AMD APU Zacate-FT1 + FCH Hudson-M1 + GPU Seymour XT-M2
PBL60 Schematics Document
REV:1.0
Compal Confidential
2010-02-15
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P02-Block Diagrams
B
247Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P02-Block Diagrams
B
247Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P02-Block Diagrams
B
247Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.

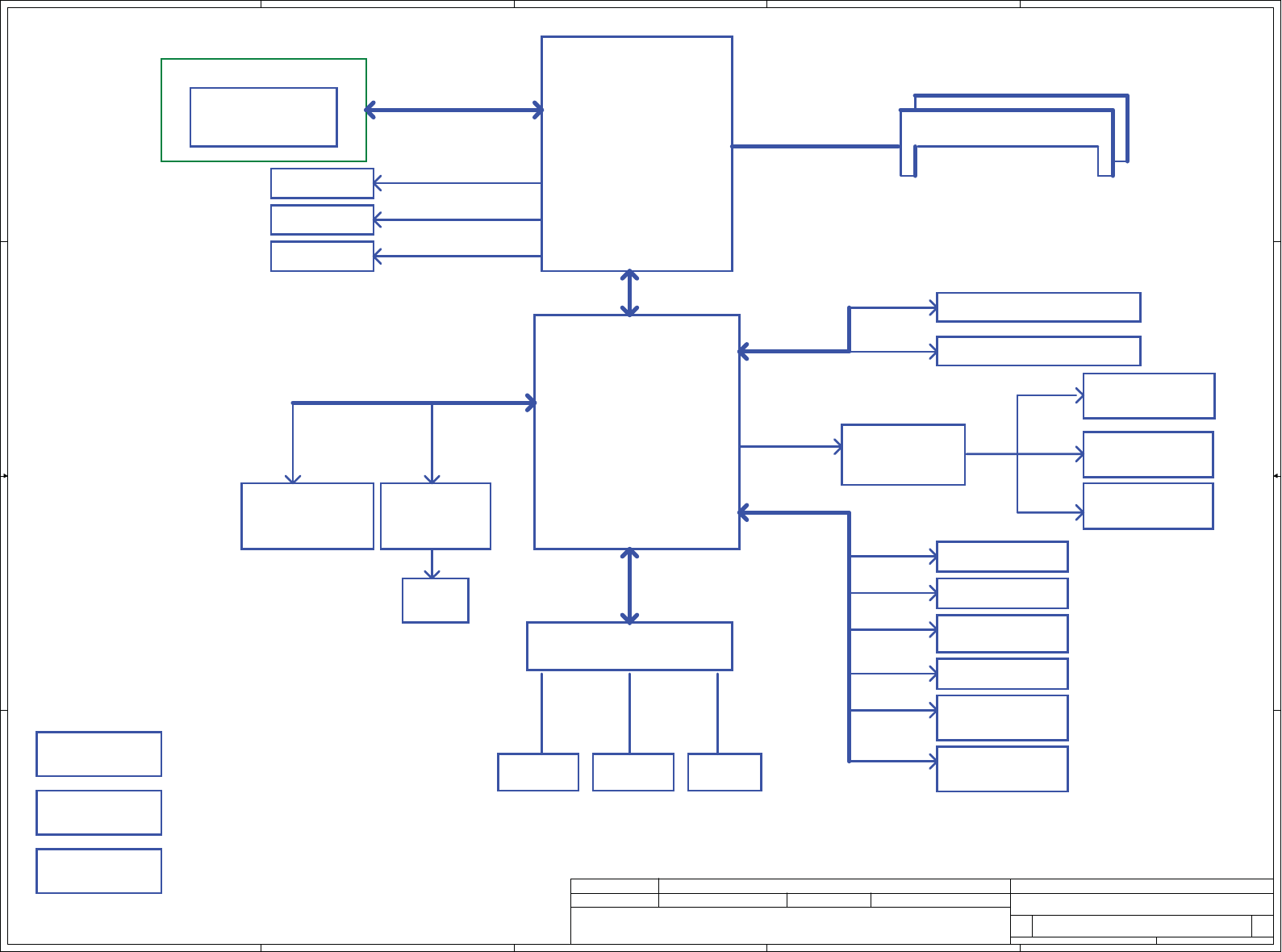

BGA 605-Ball
23mm x 23mm
AMD Brazos APU
UMI Gen.1 x4
Hudson M1
page 5,6,7
page 12 ~ 16
Single Channel
BANK 0, 1, 2, 3
204pin DDRIII-SO-DIMM X2
1.5V DDRIII
Memory BUS(DDRIII)
page 8,9
PCI-E 2.0 x1
FT1
BGA 413-Ball
19mm x 19mm
LAN(GbE)
RTL8111E
2.5GT/s per lane
Mini Card WLAN
(With Bluetooth)
USB Conn.
SATA HDD Conn.
SATA ODD Conn.
SATA
Camera
Audio Codec
ALC269
2Channel Speaker
AZALIA
USB2.0
USB Conn.
(LS-7322P)
Card Reader
RTS5137
SPI ROM
LPC BUS
Int.KBDTouch Pad
ENE KB930
Thermal Sensor
File Name : LA-7322P
Compal confidential
page 25
page 26
page 26
page 18
page 28
page 29
page 28
page 30
page 31 page 31page 30 page 27
page 32
page 10
Mini Card-1 WLAN
(With Bluetooth)
RJ45
Port 0Port 1
Port 1
Port 5
Port 2
Port 3
Port 4
Port 0
Port 1
USB Conn.
page 32
Port 0
page 29
page 25
Audio Jacks X 2
(Headphone, MIC)
DMIC
page 10
page 26
page 17 ~ 24
AMD Seymour-XT
DDR3 VRAM
512M/1G
64*16/128*16 *4
PCI-E GPP x4 GEN2
HDMI(UMA & PX)
CRT(UMA & PX)
LVDS(UMA & PX)
LVDS Conn.
CRT Conn.
page 10
page 10
page 11
HDMI Conn.
LS-7326P
Power BD
LS-7322P
Audio BD
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P03-Notes List
B
347Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P03-Notes List
B
347Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P03-Notes List
B
347Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
+APU_CORE_NB 1.0V switched power rail ON OFF
+0.75VS 0.75VS switched power rail for DDR terminator
+RTCVCC RTC power
+1.8VS 1.8V switched power rail
+5VS
+3VS
+5VALW
+1.5V
+3VALW
1.5V power rail for CPU VDDIO and DDRIII
3.3V always on power rail
5V always on power rail
3.3V switched power rail
5V switched power rail
+VSB VSB always on power rail ON ON*
ONON
ON
ON
ON
OFF
OFF
+APU_CORE
Voltage Rails
VIN
B+
+1.0VS
Adapter power supply (19V)
AC or battery power rail for power circuit.
Core voltage for CPU (0.7-1.2V)
OFF
1.0V switched power rail for NB VDDC & VGA
+1.1VS 1.1VS switched power rail ON OFF OFF
ON ON*
ON OFF OFF
+3V_LAN 3.3V power rail for LAN ON ON(WOL) OFF
S1 S3 S5
ON OFF
ON
N/A N/A N/A
N/AN/AN/A
Power Plane Description
OFF
OFF
ON
OFF
OFF
ON
Note : ON* means that this power plane is ON only with AC power available, otherwise it is OFF.
OFFON
ON
ON
ON ON*
OFF
OFF
ON
OFF
ON ON*ON+1.1VALW 1.1V always on power rail
FCH Hudson-M1
USB Port List
USB1.1
USB2.0
Port0
Port1
Port0
Port1
Port2
Port3
Port4
Port5
Port6
Port7
Port8
Port9
Port10
Port11
Port12
Port13
JUSB1
JUSB2
JUSB3
Camera
JMINI(WLAN)
Card Reader
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
Brazos
PCIE Port List
PCIE0
PCIE1
PCIE2
PCIE3
PCIE0
PCIE1
PCIE2
PCIE3
APUFCH
GPU
PCIE x4
LAN
WLAN
NC
NC
FCH Hudson-M1
SATA Port List
SATA0
SATA1
SATA2
SATA3
SATA4
SATA5
HDD
ODD
NC
NC
NC
BOM Structure
15G@: 1.5G CPU (E240)
16G@: 1.6G CPU (E350)
1G@ : 1G CPU (C50)
UMA@ : APU output.
VGA@ : GPU used.
LS@ : Level shift used.
X76@L01 :VRAM 1G.
X76@L03 :VRAM 512M.
NC
SCL0, SDA0 (Primary SMBUS in the S0 domain)
SCL1, SDA1 (Secondary SMBUS supporting ASF)
SCL2, SDA2 (Primary SMBUS in the S5 domain)
SCL3, SDA3 (Primary low-voltage SBMBUS for Processor TSI)
SCL4, SDA4 (Primary SMBUS in the S5 domain)
V
APU FCH
EC_SMB_CK2
SOURCE
KB930
MIINI1 BATT SODIMM
SMBUS Control Table
FCH_SMCLK0
FCH_SMDAT0 FCH
(+3VS)
EC_SMB_DA2
EC_SMB_CK1
EC_SMB_DA1
KB930
FCH_SMCLK3
FCH
(+3VALW)
X
X
XX
X
X
X
XX
VX
FCH_SMDAT3
VV
V
X
XX
V
VRAM
X
X
XX
V
L01 :
L02 :
L03 :
L04 :
16G@/VGA@/LS@/X76@L03
16G@/UMA@/LS@
15G@/UMA@/LS@
15G@/VGA@/LS@/X76@L03
L05 :
L06 :
16G@/VGA@/LS@/X76@L01
15G@/VGA@/LS@/X76@L01
L07 :
L08 :
L09 :
1G@/VGA@/LS@/X76@L03
1G@/VGA@/LS@/X76@L01
1G@/UMA@/LS@
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LA-7322P
1.0
P04-dGPU Block Diagram
B
447Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LA-7322P
1.0
P04-dGPU Block Diagram
B
447Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LA-7322P
1.0
P04-dGPU Block Diagram
B
447Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.

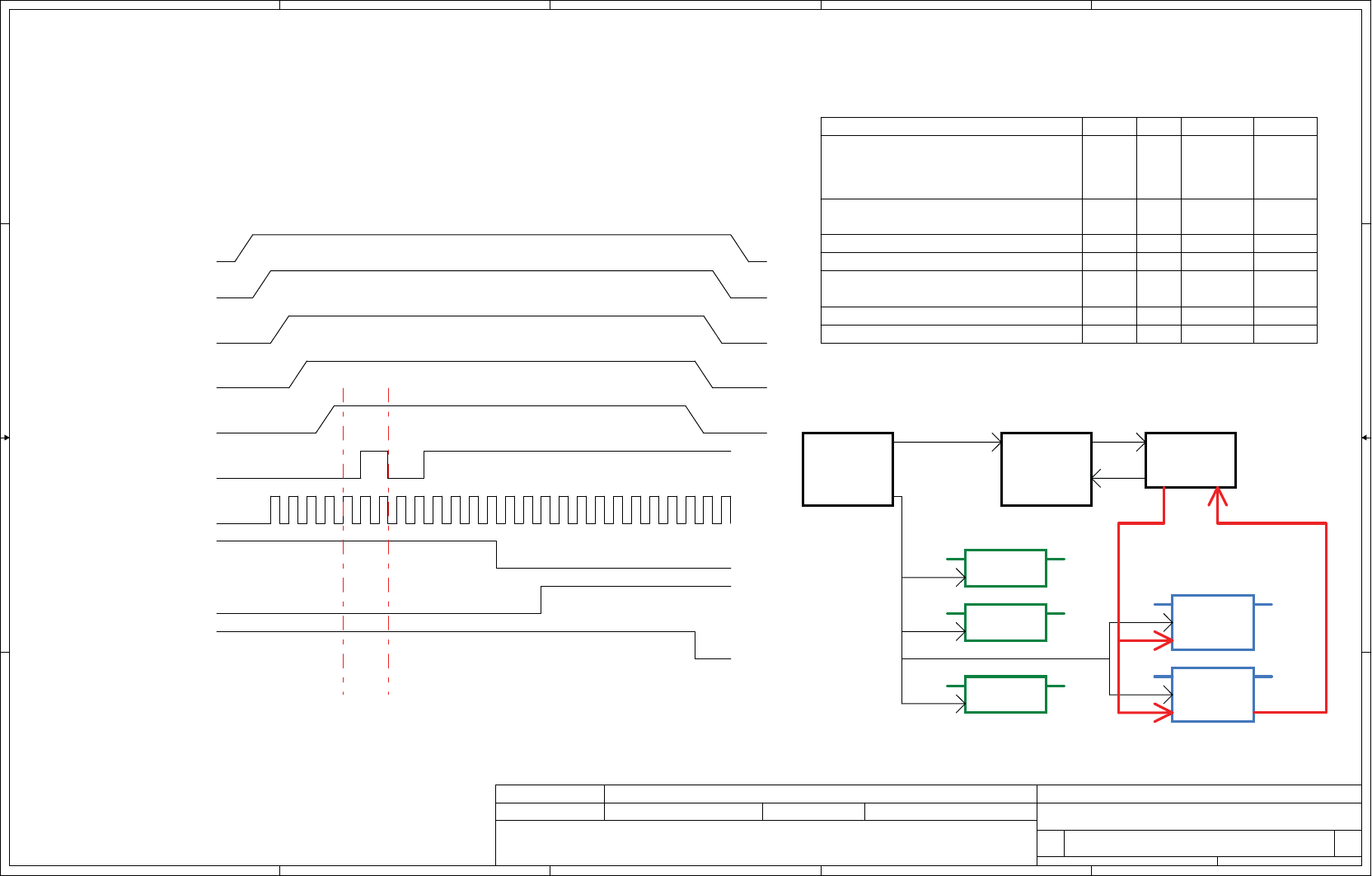

Note: Do not drive any IOs before VDDR3 is ramped up.
VDD_CT(1.8V)
VDDR3(3.3VSG)
VDDC/VDDCI(1.12V)
PERSTb
Straps Reset
Straps Valid
REFCLK
VDDR1(1.5VSG)

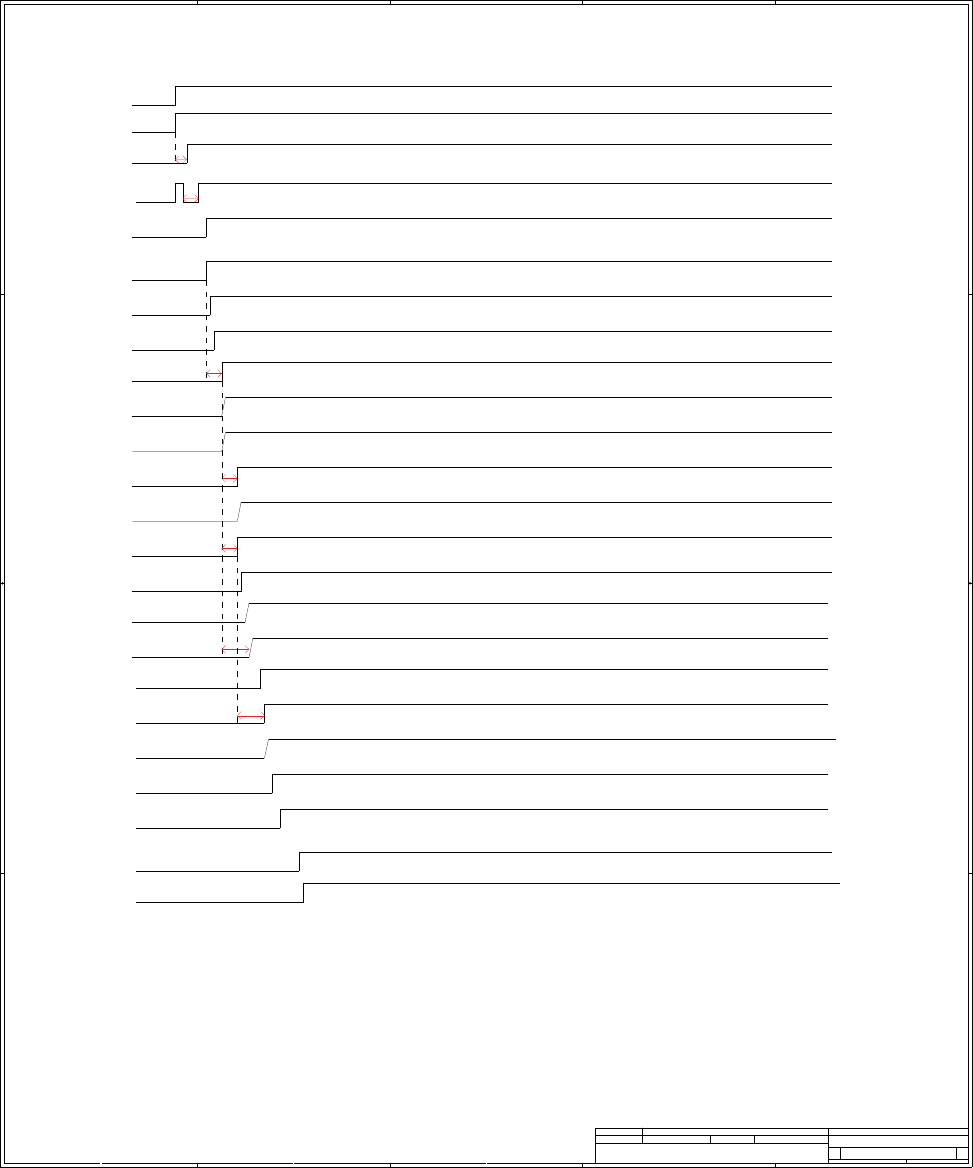

Power-Up/Down Sequence
1. All the ASIC supplies must fully reach their respective nominal voltages within 20 ms of the start of the ramp-up
sequence, though a shorter ramp-up duration is preferred.
2. VDDR3 should ramp-up before or simultaneously with VDDC.
3. For LVDS, DPx_VDD10 should ramp-up before DPx_VDD18 and the PCIe Reference clock should begin before
DPx_VDD18. For power-down, DPx_VDD18 should ramp-down before DPx_VDD10.
4. The external pull-ups on the DDC/AUX signals (if applicable) should ramp-up before or after both VDDC and
VDD_CT have ramped up.
5.VDDC and VDD_CT should not ramp-up simultaneously. (e.g., VDDC should reach 90% before VDD_CT starts to
ramp-up (or vice versa).)
PCIE_VDDC(1.0V)
Global ASIC Reset
T4+16clock
Ě'WhWŽǁĞƌWŝŶƐ DĂdžĐƵƌƌĞŶƚ
ϭϲϳϵŵ
ϱϳϱŵ
Ϯ
ϭϵϬŵ
ϳϬŵ
Ϯ͘ϴ
ϭϮ͘ϵ
W/ͺWs͕W/ͺsZ͕d^s͕sZϰ͕sͺd͕
WͺWs͕W&͗ͺsϭϴ͕W͗ͺWs͕
W͗ͺsϭϴ͕s͕sϭ/͕ϮsY͕sϮ/͕
W>>ͺWs͕DWsϭϴ͕ĂŶĚ^Wsϭϴ
W&͗ͺsϭϬ͕W͗ͺsϭϬ͕W>>ͺs͕ĂŶĚ
^WsϭϬ
W/ͺs
sZϯ͕ĂŶĚϮs
/&ͺs;ĐƵƌƌĞŶƚĐŽŶƐƵŵƉƚŝŽŶсϱϱŵΛϭ͘Ϭs͕ŝŶ
KŵŽĚĞͿ
sZϭ
sͬs/
sŽůƚĂŐĞ
ϭ͘ϴs
ϭ͘Ϭs
ϭ͘Ϭs
ϯ͘ϯs
s
^ĂŵĞĂƐ
ϭ͘ϱs
ϭ͘ϭϮs
Wyϯ͘Ϭ
K&&
MOS
K&&
K&&
K&&
K&&
K&&
K&&
KDŽĚĞ
KE
KE
KE
KE
KE
^ĂŵĞĂƐ
W/ͺs
K&&
K&&
нϭ͘Ϭs^'
нϯ͘ϯs^'
нϭ͘ϱs^'
нs'ͺKZ
нϭ͘ϴs^'
ŝ'Wh
нϭ͘Ϭs
Ě'Wh
нϯ͘ϯs>t
PE_GPIO1
нϭ͘ϱs
н
нϭ͘ϴs
PE_GPIO0 PE_EN
K^ǁŝƚĐŚ
BIF_VDDC
PX_mode
PWRGOOD

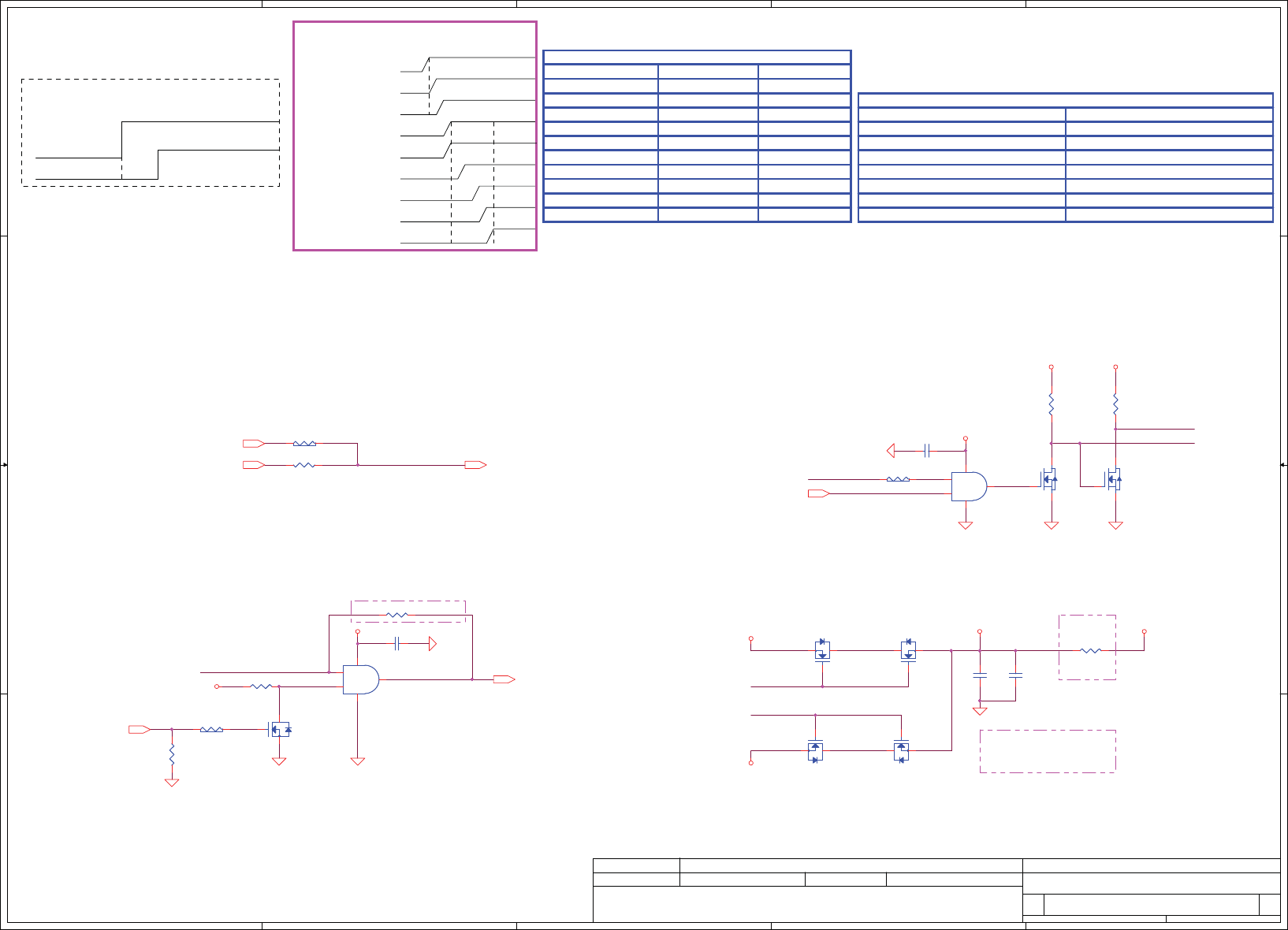

Wͺ'W/KϬ͗>ŽǁͲхZĞƐĞƚĚ'Wh͖,ŝŐŚͲхEŽƌŵĂůŽƉĞƌĂƚŝŽŶ
Wͺ'W/Kϭ͗>ŽǁͲхĚ'WhWŽǁĞƌK&&͖,ŝŐŚͲхĚ'WhWŽǁĞƌKE
tŝƚŚŽƵƚKŽƉƚŝŽŶ͗
KŽƉƚŝŽŶ͗
Wͺ'W/KϬ͗,ŝŐŚͲхEŽƌŵĂůŽƉĞƌĂƚŝŽŶ;Ě'WhŝƐŶŽƚƌĞƐĞƚŽŶKŵŽĚĞͿ
Wͺ'W/Kϭ͗>ŽǁͲхĚ'WhWŽǁĞƌK&&͖,ŝŐŚͲхĚ'WhWŽǁĞƌKE;ĂůǁĂLJƐ,ŝŐŚͿ
SI4800
SI4800
Regulator
Regulator
ϭ
Ϯϯ
ϰ
ϱ
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
APU_RST#
APU_PWRGD
APU_SVC
APU_PROCHOT#
APU_THERMTRIP#
APU_TDI
APU_TDO
APU_TCK
APU_TMS
APU_TRST#
APU_DBRDY
APU_DBREQ#
APU_SIC
APU_SID
APU_SVD
APU_ALERT#_R
APU_SIC
APU_SID
TEST19
TEST18
TEST25_H
TEST_25_L
APU_PROCHOT#
APU_THERMTRIP#
TEST31
TEST36
TEST37
TEST15
TEST_25_L
TEST33_H
TEST33_L
TEST36
APU_LCD_CLK
APU_LCD_DATA
APU_HDMI_DATA
APU_HDMI_CLK
J108_PLLTST0
APU_TDO
J108_PLLTST1
APU_PWRGD
TEST19
TEST18
APU_TRST#_R
APU_RST#
APU_TCK
APU_DBRDY
APU_TMS
APU_DBREQ#
APU_TRST#
APU_TDI
TEST35
FCH_SID
FCH_SIC
EC_SMB_CK2
EC_SMB_DA2
EC_SMB_DAAPU_SID
EC_SMB_CKAPU_SIC
APU_ALERT#_R
APU_RST#
APU_PWRGD
APU_CLKP12
APU_CLKN12
APU_DISP_CLKP12
APU_DISP_CLKN12
APU_RST#12
APU_PWRGD12
H_THERMTRIP# 13
APU_HDMI_HPD 11
ALLOW_STOP# 12
APU_ENBKL 10
APU_ENVDD 10
APU_BLPWM 10
APU_CRT_HSYNC 10
APU_CRT_VSYNC 10
APU_CRT_DDC_SCL 10
APU_CRT_DDC_SDA 10
APU_VDDNB_RUN_FB_H43
APU_VDD0_RUN_FB_H43
APU_SVC43
APU_SVD43
APU_LCD_CLK 10
APU_LCD_DATA 10
APU_TXOUT2+10
APU_TXOUT2-10
APU_TXCLK+10
APU_TXCLK-10
APU_TXOUT0+10
APU_TXOUT0-10
APU_TXOUT1+10
APU_TXOUT1-10
APU_VDD0_RUN_FB_L43
APU_HDMI_DATA 11
APU_HDMI_CLK 11
EC_SMB_DA2 18,30
FCH_SIC 13
FCH_SID 13
EC_SMB_CK2 18,30
EC_THERM#30
FCH_PROCHOT#12
APU_HDMI_TX2N11
APU_HDMI_TX2P11
APU_HDMI_TX1N11
APU_HDMI_TX1P11
APU_HDMI_TX0N11
APU_HDMI_TX0P11
APU_HDMI_CLKN11
APU_HDMI_CLKP11
APU_CRT_R 10
APU_CRT_G 10
APU_CRT_B 10
+1.8VS
+3VS
+3VS
+1.8VS
+1.8VS
+1.8VS +1.8VS
+1.8VS
+3VS
+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P05-FT1 CTRL/DP/CRT
Custom
547Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P05-FT1 CTRL/DP/CRT
Custom
547Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P05-FT1 CTRL/DP/CRT
Custom
547Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.

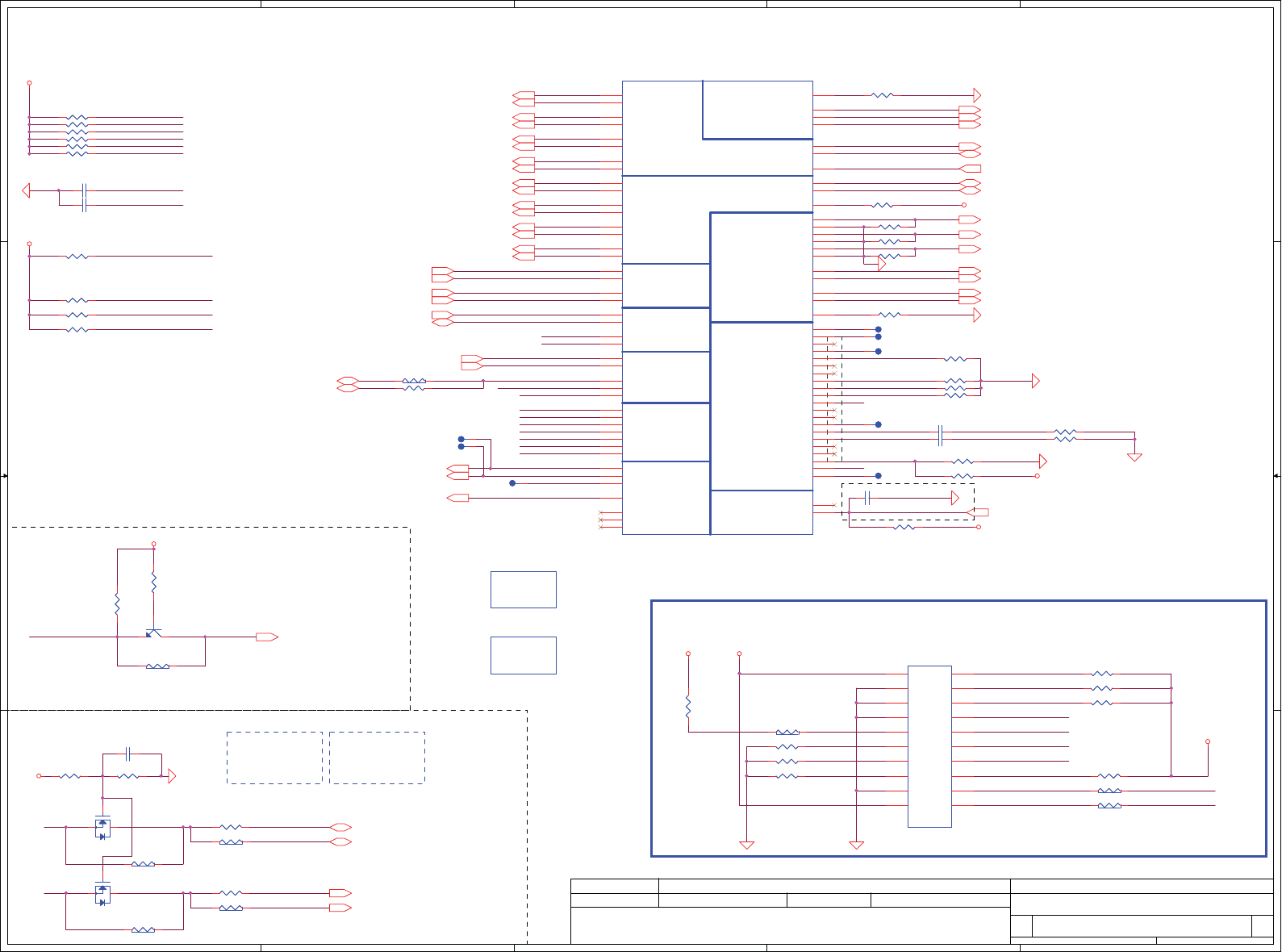

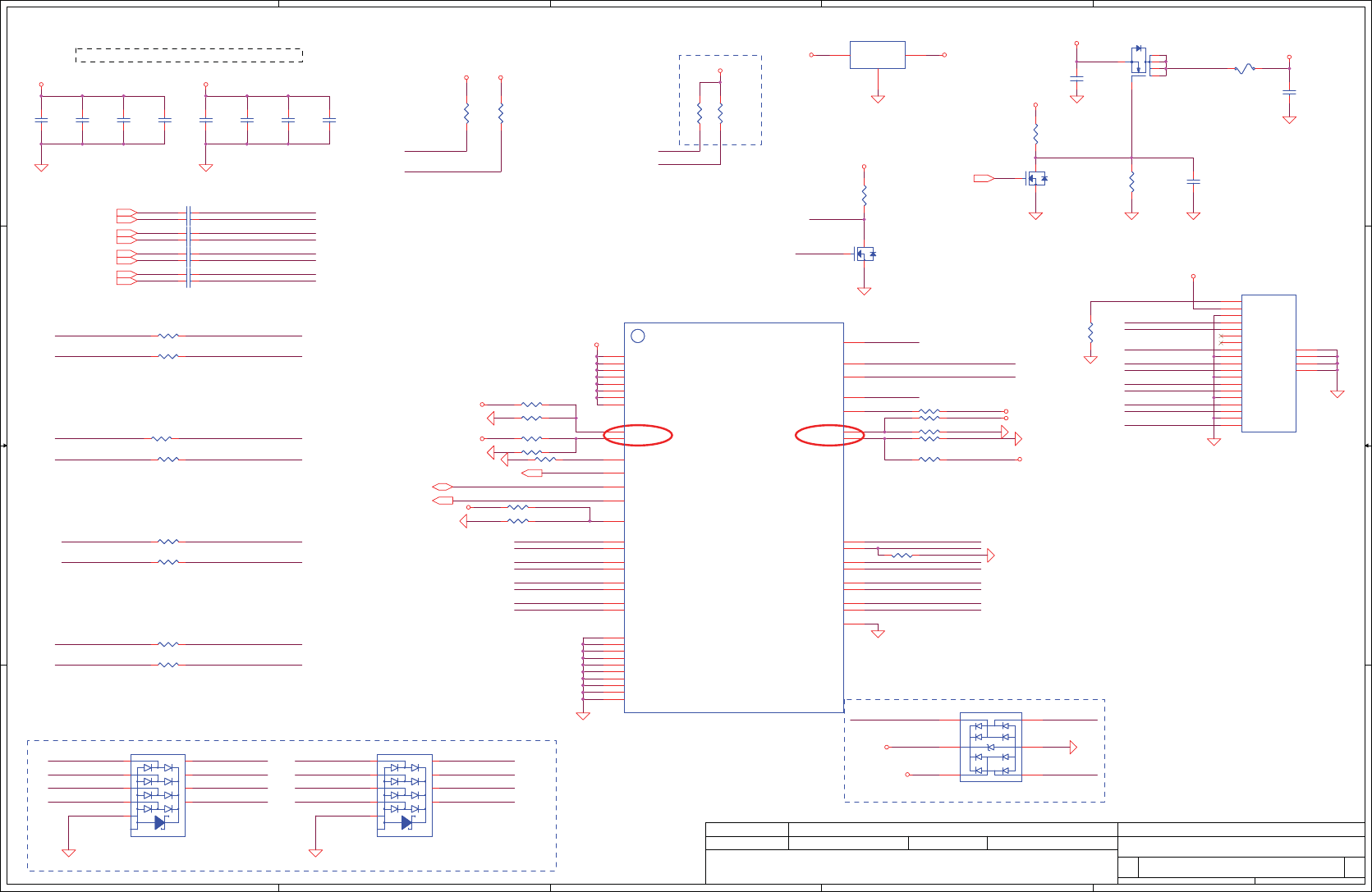

If FCH internal pull-up disabled, level-shifter could be deleted.
Need BIOS to disable internal pull-up!!
Close to APU
AMD Debug
Please be noted about TEST_18 and TEST_19
CPU TSI interface level shift
BSH111, the Vgs is:
min = 0.4V
Typ = 1.0V
Max = 1.3V
FDV301N, the Vgs is:
min = 0.65V
Typ = 0.85V
Max = 1.5V
1.607V for Gate
T0 FCH
TO EC
TO EC
T0 FCH
If use level shift, EC_SMB need pull up
(pop R747 & R748)
Delete Test point for layout limitation
20100917
Close to U22
R398 150_0402_1%R398 150_0402_1%
1 2
U22
ZACATE ZM161032B2238 1.6G BGA 413P
16G@U22
ZACATE ZM161032B2238 1.6G BGA 413P
16G@
T76
PAD T76
PAD
R431 0_0402_5%R431 0_0402_5%
1 2
R169 0_0402_5%R169 0_0402_5%
1 2
C516 0.1U_0402_16V4ZC516 0.1U_0402_16V4Z
1 2
TEST
VGA DAC
JTAG CTRL SER CLK
DP MISC
DISPLAYPORT 0 DISPLAYPORT 1
U22B
ONTARIO-2M161000-1.6G_BGA413
15G@
TEST
VGA DAC
JTAG CTRL SER CLK
DP MISC
DISPLAYPORT 0 DISPLAYPORT 1
U22B
ONTARIO-2M161000-1.6G_BGA413
15G@
RSVD_3
V5 RSVD_2
W11 RSVD_1
B4
VSS_SENSE
F1
VDDIO_MEM_S_SENSE
F3 VDDCR_CPU_SENSE
G1 VDDCR_NB_SENSE
F4
DBREQ_L
M1 DBRDY
M3 TRST_L
M4
TCK
P1 TDO
N1 TDI
N2
ALERT_L
T2 THERMTRIP_L
U2 PROCHOT_L
U1
PWROK
T4 RESET_L
T3
SID
P4 SIC
P3
SVD
J2 SVC
J1
DISP_CLKIN_L
D1 DISP_CLKIN_H
D2
CLKIN_L
V1 CLKIN_H
V2
LTDP0_TXN3
C8 LTDP0_TXP3
D8
LTDP0_TXN2
B6 LTDP0_TXP2
A6
LTDP0_TXN1
C6 LTDP0_TXP1
D6
LTDP0_TXN0
A5 LTDP0_TXP0
B5
TDP1_TXP3
A10
TDP1_TXN2
C10
TDP1_TXN1
A9 TDP1_TXP1
B9
TDP1_TXN0
B8 TDP1_TXP0
A8
DMAACTIVE_L T1
TEST38 K3
TEST37 R5
TEST36 N5
TEST35 H4
TEST34_L T15
TEST34_H U15
TEST33_L J19
TEST33_H J18
TEST31 M21
TEST28_L M5
TEST28_H L5
TEST25_L K2
TEST25_H K1
TEST19 M2
TEST18 L2
TEST17 L1
TEST16 K4
TEST15 E4
TEST14 T5
TEST6 R6
TEST5 R2
TEST4 R1
DAC_ZVSS D12
DAC_SDA D4
DAC_SCL F2
DAC_VSYNC E2
DAC_HSYNC E1
DAC_BLUEB B13
DAC_BLUE A13
DAC_GREENB B12
DAC_GREEN A12
DAC_REDB D13
DAC_RED C12
LTDP0_HPD D3
LTDP0_AUXN B3
LTDP0_AUXP A3
TDP1_HPD C1
TDP1_AUXN C2
TDP1_AUXP B2
DP_VARY_BL H1
DP_DIGON H2
DP_BLON G2
DP_ZVSS H3
TDP1_TXP2
D10
TDP1_TXN3
B10
TMS
P2
R846
0_0402_5%
R846
0_0402_5%
1 2
R176 10K_0402_5%R176 10K_0402_5%
12
C237 0.01U_0402_25V7K@C237 0.01U_0402_25V7K@
1 2
R423 1K_0402_5%R423 1K_0402_5%
1 2
C517 0.1U_0402_16V4ZC517 0.1U_0402_16V4Z
1 2
R432 0_0402_5%
@
R432 0_0402_5%
@
1 2
R420 51_0402_1%R420 51_0402_1%
1 2
R430 0_0402_5%R430 0_0402_5%
1 2
R406 100K_0402_5%R406 100K_0402_5%
1 2
R434 0_0402_5%R434 0_0402_5%
1 2
R429 0_0402_5%
@
R429 0_0402_5%
@
1 2
R427 0_0402_5%R427 0_0402_5%
1 2
T93PADT93PAD
R410 1K_0402_5%R410 1K_0402_5%
1 2
R843 1K_0402_5%R843 1K_0402_5%
12
R401 300_0402_5%R401 300_0402_5%
12
R143 1K_0402_5%R143 1K_0402_5%
1 2
R168 0_0402_5%@R168 0_0402_5%@
1 2
R408 150_0402_1%R408 150_0402_1%
1 2
R798 1K_0402_5%R798 1K_0402_5%
12
U22
ONTARIO CMC50AFPB22GT 1G
1G@U22
ONTARIO CMC50AFPB22GT 1G
1G@
C238 0.01U_0402_25V7K@C238 0.01U_0402_25V7K@
1 2
R399 1K_0402_5%R399 1K_0402_5%
1 2
T94PADT94PAD
C639 0.1U_0402_16V4Z
@
C639 0.1U_0402_16V4Z
@
1 2
R417 1K_0402_5%R417 1K_0402_5%
1 2
R414 1K_0402_5%R414 1K_0402_5%
1 2
R958 1K_0402_5%R958 1K_0402_5%
1 2
G
D
S
Q23
BSH111 1N_SOT23-3
@
G
D
S
Q23
BSH111 1N_SOT23-3
@
2
13
T67
PAD T67
PAD
T68
PAD T68
PAD
R842
1K_0402_5%
R842
1K_0402_5%
1 2
JHDT1
SAMTE_ASP-136446-07-B
CONN@
JHDT1
SAMTE_ASP-136446-07-B
CONN@
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
22
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
R433 0_0402_5%R433 0_0402_5%
1 2
R863 0_0402_5%R863 0_0402_5%
1 2
R407 150_0402_1%R407 150_0402_1%
1 2
C236 0.1U_0402_10V7K
@
C236 0.1U_0402_10V7K
@
1 2
R178 300_0402_5%R178 300_0402_5%
1 2
E
B
C
Q79
MMBT3904_NL_SOT23-3
E
B
C
Q79
MMBT3904_NL_SOT23-3
2
3 1
R411 1K_0402_5%R411 1K_0402_5%
1 2
T73
PAD T73
PAD
R415 1K_0402_5%@R415 1K_0402_5%@
1 2
R416 1K_0402_5%R416 1K_0402_5%
1 2
R799 0_0402_5%R799 0_0402_5%
1 2
R142 300_0402_5%
R142 300_0402_5%
12
R177 10K_0402_5%R177 10K_0402_5%
12
R424
10K_0402_5%
@
R424
10K_0402_5%
@
12
R141 1K_0402_5%R141 1K_0402_5%
1 2
R422 1K_0402_5%@R422 1K_0402_5%@
1 2
R402 510_0402_1%R402 510_0402_1%
1 2
R144 499_0402_1%R144 499_0402_1%
1 2
T77PADT77PAD
R428
31.6K_0402_1%
@
R428
31.6K_0402_1%
@
1 2 R160
30K_0402_1%
@
R160
30K_0402_1%
@
1 2
R418 510_0402_1%R418 510_0402_1%
1 2
R847 10K_0402_5%R847 10K_0402_5%
12
R421 51_0402_1%R421 51_0402_1%
1 2
R840 1K_0402_5%R840 1K_0402_5%
12
R400 1K_0402_5%R400 1K_0402_5%
1 2
R409 150_0402_1%R409 150_0402_1%
1 2
T66
PAD T66
PAD
G
D
S
Q22
BSH111 1N_SOT23-3
@
G
D
S
Q22
BSH111 1N_SOT23-3
@
2
13
R425
1K_0402_5%
R425
1K_0402_5%
1 2
A
A
B
B
C
C
D
D
E
E
4 4
3 3
2 2
1 1

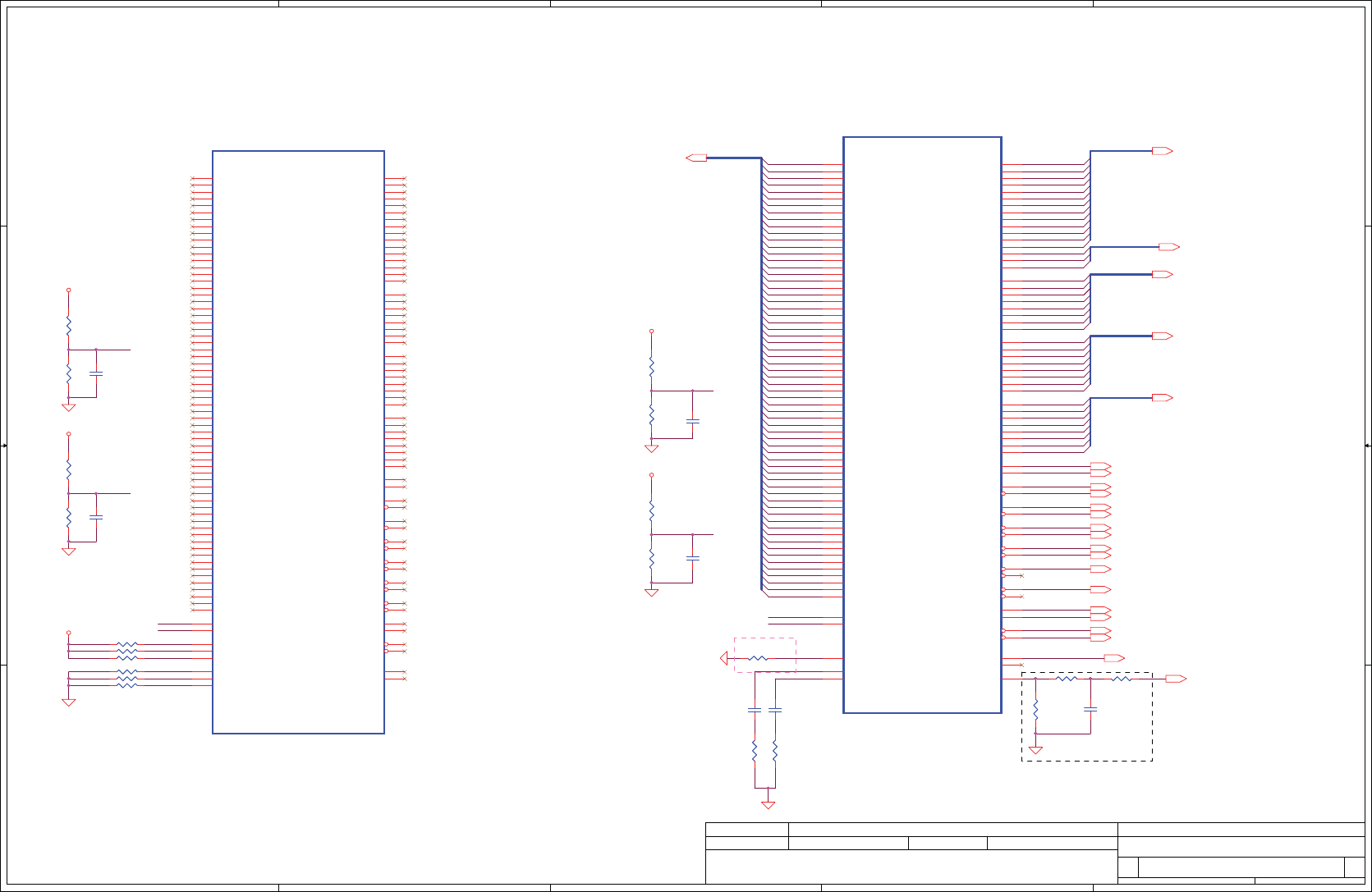

DDR_A_MA15
DDR_A_MA12
DDR_A_MA14
DDR_A_MA13
DDR_A_MA11
DDR_A_MA10
DDR_A_MA6
DDR_A_MA1
DDR_A_MA7
DDR_A_MA2
DDR_A_MA3
DDR_A_MA8
DDR_A_MA5
DDR_A_MA4
DDR_A_MA9
DDR_A_MA0
DDR_A_DM6
DDR_A_DM5
DDR_A_DM4
DDR_A_DM3
DDR_A_DM2
DDR_A_DM1
DDR_A_DM0
DDR_A_DM7
DDR_A_DQS7
DDR_A_DQS#7
DDR_A_DQS0
DDR_A_DQS#0
DDR_A_DQS4
DDR_A_DQS#4
DDR_A_DQS1
DDR_A_DQS#1
DDR_A_DQS5
DDR_A_DQS#5
DDR_A_DQS2
DDR_A_DQS#2
DDR_A_DQS6
DDR_A_DQS#6
DDR_A_DQS3
DDR_A_DQS#3
DDR_A_CLK#1
DDR_A_CLK#0
DDR_A_CLK0
DDR_A_CLK1
+MEM_VREF
DDR_A_D33
DDR_A_D32
DDR_A_D37
DDR_A_D36
DDR_A_D35
DDR_A_D34
DDR_A_D38
DDR_A_D39
DDR_A_D19
DDR_A_D22
DDR_A_D23
DDR_A_D16
DDR_A_D17
DDR_A_D21
DDR_A_D20
DDR_A_D29
DDR_A_D24
DDR_A_D28
DDR_A_D27
DDR_A_D18
DDR_A_D26
DDR_A_D30
DDR_A_D31
DDR_A_D25
DDR_A_D47
DDR_A_D40
DDR_A_D41
DDR_A_D45
DDR_A_D44
DDR_A_D43
DDR_A_D42
DDR_A_D46
DDR_A_D1
DDR_A_D5
DDR_A_D0
DDR_A_D4
DDR_A_D3
DDR_A_D2
DDR_A_D6
DDR_A_D7
DDR_A_D62
DDR_A_D63
DDR_A_D57
DDR_A_D61
DDR_A_D60
DDR_A_D59
DDR_A_D56
DDR_A_D58
DDR_A_D8
DDR_A_D12
DDR_A_D11
DDR_A_D10
DDR_A_D14
DDR_A_D15
DDR_A_D9
DDR_A_D13
DDR_A_D49
DDR_A_D53
DDR_A_D52
DDR_A_D51
DDR_A_D50
DDR_A_D54
DDR_A_D48
DDR_A_D55
DDR_A_ODT1
DDR_A_ODT0
DDR_EVENT#
DDR_RST#
DDR_A_WE#
DDR_A_CAS#
DDR_A_RAS#
DDR_CKE0
DDR_CKE1
DDR_CS1_DIMMA#
DDR_CS0_DIMMA#
+MEM_VREF
DDR_B_ODT1
DDR_B_ODT0
DDR_CS1_DIMMB#
DDR_CS0_DIMMB#
DDR_B_CLK#3
DDR_B_CLK#2
DDR_B_CLK2
DDR_B_CLK3
P_ZVDD_10
UMI_TX2P_C
UMI_TX2N_C
UMI_TX3P_C
UMI_TX3N_C
UMI_TX0P_C
UMI_TX0N_C
UMI_TX1P_C
UMI_TX1N_C
P_ZVSS
DDR_A_D[0..63]
DDR_A_MA[0..15]
DDR_A_DM[0..7]
PCIE_FTX_GRX_N0
PCIE_FTX_GRX_P0
PCIE_FTX_GRX_N1
PCIE_FTX_GRX_P1
PCIE_FTX_GRX_N2
PCIE_FTX_GRX_P2
PCIE_FTX_GRX_N3
PCIE_FTX_GRX_P3
PCIE_GTX_C_FRX_P0
PCIE_GTX_C_FRX_N0
PCIE_GTX_C_FRX_P1
PCIE_GTX_C_FRX_N1
PCIE_GTX_C_FRX_P2
PCIE_GTX_C_FRX_N2
PCIE_GTX_C_FRX_P3
PCIE_GTX_C_FRX_N3
DDR_EVENT#
DDR_CKE1
DDR_CKE0
DDR_A_BS08,9
DDR_A_BS18,9
DDR_A_BS28,9
DDR_A_DQS08,9
DDR_A_DQS18,9
DDR_A_DQS28,9
DDR_A_DQS38,9
DDR_A_DQS48,9
DDR_A_DQS58,9
DDR_A_DQS68,9
DDR_A_DQS78,9
DDR_A_DQS#08,9
DDR_A_DQS#18,9
DDR_A_DQS#28,9
DDR_A_DQS#38,9
DDR_A_DQS#48,9
DDR_A_DQS#58,9
DDR_A_DQS#68,9
DDR_A_DQS#78,9
DDR_A_CLK09
DDR_A_CLK#09
DDR_A_CLK19
DDR_A_CLK#19
DDR_RST#8,9
DDR_EVENT#8,9
DDR_A_RAS#8,9
DDR_A_CAS#8,9
DDR_A_WE#8,9
DDR_A_ODT09
DDR_A_ODT19
DDR_CKE08,9
DDR_CKE18,9
DDR_CS0_DIMMA#9
DDR_CS1_DIMMA#9
DDR_B_ODT08
DDR_B_ODT18
DDR_CS0_DIMMB#8
DDR_CS1_DIMMB#8
DDR_B_CLK28
DDR_B_CLK#28
DDR_B_CLK38
DDR_B_CLK#38
UMI_TX0P 12
UMI_TX1N 12
UMI_TX0N 12
UMI_TX1P 12
UMI_TX2P 12
UMI_TX2N 12
UMI_TX3N 12
UMI_TX3P 12
UMI_RX3P12
UMI_RX3N12
UMI_RX2P12
UMI_RX2N12
UMI_RX1P12
UMI_RX1N12
UMI_RX0P12
UMI_RX0N12
DDR_A_MA[0..15] 8,9
DDR_A_D[0..63] 8,9
DDR_A_DM[0..7] 8,9
PCIE_GTX_C_FRX_P017
PCIE_GTX_C_FRX_N017
PCIE_GTX_C_FRX_P117
PCIE_GTX_C_FRX_N117
PCIE_GTX_C_FRX_P217
PCIE_GTX_C_FRX_N217
PCIE_GTX_C_FRX_P317
PCIE_GTX_C_FRX_N317
PCIE_FTX_C_GRX_P0 17
PCIE_FTX_C_GRX_N0 17
PCIE_FTX_C_GRX_P1 17
PCIE_FTX_C_GRX_N1 17
PCIE_FTX_C_GRX_P2 17
PCIE_FTX_C_GRX_N2 17
PCIE_FTX_C_GRX_P3 17
PCIE_FTX_C_GRX_N3 17
+1.5V
+1.5V
+1.05VS
+1.5V
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P06-FT1 DDRIII/UMI/PCIE
Custom
647Thursday, February 17, 2011
2010/06/30 2012/06/30
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P06-FT1 DDRIII/UMI/PCIE
Custom
647Thursday, February 17, 2011
2010/06/30 2012/06/30
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR W RITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P06-FT1 DDRIII/UMI/PCIE
Custom
647Thursday, February 17, 2011
2010/06/30 2012/06/30

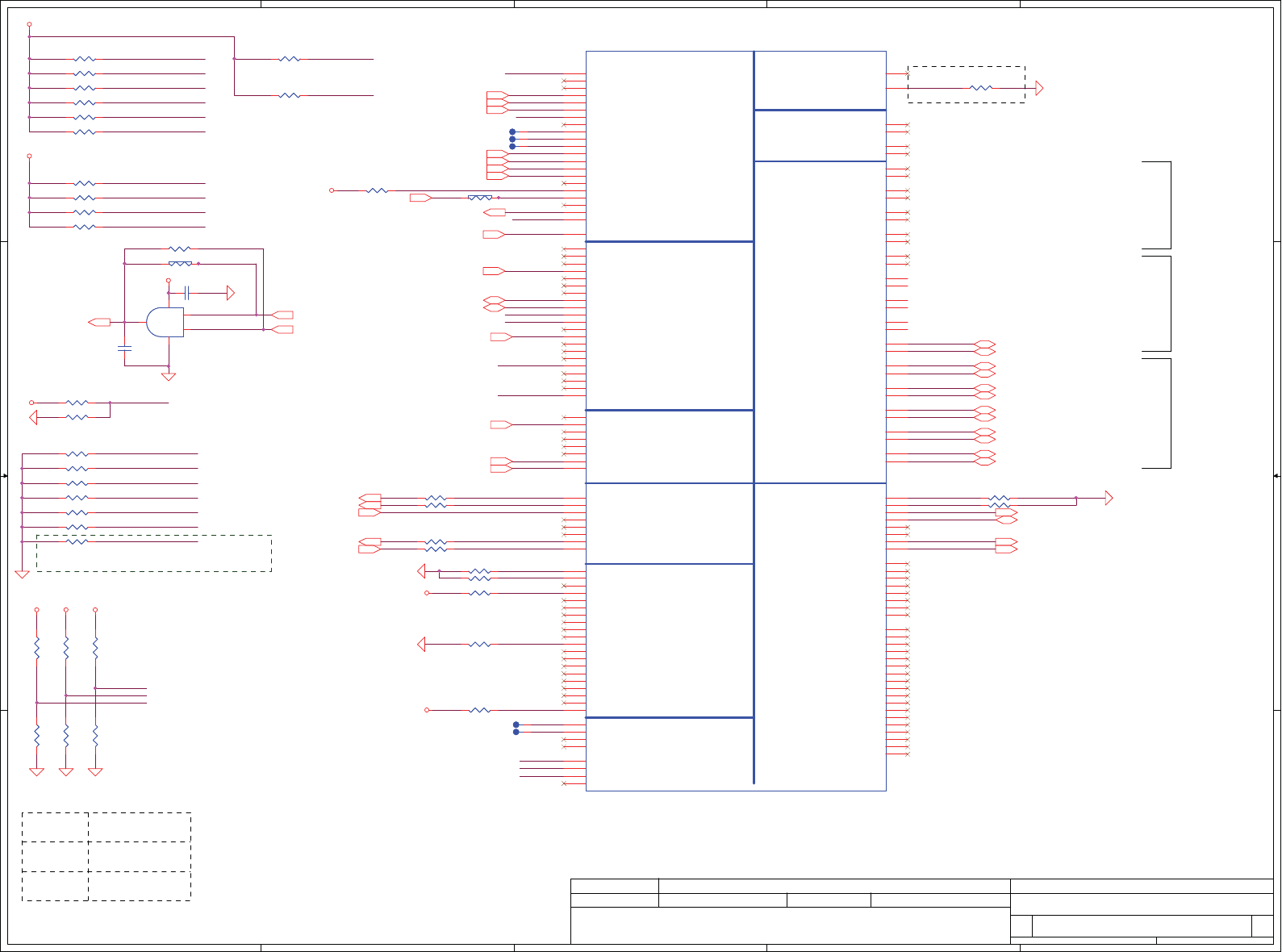

Compal Electronics, Inc.
Place within 1000 mils to APU
20100526
Less than 1"
Less than 1"
15 mils
For AMD recommend to fix S3 issue.
DDR SYSTEM MEMORY
U22E
ONTARIO-2M161000-1.6G_BGA413
15G@
DDR SYSTEM MEMORY
U22E
ONTARIO-2M161000-1.6G_BGA413
15G@
M_WE_L
V17 M_CAS_L
V19
M1_CS_L1
V16 M1_CS_L0
U17 M0_CS_L1
W16 M0_CS_L0
T17
M1_ODT1
W15 M1_ODT0
U19 M0_ODT1
V15 M0_ODT0
W19
M_CKE1
E15 M_CKE0
F15
M_EVENT_L
N17 M_RESET_L
L23
M_CLK_H3
L18 M_CLK_L2
N19 M_CLK_H2
N18 M_CLK_L1
M18 M_CLK_H1
M19 M_CLK_L0
M16 M_CLK_H0
M17
M_DQS_L7
AC16
M_DQS_L6
AC21 M_DQS_H6
AC20 M_DQS_L5
V22 M_DQS_H5
W22 M_DQS_L4
P22 M_DQS_H4
R22 M_DQS_L3
J23 M_DQS_H3
J22 M_DQS_L2
E22 M_DQS_H2
E23 M_DQS_L1
A20 M_DQS_H1
B20 M_DQS_L0
B16 M_DQS_H0
A16
M_DM7
AA16 M_DM6
AB20 M_DM5
V23 M_DM4
P23 M_DM3
H22 M_DM2
D21 M_DM1
B19 M_DM0
D15
M_BANK2
F16 M_BANK1
T18 M_BANK0
R18
M_ADD15
G15 M_ADD14
E16 M_ADD13
W17 M_ADD12
E18 M_ADD11
F17 M_ADD10
T19 M_ADD9
E19 M_ADD8
F19 M_ADD7
G18 M_ADD6
H15 M_ADD5
G17 M_ADD4
H17 M_ADD3
H18 M_ADD2
J17 M_ADD1
H19 M_ADD0
R17
M_ZVDDIO_MEM_S M22
M_VREF M23
M_DATA63 AC15
M_DATA62 AB15
M_DATA61 AB18
M_DATA60 AC18
M_DATA59 AC14
M_DATA58 AB14
M_DATA57 Y16
M_DATA56 AC17
M_DATA55 Y18
M_DATA54 AB19
M_DATA53 AA20
M_DATA52 AA23
M_DATA51 AA18
M_DATA50 AC19
M_DATA49 AB22
M_DATA48 Y20
M_DATA47 Y21
M_DATA46 W23
M_DATA45 U23
M_DATA44 T21
M_DATA43 Y22
M_DATA42 Y23
M_DATA41 V21
M_DATA40 V20
M_DATA39 T22
M_DATA38 R23
M_DATA37 P20
M_DATA36 M20
M_DATA35 T23
M_DATA34 T20
M_DATA33 P21
M_DATA32 N23
M_DATA31 K23
M_DATA30 K20
M_DATA29 H20
M_DATA28 G23
M_DATA27 K21
M_DATA26 K22
M_DATA25 H23
M_DATA24 H21
M_DATA23 F21
M_DATA22 F20
M_DATA21 D22
M_DATA20 C22
M_DATA19 F22
M_DATA18 F23
M_DATA17 D23
M_DATA16 C23
M_DATA15 C20
M_DATA14 A21
M_DATA13 B18
M_DATA12 A18
M_DATA11 D20
M_DATA10 B21
M_DATA9 A19
M_DATA8 C18
M_DATA7 D16
M_DATA6 C16
M_DATA5 C14
M_DATA4 A14
M_DATA3 D18
M_DATA2 A17
M_DATA1 A15
M_DATA0 B14
M_CLK_L3
L17
M_DQS_H7
AB16
M_RAS_L
U18
C525 0.1U_0402_16V7KVGA@C525 0.1U_0402_16V7KVGA@
1 2
C528 0.1U_0402_16V7KC528 0.1U_0402_16V7K
1 2
C530 0.1U_0402_16V7KC530 0.1U_0402_16V7K
1 2
C529 0.1U_0402_16V7KC529 0.1U_0402_16V7K
1 2
C532 0.1U_0402_16V7KC532 0.1U_0402_16V7K
1 2
R1705
68_0402_5%
R1705
68_0402_5%
12
UMI I/F PCIE I/F
U22A
ONTARIO-2M161000-1.6G_BGA413
15G@
UMI I/F PCIE I/F
U22A
ONTARIO-2M161000-1.6G_BGA413
15G@
P_UMI_RXN3
AB7 P_UMI_RXP3
AC7
P_UMI_RXN2
AC10 P_UMI_RXP2
AB10
P_UMI_RXN1
Y10 P_UMI_RXP1
AA10
P_UMI_RXN0
Y12 P_UMI_RXP0
AA12
P_ZVDD_10
Y14
P_GPP_RXN3
Y3 P_GPP_RXP3
Y4
P_GPP_RXN2
AA2 P_GPP_RXP2
AA1
P_GPP_RXN1
AC4 P_GPP_RXP1
AB4
P_GPP_RXN0
Y6 P_GPP_RXP0
AA6
P_UMI_TXN3 AC8
P_UMI_TXP3 AB8
P_UMI_TXN2 Y8
P_UMI_TXP2 AA8
P_UMI_TXN1 AB11
P_UMI_TXP1 AC11
P_UMI_TXN0 AC12
P_UMI_TXP0 AB12
P_ZVSS AA14
P_GPP_TXN3 V4
P_GPP_TXP3 V3
P_GPP_TXN2 Y2
P_GPP_TXP2 Y1
P_GPP_TXN1 AC3
P_GPP_TXP1 AB3
P_GPP_TXN0 AC6
P_GPP_TXP0 AB6
C521 0.1U_0402_16V7KVGA@C521 0.1U_0402_16V7KVGA@
1 2
C534
1000P_0402_50V7K
C534
1000P_0402_50V7K
1
2
R149
1K_0402_5%
R149
1K_0402_5%
1 2
C526 0.1U_0402_16V7KC526 0.1U_0402_16V7K
1 2
R1706
68_0402_5%
R1706
68_0402_5%
12
C524 0.1U_0402_16V7KVGA@C524 0.1U_0402_16V7KVGA@
1 2
R439
1K_0402_1%
R439
1K_0402_1%
1 2
C535
0.1U_0402_16V4Z
C535
0.1U_0402_16V4Z
1
2
C527 0.1U_0402_16V7KC527 0.1U_0402_16V7K
1 2
R436 1.27K_0402_1%R436 1.27K_0402_1%
1 2
R437
39.2_0402_1%
R437
39.2_0402_1%
12
C522 0.1U_0402_16V7KVGA@C522 0.1U_0402_16V7KVGA@
1 2
C531 0.1U_0402_16V7KC531 0.1U_0402_16V7K
1 2
R435 2K_0402_1%R435 2K_0402_1%
1 2
C533 0.1U_0402_16V7KC533 0.1U_0402_16V7K
1 2
C523 0.1U_0402_16V7KVGA@C523 0.1U_0402_16V7KVGA@
1 2
C519 0.1U_0402_16V7KVGA@C519 0.1U_0402_16V7KVGA@
1 2
C518 0.1U_0402_16V7KVGA@C518 0.1U_0402_16V7KVGA@
1 2
C520 0.1U_0402_16V7KVGA@C520 0.1U_0402_16V7KVGA@
1 2
R438
1K_0402_1%
R438
1K_0402_1%
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+VDD_18
+VDD_10
+VDDL_10
+VDD_18_DAC
+APU_CORE
+APU_CORE_NB
+1.5V
+1.8VS
+1.8VS
+1.05VS
+3VS
+APU_CORE
+APU_CORE_NB
+1.5V
+1.5V
+APU_CORE
+APU_CORE_NB
+1.5V +1.8VS
+1.05VS
+1.5V
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P07-FT1 PWR/VSS
C
747Thursday, February 17, 2011
2010/06/30 2012/06/30
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P07-FT1 PWR/VSS
C
747Thursday, February 17, 2011
2010/06/30 2012/06/30
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P07-FT1 PWR/VSS
C
747Thursday, February 17, 2011
2010/06/30 2012/06/30

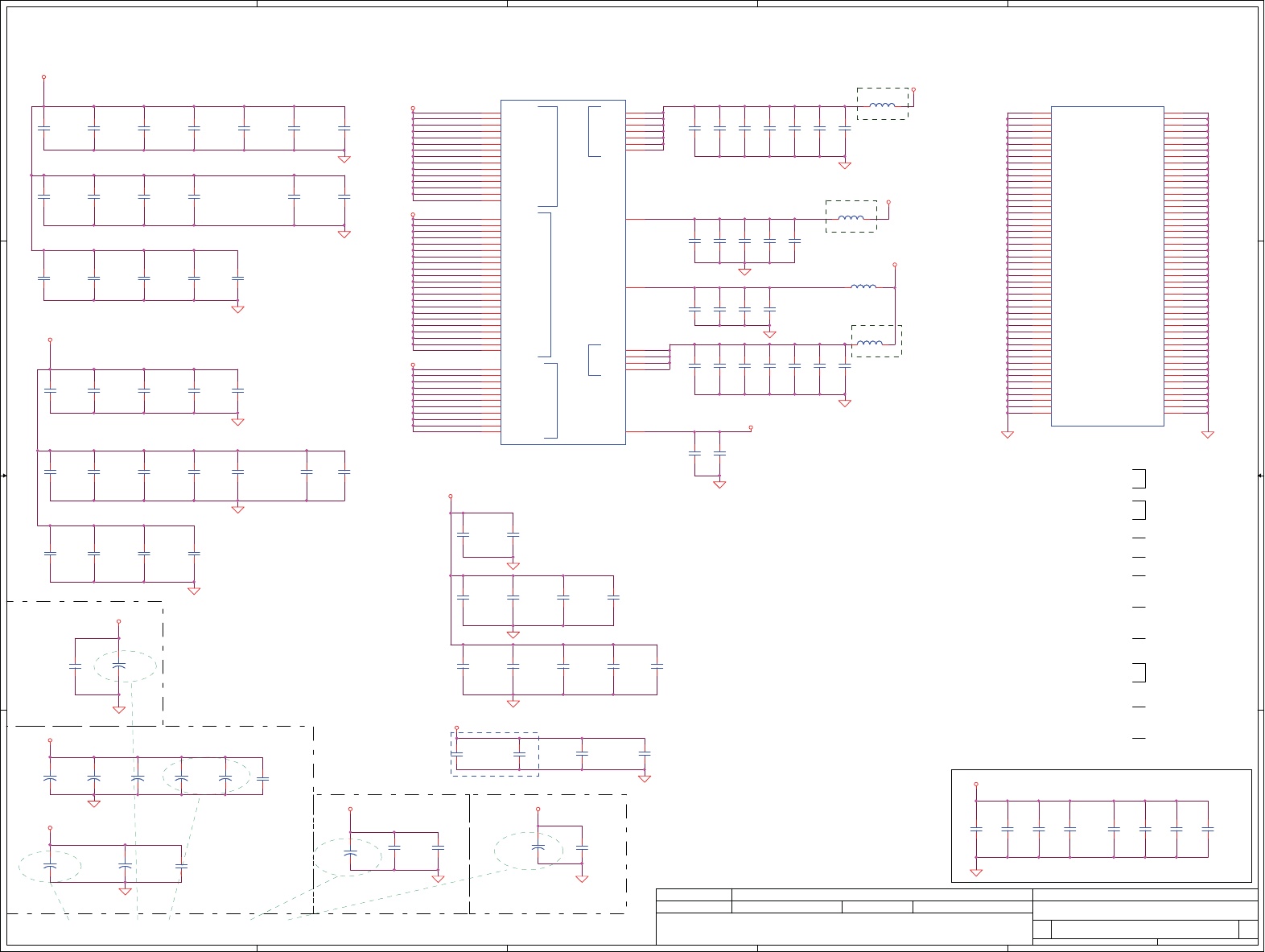

By case (Along split plane)
Near CPU Socket
Near CPU Socket Near CPU Socket
POWER
Near CPU Socket
(390uF_2.5V_6.3x5.7_ESR10m)*1=(SF000002O00)
POWER POWER
POWER
Compal Electronics, Inc.
Change from SM010014520 to SD002000080
20100816
Change from SM010014520 to SD002000080
20100816
Change from SM010014520 to SD002000080
20100816

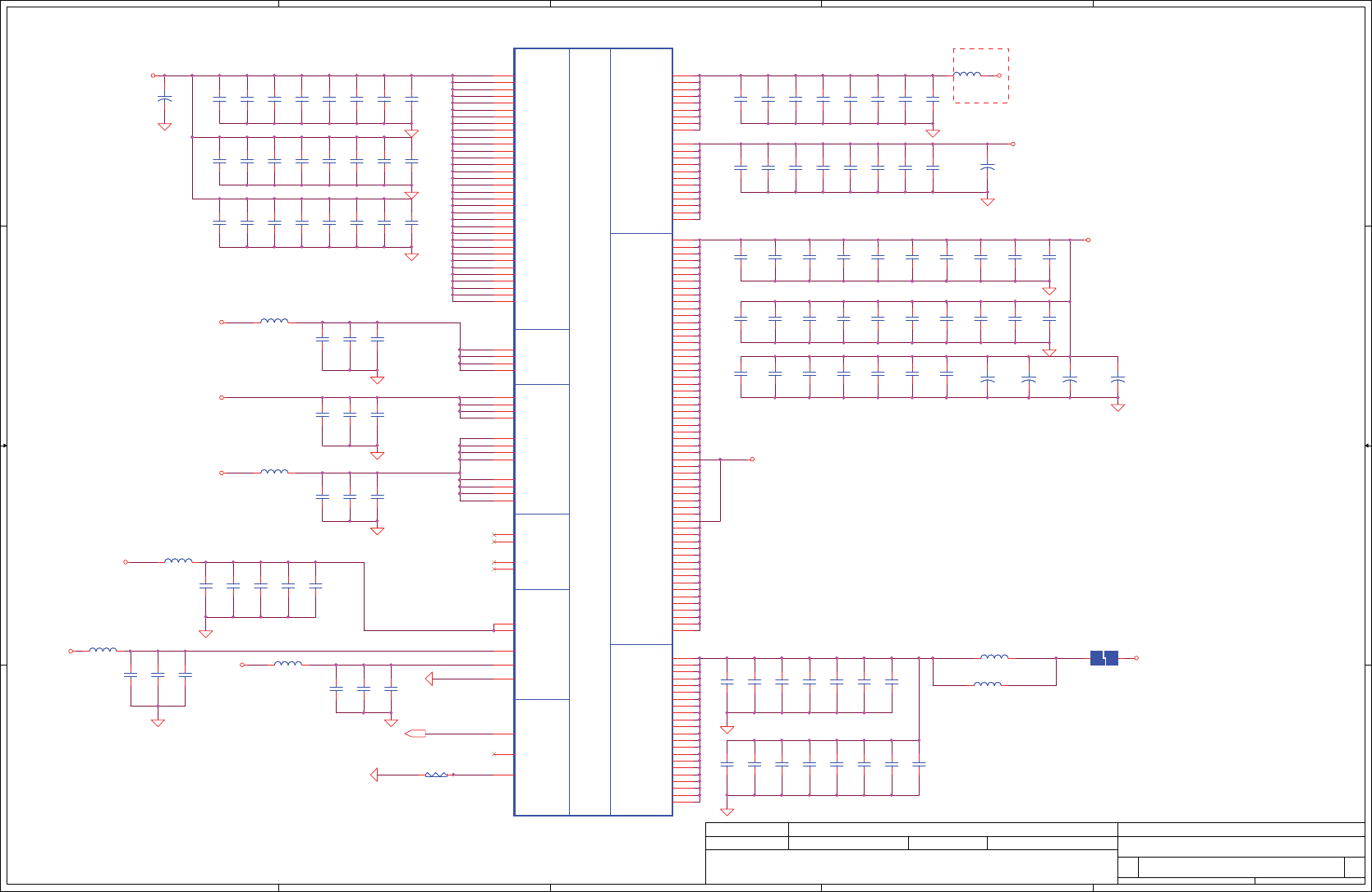

Power Cap. Summary
S_A-P_CAP 390U 2.5V M 6.3X5.7 LESR10M VU --->1.05VS(Qty : 1)
S POLY C 330U 2.5V M D2E TPE LESR9M H1.8 --->+APU_CORE(Qty : 3) Unpop:2
S_A-P_CAP 390U 2.5V M 6.3X5.7 LESR10M VU--->+APU_CORE_NB(Qty : 1)
S POLY C 330U 2.5V Y D2 LESR9M EEFS H1.9 --->+APU_CORE_NB(Qty : 1)
S_A-P_CAP 390U 2.5V M 6.3X5.7 LESR10M VU --->+1.8VS(Qty : 1)
APU
DDR3 Socket
GPU
USB
S_A-P_CAP 390U 2.5V M 6.3X5.7 LESR10M VU --->+APU_CORE(Qty : 2)
S POLY C 330U 2V M X LESR6M SX H1.9 --->1.5V(Qty : 1)
FCH
S POLY C 330U 2.5V Y D2 LESR9M EEFS H1.9 --->1.1VS(Qty : 1) UMA unpop
S_A-P_CAP 220U 6.3V M C45 R17M SVPE H4.4 --->+USB_VCCA(Qty : 1)
180PF Qt'y follow the distance between
CPU socket and DIMM0. <2.5inch>
S_A-P_CAP 390U 2.5V M 6.3X5.7 LESR10M VU --->+1.5V(Qty : 1)
S_A-P_CAP 390U 2.5V M 6.3X5.7 LESR10M VU --->+VGA_CORE(Qty : 1)
S POLY C 330U 2V M X LESR6M SX H1.9 --->VGA_CORE(Qty : 2) Unpop:1
S_A-P_CAP 390U 2.5V M 6.3X5.7 LESR10M VU --->+1.5VSG(Qty : 1)
+APU_CORE
+APU_CORE_NB
+1.5V
+1.05VS
+1.8VS
+1.5V
+1.1VS
+GPU_CORE
+1.5VSG
+USB_VCCA
11A
10A
2A
2A
0.15A
0.2A
5.5A
0.5A
FOR EMI PURPOSE
L32
FBMA-L11-201209-221LMA30T_0805
L32
FBMA-L11-201209-221LMA30T_0805
12

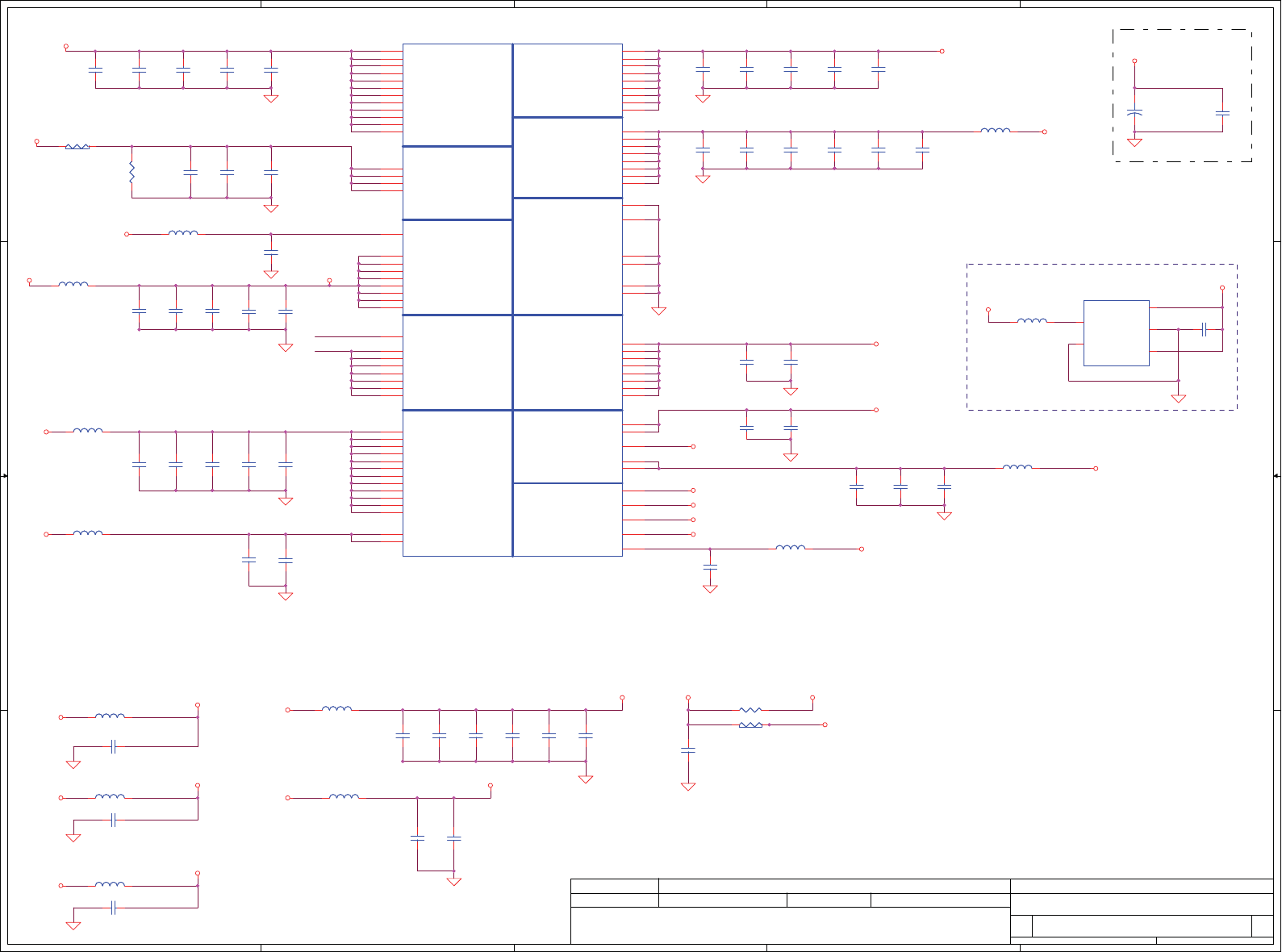

CPU CORE GPU AND NB CORE DDR3
TSense/PLL/DP/PCIE/IO
DIS PLL
PCIE/IO/DDR3 Phy
DAC
DP Phy/IO
POWER
U22C
ONTARIO-2M161000-1.6G_BGA413
15G@
CPU CORE GPU AND NB CORE DDR3
TSense/PLL/DP/PCIE/IO
DIS PLL
PCIE/IO/DDR3 Phy
DAC
DP Phy/IO
POWER
U22C
ONTARIO-2M161000-1.6G_BGA413
15G@
VDDIO_MEM_S_11
U16 VDDIO_MEM_S_10
W18 VDDIO_MEM_S_9
R19 VDDIO_MEM_S_8
R16 VDDIO_MEM_S_7
N16 VDDIO_MEM_S_6
L19 VDDIO_MEM_S_5
L16 VDDIO_MEM_S_4
J16 VDDIO_MEM_S_3
E17 VDDIO_MEM_S_2
G19 VDDIO_MEM_S_1
G16
VDDCR_NB_22
P13 VDDCR_NB_21
P11 VDDCR_NB_20
N14 VDDCR_NB_19
N12 VDDCR_NB_18
N10 VDDCR_NB_17
M13 VDDCR_NB_16
M12 VDDCR_NB_15
M11 VDDCR_NB_14
L14 VDDCR_NB_13
L12 VDDCR_NB_12
L10 VDDCR_NB_11
K13 VDDCR_NB_10
K11 VDDCR_NB_9
H12 VDDCR_NB_8
H9 VDDCR_NB_7
G13 VDDCR_NB_6
G11 VDDCR_NB_5
F12 VDDCR_NB_4
F9 VDDCR_NB_3
E13 VDDCR_NB_2
E11 VDDCR_NB_1
E8
VDDCR_CPU_15
R8 VDDCR_CPU_14
N7 VDDCR_CPU_13
M8 VDDCR_CPU_12
M6 VDDCR_CPU_11
L7 VDDCR_CPU_10
J8 VDDCR_CPU_9
J6 VDDCR_CPU_8
H7 VDDCR_CPU_7
H5 VDDCR_CPU_6
G8 VDDCR_CPU_5
G6 VDDCR_CPU_4
F7 VDDCR_CPU_3
F5 VDDCR_CPU_2
E6 VDDCR_CPU_1
E5
VDD_33 A4
VDD_10_4 T12
VDD_10_3 V12
VDD_10_2 W13
VDD_10_1 U13
VDDPL_10 U11
VDD_18_DAC W9
VDD_18_7 V7
VDD_18_6 T7
VDD_18_5 W6
VDD_18_4 U9
VDD_18_3 U6
VDD_18_2 W8
VDD_18_1 U8
C581
1U_0402_6.3V6K
C581
1U_0402_6.3V6K
1
2
C559
0.1U_0402_16V7K
C559
0.1U_0402_16V7K
1
2
C604
10U_0603_6.3V6M
C604
10U_0603_6.3V6M
1
2
C543
10U_0603_6.3V6M
C543
10U_0603_6.3V6M
1
2
C548
1U_0402_6.3V6K
C548
1U_0402_6.3V6K
1
2
GND
U22D
ONTARIO-2M161000-1.6G_BGA413
15G@
GND
U22D
ONTARIO-2M161000-1.6G_BGA413
15G@
VSS_49
N11 VSS_48
N8 VSS_47
N6 VSS_46
N4 VSS_45
M7 VSS_44
L22 VSS_43
L20 VSS_42
L13 VSS_41
L11 VSS_40
L8 VSS_39
L6 VSS_38
L4 VSS_37
K14 VSS_36
K10 VSS_35
J20 VSS_34
J7 VSS_33
J5 VSS_32
J4 VSS_31
H13 VSS_30
H11 VSS_29
H6 VSS_28
G22 VSS_27
G20 VSS_26
G12 VSS_25
G9 VSS_24
G7 VSS_23
G5 VSS_22
G4 VSS_21
F13 VSS_20
F11 VSS_19
F8 VSS_18
E20 VSS_17
E12 VSS_16
E9 VSS_15
E7 VSS_14
D19 VSS_13
D17 VSS_12
B15 VSS_11
D14 VSS_10
D11 VSS_9
D9 VSS_8
D7 VSS_7
D5 VSS_6
C4 VSS_5
B22 VSS_4
B17 VSS_3
B11 VSS_2
B7 VSS_1
A7
VSSBG_DAC A11
VSS_97 AC13
VSS_96 AC9
VSS_95 AC5
VSS_94 AB21
VSS_93 AB17
VSS_92 AB13
VSS_91 AB9
VSS_90 AB5
VSS_89 AB2
VSS_88 AA22
VSS_87 AA4
VSS_86 Y19
VSS_85 Y17
VSS_84 Y15
VSS_83 Y13
VSS_82 Y11
VSS_81 Y9
VSS_80 Y7
VSS_79 Y5
VSS_78 W20
VSS_77 W12
VSS_76 W7
VSS_75 W5
VSS_74 W4
VSS_73 W2
VSS_72 W1
VSS_71 V13
VSS_70 V11
VSS_69 V9
VSS_68 V8
VSS_67 U22
VSS_66 U20
VSS_65 U12
VSS_64 U7
VSS_63 U5
VSS_62 U4
VSS_61 T13
VSS_60 T11
VSS_59 T9
VSS_58 T6
VSS_57 R20
VSS_56 R7
VSS_55 R4
VSS_54 P14
VSS_53 P10
VSS_52 N22
VSS_51 N20
VSS_50 N13
C555
180P_0402_50V8J
C555
180P_0402_50V8J
1
2
C623
10U_0603_6.3V6M
C623
10U_0603_6.3V6M
1
2
C597
1U_0402_6.3V6K
C597
1U_0402_6.3V6K
1
2
C542
10U_0603_6.3V6M
C542
10U_0603_6.3V6M
1
2
C613
180P_0402_50V8J
@
C613
180P_0402_50V8J
@
1
2
C587
180P_0402_50V8J
C587
180P_0402_50V8J
1
2
C616
10U_0603_6.3V6M
@
C616
10U_0603_6.3V6M
@
1
2
C539
10U_0603_6.3V6M
C539
10U_0603_6.3V6M
1
2
C556
180P_0402_50V8J
C556
180P_0402_50V8J
1
2
C579
10U_0603_6.3V6M
C579
10U_0603_6.3V6M
1
2
C566
1U_0402_6.3V6K
C566
1U_0402_6.3V6K
1
2
C685
10U_0603_6.3V6M
C685
10U_0603_6.3V6M
1
2
C584
1U_0402_6.3V6K
C584
1U_0402_6.3V6K
1
2
C554
180P_0402_50V8J
C554
180P_0402_50V8J
1
2
C536
10U_0603_6.3V6M
C536
10U_0603_6.3V6M
1
2
C574
10U_0603_6.3V6M
C574
10U_0603_6.3V6M
1
2
+
C1105
390U_2.5V_10M
+
C1105
390U_2.5V_10M
1
2
C102
0.1U_0402_16V7K
C102
0.1U_0402_16V7K
1
2
C547
1U_0402_6.3V6K
C547
1U_0402_6.3V6K
1
2
C611
0.1U_0402_16V7K
@
C611
0.1U_0402_16V7K
@
1
2
C541
10U_0603_6.3V6M
C541
10U_0603_6.3V6M
1
2
C551
1U_0402_6.3V6K
C551
1U_0402_6.3V6K
1
2
C596
1U_0402_6.3V6K
C596
1U_0402_6.3V6K
1
2
C593
0.1U_0402_16V7K
C593
0.1U_0402_16V7K
1
2
+
C617
390U_2.5V_10M
@
+
C617
390U_2.5V_10M
@
1
2
C546
1U_0402_6.3V6K
C546
1U_0402_6.3V6K
1
2
C557
1U_0402_6.3V6K
C557
1U_0402_6.3V6K
1
2
C563
0.1U_0402_16V7K
C563
0.1U_0402_16V7K
1
2
C569
0.1U_0402_16V7K
C569
0.1U_0402_16V7K
1
2
C591
0.1U_0402_16V7K
C591
0.1U_0402_16V7K
1
2
C615
180P_0402_50V8J
@
C615
180P_0402_50V8J
@
1
2
C568
180P_0402_50V8J
C568
180P_0402_50V8J
1
2
C598
1U_0402_6.3V6K
C598
1U_0402_6.3V6K
1
2
C104
180P_0402_50V8J
C104
180P_0402_50V8J
1
2
+
C1104
390U_2.5V_10M
+
C1104
390U_2.5V_10M
1
2
C625
10U_0603_6.3V6M
@
C625
10U_0603_6.3V6M
@
1
2
+
C618
390U_2.5V_10M
+
C618
390U_2.5V_10M
1
2
C600
0.1U_0402_16V7K
C600
0.1U_0402_16V7K
1
2
C620
10U_0603_6.3V6M
@
C620
10U_0603_6.3V6M
@
1
2
+
C621
390U_2.5V_10M
@
+
C621
390U_2.5V_10M
@
1
2
C588
180P_0402_50V8J
C588
180P_0402_50V8J
1
2
C595
1U_0402_6.3V6K
C595
1U_0402_6.3V6K
1
2
C610
0.1U_0402_16V7K
@
C610
0.1U_0402_16V7K
@
1
2
C570
0.1U_0402_16V7K
C570
0.1U_0402_16V7K
1
2
C552
1U_0402_6.3V6K
C552
1U_0402_6.3V6K
1
2
C586
1U_0402_6.3V6K
C586
1U_0402_6.3V6K
1
2
C589
10U_0603_6.3V6M
C589
10U_0603_6.3V6M
1
2
L29
FBMA-L11-201209-221LMA30T_0805
L29
FBMA-L11-201209-221LMA30T_0805
12
C567
10U_0603_6.3V6M
C567
10U_0603_6.3V6M
1
2
C545
180P_0402_50V8J
C545
180P_0402_50V8J
1
2
C565
0.1U_0402_16V7K
C565
0.1U_0402_16V7K
1
2
C544
10U_0603_6.3V6M
C544
10U_0603_6.3V6M
1
2
C575
10U_0603_6.3V6M
C575
10U_0603_6.3V6M
1
2
C582
1U_0402_6.3V6K
C582
1U_0402_6.3V6K
1
2
+
C606
330U_D2E_2.5VM_R9M
@
+
C606
330U_D2E_2.5VM_R9M
@
1
2
+
C622
390U_2.5V_10M
+
C622
390U_2.5V_10M
1
2
L31
FBMA-L11-201209-221LMA30T_0805
L31
FBMA-L11-201209-221LMA30T_0805
12
C580
0.1U_0402_16V7K
C580
0.1U_0402_16V7K
1
2
C578
10U_0603_6.3V6M
C578
10U_0603_6.3V6M
1
2
C684
10U_0603_6.3V6M
@
C684
10U_0603_6.3V6M
@
1
2
C577
10U_0603_6.3V6M
C577
10U_0603_6.3V6M
1
2
L30
FBMA-L11-201209-221LMA30T_0805
L30
FBMA-L11-201209-221LMA30T_0805
12
C553
1U_0402_6.3V6K
C553
1U_0402_6.3V6K
1
2
C550
1U_0402_6.3V6K
C550
1U_0402_6.3V6K
1
2
C601
0.1U_0402_16V7K
C601
0.1U_0402_16V7K
1
2
C602
180P_0402_50V8J
C602
180P_0402_50V8J
1
2
+
C607
390U_2.5V_10M
+
C607
390U_2.5V_10M
1
2
+
C624
390U_2.5V_10M
+
C624
390U_2.5V_10M
1
2
C612
180P_0402_50V8J
@
C612
180P_0402_50V8J
@
1
2
C608
0.1U_0402_16V7K
@
C608
0.1U_0402_16V7K
@
1
2
C538
1U_0402_6.3V6K
C538
1U_0402_6.3V6K
1
2
C603
180P_0402_50V8J
C603
180P_0402_50V8J
1
2
C537
0.1U_0402_16V7K
C537
0.1U_0402_16V7K
1
2
C560
0.1U_0402_16V7K
C560
0.1U_0402_16V7K
1
2
C619
10U_0603_6.3V6M
C619
10U_0603_6.3V6M
1
2
C572
1U_0402_6.3V6K
C572
1U_0402_6.3V6K
1
2
C549
10U_0603_6.3V6M
C549
10U_0603_6.3V6M
1
2
C609
0.1U_0402_16V7K
@
C609
0.1U_0402_16V7K
@
1
2
C540
10U_0603_6.3V6M
C540
10U_0603_6.3V6M
1
2
C594
0.1U_0402_16V7K
C594
0.1U_0402_16V7K
1
2
C599
0.1U_0402_16V7K
C599
0.1U_0402_16V7K
1
2
C590
10U_0603_6.3V6M
C590
10U_0603_6.3V6M
1
2
C614
180P_0402_50V8J
@
C614
180P_0402_50V8J
@
1
2
C592
0.1U_0402_16V7K
C592
0.1U_0402_16V7K
1
2
C103
180P_0402_50V8J
C103
180P_0402_50V8J
1
2
C573
10U_0603_6.3V6M
C573
10U_0603_6.3V6M
1
2
C561
0.1U_0402_16V7K
C561
0.1U_0402_16V7K
1
2
C562
0.1U_0402_16V7K
C562
0.1U_0402_16V7K
1
2
C571
1U_0402_6.3V6K
C571
1U_0402_6.3V6K
1
2
C564
180P_0402_50V8J
C564
180P_0402_50V8J
1
2
+
C605
330U_D2E_2.5VM_R9M
@
+
C605
330U_D2E_2.5VM_R9M
@
1
2
C101
0.1U_0402_16V7K
C101
0.1U_0402_16V7K
1
2
C558
10U_0603_6.3V6M
C558
10U_0603_6.3V6M
1
2
C585
1U_0402_6.3V6K
C585
1U_0402_6.3V6K
1
2
C576
10U_0603_6.3V6M
C576
10U_0603_6.3V6M
1
2
C583
1U_0402_6.3V6K
C583
1U_0402_6.3V6K
1
2

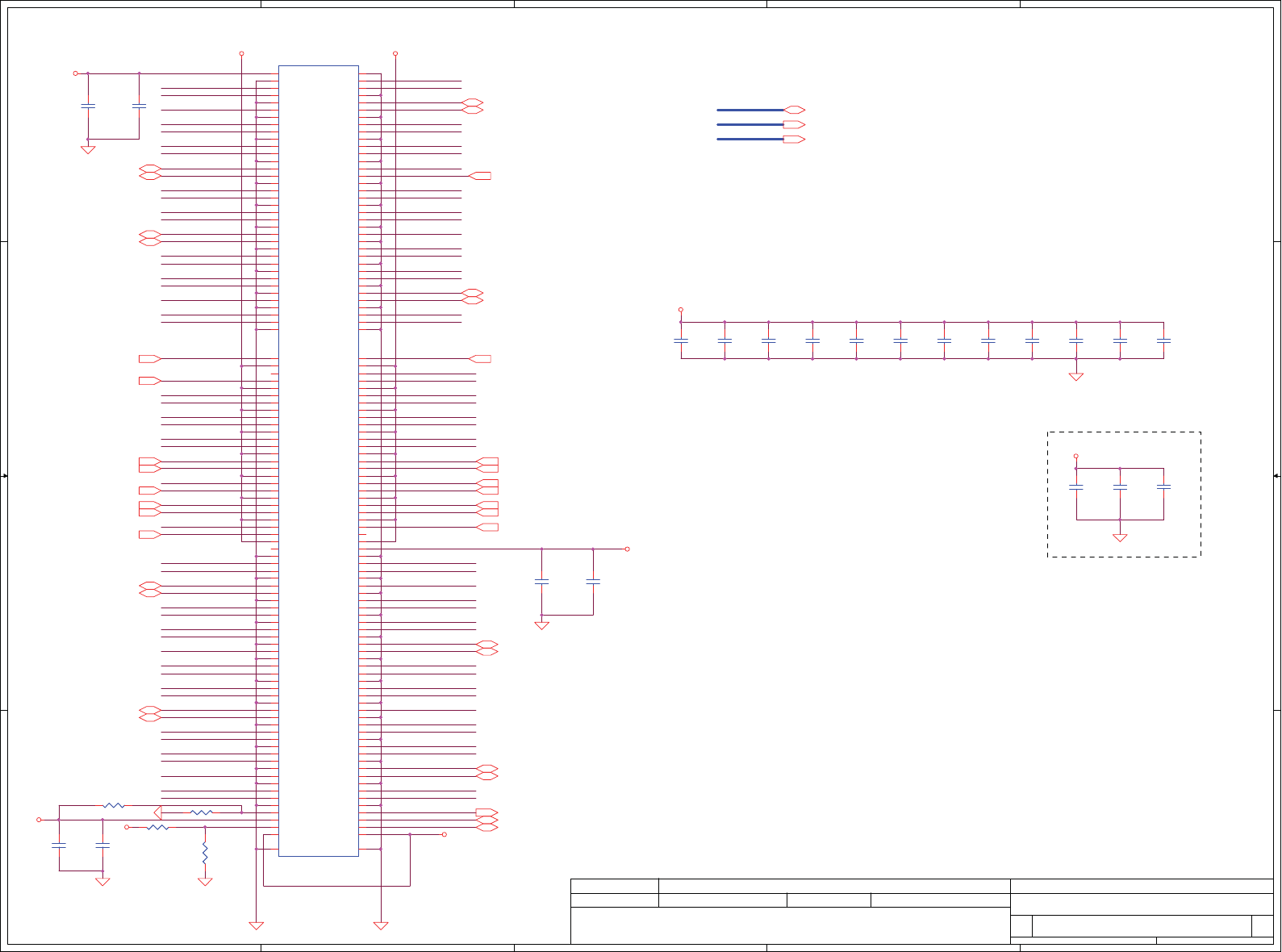

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DDR_A_D26
DDR_A_D2
DDR_A_D25
DDR_A_D35
DDR_A_MA12
DDR_A_D42
DDR_A_D27
DDR_A_D59
DDR_A_MA3
DDR_A_D57
DDR_A_D0
DDR_A_DM0
DDR_A_D51
DDR_A_D19
DDR_A_D33
DDR_A_D58
DDR_A_DM5
DDR_A_MA8
DDR_A_D10
DDR_A_MA10
DDR_A_D3
DDR_A_D1
DDR_A_D40
DDR_A_MA9
DDR_A_D16
DDR_A_DM3
DDR_A_D49
DDR_A_D9
DDR_A_DM7
DDR_A_MA1
DDR_A_MA5
DDR_A_D24
DDR_A_D56
DDR_A_D18
DDR_A_D43
DDR_A_D34
DDR_A_D48
DDR_A_D11
DDR_A_D32
DDR_A_MA13
DDR_A_D50
DDR_A_D8
DDR_A_D41
DDR_A_D17
DDR_A_D[0..63]
DDR_A_MA[0..15]
DDR_A_DM[0..7]
DDR_A_D36
DDR_A_D63
DDR_A_D5
DDR_A_D22
DDR_A_D14
DDR_A_DM6
DDR_A_MA15
DDR_A_D31
DDR_A_D12
DDR_A_D6
DDR_A_D39
DDR_A_MA7
DDR_A_MA0
DDR_A_DM2
DDR_A_DM1
DDR_A_D46
DDR_A_D28
DDR_A_DM4
DDR_A_D4
DDR_A_D30
DDR_A_D44
DDR_A_MA6
DDR_A_D29
DDR_A_D52
DDR_A_D54
DDR_A_D45
DDR_A_D7
DDR_A_D13
DDR_A_D20
DDR_A_D60
DDR_A_D37
DDR_A_MA14
DDR_A_D55
DDR_A_MA4
DDR_A_D21
DDR_A_D62
DDR_A_D15
DDR_A_D23
DDR_A_D53
DDR_A_D47
DDR_A_D38
DDR_A_MA11
DDR_A_D61
DDR_A_MA2
DDR_CKE06,9
DDR_CS1_DIMMB#6
DDR_A_WE#6,9
DDR_A_BS26,9
DDR_A_BS06,9
DDR_A_CAS#6,9
DDR_B_CLK26
DDR_B_CLK#26
DDR_A_DQS#16,9
DDR_A_DQS16,9
DDR_A_DQS#26,9
DDR_A_DQS26,9
DDR_A_DQS#46,9
DDR_A_DQS46,9
DDR_A_DQS#66,9
DDR_A_DQS66,9
DDR_A_MA[0..15] 6,9
DDR_A_D[0..63] 6,9
DDR_A_DM[0..7] 6,9
DDR_A_BS1 6,9
DDR_A_RAS# 6,9
DDR_CS0_DIMMB# 6
DDR_RST# 6,9
DDR_B_ODT0 6
DDR_B_ODT1 6
DDR_B_CLK#3 6
DDR_B_CLK3 6
DDR_CKE1 6,9
DDR_A_DQS3 6,9
DDR_A_DQS0 6,9
DDR_A_DQS#3 6,9
DDR_A_DQS#0 6,9
DDR_A_DQS5 6,9
DDR_A_DQS#5 6,9
DDR_A_DQS7 6,9
DDR_A_DQS#7 6,9
DDR_EVENT# 6,9
FCH_SMDAT0 9,13,28
FCH_SMCLK0 9,13,28
+0.75VS
+VREF_DQ
+1.5V
+3VS
+1.5V
+1.5V
+VREF_CA
+0.75VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P08-DDR3 SODIMM-I Socket
Custom
847Thursday, February 17, 2011
2010/06/30 2012/06/30
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P08-DDR3 SODIMM-I Socket
Custom
847Thursday, February 17, 2011
2010/06/30 2012/06/30
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P08-DDR3 SODIMM-I Socket
Custom
847Thursday, February 17, 2011
2010/06/30 2012/06/30
Place near JDIMM2
CRB 0.1u X1 4,7uX1
Compal Electronics, Inc.
DDR3 SO-DIMM A H:5.2mm
Standard Typ
C667
2.2U_0603_6.3V4Z
C667
2.2U_0603_6.3V4Z
1
2
C666
1000P_0402_50V7K
C666
1000P_0402_50V7K
1
2
C48
0.1U_0402_16V4Z
C48
0.1U_0402_16V4Z
1
2
C683
0.1U_0402_16V4Z
C683
0.1U_0402_16V4Z
1
2
R155 10K_0402_5%
R155 10K_0402_5%
1 2
C47
0.1U_0402_16V4Z
C47
0.1U_0402_16V4Z
1
2
C45
0.1U_0402_16V4Z
C45
0.1U_0402_16V4Z
1
2
C652
0.1U_0402_16V4Z
C652
0.1U_0402_16V4Z
1
2
C668
0.1U_0402_16V4Z
C668
0.1U_0402_16V4Z
1
2
C49
0.1U_0402_16V4Z
C49
0.1U_0402_16V4Z
1
2
R151
10K_0402_5%
R151
10K_0402_5%
12
R152 10K_0402_5%
@
R152 10K_0402_5%
@
1 2
C682
0.1U_0402_16V4Z
C682
0.1U_0402_16V4Z
1
2
C46
0.1U_0402_16V4Z
C46
0.1U_0402_16V4Z
1
2
C680
0.1U_0402_16V4Z
C680
0.1U_0402_16V4Z
1
2
C655
0.1U_0402_16V4Z
C655
0.1U_0402_16V4Z
1
2
C44
0.1U_0402_16V4Z
C44
0.1U_0402_16V4Z
1
2
C654
0.1U_0402_16V4Z
C654
0.1U_0402_16V4Z
1
2
C50
0.1U_0402_16V4Z
@
C50
0.1U_0402_16V4Z
@
1
2C664
4.7U_0603_6.3V6K
C664
4.7U_0603_6.3V6K
1
2
C665
0.1U_0402_16V4Z
C665
0.1U_0402_16V4Z
1
2
R150 10K_0402_5%
@
R150 10K_0402_5%
@
1 2
C681
1000P_0402_50V7K
C681
1000P_0402_50V7K
1
2
C51
0.1U_0402_16V4Z
C51
0.1U_0402_16V4Z
1
2
C653
0.1U_0402_16V4Z
C653
0.1U_0402_16V4Z
1
2
JDIMM1
TYCO_2-2013289-1
JDIMM1
TYCO_2-2013289-1
VREF_DQ
1VSS1 2
VSS2
3DQ4 4
DQ0
5DQ5 6
DQ1
7VSS3 8
VSS4
9DQS#0 10
DM0
11 DQS0 12
VSS5
13 VSS6 14
DQ2
15 DQ6 16
DQ3
17 DQ7 18
VSS7
19 VSS8 20
DQ8
21 DQ12 22
DQ9
23 DQ13 24
VSS9
25 VSS10 26
DQS#1
27 DM1 28
DQS1
29 RESET# 30
VSS11
31 VSS12 32
DQ10
33 DQ14 34
DQ11
35 DQ15 36
VSS13
37 VSS14 38
DQ16
39 DQ20 40
DQ17
41 DQ21 42
VSS15
43 VSS16 44
DQS#2
45 DM2 46
DQS2
47 VSS17 48
VSS18
49 DQ22 50
DQ18
51 DQ23 52
DQ19
53 VSS19 54
VSS20
55 DQ28 56
DQ24
57 DQ29 58
DQ25
59 VSS21 60
VSS22
61 DQS#3 62
DM3
63 DQS3 64
VSS23
65 VSS24 66
DQ26
67 DQ30 68
DQ27
69 DQ31 70
VSS25
71 VSS26 72
A12/BC#
83 A11 84
A9
85 A7 86
VDD5
87 VDD6 88
A8
89 A6 90
CKE0
73 CKE1 74
VDD1
75 VDD2 76
NC1
77 A15 78
BA2
79 A14 80
VDD3
81 VDD4 82
A5
91 A4 92
VDD7
93 VDD8 94
A3
95 A2 96
A1
97 A0 98
VDD9
99 VDD10 100
CK0
101 CK1 102
CK0#
103 CK1# 104
VDD11
105 VDD12 106
A10/AP
107 BA1 108
BA0
109 RAS# 110
VDD13
111 VDD14 112
WE#
113 S0# 114
CAS#
115 ODT0 116
VDD15
117 VDD16 118
A13
119 ODT1 120
S1#
121 NC2 122
VDD17
123 VDD18 124
NCTEST
125 VREF_CA 126
VSS27
127 VSS28 128
DQ32
129 DQ36 130
DQ33
131 DQ37 132
VSS29
133 VSS30 134
DQS#4
135 DM4 136
DQS4
137 VSS31 138
VSS32
139 DQ38 140
DQ34
141 DQ39 142
DQ35
143 VSS33 144
VSS34
145 DQ44 146
DQ40
147 DQ45 148
DQ41
149 VSS35 150
VSS36
151 DQS#5 152
DM5
153 DQS5 154
VSS37
155 VSS38 156
DQ42
157 DQ46 158
DQ43
159 DQ47 160
VSS39
161 VSS40 162
DQ48
163 DQ52 164
DQ49
165 DQ53 166
VSS41
167 VSS42 168
DQS#6
169 DM6 170
DQS6
171 VSS43 172
VSS44
173 DQ54 174
DQ50
175 DQ55 176
DQ51
177 VSS45 178
VSS46
179 DQ60 180
DQ56
181 DQ61 182
DQ57
183 VSS47 184
VSS48
185 DQS#7 186
DM7
187 DQS7 188
VSS49
189 VSS50 190
DQ58
191 DQ62 192
DQ59
193 DQ63 194
VSS51
195 VSS52 196
SA0
197 EVENT# 198
VDDSPD
199 SDA 200
SA1
201 SCL 202
VTT1
203 VTT2 204
G1
205 G2 206
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DDR_A_D[0..63]
DDR_A_MA[0..15]
DDR_A_DM[0..7]
DDR_A_D26
DDR_A_D2
DDR_A_D25
DDR_A_D27
DDR_A_D0
DDR_A_DM0
DDR_A_D19
DDR_A_D10
DDR_A_D3
DDR_A_D1
DDR_A_D16
DDR_A_DM3
DDR_A_D9
DDR_A_D24
DDR_A_D18
DDR_A_D11
DDR_A_D8
DDR_A_D17
DDR_A_MA12
DDR_A_MA3
DDR_A_MA8
DDR_A_MA10
DDR_A_MA9
DDR_A_MA1
DDR_A_MA5
DDR_A_MA13
DDR_A_D35
DDR_A_D42
DDR_A_D59
DDR_A_D57
DDR_A_D51
DDR_A_D33
DDR_A_D58
DDR_A_DM5
DDR_A_D40
DDR_A_D49
DDR_A_DM7
DDR_A_D56
DDR_A_D43
DDR_A_D34
DDR_A_D48
DDR_A_D32
DDR_A_D50
DDR_A_D41
DDR_A_D5
DDR_A_D22
DDR_A_D14
DDR_A_D31
DDR_A_D12
DDR_A_D6
DDR_A_DM2
DDR_A_DM1
DDR_A_D28
DDR_A_D4
DDR_A_D30
DDR_A_D29
DDR_A_D7
DDR_A_D13
DDR_A_D20
DDR_A_D21
DDR_A_D15
DDR_A_D23
DDR_A_D36
DDR_A_D63
DDR_A_DM6
DDR_A_D39
DDR_A_D46
DDR_A_DM4
DDR_A_D44
DDR_A_D52
DDR_A_D54
DDR_A_D45
DDR_A_D60
DDR_A_D37
DDR_A_D55
DDR_A_D62
DDR_A_D53
DDR_A_D47
DDR_A_MA15
DDR_A_MA7
DDR_A_MA0
DDR_A_D38
DDR_A_D61
DDR_A_MA6
DDR_A_MA14
DDR_A_MA4
DDR_A_MA11
DDR_A_MA2
DDR_A_MA[0..15] 6,8
DDR_A_D[0..63] 6,8
DDR_A_DM[0..7] 6,8
DDR_A_DQS#16,8
DDR_A_DQS16,8
DDR_A_DQS#26,8
DDR_A_DQS26,8
DDR_CKE06,8
DDR_CS1_DIMMA#6
DDR_A_WE#6,8
DDR_A_BS26,8
DDR_A_BS06,8
DDR_A_CAS#6,8
DDR_A_CLK06
DDR_A_CLK#06
DDR_A_DQS#46,8
DDR_A_DQS46,8
DDR_A_DQS#66,8
DDR_A_DQS66,8
DDR_RST# 6,8
DDR_A_DQS3 6,8
DDR_A_DQS0 6,8
DDR_A_DQS#3 6,8
DDR_A_DQS#0 6,8
DDR_EVENT# 6,8
FCH_SMDAT0 8,13,28
FCH_SMCLK0 8,13,28
DDR_A_DQS5 6,8
DDR_A_DQS#5 6,8
DDR_A_DQS7 6,8
DDR_A_DQS#7 6,8
DDR_A_BS1 6,8
DDR_A_RAS# 6,8
DDR_CS0_DIMMA# 6
DDR_A_ODT0 6
DDR_A_ODT1 6
DDR_A_CLK#1 6
DDR_A_CLK1 6
DDR_CKE1 6,8
+VREF_DQ
+1.5V
+VREF_CA
+1.5V
+0.75VS
+1.5V
+VREF_DQ
+1.5V
+3VS
+1.5V
+VREF_CA
+0.75VS
+1.5V
+1.5V
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P09-DDR3 SODIMM-II Socket
Custom
947Thursday, February 17, 2011
2010/06/30 2012/06/30
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P09-DDR3 SODIMM-II Socket
Custom
947Thursday, February 17, 2011
2010/06/30 2012/06/30
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P09-DDR3 SODIMM-II Socket
Custom
947Thursday, February 17, 2011
2010/06/30 2012/06/30
Place near JDIMM1
CRB 0.1u X1 4.7u X1
CRB 100U X2
Compal Electronics, Inc.
15mil 15mil
330U ESR:9m H:2
P/N:SGA20331E10
For DRAM strap pin reservation
20100817
For DRAM strap pin reservation
20100817
DDR3 SO-DIMM B H:9.2mm
Standard Type
CRB only one 4.7k
C629
0.1U_0402_16V4Z
C629
0.1U_0402_16V4Z
1
2
C675
0.1U_0402_16V4Z
C675
0.1U_0402_16V4Z
1
2
C635
0.1U_0402_16V4Z
C635
0.1U_0402_16V4Z
1
2
C636
0.1U_0402_16V4Z
C636
0.1U_0402_16V4Z
1
2
C631
0.1U_0402_16V4Z
C631
0.1U_0402_16V4Z
1
2
R148
1K_0402_1%
R148
1K_0402_1%
1 2
R154
10K_0402_5%
@
R154
10K_0402_5%
@
1 2
C643
0.1U_0402_16V4Z
C643
0.1U_0402_16V4Z
1
2
JDIMM2
TYCO_2-2013310-1
JDIMM2
TYCO_2-2013310-1
VREF_DQ
1VSS1 2
VSS2
3DQ4 4
DQ0
5DQ5 6
DQ1
7VSS3 8
VSS4
9DQS#0 10
DM0
11 DQS0 12
VSS5
13 VSS6 14
DQ2
15 DQ6 16
DQ3
17 DQ7 18
VSS7
19 VSS8 20
DQ8
21 DQ12 22
DQ9
23 DQ13 24
VSS9
25 VSS10 26
DQS#1
27 DM1 28
DQS1
29 RESET# 30
VSS11
31 VSS12 32
DQ10
33 DQ14 34
DQ11
35 DQ15 36
VSS13
37 VSS14 38
DQ16
39 DQ20 40
DQ17
41 DQ21 42
VSS15
43 VSS16 44
DQS#2
45 DM2 46
DQS2
47 VSS17 48
VSS18
49 DQ22 50
DQ18
51 DQ23 52
DQ19
53 VSS19 54
VSS20
55 DQ28 56
DQ24
57 DQ29 58
DQ25
59 VSS21 60
VSS22
61 DQS#3 62
DM3
63 DQS3 64
VSS23
65 VSS24 66
DQ26
67 DQ30 68
DQ27
69 DQ31 70
VSS25
71 VSS26 72
A12/BC#
83 A11 84
A9
85 A7 86
VDD5
87 VDD6 88
A8
89 A6 90
CKE0
73 CKE1 74
VDD1
75 VDD2 76
NC1
77 A15 78
BA2
79 A14 80
VDD3
81 VDD4 82
A5
91 A4 92
VDD7
93 VDD8 94
A3
95 A2 96
A1
97 A0 98
VDD9
99 VDD10 100
CK0
101 CK1 102
CK0#
103 CK1# 104
VDD11
105 VDD12 106
A10/AP
107 BA1 108
BA0
109 RAS# 110
VDD13
111 VDD14 112
WE#
113 S0# 114
CAS#
115 ODT0 116
VDD15
117 VDD16 118
A13
119 ODT1 120
S1#
121 NC2 122
VDD17
123 VDD18 124
NCTEST
125 VREF_CA 126
VSS27
127 VSS28 128
DQ32
129 DQ36 130
DQ33
131 DQ37 132
VSS29
133 VSS30 134
DQS#4
135 DM4 136
DQS4
137 VSS31 138
VSS32
139 DQ38 140
DQ34
141 DQ39 142
DQ35
143 VSS33 144
VSS34
145 DQ44 146
DQ40
147 DQ45 148
DQ41
149 VSS35 150
VSS36
151 DQS#5 152
DM5
153 DQS5 154
VSS37
155 VSS38 156
DQ42
157 DQ46 158
DQ43
159 DQ47 160
VSS39
161 VSS40 162
DQ48
163 DQ52 164
DQ49
165 DQ53 166
VSS41
167 VSS42 168
DQS#6
169 DM6 170
DQS6
171 VSS43 172
VSS44
173 DQ54 174
DQ50
175 DQ55 176
DQ51
177 VSS45 178
VSS46
179 DQ60 180
DQ56
181 DQ61 182
DQ57
183 VSS47 184
VSS48
185 DQS#7 186
DM7
187 DQS7 188
VSS49
189 VSS50 190
DQ58
191 DQ62 192
DQ59
193 DQ63 194
VSS51
195 VSS52 196
SA0
197 EVENT# 198
VDDSPD
199 SDA 200
SA1
201 SCL 202
VTT1
203 VTT2 204
G1
205 G2 206
+
C1102
330U_D2E_2.5VM_R9M
+
C1102
330U_D2E_2.5VM_R9M
1
2
R962
10K_0402_5%
R962
10K_0402_5%
1 2
C646
2.2U_0603_6.3V4Z
C646
2.2U_0603_6.3V4Z
1
2
C632
0.1U_0402_16V4Z
C632
0.1U_0402_16V4Z
1
2
R146
1K_0402_1%
R146
1K_0402_1%
1 2
C628
0.1U_0402_16V4Z
C628
0.1U_0402_16V4Z
1
2
C637
0.1U_0402_16V4Z
C637
0.1U_0402_16V4Z
1
2
C641
0.1U_0402_16V4Z
C641
0.1U_0402_16V4Z
1
2
C633
0.1U_0402_16V4Z
C633
0.1U_0402_16V4Z
1
2
C626
0.1U_0402_16V4Z
C626
0.1U_0402_16V4Z
1
2
R961 10K_0402_5%@R961 10K_0402_5%@
1 2
C642
4.7U_0603_6.3V6K
C642
4.7U_0603_6.3V6K
1
2
C647
0.1U_0402_16V4Z
C647
0.1U_0402_16V4Z
1
2
R153 10K_0402_5% R153 10K_0402_5%
1 2
C678
0.1U_0402_16V4Z
C678
0.1U_0402_16V4Z
1
2
R147
1K_0402_1%
R147
1K_0402_1%
1 2
C638
0.1U_0402_16V4Z
C638
0.1U_0402_16V4Z
1
2
R145
1K_0402_1%
R145
1K_0402_1%
1 2
C676
0.1U_0402_16V4Z
C676
0.1U_0402_16V4Z
1
2
C110
0.1U_0402_16V4Z
C110
0.1U_0402_16V4Z
1
2
C627
1000P_0402_50V7K
C627
1000P_0402_50V7K
1
2
C640
0.1U_0402_16V4Z
@
C640
0.1U_0402_16V4Z
@
1
2
C630
0.1U_0402_16V4Z
C630
0.1U_0402_16V4Z
1
2
C644
0.1U_0402_16V4Z
C644
0.1U_0402_16V4Z
1
2
C634
0.1U_0402_16V4Z
C634
0.1U_0402_16V4Z
1
2
C645
1000P_0402_50V7K
C645
1000P_0402_50V7K
1
2

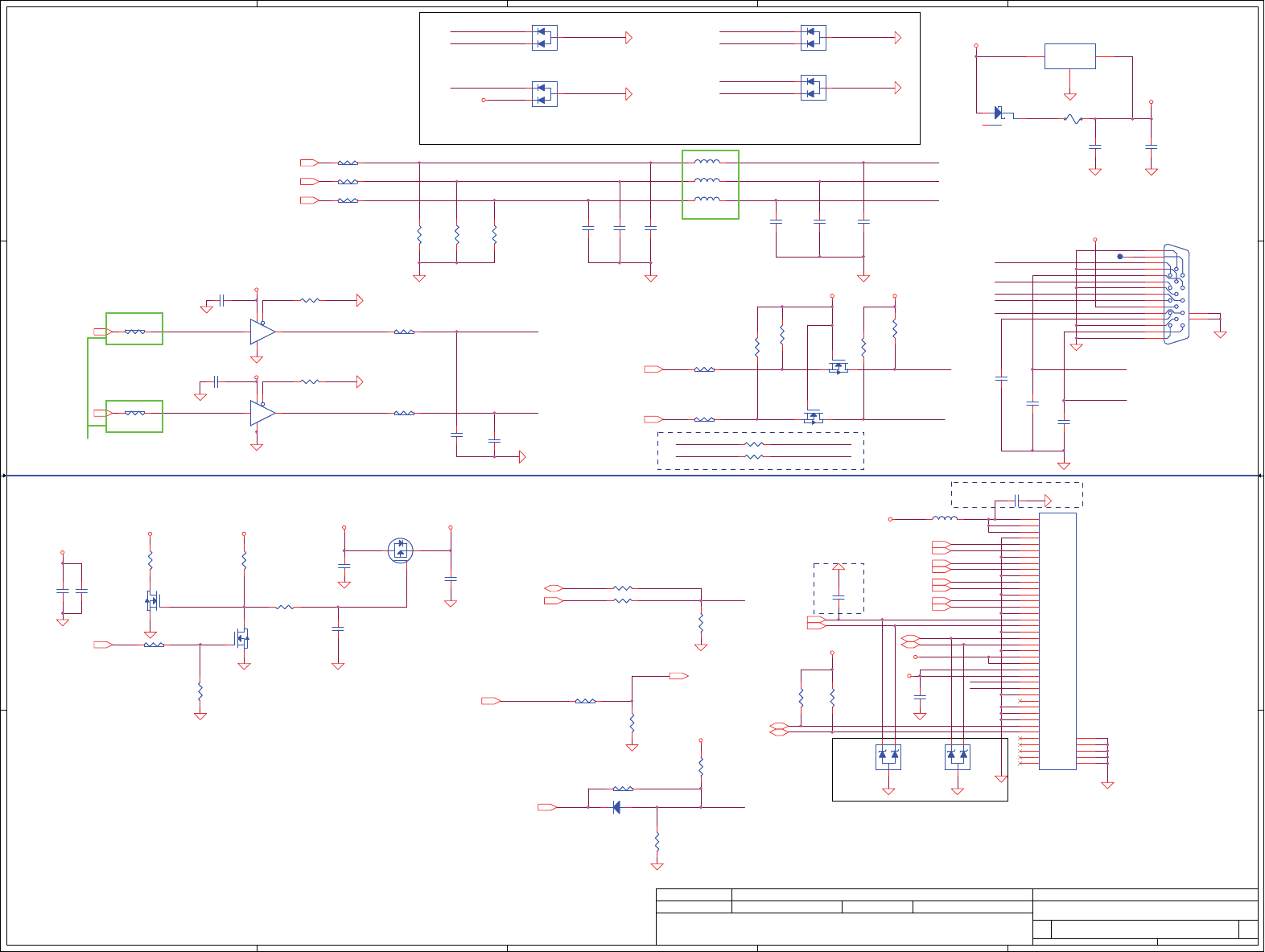

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
INVTPWM
VGA_DDC_DATA_C
RED
VGA_DDC_CLK_C
CRT_VSYNC_D
CRT_HSYNC_D
GREEN
VSYNC_L
HSYNC_L
BLUE
+5VS_CRTVCC
DISPOFF#
APU_ENBKL
B+_L
RED
GREEN
BLUECRT_B_R
CRT_G_R
APU_CRT_HSYNC_R
CRT_DATA
CRT_CLK
CRT_R_R
APU_CRT_VSYNC_R VSYNC_L
HSYNC_L
BKOFF#
VGA_DDC_DATA_C
VGA_DDC_CLK_C
INVTPWM
DISPOFF#
RED
BLUE
GREEN
HSYNC_L
VSYNC_L
VGA_DDC_DATA_C
VGA_DDC_CLK_C
USB20_N2
USB20_P2
CRT_DATA
CRT_CLK VGA_DDC_CLK_C
VGA_DDC_DATA_C
APU_LCD_CLK5
APU_LCD_DATA5
APU_TXOUT2+5
APU_TXOUT2-5
APU_TXCLK-5
APU_TXCLK+5
INVT_PWM30
APU_BLPWM5
USB20_N213
USB20_P213
APU_CRT_DDC_SDA5
APU_CRT_DDC_SCL5
APU_CRT_VSYNC5
APU_CRT_HSYNC5
APU_ENBKL5
BKOFF#30
APU_ENVDD5
ENBKL 30
DMIC_CLK26
DMIC_DATA26
APU_CRT_R5
APU_CRT_G5
APU_CRT_B5
APU_TXOUT1+5
APU_TXOUT1-5
APU_TXOUT0+5
APU_TXOUT0-5
+3VS
+LCDVDD
+5VS
+CRT_VCC
+CRT_VCC
+CRT_VCC
B+
+CRT_VCC
+LCDVDD
+5VALW
+LCDVDD
+LCDVDD
+3VS
+3VS
+CRT_VCC+3VS
+3VS
+CRT_VCC
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P10-LVDS/CRT CONN
C
10 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P10-LVDS/CRT CONN
C
10 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P10-LVDS/CRT CONN
C
10 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Camera
C R T
For EMI
W=40mils
DDC_MD2
W=40mils
Close to APU
W=60mils
W=60mils
W=60mils
LCD POWER CIRCUIT
ESD
ESD
For EMI, close to JLVDS1.
For EMI, close to JLVDS1.
For AMD check list
C1589
0.047U_0402_16V7K
C1589
0.047U_0402_16V7K
R1647
0_0402_5%
R1647
0_0402_5%
1 2
C1581
100P_0402_50V8J
@
C1581
100P_0402_50V8J
@
1
2
D1
YSDA0502C 3P C/A SOT-23
@
D1
YSDA0502C 3P C/A SOT-23
@
2
3
1
C9
22P_0402_50V8J
@
C9
22P_0402_50V8J
@
1
2
C1587
0.1U_0402_16V4Z
C1587
0.1U_0402_16V4Z
1
2
C1573
6.8P_0402_50V8J
C1573
6.8P_0402_50V8J
1
2
R1655
0_0402_5%
@R1655
0_0402_5%
@
1 2
C1578
0.1U_0402_16V4Z
C1578
0.1U_0402_16V4Z
1 2
R1639
150_0402_1%
R1639
150_0402_1%
12
C1575
6.8P_0402_50V8J
C1575
6.8P_0402_50V8J
1
2
C1579
0.1U_0402_16V4Z
C1579
0.1U_0402_16V4Z
1 2
C122680P_0402_50V7K @C122680P_0402_50V7K @
1 2
R1656
220K_0402_1%
R1656
220K_0402_1%
12
R1642
2.2K_0402_5%
R1642
2.2K_0402_5%
12
R1653
47K_0402_5%
R1653
47K_0402_5%
12
R1643
0_0603_5%
R1643
0_0603_5%
1 2
R1636
0_0402_5%
R1636
0_0402_5%
1 2
L117
NBQ160808T-800Y-N 0603
L117
NBQ160808T-800Y-N 0603
1 2
C1574
6.8P_0402_50V8J
C1574
6.8P_0402_50V8J
1
2
C1576
6.8P_0402_50V8J
C1576
6.8P_0402_50V8J
1
2
R1635
0_0402_5%
R1635
0_0402_5%
1 2
L119
FBMA-L11-201209-221LMA30T_0805
L119
FBMA-L11-201209-221LMA30T_0805
1 2
R1634
0_0402_5%
R1634
0_0402_5%
1 2
C1577
6.8P_0402_50V8J
C1577
6.8P_0402_50V8J
1
2
L116
NBQ160808T-800Y-N 0603
L116
NBQ160808T-800Y-N 0603
1 2
C1572
6.8P_0402_50V8J
C1572
6.8P_0402_50V8J
1
2
Q99B
2N7002DW-7-F_SOT363-6
Q99B
2N7002DW-7-F_SOT363-6
3
5
4
R1650
0_0603_5%
R1650
0_0603_5%
1 2
C1570
0.1U_0402_16V4Z

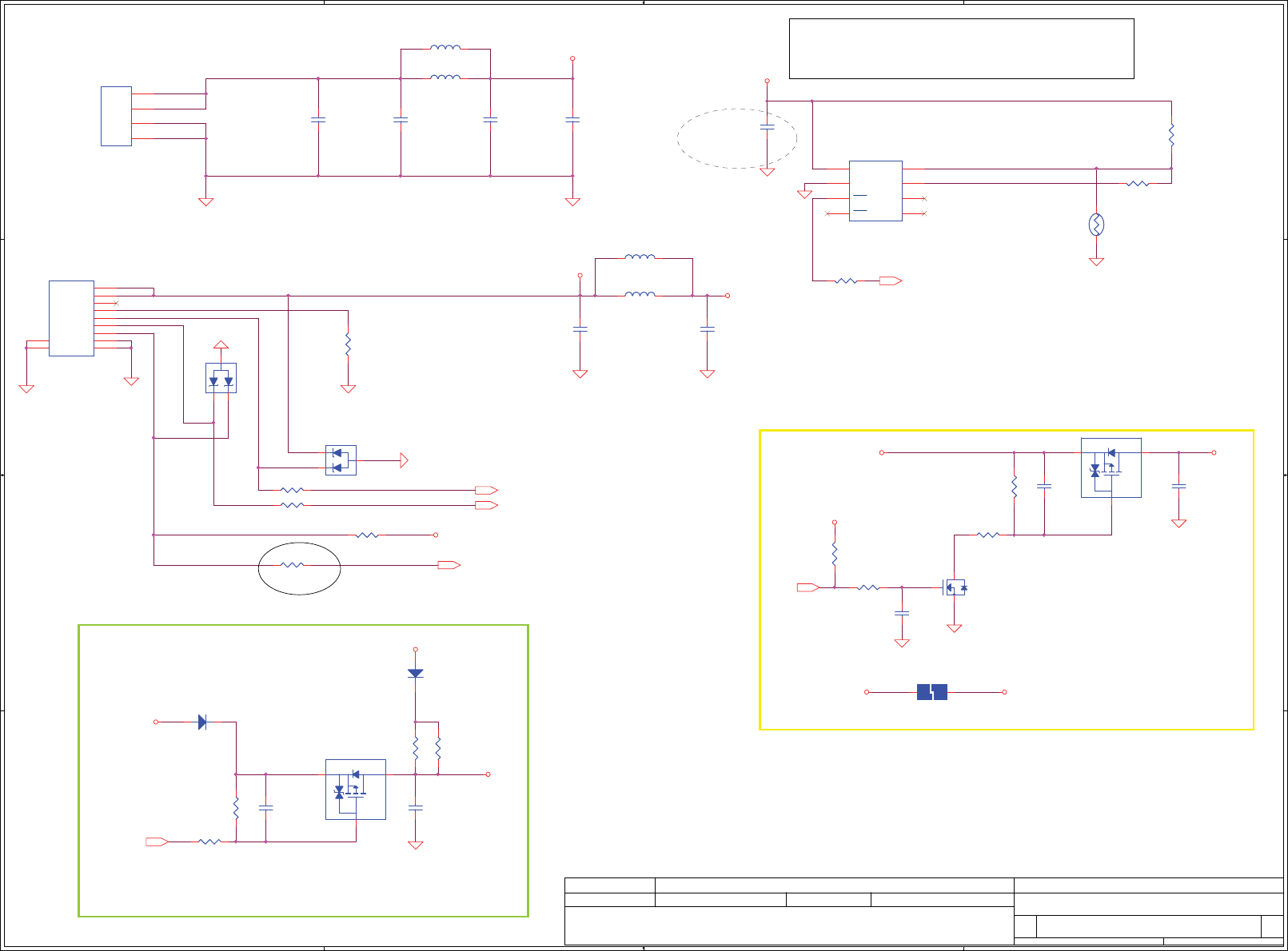

C1570
0.1U_0402_16V4Z
1
2
R1644
2.2K_0402_5%
R1644
2.2K_0402_5%
12
D5 RB751V40_SC76-2@D5 RB751V40_SC76-2@
1 2
D29
AZC199-02SPR7G_SOT23-3
@D29
AZC199-02SPR7G_SOT23-3
@
22
33
1
1
R1670
10K_0402_5%
@
R1670
10K_0402_5%
@
12
JLVDS1
HONDA_LVD-A40SFYG+
CONN@
JLVDS1
HONDA_LVD-A40SFYG+
CONN@
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
G1 41
G2 42
G3 43
G4 44
G5 45
R1638
150_0402_1%
R1638
150_0402_1%
12
D2
YSDA0502C 3P C/A SOT-23
@
D2
YSDA0502C 3P C/A SOT-23
@
2
3
1
R1659
0_0402_5%
R1659
0_0402_5%
1 2
R1654
0_0402_5%
R1654
0_0402_5%
1 2
C1590
0.1U_0402_16V4Z
@
C1590
0.1U_0402_16V4Z
@
1
2
R1672
0_0402_5%
R1672
0_0402_5%
1 2
G
D
S
Q93
SI2301BDS-T1-E3_SOT23-3
G
D
S
Q93
SI2301BDS-T1-E3_SOT23-3
2
1 3
R1660
100K_0402_5%
R1660
100K_0402_5%
12
R1652
100_0805_5%
R1652
100_0805_5%
12
C1584
15P_0402_50V8J
C1584
15P_0402_50V8J
1
2
D30
AZC199-02SPR7G_SOT23-3
@D30
AZC199-02SPR7G_SOT23-3
@
22
33
1
1
R1657
10K_0402_5%
R1657
10K_0402_5%
12
G
G
JCRT1
SUYIN_070546FR015S263ZR
CONN@
G
G
JCRT1
SUYIN_070546FR015S263ZR
CONN@
6
11
1
7
12
2
8
13
3
9
14
4
10
15
5
16
17
L118
NBQ160808T-800Y-N 0603
L118
NBQ160808T-800Y-N 0603
1 2
D4
RB491D_SOT23-3
D4
RB491D_SOT23-3
2
1
3
R1648
1K_0402_5%
R1648
1K_0402_5%
1 2
C1580
100P_0402_50V8J
C1580
100P_0402_50V8J
1
2
Q101B DMN66D0LDW-7_SOT363-6
Q101B DMN66D0LDW-7_SOT363-6
34
5
Q99A
2N7002DW-7-F_SOT363-6
Q99A
2N7002DW-7-F_SOT363-6
61
2
D3
YSDA0502C 3P C/A SOT-23
@
D3
YSDA0502C 3P C/A SOT-23
@
2
3
1
T69 PAD
T69 PAD
R1663
0_0402_5%
R1663
0_0402_5%
1 2
R1664
100K_0402_1%
R1664
100K_0402_1%
1 2
R1645
2.2K_0402_5%
R1645
2.2K_0402_5%
12
R1637
150_0402_1%
R1637
150_0402_1%
12
L115
SMD1812P075TF .75A 13.2V
L115
SMD1812P075TF .75A 13.2V
21
R31
0_0402_5%
@R31
0_0402_5%
@
1 2
Q101A
DMN66D0LDW-7_SOT363-6
Q101A
DMN66D0LDW-7_SOT363-6
61
2
R1649
0_0402_5%
R1649
0_0402_5%
1 2
U88
74AHCT1G125GW_SOT353-5
U88
74AHCT1G125GW_SOT353-5
A
2Y4
OE# 1
G
3P5
R1661
2.2K_0402_5%
R1661
2.2K_0402_5%
12
C1588
0.1U_0402_16V4Z
C1588
0.1U_0402_16V4Z
1
2
C1583
15P_0402_50V8J
C1583
15P_0402_50V8J
1
2
C1571
0.1U_0402_16V4Z
@
C1571
0.1U_0402_16V4Z
@
1
2
C1585
4.7U_0805_10V4Z
C1585
4.7U_0805_10V4Z
1
2
R1651
0_0402_5%
R1651
0_0402_5%
12
R1641
0_0402_5%
R1641
0_0402_5%
12
Q92
AP2230_SOT23-3
@
Q92
AP2230_SOT23-3
@
VIN
1
GND
2
VOUT 3
D6
YSDA0502C 3P C/A SOT-23
@
D6
YSDA0502C 3P C/A SOT-23
@
2
3
1
R1677
10K_0402_5%
R1677
10K_0402_5%
12
R1640
1K_0402_5%
R1640
1K_0402_5%
1 2
U87
74AHCT1G125GW_SOT353-5
U87
74AHCT1G125GW_SOT353-5
A
2Y4
OE# 1
G
3P5
R4
0_0402_5%
@R4
0_0402_5%
@
1 2
R1646
2.2K_0402_5%
R1646
2.2K_0402_5%
12
C1586
4.7U_0805_10V4Z
C1586
4.7U_0805_10V4Z
1
2
R1662
2.2K_0402_5%
R1662
2.2K_0402_5%
12
C1582
100P_0402_50V8J
@
C1582
100P_0402_50V8J
@
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SCLK
SDATA
HDMI_HPD_R
HDMI_CLK#_L
HDMI_CLK_L
HDMI_TX0#_L
HDMI_TX0_L
HDMI_TX1#_L
HDMI_TX1_L
HDMI_TX2#_L
HDMI_TX2_L
HDMI_TX2
HDMI_TX0
HDMI_TX0#
HDMI_CLK
HDMI_TX1
HDMI_CLK#
HDMI_TX2#
HDMI_TX1#
EN_HDMI
+HDMI_5V
APU_HDMI_DATA
APU_HDMI_HPD
HDMI_HPD_R#
SDATA
SCLK
HDMI_HPD_R
APU_HDMI_CLK
HDMI_HPD_R#
HDMI_HPD_R
HDMI_TX2
HDMI_TX2#
HDMI_TX0
HDMI_TX0#
HDMI_CLK
HDMI_TX1
HDMI_CLK#
HDMI_TX1#
HDMI_R_TX0#
HDMI_R_TX0
HDMI_R_TX2#
HDMI_R_TX2
HDMI_R_TX1#
HDMI_R_CLK#
HDMI_R_TX1
HDMI_R_CLK
SCLK
SDATA
APU_HDMI_DATA
APU_HDMI_CLK
HDMI_R_TX1
HDMI_R_TX2#
HDMI_R_TX1#
HDMI_R_CLK
HDMI_R_TX2
HDMI_R_TX0
HDMI_R_TX0#
HDMI_R_CLK#HDMI_CLK#_L
HDMI_TX0#_L
HDMI_TX1#_L
HDMI_TX2#_L
HDMI_CLK_L
HDMI_TX1_L
HDMI_TX2_L
HDMI_TX0_L
HDMI_R_TX0
HDMI_R_TX0#
HDMI_HPD_R SDATA
SCLK
HDMI_R_TX0
HDMI_R_TX0#
HDMI_R_TX2#
HDMI_R_TX1# HDMI_R_TX2
HDMI_R_TX1
HDMI_R_CLK
HDMI_R_CLK#
HDMI_R_TX1
HDMI_R_TX1# HDMI_R_TX2
HDMI_R_TX2#
HDMI_R_CLK#
HDMI_R_CLK
APU_HDMI_TX1P5
APU_HDMI_TX1N5
APU_HDMI_TX2P5
APU_HDMI_TX2N5
APU_HDMI_CLKP5
APU_HDMI_CLKN5
APU_HDMI_TX0N5
APU_HDMI_TX0P5
SUSP34,41
APU_HDMI_CLK5
APU_HDMI_DATA5
APU_HDMI_HPD5
+VSB
+5VS
+HDMI_5V_OUT
+5VS +HDMI_5V_OUT
+HDMI_5V_OUT
+3VS
+3VS
+3VS
+3VS +3VS
+3VS
+3VS
+3VS
+HDMI_5V_OUT
+HDMI_5V_OUT
+5VS
+3VS
+3VS
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P11-HDMI CONN
Custom
11 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P11-HDMI CONN
Custom
11 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P11-HDMI CONN
Custom
11 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.

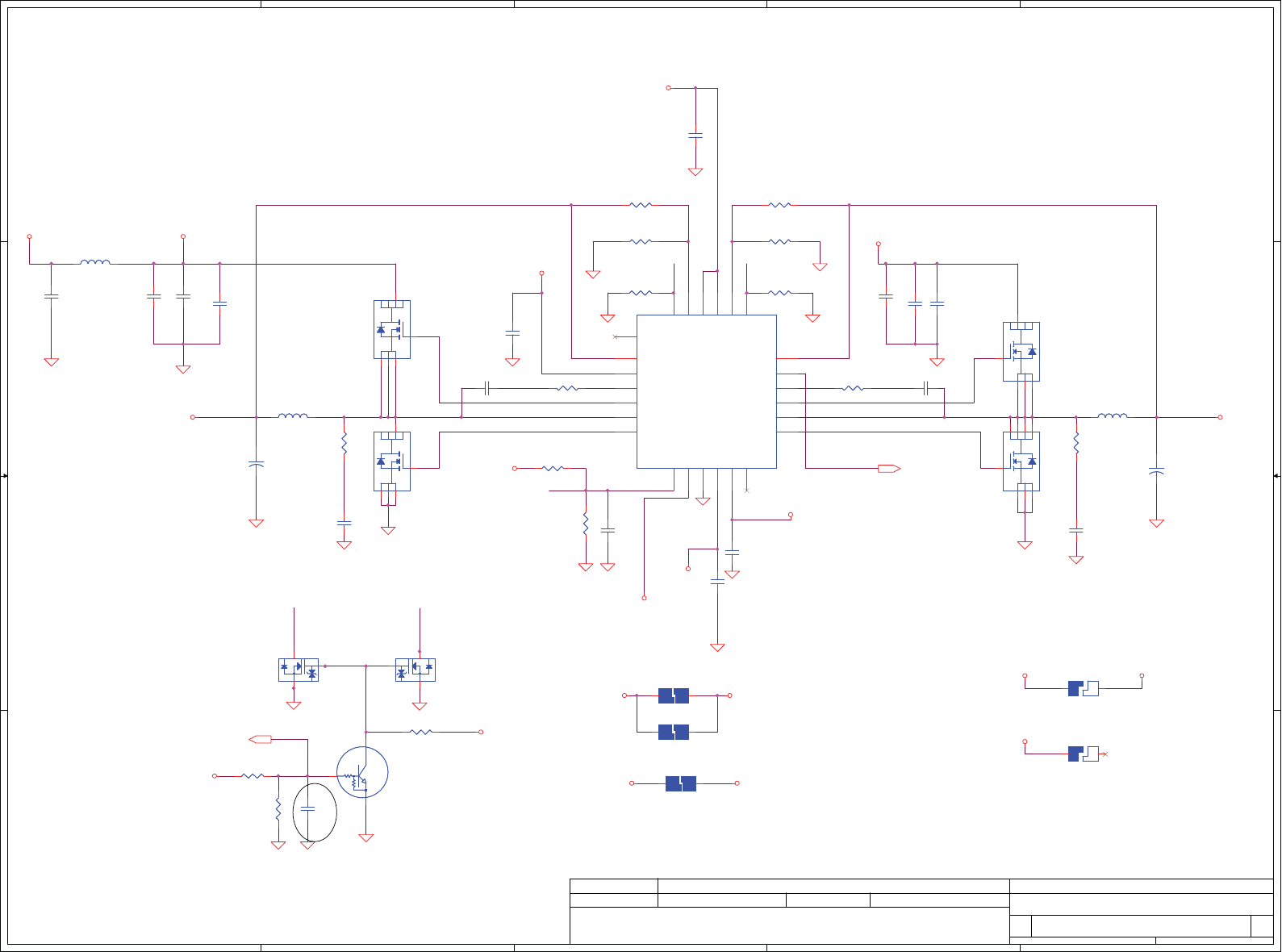

W=40mils
Trace AS Short PASS
close to U10VCC (+3VS) pins (one Pin one Capacitor)
5V PULL UP IN CONNECTER SIDE
R200, R201 place near JHDMI connect
For ESD request.
For ESD request.
Swap signal for layout route.
R200
2.2K_0402_5%
R200
2.2K_0402_5%
12
C1603 0.1U_0402_16V7KC1603 0.1U_0402_16V7K
1 2
R210 0_0402_5%
R210 0_0402_5%
1 2
R1703 4.7K_0402_5%@R1703 4.7K_0402_5%@
1 2
C1595
0.1U_0402_16V4Z
@
C1595
0.1U_0402_16V4Z
@
1
2
R1678
470K_0402_5%
R1678
470K_0402_5%
12
R1684 4.7K_0402_5%LS@R1684 4.7K_0402_5%LS@
1 2
C1600
0.1U_0402_16V4Z
LS@
C1600
0.1U_0402_16V4Z
LS@
1
2
R1701
10K_0402_5%
R1701
10K_0402_5%
12
C1608 0.1U_0402_16V7KC1608 0.1U_0402_16V7K
1 2
C1609 0.1U_0402_16V7KC1609 0.1U_0402_16V7K
1 2
S
G
D
Q95
SI3456BDV-T1-E3 1N TSOP6
S
G
D
Q95
SI3456BDV-T1-E3 1N TSOP6
3
6
2
4 5
1
C1599
0.1U_0402_16V4Z
LS@
C1599
0.1U_0402_16V4Z
LS@
1
2
R1736 4.7K_0402_5%@R1736 4.7K_0402_5%@
1 2
R208 0_0402_5%
R208 0_0402_5%
1 2
R213 0_0402_5%
R213 0_0402_5%
1 2
R1694 4.7K_0402_5%
R1694 4.7K_0402_5%
1 2
R220 0_0402_5%
R220 0_0402_5%
1 2
R1679
1.5M_0402_5%
R1679
1.5M_0402_5%
12
R205
2.2K_0402_5%
R205
2.2K_0402_5%
12
C1607 0.1U_0402_16V7KC1607 0.1U_0402_16V7K
1 2
C1602 0.1U_0402_16V7KC1602 0.1U_0402_16V7K
1 2
F2
0.5A_15V_SMD1812P050TF
F2
0.5A_15V_SMD1812P050TF
2 1
R211 0_0402_5%
R211 0_0402_5%
1 2
C1591
1U_0603_10V6K
@
C1591
1U_0603_10V6K
@
1
2
R1687 4.7K_0402_5%@R1687 4.7K_0402_5%@
1 2
R204 2.2K_0402_5%
R204 2.2K_0402_5%
1 2
C1604 0.1U_0402_16V7KC1604 0.1U_0402_16V7K
1 2
ASM1442 QFN 48P
U89
ASM1442 QFN 48P
U89
VCC3V
2
ANALOG1(REXT)
6
HPD_SOURCE
7
SDA_SOURCE
8
SCL_SOURCE
9
ANALOG2
10
GND
12 GND
5GND
1
GND
18
GND
24
GND
27
GND
31
GND
36
GND
37
GND
43
VCC3V
11
VCC3V
15
VCC3V
21
VCC3V
26
VCC3V
33
VCC3V
40
VCC3V
46
FUNCTION1
3
FUCNTION2
4
OUT_D4+
13
OUT_D4-
14
OUT_D3+
16
OUT_D3-
17
OUT_D2+
19
IN_D4+ 48
IN_D4- 47
IN_D3+ 45
IN_D3- 44
IN_D2+ 42
IN_D2- 41
IN_D1- 38
OE* 25
SCL_SINK 28
SDA_SINK 29
HPD_SINK 30
DDC_EN 32
OUT_D2-
20
OUT_D1+
22
OUT_D1-
23 IN_D1+ 39
FUNCTION3 34
FUNCTION4 35
THERMAL_GND 49
R202
2.2K_0402_5%
R202
2.2K_0402_5%
12
R223 0_0402_5%
R223 0_0402_5%
1 2
R214 0_0402_5%
R214 0_0402_5%
1 2
R1692 4.7K_0402_5%@R1692 4.7K_0402_5%@
1 2
R1688 4.7K_0402_5%@R1688 4.7K_0402_5%@
1 2
Q94
AP2230_SOT23-3
@
Q94
AP2230_SOT23-3
@
VIN
1
GND
2
VOUT 3
C1592
1U_0603_10V4Z
C1592
1U_0603_10V4Z
1
2
C1605 0.1U_0402_16V7KC1605 0.1U_0402_16V7K
1 2
D16
AZC099-04S.R7G_SOT23-6
D16
AZC099-04S.R7G_SOT23-6
I/O4
6
VDD
5
I/O3
4
I/O2 3
GND 2
I/O1 1
G
D
S
Q96
SSM3K7002FU_SC70-3
G
D
S
Q96
SSM3K7002FU_SC70-3
2
13
8
D13
L15ESDL5V0NA-4 SLP2510P8
8
D13
L15ESDL5V0NA-4 SLP2510P8
4
5
1
6
2
7
3
9
8
C1601
0.1U_0402_16V7K
C1601
0.1U_0402_16V7K
1
2
R1685 4.7K_0402_5%@R1685 4.7K_0402_5%@
1 2
C1593
0.1U_0402_16V4Z
@
C1593
0.1U_0402_16V4Z
@
1
2
C1597
10U_0805_10V4Z~D
LS@
C1597
10U_0805_10V4Z~D
LS@
1
2
R1689 3.6K_0402_1%
R1689 3.6K_0402_1%
1 2
R1704
100K_0402_5%
@
R1704
100K_0402_5%
@
12
C1606 0.1U_0402_16V7KC1606 0.1U_0402_16V7K
1 2
C1596
0.1U_0402_16V4Z
@
C1596
0.1U_0402_16V4Z
@
1
2
R1707 4.7K_0402_5%@R1707 4.7K_0402_5%@
1 2
C1594
0.1U_0402_16V4Z
@
C1594
0.1U_0402_16V4Z
@
1
2
R226 0_0402_5%
R226 0_0402_5%
1 2
R1737 4.7K_0402_5%@R1737 4.7K_0402_5%@
1 2
8
D11
L15ESDL5V0NA-4 SLP2510P8
8
D11
L15ESDL5V0NA-4 SLP2510P8
4
5
1
6
2
7
3
9
8
R201
2.2K_0402_5%
R201
2.2K_0402_5%
12
JHDMI1
SUYIN_100042MR019S153ZL
JHDMI1
SUYIN_100042MR019S153ZL
D2+
1D2_shield
2D2-
3D1+
4D1_shield
5D1-
6D0+
7D0_shield
8D0-
9CK+
10 CK_shield
11 CK-
12 CEC
13 Reserved
14 SCL
15 SDA
16 DDC/CEC_GND
17 +5V
18 HP_DET
19
GND 20
GND 21
GND 22
GND 23
G
D
S
Q84
SSM3K7002FU_SC70-3
G
D
S
Q84
SSM3K7002FU_SC70-3
2
13
R1686 4.7K_0402_5%@R1686 4.7K_0402_5%@
1 2
C1598
0.1U_0402_16V4Z
LS@
C1598
0.1U_0402_16V4Z
LS@
1
2

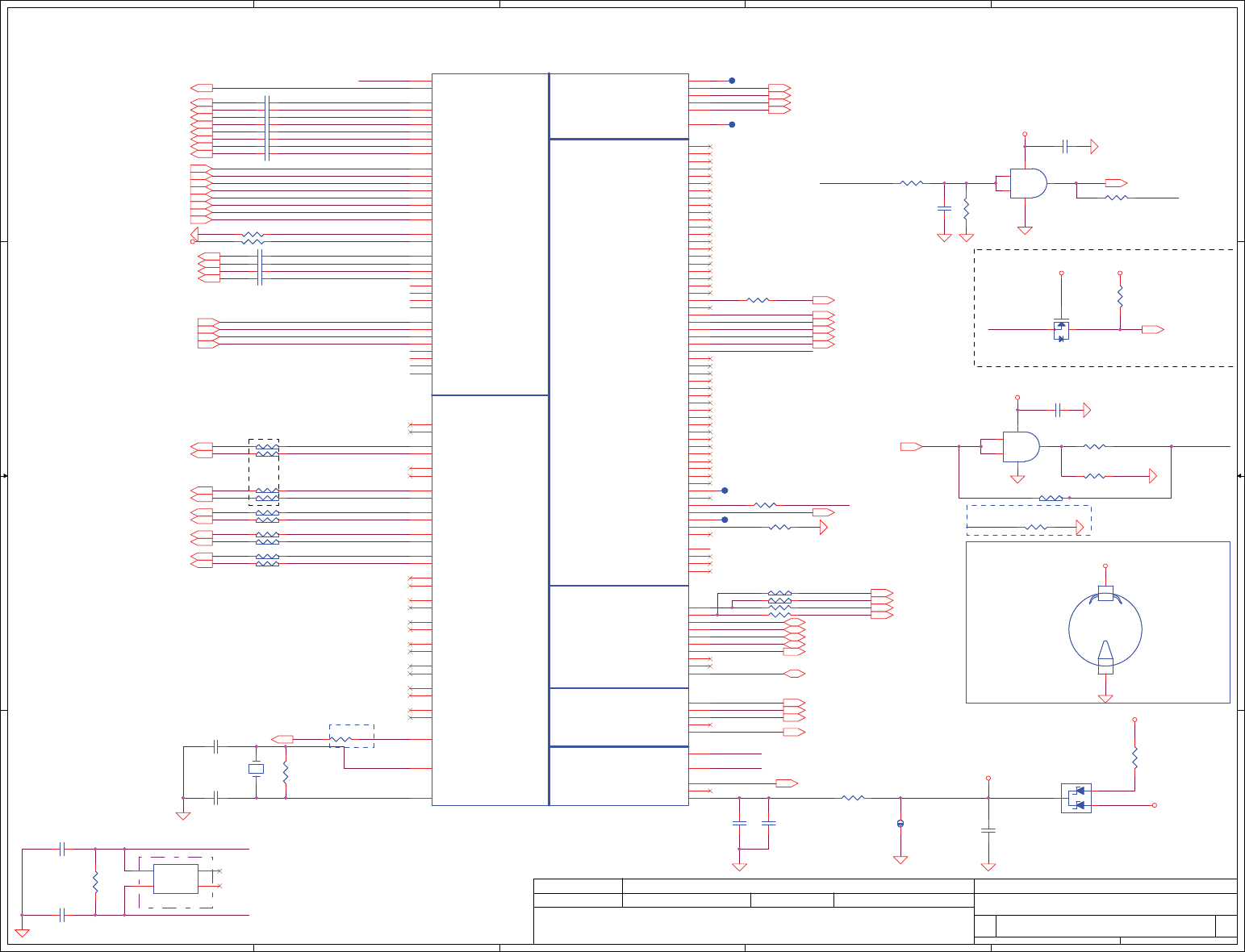

A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

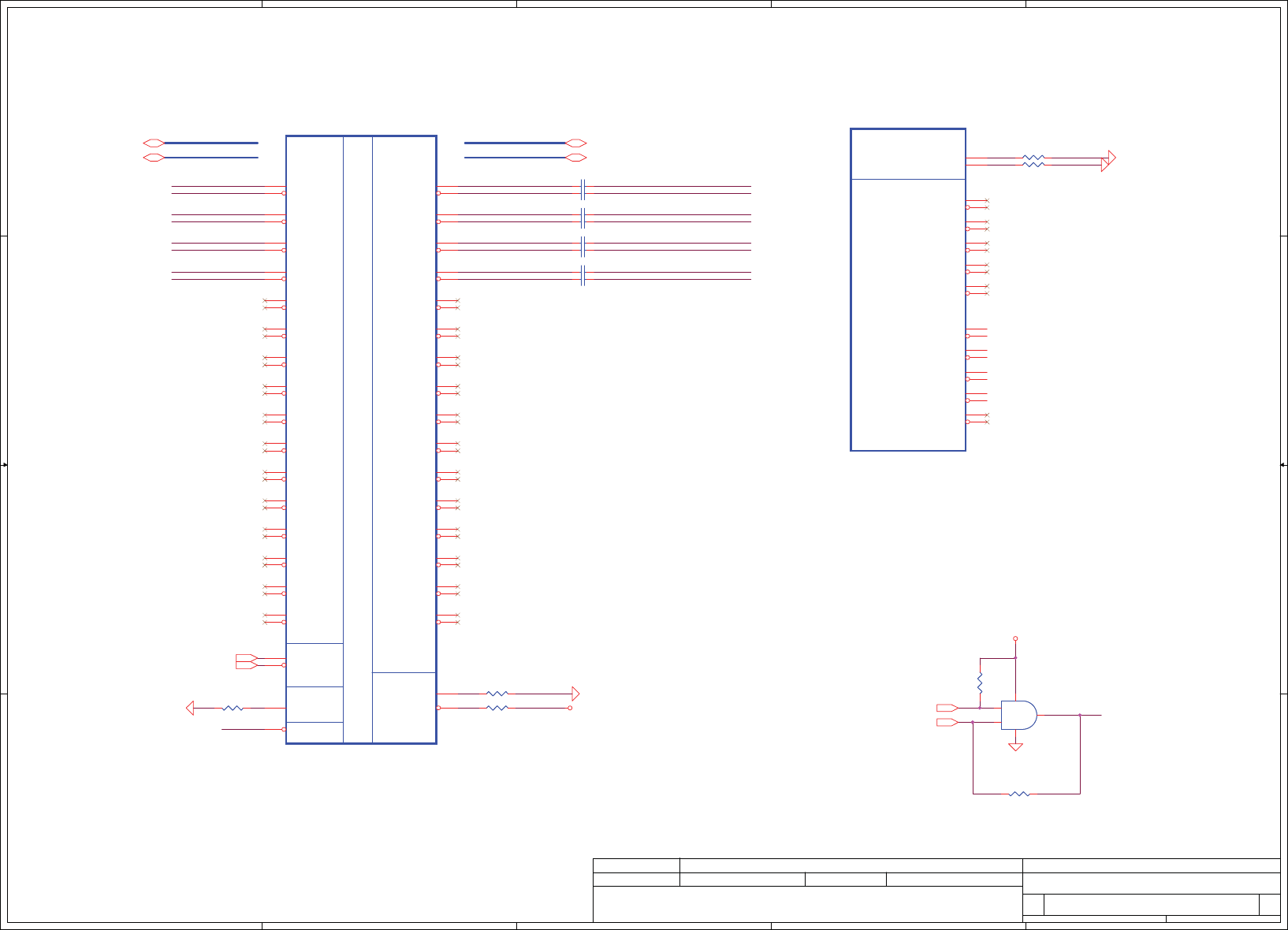

UMI_RX0P_C
UMI_RX0N_C
UMI_RX1P_C
UMI_RX1N_C
UMI_RX2P_C
UMI_RX2N_C
UMI_RX3P_C
UMI_RX3N_C
25M_CLK_X1
25M_CLK_X2
RTC_32KHI
RTC_32KHO
CLK_PCIE_MINI1#_R
CLK_PCIE_MINI1_R
CLK_PCIE_LAN#_R
CLK_PCIE_LAN_R
APU_DISP_CLKP_R
APU_DISP_CLKN_R
APU_CLKP_R
APU_CLKN_R
CLK_PCIE_VGA_R
CLK_PCIE_VGA#_R
LPCCLK0
RTC_CLK
APU_PWRGD
PE_GPIO1
RTC_32KHI
RTC_32KHO
A_RST#
PCIE_RST#
PCIE_RST#
CLK_SD_48M_R
VGA_PWRGD VGA_PWRGD_R
A_RST#
PCIE_FTX_DRX_P1
PCIE_FTX_DRX_N1
PCIE_FTX_DRX_P0
PCIE_FTX_DRX_N0
LPCCLK1
PE_GPIO0
VGA_PWRGD_R
PE_GPIO1
UMI_RX0P6
UMI_RX0N6
UMI_RX1P6
UMI_RX1N6
UMI_RX2P6
UMI_RX2N6
UMI_RX3P6
UMI_RX3N6
UMI_TX1P6
UMI_TX1N6
UMI_TX0P6
UMI_TX0N6
UMI_TX2P6
UMI_TX2N6
UMI_TX3P6
UMI_TX3N6
APU_DISP_CLKP5
APU_DISP_CLKN5
APU_CLKP5
LPC_CLK0_EC 30
LPC_FRAME# 28,30
LPC_AD1 28,30
LPC_AD2 28,30
LPC_AD0 28,30
LPC_AD3 28,30
SERIRQ 30
ALLOW_STOP# 5
FCH_PROCHOT# 5
APU_PWRGD 5
APU_RST# 5
CLK_PCIE_LAN25
CLK_PCIE_LAN#25
CLK_PCIE_MINI128
CLK_PCIE_MINI1#28
PCI_CLK1 16
PCI_CLK3 16
PCI_CLK4 16
PCI_AD27 16
PCI_AD25 16
PCI_AD24 16
PCI_AD23 16
PCI_AD26 16
APU_CLKN5
CLK_PCIE_VGA#17
CLK_PCIE_VGA17
LPC_CLK0 16
H_PWRGD_L 43
RTC_CLK 16,30
PE_GPIO1 23,30
CLK_PCI_DB 28
PLT_RST# 17,25,28
PCI_CLK2 16
VGA_PWRGD23,41,42,44
A_RST#30
PCIE_FTX_C_DRX_P025
PCIE_FTX_C_DRX_N025
PCIE_FTX_C_DRX_N128
PCIE_FTX_C_DRX_P128
PCIE_FRX_DTX_P025
PCIE_FRX_DTX_N025
PCIE_FRX_DTX_P128
PCIE_FRX_DTX_N128
LPC_CLK1 16
CLK_SD_48M27
PE_GPIO0 17
+PCIE_VDDAN
+1.8VS +3VS
+RTCVCC
+CHGRTC
+RTCBATT
+3VALW
+3VALW
+RTCBATT
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P12-FCH PCIE/PCI/ACPI/LPC/RTC
Custom
12 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P12-FCH PCIE/PCI/ACPI/LPC/RTC
Custom
12 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P12-FCH PCIE/PCI/ACPI/LPC/RTC
Custom
12 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.

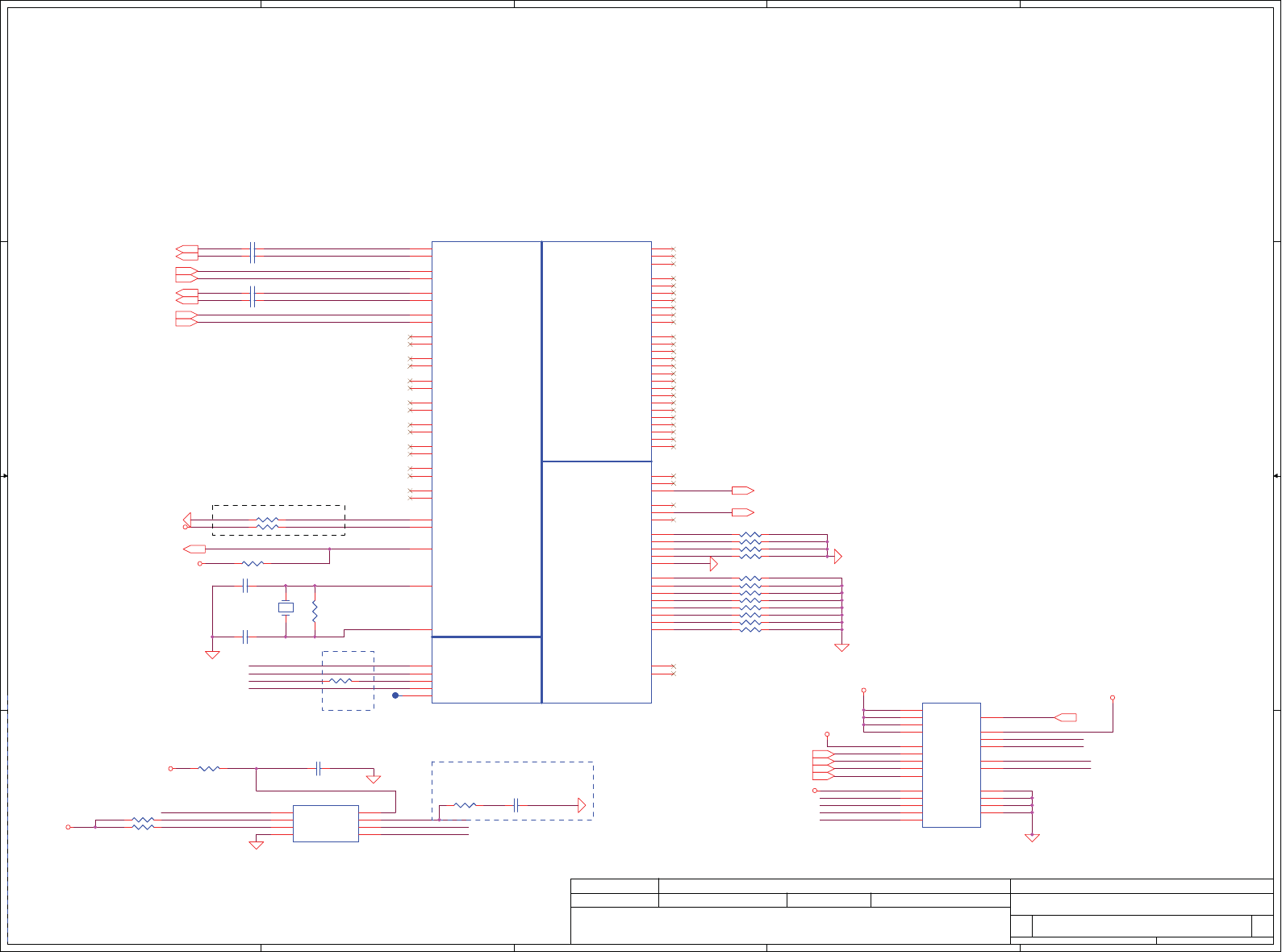

WLAN
LAN
close to FCH within 1"
W=20mils
for Clear CMOS
RTC BATT Conn.
Close to FCH
Need to check material?
For PCIE device reset on FS1 (GFX,GLAN,WLAN,LVDS Travis)
LAN
WLAN
FCH : SA000046H60 (S IC 218-0792001 A12 HUDSON-M1 FCBGA 605P)
FCH : SA000046H70 (S IC 218-0792006 A13 HUDSON-M1 FCBGA 605P)
EMI
For GPIO45 leakage
C58 0.1U_0402_16V7KC58 0.1U_0402_16V7K
1 2
C59 0.1U_0402_16V7KC59 0.1U_0402_16V7K
1 2
R179
1K_0402_5%
R179
1K_0402_5%
12
R175 33_0402_5%R175 33_0402_5%
1 2
C1271
1U_0402_6.3V4Z
C1271
1U_0402_6.3V4Z
1
2
R577 22_0402_5%R577 22_0402_5%
1 2
U28
NC7SZ08P5X_NL_SC70-5
U28
NC7SZ08P5X_NL_SC70-5
B
2
A
1Y4
P5
G
3
R570 0_0402_5%R570 0_0402_5%
1 2
R839 0_0402_5%R839 0_0402_5%
1 2
PCI I/F
PCI EXPRESS I/F
PCI CLKS
LPC
RTC
CLOCK GENERATOR
CPU
U31E
21807-A11-HUDSON-M1_FCBGA605
PCI I/F
PCI EXPRESS I/F
PCI CLKS
LPC
RTC
CLOCK GENERATOR
CPU
U31E
21807-A11-HUDSON-M1_FCBGA605
25M_X2
L27
25M_X1
L26
14M_25M_48M_OSC
L25
GPP_CLK8N
T28 GPP_CLK8P
T29
GPP_CLK7N
N27 GPP_CLK7P
N26
GPP_CLK6N
P28 GPP_CLK6P
P29
GPP_CLK5N
M25 GPP_CLK5P
P25
GPP_CLK4N
L23 GPP_CLK4P
L24
GPP_CLK3N
V25 GPP_CLK3P
T25
GPP_CLK2N
M28 GPP_CLK2P
M29
GPP_CLK1N
N28 GPP_CLK1P
N29
GPP_CLK0N
L28 GPP_CLK0P
L29
SLT_GFX_CLKN
T23 SLT_GFX_CLKP
V23
CPU_HT_CLKN
T21 CPU_HT_CLKP
V21
NB_HT_CLKN
T27 NB_HT_CLKP
T26
NB_DISP_CLKN
U28 NB_DISP_CLKP
U29
PCIE_RCLKN/NB_LNK_CLKN
P23 PCIE_RCLKP/NB_LNK_CLKP
M23
GPP_RX3N
W25 GPP_RX3P
W24 GPP_RX2N
V24 GPP_RX2P
W23 GPP_RX1N
AA24 GPP_RX1P
AA25 GPP_RX0N
Y21 GPP_RX0P
AA22
GPP_TX3N
W29 GPP_TX3P
W28 GPP_TX2N
Y27 GPP_TX2P
Y26 GPP_TX1N
Y28 GPP_TX1P
Y29 GPP_TX0N
AA29 GPP_TX0P
AA28
PCIE_CALRN
AD28 PCIE_CALRP
AD29
UMI_RX3N
AB24 UMI_RX3P
AB25 UMI_RX2N
AC25 UMI_RX2P
AC24 UMI_RX1N
AD24 UMI_RX1P
AD25 UMI_RX0N
AE23 UMI_RX0P
AE24
UMI_TX3N
AB27 UMI_TX3P
AB26 UMI_TX2N
AB28 UMI_TX2P
AB29 UMI_TX1N
AC29 UMI_TX1P
AC28 UMI_TX0N
AD27 UMI_TX0P
AD26
A_RST_L
L1 PCIE_RST_L
P1
VDDBT_RTC_G B1
INTRUDER_ALERT_L B2
RTCCLK D2
32K_X2 C2
32K_X1 C1
LDT_RST_L J24
LDT_STP_L G22
LDT_PG K19
PROCHOT_L H21
ALLOW_LDTSTP/DMA_ACTIVE_L G21
SERIRQ/GPIO48 AB19
LDRQ1_L/CLK_REQ6_L/GPIO49 AA18
LDRQ0_L J25
LFRAME_L G28
LAD3 H28
LAD2 H29
LAD1 J26
LAD0 J27
LPCCLK1 H25
LPCCLK0 H24
INTH_L/GPIO35 AJ4
INTG_L/GPIO34 AG4
INTF_L/GPIO33 AG6
INTE_L/GPIO32 AJ6
LOCK_L AD7
CLKRUN_L AB11
GNT3_L/CLK_REQ7_L/GPIO46 AB12
GNT2_L/GPO45 AH6
GNT1_L/GPO44 AJ5
GNT0_L AD12
REQ3_L/CLK_REQ5_L/GPIO42 AC12
REQ2_L/CLK_REQ8_L/GPIO41 AH4
REQ1_L/GPIO40 AH5
REQ0_L AE11
SERR_L AE4
PERR_L AE6
STOP_L AF5
PAR AC5
TRDY_L AE7
IRDY_L AJ3
DEVSEL_L AB9
FRAME_L AE8
CBE3_L AA10
CBE1_L AD5
CBE0_L AA8
AD31/GPIO31 AH3
AD30/GPIO30 AG2
AD29/GPIO29 AH2
AD28/GPIO28 AF3
AD27/GPIO27 AF4
AD26/GPIO26 AF6
AD25/GPIO25 AC11
AD24/GPIO24 AD9
AD23/GPIO23 AE9
AD22/GPIO22 AF2
AD21/GPIO21 AG1
AD20/GPIO20 AF1
AD19/GPIO19 AE3
AD18/GPIO18 AF8
AD17/GPIO17 AE1
AD16/GPIO16 AE2
AD15/GPIO15 AC6
AD14/GPIO14 AD2
AD12/GPIO12 AC1
AD11/GPIO11 AC4
AD10/GPIO10 AC3
AD9/GPIO9 AC2
AD8/GPIO8 AA6
AD7/GPIO7 AB5
AD6/GPIO6 AB6
AD5/GPIO5 AB2
AD4/GPIO4 AA5
AD3/GPIO3 AB1
AD2/GPIO2 AA3
AD1/GPIO1 AA4
AD0/GPIO0 AA1
PCIRST_L V2
PCICLK4/14M_OSC/GPO39 Y1
PCICLK3/GPO38 W4
PCICLK2/GPO37 W3
PCICLK1/GPO36 W1
PCICLK0 W2
AD13/GPIO13 AD1
CBE2_L AD8
C60 0.1U_0402_16V7KC60 0.1U_0402_16V7K
1 2
R582 0_0402_5%
@
R582 0_0402_5%
@
1 2
C53 0.1U_0402_16V7KC53 0.1U_0402_16V7K
1 2
Y4
32.768KHZ_7PF_Q13MC1461000100
Y4
32.768KHZ_7PF_Q13MC1461000100
OSC
4
OSC
1
NC 3
NC 2
R576
1M_0603_5%
R576
1M_0603_5%
C57 0.1U_0402_16V7KC57 0.1U_0402_16V7K
1 2
C61 0.1U_0402_16V7KC61 0.1U_0402_16V7K
1 2
R162 0_0402_5%R162 0_0402_5%
1 2
R573 0_0402_5%R573 0_0402_5%
1 2
CLRP1
SHORT PADS
@
CLRP1
SHORT PADS
@
12
C55 0.1U_0402_16V7KC55 0.1U_0402_16V7K
1 2
R564 0_0402_5%R564 0_0402_5%
1 2
R585 0_0402_5%R585 0_0402_5%
1 2
R575 22_0402_5%R575 22_0402_5%
1 2
R163 0_0402_5%R163 0_0402_5%
1 2
R574 0_0402_5%R574 0_0402_5%
1 2
R561 2K_0402_1%R561 2K_0402_1%
12
C67
12P_0402_50V8J
C67
12P_0402_50V8J
1 2
C1234
0.1U_0402_16V4Z
C1234
0.1U_0402_16V4Z
1 2
C62 0.1U_0402_16V7KC62 0.1U_0402_16V7K
1 2
T95PAD T95PAD
R854 0_0402_5%R854 0_0402_5%
1 2 JRTC1
SUYIN_060003HA002G202ZL
JRTC1
SUYIN_060003HA002G202ZL
+1
-
2
Y3
25MHZ_12PF_X5H025000FC1H-H
Y3
25MHZ_12PF_X5H025000FC1H-H
12
C1270
0.1U_0402_16V4Z
C1270
0.1U_0402_16V4Z
1
2
R595 0_0402_5%@R595 0_0402_5%@
1 2
R853 0_0402_5%R853 0_0402_5%
1 2
C64
10P_0402_50V8J
C64
10P_0402_50V8J
1 2
G
D
S
Q90
FDV301N_NL_SOT23-3
G
D
S
Q90
FDV301N_NL_SOT23-3
2
13
R563
20M_0603_5%
R563
20M_0603_5%
12
R655 22_0402_5%R655 22_0402_5%
1 2
T97PAD T97PAD
C1233
150P_0402_50V8J
C1233
150P_0402_50V8J
1
2
R560 590_0402_1%R560 590_0402_1%
12
C56 0.1U_0402_16V7KC56 0.1U_0402_16V7K
1 2
R830 0_0402_5%
@
R830 0_0402_5%
@
1 2
C717 0.1U_0402_16V7KC717 0.1U_0402_16V7K
1 2
R164
10K_0402_5%
R164
10K_0402_5%
12
R99 10K_0402_5%R99 10K_0402_5%
1 2
R571 0_0402_5%R571 0_0402_5%
1 2
T92PAD T92PAD
R174
8.2K_0402_5%@
R174
8.2K_0402_5%@
1 2
T96PAD T96PAD
R565 0_0402_5%R565 0_0402_5%
1 2
C54 0.1U_0402_16V7KC54 0.1U_0402_16V7K
1 2
D23
DAN202UT106_SC70-3
D23
DAN202UT106_SC70-3
2
3
1
C1199
0.1U_0402_16V4Z
C1199
0.1U_0402_16V4Z
1 2
U33
NC7SZ08P5X_NL_SC70-5
@
U33
NC7SZ08P5X_NL_SC70-5
@
B
2
A
1Y4
P5
G
3
R838 100K_0402_5%
@
R838 100K_0402_5%
@
1 2
R572 0_0402_5%R572 0_0402_5%
1 2
C65
10P_0402_50V8J
C65
10P_0402_50V8J
1 2
R864 510_0402_5%R864 510_0402_5%
1 2
C63 0.1U_0402_16V7KC63 0.1U_0402_16V7K
1 2
C66
10P_0402_50V8J
C66
10P_0402_50V8J
1 2
R109 10K_0402_5%
R109 10K_0402_5%
1 2
C1272
0.1U_0402_16V4Z
C1272
0.1U_0402_16V4Z
1
2
R569 0_0402_5%R569 0_0402_5%
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4

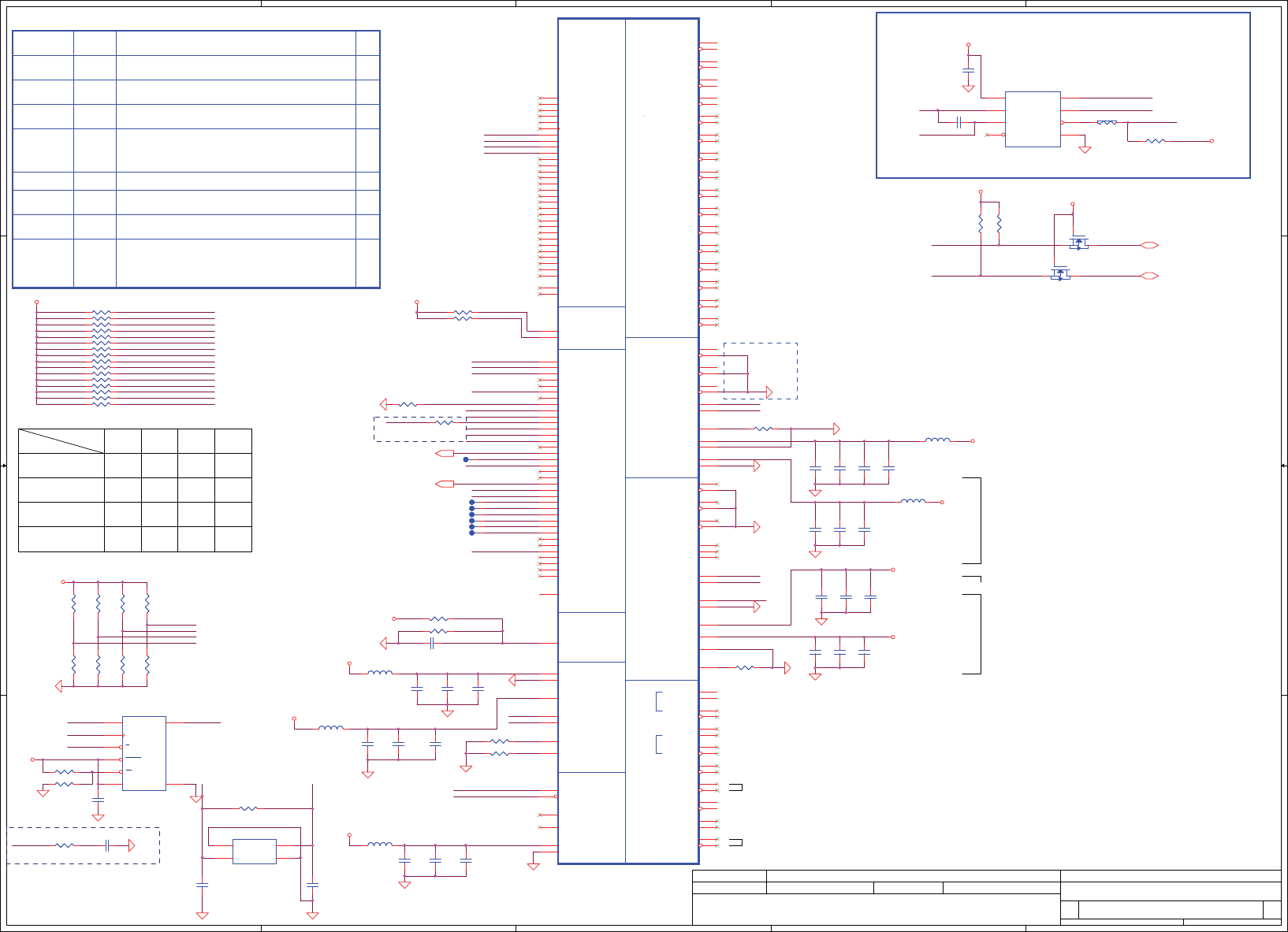

USB_RCOMP
HDA_SDOUT
FCH_PWROK
HDA_SDIN0
HDA_BITCLK
HDA_SYNC
HDA_RST#
EC_PWM2
NB_PWRGD
GPIO194
GPIO193
GPIO187
GPIO188
VGA_CLKREQ#_R
FCH_SMCLK1
FCH_SMDAT1
GPIO190
GPIO191
GPIO189
GPIO189
GPIO190
GPIO191
FCH_SID
FCH_SIC
USB_OC0#
FCH_PCIE_WAKE_R#
USB_OC1#
NB_PWRGD
FCH_SMDAT0
FCH_SMCLK0
MINI1_CLKREQ#
HDA_SDOUT
FCH_SMDAT1
HDA_BITCLK
HDA_SDIN0
EC_RSMRST#
VGA_CLKREQ#_R
FCH_SMCLK1
EC_LID_OUT#
USB_OC1#
LAN_CLKREQ#
EC_PWM3
VRAM_SEL
VRAM_SEL
PCI_PME#
PCI_PME#
FCH_PCIE_WAKE_R#
SLP_S3#30
SLP_S5#30
PBTN_OUT#30
EC_KBRST#30
EC_GA2030
EC_SMI#30
H_THERMTRIP#5
EC_RSMRST#30
HDA_SYNC_AUDIO26
HDA_RST_AUDIO#26
HDA_SDIN026
HDA_SDOUT_AUDIO26
HDA_BITCLK_AUDIO26
EC_SCI#30
LAN_CLKREQ#25
MINI1_CLKREQ#28
USB_OC0#32
FCH_SMDAT08,9,28
FCH_SMCLK08,9,28
EC_LID_OUT#30
FCH_PWROK43
VGATE 30,43
EC_PWROK 30
FCH_SIC 5
FCH_SID 5
EC_PWM2 16
USB_OC1#32
EC_PWM3 16
USB20_P0 32
USB20_N0 32
USB20_P1 32
USB20_N1 32
USB20_P2 10
USB20_N2 10
USB20_P3 28
USB20_N3 28
USB20_N4 27
USB20_P4 27
USB20_P5 26
USB20_N5 26
FCH_PCIE_WAKE#25,28,30
+3VALW
+3VALW
+3VS
+3VALW+3VALW+3VALW
+3VALW
+3VS
+3VALW
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P13-FCH HDA/USB/ACPI
Custom
13 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P13-FCH HDA/USB/ACPI
Custom
13 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P13-FCH HDA/USB/ACPI
Custom
13 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Root
Root
Root
10mils and <1"
Pull-down for enable high performance mode
20100527 (required for M1)
EHCI CTL
DEV 18, Fn 2
EHCI CTL
DEV 19, Fn 2
USB_HSD[13:0]P/N:
USB P/N pairs with trace lengths up to
10" and have a decoupling 5.6-pF capacitor
footprint placed near the USB connector or device.
VRAM_Freq : 1->900Hz
0-> 800Hz*
SKU_ID : 1->VGA*
0->UMA
SKU_ID
(GPIO189)
PX_FN
(GPIO190)
PX_Function : 1->PX Enable*
0->PX Disable
PX_SEL
(GPIO191)
PX_SEL : 1->PX 3.0*
0->PX 4.0
UMA
GPIO 189 190 191
0
DISO
PX3.0
PX4.0
0 1
1
1
1
0
1
1
1
1
0
USB1
USB2
WLAN(BT)
CardReder
CMOS
USB3
R626 2.2K_0402_5%
@
R626 2.2K_0402_5%
@
1 2
R818 10K_0402_5%R818 10K_0402_5%
1 2
R608 10K_0402_5%
@
R608 10K_0402_5%
@
1 2
R583 33_0402_5%R583 33_0402_5%
1 2
R587 10K_0402_5%R587 10K_0402_5%
1 2
R404 100K_0402_5%
@
R404 100K_0402_5%
@
1 2
R591 10K_0402_5%R591 10K_0402_5%
1 2
R586 10K_0402_5%R586 10K_0402_5%
12
R910
10K_0402_5%
VGA@
R910
10K_0402_5%
VGA@
12
R165 33_0402_5%R165 33_0402_5%
1 2
C112
0.1U_0402_16V7K
@
C112
0.1U_0402_16V7K
@
1
2
USB OC
ACPI/WAKE UP EVENTS
USB MISC
USB 1.1
USB 2.0
GBE LAN
GPIO
EMBEDDED CTRL
HD AUDIO
U31A
21807-A11-HUDSON-M1_FCBGA605
USB OC
ACPI/WAKE UP EVENTS
USB MISC
USB 1.1
USB 2.0
GBE LAN
GPIO
EMBEDDED CTRL
HD AUDIO
U31A
21807-A11-HUDSON-M1_FCBGA605
PS2M_CLK/GPIO192
E27 PS2M_DAT/GPIO191
F29 PS2KB_CLK/GPIO190
F28 PS2KB_DAT/GPIO189
D27
FC_RST_L/GPO160
G29 SPI_CS2_L/GBE_STAT2/GPIO166
F21 PS2_CLK/SCL4/GPIO188
E24 PS2_DAT/SDA4/GPIO187
E23
GBE_PHY_INTR
V7 GBE_PHY_RST_L
M9 GBE_PHY_PD
P4 GBE_TXCTL/TXEN
M7 GBE_TXD0
P7 GBE_TXD1
T7 GBE_TXD2
P9 GBE_TXD3
M5 GBE_TXCLK
P5 GBE_RXERR
V5 GBE_RXCTL/RXDV
T5 GBE_RXD0
U2 GBE_RXD1
T2 GBE_RXD2
U3 GBE_RXD3
U1 GBE_RXCLK
T9 GBE_MDIO
L5 GBE_MDCK
L6 GBE_CRS
T4 GBE_COL
T1
AZ_RST_L
P2 AZ_SYNC
N2 AZ_SDIN3/GPIO170
M4 AZ_SDIN2/GPIO169
M1 AZ_SDIN1/GPIO168
M2 AZ_SDIN0/GPIO167
L2 AZ_SDOUT
N1 AZ_BITCLK
M3
USB_OC0_L/TRST_L/GEVENT12_L
F8 USB_OC1_L/TDI/GEVENT13_L
E7 USB_OC2_L/TCK/GEVENT14_L
F7 USB_OC3_L/AC_PRES/TDO/GEVENT15_L
E8 USB_OC4_L/IR_RX0/GEVENT16_L
D4 USB_OC5_L/IR_TX0/GEVENT17_L
E4 USB_OC6_L/IR_TX1/GEVENT6_L
D1 BLINK/USB_OC7_L/GEVENT18_L
H3
CLK_REQG_L/GPIO65_OSCIN
AA20 GBE_STAT0/GEVENT11_L
K3 GBE_LED2/GEVENT10_L
G5 GBE_LED1/GEVENT9_L
D7 GBE_LED0/GPIO183
D5 DDR3_RST_L/GEVENT7_L
H4 SMARTVOLT2/SHUTDOWN_L/GPIO51
AJ21 IR_LED_L/LLB_L/GPIO184
E1 CLK_REQ1_L/FANOUT4_GPIO61
AB18 CLK_REQ2_L/FANIN4_GPIO62
AH21 SDA1_GPIO228
F4 SCL1_GPIO227
F5 SDA0_GPIO47
AE22 SCL0_GPIO43
AD22 SPKR_GPIO66
AF19 SATA_IS5_L/FANIN3/GPIO59
AE19 SATA_IS4_L/FANOUT3/GPIO55
AF20 CLK_REQ0_L/SATA_IS3_L/GPIO60
AC18 SMARTVOLT1/SATA_IS2_L/GPIO50
AB21 CLK_REQ3_L/SATA_IS1_L/GPIO63
AA16 CLK_REQ4_L/SATA_IS0_L/GPIO64
AD19
RSMRST_L
G1
NB_PWRGD
AC19 THRMTRIP_L/SMBALERT_L/GEVENT2_L
J6 IR_RX1/GEVENT20_L
F3 WAKE_L/GEVENT8_L
H6 SYS_RESET_L/GEVENT19_L
J1 GEVENT5_L
H2 LPC_SMI_L/GEVENT23_L
J29 LPC_PME_L/GEVENT3_L
K2 KBRST_L/GEVENT1_L
AE21 GA20IN/GEVENT0_L
AD21 TEST2
F6 TEST1/TMS
C4 TEST0
B3 SUS_STAT_L
G6 PWR_GOOD
H5 PWR_BTN_L
F2 SLP_S5_L
H1 SLP_S3_L
F1 SPI_CS3_L/GBE_STAT1/GEVENT21_L
D3 RI_L/GEVENT22_L
K1 PCI_PME_L/GEVENT4_L
J2
KSO_17/GPIO226 B22
KSO_16/GPIO225 A22
KSO_15/GPIO224 C22
KSO_14/GPIO223 D22
KSO_13/GPIO222 A23
KSO_12/GPIO221 B23
KSO_11/GPIO220 C24
KSO_10/GPIO219 B24
KSO_9/GPIO218 D24
KSO_8/GPIO217 A25
KSO_7/GPIO216 B25
KSO_6/GPIO215 A24
KSO_5/GPIO214 C26
KSO_4/GPIO213 A26
KSO_3/GPIO212 D26
KSO_2/GPIO211 B27
KSO_1/GPIO210 A27
KSO_0/GPIO209 B28
KSI_7/GPIO208 C28
KSI_6/GPIO207 C29
KSI_5/GPIO206 D28
KSI_4/GPIO205 D29
KSI_3/GPIO204 E29
KSI_2/GPIO203 E28
KSI_1/GPIO202 G25
KSI_0/GPIO201 G24
EC_PWM3/EC_TIMER3/GPIO200 E21
EC_PWM2/EC_TIMER2/GPIO199 F22
EC_PWM1/EC_TIMER1/GPIO198 E22
EC_PWM0/EC_TIMER0/GPIO197 F25
SDA3_LV/GPIO196 E26
SCL3_LV/GPIO195 B26
SDA2/GPIO194 F23
SCL2/GPIO193 D25
USB_HSD0N B16
USB_HSD0P A16
USB_HSD1N A17
USB_HSD1P B17
USB_HSD2N J18
USB_HSD2P J16
USB_HSD3N E16
USB_HSD3P E18
USB_HSD4N A14
USB_HSD4P B14
USB_HSD5N C16
USB_HSD5P D16
USB_HSD6N G18
USB_HSD6P G16
USB_HSD7N G14
USB_HSD7P G12
USB_HSD8N C13
USB_HSD8P D13
USB_HSD9N B13
USB_HSD9P A13
USB_HSD10N J14
USB_HSD10P J12
USB_HSD11N E12
USB_HSD11P E14
USB_HSD12N E11
USB_HSD12P F11
USB_HSD13N A12
USB_HSD13P B12
USB_FSD0N J8
USB_FSD0P/GPIO185 H9
USB_FSD1N H11
USB_FSD1P/GPIO186 J10
USB_RCOMP G19
USBCLK/14M_25M_48M_OSC A10
R603 10K_0402_5%R603 10K_0402_5%
1 2
R579 10K_0402_5%@R579 10K_0402_5%@
1 2
R599 2.2K_0402_5%R599 2.2K_0402_5%
1 2
T84 PADT84 PAD
R580 0_0402_5%@R580 0_0402_5%@12
R607 10K_0402_5%
@
R607 10K_0402_5%
@
1 2
R609 10K_0402_5%R609 10K_0402_5%
1 2
R173 10K_0402_5%
@
R173 10K_0402_5%
@
1 2
R597 4.7K_0402_5%R597 4.7K_0402_5%
1 2
R871 10K_0402_5%R871 10K_0402_5%
1 2
R590 33_0402_5%R590 33_0402_5%
1 2
R872 10K_0402_5%R872 10K_0402_5%
1 2
R930 10K_0402_5%
R930 10K_0402_5%
1 2
R593 10K_0402_5%R593 10K_0402_5%
1 2
C111 0.1U_0402_16V7K
@
C111 0.1U_0402_16V7K
@
1 2
R911
10K_0402_5%
VGA@
R911
10K_0402_5%
VGA@
12
R589 33_0402_5%R589 33_0402_5%
1 2
T85 PADT85 PAD
R914
10K_0402_5%
UMA@
R914
10K_0402_5%
UMA@
12
R592 10K_0402_5%R592 10K_0402_5%
1 2
R588 10K_0402_5%R588 10K_0402_5%
1 2
T83 PADT83 PAD
R627
0_0402_5%
R627
0_0402_5%
12
R584 10K_0402_5%R584 10K_0402_5%
12
R817 10K_0402_5%R817 10K_0402_5%
1 2
R913
10K_0402_5%
UMA@
R913
10K_0402_5%
UMA@
12
R605 10K_0402_5%
R605 10K_0402_5%
1 2
U30
NC7SZ08P5X_NL_SC70-5
@
U30
NC7SZ08P5X_NL_SC70-5
@
B2
A1
Y
4
P5
G
3
R596 10K_0402_5%R596 10K_0402_5%
1 2
R581 0_0402_5%R581 0_0402_5%
12
T86 PADT86 PAD
R578
11.8K_0402_1%
R578
11.8K_0402_1%
1 2
R600 10K_0402_5%R600 10K_0402_5%
1 2
T82 PADT82 PAD
R604 10K_0402_5%R604 10K_0402_5%
1 2
R606 150_0402_1%R606 150_0402_1%
1 2
R598 2.2K_0402_5%R598 2.2K_0402_5%
1 2
R932 10K_0402_5%R932 10K_0402_5%
1 2
R915
10K_0402_5%
VGA@
R915
10K_0402_5%
VGA@
12
R912
10K_0402_5%
UMA@
R912
10K_0402_5%
UMA@
12
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
SATA_CALRN
SATA_ITX_C_DRX_P0
SATA_ITX_C_DRX_N0
SATA_ITX_C_DRX_N1
SATA_ITX_C_DRX_P1
SATA_CALRP
TEMPIN0
TEMPIN1
TEMPIN2
GPIO178
GPIO179
GPIO182
GPIO180
GPIO176
GPIO177
GPIO175
GPIO181
25M_SATA_X1
25M_SATA_X2
FCH_SPI_WP#
FCH_+SPI_VCC
FCH_SPI_HOLD#
FCH_SPICS#/FSEL#_R
FCH_SPICS#/FSEL#
FCH_SI_SPI_SO_R
FCH_SI_SPI_SO
FCH_SO_SPI_SI_R
FCH_SO_SPI_SI
FCH_SPICLK_RRFCH_SPICLK
FCH_SPICLK_R
EC_ON
FCH_SPICLK_R
FCH_SPICS#/FSEL#
FCH_SPICS#/FSEL#_R
FCH_SI_SPI_SO_R
FCH_SO_SPI_SI_R
FCH_SI_SPI_SO
FCH_SO_SPI_SI
KSI4
KSI5
KSI6
KSI7
FCH_SPICLK
SATA_LED#28
SATA_ITX_DRX_P029
SATA_ITX_DRX_N029
SATA_DTX_C_IRX_N029
SATA_DTX_C_IRX_P029
SATA_ITX_DRX_P129
SATA_ITX_DRX_N129
SATA_DTX_C_IRX_N129
SATA_DTX_C_IRX_P129
BT_ON 28
WL_OFF# 28
EC_ON 30,33
KSI430,31
KSI530,31
KSI630,31
KSI730,31
+AVDD_SATA
+3VS
+3V_SPI
+3V_SPI
+3VALW
+3V_SPI
+3VALW
+3VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P14-FCH-SATA/SPI
Custom
14 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P14-FCH-SATA/SPI
Custom
14 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P14-FCH-SATA/SPI
Custom
14 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
VIN6/GBE_STAT3/GPIO181
Enable integrated pull-down/up and leave unconnected
HDD
ODD
10 mils and < 1"
EMI
EMI
U32
MX25L1606EM2I-12G_SO8
SA000041N00
@
U32
MX25L1606EM2I-12G_SO8
SA000041N00
@
CS#
1
SO 2
WP#
3
GND
4SI 5
SCLK 6
HOLD#
7
VCC 8
C107
22P_0402_50V8J
@
C107
22P_0402_50V8J
@
1 2
C648 0.01U_0402_16V7KC648 0.01U_0402_16V7K
1 2
Y7
25MHZ_20PF_7A25000012
@
Y7
25MHZ_20PF_7A25000012
@
12
R861
1M_0603_5%
@
R861
1M_0603_5%
@
C785
0.1U_0402_16V4Z
@
C785
0.1U_0402_16V4Z
@
1 2
R610 1K_0402_1%R610 1K_0402_1%
1 2
R504 0_0603_5%
@
R504 0_0603_5%
@
1 2
R623 10K_0402_5%@R623 10K_0402_5%@12
R618 10K_0402_5%R618 10K_0402_5%
12
SPI ROM
GPIOD
SERIAL ATA
HW MONITOR
U31B
21807-A11-HUDSON-M1_FCBGA605
SPI ROM
GPIOD
SERIAL ATA
HW MONITOR
U31B
21807-A11-HUDSON-M1_FCBGA605
ROM_RST_L/GPIO161
G2 SPI_CS1_L/GPIO165
K9 SPI_CLK/GPIO162
K4 SPI_DO/GPIO163
E2 SPI_DI/GPIO164
J5
SATA_X2
AC16
SATA_X1
AD16
SATA_ACT_L/GPIO67
AD11
SATA_CALRN
AA14 SATA_CALRP
AB14
SATA_RX5P
AJ19 SATA_RX5N
AH19
SATA_TX5N
AH18 SATA_TX5P
AJ18
SATA_RX4P
AH17 SATA_RX4N
AJ17
SATA_TX4N
AF17 SATA_TX4P
AG17
SATA_RX3P
AF14 SATA_RX3N
AG14
SATA_TX3N
AJ14 SATA_TX3P
AH14
SATA_RX2P
AH12 SATA_RX2N
AJ12
SATA_TX2N
AF12 SATA_TX2P
AG12
SATA_RX1P
AF10 SATA_RX1N
AG10
SATA_TX1N
AJ10 SATA_TX1P
AH10
SATA_RX0P
AH8 SATA_RX0N
AJ8
SATA_TX0N
AJ9 SATA_TX0P
AH9
NC2 Y2
NC1 G27
VIN7/GBE_LED3/GPIO182 A8
VIN6/GBE_STAT3/GPIO181 B8
VIN5/GPIO180 B7
VIN4/GPIO179 A7
VIN3/GPIO178 C5
VIN2/GPIO177 A4
VIN1/GPIO176 B4
VIN0/GPIO175 A3
TEMP_COMM C7
TEMPIN3/TALERT_L/GPIO174 B5
TEMPIN2/GPIO173 A5
TEMPIN1/GPIO172 A6
TEMPIN0/GPIO171 B6
FANIN2/GPIO58 W8
FANIN1/GPIO57 V9
FANIN0/GPIO56 W7
FANOUT2/GPIO54 Y9
FANOUT1/GPIO53 W6
FANOUT0/GPIO52 W5
FC_ADQ15/GPIOD143 AH26
FC_ADQ14/GPIOD142 AG25
FC_ADQ13/GPIOD141 AJ25
FC_ADQ12/GPIOD140 AJ24
FC_ADQ11/GPIOD139 AF23
FC_ADQ10/GPIOD138 AJ23
FC_ADQ9/GPIOD137 AH22
FC_ADQ8/GPIOD136 AF21
FC_ADQ7/GPIOD135 AG21
FC_ADQ6/GPIOD134 AJ22
FC_ADQ5/GPIOD133 AH23
FC_ADQ4/GPIOD132 AG23
FC_ADQ3/GPIOD131 AH24
FC_ADQ2/GPIOD130 AH25
FC_ADQ1/GPIOD129 AJ26
FC_ADQ0/GPIOD128 AJ27
FC_INT2/GPIOD147 AH27
FC_INT1/GPIOD144 AF29
FC_CE2_L/GPIOD150 AE29
FC_CE1_L/GPIOD149 AF27
FC_WE_L/GPIOD148 AG26
FC_AVD_L/GPIOD146 AG29
FC_OE_L/GPIOD145 AF28
FC_FBCLKIN AF26
FC_FBCLKOUT AG28
FC_CLK AH28
R510
0_0402_5%
@R510
0_0402_5%
@
1 2
R611 931_0402_1%R611 931_0402_1%
1 2
R622 10K_0402_5%R622 10K_0402_5%
12
C649 0.01U_0402_16V7KC649 0.01U_0402_16V7K
1 2
R612 10K_0402_5%R612 10K_0402_5%
12
R617 10K_0402_5%R617 10K_0402_5%
12
R614 10K_0402_5%R614 10K_0402_5%
12
C658 0.01U_0402_16V7KC658 0.01U_0402_16V7K
1 2
R491 4.7K_0402_5%@R491 4.7K_0402_5%@
1 2
R613 10K_0402_5%R613 10K_0402_5%
12
R616 10K_0402_5%
@
R616 10K_0402_5%
@
1 2
C784 0.1U_0402_16V4Z
@
C784 0.1U_0402_16V4Z
@
1 2
R620 10K_0402_5%R620 10K_0402_5%
12
U11
PI3V512QE_QSOP24
@
U11
PI3V512QE_QSOP24
@
VDD
4
YA 2
YB 5
YC 6
YD 8
GND 3
VDD
1
GND 7
VDD
9
GND 10
YE 11
SEL 12
E1
13
E0
14
D1
15 C1
16
D0
17 C0
18
VDD
19
GND 20
B1
21
B0
22
A1
23
A0
24
R507 4.7K_0402_5%@R507 4.7K_0402_5%@
1 2
T78PADT78PAD
R615 10K_0402_5%R615 10K_0402_5%
12
R624 10K_0402_5%R624 10K_0402_5%
12
C106
22P_0402_50V8J
@
C106
22P_0402_50V8J
@
1 2
R511
0_0402_5%
@
R511
0_0402_5%
@
1 2
R619 10K_0402_5%R619 10K_0402_5%
12
R621 10K_0402_5%R621 10K_0402_5%
12
C656 0.01U_0402_16V7KC656 0.01U_0402_16V7K
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
+VDDPL33_PCIE
+VDDPL_33_SATA
+AVDD_USB
+VDDAN_11_USB
+VDDAN_11_CLK
+VDDIO_18_FC
+VDDCR_11_USB
+AVDD_SATA
+VDDXL_33_S
+3VS
+VDDPL33
+3VS
+3VALW
+1.1VALW
+1.1VS
+1.1VS
+1.1VS
+3VALW
+VDDPL11
+VDDAN33_HWM
+VDDIO_AZ
+VDDPL11
+1.1VALW
+VDDAN33_HWM
+3VALW
+VDDIO_AZ +3VALW
+1.8VS
+3VS
+1.1VS
+3VS
+AVDD_USB
+VDDPL33
+1.1VALW
+3VS
+VDDPL_33_SATA
+AVDD_SATA
+1.1VS
+PCIE_VDDAN
+VDDCR_11_USB
+3VALW
+1.1VALW
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P15-FCH PWR
Custom
15 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P15-FCH PWR
Custom
15 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P15-FCH PWR
Custom
15 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
For 3V AZ device
GPIO I/F implemented: tied to +1.8V_S0
GPIO I/F not implemented: tied to
+1.8V_S0 or 0 ohm to ground
Reserve
42mA
0.16mA
22.5mA
1115.6mA
15.5mA
1345.2mA
534.5mA
88.6mA 5mA
11.4mA
16.1mA
65.3mA
46.5mA
58mA
15.3mA
49.5mA
165.2mA
382.9mA
979.4mA
R635 0_0603_5%R635 0_0603_5%
1 2
C118
1U_0402_6.3V6K
C118
1U_0402_6.3V6K
1
2
C775
0.1U_0402_16V7K
C775
0.1U_0402_16V7K
1
2
C72
0.1U_0402_16V7K
C72
0.1U_0402_16V7K
1
2
C83
1U_0402_6.3V6K
C83
1U_0402_6.3V6K
1
2
L55
FBMA-L11-160808-221LMT_2P
L55
FBMA-L11-160808-221LMT_2P
12
C71
10U_0603_6.3V6M
C71
10U_0603_6.3V6M
1
2
C105
10U_0603_6.3V6M
C105
10U_0603_6.3V6M
1
2
C743
10U_0603_6.3V6M
C743
10U_0603_6.3V6M
1
2
C78
1U_0402_6.3V6K
C78
1U_0402_6.3V6K
1
2
C70
0.1U_0402_16V7K
C70
0.1U_0402_16V7K
1
2
C80
0.1U_0402_16V7K
C80
0.1U_0402_16V7K
1
2
C738
0.1U_0402_16V7K
C738
0.1U_0402_16V7K
1
2
C776
0.1U_0402_16V7K
C776
0.1U_0402_16V7K
1
2
C113
10U_0603_6.3V6M
C113
10U_0603_6.3V6M
1
2
C79
0.1U_0402_16V7K
C79
0.1U_0402_16V7K
1
2
C93
2.2U_0603_6.3V6K
C93
2.2U_0603_6.3V6K
1
2
C100
2.2U_0603_6.3V6K
C100
2.2U_0603_6.3V6K
1
2
C777 2.2U_0603_6.3V6KC777 2.2U_0603_6.3V6K
1 2
C778
1U_0402_6.3V6K
C778
1U_0402_6.3V6K
1
2
L50
FBMA-L11-201209-221LMA30T_0805
L50
FBMA-L11-201209-221LMA30T_0805
12
C69
0.1U_0402_16V7K
C69
0.1U_0402_16V7K
1
2
L45
FBMA-L11-201209-221LMA30T_0805
L45
FBMA-L11-201209-221LMA30T_0805
12
C86
10U_0603_6.3V6M
C86
10U_0603_6.3V6M
1
2
C90
0.1U_0402_16V7K
C90
0.1U_0402_16V7K
1
2
+
C119
330U_D2_2.5VY_R9M
+
C119
330U_D2_2.5VY_R9M
1
2
C75
1U_0402_6.3V6K
C75
1U_0402_6.3V6K
1
2
C95
2.2U_0603_6.3V6K
C95
2.2U_0603_6.3V6K
1
2
PCI/GPIO I/O
PCI EXPRESS
GBE LAN
FLASH I/O
CORE S5CORE S0 CLKGEN I/O 3.3V_S5 I/O
SERIAL ATA
POWER
PLL
USB I/O
U31C
21807-A11-HUDSON-M1_FCBGA605
PCI/GPIO I/O
PCI EXPRESS
GBE LAN
FLASH I/O
CORE S5CORE S0 CLKGEN I/O 3.3V_S5 I/O
SERIAL ATA
POWER
PLL
USB I/O
U31C
21807-A11-HUDSON-M1_FCBGA605
VDDAN_11_USB_S_2
D11 VDDAN_11_USB_S_1
C11
VDDAN_33_USB_S_12
E19 VDDAN_33_USB_S_11
D20 VDDAN_33_USB_S_10
D19 VDDAN_33_USB_S_9
D18 VDDAN_33_USB_S_8
C20 VDDAN_33_USB_S_7
C18 VDDAN_33_USB_S_6
B20 VDDAN_33_USB_S_5
B19 VDDAN_33_USB_S_4
B18 VDDAN_33_USB_S_3
A20 VDDAN_33_USB_S_2
A19 VDDAN_33_USB_S_1
A18
VDDAN_11_SATA_7
AE16 VDDAN_11_SATA_6
AD18 VDDAN_11_SATA_5
AE18 VDDAN_11_SATA_3
AG19 VDDAN_11_SATA_2
AH20 VDDAN_11_SATA_4
AF18 VDDAN_11_SATA_1
AJ20
VDDPL_33_SATA
AD14
VDDAN_11_PCIE_8
W26 VDDAN_11_PCIE_7
W22 VDDAN_11_PCIE_6
V29 VDDAN_11_PCIE_5
V28 VDDAN_11_PCIE_4
V27 VDDAN_11_PCIE_3
V26 VDDAN_11_PCIE_2
V22 VDDAN_11_PCIE_1
U26
VDDPL_33_PCIE
AE28
VDDIO_18_FC_4
AC22 VDDIO_18_FC_3
AF24 VDDIO_18_FC_2
AE25 VDDIO_18_FC_1
AF22
VDDIO_33_PCIGP_12
AA19 VDDIO_33_PCIGP_11
AF7 VDDIO_33_PCIGP_10
AA9 VDDIO_33_PCIGP_9
AA7 VDDIO_33_PCIGP_8
AC8 VDDIO_33_PCIGP_7
AB4 VDDIO_33_PCIGP_6
AA2 VDDIO_33_PCIGP_5
AC21 VDDIO_33_PCIGP_4
AE5 VDDIO_33_PCIGP_3
Y19 VDDIO_33_PCIGP_2
V6 VDDIO_33_PCIGP_1
AH1
VDDXL_33_S L20
VDDAN_33_HWM_S D6
VDDPL_33_USB_S F19
VDDPL_11_SYS_S L22
VDDPL_33_SYS M21
VDDCR_11_USB_S_2 B11
VDDCR_11_USB_S_1 A11
VDDIO_AZ_S M8
VDDCR_11_S_2 G26
VDDCR_11_S_1 F26
VDDIO_33_S_8 T8
VDDIO_33_S_7 T6
VDDIO_33_S_6 J9
VDDIO_33_S_5 L10
VDDIO_33_S_4 K10
VDDIO_33_S_3 B21
VDDIO_33_S_2 D21
VDDIO_33_S_1 A21
VDDIO_GBE_S_2 P8
VDDIO_GBE_S_1 M6
VDDCR_11_GBE_S_2 L9
VDDCR_11_GBE_S_1 L7
VDDIO_33_GBE_S M10
VDDRF_GBE_S V1
VDDAN_11_CLK_8 J22
VDDAN_11_CLK_7 K21
VDDAN_11_CLK_6 J20
VDDAN_11_CLK_5 J21
VDDAN_11_CLK_4 K26
VDDAN_11_CLK_3 J28
VDDAN_11_CLK_2 K29
VDDAN_11_CLK_1 K28
VDDCR_11_9 W18
VDDCR_11_8 W12
VDDCR_11_7 V18
VDDCR_11_6 V12
VDDCR_11_5 U17
VDDCR_11_4 U13
VDDCR_11_3 N17
VDDCR_11_2 R15
VDDCR_11_1 N13
C85
10U_0603_6.3V6M
C85
10U_0603_6.3V6M
1
2
C109
10U_0603_6.3V6M
C109
10U_0603_6.3V6M
1
2
C94
0.1U_0402_16V7K
C94
0.1U_0402_16V7K
1
2
C98
2.2U_0603_6.3V6K
C98
2.2U_0603_6.3V6K
1
2
L107
FBMA-L11-160808-221LMT 0603
@
L107
FBMA-L11-160808-221LMT 0603
@
12
L43
FBMA-L11-201209-221LMA30T_0805
L43
FBMA-L11-201209-221LMA30T_0805
12
C73
0.1U_0402_16V7K
C73
0.1U_0402_16V7K
1
2
C116
0.1U_0402_16V7K
C116
0.1U_0402_16V7K
1
2
C782
0.1U_0402_16V7K
C782
0.1U_0402_16V7K
1
2
L53
FBMA-L11-160808-221LMT_2P
L53
FBMA-L11-160808-221LMT_2P
12
C121
10U_0603_6.3V6M
C121
10U_0603_6.3V6M
1
2
C108
10U_0603_6.3V6M
C108
10U_0603_6.3V6M
1
2
C82
2.2U_0603_6.3V6K
C82
2.2U_0603_6.3V6K
1
2
C87
1U_0402_6.3V6K
C87
1U_0402_6.3V6K
1
2
C115
0.1U_0402_16V7K
C115
0.1U_0402_16V7K
1
2
C91
0.1U_0402_16V7K
C91
0.1U_0402_16V7K
1
2
C81
2.2U_0603_6.3V6K
C81
2.2U_0603_6.3V6K
1
2
C84
1U_0402_6.3V6K
C84
1U_0402_6.3V6K
1
2
L51
FBMA-L11-160808-221LMT_2P
L51
FBMA-L11-160808-221LMT_2P
12
C989
1U_0402_6.3V6K
@
C989
1U_0402_6.3V6K
@
1 2
L47
FBMA-L11-201209-221LMA30T_0805
L47
FBMA-L11-201209-221LMA30T_0805
12
C92
10U_0603_6.3V6M
C92
10U_0603_6.3V6M
1
2
C120 2.2U_0603_6.3V6KC120 2.2U_0603_6.3V6K
1 2
C746
0.1U_0402_16V7K
C746
0.1U_0402_16V7K
1
2
L46
FBMA-L11-201209-221LMA30T_0805
L46
FBMA-L11-201209-221LMA30T_0805
12
C77
10U_0603_6.3V6M
C77
10U_0603_6.3V6M
1
2
C68
10U_0603_6.3V6M
C68
10U_0603_6.3V6M
1
2
L44
FBMA-L11-160808-221LMT_2P
L44
FBMA-L11-160808-221LMT_2P
12
L49
FBMA-L11-160808-221LMT_2P
L49
FBMA-L11-160808-221LMT_2P
12
C96
10U_0603_6.3V6M
C96
10U_0603_6.3V6M
1
2
C114
0.1U_0402_16V7K
C114
0.1U_0402_16V7K
1
2
C88
1U_0402_6.3V6K
C88
1U_0402_6.3V6K
1
2
C117
1U_0402_6.3V6K
C117
1U_0402_6.3V6K
1
2
C99 2.2U_0603_6.3V6KC99 2.2U_0603_6.3V6K
1 2
C74
1U_0402_6.3V6K
C74
1U_0402_6.3V6K
1
2
APL5317
U85
@
APL5317
U85
@
GND 2
VIN 1
EN 3
FB
4
VOUT
5
C97
1U_0402_6.3V6K
C97
1U_0402_6.3V6K
1
2
R634 0_0603_5%
@
R634 0_0603_5%
@
1 2
R633
0_0402_5%
@
R633
0_0402_5%
@
12
C76
2.2U_0603_6.3V6K
C76
2.2U_0603_6.3V6K
1
2
L52
FBMA-L11-160808-221LMT_2P
L52
FBMA-L11-160808-221LMT_2P
12
L48
FBMA-L11-160808-221LMT_2P
L48
FBMA-L11-160808-221LMT_2P
12
C89
0.1U_0402_16V7K
C89
0.1U_0402_16V7K
1
2
C744
4.7U_0603_6.3V6K
C744
4.7U_0603_6.3V6K
1
2
R632
0_0603_5%
R632
0_0603_5%
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
PCI_AD2712
PCI_AD2512
PCI_AD2412
PCI_AD2312
PCI_CLK312
PCI_CLK412
LPC_CLK012
PCI_AD2612
LPC_CLK112
EC_PWM313
EC_PWM213
RTC_CLK12,30
PCI_CLK112
PCI_CLK212
+3VS +3VS +3VS +3VALW +3VALW +3VALW +3VALW +3VALW+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LA-7322P
1.0
P16-FCH-VSS/Strap
B
16 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LA-7322P
1.0
P16-FCH-VSS/Strap
B
16 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LA-7322P
1.0
P16-FCH-VSS/Strap
B
16 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.

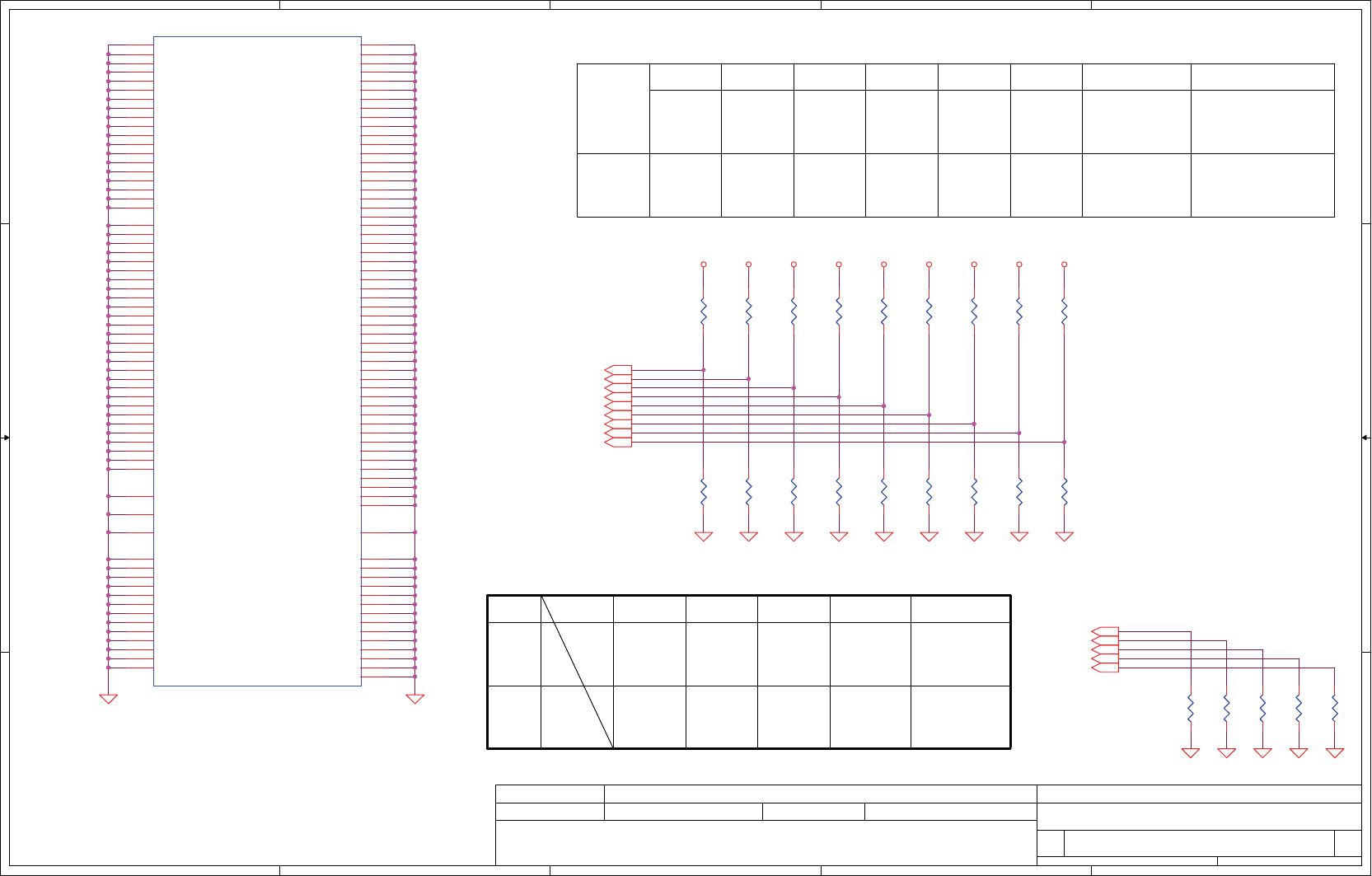

check defaultCheck AD29,AD28 strap function
Required Setting
DEFAULT
DEBUG STRAPS
PCI_AD25 PCI_AD24
Getting Value
from I2C EPROM
Disable I2C
ROM
DEFAULT
FC PLL
bypassed
USE internal
PLL generated
PLL CLK
DEFAULT
Selects
FC PLL
PULL
HIGH
DEFAULT
BYPASS
PCI PLL
PCI_AD27
PULL
LOW
FCH M1 HAS 15K INTERNAL PU FOR PCI_AD[27:23]
PCI_AD23
Enable ROM Straps
PCI_AD26
ILA AUTORUN
Disabled
Enabled
ILA
AUTORUN
DEFAULT
Reserved
Internal
CLKGEN
Mode
DEFAULT
DEFAULT
USE
DEBUG
STRAP
IGNORE
DEBUG
STRAP
DEFAULT
Check Internal PU/PD
internal EC
ENABLE
internal EC
DISABLE
PCI_CLK4
External
CLKGEN
Mode
DEFAULT
PULL
LOW
PULL
HIGH
REQUIRED STRAPS
LPC_CLK0
DEFAULT
ALLOW PCIE
GEN2
PCI_CLK1
FORCE PCIE
GEN1
PCI_CLK3 LPC_CLK1
NON Fusion
CLOCK
Mode
Fusion
CLOCK
Mode
RTC_CLK
S5 PLUS
MODE
ENABLED
S5 PLUS
MODE
DISABLED
DEFAULT
EC_PWM3EC_PWM2
LPC ROM (H.L)
*
SPI ROM(L,H)
PCI_CLK2
WATCHDOG
TIMER
ENABLE
WATCHDOG
TIMER
DISABLE
DEFAULT
R637
10K_0402_5%
@
R637
10K_0402_5%
@
12
R167
10K_0402_5%
@
R167
10K_0402_5%
@
12
R638
10K_0402_5%
@
R638
10K_0402_5%
@
12
R594
10K_0402_5%
R594
10K_0402_5%
12
R644
2.2K_0402_5%
@
R644
2.2K_0402_5%
@
12
R601
2.2K_0402_5%
@
R601
2.2K_0402_5%
@
12
R551
10K_0402_5%
R551
10K_0402_5%
12
R636
10K_0402_5%
R636
10K_0402_5%
12
GND
U31D
21807-A11-HUDSON-M1_FCBGA605
GND
U31D
21807-A11-HUDSON-M1_FCBGA605
VSSIO_PCIECLK_13
J23 VSSIO_PCIECLK_12
V20 VSSIO_PCIECLK_11
T24 VSSIO_PCIECLK_10
T22 VSSIO_PCIECLK_9
T20 VSSIO_PCIECLK_8
P26 VSSIO_PCIECLK_7
P24 VSSIO_PCIECLK_6
P22 VSSIO_PCIECLK_5
M26 VSSIO_PCIECLK_4
M24 VSSIO_PCIECLK_3
M22 VSSIO_PCIECLK_2
P20 VSSIO_PCIECLK_1
P21
VSSXL
M19
VSSAN_HWM
D8
EFUSE
Y4
VSSIO_USB_28
H19 VSSIO_USB_27
K18 VSSIO_USB_26
K16 VSSIO_USB_25
K14 VSSIO_USB_24
K12 VSSIO_USB_23
J19 VSSIO_USB_22
J11 VSSIO_USB_21
H18 VSSIO_USB_20
H16 VSSIO_USB_19
H14 VSSIO_USB_18
H12 VSSIO_USB_17
D9 VSSIO_USB_16
F18 VSSIO_USB_15
G11 VSSIO_USB_14
C9 VSSIO_USB_13
F16 VSSIO_USB_12
F14 VSSIO_USB_11
F12 VSSIO_USB_10
F9 VSSIO_USB_9
E9 VSSIO_USB_8
D17 VSSIO_USB_7
D14 VSSIO_USB_6
D12 VSSIO_USB_5
D10 VSSIO_USB_4
B9 VSSIO_USB_3
K11 VSSIO_USB_2
B10 VSSIO_USB_1
A9
VSSIO_SATA_19
AJ16 VSSIO_SATA_18
AJ13 VSSIO_SATA_17
AJ11 VSSIO_SATA_16
AJ7 VSSIO_SATA_15
AH16 VSSIO_SATA_14
AH13 VSSIO_SATA_13
AH11 VSSIO_SATA_12
AH7 VSSIO_SATA_11
AG8 VSSIO_SATA_10
AF16 VSSIO_SATA_9
AF13 VSSIO_SATA_8
AF11 VSSIO_SATA_7
AF9 VSSIO_SATA_6
AE14 VSSIO_SATA_5
AE12 VSSIO_SATA_4
AC14 VSSIO_SATA_3
AB16 VSSIO_SATA_2
Y16 VSSIO_SATA_1
Y14
VSSIO_PCIECLK_27 K20
VSSIO_PCIECLK_26 L21
VSSIO_PCIECLK_25 AE26
VSSIO_PCIECLK_24 W20
VSSIO_PCIECLK_23 W21
VSSIO_PCIECLK_22 Y20
VSSIO_PCIECLK_21 AC26
VSSIO_PCIECLK_20 AA26
VSSIO_PCIECLK_19 AD23
VSSIO_PCIECLK_18 AB23
VSSIO_PCIECLK_17 AA23
VSSIO_PCIECLK_16 AA21
VSSIO_PCIECLK_15 H26
VSSIO_PCIECLK_14 H23
VSSPL_SYS M20
VSS_52 L8
VSS_51 L4
VSS_50 N4
VSS_49 P6
VSS_48 V10
VSS_47 AH29
VSS_46 H7
VSS_45 AF25
VSS_44 M12
VSS_43 G9
VSS_42 G8
VSS_41 J4
VSS_40 G4
VSS_39 AA12
VSS_38 AA11
VSS_37 Y11
VSS_36 Y12
VSS_35 Y10
VSS_34 Y18
VSS_33 U4
VSS_32 B29
VSS_31 AJ28
VSS_30 W10
VSS_29 W9
VSS_28 V8
VSS_27 AC9
VSS_26 AB7
VSS_25 AD4
VSS_24 AD6
VSS_23 V4
VSS_22 P3
VSS_21 J7
VSS_20 L18
VSS_19 L12
VSS_18 M11
VSS_17 V19
VSS_16 M18
VSS_15 U15
VSS_14 V11
VSS_13 P10
VSS_12 T10
VSS_11 R17
VSS_10 R13
VSS_9 N15
VSS_8 F24
VSS_7 E6
VSS_6 E25
VSS_5 D23
VSS_4 E5
VSS_3 A2
VSS_2 A28
VSS_1 AJ2
R647
2.2K_0402_5%
@
R647
2.2K_0402_5%
@
12
R643
10K_0402_5%
R643
10K_0402_5%
12
R646
2.2K_0402_5%
@
R646
2.2K_0402_5%
@
12
R645
2.2K_0402_5%
@
R645
2.2K_0402_5%
@
12
R602
2.2K_0402_5%
R602
2.2K_0402_5%
12
R649
10K_0402_5%
@
R649
10K_0402_5%
@
12
R650
10K_0402_5%
R650
10K_0402_5%
12
R166
10K_0402_5%
R166
10K_0402_5%
12
R550
10K_0402_5%
@
R550
10K_0402_5%
@
12
R625
2.2K_0402_5%
@
R625
2.2K_0402_5%
@
12
R640
10K_0402_5%
@
R640
10K_0402_5%
@
12
R642
10K_0402_5%
R642
10K_0402_5%
12
R639
10K_0402_5%
@
R639
10K_0402_5%
@
12
R641
10K_0402_5%
R641
10K_0402_5%
12
R648
2.2K_0402_5%
@
R648
2.2K_0402_5%
@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VGA_RST#
PCIE_FTX_C_GRX_N[0..3]
PCIE_FTX_C_GRX_P[0..3]
PCIE_GTX_C_FRX_N[0..3]
PCIE_GTX_C_FRX_P[0..3]
PCIE_GTX_C_FRX_N1
PCIE_GTX_C_FRX_P1
PCIE_GTX_FRX_N1
PCIE_GTX_FRX_P1
PCIE_GTX_C_FRX_N2
PCIE_GTX_C_FRX_P2
PCIE_GTX_FRX_N2
PCIE_GTX_FRX_P2
PCIE_GTX_C_FRX_N0
PCIE_GTX_C_FRX_P0PCIE_GTX_FRX_P0
PCIE_GTX_FRX_N0
PCIE_GTX_C_FRX_N3
PCIE_GTX_C_FRX_P3PCIE_GTX_FRX_P3
PCIE_GTX_FRX_N3
PCIE_FTX_C_GRX_N2
PCIE_FTX_C_GRX_P2
PCIE_FTX_C_GRX_N0
PCIE_FTX_C_GRX_P0
PCIE_FTX_C_GRX_P1
PCIE_FTX_C_GRX_N1
PCIE_FTX_C_GRX_N3
PCIE_FTX_C_GRX_P3
VGA_RST#
CLK_PCIE_VGA12
CLK_PCIE_VGA#12
PCIE_GTX_C_FRX_N[0..3] 6
PCIE_GTX_C_FRX_P[0..3] 6
PCIE_FTX_C_GRX_P[0..3]6
PCIE_FTX_C_GRX_N[0..3]6
PE_GPIO012
PLT_RST#12,25,28
+1.0VSG
+3VSG
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P17-Vancouver_ PCIE / LVDS
Custom
17 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P17-Vancouver_ PCIE / LVDS
Custom
17 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P17-Vancouver_ PCIE / LVDS
Custom
17 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
GFX PCIE LANE REVERSAL
AH16
Accessiable for "Test Purposes"
Connect to GND for "Normal Operation"
Seymour XT P/N: SA000047H10 (S IC 216-0809000 A11 SEYMOUR XT M2)
PCI EXPRESS INTERFACE
CLOCK
CALIBRATION
2160809000A11SEYMOU_FCBGA962
U2A
VGA@
PCI EXPRESS INTERFACE
CLOCK
CALIBRATION
2160809000A11SEYMOU_FCBGA962
U2A
VGA@
PWRGOOD
AH16 PCIE_CALRN Y29
PCIE_CALRP Y30
PCIE_REFCLKN
AA36 PCIE_REFCLKP
AB35
PCIE_RX0N
Y37 PCIE_RX0P
AA38
PCIE_RX10N
K37 PCIE_RX10P
L38
PCIE_RX11N
J36 PCIE_RX11P
K35
PCIE_RX12N
H37 PCIE_RX12P
J38
PCIE_RX13N
G36 PCIE_RX13P
H35
PCIE_RX14N
F37 PCIE_RX14P
G38
PCIE_RX15N
E37 PCIE_RX15P
F35
PCIE_RX1N
W36 PCIE_RX1P
Y35
PCIE_RX2N
V37 PCIE_RX2P
W38
PCIE_RX3N
U36 PCIE_RX3P
V35
PCIE_RX4N
T37 PCIE_RX4P
U38
PCIE_RX5N
R36 PCIE_RX5P
T35
PCIE_RX6N
P37 PCIE_RX6P
R38
PCIE_RX7N
N36 PCIE_RX7P
P35
PCIE_RX8N
M37 PCIE_RX8P
N38
PCIE_RX9N
L36 PCIE_RX9P
M35
PERSTB
AA30
PCIE_TX0N Y32
PCIE_TX0P Y33
PCIE_TX10N L32
PCIE_TX10P L33
PCIE_TX11N L29
PCIE_TX11P L30
PCIE_TX12N K32
PCIE_TX12P K33
PCIE_TX13N J32
PCIE_TX13P J33
PCIE_TX14N K29
PCIE_TX14P K30
PCIE_TX15N H32
PCIE_TX15P H33
PCIE_TX1N W32
PCIE_TX1P W33
PCIE_TX2N U32
PCIE_TX2P U33
PCIE_TX3N U29
PCIE_TX3P U30
PCIE_TX4N T32
PCIE_TX4P T33
PCIE_TX5N T29
PCIE_TX5P T30
PCIE_TX6N P32
PCIE_TX6P P33
PCIE_TX7N P29
PCIE_TX7P P30
PCIE_TX8N N32
PCIE_TX8P N33
PCIE_TX9N N29
PCIE_TX9P N30
R394
2.2K_0402_5%
@
R394
2.2K_0402_5%
@
12
C5 0.1U_0402_16V7KVGA@C5 0.1U_0402_16V7KVGA@
1 2
C7 0.1U_0402_16V7KVGA@C7 0.1U_0402_16V7KVGA@
1 2
R6 2K_0402_1%VGA@R6 2K_0402_1%VGA@
1 2
LVTMDP
LVDS CONTROL
2160809000A11SEYMOU_FCBGA962
U2G
VGA@
LVTMDP
LVDS CONTROL
2160809000A11SEYMOU_FCBGA962
U2G
VGA@
DIGON AJ27
TXCLK_LN_DPE3N AR34
TXCLK_LP_DPE3P AP34
TXCLK_UN_DPF3N AL36
TXCLK_UP_DPF3P AK35
TXOUT_L0N_DPE2N AU35
TXOUT_L0P_DPE2P AW37
TXOUT_L1N_DPE1N AU39
TXOUT_L1P_DPE1P AR37
TXOUT_L2N_DPE0N AR35
TXOUT_L2P_DPE0P AP35
TXOUT_L3N AP37
TXOUT_L3P AN36
TXOUT_U0N_DPF2N AK37
TXOUT_U0P_DPF2P AJ38
TXOUT_U1N_DPF1N AJ36
TXOUT_U1P_DPF1P AH35
TXOUT_U2N_DPF0N AH37
TXOUT_U2P_DPF0P AG38
TXOUT_U3N AG36
TXOUT_U3P AF35
VARY_BL AK27
C1 0.1U_0402_16V7KVGA@C1 0.1U_0402_16V7KVGA@
1 2
R3 1.27K_0402_1%VGA@R3 1.27K_0402_1%VGA@
1 2
C8 0.1U_0402_16V7KVGA@C8 0.1U_0402_16V7KVGA@
1 2
U16
NC7SZ08P5X_NL_SC70-5
VGA@
U16
NC7SZ08P5X_NL_SC70-5
VGA@
B
2
A
1Y4
P5
G
3
R5 10K_0402_5%
VGA@
R5 10K_0402_5%
VGA@ 12
C2 0.1U_0402_16V7KVGA@C2 0.1U_0402_16V7KVGA@
1 2
R554
0_0402_5%
@
R554
0_0402_5%
@12
C4 0.1U_0402_16V7KVGA@C4 0.1U_0402_16V7KVGA@
1 2
R2 10K_0402_5%VGA@R2 10K_0402_5%VGA@
1 2
R1 10K_0402_5%VGA@R1 10K_0402_5%VGA@
1 2
C3 0.1U_0402_16V7KVGA@C3 0.1U_0402_16V7KVGA@
1 2
C6 0.1U_0402_16V7KVGA@C6 0.1U_0402_16V7KVGA@
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VGA_GPIO11
VGA_GPIO12
VGA_GPIO13
VGA_GPIO0
VGA_GPIO1
VGA_GPIO2
SOUT_GPIO8
SIN_GPIO9
VRAM_ID3
VRAM_ID1
VRAM_ID2
VRAM_ID0
VGA_GPIO5
VRAM_ID1
VRAM_ID2
VRAM_ID3
VRAM_ID0
V2SYNC
H2SYNC
ROMSE_GPIO22
GENERICC
BB_EN_GPIO21
VGA_GPIO1
VGA_GPIO2
THM_ALERT#
SOUT_GPIO8
SIN_GPIO9
VGA_GPIO11
VGA_GPIO12
VGA_GPIO13
GPU_VID0
VGA_GPIO0
GPU_VID1
VGA_ENBKL
GENERICC
ROMSE_GPIO22
VGA_GPIO5
BB_EN_GPIO21
+VGA_VREF
+DPLL_PVDD
+DPLL_VDDC
XTALOUT
27MCLK
GPU_THERM_D+
GPU_THERM_D-
+TSVDD
+AVDD
VGA_SMB_CK2
EC_SMB_DA2
EC_SMB_CK2
+VDD1DI
THM_ALERT#
VGA_SMB_DA2
GPU_THERM_D-
GPU_THERM_D+
+VDD1DI
VGA_SMB_DA2
H2SYNC
V2SYNC
VGA_SMB_CK2
CLK_GPIO10
ROMSE_GPIO22
SOUT_GPIO8SIN_GPIO9
HSYNC
VSYNC
HSYNC
VSYNC
CLK_GPIO10
CLK_GPIO10
XTALOUT27MCLK
GPU_VID044
GPU_VID144
EC_SMB_DA2 5,30
EC_SMB_CK2 5,30
+3VSG
+1.8VSG
+3VSG
+1.8VSG
+1.8VSG
+1.0VSG
+1.8VSG
+3VSG
+1.8VSG
+1.8VSG
+3VSG
+3VSG
+3VSG
+3VSG
+3VSG
+1.8VSG
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P18-Vancouver_Strap/DP/HDMI//CRT
Custom
18 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P18-Vancouver_Strap/DP/HDMI//CRT
Custom
18 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P18-Vancouver_Strap/DP/HDMI//CRT
Custom
18 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
BIF_GEN2_EN
GPIO2 0= Advertises the PCI-E device as 2.5 GT/s capable at power-on
5.0 GT/s capability will be controlled by software
1= Advertises the PCI-E device as 5.0 GT/s capable at power-on
GPIO11
GPIO12
GPIO13 GPIO13,12,11 (config 2,1,0) :
1
1
Strap Name Pin Straps description <all internal PD>
001
BIOS_ROM_EN
Setting
GPIO22 Enable external BIOS ROM device
0: Diable, 1: Enable
00: No audio function; 10: Audio for DisplayPort only;
01: Audio for DisplayPort and HDMI if adapter is detected;
11: Audio for both DisplayPort and HDMI
0
1
a) If BIOS_ROM_EN = 1, then Config[2:0] defines
the ROM type.
b) If BIOS_ROM_EN = 0, then Config[2:0] defines
the primary memory aperture size.
AUD[1]
AUD(0)
memory apertures
CONFIG[3:0]
128 MB 000
256 MB 001 *
64 MB 010
HSYNC
VSYNC
GPIO9
00
VGA Disable determines
CONFIG[2]
0: VGA Controller capacity enabled
CONFIG[1]
1: The device will not be recognized as the system’s VGA controller
CONFIG[0]
PD-Reset
RESERVED
TX_PWRS_ENB
GPIO0 Transmitter Power Saving Enable
0: 50% Tx output swing for mobile mode
1: full Tx output swing (Default setting for Desktop)
H2SYNC
Internal PD
GPIO8
0
GPIO21
Internal use only. THIS PAD HAS AN INTERNAL
PULL-DOWN AND MUST BE 0 V AT RESET. The
pad may be left unconnected
(GENLK_CLK)
GPIO1
TX_DEEMPH_EN
PCI Express Transmitter De-emphasis Enable
0: Tx de-emphasis diabled for mobile mode
1: Tx de-emphasis enabled (Defailt setting for desktop)
Robson (XT)/Seymour(XT)
DNI
GENERICC
GPIO5
VGA_DIS
GPIO_0 will use to control
PSI in the future product
75mA
470ohm/1A
470ohm/1A
120ohm/0.3A 20mA
125mA
NC on Park,
Robson and Seymour
45mA
Not share via for other GND
NC on Park,
Robson and Seymour
100mA
1001 101X b
Address
130mA
2mA
Except A2VSSQ change to TSVSSQ,
others are NC on Whistler and Seymour
External VGA Thermal Sensor
In Whistler and Seymour, change to
GENLK_CLK, GENLK_VSYNC for
Global Swap Lock on multiple GPUs
120ohm/0.3A
120ohm/0.3A NC on Whistler and Seymour
70mA
TYPE 1
FLASH ROM
15mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
10mil
AL31 Manhattan/Vancouver is NC, Boardway is
ADC input(0-1V) use measure regulator current or temperature
For EMI
For EMI
1
1
VRAM_ID2 VRAM_ID1 VRAM_ID0
VRAM
Samsung 00
Location VRAM_ID3
00
1
0
SA00004GS30 64M16
K4W1G1646G-BC11
Hynix
Hynix
SA000041S60 64M16
H5TQ1G63DFR-11C
SA00003YO30 128M16
H5TQ2G63BFR-11C
0
0
0
Samsung
00
10
0
SA000047QA0 128M16
K4W2G1646C-HC11
T2T2
R16 10K_0402_5%@R16 10K_0402_5%@
1 2
R22 10K_0402_5%@R22 10K_0402_5%@
1 2
R75
1M_0603_5%
VGA@
R75
1M_0603_5%
VGA@
R29
10K_0402_5%
VGA@R29
10K_0402_5%
VGA@
12
C21 0.1U_0402_16V4Z
VGA@
C21 0.1U_0402_16V4Z
VGA@
1 2
C31
0.1U_0402_16V4Z
@
C31
0.1U_0402_16V4Z
@
1
2
C11
2200P_0402_50V7K
VGA@
C11
2200P_0402_50V7K
VGA@
1 2
C10
0.1U_0402_16V4Z
VGA@
C10
0.1U_0402_16V4Z
VGA@
1
2
R18 10K_0402_5%VGA@ R18 10K_0402_5%VGA@
1 2
R11 10K_0402_5%VGA@ R11 10K_0402_5%VGA@
1 2
R7
0_0402_5%
R7
0_0402_5%
12
R38
10K_0402_5%
@
R38
10K_0402_5%
@
12
R15 10K_0402_5%VGA@ R15 10K_0402_5%VGA@
1 2
R13 10K_0402_5%VGA@ R13 10K_0402_5%VGA@
1 2
R14 4.7K_0402_5%VGA@R14 4.7K_0402_5%VGA@
1 2
C16
0.1U_0402_16V4Z
VGA@
C16
0.1U_0402_16V4Z
VGA@
1
2
R49 0_0402_5%@R49 0_0402_5%@
1 2
R23 10K_0402_5%@R23 10K_0402_5%@
1 2
R41
10K_0402_5%
@
R41
10K_0402_5%
@
12
R42 499_0402_1%VGA@R42 499_0402_1%VGA@
1 2
R44
10K_0402_5%
@
R44
10K_0402_5%
@
12
C14
10U_0603_6.3V6M
VGA@
C14
10U_0603_6.3V6M
VGA@
1
2
Q1B
DMN66D0LDW-7_SOT363-6
VGA@Q1B
DMN66D0LDW-7_SOT363-6
VGA@
3
5
4
C13
0.1U_0402_16V4Z
VGA@
C13
0.1U_0402_16V4Z
VGA@
1
2
C25
10U_0603_6.3V6M
VGA@
C25
10U_0603_6.3V6M
VGA@
1
2
C20
10U_0603_6.3V6M
VGA@
C20
10U_0603_6.3V6M
VGA@
1
2
T1T1
T7T7
L78
BLM18AG121SN1D_0603
VGA@
L78
BLM18AG121SN1D_0603
VGA@
12
R19 10K_0402_5%@R19 10K_0402_5%@
1 2
U5
M25P10-AVMN6P
@
U5
M25P10-AVMN6P
@
S
1
VCC
8
Q2
HOLD
7
VSS 4
D
5
C
6
W
3
C19
0.1U_0402_16V4Z
VGA@
C19
0.1U_0402_16V4Z
VGA@
1
2
R43 249_0402_1%VGA@R43 249_0402_1%VGA@
1 2
R24 10K_0402_5%@R24 10K_0402_5%@
1 2
T3T3
C27
1U_0402_6.3V4Z
VGA@
C27
1U_0402_6.3V4Z
VGA@
1
2
R51 0_0402_5%
@
R51 0_0402_5%
@
12
C12
1U_0402_6.3V4Z
VGA@
C12
1U_0402_6.3V4Z
VGA@
1
2
R9
4.7K_0402_5%
VGA@
R9
4.7K_0402_5%
VGA@
1 2
R17 10K_0402_5%@R17 10K_0402_5%@
1 2
C33
1U_0402_6.3V4Z
VGA@
C33
1U_0402_6.3V4Z
VGA@
1
2
R21 10K_0402_5%@R21 10K_0402_5%@
1 2
T4T4
C29
0.1U_0402_16V4Z
VGA@
C29
0.1U_0402_16V4Z
VGA@
1
2
R52 0_0402_5%
@
R52 0_0402_5%
@
12
DPA
DPB
DPC
DPD
MUTI GFX
I2C
GENERAL PURPOSE I/O
DAC1
DAC2
DDC/AUX
THERMAL
PLL/CLOCK
2160809000A11SEYMOU_FCBGA962
U2B
VGA@
DPA
DPB
DPC
DPD
MUTI GFX
I2C
GENERAL PURPOSE I/O
DAC1
DAC2
DDC/AUX
THERMAL
PLL/CLOCK
2160809000A11SEYMOU_FCBGA962
U2B
VGA@
DMINUS
AG29
DPLL_PVDD
AM32
DPLL_PVSS
AN32
DPLL_VDDC
AN31
DPLUS
AF29
NC_DVPCLK
AR1
NC_DVPCNTL_0
AP8
NC_DVPCNTL_1
AW8
NC_DVPCNTL_2
AR3
NC_DVPCNTL_MVP_0
AR8
NC_DVPCNTL_MVP_1
AU8
DVPDATA_0
AU1
DVPDATA_1
AU3
DVPDATA_10
AV7
DVPDATA_11
AN7
DVPDATA_12
AV9
DVPDATA_13
AT9
DVPDATA_14
AR10
DVPDATA_15
AW10
DVPDATA_16
AU10
NC_DVPDATA_17
AP10
NC_DVPDATA_18
AV11
NC_DVPDATA_19
AT11
DVPDATA_2
AW3
NC_DVPDATA_20
AR12
NC_DVPDATA_21
AW12
NC_DVPDATA_22
AU12
NC_DVPDATA_23
AP12
DVPDATA_3
AP6
DVPDATA_4
AW5
DVPDATA_5
AU5
DVPDATA_6
AR6
DVPDATA_7
AW6
DVPDATA_8
AU6
DVPDATA_9
AT7
GENERICA
AJ19
GENERICB
AK19
GENERICC
AJ20
GENERICD
AK20
GENERICE_HPD4
AJ24
NC_GENERICF_HPD5
AH26
NC_GENERICG_HPD6
AH24
GPIO_0
AH20
GPIO_1
AH18
GPIO_10_ROMSCK
AJ16
GPIO_11
AK16
GPIO_12
AL16
GPIO_13
AM16
GPIO_14_HPD2
AM14
GPIO_15_PWRCNTL_0
AM13
GPIO_16
AK14
GPIO_17_THERMAL_INT
AG30
GPIO_18_HPD3
AN14
GPIO_19_CTF
AM17
GPIO_2
AN16
GPIO_20_PWRCNTL_1
AL13
GPIO_21_BB_EN
AJ14
GPIO_22_ROMCSB
AK13
GPIO_23_CLKREQB
AN13
GPIO_3_SMBDATA
AH23
GPIO_4_SMBCLK
AJ23
GPIO_5_AC_BATT
AH17
GPIO_6
AJ17
GPIO_7_BLON
AK17
GPIO_8_ROMSO
AJ13
GPIO_9_ROMSI
AH15
H2SYNC/GENLK_CLK AD29
HPD1
AK24
HSYNC AC36
JTAG_TCK
AK23 JTAG_TDI
AN23
JTAG_TDO
AM24 JTAG_TMS
AL24
JTAG_TRSTB
AM23
NC_DDCDATA_AUX7N AK29
NC_DDCCLK_AUX7P AK30
TS_FDO
AK32
TSVDD
AJ32
TSVSS
AJ33
VREFG
AH13
VSS1DI AC34
VSS2DI/NC AG32
XTALIN
AV33
XTALOUT
AU34
A2VDD/NC AG33
A2VDDQ/NC AD33
A2VSSQ/TSVSSQ AF33
AUX1N AL27
AUX1P AM27
AUX2N AM20
AUX2P AN20
AVDD AD34
AVSSQ AE34
BAF37
B2/NC AF30
B2B/NC AF31
BB AE38
C/NC AC32
COMP/NC AF32
DDC1CLK AM26
DDC1DATA AN26
DDC2CLK AM19
DDC2DATA AL19
DDC6CLK AJ30
DDC6DATA AJ31
DDCDATA_AUX3N AM30
DDCCLK_AUX3P AL30
NC_DDCDATA_AUX4N AM29
NC_DDCCLK_AUX4P AL29
DDCDATA_AUX5N AM21
DDCCLK_AUX5P AN21
GAE36
G2/NC AD30
G2B/NC AD31
GB AD35
RAD39
R2/NC AC30
R2B/NC AC31
R2SET/NC AA29
RB AD37
RSET AB34
SCL
AK26
SDA
AJ26
TX0M_DPA2N AR24
TX0M_DPC2N AR14
TX0P_DPA2P AT25
TX0P_DPC2P AT15
TX1M_DPA1N AV25
TX1M_DPC1N AV15
TX1P_DPA1P AU26
TX1P_DPC1P AU16
TX2M_DPA0N AR26
TX2M_DPC0N AR16
TX2P_DPA0P AT27
TX2P_DPC0P AT17
TX3M_DPB2N AU30
NC_TX3M_DPD2N AR20
TX3P_DPB2P AV31
NC_TX3P_DPD2P AT21
TX4M_DPB1N AT31
NC_TX4M_DPD1N AV21
TX4P_DPB1P AR32
NC_TX4P_DPD1P AU22
TX5M_DPB0N AU32
NC_TX5M_DPD0N AR22
TX5P_DPB0P AT33
NC_TX5P_DPD0P AT23
TXCAM_DPA3N AV23
TXCAP_DPA3P AU24
TXCBM_DPB3N AT29
TXCBP_DPB3P AR30
TXCCM_DPC3N AV13
TXCCP_DPC3P AU14
NC_TXCDM_DPD3N AT19
NC_TXCDP_DPD3P AU20
V2SYNC/GENLK_VSYNC AC29
VDD1DI AC33
VDD2DI/NC AG31
VSYNC AC38
Y/NC AD32
TS_A/NC
AL31
XO_IN
AW34
XO_IN2
AW35
SWAPLOCKA
AJ21
SWAPLOCKB
AK21
R47
10K_0402_5%
@
R47
10K_0402_5%
@
12
T6T6
L3
BLM18AG121SN1D_0603
VGA@
L3
BLM18AG121SN1D_0603
VGA@
12
C123 20P_0402_50V8
@
C123 20P_0402_50V8
@
1 2
C15
1U_0402_6.3V4Z
VGA@
C15
1U_0402_6.3V4Z
VGA@
1
2
R50 0_0402_5%@R50 0_0402_5%@
1 2
Q1A DMN66D0LDW-7_SOT363-6
VGA@
Q1A DMN66D0LDW-7_SOT363-6
VGA@
61
2
R45
10K_0402_5%
@
R45
10K_0402_5%
@
12
C17
10U_0603_6.3V6M
VGA@
C17
10U_0603_6.3V6M
VGA@
1
2
R20 10K_0402_5%@R20 10K_0402_5%@
1 2
R53 0_0402_5%@R53 0_0402_5%@
12
R10
4.7K_0402_5%
VGA@
R10
4.7K_0402_5%
VGA@
1 2
C36
18P_0402_50V8
VGA@C36
18P_0402_50V8
VGA@
1
2
U4
ADM1032ARMZ-2REEL_MSOP8
VGA@U4
ADM1032ARMZ-2REEL_MSOP8
VGA@
VDD
1
ALERT# 6
THERM#
4GND 5
D+
2
D-
3
SCLK 8
SDATA 7
R25 10K_0402_5%@R25 10K_0402_5%@
1 2
R28 10K_0402_5%@R28 10K_0402_5%@
1 2
R8 4.7K_0402_5%
VGA@
R8 4.7K_0402_5%
VGA@
1 2
R39
10K_0402_5%
@
R39
10K_0402_5%
@
12
C52
10U_0603_6.3V6M
VGA@
C52
10U_0603_6.3V6M
VGA@
1
2
C35
18P_0402_50V8
VGA@ C35
18P_0402_50V8
VGA@
1
2
L4
BLM18AG121SN1D_0603
VGA@
L4
BLM18AG121SN1D_0603
VGA@
12
T5T5
R26 10K_0402_5%@R26 10K_0402_5%@
1 2
C23
10U_0603_6.3V6M
VGA@
C23
10U_0603_6.3V6M
VGA@
1
2
R46
10K_0402_5%
@
R46
10K_0402_5%
@
12
R48
715_0402_1%
VGA@
R48
715_0402_1%
VGA@
1 2
R27 10K_0402_5%@R27 10K_0402_5%@
1 2
R74 0_0402_5%
@
R74 0_0402_5%
@
12
C24
0.1U_0402_16V4Z
VGA@
C24
0.1U_0402_16V4Z
VGA@
1
2
C26
0.1U_0402_16V4Z
VGA@
C26
0.1U_0402_16V4Z
VGA@
1
2
Y1
27MHZ_16PF_X7S027000BG1H-U
VGA@
Y1
27MHZ_16PF_X7S027000BG1H-U
VGA@
OUT 3
GND 2
GND
4
IN
1
C32
10U_0603_6.3V6M
VGA@
C32
10U_0603_6.3V6M
VGA@
1
2
L79 BLM18AG121SN1D_0603
VGA@
L79 BLM18AG121SN1D_0603
VGA@
12
C30
1U_0402_6.3V4Z
VGA@
C30
1U_0402_6.3V4Z
VGA@
1
2
C18
1U_0402_6.3V4Z
VGA@
C18
1U_0402_6.3V4Z
VGA@
1
2
C28
10U_0603_6.3V6M
VGA@
C28
10U_0603_6.3V6M
VGA@
1
2
R12 4.7K_0402_5%VGA@R12 4.7K_0402_5%VGA@
1 2
R40
10K_0402_5%
@
R40
10K_0402_5%
@
12
R30 499_0402_1%VGA@R30 499_0402_1%VGA@
1 2
L5
BLM18AG121SN1D_0603
VGA@
L5
BLM18AG121SN1D_0603
VGA@
12
C34
0.1U_0402_16V4Z
VGA@
C34
0.1U_0402_16V4Z
VGA@
1
2
C22
1U_0402_6.3V4Z
VGA@
C22
1U_0402_6.3V4Z
VGA@
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TESTEN
TEST_MCLK
MVREFDB
TEST_YCLK
MVREFSB
MVREFSB
MDB51
MDB15
MDB16
MDB52
MDB17
MDB53
MDB18
MDB54
MDB19
MDB55
MDB20
MDB56
MDB21
MDB57
MDB22
MDB58
MDB23
MDB59
MDB24
MDB60
MDB25
MDB61
MDB26
MDB27
MDB62
MDB28
MDB63
MDB[0..63]
MDB29
MDB30
MDB31
MDB32
MDB0
MDB33
MDB34
MDB35
MDB36
MDB37
MDB1
MDB38
MDB39
MDB2
MDB40
MDB3
MDB41
MDB4
MDB42
MDB5
MDB6
MDB43
MDB7
MDB44
MDB8
MDB45
MDB9
MDB46
MDB10
MDB47
MDB11
MDB48
MDB12
MDB49
MDB13
MDB50
MDB14
MVREFDB
MAB12
DQMB#5
B_BA2
CKEB1
CASB0#
DQMB#6
B_BA0
CASB1#
B_BA1
DQMB#7
RASB0#
QSB#1
RASB1#
QSB0
CLKB1
MAB0
QSB#2
CLKB1#
MAB[0..12]
QSB#3
QSB#4
DQMB#1
QSB1
QSB#5
MAB1
WEB0#
QSB#6
QSB#[0..7]
QSB[0..7]
CSB0#_0
MAB2
B_BA[0..2]
QSB2
DQMB#2
QSB#7
MAB3
WEB1#
QSB3
MAB4
DQMB#0
QSB4
MAB5
CSB1#_0
DQMB#3
QSB5
MAB6
CLKB0
DQMB#[0..7]
MAB7
QSB6
MAB8
CLKB0#
DQMB#4
QSB7
MAB9
MAB10
QSB#0
MAB11
CKEB0
ODTB0
ODTB1
MVREFDA
MVREFSA
MVREFDA
MVREFSA
MDB[0..63]22
QSB#[0..7] 22
QSB[0..7] 22
MAB[0..12] 22
B_BA[0..2] 22
DQMB#[0..7] 22
ODTB0 22
ODTB1 22
CLKB0 22
CLKB0# 22
CLKB1 22
CLKB1# 22
RASB1# 22
RASB0# 22
CSB1#_0 22
CASB1# 22
CASB0# 22
CSB0#_0 22
WEB1# 22
CKEB1 22
CKEB0 22
WEB0# 22
VRAM_RST# 22
MAB13 22
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P19-Vancouver_Memory
Custom
19 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P19-Vancouver_Memory
Custom
19 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P19-Vancouver_Memory
Custom
19 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Robson,Seymour only support single channel
memory (channel B only)
MAB13 is for 128M*16 VRAM
R56
40.2_0402_1%
VGA@
R56
40.2_0402_1%
VGA@
12
R62 243_0402_1%VGA@R62 243_0402_1%VGA@
12
C39
0.1U_0402_16V4Z
VGA@
C39
0.1U_0402_16V4Z
VGA@
1
2
R55
100_0402_1%
VGA@
R55
100_0402_1%
VGA@
12
MEMORY INTERFACE A
DDR2
GDDR3/GDDR5
DDR3
GDDR5/DDR2/GDDR3
DDR2
GDDR5/GDDR3
DDR3
GDDR5
2160809000A11SEYMOU_FCBGA962
U2C
VGA@
MEMORY INTERFACE A
DDR2
GDDR3/GDDR5
DDR3
GDDR5/DDR2/GDDR3
DDR2
GDDR5/GDDR3
DDR3
GDDR5
2160809000A11SEYMOU_FCBGA962
U2C
VGA@
NC_DQA0_0/DQA_0
C37
NC_DQA0_1/DQA_1
C35
NC_DQA0_10/DQA_10
C30
NC_DQA0_11/DQA_11
A30
NC_DQA0_12/DQA_12
F28
NC_DQA0_13/DQA_13
C28
NC_DQA0_14/DQA_14
A28
NC_DQA0_15/DQA_15
E28
NC_DQA0_16/DQA_16
D27
NC_DQA0_17/DQA_17
F26
NC_DQA0_18/DQA_18
C26
NC_DQA0_19/DQA_19
A26
NC_DQA0_2/DQA_2
A35
NC_DQA0_20/DQA_20
F24
NC_DQA0_21/DQA_21
C24
NC_DQA0_22/DQA_22
A24
NC_DQA0_23/DQA_23
E24
NC_DQA0_24/DQA_24
C22
NC_DQA0_25/DQA_25
A22
NC_DQA0_26/DQA_26
F22
NC_DQA0_27/DQA_27
D21
NC_DQA0_28/DQA_28
A20
NC_DQA0_29/DQA_29
F20
NC_DQA0_3/DQA_3
E34
NC_DQA0_30/DQA_30
D19
NC_DQA0_31/DQA_31
E18
NC_DQA1_0/DQA_32
C18
NC_DQA1_1/DQA_33
A18
NC_DQA1_2/DQA_34
F18
NC_DQA1_3/DQA_35
D17
NC_DQA1_4/DQA_36
A16
NC_DQA1_5/DQA_37
F16
NC_DQA1_6/DQA_38
D15
NC_DQA1_7/DQA_39
E14
NC_DQA0_4/DQA_4
G32
NC_DQA1_8/DQA_40
F14
NC_DQA1_9/DQA_41
D13
NC_DQA1_10/DQA_42
F12
NC_DQA1_11/DQA_43
A12
NC_DQA1_12/DQA_44
D11
NC_DQA1_13/DQA_45
F10
NC_DQA1_14/DQA_46
A10
NC_DQA1_15/DQA_47
C10
NC_DQA1_16/DQA_48
G13
NC_DQA1_17/DQA_49
H13
NC_DQA0_5/DQA_5
D33
NC_DQA1_18/DQA_50
J13
NC_DQA1_19/DQA_51
H11
NC_DQA1_20/DQA_52
G10
NC_DQA1_21/DQA_53
G8
NC_DQA1_22/DQA_54
K9
NC_DQA1_23/DQA_55
K10
NC_DQA1_24/DQA_56
G9
NC_DQA1_25/DQA_57
A8
NC_DQA1_26/DQA_58
C8
NC_DQA1_27/DQA_59
E8
NC_DQA0_6/DQA_6
F32
NC_DQA1_28/DQA_60
A6
NC_DQA1_29/DQA_61
C6
NC_DQA1_30/DQA_62
E6
NC_DQA1_31/DQA_63
A5
NC_DQA0_7/DQA_7
E32
NC_DQA0_8/DQA_8
D31
NC_DQA0_9/DQA_9
F30
MEM_CALRP1
M12
NC_MVREFDA
L18
NC_MVREFSA
L20
NC_MEM_CALRN0
L27
MEM_CALRN1
N12
NC_MEM_CALRN2
AG12
NC_MEM_CALRP0
M27
NC_MEM_CALRP2
AH12
NC_CASA0B K20
NC_CASA1B K17
NC_CKEA0 K21
NC_CKEA1 J20
NC_CLKA0 H27
NC_CLKA0B G27
NC_CLKA1 J14
NC_CLKA1B H14
NC_CSA0B_0 K24
NC_CSA0B_1 K27
NC_CSA1B_0 M13
NC_CSA1B_1 K16
NC_WCKA0_0/DQMA_0 A32
NC_WCKA0B_0/DQMA_1 C32
NC_WCKA0_1/DQMA_2 D23
NC_WCKA0B_1/DQMA_3 E22
NC_WCKA1_0/DQMA_4 C14
NC_WCKA1B_0/DQMA_5 A14
NC_WCKA1_1/DQMA_6 E10
NC_WCKA1B_1/DQMA_7 D9
NC_MAA0_0/MAA_0 G24
NC_MAA0_1/MAA_1 J23
NC_MAA1_2/MAA_10 L13
NC_MAA1_3/MAA_11 G16
NC_MAA1_4/MAA_12 J16
NC_MAA1_5/MAA_13_BA2 H16
NC_MAA1_6/MAA_14_BA0 J17
NC_MAA1_7/MAA_A15_BA1 H17
NC_MAA0_2/MAA_2 H24
NC_MAA0_3/MAA_3 J24
NC_MAA0_4/MAA_4 H26
NC_MAA0_5/MAA_5 J26
NC_MAA0_6/MAA_6 H21
NC_MAA0_7/MAA_7 G21
NC_MAA1_0/MAA_8 H19
NC_MAA1_1/MAA_9 H20
NC_ADBIA0/ODTA0 J21
NC_ADBIA1/ODTA1 G19
NC_RASA0B K23
NC_RASA1B K19
NC_EDCA0_0/QSA_0/RDQSA_0 C34
NC_EDCA0_1/QSA_1/RDQSA_1 D29
NC_EDCA0_2/QSA_2/RDQSA_2 D25
NC_EDCA0_3/QSA_3/RDQSA_3 E20
NC_EDCA1_0/QSA_4/RDQSA_4 E16
NC_EDCA1_1/QSA_5/RDQSA_5 E12
NC_EDCA1_2/QSA_6/RDQSA_6 J10
NC_EDCA1_3/QSA_7/RDQSA_7 D7
NC_MAA0_8 H23
NC_MAA1_8 J19
NC_DDBIA0_0/QSA_0B/W DQSA_0 A34
NC_DDBIA0_1/QSA_1B/W DQSA_1 E30
NC_DDBIA0_2/QSA_2B/W DQSA_2 E26
NC_DDBIA0_3/QSA_3B/W DQSA_3 C20
NC_DDBIA1_0/QSA_4B/W DQSA_4 C16
NC_DDBIA1_1/QSA_5B/W DQSA_5 C12
NC_DDBIA1_2/QSA_6B/W DQSA_6 J11
NC_DDBIA1_3/QSA_7B/W DQSA_7 F8
NC_WEA0B K26
NC_WEA1B L15
C38
0.1U_0402_16V4Z
VGA@
C38
0.1U_0402_16V4Z
VGA@
1
2
C43
120P_0402_50V8
VGA@
C43
120P_0402_50V8
VGA@
1
2
R54
40.2_0402_1%
VGA@
R54
40.2_0402_1%
VGA@
12
MEMORY INTERFACE B
DDR2
GDDR5/GDDR3
DDR3
DDR2
GDDR3/GDDR5
DDR3
GDDR5
GDDR5/DDR2/GDDR3
2160809000A11SEYMOU_FCBGA962
U2D
VGA@
MEMORY INTERFACE B
DDR2
GDDR5/GDDR3
DDR3
DDR2
GDDR3/GDDR5
DDR3
GDDR5
GDDR5/DDR2/GDDR3
2160809000A11SEYMOU_FCBGA962
U2D
VGA@
DQB0_0/DQB_0
C5
DQB0_1/DQB_1
C3
DQB0_10/DQB_10
J4
DQB0_11/DQB_11
K6
DQB0_12/DQB_12
K5
DQB0_13/DQB_13
L4
DQB0_14/DQB_14
M6
DQB0_15/DQB_15
M1
DQB0_16/DQB_16
M3
DQB0_17/DQB_17
M5
DQB0_18/DQB_18
N4
DQB0_19/DQB_19
P6
DQB0_2/DQB_2
E3
DQB0_20/DQB_20
P5
DQB0_21/DQB_21
R4
DQB0_22/DQB_22
T6
DQB0_23/DQB_23
T1
DQB0_24/DQB_24
U4
DQB0_25/DQB_25
V6
DQB0_26/DQB_26
V1
DQB0_27/DQB_27
V3
DQB0_28/DQB_28
Y6
DQB0_29/DQB_29
Y1
DQB0_3/DQB_3
E1
DQB0_30/DQB_30
Y3
DQB0_31/DQB_31
Y5
DQB1_0/DQB_32
AA4
DQB1_1/DQB_33
AB6
DQB1_2/DQB_34
AB1
DQB1_3/DQB_35
AB3
DQB1_4/DQB_36
AD6
DQB1_5/DQB_37
AD1
DQB1_6/DQB_38
AD3
DQB1_7/DQB_39
AD5
DQB0_4/DQB_4
F1
DQB1_8/DQB_40
AF1
DQB1_9/DQB_41
AF3
DQB1_10/DQB_42
AF6
DQB1_11/DQB_43
AG4
DQB1_12/DQB_44
AH5
DQB1_13/DQB_45
AH6
DQB1_14/DQB_46
AJ4
DQB1_15/DQB_47
AK3
DQB1_16/DQB_48
AF8
DQB1_17/DQB_49
AF9
DQB0_5/DQB_5
F3
DQB1_18/DQB_50
AG8
DQB1_19/DQB_51
AG7
DQB1_20/DQB_52
AK9
DQB1_21/DQB_53
AL7
DQB1_22/DQB_54
AM8
DQB1_23/DQB_55
AM7
DQB1_24/DQB_56
AK1
DQB1_25/DQB_57
AL4
DQB1_26/DQB_58
AM6
DQB1_27/DQB_59
AM1
DQB0_6/DQB_6
F5
DQB1_28/DQB_60
AN4
DQB1_29/DQB_61
AP3
DQB1_30/DQB_62
AP1
DQB1_31/DQB_63
AP5
DQB0_7/DQB_7
G4
DQB0_8/DQB_8
H5
DQB0_9/DQB_9
H6
MVREFDB
Y12
MVREFSB
AA12
TESTEN
AD28
CASB0B W10
CASB1B AA10
CKEB0 U10
CKEB1 AA11
CLKB0 L9
CLKB0B L8
CLKB1 AD8
CLKB1B AD7
CLKTESTA
AK10
CLKTESTB
AL10
CSB0B_0 P10
CSB0B_1 L10
CSB1B_0 AD10
CSB1B_1 AC10
WCKB0_0/DQMB_0 H3
WCKB0B_0/DQMB_1 H1
WCKB0_1/DQMB_2 T3
WCKB0B_1/DQMB_3 T5
WCKB1_0/DQMB_4 AE4
WCKB1B_0/DQMB_5 AF5
WCKB1_1/DQMB_6 AK6
WCKB1B_1/DQMB_7 AK5
DRAM_RST AH11
MAB0_0/MAB_0 P8
MAB0_1/MAB_1 T9
MAB1_2/MAB_10 AC8
MAB1_3/MAB_11 AC9
MAB1_4/MAB_12 AA7
MAB1_5/BA2 AA8
MAB1_6/BA0 Y8
MAB1_7/BA1 AA9
MAB0_2/MAB_2 P9
MAB0_3/MAB_3 N7
MAB0_4/MAB_4 N8
MAB0_5/MAB_5 N9
MAB0_6/MAB_6 U9
MAB0_7/MAB_7 U8
MAB1_0/MAB_8 Y9
MAB1_1/MAB_9 W9
ADBIB0/ODTB0 T7
ADBIB1/ODTB1 W7
RASB0B T10
RASB1B Y10
EDCB0_0/QSB_0/RDQSB_0 F6
EDCB0_1/QSB_1/RDQSB_1 K3
EDCB0_2/QSB_2/RDQSB_2 P3
EDCB0_3/QSB_3/RDQSB_3 V5
EDCB1_0/QSB_4/RDQSB_4 AB5
EDCB1_1/QSB_5/RDQSB_5 AH1
EDCB1_2/QSB_6/RDQSB_6 AJ9
EDCB1_3/QSB_7/RDQSB_7 AM5
DDBIB0_0/QSB_0B/W DQSB_0 G7
DDBIB0_1/QSB_1B/W DQSB_1 K1
DDBIB0_2/QSB_2B/W DQSB_2 P1
DDBIB0_3/QSB_3B/W DQSB_3 W4
DDBIB1_0/QSB_4B/W DQSB_4 AC4
DDBIB1_1/QSB_5B/W DQSB_5 AH3
DDBIB1_2/QSB_6B/W DQSB_6 AJ8
DDBIB1_3/QSB_7B/W DQSB_7 AM3
WEB0B N10
WEB1B AB11
MAB0_8 T8
MAB1_8 W8
R67 243_0402_1%VGA@R67 243_0402_1%VGA@
12
R66 243_0402_1%VGA@R66 243_0402_1%VGA@
12
R61
100_0402_1%
VGA@
R61
100_0402_1%
VGA@
12
R59
100_0402_1%
VGA@
R59
100_0402_1%
VGA@
12
R72
51.1_0402_1%
@
R72
51.1_0402_1%
@
12
R60
40.2_0402_1%
VGA@
R60
40.2_0402_1%
VGA@
12
C40
0.1U_0402_16V4Z
VGA@
C40
0.1U_0402_16V4Z
VGA@
1
2
R71
5.11K_0402_1%
VGA@R71
5.11K_0402_1%
VGA@
12
R64 243_0402_1%VGA@R64 243_0402_1%VGA@
12
R57
100_0402_1%
VGA@
R57
100_0402_1%
VGA@
12
R68
10_0402_5%
VGA@R68
10_0402_5%
VGA@
1 2
C37
0.1U_0402_16V4Z
VGA@
C37
0.1U_0402_16V4Z
VGA@
1
2
R70
51.1_0402_1%
VGA@ R70
51.1_0402_1%
VGA@
1 2
C42
0.1U_0402_16V4Z
@C42
0.1U_0402_16V4Z
@
1
2
R73
51.1_0402_1%
@
R73
51.1_0402_1%
@
12
R69 243_0402_1%VGA@R69 243_0402_1%VGA@
12
R65 5.11K_0402_1%
VGA@
R65 5.11K_0402_1%
VGA@
12
C41
0.1U_0402_16V4Z
@C41
0.1U_0402_16V4Z
@
1
2
R58
40.2_0402_1%
VGA@
R58
40.2_0402_1%
VGA@
12
R63 243_0402_1%VGA@R63 243_0402_1%VGA@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+VDD_CT
+SPV10
+SPV_18
+VDDR4
+MPV_18
FB_GND
GCORE_SEN
+PCIE_VDDR
+VDDCI+VDDCI
GCORE_SEN44
+1.8VSG
+1.5VSG
+1.8VSG
+3VSG
+1.8VSG
+1.0VSG
+1.8VSG
+1.8VSG
+1.0VSG
+VGA_CORE
+BIF_VDDC
+VGA_CORE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P20-Vancouver_Power/GND
Custom
20 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P20-Vancouver_Power/GND
Custom
20 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P20-Vancouver_Power/GND
Custom
20 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
2800mA
120ohm/0.3A
219mA
60mA
470ohm/1A
120ohm/0.3A
170mA
470ohm/1A
75mA
75mA
120ohm/0.3A
120mA
Removed bead on ref137-12
220ohm/2A
504mA
2A
4A
55mA
FOR XT DDR3 13 A (RMS)/14.2 A(Peak)
390U ESR:10m H:5.7
P/N:SF000002O00
330U ESR:10m H:5.7
P/N:SF000002O00
C372
1U_0402_6.3V4Z
VGA@C372
1U_0402_6.3V4Z
VGA@
1
2
C350
1U_0402_6.3V4Z
VGA@C350
1U_0402_6.3V4Z
VGA@
1
2
C364
1U_0402_6.3V4Z
VGA@C364
1U_0402_6.3V4Z
VGA@
1
2
C407
0.1U_0402_16V4Z
VGA@C407
0.1U_0402_16V4Z
VGA@
1
2
C355
1U_0402_6.3V4Z
VGA@C355
1U_0402_6.3V4Z
VGA@
1
2
C357
10U_0603_6.3V6M
VGA@C357
10U_0603_6.3V6M
VGA@
1
2
C425
1U_0402_6.3V4Z
VGA@C425
1U_0402_6.3V4Z
VGA@
1
2
L36
BLM18AG601SN1D_2P
VGA@L36
BLM18AG601SN1D_2P
VGA@
12
C384
10U_0603_6.3V6M
VGA@C384
10U_0603_6.3V6M
VGA@
1
2
C326
0.1U_0402_16V4Z
VGA@C326
0.1U_0402_16V4Z
VGA@
1
2
C409
10U_0603_6.3V6M
VGA@C409
10U_0603_6.3V6M
VGA@
1
2
C420
1U_0402_6.3V4Z
VGA@C420
1U_0402_6.3V4Z
VGA@
1
2
C370
1U_0402_6.3V4Z
VGA@C370
1U_0402_6.3V4Z
VGA@
1
2
C404
1U_0402_6.3V4Z
VGA@C404
1U_0402_6.3V4Z
VGA@
1
2
C333
1U_0402_6.3V4Z
VGA@C333
1U_0402_6.3V4Z
VGA@
1
2
C342
1U_0402_6.3V4Z
VGA@C342
1U_0402_6.3V4Z
VGA@
1
2
C411
0.1U_0402_16V4Z
VGA@C411
0.1U_0402_16V4Z
VGA@
1
2
C354
1U_0402_6.3V4Z
VGA@C354
1U_0402_6.3V4Z
VGA@
1
2
C401
1U_0402_6.3V4Z
VGA@C401
1U_0402_6.3V4Z
VGA@
1
2
C405
0.1U_0402_16V4Z
VGA@C405
0.1U_0402_16V4Z
VGA@
1
2
C376
1U_0402_6.3V4Z
VGA@C376
1U_0402_6.3V4Z
VGA@
1
2
+
C686
390U_2.5V_10M
VGA@
+
C686
390U_2.5V_10M
VGA@
1
2
C327
1U_0402_6.3V4Z
VGA@C327
1U_0402_6.3V4Z
VGA@
1
2
C359
10U_0603_6.3V6M
VGA@C359
10U_0603_6.3V6M
VGA@
1
2
C403
10U_0603_6.3V6M
VGA@C403
10U_0603_6.3V6M
VGA@
1
2
C352
1U_0402_6.3V4Z
VGA@C352
1U_0402_6.3V4Z
VGA@
1
2
C367
1U_0402_6.3V4Z
VGA@C367
1U_0402_6.3V4Z
VGA@
1
2
C408
10U_0603_6.3V6M
VGA@C408
10U_0603_6.3V6M
VGA@
1
2
C323
1U_0402_6.3V4Z
VGA@C323
1U_0402_6.3V4Z
VGA@
1
2
C406
1U_0402_6.3V4Z
VGA@C406
1U_0402_6.3V4Z
VGA@
1
2
C330
1U_0402_6.3V4Z
VGA@C330
1U_0402_6.3V4Z
VGA@
1
2
C336
10U_0603_6.3V6M
VGA@C336
10U_0603_6.3V6M
VGA@
1
2
L38
BLM18AG121SN1D_0603
VGA@L38
BLM18AG121SN1D_0603
VGA@
12
C427
10U_0603_6.3V6M
VGA@C427
10U_0603_6.3V6M
VGA@
1
2
C389
10U_0603_6.3V6M
VGA@C389
10U_0603_6.3V6M
VGA@
1
2
C379
1U_0402_6.3V4Z
VGA@C379
1U_0402_6.3V4Z
VGA@
1
2
C415
1U_0402_6.3V4Z
VGA@C415
1U_0402_6.3V4Z
VGA@
1
2
+
C394
390U_2.5V_10M
VGA@
+
C394
390U_2.5V_10M
VGA@
1
2
C385
1U_0402_6.3V4Z
VGA@C385
1U_0402_6.3V4Z
VGA@
1
2
C419
1U_0402_6.3V4Z
VGA@C419
1U_0402_6.3V4Z
VGA@
1
2
C426
1U_0402_6.3V4Z
VGA@C426
1U_0402_6.3V4Z
VGA@
1
2
L40
BLM18AG121SN1D_0603
VGA@L40
BLM18AG121SN1D_0603
VGA@
12
C341
1U_0402_6.3V4Z
VGA@C341
1U_0402_6.3V4Z
VGA@
1
2
C351
1U_0402_6.3V4Z
VGA@C351
1U_0402_6.3V4Z
VGA@
1
2
C343
0.1U_0402_16V4Z
VGA@C343
0.1U_0402_16V4Z
VGA@
1
2
C410
1U_0402_6.3V4Z
VGA@C410
1U_0402_6.3V4Z
VGA@
1
2
C374
1U_0402_6.3V4Z
VGA@C374
1U_0402_6.3V4Z
VGA@
1
2
C381
1U_0402_6.3V4Z
VGA@C381
1U_0402_6.3V4Z
VGA@
1
2
POWER
PLL
PCIE
CORE
MEM I/O
I/O
LEVEL
TRANSLATION
ISOLATED
CORE I/O
VOLTAGE
SENESE
2160809000A11SEYMOU_FCBGA962
U2E
VGA@
POWER
PLL
PCIE
CORE
MEM I/O
I/O
LEVEL
TRANSLATION
ISOLATED
CORE I/O
VOLTAGE
SENESE
2160809000A11SEYMOU_FCBGA962
U2E
VGA@
PCIE_VDDR/PCIE_PVDD AB37
MPV18#1
H7
MPV18#2
H8
SPV18
AM10
PCIE_VDDC#1 G30
PCIE_VDDC#10 R28
PCIE_VDDC#11 T28
PCIE_VDDC#12 U28
PCIE_VDDC#2 G31
PCIE_VDDC#3 H29
PCIE_VDDC#4 H30
PCIE_VDDC#5 J29
PCIE_VDDC#6 J30
PCIE_VDDC#7 L28
PCIE_VDDC#8 M28
PCIE_VDDC#9 N28
PCIE_VDDR#1 AA31
PCIE_VDDR#2 AA32
PCIE_VDDR#3 AA33
PCIE_VDDR#4 AA34
PCIE_VDDR#5 V28
PCIE_VDDR#6 W29
PCIE_VDDR#7 W30
PCIE_VDDR#8 Y31
SPV10
AN9
SPVSS
AN10
VDDR1#1
AC7
VDDR1#10
G17
VDDR1#11
G20
VDDR1#12
G23
VDDR1#13
G26
VDDR1#14
G29
VDDR1#15
H10
VDDR1#16
J7
VDDR1#17
J9
VDDR1#18
K11
VDDR1#19
K13
VDDR1#2
AD11
VDDR1#20
K8
VDDR1#21
L12
VDDR1#22
L16
VDDR1#23
L21
VDDR1#24
L23
VDDR1#25
L26
VDDR1#26
L7
VDDR1#27
M11
VDDR1#28
N11
VDDR1#29
P7
VDDR1#3
AF7
VDDR1#30
R11
VDDR1#31
U11
VDDR1#32
U7
VDDR1#33
Y11
VDDR1#34
Y7
VDDR1#4
AG10
VDDR1#5
AJ7
VDDR1#6
AK8
VDDR1#7
AL9
VDDR1#8
G11
VDDR1#9
G14
VDDR3#1
AF23
VDDR3#2
AF24
VDDR3#3
AG23
VDDR3#4
AG24
VDDR4#4
AF13
VDDR4#5
AF15
VDDR4#7
AG13
VDDR4#8
AG15
VDDR4#1
AD12
VDDR4#2
AF11
VDDR4#3
AF12
VDDR4#6
AG11
NC_VDDRHA
M20
NC_VDDRHB
V12
NC_VSSRHA
M21
NC_VSSRHB
U12
VDD_CT#1
AF26
VDD_CT#2
AF27
VDD_CT#3
AG26
VDD_CT#4
AG27
VDDC#1 AA15
VDDC#9 AB21
VDDC#10 AB23
VDDC#11 AB26
VDDC#12 AB28
VDDCI#3 AC12
VDDCI#4 AC15
VDDC#13 AC17
VDDC#14 AC20
VDDC#15 AC22
VDDC#16 AC24
VDDC#2 AA17
VDDC#17 AC27
VDDCI#5 AD13
VDDCI#6 AD16
VDDC#18 AD18
VDDC#19 AD21
VDDC#20 AD23
VDDC#21 AD26
VDDC#22 AF17
VDDC#23 AF20
VDDC#24 AF22
VDDC#3 AA20
VDDC#25 AG16
VDDC#26 AG18
VDDC#27 AG21
VDDC#28 AH22
VDDCI#8 M16
VDDCI#9 M18
VDDCI#10 M23
VDDC#31 M26
VDDCI#12 N15
VDDCI#13 N17
VDDC#4 AA22
VDDCI#14 N20
VDDCI#15 N22
VDDC#32 N24
VDDC/BIF_VDDC#33 N27
VDDCI#17 R13
VDDCI#18 R16
VDDC#34 R18
VDDC#35 R21
VDDC#36 R23
VDDC#37 R26
VDDC#5 AA24
VDDCI#20 T15
VDDC#38 T17
VDDC#39 T20
VDDC#40 T22
VDDC#41 T24
VDDC/BIF_VDDC#42 T27
VDDC#43 U16
VDDC#44 U18
VDDC#45 U21
VDDC#46 U23
VDDC#6 AA27
VDDC#47 U26
VDDCI#21 V15
VDDC#48 V17
VDDC#49 V20
VDDC#50 V22
VDDC#51 V24
VDDC#52 V27
VDDC#53 Y16
VDDC#54 Y18
VDDC#55 Y21
VDDCI#2 AB13
VDDC#56 Y23
VDDC#57 Y26
VDDC#58 Y28
VDDC#7 AB16
VDDC#8 AB18
VDDCI#7 M15
VDDCI#11 N13
VDDCI#16 R12
VDDCI#19 T12
VDDCI#1 AA13
VDDCI#22 Y13
VDDC#29 AH27
VDDC#30 AH28
FB_VDDC
AF28
FB_VDDCI
AG28
FB_GND
AH29
C332
1U_0402_6.3V4Z
VGA@C332
1U_0402_6.3V4Z
VGA@
1
2
C325
1U_0402_6.3V4Z
VGA@C325
1U_0402_6.3V4Z
VGA@
1
2
C378
1U_0402_6.3V4Z
VGA@C378
1U_0402_6.3V4Z
VGA@
1
2
C391
10U_0603_6.3V6M
VGA@C391
10U_0603_6.3V6M
VGA@
1
2
C339
1U_0402_6.3V4Z
VGA@C339
1U_0402_6.3V4Z
VGA@
1
2
C398
1U_0402_6.3V4Z
VGA@C398
1U_0402_6.3V4Z
VGA@
1
2
L34
FBMA-L11-201209-221LMA30T_0805
VGA@L34
FBMA-L11-201209-221LMA30T_0805
VGA@
12
C397
10U_0603_6.3V6M
VGA@C397
10U_0603_6.3V6M
VGA@
1
2
C413
0.1U_0402_16V4Z
VGA@C413
0.1U_0402_16V4Z
VGA@
1
2
+
C395
330U_D2_2V_Y
VGA@
+
C395
330U_D2_2V_Y
VGA@
1
2
C347
10U_0603_6.3V6M
VGA@C347
10U_0603_6.3V6M
VGA@
1
2
C382
1U_0402_6.3V4Z
VGA@C382
1U_0402_6.3V4Z
VGA@
1
2
C346
1U_0402_6.3V4Z
VGA@C346
1U_0402_6.3V4Z
VGA@
1
2
C412
1U_0402_6.3V4Z
VGA@C412
1U_0402_6.3V4Z
VGA@
1
2
C340
1U_0402_6.3V4Z
VGA@C340
1U_0402_6.3V4Z
VGA@
1
2
C345
1U_0402_6.3V4Z
VGA@C345
1U_0402_6.3V4Z
VGA@
1
2
C361
1U_0402_6.3V4Z
VGA@C361
1U_0402_6.3V4Z
VGA@
1
2
L39
FBMA-L11-201209-121LMA50T_0805
VGA@L39
FBMA-L11-201209-121LMA50T_0805
VGA@
12
+
C447
330U_D2_2V_Y
@
+
C447
330U_D2_2V_Y
@
1
2
C362
1U_0402_6.3V4Z
VGA@C362
1U_0402_6.3V4Z
VGA@
1
2
C358
10U_0603_6.3V6M
VGA@C358
10U_0603_6.3V6M
VGA@
1
2
C369
1U_0402_6.3V4Z
VGA@C369
1U_0402_6.3V4Z
VGA@
1
2
C428
10U_0603_6.3V6M
VGA@C428
10U_0603_6.3V6M
VGA@
1
2
C360
10U_0603_6.3V6M
VGA@C360
10U_0603_6.3V6M
VGA@
1
2
C328
1U_0402_6.3V4Z
VGA@C328
1U_0402_6.3V4Z
VGA@
1
2
C353
1U_0402_6.3V4Z
VGA@C353
1U_0402_6.3V4Z
VGA@
1
2
C416
1U_0402_6.3V4Z
VGA@C416
1U_0402_6.3V4Z
VGA@
1
2
C334
1U_0402_6.3V4Z
VGA@C334
1U_0402_6.3V4Z
VGA@
1
2
C331
1U_0402_6.3V4Z
VGA@C331
1U_0402_6.3V4Z
VGA@
1
2
C388
10U_0603_6.3V6M
VGA@C388
10U_0603_6.3V6M
VGA@
1
2
R375
0_0402_5%
R375
0_0402_5%
1 2
J7
JUMP_43X118@
J7
JUMP_43X118@
11
2
2
C377
1U_0402_6.3V4Z
VGA@C377
1U_0402_6.3V4Z
VGA@
1
2
C383
1U_0402_6.3V4Z
VGA@C383
1U_0402_6.3V4Z
VGA@
1
2
C349
1U_0402_6.3V4Z
VGA@C349
1U_0402_6.3V4Z
VGA@
1
2
C423
1U_0402_6.3V4Z
VGA@C423
1U_0402_6.3V4Z
VGA@
1
2
C422
1U_0402_6.3V4Z
VGA@C422
1U_0402_6.3V4Z
VGA@
1
2
C344
1U_0402_6.3V4Z
VGA@C344
1U_0402_6.3V4Z
VGA@
1
2
C329
1U_0402_6.3V4Z
VGA@C329
1U_0402_6.3V4Z
VGA@
1
2
C424
1U_0402_6.3V4Z
VGA@C424
1U_0402_6.3V4Z
VGA@
1
2
C356
1U_0402_6.3V4Z
VGA@C356
1U_0402_6.3V4Z
VGA@
1
2
C393
10U_0603_6.3V6M
VGA@C393
10U_0603_6.3V6M
VGA@
1
2
C421
10U_0603_6.3V6M
VGA@C421
10U_0603_6.3V6M
VGA@
1
2
C324
1U_0402_6.3V4Z
VGA@C324
1U_0402_6.3V4Z
VGA@
1
2
C402
0.1U_0402_16V4Z
VGA@C402
0.1U_0402_16V4Z
VGA@
1
2
C338
1U_0402_6.3V4Z
VGA@C338
1U_0402_6.3V4Z
VGA@
1
2
+
C396
330U_D2_2V_Y
VGA@
+
C396
330U_D2_2V_Y
VGA@
1
2
C387
10U_0603_6.3V6M
VGA@C387
10U_0603_6.3V6M
VGA@
1
2
C414
0.1U_0402_16V4Z
VGA@C414
0.1U_0402_16V4Z
VGA@
1
2
C363
1U_0402_6.3V4Z
VGA@C363
1U_0402_6.3V4Z
VGA@
1
2
C380
1U_0402_6.3V4Z
VGA@C380
1U_0402_6.3V4Z
VGA@
1
2
C371
1U_0402_6.3V4Z
VGA@C371
1U_0402_6.3V4Z
VGA@
1
2
+
C322
390U_2.5V_10M
VGA@
+
C322
390U_2.5V_10M
VGA@
1
2
C400
10U_0603_6.3V6M
VGA@C400
10U_0603_6.3V6M
VGA@
1
2
C386
0.1U_0402_16V4Z
VGA@C386
0.1U_0402_16V4Z
VGA@
1
2
C366
1U_0402_6.3V4Z
VGA@C366
1U_0402_6.3V4Z
VGA@
1
2
C399
0.1U_0402_16V4Z
VGA@C399
0.1U_0402_16V4Z
VGA@
1
2
C390
10U_0603_6.3V6M
VGA@C390
10U_0603_6.3V6M
VGA@
1
2
L35
BLM18AG121SN1D_0603
VGA@L35
BLM18AG121SN1D_0603
VGA@
12
C348
1U_0402_6.3V4Z
VGA@C348
1U_0402_6.3V4Z
VGA@
1
2
C417
1U_0402_6.3V4Z
VGA@C417
1U_0402_6.3V4Z
VGA@
1
2
C373
1U_0402_6.3V4Z
VGA@C373
1U_0402_6.3V4Z
VGA@
1
2
C418
1U_0402_6.3V4Z
VGA@C418
1U_0402_6.3V4Z
VGA@
1
2
C375
1U_0402_6.3V4Z
VGA@C375
1U_0402_6.3V4Z
VGA@
1
2
L41
FBMA-L11-201209-121LMA50T_0805
VGA@L41
FBMA-L11-201209-121LMA50T_0805
VGA@
12
C337
1U_0402_6.3V4Z
VGA@C337
1U_0402_6.3V4Z
VGA@
1
2
C368
1U_0402_6.3V4Z
VGA@C368
1U_0402_6.3V4Z
VGA@
1
2
C392
10U_0603_6.3V6M
VGA@C392
10U_0603_6.3V6M
VGA@
1
2
C365
1U_0402_6.3V4Z
VGA@C365
1U_0402_6.3V4Z
VGA@
1
2
L37
BLM18AG121SN1D_0603
VGA@L37
BLM18AG121SN1D_0603
VGA@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+DPCD_VDD18
+DPEF_VDD18
+DPCD_VDD10
+DPEF_VDD10
+DPEF_VDD10
+DPCD_VDD10
+DPCD_VDD18
+DPEF_VDD18
+DPCD_VDD18
+DPAB_VDD18
+DPAB_VDD18
+DPEF_VDD18
+DPEF_VDD18
+DPAB_VDD18
+DPAB_VDD10
+DPAB_VDD18
+DPAB_VDD10
+DPCD_VDD18
PX_EN 23
+1.0VSG
+1.0VSG
+1.8VSG
+1.8VSG
+1.0VSG
+1.8VSG
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P21-Vancouver_Power/GND
Custom
21 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P21-Vancouver_Power/GND
Custom
21 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P21-Vancouver_Power/GND
Custom
21 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
150mA
110mA
470ohm/1A
440mA
240mA
470ohm/1A
470ohm/1A
470ohm/1A
300mA
220mA
470ohm/1A
470ohm/1A
C443
1U_0402_6.3V4Z
VGA@C443
1U_0402_6.3V4Z
VGA@
1
2
R377
150_0402_1%
VGA@
R377
150_0402_1%
VGA@
1 2
C442
0.1U_0402_16V4Z
VGA@C442
0.1U_0402_16V4Z
VGA@
1
2
C440
10U_0603_6.3V6M
VGA@C440
10U_0603_6.3V6M
VGA@
1
2
C431
1U_0402_6.3V4Z
VGA@C431
1U_0402_6.3V4Z
VGA@
1
2
C437
1U_0402_6.3V4Z
VGA@C437
1U_0402_6.3V4Z
VGA@
1
2
R378
0_0402_5%
R378
0_0402_5%
1 2
L66
BLM18AG121SN1D_0603
VGA@L66
BLM18AG121SN1D_0603
VGA@
12
C429
10U_0603_6.3V6M
VGA@C429
10U_0603_6.3V6M
VGA@
1
2
C444
10U_0603_6.3V6M
VGA@C444
10U_0603_6.3V6M
VGA@
1
2
L67
BLM18AG121SN1D_0603
VGA@L67
BLM18AG121SN1D_0603
VGA@
12
R376
150_0402_1%
VGA@
R376
150_0402_1%
VGA@ 12
L63
BLM18AG121SN1D_0603
VGA@L63
BLM18AG121SN1D_0603
VGA@
12
C439
1U_0402_6.3V4Z
VGA@C439
1U_0402_6.3V4Z
VGA@
1
2
L42
BLM18AG121SN1D_0603
VGA@L42
BLM18AG121SN1D_0603
VGA@
12
C435
10U_0603_6.3V6M
VGA@C435
10U_0603_6.3V6M
VGA@
1
2
R379
150_0402_1%
VGA@
R379
150_0402_1%
VGA@ 12
C441
10U_0603_6.3V6M
VGA@C441
10U_0603_6.3V6M
VGA@
1
2
R4550_0603_5%
@
R4550_0603_5%
@
1 2
C434
1U_0402_6.3V4Z
VGA@C434
1U_0402_6.3V4Z
VGA@
1
2
C433
0.1U_0402_16V4Z
VGA@C433
0.1U_0402_16V4Z
VGA@
1
2
C438
0.1U_0402_16V4Z
VGA@C438
0.1U_0402_16V4Z
VGA@
1
2
C430
0.1U_0402_16V4Z
VGA@C430
0.1U_0402_16V4Z
VGA@
1
2
DP PLL POWER
DP A/B POWER
DP C/D POWER
DP E/F POWER
2160809000A11SEYMOU_FCBGA962
U2H
VGA@
DP PLL POWER
DP A/B POWER
DP C/D POWER
DP E/F POWER
2160809000A11SEYMOU_FCBGA962
U2H
VGA@
DPAB_VDD18/DPA_PVDD AU28
DP_VSSR/DPA_PVSS AV27
DPAB/DPA_VDD10#1 AP31
DPAB/DPA_VDD10#2 AP32
DPAB/DPA_VDD18#1 AN24
DPAB/DPA_VDD18#2 AP24
DP/DPA_VSSR#1 AN27
DP/DPA_VSSR#2 AP27
DP/DPA_VSSR#3 AP28
DP/DPA_VSSR#4 AW24
DP/DPA_VSSR#5 AW26
DPAB_CALR AW28
DPAB_VDD18/DPB_PVDD AV29
DP_VSSR/DPB_PVSS AR28
DPAB/DPB_VDD10#1 AN33
DPAB/DPB_VDD10#2 AP33
DPAB/DPB_VDD18#1 AP25
DPAB/DPB_VDD18#2 AP26
DP/DPB_VSSR#1 AN29
DP/DPB_VSSR#2 AP29
DP/DPB_VSSR#3 AP30
DP/DPB_VSSR#4 AW30
DP/DPB_VSSR#5 AW32
DPCD_VDD18/DPC_PVDD AU18
DP_VSSR/DPC_PVSS AV17
DPCD/DPC_VDD10#1
AP13
DPCD/DPC_VDD10#2
AT13
DPCD/DPC_VDD18#1
AP20
DPCD/DPC_VDD18#2
AP21
DP/DPC_VSSR#1
AN17
DP/DPC_VSSR#2
AP16
DP/DPC_VSSR#3
AP17
DP/DPC_VSSR#4
AW14
DP/DPC_VSSR#5
AW16
DPCD_CALR
AW18
DPCD_VDD18/DPD_PVDD AV19
DP_VSSR/DPD_PVSS AR18
DPCD/DPD_VDD10#1
AP14
DPCD/DPD_VDD10#2
AP15
DPCD/DPD_VDD18#1
AP22
DPCD/DPD_VDD18#2
AP23
DP/DPD_VSSR#1
AN19
DP/DPD_VSSR#2
AP18
DP/DPD_VSSR#3
AP19
DP/DPD_VSSR#4
AW20
DP/DPD_VSSR#5
AW22
DPEF_VDD18/DPE_PVDD AM37
DP_VSSR/DPE_PVSS AN38
DPEF/DPE_VDD10#1
AL33
DPEF/DPE_VDD10#2
AM33
DPEF/DPE_VDD18#1
AH34
DPEF/DPE_VDD18#2
AJ34
DP/DPE_VSSR#1
AN34
DP/DPE_VSSR#2
AP39
DP/DPE_VSSR#3
AR39
DP/DPE_VSSR#4
AU37
DPEF_CALR
AM39
DPEF_VDD18/DPF_PVDD AL38
DP_VSSR/DPF_PVSS AM35
DPEF/DPF_VDD10#1
AK33
DPEF/DPF_VDD10#2
AK34
DPEF/DPF_VDD18#1
AF34
DPEF/DPF_VDD18#2
AG34
DP/DPF_VSSR#1
AF39
DP/DPF_VSSR#2
AH39
DP/DPF_VSSR#3
AK39
DP/DPF_VSSR#4
AL34
DP/DPF_VSSR#5
AM34
GND
2160809000A11SEYMOU_FCBGA962
U2F
VGA@
GND
2160809000A11SEYMOU_FCBGA962
U2F
VGA@
PCIE_VSS#1
AB39
PCIE_VSS#10
J31
PCIE_VSS#11
J34
PCIE_VSS#12
K31
PCIE_VSS#13
K34
PCIE_VSS#14
K39
PCIE_VSS#15
L31
PCIE_VSS#16
L34
PCIE_VSS#17
M34
PCIE_VSS#18
M39
PCIE_VSS#19
N31
PCIE_VSS#2
E39
PCIE_VSS#20
N34
PCIE_VSS#21
P31
PCIE_VSS#22
P34
PCIE_VSS#23
P39
PCIE_VSS#24
R34
PCIE_VSS#25
T31
PCIE_VSS#26
T34
PCIE_VSS#27
T39
PCIE_VSS#28
U31
PCIE_VSS#29
U34
PCIE_VSS#3
F34
PCIE_VSS#30
V34
PCIE_VSS#31
V39
PCIE_VSS#32
W31
PCIE_VSS#33
W34
PCIE_VSS#34
Y34
PCIE_VSS#35
Y39
PCIE_VSS#4
F39
PCIE_VSS#5
G33
PCIE_VSS#6
G34
PCIE_VSS#7
H31
PCIE_VSS#8
H34
PCIE_VSS#9
H39
VSS_MECH#1 A39
VSS_MECH#2 AW1
VSS_MECH#3 AW39
GND#1 A3
GND#10 AA6
GND#98 F13
GND#100
F15
GND#101
F17
GND#102
F19
GND#103
F21
GND#104
F23
GND#105
F25
GND#106
F27
GND#107
F29
GND#108
F31
GND#11 AB12
GND#109
F33
GND#110
F7
GND#111
F9
GND#112
G2
GND#113
G6
GND#114
H9
GND#115
J2
GND#116
J27
GND#117
J6
GND#118
J8
GND#12 AB15
GND#119
K14
GND#120
K7
GND#121
L11
GND#122
L17
GND#123
L2
GND#124
L22
GND#125
L24
GND#126
L6
GND#127
M17
GND#128
M22
GND#13 AB17
GND#129
M24
GND#130
N16
GND#131
N18
GND#132
N2
GND#133
N21
GND#134
N23
GND#135
N26
GND#136
N6
GND#137
R15
GND#138
R17
GND#14 AB20
GND#139
R2
GND#140
R20
GND#141
R22
GND#142
R24
GND#143
R27
GND#144
R6
GND#145
T11
GND#146
T13
GND#147
T16
GND#148
T18
GND#15 AB22
GND#149
T21
GND#150
T23
GND#151
T26
GND#153
U15
GND#154
U17
GND#155
U2
GND#156
U20
GND#157
U22
GND#158
U24
GND#159
U27
GND#16 AB24
GND#160
U6
GND#161
V11
GND#163
V16
GND#164
V18
GND#165
V21
GND#166
V23
GND#167
V26
GND#168
W2
GND#169
W6
GND#170
Y15
GND#17 AB27
GND#171
Y17
GND#172
Y20
GND#173
Y22
GND#174
Y24
GND#175
Y27
GND#18 AC11
GND#19 AC13
GND#2 A37
GND#20 AC16
GND#21 AC18
GND#22 AC2
GND#23 AC21
GND#24 AC23
GND#25 AC26
GND#26 AC28
GND#27 AC6
GND#28 AD15
GND#29 AD17
GND#3 AA16
GND#30 AD20
GND#31 AD22
GND#32 AD24
GND#33 AD27
GND#34 AD9
GND#35 AE2
GND#36 AE6
GND#37 AF10
GND#38 AF16
GND#39 AF18
GND#4 AA18
GND#40 AF21
GND#41 AG17
GND#42 AG2
GND#43 AG20
GND#44 AG22
GND#45 AG6
GND#46 AG9
GND#47 AH21
GND#48 AJ10
GND#5 AA2
GND#49 AJ11
GND#50 AJ2
GND#51 AJ28
GND#52 AJ6
GND#53 AK11
GND#54 AK31
GND#55 AK7
GND#56 AL11
GND#57 AL14
GND#58 AL17
GND#6 AA21
GND#59 AL2
GND#60 AL20
GND/PX_EN#61 AL21
GND#62 AL23
GND#63 AL26
GND#64 AL32
GND#65 AL6
GND#66 AL8
GND#67 AM11
GND#68 AM31
GND#7 AA23
GND#69 AM9
GND#70 AN11
GND#71 AN2
GND#72 AN30
GND#73 AN6
GND#74 AN8
GND#75 AP11
GND#76 AP7
GND#77 AP9
GND#78 AR5
GND#8 AA26
GND#79 B11
GND#80 B13
GND#81 B15
GND#82 B17
GND#83 B19
GND#84 B21
GND#85 B23
GND#86 B25
GND#87 B27
GND#9 AA28
GND#88 B29
GND#89 B31
GND#90 B33
GND#91 B7
GND#92 B9
GND#93 C1
GND#94 C39
GND#95 E35
GND#96 E5
GND#97 F11
GND#152
U13
GND#162
V13
C446
1U_0402_6.3V4Z
VGA@C446
1U_0402_6.3V4Z
VGA@
1
2
C432
10U_0603_6.3V6M
VGA@C432
10U_0603_6.3V6M
VGA@
1
2
L64
BLM18AG121SN1D_0603
VGA@L64
BLM18AG121SN1D_0603
VGA@
12
C436
0.1U_0402_16V4Z
VGA@C436
0.1U_0402_16V4Z
VGA@
1
2
L80
BLM18AG121SN1D_0603
VGA@L80
BLM18AG121SN1D_0603
VGA@
12
C445
0.1U_0402_16V4Z
VGA@C445
0.1U_0402_16V4Z
VGA@
1
2

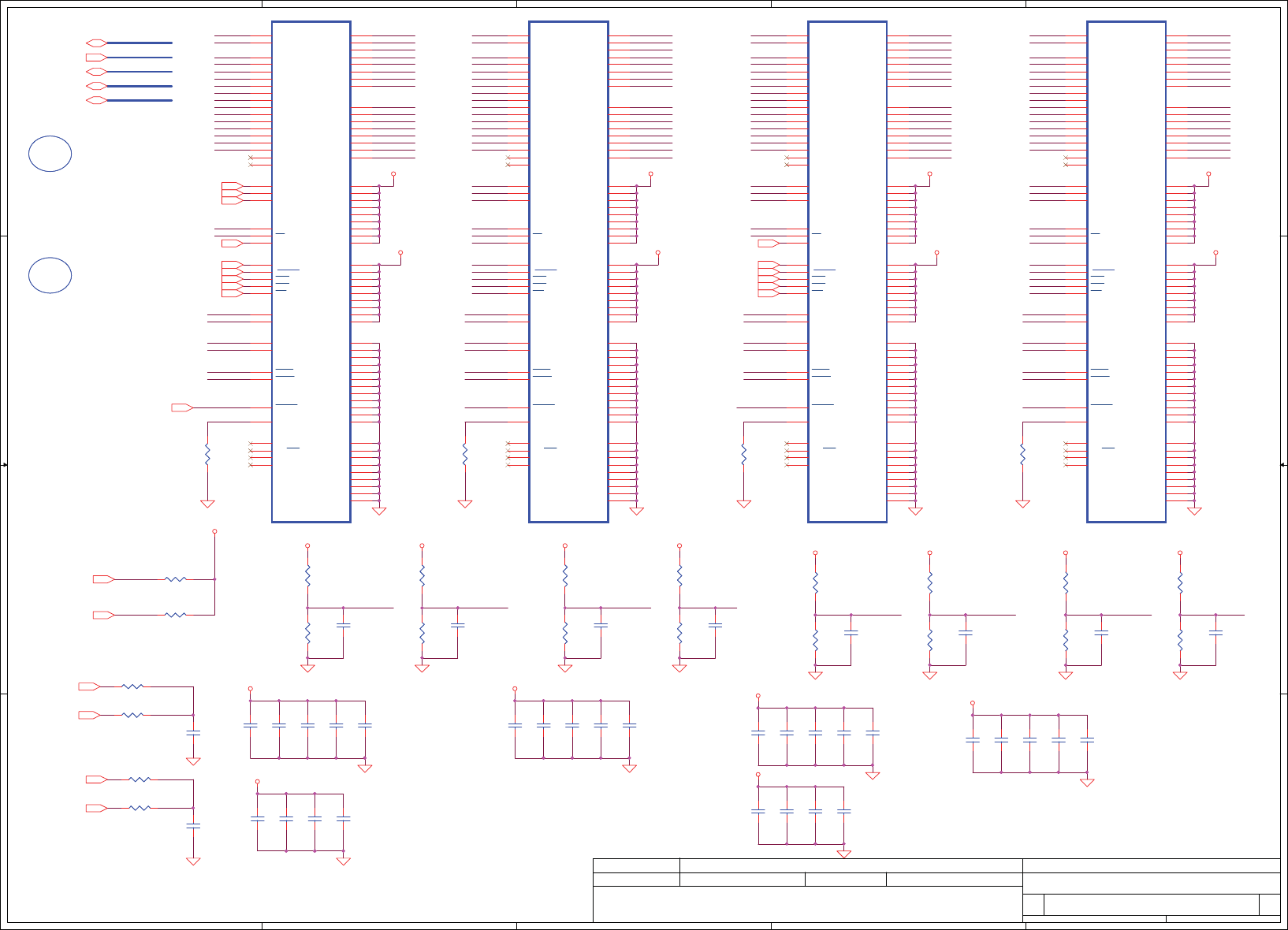

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
DQMB#1
MAB11
MAB12
MAB4
MAB2
MAB1
MAB0
QSB#3
VRAM_RST#
MAB10
DQMB#3
MAB7
QSB#1
MAB3
VREFDB_Q1
MAB9
QSB3
MAB8
VREFCB_A1
MAB5
QSB1
MAB6
QSB#2
DQMB#2
QSB#0
QSB2
QSB0
DQMB#0
MAB8
VRAM_RST#
MAB12
MAB1
VREFDB_Q2
VREFCB_A2
MAB4
MAB7
MAB0
MAB10
MAB3
MAB5
MAB2
MAB9
MAB6
MAB11
QSB#4
DQMB#4
QSB#5
QSB4
QSB5
DQMB#5
MAB8
VRAM_RST#
MAB12
MAB1
VREFDB_Q3
VREFCB_A3
MAB4
MAB7
MAB0
MAB10
MAB3
MAB5
MAB2
MAB9
MAB6
MAB11
QSB#6
DQMB#6
QSB#7
QSB6
QSB7
DQMB#7
MAB8
VRAM_RST#
MAB12
MAB1
VREFDB_Q4
VREFCB_A4
MAB4
MAB7
MAB0
MAB10
MAB3
MAB5
MAB2
MAB9
MAB6
MAB11
MDB15
MDB14
MDB10
MDB9
MDB12
MDB13
MDB8
MDB11
MDB25
MDB24
MDB31
MDB29
MDB26
MDB27
MDB30
MDB28
MDB22
MDB21
MDB20
MDB19
MDB17
MDB23
MDB18
MDB16
MDB2
MDB5
MDB3
MDB7
MDB0
MDB6
MDB1
MDB4
MDB44
MDB41
MDB45
MDB43
MDB46
MDB37
MDB39
MDB32
MDB35
MDB38
MDB33
MDB40
MDB36
MDB34
MDB47
MDB42
MDB51
MDB55
MDB50
MDB58
MDB57
MDB61
MDB52
MDB53
MDB48
MDB60
MDB54
MDB49
MDB63
MDB56
MDB62
MDB59
MAB13 MAB13 MAB13 MAB13
VREFCB_A1 VREFCB_A2 VREFDB_Q2VREFDB_Q1
VREFDB_Q3VREFCB_A3 VREFCB_A4 VREFDB_Q4
CLKB1
CLKB1#CLKB1#
CLKB1
CLKB0#
CLKB0 CLKB0
CLKB0#
B_BA0
B_BA1
B_BA2 B_BA2
B_BA0
B_BA1
B_BA2
B_BA0
B_BA1
CKEB0
ODTB0
CSB0#_0
RASB0#
CASB0#
WEB0#
CKEB1
ODTB1
CSB1#_0
RASB1#
CASB1#
WEB1#
ODTB0
ODTB1
CLKB019
CLKB0#19
CLKB119
CLKB1#19
QSB#[7..0]19
QSB[7..0]19
DQMB#[7..0]19
MDB[0..63]19
MAB[13..0]19
VRAM_RST#19
CKEB119
B_BA019
B_BA119
B_BA219
CKEB019
CSB0#_019
WEB0#19
CASB0#19
RASB0#19
CSB1#_019
RASB1#19
CASB1#19
WEB1#19
ODTB019 ODTB119
ODTB019
ODTB119
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG +1.5VSG +1.5VSG+1.5VSG
+1.5VSG+1.5VSG+1.5VSG+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
+1.5VSG
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P22-VRAM_DDR3 / Channel B
Custom
22 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P22-VRAM_DDR3 / Channel B
Custom
22 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P22-VRAM_DDR3 / Channel B
Custom
22 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
VRAM P/N :
Samsung : SA00004GS10 (S IC D3 64M16 K4W1G1646G-BC11 FBGA) 900MHz
Hynix : SA000032420 (S IC D3 64MX16 H5TQ1G63BFR-12C FBGA 1.5V )800MHz
Hynix : SA000041S40 ( S IC D3 64MX16 H5TQ1G63DFR-11C FBGA )900MHz
R79
243_0402_1%
VGA@
R79
243_0402_1%
VGA@
12
R81
243_0402_1%
VGA@
R81
243_0402_1%
VGA@
12
C181
1U_0402_6.3V6K
VGA@C181
1U_0402_6.3V6K
VGA@
1
2
C193
1U_0402_6.3V6K
VGA@C193
1U_0402_6.3V6K
VGA@
1
2
C199
10U_0603_6.3V6M
VGA@C199
10U_0603_6.3V6M
VGA@
1
2
R87
4.99K_0402_1%
VGA@
R87
4.99K_0402_1%
VGA@
12
C203
10U_0603_6.3V6M
VGA@C203
10U_0603_6.3V6M
VGA@
1
2
C189
1U_0402_6.3V6K
VGA@C189
1U_0402_6.3V6K
VGA@
1
2
C184
1U_0402_6.3V6K
VGA@C184
1U_0402_6.3V6K
VGA@
1
2
R97
4.99K_0402_1%
VGA@
R97
4.99K_0402_1%
VGA@
12
C202
10U_0603_6.3V6M
VGA@C202
10U_0603_6.3V6M
VGA@
1
2
96-BALL
SDRAM DDR3
U9
K4W1G1646G-BC11
X76@
96-BALL
SDRAM DDR3
U9
K4W1G1646G-BC11
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C201
10U_0603_6.3V6M
VGA@C201
10U_0603_6.3V6M
VGA@
1
2
C188
1U_0402_6.3V6K
VGA@C188
1U_0402_6.3V6K
VGA@
1
2
R106
56_0402_1%
VGA@R106
56_0402_1%
VGA@
1 2
ZZZ1
1GVRAM
X76L01@
ZZZ1
1GVRAM
X76L01@
R96
4.99K_0402_1%
VGA@
R96
4.99K_0402_1%
VGA@
12
R86
4.99K_0402_1%
VGA@
R86
4.99K_0402_1%
VGA@
12
R1735
56_0402_1%
@R1735
56_0402_1%
@
1 2
R78
4.99K_0402_1%
VGA@
R78
4.99K_0402_1%
VGA@
12
C179
1U_0402_6.3V6K
VGA@C179
1U_0402_6.3V6K
VGA@
1
2
C172
0.1U_0402_16V4Z
VGA@
C172
0.1U_0402_16V4Z
VGA@
1
2
C171
0.1U_0402_16V4Z
VGA@
C171
0.1U_0402_16V4Z
VGA@
1
2
R103
56_0402_1%
VGA@R103
56_0402_1%
VGA@
1 2
C169
0.1U_0402_16V4Z
VGA@
C169
0.1U_0402_16V4Z
VGA@
1
2
R85
4.99K_0402_1%
VGA@
R85
4.99K_0402_1%
VGA@
12
R101
4.99K_0402_1%
VGA@
R101
4.99K_0402_1%
VGA@
12
R80
243_0402_1%
VGA@
R80
243_0402_1%
VGA@
12
C190
1U_0402_6.3V6K
VGA@C190
1U_0402_6.3V6K
VGA@
1
2
R1734
56_0402_1%
@R1734
56_0402_1%
@
1 2
C198
0.01U_0402_25V7K
VGA@C198
0.01U_0402_25V7K
VGA@
1
2
C206
10U_0603_6.3V6M
VGA@C206
10U_0603_6.3V6M
VGA@
1
2
R82
243_0402_1%
VGA@
R82
243_0402_1%
VGA@
12
C195
1U_0402_6.3V6K
VGA@C195
1U_0402_6.3V6K
VGA@
1
2
R98
4.99K_0402_1%
VGA@
R98
4.99K_0402_1%
VGA@
12
C185
1U_0402_6.3V6K
VGA@C185
1U_0402_6.3V6K
VGA@
1
2
C187
1U_0402_6.3V6K
VGA@C187
1U_0402_6.3V6K
VGA@
1
2
C205
10U_0603_6.3V6M
VGA@C205
10U_0603_6.3V6M
VGA@
1
2
R90
4.99K_0402_1%
VGA@
R90
4.99K_0402_1%
VGA@
12
R104
56_0402_1%
VGA@R104
56_0402_1%
VGA@
1 2
R100
4.99K_0402_1%
VGA@
R100
4.99K_0402_1%
VGA@
12
C192
1U_0402_6.3V6K
VGA@C192
1U_0402_6.3V6K
VGA@
1
2
C174
0.1U_0402_16V4Z
VGA@
C174
0.1U_0402_16V4Z
VGA@
1
2
R89
4.99K_0402_1%
VGA@
R89
4.99K_0402_1%
VGA@
12
C178
1U_0402_6.3V6K
VGA@C178
1U_0402_6.3V6K
VGA@
1
2
C191
1U_0402_6.3V6K
VGA@C191
1U_0402_6.3V6K
VGA@
1
2
96-BALL
SDRAM DDR3
U7
K4W1G1646G-BC11
X76@
96-BALL
SDRAM DDR3
U7
K4W1G1646G-BC11
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C173
0.1U_0402_16V4Z
VGA@
C173
0.1U_0402_16V4Z
VGA@
1
2
96-BALL
SDRAM DDR3
U6
K4W1G1646G-BC11
X76@
96-BALL
SDRAM DDR3
U6
K4W1G1646G-BC11
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C196
1U_0402_6.3V6K
VGA@C196
1U_0402_6.3V6K
VGA@
1
2
R95
4.99K_0402_1%
VGA@
R95
4.99K_0402_1%
VGA@
12
C170
0.1U_0402_16V4Z
VGA@
C170
0.1U_0402_16V4Z
VGA@
1
2
C177
0.01U_0402_25V7K
VGA@C177
0.01U_0402_25V7K
VGA@
1
2
C186
1U_0402_6.3V6K
VGA@C186
1U_0402_6.3V6K
VGA@
1
2
ZZZ2
512MVRAM
X76L03@
ZZZ2
512MVRAM
X76L03@
C197
1U_0402_6.3V6K
VGA@C197
1U_0402_6.3V6K
VGA@
1
2
R102
4.99K_0402_1%
VGA@
R102
4.99K_0402_1%
VGA@
12
C175
0.1U_0402_16V4Z
VGA@
C175
0.1U_0402_16V4Z
VGA@
1
2
R84
4.99K_0402_1%
VGA@
R84
4.99K_0402_1%
VGA@
12
C204
10U_0603_6.3V6M
VGA@C204
10U_0603_6.3V6M
VGA@
1
2
C194
1U_0402_6.3V6K
VGA@C194
1U_0402_6.3V6K
VGA@
1
2
96-BALL
SDRAM DDR3
U8
K4W1G1646G-BC11
X76@
96-BALL
SDRAM DDR3
U8
K4W1G1646G-BC11
X76@
WE
L3
RAS
J3
CAS
K3
CS/CS0
L2
CKE/CKE0
K9
CK
J7
CK
K7
DQSU
B7
BA0
M2
BA1
N8
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
VSSQ D1
VSS A9
VSS E1
VSS B3
NC/ODT1
J1
VDD B2
VDD D9
VDDQ A1
VDDQ A8
VDDQ C1
VDDQ C9
NC/CS1
L1
NC/CE1
J9
VDDQ E9
ZQ/ZQ0
L8
RESET
T2
DQSL
F3
DMU
D3 DML
E7
VSSQ B1
VSSQ B9
VSSQ D8
VSSQ E2
DQSU
C7
VSSQ E8
DQSL
G3
VDDQ F1
VSSQ F9
VSSQ G1
VDDQ H2
VDDQ H9
VSSQ G9
VREFCA
M8
VSS G8
VDD G7
ODT/ODT0
K1
A0
N3
A1
P7
VDD K2
A12
N7
VSS J2
VDD K8
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
DQU0 D7
A13
T3
A14
T7
A15/BA3
M7
BA2
M3
VREFDQ
H1
NCZQ1
L9
VDD N1
VDD N9
VDD R1
VDD R9
VSS J8
VSS M1
VSS M9
VSS P1
VSS P9
VSS T1
VSS T9
VDDQ D2
C200
10U_0603_6.3V6M
VGA@C200
10U_0603_6.3V6M
VGA@
1
2
R83
4.99K_0402_1%
VGA@
R83
4.99K_0402_1%
VGA@
12
R105
56_0402_1%
VGA@R105
56_0402_1%
VGA@
1 2
C182
1U_0402_6.3V6K
VGA@C182
1U_0402_6.3V6K
VGA@
1
2
C180
1U_0402_6.3V6K
VGA@C180
1U_0402_6.3V6K
VGA@
1
2
C183
1U_0402_6.3V6K
VGA@C183
1U_0402_6.3V6K
VGA@
1
2
C176
0.1U_0402_16V4Z
VGA@
C176
0.1U_0402_16V4Z
VGA@
1
2
R88
4.99K_0402_1%
VGA@
R88
4.99K_0402_1%
VGA@
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
VDDC_EN
1.5_VDDC_PWREN
VGA_PWR_ON
1.5_VDDC_PWREN
1.0_EN
VDDC_EN
1.0_EN
VGA_PWR_ON
VGA_PWRGD12,41,42,44
PX_EN21
1.5_VDDC_PWREN 24,44
VGA_ON30
PE_GPIO112,30 VGA_PWR_ON 24,41
+3VS
+5VS +5VS
+BIF_VDDC
+1.0VSG
+VGA_CORE
+VGA_CORE
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P23-VGA power sequence and BACO
Custom
23 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P23-VGA power sequence and BACO
Custom
23 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P23-VGA power sequence and BACO
Custom
23 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
From +VGA_CORE regulator
VGA Muxless with BACO Status Mapping table
PX_EN
Normal mode BACO mode
01
1.5_VDDC_PWREN 1 0
+3.3VSG ON
+1.8VSG ON
+1.0VSG
+VGA_CORE
+1.5VSG
ON
ON
ON
ON
ON
ON
OFF
OFF
+BIF_VDDC +VGA_CORE +1.0VSG
VGA Power Enable Signal Mapping table
Seymour
+3.3VSG
+1.8VSG
+1.0VSG
+VGA_CORE
+1.5VSG
+VDDCI
SUSP#
VGA_PWR_ON#
VGA_PWR_ON
Combine with +VGA_CORE
1.5_VDDC_PWREN
1.5_VDDC_PWREN#
Power Sequence of Whistler and Seymour
(JUMP form +3VS)
+VGA_CORE
+1.5VSG
+1.0VSG
+1.8VSG
20ms
VGA_ON
VGA_PWR_ON
10ms
SUSP#
+3VSG
1.5_VDDC_PWREN
AO3416 NMOS
Vgs(th)(Max)= 1V
Rds(on)(Max)= 22m ohm @Vgs=4.5V
VDDC_EN
1.0_EN
1
01
0
30mil20mil
30mil
VGA_PWR_ON source signal VGA_ON
Delay SUSP# 10ms
PE_GPIO1
VGA_PWR_ON >1ms
For PX sequence, >1mS delay is required between
PE_GPIO1 and VGA_PWR_ON
WOBACO@
WOBACO@
For VGA Power on control
Q3A
DMN66D0LDW-7_SOT363-6
VGA@Q3A
DMN66D0LDW-7_SOT363-6
VGA@
61
2
U10
NC7SZ08P5X_NL_SC70-5
VGA@
U10
NC7SZ08P5X_NL_SC70-5
VGA@
B
2
A
1Y4
P5
G
3
G
D
S
Q5
AO3416_SOT23-3
VGA@
G
D
S
Q5
AO3416_SOT23-3
VGA@
2
1 3
C239
10U_0603_6.3V6M
VGA@
C239
10U_0603_6.3V6M
VGA@
1
2
R117 0_0805_5%
@
R117 0_0805_5%
@
1 2
Q3B
DMN66D0LDW-7_SOT363-6
VGA@Q3B
DMN66D0LDW-7_SOT363-6
VGA@
34
5
G
D
S
Q4
AO3416_SOT23-3
VGA@
G
D
S
Q4
AO3416_SOT23-3
VGA@
2
13
U12
NC7SZ08P5X_NL_SC70-5
VGA@
U12
NC7SZ08P5X_NL_SC70-5
VGA@
B
2
A
1Y4
P5
G
3
C209
0.1U_0402_10V7K
VGA@C209
0.1U_0402_10V7K
VGA@
12
R110
5.11K_0402_1%
VGA@
R110
5.11K_0402_1%
VGA@
12
R108 10K_0402_5%
VGA@
R108 10K_0402_5%
VGA@
1 2
R114
0_0402_5%
R114
0_0402_5%
1 2
G
D
S
Q8
AO3416_SOT23-3
VGA@
G
D
S
Q8
AO3416_SOT23-3
VGA@
2
1 3
R111
0_0402_5%
R111
0_0402_5%
1 2
R107 0_0402_5%
@
R107 0_0402_5%
@
1 2
R77
0_0402_5%
R77
0_0402_5%
1 2
R119 10K_0402_1%
@
R119 10K_0402_1%
@
1 2
C212
10U_0603_6.3V6M
VGA@
C212
10U_0603_6.3V6M
VGA@
1
2
R113
1K_0402_5%
VGA@
R113
1K_0402_5%
VGA@
1 2
R112
1K_0402_5%
VGA@
R112
1K_0402_5%
VGA@
1 2
G
D
S
Q7
AO3416_SOT23-3
VGA@
G
D
S
Q7
AO3416_SOT23-3
VGA@
2
13
C207
0.1U_0402_10V7K
VGA@C207
0.1U_0402_10V7K
VGA@
1 2
G
D
S
Q2
2N7002_SOT23
VGA@
G
D
S
Q2
2N7002_SOT23
VGA@
2
13
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
1.5_VDDC_PWREN#
1.5VSG_GATE
1.5_VDDC_PWREN#
VGA_PWR_ON#
VGA_PWR_ON#
1.8VSG_GATE
VGA_PWR_ON#1.5_VDDC_PWREN#
VGA_PWR_ON23,411.5_VDDC_PWREN23,44
1.5_VDDC_PWREN#34
+3VSG+3VS
+1.5V
+VSB
+1.5VSG
+VSB
+1.8VS +1.8VSG
+5VALW+5VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
P24-VGA DC Interface
Custom
24 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
P24-VGA DC Interface
Custom
24 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
P24-VGA DC Interface
Custom
24 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
+1.8VS TO +1.8VSG
+3.3VS TO +3.3VSG
+1.5V TO +1.5VSG
Change P/N SB00000GV00
R124 0_0805_5%
VGA@
R124 0_0805_5%
VGA@
1 2
C232
0.1U_0603_25V7K
VGA@
C232
0.1U_0603_25V7K
VGA@
1
2
R1119
100K_0402_5%
R1119
100K_0402_5%
1 2
U14
AO4478L 1N SO8
VGA@
U14
AO4478L 1N SO8
VGA@
36
5
7
8
2
4
1
R1123
100K_0402_5%
R1123
100K_0402_5%
12
G
D
S
Q68
SSM3K7002FU_SC70-3
G
D
S
Q68
SSM3K7002FU_SC70-3
2
13
C227
10U_0603_6.3V6M
VGA@
C227
10U_0603_6.3V6M
VGA@
1
2
R1134
10K_0402_5%
R1134
10K_0402_5%
12
C225
1U_0402_6.3V4Z
VGA@
C225
1U_0402_6.3V4Z
VGA@
1
2
R1131
100K_0402_5%
R1131
100K_0402_5%
1 2
G
D
S
Q16
SSM3K7002FU_SC70-3
VGA@
G
D
S
Q16
SSM3K7002FU_SC70-3
VGA@
2
13
C233
0.1U_0603_25V7K
VGA@
C233
0.1U_0603_25V7K
VGA@
1
2
C235
0.1U_0603_25V7K
VGA@
C235
0.1U_0603_25V7K
VGA@
1
2
C224
10U_0603_6.3V6M
VGA@
C224
10U_0603_6.3V6M
VGA@
1
2
C231
10U_0603_6.3V6M
VGA@
C231
10U_0603_6.3V6M
VGA@
1
2
C229
10U_0603_6.3V6M
VGA@
C229
10U_0603_6.3V6M
VGA@
1
2
R139 47K_0402_5%
VGA@
R139 47K_0402_5%
VGA@
12
R134
470_0603_5%
VGA@
R134
470_0603_5%
VGA@
1 2
R135 100K_0402_5%
VGA@
R135 100K_0402_5%
VGA@
12
R137 100K_0402_5%
VGA@
R137 100K_0402_5%
VGA@
12
G
D
S
Q19
SSM3K7002FU_SC70-3
VGA@
G
D
S
Q19
SSM3K7002FU_SC70-3
VGA@
2
13
G
D
S
Q77
SSM3K7002FU_SC70-3
G
D
S
Q77
SSM3K7002FU_SC70-3
2
13
R133
470_0603_5%
VGA@
R133
470_0603_5%
VGA@
1 2
U15
AO4478L 1N SO8
VGA@
U15
AO4478L 1N SO8
VGA@
36
5
7
8
2
4
1
C226
10U_0603_6.3V6M
VGA@
C226
10U_0603_6.3V6M
VGA@
1
2
G
D
S
Q18
SSM3K7002FU_SC70-3
VGA@
G
D
S
Q18
SSM3K7002FU_SC70-3
VGA@
2
13
G
D
S
Q17
SSM3K7002FU_SC70-3
VGA@
G
D
S
Q17
SSM3K7002FU_SC70-3
VGA@
2
13
C230
10U_0603_6.3V6M
VGA@
C230
10U_0603_6.3V6M
VGA@
1
2
C234
0.1U_0603_25V7K
VGA@
C234
0.1U_0603_25V7K
VGA@
1
2
R136 100K_0402_5%
VGA@
R136 100K_0402_5%
VGA@
1 2
C228
1U_0402_6.3V4Z
VGA@
C228
1U_0402_6.3V4Z
VGA@
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
+LAN_VDDREG
+LAN_VDDREG
+LAN_SROUT1.05
XTLO
XTLI
XTLO
XTLI
PCIE_FRX_C_DTX_N0
LAN_WAKE#
+LAN_SROUT1.05
PCIE_FRX_C_DTX_P0
ISOLATEB
LAN_MDIP3
LAN_MDIP2
LAN_MDIN1
LAN_MDIN2
LAN_MDIP1
LAN_MDIN3
LAN_MDIN0
LAN_MDIP0
+V_DAC
+V_DAC
+V_DAC
+V_DAC
EN_WOL#
+LAN_EVDD10
+LAN_EVDD10
RJ45_TX3+
RJ45_TX2-
RJ45_RX1+
RJ45_RX1-
RJ45_TX3-
RJ45_TX0+
RJ45_TX0-
RJ45_TX2+
LAN_MDIP1
LAN_MDIN1
LAN_MDIN0
LAN_MDIP0
LAN_MDIP3
LAN_MDIN3
LAN_MDIP2
LAN_MDIN2
LAN_WAKE#
RJ45_TX0-
RJ45_TX0+
LAN_MDIN0
LAN_MDIP0
LAN_MDIP1
LAN_MDIN1
RJ45_RX1+
RJ45_RX1-
LAN_MDIP2
LAN_MDIN2
RJ45_TX2+
RJ45_TX2-
RJ45_TX3+
RJ45_TX3-LAN_MDIN3
LAN_MDIP3
RJ45_RX1+
RJ45_TX0+
RJ45_TX2+
RJ45_TX3+
RJ45_RX1-
RJ45_TX0-
RJ45_TX2-
RJ45_TX3-
EN_WOL#
EN_WOL30
PCIE_FTX_C_DRX_N012
PCIE_FRX_DTX_P012
PCIE_FTX_C_DRX_P012
PCIE_FRX_DTX_N012
CLK_PCIE_LAN#12
CLK_PCIE_LAN12
LAN_CLKREQ#13
PLT_RST#12,17,28
FCH_PCIE_WAKE#13,28,30
+LAN_IO
+LAN_IO
+3VALW +LAN_VDD
+3VS
+LAN_VDD
+LAN_VDD
+LAN_VDD
+LAN_IO
+LAN_IO
+LAN_VDD
+LAN_IO
+5VALW
+LAN_IO
+LAN_IO
GND_LAN
GND_LAN
GND_LAN
GND_LAN
+LAN_IO
+LAN_IO
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P25-LAN RTL8111E
Custom
25 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P25-LAN RTL8111E
Custom
25 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P25-LAN RTL8111E
Custom
25 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
W=60mils W=60mils
( Should be place within 200 mils )
These components close to Pin 36
These caps close to Pin 12,27,39,42,47,48
1.5A
W=60mils
W=60mils
These caps close to Pin 3,6,9,13,29,41,45
3.3V : Enable switching regulator
0V : Disable switching regulator
W=40mils W=20mils
For ESD request.
ESD
ESD
SOD323 package
R1529 75_0603_1%R1529 75_0603_1%
1 2
R538 10K_0402_5%R538 10K_0402_5%
1 2
R553
10K_0402_5%
R553
10K_0402_5%
1 2
D18
AZC099-04S.R7G_SOT23-6
D18
AZC099-04S.R7G_SOT23-6
I/O4
6
VDD
5
I/O3
4
I/O2 3
GND 2
I/O1 1
G
D
S
Q30
SSM3K7002FU_SC70-3
G
D
S
Q30
SSM3K7002FU_SC70-3
2
13
D31 LSE-200NX3216TRLF_1206-2@D31 LSE-200NX3216TRLF_1206-2@
1 2
C1620
0.1U_0402_16V7K
C1620
0.1U_0402_16V7K
1
2
R1102
470_0603_5%
R1102
470_0603_5%
1 2
R533
100K_0402_5%
R533
100K_0402_5%
1 2
D41
PD10943-T7_SOD323-2
@D41
PD10943-T7_SOD323-2
@
1
122
D40
PD10943-T7_SOD323-2
@D40
PD10943-T7_SOD323-2
@
1
122
D34 LSE-200NX3216TRLF_1206-2@D34 LSE-200NX3216TRLF_1206-2@
1 2
C1624
0.1U_0603_25V7K
C1624
0.1U_0603_25V7K
1
2
R537 10K_0402_5%R537 10K_0402_5%
1 2
D19
AZC099-04S.R7G_SOT23-6
D19
AZC099-04S.R7G_SOT23-6
I/O4
6
VDD
5
I/O3
4
I/O2 3
GND 2
I/O1 1
R1530 75_0603_1%R1530 75_0603_1%
1 2
R549 75_0603_1%R549 75_0603_1%
1 2
C1636
1000P_1206_2KV7K
C1636
1000P_1206_2KV7K
1
2
R542 10K_0402_5%R542 10K_0402_5%
1 2
R534
220K_0402_5%~N
R534
220K_0402_5%~N
1 2
J8
JUMP_43X118@
J8
JUMP_43X118@
11
2
2
C1619
0.1U_0402_16V7K
C1619
0.1U_0402_16V7K
1
2
R546
0_0603_5%
@
R546
0_0603_5%
@
1 2
C1630 0.1U_0402_16V7K
C1630 0.1U_0402_16V7K
1 2
G
D
S
Q54
SSM3K7002FU_SC70-3
G
D
S
Q54
SSM3K7002FU_SC70-3
2
13
C1633
15P_0402_50V8J
C1633
15P_0402_50V8J
1 2
C1611
0.1U_0402_16V7K
C1611
0.1U_0402_16V7K
1
2
C1623
0.1U_0402_16V7K
C1623
0.1U_0402_16V7K
1
2
C1631
0.1U_0402_16V7K
C1631
0.1U_0402_16V7K
1
2
C1617
0.1U_0402_16V7K
C1617
0.1U_0402_16V7K
1
2
C1616
0.1U_0402_16V7K
C1616
0.1U_0402_16V7K
1
2
TS1
LG-2446S-1 100/1000BASE-TX LAN
TS1
LG-2446S-1 100/1000BASE-TX LAN
TCT1
1
TD1+
2
TD1-
3
TCT2
4
TD2+
5
TD2-
6MX2- 19
MX2+ 20
MCT2 21
MX1- 22
MX1+ 23
MCT1 24
TCT3
7
TD3+
8
TD3-
9
TCT4
10
TD4+
11
TD4-
12
MCT3 18
MX3+ 17
MX3- 16
MCT4 15
MX4+ 14
MX4- 13
D38
PD10943-T7_SOD323-2
@D38
PD10943-T7_SOD323-2
@
1
122
R539
0_0402_5%
R539
0_0402_5%
12
U49
RTL8111E-VL-CGT_QFN48_6X6
U49
RTL8111E-VL-CGT_QFN48_6X6
PERSTB
25
HSOP
22
HSON
23
HSIP
17
HSIN
18
REFCLK_P
19
REFCLK_N
20 NC/MDIP2 7
NC/MDIN2 8
NC/MDIP3 10
NC/MDIN3 11
LED3/EEDO 31
LED1/EESK 37
EECS/SCL 30
LED0 40
MDIN1 5
MDIP1 4
MDIN0 2
MDIP0 1
RSET
46
LANWAKEB
28
ISOLATEB
26
CKXTAL1
43
CKXTAL2
44
AVDD10 3
EVDD10 21
DVDD10 29
DVDD10 41
VDDREG
34
ENSWREG
33
DVDD33 27
DVDD33 39
AVDD33 12
DVDD10 13
AVDD33 42
CLKREQB
16
EEDI/SDA 32
AVDD33 47
AVDD33 48
AVDD10 6
AVDD10 9
AVDD10 45
NC/SMBCLK
14
NC/SMBDATA
15
GPO/SMBALERT
38
GND
24
PGND
49 REGOUT 36
VDDREG
35
R535
0_0603_5%
R535
0_0603_5%
1 2
R544
0_0402_5%
R544
0_0402_5%
12
C1629 0.1U_0402_16V7K
C1629 0.1U_0402_16V7K
1 2
R1620
10K_0402_5%
R1620
10K_0402_5%
1 2
C1614
0.1U_0402_16V7K
C1614
0.1U_0402_16V7K
1
2
JLAN1
SANTA_130452-C
JLAN1
SANTA_130452-C
PR1-
2
PR1+
1
PR2+
3
PR3+
4
PR3-
5
PR2-
6
PR4+
7
PR4-
8
SHLD2 10
SHLD1 9
C1626
0.1U_0402_16V7K
C1626
0.1U_0402_16V7K
1
2
C1612
0.1U_0402_16V7K
C1612
0.1U_0402_16V7K
1
2
C1618
0.1U_0402_16V7K
C1618
0.1U_0402_16V7K
1
2
R545
0_0603_5%
@
R545
0_0603_5%
@
1 2
R540
1K_0402_5%
R540
1K_0402_5%
1 2
R543 1K_0402_5% R543 1K_0402_5%
1 2
C1610
1U_0402_6.3V6K
C1610
1U_0402_6.3V6K
1
2
G
D
S
Q91
2N7002_SOT23
G
D
S
Q91
2N7002_SOT23
2
1 3
R552 75_0603_1%R552 75_0603_1%
1 2
C1613
0.1U_0402_16V7K
C1613
0.1U_0402_16V7K
1
2
L120
4.7UH_SIA4012-4R7M_20%
L120
4.7UH_SIA4012-4R7M_20%
1 2
Y6
25MHZ_12PF_X5H025000FC1H-H
Y6
25MHZ_12PF_X5H025000FC1H-H
1 2
C1625
4.7U_0603_6.3V6K
C1625
4.7U_0603_6.3V6K
1
2
C1634
12P_0402_50V8J
C1634
12P_0402_50V8J
1 2
C1622
0.1U_0402_16V7K
C1622
0.1U_0402_16V7K
1
2
C1621
0.1U_0402_16V7K
C1621
0.1U_0402_16V7K
1
2
D39
PD10943-T7_SOD323-2
@D39
PD10943-T7_SOD323-2
@
1
122
R536
0_0603_5%
R536
0_0603_5%
1 2
C1635
0.01U_0402_16V7K
C1635
0.01U_0402_16V7K
1 2
C1628
1U_0402_6.3V6K
C1628
1U_0402_6.3V6K
1
2
R547 2.49K_0402_1%
R547 2.49K_0402_1%
1 2
C1627
0.1U_0402_16V7K
C1627
0.1U_0402_16V7K
1
2
D21 LSE-200NX3216TRLF_1206-2@D21 LSE-200NX3216TRLF_1206-2@
1 2
C1632
4.7U_0603_6.3V6K
C1632
4.7U_0603_6.3V6K
1
2
R541
15K_0402_5%
R541
15K_0402_5%
1 2
C1615
0.1U_0402_16V7K
C1615
0.1U_0402_16V7K
1
2
D22 LSE-200NX3216TRLF_1206-2@D22 LSE-200NX3216TRLF_1206-2@
1 2
G
D
S
Q29
AO3419L_SOT23-3
G
D
S
Q29
AO3419L_SOT23-3
2
13
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
1 1
2 2
3 3
4 4
HP_OUTL
HP_OUTR
HDA_SDOUT_AUDIO
HDA_SYNC_AUDIO
HDA_SYNC_AUDIO
HDA_SDOUT_AUDIO
HDA_SDIN_AUDIO
AC_JDREF
AC97_VREF
HDA_RST_AUDIO#
HDA_BITCLK_AUDIO
EC_MUTE#
SPKOUT_L1
SPKOUT_L2
SPKOUT_R1
SPKOUT_R2
SPKOUT_R2
SPKOUT_R1
SPKOUT_L2
SPKOUT_L1
PD#
HDA_RST_AUDIO#
SPK_R1
SPK_R2
SPK_L1
SPK_L2
SPK_L1
SENSE_AHP_JD
MIC_JD
MIC1_C
MIC2_C
DMIC_DATA_CODEC
DMIC_CLK_CODEC
DMIC_DATA
MIC-1
MIC_JD
HPL
HPRHP_RHP_OUTR
HP_OUTL HP_L
+3VS_DVDD_R
MIC1_RMIC1
MIC2 MIC2_R
MIC-2
DMIC_CLK
HDA_BITCLK_AUDIO_R
HP_JD
HPR
HPL
MIC2
MIC1
SPK_L2
SPK_R1
SPK_R2
HDA_RST_AUDIO#13
HDA_SDIN0 13
HDA_BITCLK_AUDIO 13
HDA_SYNC_AUDIO 13
HDA_SDOUT_AUDIO 13
EC_MUTE#30
DMIC_DATA10
DMIC_CLK10
EAPD 30
USB20_P513
USB20_N513
+5VS
+VDDA
+3VS
+5VS_PVDD
+5VS
+5VS_PVDD
+MIC1_VREFO_L
+MIC1_VREFO_R
+3VS_DVDD
+1.5VS
+MIC1_VREFO_R
+MIC1_VREFO_L
+3VS_DVDD
+USB_VCCB
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P26-HD CODEC ALC259
Custom
26 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P26-HD CODEC ALC259
Custom
26 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P26-HD CODEC ALC259
Custom
26 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Close to JSPK1
EMI request 12.24
Change to cap PN for audio issue.
C1497 2.2U_0603_16V6K
C1497 2.2U_0603_16V6K
1 2
R1547
0_0402_5%
R1547
0_0402_5%
1 2
JAU1
ACES_87213-1400G
JAU1
ACES_87213-1400G
1
12
23
34
45
56
67
78
89
910
10 11
11 12
12 13
13 14
14
C1500
0.1U_0402_16V7K
<BOM Structure>
C1500
0.1U_0402_16V7K
<BOM Structure>
1
2
R1556 0_0402_5%@R1556 0_0402_5%@
1 2
D9
PJMBZ6V8_SOT23-3
@
D9
PJMBZ6V8_SOT23-3
@
2
3
1
R1542 2.2K_0402_1%
R1542 2.2K_0402_1%
12
R1559 0_0402_5%@R1559 0_0402_5%@
1 2
R1553
4.7K_0402_5%
@
R1553
4.7K_0402_5%
@
12
C1504
470P_0402_50V7K
C1504
470P_0402_50V7K
1
2
R1555
75_0603_1%
R1555
75_0603_1%
1 2
R1534
0_0603_5%
R1534
0_0603_5%
12
C1485
0.1U_0402_16V7K
C1485
0.1U_0402_16V7K
1
2
R1532 0_0603_5%
R1532 0_0603_5%
1 2
C1482
10U_0603_6.3V6M
C1482
10U_0603_6.3V6M
1
2
C1483 1U_0603_10V6K@C1483 1U_0603_10V6K@
1
2
R1540
1K_0402_5%
R1540
1K_0402_5%
1 2
C1477
0.1U_0402_16V7K
C1477
0.1U_0402_16V7K
1
2
R1548
20K_0402_1%
R1548
20K_0402_1%
1 2
C1480 0.22U_0603_16V7K
@
C1480 0.22U_0603_16V7K
@
1 2
C1474 1U_0603_10V6K@C1474 1U_0603_10V6K@
1
2
L112
BLM18PG121SN1D_0603
L112
BLM18PG121SN1D_0603
1 2
L109
BLM18PG121SN1D_0603
L109
BLM18PG121SN1D_0603
1 2
R1536 0_0603_5%
R1536 0_0603_5%
1 2
C1486
0.1U_0402_16V7K
<BOM Structure>
C1486
0.1U_0402_16V7K
<BOM Structure>
1
2
L111
BLM18PG121SN1D_0603
L111
BLM18PG121SN1D_0603
1 2
C1481
0.1U_0402_16V7K
C1481
0.1U_0402_16V7K
1
2
C1478 0.22U_0603_16V7K
@
C1478 0.22U_0603_16V7K
@
1 2
L110
BLM18PG121SN1D_0603
L110
BLM18PG121SN1D_0603
1 2
R1590
0_0402_5%
R1590
0_0402_5%
1 2
C1488
10U_0603_6.3V6M
C1488
10U_0603_6.3V6M
1
2
C1499
10U_0805_10V6K
@
C1499
10U_0805_10V6K
@
1
2
C1476
0.1U_0402_16V7K
C1476
0.1U_0402_16V7K
1
2
C1494
10P_0402_50V8J
@
C1494
10P_0402_50V8J
@1
2
R1554
75_0603_1%
R1554
75_0603_1%
1 2
L121
FBMA-L10-160808-301LMT_2P
L121
FBMA-L10-160808-301LMT_2P
1 2
U50
ALC269-GR_QFN48_7X7
U50
ALC269-GR_QFN48_7X7
AVDD1 25
AVDD2 38
AVSS1 26
AVSS2 37
DVDD 1
DVDD_IO 9
DVSS1
7
PVDD1 39
PVDD2 46
PVSS1
42 PVSS2
43 CPVEE 34
JDREF 19
VREF 27
LDO_CAP 28
MIC1_VREFO_R 30
MIC2_VREFO 29
MIC1_VREFO_L
31
CBN
35
CBP
36
SENSE A
13
SENSE B
18
SPK_OUT_L+ 40
SPK_OUT_L- 41
SPK_OUT_R+ 45
SPK_OUT_R- 44
HP_OUT_L 32
HP_OUT_R 33
PCBEEP
12
LINE1_L
23
LINE1_R
24
LINE2_L
14
LINE2_R
15
MIC1_L
21
MIC1_R
22
MIC2_L
16
MIC2_R
17
MONO_OUT 20
RESET#
11
GPIO0/DMIC_DATA
2
GPIO1/DMIC_CLK
3
PD#
4
SYNC 10
BCLK 6
SDATA_OUT 5
SDATA_IN 8
EAPD 47
SPDIFO 48
DVSS2
49
R1552
20K_0402_1%
R1552
20K_0402_1%
1 2
R1557 0_0402_5%@R1557 0_0402_5%@
1 2
C1506
220P_0402_50V7K
C1506
220P_0402_50V7K
1
2
C1492
22P_0402_50V8J
@
C1492
22P_0402_50V8J
@
1
2
R1533 0_0603_5%
R1533 0_0603_5%
1 2
C1484 0.22U_0603_16V7K
@
C1484 0.22U_0603_16V7K
@
1 2
C1491
10P_0402_50V8J
@
C1491
10P_0402_50V8J
@1
2
JSPK1
ACES_88266-04001
JSPK1
ACES_88266-04001
1
1
2
2
3
3
4
4G1 5
G2 6
C1493 4.7U_0603_6.3V6KC1493 4.7U_0603_6.3V6K
1 2
R1545
0_0402_5%
R1545
0_0402_5%
1 2
C1501
10U_0805_10V6K
C1501
10U_0805_10V6K
1
2
C1489
0.1U_0402_16V7K
C1489
0.1U_0402_16V7K
1
2
R1541 2.2K_0402_1%
R1541 2.2K_0402_1%
12
C1487
10U_0805_10V6K
C1487
10U_0805_10V6K
1
2
R1538
0_0402_5%
@
R1538
0_0402_5%
@
12
C1498
2.2U_0603_16V6K
C1498
2.2U_0603_16V6K
1 2
C1495
220P_0402_50V7K
C1495
220P_0402_50V7K
1
2
R1537
0_0603_5%
R1537
0_0603_5%
12
C1473 0.22U_0603_16V7K
@
C1473 0.22U_0603_16V7K
@
1 2
R1543 0_0402_5%R1543 0_0402_5%
1 2
R1535 0_0603_5%
R1535 0_0603_5%
1 2
R1549
39.2K_0402_1%
R1549
39.2K_0402_1%
12
R1539
1K_0402_5%
R1539
1K_0402_5%
1 2 C1490 4.7U_0603_6.3V6KC1490 4.7U_0603_6.3V6K
1 2
C1496
220P_0402_50V7K
C1496
220P_0402_50V7K
1
2
C1503
0.1U_0402_16V7K
@
C1503
0.1U_0402_16V7K
@
1
2
C1475
10U_0805_10V6K
C1475
10U_0805_10V6K
1
2
R1558 0_0402_5%@R1558 0_0402_5%@
1 2
R1546
33_0402_5%
R1546
33_0402_5%
1 2
D10
PJMBZ6V8_SOT23-3
@
D10
PJMBZ6V8_SOT23-3
@
2
3
1
R1531
0_0805_5%
R1531
0_0805_5%
12
C1502
470P_0402_50V7K
C1502
470P_0402_50V7K
1
2
L108
MBK1608800YZF 0603
L108
MBK1608800YZF 0603
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SDCLK_MSD2
SDWP_MSCLK
MS_INS#
MS_INS#
MS_BS
MS_BS
MSD0
CLK_SD_48M
SDCD#
SDCMD
SDD3_MSD1
SDD2
+RREF
+CARDPWR
+VREG
+3VS_CR
SDD1
SDD0
USB20_N4
USB20_P4
SDD2
SDCD#
SDD0
SDD1
SDCMD
MSD0
MSD3
MSD3
SDD3_MSD1
SDCLKMSD2 SDCLK_MSD2
SDCLK_MSD2
SDWP_MSCLK
SDWP_MSCLK SDWP_MSCLK_R
CLK_SD_48M 12
USB20_P413
USB20_N413
+CARDPWR
+3VS +3VS_CR
+CARDPWR
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P27-RTS5137 Media Card Controller
Custom
27 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P27-RTS5137 Media Card Controller
Custom
27 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
P27-RTS5137 Media Card Controller
Custom
27 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Card Reader RTS5137
(only SD/MMC/MS function)
Close to connector
30mil
30mil
12mil
10mil
30mil
EMI
EMI Close to U51
+RREF & +VREF need 12mils
R441 0_0402_5%
R441 0_0402_5%
1 2
C1509 10P_0402_50V8J@C1509 10P_0402_50V8J@
1 2
C1513
0.1U_0402_16V4Z
C1513
0.1U_0402_16V4Z
1
2
JCR1
TAITW_R009-142-HM
JCR1
TAITW_R009-142-HM
SD-CD
1
MS-GND
20 SD-D3
19
MS-D0
10
SD-D1
3
SD-CMD
16 MS-D3
15 MS-INS
14 SD-GND
13 MS-D2
12 SD-VCC
11
MS-VCC
18
MS-D1
9
MS-BS
7SD-GND
6
SD-D0
4
MS-GND
5
SD-CLK
8
SD-WP
2
MS-SCLK
17
SD-D2
21
GND
23 GND
22
C1507 100P_0402_50V8J
@
C1507 100P_0402_50V8J
@
12
RTS5137-GR_QFN24_4X4
U51
RTS5137-GR_QFN24_4X4
U51
REFE
1
DM
2
DP
3
3V3_IN
4
CARD_3V3
5
V18
6
NC
7
SP1
8
SP2
9
SP3
10
SP4
11
SP5
12 SP6 13
SP7 14
SP8 15
SP9 16
GPIO0 17
SP10 18
SP11 19
SP12 20
SP13 21
SP14 22
NC 23
CLK_IN 24
EPAD
25
C788
0.1U_0402_16V4Z
@
C788
0.1U_0402_16V4Z
@
1 2
C1512
1U_0402_6.3V6K
C1512
1U_0402_6.3V6K
1
2
R1561 10_0402_5%
@
R1561 10_0402_5%
@
1 2
R1562
100K_0402_5%
@
R1562
100K_0402_5%
@
1 2
R515
0_0402_5%
R515
0_0402_5%
1 2
R1560 0_0603_5%R1560 0_0603_5%
1 2
R1733
6.2K_0603_1%
R1733
6.2K_0603_1%
1 2
C1514
0.1U_0402_16V4Z
C1514
0.1U_0402_16V4Z
1
2
C1515
0.1U_0402_16V4Z
C1515
0.1U_0402_16V4Z
1
2
C1511
0.1U_0402_16V4Z
C1511
0.1U_0402_16V4Z
1
2
C787
0.1U_0402_16V4Z
@
C787
0.1U_0402_16V4Z
@
1 2
C1510
4.7U_0805_10V4Z
C1510
4.7U_0805_10V4Z
1
2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
MINI1_CLKREQ#
FCH_SMCLK0_R
FCH_SMDAT0_R
EC_TX_P80_DATA
EC_RX_P80_CLK
WLAN_R_LED#
LPC_FRAME#
LPC_AD3
LPC_AD2
LPC_AD1
LPC_AD0
LPC_FRAME#_R
LPC_AD3_R
LPC_AD2_R
LPC_AD1_R
LPC_AD0_R
LPC_FRAME#_R
LPC_AD3_R
LPC_AD2_R
LPC_AD1_R
LPC_AD0_R
PCI_RST#_R
CLK_PCI_DB
CLK_PCI_DB
PCI_RST#_R
EC_TX_P80_DATA_R
WLAN_WAKE#
PLT_RST#
WLAN_R_LED# WLAN_D_LED#
BT_ON
EC_RX_P80_CLK_R
BT_ON
BT_R_LED#
BT_R_LED#
WLAN_LED#
BT_LED#
PWR_LED#
CHARGE_LED1#
CHARGE_LED0#
WLAN_D_LED#
SATA_LED#
NUM_LED#
CAPS_LED#
CLK_PCI_DB
FCH_PCIE_WAKE#13,25,30
MINI1_CLKREQ#13
USB20_N3 13
USB20_P3 13
PLT_RST# 12,17,25
WL_OFF#_EC 30
EC_TX_P80_DATA30
EC_RX_P80_CLK30
FCH_SMCLK0 8,9,13
FCH_SMDAT0 8,9,13
PCIE_FTX_C_DRX_N112
PCIE_FTX_C_DRX_P112
PCIE_FRX_DTX_N112
PCIE_FRX_DTX_P112
LPC_AD2 12,30
LPC_AD1 12,30
LPC_AD3 12,30
LPC_AD0 12,30
LPC_FRAME# 12,30
CLK_PCI_DB 12
CLK_PCIE_MINI1#12
CLK_PCIE_MINI112
WL_OFF# 14
SATA_LED#14
PWR_LED#30,33
CHARGE_LED1#30
CHARGE_LED0#30
RF_LED#30
NUM_LED#30
CAPS_LED#30
BT_ON14
WLAN_LED# 30
BT_LED# 30
SUSP#30,34,38,42
+3VS_WLAN
+3VS
+3VALW
+3VALW
+1.5VS
+3VS_WLAN+3VS
+1.5VS
+3VS
+3VS
+5VALW
+3VALW
+3VALW
+3VS
+3VS
+5VALW
+3VALW
+5VALW
+3VS_WLAN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P28-Mini PCIE/LED
28 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P28-Mini PCIE/LED
28 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P28-Mini PCIE/LED
28 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Mini-Express Card for WLAN/WiMAX(Half)
Mini-Express Card(WLAN/WiMAX)
Reserve for SW mini-pcie debug card.
Series resistors closed to KBC side.
For EC to detect
debug card insert.
LED
White
White
Orange
BATT_LOW_LED#
BATT_CHG_LED#
Green
Add to prevent leakage issue.
Green
Green
Green
ESD
EMI
W=60mils
R1570 0_0402_5%@R1570 0_0402_5%@
1 2
R1576 0_0402_5%R1576 0_0402_5%
1 2
D26
YSDA0502C 3P C/A SOT-23
@
D26
YSDA0502C 3P C/A SOT-23
@
2
3
1
C1518
0.1U_0402_16V4Z
C1518
0.1U_0402_16V4Z
1
2
D25
RB751V_SOD323
@
D25
RB751V_SOD323
@
21
R1592300_0402_5% R1592300_0402_5%
12
C1516
0.1U_0402_16V4Z
@
C1516
0.1U_0402_16V4Z
@
1
2
R1564
0_0805_5%
R1564
0_0805_5%
12
R1593300_0402_5% R1593300_0402_5%
12
D36
YSDA0502C 3P C/A SOT-23
@
D36
YSDA0502C 3P C/A SOT-23
@
2
3
1
R1578 0_0402_5%R1578 0_0402_5%
1 2
R1573 0_0402_5%R1573 0_0402_5%
1 2
R1586300_0402_5% R1586300_0402_5%
12
R1569 0_0402_5%@R1569 0_0402_5%@
1 2
R1589 0_0402_5%R1589 0_0402_5%
1 2
C1664
1U_0402_6.3V6K
@
C1664
1U_0402_6.3V6K
@
1
2
LED3
19-21SYGC/S530-E3/TR8 0603 Y/G
LED3
19-21SYGC/S530-E3/TR8 0603 Y/G
21
R1579 0_0402_5%R1579 0_0402_5%
1 2
D37
YSDA0502C 3P C/A SOT-23
@
D37
YSDA0502C 3P C/A SOT-23
@
2
3
1
LED5
19-21SYGC/S530-E3/TR8 0603 Y/G
LED5
19-21SYGC/S530-E3/TR8 0603 Y/G
21
R1567 0_0402_5%@R1567 0_0402_5%@
1 2
R517
0_0402_5%
@
R517
0_0402_5%
@
12
R654
10K_0402_5%
R654
10K_0402_5%
1 2
R1580 0_0402_5%R1580 0_0402_5%
1 2
LED1
19-217/T1D-DP1Q2QY/3T 0603 WHITE
LED1
19-217/T1D-DP1Q2QY/3T 0603 WHITE
21
R1563 0_1206_5% R1563 0_1206_5%
12
R1565 0_0402_5%
@
R1565 0_0402_5%
@
1 2
R1583
100K_0402_5%
R1583
100K_0402_5%
1 2
R1582
100_0402_1%
@R1582
100_0402_1%
@
1 2
JMINI1
BELLW_80003-1021
JMINI1
BELLW_80003-1021
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
31
31
33
33
35
35
37
37
39
39
41
41
43
43
45
45
47
47
49
49
51
51
GND1
53
22
44
66
88
10 10
12 12
14 14
16 16
18 18
20 20
22 22
24 24
26 26
28 28
30 30
32 32
34 34
36 36
38 38
40 40
42 42
44 44
46 46
48 48
50 50
52 52
GND2 54
LED4
19-21SYGC/S530-E3/TR8 0603 Y/G
LED4
19-21SYGC/S530-E3/TR8 0603 Y/G
21
R1575
0_0402_5%
R1575
0_0402_5%
12
R1577
0_0402_5%
R1577
0_0402_5%
12
D24
RB751V_SOD323
@
D24
RB751V_SOD323
@
21
O
W
LED2
HT-297DQ/GQ 0603 AMB/YG
O
W
LED2
HT-297DQ/GQ 0603 AMB/YG
21
43
G
D
S
Q31
AO3413_SOT23-3
@
G
D
S
Q31
AO3413_SOT23-3
@
2
13
R1596 0_1206_5%
@
R1596 0_1206_5%
@
12
R1585300_0402_5% R1585300_0402_5%
12
G
D
S
Q32
SSM3K7002FU_SC70-3
@
G
D
S
Q32
SSM3K7002FU_SC70-3
@
2
13
R115 0_0402_5%
@
R115 0_0402_5%
@
1 2
C1517
0.1U_0402_16V4Z
C1517
0.1U_0402_16V4Z
1
2
R1584300_0402_5% R1584300_0402_5%
12
R1572 0_0402_5%@R1572 0_0402_5%@
1 2
LED6
19-21SYGC/S530-E3/TR8 0603 Y/G
LED6
19-21SYGC/S530-E3/TR8 0603 Y/G
21
C124
10P_0402_50V8J
@
C124
10P_0402_50V8J
@
1 2
R548
100K_0402_5%
@
R548
100K_0402_5%
@
1 2
R1591300_0402_5% R1591300_0402_5%
12
R1581
100_0402_1%
R1581
100_0402_1%
1 2
R1574 0_0402_5%R1574 0_0402_5%
1 2
D35
YSDA0502C 3P C/A SOT-23
@
D35
YSDA0502C 3P C/A SOT-23
@
2
3
1
R1571 0_0402_5%@R1571 0_0402_5%@
1 2
R1568 0_0402_5%R1568 0_0402_5%
1 2
C1663
0.1U_0603_25V7K
@
C1663
0.1U_0603_25V7K
@
1
2
R1566 0_0402_5% R1566 0_0402_5%
1 2
R1588300_0402_5% R1588300_0402_5%
12
R1594 0_0402_5%@R1594 0_0402_5%@
1 2
A
A
B
B
C
C
D
D
E
E
F
F
G
G
H
H
1 1
2 2
3 3
4 4
SATA_DTX_IRX_P1
SATA_DTX_IRX_N1
SATA_DTX_C_IRX_P0
SATA_DTX_IRX_N0
SATA_DTX_IRX_P0
SATA_ITX_DRX_N0
SATA_ITX_DRX_P0
SATA_DTX_C_IRX_N0
+5VS_HDD
+5VS_ODD
SATA_DTX_C_IRX_P114
SATA_DTX_C_IRX_N114
SATA_ITX_DRX_P114
SATA_ITX_DRX_N114
SATA_ITX_DRX_P014
SATA_DTX_C_IRX_N014
SATA_DTX_C_IRX_P014
SATA_ITX_DRX_N014
+3VS
+5VS
+3VS
+5VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P29-HDD & ODD CONN
B
29 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P29-HDD & ODD CONN
B
29 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P29-HDD & ODD CONN
B
29 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
SATA ODD FFC Conn.
SATA HDD Conn.
80mils
C1519 0.01U_0402_16V7KC1519 0.01U_0402_16V7K
1 2
R1598
0_0805_5%
R1598
0_0805_5%
1 2
JODD1
OCTEK_SLS-13DC1G_RV
JODD1
OCTEK_SLS-13DC1G_RV
GND
1
A+
2
A-
3
GND
4
B-
5
B+
6
GND
7
DP
8
+5V
9
+5V
10
MD
11
GND
12
GND
13
GND 14
GND 15
C662
0.1U_0402_16V4Z
C662
0.1U_0402_16V4Z
1
2
C663
1000P_0402_50V7K
C663
1000P_0402_50V7K
1
2
C1521 0.01U_0402_16V7KC1521 0.01U_0402_16V7K
1 2
C1520 0.01U_0402_16V7KC1520 0.01U_0402_16V7K
1 2
JHDD1
SUYIN_127043FR022S21MZR
JHDD1
SUYIN_127043FR022S21MZR
GND
1
A+
2
A-
3
GND
4
B-
5
B+
6
GND
7
V33
8
V33
9
V33
10
GND
11
GND
12
GND
13
V5
14
V5
15
V5
16
GND
17
Reserved
18
GND
19
V12
20
V12
21
V12
22
GND1 23
GND2 24
C1472
0.1U_0402_16V4Z
C1472
0.1U_0402_16V4Z
1
2
R1595
0_0805_5%
R1595
0_0805_5%
1 2
C660
10U_0603_6.3V6M
C660
10U_0603_6.3V6M
1
2
C1522 0.01U_0402_16V7KC1522 0.01U_0402_16V7K
1 2
C661
1U_0402_6.3V4Z
C661
1U_0402_6.3V4Z
1
2
R629 10K_0402_5%
@
R629 10K_0402_5%
@
1 2
KSO[0..15]
KSI[0..7]
SUSP#
KSO1
KSO2
TP_DATA
TP_CLK
ACIN
EC_SMB_DA2
SPI_SO
SPI_CS#
EC_SMB_DA1
EC_SMB_CK1
XCLKO
EC_MUTE#
EC_SCI#
BKOFF#
EC_SMI#
KSO13
KSO10
EC_SCI#
EC_SMB_CK1
SPI_SI_R
KSO12
KSO8
KSO1
USB_ON#
CHARGE_LED0#
FAN_SPEED
KSI6
ACIN
KSO15
KSO0
BKOFF#
SYSON
IREF
SPI_SO_R
KSO5
FSTCHG
KSI4
SPI_CLK
V18R
KSO6
TP_CLK
LPC_AD1
INVT_PWM
XCLKO
SUSP#
EC_SMB_CK2
KSI7
KSO11
EC_SMB_CK2
KSI5
KSO3
KSO2
EC_SMB_DA1
KSI2
LPC_AD3
CAPS_LED#
KSI1
KSO7
EC_LID_OUT#
EC_RX_P80_CLK
LPC_AD0
LID_SW#
A_RST#
KSO9
EC_TX_P80_DATA
KSO4
SPI_CS#
KSI3
XCLKI
EC_SMB_DA2
BRDID
ACOFF
EC_ONEC_SMI#
EC_PME#
PBTN_OUT#
XCLKI
BRDID
KSI0
KSO14
TP_DATA
LPC_AD2
EC_PWROK_R
+3VALW_EC +EC_VCCA
ECAGND
ECAGND
BATT_TEMP
ECAGND
USB_ON#
SPI_SI_R
SPI_CLK_R
SPI_HOLD#SPI_SO_R
SPI_SI
NUM_LED#
CHARGE_LED1#
EC_PME#
FAN_SET
SPI_SO
SPI_CS#
BT_LED#
WLAN_LED#
SPI_CLK_R
LID_SW#
SPI_CLK_R
KSO[0..15]31
KSI[0..7]14,31
FCH_PCIE_WAKE#13,25,28
CHARGE_LED0# 28
LPC_AD212,28
EC_SMI#13
INVT_PWM10
WL_OFF#_EC 28
CAPS_LED# 28
EC_SMB_DA135
USB_ON# 32
EC_ON 14,33
ACIN 36
IREF 36
EC_SCI#13
CHGVADJ 36
A_RST#12
SLP_S5#13
LPC_FRAME#12,28
EN_WOL 25
TP_CLK 31
LPC_AD012,28
EC_SMB_DA25,18
EC_PWROK 13
ON/OFF#33
EC_LID_OUT# 13
EC_KBRST#13
BATT_TEMP 35
FAN_SPEED33
SLP_S3#13
PBTN_OUT# 13
SERIRQ12
EC_RSMRST# 13
LPC_AD312,28
LPC_CLK0_EC12
ADP_I 36
ACOFF 36
FSTCHG 36
TP_DATA 31
EC_SMB_CK135
EC_TX_P80_DATA28
LID_SW# 33
SYSON 34,39
LPC_AD112,28
EC_GA2013
EC_SMB_CK25,18
RF_LED# 28
SUSP# 28,34,38,42
ENBKL 10
EC_MUTE# 26
BKOFF# 10
VR_ON 43
RTC_CLK12,16
EC_RX_P80_CLK28
VGATE 13,43
EAPD 26
NUM_LED#28
PWR_LED# 28,33
CHARGE_LED1# 28
FAN_SET 33
VLDT_EN 34
EC_THERM# 5
VGA_ON 23
PE_GPIO1 12,23
BT_LED# 28
WLAN_LED# 28
+3VALW
+3VALW
+5VS
+3VS
+3VALW
+3VS
+3VALW
+3VS
+3VALW
+3VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P30-BIOS & EC KB930
Custom
30 47Friday, February 18, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P30-BIOS & EC KB930
Custom
30 47Friday, February 18, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P30-BIOS & EC KB930
Custom
30 47Friday, February 18, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
If Q8 or R429, R432 implemented,
R747 & R748 need to be mounted
ID BRD ID Ra Rb Vab
Ra
Rb
100K
100K
100K
34.8K
46.4K
0.683V
0.851V
1.045V
R01 SR
R02 ER
R10 PR
0
1
2
20mils
FOR EC 128KB SPI ROM
(150mil PACKAGE) SA00002C100
EMI request 12.24
26.1K
Reserve for EC
Close to U47
EMI request 12.24
Y5
32.768KHZ_12.5PF_9H03200413
@Y5
32.768KHZ_12.5PF_9H03200413
@
OSC 4
OSC 1
NC
3
NC
2
R1607 4.7K_0402_5%R1607 4.7K_0402_5%
1 2
R1624 0_0402_5%R1624 0_0402_5%
1 2
R516
33_0402_5%
R516
33_0402_5%
1 2
C1542
1000P_0402_50V7K
@
C1542
1000P_0402_50V7K
@
1
2
C1539
0.1U_0402_16V4Z
C1539
0.1U_0402_16V4Z
1
2
R1617 10K_0402_5%
@
R1617 10K_0402_5%
@
1 2
R1631
FBMA-10-100505-101T
R1631
FBMA-10-100505-101T
12
R1608 4.7K_0402_5%R1608 4.7K_0402_5%
1 2
C1541 15P_0402_50V8J
@
C1541 15P_0402_50V8J
@
1 2
R1627
2.2K_0402_5%
@
R1627
2.2K_0402_5%
@
R1604
10_0402_5%@
R1604
10_0402_5%@
12
R1615 2.2K_0402_5%
R1615 2.2K_0402_5%
1 2
L114
FBM-11-160808-601-T_0603
L114
FBM-11-160808-601-T_0603
1 2
C1540 15P_0402_50V8J
@
C1540 15P_0402_50V8J
@
1 2
R1605 47K_0402_5%R1605 47K_0402_5%
1 2
C1534 100P_0402_50V8JC1534 100P_0402_50V8J
1 2
C1526
0.1U_0402_16V4Z
C1526
0.1U_0402_16V4Z
1
2
R1618 0_0402_5%
@
R1618 0_0402_5%
@
1 2
R1616 10K_0402_5%R1616 10K_0402_5%
1 2
C1524
0.1U_0402_16V4Z
C1524
0.1U_0402_16V4Z
1
2
R1613 2.2K_0402_5%
R1613 2.2K_0402_5%
1 2
R138
100K_0402_5%
R138
100K_0402_5%
12
C1531 100P_0402_50V8JC1531 100P_0402_50V8J
1 2
C1536
4.7U_0805_10V4Z
C1536
4.7U_0805_10V4Z
1
2
R1632
15_0402_5%
R1632
15_0402_5%
1 2
C1533
0.1U_0402_16V4Z
C1533
0.1U_0402_16V4Z 1
2
R1602
0_0805_5%
R1602
0_0805_5%
1 2
C1528
1000P_0402_50V7K
C1528
1000P_0402_50V7K
1
2
LPC & MISC
Int. K/B
Matrix
SM Bus
GPIO
GPIO
AD Input
PWM Output
DA Output
PS2 Interface
SPI Device Interface
SPI Flash ROM
GPO
GPI
U47
KB930QF A0 LQFP 128P
LPC & MISC
Int. K/B
Matrix
SM Bus
GPIO
GPIO
AD Input
PWM Output
DA Output
PS2 Interface
SPI Device Interface
SPI Flash ROM
GPO
GPI
U47
KB930QF A0 LQFP 128P
GA20/GPIO00
1
KBRST#/GPIO01
2
SERIRQ#
3
LFRAME#
4
LAD3
5
PM_SLP_S3#/GPIO04
6
LAD2
7
LAD1
8
VCC 9
LAD0
10
GND
11
PCICLK
12
PCIRST#/GPIO05
13
PM_SLP_S5#/GPIO07
14
EC_SMI#/GPIO08
15
LID_SW#/GPIO0A
16
SUSP#/GPIO0B
17
PBTN_OUT#/GPIO0C
18
EC_PME#/GPIO0D
19
SCI#/GPIO0E
20
INVT_PWM/PWM1/GPIO0F 21
VCC 22
BEEP#/PWM2/GPIO10 23
GND
24
EC_THERM#/GPIO11
25
FANPWM1/GPIO12 26
ACOFF/FANPWM2/GPIO13 27
FAN_SPEED1/FANFB1/GPIO14
28
FANFB2/GPIO15
29
EC_TX/GPIO16
30
EC_RX/GPIO17
31
ON_OFF/GPIO18
32
VCC 33
PWR_LED#/GPIO19
34
GND
35
NUMLED#/GPIO1A
36
ECRST#
37
CLKRUN#/GPIO1D
38
KSO0/GPIO20
39
KSO1/GPIO21
40
KSO2/GPIO22
41
KSO3/GPIO23
42
KSO4/GPIO24
43
KSO5/GPIO25
44
KSO6/GPIO26
45
KSO7/GPIO27
46
KSO8/GPIO28
47
KSO9/GPIO29
48
KSO10/GPIO2A
49
KSO11/GPIO2B
50
KSO12/GPIO2C
51
KSO13/GPIO2D
52
KSO14/GPIO2E
53
KSO15/GPIO2F
54
KSI0/GPIO30
55
KSI1/GPIO31
56
KSI2/GPIO32
57
KSI3/GPIO33
58
KSI4/GPIO34
59
KSI5/GPIO35
60
KSI6/GPIO36
61
KSI7/GPIO37
62
BATT_TEMP/AD0/GPIO38 63
BATT_OVP/AD1/GPIO39 64
ADP_I/AD2/GPIO3A 65
AD3/GPIO3B 66
AVCC 67
DAC_BRIG/DA0/GPIO3C 68
AGND
69
EN_DFAN1/DA1/GPIO3D 70
IREF/DA2/GPIO3E 71
DA3/GPIO3F 72
CIR_RX/GPIO40 73
CIR_RLC_TX/GPIO41 74
AD4/GPIO42 75
SELIO2#/AD5/GPIO43 76
SCL1/GPIO44
77
SDA1/GPIO45
78
SCL2/GPIO46
79
SDA2/GPIO47
80
KSO16/GPIO48
81
KSO17/GPIO49
82
PSCLK1/GPIO4A 83
PSDAT1/GPIO4B 84
PSCLK2/GPIO4C 85
PSDAT2/GPIO4D 86
TP_CLK/PSCLK3/GPIO4E 87
TP_DATA/PSDAT3/GPIO4F 88
FSTCHG/SELIO#/GPIO50 89
BATT_CHGI_LED#/GPIO52 90
CAPS_LED#/GPIO53 91
BATT_LOW_LED#/GPIO54 92
SUSP_LED#/GPIO55 93
GND
94
SYSON/GPIO56 95
VCC 96
SDICS#/GPXOA00 97
SDICLK/GPXOA01 98
SDIDO/GPXOA02 99
EC_RSMRST#/GPXO03 100
EC_LID_OUT#/GPXO04 101
EC_ON/GPXO05 102
EC_SWI#/GPXO06 103
ICH_PWROK/GPXO06 104
BKOFF#/GPXO08 105
WL_OFF#/GPXO09 106
GPXO10 107
GPXO11 108
SDIDI/GPXID0 109
PM_SLP_S4#/GPXID1 110
VCC 111
ENBKL/GPXID2 112
GND
113
GPXID3 114
GPXID4 115
GPXID5 116
GPXID6 117
GPXID7 118
SPIDI/RD# 119
SPIDO/WR# 120
VR_ON/XCLK32K/GPIO57 121
XCLK1
122
XCLK0
123 V18R 124
VCC 125
SPICLK/GPIO58 126
AC_IN/GPIO59 127
SPICS# 128
C126
10P_0402_50V8J
@
C126
10P_0402_50V8J
@
1
2
U48
MX25L1606EM2I-12G_SO8
U48
MX25L1606EM2I-12G_SO8
CS#
1
SO
2
WP#
3
GND
4
VCC 8
HOLD# 7
SCK 6
SI 5
R1633
20M_0603_5%
@
R1633
20M_0603_5%
@
12
C125
22P_0402_50V8J
C125
22P_0402_50V8J
1
2
R1612 100K_0402_1%
@
R1612 100K_0402_1%
@
1 2
R1611 100K_0402_1%
@
R1611 100K_0402_1%
@
1 2
R1606 46.4K_0402_1%R1606 46.4K_0402_1%
1 2
C1535
22P_0402_50V8J
C1535
22P_0402_50V8J
1
2
R1609 47K_0402_5%R1609 47K_0402_5%
1 2
R35 10K_0402_5%R35 10K_0402_5%
1 2
L113
FBM-11-160808-601-T_0603
L113
FBM-11-160808-601-T_0603
1 2
R1623 10K_0402_5%R1623 10K_0402_5%
1 2
C1538
100P_0402_50V8J
@
C1538
100P_0402_50V8J
@
1
2
R1630 15_0402_5%R1630 15_0402_5%
1 2
R1625 10K_0402_5%
@
R1625 10K_0402_5%
@
1 2
R1628 0_0402_5%
R1628 0_0402_5%
1 2
R1626
2.2K_0402_5%
@
R1626
2.2K_0402_5%
@
R1603 100K_0402_5%R1603 100K_0402_5%
1 2
R1619 10K_0402_5%R1619 10K_0402_5%
1 2
C1532
22P_0402_50V8J@
C1532
22P_0402_50V8J@
12
R1610 47K_0402_5%R1610 47K_0402_5%
1 2
C1530
1000P_0402_50V7K
C1530
1000P_0402_50V7K
1
2
C1527
0.1U_0402_16V4Z
C1527
0.1U_0402_16V4Z
1
2
R1622 10K_0402_5%R1622 10K_0402_5%
1 2
C1525
0.1U_0402_16V4Z
C1525
0.1U_0402_16V4Z
1
2
R1614
10K_0402_5%
R1614
10K_0402_5%
1 2
C1537
100P_0402_50V8J
@
C1537
100P_0402_50V8J
@
1
2
R1629
10K_0402_5%
R1629
10K_0402_5%
12
D8 RB751V_SOD323
@
D8 RB751V_SOD323
@
21
C1529
1000P_0402_50V7K
C1529
1000P_0402_50V7K
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
KSO[0..15]
KSI[0..7]
KSO2
KSO15
KSO6
KSO8
KSO13
KSO12
KSO11
KSO10
KSO3
KSO4
KSI0
KSO0
KSO1
KSO7
KSI2
KSO5
KSI3
KSO14
KSI7
KSI6
KSI5
KSI4
KSO9
KSI1
SW/L
TP_CLK
TP_DATATP_DATA
SW/R
SW/L SW/R
KSO6
KSO8
KSO4
KSO2
KSO1
KSO5
KSI5
KSI4
KSO9
KSI6
KSO15
KSO10
KSO11
KSO14
KSO13
KSO12
KSO3
KSI3
KSI2
KSI1
KSI7
KSO7
KSI0
KSO0
KSO[0..15] 30
KSI[0..7] 14,30
TP_CLK30
TP_DATA30
+5VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
P31-KB /SW/TP/Lid
B
31 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
P31-KB /SW/TP/Lid
B
31 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
P31-KB /SW/TP/Lid
B
31 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
INT_KBD Conn.
To TP/B Conn.
CONN PIN define need double check
Reserve for ESD
Pin define
JKB1
ACES_88514-02401-071
JKB1
ACES_88514-02401-071
1
12
23
34
45
56
67
78
89
910
10 11
11 12
12 13
13 14
14 15
15 16
16 17
17 18
18 19
19 20
20 21
21 22
22 23
23 24
24
GND1
25 GND2
26
C1557 100P_0402_50V8J@C1557 100P_0402_50V8J@
1 2
C1555 100P_0402_50V8J@C1555 100P_0402_50V8J@
1 2
C1545 100P_0402_50V8J@C1545 100P_0402_50V8J@
1 2
C1554 100P_0402_50V8J@C1554 100P_0402_50V8J@
1 2
C1546 100P_0402_50V8J@C1546 100P_0402_50V8J@
1 2
C1549 100P_0402_50V8J@C1549 100P_0402_50V8J@
1 2
C1544 100P_0402_50V8J@C1544 100P_0402_50V8J@
1 2
C1548 100P_0402_50V8J@C1548 100P_0402_50V8J@
1 2
C1556 100P_0402_50V8J@C1556 100P_0402_50V8J@
1 2
C1560 100P_0402_50V8J@C1560 100P_0402_50V8J@
1 2
C1550 100P_0402_50V8J@C1550 100P_0402_50V8J@
1 2
C1564 100P_0402_50V8J@C1564 100P_0402_50V8J@
1 2
C1559 100P_0402_50V8J@C1559 100P_0402_50V8J@
1 2
JTP1
ACES_88514-00601-071
JTP1
ACES_88514-00601-071
1
12
23
34
45
56
6
GND
8
GND
7
C1567
0.1U_0402_16V4Z
C1567
0.1U_0402_16V4Z
C1547 100P_0402_50V8J@C1547 100P_0402_50V8J@
1 2
C1568
100P_0402_50V8J
@
C1568
100P_0402_50V8J
@
1
2
SW6
DTSGZML-63N-Q-T-R_5P
SW6
DTSGZML-63N-Q-T-R_5P
2
3
1
4
5
C1569
100P_0402_50V8J
@
C1569
100P_0402_50V8J
@
1
2
D17
YSDA0502C 3P C/A SOT-23
@
D17
YSDA0502C 3P C/A SOT-23
@
2
3
1
C1553 100P_0402_50V8J@C1553 100P_0402_50V8J@
1 2
C1563 100P_0402_50V8J@C1563 100P_0402_50V8J@
1 2
C1543 100P_0402_50V8J@C1543 100P_0402_50V8J@
1 2
C1558 100P_0402_50V8J@C1558 100P_0402_50V8J@
1 2
C1562 100P_0402_50V8J@C1562 100P_0402_50V8J@
1 2
D28
YSDA0502C 3P C/A SOT-23
@
D28
YSDA0502C 3P C/A SOT-23
@
2
3
1
C1552 100P_0402_50V8J@C1552 100P_0402_50V8J@
1 2
SW5
DTSGZML-63N-Q-T-R_5P
SW5
DTSGZML-63N-Q-T-R_5P
2
3
1
4
5
C1551 100P_0402_50V8J@C1551 100P_0402_50V8J@
1 2
C1561 100P_0402_50V8J@C1561 100P_0402_50V8J@
1 2
C1565 100P_0402_50V8J@C1565 100P_0402_50V8J@
1 2
C1566 100P_0402_50V8J@C1566 100P_0402_50V8J@
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
USB20_N1_C
USB20_P1_C
USB20_N1_C
USB20_P0_C
USB20_P0
USB20_P1
USB20_N0
USB20_N1
USB20_P0_C
USB20_P1_C
USB20_N0_C
USB_ON#
USB20_N0_C
USB_ON#
USB20_P0_C
USB20_N0_C USB20_N1_C
USB20_P1_C
USB_ON#30
USB20_P113
USB20_N113
USB_OC0# 13
USB_ON#30 USB_OC1# 13
USB20_N013
USB20_P013 +USB_VCCA
+USB_VCCA
+5VALW
+USB_VCCA
+USB_VCCB+5VALW
+5VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P32-USB/BT/USBsub
Custom
32 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P32-USB/BT/USBsub
Custom
32 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P32-USB/BT/USBsub
Custom
32 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
W=80mils
Left USB Conn.
W=80mils
Left USB Conn.
EMI request
Low Active
Low Active
For ESD request.
C707 0.1U_0402_16V4ZC707 0.1U_0402_16V4Z
12
C709
47U_0805_6.3V
C709
47U_0805_6.3V
1
2
U55
AP2301MPG-13 MSOP 8P
U55
AP2301MPG-13 MSOP 8P
GND
1
IN
2
IN
3
EN#
4OC# 5
OUT 6
OUT 7
OUT 8
L54
S COM FI_ KINGCORE WCM-2012HS-900T
L54
S COM FI_ KINGCORE WCM-2012HS-900T
1
1
4
433
22
C714
0.1U_0402_16V4Z
C714
0.1U_0402_16V4Z
1
2
C711
470P_0402_50V7K
C711
470P_0402_50V7K
1
2
JUSB2
SUYIN_020173MR004S50DZL
CONN@
JUSB2
SUYIN_020173MR004S50DZL
CONN@
VCC
1
D-
2
D+
3
GND
4
GND1
5
GND2
6
GND3
7
GND4
8
D20
AZC099-04S.R7G_SOT23-6
D20
AZC099-04S.R7G_SOT23-6
I/O4
6
VDD
5
I/O3
4
I/O2 3
GND 2
I/O1 1
L57
S COM FI_ KINGCORE WCM-2012HS-900T
L57
S COM FI_ KINGCORE WCM-2012HS-900T
1
1
4
433
22
JUSB1
SUYIN_020173MR004S50DZL
CONN@
JUSB1
SUYIN_020173MR004S50DZL
CONN@
VCC
1
D-
2
D+
3
GND
4
GND1
5
GND2
6
GND3
7
GND4
8
C708
470P_0402_50V7K
C708
470P_0402_50V7K
1
2
C712
47U_0805_6.3V
C712
47U_0805_6.3V
1
2
C1508
220P_0402_50V7K
C1508
220P_0402_50V7K
1
2
C713
1000P_0402_50V7K@
C713
1000P_0402_50V7K@
1
2
C1505
220P_0402_50V7K
C1505
220P_0402_50V7K
1
2
U54
AP2301MPG-13 MSOP 8P
U54
AP2301MPG-13 MSOP 8P
GND
1
IN
2
IN
3
EN#
4OC# 5
OUT 6
OUT 7
OUT 8
C710
1000P_0402_50V7K@
C710
1000P_0402_50V7K@
1
2
EC_ON
ON/OFFBTN#ON/OFFBTN#
FAN_SPEED
+5VS_FAN
FAN_SPEED
LID_SW#
ON/OFFBTN#
EC_ON14,30
ON/OFF# 30
51_ON# 35
FAN_SET30
FAN_SPEED30
PWR_LED# 28,30
LID_SW# 30
+3VALW
+5VS+3VS
+5VALW
+3VALW
GND_LAN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
P33-Other IO/USB (right)
Custom
33 47Friday, February 18, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
P33-Other IO/USB (right)
Custom
33 47Friday, February 18, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
1.0
P33-Other IO/USB (right)
Custom
33 47Friday, February 18, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
%RWWRP6LGH
ON/OFF switch
Power Button
Change to SC600000B00
Fan Control Circuit
H22
H_3P0
@
H22
H_3P0
@
1
H19
H_4P2
@
H19
H_4P2
@
1
H14
H_3P0
@
H14
H_3P0
@
1
H10
H_3P8
@
H10
H_3P8
@
1
FD2
FIDUCIAL_C40M80
FD2
FIDUCIAL_C40M80
1
D12
DAN202UT106_SC70-3
D12
DAN202UT106_SC70-3
2
3
1
SW4
SMT1-05-A_4P
@SW4
SMT1-05-A_4P
@
3
2
1
4
5
6
H3
H_3P0
@
H3
H_3P0
@
1
H20
H_3P0
@
H20
H_3P0
@
1
H1
H_3P0
@
H1
H_3P0
@
1
C773
1000P_0402_50V7K
C773
1000P_0402_50V7K
1
2
D27
PJSOT24CH_SOT23-3
D27
PJSOT24CH_SOT23-3
1
2
3
H6
H_3P8
@
H6
H_3P8
@
1
FD1
FIDUCIAL_C40M80
FD1
FIDUCIAL_C40M80
1
H8
H_3P0
@
H8
H_3P0
@
1
R496
10K_0402_5%
R496
10K_0402_5%
1 2
FD4
FIDUCIAL_C40M80
FD4
FIDUCIAL_C40M80
1
C702
1000P_0402_50V7K~N
C702
1000P_0402_50V7K~N
1
2
H15
H_3P0
@
H15
H_3P0
@
1
H16
H_4P2
@
H16
H_4P2
@
1
H9
H_3P0
@
H9
H_3P0
@
1
C700
1000P_0402_50V7K~N
C700
1000P_0402_50V7K~N
1
2
FD3
FIDUCIAL_C40M80
FD3
FIDUCIAL_C40M80
1
JBTN1
ACES_85201-06051
JBTN1
ACES_85201-06051
GND 7
GND 8
11
22
33
44
55
66
R495
100K_0402_5%
R495
100K_0402_5%
1 2
H17
H_4P2
@
H17
H_4P2
@
1
R653
10K_0402_5%
R653
10K_0402_5%
1 2
C1523
220P_0402_50V7K
C1523
220P_0402_50V7K
1
2
H5
H_3P8
@
H5
H_3P8
@
1
H11
H_3P0
@
H11
H_3P0
@
1
H25
H_3P3
@
H25
H_3P3
@
1
C701
2.2U_0603_106K
C701
2.2U_0603_106K
1
2
U53
APL5607KI-TRG_SO8
U53
APL5607KI-TRG_SO8
EN 1
VIN 2
VOUT 3
VSET 4
GND
8
GND
7
GND
6
GND
5
H18
H_4P2
@
H18
H_4P2
@
1
C703
10U_0603_6.3V6M
C703
10U_0603_6.3V6M
1
2
H24
H_3P2
@
H24
H_3P2
@
1
G
D
S
Q27
SSM3K7002FU_SC70-3
G
D
S
Q27
SSM3K7002FU_SC70-3
2
13
JFAN1
ACES_85205-0300N
JFAN1
ACES_85205-0300N
1
12
23
3
GND
4GND
5
H13
H_3P0
@
H13
H_3P0
@
1
H23
H_3P8
@
H23
H_3P8
@
1
ZZZ
PCB
ZZZ
PCB
H7
H_3P8
@
H7
H_3P8
@
1
H2
H_6P2X3P2
@
H2
H_6P2X3P2
@
1
H4
H_3P0N
@
H4
H_3P0N
@
1
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
SUSP
5VS_GATE
VLDT_EN#
SUSP
3VS_GATE
1.1VS_GATE
SUSP
SUSP
SYSON#
VLDT_EN#
SUSP
SUSP#
SUSP
SYSON# SUSP VLDT_EN# 1.5_VDDC_PWREN#
SYSON30,39
VLDT_EN30
SUSP11,41
SUSP#28,30,38,42
1.5_VDDC_PWREN# 24
+5VALW
+3VALW
+3VS
+5VS
+VSB
+1.1VALW
+VSB
+1.1VS
+VSB
+5VALW
+5VALW
+5VALW
+1.5VS+1.5V +1.5V +0.75VS +1.1VS +VGA_CORE
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P34-DC Interface
Custom
34 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P34-DC Interface
Custom
34 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
1.0
P34-DC Interface
Custom
34 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
LA-7322P
+1.1VALW TO +1.1VS
+3VALW TO +3VS
+5VALW TO +5VS
+1.5VS
Change P/N SB00000HZ00
Change P/N SB00000HZ00
G
D
S
Q61
SSM3K7002FU_SC70-3
G
D
S
Q61
SSM3K7002FU_SC70-3
2
13
G
D
S
Q59
SSM3K7002FU_SC70-3
G
D
S
Q59
SSM3K7002FU_SC70-3
2
13
G
D
S
Q60
SSM3K7002FU_SC70-3
G
D
S
Q60
SSM3K7002FU_SC70-3
2
13
C1450
0.1U_0603_25V7K
C1450
0.1U_0603_25V7K
1
2
C1448
10U_0603_6.3V6M
C1448
10U_0603_6.3V6M
1
2
U38
AO4478L 1N SO8
U38
AO4478L 1N SO8
36
5
7
8
2
4
1
C1443
10U_0603_6.3V6M
C1443
10U_0603_6.3V6M
1
2
C1453
10U_0603_6.3V6M
C1453
10U_0603_6.3V6M
1
2
C1449
1U_0402_6.3V4Z
C1449
1U_0402_6.3V4Z
1
2
G
D
S
Q28
SSM3K7002FU_SC70-3
VGA@
G
D
S
Q28
SSM3K7002FU_SC70-3
VGA@
2
13
R1110
300_0603_5%
R1110
300_0603_5%
1 2
R1128
470_0603_5%
R1128
470_0603_5%
1 2
G
D
S
Q52
SSM3K7002FU_SC70-3
G
D
S
Q52
SSM3K7002FU_SC70-3
2
13
R1115
10K_0402_5%
R1115
10K_0402_5%
12
R1104
1K_0402_5%
R1104
1K_0402_5%
12
G
D
S
Q74
SSM3K7002FU_SC70-3
G
D
S
Q74
SSM3K7002FU_SC70-3
2
13
G
D
S
Q51
SSM3K7002FU_SC70-3
G
D
S
Q51
SSM3K7002FU_SC70-3
2
13
C1463
0.1U_0603_25V7K
C1463
0.1U_0603_25V7K
1
2
C1461
10U_0603_6.3V6M
C1461
10U_0603_6.3V6M
1
2
G
D
S
Q53
SSM3K7002FU_SC70-3
G
D
S
Q53
SSM3K7002FU_SC70-3
2
13
C1456
0.1U_0603_25V7K
C1456
0.1U_0603_25V7K
1
2
U39
AO4478L 1N SO8
U39
AO4478L 1N SO8
36
5
7
8
2
4
1
G
D
S
Q63
SI2301CDS-T1-GE3_SOT23-3
G
D
S
Q63
SI2301CDS-T1-GE3_SOT23-3
2
13
G
D
S
Q67
SSM3K7002FU_SC70-3
G
D
S
Q67
SSM3K7002FU_SC70-3
2
13
R1112 200K_0402_5%R1112 200K_0402_5%
12
G
D
S
Q80
SSM3K7002FU_SC70-3
G
D
S
Q80
SSM3K7002FU_SC70-3
2
13
R1103 47K_0402_5%R1103 47K_0402_5%
1 2
R1111
100K_0402_5%
R1111
100K_0402_5%
1 2
C1451
0.1U_0603_25V7K
C1451
0.1U_0603_25V7K
1
2
R1121
100K_0402_5%
R1121
100K_0402_5%
1 2
C1454
10U_0603_6.3V6M
C1454
10U_0603_6.3V6M
1
2
G
D
S
Q56
SSM3K7002FU_SC70-3
G
D
S
Q56
SSM3K7002FU_SC70-3
2
13
R1135
470_0603_5%
R1135
470_0603_5%
1 2
R1122
200K_0402_5%
R1122
200K_0402_5%
12
G
D
S
Q78
SSM3K7002FU_SC70-3
G
D
S
Q78
SSM3K7002FU_SC70-3
2
13
R1108
100K_0402_5%
R1108
100K_0402_5%
1 2
G
D
S
Q55
SSM3K7002FU_SC70-3
G
D
S
Q55
SSM3K7002FU_SC70-3
2
13
G
D
S
Q65
SSM3K7002FU_SC70-3
G
D
S
Q65
SSM3K7002FU_SC70-3
2
13
R1137
470_0603_5%
R1137
470_0603_5%
1 2
C1446
10U_0603_6.3V6M
C1446
10U_0603_6.3V6M
1
2
C1445
10U_0603_6.3V6M
C1445
10U_0603_6.3V6M
1
2
U41
AO4478L 1N SO8
U41
AO4478L 1N SO8
36
5
7
8
2
4
1
C1455
1U_0402_6.3V4Z
C1455
1U_0402_6.3V4Z
1
2R1116
100K_0402_5%
R1116
100K_0402_5%
1 2
R1109
100K_0402_5%
R1109
100K_0402_5%
12
R1120
470_0603_5%
R1120
470_0603_5%
1 2
R1101
150_0603_5%
R1101
150_0603_5%
1 2
R1126
470_0603_5%
VGA@
R1126
470_0603_5%
VGA@
1 2
C1452
10U_0603_6.3V6M
C1452
10U_0603_6.3V6M
1
2
R1107
10K_0402_5%
R1107
10K_0402_5%
12
C1444
1U_0402_6.3V4Z
C1444
1U_0402_6.3V4Z
1
2
C1447
10U_0603_6.3V6M
C1447
10U_0603_6.3V6M
1
2
R1105 47K_0402_5%R1105 47K_0402_5%
1 2
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
VS_N_001
VS_N_002
N1
ADPIN
OTP_N_002
OTP_N_001
VSB_N_002
VSB_N_003
VSB_N_001
OTP_N_003
B/I
EC_SMCA
EC_SMDA
TS_A
51_ON#33
SPOK37,40
VS_ON 37
BATT_TEMP 30
EC_SMB_DA1 30
EC_SMB_CK1 30
VIN
VIN
VS
BATT+
VL
B+
VL
+VSBP
+VSBP +VSB
BATT+
VMB
+3VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
DCIN / BATT CONN / OTP
35 44Friday, February 18, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
DCIN / BATT CONN / OTP
35 44Friday, February 18, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
DCIN / BATT CONN / OTP
35 44Friday, February 18, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
NCL61 LA-6321P M/B
CPU thermal protection at 92 +-3 degree C
Recovery at 80 +-3 degree C
PH1 under CPU botten side :
X7R type
(120mA,40mils ,Via NO.= 1)
PC9
0.1U_0603_25V7K
PC9
0.1U_0603_25V7K
12
PR2 22.1K_0402_1%PR2 22.1K_0402_1%
12
PR22
22K_0402_1%
PR22
22K_0402_1%
1 2
PR4
0_0402_5%
PR4
0_0402_5%
12
PJPDC1
@ACES_88323-0471
PJPDC1
@ACES_88323-0471
11
22
33
44
PJ2
JUMP_43X39
PJ2
JUMP_43X39
11
2
2
PR31
100_0402_1%
PR31
100_0402_1%
1 2
PC11
0.22U_0603_25V7K
PC11
0.22U_0603_25V7K
12
PR29
100K_0402_5%
PR29
100K_0402_5%
1 2
PL3
HCB2012KF-121T50_0805
PL3
HCB2012KF-121T50_0805
1 2
PQ3
TP0610K-T1-GE3_SOT23-3
PQ3
TP0610K-T1-GE3_SOT23-3
2
13
PC6
1000P_0402_50V7K
PC6
1000P_0402_50V7K
12
PR16
0_0402_5%
PR16
0_0402_5%
1 2
PD3
RLS4148_LL34-2
PD3
RLS4148_LL34-2
1 2
PD1
@PJSOT24CW_SOT323-3
PD1
@PJSOT24CW_SOT323-3
2
3
1
PL1
HCB2012KF-121T50_0805
PL1
HCB2012KF-121T50_0805
1 2
PR27
1K_0402_1%
PR27
1K_0402_1%
1 2
PR1
22K_0402_1%
PR1
22K_0402_1%
1 2
PC4
100P_0402_50V8J
PC4
100P_0402_50V8J
12
PC3
1000P_0402_50V7K
PC3
1000P_0402_50V7K
12
PU1
G718TM1U_SOT23-8
PU1
G718TM1U_SOT23-8
RHYST2 5
OT1
3
OT2
4
GND
2
VCC
1
TMSNS2 6
RHYST1 7
TMSNS1 8
PC12
0.1U_0603_25V7K
PC12
0.1U_0603_25V7K
12
PR12
22K_0402_1%
PR12
22K_0402_1%
1 2
PH1
100K_0402_1%_NCP15W F104F03RC
PH1
100K_0402_1%_NCP15W F104F03RC
12
PC5
0.1U_0603_16V7K
PC5
0.1U_0603_16V7K
12
PR10
100K_0402_1%
PR10
100K_0402_1%
12
PC10
0.1U_0402_16V7K
PC10
0.1U_0402_16V7K
12
PC2
100P_0402_50V8J
PC2
100P_0402_50V8J
12
PC1
1000P_0402_50V7K
PC1
1000P_0402_50V7K
12
PC7
0.01U_0402_25V7K
PC7
0.01U_0402_25V7K
12
PR28
100_0402_1%
PR28
100_0402_1%
1 2
PL4
HCB2012KF-121T50_0805
PL4
HCB2012KF-121T50_0805
1 2
PR21
100K_0402_1%
PR21
100K_0402_1%
12
G
D
S
PQ2
SSM3K7002FU_SC70-3
G
D
S
PQ2
SSM3K7002FU_SC70-3
2
13
PD2
@PJSOT24CW _SOT323-3
PD2
@PJSOT24CW _SOT323-3
2
3
1
PL2
HCB2012KF-121T50_0805
PL2
HCB2012KF-121T50_0805
1 2
PJP2
@SUYIN_200275MR009G186ZL
PJP2
@SUYIN_200275MR009G186ZL
11
33
44
55
66
88
99
22
77
GND
11 GND
10
PR17
68_1206_5%
PR17
68_1206_5%
12
PD4
RLS4148_LL34-2
PD4
RLS4148_LL34-2
12
PR30
1K_0402_1%
PR30
1K_0402_1%
1 2
PR13
100K_0402_1%
PR13
100K_0402_1%
1 2
PC8
0.22U_0603_25V7K
PC8
0.22U_0603_25V7K
12
PR18
68_1206_5%
PR18
68_1206_5%
12
PQ1
TP0610K-T1-GE3_SOT23-3
PQ1
TP0610K-T1-GE3_SOT23-3
2
13
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
ACOFF
CHG_VCOMP
CHG_ICOMP
6251_EN CSON
6251VDD
CHG_ICM
6251VDD
CHG_N_008
6251VREF
CHG_CSIN
6251VREF
PACIN
BST_CHG
ACPRN
6251aclim
DH_CHG
CSIP
DL_CHG
CSIN
CHG_CHLIM
LX_CHG
6251VDDP
BST_CHGA
CHG_N_003
CHG_N_010
CHG_N_009
CHG
CHG_VADJ
CHG_SNUB
CHG_CSIP
CSOPCHG_CSOP
CHG_CSON
CHG_N_005
PACIN
ACPRN
ACSETIN
ACPRN
CHG_VIN
DCIN
ACSETIN
CHG_N_001
CHG_N_002
CHG_N_006
CHG_N_001
IREF30
FSTCHG30
ACOFF30
CHGVADJ30
ADP_I30
ACIN 30
VIN
VIN
BATT+
P2 P3
B+
CHG_B+
B+
6251VDD
VIN
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
CHARGER
36 44Friday, February 18, 2011
2009/01/23 2010/01/23
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
CHARGER
36 44Friday, February 18, 2011
2009/01/23 2010/01/23
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
CHARGER
36 44Friday, February 18, 2011
2009/01/23 2010/01/23
Compal Electronics, Inc.
NCL61 LA-6321P M/B
Vcell
CHGVADJ=(Vcell-4)/0.10627
CHGVADJ
4V
4.2V
0V
1.882V
CC=0.25A~3A
IREF=0.254V~3.048V
IREF=1.016*Icharge
VCHLIM need over 95mV
Iada=0~4.737A(90W);CP=4.03A;where Racdet=0.020ohm,where Rtop=12.4K
90W for Dis:Rtop:SD00000AJ80
Iada=0~3.421A(65W);CP=2.91A;where Racdet=0.020ohm,where Rtop=226K
65W for UMA:Rtop:SD034226380
Astro2010_01_15 need confirm P/N
CP= 85%*Iada;
Iinput=(1/Racdet)*((0.05*Vaclim/VREF+0.05))
when 90W,Iinput=(1/0.02)*(0.05*1.44966/2.39+0.05)=4.02A
when 65W,Iinput=(1/0.02)*(0.05*0.38914/2.39+0.05)=2.92A
CP mode
Vaclim=VREF*(Rbot//Rinternal/(Rtop//Rinternal+Rbot//Rinternal))
when 90W Vaclim=2.39*(20K//152K/(20K//152K+12.4K//152K))=1.44966V
when 65W Vaclim=2.39*(20K//152K/(20K//152K+226K//152K))=0.38914V
Rtop
Add
PC120 must close EC pin.
2S: Float
3S: GND
(B+ 6A,240mils ,Via NO.= 12)
PC117
0.01U_0402_25V7K
PC117
0.01U_0402_25V7K
1 2
E
B
C
PQ112
MMBT3904W H NPN SOT323-3
E
B
C
PQ112
MMBT3904W H NPN SOT323-3
2
3 1
PC102
10U_0805_25V6K
PC102
10U_0805_25V6K
12
PR126
0_0603_5%
PR126
0_0603_5%
1 2
PC125
@10U_0805_25V6K
PC125
@10U_0805_25V6K
12
PR123 100_0402_1%PR123 100_0402_1%
1 2
PQ108
AON7408L_DFN8-5
PQ108
AON7408L_DFN8-5
3 5
2
4
1
PR113
10_1206_5%
PR113
10_1206_5%
1 2
PR120
20_0603_5%
PR120
20_0603_5%
12
PC108
0.1U_0603_25V7K
PC108
0.1U_0603_25V7K
12
PC128
4.7U_0805_25V6K
PC128
4.7U_0805_25V6K
12
PC106
2200P_0402_25V7K
PC106
2200P_0402_25V7K
12
PR121 10K_0402_1%PR121 10K_0402_1%
1 2
PR110
47K_0402_1%
PR110
47K_0402_1%
1 2
PC120
0.1U_0402_16V7K
PC120
0.1U_0402_16V7K
1 2
PQ107A
SSM6N7002FU_US6
PQ107A
SSM6N7002FU_US6
61
2
PR122
2.2_0603_1%
PR122
2.2_0603_1%
1 2
PL101
10UH_MSCDRI-104A-100M-E_4.6A_20%
PL101
10UH_MSCDRI-104A-100M-E_4.6A_20%
1 2
PR107
200K_0402_1%
PR107
200K_0402_1%
12
PQ101
AO4435L_SO8
PQ101
AO4435L_SO8
36
5
7
8
2
4
1
PR115
100K_0402_1%
PR115
100K_0402_1%
1 2
PL103
1.2UH_1127AS-1R2N_2.4A_30%
PL103
1.2UH_1127AS-1R2N_2.4A_30%
1 2
PC107
5600P_0402_25V7K
PC107
5600P_0402_25V7K
1 2
PC114
@2200P_0402_25V7K
PC114
@2200P_0402_25V7K
12
PR109
47K_0402_1%
PR109
47K_0402_1%
12
PR124
22K_0402_5%
PR124
22K_0402_5%
1 2
PR136
20K_0402_1%
PR136
20K_0402_1%
12
PR125
@4.7_1206_5%
PR125
@4.7_1206_5%
12
PR118
20_0603_5%
PR118
20_0603_5%
1 2
PR103
150K_0402_1%
PR103
150K_0402_1%
12
PQ105
DTC115EUA_SC70-3
PQ105
DTC115EUA_SC70-3
2
13
PQ107B
SSM6N7002FU_US6
PQ107B
SSM6N7002FU_US6
34
5
PQ103
AO4407AL 1P SO8
PQ103
AO4407AL 1P SO8
3 6
5
7
8
2
4
1
PC123
4.7U_0805_6.3V6K
PC123
4.7U_0805_6.3V6K
1 2
PQ110
AON7406L_DFN8-5
PQ110
AON7406L_DFN8-5
4
5
1
2
3
PR102
0.02_1206_1%
PR102
0.02_1206_1%
1
3
4
2
PU101
ISL6251AHAZ-T QSOP 24P
PU101
ISL6251AHAZ-T QSOP 24P
EN
3
CELLS
4
VDD
1
ACSET
2
ICOMP
5
VCOMP
6
CHLIM
9
ACPRN 23
CSIP 19
UGATE 17
PHASE 18
BOOT 16
PGND 13
GND
12
ICM
7
VREF
8
VADJ
11
DCIN 24
CSIN 20
ACLIM
10
LGATE 14
VDDP 15
CSOP 21
CSON 22
PC122
0.01U_0402_25V7K
PC122
0.01U_0402_25V7K
12
PC110
1000P_0402_50V7K
PC110
1000P_0402_50V7K
12
PR114
10K_0402_1%
PR114
10K_0402_1%
12
PC129
10U_0805_25V6K
PC129
10U_0805_25V6K
12
PQ111
DTC115EUA_SC70-3
PQ111
DTC115EUA_SC70-3
2
13
PL102
@HCB2012KF-121T50_0805
PL102
@HCB2012KF-121T50_0805
1 2
PC104
10U_0805_25V6K
PC104
10U_0805_25V6K
12
PR131
47K_0402_1%
PR131
47K_0402_1%
12
PR127
226K_0402_1%
PR127
226K_0402_1%
1 2
PQ106
DTC115EUA_SC70-3
PQ106
DTC115EUA_SC70-3
2
13
PR111
14.3K_0402_1%
PR111
14.3K_0402_1%
12
PQ104
DTA144EUA_SC70-3
PQ104
DTA144EUA_SC70-3
2
1 3
PC118
0.1U_0603_25V7K
PC118
0.1U_0603_25V7K
1 2
PR117
100K_0402_1%
PR117
100K_0402_1%
12
PQ102
AO4409L_SO8
PQ102
AO4409L_SO8
3 6
5
7
8
2
4
1
PR108
191K_0402_1%
PR108
191K_0402_1%
1 2
PR119
20_0603_5%
PR119
20_0603_5%
1 2
PC116 6800P_0402_25V7KPC116 6800P_0402_25V7K
1 2
PR133
10K_0402_1%
PR133
10K_0402_1%
1 2
PR101
0.02_1206_1%
PR101
0.02_1206_1%
1
3
4
2
PR116
150K_0402_1%
PR116
150K_0402_1%
12
PR104
140K_0402_1%
PR104
140K_0402_1%
12
G
D
S
PQ109
@SSM3K7002FU_SC70-3
G
D
S
PQ109
@SSM3K7002FU_SC70-3
2
13
PR105
10K_0402_1%
PR105
10K_0402_1%
1 2
PR132
10K_0402_1%
PR132
10K_0402_1%
12
PC113
0.047U_0603_16V7K
PC113
0.047U_0603_16V7K
1 2
PR128
20K_0402_1%
PR128
20K_0402_1%
12
PC121
0.1U_0603_25V7K
PC121
0.1U_0603_25V7K
12
PC103
4.7U_0805_25V6K
PC103
4.7U_0805_25V6K
12
PC112
1U_0603_25V6K
PC112
1U_0603_25V6K
1 2
PR130
0_0402_5%
PR130
0_0402_5%
1 2
PC109
2.2U_0603_6.3V6K
PC109
2.2U_0603_6.3V6K
12
PC124
@680P_0402_50V7K
PC124
@680P_0402_50V7K
12
PR112
10K_0402_1%
PR112
10K_0402_1%
1 2
PD106
RB751V-40TE17_SOD323-2
PD106
RB751V-40TE17_SOD323-2
12
PR129
4.7_0603_5%
PR129
4.7_0603_5%
1 2
PR106
22K_0402_1%
PR106
22K_0402_1%
12
PC105
0.1U_0402_25V6
PC105
0.1U_0402_25V6
12
PC101
10U_0805_25V6K
PC101
10U_0805_25V6K
12
PD101
RB751V-40TE17_SOD323-2
PD101
RB751V-40TE17_SOD323-2
1 2
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
BST_5V
LX_5V
BST1_5VBST1_3V
UG_5V
BST_3V
ENTRIP2
ENTRIP1
FB_3V
LG_5V
EN0
SNUB_3V
SNUB_5V
LG_3V
UG_3V
LX_3V
FB_5V
N_3_5V_001
ENTRIP1
ENTRIP2
SPOK 35,40
VS_ON35
B++
+5VALWP
VL
+3VALWP
B++
B++
2VREF_6182
B+
+3VLP
+3VLP
2VREF_6182
+5VALWP
+3VALW
+5VALW
+3VALWP
VL
B++
VL
VS
+CHGRTC
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LAXXXX
0.1
3.3VALWP/5VALWP
Custom
37 44Friday, February 18, 2011
2007/08/02 2008/08/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LAXXXX
0.1
3.3VALWP/5VALWP
Custom
37 44Friday, February 18, 2011
2007/08/02 2008/08/02
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LAXXXX
0.1
3.3VALWP/5VALWP
Custom
37 44Friday, February 18, 2011
2007/08/02 2008/08/02
Compal Electronics, Inc.
(11A,440mils ,Via NO.= 22)
(4A,120mils ,Via NO.= 8)
EC:+3VL, reserve PR319, install PR318, PR320 100K
EC:+3VALW, reserve PR318, install PR319, PR320 42.2K
PQ303
AON7408L_DFN8-5
PQ303
AON7408L_DFN8-5
3 5
2
4
1
PR315
95.3K_0402_1%
PR315
95.3K_0402_1%
12
PC321
2.2U_0603_10V6K
PC321
2.2U_0603_10V6K
12
PL303
4.7UH_FMJ-0630T-4R7 HF_5.5A_20%
PL303
4.7UH_FMJ-0630T-4R7 HF_5.5A_20%
12
PC306
10U_0805_25V6K
PC306
10U_0805_25V6K
12
PR301
13.7K_0402_1%
PR301
13.7K_0402_1%
1 2
PR303
140K_0402_1%
PR303
140K_0402_1%
1 2
PC309
0.1U_0402_25V6
PC309
0.1U_0402_25V6
12
+
PC305
220U_6.3VM_R15
+
PC305
220U_6.3VM_R15
1
2
PC315
0.1U_0402_10V7K
PC315
0.1U_0402_10V7K
1 2
PL305
4.7UH_FMJ-0630T-4R7 HF_5.5A_20%
PL305
4.7UH_FMJ-0630T-4R7 HF_5.5A_20%
1 2
PQ308
DTC115EUA_SC70-3
PQ308
DTC115EUA_SC70-3
2
13
PJP302
PAD-OPEN 2x2m
PJP302
PAD-OPEN 2x2m
2 1
PR309
2.2_0402_5%
PR309
2.2_0402_5%
1 2
+
PC303
220U_6.3VM_R15
+
PC303
220U_6.3VM_R15
1
2
PJP306
PAD-OPEN 4x4m
PJP306
PAD-OPEN 4x4m
1 2
PC316
680P_0402_50V7K
PC316
680P_0402_50V7K
12
PC317
680P_0402_50V7K
PC317
680P_0402_50V7K
12
PC308
1U_0603_16V6K
PC308
1U_0603_16V6K
12
G
D
S
PQ307A
SSM6N7002FU_US6
G
D
S
PQ307A
SSM6N7002FU_US6
2
61
PR308
2.2_0402_5%
PR308
2.2_0402_5%
1 2
PR313
4.7_1206_5%
PR313
4.7_1206_5%
12
PR319
100K_0402_1%
PR319
100K_0402_1%
1 2
PJP305
PAD-OPEN 4x4m
PJP305
PAD-OPEN 4x4m
1 2
PU301
S IC RT8205LZQW(2) WQFN 24P PWM
PU301
S IC RT8205LZQW(2) WQFN 24P PWM
FB1 2
REF 3
VO1 24
ENTRIP1 1
TONSEL 4
FB2 5
SKIPSEL
14
NC
18
VREG5
17
VO2
7
VREG3
8
VIN
16
GND
15
UGATE1 21
BOOT1 22
ENTRIP2 6
PGOOD 23
PHASE1 20
LGATE1 19
EN
13
BOOT2
9
UGATE2
10
PHASE2
11
LGATE2
12
P PAD
25
PR305
30.9K_0402_1%
PR305
30.9K_0402_1%
1 2
PR314
499K_0402_1%
PR314
499K_0402_1%
1 2
PC304
4.7U_0805_25V6K
PC304
4.7U_0805_25V6K
12
PR306
20K_0402_1%
PR306
20K_0402_1%
1 2
PQ306
AO4406AL_SO8
PQ306
AO4406AL_SO8
4
7
8
6
5
1
2
3
PR317
100K_0402_5%
PR317
100K_0402_5%
1 2
PJP301
PAD-OPEN 2x2m
PJP301
PAD-OPEN 2x2m
2 1
PQ304
AON7406L_DFN8-5
PQ304
AON7406L_DFN8-5
4
5
1
2
3
PC319
0.1U_0603_25V7K
PC319
0.1U_0603_25V7K
12
PR320
42.2K_0402_1%
PR320
42.2K_0402_1%
12
PC322
@680P_0402_50V7K
PC322
@680P_0402_50V7K
12
PC312
2200P_0402_50V7K
PC312
2200P_0402_50V7K
12
PC310
2200P_0402_50V7K
PC310
2200P_0402_50V7K
12
PQ305
AON7408L_DFN8-5
PQ305
AON7408L_DFN8-5
3 5
2
4
1
PC313
10U_0805_6.3V6M
PC313
10U_0805_6.3V6M
12
PC318
4.7U_0805_10V6K
PC318
4.7U_0805_10V6K
12
PC314
0.1U_0402_10V7K
PC314
0.1U_0402_10V7K
1 2
PJP303
PAD-OPEN 4x4m
PJP303
PAD-OPEN 4x4m
1 2
PC311
0.1U_0402_25V6
PC311
0.1U_0402_25V6
12
PR312
4.7_1206_5%
PR312
4.7_1206_5%
12
G
D
S
PQ307B
SSM6N7002FU_US6
G
D
S
PQ307B
SSM6N7002FU_US6
5
34
PL301
HCB2012KF-121T50_0805
PL301
HCB2012KF-121T50_0805
1 2
PR302
20K_0402_1%
PR302
20K_0402_1%
1 2
PC320
1U_0603_10V6K
PC320
1U_0603_10V6K
12
PR307
162K_0402_1%
PR307
162K_0402_1%
1 2
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
1.8VSP_FB
1.8VSP_VIN
1.8VSP_LX
SNUB_1.8VSP
EN_1.8VSP
SUSP#30,34,41,42
+1.8VSP
+1.8VSP +1.8VS
+5VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
+1.8VSP
38 44Friday, February 18, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
+1.8VSP
38 44Friday, February 18, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
+1.8VSP
38 44Friday, February 18, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
<Vo=1.8V> VFB=0.6V
Vo=VFB*(1+PR401/PR402)=0.6*(1+20K/10K)=1.8V
NCL61 LA-6321P M/B
(2.5A, 100mils, Via NO.= 5)
PU401
SY8033BDBC_DFN10_3X3
PU401
SY8033BDBC_DFN10_3X3
EN
5
PG 4
LX 3
FB 6
SVIN
8
TP
11
LX 2
PVIN
10
NC
7
PVIN
9
NC
1
PR401
20K_0402_1%
PR401
20K_0402_1%
12
PR402
10K_0402_1%
PR402
10K_0402_1%
12
PC402
22U_0805_6.3VAM
PC402
22U_0805_6.3VAM
12
PR404 0_0402_5%PR404 0_0402_5%
1 2
PC403
22U_0805_6.3VAM
PC403
22U_0805_6.3VAM
12
PL402
HCB1608KF-121T30_0603
PL402
HCB1608KF-121T30_0603
1 2
PL401
1UH_PCMC063T-1R0MN_11A_20%
PL401
1UH_PCMC063T-1R0MN_11A_20%
1 2
PC406
680P_0402_50V7K
PC406
680P_0402_50V7K
12
PR403
4.7_1206_5%
PR403
4.7_1206_5%
12
PR405
@47K_0402_5%
PR405
@47K_0402_5%
12
PC401
22U_0805_6.3VAM
PC401
22U_0805_6.3VAM
12
PJP401
PAD-OPEN 3x3m
PJP401
PAD-OPEN 3x3m
1 2
PC405
@0.1U_0402_10V7K
PC405
@0.1U_0402_10V7K
12
PC404
68P_0402_50V8J
PC404
68P_0402_50V8J
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TRIP_1.5V
LG_1.5V
UG_1.5V
BST1_1.5VBST_1.5V
TON_1.5V
FB_1.5V
EN_1.5V
V5FILT_1.5V+5VALW
LX_1.5V
SNUB_1.5V
+5VALW
SYSON30,34
+1.5V
+1.5VP
+1.5VP
1.5V_B+
B+
+1.5VP
+1.5VP
+5VALW
+5VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LAXXXX
0.1
+1.5VP
39 44Friday, February 18, 2011
2007/05/29 2008/05/29
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LAXXXX
0.1
+1.5VP
39 44Friday, February 18, 2011
2007/05/29 2008/05/29
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LAXXXX
0.1
+1.5VP
39 44Friday, February 18, 2011
2007/05/29 2008/05/29
Compal Electronics, Inc.
(8A,320mils ,Via NO.= 16)
+
PC501
220U_6.3VM_R15
+
PC501
220U_6.3VM_R15
1
2
PR507
100_0402_1%
PR507
100_0402_1%
1 2
PR509
@4.7_1206_5%
PR509
@4.7_1206_5%
12
PR501
2.21K_0402_1%
PR501
2.21K_0402_1%
1 2
PC506
2200P_0402_50V7K
PC506
2200P_0402_50V7K
12
PJP501
@PAD-OPEN 4x4m
PJP501
@PAD-OPEN 4x4m
1 2
PL501
2.2UH_PCMC063T-2R2MN_8A_20%
PL501
2.2UH_PCMC063T-2R2MN_8A_20%
1 2
PC504
@4.7U_0805_25V6-K
PC504
@4.7U_0805_25V6-K
12
PC510
4.7U_0805_10V6K
PC510
4.7U_0805_10V6K
12
PC509
4.7U_0603_10V6K
PC509
4.7U_0603_10V6K
12
PC511
@680P_0402_50V7K
PC511
@680P_0402_50V7K
12
PC507
0.1U_0402_25V6
PC507
0.1U_0402_25V6
12
PC505
@0.1U_0402_10V7K
PC505
@0.1U_0402_10V7K
12
PR503
0_0402_5%
PR503
0_0402_5%
12
PR506
255K_0402_1%
PR506
255K_0402_1%
1 2
PC508
0.1U_0402_10V7K
PC508
0.1U_0402_10V7K
1 2
PU501
RT8209MGQW_WQFN14_3P5X3P5
PU501
RT8209MGQW_WQFN14_3P5X3P5
VOUT
3
VDD
4
EN/DEM 1
TON
2
FB
5
PGOOD
6LGATE 9
UGATE 13
PHASE 12
GND
7
PGND
8
CS 11
VDDP 10
BOOT 14
NC 15
PR502
2.15K_0402_1%
PR502
2.15K_0402_1%
12
PC503
10U_0805_25V6K
PC503
10U_0805_25V6K
12
PQ501
AON7408L_DFN8-5
PQ501
AON7408L_DFN8-5
3 5
2
4
1
PR508 15.4K_0402_1%
PR508 15.4K_0402_1%
1 2
PC502
@680P_0402_50V7K
PC502
@680P_0402_50V7K
12
PQ502
FDS6690AS-G_SO8
PQ502
FDS6690AS-G_SO8
4
7
8
6
5
1
2
3
PL502
HCB1608KF-121T30_0603
PL502
HCB1608KF-121T30_0603
12
PR504
2.2_0402_5%
PR504
2.2_0402_5%
1 2
PJP502
@PAD-OPEN 4x4m
PJP502
@PAD-OPEN 4x4m
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TRIP_1.1V
LG_1.1V
UG_1.1V
BST1_1.1VBST_1.1V
TON_1.1V
FB_1.1V
EN_1.1V
V5FILT_1.1V+5VALW
LX_1.1V
SNUB_1.1V
+5VALW
SPOK35,37
+1.1VALW
+1.1VALWP
+1.1VALWP
1.1V_B+
B+
+1.1VALWP
+1.1VALWP
+5VALW
+5VALW
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LAXXXX
0.1
PWR+1.1VALWP
Custom
40 44Friday, February 18, 2011
2009/12/01 2010/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LAXXXX
0.1
PWR+1.1VALWP
Custom
40 44Friday, February 18, 2011
2009/12/01 2010/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LAXXXX
0.1
PWR+1.1VALWP
Custom
40 44Friday, February 18, 2011
2009/12/01 2010/12/31
Compal Electronics, Inc.
(8A,320mils ,Via NO.=16)
PQ702
FDS6690AS-G_SO8
PQ702
FDS6690AS-G_SO8
3 6
5
7
8
2
4
1
PU701
RT8209MGQW_WQFN14_3P5X3P5
PU701
RT8209MGQW_WQFN14_3P5X3P5
VOUT
3
VDD
4
EN/DEM 1
TON
2
FB
5
PGOOD
6LGATE 9
UGATE 13
PHASE 12
GND
7
PGND
8
CS 11
VDDP 10
BOOT 14
NC 15
PC708
4.7U_0603_6.3V6M
PC708
4.7U_0603_6.3V6M
12
PC710
@680P_0402_50V7K
PC710
@680P_0402_50V7K
12
PC706
0.1U_0402_25V6
PC706
0.1U_0402_25V6
12
+
PC701
220U_6.3VM_R15
+
PC701
220U_6.3VM_R15
1
2
PC702
10U_0805_25V6K
PC702
10U_0805_25V6K
1
2
PL702
HCB1608KF-121T30_0603
PL702
HCB1608KF-121T30_0603
12
PL701
1UH_PCMC063T-1R0MN_11A_20%
PL701
1UH_PCMC063T-1R0MN_11A_20%
1 2
PJP701
PAD-OPEN 4x4m
PJP701
PAD-OPEN 4x4m
1 2
PC704
@0.1U_0402_10V7K
PC704
@0.1U_0402_10V7K
12
PR703
0_0402_5%
PR703
0_0402_5%
12
PR707
100_0603_1%
PR707
100_0603_1%
1 2
PR701
4.64K_0402_1%
PR701
4.64K_0402_1%
1 2
PC703
@4.7U_0805_25V6-K
PC703
@4.7U_0805_25V6-K
12
PR705
255K_0402_1%
PR705
255K_0402_1%
1 2
PR702
10K_0402_1%
PR702
10K_0402_1%
12
PR709
@4.7_1206_5%
PR709
@4.7_1206_5%
12
PR704
2.2_0402_5%
PR704
2.2_0402_5%
1 2
PC705
2200P_0402_50V7K
PC705
2200P_0402_50V7K
12
PR708 15.4K_0402_1%PR708 15.4K_0402_1%
1 2
PC707
0.1U_0402_10V7K
PC707
0.1U_0402_10V7K
1 2
PQ701
AON7408L_DFN8-5
PQ701
AON7408L_DFN8-5
3 5
2
4
1
PC709
4.7U_0805_10V6K
PC709
4.7U_0805_10V6K
12
PR706
@100K_0402_5%
PR706
@100K_0402_5%
1 2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
0.75VS_N_002
VREF_G2992
+VSB1
SUSP
+1.05VSP_N001
+1.05VSP_N002
SUSP11,34
VGA_PWRGD 12,23,42,44
VGA_PWR_ON
30,34,38,42
+0.75VS
+0.75VSP
+3VALW
+0.75VSP
+1.5V
+1.05VS
+1.05VSP_L
+1.1VALW +1.05VSP_L
+VSB
+3VALW
+3VS
+1.5VP
+5VALW
+1.0VSP
+1.0VSG
+1.0VSP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LAXXXX
0.1
PWR 0.75VSP +1.05VSP
41 44Friday, February 18, 2011
2006/11/23 2007/11/23
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LAXXXX
0.1
PWR 0.75VSP +1.05VSP
41 44Friday, February 18, 2011
2006/11/23 2007/11/23
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LAXXXX
0.1
PWR 0.75VSP +1.05VSP
41 44Friday, February 18, 2011
2006/11/23 2007/11/23
Compal Electronics, Inc.
(2A,80mils ,Via NO.= 4)
+1.1VALW TO +1.05VSP
1HHGWRFRQILUPZLWK+:SRZHUVHTXHQFH
(2.5A,100mils ,Via NO.= 5)
(5A,200mils ,Via NO.=10)
PR608
@1K_0402_1%
PR608
@1K_0402_1%
12
PJP602
PAD-OPEN 4x4m
PJP602
PAD-OPEN 4x4m
1 2
PR605
330K_0402_5%
PR605
330K_0402_5%
12
PC606
@0.1U_0402_10V7K
PC606
@0.1U_0402_10V7K
12
PR610
1.82K_0402_1%
PR610
1.82K_0402_1%
12
PU602 APL5930KAI-TRG_SO8PU602 APL5930KAI-TRG_SO8
VIN
9
EN
8
VCNTL
6
VIN
5
POK
7
GND
1
FB 2
VOUT 4
VOUT 3
G
D
S
PQ602
SSM3K7002FU_SC70-3
G
D
S
PQ602
SSM3K7002FU_SC70-3
2
13
PC605
10U_0805_6.3V6M
PC605
10U_0805_6.3V6M
12
PJP603
PAD-OPEN 3x3m
PJP603
PAD-OPEN 3x3m
1 2
PC608
4.7U_0603_6.3V6K
PC608
4.7U_0603_6.3V6K
12
PC603
1U_0603_10V6K
PC603
1U_0603_10V6K
12
PR601
1K_0402_1%
PR601
1K_0402_1%
12
PC614
180P_0402_50V8J
PC614
180P_0402_50V8J
12
PR602
1K_0402_1%
PR602
1K_0402_1%
12
PC609
4.7U_0603_6.3V6K
PC609
4.7U_0603_6.3V6K
12
PC613
0.1U_0402_25V6
PC613
0.1U_0402_25V6
12
PD601
1SS355_SOD323-2
PD601
1SS355_SOD323-2
1 2
PC612
1U_0603_10V6K
PC612
1U_0603_10V6K
12
PR609
100K_0402_1%
PR609
100K_0402_1%
1 2
PC602
1U_0402_6.3V6K
PC602
1U_0402_6.3V6K
12
PR606
@100K_0402_1%
PR606
@100K_0402_1%
1 2
PR611
7.32K_0402_1%
PR611
7.32K_0402_1%
12
G
D
S
PQ604A
@SSM6N7002FU_US6
G
D
S
PQ604A
@SSM6N7002FU_US6
2
61
PR604
0_0402_5%
PR604
0_0402_5%
12
PQ601
IRF8707GTRPBF_SO8
PQ601
IRF8707GTRPBF_SO8
4
6
1
2
3
5
7
8
PC610
@0.1U_0402_10V7K
PC610
@0.1U_0402_10V7K
12
PU601
APL5336KAI-TRL_SOP8P8
PU601
APL5336KAI-TRL_SOP8P8
NC 5
VREF
3
VOUT
4
GND
2
VIN
1
VCNTL 6
NC 7
NC 8
TP 9
PC616
@0.1U_0402_10V7K
PC616
@0.1U_0402_10V7K
12
PR603
47K_0402_5%
PR603
47K_0402_5%
1 2
PJP601
PAD-OPEN 3x3m
PJP601
PAD-OPEN 3x3m
1 2
PC604
0.1U_0402_16V7K
PC604
0.1U_0402_16V7K
12
PC607
0.1U_0402_25V6
PC607
0.1U_0402_25V6
12
PC615
22U_0805_6.3V6M
PC615
22U_0805_6.3V6M
12
PC601
4.7U_0805_6.3V6K
PC601
4.7U_0805_6.3V6K
12
PR607
@0_0402_5%
PR607
@0_0402_5%
12
G
D
S
PQ603
SSM3K7002FU_SC70-3
G
D
S
PQ603
SSM3K7002FU_SC70-3
2
13
G
D
S
PQ604B
@SSM6N7002FU_US6
G
D
S
PQ604B
@SSM6N7002FU_US6
5
34
PC611
4.7U_0805_6.3V6K
PC611
4.7U_0805_6.3V6K
12
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
1.05VSP_FB
1.05VSP_VIN
1.05VSP_LX
SNUB_1.05VSP
EN_1.05VSP
SUSP#30,34,38,41
VGA_PWRGD12,23,41,44
+1.05VSP
+5VALW
+1.05VS
+1.05VSP
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
+1.05VSP
42 44Friday, February 18, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
+1.05VSP
42 44Friday, February 18, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
0.1
+1.05VSP
42 44Friday, February 18, 2011
Compal Electronics, Inc.
2010/01/232009/01/23
NCL61 LA-6321P M/B
(5A,200mils ,Via NO.=10)
PJP801
PAD-OPEN 4x4m
PJP801
PAD-OPEN 4x4m
1 2
PU802
@SY8035DBC_DFN10_3X3
PU802
@SY8035DBC_DFN10_3X3
EN
5
PG 4
LX 3
FB 6
SVIN
8
TP
11
LX 2
PVIN
10
SS
7
PVIN
9
LX 1
PC805
@0.1U_0402_10V7K
PC805
@0.1U_0402_10V7K
12
PC803
@22U_0805_6.3VAM
PC803
@22U_0805_6.3VAM
12
PC804
@68P_0402_50V8J
PC804
@68P_0402_50V8J
12
PR806
@0_0402_5%
PR806
@0_0402_5%
1 2
PL802
@HCB1608KF-121T30_0603
PL802
@HCB1608KF-121T30_0603
1 2
PR804 @0_0402_5%PR804 @0_0402_5%
1 2
PR802
@10K_0402_1%
PR802
@10K_0402_1%
12
PR805
@47K_0402_5%
PR805
@47K_0402_5%
12
PR803
@4.7_1206_5%
PR803
@4.7_1206_5%
12
PL801
@1UH_PCMC063T-1R0MN_11A_20%
PL801
@1UH_PCMC063T-1R0MN_11A_20%
1 2
PC801
@22U_0805_6.3VAM
PC801
@22U_0805_6.3VAM
12
PC806
@680P_0402_50V7K
PC806
@680P_0402_50V7K
12
PC802
@22U_0805_6.3VAM
PC802
@22U_0805_6.3VAM
12
PR801
@7.5K_0402_1%
PR801
@7.5K_0402_1%
12
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
UGATE0
ISP0
PHASE0
SNUB_CPU
ISN0
LGATE0
BOOT0
TON
BOOT0
UGATE0
PHASE0
LGATE0
PVCC
OCSET
COMP
TON
ISP0
ISN0
ISP1
ISN1
RGND
FB
ENABLE
PGOOD
RGND_NB
COMP_NB
FB_NB
TON_NB
ISP_NB
ISN_NB
LGATE_NB
PHASE_NB
UGATE_NB
BOOT_NB
PHASE_NB
UGATE_NB
LGATE_NB
TON_NB
ISP_NB
BOOT_NB
SNUB_NB
RBIAS
VCC
ISN_NB
COMP_NB
RGND_NB
FB_NB
VFIX/DRPSEL
OCSET_NB
VFIX/DRPSEL
OCSET_NB
APU_VDD0_RUN_FB_H 45
+APU_CORE 45
APU_VDD0_RUN_FB_L 45
APU_SVD45
APU_SVC45
VR_ON45
VGATE45,52
FCH_PWROK45
H_PWRGD_L45
+APU_CORE_NB45
APU_VDDNB_RUN_FB_H45
APU_VDD0_RUN_FB_L45
+APU_CORE
CPU_B+
B+
+5VS
+5VS
+1.5V
CPU_B+
+APU_CORE_NB
+5VS
+5VS
+5VS
+3VS
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LAXXXX
0.1
PWR-CPU_CORE
C
43 44Friday, February 18, 2011
2009/12/01 2010/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LAXXXX
0.1
PWR-CPU_CORE
C
43 44Friday, February 18, 2011
2009/12/01 2010/12/31
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LAXXXX
0.1
PWR-CPU_CORE
C
43 44Friday, February 18, 2011
2009/12/01 2010/12/31
10uF_0603 * 7
1uF_0402 * 4
0.1uF_0402 * 5
180P_0402 * 2
390uF * 3
Reserve 330uF * 2
(14A, 560mils, via no = 28)
+CPU_CORE
Imax=7.7A
Ipeak=11A
Iocp(minimum)=13.2A
DCR=4.2mohm
Rdson = 7mohm
+CPU_CORE_NB
Imax=7A
Ipeak=10A
Iocp(minimum)=12A
DCR=10mohm
Rdson = 22mohm
(10A, 400mils, via no = 20)
10uF_0603 * 6
1uF_0402 * 5
0.1uF_0402 * 4
180P_0402 * 2
390uF * 1
Reserve 390uF
Compal Electronics, Inc.
PC252
1U_0603_10V6K
PC252
1U_0603_10V6K
12
PR245
110K_0402_1%
PR245
110K_0402_1%
1 2
PC237
@68P_0402_50V8J
PC237
@68P_0402_50V8J
1 2
PR213
2K_0402_1%
PR213
2K_0402_1%
12
PR222
10K_0402_1%
PR222
10K_0402_1%
1 2
PR231
47K_0402_1%
PR231
47K_0402_1%
1 2
PR207
1_0402_5%
PR207
1_0402_5%
12
PR230
0_0402_5%
PR230
0_0402_5%
12
PC245
0.1U_0402_25V6
PC245
0.1U_0402_25V6
12
PR210
4.7_1206_5%
PR210
4.7_1206_5%
12
PR237
@51_0402_1%
PR237
@51_0402_1%
1 2
+
PC247@68U_25V_M_R0.44
+
PC247@68U_25V_M_R0.44
1
2
PC234
@0.01U_0402_25V7K
PC234
@0.01U_0402_25V7K
1 2
PQ205
AO4726L_SO8
PQ205
AO4726L_SO8
3
5
2
4
1
6
7
8
PR226
100_0402_5%
PR226
100_0402_5%
12
PR221
0_0402_5%
PR221
0_0402_5%
1 2
PR219
100_0402_5%
PR219
100_0402_5%
1 2
PR256
10K_0402_1%
PR256
10K_0402_1%
1 2
PL202
1UH_MMD-06CZ-1R0M-V1_11A_20%
PL202
1UH_MMD-06CZ-1R0M-V1_11A_20%
1 2
PR253
7.15K_0402_1%
PR253
7.15K_0402_1%
1 2
PC246
@4.7U_0805_25V6-K
PC246
@4.7U_0805_25V6-K
12
PR249
4.7_1206_5%
PR249
4.7_1206_5%
12
PR225
100_0402_5%
PR225
100_0402_5%
1 2
PC229
@68P_0402_50V8J
PC229
@68P_0402_50V8J
1 2
PR220
0_0402_5%
PR220
0_0402_5%
1 2
PR244
2.43K_0402_1%
PR244
2.43K_0402_1%
1 2
PC215
0.1U_0402_25V6
PC215
0.1U_0402_25V6
12
PC239
@68P_0402_50V8J
PC239
@68P_0402_50V8J
1 2
PR234
0_0402_5%
PR234
0_0402_5%
12
PR248
2.2_0603_5%
PR248
2.2_0603_5%
12
PR246
0_0402_5%
PR246
0_0402_5%
1 2
PR228
10K_0402_1%
PR228
10K_0402_1%
1 2
PC205
10U_0805_25V6K
PC205
10U_0805_25V6K
12
PL205
HCB2012KF-121T50_0805
PL205
HCB2012KF-121T50_0805
12
PC204
@4.7U_0805_25V6-K
PC204
@4.7U_0805_25V6-K
12
PC242
0.1U_0402_25V6
PC242
0.1U_0402_25V6
1 2
PR247
1_0402_5%
PR247
1_0402_5%
12
PC253
@0.01U_0402_25V7K
PC253
@0.01U_0402_25V7K
1 2
PC228
@68P_0402_50V8J
PC228
@68P_0402_50V8J
1 2
PC225
470P_0402_50V8J
PC225
470P_0402_50V8J
1 2
PQ202
AON7408L_DFN8-5
PQ202
AON7408L_DFN8-5
3 5
2
4
1
PC220
680P_0603_50V7K
PC220
680P_0603_50V7K
12
PC211
2200P_0402_50V7K
PC211
2200P_0402_50V7K
12
PR236
100_0402_5%
PR236
100_0402_5%
12
PR252
10K_0402_1%
PR252
10K_0402_1%
1 2
PR255
10K_0402_1%
PR255
10K_0402_1%
1 2
PC251
680P_0603_50V7K
PC251
680P_0603_50V7K
12
PC238
@68P_0402_50V8J
PC238
@68P_0402_50V8J
1 2
PR242
2.43K_0402_1%
PR242
2.43K_0402_1%
1 2
PC203
1U_0603_10V6K
PC203
1U_0603_10V6K
12
PC236
470P_0402_50V8J
PC236
470P_0402_50V8J
1 2
PC230
0.1U_0402_25V6
PC230
0.1U_0402_25V6
1 2
PC241
0.1U_0402_25V6
PC241
0.1U_0402_25V6
1 2
PC226
68P_0402_50V8J
PC226
68P_0402_50V8J
1 2
PR206
2.2_0603_5%
PR206
2.2_0603_5%
12
PR217
0_0402_5%
PR217
0_0402_5%
12
PC249
2200P_0402_50V7K
PC249
2200P_0402_50V7K
12
PC243
2200P_0402_50V7K
PC243
2200P_0402_50V7K
12
PR227
0_0402_5%
PR227
0_0402_5%
1 2
PC232
@0.01U_0402_25V7K
PC232
@0.01U_0402_25V7K
1 2
PR208
100K_0402_1%
PR208
100K_0402_1%
1 2
PQ206
AON7408L_DFN8-5
PQ206
AON7408L_DFN8-5
3 5
2
4
1
PR229
33K_0402_1%
PR229
33K_0402_1%
1 2
PC235
68P_0402_50V8J
PC235
68P_0402_50V8J
1 2
PC240
0.22U_0603_10V7K
PC240
0.22U_0603_10V7K
12
PR224
0_0402_5%
PR224
0_0402_5%
1 2
PR235 0_0402_5%PR235 0_0402_5%
1 2
PC223
0.1U_0402_25V6
PC223
0.1U_0402_25V6
1 2
PR241 @51_0402_1%PR241 @51_0402_1%
1 2
PR239
5.1K_0402_1%
PR239
5.1K_0402_1%
1 2
PR223
47K_0402_1%
PR223
47K_0402_1%
1 2
PC231
@0.01U_0402_25V7K
PC231
@0.01U_0402_25V7K
1 2
PR202
2_0603_5%
PR202
2_0603_5%
12
PR205
130K_0402_1%
PR205
130K_0402_1%
12
PC227
@68P_0402_50V8J
PC227
@68P_0402_50V8J
1 2
PR250
2_0603_5%
PR250
2_0603_5%
12
+
PC218
220U_6.3VM_R15
+
PC218
220U_6.3VM_R15
1
2
PR233 @0_0402_5%PR233 @0_0402_5%
1 2
PR232
10K_0402_1%
PR232
10K_0402_1%
1 2
PC206
0.1U_0402_25V6
PC206
0.1U_0402_25V6
12
PQ203
AO4468L_SO8
PQ203
AO4468L_SO8
4
7
8
6
5
1
2
3
PR238
0_0402_5%
PR238
0_0402_5%
1 2
PR251
8.2K_0402_1%
PR251
8.2K_0402_1%
1 2
PU201
RT8870AZQW_WQFN40_5X5
PU201
RT8870AZQW_WQFN40_5X5
SVC
3
SVD
4
RBIAS
1
EN
2
PWORK
5
PGOOD
6
OCSET_NB
8
UGATE_NB
19
LGATE_NB
17
RGND_NB
15
UGATE0 22
PGND_NB
16
ISN_NB
14
TON_NB
12
COMP_NB
11
VFIX/DRPSEL
7
FB_NB
10 BOOT0 21
PHASE0 23
BOOT_NB
20
PHASE_NB
18
VCC
9
PGND0 24
ISP_NB
13
PVCC 26
LGATE1 27
PGND1 28
PHASE1 29
UGATE1 30
ISN1 32
ISP1 33
RGND 34
ISN0 35
ISP0 36
TON 37
COMP 38
FB 39
OCSET 40
GND 41
LGATE0 25
BOOT1 31
PC244
10U_0805_25V6K
PC244
10U_0805_25V6K
1
2
PC250
0.1U_0402_25V6
PC250
0.1U_0402_25V6
12
PL204
0.47UH_MMD-06CZ-R47M-V1_17.5A_20%
PL204
0.47UH_MMD-06CZ-R47M-V1_17.5A_20%
1 2
PC222
0.1U_0402_25V6
PC222
0.1U_0402_25V6
1 2
PR240
22K_0402_1%
PR240
22K_0402_1%
1 2
PC216
0.22U_0603_10V7K
PC216
0.22U_0603_10V7K
12
PR254
@10K_0402_1%
PR254
@10K_0402_1%
1 2
A
A
B
B
C
C
D
D
1 1
2 2
3 3
4 4
SNUB_VGA
N_VGA_006
LG_VGA
FB_VGA
UG_VGA
+VGA_CORE
+5VALW
TRIP_VGA
LX_VGA
N_VGA_001
N_VGA_005N_VGA_002
N_VGA_003
VGA_B+
V5FILT_VGA
BST_VGA BST1_VGA
N_VGA_004
TON_VGA
EN_VGA
GCORE_SEN
VGA_PWRGD 12,23,41,42
GPU_VID018
GPU_VID118
1.5_VDDC_PWREN23,34
GCORE_SEN20
+VGA_CORE
B+
+VGA_COREP1
+VGA_CORE
+5VALW
+3VS
+5VALW
+3VS
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LAXXXX
0.1
VGA_CORE
44 44Friday, February 18, 2011
2007/05/29 200810/11
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LAXXXX
0.1
VGA_CORE
44 44Friday, February 18, 2011
2007/05/29 200810/11
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date Deciphered Date
LAXXXX
0.1
VGA_CORE
44 44Friday, February 18, 2011
2007/05/29 200810/11
Compal Electronics, Inc.
GPU_VID1 +VGA_CORE
1
0
0
1
1
0
0.9V
1.05V
1.1V
GPU_VID0
PR914 pin2 trace need to close VGA chipset
MLCC.(remote sense)
PC912 pin1 trace need to close PC901. (local
sense.)
(14A, 560mils, via no = 28)
Need to close PC901
PC913
@680P_0402_50V7K
PC913
@680P_0402_50V7K
12
PC903
4.7U_0805_25V6K
PC903
4.7U_0805_25V6K
12
PR905
11K_0402_1%
PR905
11K_0402_1%
1 2
PC914
0.022U_0402_16V7K
PC914
0.022U_0402_16V7K
12
PR922
0_0402_5%
PR922
0_0402_5%
1 2
PU901
RT8209BGQW_WQFN14_3P5X3P5
PU901
RT8209BGQW_WQFN14_3P5X3P5
VOUT
3
VDD
4
EN/DEM 1
TON
2
FB
5
PGOOD
6LGATE 9
UGATE 13
PHASE 12
GND
7
PGND
8
CS 11
VDDP 10
BOOT 14
NC 15
PC902
4.7U_0805_6.3V6K
PC902
4.7U_0805_6.3V6K
12
PQ904B
SSM6N7002FU_US6
PQ904B
SSM6N7002FU_US6
3 4
5
PR902
10K_0402_1%
PR902
10K_0402_1%
12
PC906
0.1U_0402_25V6
PC906
0.1U_0402_25V6
12
PR923
0_0402_5%
PR923
0_0402_5%
1 2
PR903
10.5K_0402_1%
PR903
10.5K_0402_1%
1 2
PR919
10K_0402_5%
PR919
10K_0402_5%
12
PR914
100_0402_5%
PR914
100_0402_5%
12
PR901
2K_0402_1%
PR901
2K_0402_1%
1 2
PR909
255K_0402_1%
PR909
255K_0402_1%
1 2
PQ904A
SSM6N7002FU_US6
PQ904A
SSM6N7002FU_US6
61
2
PQ903A
SSM6N7002FU_US6
PQ903A
SSM6N7002FU_US6
61
2
PR911
100K_0402_1%
PR911
100K_0402_1%
12
PC907
2200P_0402_50V7K
PC907
2200P_0402_50V7K
12
PR912
@4.7_1206_5%
PR912
@4.7_1206_5%
12
PQ906
TPCA8059-H_PPAK56-8-5
PQ906
TPCA8059-H_PPAK56-8-5
4
5
1
2
3
PR904
30.1K_0402_1%
PR904
30.1K_0402_1%
1 2
PR918
10K_0402_5%
PR918
10K_0402_5%
12
PQ901
NTMS4816NR2G_SO8
PQ901
NTMS4816NR2G_SO8
4
1
2
3 6
7
5
8
PR921
10K_0402_5%
PR921
10K_0402_5%
12
PR920
15K_0402_1%
PR920
15K_0402_1%
12
PL902
HCB1608KF-121T30_0603
PL902
HCB1608KF-121T30_0603
1 2
PC909
0.1U_0402_10V7K
PC909
0.1U_0402_10V7K
1 2
PC910
1U_0603_10V6K
PC910
1U_0603_10V6K
12
PR916
10K_0402_5%
PR916
10K_0402_5%
1 2
PR907
2.2_0402_1%
<BOM Structure>
PR907
2.2_0402_1%
<BOM Structure>
1 2
PC912
0.1U_0402_10V7K
PC912
0.1U_0402_10V7K
1 2
PC905
@0.1U_0402_10V7K
PC905
@0.1U_0402_10V7K
12
PC915
0.022U_0402_16V7K
PC915
0.022U_0402_16V7K
12
PC911
4.7U_0805_10V6K
PC911
4.7U_0805_10V6K
12
PR908
316_0402_1%
PR908
316_0402_1%
12
PC908
@680P_0402_50V7K
PC908
@680P_0402_50V7K
12
PL901
0.56UH +-20% PCMC104T-R56MN 25A
PL901
0.56UH +-20% PCMC104T-R56MN 25A
1 2
PR917
15K_0402_1%
PR917
15K_0402_1%
12
PC904
4.7U_0805_25V6K
PC904
4.7U_0805_25V6K
12
PQ903B
SSM6N7002FU_US6
PQ903B
SSM6N7002FU_US6
3 4
5
+
PC901
390U_2.5V_M
+
PC901
390U_2.5V_M
1
2
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Securi ty Classific ation
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLO SED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRO NICS, INC.
Issued Date
Decipher ed Date
LA-7322P
1.0
Po wer Seque nce
45 47
Thursday, February 17, 2011
2010/06/30 2012/ 06/30
Title
Size Document Number Rev
Date: Sheet of
Securi ty Classific ation
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLO SED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRO NICS, INC.
Issued Date
Decipher ed Date
LA-7322P
1.0
Po wer Seque nce
45 47
Thursday, February 17, 2011
2010/06/30 2012/ 06/30
Title
Size Document Number Rev
Date: Sheet of
Securi ty Classific ation
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLO SED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRO NICS, INC.
Issued Date
Decipher ed Date
LA-7322P
1.0
Po wer Seque nce
45 47
Thursday, February 17, 2011
2010/06/30 2012/ 06/30
9$/:9$/:9$/:
9*$B3:5*'
95B21
9
9*$B&25(96*
96*96*
$&,1%$77,1
969696
(&B560567
6/3B6
9*$B567
B9''&B3:5(1
6/3B6
3%71B287
(&WR)&+
6863
9696
'HOD\6863PV
7PV
9*$B21
9/'7B(1
(&B3:52.
32:(56(48(1&(
7!PV
6<621
96
$38B&25($38B&25(B1%
9*$7(
9*$B21'HOD\PV
'HOD\6863PV
$1'IURP9*$B213;B(1
96*WR96*SRZHUXS
)&+WR(&
)&+WR(&
3/7B567
$1'IURP3/7B5673(B*3,2
'HOD\6/3B6PV
'HOD\6/3B6PV
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
HW-PIR
Custom
46 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
HW-PIR
Custom
46 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
HW-PIR
Custom
46 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
9HUVLRQFKDQJHOLVW3,5/LVW 3DJHRIIRU+:
5HDVRQIRUFKDQJH 5HY 3* 0RGLI\/LVW 'DWH 3KDVH)L[HG,VVXH,WHP
Update SW5 SW6 footpintSW5 SW6 footprint error
Swap JFAN1 pin defineFAN module connecter pin define error
PG#31
PG#33
0.11
0.11
12/15 ERPG#310.11TP FFC error Swap JTP1 pin define
DFB request to update footprint Update JBTN1& JSPK1 footprint
PG#26
PG#33
R930 change to popPG#13LID issue
LID_SW# added a pull up 10Kohm. (R35)LID issue PG#30
PG#30
PG#34Double component
Change R1606 from 26.1Kohm to 34.8Kohm
Del Q54 & R1102
Update Broad ID
ER12/15
12/15
12/15
12/15
12/15
12/15
12/15
12/16
ER
ER
ER
ER
ER
ER
ER
ER
0.11
0.11
0.11
0.11
0.11
Update PW schematic 0.11
0.11APU_THERMTRIP# of FCH SPEC
0.11
PG#05 R424 & Q79 change to unpop, R427 change to pop 12/17
EREC release note
0.12
PG#30 Add C125 & R138 12/17
ERCrasis circuit
0.12
PG#14 Add UH6,R512,R513,R514 12/20
ERReserve R155 R152PG#08 12/21DDR3 SPD
Update PW schematic 0.13 12/23 ER
Clear CMOS 0.13 PG#12 R865 change to CLRP1 12/23 ER
Procurement recommend 0.13 D4,Q97,Q29 change PN & footprint 12/23 ER
WLAN PW spec
R1631 change to FBMA-10-100505-101T
PG#28 Reserve Q31 ,Q32 circuit
EMI request R1544 change to L121
PG#30EMI request
0.13
0.13
0.13
0.13
PG#26
R516 change to 33ohm, C1535 change to 22PPG#30EMI request
12/24 ER
12/24 ER
12/24 ER
12/24 ER
0.13 Add R553 & J8
Update PW schematic
0.13 12/27
12/27 ER
ER
PG#25LAN power
EMI request
0.13
PG#25
12/27 ER
R549,R552,R1529,R1530 change to 0603
Crystal EA 0.2 C35,C36 change to 18P from 20PPG#18
C1634 change to 10P from 27P
C1633 change to 12P from 27P
Crystal EA 0.2 PG#25
C66 change to 8.2P from 22P
C67 change to 10P from 22P
Crystal EA 0.2 PG#12
12/29
ER
ER
ER12/29
12/29
PE_GPIO1 pull down Add R109 for PE_GPIO10.2 PG#12 ER12/29
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
HW-PIR
Custom
47 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
HW-PIR
Custom
47 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
Title
Size Document Number Rev
Date: Sheet of
Security Classification
Compal Secret Data
THIS SHEET OF ENGINEERING DRAWING IS THE PROPRIETARY PROPERTY OF COMPAL ELECTRONICS, INC. AND CONTAINS CONFIDENTIAL
AND TRADE SECRET INFORMATION. THIS SHEET MAY NOT BE TRANSFERED FROM THE CUSTODY OF THE COMPETENT DIVISION OF R&D
DEPARTMENT EXCEPT AS AUTHORIZED BY COMPAL ELECTRONICS, INC. NEITHER THIS SHEET NOR THE INFORMATION IT CONTAINS
MAY BE USED BY OR DISCLOSED TO ANY THIRD PARTY WITHOUT PRIOR WRITTEN CONSENT OF COMPAL ELECTRONICS, INC.
Issued Date
Deciphered Date
LA-7322P
1.0
HW-PIR
Custom
47 47Thursday, February 17, 2011
2010/06/30 2012/06/30
Compal Electronics, Inc.
9HUVLRQFKDQJHOLVW3,5/LVW 3DJHRIIRU+:
5HDVRQIRUFKDQJH 5HY 3* 0RGLI\/LVW 'DWH 3KDVH)L[HG,VVXH,WHP
0.21
0.21
For frequency matching. Change Y4 from 12.5pF to 7 pF
Change C64,C65 from 22p to 10pF.
For CRT EA. Change C1572,C1573,C1574,C1575,C1576,C1577 from
10p to 6.8p.
Change bead value.
PG#12
PG#10
0.21
0.21
01/11 ERPG#340.21Discharge time fail. Change R1110, R1101 from 470 ohm to 300 ,150 ohm.
Pop R153 and R155, un-pop R961,R150.Change the strap for RAM. PG#08
PG#09
Correct HDMI audio strap pin. PG#18 Un-pop R21,R22 for DIS skew.
ER
ER
ER
ER
01/11
01/11
01/11
01/11
For PR phase ME assemble. 0.21 Del SW3 ,Unpop Sw4.PG#33 02/09 PR
PG#30For PR phase board ID. 0.22 Change BID R1603 from 34.8k to 46.4k. 02/14 PR
1.0 PG#18 Add R75 1M ohm.For S3 resume fail issue. 02/15 PR
Reserve for S3 can't be resume issue of some APU. 0.21 PG#06 Add R1705,R1706. 01/21 PR
For frequency matching. 1.0 Change C66,C67 from 8.2pF 10pF p to 10pF 12pF.PG#12 02/16 PR
For frequency matching. 1.0
C1634 change from 10P to 12P
C1633 change from 12P to 15P
PG#25 02/16 PR
For EMI test. 1.0
For EMI test. 1.0
PG#32 Add C1508, C1505 220p.
PG#33 Add C1523 220p.
02/17
02/17
PR
PR
PG#26 Add C1506 220p.1.0For EMI test. 02/17 PR
02/17 PR
For only footprint. 1.0 PG#11 Del L11, L12, L13, L14
Change L116,L117,L1181.0 PG#10For CRT EA. 02/17 PR
1.0 PG#10 02/17 PR
02/17 PRPG#25 Change TS1 from XXXXXX to SP050005L001.0For LAN EMI test.
Change R606 from 2.2k to 150 ohm.
For EMI request. 1.0 PG#30 Add C126 10 pF,change R516 to 39 ohm, C1535 to 33 pF. 02/17 PR
