PC5020CF V3.2 Installation Manual

PC5020CF v3.2 Installation Manual PC5020CF v3.2 Installation Manual

User Manual: PC5020CF v3.2 Installation Manual AlarmHow.net Library

Open the PDF directly: View PDF .
Page Count: 68

Power 864

SECURITY SYSTEM

Installation

Manual

IMPORTANT

This manual contains information on limitations regarding product use and function and information on the

limitations as to liability of the manufacturer. The entire manual should be carefully read.

PC5O2O/PC5O2OCF Version 3.2

DLS-3 v1.3 and higher

Now classified in accordance with ANSI/SIA CP-01-2000 (SIA-FAR)

WARNING Please Read Carefully

Note to Installers

This warning contains vital information. As the only individual in contact with system users, it is your

responsibility to bring each item in this warning to the attention of the users of this system.

System Failures

This system has been carefully designed to be as effective as possible. There are circumstances, however,

involving fire, burglary, or other types of emergencies where it may not provide protection. Any alarm sys-

tem of any type may be compromised deliberately or may fail to operate as expected for a variety of reasons.

Some but not all of these reasons may be:

■ Inadequate Installation

A security system must be installed properly in order to provide adequate protection. Every installation

should be evaluated by a security professional to ensure that all access points and areas are covered. Locks

and latches on windows and doors must be secure and operate as intended. Windows, doors, walls, ceilings

and other building materials must be of sufficient strength and construction to provide the level of protection

expected. A reevaluation must be done during and after any construction activity. An evaluation by the fire

and/or police department is highly recommended if this service is available.

■ Criminal Knowledge

This system contains security features which were known to be effective at the time of manufacture. It is

possible for persons with criminal intent to develop techniques which reduce the effectiveness of these fea-

tures. It is important that a security system be reviewed periodically to ensure that its features remain effec-

tive and that it be updated or replaced if it is found that it does not provide the protection expected.

■ Access by Intruders

Intruders may enter through an unprotected access point, circumvent a sensing device, evade detection by

moving through an area of insufficient coverage, disconnect a warning device, or interfere with or prevent

the proper operation of the system.

■ Power Failure

Control units, intrusion detectors, smoke detectors and many other security devices require an adequate

power supply for proper operation. If a device operates from batteries, it is possible for the batteries to fail.

Even if the batteries have not failed, they must be charged, in good condition and installed correctly. If a

device operates only by AC power, any interruption, however brief, will render that device inoperative while

it does not have power. Power interruptions of any length are often accompanied by voltage fluctuations

which may damage electronic equipment such as a security system. After a power interruption has occurred,

immediately conduct a complete system test to ensure that the system operates as intended.

■ Failure of Replaceable Batteries

This system’s wireless transmitters have been designed to provide several years of battery life under normal

conditions. The expected battery life is a function of the device environment, usage and type. Ambient con-

ditions such as high humidity, high or low temperatures, or large temperature fluctuations may reduce the

expected battery life. While each transmitting device has a low battery monitor which identifies when the

batteries need to be replaced, this monitor may fail to operate as expected. Regular testing and maintenance

will keep the system in good operating condition.

■ Compromise of Radio Frequency (Wireless) Devices

Signals may not reach the receiver under all circumstances which could include metal objects placed on or

near the radio path or deliberate jamming or other inadvertent radio signal interference.

■ System Users

A user may not be able to operate a panic or emergency switch possibly due to permanent or temporary

physical disability, inability to reach the device in time, or unfamiliarity with the correct operation. It is

important that all system users be trained in the correct operation of the alarm system and that they know

how to respond when the system indicates an alarm.

■ Smoke Detectors

Smoke detectors that are a part of this system may not properly alert occupants of a fire for a number of rea-

sons, some of which follow. The smoke detectors may have been improperly installed or positioned. Smoke

may not be able to reach the smoke detectors, such as when the fire is in a chimney, walls or roofs, or on the

other side of closed doors. Smoke detectors may not detect smoke from fires on another level of the resi-

dence or building.

Every fire is different in the amount of smoke produced and the rate of burning. Smoke detectors cannot

sense all types of fires equally well. Smoke detectors may not provide timely warning of fires caused by

carelessness or safety hazards such as smoking in bed, violent explosions, escaping gas, improper storage of

flammable materials, overloaded electrical circuits, children playing with matches or arson.

Even if the smoke detector operates as intended, there may be circumstances when there is insufficient warn-

ing to allow all occupants to escape in time to avoid injury or death.

■ Motion Detectors

Motion detectors can only detect motion within the designated areas as shown in their respective installation

instructions. They cannot discriminate between intruders and intended occupants. Motion detectors do not

provide volumetric area protection. They have multiple beams of detection and motion can only be detected

in unobstructed areas covered by these beams. They cannot detect motion which occurs behind walls, ceil-

ings, floor, closed doors, glass partitions, glass doors or windows. Any type of tampering whether intentional

or unintentional such as masking, painting, or spraying of any material on the lenses, mirrors, windows or

any other part of the detection system will impair its proper operation.

Passive infrared motion detectors operate by sensing changes in temperature. However their effectiveness

can be reduced when the ambient temperature rises near or above body temperature or if there are intentional

or unintentional sources of heat in or near the detection area. Some of these heat sources could be heaters,

radiators, stoves, barbeques, fireplaces, sunlight, steam vents, lighting and so on.

■ Warning Devices

Warning devices such as sirens, bells, horns, or strobes may not warn people or waken someone sleeping if

there is an intervening wall or door. If warning devices are located on a different level of the residence or

premise, then it is less likely that the occupants will be alerted or awakened. Audible warning devices may

be interfered with by other noise sources such as stereos, radios, televisions, air conditioners or other appli-

ances, or passing traffic. Audible warning devices, however loud, may not be heard by a hearing-impaired

person.

■ Telephone Lines

If telephone lines are used to transmit alarms, they may be out of service or busy for certain periods of time.

Also an intruder may cut the telephone line or defeat its operation by more sophisticated means which may

be difficult to detect.

■ Insufficient Time

There may be circumstances when the system will operate as intended, yet the occupants will not be pro-

tected from the emergency due to their inability to respond to the warnings in a timely manner. If the system

is monitored, the response may not occur in time to protect the occupants or their belongings.

■ Component Failure

Although every effort has been made to make this system as reliable as possible, the system may fail to func-

tion as intended due to the failure of a component.

■ Inadequate Testing

Most problems that would prevent an alarm system from operating as intended can be found by regular test-

ing and maintenance. The complete system should be tested weekly and immediately after a break-in, an

attempted break-in, a fire, a storm, an earthquake, an accident, or any kind of construction activity inside or

outside the premises. The testing should include all sensing devices, keypads, consoles, alarm indicating

devices and any other operational devices that are part of the system.

■ Security and Insurance

Regardless of its capabilities, an alarm system is not a substitute for property or life insurance. An alarm sys-

tem also is not a substitute for property owners, renters, or other occupants to act prudently to prevent or

minimize the harmful effects of an emergency situation.

Limited Warranty

Digital Security Controls Ltd. warrants the original purchaser that for a period of twelve months from the

date of purchase, the product shall be free of defects in materials and workmanship under normal use. Dur-

ing the warranty period, Digital Security Controls Ltd. shall, at its option, repair or replace any defective

product upon return of the product to its factory, at no charge for labour and materials. Any replacement and/

or repaired parts are warranted for the remainder of the original warranty or ninety (90) days, whichever is

longer. The original purchaser must promptly notify Digital Security Controls Ltd. in writing that there is

defect in material or workmanship, such written notice to be received in all events prior to expiration of the

warranty period. There is absolutely no warranty on software and all software products are sold as a user

license under the terms of the software license agreement included with the product. The Customer assumes

all responsibility for the proper selection, installation, operation and maintenance of any products purchased

from DSC. Custom products are only warranted to the extent that they do not function upon delivery. In

such cases, DSC can replace or credit at its option.

International Warranty

The warranty for international customers is the same as for any customer within Canada and the United

States, with the exception that Digital Security Controls Ltd. shall not be responsible for any customs fees,

taxes, or VAT that may be due.

Warranty Procedure

To obtain service under this warranty, please return the item(s) in question to the point of purchase. All

authorized distributors and dealers have a warranty program. Anyone returning goods to Digital Security

Controls Ltd. must first obtain an authorization number. Digital Security Controls Ltd. will not accept any

shipment whatsoever for which prior authorization has not been obtained.

Conditions to Void Warranty

This warranty applies only to defects in parts and workmanship relating to normal use. It does not cover:

• damage incurred in shipping or handling;

• damage caused by disaster such as fire, flood, wind, earthquake or lightning;

• damage due to causes beyond the control of Digital Security Controls Ltd. such as excessive voltage,

mechanical shock or water damage;

• damage caused by unauthorized attachment, alterations, modifications or foreign objects;

• damage caused by peripherals (unless such peripherals were supplied by Digital Security Controls Ltd.);

• defects caused by failure to provide a suitable installation environment for the products;

• damage caused by use of the products for purposes other than those for which it was designed;

• damage from improper maintenance;

• damage arising out of any other abuse, mishandling or improper application of the products.

Items Not Covered by Warranty

In addition to the items which void the Warranty, the following items shall not be covered by Warranty: (i)

freight cost to the repair centre; (ii) products which are not identified with DSC's product label and lot num-

ber or serial number; (iii) products disassembled or repaired in such a manner as to adversely affect perfor-

mance or prevent adequate inspection or testing to verify any warranty claim. Access cards or tags returned

for replacement under warranty will be credited or replaced at DSC's option. Products not covered by this

warranty, or otherwise out of warranty due to age, misuse, or damage shall be evaluated, and a repair esti-

mate shall be provided. No repair work will be performed until a valid purchase order is received from the

Customer and a Return Merchandise Authorisation number (RMA) is issued by DSC's Customer Service.

Digital Security Controls Ltd.’s liability for failure to repair the product under this warranty after a reason-

able number of attempts will be limited to a replacement of the product, as the exclusive remedy for breach

of warranty. Under no circumstances shall Digital Security Controls Ltd. be liable for any special, incidental,

or consequential damages based upon breach of warranty, breach of contract, negligence, strict liability, or

any other legal theory. Such damages include, but are not limited to, loss of profits, loss of the product or any

associated equipment, cost of capital, cost of substitute or replacement equipment, facilities or services,

down time, purchaser’s time, the claims of third parties, including customers, and injury to property. The

laws of some jurisdictions limit or do not allow the disclaimer of consequential damages. If the laws of such

a jurisdiction apply to any claim by or against DSC, the limitations and disclaimers contained here shall be

to the greatest extent permitted by law. Some states do not allow the exclusion or limitation of incidental or

consequential damages, so that the above may not apply to you.

Disclaimer of Warranties

This warranty contains the entire warranty and shall be in lieu of any and all other warranties, whether

expressed or implied (including all implied warranties of merchantability or fitness for a particular purpose)

and of all other obligations or liabilities on the part of Digital Security Controls Ltd. Digital Security Controls

Ltd. neither assumes responsibility for, nor authorizes any other person purporting to act on its behalf to mod-

ify or to change this warranty, nor to assume for it any other warranty or liability concerning this product. This

disclaimer of warranties and limited warranty are governed by the laws of the province of Ontario, Canada.

WARNING: Digital Security Controls Ltd. recommends that the entire system be completely tested

on a regular basis. However, despite frequent testing, and due to, but not limited to, criminal tamper-

ing or electrical disruption, it is possible for this product to fail to perform as expected.

Out of Warranty Repairs

Digital Security Controls Ltd. will at its option repair or replace out-of-warranty products which are returned

to its factory according to the following conditions. Anyone returning goods to Digital Security Controls

Ltd. must first obtain an authorization number. Digital Security Controls Ltd. will not accept any shipment

whatsoever for which prior authorization has not been obtained.

Products which Digital Security Controls Ltd. determines to be repairable will be repaired and returned. A

set fee which Digital Security Controls Ltd. has predetermined and which may be revised from time to time,

will be charged for each unit repaired.

Products which Digital Security Controls Ltd. determines not to be repairable will be replaced by the nearest

equivalent product available at that time. The current market price of the replacement product will be

charged for each replacement unit.

New Features

PC5200 Support The PC5020 v3.1 and higher supports the new PC5200 Power Supply module. See PC5200 Power Supply Output

Module, Pg 2.

PC5936 Support The PC5020 v3.1 and higher supports the PC5936 15-station audio matrix module. See PC5936 Audio Interface

Module, Pg 3.

SIA FAR SIA False Alarm Reduction has been incorporated in this version. See the Quick Reference Chart SIA-FAR on the fol-

lowing page.

No Activity Arming

(by Partition) This feature enables the system (or partition) to arm if there is no zone activity for a programmed time period. See

Sections [191]-[198] - No-Activity Timer (Partition 1-8), Pg 33.

Programmable

Auto-arm Pre-Alert

Timer

The Auto-Arm Pre-alert Time is now programmable. The default value for this timer has been extended to 5 minutes.

See Section [199] - Auto-arming Pre-Alert Time, Pg 30.

Periodic Test

Transmission

Exception

With this feature enabled, the panel will not send a test transmission if there has been any transmission received by

the receiver within the programmed time. See Section [018] - Sixth System Option Codes, Option 1, Pg 30.

Cross Zoning This feature requires two or more trips on a zone(s) specified as “cross zones” within a specified time before starting

an alarm sequence. The Cross Zone option is programmable by zone via Attribute 9. See Section [018], Sixth Sys-

tem Option Codes,Option 6, Pg 32.

True Automatic

Contact ID When selecting Automatic Contact ID for reporting, the reporting code will represent how a zone is defined according

to the SIA specification for Contact ID. If Automatic Contact ID is enabled, see Appendix A for reporting codes that

will be used for each zone type.

Keypad Buzzer When enabled and the system or Partition is in alarm, all assigned keypad buzzers will follow the bell output. When

disabled, the keypad buzzers will only sound for buzzer type alarms. This option is off at default. See Section [018] -

Sixth System Option Codes, Option 5, Pg 31.

New Zone Types See Sections [001]-[004] - Zone Definitions, Pg 21, 22.

Zone Type 27 - Delayed 24 Hour Waterflow Zone

Zone Type 28 - Instant 24 Hour Waterflow Zone

Zone Type 29 - Auto Verified Fire Zone

Zone Type 30 - Fire Supervisory Zone

Zone Type 31 - Day Zone

Waterflow Silence

Inhibit Option This option affects the Instant Waterflow Zone and the Delay Waterflow Zone.

This option does NOT allow the user to silence alarms, manually, automatically, or by a system reset until all waterflow

zones are returned to their restored state. See Section [018] - Sixth System Option Codes, Option 4, Pg 31.

Verbal Door Chime

and Verbal Alarm

Support

This feature enables the Door Chime to verbally annunciate the Zone that has been violated instead of a series of

beeps. See Section [018] - Sixth System Option Codes, Option 2&3, Pg 33. This feature is only available when using

the ESCORT5580 v3.0, and the PC5936 v1.0. Refer to the Escort5580 v3.0 and PC5936 v1.0 Installation Manuals

for further information.

Loop Response The PC5020 v3.1 and higher can configure any or all onboard zones for 36 ms Loop Response (see Section [030] -

Fast Loop Response, Pg 29).

T-Link The PC5020 v3.2 supports the T-Link TCP/IP Network Communicator.

PC5020 Installer Programming Quick Reference Chart SIA False Alarm Reduction

Minimum requirement system for SIA-FAR Installations :

• 1 PC5020 Control panel

• 2 Local annunciation devices

The local annunciation devices may be any combination of the following keypads.

• LCD5500Z • LCD5501Z

• PKP-LCD • PKP-ICN

The following optional subassembly modules also bear the SIA FAR classification

and may be used if desired:

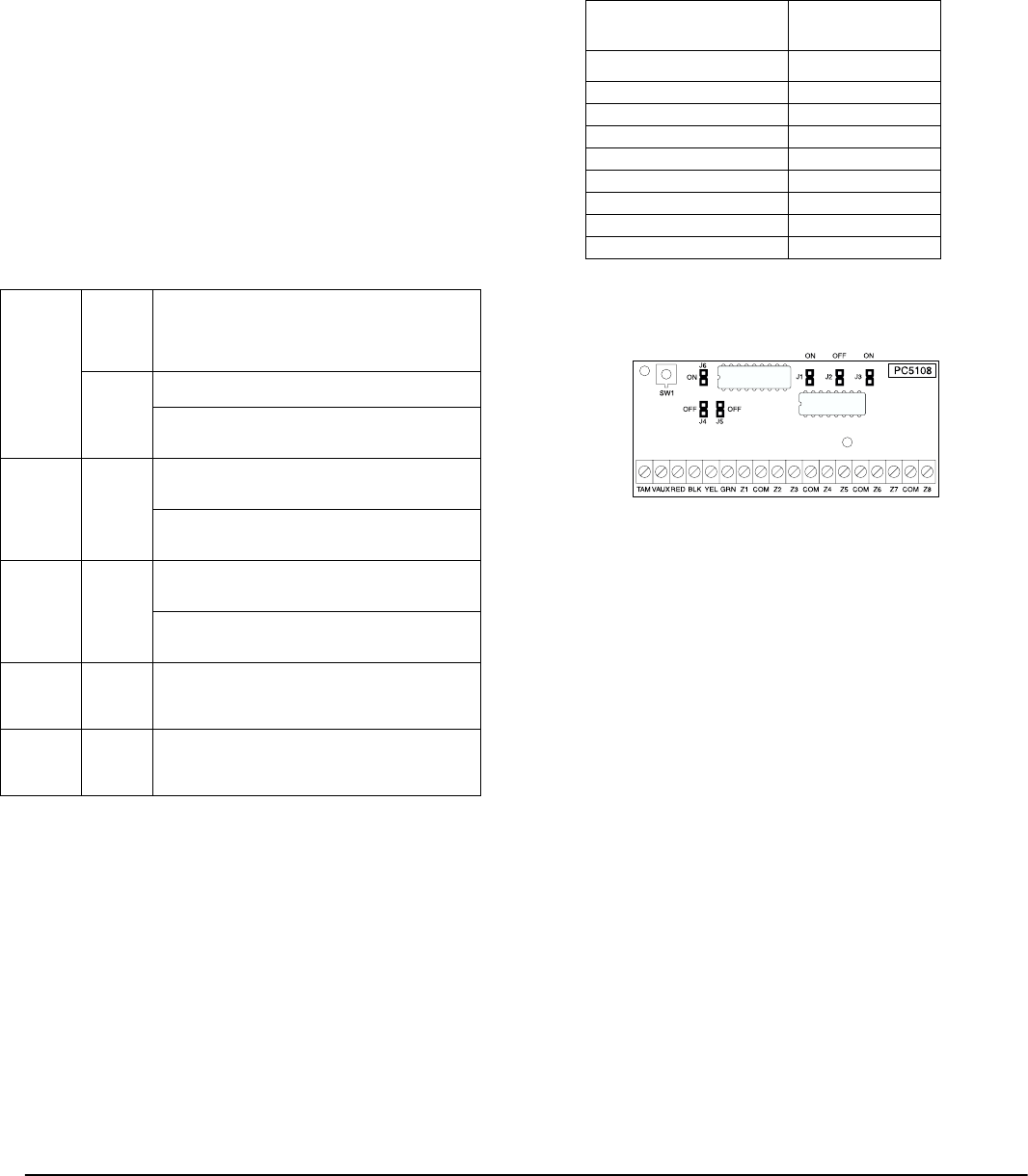

PC5108 Zone Expander Module

Compatible initiating devices: Bravo200 series, 300 series, 400 series, 500 series,

600 series, AC-100, Encore300 series, Force200 series, 210 series, MN240.

PC5208 Low Current PGM Output Module

The following optional accessory modules also bear the SIA FAR classification and

may be used if desired.

PC5204 Auxiliary Power Supply with PGM output ports

Escort5580/Escort5580TC

PC5400 Printer Module

Caution

• For SIA FAR installations, only use modules / devices that are listed

on this page.

• Fire Alarm Verification feature (Auto Verified Fire zone) is not sup-

ported on 2-wire smoke detectors zones. This feature may be

enabled for 4-wire smoke detectors only.

• Call Waiting Cancel (Section 382 Option 4) feature on a non-Call

Waiting line will prevent successful communication to the central

station.

• All smoke detectors on the system must be tested annually by con-

ducting the Installer Walk Test. Prior to exiting the walk test mode,

a sensor reset must be conducted on the system, [*][7][2] to reset

all latching 4-wire smoke detectors. Please refer to the smoke

detector installation instructions on how to correctly test the detec-

tors.

Notes

• Programming at installation may be subordinate to other UL require-

ments for the intended application.

• Cross zones have the ability to individually protect the intended area

(e.g., motion detectors, which overlap).

• Cross zoning is not recommended for line security Installations nor is it to

be implemented on exit / entry zones.

• There is a communication delay of 30 seconds in this control panel. It can

be removed, or it can be increased up to 45 seconds at the option of the

end user by consulting with the Installer.

• Do not duplicate any reporting codes. This applies for all communication

formats other than SIA sending automatic programmed reporting codes.

• The control unit must be installed with a local sounding device and an

off-premise transmission for SIA communication format.

Section Number Installation

Manual Section

Description

005 5.3 System Times: Access to Entry Delays and Exit Delay for each partition and Bell Time Out for the system.

009 – 011 5.3 Programmable Outputs: Access to PGM Output programming for the main board, PC5208 and PC5204 modules. Output

Attributes in Section in Sections 501 – 514. Partition Assignments in Section 551 – 564.

014, Option 6 5.3 Audible Exit Beeps: Enables beeps from the keypad for the duration of Exit Delay.

018, Option 6 5.3 Cross Zoning: This option enables Cross Zoning for the entire system. Individual zones can be enabled for Cross zoning

via Zone Attributes in Sections 101 – 164. Default = OFF

018, Option 7 5.3 Exit Delay Restart: Enables the Exit Delay Restart feature.

101 – 164 5.4 Zone Attributes: Access to zone attributes, such as, Audible Bell, Swinger Shutdown, Transmission Delay, and Cross Zone.

176 5.4 Cross Zone Timer: Access to the programmable Cross Zone timer.

304 5.6 Call Waiting Cancel Dialing String: Access to the Dialing sequence used to disable Call Waiting.

328, 6th Entry 5.6 Cross Zone Reporting Code: Access to the reporting code for Cross Zone Alarm.

328, 7th Entry 5.6 Burglary not Verified Reporting Code: Access to the reporting code for Burglary Not Verified.

328, 8th Entry 5.6 Alarm Cancelled Reporting Code: Access to the reporting code for Alarm Cancelled.

348, 1st and 2nd Entries 5.6 Walk Test End and Begin Reporting Codes: Access to the reporting codes for Walk Test Begin and Walk Test End.

377, 1st Entry 5.6 Swinger Shutdown for Alarms: Access to the Swinger Shutdown limit for zone alarms.

377, 4th Entry 5.6 Communications Delay: Access to the programmable delay before communicating alarms.

377, 11th Entry 5.6 Communications Cancel Window: Access to the programmable Communications Cancel window.

382, Option 2 5.6 Alarm Comms. During Walk Test: Enables Communication of zone alarms while installer Walk Test is active.

382, Option 3 5.6 Communications Cancelled Message: Enables the “Communications Cancelled” message display on all keypads.

382, Option 4 5.6 Call Waiting Cancel: Enables the use of the Call Waiting Cancel string in programmed in Section 304.

901 5.11 Installer Walk Test Mode: Enable/Disable Installer Walk Test mode. This mode can be used to test each zone on the sys-

tem for proper functionality.

[*][5] Master Code

33rd and 34th Entries

4.1 Duress Code: Do not derive code from an existing Master/User code (eg., Master Code is 1234, the duress code should

not be 1233 or 1235.

[*][6] Master Code

Option 4

4.3 System Test: The system activates all keypad sounders, bells or sirens for 2 seconds and all keypad lights turn on. Refer

to the User Manual (part no. 29005909).

iii

Table of Contents

Commercial Burglary, Residential Fire and

Burglary Applications

Commercial Fire Applications

Section 1: Introduction 1

1.1 About the PC5020 System ........................................... 1

1.2 About the PC5020 Manual Set ..................................... 1

1.3 Main Panel Specifications ............................................. 1

1.4 Additional Devices ........................................................ 2

Section 2: Installation and Wiring 5

2.1 Installation Steps .......................................................... 5

2.2 Terminal Descriptions ................................................... 5

2.3 Wire Routing for Power & Non-Power Limited .............. 6

2.4 Keybus Operation and Wiring ....................................... 6

2.5 Current Ratings - Modules & Accessories ...................... 6

2.6 Assigning Zones to Zone Expanders .............................. 7

2.7 Keypad Assignment ...................................................... 7

2.8 Confirming Module Supervision ................................... 8

2.9 Removing Modules ....................................................... 8

2.10 Zone Wiring ................................................................. 8

2.11 Keypad Zones ............................................................. 10

Section 3: How to Program 11

3.1 How to Enter Installer Programming ........................... 11

3.2 Programming Decimal Data ........................................ 11

3.3 Programming Hexadecimal Data ................................. 11

3.4 Programming Toggle Options ..................................... 11

3.5 Viewing Programming ................................................ 12

Section 4: Keypad Commands 13

4.1 Arming and Disarming ............................................... 13

4.2 [✱] Commands ........................................................... 14

4.3 Function Keys ............................................................. 17

4.4 Global and Partition Keypad Operation ....................... 18

4.5 Features Available for the LCD5500Z .......................... 18

Section 5: Programming Sections 19

5.1 For the Record............................................................. 20

5.2 Keypad Programming.................................................. 20

5.3 Basic Programming...................................................... 20

5.4 Advanced Programming .............................................. 29

5.5 Partition & Zone Programming .................................... 30

5.6 Communicator Programming....................................... 31

5.7 Downloading Options ................................................. 40

5.8 Programmable Output Programming ........................... 41

5.9 International Programming .......................................... 42

5.10 Module Programming ................................................. 43

5.11 Special Installer Instructions ......................................... 44

Section 6: Central & Remote Station

Fire Installation Instructions 46

6.1 Introduction ................................................................46

6.2 Hardware Description and Specifications ..................... 46

6.3 Compatible Devices .................................................... 46

Section 7: Fire Monitoring Zone Types 47

7.1 Partitions and Fire System Configuration ..................... 47

7.2 Fire Zones ................................................................... 47

7.3 Auto Verify Fire ........................................................... 47

7.4 Waterflow Zone .......................................................... 47

7.5 PC5700 Zones ............................................................ 48

7.6 Four-Wire Smoke Detector Zones ................................ 48

7.7 Two-Wire Smoke Detector Zones ................................ 48

7.8 Fire Supervisory Zone .................................................. 48

Section 8: Fire System Operation 49

8.1 Manual Signal Silence ................................................. 49

8.2 Automatic Signal Silence (Bell Time-out) ..................... 49

8.3 Manual Sensor Reset ([✱][7][2]) ................................... 49

8.4 Subsequent Alarm Operation ......................................49

8.5 Auto-Scroll LCD Keypad Display ..................................49

8.6 Fire Trouble Conditions ............................................... 49

8.7 AC Delays ................................................................... 50

8.8 Fire Reporting Codes .................................................. 50

Section 9: Listing Requirements 51

9.1 UL Listed Commercial and Residential Installations ...... 51

9.2 Commercial Fire Monitoring Installations .....................51

9.3 ULC Listing Requirements ........................................... 51

Appendix A: Reporting Codes 52

Appendix B: Wiring Diagrams 55

PC5020 UL Wiring Diagram

NOTE: For ULC installations please refer to the ULC Wiring Diagram part #18006238 and the ULC Installation

Information Sheet part #29002157.

Section 1: Introduction

1.1 About the PC5020 System

The PC5020 is a high end security system. It supports up

to 64 zones, 8 separate partitions, and 32 users.

The user interface is simple and easy to use. The

LCD5500Z keypad guides users through their available

options with easy-to-understand prompts.

The status of the PC5020 system can be monitored over

telephone lines, or using an alternative communicating

device, including LINKS1000, LINKS2X50, LINKS3000,

Skyroute™ and DVACS*.

The PC5020 main board comes with 4 programmable out-

puts, and you can add up to 12 more using PC5204 and

PC5208 modules. You can program the outputs to control

things such as doorstrikes and lights, using 25 different

output options. See ‘Programmable Outputs’ in Section 5.

You can program the PC5020 using any system keypad,

or using DLS-3 downloading software and a computer.

See ‘How to Program’ on page 10.

Review the complete PC5020 manual set before installing

the PC5020 security system

1.2 About the PC5020 Manual Set

Installer Manuals

Read the entire manual carefully before beginning your

installation.

This manual describes:

• An overview of the system (Section 1: ’Introduction’)

• How to install and wire the system and its modules

(Section 2: ’Installation and Wiring’)

• How to program the system (Section 3: ’How to Pro-

gram’)

• An introduction to the user interface and keypad oper-

ation (Section 4: ’Keypad Commands’)

• An overview of the main system programming sec-

tions (Section 5: ’Programming Sections’).

Be sure to record all your system programming in the Pro-

gramming Worksheets.

If you will be adding modules to your PC5020 system, read

the Installation Instructions that come with each module.

User’s Guide

One User’s Guide comes with the PC5020 system. The

User’s Guide provides easy to follow instructions for end-

users. Installers should also review this manual, in order

to properly instruct the end-users once the installation is

complete.

Commercial Fire Application

Please refer to the Central and Remote Station Fire Installa-

tion Guide for information concerning Commercial Fire

applications.

1.3 Main Panel Specifications

Flexible Zone Configuration:

• 8 fully programmable zones

• 39 access codes: 32 user, 1 system master, 2 supervisor

codes, 2 duress, 1 maintenance and 1 installer code

• Expandable to 64 zones

• Keypads with zone inputs available (PC5508Z,

PC5516Z, PC5532Z, LCD5500Z, and LCD5501Z)

• Hardwired expansion available using the PC5108 8-

zone expansion module, the PC5100 addressable 32

zone expansion module and the PC5700/5720 fire

module

• Wireless expansion available using the PC5132 wire-

less 32 zone expansion module (433 or 900MHz, fully

supervised)

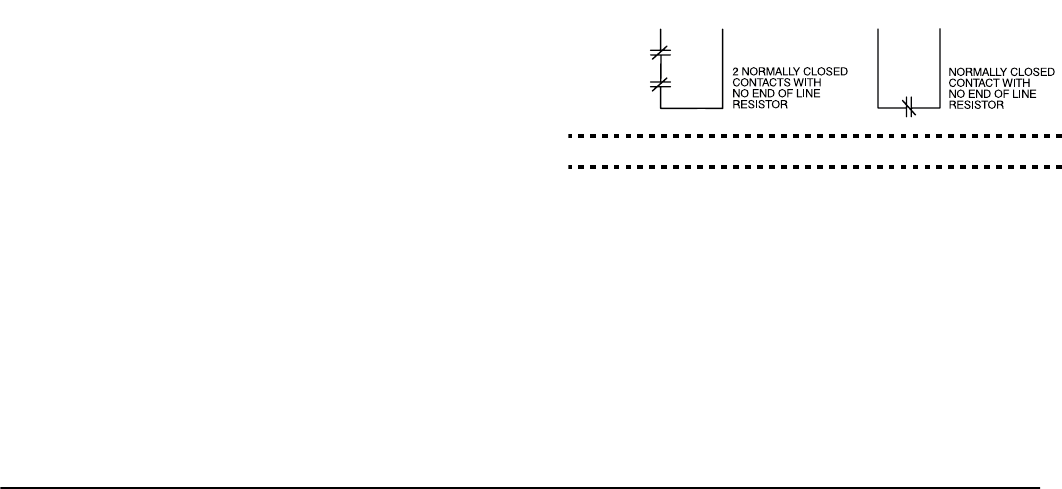

• Normally closed, Single EOL, or Double EOL zone

supervision

• 34 zone types, 8 programmable zone options

• Up to 8 partitions

Audible Alarm Output:

• 700mA supervised bell output (current limit 3 Amps),

12 VDC

• Steady or pulsed output

EEPROM Memory:

• Will not lose programming or system status on com-

plete AC and battery failure

Programmable Outputs:

• Up to 14 programmable outputs, 21 programmable

options

• Three low current (50 mA) PGM outputs on main panel

(PGM1, PGM3, PGM4)

• One high current (300 mA) PGM output with 2-wire

smoke detector capability on main panel (PGM 2)

• Eight additional low current (50 mA) PGM outputs

available using the PC5208 module

• Four high current (1 Amp) PGM outputs available using

the PC5204 module (1 PC5204 output, fully supervised

for siren output)

Powerful 1.5 Amp Regulated Power Supply:

• 550 mA auxiliary supply, 12 VDC

• Positive temperature coefficient (PTC) components

replace fuses

• Supervision for loss of AC power, low battery

• Internal clock locked to AC power frequency

NOTE: For 24-hr standby, maximum Aux capacity is

420mA.

Power Requirements:

• Transformer = 16.5 VAC, 40VA (min) permanently

connected

• Battery = (2) 12 volt 7Ah (min.) rechargeable sealed lead

acid

or (1) 12 volt 4Ah battery (for Burglary applications only)

• PC5020 current draw: 65mA

Remote Keypad Specifications:

• Various keypads are available:

- PC5508Z 8 Zone LED keypad

- PC5516Z 16 Zone LED keypad

- PC5532Z 32 Zone LED keypad

- LCD5500Z Liquid Crystal Display keypad

- LCD5501Z LCD-style keypad

- LCD5501Z32-900/LCD5501Z32-433 keypad /

receiver

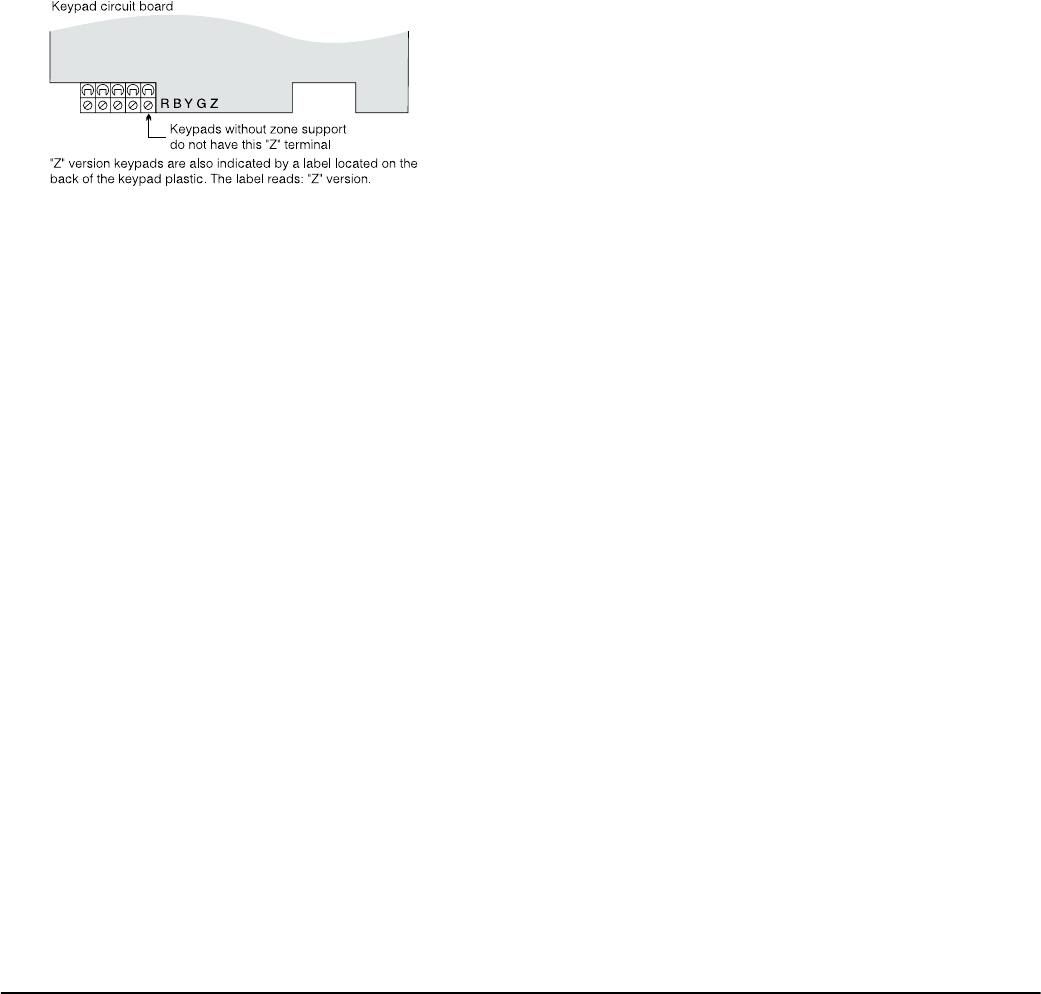

• ’Z’ version keypads have one zone input

• Each keypad has 5 fully programmable function keys

• Connect up to 8 keypads

• Four wire (Quad) connection to Keybus

• Built in piezoelectric buzzer

Digital Communicator Specifications:

• Supports all major formats including SIA, Contact ID,

and Residential Dial

• Split reporting of selected transmissions to each tele-

phone number

*DVACS is a registered trademark of Electro Arts Limited.

• 3 programmable telephone numbers

• 1 system account number, plus 8 partition account

numbers

• Supports LINKS1000, GSM1000 cellular communica-

tion, Links 2X50 long range alarm transmitter and Sky-

route™ Cellemetry communication transceiver

• DTMF and pulse dialing

• DPDT line seizure

• Anti-jam detection

• Event-initiated personal paging

• T-Link communications via PC-Link

System Supervision Features

The PC5020 continuously monitors a number of possible

Trouble conditions including:

• AC power failure

• Trouble by zone

• Fire trouble

• Telephone line trouble

• Low battery condition

• Bell output trouble

• Loss of internal clock

• AUX power supply fault

• Tamper by zone

• Failure to communicate

• Module Fault (Supervisory or Tamper)

• Camera Troubles via DLM-4L

False Alarm Prevention Features

• Audible Exit Delay

• Audible Exit Fault

• Urgency on Entry Delay

• Quick Exit

• Swinger Shutdown

• Recent Closing Transmission

• Cross Zone Alarm

• Burglary-verified timer

• Double Hit Timer

• Communication Delay

• Rotating Keypress Buffer

Additional Features

• Automatic arming by partition at a specified time, each

day of the week

• Keypad-activated alarm output and communicator test

• Keypad lockout

• Audio capability using the PC5936 audio interface mod-

ule; allows local intercom and central station 2-way lis-

ten-in

• All modules connect to the system via a four wire Key-

bus, up to 1000’/305m from the main panel

• Event buffer can be printed using PC5400 RS-232 serial

interface module

• Supports the Escort5580(TC) Voice Prompt Module,

with automation and lighting control

• 256-event buffer, time and date stamped

• Uploading/downloading capability

• Daylight Savings Time option

• Downlook support (DLM-4L v1.0 and PC5108L)

1.4 Additional Devices

In addition to the information below, see the back cover for

a DSC Module Compatibility table.

Keypads

A maximum of 8 keypads can be connected to the control

panel. You can connect any combination of the following

listed. Different keypads (with function keys) can be used

for different size systems: 8 zone, 16 zone, 32 zone, & 64

zone.

• PC5508Z: 8 zone LED keypad, with one zone input

• PC5516Z: 16 zone LED keypad, with one zone input

• PC5532Z: 32 zone LED keypad, with one zone input

• LCD5500Z: LCD keypad, with one zone input

• LCD5501Z: LCD-style keypad, with one zone input

• LCD5501Z32-433: keypad/receiver

NOTE: The following keypad versions can only be used

on the first two partitions (partition 1 and partition 2),

and the first 8, 16, or 32 zones: PC5508(Z), PC5516(Z),

PC5532(Z) v2.00 and lower, LCD5500(Z) versions 2.x and

lower, LCD5501Z versions 1.x and lower

PC5100 2-Wire Addressable Device Interface Module

The PC5100 module is used to connect 2-wire addressable

devices to the system. Up to 32 2-wire addressable devices

can be added to the system.

NOTE: PC5100 v1.0 and lower modules can only sup-

port the first 32 zones on the PC5020 system.

PC5108 Eight Zone Expander Module

Eight zone expander module can be used to increase the

number of zones on the system. Up to 7 modules can be

connected to increase the system zones to a maximum of

64 (see the PC5108 Installation Instructions Sheet).

NOTE: PC5108 v1.0 and lower modules can only support

the first 32 zones on the PC5020 system. PC5108 v1.0 and

lower modules enroll as two modules and use up two

supervisory slots.

NOTE: Do not mix PC5108 v1.x and lower modules with

PC5108 v2.0 and higher modules on the same system.

PC5132 Wireless Receiver Module

The PC5132 wireless receiver module can be used to con-

nect up to 32 fully supervised wireless devices (see the

PC5132 Installation Manual for details.)

NOTE: Only the first 32 zones on the PC5020 system can

be used as wireless zones.

PC5200 Power Supply Output Module

The PC5200 can provide up to 1 Amp of additional power

for modules or devices connected to the control panel. Up

to 4 modules can be connected to the system. Each module

requires a 16.5 volt AC 40 VA transformer and 4Ah battery

(see PC5200 Installation Instructions for details).

PC5204 Power Supply Output Module

The PC5204 can provide up to 1 Amp of additional power

for modules or devices connected to the control panel. The

module requires a 16.5 volt AC 40 VA transformer and 4

Ah battery. In addition, the module provides 4 program-

mable high current voltage outputs. (See PC5204 Installa-

tion Instructions for details).

PC5208 Eight Low Current Output Module

Adds 8 programmable low current outputs (50mA) to the

control (see the PC5208 Installation Instructions for details).

NOTE: If you use the main panel and the PC5208 out-

puts, PGM 3 will work the same as the first PC5208 out-

put, and PGM 4 will work the same as the second

PC5208 output.

Escort5580(TC) Module

This Escort5580(TC) module will turn any tone telephone

into a fully functional keypad. The module also includes a

built-in interface to control up to 32 line carrier type

devices for lighting and temperature control (see the

Escort5580(TC) Installation Manual for details.)

NOTE: Users will not be able to access partitions 3 to 8,

and zones 33 to 64 through Escort5580(TC) versions 2.x

and lower. Only partitions 1 and 2, and zones 1 to 32

are supported on these versions.

Introduction: 1.4 Additional Devices

PC5936 Audio Interface Module

The PC5936 audio interface module provides paging,

intercom, baby listen-in and door answer to the PC5020

control panel. The module has built-in two-way voice

capability for central station (see the PC5936 Installation

Manual for details).

Three additional devices are available:

• PC5921 PKP-ICM Intercom Audio Station can be used

in conjunction with the PC5936 Audio Interface Mod-

ule.

• PC5921 EXT Door Box Audio Station can be used in

conjunction with the PC5936 Audio Interface Module.

• PC5921 EXT/R Door Box Audio Station can be used in

conjunction with the PC5936 Audio Interface Module.

The Door Box contains a relay so the normal door bell

can be used instead of the internal one generated by the

PC5936 Audio Interface Modules.

PC5400 Printer Module

This PC5400 printer module will allow the panel to print

out all events that occur on the system to any serial

printer. All events will be printed with the partition, time,

date and the event that occurred (see PC5400 Installation

Manual for details).

NOTE: The PC5400 v2.x and lower only supports

events on partitions 1 and 2, and zones 1-32.

LINKS1000 Cellular Communicator

The LINKS1000 Cellular Communicator provides an effi-

cient, cost-effective method for adding cellular back-up.

The unit comes in its own cabinet with antenna and

requires a separate battery and transformer (see Links1000

Cellular Communicator in Section 5).

T-Link Local Area Network Communicator

The T-Link Local Area Network Communicator provides

an efficient method of communicating via a Local Area

Network (LAN). See the T-Link Installation Manual for

more details. NOTE: The T-Link module has not been

investigated by UL.

Alternate Communicators

Refer to the associated Installation Manual for LINKS2X50,

LINKS3000, & Skyroute™ programming details.

Downlook Support: PC5108L and DLM-4 v1.0L

The PC5108L will expand the control panel’s zone capa-

bility by adding eight fully programmable zone inputs.

The module will also act as an interface between the

DLM-4L v1.0 video transmission module and the PC5020

control panel. The PC5108L is also an 8-camera video

switcher.

For more information on either module, see their respective

Installation Manuals.

NOTE: The PC5108L module can only be assigned zones

from 9 to 32. The PC5108L will not support zones 33 to

64. Camera scripts can only be run for zones 1 to 32. The

PC5108L enrolls as two expander modules and use up

two supervisory slots.

NOTE: Do not mix PC5108L v1.x and lower modules with

PC5108 v2.0 and higher modules on the same system.

PC5700 Fire Module

This is a zone expansion module with four general pur-

pose zone inputs, two Class A supervisory waterflow

zone inputs, ground fault detection and dual-supervised

telephone line inputs.

PC5720 Fire Module

This is a zone expansion fire module that can be used for

ULC Listed non-residential fire applications. The PC5720

can also be used as an interface between the control panel

and either a serial printer or a DVACS communications

network.

NOTE: The PC5700 v1.x and PC5720 v1.x enroll as two

expander modules and use two supervisory slots.

NOTE: Do not mix PC5700 v1.x and PC5720 v1.x and

lower modules with PC5108 v2.0 and higher modules

on the same system.

Cabinets

Several different cabinets are available for the PC5020

modules. They are as follows:

•PC4050C - alternate main control cabinet (Household

Fire & Burglary) for the PC5020 main panel. Dimen-

sions 305mm x 376mm x 125mm / 12.0” x 14.8” x 4.9”

approximately.

•PC4050CR - alternate main control cabinet (Commer-

cial Fire) for the PC5020 main panel. Dimensions

305mm x 376mm x 125mm / 12.0” x 14.8” x 4.9”

approximately.

•PC4050CAR - alternate main control cabinet (Com-

mercial Burglary) for the PC5020 main panel. Dimen-

sions 305mm x 376mm x 125mm / 12.0” x 14.8” x 4.9”

approximately.

•PC4050CRAR - alternate main control cabinet (Com-

mercial Fire and Commercial Burglary) for the PC5020

main panel. Dimensions 305mm x 376mm x 125mm /

12.0” x 14.8” x 4.9” approximately.

• PC500C - alternate main control cabinet (Household

Burglary). Dimensions 213mm x 235mm x 78mm / 8.4”

x 9.25” x 3” approximately.

•PC5002C - cabinet to house the PC5204 power supply

output module. Dimensions 213mm x 235mm x 78mm

/ 8.4” x 9.25” x 3” approximately.

•PC5003C - main control cabinet for the PC5020 main

panel. Dimensions 222mm x 298mm x 78mm / 11.3” x

11.7” x 3.0” approximately (Household Fire & Burglary).

•PC5004C - cabinet to house the Escort5580(TC) module

and PC5400 Printer Module. Dimensions 229mm x

178mm x 65mm / 9” x 7” x 2.6” approximately.

•PC5001C - cabinet to house the PC5108 zone expander

module and the PC5208 8 low current output module.

Dimensions 153mm x 122mm x 38mm / 6” x 4.8” x

1.5” approximately.

•PC5001CP - plastic cabinet to house the PC5108 zone

expander module and the PC5208 8 low current output

module. Dimensions 146mm x 105mm x 25.5mm /

5.75” x 4.2” x 1” approximately.

•CMC-1 - alternate main control cabinet (Commercial

Burglary) Dimensions 222mm x 298mm x 78mm / 11.3”

x 11.7” x 3.0” approximately.

•Multi-3 - cabinet to house the PC5936/PC5937 mod-

ules. Dimensions 287mm x 298mm x 78mm / 11.3” x

11.7” x 3.0” approximately.

•HS-CAB100 - structured wiring cabinet for PC5020

main panel. Dimensions 362mm x 229mm x 102mm /

14.25” x 9” x 4” with a wire raceway positioned on the

right side of the cabinet. The cover is 389mm x 254mm

/ 15.3” x 10”.

•HS-CAB200 - structured wiring cabinet for PC5020 main

panel. Dimensions are 362mm x 362mm x 102mm /

14.25” x 14.25” x 4” with a wire raceway in the center of

the cabinet. The cover is 389mm x 389mm / 15.3” x 15.3”.

•HS-CAB2800 - structured wiring cabinet for PC5020

main panel. Dimensions 724mm x 362mm x 102mm /

28.5” x 14.25” x 4” with a wire raceway in the center of

the cabinet. The cover is 752mm x 387mm / 29.6” x

15.3”.

•HS-CAB4200 - structured wiring cabinet for PC5020

main panel. Dimensions 1086mm x 362mm x 102mm /

42.75” x 14.25” x 4.0” with a wire raceway in the center

of the cabinet.

Backplates

There are two different backplates available for keypads

to mount an audio station next to a keypad:

PC55BP1 Backplate

Use this backplate when

mounting an audio station next

to a keypad. Dimensions

208mm x 115mm x 18mm /

8.2” x 4.5” x 0.25” approxi-

mately.

PC55BP2 Backplate

Use this backplate when

mounting an audio station

next to a keypad. In addition

the backplate will allow you

to mount a PC5108 zone

expander module or the

PC5208 8 low current output

module. Dimensions 208mm x 115mm x 18mm / 8.2” x

4.5” x 0.7” approximately.

Section 2: Installation and Wiring

The following sections provide a complete description of how to wire and configure devices and zones.

2.1 Installation Steps

The following steps are provided to assist with the instal-

lation of the panel. It is suggested that you read over this

section briefly to get an overall understanding of the

order of installation. Once this is done carefully work

through each step. Working from this plan will help

reduce problems and reduce the overall installation time

required.

Step 1 Create a Layout

Draw a rough sketch of the building and include all alarm

detection devices, zone expanders, keypads and all other

modules that are required.

Step 2 Mounting the Panel

Locate the panel in a dry area, preferably located near an

unswitched AC power source and the incoming tele-

phone line. Before attaching the cabinet to the wall be

sure to press the five circuit board mounting studs into

the cabinet from the back.

NOTE: Complete all wiring before applying AC or con-

necting the battery.

Step 3 Wiring the Keybus (Section 2.4)

Wire the Keybus to each of the modules following the

guidelines provided.

Step 4 Assigning Zones to Zone Expanders

(Section 2.6)

If zone expander modules are being used the modules

must be configured so the panel knows which zones are

assigned to each expander. Follow the guideline provided

to assign zones to expanders.

Step 5 Zone Wiring (Section 2.10)

Power down the control panel and complete all zone wir-

ing. Follow the guidelines provided in section 2.10 to con-

nect zones using normally closed loops, single EOL

resistor, double EOL resistors, Fire zones and Keyswitch

Arming zones.

Step 6 Completing Wiring

Complete all other wiring including bells or sirens, tele-

phone line connections, ground connections or any other

wiring necessary. Follow the guidelines provided in sec-

tion 2.2 ‘Terminal Descriptions’.

Step 7 Power up the Control Panel

Once all zone wiring and Keybus wiring is complete,

power up the control panel.

NOTE: The panel will not power up if only the battery

is connected.

Step 8 Keypad Assignment (Section 2.7)

Keypads must be assigned to different slots to be prop-

erly supervised. Follow the guideline provided in section

2.7 to assign keypads.

Step 9 Confirming Module Supervision

(Section 2.8)

By default, all modules are supervised upon installation.

Supervision is enabled at all times so that the panel can

indicate a Trouble if a module is removed from the sys-

tem.

To confirm that each module is properly supervised, fol-

low the guidelines provided in section 2.8.

Step 10 Programming the System (Sections 4 & 5)

Section 4.0 provides a complete description of how to pro-

gram the panel. Section 5.0 contains complete descriptions

of the various programmable features, what options are

available and how the options function. The Programming

Worksheets should be filled out completely before attempting

to program the system.

Step 11 Testing the System

Test the panel completely to ensure that all features and

functions are operating as programmed.

2.2 Terminal Descriptions

NOTE: AC Terminals - AC

The panel requires a 16.5 volt, 40 VA transformer. Con-

nect the transformer to an unswitched AC source and

connect the transformer to these terminals.

NOTE: Do not connect the transformer until all other

wiring is complete.

Battery Connection

The battery is used to provide backup power in the event

of an AC power failure and to provide additional current

when the panel demands exceed the power output of the

transformer, such as when the panel is in alarm.

NOTE: Do not connect the battery until all other wir-

ing is complete.

Connect the RED battery lead to the positive of the bat-

tery, the BLACK battery lead to the negative.

Auxiliary Power Terminals - AUX+ and GND

These terminals provide up to 550mA of current at 12

VDC (rated 11.6-12.6 VDC for UL residential applica-

tions) for devices requiring power. Connect the positive

side of any device requiring power to the AUX+ terminal,

the negative side to GND. The AUX output is protected; if

too much current is drawn from these terminals (wiring

short) the panel will temporarily shut off the output, until

the problem is corrected. NOTE: The maximum AUX

capacity for 24-hr standby is 420mA.

Bell Output Terminals - BELL+ and BELL-

These terminals provide up to 3 Amps of current at 12 VDC

(with standby battery; 700 mA continuous) for powering

bells, sirens, strobes or other warning type equipment.

Connect the positive side of any alarm warning device to

BELL+, the negative side to BELL–. The BELL output is

protected; if too much current is drawn from these termi-

nals (wiring short) the BELL PTC will open.

The bell output is supervised. If no alarm warning device

is being used connect a 1KΩ resistor across BELL+ and

BELL– to prevent the panel from displaying a Trouble con-

dition (see section ’[*][2] Trouble Display’).

Keybus Terminals - RED, BLK, YEL, GRN

The Keybus is used by the panel to communicate with

modules and by modules to communicate with the panel.

Each module has four Keybus terminals that must be con-

nected to the four Keybus terminals on the panel. For

more information, see section ’Keybus Operation and

Wiring’.

Programmable Outputs - PGM1, PGM2, PGM3,

PGM4

Each PGM output is designed so

that when activated by the panel,

the terminal will switch to ground

PGM1, PGM3, and PGM4 can

each sink up to 50 mA of current.

These PGMs can be used to acti-

vate LEDs or a small buzzer. Con-

nect the positive side of the LED

or buzzer to AUX+, the negative

side to the PGM.

PGM2 is a high current output

(300mA) and operates similarly to

PGM1. If more than 300 mA of cur-

rent is required, a relay must be used. Refer to the diagram.

Zone Input Terminals - Z1 to Z8

Each detection device must be connected to a zone on the

control panel. It is suggested that each zone have one

detection device however it is possible to wire multiple

detection devices to the same zone.

For zone wiring specifics, see section ’Zone Wiring’.

Telephone Connection Terminals - TIP, RING, T-1, R-1

If a telephone line is required for central station commu-

nication or downloading, connect an RJ-31X jack in the

following manner:

Connect the PC5020 and modules that use the telephone

line(s) in the following order:

For example, if you are installing a PC5020 with a

LINKS1000/GSM1000 and a PC5936 intercom module,

connect the incoming line to the LINKS1000, then from

the LINKS1000 to the PC5020, then from the PC5020 to

the PC5936 audio module and then from the PC5936

module to the house telephones.

NOTE: Ensure that all plugs and jacks meet the dimen-

sion, tolerance and metallic plating requirements of 47

C.F.R. Part 68, SubPart F. For proper operation there

must be no other telephone equipment connected

between the control panel and the telephone com-

pany facilities.

NOTE: Do not connect the alarm panel communicator

to telephone lines intended for use with a FAX

machine. These lines may incorporate a voice filter

which disconnects the line if anything other than FAX

signals are detected, resulting in incomplete transmis-

sions.

2.3 Wire Routing for Power & Non-Power Limited

All wiring entry points are designated by the arrows. All

circuits are classified UL installation power limited except

for the battery leads which are not power limited.

A minimum ¼” (6.4mm) separation must be maintained

at all points between power limited and non-power lim-

ited wiring and connections.

NOTE: Wire entry for power limited wiring must be

separated by a different entry access from non-power

limited wiring.

2.4 Keybus Operation and Wiring

The Keybus is used by the panel to communicate with all

modules connected and by the modules to talk to the

panel. The RED and BLK terminals are used to provide

power while YEL and GRN are clock and data.

NOTE: The 4 Keybus terminals of the panel must be

connected to the 4 Keybus terminals or wires of all

modules.

The following conditions apply:

• Keybus should be run in minimum 22 gauge quad

(0.5mm), two pair twisted preferred

• the modules can be home-run to the panel, connected in

series or can be T-tapped

• any module can be connected anywhere along the Key-

bus; you do not need a separate Keybus wire run for

keypads, zone expanders etc.

• no module can be more than 1,000'/305m (in wire

length) from the panel

• shielded wire is not necessary unless wires are run in an

area that may present excessive RF noise or interference

Example of Keybus Wiring

Module (A) is wired cor-

rectly as it is within 1,000'/

305m of the panel, in wire

distance. Module (B) is

wired correctly as it is

within 1,000'/305m of the

panel, in wire distance.

Module (C) is NOT wired

correctly as it is further than 1,000'/305m from the panel,

in wire distance.

2.5 Current Ratings - Modules & Accessories

In order for the PC5020 system to operate properly, the

power output capabilities of the main control and expan-

sion devices must not be exceeded. Use the data pre-

sented below to ensure that no part of the system is

overloaded and cannot function properly.

PC5020 Device Ratings (@ 12 VDC)

• LCD5500Z Keypad: 85 mA

• LCD5501Z Keypad: 45mA

PC5936

Keybus

NOTE: A minimum 1/4" (6.4mm) separation

must be maintained at all points between

power limited and non-power limited wiring

and connections.

Installation and Wiring: 2.6 Assigning Zones to Zone Expanders

• LCD5501Z32-433 Keypad/Receiver: 260mA (max.)

• PC5100 Addressable Device Interface Module: 40mA

• PC5508Z Keypad: 85 mA

• PC5516Z Keypad: 85 mA

• PC5532Z Keypad: 85 mA

• PC5108 Zone Module: 35 mA

• PC5108L Downlook Interface: 60 mA

• PC5132 Wireless Module: 125 mA

• PC5200 Output Module: 20 mA

• PC5204 Output Module: 20 mA

• PC5208 Output Module: 50 mA

• PC5320 Multiple Receiver Interface Module: 55mA

• Escort5580(TC) Module: 150 mA

• PC5400 Printer Module: 65 mA

• PC5700 Fire Module: 150 mA

• PC5904 Central Station Talk/Listen Module: 175mA

• PC5936 Audio Interface Module: 65 mA

• PC5937 Audio Port Expansion Module: 5mA

• PC5921 Intercom Audio Station: 20 mA

• PC5921 EXT Door Box Audio Station: 20 mA

• PC5921 EXT/R Door Box Audio Station: 35 mA

• DLM-4L v1.0: 180 mA

System Outputs (all 12 VDC)

Other Devices

Read the manufacturer’s literature carefully to determine

the maximum current requirement (during activation or

alarm) and use this value for loading calculations. Do not

allow connected devices to exceed the system capabilities

during any possible operational mode.

2.6 Assigning Zones to Zone Expanders

The main panel contains zones 1 to 8. Additional zone

expanders may be added to increase the number of zones

on the system. Each zone expander consists of one group

of 8 zones. Each module must be set to assign the specific

zones to the expander. To do this, set the jumpers located

on the expander to the proper settings (see chart below).

NOTE: PC5108 v1.0 and lower modules can only sup-

port the first 32 zones on the PC5020 system. PC5108

v1.0 and lower, PC5108L, PC5700, and PC5720 each

enroll as two expander modules.

NOTE: Before a zone expander will work properly, you

must set the jumpers so the panel can determine the

correct zone assignment.

NOTE: It is not recommended to use PC5108 v1.x and

v2.x simultaneously on the same PC5020.

The following are the jumper settings for different zone

assignments for PC5108 v2.0 modules. If you need to

enroll PC5108 v1.0, PC5108L or PC5700 modules, refer to

the appropriate module Installation Sheet for the correct

jumper settings.

The following is a diagram of the PC5108 zone expander

modules and where the jumper switches are located. Refer

to the Installation Instructions for the module for more infor-

mation.

NOTE: Only jumpers J1, J2, and J3 determine the zone

assignment for the module.

2.7 Keypad Assignment

There are 8 available slots for keypads. LED and

LCD5501Z keypads by default are assigned to slot 1. The

LCD5500Z is assigned by default to slot 8. Keypads can

each be assigned to a different slot (1 to 8) which offers

two advantages. The panel can supervise the keypad con-

nection to indicate a Trouble condition if it is removed.

Also keypads can be assigned to operate a specific parti-

tion, or to operate as a global keypad.

How to Assign Keypads

NOTE: All keypad assignment must be done at each

keypad on the system. When using LCD5500(Z) key-

pads, one keypad must remain in slot 8. Do not assign

more than one keypad to the same slot.

NOTE: The following keypad versions can only be used

on partition 1 & partition 2, and the first 8, 16, or 32

zones: PC5508(Z), PC5516(Z), PC5532(Z) versions v2.0 &

lower, LCD5500(Z) versions 3.x and lower. To assign a

keypad to a slot and select the partition it will operate,

enter the following:

1. Enter Installer Programming

2. Press [000] for Keypad Programming

3. Press [0] for Partition and Slot Assignment

4. Enter a two digit number to specify the partition and slot

assignment.

1st digit enter 0 for Global operation, or

enter 1-8 for partitions 1-8

2nd digit enter 1 to 8 for Slot Assignment

PC5020 VAUX: 550 mA.

Subtract the listed rating for each keypad, expan-

sion module and accessory connected to VAUX or

Keybus. NOTE: The maximum AUX capacity

for 24-hr standby is 420mA.

BELL: 700 mA.

Continuous Rating.

3.0 A.

Short Term. Available only with standby battery

connected.

PC5200 VAUX: 1.0 A.

Continuous Rating. Subtract for each device con-

nected.

3.0 A.

Short Term. Available only with standby battery

connected.

PC5204 VAUX: 1.0 A.

Continuous Rating. Subtract for each device con-

nected.

3.0 A.

Short Term. Available only with standby battery

connected.

PC5208 VAUX: 250 mA.

Subtract for each device connected. Subtract the

total load on this terminal from the PC5020

VAUX/Keybus output.

PC5108 VAUX: 100 mA.

Subtract for each device connected. Subtract the

total load on this terminal from the PC5020

VAUX/Keybus output.

Module Jumpers System Zones

Assigned

J1 J2 J3

ON ON ON Zones disabled

OFF ON ON Zones 09 - 16

ON OFF ON Zones 17 - 24

OFF OFF ON Zones 25 - 32

ON ON OFF Zones 33 - 40

OFF ON OFF Zones 41 - 48

ON OFF OFF Zones 49 - 56

OFF OFF OFF Zones 57 - 64

5. Press the [#] key twice to exit programming.

6. Continue this procedure at each keypad until all have

been assigned to the correct slot and partition.

How to Program Function Keys

Each of the 5 function keys on each keypad may be pro-

grammed for different operation.

1. Enter Installer Programming.

2. Press [000] for Keypad Programming.

3. Enter [1] to [5] to select function key to program.

4. Enter a 2-digit number for function key option - [00] to [30].

5. Continue from step 3 until all function keys are pro-

grammed.

6. Press [#] key twice to exit Installer Programming.

For a complete list of Function Key options, see section

’Function Keys’.

2.8 Confirming Module Supervision

By default, all modules are supervised upon installation.

Supervision is enabled at all times so that the panel can

indicate a trouble if a module is removed from the system.

To check which modules are currently connected and

supervised:

1. Press [*] [8] [Installer Code] to enter Installer Program-

ming.

2. Press [903] to display all modules.

3. The LCD keypad will allow you to scroll through the

modules.

NOTE: Module supervision will not display correctly at

an LCD5500Z v2.x and lower keypad.

In LED keypads, zone lights will be turned on according

to what modules the panel has found on the system.

Refer to the following chart:

Keypad Light Module/Device Present

[1] Keypad 1

[2] Keypad 2

[3] Keypad 3

[4] Keypad 4

[5] Keypad 5

[6] Keypad 6

[7] Keypad 7

[8] Keypad 8

[9] Zones 9 to 16

[10] Zones 17 to 24

[11] Zones 25 to 32

[12] Zones 33 to 40

[13] Zones 41 to 48

[14] Zones 49 to 56

[15] PC5100

[16] Zones 57 to 64

[17] PC5132

[18] PC5208

[19] PC5204

[20] PC5400

[21] PC5936

[22] LINKS2X50/Skyroute™

[23] DLM-4L v1.0

[24] Escort5580(TC)

[25] Future Use

[26] PC520X-1

[27] PC520X-2

[28] PC520X-3

[29] PC520X-4

If a module is connected but does not show as being

present, it may be due to any of the following reasons:

• it is not connected to the Keybus

• there is a Keybus wiring problem

• the module is more than 1,000'/305m from the panel

• the module does not have enough power

• the PC5132 does not have any devices added

2.9 Removing Modules

If a module is no longer required on the system, the panel

must be told to stop supervising the module. To do this:

1. Remove the module from the Keybus.

2. Press [*] [8] [Installer Code] to enter Installer Program-

ming.

3. Press [902] to enable supervision. The panel will auto-

matically search for all modules on the system, will see

that the module has been removed, and will stop super-

vising it.

4. Once the search is complete (it will take about 1 minute)

enter section [903] to confirm that the correct modules

are supervised on the system.

2.10 Zone Wiring

For a complete description of the operation of all zone

types, see section ’Basic Programming PWS Sect 3’.

There are several different ways in which zones may be

wired, depending on which programming options have

been selected. The panel can be programmed to supervise

normally closed, end of line, or double end of line loops.

Refer to the following sections to study each type of indi-

vidually supervised zone wiring.

NOTE: Any zone programmed for Fire or 24-hr Super-

visory must be wired with a single end of line (EOL)

resistor regardless of the type of zone wiring supervi-

sion selected for the panel (section [013], options [1]

and [2]). See Zone Definitions [001] [004]. If you

change the zone supervision options from DEOL to

EOL or from NC to DEOL (section [013], options [1] or

[2]), power the system down completely, and then

power it back up for correct operation.

Normally Closed (NC) Loops

To enable normally closed loops, programming section

[013], option [1] must be ON.

NOTE: This option should only be selected if Normally

Closed (NC) devices/contacts are being used.

Normally Closed Loops. . . . . . . . . . . . . . . Section [013], Option [1]

Single End Of Line (EOL) Resistors

To enable panel detection of single end of line resistors,

programming section [013], options [1] and [2] must be

OFF.

NOTE: This option should be selected if either Nor-

mally Closed (NC) or Normally Open (NO) detection

devices or contacts are being used.

ANY Z

TERMINAL ANY COM

TERMINAL

ANY Z

TERMINAL ANY COM

TERMINAL

Installation and Wiring: 2.10 Zone Wiring

End of Line Resistors . . . . . . . . . . . . . . . . Section [013], Option [1]

Single End of Line Resistors . . . . . . . . . . . Section [013], Option [2]

Double End of Line (DEOL) Resistors

Double end of line resistors allow the panel to determine

if the zone is in alarm, tampered or faulted.

To enable panel detection of double end of line resistors,

programming section [013], option [1] must be OFF and

option [2] must be ON.

NOTE: If the double EOL supervision option is

enabled, all hardwired zones must be wired for double

EOL resistors, except for Fire and 24-hr Supervisory

zones.

Do not wire DEOL resistors on keypad zones.

Do not use DEOL resistors for Fire zones or 24-hr

Supervisory zones. Do not wire Fire zones to keypad

zone terminals if the DEOL supervision option is

selected.

This option can only be selected if Normally Closed

(NC) detection devices or contacts are being used. Only

one NC contact can be connected to each zone.

The following chart shows zone status under certain con-

ditions:

End-of-Line Resistors . . . . . . . . . . . . . . . . Section [013], Option [1]

Double End-of-Line Resistors . . . . . . . . . . Section [013], Option [2]

Fire Zone Wiring - 4-wire Smoke Detectors

All zones defined as Fire (see section ’Basic Programming

PWS Sect 3’) must be wired according to the following

diagram:

For a complete description of how fire zones operate, see

section ’Basic Programming PWS Sect 3’.

Fire Zone Wiring - 2-wire Smoke Detectors

If PGM 2 has been programmed for 2-wire smoke detec-

tor connection (see section ’Basic Programming PWS Sect

3’) , the detectors must be wired according to the follow-

ing diagram:

For a complete description of how fire zones operate, see

section ’Basic Programming PWS Sect 3’.

Keyswitch Zone Wiring

Zones may be programmed to be used as keyswitch arm-

ing zones and must be wired according to the following

diagram:

For a complete description of how keyswitch zones oper-

ate, see section ’Basic Programming PWS Sect 3’.

LINKS1000 Supervisory (24-hr Supervisory)

When using the LINKS1000 cellular communicator, any

main board zone may be configured for LINKS1000 Super-

vision. Program this zone as zone type (09), 24-hr Supervi-

sory in section [001].

With a 24-hr Supervisory zone, if the LINKS1000 experi-

ences a trouble, the zone will be violated, causing the

panel to report the event to the central station. This type

of zone always requires a single EOL resistor

(5600Ω).Refer to LINKS 1000 Installation Manual wiring

diagram for installation.

LINKS1000 Answer

If the LINKS1000 cellular commu-

nicator is being used a zone may

be configured for LINKS1000

Answer to allow downloading to

be performed in the event of tele-

phone line failure.

When the LINKS1000 receives a

telephone call it will activate the

RING terminal on the LINKS1000 circuit board. This ter-

minal can be used to violate a zone programmed as (24)

LINKS1000 Answer (see section ’Basic Programming

PWS Sect 3’), causing the panel to seize the telephone line

and begin communication with the downloading com-

puter.

The zone programmed as LINKS1000 Answer ALWAYS

requires a single EOL resistor (5600Ω) and must be wired

according to the diagram above.

NOTE: The LINKS1000 Answer zone is only required

for downloading to the panel via the LINKS1000, or

for remotely connecting to the Escort5580(TC) module

via the LINKS1000.

NOTE: When using the LINKS1000, Busy Tone Detec-

tion must not be used.

NOTE: Keypad zones cannot be used for 24-hr Supervi-

sory or LINKS1000 Answer.

Loop Resistance Loop Status

0Ω (shorted wire, loop shorted) Fault

5600Ω (contact closed) Secure

Infinite (broken wire, loop open) Tamper

11200Ω (contact open) Violated

LINKS 2X50/LINKS 3000/Skyroute™

Refer to the LINKSX50, LINKS3000 and Skyroute™

Installation Manuals for wiring and installation details.

2.11 Keypad Zones

Keypads with zone inputs can be connected to devices

such as door contacts. This saves you from running wires

back to the control panel for every device.

To install the keypad, open the keypad plastic by remov-

ing the screw at the bottom of the unit. Locate the five ter-

minals on the keypad circuit board. Connect the four

Keybus wires from the control panel: the red wire to R,

the black to B, the yellow to Y and the green to G.

To connect the zone, run one wire to the Z terminal and

the other to B. For powered devices, use red and black to

supply power to the device. Run the red wire to the R

(positive) terminal and the black wire to the B (negative)

terminal.

When using end of line supervision, connect the zone

according to one of the configurations outlined in section

2.10 ‘Zone Wiring‘.

NOTE: End of line resistors must be placed on the

device end of the loop, not at the keypad.

NOTE: Keypad zones do not support DEOL resistors.

Assigning Keypad Zones

When using keypad zone inputs, each input used must be

assigned a zone number in Installer Programming.

First, ensure that you have enrolled all installed keypads

into the desired slots (see section ’Keypad Assignment’).

Next, enter programming section [020] to assign the

zones. There are eight programming locations in this sec-

tion, one for each keypad slot. Enter a 2-digit zone num-

ber for each of the keypad zones. This number must be

entered in the location corresponding to the keypad to

which each zone is connected.

NOTE: If a keypad zone input is assigned on a zone

numbered from 1 to 8, the corresponding zone cannot

be used on the main control panel.

Once the keypad zones are assigned, you must also

program zone definitions and zone attributes (see sec-

tion 5.3 Basic Programming and Section 5.4 Advanced

System Programming)

Section 3: How to Program

The following section of the manual describes how to

enter Installer Programming and how to program the var-

ious sections.

NOTE: It is extremely important that you read the fol-

lowing section of the manual to completely under-

stand how to program the panel.

3.1 How to Enter Installer Programming

Installer Programming is used to program all communi-

cator and panel options. The Installer Code is [5555] at

default, but should be changed to prevent unauthorized

access to programming.

NOTE: Once Installer Programming is exited, the sys-

tem will reset. This will take 15 seconds. Do not

attempt to perform any system function during this

reset period. In addition, all outputs will return to

their normal, deactivated state (or activated if

inverted).

LED Keypad

Step 1: From any keypad enter [*][8][Installer Code].

• The ‘Program’ light will flash to indicate you are in

programming

• The ‘Armed’ light will turn on to indicate the panel is

waiting for the 3-digit Section number to program

Step 2: Enter the 3-digit Section number you want to pro-

gram.

• The Armed light will turn off

• The Ready light will turn on to indicate the panel is

ready for the information for the selected Section

NOTE: If the 3-digit section number entered is not

valid or the module that pertains to the Section is not

present, the keypad will sound a 2-second beep or

error tone.

LCD Keypad

Step 1: From any keypad enter [*][8][Installer Code].

The keypad will display ‘Enter Section’ followed by three

dashes.

Step 2: Enter the 3-digit Section number you want to pro-

gram.

The keypad will now display information for the section

entered.

Installer Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section [006]

3.2 Programming Decimal Data

When the Ready light is ON the panel is waiting for the

information to be programmed for the selected Section.

Enter the information written in the boxes for the Section

found in the Programming Worksheets.

If a digit is entered for each program box in a Section the

panel will automatically exit from the Section. It will turn

OFF the Ready light and turn the Armed light back ON.

You can also press the [#] key to exit a Section before

entering data for every box. This is handy if you only

need to change the first few program boxes. All other

locations in the Section will remain unchanged. If the [#]

key is pressed the panel will turn OFF the Ready light,

turn ON the Armed light and exit you from the Section.

3.3 Programming Hexadecimal Data

On occasion, hexadecimal (Hex) digits may be required.

To program a Hex digit press the [*] key. The panel will

enter Hex programming and Ready light will begin to

flash.

The following table indicates which number should be

pressed to enter the corresponding Hex digit:

1 = A 2 = B 3 = C 4 = D 5 = E 6 = F

After the correct Hex digit is entered the Ready light will

continue to flash. If another Hex digit is required press

the corresponding number. If a decimal digit is required

press the [*] key again. The Ready light will turn on solid

and the panel will return to regular decimal program-

ming.

NOTE: It is important to watch the Ready light. If the

light is flashing any number you enter will be pro-

grammed as the Hex equivalent.

Example: To enter ‘C1’ for a closing by user 1, you would

enter [*] [3] [*], [1]

[*] to enter Hexadecimal mode (Ready light flashes)

[3] to enter C

[*] to return to decimal mode (Ready light is solid)

[1] to enter digit 1

If you enter information into a section and make a mis-

take, press the [#] key to exit the section. Select that sec-

tion again and re-enter the information correctly.

If you are using a pulse communications format, a deci-

mal zero [0] does not transmit. Programming a zero [0]

tells the panel not to send any pulses for that digit. Deci-

mal zero [0] is a filler digit. To make a zero [0] transmit, it

must be programmed as a Hexadecimal ‘A’.

Example: for the 3-digit account number ‘403’, you would

enter [4], [*] [1] [*] [3], [0].

[4] to enter the digit 4

[*] to enter Hexadecimal mode (Ready light flashes)

[1] to enter A

[*] to return to decimal mode (Ready light is solid)

[3] to enter the digit 3

[0] to enter the digit 0 as a filler digit.

3.4 Programming Toggle Options

Some Sections contain several toggle options. The panel

will use zone lights 1 through 8 to indicate if the different

options are enabled or disabled. Refer to the Programming

Worksheets to determine what each option represents and

whether the light should be ON or OFF for your applica-

tion.

Press the number corresponding to the option to toggle

the light ON or OFF.

Once all the toggle options have been selected correctly

press the [#] key to exit the Section and save the changes.

The panel will turn off the Ready light and turn on the

Armed light.

3.5 Viewing Programming

LED and LCD5501Z Keypads

Any programming section can be viewed from an LED or

LCD5501Z keypad. When a programming section is

entered, the keypad will immediately display the first

digit of information programmed in that section.

The keypad displays the information using a binary for-

mat, according to the following chart:

See Hex data

entry instructions

Press any of the Emergency keys (Fire, Auxiliary or Panic)

to advance to the next digit.

When all the digits in a section have been viewed, the

panel will exit the section: the Ready light will turn OFF,

and the Armed light will turn ON, waiting for the next

three-digit programming section number to be entered.

Press the [#] key to exit the section

LCD Keypad

When a programming section is entered, the keypad will

immediately display all the information programmed in

that section. Use the arrow keys (< >) to scroll through the

data being displayed. To exit the section, scroll past the

end of the data displayed, or press the [#] key.

Section 4: Keypad Commands

Use any system keypad to enter commands, or to program the PC5020 security system. The LED keypad uses function and

zone indicator lights to represent alarm functions and status. The LCD keypad provides a written description on the liquid

crystal display and uses function indicator lights to communicate alarm status to the user.

The PC5020 User’s Guide provides basic directions for arming and disarming the system, bypassing zones and performing user

functions from the keypads. The following sections provide additional details on these functions.

4.1 Arming and Disarming

Arming

The system cannot be armed unless the Ready light is on.

If the Ready light is not on, ensure all protected doors and

windows are secure and stop movement in areas covered

by motion detectors.

When the Ready light is on, enter a valid access code. As

each digit is pressed the keypad will beep. If an incorrect

code is entered, the keypad will emit a steady 2-second

beep to indicate that the code was not correct. If the code

is correct but the Ready light was not on, the panel will

beep six times rapidly followed by a long 2-second beep

to indicate the system was not ready.

When the correct code is entered and the system is ready,

the panel beeps six times rapidly, and the Armed light

turns on. The panel begins counting down the Exit Delay.

If the Audible Exit Delay option is enabled, the keypad

will beep every second until the Exit Delay expires. The

keypad will beep rapidly for the last 10 seconds of Exit

Delay to warn the user the system is about to arm.

Exit the premises through the designated entry/exit door

before the Exit Delay expires.

Users can restart the Exit Delay while it is counting down

by pressing the Away key. The system will not log the

user who re-started the Exit Delay, unless the Quick Arm-

ing Disabled/Function Keys Require Code option is

turned on (Section [015], option [4]).

Other methods of arming are available (see Section “[*]

[0] Quick Arm”, ’[*][9] Arming without Entry Delay’, and

section 4.4 ’Function Keys’).

NOTE: The PC5020 has a built-in feature called Audi-

ble Exit Fault (see Section 5.3 Basic Programming PWS

Sect 3 [001]-[004] for more information).

Stay and Away Arming

When a user arms the system, if any zones on the system

have been programmed as Stay/Away, the panel will

immediately turn on the Bypass light. The panel will then

monitor all zones programmed as Delay 1 and Delay 2. If

no delay type zone is violated by the end of the Exit Delay

(i.e., nobody leaves through the entry/exit door), the

panel will bypass all Stay/Away type zones. The panel is

now Stay armed. The Bypass light will remain on to

inform the home owner that the interior protection is

bypassed. This is a convenience for users that want to

arm the panel while at home. Using this method, users do

not have to bypass the interior zones manually.

Users can add the Stay/Away zones back into the system

at any time by entering [*] [1] (see section ’[*][1] Zone

Bypassing’), or by using the Away function button.

If a delay zone is violated during the Exit Delay (i.e.,

somebody leaves through the designated entry/exit

door), all zones will be active after the Exit Delay expires.

The panel is now Away armed. The Bypass light on the

keypad will be off.

Other methods of Stay and Away arming are available

(see section ’Function Keys’).

Using the Away Button While Stay Armed

If a partition is armed in Stay mode and a user wishes to

leave the premises without having to disarm and re-arm

the system, they may press the Away button. The system

will begin counting the standard Exit Delay, allowing the

user to leave without actually disarming. The panel will

log ’Armed in Away Mode’ upon completion of the Exit

Delay. This feature is useful for users with Wireless Keys

with Stay/Away buttons, and who wish to have their

panel armed at all times.

Using the Stay Button While Away Armed

Pressing the Stay key while a partition is Away armed

will begin the Exit Delay again. The panel will log

’Armed in Stay Mode’. This feature is useful for users

with wireless keys with Stay/Away buttons, and who

wish to have their panel armed at all times.

NOTE: If function keys require the entering of an

access code, a valid access code must be entered to

toggle between arming modes. The access code used

to perform this function will be logged with ’User Log

User XX’. Swinger shutdown will be reset if the Stay or

Away buttons are pressed while the system is armed.

Disarming

To disarm the panel, enter the premises through the des-

ignated entry/exit door. The keypad will emit a steady

beep to warn that you must disarm the system. During

the last 10 seconds of entry delay the panel will pulse the

keypad beeper on and off rapidly to warn that the entry

delay is about to expire.

Enter a valid access code at the keypad. If an error is

made, re-enter the code correctly. When a correct code is

entered the keypad will turn off the Armed light and stop

the keypad buzzer.

If an alarm occurred while the panel was armed the Mem-

ory light and the zones which caused the alarm will be

flashing. Press the [#] key to return the keypad to the

Ready state.

Event Buffer

The panel will store the last 256 events that have occurred

on the system. Each event will contain the time, date, par-

tition and the event itself along with the zone number,

access code number or any other information pertaining

to the event.

If the Event Buffer Follows Swinger Shutdown feature is

enabled the event buffer will not store events after the

swinger shutdown level has been reached. This will pre-

vent the panel from overwriting the entire buffer if a

problem exists (see Section 5.3 Basic Programming PWS

Sect 3 [377]. The event buffer can be viewed three differ-

ent ways. It can be viewed through an LCD keypad,

printed on-site using the PC5400 printer module, or it can

be uploaded through the DLS software.

Viewing the Event Buffer

The following is the procedure for viewing the event

buffer through the LCD keypad:

• Step 1 - Enter [*] [6] [Master Code]

• Step 2 - Select ‘View Event Buffer’

The keypad will display the event number, partition, time

and date of the event in question. Use the [*] key to toggle

between this information and the event itself. Use the

arrow keys (<>) to scroll through the events in the buffer.

When you have finished viewing the event buffer press

the [#] key to exit.

NOTE: When viewing events for partitions 3 to 8 on a

PKP-LCD v2.x and lower keypad, they will show as

being logged in the ’System Area’.

4.2 [*] Commands

[*][1] Zone Bypassing

Users can bypass individual zones using the [*][1] keypad

command. This command can be used if users want to

have access to an area while the partition is armed, or to

bypass a defective zone (bad contact, damaged wiring)

until service can be provided.

A bypassed zone will not cause an alarm. Instructions on

zone bypassing can be found in the PC5020 User’s Guide

(’Zone Bypassing’).

When the partition is disarmed, all zones bypassed using

[*] [1] will be unbypassed, except for 24-Hr zones.

If the Code Required for Bypass option is enabled, an

access code will be required to enter the Bypass mode.

Only access codes with the Bypass attribute enabled will

be able to bypass zones (see section ’[*] [5] Programming

Access Codes’).

These features are also available on the [*][1] zone bypass-

ing menu:

•Bypass Recall: Press [99] while in the [*][1] menu to

recall the last set of bypassed zones.

•Clear Bypasses: Press [00] while in the [*][1] menu to

clear all bypassed zones.

•Bypass Groups: Users can program a group of zones

to be bypassed (bypass group). Each partition can have

a different bypass group. To program a bypass group,

in the [*][1] menu, select the zones to be bypassed.

Press [95] to save the group. To recall the group, press

[*][1] followed by [91].

If the Code Required for Bypass option is enabled, the

Master code or Supervisor codes must be used to

access this feature.

NOTE: If a 24-hr zone is bypassed, ensure that the zone

is restored or disabled before removing the bypass.

Code required for bypass . . . . . . . . . . . . . Section [015], Option [5]

[*][2] Trouble Display

The panel constantly monitors itself for several different

trouble conditions. If a trouble condition is present, the

Trouble light will be ON and the keypad will beep twice

every 10 seconds. The trouble beep can be silenced by

pressing any key on any keypad. If Bell Squawk on Trou-

ble is enabled (section [014], option[5]), the bell will

squawk every 10 seconds when a Trouble condition is

present.

NOTE: If there is an AC Trouble, the keypad will not

beep for a General System Trouble.

To view Trouble conditions from an LED or LCD5501Z

keypad:

1. Press [*] [2].

2. The keypad will flash the Trouble light. The zone indica-

tor lights corresponding to the present Trouble condi-

tions will be ON.

When using an LCD keypad, the Trouble conditions will

be listed on the display. Users can scroll through the list of

present Trouble conditions using the arrow (< >) keys.

NOTE: Troubles can be viewed while armed using the

LCD keypad, provided the keypad is version 2.0 or

later. Older keypads will incorrectly display ’Fire Trou-

ble’. If using older LCD keypads, program section [013],

option [3] as OFF to ensure that Troubles are displayed

correctly.

The various Troubles are described below:

Light Trouble

1Service Required: Press [1] to determine the specific Trouble. Lights 1 - 8 will light up to indicate the Trouble:

• Light [1] Low Battery: Main panel backup battery charge is low (below 11.5 volts under load).Trouble is restored when the battery

charges over 12.5 volts.

• Light [2] Bell Circuit Trouble: The bell circuit is open (see section ’Terminal Descriptions’).

• Light [3] General System Trouble: One or more of the following Troubles has occurred: the PC5204 power supply module has an AUX

failure, PC5204 Output #1 Trouble, Camera Trouble, Home Automation Trouble on the Escort5580(TC), or a printer connected to the

PC5400 printer module has a fault and is off-line. Users can view specific conditions in the event buffer.

• Light [4] General System Tamper: Tamper has been detected in a module.

• Light [5] General System Supervisory: The panel has lost communication with a module connected to the Keybus (See section 2.8

‘Confirming Module Supervision‘). The event buffer will log the event.

• Light [6] RF Jam: Please refer to the PC5132 Installation Manual for more information.

• Light [7] PC5204 Low Battery: The PC5204 module has a low backup battery.

• Light [8] PC5204 AC Failure: The PC5204 module has lost AC power.

NOTE: If you remove and then restore power to the main panel in order to service any PC5204 module, or any module being pow-

ered by a PC5204, you must also remove and then restore power to the PC5204 and any connected modules. This ensures that any

Troubles present on the module are correctly logged and/or annunciated.

2AC Failure: AC power is no longer being supplied to the control panel. The Trouble light will flash if an AC Failure is present, if the Trouble Light

Flashes if AC Fails option is programmed (section [016], option [2]). This trouble will not be displayed if the AC Trouble Displayed option is dis-

abled (section [016], option [1]).

3Telephone Line Monitoring Trouble (TLM): There is a problem with the telephone line. If the system has a LINKS1000, or an alternate commu-

nicator, this trouble can be reported to the central station by programming reporting codes in sections [345] and [346].

4Failure to Communicate (FTC): The communicator failed to communicate with any of the programmed telephone numbers (see section 5.6

‘Communicator Programming’).

5Zone Fault (including Fire Zone): A zone on the system is experiencing trouble, meaning that a zone could not provide an alarm to the panel if

required to do so (e.g., a fire zone is open, or there is a short on a DEOL zone, or a supervisory fault on a wireless zone). When a zone fault occurs,

the keypad(s) on the system will start to beep. Press [5] while in Trouble mode to view the affected zones.

NOTE: A Fire zone trouble will be generated and displayed in the armed state.

Keypad Commands: 4.2 [*] Commands

[*] [3] Alarm Memory

The memory light will be on if any alarm occurred during

the last armed period or if an alarm occurred while the

panel was disarmed (24-hr zones). Instructions on view-

ing alarms in memory are located in the PC5020 User’s

Guide (’Disarming the System’).

[*] [4] Door Chime On/Off

If enabled the keypad will beep 6 times rapidly when a

zone is tripped and restored. The panel will only do this

for zones with the Door Chime attribute enabled and if

the door chime feature is enabled (see Section 5.4 Advanced

Programming [101]-[164]).

[*] [5] Programming Access Codes

All access codes can arm and disarm any partition they

are enabled for, and can activate the PGM outputs using

the [*][7] commands (see section ’[*] [7] Command Out-

put Functions’).

For instructions on programming access codes, see the

PC5020 User’s Guide (‘Programming Access Codes’).

The available access codes are as follows:

General Access Codes - Access Codes [01] to [32]

Each access code can be used to arm and disarm the

assigned partitions. Additional access code attributes are

also programmable to determine what abilities the code

will have.

You can program partition assignments and access code

attributes by following the instructions in this section.

Duress Codes - Access Codes [33] and [34]

When a Duress Code is used to perform any function the

panel will send a Duress reporting code to the central sta-

tion (see Section 5.3 Basic Programming [001]-[004] and Sec-

tion 5.6 Communicator Programming ).

Supervisor Codes - Access Codes [41] and [42]

Supervisor Codes can program additional access codes.

By default, Supervisor codes have the same partition and

attribute programming as the Master code. You can

change the partition and attribute programming for these

codes by following the instructions in this section.

System Master Code - Access Code [40]

By default the System Master Code is enabled to operate

on all partitions, and can perform any keypad function.

This code can be used to program all access codes, includ-

ing the Supervisor Codes and Duress Codes.

If the Master Code Not Changeable option is enabled the

System Master Code can only be changed using Installer

Programming.

Maintenance Code

The maintenance code can only be used to arm and dis-

arm the system. It cannot be used to bypass zones, to

access the Escort5580(TC), or to cancel or postpone auto-

matic arming. The code can only be programmed in

Installer Programming.

Programming Partition Assignments and Access

Code Attributes

You can enable or disable each access code to work on

each partition. Additional access code attributes are also

programmable. Attributes determine what abilities the

code will have.

By default, each code has the attributes of the code used

to program it. For example, if you use the Master Code to

program other access codes, the new codes will have the

same attributes as the Master Code. You can change the

partition and attribute programming by following the

instructions described below.

You cannot change Master Code partition or attribute

programming. The Master Code has all partitions and all

attributes turned on, except for the Bell Squawk on Arm-

ing/Disarming attribute.

To program which partition(s) each code will work on:

1. Enter [*][5][Master Code][8] to enter partition programming.

2. Enter the 2-digit number of the access code you want to

edit.

3. Enter the partition number (1-8) to toggle it on or off.

NOTE: Partition programming is NOT supported at the

following keypads: PC5508(Z), PC5516(Z), PC5532(Z)

versions v2.00 and lower; LCD5500(Z) version 2.x and

lower; LCD5501Z version 1.x and lower.

To program each attribute:

1. Enter [*][5][Master Code][9] to enter the attribute pro-

gramming mode.

2. Enter the 2-digit number of the access code you want to

edit.

3. Enter the attribute number to toggle it on or off.

The programmable attributes are as follows:

•Attributes 1-2: For Future Use.

•Attribute 3: Zone Bypass enabled.

This attribute allows the user to bypass zones.

•Attribute 4: Escort5580(TC) Remote Access

This attribute allows the user to access the security sys-

tem via the Escort, if installed.

•Attribute 5: Downlook Remote Trigger to Telephone

Number 1. For use with the Escort5580(TC) and the

PC5108L/DLM-4L (see the PC5108L Installation Manual

for details).

•Attribute 6: Downlook Remote Trigger to Telephone

Number 2. For use with the Escort5580(TC) and the

PC5108L/DLM-4L (see the PC5108L Installation Manual

for details).

•Attribute 7: Bell Squawk on Arming/Disarming. When

this attribute is turned on, the bell will squawk when the

access code is entered to arm or disarm the system. For

example, you can use the arm/disarm bell squawk

attribute to have wireless key access codes squawk the

bell, while other codes are silent. To do this, enable

attribute [7] on all access codes associated with wireless

keys.

6Zone Tamper: A zone configured for double end of line resistor supervision has a tamper condition, or the tamper switch is open on a wireless

device. When a tamper condition occurs, the keypad(s) will start to beep (if the system is armed, an alarm will occur). Press [6] while in Trouble

mode to view the affected zones. If a zone is tampered or faulted, it must be fully restored to clear the trouble.

7Device Low Battery: A wireless device has a low battery condition. Press [7] one, two, or three times to view which devices are experiencing bat-

tery failure. An LED keypad will indicate battery failure using zone lights. The following will occur:

Keypad beeps: Keypad displays:

Press [7] 1) Zones with low batteries (LED keypad - zone lights 1 to 32)

Press [7] again 2) Handheld keypads with low batteries (LED keypad - zone lights 1 to 4)

Press [7] again 3) Wireless keys with low batteries (LED keypad - zone lights 1 to 16)

8Loss of System Time: When the panel is powered up, the internal clock needs to be set to the correct time. This trouble is cleared when an

attempt is made to reset the clock. This is set in ‘[*][6] User Functions’ Programming on page 16.

Light Trouble

NOTE: If you enable the Bell Squawk on Arming/Dis-

arming option (section [014], option [1]), the bell will

sound arm/disarm bell squawks for all access codes,

regardless of the programming for attribute [7] (See

Section 5.3 Basic Programming PWS Sect 3 [001]-[004]

and Section 5.4 ‘Advanced Programming’).

Installer Programming - Codes and Options

There are three codes which can be programmed by the

installer in Installer Programming: the Master Code, the

Installer Code, and a Maintenance Code. All other access

codes can be programmed through the [*][5] command, as

described previously in this section.

The master code can also be programmed by the user as

access code (40). However, if the Master Code Not Change-

able option is enabled, the Master Code can only be

changed in Installer programming.

The Maintenance Code can only be used to arm and dis-

arm the system. The Maintenance Code cannot bypass

zones, use [*][9] to arm the system, cancel auto-arming, or

perform [*][7] command functions. There will be no arm/

disarm bell squawks when the Maintenance Code is used.

General access codes can arm and disarm the system.

When the Code Required for Bypassing option is

enabled, users will need to enter a valid access code in

order to bypass zones. Individual access codes can have

the Zone Bypassing attribute disabled under Access Code

Attribute programming, as described previously in this

section.

Installer Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section [006]

Master Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section [007]

Maintenance Code . . . . . . . . . . . . . . . . . . . . . . . . . . Section [008]

Master Code Not Changeable. . . . . . . . . . . . . . . Section [015]: [6]

Code Required for Bypassing . . . . . . . . . . . . . . . Section [015]: [5]

NOTE: Only one partition at a time can use [*][5]

programming.

[*] [6] User Functions

NOTE: Only one partition at a time can use [*][6]

programming.

To program user functions, perform the following:

1. Press [*] [6] [Master Code]. The keypad will flash the

‘Program’ light.

2. Press the number [1] to [5] for the item to be pro-

grammed.

•[1] - Time and Date

See the PC5020 User’s Guide for instructions on setting

the time and date (’Setting the Time and Date’).

•[2] - Auto-arm Enable/Disable

Enter [2] to enable (three keypad beeps) or disable (one

long beep) the auto-arm feature.

•[3] - Auto-arm Schedule

Enter [3] to change the auto-arm time for each day of

the week.

Scroll to the day of the week you want to change, or

enter the number of the day (1-7 for Sunday to Satur-

day). On an LED keypad, zone lights 1-7 will represent

Sunday to Saturday.

When you have selected a day, enter the auto-arm time

in 24-hr format (i.e., enter a 4-digit number in [hhmm]

format).

The system will return you to the day selection menu.

Scroll to the next day you want to program, or to exit

auto-arm programming, press [#].

NOTE: To change the Auto-arm schedule at another

partition, users with access to that partition will have to

select the partition on the keypad, before entering the

Auto-arm Schedule menu. See section 4.4 ‘Global and

Partition Keypad Operation‘ for more information.

NOTE: Only PKP-LCD v2.0 or greater keypads support

the [*][6][3] menu option.

•[4] - System Test

When [4] is pressed the panel will perform the following.

- sound the alarm output for two seconds

- light all lights and display pixels on the keypad

- sound the keypad buzzer for two seconds

- test the main panel/PC5200/PC5204 battery

- send a System Test Reporting code, if programmed.

For step-by-step instructions on performing a system test,

see the PC5020 User’s Guide (‘Full System Test’).

•[5] - Enable DLS (Downloading)

When [5] is pressed the panel will turn on the down-

loading option for 6 hours. During this time the panel

will answer incoming downloading calls (see Section

5.7 Downloading Options PWS Sect 7)

• [6] – User-initiated Call-Up

When [6] is pressed, the panel will initiate a call to the

downloading computer.

LCD Keypad User Functions

Additional features are available using on the LCD key-

pad. These features do not have numbers assigned. Use

the arrow keys (< >) to scroll through the [✱] [6] menu

and press the [✱] key to select the following commands.

View Event Buffer: The 256 event buffer can be viewed

through any LCD keypad.

•Brightness Control: When this option is selected the

keypad will allow you to scroll through 10 different

backlight level options. Use the arrow keys (<>) to

scroll to the desired backlight level and press the [#]

key to exit.

•Contrast Control: When this option is selected the key-

pad will allow you to scroll through 10 different con-

trast level options. Use the arrow keys (<>) to scroll to

the desired contrast level and press the [#] key to exit.

•Keypad Buzzer Control: When this option is selected

the keypad will allow you to scroll through 21 differ-

ent keypad sounder tone options. Use the arrow keys

(<>) to scroll to the desired keypad beeper level and

press the [#] key to exit. This function can be achieved

on LED keypads by holding the [*] key.

[*] [7] Command Output Functions

There are four output functions available to the user.

Entering [*] [7] [1-4] [Access Code, if required] will acti-

vate any output programmed for options [19]-[22]

(respectively). Each function can be performed when the

system is either armed or disarmed.

For more information regarding these output types, (see

Section 5.8 Programmable Output Programming).

[*] [8] Installer Programming

Enter [*][8] followed by the Installer Code to enter

Installer Programming.

[*] [9] Arming Without Entry Delay

When a partition is armed with the [*][9] command the

panel will remove the entry delay from the partition. After

the Exit Delay, Delay 1 and Delay 2 type zones will be

instant and Stay/Away zones will remain bypassed. (see

section ’Basic Programming PWS Sect 3’).

For more information regarding this feature, see the

PC5020 User’s Guide.

The entry delay can be activated or deactivated at any

time while the system is armed by pressing [*][9].

NOTE: Global Delay zones will always have an entry

delay, even if the system is armed using [*][9].

Keypad Commands: 4.3 Function Keys

[*] [0] Quick Arm

If the Quick Arm Enable option is enabled the panel can

be armed by entering [*][0]. This is a useful method of

arming a partition when someone without an access code

will be required to arm a partition.

[*] [0] Quick Exit

Quick Exit will allow someone to leave an armed premise

through a Delay type zone without having to disarm and

rearm the system.

When [*][0] is entered, if the Quick Exit Enabled option is

enabled, the panel will provide a 2-minute window to

exit. During this time the panel will ignore the first activa-

tion of a Delay type zone. When the Delay zone is secured

the panel will end the 2-minute time period.

If a second Delay zone is tripped, or if the zone is not

restored after two minutes, the panel will start entry

delay.

NOTE: If Quick Exit is used on a partitioned system,

Keypad Blanking and Access Code Required to Remove

Blanking should be enabled.

Quick Arm Enable. . . . . . . . . . . . . . . . . . .Section [015], Option [4]

Quick Exit Enable . . . . . . . . . . . . . . . . . . .Section [015], Option [3]

4.3 Function Keys

There are five function keys on the PC5020 keypads

labelled Stay, Away, Chime, Reset and Exit. The operation

of these keys is described below. The function is activated

by pressing and holding the key for 2 seconds.

’Stay’ - Stay Arm

Arms the partition to which the keypad is assigned. All

Stay/Away type zones will be automatically bypassed.

Delay type zones will provide entry and Exit Delay. The

Quick Arm feature must be enabled for this key to func-

tion (Section [015], Option [4]). If Quick Arming is not

enabled, the user must enter their access code after press-

ing the function key in order to arm the system in the Stay

mode.

’Away’ - Away Arm

Arms the partition to which the keypad is assigned. All

Stay/Away type zones will be active at the end of the Exit

Delay. Delay type zones will provide entry and Exit

Delay. The Quick Arm feature must be enabled for this

key to function (Section [015], option [4]). If Quick Arming

is not enabled, the user must enter their access code after

pressing the function key in order to arm the system in

the Away mode.

’Chime’ - Door Chime On/Off

Pressing the key will toggle the Door Chime feature ON

or OFF. One solid beep means the feature has been dis-

abled, three short beeps means it has been enabled.

’Reset’ - Reset Smoke Detectors

Pressing this key will cause the panel to activate for 5 sec-

onds any output programmed as Sensor Reset. (see sec-

tion ’[*] [7] Command Output Functions’).

’Exit’ - Activate Quick Exit

Pressing this key will cause the panel to activate the Quick

Exit feature (see section ’[*] [0] Quick Exit’).

Function Key Options

The programming of any function key on any keypad

may be changed to one of the options listed below (see

section 2.7 ‘Keypad Assignment‘ for instructions on

changing function key programming.)

[00] - Null Key

The key is not used and will perform no function when

pressed.

[01] - Select Partition 1

Provides an easy way to select partition 1. This is the

same as pressing and holding the [#] key then pressing

and holding the [1] key to select partition 1 (see section

’Global and Partition Keypad Operation’).

[02] - Select Partition 2

Provides an easy way to select partition 2. This is the

same as pressing and holding the [#] key then pressing

and holding the [2] key to select partition 2 (see section

’Global and Partition Keypad Operation’).

[03] - Stay Arm

Same as described in Function Keys - Section 3.5.

[04] - Away Arm

Same as described in Function Keys - Section 3.5.

[05] - [*]+[9] No Entry Delay Arm

After this function key is pressed the user must enter a

valid access code. The partition will arm and remove entry

delay from the partition when the Exit Delay expires (see

section ’[*] [9] Arming Without Entry Delay’).

[06] - [*]+[4] Door Chime On/Off

This function key provides the user a simple method for

turning the Door Chime feature on and off (see section ’[*]

[4] Door Chime On/Off’).

[07] - [*]+[6]...[4] System Test

This function key provides the user with a simple method

for testing the system (see section ’[*] [6] User Functions’).

A valid Master Code is required to perform this com-

mand.

[08] - [*]+[1] Bypass Mode

This function key provides the user with a simple method

for entering the Bypass Mode. If an access code is

required it must be entered before bypassing can be per-

formed (see section ’[*][1] Zone Bypassing’).

[09] - [*]+[2] Trouble Display

This function key provides the user with a simple method

for entering the Trouble Display mode (see section ’[*][2]

Trouble Display’).

[10] - [*]+[3] Alarm Memory

This function key provides the user with a simple method

for entering the Alarm Memory Display mode (see sec-

tion ’[*] [3] Alarm Memory’).

[11] - [*]+[5] Programming Access Codes

This function key provides the user with a simple method

for programming access codes. After this key is pressed a

valid System Master or Supervisor Code will have to be

entered before the panel will allow programming to be

performed (see section 4.2 ‘[*] Commands‘).

[12] - [*]+[6] User Functions

This function key provides the user with a simple method

for programming user functions. Once this key is pressed a

valid System Master Code or Partition Master Code must

be entered before the panel will allow User Functions to be

performed (section 4.2 ‘[*] Commands‘).

[13] - [*]+[7]+[1] Command Output Option 1

This function key provides the user with a simple method

for activating a PGM output programmed as Command

Output Option 1 (see Section 5.8, Programmable Output Pro-

gramming). By default, after this key is pressed a valid

access code must be entered (section 4.2 ‘[*] Commands‘).

[14] - [*]+[7]+[2] Smoke Detector Reset

This function key provides the user with a simple method

for activating a PGM output programmed as either option

[03] Sensor Reset or [20] Command Output option 2.

[15] - General Voice Prompt Help

This feature can only be programmed if both the

Escort5580(TC) and the PC5936 audio matrix module are

being used.

When the function key is pressed, the intercoms will per-

form a Help page. The user must then press the Page/

Answer button on any intercom station to begin the help

session with the Escort.

For more information, see the PC5936 Installation Manual.

NOTE: While the voice prompt help is active, users will

not be able to disarm the system using wireless keys.

[16] - [*]+[0] Quick Exit

Same as described in ‘Function Keys’ - Section 3.5.

[17] - [*]+[1] Reactivate Stay/Away Zones

This function key provides the user with a simple method

for adding Stay/Away zones back into the system (section

4.2 ‘[*] Commands‘).

[18] Identified Voice Prompt Help

This feature can only be programmed if the Escort5580(TC)

and the PC5936 audio matrix module are being used.

When the function key is pressed, the Escort5580(TC) will

begin a help session from the intercom station pro-

grammed as closest to the keypad. In order for this option

to function, you must program PC5936 Section [802], sub-

section [14] ’Keypad Port Assignments.’ For more informa-

tion, Refer to the PC5936 Installation Manual.

NOTE: This function key cannot be programmed for

PC55XXZ LED keypads with software version 1.0.

NOTE: While the voice prompt help is active, users will

not be able to disarm the system using wireless keys.

[19] - [*]+[7]+[3] Command Output 3

[21] - [*]+[7]+[4] Command Output 4

Function keys [19] and [21] provide the user with a simple

method of activating an output programmed as Command

Output Option 3 or 4.

[22] - Active Camera Monitor Selection

This function key is for use with the PC5108L Downlook

interface/camera monitor module. For instructions on the

function key use, see the PC5108L Installation Manual.

[23] - Bypass Recall

Pressing this function key will recall the last group of

bypassed zones. The function key will follow the Code

Required for Bypass option. If the option is enabled, a

valid access code with the Bypass attribute enabled must be

entered after the function key is pressed. For instructions on

zone bypassing, see the PC5020 User’s Guide.

[24] - Recall Bypass Group

This function key will recall zones in the Bypass Group for

the partition. This group is programmed by the user in the

[*][1] Bypass menu. The function key will follow the Code

Required for Bypass option. If the option is enabled, a

valid access code with the Bypass attribute enabled must

be entered after the function key is pressed. For instruc-

tions on zone bypassing and programming Bypass Groups,

see the PC5020 User’s Guide.

[25]-[26] - For Future Use

[27] - Select Partition 3

[28] - Select Partition 4

[29] - Select Partition 5

[30] - Select Partition 6

[31] - Select Partition 7

[32] - Select Partition 8

These keys provide users with an easy way to select one of

the above partitions. For example, this is the same as press-

ing and holding the [#] key, then pressing and holding the

[3] key to select partition 3 (see section ’Global and Parti-

tion Keypad Operation’).

4.4 Global and Partition Keypad Operation

A global keypad will display limited information until a

partition is selected: the Trouble light will turn on if a trou-

ble condition is present, and the Armed light will turn on if

all the partitions are armed. To select a partition the user

must press and hold one of keys [1] - [8] for two seconds,

depending on which partition they want to access (e.g.,

press and hold [2] for partition 2). The keypad will then

display the status of the selected partition and allow nor-

mal operation.

A partition keypad will display the status of the partition

to which it is assigned. A user with access to more than one

partition may temporarily assign the keypad to another

partition to gain access. To do this the user must first press

and hold the [#] key for two seconds. The keypad will go

blank. The user must then press and hold one of keys [1] -

[8] for two seconds, depending on which partition they

want to access (e.g., press and hold [2] for partition 2). The

keypad will then display the status of the selected partition

and allow normal access.

4.5 Features Available for the LCD5500Z

These features are only available for LCD5500Z keypads

with zone inputs:

Automatic Scrolling of Open Zones

The LCD5500Z keypad (v3.1 and higher) automatically

scrolls through open zones while the keypad is idle. This

feature, if enabled, will override the clock display. This

option can be programmed in LCD programming section

[076], Option [8].

Automatic Scrolling of Alarms in Memory

The LCD5500Z keypad allows automatic scrolling through

alarms in memory while the keypad is idle. This feature, if

enabled, will override the clock display. This option can be

programmed in LCD programming section [076], Option

[4].

24-hr Time Display Option

The LCD5500Z can be programmed to display time using a

24-hr clock, instead of a 12-hour, a.m./p.m. clock. This

option can be programmed in LCD programming section

[076], Option [3].

Keypad Zones

See section 2.11 ‘Keypad Zones‘.

Viewing Troubles While Armed

See section 4.2 ‘[*] Commands‘ for information on how to

view troubles.

Backlighting Boost (available for all zone input

keypads)

The LCD5500Z and PC55xx zone input keypads will pro-

vide extra number pad lighting when any key is pressed.

The backlighting boost will last for an additional 30 sec-

onds after the last keypress.

Prompts for the following features are only sup-

ported by LCD5500(Z) v2.x and higher:

• Downlook Support (DLM-4L/PC5108L): Active Camera

Monitor Selection, Remote Trigger

• Auto-arm features: Late to Close, Auto-arm Postpone/

Cancel, Auto-arm by Day

• Bypass Groups

Section 5: Programming Sections

The structure of this section corresponds with the structure of the Programming Worksheets (PWS) and is intended to be used

with them. Paragraph 5.1 corresponds with Section 1 etc. Table 5-1 references the paragraphs in this section with the corre-

sponding location in the programming worksheets.

Table 5-1 - SECTION 5 CONTENTS

Sect Item Sect Item

Para 5.1 For the Record 378 Test Transmission Time of Day

Para 5.2 Keypad Programming 380 First Communicator Option Code

Para 5.3 Basic Programming 381 Second Communicator Option Code

001-004 Zone Definitions 382 Third Communicator Option Code

005 System Times 390 LINKS1000 Preamble (First Telephone Number)

006-008 Special Access Codes 391 LINKS1000 Preamble (Second Telephone Number)

009-011 Programmable Output Options 392 LINKS1000 Preamble (Third Telephone Number)

012 Keypad Lockout Options 393 LINKS1000 Special Function Preamble (All Phone Nos.)

013 First System Option Codes Para 5.7 Downloading Options

014 Second System Option Codes 401 First Downloading Option Code

015 Third System Option Codes 402 Downloading Computer’s Telephone Number (32 Digits)

016 Fourth System Option Codes 403 Downloading Access Code

017 Fifth System Option Codes 404 Panel Identification Code

018 Sixth System Option Codes 405 Answering Machine Double-Call Timer

020 Keypad Zone Assignments 406 Number of Rings to Answer On

030 Zone Loop Response Option Code 490 Links Preamble (Downloading Telephone Number)

Para 5.4 Advanced System Programming 499 Initiate PC-Link Downloading

101-164 Zone Attributes Para 5.8 Programmable Output Programming

165-178 System Timers 501-502 Main Board

181-188 Automatic Arming Schedule 503-504 Main Board / PC5208

190-198 No Activity Arming Pre-Alert 505-510 PC5208

199 Auto Arming Pre-Alert Timer 511-514 PC5204

Sect 5 Partition and Zone Programming 551-552 Main Board

201 Partition Selection Mask 553-554 Main Board/PC5208

202-265 Assigning Zones to Partitions 555-560 PC5208

Sect 6 Communicator Programming 561-564 PC5204

301-304 Telephone Numbers Para 5.9 International Programming

310 System Account Code 700 Clock Adjust

311-318 Partition Account Code 701 First International Options Code

320-323 Alarm Reporting Codes, Zones 01-64 702 Second International Options Code

324-327 Alarm Restoral Reporting Codes, Zones 01-64 703 Delay between Dialing Attempts

328 Miscellaneous Alarm Reporting Codes Para 5.10 Module Programming

329 Priority Alarm and Restoral 801 PC5400 Printer Module Programming

330-333 Tamper Reporting Codes, Zones 01-64 802 PC59XX Audio Interface Programming

334-337 Tamper Restoral Reporting Codes, Zones 01-64 803 Alternate Communicator Programming

338 Miscellaneous Tamper Reporting Codes 804 PC5132

339-340 Closing (Arming) Reporting Codes, Access Codes 1-32 805 PC5100

341 Miscellaneous Closing (Arming) Reporting Codes 806 PC5108L

342-343 Opening (Disarming) Reporting Codes, Codes 1-32 Para 5.11 Special Installer Functions

344 Miscellaneous Opening (Disarming) Reporting Codes 901 Installer Walk Test Mode Enable / Disable

345 Maintenance Alarm Reporting Codes 902 Module Supervision Reset

346 Maintenance Restoral Reporting Codes 903 Module Supervision Field

347 Miscellaneous Maintenance Reporting Codes 904 Wireless Module Placement Test

348 Test Transmission Reporting Codes 906 Local Test of Downlook Remote Trigger

349 PC5700 Maintenance Reporting Codes 990 Installer Lockout Enable

350 Communicator Format Options 991 Installer Lockout Disable

351-358 Alarm/Restore Communicator Call Directions 993 Restore Alternate Communicator Default Programming

359-366 Tamper/Restore Communicator Call Directions 995 Restore Escort5580(TC) to Factory Default Programming

367-374 Opening/Closing Communicator Call Directions 996 Restore PC5132 to Factory Default Programming

375 System Maintenance Communicator Call Directions 997 Restore PC5400 to Factory Default Programming

376 System Test Transmissions Communicator Call Directions 998 Restore PC5936 to Factory Default Programming

377 Communication Variables 999 Restore PC5020 to Factory Default Programming

5.1 For the Record PWS Sect 1

This Section identifies the client, installation date, Installer Code, hardware configuration and programming summary for each

zone. Remove these pages and retain for reference.

5.2 Keypad Programming PWS Sect 2

Refer to Section 2.6 ‘Keypad Assignment’

5.3 Basic Programming PWS Sect 3

[001]-[004] - Zone Definitions

These sections require 16 2-digit entries. Each 2-digit number entered determines how a zone will operate.

NOTE: In addition to selecting how each zone will operate, attributes can be programmed by zone (see section

’Advanced Programming PWS Sect 4’ [101]-[164]).

[001]-[004] ZONE DEFINITIONS

Option Zone Type Description

00 Null Zone For zones that are not used and do not require a closed loop or EOL resistor

01 Delay 1 Follows the Entry Delay 1 and Exit Delay programmed in Section [005] and is normally used for Entry/Exit doors. The

Exit Delay starts as soon as the panel is armed. The zone may be opened and closed during the delay time without

causing an alarm. After the Exit Delay time has expired, opening the zone will start the Entry Delay timer. During the

Entry Delay time, the keypad buzzer will sound steadily to advise the user that the system should be disarmed. If the

panel is disarmed before the Entry Delay expires, no alarm will be generated.

02 Delay 2 Operates the same as Type [01] zone except the Entry Delay time can be independently set in Section [005]. The Exit

Delay time is common to both zone types.

03 Instant Normally used for door and window contacts and has the standard Exit Delay, but is instant when opened after the

Exit Delay expires

04 Interior Used with interior motion detectors. Interior zones feature an Exit Delay and an Entry Delay provided that any Delay

type zone has been tripped first. If the protected area is entered without coming through the a delayed entrance and

an Interior zone is tripped, an immediate alarm will be generated

05 Interior Stay/Away. If the system is armed and a Delay zone is NOT tripped during the Exit Delay time, this zone type will be bypassed. If

the [*][1] command is used to activate all Stay/Away type zones, this zone will have the standard Exit Delay. Once

armed, this zone will act like an Interior zone [04].

06 Delay Stay/Away If the system is armed and a Delay zone is NOT tripped during the Exit Delay time, this zone type will be bypassed. If

the [*][1] command is used to activate all Stay/Away type zones, this zone will have the standard Exit Delay. Once

armed, this zone will follow the Entry Delay time for Entry Delay 1 when tripped.

07 Delayed 24-hr Fire

(Hardwired)

Operates the same as the standard Fire zone, except the alarm memory and transmission by the communicator is

delayed by 30 seconds. If the alarm is acknowledged by pressing any key within 30 seconds, the bells will silence and

the transmission will be aborted. If the alarm has been acknowledged, and the smoke detector has not been

restored to normal, the bell output will activate after 90 seconds. The user then has another 30 second delay before

the bell output latches and communications is activated. A code is then required to silence the bell output.

NOTE: The Fire Delay will be terminated if a 2nd Fire zone is tripped or if the [F] key is pressed during a delay.

NOTE: This zone type should not be used for Commercial Fire applications.

08 Standard 24-hr Fire

(Hardwired)

On alarm, the bell output will sound to indicate that the fire loop has been activated. If enabled, the communicator

will immediately transmit the alarm to the monitoring station.

NOTE: DO NOT change the Zone attributes of Fire type zones from the default settings.

09 24-hr Supervisory This zone is active at all times and will report an alarm at all times. The Supervision options (NC, EOL, DEOL, ZD) do

not affect the functionality of the zone. The restored state of this zone type is 5.6KΩ, the Alarm state is short and

the Trouble state is open. Can be used with the LINKS module as a LINKS Supervision zone.

NOTE: This zone type must not be used for wireless zones.

10 24-hr Supervisory

Buzzer

This zone is active at all times and will report an alarm at all times. Once tripped, the keypad buzzer will sound until

a valid access code is entered.

NOTE: This zone type should not be used on a Keyswitch ONLY system.

11 24-hr Burglary This zone is active at all times and will report an alarm if the panel is armed or disarmed. This zone will sound the bell

for the length of Bell Time-out if the Audible attribute is enabled.

12 24-hr Holdup Similar to 24-hr Burglary except for System Event output type, SIA identifier and zone attribute.

13 24-hr Gas Similar to 24-hr Burglary except for System Event output type, SIA identifier and zone attribute

14 24-hr Heat Similar to 24-hr Burglary except for System Event output type, SIA identifier and zone attribute.

15 24-hr Medical Similar to 24-hr Burglary except for System Event output type, SIA identifier and zone attribute.

16 24-hr Panic Similar to 24-hr Burglary except for System Event output type, SIA identifier and zone attribute.

17 24-hr Emergency Similar to 24-hr Burglary except for System Event output type, SIA identifier and zone attribute.

18 24-hr Sprinkler Similar to 24-hr Burglary except for System Event output type, SIA identifier and zone attribute.

19 24-hr Water Similar to 24-hr Burglary except for System Event output type, SIA identifier and zone attribute.

20 24-hr Freeze Similar to 24-hr Burglary except for System Event output type, SIA identifier and zone attribute.

21 24-hr Latching Tamper This zone type, when violated, will cause arming of the system to be inhibited until the valid Installer Code is

entered. If this zone type is violated, the Installer Code must be entered ([*][8] Installers Code) before the system can

be armed.

22 Momentary Keyswitch

Arm

A keyswitch module may be connected to the zone programmed as Momentary Keyswitch arm. Momentary activa-

tion of this zone to the alarm state will alternatively arm and disarm the system and silence alarms.

23 Maintained Keyswitch

Arm

A keyswitch module may be connected to the zone programmed as Maintained Keyswitch arm. In the restored

state, the panel is disarmed. Only the violation of this zone type to the alarm state will make the panel arm.

24 LINKS Answer Provides the LINKS1000 with a forced answer for downloading. The Restored state of this zone type is 5.6KΩ, and the

open state causes the panel to answer. See the LINKS1000 Installation Manual for wiring instructions. When the zone is

violated, the panel will seize the telephone line.

NOTE: This zone type must not be used for wireless zones.

Programming Sections: 5.3 Basic Programming PWS Sect 3

[005] - System Times

This section has 9 sub-sections, 1 for each of the 8 parti-

tions, and 1 for the Bell time-out. A 2-digit entry is

required to access these sub-sections.

NOTE: Entry of 000 in these sections will result in a 255-

second time.

Sub-Sections 1-8 each require three 3-digit entries.

[01] - [08] Entry Delay 1, Entry Delay 2, and Exit Delay

per partition.

•Entry Delay 1: 030-255 Seconds

This value determines the Entry delay time for Delay 1

type zones. The default Entry Delay 1 time is 30 seconds.

•Entry Delay 2: 030-255 Seconds

This value determines the Entry delay time for Delay 2

type zones. The default Entry Delay 2 time is 30 seconds.

•Exit Delay: 045-255 Seconds

This value determines the Exit delay time when arming

the system. The default Exit Delay time is 60 seconds.

NOTE: The Exit Delay must not exceed 255 seconds.

The minimum possible entry is 45 seconds.

NOTE: If the Exit Delay is silent (Section 014, Option 6

or Stay Function Key Arming) the Exit Delay will be

twice the programmed value (090-510 seconds).

[09] Bell Time-out: 001-255 Minutes

The Bell Time-out for all 8 partitions will be the same.

The siren will silence after the number of minutes pro-

grammed for the Bell Time-out value has passed. The

default Bell Time-out is 4 minutes

The panel supervises the Bell output. If an open condition

is detected, the panel will immediately indicate a Trouble

condition by beeping the keypad twice every 10 seconds

to alert the owner to the problem. The panel can send a

Bell Circuit Trouble and Trouble Restoral reporting

codes to indicate the situation (see Section 5.6, ‘Commu-

nicator Programming’ PWS Sect 6).

If the Temporal Three Fire Signal option is enabled, all

Fire signals will follow the Temporal Three Pattern as

described in NFPA 72. If turned OFF all Fire signals will

sound a one second on, one second off cadence.

If Fire Bell Continuous is enabled, the alarm output will

sound until a code is entered. If disabled, the alarm will

sound until a code is entered or the bell time-out has

expired.

NOTE: Only fire zones will follow the Temporal Three

Fire Signal.

Bell Time-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section [005]

Bell Circuit Trouble Reporting Code . . . . . . . . . . . . . . Section [349]

Bell Circuit Trouble Restoral Reporting Code. . . . . . . . Section [350]

Temporal Three Fire Signal

Enable/Disable . . . . . . . . . . . . . . . . . . . . . Section [013], Option [8]

Fire Bell Continuous . . . . . . . . . . . . . . . . . Section [014], Option [8]

25 Interior Delay Zone The Interior Delay Zone is normally used with motion detectors and has a standard Exit Delay time. If the panel is

armed, and a Delay zone is violated during the Exit Delay (or the Away function key is used), the Interior Delay Zone

will be active at the end of the Exit Delay. This zone will cause an instant alarm when violated. This zone type will fol-

low the Entry Delay time provided that a Delay zone is violated first. If the panel is armed, and a Delay zone is NOT

violated during the Exit Delay (or the Stay function key is used, or [*][9] armed), a violation of this zone type will ini-

tiate Entry Delay 1.

26 24-hr Non-Alarm These zones are active at all times but do not cause an alarm, and do not show up in alarm memory. Zone Attributes

such as Zone Bypassing and Door Chime affect the functionality of this zone. A 24-hr Non-alarm zone may be used

for Zone Follower automation applications.

NOTE: This zone type will be active in Walk Test. Tampers and Faults. Zones programmed as 24-hr Non-

alarm type will not cause alarms.

NOTE: Alarms on this zone will not initiate Downlook.

27 Delayed 24-hr Water-

flow

These zones will follow the waterflow Delay Timer. When a delayed waterflow zone is violated, the waterflow timer

will start, (any subsequent delayed waterflow zones that become active do not reset or abort this timer). If there are

still delayed waterflow zones open when the waterflow timer expires, the panel will go into alarm and communicate

the event(s) regardless of the armed state.

28 Instant 24-hr Water-

flow

A waterflow alarm is a Fire alarm. The Fire related bells and Aux functions are activated. This Zone type functions

similar to Type 27 (Delayed 24-hr waterflow), but does not follow the Waterflow Delay Timer. When this zone is vio-

lated, it will immediately go into alarm. This zone type always uses a single EOL configuration.

29 Auto Verified Fire Zone This zone ensures that an alarm condition persists by resetting a tripped sensor in a fire zone and confirming that the

sensor has remained tripped or is waiting for the sensor to re-trip within a set period of time (e.g., cycling power to

a smoke detector to ensure the condition persists when power is restored). The alarm sequence for the zone is indi-

cated below:

Step #1 Duration 20 Seconds Sensor Reset

Step #2 Duration 10 Seconds Settle Time (Power-up)

Step #3 Duration 60 Seconds Check for Verified Alarm

NOTE: If another Fire device detects Fire during the Auto Verify or Delay sequence, the sequence is termi-

nated and alarms are immediately generated for all pending zones. This applies to all other Fire zones on

the system regardless of the partition assignments (i.e., two fire alarms anywhere on the system will can-

cel all pending fire delays and create immediate alarms).

30 Fire Supervisory Zone When this zone is violated, the system turns on the keypad buzzer, and communicates the supervisory alarm condi-

tion to the monitoring station. The buzzer will not follow the Bell Time-out. To silence the buzzer, a valid access code

must be entered.

NOTE: The fire supervisory alarm is not affected by the waterflow silence inhibit option described in

[018], Option 4, Pg 32

31 Day Zone A zone programmed as this type has different characteristics in the armed and disarmed state. In the disarmed state,

violating this zone will sound the keypad buzzer but will not log or report the event. In the armed state, violating this

zone will sound the bell and communicate the event.

87 Delayed 24-hr Fire

(Wireless)

Used only with wireless smoke detectors. Functions same as Zone Type [07].

88 Standard 24-hr Fire

(Wireless)

Used only with wireless smoke detectors. Functions same as Zone Type [08].

[001]-[004] ZONE DEFINITIONS

Option Zone Type Description

[006]-[008] Special Access Codes

These sections require 4 or 6 digits to be entered.

[006] - Installer Code

Installer Lockout Enable . . . . . . . . . . . . . . . . . . . . . . Section [990]

Installer Lockout Disable . . . . . . . . . . . . . . . . . . . . . . Section [991]

[007] - Master Code

[008] - Maintenance Code

This is an Arm/Disarm only code. It can not be used to

bypass, activate [*][7] outputs, program other user codes

or enter the [*][6] menu. It can access and arm through the

Escort5580(TC). Openings or Closings using this code

report as a Special Opening/Closing and will log to the

event buffer as ’Maintenance Code’.

[009]-[011] Programmable Output Options

Programmable outputs are programmed with a two digit

code indicated in the table below. Programmable outputs

are available on the following devices:

• PGM 1, PGM 2, PGM 3, and PGM 4 on the PC5020

main board

• 8 low current outputs available with the PC5208 out-

put module

• 4 high current outputs available with the PC5204

power supply/output module

• Section [009] is used to program the PGM outputs on

the PC5020.

• The first two entries of Section [010] are used to pro-

gram the last two outputs on the PC5020, and the first

two on the PC5208.

• Section [010] is used to program the PGM outputs on

the PC5208.

• Section [011] is used to program the PGM outputs on

the PC5204.

Programming any of the outputs is a three step process:

1. Select an option from the list below for the PGM output.

2. Select the output attributes for the PGM output.

3. Select the partitions on which the PGM output will operate.

The following is a list of the programmable output

options and attributes.

PGM Attribute Programming . . . . . . . . . . . . . . Section [501]-[564]

[009] - [011] PROGRAMMABLE OUTPUT OPTIONS

Option Output Description

01 Burglary and Fire Bell

Follower

This output will activate when the Bell output is active and will turn off when the alarm output is silenced. If the

alarm output is pulsing, the PGM output will pulse as well. This PGM output will follow:

• Fire Pre-alerts

• Temporal Three Fire Signal (if enabled)

• All Burglary and Fire Alarms by partition

• Bell Time-out

This output will NOT follow Bell Squawks of any kind. The Main Bell will still activate for all alarms; the PGM out-

put will only activate for alarms for the partition it is assigned to.

NOTE: The Fire Bell has precedence over Burglary. If a fire alarm occurs on partition X, and partition Y

already has a Burglary Alarm active (’Burg’ PGM active on partition two), the Fire and Burg output on

partition Y will pulse (’Fire’ PGM) with the Main Bell. Silent alarms will be audible if either partition is

in an audible alarm condition.

02 Not Used For Future Use

03 Sensor Reset This output will normally be active. This option is used to reset power for latching smoke detectors. The output

will deactivate for five seconds when the [*] [7] [2] command is entered (see section ’[*] [7] Command Output

Functions’). The keypad buzzer will not sound for the five second period.

Refer to the Control Panel Wiring Diagram in this manual for wiring instructions.

NOTE: Only ONE of options [03] Sensor Reset and [20] [*] [7] [2] Command Output Option [2] may be

programmed on the same system.

04 Two-Wire Smoke Reset

(PGM2 only)

Allows 2-wire smoke detectors to be connected; refer to the wiring diagram on page iv, [*][7][2] to reset.

05 System Armed Status The output will activate when the partition or system is armed and deactivate when disarmed. If this output is

assigned to both partitions, all partitions must be armed for the output to activate.

06 Ready To Arm The output will activate when the partition or System is ready to arm (all non-force armable zones on the system

are restored). The output will deactivate when an access code is entered to arm the system and the Exit Delay

begins.

07 Keypad Buzzer Follow This output will activate when any of the following events occurs and will remain active for as long as the keypad

buzzer is active: Door Chime, Entry Delay, Audible Exit Delay, Auto-arm Prealert and 24-hr Supervisory Buzzer Zone

08 Courtesy Pulse This option provides an output which activates for the entry and exit times, plus 2 minutes. It can be used to turn

on a courtesy light near the exit door for the duration of the entry / exit times. If more than one courtesy pulse

output is required, they all must be programmed for global operation (PGM attributes 1 and 2 enabled).

09 System Trouble The output will activate when any of the selected Trouble conditions are present. It will deactivate when all the

selected Trouble conditions are cleared. The PGM attributes for this option, programmed in Sections [141] to

[142], differ from the standard selection of attributes normally programmed in sections [501] to [514]. Program

which Trouble conditions will activate the output by selecting some or all of the following attributes:

Bit [1] Service Required* Bit [5] Fire Trouble / Zone Fault

Bit [2] AC Failure Bit [6] Zone Tamper

Bit [3] Telephone Line Trouble Bit [7] Zone Low Battery

Bit [4] Failure to Communicate Bit [8] Loss of Clock

*Battery, bell, general Trouble, general tamper, general supervisory

Programming Sections: 5.3 Basic Programming PWS Sect 3

10 Latched System Event

(Strobe)

This output will activate when any of the selected system events (alarms) occur on the system. In the armed state,

the output will deactivate only once the system is disarmed. This output will activate when the programmed

events occur on any partition.

If an alarm activates this output in the disarmed state, the output will deactivate if a user enters a valid access code

while the Bell Time-out is counting down. The output will also deactivate if someone arms the system after the

Bell Time-out has expired. This output can be used to indicate that an alarm has occurred before entering the pre-

mises.

The PGM attributes for this option, programmed in Sections [501] to [514], differ from the standard selection of

attributes normally programmed. Program the events that will activate the output by selecting some or all of the

following attributes:

Bit [1] Burglary (Delay, Instant, Interior, Stay/Away and 24-hr Burglary Zones)

Bit [2] Fire (Fire Keys, Fire Zones)

Bit [3] Panic (Panic Keys and Panic Zones)

Bit [4] Medical (Auxiliary Keys, Medical and Emergency Zones)

Bit [5] Supervisory (Supervisory, Freezer and Water Zones)

Bit [6] Priority (Gas, Heat, Sprinkler and 24-hr Latching Zones)

Bit [7] Holdup (Holdup Zones)

Bit [8] Output follows pulse timer (Section [170])

This output will activate for silent and audible alarms or medical conditions only. It will not activate during pre-alert

or delays.

11 System Tamper This output will activate when any Tamper condition is present and will deactivate when all Tamper conditions are

cleared. These tampers include zone tampers (DEOL), 24-hr latching tamper zone type, module and keypad

tampers.

12 TLM and Alarm This output will activate when a telephone line fault condition is present AND an alarm occurs. The output will

remain active until an access code is entered to disarm any partition. The output will activate for all audible and

silent alarms (except duress) if a TLM Trouble is present. If an alarm activates this output in the disarmed state, it

will deactivate when the system is armed or the telephone line is restored.

13 Kissoff The PGM output will activate for two seconds after the panel receives the kissoff from the central station.

14 Ground Start The output will activate for two seconds before the panel attempts dialing to obtain a dial tone on ground start

telephone equipment. Two 2-second pauses must be inserted at the beginning of the telephone number when

using this option.

15 Remote Operation This output can be activated and deactivated remotely on command from DLS software.

16 LINKS 1000 Support

(PGM1 only)

This option configures the PGM1 terminal for operation with the LINKS1000 cellular alarm communicator.

17 Away Armed Status This output will activate when the system is armed with the Stay/Away zones activated.

18 Stay Armed Status The output will activate when the system is armed with the Stay/Away zones bypassed.

19 Command Output #1. This output is activated by entering the [*][7][1] command. The configuration of the corresponding attributes

determines how this PGM type will activate.

Command Outputs 1-4 are user-initiated by entering [*] [7] [1-4] at any keypad. When any output is activated,

three acknowledgment beeps are sounded.

Refer to Section [501] and [551] for more information on Attributes.

NOTE: If there are multiple outputs programmed with the same output type, the output options must

be the same.

20 Command Output #2. This output is activated by entering the [*][7][2] command. The configuration of the corresponding attributes

determines how this PGM type will activate.

NOTE: Only ONE of options [03] Sensor Reset and [20] [*] [7] [2] Command Output Option #2 may be

programmed on the same system.

21 Command Output #3. This output is activated by entering the [*][7][3] command. The configuration of the corresponding attributes

determines how this PGM type will activate.

22 Command Output #4. This output is activated by entering the [*][7][4] command. The configuration of the corresponding attributes

determines how this PGM type will activate.

23 Silent 24-hr Input (PGM2

Only).

With this input the keypad will not indicate an alarm, the bell will remain silent but the signal will be sent to the

central station. This input does not follow Swinger Shutdown. A 2.2KΩ EOL resistor is required for this input (to

Aux+). If a short or open occurs, an alarm is generated.

24 Audible 24-hr (PGM 2

only).

LCD keypads will show that the system is in alarm, and the bell will sound for the duration of BTO. The signal will

also be sent to the central station. This input does not follow Swinger Shutdown. A 2.2KΩ EOL resistor is required

for this input (to Aux+). If a short or open occurs, an alarm is generated.

25 Delay Fire and Burglar

Output.

This programmable output type operates the same as the Fire and Burglary Output (Type 01), except that it follows

the Transmission Delay Timer found in Section [370]. If a zone is violated that has the TX Delay attribute enabled

(bit 7), the bell and regular Fire and Burg PGMs will activate. At the end of the Transmission Delay, this new PGM

type will activate.

This feature is used for door sirens; if a false alarm occurs on a panel, the end user could silence it before any

external sirens are activated.

NOTE: If a zone is violated that causes an alarm that does not have Tx Delay enabled, these outputs

will activate immediately.

This output is partitionable, and will follow transmission delay by partition.

This output will activate for Audible Exit Fault

[009] - [011] PROGRAMMABLE OUTPUT OPTIONS

Option Output Description

[012] - Keypad Lockout Options

The panel can be programmed to ‘lockout’ keypads if a

series of incorrect access code entries is made. After the

Number of Invalid Codes Before Lockout has been

reached the panel will lock out the keypad for the Lock-

out Duration and log the event to the event buffer. For

the duration of the lockout the panel will sound an error

tone when any key is pressed. To program ‘Number of

Invalid Codes Before Lockout’:

Enter a number from 000 to 255 to determine the number

of invalid master, duress, user or installer access code

entries to reach keypad lockout. When keypad lockout

occurs, the system is rendered inoperative via keypad for

the programmed duration. When any keys are pressed,

an error tone will sound.

To program ‘Lockout Duration’, enter a time from 000 to

255 minutes to determine the length of time before lock-

out resets and the keypad can once again be used.

NOTE: If lockout is not reached within the hour roll-

over, the number of invalid attempts is reset to 0.

NOTE: FAP keys are still active during Keypad Lockout.

NOTE: Keypad Lockout is a Global Feature.

To disable Keypad Lockout enter the Number of Invalid

Codes Before Lockout as (000).

NOTE: If Keypad Lockout is active, the panel cannot be

armed or disarmed with a keyswitch.

[013] First System Option Codes

Option Definition On/Off Description

1 Zone Loop Type ON Normally Closed Loops. All zones are wired as normally closed circuits with returns connected to a

COM terminal. The end of line resistor is not required. An alarm will be generated when the circuit is

opened.

OFF End of Line Resistors. All zones must be wired with an end of line (EOL) resistor configuration,

determined by Option 2 in this system.

NOTE: The valid EOL value is 5600 Ohms (5.6KΩΩ).

2 End of Line Option ON Double End-of-Line Resistors. All zones will use Double-End-of-Line resistors, except Standard Fire,

Delayed Fire, Supervisory, and LINKS Answer zone types. These zones must be connected using the

EOL resistor. Double EOL resistors enable detection of zone faults and tampers. See wiring diagram.

OFF Single End-of-Line Resistors. All zones must have a 5.6KΩ resistor across them. If the zone is

shorted or open, it will be in the violated state.

3 Trouble Display ON Panel Shows all Troubles While Armed. The panel will illuminate the Trouble LED when any trou-

bles are present on the system in both the armed and disarmed state.

OFF Panel Shows Only Fire Troubles While Armed. The panel will illuminate the Trouble LED for all

troubles while disarmed, but will only illuminate the LED for Fire Troubles while armed.

NOTE: This option must be OFF if PKP-LCD keypads older than version 2.00 are used.

4 Tampers/Faults Dis-

play

ON Tampers and Faults Do Not Show as Open. The panel will not illuminate the respective zone LED

if the zone is in the Tamper or Fault states, only the Trouble LED will be on.

OFF Tampers and Faults Show as Open. The panel will illuminate the respective Zone LED if the zone is

in the Tamper or Fault states. The Trouble LED will also light.

5 Auto-arm Schedule

Programming

ON Auto-arm Schedule in [*][6]. The Auto-arm schedules (Sect [181] - [188]) are accessible via [*][6] as

well as Installer Programming.

NOTE: Refer to ’Setting Date and Time’ in the User’s Guide

OFF Auto-arm Schedule in Installer’s. Programming Only. The Auto-arm Schedules (Sect [181] -

[188]) are only accessible via Installer’s Programming.

NOTE: This toggle controls access for all eight partitions

6 Audible Exit Fault ON Audible Exit Fault is Enabled. To prevent false alarms, use the built-in feature Audible Exit Fault.

If a delay zone is violated within 4 seconds after the Exit Delay has expired, the panel will sound the

Entry Delay warning through the keypad and siren alerting the customer that an improper exit was

made. If the panel is disarmed within the Entry Delay no signal is sent. If not, the panel will continue

to sound the alarm and send a signal to the central station.

OFF Audible Exit Fault is Disabled.

NOTE: For [*][9] arming, if Audible Exit Fault is enabled a violated zone will begin entry

delay as per Audible Exit Fault functionality. If this option is disabled, a violated delay zone

at the end of the Exit Delay will cause an instant alarm.

7 Event Buffer Fol-

lows Swinger Shut-

down

ON Event Buffer Follows Swinger Shutdown. Once an event reaches its Swinger Shutdown limit pro-

grammed in Section [370], it will no longer log events to the event buffer until the Swinger Shut-

down is reset. This avoids filling the event buffer with useless events and prevents the panel from

overwriting the entire buffer if a problem exists.

OFF Event Buffer Logs Events past Swinger Shutdown.

8 Fire Signaling ON Temporal Three Fire Signal. To comply with NFPA 72, all fire bells will sound in the Temporal Three

pattern as described in the NFPA standard if this option is enabled. This cadence is as follows: (500ms

ON, 500ms OFF, 500ms ON, 500ms OFF, 500ms ON, 1.5 sec. OFF).

OFF Standard Pulsed Fire Signal. All fire bells will sound with the standard 1 second on/1 second off

fire bell cadence.

[014] - SECOND SYSTEM OPTION CODES

Option Definition On/Off Description

1 Bell Squawk ON Arm / Disarm Bell Squawk Enabled. The bell output will sound a single squawk when armed in

any manner, including Auto-arm, and a double squawk upon disarming the system. If there are

alarms in memory, the bell will emit a series of three squawk pairs to indicate the alarm memory.

NOTE: If you enable the Bell Squawk on Arming/Disarming, the bell will sound arm/disarm

bell squawks for all access codes, regardless of the programming for attribute [7] (see sec-

tion ’[*] [5] Programming Access Codes’)

OFF Arm / Disarm Bell Squawk Disabled. The bell output will not squawk when the system is armed or

disarmed in any manner.

Programming Sections: 5.3 Basic Programming PWS Sect 3

2 Bell During Auto-

arm

ON Bell Squawk During Auto-arm Enabled. The bell output will sound a single squawk every 10 sec-

onds during the Auto-arm Pre-alert time. This will inform anyone on the premises that the system is

being armed.

OFF Bell Squawk During Auto-arm Disabled. The bell output will not be activated during the Auto-

arm warning time

3 Bell Squawk On Exit ON Bell Squawk On Exit Delay. The bell output will squawk once per second during the Exit Delay

time. The bell will also sound 3 squawks per second for the final 10 seconds

NOTE: If the panel is armed using the Stay function key, or by entering [*] [9] [Access

Code], there will be no bell squawks during entry and Exit Delays, except for the arm/dis-

arm bell squawks.

OFF No Bell Squawk On Exit Delay.

NOTE: This audible option does not apply to Stay and No Entry arming modes.

4 Bell Squawk On

Entry

ON Bell Squawk On Entry Delay. The bell output will pulse with the same timing as the buzzer during

the Entry Delay time. The bell will also sound 3 squawks per second for the final 10 seconds if Option

6 in this section is enabled.

NOTE: This feature must not be used with two or more partitions.

OFF No Bell Squawk On Entry Delay

5 Bell Squawk on

Troub le

ON Bell Squawks on Trouble. When there is a Trouble condition annunciated on the system keypads,

the bell will squawk 2 times every 10 seconds (as per the keypad buzzer). The bell will be silenced

when the keypad beeps are silenced (any key pressed on keypad).

OFF No Bell Squawks on Trouble.

6 Audible Exit Beeps ON Audible Exit With Urgency. The keypad will sound a pulsing tone (once per second) during the Exit

Delay. For the last 10 seconds of the Exit Delay, the keypad and bell / siren (if enabled) will sound a

different tone (3 tones per second) to warn that the Exit Delay is about to expire.

OFF Silent Exit Delay. The keypad will not sound during the Exit Delay.

7 Exit Delay Termina-

tion

ON Exit Delay Termination Enabled. The Exit Delay will be terminated once a Delay 1 Zone for the

entry/exit door or area is restored. All audible options associated with the Exit Delay will be silenced

when the Exit Delay is terminated. Force-armable Delay 1 type zones will also terminate the Exit

Delay.

OFF Exit Delay Termination Disabled. The Exit Delay timer will continue to count even after the Delay

Zone for the entry/exit door or area is restored. All audible options associated with the Exit Delay will

function until the time programmed for the Exit Delay has elapsed.

8 Fire Bell Time-out ON Fire Bell is Continuous. The bell output will sound for all Fire type alarms until an access code is

entered to silence the alarm or disarm the system regardless of the time programmed for bell Time-

out in Section [005].

OFF Fire Bell Follows Time-out. The bell output will sound for all Fire type alarms for the duration of

Bell Time-out or until an access code is entered.

[015] - THIRD SYSTEM OPTION CODES

Option Definition On/Off Description

1 [F] Key ON [F] Key Enabled. Pressing and holding the [F] key for 2 seconds will generate a Fire alarm. The key-

pad will sound a set of 3 beeps to acknowledge the valid alarm and the bell or siren will pulse one

second on, one second off if option 8 of Section [013] is disabled (Standard Fire option). If Fire Bell

is Continuous (Section [14], Option 8) is selected the alarm output will sound until a code is

entered; otherwise it will sound until a code is entered or the alarm output times out.The Fire, Auxil-

iary, Panic keys will operate even if Keypad Blanking and Keypad Lockout are active (see Section 5.3

‘Basic Programming PWS Sect 3’ [012]).

OFF [F] Key Disabled. The [F] key will not sound or report an alarm when pressed.

2 [P] Key Annuncia-

tion

ON [P] Key Audible. When a valid [P] key alarm is generated, the keypad buzzer will sound a series of 3

beeps to acknowledge the alarm. The bell or siren will also sound for the length of Bell Time-out.

NOTE: The Fire, Auxiliary, Panic keys will operate even if Keypad Blanking and Keypad

Lockout are active (See Section 5.3 ‘Basic Programming PWS Sect 3’ [012]).

OFF [P] Key Silent. When a valid [P] key alarm is generated: the Keypad buzzer and the bell output will

remain silent; the alarm transmission will still be transmitted if programmed.

3 Quick Exit ON Quick Exit Enabled. When the system is armed, users may enter the [*][0] command to allow a sin-

gle Delay 1 or Delay 2 Zone to be activated so they may leave the premises. Only one Delay zone may

be activated. Additional activity on another Delay zone will initiate its respective alarm sequence. If

the Delay zone is still open two minutes after the [*][0] command is entered, the Entry Delay will be

initiated. If armed in the Stay mode, the automatic bypass on Stay/Away zones will not be removed.

OFF Quick Exit Disabled.

4 Quick Arming/Func-

tion Key

ON Quick Arming Enabled/Function Keys Do Not Require Code. [*][0] arming and Stay/Away func-

tion keys may be used to arm the system without the entry of a valid access code. All other function

keys may also be used without the entry of an access code.

OFF Quick Arming Disabled/Function Keys Require Code. [*][0] arming is not permitted, and all

function keys require the entry of an access code to activate (including Stay/Away keys).

NOTE: This option must be on if less than version 3.00 of the PC5132 is used.

5 Bypass Access Code ON Access Code Required to Bypass Zones. After entering the [*][1] Bypass Zones command, an

access code must be entered before zones may be bypassed.

OFF Access Code Not Required to Bypass Zones. Enter the [*][1] Bypass Zones Command to bypass

zones.

NOTE: This option is supplemental to Option 4.

6 Master Code ON Master Code Not User Changeable. The Master Code (Access Code 40) may not be changed by

the user, and may only be programmed in the Installers Programming mode.

OFF Master Code User-Changeable. The Master Code (#40) may be programmed by the user using the

[*] [5] [Master Code] command. The Master Code may also be programmed in the Installer Program-

ming mode.

7 Telephone Line

Monitor

ON Telephone Line Monitor enabled. The TLM function will be active and the system will indicate a

Trouble #3 condition when using the [*][2] View Trouble Conditions command.

OFF Telephone Line Monitor disabled. The TLM function will be shut off and telephone line troubles

will not be indicated by the system.

8 Telephone Line

Monitor Audible

Trouble

ON TLM Audible When Armed. When the system is disarmed, a Telephone Line Monitor Trouble will

generate a Trouble indication as described above. If the system is armed, a Telephone Line Monitor

Trouble will generate an audible alarm on the bell or siren for the duration programmed for Bell

Time-out or until an access code is entered to disarm.

OFF TLM Trouble Only. A Telephone Line Trouble will generate a Trouble indication, the Trouble LED will

come ON, and the keypad sounder will beep until a key is pressed.

[016] - FOURTH SYSTEM OPTION CODES

Option Definition On/Off Description

1 AC Trouble Display ON AC Trouble Displayed. If AC power fails, the condition will be reported to the monitoring station

and will be indicated as a Trouble condition on the system keypads.

OFF AC Trouble Not Displayed. If AC power fails, the condition will be reported, but the Trouble light

will not be indicated on the system keypads. If [*][2] is entered to view the system troubles, Trouble

#2 will still be displayed.

2 AC Trouble Flash ON Trouble Light Flashes if AC Fails. When AC power is lost from the system, the Trouble light will

flash in the base Ready and Armed mode within 30 seconds after power is lost. When AC restores,

the Trouble light will stop flashing within 30 seconds. If enabled, this option will override the AC dis-

play option.

OFF Trouble Light Does Not Flash on AC Fail.

Option Definition On/Off Description

3 Keypad Blanking ON Blank Keypad When Not Used. If no keys are pressed for 30 seconds, all keypad lights except

backlighting (if enabled) will be shut OFF until the next keypress, Entry Delay, Audible Alarm or Key-

pad Buzzer condition.

NOTE: Keypad function keys will still operate when the keypad is blank, unless the func-

tion key is programmed to require an access code.

OFF Keypad Always Active. The keypad lights will remain ON at all times.

4 Keypad Blanking

Restore

ON Access Code Required to remove Keypad Blanking. A valid access code must be entered before

a blanked Keypad can be used

OFF Access Code Not Required. Pressing any key on a blanked keypad will remove the blanking.

5 Keypad Backlight-

ing

ON Keypad Backlighting is Enabled. All keypads on the system will have backlighting on all of the

time.

OFF Keypad Backlighting is Disabled.

6 Power Save Mode ON Power Save Mode Enabled. If AC power fails, all keypad lights including backlighting will be shut

OFF. The keypad lights will come back ON after a keypress, Entry Delay, Audible Alarm or Keypad

Buzzer condition (except Door Chime). The keypad lights will return to the off state after 30 seconds

of keypad inactivity.

OFF Power Save Mode Disabled.

7 Bypass Status

Display

ON Bypass Status Displayed While Armed. The Bypass status light will be ON if there are zones

bypassed when the system is armed.

OFF Bypass Status Not Displayed While Armed. The Bypass light will be ON only while the system is

disarmed to indicate that there are bypassed zones on the system. When the system is armed, the

Bypass light will be OFF.

NOTE: The Bypass status LED will be ON if there are Stay/Away zones auto-bypassed at the

time of arming regardless of whether or not this option is enabled. This option only

enables and disables manual bypass display.

8 Keypad Tampers ON Keypad Tampers are Enabled. All keypads containing Tamper switches will generate Tamper

Alarms and Restorals (Sect 338). NOTE: Not used in North America; ensure that it is disabled.

OFF Keypad Tampers are Disabled.

NOTE: If this option is used, all keypads should be properly installed and secured (Tamper

restored) before enabling the option.

[017] - FIFTH SYSTEM OPTION CODES

Option Definition On/Off Description

1 Wireless Key

Disarming

ON WLS Keys Do Not Use Access Codes. The panel will accept the disarm keycode from an unidenti-

fied wireless key, allowing arming/disarming without a code.

NOTE: Wireless keys can only be assigned access codes when used with PC5132 (refer to

the PC5132 Installation Manual for information on programming wireless keys.)

NOTE: This option must be enabled when using a PC5132 v2.1 or earlier.

OFF NOTE: WLS Keys Uses Access Codes. The panel will NOT accept the disarm keycode from an uniden-

tified wireless key. An Access code must be associated with a WLS key for proper operation (refer to the

PC5132 manual for information on programming wireless keys).

NOTE: This option must be ON when using a PC5132 older than v3.00.

2 RF Jam Event Log

Options

ON RF Jam Log After 5 Minutes. The RF Jam Trouble will not log to the event buffer until the 5- minute

delay has elapsed.

OFF RF Jam Log After 30 Seconds. The RF Jam Trouble will log to the event buffer after the initial 30

second delay has elapsed.

Programming Sections: 5.3 Basic Programming PWS Sect 3

Option Definition On/Off Description

3 Audible RF Jam

Trouble Beeps

ON Audible RF Jam Trouble Beeps

OFF An RF Jam will not sound Trouble Beeps

4 Double Hit ON Double Hit Enabled. Two alarms from the same zone within the Cross Zone Timer Duration will

cause the Police Code or Cross Zone to be logged and transmitted.

OFF Double Hit Disabled. Two alarms from the same zone will not cause the Police Code or Cross Zone

to be logged and transmitted. Two different zones must be in alarm to transmit the Police Code or

verify the Cross Zone.

NOTE: This feature only applies to zones defined as Interior, Interior Delay, Interior Stay/

Away, or Delay Stay/Away (PIR Zones).

• This is a flexible extension of the existing Police Code.

• This feature is directly affected by the Cross Zone Timer.

5 Late To Close ON Late to Close Enabled. The panel will communicate and log a Late to Close event at the time pro-

grammed for Auto-arm for each partition. This system toggle controls if the Late to Close reporting

code is sent at the end of the Auto-arm/Postpone Pre-alert. Use this feature for installations that

require an audible warning if the panel is not armed by a certain time of day, if you do not wish to

have it arm. Anyone who hears this warning should manually arm, or contact the central station to

let them know why the panel has not been armed by the programmed time.

OFF Late to Close Disabled. The panel will neither communicate nor log a Late to Close event at the

time programmed for Auto-arm for each partition.

NOTE: If the Auto-arm toggle option is disabled, the Auto-arm Pre-alert will still occur if there is a

time programmed for that day if this option is enabled. This option does not directly affect the func-

tionality of Auto-arm. If Late to Close is enabled and Auto-arming is not, LCD Keypads will still dis-

play ‘System Arming in Progress’ during the Late to Close Pre-alert.

6 Daylight Savings

Time

ON Daylight Savings Time Enabled. At 2 a.m. on the first Sunday in April, the panel clock will be set

forward one hour to 3 a.m. At 2 a.m. on the last Sunday in October, the panel clock will be set back

one hour to 1 a.m. Events programmed to occur between 2:00 and 3:00 a.m. will not occur on the

first Sunday in April. Events programmed to occur between 1:00 and 2:00 a.m. will occur twice on

the last Sunday in October.

OFF Daylight Savings Time Disabled. The panel will make no automatic time adjustments for Daylight

Savings Time.

NOTE: Auto-arm and test transmissions should not be attempted between 0200 and 0300 hours, as

they will be missed on the first Sunday in April. Events programmed to occur between 0100 and

0200 will occur twice on the last Sunday in October.

7 Periodic Camera

Test

ON Periodic Camera Test Enabled. The panel will test all active cameras on the PC5108L every 30

minutes.

OFF Periodic Camera Test Disabled. If this option is OFF, the panel will only test all active cameras on

the PC5108L upon exiting Installer Programming, or during System Test

NOTE: The active camera monitor is selected using function key Option 22. Refer to the

PC5108L Installation Manual for function key use.

8 Bell Squawk on

Away Key Arming

ON Squawk on Away Key Arming/Disarming Only. Bell Squawks will only be heard on Away arm-

ing, as well as upon disarming after being armed in the Away mode with the Away key.

NOTE: This option controls when Bell Squawks are annunciated. This feature is to prevent

the bell from being activated when arming from inside the premises.

OFF Bell Squawk on all Arming/Disarming. Bell Squawks will be heard on all types of arming and dis-

arming.

NOTE: This option follows the Bell Squawk on Arming/Disarming and Bell Squawk Attribute fea-

tures. This option is off at default.

[018] - SIXTH SYSTEM OPTION CODES

Option Definition On/Off Description

1 Periodic Test Trans-

mission Exception

ON Periodic Test Transmission Exception Enabled. With this feature enabled, the panel will not send

a test transmission if there has been a transmission sent to the receiver within the programmed time.

Test Transmission Exception allows any communicable event to reset the test transmission cycle,

reducing the number of communications events sent to the central station, For example:

02/10 - Opening

02/11 - Closing1 Days

02/14 - Test Transmission3 Days < 7 Days

02/16 - Opening2 Days between

02/18 - Closing2 Days Test

02/21 - Test Transmission3 Days < Transmissions

If an event is communicated, the Test Tx counter is reset, ensuring that a Test Tx event will not occur

for an entire cycle from that point, instead of from the last test transmission sent. An example is

given below with test transmission set for every 3 days. This ensures that a transmission is sent every

3 days to test communications; however, if an event has already been sent in the last 3 days, a test

transmission is not required. If the event was sent via land line, the land line Test Tx cycle is reset. If

the event is sent via LINKS1000, the LINKS Test Tx cycle is reset.

NOTE: In order for an event to reset the Test Tx cycle, a kissoff must be received from the

receiver.

NOTE: The test transmission cycle will not be reset when events are transmitted using the

Pager (05) or Residential Dial (06) formats.

OFF Periodic Test Transmission Exception Disabled. The panel will always send a test transmission at

the programmed interval and time. This option is OFF at default.

Option Definition On/Off Description

2 Verbal Door Chime ON Verbal Door Chime Is Enabled. The system will verbally annunciate the zone (or programmed

label) when it is violated if Door Chime is programmed.

This feature is available when Escort5580(TC) v3.00, and the PC5936 v1.00 are used. This feature

enables the Door Chime to verbally annunciate the zone that has been violated instead of a series of

beeps, If the Verbal Chime feature is enabled, whenever a zone with the Chime attribute enabled is

violated, a series of beeps will sound and the system will verbally prompt ’Zone X’. When the zone is

restored, the system will sound a series of beeps. For example, if a label is programmed for the above

Zone, the system will verbally annunciate (after the beeps) ’South Bedroom Window’. See associ-

ated Installation Manuals

NOTE: Only beeps are annunciated on a zone restoral.

OFF Verbal Door Chime is Disabled. The system will only annunciate a series of beeps whenever a zone

programmed for Chime is either violated or restored. This option is defaulted OFF.

3 Verbal Alarm ON Verbal Alarm Is Enabled. The system will verbally annunciate audible zone alarms via their zone

number (or programmed label) in conjunction with the bell outputs.

This feature is available when the Escort5580(TC) v3.00 and PC5936 v1.00) are used. This feature

enables verbal annunciation of alarm conditions on the system. When an audible non-fire zone goes

into alarm with this feature enabled, the PC5020 will sound the alarm condition via the bell outputs,

but every 15 seconds (as programmed in the Alarm Tone Period – Section [178]) it will silence the bell

outputs and the PC5936 speakers will verbally annunciate the alarm condition ’Alarm Zone 4’ or, if

the label is programmed, ’Alarm South Bedroom Window’.

When the zone is in alarm, the software automatically inserts the word ’Alarm’ in front of the appro-

priate zone label.

When an audible fire zone goes into alarm, the system automatically inserts the words ’Fire’ and

’Alarm’ in front of the appropriate zone label (’Fire Alarm Zone 4’ or ’Fire Alarm South Bedroom

Smoke’).

If there are multiple alarms, the system will annunciate the first and last zones that have gone into

alarm.

NOTE: Fire annunciation always overrides any Burglary Zone alarm annunciation. Verbal

Alarm will cease with the siren at Bell Time-out.

OFF Verbal Alarm is Disabled. The system will only annunciate via the bell outputs during an audible

alarm condition. This option is defaulted OFF.

4 Waterflow Silence

Inhibit

ON Waterflow Silence Enabled. An Instant or Delayed 24-hr waterflow alarm can not be silenced by

any means (including Bell Time-out) until all waterflow zones on the system are restored.

OFF Waterflow Silence Disabled. Alarms can be silenced whether a waterflow zone is open on the sys-

tem or not. This Option is OFF at default.

5 Keypad Buzzer

Alarm

ON Keypad Buzzer Follows Bell Enabled. The keypad buzzers will follow the selected partition’s bell

activity.

OFF Keypad Buzzer Follows Bell Disabled. The keypad buzzer will not follow all bell activity. Only

alarms designated to activate the keypad buzzer will do so. This option is OFF at default.

6 Cross Zoning /

Police Zone Select

ON Cross Zoning is Enabled. The panel will use the Cross Zone attribute for Burglary verification.

This feature requires two or more trips on a zone(s) designated as ’cross zones’ within a specified

time before starting an alarm sequence. See Section [101],Option 9, Pg 33.

When a zone with the Cross Zone attribute enabled is violated, nothing occurs on the local premises

(except Entry Delay or System Event PGM output activation, if applicable) and the Cross Zone Timer

commences. If another zone with the Cross Zone attribute enabled is violated before the timer

expires, the panel will transmit the first alarm signal, a Cross Zone event, followed by the second

zone alarm, and begins the appropriate local alarm sequence. If no other zones are violated before

the timer expires, no alarm sequence occurs and an Alarm Not Verified event is logged. If the Double

Hit feature is enabled (Section [017], Option 4), the panel will react on two violations of the same

zone during the Cross Zone Timer (Section [176]) for starting an alarm sequence.

This option is dependent on the programming of the Burglary Verification Options (Section [018],

Option 6). It is not enabled if Police Code is enabled.

This option will not function on zones that do not log alarm events (e.g., while disarmed, Day Zone,

Instant zone, etc.).

NOTE: The Cross Zone/Police Code Timer is in seconds for Cross Zoning and in minutes for

Police Code. No fire zones types should use the Cross Zone Attribute.

OFF Police Code is Enabled. The panel will use the Police Code feature for Burglary Verification. This

option is OFF at default.

NOTE: Each zone has the ability to individually protect the intended area.

7 Exit Delay Restart ON One Time Exit Delay Restart on Delay zone re-entry Enabled. If a Delay zone is violated and

restored during the Exit Delay, it is considered an exit. If a delay zone is violated again it is considered

a re-entry. With this option enabled the panel will restart the Exit Delay. Further violations and

restores of delay zones will not restart the Exit Delay. NOTE: Option is ON by default.

OFF One Time Exit Delay Restart on Delay Zone Re-entry Disabled. Delay zone violations and

restores will not restart the Exit Delay.

NOTE: The Exit Delay can only be restarted once. This includes restarts from Away function

keys.

8 AC Trouble Beeps ON AC Trouble Beeps Enabled. When an AC Trouble occurs on the panel, all keypads will sound an

audible Trouble indication (2 beeps every 10 seconds)

OFF AC Trouble Beeps Disabled. AC Troubles will remain silent. This option is OFF at default.

Programming Sections: 5.4 Advanced Programming PWS Sect 4

[020] - Keypad Zone Assignment

Assigning Keypad Zones

Each keypad has a zone input to which a device (e.g., a

door contact) can be connected (see section 2.11 ‘Keypad

Zones‘ for wiring information.)

Once the keypad zones are installed, enter the 2-digit

zone designated for each keypad (slot), from 01-64.

NOTE: 24-hr Supervisory (LINKS) and LINKS Answer

Zones cannot be used on keypad zones.

Fire zones can not be used on keypad zones if DEOL is

enabled.

[030] - Fast Loop Response

An eight bit toggle option controls which main board

zones have Fast Loop (36 ms) or Normal Loop Response

(540 ms). Fast Loop Response is typically used for vibra-

tion sensors.

5.4 Advanced Programming PWS Sect 4

[101]-[164] Zone Attributes

The two sets of attributes (1-8 and 9-16) can be toggled by

pressing ‘9’ within any zone’s attribute section. If the

Ready LED is on, the keypad is indicating Zone

Attributes 1-8; if the Ready and Armed LED’s are on, the

keypad is indicating Zone Attributes 9-16. The following

options can be enabled or disabled by zone.

NOTE: DO NOT change Fire zones attributes from the default settings.

[165] - Maximum Dialing Attempts To Each Phone

Number

This value represents the number of attempts that will be

made to each telephone number when communicating.

The default value is 007 attempts. Valid entries are 001-

015.

NOTE: The PC5020 will not allow more than 15 dialing

attempts to a single phone number. If a value higher

than 15 is programmed in Section [165], the panel will

still only make15 attempts.

[166] - Post-Dial Wait For Handshake

This value represents the time the communicator waits

for a valid initial handshake from the receiver after dial-

ing the programmed telephone number. The default

value is 040 seconds.

[170]-[178] Timers

[170] - PGM Output Timer

This value represents the period of time (in seconds) that a

PGM will activate if programmed to follow the PGM

Timer.

The default value is 005 seconds. Valid entries are 001-255.

NOTE: This option does not affect outputs pro-

grammed as Sensor Reset (Type 03).

NOTE: If a System Event PGM is programmed to follow

the Command Output Timer, all attributes must be

enabled.

[175] - Auto-arm Postpone Timer

This feature controls the sequence of events after a valid

access code is entered during the Auto-arm Pre-alert. If

the Auto-arm Postpone Timer is programmed as 000, the

Auto-arm will be cancelled. If a value between 001 and

255 is programmed, then the Auto-arm will be postponed

for the corresponding number of minutes and the panel

will resume normal operation. The panel will also log the

appropriate user log for the access code which postponed

the arming. When the postpone time expires, the panel

Auto-arm Pre-alert will be re-initiated (unless the parti-

tion is armed). The Auto-arm can be postponed multiple

times. If the Auto-arm is postponed, arming or disarming

the panel will not affect the postpone sequence.

[176] - Cross Zone/Police Code Timer

This option affects the Cross Zone Police Code log and

transmission as well as the Cross Zone feature.

[101]-[164] ZONE ATTRIBUTES

Option Attribute On/Off Description

1BellONAn alarm will cause the bell output to activate.

OFF Silent Alarm

2 Bell Type ON The bell output will be steady when the zone is in alarm.

OFF The bell output will pulse when the zone is in alarm.

3ChimeONEvery keypad will chime when the zone is violated and when the zone is secured. Door Chime

will work in both the armed and disarmed states.

OFF The zone will not chime the keypads.

4 Bypass ON The zone can be manually bypassed.

OFF The zone cannot be bypassed.

5 Force Arming ON The system (partition) can be armed with the zone violated. The zone will be temporarily

bypassed, and when the zone is secured it will be added back into the system.

OFF The system cannot be armed if this zone is open.

6 Swinger Shutdown ON The zone will shut down after a programmed number of alarms, inhibiting further transmissions

to the monitoring station. The bell can follow swinger shutdown if programmed.

OFF Swinger Shutdown Disabled

7 Transmission Delay ON The reporting of zone alarms will be delayed for the programmed time. If a valid access code is

entered within this time, no alarm signal will be communicated.

OFF When an alarm occurs, the reporting code is transmitted immediately.

NOTE: Transmission Delay cannot be used on fire zones.

8 Wireless ON Zone is Wireless. The zone will ignore the main board zone (if applicable) and respond to the

corresponding zone enrolled on the PC5132.

OFF Zone is Hardwired. The zone uses the corresponding hardwired zone.

9 Cross Zone ON Zone is a Cross Zone. Zone is enabled for Cross Zoning.

OFF Zone is not a Cross Zone. Zone is not enabled for Cross Zoning. The default state for the Cross

Zone attribute is OFF for all zone types.

NOTE: DO NOT change Fire Zones attributes from the default settings.

When a zone trip occurs, the Cross Zone Timer starts.

This timer affects the panel in two different ways

depending on the programming of the Burglary Verifica-

tion Options (Section [018], Option 6):

• If the Police Code feature is being used, the first zone

alarm will immediately transmit. If a second zone

alarm occurs in the time period (minutes) pro-

grammed in this section, the panel will log and trans-

mit the Police Code event. If the second zone alarm

occurs after this timer expires, the Police Code will not

be logged or transmitted, and the timer will restart.

• If the new Cross Zone attribute is used, the first zone

alarm will not log or transmit. If a second zone is vio-

lated within the Cross Zone Timer’s duration (sec-

onds), the panel will go into the appropriate alarm

sequence and will communicate both zone alarms. No

Police Code is sent.

NOTE: If 000 is programmed in this section, either: the

Police Code will transmit for any two different zone

alarms during an armed-to-armed period or the new

Cross Zoning feature will not work. This is not a valid

entry for Cross Zoning.

NOTE: Option[9], Section [101]-[164] must be enabled

for the Cross Zoning feature to function. Each zone

has the ability to individually protect the intended

area. Cross Zoning is NOT recommended for line secu-

rity installations or on exit/entry zones.

[177] - Waterflow Delay Timer

This option affects the Delayed 24-hr waterflow zone

type. The value programmed in this section is the time

for which the zone has to be violated before going into

alarm. Valid entries are from 000 to 090 seconds, with a

default of 000.

NOTE: The total delay time (combination of control

unit plus waterflow device) for a waterflow zone

alarm is not to exceed 120 seconds.

[178] - Alarm Tone Period for Verbal Alarm

This is the period of time that the system will sound the

bell outputs before silencing them and verbally annunci-

ating the alarms through the PC5936/Escort5580(TC).

Valid entries for this section are 001-255, and the default

value is 15 seconds.

[181]-[188] - Auto-arm Schedules

Sections [181] through [188] allow the installer to program

seven independent times of the day when the selected par-

tition will arm when Auto-arm is enabled. The 7 entries

represent the days of the week as indicated below:

NOTE: Valid entries are 0000-2359 hrs; 9999 to dis-

able.

X = partition to which the section belongs (i.e. Section

[182] = partition two schedule). In addition to these

schedules, partitions can be enabled or disabled in [*][6]

programming. This is controlled by Option 2 in Section

[017].

[190] - No Activity Arming Pre-Alert Duration

This is the duration for which the No Activity Arming

Pre-alert will sound when the No Activity Timer for the

partition expires (see Section [191]-[198]). If programmed

as 000, the partition will arm as soon as its No Activity

Timer expires. This feature enables the system (or parti-

tion) to arm if there is no zone activity for a programmed

time period. If the No Activity Arm option for a partition

is programmed with a number other than 000, the parti-

tion will Auto-arm if no activity is detected for the pro-

grammed number of minutes.

[191]-[198] - No-Activity Timer (Partition 1-8)

The timer will begin when a delay type zone assigned to

the partition is restored. The timer is stopped if any zone

assigned to the partition is tripped or restored. The timer

will restart when a delay type zone is again restored.

When the timer expires, the panel will sound the buzzers

of all keypads assigned to the partition for the time pro-

grammed in Section [190]. If any key is pressed or zone is

violated/restored on that partition, the Auto-arm Pre-

alert will be aborted. For zone types 04, 05, 06, and 25,

restorals will not affect No Activity Arming. A partition

begins it’s Auto-arm sequence when its No-Activity

Timer expires. If 000 is programmed in a section, No-

Activity Arming for that partition is disabled. Valid

entries are 000 - 255 minutes, with a default of 001.

The system will not arm if it is in OFF normal state.

[199] - Auto-arming Pre-Alert Time

This section allows programming of the standard Auto-

arm Pre-alert duration. If Auto-arm is postponed this

timer will re-start after the Auto-arm Postpone Timer

expires. Valid entries are from 001 - 255 minutes, the

default is 005.

NOTE: There is no differentiation between the No

Activity Pre-alert and the Standard Auto-arm Pre-alert

at a keypad. No Activity Arming and Auto-arm will log

and transmit as a Special Closing.

5.5 Partition & Zone Programming

[201] Partition Selection Mask

This section allows the programming of which partitions

will be active on the system.

[202]-[265] - Partition Zone Assignments

Partitions and Zone Assignment

A partition is a limited area of the premises which will

operate independently of another area of the premises.

You can create up to eight partitions on the PC5020 sys-

tem.

To set up the system for more than one partition, you

must turn on each partition in section [201].

You can assign any zone to any of the partitions. Global

Zones are zones assigned to more than one partition. A

global zone will only be armed when all assigned parti-

tions are armed. The zone will be disarmed when any

assigned partition is disarmed.

By default, zones 1 through 8 are assigned to partition 1.

If additional zones are being used, or if the application

requires more than one partition, you must program

which zones are assigned to which partitions. You can do

this in programming sections [202] - [265].

NOTE: You can assign any Access Code to work on any

of the partitions (see section ’[*] [5] Programming

Access Codes’).

You can assign keypads to work on either a single parti-

tion, or on all partitions (Global operation). See Section 2

‘Keypad Assignment’.

Each partition can be programmed to report using a differ-

ent account number.

Some of the Programmable Output options are also select-

able by partition see Section 5 ‘Programmable Outputs’.

[18X] Partition X Auto-arm Times

Day Default

Sunday 9999 I___I___I___I___I

Monday 9999 I___I___I___I___I

Tuesday 9999 I___I___I___I___I

Wednesday 9999 I___I___I___I___I

Thursday 9999 I___I___I___I___I

Friday 9999 I___I___I___I___II

Saturday 9999 I___I___I___I___I

Programming Sections: 5.6 Communicator Programming PWS Sect6

Partition 1-8 Enabled/Disabled Section [201]

Partition 1 Zone Assignments Sections [202] to [209]

Partition 2 Zone Assignments Sections [210] to [217]

Partition 3 Zone Assignments Sections [218] to [225]

Partition 4 Zone Assignments Sections [226] to [233]

Partition 5 Zone Assignments Sections [234] to [241]

Partition 6 Zone Assignments Sections [242] to [249]

Partition 7 Zone Assignments Sections [250] to [257]

Partition 8 Zone Assignments Sections [258] to [265]

These 8-bit toggle sections determine which partitions

each individual zone is assigned to. If a zone is enabled

on any partition, it will be supervised via the panel’s EOL

supervision, and will operate according to the zone type

programmed. If a zone is not assigned to any partition, it

will not be supervised and all activity on the zone will be

ignored by the panel.

5.6 Communicator Programming PWS Sect6

[301]-[304] Communicator - Telephone Numbers

The panel can call 3 different telephone numbers for com-

munication to a central station. The 1stTelephone Num-

ber is the primary number, the 2nd Telephone Number is

the secondary number and the 3rd Telephone Number

will back up the 1st telephone number if enabled.

NOTE: The 3rd Telephone Number will NOT back up

the 2nd Telephone Number.

If Alternate Dial is enabled the panel will alternate

between the 1st and 3rd telephone numbers when

attempting to call the central station. If disabled the panel

will only attempt to call the 3rd telephone number after

failing to communicate on the 1st telephone number.

NOTE: For Alternate Dial to work properly the 3rd

telephone Number must be both enabled and pro-

grammed.

Telephone numbers can be up to 32 digits which will

allow you to add special digits if required. To program

the telephone number enter numbers 0 through 9 as

required.

To communicate events over a LAN or WAN network

using the T-Link module, program the desired phone

number with DCAA. This allows the panel to send events

to the T-Link module in the SIA format via the PC-Link

connection.

NOTE: This feature has not been investigated by UL.

Pressing [#] in these sections from an LED keypad will

exit and delete the rest of the phone number. Pressing [#]

in these sections from an LCD keypad will exit and save

the entire phone number up to the first Hex F.

The following is a list of Hex digits which can also be pro-

grammed and the functions they perform:

Hex (A) -not used

Hex (B) -simulates the [*] key on a tone telephone

Hex (C) -simulates the [#] key on a tone telephone

Hex (D) -forces the panel to search for dial tone

Hex (E) -forces the panel to pause for 2 seconds

Hex (F) -end of telephone number marker

3rd Telephone Number Enable . . . . . . . . . Section [380], Option [5]

Alternate Dial. . . . . . . . . . . . . . . . . . . . . . Section [380], Option [6]

Downloading Options . . . . . . . . . . . . . . . . . . . . . (Section 7: PWS)

[301] - First Telephone Number

[302] - Second Telephone Number

[303] - Third Telephone Number

NOTE: There is a static delay of 2 seconds before any

additional dial tone search in a phone number.

NOTE: The panel will not attempt to communicate, if

no phone number is programmed. This applies to

phone numbers 1, 2 and 3.

[304] - Call Waiting Cancel Dialing String

This is a 6-digit Hex entry that is used to disable Call

Waiting on a Call Waiting-equipped phone line. This is

typically *70 in most areas. Dialing this string before a

phone number will disable Call Waiting for the duration

of the call. If this section is programmed (not FF), and Sec-

tion 382, Option 4 is ON, the panel will dial this string in

place of the first digit of the phone number (Sections

[301]-[303]). This only applies to the first attempt that is

made to each phone number.

NOTE: If not all 6 digits are required they should be

filled with Hex F.

All 6 digits of this section need to be programmed in

order for any changes to be accepted.

Communicator - Account Codes

The System Account Code will be used by the panel

when communicating System events (e.g. Low Battery,

Test Transmission). This account code can be up to six

digits in length for the SIA Communications format. Only

the SIA reporting format supports six-digit account

codes. All other formats will use the first four digits of the

account code.

NOTE: If the communicator is programmed for the SIA

reporting format, the system will use this account code

for all partitions.

There are eight Partition Identifier Codes (or account

codes) programmable, one for each partition. The account

code is used by central station to determine which panel

is calling.

If you have programmed the system for more than one

partition, you must program an account code for each

active partition. The panel will report to the central sta-

tion by partition. For example, if an alarm occurs on a

zone assigned to partition 1 the panel will report using

partition 1 account code.

[310] - System Account Code

This is the account code used by the panel when commu-

nicating System events (e.g., Low Battery, Test Transmis-

sion, etc.).

This account code can be up to six digits in length for the

SIA Communications format.

Only SIA supports 6-digit account codes. If the last two

digits of the account code are FF, the panel will only use

the first four digits. All other formats will use the first

four digits of the account code.

The call directions that use this account code are System

Maintenance (Troubles, Zone Faults, etc.) and System Test

Transmissions.

NOTE: SIA will use this account code for all partitions

and system events. System events will be identified by

Nri0, with partitions 1-8 using Nri1-8.

[311]-[317] - Partition 1-8 Account Codes

These account codes are used by the panel when commu-

nicating events for partitions 1-8 when using formats

other than SIA.

NOTE: All partition account codes are 4 digits in

length. Valid entries are 0000-FFFE.

[320] - [349] Reporting Codes

Communicator - Reporting Codes

Unless you are using Automatic Contact ID or Automatic

SIA formats, reporting codes must be programmed in

order for the panel to report events to the central station.

Reporting codes are two digits and can use hexadecimal

digits A through F. To disable a reporting code, program

it as FF (default setting) or 00. For a complete description

of reporting codes which can be programmed and lists of

Automatic Contact ID and SIA format codes, see section

Appendix A: ‘Reporting Codes‘.

[320]-[323] - Alarm Reporting Codes, Zones 1-64

The panel will transmit the Zone Alarm reporting code

for a zone when the zone goes into alarm. 24-hr type

zones will go into alarm whether the panel is armed or

disarmed and report to the central station. All other zone

types will only go into alarm if the panel is armed.

Reporting codes can be one or two digits and can use Hex

digits (A through F). The following is a description of the

different reporting codes that can be programmed and

when the events will be reported to the central station.

[324]-[327] - Alarm Restoral Reporting Codes,

Zones 1-64

If the Restoral on Bell Time-out option is selected the

panel will send the Zone Restoral Reporting Code for the

zone when the alarm output times out AND the zone is

secure. If the zone is not secured when the alarm output

times out the panel will send the restoral immediately

after the zone is secured.

If the Restoral on Bell Time-out option is not selected the

panel will immediately send the Zone Restoral reporting

code when the zone is secured or when the panel is dis-

armed, regardless if the alarm output is active or not.

NOTE: 24-hr type zones will report the restoral immedi-

ately after the zone is secured.

[328] - Miscellaneous Alarm Reporting Codes

Duress Alarm: this reporting code will be transmitted to

the monitoring station whenever a Duress code is used to

perform any function on the system.

Opening After Alarm: this reporting code will be trans-

mitted to the monitoring station on opening if an alarm

has occurred during the previous armed period.

Recent Closing: a Recent Closing transmission will be sent

if an alarm occurs within 2 minutes of an exit time expira-

tion. The Recent Closing report will be sent for the first

alarm only.

Zone Expander Supervisory Alarm: this reporting code is

sent when the system loses communications with any

zone expander module (PC5108, PC5132, or keypad with

on-board zone).

Zone Expander Supervisory Restoral: this reporting code

is sent when the system regains communications with all

zone expander modules (PC5108, PC5132, or keypad with

on-board zone) that have been enrolled on the system.

Cross Zone / Police Code Alarm: When using Cross Zon-

ing (Section 018, Option 6 ON), this reporting code will be

sent when two Crossed Zones go into alarm during the

cross zone period.

When using Police Code (Section 018, Option 6 OFF), this

reporting code will be sent when any two zones go into

alarm.

If the Double Hit option has been enabled, this reporting

code will be sent when two zone alarms occur on the

same zone and the Burglary Verified timer has not

expired.

NOTE: Only one reporting code will be sent during

each armed to armed period when using Police Code.

Burglary Not Verified: this reporting code will be sent

after the Burglary Verified Timer expires after a zone

alarm occurs.

Alarm Canceled: this reporting code will be sent if a valid

access code is entered during the Alarm Cancel window.

If a valid access code is entered during this window, then

the Alarm Canceled event is logged and sent. When the

central station has acknowledged this reporting code/

event, a keypad ring-back will occur.

[329] - Priority Alarm and Restoral Reporting

Codes

[F], [A], [P] Alarm: this reporting code will be sent if the

[F] [A] or [P] key is used to generate manual alarms.

Auxiliary Input Alarm: this reporting code will be sent

when PGM2 is being used for 2-wire smoke detectors and

the 2-wire smoke detector goes into alarm.

[F], [A], [P] Restoral: this reporting code will be sent after

the [F] [A] [P] alarm reporting code is sent.

Auxiliary Input Restoral: the panel will transmit this

reporting code when the 2-wire smoke detector has

restored after an alarm.

[330]-[333] - Tamper Reporting Codes, Zones 1-64

If the panel is programmed for Double EOL zones (see

Section 2.10 "Zone Wiring") the panel will report a Zone

Tamper Alarm reporting code if an open condition is

present on a zone. A different reporting code can be pro-

grammed for each zone for identification.

[334]-[337] - Tamper Reporting Codes, Zones 1-64

The Zone Tamper Restoral reporting code will be trans-

mitted immediately when the Tamper condition is

restored.

[338] - Miscellaneous Tamper Reporting Codes

General System Tamper: a General System Tamper

Reporting code will be transmitted when the tamper zone

on any module is violated.

General System Tamper Restoral: the General System

Tamper Restoral reporting code will be transmitted when

the tamper zone on the module is restored.

Keypad Lockout: the panel will transmit the Keypad

Lockout reporting code if the lockout is activated.

[339]-[340] - Closing (Arming) Reporting Codes,

Zones 1-32

The panel will transmit a Closing reporting code to indi-

cate a partition(s) is armed. A different reporting code can

be transmitted for each User Code, Partition Master Code

and System Master Code to identify who armed the parti-

tion(s).

[341] - Miscellaneous Closing (Arming) Reporting

Codes

Closing by Duress Code 33/34: a Closing by Duress code

Reporting code will be transmitted in addition to the

Duress reporting code if a partition(s) is armed using a

Duress Code.

Closing by Master or Supervisory Code: the panel will

transmit a Closing reporting code to indicate a parti-

tion(s) is armed. A different reporting code can be trans-

mitted for each User Code, Supervisory Code and System

Master Code to identify who armed the partition(s).

Partial Closing: a Partial Closing reporting code will be

transmitted if a partition is armed with zones manually

bypassed. The code will also be transmitted if a partition

Auto-arms with zone(s) in violation.

Programming Sections: 5.6 Communicator Programming PWS Sect6

Special Closing: a Special Closing reporting code will be

transmitted if the partition(s) is armed using any of the

following methods:

• Quick Arm

• Auto-arm

• Arming via the DLS Software

• Arming via Keyswitch

• Away Function Key Arming

• Arming with the Maintenance Code.

• Stay Function Key arming

Late to Close: a Late to Close reporting code will be trans-

mitted if a partition isn't armed before the auto-arm start

time when the late to close option, (Section 017, option 5)

is enabled.

[342]-[343] - Opening (Disarming) Reporting

Codes Access Codes 1-32

The panel will transmit an Opening reporting code to indi-

cate partition(s) is disarmed. A different reporting code

can be transmitted for each user code, partition master

code and system master code to identify who armed the

partition(s).

[344] - Miscellaneous Opening (Disarming)

Reporting Codes

Opening by Duress Code 33/34: This reporting code will be

transmitted in addition to the duress reporting code if a

partition(s) is disarmed using a Duress Code

Opening by Master or Supervisory Code: The panel will

transmit this reporting code to indicate a partition(s) is

armed. A different reporting code can be transmitted for

each User Code, Supervisory Code and System Master

Code to identify who armed the partition(s).

Auto Arm Cancellation: This reporting code is transmitted

when the Auto Arming sequence is canceled or Postponed

Special Opening: A Special Opening reporting code will

be transmitted if the partition(s) is disarmed using any of

the following methods:

• Disarming using the Maintenance Code

• Disarming via the DLS Software

• Disarming via keyswitch

[345] - Maintenance Alarm Reporting Codes

Battery Trouble Alarm: the panel will transmit a Battery

Trouble Alarm reporting code when the backup battery

drops below 11.5 VDC.

AC Failure Trouble Alarm: the panel will transmit an AC

Failure Trouble Alarm reporting code when the AC to

the panel is lost and the AC Failure Communication

Delay timer expires.

Bell Circuit Trouble Alarm: a Bell Circuit Trouble Alarm

reporting code will be transmitted immediately if an open

condition is measured on the Bell Output of the main

panel.

Fire Trouble Alarm: a Fire Trouble Alarm reporting code

will be transmitted immediately when an open condition

is measured on any fire zone.

Auxiliary Power Supply Trouble Alarm: the Auxiliary

Power Supply Trouble Alarm reporting code will be

transmitted if the AUX output is shorted.

TLM Trouble: a TLM Trouble reporting code can only be

transmitted if a LINKS1000/2X50 Communicator is being

used (see Section 5.26 LINKS1000 Cellular Communica-

tor). The panel will only transmit the signal after the time

programmed for the TLM Trouble Delay.

General System Trouble: a General System Trouble

reporting code will be transmitted if the panel detects any

of the following:

• AC Power Failure

• Low Battery

• AUX Output Trouble

• Output #1 on the PC5200/PC5204 Power Supply/Out-

put Module.

General System Supervisory Trouble: a General System

Supervisory Trouble reporting code will be transmitted if

any module goes missing from the Keybus. If the module

is a zone expander the panel will also transmit the Zone

Expander Supervisory Alarm Trouble reporting code.

[346] - Maintenance Restoral Reporting Codes

Battery Trouble Restoral: the Battery Trouble Restoral

reporting code will not be transmitted until the battery

has been charged over 12.5 VDC.

AC Failure Trouble Restoral: the AC Failure Trouble

Restoral reporting code will be transmitted once AC

power has been restored for the amount of time pro-

grammed for AC Failure Communication delays.

Bell Circuit Trouble Restoral: the Bell Circuit Trouble

Restoral reporting code will be transmitted as soon as the

open condition on the bell output is corrected.

Fire Trouble Restoral: the Fire Trouble Restoral report-

ing code will be transmitted when the correct resistance

value is measured on any Fire type zone.

Auxiliary Power Supply Trouble Restoral: the panel

constantly checks the AUX output, when the excessive

current draw is removed the panel will reset the output

and transmit an Auxiliary Power Supply Trouble Resto-

ral reporting code.

TLM Restoral: the TLM Restoral reporting code will be

transmitted immediately after the Trouble is restored.

General System Trouble Restoral: a General System

Trouble Restoral reporting code will be transmitted when

the panel detects none of the following:

• AC Power Failure • Low Battery

• AUX Output Trouble •Output #1 on the PC5200 /

PC5204 power Supply/Output Module after a Trouble

was reported.

General System Supervisory Restoral: the General Sys-

tem Trouble Restoral reporting code will be transmitted

when the control panel detects all modules enrolled on

the keybus

[347] - Miscellaneous Maintenance Reporting Codes

Telephone Number 1 (2) FTC Restore: if the panel fails to

transmit information to the central station it will display a

failure to communicate Trouble condition. The panel will

transmit a Phone Number 1 Failure to Communicate

reporting code or a Phone Number 2 Failure to Communi-

cate reporting code the next time it calls the central sta-

tion. The panel will transmit the old events, followed by

the failure to communicate, followed by the new events.

Event Buffer 75% Full: If the event buffer is uploaded on

a regular basis an Event Buffer 75% Full reporting code

can be transmitted to warn that the Buffer is almost full.

DLS Lead In: The DLS Lead In reporting code will only

be transmitted if the DLS Call Back feature is being used

(see Section 5.8 "Downloading"). Before the panel calls the

computer back it will call the central station and transmit

the reporting code to indicate a download session is

about to begin.

DLS Lead Out: After a downloading session is attempted

and/or completed, the panel will transmit a DLS Lead

Out reporting code.

Zone Fault Alarm: The Zone Fault Alarm reporting code

will be transmitted when there is a short detected on any

DEOL zone and/or a loss of Supervisory on a wireless

zone.

Zone Fault Restoral: The Zone Fault Restoral reporting

code will be transmitted when the fault condition on the

zone is corrected.

Delinquency Code: The Delinquency reporting code is

sent whenever the panel is not armed within the number

of days programmed for the Delinquency Transmission

Delay.

General Zone Low Battery Alarm: the panel will trans-

mit a General Zone Low Battery Alarm reporting code

when a wireless detector indicates a low battery condition

and the delay programmed in Zone Low Battery Trans-

mission Delay expires.

General Zone Low Battery Restoral: the General Zone

Low Battery Restoral reporting code will be transmitted

when the low battery condition on all wireless zones is

corrected. The specific zone that caused the trouble will

be stored to the event buffer.

[348] - Test Transmission Reporting Codes

Walk Test End: the Walk Test End reporting code will be

transmitted when a Walk Test is terminated.

Walk Test Begin: the Walk Test Begin reporting code will

be transmitted when a Walk Test is initiated.

Periodic Test Transmission with Trouble - the panel can

be programmed to transmit a Periodic Test Transmission

with Trouble reporting code in place of the standard Peri-

odic Test Transmission if any of the following conditions

exist.

• Fire Zone Trouble (Zones 1-64)

• Battery Trouble (PC5020, PC520X)

• Fire Zone Alarm (Zones 1-64, Two-Wire Smoke

• Aux Trouble (PC5020)

• Fire Trouble (Two-Wire Smoke)

• Bell Trouble (PC5020)

• Fire Tamper/Low Sensitivity (Wireless/AML Zones 1-32)

• Module Supervisory

• Fire Zones Bypassed (Zones 1-64)

• Ground Fault (PC5700)

• Fire Supervisory (Wireless/AML Zones 1-32)

• TLM Trouble (PC5020, PC5700 Line 1-2)

• AC Trouble (PC5020, PC520X)

• FTC Trouble

Periodic Test Transmission: the Periodic Test Transmission

reporting code will be transmitted at the specified time,

(programmed in Section 378) every X number of days (see

Section 377).

System Test: the System Test reporting code will be trans-

mitted when a system test is performed on the panel.

Links 1000 Test Transmission Code: the Links1000 Test

Transmission reporting code will be transmitted via the

LINKS1000 cellular transmitter at the programmed inter-

val (see ‘Test Transmission Cycles’ section [378]) and time

of day (see Section [377]) of the LINKS Periodic Test

Transmission.

NOTE: To disable this transmission of this reporting code, 00

must be entered.

[349] - PC5700 Maintenance Reporting Codes

PC5700 Ground Fault Trouble: the panel will transmit this

reporting code when a Ground Fault Trouble occurs on

the PC5700.

PC5700 Ground Fault Restoral: the panel will transmit

this reporting code when the Ground Fault Trouble condi-

tion has restored on the PC5700.

PC5700 TLM 1(2) Trouble: the panel will transmit this

reporting code when a TLM Trouble occurs on the

PC5700 line 1 and/or on line 2.

PC5700 TLM 1(2) Restoral: the panel will transmit this

reporting code when a TLM Restoral occurs on the

PC5700 line 1 and/or line 2.

[350] - Communicator Format Options

Communicator - Reporting Formats

Each central station telephone number of the panel can be

programmed to report using any one of the 5 formats

available. The following formats are supported: Pulse (10

and 20 bps), Contact ID, SIA, Residential Dial and a Pager

format. The following is a description of each.

SIA (Level 2)

SIA is a specialized format that will communicate infor-

mation quickly using frequency shift keying (FSK) rather

than pulses. The SIA format will automatically generate

the type of signal being transmitted, such as Burglary,

Fire, Panic etc. The two digit reporting code is used to

identify the zone or access code number.

NOTE: SIA format must be used if Downlook is

required.

NOTE: SIA format must be used for phone numbers

programmed to communicate via the T-Link.

If the SIA format is selected the panel can be programmed

to automatically generate all zone and access code num-

bers eliminating the need to program these items.

If the SIA Sends Automatic Reporting Codes option is

enabled the panel will operate as follows:

1. If the reporting code for an event is programmed as [00]

the panel will not attempt to call the central station.

2. If the reporting code for an event is programmed as any-

thing from [01] to [FF] the panel will AUTOMATICALLY

generate the zone or access code number.

3. Bypassed zones will always be identified when partial

closing of the system occurs.

The Communicator Call Direction Options can be used to

disable reporting of events such as Openings/Closings.

Also, if all the Opening/Closing reporting codes were

programmed as [00] the panel would not report.

If the SIA Sends Automatic Reporting Codes option is

disabled the panel will operate as follows:

1. If the reporting code for an event is programmed as [00] or

[FF] the panel will not attempt to call the central station.

2. If the reporting code for an event is programmed as any-

thing from [01] to [FE] the panel will send the programmed

reporting code.

3. Bypassed zones will not be identified when partial closing

the system.

NOTE: If using Downlook, do not program the second

telephone number for the SIA reporting code format

(Section [360]) if the Automatic Reporting Code option

is enabled (Section [381]).

NOTE: The zone number for Zone Low Battery and

Zone Fault events will not be identified when Pro-

grammed SIA is used.

SIA Sends Automatic Reporting Codes . . .Section [381], Option [3]

Communicator Call Direction Options . . . . . . Section [351] to [376]

SIA Identifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Appendix A

Residential Dial

If Residential Dial is programmed and an event pro-

grammed to communicate occurs, the panel will seize the

line and dial the appropriate telephone number(s). Once

the dialing is complete, the panel will emit an ID tone and

wait for a handshake (press a 1, 2, 4, 5, 7, 8, 0, ✱ or # key

from any telephone). It will wait for this handshake for

the duration of Post Dial Wait for Handshake timer.

Once the panel receives the handshake, it will emit an

alarm tone over the telephone line for 20 seconds. If sev-

eral alarms occur at the same time, only one call will be

made to each telephone number the panel is programmed

to call.

Programming Sections: 5.6 Communicator Programming PWS Sect6

NOTE: The Residential Dial format will not work over

the LINKS1000.

Communicator Call Direction Options . . . . . Section [361] to [368]

Pager Format

The Communicator Format option for either telephone

number can be programmed for Pager format. If an event

occurs and the Communicator Call Direction options

direct the call to a telephone number with the Pager for-

mat selected the panel will attempt to page.

When calling a pager extra digits will be required to make

it work properly.The following is a list of Hex digits and

the function they perform:

Hex [A] - not used

Hex [B] - simulates the [] key on a tone telephone

Hex [E] - two second pause

Hex [C] - simulates the [#] key on a tone telephone

Hex [F] - end of telephone number marker

Hex [D] - forces the panel to search for dial tone

The panel will attempt to call the pager one time. After

dialing the digits in the telephone number the panel will

send the account number and reporting code followed by

the [#] key (Hex [C]).

There is no ringback when using Pager format. The panel

has no way of confirming if the pager was called success-

fully; a Failure to Communicate Trouble will only be gen-

erated once the maximum number of attempts has been

reached.

NOTE: The Pager format cannot be used with the

LINKS1000 cellular communicator.

NOTE: Do not use the digit C in a reporting code when

using Pager format. In most cases, the digit C will be

interpreted as a [#], which will terminate the page

before it has finished.

NOTE: If the panel detects a busy signal, it will attempt

to page again. It will make the maximum number of

attempts programmed in section [165]. Force dialing

should be disabled when using Pager format.

NOTE: When using Pager format, you must program

two hex digit Es at the end of the telephone number.

Pulse Formats

Depending on the pulse format selected the panel will

communicate using the following:

• 3/1, 3/2, 4/1 or 4/2

• 1400 or 2300 Hz handshake

• 10 or 20 bits per second

• non-extended

The digit ‘0’ will send no pulses and is used as a filler.

When programming account numbers enter four digits.

When programming a 3-digit account number the fourth

digit must be programmed as a plain ‘0’ which will act as

a filler digit.

If an account number has a ‘0’ in it, substitute a Hex digit

‘A’ for the ‘0’. Examples:

• 3-digit account number [123]- program [1230]

• 3-digit account number [502] - program [5A20]

• 4-digit account number [4079] - program [4A79]

When programming reporting codes two digits must be

entered. If one digit reporting codes are to be used the sec-

ond digit must be programmed as a ‘0’. If a ‘0’ is to be

transmitted substitute a Hex digit ‘A’ for the ‘0’. Examples:

• 1-digit reporting code [3] - program [30]

• 2-digit reporting code [30] - program [3A]

To prevent the panel from reporting an event program the

reporting code for the event as [00] or [FF].

NOTE: This communication format cannot be selected

if Downlook is required.

Contact ID

Contact ID is a specialized format that will communicate

information quickly using tones rather than pulses. In

addition to sending information more quickly the format

also allows more information to be sent. For example,

rather than reporting an alarm zone 1 the Contact ID for-

mat can also report the type of alarm, such as Entry/Exit

alarm zone 1.

If Contact ID Sends Automatic Reporting Codes is

selected, the panel will automatically generate a reporting

code for each event. These identifiers are listed in Appen-

dix A. If the Automatic Contact ID option is not selected,

reporting codes must be programmed. The 2-digit entry

determines the type of alarm. The panel will automati-

cally generate all other information, including the zone

number.

NOTE: If the Automatic Contact ID option is selected,

the panel will automatically generate all zone and

access code numbers, eliminating the need to program

these items.

NOTE: The zone number for Zone Low Battery and

Zone Fault events will not be identified when Pro-

grammed Contact ID is used.

If the Contact ID Uses Automatic Reporting Codes

option is enabled, the panel will operate as follows:

• If an event’s reporting code is programmed as [00], the

panel will not attempt to call the central station.

• If the reporting code for an event is programmed as

anything from [01] to [FF], the panel will automatically

generate the zone or access code number. See Appen-

dix A for a list of the codes which will be transmitted.

If the Contact ID Uses Programmed Reporting Codes

option is enabled, the panel will operate as follows:

• If an event’s reporting code is programmed as [00] or

[FF], the panel will not attempt to call central station.

• If the reporting code for an event is programmed as

anything from [01] to [FE], the panel will send the pro-

grammed reporting code.

• Account numbers must be four digits.

• If the digit 0 is in the account number substitute the

Hex digit A for the 0.

• All reporting codes must be two digits.

• If the digit 0 is in the reporting code substitute the Hex

digit A for the 0.

• To prevent the panel from reporting an event program

the reporting code for the event as [00] or [FF].

NOTE: This communication format cannot be selected

if Downlook is required.

Contact ID Sends Automatic

Reporting Codes . . . . . . . . . . . . . . . . . . . Section [381], Option [7]

This section requires 2 two-digit entries (1 per phone

number). The 3rd telephone number uses the format pro-

grammed for the 1st telephone number.

Entry Communication Format

01 20 bps, 1400 HZ handshake

02 20 bps, 2300 HZ handshake

03 CONTACT I.D.

04 SIA FSK

05 Pager

06 Residential Dial

07 10 bps, 1400 Hz handshake

08 10 bps, 2300 Hz handshake

Reporting Codes

• SIA - 0 is valid in account or reporting code (not 00 in a

reporting code though)

• ADEMCO Contact ID - 0 is not valid in account or

reporting code (A must be used, 10 in checksum)

• BPS Formats - 0 is not valid in account or reporting

code (A must be used)

• SIA - This format uses 300 Baud FSK as the communi-

cation medium. The account code can be 4 or 6 hexa-

decimal digits in length, all reporting codes must be 2-

digits in length. The SIA format will transmit a 4- (or 6-

digit account code, a 2-digit identifier code and a 2

digit reporting code. The 2-digit identifier is pre-pro-

grammed by the panel.

Telephone Line Monitoring (TLM)

When the TLM Enable option is selected, the panel will

supervise the telephone line and will indicate a Trouble

condition if the telephone line is disconnected.

If the TLM Enable option is ON, the panel will check the

telephone line every 10 seconds. If the telephone line volt-

age is below 3V for the number of checks programmed in

the TLM Trouble Delay section, the panel will report a

TLM Trouble. The default number of checks is 3. Enter a

number from (000) to (255) in the TLM Trouble Delay sec-

tion to change the number of checks before the TLM Trou-

ble is reported. Programming a delay means that a

momentary interruption of the telephone line will not

cause a Trouble condition.

If the TLM Trouble Beeps When Armed option is

enabled, the panel will indicate a TLM Trouble at the key-

pad while the system is armed. To activate the bell output

in the case of a TLM Trouble while the system is armed,

the TLM Audible (Bell) When Armed option must be

selected.

When the Trouble condition is restored, the panel can

send a TLM Restoral reporting code. Any events which

occur while the telephone line is down will also be com-

municated.

If the LINKS1000 Cellular Communicator, or LINKS2X50

is being used, the panel can be programmed to report a

TLM Trouble reporting code.

[351]-[376] - Communicator Call Directions

For events from each Call Direction group the control

panel can call 2 different phone numbers and use the

LINKS as backup or as a redundant communicator for

one or both numbers. The third phone number can only

be used as a backup or alternate to the first.

Each report falls under one of the following 5 Groups:

1. Partition X Alarms & Restorals

2. Partition X Openings & Closings

3. Partition X Tampers & Restores

4. System Maintenance Alarms & Restorals

5. System Test Transmissions

Each group can be assigned to the following Call Direc-

tions

1. Option 1 - 1st Telephone Number (and 3rd Telephone

Number if enabled for alternate or backup)

2. Option 2 - 2nd Telephone Number

3. Option 3 - 1st Telephone Number via LINKS (and 3rd

Telephone Number if enabled for alternate or backup)

4. Option 4 - 2nd Telephone Number via LINKS

5. Option 5 - Alternate Communicator. This allows the

panel to have control of what types of events the

LINKS2X50 products will communicate. This Call Direc-

tion is enabled at default.

[377] - COMMUNICATION VARIABLES

Swinger Shutdown (Alarms & Restores)

This value defines the number of attempts (alarm and restoral pairs) per zone that the communicator will make before it shuts down for that zone (’swinger

shutdown’). Program 001 or 002 in this entry. When programmed as 000, the communicator will shut down after 2 Alarm/Restoral pairs.

Different limits can be programmed for Zone Alarms, Zone Tampers and Maintenance signals. After the panel has communicated the programmed number

of transmissions for an event it will no longer report that event until the swinger shutdown is reset. For example, the swinger shutdown limit for Zone Alarms is

set to [001]. The panel will not send more than 1 alarm signal for each zone with a swinger attribute until the swinger shutdown is reset.

The Bell output will not be activated for alarms on zones that have exceeded the limit of alarms set in the Swinger Shutdown counter. Swinger shutdown on

global zones will log once to the System Area.

NOTE: Swinger Shutdown will reset on all partitions when any partition on the system is armed, or every day at midnight. Once reset, the panel

will again communicate normally

NOTE: The Bell and event buffer can follow Swinger Shutdown if enabled.

Swinger Shutdown (Tampers & Restorals)

This value defines the number of times the same system Tamper type event will occur before stopping transmissions. Valid entries are 000 to 014.

Swinger Shutdown (Maintenance Troubles & Restorals)

This value defines the number of times the same system Maintenance (Trouble) type event will occur before stopping transmissions. Fire Troubles will follow the

Maintenance Swinger Shutdown Variable. Swinger Shutdown is enabled on Zone Types [01]-[06] and [25] on all panels by default, and on all definitions. Valid

entries are 000 to 014.

Communication Delay (Seconds)

This value defines the delay before transmission. The delay is for zones which have the Transmission Delay attribute enabled. Program a time from 015 to 045

seconds. This communications transmission delay will be by partition. Each partition will share the same active timer, so if the delay is already active due to an

alarm on a different partition, then any new activity on yet another partition will not restart the communications delay timer.

NOTE: If global zones are used with communications delay, then to stop all alarms from being sent when the communications delay expires,

access codes must be entered on all partitions that went in alarm from that global zone.

NOTE: If transmission delay starts on one partition, other partitions cannot cancel it. If transmission delay is active on more than one partition,

and a code is entered on one of them, that partition’s transmission delay will be cancelled.

NOTE: For UL installations the entry delay plus communication delay cannot exceed 60 seconds.

Refer to Zone Attributes Section [101]-[164], Option [7]

AC Failure Communication Delay (Minutes/Hours)

This value determines the delay before an AC Failure or AC Restoral is reported. The AC failure or restoral is still displayed immediately. Valid entries are from

000 to 255 minutes/hours.

NOTE: Selection of minutes or hours for the delay is set in section [382], Option 6.

NOTE: If AC Failure Communications Delay is programmed as 000, the AC Failure Trouble reporting code will be sent immediately*.

TLM Trouble Delay

The number of valid checks (10 second interval) required before a Telephone Line Trouble is generated is programmed here. Valid entries are 000-255 for Trou-

ble annunciation and transmission (LINKS) delays of 10 to 2550 Seconds (42.5 Minutes).

*NOTE: Do not use this section for central & remote fire applications

Programming Sections: 5.6 Communicator Programming PWS Sect6

[378] - Test Transmission Time of Day

Program the time of the test transmission in this section.

Enter a 4-digit time using the 24-hr clock format

(HH:MM). Valid entries are from 00 to 23 for the hours

(HH) and 00 to 59 for the minutes (MM).

To disable the test transmission, enter [9999] in this sec-

tion.

NOTE: Do NOT enter [9999] for Central & Remote Fire

applications.

Test Transmission Cycle (Land Line)

This value determines the period between Test Transmissions for the Land Line. Valid entries are [000]-[255]. Whether this interval is in

minutes or days is determined on Section [702], Option 3.

NOTE: Enter [001] for PC5020CF Commercial Fire panel. For Commercial Fire applications enter 001.

Test Transmission Cycle (LINKS1000)

This value determines the period between Test Transmissions for the LINKS1000. Valid entries are [000]-[255]. The period is in days or hours. This applies to

Land-line and LINKS Test Transmissions, and for minutes and hours for the Land-line (LINKS only uses Hours).

NOTE: When a new value is programmed (locally or remotely), the panel will transmit a Test transmission when the next Test Transmission Time

is reached. The panel will then load in the new value, and continue the cycle based on this new value. This informs the Installer/Central to expect

the next Test Transmission when the cycle has been changed.

Wireless Zone Low Battery Transmission Delay (Days)

When a zone reports a low battery condition, the Trouble condition will be indicated immediately on the keypad, but the transmission to the monitoring station

will be delayed by the number of days programmed in this section. If the user does not correct the low battery condition before the delay expires, the low bat-

tery condition will be transmitted. The Low Battery Restoral transmission is not delayed.

NOTE: The panel will not send additional low battery events until the first low battery Trouble is restored.

Delinquency Transmission Delay

The value in this section determines the period of time that the Delinquency Event will be postponed until it is logged to the event buffer and transmitted.

Whether this value is in hours or days is determined if Delinquency is for Activity (hours) or Closing (days) as specified in Section [380] Option 8.

The timer starts under the following conditions:

• When the system is armed in the Stay mode

• When the system is disarmed

• When a zone is violated and restored while the system is disarmed/Stay armed (Interior, Interior Delay, Interior Stay/Away, or Delay

Stay/Away zones only).

The activity delinquency timer will be ignored when the system is armed in the Away mode. Zones that are bypassed in the [*][1] Bypass

menu will not reset the timer.

If the system is programmed to monitor Closing Delinquency, the timer will be programmed in days. The timer will restart every time the

system is disarmed.

Activity/Closing Delinquency section [380], option [8].

Communications Cancel Window

After TX Delay expires and a zone alarm has been transmitted, the Cancel window will begin. If an access code is entered during this window, a Communica-

tions Cancel reporting code will be communicated. If the window expires without an access code entered or a code is entered after the window, no Opening

After Alarm log or communication will occur. The system keypads will provide an audible confirmation that the opening after alarm log was successfully com-

municated (5 quick beeps).

[377] - COMMUNICATION VARIABLES

[380] - FIRST COMMUNICATOR OPTION CODES

Option Communicator Code On/Off Description

1 Communications ON Communicator Enabled. The system’s communicator will be enabled and all events with

reporting codes will be reported to the monitoring station. Refer to the Telephone Number,

reporting code and Call Direction Programming Sections.

OFF Communicator Disabled. The system’s communicator will be shut off and events will not be

transmitted to the monitoring station. Downloading may still be performed if enabled.

2 Restore Transmission ON Restore Transmissions on Bell Time-out. Zone restoral reporting codes will not be transmit-

ted until the zone has been restored and the Bell time-out has expired. If the zone is not

restored when the bell time-out expires, the restoral will be transmitted when the zone physi-

cally restores or when the system is disarmed.

NOTE: 24-hr zones will not restore until the zone is physically restored.

OFF Restore Transmissions Follow Zones. Zone restoral reporting codes will be transmitted when

the zone is physically restored. If the zones are still active when the system is disarmed, the

restore codes will be transmitted when the system is disarmed.

NOTE: 24-hr zones will not restore until the zone is physically restored.

3 Dialing Method ON Pulse Dialing enabled. The control panel will dial telephone numbers using pulse (rotary) dialing.

OFF DTMF Dialing enabled. The control panel will dial telephone numbers using DTMF (dual tone

multi-frequency) dialing.

4 Switch to Pulse Dialing ON Switch to Pulse Dialing after 4 DTMF attempts. If DTMF dialing is enabled, the control panel

will dial telephone numbers using DTMF dialing for the first 4 attempts. If unsuccessful, the con-

trol panel will switch to pulse (rotary) dialing for the remaining attempts.

OFF DTMF Dial for all Attempts. If DTMF dialing is enabled, the control panel will dial telephone

numbers using DTMF dialing for all dialing attempts.

5 3rd Phone Number Enable ON 3rd Phone Number Enabled. The 3rd Phone number will be used for Alternate Dialing with

the 1st phone number or as a backup of the 1st phone number (see light 6).

OFF 3rd Phone Number Disabled. The 3rd Phone number will not be used.

6 3rd Phone Number ON Alternate Dialing Enabled (1st & 3rd). After each dialing attempt, the communicator

switches between the 1st phone number and 3rd phone number.

OFF Call 1st Number, Backup to 3rd Number. If the programmed number of attempts to commu-

nicate to the First Telephone Number fail, the same number of attempts will be made to com-

municate to the Third Telephone Number. If all attempts to communicate to the Third Telephone

Number fail, a Failure to Communicate Trouble will be generated.

7 LINKS Dialing ON Call LINKS as well as Land Line(s). The control panel will dial the programmed number of

attempts through the LINKS, followed by the number of programmed attempts over the land-

line regardless of whether the communication over the LINKS was successful.

OFF LINKS is backup of Land Line(s). The control panel will dial through the LINKS if the panel is

having difficulty communicating over the phone line. For each failed attempt to the land line,

one attempt will be made to the LINKS1000.

8 Delinquency ON Delinquency Follows Zone Activity (Activity Delinquency). This feature assists in the mon-

itoring of the elderly and the handicapped. If there is no zone activity on a partition, the Delin-

quency Transmission Delay timer in Section [370] will begin counting in hours. When the

counter reaches the programmed time, the panel will communicate the Delinquency Code to

the central station, if programmed. If there is zone activity present on the system at any time,

the counter will be reset. If this option is used, the Closing Delinquency option is not available.

NOTE: This code will not be transmitted for partitions that are Away armed. Activity

on bypassed zones does not affect this timer. The timer is reset on arming.

OFF Delinquency Follows Arming (Closing Delinquency). This reporting code is sent whenever

the programmed number of days for Delinquency has expired without the partition being

armed. The timer for this feature is programmed in Section [370]. The value programmed in this

section determines the number of days of no-arming the partition counts before sending the

Delinquency reporting code to the central station. Once this code is sent, the timer will not be

started again until the partition has been armed. Each day programmed in the counter repre-

sents one day PLUS the time it takes for the partition to reach midnight. This feature may be dis-

abled by programming 000 in Section [370].

[380] - FIRST COMMUNICATOR OPTION CODES

Option Communicator Code On/Off Description

[381] - SECOND COMMUNICATOR OPTION CODES

Option Communicator Code On/Off Description

1 Opening After Alarm Keypad

Ringback

ON Opening After Alarm Keypad Ringback Enabled. When the Opening After Alarm reporting

code is successfully transmitted to a programmed telephone number, the keypad will sound a

series of 8 beeps to confirm to the end user that the Opening After Alarm code was sent and

received. This ringback will occur for each Opening After Alarm code successfully reported.

OFF Opening After Alarm Keypad Ringback Disabled

2 Opening After Alarm Bell

Ringback

ON Opening After Alarm Bell Ringback Enabled. When the Opening After Alarm reporting

code is successfully transmitted to a programmed telephone number, the bell will sound a series

of 8 squawks to confirm to the end user that the Opening After Alarm code was sent and

received. This ringback will occur for each Opening After Alarm code successfully transmitted.

OFF Opening After Alarm Bell Ringback Disabled

3 SIA Reporting Codes ON SIA Sends Programmed Reporting Codes. This option is for use with the SIA communication

format.). If 00 is programmed in the reporting code section, the event will not be communi-

cated. When this option is ON and there is a valid reporting code programmed in the reporting

code section, the programmed reporting code will be transmitted. If FF is programmed as a

reporting code, the event will not be communicated.

Reporting Code Entry Option ON Option OFF

00 No Transmission No Transmission

FF No Transmission Auto Reporting Code sent

01-FE 01-FE sent Auto Reporting Code sent

OFF SIA Sends Automatic Reporting Codes. When this option is OFF and there is a valid reporting

code (01-FE) or FF programmed in the reporting code section, the panel will transmit an auto-

matic reporting code for SIA only. This would be used when automatic reporting codes are

required but there is a requirement for a different reporting code (e.g., Pager format, etc.).

4 Closing Confirmation ON Closing Confirmation Enabled. When a Closing reporting code is successfully transmitted to

a programmed telephone number, the keypad will sound a series of 8 beeps to confirm to the

end user that the Closing code was sent and received.

OFF Closing Confirmation Disabled. There will be no keypad ringback when a Closing reporting

code is successfully transmitted to a programmed telephone number.

5 Talk/Listen Options for

Phone Number One/Three

ON Talk/Listen (PC5936) on Phone #1/3 Enabled. If Talk/Listen is requested for an event by the

PC5936, the panel will request the session on the next communication on phone number 1/3

(via L-Block) to the central station.

OFF Talk/Listen (PC5936) on Phone #1/3 Disabled. The panel will not request a Talk/Listen session

for an event even if the PC5936 has requested it.

6 Talk/Listen Options for

Phone Number Two

ON Talk/Listen (PC5936) on Phone #2 Enabled. If Talk/Listen is requested for an event by the

PC5936, the panel will request the session on the next communication on phone number 2 (via

L-Block) to the central station.

OFF Talk/Listen (PC5936) on Phone #2 Disabled. The panel will not request a Talk/Listen session

for an event even if the PC5936 has requested it.

7 Contact I.D. Reporting Codes ON Contact I.D. Uses Programmed Reporting Codes. The Contact I.D. communications format

will use programmed reporting codes when transmitting to the central station.

OFF Contact I.D. Uses Automatic Reporting Codes. The Contact I.D. communications format will use

the automatic reporting codes as shown in Appendix C when transmitting to the central station.

8 Local Mode ON Local Mode Enabled. The panel will always send events to the PC5108L module. Downlook

will not be initiated if requested.

OFF Local Mode Disabled. The panel will only send events that are being communicated to the

PC5108L module. Downlook will be initiated when requested.

Programming Sections: 5.6 Communicator Programming PWS Sect6

[390]-[393] LINKS Preambles

Downloading can be performed through the LINKS1000

cellular communicator if the telephone line is discon-

nected. If using the LINKS1000 with Call Back, you need

to program the LINKS1000 Preamble with the download-

ing telephone number in order for the panel to call the

computer correctly.

LINKS1000 Cellular Communicator

The LINKS1000 cellular communicator can be used three

different ways: as the sole communicator for the panel, as

a backup for either or both telephone numbers, or as a

redundant backup to the land line communicator (the

panel will call both the land line and via the LINKS1000).

A LINKS1000 Preamble is programmable for each tele-

phone number in the event that the land line number is

local but the LINKS1000 is required to dial an exchange.

When programming a LINKS1000 Preamble, all unused

digits must be programmed with a Hex decimal ’F’.

Sole Communicator

The panel can be programmed to report only using the

LINKS1000 cellular communicator when an event occurs.

To program this select only the LINKS1000 for the Com-

municator Call Direction Options for the event. In addi-

tion the Call LINKS1000 as well as Land Line option

must also be enabled. When the selected event occurs the

panel will only attempt to call the central station using

the LINKS1000.

NOTE: If a LINKS1000-only event fails to communicate,

the LINKS1000 must successfully communicate a

LINKS1000-only event in order for the FTC Trouble to

clear.

Backup Communicator

The panel can be programmed to call using the

LINKS1000 cellular communicator if the panel is having

difficulty communicating an event using the land line. To

program this select the telephone number and

LINKS1000 options for the Communicator Call Direction

Options for the event. The LINKS1000 is backup of Land

Lines option must also be selected.

When used as a backup communicator the panel will

attempt to call the central station in the following manner:

• the panel will try to call using land lines - if unsuc-

cessful the panel will try to call using the LINKS1000

• if unsuccessful the panel will try to call using the land

lines

• if unsuccessful the panel will try to call using the

LINKS1000

This process will continue until the panel has successfully

communicated with the central station or the Maximum

Dialing Attempts has been reached.

Redundant Communicator

The panel can be programmed to call using the land line

and the LINKS1000 cellular communicator when an event

occurs. To program this select both the telephone number

and the LINKS1000 options for the Communicator Call

Direction Options for the event. In addition the Call

LINKS1000 as well as Land Line option must be

selected. The panel will call the LINKS1000 and then call

the land line when reporting the selected event.

LINKS1000 Special Preamble*

In some areas of North America, dialing #DAT or *DATA

reduces the cellular billing increment. The LINKS1000 Spe-

cial Preamble (section [393]), allows the use of [*] and [#]

characters for the programming of #DAT and *DATA. The

LINKS1000 Special Preamble is sent BEFORE the Preamble

programmed in Sections [390] to [392]. Example: [Special

Preamble][Regular Preamble][Telephone Number].

NOTE: If this Special Preamble is programmed, it will be

inserted before the Regular Preamble of ALL telephone

numbers. Hex digits D and E are not supported for Pre-

amble programming. If Busy Tone Detection is enabled,

the LINKS1000 must be tested to ensure full operation.

Refer to the LINKS1000 Installation Manual for more infor-

mation and connection diagrams.

* Do not use this section for Central and Remote Fire Applications.

[382] - THIRD COMMUNICATOR OPTION CODES

Option Communicator Code On/Off Description

1 Contact I.D. Partial Closing

Identifier

ON Partial Closing Identifier = 5. Contact I.D. uses 5 as the identifier for the Partial Closing event.

OFF Partial Closing Identifier = 4. Contact I.D. uses 4 as the identifier for the Partial Closing event.

This option is defaulted OFF.

2 Walk Test Communication ON Zone Alarms Communicate during Walk Test Enabled. Zone alarms that occur during Walk

Test will communicate if programmed to do so.

OFF Zone Alarms Communicate during Walk Test Disabled. Zone alarms that occur during Walk

Test will not communicate even if programmed.This option is defaulted OFF. NOTE: This

option must be OFF for SIA FAR installations.

3 Communications Cancelled

Message

ON Communications Cancelled Message Enabled. The ’Communications Cancelled’

(LCD5500Z) or ’CC’ (LCD5501Z) message will be displayed if alarms are acknowledged during

the Transmission Delay time. This message will be displayed for 5 seconds on all keypads on the

partition. The acknowledgment can be from an access code, disarm function key, or a keyswitch

zone. Caution: This option must NOT be turned OFF for SIA-FAR installations.

OFF Communications Cancelled Message Disabled. The ’Communications Cancelled’ message

will not be displayed. This option is defaulted OFF.

4 Call Waiting Cancel ON Call Waiting Cancel Enabled. The Call Waiting dialing string programmed in Section [304] will

be dialed before the first attempt of each phone number. All subsequent dialing attempts to the

same phone number will not use the Call Waiting Cancel dialing string.

OFF Call Waiting Cancel Disabled. The Call Waiting dialing string will not be dialed. This option is

defaulted OFF. Note: A Call Waiting Cancel on a non-call waiting line will prevent successful

connection to the central station.

5 T-Link ON The panel will communicate with a T-Link module connected to the PC-Link header.

OFF The T-Link interface is disabled.

*NOTE: Not investigated by UL.

6 AC Failure Transmission

Delay

ON AC Failure Transmission Delay. Delay is in hours.

NOTE: For central & remote fire applications, this option must be ON.

OFF AC Failure Transmission Delay. Delay is in minutes.

7-8 ON For Future Use

(Downloading Telephone Number) . . . . . . . . . . . . . . .Section [490]

Communicator Call Direction Options . . . . . Section [351] to [376]

Call LINKS1000 as well as Land Line . . . . . Section [380], Option [7]

Maximum Dialing Attempts . . . . . . . . . . . . . . . . . . . Section [165][

This 4-digit number can be used with long distance tele-

phone numbers that are dialed through the LINKS mod-

ule. These codes are used for programming area codes in

cases where a land line telephone number may be a local

call, while the cellular telephone number dialed by the

LINKS module is a long distance call.

[393] - LINKS Special Function Preamble

This Special Preamble is inserted before all other pream-

bles. It is used for dialing such cellular numbers as #DAT

and *DATA for reduced billing increments.

5.7 Downloading Options PWS Sect 7

Downloading

Downloading allows programming of the entire control

panel via a computer, modem and telephone line. All

functions and features, changes and status, such as Trou-

ble conditions and open zones can be viewed or pro-

grammed by downloading.

NOTE: When power is applied to the panel, a 6-hour

downloading window can be enabled. This will allow

you to perform downloading without having to do

any keypad programming.

NOTE: When an event occurs that the system is pro-

grammed to communicate to the central station, the

panel will disconnect from the downloading computer

and report the event. This will happen for all events

except test transmissions.

If the Answering Machine/Double Call option is enabled

(or during the first 6 hours after power up) the panel will

answer incoming calls for downloading provided the fol-

lowing conditions occur:

1. The panel hears one or two rings, then misses a ring.

2. At this point the panel will start a timer.

3. If the panel hears another ring before the Answering

Machine Double Call Timer expires it will answer on

the first ring of the second call.

The panel will immediately go on-line and begin the

download process unless the Call Back option is enabled.

If enabled, the panel and computer will both hang up.

The panel will then call the Download Computer Tele-

phone Number and wait for the computer to answer.

Once the computer answers downloading will begin.

If the User-enabled DLS Window option is ON, the user

can activate the downloading feature by entering

[*][6][Master Code][5].

Six hours after power-up, the panel will not answer

incoming calls unless the Answering Machine/Double

Call option is enabled, or the Number of Rings is pro-

grammed to be more than [0].

If the User-Initiated Call-Up option is enabled, the user

can have the panel initiate a call to the downloading com-

puter by pressing [*][6][Master Code][6].

The Download Access Code and Panel Identifier Code

are for security and proper identification. Both the panel

and the computer file should have the same information

programmed before attempting to download.

The time to complete a successful download can be signif-

icantly reduced with the use of the PC-Link. This adaptor

makes it possible to perform on-site downloading. To Ini-

tiate Local Downloading via the PC-Link, enter [✱][8]

[Installer Code] [499] [Installer Code] [499]. All keypads

will be busy for the duration of the PC-Link connection.

The status LEDs will display the current system status on

the keypad where the PC-Link was initiated. For more

information on connecting the PC-Link, refer to your ’PC-

Link Download Kit Instruction Sheet’.

Downloading can also be performed through the

LINKS1000 cellular communicator if the telephone line is

disconnected. If using the LINKS1000 with Call Back, you

need to program the LINKS1000 Preamble with the

downloading telephone number in order for the panel to

call the computer correctly.

NOTE: When uploading labels from LCD keypads, the

DLS software will receive the labels only from the LCD

keypad assigned to slot 8. In addition, version 1.0 and

version 2.0 LCD keypads are not compatible on the

same system. For more information refer to the Down-

load Manual included with the computer software.

NOTE: The most recent version of the PKP-LCD keypad

on the system should be assigned to slot 8.

Answering Machine Double Call Timer . . . . . . . . . . . Section [405]

Download Computer Telephone Number . . . . . . . . . Section [402]

Download Access Code . . . . . . . . . . . . . . . . . . . . . . . Section [403]

Panel Identifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Section [404]

LINKS1000 Preamble (Downloading) . . . . . . . . . . . . . Section [490]

Programming Sections: 5.8 Programmable Output Programming PWS Sect 8

NOTE: To perform downloading via the T-Link module,

Option [1], Section 401 must be enabled or the num-

ber of rings in section 406 must be programmed.

NOTE: Option [2] applies to DLS via T-Link as well.

Options [3] and [4] cannot be performed through T-

Link.

[402] - Downloading Computer’s Telephone Number

This telephone number is 32 digits in length.

[403] - Downloading Access Code

This 4-digit Hexadecimal code allows the panel to con-

firm that it is communicating with a valid downloading

computer.

[404] - Panel Identification Code

This 4-digit Hexadecimal code allows the downloading

computer to confirm the identity of the control panel.

[405] - Double-Call Timer

This timer sets the amount of time that can be taken

between calls when using Double Call to contact the

panel.

Valid entries are 001 to 255 (seconds).

[406] - Number of Rings to Answer On

The value in this section determines how many rings that

the panel will automatically pick up on in order to estab-

lish a DLS connection. Default value is 000 rings. Valid

entries are [000]-[020].

NOTE: If Section [401] Option 1 and Section [406] are

enabled, either one will work depending on how the

installer calls the premises.

[490] - LINKS DLS Phone Number Preamble

Refer to Section [390].

[499] - Initiate PC-LINK Communications

The installer may initiate a PC-Link DLS session between

a computer and panel by entering this section in the fol-

lowing manner:

[499] - [Installer Code] [499].

The installer should already have the PC-Link cable prop-

erly connected between the panel’s header and the down-

loading computer as well as have the DLS file waiting for

the panel to connect before entering this command.

NOTE: PC-Link cannot be initiated while the panel is

communicating via the phone line.

5.8 Programmable Output Programming PWS

Sect 8

[501]-[515] - Programmable Output Attributes

PGM output attributes and output type must be pro-

grammed for each PGM output. PGM output options [09]

System Trouble and [10] Latched System Event have a

unique set of attributes listed below the description of

each output type.

PGM attributes return to their default settings when PGM

output options are changed. See the Programming Work-

sheets for a list of the default settings for each PGM output

type.

CAUTION: Select the normal and active states of each PGM

output to ensure that undesirable output states do not occur

after a loss and restoral of AC power.

If you program more than one PGM output as the same

output type (e.g., If PGM 1 and PGM 2 are both pro-

grammed as [19] Command Output 1), the settings for out-

put attributes [1], [2] and [5] must be the same. This does

not apply to outputs programmed as types [09] and [10].

NOTE: Attribute [3] must be ON for PGM output

option [16].

Assigning Partitions to Programmable Outputs

By default, all programmable outputs are assigned to par-

tition 1. For programmable outputs to work on other par-

titions, enable or disable the appropriate partitions in the

Partition Assignment programming sections.

PGM Output Partition Assignment. . . . . . . . . Sections [551] - [564]

PGM Output Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . Section [170

[401] - First Downloading Option Codes

Option Downloading Code On/Off Description

1 Downloading Answer ON Downloading Answer Enabled. The system will answer calls for downloading if a successful

Double call routine is detected. Have the downloading computer call the system and let the tele-

phone line ring once or twice. After 1 or 2 rings, hang up. If called back within the programmed

Double Call Time (000-255 seconds), the panel will answer on the first ring.

OFF Downloading Answer Disabled. The system will not answer incoming calls using the Double

Call routine unless the User enables the DLS window. This option can be enabled by turning

Option 2 ON.

2 DLS Window ON User Can Enable DLS Window. The user can use the [*][6][Master Code][5] command to

enable a 6-hour window in which the panel will answer calls for downloading if a successful

Double Call routine is detected. If this option is enabled, the window is open upon power-up.

The window is on for the full 6 hours if enabled.

OFF User Can Not Enable DLS Window. The user can not enable a window for DLS calls.

NOTE: Options 1 and 2 are not related. One does not need to be enabled for the other

to perform its function.

3 Call-Back ON Call-Back Enabled. When the system answers the downloading computer’s call, both the com-

puter and the panel will hang up. The panel will then call the Downloading Telephone Number

and connect with the computer at that number. If more than one downloading computer is to

be used, this function should be disabled.

OFF Call-Back Disabled. The downloading computer will have immediate access to the panel once

it is identified as a valid system.

4 User Call-Up ON User Call-Up Enabled. When this feature is enabled, the user may initiate a single call of the

Downloading Telephone by entering [*][6][Master Code][6].

OFF User Call-Up Disabled. An error tone will be generated when [*][6][Master Code][6] is

entered.

5-8 For Future Use

[551]-[564] PGM Partition Assignment

The PC5020 has an 8-bit toggle field per output that deter-

mines which partitions the output is assigned to (outputs

PGM 1-14). Each bit corresponds to a partition in each

PGM’s toggle mask. This field is supported by PGMs that

have multiple partition capabilities (i.e., Command Out-

puts, Away Arming) It does not affect system outputs

(e.g., Ground Start Pulse).

NOTE: For PGM output types 19-22, for any PGM out-

put programmed as the same type, use the attributes

and partition assignments of the lowest PGM.

NOTE: PGM Output Types 09-16, 23 and 24 do not use

the PGM Partition Assignment Mask.

5.9 International Programming PWS Sect 9

[700] - Automatic Clock Adjust

The value entered here adds or subtracts seconds at the

end of each day to compensate for crystal/ceramic reso-

nator inaccuracies. Valid entries are 00-99 with 60 seconds

being the default minute. To determine the value to be

programmed in this section perform the following:

• Monitor the time lost by the panel over a period of time.

• Calculate the average amount of time per day that the

panel gains or loses.

• Add or subtract this value (seconds) from 60 and enter

the value.

Example: panel loses an average of 9 seconds per day.

Instead of loading 60 seconds for the last minute of each

day, program the panel to load 51 seconds with the use of

Section [700]; this will speed up the panel by 9 seconds

everyday.

[501]-[515] PROGRAMMABLE OUTPUT ATTRIBUTES

PGM Output Types [01], [03], [04], [05]-[08],[12],[13],[14],[15],[17],[18] and [25]

1Not Used NOTE: This option must be off to ensure proper PGM operation.

2Not Used NOTE: This option must be off to ensure proper PGM operation.

3 Output Level ON The output will activate (switch to Ground) when the event occurs.

OFF The output will de-activate (switch to open) when the event occurs.

PGM Output Types [03], and [19]-[22]

4 Output Options ON Output Pulsed. The output will activate for the duration programmed in for the PGM Output

Timer in Section [164]. This default period is five seconds.

OFF Output On/Off. The output will toggle between on and off when the corresponding [*][7]

command is entered.

PGM Output Types [19]-[22].

5 Access Code Options ON Access Code Required for Activation.

OFF No Access Code Required for Activation. Attribute 3 is available for all Output types.

PGM Output Types [09] System Trouble

1 Service Required

2AC Fail

3 Telephone Line Fault

4 Communications (Failure)

5 Zone (Fire) Fault

6 Zone Tamper

7 Zone Low Battery

8 Loss of Clock

PGM Output Types [10] System Event

1 Burglary Delay, Instant, Interior, Stay/Away, and 24-hr Burg Zone Types

2 Fire [F] Key, Fire Zone

3 Panic [P] Key and Panic zones

4 Medical [A] Key, Medical and Emergency zones

5 Supervisory Supervisory, Freeze and Water zones

6 Priority Gas, Heat, Sprinkler and 24-hr Latching Tamper zones

7 Holdup Holdup Zones and Duress Alarms

8 Output Options ON Output Follows PGM Timer. The output will activate for the period of time programmed for

the PGM Output Timer.

OFF Output is Latched. The output will be active until a valid access code is entered.

NOTE: If a System Event PGM is programmed to follow the Command Output Timer,

all attributes must be enabled.

NOTE: These are the attributes available for the System Event PGM option. The out-

put will activate if any of the corresponding alarm types occur on the system.

[701] FIRST INTERNATIONAL OPTION CODES

Option International Code On/Off Description

1 AC ON 50 Hz AC. - The incoming AC power cycles at 50 Hz.

OFF 60 Hz AC. - The incoming AC power cycles at 60 Hz.

2 Time Base ON The timebase is the internal crystal oscillator. In cases of unstable AC power input, the

internal crystal can be used to keep the most accurate timebase.

OFF The timebase is the AC power input. The 50 or 60 Hz AC power input is normally very stable

and can be used as the timebase

Programming Sections: 5.10 Module Programming PWS Sect 10

[703] - Delay Between Dialing Attempts

For standard (force) dialing, the panel will go off-hook,

search for dial tone for 5 seconds, hang-up for 20 seconds,

go off-hook, search for dial tone for 5 seconds, then dial. If

there is no initial handshake recognized within 40 sec-

onds, the panel will hang up. This programmable timer

adds a delay before the next call is attempted, and is

defaulted to 001 for a total of six seconds.

5.10 Module Programming PWS Sect 10

The programming sections listed below pertain to addi-

tional modules on the system. For instructions on program-

ming these modules and a description of each programming

section, see the associated Installation Manuals.

3 Arming Inhibit ON AC/DC Arming Inhibit with Battery Check Enabled. When an AC or DC Trouble is present,

the system will not arm. This includes Keypad, Keyswitch, Automatic, and Downloading arming.

If enabled and arming is attempted, the system will perform a system battery check as well as a

battery check on all peripheral modules supported by a backup battery.

OFF Arming not Inhibited. The system can be armed, regardless of the presence of an AC or DC

Trouble and will not check all system batteries upon arming.

NOTE: If this option is enabled, it is strongly recommended that AC Troubles be dis-

played (Section [017], Option 1 ON).

4 Latching System Tamper ON System Tampers Require Installer Reset and Inhibit Arming If any system Tamper condition

occurs, the Installer Code must be entered [*][8] [Installer Code] and the Tamper condition must

be restored before the system can be armed. This includes Auto-arming and keyswitch. If Auto-

arming is attempted with a latched tamper, the panel will not arm. The Auto-arm cancellation

code is not transmitted however because a user did not cancel the Auto-arming sequence.

OFF System Tampers Do Not Require Installer Reset. If enabled, the manual bypassing of a

zone will not bypass the tamper or fault states (DEOL). This feature also applies to Zone Faults.

5 Access Code Length ON 6-digit Access Codes. All access codes on the system will be 6 digits in length except the Panel

I.D. Code and the Downloading Access Code.

• System Master Code = XXXX56 XXXX = previous code, (1234)

• Installer Code = YYYY55 YYYY = previous code, (5555)

OFF 4-digit Access Codes. All access codes on the system will be 4 digits in length. For any existing

codes, the last 2 digits are removed.

6 Busy Tone ON Busy Tone Detection Enabled. If these tones are detected, the communicator will disengage

the phone line and try to place the call again following the Delay Between Dialing Attempts.

OFF Busy Tone Detection Disabled. The communicator will use the standard dialing procedure for

every attempt.

7 Battery Current Charge ON High Current Battery Charge. Approximately 650-700 mA.

OFF Standard Current Battery Charge. Approximately 350 mA.

8 ON For Future Use

[701] FIRST INTERNATIONAL OPTION CODES

Option International Code On/Off Description

[702] SECOND INTERNATIONAL OPTION CODES

Option International Code On/Off Description

1 Pulse Dial ON Pulse Dialing Make/Break Ratio is 33/67

OFF Pulse Dialing Make/Break Ratio is 40/60

2 Force Dial ON Force Dialing Enabled. If the first attempt by the panel to call the monitoring station fails to

detect a dial tone, on every subsequent attempt the panel will dial regardless of the presence of

dial tone. See {703] Delay Between Dialing Attempts

OFF Force Dialing Disabled. The panel will not dial the programmed telephone number if dial tone

is not present.

3 Land Line Test Transmission ON Land Line Test Transmission Interval is in Minutes. The value programmed in Section [370]

seventh entry is in minutes.

OFF Land Line Test Transmission Interval is in Days. The value programmed in Section [370] Sev-

enth entry is in days. NOTE: This option must be OFF for the PC5020CF.

4 Handshake ON 1600 Hz Handshake. The communicator responds to a 1600 Hz handshake for bps formats.

OFF Standard Handshake. The communicator responds to the handshake designated by the for-

mat selected (1400 or 2300 Hz).

5 I.D. Tone ON I.D. Tone Enabled. After the telephone number is dialed, the panel will emit a tone (as speci-

fied by Option 6) for 500ms every 2 seconds to indicate that it is a digital equipment call, not

voice.

OFF I.D. Tone Disabled.

6 I.D. Tone Frequency ON 2100 Hz I.D. Tone

OFF 1300 Hz I.D. Tone

7 DLS Window ON One Time 1-hour User-enabled DLS Window. The user-enabled DLS Window is 1 hour in

length and will be closed after a successful hang-up from a downloading call.

OFF Full 6-hour User-enabled DLS Window. The user-enabled DLS Window is 6 hours in length

and remains open after a successful hang-up from a downloading call. This option determines

the length of the DLS window available on power up.

8 FTC Bell ON Bell on FTC when armed. If a Failure to Communicate Trouble is generated while the system is

armed, the Bell output will sound for the length of Bell time-out or until the system is disarmed.

OFF FTC Trouble only when armed. If a Failure to Communicate Trouble is generated while the

panel is armed, the Bell output will not sound but the keypad buzzer will sound Trouble beeps

until a key is pressed.

1. PC5400 Programming Section [801]

2. PC5936 Programming Section [802]

• PC5936 audio interface will allow you to connect to 16

Interior (PC5921) or exterior (PC5921EXT) Intercom

Station. These surface mounted stations contain a

speaker and a microphone. This module enables Page/

Answer, Do Not Disturb, Baby Monitor, Answer

Incoming Calls, Doorbell Function, and Background

Music features in your alarm. This module also has the

Listen-in feature for central station monitoring. The

central station can select the audio station, listen/talk,

extend on-line time and hang up. The Listen-In feature

can be enabled separately for telephone numbers 1/3

and 2. All Talk/Listen and/or video sessions will be discon-

nected if the panel needs to communicate alarms to the

central station.

• Alternate Communicator Programming Section [803]

• PC5132 Programming Section [804]

• PC5100 Programming Section [805]

• PC5108L Programming Section [806]

NOTE: All talk/listen and/or video sessions are discon-

nected when the panel communicates alarms to the

central station.

• T-Link Programming Section [851]

NOTE: Option [5] in Section [382] must be enabled to

access this section.

The T-Link module can be used to communicate panel

events in SIA format over a Local Area Network (LAN). It

can also be used for downloading (this requires DLS-3 v1.3).

Telephone 1 & 3 Listen-In Enabled . . . . . . . Section [381], Option 5

Telephone 2 Listen-In Enabled . . . . . . . . . . Section [381], Option 6

Periodic Camera Test

When the Periodic Camera Test option is enabled, the

panel will test cameras connected to a PC5108L module

every 30 minutes. Only cameras with the Camera Test

option enabled will be tested. See your PC5108L Installa-

tion Manual for more information on camera tests.

If the Local Mode option is ON, the panel will send

events to the PC5108L module, Downlook will not be ini-

tiated if requested. If the Local Mode option is OFF, the

panel will send communicated events to the PC5108L

module. Downlook will initiate when requested. See your

PC5108L Installation Manual for more information.See

Periodic Camera Test Section [017], Option [7] and Local

Mode Enabled/Disabled Section [381], Option [8]

5.11 Special Installer Instructions PWS Sect 11

[901] - Installer Walk Test Mode Enable / Disable

The Installer Walk Test can be used to test the alarm state

of each zone of the panel. The Walk Test cannot be used to

test zone type [24]. Before beginning the Walk Test, ensure

the following conditions are met:

1. The panel is disarmed

2. The Keypad Blanking option is disabled (section [016]: [3])

3. The Fire Bell is Continuous option is disabled (section

[014]: [8])

4. The Transmission Delay is disabled, if Transmission Delay is

not required (section [377])

NOTE: Fire Troubles are not supported in Walk Test.

All outputs will activate for all partitions during the

Walk Test, regardless of programming.

To perform a Walk Test, do the following:

1. Enter Installer Programming

2. Enter Section [901]

When any zone is violated the panel will activate the Bell

Output for two seconds and log the event to the event

buffer. Check the event buffer to ensure that all zones and

FAP keys are functioning properly.

NOTE: If there is no zone activity on the system for 15

minutes, the system will end the Walk Test and return

to the normal state.

To stop the test, you must do the following:

1. Enter Installer Programming

2. Enter Section [901]

Zones do not have to be restored to stop the test. After the

test is complete, check the event buffer to ensure that the

Audible/Silent 24-Hr. PGM alarms have been restored.

NOTE: The Alarm Memory is cleared upon entering

Walk Test mode. When the Walk Test is complete, the

Alarm Memory will indicate the zones tested. The

Alarm Memory will be cleared the next time the panel

is armed.

NOTE: While the Walk Test is in progress, all three

LEDs (Ready, Arm, Trouble) will flash at a rapid rate. At

the start of the Walk Test, a TS signal will be communi-

cated. When the test is stopped a TE (test end) is com-

municated.

[902] - Reset Module Supervision

All modules will automatically enroll within one minute

upon power up (except the PC5132 if there are no serial

numbers programmed). If modules are to be removed, this

section should be entered after the removal of the modules

so that it can clear any supervisory Troubles that may be

present. When this mode is entered, the system will re-eval-

uate the components of the system.

NOTE: It may take up to a minute to enroll or delete a

module. Before entering Section [903] to view the

module field, this time should be taken into account.

If there is a module that is not properly communicating

with the system and this section is entered, the module

will be deleted from the system.

Once executed, all pending Supervisory Trouble Restorals

will not be logged or transmitted.

[903] - Module Supervision Field

When this mode is entered, the system will display all of

the modules presently enrolled on the system as indicated

below.

[904] - Module Placement Test

Module Selection

Upon entering Section [904], a 2-digit entry will be

required to select the zone number to be tested. Valid

entries are 01-32 for Zones 01-32 respectively. On an LCD

keypad, there are two ways to make a zone selection:

direct entry of 01-32, or by scrolling across to the descrip-

[903] MODULE SUPERVISION FIELD

Indicator Module

Lights 1-8 Keypads 1-8

Lights 9-14 Zone Expander Groups 1-6

Light 15 PC5100

Light 16 Zone Expander Group 7

Light 17 PC5132

Light 18 PC5208

Light 19 PC5204

Light 20 PC5400

Light 21 PC59XX

Light 22 Alternate Communicator

Light 23 Downlook Module

Light 24 Escort5580(TC)

Light 25 For Future Use

Light 26-29 PC520X1-4

Programming Sections: 5.11 Special Installer Instructions PWS Sect 11

tion of the module (i.e. ’Zone 1’). If a module is selected

that is not enrolled, an error tone will sound.

Placement Indication

After the zone is selected, the alarm contacts must be

opened. This will register a signal strength value that will

be indicated and anunciated on all keypads, as well as on

the bell. The system will remain in this test mode until [#]

is pressed or Installer Time-out (20 minutes).

• GOOD signal will be indicated by Light 1 on an LED

keypad or the word GOOD on an LCD keypad. It will be

enunciated on the Keypad by 1 beep and on the Bell by 1

Squawk.

• FAIR signal will be indicated by Light 2 on an LED key-

pad or the word FAIR on an LCD keypad. It will be

enunciated on the Keypad by 2 beep and on the Bell by 2

Squawk.

• BAD signal will be indicated by Light 3 on an LED key-

pad or the word BAD on an LCD keypad. It will be enun-

ciated on the Keypad by 3 beep and on the Bell by 3

Squawk.

• Non-Enrolled zone will be annunciated on the Keypad

by an error tone.

[906] - Local Downlook Remote Trigger

While in this section, either 1 or 2 can be pressed to ini-

tiate Downlook to either phone number 1 or 2, respec-

tively. The panel will communicate the System Test event,

log ’Downlook Remote Trigger’, and transmit the script

found in the PC5108L for Remote Trigger.

[990][Installer Code] - Installer Lockout Enable

If enabled, the panel will give a distinctive audible indica-

tion on power up (the phone line relay will click 10

times). This feature will have no effect on a Software

Default (all programming will return to the factory

defaults). However, if a Hardware default is attempted

while lockout is enabled, the default will not occur, and

the fraudulent attempt will be logged to the event buffer.

Installer Lockout

If Installer Lockout is selected a hardware default cannot

be performed. If a software default is performed all pro-

gramming will restore to factory default.

When Installer Lockout Disable is selected the panel will

restore all programming to factory defaults if a hardware

or software default is performed on the main control panel.

To enable Installer Lockout perform the following:

1.Enter Installer Programming.

2.To enable Installer Lockout, enter section [990]

3.Enter the Installer Code.

4.Enter section [990] again.

[991][Installer Code] - Installer Lockout Disable

This disables the Installer Lockout feature described above.

To disable Installer Lockout perform the following:

1. Enter Installer Programming.

2. To disable Installer Lockout, enter section [991].

3. Enter the Installer Code.

4. Enter section [991] again.

[993]-[999] Factory Defaults

On occasion it may be necessary to default the main con-

trol panel or one of the modules that can be connected.

There are several different defaults available including

defaulting the main control panel, Escort5580(TC) mod-

ule, PC5132 wireless expander module, PC5400 printer

module and LINKS2X50 module.

NOTE: Defaulting the main panel does not default the

keypads. Refer to the Programming Worksheets

Appendices A and B for instructions for defaulting

LCD5500Z and LCD5501Z keypads. PC55XXZ LED key-

pads must be manually reprogrammed in program-

ming section [000].

Factory Default Main Panel (Hardware)

1. Remove AC and battery power from the panel.

2. Remove all wires from the zone 1 and PGM1 terminals.

3. With a piece of wire short the zone 1 terminal to the

PGM1 terminal.

4. Apply AC power to the main panel.

5. When zone light 1 is lit on the keypad the default is com-

plete.

6. Remove AC power from the control

7. Reconnect all original wiring and power up the control.

NOTE: AC power must be used to power the panel.

The panel will not default if the battery is used.

Factory Default Main Panel (Software) and other

modules

1. Enter Installer Programming.

2. Enter the appropriate programming section [99X].

3. Enter the Installer Code.

4. Enter the appropriate programming section [99X] again.

The panel will take a few seconds to reset. When the key-

pad is operational, the default is complete.

[993][Installer Code] - Restore Alternate Comm.

Factory Default Programming

When this section is successfully entered, all program-

ming for the Alternate Communicator (LINKS2150,

LINKS2450, LINKS3000, or PC5400 DVACS module) will

be returned to the factory defaults.

[995][Installer Code] - Restore Escort5580(TC) Fac-

tory Default Programming

When this section is successfully entered, all program-

ming for the Escort5580(TC) module will be returned to

the factory defaults.

[996][Installer Code] - Restore PC5132 Wireless

Factory Default Programming

When this section is successfully entered, all program-

ming in the PC5132 wireless expansion module will be

returned to the factory defaults.

[997][Installer Code] - Restore PC5400 Factory

Default Programming

When this section is successfully entered, all program-

ming in the PC5400 serial module will be returned to the

factory defaults.

[998][Installer Code] - Restore PC59XX Factory

Default Programming

When this section is successfully entered, all program-

ming in the PC59XX audio matrix module will be

returned to the factory defaults.

[999][Installer Code] - Restore Factory Default Pro-

gramming

When this section is successfully entered, all program-

ming for the PC5020 will be returned to the factory

defaults. The programming for the Escort5580(TC),

PC5132, PC5400 and PC59XX modules will not be

defaulted. When this command is executed, the module

supervision field will be reset.

Section 6: Central & Remote Station Fire

Installation Instructions

6.1 Introduction

The PC5020CF is a UL/ULC Listed panel for [1] Central &

Remote Station Fire Monitoring [2] Local & Central Sta-

tion Burglary Alarm Monitoring. When used for fire

monitoring, all fire functions must be configured to take

priority over Burglary and other auxiliary functions.

The PC5020CF has a number of system functions estab-

lished as default values. These functions must be main-

tained to ensure the Life-Safety integrity of the installation

meets all applicable codes and standards.

To ensure an appropriate installation, all applicable NFPA

and local codes and standards should be reviewed. The

local AHJ (Authority Having Jurisdiction) should also be

consulted prior to installation to determine specific local

requirements for a fire alarm installation.

Information in this manual is intended to describe the fire

functionality of the equipment. Further information on

the overall system is contained in the companion manuals

for this product and must be consulted for a full under-

standing of operation, installation and programming.

This manual lists a number of alarm initiating and alarm

notification devices for use with this equipment.

6.2 Hardware Description and Specifications

P-8+CF - Main Panel

• One PC4050CR cabinet 14.8” x 12.0” x 4.9” with space

for two 12V, 7Ah sealed lead-acid rechargeable batter-

ies

One PC5020 main control module which includes:

• 8 zones programmable for Fire or Burglary

• Programmable outputs:

• 12 VDC, 50 mA max. each (standard output)

(PGM 1, 3, 4) or

•12 V

DC, 300 mA max. each (smoke detector

capability)(PGM 2)

• One unswitched AUX power supply – 12 VDC, 420

mA max.

• One supervised bell circuit – 12 VDC, 700 mA max.

• Supervised battery charger – 12 VDC, 360 mA

charging current max.

• Supervised telephone communicator (connects to

PC5700 module)

• Tamper kit T-1

• One power transformer – 16.5 VAC, 37 VA minimum

• One hardware package which includes:

• 16 EOL resistors (5,600Ω)

• One black cabinet plug

• One green grounding strap

• Mounting hardware for the PC5020CF PCB

• One EOL resistor (2200Ω)

• One (1000Ω) resistor for bell supervision

Minimum System Requirements for Commercial

Fire Applications

PC5020 CF System Components:

Central Station Fire Monitoring Service

• PC5020 control unit

• PC4050CR/PC4050CRAR enclosure

• PC5700 fire module

• LCD5500Z keypad

Remote Station Fire Monitoring Service

• PS5350 external battery charger

NOTE: This unit must be used together with all the

components listed for central station fire monitoring

service.

6.3 Compatible Devices

PC5700 Fire Module (150mA max. current draw)

• Two waterflow zones – Class ‘A’

• Two supervised communicator outputs

• Terminal connections for local telephone

• Hardware to mount the module to the side wall of the

PC4050CR/PC4050CRAR enclosure

LCD5500Z Fire Keypad (85mA max. current draw)

Standard LCD keypad (red bezel optional) for use with

the P-8+ CF.

NOTE: At least one LCD5500Z keypad must be used

with the PC5020CF and should be installed close to

the panel.

Compatible Smoke Detectors

Please see the 2-wire Smoke Detector Compatibility

Chart (below) for a list of 2-wire smoke detectors that

have been listed as compatible with the PC5020CF two-

wire smoke detection zone (PGM2).

PS5350 - External Battery Charger (For remote

station fire monitoring)

• PC4055C beige or red cabinet

• PS4085 multi-rate charger module

• Transformer, 12VAC, 80 VA

• Space for 60Ah, 12V sealed lead-acid battery

Name Model Compatibility

Max

Base

DSC MN220, -R, -T,

-RT

PS-220 30 None

System Sensor 2100AT, A 30 None

2100TR A 30 None

Sentrol 429AT or

521B/BXT

SW1 on

S09A 30 None

400 series,

429C, 429CT

S10A 30 None

429CST,

429CRT,

429CSST

S11A 30 None

521CRXT S11A 30 None

521B, 521BXT

SW1 off

S10A 30 None

711U/UT,

712U, 721U/

UD/UT

S10A 30 None

713-5U, 713-

6U, 722U

S10A 30 None

731U, 731UD,

732U

S11A 30 None

Section 7: Fire Monitoring Zone Types

This section explains all Fire monitoring zones that can be programmed on the PC5020CF and PC5700 fire module. Fire moni-

toring zone programming is the same as burglary zone programming. Instructions on zone programming are located in the P-

8+ Installation Manual, see Partitions and Zones.

NOTE: 2-wire smoke detectors can only be connected to the dedicated 2-wire smoke zone on the PC5020CF, PGM2 and Aux+

terminals.

7.1 Partitions and Fire System Configuration

A fire system within a single building must not be parti-

tioned in such a way that audible or visual alarm notifica-

tion appliances would operate in one partition and not

another.

Even though the system can be partitioned for security

control purposes, any fire zone on any partition in the

building must activate all fire monitoring zones in all sys-

tem partitions.

The P-8+ CF provides two methods for achieving these

results.

Fire Configuration 1

• Assign all fire monitoring zones to one partition.

• Assign at least one keypad to the same partition as the

fire monitoring zones.

• Other types of zones can also be assigned to this parti-

tion without affecting the fire operation as described

below.

Operation

The waterflow and any fire monitoring zones on the

PC5700 module will show, in the auto-scroll mode, on all

partition and global keypads. If a zone on the PC5700 is in

alarm, then fire silence and reset can be done from any

partition keypad.

If the alarm is from a partition zone then fire alarm silence

and reset can only be done directly on the fire partition

keypad(s). To silence from other partition keypads or a

global keypad requires that the keypad be loaned to the

fire partition.

Fire Configuration 2 (Recommended)

• Assign ALL fire zones to ALL active partitions in the

system. Do not program fire zones as ‘silent’.

• One or more keypads can be located on any partition.

Operation

On alarm, the auto-scroll display will show on all parti-

tion keypads.

Fire alarm silence and fire system reset may be done

directly on any partition keypad. To silence from a global

keypad requires that the global keypad be loaned to one

of the partitions.

NOTE: Assign command output 2 (sensor reset) to all

partitions.

7.2 Fire Zones

All zones can be programmed as Fire Monitoring zones.

This zone is always an end of line resistor type with nor-

mally open alarm contacts from the alarm initiating

device(s). Multiple devices can be connected in parallel

on a single zone.

The zone wiring is supervised by the control panel for:

• Short Circuit: Fire Alarm

• Open Circuit: loss of the end of line resistor; this will be

indicated as a Zone Trouble

• Ground Fault: resistance < 40kΩ to earth ground indi-

cated as a Ground Fault Trouble on PC5700 zone 7

Typical Fire Devices used on this zone type are:

• Heat Detectors – fixed temperature and/or rate-of-rise

• Fire alarm panel outputs such as Alarms and Troubles

• Manual pull stations

• 4-wire smoke detectors

Standard Fire Operation

When a Fire Monitoring zone goes into alarm, the panel

will activate the alarm notification output(s) and will

immediately transmit a reporting code to the central sta-

tion, if programmed. The alarm notification output(s) can

be programmed to pulse—one second on, one second

off—or to follow another programmed alarm notification

pattern (see Section 5.3, ‘Basic Programming’, [005] Sys-

tem Times). If an open condition is present, the panel will

immediately display and communicate a Trouble condi-

tion. All keypads will annunciate the Trouble by activating

the Trouble light and beeping twice every ten seconds. The

keypads can be silenced by pressing any key.

7.3 Auto Verify Fire

All zones can be programmed as Auto Verify Fire zones.

For zones on the main panel or zone expanders, this zone is

always an end of line resistor type with Normally Open

alarm contacts from the alarm initiating device(s). Multiple

devices can be connected on a single zone.

The zone wiring is supervised by the control panel for:

• Short Circuit: Fire Alarm

• Open Circuit: loss of the end of line resistor; this will

be indicated as a Zone Trouble

• Ground Fault: resistance < 40kΩ to earth ground indi-

cated as a Common Ground Fault Trouble.

NOTE: This zone type is only for smoke detectors that

can be reset by the control panel. Do not mix contact

type alarm-initiating devices on zones programmed for

Auto Verify Fire. The following device can be used:

•4-wire smoke detectors powered from the AUX+

output on the P-8+CF main board

7.4 Waterflow Zone

This type is a Contact Input Fire Zone and is always an

end of line resistor type with normally open alarm con-

tacts from the initiating device(s) when used on the

PC5020CF (zones 1-8) or zone expander on-board zones.

A maximum of five waterflow contacts can be connected

in parallel on a single waterflow zone.

The zone wiring is supervised by the control panel for:

• Short Circuit: Fire Alarm

• Open Circuit: loss of the end of line resistor and will be

indicated as a Zone Trouble

• Ground Fault: resistance < 40kΩ to earth ground indi-

cated as a Common Ground Fault Trouble.

Typical alarm initiating devices used on this zone type are

waterflow switches for fire suppression sprinklers

NOTE: For this type of zone, only waterflow alarm-ini-

tiating devices can be connected. A maximum of five

(5) waterflow alarm-initiating devices is allowed per

zone (Ref: NFPA 72 / 5-6 and 3.8.5).

7.5 PC5700 Zones

PC5700 Waterflow

The waterflow zones on the PC5700 are hardcoded for

waterflow operation and cannot be reprogrammed.

If waterflow zones are used on the PC5020CF, the PC5700

waterflow zone must be used. This zone is a normally

closed loop between A+ and A- and B+ and B- (class A)

with normally open alarm contacts from the waterflow

alarm-initiating devices. As per NFPA, only five water-

flow initiating devices may be connected to a single zone.

The zone wiring is supervised by the control panel for:

• Short Circuit: Fire Alarm

• Open Circuit: If either the A or B loop is open, this will

be indicated as a Zone Trouble (zone fault)

• Ground Fault: resistance < 40kΩ to earth ground indi-

cated as a Common Ground Fault Trouble.

7.6 Four-Wire Smoke Detector Zones

All zones (except for waterflow zones) can be pro-

grammed for 4-wire smoke detectors. It is always an end

of line resistor type with normally open alarm contacts

from the fire alarm-initiating devices. Multiple contacts

can be connected in parallel on a single zone.

For commercial applications, zones used for 4-wire

smoke detectors can be programmed as Standard Fire.

For residential applications, the zone can be programmed

as Standard Fire.

Power for the 4-wire smoke detectors can be derived from

the auxiliary (AUX+) output on the P-8+ CF main panel.

This detector may be connected to any PGM 1-4. The

PGM must be programmed as Sensor Reset (see Program-

ming Worksheets). PGM2 can either be programmed for a

2-wire smoke detector or a 4-wire smoke detector, but

both detectors cannot be programmed concurrently on

PGM2. For a wiring diagram, see Appendix B-6 ‘Sensor

Reset for 4-Wire Smoke Detectors’.

7.7 Two-Wire Smoke Detector Zones

PGM2 can be programmed for 2-wire smoke detectors.

More than one smoke detector can be connected in paral-

lel, refer to the Compatability Chart in this manual for

details (see section 6.3). For installations of these devices,

refer to wiring diagram B.1, see Appendix B. PGM2 must

be programmed for 2-wire smoke support (PGM2 only)

Option[4]. Refer to the PC5020 CF Programming Work-

sheets, ‘Programmable Output Options’.

7.8 Fire Supervisory Zone

This zone is always an end of line resistor type with nor-

mally open alarm contacts from the Fire Supervisory initi-

ating devices. A maximum of 20 Fire Supervisory devices

can be connected in parallel on a single zone. The zone

wiring is supervised by the control panel for:

• Short Circuit - Supervisory off-normal

• Open Circuit - loss of the end of line resistor; this will

be indicated as a Zone Trouble

A Fire Supervisory zone monitors fire critical systems to

indicate when those systems are in a condition that could

prevent normal operation. These most commonly moni-

tored devices are sprinkler gate valves to ensure they are

not closed, which would prevent water from flowing to

the sprinklers.

Section 8: Fire System Operation

8.1 Manual Signal Silence

Once the panel is in alarm and the alarm notification

appliances are active, entering a valid user code will

silence the alarm signals.

Silencing will not deactivate any output programmed as

Fire Strobe.

Manual Silencing initiates a Trouble condition by turning on

the keypad Trouble LED and sounding the keypad buzzer.

The buzzer may be silenced by entering an access code.

If a waterflow alarm is present on the system silencing

will not be possible. Instead, the system will announce,

‘Silence Inhibit, Waterflow Alarm’. All waterflow zones

must be secured before the system can be silenced.

8.2 Automatic Signal Silence (Bell Time-out)

Ref: Section[014] Option [8] Fire Bell Follows Time-out

Ref: Section[005] Bell Time-out (default 004 minutes)

The fire alarm notification appliances may be set to

silence automatically after a programmed time. The sys-

tem is default programmed to silence the notification

appliances four minutes after the last initiated fire alarm.

If the Fire Time-out option is disabled, the notification

appliance can only be silenced manually.

The Bell Time-out timer begins upon the first fire alarm.

Each subsequent alarm will restart the timer.

8.3 Manual Sensor Reset ([*][7][2])

The Sensor Reset function is designed so that the user can

manually reset latching smoke detectors by entering

[*][7][2]. In order for this feature to function, the detectors

to be reset must be connected to a programmable output

(PGM1-4, AUX+).

Program the output as ‘Sensor Reset 2’ (PGM output

option #03). The output pulse time is by default set at five

seconds. For instructions on output programming, see

your PC5020CF Installation Manual, Section 5.3 ‘Basic Pro-

gramming’, [009]-[011] Programmable Output Options.

RECOMMENDED: As a security measure, ensure that

a code is required to activate [*][7][2]. This will

require that a user enter a valid access code after

entering [*][7][2] in order to reset smoke detectors.

8.4 Subsequent Alarm Operation

If the alarm notification appliances have been silenced –

manually or automatically – and a subsequent fire alarm

is initiated, the following will occur:

• Audible and visual notification appliances will acti-

vate as programmed.

• The Bell Time-out, if used, will restart for a full timing

period before automatic silencing.

• The new alarm and all previous alarms/troubles will

be displayed.

If a subsequent Fire alarm is initiated before the alarm

notification appliances have been silenced, either manu-

ally or automatically, then the following will occur:

• The Bell Time-out, if used, will restart for a full timing

period before automatic silencing.

• The new alarm will be shown.

8.5 Auto-Scroll LCD Keypad Display

When an alarm is initiated, the Alarm and selected Trou-

ble conditions will be displayed on the system LCD key-

pad(s). If there is more than one Alarm or Trouble present

simultaneously, the keypad will continuously scroll

through each event. Items on the scroll list are displayed

at two-second intervals. The keypad will beep as each

message is displayed.

Although critical Troubles are displayed, Auto-scroll is only

initiated upon a Fire Alarm. If a Fire Trouble is detected and

a Fire Alarm is not present, the Trouble will be indicated as

any other system trouble; the keypad Trouble light will turn

on and the keypad buzzer will beep.

The following events are included in the Auto-scroll.

•’Fire Alarm [Zone Label]’: This message will appear for

all Fire Alarms. Messages are displayed sequentially by

zone number.

•’Fire Trouble [Zone Label]’: This message will appear

for Fire off-normal conditions only and the keypad

buzzer will beep once as it is displayed. Messages are

displayed sequentially by zone number.

•’Bell CCT Trouble’: This message will appear if an

open fault is detected on the PC5020CF bell zone.

•’Failure to Communicate’: This message will appear

when the panel cannot report to the central station.

Auto-scroll will stop when a valid user code is entered to

silence the alarm notification appliances.

8.6 Fire Trouble Conditions

In all cases, when the panel detects a Trouble condition, the

keypad Trouble light turns on and the keypad buzzer will

sound two short beeps every 10 seconds. Pressing any key

will silence the audible Trouble signal. The Trouble buzzer

will resound if another Trouble is generated.

Fire Zone Trouble

A fire zone Trouble will be generated when an open cir-

cuit is detected on any fire zone.

AC Trouble

An AC Fail Trouble is generated if the AC fails on the P-

8+CF. AC Troubles are grouped for common indication

on a remote annunciator as an ‘AC Trouble’.

See also Section 5.6 ‘Communicator Programming’, [377]’

Communication Variables.

Battery Trouble

A battery Trouble is generated if the PC5020CF/PS5350

panel batteries are open or shorted. This Trouble condi-

tion only turns on the keypad Trouble light and sounds

the keypad buzzer.

Ground Fault

Ground fault detection must be enabled for Commercial

Fire Monitoring installations by connecting the EGND

terminal on the PC5020CF to a solid earth ground. Upon

detection of a resistance of <40kΩ between any extended

conductor and earth ground, a Ground Fault Trouble will

be generated via zone 7 of the PC5700 (see Installation

Instructions for PC5700 fire module v2.0).

TLM Troubles

If the PC5700 module detects a TLM Trouble on telephone

line 1 or 2, Zone 8 on the PC5700 will be violated auto-

matically. The panel can only monitor both telephone

lines if a PC5700 is connected.

NOTE: TLM Trouble monitoring should not be disabled.

Fail To Communicate (FTC)

If the control panel is unable to report to the central sta-

tion, an FTC Trouble will be generated and the message

’Failure to Communicate’ will be added to the Troubles

list to advise the user that the central station may not

have received the communication about the current alarm

status.

8.7 AC Delays

AC Fail TX Delay

AC Fail TX Delay -UL Requirement

If the AC Fail TX Delay is programmed, the panel will

delay reporting the AC Trouble to the central station for

the programmed time.

NOTE: For 24-hr battery backup (14Ah battery) pro-

gram AC Fail Transmission Delay for 6 hours. For 60

hour battery backup (60ah battery) program AC Fail

Transmission Delay for 15 hours.

See section 5.6 ’Communicator Programming’, [377]

Communication Variables.

8.8 Fire Reporting Codes

The following reporting codes should be programmed on

every PC5020CF system:

Fire Events

2-wire Alarm – This reporting code will be sent when a 2-

wire smoke zone alarm occurs. The 2-wire smoke zone

acts as a standard fire zone. The 2-wire Alarm Restoral

reporting code will be sent when the alarm condition is

restored.

Waterflow Alarm – This reporting code will be sent when

a waterflow zone alarm occurs. The Waterflow Restoral

reporting code will be sent when the alarm condition is

restored.

2-wire Trouble – This reporting code will be sent when

the 2-wire smoke detector zone has a trouble (open) con-

dition. The 2-wire Trouble Restoral reporting code will be

sent when the condition has restored.

Waterflow Trouble – This reporting code will be sent

when the waterflow detector zone has a Trouble condi-

tion. The waterflow Trouble Restoral reporting code will

be sent when the condition has restored.

[F] Key

The panel will transmit a Keypad Fire Alarm reporting

code and the Keypad Fire Restoral reporting code when

the Fire Keys on any keypad are pressed for two seconds.

NOTE: For commercial applications, do not program

the [F] key for keypads that are readily accessible by

the public. For more information regarding this key,

see the PC5020CF Installation Manual Section 5.3,

‘Basic Programming’, [015] Third System Option

Codes, Option [1].

System Maintenance

Panel Battery Trouble – This code will be sent when the

control panel battery is low, disconnected or if the battery

fuse fails. The Battery Trouble Restoral reporting code

will be sent when the condition is cleared.

Panel AC Trouble – This code will be sent when the AC

power to the control panel is disconnected or interrupted.

To prevent communicating the trouble in the event of

short power failures, the code will not be sent until the

AC Failure Communication Delay has expired. When the

Trouble is restored, the AC Line Trouble Restoral report-

ing code will be sent.

Panel Bell Trouble – This code will be sent when a bell

Trouble occurs. This is when an open circuit is detected

across the bell terminals. When the Trouble condition is

restored, the Main Bell Trouble Restoral reporting code

will be transmitted.

Panel AUX Trouble – This code will be sent when an aux-

iliary voltage supply Trouble occurs. When the voltage

supply is restored, the Main Auxiliary Trouble Restoral

code will be sent.

GND Fault Trouble – This reporting code will be sent

when the earth ground connection detects a ground fault.

The Ground Fault Restoral reporting code will be sent

when the earth ground fault connection is restored.

NOTE: The PC5020CF EGND terminal must not be con-

nected to the key ground. Connecting earth ground to

the key ground will interfere with system performance

and generate a Ground Fault Trouble.

Periodic Test – This is the reporting code that is sent to the

monitoring station to test communications (see PC5020CF

Installation Manual, section 5.6, ‘Communicator Program-

ming’, [377] Communication Variables).

Periodic Test TBL – This test transmission code is sent

instead of a Periodic Test Transmission if any of the fol-

lowing conditions occur:

• Common Fire Trouble

• Fire Zone Alarm (all zones)

• Fire Alarm (5700)

• Fire Zone Trouble (all zones)

• Fire Zone(s) Bypassed

• AUX Trouble (main panel)

• Key Low Power

• Module Supervisory Fault

• [F] Key Alarm

Section 9: Listing Requirements

9.1 UL Listed Commercial and Residential

Installations

The installation requirements listed below must

be met for the following grades of service.

Grade A Local

The installation must have a bell which is UL Listed for mecantile local alarms

(AMSECO MBL10B with model AB-12 bell housing).

The digital communicator must be enabled.

The control panel must be in the attack-resistant enclosure

(DSC Model CMC-1 or PC4050CAR).

Grade B Central Station and Police Connect

The installation must have a bell which is UL Listed for mecantile local alarms

(AMSECO MBL10B with model AB-12 bell housing).

The digital communicator must be enabled.

The control panel must be in the attack resistant enclosure

(DSC Model CMC-1 or PC4050CAR).

Grade C Central Station

The digital communicator must be enabled.

The control panel must be in the attack resistant enclosure

(DSC Model CMC-1 or PC4050CAR).

All Commercial Installations

• The Entry Delay must not exceed 120 seconds

• The Exit Delay must not exceed 120 seconds.

• The minimum Bell Time-out is 15 minutes.

Residential Installations

• The Entry Delay must not exceed 45 seconds

• The Exit Delay must not exceed 60 seconds.

• The minimum Bell Time-out is 4 minutes.

Home Health Care Signaling Equipment

• There must be at least two keypads, one of either the LCD5500Z or LCD5501Z

and one of the following models, PC5508Z, PC5516Z or PC5532Z.

• Each system shall be programmed to activate an audible Trouble signal

within 90 seconds upon loss of microprocessor memory.

Programming

The notes in the programming sections describing the system configurations

for UL Listed installations must be implemented.

Control of the Protected Premises

In order to have a UL Certificated system the protected area is to be under the

responsibility of one ownership and management (i.e., one business under one

name). This may be a group of buildings attached or unattached with different

addresses but under the responsibility of someone having mutual interest. The

person of mutual interest is not the alarm-installing company.

Bell Location

The alarm sounding device (bell) must be located where it can be heard by

the person or persons responsible for maintaining the security system during

the daily arming cycle.

Protection of the Control Unit

The local control and the local power supply must be protected in one of the

following ways:

• The control unit and audible alarm device must be in a protected area

which is armed 24 hours a day.

• Each partition must arm the area protecting the control unit and the audible

alarm device power supply. This may require duplicate protection armed

by each partition. Access to this protected area, without causing an alarm,

will require that all partitions be disarmed.

• In all cases described above, the protected area for the control unit must

be programmed as not-bypassable.

Casual Users

The installer should caution the user(s) not to give system information to

casual users (e.g. codes, bypass methods, etc. to baby-sitters or ser-

vice people). Only the One-Time Use codes should be given to casual

users.

User Information

The installer should advise the users and note in the User’s Guide:

• Service organization name and telephone number

• The programmed exit time

• The programmed entry time

• Test system weekly

9.2 Commercial Fire Monitoring Installations

System Specifications

• Class B / Style B 2-Wire Smoke Detector Supervision

• Class B/ Style B Waterflow Supervision

• Service Type: Automatic, Manual, Sprinkler Supervisory, Waterflow

• Signaling Type: Non-coded

• Ground Fault Supervision

• Supervised Dual Telephone Lines

PC5020 CF modules other than those specified have not been investi-

gated by UL for use with commercial fire monitoring alarm systems and

cannot be used for commercial fire monitoring service.

All other modules providing burglary sevice must be provided in a sep-

arate enclosure.

Two-Wire Smoke Detector Compatibility

• Maximum loop resistance: 100 Ohms (if available)

• Operating Voltage Range: 8.9 - 12.0 (if available)

• Maximum Alarm Current: 87.5 mA (if available)

• Compatibility Identifier: PC5-2

Please see the Compatibility Listing Chart, section 1.2 ‘Hardware

Description and Specifications’ for a list of compatible 2-wire smoke

detectors.

Hardware Requirements

A UL Listed fire monitoring installation must include at least the following:

• PC5020CF & PC4050 CR control unit

• PC5700 fire module

• Batteries of sufficient capacity or PS5350 with batteries to provide 24

hours of standby supervision followed by five minutes of alarm notifi-

cation for central monitoring station use.

• PS5350 with batteries to provide 60 hours of standby supervision fol-

lowed by 5 minutes of alarm notification for remote station supervision.

• At least one keypad (the LCD5500Z is recommended), which must

be located near the control panel.

• Notice on page 61 must be permanently located close to this keypad.

• UL Listed input and output devices as required (not supplied)

• The PC5020 must be configured to communicate solely to a SG-

MLR2-DG receiver for central and remote station services

Programming Requirements

Ensure that the hardware has been installed and connected correctly

before attempting to program. For Commercial Fire programming

guidelines, refer to Appendix C of the Programming Worksheets.

9.3 ULC Listing Requirements

For ULC installations please refer to the ULC Wiring Diagram part

#18006238 and the ULC Installation Information Sheet part #29002157.

Appendix A: Reporting Codes

The following tables contain Contact ID and Automatic

SIA format reporting codes. For more information on

reporting code formats and notes about individual

reporting codes, (See Section 5.6 Communicator Pro-

gramming PWS Sect 6).

Contact ID

The first digit (in parentheses) will automatically be sent

by the control panel. The second two digits are pro-

grammed to indicate specific information about the sig-

nal. For example, if zone 1 is an entry/exit point, you

could program the event code as [34]. The central station

would receive the following:

*BURG - ENTRY/EXIT - 1 where the ’1’ indicates which

zone went into alarm.

SIA Format - Level 2 (Hardcoded)

The SIA communication format used in this product fol-

lows the level 2 specifications of the SIA Digital Commu-

nication Standard - October 1997. This format will send

the account code along with its data transmission. The

transmission will look similar to the following at the

receiver:

N Ri01 BA 01

N = New Event

Ri01 = Partition /Area Identifier

BA = Burglary Alarm

01 = Zone 1

NOTE: A system event will use the Area Identifier Ri00.

Section # Reporting Code Code Sent When... Dialer

Direction*

Automatic

Contact ID

Codes

SIA Auto Rep

Codes**

[320]-[323] Zone Alarms Zone goes into alarm A/R See Table 3 See Table 3

[324]-[327] Zone Restorals Alarm condition has been restored A/R

[328] Duress Alarm Duress code entered at keypad A/R (1) 21 HA-00

[328] Opening After Alarm System disarmed with alarm in memory A/R (4) A6 OR-00

[328] Recent Closing Alarm occurs within two minutes of system arming A/R (4) 59 CR-00

[328] Zone Expander Supervisory

Alarm/Rest.

Panel loses/restores supervisory transmission over the Keybus

from zone expansion modules, or keypads with zone inputs

A/R (1) 43 UA-00/UH-00

[328] Cross Zone (Police Code)

Alarm

Two zones on the same partition go into alarm during any

given armed-to-armed period (incl. 24-hr zones)

A/R (1) 4A BM-00/BV-00

[328] Burglary Not Verified A/R (3) 78 BG-00

[328]

[329] [F] Key Alarm/Restoral Keypad fire alarm (alarm and restoral reporting codes sent

together)

A/R (1) 15 FA-00/FH-00

[329] [A] Key Alarm/Restoral Keypad auxiliary alarm (alarm and restoral reporting codes sent

together)

A/R (1) AA MA-00/MH-00

[329] [P] Key Alarm/Restoral Keypad panic alarm (alarm and restoral reporting codes sent

together)

A/R (1) 2A PA-00/PH-00

[329] Aux Input Alarm/Restoral Option#23/24: a panic button wired to PGM 2 is pressed/

access code is entered

Option #04: a 2-wire smoke detector wired to PGM 2 goes

into alarm/alarm is cleared.

A/R

(1) 4A

(1) 11

UA-99/UH-99

FA-99/FH-99

[330]-[337] Zone Tamper/Restoral Zone is tampered / Tamper condition restored T/R (1) 44 TA-ZZ/TR-ZZ

[338] General System Tamper/Rest. Enrolled module with tamper inputs has a Tamper alarm/all

module Tampers restored

T/R (1) 45 TA-00/TR-00

[338] Keypad Lockout Maximum number of incorrect access codes has been entered

at a keypad

T/R (4) 21 JA-00

[339-341] Closings System armed (user 01-34, 40-42 indicated) O/C (4) A2 CL-UU

[341] Partial Closing One or more zones bypassed when system armed O/C (4) 7A CG-ZZ

[341] Special Closing Closing (arming) using one of the following methods: quick

arm, auto-arm, keyswitch, function key, maintenance code,

DLS software, wireless key

O/C (4) AA CL-00

[341] Late to Close Whenever the auto-arm pre-alert sounds (if the Late to Close

option is enabled)

O/C (4) A4 CI-00

[342-344] Openings System disarmed (user 01-34, 40-42 indicated) O/C (4) A2 OP-UU

[344] Auto-arm Cancellation Auto-arm cancelled O/C (4) A5 CE-00

* A/R = alarms/restorals; T/R = tampers/restorals; O/C = openings/closings; MA/R = miscellaneous alarms/restorals; T = test transmissions

** UU = user number (user01-42); ZZ = zone number (01-64)

Section # Reporting Code Code Sent When... Dialer

Direction*

Automatic

Contact ID

Codes

SIA Auto

Reporting

Codes**

[344] Special Opening Opening (disarming) using one of the following methods: key-

switch, maintenance code, DLS software, wireless key

O/C (4) AA OP-00

[345]-[346] Battery Trouble/Restoral PC5020 battery is low/battery restored MA/R (3) A2 YT-00/YR-00

[345]-[346] AC Line Trouble/Restoral AC power to control panel is disconnected or interrupted/AC

power restored (Both codes follow AC Failure Comm. Delay.)

MA/R (3) A1 AT-00/AR-00

[345]-[346] Bell Circuit Trouble/Restoral Open or short circuit detected across bell terminals/bell circuit

restored

MA/R (3) 21 YA-99/YH-99

[345]-[346] Fire Trouble/Restoral Trouble occurs/restores on a fire zone MA/R (3) 73 FT-00/FJ-00

[345]-[346] Auxiliary Power Trouble/Rest. Aux voltage supply trouble/restoral MA/R (3) AA YP-00/YQ-00

[345] TLM Failure Telephone line monitoring trouble (sent via LINKS1000. Do not

program if LINKS1000 not used)

MA/R (3) 51 LT-00

[346] TLM Restore Telephone line restored MA/R (3) 51 LR-00

[345]-[346] Gen System Trouble/Restoral ‘Service Required’ Trouble occurs (view troubles using [*][2])/

trouble restored

MA/R (3) AA YX-00/YZ-00

[345]-[346] Gen System Supervisory Trou-

ble/Restoral

Control panel loses/restores communications with module(s)

connected to the Keybus

MA/R (3) 33 ET-00/ER-00

[347] Phone# 1 or 2 FTC Restoral Control panel has restored communications to central station

on Phone# 1 or 2 (after FTC)

MA/R (3) 54 YK-00

[347] Event Buffer is 75% Full Event buffer is almost full since last upload MA/R (6) 23 JL-00

[347] DLS Lead In Downloading session start MA/R (4) 11 RB-00

[347] DLS Lead Out Downloading session complete MA/R (4) 12 RS-00

[347] Zone Fault/Rest. One or more zones have faults/restored MA/R (3) 72 UT-ZZ/UJ-ZZ

[347] Delinquency Programmed amount of time (days or hours) for delinquency

has expired without zone activity, or without system being

armed

MA/R (4) 54*** CD-00

[347] Wireless Device Low Battery

Trouble/Rest.

Wireless zones, panic pendants, handheld keypads, wireless

keys have low battery/all low batteries restored

MA/R (3) 84 XT-00/XR-00

XT-ZZ/XR-ZZ****

[347] Installer Lead In Installer Programming has been entered MA/R (6)27 LB-00

[347] Installer Lead Out Installer Programming has been exited MA/R (6)28 LS-00

[348] Walk Test End End of test T (6) A7 TS-00

[348] Walk Test Begin Beginning of test T (6) A7 TE-00

[348] Periodic Test with Trouble Periodic system test transmission with trouble T (6) A8 RP-01

[348] Periodic Test Periodic system test transmission T (6) A2 RP-00

[348] System Test [*][6] bell/communications test T (6) A1 RX-00

[348] LINKS1000 Test LINKS1000 test transmission T (6) A3 TX-00

[349] PC5700 Ground Fault Trouble/

Restoral

Ground/Fault/Trouble occurs on the PC5700 MA/R (3) 1A US-00

[349] PC5700 TLM Line 1 Trouble/

Restoral

TLM Trouble /Restoral occurs on the PC5700 MA/R (3) 51 LT-XX

[349] PC5700 TLM Line 2 Trouble/

Restoral

TLM Trouble /Restoral occurs on the PC5700 MA/R (3) 52 LR-XX

* A/R = alarms/restorals; T/R = tampers/restorals; O/C = openings/closings; MA/R = miscellaneous alarms/restorals; T = test transmissions

** UU = user number (user01-42); ZZ = zone number (01-64)

*** Use the Fail to Close event code [(4)54] to report closing or activity delinquency. Ensure the central station is aware that this code is used.

**** Zones are identified; panic pendants, wireless keys, and handheld keypads are not.

Table2: Contact ID Zone Alarm/Restoral Event

Codes (as per ADEMCO):

Program any of these codes for zone alarms/restorals when using

the standard (non-automatic) Contact ID reporting format.

Table 3: SIA Format Automatic Zone Alarm/Restoral

Codes

Medical Alarms (1)34 Entry / Exit

(1)AA Medical (1)35 Day / Night

(1)A1 Pendant Transmitter (1)36 Outdoor

(1)A2 Fail to Report In (1)37 Tamper

Fire Alarms (1)38 Near Alarm

(1)1A Fire Alarm General Alarms

(1)11 Smoke (1)4A General Alarm

(1)12 Combustion (1)43 Exp. module failure

(1)13 Waterflow (1)44 Sensor tamper

(1)14 Heat (1)45 Module Tamper

(1)15 Pull Station (1)4A Cross Zone Police Code

(1)16 Duct 24-hr Non-Burglary

(1)17 Flame (1)5A 24-hr non-Burg

(1)18 Near Alarm (1)51 Gas detected

Panic Alarms (1)52 Refrigeration

(1)2A Panic (1)53 Loss of Heat

(1)21 Duress (1)54 Water Leakage

(1)22 Silent (1)55 Foil Break

(1)23 Audible (1)56 Day Trouble

Burglar Alarms (1)57 Low bottled Gas level

(1)3A Burglary (1)58 High Temp

(1)31 Perimeter (1)59 Low Temp

(1)32 Interior (1)61 Loss of Air Flow

(1)33 24-hr

Zone Definition

SIA Auto Rep

Codes*

Contact ID

Auto Rep

Codes*

Zone Alm/Rest. Zone Alm/Rest.

Delay 1 BA-ZZ/BH-ZZ (1) 3A

Delay 2 BA-ZZ/BH-ZZ (1) 3A

Instant BA-ZZ/BH-ZZ (1) 3A

Interior BA-ZZ/BH-ZZ (1) 3A

Interior Stay/Away BA-ZZ/BH-ZZ (1) 3A

Delay Stay/Away BA-ZZ/BH-ZZ (1) 3A

Delayed 24-hr Fire FA-ZZ/FH-ZZ (1) 1A

Standard 24-hr Fire FA-ZZ/FH-ZZ (1) 1A

24-hr Supervisory US-ZZ/UR-ZZ (3) 8A

24-hr Supervisory Buzzer UA-ZZ/UH-ZZ (1) 3A

24-hr Burg BA-ZZ/BH-ZZ (1) 3A

24-hr Holdup HA-ZZ/HH-ZZ (1) 22

24-hr Gas GA-ZZ/GH-ZZ (1) 5A

24-hr Heat KA-ZZ/KH-ZZ (1) 5A

24-hr Medical MA-ZZ/MH-ZZ (1) AA

24-hr Panic PA-ZZ/PH-ZZ (1) 2A

24-hr Emergency (non-medical) QA-ZZ/QH-ZZ (1) 1A

24-hr Sprinkler SA-ZZ/SH-ZZ (1) 13

24-hr Waterflow WA-ZZ/WH-ZZ (1) 5A

24-hr Freeze ZA-ZZ/ZH-ZZ (1) 5A

24-hr Latching BA-ZZ/BH-ZZ (1) 3A

Interior Delay BA-ZZ/BH-ZZ (1) 3A

Delayed 24-hr Waterflow SA-ZZ/SH-ZZ (1) 1A

Instant 24-hr Waterflow SA-ZZ/SH-ZZ (1) 1A

Auto Verified Fire FA-ZZ/FH-ZZ (1) 1A

24-hr Fire Supervisory FS-ZZ/FR-ZZ (2) AA

Day Zone BA-ZZ/BH-ZZ (1) 3A

Delayed 24-hr Fire (Wireless) FA-ZZ/FH-ZZ (1) 1A

Standard 24-hr Fire (Wireless) FA-ZZ/FH-ZZ (1) 1A

* ZZ = zones 01-64

Appendix B: Wiring Diagrams

B.1 PC5020CF Wiring Diagram (Ground Connection, Zone Circuits)

REDBELL

+AUX –

AC BLK YEL GRN Z1 Z3 Z5 Z7COM COM COM COMZ2 Z4 Z6 Z8 RING TIP R-1 T- 1 EGNDPGM

RED BLK RED BLK

BATTERY 2

BATTERY 1

12V 7.0Ah

Maximum battery

charge current

is 360 mA.

PGM 1: 50mA Max.*

PGM 2: 300mA Max.(supervised)

PGM 3: 50mA Max.

PGM 4: 50mA Max.

To +AUX

DEVICE

16.5VAC 37VA (min)

FTC Frost 3716

NOTE: Refer to the Installation Manual

for other AC wiring options.

Do not connect to receptacle

controlled by a switch

OUT

ALM

OUT

BLK WHT

RED GRN

EOLR-2

END OF LINE RESISTOR 5600Ω 0.5W

Refer to installation guidelines in Installation

Manual & detector manufacturer's literature

when locating smoke detectors.

RM-1 POWER LOOP SUPERVISORY RELAY

12V

35mA maximum

WHT

4-WIRE SMOKE DETECTORS

Smoke Detector must be latching type (DSC MN240 Series).

To reset smoke detectors, enter [ ] [7] [2].✱

+ AUX

PGM 2

Zone Input

COM

ALARM

INITIATING

LOOP

RESISTANCE:

100Ω

WARNING

High voltage. Disconnect

AC power and telephone

lines prior to servicing.

TYPICAL ZONE CIRCUITS

NORMALLY CLOSED

CONTACT WITH

END OF LINE

RESISTOR

ANY Z

TERMINAL ANY COM

TERMINAL

NORMALLY OPEN

CONTACTS WITH

END OF LINE

RESISTOR

ANY Z

TERMINAL ANY COM

TERMINAL

ANY Z

TERMINAL ANY COM

TERMINAL

2 NORMALLY OPEN

CONTACT AND

2 NORMALLY CLOSED

CONTACT WITH

END OF LINE

RESISTOR

1 NORMALLY OPEN

CONTACT AND

1 NORMALLY CLOSED

CONTACT WITH

END OF LINE

RESISTOR

ANY Z

TERMINAL ANY COM

TERMINAL

5600Ω5600Ω

5600Ω5600Ω5600Ω

5600Ω

PGM CONNECTIONS (1-4)

IMPORTANT: Minimum 6.4mm (0.25")

separation must be maintained between

RM-1 circuits and all other wiring.

RELAY OUTPUT

DSC

RM-1

RED BLK

WHT YEL GRN

COM N.C.N.O.

PGM2

LED INDICATOR

680

RESISTOR

(TYPICAL VALUE)

ΩLED

INDICATOR

PGM

+ AUX +AUX

211

BELL / SIREN 12VDC 700 mA MAXIMUM

(Supervised for non-fire use only)

Supplementary Bell Circuit

PC-Link Connection

SI SO

GROUND

CONNECTION

Tighten nut to break paint &

make a good connection to

the cabinet

Nut

Star washer

Lock washer

Ground wire

from building

electrical

installation

Nut

Cabinet

Bolt

UA186

2-WIRE SMOKE DETECTORS

AUX YEL GRNBLKRED

2200

END-OF-LINE

RESISTOR

EOLR-3

Ω

(+)

(-)

+ BELL - 1 PGM 2

Compatiblity Identifier: PC5-2

Maximum Operating Voltage: 13.75VDC

Maximum Circuit Resistance: 100Ω (total)

Do not mix different models on the same circuit,

as the correct operation may be impaired.

Battery capacity for standby is

at least 24 hours. Recommended

Battery: DSC model BD7-12.

All terminals Class 2 Power Limited,

except battery leads.

60Hz

PRIMARY

120VAC

All zones 6.9VDC nominal (supervised)

For remote station use,

connect PS5350 with 60 hour

battery standby capacity

Same rating

as Battery 1

*420mA (max), 12VDC

Supervised

*420mA (max), 12VDC

Supervised

*300mA (max), 5VDC

Supervised

To PC5700

Fire Module

Connect to local phones

ARNING

Incorrect connections

may result in PTC

failure or improper

operation.

Refer to the 2-wire smoke detector compatibility chart in the manual.

DOUBLE EOL CIRCUIT

1 NORMALLY CLOSED

CONTACT WITH

5600Ω END OF LINE

RESISTORS

ANY Z

TERMINAL

ANY COM

TERMINAL

ALARM

CONTACT

NOTE: Any device that will sink more than

50mA must be connected to PGM2.

Supervised

Max. Line Resistance

25.7 Ohms

NOTE: The PC5020 is capable of a maximum of three

2-wire smoke detectors in the alarm condition.

PTC

SMOKE DETECTOR

POWER 12VDC

LATCHING 4-WIRE SMOKE

DETECTOR (DSC MN240 SERIES)

Zones 1-8 of PC5020 or

Zones 1-4 of PC5700

FCC Reg. No.: F53CAN-34330-AL-E REN=0.1B Plug Type: RJ-31X Made in Canada

This device complies with Parts 15 and 68 of the FCC rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

(a) The delay (power-up) (start-up) time marked on the installation

wiring diagram of the smoke detector or on the installed smoke

detector(s) is to be used.

TABLE 1

WARNING - Not to be

removed by anyone except

occupant. This equipment

should be installed in

accordance with the National

Fire Code ANSI/NFPA 72

(National Fire Protection

Association, Batterymarch Park,

Quincy MA, 02269). Printed

information describing proper

installation, operation, testing,

maintenance, evacuation

planning, and repair service is

to be provided with this

equipment. This unit includes an

alarm verification feature that

will result in a delay of the

system alarm signal from the

indicated circuits. The total

delay (control unit plus smoke

detectors) shall not exceed 60

seconds. No other smoke

detector shall be connected to

these circuits unless approved

by the local authority having

jurisdiction. For compliance with

UL-985, at least one hardwired

smoke detector is required.

Compatible

signalling device:

Wheelock Model

34T-12-R (UL-Listed)

2-WIRE SMOKE SINGLE ZONE EOL

2200

Ω

RED

GOLD

5600

Ω

BLUE

GOLD

GRN

RED

BELL CIRCUIT

GOLD

1000

Ω

BRWN

RED

BLK

RESISTOR

IDENTIFICATIONS

NOTE: AUX+ is shared between AUX+,

Keybus, (Red, Blk, Yel, Grn) and all PGM

outputs. Minimum system required: One

LCD5500Z keypad (85mA) and one

PC5700 (150mA). Available current for

AUX+, Keybus & PGM should total180mA.

OBSERVE POLARITY

Name Model Compatibility ID Max # Base

DSC MN220 /-R/-T/-RT PS-220 30 None

System 2100AT A 30 None

Sensor 2100TR A 30 None

Sentrol 429AT or 521B/BXT S09A 30 None

SW1 on

400 series,429C, 429CT S10A 30 None

429CRT, 429CSST, S11A 30 None

429CST

521CRXT S11A 30 None

521B, 521BXT, SW1 off S10A 30 None

711U/UT, 712U, S10A 30 None

721U/UD/UT

713-5U, 713-6U, 722U S10A 30 None

731U, 731UD, 732U S11A 30 None

Compatible 2-wire Smoke Detectors

Please see the 2-wire Smoke Detector Compatibility Chart (below) for a

list of 2-wire smoke detectors that have been listed as compatible with the

PC5020CF 2-wire smoke detection zone (PGM2).

NOTE: For PGM2 only.

Listed Services

1. Central Station Fire Monitoring

2. Remote Station Fire Monitoring

1mA

Applicable Standards

UL File No. S5596

UL864 -Control units for fire pro-

tective signaling systems

Not for field installations.

For max. loading, refer to the Battery

Calculation Charts part# 29005057

Refer to the PC5020/PC5020CF Installation Manual P/N 29005907, Instruction

Manual P/N 29005909. The PC5020 is UL Listed for limited energy installations per

NEC Article 760. Recognized limited energy cable should be used. Observe NEC

wiring requirements and local codes defined by the authority having jurisdiction.

Printed information describing proper installation, operation, testing, maintenance,

evacuation planning, and repair service is to be provided with this equipment.

Security detection devices that require power from the control panel must be UL

Listed for the intended application and operate over the range of 10.0 to 14.0 VDC.

The DSC Bravo Series is a recommended UL Listed motion detector.

Temperature Range: 0˚C to 49˚C (32˚F to 120˚F)

Maximum Humidity: 85% relative humidity

Control panel is suitable for the following UL installations:

Household Fire and Grade A Household Burglary & Home Health Care Signaling

Equipment

Grade A Local

Grade B Central Station and Grade A Police Connect with basic line security

Grade C Central Station and Grade A Police Connect with basic line security

(2)12V 7Ah battery

(not supplied)

AC IN

ONLY

16V

37VA

INSTALL BATTERY AND AC WIRING AS SHOWN ABOVE

Non-power

limited access

Power limited access Power limited access

REDBELL

+AUX–

AC BLK YEL GRN Z1 Z3 Z5 Z7COM COM COM COMZ2 Z4 Z6 Z8 RING TIP R-1 T- 1 EGNDPGM

PC5020 CONTROL PANEL WIRING DIAGRAM

UA186

Voltage Barrier

IMPORTANT: A minimum of 1/4" (7mm)

separation must be maintained at all points

between power limited wiring and all other

non-power limited wiring and connections.

Wire entry for power limited wiring must be

separate from non-power limited wiring.

Refer to the PC5700 Installation

Instructions Part #29005063

NOTE: For ULC installations, please refer to the ULC Wiring Diagram part#18006238 and the ULC Installation Infor-

mation Sheet part#29002157.

Wiring Diagrams

B.2 PC5020 CF and PC5700 Fire Module Communications Connections

B.3 Battery Lead and AC Power Lead Routing for Central Station Fire Monitoring Systems

REDBELL

+AUX –

AC BLK YEL GRN Z1 Z3 Z5 Z7COM COM COM COMZ2 Z4 Z6 Z8 RING TIP R-1 T- 1 EGNDPGM

1324

PC-LINK Connection

SI SO

UA186

PC5020

Supervised

To Local

Phones

To Local

Phones

Control Panel

PC5020

INSTALL BATTERY AND AC WIRING AS SHOWN ABOVE

IMPORTANT: A minimum 1/4" (6.4mm) separation must be

maintained at all points between battery/primary AC wiring

and all other wiring connections.

POWER

LIMITED POWER

LIMITED

NON-POWER

LIMITED

WARNING: Do not route any wiring

over circuit boards. Maintain at least

1" (25.4mm) separation.

Cable Tie (not provided)

Cable

Tie

To prevent wires from falling onto batteries,

secure them to the enclosure or to the plastic

standoff located under the control panel.

Power Limited

Non-Power

Limited

Class2

Power

Limited

5700

37VA

7Ah7Ah

Voltage

Barrier

For fire installations,

lines comethrough

conduit connections.

KEYBUS

B.4 Battery Lead and AC Power Routing for UL Listed Remote Fire Monitoring Systems with the

PS5350 AC Output Connection

B.5 Sensor Reset for 2-Wire Smoke Detectors

AUX Connection

For fire installations,

lines come through

conduit connections

PC5020CF

5700

KEYBUS

Conduit opening

for battery connection

to PS5350

AC IN Only

Non-Power

Limited access

(Power Limited)

Power Limited

Access

Power Limited

Access

POWER LIMITED

BLACK (-) BATTERY LEAD 12V, 1.5A

RED (+) BATTERY LEAD 12V, 1.5A

16VAC

80 VA

Non-Power

Limited

Connect to any

COM terminal

AC OUT 16VAC, Supervised

to PC5020 AC

To any PC5020 COM terminal

non-supervised

PS5350

External Battery

Charger

OUT

COM

BAT

Voltage

Barrier

Voltage

Barrier

Opening

NOTE: The connection between PS5350 and PC5020

for commercial fire, must not be greater than 20ft of

conduit and must be in the same room.

NOTE: All circuits are Power Limited

except AC and battery leads.

Voltage Barrier

IMPORTANT: A minimum of 1/4" (6.4mm) separation must

be maintained at all points between power limited wiring

and all other non-power limited wiring and connections.

Wire entry for power limited wiring must be separate from

non-power limited wiring.

IMPORTANT: A minimum of 1/4" (6.4mm) separation must

be maintained at all points between battery/primary AC

wiring and all other wiring and connections.

2-WIRE SMOKE DETECTORS

AUX YEL GRNBLKRED

2200

END-OF-LINE

RESISTOR

EOLR-3

Ω

(+)

(-)

+BELL- 1PGM2

Compatiblity Identifier: PC5-2

Maximum Operating Voltage: 13.75VDC

Maximum Circuit Resistance: 100 (total)

mix different models on the

same circuit as correct operation

may be impaired.

Ω

Do not

Refer to the 2-wire smoke detector compatibility chart in this manual

NOTE: Do not combine the 2-wire smoke detector and 4-

wire smoke detector on PGM2 (only 2-wire smoke detec-

tors on PGM2). Please see section 2.6 section 7.6 ‘Four-Wire

Smoke Detector Zones‘

B.6 Sensor Reset for 4-Wire Smoke Detectors

AUX Connection

B.7 Other PGM Connections

SMOKE

DETECTOR

POWER

12 VDC

OUT

ALM

OUT

BLK WHT

RED GRN

LATCHING 4-WIRE

SMOKE DETECTOR

FOR EXAMPLE,

DSC MN240 Series.

EOLR-2

END OF LINE RESISTOR

5600 0.5WΩ

Refer to installation guidelines in

Installation Manual and detector manufacturer's

literature when locating smoke detectors.

RM-1 POWER LOOP

SUPERVISORY RELAY

12V

DC 35mA MAXIMUM

WHT

4-WIRE SMOKE DETECTORS

Smoke Detector must be latching type (such as

DSC MN240 Series).

To reset smoke detectors, enter [ ] [7] [2].✱

+ AUX PGM 21

Zone Input

COM

ALARM

INITIATING

LOOP

RESISTANCE:

100Ω

PGM1

PGM2

PGM3

PGM4

PGM1 PGM2 PGM3 PGM4

NOTE: For devices requiring more than 50mA, use a relay

(DSC RM-1) or UL-recognized parts only for this application.

NOTE: The RM-1 relay module cannot be installed outside of

the main panel enclosure.

This notice is to be framed and mounted adjacent to the

control unit or the keypad at the main entrance.

Fire Alarm Monitoring Operating Instructions

Normal Standby

No audible or visual indicators.

Fire Alarm

Pulsing audible alarm; the following message will be displayed on the keypad:

This message will be accompanied by other messages related to the alarm. The keypad will scroll

through each message at 2-second intervals.

To silence an alarm, enter an access code

The alarm messages will be displayed until the initiating devices are mechanically reset.

To Reset Smoke Detectors

Enter an access code to reset smoke detectors.

Alarm Test

Activate smoke detector or waterflow sensor according to manufacturer’s testing instructions.

Bell and Communicator Test

Enter [*][6][Access Code][4] on a system keypad.

Trouble Conditions

Trouble conditions are indicated by:

• The keypad Trouble light will turn ON

• The keypad buzzer will beep

To view Trouble conditions:

•Press [*][2]. The keypad display will indicate the Trouble.

To silence the Trouble beeps:

•Enter a valid access code at any keypad. The Trouble light remains on and you can view Trouble

messages using [*][2] until the Trouble has been cleared and the affected detectors are reset.

NOTE: In the event of Trouble with the Fire Detection section of this system, contact:

Name:

Address:

Telephone:

Alarm

[Zone Label]

FCC COMPLIANCE STATEMENT

CAUTION: Changes or modifications not expressly approved by Digital

Security Controls Ltd. could void your authority to use this equipment.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. How-

ever, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or tele-

vision reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

‘ Re-orient the receiving antenna.

‘ Increase the separation between the equipment and receiver.

‘ Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

‘ Consult the dealer or an experienced radio/television technician for help.

The user may find the following booklet prepared by the FCC useful: ’How to

Identify and Resolve Radio/Television Interference Problems’. This booklet is

available from the U.S. Government Printing Office, Washington D.C. 20402,

Stock # 004-000-00345-4.

IMPORTANT INFORMATION

This equipment complies with Part 68 of the FCC Rules. On the side of

this equipment is a label that contains, among other information, the FCC

registration number of this equipment.

Notification to Telephone Company The customer shall notify the tele-

phone company of the particular line to which the connection will be

made, and provide the FCC registration number and the ringer equiva-

lence of the protective circuit.

FCC Registration Number: F53CAN-34330-AL-E

Ringer Equivalence Number: 0.1B

USOC Jack: RJ31X

Telephone Connection Requirements Except for the telephone company

provided ringers, all connections to the telephone network shall be made

through standard plugs and telephone company provided jacks, or equiva-

lent, in such a manner as to allow for easy, immediate disconnection of the ter-

minal equipment. Standard jacks shall be so arranged that, if the plug

connected thereto is withdrawn, no interference to the operation of the equip-

ment at the customer’s premises which remains connected to the telephone

network shall occur by reason of such withdrawal.

Incidence of Harm Should terminal equipment or protective circuitry cause

harm to the telephone network, the telephone company shall, where practica-

ble, notify the customer that temporary disconnection of service may be

required; however, where prior notice is not practicable, the telephone com-

pany may temporarily discontinue service if such action is deemed reason-

able in the circumstances. In the case of such temporary discontinuance, the

telephone company shall promptly notify the customer and will be given the

opportunity to correct the situation.

Additional Telephone Company Information The security control panel

must be properly connected to the telephone line with a USOC RJ-31X tele-

phone jack.

The FCC prohibits customer-provided terminal equipment be connected to

party lines or to be used in conjunction with coin telephone service. Intercon-

nect rules may vary from state to state.

Changes in Telephone Company Equipment or Facilities The telephone

company may make changes in its communications facilities, equipment,

operations or procedures, where such actions are reasonably required and

proper in its business. Should any such changes render the customer’s termi-

nal equipment incompatible with the telephone company facilities the cus-

tomer shall be given adequate notice to the effect modifications to maintain

uninterrupted service.

Ringer Equivalence Number (REN) The REN is useful to determine the

quantity of devices that you may connect to your telephone line and still have

all of those devices ring when your telephone number is called. In most, but

not all areas, the sum of the RENs of all devices connected to one line should

not exceed five (5.0). To be certain of the number of devices that you may

connect to your line, you may want to contact your local telephone company.

Equipment Maintenance Facility If you experience trouble with this tele-

phone equipment, contact the facility indicated below for information on

obtaining service or repairs. The telephone company may ask that you dis-

connect this equipment from the network until the problem has been cor-

rected or until you are sure that the equipment is not malfunctioning.

Digital Security Controls Ltd. 160 Washburn St., Lockport, NY 14094

Industry Canada Statement

AVIS: L’étiquette de l’Industrie Canada identifie le matériel homologué.

Cette étiquette certifie que le matériel est conforme à certaines normes de

protection, d’exploitation et de sécurité des réseaux de télécommunica-

tions. Industrie Canada n’assure toutefois pas que le matériel fonctionnera

à la satisfaction de l’utilisateur.

Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est permis de le

raccorder aux installations de l’entreprise locale de télécommunication. Le

matériel doit également être installé en suivant une méthode acceptée de

raccordement. L’abonné ne doit pas oublier qu’il est possible que la con-

formité aux conditions énoncées ci-dessus n’empêchent pas la dégrada-

tion du service dans certaines situations.

Les réparations de matériel homologué doivent être effectuées par un cen-

tre d’entretien canadien autorisé désigné par le fournisseur. La compagnie

de télécommunications peut demander à l’utilisateur de débrancher un

appareil à la suite de réparations ou de modifications effectuées par l’utili-

sateur ou à cause de mauvais fonctionnement.

Pour sa propre protection, l’utilisateur doit s’assurer que tous les fils de

mise à la terre de la source d’énergie électrique, les lignes téléphoniques

et les canalisations d’eau métalliques, s’il y en a, sont raccordés ensemble.

Cette précaution est particulièrement importante dans les régions rurales.

AVERTISSEMENT: L’utilisateur ne doit pas tenter de faire ces raccorde-

ments lui-même; il doit avoir recours à un service d’inspection des installa-

tions électriques, ou à un électricien, selon le cas.

L’indice de charge (IC) assigné a chaque dispositif terminal indique, pour

éviter toute surcharge, le pourcentage de la charge totale qui peut être rac-

cordée à un circuit téléphonique bouclé utilisé par ce dispositif. La termi-

naison du circuit bouclé peut être constituée de n’importe quelle

combinaison de dispositifs, pourvu que la somme des indices de charge

de l’ensemble des dispositifs ne dépasse pas 100.

L’Indice de charge de ce produit est 0.1B.

NOTICE: The Industry Canada label identifies certified equipment. This

certification means that the equipment meets certain telecommunications

network protective, operational and safety requirements. Industry Canada

does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible

to be connected to the facilities of the local telecommunications company.

The equipment must also be installed using an acceptable method of con-

nection. The customer should be aware that compliance with the above

conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian

maintenance facility designated by the supplier. Any repairs or alterations

made by the user to this equipment, or equipment malfunctions, may give

the telecommunications company cause to request the user to disconnect

the equipment.

User should ensure for their own protection that the electrical ground con-

nections of the power utility, telephone lines and internal metallic water pipe

system, if present, are connected together. This precaution may be particu-

larly important in rural areas.

CAUTION: Users should not attempt to make such connections them-

selves, but should contact the appropriate electric inspection authority, or

electrician, as appropriate.

The Load Number (LN) assigned to each terminal device denotes the per-

centage of the total load to be connected to a telephone loop which is used

by the device, to prevent overloading. The termination on a loop may con-

sist of any combination of devices subject only to the requirement that the

total of the Load Numbers of all the devices does not exceed 100.

The Load Number of this unit is 0.1B.

NOTES

Toronto, Canada • www.dsc.com

Technical Help Desk: 1-800-387-3630

Printed in Canada 29005907 R002

PC5020 Module Compatibility

Module Compatible? Comments

Classic Escort (VPM-1) No

DLM-1 No

DLM-4 v1.x No

DLM-4 v1.0L Yes

DLM-7 No

Escort5580 v3.0 Yes Fully compatible with Power864.

LCD5500 v1.X Yes No Keypad zone support. Some display messages not supported. Can

only be used on Partition 1 and Partition 2, and the first 32 zones.

LCD5500Z v2.X Yes Can only be used on Partition 1 and Partition 2, and the first 32 zones.

LCD5501Z v1.x Yes Can only be used on Partition 1 and Partition 2, and the first 32 zones.

LCD5500Z v3.X Yes Fully compatible with Power864.

LCD5501Z v2.x Yes Fully compatible with Power864.

LCD5501Z32-433 Yes Fully compatible with Power864.

LCD600 No

LED615 No

Links1000 v3.0 Yes

Links2150 v1.3W Yes Some events not supported (reporting zones 33-64 and partions 3-8).

Links2450 v1.3 Yes Some events not supported (reporting zones 33-64 and partions 3-8).

PC-16 Out No

PC5100 Yes Can only add addressable devices to the first 32 zones.

PC5108 v1.X Yes Can only support the first 32 zones. Enrolls as two expander modules -

each module will use up two supervisory slots.

PC5108L Yes Can only be assigned zones from 9 to 32. Will not support zones 33 to

64. Camera scripts can only be run for zones 9 to 32. Enrolls as two

expander modules and uses two supervisory slots.

PC5108 v2.x Yes Fully compatible with Power864.

PC5132 v1.X Yes No support for Wireless Keys, Pendants or Handheld Keypads. Only the

first 32 zones can be used as wireless zones.

PC5132 v2.X Yes No identified Wireless Keys support. Only the first 32 zones can be

used as wireless zones.

PC5132 v3.X Yes Only the first 32 zones can be used as wireless zones.

PC5200 Yes Fully compatible with Power864.

PC5204 Yes Fully compatible with Power864.

PC5208 Yes Fully compatible with Power864.

PC5320 Yes Fully compatible with Power864.

PC5400 Printer/DVACS

Module v1.X to v2.1

Yes Some printing messages not supported. Some events not supported.

PC5400 Printer/DVACS

Module v2.2

Yes Some events not supported.

PC55XX Yes No Keypad zone support. Can only be used on Partition 1 and Partition

2, and the first 8, 16, or 32 zones.

PC55XXZ Yes Can only be used on Partition 1 and Partition 2, and the first 8, 16, or

32 zones.

PC5506 No

PC5509 No

PC5700 v1.X Yes Enrolls as two expander modules - each module will use up two super-

visory slots.

PC5700 v2.0 Yes Fully compatible with Power864.

PC5720 Yes Enrolls as two expander modules - each module will use up two super-

visory slots.

PC5908 No

PC5928 No

PC5936 Yes Fully compatible with Power864.

Skyroute v2.2 Yes Some events not supported (reporting zones 33-64 and partitions 3-8).

SL-XX No

PC5020CF V3.2 Installation Manual

PC5020CF v3.2 Installation Manual PC5020CF v3.2 Installation Manual
