Payment Card Industry (PCI)

PIN Transaction Security (PTS)

Device Testing and Approval

Program Guide

Version 1.1

October 2011

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Document Changes

Date

Version

Description

October 2011

1.1

Add approval classes for encrypting card readers and non-PEDs

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Table of Contents

Document Changes ..................................................................................................................................... i

Introduction ................................................................................................................................................. 1

Related Publications ................................................................................................................................. 1

Updates to Documents and Security Requirements................................................................................. 3

About This Document ............................................................................................................................... 4

About the PCI Security Standards Council ............................................................................................... 5

Payment Brand Rules ............................................................................................................................... 5

Testing and Approval Process Description ............................................................................................. 6

Overview ................................................................................................................................................... 6

Prior to Testing (POI devices only) ........................................................................................................... 6

The Modular approach .............................................................................................................................. 7

Testing Process ........................................................................................................................................ 7

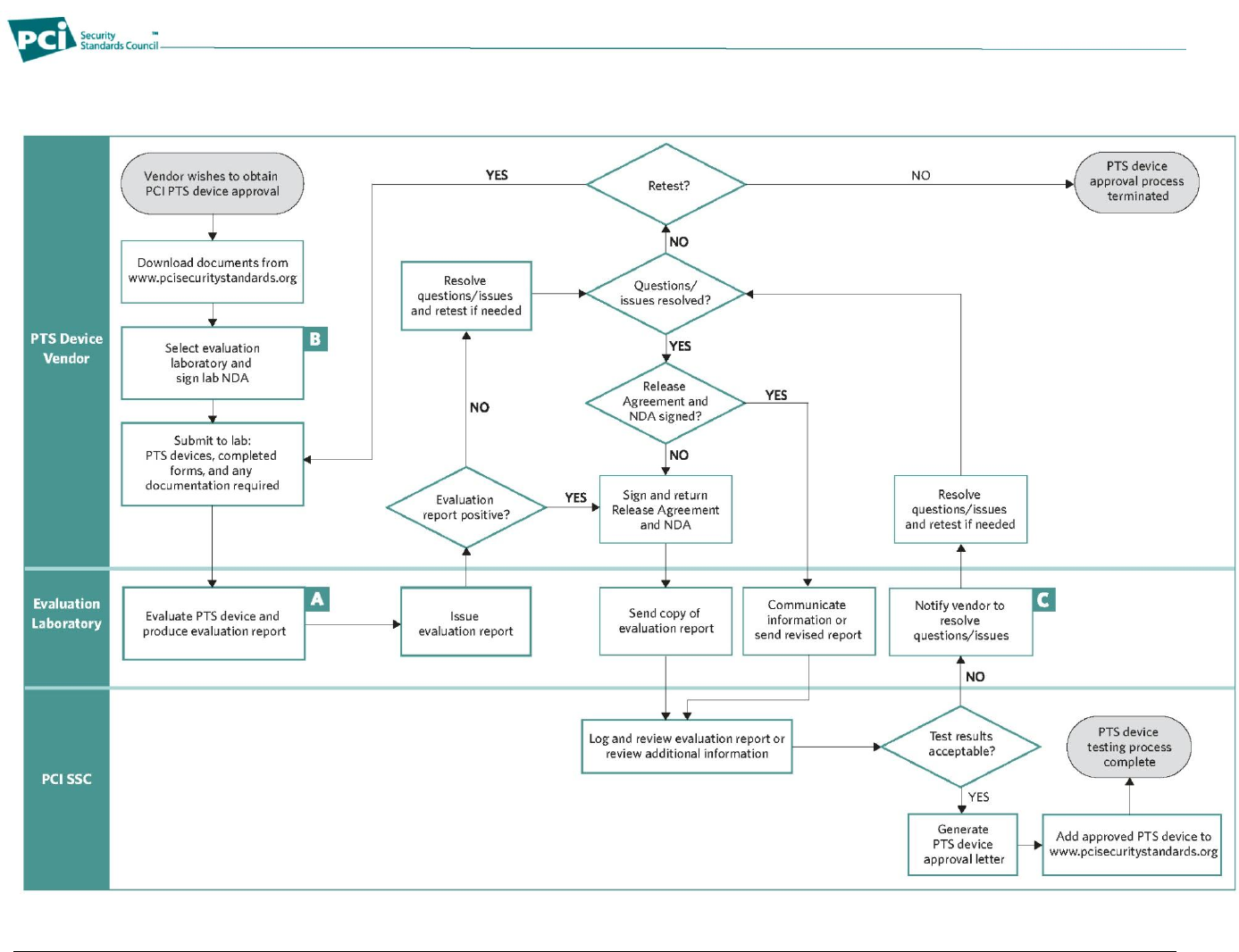

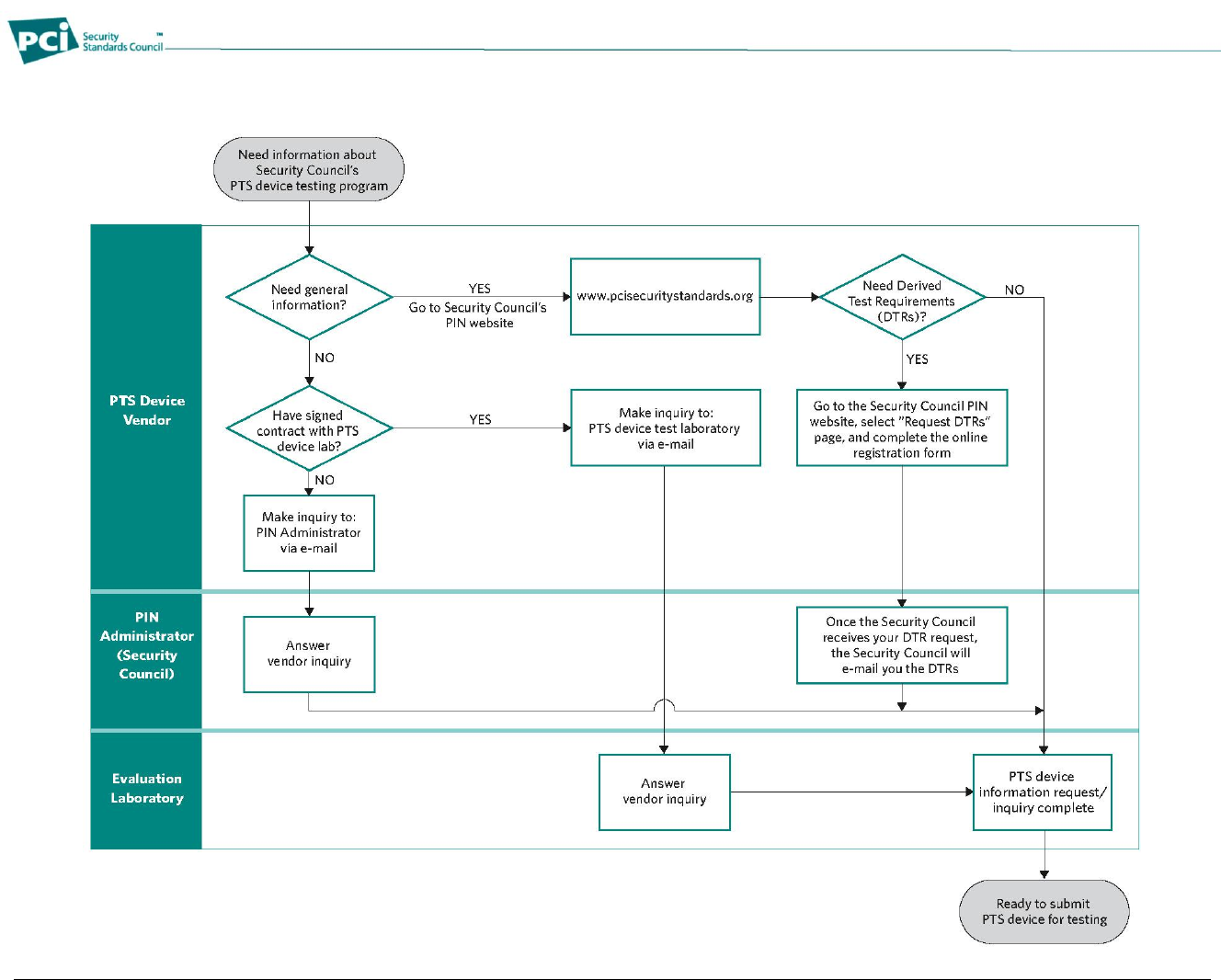

Figure 1: PTS Device Testing Inquiry Flow Chart ................................................................................. 9

Figure 2: PTS Device Approval Flow Chart ........................................................................................ 10

Figure 3: PTS Device Change Request and Renewal Flow Chart ..................................................... 11

Detailed Evaluation Process .................................................................................................................... 12

Required Documentation and Materials ................................................................................................. 12

Preparation for Testing ............................................................................................................................. 14

Laboratory Services ................................................................................................................................ 14

PCI-Recognized Laboratories ................................................................................................................. 14

Fees ........................................................................................................................................................ 14

Requirements for Testing ....................................................................................................................... 15

Test Dates ............................................................................................................................................... 15

Testing Timeframes ................................................................................................................................ 15

Test Cycle Definition ............................................................................................................................... 16

Technical Support throughout Testing .................................................................................................... 16

Approval Process ...................................................................................................................................... 17

Release Agreement and Delivery of Report ........................................................................................... 17

Roles and Responsibilities ...................................................................................................................... 17

Issuance of Approval .............................................................................................................................. 17

Expiry of Approval ................................................................................................................................... 18

Changes to a Previously Approved PTS Device .................................................................................... 19

Maintaining Approval .............................................................................................................................. 19

Boundary of Approval ............................................................................................................................. 20

Notification Following a Security Breach or Compromise ................................................................... 21

Notification and Timing ........................................................................................................................... 21

Notification Format .................................................................................................................................. 21

Notification Details .................................................................................................................................. 21

Actions following a Security Breach or Compromise .............................................................................. 22

Withdrawal of Approval ........................................................................................................................... 22

Legal Terms and Conditions .................................................................................................................... 23

Glossary of Terms and Acronyms .......................................................................................................... 24

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Appendix A: Device Listing on PCI SSC Website .................................................................................. 26

Point of Interaction (POI) ........................................................................................................................ 26

Hardware Security Module (HSM) .......................................................................................................... 26

Device Identifier ...................................................................................................................................... 27

Table 1: Example of a Device Identifier (four components) ............................................................... 27

Hardware # ............................................................................................................................................. 28

Table 2: Examples on the Use of Hardware #s.................................................................................. 28

Approval Number .................................................................................................................................... 29

Product Type........................................................................................................................................... 29

Approval Class ........................................................................................................................................ 29

Table 3: Approval Class Descriptions ................................................................................................ 29

Version .................................................................................................................................................... 31

Expiry Date ............................................................................................................................................. 31

Specific Features per Approval Class .................................................................................................... 32

Table 4: Specific Features................................................................................................................... 32

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Introduction

The following sections provide foundation and background information for this PCI PIN Transaction

Security Testing and Approval Program Guide.

Related Publications

In addition to this Program Guide (describing the testing

and approval process) the Payment Card Industry (PCI)

Security Standards Council (SSC) PIN Transaction

Security (PTS) framework includes the following

documents.

Document Name

Description

Security Requirements

 PIN Transaction Security (PTS) Point of Interaction (POI)

Modular Security Requirements - v3.x

 Encrypting PIN Pad (EPP) Security Requirements- v2.1

 POS PIN Entry Device Security Requirements- v2.1

 Hardware Security Module (HSM) Security

Requirements, v1.0

 Unattended Payment Terminal (UPT) Security

Requirements - v1.0

Contain the physical and logical security

requirements as well as device

management requirements for activity

prior to initial key loading.

Provide the forms to be used by

laboratories and vendors.

FAQs

 PIN Entry Device Security Requirements: Frequently

Asked Questions

General frequently asked questions

 PTS POI Security Requirements Technical FAQs for use

with Version 3.0

Provide additional and timely

clarifications to the application of the

Security Requirements. The FAQs are

an integral part of those requirements

and shall be fully considered during the

evaluation process.

 POS PED Security Requirements and EPP Security

Requirements Technical FAQs for use with Version 2.0

Evaluation Vendor Questionnaires

 PIN Transaction Security (PTS) Point of Interaction (POI)

Modular Evaluation Vendor Questionnaire - v3.x

 PIN Transaction Security Encrypting PIN Pad (EPP)

Evaluation Vendor Questionnaire - v2.1

 POS PIN Entry Device (PED) Evaluation Vendor

Questionnaire - v2.1

 Hardware Security Module (HSM) Evaluation Vendor

Questionnaire - v1.0

 Unattended Payment Terminal (UPT) Evaluation Vendor

Questionnaire - v1.0

Solicit additional information from

vendors to support their claims of the

conformity of their devices to those

requirements.

Note: These documents are routinely

updated and reaffirmed. The current

versions should be referenced when using

these requirements. The most current

standards will be available at

www.pcisecuritystandards.org.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Document Name

Description

Derived Test Requirements

 PIN Transaction Security (PTS) Point of Interaction (POI)

Derived Test Requirements - v3.x

 Encrypting PIN PAD (EPP) Derived Test Requirements -

v2.1

 POS PIN Entry Device Derived Test Requirements - v2.1

 Hardware Security Module (HSM) Derived Test

Requirements - v1.0

Provide specific direction to vendors on

methods the test laboratories may apply

when testing against the requirements

Recognized Laboratories List

Payment Card Industry (PCI) Recognized Laboratories

Currently recognized laboratories for

PTS device testing.

Vendor Release Agreement

PIN Transaction Security Device Security Evaluation Testing

Program Vendor Release Agreement

Contains the terms and conditions that

govern the exchange of information

between vendors and the PCI SSC

Approved Terminal Models List

Approved PIN Transaction Security Devices

List of PCI SSC Approved PIN

Transaction Security Devices

The documents above described are available in the ―PIN Transaction Security‖ section of the PCI SSC

website – www.pcisecuritystandards.org. Earlier versions of the documents are available can be found in

the PIN Transaction Security Document Archive of the same website.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Updates to Documents and Security Requirements

Security is a never-ending race against potential attackers. As a result, it is necessary to regularly review,

update, and improve the security requirements used to evaluate POI devices and hardware security

modules, collectively referred to as ―payment security devices.‖ As such, PCI SSC has agreed that all

relevant security requirements and associated test requirements will be normally updated every three

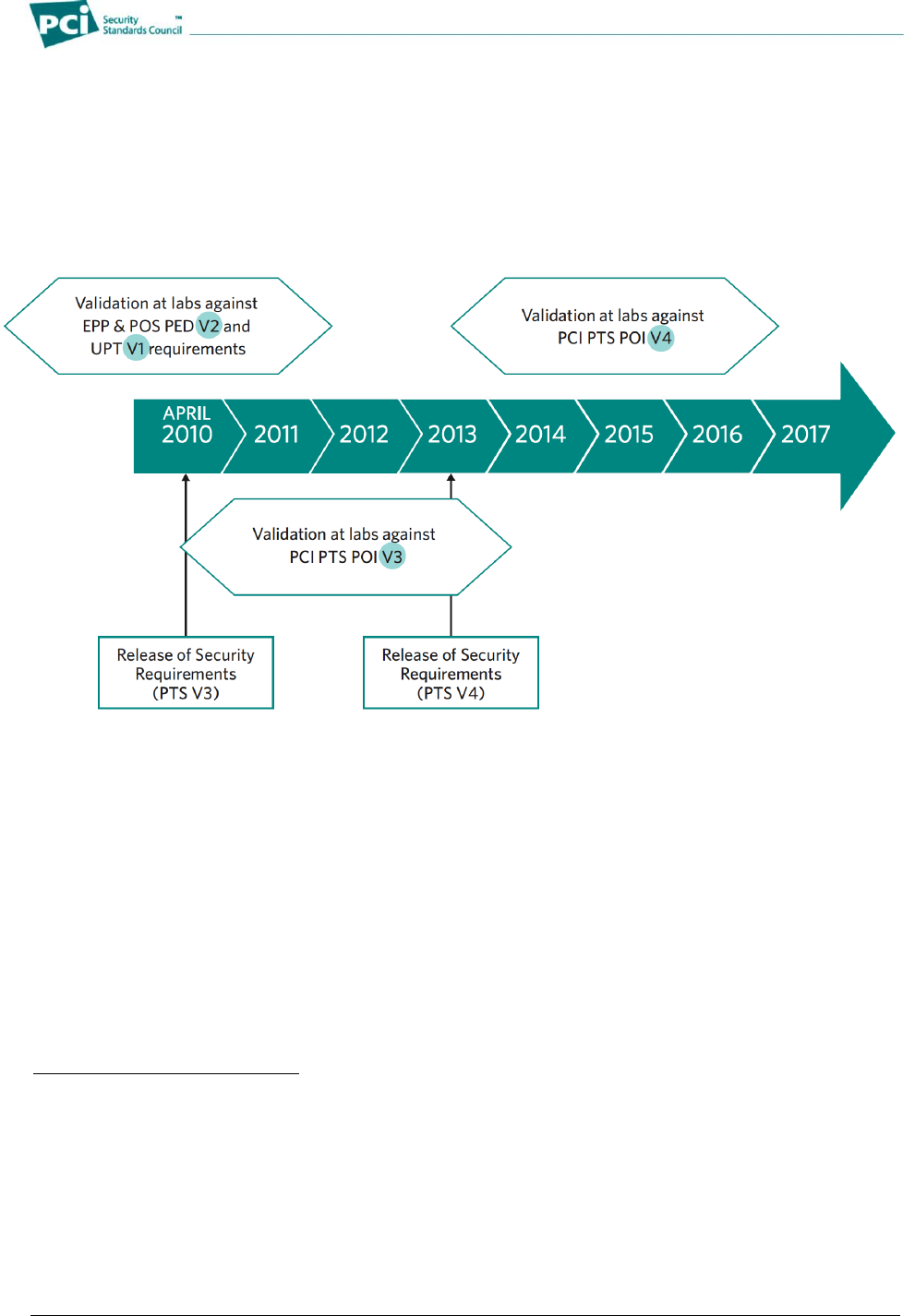

years. The following diagram describes the three-year cycle of Security Requirements v3, its

predecessors, and successor v4.

PCI SSC reserves the right to change, amend, or withdraw security requirements at any time. If such a

change is required, PCI SSC will endeavor to work closely with customers

and vendors to help reduce

the impact of any changes.

Customers are financial institutions that:

a) Offer payment cards for one or more of the participating payment brands (issuers);

b) Accept such payment cards for cash disbursement and directly or indirectly enter the resulting transaction

receipt into interchange (acquirers); or

c) Offer financial services to merchants or authorized third parties who accept such payment cards for

merchandise, services, or cash disbursement, and directly or indirectly enter the resulting transaction receipt

into interchange (acquirers).

In accordance with any mandates issued by the participating payment brands, customers should use the testing

and approval results from PCI SSC when making decisions about purchasing devices that have been approved

within the PCI PTS framework.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

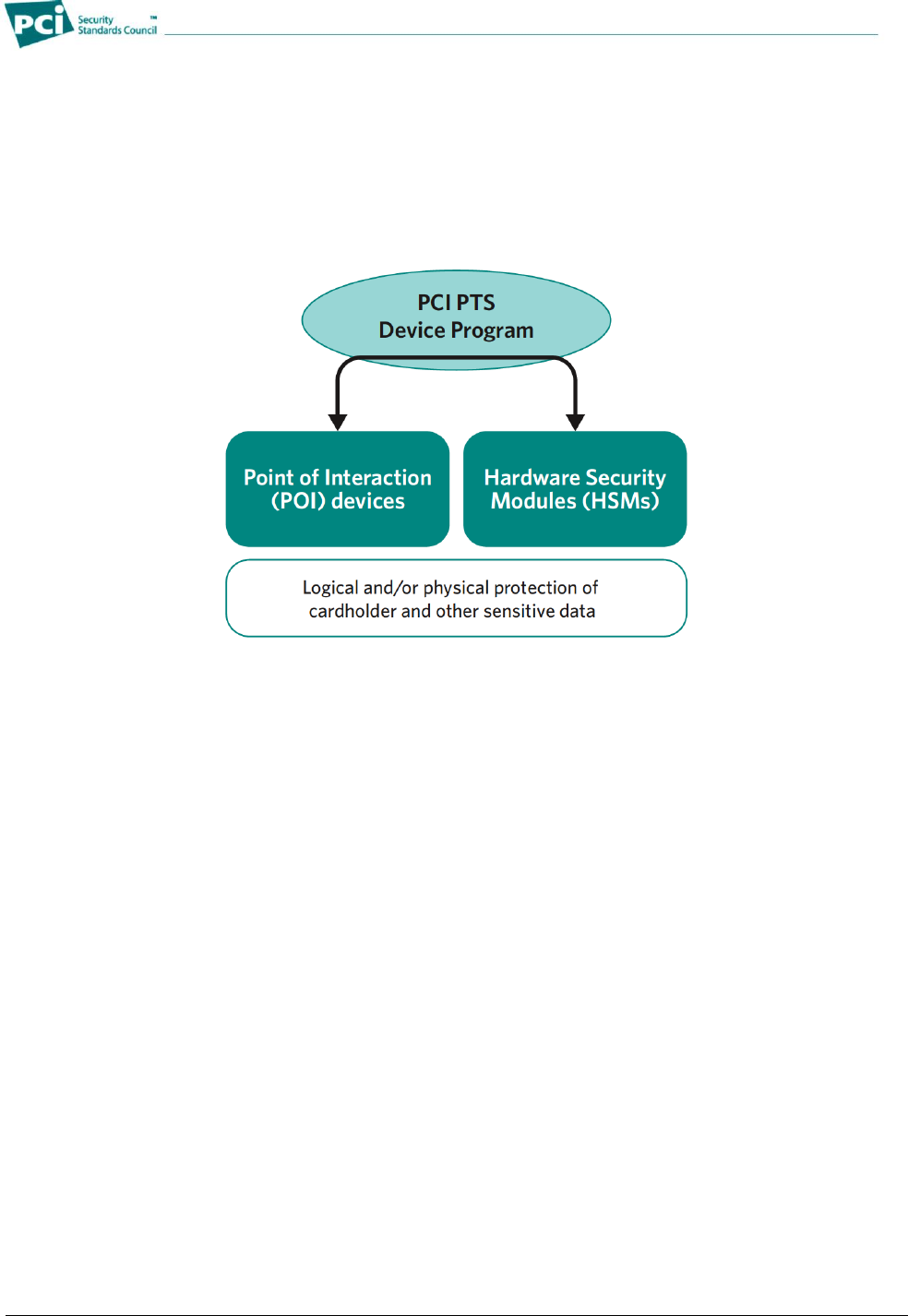

About This Document

The Payment Card Industry PIN Transaction Security (PTS) Device Testing and Approval Program Guide

provides information for vendors regarding the process of evaluation and approval by PCI SSC of

payment security devices, and reflects an alignment of the participating card payment brands to a

standard set of:

 Point of interaction (POI) and hardware security module (HSM) security requirements,

 Testing methodologies, and

 Approval processes.

Throughout this document:

 ―PCI participants‖ or ―PCI payment brand participants‖ means any entity then-currently admitted

as a member of the Council in accordance with the Delaware Limited Liability Company Act.

The PCI participants as of the date hereof are American Express Travel Related Services

Company, Inc., DFS Services LLC (Discover), JCB Advanced Technologies, Inc., MasterCard

International Incorporated, and Visa Holdings, Inc.

 ―PCI SSC,‖ ―PCI,‖ or ―Council‖ refers to the PCI Security Standards Council, LLC, a Delaware

limited liability company, which consists of the payment card brands referenced above under ―PCI

participants.‖

 ―Point of interaction (POI) devices‖ refers broadly to all PIN-acceptance devices, used in

consumer-facing transactions. Other consumer-facing device types, as delineated in Appendix A,

may be included in the POI framework, to address any emerging threats to cardholder or PCI

participants’ sensitive data.

 ―Hardware security modules (HSMs)‖ refers to secure cryptographic devices used for PIN

processing, card personalization, cryptographic-key management and data protection.

 ―Payment security devices‖ refers to POI devices and HSMs, collectively.

 ―PIN Transaction Security‖ refers to the framework within PCI standards and requirements that

deals with the evaluation and approval of payment security devices.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

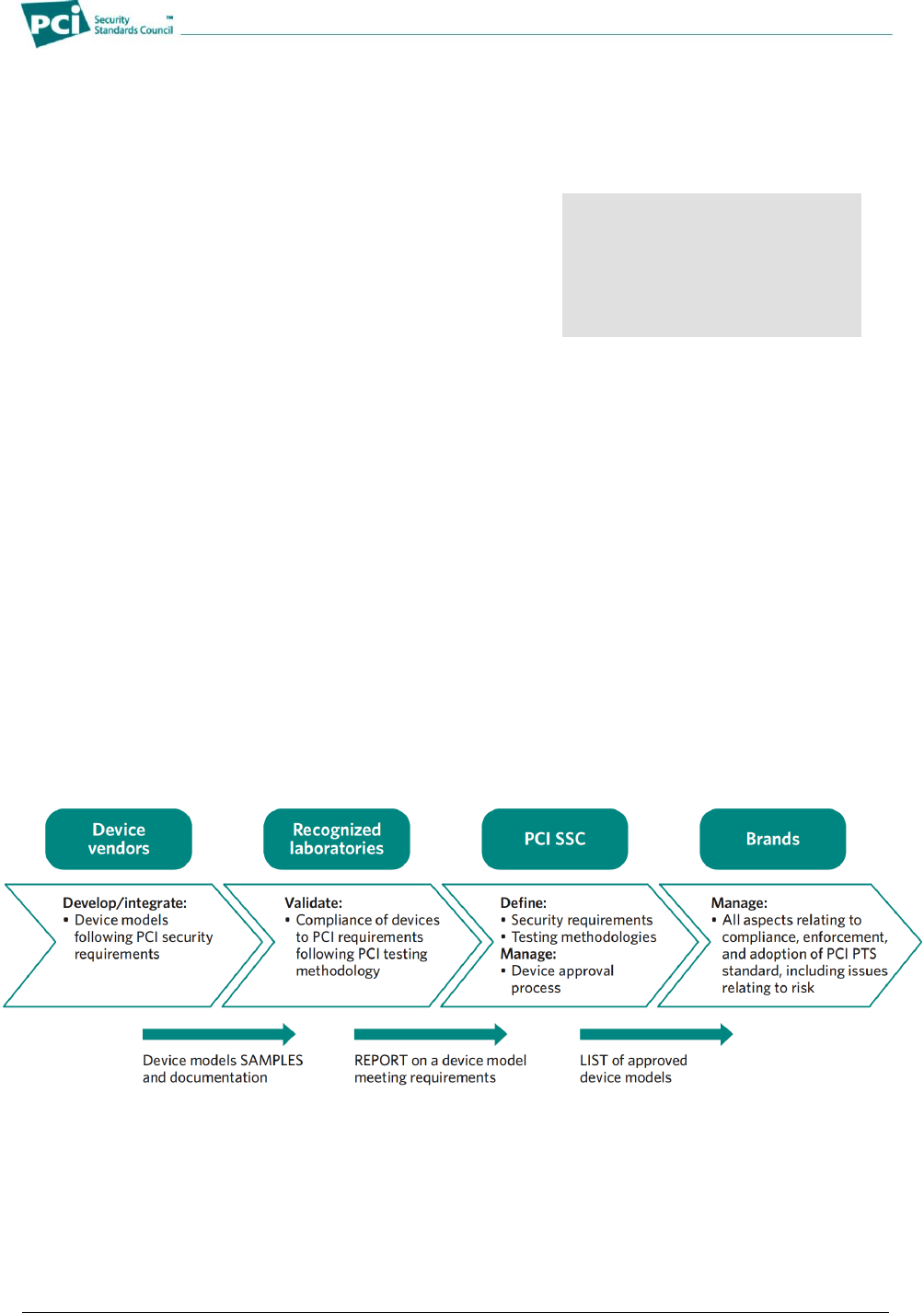

About the PCI Security Standards Council

The Payment Card Industry (PCI) Security Standards Council has established the PIN Transaction

Security framework, to address the security evaluation and approval of payment security devices.

This Payment Card Industry PIN Transaction Security Device

Testing and Approval Program Guide reflects an alignment with

the participating payment brands to a standard set of:

 Security requirements,

 Testing methodologies, and

 Approval processes

All devices submitted for security evaluations and approval have been evaluated against the applicable

aligned Payment Card Industry (PCI) PTS Security Requirements. The PCI Approval Lists provide a full

list of payment security devices recognized as meeting PCI PTS Requirements.

This collaborative effort ensures that all payment security devices will be evaluated under a common

process offering a high degree of assurance. This arrangement is intended to improve the overall security

for cardholder and other sensitive data by removing conflicting requirements. All stakeholders in the

payments value chain benefit from the aligned requirements:

 Customers benefit from a broader selection of secure devices.

 Merchants, financial institutions, processors, and other third parties are assured that they will be

using products that have met the required level of assurance.

 Vendors are able to reduce the ―time to market‖ for new devices, as they will only be required to

complete a single security evaluation and single approval process.

Payment Brand Rules

All aspects relating to compliance, enforcement, and adoption of these standards, including all issues

relating to risk, are the responsibility of the individual payment card brands. The following picture provides

a high-level description of the device security chain.

Note:

Approvals are granted directly

through PCI SSC and are

coordinated by the participating

PCI payment brands through the

PCI PTS Program process.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Testing and Approval Process Description

Overview

The PCI SCC PTS security approval framework addresses the logical and/or physical protection of cardholder

and other sensitive data at point of interaction (POI) devices and hardware security modules (HSMs), as

indicated in the diagram below.

Except where noted, this document refers to POI devices and HSMs as ―payment security devices.‖

Device vendors wishing to have their device model(s) approved by the PCI SSC may contact one of the PCI-

recognized laboratories and complete the appropriate PCI forms (included in the PCI PTS Security

Requirements and the PCI Vendor Questionnaires themselves). The vendor will then submit the device,

together with any additional documentation required by the laboratory, for evaluation and compliance

validation against the PCI PTS Security Requirements. Upon completion of the evaluation, PCI SSC will

review the evaluation report. When the device model meets the PCI requirements, an approval letter will be

issued confirming successful completion of the process. Once the payment security device model is

approved, it will be listed on the PCI PTS website.

Prior to Testing (POI devices only)

 PCI SSC recommends that the POI device receive EMV Level 1 approval first, if applicable, and then PCI

approval—prior to submitting it for any appropriate EMV Level 2 testing. (With regards to EMV Level 1

approval, there should be little or no overlap in testing processes with the PCI PTS POI security

approval.)

 If the POI device can support both types of PIN-entry options, online and offline, inform the laboratory to

evaluate both at the same time, or have the laboratory indicate future support for both options in the

evaluation report. In order to have the POI device’s approval indicate support of both options, the vendor

must ensure that after the second PIN-entry option evaluation has been performed, the laboratory

includes both in its report.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

The Modular approach

The PCI PTS modular approach provides a comprehensive evaluation process to address the diversity of

payment security device architectures, product options, and integration models. It potentially optimizes

evaluation costs and time when laboratories are reviewing non-conventional architectures; the PCI approval

of product types; and the maintenance of existing approvals (changes in security components, etc.).

The PCI PTS modular approach supports the submission of devices in accordance with the product types and

approval classes defined in Appendix A.

In order to capture the diversity of security requirements in a single compliance assessment process by the

laboratory, the PTS POI Security Requirements are split into the following evaluation modules:

Requirements and Evaluation Module

Name

Description

POI Device Core Requirements

Core logical and physical requirements of PIN

acceptance devices

Device Integration Requirements

Considers how the device is produced, controlled,

transported, stored, and used throughout its life cycle.

Open Protocols (OP)

The interface of POI terminals to open networks using

open protocols

Secure Reading and Exchange of Data (SRED)

To support secure encryption of account data in the

POI

Device Management Security Requirements

Considers how the device is produced, controlled,

transported, stored, and used throughout its life cycle.

The first two modules roughly correspond to previous versions of the PCI PED, EPP, and UPT Security

Requirements manuals.

Testing Process

Payment security devices are evaluated using the requirements embodied in the PCI PTS POI Modular

Security Requirements or PCI Hardware Security Module Requirements manual (―HSM manual‖), as

applicable. The laboratory will verify the vendor’s ―YES‖ or ―N/A‖ responses in those sections by having the

vendor provide additional evidence of conformance to the requirements via information and the required

payment security device samples.

Any product that incorporates separate modules, such as EPPs, card readers, etc., must complete the

integration requirements. Products are not required to support open protocols or the secure reading and

exchange of data; however, if they do, then those modules are mandatory for evaluation and approval.

Terminal manufacturers may purchase PCI-approved secure components from various vendors and integrate

them into their final solutions, which themselves can be approved against the PCI PTS requirements.

The laboratory does not evaluate the payment security devices against the Device Management

Requirements as specified in the PCI PTS POI Modular Security Requirements or PCI HSM Security

Requirements; nevertheless these are requirements, and the information is required as part of the approval

process. Such conformance may be separately evaluated by PCI SSC at their discretion.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Testing and Approval Process Illustration

The table below and the charts on the following pages outline and illustrate the payment security device

testing and approval process.

Process Stage

Resource/Explanation

Illustration

Prior to testing

Testing and Approval Process Description

Figure 1

Obtain appropriate documentation

and forms

Detailed Evaluation Process

Figure 2

Contact a PCI-recognized test

laboratory to initiate testing

Preparation for Testing

Figure 2

Sign NDA and release agreement

Approval Process

Figure 2

Submit documentation and

materials

Requirements for Testing

Figure 2

Respond to inquiries from test

laboratory

Technical Support throughout Testing

Figure 2

Receive response or approval

letter from PCI SSC

Approval Process

Figure 2

PTS device changes

Changes to a Previously Approved PTS Device

Figure 3

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Figure 1: PTS Device Testing Inquiry Flow Chart

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Figure 2: PTS Device Approval Flow Chart

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Figure 3: PTS Device Change Request and Renewal Flow Chart

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Detailed Evaluation Process

Payment security devices will be evaluated against the PCI PTS POI Modular Security Requirements or

the Payment Card Industry Hardware Security Module Security Requirements manual. The laboratory will

evaluate the vendor’s responses in those sections by having the vendor provide additional evidence of

conformance to the requirements—via information and the required payment security device samples.

PCI SSC will review the appropriate payment security device evaluation report from the laboratory. If the

results are satisfactory, the payment security device is approved and an Approval Letter will be issued to

the vendor. The PTS device is then posted as a ―PCI approved‖ payment security device on

www.pcisecuritystandards.org.

The Technical FAQs are an integral part of the evaluation process. Technical FAQs are identified by

major version of security requirements, e.g., 1.x, 2.x, 3.x. Each Technical FAQ version is specific to the

corresponding major version of security requirements. For example, Technical FAQs version 3 is specific

to security requirements version 3.x and only security requirements version 3.x, and so on.

The Technical FAQs are periodically updated and are generally effective upon publication. Depending on

the nature of the FAQ (e.g., clarification vs. addressing an eminent threat), their applicability may be

deferred for devices which are under evaluation at the time of publication.

Devices undergoing delta evaluations must take into account the current FAQs of the associated major

version of security requirements only for the security requirement(s) that are impacted by the delta

change. For example, if a change impacts compliance with requirements B1 and B4, only the current

FAQs associated with B1 and B4 must be taken into account as part of the delta.

Required Documentation and Materials

All information and documents relevant to the PCI PTS Testing and Approval Program can be

downloaded from www.pcisecuritystandards.org. All completed forms and questionnaires related to

payment security device evaluation must be delivered to a PCI-recognized testing laboratory, not to PCI

SSC. Evaluation-specific information should be requested directly from the PCI-recognized laboratory.

Examples of documents and items to submit to a PCI-recognized payment security device test laboratory

include as applicable for device approval class:

1. Completed appropriate PCI Security Requirements forms for device

2. Completed appropriate PCI Evaluation Vendor Questionnaire for device

3. Three (3) working POI devices (for HSMs, consult with the laboratory) with operator’s manual or

instructions

4. The necessary hardware and software accessories to perform simulated PIN-based payment

transactions (for HSMs, consult with the laboratory)

5. Documentation that describes all functions used for data input and output that can be used by

third-party application developers. Specifically, functions associated with key management, PIN

management, and user interfaces (such as display and key pad) must be described. (An API

manual is an example of documentation that could fulfill this requirement.)

6. Documentation that relates to the ―process, which can be audited.‖ Examples of such

documentation include:

 Software quality procedures

 Documentation and software control procedures

 Change forms

 Change control logs

 Change records

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

7. Instructions and accessories (such as key loaders) that will allow the test laboratory engineers to

use all special modes that the payment security device supports—including key loading, key

selection, key zeroization, and other key-management and maintenance functions

8. Additional documentation—such as block diagrams, schematics, and flowcharts—that will aid in

the payment security device evaluation. (The laboratory may request additional evaluation

material when necessary.)

Applicable to POI devices only:

Following a successful evaluation, the vendor must provide to MasterCard, on behalf of all of the PCI

participants, two (2) terminals containing the same keys and applications as those supplied to the PCI-

recognized laboratory. MasterCard will securely retain these terminals, and may use them to assess

vulnerability to new attack techniques. Also, if a terminal of that model is ever compromised in the field,

the retained samples may be used to investigate any compromise or security breach. Devices should be

sent to:

Attn: MasterCard Analysis Laboratory (MCAL)

MasterCard Worldwide

St Andrews House

Kelvin Close

Birchwood

Warrington

Cheshire

WA3 7PB

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Preparation for Testing

Laboratory Services

To facilitate the evaluation process prior to actual testing, a PCI-recognized laboratory may offer the

following services:

 Guidance on designing payment security devices to conform to the PCI security requirements

 Review of a vendor’s payment security device design, response to questions via e-mail or phone,

and participation in conference calls to clarify requirements

 A preliminary physical security assessment on a vendor’s hardware

 Guidance on bringing a vendor’s payment security devices into compliance with the PCI

requirements if areas of non-compliance are identified during the evaluation.

Vendors are encouraged to contact a PCI-recognized laboratory directly in regards to the above services

and any fees associated with them. However, the laboratories cannot offer any advice on the actual

design of the POI device or HSM.

PCI-Recognized Laboratories

PCI SSC currently recognizes a series of laboratories for PTS device testing. The current list of

recognized PTS test labs may be found at the PCI SCC website, in the ―PCI PTS‖ section.

Fees

All testing-related fees and dates are negotiated between the vendor and

laboratory, and the vendor pays all fees directly to the laboratory. If a

discrepancy requires the vendor to modify the physical design of the

payment security device or the firmware, the payment security device must

be resubmitted for a new test cycle and the laboratory will invoice the vendor

accordingly.

Note:

The vendor pays all

laboratory evaluation fees

directly to the laboratory.

Vendors are assessed a $2,000 fee for every new evaluation report received. In addition, vendors will be

assessed an annual listing or maintenance fee of $1,000 for each existing PCI approval.

Vendors or other third parties licensing approved products from other vendors to market or distribute

under their own names are not required to pay a new evaluation fee if the only change is to the name

plate. If firmware or other hardware changes are made that require a PCI-recognized test laboratory to

evaluate the changes for potential security impact, then the licensee shall be required to pay the new

evaluation fee. Additional considerations for licensing products are stipulated in the PCI PTS POI Security

Requirements Technical FAQs.

In all cases the licensed device will receive a new approval number and the licensee vendor or third party

shall be billed the annual listing fee for each such approval.

The fee for new evaluations will be a pass-through fee from the applicable test laboratory to the vendor.

The test laboratory will provide the monies to PCI SSC and recover such fees as part of the evaluation

fee. The fee will be billed quarterly, for all new evaluations submitted by the lab for the preceding three

months. Vendors shall not be billed for modifications of hardware or firmware in existing PCI approvals,

termed ―delta‖ approvals.

All initial evaluations under a major version (e.g., 2.x, 3.x, etc.) of the security requirements for a given

product shall constitute a new evaluation and shall receive a new approval number and be billed

accordingly. Delta evaluations are not permitted to take a product previously approved under an earlier

major version number—e.g., 2.x—to an approval under another major version number, e.g., 3.x.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

The approval-listing fee will be billed annually by PCI SSC to vendors for all PCI approvals existing for

that vendor on the billing date. The billing date shall be set as May 1 of every year, as PCI approvals shall

expire April 30 of any given year, depending on the device type and requirements version approved

under. For example, EPPs and attended POS PEDs approved under Version 1 of the respective

requirements shall expire with April 30, 2014; Version 2 EPPs and attended POS PEDs shall expire April

30, 2017, and so forth—i.e., on May 1 vendors shall be billed per PCI approval for each approval they

have that existed as of April 30.

Vendors may choose upon written notification to PCI SSC to not list a newly approved device for up to a

maximum of six months. However, all approved devices for which the approval has not expired shall be

billed an approval-listing fee for all such approvals that existed as of May 1. Vendors shall not be billed

the annual listing fee for products for which they have notified PCI in writing that they no longer market for

new deployments. This applies only to an entire approval, and not individual items within an approval.

The product(s) will continue to be listed by PCI as approved until the natural approval expiration date with

notation of the vendor’s cessation of sales for new deployments, unless other reasons (e.g., device

compromise) dictate withdrawal of the approval by PCI. In all cases, vendors will not be allowed to

manipulate product listings to avoid the listing or maintenance fee.

Requirements for Testing

As a requirement for testing, the payment security device vendor must provide the appropriate

documentation and samples to the laboratory. See ―Required Documentation and Materials‖ for more

information.

The testing lab may perform a pre-assessment of a vendor payment security device and decide that there

are deficiencies that would prevent an approval. The lab may then respond to the vendor with a list of all

the aspects of the payment security device that should be addressed before the formal testing process

begins.

Test Dates

Vendors submitting devices for testing at a PCI-recognized laboratory will be assigned a test date by the

lab. Vendors should notify the laboratory directly of any delay in submitting payment security devices for

testing.

Testing Timeframes

A new evaluation can generally start within two weeks of the laboratory’s receiving all items for testing.

Timeslots must be scheduled with the laboratory in advance. PCI expects that a best-case scenario for a

full evaluation suite will take a minimum of four to six weeks of laboratory work. This assumes one test

cycle, but many test cycles may be required. Evaluations can be performed more quickly if the laboratory

has all of the required documentation and hardware, and if there are not any significant compliance

issues.

The testing timeframes are estimates based on the assumption that the payment security device

successfully completes testing. If problems are found during testing, discussions between the laboratory

and the vendor may be required. Such discussions may impact testing times and cause delays and/or

end the test cycle prior to completion of all tests.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Test Cycle Definition

All payment security devices are required to complete a test cycle with successful results as part of the

PCI Testing and Approval Program. A test cycle is defined as completion of all applicable test

procedures performed on a single version of the vendor’s payment security device. When a single test

cycle is completed without any discrepancies discovered, the vendor is advised that the payment security

device has successfully completed a test cycle.

During the testing process, all the applicable test procedures are run according to the applicable PCI

Derived Test Requirements. Any discrepancies discovered are reported to the vendor. All applicable tests

should be run during a single test cycle, unless:

 An application error causes all testing within a portion of the logical software code to function

incorrectly, preventing further testing within that area of the application.

 The payment security device contains a catastrophic failure that prevents any continuation of

testing.

 Testing exceeds the scheduled test cycle length.

 The vendor requests termination of the test cycle.

If a test cycle has ended with discrepancies discovered, the vendor is notified that the payment security

device has failed the test cycle. The laboratory will issue a final report that addresses the discrepancies.

There is no provision for interrupting the test cycle and re-starting the cycle again at a later date.

Technical Support throughout Testing

The laboratory, at its discretion, may seek additional information from the vendor that may resolve the

discrepancy. If the discrepancy requires the vendor to modify the physical design of the payment security

device or the firmware, the payment security device must be resubmitted for a new test cycle and the

laboratory will invoice the vendor accordingly.

It is recommended that the vendor make available a technical resource person to assist with any

questions that may arise during laboratory testing. During the evaluation, and to expedite the process, a

vendor contact should be ―on call‖ to discuss discrepancies and respond to questions from the laboratory.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Approval Process

Release Agreement and Delivery of Report

Prior to the laboratory’s releasing the evaluation report, the vendor must sign a consent form, or release

agreement to the NDA, giving permission for release of the information to PCI SSC for approval

consideration. In addition, the vendor must sign the PCI PIN Transaction Security Device Security

Evaluation Testing Vendor Release Agreement, which is submitted by the test laboratory along with the

report. To be accepted for payment security device approval consideration, the payment security device

evaluation reports must be delivered directly to PCI SSC by the laboratories.

Vendors or other third parties licensing approved products from other vendors to market or distribute

under their own names shall also need to sign a vendor release agreement prior to the issuance of the

approval.

In all cases, the vendor release agreement, unless superseded or otherwise terminated in accordance

with provisions within the agreement, shall only require a single submission to cover all submitted vendor

products.

Roles and Responsibilities

The laboratory’s responsibility and authority is limited to performance of payment security device testing

and generation of an evaluation report outlining test results. It is the responsibility and authority of PCI

SSC to consider a payment security device for approval based on the results reported by the laboratory.

Issuance of Approval

PCI SSC will base their approval solely on the results of the laboratory evaluation report. Upon receipt of

the test report for a new evaluation, the PCI SSC have two weeks (14 calendar days) from receipt of that

report to identify any technical issues or questions for resolution by the test laboratory. If no issues or

questions to the laboratory are identified within this time frame, PCI SSC shall issue an approval letter

and post the approval information to the website. If questions or issues are identified and sent to the

laboratory, the cycle resets to one week (seven calendar days) after receipt of a complete and acceptable

response from the laboratory. The seven-day reset start does not occur until receipt of an acceptable

response for the last open item previously identified. Should additional questions or issues arise, the

cycle repeats until a satisfactory response is received, at which time PCI SSC will issue the approval

letter and post the information to the PCI SSC website.

Additional issues or questions that are raised beyond the initial 14-day period are limited to the same

security area(s) for which the technical issues or questions were originally generated. In general, this

means limited to the same security requirement(s); however, information provided by the test laboratory

may impact other security requirements, which would therefore be in scope.

For reports on modifications to existing approved devices, termed ―delta‖ letters or reports, the cycle (e.g.,

an initial 14 calendar days) is the same, and PCI SSC shall issue a revised approval letter and post the

revised information to the website unless issues or questions arise in a manner similar to the

aforementioned. Delta reports are prepared using the major requirements the payment security device

was evaluated against when newly approved.

In all cases, approval letters may be issued sooner if all payment brands positively affirm.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

The PCI approval letter and listing on www.pcisecuritystandards.org will contain, at minimum, the

following information. Each characteristic is detailed in Appendix A: Device Listing on PCI SSC Website.

 Payment Security Device Identifier

 Approval Number

 Product Type

 Approval Class

 Version

 Expiry Date

 PIN Support (online, offline) – POI only

 Key Management – POI only

 Prompt Control

 Functions Provided

 Approved Components

Note:

PCI SSC will not grant any

“partial approvals” based upon

the ability of a PTS device to

meet some—but not all—of the

applicable required physical or

logical security requirements

Expiry of Approval

In order to maintain the approval of a given approved model, the vendor must have the approved device

model re-evaluated against the current version of the PCI PTS standard before the renewal/expiration

date, as displayed in the PCI PTS approval list.

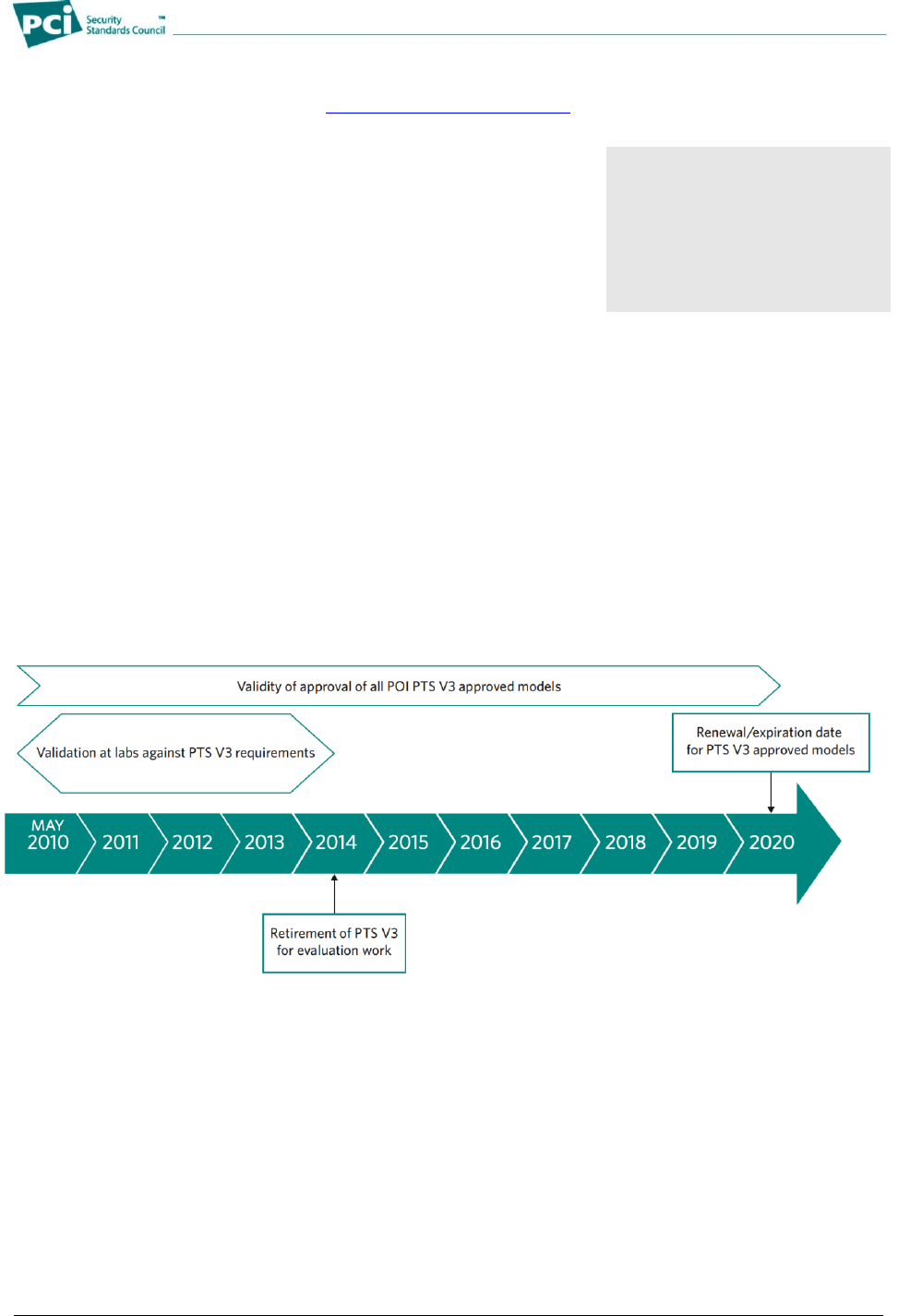

The following diagram shows the relationship between the expiration of device model tested under

Version 3 of PCI PTS POI Security Requirements and its laboratory testing work.

For devices that embed other PCI-approved devices, and are therefore basing their security on these

sub-components (even partially), the renewal/expiration date shall be the earliest among all evaluations,

including the embedded device itself.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Changes to a Previously Approved PTS Device

If an approved payment security device has undergone changes that

may potentially affect security, and/or if the vendor wants the

information in its POI Approval Letter or HSM Approval Letter and on

the PCI website revised, the vendor must submit proper change

documentation to the laboratory for determination whether a full

evaluation needs to be performed. The laboratory will communicate to

PCI SSC any information on changes to a previously approved

payment security device. PCI SSC will then denote the updates

accordingly in its revised Approval Letter and on PCI SSC’s website,

www.pcisecuritystandards.org.

Note:

If payment security device

vendors can modularize the

payment security device

functionality, it would help

minimize re-evaluations due

to hardware changes that do

not impact payment security

device security.

Maintaining Approval

1. No Impact on Security Requirements: New Testing is Not Required to Maintain Approval

If hardware or firmware (including software which impacts security) in the previously approved

payment security device is revised, but that revision is deemed to be minor and does not negatively

impact security, then documentation of the change can be submitted to the laboratory for review. (It is

strongly recommended that the vendor use the same laboratory as was used for the original

evaluation.)

Where appropriate, the laboratory will issue a letter to PCI SSC describing the nature of the change,

stating that it does not impact the POI’s or HSM’s compliance with the PCI security requirements. PCI

SSC will then review the letter to determine whether the change has any impact to the approval status

of the payment security device.

Assuming no impact, the new hardware and/or firmware version number would be considered

―Approved‖ and:

 A revised Approval Letter will be issued to the vendor, and

 The approved payment security device listing on the PCI website would be updated accordingly

with the new information.

2. Potential Impact on Security Requirements: New Testing is Required to Maintain Approval

If changes to the device do impact payment security device security requirements, the device must

undergo another security evaluation. The laboratory will then submit a new evaluation report to the PCI

SSC for re-approval consideration. (In this scenario, the vendor must first submit documentation of the

change to the laboratory, which will determine whether the nature of the change impacts payment

security device security in accordance with current PCI payment security device security

requirements.)

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Boundary of Approval

The boundary of approval by which an approval of an existing payment security device model can be

carried over to a new (or similar) payment security device model can be accomplished as follows:

1. Vendor describes the design of the new (or similar) payment security device model in the form of a

product revision document.

2. Vendor sends the documentation to the selected laboratory for review.

3. Laboratory reviews the documentation (and possibly payment security device samples).

4. Laboratory treats the document review process like a product revision of an existing approved

payment security device.

5. Laboratory then sends a letter to the vendor informing it whether or not a full test evaluation will be

required.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Notification Following a Security Breach or Compromise

Vendors must notify PCI SSC of any security breach or compromise that occurs in relation to an approved

payment security device, using the procedures described in this section.

Notification and Timing

Notwithstanding any other legal obligations the vendor may have, the vendor must immediately notify the

PCI Security Standards Council (―Council‖) of any security breach or compromise relating to any vendor-

provided:

 Point of interaction or hardware security module

 Key-generation facility

 Key-loading facility

The vendor must also provide immediate feedback about any

potential impact this (possible or actual) breach may or will have.

Note:

Notification must take place no

later than 24 hours after the vendor

first discovers the security breach

or compromise.

Notification Format

The vendor’s initial notification of a security breach or compromise must take the form of a phone call to

PCI SSC, followed by an e-mail, fax, or letter providing full details of the security breach or compromise.

Notification Details

Following notification of a security breach or compromise, the vendor must supply the PCI SSC with all

relevant information relating to that security breach or compromise. This will include, but is not limited to:

 The number and location of actual products affected

 The number of compromised accounts, (if known)

 Details of any compromised keys

 Any reports detailing the security breach or compromise

 Any reports or evaluations performed to investigate the security breach or compromise

PCI SSC, as agreed within the terms of the Payment Card Industry PIN Transaction Security Device

Security Evaluation Testing Vendor Release Agreement may share this information with PCI-recognized

laboratories to enable an evaluation of the security breach or compromise to be performed to mitigate or

prevent further security breaches or compromises. As a result of this notification, PCI SSC will work with

the vendor to correct any security weaknesses and will produce a guideline document to be issued to that

vendor’s customers, informing them of any potential vulnerability and detailing what actions should be

taken in order to mitigate or prevent further security breaches or compromises.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Actions following a Security Breach or Compromise

In the event of PCI SSC’s being made aware of a security weakness or actual compromise related to a

specific product, or group of approved products, PCI SSC will take the following actions:

 Notify PCI payment brand participants that a security weakness or compromise has occurred.

 Attempt to obtain the compromised terminal to evaluate exactly how the compromise occurred.

This may include utilizing PCI-recognized laboratories.

 Contact the vendor to inform them that their product has a security weakness, or has been

compromised and, where possible, share information relating to the actual weakness or

compromise.

 Work with the vendor to try and mitigate or prevent further compromises.

 Work with appropriate law enforcement agencies to help mitigate or prevent further compromises.

 Perform evaluations on the compromised product either internally or under the terms of PCI

SSC’s Payment Card Industry PIN Transaction Security Device Security Evaluation Testing

Vendor Release Agreement, using PCI-recognized laboratories to identify the cause of the

compromise.

Withdrawal of Approval

PCI SSC reserves the right to withdraw approval of a POI device or HSM and accordingly update the PCI

PTS Device Approval List. Some of the reasons for withdrawal of approval are:

 It is clear that the payment security device does not offer sufficient protection against current

threats and does not conform to security requirements. If PCI SSC considers that the payment

security device has a security weakness or has been compromised, PCI SSC will notify the

vendor in writing of its intent to withdraw its approval of that payment security device.

 The vendor does not either meet contractual obligations vis-à-vis PCI SSC or strictly follow the

terms of participation on the PCI PTS program as described in this document or the Payment

Card Industry PIN Transaction Security Device Security Evaluation Testing Vendor Release

Agreement.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Legal Terms and Conditions

PCI SSC’s approval applies only to payment security devices that are identical to the payment security

device tested by a PCI Security Standards Council recognized laboratory. If any aspect of the payment

security device is different from that which was tested by the laboratory—even if the payment security

device conforms to the basic product description contained in the letter—then the payment security

device model should not be considered approved, nor promoted as approved. For example, if a payment

security device contains firmware, software, or physical construction that has the same name or model

number as those tested by the laboratory, but in fact is not identical to those payment security device

samples tested by the laboratory, then the payment security device should not be considered or promoted

as approved.

No vendor or other third party may refer to a payment security device as ―PCI Approved,‖ nor otherwise

state or imply that PCI SSC has, in whole or part, approved any aspect of a vendor or its payment

security devices, except to the extent and subject to the terms and restrictions expressly set forth in a

written agreement with PCI SSC, or in an approval letter. All other references to PCI SSC’s approval are

strictly and actively prohibited by PCI SSC.

When granted, an approval is provided by PCI SSC to ensure certain security and operational

characteristics important to the achievement of PCI SSC’s goals, but the approval does not under any

circumstances include any endorsement or warranty regarding the functionality, quality, or performance of

any particular product or service. PCI SSC does not warrant any products or services provided by third

parties. Approval does not, under any circumstances, include or imply any product warranties from PCI

SSC, including, without limitation, any implied warranties of merchantability, fitness for purpose or

noninfringement, all of which are expressly disclaimed by PCI SSC. All rights and remedies regarding

products and services, which have received an approval, shall be provided by the party providing such

products or services, and not by PCI SSC or the payment brand participants.

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Glossary of Terms and Acronyms

Term

Definition

Approval Class

The approval class describes which evaluation requirements the approved

device has been tested against. See Appendix A.

Device

Payment device; may be part of a terminal.

EPP

Encrypting PIN pad; approval class, designating embeddable (OEM) devices

to be integrated into a cardholder-operated terminal.

Evaluation

Framework

Set of requirements for vendors, test methodology for laboratories, approval

process for products, and approval list pertaining to a given payment security

device type (POI device, HSM)

HSM

Hardware security module; approval class aimed at devices supporting a

variety of payment processing and cardholder authentication applications and

processes. See Appendix A.

Hybrid Reader

A device that incorporates capabilities for the capture of card data from either

a magnetic-stripe card or an integrated-circuit card (aka a smart or chip card)

ICCR

Integrated-circuit card reader

MSR

Magnetic-stripe reader

OEM

Original equipment manufacturer

Payment Security

Device

Any complete device (for example, a consumer-facing PIN-acceptance device

or an HSM) whose characteristics contribute to the security of retail electronic

payments or other financial transactions

PCI PTS Device

Security Evaluation

Program

The PCI SSC evaluation framework for payment system devices

PED

PIN entry device; approval class aimed at devices with PIN-entry and PIN-

processing ability, either attended or unattended, whose primary purpose is to

capture and convey the PIN to an ICC reader and/or to another processing

device, such as a host system. A PED must have an integrated display unless

dedicated to PIN entry only. See Appendix A.

POI

Point of interaction

POI Device

Device used in the point of interaction with a consumer

Product Type

The product type describes both the approval class of a device and whether

the device is a module to be integrated (OEM) or not.

PTS

PIN Transaction Security, the PCI SSC framework for payment security

devices. Refers to POI devices and HSMs, collectively.

PTS Devices

Payment security devices, POI devices, and HSMs

PTS-HSM

The sub-framework of the PCI-PTS device security framework that addresses

the security of HSMs

PTS-POI

The sub-framework of the PCI-PTS device security framework that addresses

the security of consumer-facing devices

PCI PIN Transaction Security Device Testing and Approval Program Guide v1.1 October 2011

Term

Definition

Terminal

Commercial device with a business function. It may be dedicated to payment

(POS terminal with integrated or separate PIN pad) or to product-dispensing

(for example, an ATM or petrol-dispensing self-service).

Test Cycle

Completion of all applicable test procedures performed on a single version of

the vendor’s payment security device

UPT

Unattended payment terminal; approval class, designating cardholder-

operated payment devices (self-service) that read, capture, and transmit card

information in conjunction with an unattended self-service device. See

Appendix A.

PCI PTS Device Testing and Approval Program Guide v1.1, Appendix A October 2011

Appendix A: Device Listing on PCI SSC Website

Listed below are the characteristics of a device listing on the PCI SSC Website.

Point of Interaction (POI)

For purposes of these requirements, a POI PIN-acceptance device is defined as:

A device that provides for the entry of PINs, used for the purchase of goods or services or dispensing of cash. An

approved POI has met all of the applicable PCI PTS POI requirements for online and/or offline PIN entry, and has a

clearly defined physical and logical boundary for all functions related to PIN entry.

In addition, non-PIN-acceptance POI devices can be validated and approved if compliant to the Secure Reading and Exchange of Data

(SRED) module, and if applicable, the Open Protocols Module. These devices shall be explicitly noted as not approved for PIN

acceptance.

Secure Card Readers must be validated to the Core and SRED requirements as delineated in Appendix B: Applicability of Requirements

of the PIN Transaction Security (PTS) Point of Interaction (POI) Modular Security Requirements.

All approval classes are subject to the Device Management Security Requirements.

A POI device may be standalone and not embeddable, in which case the PED approval class may be applicable. This class may apply to

both attended and unattended. However, vendors may decide to list an unattended terminal under the UPT class, when meeting the

appropriate requirements.

If the POI device is designed to be embedded into a wider set (e.g., vending machine or ATM), then EPP or PED approval class would

apply. In such case, there can be other functionalities present besides PIN capture and conveyance (e.g., display, card reader). Devices

entering this category will have the product type property prefixed with the word ―OEM‖ on the main page of the listing, to unambiguously

advertise the modular nature.

POI devices that combine goods (e.g., petrol) or services (ticketing machine) delivery with PIN-based payment are eligible for the UPT

approval class. These POIs can possibly include approved OEM modules.

POI devices submitted for testing must be properly identified so that PCI participants’ customers or their agents can be certain of acquiring

a POI that has been approved by PCI.

Hardware Security Module (HSM)

For purposes of these requirements, an HSM is defined as:

A physically and logically protected hardware device that provides a secure set of cryptographic services. It includes the

set of hardware, firmware, software, or some combination thereof that implements cryptographic logic, cryptographic

processes, or both, including cryptographic algorithms.

PCI PTS Device Testing and Approval Program Guide v1.1, Appendix A October 2011

Device Identifier

The Device Identifier is used by PCI to denote all relevant information that is representative of an approved point of interaction or

hardware security module, and consists of:

 Model Name,

 Hardware #,

 Firmware #, and

 Application #, if applicable

In order to ensure that the payment security device has received an approval, acquiring customers or their designated agents are strongly

advised to purchase and deploy only those payment security device models with the information that matches exactly the designations

given in the components of the PIN Entry Device Identifier or the Hardware Security Module Identifier.

Table 1: Example of a Device Identifier (four components)

Component

Description

POI Model Name/Number

Acme PIN Pad 600

Hardware #

NN-421-000-AB

Firmware #

Version 1.01

Application #

PCI 4.53

The Device identifier will be included in the approval letter and on the PCI website. If an identical payment security device is used across a

family of devices, vendors are cautioned against using a Hardware # (see below) that may restrict approval to only that payment security

device model.

PCI PTS Device Testing and Approval Program Guide v1.1, Appendix A October 2011

Hardware #

Hardware # represents the specific hardware component set used in the approved

payment security device. The fields that make up the Hardware # may consist of a

combination of fixed and variable alphanumeric characters. A lower-case "x" is used

by PCI to designate all variable fields. The ―x‖ represents fields in the Hardware # that

the vendor can change at any time to denote a different device configuration.

Examples include: country usage code, customer code, communication interface,

device color, etc.

Note:

The firmware version number may also be

subject to the use of variables in a manner

consistent with hardware version numbers

The "x" field(s) has/have been assessed by the laboratory and PCI SSC as to not

impact the POI’s or HSM’s security requirements or the vendor's approval. To ensure

that the payment security device has been approved, acquiring customers or their

designated agents are strongly advised to purchase and deploy only those payment

security devices with the Hardware # whose fixed alphanumeric characters match

exactly the Hardware # depicted on the PCI PTS Device Approval List or the vendor's

approval letter from PCI SSC.

Note:

Vendors may have produced payment security

devices with the same model name/number

(prior to validation of compliance by the

laboratory) that do not meet the payment

security device security requirements

Table 2: Examples on the Use of Hardware #s

Hardware # of

Payment Security Device

in the Approval List

Comments

NN-421-000-AB

Hardware # NN-421-000-AB of the Device Identifier does not employ the use of the variable "x." Hence, the payment

security device being deployed must match the Hardware # exactly in order for the PTS device to be considered an

approved payment security device (hardware component).

NN-4x1-0x0-Ax

Hardware # NN-4x1-0x0-Ax of the Device Identifier does employ the use of the variable "x." Hence, the payment security

device being deployed must match the Hardware # exactly in only those position(s) where there is no "x."

Actual Hardware # of

POI Supplied by Vendor

Comments

NN-421-090-AC

If the PCI website lists NN-421-000-AB as the Hardware # in the Device Identifier, then the payment security device with

the Hardware # NN-421-090-AC cannot be considered an approved payment security device (hardware component).

However, if the PCI website lists NN-4x1-0x0-Ax as the Hardware # in the Device Identifier, then the payment security

device with Hardware # NN-421-090-AC can be considered an approved payment security device (hardware

component).

NN-421-090-YC

If the PCI website lists NN-4x1-0x0-Ax as the Hardware # in the Device Identifier, then the payment security device with

the Hardware # NN-421-090-YC cannot be considered an approved payment security device (hardware component).

PCI PTS Device Testing and Approval Program Guide v1.1, Appendix A October 2011

Approval Number

Approval numbers are assigned by PCI SSC at the time of approval and remain the same for the life of the device’s approval.

Product Type

The product type gives an insight on both the approval class of a device, and whether the device is a module to be integrated (OEM) or is

ready-to-deploy equipment. The product type may be prefixed with “OEM” if the approved device is clearly designed to be integrated into

a wider set, or as a Non-PED to clearly differentiate a non-PIN-acceptance POI device from a PIN-acceptance POI device.

Vendors manufacturing OEM products that are ―bolt on‖ or drop in type modules for UPTs may choose to partner with final form factor

vendors of those UPTs (e.g., automated fuel dispenser or kiosk vendors). The OEM vendor’s product may meet most of the overall UPT

security requirements and the OEM vendor may submit that product in conjunction with additional information from the final form factor

vendor on behalf of that vendor, such as AFD or kiosk case design, to the laboratory for evaluation as an UPT.

The OEM vendor’s product cannot receive a UPT approval because the actual final form factor product may have additional cardholder

interfaces (e.g., displays or data input devices) or other characteristics that are within the scope of the UPT security requirements. The

final form factor vendor’s product would receive the UPT approval. The OEM vendor’s product would be assigned a separate approval

number and would be listed separately, and in addition, as an approved component of the UPT product, similar to the way other OEM

products are listed.

Approval Class

The Approval Class is used by PCI to ensure that its payment security device approvals accurately describe today’s ever-evolving

designs, architectures, and implementations. All POIs and HSMs approved by PCI SSC in the framework of the PCI PTS Device Security

Evaluation Program, regardless of the designated Approval Class, carry PCI’s full approval status. Financial institutions, or their

designated agents (e.g., merchants or processors), should make sure that they understand the different classes, as they represent how

the payment security device has met the PCI PTS Device Security Requirements.

Table 3: Approval Class Descriptions

Approval

Class

Description

Specific Features

(see Table 4 below for detail)

PED

An approval class aimed at POI devices, originally designed for supporting payment with PIN

entry, and dedicated to payment. A PED must have an integrated display unless dedicated to

PIN entry only.

This class may cover both attended and unattended environments and OEM or stand-alone

products.

 PIN support

 Prompt control

 Key management

 PIN-entry technology

 SRED

 OP

PCI PTS Device Testing and Approval Program Guide v1.1, Appendix A October 2011

Approval

Class

Description

Specific Features

(see Table 4 below for detail)

EPP

An approval class aimed at secure PIN entry and encryption modules in an unattended PIN-

acceptance device. An EPP may have a built-in display or card reader, or rely upon external

displays or card readers installed in the unattended device.

An EPP is typically used in an unattended PIN-acceptance device for PIN entry and is controlled

by a device controller. An EPP has a clearly defined physical and logical boundary and a

tamper-resistant/responsive or tamper-evident shell. At a minimum, a device submitted for EPP

approval must contain a PIN-entry keypad along with its built-in secure cryptographic module.

Original equipment manufacturers (OEMs) or providers of encrypting PIN pads (EPPs) to

unattended PIN-acceptance device manufacturers (e.g., ATMs or UPTs) and other self-service

device types can submit just an EPP for laboratory testing and approval. As an integral

component of a complete and fully functional POI, an approved OEM EPP can be used in

another payment device such as an ATM or UPT to minimize testing redundancy. However,

UPTs using an approved EPP will still be required to go through a laboratory evaluation in order

to obtain overall approval of the UPT.

 PIN support

 Prompt control

 Key management

 PIN-entry technology

 SRED

 OP

HSM

HSMs may support a variety of payment processing and cardholder authentication applications

and processes. The processes relevant to the full set of requirements outlined in this document

are:

 PIN Processing

 3-D Secure

 Card Verification

 Card Production and Personalization

 EFTPOS

 ATM Interchange

 Cash Card Reloading

 Data Integrity

 Chip Card Transaction Processing

N/A

PCI PTS Device Testing and Approval Program Guide v1.1, Appendix A October 2011

Approval

Class

Description

Specific Features

(see Table 4 below for detail)

UPT

The UPT class of device covers cardholder-operated payment devices that read, capture, and

transmit card information in conjunction with an unattended self-service device, including, but

not limited to, the following:

1. Automated Fuel Dispenser

2. Ticketing Machine

3. Vending Machine

UPTs may have a compound architecture directly combining payment and the delivery of

services and/or goods.

 PIN support

 Prompt control

 Key management

 PIN-entry technology

 SRED

 OP

SCR

An encrypting card reader that is intended for use with a POI device and may be further defined

as an OEM product type to be integrated into a POI terminal.

 ICCR

 MSR

Non-PED

Non-PIN-acceptance devices validated to the Secure Reading and Exchange of Data Module

and, if applicable, the Open Protocols Module. These POI devices are NOT approved for PIN

acceptance.

 SRED

 OP

Version

Version refers to the version of the security requirements the device has been evaluated against. Each approval class may follow its own version

release schedule.

Expiry Date

The expiration date for PCI-approved devices is the date upon which the device’s approval expires.

Requirements Version Used

During Evaluation At Laboratory

Expiration of

Requirements

Approval Expiration Of

Device Models

Note:

Readers should note

that the approval cycle

for PCI-approved

devices is different than

that of pre-PCI

approved devices.

Approvals for most pre-

PCI devices ended on

31 December 2007.

Version 3.x of PCI PTS POI Security Requirements

April 2014

April 2020

Version 2.x PCI PED or EPP Security Requirements

April 2011

April 2017

Version 1.x of the HSM or UPT Security Requirements

TBD

April 2017

Version 1.x PCI PED or EPP Security Requirements

April 2008

April 2014,

Approvals for PCI-evaluated devices expire six years past the effective date of a subsequent update of the

PCI security requirements

PCI PTS Device Testing and Approval Program Guide v1.1, Appendix A October 2011

Specific Features per Approval Class

Table 4: Specific Features

Feature and

Applicability

Description

PIN Support

(PED, EPP, UPT)

“PIN Support” denotes the type of PIN entry verification that can be supported by the POI.

―Online‖ represents that the POI has the capability to support online PIN verification by the payment card’s

issuer or its designated processor. To pass testing, POIs that support online PIN entry must support the use of

TDES to protect the PIN. Additionally, if the PIN needs to be protected during transport in nonintegrated offline

POIs, then the POI must support the use of TDES for that channel. ―Offline‖ means that the POI has the

capability to support offline PIN verification by the payment card’s integrated chip.

Unless otherwise noted, the ―Offline‖ designation, without any suffix, in

the PCI PTS Device Approval List represents that the POI has the

capability to support both plain-text and enciphered offline PIN

verification. The ―Offline (p)‖ designation with the ―(p)‖ as a suffix

represents that the offline POI has the capability of performing only

plain-text offline PIN verification.

Note:

All newly approved offline PIN

verification POIs must support both

plain-text and enciphered PIN

verification.

However, under current testing, all newly evaluated offline POI devices must support both plain-text and

enciphered PIN verification

Key Management

(PED, EPP, UPT)

“Key management” denotes whether the laboratory has successfully

evaluated the payment security device to support the use of Triple DES

(TDES) for PIN encryption for online PIN.TDES requires use of at least a

double-length key.

A MK/SK (master key, session key), DUKPT, and/or fixed designation

denote that the device has been evaluated successfully to support the

implementation of TDES for that particular key-management scheme(s).

Note:

DUKPT is the only ”unique key per

transaction” (UKPT) algorithm

(ANSI X9.24) that PCI recognizes

and approves; all other forms of

UKPT tested by the laboratory will

not be depicted in the approval letter

or on the PCI PTS website.

PCI PTS Device Testing and Approval Program Guide v1.1, Appendix A October 2011

Feature and

Applicability

Description

Prompt Control

(PED, EPP, UPT)

 Vendor-controlled: The end-user, acquirer, or reseller cannot modify the attended POS POI’s firmware

or POI’s payment application to make changes to the device’s prompts or PIN-entry controls. Only the

POI’s original equipment manufacturer has the capability to modify the prompts and controls for PIN entry.

 Acquirer-controlled: The original equipment manufacturer has shipped the attended POS POI with

mechanisms for controlling the POI display and its use in place. These mechanisms can be employed to

unlock the POI for updates of the prompts by the acquirer, using proper cryptographically controlled processes

as defined in the applicable POI security requirement. The reseller or end-user, if authorized by the acquirer,

can also make updates using proper cryptographically controlled processes.

Not applicable for devices without a display.

Devices must be deployed locked. In any case, the acquiring customer is always responsible to ensure

that appropriate processes and documented procedures are in place to control the POI display and usage.

PIN-Entry

Technology

(PED, EPP, UPT)

“PIN-entry technology” denotes which technology is implemented in order to capture the cardholder PIN. The

value for this field can be:

 Physical keypad: Set of buttons arranged in a block which bears digits and optionally letters, in conformance

with ISO 9564.

 Touch screen: Display that can detect the presence and location of a touch within the display area, and

enable the cardholder entering his or her PIN.

Approved

Components

(PED, UPT)

“Approved components” contains, when relevant, the list of approved subcomponents that are part of the

approved device, and which have successfully undergone a distinct evaluation.

Each component is listed with its approval number. Moreover, if the component belongs to the EPP approval

class, the approval number is augmented with the ―EPP‖ qualifier.

Functions Provided

(PED, EPP, UPT,

SCR, Non-PED)

―Functions provided‖ denotes which of the following functions are supported by the device. One or more of

the following may apply, depending on the implementation:

 PIN entry: The device enables cardholder PIN capture.

 Card reader capabilities: The device has components that can capture card data, such as magnetic-

stripe reader (MSR) or ICC reader (ICCR).

 Display: The device has an integrated display used for cardholder prompts.

 SRED: The device has met the requirements in the Secure Reading and Exchange of Data module

 OP: The device has met the requirements in the Open Protocols module

Device Form Factor

All security relevant components (PIN pad, display, card reader(s)) of the device are shown in one or more

pictures.

PCI PTS Device Ing And Approval Program Guide V1.1

PCI_PTS_Device%20ing%20and%20Approval%20Program%20Guide%20v1.1

Navigation menu

Versions of this User Manual:

Views

Navigation
