Pocket Guide

201204

Full Product range

2 3

CONTENT

DR-05 .................................................. 4

DR-07 mkii ............................................ 5

DR-40 .................................................. 6

DR-100 mkii........................................... 7

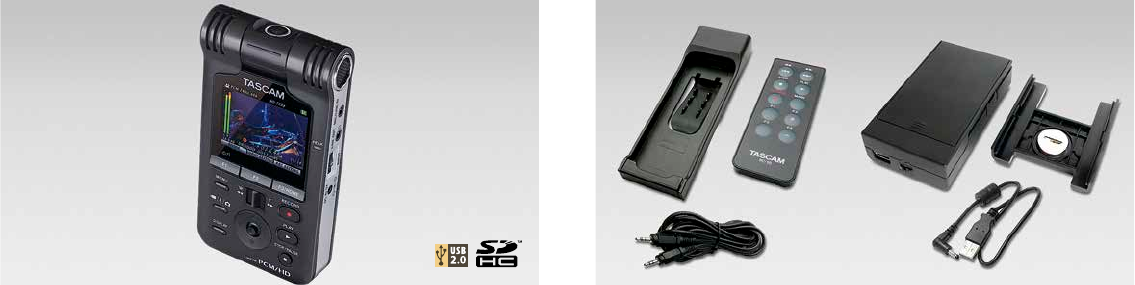

DR-V1HD .............................................. 8

RC-10 / BP-6AA ...................................... 9

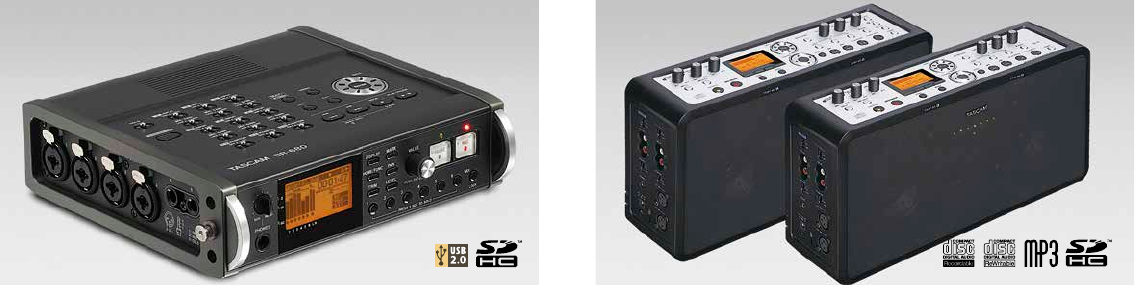

DR-680 ...............................................10

BB-1000CD / BB-800 ..............................11

DP-004 ...............................................12

DP-008 ...............................................13

DP-03 .................................................14

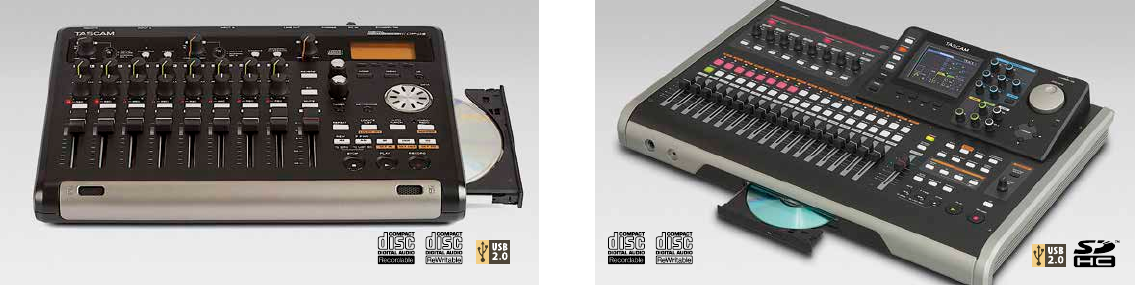

DP-24 .................................................15

DP-32 ........................................NEW! 16

GB-10 / LR-10 .......................................17

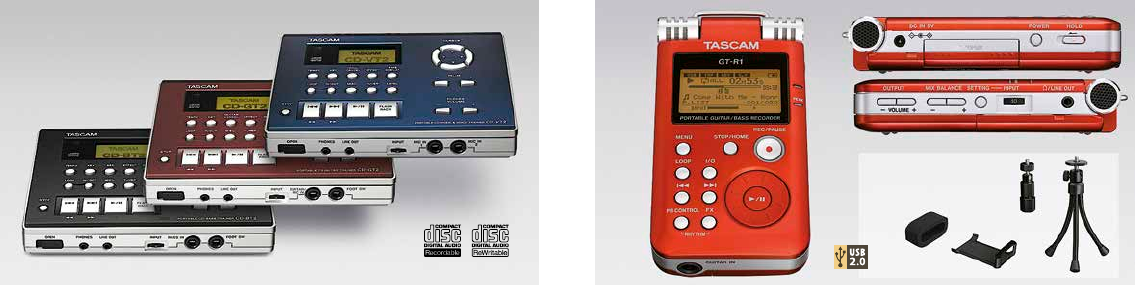

CD-BT2 / CD-GT2 / CD-VT2 .......................18

GT-R1..................................................19

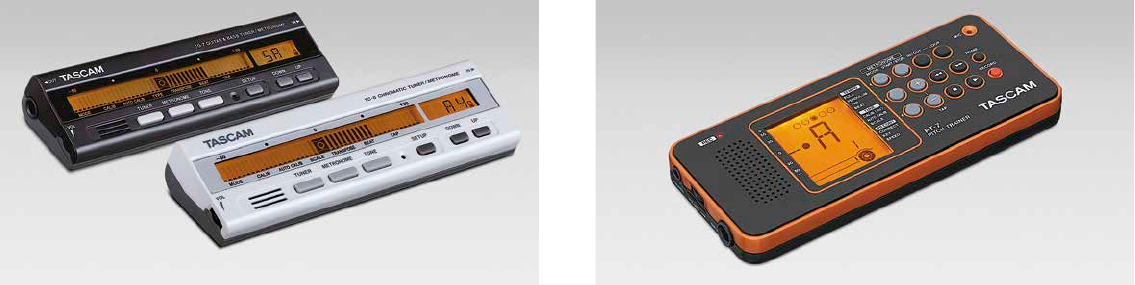

TC-8 / TG-7 ...........................................20

PT-7 ....................................................21

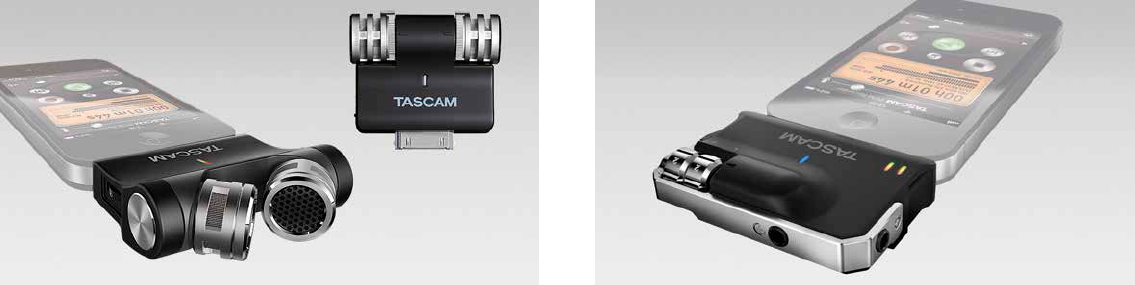

iM2X / iM2 .................................. NEW! 22

iXJ.............................................NEW! 23

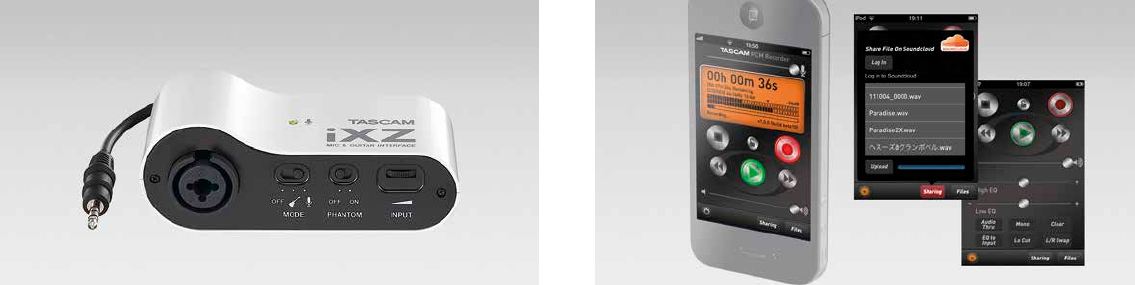

iXZ .....................................................24

PCM Recorder ......................................25

US-100 ................................................26

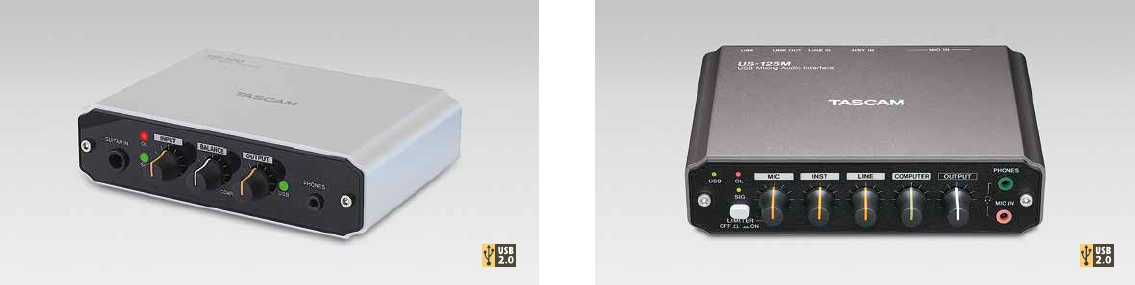

US-125M ..............................................27

US-122 mkii ..........................................28

US-144 mkii ..........................................29

US-200 ................................................30

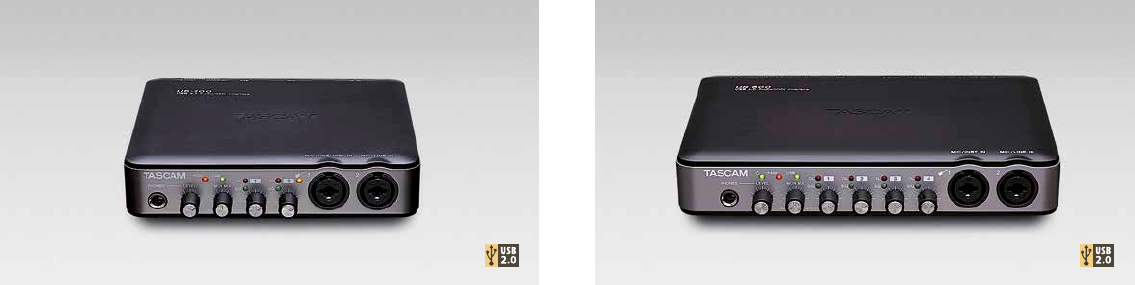

US-600 ................................................31

US-1800 ..............................................32

US-2000 ..............................................33

TA-1VP ................................................34

M-164 / M-164FX / M-164UF ....................35

DM-3200 .............................................36

DM-4800 .............................................38

DM Options .........................................40

X-48 mkii .............................................41

HS-8 ...................................................42

HS-2 ...................................................43

HS-2000 .............................................44

HS-4000 .............................................45

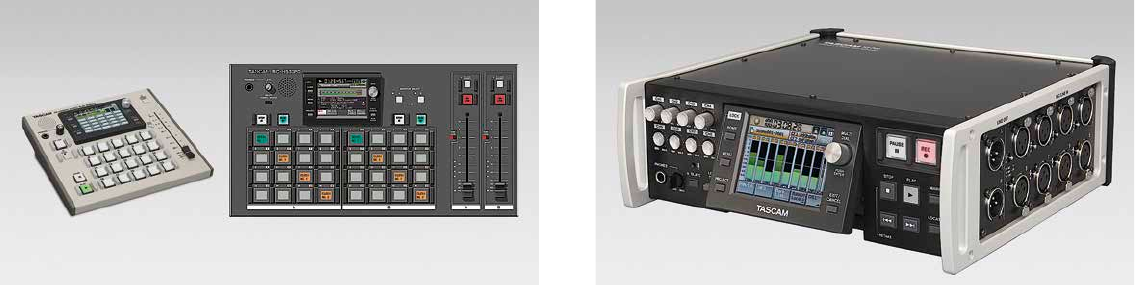

RC-HS20PD / RC-HS32PD .........................46

HS-P82 ...............................................47

RC-F82 ................................................48

HD-P2 .................................................49

DV-RA1000HD ......................................50

HD-R1 .................................................51

SS-R200 / SS-CDR200 .............................52

SS-R100 ..............................................53

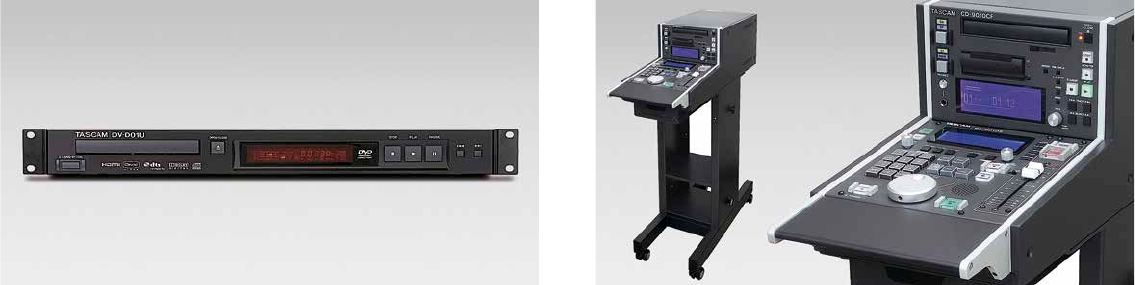

DV-D01U..............................................54

RC-3F / RC-20 ........................................55

RC-900 ....................................... NEW! 56

CD-9010 / CD-9010CF .............................57

CD-6010 ..............................................58

CD-500 / CD-500B..................................59

CD-200 / CD-200i / CD-200iB....................60

CD-200 sb ...................................NEW! 61

CD-355 ................................................62

CD-A550 / A750 .....................................63

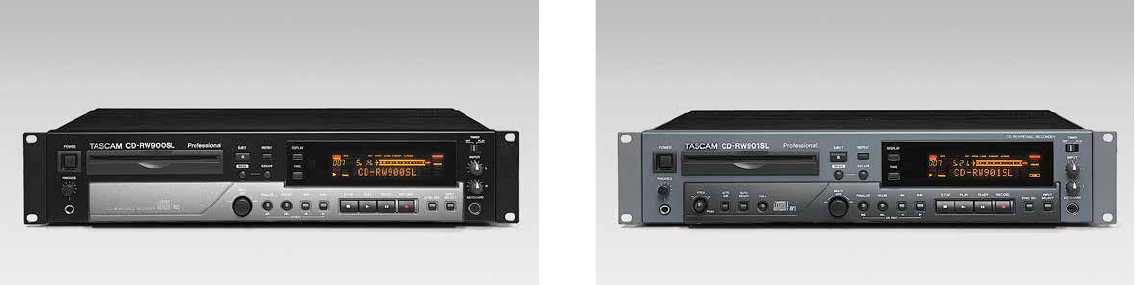

CD-RW900 sl ........................................64

CD-RW901 sl ........................................65

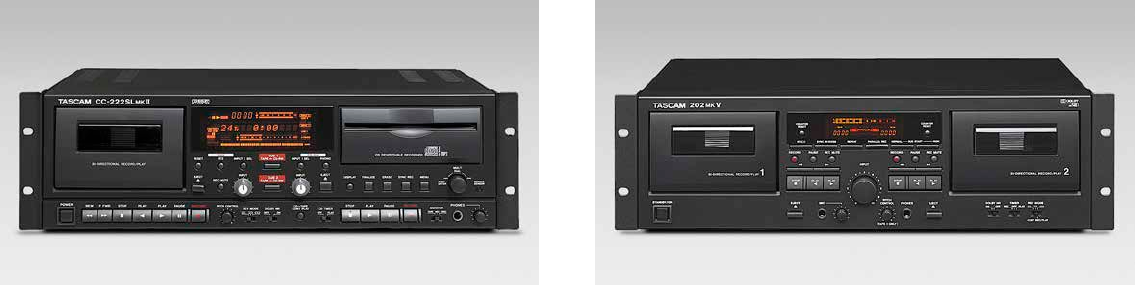

CC-222 sl mkii .......................................66

202 mkv ..............................................67

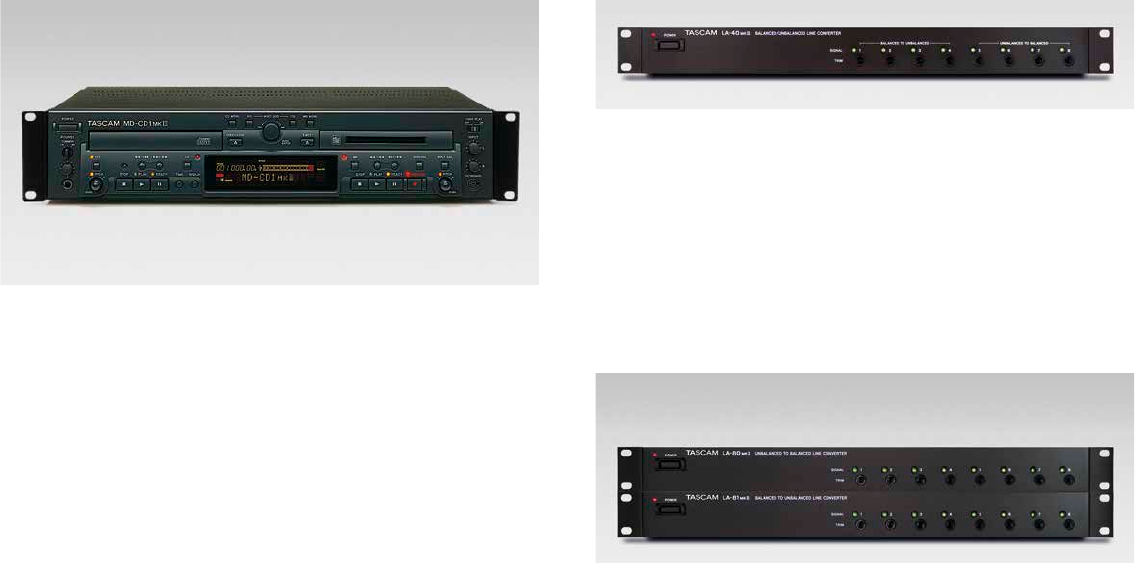

MD-CD1 mkiii........................................68

LA-40 mkiii / LA-80 mkii / LA-81 mkii .........69

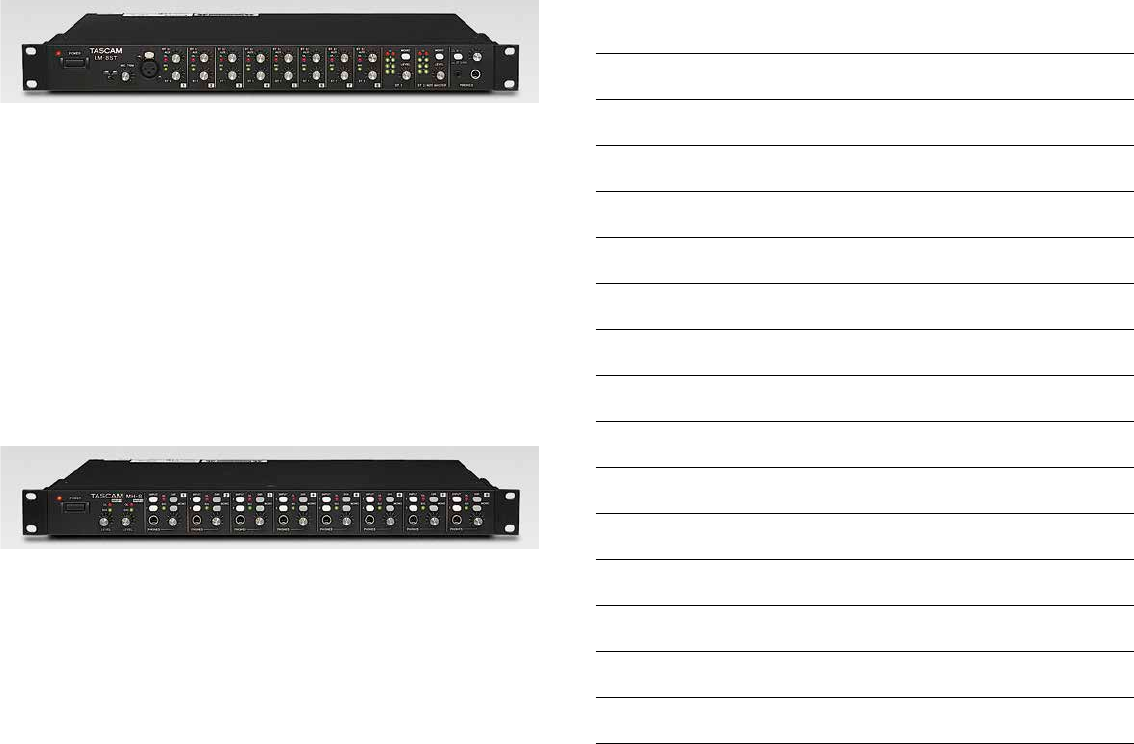

LM-8ST / MH-8 .....................................70

2. Edition, October 2012

Design and specifications subject to change without notice.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.

iPhone, iPad and iPod are trademarks of Apple Inc.

All other trademarks are property of their respective owners.

4 5

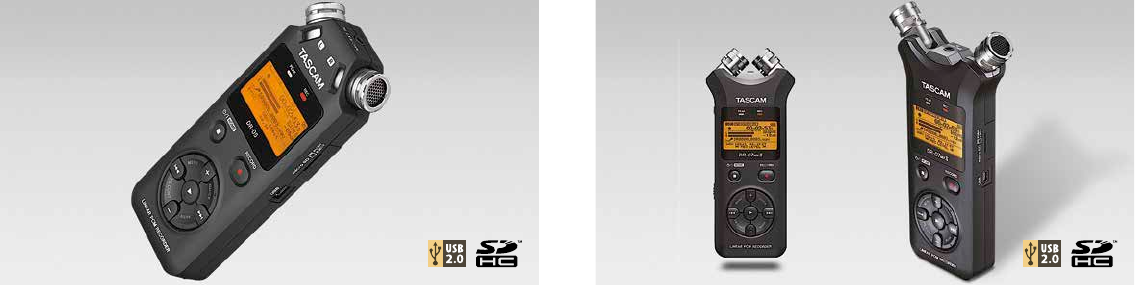

DR07 mkii LINEAR PCM/MP3 RECORDERDR05 LINEAR PCM/MP3 RECORDER

•Portable, high-quality handheld recording

•Small size and easy operation

•Uses a microSD/microSDHC card as recording

medium (2 GB included)

•Supported audio formats:

− Linear PCM (WAV format) at 44.1/48/96kHz

and 16/24-bit

− Compressed (MP3 format): 32–320 kbit/s

Recording features

•Built-in omni-directional microphones

− Accept high sound pressure level up to 125 dB

− Natural sound independent of the sound

source’s position

− Ideal for live music recording or news

gathering with atmo

•Stereo mic/line input with plug-in power to

connect an external source or microphone

•Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz)

•Manual or automatic recording level setting

•Limiter to prevent clipping

•Pre-recording buffer (2 seconds)

•Self-timer (5 or 10 seconds)

•Create a new file manually during recording

•Mark function

Playback features

•Variable speed audition (50–200 %)

•Repeat function (one track or all tracks)

•Loop function (repeat a marked section)

•Playlist feature to play files in a certain order

•Resume function

•Flash back function (1–10, 20, 30 seconds)

•EQ for tone control during playback

•Built-in loudspeaker

•Headphones/Line output

Other features

•Chromatic tuner

•File divide function

•Folder management to organize your files

•Hold function to avoid inadvertent operation

•USB 2.0 connection for file transfer

•Power supply by 2 AA size Alkaline or NiMH

batteries, USB bus power or optional AC

adapter (Tacsam PS-P515U)

•Stand adapter (¼ inch) on bottom side

•Dimensions (W x H x D):

61 mm x 141 mm x 26 mm

•Weight: 0.116 kg (without batteries)

•Portable, high-quality handheld recording

•Small size and easy operation

•Uses a microSD/microSDHC card as recording

medium (2 GB included)

•Supported audio formats:

− Linear PCM (WAV format) at 44.1/48/96kHz

and 16/24-bit

− Compressed (MP3 format): 32–320 kbit/s

Recording features

•Built-in cardioid microphones

− Accept high sound pressure level

− Easy setup (A/B and X/Y supported)

− Good directivity and channel seperation

− Ideal for live music and field recording

•Stereo mic/line input with plug-in power to

connect an external source or microphone

•Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz)

•Manual or automatic recording level setting

•Limiter to prevent clipping

•Pre-recording buffer (2 seconds)

•Auto recording start and stop by input level

•Self-timer (5 or 10 seconds)

•Overdub feature

•Create a new file manually during recording

•Mark function (manual or automatic)

Playback features

•Variable speed audition (50–200 %)

•Repeat function (one track or all tracks)

•Loop function (repeat a marked section)

•Playlist feature to play files in a certain order

•Resume function

•Flash back function (1–10, 20, 30 seconds)

•EQ for tone control during playback

•Built-in loudspeaker

•Headphones/Line output

Other features

•Built-in reverb effect

•Chromatic tuner

•File divide function

•Folder management to organize your files

•Hold function to avoid inadvertent operation

•USB 2.0 connection for file transfer

•Power supply by 2 AA size Alkaline or NiMH

batteries, USB bus power or optional AC

adapter (Tascam PS-P515U)

•Stand adapter (¼ inch) on bottom side

•Dimensions (W x H x D):

68 mm x 158 mm x 26 mm

•Weight: 0.125 kg (without batteries)

6 7

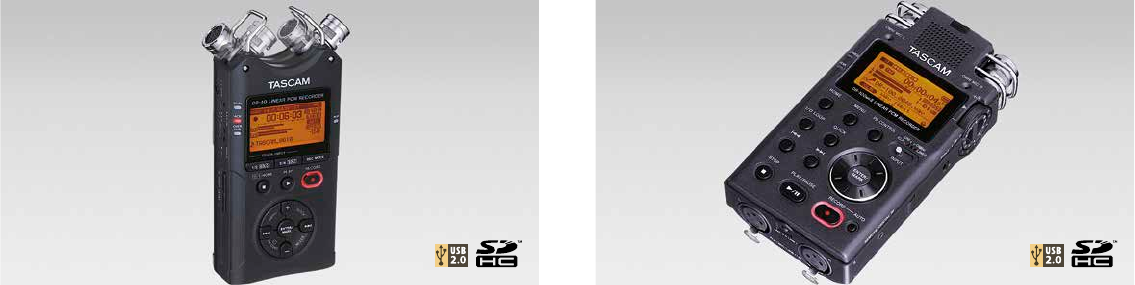

DR40 4TRACK LINEAR PCM/MP3 RECORDER

•Portable, high-quality handheld recording

•Compact size and easy operation

•Uses a SD/SDHC card as recording medium

(2-GB card included)

•Supported audio formats:

− WAV/BWF up to 96 kHz / 24-bit

− MP3 32–320 kbit/s at 44.1/48 kHz

•Built-in cardioid stereo condenser microphone

− Accepts high sound pressure level

− AB and XY configuration supported

− Ideal for live music and field recording,

news gathering, music training etc.

•Stereo XLR/TRS mic/line input with phantom

power (supports +4 dB line level input)

•4-track recording

− Create two stereo recordings from the built-

in mics and the external mic/line input at

the same time

− Create two stereo recordings with different

level settings from the built-in mics or

external mic/line input at the same time

− Non-destructive overdub: Record a mix

of one or two stereo playback files and a

stereo input signal to a new stereo file or

record only the input signal while playing

back one stereo file

− Mixdown feature with level, pan and effect

controls for each track (creates a stereo

track from a 4-track recording)

•MS decoder for recordings created with mid/

side microphone configuration

•Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz)

•Manual or automatic recording level setting

•Three Options of automatic level control

during recording: Peak Reduction, Auto Level,

Limiter

•Pre-recording buffer (2 seconds)

•Auto recording start and stop by input level

•Self-timer

•Mark function (up to 99 marks for each file)

•Playback features include automatic level alig,

VSA, Repeat, Loop, Playlist, Resume, Flash

back, EQ, ID3 tag display for MP3 files, monitor

loudspeaker

•Built-in reverb effect and chromatic tuner

•Powered by 3 AA batteries, USB or AC adapter

(optional)

•Optional footswitch and wired remote control

•Dimensions (W x H x D): 70 x 155 x 35 mm

•Weight: 0.213 kg (not including batteries)

DR100 mkii PORTABLE STEREO RECORDER

•Handheld digital stereo recorder with rugged

metal chassis for professional use

•2 separate types of batteries used together

allow for many hours of operation as well as

the ability to change batteries while recording

•MP3 and WAV file recording and playback

•Records to SD/SDHC card

•Selectable recording formats:

− Linear PCM (WAV format), 16/24-bit

− MP3 32/64/96/128/192/256/320 kbps

•Sampling frequencies: 96/48/44.1 kHz

•Four built-in high-quality condenser mics (two

uni-directional, two omni-directional)

•Two lockable XLR mic ins with phantom power

•High-performance preamp provides wide

range of gain (58 dBu to +24 dBu)

•Three selectable input sensitivities

•Stereo line input with adjustable level

•Tandem hardware recording level control

•Digital input (conversion cable included)

•Switchable low-cut filter (40 Hz, 80 Hz, 120 Hz)

•Switchable auto gain control and limiter to

prevent clipping (hardware switchable)

•Built-in monitor speaker

•Headphones output with level control

•Separate stereo line output (mini jack)

•Pre-recording buffer (2 seconds)

•Delayed recording feature

•Auto recording start and stop by input level

•Overdub feature

•Mark function (automatic or manual)

•Create a new audio file during recording

(manually or by file size)

•File divide function, file renaming

•Playback features include: In/Out loop, Folder

or playlist playback, Pitch control function

(–50 % to +16 %), Switchable VSA function

•Mic stand adapter (¼ inch) on bottom side

•USB 2.0 connection for file transfer

•Power supply by lithium-ion rechargeable

(BP-L2), two AA batteries, optional battery pack

(BP-6AA) or optional AC adapter (PS-P520)

•2-Gigabyte SD card, RC-10 wireless remote

control, windshield and softcase included

•Footswitch with three pedals for various

functions available as an option (RC-3F)

Dimensions (W x H x D):

80 mm x 153 mm x 35 mm

•Weight: 0.29 kg (not including batteries)

8 9

RC10 / BP6AA HANDHELD RECORDER ACCESSORIES

RC-10

•Wireless/wired remote control for DR-40 and

other portable audio recorders

•6 buttons for transport control and setting

marks while recording

•4 function buttons to control product-specific

features (see Owner’s manual of the related

product)

•3 m cable included

•Dimensions (W x D x H):

33 mm x 7 mm x 86 mm

(wired, excluding projections)

37 mm x 14 mm x 110 mm

(wireless, excluding projections)

•Weight: 15 g (without battery)

BP-6AA

•External battery pack for DR-40 and other

products powered by DC 5V or USB

•Increases the operation time without the need

for an AC adapter or computer

•Can be used for any Tascam product powered

by PS-P515U or PS-P520 AC adapters or any

product powered by USB

•Takes six AA batteries

•Power switch and LED indicators for remaining

battery power

•Dimension (W x H x D):

66 mm x 114 mm x 29 mm

•Weight: 102 g (without batteries)

DRV1HD HD VIDEO / LINEAR PCM RECORDER

•High-definition audio/video recorder com-

bined in one compact unit

•Ideal for musicians, podcasters, YouTube

uploaders

•Lens and microphones can be swivelled by

180 degrees

•Records to microSD/microSDHC card (2-GB card

included)

•2.4-inch TFT color LCD with Movie/Audio/

Photo display modes

Video features

•HD or VGA video mode (1280x720p / 640x480p)

•30 fps frame rate

•Wide focusing range (0.39 m to infinity)

•1x – 4x digital zoom

•Still image mode to take pictures (1280x720p

or 640x480p, image quality super fine, fine,

or normal)

•Slide show mode (interval time: 1–10 sec.)

•HDMI output allows to view HD videos or

pictures on a TV

Audio features

•Linear PCM (WAV file) recording and playback

at 44.1/48/96 kHz, 16/24 bit

•High-grade stereo condenser microphone

•Stereo input for microphone or line source

•Switchable low-cut filter (40/80/120 Hz)

•Auto or manual gain control

•Dedicated recording level control

•Switchable limiter

•VSA function (Variable Speed Audition)

•Overdub function

•Selectable playback area: All/Folder

•Built-in monaural monitor speaker

•Stereo phones/line output

Other features

•Mini-B type USB 2.0 jack for file exchange

•Powered by three Alkaline (LR6) or Ni-MH

(HR15/51) batteries

•AC power adapter available as an option

(Tascam PS-P520)

•Auto power-off (3/5/10/30 minutes or off)

•Tripod attachment screw hole

•USB cable included

10 11

DR680 PORTABLE MULTITRACK RECORDER

Recording/Playback

•High-quality field recording

•Compact size and easy operation

•Up to 8 recording tracks

− 6 tracks + stereo mix track at up to

24-bit/96 kHz

− 6 tracks via the analogue inputs + 2 tracks

via the digital input at up to 24-bit/96 kHz

− 2 tracks at 24-bit/192 kHz

•Secure and easily available SD/SDHC recording

media

•Recording/playback in uncompressed BWF or

WAV format or space-saving MP3 format

•MP3 multi-track recording

(2 stereo or 4 mono files)

•WAV/BWF sampling frequencies:

44.1/48/96/192 kHz

•MP3 sampling frequencies: 44.1/48 kHz

•MP3 bit rates: 96–320 kbit/s

•16-bit/24-bit resolution

•Mid-side (MS) microphone decoding

•Pre-recording buffer (up to 2 seconds)

•Auto recording by input level

•Locate markers

•Repeat playback feature

•GANG function to operate a group of controls

as one

•Hold feature to prevent misoperation

•Built-in loudspeaker for monitor purposes

•Powered by 8 AA-size batteries or AC adapter

PS-1225L (included)

Inputs/Outputs

•6 balanced mic/line inputs (4 XLR/TRS combo

connectors, 2 TRS connectors)

•48-volt phantom power

•Selectable input gain on each analogue input

(hardware-switchable high/low)

•Switchable low-cut filter and limiter on each

analogue input

•6 unbalanced line outputs (RCA)

•Stereo digital input and output (selectable

between SPDIF and AES/EBU)

•Headphones output with level control

•USB 2.0 high-speed data transfer to PC

•Cascade feature to control the transport of up

to four DR-680 by one unit

•Dimensions (W x H x D):

217 mm x 56 mm x 189 mm

•Weight: 1.2 kg (without batteries)

BB1000CD / BB800 PORTABLE DIGITAL RECORDERS

•Boom box style recorder including everything

needed for digital recording (BB-1000CD uses

CD or SD card, BB-800 uses SD card only)

•Perfect tool to record and play everything

anywhere

•Easy operation with dedicated knobs and keys

•Direct recording to SD/SDHC card

− WAV format (16 bit / 44.1 kHz)

− MP3 format (High/Mid/Low bit rate, 44.1 kHz)

•Four built-in microphones (switchable front/

rear) for flexible setups including 360-degree

recording – perfect for choir and band

recording or minutes recording

•Two XLR mic inputs with +48V phantom power

•Automatic or manual recording level

•Switchable auto gain control or limiter

•Line input and output (RCA)

•Headphones output (mini jack)

•Two built-in 3-inch loudspeakers

•5 W + 5 W digital amplifier

•Special playback features:

− Loop playback, Flash Back function

− Tempo change, Key change

− Part cancel feature with adjustable pan point

− Overdub feature, Marker function

− Metronome with LED indicator

− Chromatic tuner

•Auto-Recording feature allows recordings to

be started/stopped automatically by level

•File divide function (to cut unwanted noise

from recordings, for instance)

•Powered through 8 x AA alkaline batteries or

AC adapter (PS-1225L, included)

•Wireless remote control supplied as standard

•Optionally available: soft padded carrying case

(CS-BB-1000)

•W x H x D: 380 mm x 205 mm x 107 mm

•Weight: 3.4 kg (BB-1000CD), 3.2 kg (BB-800)

BB-1000CD additional features

•Direct recording to CD-R/CD-RW

•Create audio CDs (CD-DA) from WAV or MP3

files on the SD card

•Extract audio tracks from CD-DA to SD card in

WAV or MP3 format (ripping)

•Copy audio CDs (CD-DA format)

12 13

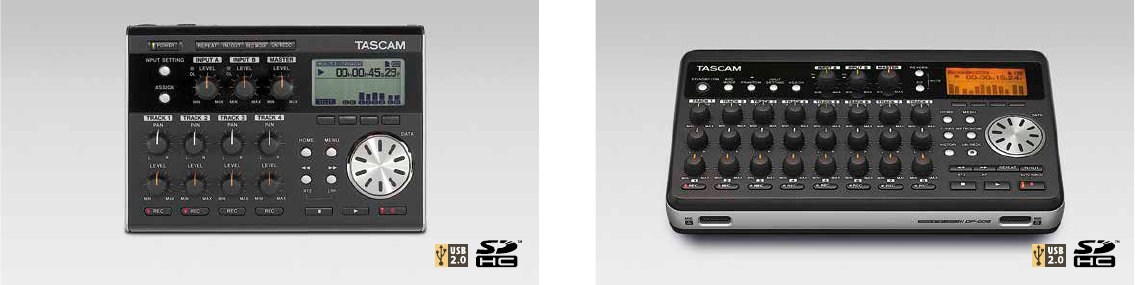

DP004 4TRACK DIGITAL POCKETSTUDIO

•Portable, ultra-compact multi-track recorder

•Simple, intuitive user interface

•High-quality recording (44.1kHz/16-bit)

•Recording media: SD/SDHC card (2GB SD card

included)

•2-track simultaneous recording

•4-track simultaneous playback

•Built-in stereo condenser microphone

•Two Mic/Line inputs

•Dedicated Level and Pan controls

•Bounce function (record a stereo mix of up to

4 tracks or mixdown up to 4 tracks to a single

new track)

•Dedicated stereo master track

•Locate features

•Repeat playback

•Editing functions: duplicate or erase tracks,

cut parts, insert silence

•Undo/Redo feature (up to 500 steps depending

on memory capacity)

•Chromatic Tuner/Metronome

•USB 2.0 port for computer backup/restore and

WAV import/export

•Can be powered by AA batteries or optional

AC adapter

•Dimensions (W x D x H):

155 mm x 34 mm x 107 mm

•Weight: 0.360 kg (without batteries)

DP008 8TRACK DIGITAL POCKETSTUDIO

•Portable, highly compact multi-track recorder

•Simple, intuitive user interface

•High-quality recording (44.1kHz/16-bit)

•Recording media: SD/SDHC card (2GB SD card

included)

•2-track simultaneous recording

•Two mic/line inputs (XLR and phone jack con-

nectors) with switchable phantom power for

condenser microphones

•One input switchable to Guitar

•Built-in stereo condenser microphone

•8-track simultaneous playback with mixing

•Dedicated Level and Pan controls

•2-band EQ for both input channels and each

of the 8 tracks

•Built-in reverb with dedicated knobs on each

track

•Bounce function (create a stereo or mono mix

of up to 8 tracks to record additional sources)

•Dedicated stereo master track

•Auto and manual punch in and punch out

•Locate features

•Repeat playback

•Editing functions: duplicate or erase tracks,

cut parts, insert silence

•Undo/Redo feature (up to 500 steps depending

on memory capacity)

•Built-in chromatic tuner and metronome

•USB 2.0 port for computer backup/restore and

WAV import/export

•Can be powered by four AA batteries or

optional AC adapter

•Dimensions (W x D x H):

221 mm x 36 mm x 127 mm

•Weight: 0.61 kg (without batteries)

14 15

DP03 8TRACK DIGITAL PORTASTUDIO™

•8-track digital Portastudio with CD burner

•Recording/playback at 44.1 kHz, 16 bit using

SD/SDHC memory card

•Simultaneous recording of two tracks

•Simultaneous playback of eight tracks

•Dedicated stereo mixdown track to mix your

song to a stereo file you can burn on CD or

transfer to a computer for MP3 encoding

•Built-in stereo condenser microphone

•Two XLR mic inputs with phantom power for

your favourite studio condenser microphones

•Two TRS line inputs, one switchable to guitar

for direct connection of an electrical guitar

or bass as well as synths, drum machines etc.

•RCA line output

•Headphones output with level control

•Two-band shelving EQ per track and on both

inputs

•On-board reverb processor

•On-board mastering effects with two-band

EQ, single/multi-band compression and a

normalizer to maximise the overall level and

improve the sound density

•Auto punch in/out for hands-free recording

over a marked section

•Track bounce feature to use more than eight

tracks by creating a mixdown of several

tracks to another track

•Workstation-style editing with copy, move,

open, cut etc.

•Multi-level undo/redo history

•Location marks to easily locate the start of

verses, soli, vocals etc.

•Built-in tuner and metronome

•On-board CD/CD-RW burner

− Create audio CDs from your mixes

− Backup/restore your projects

− Import files from audio CDs

•USB 2.0 port to backup/restore projects or

import/export wave files from/to a computer

•Nine 45-mm faders

•Selectable foot switch operation mode

•Foot switch with three switches and

assignable functions available as an option

(RC-3F)

•Dimensions (W x H x D):

416 mm x 65 mm x 299 mm

•Weight: 4.5 kg

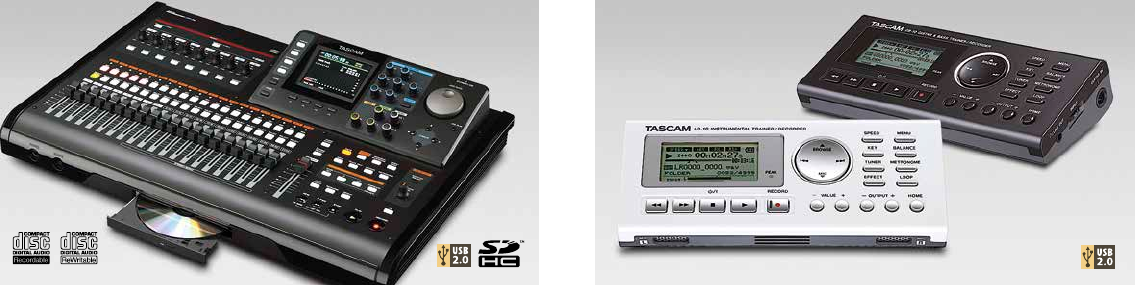

DP24 DIGITAL PORTASTUDIO

•24-track digital Portastudio

•Color LCD display and 12-encoder channel strip

for simple operation

•Eight microphone inputs on balanced combo

XLR/jack connectors with phantom power

•Up to eight-track simultaneous recording at

48kHz/24-bit audio resolution

•Solid-state recording to SD Card media for better

shock resistance than hard drive recording

•Instrument-level input for direct recording of

guitar or bass

•Dedicated controls for EQ, pan and effect sends

•Multiple effects processors for input processing,

guitar amp simulation and mastering

− Input effects: Limiter, Compressor, Noise

suppressor, Exciter

− Guitar effects: Amplifier simulator, Reverb,

Compressor, Chorus, Flanger, Phase shifter

etc.

− Mixdown effects: Reverb, Delay, Stereo

chorus, Stereo flanger

− Mastering effect: Multi-band compressor,

EQ, Noise shaping etc.

•Virtual tracks for alternate takes and undo

•CD-RW drive for mixdown and backup

•Built-in chromatic tuner and metronome

•MIDI input and output for clocking and control

•6.3-mm jack monitor outputs, effect send outs

and headphone output

•Dimension (W x H x D):

514 mm x 104 mm x 340 mm

•Weight: 6.2 kg

16 17

DP32 DIGITAL PORTASTUDIO NEW!

•32-track digital Portastudio

− 8 mono tracks, 12 stereo tracks (can also be

used as mono tracks)

− Record up to 8 tracks at once with 44.1kHz/

48kHz and 16/24-bit audio resolution

− Simultaneous playback of all 32 tracks

− Virtual tracks for alternate takes and undo

− Dedicated stereo master track

•Colour LC display and 12-encoder channel strip

for simple operation

•Built-in 40-channel mixer

− Mix down your 32 playback tracks with

eight input signals to the dedicated stereo

master track

− Use the Bounce function to mix multiple

tracks to a single mono or stereo track

•Dedicated controls for EQ, pan and effect sends

•Solid-state recording to SD Card media for better

shock resistance and reliability compared to hard

drive recording

•8 balanced microphone inputs on balanced

combo XLR/jack connectors

•Switchable phantom power for 4 channels each

•One input switchable to instrument level for

direct recording of a guitar or bass

•Unbalanced stereo output (RCA jacks)

•Balanced stereo monitor output (6.3-mm TRS)

•Two unbalanced effect sends (6.3-mm TS)

•Stereo headphones output (6.3-mm TRS)

•MIDI input and output for MMC, Control Change

and MTC output

•Footswitch input for Tascam RC-3F (optional)

•Input effects (Limiter, Compressor, Noise sup-

pressor, Exciter)

•Guitar effects (Amp simulator, Reverb,

Compressor, Chorus, Flanger, Phase shifter)

•Mixdown effects (Reverb, Delay, Stereo chorus)

•Mastering effect (Single/Multi-band stereo

compressor, EQ, Noise shaping)

•Mark function (up to 99 location marks)

•Built-in chromatic tuner and metronome

•CD-RW drive for audio CD creation and file import

and export

•USB 2.0 port for data backup/restore and file

transfer with a computer

•Dimension (W x H x D):

514 mm x 104 mm x 340 mm

•Weight: 6.2 kg

GB10 / LR10 TRAINERS/RECORDERS FOR GUITAR/BASS AND INSTRUMENTS/VOCALS

•Compact and light-weight all-in-one trainers/

recorders for jamming/training with your

favorite songs

− Simply plug in your guitar/bass (GB-10) or

record your instrument/vocal performance

with the built-in stereo mics (LR-10)

− Play or sing along with existing songs

− Record over existing songs (overdub)

− Capture musical ideas

− Check your recordings with the built-in

loudspeaker (LR-10)

− Digitize your analogue music archives (line

input, LR-10 only)

•Amp simulation, compressor and multi-effects

included (GB-10), Reverb effect (LR-10)

•Tempo control: 50 % to 150 % in 10-% steps

•Key control: ±6 semi-tones with ±50 cents

fine tune

•Tempo and key control can be used at the

same time

•In-Out loop playback (up to five loops can be

set for each file in a playlist)

•Flashback function (jump back by 1–10

seconds during playback)

•Built-in tuner and metronome

•MP3/WAV file playback and WAV file recording

•Pre-recording buffer (up to 2 seconds)

•Auto recording feature (start/stop recording

depending on the input level)

•File divide function to clean a song start or

ending from unwanted noise or to split large

files into smaller pieces

•Uses an SD/SDHC memory card as recording/

playback medium (a 2-GB card is included)

•Foot switch available as an option (Tascam

RC-3F) for hands-free operation (Several

operation modes selectable)

•USB 2.0 port for file transfer (cable included)

•Three options of power supply:

− 2 AA batteries (Alkaline or NiMH)

− USB bus power

− Optional PS-P520 AC adapter

•Dimensions (W x H x D):

158 mm x 30 mm x 70 mm

•Weight: 0.16 kg (GB-10), 0.17 kg (LR-10)

18 19

CDBT2 / CDGT2 / CDVT2 CD INSTRUMENT AND VOCAL TRAINERS

•CD players with bass (BT), guitar (GT) or

microphone (VT) pre amp and effects

•CD-DA/CD-R/CD-RW disc playback

•10 second anti-shock memory

•Album title/Track title indication by CD-Text

•Elapsed/Remain time display with bar meter

•+16 to –50% pitch control in 1% steps

•VSA (Variable Speed Audition, tempo control

without affecting key)

•Key control: ±6 semi-tones, in semi-tone steps

with ±50 cents fine tune

•Single play and continuous play

•Single Loop, All Loop, seamless In-Out Loop

•Flash Back function (instant review up to 5

seconds prior playback)

•Chromatic tuner with calibration (435–445 Hz)

•3 octaves tone oscillator

•Metronome (BPM: 40 to 220, Beat: 2 to 6)

•6.3-mm input with level control

•Input level indicator on display

•Balance between input and CD signals adjustable

•3.5-mm stereo line and headphone outputs

•Headphone volume control

•Mono monitor function for CD (L+R, L, R)

•Split monitor function (left channel: CD, right

channel: input signal or vice versa)

•Comprehensive 128 x 64 dot matrix LC display

•Two options of power supply: alkaline/NiMH

batteries or optional AC adapter PS-P520

•Dimensions (W x H x D):

194 mm x 39 mm x 138 mm

•Weight (excluding batteries): 0.55 kg

Individual features

•Built-in effects/sound controls:

− BT: Up to 4 effect modules plus 7-band graphic

EQ, 10 effect banks, Bass enhancement

− GT: Up to 3 effect modules, 10 effect banks,

Guitar Canceller with selectable pan point

and frequency range

− VT: Reverb and echo effects, Voice Changer

(1 octave up/down), Instrument/Vocal

Canceller with selectable pan point and

frequency range

•Other inputs:

− BT, GT: Foot switch connector,

5 selectable functions

− VT: Second mic input with separate mix

control on display

GTR1 PORTABLE GUITAR/BASS RECORDER

Handheld Recorder

•Portable, handheld stereo recording

•MP3 and WAV file recording and playback to/

from SD/SDHC card

•Selectable recording formats:

− WAV (16/24 bit)

− MP3 (32/64/96/128/192/256/320 KBit/s)

•48-kHz or 44.1-kHz recording resolution

•Built-in high-quality stereo condenser mic

•Variable-angle microphone mechanism with

A/B configuration allows natural wide sound

•Stereo mic input with plug-in power for an

external stereo or mono microphone

•Stereo line input for other recording sources

•Switchable low-cut filter (80 Hz or 120 Hz)

•Analogue auto gain control and limiter to

prevent clipping

Guitar/Bass Trainer

•Direct connection of electrical guitar or bass

•Built-in guitar/bass multi-effects (55 presets

with variable parameters)

•Effects can be applied to the input or playback

signal

•Built-in rhythm machine with 88 presets

•Overdub feature to record to an existing

recording or to the rhythm machine

•Part cancel feature to reduce parts of playback

signal (selectable range and pan point)

•Loop, repeat and single playback

•Variable speed playback (–50 % to +16 %)

•Key control (1–6 semitones)

•Chromatic tuner and oscillator with calibration

•Metronome

General

•Headphone/Line output (stereo mini jack)

•Folder or playlist playback

•MP3 ID3 tag display (up to version 2.4)

•1-Gigabyte SD card included

•USB 2.0 connection for file transfer to/from

computer

•Rechargable removable Lithium-ion battery

•Optionally available: replacement battery

(BP-L2), AC adapter (PS-P520), soft padded

case (CS-DR-1), accessory kit (tripod, tripod

adapter, microphone stand adapter, wind

shield (AK-DR1))

•W x H x D: 70 mm x 27 mm x 135 mm

•Weight: 0.208 kg (including battery)

AK-DR1 accessory kit

(available as an option)

20 21

TC8 / TG7 TUNER/METRONOME

TC-8: Chromatic Tuner/Metronome

•Supports eight musical scales (12-note equal

temperament, Pythagorean, Mean tone,

Werckmeister III, Kirnberger III, Kellner,

Vallotti, Young)

TG-7: Tuner/Metronome for Guitar and Bass

•Supports 7 tuning types plus 5 user-defined

settings (Regular guitar, Regular bass,

Chromatic, Drop-D, Drop-G, Open-D, Open-G,

User 1–5)

•Through output connector for permanent

use between instrument and amplifier/pre-

amplifier

Both models

•Clearly visible, extra wide pitch display

(43segments) plus note indication display

with sharp (ã) and flat (õ) symbols and

battery indicator

•Ultra high-speed pitch detection for easy and

accurate tuning

•Various tuner display modes (Meter, Animated

strobe, Needle, Fine, Tone output)

•Response speed can be set according to the

instrument to be tuned (high response speed

allows the unit to be used as a pitch trainer)

•Manual calibration (349.0–499.0 Hz)

•Auto calibration

•Metronome (30–300 BPM plus tap function,

11 beat types)

•Built-in microphone for acoustic instrument

tuning

•Instrument/microphone input jack

•Built-in loudspeaker for tuning tone and

metronome output

•Built-in stand for tabletop use or to hang the

unit on a music stand

•Strap holder

•Up to 200 hours operation time on batteries

•Dimensions (W x H x D):

150 mm x 29 mm x 50 mm

•Weight: 0.1 kg

PT7 INTONATION TRAINER / TUNER

High-speed tuner

•8 musical scales (12-note equal temperament,

Pythagorean, Mean Tone, Werckmeister III,

Kirnberger III, Kellner, Vallotti, Young )

•Calibration function

•Sound out function

Metronome

•30–300 bpm

•Tap mode to set tempo by tapping on a key

•6 time signatures (0-7 beats, duplets, triplets,

shuffle, quadruplets, quadruplets without

center beats)

Trainer section

•Audio recording with internal microphone

•External input for microphone or other source

•Internal flash memory (about 20 minutes

recording time)

•Input gain switchable Hi/Lo

•Automatic Gain Control function

•High-speed chromatic tuner (pitch displayed

on LCD in real time)

•Playback recorded sound with pitch correction

according to selected musical scale

•Loop function to play a section repeatedly

•Variable Speed Audition function to change

playback tempo without changing the key

General

•Built-in loudspeaker (switchable on/off)

•Phones output

•Large, clearly readable LC display

•Flip stand on rear side

•Powered by one AA battery or optional AC

adapter (PS-P520)

•Dimensions (W x H x D):

150 mm x 18 mm x 64 mm

•Weight: 0.125 kg (without battery)

22 23

iM2X / iM2 XY/AB STEREO CONDENSER MIC FOR iOS DEVICES NEW!

iM2X

•Turns your Apple iPhone 4, iPad or iPod touch

4G into a high-grade PCM audio recorder

•Stereo condenser microphone in XY orientation

for clear stereo definition and minimal phase

differences

•Accepts sound pressure level up to 125 dB SPL

•Microphone can be swivelled by 180 degrees

•Allows CD quality recordings (44.1kHz/16-bit)

•Input level rotary control

•Input level indicator (green/red)

•Switchable limiter

•Power supply via dock connector, no battery

required

•USB connector available for recharging the

iOS device

•Easy setup (attaches to the device’s dock

connector)

•Tascam 2-track recording app can be down-

loaded from the Apple AppStore at no charge

•Dimensions (W × H × D):

56 mm x 57 mm x 22 mm

•Weight: 30 g

iM2

•Turns your Apple iPhone 4, iPad or iPod touch

4G into a PCM audio recorder

•High-grade stereo condenser microphone

(same as Tascam DR-2d) with built-in ana-

logue/digital converter for high-quality sound

recording (44.1kHz/16-bit)

•Attaches to the unit’s dock connector

•Accepts sound pressure level up to 125 dB SPL

•Microphone can be swivelled by 180 degrees

to capture sound sources in front or behind

the unit

•Input level control

•Limiter to avoid overload

•Power supply via dock connector, no battery

required

•USB connector available for recharging the

Apple device

•Tascam 2-track recording app can be down-

loaded from AppStore at no charge

•Dimensions (W × H × D):

55 mm × 49 mm × 21 mm

•Weight: 25 g

iXJ2 MIC/LINE PREAMP FOR iOS DEVICES NEW!

iXJ2

•Use your favourite microphones or line level

(instrument) sources to create high-grade

stereo audio recordings with an Apple iPhone

4/4S, iPad or iPod touch 4G

•Internal A/D converter for recordings in CD

quality (44.1kHz/16-bit)

•Two unbalanced stereo input connectors

(accept two mono or stereo sources)

•Input selection switch (A/B/STEREO)

•Switchable plug-in power

•Selectable mono summing for news gathering

•Limiter to avoid distorted recordings

(selectable to either mono or stereo operation)

•Separate L/R input level rotary controls

•Separate L/R input level indicators (green/red)

•Powered via dock connector, no battery required

•USB connector for recharging the iOS device

•Tascam 2-track recording app can be down-

loaded from the Apple AppStore at no charge

•Dimension (W x H x D):

60 mm x 47 mm x 17 mm

•Weight: 30 g

* iPhone not included

24 25

iXZ MIC/GUITAR INTERFACE FOR iOS DEVICES

•High-quality mic/instrument preamp for Apple

iPhone, iPad and iPod

•Use your Apple device for serious recording,

guitar/bass/vocal training or karaoke

•Balanced/unbalanced combo input connector

(XLR/TS)

•Switchable phantom power for condenser

microphones

•Level control on mic input

•Headphone output

•Connection with Apple device via 4-pin mini

plug (analogue)

•No battery required when used as instrument

preamp

•Two AA batteries required for mic preamp and

phantom power

•Tascam 2-track recording app can be down-

loaded from AppStore at no charge

•Dimensions (W x H x D):

106 mm x 40 mm x 45 mm

•Weight: 0.087 kg

PCM RECORDER STEREO RECORDER APPLICATION FOR iOS DEVICES

•Free app that turns your iPad, iPhone or iPod

touch into a PCM audio recorder

•Ideal companion for Tascam iXZ, iM2 or iM2X

•Look and feel like a Tascam DR series recorder

•Clear and easy to operate user interface

•Supports WAV format at 44.1 kHz, 16 bit

•Recording time up to 12 hours

•Large time display

•Audio level meter with peak-hold and

numerical display

•Transport buttons for Playback, Recording,

Stop, Fast Forward and Rewind

•Input and output level sliders

•Two-band equalizer (can be used during

recording or playback)

•Switchable input limiter and low-cut filter

•Stereo/Mono switch, L-R channel swap

•Speaker switch

•File sharing with Soundcloud

•File transfer with a computer

•Supported iOS devices: iPad, iPad 2, iPhone 4

or later, iPod touch 4G or later

•Supported OS: iOS 4.3 or later

26 27

US100 USB AUDIO INTERFACE

•USB audio interface with two input and output

channels

•44.1/48 kHz, 16-bit resolution

•Balanced microphone input (XLR or TRS)

•Guitar input with separate connector on front

panel (TRS)

•Unbalanced stereo line input (RCA), switchable

to RIAA phono for direct connection of ana-

logue turntables

•Ground terminal for turntables

•Unbalanced stereo line output (RCA)

•Headphones output (mini-jack)

•Direct monitoring function allows latency-free

input monitoring

•Power supplied by USB connection – no

ACadapter required

•Operates using standard Windows XP, Windows

Vista and Mac OS X audio drivers

•Audacity recording software included

•Dimensions (W x H x D):

150 mm x 41 mm x 128 mm

•Weight: 0.53 kg

US125M USB AUDIO/MIDI INTERFACES

•USB audio interface with mixer functionality

•Combines a mic, instrument and line source

with a computer audio signal and feeds the

mix to your computer via USB

•Ideal for broadcasting (live streaming) over

the internet

•Four inputs with dedicated level controls:

•Microphone input (balanced XLR/TRS on

rear or unbalanced mini jack on front) with

switchable limiter and Signal/Overload

indicator

•Guitar input (standard phone jack)

•Stereo line input (RCA)

•Stereo audio input from computer via USB

•Stereo audio output to computer via USB or

directly to RCA output jacks

•Monitor output (RCA) and headphones output

(mini-jack) with level control

•Zero-latency hardware monitoring

•Can be used as a simple stand-alone mixer

•Operates using standard Windows (WDM) and

Mac OS X (CoreAudio) audio drivers

•Audio resolution up to 16 bit/48 kHz

•USB 2.0 equipped (also supports USB 1.1)

•USB-powered, no AC adapter required

•Solid aluminum case

•

•Dimensions (W x H x D):

150 mm x 42 mm x 128 mm

•Weight: 0.5 kg

28 29

US122 mkii USB AUDIO/MIDI INTERFACE

•Provides two audio inputs and two audio

outputs for a Windows or Macintosh computer

− Two analogue line inputs (one switchable

to high impedance for use with guitars,

basses, etc.)

− Common level control for headphones and

line output

•Two XLR mic inputs

•Switchable phantom power (48 volt)

•High-quality, low-noise mic preamps

•One MIDI input, one MIDI output

•USB 2.0 equipped (also supports USB 1.1)

•Up to 96-kHz/24-bit for high quality

recordings

•Zero-latency hardware monitoring with level

control and mono switch

•USB-powered, no AC adapter required

•Solid aluminum side panels

•Steinberg Cubase LE 5 included

•Supported operating systems:

− Windows XP, 32 bit or 64 bit, SP2 or later

− Windows Vista, 32 bit or 64 bit, SP2 or later

− Windows 7, 32 bit or 64 bit

− Mac OS X 10.4.11

− Mac OS X 10.5.6

− Mac OS X 10.6 (32-bit and 64-bit versions)

•Dimensions (W x H x D):

179 mm x 136 mm x 47 mm

•Weight: 0.7 kg

US144 mkii USB AUDIO/MIDI INTERFACE

•Provides four audio inputs and four audio

outputs for a Windows or Macintosh computer

− Two analogue line inputs (one switchable

to high impedance for use with guitars,

basses, etc.)

− Stereo digital audio input and output

(input: SPDIF, output: selectable SPDIF or

AES/EBU)

− Separate controls for output level and

headphones volume

•Two XLR mic inputs

•Switchable phantom power (48 volt)

•High-quality, low-noise mic preamps

•One MIDI input, one MIDI output

•USB 2.0 equipped (also supports USB 1.1)

•Up to 96-kHz/24-bit for high quality

recordings

•Zero-latency hardware monitoring with level

control and mono switch

•USB-powered, no AC adapter required

•Solid aluminum side panels

•Steinberg Cubase LE 5 included

•Supported operating systems:

− Windows XP, 32 bit or 64 bit, SP2 or later

− Windows Vista, 32 bit or 64 bit, SP2 or later

− Windows 7, 32 bit or 64 bit

− Mac OS X 10.4.11

− Mac OS X 10.5.6

− Mac OS X 10.6 (32-bit and 64-bit versions)

•Dimensions (W x H x D):

179 mm x 136 mm x 47 mm

•Weight: 0.7 kg

30 31

US200 USB AUDIO/MIDI INTERFACE

•Provides two analogue audio inputs, four

analogue audio outputs and one MIDI input/

output for a Windows or Macintosh computer

•Ideal for high-quality computer audio applica-

tions, mobile recording and DJing

•Full 24-bit/96-kHz recording without

reduction of inputs/outputs

•Zero-latency analogue direct monitoring

•High-quality microphone preamps with

switchable phantom power

•XLR/TRS combo connectors (balanced) on each

analogue input

•One input switchable to instrument level for

direct connection of a guitar or bass

•Line inputs switchable to mono

•Signal and overload indicators on each input

channel

•RCA connectors (unbalanced) on each ana-

logue output

•Level control for headphones and line output

•Monitor mix level control for headphones and

line output

•USB 2.0 equipped

•USB-powered, no AC adapter required

•Cubase LE 5 included

•Supported operating systems:

− Windows XP, 32 bit, SP3 or later

− Windows XP, 64 bit, SP2 or later

− Windows Vista, 32 bit or 64 bit, SP2 or later

− Windows 7, 32 bit or 64 bit

− Mac OS X 10.5.8 or later

− Mac OS X 10.6.3 or later

•Dimensions (W x H x D):

172 mm x 44 mm x 165 mm

•Weight: 0.48 kg

US600 USB AUDIO/MIDI INTERFACE

•Provides 6 audio inputs, 4 audio outputs (two

analogue, two digital) plus one MIDI input/

output for a Windows or Macintosh computer

•Ideal for high-quality multi-track home or

mobile recording

•Full 24-bit/96-kHz recording without

reduction of inputs/outputs

•Zero-latency analogue direct monitoring

•4 analogue audio inputs with high-quality

microphone preamps and switchable phantom

power

•Stereo SPDIF digital input (coaxial)

•One input switchable to instrument level for

direct connection of a guitar or bass

•XLR/TRS combo connectors (balanced) on each

analogue input

•Line inputs 1/2 and 3/4 each switchable to

mono

•Signal and overload indicators on each input

channel

•2 analogue outputs on RCA connectors

( unbalanced)

•Stereo SPDIF digital output (coaxial)

•Level control for headphones and line output

•Monitor mix level control for headphones and

line output

•USB 2.0 equipped

•Powered by AC adapter Tascam PS-P520

(included)

•Cubase LE 5 included

•Supported operating systems:

− Windows XP, 32 bit, SP3 or later

− Windows XP, 64 bit, SP2 or later

− Windows Vista, 32 bit or 64 bit, SP2 or later

− Windows 7, 32 bit or 64 bit

− Mac OS X 10.5.8 or later

− Mac OS X 10.6.3 or later

•Dimensions (W x H x D):

222 mm x 44 mm x 165 mm

•Weight: 0.58 kg

32 33

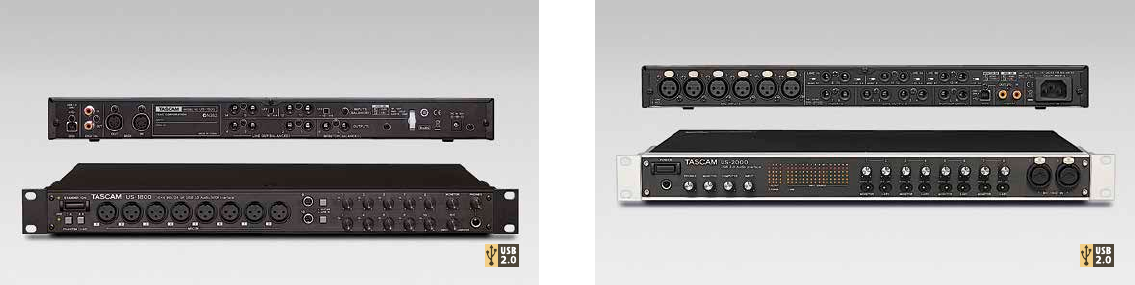

US1800 USB AUDIO/MIDI INTERFACE 16 IN 4

•Provides 16 audio inputs and 4 audio outputs

plus one MIDI input and output for a Windows

or Macintosh computer

− 8 mic/line inputs with phantom power

(switchable for 4 channels each) and level

indicators on front panel

− Two 6.3-mm balanced line/instrument

inputs on front

− Four more balanced line inputs on rear

panel

− Four line outputs

•Up to 96 kHz sampling rate at 24-bit resolution

•Separate stereo 6.3-mm monitor output

•Stereo digital I/O (input: SPDIF, output:

switchable between SPDIF and AES/EBU)

•Analogue and digital inputs can be used

simultanuously

•16-channel MIDI I/O

•Separate monitor and headphone level

controls

•Zero-latency hardware monitoring

•USB 2.0 interface

•Steinberg Cubase LE 5 (Mac/PC) included

•Supported operating systems:

− Windows XP, 32 bit or 64 bit, SP2 or later

− Windows Vista, 32 bit or 64 bit, SP2 or later

− Windows 7, 32 bit or 64 bit

− Mac OS X 10.6.3 or later

•1-U rackmount chassis

•AC adapter Tascam PS-1225L included

•Dimensions (W x H x D):

483 mm x 44 mm x 280 mm

•Weight: 3.1 kg

US2000 16/4CHANNEL USB AUDIO INTERFACE

•High-quality, 24-bit/96-kHz USB 2.0 audio

interface

•Provides 16 audio inputs and 4 audio outputs

for a Windows or Macintosh computer

•8 balanced microphone inputs with high-

gradepreamplifiers

− 6 XLR connectors on the rear

− 2 XLR/jack combo connectors on the front

(switchable to Instrument level)

− Inserts on mic channels 7 and 8

− 48 Volt phantom power switchable for two

channels each

•6 balanced line inputs on rear (phone

connectors, input level switchable between

+4dBu and –10 dBV)

•Mono switches for each analogue input

channel pair

•Stereo digital input (SPDIF) and stereo

digital output (selectable between SPDIF and

AES / EBU)

•4 balanced line outputs

•High-level headphones output

•Direct monitor function allows zero-latency

monitoring of inputs

•Separate level controls for Phones output,

Monitor output, signals sent from computer,

and signals received via the input connectors

•5-segment level meter for each input and

output

•AC-powered (adapter not required)

•Solid metal chassis with aluminum front panel

•Steinberg Cubase LE 5 included

•Supported operating systems:

− Windows XP, 32 bit or 64 bit, SP2 or later

− Windows Vista, 32 bit or 64 bit, SP2 or later

− Windows 7, 32 bit or 64 bit

− Mac OS X 10.4.11

− Mac OS X 10.5.6

− Mac OS X 10.6 (32-bit and 64-bit versions)

•Dimensions (W x H x D):

438 mm x 44 mm x 280 mm

•Weight: 2.5 kg

34 35

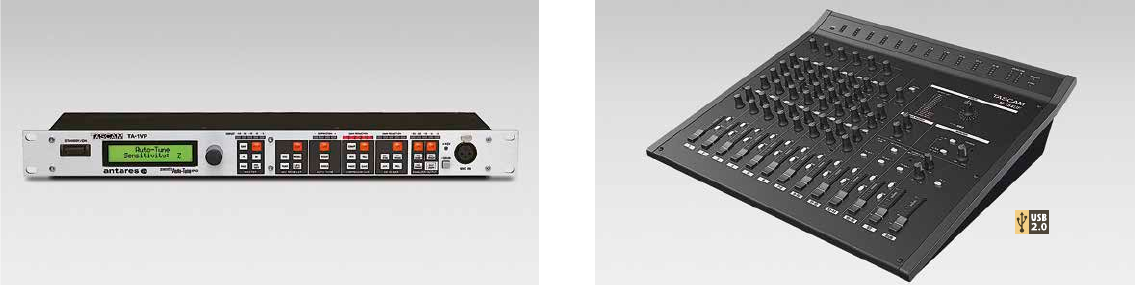

M164 / M164FX / M164UF ANALOGUE MIXING CONSOLES SERIES

•Compact 16-channel analogue mixers

− M-164: basic model

− M-164FX: with effects

− M-164UF: with USB audio and effects

•6 XLR Mic/Line input modules

− 48V phantom power (switchable on/off)

− Switchable high pass filter (80Hz)

− 3-band EQ

•5 Stereo input modules with various types of

input connectors

− Ch. 7-8/13-14: 6.3-mm TRS (balanced)

− Ch. 9-10: RCA (unbalanced), switchable to

RIAA Phono to connect a turntable

− Ch. 11-12: RCA (unbalanced)

− Ch. 15-16: Stereo mini jack (top panel)

•2 Aux sends/returns (send 1 switchable pre/

post fader, send 2 post fader)

•Stereo sub mix bus with TRS stereo sub output

and TRS mono sub output (both pseudo-

balanced)

•Stereo master bus with 2-band EQ

•Balanced TRS and unbalanced RCA stereo

master outputs, pseudo-balanced TRS mono

master output

•Headphones output with level control

(switchable Master/Sub/Aux 1)

•Easy-to-read angled meter bridge

•External power supply (PS-1225L, included)

M-164FX and M-164UF additional features

•Built-in digital effect processor with

16presets including Reverb, Delay, Chorus,

Flanger, Chorus+Room, Rotary Speaker

M-164UF additional features

•USB 2.0 audio interface (16 inputs, 2 outputs,

96kHz/24-bit) with support for Windows XP,

Windows Vista and Mac OS Tiger/Leopard

•Dimensions (all models, W x D x H):

390 mm x 345 mm x 112 mm

•Weight:

2.8 kg (M-164)

3.0 kg (M-164FX)

3.2 kg (M-164UF)

M-164u f only

TA-1VP VOCAL PROCESSOR

•Auto-tune real-time pitch correction

− EVO voice processing technology for enhanced

tracking and correction capabilities

− Correct the pitch of vocals (or solo instru-

ments) in real time and without distortion or

artifacts while preserving all of the expressive

nuances of the original performance

•Microphone modelling

− Give your vocal tracks the characteristics of

a variety of high-end studio mics

− Adjust the proximity effect associated with

mic distance

•Analogue tube modelling

− Give your vocals the warmth of a classic

tube preamp

•Variable knee compressor

− Manipulate the dynamics with a state-of-

the-art dynamics processor

− Threshold, ratio, attack and decay controls

− Continuously variable knee characteristic

•Downward expanding gate

− Gate with threshold and ratio controls to

eliminate noise and breath sounds

− Works independently of the compressor

•Variable-frequency de-esser

− Tame the sibilance of vocals

− Controls available: Threshold, ratio, attack,

decay, variable-frequency highpass

•Flexible parametric 2-band EQ

− Fine-tune your vocal sound with two

independent bands of equalization

− 6 dB or 12 dB high or low cut, high or low

shelving with variable slope, bandpass,

notch and fully parametric peaking

•Automatic mono or stereo double tracking

− Automatically mix a doubled track into the

units main output or route it to a separate

output for post-processing and mixing

•Programmable settings

− Every parameter can be saved as a preset

•Presets for a wide variety of vocal styles

− An extensive collection of factory presets

for many vocal styles included as standard

•MIDI control in realtime

− MIDI controllers for realtime automation

•Really easy to use (virtually every major

function is only a single button press away)

•Dimensions (W x H x D):

483 mm x 44 mm x 128 mm

•Weight: 2 kg

36 37

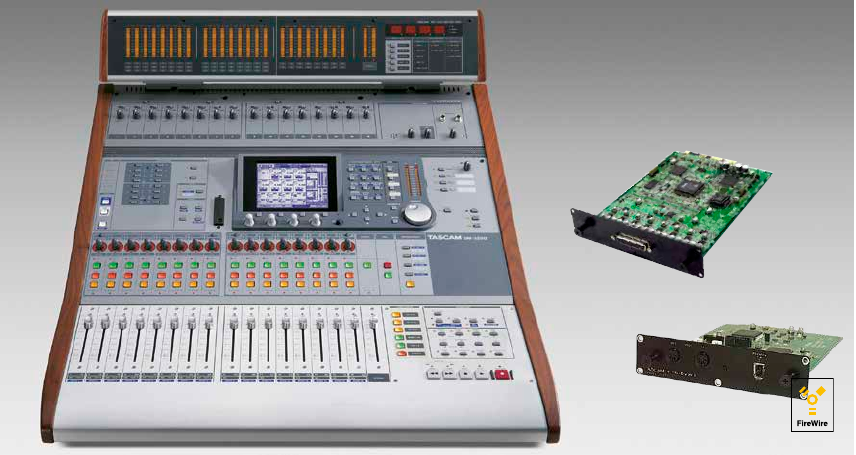

Mixer section

•48 mixing channels (32 channel inputs plus

16 returns)

•16 bus outputs, eight AUX outputs,

onestereooutput, 32 direct outputs

•Four-band EQ and dynamics on each

inputchannel (CH 1 to 32)

•Dynamics on each output (16 busses, eight Aux

sends, and Stereo output)

•Built-in effects processing

•On board TC Reverb

•16 plus one touch-sensitive motorised faders

•SEL/SOLO/MUTE keys and rotary encoder with

ring LED on each channel strip (16 channel

strips)

•Five mixer layers (Ch. 1–16, Ch. 17–32,

Returns 1–16, Busses 1–16, Auxes 1–8) and a

Remote layer for DAW control

•Built-in Talkback microphone

•Flexible I/O routing

•Surround mixing capability

•On-board automation

•Total recall by project management

DM3200 32CHANNEL DIGITAL MIXING CONSOLE

Inputs and outputs

•16 XLR balanced MIC inputs with phantom

power and 20dB PAD

•16 TRS balanced Line inputs

•16 TRS unbalanced inserts

•Four assignable sends/returns

•XLR balanced stereo output

•RCA unbalanced Studio output

•RCA unbalanced 2-track inputs

•TRS balanced Control Room output

•Two XLR AES/EBU digital I/O

•Two Coaxial SPDIF digital I/O

•ADAT I/O (8 channels)

•Three TDIF-1 I/O (24 channels)

•Two headphone outputs

•RCA TC input

•Two expansion slots (support for optional

FireWire, ADAT, AES/EBU, Analog, and TDIF

cards; see page 40)

General

•Sampling frequency: 44.1, 48, 88.2, 96kHz,

Resolution: 24-bit

•The same mixing specifications in 48k and

96k modes

•Word Sync In, Out/Thru

•MIDI In, Out, Thru/MTC Out

•Dedicated Cascade port for cascading of two

DM-3200 mixers

•Foot switch connector for hands-free operation

of selected functions

•Optional Meter bridge (MU-1000)

•DAW interconnection via optional FireWire

card (IF-FW/DM mkii)

•Transport Control

•Surround monitoring with optional expansion

card (IF-SM/DM)

•CompactFlash card for saving / loading

internal data

•Includes Tascam Mixer Companion software

(Windows XP & Mac)

•Driverless USB connection to computer

•Backup/restore data via USB

•GPI functionality

•Dimensions (W x H x D):

700 mm x 230 mm x 824 mm

•Weight: 24 kg

IF-FW/DM m kii

FireWire card

IF-SM/DM

Surround monitoring card

38 39

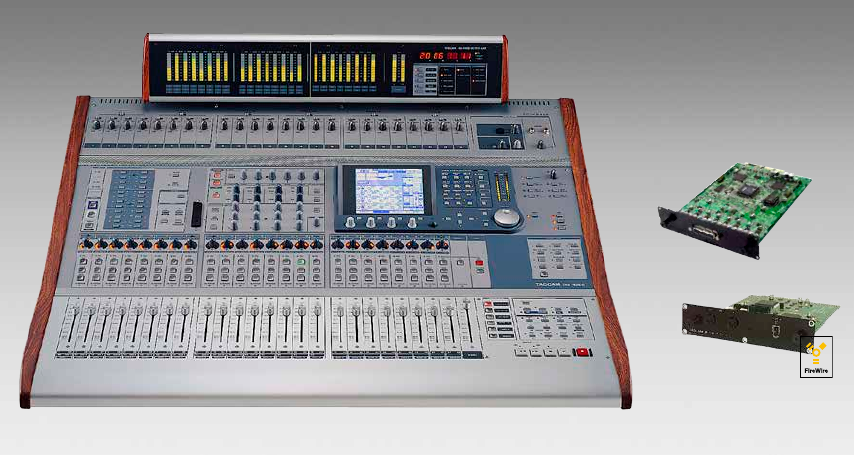

Mixer section

•64 mixing channel modules (48 full-function

channels plus 16 “simple” channels)

•24 busses, 12 aux sends, 48 direct outputs, one

stereo bus

•Four-band EQ and dynamics on each full-

function channel

•Full dynamics processing with compressor/

expander and gate on each full-function

channel

•Two high-quality digital effects including

reverb by TC Works

•Dedicated full-channel section for direct

access to module parameters

•24 plus one touch-sensitive motorised faders

•24 rotary encoders with ring LED indicators

•Five mixer layers (Ch. 1–24, Ch. 25–48,

Ch.49–64, Busses 1–24, Auxes 1–12) and a

Remote layer for DAW control

•Built-in Talkback microphone

•Flexible I/O routing

•Three surround matrices

•On-board automation

•Total recall by project management

DM4800 48+16CHANNEL DIGITAL MIXING CONSOLE

Inputs and outputs

•24 XLR balanced MIC inputs with phantom

power and 20dB PAD

•24 TRS balanced Line inputs

•24 TRS unbalanced inserts

•Eight assignable sends/returns

•XLR balanced stereo output

•RCA unbalanced 2-track input

•Two XLR AES/EBU digital I/O

•Two coaxial SPDIF digital I/O

•ADAT I/O (8 channels)

•Three TDIF-1 I/O (24 channels)

•Four expansion slots (support for optional

FireWire, ADAT, AES/EBU, Analogue, and TDIF

cards; see page 40)

•Two sets of control-room monitor outputs with

six assignable source selects

•Two headphone outputs

•BNC Word Clock input and output

•RCA Time Code input

•MIDI In, Out, Thru/MTC Out

General

•Sampling frequency: 44.1, 48, 88.2, 96kHz,

Resolution: 24-bit

•The same mixing specifications in 48k and

96k modes

•Dedicated Cascade port for cascading of two

DM-4800 mixers

•DAW interconnection via optional FireWire

card (IF-FW/DM mkii)

•Transport Control

•Surround monitoring with optional expansion

card (IF-SM/DM)

•CompactFlash card for saving / loading

internal data

•Includes Tascam Mixer Companion software

(Windows XP & Mac)

•Driverless USB connection to computer

•Backup/restore data via USB

•GPI functionality

•Foot switch connector for hands-free operation

of selected functions

•RS-422 serial port to control external

equipment

•Optional Meter bridge (MU-1000)

•Dimensions without Meterbridge

(W x H x D): 933 mm x mm 230 x 824 mm

•Weight: 35 kg

IF-FW/DM m kii

FireWire card

IF-SM/DM

Surround monitoring card

40 41

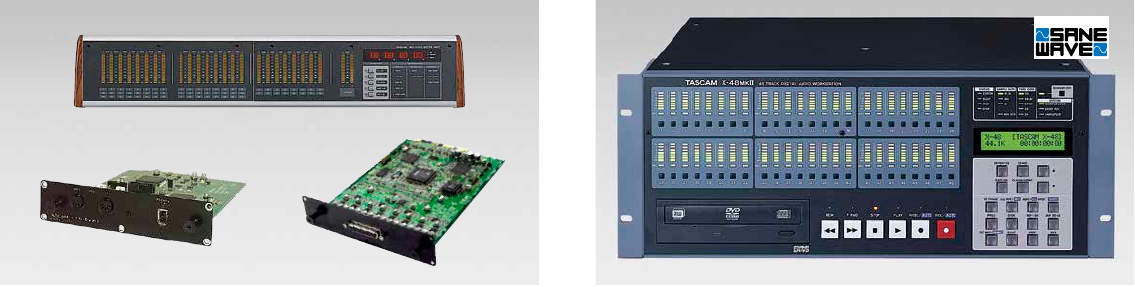

DM OPTIONS OPTIONS FOR DM SERIES MIXING CONSOLES

IF-SM/DM

•Surround monitoring card

•Installs into expansion slot of

DM series mixers

•Eight analogue output channels

•44.1k, 48k, 88.2k, 96k operation

•Flexible downmixing

•Uses the mixer’s Pink Noise generator for

monitor calibration

•Individual channel Mute/Solo

•Individual channel delay compensation

•Surround Bass Management

IF-FW/DM mkii

•FireWire interface card

•Simple FireWire (IEEE-1394) connection to

computer for audio and control data exchange

•44.1k, 48k, 88.2k, 96k operation

•Dedicated MIDI input and output ports

•Mac OS X (10.5 and 10.6) and Windows 7/

Vista/XP compatibility

•Dedicated control panel for Windows and

Macintosh

MU-1000: 24-channel meterbridge with

timecode display

IF-AN/DM: 8-channel analogue line-level I/O card

IF-AD/DM: 8-channel ADAT I/O card (44,1/48 kHz)

IF-AE/DM: 8-channel AES/EBU card

IF-AV/DM

•16-channel audio output to Aviom® A-Net®

systems (up to 150 m signal transmission)

•44.1/48 kHz sample rates at 24-bit resolution

•Less than 800 µs latency

•Stereo linking

IF-CB/DM

•16 I/O audio interface to CobraNet® networks

(up to 100 m signal transmission)

•48 kHz sample rate at 24-bit resolution

•Redundant network

•Selectable signal latency: 1.33/2.67/5.33 ms

•Less than 1 ns jitter

•CobraNet applications included

Multitrack Recording

•48-track digital recording at up to 96 kHz/24 bit

•32-bit floating point audio file recording and

playback with no loss of track count

•Advanced integrated synchronization and

machine control, including HDTV tri-level sync

•Time-stamped Broadcast Wave file format

•Front-panel transport, track arming, project

management and metering functions

•Built-in 1-TB hard drive

•Built-in DVD+RW for backup, transfer and

restore

•±12.5 % varispeed

•Grid-style editing

Workstation/Mixing

•Turn-key operation: no software conflicts to

troubleshoot

•Graphic user interface for editing, mixing,

plug-ins and meters

•48-channel mixing at 96kHz

•32-bit floating point mixer resolution

•6 stereo returns (60 inputs at mixdown)

•24 busses, 6 aux sends, stereo master bus

•Full dynamic automation

•Dynamics, 4-band parametric EQ and 4 VST

plug-in inserts per channel

Rear Panel Connections

•48 TDIF digital inputs and outputs

•Stereo SPDIF In and Out

•Two 24-channel option slots support analogue,

ADAT or AES/EBU expansion cards

•BNC Video In and Thru, auto-terminating

•BNC Word Clock In, Out and Thru, auto-

terminating

•MIDI In and Out

•TRS balanced 6.3-mm SMPTE In and Out

•6.3-mm foot switch input

•eSATA port for external hard drives

•Dimensions (W x H x D):

483 mm x 184 mm x 439 mm

•Weight: 13.7 kg

X48 mkii 48TRACK HYBRID HARD DISK WORKSTATION

CODEVELOPED WITH

42 43

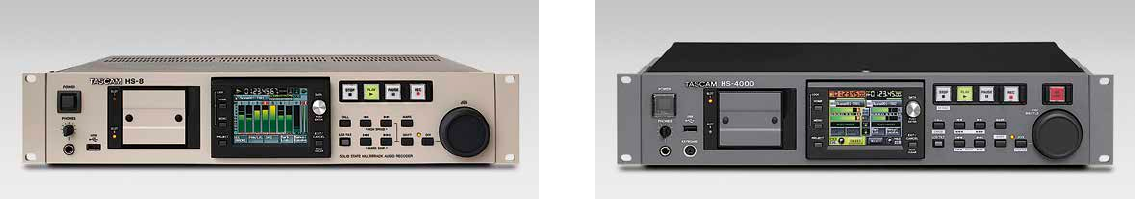

HS8 8TRACK AUDIO RECORDER/PLAYER

•Highly professional 8-track recorder

•Uses secure CompactFlash cards as recording

media (Dual CompactFlash slot, UDMA support

ensures direct, fast data transfer between

internal memory and CF media)

•Uses broadcast wave format (BWF) with

industry-standard iXML metadata

•Tracks available for recording/playback:

− 8 tracks with 2 additional tracks for a

monitor mix at 48/44.1 kHz sample rates

− 8 tracks at 96/88.2 kHz sample rates

− 4 tracks at 192/176.4 kHz sample rates

− Overdubbing is not supported

•16/24-bit recording resolution

•World’s first solid state recorder with multi-

track flash start capability (instantaneous

playback start by optional remote control,

parallel control, RS-232C serial control or

computer keyboard)

•Internal mixer for stereo monitoring and

submix to an additional stereo track

•TFT colour touch panel interface

•Pre-recording up to 5 seconds

•Locate marker function (auto/manual)

•Auto Cue, Auto Ready, Incremental Play and

Repeat functions

Inputs and Outputs

•8 balanced line inputs and outputs on 25-pin

D-sub connector

•2 balanced XLR inputs and outputs for stereo

mix track

•8 AES/EBU digital inputs and outputs on

25-pin D-Sub connector

•AES/EBU digital input and output (XLR) for

stereo mix track

•8-track ADAT digital optical input and output

•Parallel control port

•Serial control port (RS-422 or RS-232C format)

•Remote connector for optional flash start

controller (RC-HS20PD)

•SMPTE Timecode input/output

•Video sync input (supports NTSC/PAL, BB and

HD Tri-level)

•Word sync input/output (BNC)

•Gigabit Ethernet connection for data transfer,

remote control or remote monitoring (with

future firmware update)

•Computer keyboard (PS/2) connector for easy

naming of files and folders

•Dimensions (W x H x D):

483 mm x 88 mm x 288 mm

•Weight: 4.8 kg

HS4000 4TRACK AUDIO RECORDER/PLAYER

•High-quality 4-track audio recorder for profes-

sional broadcast and recording applications

•Two operation modes:

− Timeline mode: Use the unit like a tape

recorder

− Take mode: Record/play separate audio

takes, use playlists and flash start

•Ideal replacement for current DAT, MD, MO or

other recorders

•Fast boot time

•Dual Deck mode operates as two separate

stereo recorders

•Easy to read and operate through TFT colour

touch screen interface

•Dual CompactFlash slot with UDMA support

•Mirroring and continuous recording between

two CFs

•Uses broadcast wave format (BWF) with mark

function

•Sample rates: 96/88.2/48.048/48/47.952/44.1

kHz at 16/24-bit resolution

•Pre-recording up to 5 seconds (audio is

captured before the record button is actually

pressed)

•Flash start with optional flash start controller

RC-HS32PD

•Locate marker function (auto/manual) Online

function with dedicated outputs for pre-

listening and on-air playback

•Confidence monitoring

•Editing fuctions (divide, combine, erase)

•Projects can be exported in AES31 format

•Auto Cue, Auto Ready, Incremental Play, Repeat

•Playlist function

•Jog/Shuttle function

•2U rack-mount size

Inputs and Outputs

•Balanced analogue inputs and outputs (XLR)

Additional balanced monitor output (XLR)

•AES/EBU input, main and monitor outputs

•Parallel control port RS-422 serial control port

•RS-232C serial control port SMPTE Timecode

input/output as standard

•Word sync input/output (BNC)

•Video sync input (BNC)

•Gigabit Ethernet connection for data transfer,

remote control or remote monitoring

•Remote connector for optional flash start

controller

•USB connector for data exchange with external

storage devices

•Computer keyboard (PS/2) connector for easy

naming of files and folders

•Dimensions (W x H x D):

483 mm x 88 mm x 317 mm

•Weight: 5.5 kg

44 45

HS2000 STEREO AUDIO RECORDER

•Differences to HS-2 are marked in red

•High-quality stereo audio recorder for profes-

sional broadcast and recording applications

•Two operation modes:

− Timeline mode: Use the unit like a tape

recorder

− Take mode: Record/play separate audio

takes, use playlists and flash start

•Ideal replacement for current DAT, MD, MO or

other recorders

•Fast boot time

•Easy to read and operate through TFT colour

touch screen interface

•Dual CompactFlash slot with UDMA support

•Mirroring and continuous recording between

two CFs

•Uses broadcast wave format (BWF) with mark

function

•Sample rates: 192/176.4/96/88.2/48.048/48/

47.952/44.1 kHz at 16/24-bit resolution

•Pre-recording up to 5 seconds (audio is

captured before the record button is actually

pressed)

•Flash start with optional flash start controller

RC-HS20PD or RC-SS20

•Locate marker function (auto/manual)

•Online function with dedicated outputs

for pre-listening and on-air playback

•Confidence monitoring

•Editing fuctions (divide, combine, erase)

•Projects can be exported in AES31 format

•Auto Cue, Auto Ready, Incremental Play,Repeat

•Playlist function

•Jog/Shuttle function

•2U rack-mount size

Inputs and Outputs

•Balanced analogue inputs and outputs (XLR)

•Additional balanced monitor output (XLR)

•AES/EBU input, main output and monitor

output

•Parallel control port

•RS-422 serial control port as standard

•RS-232C serial control port

•SMPTE Timecode input/output as

standard

•Word sync input/output (BNC)

•Video sync input (BNC)

•Gigabit Ethernet connection for data transfer,

remote control or remote monitoring

•Remote connector for optional flash start

controller

•USB connector for data exchange

•Computer keyboard (PS/2) connector for easy

naming of files and folders

•Dimensions (W x H x D):

483 mm x 88 mm x 317 mm

•Weight: 5.5 kg

HS2 STEREO AUDIO RECORDER

•High-quality stereo audio recorder for profes-

sional broadcast and recording applications

•Ideal replacement for current DAT, MD, MO or

other recorders

•Easy to read and operate through TFT colour

touch screen interface

•Two memory card slots (CF/SD) with UDMA

support

•Mirroring between two cards

•Uses broadcast wave format (BWF) with

industry-standard iXML metadata

•Sample rates: 192/176.4/96/88.2/48/44.1 kHz

at 16/24-bit resolution

•Pre-recording up to 5 seconds

•Flash start with optional flash start controller

RC-HS20PD or RC-SS20

•Locate marker function (auto/manual)

•Editing fuctions (divide, combine, erase)

•Auto Cue, Auto Ready, Incremental Play and

Repeat, Jog/Shuttle function

•Playlist function

•2U rack-mount size

Inputs and Outputs

•Balanced analogue inputs and outputs (XLR)

•AES/EBU input and output

•Parallel control port

•RS-232C serial control port

•RS-422 serial control port (with optional SY-2

sync extension)

•SMPTE Timecode input/output (with optional

SY-2 sync extension)

•Word/video sync input (BNC)

•Word/video sync through / Word sync output

(BNC)

•1000BASE-T Ethernet connection for data

transfer, remote control or remote monitoring

•Remote connector for optional flash start

controller

•USB connector for data exchange with external

storage devices

•Computer keyboard can be connected (PS/2,

USB) for easy naming of files and folders

•Dimensions (W x H x D):

483 mm x 88 mm x 317 mm

•Weight: 4.9 kg

46 47

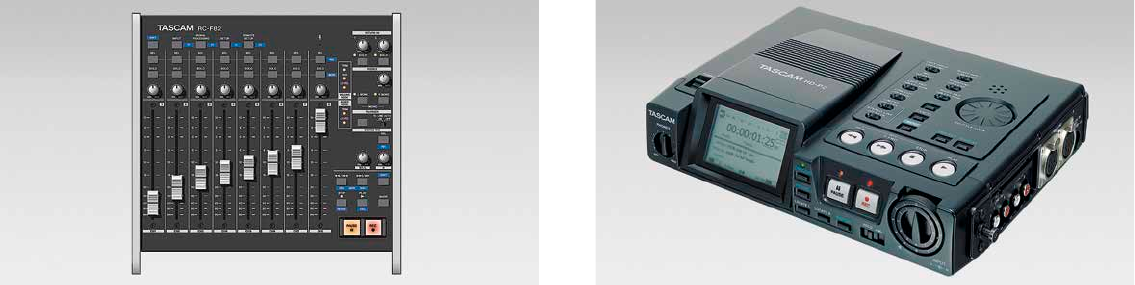

RCHS20PD / RCHS32PD FLASH START CONTROLLERS FOR HS RECORDERS

RC-HS20PD

•Colour TFT touch screen interface

•20 illuminated flash start keys

•Up to 100 tracks available for flash start

through touch screen

•Transport and Online buttons recessed to

prevent accidental operation

•100-mm fader with fader start capability and

0-dB lock

•Monitor speaker and headphones output for

monitoring

•CAT6 connection to HS-2 and HS-8

•Dimensions (W x H x D):

216 mm x 75 mm x 200 mm

•Weight: 1.4 kg

RC-HS32PD

•Flash start or fader start/stop control for

HS-4000 and HS-2000

•Colour TFT touch screen interface for full

control of the recorder

•32 flash start keys with 64 x 32 dot matrix

colour LCD for file name display

•Single Deck mode (32 keys x 3 pages) or Dual

Deck mode (16 keys x 6 pages)

•Two operation modes:

− Flash start: Press key to start playing the

take immediately

− Standby: While a take is playing, press key

to reserve the take as the next playback

take to be started immediately after the

current take is finished

•Two 100-mm faders with fader start/stop

capability and 0-dB lock

•Monitor speaker and headphones output for

monitoring

•CAT6 remote connection with recorder

•Dimensions (W x H x D):

429 mm x 99 mm x 232 mm

•Weight: 4.3 kg

Recording

•Dual CompactFlash recording media supports

backup, mirroring and seamless A/B recording*

•Long battery life through low power usage

•Easy to read and operate using pivoting TFT

colour touch panel interface

•All-aluminum chassis is rugged yet lightweight

•8 -track recording plus stereo mix for a total of

10-track recording

•8-track recording at up to 96 kHz/24 bit

•4-track recording at 192 kHz/24 bit

•Broadcast WAV (BWF) support with iXML

metadata

•Various power options:

− AA batteries (x10)

− NP type batteries

− AC adapter (included)

− External DC input

− Optional V-mount adaptor for Endura

batteries

•Pre-record buffer (up to 5 seconds)

•Internal microphone for slate recording

•Limiter and low-cut filter per track

•Auto or manual cue points

•Alert signal to headphone output

•Retake function

•Panel lockout function to prevent accidental

transport switching

Inputs/Outputs

•8 high-quality microphone preamps and A/D

converters with independent 48V phantom

power for each (standard XLR connectors)

•8 AES/EBU inputs and outputs (DB-25)

•Sampling rate converter on each AES/EBU

input

•2 balanced analogue outputs (XLR connectors)

•Stereo digital output (BNC connector)

•SMPTE Timecode input and output

•Video/Word Clock/Cascade input/output

•Headphones output (6.3-mm stereo jack)

•PS/2 keyboard input for track naming

•USB 2.0 high-speed data transfer to PC

•Optional Fader Unit (RC-F82, see next page)

•Dimensions (W x H x D):

270 mm x 100 mm x 260 mm

•Weight: 3.65 kg

* Seamless Record and Mirroring modes with future update

HSP82 PROFESSIONAL MULTITRACK FIELD RECORDER

48 49

RCF82 FADER UNIT FOR HSP82

•Fader and transport remote controller for

Tascam HS-P82

•Eight 100 mm faders (with dust protection) for

controlling the mix or input trim level of each

channel on the HS-P82

•Eight rotary knobs for controlling the input

trim level, mixer pan or mixer level of each

channel on the HS-P82

•Two rotary knobs for the stereo mix (for

master and solo levels)

•Eight dedicated keys for enabling/disabling

SOLO and recording MUTE functions

•Eight dedicated keys for calling up channel

setup screens and enabling/disabling

recording

•A dedicated key for calling up the L/R SETUP

screen for the stereo mix and for enabling/

disabling recording

•Four direct access (shortcut) buttons to open

the MIXER SETUP and REMOTE SETUP screens

•Dedicated keys for transport control

•Balanced XLR LINE IN connectors (STEREO)

•Balanced XLR LINE OUT connectors

(two stereo pairs)

•Convenient talkback function with built-in

microphone (signal can be output from a pair

of line output connectors)

•Balanced XLR RETURN IN connectors for

talkback (includes level adjustment and solo

control)

•RETURN signal can be monitored using

headphones

•Headphones connector with level control for

monitoring

•Headphones monitoring can be set to STEREO,

MONO, L MONO or R MONO

•Designed to be placed on top of an HS-P82

unit (same footprint)

•Connects with an HS-P82 unit by PS/2 (and is

also powered by this connection)

•PS/2 external keyboard can be connected

•Dimensions (W x H x D):

270 mm x 63 mm x 260 mm

•Weight: 2.5 kg

HDP2 PORTABLE, HIGHDEFINITION STEREO RECORDER

Recording

•Recording media: CompactFlash

•16 or 24 bit resolution at sample rates from

44.1 kHz through 192 kHz

•Writes uncompressed, time-stamped Broadcast

Wave file format

•Pre-Record Cache and Retake function

•Audio files continually re-saved

Inputs and Outputs

•Balanced XLR mic inputs with phantom power,

PAD, and analogue peak limiter

•Low-cut filter on each analogue input

•Unbalanced stereo line input (RCA)

•Unbalanced stereo line output (RCA)

•SPDIF digital input and output (coaxial)

•Headphone output (6.3-mm stereo jack)

•Built-in mono microphone and speaker

•FireWire port for connection with PC/Mac

•Analogue level controls

Synchronization

•SMPTE/LTC timecode input (XLR)

•Chase incoming SMPTE timecode

•Video clock input

•Tri-level sync support

•Frame Lock, Lock and Release and flexible

Freewheel settings

•Pull-up and Pull-down sample rates

Convenience

•Familiar tape machine-style layout and

function

•Easily enter/edit file names via Computer

Keyboard

•Large, angled, uncluttered LC display

•Shortcut keys and LED indicators for fre-

quently-accessed functions

•Recessed CompactFlash slot

•Runs on eight AA batteries (Alkaline, NiMH or

NiCd) or DC power adapter

•Approximately 5.5 hours of operating time on

battery power

•Durable and lightweight housing

•Supplied accessories: Shoulder Belt, Carrying

Case, AC adapter (CS-P2)

•Dimensions (W x H x D):

260 mm x 196 mm x 65 mm

•Weight: 1.2 kg

50 51

DVRA1000HD AUDIO/DSD MASTER RECORDER WITH HARD DISK DRIVE

•High-quality stereo recording at up

192kHz/24-bit or DSD format

•Records audio data directly to internal Hard

Disk Drive

•Records Broadcast Wave and DSDIFF files to

DVD±RW media (computer-readable UDF 1.5

disk format)

•Records directly to CD-R/RW media (standard

CD-DA format)

•Copies audio data from HDD to DVD±R for

archiving purposes

•Duplicates discs or copies audio files between

optical discs and the Hard Disk Drive

•DVD+RW recordings fully compatible with

DV-RA1000 and vice-versa

•Multiband compression and 3-band EQ for

master processing

•Fade in/out and editing functions

•USB 2.0 port

•Balanced XLR and unbalanced RCA I/O

•Balanced AES/EBU inputs and outputs

•SDIF-3 DSD I/O for external conversion and

processing of DSD audio

•Dedicated input level soft control

•Adjustable maximum output level

•±6% pitch control

•Word Sync In, Out, Thru

•Wired remote control and

RS-232C serial port

•PS/2 keyboard connector

•User-definable function keys

•Large, backlit LC display

•Power-on Play feature

•Auto track increment

•Various playback modes including auto cue,

auto ready and A/B play

•Headphone output

•Dimensions (W x H x D):

483 mm x 95 mm x 357 mm

•Weight: 6.8 kg

Applications

•Master Recording

•Mastering

•Live Recording

•Sound Installations

HDR1 PROFESSIONAL SOLIDSTATE AUDIO RECORDER

•1-U rack-mount solid-state audio recorder

•Uses popular, secure CompactFlash card as

recording media

•USB host interface for USB flash cards

•Audio data formats: PCM (16/24 bit), MP3

•Samplig rates supported: 44.1 kHz, 48 kHz,

96kHz (PCM only)

•XLR balanced mic/line I/O with switchable

20 dB PAD

•Phantom power (switchable on rear panel,

front LED indicator)

•Euroblock terminal I/O

•Unbalanced RCA I/O

•Rotary analogue input level controls on front

panel

•SPDIF Digital I/O (coaxial and optical)

•RJ-45 Ethernet interface (100 Mbit/s)

for file transfer and control via web browser

or Telnet

•RS-232 interface for control

•D-sub 25-pin parallel remote control interface

•Direct Play via parallel interface

•Optional direct play remote control RC-SS20

•Power-on play (playback starts when power

comes up)

•Headphones jack with level control

on front panel

•Input Through feature

•Auto Fade feature

•Input monitoring/mixing of live

stereo input along with playback

•Play modes:

− Program

− Folder

− Shuffle

− Interval, and more

•Dimensions (W x H x D):

483 mm x 44 mm x 280 mm

•Weight: 3.2 kg

EUROBLOCK SPDIF RS-232C PARALLELRCAXLR LAN

52 53

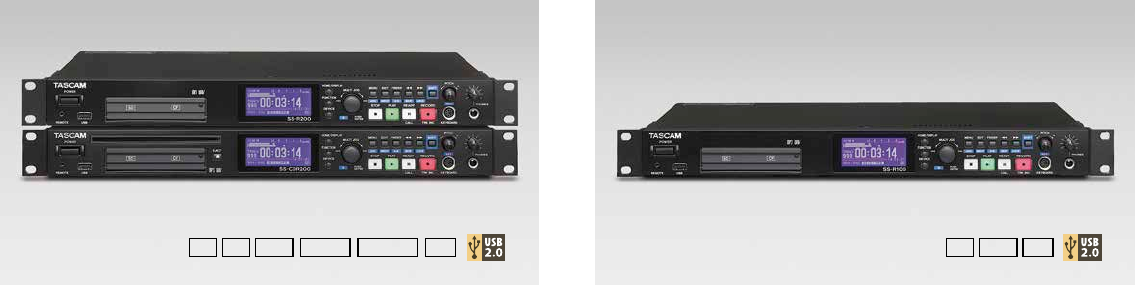

SSR200 / SSCDR200 SOLID STATE/CDRW AUDIO RECORDERS

•SS-R200: Solid state stereo audio recorder

− Uses SD, CF or USB memory as recording

media

− No moving mechanism for high reliability

− Supports WAV file recording/playback to/

from memory

•SS-CDR200: Combination solid state / CD-RW

stereo audio recorder

− Applicable media for CD-RW recorder:

CD-R, CD-RW, CD-R-DA, CD-RW-DA

− Supports MP3 file recording/playback to/

from CD (ISO 9660 format) and memory

− CD to memory copy and memory to CD

(CD-DA or Data CD)

•Remarkable space-saving 1-U rack-mount

•16 bit resolution at 44.1/48 kHz

•24-bit WAV file playback

•Sampling rate converter included

•MP3 bit rates from 64 KBit/s to 384 KBit/s

•Built-in clock for time-stamping

•Ideal for replacement of current cassette deck

or MD/CD recorder

•Long time recording for meeting minute

recording

•Long time playback and various playback

modes for sound installations (all, folder, play

list (up to 3), single, random, repeat)

•Edit functions for WAV files on memory card

(divide, combine, delete, rename)

•Pitch control, key control, call, auto cue, auto

ready, incremental play, power-on play

•Sync recording

•Auto or manual track increment

•Flash start and EOM features

•XLR balanced and RCA unbalanced analogue I/O

•Coaxial SPDIF digital I/O

•Mono mix playback

•D-sub 9-pin RS-232C serial control port

•D-sub 25-pin parallel control port

•Computer keyboard (PS/2, USB) input for

folder/file name editing and remote control

•Wired remote control included (5m)

•Optional direct play remote control (RC-SS20

or RC-20) and footswitch (RC-3F)

•Dimensions (W x H x D):

483 mm x 44 mm x 301 mm

•Weight: 3.4 kg (SS-R200), 3.7 kg (SS-CDR200)

SPDIF RS-232C PARALLEL PS/2RCAXLR

SSR100 SOLID STATE AUDIO RECORDER

•Solid state stereo audio recorder

− Uses SD, CF or USB memory as recording

media

− No moving mechanism for high reliability

− Supports WAV and MP3 file recording/

playback

•Remarkable space-saving 1-U rack-mount

•16 bit resolution at 44.1/48 kHz

•24-bit WAV file playback

•Ideal for replacement of current cassette deck,

CD or MD recorder

•Long time recording for meeting minute

recording

•Long time playback and various playback

modes for sound installations (all, folder, play

list (up to 3), single, random, repeat)

•Edit functions for WAV files on memory card

(divide, combine, delete, rename)

•Pitch control, key control, call, auto cue, auto

ready, incremental play, power-on play

•Sync recording

•Auto or manual track increment

•Flash start feature

•RCA unbalanced analogue I/O

•Coaxial SPDIF digital I/O with sampling rate

converter

•Mono mix playback

•Computer keyboard (PS/2, USB) input for

folder/file name editing and remote control

•Wired remote control included (5 m)

•Optional footswitch for controlling transport

and pitch (RC-3F)

•Dimensions (W x H x D):

483 mm x 44 mm x 301 mm

•Weight: 3.4 kg

SPDIF PS/2RCA

54 55

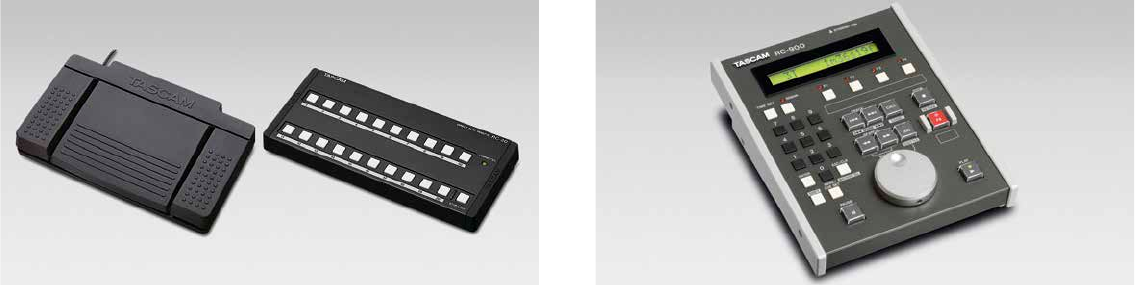

RC3F / RC20 REMOTE CONTROLS

RC-3F

•Three-pedals footswitch (left, center, right)

for hands-free operation of CD-500/CD-500B,

SS-R100, SS-R200, SS-CDR200, DR-40,

DR-100MKII, DP-03, DP-24 and other sup-

ported Tascam devices

•Perfect to control transport and trainer func-

tions of GB-10 and LR-10 trainers

•Function can be set by the controlled unit

•Battery charge indicator on bottom side

•2.5-mm TRS plug with 3.9 m cable

•Output format: UART signal (9600 bps baud

rate, even parity)

•Power supply by two AA batteries (manganese,

alkaline or NiMH rechargeables)

•Power consumption: 3 mW

•Dimension (W x H x D):

190 mm x 32 mm x 122 mm

•Weight: 0.55 kg

RC-20

•Direct play remote control for CD-500/

CD-500B, SS-R100, SS-R200, SS-CDR200 and

other supported Tascam devices

•20 large buttons to start playback of tracks,

program steps or playlist entries on the con-

nected device

•STOP/LOAD button to stop playback and to

flash load tracks if the connected device is in a

play mode that allows flash loading

•CONNECTED indicator (lights when the plug is

connected to a compatible device and power is

supplied by that device)

•Space for labelling strips above buttons

•3.9-m connection cable with 2.5-mm TRS plug

•Power consumption: 4.1 mW

•Dimension (W x H x D):

210 mm x 20 mm x 94 mm

•Weight: 0.38 kg

RC900 REMOTE CONTROL UNIT

•Universal remote control unit for Tascam

Recorders and CD Players

•Compact and easy to use with HS-4000/

HS-2000/HS-2, CD-9010/9010CF, CD-6010,

SS-R200/SS-CDR200 recorders/players

•Aluminum jog wheel for precise cueing

•Highly durable keys for professional use:

•Standard transport keys with LED indicators

•10-key pad for flash start and/or cueing

•5 function keys for frequently-used operations

(functions are fixed and vary according to the

controlled model)

•16-digit LC display

•Tascam RS-232C serial protocol

•AC adapter included (Tascam PS-P520)

•Power consumption: 1 W

•Dimensions (W x H x D):

176 mm x 59 mm x 215 mm

•Weight: 1.4 kg

56 57

DV-D01U PROFESSIONAL DVD PLAYER

•1U rack-mountable DVD player

•Accepts multiple DVD and CD formats:

− DVD Video

− DVD Audio

− VCD (Video CD)

− SVCD (Super Video CD)

− CD-DA (Digital Audio CD)

•Compatible with many file formats:

− Audio: MP3, WMA, WAV

− Image: JPEG

− Video: ASF, MPEG-2/MPEG-1, DivX

•Dolby Digital Surround

•DTS Digital Surround

•RCA analogue stereo audio output

•Optical SPDIF digital audio output

•Composite video output

•S-Video output

•Component video output

•HDMI (High Definition Multimedia Interface)

•Progressive scan

•FVPP (Fine Video Picture Processing)

•HDCP compliant (encryption standard)

•Power-on Play (Timer Play function)

•RS-232C serial port

•Infrared wireless remote control included

•Dimensions (W x H x D):

482 mm x 51 mm x 269 mm

•Weight: 2.6 kg

CD9010 / CD9010CF BROADCAST CD PLAYERS

•Professional-quality CD player for broadcast

studios and commercial installations

•Highly reliable TEAC drive with heavy-duty

tray mechanism and manual eject lever

•Highly durable keys and fader

•Carefully selected electronic components for

high-quality sound

•Large LC display with backlight

•Illuminated transport keys

•Online function

•Supports CD-DA (audio CD) and CD-R (data

CD) with MP3 or BWF/WAV encoded files

•Memory for 9 cue points per CD, up to 500

CDs in total

•Program play

•Auto cue, auto ready and incremental play

•±12.5 % pitch control

•Word sync in/through (BNC)

•Sample Rate Converter 48kHz/44.1kHz

•Balanced stereo line output (XLR)

•Unbalanced stereo monitor output (jack)

•Headphones output with level control

•Balanced stereo mix input for connection of a

backup CD player

•AES/EBU (XLR) and coaxial SPDIF digital

outputs

•Parallel port (D-sub 37pin)

•RS-232C serial port

•Rack-mountable chassis (half-rack size, 3U)

•Optional accessories:

− RC-9010 Remote control unit (with illumi-

nated keys, jog dial and display)

− AK-S9010 Stand with casters (two stands

can be combined)

− AK-A9010 Aluminum armrest for com-

fortable operation

CD-9010CF additional features

•CF card slot for playback from CompactFlash

memory cards

•Programs may contain tracks from both CD

and CF card

•Stereo/Mono select switch

•Balanced stereo monitor output (XLR)

•AES/EBU output on BNC connector (instead of

XLR), no SPDIF output

•USB keyboard connector

•Dimensions (W x H x D): 220 x 137 x 362 mm

•Weight: 5.3 kg/5.5 kg (CD-9010/CD-9010CF)

58 59

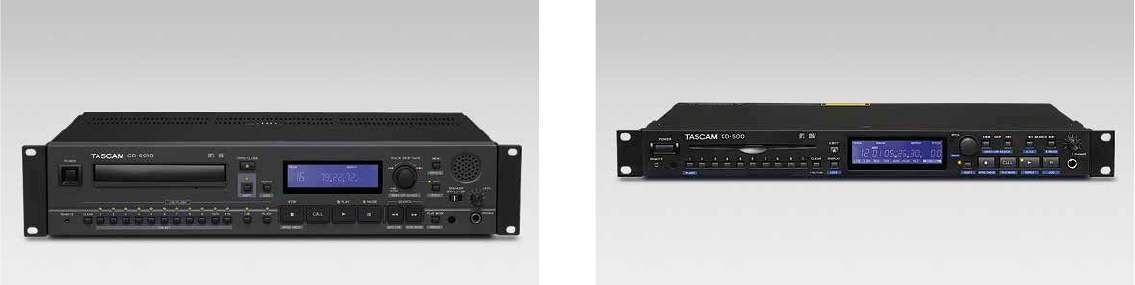

CD500 / CD500B ULTRACOMPACT CD PLAYERS

•Ultra-compact rack-mountable CD player (1U)

•Highly reliable brushless motor

•Slot-in CD drive mechanism

•Audio CD-R/RW, MP3 and WAV playback

•Flash start capability for up to 20 tracks

•Numeric keys for track selection and flash start

•Frame accurate search

•Call and skip back functions

•Auto cue, auto ready, intro check functions

•Resume function

•Index search for audio CDs

•Directory search for MP3 CDs

•Playback modes include Single, All and

Program (up to 99 tracks)

•Memory for playback programs of up to 100 CDs

•Repeat modes include Single, All and A–B

•Selectable interval time between tracks

•±16% pitch control with dedicated control

•Key original function (change speed only)

•Fade in/out (up to 10 seconds)

•Time display (elapsed, remain, total remain)

•Power-on play (timer function)

•Relay play with multiple units

•Fader start / event start

•Lock function to avoid accidental operation

•Anti-shock memory

•RCA unbalanced analogue output

•Optical digital output (SPDIF)

•Coaxial digital output (SPDIF)

•Mono output

•Serial control (RS-232C, D-sub 9-pin)

•Headphones output with level control

•Footswitch control of several functions via

three pedals (with optional Tascam RC-3F)

•Last mode memory (Playback mode /

Program / Repeat mode / Time display)

•End Of Message notification

•Backlit LC display

•Wireless remote control included (receiver

can be disbaled if required)

•Removable power cable

•Dimensions (W x H x D):

483 mm x 45 mm x 301 mm

•Weight: 3.5 kg / 3.7 kg (CD-500 / CD-500B)

Additional features on CD-500B

•XLR balanced analogue output

•XLR AES/EBU digital output

•D-sub 15-pin parallel control port

CD6010 PROFESSIONAL CD PLAYER

•Highly reliable tray CD player for broadcast,

installation or touring applications

•Audio CD-R/RW, MP3 and WAV playback

•Flash start capability for up to 20 tracks

•Numeric keys for track selection and flash start

•Frame accurate search

•Memory for up to 20 cue points

•Skip back function

•Auto cue, auto ready, incremental playback,

intro check and resume functions

•Index search for audio CDs, directory search

for MP3 CDs

•Playback modes include Single, All and

Program (up to 99 tracks)

•Memory for playback programs of up to 100 CDs

•Repeat modes include Single, All and A–B

•Selectable interval time between tracks

•±16% pitch control

•Key original function (change speed only)

•Fade in/out (up to 10 seconds)

•Time display (track elapsed / track remain /

total remain)

•Power-on play (timer function)

•Relay play with multiple units

•Fader start / event start

•Lock function to avoid accidental operation

•Anti-shock memory

•XLR balanced analogue output (output level

may be customized by technical support)

•RCA unbalanced analogue output

•Coaxial digital output (SPDIF)

•AES/EBU digital output (XLR)

•Mono output

•Serial control (RS-232C, D-sub 9-pin)

•Parallel control port (D-sub 15-pin)

•Headphones output with volume control

•Switchable monitor loudspeaker

•Last mode memory (Playback mode /

Program / Repeat mode / Time display)

•End Of Message notification

•Backlit LC display

•Rack-mountable chassis (2 U)

•Wireless remote control included

•Available as options:

− Footswitch for several functions (RC-3F)

− Direct play remote control (RC-20)

− Flash start remote control for instant access

to 20 tracks, announcements or effects

(RC-SS20)

60 61

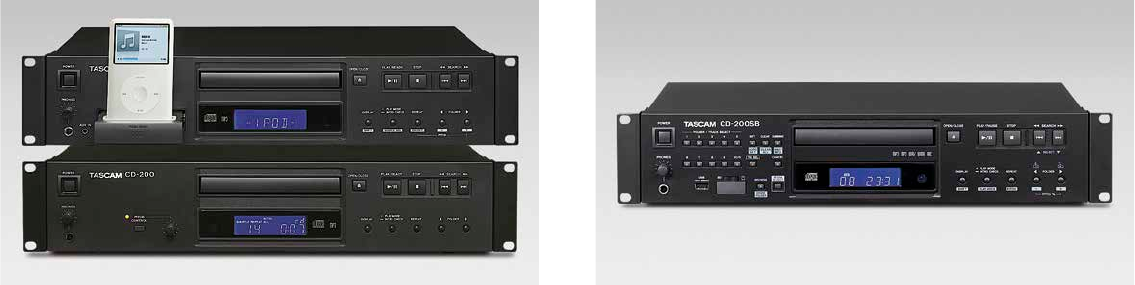

CD200sb SOLIDSTATE/CD PLAYER NEW!

•Versatile, highly reliable and easy-to-use

solid-state and CD player

•WAV, MP3, MP2, WMA, AAC file playback from

SD/SDHC cards or USB memory

•WAV, MP3, MP2 file playback from CD-R and

CD-RW

•Audio CD playback

•Front-panel keys for direct access to 10

user-defined folders on SD/SDHC cards and

USB memory

•Dubbing from CD to solid-state media (WAV or

MP3 format)

•Ideal replacement for a disc changer

•Continuous, Single, Random and Program

playback modes

•Repeat playback (Single, All, Folder)

•Intro Check feature

•CD Text and ID3/WMA/AAC tag support to

display artist and track information if available

•Time display (CD-DA: Elapsed, Remain, Total

Remain; Others: Elapsed)

•±14 % pitch control with CDs

•Anti-shock memory (10 seconds)

•Headphones output with level control

•Balanced analogue output (XLR)

•Unbalanced analogue output (RCA)

•SPDIF digital outputs (coaxial and optical)

•Wireless remote control included

•19-inch rack-mount chassis (2U)

•Dimensions (W x H x D):

481 mm x 95 mm x 298 mm

•Weight: 4.7 kg

CD200 / CD200i / CD200iB CD PLAYER / CD PLAYER WITH iPod™ DOCK

•CD-200: Easy-to-use, affordable CD player

•CD-200i, CD-200iB: CD player with iPod dock

and additional line input

•High-quality TEAC drive

(supports CD-R and CD-RW)

•Audio CD playback

•MP3 and WAV file playback from CD

•Folder selection for MP3 and WAV CDs

•Continuous, Random and Program

playback modes

•Repeat playback (Single, All, Folder)

•Intro Check feature

•CD text and ID3 tag support to display artist

and track information if available

•Time display (CD-DA: Elapsed, Remain, Total

Remain; MP3: Elapsed)

•±12.5 % pitch control

•Anti-shock memory (10 seconds)

•Headphones output with level control

•Analogue output (RCA)

•SPDIF digital outputs (coaxial and optical)

•Wireless remote control included

•19-inch rack-mount chassis (2U)

CD-200i additional features

•iPod™ dock on the front panel for playback

from an Apple® iPod

•iPod video and s-video outputs on rear panel

•Stereo line input on front panel for audio

playback from other unit

CD-200iB additional feature

•Balanced XLR outputs

•Dimensions (W x H x D):

481 mm x 95 mm x 298 mm

•Weight:

4.2 kg (CD-200)

4.7 kg (CD-200i, CD-200iB)

Apple and the Apple logo are trademarks of Apple Inc.,

registered in the U.S. and other countries. iPod is a

trademark of Apple Corporation

62 63

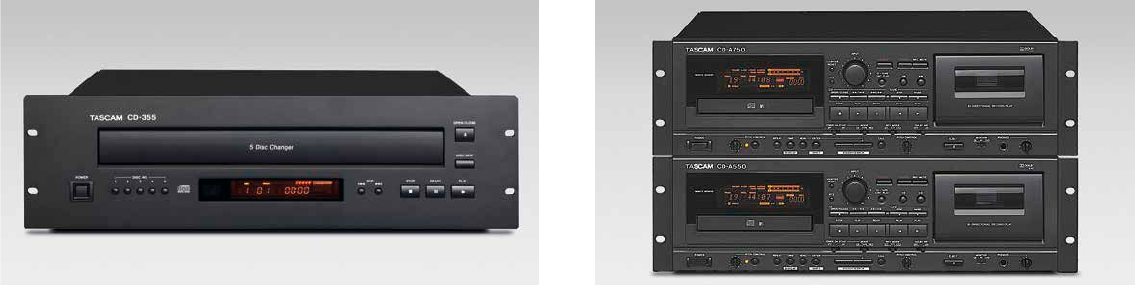

CD355 5DISC CD CHANGER

•Carousel-type CD changer for five discs

•Supports CD and CD-R/RW media

•MP3 CD playback

•Program Play across all five discs

(up to 32 tracks)

•Shuffle Play

•Intro Check

•Repeat function (Single track or All tracks)

•Time display (Elapsed, Remain, Total Elapsed,

Total Remain)

•MP3 Tag display (ID3)

•Keys for direct access to 5 discs (on front panel

and remote control)

•Number keys on remote control for direct

track access

•Fluorescent display with Music Calendar

•XLR balanced output

•RCA unbalanced output

•2 SPDIF digital audio outputs

(optical and coaxial)

•1-bit dual D/A converter

•8x oversampling rate

•3-U rack-mountable

•Full-function remote control included

•Dimensions (W x H x D):

482 mm x 131 mm x 368 mm

•Weight: 7.2 kg

CDA550 / A750 CDPLAYER / AUTOREVERSE CASSETTE DECK

General

•CD player and auto reverse cassette deck

combined in one compact chassis

•Continuous playback between CD and cassette

•CD to Tape dubbing including Edit Dubbing

feature to duplicate a marked section

•Comprehensive combined FL display

•Separate outputs for cassette and CD

•Common output with selectable source

•Mono mix output (CD or Tape)

•Power-on playback (CD or Tape)

•Power-on recording (Tape only)

•Wireless remote control included

CD Player

•High-quality TEAC drive (CD-R and CD-RW media)

•Audio CD playback

•MP3 and WAV file playback from CD

•Folder selection for MP3 and WAV CDs

•Repeat playback (All or A–B)

•Continuous, Single, Random and Program

playback modes

•Auto Space function (insert a fixed spacing

between tracks during playback)

•CD text and ID3 tag support to display artist

and track information if available

•Auto Cue, Auto Ready and Cue Call functions

•Incremental Play, Anti-shock memory

•±12.5 % pitch control

•Analogue (RCA) and SPDIF coaxial outputs

Cassette deck

•Auto reverse playback and recording

•Dolby B noise reduction

•Record mute function

•Tape counter with RTZ (Return to zero)

•±10 % pitch control

CD-A750 additional features

•XLR balanced inputs and outputs

•Parallel control port

•Serial control port

•Dimensions (W x H x D):

483 mm x 138 mm x 275 mm

•Weight:

6.3 kg (CD-A550)

6.5 kg (CD-A700)

64 65

CDRW900 sl PROFESSIONAL CD RECORDER

•Records to pro CD-R, CD-RW and consumer

CD-R and CD-RW media

•Selectable read speed to increase playability

of low-grade or damaged media

•24-bit A/D and D/A converters

•Input sample rate converter (32 kHz to 48 kHz)

•Independant L/R analogue input level control

•Digital volume

•Sync recording function

•Auto or manual track division

•Digital fade in/out from 1 to 30 sec in 1-sec steps

•Rec mute function to record silence

•Erase/un-finalize CD-RWs

•Supports CD-Text

•PS/2 keyboard can be used for CD-Text input

and as a remote control

•Timer function

(play when power comes on)

•Continuous, single, random, or program play

(up to 99 songs)

•All, single, or A-B repeat play

•Auto Cue function

•Selectable skip mode: jump by track or in

1-minute steps

•Auto Ready function

•Plays MP3 files on CDs (128 Kb/s only)

•Plays MP3 files inside directories

•Shows MP3 tags on Display (ID3)

•Pitch control (±16% in 0.1 to 1.0% steps)

•Key control (±6 semi-tones)

•Key original function (change tempo without

changing key)

•SPDIF coaxial digital I/O

•Optical TOS digital I/O

•RCA unbalanced analogue I/O

•Wireless remote control included

•Infra-red remote receiver can be deactivated

•2U rack mount construction

•Dimensions (W x H x D):

483 mm x 93 mm x 308 mm

•Weight: 4.9 kg

CDRW901 sl PROFESSIONAL CD RECORDER

•Records to pro CD-R, CD-RW and consumer

CD-R and CD-RW media

•Selectable read speed to increase playability

of low-grade or damaged media

•24-bit A/D and D/A converters

•XLR balanced analogue I/O

•RCA unbalanced analogue I/O

•Coaxial and optical digital I/O (SPDIF)

•AES/EBU digital I/O

•Automatic input sample rate converter

(to 44.1 kHz, defeatable)

•L/R analogue input level control

•Digital volume

•Sync recording function

•Auto track increment by level with trim

function, Time Track Increment: Adds a CD

track ID every 1 to 10 minutes

•Set index marks, Index search function

•Selectable skip mode: jump by track, by index, or

in 1-minute steps

•Digital fade in/out from 1 to 30 sec in 1-sec steps

•Rec mute function to record silence

•Erase/un-finalize CD-RWs

•All, single, or A-B repeat play

•Continuous, single, random, or program play

(up to 99 songs)

•Auto Cue, Auto Ready, Call, and Incremental

Play functions

•Plays MP3 files on CDs

•Plays MP3 files inside directories

•Shows MP3 tags on display (ID3)

•Pitch control (±16% in 0.1 to 1.0% steps)

•Key control (±6 semi-tones)

•Key original function (change tempo without

changing key)

•Selectable copy ID, CD-Text support

•Computer keyboard connector for text input

and transport control

•RS-232C serial control (9-pin D-sub)

•Parallel control (15-pin D-sub)

•Power-on play: Starts CD playback when

power is applied

•Continuous recording with two CD-RW901SL

•Wired remote control included

•2U rack-mount construction

•Dimensions (W x H x D):

483 x 93 x 309 mm

•Weight: 5.4 kg

66 67

CC222 sl mkii CD RECORDER / CASSETTE DECK

General

•Cassette to CD-R/RW dubbing and vice versa

•Continuous playback between decks

•Individual RCA unbalanced analogue inputs/

outputs on both decks

•Line output 2 selectable between tape-only

output and CD or tape output, with priority

to tape

•Dedicated analog input level controls

•Coaxial and optical digital i/o for CD Recorder

•RIAA phono input for turntable connection

•Headphones output with level control

•Wireless remote control included

CD-RW Recorder

•Slot-loading CD drive for CD-R, CD-RW,

CD-R-DA, CD-RW-DA discs

•MP3 file playback, including navigating

through directories of MP3 files

•24-bit A/D and D/A converters

•Digital input level control

•Selectable copy ID

•Automatic sampling rate converter (defeatable)

•Auto Track Increment by level

•Time Track Increment (1 to 10 minutes)

•Auto Space function

•Sync record with adjustable sound level

•Fade in and out (1 to 30 seconds)

•Record Mute

•Single play, continuous play, random play, and

program play (maximum 99 songs)

•Repeat function

•Intro check function

•Pitch control ±12.5 %

•Key control (1–6 semitones)

•Erase CD-RW discs

•Un-finalize CD-RW discs

•Power-on play: Starts CD playback when

power is applied for installed applications

Cassette deck

•Auto reverse

•Dolby B noise reduction

•±10% pitch control

•RTZ (Return to Zero)

•Record Mute

•CPS search function

•Dimensions (W x H x D):

483 x 138 x 295 mm

•Weight: 6.9 kg

202 mkv DUAL AUTO REVERSE CASSETTE DECK

•Two cassette decks in one unit

•Continuous, bi-directional playback or

recording over both decks

•Parallel recording on both decks

•Normal and high speed dubbing capability

•Synchro reverse dubbing

•Pitch control (±12 %, Deck 1 only)

•RTZ function (Return To Zero, Deck 1 only)

•Dolby B and HX Pro

•Unbalanced RCA inputs and outputs

•Repeat playback (A–B section)

•Microphone input with seperate level control

for mix recordings

•Power-on playback/recording ( Timer function)

•Headphones jack

•19-inch rack-mountable chassis

•Dimensions (W x H x D):

482 x 139 x 286 mm

•Weight: 4 kg

68 69

MDCD1 mkiii PROFESSIONAL MINI DISC RECORDER / CD PLAYER

CD deck

•Compatible with CD-R, CD-RW, CD-R Digital

Audio and CD-RW Digital Audio media

•Plays MP3 and WAV files on ISO 9660 CDs

(44,1kHz, 16 bit)

•ID3 tag display (information on artist and title

names stored inside MP3 files)

•Pitch control (change tempo and key simulta-

neously from +16 % to –50 %)

•Key original function

•Fade-in / fade-out (1–30 seconds)

•Individual digital (optical and coaxial) and

analogue outputs

•Transport control via computer keyboard

MD deck

•Stereo, Mono, LP2 and LP4 recording/playback

•Individual input level controls (L/R) for

analogue recording

•Auto track increment

•Time track increment (adds a track ID every 1

to 10 minutes)

•Sync recording function

•Fade-in / fade-out (1–30 seconds)

•Overwrite recording

•Edit functions (divide, combine, move tracks)

•Individual digital I/O (optical and coaxial) and

analogue I/O (RCA)

•Computer keyboard connector for title input

and external control

General

•4 x speed MiniDisc duplication

•Fade in/out dubbing

•MD–CD continuous playback

•Continuous, single, random, or program play

•All, single, or A–B repeat play

•Auto Cue and Auto Ready functions

•Power-on play function

•Headphones output with level control

•Input sample rate converter (32 to 48 kHz)

•RS-232C serial control

•Balanced input/output kit available as an

option (LA-MC1)

•Wireless remote control included

•Remote receiver can be disabled

•Compact 2U rack-mount chassis

•Dimensions (W x H x D):

483 mm x 94 mm x 308 mm

•Weight: 5.4 kg

LA40 mkiii LINE CONVERTER BALANCED/UNBALANCED, BIDIRECTIONAL

•4 channels with unbalanced RCA inputs and

balanced XLR outputs

•4 channels with balanced XLR inputs and

unbalanced RCA outputs

•XLR nominal level selectable between +4 dBu

and –20 dBu

•Trim pots for each channel on front panel

(±12 dB)

•Signal LED for each channel

•Ground lift switches for each channel and

master switch

•Distribution amplifier functionality: One mono

input signal can be routed to all four output

channels, or one stereo input signal can be

routed to two channels each (RCA to XLR and

XLR to RCA)

•Internal power supply, no AC adapter needed

•1 U rack-mountable chassis, Weight: 3 kg

LA80 mkii / LA81 mkii LINE CONVERTERS BALANCED/UNBALANCED

•LA-80: 8 channels with unbalanced RCA inputs

and balanced XLR outputs

•LA-81: 8 channels with balanced XLR inputs

and unbalanced RCA outputs

•XLR nominal level selectable between +4 dBu

and –20 dBu

•Trim pots (±12 dB) for each channel on front

panel

•Signal LED for each channel

•Ground lift switches for each channel and

master switch

•Both units can act as distribution amplifiers

•Internal power supply, no adapter needed

•1 U rack-mountable chassis, Weight: 3 kg

70 71

Notes

LM8ST LINE MIXER

MH8 EIGHTFOLD HEADPHONES AMPLIFIER

•Line mixer with flexible signal routing

•Ideal solution for installations in boardrooms,

conference rooms, health/fitness clubs,

restaurants, houses of worship, as a keyboard

or stage sub mixer and more

•8 stereo input channels for line sources (TRS)

•Additional mic/line input with level control for

channel 1 on front panel (balanced XLR)

•2 stereo outputs (balanced / unbalanced)

•Each stereo input can be mixed to each stereo

output independently:

− ST1: Input signal is sent to ST1 output

− ST2: Signal before the ST1 level control (pre

fader) is sent to ST2/AUX output

− AUX: Signal behind the ST1 level control

(post fader) is sent to ST2/AUX output

− Switches for ST2/AUX selection per channel

•Input level selectable between +4 dBu and

–10 dBV per channel (on rear panel)

•Signal presence and overload LEDs on each ch.

•4-dot LED stereo level meters on each output

•Each stereo output switchable to mono

•High-power headphones output with level

control and selectable source (ST1, ST2/AUX)

•Balanced master bus output and input (input

selectable between ST1, ST2/AUX and Mix) for

cascading of multiple units

•Ground terminal and ground lift switch

•1 U rack-mountable chassis, Weight: 3.8 kg

•High-power headphones amplifier with

flexible signal routing

•8 channels for one pair of stereo headphones

each

•2 stereo inputs assignable to each channel

•Input level control, signal presence and

overload LEDs on both stereo inputs

•Additional switchable direct stereo input

(balanced TRS) on each headphone channel

(left input can be used for mono signals)

•High output power (250 mW + 250 mW each)

•Level control, signal presence and overload

LEDs on each headphone channel

•Each channel switchable to mono

•Foldback outputs allow stereo input signals 1

and 2 to be looped through to other units

•Ground terminal and ground lift switch

•Easy replaceable fuse

•1U rack-mountable chassis

•1 U rack-mountable chassis, Weight: 3 kg

Tascam Pocketguide 2012 04 320 IXZ PG

Navigation menu

Versions of this User Manual:

Views

Navigation
