SERVICE MANUAL
xxxxxxxxx
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY NOTES
.............i
Precautions for using lead-free solder ..............vi
CHAPTER 1. OPERATION MANUAL
[1] Specifications ................................................. 1-1

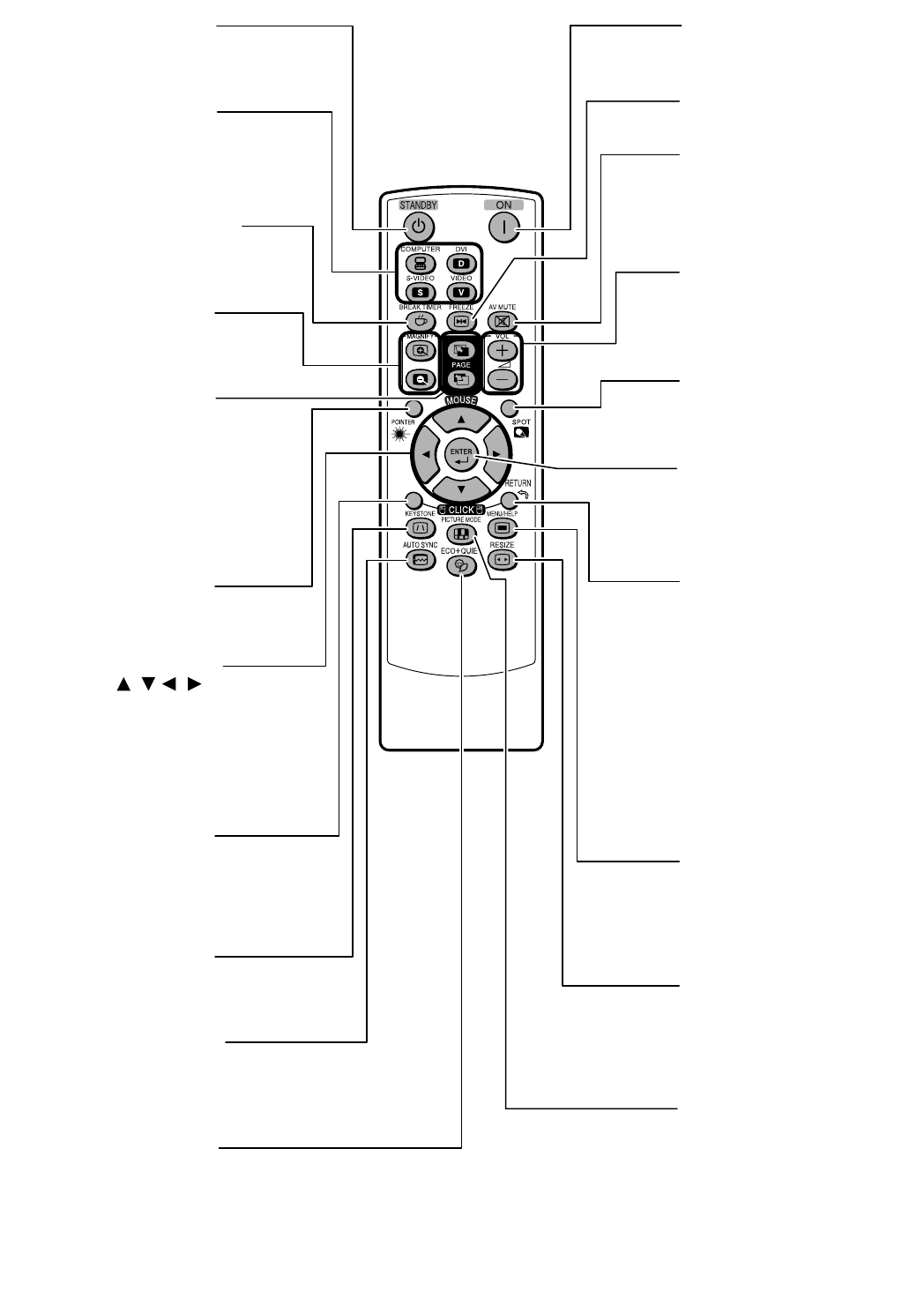

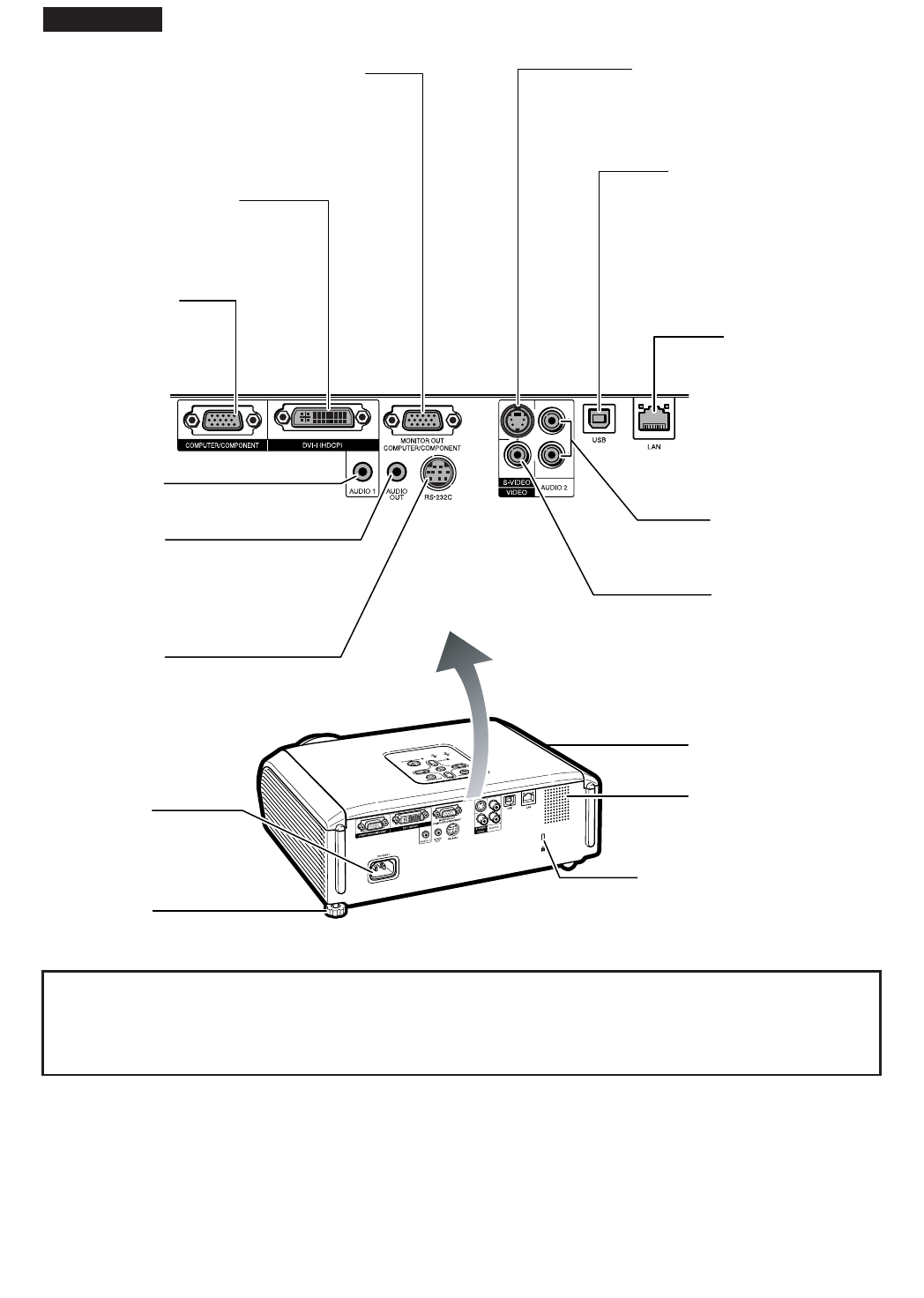

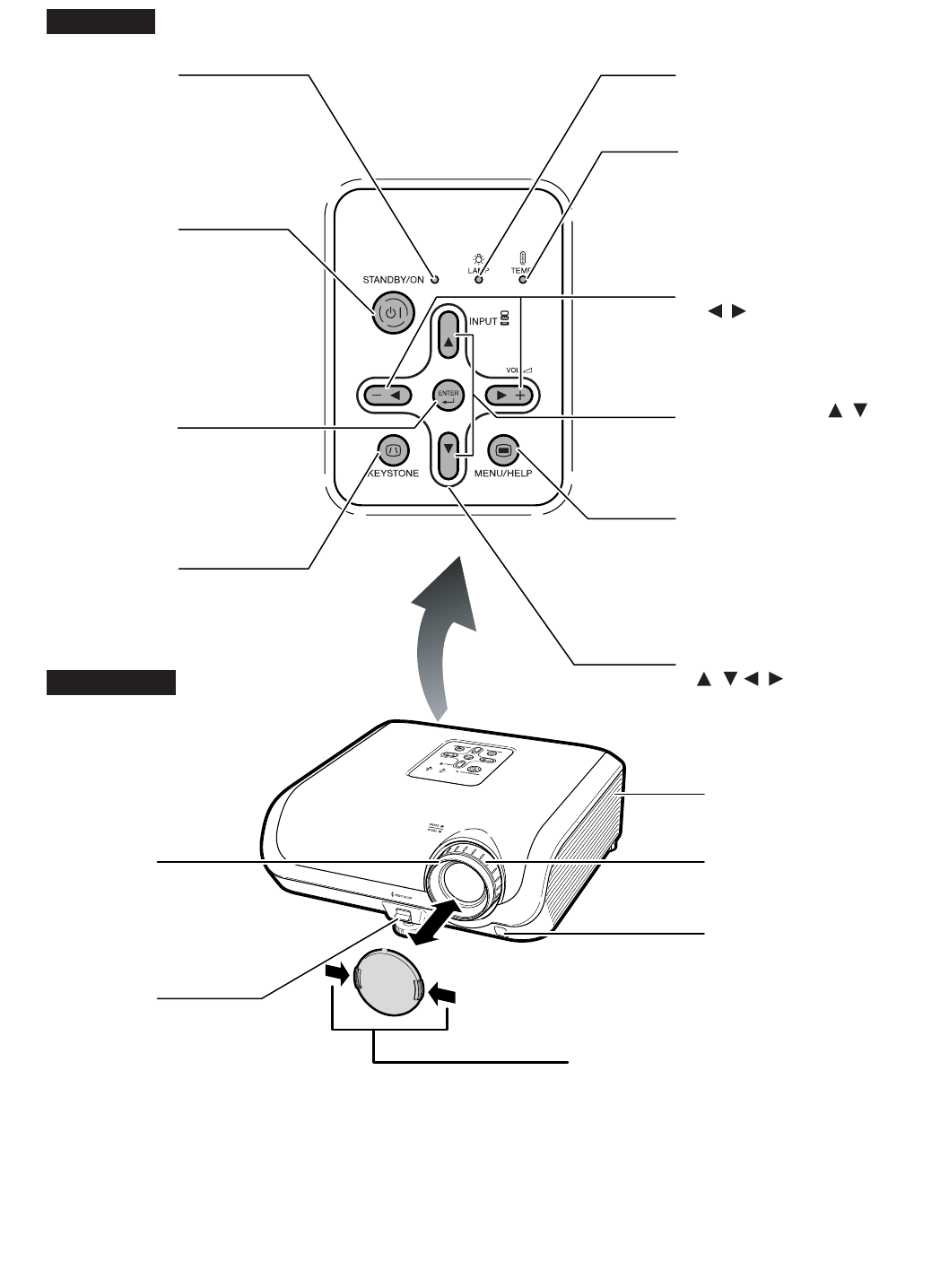

[2] Parts Name and Basic Operation................... 1-2

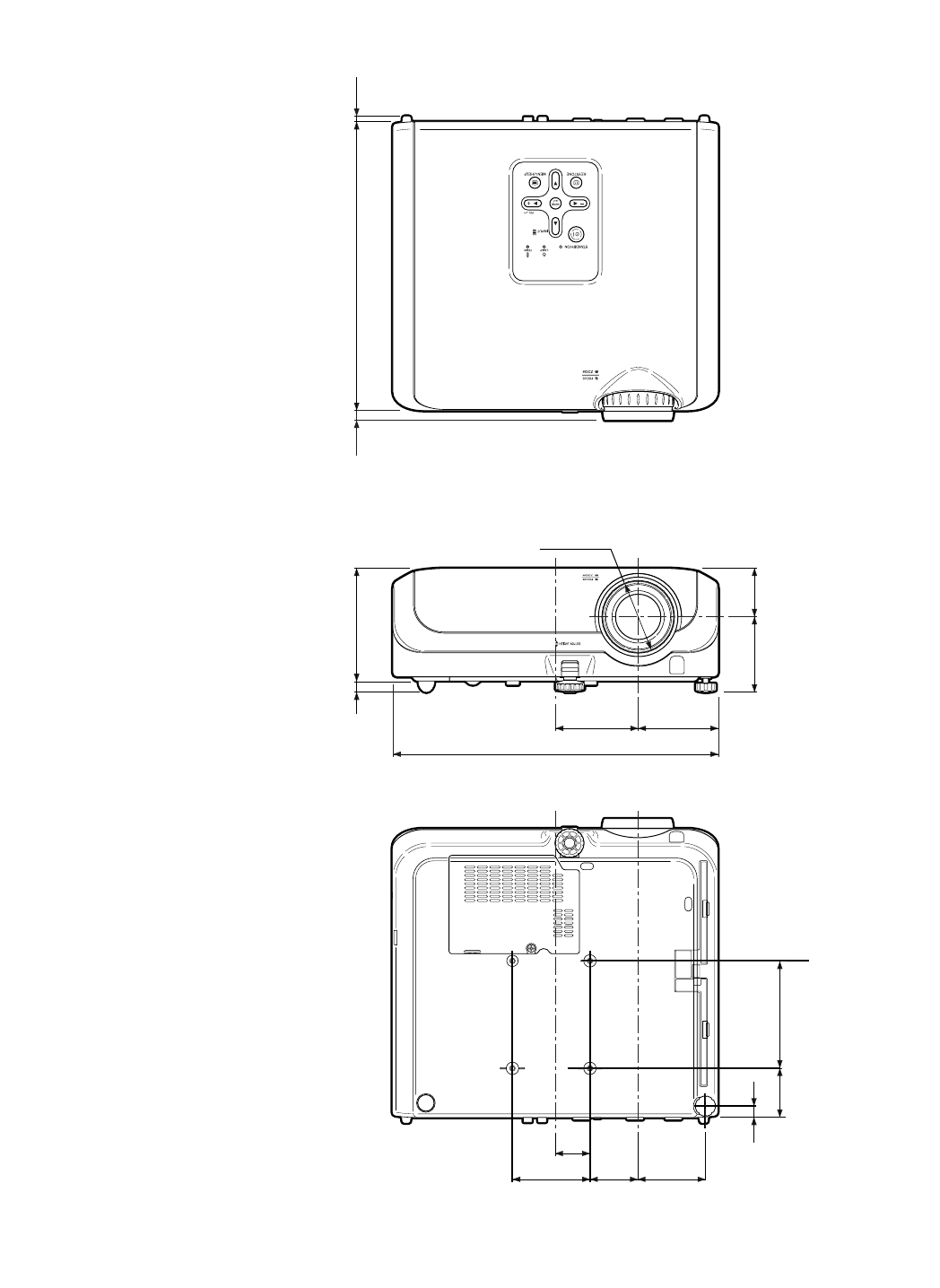

[3] DIMENSIONS ................................................ 1-8

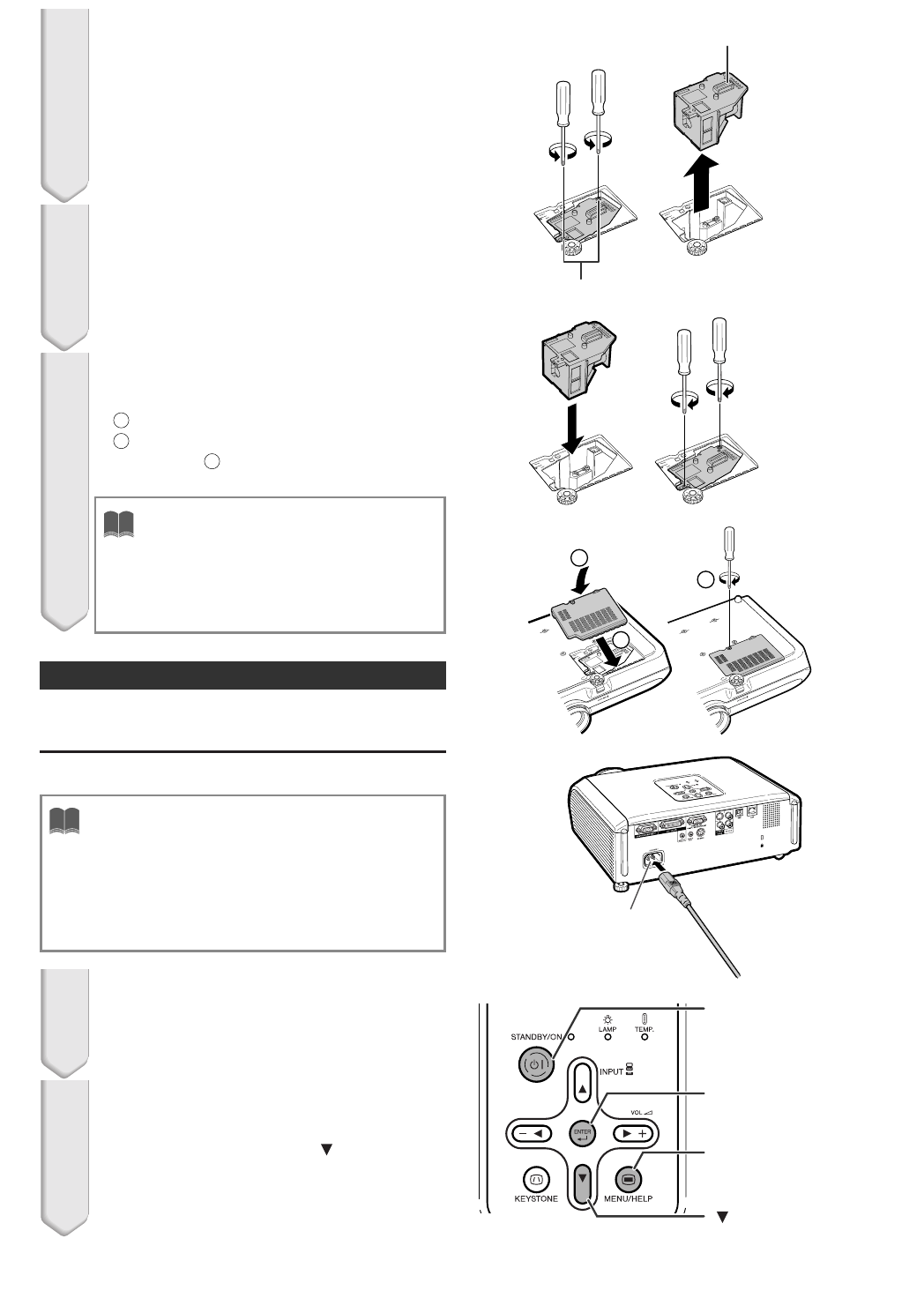

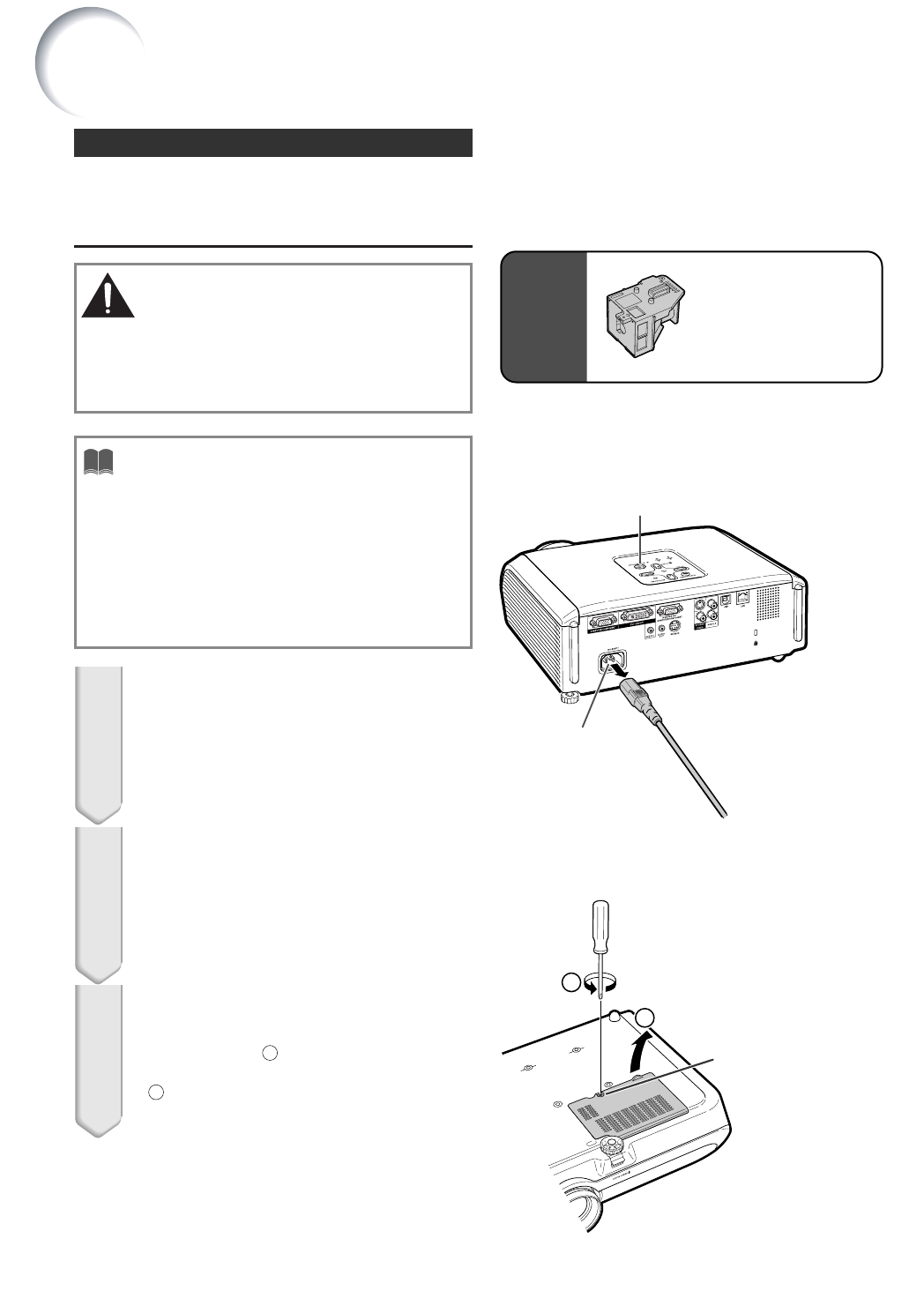

[4] Regarding the lamp........................................ 1-9

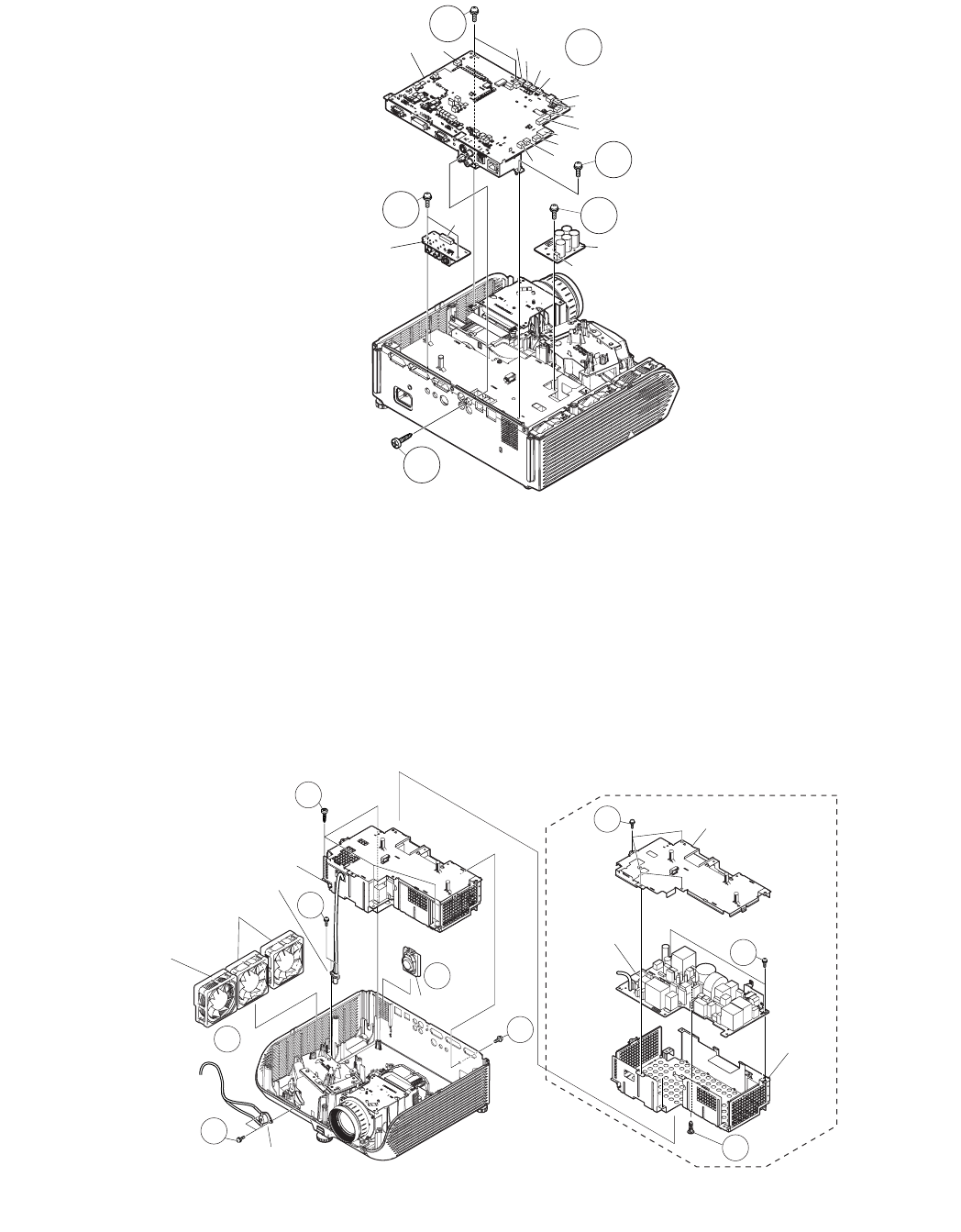

CHAPTER 2. REMOVING OF MAJOR PARTS
[1]
R

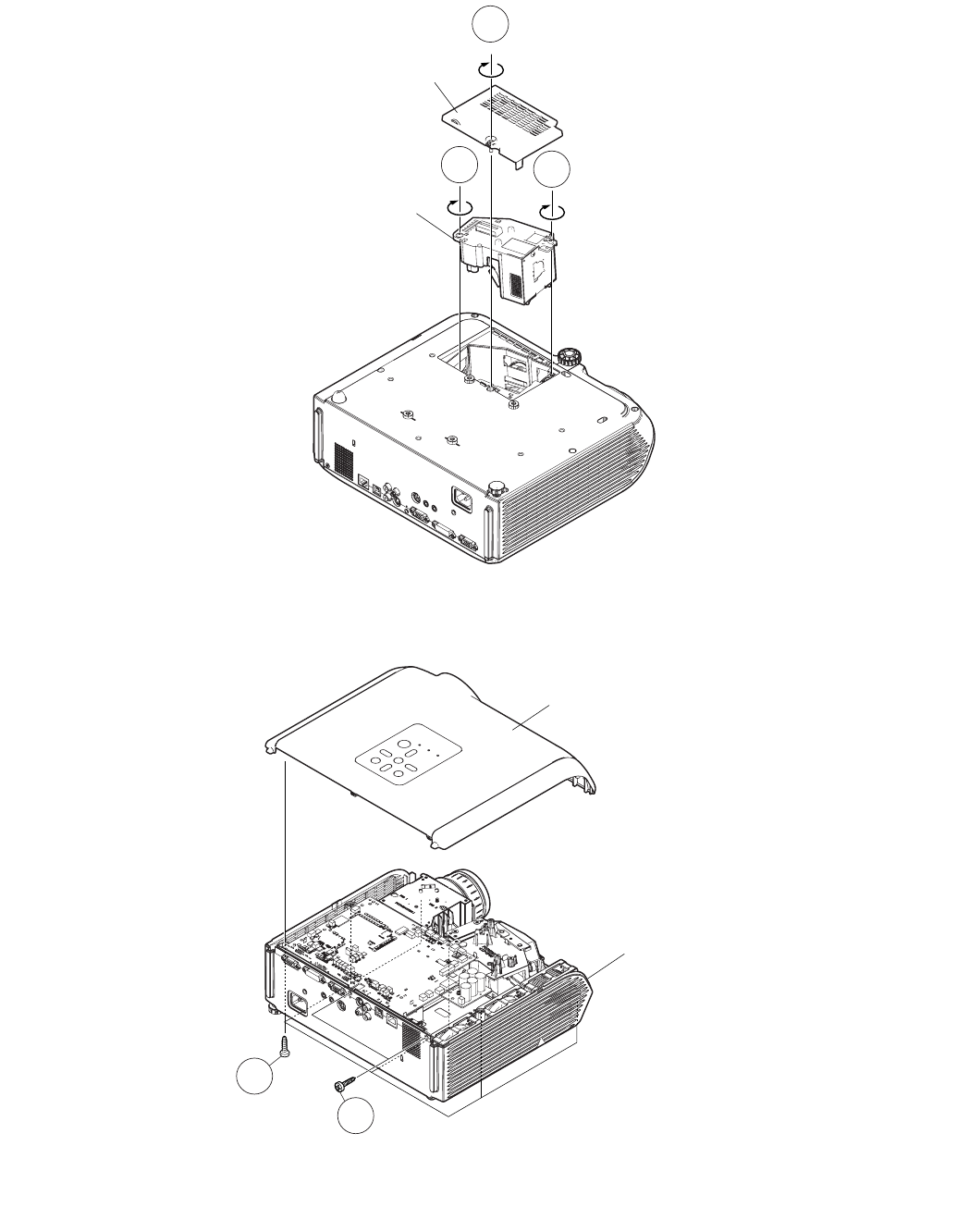

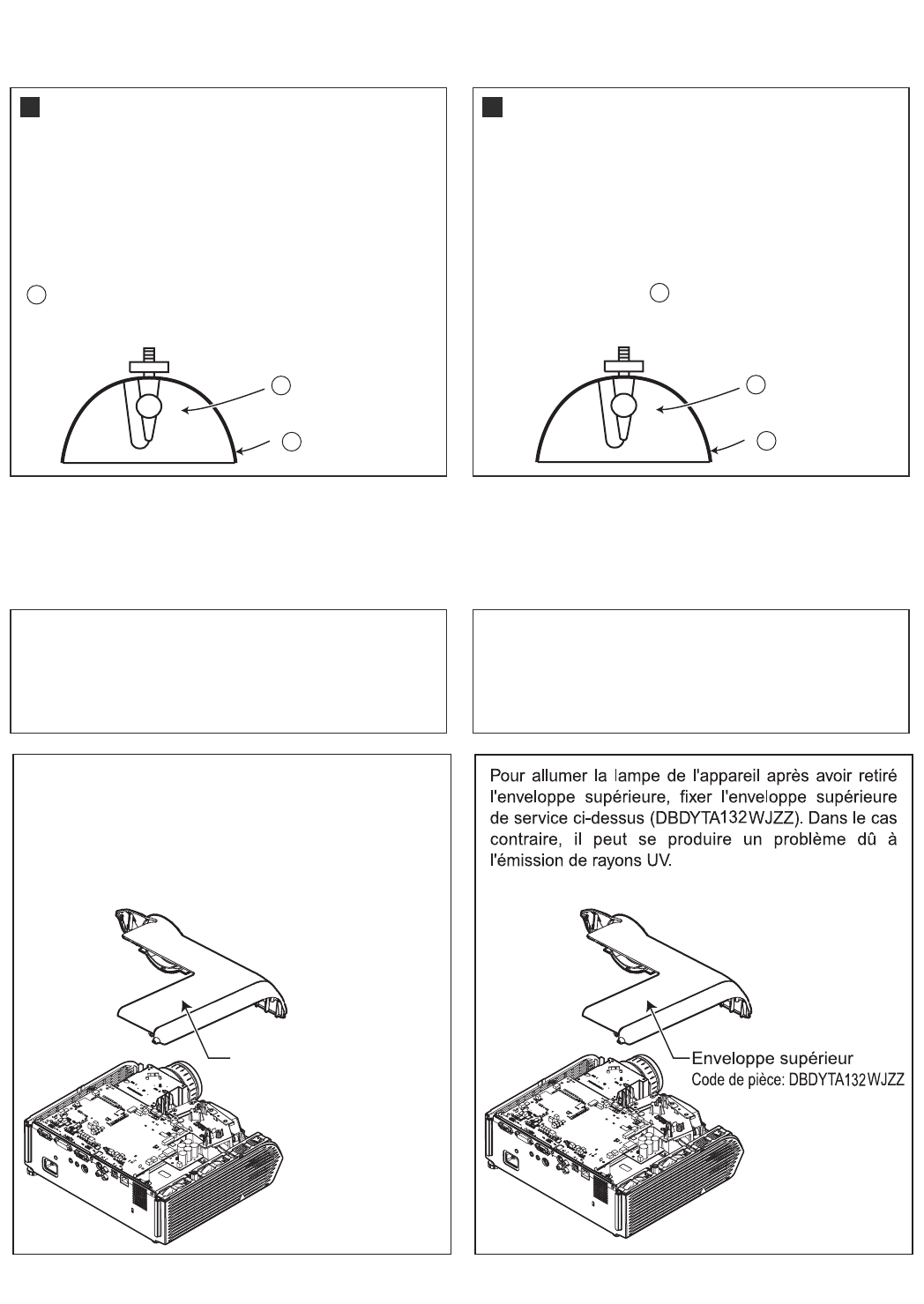

emoving the lamp door and the lamp unit
......... 2-1
[2] Removing the top body .................................. 2-1
[3] Removing the main PWB unit and terminal
PWB unit ........................................................ 2-2
[4] Removing the speaker, fan, and power
supply ballast unit........................................... 2-2

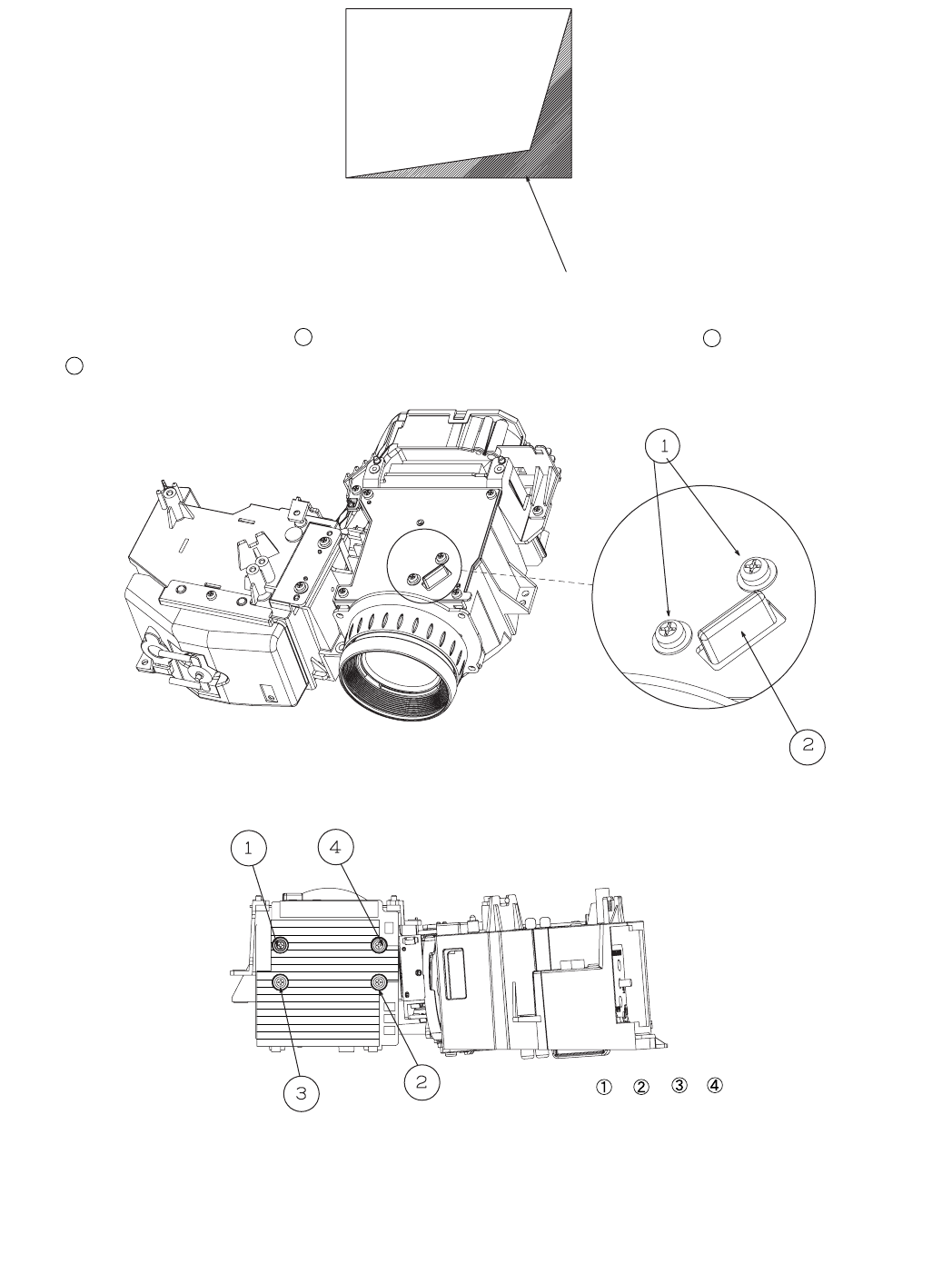

[5] Removing the optical mechanism unit and
R/C receiver PWB unit ................................... 2-3
[6] Removing the photo sensor PWB unit,
blower fan, DMD PWB, and DMD .................. 2-3

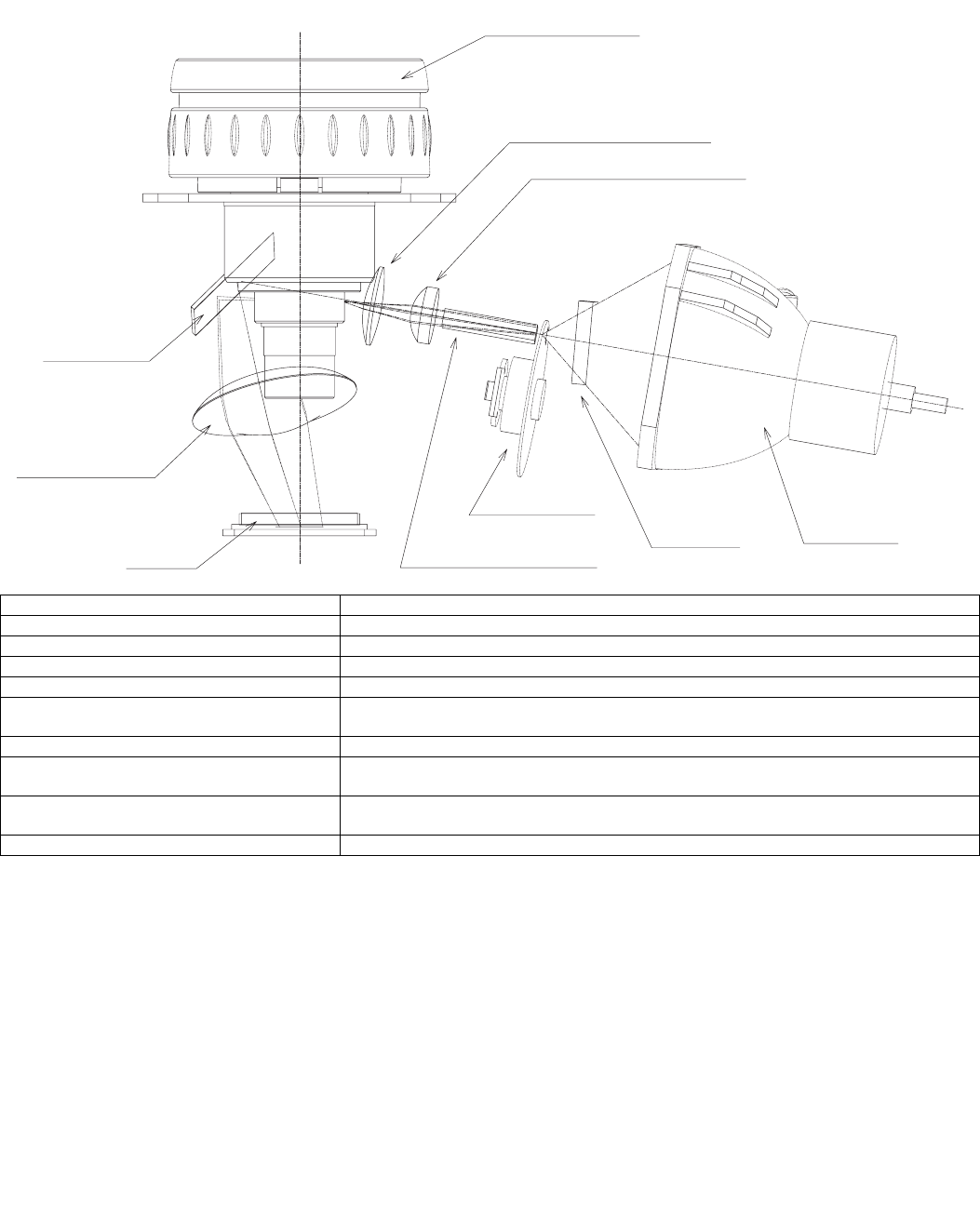

CHAPTER 3. THE OPTICAL UNIT OUTLINE
[1] THE OPTICAL UNIT OUTLINE...................... 3-1
CHAPTER 4. ELECTRICAL ADJUSTMENT
[1] ELECTRICAL ADJUSTMENT........................ 4-1

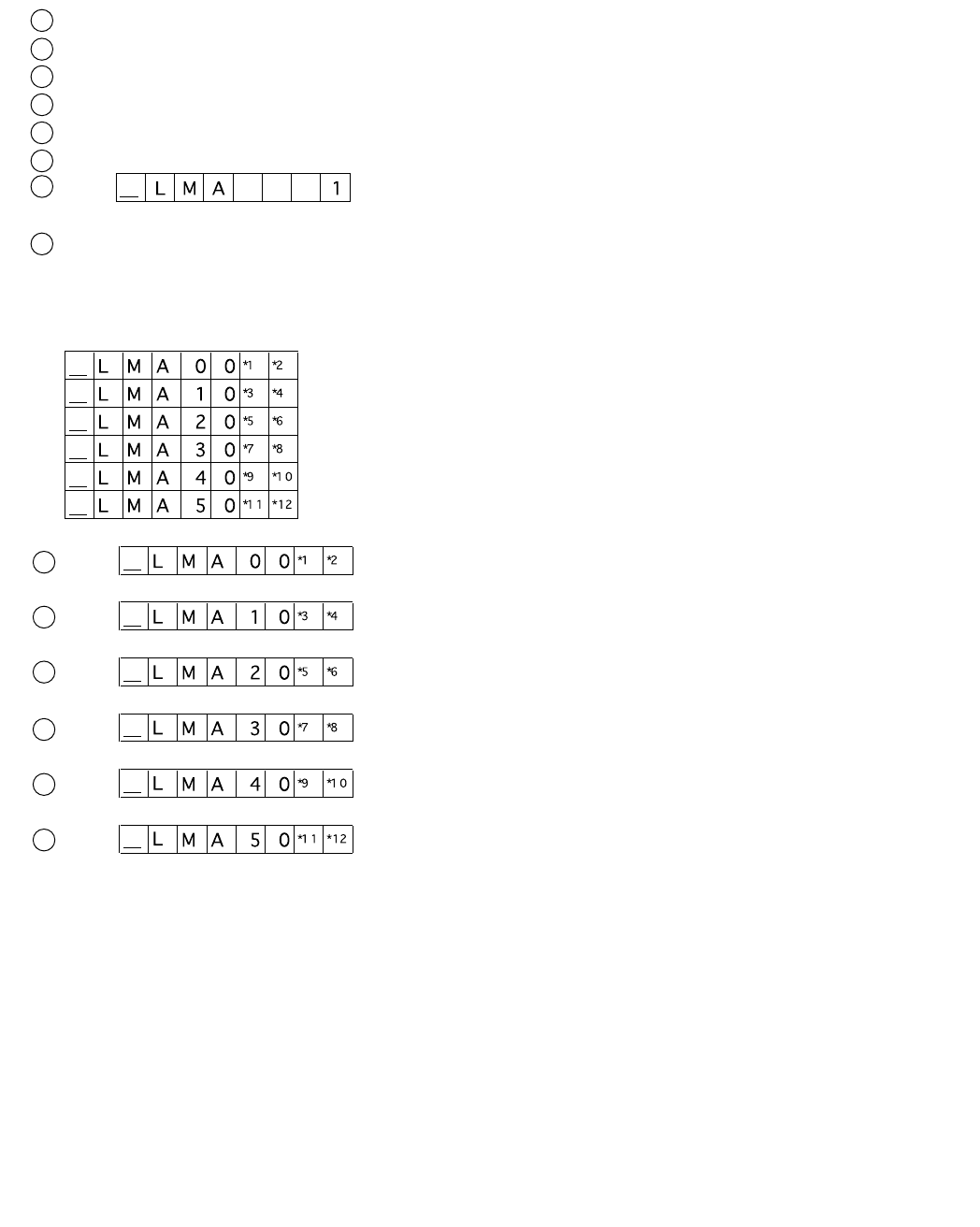

[2] Adjustment mode process menu.................... 4-4
CHAPTER 5. TROUBLESHOOTING TABLE
[1] TROUBLESHOOTING TABLE ....................... 5-1
CHAPTER 6. MAJOR IC INFORMATION
[1] MAJOR IC INFORMATION............................6-1
CHAPTER 7. BLOCK DIAGRAM/OVERALL WIRING
DIAGRAM

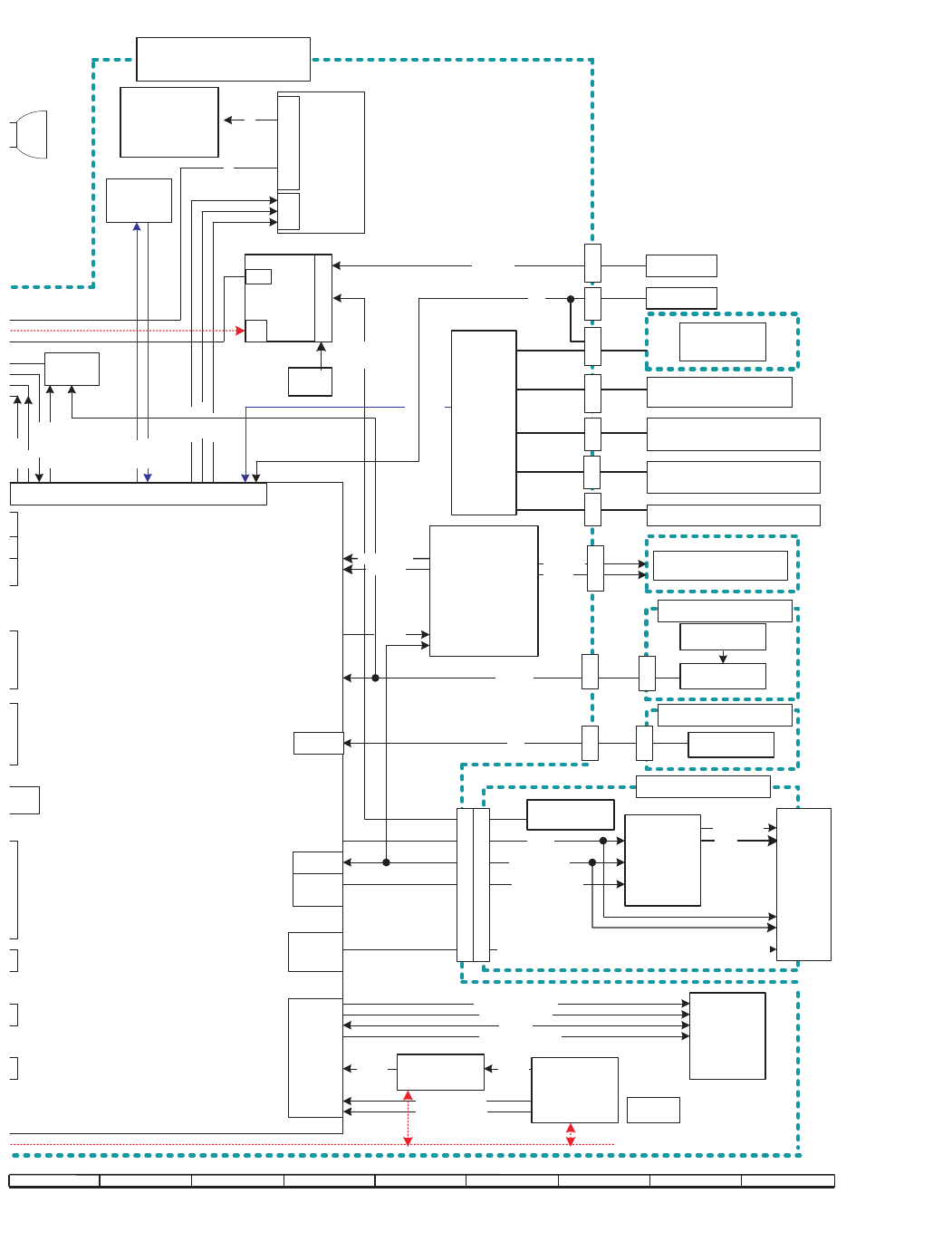

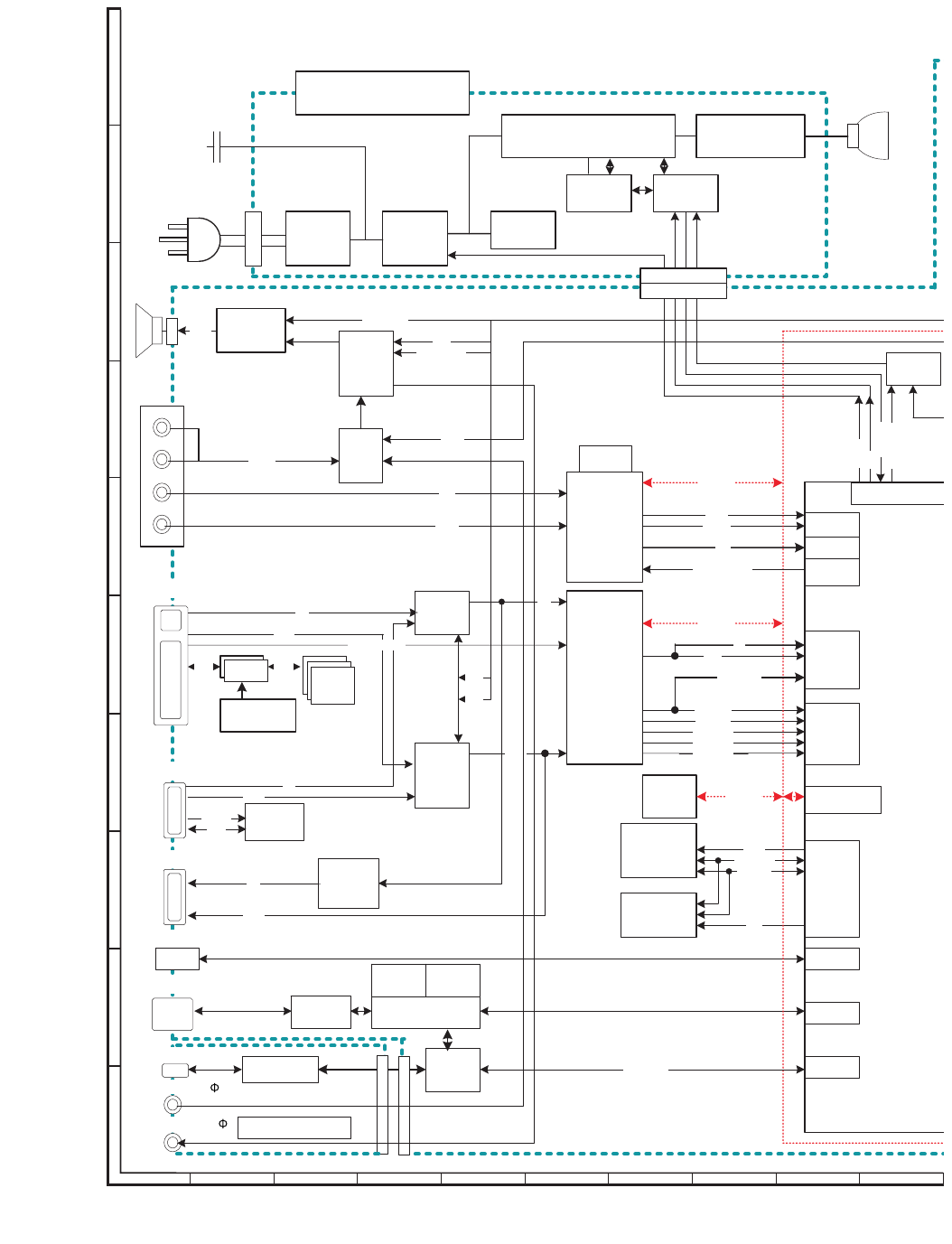

[1] BLOCK DIAGRAM.........................................7-1

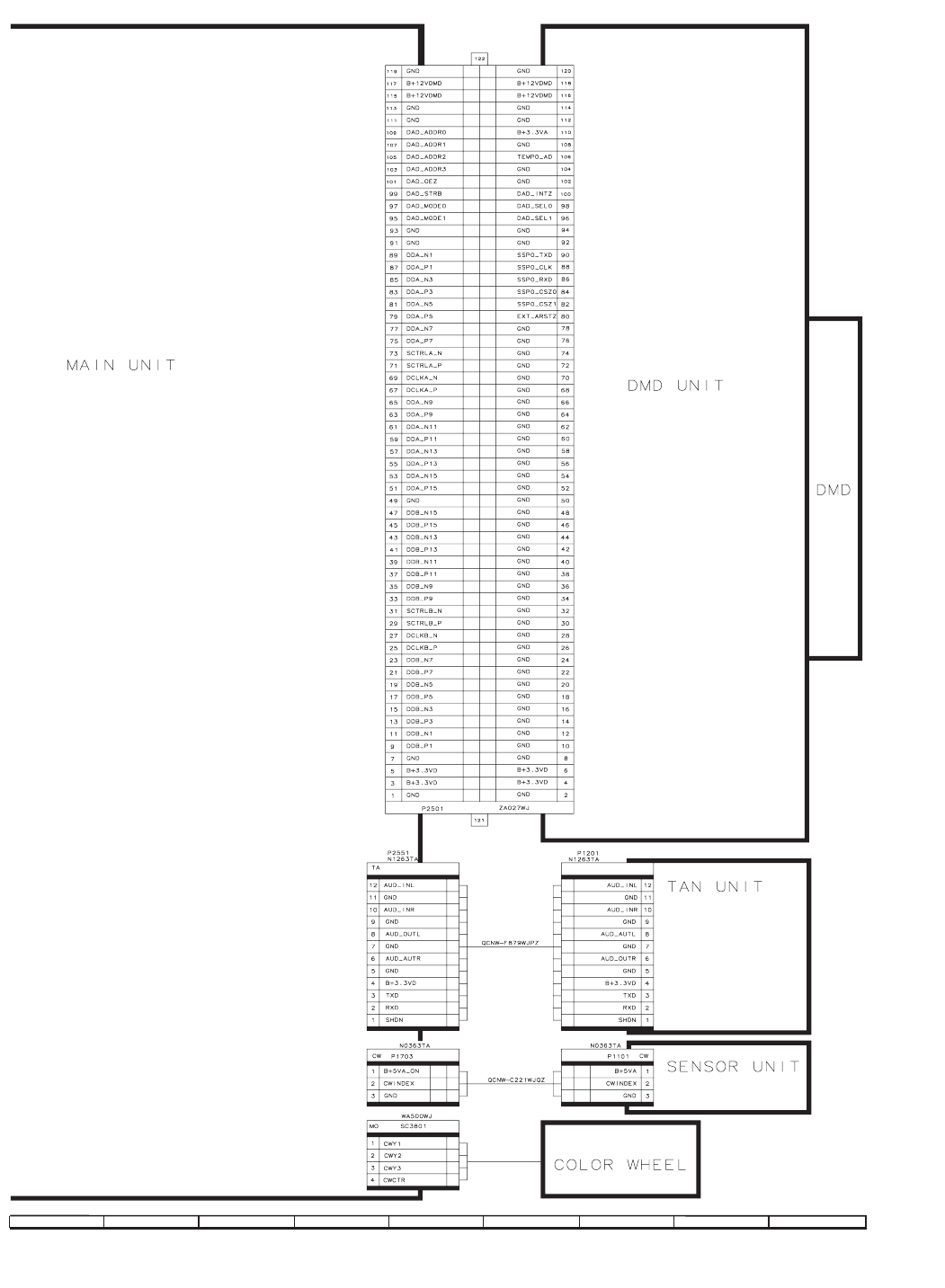

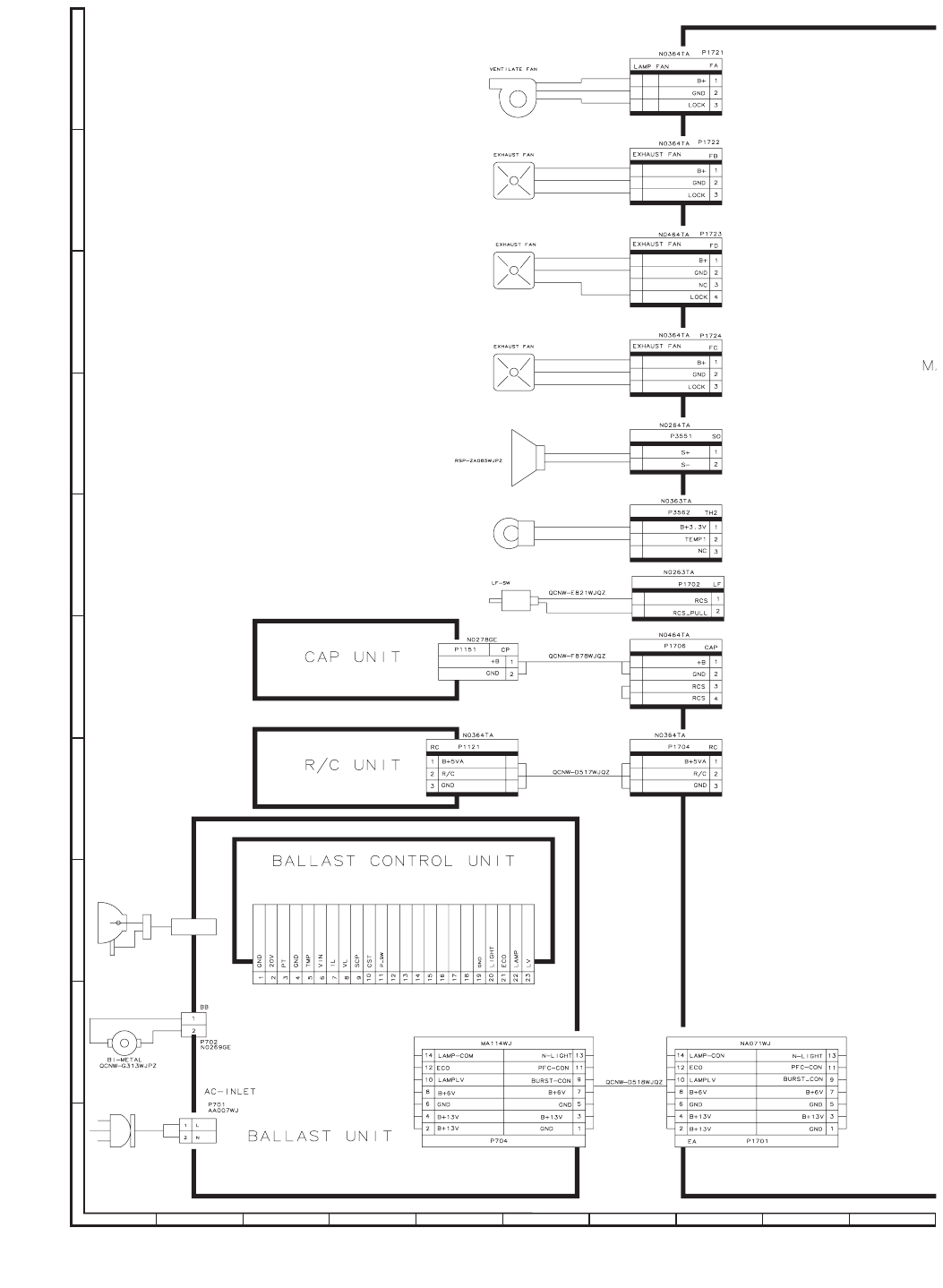

[2] OVERALL WIRING DIAGRAM......................7-3

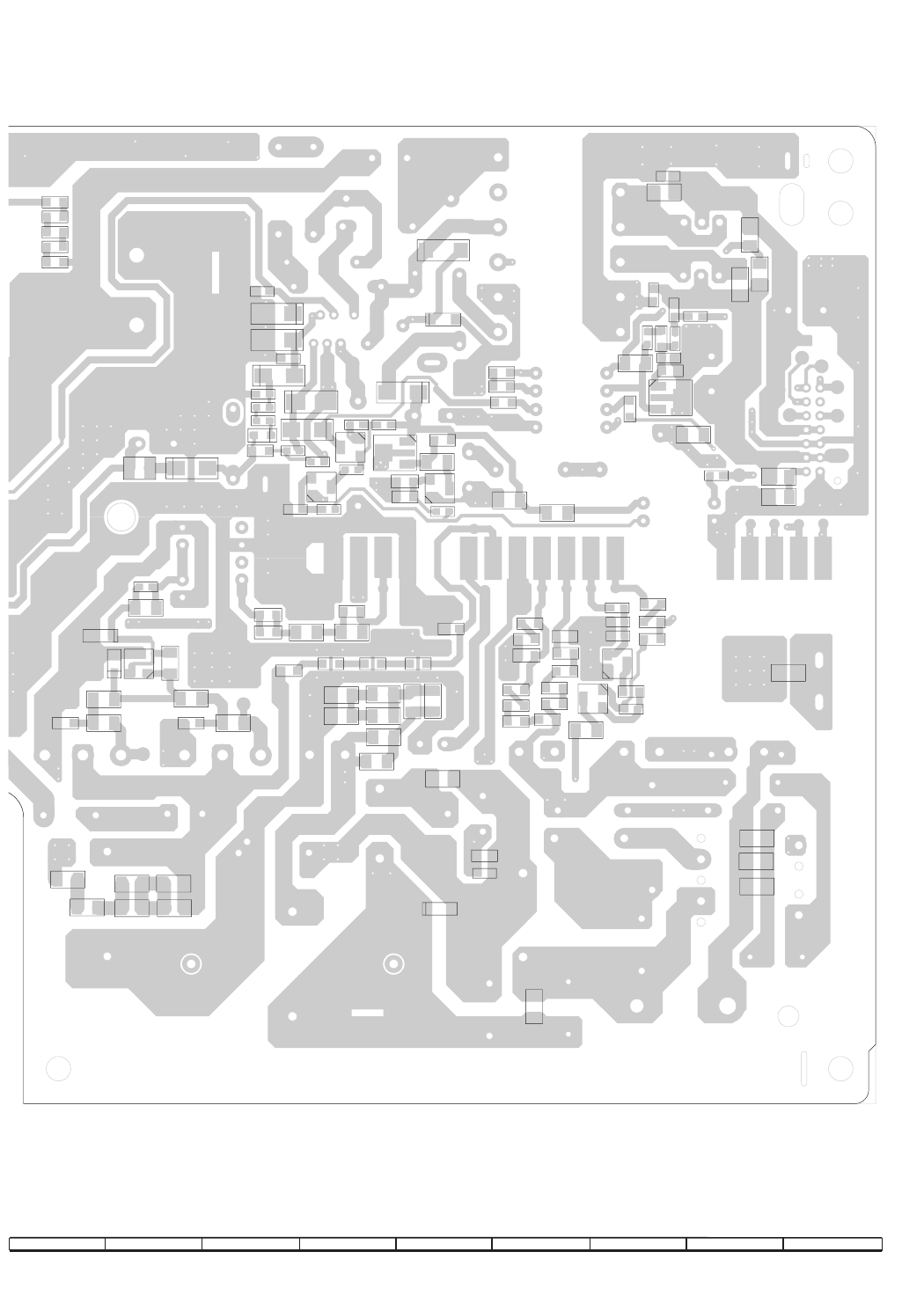

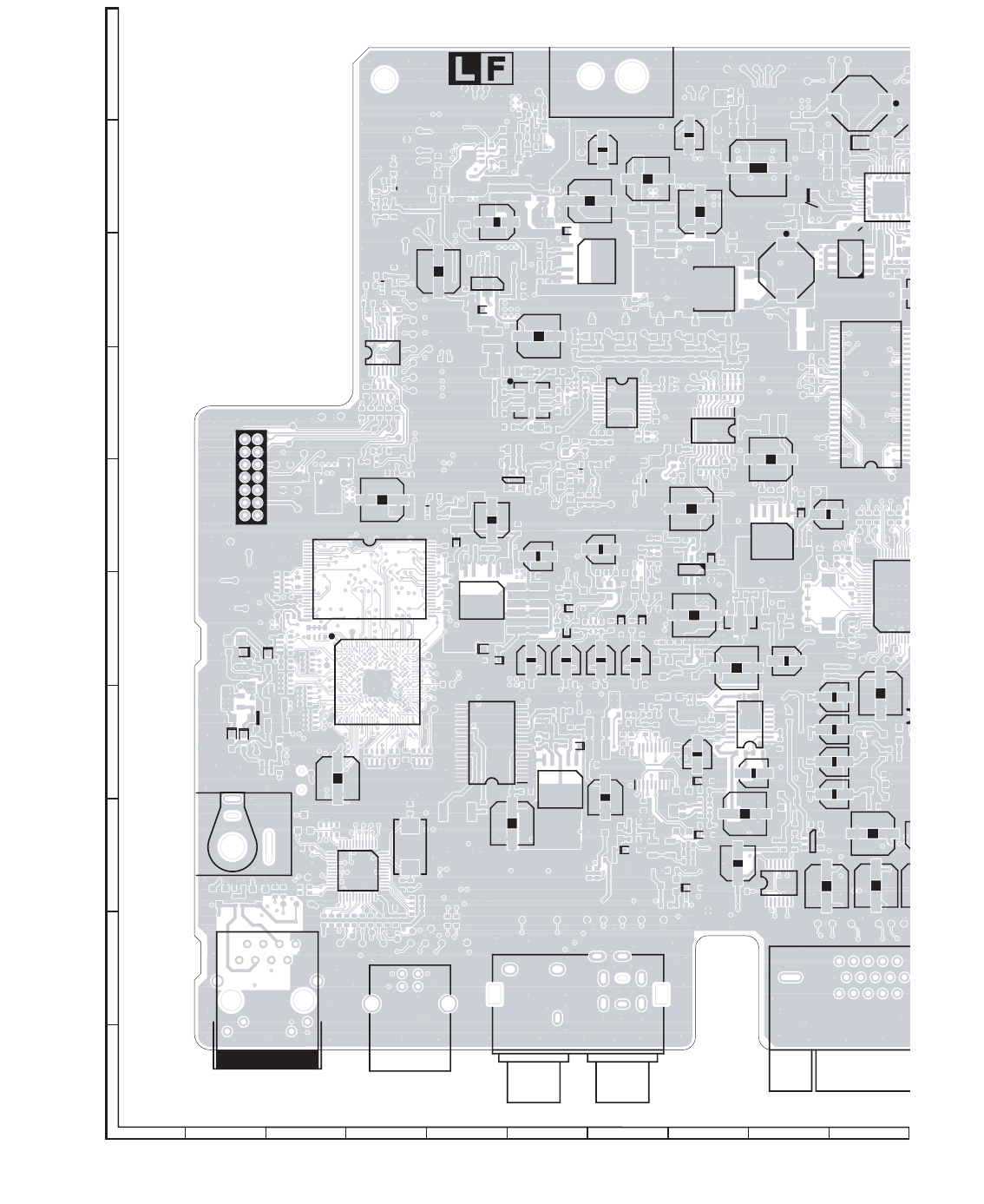

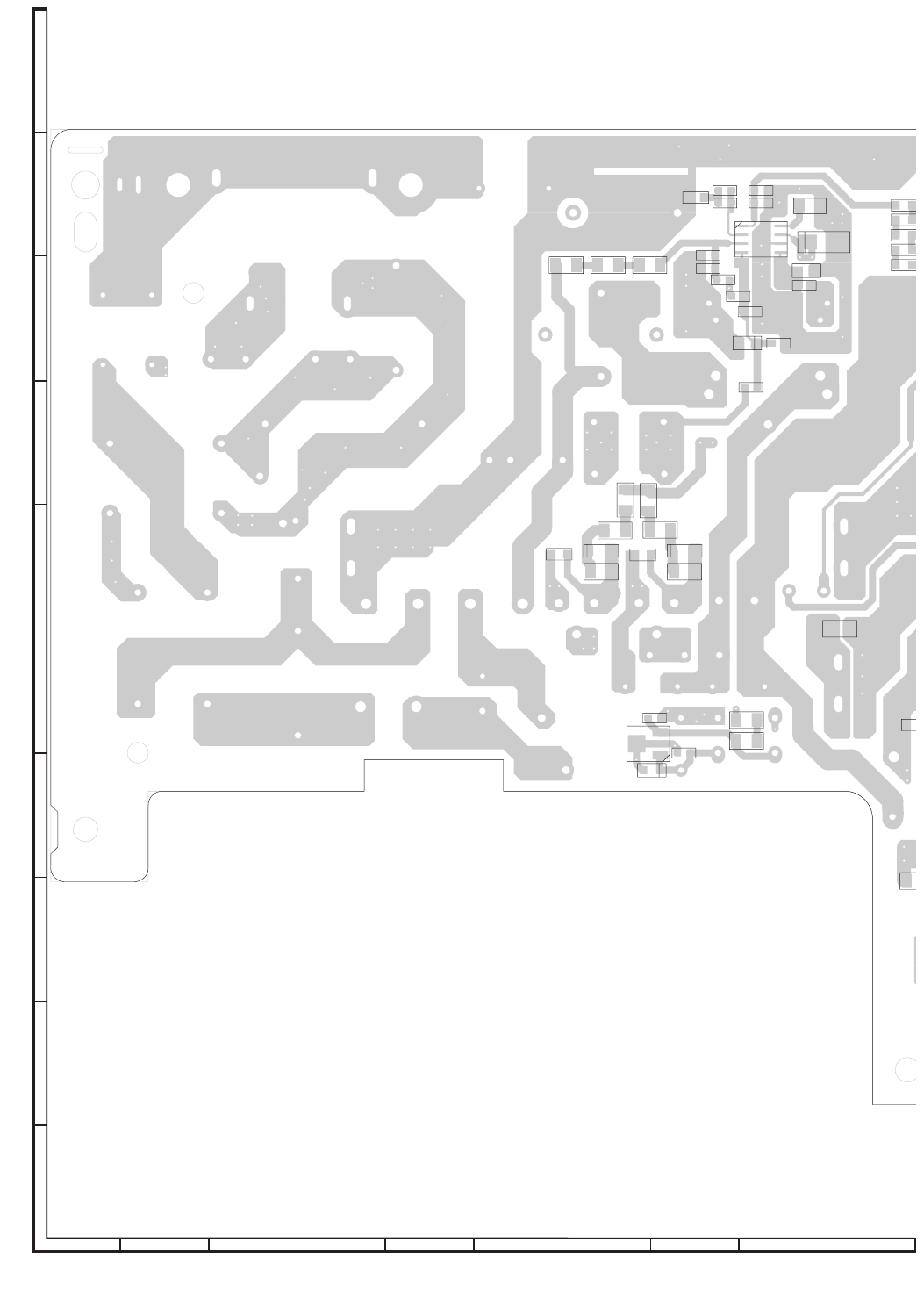

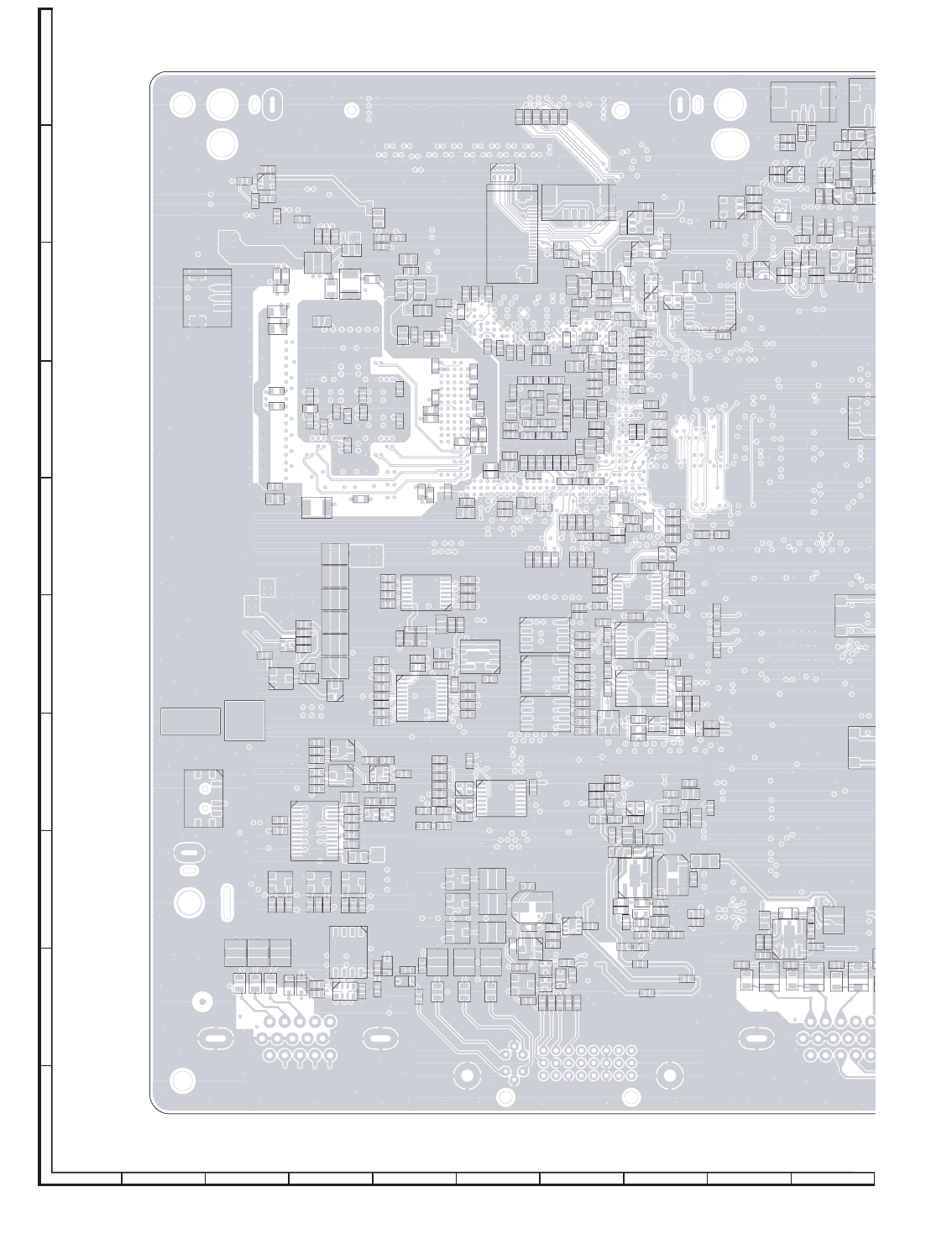

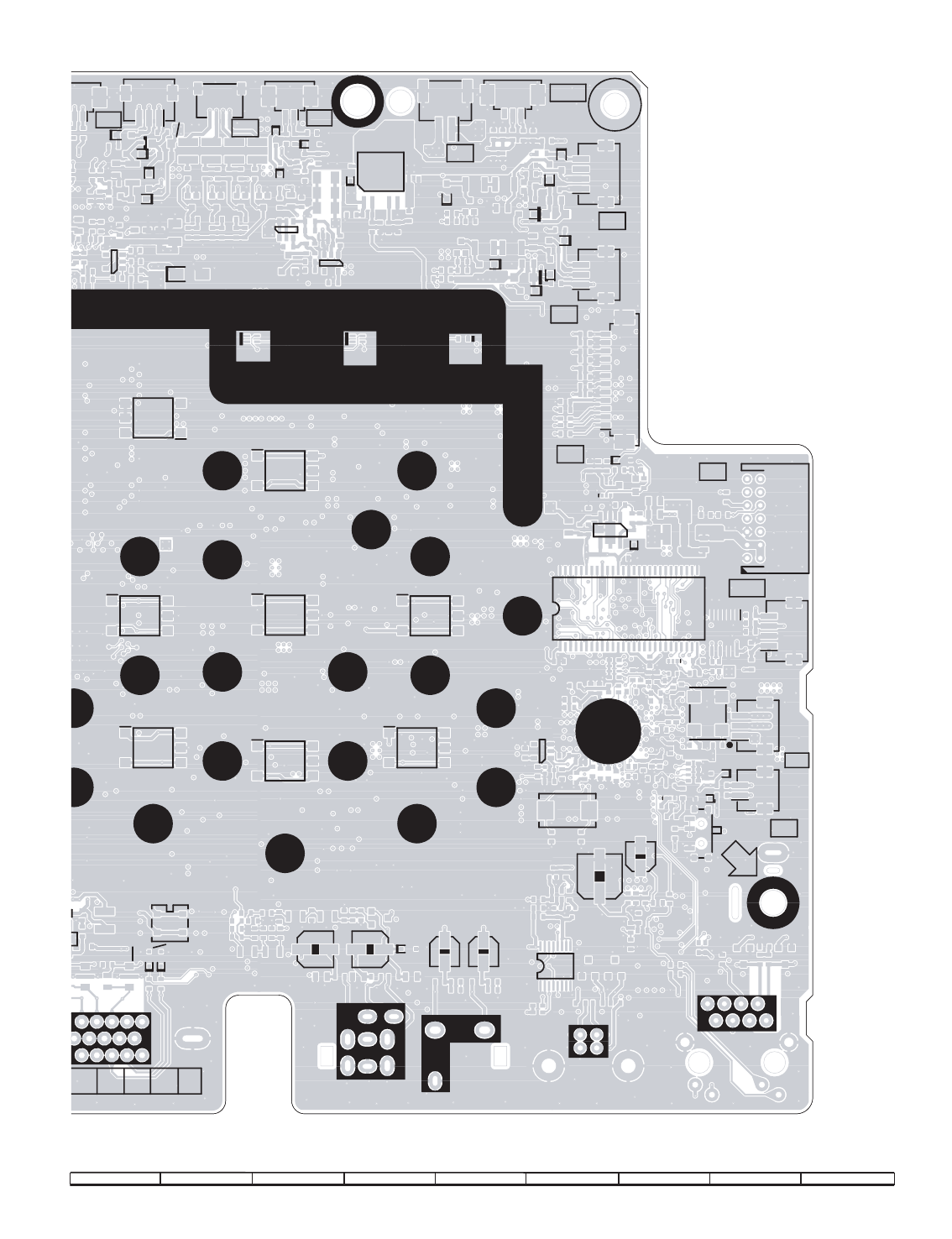

CHAPTER 8. PRINTED WIRING BOARD

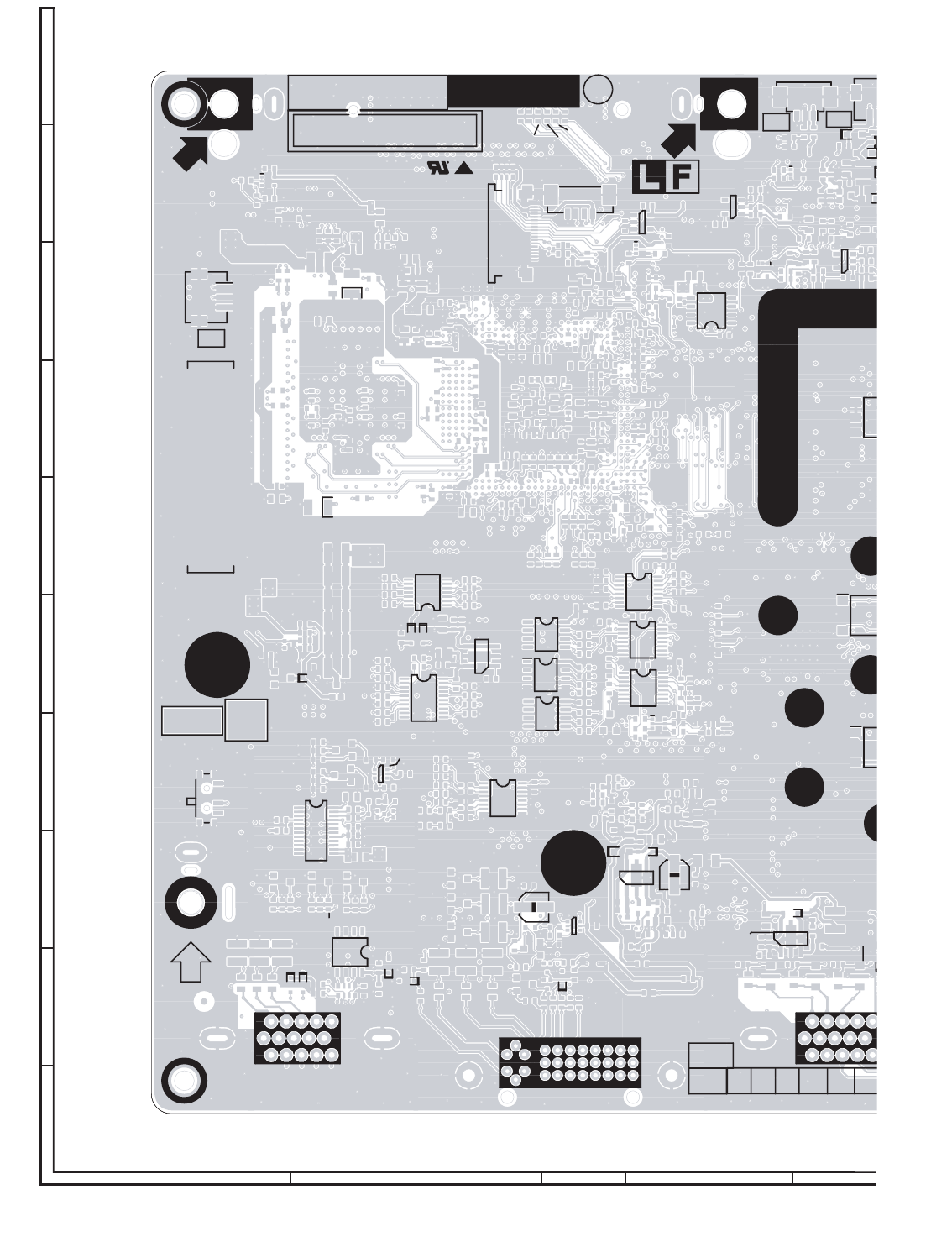

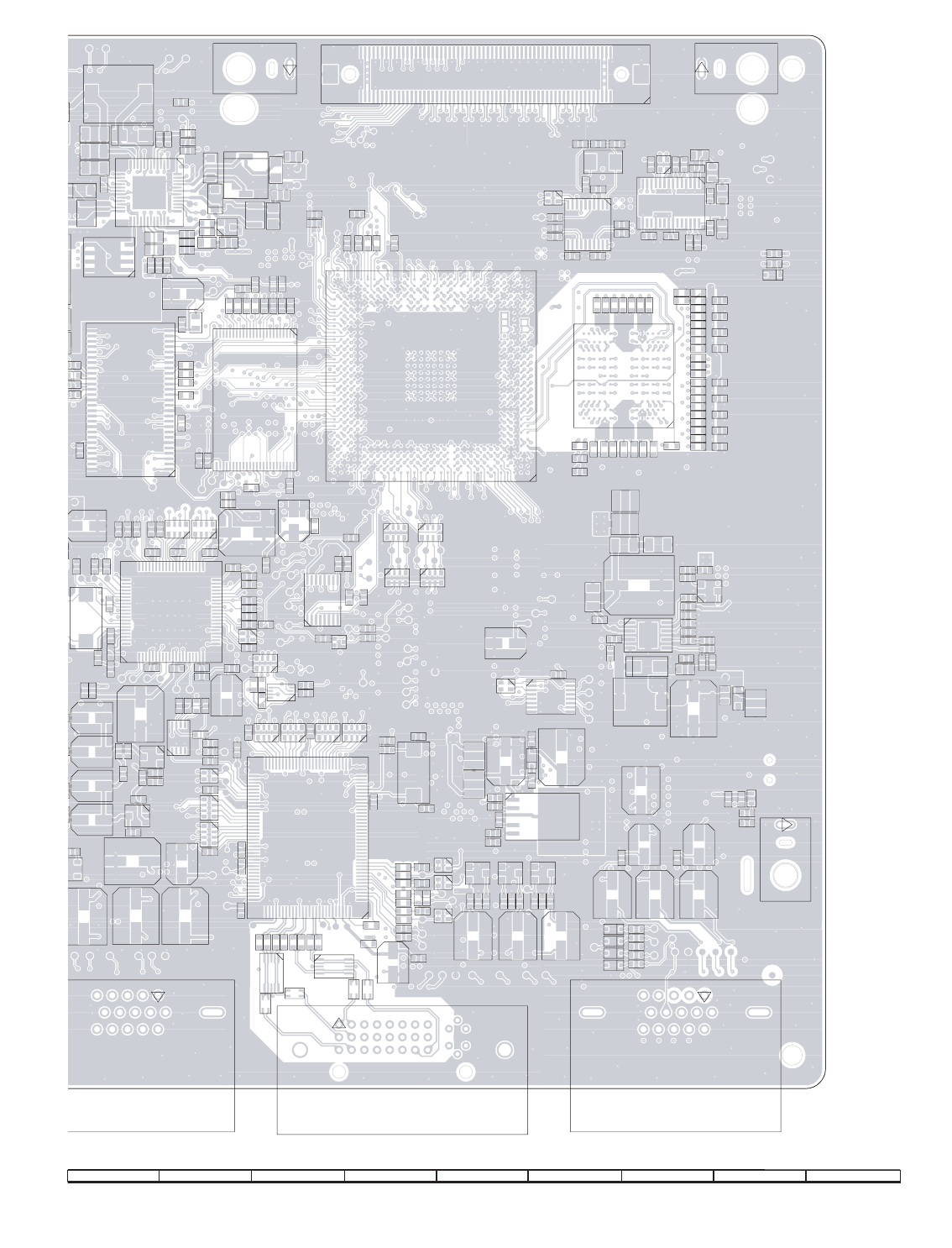

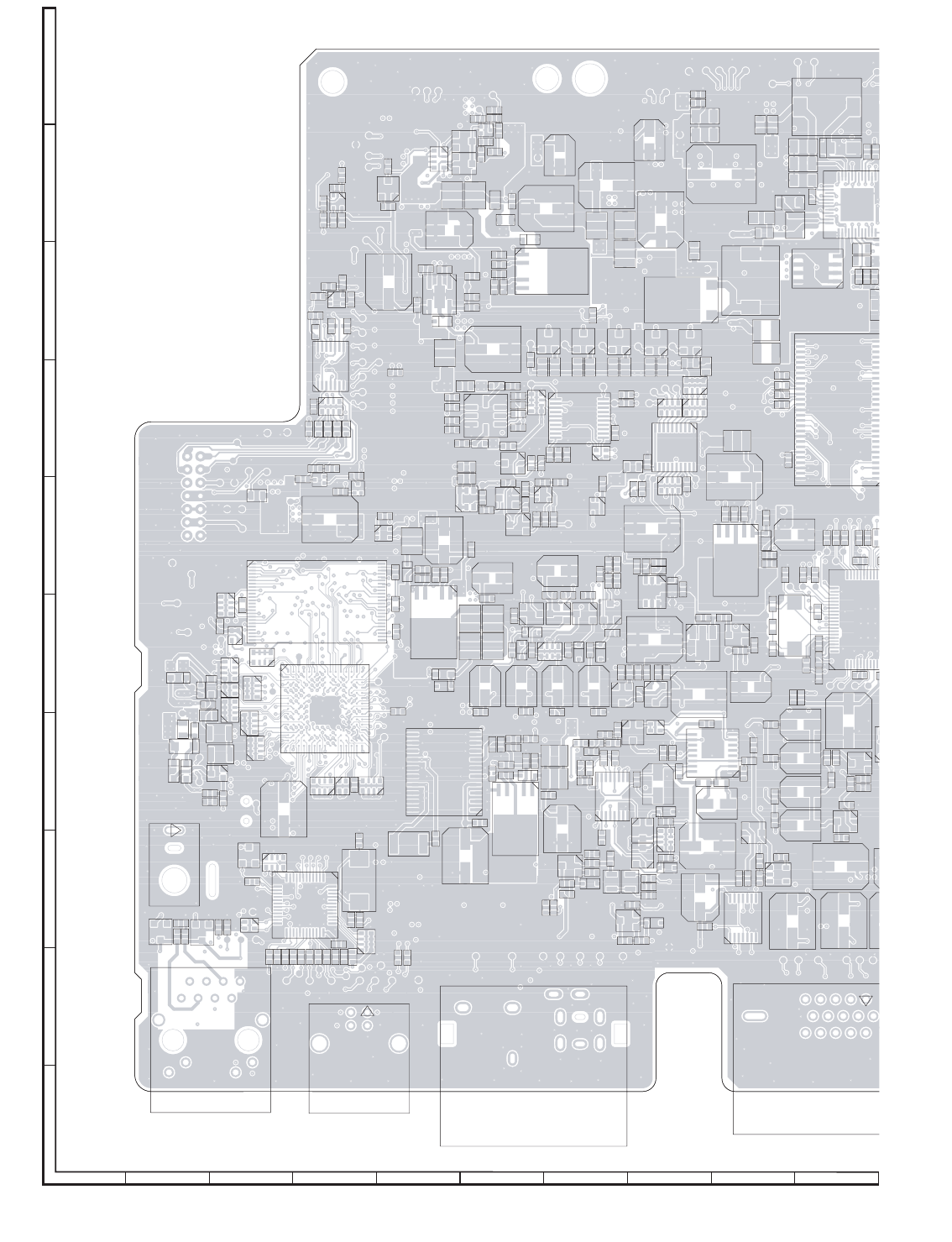

[1] MAIN Unit ......................................................8-1

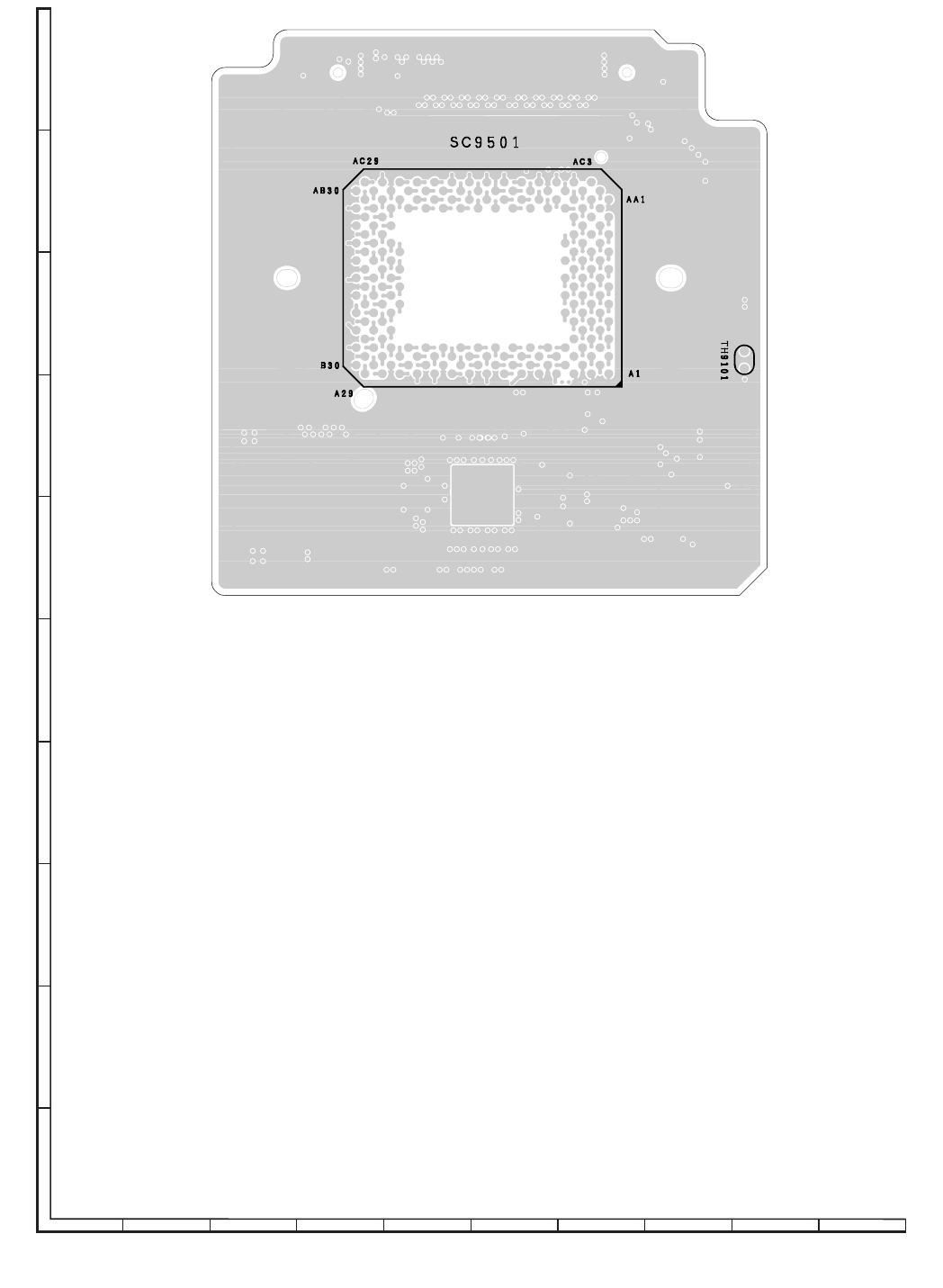

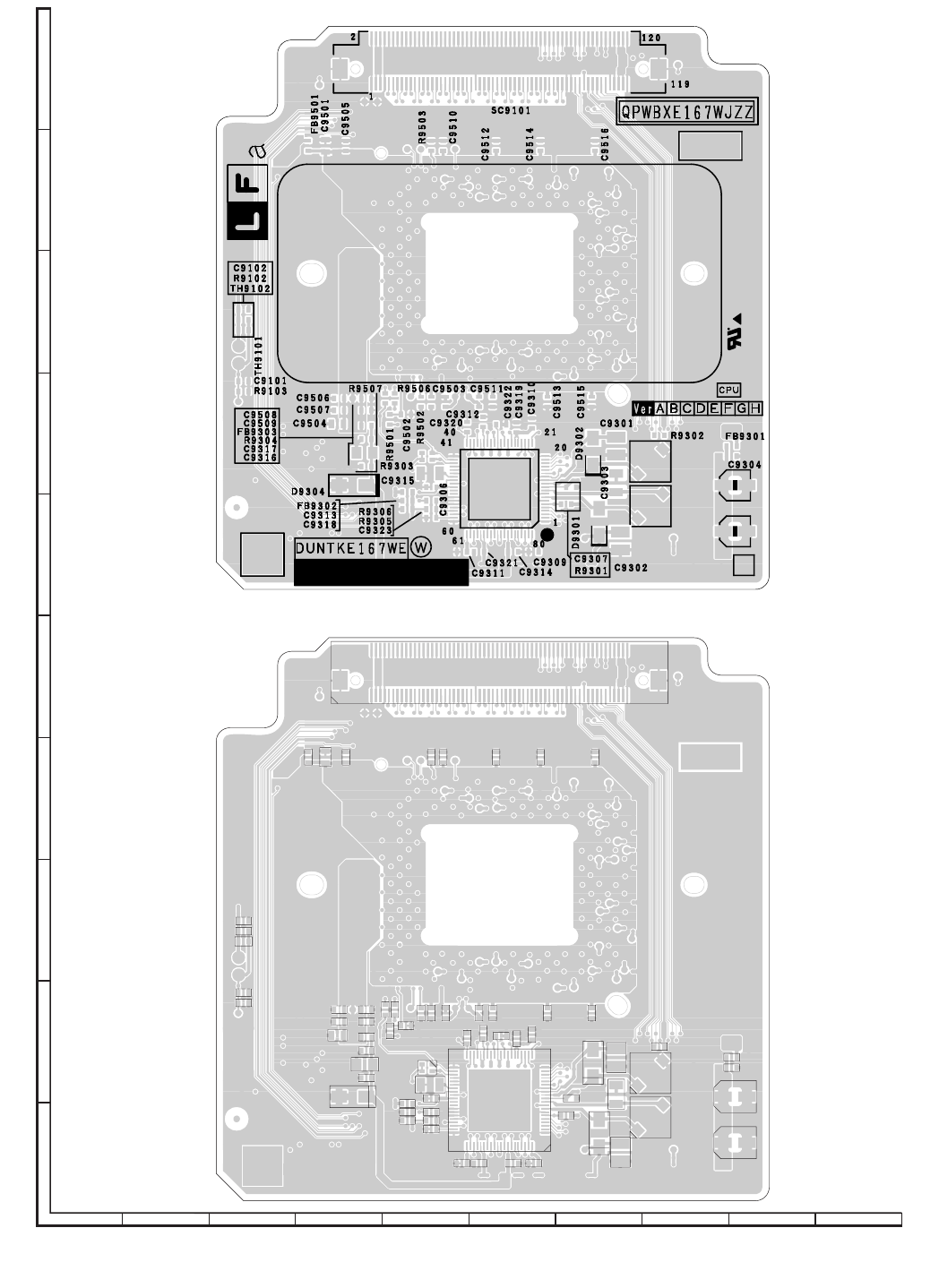

[2] DMD Unit .......................................................8-9

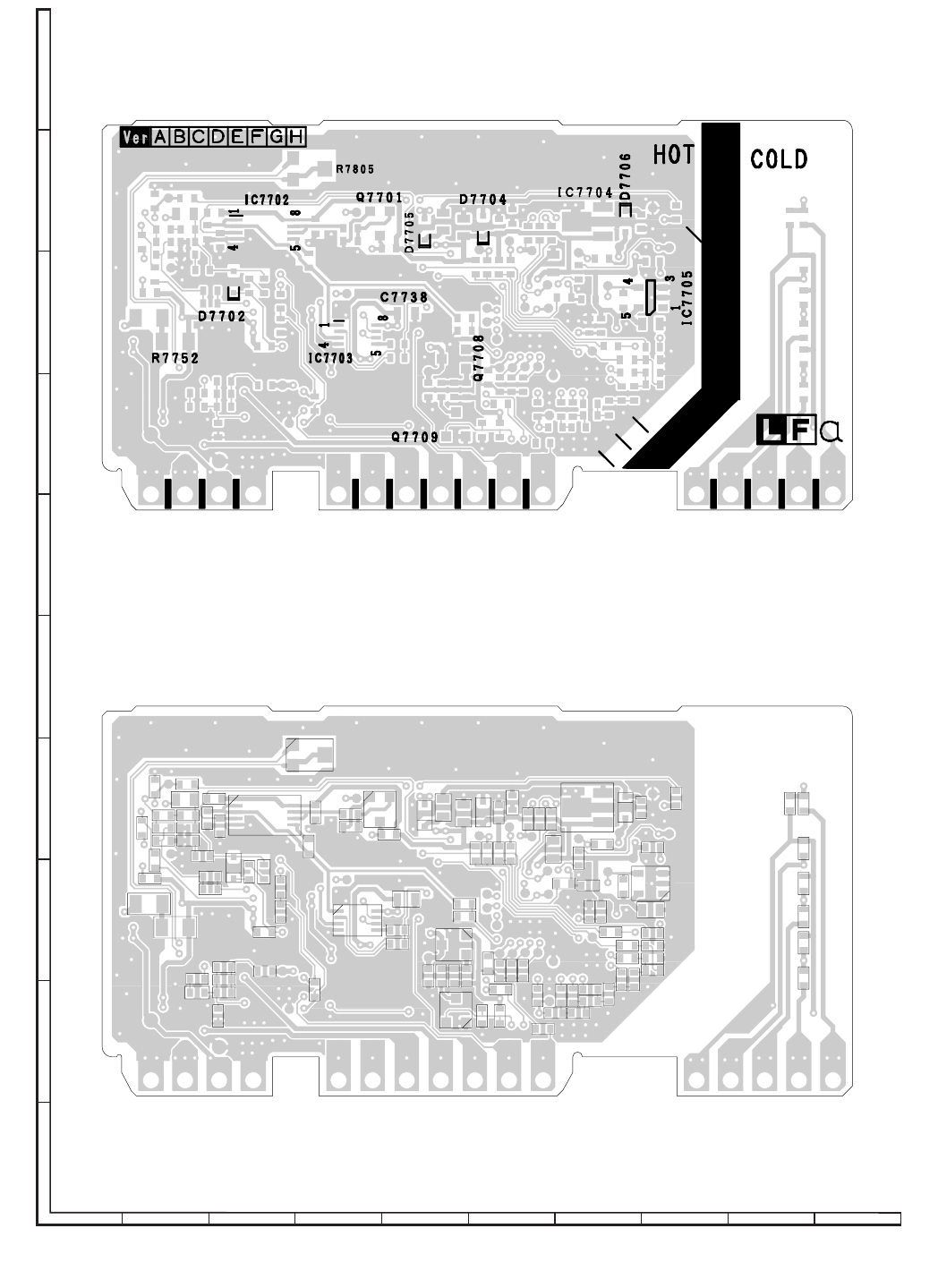

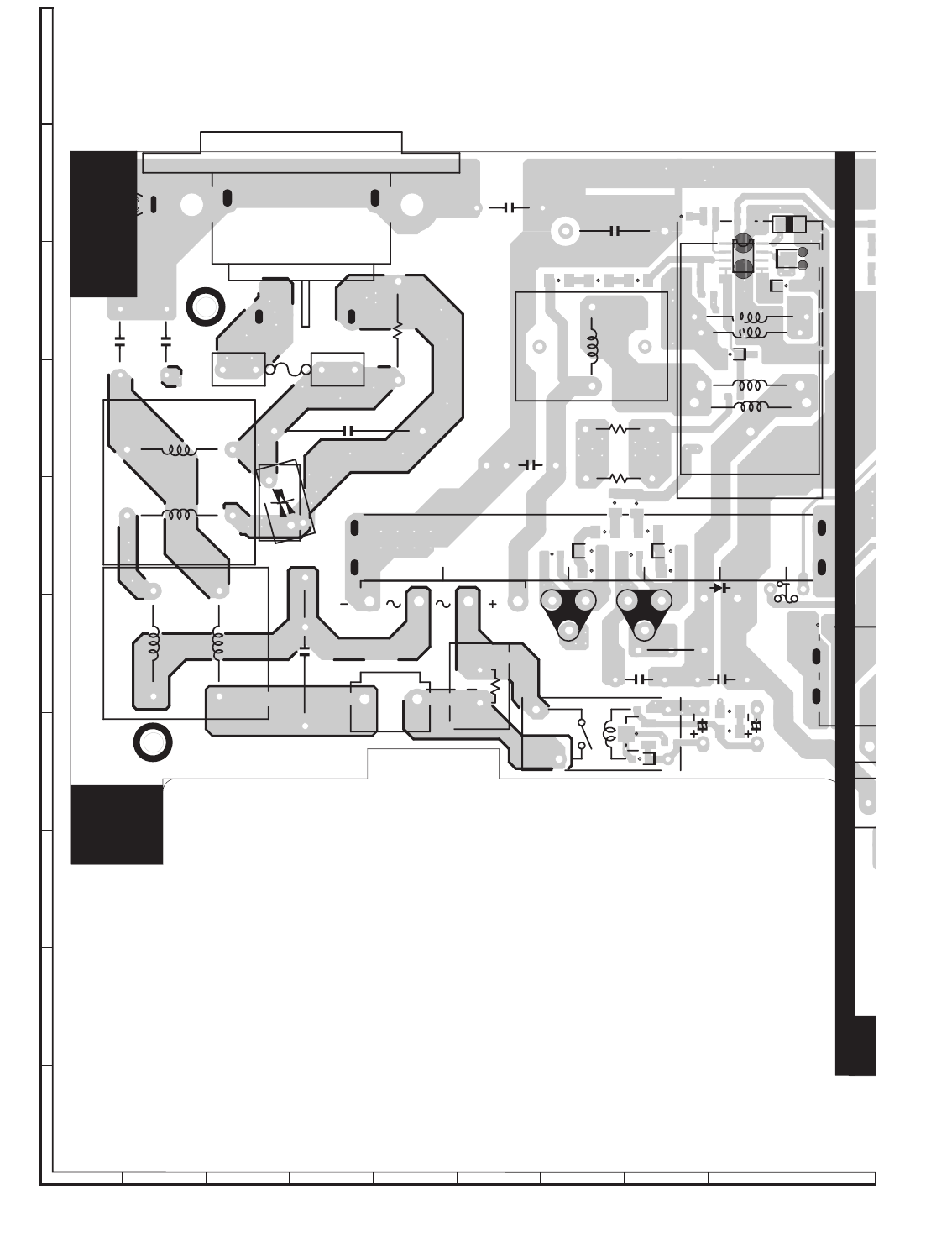

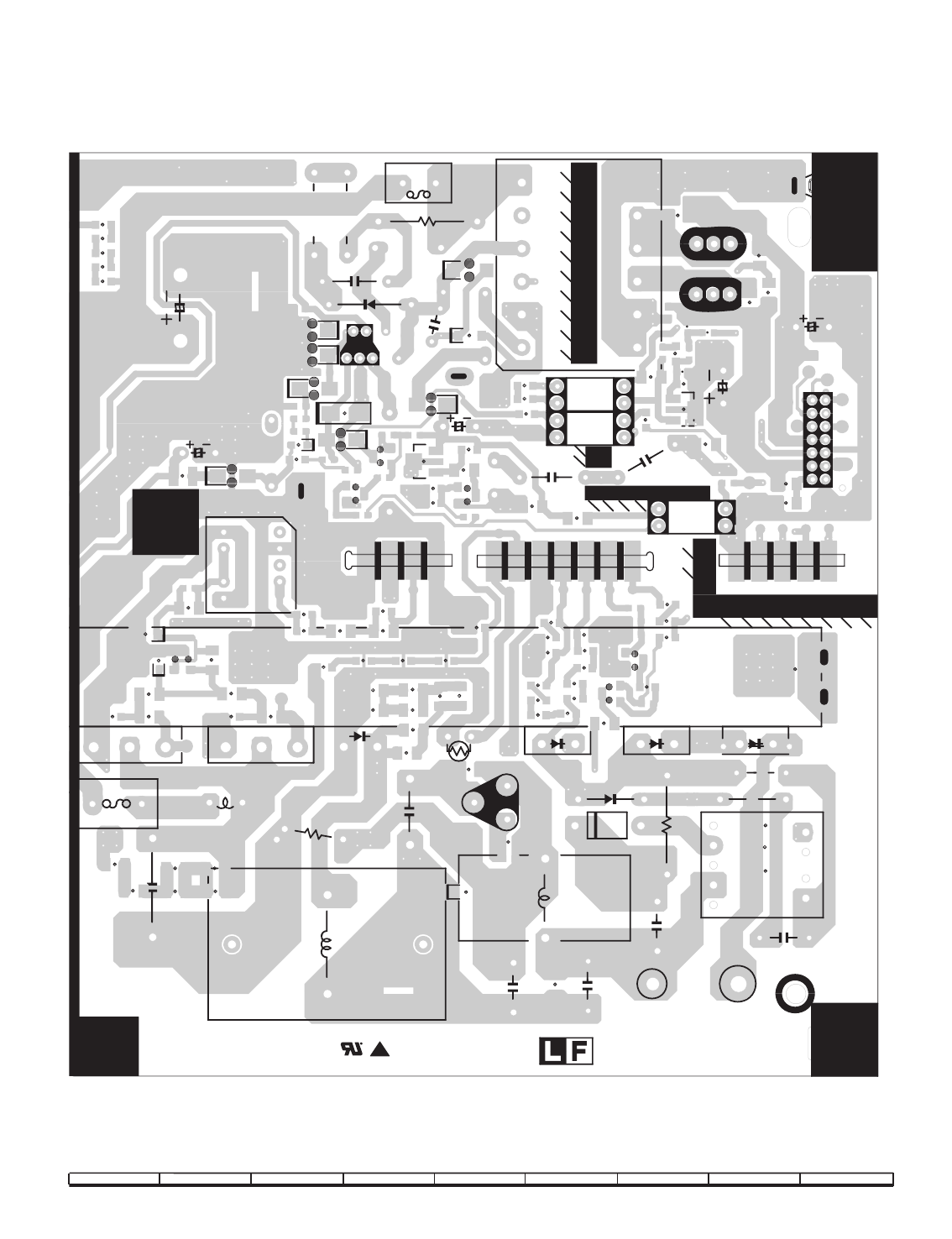

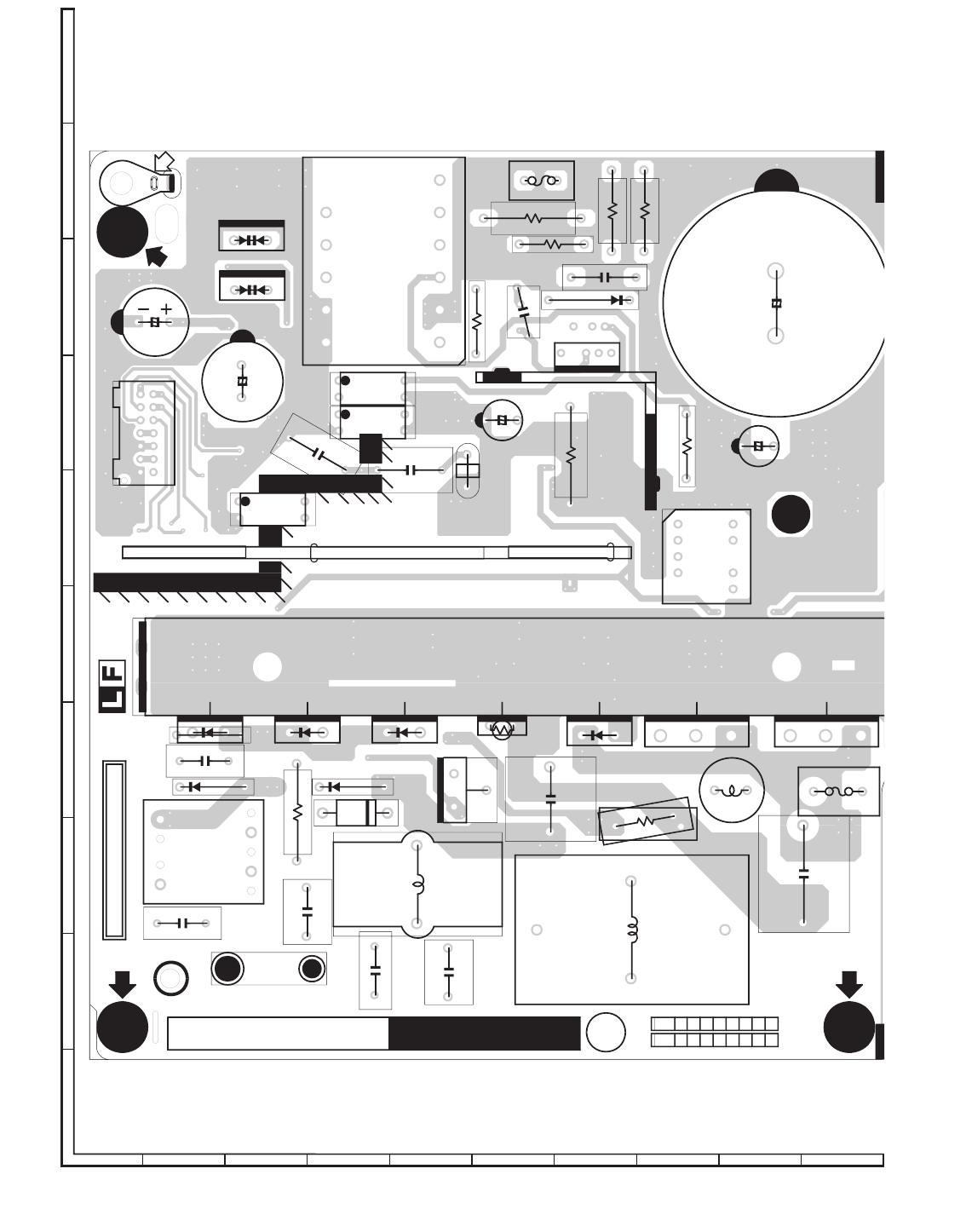

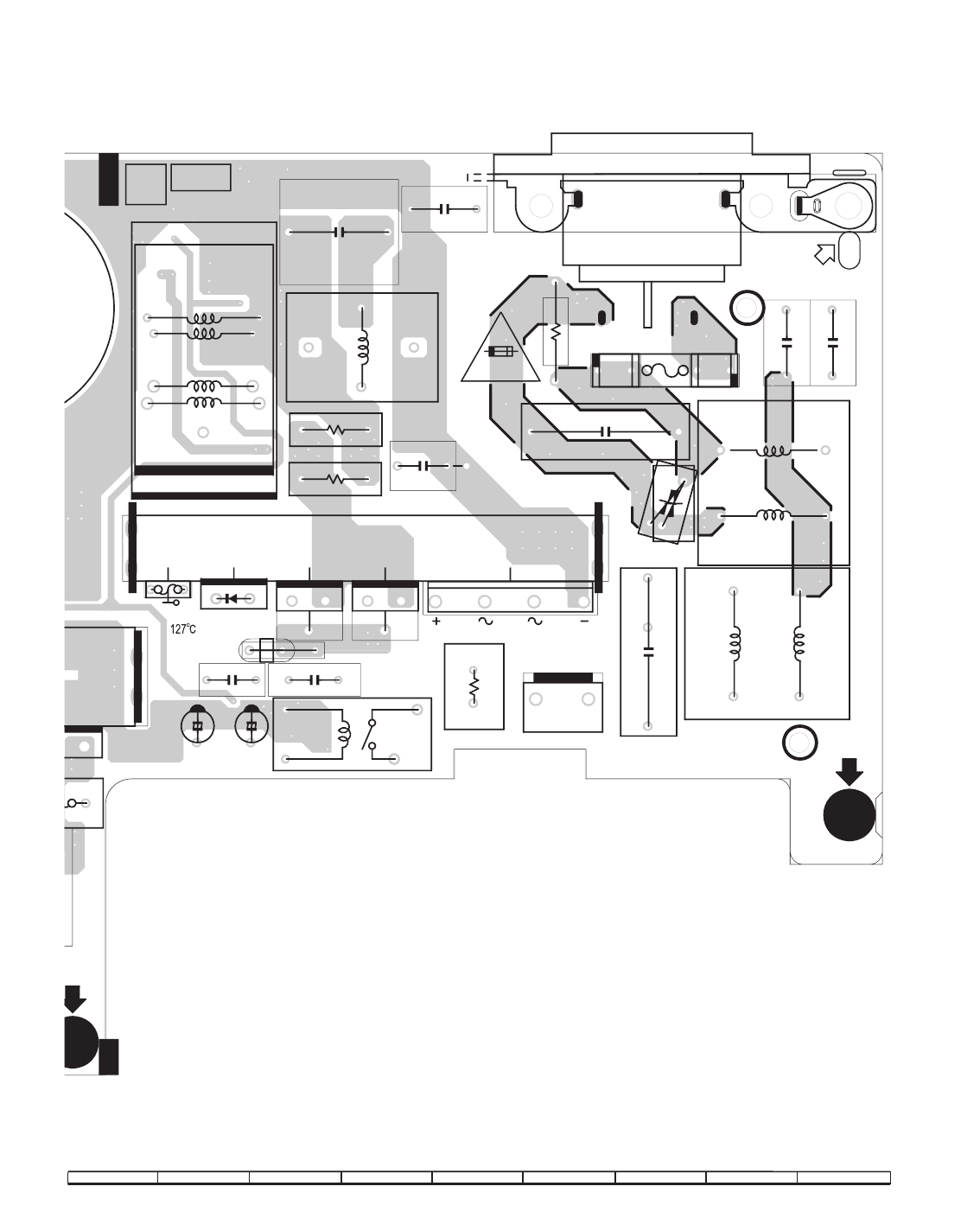

[3] BALLAST POWER Unit............................... 8-11

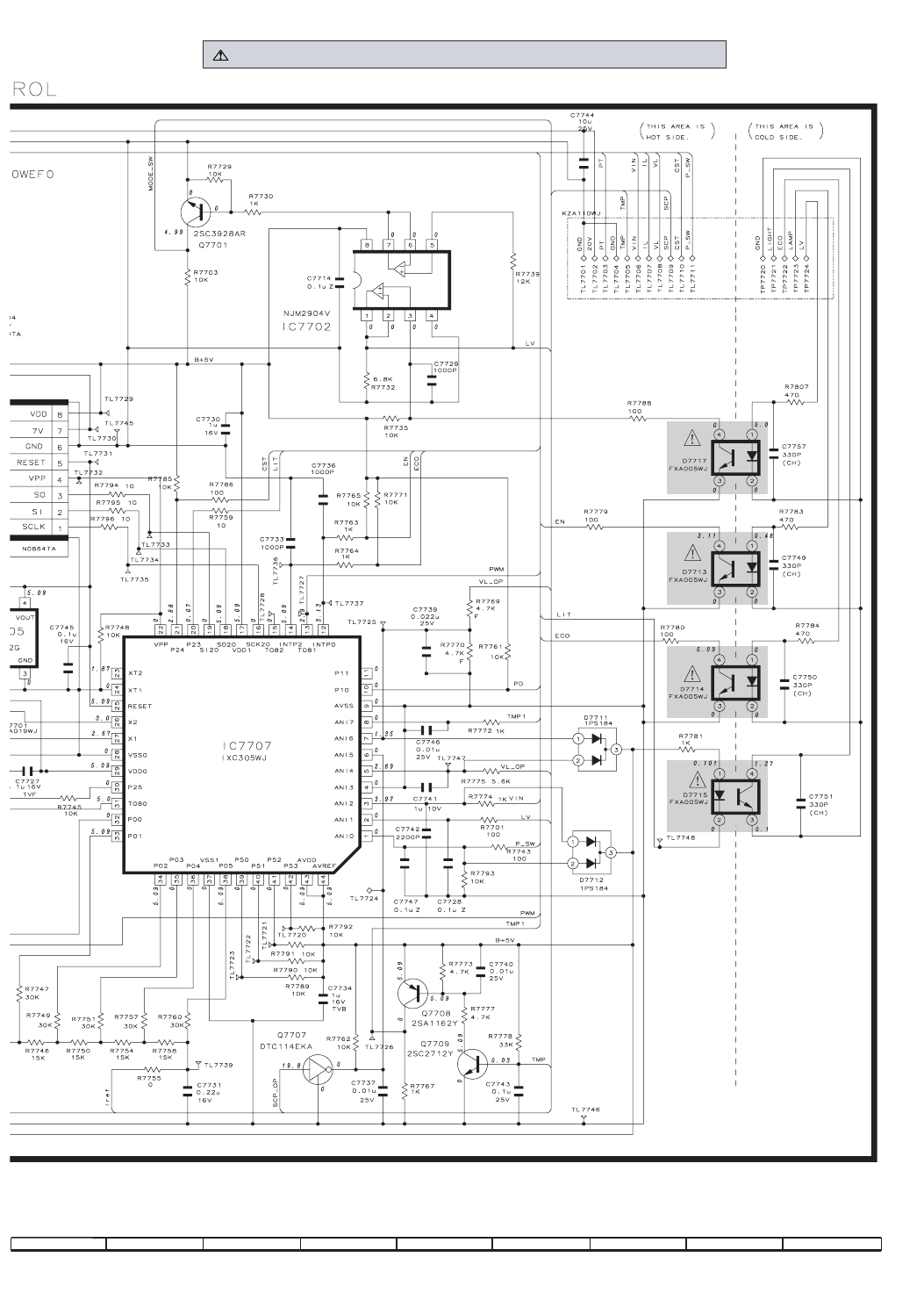

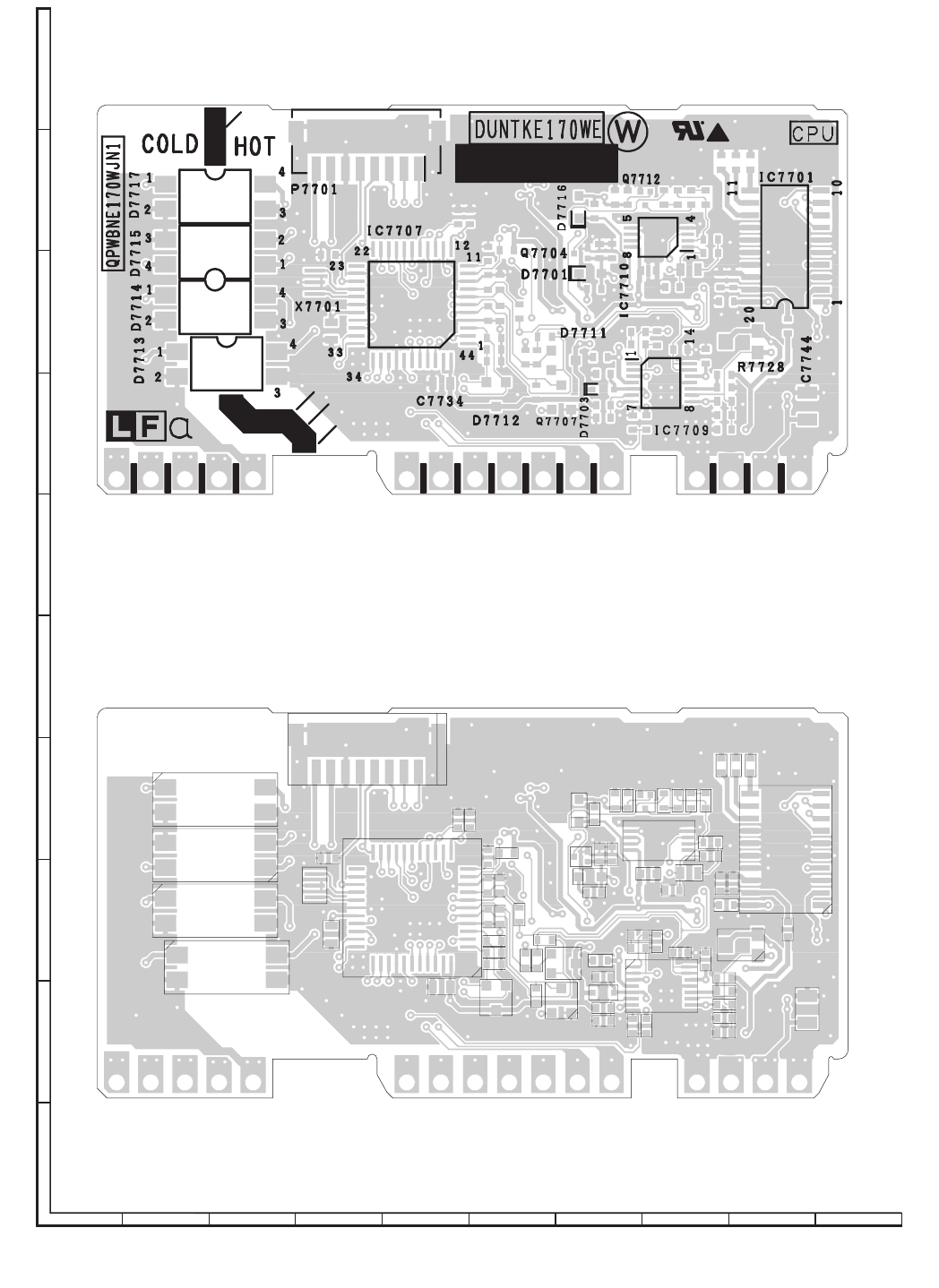

[4] BALLAST CONTROL Unit...........................8-17

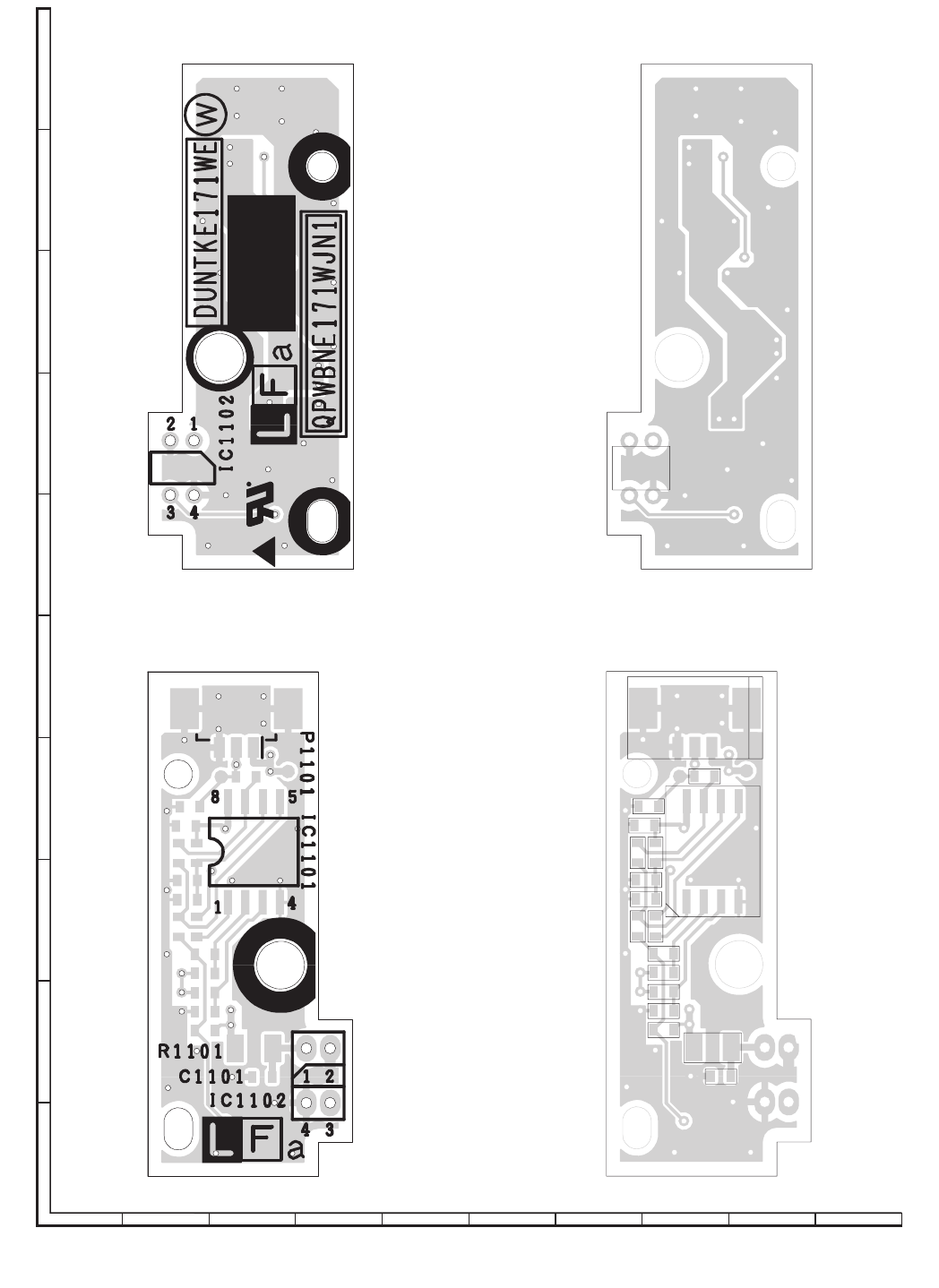

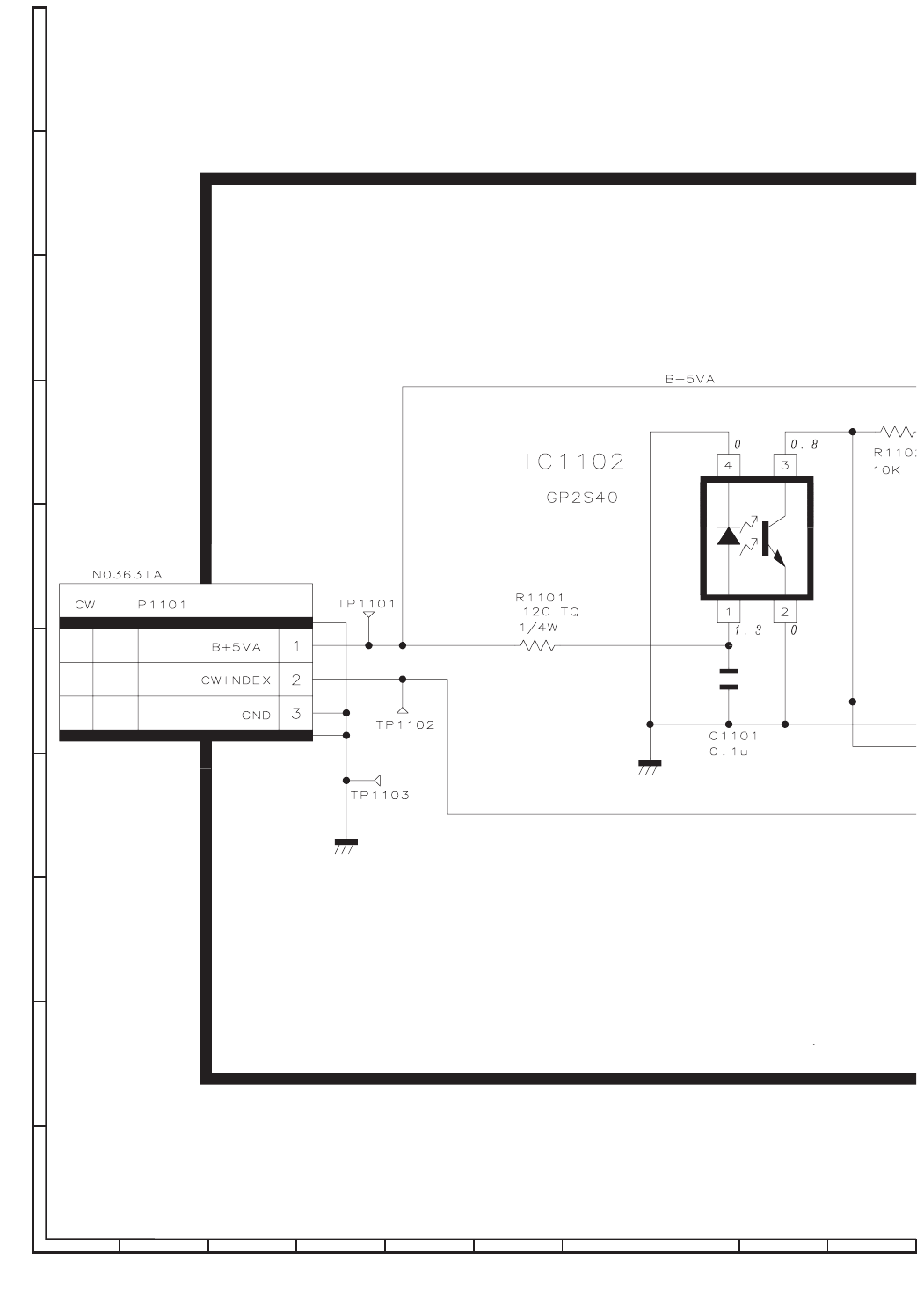

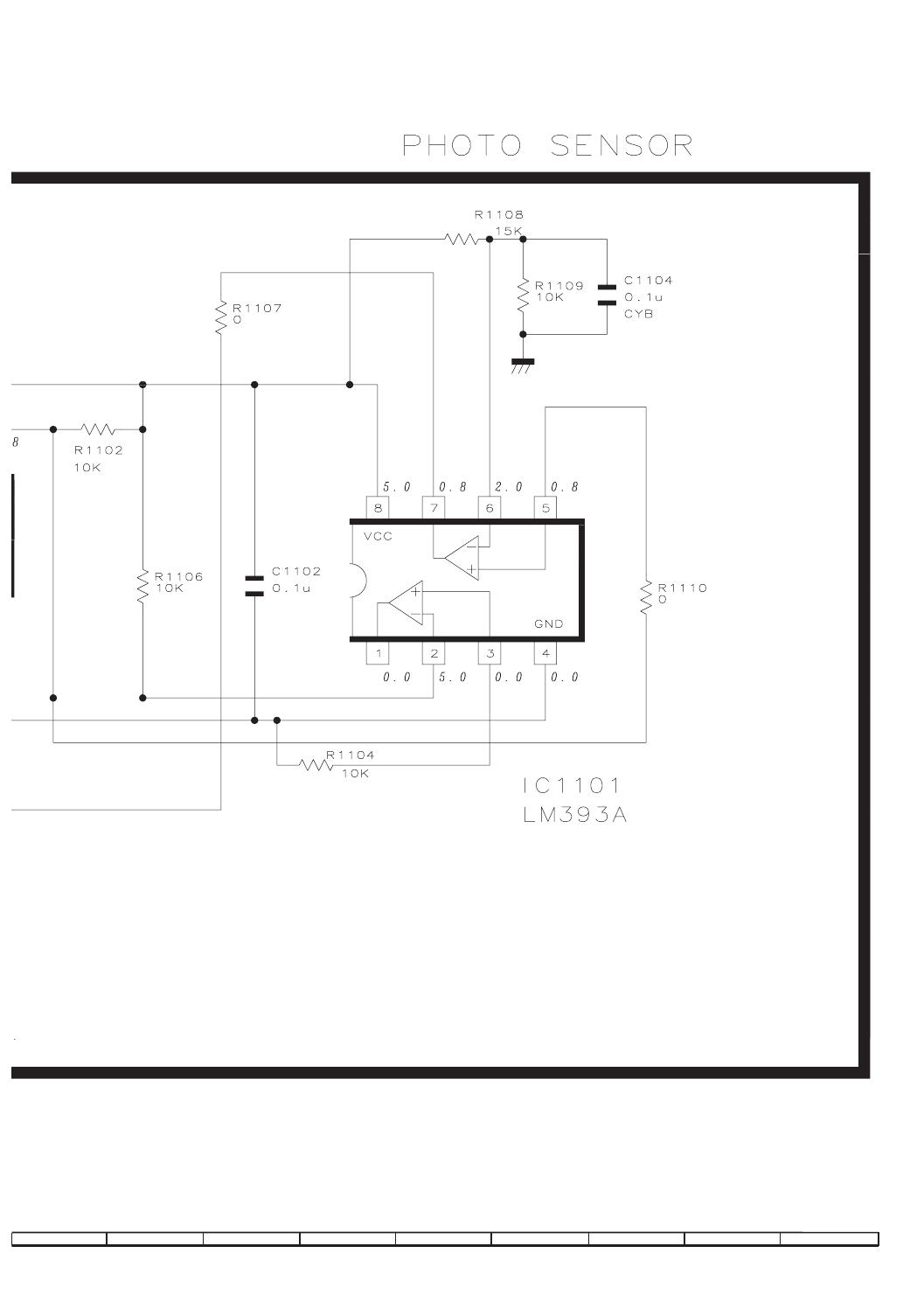

[5] PHOTO SENSOR Unit ................................8-19

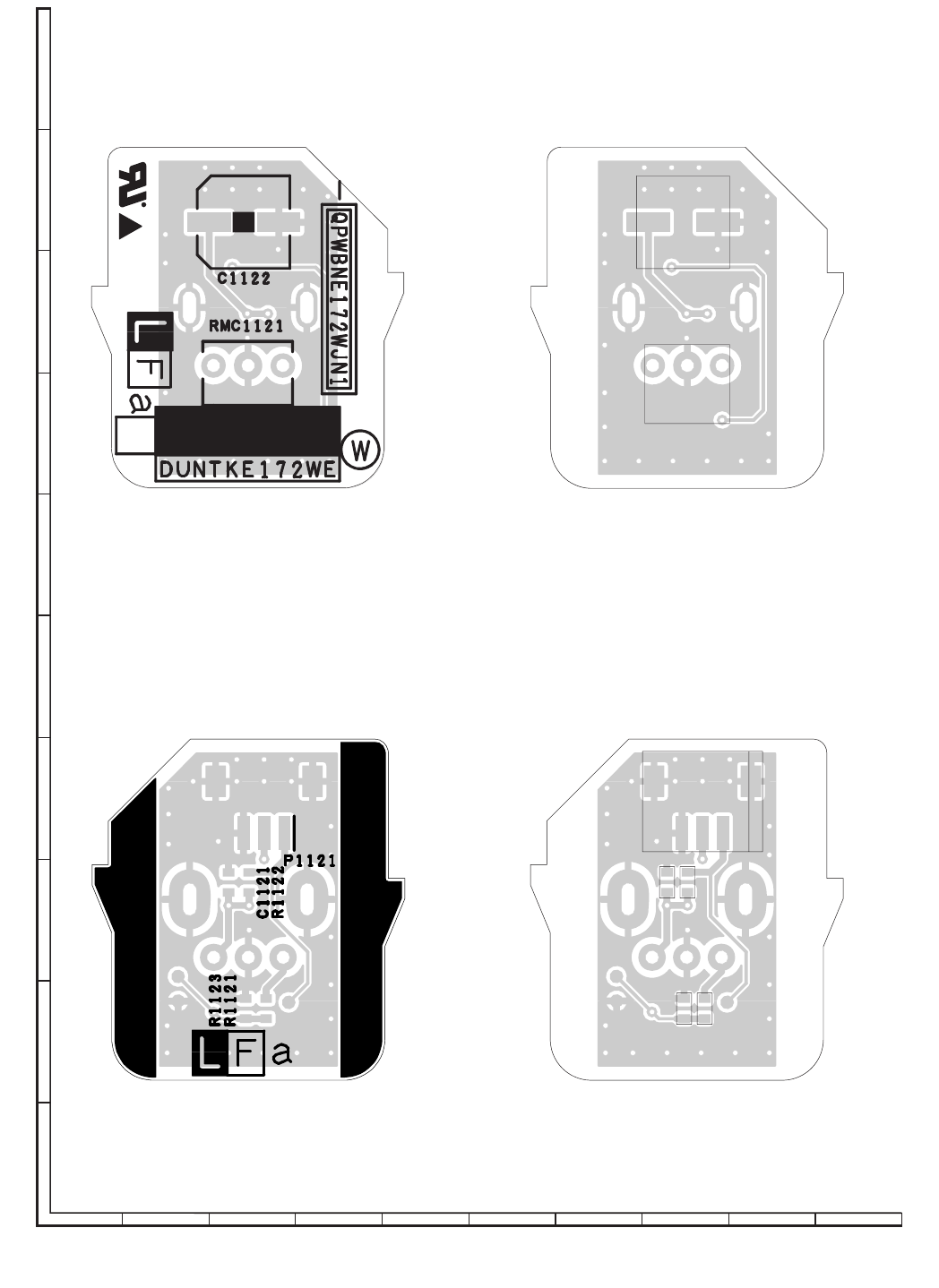

[6] R/C RECEIVER Unit....................................8-20

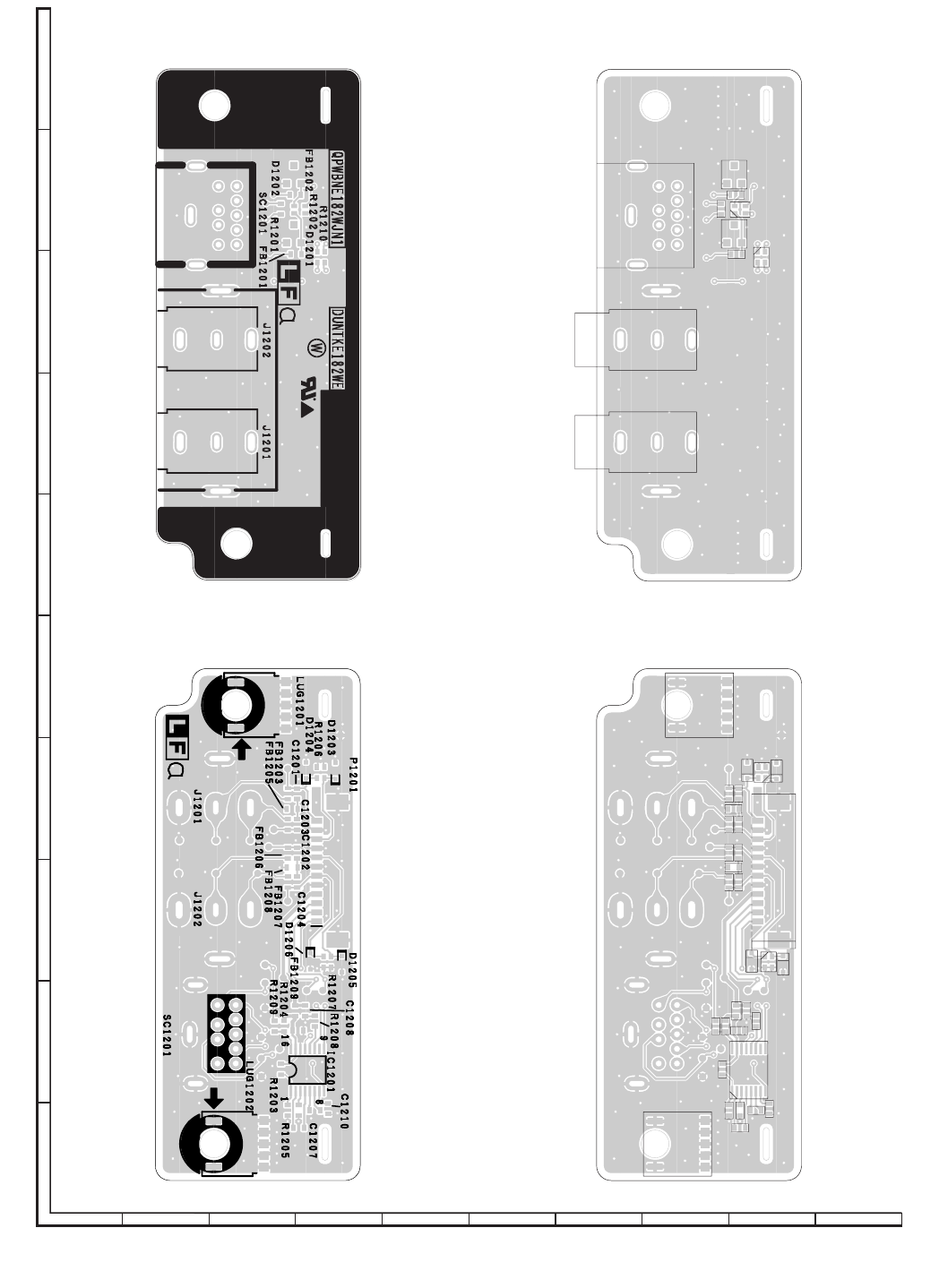

[7] TERMINAL Unit ...........................................8-21

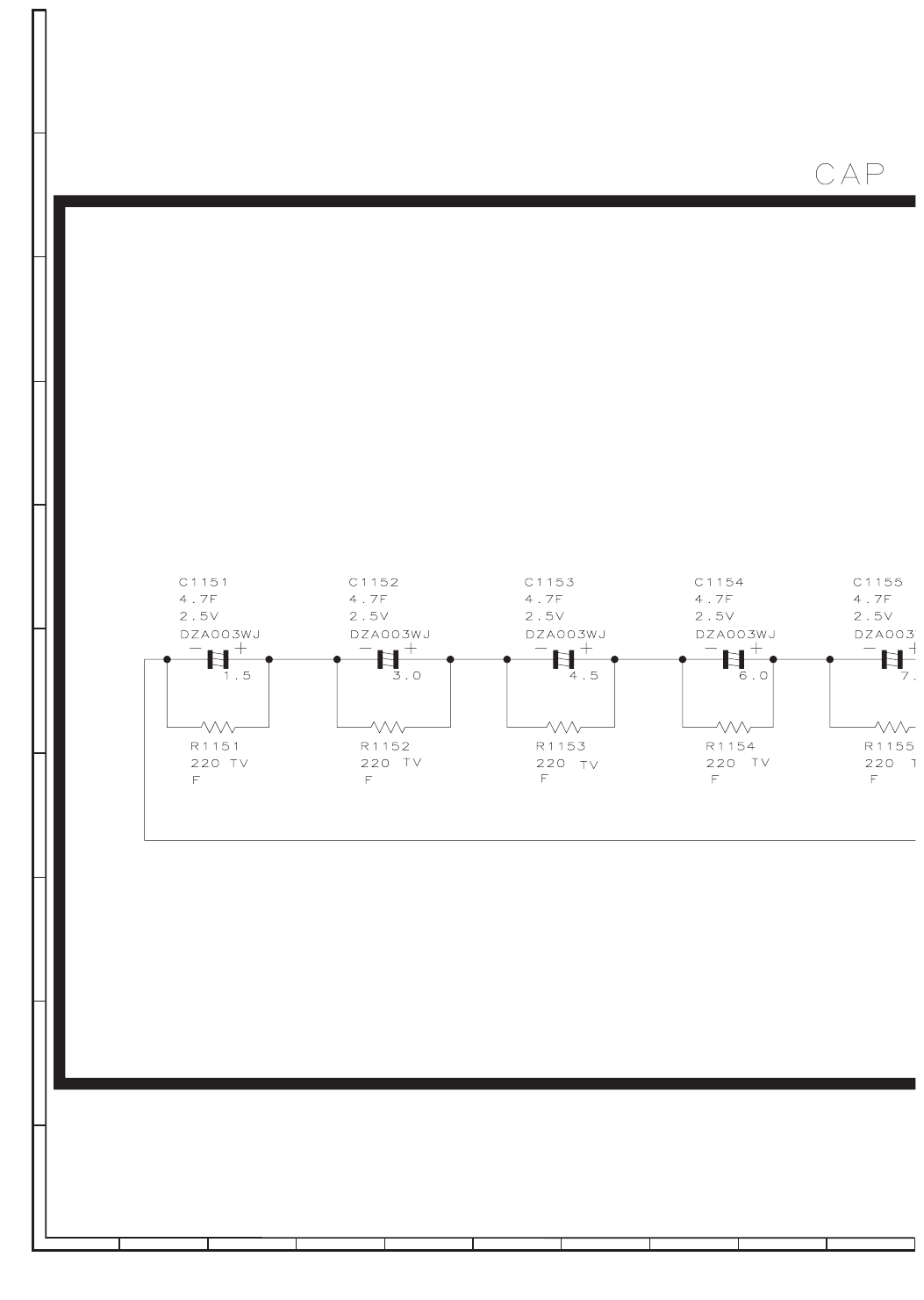

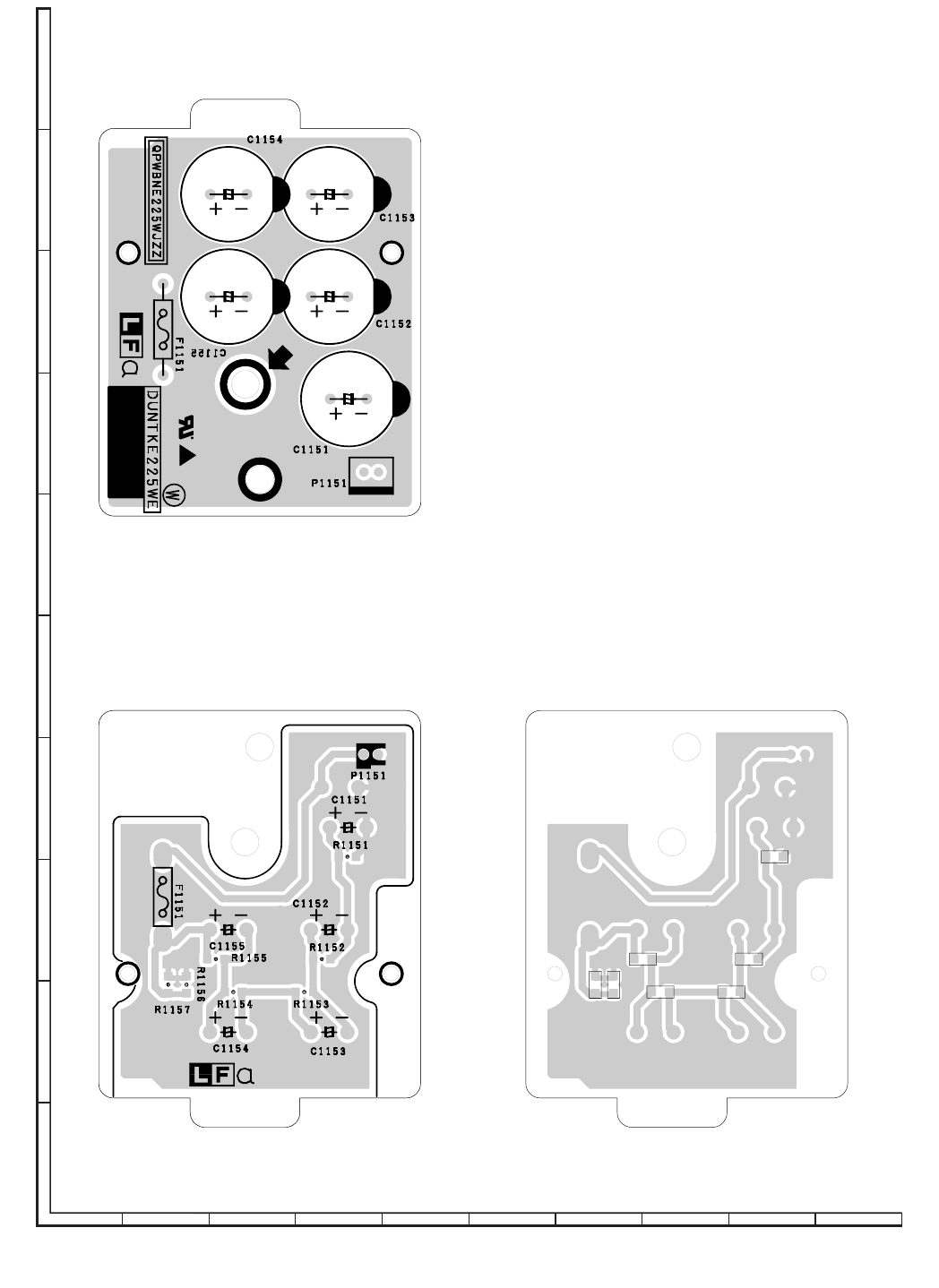

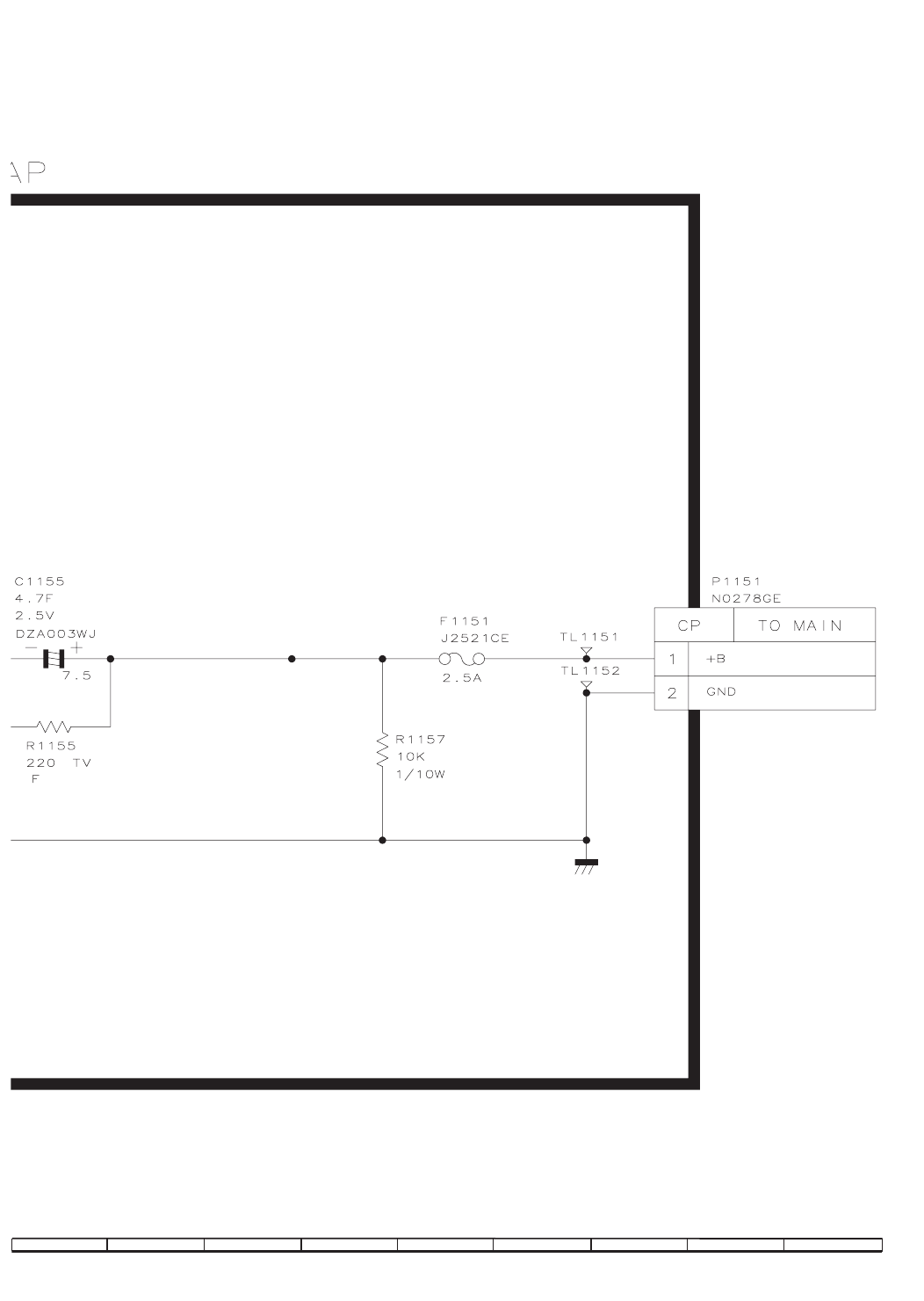

[8] CAP Unit......................................................8-22

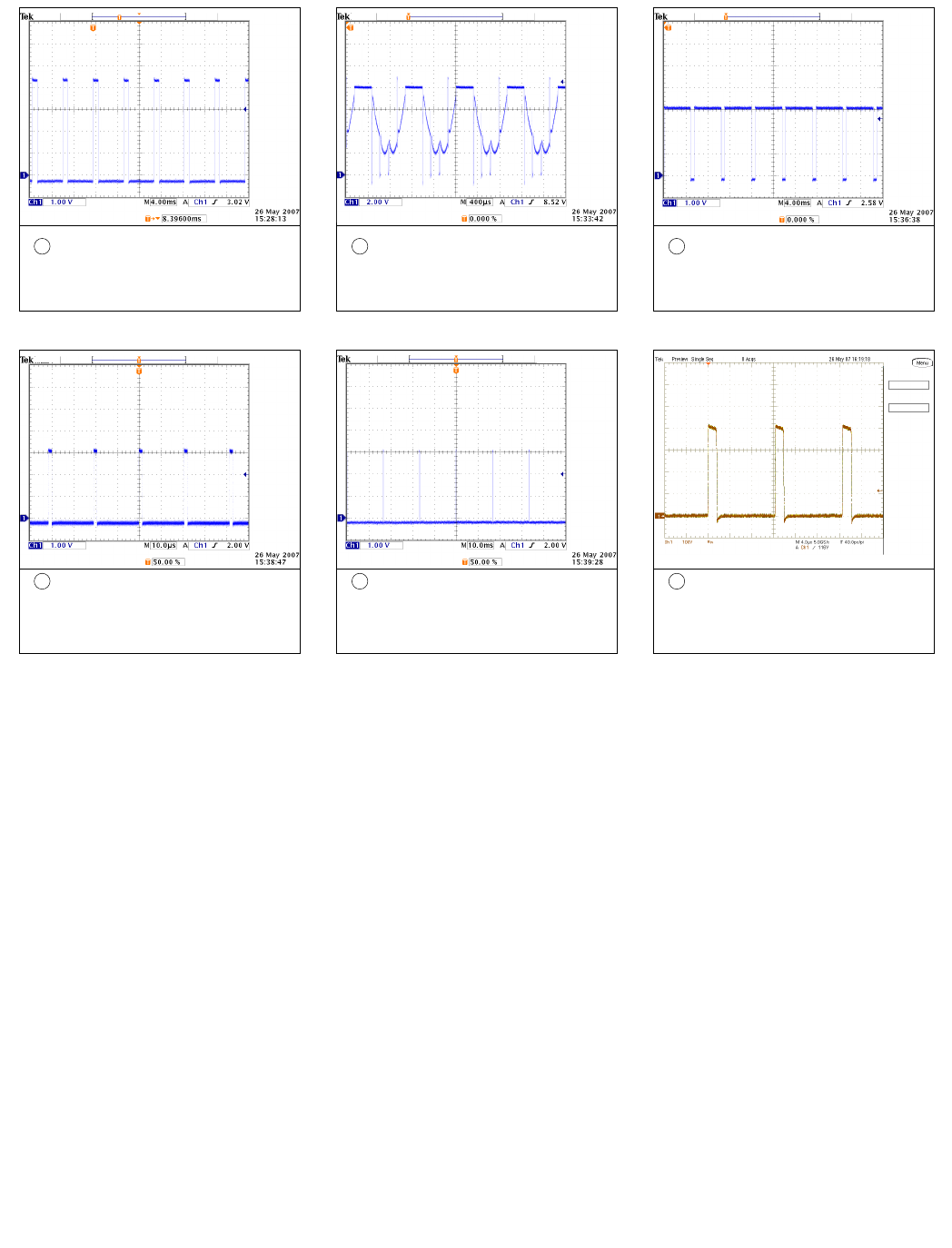

CHAPTER 9. WAVEFORMS
[1] WAVEFORMS ...............................................9-1

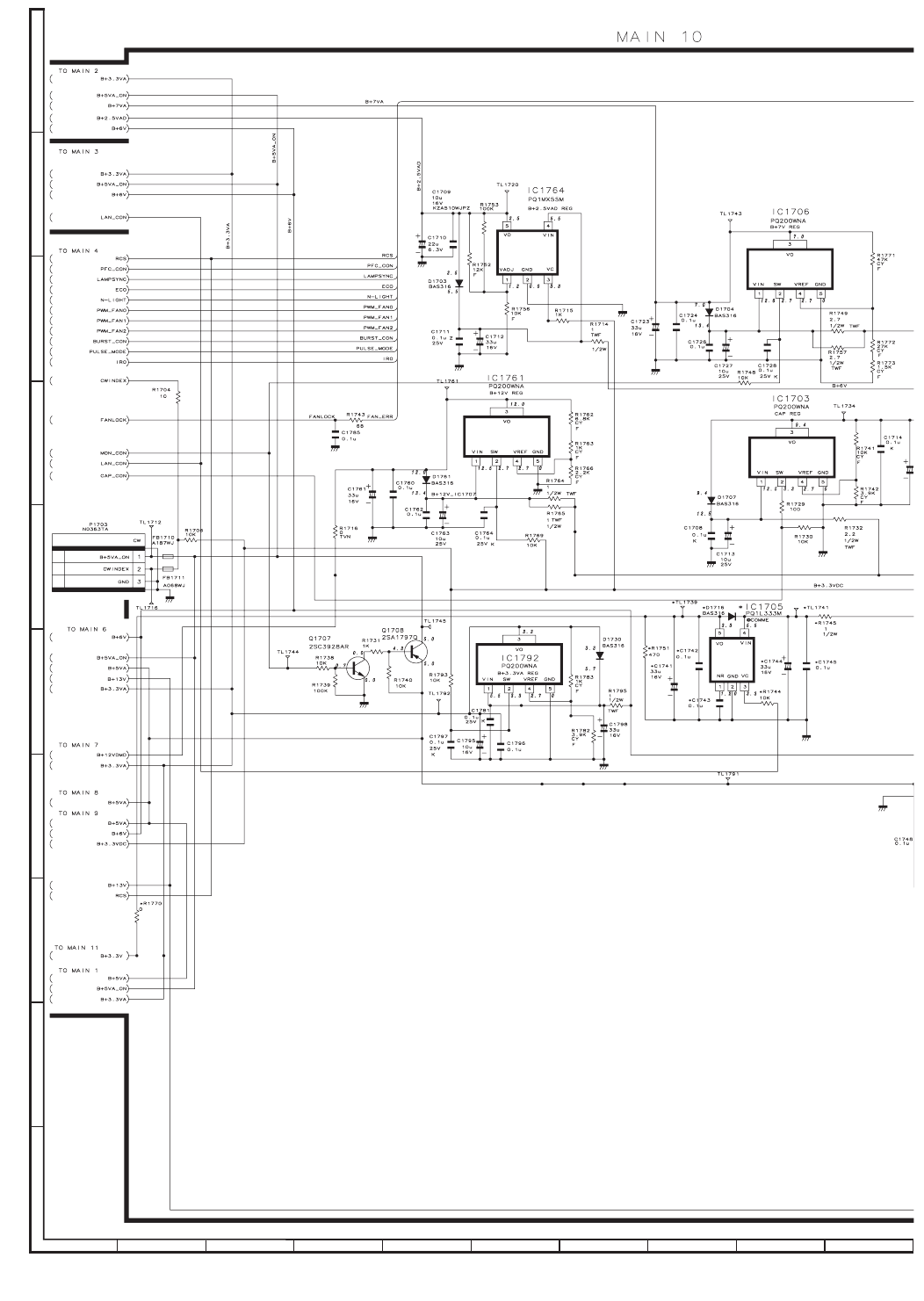

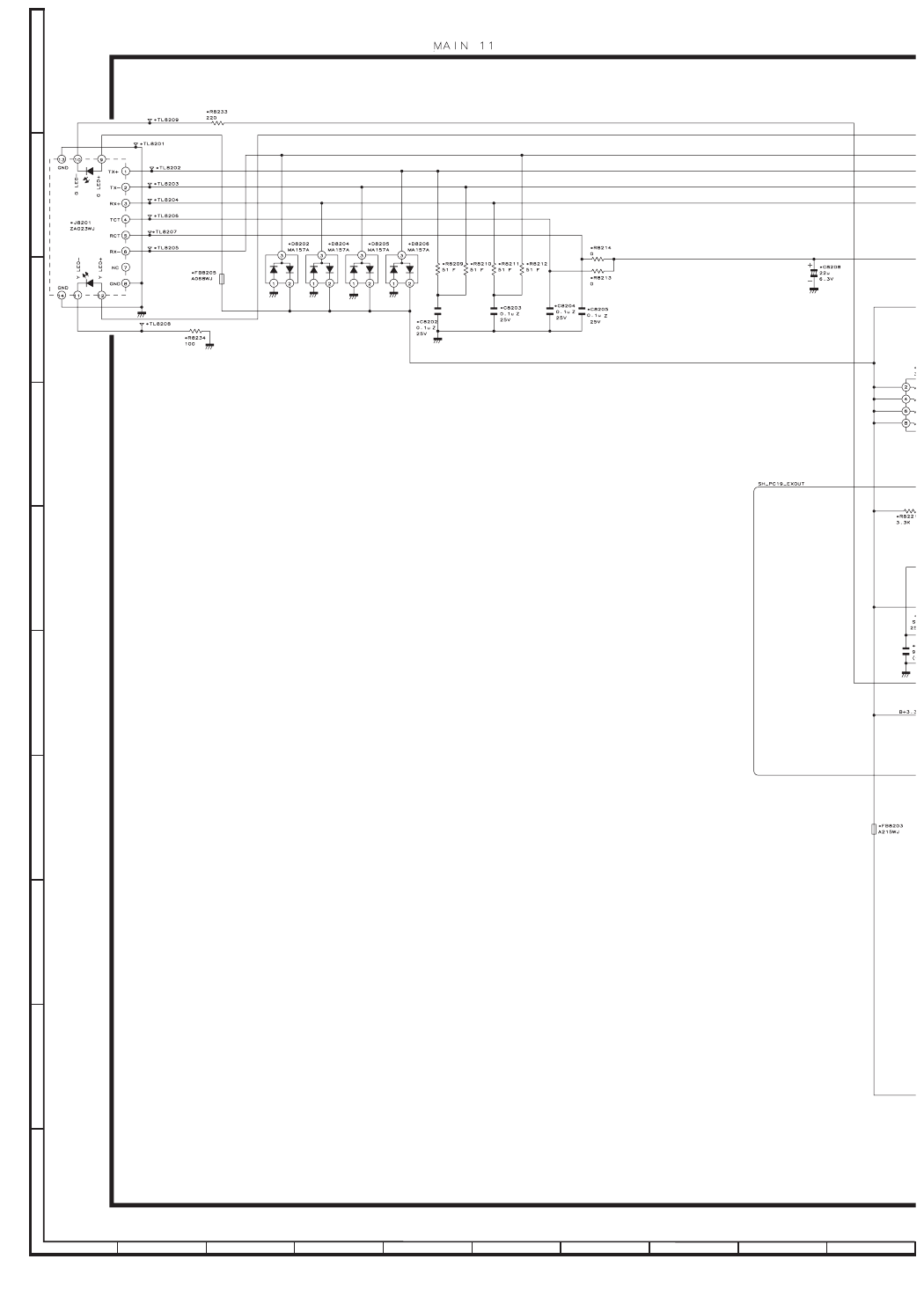

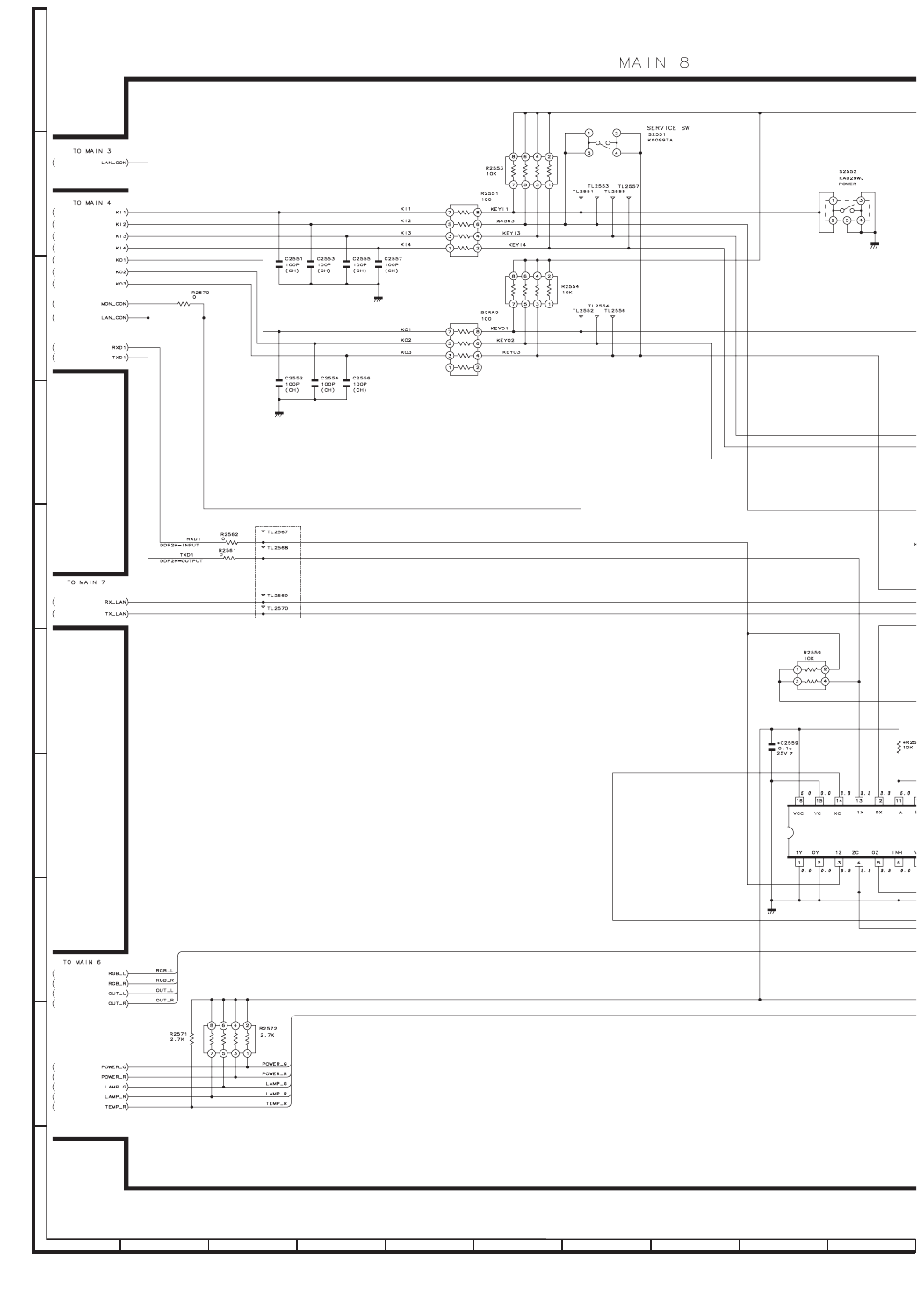

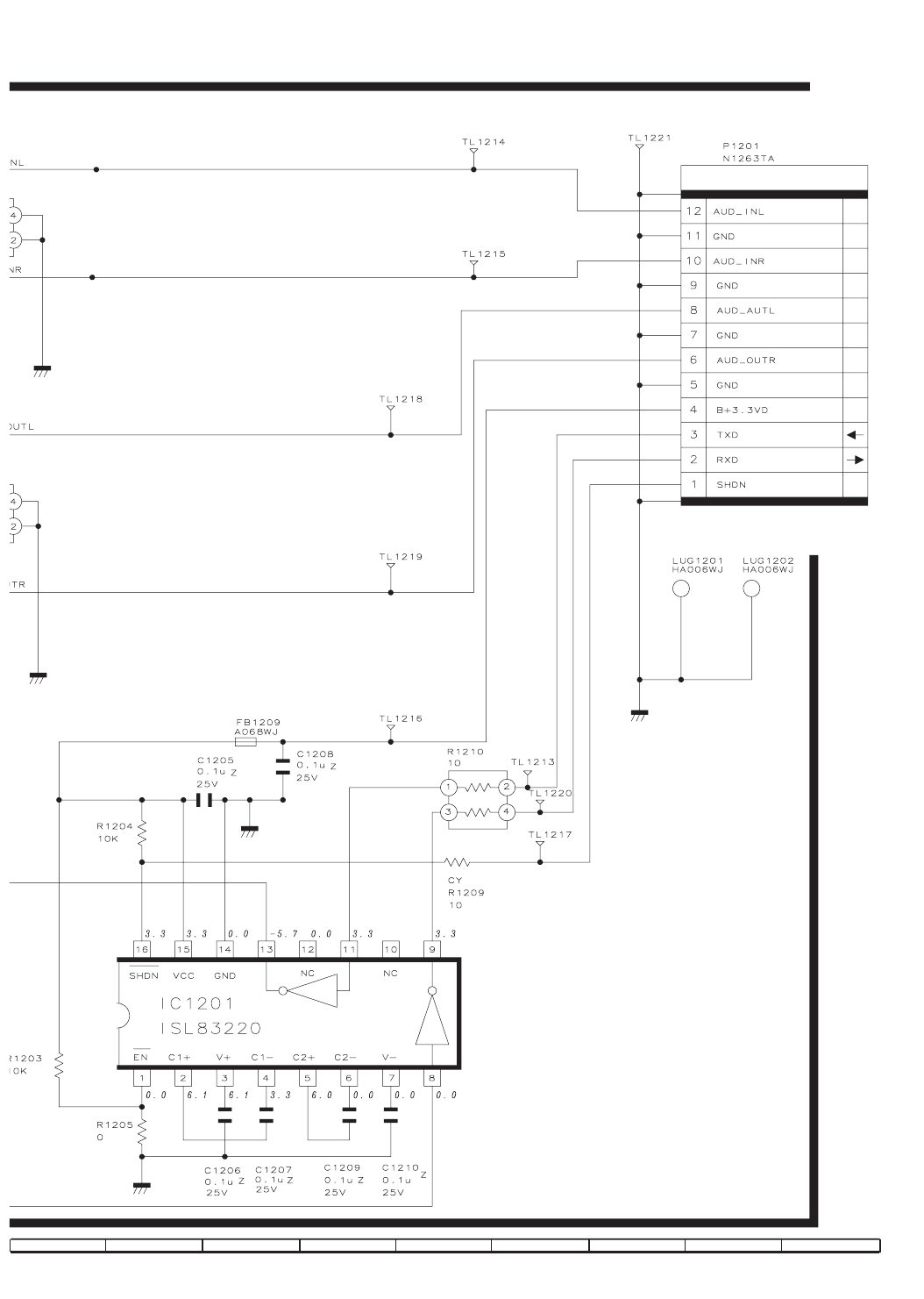

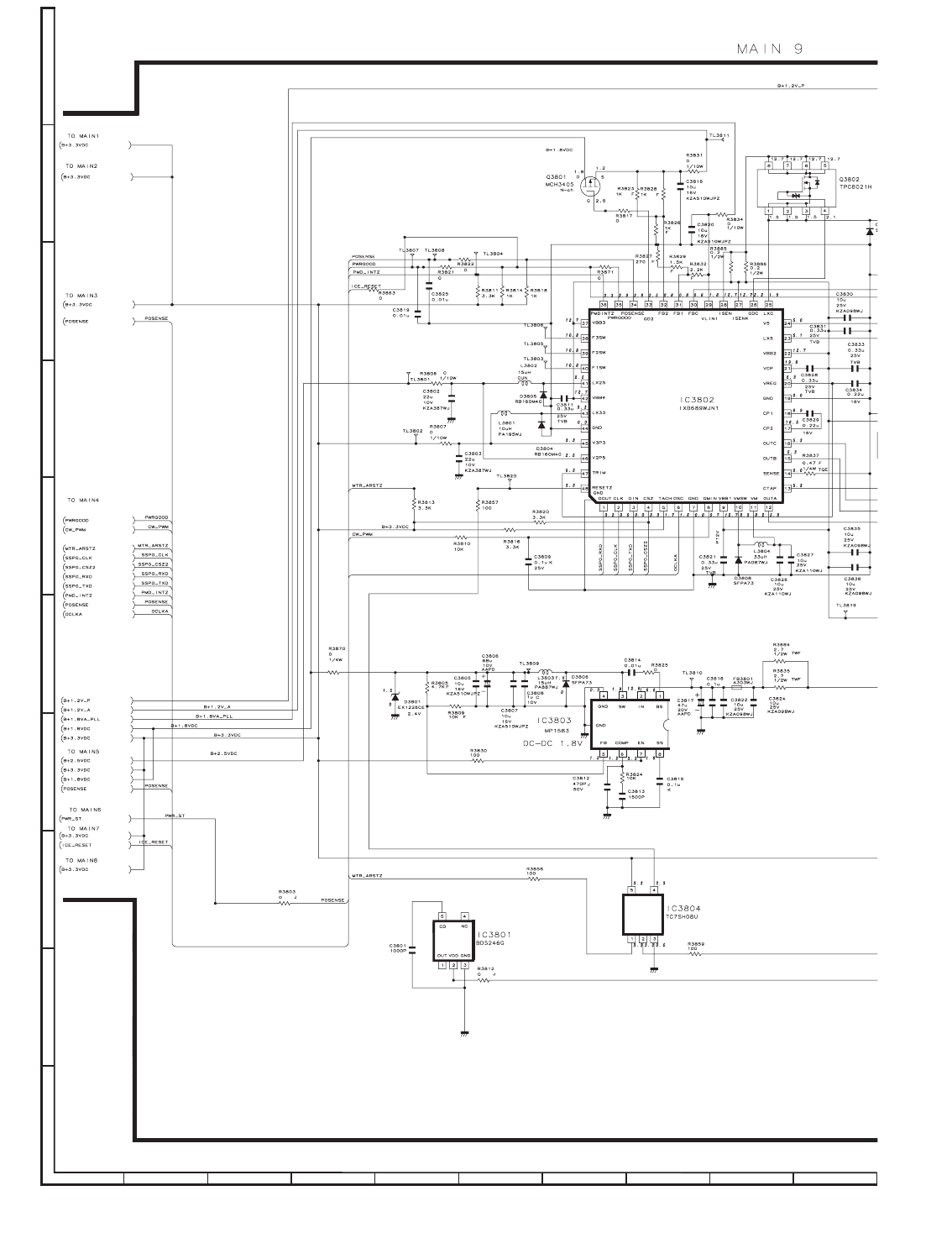

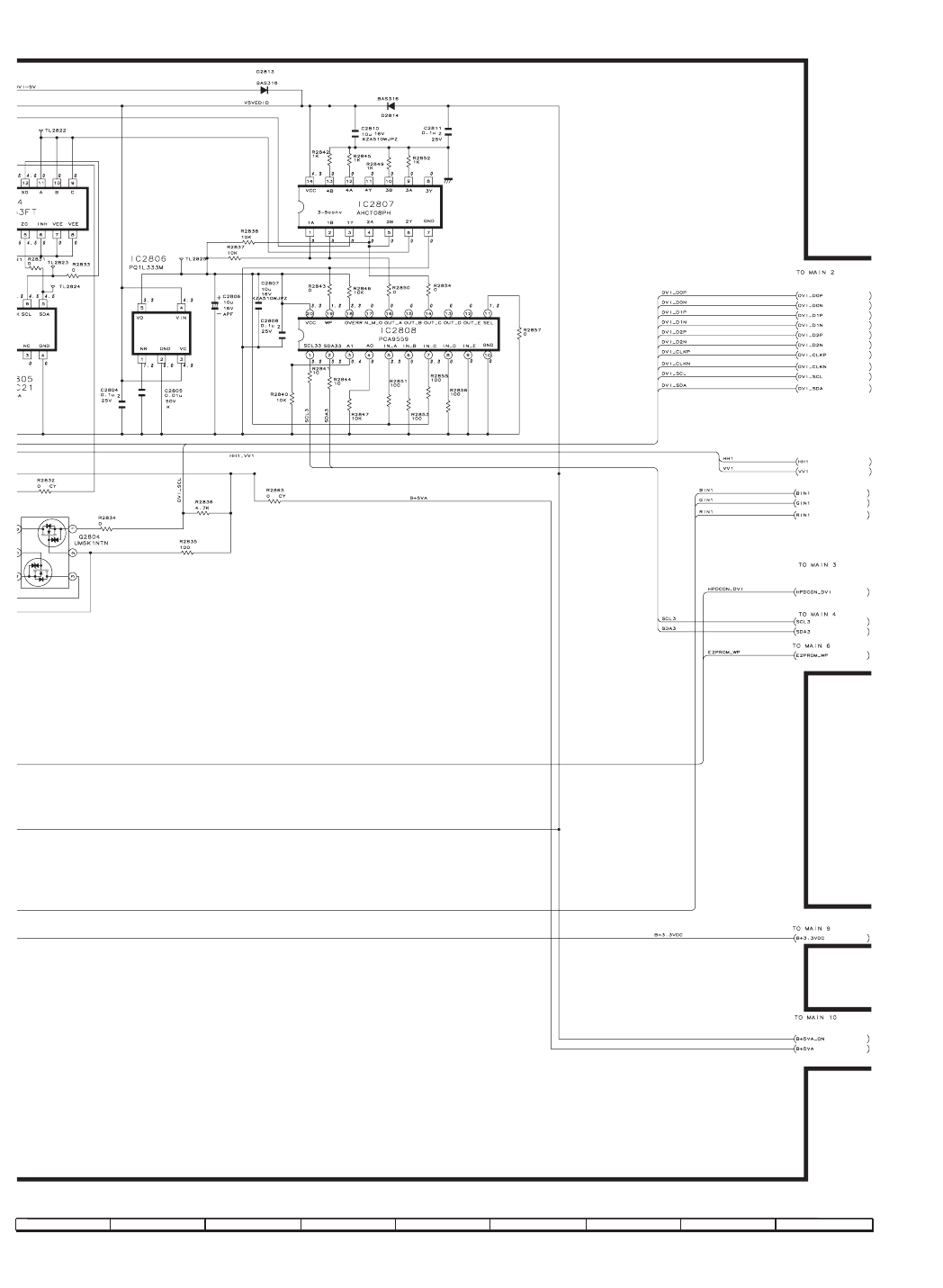

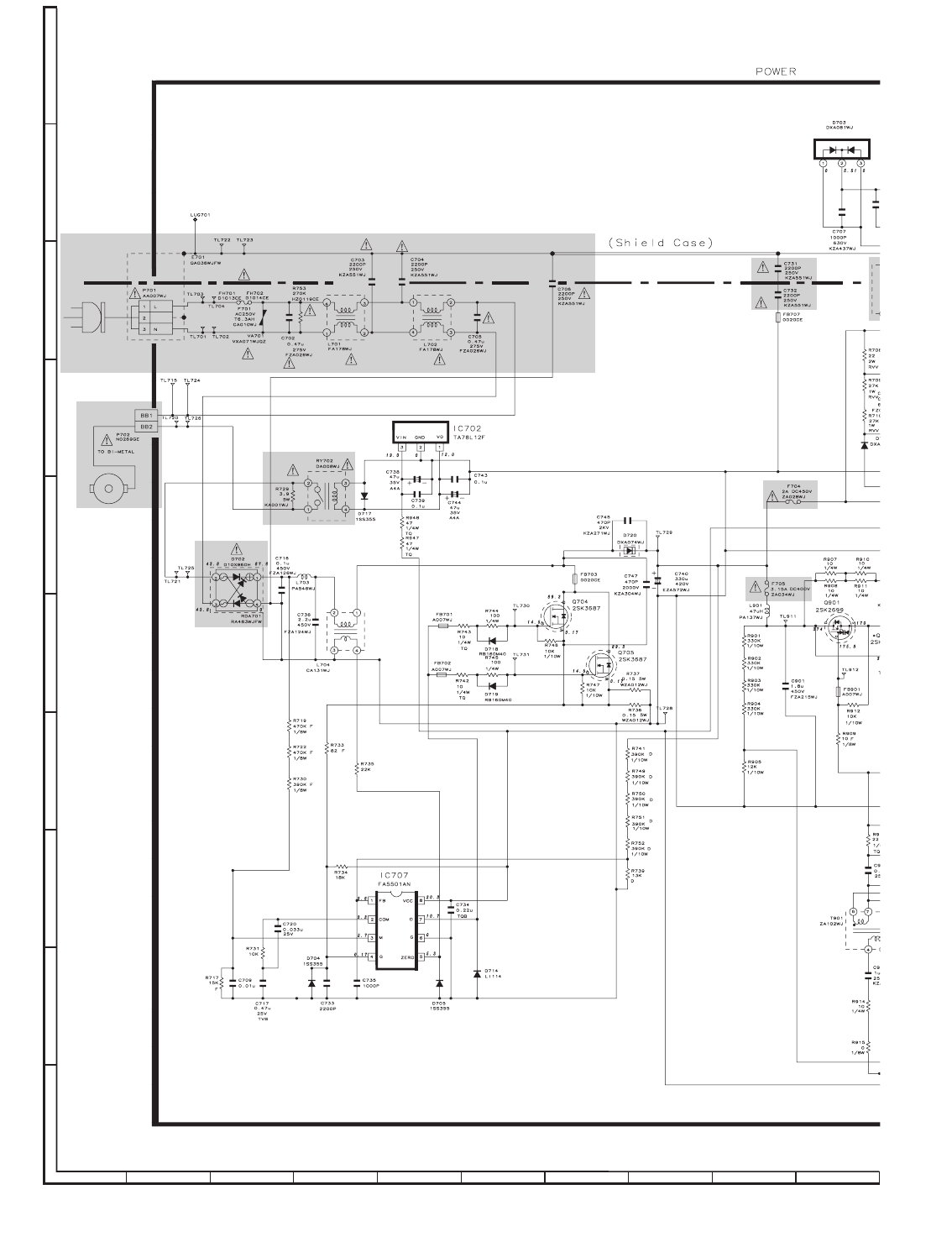

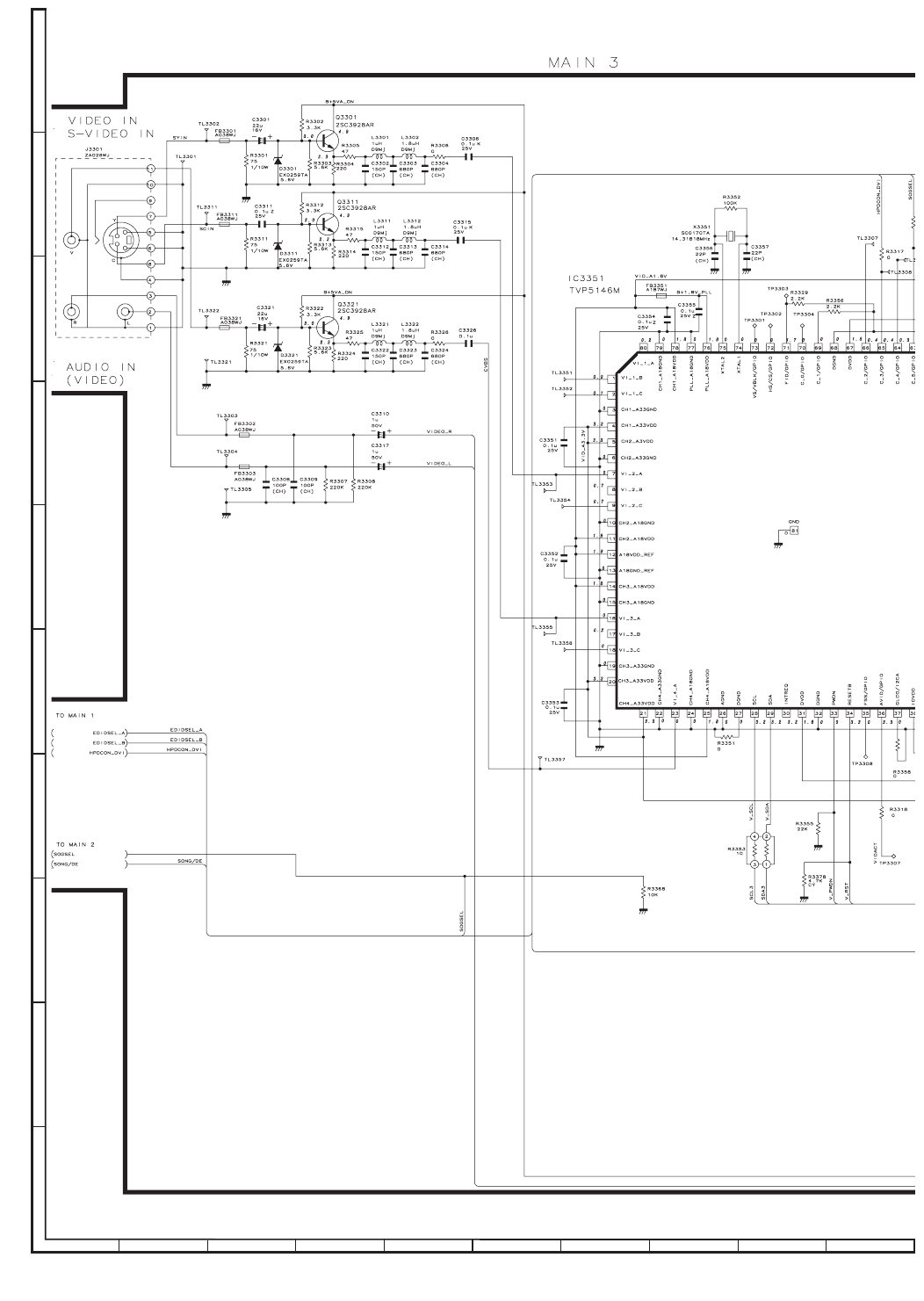

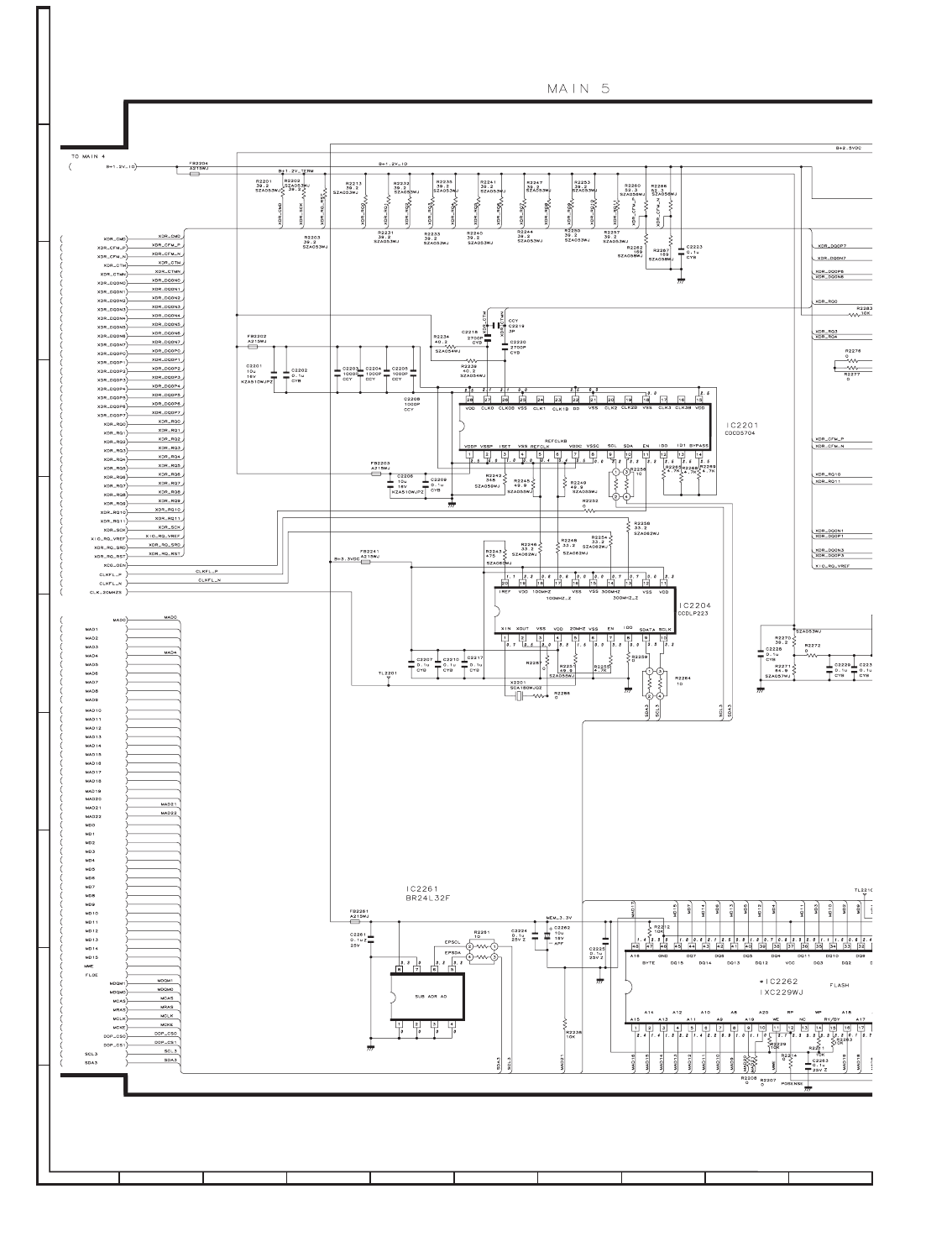

CHAPTER 10. SCHEMATIC DIAGRAM
[1] DESCRIPTION OF SCHEMATIC DIA-
GRAM..........................................................10-1

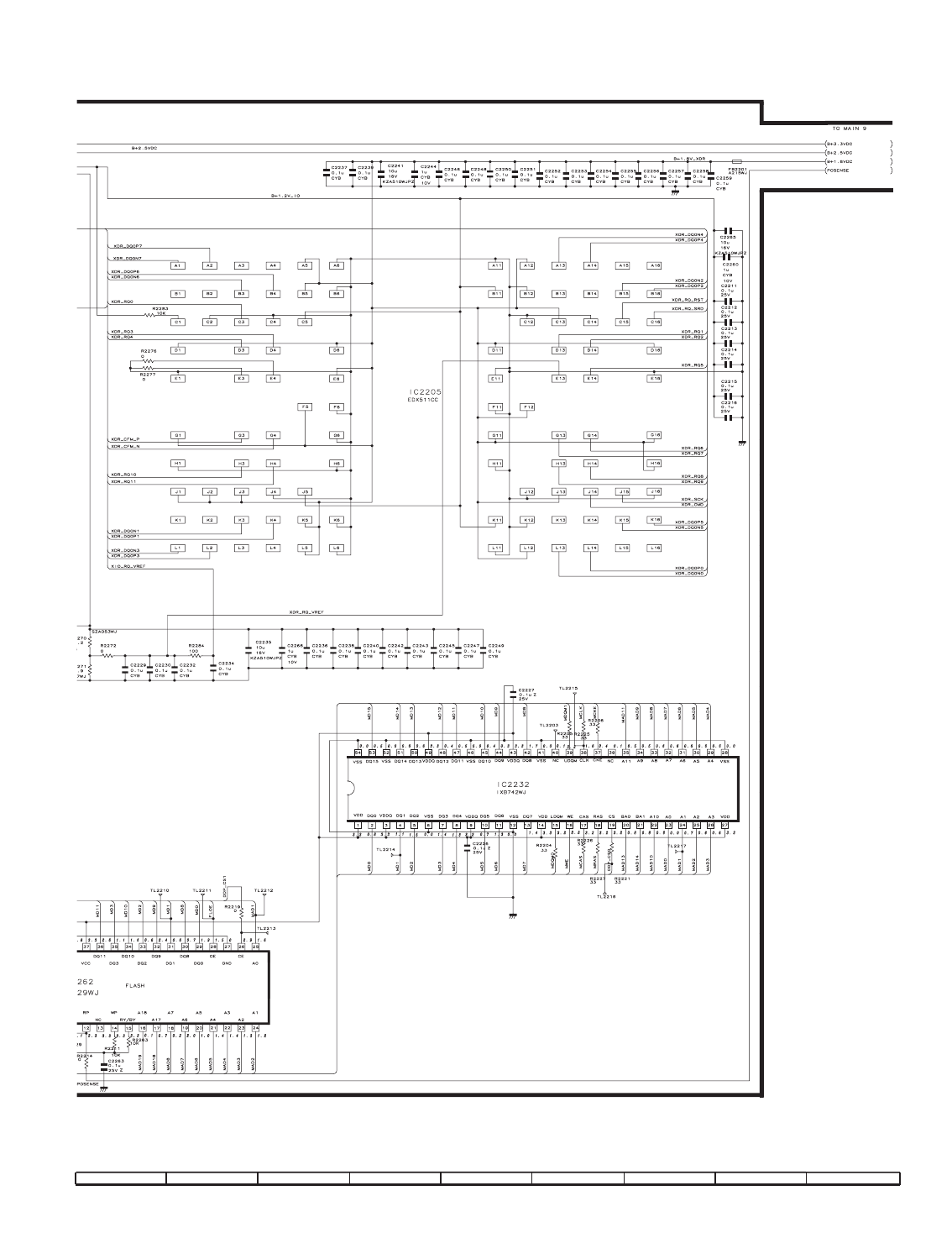

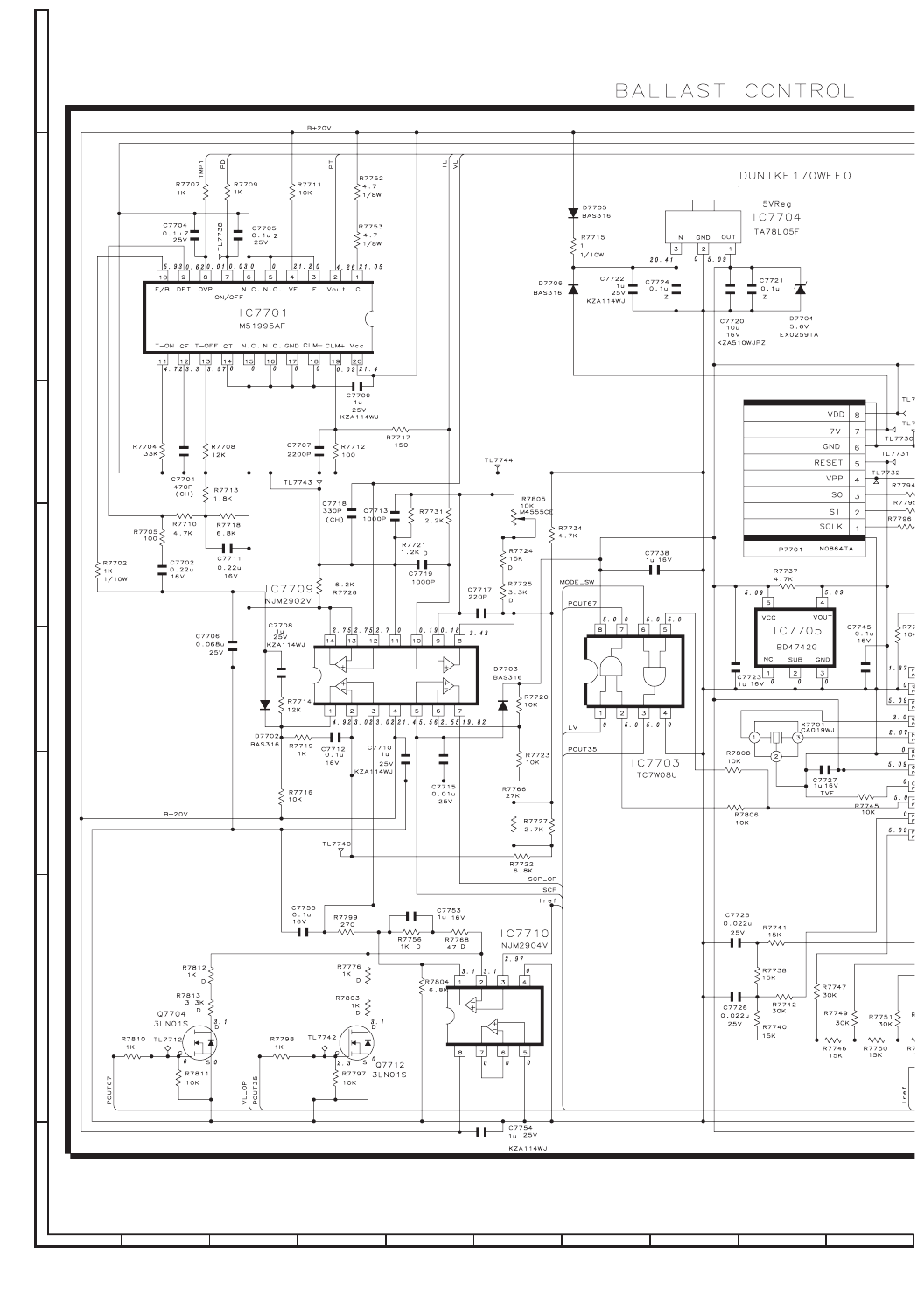

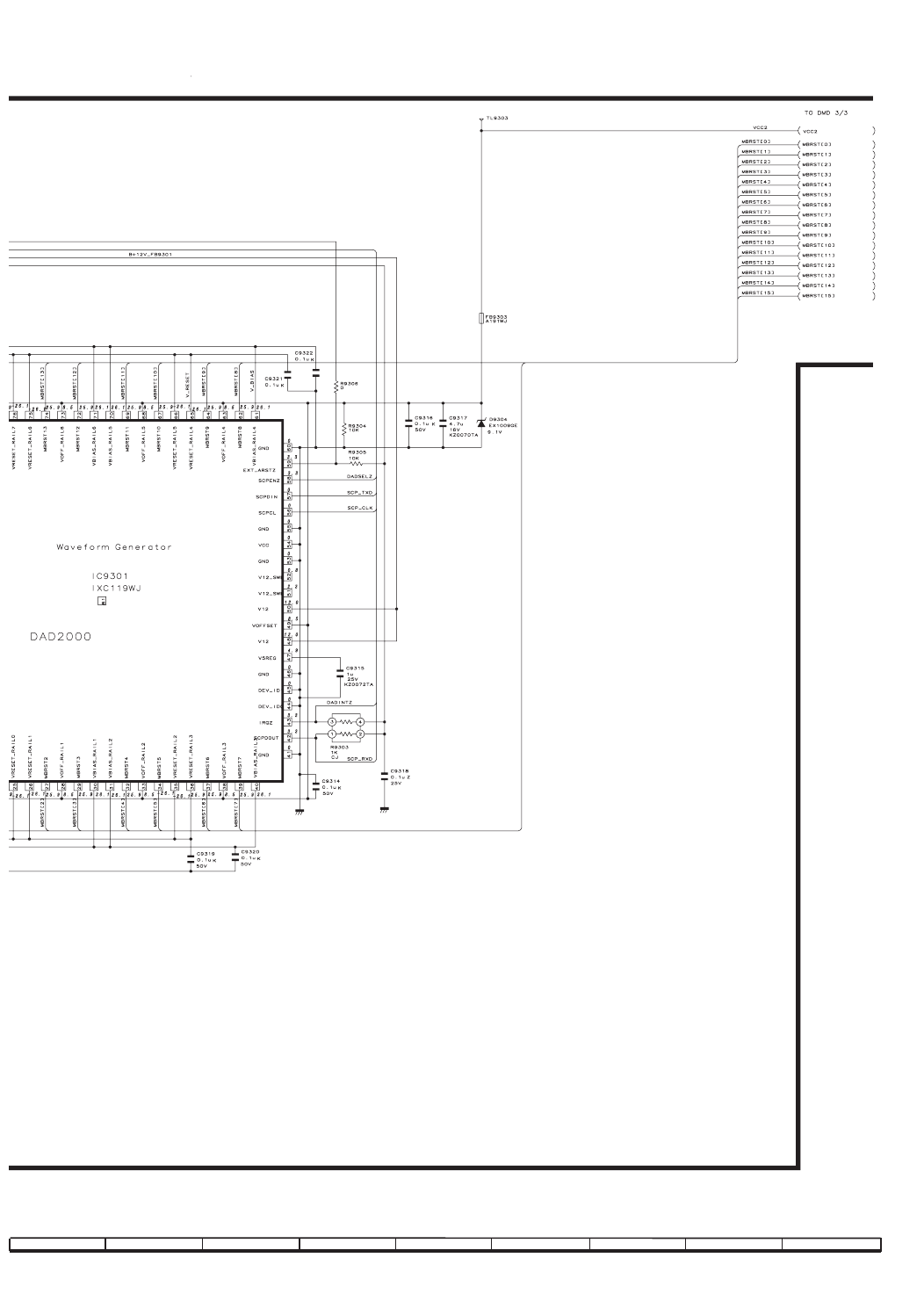

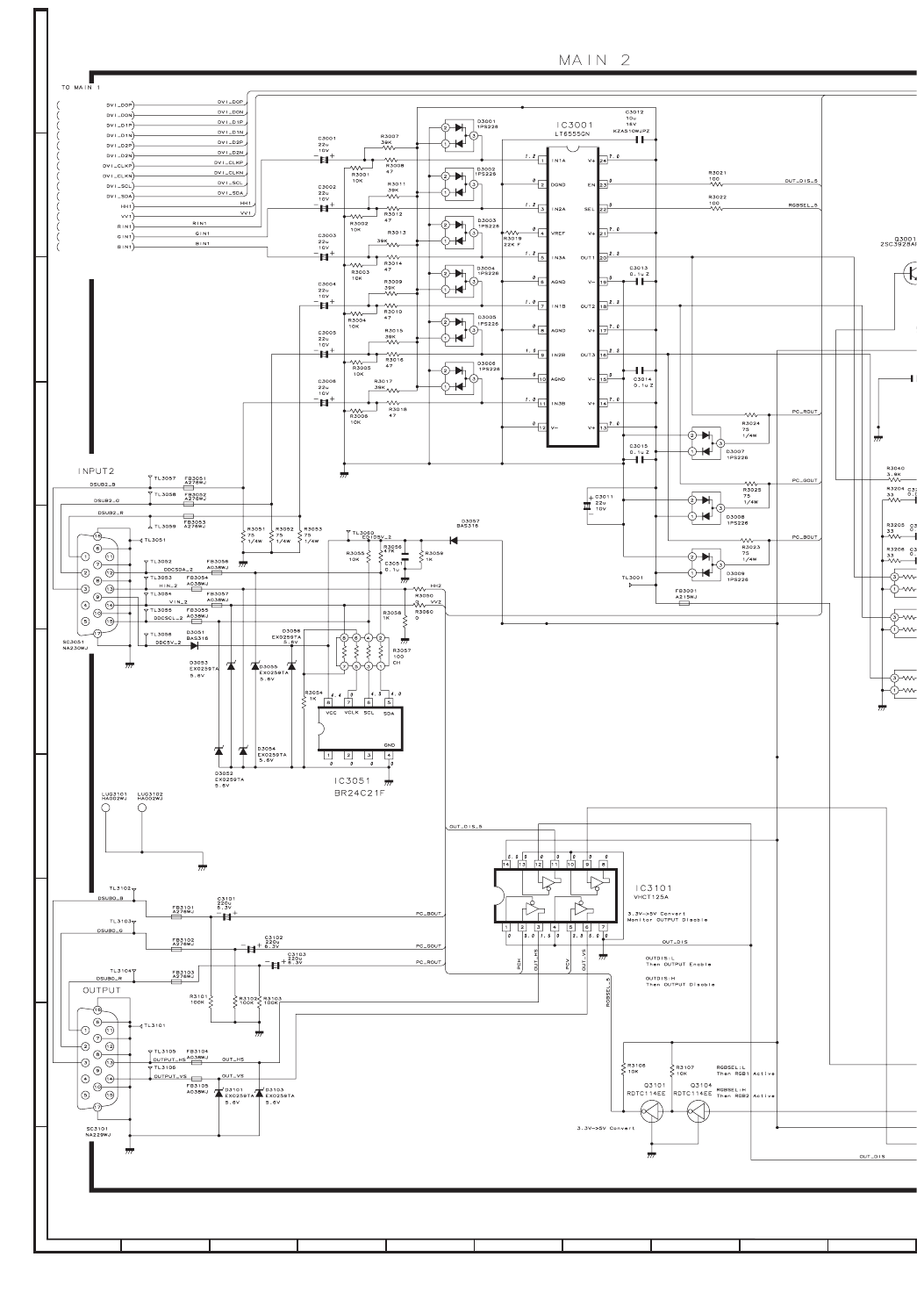

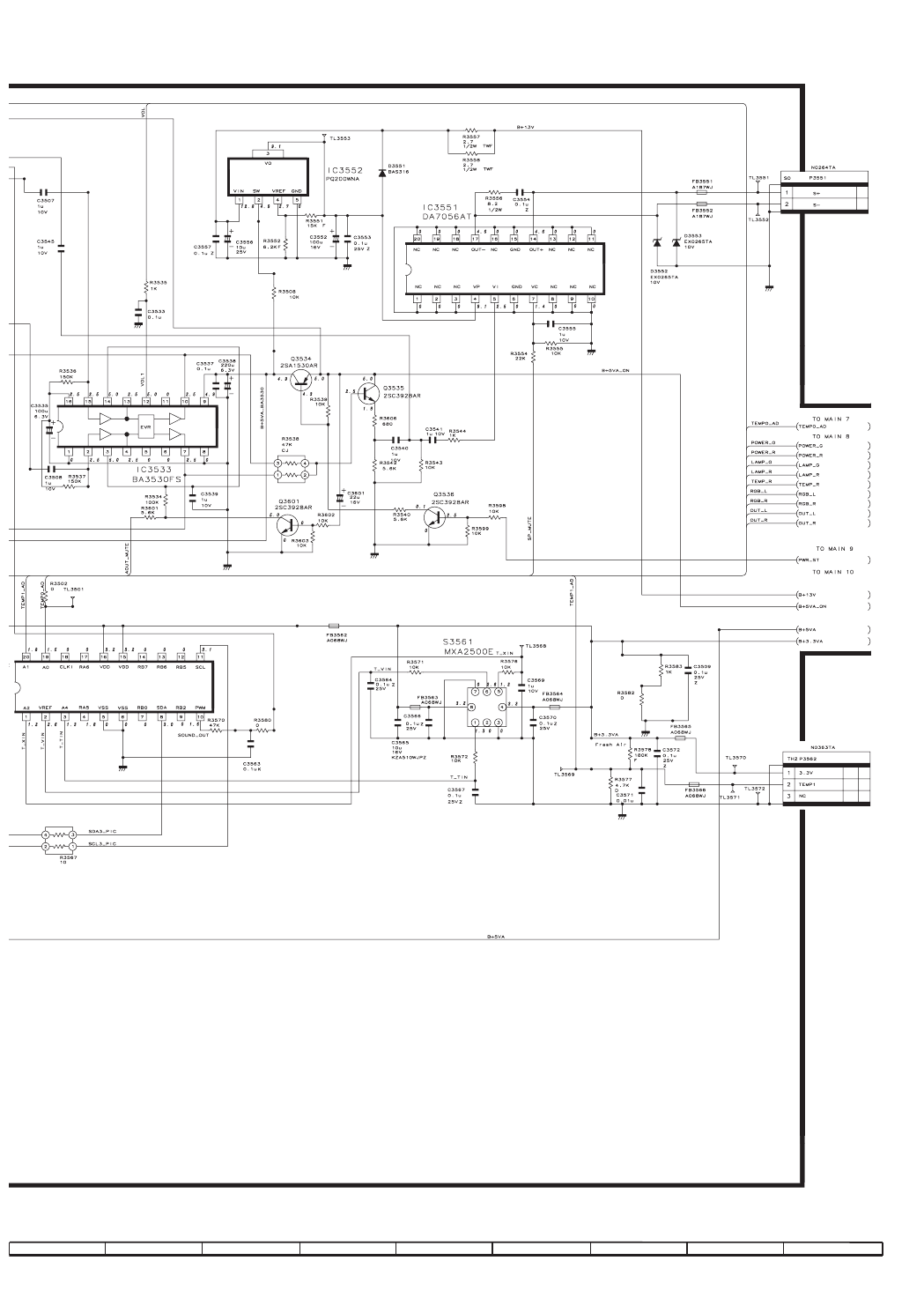

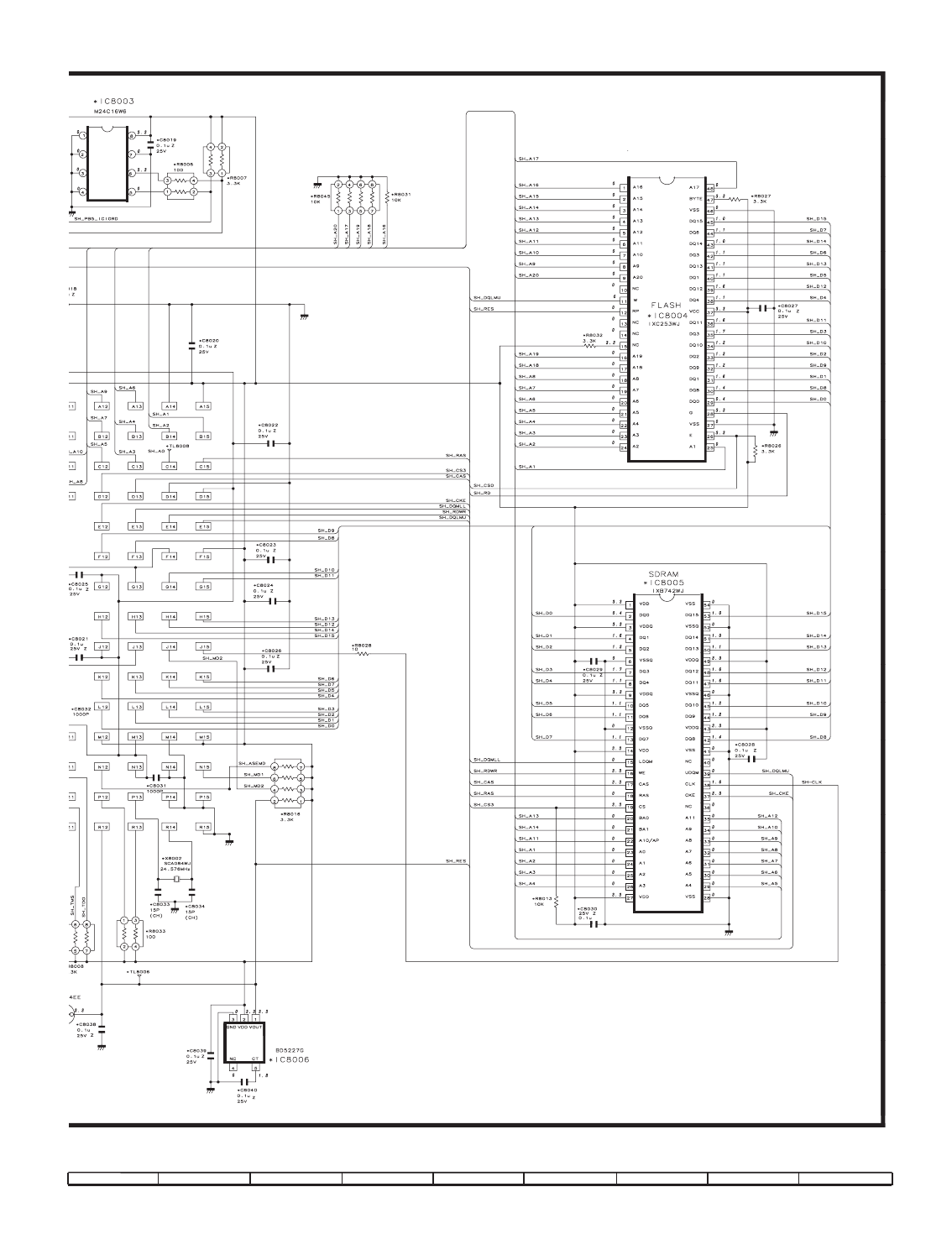

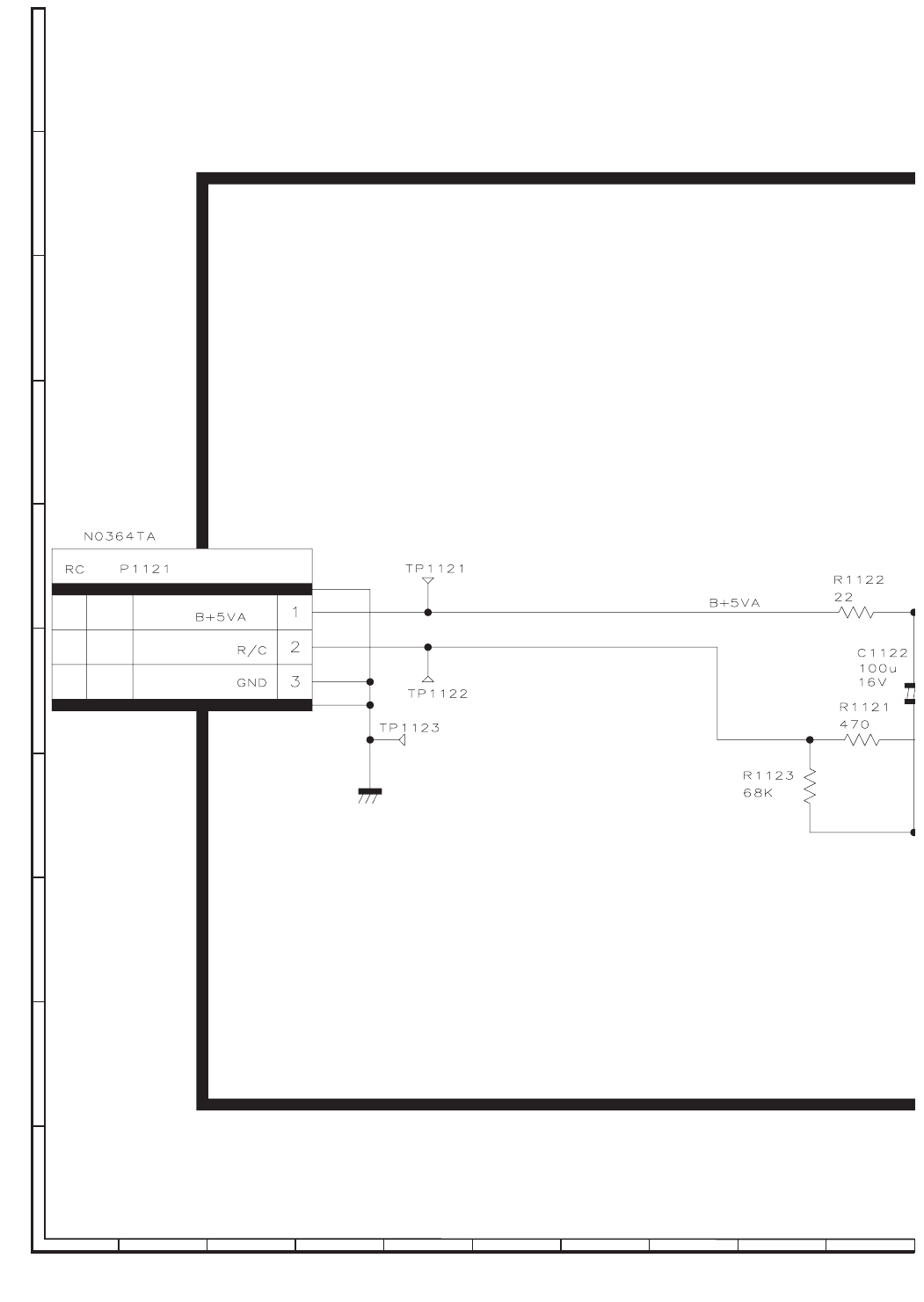

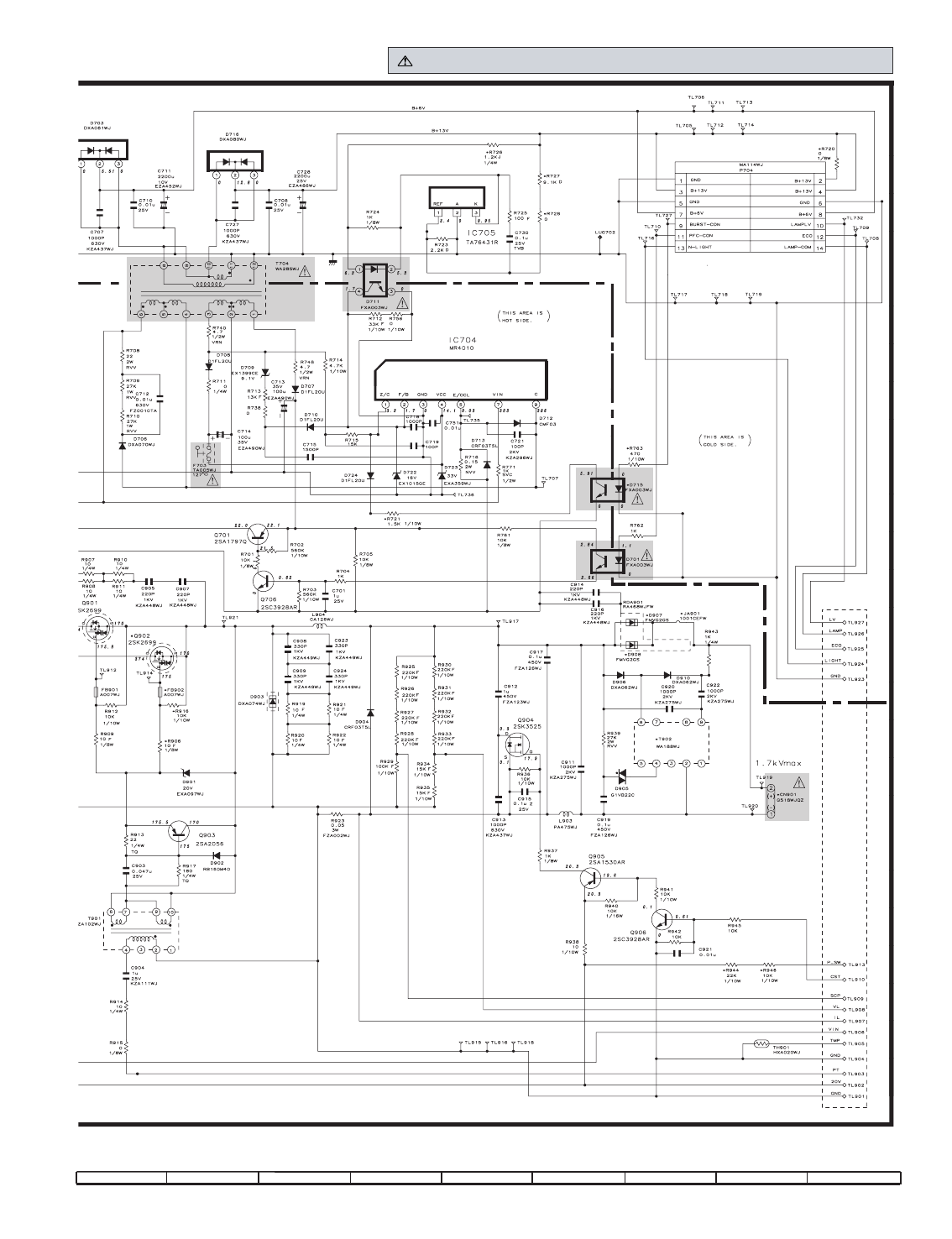

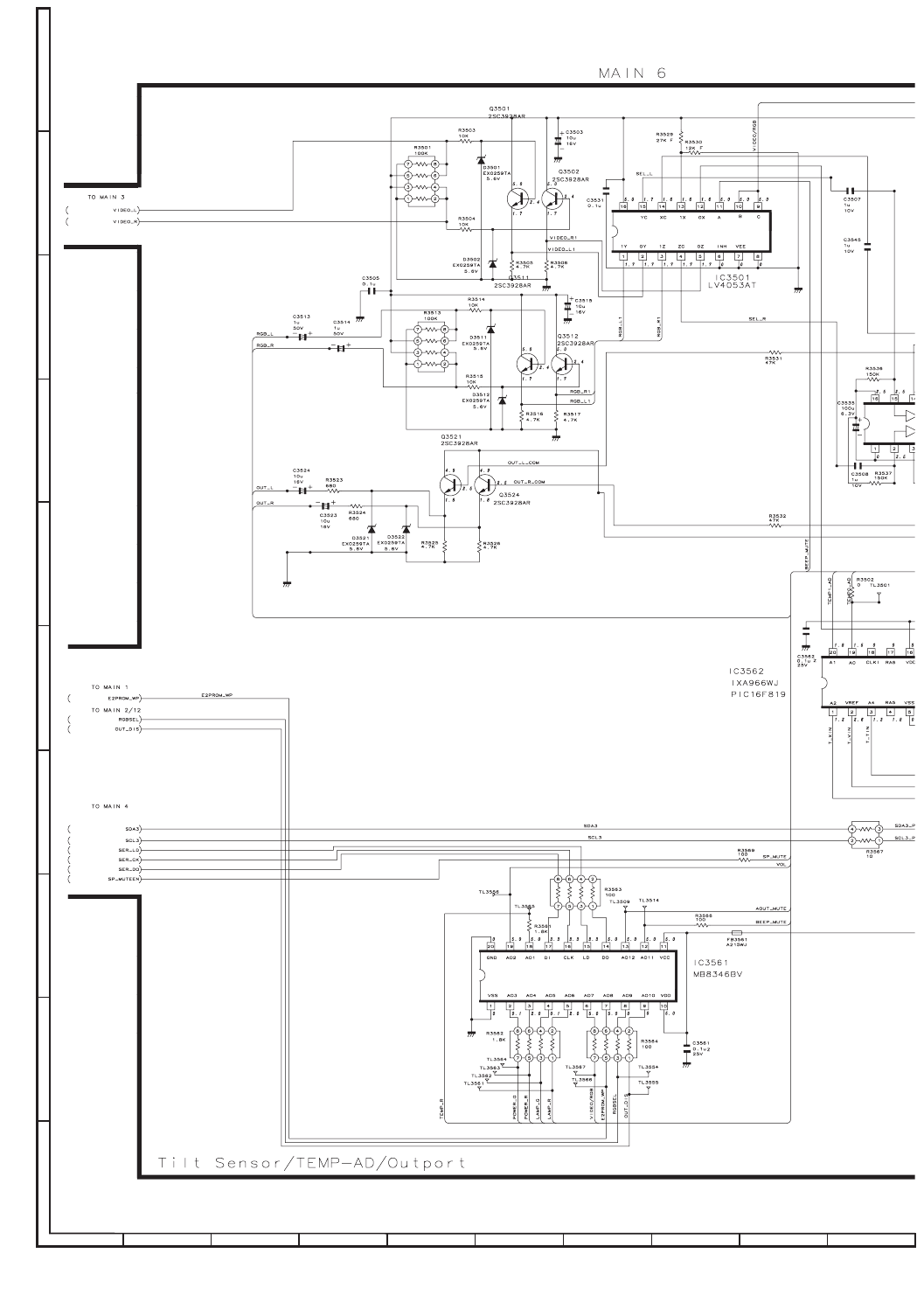

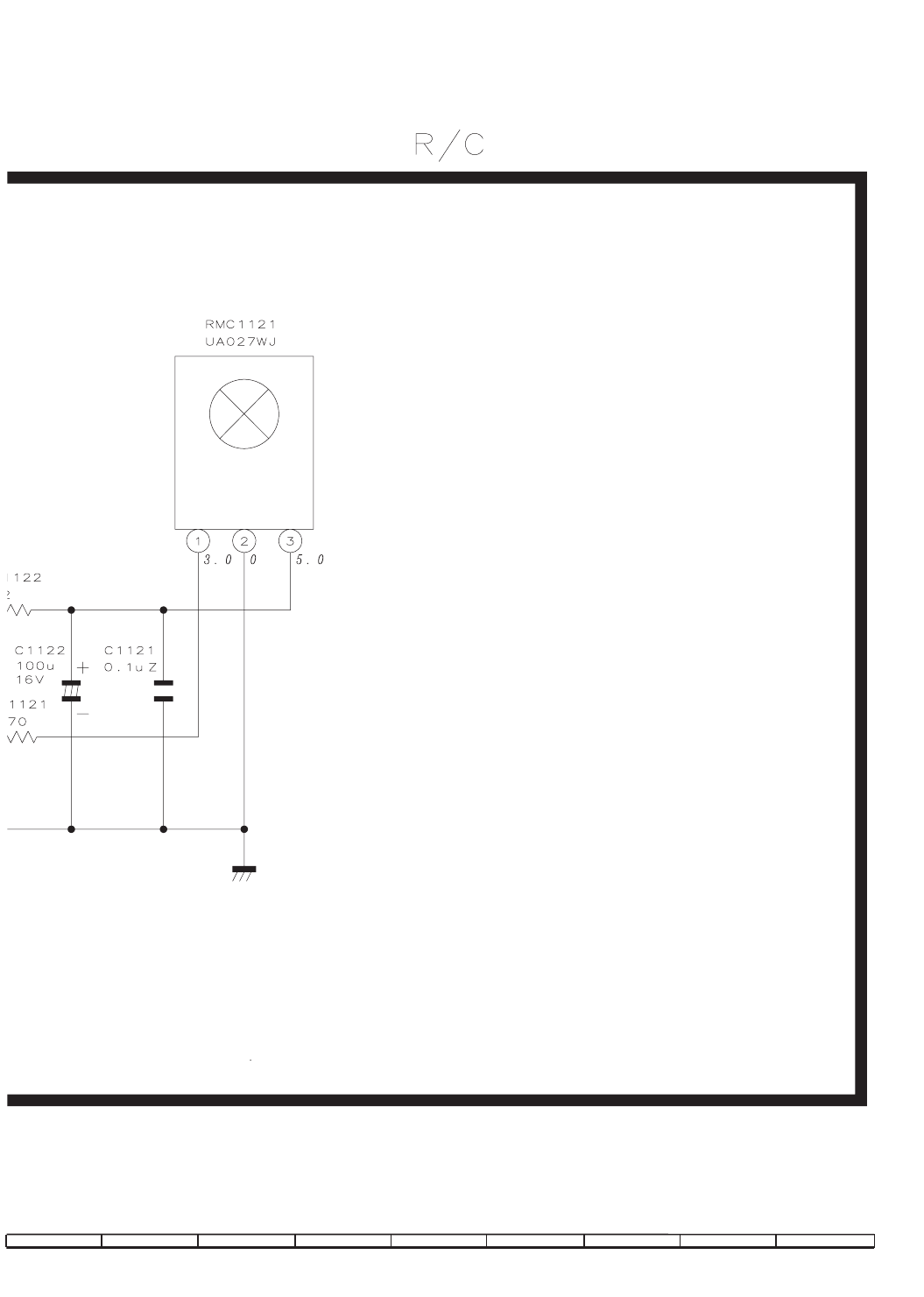

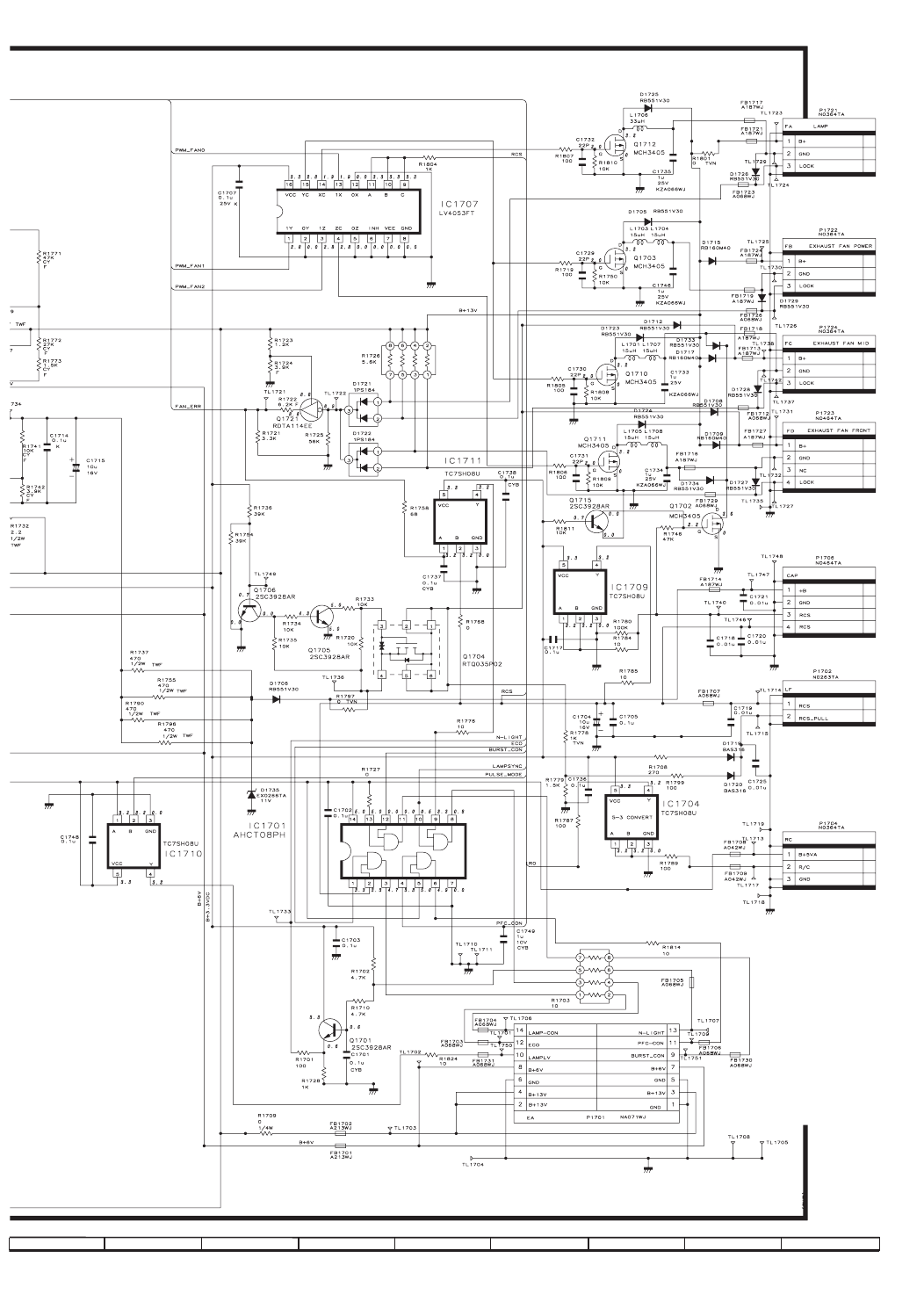

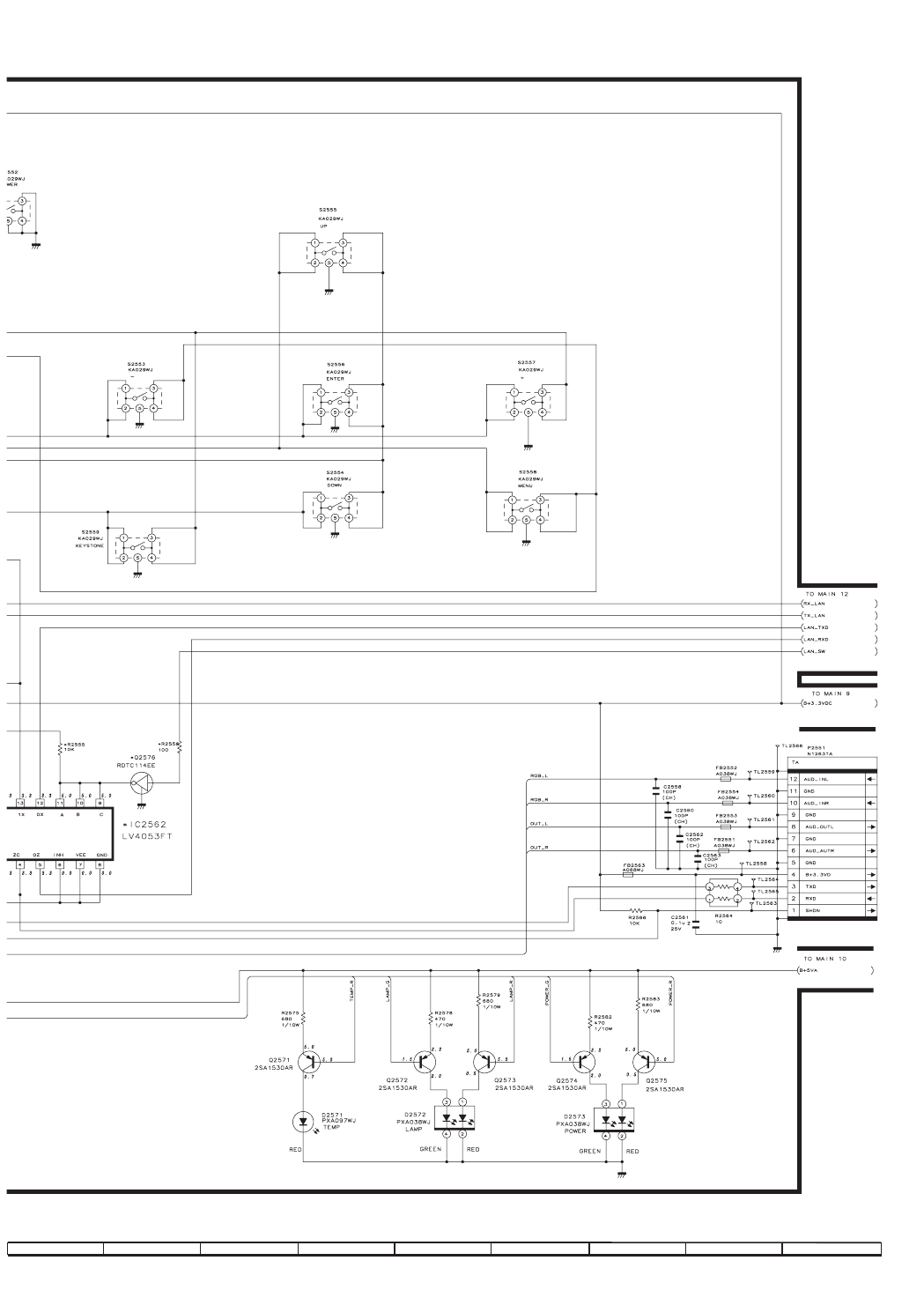

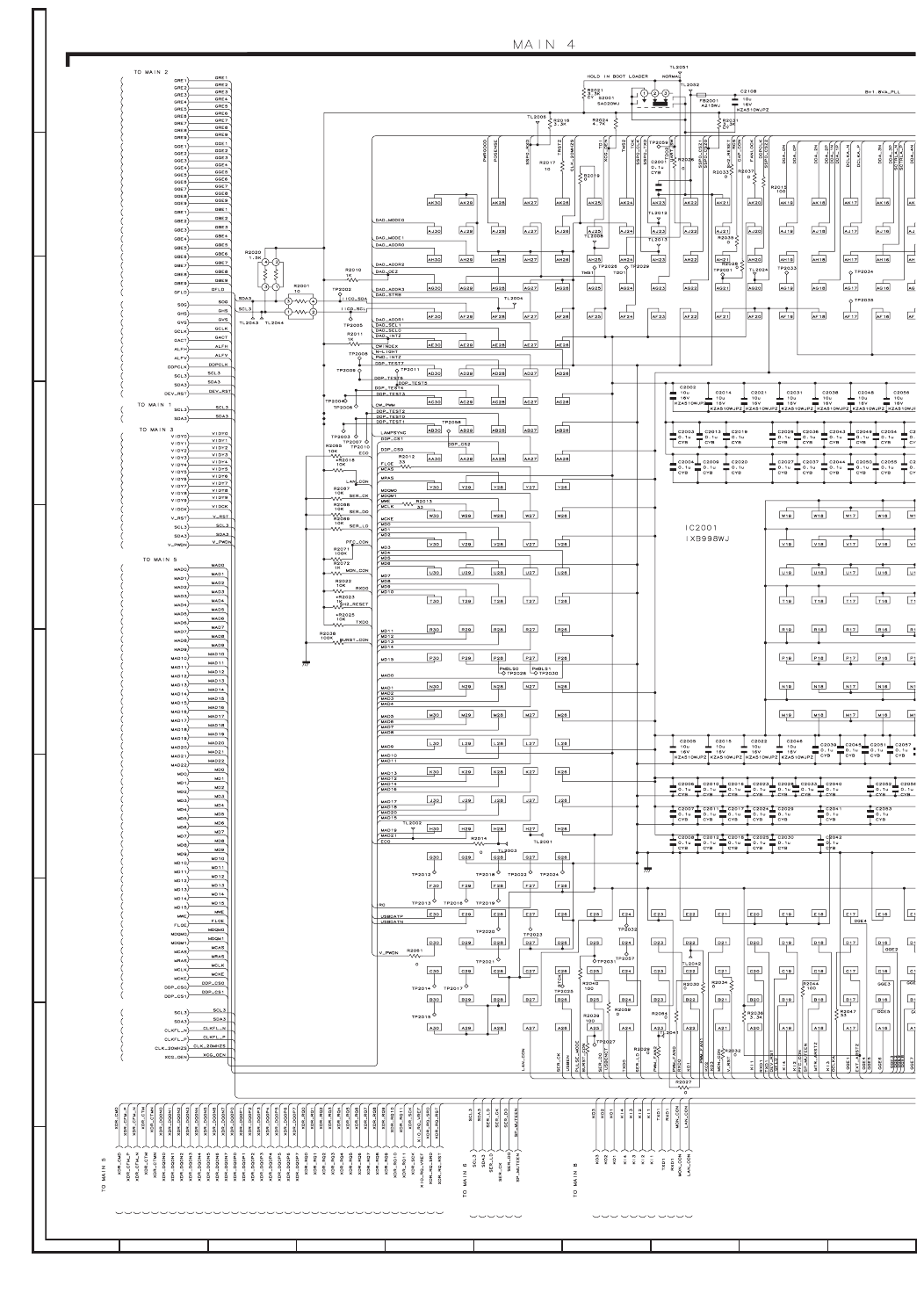

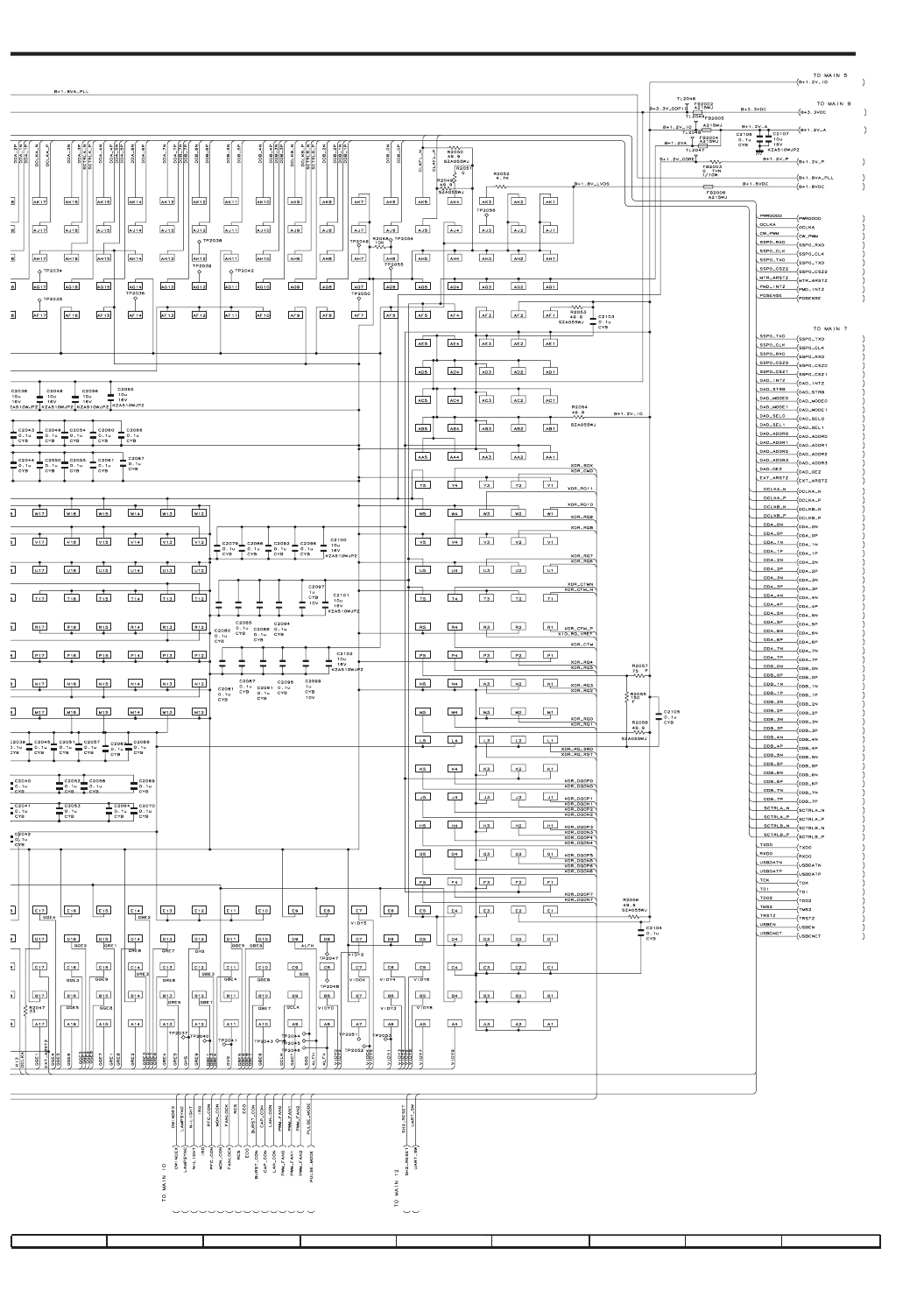

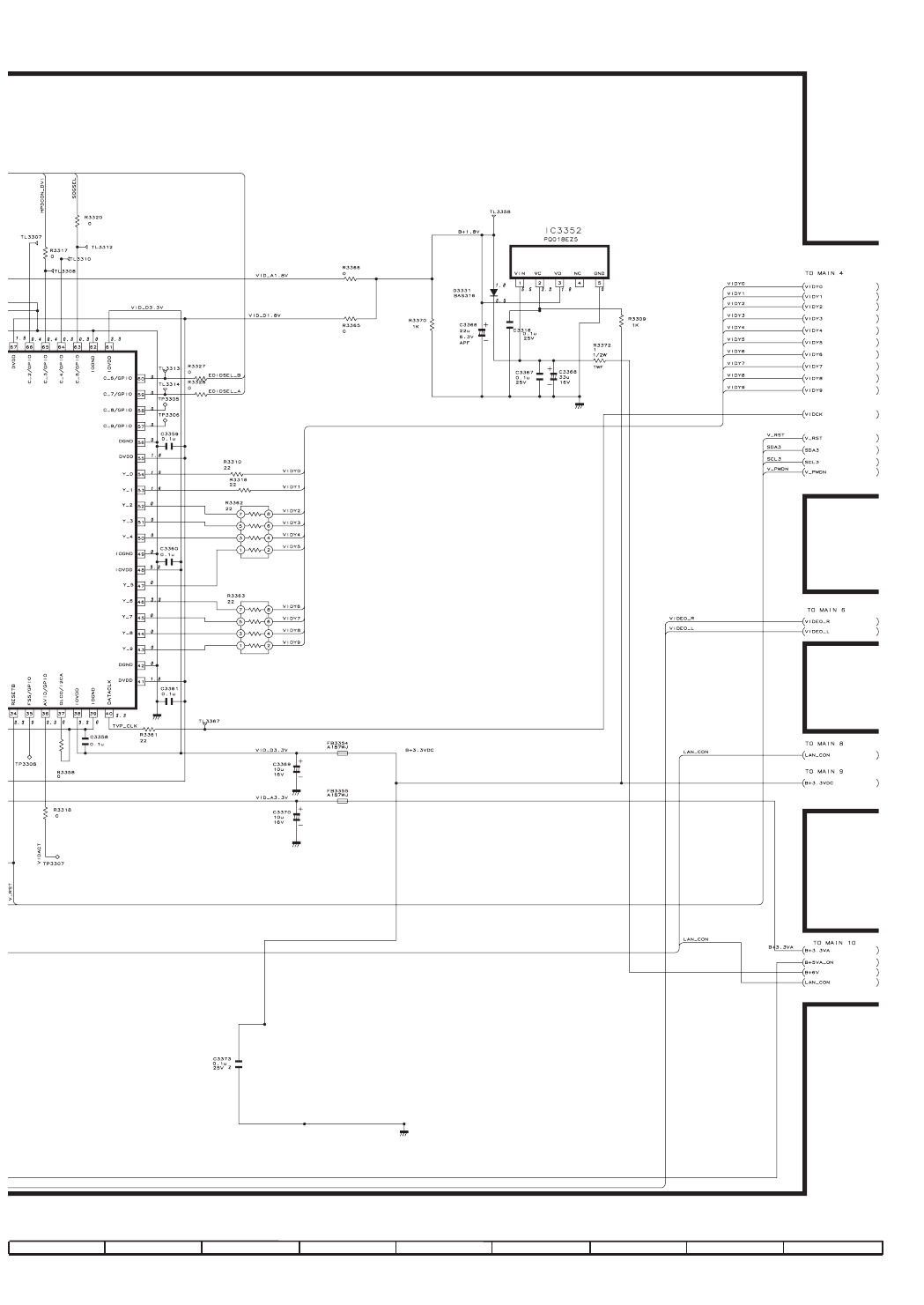

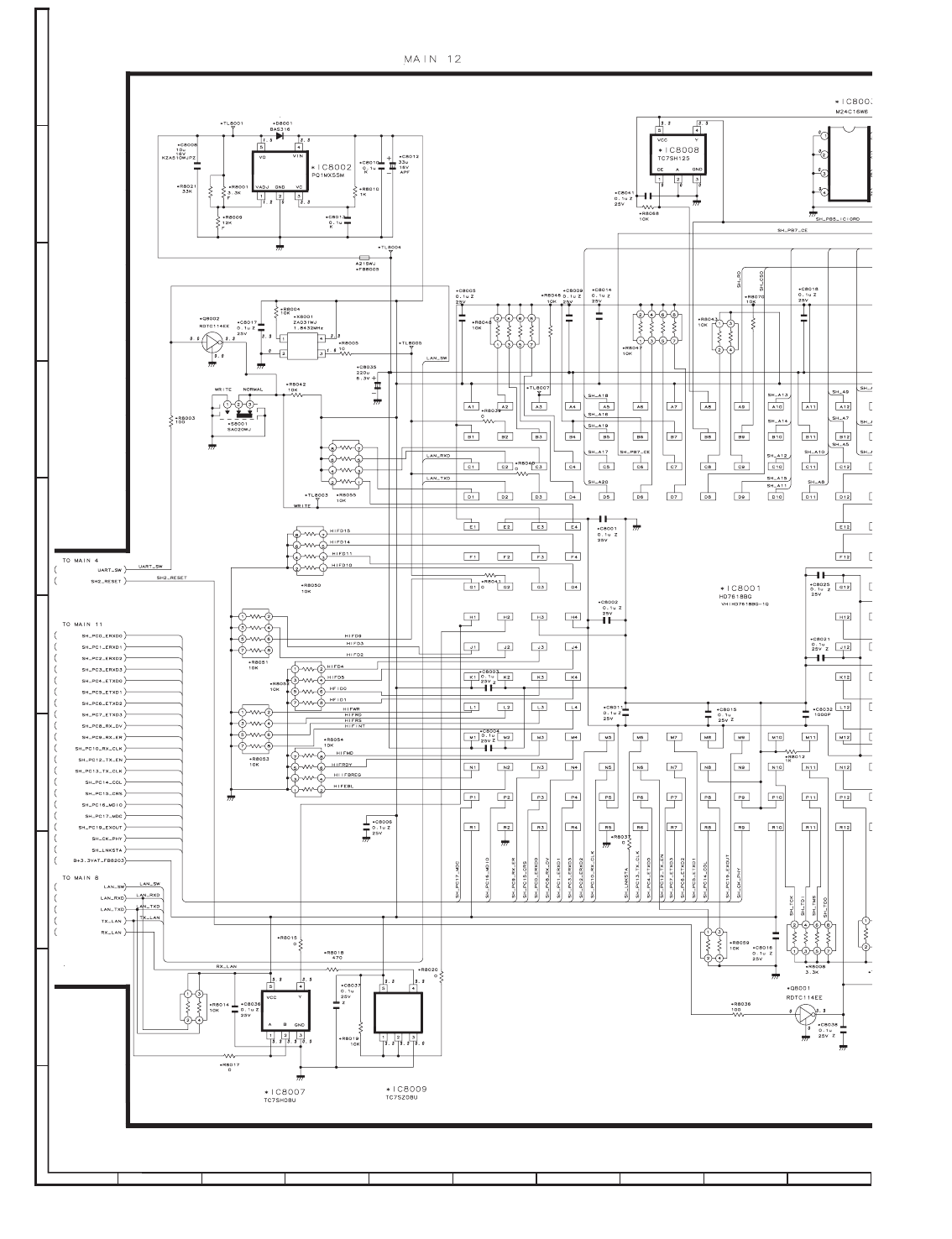

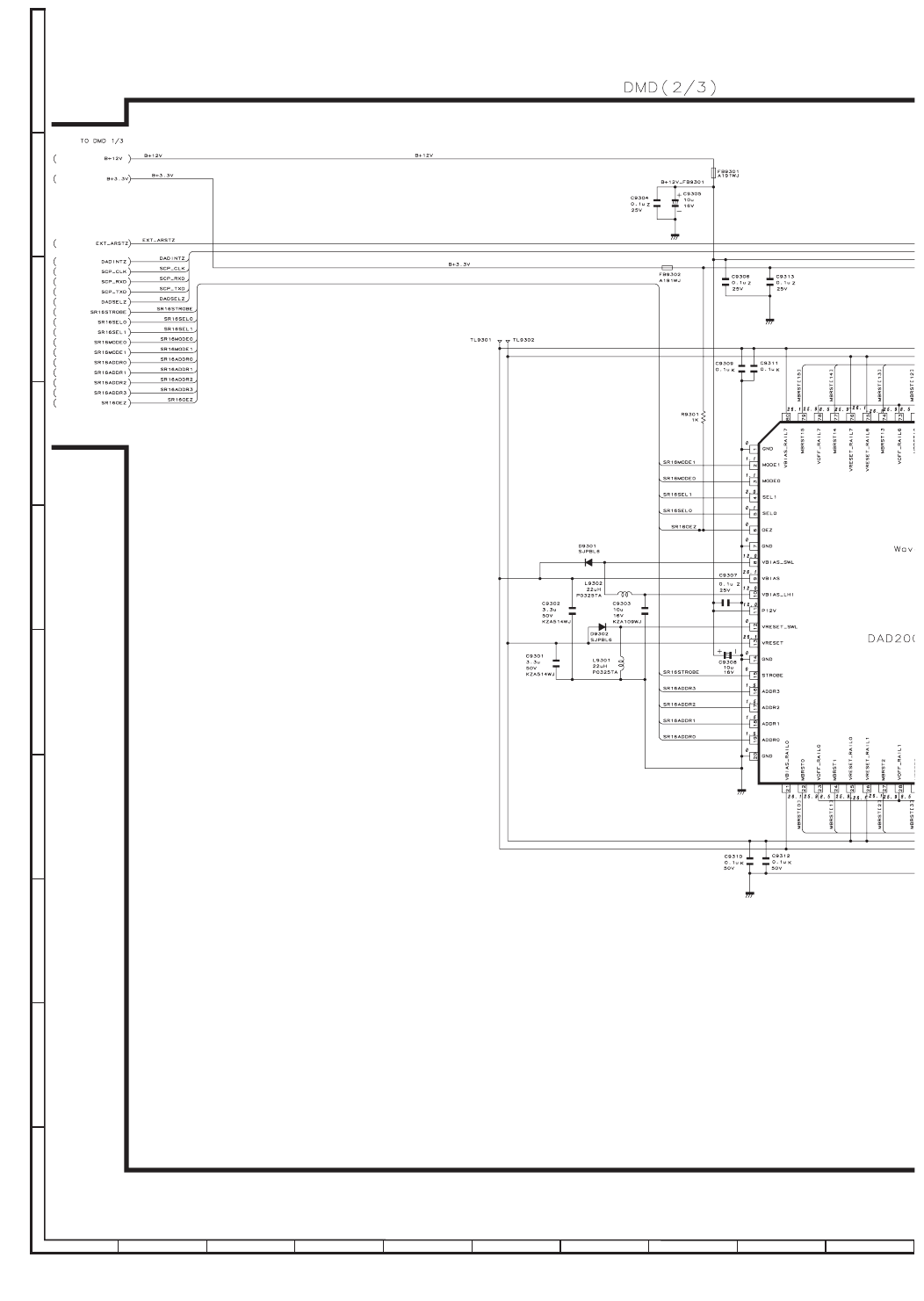

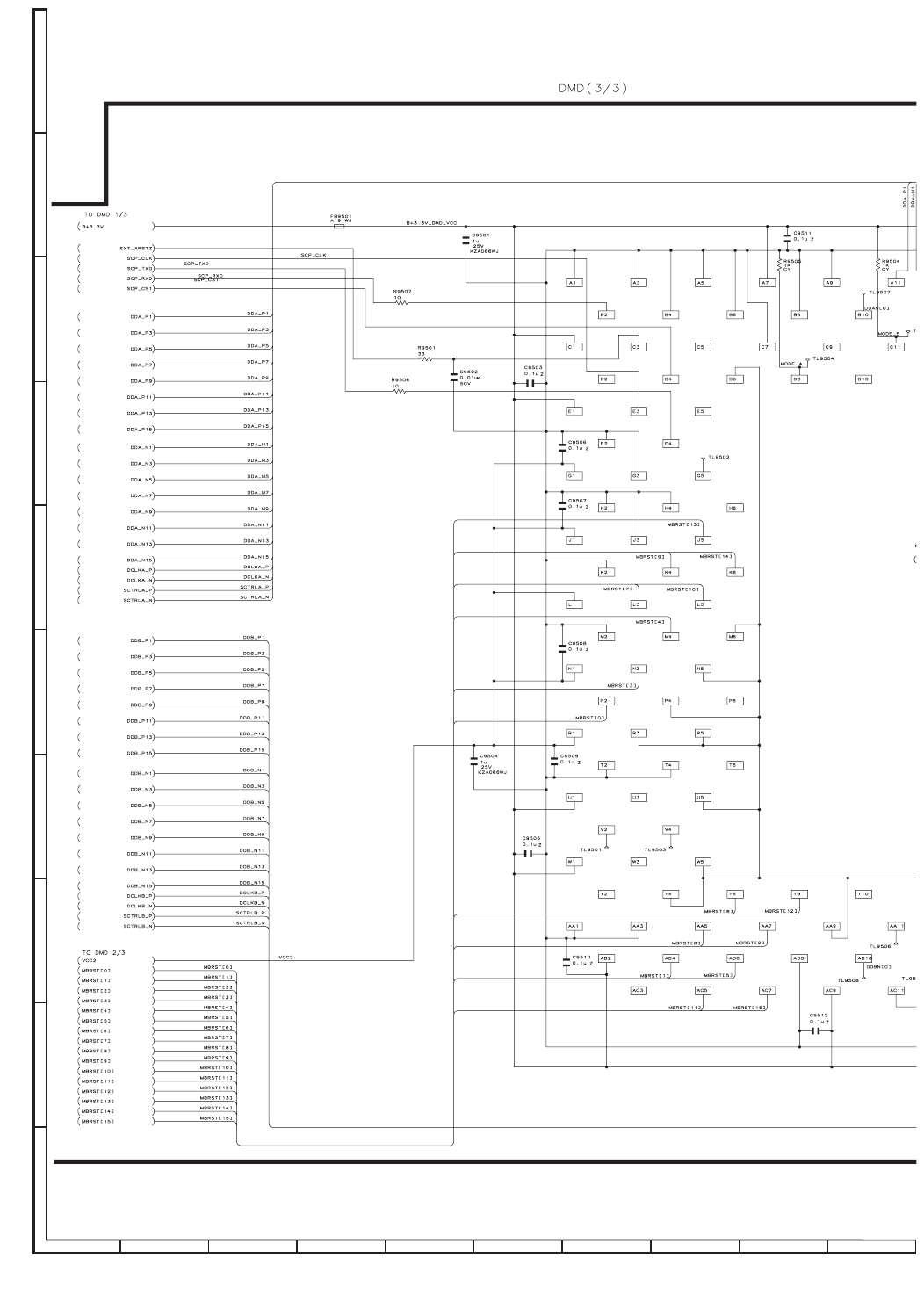

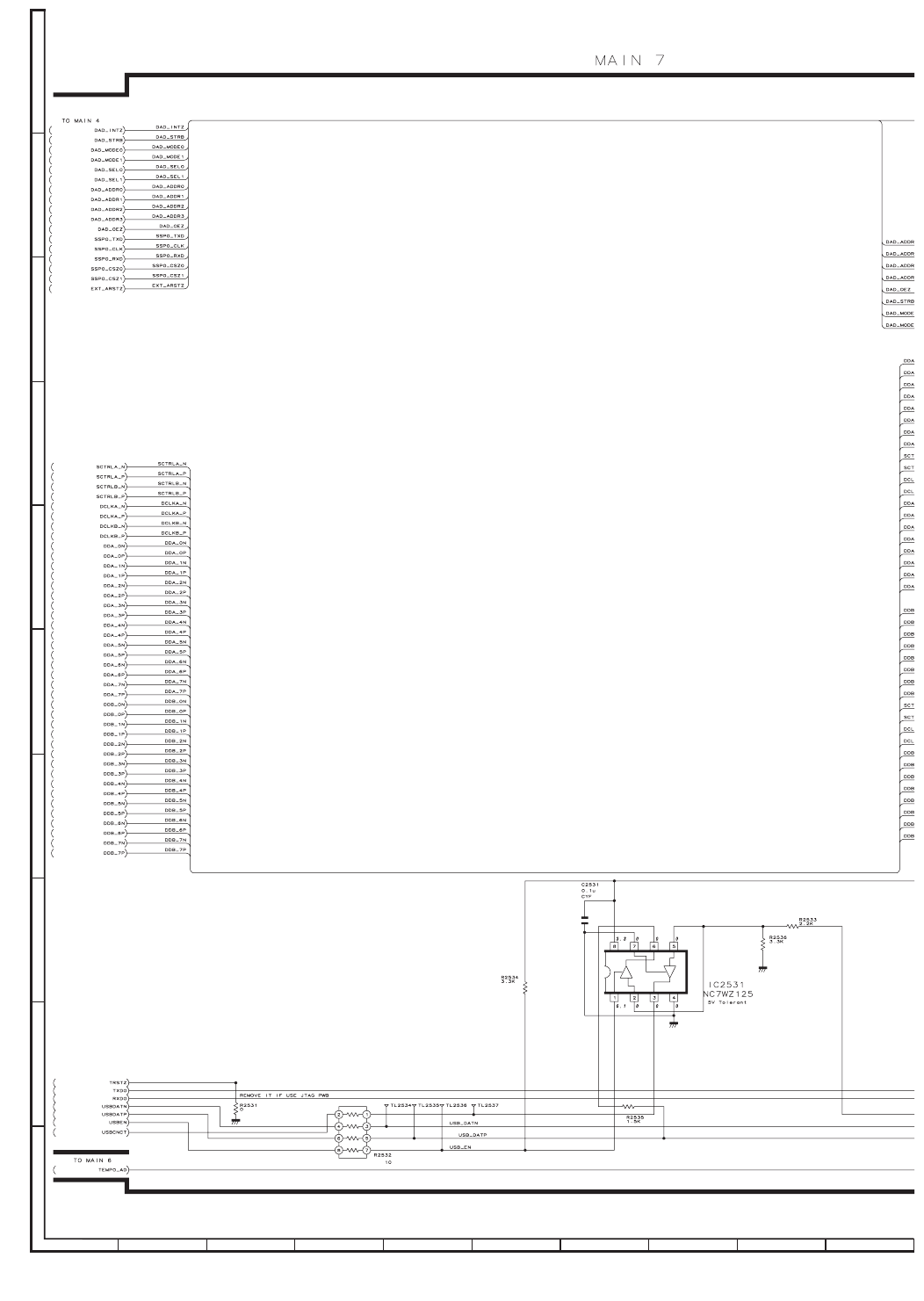

[2] SCHEMATIC DIAGRAM ..............................10-2

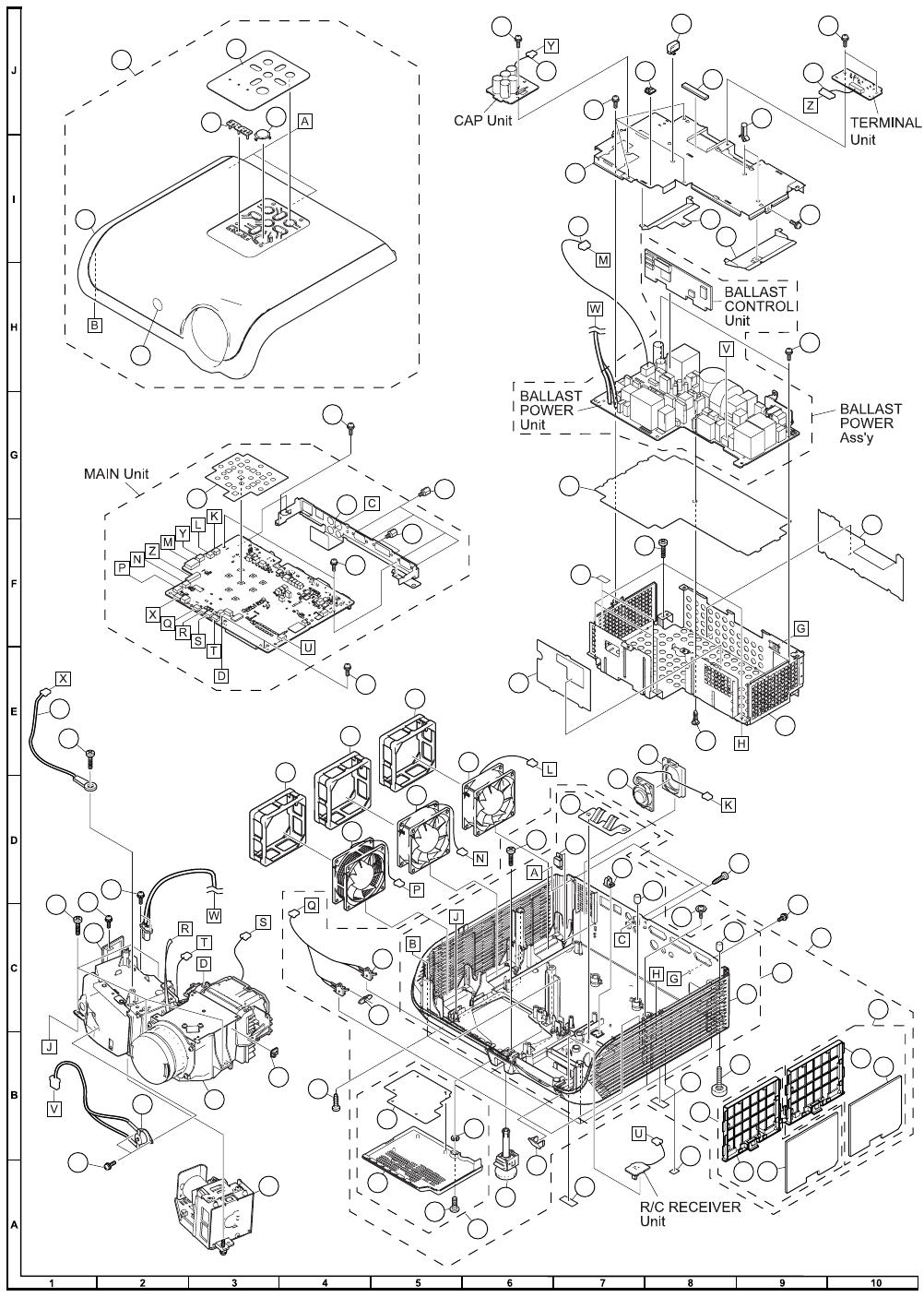

Parts Guide
TopPage
CONTENTS
PG-F320W
DATA PROJECTOR
PG-F320W
MODEL
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.
No. S87P4PG-F320W
PG-F320W
i
PG-F320W Service Manual
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY NOTES
IMPORTANT SERVICE SAFETY NOTES (for USA)
Service work should be performed only by qualified service technicians who are
thoroughly familiar with all safety checks and servicing guidelines as follows:
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
BEFORE RETURNING THE PROJECTOR:
(Fire & Shock Hazard)
Before returning the projector to the user, perform
the following safety checks:
1. Inspect lead wires are not pinched between the chassis
and other metal parts of the projector.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.

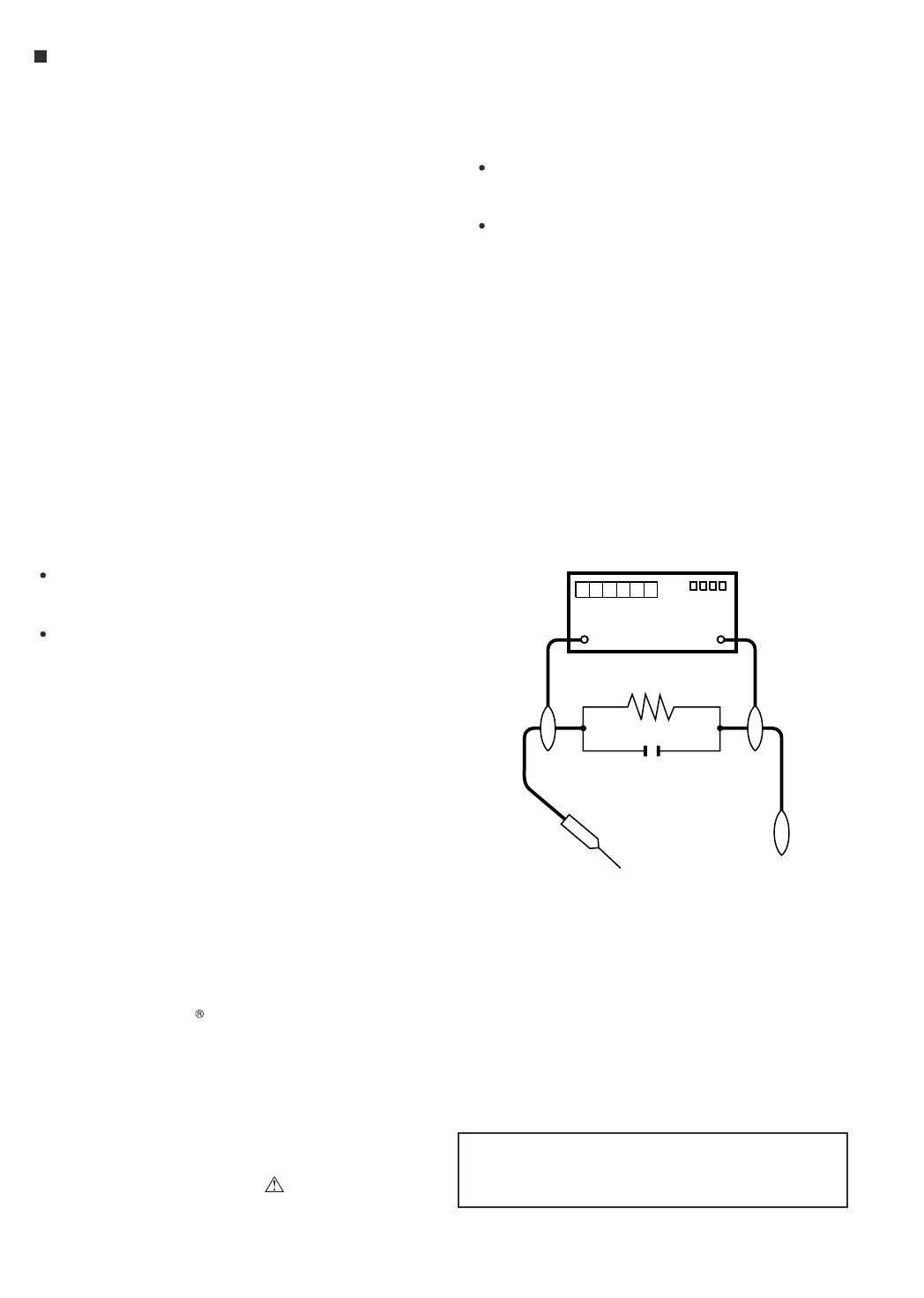

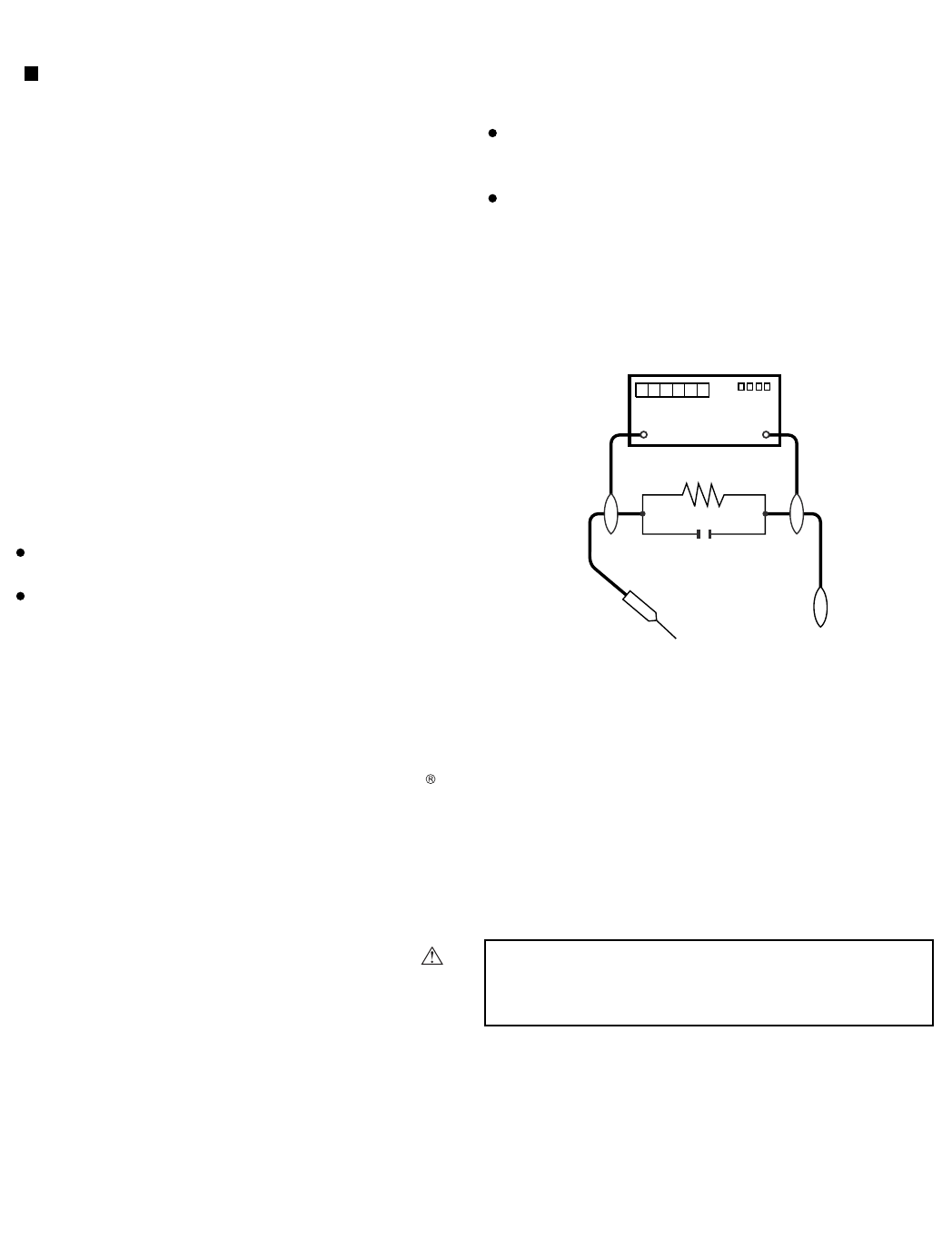

3. To be sure that no shock hazard exists, check for
current leakage in the following manner:
Plug the AC cord directly into a 120-volt AC outlet,
(Do not use an isolation transformer for this test).
Using two clip leads, connect a 1.5k ohm, 10 watt
resistor paralleled by a 0.15 µF capacitor in parallel
between all exposed metal cabinet parts and earth
ground.
Use an AC voltmeter with sensitivity of 5000 ohm per
volt., or higher, sensitivity to measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC plug
connection reversed. (If necessary, a non-polarized
adapter plug must be used only for the purpose of
completing these checks.)
Any reading of 0.4 volts RMS (this corresponds to 0.27
milliamp. AC.) or more is excessive and indicates a
potential shock hazard which must be corrected before
returning the unit to the owner.
SAFETY NOTICE
Many electrical and mechanical parts in DLP
Projector have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by “ ”
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams. For continued protection,
replacement parts must be identical to those used in
the original circuit. The use of a substitute replacement
parts which do not have the same safety characteristics
as the factory recommended replacement parts shown
in this service manual, may create shock, fire or other
hazards.
WARNING: The bimetallic component has the primary
conductive side exposed. Be very careful in
handling this component when the power is on.
DVM
AC SCALE
1.5k ohm
10 W
TO EXPOSED
METAL PARTS CONNECT TO
KNOWN EARTH
GROUND
0.15 µF
TEST PROBE
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
PG-F320W
ii
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement
accoutumé à toute vérification de sécurité et aux conseils suivants.
AVERTISSEMENT
1. N'entreprendre aucune modification de tout circuit.
C'est dangereux.
2. Débrancher le récepteur avant toute réparation.
VERIFICATIONS CONTRE L'INCEN-DIE ET
LE CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer
les vérifications suivantes.
1. Inspecter tous les faisceaux de câbles pour s'assurer
que les fils ne soient pas pincés ou qu'un outil ne soit
pas placé entre le châssis et les autres pièces
métalliques du récepteur.
2. Inspecter tous les dispositifs de protection comme les
boutons de commande non-métalliques, les isolants, le
dos du coffret, les couvercles ou blindages de réglage
et de compartiment, les réseaux de résistance-capacité,
les isolateurs mécaniques, etc.
3. S'assurer qu'il n'y ait pas de danger d'électrocution en
vérifiant la fuite de courant, de la facon suivante:
Brancher le cordon d'alimentation directem-ent à une
prise de courant de 120-V. (Ne pas utiliser de tran
sformateur d'isolation pour cet essai).
A l'aide de deux fils à pinces, brancher une résistance
de 1.5 kΩ10 watts en parallèle avec un condensateur
de 0.15µF en série avec toutes les pièces métalliques
exposées du coffret et une terre connue comme une
conduite électrique ou une prise de terre branchée à la
terre.
Utiliser un voltmètre CA d'une sensibilité d'au moins
5000Ω/V pour mesurer la chute de tension en travers
de la résistance.
Toucher avec la sonde d'essai les pièces métalliques
exposées qui présentent une voie de retour au châssis
(antenne, coffret métallique, tête des vis, arbres de
commande et des boutons, écusson, etc.) et mesurer la
chute de tension CA en-travers de la résistance. Toutes
les vérifications doivent être refaites après avoir inversé
la fiche du cordon d'alimentation. (Si nécessaire, une
prise d'adpatation non polarisée peut être utilisée dans
le but de terminer ces vérifications.)
La tension de pointe mesurèe ne doit pas dépasser 0.4V
(correspondante au courant CA de pointe de 0.27mA).
Dans le cas contraire, ilyaunepossibilité de choc
électrique qui doit être supprimée avant de rendre le
récepteur au client.
DVM
ECHELLE CA
1.5k ohm
10 W
0.15
µ
F
SONDE D'ESSAI
AUX PIECES
METALLIQUES
EXPOSEES
BRANCHER A UNE
TERRE CONNUE
AVIS POUR LA SECURITE
De nombreuses pièces, électriques et mécaniques, dans
les projecteur à DLP présentent des caractéristiques
spéciales relatives à la sécurité, qui ne sont souvent pas
évidentes à vue.
Le degré de protection ne peut pas être nécessairement
augmentée en utilisant des pièces de remplacement
étalonnées pour haute tension, puissance, etc.
Les pièces de remplacement qui présentent ces
caractéristiques sont identifiées dans ce manuel;
les pièces électriques qui présentent ces particularités
sont identifiées par la marque “ ” et hachurées dans la
liste des pièces de remplacement et les diagrammes
schématiques. Pour assurer la protection, ces pièces
doivent être identiques à celles utilisées dans le circuit
d’origine. L’utilisation de pièces qui n’ont pas les mêmes
caractéristiques que les pièces recommandées par l’usine,
indiquées dans ce manuel, peut provoquer des
électrocutions, incendies ou autres accidents.
AVERTISSEMENT: La composante bimétallique dispose du
conducteur primaire dénudé. Faire attention
lors de la manipulation de cette
composante sous tension.
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
PG-F320W
iii
NOTE POUR LE PERSONNEL
D'ENTRETIEN
PRECAUTION POUR LES RADIATIONS UV
La source de lumière, la lampe, dans le projecteur émet
de petites quantités de radiation UV.
EVITEZ TOUTE EXPOSITION DIRECTE DES
YEUX ET DE LA PEAU.
Pour votre sécurité, nous vous prions de respecter
les points suivants:
1.
Toujours porter des lunettes de soleil lors d’un entretien
du projecteur
avec la lampe allumée
et le haut du coffret retiré.
2. Ne pas faire fonctionner la lampe à l’extérieur du boîtier
de lampe.
3. Ne pas faire fonctionner plus de 2 heures avec le coffret
retiré.
Précautions pour les radiations UV
et la lampe moyenne pression
1. Toujours débrancher la fiche AC lors du remplacement
de la lampe.
2. Laisser l'unité refroidir pendant une heure avant de
procéder à l'entretien.
3. Ne remplacer qu'avec une lampe du même type. Type
AN-F310LP, caractéristique 275W-DC.
4. La lampe émet de petites quantités de radiation UV-
éviter tout contact direct avec les yeux.
5. La lampe moyenne pression implique un risque
d'explosion. Toujours suivre les instructions
d'installation décrites ci-dessous et manipuler la lampe
avec soin.
NOTE TO SERVICE
PERSONNEL

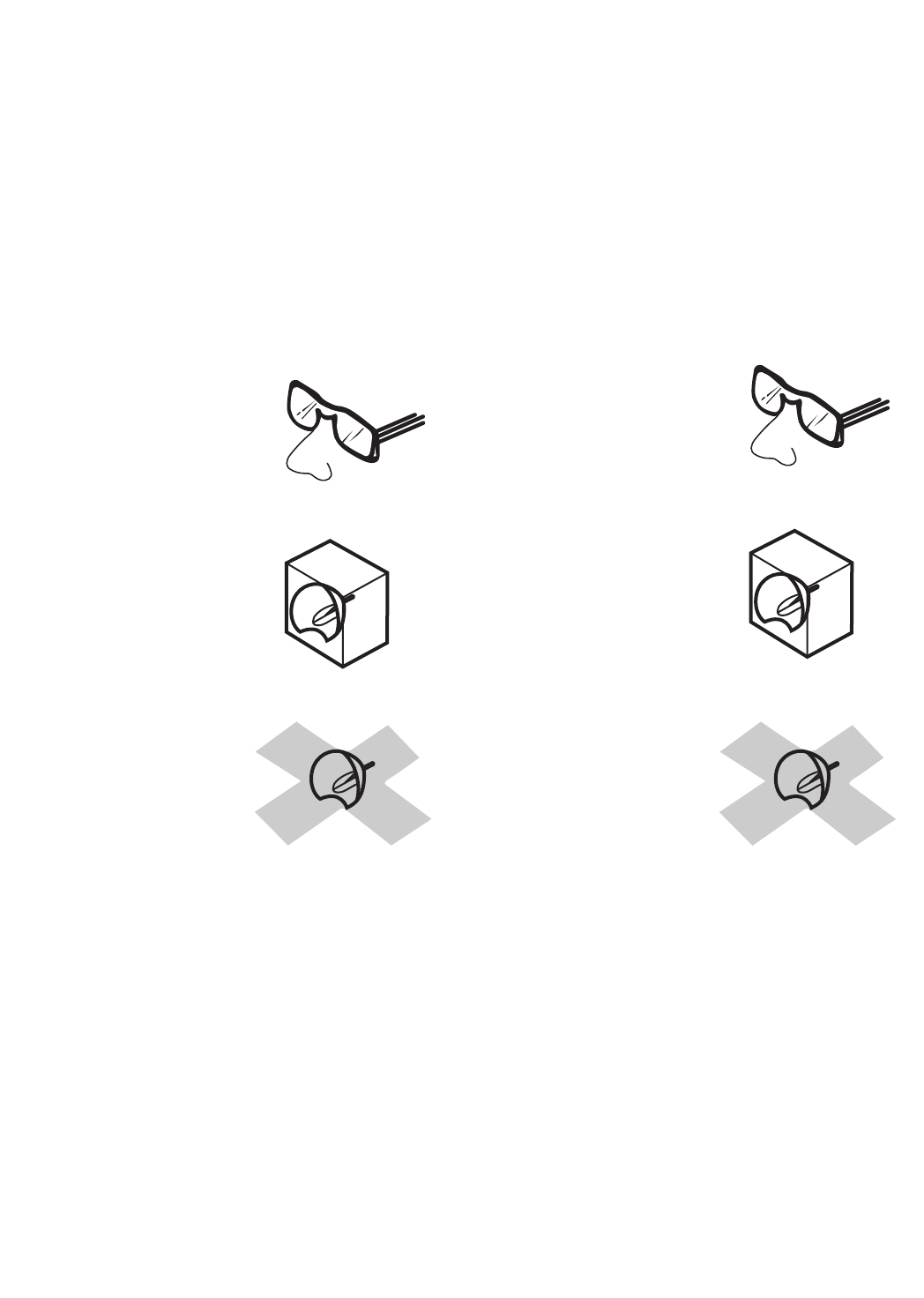

UV-RADIATION PRECAUTION
The light source, lamp, in the projector emits small
amounts of UV-Radiation.
AVOID DIRECT EYE AND SKIN EXPOSURE.
To ensure safety please adhere to the following:
1. Be sure to wear sun-glasses when servicing the
projector with the lamp
turned “on” and the top
enclosure removed.
2. Do not operate the lamp outside of the lamp housing.
3. Do not operate for more than 2 hours with the enclosure
removed.
UV-Radiation and Medium Pressure
Lamp Precautions
1. Be sure to disconnect the AC plug when replacing the
lamp.
2. Allow one hour for the unit to cool down before
servicing.
3. Replace only with same type lamp. Type AN-F310LP
rated 275W DC.
4. The lamp emits small amounts of UV-Radiation, avoid
direct-eye contact.
5. The medium pressure lamp involves a risk of explosion.
Be sure to follow installation instructions described
below and handle the lamp with care.
//////////////////////////////////////////////////////////////
//////////////////////////////////////////////////////////////
//////////////////////////////////////////////////////////////
//////////////////////////////////////////////////////////////
PG-F320W
iv
Remplacement de la lampe
Remarque:
Comme la lampe devient très chaude pendant le
fonctionnement de l’unité, son remplacement ne doit
être effectué au moins une heure après avoir coupé
l’alimentation (pour permettre à la lampe de refroidir).
En installant la nouvelle lampe, s’assurer de ne pas
toucher la lampe (ampoule). Remplacer la lampe en
tenant son réflecteur .
[N’utiliser qu’un remplacement d’origine.]
1
2
2
Lamp
Reflector
Comme de petites quantités de radiation UV sont
émises par une ouverture entre les ventilateurs as-
pirants, il est recommandé de placer le capuchon de
l’optique optionnelle sur l’ouverture pendant l’entretien
pour éviter une exposition des yeux et la peau.
Since small amounts of UV-radiation are emitted
from an opening between the exhaust fans, it is rec-
ommended to place the cap of the optional lens on
the opening during servicing to avoid eye and skin
exposure.
DANGER ! –– Never turn the power on without the
lamp to avoid electric-shock or damage of the devices
since the stabilizer generates high voltages at its start.
UV-RADIATION PRECAUTION (Continued)
Lamp Replacement
Note:
Since the lamp reaches a very high temperature during
units operation replacement of the lamp should be
done at least one hour after the power has been turned
off. (to allow the lamp to cool off.)
Installing the new lamp, make sure not to touch the
lamp (bulb) replace the lamp by holding its reflector
.
[Use original replacement only.]
DANGER ! –– Ne jamais mettre sous tension sans la
lampe pour éviter un choc électrique ou des
dommages des appareils car le stabilisateur génère
de hautes tensions à sa mise en route.
1
2
2
PRECAUTION POUR LES RADIATIONS UV (Suite)
Lampe
Reflecteur
////////////////////////////////////////////////////////////////
////////////////////////////////////////////////////////////////
////////////////////////////////////////////////////////////////
////////////////////////////////////////////////////////////////
Top Body
Part code: DBDYTA132WJZZ
To illuminate the lamp in the unit with Top Body
removed, attach the above Service Top Body
(DBDYTA132WJZZ). If not, problems may be caused
by UV light emitted from the lamp.
PG-F320W
v
WARNING: High brightness light source, do not stare into the beam of light, or view directly. Be especially
careful that children do not stare directly into the beam of light.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO
MOISTURE OR WET LOCATIONS.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE CABINET.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lighting flash with arrowhead within a
triangle is intended to tell the user that
parts inside the product are risk of electric
shock to persons.
The exclamation point within a triangle is
intended to tell the user that important
operating and servicing instructions are in
the manual with the projector.
CAUTION
AVERTISSEMENT: Source lumineuse de grande intensité. Ne pas fixer le faisceau lumineux ou le regarder
directement. Veiller particulièrement à éviter que les enfants ne fixent directement le
faisceau lumineux.
AVERTISSEMENT: AFIN D’EVITER TOUT RISQUE D’INCENDIE OU D’ELECTROCUTION, NE PAS PLACER
CET APPAREIL DANS UN ENDROIT HUMIDE OU MOUILLE.
L’éclair terminé d’une flèche à l’intérieur
d’un triangle indique à l’utilisateur que les
pi‘eces se trouvant dans l’appareil sont
susceptibles de provoquer une décharge
électrique.
Le point d’exclamation à l’intérieur d’un
triangle indique à l’utilisateur que les
instructions de fonctionnement et
d’entretien sont détaillées dans les
documents fournis avec le projecteur.
RISQUE
D’ÉLECTROCUTION. NE
PASR ETIRER LES VIS Á
L’EXCEPTION DE LA VIS DE
REPARATION UTILISATEUR
SPECIFIEES
ATTENTION
ATTENTION: POUR EVITER TOUT RISQUE
D’ELECTROCUTION, NE PAS RETIRER LE CAPOT.
AUCUNE DES PIECES INTERIEURES N’EST REPARABLE
PAR L’UTILISATEUR, A L’EXCEPTION DE L’UNITE DE
LAMPE. POUR TOUTE REPARATION, S’ADRESSER A UN
TECHNICIEN D’ENTRETIEN QUALIFIE.
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
CAUTION
(POWER Unit)
For continued
protection against a
risk of fire, replace
only with same type
6.3A, AC250V fuse.
(F701)
PRECAUTION
(Unité de PUTSSANCE)
Pour une protection
continue contre un
risques d’incendie, ne
remplacer qu’avec un
fusible 6.3A,AC250V
du même type.
(F701)
6.3A 250V
6.3A 250V
PG-F320W
vi
Precautions for using lead-free solder
Employing lead-free solder
• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The
alphabetical character following LF shows the type of lead-free solder.
Example:
Using lead-free wire solder
• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause dam-
age or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering
bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
Soldering
• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor
solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be
peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the
steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as
required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
• Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
LFa
Indicates lead-free solder of tin, silver and copper.
Part No. Description Code
ZHNDAi123250E J φ0.3mm 250g(1roll) BL
ZHNDAi126500E J φ0.6mm 500g(1roll) BK
ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM
PG-F320W
1 – 1
PG-F320W Service Manual
CHAPTER 1. OPERATION MANUAL
[1] Specifications
As a part of policy of continuous improvement, SHARP reserves the right to make design and
specification changes for product improvement without prior notice. The performance specifica-
tion figures indicated are nominal values of production units. There may be some deviations from
these values in individual units.
Model
Display devices
Resolution
Lens
Input terminals
Output terminals
Speakers
Projection lamp
Rated voltage
Rated frequency
Input current
Power consumption (Standby)
Operation temperature
Cabinet
Dimensions (main body only) [W × H × D]
Weight (approx.)
F number
Zoom
Focus
DVI-I (Compatible with HDCP)
Computer/Component
(mini D-sub 15 pin)
S-Video (mini DIN 4 pin)
Video (RCA)
Audio (ø3.5 mm stereo minijack)
Audio (RCA)
Computer/Component
(mini D-sub 15 pin)
Audio (ø3.5 mm stereo minijack)
LAN (RJ-45)
USB (Type B)
RS-232C (mini DIN 9 pin)
PG-F320W
0.65" DLP®Chip
WXGA (1280 × 800)
F 2.4 – 2.6
Manual, ×1.15 (f = 18.7 – 21.5 mm)
Manual
×1
×1
×1
×1
×1
×1 (L/R)
×1
×1 (Variable Audio Output)
×1
×1
×1
2 W (Mono)
275 W
AC 100 – 240 V
50/60 Hz
3.7 A
363 W (10.5 W) with AC 100 V
349 W (11.0 W) with AC 240 V
41°F to 95°F (+5°C to +35°C)
Plastic
12
13
/
32
"×4
19
/
64
"×11
1
/
32
"
(315 × 109 × 280 mm)
9.1 lbs. (4.1 kg)
Control and
communication
terminals
PG-F320W
1 – 2
[2] Parts Name and Basic Operation
STANDBY/ON
button
For turning the
power on and
putting the
projector into
standby mode.
Lamp indicator
Temperature warning
indicator
Adjustment buttons
(///)
For selecting menu
items.
VOL (Volume) buttons
(– / +)
For adjusting the
speaker sound level.
ENTER button
For setting
items selected
or adjusted on
the menu. MENU/HELP
button
For displaying
adjustment and
setting screens,
and help screen.
INPUT buttons ( / )
For switching input
mode.
HEIGHT
ADJUST lever
KEYSTONE
button
For entering the Keystone
Correction mode.
Intake vent
Power
indicator
Focus ring
For adjusting
the focus.
Push both sides of the lens cap to
attach or remove.
Front View
Top View
Zoom ring
For enlarging/
reducing the picture.
Remote control
sensor
PG-F320W
1 – 3
AUDIO 2 input
terminal
S-VIDEO input terminal
Terminal for connecting
video equipment with an
S-video terminal.
VIDEO input
terminal
Terminal for
connecting video
equipment.
Rear
adjustment
foot
Kensington Security
Standard connector
AC socket
Connect the
supplied
power cord.
Using the Kensington Lock
• This projector has a Kensington Security Standard connector for use with a Kensington
MicroSaver Security System. Refer to the information that came with the system for
instructions on how to use it to secure the projector.
AUDIO OUT
terminal
Audio output terminal of
equipment connected to the audio
input terminal.
AUDIO 1
input terminal
COMPUTER/
COMPONENT
input terminal
Terminal for computer
RGB and component
signals.
MONITOR OUT terminal
(Output terminal for computer RGB,
component and DVI analog signals. Shared
for COMPUTER/COMPONENT and DVI-I)
Terminal for connecting a monitor.
RS-232C
terminal
Terminal for controlling the
projector using a computer.
DVI-I input terminal
Terminal for DVI
digital, computer
RGB, and component signals.
USB terminal
Terminal connecting
with the USB terminal
on the computer for
using the supplied
remote control as the
computer mouse.
Exhaust vent
Speaker
Terminals
LAN terminal
Terminal for
controlling the
projector using a
computer via
network.
PG-F320W
1 – 4
STANDBY button
For putting the projector
into the standby mode.
BREAK TIMER button
For displaying the
break time.
COMPUTER, DVI,
S-VIDEO, VIDEO buttons
For switching to the
respective input modes.
PAGE UP/PAGE
DOWN buttons
Same as the [Page Down] and
[Page Up] keys on a computer
keyboard, when with the USB
connection (using a USB cable
or the optional remote
receiver).
POINTER button
For displaying the
pointer.
MOUSE/Adjustment
buttons ( / / / )
• For moving the
computer cursor when with the USB
connection (using a USB cable or the
optional remote receiver).
• For selecting and adjusting menu
items.
L-CLICK button
For the Left click
when with the USB connection
(using a USB cable or the
optional remote receiver).
KEYSTONE button
For entering the
Keystone Correction mode.
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
ECO+QUIET button
For lowering the noise
of the cooling fan and
extending the lamp life.
AV MUTE button
For temporarily
displaying a black
screen and turning
off the sound.
FREEZE button
For freezing images.
VOL +/– (Volume)
buttons
For adjusting the
speaker sound level.
ON button
For turning the power
on.
SPOT button
For displaying the
spotlight.
R-CLICK/RETURN
button
• For the Right click
when with the USB
connection (using a
USB cable or the
optional remote
receiver).
• For returning to the
previous menu screen
during menu
operations.
ENTER button
For setting items
selected or adjusted
on the menu.
MENU/HELP button
For displaying
adjustment and
setting screens, and
help screen.
PICTURE MODE
button
For selecting the
appropriate picture.
RESIZE button
For switching the
picture size
(NORMAL,
STRETCH, etc.).
MAGNIFY buttons
For enlarging/reducing
part of the image.
PG-F320W
1 – 5

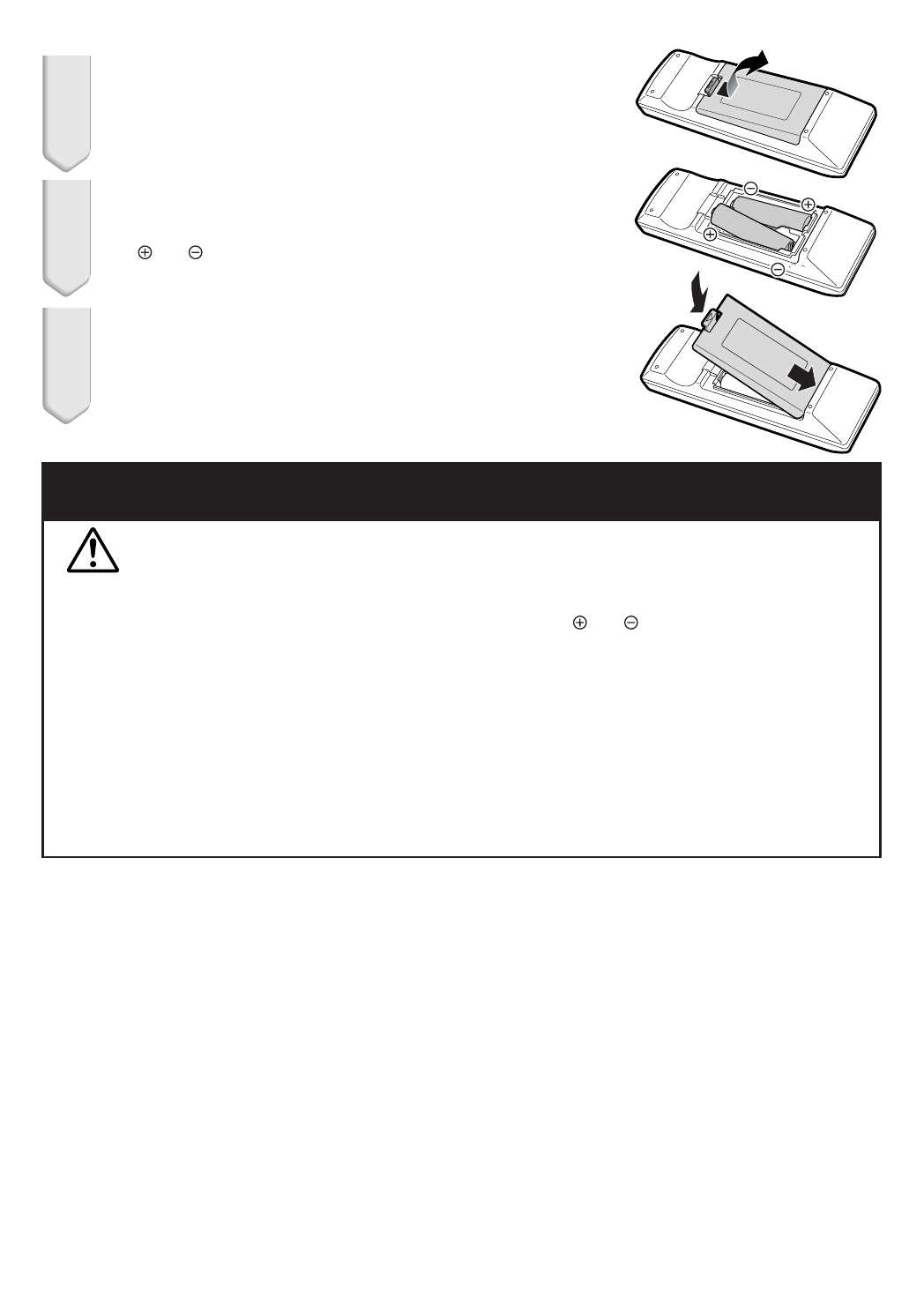

Inserting the Batteries
Insert the lower tab of the cover into the opening,
and lower the cover until it clicks in place.
Insert the batteries.
•Insert the batteries making sure the polarities correctly match
the and marks inside the battery compartment.
Pull down the tab on the cover and remove the cover
towards the direction of the arrow.
1
• Danger of explosion if battery is incorrectly replaced.
Replace only with alkaline or manganese batteries.
• Insert the batteries making sure the polarities correctly match the and marks inside the battery
compartment.
• Batteries of different types have different properties, therefore do not mix batteries of different types.
• Do not mix new and old batteries.
This may shorten the life of new batteries or may cause old batteries to leak.
• Remove the batteries from the remote control once they have run out, as leaving them in can cause them
to leak.
Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove
them using a cloth.
• The batteries included with this projector may run down in a short period, depending on how they are kept.
Be sure to replace them as soon as possible with new batteries.
• Remove the batteries from the remote control if you will not be using the remote control for a long time.
• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.
Incorrect use of the batteries may cause them to leak or explode. Please
follow the precautions below.
Caution
2
3
PG-F320W
1 – 6

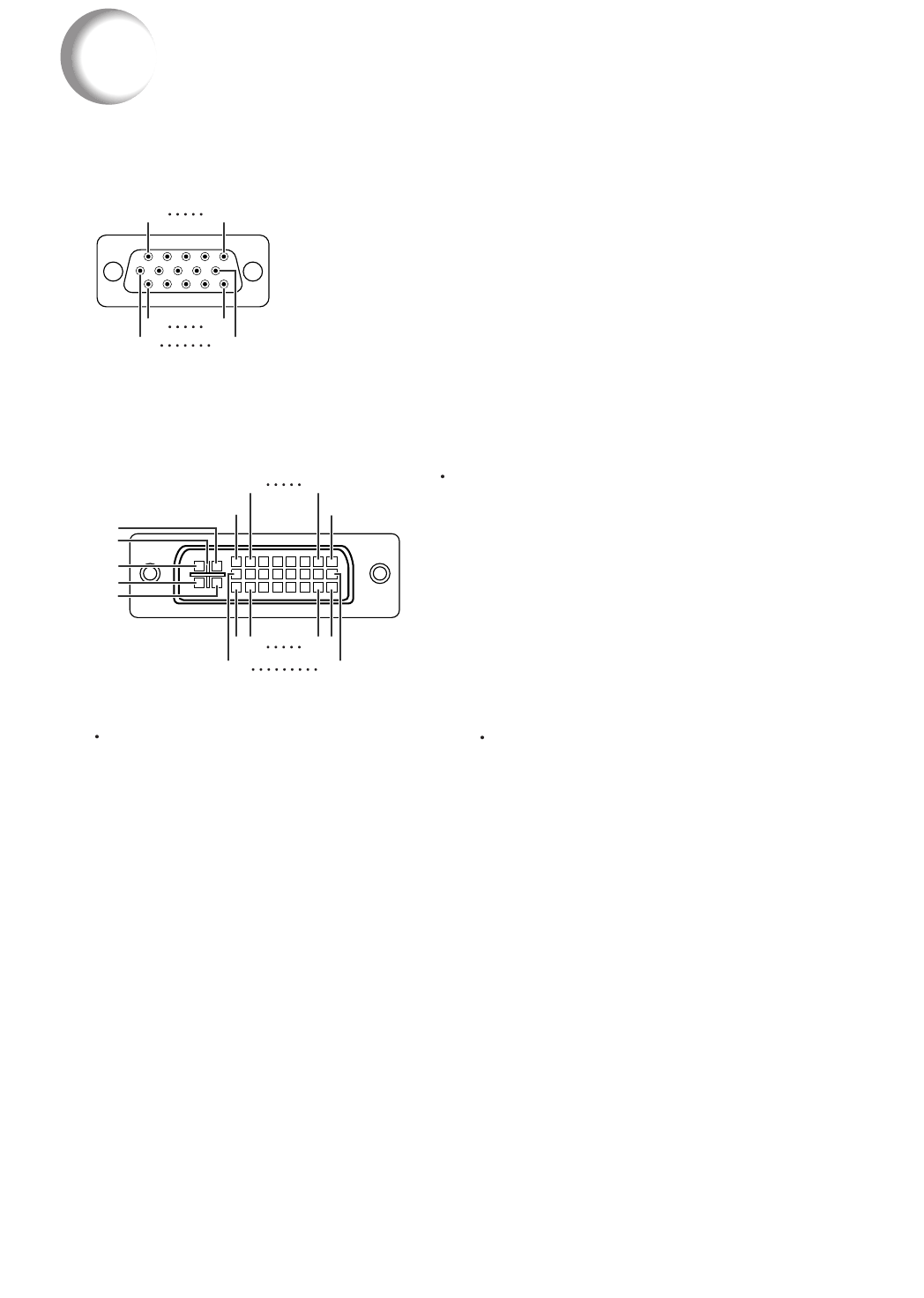

Connecting Pin Assignments
COMPUTER Input/Output
Pin No. Signal
1. Video input (red)
2. Video input (green/sync on green)
3. Video input (blue)
4. Not connected
5. Not connected
6. Earth (red)
7. Earth (green/sync on green)
8. Earth (blue)
9. Not connected
10. GND
11. Not connected
12. Bi-directional data
13. Horizontal sync signal: TTL level
14. Vertical sync signal: TTL level
15. Data clock
COMPUTER/COMPONENT input and COMPUTER/COMPONENT output Terminals : mini D-
sub 15 pin female connector
COMPONENT Input/Output
Pin No. Signal
1. PR (CR)
2. Y
3. PB (CB)
4. Not connected
5. Not connected
6. Earth (PR)
7. Earth (Y)
8. Earth (PB)
9. Not connected
10. Not connected
11. Not connected
12. Not connected
13. Not connected
14. Not connected
15. Not connected
5
10
15
1
11
6
17
24
1823
C3
21
9
16
C1
C2
C4
C5
87
DVI-I Terminal : 29 pin connector
DVI Digital Input
Pin No. Signal Pin No. Signal
1. T.M.D.S data 2- 16. Hot plug detection
2. T.M.D.S data 2+ 17. T.M.D.S data 0-
3. T.M.D.S data 2 shield 18. T.M.D.S data 0+
4. Not connected 19. T.M.D.S data 0 shield
5. Not connected 20. Not connected
6. DDC clock 21. Not connected
7. DDC data 22. T.M.D.S clock shield
8. Not connected 23. T.M.D.S clock+
9. T.M.D.S data 1- 24. T.M.D.S clock-
10. T.M.D.S data 1+ C1. Not connected
11. T.M.D.S data 1 shield C2. Not connected
12. Not connected C3. Not connected
13. Not connected C4. Not connected
14. +5V power C5. Ground
15. Ground
DVI Analog RGB Input
Pin No. Signal Pin No. Signal
1. Not connected 16. Hot plug detection
2. Not connected 17. Not connected
3. Not connected 18. Not connected
4. Not connected 19. Not connected
5. Not connected 20. Not connected
6. DDC clock 21. Not connected
7. DDC data 22. Not connected
8. Vertical sync 23. Not connected
9. Not connected 24. Not connected
10. Not connected C1. Analog input Red
11. Not connected C2. Analog input Green
(Sync On Green)
12. Not connected C3. Analog input Blue
13. Not connected C4. Horizontal sync
(Composite Sync)
14. +5V power C5. Ground
15. Ground
DVI Analog Component Input
Pin No. Signal Pin No. Signal
1. Not connected 16. Not connected
2. Not connected 17. Not connected
3. Not connected 18. Not connected
4. Not connected 19. Not connected
5. Not connected 20. Not connected
6. Not connected 21. Not connected
7. Not connected 22. Not connected
8. Not connected 23. Not connected
9. Not connected 24. Not connected
10. Not connected C1. Analog input Pr/Cr
11. Not connected C2. Analog input Y
12. Not connected C3. Analog input Pb/Cb
13. Not connected C4. Not connected
14. Not connected C5. Ground
15. Ground
PG-F320W
1 – 7
RS-232C Terminal : mini DIN 9 pin female connector
RD
SD
SG
RS
CS
Signal Name
8
9
6
5
21
4
3
7
Pin No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
I/O Reference
Not connected
Connected to internal circuit
Connected to internal circuit
Not connected
Connected to internal circuit
Not connected
Connected to CS in internal circuit
Connected to RS in internal circuit
Not connected
Receive Data
Send Data
Signal Ground
Request to Send
Clear to Send
Input
Output
RS-232C Terminal : D-sub 9 pin male connector of the DIN-D-sub RS-232C adaptor
RD
SD
SG
RS
CS
Signal NamePin No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
I/O Reference
Not connected
Connected to internal circuit
Connected to internal circuit
Not connected
Connected to internal circuit
Not connected
Connected to CS in internal circuit
Connected to RS in internal circuit
Not connected
Receive Data
Send Data
Signal Ground
Request to Send
Clear to Send
Input
Output
CD
RD
SD
ER
SG
DR
RS
CS
CI
SignalPin No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
RS-232C Cable recommended connection : D-sub 9 pin female connector
CD
RD
SD
ER
SG
DR
RS
CS
CI
SignalPin No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
51
96
• Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the controlling device (e.g.
computer).
Note
USB Terminal : Type B USB connector
VCC
USB-
USB+
SG
Signal NamePin No.
1.
2.
3.
4.
USB power
USB data-
USB data+
Signal Ground
15
69
Projector
Pin No.
4
5
6
Computer
Pin No.
4
5
6
LAN Terminal : LAN (RJ-45)
43
12
8... 1
Pin No. Signal Pin No. Signal
TX+
TX-
RX+
1.
2.
3.
4.
RX-
5.
6.
7.
8.
PG-F320W
1 – 8
[3] DIMENSIONS
Units: inches (mm)
12
13
/
32
(315)
3
1
/
16
(77.5)
3
5
/
32
(80)
1
55
/
64
(47)
2
7
/
8
(73)
4
19
/
64
(109) 11
1
/
32
(280)
23
/
64
(9)
13
/
64
(5)
7
/
16
(11)
ø9
7
/
64
(69.2)
2
19
/
32
(65.5)
1
53
/
64
(46.2)
2
61
/
64
(75)
1
11
/
32
(33.8)
1
7
/
8
(47.5) 4
7
/
64
(104)
7
/
16
(11)
PG-F320W
1 – 9
[4] Regarding the lamp
Regarding the Lamp
Lamp
It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes
5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life
(percentage) can be checked with the on-screen display.
Purchase a replacement lamp of type AN-F310LP from your place of purchase, nearest Sharp
Authorized Projector Dealer or Service Center.
Caution Concerning the Lamp
This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp
failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface
scratches or deterioration of the lamp due to a lapse of usage time.
The period of time up to failure largely varies depending on the individual lamp and/or the condition
and the frequency of use. It is important to note that failure can often result in the bulb cracking.
When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended
that the lamp be replaced with a new one immediately, even if the lamp appears to be operating
normally.
Should the lamp break, there is also a possibility that glass particles may spread inside of the
projector. In such a case, it is recommended you contact your nearest Sharp Authorized Projector
Dealer or Service Center to assure safe operation.
Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the
lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes
mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case
of exposure to the gas, consult a doctor as soon as possible.
Replacing the Lamp
Caution
Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may
cause burns or injury.
Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully
cool before removing the lamp unit.
Carefully change the lamp by following the instructions described in this section. * If you wish,
you may have the lamp replaced at your nearest Sharp Authorized Projector Dealer or Service
Center.
* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized
Projector Dealer or Service Center for repair.
IMPORTANT NOTE TO U.S. CUSTOMERS:
The lamp included with this projector is backed by a 90-day parts and labor limited
warranty. All service of this projector under warranty, including lamp replacement,
must be obtained through a Sharp Authorized Projector Dealer or Service Center.
For the name of the nearest Sharp Authorized Projector Dealer or Service Center,
please call toll-free: 1-888-GO-SHARP (1-888-467-4277).
Hg LAMP CONTAINS MERCURY For State Lamp Disposal
Information
www.lamprecycle.org or 1-800-BE-SHARP
U.S.A. ONLY
PG-F320W
1 – 10
Regarding the Lamp (Continued)
Removing and Installing
the Lamp Unit
• Make sure that you remove the lamp unit by
the handle. Do not touch the glass surface of
the lamp unit or the inside of the projector.
•
lamp, make sure you carefully follow the steps
below.
• Do not loosen other screws except for the
lamp unit cover and lamp unit.
Press STANDBY/ONon the projec-
tor or STANDBYon the remote
control to put the projector into
standby mode.
• Wait until the cooling fan stops.
Warning!
• Do not remove the lamp unit from the projec-
tor right after use. The lamp and parts around
the lamp will be very hot and may cause burns
or injury.
Disconnect the power cord.
• Unplug the power cord from the AC
socket.
• Leave the lamp until it has fully cooled
down (about 1 hour).
Remove the lamp unit cover.
• Turn the projector over. Loosen the user
service screw ( ) that secures the lamp
unit cover. Remove the lamp unit cover
().
Lamp unit
AN-F310LP
Info
Optional
accessory
AC socket
User service screw
(for lamp unit cover)
1
2
3
STANDBY/ON button
1
1
2
2
To avoid injury to yourself and damage to the
PG-F320W
1 – 11
Remove the lamp unit.
• Loosen the securing screws from the
lamp unit. Hold the lamp unit by the
handle and pull it in the direction of the
arrow. At this time, keep the lamp unit
horizontal and do not tilt it.
Resetting the Lamp Timer
Reset the lamp timer after replacing the lamp.
Insert the new lamp unit.
• Press the lamp unit firmly into the lamp
unit compartment. Fasten the securing
screws.
Replace the lamp unit cover.
• Align the tab on the lamp unit cover
( ) and place it while pressing the tab
( ) to close it. Then tighten the user ser-
vice screw ( ) to secure the lamp unit
cover.
4
5
6
Connect the power cord.
• Plug the power cord into the AC socket
of the projector.
Reset the lamp timer.
• While simultaneously holding down
MENU/HELP,ENTER and on the pro-
jector, press STANDBY/ON on the pro-
jector.
• “LAMP 0000H” is displayed, indicating
that the lamp timer is reset.
• Make sure to reset the lamp timer only when
replacing the lamp. If you reset the lamp timer
and continue to use the same lamp, this may
cause the lamp to become damaged or ex-
plode.
1
2
Info
AC socket
Securing screws
ENTER button
MENU/HELP button
button
• If the lamp unit and lamp unit cover are
not correctly installed, the power will not
turn on, even if the power cord is con-
nected to the projector.
Info
STANDBY/ON
button
2
1
3
Handle
1
2
3
PG-F320W
2 – 1
PG-F320W Service Manual
CHAPTER 2. REMOVING OF MAJOR PARTS
[1] Removing the lamp door and the lamp unit
1. Loosen the lamp door fixing screw. Lift off the lamp door.
2. Remove 2 lamp unit fixing screws to detach the lamp unit.
[2] Removing the top body
1. Remove 8 top body fixing screws to detach the Top body.
1-1
1-2 1-2
Lamp Door
Lamp Unit
Top Body
Bottom Body
2-1
2-1
PG-F320W
2 – 2
[3] Removing the main PWB unit and terminal PWB unit
1. Remove all connectors from the main PWB unit.
2. Remove 1 terminal fixing screw.
3. Remove 3 main PWB fixing screws to detach the main PWB unit.
4. Remove 3 cap PWB and terminal PWB fixing screws to detach the cap PWB unit and terminal PWB unit.
[4] Removing the speaker, fan, and power supply ballast unit
1. Remove the speaker.
2. Remove 2 fans for the power supply ballast unit and 1 fan for the optical mechanism unit.
3. Remove 2 bimetal fixing screws to detach the bimetal.
4. Remove 2 lamp socket fixing screws to detach the lamp socket.
5. Remove 1 inlet fixing screw.
6. Remove 4 power supply ballast unit fixing screws to detach the power supply ballast unit.
7. Remove 4 ballast shield (upper) fixing screws to detach the ballast shield (upper).
8. Remove 2 power supply ballast PWB unit fixing screws and 1 clip to detach the power supply PWB unit from the ballast shield (lower).
[RC] [CW]
[FA]
[MO]
[LF]
[SO][FB]
[CAP]
[CAP]
[EA]
[FC]
[FD]
3-3
3-1
MAIN PWB Unit
TERMINAL PWB
Unit
CAP PWB
Unit
3-3
3-2
[TH2]
[TA]
[TA]
3-4 3-4
4-2
4-1
4-5
4-4
4-6
4-3
Speaker
Bimetal
Fan for
optical
mechanism
unit
Fans for power supply
ballast unit
Lamp Socket
POWER SUPPLY BALLAST Unit
4-8
4-7
4-8
Ballast shield (upper)
Ballast
shield
(lower)
POWER SUPPLY
BALLAST PWB
Unit
PG-F320W
2 – 3
[5] Removing the optical mechanism unit and R/C receiver PWB unit
1. Remove 4 optical mechanism unit fixing screws to detach the optical mechanism unit.
2. Remove the R/C receiver PWB unit.
[6] Removing the photo sensor PWB unit, blower fan, DMD PWB, and DMD
1. Remove 1 photo sensor PWB unit fixing screw to detach the photo sensor PWB unit.
2. Remove 2 blower fan fixing screws to detach the blower fan.
3. Remove 4 DMD heat sink fixing screws to detach the DMD PWB unit and the DMD.
5-1
5-2
Optical Mechanism Unit
R/C Receiver PWB Unit
6-1
6-2 6-3 Photo Sensor PWB Unit
Optical Mechanism Unit
DMD heat sink
DMD spring
Backer plate
DMD PWB Unit
DMD socket DMD
Blower fan
PG-F320W
3 – 1
PG-F320W Service Manual
CHAPTER 3. THE OPTICAL UNIT OUTLINE
[1] THE OPTICAL UNIT OUTLINE
1. Layout for proper setup of the optical components and parts (top view)
(Schematic diagram)
Item Function
Lamp Light source. DC high-pressure mercury lamp.
UV/IR cut filter (UV GLASS) Filters out harmful UV and IR rays from the lamp.
Color wheel Splits light from the light source into R, G, B and W through a color filter.
Rod (ROD INTEGRATOR) Assures uniform light ray.
Illumination lens
(ILLUMINATION LENS 1, 2)
Focus light from the rod on DMD.
Reflection mirror Reflects light from the illumination lenses toward DMD.
Condenser Lens
(PLASTIC LENS)
Condenses the light from the reflection mirror to the DMD and the pupil of the projection lens.
DMD Turns the internal micro mirror ON/OFF at the rate of color component of each dot of the input
source to reflect light.
Projection lens Enlarges light from DMD and projects it on a screen.
DMD
Plastic Lens
Rod Integrator
Lamp
Reflection
mirror
Color wheel
Illumination lens 2
Projection lens
Illumination lens 1
UV Glass
PG-F320W
3 – 2
2. When the DMD unit has been replaced
If shading shown in Figure 1 appears on the screen after replacing DMD, turn the adjustment screw of the optical engine to adjust the lighting area of
DMD.
1. Loosen the adjustment lever fixing screw . After adjusting the lighting area with the adjustment lever , tighten the adjustment lever fixing
screw .
When mounting DMD, tighten the 4 screws evenly.
Fig. 1
Shading
12
1
Tightening order: →→→
Screw torque: 0.44 ± 0.05 N·m
PG-F320W
4 – 1
PG-F320W Service Manual
CHAPTER 4. ELECTRICAL ADJUSTMENT
[1] ELECTRICAL ADJUSTMENT
No. Adjusting point Adjusting conditions Adjusting procedure
1 EEPROM
initialization
1) Turn on the power (with the lamp on) and
warm up the set for 15 minutes.
• Make the following settings.
Press S2551 to call the process mode and execute
“SS2” on SS menu.
2 Model setting (Process menu)
1) Select the following group and subject.
Group: CONFIRM
Subject: MODEL
1) Check the fixed value.
PG-F320W: 0
3 Adjustment of CW index 1) Signal input: Send 256 STEP color bar.
(XGA60HZ)
2) Select the following group and subject.
Group: ADJUST CW/Auto KS
Subject: CW-INDEX.
1) The signal is input into computer 1.
2) Select the adjustment item and adjust the lamp
gradation patterns of RGBW so that smooth pat-
terns without noise appear.
4 R/G/B contrast adjustment
(manual or automatic)
1) Select the following group and subjects.
Group: ADJUST
AD/DLP
Subject: R-CONT
G-CONT
B-CONT
(Process GAMMA interlock)
2) Amplitude level 96% (0.67Vpp) the signal
is input into computer 1.
(XGA60HZ)
1) Measure chromaticity of the 96% white wind pat-
tern using CA100.
2) On the screen where bit dropouts occur, raise the
values of R/G/B-Contrast. Adjust the values so that
bright red, green, and blue bit dropouts appear on
a black background; and amounts of change in x
value of R and y values of G/B become 100/1000
or more.
3) If adjustment is performed manually watching the
screen, make adjustment so that bright red, green,
and blue bit dropouts appear on more than half of
the screen.
5 RGB white balance adjustment 1) 50% gray pattern signal is input into com-
puter 1.
(XGA60HZ)
2) Select the following group and subjects.
Group: ADJUST
AD/DLP
Subject: R-GAIN
G-GAIN
B-GAIN
1) Raise the values of two of R/G/B-GAIN (default:
100) so that the following chromaticity values are
obtained using CL200.
x value: 305 ± 5
y value: 323 ± 5
6 sRGB white balance adjustment 1) 50% gray pattern signal is input into com-
puter 1.
(XGA60HZ)
2) Select the following group and subjects.
Group: CONFIRM/DLP
Subject: S-G-OS
S-B-OS
1) Adjust S-G-OS and S-B-OS so that the following
chromaticity values are obtained using CL200.
x value: 313 ± 5
y value: 329 ± 5
7 Auto keystone initialization
and audio output check
Select the following group and subjects.
Group : ADJUST
CW/Auto KS
Subject : CAL
1) With the set placed on a level surface, press the
ENTER key and check that K-SENS value is 0 ±3.
Check that keystone is caused by tilting the unit.
2) Check that the start-up sound is heard from the
speaker when the ENTER key is pressed.
R
G
B
W
PG-F320W
4 – 2
Check items
No. Adjusting point Adjusting conditions Adjusting procedure
1 Adjustment of RGB brightness 1) Select the following group and subjects.
Group: CONFIRM/AD
Subject: R-BRIGHT
G-BRIGHT
B-BRIGHT
(Process GAMMA interlock)
1) Check the fixed value.
Fixed value: 125
2 Adjustment of Component offset 1) Feed 10-step signal with 480P compo-
nent 100% amplitude.
2) Select the following group and subjects.
Group: CONFIRM/AD
Subject: C-R-OS
C-B-OS
(Process GAMMA interlock)
1) Check the fixed value.
C-R-OS: 260
C-B-OS: 260
3 Adjustment of DLP Brightness 1) Select the following group and subject.
Group: CONFIRM/DLP
Subject: R-BLK
G-BLK
B-BLK
(Process GAMMA interlock)
1) Check the fixed value.
Fixed value: 252
4 Video Contrast adjustment 1) Feed NTSC 100% wind pattern signal.
(Signal with burst)
2) Select the following group and subjects.
Group: CONFIRM/VIDEO
Subject: V-CONT
1) Check the fixed value.
Fixed value: 134
5 Adjustment of Video Brightness 1) Feed NTSC 100% wind pattern signal.
(Signal with burst)
2) Select the following group and subject.
Group: CONFIRM/VIDEO
Subject: V-BRIGHT
1) Check the fixed value.
Fixed value: 68
6 Adjustment of Video Tint 1) Feed split color bar.
2) Select the following group and subject.
Group: CONFIRM/VIDEO
Subject: V-HUE
1) Check the fixed value.
Fixed value: 128
7 Adjustment of Video color satura-
tion
1) Select the following group and subject.
Group: CONFIRM/VIDEO
Subject: V-COLOR
1) Check the fixed value.
Fixed value: 139
8 RGB tone reproduction adjust-
ment
1) Feed the SMPTE pattern signal. 1) Make sure the 100% and 95% white as well as the
0% and 5% black gradations are visible.
9 VIDEO white balance adjustment 1) Feed the 50% gray signal.
2) Select the following group and subjects.
Group: CONFIRM/VIDEO
Subject: V-R-OS
V-G-OS
V-B-OS
1) V-R-OS is 123.
V-G-OS is 123.
V-B-OS is 123.
10 White balance checking and
readjustment
1) RGB Input
sRGB Input
VIDEO Input
DTV Input
DVD Input
1) Check that there is no deviation of white balance
with the monitor.
11 Off-timer performance 1) Select the following group and subjects.
Group: CONFIRM/CHECK
Subject: TEMP-OFF
1) Select OFF from the process mode.
Make sure the off-timer starts with 5 minutes
onscreen and count one minute in one second.
And then indication is 0 minute, the power supply
of the set is cut off.
12 Thermistor performance checking 1) Heat the thermistor with a hair dryer. 1) Make sure that the temperature is indicated.
13 Auto sync performance checking 1) Feed the phase check pattern signal. 1) In the VGA, SVGA, XGA and SXGA modes, make
sure the Clock, Phase, H-Pos and V-Pos settings
can be automatically adjusted.
PG-F320W
4 – 3

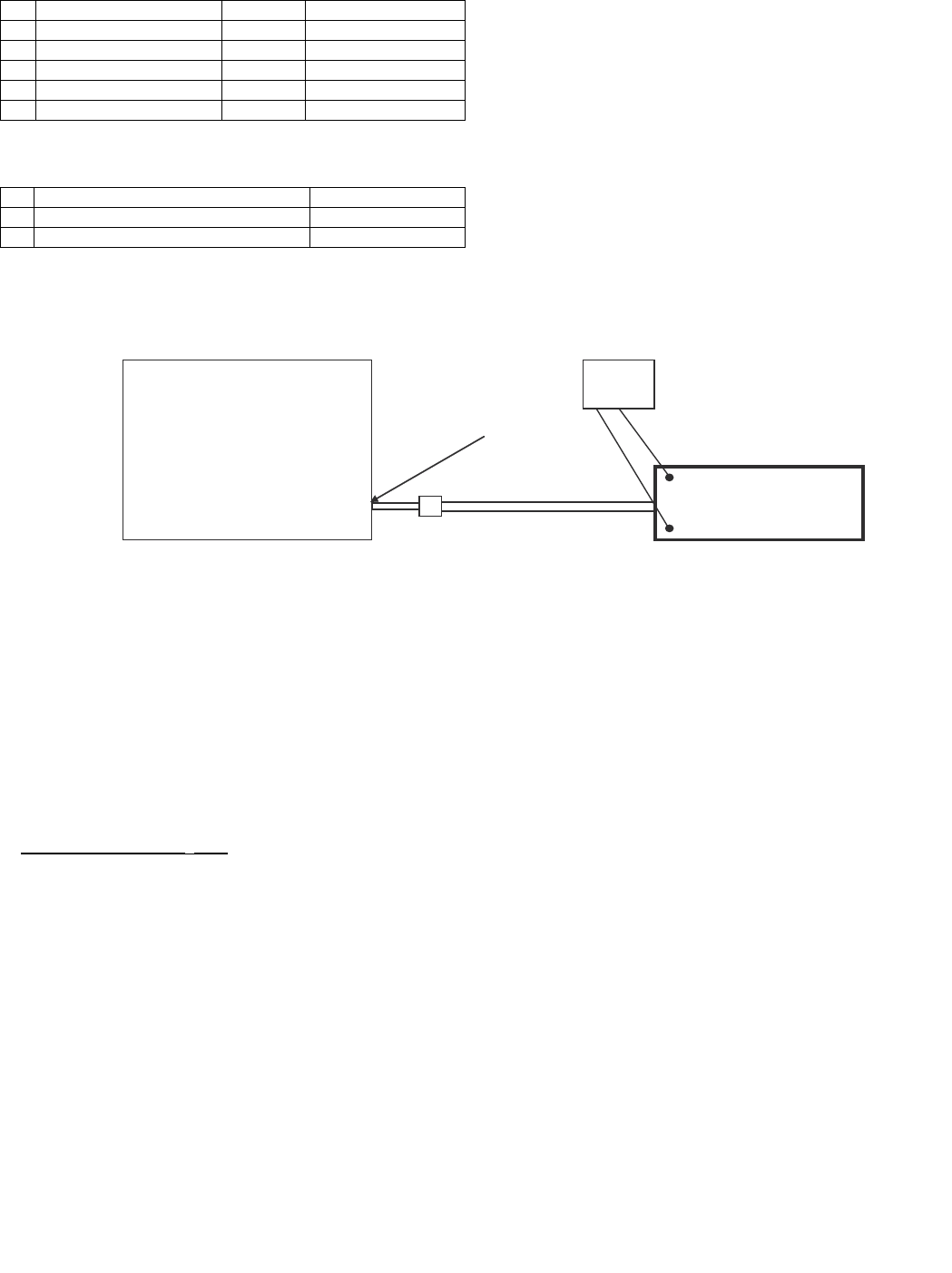

* Writing a software program (before main PWB is mounted)
Use the DLP Composer Lite Ver. 7.0 or higher to download the firmware.
* “Skip Boot Loader Area” set to “32KB”
After writing the specified version of firmware to the PWB using the RS232C cable, check the version of the written firmware.
If no software program is written, all three LEDs light up in the chassis inspection process.
Calling and quitting the process mode with the control keys on this model.
* Although it is possible for the process OUT to exit using the process menu, the IN/OUT toggle command is also available considering the existing
specification.
1) Calling and quitting
With the menu not displayed, press the “ENTER”, “ENTER”, “VOL+”, “VOL-”, “ENTER”, ”ENTER” and “MENU” keys on the remote control or on
the main unit.
2) Others
Press the S2551 process key (toggle) on the main PWB to call and quit the process menu.
NOTE: When adjusting in the process mode, set a signal with a vertical frequency of 60 Hz or no signal. (May not be properly adjusted with other sig-
nals.)
Resetting the lamp timer for this model
1) Resetting procedure
In Stand-by, run this command to clear the operating time of the lamp to 0 and turn on the power.
Press and hold “ ”, “ENTER”, and “MENU”, and then press the “STANDBY/ON” key of the set.
Forced disabling of the System-Lock of this model
1) Disabling procedure
With System-Lock input window onscreen, press the “MENU”, “ENTER”, “ENTER”, “MENU”, “ENTER”, “ENTER” and “MENU” keys, in this order,
on the remote controller.
14 DVI input operation check 1) Send the video signal to the DVI terminal. 1) Check that an image is properly projected through
the digital input and analog input.
15 Monitor out check 1) Send signals to COMPUTER 1 and
COMPUTER 2.
2) Connect another monitor to the monitor
out.
3) Connect the audio OUT.
1) Check that the same images as seen on the
screen appear on the connected monitor and that
the sound from the sound source connected to the
audio OUT is heard.
16 RS232C operation check 1) Connect the unit and a PC with the
RS232C cable.
1) Send a command from the PC, and check it func-
tions correctly.
17 USB operation check 1) Connect to a PC with an USB cable. 1) Check that page up/down is enabled using the
remote control.
18 Model name and version check 1) Select the following group.
Group: INFO/VERSION.
1) The model name appears in the MODEL field, and
the firmware version in the VERSION field.
Check that they are correct.
19 LAN operation check 1) Connect to a PC with a LAN cable. 1) Check that communication is possible.
20 Delivery settings 1) Make the following settings.
No. Adjusting point Adjusting conditions Adjusting procedure
Destination Process Remote control
adjustment adjustment
USA SS4 Factory setting at 4
China SS6 Factory setting at 6
Others SS3 Factory setting at 3
PG-F320W
4 – 4
[2] Adjustment mode process menu
1st Layer 2nd Layer Default
ADJUST CW/Auto KS CW-INDEX 30
CAL
K-SENS (0)
AD/DLP R-CONT 110
G-CONT 110
B-CONT 110
R-GAIN 100
G-GAIN 100
B-GAIN 100
SS SS1 —
SS2 —
SS3 —
SS4 —
SS5 —
SS6 —
CONFIRM AD R-BRIGHT 125
G-BRIGHT 125
B-BRIGHT 125
C-R-OS 260
C-B-OS 260
DLP R-BLK 252
G-BLK 252
B-BLK 252
S-R-OS 128
S-G-OS 128
S-B-OS 128
VIDEO V-CONT 134
V-BRIGHT 68
V-COLOR 139
V-HUE 128
V-R-OS 123
V-G-OS 123
V-B-OS 123
OFFSET-MODE 0
OFFSET-CONT 0
OFFSET-BRI 0
MODEL MODEL-SELECT 0
CHECK LED-CHK 0
TEMP-OFF —
INFO VERSION MODEL —
VER. —
PATTERN RGB 1
RGB50 1
CORSS 1
STEP 1
COLOR 1
CHR 1
INDEX 1
LAMP CURRENT 0
HISTORY1 0
HISTORY2 0
HISTORY3 0
HISTORY4 0
TOTAL 0
TEMP/FAN TEMP1 —
TEMP2 —
FAN0 3
FAN1 3
FAN2 3
1st Layer 2nd Layer Default
OTHER SPECIAL USB-MODE 0
HDCP-MODE 0
PULSE-MODE 0
EDID EEP-SELECT 1
EEP-WP 0
EXIT
PG-F320W
4 – 5
1. Adjustment of ballast unit output power (lamp power)
1. List of parts requiring adjustment
When replacing the following parts, adjust the ballast unit output power (lamp power).
2. Adjustment jigs
The following jigs are required for adjusting the ballast unit output power (lamp power).
3. Ballast unit output power (lamp power) adjustment method
Adjust the ballast unit output power (lamp power) in the following method.
2. Adjustment method
1) Unplug the ballast unit lamp cable of the projector from the lamp and connect the cable to the connecting cord
(QCNW-E007WJZZ).
2) Connect the connecting cord (QCNW-E007WJZZ) to the adjustment jig (RUNTZA018WJZZ).
3) Connect TP1 of the adjustment jig (RUNTZA018WJZZ) to the negative terminal of the tester and TP2 to the positive terminal.
4) Turn on the projector.
5) Check the Lamp setting to “Bright”.
6) Ageing the projector for 60 seconds or more.
7) Adjust the volume resistor (R7805) of the ballast control PWB (DUNTKE170WEF1) so that the voltage of the tester reaches 83±0.5V.
Adjustment value: 83±0.5V
CAUTION: 1) Caution for electric shock: Do not touch the test points TP1 and TP2 of the adjustment jig when supplying power since a high voltage
and large current is applied to them.
2) Caution for heat: Be careful that the resistance load of the adjustment jig produces a high temperature when supplying power.
3) Connection of the lamp cable: Check that the lamp cable and connecting cord (QCNW-E007WJZZ) are connected securely.
Poor connection may cause smoking or ignition due to arc discharge.
Part name Ref No. Part code
1 Cement resistor R923 RR-FZA002WJZZ
2 Ballast Control PWB —— DUNTKE170WEF1
3 Ballast microprocessor IC7707 RH-iXC305WJZZQ
4 5V regulator IC7704 VHiTA78L05F-1Y
5 Ballast Switching Control IC7701 VHiM51995AF-1Y
Part name Part code
1 Adjustment jig (resistance load 25 Ω) RUNTZA018WJZZ
2 Connecting cord (conversion cable) QCNW-E007WJZZ
Ballast Unit
Lamp Cable
Adjustment Jig
(RUNTZA018WJZZ)
Connecting Cord
(QCNW-E007WJZZ)
PG-F320W
Projector
TP1
TP2
[Setting method]
Tester
(Voltage)
PG-F320W
5 – 1
PG-F320W Service Manual
CHAPTER 5. TROUBLESHOOTING TABLE
[1] TROUBLESHOOTING TABLE
Checking the basic operation
Does the power LED light up or flash
in red or green?
NO Has P1701 come off or is it loose? YES Fully insert the connector.
YES NO
Does the set function with its keys or
the remote controller?
NO Go to “Main PWB check”.
YES
Lamp does not turn on or it turns off in
a short time.
YES Go to “Checking the lamp light-up”.
NO
Nothing is displayed or white vertical
line noise appears.
YES Go to “DMD system check”.
NO
Colors are not displayed normally.
Color deviation and color fluctuation
occur.
YES Check PHOTO SENSOR circuit.
NO
Are RGB and component input
displayed normally?
NO Go to “RGB and component signal
check”.
YES
Is VIDEO input displayed normally? NO Go to “VIDEO input check”.
YES
Is S-VIDEO input displayed normally? NO Go to “S-VIDEO input check”.
YES
END
PG-F320W
5 – 2
Main PWB check
Is 12.8 V applied to TL1703? NO Go to “Power supply ballast PWB check”.
YES
Is approx. 5.5 V applied to TL1702? NO Go to “Power supply ballast PWB check”.
YES
Is 12.5 V applied to TL3819? NO Check IC3808 and Q3805 and peripheral circuits.
YES
Is 1.2 V applied to TL3813? NO Check Q3802 and peripheral circuits.
YES
Is 3.3 V applied to TL3802? NO Check L3801 and peripheral circuits.
YES
Is 2.5 V applied to TL3801? NO Check L3802 and peripheral circuits.
YES
Is 5 V applied to TL3814? NO Check L3806 and peripheral circuits.
YES
Is 3.3 V applied to TL1792? NO Check IC1792 and peripheral circuits.
YES
Is 12 V applied to TL1761? NO Check IC1761 and peripheral circuits.
YES
Is 1.8 V applied to TL3809? NO Check IC3803 and peripheral circuits.
YES
Is 1.2 V applied to TL3811? NO Check Q3801 and peripheral circuits.
YES
Is 2.8 V applied to TL3807? NO Check IC3807 and IC3802 and peripheral circuits.
YES
Is 2.8 V applied to TL3808? NO Check IC3802 and peripheral circuits.
YES
Is 3.3 V applied to TL2051? NO Check that it is set to the NORMAL side. Or remove S2001.
YES
Is rectangular wave of 20 MHz applied to TL2201? NO Check X2201 and IC2204 and peripheral circuits.
YES
Check IC2001, IC2262, IC2232 and peripheral circuits.
PG-F320W
5 – 3
DMD system check
Check P2501 for breakage and solder crack and peripheral resis-
tance for solder crack.
Check SC9101 on the DMD PWB for breakage and solder crack.
Is there any vertical stripe (block noise) on the Screen? YES The main PWB and DMD PWB are in poor contact.
Check the contact surface for dirt and smear.
Check the DMD connector for breakage.
Reassemble the DMD, optical mechanism, and DMD PWB.
NO
Is the screen all black?
NO
YES
Is 12.5 V applied to IC3803 pin (2) and 1.8 V to
TL3809?
NO Check IC3803, IC2205, and their peripheral circuits.
YES
Is 400 MHz on IC2201 pin (26) and pin (27)? NO Check IC2201 and peripheral circuits.
YES
Is 320 MHz on IC2204 pin (13) and pin (14)? NO Check IC2204 and peripheral circuits.
YES
Is approx. 8 V applied to TL9303 on the DMD PWB? NO
YES
Is approx. 26 V applied to TL9301 on the DMD PWB? NO Check IC9301 and peripheral circuits.
YES
NO
Is approx. -26 V applied to TL9302 on the DMD PWB?
YES
The main PWB and DMD PWB are in poor contact.
Check the contact surface for dirt and smear.
Check the DMD connector for breakage.
Reassemble the DMD, optical mechanism, and DMD PWB.
PG-F320W
5 – 4
Power supply PWB check
Is 13 V applied to pins (2), (3) and (4)
of the connector P704?
NO
YES
Does the lamp turn on? YES Check the main PWB.
NO
Are connectors P704 and CN901 fully
inserted?
NO Securely insert the connectors.
YES
Is DC voltage of 380 V applied to both
ends of C740?
NO Is pin (11) of the connector P704 at
“H”?
NO Check the main PWB.
YES
YES
Check peripheral circuits of IC707.
Is F705 in the OPEN status? NO Is LAMP-EN/SYNC signal properly
sent to pin (14) of the connector
P704?
(Refer to the waveform chart .)
NO Check the main PWB.
YES YES
Check circuits F705 and after or
replace F705.
Are GATE waveforms of Q901 appro-
priate?
(See waveform diagram .)
NO Check the ballast PWB.
Are connectors P701 and P702 fully
inserted?
NO Securely insert the connectors.
YES
Is AC voltage between 100 - 240 V
applied to both ends of C702?
NO Replace F701.
YES
Is the bimetal broken?
(Connection between 1 and 2 of
P702)
NO Press the red button on the bimetal.
YES
Is R729 open? NO Is F704 open? NO Check peripheral circuits of IC704.
YES YES
Check that P704 connector pin (11)
is at “H”. Replace R729.
Replace F704.
Check that the power supply FAN
FB and FC are not stopped.
1
1
6
1
PG-F320W
5 – 5
Checking the lamp light-up
Does the lamp turn on when the
power is turned on?
YES Go to “Check when the lamp turns off
soon after turning on”.
NO
Is the lamp tight in the socket? YES Securely insert the connectors.
NO
Has the FPC cable to SC3801 come
off or is it loose?
YES Securely insert the connectors.
NO
Is rotating sound of the color wheel
heard?
NO Check IC3802 and peripheral
circuits.
(Refer to the waveform chart .)
YES Replace the color wheel.
YES
Is approx. 0.7 V applied to TL1706? NO Check IC1701 and peripheral
circuits.
(Refer to the waveform chart .)
YES
Has the harness connected to P702
on the power supply unit come off, or
is it loose?
Otherwise, is it broken?
YES Fully insert the connectors or replace
the harnesses.
NO
Dose the lamp turn on after the
replacement?
YES Replace the lamp.
NO
Is 340 V DC applied to both ends of
C917?
NO Go to “Power supply PWB check”.
YES
Is D908 or D907 short-circuited? YES Replace both D908 and D907.
NO
Is D906 or D910 short-circuited? YES Replace D906 or D910, whichever is
short-circuited.
2
1
PG-F320W
5 – 6
Check when the lamp turns off soon after turning on
Have connectors P1703, P1721,
P1722, P1723 and P1724 come off or
are they loose?
YES Securely insert the connectors.
NO
Is each cooling fan rotating? NO Check the cooling fan.
YES
The lamp light-up. After about 30 sec-
onds, the TEMP LED flash red and
the lamp turn off.
YES Check the TEMP1 and TEMP0
signal line.
NO
Is approx. 3 V applied to TL1721? NO Check peripheral circuits of Q1721.
YES
Is 12 V applied to TL1761? NO Check IC1761, IC3802 and peripheral
circuits.
Go to “DMD system check”.
YES
Is 2.5 V applied to TL3801? NO Is 3.3 V applied to TL3802? YES Check L3802 and peripheral
circuits.
YES
NO
Check L3801 and peripheral
circuits.
Is 5 V applied to TL3814? NO Check L3806 and peripheral circuits.
YES
Is 5 V applied to TL1712? NO Is 5 V applied to TL1712 with P1703
removed?
NO Check connection of FB1710 and
Q1707 and Q1708.
YES YES
Is the signal of 180 Hz sent to
TL1716? (When vertical frequency of
the input signal is 60 Hz)
NO Check PHOTO SENSOR PWB.
YES
Is the signal of 180 Hz sent to
TL1706? (When vertical frequency of
the input signal is 60 Hz)
NO Check IC1701 and peripheral circuits.
YES
Check the power supply ballast PWB.
PG-F320W
5 – 7
RGB DVI-Analog and component signal check
Send component signal or RGB signal of 1080i (or 720P) from
COMPUTER/COMPONENT Terminal or DVI-I Terminal.
Select COMPUTER or DVI-Analog using keys on the main unit
or the remote control.
YES
Is image displayed normally? YES End
NO
Are picture signals sent to TL3201, TL3204, and TL3205? NO Check IC3001 and the peripheral circuits.
YES
Is 3.3V applied to TL1792? NO Check IC1792 and peripheral circuits.
YES
Is 3.3V applied to TL3802? NO Check IC3802 and peripheral circuits.
YES
Check IC3201 and peripheral circuits.
DVI digital input check
Send the DVI digital signal to the DVI-I Terminal.
Select “DVI-D Computer” using the keys on the main unit or the
remote controller.
Does an image appear properly? YES End
NO
Is the DVI signal supplied to R3231, R3232, R3233, R3234,
R3235, R3236, R3237 and R3238?
NO Check DVI-I Terminal, L2801, L2802, L2803, L2804, D2803,
D2804 and peripheral circuits.
YES
Is 3.3V applied to TL1792? NO Check IC1792 and peripheral circuits.
YES
Is 3.3V applied to TL3802? NO Check IC3802 and peripheral circuits.
YES
Check IC3201 and peripheral circuits.
PG-F320W
5 – 8
S-VIDEO check
Send S-Video signal (color signal) from S-Video Terminal. Select
S-Video using keys on the main unit or the remote control.
Is image displayed normally? YES End
NO
Is image displayed in black and white? YES Check S-VIDEO terminal and peripheral circuits of Q3311.
NO
Is S-VIDEO signal (Y) sent to R3306? NO Check S-VIDEO terminal and peripheral circuits of Q3301.
YES
Is 1.8 V applied to TL3358? NO Check IC3352 and peripheral circuits.
YES
Is 3.3 V applied to TL1792? NO Check IC1792 and peripheral circuits.
YES
Is 3.3 V applied to TL3802? NO Check IC3802 and peripheral circuits.
YES
Check IC3351 and peripheral circuits.
VIDEO check
Send VIDEO signal from VIDEO Terminal. Use buttons on the
main unit or the remote control to select VIDEO.
Is image displayed normally? YES End
NO
Is VIDEO signal sent to C3326? NO Check VIDEO terminal and peripheral circuits of Q3321.
YES
Is 1.8 V applied to TL3358? NO Check IC3352 and peripheral circuits.
YES
Is 3.3 V applied to TL1792? NO Check IC1792 and peripheral circuits.
YES
Is 3.3 V applied to TL3802? NO Check IC3802 and peripheral circuits.
YES
Check IC3351 and peripheral circuits.
PG-F320W
5 – 9
Checking the LAN
LAN communication is disabled even though connecting the con-
trol PC with a LAN cable. The LINK LED (green) does not light
up.
YES
Are the connection of connecting cable and the settings of IP
address, sub-net address and default gateway correct?
NO Check the connecting cable and LAN settings. If the LAN
settings are unknown, contact the network administrator.
If the network settings cannot be saved, replace IC8003
(EEPROM) as it may be defective.
YES
NOTE: When IC8003 (EEPROM) is replaced, the MAC address
returns to default. Refer to “Resetting after replacing
IC8003 (EEPROM)” to reset.
Are the network device (e.g. Hub) between the control PC and
cable normal?
NO Repair defective parts in the network.
YES
When data is sent from the control PC, do pins (30) and (31) of
IC8201 (PHY receiver) receive signals?
NO Check the peripheral circuit of J8201 (RJ-45 jack with built-in
transformer).
YES
Check the PHY receiver IC8201 and the peripheral circuits of the
microprocessor IC8001.
PG-F320W
6 – 1
PG-F320W Service Manual
CHAPTER 6. MAJOR IC INFORMATION
[1] MAJOR IC INFORMATION
1. Resetting after replacing IC8003 (EEPROM)
MAC address returns to default. Follow the steps below to reset.
MAC address setting
1 Open the top cabinet of the projector and confirm the MAC address (MAC: ************) of the seal on the PWB.
2 Connect the control PC and projector with a RS-232C cable.
3 Turn on the AC power supply.
4 EEP ROM returns to default.
5 Turn off the AC power supply and turn on again.
6 Set MAC address by using the RS-232C command. (Refer to "MAC address setting" for the setting procedure.)
7Enter and check the response.
Check that it is the same as the set MAC address.
8 Setting is completed.
RS-232C commands to be used
*1 1st byte of the MAC address *2 2nd byte of the MAC address
*3 3rd byte of the MAC address *4 4th byte of the MAC address
*5 5th byte of the MAC address *6 6th byte of the MAC address
*7 7th byte of the MAC address *8 8th byte of the MAC address
*9 9th byte of the MAC address *10 10th byte of the MAC address
*11 11th byte of the MAC address *12 12th byte of the MAC address
1Enter and [*2], and press "ENTER".
Responds "OK".
2Enter and [*2], and press "ENTER".
Responds "OK".
3Enter and [*2], and press "ENTER".
Responds "OK".
4Enter and [*2], and press "ENTER".
Responds "OK".
5Enter and [*2], and press "ENTER".
Responds "OK".-
6Enter and [*2], and press "ENTER".
MAC address setting is completed.
PG-F320W
6 – 2
— MEMO —
PG-F320W
7 – 1
PG-F320W Service Manual
CHAPTER 7. BLOCK DIAGRAM/OVERALL WIRING DIAGRAM
[1] BLOCK DIAGRAM
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
BLOCK DIAGRAM
MST3362
A/D
Amp
PLL
TMDS
IC3201
E
2
PROM
32k
IC2261
MAD[20:1]
RS-232C
AUDIO
Audio Control
BA3530
IC3533
Digital
Video
Decoder
TVP5146M
IC3351
RGB INPUT(DVI-I)
SCL,SDA
R,G,B
H,V
H.V
EDID
Video(RCA)
SDRAM
IXB742WJ
MD[15:0]
SCL,SDA
SCL,SDA
N-LIGHT
AOUT_MUTE
S+,S-
H,VSOUT
DATACK
ROUT[8:0]
GOUT[8:0]
BOUT[8:0]
VY[9:1]
VCLK
FLOE
CS0
SOG
X'tal
14.3MHz
V_PDWN,V_RES
VOL
PFCON
LAMPSYNC
Sound
S-Video(S)
Audio AMP
DA7056
IC3551
EDID
E
2
PROM
IC3051
EDID5V
EDID
H,V
R,G,B
SYNC SW
LCX157MT
IC3152
RGB SW
LT6555GN
IC3002
IC3001
R,G,B
H,V
RGB INPUT(15pin D-sub)
Monitor OUT(15pin)
Level
Converter
VHCT125A
IC3101
ECO
RGB
SEL
OUT
DIS
SP_MUTE
RS232C DRIVER
ISL83220
RxD1/TxD1
N/F PFC PSU
LAMP
BIMETAL
R,G,B
PWM IXB384WJ
DC-DC Converter Low Voltage Starter
EDID
E
2
PROM
IC3001
TMDS 0/1/2/3
EDI D SW
LV4053
EDID SW
LV4053
EDID
EDI D
E
2
PROM
IC3001
EDID
E
2
PROM
FLASH
IC2262
32Mbit
USB
Gate
IC
USB
I/O EXPANDER
PCA9559
ALFH,ALFV
DE
VY0
UART SW
LV4053
AUDIO-OUT (3.5 )
AUDIO-IN (3.5 )
Audio SW
LV4053
IC3531
AUDIO-IN (RCA L,R)
CVBS
Y/C
Ballast Power unit
EA
EA
Port2
Port1
GPIO
Input CTL
Port 0
I2C BUS Host
Memory
USB
UART1
IN-LET
TAN UNIT
LAN(RJ45)
PHY
RTL8201D
LAN control
SH2
SDRAM
IXB742WJ
FLASH
UART0
PG-F320W
7 – 2
11 1312 14 15 16 18 1917
PIC
16F819
IC3562
DLPTM
Data Processor
DDP2230
ASIC
RH-IXB998WJ
IC2001
Elpida
XDRDRAM
EDX511CC
512Mbit
3.2GHz
IC2205
400MHz
for XDR
DQP[7:0],DQN[7:0]
Clock Generator
CDCDLP5704
IC2201
CFM/CFMN(400MHz)
RQ[11:0]
Comparator
IC1101
Temp. Sensor
TH9102
CWINDEX
KO[3:0]
FANLOCK
LVDS / DDA_P(8),DDA_N(8),DCLKA_P,DCLKA_N,SCTRLA_P,SCTRLA_N
DDB_P(8),DDB_N(8),,DCLKB_P,DCLKB_N,SCTRLB_P,SCTRLB_N
MBRST[15:0]
DAD2000
AnalogASIC
IC9301
VCC2
N-LIGHT
CMD/RST/SCK/SRD
20MHz/for system
R/C
CLK,DI,DO,CS0,
CS1,CS2
CONTROL(10),INT
DMD
LVDSx2
RESET
AD
KII[2:0]
SER_CLK
SER_S1
SER_D1O
PFCON
LAMPSYNC
Leaf SW
RCS
(5)
Bus
PWM
DAC
MB88346
IC3561
Bus
OUT
ECO
Photo Sensor
IC1102
AMP
TEMP2
(6)
CWCTR
CWY1/2/3
CWPWM
Thermistor
TEMP1_AD
Gate
IC
320MHz/for LVDS
100MHz
Clock Synthesizer
CDCDLP223
IC2204
POWERGOOD
POSENSE
PMD1000
Regulator
Motor Driver
Fan control
IC3802
X'tal
20MHz
FAN CTRL
IC1703
Q1703
Q1710
Q1711
Q1712
Tilt.
Sensor
Main unit
LED
STANDBY(G/R)
LAMP(G/R)
TEMP.(R)
KEY
Host
XDR IF
DMD
SR16
SSP0
IR0
GPIO
CAP
LAMP FAN
EXHAUST FAN / POWER
Color Wheel
EXHAUST FAN / MID
EXHAUST FAN / FRONT
SENSOR UNIT
RC UNIT
R/C
RMC1121
DMD UNIT
TH2LF
CAP
FAFB
FD
FC
MO
CW
CW
RC
RC
PG-F320W
7 – 3
[2] OVERALL WIRING DIAGRAM
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
OVERALL WIRING DIAGRAM
Lamp
QCNW-G518WJQZ
TEMP
SENSOR
RH-HXA025WJPZ
PG-F320W
7 – 4
11 1312 14 15 16 18 1917
PG-F320W
8 – 1
PG-F320W Service Manual
CHAPTER 8. PRINTED WIRING BOARD
[1] MAIN Unit
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN Unit (Side-A)
R8045
R8048
D3
8
1
12
13
24
IC3802
25
R8050
D3810
C3835
C3836
R8053
C3838
C1704
R8054
C3839
X3351
Q1703
Q1704
L3311
Q1705
Q1706
L3312
Q1707
Q1708
C3841
C3843
C17
C1712
C1713
C1715
Q1715
Q1716
Q1717
FB3352
D1705
D1706
R3836
D1707
R1703
R3837
R3839
17
8
14
IC1701
1
5
IC1703
1
3
4
5
IC1705
IC1708
D1715
IC1709
R1712
D1718
R3849
IC1710
C1741
C1744
D1721
D1722
C1747
D1729
R1726
D1735
R1732
R1737
C1761
C1763
R1745
a
R1755
D1761
C1785
R1764
R1765
1
5
IC1761
J8201
C1791
C1793
X8201
C1795
C1798
C3101 C3102
R1784
Q3301
D1791
C3503
C3311
Q3501
Q3502
Q3311
R1795
R1797
1
3
46
IC1791
C3513
C3514
Q2571
C3515
Q2572
Q3512
Q2573
Q2574
R3109
Q2575
17
8
14
IC3101
R3302
R2557 R3303
R2558
C3523
C3524
Q3521
C3525
C3526
Q3
5
Q3523
C3527
C3527
Q3524
C3528
D3311
C3529
R3312
IC3501
C3532
D3511
C3535
FB3802
C3536
C3538
Q3534
Q3535
Q3536
R2572
Q3537
R3514
R3322
R3323
D3522
C3552
C3554
C3556
C3362
C3366
C3368
R3538
L3804
L3805
L3806
1
8
9
16
IC3533
C3565
C3567
C3568
FB1701
R3545
R3
5
R3
5
R3549
1
60
61
80
15
IC3352
R1802
R3550
R3556
R33
6
R3557
R3558
10
11
20
IC3551
1
5
IC3552
R3366
R1811
R1812
R1813
R1814
R3562
R3564
FB1726
R3372
R3567
IC3561
1
10 11
20
IC3562
R3572
R3573
J2501
R1839
S3561
C8012
C8019
2
7
28
54
IC2232
C2262
J3301
J3301
C8220
R8007
R8008
1
15 29
43
IC8001
D8202
D8203
D8204
1
24 25
48
IC8004
C8035
C8037
C3601
IC8009
1
12
13
24
25 36
37
48
IC8201
Q3601
R8016
R8019
LUG3102
R8215
R8216
1
4
5
8
Q3802
R8028
1
8
C3810
1
2
13
14
R8033
R
3
R
C3821
R8232
R8234
1
3
4
5
IC3601
R8236
C3826
D3802
C3827
1
R3886
R3885
C
PG-F320W
8 – 2
11 1312 14 15 16 18 1917
D3804
R2285
D3805
D3806
R3033
R3228
D3808
R3806
R2867
R3807
R2868
1
12
13
24 37
48
IC3802
25 36
IC3803
3
810
3
351
C1710
D3052
C1712
D3053
D3054
D3055
R3058
FB3353
C1723
FB3354
R3831
C1727
C1728
R3835
1
2
119
120
P2501
1
5
IC1706
18
9
16
IC1707
R3854
X2201
D1732
R3866
FB2202
FB2203
R1749
R3884
R1757
R1771
R1772
R1773
C3101 C3102 C3103
18
17
24
SC2801
X3201
R2531
R2532
L2801
L2802
L2803 L2804
1
45
8
IC2531
C3502
5
03
C3509
R2551
R2552
R2553
R2554
Q3522
Q3523
FB3801
TH3501
C3362
C3363
FB3054
FB3055
FB3056
C3366
FB3057
C3369
L3801
L3802
L3803
L3804
C3370
R3159
IC3151
SC3051
R3547
R3353
R3548
FB1708
FB1709
R3549
120
21
40
41
60
61
80
IC3351
R3550
R3362 R3363
R3366
C2201
C2206
C2211
C2212
C2213
C2214
C2215
C2216
C2221
R3582
C2222
R3583
1
A
AK
30
IC2001
C2228
C2229
C2806
Q2803
R2010
R2011
1
14
15 28
IC2201
1
10
11 20
IC2204
1
16
A
L
IC2205
C2236
C2237
C2238
C2239
LUG2501
LUG2502
C2240
R2024
C2242
C2243
C2245
C2246
C2247
C2248
C2249
1
56
10
1
5
6
10
C2250
C2251
C2252
R2037
C2253
C3001 C3002
C3003
C3004
C3005
C3006
C3007 C3008
1
27
28
54
IC2232
C2262
C3011
C2079
C3213
C3218
R2251
D3001
C2086
D3002
D3003
R2254
R2256
R2258
LUG3101
C3224
C2092
C3802
C3803
R3201
C3805
C3806
1
4
5
8
Q3802
R3203
Q3803
R2264
1
38
39
64
65
102
103 128
IC3201
14
5
8
IC3202
1
24
25 48
IC2262
SC3101
R2271
R3213
C3817
R3215
R3216
R3217
R3218
R3219
R3026
C3822
C3824
D3801
4
5
IC3601
Side A
R2533
R2536
R3886
C1739
PG-F320W
8 – 3
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN Unit (Chip Parts Side-A)
C3829
R8045
D3808
R8048
IC3802
D3810
R8050
R8051
C3835
C1702
C3836
R8053 R8054
C1704
C3838
X3351
C3839
R8055 R8057
Q1703
C1708
Q1704
Q1705
L3311
R3816
L3312
Q1706
Q1707
Q1708
C3841
C3843
R3628
C1712
C1713
R3820
C1714
C1715
C1716
Q1715
Q1716
Q1717
FB3351
FB3352
C1722
Q1721
R3834
D1705
C1729
R3836
D1706
R3837
R1703
D1707
R3838
R3839
IC1701
IC1703
D1711
R3841
IC1705
R3842
C1737
IC1708
R1710
R3844
C1738
IC1709
R1711
D1715
D1716
R1712
R1713
D1718
R3849
FB3561
R1716
FB3562
R1717
FB3563
FB3564
IC1710
R1719
C1741
IC1711
C1742
C1743
C1744
D1721
C1745
D1722
C1746
C1747
R1720
C1748
R1721
C1749
R1722
R1723
R1724
D1729
R1725
R1726
R1727
R1729
R1730
D1735
R1731
R1732
R1733
R1734
R1735
R1736
R1737
R1738
C1760
R1739
C1761
C1762
C1763
C1764
R1740
R1741
R1742
R1743
R1744
R1745
R1750
R1751
R1754
R1755
R1758
R1759
C1785
D1761
R1760
R1762
R1763
R1764
R1765
R1766
R1767R1768
C1791
IC1761
C1792
C1793
C1794
C1795
X8201
C1798
R1770
R1774
R1775
C3101
C3102
R1776
R1784
R1785
Q3301
C3307
FB8202
C3501
D1791
C3503
R1790
Q3501
C3505
C3311
R1791
Q3502
C3312
R1792 C3507
C3313
C3508
C3314
R1795
Q3311
C3315
R1796
C3316
R1797
IC1791
C3513
C3514
C3515
Q2571
Q3511
Q3512
Q2572 Q2573 Q2574
IC3101
Q2575
D3301 R3109
R3302 R3303
R2557
R3304
R2558
C3523
C3524
D3501
C3525
Q3521
R3309
D3502
Q3522
C3526
C3527
Q3523
C3528
Q3524
R3501
C3529
D3311
R3502
R3503
R3310
R3504
R3505
R3312
R3506
R3313
R3508
R3314
IC3501
C3531
R3315
R3316
C3532
R3317
C3533
C3534
R3319
C3535
D3511
D3512
C3536
FB3802
C3537
Q3534 C3538
C3539
R2571
R3511
Q3535
R2572
Q3536
R3512
Q3537
R3513
R3320
R3514
R2575
R3515
R3516
R3322
R2576
R3323
R2577
R3517
R2578
C3540
R3518
R2579
C3541
R3327
R3328
C3544
R3329
C3351
D3521
C3545
C3352
D3522
C3354
R2580
R3520
D3331
C3355
R3521
R2581
C3356
R2582
R3522
C3357
R2583
R3523
R3524
R2584
C3359
R3525
R3526
R3527
R3528
R3529
C3552
C3553
C3554
C3555
C3362
C3556
C3557
C
R3530
R3531
C3366
R3532
C3367
R3533
R3534
C3368
R3535
R3536
R3537
L3804
R3538
L3805
C3561
R3539
L3806
C3562
C3563
IC3533
C3564
C3565 C3566
C3567
C3568
R3540
C3569
FB1701
R3541
R3542
R3543
FB1703
R3544
FB1704
R3545
FB1705
R3352 R3546
FB1706
R3547
R3548
C3570
R3549
R3356
IC3351
D3551
R1802
IC3352
R3550
R3551
R3552
R3553
R3554
R3555
R3556
R3557
R3558
FB1719
R3559
IC3551
R3366
IC3552
R1811
R1812
R1813
R3560
R1814
R3561
R3562
R3563
R3370
R3564
FB1724
R3565
R3371
R3372
R3566
FB1726
R3567
R3568
IC3561
R3569
IC3562
L1703
L1704
R3570
R3571
R3572
R3573
R3574
J2501
R3575
R3576
R3579 R3580
R3581
S3561
R1839
C2226
R2205
R2206
R3598
R3599
R2028
R2225
C8203
R2228
C8205
C8012
C8207
C8019
C8211
C8212
IC2232
C8217
C8219
C8027
C8220
R8007
R8008
IC8001
D8202
D8203
IC8004
D8204
R8201
C8035
R8202
C8037
R8203
R8204
IC8009
C3601
C3602
Q3601
IC8201
R8016
R8018
R8019
LUG3102 R8211
R8212
R8213
R8020
R8214
R8215
Q3802
R8216
R8025
R8026
R8027
R8028
C3810
SC3101
R8032
R8033
R3601
R3602
R3603
R3604
C3820
R8230
R3605
C3821
R3606
R8232
R8234
IC3601
D3802
C3826
R8236
C3827
R8237
J3301
J8201
PG-F320W
8 – 4
11 1312 14 15 16 18 1917
D3804
R8238
R3224
R3225
D3805
R2285
C3829
R2286
R3226
D3806
R2863
R3033
R2287
D3808
R3228
R3804
R3805
R3806
R2866
R3807
R2867
R2868
R3809
IC3802
IC3803
D3810
R3231
R3232
R3233
R3234
R3235
X3351
R3236
R3813
R3237
R3238
R3815
R3239
R3816
R3817
R3819
R3240
C1710
R3241
R3242
C1712
D3052
C3846
R3243
D3053
R3244
D3054
R3820
R3245
D3055
R3246
R3247
R3823
R3824
R3825
R3826
R3828
R3058
FB3351
FB3352
C1723
FB3353
R3830
FB3354
C1724
FB3355
R3831
C1726
C1727
C1728
D1704
R3834
R3835
R3837
R3838
P2501
R3841
R3842
IC1706
IC1707
R3854
X2201
R3856
R3857
D1732
R3866
FB2202
FB2203
R1748
R1749
R3884
R1757
C2531
R1771
R1772
R1773
C3101
C3102
C3103
SC2801
X3201
R2531
R2532
R2533
R2534
L2801
R2535
R2536
L2802
L2803
L2804
IC2531
C3502
C3509
FB2261
FB3203
R2551R2552
R2553R2554
Q3522
C3526
C3527
Q3523
C3528
C3529
R3310
R3316
R3317
R3318
FB3801
R3319
R3320
C3156
TH3501
R3327
R3328
R3329
C3351
C3352
C3353
C3354C3355
C3359 C3360
C3362
C3363
C3364
FB3054
C3365
FB3055
C3366
FB3056
FB3057
L3801
C3369
L3802
L3803
L3804
L3806
C3370
C3371
C3372
IC3151
R3159
SC3051
R3351
R3353
R3547
R3354
FB1708
R3548
R3355
R3549
FB1709
R3356
R3358
R3359
IC3351
R1804
R3550
R3360
R3361
R3362 R3363
R3365
R3366
R3368
C2201
C2202 C2204
R3565
C2205
C2206
C2207
R3568
C2208
C2209
C2210
C2211
C2212
C2213
R3574
C2214
C2215
R3575
C2216
C2221C2222
R3582
R3583
C2223
C2224
IC2001
C2225
C2226
C2227
C2228
C2229
R2201
R2202
C2806
Q2803
R2203
R2204
R2010
R
2205
R2011
R
2206
R2013
R2207
R2208
IC2201
R2209
R2017
IC2204
R2019
IC2205
C2236
C2237
R2210
C2238
LUG2501
C2239
R2211
LUG2502
R2212
R2213
R2214
R2021
R2024
C2240
R2219
C2242
C2243
R2029
C2245
C2246
C2247
C2248
C2249
R2221
R2222
D2803
D2804
R2030
R
2225 R2226
R2227
R
2228
C2250
C2251
R2229
C2252
C2253
R2037
C3001
C3002
C3003
C3004
R2231
C3005
R2232
C3006
C3007
R2233
C3008
R2234
R2235
R2237
R2238
R2239
C3201
C2262
IC2232
C3202
C3203
C2263
C3011
C3206
C3207
C3208
R2240
C3209
R2241
R2244
C2079
R2245
R2246
R2247
C3210
R2248
R2249
C3211
C3213
C3214
R2059
C3216
C3218
R2250
D3001
R2251
R2252
D3002
C2086
C
3602
R2253
D3003
R2254
R3001
R3002
R2256
R2257
R3003
R2258
C3221
LUG3101
C3222
R3007
C3224
R3008
C3802
C2092
C3803
R2260
Q3801
C3805
R3201
Q3802
C3806
R3202
C3807
R2263
Q3803
R3203
C3808
R2264
R3204
R3011
R3205
R3012
R3206
R2266
R3207
R3013
R3208
R3014
C3231
IC3201
IC2262
IC3202
SC3101
C3812
C3813
R2270
C3814
C3815
R2271
C3816
R2272
C3817
R3213
C3818
R3215R3216R3217
R3218R3219
R3026
C3820
C3822
C3823
C3824
R3220
R3221
IC3601
D3801
R3222
C3826
C3827
R3223
R2283
PG-F320W
8 – 5
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN Unit (Side-B)
C3828
R3030
R2861
R2862
R2864
R3034
R3229
R3035
R2865
R3036
R3037 R3038 R3039
1
3
4
5
C3833
IC3804
P1721
IC3805 IC3806
1
3
4
5
IC3807
R2870
R2871
R2872
C1709
R3049
C3845
D3051
C3847
R3051
D3056
R3052
D3057
R3053
Q1718
Q1719
1
4
58
IC3051
R1704 R1706
IC1704
C1736
C2100
R1714
C2101
C2102
C2104
C2106
C2107
C2108
D1725
D1731
FB2002 FB2003
FB2004
FB2005
FB2006
R3870
FB2201
R3873
14
P2533
R3874
FB2204
R3875
a
R2501
R2502
R2503
R2504
R2505
R2506
1
34
5
IC2501
FB2802 FB2803
R2511
FB2805
13
4
5
IC1764
18
17
24
Q3101
Q3103
Q3104
C2551
FB2241
C2553
C2555
C2557
R1787
R1788
R1789
FB3001
FB3002
FB3201
R3103
FB3207
C3154
C3155
S
S2
5
C3358
FB3051
C3361
C3361
FB3052
FB3053
R3151
R3154
R3158
1
89
16
IC3152
15
610
11 15
1
89
16
IC3353
FL3101
FL3102
FL3103
R3364
R3369
R1815
R1816
C2203
R1818
R1819
R3373
R3374
R3375
R3376R3377
R3378
R1820
R1821
R1822
R1823
R3380
C2021
C2218
C2219
C2027
C2220
C2804
Q2801
C2038
Q2804
C2039
R2012
C2230
R2014
C2235
C2241
S2001
C2244
C2056
D2802
R2801
D2805
D2807
R2803
R2804
R2805
R2806
R2036
R2038
C2254
R2039
C2255
1
45
8
IC2801
1
89
16
IC2802
C2256 C2257
IC2803
1
8
9
16
IC2804
C2258
1
45
8
IC2805
C2259
1
34
5
IC2806
D2813
1
7
8
14
IC2807
R2040
1
10 11
20
IC2808
D2814
C2260
C3204
C2265
C2266
C2267
C2268
R2242
C3016
R2054
R2056
C3212
C2080
C3020
C3021
C3217
C3219
C2087
D3004
C2088
FB3101
R2061
D3005
1
17
SC2531
FB3102
D3006
R2062
D3007
FB3103
D3008
R2064
R3004
C3220
R2259
R3005
D3009
FB
R2065
R3006
R2837
R2838
R2839
1
12 13
24
IC3001
C3225
R3009
C3226
13
4
5
1
34
6
IC3003
C3227
C3228
1
34
6
IC3004
C2096
R2262
R2840
R3010
Q3804
R2265
R2842
R2267
R2843
C3230
R3015
R2845
1
4
5
8
IC2261
R3209
R3016
R2847
R3017
R3018
R2848
1
61
11
R2849
R3211
R3212
P1703
R2850
P1704
R3214
R2851
R2852
R2276
R2277
R2853
R3023
R3024
R2854
R2855
R3025
R2856
R2857
R3028
R3029
M
STAND
B
KEYS
T
SE
R
LAN_A
NORMAL
RC
QPWBXE168WJN2
DUNTKE168WE
W
ABCDEFGH
Ver
CPU
Side B
LOADER
FA
3
1
CW
3
31
IC3002
R3019
R3020
PG-F320W
8 – 6
11 1312 14 15 16 18 1917
C3828
R8047
L3301
D3809
L3302
C3830
C3831
1
3
4
5
C3832
C3833
0
4
P1721
D3811 D3812
P1722
P1723
D3813
1
3
45
IC3808
D3814
P1724
Q1701
Q1702
Q1710
L3321
L3322
C1721
D1701
D1702
D1708 D1709
R
1706
R1709
IC1702
C1733
D1712
D1714
R1714
D1723
D1724
D1725
D1730
P2551
X8001
R1761
X8002
R1769
3
4
R1778
C3301
D2531
D2532
R1783
C2558
C3308
C3309
FB8203
C2560
FB8205
C2561
C2562
C2563
C3310
R1793
C3317
D3101
15
IC1792
D3103
C3321
Q3321 Q2578
R3301
R2559
R3307
R3308
R2564
R3311
R2566
P3551
18
9
16
IC2562
D2571
D2572
D2573
D3321
R3321
S2551
S2552
S2553
S2554
S2555
P3562
S2556 S2557
S2558
S2559
1
4
SC3801
D3552
FL3101
R1805
FL3102
FB1714
L1701
L1705
L1707
L1708
Q8002
C8206
C8208
C8209
C8213
FB2531
FB2532
FB2533
R8002
R8003
1
3
45
IC8002
IC8003
D8205
127
28
54
IC8005
1
3
4
5
IC8006
D8206
IC8007
R8014
FB3101
FB3104
FB3105
FB2551
FB2552
FB2553
FB2554
FB3302
FB3303
S8001
Q3806
5
10
15
FB2563
1
2
13
14
P1701
P1702
P1705
P1706
R8037
R8233
PLUS
MENU
DOWN
UP
ENTER
POWER LAMP TEMP
MINUS
STANDBY/ON
KEYSTONE
SERVICE
EA
FD
BB
SO
TH2
F
GH
FC
FA
FB
TA
WRITE
CAP
LF
11
1
1
4
4
1
1
3
3
1
1
3
31
1
NOMAL
1
2
21
1
2
MO
C3326
C3306
C3304
R3306
PG-F320W
8 – 7
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN Unit (Chip Parts Side-B)
R2860
R2284
R3030
C3828
R3031
R2861
R3801
R3032
R2862
R3802
R3227
R3803
R3034
R2864
R2865
R3035
R3229
R3036
R3037 R3038
R3808
IC3801
R3039
R2869
C3833
IC3804
C3834
R3230
IC3805
P
1
IC3806
IC3807
R2870
R3810
R3040
R3041
R2871
R3811
R2872
R3042
R3812
C1706
R3043
R3044
R3814
R3045
C1709
R3046
R3047
R3048
R3818
R3049
C1711
D3051
C3845
C3847
R3050
R3821
R3051
Q1712
R3822
R3052
D3056
R3053
D3057
R3054
R3055
R3056 R3057
R3827
Q1718
R3829
IC3051
R3059
Q1719
R3060
R3061
R3832
D1703
R1704
R1706
C1732
D1710
IC1704
C1735
C1736
R1714
C2100
R1715
C2101
C2102
C2103
C2104
C2105
C2106
C2107
C2108
D1725
R3855
D1726
R3858
R3859
R3860
R3861
C2501
D1731
R3862
R3863
R3864
R3865
FB2001
FB2002 FB2003
FB2004
FB2005
FB2006
R3870
FB2201
R3871
R3872
P2533 R3873
FB2204
R3874
R3875
R1752
R1753
R2501
R1756
R2502
R2503
R2504
R2505
R2506
R2508
IC2501
FB2801
FB2802
FB2803
FB2804
FB2805
R2511
FB2806
IC1764
Q3101
Q3102 Q3103
Q3104
R2528
FB2241
R2529
C2551
C2552
C2553
C2554
C2555
C2556
C2557
R1787
R1788
R1789
FB3001
FB3002
FB3003
R3101
FB3201
FB3202
R3102R3103
FB3204
FB3205
FB3206
R3106 R3107
FB3207
R2561
R2562
R2570
C3151
C3152
C3153
R2573
C3154
C3155
S2553
C3358C3361
FB3051
FB3052
FB3053
R3151R3152
R3153
R3154
R3155
R3156
R3157
C3373
R3158
IC3152
IC3353
FB1710
FB1711
FL3101
FL3102
R1807
FL3103
C2001
C2002
FB1717
C2003
R3364
C2004
C2005
C2006
C2007
R3367
R1810
C2008
C2009
R3369
R1815
R1816
FB1723
C2203
R1817
C2010
R1818
C2011
R1819
C2012
R3373
C2013
C2014
R3374
R3375
C2015
C2016
R3376
R3377
C2017
C2018
R1820
R3378
C2019
R1821
L1706
R1822
R1823
C2020
R3380
R3381
C2021
R3382
C2022
C2217
C2023
C2218
C2024
C2219
C2025
C2026
C2027
C2028
C2029
R2001
R2002
R2003
C2220
R2004
R2005
R2006
R2007
C2030
R2008
C2031
R2009
C2801
C2802
C2803
C2033
C2804
Q2801
C2805
C2036
Q2802
C2037
C2807
Q2804
C2038
C2808
C2039
C2809
R2012
R2014
C2230
R2015
R2016
C2232
R2018
C2040
C2810 C2234
C2235
C2041
C2811
C2042
C2043
C2044
C2045
C2046
R2020
C2048
C2049
R2022
R2023
R2025
S2001
C2241
R2026
R2027
C2050
C2244
C2051 C2052
C2053
C2054
D2801
C2055
D2802
C2056
C2057
C2058
D2805
R2801
R2031
R2802
R2032
R2033
R2803
D2807
R2034
R2804
R2035
R2805
R2036
R2806
R2807
C2254
C2060
R2808
R2038
C2061
IC2801
C2255
R2809
R2039
C2256
IC2802
C2062
IC2803
C2257
C2258
C2064
IC2804
Q3001
C2259
C2065
IC2805
C2066
IC2806
IC2807
C2067
D2813
D2814
C2068
IC2808
R2810
R2040
C3009
R2811
C2069
R2812
R2813
R2814
R2044
C2260
C2261
R2815
R2816
R2817
R2047
C2070
R2048
R2818
C3010
C3204
R2049
C2265
C3205
R2819
C2266
C3012
C3013
C2267
C3014
C2268
C3015
C3016
R2242
C3017
R2243
C3018
R2050
R2820
C3019
R2821
R2051
R2052
R2822
R2823
R2053
R2824
R2054
R2055
R2825
C3212
R2826
R2056
R2057
R2827
C3020
R2058 C2080
R2828
C3021
C2081
R2829
C3217
C2085
C3219
C2087
C2088
R2830
D3004
SC2531
R2255
D3005
R2061
R2831
FB3101
R2062
D3006
FB3102
R2832
FB3103
D3007
R2833
C3220
R3004
R2834
R2064
D3008
R2835
R2065
D3009
R3005
R2259
R2836
R2066
R3006
C3223
R2837
R2067
R2838
R2068
R3009
C3225
R2069
C3801
IC3001
C2091
R2839
IC3002
C3226
C3227
IC3003
D3010
C3804
IC3004
C3228
C2094
D3011
R2261
C2095
C3229
R2262
C2096
C2097
Q3804
R3010
R2070
R2840
C3809
C2099
R2841
R2265
R2071
R2072
R2842
R2843
R2267
C3230
R2268
R2844
R3209
IC2261
R2845
R2269
R3015
R3016
R2846
C3232
R3017
R2847
R2848
R3018
R2849
R3019
C3811
R3210
R3211
R3212
P1703
R3020
R3214
P1704
R2850
C3819
R3021
R2851
R2276
R2852
R3022
R3023
R2853
R2277
R2854
R3024
R3025
R2855
R2856
R3027
R2857
R2858
R3028
R3029
C3051
R2859
C3825
PG-F320W
8 – 8
11 1312 14 15 16 18 1917
C3828
R8044
R3801
R3802
R8046
R3803
R8047
D3809
L3301L3302
C3830
R3808
IC3801
C3831
C3832
C3833
C3834
D3811
P1721
C1701
P1722
R8052
D3812D3813
C3837
C1703 P1723
R3810
P1724
D3814
IC3808
Q1701
C1705
R3812
C1706
Q1702
C1707
R8059
R3818
C3840
C3844
C1711
Q1710
C3848
Q1711
C3849
Q1712
R3822
C1717
R8068
C1718
C1719
L3321L3322
R3827
R3829
C1720
R8070
C1721
C1725
D1701
R3832
D1702
R1701
R1702
D1708
R1705
D1709
FB3551
FB3552
R1707
C1730
R1708
C1731
R1709
C1732
IC1702
C1733
D1710
C1734
R3840
C1735
D1712
R3843
D1713
D1714
R3845
R3846
D1717
R3847
R3848
R1714
D1719
R1715
R1718
FB3565
FB3566
D1720
R3850
R3851
R3852
D1723
R3853
D1724
D1725
D1726
D1727
D1728
R1728
D1730
R3861
D1733 D1734
R3867
R3868
R3869
1
R3876
R3877
R3878
R3879
R1746
R1747
R3880
R3881
R3882
R3883
C1781
P2551
R1761
X8001
X8002
R1769
C1796
C1797
R1778
R1779
R1780
R1781
D2531
C3301
FB8005
D2532
R1782
C3302
R1783
C3303
C2558
C3304
C2559
C3305
R1786
C3306
C3308C3309
FB8201
FB8203
C2560
C2561
FB8205
C2562
C2563
C3310
R1793
R1794
C3317
R1799
D3101
IC1792
D3103
R3101
C3321
C3322
C3323
C3324
Q3321
C3325
Q2576
C3326 Q2578
R3301
R2555
R2556
R2559
R3305
R3306
R3307R3308
R2564
R3311
R2566
R2569
P3551
IC2562
D2571D2572D2573
FB3804
FB3805
D3321
FB3806
FB3807
FB3808
FB3809
S2551
R3321
S2552
S2553
R3324
S2554
R3325
S2555
S2556
P3562
R3326
S2557
S2558S2559
SC3801
FB1702
FB1707
C3571
C3572
R1801
D3552
R1803
D3553
FB1710
R1805
FL3101
R1806
FL3102
FB1712
R1807
FB1713
R1808
FB1714
R1809
FB1716
FB1717
FB1718
R1810
FB1721
FB1723
FB1727
L1701
FB1729
L1705
L1706
L1707
L1708
FB1730
R1824 FB1731
R3577
R3578
TH3561
C8001
C8002
C8003
C8004
Q8001
C8005
Q8002
C8006
C8008
C8009
C8202
C8204
C8010
C8011
C8206
C8013
C8208
C8014
C8015
C8209
C8016
C8017
C8018
C8210
C8213
C8020
C8021
C8022
C8023
C8218
C8024
FB2531
C8025
D8001
FB2532
C8026
FB2533
C8028
R8001
C8029
R8002
R8003
R8004
R8005
R8006
C8030
R8009
C8031
IC8002
C8032
IC8003
C8033
C8034
IC8005
D8205 D8206
IC8006
C8036
IC8007
R8010
IC8008
C8038
R8011
C8039
R8012
R8013
R8014
FB3101
R8015
R8209
R8017
FB3104
C8040
FB3105
C8041
R8210
FB2551
C3801
FB2552
FB2553
FB2554
R8021
FB3301 FB3302 FB3303
C3809
S8001
Q3805
Q3806
C3811
R8221
FB2563
FB3311
R8031
P1701
P1702
0
3
P1705
P1706
R8036
R8037 R8039
R8231
R8233
R8040
R8235
R8041
FB3321
R8042
R8043
PG-F320W
8 – 9
[2] DMD Unit
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
DMD Unit (Side-A)
DMD Unit (Chip Parts Side-A)
FB9301
FB9302
FB9303
SC9101
FB9501
L9301
L9302
C9101
C9102
C9301
C9302 C9303
C9304
C9305
C9306 C9307 C9308
C9309
C9501
C9502
C9503
C9310
C9504
C9311
C9505
C9312
C9506
C9313
C9507
C9314
C9508
C9315
C9509
C9316
C9317
C9318
C9319
C9510
C9511
R9102
C9512
R9103
C9513
C9320
C9514
C9321
C9515
C9322
C9516
C9323
D9301 D9302
D9304
R9301
R9302
R9303
R9304
R9305
R9306
IC9301
R9501
TH9102
R9502
R9503
R9504
R9505
R9506
R9507
PG-F320W
8 – 10
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
DMD Unit (Side-B)
PG-F320W
8 – 11
[3] BALLAST POWER Unit
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
BALLAST POWER Unit (Side-A)
24
610
1
SDG
1
23
(+)
2
(-)
1
24
69
SDG
123
16
812
S
G
D
1
2
13
14
1
9
1
23
4
123
DUNTKE169WE
W
QPWBNE169WJN1
CPU
Ver
HOT
COLD
DCBAEFGH
DCBAEFGH
a
C922
CN901
T902
C919
R939
C920
D910
JA901
D909
D908
D906
D907
D905
Q904
TH901
L903
C911
C917
L904
C901
L901
Q901
D903
C912
F705
Q902
C740
C714
T901
R740
IC704
C713
FB707
C732
D711
C721
C712
D706
R709
R710
F704
R771
R708
T704
D703
D716
C728
C711
LUG702
P704
D701
R923
RDA901
1
23
4
R748
4
C731
D715
R716
PG-F320W
8 – 12
11 1312 14 15 16 18 1917
S
C744
C745 C747
FB703
D720
F703
Q705
C738
RY702
R729
Q704 D702
P702
C705
L702
L701
VA701
VA702
C704
C703
P701
FH701
FH702
T6.3AH 250V
F701
C706
C736
L703
C716
R737
R736
L704
L705
C740
RDA701
6.3A-250V
L
N
R753
S
D
G
S
D
G
LUG701
JA702
C702
PG-F320W
8 – 13
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
BALLAST POWER Unit (Side-B)
S
14
58
C
C736
C706
R730
R722
R719
L703
R736
R737
C716
FB701
FB702
R743
D718
R744
R746
Q704 Q705
FB703
JA702
D720
R745
D719
R742
R747
C916
F703
C744
R947
R948
IC702
C739
D717
RY702
C747 C745
R729
P702
D702
C705
L702
L701
VA701
VA702
C703
C704
R753
C702
FH701
FH702
F701
250V
T6.3AH
R739R731
L705
C717
IC707
D714
D705
R735
C709
R707 R734
C733
D704 R732
R733
C738
RDA701
RDA
9
LN
G
S
D
G
S
D
L704
PG-F320W
8 – 14
11 1312 14 15 16 18 1917
24
6
10
1
SDG
1
2
3
4
(+)
2
(-)
1
2
4
69
SDG
1
23
16
81 2
S
G
D
1
2
13
14
19
1
23
4
1
23
CN901
C922
T902
R943
D910
C920
D905
D906
R939
D908
D909
JA901
L903
C919
C911
C917
C918
C915
D904
R936
Q904
D907
TH901
C913
C912
L904
D903
C909
C924
R921
R922
R920
C908
R901
R902 R903 R904
R931
R932
R933
C910
R935
R934
R905
R915
R914
C902
C904 C906
C914
R938
R946
R945
C921
R942
Q906
R941
R940
Q905
R937
R930
R925
R926
R927
R928
R929
R907
R908
R910
R911
C905
C907
C901
F705
L901 Q901
Q902
R916
R906
FB902
R912 FB901
R909
R913
Q903
D901
D902
R917
C903
T901
R711
C714
D708
R752
R751
R750
R749
R741
C740
R710
R709
C712
D706
R708
D723
D722
D710
C718
F704
R771
C721
D712
D713
R748
D707
C713
R718
P704
R765
R720
R721
C711
C728
IC705
C731
C732
D711
T704
R726
C727
D716
D703
C707
C710
R754
C715
R740
R738
R713
D709
R714
IC704
D721
R715
C719
Q708
R759 R760
R758
R703
R704
Q706
C701
Q701 R702
R701
FB707
D724
R756
R712
R705
R761 D701
RDA901
a
1
2
3
4
R762
R949
R924
R923
HOT COLD
D715
R716
R944
PG-F320W
8 – 15
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
BALLAST POWER Unit (Chip Parts Side-B)
FB701
FB702
R707
R717
R719 R722
R9
1
R730
R731
R732
R733
R734
R735
R739
R741
R742
R743
R744 R745
C709
R746 R747
R749
C
9
R750
R751
R752
R947
C717
R948
C720
C916
C733
C734
C735
C739
C743
D704
D705
D714
D717
D718 D719
IC702
IC707
PG-F320W
8 – 16
11 1312 14 15 16 18 1917
Q701
Q706
Q707
Q708
Q903
Q905
Q906
FB901FB902
R701
R702
R703
R704
R705
R706
R901 R902 R903 R904
R711
R905
R712
R906
R713
R907
R714
R908
R715
R909
R718
R910
R911
R912
R913
R720
R914
R721
R915
R916
R723
R917
R724
R725
R919
R726
R727 R728
R920
R921
R922
R924
R925
R926
R927
R928
R929
R738
R930
R931
C701
R932
R933
R934
R741
R935
R936
R937
C707
R938
C708
R749
C902
C903
R940
C710
C904
R941
C905
R942
C906
R943
C907
R750
R944
C908
R751
R945
C715
C909
R752
R946
R754
C718
R949
R755
C719
R756
R757
R758
C910
R759
C913
C914
C915
R760
C918
R761
R762
R763
C727
R764
R765
C921
C923
C730
C924
C751
D707
D708
D709
D901
D902
D710
D904
D712
D713
D721
D722
D723
D724
IC705
PG-F320W
8 – 17
[4] BALLAST CONTROL Unit
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
BALLAST CONTROL Unit (Side-A)
BALLAST CONTROL Unit (Chip Parts Side-A)
R7813
R7787
R7755
C7742
C7733
C7709
R7803
R7762
C7756
R7721
D7712
C7713
R7797
R7731
R7723
R7717
R7708
Q7712
X7701
R7776
C7754
C7747
D7717
C7735
R7704
R7775
C7753
C7746
R7712
C7710
P7701
R7798
IC7710
D7713
C7731
C7727
R7793
R7761
R7720
C7736
D7701
C7712
C7701
R7772
R7756
D7715
C7734
Q7707
R7804
C7737
R7812
R7770
R7728
R7719
C7739
Q7704
C7744
IC7709
R7810
R7768
R7726
D7714
IC7701
C7718
C7707
D7703
C7717
C7752
C7745
D7716
D7711
R7811
R7769
C7741
C7719
IC7707
C7715
PG-F320W
8 – 18
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
BALLAST CONTROL Unit (Side-B)
BALLAST CONTROL Unit (Chip Parts Side-B)
R7771
R7739
C7750
R7711
D7705
C7721
R7794
R7778
R7746
R7714
R7706
C7702
R7806
R7781
R7765
R7749
C7705
R7792
R7760
R7744
C7725
C7711
R7791
R7759
R7743
IC7705
R7703
R7807
R7782
R7766 R7750
R7732
R7724 C7716
Q7701
R7777
R7745
C7755
R7713
R7705
R7788
R7740
R7729
C7743
R7701
C7722
R7795
R7779
R7763
R7747
C7757
C7749
R7715
R7707
C7726
C7714
C7703
R7786
R7754
R7738
IC7703
C7729
C7720
R7789
R7773
R7757
R7741
C7751
IC7704
D7706
C7723
Q7708
R7784
R7752
R7735
R7718
D7704
R7808
R7799
R7783
R7767
R7751
R7734
R7725
C7740
R7710
R7709
C7706
R7790
R7774
R7758
R7742
R7702
C7724
Q7709
R7785
R7753
R7737
R7727
C7738
IC7702
C7728
C7708
R7805
R7796
R7780
R7764
R7748
R7730
R7722
R7716
C7730
D7702
C7704
PG-F320W
8 – 19
[5] PHOTO SENSOR Unit
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
PHOTO SENSOR Unit (Side-A) PHOTO SENSOR Unit (Chip Parts Side-A)
PHOTO SENSOR Unit (Side-B) PHOTO SENSOR Unit (Chip Parts Side-B)
IC1102
R1101
R1102
R1103
R1104
R1105
R1106
R1107
R1108
R1109
IC1101
R1110
R1111
P1101
C1101
C1102
C1103
R1112
C1104
PG-F320W
8 – 20
[6] R/C RECEIVER Unit
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
R/C RECEIVER Unit (Side-A) R/C RECEIVER Unit (Chip Parts Side-A)
R/C RECEIVER Unit (Side-B) R/C RECEIVER Unit (Chip Parts Side-B)
C1121
R1121
R1122
R1123
P1121
C1122
RMC1121
PG-F320W
8 – 21
[7] TERMINAL Unit
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
TERMINAL Unit (Side-A) TERMINAL Unit (Chip Parts Side-A)
TERMINAL Unit (Side-B) TERMINAL Unit (Chip Parts Side-B)
FB1201
FB1202
SC1201
D1201
D1202
R1201
R1202
R1210
J1201J1202
FB1203 FB1204
LUG1201
FB1205
LUG1202
FB1206 FB1207
FB1208
FB1209
P1201
C1201 C1202C1203 C1204
C1205
C1206
C1207
C1208
C1209
C1210
D1203
D1204
D1205
D1206
R1203
R1204 R1205
R1206
R1207
R1208
R1209
IC1201
PG-F320W
8 – 22
[8] CAP Unit
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
CAP Unit (Side-A)
CAP Unit (Side-B) CAP Unit (Chip Parts Side-B)
R1151
R1152
R1153R1154
R1156
R1157
R1155
PG-F320W
9 – 1
PG-F320W Service Manual
CHAPTER 9. WAVEFORMS
[1] WAVEFORMS
Trigger detection
Taking
1P704(14)
LAMP-CON
H:4ms/div
V:1V/div
2SC3801(1)
CWY1
H:400us/div
V:2V/div
3P1703(2)
CWINDEX
H:4ms/div
V:1V/div
4IC3201(70)
HSOUT
H:10us/div
V:1V/div
XGA60Hz
5IC3201(71)
VSOUT
H:10ms/div
V:1V/div
XGA60Hz
6Q901(GATE)
H:4us/div
V:100V/div
Trigger detection
Tak in g Trigger detection
Tak in g
Trigger detection
Taking Trigger detection
Taking
PG-F320W
10 – 1
PG-F320W Service Manual
CHAPTER 10. SCHEMATIC DIAGRAM
[1] DESCRIPTION OF SCHEMATIC DIAGRAM
1. VOLTAGE MEASUREMENT CONDITION:
1. Voltages at test points are measured at the supply voltage of AC
100V/CROSS 10V-240. Signals are fed by a color bar signal gener-
ator for servicing purpose and the above voltages are measured
with a 20k ohm/V tester.
2. INDICATION OF RESISTOR & CAPACITOR:
RESISTOR
1. he unit of resistance “Ω” is omitted.
(K=kΩ=1000 Ω, M=MΩ).
2. All resistors are ± 5%, unless otherwise noted.
(J=± 5%, F= ± 1%, D= ± 0.5%)
3. All resistors are 1/10W, unless otherwise noted.
4. All resistors are Carbon type, unless otherwise noted.
: Solid : Cement
: Oxide Film : Special
: Metal Coating
CAPACITOR
1. All capacitors are µF, unless otherwise noted.
(P=pF=µµF).
2. All capacitors are 50V, unless otherwise noted.
3. All capacitors are Ceramic type, unless otherwise noted.
(ML): Mylar (TA): Tantalum
(PF): Polypro Film (ST): Styrol
CAUTION:
This circuit diagram is original one, therefore there may be a
slight difference from yours.
SAFETY NOTES:
1. DISCONNECT THE AC PLUG FROM THE AC
OUTLET BEFORE REPLACING PARTS.
2. SEMICONDUCTOR HEAT SINKS SHOULD BE
REGARDED AS POTENTIAL SHOCK HAZARDS
WHEN THE CHASSIS IS OPERATING.
IMPORTANT SAFETY NOTICE:
PARTS MARKED WITH “ ” ( ) ARE
IMPORTANT FOR MAINTAINING THE SAFETY OF THE
SET. BE SURE TO REPLACE THESE PARTS WITH
SPECIFIED ONES FOR MAINTAINING THE SAFETY AND
PERFORMANCE OF THE SET.
C
W
ST
N
PG-F320W
10 – 2

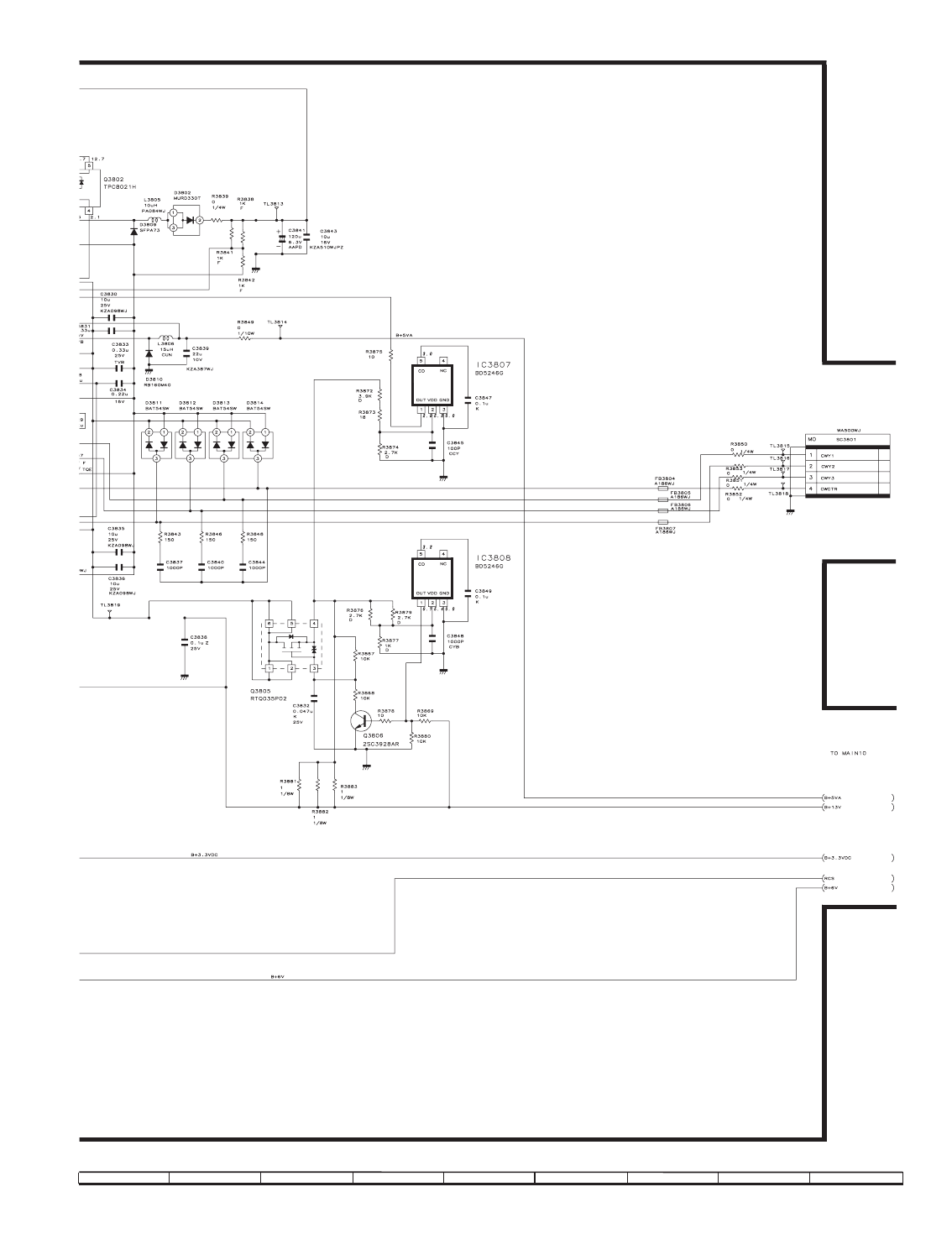

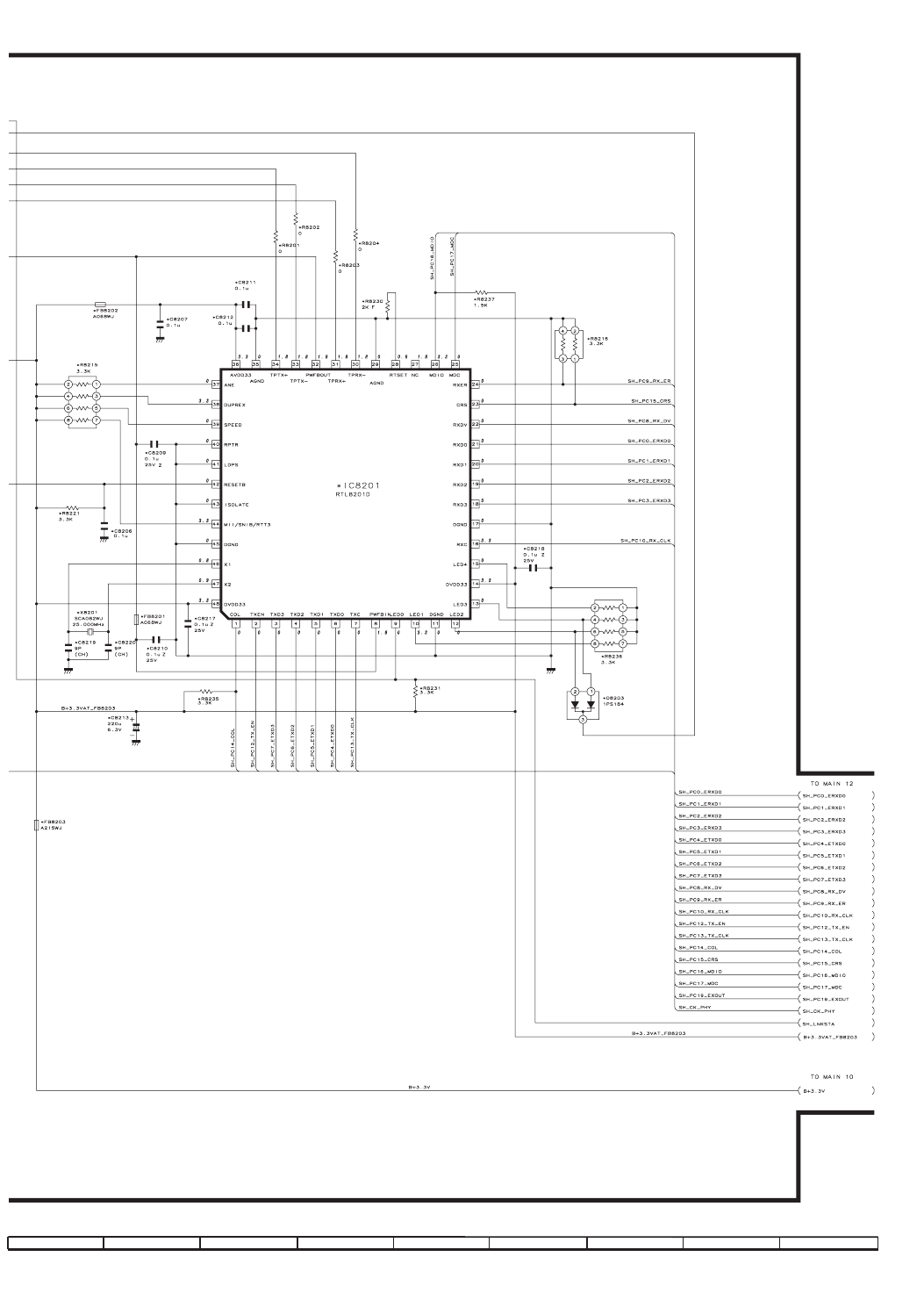

[2] SCHEMATIC DIAGRAM
123
4567 910
8
J
A
B
C
D
E
F
G
H
I

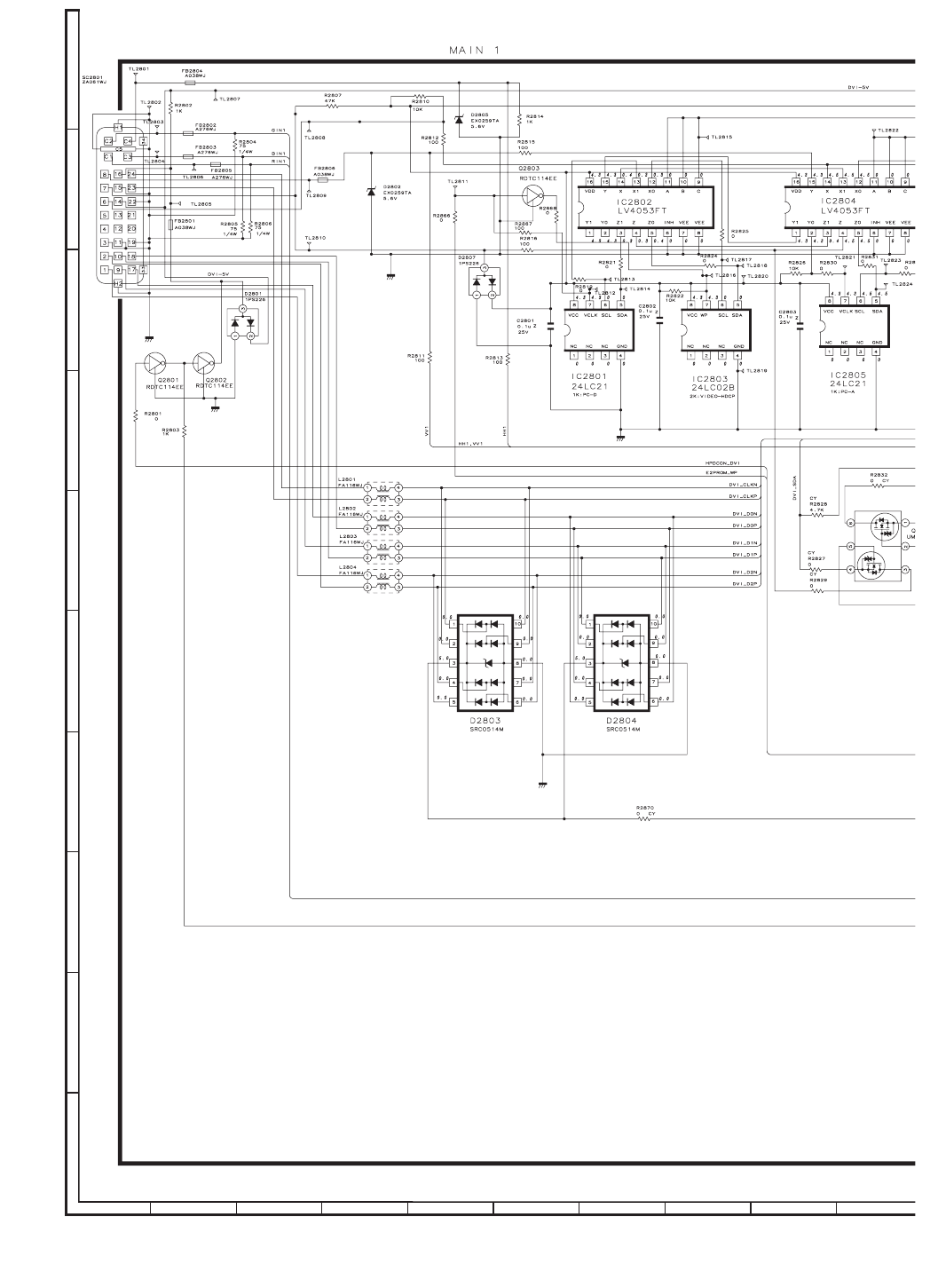

MAIN UNIT-1
PG-F320W
10 – 3
11 1312 14 15 16 18 1917
PG-F320W
10 – 4
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-2
PG-F320W
10 – 5
11 1312 14 15 16 18 1917
PG-F320W
10 – 6
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-3
PG-F320W
10 – 7
11 1312 14 15 16 18 1917
PG-F320W
10 – 8
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-4
PG-F320W
10 – 9
11 1312 14 15 16 18 1917
PG-F320W
10 – 10
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-5
PG-F320W
10 – 11
11 1312 14 15 16 18 1917
PG-F320W
10 – 12
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-6
PG-F320W
10 – 13
11 1312 14 15 16 18 1917
PG-F320W
10 – 14
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-7
PG-F320W
10 – 15
11 1312 14 15 16 18 1917
PG-F320W
10 – 16
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-8
PG-F320W
10 – 17
11 1312 14 15 16 18 1917
PG-F320W
10 – 18
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-9
PG-F320W
10 – 19
11 1312 14 15 16 18 1917
PG-F320W
10 – 20
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-10
PG-F320W
10 – 21
11 1312 14 15 16 18 1917
PG-F320W
10 – 22
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-11
PG-F320W
10 – 23
11 1312 14 15 16 18 1917
PG-F320W
10 – 24
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
MAIN UNIT-12
PG-F320W
10 – 25
11 1312 14 15 16 18 1917
PG-F320W
10 – 26
123
4567 910
8
J
A
B
C
D
E
F
G
H
I

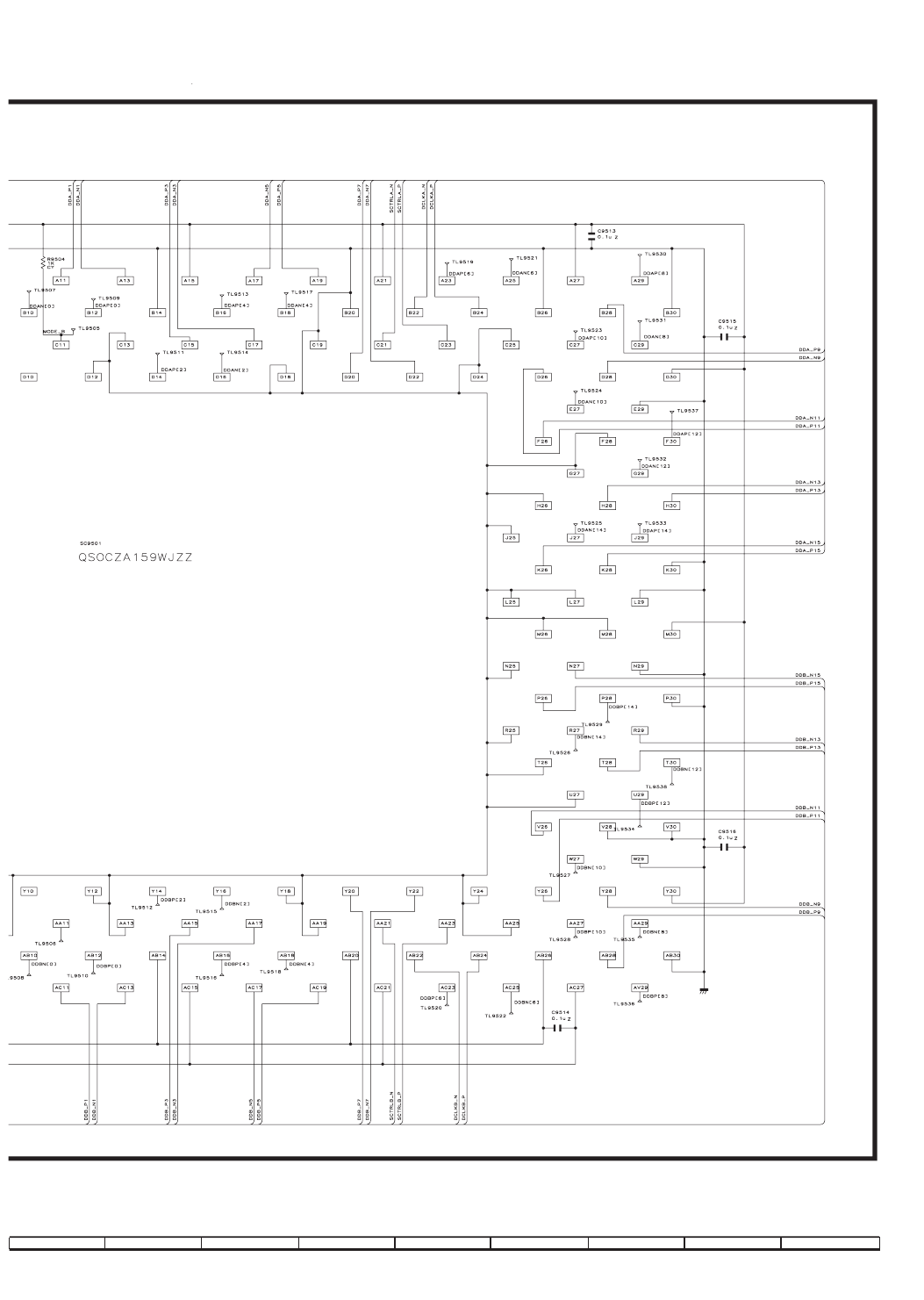

DMD UNIT-1
PG-F320W
10 – 27
11 1312 14 15 16 18 1917
PG-F320W
10 – 28
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
DMD UNIT-2
PG-F320W
10 – 29
11 1312 14 15 16 18 1917
PG-F320W
10 – 30
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
DMD UNIT-3
PG-F320W
10 – 31
11 1312 14 15 16 18 1917
PG-F320W
10 – 32
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
POWER UNIT
PG-F320W
10 – 33
11 1312 14 15 16 18 1917
AND SHADED COMPONENTS=SAFETY RELATED PARTS
PG-F320W
10 – 34
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
BALLAST CONTROL UNIT
PG-F320W
10 – 35
11 1312 14 15 16 18 1917
AND SHADED COMPONENTS=SAFETY RELATED PARTS
PG-F320W
10 – 36
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
PHOTO SENSOR UNIT
PG-F320W
10 – 37
11 1312 14 15 16 18 1917
PG-F320W
10 – 38
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
R/C RECEIVER UNIT
PG-F320W
10 – 39
11 1312 14 15 16 18 1917
PG-F320W
10 – 40
123
4567 910
8
J
A
B
C
D
E
F
G
H
I

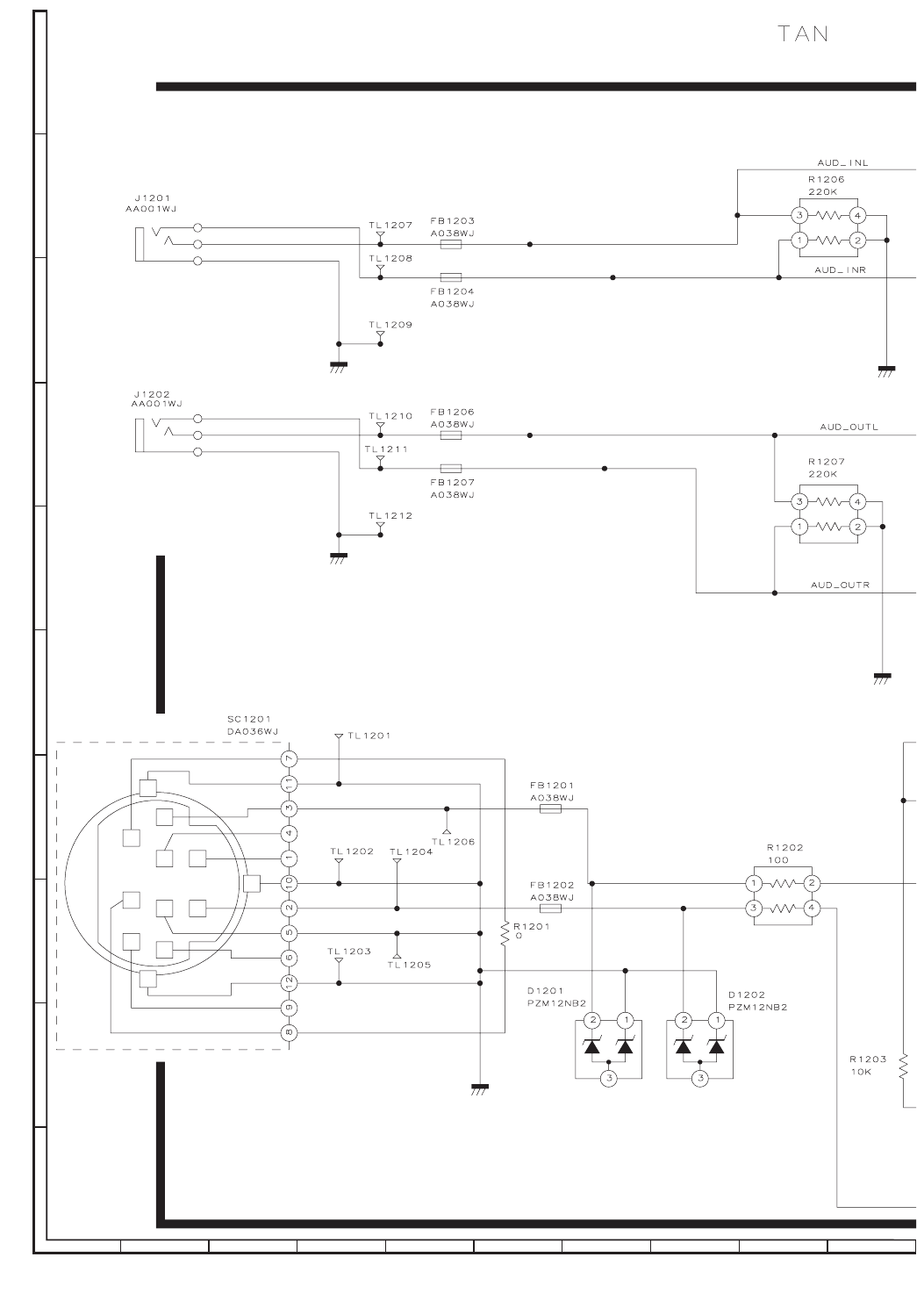

TERMINAL UNIT
PG-F320W
10 – 41
11 1312 14 15 16 18 1917
PG-F320W
10 – 42
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
CAP UNIT
PG-F320W
10 – 43
11 1312 14 15 16 18 1917
PG-F320W
10 – 44
— M E M O —
PARTS GUIDE
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
PG-F320W
PartsGuide
[1] PRINTED WIRING BOARD
ASSEMBLIES
(NOT REPLACEMENT ITEM)
[2] DUNTKE167WEF0 (DMD Unit)
[3] DUNTKE168FMF2 (MAIN Unit)
[4] DUNTKE169WEF1
(BALLAST POWER Unit)
[5] DUNTKE170WEF1
(BALLAST CONTROL Unit)
[6] DUNTKE171WEF1
(PHOTO SENSOR Unit)
[7] DUNTKE172WEF1
(R/C RECEIVER Unit)
[8] DUNTKE182WEF1
(TERMINAL Unit)
[9] DUNTKE225WEF1 (CAP Unit)
[10] CABINET AND MECHANICAL
PARTS
[11] OPTICAL MECHANISM PARTS
[12] SUPPLIED ACCESSORIES
[13] PACKING PARTS
(NOT REPLACEMENT ITEM)
[14] SERVICE JIGS AND EQUIPMENT
(USE FOR SERVICING)
CONTENTS
No. S87P4PG-F320W
DATA PROJECTOR
PG-F320W
Note:
The reference numbers on the PWB are arranged
in alphabetical order.
MODEL
PG-F320W
2
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[1] PRINTED WIRING BOARD ASSEMBLIES (NOT REPLACEMENT ITEM)
NDUNTKE167WEF0 BD N J DMD Unit (without the DMD chip)
NDUNTKE168FMF2 DA N J MAIN Unit
NDSETUE169FMG1 CP J BALLAST POWER Ass'y (with Ballast Control Unit)
NNot Available - - BALLAST POWER Unit *Order the BALLAST POWER Ass'y (DSETUE169FMG1) when
replacing ballast power unit (DUNTKE169WEF1).
NDUNTKE170WEF1 BQ N J BALLAST CONTROL Unit
NDUNTKE171WEF1 AU N J PHOTO SENSOR Unit
NDUNTKE172WEF1 AU N J R/C RECEIVER Unit
NDUNTKE182WEF1 AY N J TERMINAL Unit
NDUNTKE225WEF1 BL N J CAP Unit
[2] DUNTKE167WEF0 (DMD Unit)
C9101 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C9102 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9301 RC-KZA514WJZZY AF J Capacitor 3.3 50V
C9302 RC-KZA514WJZZY AF J Capacitor 3.3 50V
C9303 RC-KZA109WJZZY AC J Capacitor 10 16V Ceramic
C9304 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C9305 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C9306 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C9307 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C9308 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C9309 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9310 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9311 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9312 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9313 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C9314 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9315 RC-KZ0072TAZZY AC J Capacitor 1 25V Ceramic
C9316 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9317 RC-KZ0070TAZZY AD J Capacitor 4.7 16V Ceramic
C9318 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C9319 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9320 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9321 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9322 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C9501 RC-KZA066WJZZY AB J Capacitor 1 25V Ceramic
C9502 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C9503 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9504 RC-KZA066WJZZY AB J Capacitor 1 25V Ceramic
C9505 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9506 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9507 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9508 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9509 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9510 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9511 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9512 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9513 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9514 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9515 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C9516 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
D9301 VHDSJPBL6++-1Y AD N J Diode SJPB-L6VL
D9302 VHDSJPBL6++-1Y AD N J Diode SJPB-L6VL
D9304 RH-EX1009GEZZY AE J Zener Diode EX1009GE 9.1V
FB9301 RBLN-A191WJZZY AB J Ferrite Bead
FB9302 RBLN-A191WJZZY AB J Ferrite Bead
FB9303 RBLN-A191WJZZY AB J Ferrite Bead
FB9501 RBLN-A191WJZZY AB J Ferrite Bead
IC9301 RH-iXC119WJZZQ CA J IC 2506593-0004
L9301 RCiLP0325TAZZY AD J Coil 22µH
L9302 RCiLP0325TAZZY AD J Coil 22µH
R9102 VRS-CY1JF184FY AA J Resistor 180k 1/16W Metal Oxide
R9103 VRN-CY1JF472DY AA J Resistor 4.7k 1/16W Metal Film
R9301 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R9303 VRS-CJ1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R9304 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R9305 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R9306 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R9501 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R9504 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R9505 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R9506 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R9507 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
SC9101 QSOCZA140WJZZQ AZ J Socket 120Pin
TH9102 VHH103KT161-1Y AE J Thermistor 103KT161
PG-F320W
3
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[3] DUNTKE168FMF2 (MAIN Unit)
C1701 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1702 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1703 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1704 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C1705 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1707 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1708 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1709 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C1710 VCEAPF0JW226MY AB J Capacitor 22 6.3V Electrolytic
C1711 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1712 VCEAPF1CW336MY AD J Capacitor 33 16V Electrolytic
C1713 VCEAPF1EW106MY AC J Capacitor 10 25V Electrolytic
C1714 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1715 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C1717 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1718 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C1719 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C1720 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C1721 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C1723 VCEAPF1CW336MY AD J Capacitor 33 16V Electrolytic
C1724 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1725 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C1726 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1727 VCEAPF1EW106MY AC J Capacitor 10 25V Electrolytic
C1728 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1729 VCCCCY1HH220JY AA J Capacitor 22p 50V Ceramic
C1730 VCCCCY1HH220JY AA J Capacitor 22p 50V Ceramic
C1731 VCCCCY1HH220JY AA J Capacitor 22p 50V Ceramic
C1732 VCCCCY1HH220JY AA J Capacitor 22p 50V Ceramic
C1733 RC-KZA066WJZZY AB J Capacitor 1 25V Ceramic
C1734 RC-KZA066WJZZY AB J Capacitor 1 25V Ceramic
C1735 RC-KZA066WJZZY AB J Capacitor 1 25V Ceramic
C1736 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1737 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1738 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1741 VCEAPF1CW336MY AD J Capacitor 33 16V Electrolytic
C1742 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1743 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1744 VCEAPF1CW336MY AD J Capacitor 33 16V Electrolytic
C1745 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1746 RC-KZA066WJZZY AB J Capacitor 1 25V Ceramic
C1748 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1749 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C1760 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1761 VCEAPF1CW336MY AD J Capacitor 33 16V Electrolytic
C1762 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1763 VCEAPF1EW106MY AC J Capacitor 10 25V Electrolytic
C1764 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1781 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1785 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1795 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C1796 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1797 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C1798 VCEAPF1CW336MY AD J Capacitor 33 16V Electrolytic
C2001 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2002 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2003 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2004 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2005 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2006 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2007 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2008 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2009 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2010 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2011 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2012 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2013 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2014 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2015 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2016 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2017 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2018 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2019 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2020 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2021 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2022 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2023 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2024 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2025 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2026 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2027 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2028 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2029 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2030 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2031 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
PG-F320W
4
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C2033 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2036 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2037 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2038 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2039 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2040 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2041 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2042 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2043 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2044 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2045 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2046 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2048 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2049 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2050 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2051 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2052 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2053 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2054 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2055 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2056 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2057 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2058 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2060 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2061 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2062 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2064 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2065 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2066 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2067 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2068 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2069 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2070 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2079 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2080 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2081 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2085 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2086 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2087 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2088 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2091 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2092 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2094 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2095 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2096 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2097 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C2099 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C2100 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2101 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2102 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2103 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2104 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2105 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2106 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2107 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2108 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2201 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2202 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2203 VCCCCY1HH102JY AB J Capacitor 1000p 50V Ceramic
C2204 VCCCCY1HH102JY AB J Capacitor 1000p 50V Ceramic
C2205 VCCCCY1HH102JY AB J Capacitor 1000p 50V Ceramic
C2206 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2207 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2208 VCCCCY1HH102JY AB J Capacitor 1000p 50V Ceramic
C2209 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2210 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2211 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2212 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2213 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2214 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2215 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2216 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2217 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2218 VCKYCY1HB272KY AA J Capacitor 2700p 50V Ceramic
C2219 VCCCCY1HH3R0CY AA J Capacitor 3p 50V Ceramic
C2220 VCKYCY1HB272KY AA J Capacitor 2700p 50V Ceramic
C2223 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2224 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2225 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2226 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2227 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2228 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2229 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2230 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2232 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
5
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C2234 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2235 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2236 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2237 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2238 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2239 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2240 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2241 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2242 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2243 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2244 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C2245 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2246 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2247 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2248 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2249 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2250 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2251 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2252 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2253 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2254 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2255 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2256 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2257 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2258 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2259 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C2260 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C2261 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2262 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C2263 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2265 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2266 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C2531 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2551 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2552 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2553 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2554 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2555 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2556 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2557 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2558 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2559 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2560 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2561 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2562 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2563 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C2801 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2802 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2803 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2804 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2805 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C2806 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C2807 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2808 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C2810 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C2811 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3001 VCEAPF1AW226MY AC J Capacitor 22 10V Electrolytic
C3002 VCEAPF1AW226MY AC J Capacitor 22 10V Electrolytic
C3003 VCEAPF1AW226MY AC J Capacitor 22 10V Electrolytic
C3004 VCEAPF1AW226MY AC J Capacitor 22 10V Electrolytic
C3005 VCEAPF1AW226MY AC J Capacitor 22 10V Electrolytic
C3006 VCEAPF1AW226MY AC J Capacitor 22 10V Electrolytic
C3010 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3011 VCEAPF1AW226MY AC J Capacitor 22 10V Electrolytic
C3012 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3013 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3014 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3015 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3051 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3101 VCEAPF0JW227MY AD J Capacitor 220 6.3V Electrolytic
C3102 VCEAPF0JW227MY AD J Capacitor 220 6.3V Electrolytic
C3103 VCEAPF0JW227MY AD J Capacitor 220 6.3V Electrolytic
C3151 VCCCCY1HH820JY AA J Capacitor 82p 50V Ceramic
C3152 VCCCCY1HH820JY AA J Capacitor 82p 50V Ceramic
C3153 VCCCCY1HH221JY AA J Capacitor 220p 50V Ceramic
C3154 VCCCCY1HH221JY AA J Capacitor 220p 50V Ceramic
C3155 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3201 VCKYCY1EB473KY AA J Capacitor 0.047 25V Ceramic
C3202 VCKYCY1EB473KY AA J Capacitor 0.047 25V Ceramic
C3203 VCKYCY1EB473KY AA J Capacitor 0.047 25V Ceramic
C3205 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3206 VCKYCY1EB473KY AA J Capacitor 0.047 25V Ceramic
C3207 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C3208 VCKYCY1EB473KY AA J Capacitor 0.047 25V Ceramic
C3209 VCKYCY1EB473KY AA J Capacitor 0.047 25V Ceramic
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
6
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C3210 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3211 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3212 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3213 VCEAPF0JW226MY AB J Capacitor 22 6.3V Electrolytic
C3216 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3217 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3219 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3220 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3221 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3222 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3223 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3225 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3226 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3227 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3228 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3229 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3230 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3231 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3232 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3301 VCEAPF1CW226MY AB J Capacitor 22 16V Electrolytic
C3302 VCCCCY1HH151JY AA J Capacitor 150p 50V Ceramic
C3303 VCCCCY1HH681JY AB J Capacitor 680p 50V Ceramic
C3304 VCCCCY1HH681JY AB J Capacitor 680p 50V Ceramic
C3306 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C3308 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C3309 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C3310 VCEAPF1HW105MY AB J Capacitor 1 50V Electrolytic
C3311 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3312 VCCCCY1HH151JY AA J Capacitor 150p 50V Ceramic
C3313 VCCCCY1HH681JY AB J Capacitor 680p 50V Ceramic
C3314 VCCCCY1HH681JY AB J Capacitor 680p 50V Ceramic
C3315 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C3316 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C3317 VCEAPF1HW105MY AB J Capacitor 1 50V Electrolytic
C3321 VCEAPF1CW226MY AB J Capacitor 22 16V Electrolytic
C3322 VCCCCY1HH151JY AA J Capacitor 150p 50V Ceramic
C3323 VCCCCY1HH681JY AB J Capacitor 680p 50V Ceramic
C3324 VCCCCY1HH681JY AB J Capacitor 680p 50V Ceramic
C3326 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C3351 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3352 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3353 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3354 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3355 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3356 VCCCCY1HH220JY AA J Capacitor 22p 50V Ceramic
C3357 VCCCCY1HH220JY AA J Capacitor 22p 50V Ceramic
C3358 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3359 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3360 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3361 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3366 VCEAPF0JW226MY AB J Capacitor 22 6.3V Electrolytic
C3367 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3368 VCEAPF1CW336MY AD J Capacitor 33 16V Electrolytic
C3369 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C3370 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C3373 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3503 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C3505 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3507 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C3508 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C3509 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3513 VCEAPF1HW105MY AB J Capacitor 1 50V Electrolytic
C3514 VCEAPF1HW105MY AB J Capacitor 1 50V Electrolytic
C3515 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C3523 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C3524 VCEAPF1CW106MY AB J Capacitor 10 16V Electrolytic
C3531 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3533 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3535 VCEAPF0JW107MY AC J Capacitor 100 6.3V Electrolytic
C3537 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3538 VCEAPF0JW227MY AD J Capacitor 220 6.3V Electrolytic
C3539 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C3540 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C3541 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C3545 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C3552 VCEAPF1CW107MY AC J Capacitor 100 16V Electrolytic
C3553 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3554 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3555 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C3556 VCEAPF1EW106MY AC J Capacitor 10 25V Electrolytic
C3557 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3561 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3562 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3563 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C3564 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
7
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C3565 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3566 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3567 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3569 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C3570 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3571 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C3572 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3601 VCEAPF1CW226MY AB J Capacitor 22 16V Electrolytic
C3801 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C3802 RC-KZA387WJZZY AF J Capacitor 22 10V Ceramic
C3803 RC-KZA387WJZZY AF J Capacitor 22 10V Ceramic
C3805 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3806 VCAAPD1AJ686MY AE J Capacitor 68 10V Electrolytic
C3807 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3808 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C3809 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C3811 VCKYTV1EB334KY AB J Capacitor 0.33 25V Ceramic
C3812 VCCCCY1HH471JY AA J Capacitor 470p 50V Ceramic
C3813 VCKYCY1HB152KY AA J Capacitor 1500p 50V Ceramic
C3814 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C3815 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C3816 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3817 VCAAPD1DJ476MY AF J Capacitor 47 20V Electrolytic
C3818 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3819 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C3820 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3821 VCKYTV1EB334KY AB J Capacitor 0.33 25V Ceramic
C3822 RC-KZA098WJZZY AD J Capacitor 10 25V
C3824 RC-KZA098WJZZY AD J Capacitor 10 25V
C3825 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C3826 RC-KZA110WJZZY AD J Capacitor 10 25V Ceramic
C3827 RC-KZA110WJZZY AD J Capacitor 10 25V Ceramic
C3828 VCKYTV1EB334KY AB J Capacitor 0.33 25V Ceramic
C3829 VCKYCY1CB224KY AB J Capacitor 0.22 16V Ceramic
C3830 RC-KZA098WJZZY AD J Capacitor 10 25V
C3831 VCKYTV1EB334KY AB J Capacitor 0.33 25V Ceramic
C3832 VCKYCY1EB473KY AA J Capacitor 0.047 25V Ceramic
C3833 VCKYTV1EB334KY AB J Capacitor 0.33 25V Ceramic
C3834 VCKYCY1CB224KY AB J Capacitor 0.22 16V Ceramic
C3835 RC-KZA098WJZZY AD J Capacitor 10 25V
C3836 RC-KZA098WJZZY AD J Capacitor 10 25V
C3837 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C3838 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C3839 RC-KZA387WJZZY AF J Capacitor 22 10V Ceramic
C3840 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C3841 VCAAPD0JJ127MY AF J Capacitor 120 6.3V Electrolytic
C3843 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C3844 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C3845 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C3847 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C3848 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C3849 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C8001 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8002 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8003 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8004 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8005 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8006 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8008 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C8009 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8010 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C8011 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8012 VCEAPF1CW336MY AD J Capacitor 33 16V Electrolytic
C8013 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C8014 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8015 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8016 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8017 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8018 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8019 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8020 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8021 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8022 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8023 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8024 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8025 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8026 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8027 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8028 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8029 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8030 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8031 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C8032 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C8033 VCCCCY1HH150JY AA J Capacitor 15p 50V Ceramic
C8034 VCCCCY1HH150JY AA J Capacitor 15p 50V Ceramic
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
8
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C8035 VCEAPF0JW227MY AD J Capacitor 220 6.3V Electrolytic
C8036 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8037 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8038 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8039 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8040 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8041 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8202 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8203 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8204 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8205 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8206 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8207 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8208 VCEAPF0JW226MY AB J Capacitor 22 6.3V Electrolytic
C8209 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8210 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8211 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8212 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8213 VCEAPF0JW227MY AD J Capacitor 220 6.3V Electrolytic
C8217 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8218 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C8219 VCCCCY1HH9R0DY AA J Capacitor 9p 50V Ceramic
C8220 VCCCCY1HH9R0DY AA J Capacitor 9p 50V Ceramic
D1703 VHDBAS316//-1Y AB J Diode BAS316,115
D1704 VHDBAS316//-1Y AB J Diode BAS316,115
D1705 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1706 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1707 VHDBAS316//-1Y AB J Diode BAS316,115
D1708 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1709 VHDRB160M40-1Y AC J Diode RB160M-40TR
D1712 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1715 VHDRB160M40-1Y AC J Diode RB160M-40TR
D1716 VHDBAS316//-1Y AB J Diode BAS316,115
D1717 VHDRB160M40-1Y AC J Diode RB160M-40TR
D1719 VHDBAS316//-1Y AB J Diode BAS316,115
D1720 VHDBAS316//-1Y AB J Diode BAS316,115
D1721 VHD1PS184++-1Y AB J Diode 1PS184,115
D1722 VHD1PS184++-1Y AB J Diode 1PS184,115
D1723 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1724 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1725 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1726 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1727 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1728 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1729 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1730 VHDBAS316//-1Y AB J Diode BAS316,115
D1733 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1734 VHDRB551V30-1Y AC J Diode RB551V-30TE-17
D1735 RH-EX0266TAZZY AB N J Diode PDZ11B,115
D1761 VHDBAS316//-1Y AB J Diode BAS316,115
D2531 VHEPZM12NB2-1Y AC J Zener Diode PZM12NB2
D2532 VHEPZM12NB2-1Y AC J Zener Diode PZM12NB2
D2571 RH-PXA097WJZZY AC J Photo Diode KPH-1608EC
D2572 RH-PXA038WJZZY AC J Photo Diode (LAMP)
D2573 RH-PXA038WJZZY AC J Photo Diode (POWER)
D2801 VHD1PS226++-1Y AB J Diode 1PS226,115
D2802 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D2803 VHDSRC0514M-1Y AG J Diode RClamp0514M.TBT
D2804 VHDSRC0514M-1Y AG J Diode RClamp0514M.TBT
D2805 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D2807 VHD1PS226++-1Y AB J Diode 1PS226,115
D2813 VHDBAS316//-1Y AB J Diode BAS316,115
D2814 VHDBAS316//-1Y AB J Diode BAS316,115
D3001 VHD1PS226++-1Y AB J Diode 1PS226,115
D3002 VHD1PS226++-1Y AB J Diode 1PS226,115
D3003 VHD1PS226++-1Y AB J Diode 1PS226,115
D3004 VHD1PS226++-1Y AB J Diode 1PS226,115
D3005 VHD1PS226++-1Y AB J Diode 1PS226,115
D3006 VHD1PS226++-1Y AB J Diode 1PS226,115
D3007 VHD1PS226++-1Y AB J Diode 1PS226,115
D3008 VHD1PS226++-1Y AB J Diode 1PS226,115
D3009 VHD1PS226++-1Y AB J Diode 1PS226,115
D3051 VHDBAS316//-1Y AB J Diode BAS316,115
D3052 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3053 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3054 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3055 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3056 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3057 VHDBAS316//-1Y AB J Diode BAS316,115
D3101 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3103 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3301 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3311 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3321 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3331 VHDBAS316//-1Y AB J Diode BAS316,115
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
9
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
D3501 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3502 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3511 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3512 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3521 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3522 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D3551 VHDBAS316//-1Y AB J Diode BAS316,115
D3552 RH-EX0265TAZZY AB J Zener Diode EX0265TA 10V
D3553 RH-EX0265TAZZY AB J Zener Diode EX0265TA 10V
D3801 RH-EX1226CEZZY AB J Diode HZU2.4BTRF-E
D3802 VHDMURD330T-1Y AM N J Diode MURD330T4G
D3804 VHDRB160M40-1Y AC J Diode RB160M-40TR
D3805 VHDRB160M40-1Y AC J Diode RB160M-40TR
D3806 VHDSFPA73//2EY AD J Diode SFPA-73VL
D3808 VHDSFPA73//2EY AD J Diode SFPA-73VL
D3809 VHDSFPA73//2EY AD J Diode SFPA-73VL
D3810 VHDRB160M40-1Y AC J Diode RB160M-40TR
D3811 VHDBAT54SW+-1Y AC J Diode BAT54SW,115
D3812 VHDBAT54SW+-1Y AC J Diode BAT54SW,115
D3813 VHDBAT54SW+-1Y AC J Diode BAT54SW,115
D3814 VHDBAT54SW+-1Y AC J Diode BAT54SW,115
D8001 VHDBAS316//-1Y AB J Diode BAS316,115
D8202 VHDMA157A//-1Y AC J Diode MA3X157A0L
D8203 VHD1PS184++-1Y AB J Diode 1PS184,115
D8204 VHDMA157A//-1Y AC J Diode MA3X157A0L
D8205 VHDMA157A//-1Y AC J Diode MA3X157A0L
D8206 VHDMA157A//-1Y AC J Diode MA3X157A0L
FB1701 RBLN-A213WJZZY AB J Ferrite Bead
FB1702 RBLN-A213WJZZY AB J Ferrite Bead
FB1703 RBLN-A068WJZZY AB J Ferrite Bead
FB1704 RBLN-A068WJZZY AB J Ferrite Bead
FB1705 RBLN-A068WJZZY AB J Ferrite Bead
FB1706 RBLN-A068WJZZY AB J Ferrite Bead
FB1707 RBLN-A068WJZZY AB J Ferrite Bead
FB1708 RBLN-A042WJZZY AB J Ferrite Bead
FB1709 RBLN-A042WJZZY AB J Ferrite Bead
FB1710 RBLN-A187WJZZY AB J Ferrite Bead
FB1711 RBLN-A068WJZZY AB J Ferrite Bead
FB1712 RBLN-A068WJZZY AB J Ferrite Bead
FB1713 RBLN-A187WJZZY AB J Ferrite Bead
FB1714 RBLN-A187WJZZY AB J Ferrite Bead
FB1716 RBLN-A187WJZZY AB J Ferrite Bead
FB1717 RBLN-A187WJZZY AB J Ferrite Bead
FB1718 RBLN-A187WJZZY AB J Ferrite Bead
FB1719 RBLN-A187WJZZY AB J Ferrite Bead
FB1721 RBLN-A187WJZZY AB J Ferrite Bead
FB1723 RBLN-A068WJZZY AB J Ferrite Bead
FB1724 RBLN-A187WJZZY AB J Ferrite Bead
FB1726 RBLN-A068WJZZY AB J Ferrite Bead
FB1727 RBLN-A187WJZZY AB J Ferrite Bead
FB1729 RBLN-A068WJZZY AB J Ferrite Bead
FB1730 RBLN-A068WJZZY AB J Ferrite Bead
FB1731 RBLN-A068WJZZY AB J Ferrite Bead
FB2001 RBLN-A215WJZZY AB J Ferrite Bead
FB2002 RBLN-A215WJZZY AB J Ferrite Bead
FB2003 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
FB2004 RBLN-A215WJZZY AB J Ferrite Bead
FB2005 RBLN-A215WJZZY AB J Ferrite Bead
FB2006 RBLN-A215WJZZY AB J Ferrite Bead
FB2201 RBLN-A215WJZZY AB J Ferrite Bead
FB2202 RBLN-A215WJZZY AB J Ferrite Bead
FB2203 RBLN-A215WJZZY AB J Ferrite Bead
FB2204 RBLN-A215WJZZY AB J Ferrite Bead
FB2241 RBLN-A215WJZZY AB J Ferrite Bead
FB2261 RBLN-A215WJZZY AB J Ferrite Bead
FB2531 RBLN-0006TAZZY AB J Ferrite Bead
FB2532 RBLN-0006TAZZY AB J Ferrite Bead
FB2533 RBLN-0006TAZZY AB J Ferrite Bead
FB2551 RBLN-A038WJZZY AB J Ferrite Bead
FB2552 RBLN-A038WJZZY AB J Ferrite Bead
FB2553 RBLN-A038WJZZY AB J Ferrite Bead
FB2554 RBLN-A038WJZZY AB J Ferrite Bead
FB2563 RBLN-A068WJZZY AB J Ferrite Bead
FB2801 RBLN-A038WJZZY AB J Ferrite Bead
FB2802 RBLN-A276WJZZY AB J Ferrite Bead
FB2803 RBLN-A276WJZZY AB J Ferrite Bead
FB2804 RBLN-A038WJZZY AB J Ferrite Bead
FB2805 RBLN-A276WJZZY AB J Ferrite Bead
FB2806 RBLN-A038WJZZY AB J Ferrite Bead
FB3001 RBLN-A215WJZZY AB J Ferrite Bead
FB3051 RBLN-A276WJZZY AB J Ferrite Bead
FB3052 RBLN-A276WJZZY AB J Ferrite Bead
FB3053 RBLN-A276WJZZY AB J Ferrite Bead
FB3054 RBLN-A038WJZZY AB J Ferrite Bead
FB3055 RBLN-A038WJZZY AB J Ferrite Bead
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
10
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
FB3056 RBLN-A038WJZZY AB J Ferrite Bead
FB3057 RBLN-A038WJZZY AB J Ferrite Bead
FB3101 RBLN-A276WJZZY AB J Ferrite Bead
FB3102 RBLN-A276WJZZY AB J Ferrite Bead
FB3103 RBLN-A276WJZZY AB J Ferrite Bead
FB3104 RBLN-A038WJZZY AB J Ferrite Bead
FB3105 RBLN-A038WJZZY AB J Ferrite Bead
FB3201 RBLN-A068WJZZY AB J Ferrite Bead
FB3202 RBLN-A068WJZZY AB J Ferrite Bead
FB3203 RBLN-A187WJZZY AB J Ferrite Bead
FB3204 RBLN-A187WJZZY AB J Ferrite Bead
FB3205 RBLN-A187WJZZY AB J Ferrite Bead
FB3206 RBLN-A187WJZZY AB J Ferrite Bead
FB3207 RBLN-A068WJZZY AB J Ferrite Bead
FB3301 RBLN-A038WJZZY AB J Ferrite Bead
FB3302 RBLN-A038WJZZY AB J Ferrite Bead
FB3303 RBLN-A038WJZZY AB J Ferrite Bead
FB3311 RBLN-A038WJZZY AB J Ferrite Bead
FB3321 RBLN-A038WJZZY AB J Ferrite Bead
FB3351 RBLN-A187WJZZY AB J Ferrite Bead
FB3354 RBLN-A187WJZZY AB J Ferrite Bead
FB3355 RBLN-A187WJZZY AB J Ferrite Bead
FB3551 RBLN-A187WJZZY AB J Ferrite Bead
FB3552 RBLN-A187WJZZY AB J Ferrite Bead
FB3561 RBLN-A215WJZZY AB J Ferrite Bead
FB3562 RBLN-A068WJZZY AB J Ferrite Bead
FB3563 RBLN-A068WJZZY AB J Ferrite Bead
FB3564 RBLN-A068WJZZY AB J Ferrite Bead
FB3565 RBLN-A068WJZZY AB J Ferrite Bead
FB3566 RBLN-A068WJZZY AB J Ferrite Bead
FB3801 RBLN-A303WJZZY AB J Ferrite Bead
FB3804 RBLN-A186WJZZY AA J Ferrite Bead
FB3805 RBLN-A186WJZZY AA J Ferrite Bead
FB3806 RBLN-A186WJZZY AA J Ferrite Bead
FB3807 RBLN-A186WJZZY AA J Ferrite Bead
FB8005 RBLN-A215WJZZY AB J Ferrite Bead
FB8201 RBLN-A068WJZZY AB J Ferrite Bead
FB8202 RBLN-A068WJZZY AB J Ferrite Bead
FB8203 RBLN-A215WJZZY AB J Ferrite Bead
FB8205 RBLN-A068WJZZY AB J Ferrite Bead
IC1701 VHiAHCT08PH-1Y AE J IC 74AHCT08PW/G,118
IC1703 VHiPQ200WNA-1Y AG J IC PQ200WNA1ZPH
IC1704 VHiTC7SH08U-1Y AF J IC TC7SH08FU(TE85L,JF)
IC1705 VHiPQ1L333M-1Y AD J IC PQ1L333M2SPQ
IC1706 VHiPQ200WNA-1Y AG J IC PQ200WNA1ZPH
IC1707 VHiLV4053FT-1Y AE J IC TC74LVX4053FT(EL)
IC1709 VHiTC7SH08U-1Y AF J IC TC7SH08FU(TE85L,JF)
IC1710 VHiTC7SH08U-1Y AF J IC TC7SH08FU(TE85L,JF)
IC1711 VHiTC7SH08U-1Y AF J IC TC7SH08FU(TE85L,JF)
IC1761 VHiPQ200WNA-1Y AG J IC PQ200WNA1ZPH
IC1764 VHiPQ1MX55M-1Y AD J IC PQ1MX55M2SPQ
IC1792 VHiPQ200WNA-1Y AG J IC PQ200WNA1ZPH
IC2001 RH-iXB998WJN1Q CD N J IC 2507605-0002
IC2201 VHiCDCD5704-1Y BB J IC CDCD5704PWR
IC2204 VHiCCDLP223-1Y BE J IC CDCDLP223PWR
IC2205 VHiEDX511CC-1Q BX J IC EDX5116ACSE-3C-E
IC2232 RH-iXB742WJZZQ AX J IC K4S641632K-UC75
IC2261 VHiBR24L32F-1Y AG J IC BR24L32F-WE2
IC2262 RH-iXC229WJZZQ BB N J IC iXC229WJ (Program Data F-ROM)
IC2531 VHiNC7WZ125-1Y AD J IC NC7WZ125K8X
IC2562 VHiLV4053FT-1Y AE J IC TC74LVX4053FT(EL)
IC2801 RH-iXC260WJZZS AH J IC iXC260WJ (EEPROM PC-D)
IC2802 VHiLV4053FT-1Y AE J IC TC74LVX4053FT(EL)
IC2803 RH-iXC261WJZZS AH J IC iXC261WJ (EEPROM HDCP)
IC2804 VHiLV4053FT-1Y AE J IC TC74LVX4053FT(EL)
IC2805 RH-iXC259WJZZS AH J IC iXC259WJ (EEPROM Analog)
IC2806 VHiPQ1L333M-1Y AD J IC PQ1L333M2SPQ
IC2807 VHiAHCT08PH-1Y AE J IC 74AHCT08PW/G,118
IC2808 VHiPCA9559+-1Y AN J IC PCA9559PW/G,118
IC3001 VHiLT6555GN-1Y AS J IC LT6555CGN#TRPBF
IC3051 RH-iXC259WJZZS AH J IC iXC259WJ (EEPROM Analog)
IC3101 VHiVHCT125A-1Y AE J IC TC74VHCT125AFT(EL)
IC3152 VHiLCX157MT-1Y AE J IC 74LCX157MTCX
IC3201 VHiMST3362K-1Q BU J IC MST3362MK-LF-170
IC3351 VHiTVP5146M-1Q BR J IC TVP5146PFP
IC3352 VHiPQ018EZ5-1Y AF J IC PQ018EZ5MZPH
IC3501 VHiLV4053AT-1Y AE J IC SN74LV4053APWR
IC3533 VHiBA3530FS-1Y AM J IC BA3530FS-E1
IC3551 VHiDA7056AT-1Y AM J IC TDA7056AT/N2,518
IC3552 VHiPQ200WNA-1Y AG J IC PQ200WNA1ZPH
IC3561 VHiMB8346BV-1Y AN J IC MB88346BPFV-G-BND-EFE1
IC3562 RH-iXA966WJZZY AZ J IC PIC16F819-I/SS
IC3801 VHiBD5246G+-1Y AE J IC BD5246G-TR
IC3802 RH-iXB689WJN1Q BM N J IC 2506224-0002
IC3803 VHiMP1583++-1Y AH J IC MP1583DN-LF-Z
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
11
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
IC3804 VHiTC7SH08U-1Y AF J IC TC7SH08FU(TE85L,JF)
IC3807 VHiBD5246G+-1Y AE J IC BD5246G-TR
IC3808 VHiBD5246G+-1Y AE J IC BD5246G-TR
IC8001 VHiHD7618BG-1Q BK J IC HD6417618BGN100V
IC8002 VHiPQ1MX55M-1Y AD J IC PQ1MX55M2SPQ
IC8003 VHiM24C16W6-1Y AG J IC M24C16-WMN6TP
IC8004 RH-iXC253WJZZQ BF N J IC M29W160EB70N6E
IC8005 RH-iXB742WJZZQ AX J IC K4S641632K-UC75
IC8006 VHiBD5227G+-1Y AD J IC BD5227G-TR
IC8007 VHiTC7SH08U-1Y AF J IC TC7SH08FU(TE85L,JF)
IC8008 VHiTC7SH125-1Y AD J IC TC7SH125FU(TE85L,F
IC8009 VHiTC7SZ08U-1Y AE J IC TC7SZ08FU(TE85L,F)
IC8201 VHiRTL8201D-1Q AY J IC RTL8201CP-VC-LF
J2501 QSOCZA074WJZZ AD J Jack USB
J3301 QJAKZA026WJZZ AG J Jack S-Video In/Video In/Audio In
J8201 QJAKZA023WJZZ AS J Jack LAN
L1701 VPCUN150KR63NY AC J Peaking 15µH
L1703 VPCUN150KR63NY AC J Peaking 15µH
L1704 VPCUN150KR63NY AC J Peaking 15µH
L1705 VPCUN150KR63NY AC J Peaking 15µH
L1706 VPCUN330K1R4NY AC J Peaking 33µH
L1707 VPCUN150KR63NY AC J Peaking 15µH
L1708 VPCUN150KR63NY AC J Peaking 15µH
L2801 RCiLFA116WJZZY AE J Coil
L2802 RCiLFA116WJZZY AE J Coil
L2803 RCiLFA116WJZZY AE J Coil
L2804 RCiLFA116WJZZY AE J Coil
L3301 VPD9M1R0JR57NY AB J Peaking 1µH
L3302 VPD9M1R8JR84NY AC J Peaking 1.8µH
L3311 VPD9M1R0JR57NY AB J Peaking 1µH
L3312 VPD9M1R8JR84NY AC J Peaking 1.8µH
L3321 VPD9M1R0JR57NY AB J Peaking 1µH
L3322 VPD9M1R8JR84NY AC J Peaking 1.8µH
L3801 RCiLPA195WJZZY AD J Coil 10µH
L3802 VPCUN150KR63NY AC J Peaking 15µH
L3803 RCiLPA887WJZZY AG J Coil 15µH
L3804 RCiLPA087WJZZY AE J Coil 33µH
L3805 RCiLPA084WJZZY AE J Coil 10µH
L3806 VPCUN150KR63NY AC J Peaking 15µH
LUG2501 QLUGHA002WJZZ AB J Lug
LUG2502 QLUGHA002WJZZ AB J Lug
LUG3101 QLUGHA002WJZZ AB J Lug
LUG3102 QLUGHA002WJZZ AB J Lug
P1701 QPLGNA071WJZZ AC J Plug 14Pin (EA)
P1702 QPLGN0263TAZZY AB J Plug 2Pin (LF)
P1703 QPLGN0363TAZZY AC J Plug 3Pin (CW)
P1704 QPLGN0364TAZZY AC J Plug 3Pin (RC)
P1706 QPLGN0464TAZZY AC J Plug 4Pin (CAP)
P1721 QPLGN0364TAZZY AC J Plug 3Pin (FA)
P1722 QPLGN0364TAZZY AC J Plug 3Pin (FB)
P1723 QPLGN0464TAZZY AC J Plug 4Pin (FD)
P1724 QPLGN0364TAZZY AC J Plug 3Pin (FC)
P2501 QPLGZA027WJZZQ AZ J Plug 122Pin
P2551 QPLGN1263TAZZY AD J Plug 12Pin (TA)
P3551 QPLGN0264TAZZY AC J Plug 2Pin (SO)
P3562 QPLGN0363TAZZY AC J Plug 3Pin (TH2)
Q1701 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q1702 VSMCH3405++-1Y AD J Transistor MCH3405-TLE
Q1703 VSMCH3405++-1Y AD J Transistor MCH3405-TLE
Q1704 VSRTQ035P02-1Y AD J Transistor RTQ035P02TR
Q1705 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q1706 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q1707 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q1708 VS2SA1797Q+-1Y AD J Transistor 2SA1797 T100 Q
Q1710 VSMCH3405++-1Y AD J Transistor MCH3405-TLE
Q1711 VSMCH3405++-1Y AD J Transistor MCH3405-TLE
Q1712 VSMCH3405++-1Y AD J Transistor MCH3405-TLE
Q1715 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q1721 VSRDTA114EE-1Y AB J Transistor PDTA114EE,115
Q2571 VS2SA1530AR-1Y AB J Transistor 2SA1530A-T112-1R
Q2572 VS2SA1530AR-1Y AB J Transistor 2SA1530A-T112-1R
Q2573 VS2SA1530AR-1Y AB J Transistor 2SA1530A-T112-1R
Q2574 VS2SA1530AR-1Y AB J Transistor 2SA1530A-T112-1R
Q2575 VS2SA1530AR-1Y AB J Transistor 2SA1530A-T112-1R
Q2576 VSRDTC114EE-1Y AA J Transistor PDTC114EE,115
Q2801 VSRDTC114EE-1Y AA J Transistor PDTC114EE,115
Q2802 VSRDTC114EE-1Y AA J Transistor PDTC114EE,115
Q2803 VSRDTC114EE-1Y AA J Transistor PDTC114EE,115
Q2804 VSUM6K1NTN+-1Y AC J Transistor UM6K1N TN
Q3001 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3101 VSRDTC114EE-1Y AA J Transistor PDTC114EE,115
Q3104 VSRDTC114EE-1Y AA J Transistor PDTC114EE,115
Q3301 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3311 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3321 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
12
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
Q3501 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3502 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3511 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3512 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3521 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3524 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3534 VS2SA1530AR-1Y AB J Transistor 2SA1530A-T112-1R
Q3535 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3536 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3601 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q3801 VSMCH3405++-1Y AD J Transistor MCH3405-TLE
Q3802 VSTPC8021H+-1Y AG N J Transistor TPC8021-H(TE12L,Q)
Q3805 VSRTQ035P02-1Y AD J Transistor RTQ035P02TR
Q3806 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q8001 VSRDTC114EE-1Y AA J Transistor PDTC114EE,115
Q8002 VSRDTC114EE-1Y AA J Transistor PDTC114EE,115
R1701 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1702 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R1703 VRS-CH1JF100JY AA J Resistor 10 1/16W Metal Oxide
R1704 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R1706 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1708 VRS-CY1JF271JY AA J Resistor 270 1/16W Metal Oxide
R1709 VRS-TW2ED000JY AB J Resistor 0 1/4W Metal Oxide
R1710 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R1714 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide
R1715 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R1716 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
R1719 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1720 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1721 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R1722 VRS-CY1JF622FY AA J Resistor 6.2k 1/16W Metal Oxide
R1723 VRS-CY1JF122JY AA J Resistor 1.2k 1/16W Metal Oxide
R1724 VRS-CY1JF392FY AA J Resistor 3.9k 1/16W Metal Oxide
R1725 VRS-CY1JF563JY AA J Resistor 56k 1/16W Metal Oxide
R1726 VRS-CH1JF562JY AB J Resistor 5.6k 1/16W Metal Oxide
R1727 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R1728 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R1729 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1730 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1731 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R1732 VRS-TW2HF2R2JY AA J Resistor 2.2 1/2W Metal Oxide
R1733 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1734 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1735 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1736 VRS-CY1JF393JY AA J Resistor 39k 1/16W Metal Oxide
R1737 VRS-TW2HF471JY AA J Resistor 470 1/2W Metal Oxide
R1738 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1739 VRS-CY1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R1740 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1741 VRS-CY1JF103FY AA J Resistor 10k 1/16W Metal Oxide
R1742 VRS-CY1JF392FY AA J Resistor 3.9k 1/16W Metal Oxide
R1743 VRS-CY1JF680JY AA J Resistor 68 1/16W Metal Oxide
R1744 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1745 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide
R1746 VRS-CY1JF473JY AA J Resistor 47k 1/16W Metal Oxide
R1748 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1749 VRS-TW2HF2R7JY AA J Resistor 2.7 1/2W Metal Oxide
R1750 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1751 VRS-CY1JF471JY AA J Resistor 470 1/16W Metal Oxide
R1752 VRS-CY1JF123FY AA J Resistor 12k 1/16W Metal Oxide
R1753 VRS-CY1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R1754 VRS-CY1JF393JY AA J Resistor 39k 1/16W Metal Oxide
R1755 VRS-TW2HF471JY AA J Resistor 470 1/2W Metal Oxide
R1756 VRS-CY1JF103FY AA J Resistor 10k 1/16W Metal Oxide
R1757 VRS-TW2HF2R7JY AA J Resistor 2.7 1/2W Metal Oxide
R1758 VRS-CY1JF680JY AA J Resistor 68 1/16W Metal Oxide
R1762 VRS-CY1JF682FY AA J Resistor 6.8k 1/16W Metal Oxide
R1763 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R1764 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide
R1765 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide
R1766 VRS-CY1JF222FY AA J Resistor 2.2k 1/16W Metal Oxide
R1768 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R1769 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1770 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R1771 VRS-CY1JF473FY AA J Resistor 47k 1/16W Metal Oxide
R1772 VRS-CY1JF273FY AA J Resistor 27k 1/16W Metal Oxide
R1773 VRS-CY1JF152FY AA J Resistor 1.5k 1/16W Metal Oxide
R1776 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R1778 VRS-TV1JD102JY AA J Resistor 1k 1/10W Metal Oxide
R1779 VRS-CY1JF152JY AA J Resistor 1.5k 1/16W Metal Oxide
R1780 VRS-CY1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R1782 VRS-CY1JF392FY AA J Resistor 3.9k 1/16W Metal Oxide
R1783 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R1784 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R1785 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
13
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R1787 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1789 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1790 VRS-TW2HF471JY AA J Resistor 470 1/2W Metal Oxide
R1793 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1795 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide
R1796 VRS-TW2HF471JY AA J Resistor 470 1/2W Metal Oxide
R1797 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
R1799 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1801 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
R1804 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R1805 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1806 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1807 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1808 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1809 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1810 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1811 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1814 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R1824 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2001 VRS-CJ1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2010 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2011 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2012 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2013 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2014 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2015 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2016 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R2017 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2018 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2019 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2020 VRS-CJ1JF152JY AA J Resistor 1.5k 1/16W Metal Oxide
R2021 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R2022 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2023 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2024 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R2025 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2026 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2027 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2028 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2029 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2030 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2031 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R2032 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2033 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2034 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2035 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2036 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R2037 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2038 VRS-CY1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R2039 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2040 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2044 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2047 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2048 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2049 RR-SZA055WJZZY AA J Resistor 49.9
R2050 RR-SZA055WJZZY AA J Resistor 49.9
R2051 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2052 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R2053 RR-SZA055WJZZY AA J Resistor 49.9
R2054 RR-SZA055WJZZY AA J Resistor 49.9
R2055 VRS-CY1JF151FY AA J Resistor 150 1/16W Metal Oxide
R2056 RR-SZA055WJZZY AA J Resistor 49.9
R2057 VRS-CY1JF750FY AA J Resistor 75 1/16W Metal Oxide
R2058 RR-SZA055WJZZY AA J Resistor 49.9
R2059 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2061 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2064 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2065 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2067 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2068 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2069 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2071 VRS-CY1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R2072 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2201 RR-SZA053WJZZY AA J Resistor 39.2
R2202 RR-SZA053WJZZY AA J Resistor 39.2
R2203 RR-SZA053WJZZY AA J Resistor 39.2
R2204 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2205 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2206 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2207 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2208 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2211 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2212 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2213 RR-SZA053WJZZY AA J Resistor 39.2
R2214 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
14
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R2219 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2221 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2225 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2226 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2227 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2229 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2231 RR-SZA053WJZZY AA J Resistor 39.2
R2232 RR-SZA053WJZZY AA J Resistor 39.2
R2233 RR-SZA053WJZZY AA J Resistor 39.2
R2234 RR-SZA054WJZZY AA J Resistor 40.2
R2235 RR-SZA053WJZZY AA J Resistor 39.2
R2238 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2239 RR-SZA054WJZZY AA J Resistor 40.2
R2240 RR-SZA053WJZZY AA J Resistor 39.2
R2241 RR-SZA053WJZZY AA J Resistor 39.2
R2242 RR-SZA059WJZZY AA J Resistor 348
R2243 RR-SZA060WJZZY AA J Resistor 475
R2244 RR-SZA053WJZZY AA J Resistor 39.2
R2245 RR-SZA055WJZZY AA J Resistor 49.9
R2246 RR-SZA062WJZZY AA J Resistor 33.2
R2247 RR-SZA053WJZZY AA J Resistor 39.2
R2248 RR-SZA062WJZZY AA J Resistor 33.2
R2249 RR-SZA055WJZZY AA J Resistor 49.9
R2250 RR-SZA053WJZZY AA J Resistor 39.2
R2251 RR-SZA055WJZZY AA J Resistor 49.9
R2252 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2253 RR-SZA053WJZZY AA J Resistor 39.2
R2254 RR-SZA062WJZZY AA J Resistor 33.2
R2255 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R2256 VRS-CJ1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2257 RR-SZA053WJZZY AA J Resistor 39.2
R2258 RR-SZA062WJZZY AA J Resistor 33.2
R2259 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2260 RR-SZA056WJZZY AA J Resistor 52.3
R2261 VRS-CJ1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2262 RR-SZA058WJZZY AA J Resistor 169
R2263 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2264 VRS-CJ1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2265 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R2266 RR-SZA056WJZZY AA J Resistor 52.3
R2267 RR-SZA058WJZZY AA J Resistor 169
R2268 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R2269 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R2270 RR-SZA053WJZZY AA J Resistor 39.2
R2271 RR-SZA057WJZZY AA J Resistor 64.9
R2272 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2276 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2277 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2283 VRS-CY1JF103FY AA J Resistor 10k 1/16W Metal Oxide
R2284 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2286 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2287 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2501 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2502 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2503 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2504 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2505 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2506 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R2528 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2529 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2531 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2532 VRS-CH1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2533 VRS-CY1JF222JY AA J Resistor 2.2k 1/16W Metal Oxide
R2534 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R2535 VRS-CY1JF152JY AA J Resistor 1.5k 1/16W Metal Oxide
R2536 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R2551 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2552 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2553 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2554 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2555 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2556 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2559 VRS-CJ1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2561 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2562 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2564 VRS-CJ1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2566 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2570 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2571 VRS-CY1JF272JY AA J Resistor 2.7k 1/16W Metal Oxide
R2572 VRS-CH1JF272JY AA J Resistor 2.7k 1/16W Metal Oxide
R2575 VRS-TV1JD681JY AA J Resistor 680 1/10W Metal Oxide
R2578 VRS-TV1JD471JY AA J Resistor 470 1/10W Metal Oxide
R2579 VRS-TV1JD681JY AA J Resistor 680 1/10W Metal Oxide
R2582 VRS-TV1JD471JY AA J Resistor 470 1/10W Metal Oxide
R2583 VRS-TV1JD681JY AA J Resistor 680 1/10W Metal Oxide
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
15
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R2801 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2802 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2803 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2804 VRS-TW2ED750JY AA J Resistor 75 1/4W Metal Oxide
R2805 VRS-TW2ED750JY AA J Resistor 75 1/4W Metal Oxide
R2806 VRS-TW2ED750JY AA J Resistor 75 1/4W Metal Oxide
R2807 VRS-CY1JF473JY AA J Resistor 47k 1/16W Metal Oxide
R2810 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2811 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2812 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2813 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2814 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2815 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2816 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2819 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2821 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2822 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2824 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2825 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2826 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2827 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2828 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R2829 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2830 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2831 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2832 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2833 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2834 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2835 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2836 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R2837 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2838 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2840 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2841 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2842 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2843 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2844 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R2845 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2846 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2847 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R2849 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2850 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2851 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2852 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R2853 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2854 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2855 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2856 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2857 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2865 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2866 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2867 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R2868 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R2870 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3001 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3002 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3003 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3004 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3005 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3006 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3007 VRS-CY1JF393JY AA J Resistor 39k 1/16W Metal Oxide
R3008 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R3009 VRS-CY1JF393JY AA J Resistor 39k 1/16W Metal Oxide
R3010 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R3011 VRS-CY1JF393JY AA J Resistor 39k 1/16W Metal Oxide
R3012 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R3013 VRS-CY1JF393JY AA J Resistor 39k 1/16W Metal Oxide
R3014 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R3015 VRS-CY1JF393JY AA J Resistor 39k 1/16W Metal Oxide
R3016 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R3017 VRS-CY1JF393JY AA J Resistor 39k 1/16W Metal Oxide
R3018 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R3019 VRS-CY1JF223FY AA J Resistor 22k 1/16W Metal Oxide
R3021 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3022 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3023 VRS-TW2ED750JY AA J Resistor 75 1/4W Metal Oxide
R3024 VRS-TW2ED750JY AA J Resistor 75 1/4W Metal Oxide
R3025 VRS-TW2ED750JY AA J Resistor 75 1/4W Metal Oxide
R3040 VRS-CY1JF392JY AA J Resistor 3.9k 1/16W Metal Oxide
R3042 VRS-CY1JF471JY AA J Resistor 470 1/16W Metal Oxide
R3044 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3050 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3051 VRS-TW2ED750JY AA J Resistor 75 1/4W Metal Oxide
R3052 VRS-TW2ED750JY AA J Resistor 75 1/4W Metal Oxide
R3053 VRS-TW2ED750JY AA J Resistor 75 1/4W Metal Oxide
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
16
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R3054 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3055 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3056 VRS-CY1JF473JY AA J Resistor 47k 1/16W Metal Oxide
R3057 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3058 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3059 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3060 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3101 VRS-CY1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R3102 VRS-CY1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R3103 VRS-CY1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R3106 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3107 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3151 VRS-CJ1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3152 VRS-CJ1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3153 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3154 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3155 VRS-CY1JF680JY AA J Resistor 68 1/16W Metal Oxide
R3156 VRS-CY1JF680JY AA J Resistor 68 1/16W Metal Oxide
R3157 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3158 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3201 VRS-CJ1JF151JY AA J Resistor 150 1/16W Metal Oxide
R3202 VRS-CJ1JF151JY AA J Resistor 150 1/16W Metal Oxide
R3203 VRS-CJ1JF151JY AA J Resistor 150 1/16W Metal Oxide
R3204 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R3205 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R3206 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R3207 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3208 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3209 VRS-CJ1JF100JY AA J Resistor 10 1/16W Metal Oxide
R3210 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3211 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3212 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3213 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3214 VRS-CY1JF391FY AA J Resistor 390 1/16W Metal Oxide
R3215 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3216 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3217 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3218 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3219 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3220 VRS-CJ1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3221 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3222 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3223 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3224 VRS-CY1JF390JY AA J Resistor 39 1/16W Metal Oxide
R3228 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3229 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3230 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3231 VRS-CY1JF100FY AB J Resistor 10 1/16W Metal Oxide
R3232 VRS-CY1JF100FY AB J Resistor 10 1/16W Metal Oxide
R3233 VRS-CY1JF100FY AB J Resistor 10 1/16W Metal Oxide
R3234 VRS-CY1JF100FY AB J Resistor 10 1/16W Metal Oxide
R3235 VRS-CY1JF100FY AB J Resistor 10 1/16W Metal Oxide
R3236 VRS-CY1JF100FY AB J Resistor 10 1/16W Metal Oxide
R3237 VRS-CY1JF100FY AB J Resistor 10 1/16W Metal Oxide
R3238 VRS-CY1JF100FY AB J Resistor 10 1/16W Metal Oxide
R3239 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3240 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3241 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3242 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3244 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3245 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3246 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3301 VRS-TV1JD750FY AA J Resistor 75 1/10W Metal Oxide
R3302 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R3303 VRS-CY1JF562JY AA J Resistor 5.6k 1/16W Metal Oxide
R3304 VRS-CY1JF221JY AA J Resistor 220 1/16W Metal Oxide
R3305 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R3306 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3307 VRS-CY1JF224JY AA J Resistor 220k 1/16W Metal Oxide
R3308 VRS-CY1JF224JY AA J Resistor 220k 1/16W Metal Oxide
R3309 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3310 VRS-CY1JF220JY AA J Resistor 22 1/16W Metal Oxide
R3311 VRS-TV1JD750FY AA J Resistor 75 1/10W Metal Oxide
R3312 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R3313 VRS-CY1JF562JY AA J Resistor 5.6k 1/16W Metal Oxide
R3314 VRS-CY1JF221JY AA J Resistor 220 1/16W Metal Oxide
R3315 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R3316 VRS-CY1JF220JY AA J Resistor 22 1/16W Metal Oxide
R3317 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3318 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3320 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3321 VRS-TV1JD750FY AA J Resistor 75 1/10W Metal Oxide
R3322 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R3323 VRS-CY1JF562JY AA J Resistor 5.6k 1/16W Metal Oxide
R3324 VRS-CY1JF221JY AA J Resistor 220 1/16W Metal Oxide
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
17
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R3325 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R3326 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3327 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3328 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3329 VRS-CY1JF222JY AA J Resistor 2.2k 1/16W Metal Oxide
R3351 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3352 VRS-CY1JF104FY AA J Resistor 100k 1/16W Metal Oxide
R3353 VRS-CJ1JF100JY AA J Resistor 10 1/16W Metal Oxide
R3355 VRS-CY1JF223JY AA J Resistor 22k 1/16W Metal Oxide
R3356 VRS-CY1JF222JY AA J Resistor 2.2k 1/16W Metal Oxide
R3358 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3361 VRS-CY1JF220JY AA J Resistor 22 1/16W Metal Oxide
R3362 VRS-CH1JF220JY AA J Resistor 22 1/16W Metal Oxide
R3363 VRS-CH1JF220JY AA J Resistor 22 1/16W Metal Oxide
R3365 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3366 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3368 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3370 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3372 VRS-TW2HF1R0JY AA J Resistor 1 1/2W Metal Oxide
R3378 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R3501 VRS-CH1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R3502 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3503 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3504 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3505 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R3506 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R3508 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3513 VRS-CH1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R3514 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3515 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3516 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R3517 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R3523 VRS-CY1JF681JY AA J Resistor 680 1/16W Metal Oxide
R3524 VRS-CY1JF681JY AA J Resistor 680 1/16W Metal Oxide
R3525 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R3526 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R3529 VRS-CY1JF273FY AA J Resistor 27k 1/16W Metal Oxide
R3530 VRS-CY1JF123FY AA J Resistor 12k 1/16W Metal Oxide
R3531 VRS-CY1JF473JY AA J Resistor 47k 1/16W Metal Oxide
R3532 VRS-CY1JF473JY AA J Resistor 47k 1/16W Metal Oxide
R3534 VRS-CY1JF104JY AA J Resistor 100k 1/16W Metal Oxide
R3535 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3536 VRS-CY1JF154JY AA J Resistor 150k 1/16W Metal Oxide
R3537 VRS-CY1JF154JY AA J Resistor 150k 1/16W Metal Oxide
R3538 VRS-CJ1JF473JY AB J Resistor 47k 1/16W Metal Oxide
R3539 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3540 VRS-CY1JF562JY AA J Resistor 5.6k 1/16W Metal Oxide
R3542 VRS-CY1JF562JY AA J Resistor 5.6k 1/16W Metal Oxide
R3543 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3544 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3551 VRS-CY1JF153FY AA J Resistor 15k 1/16W Metal Oxide
R3552 VRS-CY1JF622FY AA J Resistor 6.2k 1/16W Metal Oxide
R3554 VRS-CY1JF223JY AA J Resistor 22k 1/16W Metal Oxide
R3555 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3556 VRS-TX2HF8R2JY AB J Resistor 8.2 1/2W Metal Oxide
R3557 VRS-TW2HF2R7JY AA J Resistor 2.7 1/2W Metal Oxide
R3558 VRS-TW2HF2R7JY AA J Resistor 2.7 1/2W Metal Oxide
R3561 VRS-CY1JF182JY AA J Resistor 1.8k 1/16W Metal Oxide
R3562 VRS-CH1JF182JY AB J Resistor 1.8k 1/16W Metal Oxide
R3563 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3564 VRS-CH1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3566 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3567 VRS-CJ1JF100JY AA J Resistor 10 1/16W Metal Oxide
R3569 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3570 VRS-CY1JF473JY AA J Resistor 47k 1/16W Metal Oxide
R3571 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3572 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3576 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3577 VRN-CY1JF472DY AA J Resistor 4.7k 1/16W Metal Film
R3578 VRS-CY1JF184FY AA J Resistor 180k 1/16W Metal Oxide
R3580 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3582 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3583 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3598 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3599 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3601 VRS-CY1JF562JY AA J Resistor 5.6k 1/16W Metal Oxide
R3602 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3603 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3606 VRS-CY1JF681JY AA J Resistor 680 1/16W Metal Oxide
R3803 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3805 VRS-CY1JF472FY AA J Resistor 4.7k 1/16W Metal Oxide
R3806 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
R3807 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
R3809 VRS-CY1JF103FY AA J Resistor 10k 1/16W Metal Oxide
R3810 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
18
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R3811 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R3812 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3813 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R3814 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3816 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R3817 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3818 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R3820 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R3821 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3822 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3823 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3824 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3825 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3826 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3827 VRS-CY1JF271FY AA J Resistor 270 1/16W Metal Oxide
R3828 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3829 VRS-CY1JF152FY AA J Resistor 1.5k 1/16W Metal Oxide
R3830 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3831 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
R3832 VRS-CY1JF222FY AA J Resistor 2.2k 1/16W Metal Oxide
R3834 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
R3835 VRS-TW2HF2R7JY AA J Resistor 2.7 1/2W Metal Oxide
R3837 VRS-TQ2EDR47FY AC J Resistor 0.47 1/4W Metal Oxide
R3838 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3839 VRS-TW2ED000JY AB J Resistor 0 1/4W Metal Oxide
R3841 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3842 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R3843 VRS-CY1JF151JY AA J Resistor 150 1/16W Metal Oxide
R3846 VRS-CY1JF151JY AA J Resistor 150 1/16W Metal Oxide
R3848 VRS-CY1JF151JY AA J Resistor 150 1/16W Metal Oxide
R3849 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
R3850 VRS-TW2ED000JY AB J Resistor 0 1/4W Metal Oxide
R3851 VRS-TW2ED000JY AB J Resistor 0 1/4W Metal Oxide
R3852 VRS-TW2ED000JY AB J Resistor 0 1/4W Metal Oxide
R3853 VRS-TW2ED000JY AB J Resistor 0 1/4W Metal Oxide
R3857 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3858 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3859 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R3863 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3867 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3868 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3869 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3870 VRS-TW2ED000JY AB J Resistor 0 1/4W Metal Oxide
R3871 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R3872 VRS-CY1JF392DY AA J Resistor 3.9k 1/16W Metal Oxide
R3873 VRS-CY1JF180JY AA J Resistor 18 1/16W Metal Oxide
R3874 VRS-CY1JF272DY AA J Resistor 2.7k 1/16W Metal Oxide
R3875 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R3876 VRS-CY1JF272DY AA J Resistor 2.7k 1/16W Metal Oxide
R3877 VRS-CY1JF102DY AA J Resistor 1k 1/16W Metal Oxide
R3878 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R3879 VRS-CY1JF272DY AA J Resistor 2.7k 1/16W Metal Oxide
R3880 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R3881 VRS-TQ2BD1R0JY AA J Resistor 1 1/8W Metal Oxide
R3882 VRS-TQ2BD1R0JY AA J Resistor 1 1/8W Metal Oxide
R3883 VRS-TQ2BD1R0JY AA J Resistor 1 1/8W Metal Oxide
R3884 VRS-TW2HF2R7JY AA J Resistor 2.7 1/2W Metal Oxide
R3885 VRS-TW2HPR20JY AB N J Resistor 0.2 1/2W Metal Oxide
R3886 VRS-TW2HPR20JY AB N J Resistor 0.2 1/2W Metal Oxide
R8001 VRS-CY1JF332FY AA J Resistor 3.3k 1/16W Metal Oxide
R8003 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R8004 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8005 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R8006 VRS-CJ1JF101JY AA J Resistor 100 1/16W Metal Oxide
R8007 VRS-CJ1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8008 VRS-CH1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8009 VRS-CY1JF123FY AA J Resistor 12k 1/16W Metal Oxide
R8010 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R8012 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R8013 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8014 VRS-CJ1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8015 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8016 VRS-CH1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8017 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8018 VRS-CY1JF471JY AA J Resistor 470 1/16W Metal Oxide
R8019 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8020 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8021 VRS-CY1JF333JY AA J Resistor 33k 1/16W Metal Oxide
R8026 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8027 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8028 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R8031 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8032 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8033 VRS-CJ1JF101JY AA J Resistor 100 1/16W Metal Oxide
R8036 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
19
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R8037 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8039 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8040 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8041 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8042 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8043 VRS-CJ1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8045 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8046 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8047 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8048 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8050 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8051 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8052 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8053 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8054 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8055 VRS-CH1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8059 VRS-CJ1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8068 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8070 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R8201 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8202 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8203 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8204 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8209 VRS-CY1JF510FY AA J Resistor 51 1/16W Metal Oxide
R8210 VRS-CY1JF510FY AA J Resistor 51 1/16W Metal Oxide
R8211 VRS-CY1JF510FY AA J Resistor 51 1/16W Metal Oxide
R8212 VRS-CY1JF510FY AA J Resistor 51 1/16W Metal Oxide
R8213 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8214 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R8215 VRS-CH1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8216 VRS-CJ1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8221 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8230 VRS-CY1JF202FY AA J Resistor 2.0k 1/16W Metal Oxide
R8231 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8233 VRS-CY1JF221JY AA J Resistor 220 1/16W Metal Oxide
R8234 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R8235 VRS-CY1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8236 VRS-CH1JF332JY AA J Resistor 3.3k 1/16W Metal Oxide
R8237 VRS-CY1JF152JY AA J Resistor 1.5k 1/16W Metal Oxide
S2001 QSW-SA020WJZZY AE J Slide Switch
S2551 QSW-K0099TAZZY AC J Service Switch
S2552 QSW-KA029WJZZY AD J Switch (POWER)
S2553 QSW-KA029WJZZY AD J Switch (-)
S2554 QSW-KA029WJZZY AD J Switch (DOWN)
S2555 QSW-KA029WJZZY AD J Switch (UP)
S2556 QSW-KA029WJZZY AD J Switch (ENTER)
S2557 QSW-KA029WJZZY AD J Switch (+)
S2558 QSW-KA029WJZZY AD J Switch (MENU)
S2559 QSW-KA029WJZZY AD J Switch (KEYSTONE)
S3561 VHiMXA2500E-1Y AY J Switch MXS2500EL-T/R
S8001 QSW-SA020WJZZY AE J Slide Switch
SC2801 QSOCZA061WJZZ AK J Socket (DVI-I)
SC3051 QSOCNA230WJZZ AH J Socket INPUT2
SC3101 QSOCNA229WJZZ AH J Socket OUTPUT
SC3801 QCNCWA500WJZZY AC J Connector 4Pin (MO)
X2201 RCRSCA180WJQZY AL N J Crystal
X3351 RCRSC0170TAZZY AG J Crystal 14.31818MHz
X8001 RCRSZA031WJZZY AQ J Crystal 1.8432MHz
X8002 RCRSCA084WJZZY AL J Crystal 24.576MHz
X8201 RCRSCA082WJZZY AL J Crystal 25.000MHz
NLX-BZ3100CEF7 AA J Screw, x2
NNSFTZ0134CEFW AD J Shaft for DVI Socket, x2
NPSLDCA027WJKZ AE N J Shield (Button)
NPSLDMB152WJFW AP J Shield (Terminal)
[4] DUNTKE169WEF1 (BALLAST POWER Unit)
C701 RC-KZA111WJZZY AC J Capacitor 1 25V Ceramic
!
C702 RC-FZA026WJZZ AE J Capacitor 0.47 275V Metallized Plastic Film
!
C703 RC-KZA551WJZZ AD J Capacitor 2200p AC250V Ceramic
!
C704 RC-KZA551WJZZ AD J Capacitor 2200p AC250V Ceramic
!
C705 RC-FZA026WJZZ AE J Capacitor 0.47 275V Metallized Plastic Film
!
C706 RC-KZA551WJZZ AD J Capacitor 2200p AC250V Ceramic
C707 RC-KZA437WJZZY AD J Capacitor 1000p 630V Ceramic
C708 VCKYCY1EB103KY AA J Capacitor 0.01 25V Ceramic
C709 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C710 VCKYCY1EB103KY AA J Capacitor 0.01 25V Ceramic
C711 RC-EZA452WJZZ AG J Capacitor 2200 10V Electrolytic
C712 RC-FZ0010TAZZ AC J Capacitor 0.01 630V Metallized Plastic Film
C713 RC-EZA490WJZZ+ AD J Capacitor 100 35V Electrolytic
C714 RC-EZA490WJZZ+ AD J Capacitor 100 35V Electrolytic
C715 VCKYCY1HB152KY AA J Capacitor 1500p 50V Ceramic
C716 RC-FZA126WJZZ AE J Capacitor 0.1 450V Metallized Plastic Film
C717 VCKYTV1EB474KY AC J Capacitor 0.47 25V Ceramic
C718 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
[3] DUNTKE168FMF2 (MAIN Unit)
PG-F320W
20
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C719 VCCCCY1HH101JY AA J Capacitor 100p 50V Ceramic
C720 VCKYCY1EB333KY AA J Capacitor 0.033 25V Ceramic
C721 RC-KZA296WJZZ AE J Capacitor 100p 2kV
C727 RC-KZA437WJZZY AD J Capacitor 1000p 630V Ceramic
C728 RC-EZA486WJZZ AP J Capacitor 2200 25V Electrolytic
C730 VCKYTV1EB104KY AB J Capacitor 0.1 25V Ceramic
!
C731 RC-KZA551WJZZ AD J Capacitor 2200p AC250V Ceramic
!
C732 RC-KZA551WJZZ AD J Capacitor 2200p AC250V Ceramic
C733 VCKYCY1HB222KY AA J Capacitor 2200p 50V Ceramic
C734 VCKYTQ1HB224KY AC J Capacitor 0.22 50V Ceramic
C735 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C736 RC-FZA124WJZZ AG J Capacitor 2.2 450V Metallized Plastic Film
C738 VCEA4A1VN476M+ AC J Capacitor 47 35V Electrolytic
C739 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C740 RC-EZA572WJZZ AW J Capacitor 330 420V Electrolytic
C743 VCKYCY1HB104KY AA J Capacitor 0.1 50V Ceramic
C744 VCEA4A1VN476M+ AC J Capacitor 47 35V Electrolytic
C745 RC-KZA271WJZZ AC J Capacitor 470p 2kV Ceramic
C747 RC-KZA304WJZZ AD J Capacitor 470p 2kV Ceramic
C751 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C901 RC-FZA215WJZZ AH J Capacitor 1.8 450V Metallized Plastic Film
C903 VCKYCY1EB473KY AA J Capacitor 0.047 25V Ceramic
C904 RC-KZA111WJZZY AC J Capacitor 1 25V Ceramic
C905 RC-KZA448WJZZY AD J Capacitor 220p 1kV Ceramic
C907 RC-KZA448WJZZY AD J Capacitor 220p 1kV Ceramic
C908 RC-KZA449WJZZY AD J Capacitor 330p 1kV Ceramic
C909 RC-KZA449WJZZY AD J Capacitor 330p 1kV Ceramic
C911 RC-KZA275WJZZ AD J Capacitor 1000p 2kV Ceramic
C912 RC-FZA123WJZZ AF J Capacitor 1 450V Metallized Plastic Film
C913 RC-KZA437WJZZY AD J Capacitor 1000p 630V Ceramic
C914 RC-KZA448WJZZY AD J Capacitor 220p 1kV Ceramic
C915 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C916 RC-KZA448WJZZY AD J Capacitor 220p 1kV Ceramic
C917 RC-FZA126WJZZ AE J Capacitor 0.1 450V Metallized Plastic Film
C919 RC-FZA126WJZZ AE J Capacitor 0.1 450V Metallized Plastic Film
C920 RC-KZA275WJZZ AD J Capacitor 1000p 2kV Ceramic
C921 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C922 RC-KZA275WJZZ AD J Capacitor 1000p 2kV Ceramic
C923 RC-KZA449WJZZY AD J Capacitor 330p 1kV Ceramic
C924 RC-KZA449WJZZY AD J Capacitor 330p 1kV Ceramic
!
CN901 QCNW-G518WJQZ AW N J Connecter 2Pin
!
D701 RH-FXA003WJZZ AD J Diode PC123Y82
!
D702 VHDD10XB60H-1 AL J Diode D10XB60H-7101
D703 RH-DXA081WJZZ AH J Diode D15SCA4M-7000
D704 VHD1SS355//-1Y AB J Diode 1SS355FNTE-17
D705 VHD1SS355//-1Y AB J Diode 1SS355FNTE-17
D706 RH-DXA070WJZZY AE J Diode SARS01V1
D707 VHDD1FL20U/-1Y AC J Diode D1FL20U
D708 VHDD1FL20U/-1Y AC J Diode D1FL20U
D709 RH-EX1399CEZZY AB J Zener Diode EX1399CE 9.1V
D710 VHDD1FL20U/-1Y AC J Diode D1FL20U
!
D711 RH-FXA003WJZZ AD J Diode PC123Y82
D712 VHDCMF03+++-1Y AD J Diode CMF03(T2L,SHARP,Q)
D713 VHDCRF03T5L-1Y AF J Diode CRF03(T5L,SHARP,Q)
D714 VHDLi114+++-1Y AC J Diode LI114
!
D715 RH-FXA003WJZZ AD J Diode PC123Y82
D716 RH-DXA080WJZZ AK J Diode SF20JC10-7000
D717 VHD1SS355//-1Y AB J Diode 1SS355FNTE-17
D718 VHDRB160M40-1Y AC J Diode RB160M-40TR
D719 VHDRB160M40-1Y AC J Diode RB160M-40TR
D720 RH-DXA074WJZZ AH J Diode SF10L60U-7100
D722 RH-EX1015GEZZY AD J Zener Diode EX1015GE 16V
D723 RH-EXA359WJZZY AE J Zener Diode EXA359WJ 33V
D724 VHDD1FL20U/-1Y AC J Diode D1FL20U
D901 RH-EXA097WJZZY AB J Zener Diode EXA097WJ 20V
D902 VHDRB160M40-1Y AC J Diode RB160M-40TR
D903 RH-DXA074WJZZ AH J Diode SF10L60U-7100
D904 VHDCRF03T5L-1Y AF J Diode CRF03(T5L,SHARP,Q)
D905 VHSG1VB22C+-1 AK J Diode SI.CONTROL RECTIFIER
D906 RH-DXA062WJZZY AE J Diode SHV-04V6
D907 VHDFMVG2GS+-1 AM J Diode FMV-G2GS
D908 VHDFMVG2GS+-1 AM J Diode FMV-G2GS
D910 RH-DXA062WJZZY AE J Diode SHV-04V6
E701 LANGQA036WJFW AG N J Fixing Metal (AC-Inlet-ANG)
!
F701 QFS-CA010WJZZ AF J Fuse T6.3AH/AC250V
!
F703 QFS-TA005WJZZ AG J Thermal Fuse 127°C.
!
F704 QFS-ZA028WJZZ AP J Fuse 2A 450V
!
F705 QFS-ZA034WJZZ AP J Fuse 3.15A 400V
FB701 RBLN-A007WJZZY AC J Ferrite Bead
FB702 RBLN-A007WJZZY AC J Ferrite Bead
FB703 RBLN-0020CEZZ+ AB J Ferrite Bead
FB707 RBLN-0020CEZZ+ AB J Ferrite Bead
FB901 RBLN-A007WJZZY AC J Ferrite Bead
FB902 RBLN-A007WJZZY AC J Ferrite Bead
[4] DUNTKE169WEF1 (BALLAST POWER Unit)
PG-F320W
21
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
!
FH701 QFSHD1013CEZZ+ AC J Fuse Holder
!
FH702 QFSHD1014CEZZ+ AC J Fuse Holder
IC702 VHiTA78L12F-1Y AF J IC TA78L12F(TE12L,F)
IC704 VHiMR4010++-1 AP J IC MR4010-7101
IC705 VHiTA76431R-1Y AE J IC TA76431FR(TE12L,F)
IC707 VHiFA5501AN-1Y AQ J IC FA55501AN-D1-TE1
!
L701 RCiLFA178WJZZ AK J Coil
!
L702 RCiLFA178WJZZ AK J Coil
L703 RCiLPA546WJZZ AH J Coil
L704 RCiLCA131WJZZ AW J Coil
L901 RCiLPA137WJZZ AF J Coil 47µH
L903 RCiLPA475WJZZ AK J Coil
L904 RCiLCA126WJZZ AQ J Coil
LUG701 QLUGHA002WJZZ AB J Lug
LUG702 QLUGHA002WJZZ AB J Lug
!
P701 QPLGAA007WJZZ AM N J Plug 3Pin (AC Inlet)
!
P702 QPLGN0269GEZZ AB J Plug 2Pin
P704 QCNCMA114WJZZ AF J Plug 14Pin
Q701 VS2SA1797Q+-1Y AD J Transistor 2SA1797 T100 Q
Q704 VS2SK3687++-1 AS J Transistor 2SK3687-01MR-F119
Q705 VS2SK3687++-1 AS J Transistor 2SK3687-01MR-F119
Q706 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q901 VS2SK2699++-1 AR J Transistor 2SK2699(SHARP,F)
Q902 VS2SK2699++-1 AR J Transistor 2SK2699(SHARP,F)
Q903 VS2SA2056++-1Y AE J Transistor 2SA2056(TE85L,F)
Q904 VS2SK3525++-1 AM J Transistor 2SK3525-01MR-F119
Q905 VS2SA1530AR-1Y AB J Transistor 2SA1530A-T112-1R
Q906 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
R701 VRS-TQ2BD103JY AA J Resistor 10k 1/8W Metal Oxide
R702 VRS-TV1JD564JY AA J Resistor 560k 1/10W Metal Oxide
R703 VRS-TV1JD564JY AA J Resistor 560k 1/10W Metal Oxide
R704 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R705 VRS-TQ2BD103JY AA J Resistor 10k 1/8W Metal Oxide
R708 VRS-VV3DB220J AA J Resistor 22 2W Metal Oxide
R709 VRS-VV3AB273J AA J Resistor 27k 1W Metal Oxide
R710 VRS-VV3AB273J AA J Resistor 27k 1W Metal Oxide
R711 VRS-TW2ED000JY AB J Resistor 0 1/4W Metal Oxide
R712 VRS-TV1JD333FY AA J Resistor 33k 1/10W Metal Oxide
R713 VRS-CY1JF133FY AA J Resistor 13k 1/16W Metal Oxide
R714 VRS-TV1JD472JY AA J Resistor 4.7k 1/10W Metal Oxide
R715 VRS-CY1JF153JY AA J Resistor 15k 1/16W Metal Oxide
R716 VRN-VV3DBR15J AB J Resistor 0.15 2W Metal Film
R717 VRS-CY1JF153FY AA J Resistor 15k 1/16W Metal Oxide
R719 VRS-TQ2BD474FY AA J Resistor 470k 1/8W Metal Oxide
R720 VRS-TQ2BD000JY AA J Resistor 0 1/8W Metal Oxide
R721 VRS-TV1JD152JY AA J Resistor 1.5k 1/10W Metal Oxide
R722 VRS-TQ2BD474FY AA J Resistor 470k 1/8W Metal Oxide
R723 VRS-CY1JF222DY AA J Resistor 2.2k 1/16W Metal Oxide
R724 VRS-TQ2BD102JY AA J Resistor 1k 1/8W Metal Oxide
R725 VRS-CY1JF101FY AA J Resistor 100 1/16W Metal Oxide
R726 VRS-TQ2EF122JY AA J Resistor 1.2k 1/4W Metal Oxide
R727 VRS-CY1JF912DY AB J Resistor 9.1k 1/16W Metal Oxide
R728 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
!
R729 RMPTKA001WJZZ AH J Resistor Packaged Circuit
R730 VRS-TQ2BD394FY AA J Resistor 390k 1/8W Metal Oxide
R731 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R733 VRS-CY1JF820FY AA J Resistor 82 1/16W Metal Oxide
R734 VRS-CY1JF183JY AA J Resistor 18k 1/16W Metal Oxide
R735 VRS-CY1JF223JY AA J Resistor 22k 1/16W Metal Oxide
R736 RR-WZA012WJZZ AE J Resistor 0.15 5W Resistor Wire
R737 RR-WZA012WJZZ AE J Resistor 0.15 5W Resistor Wire
R738 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R739 VRN-CY1JF133DY AB J Resistor 13k 1/16W Metal Film
R740 VRN-SV2HC4R7JY AB J Resistor 4.7 1/2W Metal Film
R741 VRN-TV1JD394DY AB J Resistor 390k 1/10W Metal Film
R742 VRS-TQ2EF100JY AA J Resistor 10 1/4W Metal Oxide
R743 VRS-TQ2EF100JY AA J Resistor 10 1/4W Metal Oxide
R744 VRS-TQ2EF101JY AA J Resistor 100 1/4W Metal Oxide
R745 VRS-TQ2EF101JY AA J Resistor 100 1/4W Metal Oxide
R746 VRS-TV1JD103JY AA J Resistor 10k 1/10W Metal Oxide
R747 VRS-TV1JD103JY AA J Resistor 10k 1/10W Metal Oxide
R748 VRN-SV2HC4R7JY AB J Resistor 4.7 1/2W Metal Film
R749 VRN-TV1JD394DY AB J Resistor 390k 1/10W Metal Film
R750 VRN-TV1JD394DY AB J Resistor 390k 1/10W Metal Film
R751 VRN-TV1JD394DY AB J Resistor 390k 1/10W Metal Film
R752 VRN-TV1JD394DY AB J Resistor 390k 1/10W Metal Film
!
R753 RR-HZ0119CEZZY AC J Resistor 270k
R756 VRS-TV1JD000JY AA J Resistor 0 1/10W Metal Oxide
R761 VRS-TQ2BD103JY AA J Resistor 10k 1/8W Metal Oxide
R762 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R763 VRS-TV1JD471JY AA J Resistor 470 1/10W Metal Oxide
R771 VRS-SV2HC102J AA J Resistor 1k 1/2W Metal Oxide
R901 VRS-TV1JD334FY AA J Resistor 330k 1/10W Metal Oxide
R902 VRS-TV1JD334FY AA J Resistor 330k 1/10W Metal Oxide
R903 VRS-TV1JD334FY AA J Resistor 330k 1/10W Metal Oxide
[4] DUNTKE169WEF1 (BALLAST POWER Unit)
PG-F320W
22
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R904 VRS-TV1JD334FY AA J Resistor 330k 1/10W Metal Oxide
R905 VRS-TV1JD123FY AA J Resistor 12k 1/10W Metal Oxide
R906 VRS-TQ2BD100FY AA J Resistor 10 1/8W Metal Oxide
R907 VRS-TQ2EF100JY AA J Resistor 10 1/4W Metal Oxide
R908 VRS-TQ2EF100JY AA J Resistor 10 1/4W Metal Oxide
R909 VRS-TQ2BD100FY AA J Resistor 10 1/8W Metal Oxide
R910 VRS-TQ2EF100JY AA J Resistor 10 1/4W Metal Oxide
R911 VRS-TQ2EF100JY AA J Resistor 10 1/4W Metal Oxide
R912 VRS-TV1JD103JY AA J Resistor 10k 1/10W Metal Oxide
R913 VRS-TQ2EF220JY AA J Resistor 22 1/4W Metal Oxide
R914 VRS-TQ2EF100JY AA J Resistor 10 1/4W Metal Oxide
R915 VRS-TQ2BD000JY AA J Resistor 0 1/8W Metal Oxide
R916 VRS-TV1JD103JY AA J Resistor 10k 1/10W Metal Oxide
R917 VRS-TQ2EF181JY AA J Resistor 180 1/4W Metal Oxide
R919 VRS-TQ2EF100FY AA J Resistor 10 1/4W Metal Oxide
R920 VRS-TQ2EF100FY AA J Resistor 10 1/4W Metal Oxide
R921 VRS-TQ2EF100FY AA J Resistor 10 1/4W Metal Oxide
R922 VRS-TQ2EF100FY AA J Resistor 10 1/4W Metal Oxide
R923 RR-FZA002WJZZ AE J Resistor 0.05 3W Metal Plate Resistor
R925 VRS-TV1JD224FY AA J Resistor 220k 1/10W Metal Oxide
R926 VRS-TV1JD224FY AA J Resistor 220k 1/10W Metal Oxide
R927 VRS-TV1JD224FY AA J Resistor 220k 1/10W Metal Oxide
R928 VRS-TV1JD224FY AA J Resistor 220k 1/10W Metal Oxide
R929 VRS-TV1JD104FY AA J Resistor 100k 1/10W Metal Oxide
R930 VRS-TV1JD224FY AA J Resistor 220k 1/10W Metal Oxide
R931 VRS-TV1JD224FY AA J Resistor 220k 1/10W Metal Oxide
R932 VRS-TV1JD224FY AA J Resistor 220k 1/10W Metal Oxide
R933 VRS-TV1JD224FY AA J Resistor 220k 1/10W Metal Oxide
R934 VRS-TV1JD153FY AA J Resistor 15k 1/10W Metal Oxide
R935 VRS-TV1JD153FY AA J Resistor 15k 1/10W Metal Oxide
R936 VRS-TV1JD103JY AA J Resistor 10k 1/10W Metal Oxide
R937 VRS-TQ2BD102JY AA J Resistor 1k 1/8W Metal Oxide
R938 VRS-TV1JD100JY AA J Resistor 10 1/10W Metal Oxide
R939 VRS-VV3DB273J AA J Resistor 27k 2W Metal Oxide
R940 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R941 VRS-TV1JD103JY AA J Resistor 10k 1/10W Metal Oxide
R942 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R943 VRS-TQ2EF102JY AA J Resistor 1k 1/4W Metal Oxide
R944 VRS-TV1JD223JY AA J Resistor 22k 1/10W Metal Oxide
R945 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R946 VRS-TV1JD103JY AA J Resistor 10k 1/10W Metal Oxide
R947 VRS-TQ2EF470JY AA J Resistor 47 1/4W Metal Oxide
R948 VRS-TQ2EF470JY AA J Resistor 47 1/4W Metal Oxide
RDA701 PRDARA483WJFW AH N J Heat Sink
RDA901 PRDARA468WJFW AL N J Heat Sink
!
RY702 RRLYDA008WJZZ AG J Relay
!
T704 RTRNWA285WJZZ AV J Transformer
T901 RTRNZA102WJZZ AH J Transformer
T902 RTRNWA188WJZZ AK J Transformer
TH901 RH-HXA020WJZZ AK J Thermistor PTFM04BB222Q2N34B0
!
VA701 RH-VXA071WJQZ AD J Varistor ERZV10D471CS
NLX-BZ3049GEFN AB J Screw, x13
NLX-BZA044WJFU AA J Screw, x2
NPRDARA484WJFW AF N J Heat Sink
NPSPAZB157WJZZ AE J Spacer, x2
NXBSSN30P06000 AA J Screw, x2
[5] DUNTKE170WEF1 (BALLAST CONTROL Unit)
C7701 VCCCCY1HH471JY AA J Capacitor 470p 50V Ceramic
C7702 VCKYCY1CB224KY AB J Capacitor 0.22 16V Ceramic
C7704 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C7705 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C7706 VCKYCY1EB683KY AB J Capacitor 0.068 25V Ceramic
C7707 VCKYCY1HB222KY AA J Capacitor 2200p 50V Ceramic
C7708 RC-KZA114WJZZY AB J Capacitor 1 25V Ceramic
C7709 RC-KZA114WJZZY AB J Capacitor 1 25V Ceramic
C7710 RC-KZA114WJZZY AB J Capacitor 1 25V Ceramic
C7711 VCKYCY1CB224KY AB J Capacitor 0.22 16V Ceramic
C7712 VCKYCY1CB104KY AB J Capacitor 0.1 16V Ceramic
C7713 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C7714 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C7715 VCKYCY1EB103KY AA J Capacitor 0.01 25V Ceramic
C7717 VCKYCY1HB221KY AA J Capacitor 220p 50V Ceramic
C7718 VCCCCY1HH331JY AA J Capacitor 330p 50V Ceramic
C7719 VCCCCY1HH102JY AB J Capacitor 1000p 50V Ceramic
C7720 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C7721 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C7722 RC-KZA114WJZZY AB J Capacitor 1 25V Ceramic
C7723 VCKYTV1CB105KY AC J Capacitor 1 16V Ceramic
C7724 VCKYCY1HF104ZY AA J Capacitor 0.1 50V Ceramic
C7725 VCKYCY1EB223KY AA J Capacitor 0.022 25V Ceramic
C7726 VCKYCY1EB223KY AA J Capacitor 0.022 25V Ceramic
C7727 VCKYTV1CF105ZY AB J Capacitor 1 16V Ceramic
C7728 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C7729 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
[4] DUNTKE169WEF1 (BALLAST POWER Unit)
PG-F320W
23
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C7730 VCKYTV1CB105KY AC J Capacitor 1 16V Ceramic
C7731 VCKYCY1CB224KY AB J Capacitor 0.22 16V Ceramic
C7733 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C7734 VCKYTV1CB105KY AC J Capacitor 1 16V Ceramic
C7736 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C7737 VCKYCY1EB103KY AA J Capacitor 0.01 25V Ceramic
C7738 VCKYTV1CB105KY AC J Capacitor 1 16V Ceramic
C7739 VCKYCY1EB223KY AA J Capacitor 0.022 25V Ceramic
C7740 VCKYCY1EB103KY AA J Capacitor 0.01 25V Ceramic
C7741 VCKYCY1AB105KY AB J Capacitor 1 10V Ceramic
C7742 VCKYCY1HB222KY AA J Capacitor 2200p 50V Ceramic
C7743 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
C7744 RC-KZA110WJZZY AD J Capacitor 10 25V Ceramic
C7745 VCKYCY1CB104KY AB J Capacitor 0.1 16V Ceramic
C7746 VCKYCY1EB103KY AA J Capacitor 0.01 25V Ceramic
C7747 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C7749 VCCCCY1HH331JY AA J Capacitor 330p 50V Ceramic
C7750 VCCCCY1HH331JY AA J Capacitor 330p 50V Ceramic
C7751 VCCCCY1HH331JY AA J Capacitor 330p 50V Ceramic
C7753 VCKYTV1CB105KY AC J Capacitor 1 16V Ceramic
C7754 RC-KZA114WJZZY AB J Capacitor 1 25V Ceramic
C7755 VCKYCY1CB104KY AB J Capacitor 0.1 16V Ceramic
C7757 VCCCCY1HH331JY AA J Capacitor 330p 50V Ceramic
D7702 VHDBAS316//-1Y AB J Diode BAS316,115
D7703 VHDBAS316//-1Y AB J Diode BAS316,115
D7704 RH-EX0259TAZZY AB J Zener Diode EX0259TA 5.6V
D7705 VHDBAS316//-1Y AB J Diode BAS316,115
D7706 VHDBAS316//-1Y AB J Diode BAS316,115
D7711 VHD1PS184++-1Y AB J Diode 1PS184,115
D7712 VHD1PS184++-1Y AB J Diode 1PS184,115
!
D7713 RH-FXA005WJZZY AD J Diode PC123ZY8J00F
!
D7714 RH-FXA005WJZZY AD J Diode PC123ZY8J00F
!
D7715 RH-FXA005WJZZY AD J Diode PC123ZY8J00F
!
D7717 RH-FXA005WJZZY AD J Diode PC123ZY8J00F
IC7701 VHiM51995AF-1Y AM J IC M51995AFPCF0J
IC7702 VHiNJM2904V-1Y AF J IC NJM2904V-TE1
IC7703 VHiTC7W08U/-1Y AD J IC TC7W08FU(TE12L,F)
IC7704 VHiTA78L05F-1Y AE J IC TA78L05F(TE12L,F)
IC7705 VHiBD4742G+-1Y AD J IC BD4742G-TR
IC7707 RH-iXC305WJZZQ AW N J IC iXC305WJ (Flash MICON)
IC7709 VHiNJM2902V-1Y AD J IC NJM2902V(TE1)
IC7710 VHiNJM2904V-1Y AF J IC NJM2904V-TE1
P7701 QPLGN0864TAZZY AE J Plug 8Pin
Q7701 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q7704 VS3LN01S///-1Y AC J Transistor 3LN01S-TL-E
Q7707 VSDTC114EKA-1Y AB J Transistor DTC114EKAT146
Q7708 VS2SA1162Y/-1Y AB J Transistor 2SA1162-Y(TE85L,F)/(T5L,F,T)
Q7709 VS2SC2712Y/-1Y AB J Transistor 2SC2712-Y(T5LTST,F
Q7712 VS3LN01S///-1Y AC J Transistor 3LN01S-TL-E
R7701 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R7702 VRS-TV1JD102JY AA J Resistor 1k 1/10W Metal Oxide
R7703 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7704 VRS-CY1JF333JY AA J Resistor 33k 1/16W Metal Oxide
R7705 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R7707 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7708 VRS-CY1JF123JY AA J Resistor 12k 1/16W Metal Oxide
R7709 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7710 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R7711 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7712 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R7713 VRS-CY1JF182JY AA J Resistor 1.8k 1/16W Metal Oxide
R7714 VRS-CY1JF123JY AA J Resistor 12k 1/16W Metal Oxide
R7715 VRS-TV1JD1R0JY AA J Resistor 1 1/10W Metal Oxide
R7716 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7717 VRS-CY1JF151JY AA J Resistor 150 1/16W Metal Oxide
R7718 VRS-CY1JF682JY AA J Resistor 6.8k 1/16W Metal Oxide
R7719 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7720 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7721 VRS-CY1JF122DY AA J Resistor 1.2k 1/16W Metal Oxide
R7722 VRS-CY1JF682JY AA J Resistor 6.8k 1/16W Metal Oxide
R7723 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7724 VRS-CY1JF153DY AA J Resistor 15k 1/16W Metal Oxide
R7725 VRS-CY1JF332DY AA J Resistor 3.3k 1/16W Metal Oxide
R7726 VRS-CY1JF622JY AA J Resistor 6.2k 1/16W Metal Oxide
R7727 VRS-CY1JF272JY AA J Resistor 2.7k 1/16W Metal Oxide
R7729 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7730 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7731 VRS-CY1JF222JY AA J Resistor 2.2k 1/16W Metal Oxide
R7732 VRS-CY1JF682JY AA J Resistor 6.8k 1/16W Metal Oxide
R7734 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R7735 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7737 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R7738 VRS-CY1JF153JY AA J Resistor 15k 1/16W Metal Oxide
R7739 VRS-CY1JF123JY AA J Resistor 12k 1/16W Metal Oxide
R7740 VRS-CY1JF153JY AA J Resistor 15k 1/16W Metal Oxide
[5] DUNTKE170WEF1 (BALLAST CONTROL Unit)
PG-F320W
24
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R7741 VRS-CY1JF153JY AA J Resistor 15k 1/16W Metal Oxide
R7742 VRS-CY1JF303JY AA J Resistor 30k 1/16W Metal Oxide
R7743 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R7745 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7746 VRS-CY1JF153JY AA J Resistor 15k 1/16W Metal Oxide
R7747 VRS-CY1JF303JY AA J Resistor 30k 1/16W Metal Oxide
R7748 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7749 VRS-CY1JF303JY AA J Resistor 30k 1/16W Metal Oxide
R7750 VRS-CY1JF153JY AA J Resistor 15k 1/16W Metal Oxide
R7751 VRS-CY1JF303JY AA J Resistor 30k 1/16W Metal Oxide
R7752 VRS-TQ2BD4R7JY AA J Resistor 4.7 1/8W Metal Oxide
R7753 VRS-TQ2BD4R7JY AA J Resistor 4.7 1/8W Metal Oxide
R7754 VRS-CY1JF153JY AA J Resistor 15k 1/16W Metal Oxide
R7755 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R7756 VRS-CY1JF102DY AA J Resistor 1k 1/16W Metal Oxide
R7757 VRS-CY1JF303JY AA J Resistor 30k 1/16W Metal Oxide
R7758 VRS-CY1JF153JY AA J Resistor 15k 1/16W Metal Oxide
R7759 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R7760 VRS-CY1JF303JY AA J Resistor 30k 1/16W Metal Oxide
R7761 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7762 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7763 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7764 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7765 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7766 VRS-CY1JF273JY AA J Resistor 27k 1/16W Metal Oxide
R7767 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7768 VRS-CY1JF470DY AB J Resistor 47 1/16W Metal Oxide
R7769 VRS-CY1JF472FY AA J Resistor 4.7k 1/16W Metal Oxide
R7770 VRS-CY1JF472FY AA J Resistor 4.7k 1/16W Metal Oxide
R7771 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7772 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7773 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R7774 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7775 VRS-CY1JF562JY AA J Resistor 5.6k 1/16W Metal Oxide
R7776 VRS-CY1JF102DY AA J Resistor 1k 1/16W Metal Oxide
R7777 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R7778 VRS-CY1JF333JY AA J Resistor 33k 1/16W Metal Oxide
R7779 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R7780 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R7781 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7783 VRS-CY1JF471JY AA J Resistor 470 1/16W Metal Oxide
R7784 VRS-CY1JF471JY AA J Resistor 470 1/16W Metal Oxide
R7785 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7786 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R7788 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R7789 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7790 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7791 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7792 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7793 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7794 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R7795 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R7796 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R7797 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7798 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7799 VRS-CY1JF271JY AA J Resistor 270 1/16W Metal Oxide
R7803 VRS-CY1JF102DY AA J Resistor 1k 1/16W Metal Oxide
R7804 VRS-CY1JF682JY AA J Resistor 6.8k 1/16W Metal Oxide
R7805 RVR-M4555CEZZY AC J Resistor VARIABLE RESISTOR
R7806 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7807 VRS-CY1JF471JY AA J Resistor 470 1/16W Metal Oxide
R7808 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7810 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R7811 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R7812 VRS-CY1JF102DY AA J Resistor 1k 1/16W Metal Oxide
R7813 VRS-CY1JF332DY AA J Resistor 3.3k 1/16W Metal Oxide
X7701 RCRMCA019WJZZY AF J Ceramic Vibrator
[6] DUNTKE171WEF1 (PHOTO SENSOR Unit)
C1101 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1102 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1104 VCKYCY1EB104KY AB J Capacitor 0.1 25V Ceramic
IC1101 VHiLM393A//-1Y AL J IC LM393APSR
IC1102 VHPGP2S40//-1S AK J IC Photodiode
P1101 QPLGN0363TAZZY AC J Plug 3Pin (CW)
R1101 VRS-TQ2EF121JY AA J Resistor 120 1/4W Metal Oxide
R1102 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1104 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1106 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1107 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R1108 VRS-CY1JF153JY AA J Resistor 15k 1/16W Metal Oxide
R1109 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1110 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
NQCNW-C221WJQZ AF J Connecting Cord
[5] DUNTKE170WEF1 (BALLAST CONTROL Unit)
PG-F320W
25
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[7] DUNTKE172WEF1 (R/C RECEIVER Unit)
C1121 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1122 VCEAPF1CW107MY AC J Capacitor 100 16V Electrolytic
P1121 QPLGN0364TAZZY AC J Plug 3Pin (RC)
R1121 VRS-CY1JF471JY AA J Resistor 470 1/16W Metal Oxide
R1122 VRS-CY1JF220JY AA J Resistor 22 1/16W Metal Oxide
R1123 VRS-CY1JF683JY AA J Resistor 68k 1/16W Metal Oxide
RMC1121 RRMCUA027WJZZ AK J Remote Receiver
NLHLDPA022WJZZ AD J Holder
NQCNW-D517WJQZ AE J Connecting Cord
[8] DUNTKE182WEF1 (TERMINAL Unit)
C1205 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1206 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1207 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1208 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1209 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
C1210 VCKYCY1EF104ZY AA J Capacitor 0.1 25V Ceramic
D1201 VHEPZM12NB2-1Y AC J Zener Diode PZM12NB2
D1202 VHEPZM12NB2-1Y AC J Zener Diode PZM12NB2
FB1201 RBLN-A038WJZZY AB J Ferrite Bead
FB1202 RBLN-A038WJZZY AB J Ferrite Bead
FB1203 RBLN-A038WJZZY AB J Ferrite Bead
FB1204 RBLN-A038WJZZY AB J Ferrite Bead
FB1206 RBLN-A038WJZZY AB J Ferrite Bead
FB1207 RBLN-A038WJZZY AB J Ferrite Bead
FB1209 RBLN-A068WJZZY AB J Ferrite Bead
IC1201 VHiiSL83220-1Y AQ J IC ISL83220ECVZ-T(S2702)
J1201 QJAKAA001WJZZ AD J Jack AUDIO 1
J1202 QJAKAA001WJZZ AD J Jack AUDIO OUT
LUG1201 QLUGHA006WJZZY AC J Lug
LUG1202 QLUGHA006WJZZY AC J Lug
P1201 QPLGN1263TAZZY AD J Plug 12Pin
R1201 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R1202 VRS-CJ1JF101JY AA J Resistor 100 1/16W Metal Oxide
R1203 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1204 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R1205 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R1206 VRS-CJ1JF224JY AA J Resistor 220k 1/16W Metal Oxide
R1207 VRS-CJ1JF224JY AA J Resistor 220k 1/16W Metal Oxide
R1209 VRS-CY1JF100JY AA J Resistor 10 1/16W Metal Oxide
R1210 VRS-CJ1JF100JY AA J Resistor 10 1/16W Metal Oxide
SC1201 QSOCDA036WJZZ AF J Socket RS-232C
NQCNW-F879WJPZ AW J Connecting Cord (TAN Wire)
[9] DUNTKE225WEF1 (CAP Unit)
C1151 RC-DZA003WJZZ AW J Capacitor 4.7 2.5V Electrolytic
C1152 RC-DZA003WJZZ AW J Capacitor 4.7 2.5V Electrolytic
C1153 RC-DZA003WJZZ AW J Capacitor 4.7 2.5V Electrolytic
C1154 RC-DZA003WJZZ AW J Capacitor 4.7 2.5V Electrolytic
C1155 RC-DZA003WJZZ AW J Capacitor 4.7 2.5V Electrolytic
F1151 QFS-J2521CEZZY AD J Fuse 2.5A
P1151 QPLGN0278GEZZ AA J Plug
R1151 VRS-TV1JD221FY AA J Resistor 220 1/10W Metal Oxide
R1152 VRS-TV1JD221FY AA J Resistor 220 1/10W Metal Oxide
R1153 VRS-TV1JD221FY AA J Resistor 220 1/10W Metal Oxide
R1154 VRS-TV1JD221FY AA J Resistor 220 1/10W Metal Oxide
R1155 VRS-TV1JD221FY AA J Resistor 220 1/10W Metal Oxide
R1157 VRS-TV1JD103JY AA J Resistor 10k 1/10W Metal Oxide
NQCNW-F878WJQZ AG J Connecting Cord
PG-F320W
26
[10] CABINET AND MECHANICAL PARTS
11
1-1
1-5
1-3
1-2 1-4
5
42
50
4
43 51
36
49
43
46
17
45
11-1
11-4
11-2
11-3
30
15
13
43
41
12
44
56
43
47
2
39
25
43
31
20
21
21
31
31
17
23
24
29
17
47 48 54
14
52
2-2-5
2-2-4
2-2-3
2-2-2
2-2-1
2-7-1
2-1-1
2-1-2
2-1-3
2-1-4
2-8-1
2-7-2
2-8-2
2-2-6
2-9
2-3
2-7
2-5
2-4
2-8
2-2
2-1
2-6
2-11
2-10
17
17
53
17
35
17
26
33
55
PG-F320W
27
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[10] CABINET AND MECHANICAL PARTS
1CBDYTA266WEF0 BP N J Top Body Ass'y
1-1 Not Available - N - Top Body
1-2 HDECPA027WJSA AD J Led Cover
1-3 HiNDPB309WJSE AK N J Operation Cover
1-4 JBTN-A463WJSA AF J Power Button
1-5 TLABZB677WJZZ AD N J POP Label
2CBDYUA307WEF0 BV N J Bottom Body Ass'y
2-1 CDORUA079WEF0 AL J Lamp Door Ass'y
2-1-1 Not Available - N - Lamp Door
2-1-2 LX-BZ3274CEFN AE J Screw
2-1-3 XRESJ30-06000 AA J E-Ring
2-1-4 PSLDHA042WJFW AF J Shield
2-2 Not Available - N - Bottom Body Ass'y
2-2-1 Not Available - N - Bottom Body
2-2-2 LX-NZ3120CEFW AB J Nut
2-2-3 LX-NZ3144CEFW AC J Nut, x5
2-2-4 LHLDWA161WJZZ AD J Wire Holder
2-2-5 LANGFA300WJFW AC J Kensington Holder
2-2-6 QEARPA261WJFW AD J Bottom Earth
2-3 GLEGPA030WJSA AK J Rear Adjuster
2-4 GLEGPA036WJSA AP J Front Adjuster
2-5 HDECPA028WJSA AE J R/C Cover
2-6 XEBSN30P08000 AA J Screw (Front Adjuster)
2-7 Not Available - - Filter Ass'y (Front)
2-7-1 LHLDZA781WJKA AF N J Filter Holder (Front)
2-7-2 PFiLDA025WJZZ AK N J Filter
2-8 Not Available - - Filter Ass'y (Rear)
2-8-1 LHLDZA782WJKA AF N J Filter Holder (Rear)
2-8-2 PFiLDA025WJZZ AK N J Filter
2-9 LX-HZ3105CEFN AB J Screw
2-10 MLEVPA036WJK0 AF J SW Lever
2-11 QCNW-E821WJQZ AN J LF Wire
4----- - N - Refer to Optical Mechanism Parts
5AN-F310LP - N J Lamp Unit
11-1 LX-BZ3100CEF7 AA J Screw, x2
11-2 NSFTZ0134CEFW AD J DVI Nut, x2
11-3 PSLDCA027WJKZ AE N J Button Shield
11-4 PSLDMB152WJFW AP J Terminal Shield
12 HiNDPB658WJZZ AH N J PSB Label (for Singapore)
13 LHLDZA579WJKZ AH J Speaker Holder
14 LHLDZA580WJKZ AD J Support, x2
15 LHLDZA590WJKZ AD J PWB Support
17 LX-BZ3100CEF7 AA J Screw, x13
20 NFANRA070WJ00 AY N J Exhaust Fan (Lamp)
21 NFANRA069WJ00 AT N J Exhaust Fan (Power) , x2
23 PCOVNA008WJZZ AE J Power Unit Duct B
24 PCOVNA009WJZZ AE J Power Unit Duct C
25 PZETKA234WJKZ AL N J Power Insulator (Front)
26 PCOVWA005WJKZ AH J Power Insulator (Rear)
29 PSLDMB151WJFW AS N J Power Unit Shield (Upper)
30 PSLDMB169WJFW AW N J Power Unit Shield (Lower)
31 PSPAGA276WJZZ AP J Fan Rubber, X3
33 PZETKA128WJKZ AN J Power Insulator (Bottom)
35 QCNW-D518WJQZ AM J EA Wire
!
36 QCNW-G313WJPZ AT N J Bimetal Wire
39 RSP-ZA085WJQZ AP J Speaker
41 XBBSN30P08000 AA J Screw
42 XBPS830P08JS0 AB J Screw, x2
43 XEBSN30P12000 AA J Screw, x18
44 TLABZA956WJZZ AB J WEEE Mark Label (Except U.S.A and Canada)
45 Not Available - - Shaft, x4
46 RH-HXA025WJPZ AP J Thermistor
47 LHLDW1226CEZZ AC J Wire Holder, x2
48 PSPAZA875WJKZ AC J Spacer
49 XBBSN30P06000 AA J Screw, x2
50 PSLDPA080WJFW AE N J Exhaust Louver
51 XEBSN30P08000 AA J Screw
52 LHLDW1090GEZZ AB J Wire Holder
53 QCNW-F878WJQZ AG J Connecting Cord (CAP Wire)
54 QCNW-F879WJPZ AW J Connecting Cord (TAN Wire)
55 PSPATA031WJZZ AD J Spacer, x2
56 Not Available - N - Serial No Label
PG-F320W
28
[11] OPTICAL MECHANISM PARTS
4-29
4-32
4-13
40
4-30
4-23
4-8 4-19
4-3
4-24
4-5
4-5-1
4-5-4
4-5-3
4-5-2
4-29
4-26
4-12
40
22
4-7
4-29 4-16
4-25
4-4
4-17 4-18
4-27
4-31
4-31
4-29
4-29
40
18
18
19
19
27 16
32 28 37
38
4-22
4-29 4-29
4-35
4-34
4-29
4-11
4-31
4-2
4-20
4-21
4-29
4-1
4-15
4-9
4-10
4-6
4
PG-F320W
29
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[11] OPTICAL MECHANISM PARTS
4CCHSKA019WEFi CS N J Optical Mechanism Unit
4-1 LCHSKA019WJF1 BG J Engine Base
4-2 LHLDZA572WJKZ AH J Mirror Holder
4-3 LHLDZA715WJKZ AK J Rod Holder Base
4-4 LHLDZA716WJKZ AH J Rod Holder Cover
4-5 CFiLWA143WEF0 BQ N J Color Wheel Ass'y
4-5-1 PFiLWA143WJZZ BP N J Color Wheel
4-5-2 LHLDZA868WJFW AU J C/W Holder
4-5-3 PSHEGA043WJKZ AF J Sheet
4-5-4 XBBS920P05000 AB J Screw for C/W, x3
4-6 MSPRCA062WJFJ AB J Spring, x4
4-7 MSPRPA061WJFW AE J Plastic Lens Spring
4-8 MSPRPA070WJFW AC J Rod Spring, x2
4-9 PCOVPA028WJSA AN J Focus Ring
4-10 PCOVPA029WJSA AM J Zoom Ring
4-11 PCOVZA056WJFW AF J Engine Cover
4-12 PCOVZA098WJKZ BG J Lamp House
4-13 PDUC-A064WJKZ AR J Exhaust Duct
4-15 PLNS-A066WJZZ BV J Projection Lens
4-16 PLNS-A056WJN3 BD N J Plastic Lens
4-17 PLNS-A057WJZZ AR J Illumi Lens 1
4-18 PLNS-A058WJZZ AS J Illumi Lens 2
4-19 PLNS-A088WJZZ BL N J Rod
4-20 PMiR-A126WJZZ AS J Reflect Mirror
4-21 PSLDPA036WJFW AF J Projection Lens Aperture
4-22 PSLDPA061WJFW AG J DMD Aperture
4-23 PSLDPA055WJFW AE J Rod Aperture
4-24 PSLDPA079WJFW AL N J Illumi Aperture 1
4-25 PSLDPA057WJFW AG J Illumi Aperture 2
4-26 PSLDPA042WJFW AE J House Shading board
4-27 PSPAZA769WJZZ AF J Dust Proof Spacer
4-29 XBBSN30P06000 AA J Screw, x2
4-30 XBBSN30P10000 AA J Screw for C/W Holder, x2
4-31 XBPS830P08JS0 AB J Screw, x6
4-32 XEBSN30P08000 AA J Screw, x2
4-34 TLABZB026WJZZ AE J MECHA No. LABEL
4-35 TLABZB027WJZZ AB J OPT MODEL LABEL
16 LHLDZA612WJFW AL J Backer Plate
18 LX-BZA110WJF7 AC J DMD Screw, x4
19 MSPRCA062WJFJ AB J Spring, x4
22 NFANSA019WJZZ BB J Blower Fan Unit
27 PRDARA341WJFW AX J DMD Heat Sink
28 PSHEZA064WJZZ AL J Thermal Pad
32 PSPAZA768WJZZ AD J Backer Plate Sheet
37 QSOCZA159WJZZ AY N J DMD Socket
38 RDMDPA033WJZZ EC N J DMD Chip, 0.65" WXGA LVDS
40 XBBSN30P06000 AA J Screw, x4
PG-F320W
30
[12] SUPPLIED ACCESSORIES
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[12] SUPPLIED ACCESSORIES
X1 RRMCGA592WJSA BD N J Remote Control unit
!
X2 QACCBA036WJPZ AX J AC Cord (for U.K and Singapore)
!
X2 QACCDA007WJPZ AR J AC Cord (for U.S.A and Canada)
!
X2 QACCLA018WJPZ AU J AC Cord (for Australia, New Zealand and Oceania)
!
X2 QACCVA011WJPZ AT J AC Cord (for Europe except U.K)
X3 QCNWGA045WJPZ AU J RGB Cable
X4 TiNS-D356WJZZ AR N J Operation Manual
X5 UDSKAA095WJZZ AL N J CD-ROM
X6 TGAN-A232WJZZ AC N J SEC ER Information (for U.S.A)
X7 TGAN-A233WJZZ AC N J SECL ER Information (for Canada)
X8 TGAN-A811WJZZ AB J SECL Warranty (for Canada)
X9 TGAN-A843WJZZ AK N J SEC Warranty (for U.S.A)
X10 TLABZA255WJZZ AE N J ER Sticker (for U.S.A and Canada)
X11 SSAKA0160CEZZ AB J Polyethylene Bag
X12 QCNWGA091WJPZ AZ J DIN-D-sub RS-232C adaptor
X13 CCAPHA024WJSA AG J Lens Cap Ass'y
X14 TCAUZA187WJZZ AC J WEEE Caution Sheet (Except U.S.A and Canada)
X15 GCASNA014WJSA AZ J Caring Bag
X1 X2
X3
X15
X12
X13
X4
X5
PG-F320W
31
[13] PACKING PARTS (NOT REPLACEMENT ITEM)
S8
S2
S6
S3
S4
S7
S1
S5
S9
S7
PG-F320W
32
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[13] PACKING PARTS (NOT REPLACEMENT ITEM)
S1 SPAKCD783WJZZ - N - Packing Case
S2 SPAKFB263WJZZ - N - Accessory Case
S3 SPAKPA360WJZZ - - Wrapping Paper
S4 SPAKXA768WJZZ - - Buffer Material
S5 TLABVA333WJZZ - - Bar Code Label
S6 TLABZA610WJZZ - - Recycle Label (for Europe except U.K)
S7 TLABZA957WJZZ - - C.W.Mark, x2 (for Europe and Singapore)
S8 SSAKAA037WJZZ - - Caring Bag Sack
S9 TLABV0003SEZZ - - Model Name Label, x2
[14] SERVICE JIGS AND EQUIPMENT (USE FOR SERVICING)
NQCNW-C516WJQZ AG J Extension Cable, 3pins L=200mm, Main to Fan, x2
NQCNWKA006WJZZ AX J Extension Cable, 4pins L=500mm, Main to Fan
NQCNWKA008WJZZ AP J Extension Cable, 14pins, Main to Power
NQCNWKA019WJZZ BU J Extension Cable, 120pins, Main to DMD
NRUNTZA018WJZZ DR J Adjustment Jig, for the Ballast Unit
NQCNW-E007WJZZ AT J Extension Cable, 3 - 2pins L=600mm, Ballast to Lamp
NDBDYTA132WJZZ BS J Service Top Body (UV light protection cover)
PG-F320W
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
COPYRIGHT ©XXXX BYSHARP CORPORATION
ALL RIGHTS RESERVED.
2007
SHARP CORPORATION
AV Systems Group
CS Promotion Center
Yaita,Tochigi 329-2193, Japan
TQ2310-S YK. DS
PG-F320W

Navigation menu
