PG-M20S

PG-M20X

SERVICE MANUAL

SERVICE-ANLEITUNG

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored

to its original condition and only parts identical to those specified should be used.

MODELS

MODELLE

PG-M20S

PG-M20X

AN-60KT

DIGITAL MULTIMEDIA PROJECTOR

DIGITALER MULTIMEDIA PROJEKTOR

SHARP CORPORATION This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

Im lnteresse der Benutzersicherheit (erforderliche Sicherheitsregeln in einigen Ländern) muß das Gerät in seinen

Originalzustand gebracht werden. Außerdem dürfen für die spezifizierten Bauteile nur identische Teile verwendet

werden.

CONTENTS

»SPECIFICATIONS ............................................. 2

»IMPORTANT SERVICE SAFETY

NOTES (for USA)............................................... 3

»NOTE TO SERVICE PERSONNEL ................... 4

»OPERATION MANUAL ...................................... 8

»REMOVING OF MAJOR PARTS ..................... 13

»RESETTING THE TOTAL LAMP TIMER ......... 19

»ELECTRICAL ADJUSTMENT ........................... 21

»TROUBLE SHOOTING TABLE ........................ 28

»CHASSIS LAYOUT .......................................... 94

»BLOCK DIAGRAM ........................................... 96

»OVERALL WIRING DIAGRAM ........................ 98

»SCHEMATIC DIAGRAM ................................ 100

»PRINTED WIRING BOARD ASSEMBLIES ... 146

»PARTS LIST

ËELECTRICAL PARTS ................................ 153

ËCABINET AND MECHANICAL PARTS ..... 166

ËACCESSORIES PARTS ............................ 170

ËPACKING PARTS....................................... 170

»PACKING OF THE SET ................................. 171

»AN-60KT ........................................................ 172

Page

INHALT

»TECHNISCHE DATEN ..................................... 49

»HINWEISE FÜR DAS

WARTUNGSPERSONAL ................................ 50

»BEDIENUNGSANLEITUNG ............................ 52

»ENTFERNEN DER HAUPTTEILE ................... 57

»RÜCKSTELLEN DES

LAMPENBETRIEBSZEIT-TIMERS .................. 63

»ELEKTRISCH EINSTELLUNG ........................ 66

»FEHLERSUCHTABELLE ................................. 73

»CHASSIS-ANORDNUNG ................................ 94

»BLOCKSCHALTBILD ....................................... 96

»GESAMTSCHALTPLAN .................................. 98

»SCHEMATISCHER SCHALTPLAN................ 100

»LEITERPLATTENEINHEITEN ....................... 146

»ERSATZTEILLISTE

ËELEKTRISCHE BAUTEILE ....................... 153

ËGEHÄUSE UND MECHANISCHE

BAUTEILE.................................................. 166

ËZUBEHÖRTEILE ....................................... 170

ËVERPACKUNGSTEILE .............................. 170

»VERPACKEN DES GERÄTS ......................... 171

»AN-60KT ........................................................ 172

Seite

S72N3PG-M20XU

PG-M20S

PG-M20X

Specifications

Digital Multimedia Projector

PG-M20X/PG-M20S

NTSC 3.58/NTSC 4.43/PAL/PAL-M/PAL-N/PAL 60/SECAM/

DTV480I/DTV480P/DTV720P/DTV1080I

Single Chip Digital Micromirror Device™ (DMD™) by Texas Instruments

Panel size: 0.7" (17.8 mm), 1 chip XGA DMD(PG-M20X)/0.55"(14.0mm)",1 chip SVGA DMD(PG-M20S)

No. of dots: 786,432 dots (1,024 [H] × 768 [V])(PG-M20X)/480.000 dots (800[H] × 600[V])(PG-M20S)

1–1.2 × zoom lens, F1.75–2.04, f = 28.0–33.5 mm

High Intensity Discharge Lamp (HID Lamp), DC 210 W

29-pin connector

DVI input signal: Digital 250–1,000 mV 50 Ω

Analog 0.7 Vp-p 75 Ω

Y: 1.0 Vp-p, sync negative, 75 Ω terminated

: 0.7 Vp-p, 75 Ω terminated

700 TV lines (DTV720P)(PG-M20X)/500TV Lines (S-Video[NTSC3.58])(PG-M20S)

29-pin connector

RGB separate/sync on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminated

HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative)

VERTICAL SYNC. SIGNAL: Same as above

4-pin Mini DIN connector

Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated

C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated

RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω

terminated

12–230 MHz(PG-20X)/12-120MHz(PG-M20S)

43–100 Hz

15–126 kHz(PG-20X)/15-102kHz(PG-M20S)

ø3.5 mm MINIJACK: AUDIO, 0.5 Vrms, more than 47 kΩ (stereo)

2.0 W (monaural)

4 cm × 3 cm

AC 100–240 V

3.2 A

50/60 Hz

290 W

<1,090 BTU/hour

41°F to 95°F (+5°C to +35°C)

–4°F to 140°F (–20°C to +60°C)

Plastic

38 kHz

85⁄8"× 3" × 11 15⁄16" (219 (W) × 76 (H) × 303 (D) mm) (main body only)

83⁄4"× 3 1⁄4"× 12 1⁄2" (223 (W) × 83 (H) × 318 (D) mm) (including adjustment feet

and projecting parts)

5.8 lbs. (2.6 kg)

Remote control, Two R-03 batteries, Power cord for U.S., Canada etc. (6', 1.8 m), Power

cord for Europe, except U.K. (6', 1.8 m), Power cord for U.K., Hong Kong and Singapore (6',

1.8 m), Power cord for Australia, New Zealand and Oceania (6', 1.8 m), DVI to 15-pin D-sub

cable (6', 1.8 m), USB cable (6', 1.8 m), Carrying case, Lens cap (attached), Lens cap

strap, Terminal cover (attached), CD-ROM, Operation manual, Quick reference guides

Lamp unit (Lamp/cage module) (BQC-PGM20X//1), Remote control (RRMCGA013WJSA),

Two R-03 batteries (“AAA” size, UM/SUM-4, HP-16, or similar), Power cord for U.S., Canada

etc. (QACCDA007WJPZ), Power cord for Europe, except U.K. (QACCV4002CEZZ), Power

cord for U.K., Hong Kong and Singapore (QACCB5024CENA[PG-M20X]/QACCBA012WJPZ

Power cord for Australia,[PG-M20S]), New Zealand and Oceania (QACCL3022CEZZ),

DVI to 15-pin D-sub cable (QCNWGA010WJZZ), USB cable (QCNWG0001WJPZ),

Carrying case(GCASN0005CESA), Lens cap (CCAPHA001WJ01), Lens cap strap

(UBNDT0013CEZZ),Terminal cover (GCOVD0103CESA), CD-ROM (UDSKA0058CEN1

[PG-M20X]/UDSKAA009WJZZ[PG-M20S]),Operation manual (TINS-7609CEZZ[PG-M20X]

/TINS-A209WJZZ[PG-M20S]), Quick reference guides

Product type

Model

Video system

Display method

DMD panel

Lens

Projection lamp

Component input signal

(INPUT1)

Horizontal resolution

Computer RGB input signal

(INPUT 1)

S-video input signal

(INPUT 2)

Video input signal

(INPUT 3)

Pixel clock

Vertical frequency

Horizontal frequency

Audio input signal

Audio output

Speaker system

Rated voltage

Input current

Rated frequency

Power consumption

Power dissipation

Operating temperature

Storage temperature

Cabinet

I/R carrier frequency

Dimensions (approx.)

Weight (approx.)

Supplied accessories

Replacement parts

This SHARP projector uses a DMD panel. This very sophis-

ticated panel contains 786,432(PG-M20X)/480,000(PG-M20-

S) pixels. As with any high technology electronic equipment

such as large screen TVs, video systems and video cameras,

there are certain acceptable tolerances that the equipment

must conform to.

This unit has some inactive pixels within acceptable toler-

ances which may result in inactive dots on the picture screen.

This will not affect the picture quality or the life expectancy

of the unit.

Specifications are subject to change without notice.

PG-M20S

PG-M20X

IMPORTANT SERVICE SAFETY NOTES (for USA)

ËService work should be performed only by qualified service technicians who are

thoroughly familiar with all safety checks and servicing guidelines as follows:

WARNING

1. For continued safety, no modification of any circuit

should be attempted.

2. Disconnect AC power before servicing.

BEFORE RETURNING THE PROJECTOR:

(Fire & Shock Hazard)

Before returning the projector to the user, perform

the following safety checks:

1. Inspect lead wires are not pinched between the

chassis and other metal parts of the projector.

2. Inspect all protective devices such as non-metallic

control knobs, insulating materials, cabinet backs,

adjustment and compartment covers or shields,

isolation resistor-capacity networks, mechanical

insulators, etc.

3. To be sure that no shock hazard exists, check for

current leakage in the following manner:

»Plug the AC cord directly into a 120-volt AC outlet,

(Do not use an isolation transformer for this test).

»Using two clip leads, connect a 1.5k ohm, 10 watt

resistor paralleled by a 0.15µF capacitor in parallel

between all exposed metal cabinet parts and earth

ground.

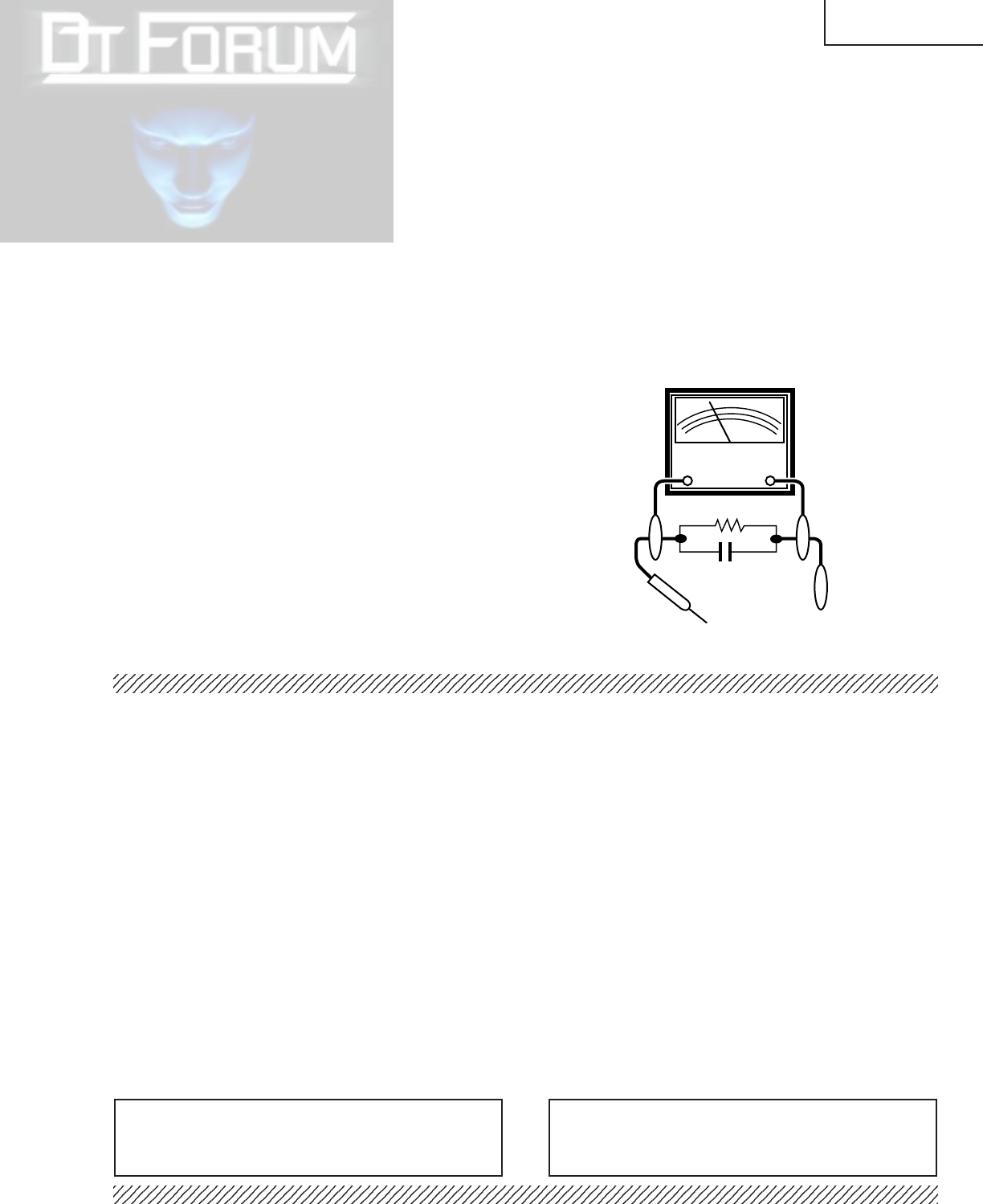

»Use an AC voltmeter with sensitivity of 5000 ohm

per volt., or higher, sensitivity to measure the AC

voltage drop across the resistor (See Diagram).

»All checks must be repeated with the AC plug

connection reversed. (If necessary, a non-polarized

adapter plug must be used only for the purpose of

completing these checks.)

Any reading of 0.3 volts RMS (this corresponds to

0.2 milliamp. AC.) or more is excessive and indicates

a potential shock hazard which must be corrected

before returning the unit to the owner.

SAFETY NOTICE

Many electrical and mechanical parts in Projector have

special safety-related characteristics.

These characteristics are often not evident from visual

inspection, nor can protection afforded by them be

necessarily increased by using replacement

components rated for higher voltage, wattage, etc.

Replacement parts which have these special safety

characteristics are identified in this manual; electrical

components having such features are identified by “å”

and shaded areas in the Replacement Parts Lists and

Schematic Diagrams. For continued protection,

replacement parts must be identical to those used in

the original circuit. The use of a substitute replacement

parts which do not have the same safety characteristics

as the factory recommended replacement parts shown

in this service manual, may create shock, fire or other

hazards.

AVIS POUR LA SECURITE

De nombreuses pièces, électriques et mécaniques, dans

les projecteur à présentent des caractéristiques

spéciales relatives à la sécurité, qui ne sont souvent

pas évidentes à vue.

Le degré de protection ne peut pas être nécessairement

augmentée en utilisant des pièces de remplacement

étalonnées pour haute tension, puissance, etc.

Les pièces de remplacement qui présentent ces

caractéristiques sont identifiées dans ce manuel;

les pièces électriques qui présentent ces particularités

sont identifiées par la marque “å” et hachurées dans

la liste des pièces de remplacement et les diagrammes

schématiques. Pour assurer la protection, ces pièces

doivent être identiques à celles utilisées dans le circuit

d’origine. L’utilisation de pièces qui n’ont pas les mêmes

caractéristiques que les pièces recommandées par

l’usine, indiquées dans ce manuel, peut provoquer des

électrocutions, incendies ou autres accidents.

WARNING: The bimetallic component has the primary

conductive side exposed. Be very careful in

handling this component when the power is on.

AVERTISSEMENT: La composante bimétallique dispose du

conducteur primaire dénudé. Faire

attention lors de la manipulation de cette

composante sous tension.

VOLTMETER

1.5k ohm (10W)

0.15µF

TEST PROBE

TO EXPOSED

METAL PARTS CONNECT TO KNOWN

EARTH GROUND

PG-M20S

PG-M20X

NOTE POUR LE PERSONNEL

D’ENTRETIEN

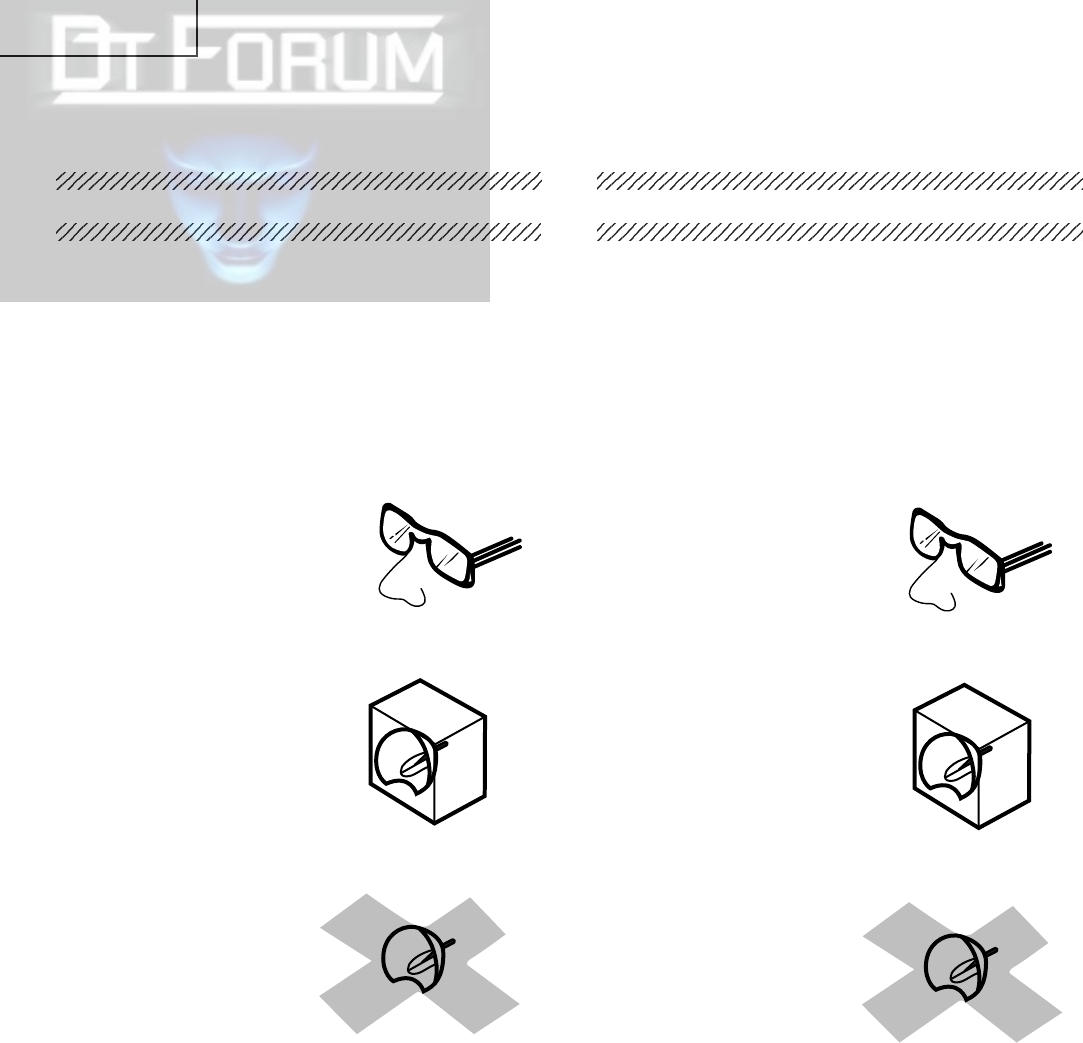

PRECAUTION POUR LES RADIATIONS UV

La source de lumière, la lampe métal halide,

dans le projecteur émet de petites quantités de

radiation UV.

EVITEZ TOUTE EXPOSITION DIRECTE

DES YEUX ET DE LA PEAU.

Pour votre sécurité, nous vous prions de respecter

les points suivants:

1. Toujours porter des lunettes de soleil lors d’un

entretien du projecteur

avec la lampe allumée

et le haut du coffret retiré.

2. Ne pas faire fonctionner la lampe à l’extérieur du

boîtier de lampe.

3. Ne pas faire fonctionner plus de 2 heures avec le

coffret retiré.

Précautions pour les radiations UV

et la lampe moyenne pression

1. Toujours débrancher la fiche AC lors du

remplacement de la lampe.

2. Laisser l’unité refroidir pendant une heure avant de

procéder à l’entretien.

3. Ne remplacer qu’avec une lampe du même type.

Type BQC-PGM20X//1 caractéristique 85V/210W.

4. La lampe émet de petites quantités de radiation UV-

éviter tout contact direct avec les yeux.

5. La lampe moyenne pression implique un risque

d’explosion. Toujours suivre les instructions

d’installation décrites ci-dessous et manipuler la

lampe avec soin.

NOTE TO SERVICE

PERSONNEL

UV-RADIATION PRECAUTION

The light source, metal halide lamp, in the projector

emits small amounts of UV-Radiation.

AVOID DIRECT EYE AND SKIN EXPOSURE.

To ensure safety please adhere to the following:

1. Be sure to wear sun-glasses when servicing the

projector with the lamp

turned “on” and the top

enclosure removed.

2. Do not operate the lamp outside of the lamp housing.

3. Do not operate for more than 2 hours with the

enclosure removed.

UV-Radiation and Medium Pressure

Lamp Precautions

1. Be sure to disconnect the AC plug when replacing

the lamp.

2. Allow one hour for the unit to cool down before

servicing.

3. Replace only with same type lamp. Type BQC-

PGM20X//1 rated 85V/210W.

4. The lamp emits small amounts of UV-Radiation,

avoid direct-eye contact.

5. The medium pressure lamp involves a risk of

explosion. Be sure to follow installation instructions

described below and handle the lamp with care.

PG-M20S

PG-M20X

Lamp

Reflector

Comme de petites quantités de radiation UV sont

émises par une ouverture entre le couvercle du con-

duit et le botier de la lampe,il est recommandé de

placer le CAPUCHON D'OPTIQUE sur l'ouverture

pendant l'entretien pour éviter une exposition des

yeux et la peau.

Remarque: Priére de se procurer un capuchon

d'optique acant d'entretien un modéle

PG-M20X/PG-M20S qui est livré sans.

Since small amounts of UV-Radiation are emitted

from an opening between the duct cover and the

lamp housing, it is recommended to place the LENS

CAP on the opening during servicing to avoid eye

and skin exposure.

Note: Please obtain a lens cap before servicing a

models PG-M20X/PG-M20S that is received

without one.

DANGER ! –– Never turn the power on without the

lamp to avoid electric-shock or damage of the

devices since the stabilizer generates high voltages

at its start.

UV-RADIATION PRECAUTION (Continued)

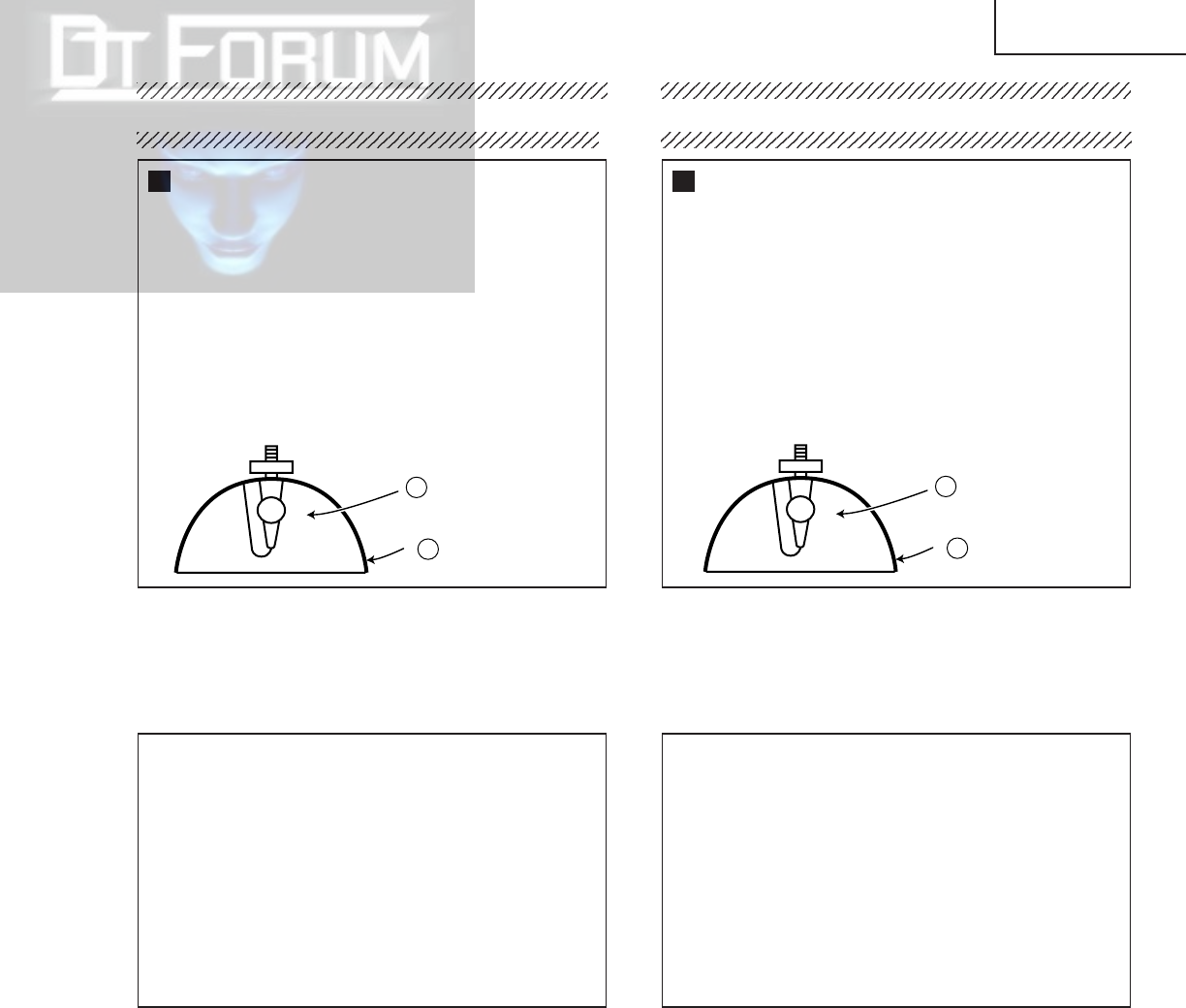

Lamp Replacement

Note:

Since the lamp reaches a very high temperature

during units operation replacement of the lamp

should be done at least one hour after the power

has been turned off. (to allow the lamp to cool off.)

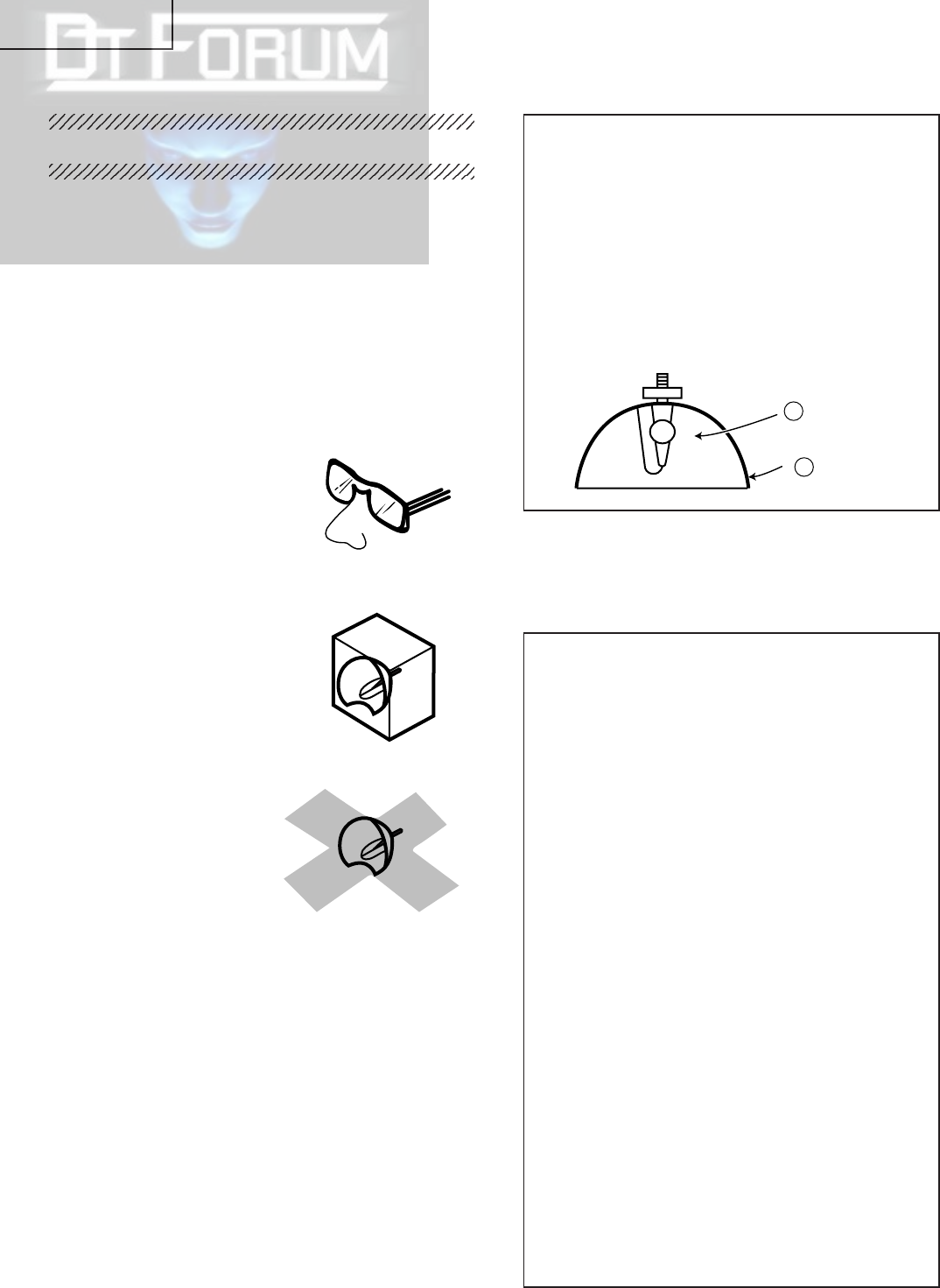

Installing the new lamp, make sure not to touch the

lamp (bulb) replace the lamp by holding its reflector

[Use original replacement only.]

DANGER ! –– Ne jamais mettre sous tension sans

la lampe pour éviter un choc électrique ou des

dommages des appareils car le stabilisateur génère

de hautes tensions à sa mise en route.

Remplacement de la lampe

Remarque:

Comme la lampe devient très chaude pendant le

fonctionnement de l’unité, son remplacement ne doit

être effectué au moins une heure après avoir coupé

l’alimentation (pour permettre à la lampe de refroidir).

En installant la nouvelle lampe, s’assurer de ne pas

toucher la lampe (ampoule). Remplacer la lampe en

tenant son réflecteur 2.

[N’utiliser qu’un remplacement d’origine.]

PRECAUTION POUR LES RADIATIONS UV (Suite)

Lampe

Reflecteur

PG-M20S

PG-M20X

WARNING: High brightness light source, do not stare into the beam of light, or view directly. Be especially

careful that children do not stare directly in to the beam of light.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO

MOISTURE OR WET LOCATIONS.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE CABINET.

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lighting flash with arrowhead within

a triangle is intended to tell the user that

parts inside the product are risk of electric

shock to persons.

The exclamation point within a triangle is

intended to tell the user that important

operating and servicing instructions are

in the manual with the projector.

CAUTION

AVERTISSEMENT: Source lumineuse de grande intensité. Ne pas fixer le faisceau lumineux ou le regarder

directement. Veiller particulièrement à éviter que les enfants ne fixent directement le

faisceau lumineux.

AVERTISSEMENT: AFIN D’EVITER TOUT RISQUE D’INCENDIE OU D’ELECTROCUTION, NE PAS PLACER

CET APPAREIL DANS UN ENDROIT HUMIDE OU MOUILLE.

L’éclair terminé d’une flèche à l’intérieur

d’un triangle indique à l’utilisateur que les

pi‘eces se trouvant dans l’appareil sont

susceptibles de provoquer une décharge

électrique.

Le point d’exclamation à l’intérieur d’un

triangle indique à l’utilisateur que les

instructions de fonctionnement et

d’entretien sont détaillées dans les

documents fournis avec le projecteur.

RISQUE

D’ELECTROCUTION NE

PASRETIRER LES VIS, A

L’EXCEPTION DES VIS DE

REPARATION UTILISATEUR

SPECIFIEES

ATTENTION

ATTENTION: POUR EVITER TOUT RISQUE

D’ELECTROCUTION, NE PAS RETIRER LE CAPOT.

AUCUNE DES PIECES INTERIEURES N’EST REPARABLE

PAR L’UTILISATEUR, A L’EXCEPTION DE L’UNITE DE

LAMPE. POUR TOUTE REPARATION, S’ADRESSER A UN

TECHNICIEN D’ENTRETIEN QUALIFIE.

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREWS

PG-M20S

PG-M20X

Precautions for using lead-free solder

1 Employing lead-free solder

"Input and key PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is

attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free

solder.

Example:

2 Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional

lead wire solder may cause damage or accident due to cracks.

As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend you

to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldening bit,

contact our service station or service ranch in your area.

3 Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead solder

by 40°C, and as it has poor solder wettabillty, you may be apt to keep the soldering bit in contact with the PWB for

extended period of time. However, Since the land may be peeled off or the maximum heat-resistance temperature of

parts may be excoeded, remove the bit from the PWB as soon as you conurm the steady soldering condition.

Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to tum on and

off the power of the bit as required.

if a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after

every use of it.

When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Becareful when replacing parts with polarity indication on the PWB silk.

LFa

Indicates lead-free solder of tin, silver and copper.

Part No. ★Description Code

ZHNDAi123250E J φ0.3mm 250g(1roll) BL

ZHNDAi126500E J φ0.6mm 500g(1roll) BK

ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM

Lead-free wire solder for servicing

PG-M20S

PG-M20X

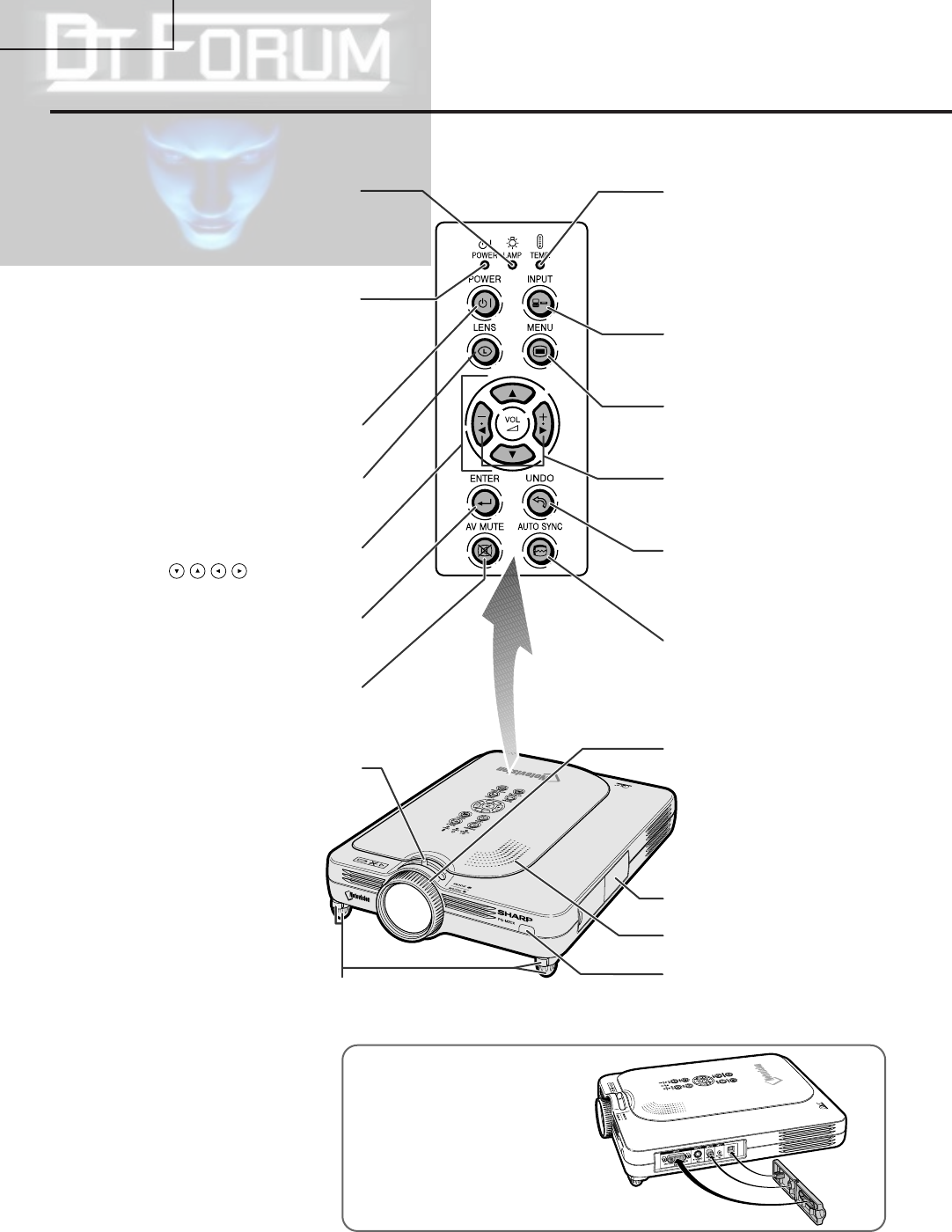

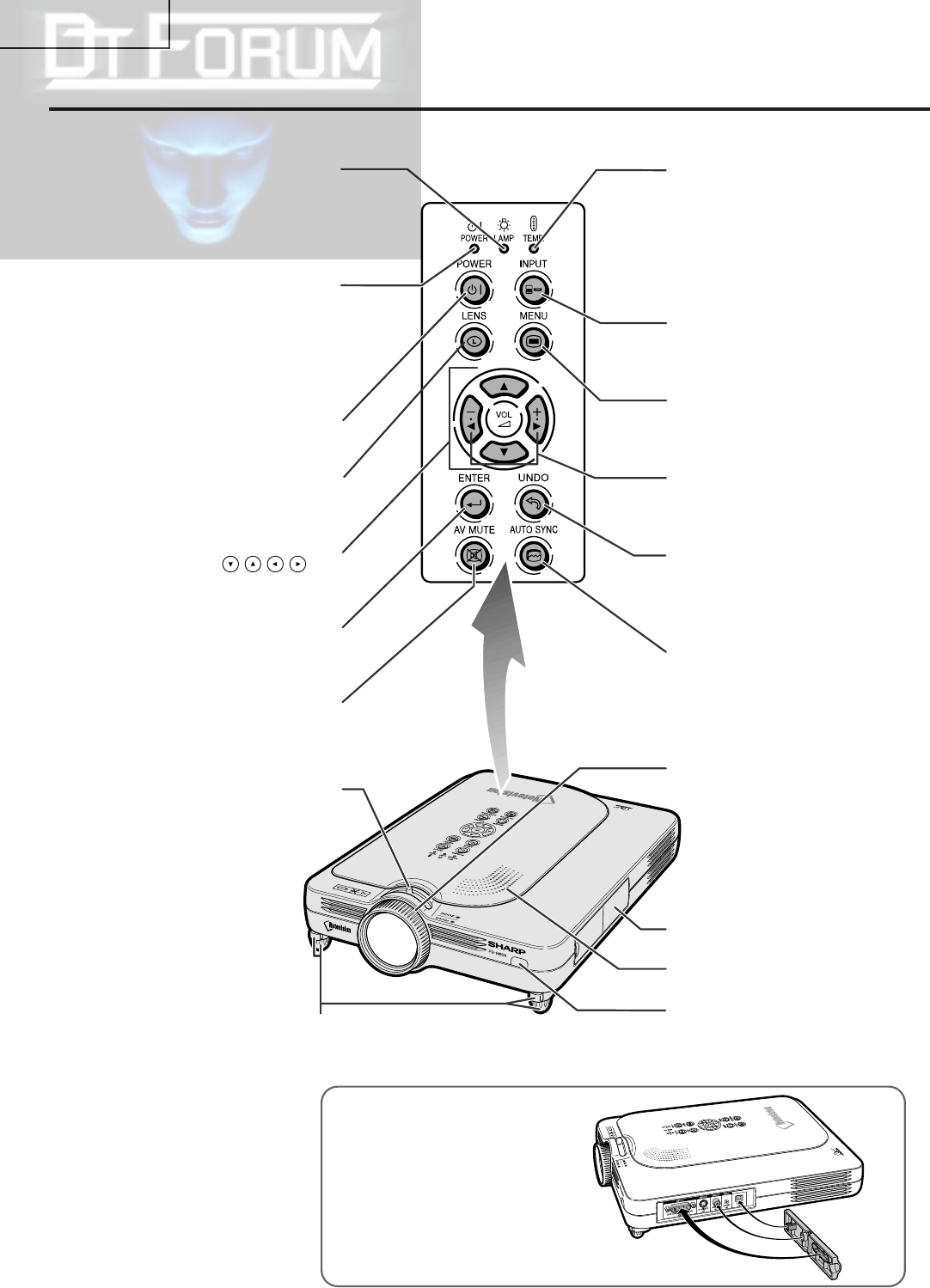

Location of Controls

Projector (Front and Top View)

Foot releases/Adjustment

feet

For adjusting the projector’s

height.

Attaching the terminal cover

Attach the terminal cover by

placing it on the side panel of the

projector and pressing it into

place, as shown in the illustration.

TEMPERATURE

WARNING indicator

Illuminates in green

normally. When the

internal temperature

rises, this indicator will

illuminate in red.

Zoom knob Focus ring

AV MUTE button

For temporarily turning off the

sound and picture.

ENTER button

For setting items selected

or adjusted on the menu.

Adjustment buttons

()

For selecting menu items.

LENS button

For adjusting Keystone or

Digital Shift setting.

POWER button

Turns the power on or off.

POWER indicator

Illuminates in red, when the

projector is in standby.

When the power is turned

on, this indicator will

illuminate in green.

LAMP REPLACEMENT

indicator

Illuminates in green normally.

Replace the lamp when the

indicator illuminates in red.

AUTO SYNC button

For automatically

adjusting images when

connected to a computer.

UNDO button

For undoing an operation

or returning to the default

settings.

VOLUME buttons

For adjusting the

speaker sound level.

MENU button

For displaying adjustment

and setting screens.

INPUT button

For switching input mode

1, 2 or 3.

Remote control

sensor

Terminal cover

Speaker

PG-M20S

PG-M20X

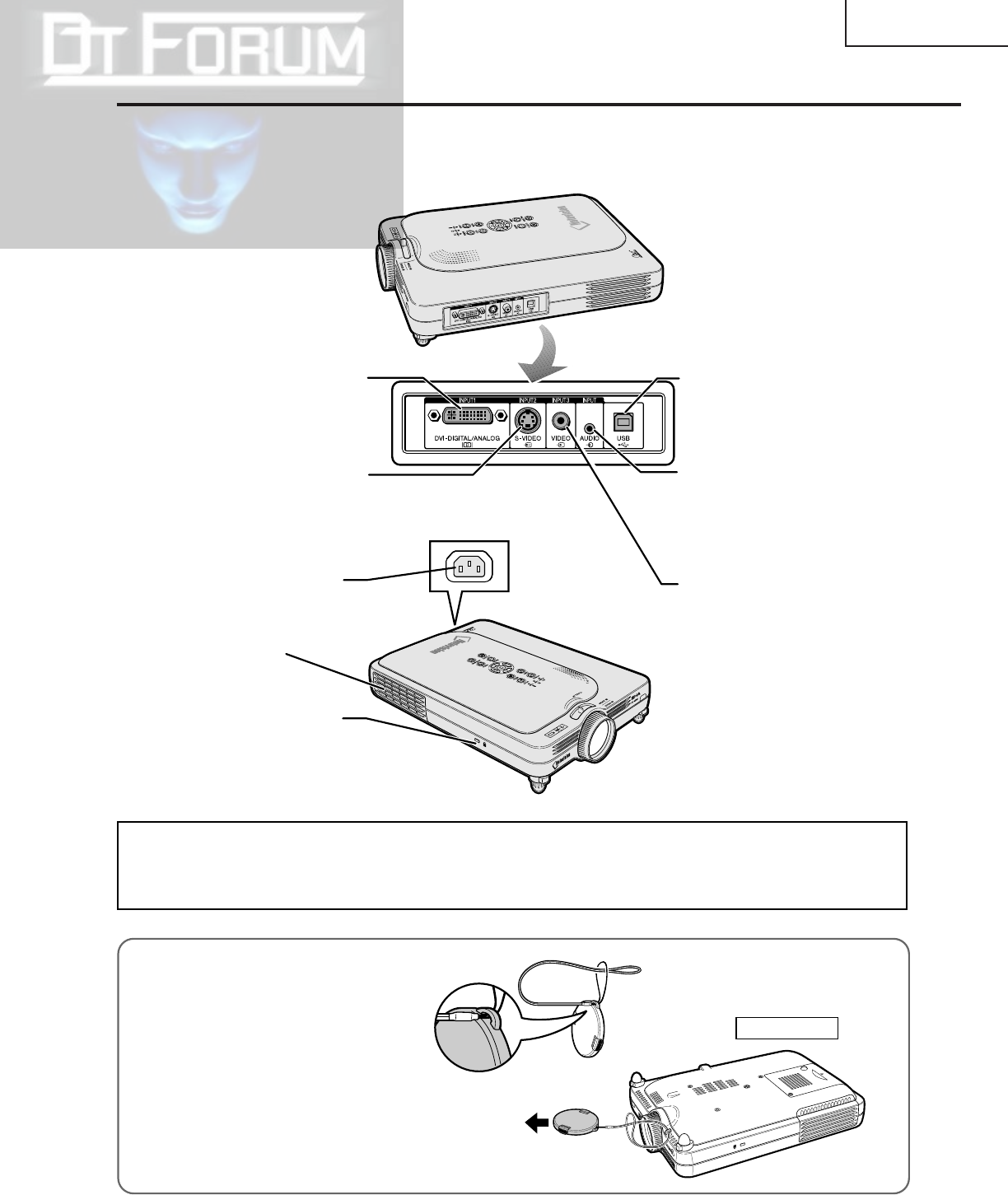

Projector (Side View)

Exhaust vent

AC socket

Kensington Security

Standard connector

Using the Kensington Lock

•This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security

System. Refer to the information that came with the system for instructions on how to use it to secure the

projector.

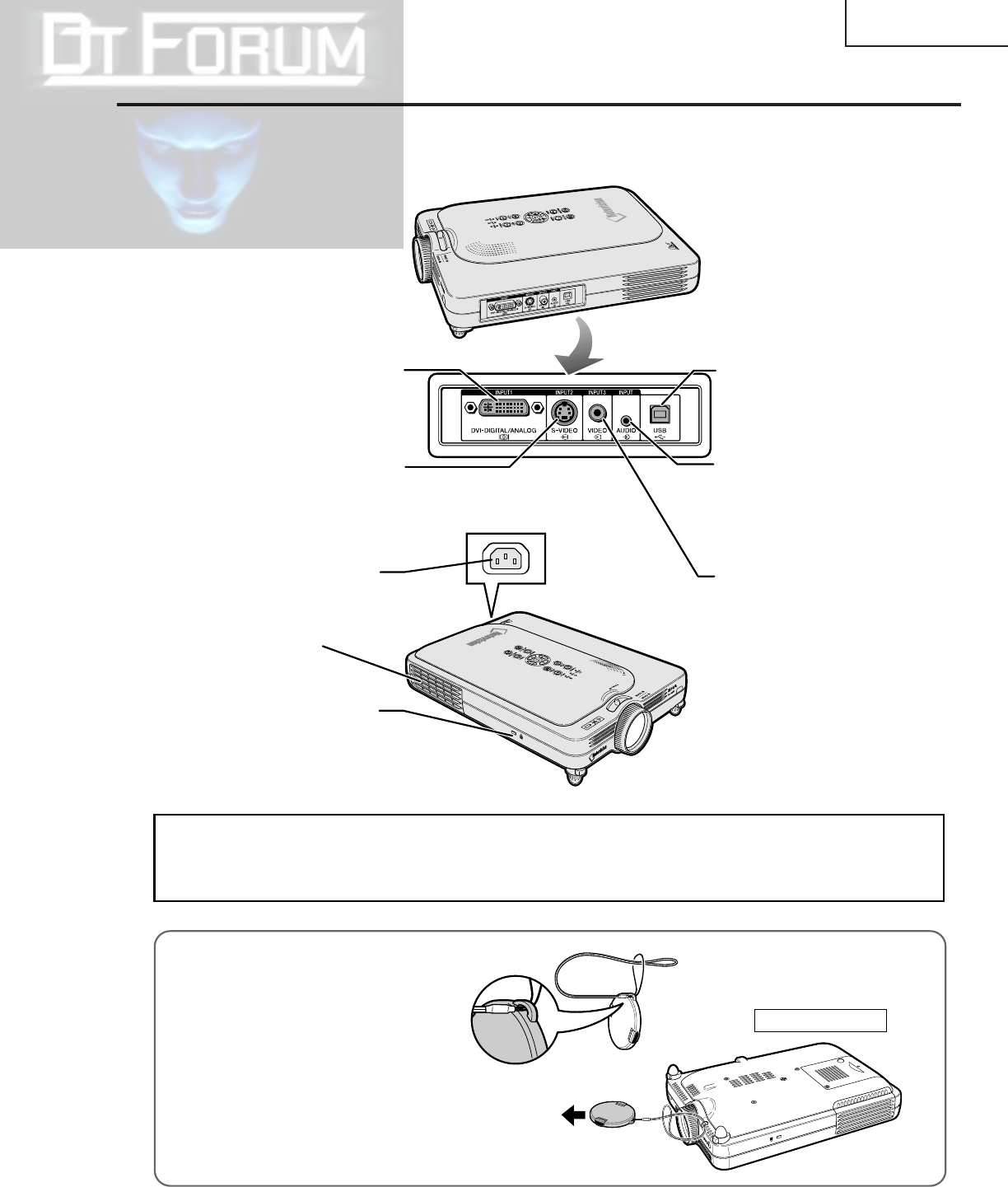

Attaching the lens cap

After putting the lens cap strap on the

lens cap, pass the other end of the strap

through the hole under the projector, next

to the lens, as shown in the illustration. Bottom View

INPUT 2 terminal

Terminal for connecting video

equipment with an S-VIDEO

terminal.

INPUT 1 terminal

Port for DVI digital, computer

RGB, and COMPONENT

signals.

INPUT 3 terminal

For connecting video

equipment.

INPUT AUDIO terminal

Shared audio terminal for

INPUT 1, INPUT 2, and

INPUT 3.

USB terminal

For connecting a compu-

ter using a USB cable.

PG-M20S

PG-M20X

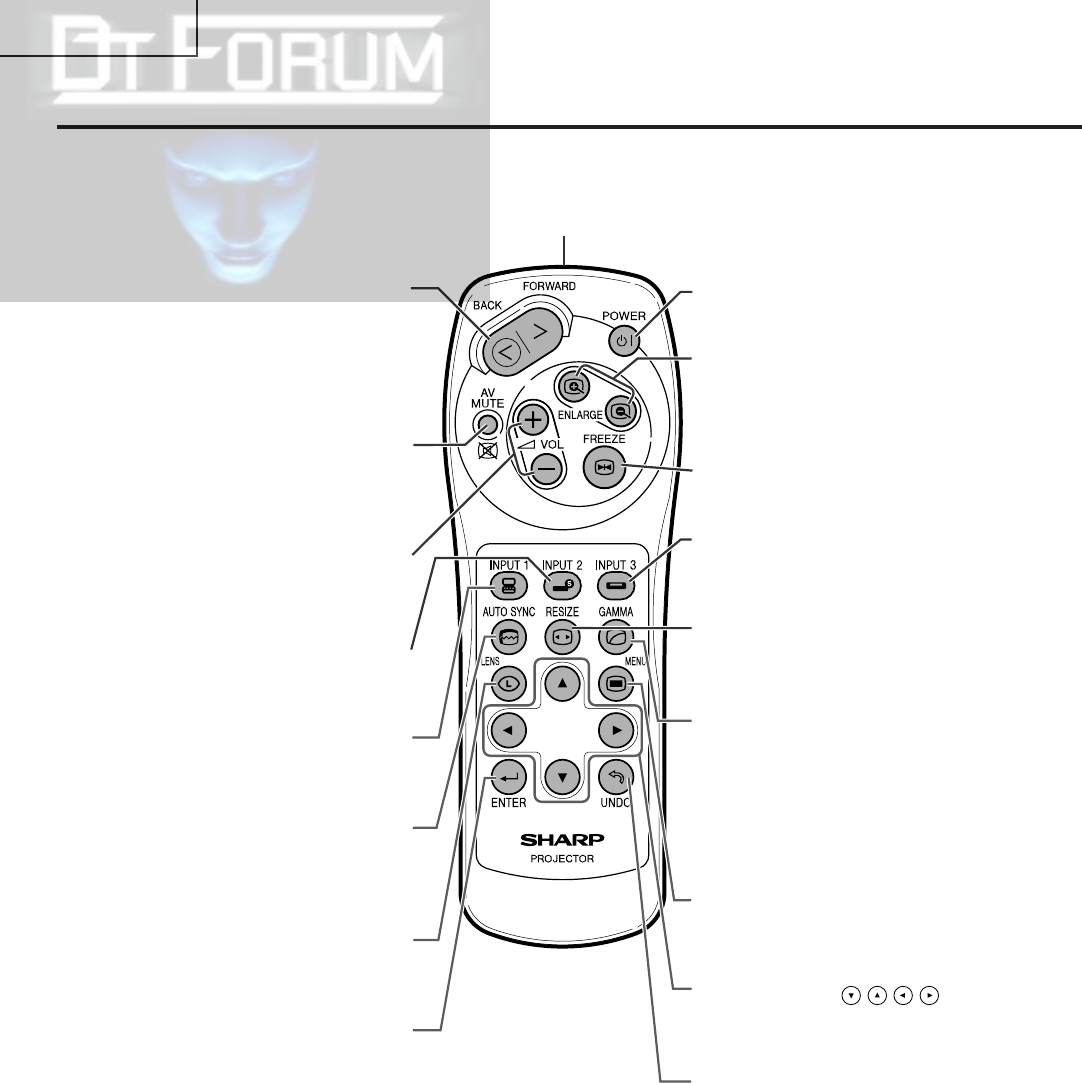

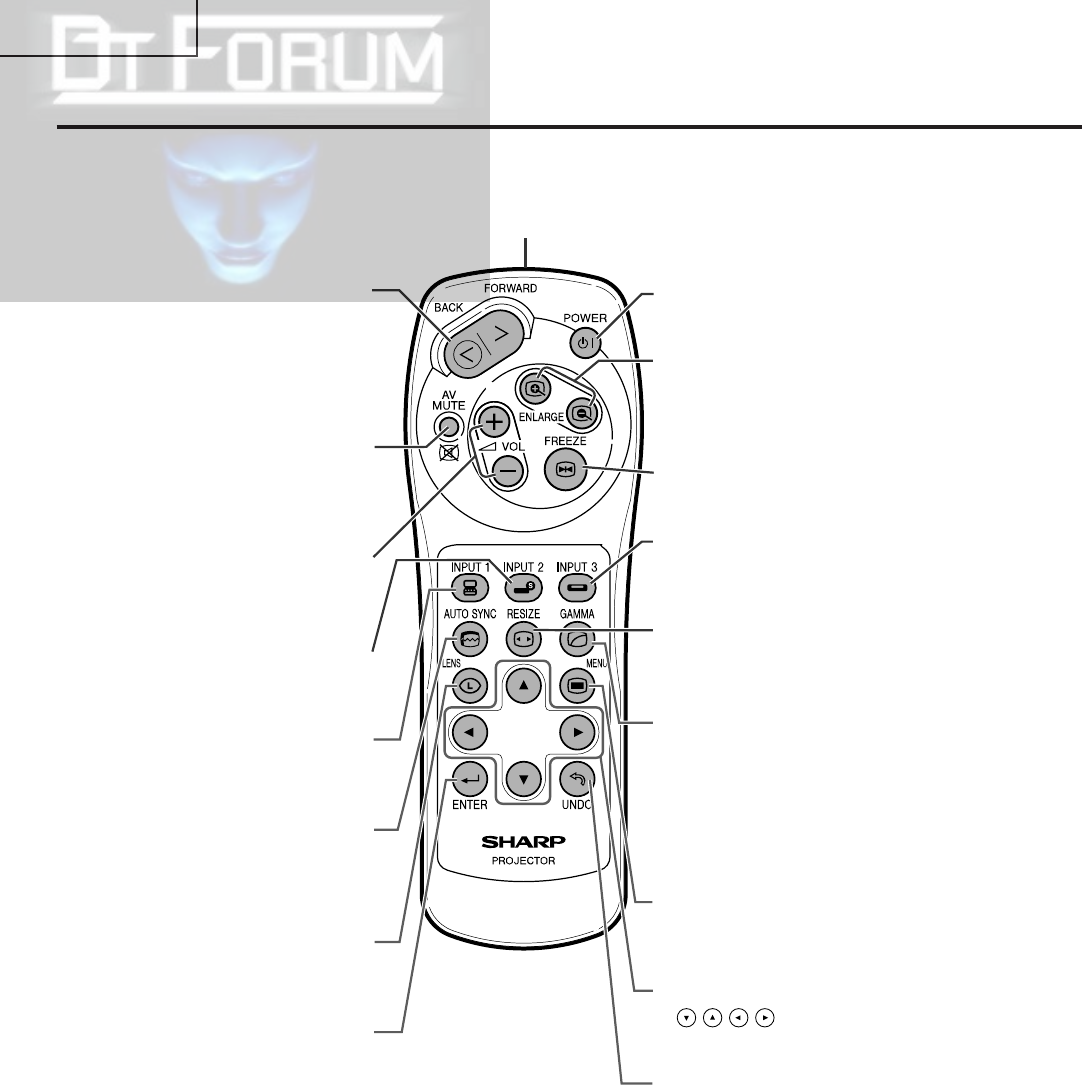

Remote Control

FORWARD/BACK button

Moves forward or backwards

when connected to a computer

using a USB cable. Same as the

[Page Down] and [Page Up]

keys on a computer keyboard.

AV MUTE button

For temporarily turning off the

sound and picture.

VOLUME buttons

For adjusting the speaker

sound level.

INPUT 2 button

For switching the input mode to

INPUT 2.

INPUT 1 button

For switching the input mode to

INPUT 1.

AUTO SYNC button

For automatically adjusting

images when connected to a

computer.

LENS button

For adjusting Keystone or

Digital Shift setting.

ENTER button

For setting items selected or

adjusted on the menu.

POWER button

Turns the power on or off.

ENLARGE (Enlarge/Reduce)

buttons

For enlarging or reducing part of the

image.

FREEZE button

For freezing images.

INPUT 3 button

For switching the input mode to

INPUT 3.

RESIZE button

For switching the screen size

(NORMAL, BORDER, etc).

GAMMA button

For correcting the brightness of an

image, when the images displayed

are hard to see because of the

brightness of the room. Four

gamma modes are available to

choose from.

MENU button

For displaying adjustment and

setting screens.

Adjustment buttons

(

)

For selecting menu items.

UNDO button

For undoing an operation or

returning to the default settings.

Remote control signal transmitter

PG-M20S

PG-M20X

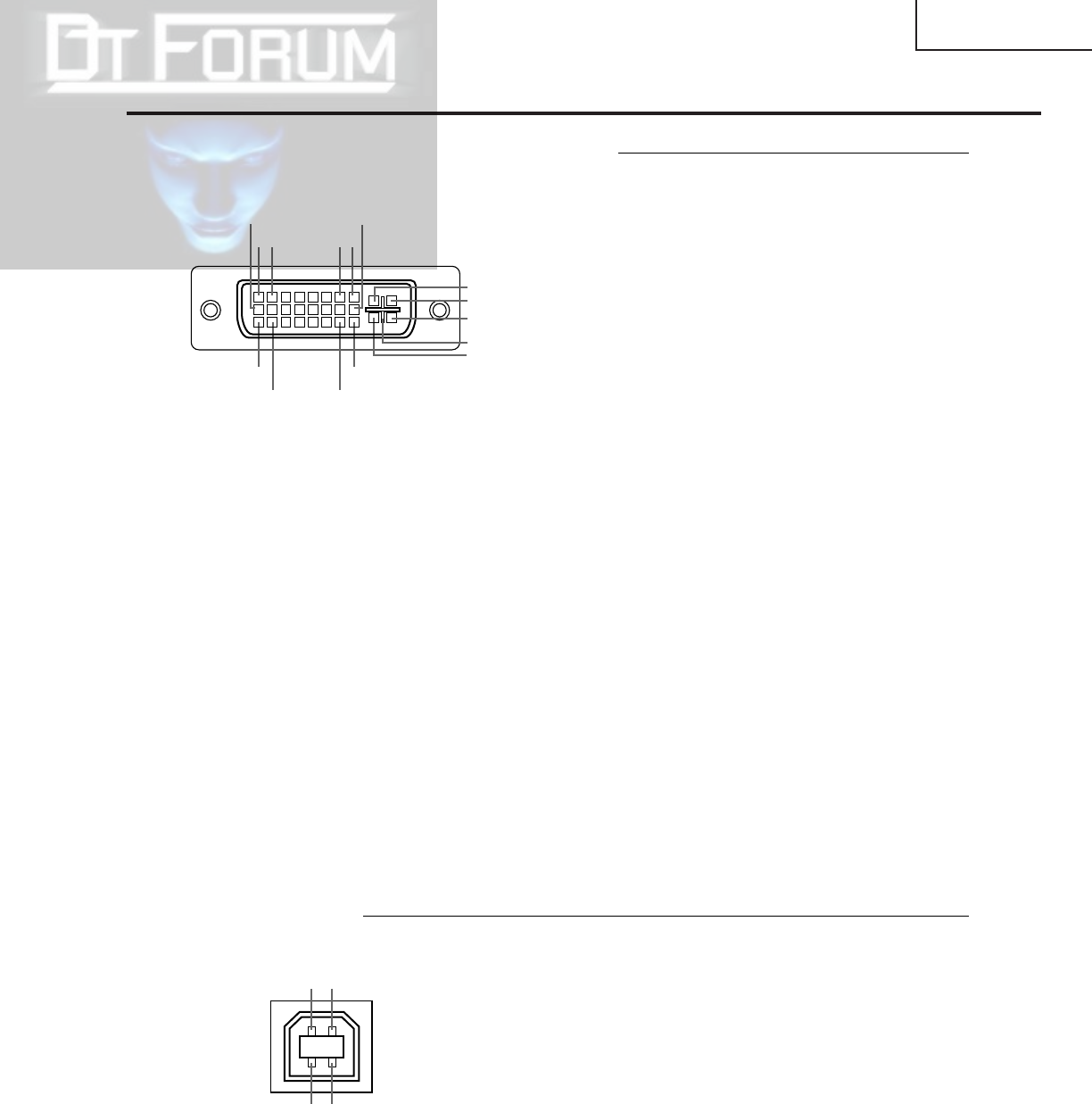

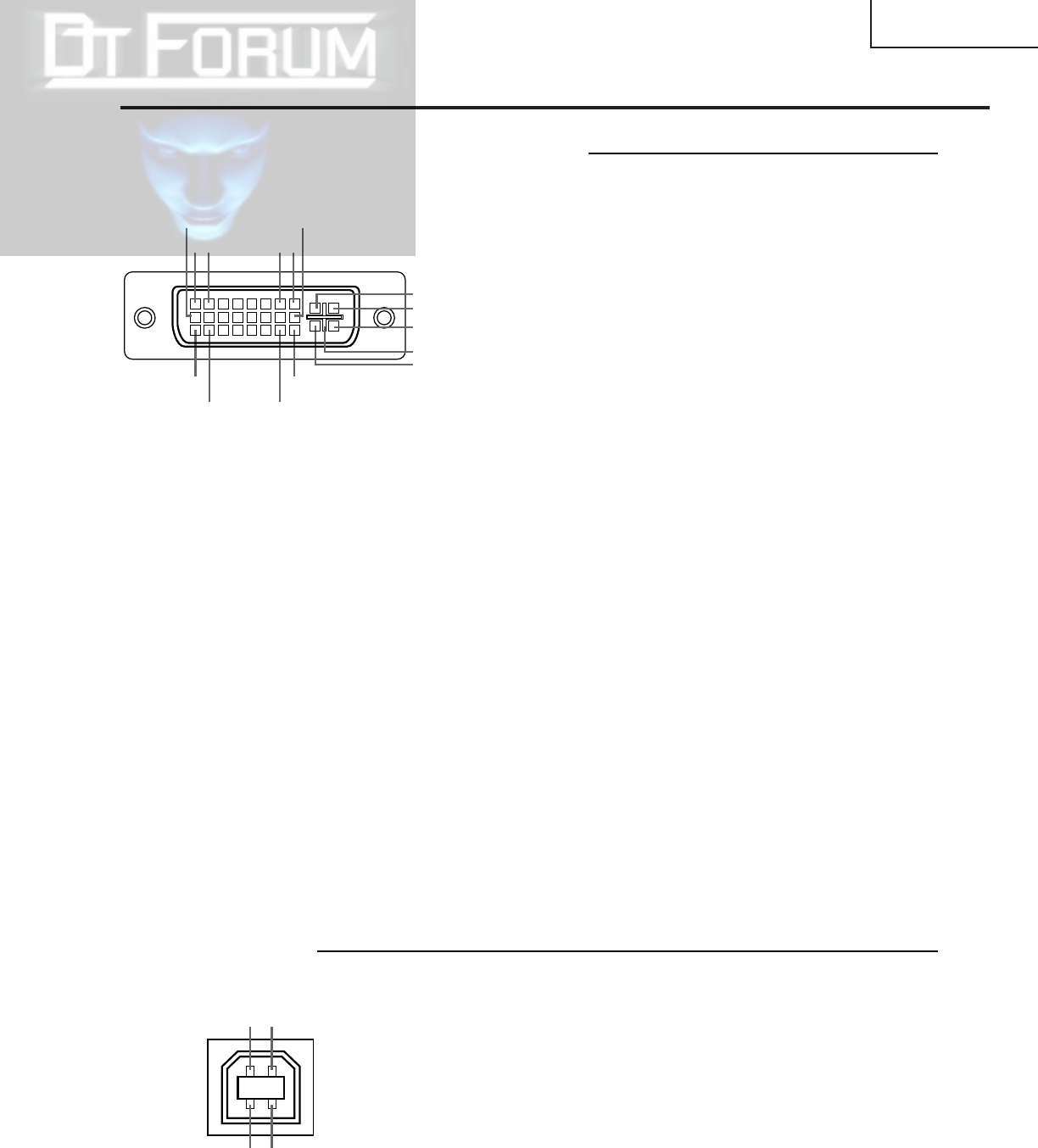

Connection Pin Assignments

•••••••••

••••

18 23

916

• DVI Digital INPUT

Pin No. Signal Pin No. Signal

1 T.M.D.S data 2–16 Hot plug detection

2 T.M.D.S data 2+ 17 T.M.D.S data 0–

3 T.M.D.S data 2 shield 18 T.M.D.S data 0+

4 Not connected 19 T.M.D.S data 0 shield

5 Not connected 20 Not connected

6 DDC clock 21 Not connected

7 DDC data 22 T.M.D.S clock shield

8 Not connected 23 T.M.D.S clock+

9 T.M.D.S data 1–24 T.M.D.S clock–

10 T.M.D.S data 1+ C1 Not connected

11 T.M.D.S data 1 shield C2 Not connected

12 Not connected C3 Not connected

13 Not connected C4 Not connected

14 +5V current C5 Ground

15 Ground

DVI Digital / Analog INPUT 1 port : 29 pin connector

• DVI Analog RGB Input

Pin No. Signal Pin No. Signal

1 Not connected 16 Hot plug detection

2 Not connected 17 Not connected

3 Not connected 18 Not connected

4 Not connected 19 Not connected

5 Not connected 20 Not connected

6 DDC clock 21 Not connected

7 DDC data 22 Not connected

8 Vertical sync 23 Not connected

9 Not connected 24 Not connected

10 Not connected C1 Analog input Red

11 Not connected C2 Analog input Green

12 Not connected C3 Analog input Blue

13 Not connected C4 Horizontal sync

14 +5V current C5 Ground

15 Ground

• DVI Analog Component Input

Pin No. Signal Pin No. Signal

1 Not connected 16 Not connected

2 Not connected 17 Not connected

3 Not connected 18 Not connected

4 Not connected 19 Not connected

5 Not connected 20 Not connected

6 Not connected 21 Not connected

7 Not connected 22 Not connected

8 Not connected 23 Not connected

9 Not connected 24 Not connected

10 Not connected C1 Analog input Pr/Cr

11 Not connected C2 Analog input Y

12 Not connected C3 Analog input Pb/Cb

13 Not connected C4 Not connected

14 Not connected C5 Ground

15 Ground

4-pin USB connector

• USB connector: 4 pin B-type USB connector

Pin no. Signal Name

1 VCC USB current

2 USB–USB data–

3 USB+ USB data+

4 SG Signal Ground

PG-M20S

PG-M20X

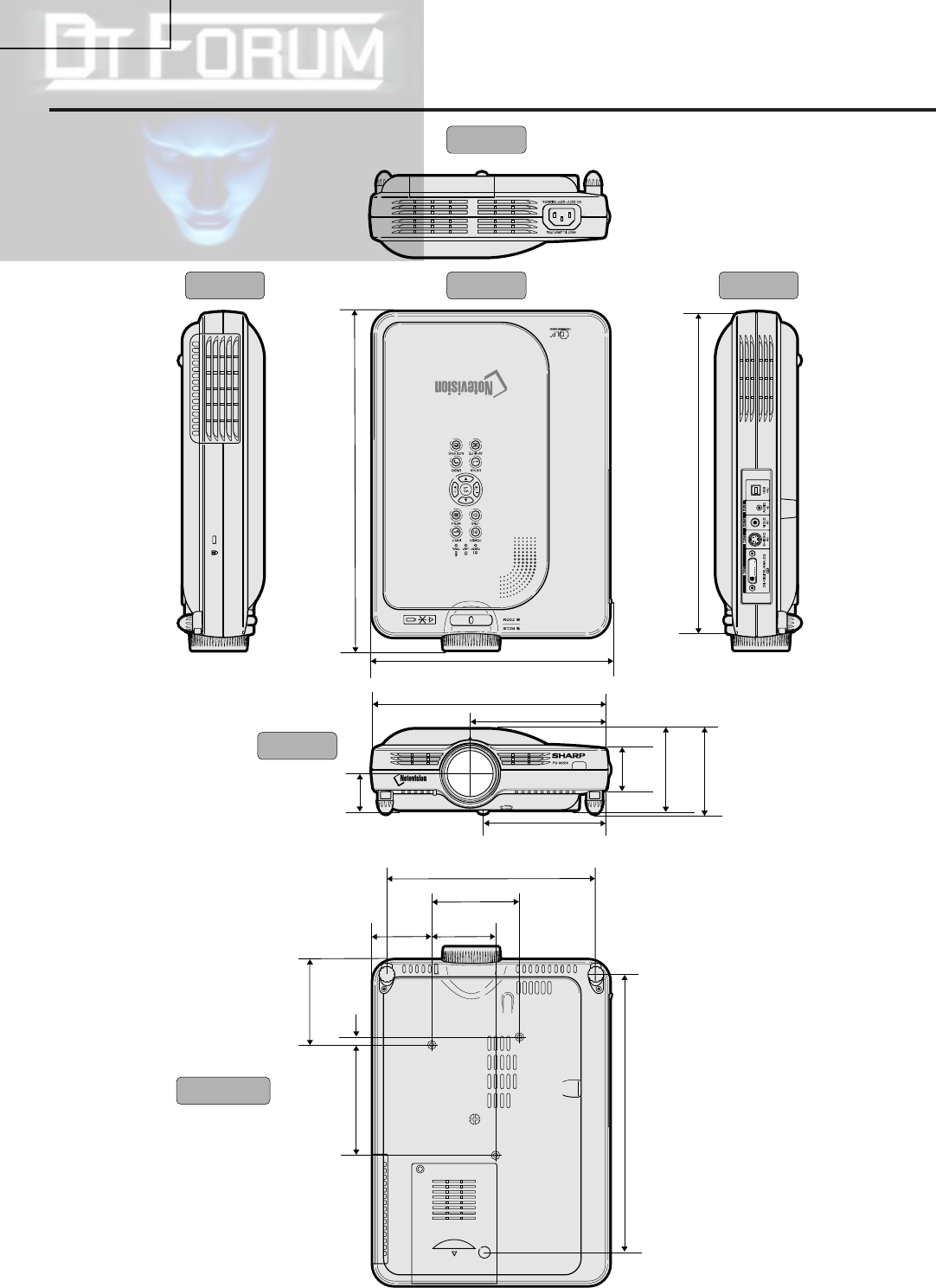

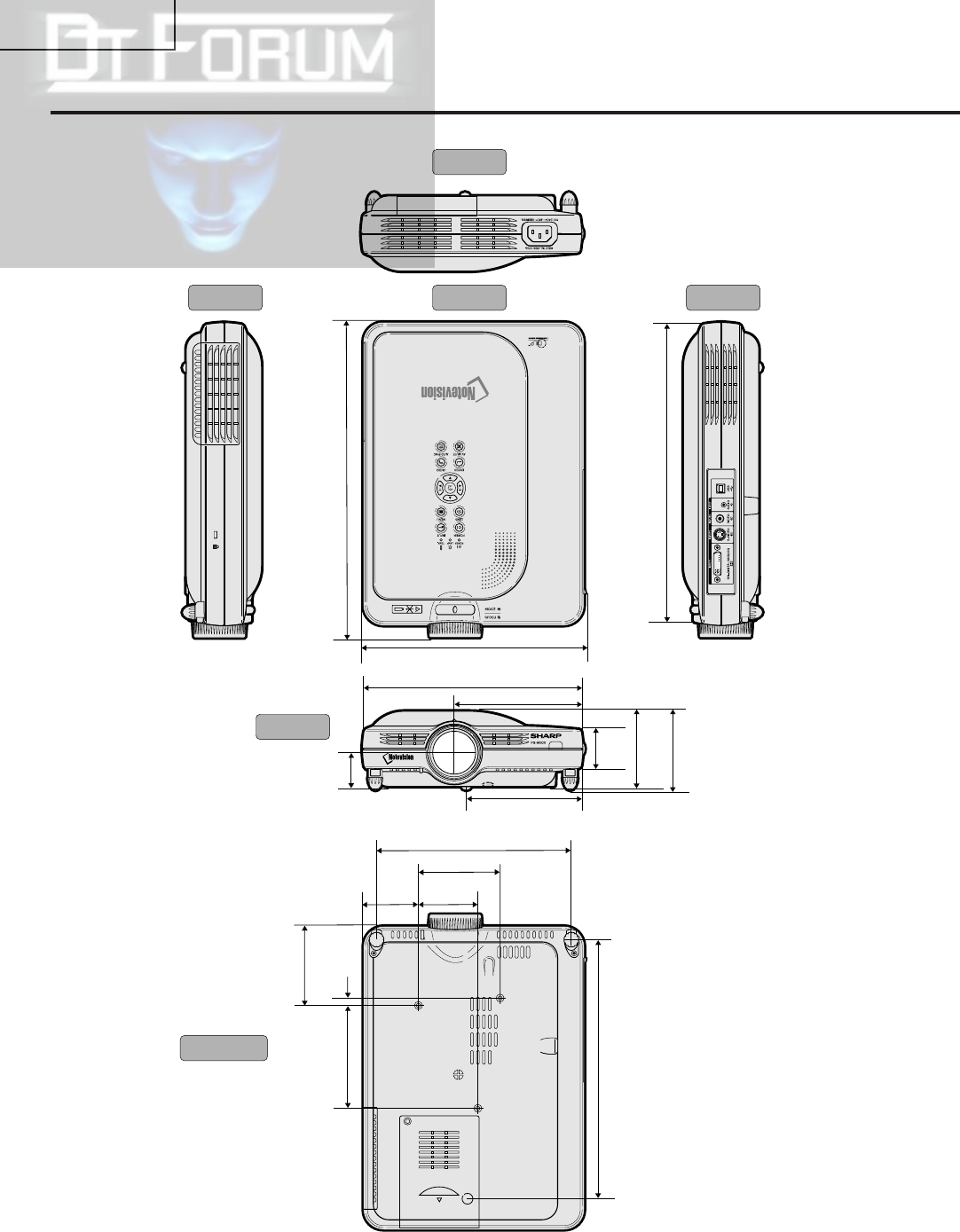

Dimensions

Units: inches (mm)

Side View Side ViewTop View

Rear View

Front View

Bottom View

(303)

(38.7)

(34.2)

(82.9)

(76.1)

(261.5)

(104)

(80)

(7.5)

(318.3)

(219)

(128)

(115.5)

(223)

(195)

(60)

(55.5)

(82.5)

PG-M20S

PG-M20X

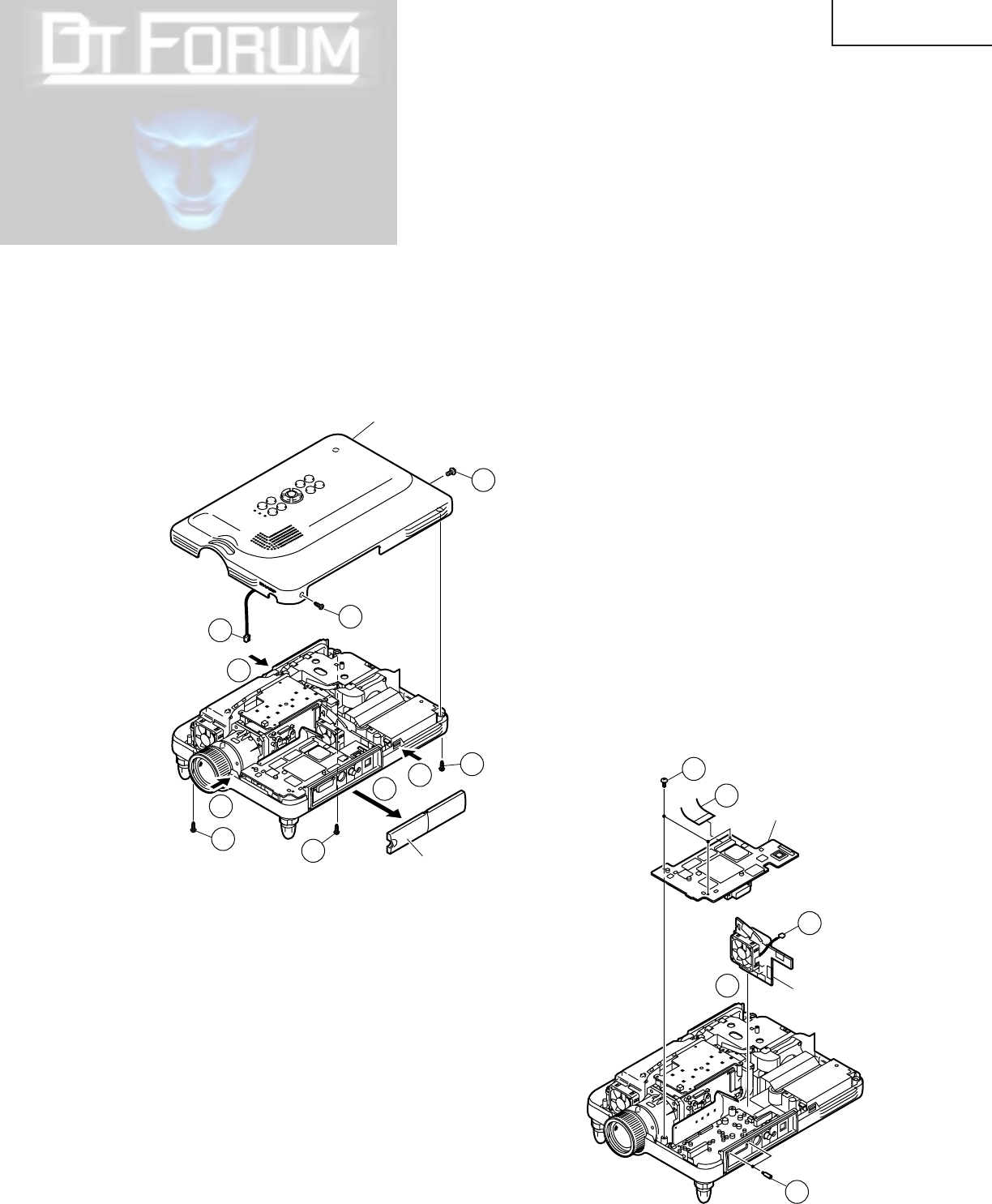

REMOVING OF MAJOR PARTS

1. Removing the top panel

1-1. Detach the terminal block cover.

1-2. Remove the five lock screws from the top panel.

1-3. Press the right side of the bottom body to undo the hook.

1-4. Press the left side of the bottom body to undo the hook.

1-5. Press the front of the bottom body to undo the hook. Get the top panel loose from the bottom body.

1-6. Slightly raise the front of the top panel and disconnect the speaker connector.

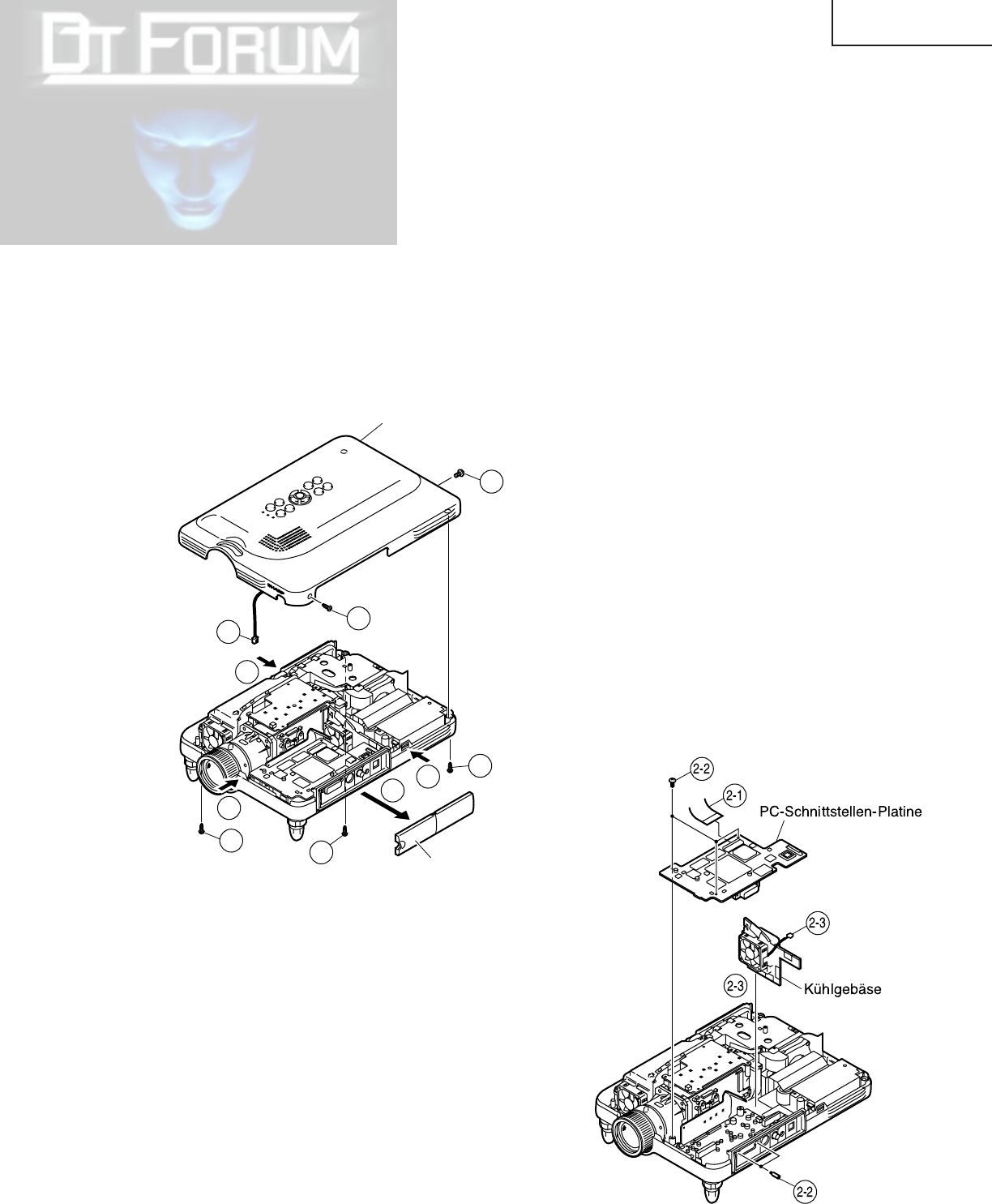

2. Removing the PC I/F PWB and cooling fan

2-1. Disconnect the connector.

2-2. Remove the three lock screws from the PC I/F PWB and then the two hex support screws.

2-3. Disconnect the connector and take out the cooling fan.

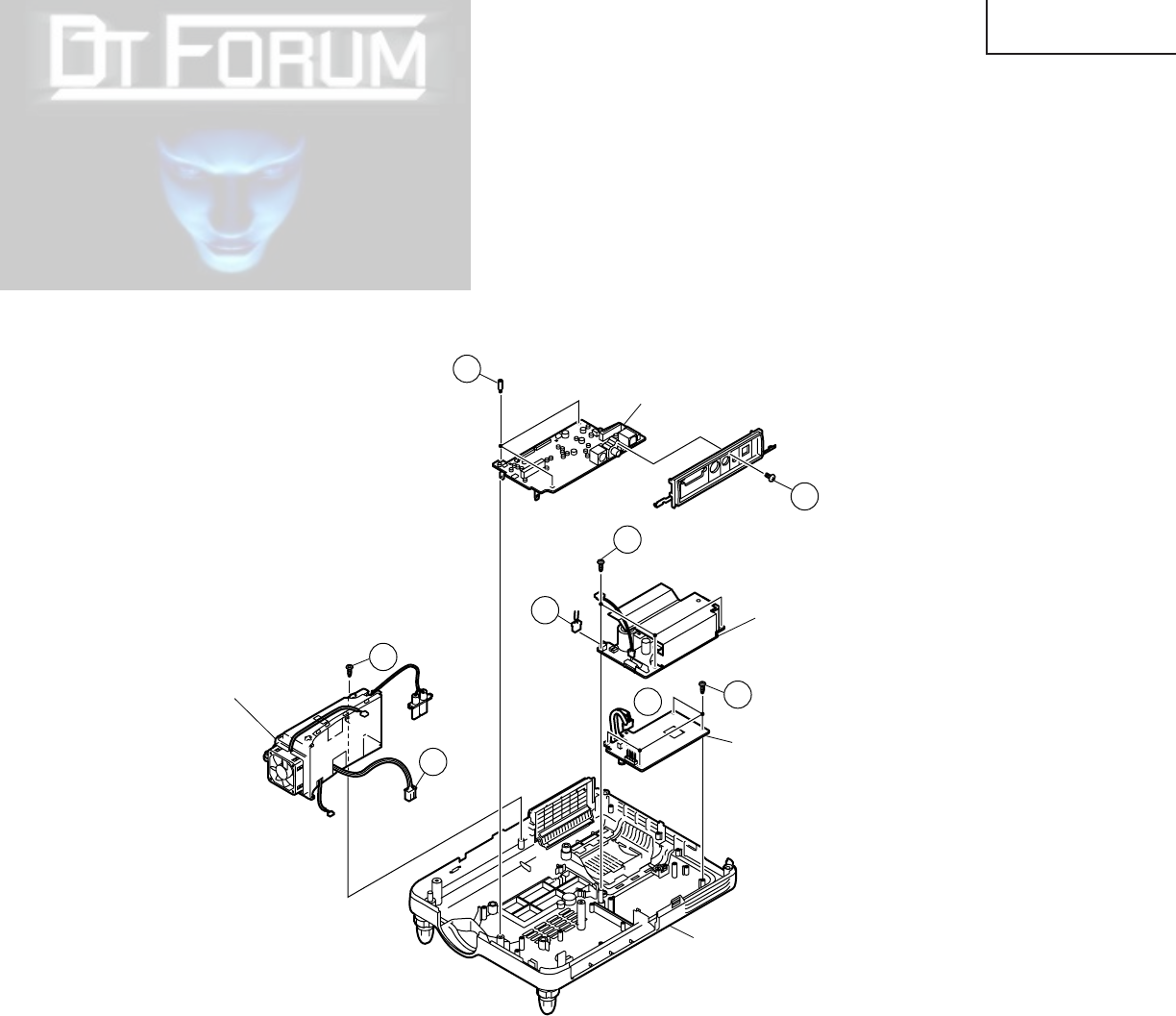

Top panel

Terminal block cover

1-2

1-1

1-2

1-6

1-2

1-5

1-4

1-3

2-2

2-1

PC I/F PWB unit

2-3

Cooling fan

2-2

PG-M20S

PG-M20X

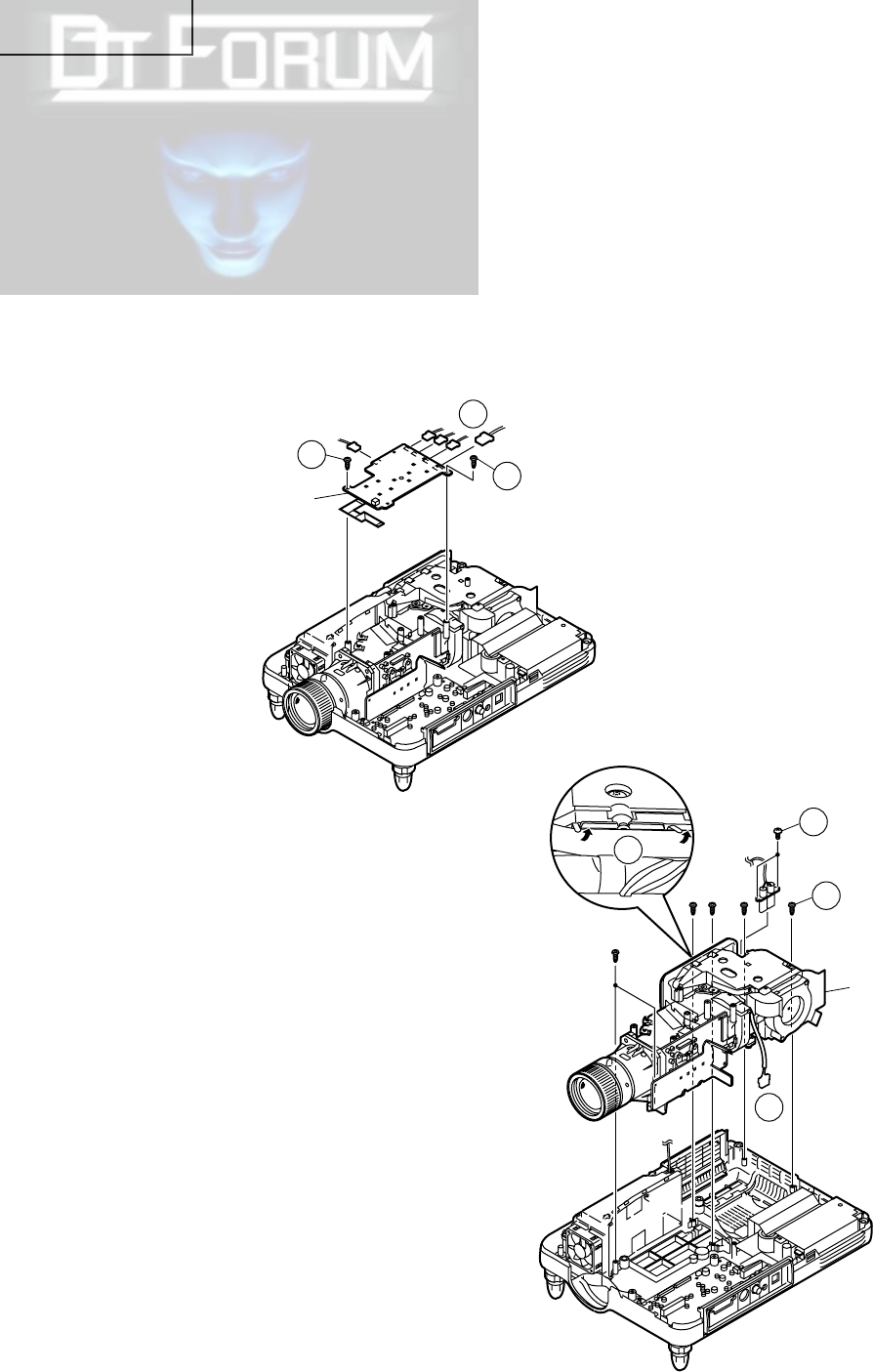

3. Removing the operation PWB

3-1. Remove the two lock screws from the operation PWB and slightly raise this PWB.

3-2. Disconnect the connectors.

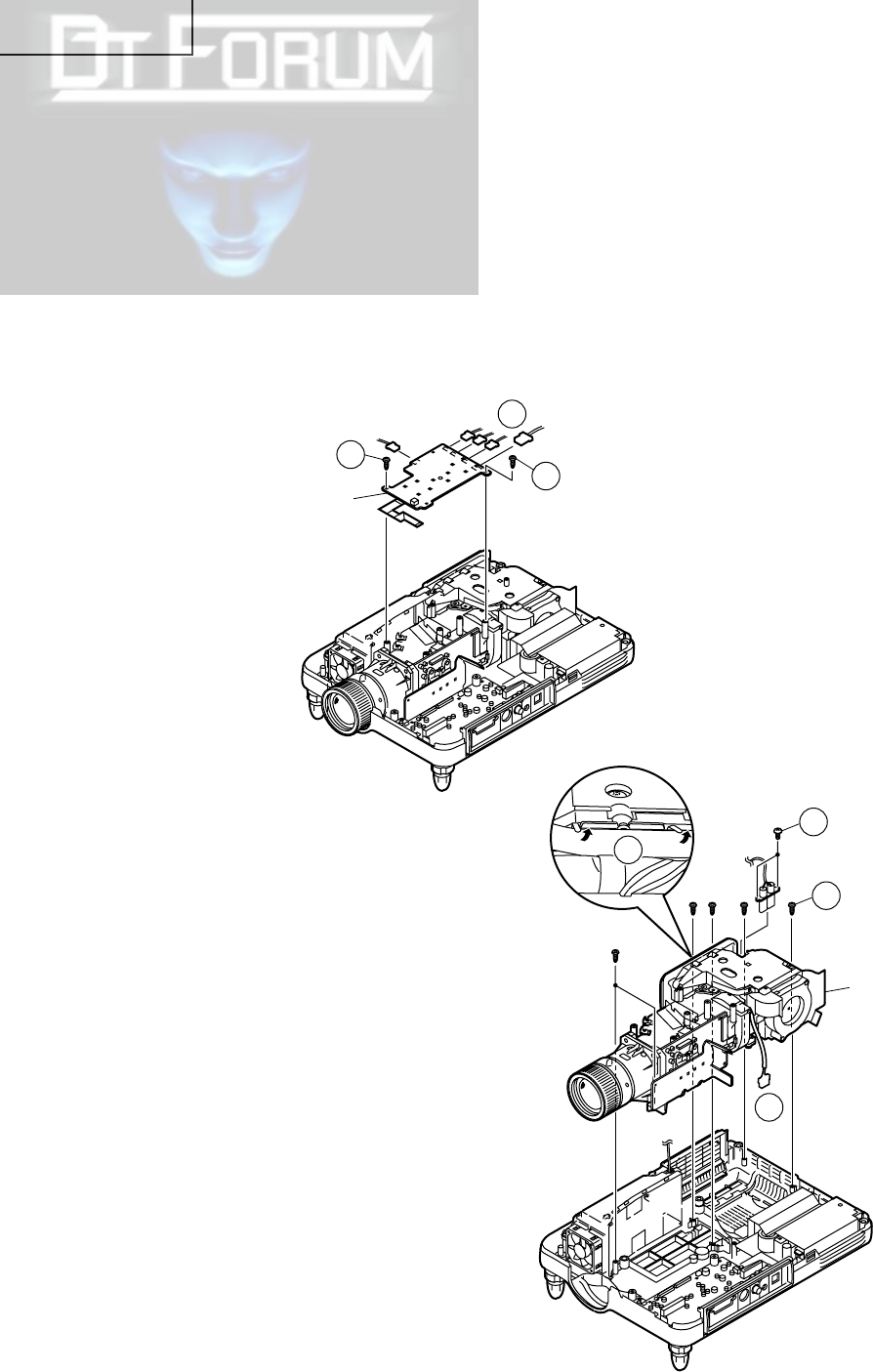

4. Removing the optical mechanism

4-1. Remove the two lock screws from the lamp socket.

4-2. Raise the two lamp socket lead fixtures.

4-3. Disconnect the connectors.

4-4. Remove the six lock screws from the optical mechanism.

3-2

3-1 3-1

Operation PWB unit

4-4

4-3

4-1

Optical mechanism

4-2

PG-M20S

PG-M20X

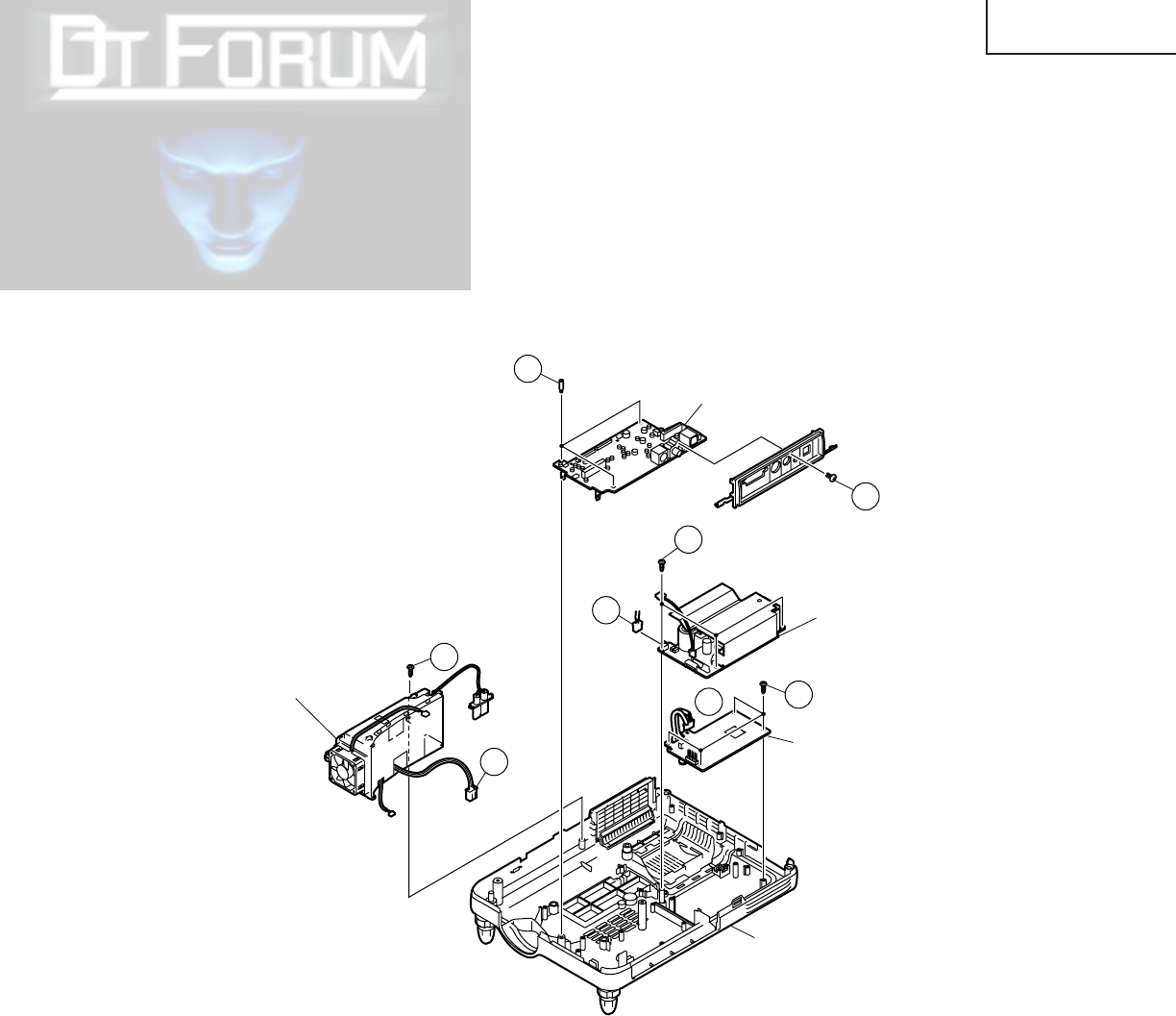

5. Removing the other PWBs

5-1. Disconnect the connectors.

5-2. Remove the four lock screws from the power PWB.

5-3. Remove the lock screw from the ballast PWB unit.

5-4. Remove the three hex support screws from the input PWB.

5-5. Remove the lock screw from the terminal block cover.

5-6. Remove the three lock screws from the PFC PWB.

5-3

Bottom body

Ballast PWB unit

5-6

5-2

5-1

PFC PWB unit

Power PWB unit

Input PWB unit

5-4

5-5

PG-M20S

PG-M20X

6. Removing the formatter PWB

6-1. Disconnect the connector.

6-2. Remove the two lock screws from the heat sink.

6-3. Remove the four lock screws from the backer plate assembly, and detach the formatter PWB.

Note: The DMD (Digital Micromirror Device) unit is easily affected by static electricity. In handling this unit, be sure

to wear a wristband or take other anti-static measure.

6-2

6-1

6-3

Formatter PWB unit

Backer plate assemb

DMD (Digital Micromirror 

Device) unit

Heat sink

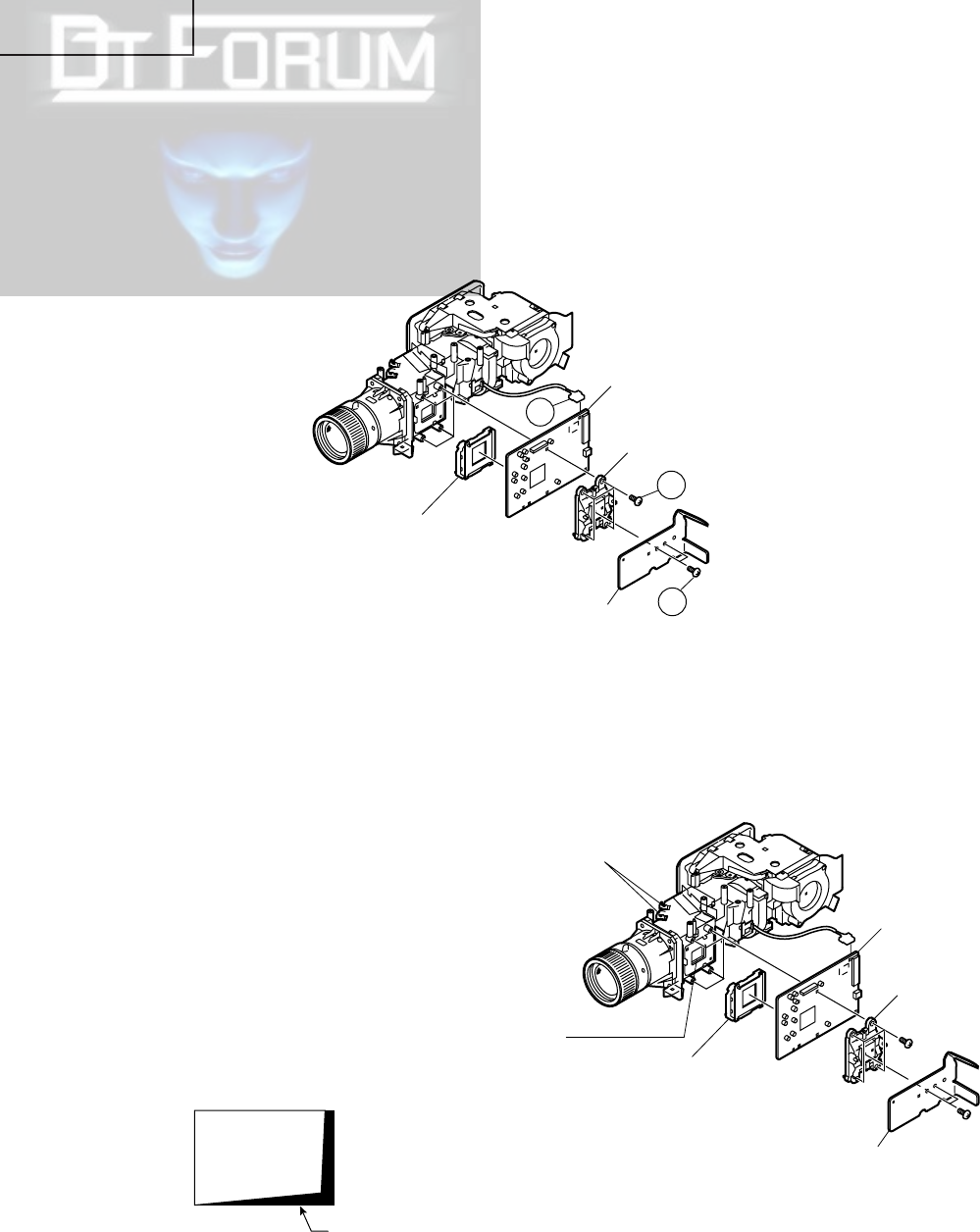

Precautions in replacing the DMD chip

Note: Be careful not to allow dust and fingerprint

on the cover glass of DMD chip and prism

surface of optical engine.

1. When you fix 4screws of backer plate assembly,

press backer plate to formatter PWB and fix by

cross multiply step by step.

2. If something shade appears on the projection

screen like Fig1, release 2 screws on mirror

adjusting plate and move that plate to adjust

illumination area of DMD chip.

Formatter PWB unit

Backer plate assembly

DMD (Digital Micromirror 

Device) chip

+Outer Frame

+C-spring

Heat sink

Prism surface

Mirror adjusting plate

Fig.1 Shad

PG-M20S

PG-M20X

* Precautions in setting up the DMD (Digital Micromirror Device) unit

Before connecting the formatter PWB to the optical engine, take the following steps. Look at the voltage rank marking

that is on the DMD itself. Referring to this marking, set the DIP switches on the formatter PWB. And connect this PWB

to the optical engine. Wrong settings will adversely affect the system performance.

Voltage ranking system with the DIP switches on formatter PWB

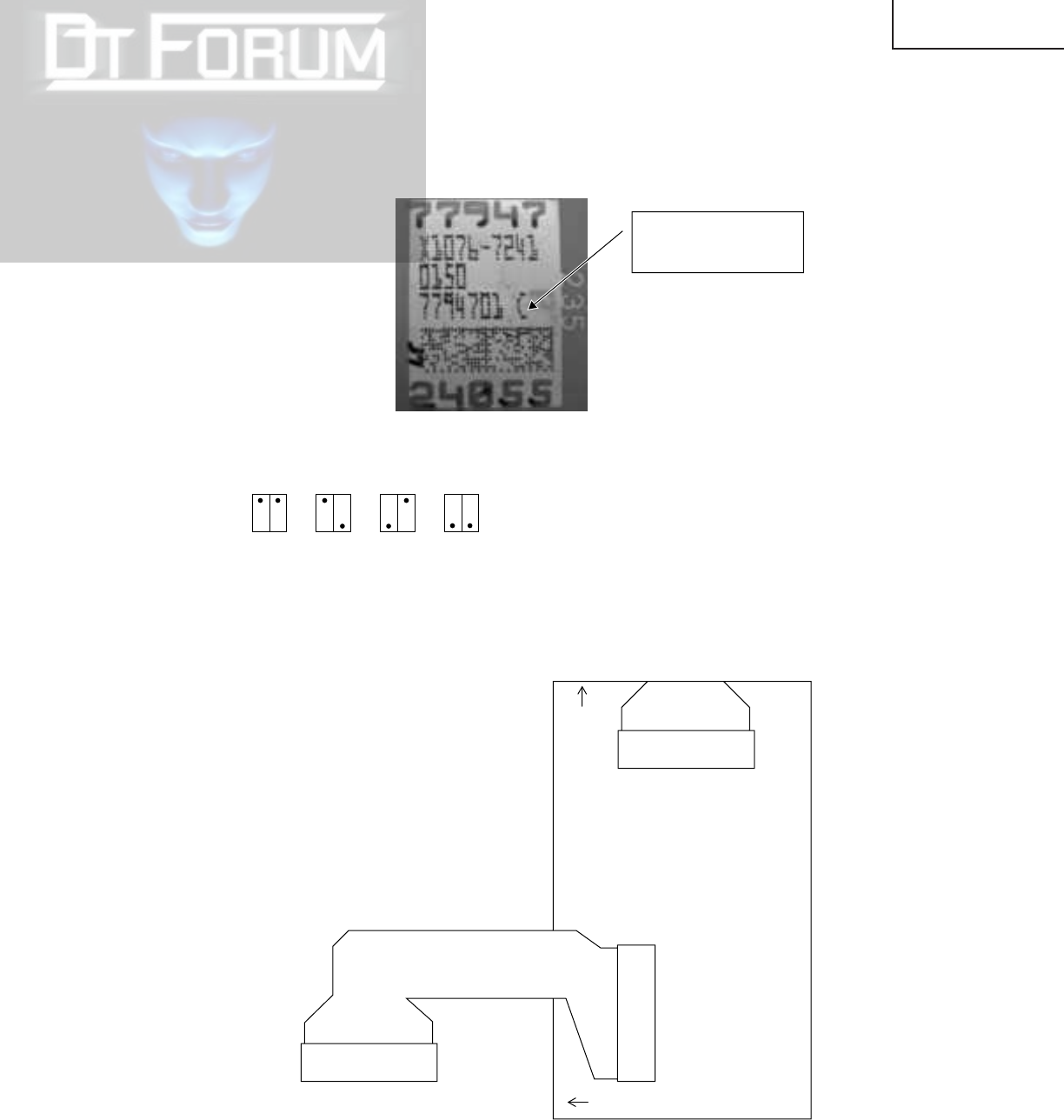

* Connecting the FPC extension cables (QCNW-A298WJZZ)

Connect the cables to the formatter PWB (TO FMT) and the PC I/F PWB (TO PC), referring to the silk-screen-printed

markings. See the sketch below. (The FPC is already connected at TO PC.)

Voltage rank marking

This sample is "C".

BCDE

TO PC

TO FMT

PG-M20S

PG-M20X

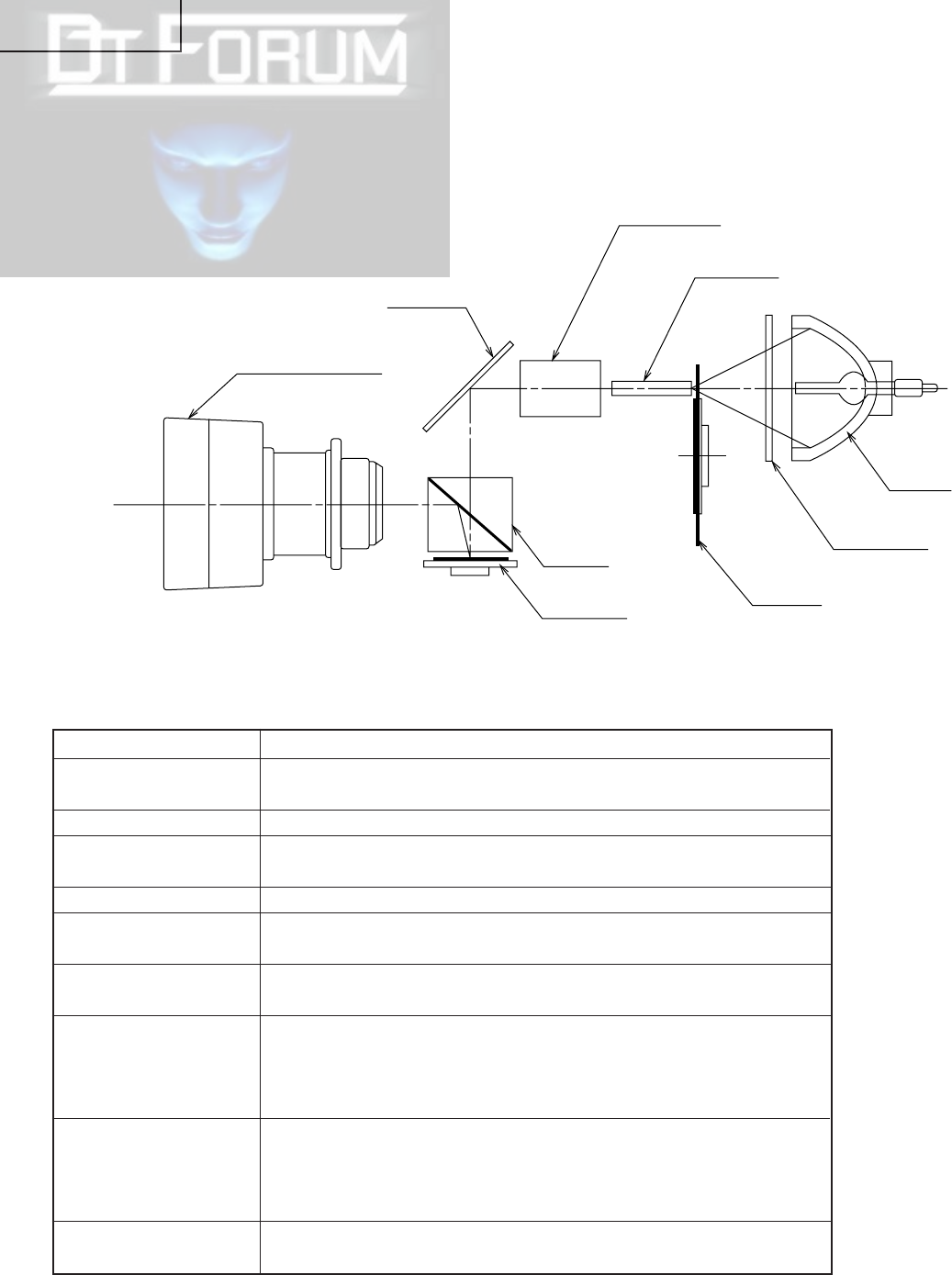

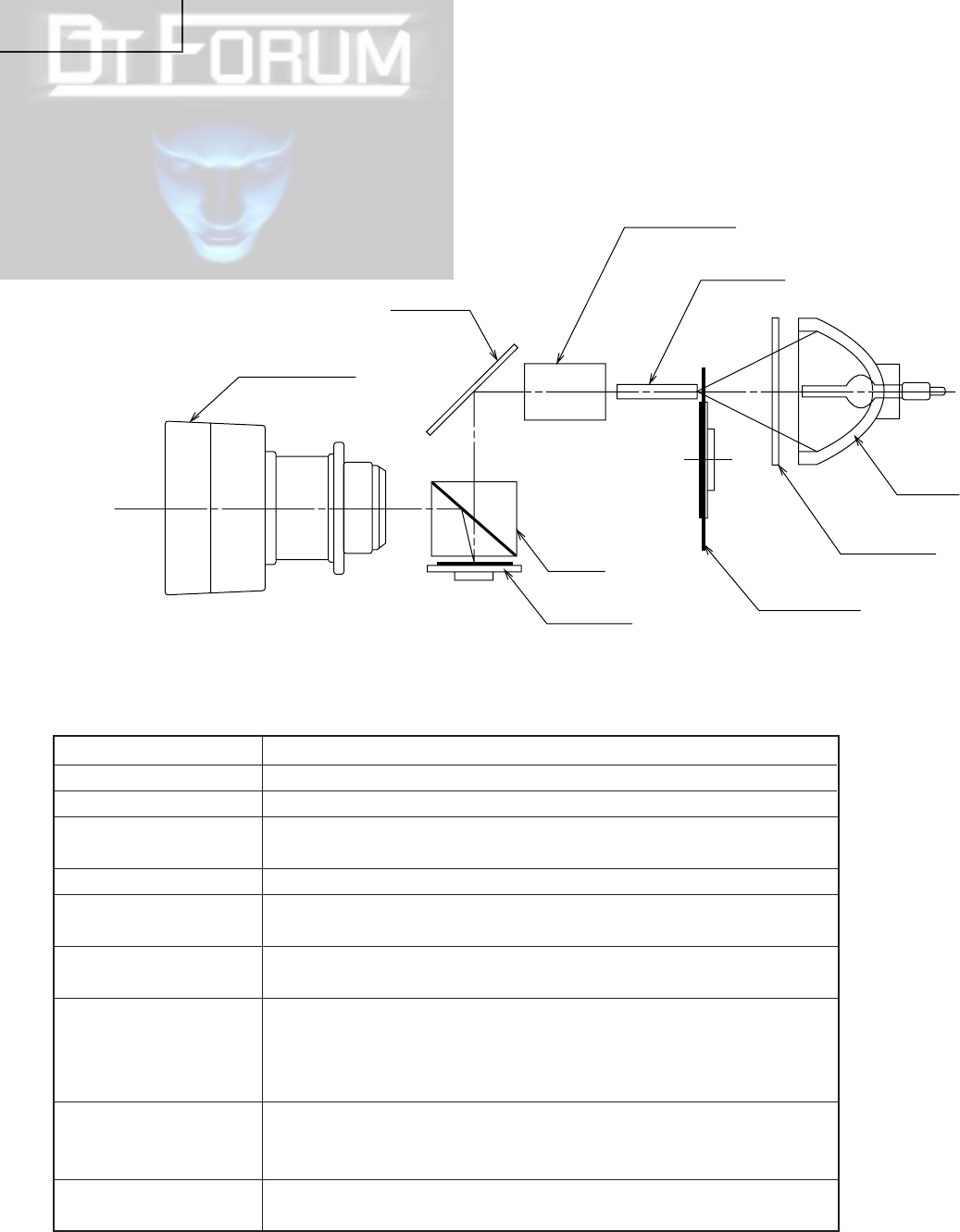

Outline of the optical unit

Item

Lamp

UV/IR filter

Color wheel

Rod lens

Relay lenses

Reflector

Prism

DMD chip

Projection lens

Function

Light source. DC-driven high-pressure mercury vapor lamp.

Used to absorb ultraviolet and infrared rays.

Used to let the source light through the color filter and to

separate it into R, G and B colors.

Used to make for uniform light beams.

Used to collect the light from the rod lens into the DMD

chip.

Used to reflect the light from the relay lenses against the

DMD chip.

Used to introduce the light from the reflector over the effec-

tive surface of the DMD chip. When the micromirror gets

tilted (ON) as specified, the reflected light is guided to the

projection lens.

Used to turn on and off the micromirror in response to the

ratio of color components at each dot and thus to reflect the

incoming light accordingly.

Used to enlarge the light from the DMD chip and to get the

light projected on the screen.

DMD chip

Prism

Projection lens

Reflector

Relay lenses

Rod lens

Lamp

UV/IR filter

Color wheel

PG-M20S

PG-M20X

AC socket

POWER button

Adjustment buttons

(

ENTER button

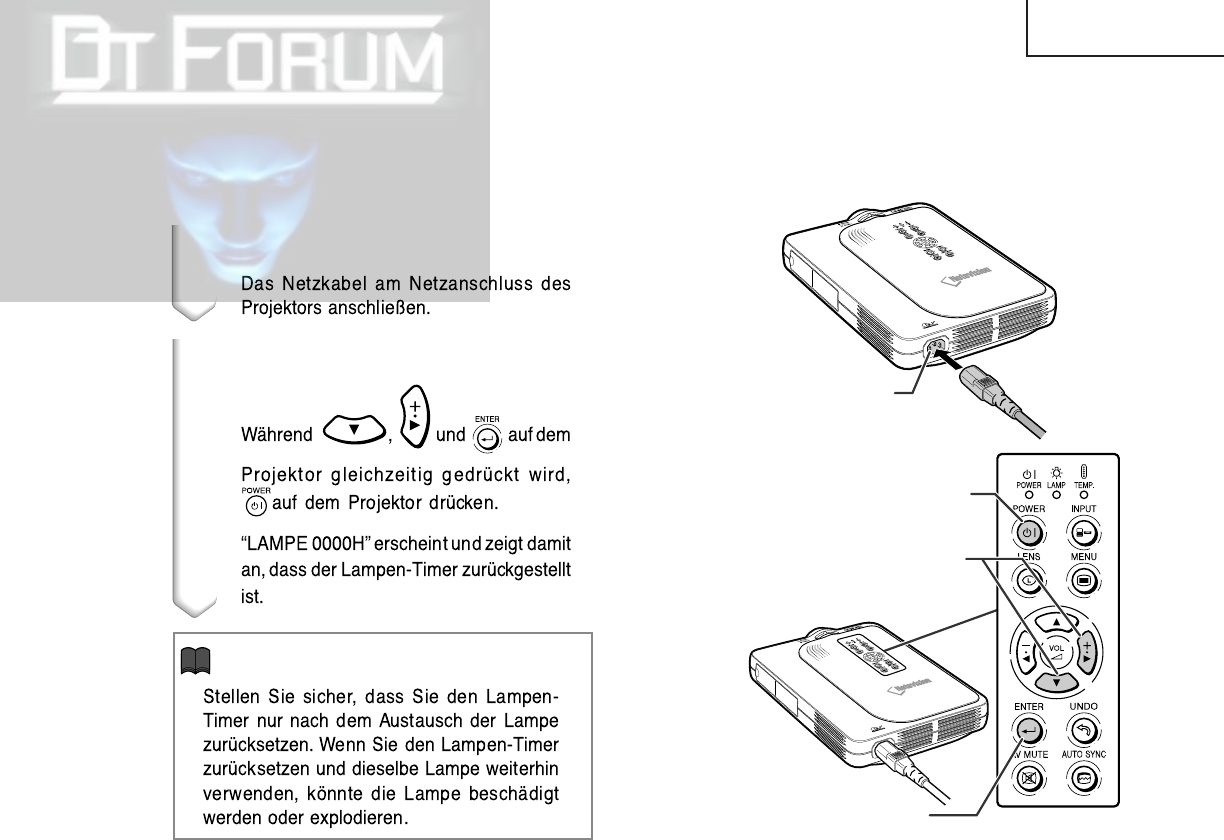

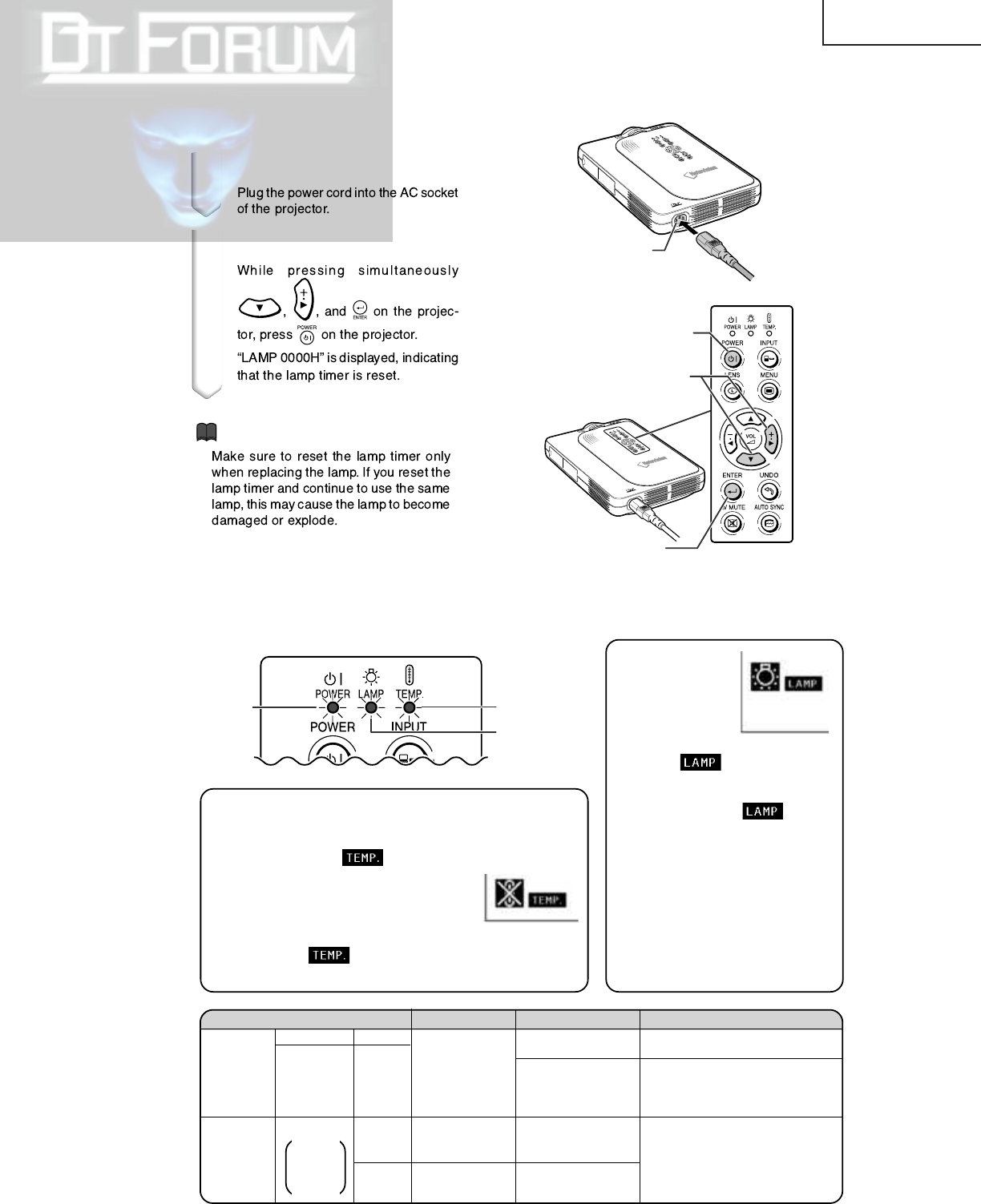

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Connect the power cord.

•

Reset the lamp timer.

•

Info

•

RESETTING THE TOTAL LAMP TIMER

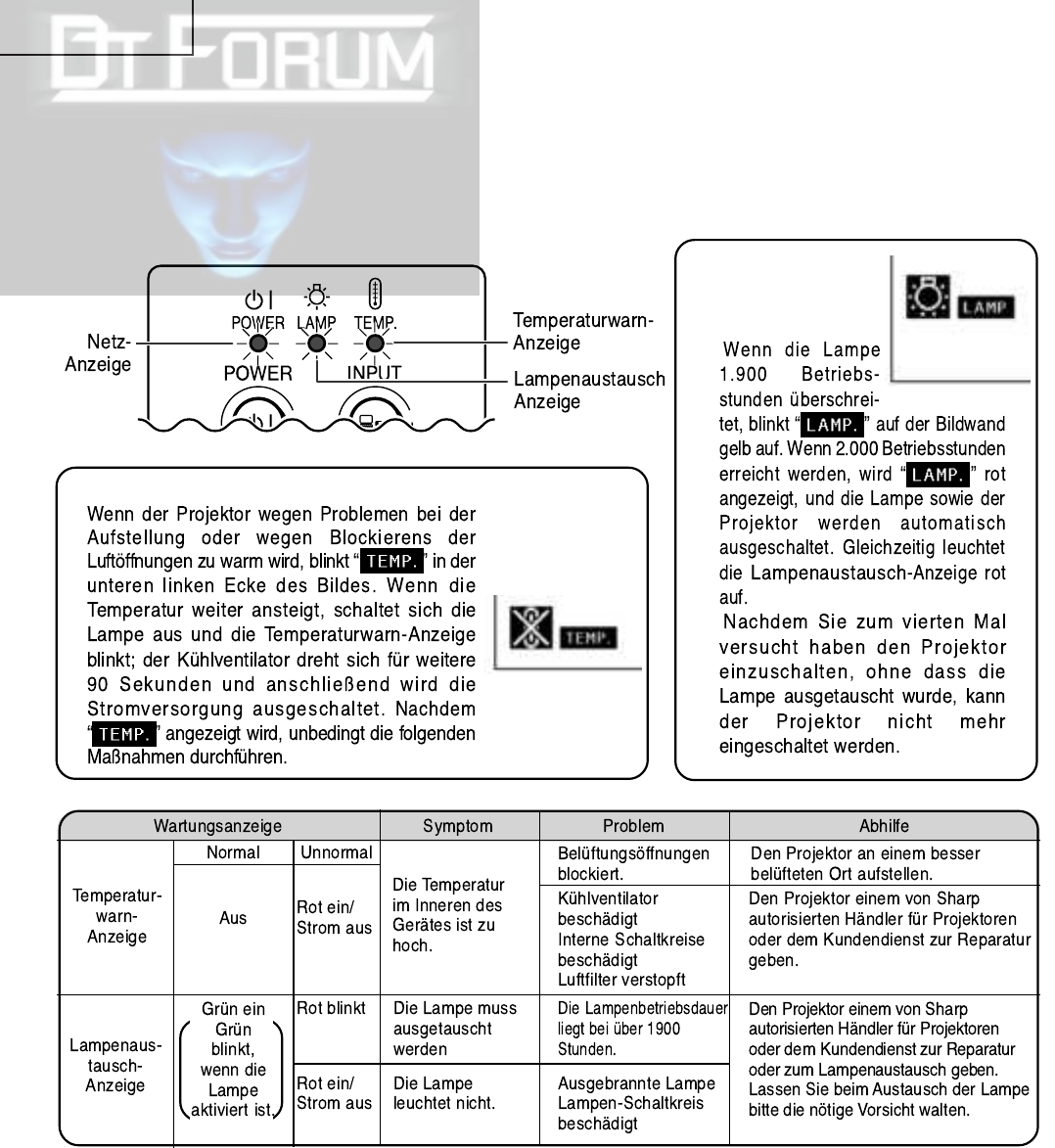

About the TEMPERATURE WARNING indicator

If the temperature inside the projector in-

creases, due to blockage of the air vents, or

the setting location, will blink in the

lower left corner of the picture. If the tem-

perature keeps on rising, the lamp will turn

off and the TEMPERATURE WARNING in-

dicator will blink, the cooling fan will run for

further 90 seconds, then the power will be

shut off. After appears, be sure to

perform the following measures.

■The warning lights on the projector indicate problems inside the projector.

■If a problem occurs, either the TEMPERATURE WARNING indicator or the LAMP REPLACEMENT

indicator will illuminate red, and the power will turn off. After the power has been turned off, follow

the procedures given below.

TEMPERATURE

WARNING

indicator

LAMP

REPLACEMENT

indicator

POWER

indicator

About the

LAMP

REPLACEMENT

indicator

■When the lamp

exceeds 1,900 cumulative hours

of use, will be displayed

on the screen in yellow. When

the cumulative hours of use

reach 2,000, will

change to red, the lamp will au-

tomatically turn off and then the

projector as well. At this time, the

LAMP REPLACEMENT indica-

tor will illuminate in red.

■If you try to turn on the projector

a fourth time without replacing

the lamp, the projector will not

turn on.

Maintenance indicator Condition Problem Possible Solution

TEMPERA-

TURE

WARNING

indicator

Normal Abnormal

Off Red on/

Power off

The internal

temperature is

abnormally high.

Abnormal • Blocked air intake •Relocate the projector to an area

with proper ventilation.

•Cooling fan break-

down

•Internal circuit failure

•Clogged air intake

•Take the projector to your nearest

Sharp Authorized Projector Dealer

or Service Center for repair.

LAMP

REPLACE-

MENT

indicator Red on/

Power off The lamp does

not illuminate. •Burnt-out lamp

•Lamp circuit failure

•Take the projector to your nearest

Sharp Authorized Projector Dealer

or Service Center for repair or

lamp replacement.

•Please exercise care when

replacing the lamp.

Green on

Green

blinks

when the

lamp is

active.

Red

blinks Time to change

the lamp •Lamp usage time

exceeded 1,900

hours

PG-M20S

PG-M20X

How to Release the System Lock

Turn on the power. If the system lock is applied, the system-resetting screen appears. Press the following keys in this

order.

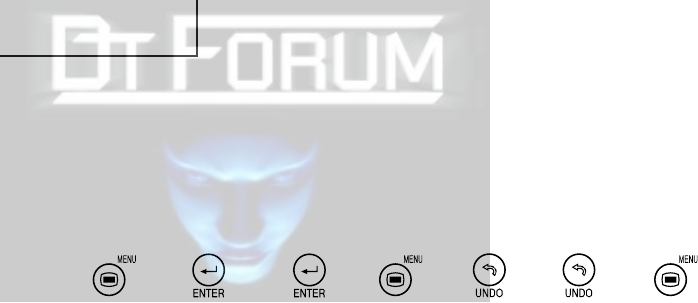

MENU → ENTER → ENTER → MENU → UNDO → UNDO → MENU

After pressing the MENU key first, press the remaining six keys within 10 seconds.

PG-M20S

PG-M20X

ELECTRICAL ADJUSTMENT

1 Initialization of

EEPROM 1. Turn on the power (the lamp lights

up) and warm up the system for 15

minutes.

No. Adjustment Items Adjustment Conditions Adjustment Procedures

1. Carry out the following setting.

Press SW2001 to enter the process

mode, and execute S2 on SSS menu.

2 Adjustment of CW

index 1. Signal input: 64-step color bar

2. Select the following group and sub-

ject.

Group: DLP

Subject: Select CW-INDEX.

1. Feed the signal to INPUT 1.

2. Select subject and make adjustment

so that the lamp gradation patterns

of R, G and B should be smooth with-

out noise.

3 Adjustment of

RGB gradation

reproduction

1. Feed the SMPTE pattern signal.

2. Select the following group and sub-

ject.

Group: DLP

Subject: G1-GAIN

1. Confirm that 100% and 95% white

gradation, and 0% and 5% black gra-

dation are discernible.

2. If the white gradation looks differently,

do fine adjustment by G1-GAIN.

4 Adjustment of

video brightness/

contrast

1. Feed the NTSC100% window pat-

ter signal. (Burst signal)

2. Select the following group and sub-

ject.

Group: VIDEO

Subject: AUTO

1. After signal input, select AUTO us-

ing the set's switch or the remote

controller's button for automatic ad-

justment.

5 Adjustment of

video tint 1. Feed the split color bar signal.

2. Select the following group and sub-

ject.

Group: VIDEO

Subject: TINT

1. Confirm the fixed value.

Fixed value: 128

PG-M20S

PG-M20X

6 Adjustment of

NTSC color

saturation

1. Feed the internal 8ch (split color bar)

signal.

2. Select the following group and sub-

ject.

Group: VIDEO

Subject: N-COLOR

No. Adjustment Items Adjustment Conditions Adjustment Procedures

1. Confirm the fixed value.

Fixed value: 59

7 Adjustment of PAL

color saturation 1. Feed the PAL color bar signal.

2. Select the following group and sub-

ject.

Group: VIDEO

Subject: P-COLOR

1. Confirm the fixed value.

Fixed value: 59

8 Adjustment of

SECAM color

saturation

1. Feed the SECAM color bar signal.

2. Select the following group and sub-

ject.

Group: VIDEO

Subject: S-COLOR

1. Confirm the fixed value.

Fixed value: 59

9 Adjustment of

COMPO G bright-

ness

1. Input signal: 0% gray pattern sig-

nal (480I)

2. Select the following group and sub-

ject.

Group: COMPO

Subject: G-BRIGHT

1. Feed the signal to INPUT 1.

Make adjustment so that some bits

should be missing in the picture.

10 Adjustment of

COMP CR-Offset 1. Feed the color difference signal

(480I): Y 0% brightness, Cb and Cr

0% white patterns.

Group: COMPO

Subject: AUTO

1. After signal input, select AUTO us-

ing the set's switch or the remote

controller's button for automatic ad-

justment.

11 Automatic Adjust-

ment of RGB

white balance

1. Feed the 50% gray pattern signal

(XGA, 60 Hz [PG-M20X]/SVGA,60

Hz [PG-M20S]).

2. Select the following group and sub-

ject.

Group: DLP

Subjects: R1-GAIN (Red)

B1-GAIN (Blue)

1. Adjust R-1 GAIN and B1-GAIN so that

x-value should be 266±3 and y-value

320±3.

12 Automatic Adjust-

ment of SRGB

white balance

1. Feed the 50% gray pattern signal

(XGA, 60 Hz [PG-M20X]/SVGA,60

Hz [PG-M20S]).

2. Select the following group and sub-

ject.

Group: DLP

Subjects: S-R1-GAIN (Red)

S-G1-GAIN (Green)

S-B1-GAIN (Blue)

1. Set the value of S-R1-GAIN to 34.

2. Adjust S-G1-GAIN and S-B1-GAIN

so that x-value should be 310±3 and

y-value 335±3.

PG-M20S

PG-M20X

13 Automatic adjust-

ment of video

white balance

1. Feed the 50% gray pattern signal

(NTSC, burst signal).

2. Select the following group and sub-

ject.

Group: DLP

Subjects: V-R1-GAIN (Red)

V-B1-GAIN (Blue)

No. Adjustment Items Adjustment Conditions Adjustment Procedures

1. Adjust V-R1-GAIN and V-B1-GAIN so

that x-value should be 265±3 and y-

value should be 298±3.

14 Automatic adjust-

ment of DTV white

balance

1. Feed the 50% gray pattern signal

(480I, color difference signal).

2. Select the following group and sub-

ject.

Group: DLP

Subjects: C-R1-GAIN

C-B1-GAIN

1. Adjust C-R1-GAIN and C-B1-GAIN

so that x-value should be 263±3 and

y-value should be 295±3.

15 Adjustment of

DLP voltage (For

reference)

1. Read voltage rank of DLP descrip-

tion.

2. Set the switch corresponding to the

rank which has been read. (on the

formatter PWB)

1. Carry out adjustment when DLP chip

has been replaced or combination of

chip and formatter has been changed.

2. Rank: BCDE

Setting value: 1234

16 Confirmation and

re-adjustment of

white balance

1. The adjusting conditions for each

item are as follows:

For RGB input, see Item 11

For SRGB input, see Item 13

For video input, see Item 14

For DVT input, see Item 12

Confirm that there is no deviation in white

balance from that of the monitoring

equipment.

For readjustment, proceed in the order

of RGB input, video input and DTV in-

put.

17 Confirmation of

color-related

operation

1. Receive the color bar signal. 1. Select L1 in the process mode.

Check the performance of color and

tint.

18 Confirmation of

picture-related

operation

1. Receive monoscope pattern signal. 1. Select L2 in the process mode.

Check Picture, Brightness and Sharp-

ness.

19 Confirmation of

RGB 1. Receive the RGB signal. 1. Select L4 on the process mode.

Check Picture, Brightness, Red, Blue,

Clock, Phase, H-POS and V-POS.

20 Confirmation of

off-timer operation 1. Select OFF in the process mode.

Confirm that the off-timer starts with

5-minute display, counts 1 minute for

1 second, and turns off when 0 minute

is displayed.

21 Confirmation of

thermistor opera-

tion

1. Heat the thermistor by dryer. 1. Confirm that the temperature is dis-

played.

PG-M20S

PG-M20X

22 Automatic sync

operation 1. Receive the phase checking pattern

signal.

No. Adjustment Items Adjustment Conditions Adjustment Procedures

1. Confirm that Clock, Phase, H-POS

and V-POS can be automatically

adjusted in the VGA/S-VGA/XGA

mode.

23 Confirmation of

USB operation Connect the set to a personal computer

by USB cable. Using the remote controller, make sure

that feed and return operations are ef-

fective on the display of the personal

computer.

24 Factory settings 1. Make the following settings.

Process Remote controller

adjustment settings

S4 "Factory Setting 4"

How to Adjust the PC I/F unit

1. Initialization of EEPROM

1) Press SW2002 to enter the process mode.

2) Execute S1 on the SSS menu. (By S1, all the contents of EEPROM are initialized.)

3) Confirm that the program version "Ver. XXX" has become the latest one

2. Adjusting items

1) Adjustment of RGB drive/gain

(1) feed the window pattern signal that has 100% and 0% signals.

(2) Select AUTO among the A/D items in the process mode and carry out adjustment.

PG-M20S

PG-M20X

Group Sub Group Subject

Adjust PC Image A/D R-BRIGHT

G-BRIGHT

B-BRIGHT

R-D

B-D

G-D

AD-AUTO

Adjust DLP Image DLP R1-BLK

R1-GAIN

G1-BLK

G1-GAIN

B1-GAIN

CW-INDEX

S-R1-GAIN

S-G1-GAIN

S-B1-GAIN

C-R1-GAIN

C-B1-GAIN

V-R1-GAIN

V-B1-GAIN

Adjust VIDEO Image VIDEO PICTURE

BRIGHT

TINT

N-COLOR

P-COLOR

S-COLOR

STAT-GAIN

VIDEO-AUTO

Adjust Component Image DTV G-BRIGHT

CB-OFFSET

CR-OFFSET

COMPO-AUTO

Process mode LINE L1

OFF

TEMP OFF

SENSOR CHECK

INTIAL SETTING SSS TIME

» Adjustment mode process menu

» Entering the adjustment process mode

There are follwing two methods.

» Press the SW2001 on the KEY PWB unit.

» Press the follwing keys in this order.

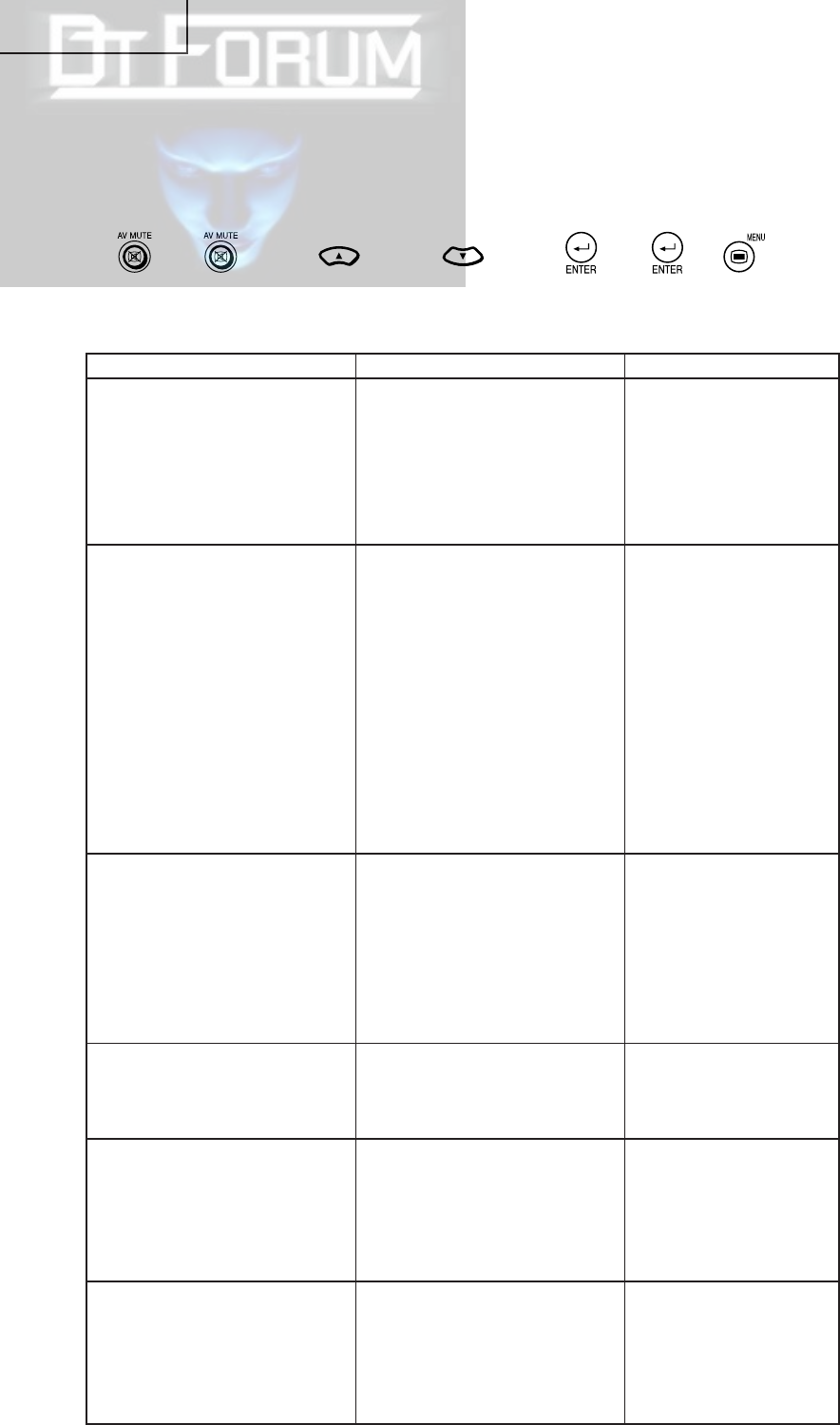

AV MUTE→AV MUTE→Adj up→Adj down→ENTER→ENTER→MENU

PG-M20S

PG-M20X

Group Sub Group Subject

Sample Pattern PATTERN RGB

RGB(50)

CROSS

FOCUS

SETP

COLOR

CHR

Adjust CVIC CVIC-PROGRSSIVE MODE

MDSW

PTGSW

C-TESTSW

C-ILG-LY

C-MOD-LY

C-VE-LV

CVIC-ENHANCE-VIDE ENH-PLUS

ENH-MINUS

DFC

CVIC-ENHANCE-HTTV ENH-PLUS

ENH-MINUS

DFC

CVIC-ENHANCE-RGB MODE

ENH-GAIN

ENH-PLUS

CVIC-SCREEN CUBIC-RGB

CUBIC-VEDEO

CVIC-NR YNR-LEVEL

YNR-K

YNR-FSEL

CNR-LEVEL

CNR-K

CNR-FSEL

CNR-FILSW

CVIC-PTG TESTSW

ENABLE

MV-F

VDDTP

CVIC-CMS RED

YELLOW

GREEN

CYAN

BLUE

MAGENTA

CVIC-DEGAMMA TABLE

Version Check etc Special IPL

IPL2

E2PROM

ADR RD/WR

USB-MODE

PG-M20S

PG-M20X

How to write in a Serial number

Install the new program for the software into your PC

a.This software is downloaded from home page of SHARP intranet.

http://172.24.145.13/tcg-qrc/prj/prj-e.asp

NAME:USB to Sirial Driver program.

STEP 1

Set-up for USB Serial Driver

(Refer to "Installation Process and advice.doc" file.)

STEP 2

Call the adjustment process mode, and select the sub-group "SPECIAL" and the adjustment item

"USB-MODE". Change the USB MODE value from 0 to 1.

(With this change, input of a 232C command becomes possible.)

STEP 3

Please connect the USB cable between the PC and the projector.

STEP 4

Please execute the program "TeraTerm".

(configuration file is to use attached Teraterm.ini.)

STEP 5

You write it by using the attached macro-file (serial_write.ttl).

A serial number is described in this macro-file. Enter this number.

STEP 6

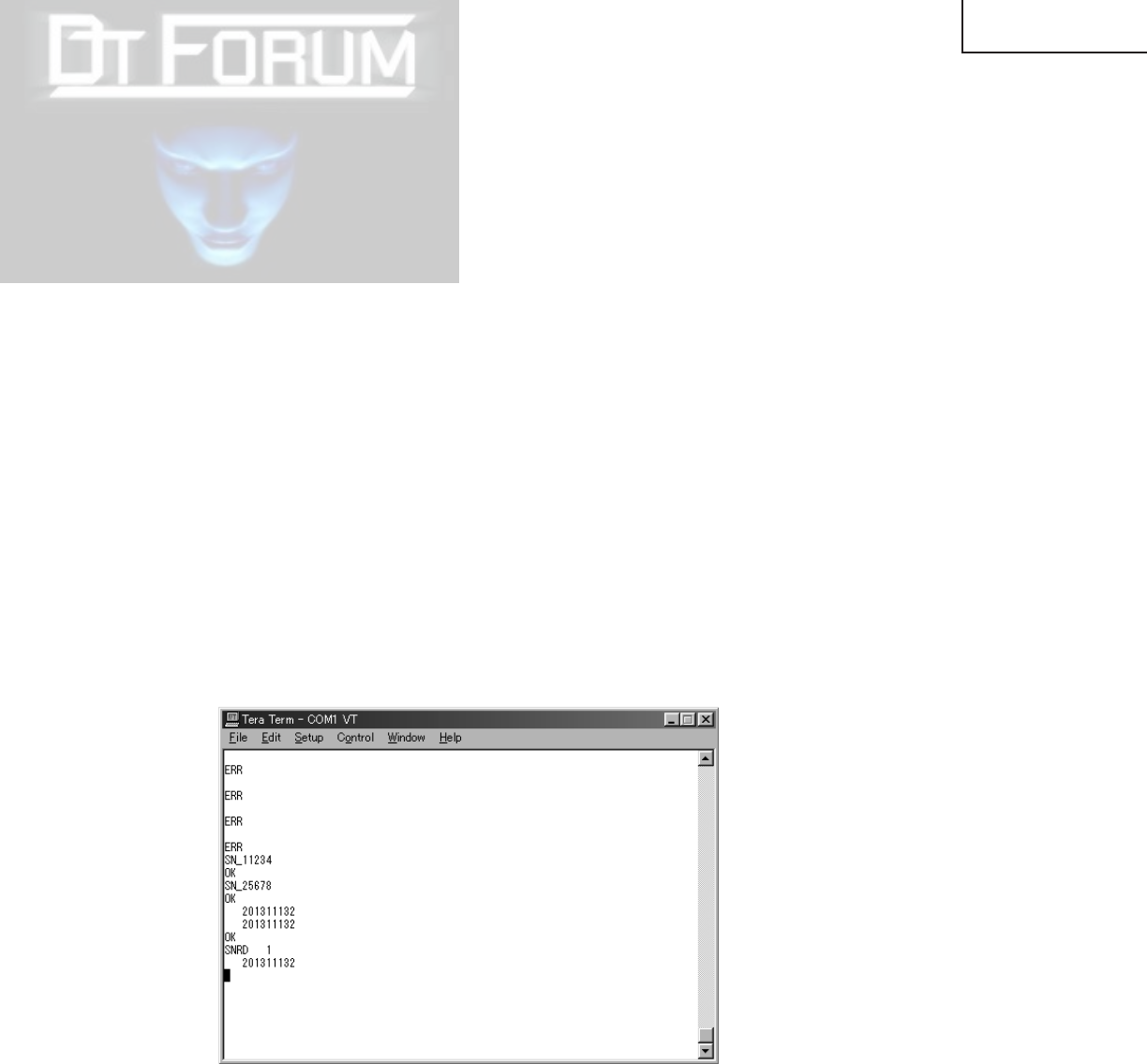

Message will be appear as follows,

STEP 7

Please finish TeraTerm.

STEP 8

Please change the value from 1 to 0 for USB MODE in Special (Factory mode).

(For this change, input of a 232C command becomes invalid.)

After the installation for USB to 232C driver, select the 232C with SW2002 on the KEY unit.

Connect the USB cable, and change COM2 for teraterm(setup-serial port) then push "Enter" key

and confirm "ERR" message comes back.

If "ERR" comes back setting is correct. In case of "ERR" does not come back, COM2 is incorrect.

Please try COM3, COM4 by turn, and find correct COM port.

PG-M20S

PG-M20X

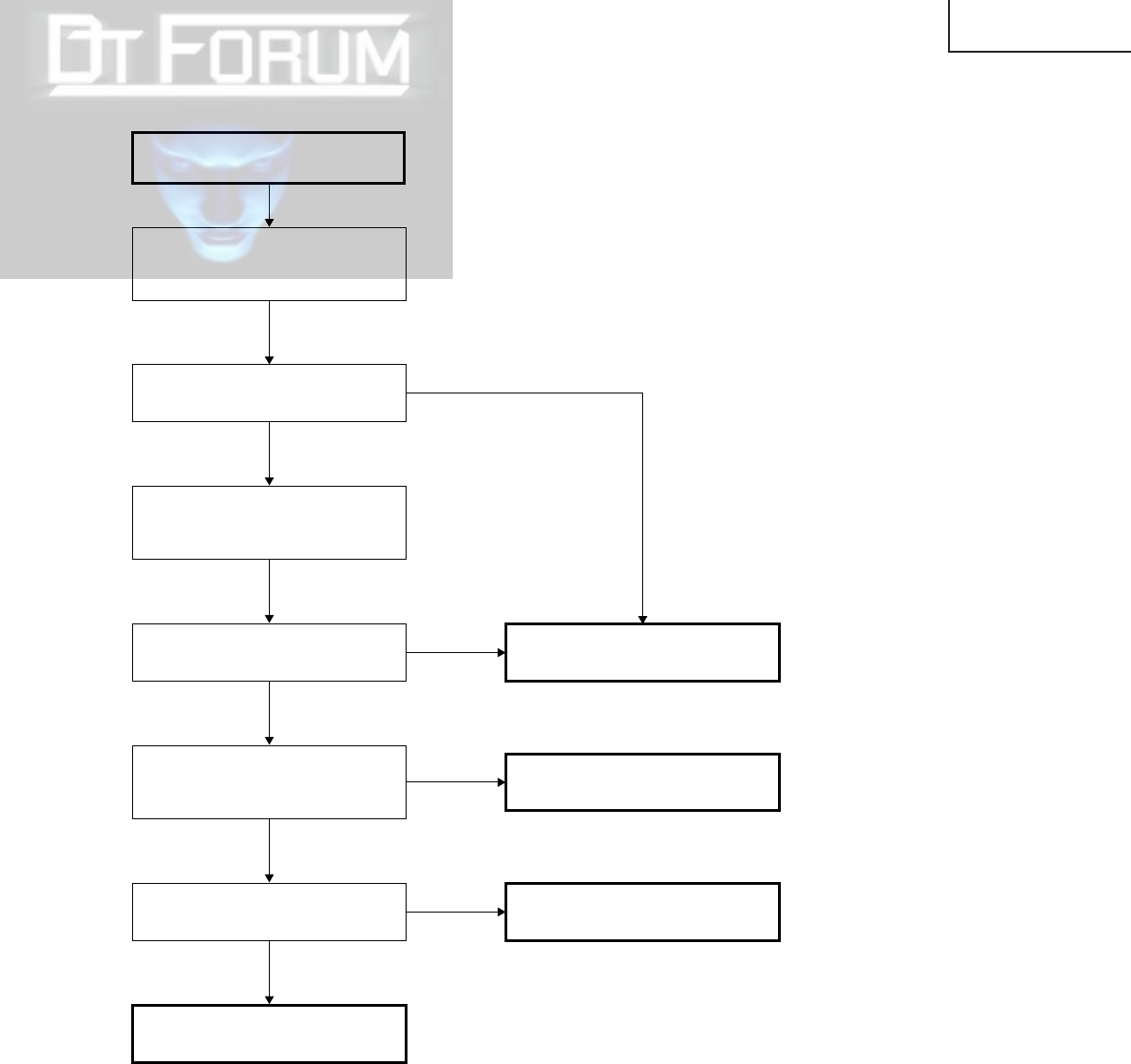

TROUBLE SHOOTING TABLE

Yes

Checking of Basic Operation

Yes

Yes Yes

Does the video input operate

normally?

Does the DVI input operate

normally?

Do the component input/DVI input

operate normally?

Does the RGB input operate

normally?

Is the user menu displayed?

Does the cooling fan rotate and

does the lamp light up?

Go to "Checking of Power Unit".

Go to "Checking of Sub-microcomputer

and Its Periphery"

Go to "Checking of Lamp Lighting-up"

Check the formatter circuit and

its periphery.

Check IC8013 (AD) and go to

"Checking of RGB Input".

Is there input signal at pins

(8), (17) and (23) of IC8013?

Check IC8015 and peripheral

circuit.

Go to "Checking of Video

Input". Is there input signal at

the emitter of Q8002?

Check IC8015 and its

peripheral circuit.

No Check IC3852 and its

peripheral circuit.

No Check IC3852 and its

peripheral circuit.

Does the POWER LED light up or

flicker in red or green?

End

Does the set operate by the set's

key or the remote controller's

power key?

PG-M20S

PG-M20X

Yes

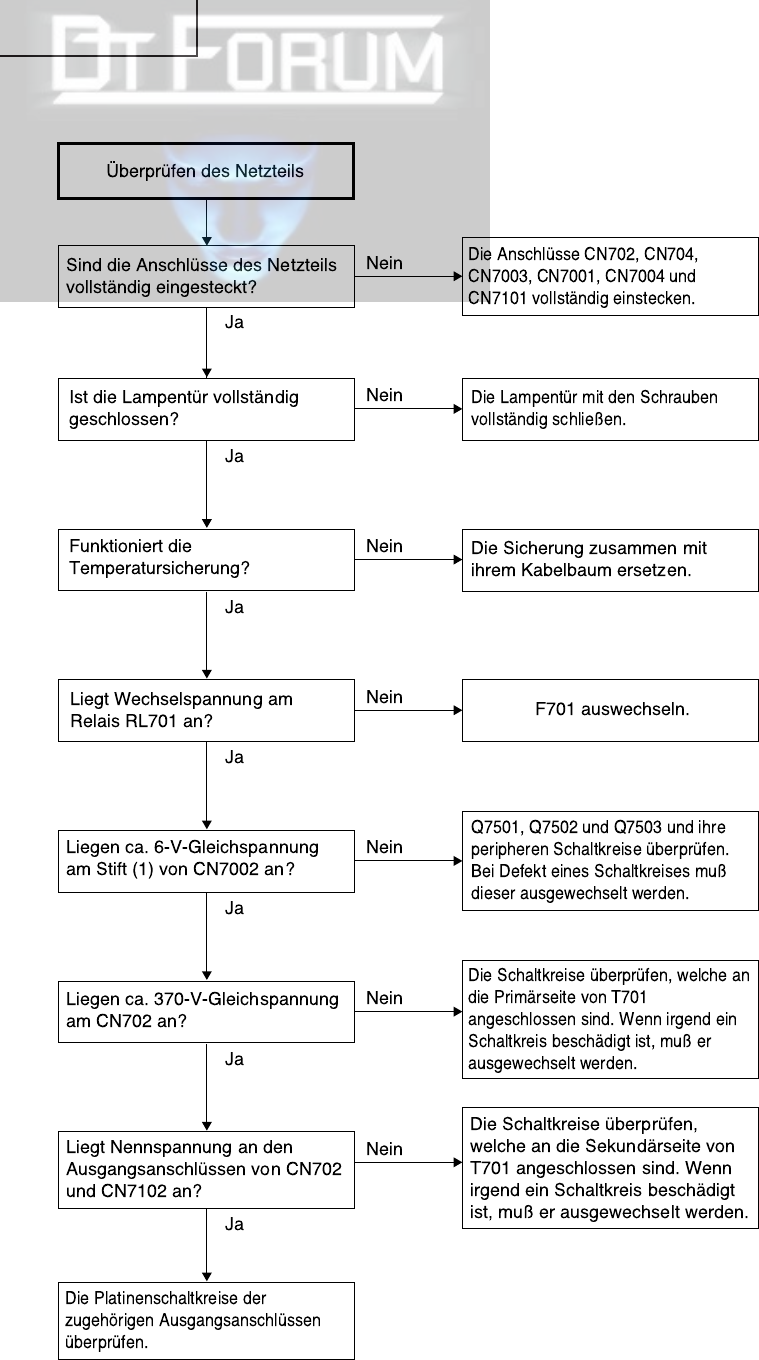

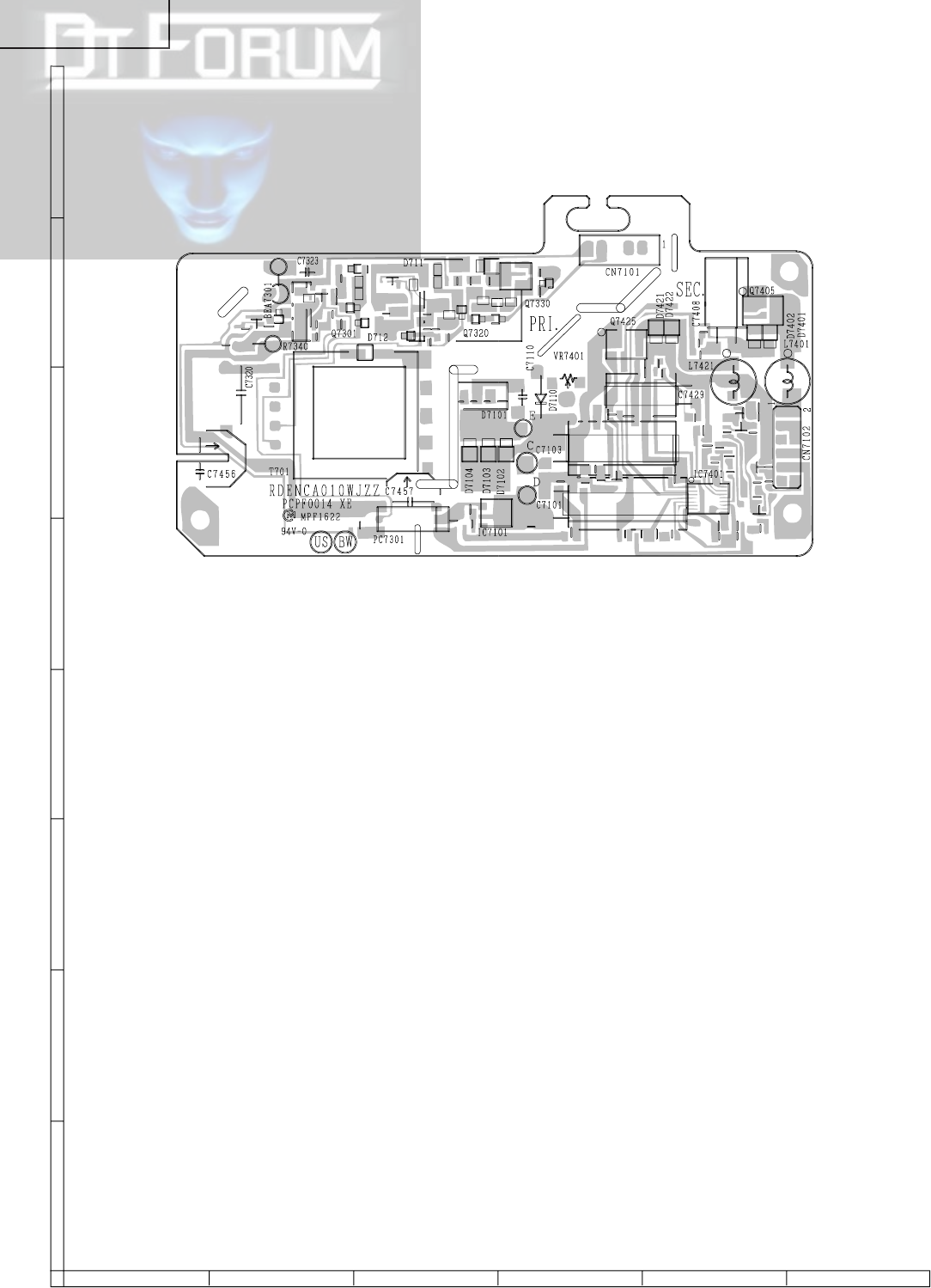

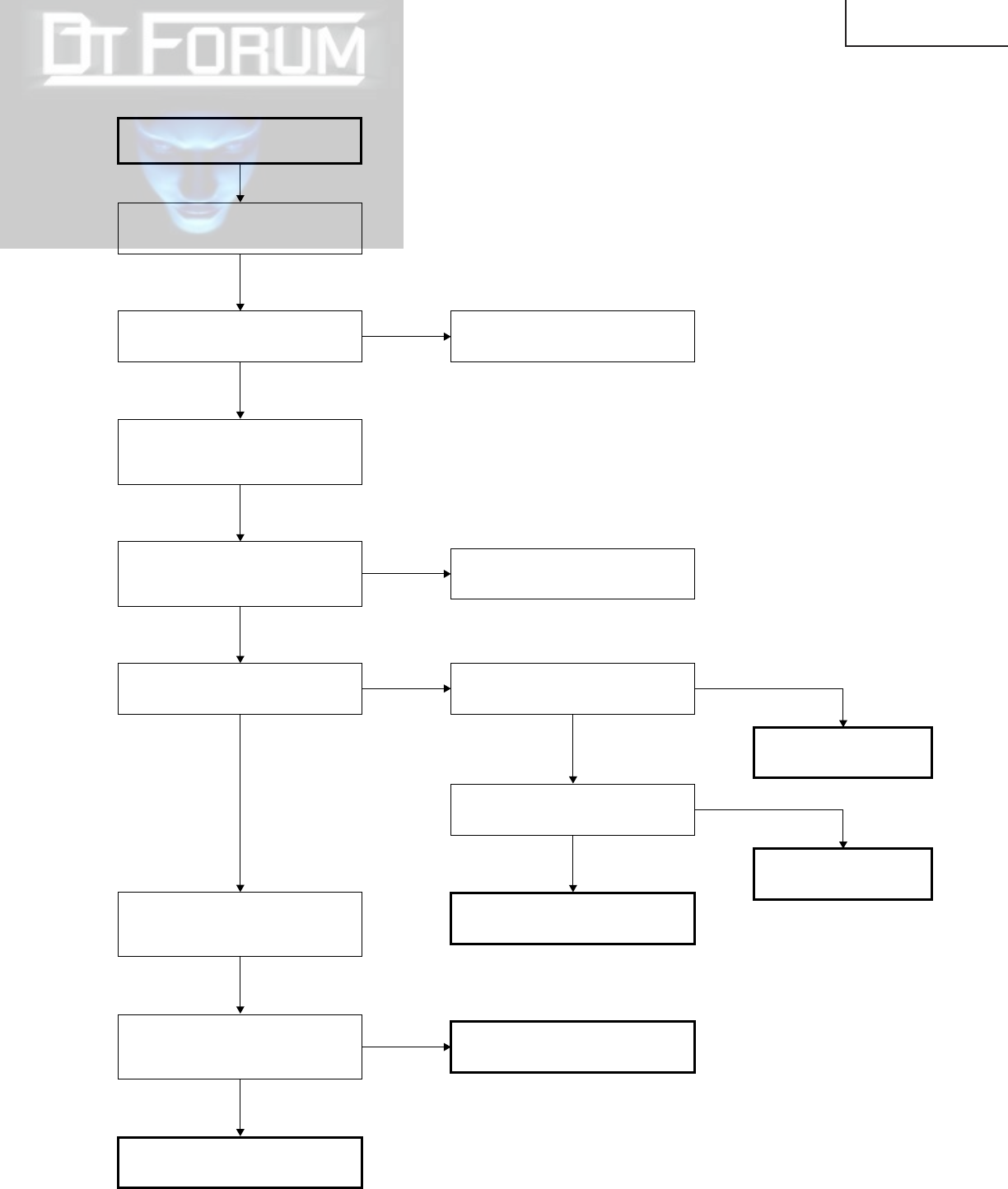

Checking of Power Unit

Are connectors in the power unit

completely inserted?

Yes

Is the lamp door closed

completely?

Close the lamp door completely by

screws.

Yes

Does the temperature

fuse function?

Replace the fuse as well as its

harness.

Yes

Is AC voltage applied across relay

RL701? Replace F701.

Yes

Is there DC voltage of about 6V at

pin (1) of CN7002?

Check Q7501, Q7502 and Q7503

and their peripheral circuits. If any

circuit is damaged, replace it.

Yes

Is there DC voltage of about 370V

across CN702?

Check the circuits connected to the

primary side of T701. If any circuit

is damaged, replace it.

Yes

Is there rated voltage at the output

terminals of CN702 and CN7102?

Check the circuits connected to the

secondary side of T701. If any

circuit is damaged, replace it.

Check the PWB circuits of relevant

output sides.

Insert the connectors CN702,

CN704, CN7003, CN7001,

CN7004 and CN7101 completely.

PG-M20S

PG-M20X

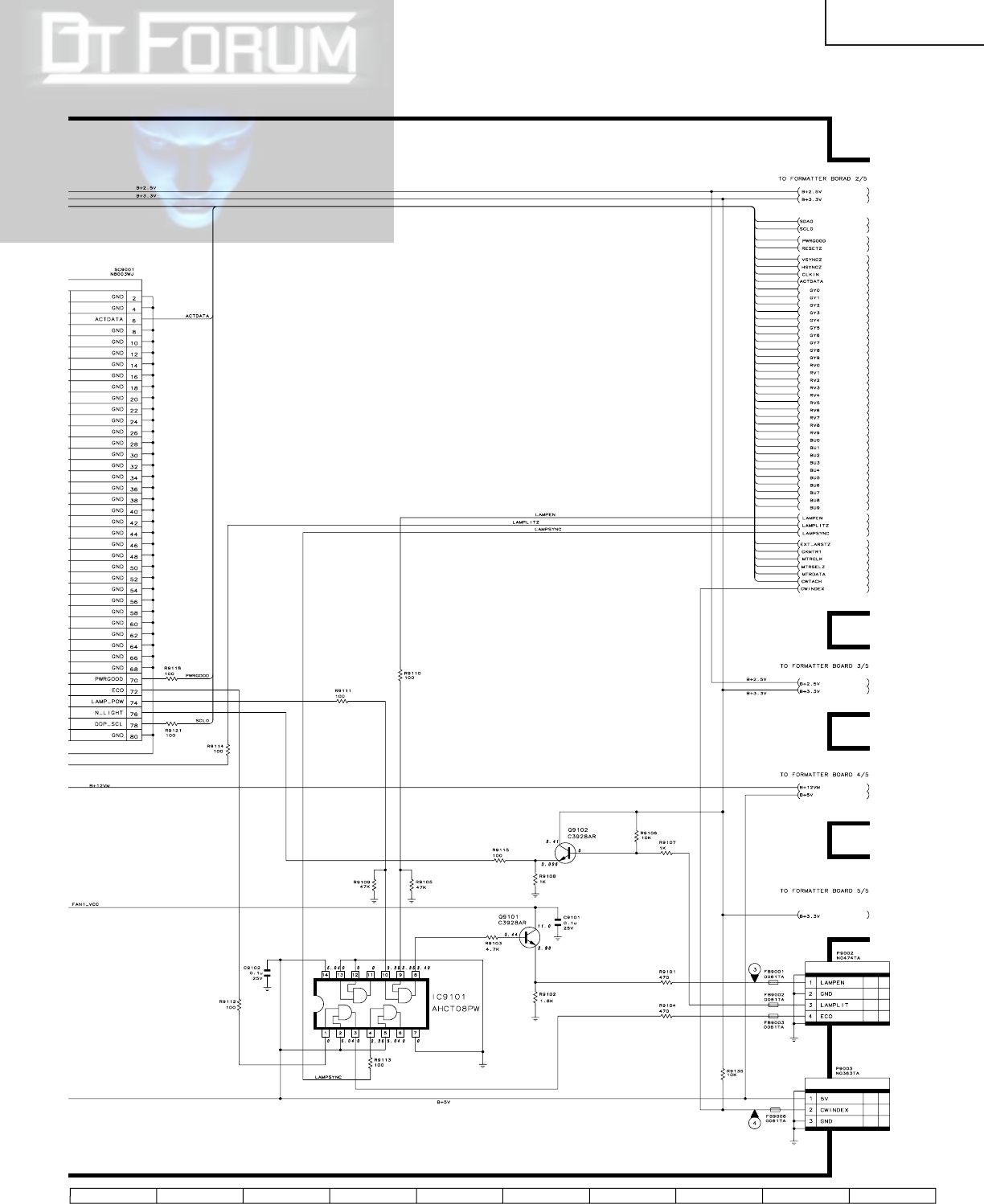

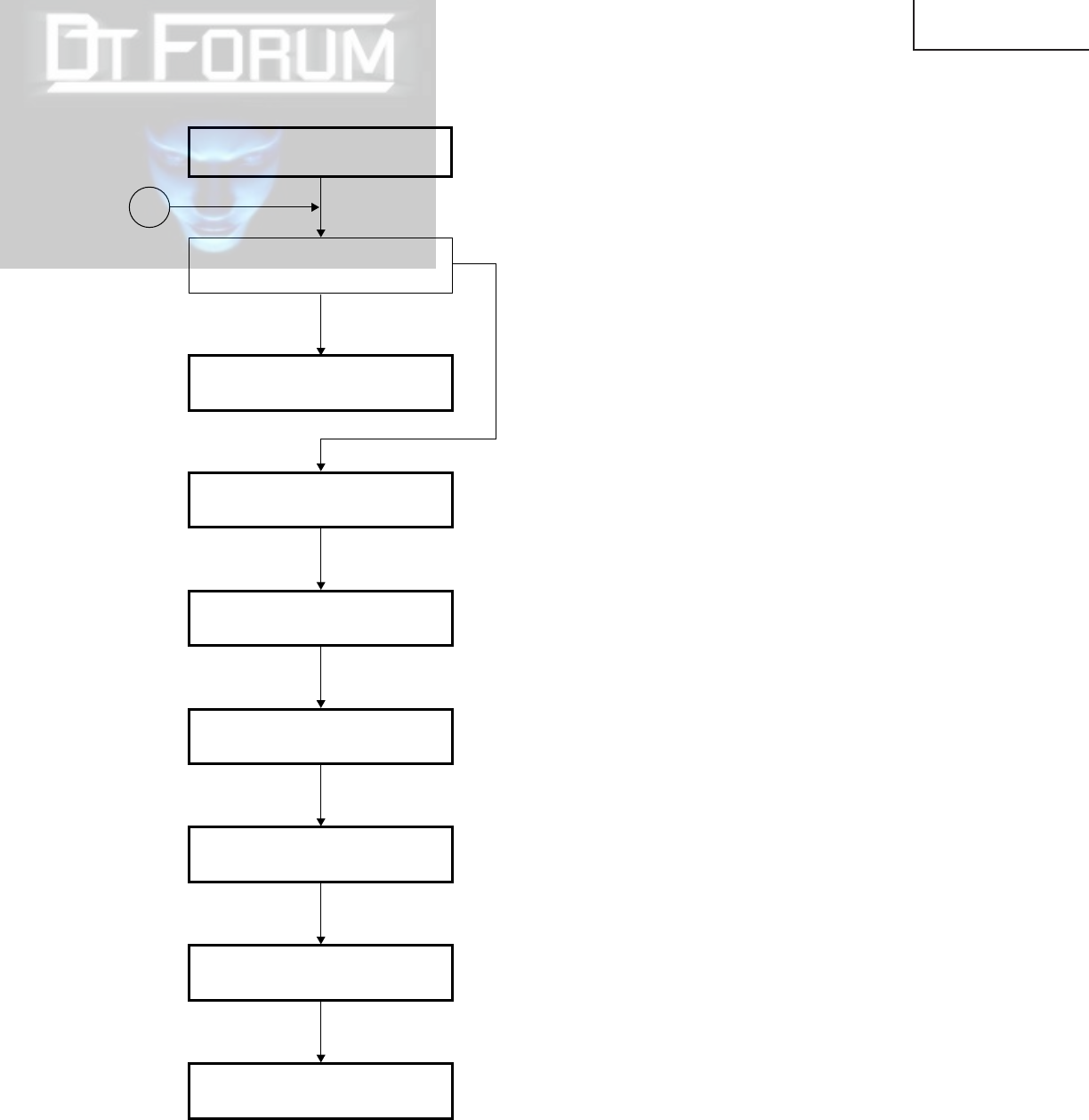

Lamp failure to light up

(formatter unit)

Yes

Is there the specified voltage at

pin (15) of SC9002?

Is there the 180-Hz pulse signal at

pin (1) of P9002?

Is any of the SC9001, SC9002,

P9002 and P9003 connectors

disconnected or in poor contact?

Yes Insert the connectors completely.

No Is there the specified voltage at

pin (11) of P3002?

No Check the fan circuit

(near IC2101) on the

KEY PWB.

No Check the power unit.

Are there the specified voltages

at pins (23) and (24) of P3003 on

the input PWB?

Go to "Checking of PC I/F unit"

Yes

Check the lamp and ballast unit.

Yes

Is the signal at pin (10) of IC9101

at High level?

Are the signals at pins (69) and

(70) of SC9001 at High level?

Yes

Is the signal at pin (9) of IC9101

at High level?

Trouble with IC9003.

Trouble with IC9101 or its

peripheral part.

Yes

Is there the 180-Hz pulse signal at

pin (2) of P9003 when no input

signal is given?

Yes

PG-M20S

PG-M20X

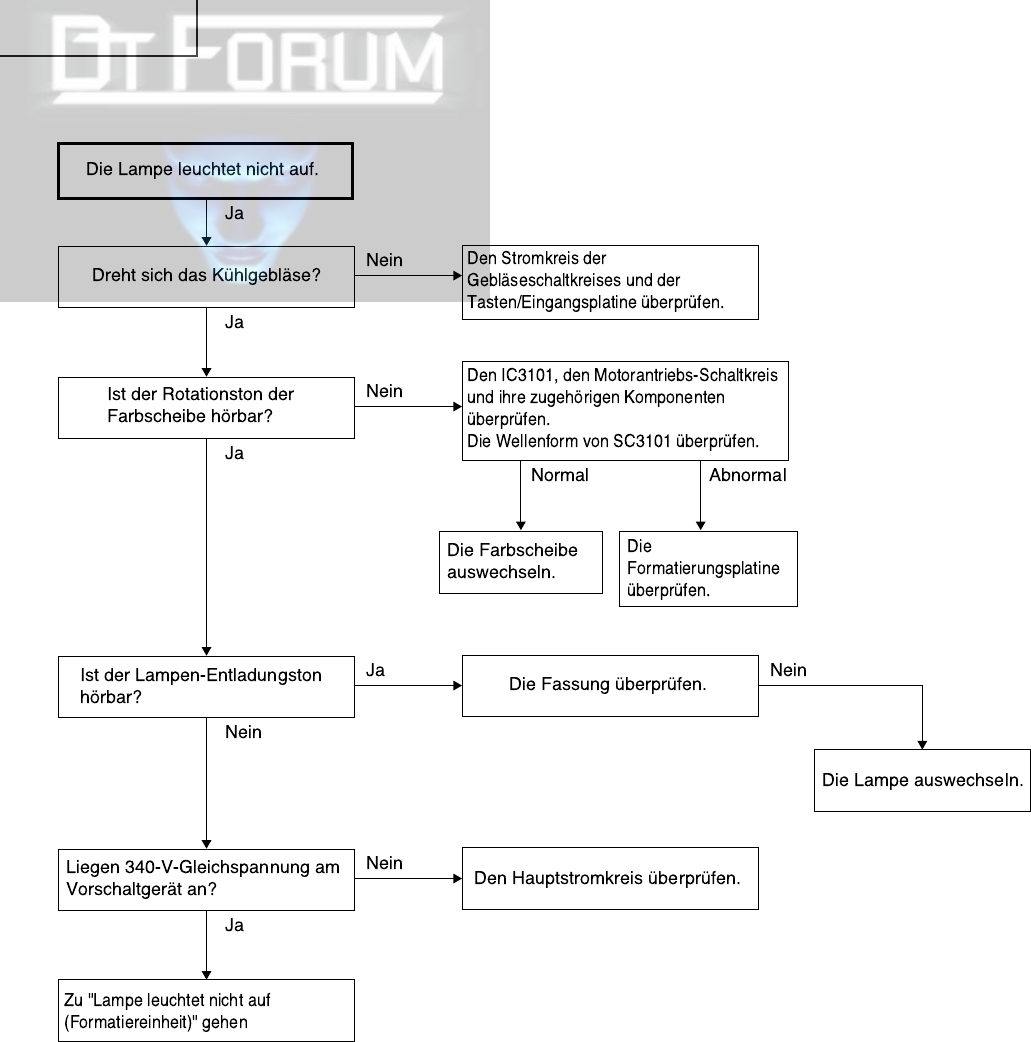

Lamp does not light up.

Yes

Is the cooling fan rotating?

Check the socket

Check the power circuit.

No Check the power circuit or the fan

circuit on the key/input PWB.

Yes

Is the color wheel rotating sound

heard?

No Check IC3101, the motor driver

circuit and their periphery.

Check the waveform of SC3101.

Normal Abnormal

Is the lamp discharging sound

heard?

Yes

Is DC 340V voltage applied across

the ballast power?

Go to "Lamp failure to light up

(formatter unit)".

Replace the color

wheel. Check the

formatter PWB.

Replace the lamp.

PG-M20S

PG-M20X

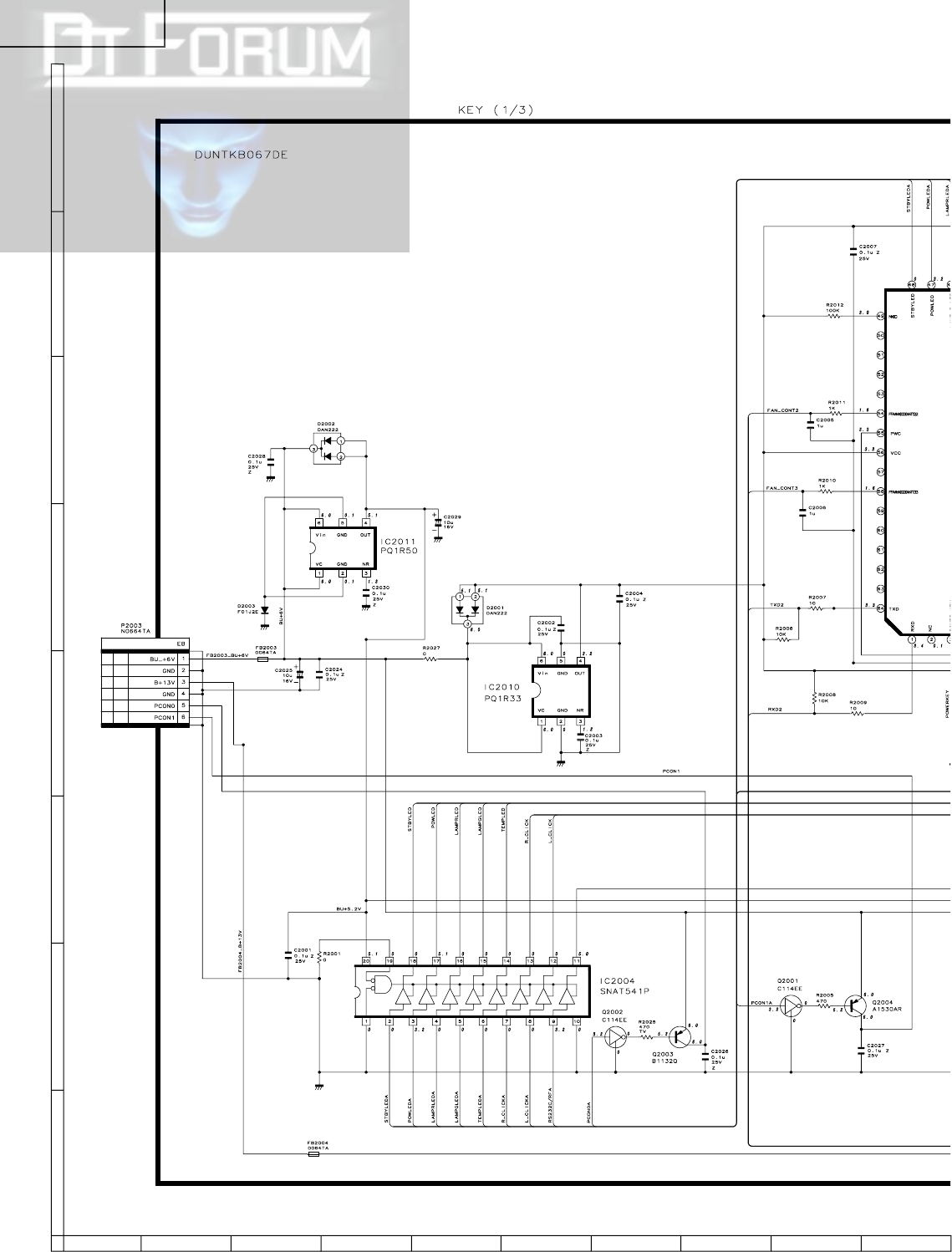

Yes

Does POWER LED flicker in red

(for 2 seconds)?

Is there B+3.3V output at pins (12)

and (13) of CN3701?

Is there 6V output at pins (5) and

(6) of P2003?

Yes

Go to "Checking of PC I/F Unit", and check

the flexible connector.

Communication error of sub-microprocessor

(KEY) and SH microprocessor (PC I/F unit)

Pins (20) and (21) of P2001.

Yes

Go to "Checking of Power Unit"

Check Q2001 thru Q2004

and IC2001.

Yes

Is Bu+6.2V signal outputted?" Go to "Checking of

Power Unit"

Yes

Is Bu+3.3V signal outputted? Check IC2010 and its

periphery.

Check IC2010 and its

periphery.

Yes

Is 3.3V signal output at pin

(19) of IC2001?

Check IC2001 and its

periphery and go to

"Checking of Remote Control

Communication".

Checking of Sub-microprocessor

and Its Periphery

PG-M20S

PG-M20X

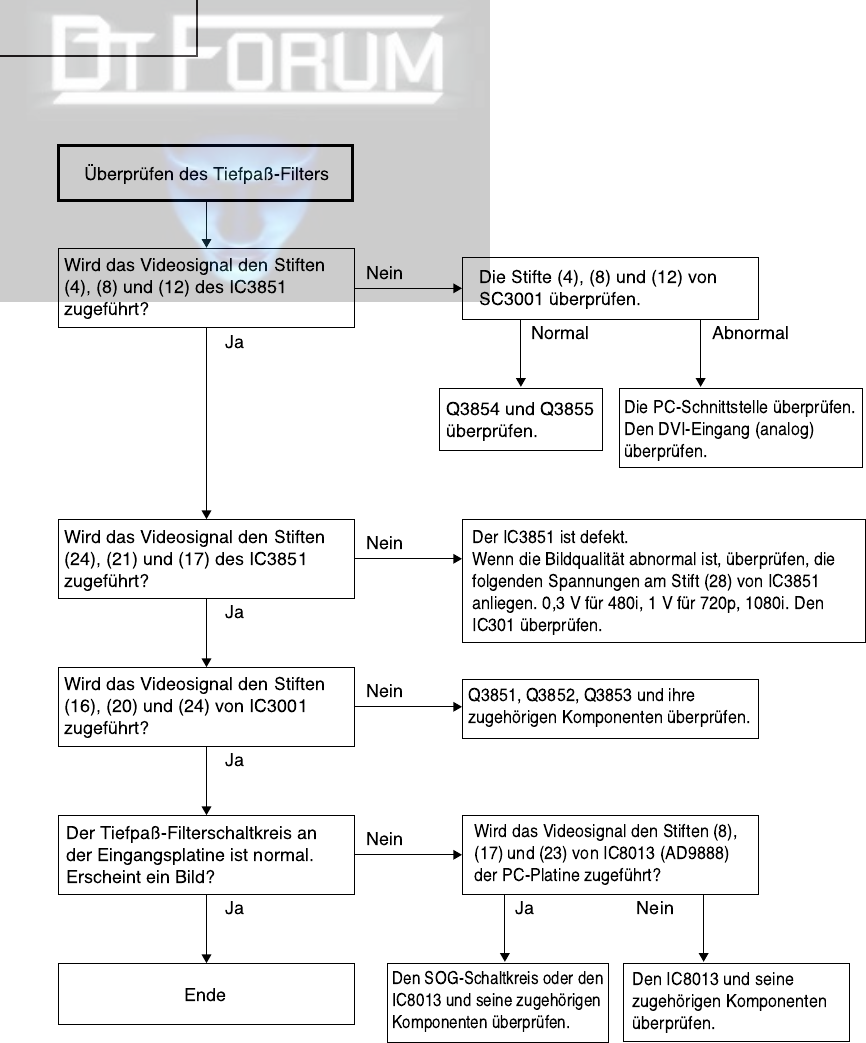

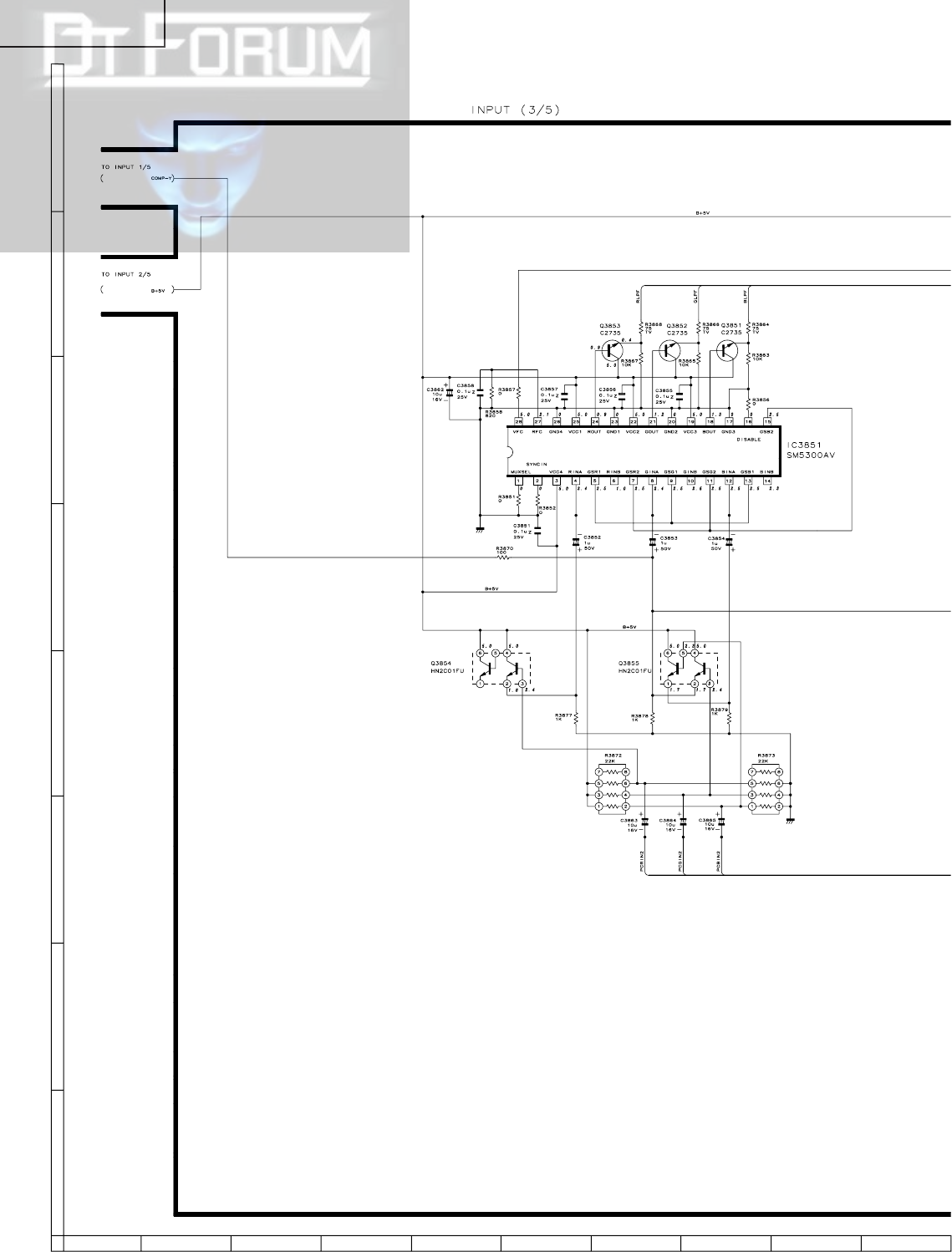

Checking of Low-pass Filter Circuit

Yes

Is video signal is inputted to pins

(4), (8) and (12) of IC3851?

Is video signal inputted to pins

(24), (21) and (17) of IC3851?

Is the video signal inputted to pins

(8), (17) and (23) of IC8013

(AD9888) of the PC I/F unit?

No IC3851 is defective.

If the picture quality is abnormal, check whether

or not the following voltages are outputted to

pin (28) of IC3851.

0.3 V for 480i, 1 V for 720p, 1080i, Check IC301.

Yes

Check Q3851, Q3852 and Q3853

and their periphery.

Is video signal is inputted to pins

(16), (20) and (24) of IC3001?

Yes

The low-pass filter circuit on the

input PWB is normal. Does the

picture appear?

Yes

No Check pins (4), (8) and (12) of

SC3001.

Normal Abnormal

Check Q3854 and

Q3855.

Check the PC I/F unit.

Check DVI (analog)

input.

Yes No

Check the SOG

circuit or IC8013

and its periphery.

Check IC8013

and its periphery.

End

PG-M20S

PG-M20X

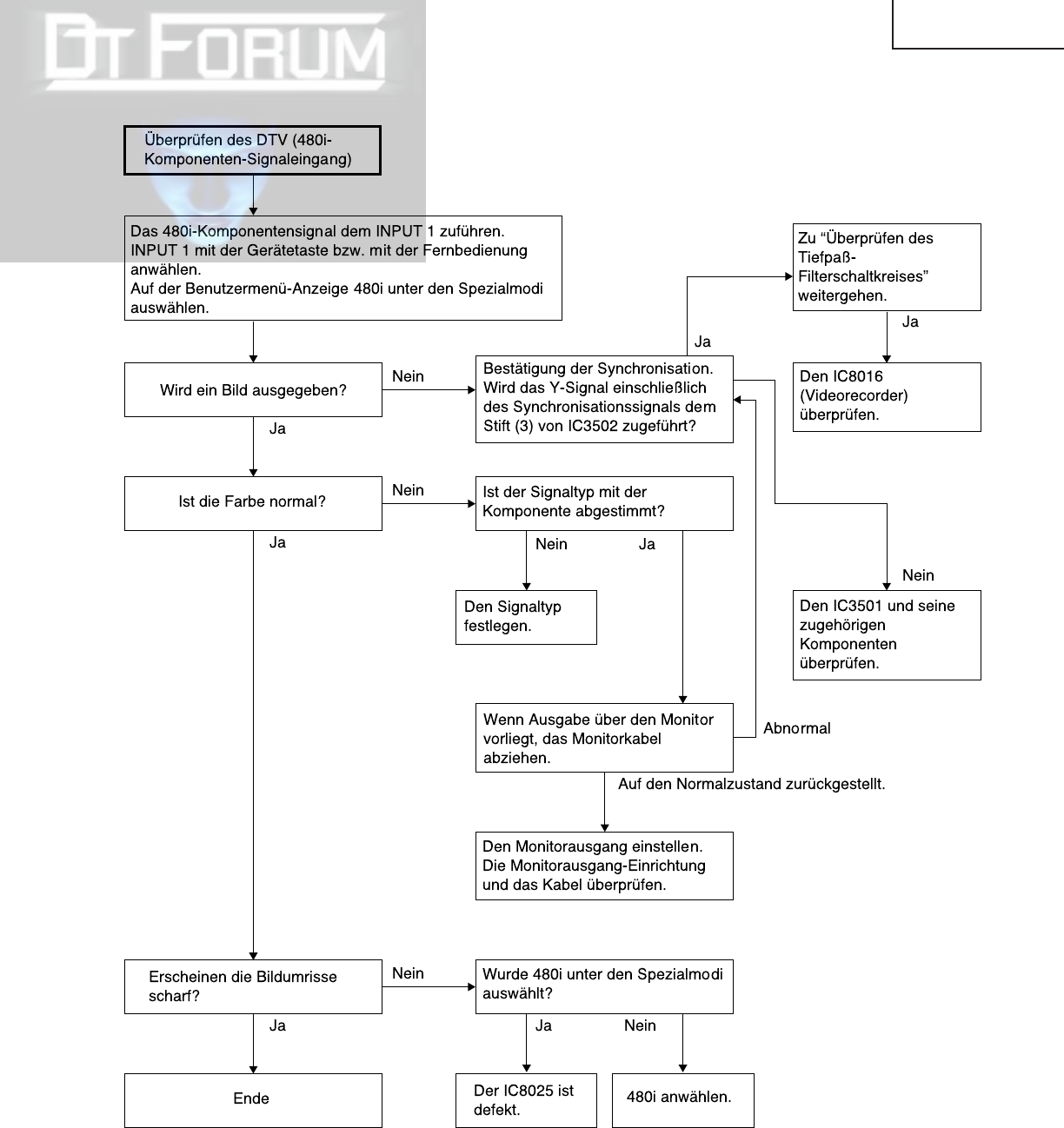

Feed the 480i component signal in INPUT 1.

Select INPUT 1 using the set's key or the remote controller.

Select 480i among the special modes on the user

menu screen.

Is 480i selected among the special

modes?

Does the contour of picture

appear clear.

Confirmation of synchronization.

Is Y signal including sync signal

inputted to pin (3) of IC3502?

Is picture outputted?

Is the color normal?

Is the signal type set to the

component?

In case of monitor output,

disconnect the monitor output

cable.

Set the monitor output.

Check the monitor output

equipment and cable.

Yes

Yes No

Yes

Abnormal

Set the signal type.

IC8025 is defective. Select 480i.

Restored to normal condition

Yes

End

Checking of DTV

(480i Component Input)

Check IC8016

(Video decoder).

Go to "Checking of

Low-pass Filter Circuit"

Check IC3501 and its

periphery.

Yes

PG-M20S

PG-M20X

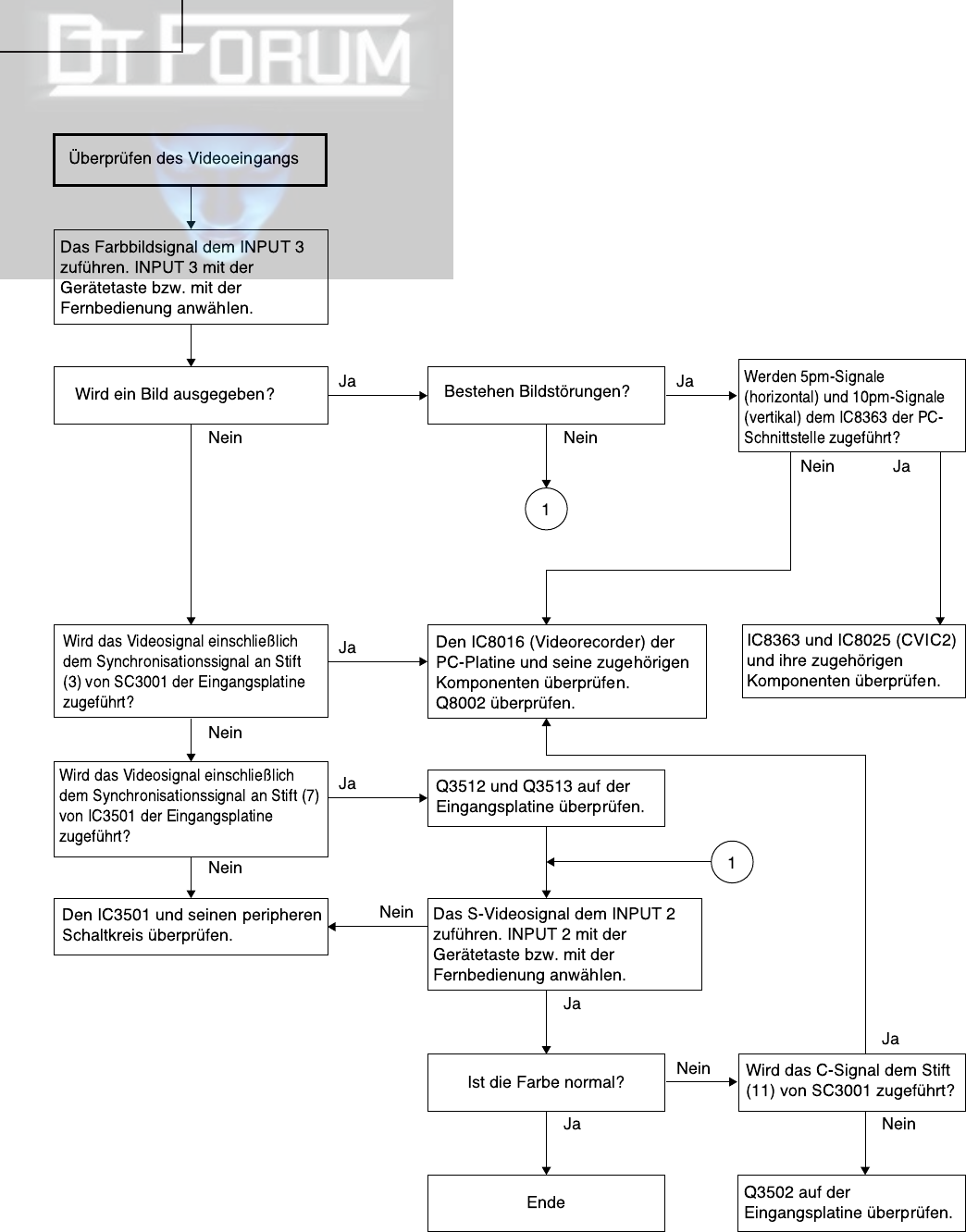

Feed the composite video signal to

INPUT 3. Select INPUT 3 using the

set's key or the remote controller.

Feed the S-video signal to INPUT 2.

Select INPUT 2 using the set's key

or the remote controller. Does the

picture appear?

Does the picture appear?

Check IC3501 and its peripheral

circuit.

Is the picture disturbed?

Is the video signal including sync

signal inputted to pin (3) of SC3001

on the input PWB?

Yes Yes

No No

Check IC8016 (video decoder)

of PC board and its periphery.

Check Q8002.

Yes

Is the video signal including sync

signal inputted to pin (7) of IC3501

on the input PWB?

Check Q3512 and Q3513 on

the input PWB.

Yes

Is the color normal?

End

Yes No

Yes

Checking of Video Input

Check IC8363 and

IC8025 (CVIC2) and

their periphery.

Check Q3502 on the

input PWB.

Is the C signal inputted

to pin (11) of SC3001?

Yes

Are pin(5) (horizontal) and

pin(10) (vertical) signals

inputted to IC8363 on the

PC I/F unit?

PG-M20S

PG-M20X

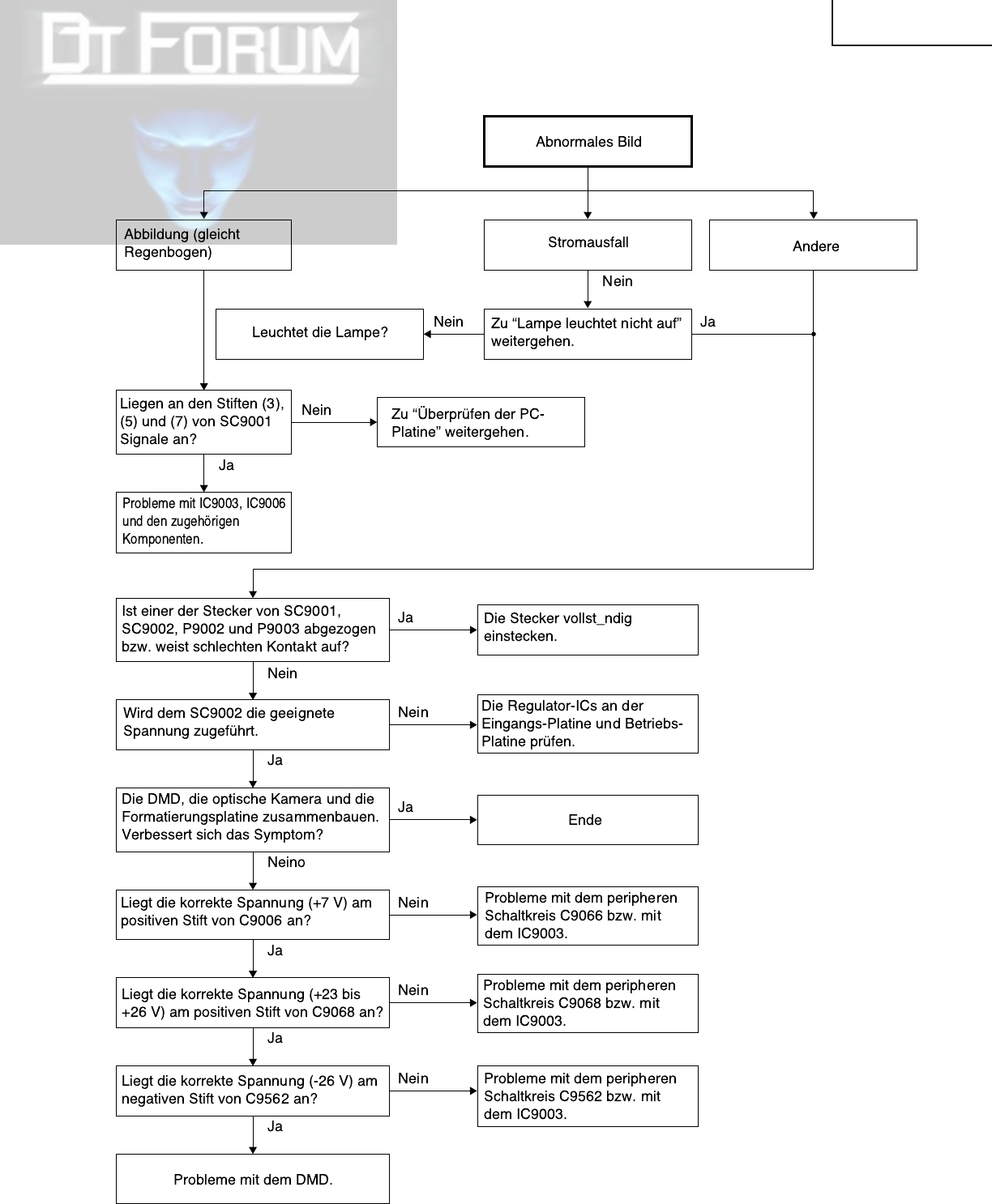

Abnormal picture

Yes

Rainbow-like picture

Is signal outputted at

pins (3), (5) and (7) of

SC9001?

Blackout

Is the lamp on?

Go to "Checking of PC I/F nunit"

Insert the connectors

completely.

No Check the regulator ICs on the

input PWB and KEY PWB.

No Trouble with peripheral circuit

of C9066 or trouble with IC9003.

Trouble with peripheral circuit

of C9068 or trouble with IC9003.

Trouble with peripheral circuit

of C9562 or trouble with IC9003.

Yes End

Is any of SC9001, SC9002, P9002

and P9003 connectors

disconnected or in poor contact?

No Yes

Go to "Lamp Does Not

Light Up."

Others

Trouble with IC9003,

IC9006 or their periphery

Yes

Is an appropriate voltage supplied

to SC9002?

Yes

Reassemble the DMD, optical

mechanism and formatter unit.

Is the symptom improved?

Is the voltage at the positive-polarity

pin of C9066 appropriate (+7V)?

Yes

Is the voltage at the positive-polarity

pin of C9068 appropriate (+23 to +26V)?

Yes

Is the voltage at the negative-polarity

pin of C9562 appropriate (-26V)?

Yes

Trouble with the DMD

» FORMATTER Unit

PG-M20S

PG-M20X

Yes

Is the user menu displayed?

Check the onscreen display.

Check the RGB input.

Check the component input.

Check the video input.

Check the DVI digital input.

PCカードのチェック

End

Check the PC card.

Checking of PC PWB

» PC I/F Unit-1/12

PG-M20S

PG-M20X

Checking of Onscreen Display

Is the user menu displayed

normally by the MENU key?

Enter the process menu and select

PATTERN. Then select the

COLOR pattern.

The onscreen display is normal.

Yes

Is the onscreen display color

normal?

Make STEP signal selection.

Adjust the DLP system in the

process adjustment mode.

Is the STEP signal normal? Rewrite the onscreen display data.

Yes

Is the signal compatible with the

STEP signal outputted at TL106

thru TL111?

Go to "Checking of GA4 and Its

Periphery".

Rewrite the onscreen display data.

IC8025 is defective.

» PC I/F Unit-2/12

PG-M20S

PG-M20X

Checking of RGB Input

Feed the sync separation type

analog RGB signal to INPUT 1.

Select INPUT 1 using the set's

key or the remote controller.

Go to "Confirmation of

Video Input".

Go to "Checking of Sync Signal".

Yes

Go to "Checking of RGB Signal".

IC8013, 8025 or its periphery is

defective.

Yes

Does the picture appear?

Is the picture disturbed?

Do the three colors R, G and B

appear?

Yes

Carry out the AUTOSYNC process.

Is the contour of picture clear?

Is there any disturbance in the

vertical stripe pattern?

End

» PC I/F Unit-3/12

PG-M20S

PG-M20X

Confirmation of Video Input

Make "Confirmation of Input

Signal Setting".

Is there video signal at the land

of C8070?

Is there signal at the terminal C2 of

P8001 (DVI connector)?

Somewhere in the signal route is

defective. Check the capacitors and

resistors between the connector

and IC8013.

The signal source or connector

is defective.

Yes

Go to "Checking of Sync Signal".

IC8025 or IC8013 is defective.

Confirmation of Input Signal Setting

Is the input menu selected

correctly?

Are the connectors connected

correctly?

Yes

Select the input menu correctly.

Connect the connectors correctly.

End

» PC I/F Unit-4/12

PG-M20S

PG-M20X

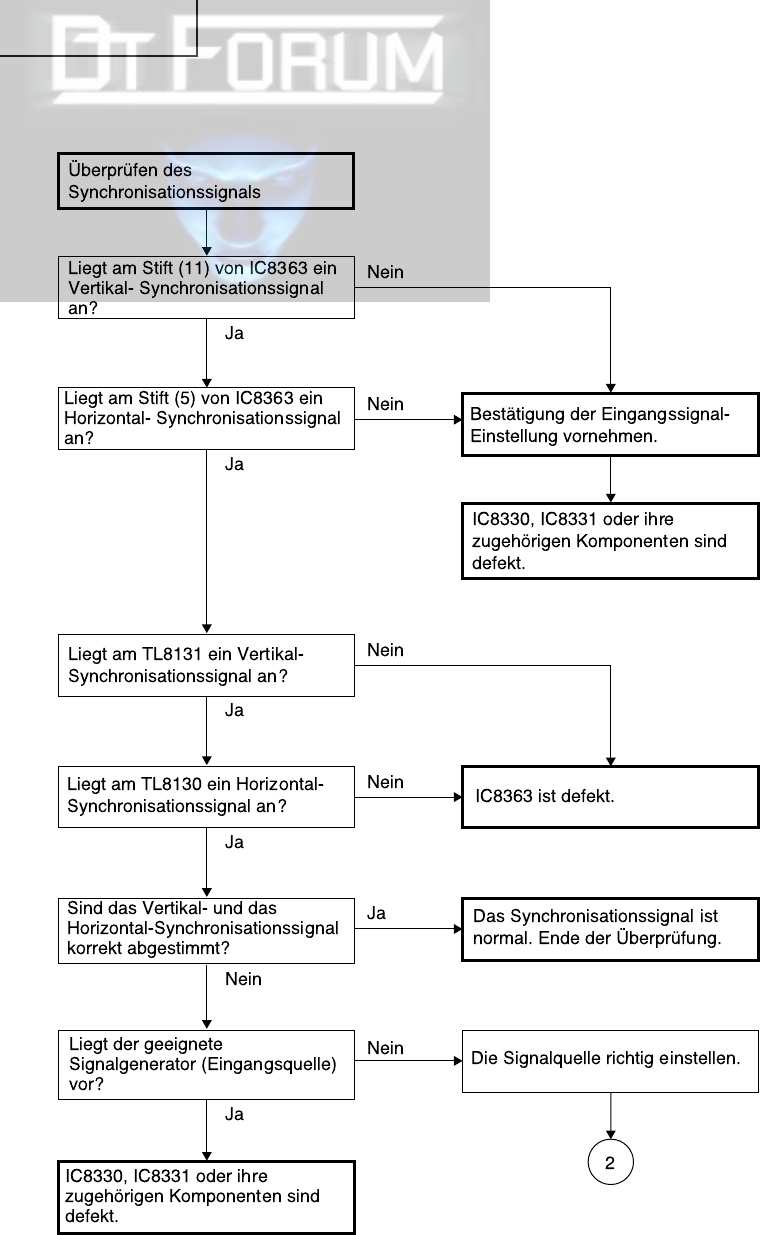

Checking of Sync Signal

Is there the vertical sync signal at

pin (11) of IC8363?

Is there the horizontal sync signal

at pin (5) of IC8363?

Is there the vertical sync signal at

TL8131?

Is the signal generator

(input source) appropriate?

Are both the vertical and horizontal

signals in appropriate timing?

Is there the horizontal sync signal

at TL8130?

The sync signal is normal.

End of checking.

Yes

Make confirmation of input signal

setting.

Yes

IC8330, IC8331 or its periphery

is defective.

IC8363 is defective.

Set the signal source appropriately.

IC8330, IC8331 or its periphery

is defective.

» PC I/F Unit-5/12

PG-M20S

PG-M20X

Checking of R, G and B Signals

Is the signal type set to RGB?

Set the process mode.

For checking the input signal,

set the signal generator to

gradation signal.

Check TL8169, TL8170 and

TL8180 by oscilloscope.

(MSB bit after A/D conversion)

Go to "Checking of GA4 and Its

Periphery".

Select R, G and B individually on

the pattern menu.

Does the signal come to C8062,

C8070 and C8078?

No No

Set the signal type to RGB.

Yes

IC8013 and its periphery are

defective.

Are there the specified signals at

TL8169, TL8170 and TL8180?

Yes Yes

IC8025 and its periphery are

defective.

Go to "Confirmation of

Video Input".

» PC I/F Unit-6/12

PG-M20S

PG-M20X

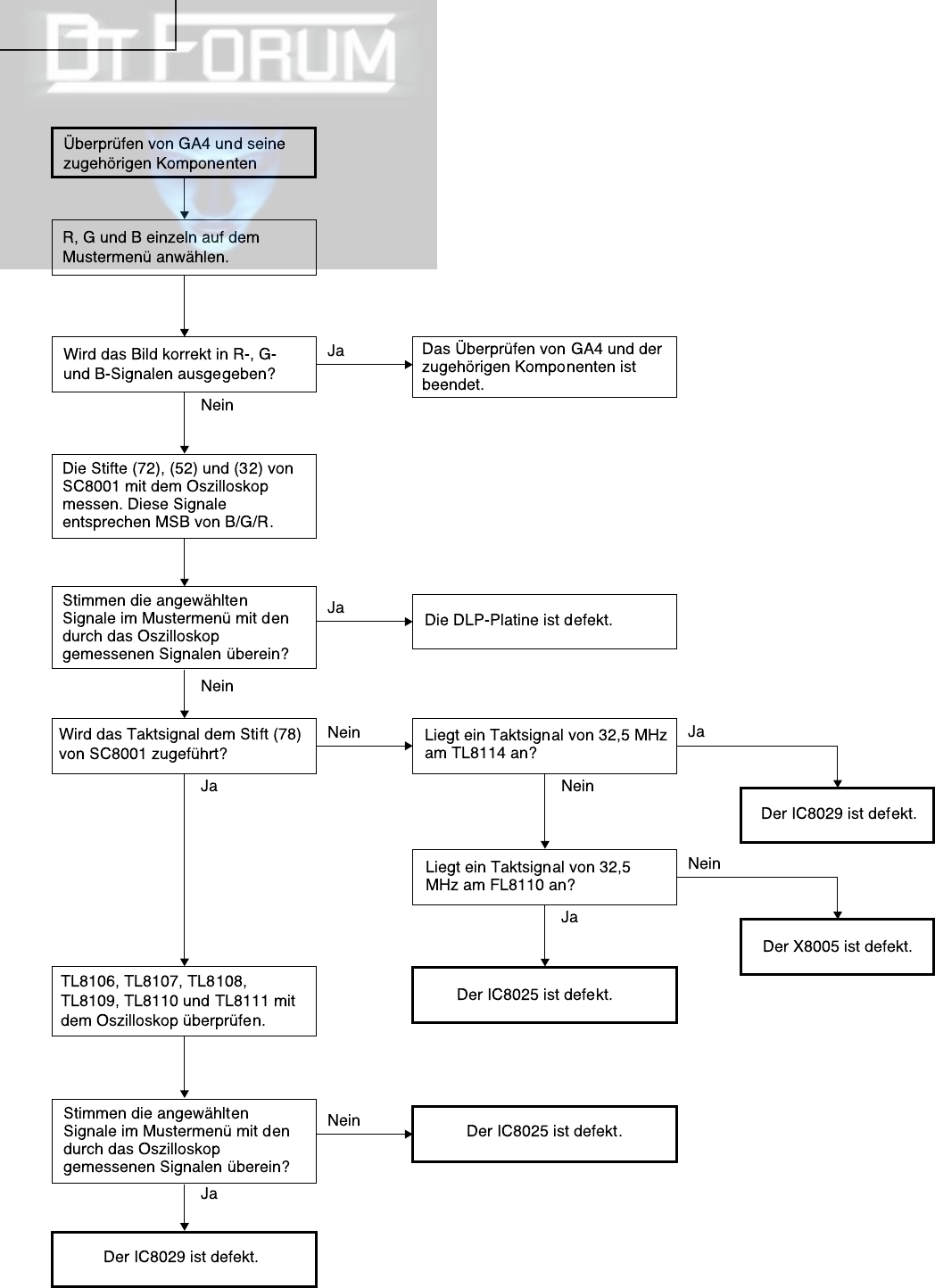

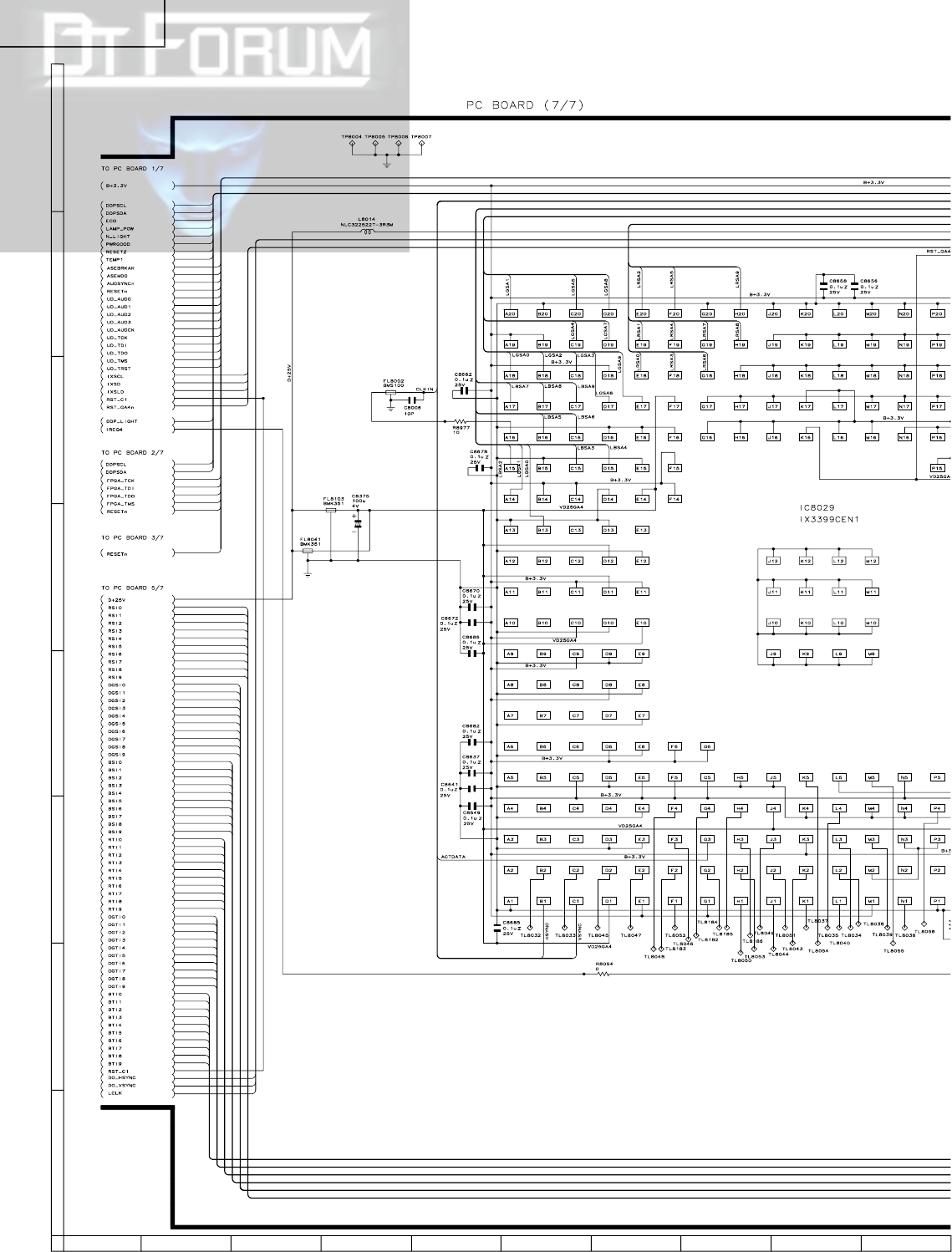

Checking of GA4 and Its Periphery

Select R, G and B individually on

the pattern menu in process mode.

Is picture outputted appropriately

in R, G and B?

Check pins (72), (52) and (32) of

SC8001 by oscilloscope.

These signals are MSB of B/G/R.

Check TL8106, TL8107, TL8108,

TL8109, TL81010 and TL81011

by oscilloscope.

Do the signals selected on the

pattern menu match with those

checked by oscilloscope?

Do the signals selected on the

pattern menu match with those

checked by oscilloscope?

Is there the clock (32.5 MHz)

signal at TL8114?

Checking of GA4 and its periphery

ends.

Yes

The DLP PWB is defective.

Yes

Is there the clock (32.5 MHz)

signal at TL8110?

Does the clock signal come to pin

(78) of SC8001?

Yes

IC8025 is defective.

IC8029 is defective.

Yes

IC8029 is defective.

X8005 is defective.

Yes

» PC I/F Unit-7/12

PG-M20S

PG-M20X

Checking of Component Input

(except 480I)

Feed the component signal to

INPUT 1.

Select INPUT 1 using the set's

key or the remote controller.

Is the color normal?

Is the signal type set at component?

Set the signal type to component.

Carry out the process adjustment.

Is the picture appear?

IC8013 or IC8025 is defective.

Go to "Checking of SOG Circuit".

Is the contour of picture clear?

Yes

The component is normal. End.

» PC I/F Unit-8/12

PG-M20S

PG-M20X

Checking of SOG Circuit

Check pin (2) of IC8365 by

oscilloscope.

The SOG sync separation circuit

(input PWB) is defective.

Is there the Y signal including sync

signal?

Check the land of C8070 by

oscilloscope.

Is the composite sync signal

reproduced in correct timing?

Go to "Confirmation of Input

Signal Setting".

The SOG circuit is normal.

End.

Yes

» PC I/F Unit-9/12

PG-M20S

PG-M20X

Feed the composite video signal to

INPUT 3.

Select INPUT 3 using the set's key

or the remote controller.

Is there any disturbance in the

picture?

The video input is normal. End.

Is the color normal?

Is the picture appear?

Go to "Checking of Video

Sync Signal".

Yes

Input PWB is defective.

Q8002 and its periphery are

defective.

IC8015 is defective.

Is there the specified signal

at R8114?

Checking of Video Input

Go to "Checking of Video

Sync Signal".

Carry out the process

adjustment.

Yes

Check the clock signal of IC8015

by FL8114.

Is the clock signal normal?

Yes

IC8025 and its periphery are

defective.

Yes Yes

Is the video signal inputted to

C8141?

Go to "Checking of Video Sync

Signal".

» PC I/F Unit-10/12

PG-M20S

PG-M20X

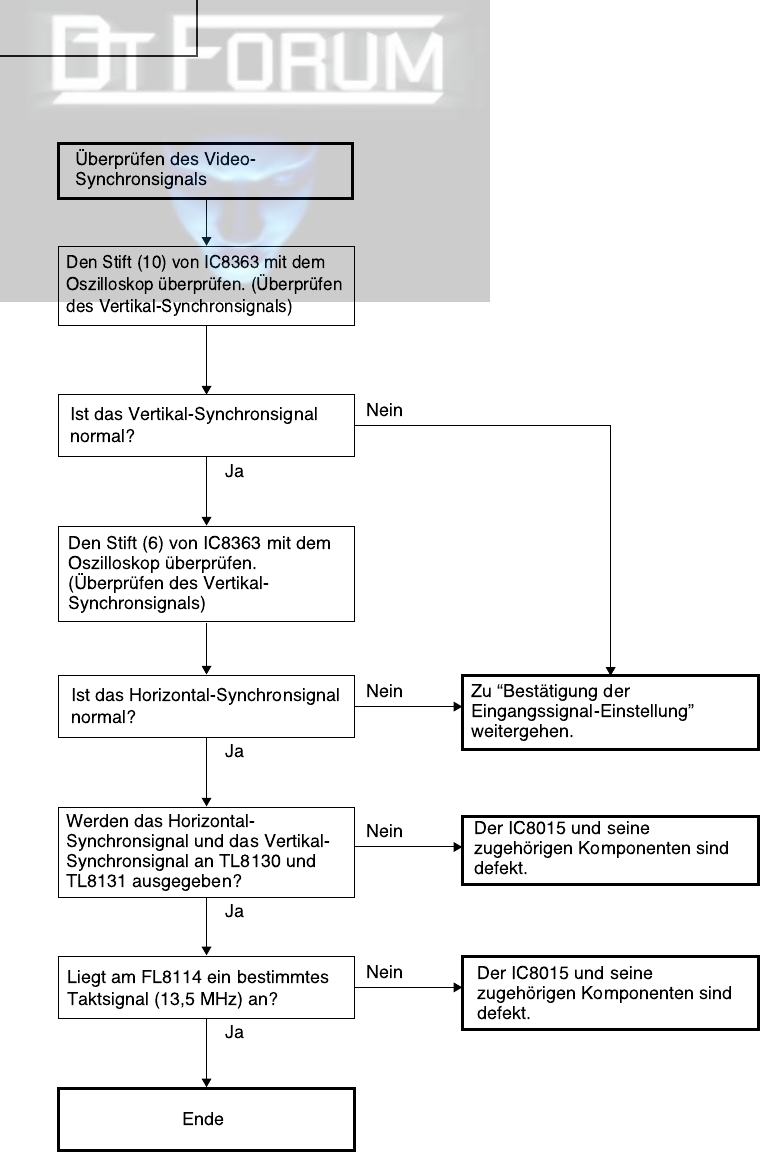

Checking of Video Sync Signal

Check pin (10) of IC8363 by

oscilloscope.

(Checking of vertical sync signal)

Check pin (6) of IC8363 by

oscilloscope.

(Checking of horizontal sync signal)

Are the horizontal sync signal and

vertical sync signal outputted at

TL8130 and TL8131?

Is the vertical sync signal normal?

Is the horizontal sync signal

normal?

Yes

Go to "Confirmation of Input Signal

Setting".

Yes

Is there the specified clock

(13.5 MHz) signal at FL8114?

Yes

End

Yes

IC8015 and its periphery are

defective.

IC8015 and its periphery are

defective.

» PC I/F Unit-11/12

PG-M20S

PG-M20X

Checking of DVI Digital Input

Select INPUT 1 for input.

Feed the DVI digital signal to

INPUT 1.

Is there any disturbance in the

picture?

Is the color normal?

Is the picture appear?

Yes

No IC8298 and its periphery are

defective.

No IC8298 and its periphery are

defective.

The DVI digital input is normal.

Check pin (13) of IC8363 for vertical

sync signal, and check pin (3) of

IC8363 for horizontal sync signal.

Check R8685 for clock signal.

Is the clock signal normal?

Are the sync signals normal?

Yes

IC8025 and its periphery are

defective.

» PC I/F Unit-12/12

PG-M20S

PG-M20X

Technische Daten

Digitaler Multimedia-Projektor

PG-M20X/PG-M20S

NTSC 3.58/NTSC 4.43/PAL/PAL-M/PAL-N/PAL 60/SECAM/

DTV480I/DTV480P/DTV720P/DTV1080I

Single Chip Digital Micromirror Device™ (DMD™) von Texas Instruments

Panel-Größe: 0,7

(17,8 mm), 1 Chip XGA DMD(PG-M20X)/

Anzahl der Bildpunkte: 786.432 Bildpunkte (1.024 [H] × 768 [V])

(PG-M20X)

1–1.2 × Zoom-Objektiv, F1,75–2,04, f = 28,0–33,5 mm

Hochleistungslampe (HID-Lampe), DC 210 W

29-pol. Anschluss

DVI-Eingangssignal: Digital 250–1.000 mV 50 Ω

Analog 0,7 Vs-s 75 Ω

Y: 1,0 Vs-s, negatives Sync., 75 Ω terminiert

: 0,7 Vs-s, 75 Ω terminiert

700 Fernsehzeilen (DTV720P)(PG-M20X)/500 Fernsehzeilen (S-Video[NTSC3.58])(PG-M20S)

29-pol. Anshluss

RGB getrennt/Sync auf Grün-Typ analoger Eingang: 0-0,7 Vs-s, positiv, 75 Ω terminiert

HORIZONTALES SYNC.-SIGNAL: TTL-Pegel (positiv/negativ)

VERTIKALES SYNC.-SIGNAL: Wie oben

4-pol. Mini DIN-Anschluss

Y (Luminanzsignal): 1,0 Vs-s, negatives Sync., 75 Ω terminiert

C (Chrominanzsignal): Stoß 0,286 Vs-s, 75 Ω terminiert

RCA-Anschluss: VIDEO, gemischtes Video, 1,0 Vs-s, negatives Sync.,

75 Ω terminiert

12-230 MHz(PG-M20X)/12-120MHz(PG-M20S)

43-100 Hz

15-126 kHz(PG-M20X)/15-102kHz(PG-M20S)

ø 3,5 mm Minibuchse: AUDIO, 0,5 Vrms, mehr als 47 kΩ (Stereo)

2,0 W (Mono)

4 cm × 3 cm

100-240 V Wechselstromspannung

3,2 A

50/60 Hz

290 W

<1.090 kWh

41°F bis 95°F (+5°C bis +35°C)

–4°F bis 140°F (–20°C bis +60°C)

Plastik

38 kHz

8 5⁄8" × 3" × 11 15⁄16" (219 (B) × 76 (H) × 303 (T) mm) (nur Hauptgerät)

8 3⁄4" × 3 1⁄4" × 12 1⁄2" (223 (B) × 83 (H) × 318 (T) mm) (einschließlich Drehfüße und Projektionsteile)

5,8 lbs. (2,6 kg)

Fernbedienung, zwei R-03-Batterien, Netzkabel für USA, Kanada usw. (6', 1,8 m), Netzkabel für

Europa, ausgenommen Großbritannien (6', 1,8 m), Netzkabel für Großbritannien, Hongkong und

Singapur (6', 1,8 m), Netzkabel für Australien, Neuseeland und Ozeanien (6', 1,8 m), DVI an 15-Pin

D-Sub-Kabel (6', 1,8 m), USB-Kabel (6', 1,8 m), Tragetasche, Objektivkappe (befestigt), Riemen für

Objektivkappe, Anschlussabdeckung (befestigt), CD-ROM, Bedienungsanleitung, Kurzanleitung

Lampeneinheit (Lampen-/Gehäusemodul) (BQC-PGM20X//1) Fernbedienung (RRMCGA013WJSA),

zwei R-03-Batterien (“AAA”, UM/SUM-4, HP-16 oder ähnlich), Netzkabel für USA, Kanada usw.

(QACCDA007WJPZ), Netzkabel für Europa, ausgenommen Großbritannien (QACCV4002CEZZ),

Netzkabel für Großbritannien, Hongkong und Singapur (QACCB5024CENA[PG-M20X]/QACCBA012

WJPZ[PG-M20S]), Netzkabel für Australien, Neuseeland und Ozeanien (QACCL3022CEZZ), DVI an

15-Pin D-Sub-Kabel (QCNWGA010WJZZ), USB-Kabel (QCNWG0001WJPZ), Tragetasche

(GCASN0005CESA), Objektivkappe (CCAPHA001WJ01), Riemen für Objektivkappe

(UBNDT0013CEZZ), Anschlussabdeckung (GCOVD0103CESA), CD-ROM (UDSKA0058CEN1

[PG-M20X]UDSKAA009WJZZ{PG-M20S}),Bedienungsanleitung (TINS-7609CEZZ[PG-M20X]/

TiNS-A209WJZZ[PG-M20S]),Kurzanleitung

Produkttyp

Modell

Videosystem

Wiedergabeverfahren

DMD-Panel

Objektiv

Projektionslampe

Komponenten-Eingangssignale

(INPUT 1)

Horizontale Auflösung

Computer-RGB-Eingangssignal

(INPUT 1)

S-Videoeingangssignal

(INPUT 2)

Videoeingangssignal

(INPUT 3)

Pixeltakt

Vertikale Frequenz

Horizontale Frequenz

Audioeingangssignal

Audioausgang

Lautsprechersystem

Nennspannung

Eingangsspannung

Nennfrequenz

Leistungsaufnahme

Stromverlust

Betriebstemperatur

Lagertemperatur

Gehäuse

I/R-Trägerfrequenz

Abmessungen (ca.)

Gewicht (ca.)

Mitgeliefertes Zubehör

Ersatzteile

Dieser Projektor von SHARP ist mit einem DMD-Panel

ausgestattet. Diese neuartigen Panel enthalten 786.432

(PG-M20X)/480.000(PG-M20S) Bildpunkte.

Bei allen technologisch

fortschrittlichen, elektronischen Geräten, z. B. Großbild-Fernse-

hern,Videosystemen bzw.Videokameras, sind bestimmte Tolera-

für die Funktionen gegeben.

Dieses Gerät hat einige inaktive, innerhalb akzeptierter

Toleranzgrenzen liegende Bildpunkte, die als leuchtende oder als

nicht aktive Punkte auf der Bildwand wiedergegeben werden. Dies

hat keinen Einfluss auf die Bildqualität oder die Lebensdauer des

Gerätes.

Änderungen der technischen Daten ohne vorherige Ankündigung vorbehalten.

0.55

"(140.0mm), 1 chip SVGA DMD(PG-M20S)

480.000 Bildpunkte (800 [H] × 600 [V])

(PG-M20S)

nzgrenzen

PG-M20S

PG-M20X

HINWEIS FÜR DAS WARTUNGSPERSONAL

ACHTUNG: UV-STRAHLUNG

Die Lichtquelle im Projektor, eine Metall-Halogen-

Lampe, gibt eine geringe UV-Strahlung ab.

DIREKTE BESTRAHLUNG AUF AUGEN

UND HAUT MUSS VERMIEDEN WERDEN.

Zur Gewährleistung der Sicherheit muß folgendes

beachtet werden:

1. Bei Arbeiten am Projektor bei eingeschalteter

Lampe und abgenommenem oberen Gehäuse

muß unbedingt eine Sonnenbrille getragen

werden.

2. Die Lampe darf nicht außerhalb des

Lampengehäuses eingeschaltet werden.

3. Betrieb für länger als 2 Stunden bei

abgenommenem Gehäuse ist nicht zulässig.

Zur Beachtung bei UV-Strahlung

und Mitteldruck-Lampen

1. Vor dem Auswechseln der Lampe muß der

Netzstecker gezogen werden.

2. Vor Durchführung von Wartungsarbeiten muß das

Gerät eine Stunde abkühlen.

3. Nur mit dem gleichen Lampentyp ersetzen Typ

BQC-PGM20X//1; Nennleistung 85 V/210 W.

4. Die Lampe gibt eine geringe UV-Strahlung ab,

daher muß direkter Augenkontakt vermieden

werden.

5. Die Mitteldruck-Lampe weist ein Explosionsrisiko

auf. Daher müssen die nachstehenden

Installationsanweisungen beachtet werden, und die

Lampe muß vorsichtig behandelt werden.

Ë Auswechseln der Lampe

Hinweis:

Da die Lampe während des Betriebs sehr heiß wird,

sollte die Lampe erst ausgewechselt werden, nachdem

das Gerät mindestens eine Stunde ausgeschaltet war,

damit die Lampe ausreichend abkühlen kann.

Beim Installieren der neuen Lampe muß darauf

geachtet werden, die Lampe selbst (Glaskolben)

nicht zu berühren. Vielmehr muß die Lampe am

Reflektor 2 gehalten werden.

[Es darf nur ein Original-Ersatzteil verwendet

werden.]

GEFAHR! — Niemals die Spannungsversorgung

einschalten, ohne daß eine Lampe vorhanden ist,

um elektrische Schläge und Schäden am Gerät zu

vermeiden, da der Stabilisator anfangs hohe

Spannungen erzeugt.

Da eine geringe UV-Strahlung aus einer Öffnung

zwischen der Schachtabdeckung und dem

Lampengehäuse austritt, sollte der Objektivdeckel

bei Wartungsarbeiten auf die Öffnung gesetzt

werden, um die Bestrahlung von Augen und Haut

zu vermeiden (Abb. 1).

Hinweis: Besorgen Sie sich einen Objektivdeckel,

bevor Sie Arbeiten an einem Modelle PG-

M20X/PG-M20S durchführen, das keinen

Objektivdeckel aufweist.

Abbildung 1.

Lampe

Reflektor

PG-M20S

PG-M20X

Vorsichtsmaßregeln für bleifreien Lötzinn

1 Verwendung von bleifreiem Lötzinn

Die "Eingangs-und Schlüssel-Platine" dieses Modells verwendet bleifreien Lötzinn. Das LF-Symbol zeigt bleifreien

Lötzinn an und ist an den Platinen und Wartungsanleitungen angebracht. Der Buchstabe nach LF zeigt den Typ des

bleifreien Lötzinns an.

Beispiel:

2 Bei Reparatur der mit bleifreiem Lötzinn gelöteten Platine immer bleifreien Lötzinn verwenden. Reparatur mit

herkömmlichem Lötzinn kann zu Schäden oder Unfällen aufgrund von Rissen führen.

Da der Schmelzpunkt bleifreien Lvtzinns (Sn-Ag-Cu) um 40°C höher als der von Bleidraht-Lötzinn ist, empfehlen wir

die Verwendung einer speziellen Lötspitze. Wenn Fragen über den Beschaffung leitfreien Lötzinns oder spezieller

Lötspitzen bestehen, wenden Sie sich an unsere Kundendienstvertretung in Ihrem Gebiet.

3Löten

Da der Schmelzpunkt bleifreien Lötzinns (Sn-Ag-Cu) etwa 220°C beträgt, was um 40°C höher als der von bleihaltigem

Lötzinn ist, und außerdem schlechte Löt-Benetzbarkeit aufweist, kann es erforderlich werden, die Lötspitze längere

Zeit in Kontakt mit der Platine zu halten. Da die Lötlauge abfliessen kann oder der maximale Hitzewiderstand von

Teilen überschritten werden kann, die Lötspitze sofort von der Platine nehmen, sobald eine gute Lötung erzielt ist.

Bleifreier Lötzinn enth_lt mehr Zinn, und das Ende der Lötspitze kann leicht angegriffen werden. Immer sicherstellen,

dass der Lötkolben nur bei Bedarf eingeschaltet wird.

Wenn ein anderer Typ von Lötzinn an der Lötspitze haften bleibt, verschmilzt er mit dem bleifreien Lötzinn. Die

Lötspitze nach jeder Verwendung reinigen.

Wenn die Lötspitze bei der Verwendung geschwärzt wird, die Spitze mit Stahlwolle oder feinem Sandpapier

abschmirgeln.

Immer beim Austausch von Teilen vorsichtig sein, und die Polaritätsanzeige auf der Platinenbeschriftung beachten.

LFa

Zeigt bleifreien Lötzinn aus Zinn, Silber und Kupfer an.

Teile-Nr. ★Beschreibung Code

ZHNDAi123250E J φ0.3mm 250g(1roll) BL

ZHNDAi126500E J φ0.6mm 500g(1roll) BK

ZHNDAi12801KE J φ1.0mm 1 Rolle BM

Bleifreier Lötzinn zur Wartung

PG-M20S

PG-M20X

Bedienelemente

LAMP-Anzeige

(Lampenaustausch)

Leuchtet normalerweise grün. Die

Lampe austauschen, wenn die

Anzeige rot leuchtet.

POWER-Anzeige (Netz)

Leuchtet rot, wenn sich der

Projektor im Bereitschaftsbetrieb

befindet. Wenn die Strom-

versorgung eingeschaltet ist,

leuchtet diese Anzeige grün.

POWER-Taste

Schaltet die Stromversorgung

ein oder aus.

LENS-Taste

Für das Einstellen der

Trapezverzerrungs- oder Digitalen

Verschiebungs-Einstellung.

Einstelltasten

( )

Für die Wahl der Menüpunkte.

ENTER-Taste

Für die Einstellung der gewählten

oder eingestellten Menüpunkte.

AV MUTE-Taste

Für das vorübergehende

Ausschalten des Tons und des

Bildes.

Zoom-Knopf

Fußentriegelungen/

Einstellfuß

Für das Einstellen der Projektor-

höhe.

Befestigen der

Anschlussabdeckung

Die Anschlussabdeckung an der

Projektorseite befestigen und

eindrücken, wie in der Abbildung

gezeigt.

TEMP.-Anzeige

(Temperaturwarn)

Leuchtet normalerweise

grün. Wenn die interne

Temperatur ansteigt, leuchtet

diese Anzeige rot.

INPUT-Taste

Für das Umschalten

zwischen Eingangsmodus 1,

2 und 3.

MENU-Taste

Für die Anzeige des Justie-

rungs- und Einstellungsbild-

schirms.

VOL-Tasten

Für das Einstellen des

Lautsprecher-Tonpegels.

UNDO-Taste

Für das Rückgängigmachen

eines Bedienschrittes oder

für die Rückkehr zu den

Grundeinstellungen.

AUTO SYNC-Taste

Für das automatische

Einstellen von Bildern,

wenn ein Computer

angeschlossen ist.

Fokusring

Anschlussabdeckung

Lautsprecher

Fernbedienungssensor

Projektor (Vorder- und Draufsicht)

PG-M20S

PG-M20X

Projektor (Seitenansicht)

INPUT 1-Anschluss

Schnittstelle für DVI Digital-,

Computer RGB- und COMPO-

NENT-Signale.

INPUT 2-Anschluss

Anschluss für ein Videogerät mit

einem S-VIDEO-Anschluss.

USB-Anschluss

Für den Anschluss eines

Computers mittels USB-

Kabel.

INPUT AUDIO-

Anschluss

Gemeinsam genutzter

Audioanschluss für INPUT

1, INPUT 2 und INPUT 3.

INPUT 3-Anschluss

Für den Anschluss eines

Videogerätes.

Netzanschluss

Kensington-Sicherheits-

standardanschluss

Verwendung der Kensington-Sperre

•

Dieser Projektor ist mit einem Kensington-Sicherheitsstandardanschluss für die Verwendung des Kensington MicroSaver-

Sicherheitssystem ausgestattet. Lesen Sie hinsichtlich der Verwendung die Informationen, die dem System beiliegen, um

den Projektor zu sichern.

Befestigen der Objektivkappe

Nach dem Befestigen des Riemens an der

Objektivkappe das andere Ende des Riemens

durch das Loch unter dem Projektor neben

dem Objektiv hindurch führen, wie in der

Abbildung gezeigt.

Ansicht von unten

Luftaustritt-

öffnung

PG-M20S

PG-M20X

Fernbedienung

FORWARD/BACK-Taste

Schaltet nach vorne oder hinten,

wenn ein Computer mittels eines

USB-Kabels angeschlossen ist. Wie

die [Page Up]- und [Page Down]-

Tasten auf der Computer-Tastatur.

AV MUTE-Taste

Für das vorübergehende

Ausschalten des Tons und des

Bildes.

VOLUME-Tasten

Für das Einstellen des

Lautsprecher-Tonpegels.

INPUT 2-Taste

Für das Umschalten des

Eingangsmodus zu EINGANG 2.

INPUT 1-Taste

Für das Umschalten des

Eingangsmodus zu EINGANG 1.

AUTO SYNC-Taste

Für das automatische Einstellen

von Bildern, wenn ein Computer

angeschlossen ist.

LENS-Taste

Für das Einstellen der

Trapezverzerrungs- oder Digitalen

Verschiebungs-Einstellung.

ENTER-Taste

Für die Einstellung der gewählten

oder eingestellten Menüpunkte.

POWER-Taste

Schaltet die Stromversorgung ein oder

aus.

ENLARGE-Tasten (Vergrößern/

Verkleinern)

Für das Vergrößern oder Verkleinern

eines Bildteils.

FREEZE-Taste

Für das Einfrieren von Bildern.

INPUT 3-Taste

Für das Umschalten des

Eingangsmodus zu EINGANG 3.

RESIZE-Taste

Für das Umschalten der Bildwandgröße

(NORMAL, UMRANDLING usw).

GAMMA-Taste

Für das Korrigieren der Helligkeit eines

Bildes, wenn das angezeigte Bild

aufgrund der Raumhelligkeit schwierig

zu sehen ist. Sie können aus vier

verfügbaren Gamma-Modi auswählen.

MENU-Taste

Für die Anzeige des Justierungs- und

Einstellungsbildschirms.

Einstelltasten

( )

Für die Wahl der Menüpunkte.

UNDO-Taste

Für das Rückgängigmachen eines

Bedienschrittes oder für die Rückkehr

zu den Grundeinstellungen.

Fernbedienungssignal-Sender

PG-M20S

PG-M20X

Pin-Belegung

•••••••••

••••

18 23

916

•

DVI-Digital-EINGANG

Pin-Nr. Signal Pin-Nr. Signal

1 T.M.D.S-Daten 2–16 Hot Plug festgestellt

2 T.M.D.S-Daten 2+ 17 T.M.D.S-Daten 0–

3 T.M.D.S-Daten 2 Abschirmung 18 T.M.D.S-Daten 0+

4 Nicht angeschlossen 19 T.M.D.S-Daten 0 Abschirmung

5 Nicht angeschlossen 20 Nicht angeschlossen

6 DDC-Taktgeber 21 Nicht angeschlossen

7 DDC-Daten 22

T.M.D.S-Taktgeber Abschirmung

8 Nicht angeschlossen 23 T.M.D.S-Taktgeber+

9 T.M.D.S-Daten 1–24 T.M.D.S-Taktgeber–

10 T.M.D.S-Daten 1+ C1 Nicht angeschlossen

11 T.M.D.S-Daten 1 Abschirmung C2 Nicht angeschlossen

12 Nicht angeschlossen C3 Nicht angeschlossen

13 Nicht angeschlossen C4 Nicht angeschlossen

14 +5V-Stromversorgung C5 Masse

15 Masse

DVI Digital-/Analog-EINGANG 1-Port: 29 Pin-Anschluss

•

DVI-Analog-RGB-Eingang

Pin-Nr. Signal Pin-Nr. Signal

1 Nicht angeschlossen 16 Hot Plug festgestellt

2 Nicht angeschlossen 17 Nicht angeschlossen

3 Nicht angeschlossen 18 Nicht angeschlossen

4 Nicht angeschlossen 19 Nicht angeschlossen

5 Nicht angeschlossen 20 Nicht angeschlossen

6 DDC-Taktgeber 21 Nicht angeschlossen

7 DDC-Daten 22 Nicht angeschlossen

8 Vertikales Sync. 23 Nicht angeschlossen

9 Nicht angeschlossen 24 Nicht angeschlossen

10 Nicht angeschlossen C1 Analogeingang Rot

11 Nicht angeschlossen C2 Analogeingang Grün

12 Nicht angeschlossen C3 Analogeingang Blau

13 Nicht angeschlossen C4 Horizontales Sync.

14 +5V-Stromversorgung C5 Masse

15 Masse

•

DVI-Analog-Komponenten-Eingang

Pin-Nr. Signal Pin-Nr. Signal

1 Nicht angeschlossen 16 Nicht angeschlossen

2 Nicht angeschlossen 17 Nicht angeschlossen

3 Nicht angeschlossen 18 Nicht angeschlossen

4 Nicht angeschlossen 19 Nicht angeschlossen

5 Nicht angeschlossen 20 Nicht angeschlossen

6 Nicht angeschlossen 21 Nicht angeschlossen

7 Nicht angeschlossen 22 Nicht angeschlossen

8 Nicht angeschlossen 23 Nicht angeschlossen

9 Nicht angeschlossen 24 Nicht angeschlossen

10 Nicht angeschlossen C1 Analogeingang Pr/Cr

11 Nicht angeschlossen C2 Analogeingang Y

12 Nicht angeschlossen C3 Analogeingang Pb/Cb

13 Nicht angeschlossen C4 Nicht angeschlossen

14 Nicht angeschlossen C5 Masse

15 Masse

4-Pin-USB-Anschluss

•

USB-Anschluss: 4 Pin B-Typ USB-Anschluss

Pin Nr. Signal Bezeichnung

1 VCC USB-Strom

2 USB–USB-Daten–

3 USB+ USB-Daten+

4 SG Signal-Masse

PG-M20S

PG-M20X

Abmessungen

(302,5)

(38,7)

(34,2)

(82,9)

(76,1)

(261,5)

(104)

(80)

(7,5)

(318,3)

(219)

(128)

(115,5)

(223)

(195)

(60)

(55,5)

(82,5)

Einheiten: Zoll (mm)

Ansicht von

der Seite

Ansicht von

hinten

Ansicht von

oben Ansicht von

der Seite

Ansicht von

vorne

Ansicht von

unten

PG-M20S

PG-M20X

ENTFERNEN DER HAUPTTEILE

1. Ausbau der Oberabdeckung

1-1. Die Klemmenblock-Abdeckung entfernen.

1-2. Die fünf Sperrschrauben von der Oberabdeckung entfernen.

1-3. Die rechte Seite des Unterteils drücken, um den Haken zu lösen.

1-4. Die linke Seite des Unterteils drücken, um den Haken zu lösen.

1-5. Die vordere Seite des Unterteils drücken, um den Haken zu lösen. Die Oberplatte vom Unterteil lösen.

1-6. Leicht die Vorderseite der Oberplatte anheben, und den Lautsprecher-Steckverbinder abtrennen.

2. Ausbau der PC-Schnittstellen-Platine und des Kühlgeblöses

2-1. Den Steckverbinder abtrennen.

2-2. Die drei Sperrschrauben von der PC-Schnittstellen-Platine entfernen, und dann die beiden Sechskant-

Halteschrauben entfernen.

2-3. Den Steckverbinder abtrennen, und das Kühlgeblöse herausnehmen.

Oberplatte

Klemmenblock-Abdeckung

1-2

1-1

1-2

1-6

1-2

1-5

1-4

1-3

PG-M20S

PG-M20X

3. Ausbau der Betriebs-Platine

3-1. Die zwei Sperrschrauben von der Betriebs-Platine entfernen, und dann die Platine leicht anheben.

3-2. Die Steckverbinder abtrennen.

4. Ausbau des Optikmechanismus

4-1. Die beiden Sperrschrauben von der Lampenfassung entfernen.

4-2. Die beiden Lampenfassungs-Leitungsbefestigungen anheben.

4-3. Die Steckverbinder abtrennen.

4-4. Die sechs Sperrschrauben vom Optikmechanismus entfernen.

3-2

3-1 3-1

Betriebs-Platinen-Einheit

4-4

4-3

4-1

Optikmechanismus

4-2

PG-M20S

PG-M20X

5. Ausbau der anderen Platinen

5-1. Die Steckverbinder abtrennen.

5-2. Die vier Sperrschrauben von der Betriebsstrom-Platine entfernen.

5-3. Die Sperrschraube von der Vorschaltdrossel-Platineneinheit entfernen.

5-4. Die drei Sechskant-Halteschrauben von der Eingangsplatine entfernen.

5-5. Die Sperrschraube von der Klemmenblock-Abdeckung entfernen.

5-6. Die drei Sperrschrauben von der PFC-Platine entfernen.

5-3

Unterteil

Vorschaltdrossel-Platineneinheit

5-6

5-2

5-1

PFC-Platineneinheit

Betriebsstrom-Platineneinheit

Eingangsplatinen-Einheit

5-4

5-5

PG-M20S

PG-M20X

6. Ausbau der Formatierer-Platine

6-1. Die Steckverbinder abtrennen.

6-2. Die beiden Sperrschrauben von der Wärmesenke entfernen.

6-3. Die vier Sperrschrauben von der Rückhalteplatten-Bügel entfernen, und die Formatierer-Platine abnehmen.

Hinweis: Die DMD(Digital-Mikrospiegel-Vorrichtung)-Einheit wird leicht durch statische Elektrizität beeinflusst.

Beim Umgang mit diesem Gerät immer ein statikableitendes Armband tragen oder andere Maßnahmen gegen

Statik treffen.

6-2

6-1

6-3

Formattierer-Platineneinheit

Rückhalteplatten-Baugruppe

DMD(Digital-Mikrospiegel-

Vorrichtung)-Einheit

Wärmesenke

Vorsichtsmaßregeln zur Auswechslung des DMD

(Digital-Mikrospiegel-Vorrichtung) -Chips

Hinweis: Sicherstellen, daß sich keine Staube und

Fingerabdrücke auf dem Deckglas des

DMD-Chips und der Prismen-Oberfläche

des Optikapparats zurücklassen.

1. Beim Festziehen der 4 Schrauben der

Rückhalteplatten-Baugruppe die

Rückhalteplatte auf die Formatier-Platine

niederdrücken und die Schrauben diagonal

festziehen.

2. Falls ein Schatten auf dem Projektionsschirm

erscheint, wie in der Abbidlung 1, die beide

Schrauben von der Spiegeleinstellplatte lockern

und diese Platte bewegen, um das Leuchtfeld

des DMD-Chips einzustellen.

Abbildung 1 Schatten

PG-M20S

PG-M20X

* Vorsichtsmaßregeln zur Einrichtung der DMD(Digital-Mikrospiegel-Vorrichtung)-Einheit

Vor dem Anschließen der Formatierer-Platine an den Optikapparat die folgenden Schritte ausführen. Die Spannngsrang-

Markierung am DMD selber prüfen. Entsprechend dieser Markierung die DIP-Schalter an der Formatier-Platine einstellen.

Danach diese Platine an den Optikapparat anschließen. Falsche Einstellungen beeinträchtigen die Systemleistung.

Spannungsrangsystem mit den DIP-Schaltern an der Formatier-Platine

* Anschluss der FPC-Verlängerungskabel (QCNW-A298WJZZ)

Die Kabel an die Formatierer-Platine (TO FMT) und die PC-Schnittstellenplatine (TO PC) entsprechend den

Schablonendruck-Markierungen anschließen. Siehe Skizze unten. (Die FPC ist bereits an TO PC angeschlossen.)

BCDE

TO PC

TO FMT

Spannungsstand-Markierung

Diese Probe ist "C".

PG-M20S

PG-M20X

Kurzbeschreibung des Optikapparats

Gegenstand

Lampe

UV/IR-Filter

Farbrad

Stablinse

Relaislinsen

Reflektor

Prism

DMD-Chip

Projektionsobjektiv

Funktion

Lichtquelle. Gleichstrombetriebene Hochdruck-

Quecksilberdampflampe.

Zur Absorption von Ultraviolett- und Infrarotstrahlen.

Dient zum Durchlassen der Lichtquelle durch den Farbfilter

und Aufspalten in die Farben R, G und B.

Dient zur Erzeugung uniformer Lichtstrahlen.

Dienen zum Sammeln des Lichts von der Stablinse in den

DMD-Chip.

Dient zum Reflektieren des Lichts von der Relaislinse gegen

den DMD-Chip.

Dient zum Einführen des Lichts vom Reflektor über die

Effektivoberfläche des DMD-Chips. Wenn der Mikrospiegel

gekippt wird (EIN) wie vorgeschrieben, wird das reflektierte

Licht zur Projektionslinse geführt.

Dient zum Einschalten und Ausschalten des Mikrospiegels

als Reaktion auf das Verhältnis der Farbkomponenten bei

jedem Punkt und deshalb zur entsprechenden Reflektion

des einfallenden Lichts.

Dient zum Vergrößern des Lichts vom DMD-Chip und zur

Projektion des Lichts auf den Schirm.

DMD-Chip

Prisma

Projektionsobjektiv

Reflektor

Relaislinsen

Stablinse

Lampe

UV/IR-Filter

Farbrad

PG-M20S

PG-M20X

RÜCKSTELLUNG DES LAMPEN-TIMERS

Netzanschluss

POWER-Taste

Einstelltasten

(""

",||

ENTER-Taste

Den Lampen-Timer nach dem Lampenaustausch

zurückzustellen.

Das Netzkabel anschließen.

•

2Den Lampen-Timer zurückstellen.

•

Info

•

PG-M20S

PG-M20X

WARTUNGSANZEIGEN

Über die Temperaturwarn-Anzeige

■

Die Warnleuchten auf dem Projektor weisen auf Fehlfunktionen im Projektor hin.

■

Falls ein Problem auftritt, leuchtet entweder die Temperaturwarn-Anzeige oder die Lampenaustausch-Anzeige

rot auf und die Stromversorgung wird ausgeschaltet. Nach dem Ausschalten des Gerätes den unten aufgeführten

Schritten folgen.

Über die

Lampenaustausch

■

• •

•

PG-M20S

PG-M20X

Freigabe der Systemsperre

Das Gerät einschalten. Wenn die Systemsperre aktiviert wird, erscheint die System-Nullstellungsanzeige. Danach

sind die folgenden Tasten in der vorgeschriebenen Reihenfolge zu betätigen.

MENU → ENTER → ENTER → MENU → UNDO → UNDO → MENU

Zuerst die MENU-Taste drücken, dann die verbleibenden Tasten innerhalb von 10 Sekunden betätigen.

PG-M20S

PG-M20X

ELEKTRISCH EINSTELLUNG

1 Initialisierung des

EEPROM 1. Das Gerät einschalten (Lampe

leuchtet auf) und das System für

15 Minuten aufwärmen lassen.

Nr. Einstellposten Einstellbedingungen Einstellverfahren

1. Folgende Einstellungen ausführen.

SW200 drücken, um in den

Prozeßmodus einzutreten, dann

S2 im SSS-Menü ausführen.

2 Einstellung für

CW-Index 1. Signaleingang: Farbbalken mit 64

Abstufungen

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: DLP

Posten: CW-INDEX anwählen.

1. Das Signal zu INPUT 1 leiten.

2. Den Posten anwählen und

Einstellungen vornehmen, so daß

die Lampen-Abstufungsmuster von

R, G und B weich und störungsfrei

erscheinen.

3 Einstellung der

Reproduktion für

die RGB-

Abstufung

1. Das SMPTE-Mustersignal

zuführen.

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: DLP

Posten: G1-GAIN

1. Sicherstellen, daß 100% und 95%

Weißabstufung sowie 0% und 5%

Schwarzabstufung erkennbar sind.

2. Falls die Weißabstufung

unterschiedlich erscheint, muß die

Feineinstellung durch G1-GAIN

erfolgen.

4 Einstellung für

Video/

Helligkeitskontrast

1. Das Fenster-Mustersignal

(NTSC100%) zuführen (Burst-

Signal)

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: VIDEO

Posten: AUTO

1. Nach der Signalzuführung ist

“AUTO” mit dem Geräteschalter

oder der Taste für die

automatische Einstellung auf der

Fernbedienung anzuwählen.

5 Einstellung auf

Video-Farbton 1. Das Farb-Trennsignal zuführen.

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: VIDEO

Posten: TINT

1. Den festgelegten Wert bestätigen.

Festgelegter Wert: 128

PG-M20S

PG-M20X

6 Einstellung der

NTSC-

Farbsättigung

1. Das interne 8-Kanal-Trennsignal

zuführen.

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: VIDEO

Posten: N-COLOR

Nr. Einstellposten Einstellbedingungen Einstellverfahren

1. Den festgelegten Wert bestätigen.

Festgelegter Wert: 59

7 Einstellung der

PAL-Farbsättigung 1. Das PAL-Farbbalkensignal

zuführen.

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: VIDEO

Posten: P-COLOR

1. Den festgelegten Wert bestätigen.

Festgelegter Wert: 59

8 Einstellung der

SECAM-

Farbsättigung

1. Das SECAM-Farbbalkensignal

zuführen.

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: VIDEO

Posten: S-COLOR

1. Den festgelegten Wert bestätigen.

Festgelegter Wert: 59

9 Einstellung der

COMPO G-

Helligkeit

1. Eingangssignal: 0%

Graumustersignal (480I)

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: COMPO

Posten: G-BRIGHT

1. Das Signal zu INPUT 1 leiten.

Die Einstellung so vornehmen, daß

einige Bits im Bild fehlen.

10 Einstellung für

COMPO CR-

Offset

1. Das Farbdifferenzsignal (480I)

zuführen: Y 0% Helligkeit, Cb und

Cr 0% Helligkeit

Gruppe: COMPO

Posten: AUTO

1. Nach der Signalzuführung ist

“AUTO” mit dem Geräteschalter

oder der Taste für die

automatische Einstellung auf der

Fernbedienung anzuwählen.

11 Automatische

Einstellung der

RGB-Weißbalance

1. Das Grau-Mustersignal (50%)

zuführen (XGA, 60 Hz:PG-M20X/

SVGA,60 Hz:PG-M20S).

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: DLP

Posten: R1-GAIN (Rot)

B1-GAIN (Blau)

1. R-1 GAIN und B1-GAIN so

einstellen, daß der x-Wert 266±3

und der y-Wert 320±3 beträgt.

12 Automatische

Einstellung der

SRGB-

Weißbalance

1. Das Grau-Mustersignal (50%)

zuführen (XGA, 60 Hz:PG-M20X/

SVGA,60 Hz:PG-M20S).

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: DLP

Posten: S-R1-GAIN (Rot)

S-G1-GAIN (Grün)

S-B1-GAIN (Blau)

1. Den Wert S-R1-GAIN auf 34

einstellen.

2. S-G1-1 GAIN und S-B1-GAIN so

einstellen, daß der x-Wert 310±3

und der y-Wert 335±3 beträgt.

PG-M20S

PG-M20X

13 Automatische

Einstellung der

Video-

Weißbalance

1. Das Grau-Mustersignal (50%)

zuführen (NTSC, Burst-Signal).

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: DLP

Posten: V-R1-GAIN (Rot)

V-B1-GAIN (Blau)

Nr. Einstellposten Einstellbedingungen Einstellverfahren

1. V-G1-1 GAIN und V-B1-GAIN so

einstellen, daß der x-Wert 265±3

und der y-Wert 298±3 beträgt.

14 Automatische

Einstellung der

DTV-Weißbalance

1. Das Grau-Mustersignal (50%)

zuführen (480I,

Farbdifferenzsignal).

2. Die nachfolgende Gruppe bzw.

die Position wählen.

Gruppe: DLP

Posten: C-R1-GAIN

C-B1-GAIN

1. C-R1-GAIN und C-B1-GAIN so

einstellen, daß der x-Wert 263±3

und der y-Wert 295±3 beträgt.

15 Einstellung der

DLP-Spannung

(für Referenz)

1. Den Spannungsbereich der DLP-

Beschreibung lesen.

2. Den Schalter gemäß dem

abgelesenen Bereich einstellen

(auf der Formatierungsplatine).

1. Die Einstellung durchführen, wenn

der DLP-Chip ausgewechselt oder

die Chip-/Formatiererkombination

verändert wurde.

2.Reihe: BCDE

Einstellwert: 1234

16 Bestätigung und

Neueinstellung

der Weißbalance

1. Die Einstellbedingungen für jeden

einzelnen Posten sind wie folgt:

Für RGB-Eingang auf Posten 13-

1 Bezug nehmen.

Für SRGB-Eingang auf Posten

13-2 Bezug nehmen.

Für Videoeingang auf Posten 13-3

Bezug nehmen

Für DVT-Eingang auf Posten 13-1

Bezug nehmen.

Sicherstellen, daß keine Abweichung

in der Weißbalance auftritt (verglichen

mit der Überwachungseinrichtung).

Für die Neueinstellung in der

folgenden Reihenfolge vorgehen:

RGB-Eingang, Videoeingang und

DTV-Eingang.

17 Bestätigung der

farbbezogenen

Operation

1. Das Farbbildsignal empfangen. 1. L1 im Prozeßmodus empfangen.

Die Leistung von Farbe und

Tönung überprüfen.

18 Bestätigung der

farbbezogenen

Operation

1. Das Monoskop-Mustersignal

empfangen. 1. L2 im Prozeßmodus empfangen.

Das Bild, die Bildhelligkeit und die

Bildschärfe überprüfen.

19 Bestätigung von

RGB 1. Das RGB-Signal empfangen. 1. L4 im Prozeßmodus anwählen.

Folgendes überprüfen: Bild,

Bildhelligkeit, Rot, Blau, Takt,

Phase, H-POS und V-POS.

20 Bestätigung des

Off-Timer-

Betriebs

1. OFF im Prozeßmodus anwählen.

Sicherstellen, daß der Off-Timer

mit einer 5minütigen Anzeige

beginnt, 1 Minute für 1 Sekunde

zählt und dann ausschaltet,

nachdem die Minute “0” angezeigt

wird.

21 Bestätigung des

Thermistorbetriebs 1. Den Thermistor mit einem

Haarfön erwärmen. 1. Sicherstellen, daß die Temperatur

angezeigt wird.

PG-M20S

PG-M20X

Automatischer

Synchronisationsbetrieb

1. Das Phasen-Prüfmustersignal

empfangen.

Nr. Einstellposten Einstellbedingungen Einstellverfahren

1. Sicherstellen, daß Takt, Phase, H-

POS und V-POS automatisch im

VGA/S-VGA/XGA-Modus

eingestellt werden können.

23 Den USB-Betrieb

bestätigen. Das Gerät via ein USB-Kabel an

einen PVC anschließen. Die Fernbedienung benutzen und

sicherstellen, daß der Zuführungs-

und Rückführungsbetrieb am

Computermonitor effektvoll ist.

Werkseinstellungen

1. Die folgenden Einstellungen

durchführen.

Prozeß- Fernbedienung-

Einstellung seinstellungen

"Werkseinstellung 4"

Einstellung der PC-Platine

1. Initialisierung des EEPROM

1) SW2001 drücken, um in den Prozeßmodus einzutreten.

2) S1 auf dem SSS-Menü ausführen. (Wenn S1 auf dem SSS-Menü ausgeführt wird, wird der Inhalt des EEPROMs

initialisiert.)

3) Sicherstellen, daß es sich bei der Version des Programms (Ver. XXX) um die neueste Version handelt.

2. Einstellposten

1) Einstellung für RGB-Betriebs-/Verstärkungsspannung

(1) Das Fenster-Mustersignal zuführen, welches 100%- und 0%-Signale aufweist.

(2) AUTO unter den Analog-/Digitalposten im Prozeßmodus anwählen und die Einstellung durchführen.

PG-M20S

PG-M20X

Gruppe Untergruppe Gegenstand

APC-Bild einstellen A/D R-BRIGHT

G-BRIGHT

B-BRIGHT

R-D

B-D

G-D

AD-AUTO

DLP-Bild einstellen DLP R1-BLK

R1-GAIN

G1-BLK

G1-GAIN

B1-GAIN

CW-INDEX

S-R1-GAIN

S-G1-GAIN

S-B1-GAIN

C-R1-GAIN

C-B1-GAIN

V-R1-GAIN

V-B1-GAIN

VIDEO-Bild einstellen VIDEO PICTURE

BRIGHT

TINT

N-COLOR

P-COLOR

S-COLOR

STAT-GAIN

VIDEO-AUTO

Komponenten-Bild einstellen DTV G-BRIGHT

CB-OFFSET

CR-OFFSET

COMPO-AUTO

Prozessmodus LINE L1

OFF

TEMP OFF

SENSOR CHECK

ANFANGSEINSTELLUNG SSS TIME

» Einstellmodus-Prozessmenü

» Eingabe des Einstellprozeßmodus

Es gibt die folgenden zwei Verfahren.

» Den SW2001 an der Tastenplatinen-Einheit drücken.

» Die folgenden Tasten in der vorgeschriebenen Reihenfolge betätigen.

AV MUTE→AV MUTE→Einstell oben→Einstell unten→ENTER→ENTER→MENU

PG-M20S

PG-M20X

Gruppe Untergruppe Gegenstand

Beispielmuster PATTERN RGB

RGB(50)

CROSS

FOCUS

SETP

COLOR

CHR

CVIC einstellen CVIC-PROGRSSIVE MODE

MDSW

PTGSW

C-TESTSW

C-ILG-LY

C-MOD-LY

C-VE-LV

CVIC-ENHANCE-VIDE ENH-PLUS

ENH-MINUS

DFC

CVIC-ENHANCE-HTTV ENH-PLUS

ENH-MINUS

DFC

CVIC-ENHANCE-RGB MODE

ENH-GAIN

ENH-PLUS

CVIC-SCREEN CUBIC-RGB

CUBIC-VEDEO

CVIC-NR YNR-LEVEL

YNR-K

YNR-FSEL

CNR-LEVEL

CNR-K

CNR-FSEL

CNR-FILSW

CVIC-PTG TBL-NO

TESTSW

ENABLE

MV-F

VDDTP

CVIC-CMS RED

YELLOW

GREEN

CYAN

BLUE

MAGENTA

CVIC-DEGAMMA TABLE

Versionsprüfung usw. SPECIAL IPL

IPL2

E2PROM

ADR RD/WR

USB MODE

PG-M20S

PG-M20X

Wie eine seiriennummer zu schreiben.

Die neueste Version dieses Programms (USB-Seriell-Treiberprogramm) von der Homepage des SHARPs

“http://172.24.145.13/tcg-qrc/prj/prj-e.asp” herunterladen.

Name:USB to Sirial Driver program.

SCHRITT 1

Einrichtung für seriellen USB-Treiber

(Siehe Datei "Treiberinstallationsverfahren und Rat.doc")

SCHRITT 2

Den Einstellprozeßmodus anrufen, und die Untergruppe “SPECIAL” sowie den Einstellposten

“USB-MODE” wählen. Den USB MODE-Wert von 0 auf 1 umstellen.

(Für diese Änderung wird Eingabe eines 232C-Befehls möglich.)

SCHRITT 3

Das USB-Kabel zwischen PC und Projektor anschließen.

SCHRITT 4

Das Parameter "TeraTerm" ausführen.

(Die Konfigurationsdatei dient zur Verwendung des beiliegenden Teraterm.ini.)

SCHRITT 5

Mit Hilfe der beiliegenden Macro-Datei (serial_write.ttl) beschreiben.

Eine Seriennummer ist in dieser Macro-Datei beschrieben. Diese Nummer eingeben.

SCHRITT 6

Die Meldung erscheint wie folgt.

SCHRITT 7

Bitte TeraTerm beenden.

SCHRITT 8

Den Wert von 1 auf 0 für USB MODE in Special (Werksmodus) umstellen.

(Für diese Änderung wird Eingabe eines 232C-Befehls unmöglich.)

Nach der Installation für USB zum 232C Treiber soll 232C mit SW2002 am Tasten-PC gewählt werden.

Das USB-Kabel anschließen, und COM2 für TeraTerm ändern (Seriell-Anschluss einrichten), und dann die "EN-

TER"-Taste drücken und bestätigen, dass die Meldung "ERR" zurückkommt.

Wenn "ERR" zurückkommt, ist die Einstellung korrekt. Wenn "ERR" nicht zurückkommt, ist COM2 falsch.

Bitte nacheinander COM3 und COM4 probieren, und den richtigen COM-Anschluss finden.

PG-M20S

PG-M20X

FEHLERSUCHTABELLE

Nein

Üerprüfen der grundlegenden

Funktionen

Nein

Ja Ja

Nein

Leuchtet die POWER LED auf,

oder blinkt sie in Rot bzw. Grün?

Funktioniert das Gerät durch den

Geräteschlüssel oder die

Einschalttaste auf der

Fernbedienung?

Dreht sich das Kühlgebläse und

leuchtet die Lampe?

Wird das Benutzermenü

angezeigt?

Funktioniert der RGB-Eingang

normal?

Funktioniert der DVI-Eingang

normal?

Funktioniert der

Komponenteneingang/DVI-Eingang

normal?

Funktioniert der Videoeingang

normal?

Ende

Zu “Überprüfen des Netzteils”

weitergehen.

Zu “Überprüfen des Sub-Microcomputers

und seiner zugehörigen Komponenten”

weitergehen.

Zu “Überprüfen der Lampenfunktion”

weitergehen.

Den Formatierungsschaltkreis und seine

zugehörigen Komponenten prüfen.

Den IC8013 (AD) überprüfen und zu

“Überprüfen des RGB-Eingangs” weitergehen.

Den IC8015 und seinen peripheren

Schaltkreis überprüfen.

Liegen Eingangssignale an den

Stiften (8), (17) und (23) von IC8013

vor?

Zu “Überprüfen des Videoeingangs”

weitergehen. Liegt am Emitter des

Q8002 ein Eingangssignal an?

Den IC8015 und seinen peripheren

Schaltkreis überprüfen.

Den IC3852 und seinen

peripheren Schaltkreis

überprüfen.

Den IC3852 und seinen

peripheren Schaltkreis

überprüfen.

PG-M20S

PG-M20X

PG-M20S

PG-M20X

PG-M20S

PG-M20X

PG-M20S

PG-M20X

PG-M20S

PG-M20X

PG-M20S

PG-M20X

PG-M20S

PG-M20X

PG-M20S

PG-M20X

» FORMATTER Unit

PG-M20S

PG-M20X

» PC I/F Unit-1/12

Nein

PCカードのチェック

Überprüfen der PC-Platine

Wird das Benutzermenü

angezeigt?

Die Bildschirmanzeige

überprüfen.

Den RGB-Eingang überprüfen.

Den Komponenteneingang

überprüfen.

Den Videoeingang überprüfen.

Den DVI-Digitaleingang

überprüfen.

Die PC-Karte überprüfen.

Ende

PG-M20S

PG-M20X

» PC I/F Unit-2/12

Nein

Überprüfen der Bildschirmanzeige

Wird das Benutzermenü

normalerweise durch die MENU-

Taste angezeigt?

Das Prozeßmenü eingeben und

PATTERN anwählen. Danach das

COLOR-Muster wählen.

Die Farbe der Bildschirmanzeige

normal?

Die STEP-Signalwahl durchführen.

Ist das STEP-Signal normal?

Ist das Signal mit dem STEP-

Signal kompatible (am TL106 bis

TL111 vorhanden).

Zu “Überprüfen von GA4 und

seine zugehörigen Komponenten”

weitergehen.

Die Bildschirmdaten ändern.

Die Bildschirmanzeige ist normal.

Das DLP-System im Prozeß-

Einstellmodus einstellen.

Die Bildschirmdaten andern.

Der IC8025 ist defekt.

PG-M20S

PG-M20X

» PC I/F Unit-3/12

Nein

Überprüfen des RGB-Eingangs

Das RGB-Signal (Synchronisationstyp-

Analogsignal) dem INPUT 1 zuführen.

INPUT 1 mit der Gerätetaste bzw.

mit der Fernbedienung anwählen.

Erscheint das Bild?

Ist das Bild gestört?

Erscheinen die drei Farben R, G

und B?

Den AUTOSYNC-Prozeß

ausführen.

Erscheinen die Bildumrisse

scharf?

Liegt eine Störung im Vertikal-

Streifenmuster vor?

Ende

Zu “Bestätigen des

Videoeingangs” weitergehen.

Zu “Überprüfen des

Synchronisationssignals”

weitergehen.

Zu “Überprüfen des RGB-

Signals” weitergehen.

IC8013, IC8025 oder seine

zugehörigen Komponenten sind

defekt.

PG-M20S

PG-M20X

» PC I/F Unit-4/12

PG-M20S

PG-M20X

» PC I/F Unit-5/12

PG-M20S

PG-M20X

» PC I/F Unit-6/12

Nein Nein

Nein

Ja Ja

Überprüfen der R-, G- und B-

Signale

Ist der Signaltyp auf RGB

eingestellt?

Den Signaltyp auf RGB einstellen.

Den Prozeßmodus einstellen.

R, G und B einzeln auf dem

Mustermenü anwählen.

Zu “Überprüfen von GA4 und

seine zugehörigen Komponenten”

weitergehen.

Für das Überprüfen des

Eingangssignals den Signalgeber

auf das Abstufungssignal

einstellen.

TL8169, TL8170 und TL8180 mit

dem Oszilloskop überprüfen.

(MSB-Bit nach der A/D-

Wandlung)

Liegen bestimmte Signale an

TL8169, TL8170 und TL8180 an?

Der IC8025 und seine

zugehörigen Komponenten sind

defekt.

Werden C8062, C8070 und

C8078 Signale zugeführt?

Der IC8013 und seine

zugehörigen Komponenten sind

defekt.

Zu “Bestätigen des

Videoeingangs”

weitergehen.

PG-M20S

PG-M20X

» PC I/F Unit-7/12

PG-M20S

PG-M20X

» PC I/F Unit-8/12

Nein

Überprüfen des

Komponenteneingangs

(außer 480I)

Das Komponentensignal dem

INPUT 1 zuführen.

INPUT 1 mit der Gerätetaste bzw.

mit der Fernbedienung anwählen.

Erscheint das Bild? Zu “Überprüfen des SOG-

Schaltkreises” weitergehen.

Ist die Farbe normal?

Ist der Signaltyp auf die

Komponente eingestellt?

Den Signaltyp auf die

Komponente einstellen.

Die Prozeß-Einstellung

ausführen.

Erscheinen die Bildumrisse

scharf?

Das Komponentensignal ist

normal. Ende.

IC8013 oder IC8025 ist defekt.

PG-M20S

PG-M20X

» PC I/F Unit-9/12

Nein

Überprüfen des SOG-Schaltkreises

Den Stift (2) von IC8365 mit dem

Oszilloskop überprüfen.

Wird das Farbbildsignal mit dem

korrekten Timing reproduziert?

C8070 mit dem Oszilloskop

überprüfen.

Liegt ein Y-Signal (einschl.

Synchronisationssignal) vor?

Der SOG-Synchronsignal-

Trennschaltkreis (Eingangsplatine)

ist defekt.

Der SOG-Schaltkreis ist normal.

Ende.

Zu “Bestätigung der

Eingangssignal-Einstellung”

weitergehen.

PG-M20S

PG-M20X

» PC I/F Unit-10/12

PG-M20S

PG-M20X

» PC I/F Unit-11/12

PG-M20S

PG-M20X

» PC I/F Unit-12/12

Nein

Überprüfen des DVI-Digitaleingangs

Das DVI-Digitalsignal dem INPUT 1

zuführen.

INPUT 1 als Eingang wählen.

Erscheint das Bild?

Treten irgendwelche Bildstörungen

auf?

Ist die Farbe normal? Der IC8298 und seine zugehörigen

Komponenten sind defekt.

Der DVI-Eingang ist normal.

Den Stift (13) von IC8363 auf Vertikal-

Synchronsignale und den Stift (3) des

IC8363 auf Horizontal-

Synchronsignale überprüfen.

Sind die Synchronisationssignale

normal?

Überprüfen, ob am R8685 ein

Taktsignal vorherrscht.

Ist das Taktsignal normal?

Der IC8025 und seine

zugehörigen Komponenten sind

defekt.

Der IC8298 und seine

zugehörigen Komponenten sind

defekt.

87109654321

PG-M20S

PG-M20X

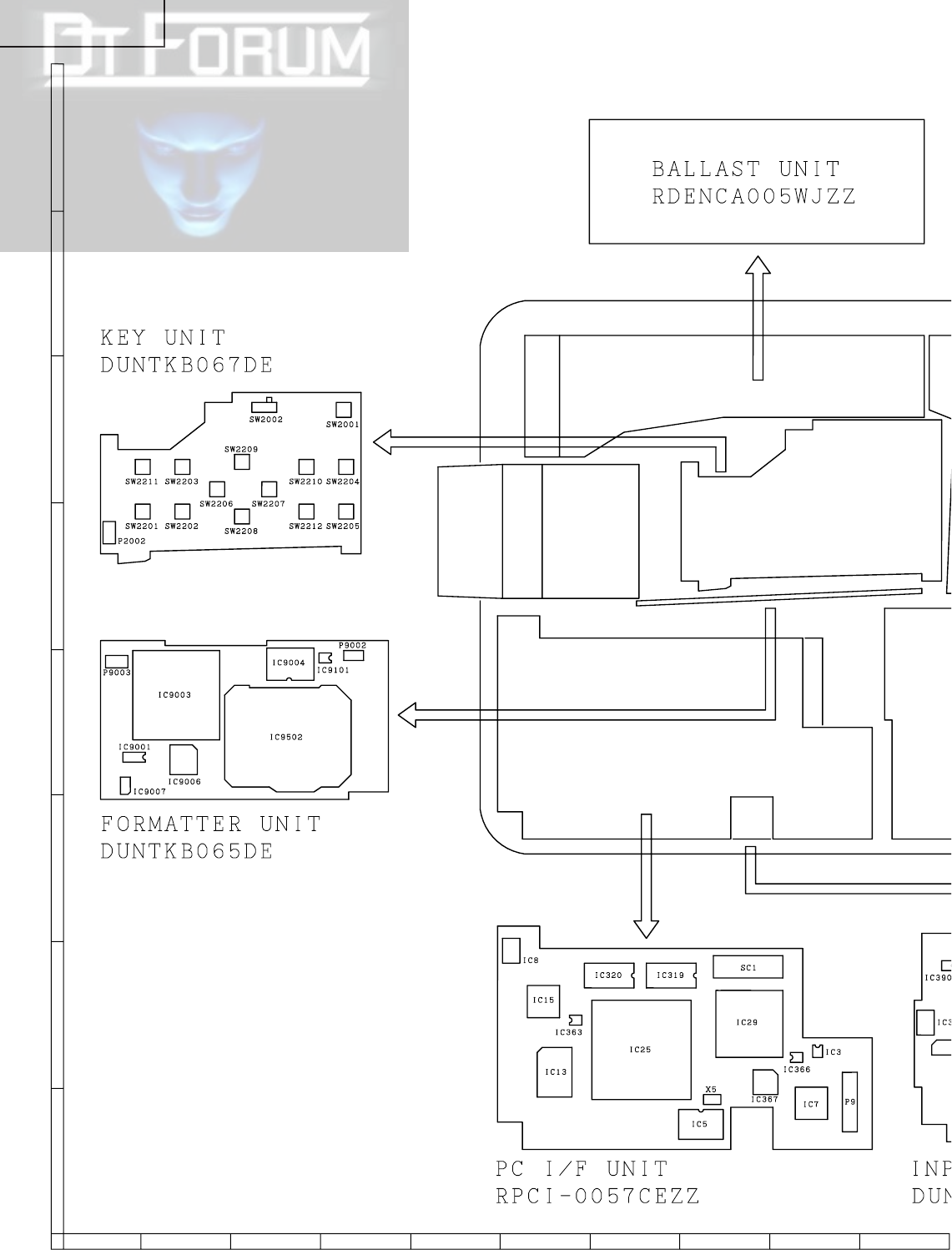

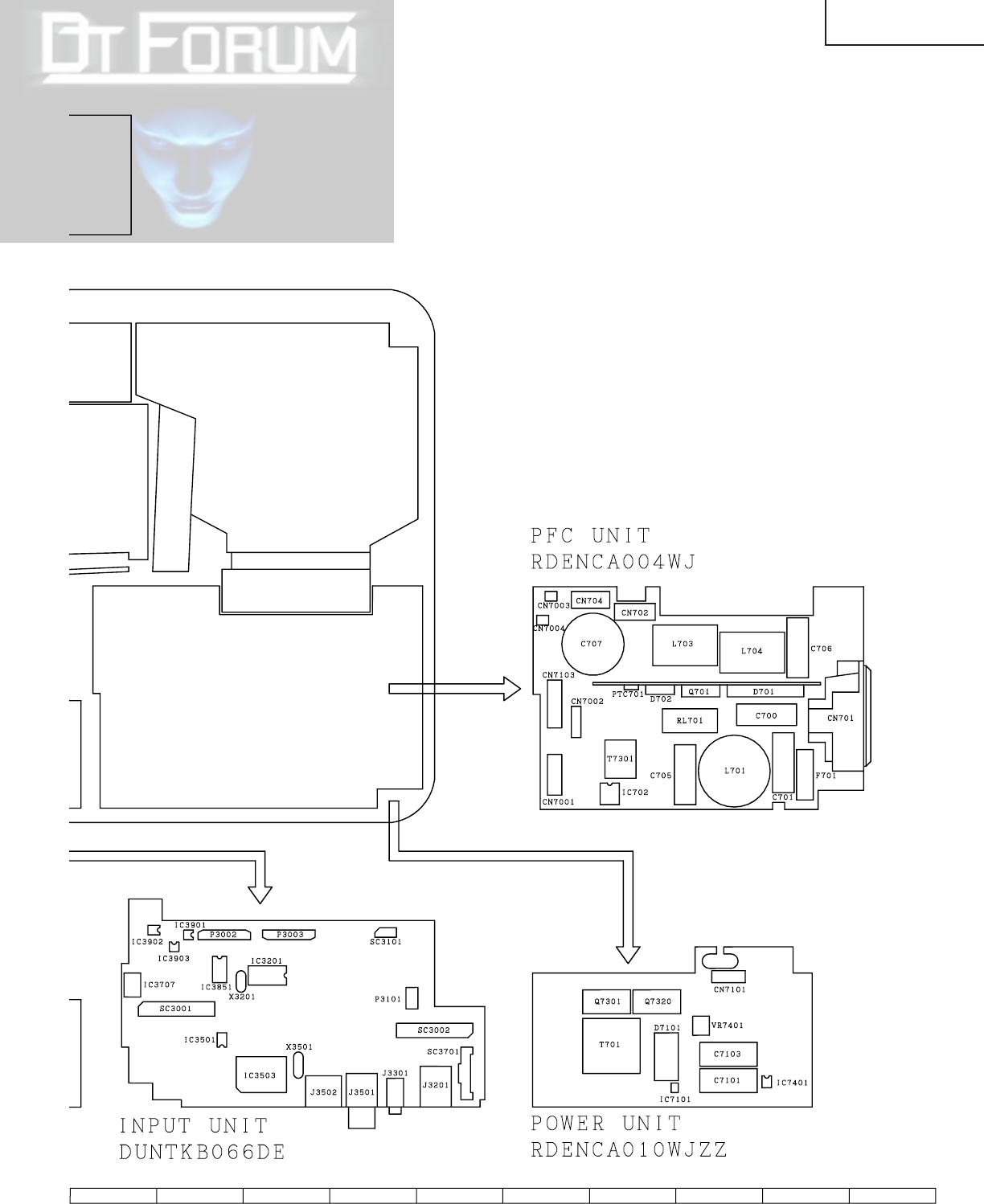

CHASSIS LAYOUT/CHASSIS-ANORDNUNG

1716 1918151413121110

PG-M20S

PG-M20X

87109654321

PG-M20S

PG-M20X

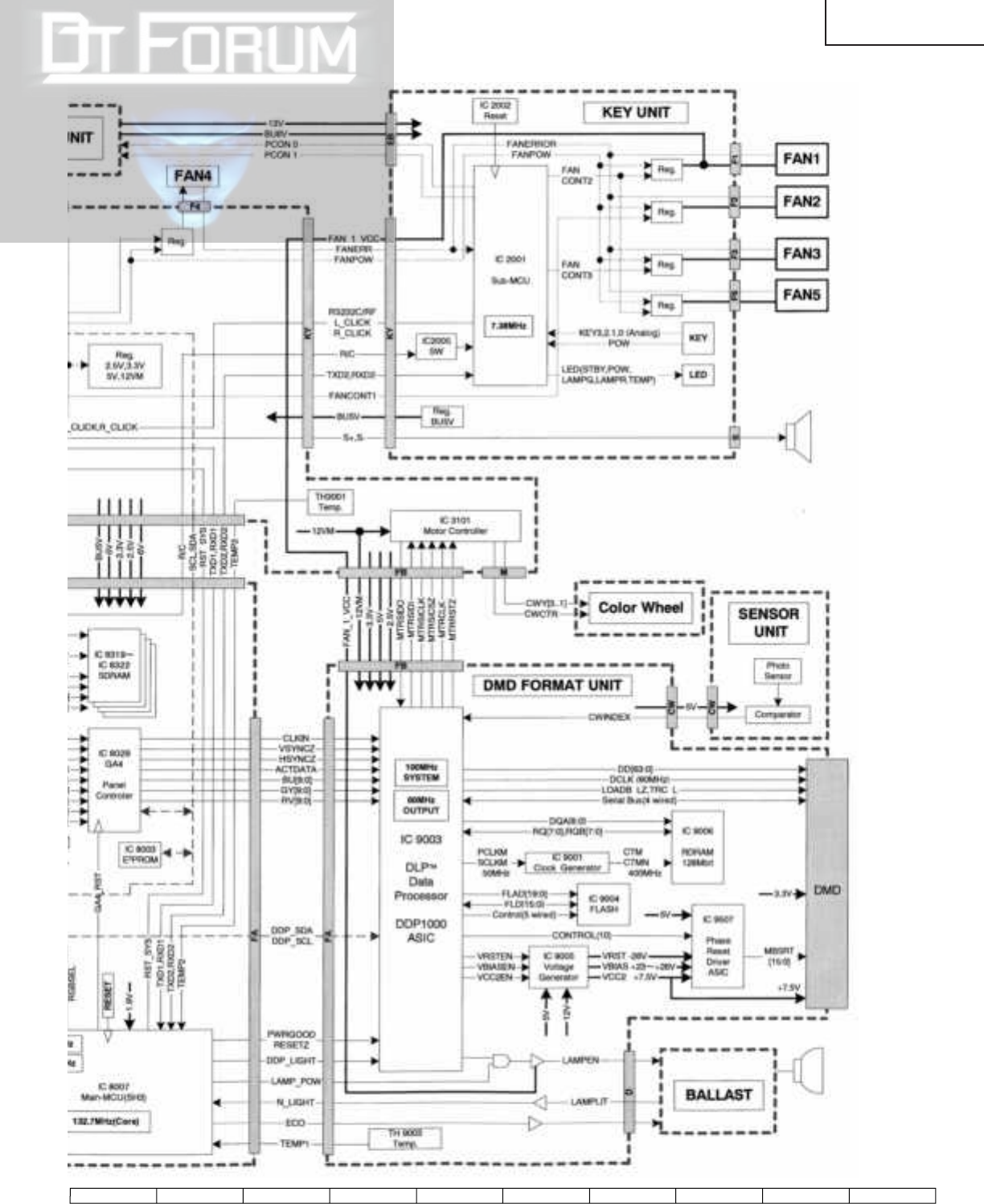

BLOCK DIAGRAM/BLOCKCHALTBILD

1716 1918151413121110

PG-M20S

PG-M20X

87109654321

PG-M20S

PG-M20X

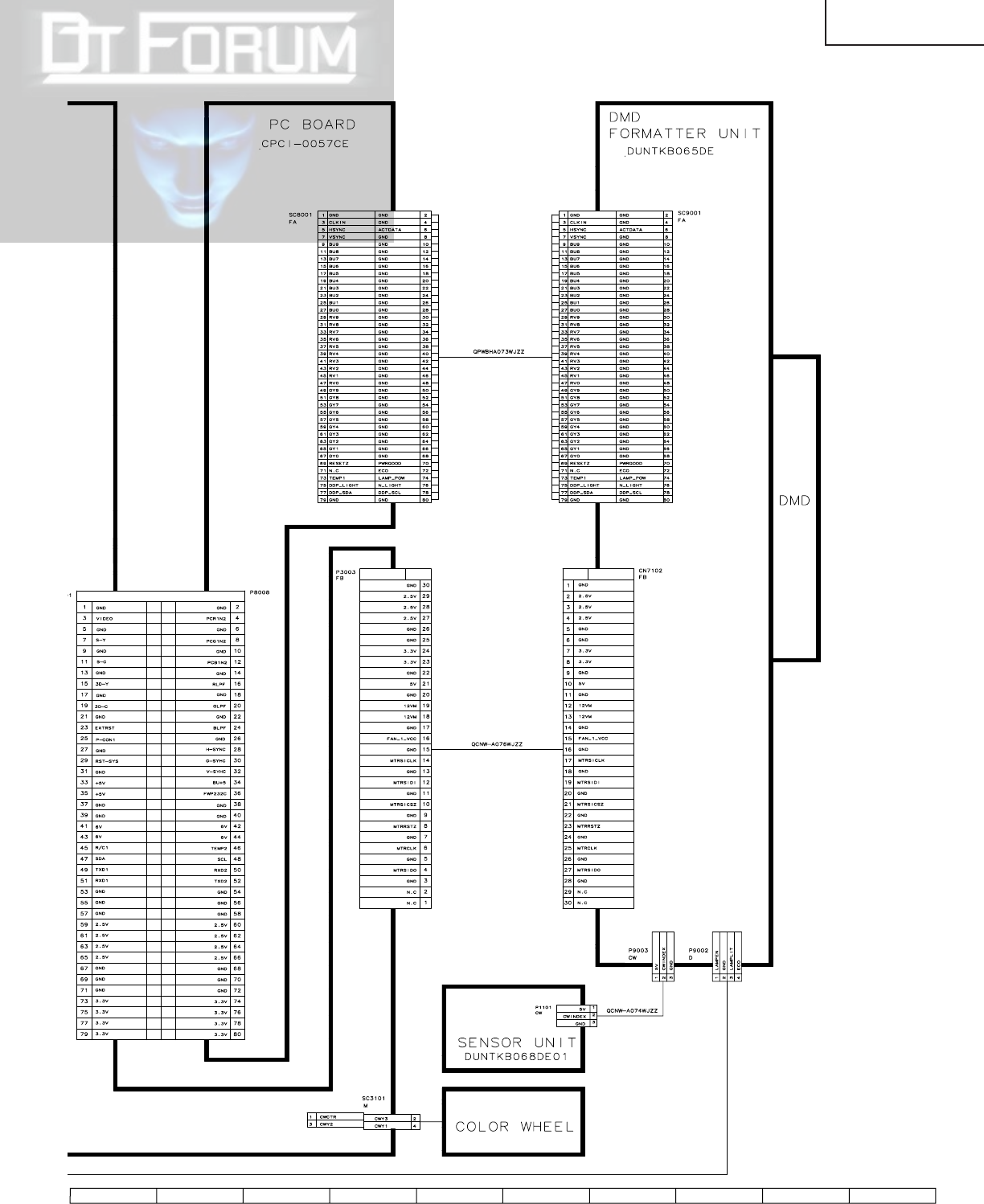

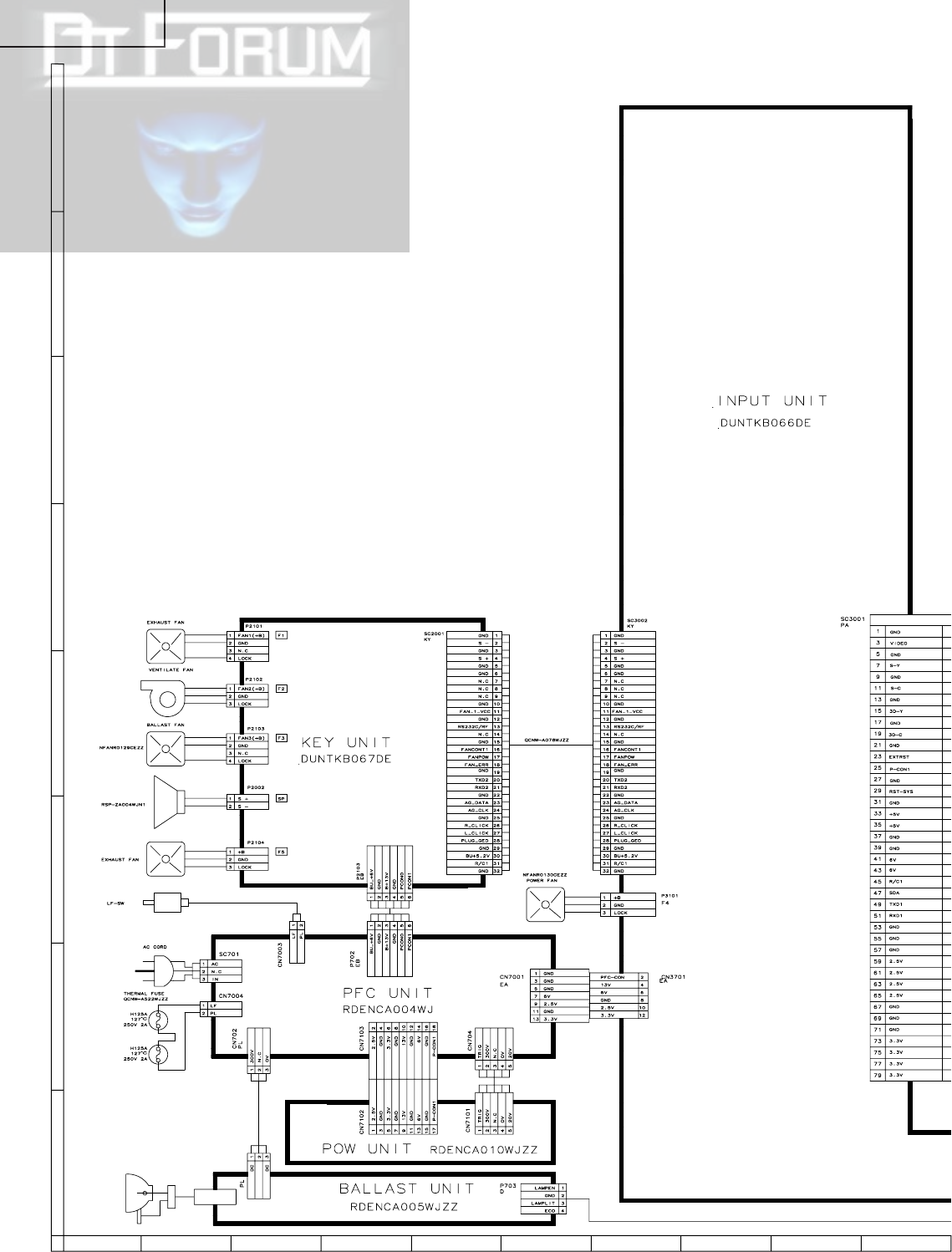

OVERALL WIRING DIAGRAM/GESAMTSCHALTPLAN

1716 1918151413121110

PG-M20S

PG-M20X

100

PG-M20S

PG-M20X

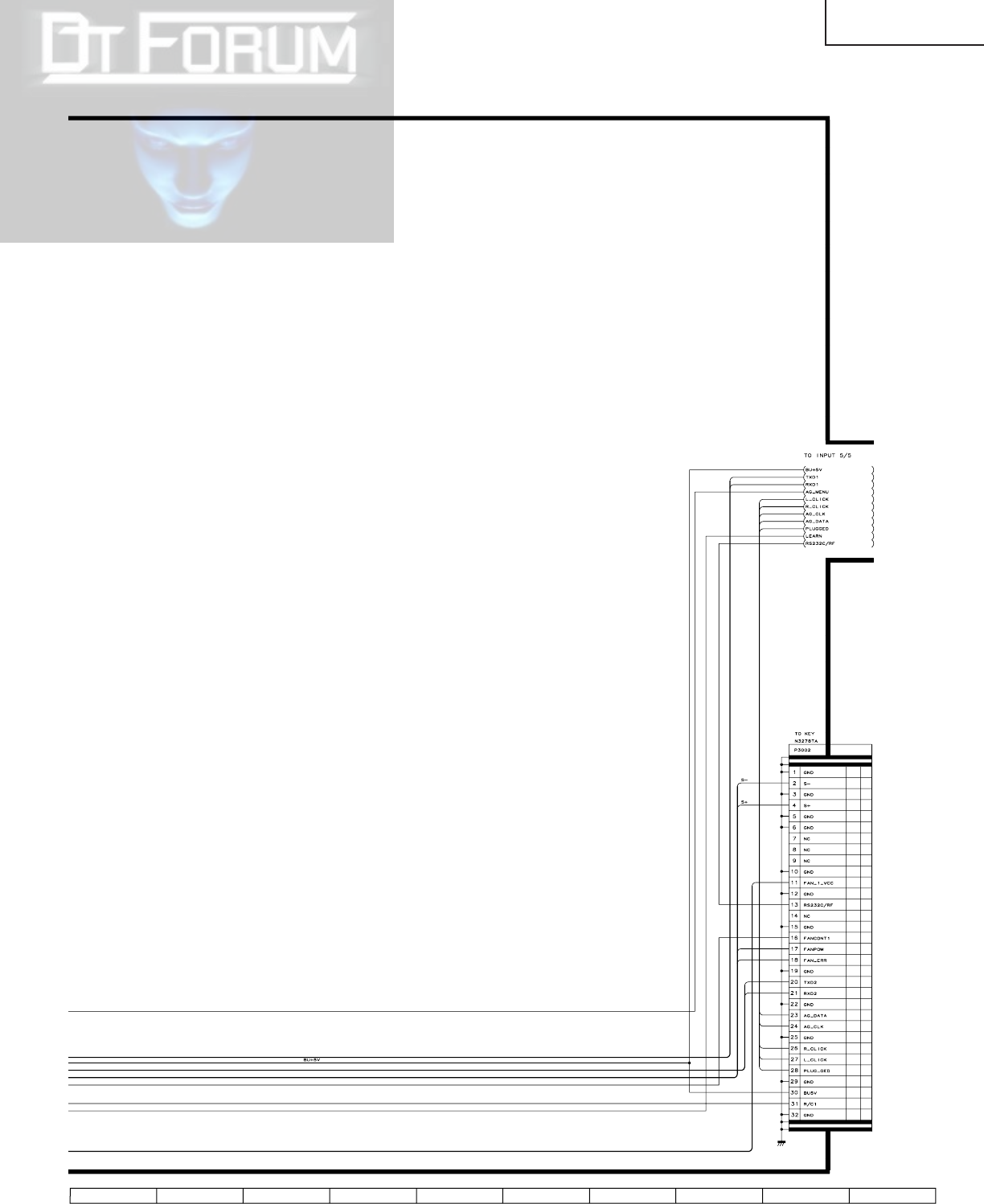

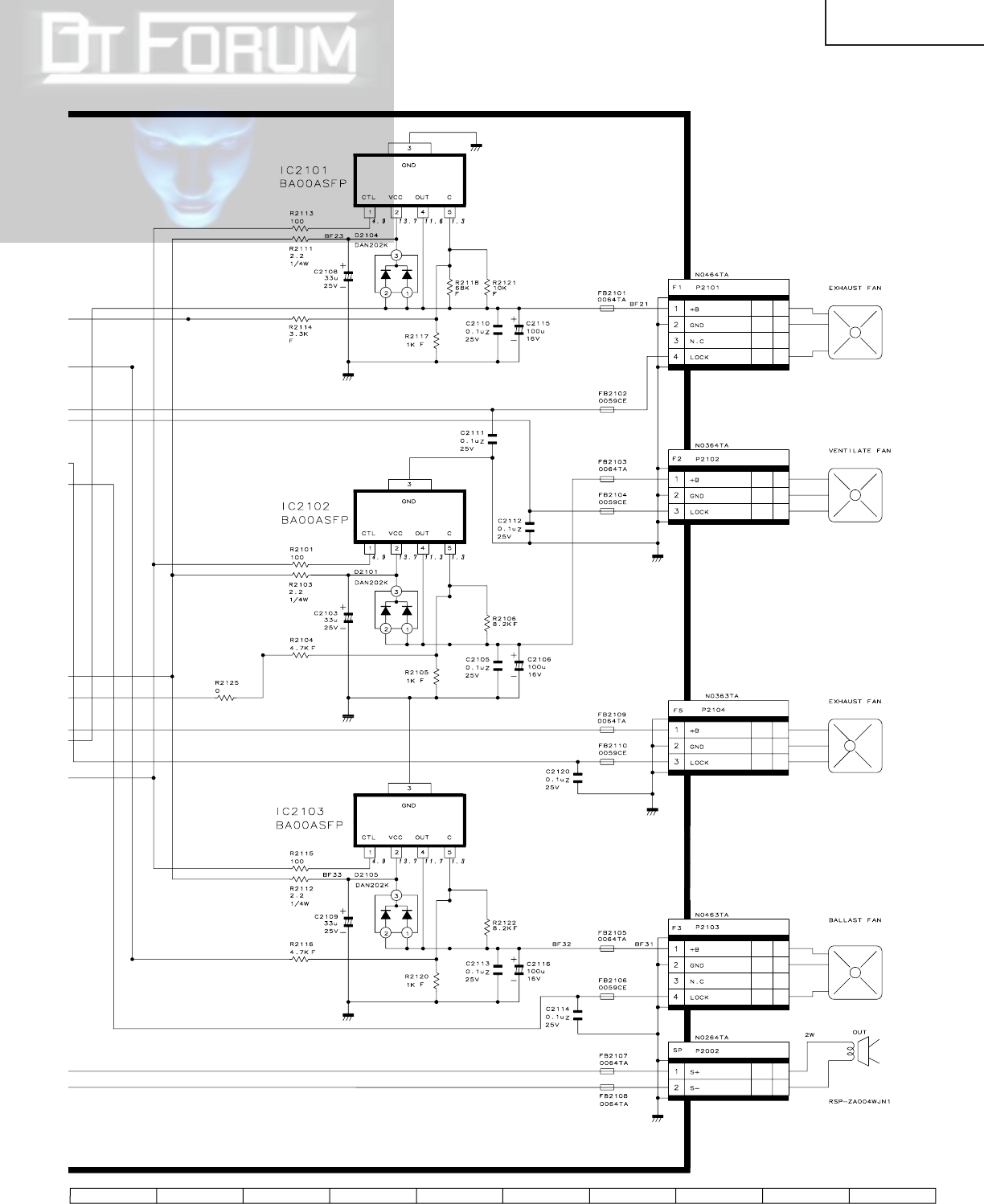

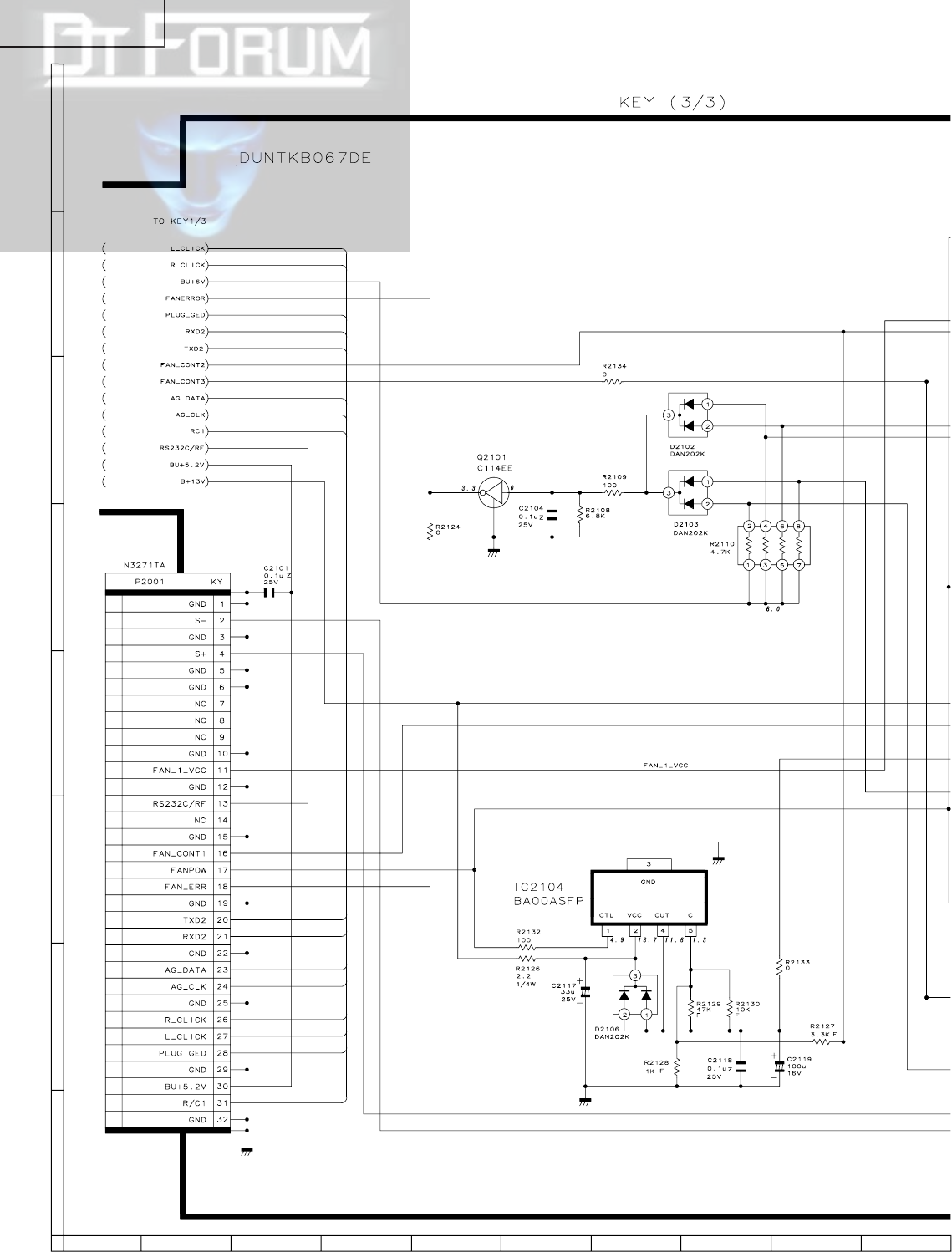

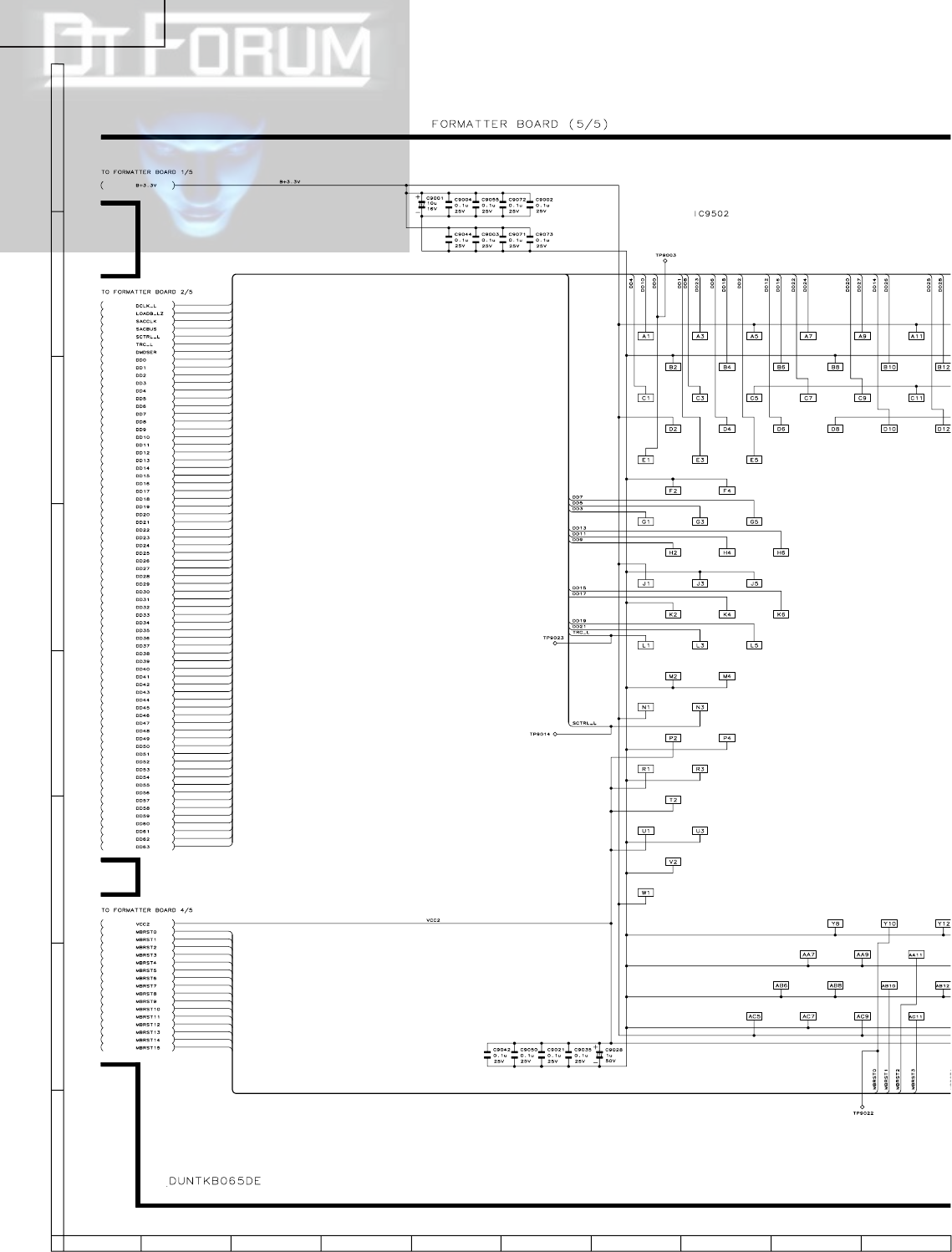

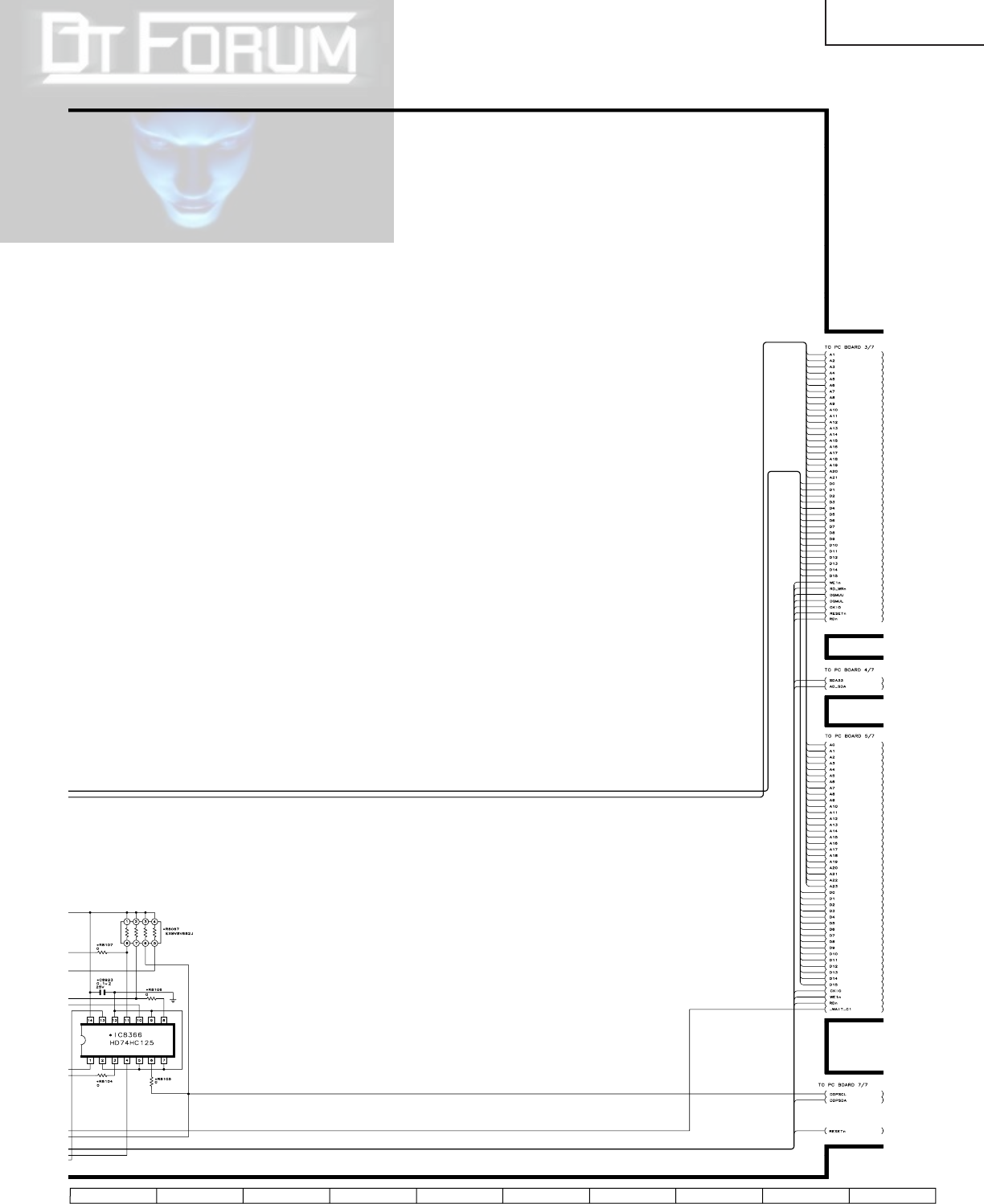

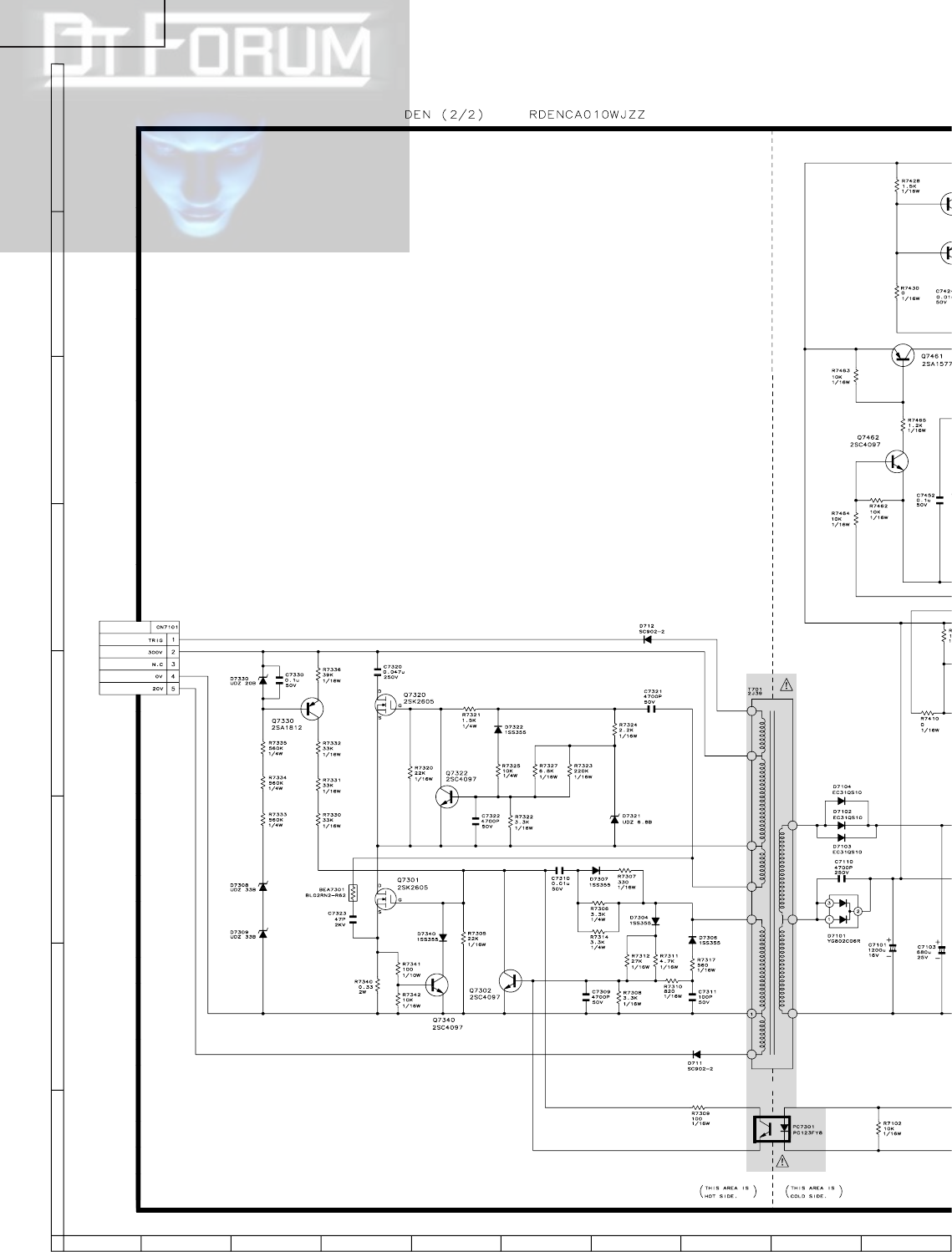

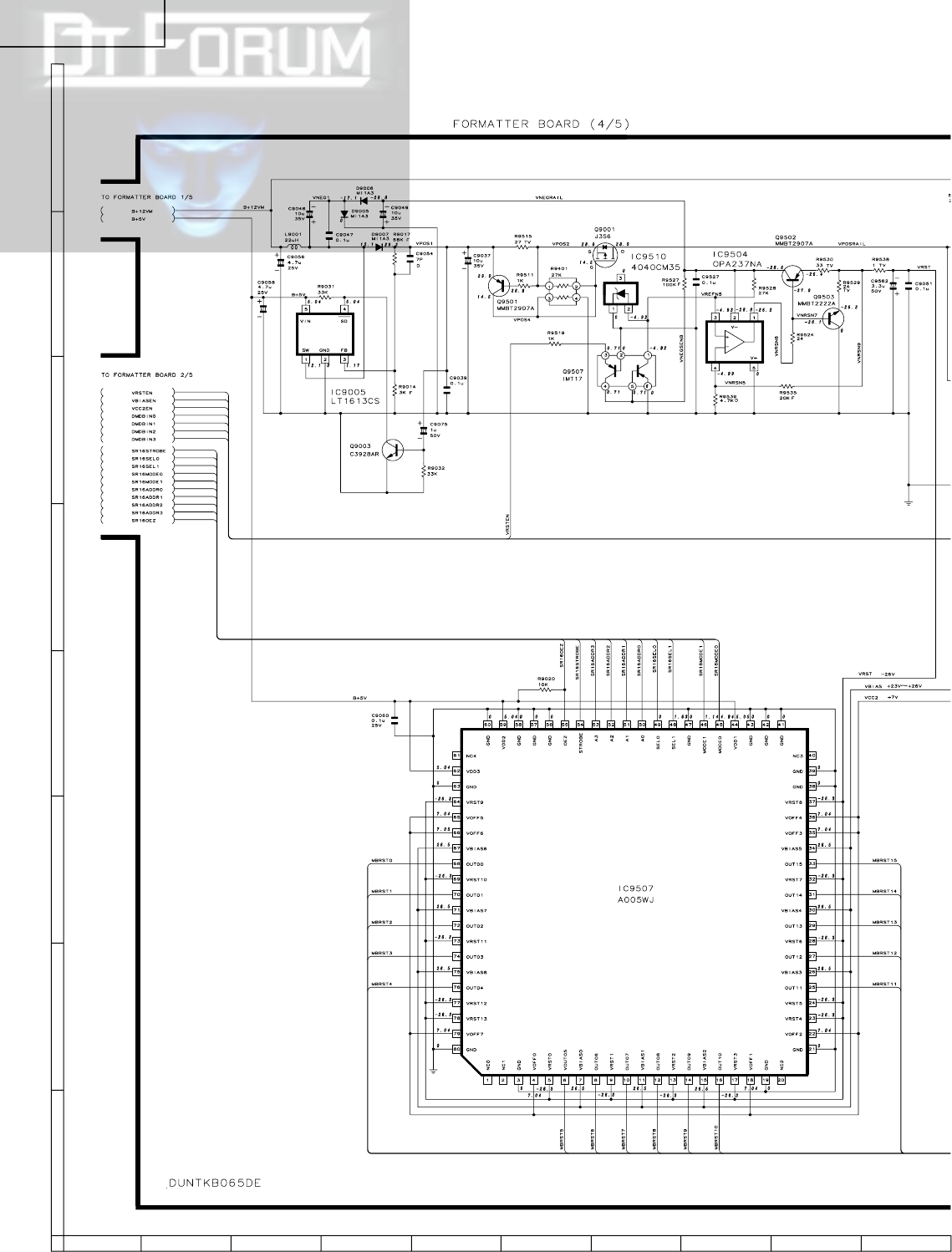

DESCRIPTION OF SCHEMATIC

DIAGRAM

VOLTAGE MEASUREMENT CONDITION:

1. Voltages at test points are measured at the supply

voltage of AC 230V. Signals are fed by a colour bar

signal generator for servicing purpose and the above

voltages are measured with a 20k ohm/V tester.

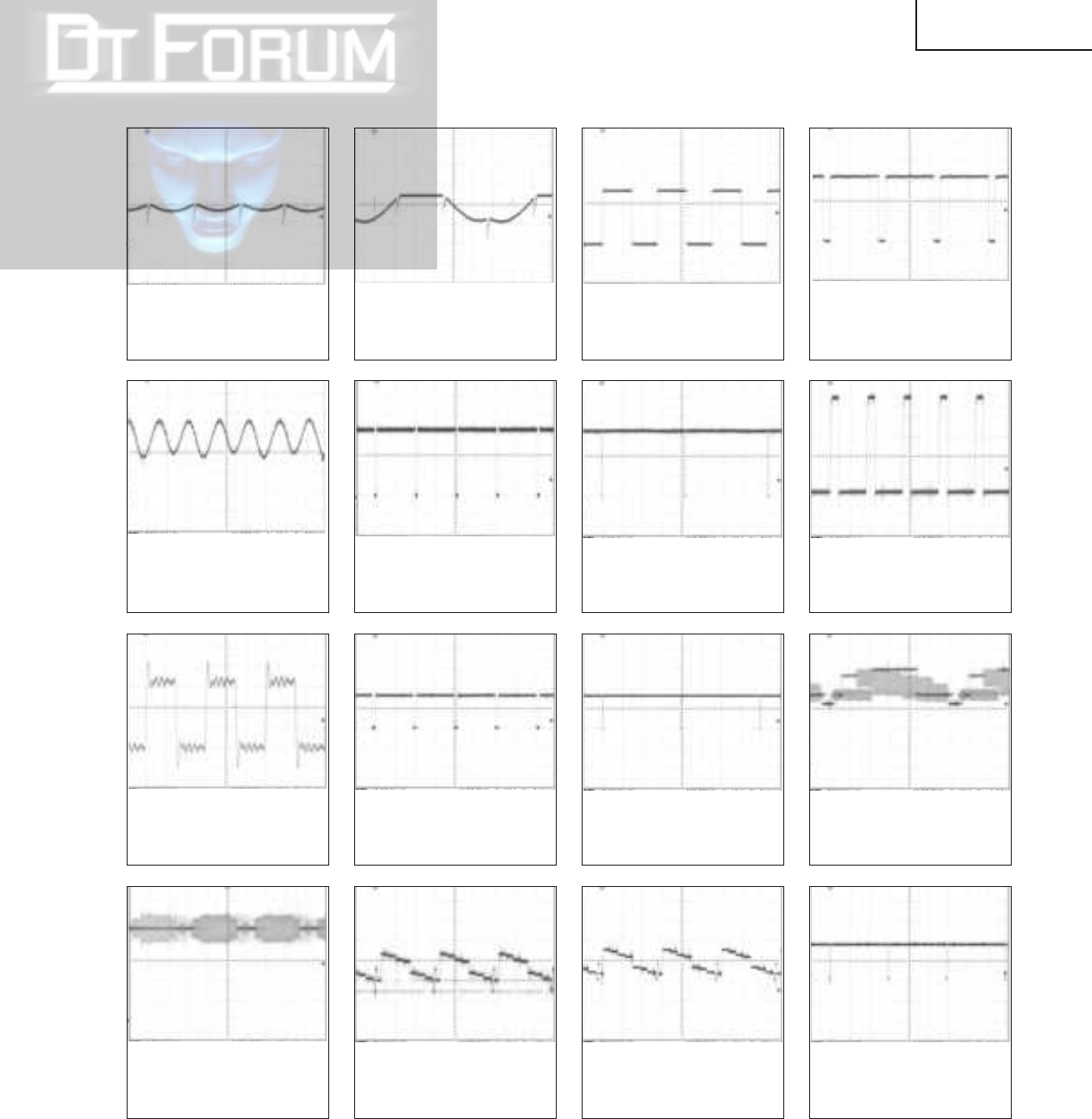

WAVEFORM MEASUREMENT CONDI-

TION:

1. Waveforms at test points are observed at the supply

voltage of AC 230V. Signals are fed by a colour bar

signal generator for servicing purpose.

INDICATION OF RESISTOR & CAPACI-

TOR:

RESISTOR

1. The unit of resistance “Ω” is omitted.

(K=kΩ=1000 Ω, M=MΩ).

2. All resistors are ± 5%, unless otherwise noted.

(J= ± 5%, F= ± 1%, D= ± 0.5%)

3. All resistors are 1/16W, unless otherwise noted.

4. All resistors are Carbon type, unless otherwise

noted.

C : Solid W : Cement

S : Oxide Film T : Special

N : Metal Coating

CAPACITOR

1. All capacitors are µF, unless otherwise noted.

(P=pF=µµF).

2. All capacitors are 50V, unless otherwise noted.

3. All capacitors are Ceramic type, unless otherwise

noted.

(ML): Mylar (TA): Tantalum

(PF): Polypro Film (ST): Styrol

BESCHREIBUNG DES

SCHEMATISCHEN SCHALTPLANS

SPANNUNGSMESSUNGEN:

1. Spannungen an den Prüfpunkten werden bei einer

Netzspannung von 230V gemessen, Signale werden

für die Wartung mit einem Farbbalken-Signal

generator zugeführt, und Spannungen werden mit

einem Meßinstrument (20 kΩ/V) ermittelt.

SIGNALFORMMESSUNGEN:

1. Die Wellenformen an den Testpunkten werden bei

einer Netzspannung von 230V verfolgt. Signale

werden für die Wartung mit einem Farbbalken-Signal

generator zugeführt.

BEZEICHNUNG DES WIDERSTANDS UND

KONDENSATORS:

WIDERSTAND

1. Die Widerstandseinheit “Ω” wird weggelassen.

(K=kΩ=1000 Ω, M=MΩ).

2. Alle Widerstände haben ± 5%, sofern nicht anders

angegeben.

(J= ± 5%, F= ± 1%, D= ± 0.5%)

3. Alle Widerstände haben 1/16W, sofern nicht anders

angegeben.

4. Alle Widerstände sind Kohletyp, sofern nicht anders

angegeben.

C : Fest W : Zement

S : Oxidefilm T : Spezial

N : Metallüberzug

KONDENSATOR

1. Die Kapazitätseinheit ist µF, sofern nicht anders

angegeben.

(P=pF=µµF).

2. Alle Kondensatoren haben 50V, sofern nicht anders

angegeben.

3. Alle Kondensatoren sind Keramiktyp, sofern nicht

anders angegeben.

(ML): Mylar (TA): Tantal

(PF): Polyprofilm (ST): Styrol

CAUTION:

This circuit diagram is original one, therefore there may be a

slight difference from yours.

SAFETY NOTES:

1. DISCONNECT THE AC PLUG FROM THE AC

OUTLET BEFORE REPLACEING PARTS.

2. SEMICONDUCTOR HEAT SINKS SHOULD BE

REGARDED AS POTENTIAL SHOCK HAZARDS

WHEN THE CHASSIS IS OPERATING.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH “

( ) ARE

IMPORTANT FOR MAINTAINING THE SAFETY OF

THE SET. BE SURE TO REPLACE THESE PARTS

WITH SPECIFIED ONES FOR MAINTAINING THE

SAFETY AND PERFORMANCE OF THE SET.

ACHTUNG:

bei diesem Schaltplan handelt es sich um den ursprünglichen.

Esönnen daher geringfügige Unterschiede zu dem lhrem bestehen.

SICHERHEITSANMERKUNGEN:

1. VOR DEM AUSWECHSELN VON TEILEN MUSS

UNBEDINGT NETZSTECKER AUS DER

NETZSTECKDOSE GEZOGEN WERDEN.

2. DIE WARMEABLEITER DER HALBLEITER SOLLTEN

BEIM BETRIEB DES CHASSIS ALS MÖGLICHE

URSACHEN VON GEFÄHRLICHEN ELEKTRISCHEN

SCHLÄGEN BETRACHTET WERDEN.

WICHTIGE SICHERHEITSANMERKUNGEN:

MIT “

( )BEZEICHNETEN TEILE SIND

BESONDERS WICHTIG FÜR DIE AUFRECHTERHALTUNG

DER SICHERHEIT . BEIM WECHDIESER TEILE SOLLTEN

DIE VORGESCHRIEBENEN TEILE IMMER VERWENDET

WERDEN, UM SOWOHL DIE SICHERHEIT ALS AUCH DIE

LEISTUNG DES GERÄTES AUFRECHTZUERHALTEN.

101

PG-M20S

PG-M20X

WAVEFORMS/WELLENFORMEN

1SC3101 1-pin

(INPUT CWCTR)

H : 200µ sec/div

V : 6.90V/div

2SC3101 3-pin

(INPUT CWY2)

H : 200µ sec/div

V : 6.90V/div

3P9002 1-pin

(FORMAT LAMPEN)

H : 2m sec/div

V : 1.64V/div

4P9003 2-pin

(FORMAT CWINDEX)

H : 2m sec/div

V : 1.64V/div

5SC9001 3-pin

(FORMAT CLKIN)

H : 400µ sec/div

V : 870mV/div

6SC9001 5-pin

(FORMAT HSYNC)

H : 10µ sec/div

V : 880mV/div

7SC9001 7-pin

(FORMAT VSYNC)

H : 4m sec/div

V : 880mV/div

8SC9002 17-pin

(FORMAT MTRSICLK)

H : 2µ sec/div

V : 1.44V/div

9SC9002 25-pin

(FORMAT MTRCLK)

H : 40m sec/div

V : 1.44V/div

0IC8363 7-pin

(PC-BOARD PCH)

H : 10µ sec/div

V : 840mV/div

qIC8363 1-pin

(PC-BOARD PCV)

H : 4m sec/div

V : 840mV/div

wSC3001 3-pin

(INPUT VIDEO)

H : 10µ sec/div

V : 180mV/div

eSC3001 11-pin

(INPUT S-C)

H : 20µ sec/div

V : 1.44V/div

rSC3001 8-pin

(INPUT PCGIN2)

H : 10µ sec/div

V : 180mV/div

tSC3001 20-pin

(INPUT GLPF)

H : 10µ sec/div

V : 230mV/div

ySC3001 30-pin

(INPUT C-SYNC)

H : 10µ sec/div

V : 840mV/div

102

87109654321

PG-M20S

PG-M20X

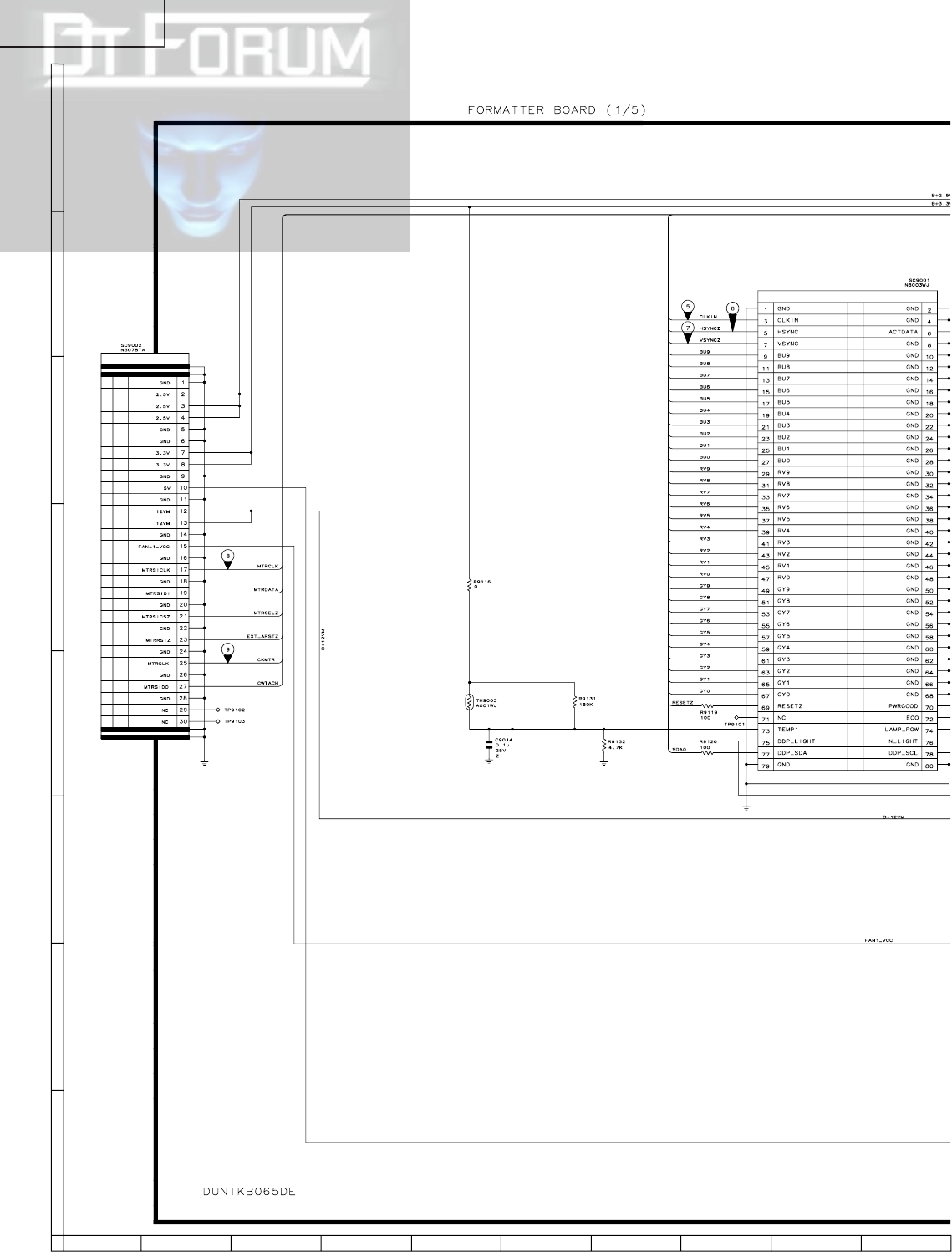

Ë FORMATTER UNIT-1/5 / FORMATIERER EINHEIT-1/5

103

1716 1918151413121110

PG-M20S

PG-M20X

104

87109654321

PG-M20S

PG-M20X

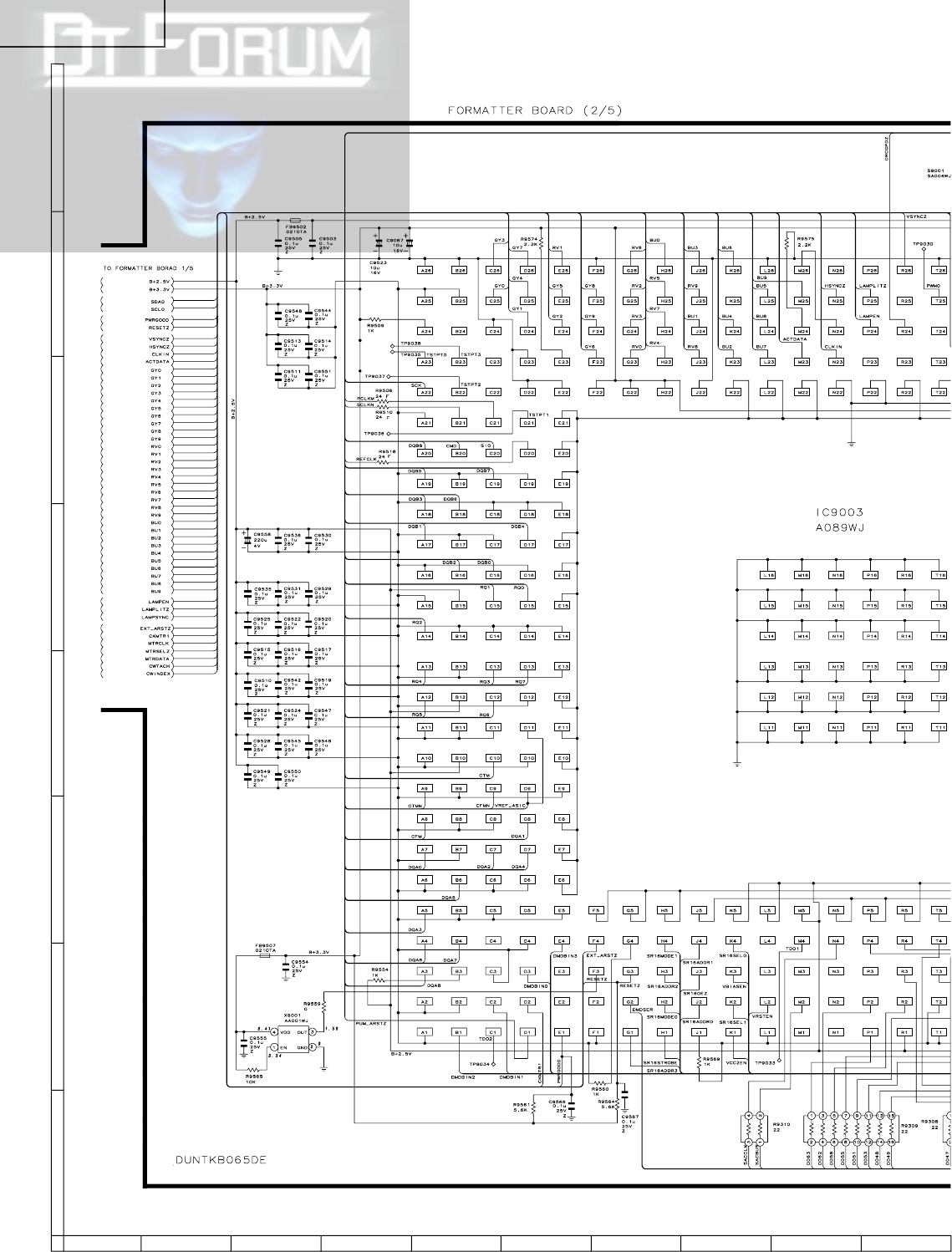

Ë FORMATTER UNIT-2/5 / FORMATIERER EINHEIT-2/5

105

1716 1918151413121110

PG-M20S

PG-M20X

106

87109654321

PG-M20S

PG-M20X

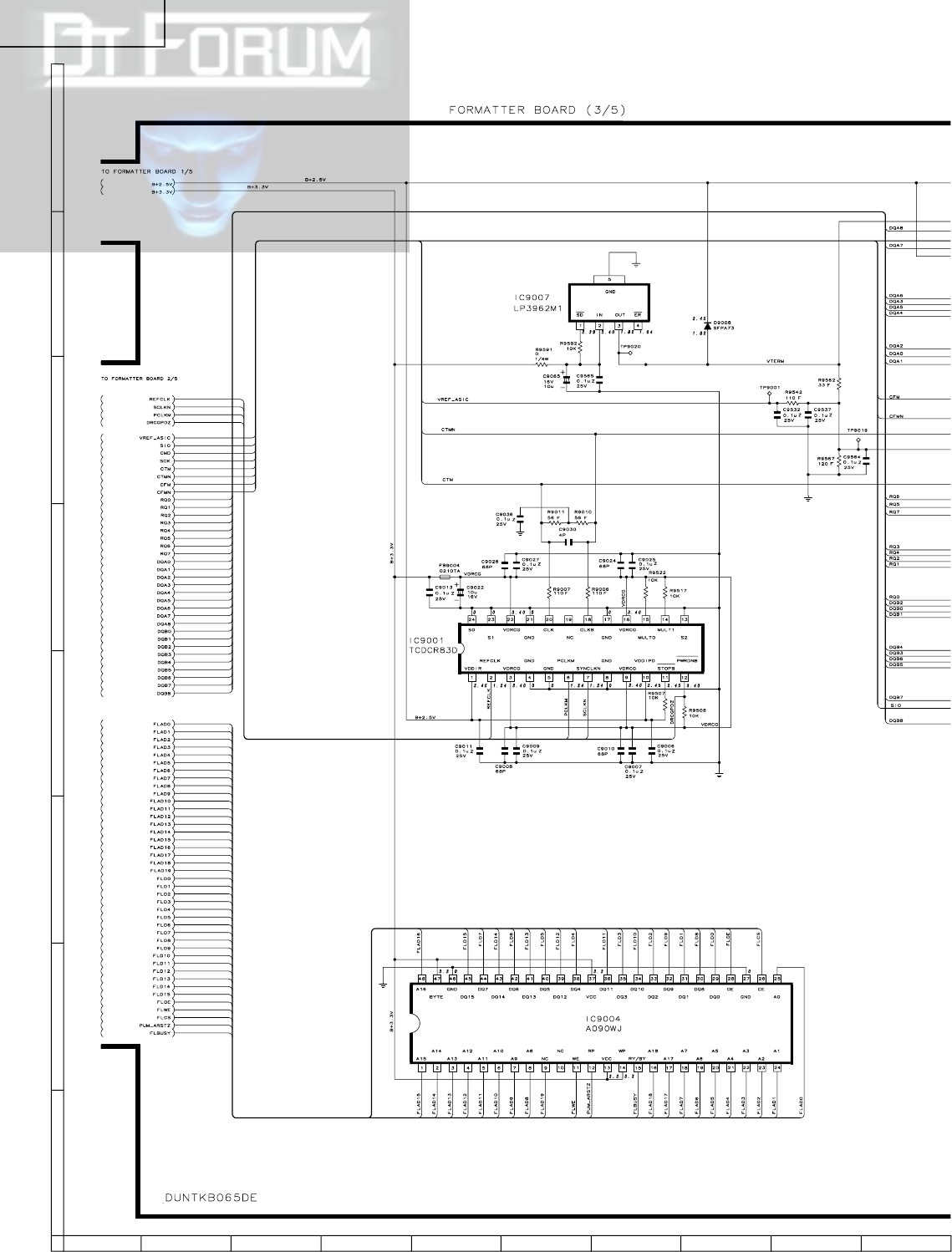

Ë FORMATTER UNIT-3/5 / FORMATIERER EINHEIT-3/5

107

1716 1918151413121110

PG-M20S

PG-M20X

108

87109654321

PG-M20S

PG-M20X

Ë FORMATTER UNIT-4/5 / FORMATIERER EINHEIT-4/5

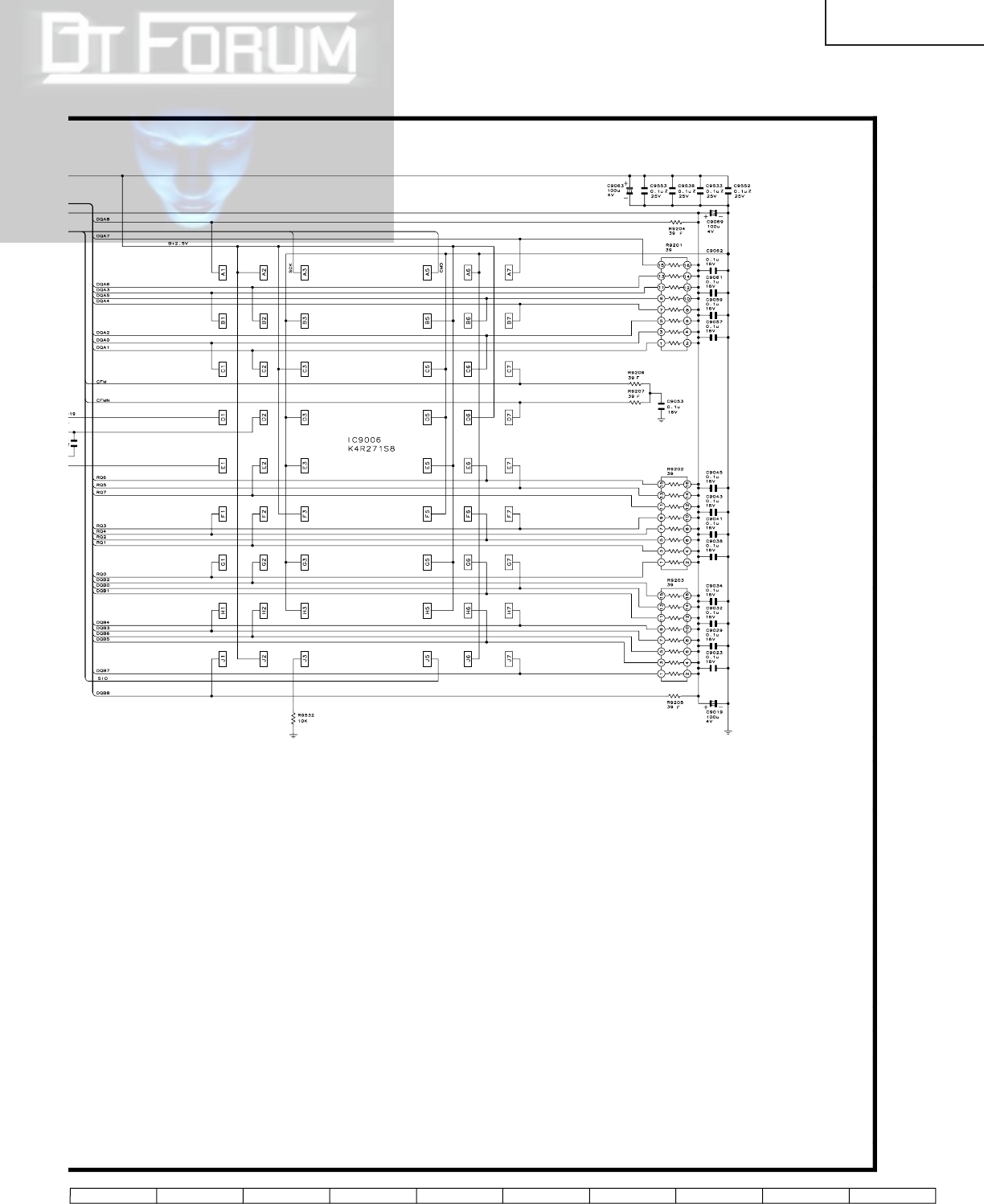

109

1716 1918151413121110

PG-M20S

PG-M20X

110

87109654321

PG-M20S

PG-M20X

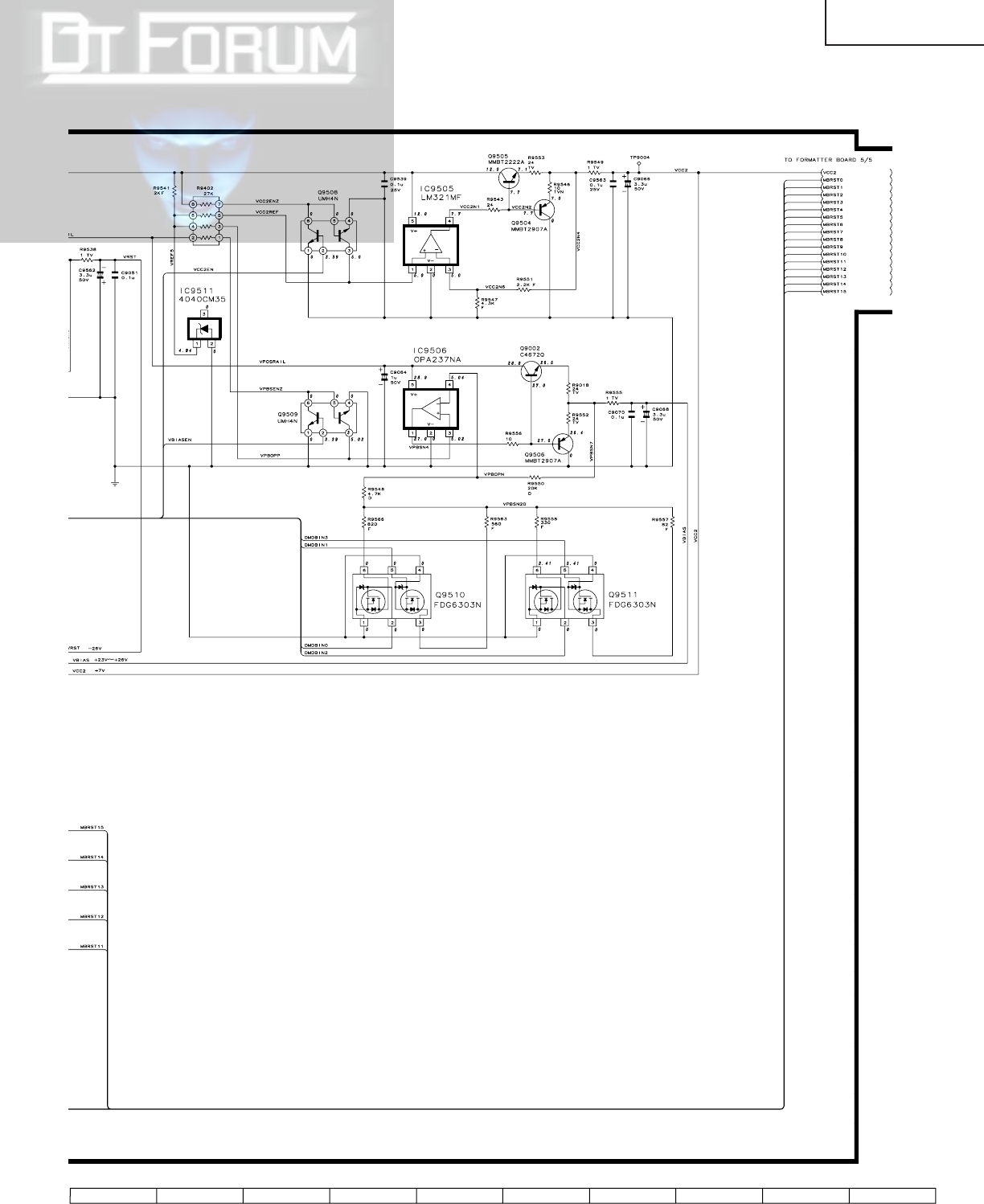

Ë FORMATTER UNIT-5/5 / FORMATIERER EINHEIT-5/5

0.7" XGA DMD DDR (20X)

0.55" SVGA DMD DDR (20S)

111

1716 1918151413121110

PG-M20S

PG-M20X

112

87109654321

PG-M20S

PG-M20X

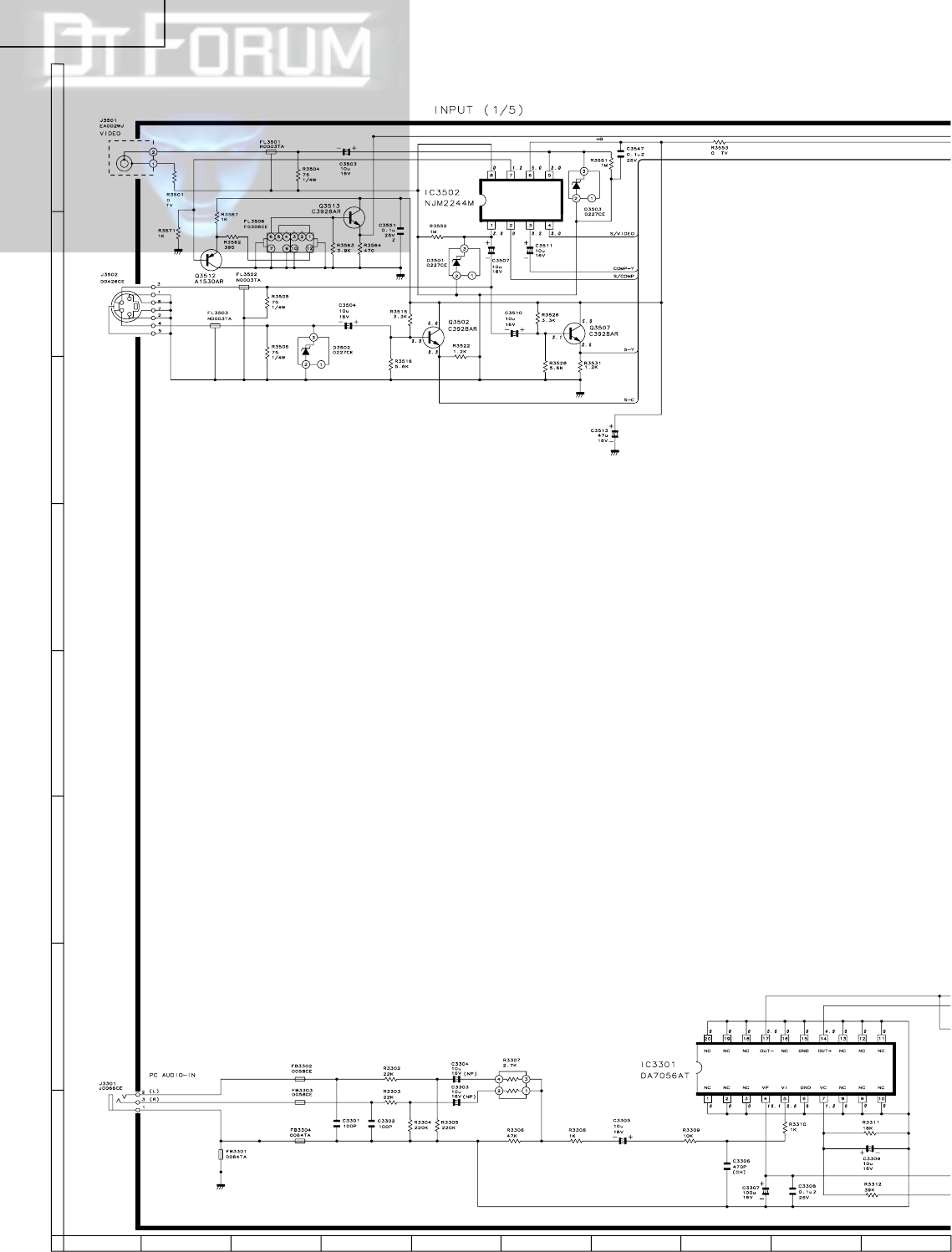

Ë INPUT UNIT-1/5 / EINGANGSEINHEIT-1/5

113

1716 1918151413121110

PG-M20S

PG-M20X

114

87109654321

PG-M20S

PG-M20X

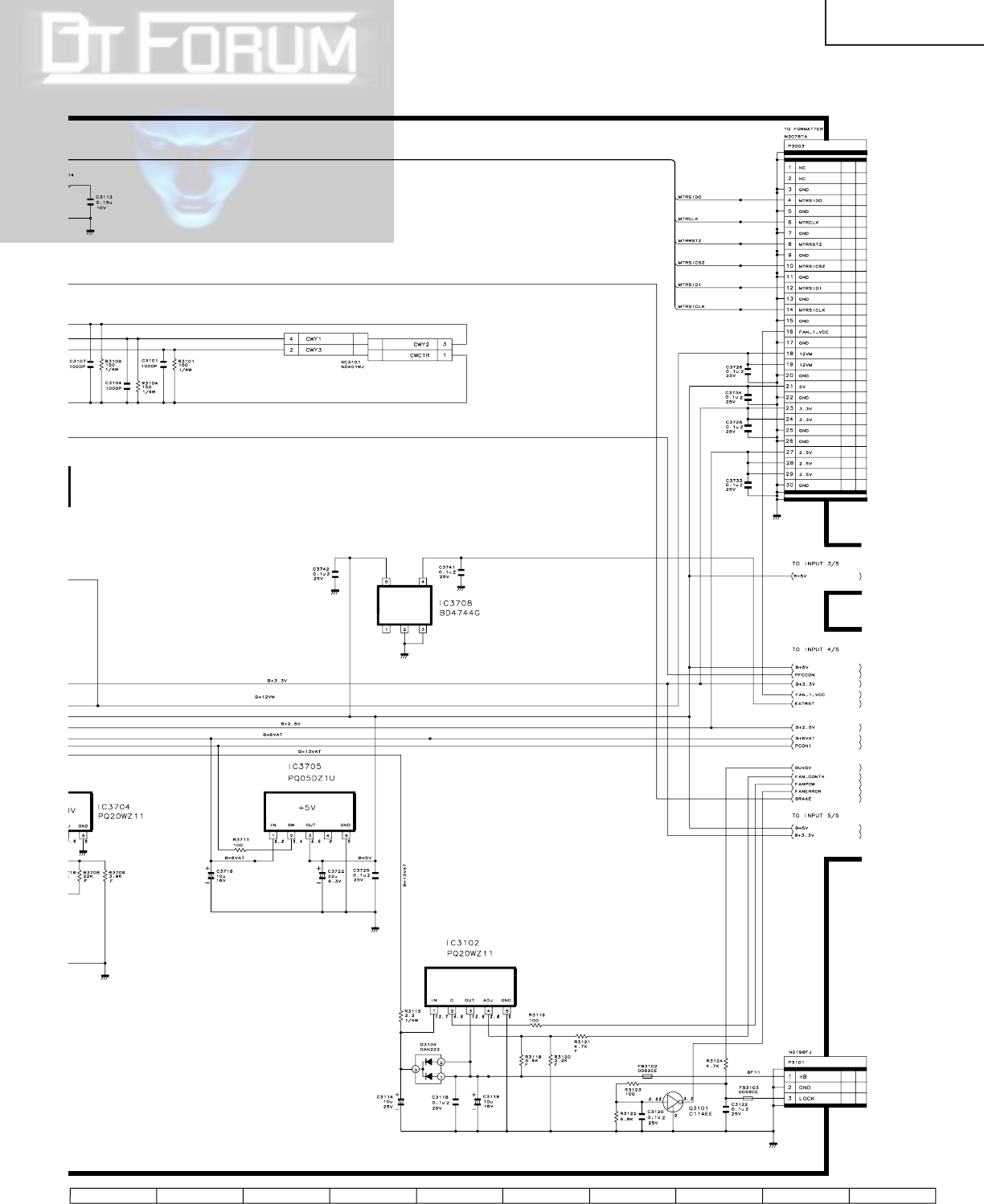

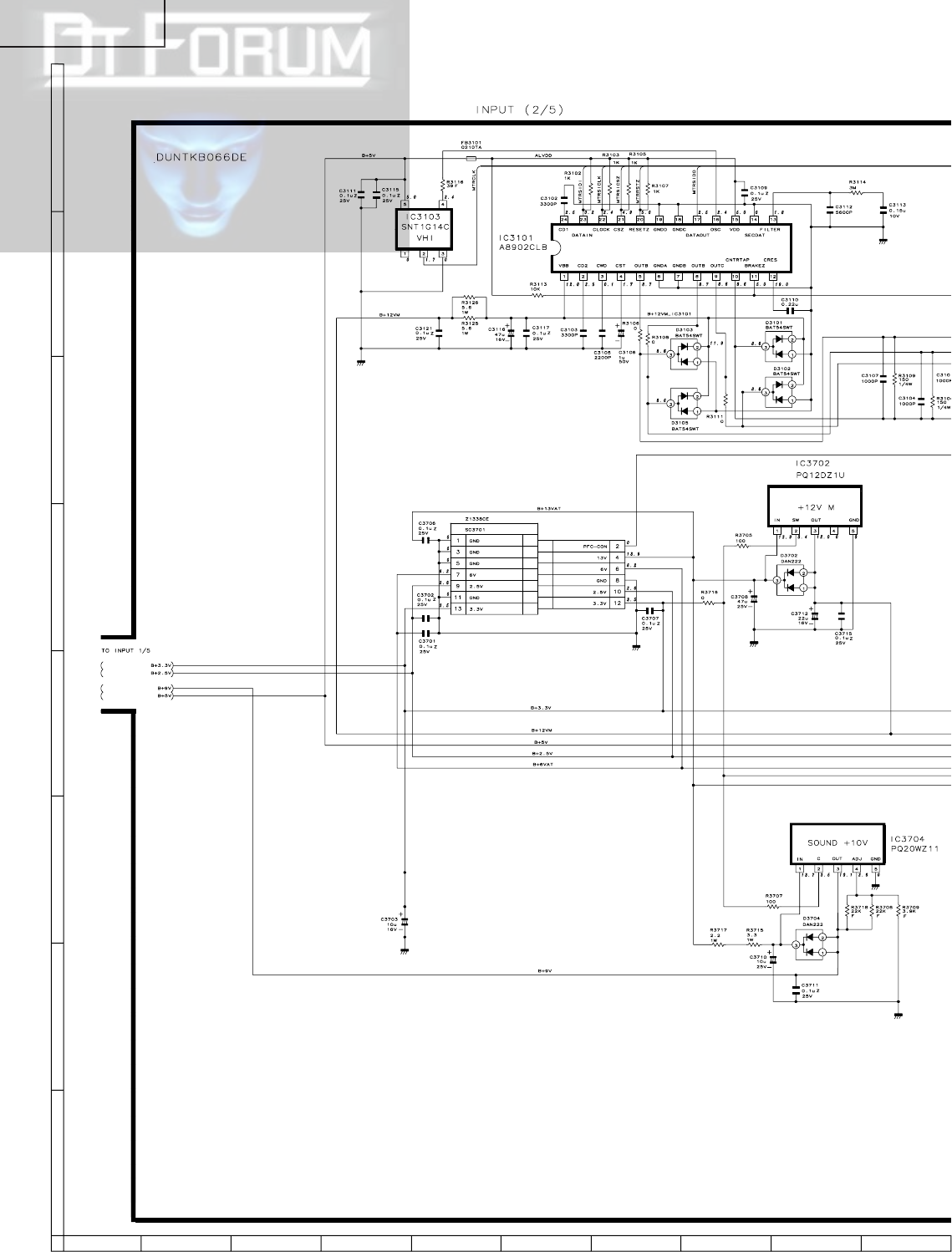

Ë INPUT UNIT-2/5 / EINGANGSEINHEIT-2/5

115

1716 1918151413121110

PG-M20S

PG-M20X

116

87109654321

PG-M20S

PG-M20X

Ë INPUT UNIT-3/5 / EINGANGSEINHEIT-3/5

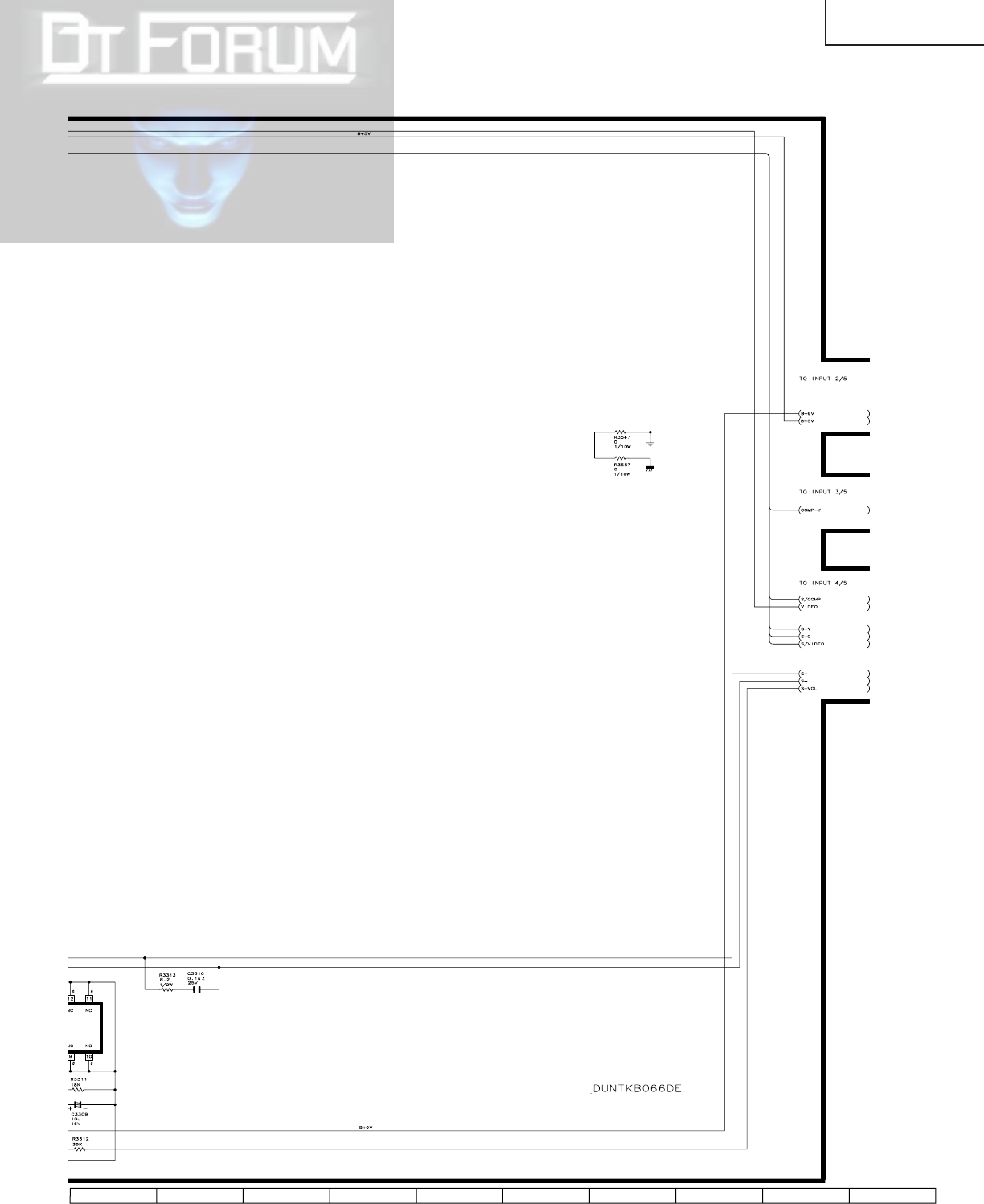

117

1716 1918151413121110

PG-M20S

PG-M20X

118

87109654321

PG-M20S

PG-M20X

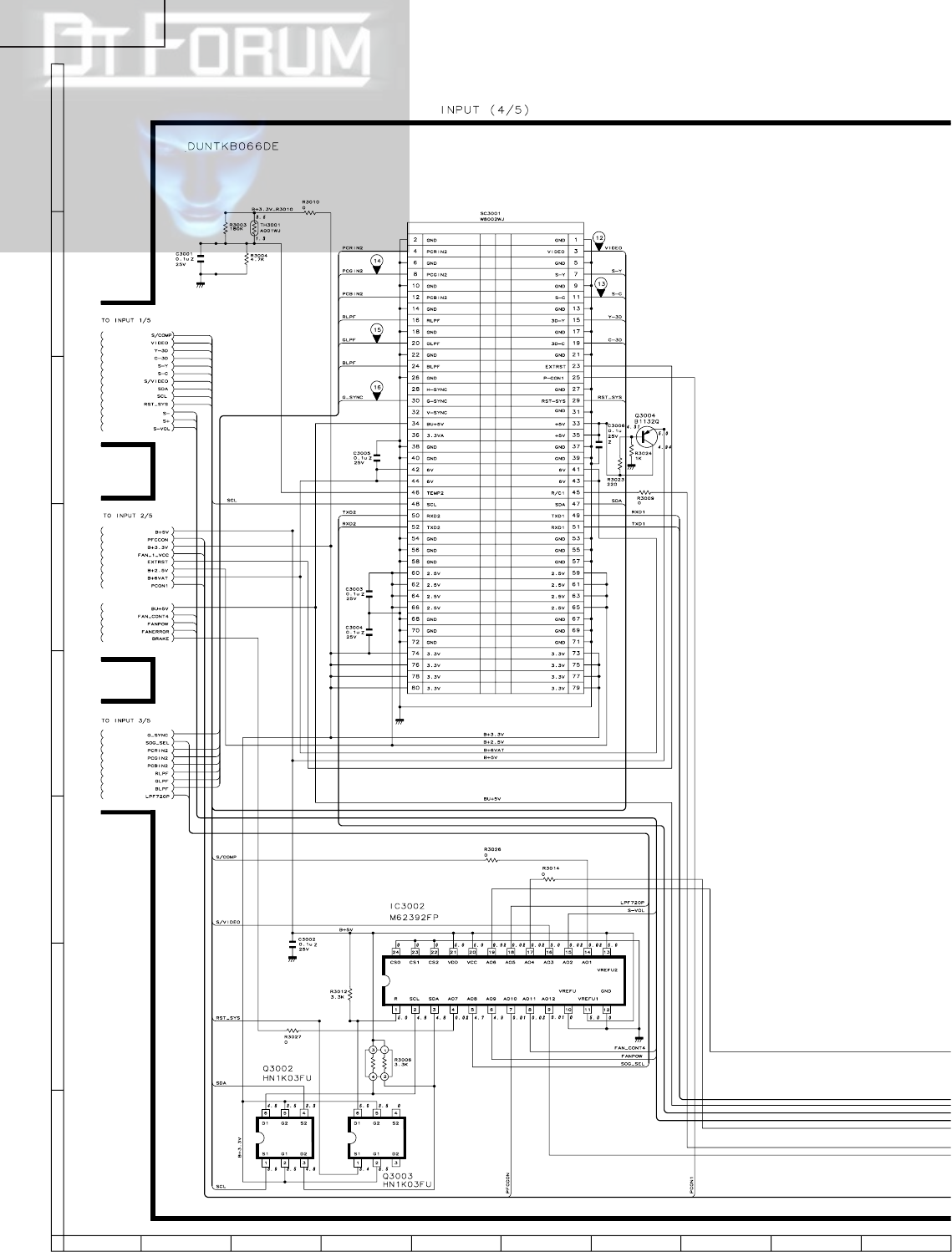

Ë INPUT UNIT-4/5 / EINGANGSEINHEIT-4/5

119

1716 1918151413121110

PG-M20S

PG-M20X

120

87109654321

PG-M20S

PG-M20X

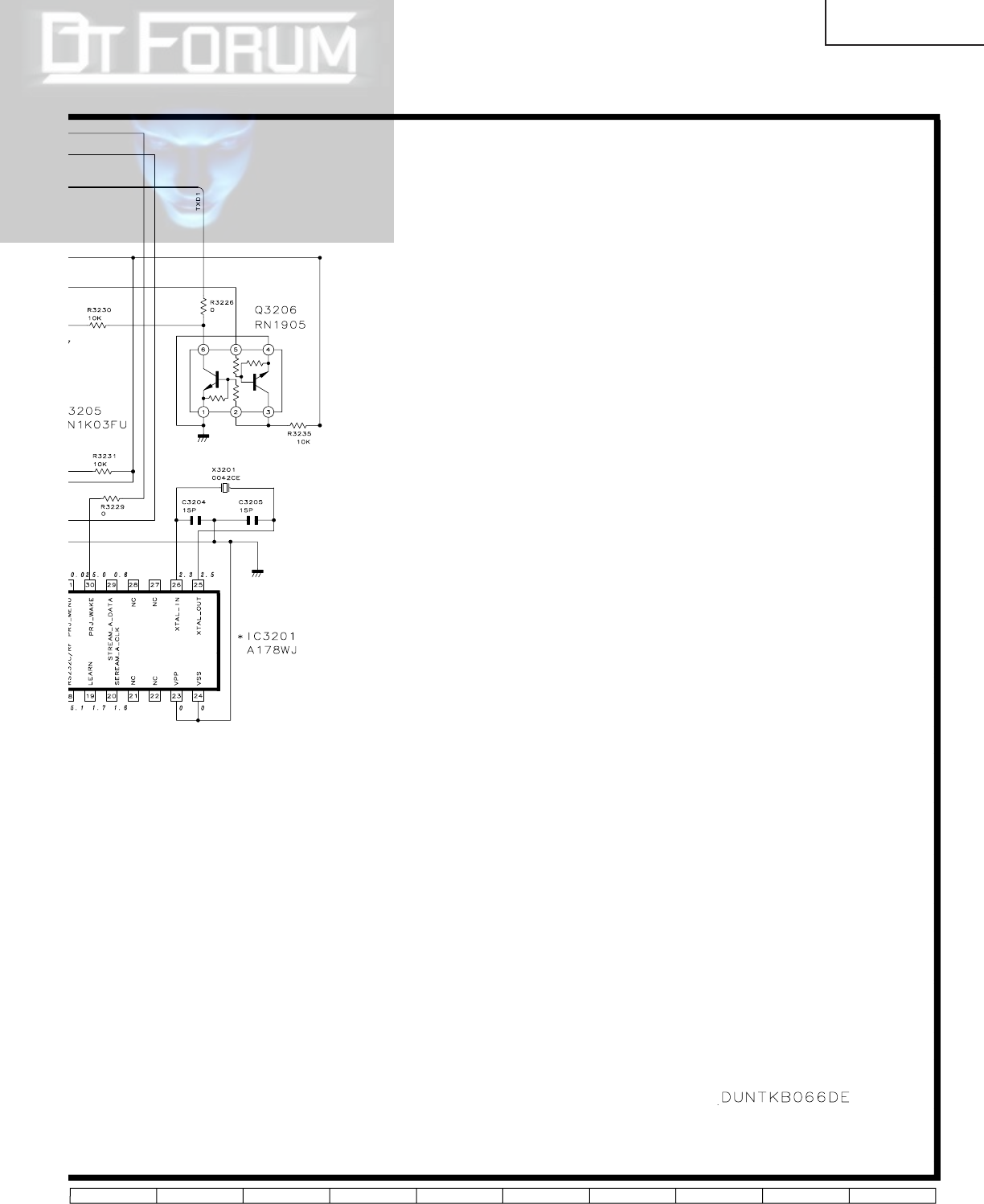

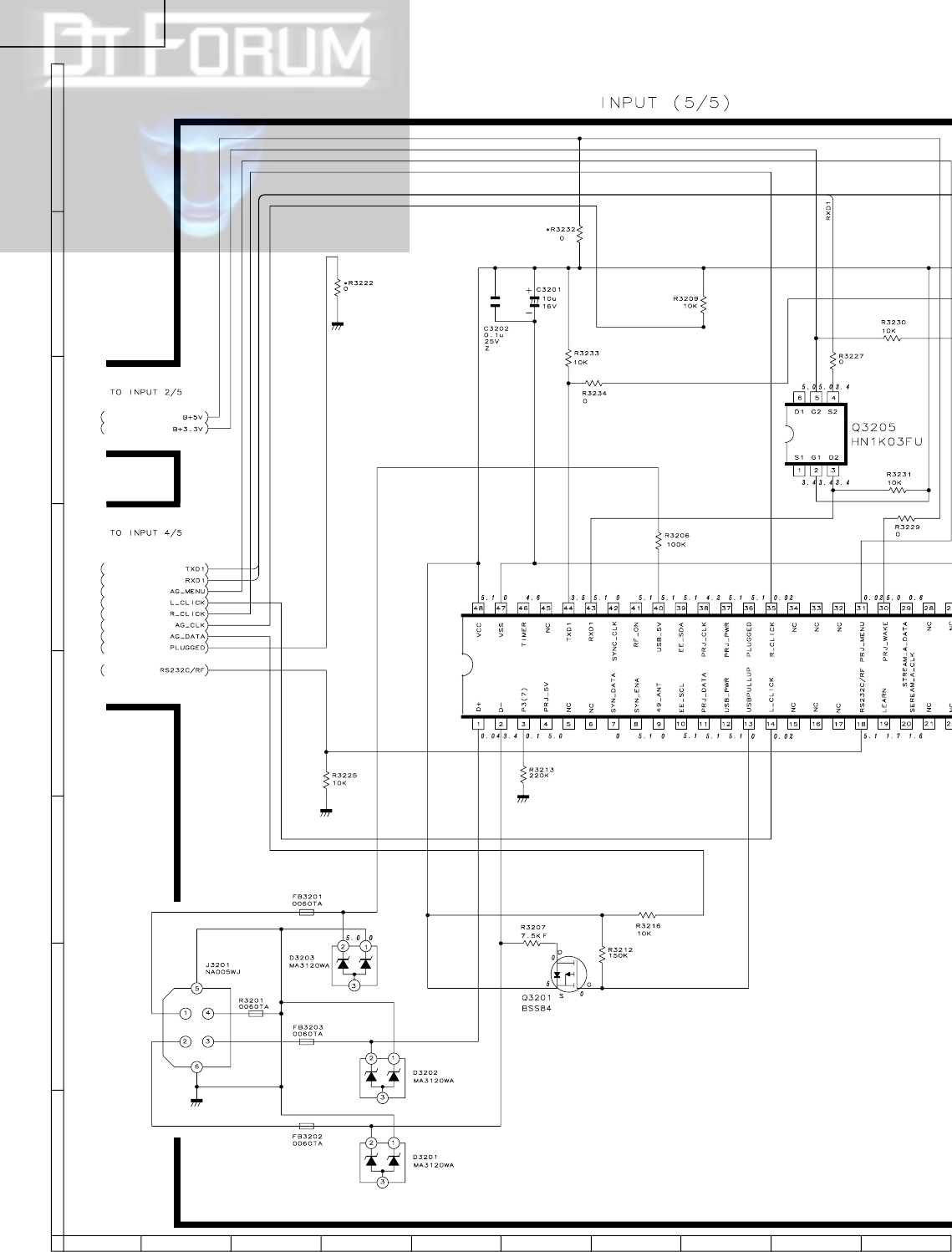

Ë INPUT UNIT-5/5 / EINGANGSEINHEIT-5/5

121

1716 1918151413121110

PG-M20S

PG-M20X

122

87109654321

PG-M20S

PG-M20X

Ë KEY UNIT-1/3 / SCHLÜSSELEINHEIT-1/3

123

1716 1918151413121110

PG-M20S

PG-M20X

124

87109654321

PG-M20S

PG-M20X

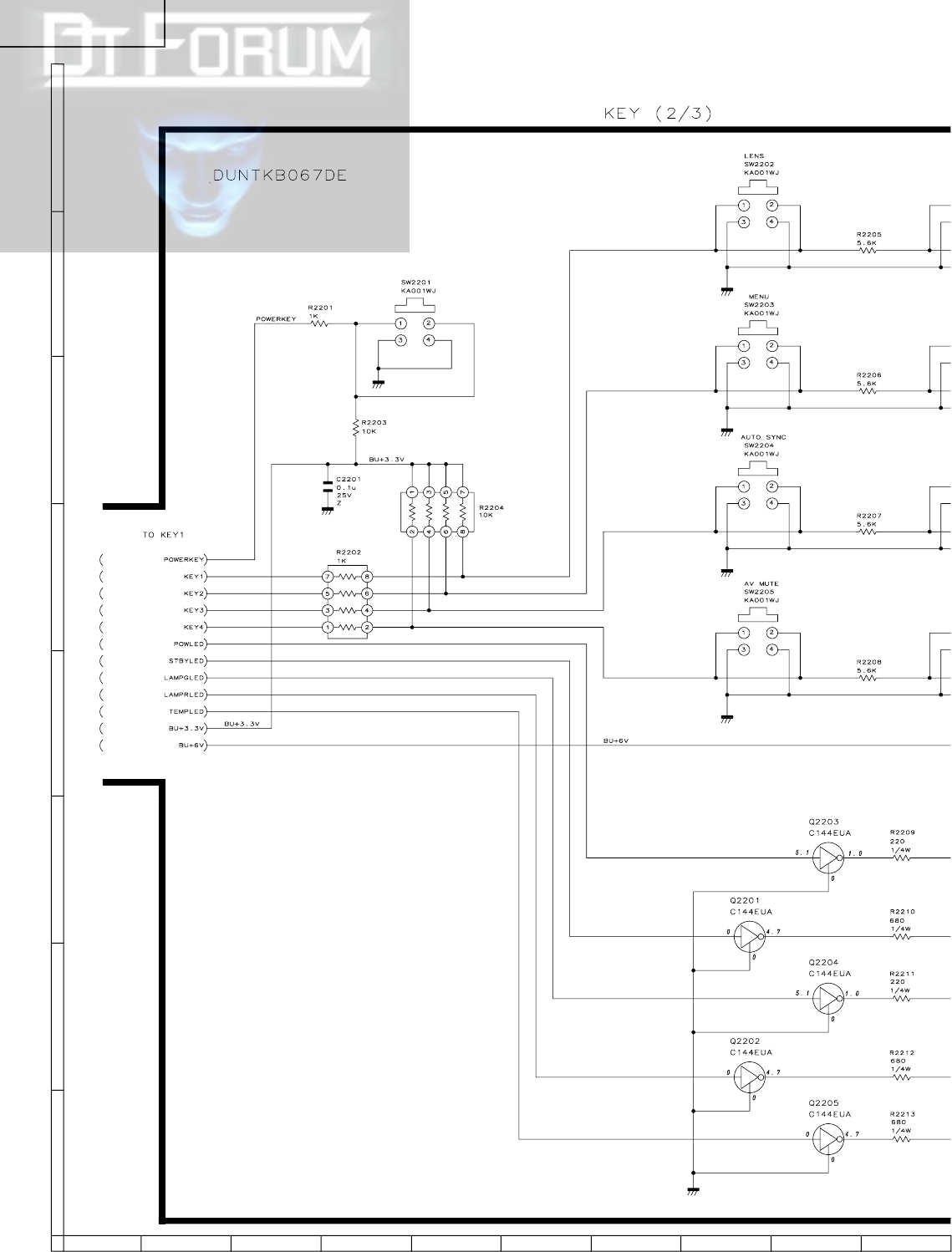

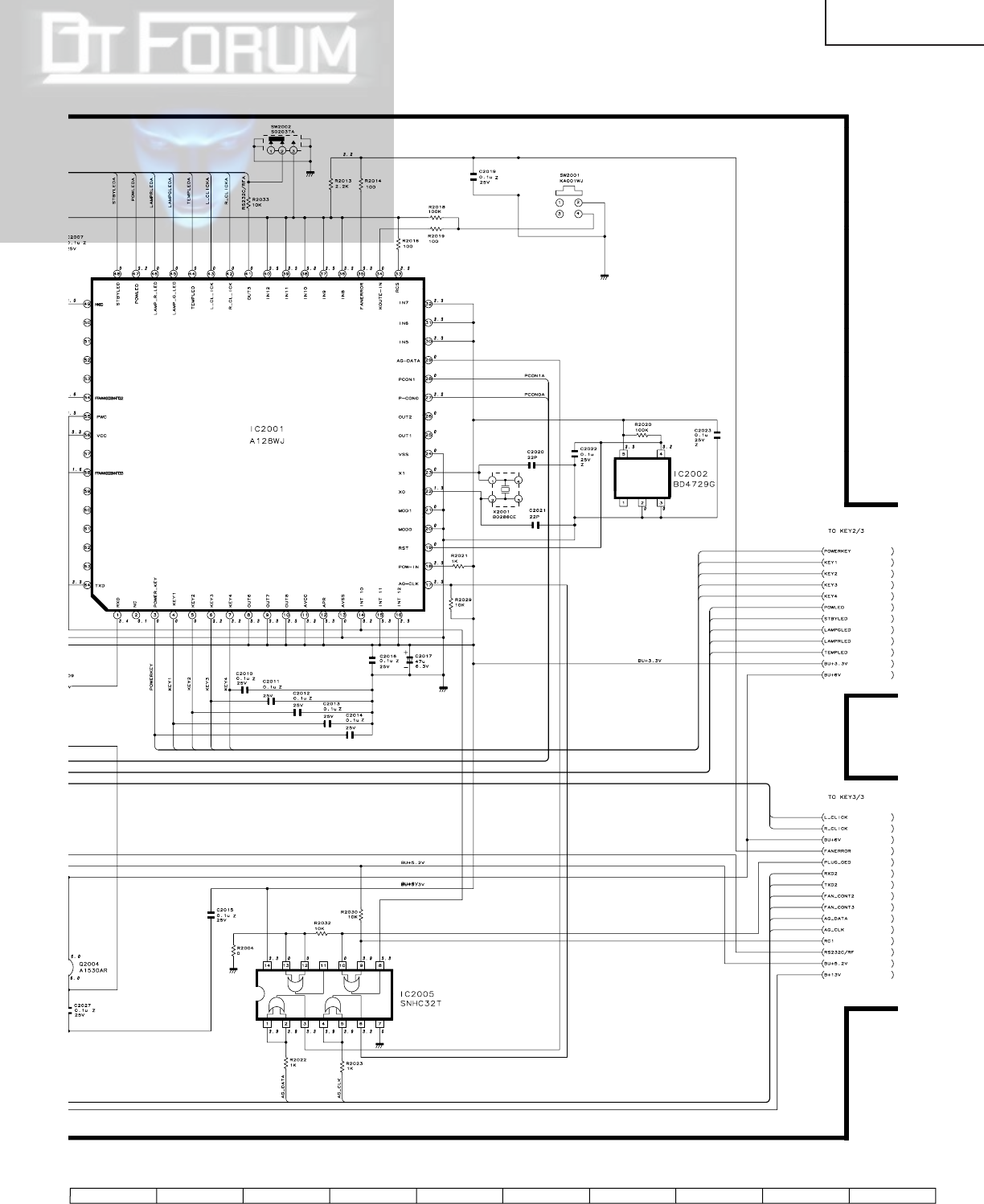

Ë KEY UNIT-2/3 / SCHLÜSSELEINHEIT-2/3

125

1716 1918151413121110

PG-M20S

PG-M20X

126

87109654321

PG-M20S

PG-M20X

Ë KEY UNIT-3/3 / SCHLÜSSELEINHEIT-3/3

127

1716 1918151413121110

PG-M20S

PG-M20X

128

87109654321

PG-M20S

PG-M20X

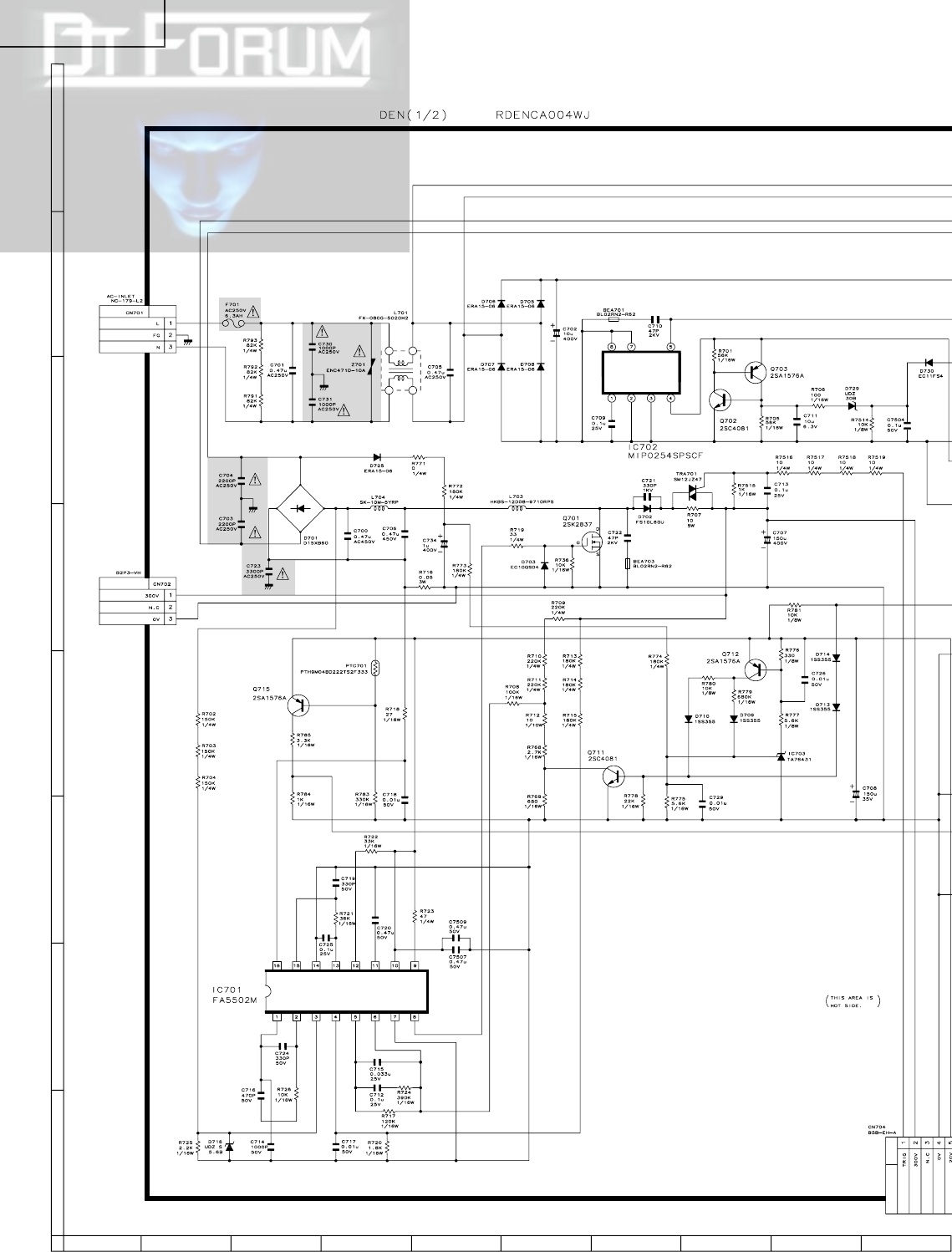

Ë PFC UNIT / PFC-EINHEIT

129

1716 1918151413121110

PG-M20S

PG-M20X

130

87109654321

PG-M20S

PG-M20X

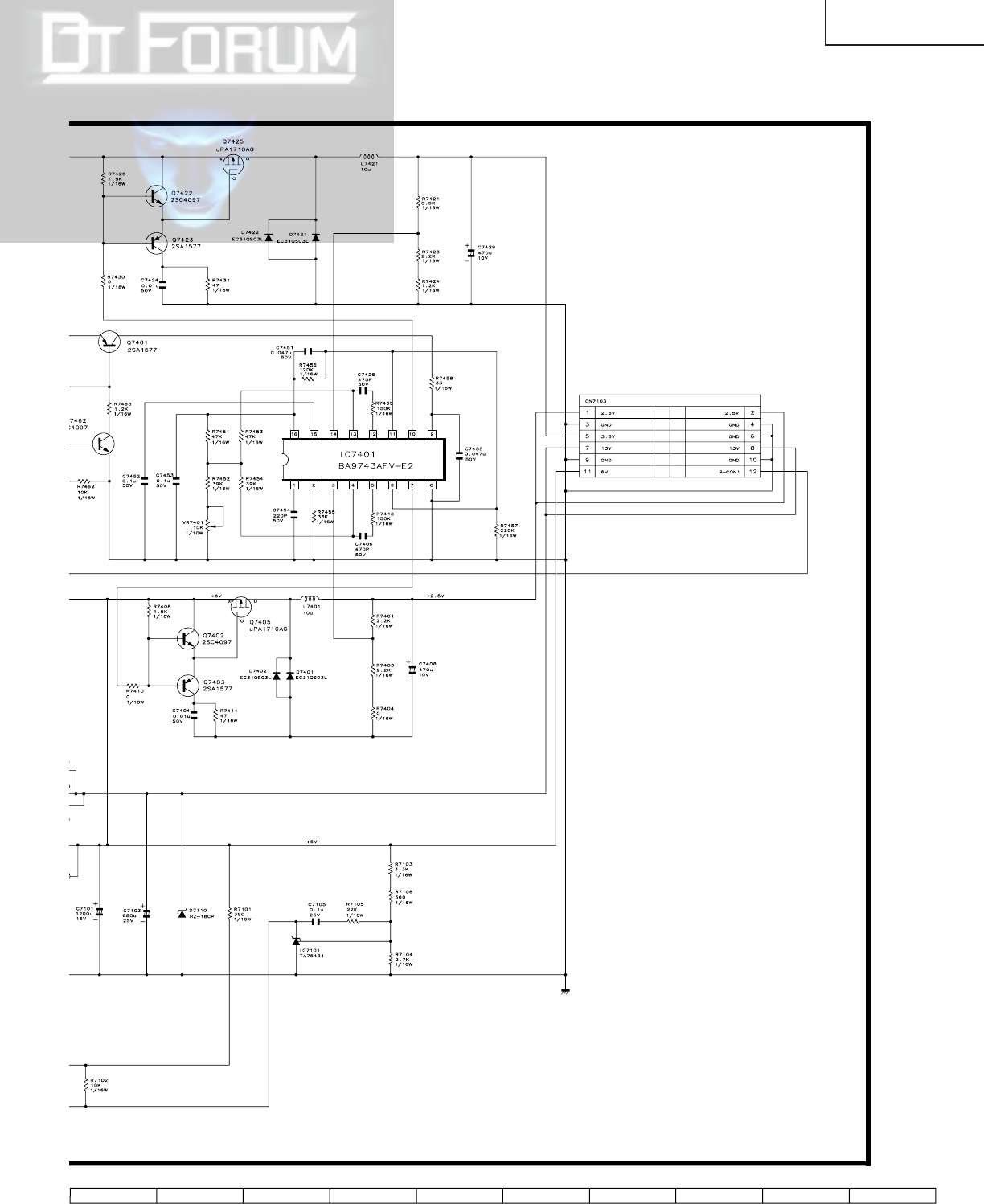

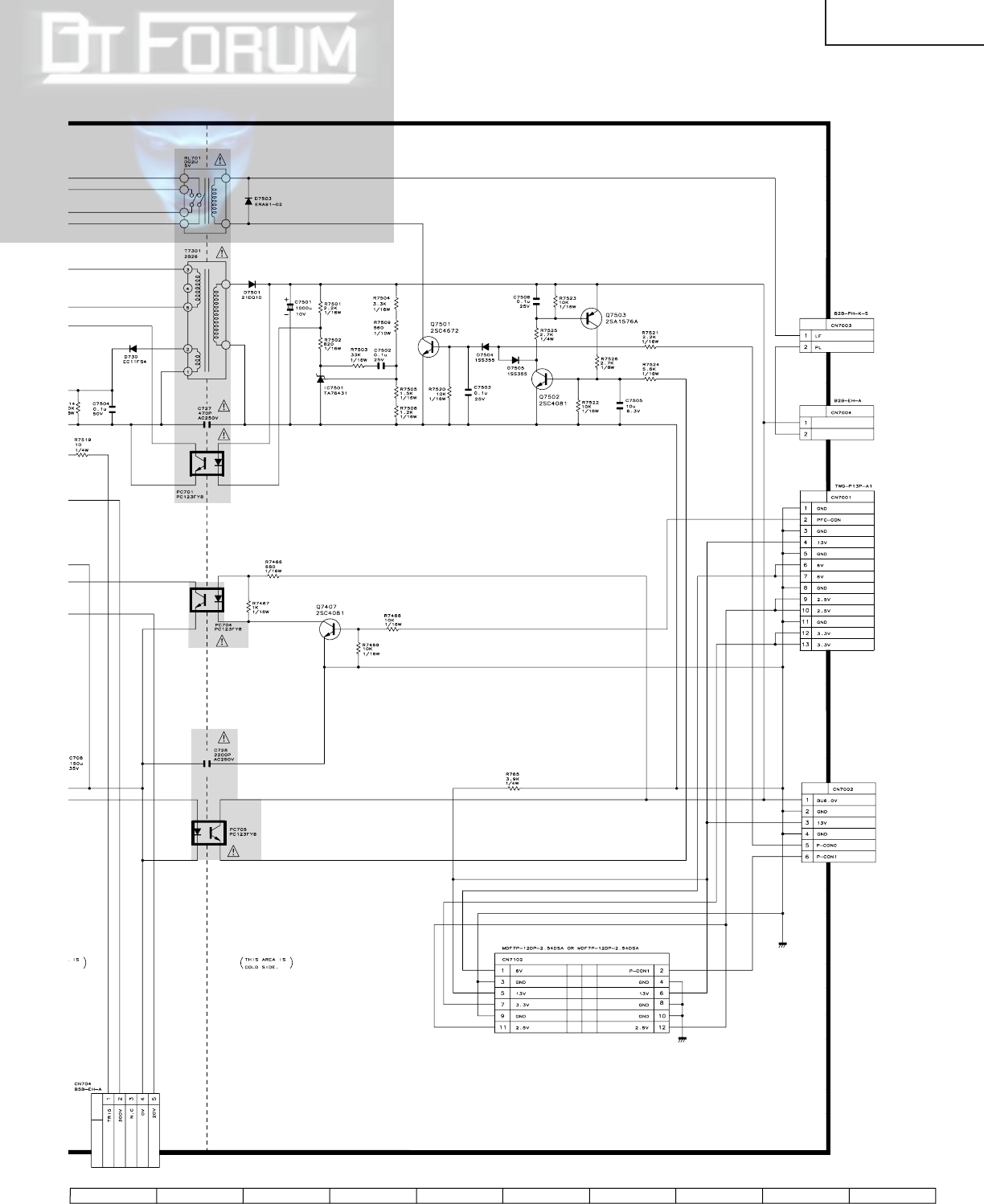

Ë POWER UNIT / NETZEINHEIT

131

1716 1918151413121110

PG-M20S

PG-M20X

132

87109654321

PG-M20S

PG-M20X

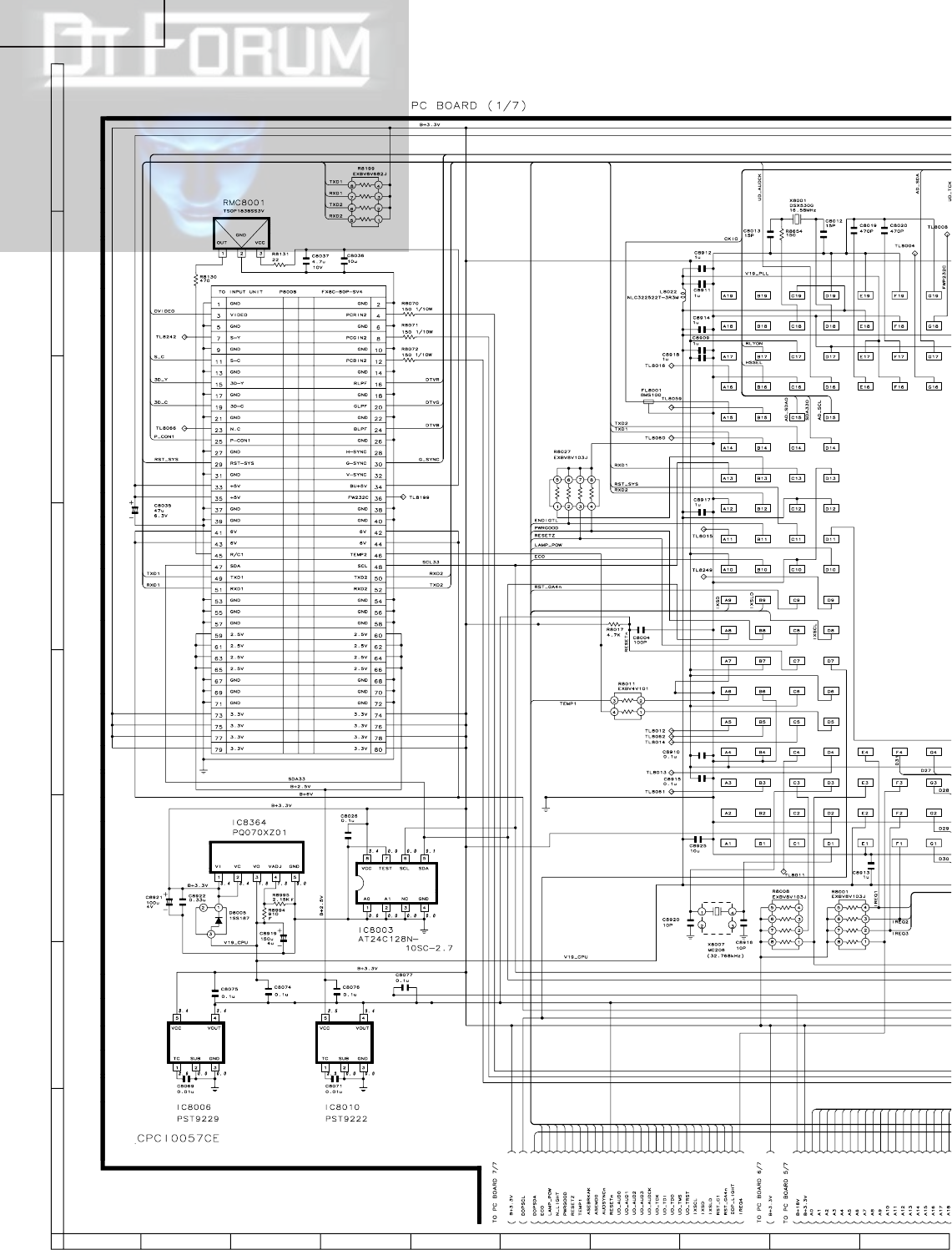

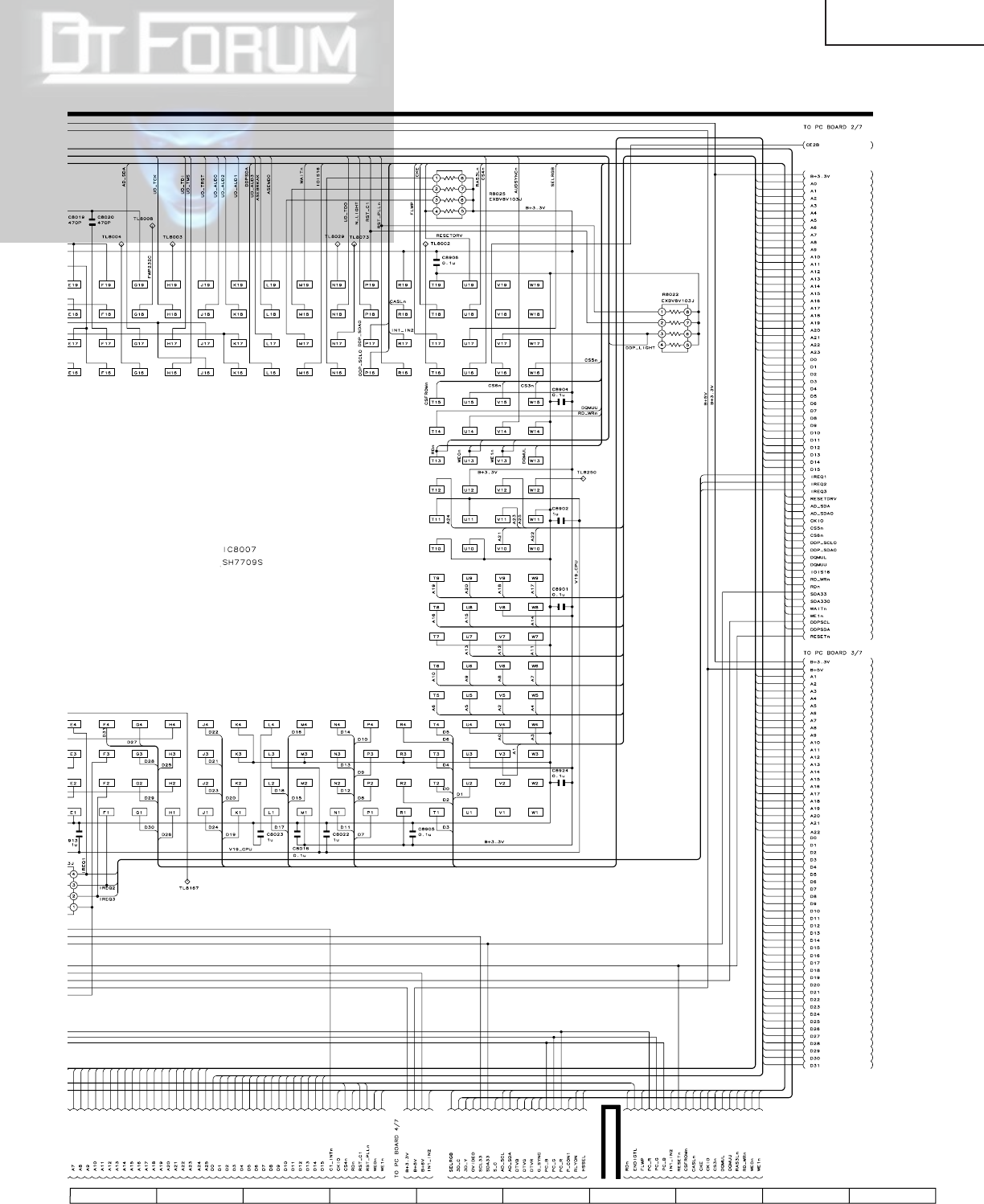

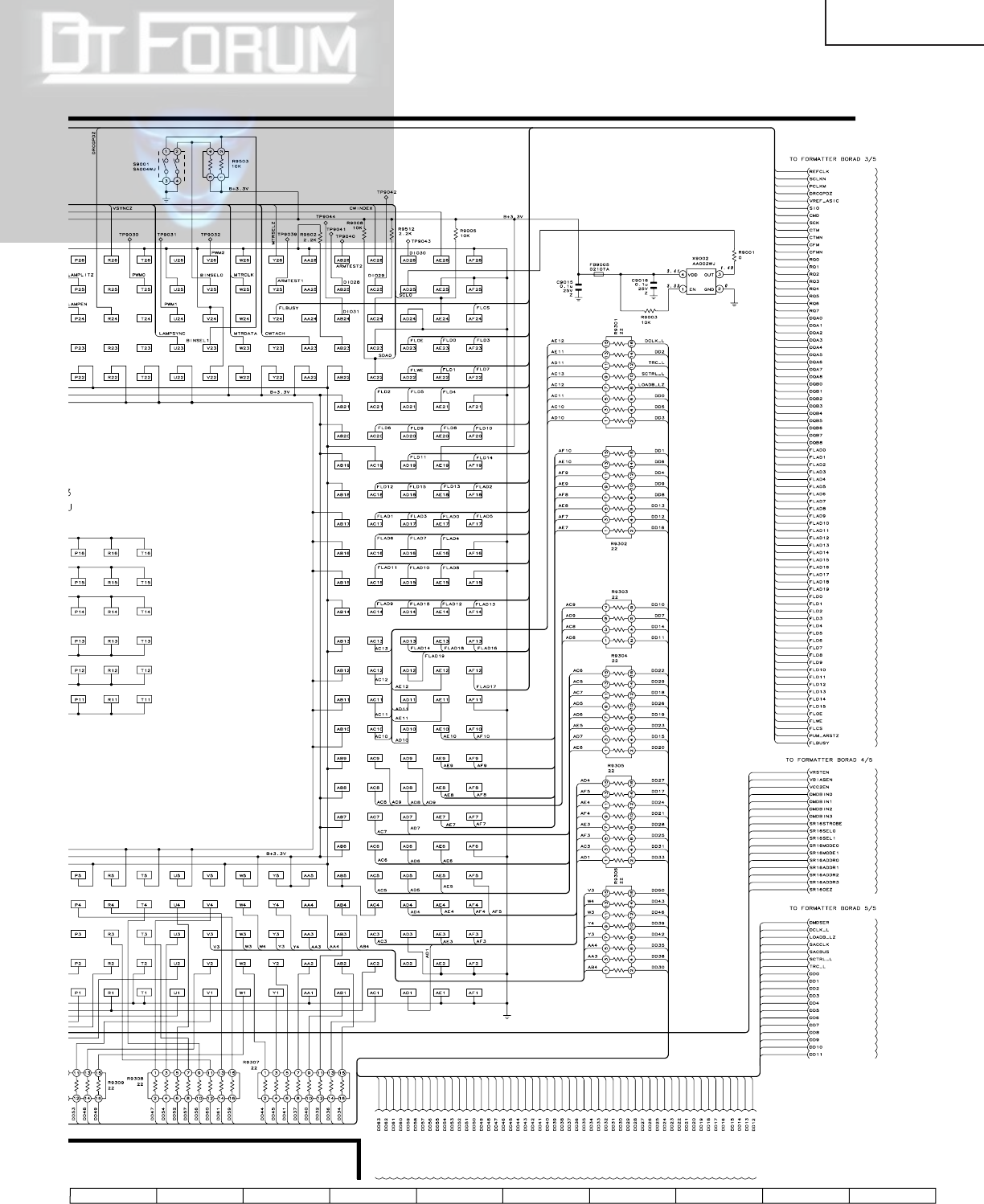

Ë PC I/F UNIT-1/7 / PC-I/F-EINHEIT-1/7

133

1716 1918151413121110

PG-M20S

PG-M20X

134

87109654321

PG-M20S

PG-M20X

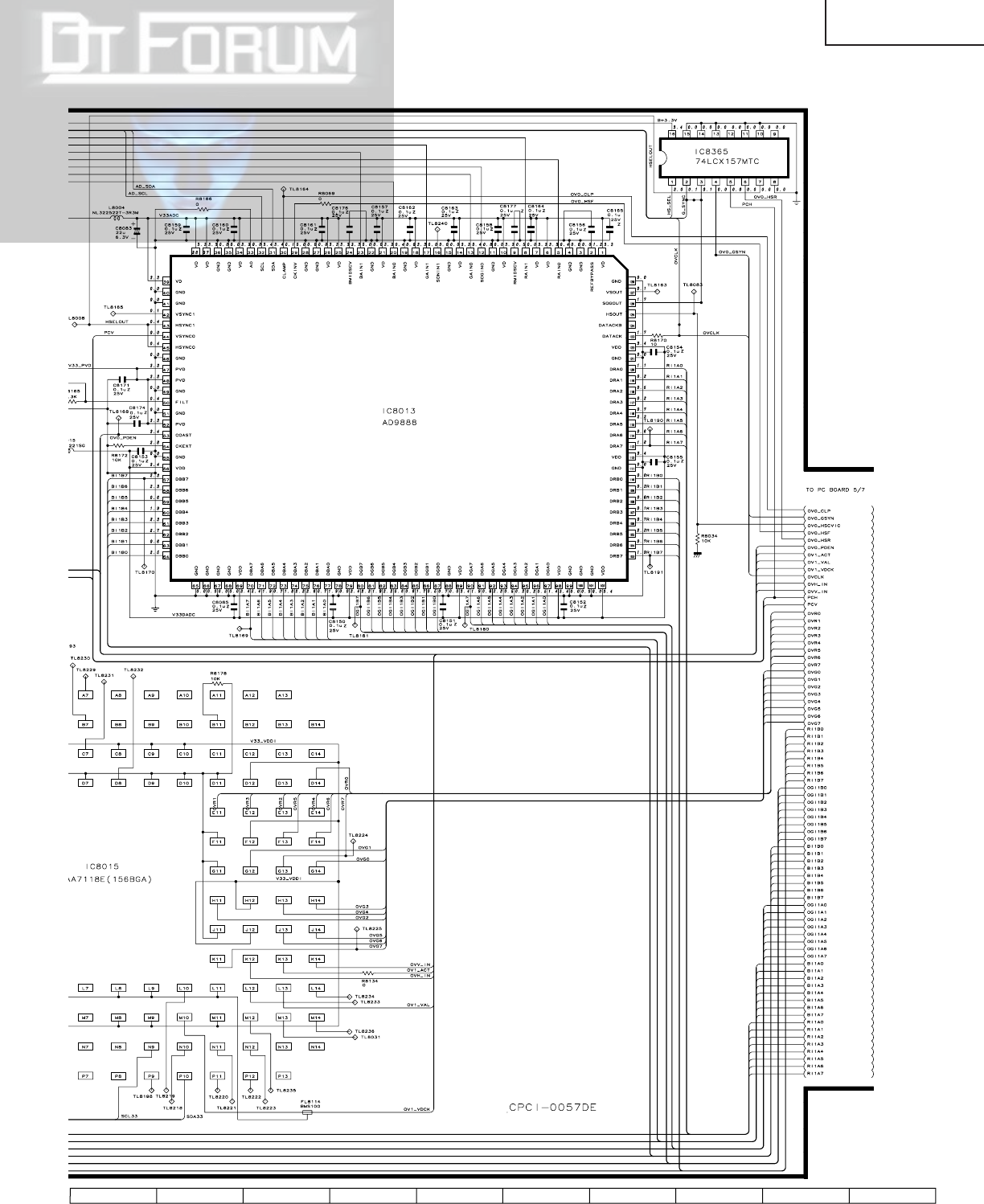

Ë PC I/F UNIT-2/7 / PC-I/F-EINHEIT-2/7

135

1716 1918151413121110

PG-M20S

PG-M20X

136

87109654321

PG-M20S

PG-M20X

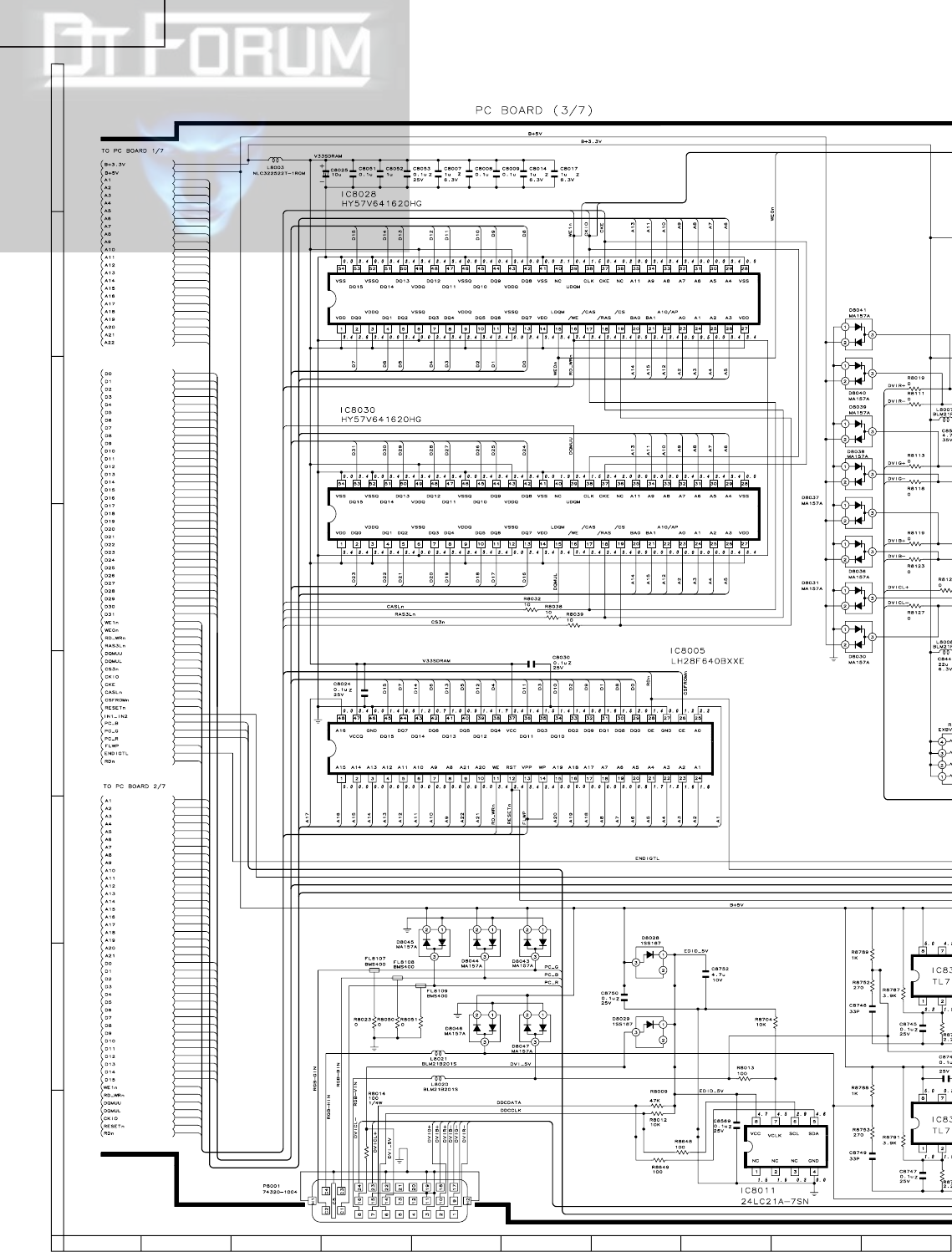

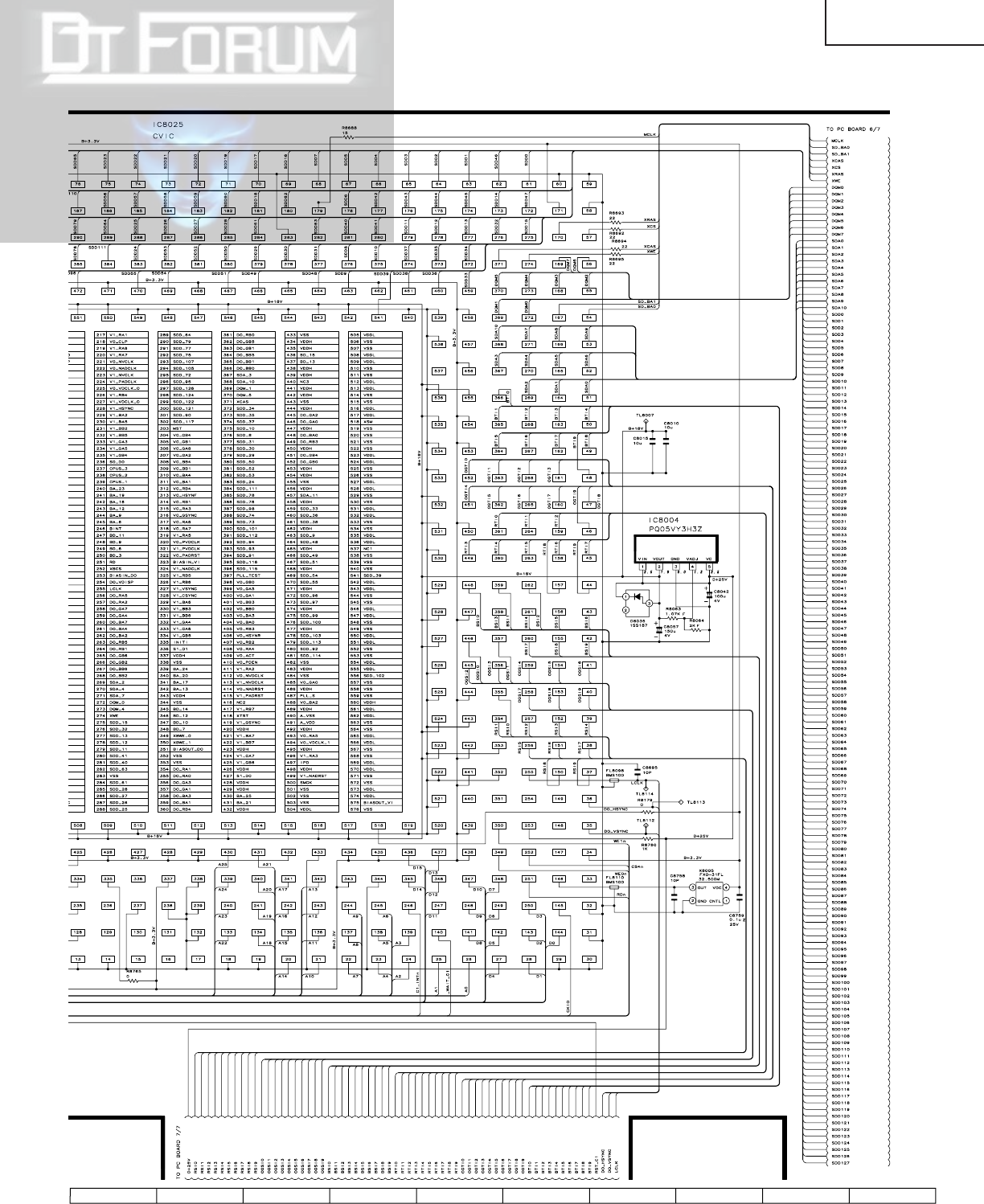

Ë PC I/F UNIT-3/7 / PC-I/F-EINHEIT-3/7

137

1716 1918151413121110

PG-M20S

PG-M20X

138

87109654321

PG-M20S

PG-M20X

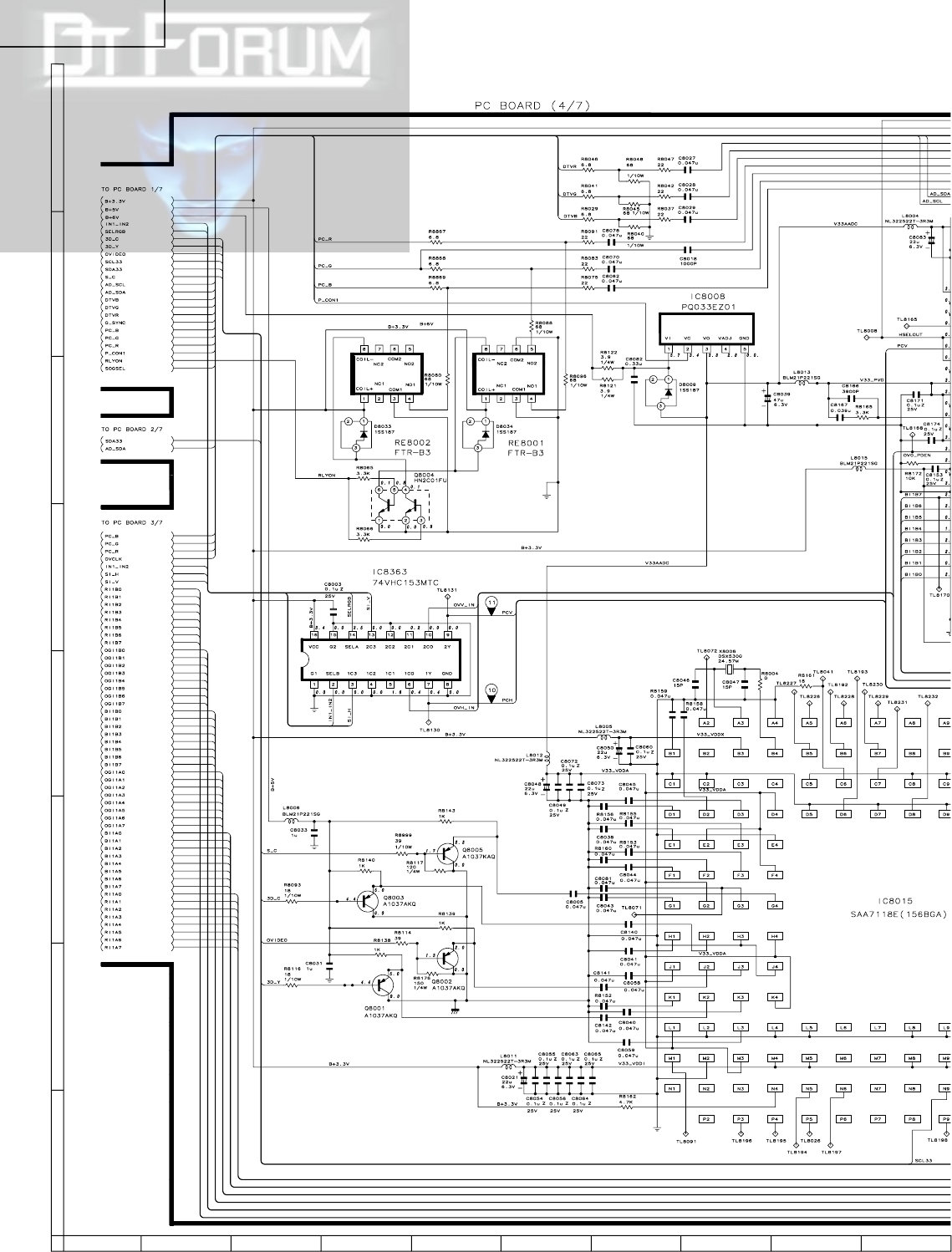

Ë PC I/F UNIT-4/7 / PC-I/F-EINHEIT-4/7

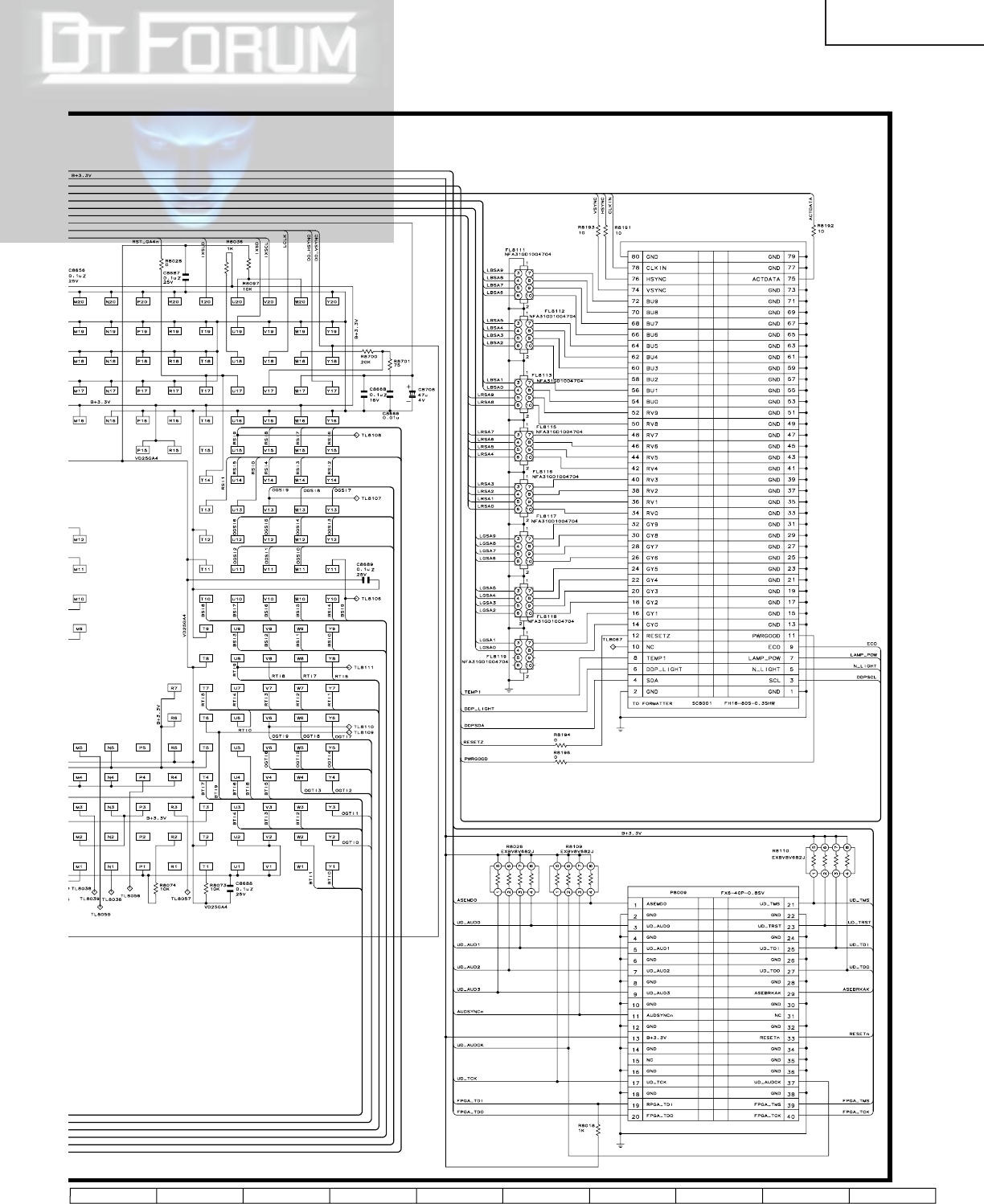

139

1716 1918151413121110

PG-M20S

PG-M20X

140

87109654321

PG-M20S

PG-M20X

Ë PC I/F UNIT-5/7 / PC-I/F-EINHEIT-5/7

141

1716 1918151413121110

PG-M20S

PG-M20X

142

87109654321

PG-M20S

PG-M20X

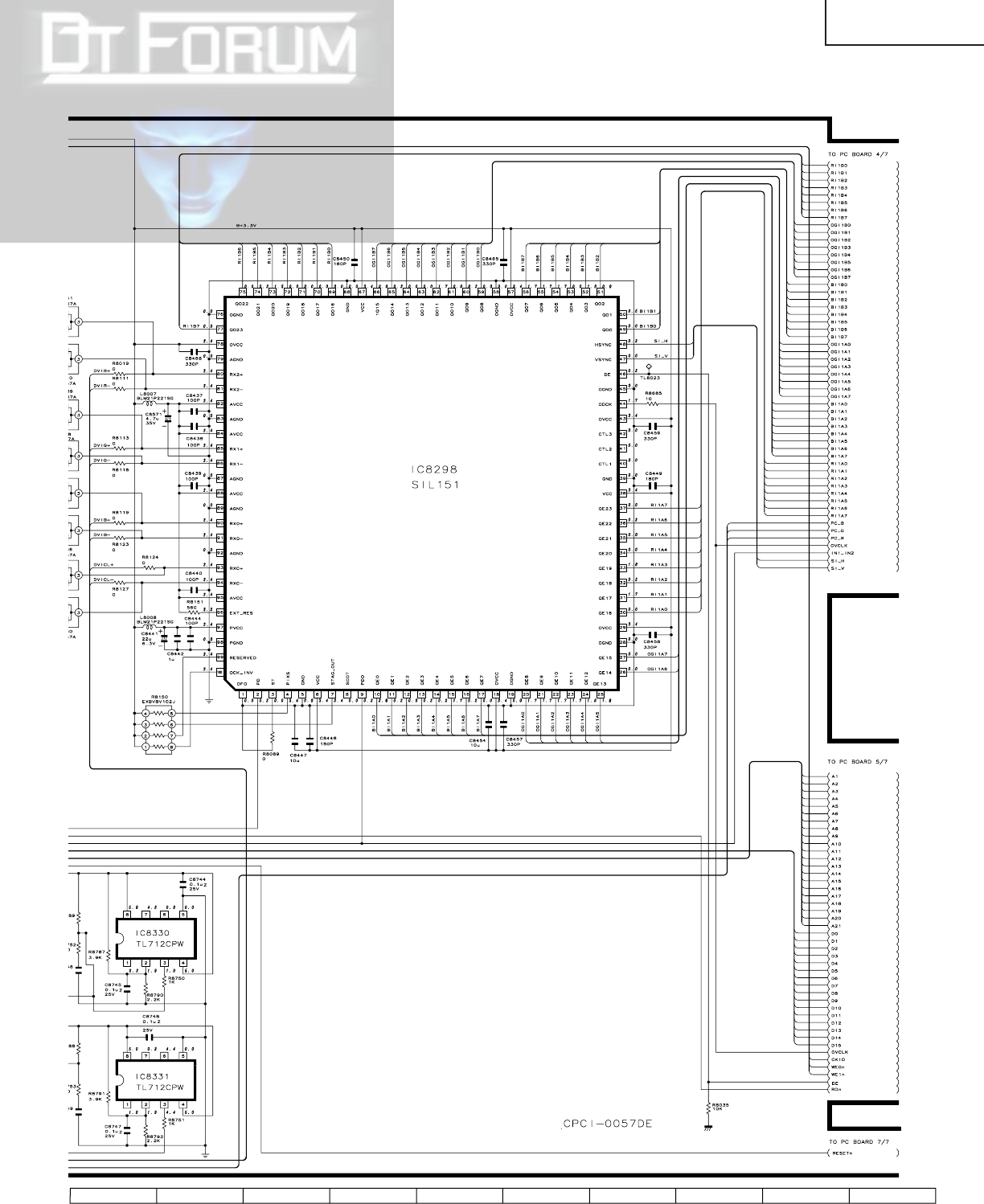

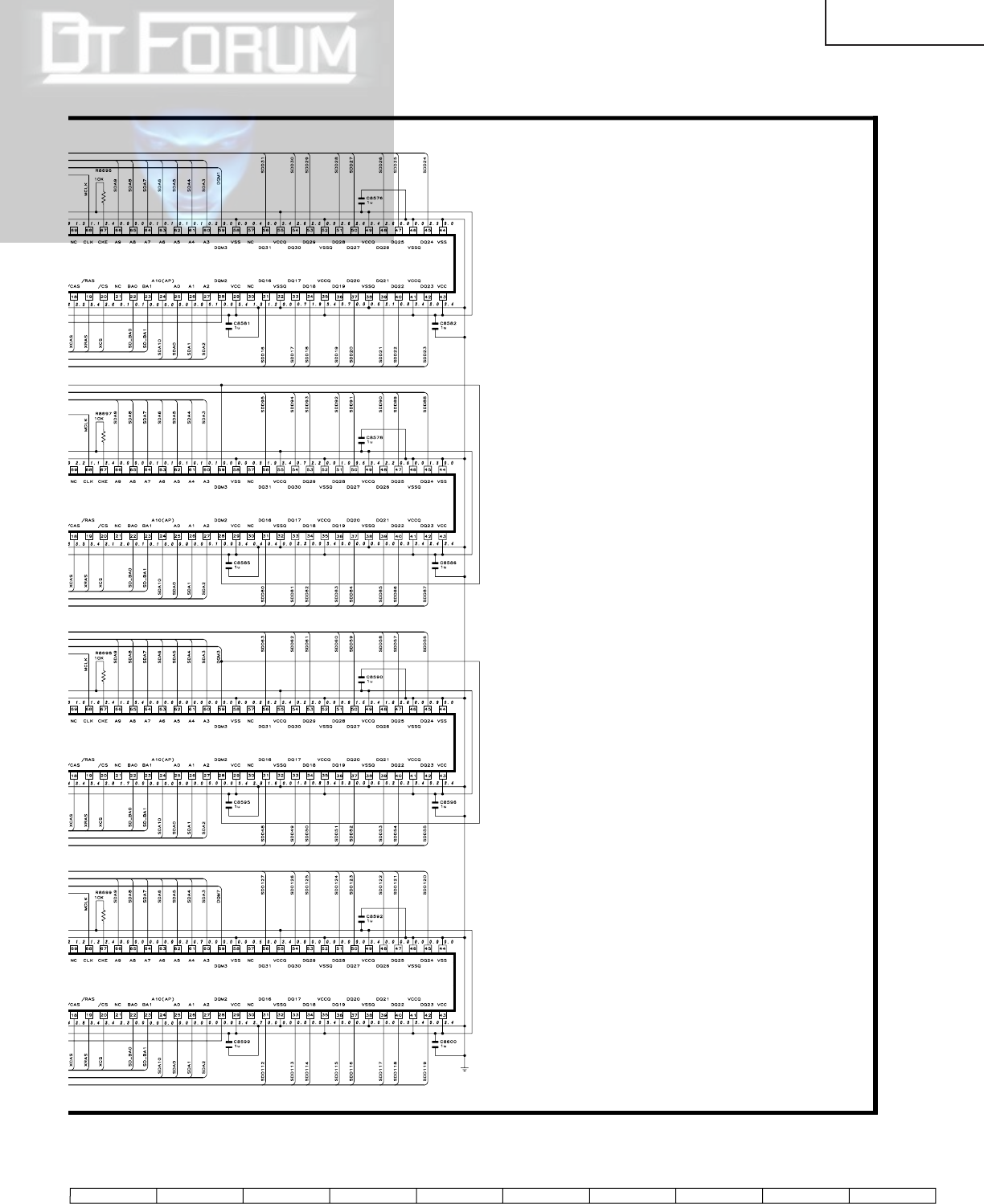

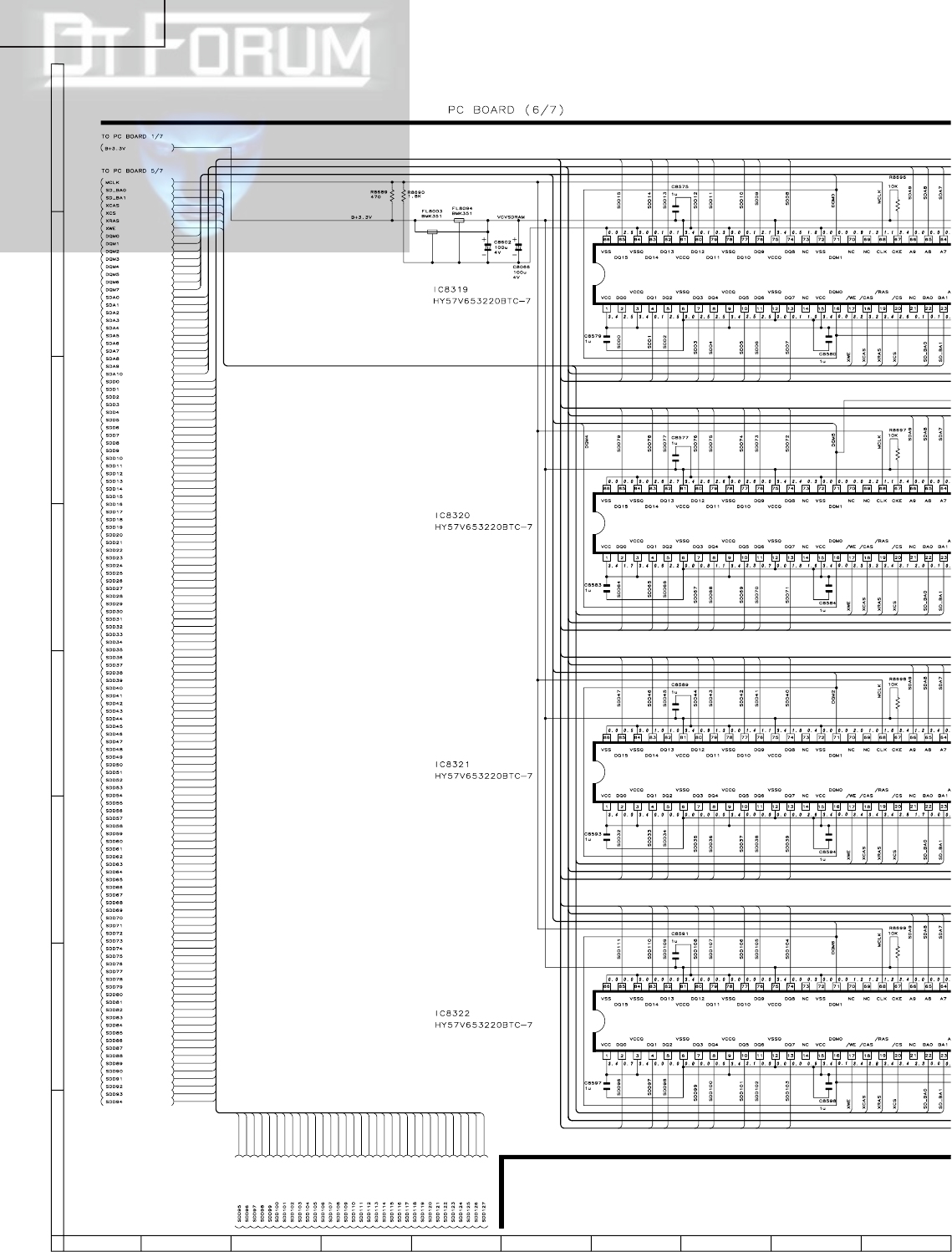

Ë PC I/F UNIT-6/7 / PC-I/F-EINHEIT-6/7

143

1716 1918151413121110

PG-M20S

PG-M20X

144

87109654321

PG-M20S

PG-M20X

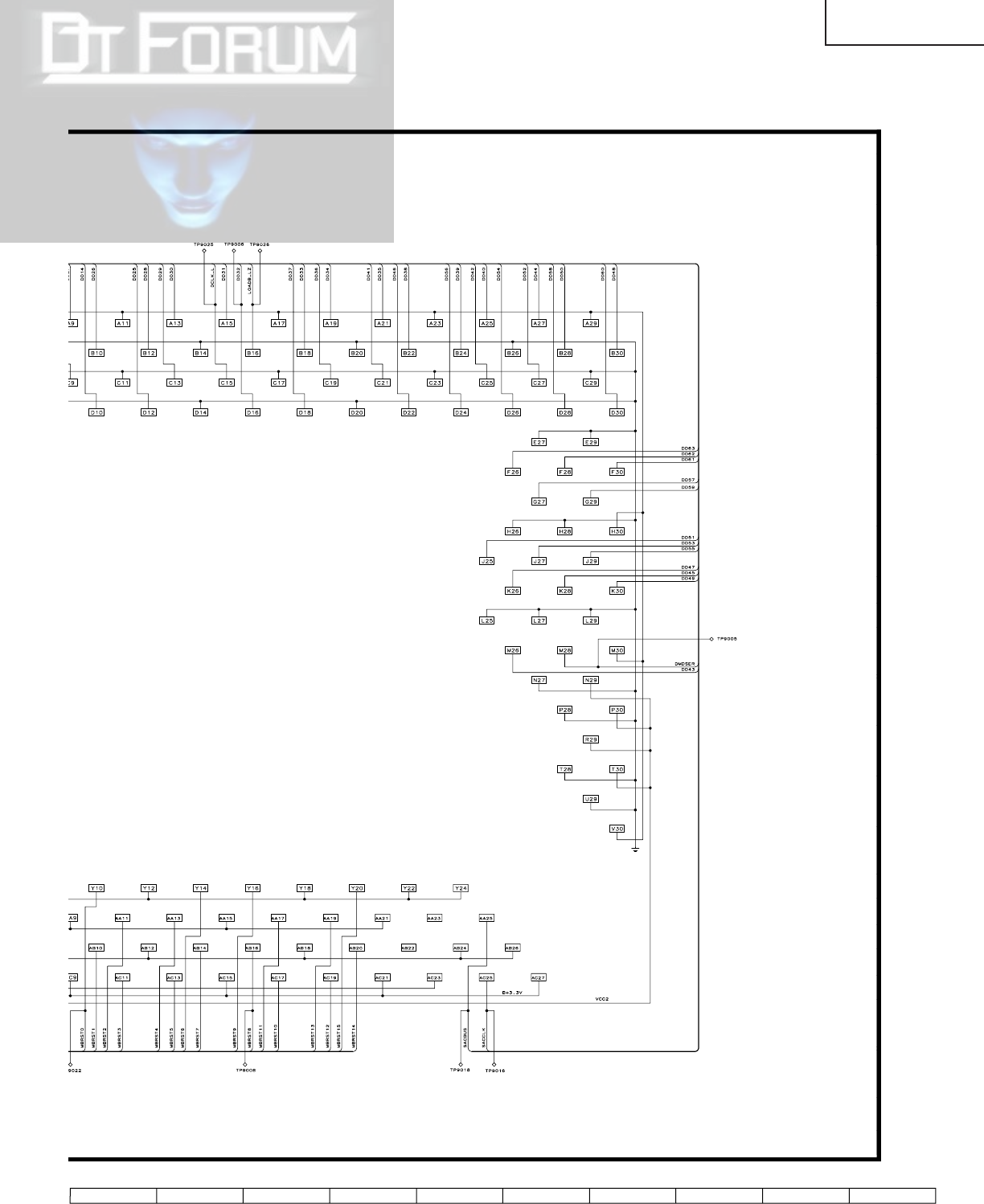

Ë PC I/F UNIT-7/7 / PC-I/F-EINHEIT-7/7

145

1716 1918151413121110

PG-M20S

PG-M20X

146

654321

PG-M20S

PG-M20X

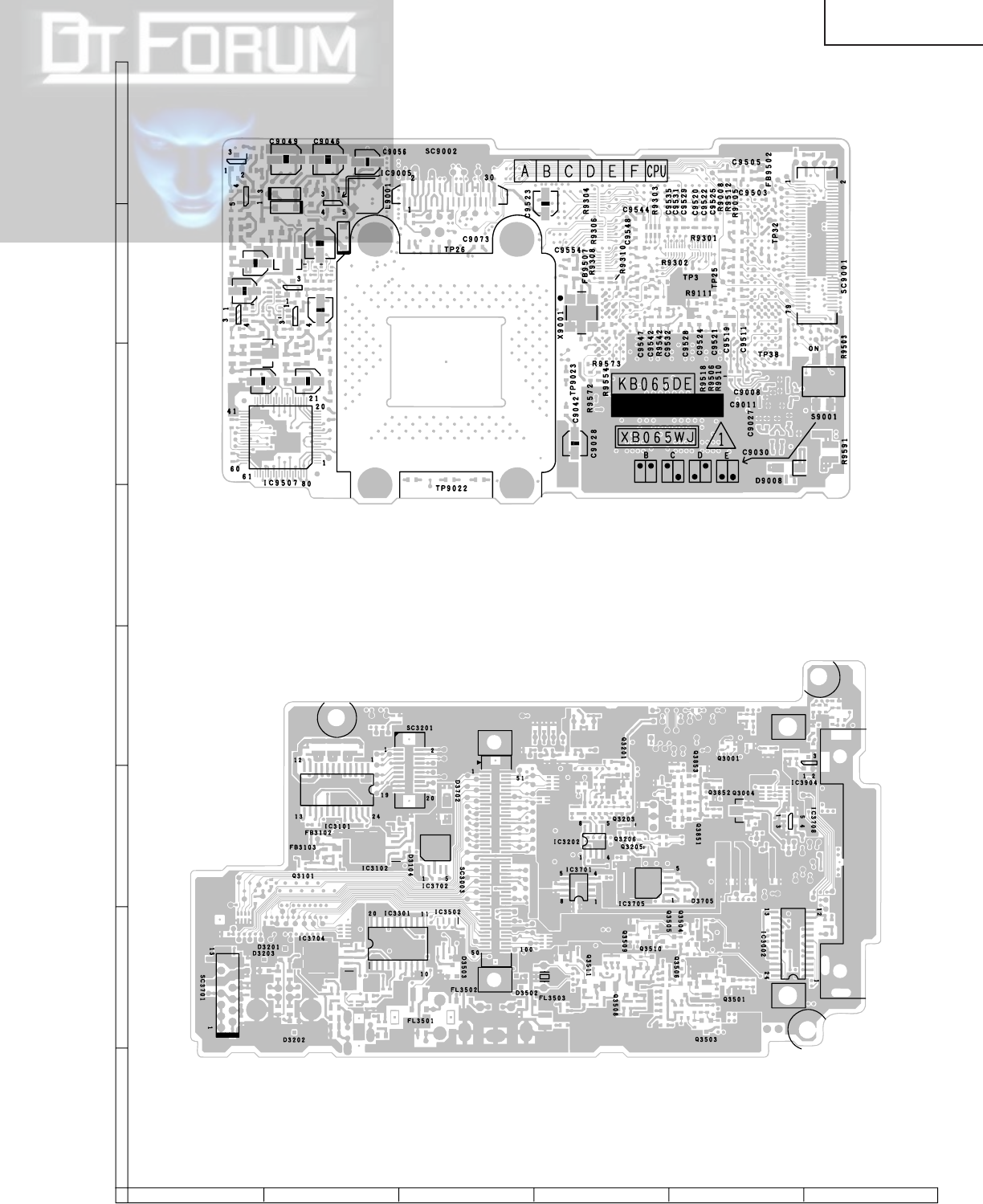

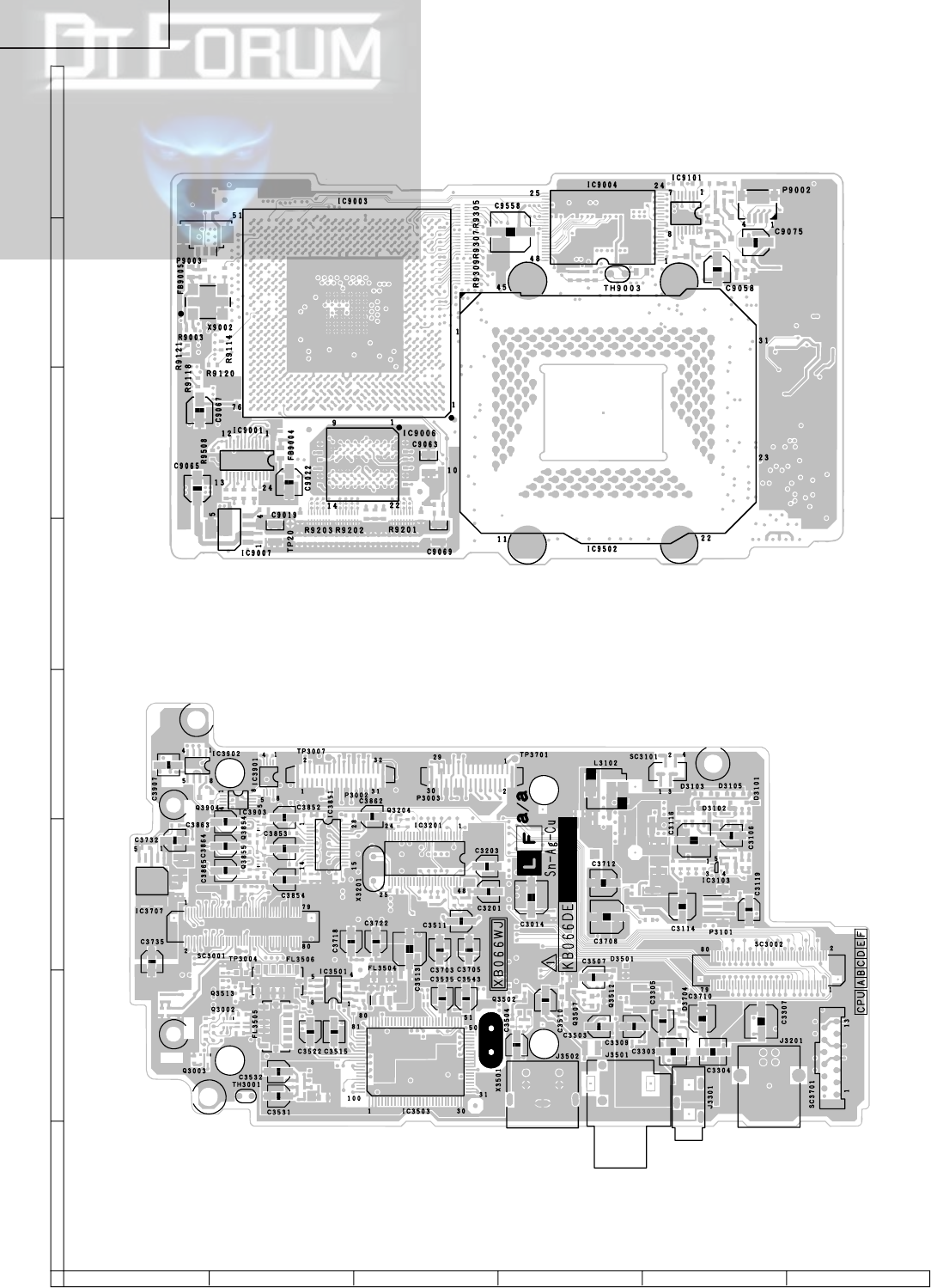

FORMATTER Unit (Side-A)

FORMATIERER Einheit (Seite-A)

INPUT Unit (Side-A)

EINGANGS Einheit (Seite-A)

PRINTED WIRING ASSEMBLIES/

LEITERPLTTENEINHEITEN

147

654321

PG-M20S

PG-M20X

FORMATTER Unit (Side-B)

FORMATIERER Einheit (Seite-B)

INPUT Unit (Side-B)

EINGANGS Einheit (Seite-B)

148

654321

PG-M20S

PG-M20X

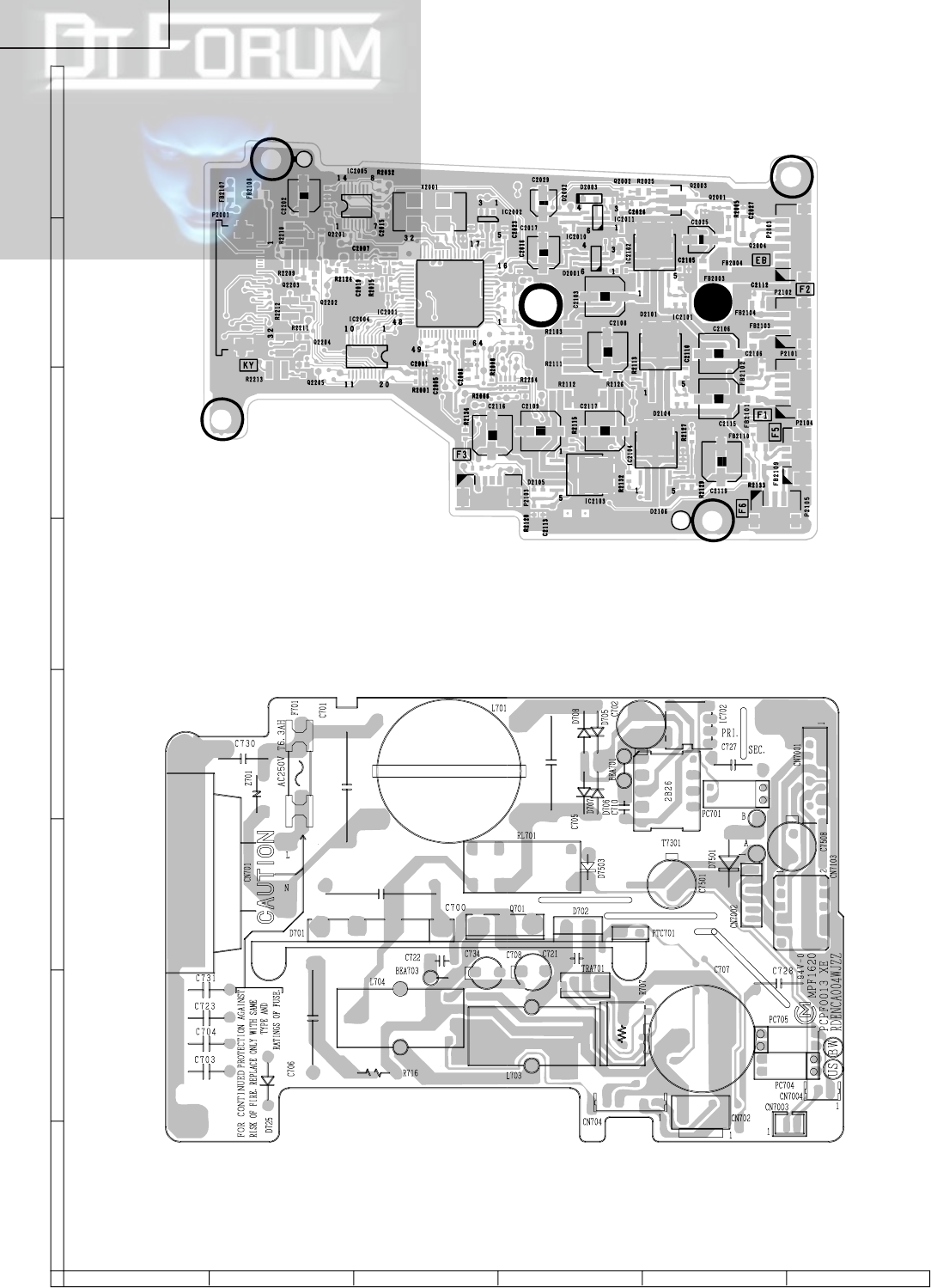

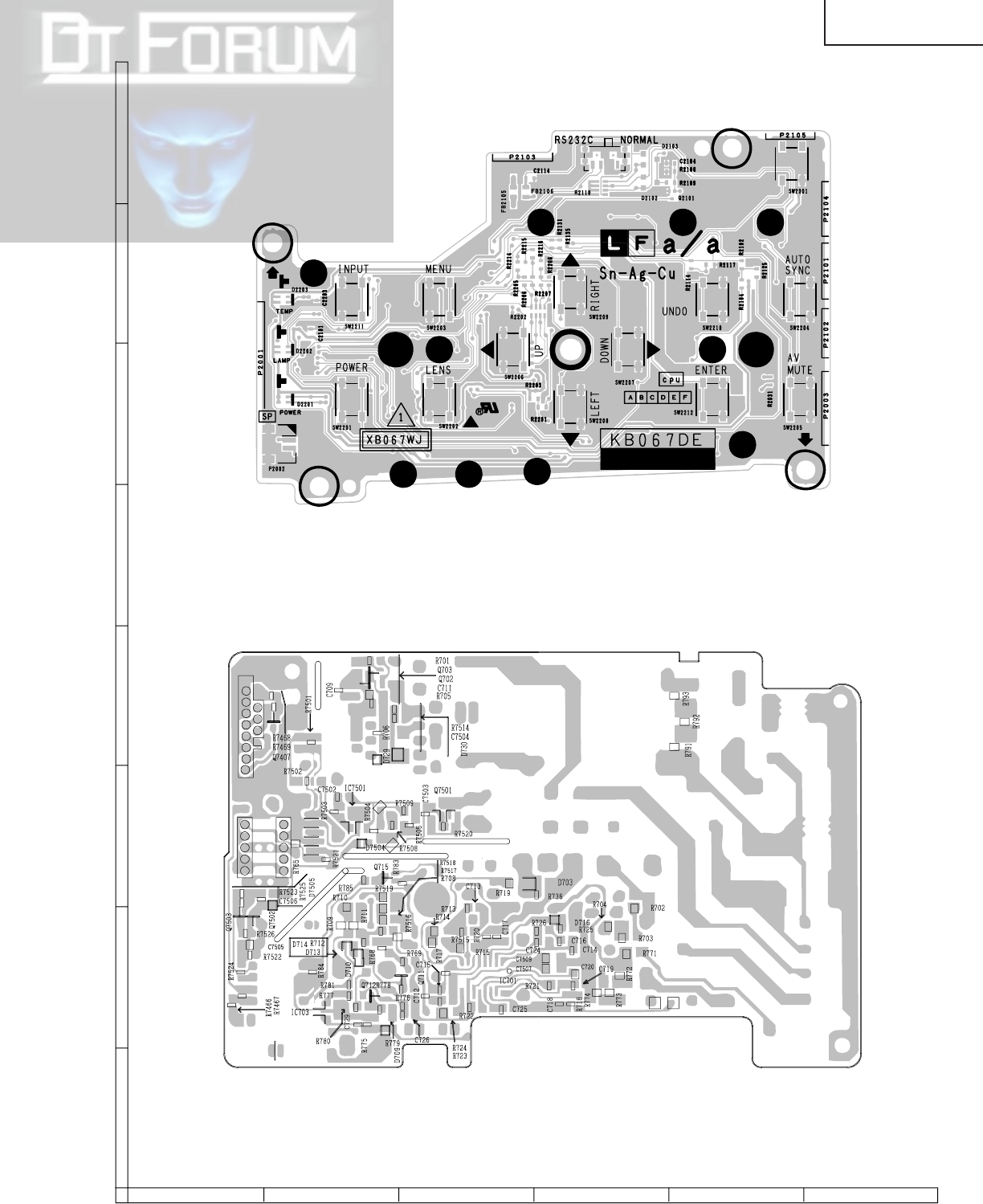

KEY Unit (Side-A)

SCHLÜSSEL Einheit (Seite-A)

PFC Unit (Side-A)

PFC-Einheit (Seite-A)

149

654321

PG-M20S

PG-M20X

KEY Unit (Side-B)

SCHLÜSSEL Einheit (Seite-B)

PFC Unit (Side-B)

PFC-Einheit (Seite-B)

150

654321

PG-M20S

PG-M20X

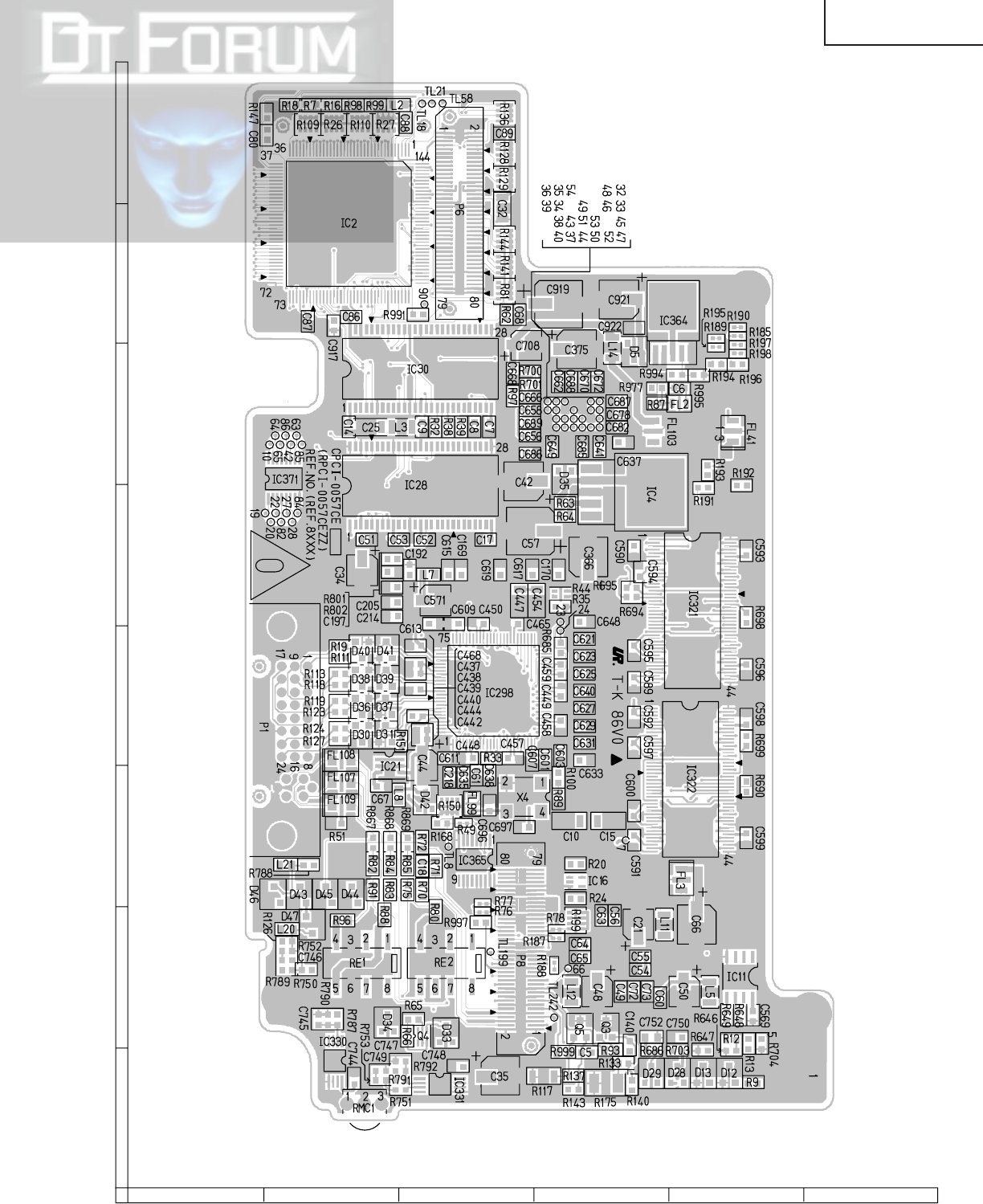

PC I/F Unit (Side-A)

PC-I/F Einheit (Seite-A)

151

654321

PG-M20S

PG-M20X

PC I/F Unit (Side-B)

PC-I/F Einheit (Seite-B)

152

654321

PG-M20S

PG-M20X

POWER Unit (Component Side)

NETZ Einheit (Bestückugsseite)

153

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

DUNTKB065DE01 (PG-M20X)

DUNTKB065DE03 (PG-M20S)

FORMATTER UNIT

ERSATZTEILLISTE

AUSTAUSCH VON TEILEN

Ersatzteile, die besondere Sicherheitseigenschften haben, sind in

dieser Anleitung markiert. Elektrische Komponenten mit solchen

Eigenshaften sind in den Ersatzteil durch "å" gekenn-zeichnet.

Der Gebrauch von Ersatzteilen, die nicht deselben Sicherheits-

eigenschaften haben wie die vom Hersteller empfohlenen ud in der

Bedienungsanleitung angegebenen, können zur Ursache von

Blitzeinschlägen, Bränden und anderen Gefahren werden.

"WIE MAN ERSATSTEILE BESTELLT"

Damit Ihre Bestellung promt und korrekt ausgeführt wird, geben Sie

bitte folgende Informationen.

1. MODELL NR. 2. REF. NR.

3. ERSATZTEIL NR. 4. BESCHREIBUNG

5. KODE 6. QUANTITÄT

PARTS LIST

PARTS REPLACEMENT

Parts marked with "å" are important for maintaining the safety of

the set. Be sure to replace these parts with specified ones for main-

taining the safety and performance of the set.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the

following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

5. CODE 6. QUANTITY

in USA: Contact your nearest SHARP Parts Distributor.

For location of SHARP Parts Distributor,

Please call Toll-Free; 1-800-BE-SHARP

in CANADA: Contact SHARP Electronics of Canada Limited

Phone (416) 890-2100.

★ MARK: SPARE PARTS-DELIVERY SECTION ★ MARKIERUNG : ERSATZTEILE-LIEFERUNG

PG-M20X

DUNTKB065DE01 J FORMATTER Unit CP

DUNTKB066DE01 – INPUT Unit —

DUNTKB067DE01 – KEY UNIT —

RDENCA004WJZZ – PFC Unit —

RDENCA010WJZZ – POWER Unit —

CPCi-0057CE01 J PC I/F Unit CW

RDENCA005WJZZ J BALLAST Unit BZ

(Unit Replacement)

PG-M20S

DUNTKB065DE03 J FORMATTER Unit

DUNTKB066DE03 – INPUT Unit —

DUNTKB067DE03 – KEY UNIT —

RDENCA004WJN1 – PFC Unit —

RDENCA010WJZZ – POWER Unit —

CPCi-0057CE31 J PC I/F Unit

RDENCA005WJZZ J BALLAST Unit BZ

(Unit Replacement)

INTEGRATED CIRCUITS

IC9001 VHiTCDCR83D-1Y J TCDCR83D AR

IC9004 RH-iXA090WJZZQ J IC (PG-M20X) AU

IC9004 RH-iXA343WJZZ J IC (PG-M20S)

IC9005 VHiLT1613CS-1Y J LT1613CS AS

IC9007 VHiLP3962M1-1Y J LP3962M1 AM

IC9101 VHiAHCT08PW-1Y J AHCT08PW AD

IC9504 VHiOPA237NA-1Y J OPA237NA AH

IC9505 VHiLM321MF+-1Y J LM321MF AE

IC9506 VHiOPA237NA-1Y J OPA237NA AH

IC9510 VHi4040CM35-1Y J 4040CM35 AH

IC9511 VHi4040CM35-1Y J 4040CM35 AH

Note: When exchanging the following parts, it becomes unit

replacement correspondence.

IC9003 — – DDP1000 —

IC9006 — – RAMBUS —

TRANSISTORS

Q9001 VS2SJ356+++-1Y J 2SJ356 AE

Q9002 VS2SC4672Q/-1 J 2SC4672Q AE

Q9003 VS2SC3928AR-1 J 2SC3928AR AB

Q9101 VS2SC3928AR-1 J 2SC3928AR AB

Q9102 VS2SC3928AR-1 J 2SC3928AR AB

Q9501 VSMMBT2907A-1Y J MMBT2907A AB

Q9502 VSMMBT2907A-1Y J MMBT2907A AB

Q9503 VSMMBT2222A-1Y J MMBT2222A AB

Q9504 VSMMBT2907A-1Y J MMBT2907A AB

Q9505 VSMMBT2222A-1Y J MMBT2222A AB

Q9506 VSMMBT2907A-1Y J MMBT2907A AB

Q9507 VSiMT17++++-1Y J IMT17 AC

Q9508 VSUMH4N++++-1Y J UMH4N AC

Q9509 VSUMH4N++++-1Y J UMH4N AC

Q9510 VSFDG6303N+-1Y J FDG6303N AE

Q9511 VSFDG6303N+-1Y J FDG6303N AE

DIODES AND THERMISTER

D9005 VHDMi1A3///2E J Diode AC

D9006 VHDMi1A3///2E J Diode AC

D9007 VHDMi1A3///2E J Diode AC

D9008 VHDSFPA73//2EY J Diode AD

TH9003 RH-HXA001WJZZ J Thermister AD

154

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

DUNTKB065DE01 (PG-M20X)

DUNTKB065DE03 (PG-M20S)

FORMATTER UNIT (Continued)

PACKAGED CIRCUITS AND COIL

X9001 RCRUAA001WJZZY J Crystal AN

X9002 RCRUAA002WJZZY J Crystal AN

L9001 RCiLP0191GEZZY J Peaking Coil AD

CAPACITORS

C9001 VCEAPF1CW106M J 10 16V Electrolytic AB

C9002 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9003 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9004 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9006 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9007 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9008 VCCCCY1HH680J J 68p 50V Ceramic AA

C9009 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9010 VCCCCY1HH680J J 68p 50V Ceramic AA

C9011 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9013 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9014 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9015 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9016 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9019 VCSNDE0GP107MY J 100 4V Chip AF

C9021 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9022 VCEAPF1CW106M J 10 16V Electrolytic AB

C9023 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9024 VCCCCY1HH680J J 68p 50V Ceramic AA

C9025 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9026 VCCCCY1HH680J J 68p 50V Ceramic AA

C9027 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9028 VCEAPF1HW105M J 1.0 50V Electrolytic AB

C9029 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9030 VCCCCY1HH4R0C J 4p 50V Ceramic AA

C9032 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9034 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9035 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9036 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9037 VCEASH1VN106MY J 10 35V Electrolytic AC

C9038 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9039 VCKYCY1HF104ZY J 0.1 50V Ceramic AA

C9041 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9042 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9043 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9044 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9045 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9046 VCEASH1VN106MY J 10 35V Electrolytic AC

C9047 VCKYCY1HF104ZY J 0.1 50V Ceramic AA

C9049 VCEASH1VN106MY J 10 35V Electrolytic AC

C9050 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9051 VCKYCY1HF104ZY J 0.1 50V Ceramic AA

C9053 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9054 VCCCCY1HH7R0D J 7p 50V Ceramic AA

C9055 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9056 VCEAPV1EW475M J 4.7 25V Electrolytic AC

C9057 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9058 VCEAPF1EW475M J 4.7 25V Electrolytic AB

C9059 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9060 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9061 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9062 VCKYCY1CB104K J 0.1 16V Ceramic AB

C9063 VCSNDE0GP107MY J 100 4V Chip AF

C9064 VCEAPF1HW105M J 1.0 50V Electrolytic AB

C9065 VCEAPF1CW106M J 10 16V Electrolytic AB

C9066 VCEAPF1HW335M J 3.3 50V Electrolytic AB

C9067 VCEAPF1CW106M J 10 16V Electrolytic AB

C9068 VCEAPF1HW335M J 3.3 50V Electrolytic AB

C9069 VCSNDE0GP107MY J 100 4V Chip AF

C9070 VCKYCY1HF104ZY J 0.1 50V Ceramic AA

C9071 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9072 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9073 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9075 VCEAPF1HW105M J 1.0 50V Electrolytic AB

C9101 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9102 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9503 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9505 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9510 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9511 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9513 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9514 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9515 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9516 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9517 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9519 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9520 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9521 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9522 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9523 VCEAPF1CW106M J 10 16V Electrolytic AB

C9524 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9525 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9527 VCKYCY1HF104ZY J 0.1 50V Ceramic AA

C9528 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9529 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9530 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9531 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9532 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9533 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9535 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9536 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9537 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9538 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9539 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9542 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9544 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9545 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9546 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9547 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9548 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9549 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9550 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9551 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9552 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9553 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9554 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9555 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9558 VCEAPF0GW227M J 220 4V Electrolytic AB

C9562 VCEAPF1HW335M J 3.3 50V Electrolytic AB

C9563 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9564 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9565 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9566 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C9567 VCKYCY1EF104Z J 0.1 25V Ceramic AA

RESISTORS

R9001 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R9003 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9005 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9006 VRS-CY1JF111F J 110 1/16W Metal Oxide AA

R9007 VRS-CY1JF111F J 110 1/16W Metal Oxide AA

R9008 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9010 VRS-CY1JF560F J 56 1/16W Metal Oxide AA

R9011 VRS-CY1JF560F J 56 1/16W Metal Oxide AA

R9014 VRS-CY1JF302F J 3k 1/16W Metal Oxide AA

R9017 VRS-CY1JF683F J 68k 1/16W Metal Oxide AA

R9018 VRS-TV1JD240J J 24 1/16W Metal Oxide AA

R9020 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9031 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA

R9032 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA

R9101 VRS-CY1JF471J J 470 1/16W Metal Oxide AA

R9102 VRS-CY1JF182J J 1.8k 1/16W Metal Oxide AA

R9103 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA

R9104 VRS-CY1JF471J J 470 1/16W Metal Oxide AA

R9105 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA

R9106 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9107 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R9108 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R9109 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA

R9110 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R9111 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R9112 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

155

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

R9113 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R9114 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R9115 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R9116 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R9118 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R9119 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R9120 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R9121 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R9131 VRS-CY1JF184J J 180k 1/16W Metal Oxide AA

R9132 VRN-CY1JF472D J 4.7k 1/16W Metal Film AA

R9135 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9201 VRK-CD1JJ390FY J 39 1/16W Metal Compo AC

R9202 VRK-CD1JJ390FY J 39 1/16W Metal Compo AC

R9203 VRK-CD1JJ390FY J 39 1/16W Metal Compo AC

R9204 VRS-CY1JF390FY J 39 1/16W Metal Oxide AA

R9205 VRS-CY1JF390FY J 39 1/16W Metal Oxide AA

R9206 VRS-CY1JF390FY J 39 1/16W Metal Oxide AA

R9207 VRS-CY1JF390FY J 39 1/16W Metal Oxide AA

R9301 VRK-CC1JJ220JY J 22 1/16W Metal Compo AC

R9302 VRK-CC1JJ220JY J 22 1/16W Metal Compo AC

R9303 VRS-CB1JF220J J 22 1/16W Metal Oxide AC

R9304 VRK-CC1JJ220JY J 22 1/16W Metal Compo AC

R9305 VRK-CC1JJ220JY J 22 1/16W Metal Compo AC

R9306 VRK-CC1JJ220JY J 22 1/16W Metal Compo AC

R9307 VRK-CC1JJ220JY J 22 1/16W Metal Compo AC

R9308 VRK-CC1JJ220JY J 22 1/16W Metal Compo AC

R9309 VRK-CC1JJ220JY J 22 1/16W Metal Compo AC

R9310 VRS-CA1JF220J J 22 1/16W Metal Oxide AA

R9401 VRS-CA1JF273J J 27k 1/16W Metal Oxide AA

R9402 VRS-CB1JF273J J 27k 1/16W Metal Oxide AC

R9502 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA

R9503 VRS-CA1JF103J J 10k 1/16W Metal Oxide AA

R9506 VRS-CY1JF240FY J 24 1/16W Metal Oxide AA

R9507 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9508 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9509 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R9510 VRS-CY1JF240FY J 24 1/16W Metal Oxide AA

R9511 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R9512 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA

R9515 VRS-TV1JD270J J 27 1/16W Metal Oxide AA

R9517 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9518 VRS-CY1JF240FY J 24 1/16W Metal Oxide AA

R9519 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R9522 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9524 VRS-CY1JF240JY J 24 1/16W Metal Oxide AA

R9527 VRS-CY1JF104F J 100k 1/16W Metal Oxide AA

R9528 VRS-CY1JF273J J 27k 1/16W Metal Oxide AA

R9529 VRS-TV1JD240J J 24 1/16W Metal Oxide AA

R9530 VRS-TV1JD330J J 33 1/16W Metal Oxide AA

R9532 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9535 VRS-CY1JF203F J 20k 1/16W Metal Oxide AA

R9538 VRS-TV1JD1R0J J 1 1/16W Metal Oxide AA

R9539 VRN-CY1JF472D J 4.7k 1/16W Metal Film AA

R9541 VRS-CY1JF202F J 2k 1/16W Metal Oxide AA

R9542 VRS-CY1JF111F J 110 1/16W Metal Oxide AA

R9543 VRS-CY1JF240JY J 24 1/16W Metal Oxide AA

R9546 VRS-TV1JD100J J 10 1/16W Metal Oxide AA

R9547 VRS-CY1JF432F J 4.3k 1/16W Metal Oxide AA

R9548 VRN-CY1JF472D J 4.7k 1/16W Metal Film AA

R9549 VRS-TV1JD1R0J J 1 1/16W Metal Oxide AA

R9550 VRN-CY1JF203D J 20k 1/16W Metal Film AB

R9551 VRS-CY1JF222F J 2.2k 1/16W Metal Oxide AA

R9552 VRS-TV1JD240J J 24 1/16W Metal Oxide AA

R9553 VRS-TV1JD240J J 24 1/16W Metal Oxide AA

R9554 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R9555 VRS-TV1JD1R0J J 1 1/16W Metal Oxide AA

R9556 VRS-CY1JF100J J 10 1/16W Metal Oxide AA

R9557 VRS-CY1JF820F J 82 1/16W Metal Oxide AA

R9558 VRS-CY1JF331F J 330 1/16W Metal Oxide AA

R9559 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R9560 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R9561 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA

R9562 VRS-CY1JF330FY J 33 1/16W Metal Oxide AA

R9563 VRS-CY1JF561F J 560 1/16W Metal Oxide AA

R9564 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA

R9565 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R9566 VRS-CY1JF821F J 820 1/16W Metal Oxide AA

R9567 VRS-CY1JF121F J 120 1/16W Metal Oxide AA

R9569 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R9574 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA

R9575 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA

R9591 VRS-TW2ED000J J 0 1/4W Metal Oxide AB

R9592 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

SWITCH

S9001 QSW-SA004WJZZY J Slide Switch AG

MISCELLANEOUS PARTS

FB9001 RBLN-0061TAZZ J Ferrite Bead AD

FB9002 RBLN-0061TAZZ J Ferrite Bead AD

FB9003 RBLN-0061TAZZ J Ferrite Bead AD

FB9004 RBLN-0210TAZZ J Ferrite Bead AB

FB9005 RBLN-0210TAZZ J Ferrite Bead AB

FB9006 RBLN-0061TAZZ J Ferrite Bead AD

FB9502 RBLN-0210TAZZ J Ferrite Bead AB

FB9507 RBLN-0210TAZZ J Ferrite Bead AB

P9002 QPLGN0474TAZZ J Plug, 4-pin AD

P9003 QPLGN0363TAZZ J Plug, 3-pin AC

SC9001 QSOCN8003WJZZY J Socket, 80-pin AM

SC9002 QSOCN3078TAZZ J Socket, 30-pin AE

DUNTKB065DE01 (PG-M20X)

DUNTKB065DE03 (PG-M20S)

FORMATTER UNIT (Continued)

156

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

DUNTKB066DE01 (PG-M20X)

DUNTKB066DE03 (PG-M20S)

INPUT UNIT

INTEGRATED CIRCUITS

IC3002 VHiM62392FP-1 J M62392FP AM

IC3101 VHiA8902CLB-1Y J A8902CLB BA

IC3102 VHiPQ20WZ11-1 J PQ20WZ1U AG

IC3103 VHiSNT1G14C-1Y J SNT1G14C AD

IC3201 RH-iXA178WJZZY J IC AW

IC3301 VHiDA7056AT-1Y J TDA7056AT/N2 AM

IC3502 VHiNJM2244M-1 J NJM2244M AG

IC3702 VHiPQ12DZ1U-1Y J PQ12DZ1U AG

IC3704 VHiPQ20WZ11-1 J PQ20WZ1U AG

IC3705 VHiPQ05DZ1U-1Y J PQ05DZ1U AG

IC3708 VHiBD4744G+-1Y J BD4744G-TR AD

IC3851 VHiSM5300AV-1Y J SM5300AV AR

IC3901 VHiTL712CPW-1 J T1712CPWR AL

IC3902 VHiLMH6643A-1Y J LMH6643A AP

IC3903 VHiTL712CPW-1 J T1712CPWR AL

TRANSISTORS

Q3002 VSHN1K03FU+-1Y J HN1K03FU AD

Q3003 VSHN1K03FU+-1Y J HN1K03FU AD

Q3004 VS2SB1132Q/-1 J 2SB1132Q AC

Q3101 VSDTC114EE/-1 J DTC114EE AB

Q3201 VSBSS84++++-1Y J BSS84 AE

Q3205 VSHN1K03FU+-1Y J HN1K03FU AD

Q3206 VSRN1905///-1 J RN1905 AB

Q3502 VS2SC3928AR-1 J 2SC3928AR AB

Q3507 VS2SC3928AR-1 J 2SC3928AR AB

Q3512 VS2SA1530AR-1 J 2SA1530AR AB

Q3513 VS2SC3928AR-1 J 2SC3928AR AB

Q3851 VS2SC2735//-1 J 2SC2735 AB

Q3852 VS2SC2735//-1 J 2SC2735 AB

Q3853 VS2SC2735//-1 J 2SC2735 AB

Q3854 VSHN2C01FU/-1 J HN2C01FU AC

Q3855 VSHN2C01FU/-1 J HN2C01FU AC

Q3904 VS2SC2412KQ-1 J 2SC2412KQ AA

DIODES AND THERMISTER

D3101 VHDBAT54SWT-1Y J Diode AC

D3102 VHDBAT54SWT-1Y J Diode AC

D3103 VHDBAT54SWT-1Y J Diode AC

D3104 VHDDAN222//-1 J Diode AA

D3105 VHDBAT54SWT-1Y J Diode AC

D3201 VHDMA3120WA-1 J Diode AK

D3202 VHDMA3120WA-1 J Diode AK

D3203 VHDMA3120WA-1 J Diode AK

D3501 RH-EX0227CEZZ J Zener Diode AB

D3502 RH-EX0227CEZZ J Zener Diode AB

D3503 RH-EX0227CEZZ J Zener Diode AB

D3702 VHDDAN222//-1 J Diode AA

D3704 VHDDAN222//-1 J Diode AA

TH3001 RH-HXA001WJZZ J Thermister AD

PACKAGED CIRCUIT AND FILTERS

X3201 RFiLA0042CEZZ J Filter, 454kHz AD

FL3501 RFiLN0003TAZZ J Filter AD

FL3502 RFiLN0003TAZZ J Filter AD

FL3503 RFiLN0003TAZZ J Filter AD

FL3506 RCiLF0306CEZZ J Filter AH

CAPACITORS

C3001 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3002 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3003 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3004 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3005 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3006 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3101 VCKYCY1HB102K J 1000p 50V Ceramic AA

C3102 VCKYCY1HB332K J 3300p 50V Ceramic AA

C3103 VCKYCY1HB332K J 3300p 50V Ceramic AA

C3104 VCKYCY1HB102K J 1000p 50V Ceramic AA

C3105 VCKYCY1HB222K J 2200p 50V Ceramic AA

C3106 VCEASM1HW105MYJ 1 50V Electrolytic AC

C3107 VCKYCY1HB102K J 1000p 50V Ceramic AA

C3109 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3110 VCKYCY1HF224ZY J 0.22 50V Ceramic AA

C3111 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3112 VCKYCY1HB562K J 5600p 50V Ceramic AA

C3113 VCKYCY1AB154KY J 0.15 10V Ceramic AB

C3114 VCEASM1EW106MYJ 10 25V Electrolytic AC

C3115 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3116 VCEASM1CW476MYJ 47 16V Electrolytic AC

C3117 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3118 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3119 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3120 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3121 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3122 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3201 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3202 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3204 VCCCCY1HH150J J 15p 50V Ceramic AA

C3205 VCCCCY1HH150J J 15p 50V Ceramic AA

C3301 VCCCCY1HH101J J 100p 50V Ceramic AA

C3302 VCCCCY1HH101J J 100p 50V Ceramic AA

C3303 VCE9PF1CW106M J 10 16V Elect.(N.P) AC

C3304 VCE9PF1CW106M J 10 16V Elect.(N.P) AC

C3305 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3306 VCCCCY1HH471J J 470p 50V Ceramic AA

C3307 VCEASM1CW107MYJ 100 16V Electrolytic AD

C3308 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3309 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3310 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3503 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3504 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3507 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3510 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3511 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3513 VCEASM1CW476MYJ 47 16V Electrolytic AC

C3547 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3551 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3701 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3702 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3703 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3706 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3707 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3708 VCEASM1EW476MYJ 47 25V Electrolytic AD

C3710 VCEASM1EW106MYJ 10 25V Electrolytic AC

C3711 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3712 VCEASM1CW226MYJ 22 16V Electrolytic AC

C3715 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3718 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3722 VCEASM0JW226MY J 22 6.3V Electrolytic AC

C3725 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3726 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3728 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3733 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3734 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3741 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3742 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3851 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3852 VCEASM1HW105MYJ 1 50V Electrolytic AC

C3853 VCEASM1HW105MYJ 1 50V Electrolytic AC

C3854 VCEASM1HW105MYJ 1 50V Electrolytic AC

C3855 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3856 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3857 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3858 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3862 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3863 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3864 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3865 VCEASM1CW106MYJ 10 16V Electrolytic AC

C3901 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3903 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3904 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3905 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C3907 VCE9PF1HW474M J 0.47 50V Elect.(N.P) AD

C3909 VCCCCY1HH101J J 100p 50V Ceramic AA

C3910 VCKYCY1EF104Z J 0.1 25V Ceramic AA

157

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

C3911 VCKYCY1HB222K J 2200p 50V Ceramic AA

RESISTORS

R3003 VRS-CY1JF184J J 180k 1/16W Metal Oxide AA

R3004 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA

R3006 VRS-CA1JF332JY J 3.3k 1/16W Metal Oxide AB

R3009 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3010 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3012 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA

R3014 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3023 VRS-CY1JF221J J 220 1/16W Metal Oxide AA

R3024 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3026 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3027 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3101 VRS-TW2ED151J J 150 1/4W Metal Oxide AA

R3102 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3103 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3104 VRS-TW2ED151J J 150 1/4W Metal Oxide AA

R3105 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3106 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3107 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3108 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3109 VRS-TW2ED151J J 150 1/4W Metal Oxide AA

R3111 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3113 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3114 VRS-CY1JF305JY J 3M 1/16W Metal Oxide AA

R3115 VRS-TX2HF2R2J J 2.2 1/2W Metal Oxide AB

R3116 VRS-CY1JF390FY J 39 1/16W Metal Oxide AA

R3118 VRS-CY1JF562F J 5.6k 1/16W Metal Oxide AA

R3119 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R3120 VRS-CY1JF222F J 2.2k 1/16W Metal Oxide AA

R3121 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA

R3122 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA

R3123 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R3124 VRS-CY1JF472J J 4.7k 1/16W Metal Oxide AA

R3125 VRS-CE3AF5R6JY J 5.6 1W Metal Oxide AC

R3126 VRS-CE3AF5R6JY J 5.6 1W Metal Oxide AC

R3201 RBLN-0060TAZZ J Ferrite Bead AB

R3206 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA

R3207 VRS-CY1JF752F J 7.5k 1/16W Metal Oxide AA

R3209 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3212 VRS-CY1JF154J J 150k 1/16W Metal Oxide AA

R3213 VRS-CY1JF224J J 220k 1/16W Metal Oxide AA

R3216 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3222 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3225 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3226 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3227 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3229 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3230 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3231 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3232 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3233 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3234 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3235 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3302 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA

R3303 VRS-CY1JF223J J 22k 1/16W Metal Oxide AA

R3304 VRS-CY1JF224J J 220k 1/16W Metal Oxide AA

R3305 VRS-CY1JF224J J 220k 1/16W Metal Oxide AA

R3306 VRS-CY1JF473J J 47k 1/16W Metal Oxide AA

R3307 VRS-CA1JF272J J 2.7k 1/16W Metal Oxide AA

R3308 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3309 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3310 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3311 VRS-CY1JF393J J 39k 1/16W Metal Oxide AA

R3312 VRS-CY1JF823J J 82k 1/16W Metal Oxide AA

R3313 VRS-TX2HF8R2J J 8.2 1/2W Metal Oxide AA

R3501 VRS-TV1JD000J J 0 1/16W Metal Oxide AA

R3504 VRS-TW2ED750J J 75 1/4W Metal Oxide AA

R3505 VRS-TW2ED750J J 75 1/4W Metal Oxide AA

R3506 VRS-TW2ED750J J 75 1/4W Metal Oxide AA

R3515 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA

R3516 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA

R3522 VRS-CY1JF122J J 1.2k 1/16W Metal Oxide AA

R3526 VRS-CY1JF332J J 3.3k 1/16W Metal Oxide AA

R3528 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA

R3531 VRS-CY1JF122J J 1.2k 1/16W Metal Oxide AA

R3537 VRS-TV1JD000J J 0 1/16W Metal Oxide AA

R3547 VRS-TV1JD000J J 0 1/16W Metal Oxide AA

R3551 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA

R3552 VRS-CY1JF105J J 1M 1/16W Metal Oxide AA

R3553 VRS-TV1JD000J J 0 1/16W Metal Oxide AA

R3561 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3562 VRS-CY1JF391J J 390 1/16W Metal Oxide AA

R3563 VRS-CY1JF392J J 3.9k 1/16W Metal Oxide AA

R3564 VRS-CY1JF471J J 470 1/16W Metal Oxide AA

R3705 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R3707 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R3708 VRS-CY1JF223F J 22k 1/16W Metal Oxide AA

R3709 VRS-CY1JF392F J 3.9k 1/16W Metal Oxide AA

R3711 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R3715 VRS-CE3AF3R3JY J 3.3 1W Metal Oxide AC

R3716 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3717 VRS-CE3AF2R2JY J 2.2 1W Metal Oxide AC

R3718 VRS-CY1JF223F J 22k 1/16W Metal Oxide AA

R3851 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3852 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3856 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3857 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R3858 VRS-CY1JF821J J 820 1/16W Metal Oxide AA

R3863 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3864 VRS-TV1JD750J J 75 1/16W Metal Oxide AA

R3865 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3866 VRS-TV1JD750J J 75 1/16W Metal Oxide AA

R3867 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3868 VRS-TV1JD750J J 75 1/16W Metal Oxide AA

R3870 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R3871 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R3872 VRS-CB1JF223J J 22k 1/16W Metal Oxide AA

R3873 VRS-CB1JF223J J 22k 1/16W Metal Oxide AA

R3877 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3878 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3879 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3904 VRS-CY1JF112F J 1.1k 1/16W Metal Oxide AA

R3905 VRS-CY1JF151F J 150 1/16W Metal Oxide AA

R3907 VRS-CY1JF102J J 1.0k 1/16W Metal Oxide AA

R3908 VRS-CY1JF272F J 2.7k 1/16W Metal Oxide AA

R3909 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R3910 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R3914 VRS-CY1JF821J J 820 1/16W Metal Oxide AA

R3915 VRS-CY1JF333J J 33k 1/16W Metal Oxide AA

R3916 VRS-CY1JF821J J 820 1/16W Metal Oxide AA

R3917 VRS-CY1JF470J J 47 1/16W Metal Oxide AA

R3918 VRS-CY1JF123J J 12k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

FB3101 RBLN-0210TAZZ J Ferrite Bead AB

FB3102 RBLN-0062CEZZ J Ferrite Bead AC

FB3103 RBLN-0059CEZZ J Ferrite Bead AB

FB3201 RBLN-0060TAZZ J Ferrite Bead AB

FB3202 RBLN-0060TAZZ J Ferrite Bead AB

FB3203 RBLN-0060TAZZ J Ferrite Bead AB

FB3301 RBLN-0064TAZZ J Ferrite Bead AC

FB3302 RBLN-0058CEZZ J Ferrite Bead AB

FB3303 RBLN-0058CEZZ J Ferrite Bead AB

FB3304 RBLN-0064TAZZ J Ferrite Bead AC

J3201 QSOCNA005WJZZ J Jack, 4-pin AE

J3301 QJAKJ0066CEZZ J Jack , PC Audio IN AE

J3501 QJAKEA002WJZZ J Jack, Video IN AD

J3502 QSOCD0426CEZZ J Din Jack Socket AE

P3002 QSOCN3278TAZZY J Plug, 32-pin AF

P3003 QSOCN3078TAZZ J Plug, 30-pin AE

P3101 QPLGN0198FJZZ J Plug, 3-pin AD

SC3001 QCNCW8002WJZZY J Socket, 80-pin AL

SC3101 QSOCN0401WJZZY J Socket, 4-pin AC

SC3701 QSOCZ1338CEZZ J Socket, 13-pin AD

LANGF9661CEFW J Angle AF

XBBSD20P03000 J Screw AA

DUNTKB066DE01 (PG-M20X)

DUNTKB066DE03 (PG-M20S)

INPUT UNIT (Continued)

158

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

DUNTKB067DE01 (PG-M20X)

DUNTKB067DE03 (PG-M20S)

KEY UNIT

INTEGRATED CIRCUITS

IC2001 RH-iXA128WJZZQ J IC AQ

IC2002 VHiBD4729G+-1Y J BD4729G-TR AD

IC2004 VHiSNAT541P-1Y J SNAT541P AF

IC2005 VHiSNHC32T/-1 J SN74HC32PW AG

IC2010 VHiPQ1R33//-1 J PQ1R33 AE

IC2011 VHiPQ1R50//-1 J PQ1R50 AF

IC2101 VHiBA00ASFP-1 J BA00ASFP-E2 AG

IC2102 VHiBA00ASFP-1 J BA00ASFP-E2 AG

IC2103 VHiBA00ASFP-1 J BA00ASFP-E2 AG

IC2104 VHiBA00ASFP-1 J BA00ASFP-E2 AG

TRANSISTORS

Q2001 VSDTC114EE/-1 J DTC114EE AB

Q2002 VSDTC114EE/-1 J DTC114EE AB

Q2003 VS2SB1132Q/-1 J 2SB1132Q AC

Q2004 VS2SA1530AR-1 J 2SA1530AR AB

Q2101 VSDTC114EE/-1 J DTC114EE AB

Q2201 VSDTC144EUA-1 J DTC144EUA AB

Q2202 VSDTC144EUA-1 J DTC144EUA AB

Q2203 VSDTC144EUA-1 J DTC144EUA AB

Q2204 VSDTC144EUA-1 J DTC144EUA AB

Q2205 VSDTC144EUA-1 J DTC144EUA AB

DIODES

D2001 VHDDAN222//-1 J Diode AA

D2002 VHDDAN222//-1 J Diode AA

D2003 VHDF01J2E//-1 J Diode AC

D2101 VHDDAN202K/-1 J Diode AB

D2102 VHDDAN202K/-1 J Diode AB

D2103 VHDDAN202K/-1 J Diode AB

D2104 VHDDAN202K/-1 J Diode AB

D2105 VHDDAN202K/-1 J Diode AB

D2106 VHDDAN202K/-1 J Diode AB

D2201 RH-PX0210TAZZY J Diode AC

D2202 RH-PX0210TAZZY J Diode AC

D2203 RH-PX0210TAZZY J Diode AC

PACKAGED CIRCUIT

X2001 RCRSB0286CEZZ J Crystal AH

CAPACITORS

C2001 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2002 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2003 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2004 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2005 VCKYCY1AF105Z J 1 10V Ceramic AC

C2006 VCKYCY1AF105Z J 1 10V Ceramic AC

C2007 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2010 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2011 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2012 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2013 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2014 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2015 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2016 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2017 VCEASM0JW476MY J 47 6.3V Electrolytic AC

C2019 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2020 VCCCCY1HH220J J 22p 50V Ceramic AA

C2021 VCCCCY1HH220J J 22p 50V Ceramic AA

C2022 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2023 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2024 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2025 VCEASM1CW106MYJ 10 16V Electrolytic AC

C2026 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2027 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2028 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2029 VCEASM1CW106MYJ 10 16V Electrolytic AC

C2030 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2101 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2103 VCEASM1EW336MYJ 33 25V Electrolytic AC

C2104 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2105 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2106 VCEASM1CW107MYJ 100 16V Electrolytic AD

C2108 VCEASM1EW336MYJ 33 25V Electrolytic AC

C2109 VCEASM1EW336MYJ 33 25V Electrolytic AC

C2110 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2111 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2112 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2113 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2114 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2115 VCEASM1CW107MYJ 100 16V Electrolytic AD

C2116 VCEASM1CW107MYJ 100 16V Electrolytic AD

C2117 VCEASM1EW336MYJ 33 25V Electrolytic AC

C2118 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2119 VCEASM1CW107MYJ 100 16V Electrolytic AD

C2120 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2201 VCKYCY1EF104Z J 0.1 25V Ceramic AA

C2202 VCEASM1CW226MYJ 22 16V Electrolytic AC

C2203 VCKYCY1EF104Z J 0.1 25V Ceramic AA

RESISTORS

R2001 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R2004 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R2005 VRS-CY1JF471J J 470 1/16W Metal Oxide AA

R2006 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R2007 VRS-CY1JF100J J 10 1/16W Metal Oxide AA

R2008 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R2009 VRS-CY1JF100J J 10 1/16W Metal Oxide AA

R2010 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R2011 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R2012 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA

R2013 VRS-CY1JF222J J 2.2k 1/16W Metal Oxide AA

R2014 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R2016 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R2018 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA

R2019 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R2020 VRS-CY1JF104J J 100k 1/16W Metal Oxide AA

R2021 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R2022 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R2023 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

R2025 VRS-TV1JD471J J 470 1/16W Metal Oxide AA

R2027 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R2029 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R2030 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R2032 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R2033 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R2101 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R2103 VRS-TW2ED2R2J J 2.2 1/4W Metal Oxide AB

R2104 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA

R2105 VRS-CY1JF102F J 1k 1/16W Metal Oxide AA

R2106 VRS-CY1JF822F J 8.2k 1/16W Metal Oxide AA

R2108 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA

R2109 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R2110 VRS-CB1JF472J J 4.7k 1/16W Metal Oxide AC

R2111 VRS-TW2ED2R2J J 2.2 1/4W Metal Oxide AB

R2112 VRS-TW2ED2R2J J 2.2 1/4W Metal Oxide AB

R2113 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R2114 VRS-CY1JF332F J 3.3k 1/16W Metal Oxide AA

R2115 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R2116 VRS-CY1JF472F J 4.7k 1/16W Metal Oxide AA

R2117 VRS-CY1JF102F J 1k 1/16W Metal Oxide AA

R2118 VRS-CY1JF683F J 68k 1/16W Metal Oxide AA

R2120 VRS-CY1JF102F J 1k 1/16W Metal Oxide AA

R2121 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA

R2122 VRS-CY1JF822F J 8.2k 1/16W Metal Oxide AA

R2124 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R2125 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R2126 VRS-TW2ED2R2J J 2.2 1/4W Metal Oxide AB

R2127 VRS-CY1JF332F J 3.3k 1/16W Metal Oxide AA

R2128 VRS-CY1JF102F J 1k 1/16W Metal Oxide AA

R2129 VRS-CY1JF473F J 47k 1/16W Metal Oxide AA

R2130 VRS-CY1JF103F J 10k 1/16W Metal Oxide AA

R2132 VRS-CY1JF101J J 100 1/16W Metal Oxide AA

R2133 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R2134 VRS-CY1JF000J J 0 1/16W Metal Oxide AA

R2201 VRS-CY1JF102J J 1k 1/16W Metal Oxide AA

159

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

R2202 VRS-CB1JF102J J 1k 1/16W Metal Oxide AA

R2203 VRS-CY1JF103J J 10k 1/16W Metal Oxide AA

R2204 VRS-CB1JF103J J 10k 1/16W Metal Oxide AA

R2205 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA

R2206 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA

R2207 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA

R2208 VRS-CY1JF562J J 5.6k 1/16W Metal Oxide AA

R2209 VRS-TW2ED221J J 220 1/4W Metal Oxide AA

R2210 VRS-TW2ED681J J 680 1/4W Metal Oxide AA

R2211 VRS-TW2ED221J J 220 1/4W Metal Oxide AA

R2212 VRS-TW2ED681J J 680 1/4W Metal Oxide AA

R2213 VRS-TW2ED681J J 680 1/4W Metal Oxide AA

R2214 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA

R2215 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA

R2216 VRS-CY1JF682J J 6.8k 1/16W Metal Oxide AA

SWITCHES

SW2001

QSW-KA001WJZZY J Switch AD

SW2002

QSW-S0203TAZZ J Switch AD

SW2201

QSW-KA001WJZZY J Switch AD

SW2202

QSW-KA001WJZZY J Switch Lens AD

SW2203

QSW-KA001WJZZY J Switch Menu AD

SW2204

QSW-KA001WJZZY J Switch Auto Sync AD

SW2205

QSW-KA001WJZZY J Switch AV Mute AD

SW2206

QSW-KA001WJZZY J Switch Cursor Up AD

SW2207

QSW-KA001WJZZY J Switch Cursor Down AD

SW2208

QSW-KA001WJZZY J Switch Cursor Left AD

SW2209

QSW-KA001WJZZY J Switch Cursor Right AD

SW2210

QSW-KA001WJZZY J Switch Undo AD

SW2211

QSW-KA001WJZZY J Switch Input AD

SW2212

QSW-KA001WJZZY J Switch Enter AD

MISCELLANEOUS PARTS

FB2003 RBLN-0064TAZZ J Ferrite Bead AC

FB2004 RBLN-0064TAZZ J Ferrite Bead AC

FB2101 RBLN-0064TAZZ J Ferrite Bead AC

FB2102 RBLN-0059CEZZ J Ferrite Bead AB

FB2103 RBLN-0064TAZZ J Ferrite Bead AC

FB2104 RBLN-0059CEZZ J Ferrite Bead AB

FB2105 RBLN-0064TAZZ J Ferrite Bead AC

FB2106 RBLN-0059CEZZ J Ferrite Bead AB

FB2107 RBLN-0064TAZZ J Ferrite Bead AC

FB2108 RBLN-0064TAZZ J Ferrite Bead AC

FB2109 RBLN-0064TAZZ J Ferrite Bead AC

FB2110 RBLN-0059CEZZ J Ferrite Bead AB

P2001 QSOCN3271TAZZ J Plug, 32-pin(KY) AE

P2002 QPLGN0264TAZZ J Plug, 2-pin(SP) AC

P2003 QPLGN0664TAZZ J Plug, 6-pin(EB) AD

P2101 QPLGN0464TAZZ J Plug, 4-pin(F1) AC

P2102 QPLGN0364TAZZ J Plug, 3-pin(F2) AC

P2103 QPLGN0463TAZZ J Plug, 4-pin(F3) AC

P2104 QPLGN0363TAZZ J Plug, 3-pin(F5) AC

DUNTKB067DE01 (PG-M20X)

DUNTKB067DE03 (PG-M20S)

KEY UNIT (Continued)

RDENCA004WJZZ (PG-M20X)

RDENCA004WJN1 (PG-M20S)

PFC UNIT

INTEGRATED CIRCUITS

IC701 95CH3151AC001 J FA5502M

IC702 95C0H1R1A0010 J MIP0254SPSCF

IC703 95C0H1Q3A0010 J TA76431 AQ

IC7501 95C0H1Q3A0010 J TA76431 AQ

TRANSISTORS

Q701 95CT2837KL001 J 2SK2837

Q702 95C0T394A0010 J 2SC4081 AH

Q703 95C0T192A0010 J 2SA1576A AH

Q711 95C0T394A0010 J 2SC4081 AH

Q712 95C0T192A0010 J 2SA1576A AH

Q715 95C0T192A0010 J 2SA1576A AH

Q7407 95C0T394A0010 J 2SC4081 AH

Q7501 95C0T397A0010 J 2SC4672K AM

Q7502 95C0T394A0010 J 2SC4081 AH

Q7503 95C0T192A0010 J 2SA1576A AH

DIODES

D701 95CD1132AL006 J D25XB60 AU

D702 95CD2172AL006 J FS10L60U AR

D703 95C0D2Q3A0040 J EC10QS04 AM

D705 95C0D157A0060 J ERA15-06 AE

D706 95C0D157A0060 J ERA15-06 AE

D707 95C0D157A0060 J ERA15-06 AE

D708 95C0D157A0060 J ERA15-06 AE

D709 95C0D295A0080 J 1SS355 AE

D710 95C0D295A0080 J 1SS355 AE

D713 95C0D295A0080 J 1SS355 AE

D714 95C0D295A0080 J 1SS355 AE

D716 95C0D492A0020 J UDZS 5.6B AK

D725 95C0D157A0060 J ERA15-06 AE

D729 95C0D491A0290 J UDZ 30B AM

D730 95C0D291A0010 J EC11FS4

D7501 95C0D279A0100 J 21DQ10 TA2B1

D7503 95C0D265A0020 J ERA91-02 AL

D7504 95C0D295A0080 J 1SS355 AE

D7505 95C0D295A0080 J 1SS355 AE

TRA701 95C0D513A6120 J SM12JZ47 AT

åZ701 95C0D758A4710 J ENC471 AK

PACKAGED CIRCUITS

åPC701 95C0H723A0010 J PC123FY8 AM

åPC704 95C0H723A0010 J PC123FY8 AM

åPC705 95C0H723A0010 J PC123FY8 AM

PTC701 95C0D802A1010 J PTH9M04BD222TS2F333 AP

COILS

L701 95CL1107RL502 J FK-080G-5020H2

L704 95C0L115R1110 J SK-10M-5YRP

L703 95CL1109RL401 J HKBS-12D080-9710RS

TRANSFORMERS

åT7301 95CL2000BS026 J 2B26

CAPACITORS

C700 95C0C247M4740 J 0.47

AC450V

Film AV

C701 95C0C245Q4740 J 0.47

AC250V

Film AS

C702 95CC3105MR100 J 10 400V Electrolytic

åC703 95C0C1H8Q2220 J 2200p

AC250V

Ceramic AH

åC704 95C0C1H8Q2220 J 2200p

AC250V

Ceramic AH

C705 95C0C245Q4740 J 0.47

AC250V

Film AS

C706 95C0C247M4740 J 0.47

AC450V

Film AV

C707 95CC3124ML151 J 150 400V Electrolytic

C708 95C0C3A0D1510 J 150 35V Electrolytic AM

C709 95C0C195C1040 J 0.1 25V Ceramic AD

C710 95C0C1B2S4700 J 47p 2kV Ceramic

C711 95C0C1Q0A1060 J 10 6.3V Ceramic AQ

C712 95C0C195C1040 J 0.1 25V Ceramic AD

C713 95C0C195C1040 J 0.1 25V Ceramic AD

C714 95CC1102EC102 J 1000p 50V Ceramic

160

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

RDENCA004WJZZ (PG-M20X)

RDENCA004WJN1 (PG-M20S)

PFC UNIT (Continued)

C715 95C0C195C3330 J 0.033 25V Ceramic

C716 95C0C194E1010 J 100p 50V Ceramic AC

C717 95C0C195E1030 J 0.01 50V Ceramic AC

C718 95C0C195E1030 J 0.01 50V Ceramic AC

C719 95C0C194E3310 J 330p 50V Ceramic AC

C720 95C0C198E4740 J 0.47 50V Ceramic

C721 95C0C1A9R3310 J 330p 1kV Ceramic AH

C722 95C0C1B2S4700 J 47p 2kV Ceramic

C723 95C0C1H8Q3320 J 3300p

AC250V

Ceramic AS

C724 95C0C194E1020 J 1000p 50V Ceramic AK

C725 95C0C195C1040 J 0.1 25V Ceramic AD

C726 95C0C195E1030 J 0.01 50V Ceramic AC

åC727 95C0C1H8Q4710 J 470p

AC250V

Ceramic AG

åC728 95C0C1H8Q2220 J 2200p

AC250V

Ceramic AH

C729 95C0C195E1030 J 0.01 50V Ceramic AC

åC730 95C0C1H8Q1020 J 1000p

AC250V

Ceramic AH

åC731 95C0C1H8Q1020 J 1000p

AC250V

Ceramic AH

C734 95C0C377M1R00 J 1 400V Electrolytic AM

C7501 95C0C3A0A1020 J 1000 10V Electrolytic

C7502 95C0C195C1040 J 0.1 25V Ceramic AD

C7503 95C0C195C1040 J 0.1 25V Ceramic AD

C7504 95C0C195E1040 J 0.1 50V Ceramic AF

C7505 95C0C1Q0A1060 J 10 6.3V Ceramic AQ

C7506 95C0C195C1040 J 0.1 25V Ceramic AD

C7507 95C0C198E4740 J 0.47 50V Ceramic

C7508 95C0C3A0B4710 J 470 16V Electrolytic

C7509 95C0C198E4740 J 0.47 50V Ceramic

RESISTORS

R701 95CR3107SC563 J 56K 1/16W

R702 95C0R390T1540 J 150k 1/4W Chip3216 AC

R703 95C0R390T1540 J 150k 1/4W Chip3216 AC

R704 95C0R390T1540 J 150k 1/4W Chip3216 AC

R705 95CR3107SC563 J 56K 1/16W

R706 95C0R3Q4S1010 J 100 1/16W Chip1608 AH

R707 95C0R522F1000 J 10 5W Fuse Resistor AQ

R708 95C0R3Q4S1040 J 100k 1/16W AH

R709 95C0R391T2240 J 220k 1/4W Chip3216 AH

R710 95C0R391T2240 J 220k 1/4W Chip3216 AH

R711 95C0R391T2240 J 220k 1/4W Chip3216 AH

R712 95C0R3Q3V1000 J 10 1/10W Chip2012

R713 95C0R391T1840 J 180k 1/4W AC

R714 95C0R391T1840 J 180k 1/4W AC

R715 95C0R391T1840 J 180k 1/4W AC

R716 95C0R516FR050 J 0.05 3W AQ

R717 95C0R3Q4S1240 J 120k 1/16W Chip1608

R718 95C0R3Q0V2700 J 27 1/8W

R719 95C0R390T3300 J 33 1/4W Chip3216 AC

R720 95C0R3Q8S1820 J 1.8k 1/16W Chip1608

R721 95C0R3Q8S3630 J 36k 1/16W Chip1608

R722 95C0R3Q4S3330 J 33k 1/16W Chip1608 AH

R723 95C0R390T4700 J 47 1/4W Chip3216 AH

R724 95C0R3Q4S3940 J 390k 1/16W Chip1608

R725 95C0R3Q8S2220 J 2.2k 1/16W Chip1608 AH

R726 95C0R3Q4S1030 J 10k 1/16W Chip1608 AH

R736 95C0R3Q8S1030 J 10k 1/16W Chip1608 AH

R765 95C0R390T3920 J 3.9k 1/4W

R768 95C0R3Q4S2720 J 2.7k 1/16W Chip1608

R769 95C0R3Q8S6810 J 680 1/16W Chip1608

R771 95C0R390T0000 J 0 1/4W Chip3216 AC

R772 95C0R391T1840 J 180k 1/4W AC

R773 95C0R391T1840 J 180k 1/4W AC

R774 95C0R391T1840 J 180k 1/4W AC

R775 95C0R3Q8S5620 J 5.6k 1/16W Chip1608

R776 95C0R3Q0V3310 J 330 1/8W Chip2012

R777 95C0R3Q0V5620 J 5.6k 1/8W Chip2012 AB

R778 95C0R3Q4S2230 J 22k 1/16W Chip1608 AH

R779 95C0R3Q4S6840 J 680k 1/16W Chip1608

R780 95C0R3Q0V1030 J 10k 1/8W Chip2012 AB

R781 95C0R3Q0V1030 J 10k 1/8W Chip2012 AB

R783 95C0R3Q4S3340 J 330k 1/16W Chip1608 AH

R784 95C0R3Q4S1020 J 1k 1/16W Chip1608 AH

R785 95C0R3Q4S3320 J 3.3k 1/16W Chip1608 AH

R791 95C0R390T8230 J 82k 1/4W Chip3216 AC

R792 95C0R390T8230 J 82k 1/4W Chip3216 AC

R793 95C0R390T8230 J 82k 1/4W Chip3216 AC

R7466 95C0R3Q4S6810 J 680 1/16W Chip1608 AH

R7467 95C0R3Q4S1020 J 1k 1/16W Chip1608 AH

R7468 95C0R3Q4S1030 J 10k 1/16W Chip1608 AH

R7469 95C0R3Q4S1030 J 10k 1/16W Chip1608 AH

R7501 95C0R3Q4S2220 J 2.2k 1/16W Chip1608 AH

R7502 95C0R3Q0V8210 J 820 1/8W

R7503 95C0R3Q4S3330 J 33k 1/16W Chip1608 AH

R7504 95C0R3Q8S3320 J 3.3k 1/16W Chip1608

R7505 95C0R3Q8S1520 J 1.5k 1/16W Chip1608

R7508 95C0R3Q8S1220 J 1.2k 1/16W Chip1608

R7509 95C0R3Q3V5610 J 560 1/10W Chip2012

R7514 95C0R3Q0V1030 J 10k 1/8W Chip2012 AB

R7515 95C0R3Q4S1020 J 1k 1/16W Chip1608 AH

R7516 95C0R390T1000 J 10 1/4W Chip3216 AC

R7517 95C0R390T1000 J 10 1/4W Chip3216 AC

R7518 95C0R390T1000 J 10 1/4W Chip3216 AC

R7519 95C0R390T1000 J 10 1/4W Chip3216 AC

R7520 95C0R3Q4S1030 J 10k 1/16W Chip1608 AH

R7521 95C0R3Q4S2220 J 2.2k 1/16W Chip1608 AH

R7522 95C0R3Q4S1030 J 10k 1/16W Chip1608 AH

R7523 95C0R3Q4S1030 J 10k 1/16W Chip1608 AH

R7524 95C0R3Q0V5620 J 5.6k 1/8W AB

R7525 95C0R3Q0V2720 J 2.7k 1/8W

R7526 95C0R3Q0V2720 J 2.7k 1/8W

MISCELLANEOU PARTS

åRL701 95CK3102AL001 J DG5D2-0(M)

BEA701

95C0L551A0020 J BL02RN2-R62 T2 AE

BEA703

95C0L551A0010 J BL02RN1-R62 T2 AD

BEA704

95CBPR53RA035 J BPR53RA035013030M

åF701 95C0K718A6R30 J Fuse, AC250V 6.3AH 215 AN

FH1 95C0M850A0010 J TP00351-51 AK

FH2 95C0M850A0010 J TP00351-51 AK

CN701 95CK2105SL001 J NC-179-L2

CN702 95C0K251A0020 J B2P3-VH AF

CN704 95C0K248A0050 J B5B-EH-A

CN7001

95CK2102FS013 J TWG-P13P-A1

CN7002

95C0WPF2014A0 J CONNECTOR

CN7003

95C0K202B0020 J B2B-PH-K-S AK

CN7004

95C0K248A0020 J B2B-EH-A

CN7103

95CK2106KS012 J MDF7-12D-2.54DSA(01)

HS1 95C0MPF002800 J Shield

HS2 95C0MPF002900 J Shield

161

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

RDENCA010WJZZ

POWER UNIT

INTEGRATED CIRCUITS

IC7101 95C0H1Q3A0010 J TA76431 AQ

IC7401 95C0H1R3A0010 J BA9743AFV-E2

TRANSISTORS

Q7301 95C0T601B0010 J 2SK2605

Q7302 95C0T395A0010 J 2SC4097

Q7320 95C0T601B0010 J 2SK2605

Q7322 95C0T395A0010 J 2SC4097

Q7330 95C0T196A0010 J 2SA1812 AS

Q7340 95C0T395A0010 J 2SC4097

Q7402 95C0T395A0010 J 2SC4097

Q7403 95C0T193A0010 J 2SA1577 AK

Q7405 95C0T593A0010 J UPA1710AG

Q7422 95C0T395A0010 J 2SC4097

Q7423 95C0T193A0010 J 2SA1577 AK

Q7425 95C0T593A0010 J UPA1710AG

Q7461 95C0T193A0010 J 2SA1577 AK

Q7462 95C0T395A0010 J 2SC4097

DIODES

D711 95C0D292A0020 J SC902-2 AM

D712 95C0D292A0020 J SC902-2 AM

D7101 95C0D224B0060 J YG802C06R AR

D7102 95C0D2Q0A0100 J EC31QS10

D7103 95C0D2Q0A0100 J EC31QS10

D7104 95C0D2Q0A0100 J EC31QS10

D7110 95C0D461A1900 J HZ-18 AH

D7304 95C0D295A0080 J 1SS355 AE

D7306 95C0D295A0080 J 1SS355 AE

D7307 95C0D295A0080 J 1SS355 AE

D7308 95C0D491A0300 J UDZ 33B

D7309 95C0D491A0300 J UDZ 33B

D9321 95C0D492A0040 J UDZS 6.8B

D7322 95C0D295A0080 J 1SS355 AE

D7330 95C0D491A0250 J UDZ 20B AM

D7340 95C0D295A0080 J 1SS355 AE

D7401 95C0D2Q0A0030 J EC31QS03L

D7402 95C0D2Q0A0030 J EC31QS03L

D7421 95C0D2Q0A0030 J EC31QS03L

D7422 95C0D2Q0A0030 J EC31QS03L

COILS AND TRANSFORMERS

L7401 95C0L150S1000 J 18261A(10uH) AN

L7421 95C0L150S1000 J 18261A(10uH) AN

åT701 95CL2000JS039 J 2J39

PACKAGED CIRCUIT

åPC7301 95C0H723A0010 J PC123FY8 AM

CONTROL

VR7401 95C0R854E1030 J 10k 1/10W

CAPACITORS

C7101 95CC3128B5122 J 1200 16V Electrolytic

C7103 95CC3128CS681 J 680 25V Electrolytic

C7105 95C0C195C1040 J 0.1 25V Ceramic AD

C7110 95C0C1A9L4720 J 4700p 250V Ceramic

C7309 95C0C193A4720 J 4700p 50V Ceramic AM

C7310 95C0C1Q2E1030 J 0.01 50V Ceramic AH

C7311 95C0C1Q1E1010 J 100p 50V Ceramic AH

C7320 95C0C2X5L4730 J 0.047 250V

C7321 95C0C1Q2E4720 J 4700p 50V Ceramic AH

C7322 95C0C193A4720 J 4700p 50V Ceramic AM

C7323 95C0C1B2S4700 J 47p 2kV Ceramic

C7330 95C0C195E1040 J 0.1 50V Ceramic AF

C7404 95C0C195E1030 J 0.01 50V Ceramic AC

C7406 95C0C195E4710 J 470p 50V Ceramic

C7408 95CC3128AS471 J 470 10V Electrolytic

C7424 95C0C195E1030 J 0.01 50V Ceramic AC

C7426 95C0C195E4710 J 470p 50V Ceramic

C7429 95CC3128AS471 J 470 10V Electrolytic

C7451 95C0C195E4730 J 0.047 50V Ceramic

C7452 95C0C195E1040 J 0.1 50V Ceramic AF

C7453 95C0C195E1040 J 0.1 50V Ceramic AF

C7454 95C0C1Q1E2210 J 220p 50V Ceramic AH

C7455 95C0C195E4730 J 0.047 50V Ceramic

RESISTORS

R7101 95C0R3Q4S3910 J 390 1/16W AH

R7102 95C0R3Q4S1030 J 10k 1/16W AH

R7103 95C0R3Q8S3320 J 3.3k 1/16W

R7104 95C0R3Q8S2720 J 2.7k 1/16W AH

R7105 95C0R3Q4S2220 J 2.2k 1/16W AH

R7106 95C0R3Q3V5610 J 560 1/10W

R7305 95C0R3Q4S2230 J 22k 1/16W AH

R7306 95C0R390T3320 J 3.3k 1/4W AC

R7307 95C0R3Q4S3310 J 330 1/16W

R7308 95C0R3Q4S3320 J 3.3k 1/16W AH

R7309 95C0R3Q4S1010 J 100 1/16W AH

R7310 95C0R3Q8S8210 J 820 1/16W AH

R7311 95C0R3Q8S4720 J 4.7k 1/16W AH

R7312 95C0R3Q8S4730 J 47k 1/16W

R7314 95C0R390T3320 J 3.3k 1/4W AC

R7317 95C0R3Q3V5610 J 560 1/10W

R7320 95C0R3Q4S2230 J 22k 1/16W AH

R7321 95C0R390T1520 J 1.5k 1/4W

R7322 95C0R3Q4S3320 J 3.3k 1/16W AH

R7323 95C0R3Q4S2240 J 220k 1/16W AH

R7324 95C0R3Q8S2220 J 2.2k 1/16W AH

R7325 95C0R390T1030 J 10k 1/4W

R7327 95C0R3Q4S6820 J 6.8k 1/16W AH

R7330 95C0R3Q4S3330 J 33k 1/16W AH

R7331 95C0R3Q4S3330 J 33k 1/16W AH

R7332 95C0R3Q4S3330 J 33k 1/16W AH

R7333 95C0R390T5640 J 560k 1/4W AH

R7334 95C0R390T5640 J 560k 1/4W AH

R7335 95C0R390T5640 J 560k 1/4W AH

R7336 95C0R3Q4S3930 J 39k 1/16W

R7340 95C0R375DR330 J 0.33 2W

R7341 95C0R3Q3V1010 J 100 1/10W

R7342 95C0R3Q8S1030 J 10k 1/16W AH

R7401 95C0R3Q8S2220 J 2.2k 1/16W AH

R7403 95C0R3Q8S2220 J 2.2k 1/16W AH

R7404 95C0R3Q4S0000 J 0 1/16W AH

R7408 95C0R3Q4S1520 J 1.5k 1/16W

R7410 95C0R3Q4S0000 J 0 1/16W AH

R7411 95C0R3Q4S4700 J 47 1/16W

R7415 95C0R3Q4S1540 J 150k 1/16W

R7421 95C0R3Q8S5620 J 5.6k 1/16W

R7423 95C0R3Q8S2220 J 2.2k 1/16W AH

R7424 95C0R3Q8S1220 J 1.2k 1/16W

R7428 95C0R3Q4S1520 J 1.5k 1/16W

R7430 95C0R3Q4S0000 J 0 1/16W AH

R7431 95C0R3Q4S4700 J 47 1/16W

R7435 95C0R3Q4S1540 J 150k 1/16W

R7451 95C0R3Q8S4730 J 47k 1/16W

R7452 95C0R3Q8S3930 J 39k 1/16W AH

R7453 95C0R3Q8S4730 J 47k 1/16W

R7454 95C0R3Q8S3930 J 39k 1/16W AH

R7455 95C0R3Q4S3330 J 33k 1/16W AH

R7456 95C0R3Q4S1240 J 120k 1/16W

R7457 95C0R3Q4S2240 J 220k 1/16W AH

R7458 95C0R3Q4S3300 J 33 1/16W

R7462 95C0R3Q4S1030 J 10k 1/16W AH

R7463 95C0R3Q4S1030 J 10k 1/16W AH

R7464 95C0R3Q4S1030 J 10k 1/16W AH

R7465 95C0R3Q4S1220 J 1.2k 1/16W

MISCELLANEOUS PARTS

BEA7301

95C0L551A0020 J BL02RN2-R62 T2 AE

CN7102

95CK2107KS012 J MDF7P-12DP-2.54DSA

CN7101

95C0WPF2013B0 J Plug, 5-pin

162

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

CPCi-0057CE01 (PG-M20X)

CPCi-0057CE31 (PG-M20S)

PC I/F UNIT

INTEGRATED CIRCUITS

IC3 9DK001-11020 J AT24C128N-10SC-1.8 AS

IC4 9DK001-15115 J PQ05VY3H3Z AM

IC5 RH-iXA148WJZZQ J

LH28F640BXXE(PG-M20X)

IC5 RH-iXA348WJZZ J IC (PG-M20S)

IC6 9DK001-15118 J PST9229 AL

IC7 RH-iXA147WJZZQ J HD6417709SBP133V BK

IC8 9DK001-15112 J PQ033EZ01 AM

IC10 9DK001-15117 J PST9222 AK

IC11 9DK001-11023 J 24LC21A7SN AS

IC13 9DK001-15113 J AD9888 BT

IC15 9DK001-15119 J SAA7118E BM

IC25 RH-iXA091WJZZQ J CVIC2 BX

IC28 9KD001-11028 J HY57V641620HGT-H AY

IC29 RH-iX3399CEN1Q J IX3399 BM

IC30 9DK001-11028 J HY57V641620HGT-H AY

IC319 9DK001-11024 J HY57V653220BTC-7 BN

IC320 9DK001-11024 J HY57V653220BTC-7 BN

IC321 9DK001-11024 J HY57V653220BTC-7 BN

IC322 9DK001-11024 J HY57V653220BTC-7 BN

IC330 9DK001-15089 J TL712CPW AR

IC331 9DK001-15089 J TL712CPW AR

IC298 9DK001-15090 J SiL151A BP

IC363 9DK001-12107 J 74VHC153MTC AK

IC364 9DK001-15114 J PQ070XZ01 AN

IC365 9DK001-12103 J 74LCX157MTC AK

IC366 9DK001-12105 J 74LVX125MTC AK

Note: When exchanging the following parts, it becomes unit

replacement correspondence.

IC7, IC15, IC25, IC29

TRANSISTORS

Q1 9DK001-20012 J 2SA1037AKQ AE

Q2 9DK001-20012 J 2SA1037AKQ AE

Q3 9DK001-20012 J 2SA1037AKQ AE

Q4 9DK001-20037 J HN2C01FU AG

Q5 9DK001-20012 J 2SA1037AKQ AE

DIODES

D5 9DK001-30018 J 1SS187 AD

D9 9DK001-30018 J 1SS187 AD

D28 9DK001-30018 J 1SS187 AD

D29 9DK001-30018 J 1SS187 AD

D30 9DK001-30015 J MA157A AE

D31 9DK001-30015 J MA157A AE

D33 9DK001-30018 J 1SS187 AD

D34 9DK001-30018 J 1SS187 AD

D35 9DK001-30018 J 1SS187 AD

D36 9DK001-30015 J MA157A AE

D37 9DK001-30015 J MA157A AE

D38 9DK001-30015 J MA157A AE

D39 9DK001-30015 J MA157A AE

D40 9DK001-30015 J MA157A AE

D41 9DK001-30015 J MA157A AE

D43 9DK001-30015 J MA157A AE

D44 9DK001-30015 J MA157A AE

D45 9DK001-30015 J MA157A AE

D46 9DK001-30015 J MA157A AE

D47 9DK001-30015 J MA157A AE

PACKAGED CIRCUITS

X1 9DK001-80038 J CX-53F(16.588MHz) AN

X4 9DK001-80018 J FXO-31FL(25.000MHz) AV

X5 9DK001-80024 J FXO-31FL(32.500MHz) AT

X6 9DK001-80034 J CX-53F(24.576MHz) AN

X7 9DK001-80015 J MC-206(32.768kHz) AS

RMC1 9DK001-15121 J TSOP1838SS3V AM

COILS AND FILTERS

L3 9DK001-81059 J NLC322522T-1R0M 1.0µH AE

L4 9DK001-81052 J NLC322522T-3R3M 3.3µH AG

L5 9DK001-81052 J NLC322522T-3R3M 3.3µH AG

L6 9DK001-81062 J BLM21P221SG AE

L7 9DK001-81062 J BLM21P221SG AE

L8 9DK001-81062 J BLM21P221SG AE

L11 9DK001-81052 J NLC322522T-3R3M 3.3µH AG

L12 9DK001-81052 J NLC322522T-3R3M 3.3µH AG

L13 9DK001-81062 J BLM21P221SG AE

L14 9DK001-81052 J NLC322522T-3R3M 3.3µH AG

L15 9DK001-81062 J BLM21P221SG AE

L20 9DK001-81044 J BLM21B201S AE

L21 9DK001-81044 J BLM21B201S AE

L22 9DK001-81052 J NLC322522T-3R3M 3.3µH AG

FL1 9DK001-82021 J BMS100 AH

FL2 9DK001-82021 J BMS100 AH

FL3 9DK001-81020 J BMK351 AG

FL41 9DK001-81020 J BMK351 AG

FL94 9DK001-81020 J BMK351 AG

FL98 9DK001-82021 J BMS100 AH

FL99 9DK001-82021 J BMS100 AH

FL103 9DK001-81020 J BMK351 AG

FL107 9DK001-82021 J BMS100 AH

FL108 9DK001-82021 J BMS100 AH

FL109 9DK001-82021 J BMS100 AH

FL110 9DK001-82021 J BMS100 AH

FL111 9DK001-82028 J NFA31GD1004704 AM

FL112 9DK001-82028 J NFA31GD1004704 AM

FL113 9DK001-82028 J NFA31GD1004704 AM

FL114 9DK001-82021 J BMS100 AH

FL115 9DK001-82028 J NFA31GD1004704 AM

FL116 9DK001-82028 J NFA31GD1004704 AM

FL117 9DK001-82028 J NFA31GD1004704 AM

FL118 9DK001-82028 J NFA31GD1004704 AM

FL119 9DK001-82028 NFA31GD1004704 AM

CAPACITORS

C3 9DK001-42157 J 0.1 25V Ceramic AC

C4 9DK001-42099 J 100p 50V Ceramic AC

C5 9DK001-42105 J 0.047 50V Ceramic AC

C6 9DK001-42115 J 10p 50V Ceramic AC

C7 9DK001-42156 J 1 6.3V Ceramic AC

C8 9DK001-42157 J 0.1 25V Ceramic AC

C9 9DK001-42157 J 0.1 25V Ceramic AC

C10 9DK001-42131 J 10 10V Ceramic AE

C12 9DK001-42103 J 15p 50V Ceramic AC

C13 9DK001-42103 J 15p 50V Ceramic AC

C14 9DK001-42156 J 1 6.3V Ceramic AC

C15 9DK001-42131 J 10 10V Ceramic AE

C16 9DK001-42157 J 0.1 25V Ceramic AC

C17 9DK001-42156 J 1 6.3V Ceramic AC

C18 9DK001-42128 J 1000p Ceramic AC

C19 9DK001-42104 J 470p 50V Ceramic AC

C20 9DK001-42104 J 470p 50V Ceramic AC

C21 9DK001-40081 J 22 6.3V Electrolytic AF

C22 9DK001-42156 J 1 6.3V Ceramic AC

C23 9DK001-42156 J 1 6.3V Ceramic AC

C24 9DK001-42157 J 0.1 25V Ceramic AC

C25 9DK001-42131 J 10 10V Electrolytic AE

C26 9DK001-42157 J 0.1 25V Ceramic AC

C27 9DK001-42105 J 0.047 50V Ceramic AC

C28 9DK001-42105 J 0.047 50V Ceramic AC

C29 9DK001-42105 J 0.047 50V Ceramic AC

C30 9DK001-42157 J 0.1 25V Ceramic AC

C31 9DK001-42156 J 1 6.3V Ceramic AC

C33 9DK001-42156 J 1 6.3V Ceramic AC

C35 9DK001-40089 J 47 6.3V Electrolytic AE

C36 9DK001-42131 J 10 10V Ceramic AE

C37 9DK001-42113 J 4.7 10V Ceramic AB

C38 9DK001-42105 J 0.047 50V Ceramic AC

C39 9DK001-40089 J 47 6.3V Electrolytic AE

C40 9DK001-42105 J 0.047 50V Ceramic AC

C41 9DK001-42105 J 0.047 50V Ceramic AC

C42 9DK001-40091 J 100 4V Electrolytic AF

C43 9DK001-42105 J 0.047 50V Ceramic AC

C44 9DK001-42105 J 0.047 50V Ceramic AC

C45 9DK001-42105 J 0.047 50V Ceramic AC

C46 9DK001-42103 J 15p 50V Ceramic AC

163

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

C47 9DK001-42103 J 15p 50V Ceramic AC

C48 9DK001-40081 J 22 6.3V Electrolytic AF

C49 9DK001-42157 J 0.1 25V Ceramic AC

C50 9DK001-40081 J 22 6.3V Electrolytic AF

C51 9DK001-42156 J 1 6.3V Ceramic AC

C52 9DK001-42157 J 0.1 25V Ceramic AC

C53 9DK001-42157 J 0.1 25V Ceramic AC

C54 9DK001-42157 J 0.1 25V Ceramic AC

C55 9DK001-42157 J 0.1 25V Ceramic AC

C56 9DK001-42157 J 0.1 25V Ceramic AC

C57 9DK001-40109 J 150 4V Electrolytic AC

C58 9DK001-42105 J 0.047 50V Ceramic AC

C59 9DK001-42105 J 0.047 50V Ceramic AC

C60 9DK001-42157 J 0.1 25V Ceramic AC

C61 9DK001-42156 J 1 6.3V Ceramic AC

C62 9DK001-42105 J 0.047 50V Ceramic AC

C63 9DK001-42157 J 0.1 25V Ceramic AC

C64 9DK001-42157 J 0.1 25V Ceramic AC

C65 9DK001-42157 J 0.1 25V Ceramic AC

C66 9DK001-40091 J 100 4V Electrolytic AF

C69 9DK001-42096 J 0.01 50V Ceramic AC

C70 9DK001-42105 J 0.047 50V Ceramic AC

C71 9DK001-42096 J 0.01 50V Ceramic AC

C72 9DK001-42157 J 0.1 25V Ceramic AC

C73 9DK001-42157 J 0.1 25V Ceramic AC

C74 9DK001-42157 J 0.1 25V Ceramic AC

C75 9DK001-42157 J 0.1 25V Ceramic AC

C76 9DK001-42157 J 0.1 25V Ceramic AC

C77 9DK001-42157 J 0.1 25V Ceramic AC

C78 9DK001-42105 J 0.047 50V Ceramic AC

C81 9DK001-42105 J 0.047 50V Ceramic AC

C82 9DK001-42154 J 0.33 10V Ceramic AB

C83 9DK001-40081 J 22 6.3V Electrolytic AF

C85 9DK001-42157 J 0.1 25V Ceramic AC

C140 9DK001-42105 J 0.047 50V Ceramic AC

C141 9DK001-42105 J 0.047 50V Ceramic AC

C142 9DK001-42105 J 0.047 50V Ceramic AC

C150 9DK001-42157 J 0.1 25V Ceramic AC

C151 9DK001-42157 J 0.1 25V Ceramic AC

C152 9DK001-42157 J 0.1 25V Ceramic AC

C153 9DK001-42157 J 0.1 25V Ceramic AC

C154 9DK001-42157 J 0.1 25V Ceramic AC

C155 9DK001-42157 J 0.1 25V Ceramic AC

C156 9DK001-42157 J 0.1 25V Ceramic AC

C157 9DK001-42157 J 0.1 25V Ceramic AC

C158 9DK001-42157 J 0.1 25V Ceramic AC

C159 9DK001-42157 J 0.1 25V Ceramic AC

C160 9DK001-42157 J 0.1 25V Ceramic AC

C161 9DK001-42157 J 0.1 25V Ceramic AC

C162 9DK001-42157 J 0.1 25V Ceramic AC

C163 9DK001-42157 J 0.1 25V Ceramic AC

C164 9DK001-42157 J 0.1 25V Ceramic AC

C165 9DK001-42157 J 0.1 25V Ceramic AC

C166 9DK001-42158 J 3900p 16V Film AL

C167 9DK001-42155 J 0.039 16V Film AL

C169 9DK001-42157 J 0.1 25V Ceramic AC

C170 9DK001-42157 J 0.1 25V Ceramic AC

C171 9DK001-42157 J 0.1 25V Ceramic AC

C174 9DK001-42157 J 0.1 25V Ceramic AC

C176 9DK001-42157 J 0.1 25V Ceramic AC

C177 9DK001-42157 J 0.1 25V Ceramic AC

C192 9DK001-42157 J 0.1 25V Ceramic AC

C197 9DK001-42157 J 0.1 25V Ceramic AC

C205 9DK001-42157 J 0.1 25V Ceramic AC

C214 9DK001-42157 J 0.1 25V Ceramic AC

C218 9DK001-42157 J 0.1 25V Ceramic AC

C366 9DK001-40091 J 100 4V Electrolytic AF

C375 9DK001-40091 J 100 4V Electrolytic AF

C437 9DK001-42099 J 100p 50V Ceramic AC

C438 9DK001-42099 J 100p 50V Ceramic AC

C439 9DK001-42099 J 100p 50V Ceramic AC

C440 9DK001-42099 J 100p 50V Ceramic AC

CPCi-0057CE01 (PG-M20X)

CPCi-0057CE31 (PG-M20S)

PC I/F UNIT (Continued)

C441 9DK001-40081 J 22 6.3V Electrolytic AF

C442 9DK001-42156 J 1 6.3V Ceramic AC

C444 9DK001-42099 J 100p 50V Ceramic AC

C447 9DK001-42131 J 10 10V Ceramic AE

C448 9DK001-42122 J 180p 50V Ceramic AC

C449 9DK001-42122 J 180p 50V Ceramic AC

C450 9DK001-42122 J 180p 50V Ceramic AC

C454 9DK001-42131 J 10 10V Ceramic AE

C457 9DK001-42123 J 330p 50V Ceramic AC

C458 9DK001-42123 J 330p 50V Ceramic AC

C459 9DK001-42123 J 330p 50V Ceramic AC

C465 9DK001-42123 J 330p 50V Ceramic AC

C468 9DK001-42123 J 330p 50V Ceramic AC

C569 9DK001-42157 J 0.1 25V Ceramic AC

C571 9DK001-40076 J 4.7 35V Electrolytic AF

C575 9DK001-42157 J 0.1 25V Ceramic AC

C576 9DK001-42156 J 1 6.3V Ceramic AC

C577 9DK001-42156 J 1 6.3V Ceramic AC

C578 9DK001-42156 J 1 6.3V Ceramic AC

C579 9DK001-42156 J 1 6.3V Ceramic AC

C580 9DK001-42157 J 0.1 25V Ceramic AC

C581 9DK001-42156 J 1 6.3V Ceramic AC

C582 9DK001-42156 J 1 6.3V Ceramic AC

C583 9DK001-42156 J 1 6.3V Ceramic AC

C584 9DK001-42157 J 0.1 25V Ceramic AC

C585 9DK001-42157 J 0.1 25V Ceramic AC

C586 9DK001-42156 J 1 6.3V Ceramic AC

C589 9DK001-42156 J 1 6.3V Ceramic AC

C590 9DK001-42156 J 1 6.3V Ceramic AC

C591 9DK001-42156 J 1 6.3V Ceramic AC

C592 9DK001-42156 J 1 6.3V Ceramic AC

C593 9DK001-42156 J 1 6.3V Ceramic AC

C594 9DK001-42157 J 0.1 25V Ceramic AC

C595 9DK001-42157 J 0.1 25V Ceramic AC

C596 9DK001-42156 J 1 6.3V Ceramic AC

C597 9DK001-42157 J 0.1 25V Ceramic AC

C598 9DK001-42156 J 1 6.3V Ceramic AC

C599 9DK001-42156 J 1 6.3V Ceramic AC

C600 9DK001-42157 J 0.1 25V Ceramic AC

C601 9DK001-42157 J 0.1 25V Ceramic AC

C602 9DK001-40091 J 100 4V Electrolytic AF

C603 9DK001-42157 J 0.1 25V Ceramic AC

C607 9DK001-42157 J 0.1 25V Ceramic AC

C609 9DK001-42157 J 0.1 25V Ceramic AC

C611 9DK001-42157 J 0.1 25V Ceramic AC

C613 9DK001-42157 J 0.1 25V Ceramic AC

C615 9DK001-42157 J 0.1 25V Ceramic AC

C617 9DK001-42157 J 0.1 25V Ceramic AC

C619 9DK001-42157 J 0.1 25V Ceramic AC

C621 9DK001-42157 J 0.1 25V Ceramic AC

C623 9DK001-42157 J 0.1 25V Ceramic AC

C625 9DK001-42157 J 0.1 25V Ceramic AC

C627 9DK001-42157 J 0.1 25V Ceramic AC

C629 9DK001-42157 J 0.1 25V Ceramic AC

C631 9DK001-42157 J 0.1 25V Ceramic AC

C633 9DK001-42157 J 0.1 25V Ceramic AC

C635 9DK001-42157 J 0.1 25V Ceramic AC

C637 9DK001-42157 J 0.1 25V Ceramic AC

C638 9DK001-42157 J 0.1 25V Ceramic AC

C640 9DK001-42157 J 0.1 25V Ceramic AC

C641 9DK001-42157 J 0.1 25V Ceramic AC

C648 9DK001-42157 J 0.1 25V Ceramic AC

C649 9DK001-42157 J 0.1 25V Ceramic AC

C656 9DK001-42157 J 0.1 25V Ceramic AC

C658 9DK001-42157 J 0.1 25V Ceramic AC

C662 9DK001-42157 J 0.1 25V Ceramic AC

C666 9DK001-42096 J 0.01 50V Ceramic AC

C668 9DK001-42157 J 0.1 25V Ceramic AC

C670 9DK001-42157 J 0.1 25V Ceramic AC

C672 9DK001-42157 J 0.1 25V Ceramic AC

C678 9DK001-42157 J 0.1 25V Ceramic AC

C682 9DK001-42157 J 0.1 25V Ceramic AC

C685 9DK001-42157 J 0.1 25V Ceramic AC

C686 9DK001-42157 J 0.1 25V Ceramic AC

C687 9DK001-42157 J 0.1 25V Ceramic AC

C688 9DK001-42157 J 0.1 25V Ceramic AC

164

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

C689 9DK001-42157 J 0.1 25V Ceramic AC

C695 9DK001-42115 J 10p 50V Ceramic AC

C696 9DK001-42115 J 10p 50V Ceramic AC

C697 9DK001-42157 J 0.1 25V Ceramic AC

C708 9DK001-40090 J 47 4V Electrolytic AF

C744 9DK001-42157 J 0.1 25V Ceramic AC

C745 9DK001-42157 J 0.1 25V Ceramic AC

C746 9DK001-42112 J 33p 50V Ceramic AB

C747 9DK001-42157 J 0.1 25V Ceramic AC

C748 9DK001-42157 J 0.1 25V Ceramic AC

C749 9DK001-42112 J 33p 50V Ceramic AB

C750 9DK001-42157 J 0.1 25V Ceramic AC

C752 9DK001-42113 J 4.7 10V Ceramic AB

C758 9DK001-42115 J 10p 50V Ceramic AC

C759 9DK001-42157 J 0.1 25V Ceramic AC

C901 9DK001-42157 J 0.1 25V Ceramic AC

C902 9DK001-42156 J 1 6.3V Ceramic AC

C904 9DK001-42157 J 0.1 25V Ceramic AC

C905 9DK001-42157 J 0.1 25V Ceramic AC

C906 9DK001-42157 J 0.1 25V Ceramic AC

C909 9DK001-42156 J 1 6.3V Ceramic AC

C910 9DK001-42157 J 0.1 25V Ceramic AC

C911 9DK001-42156 J 1 6.3V Ceramic AC

C912 9DK001-42156 J 1 6.3V Ceramic AC

C913 9DK001-42156 J 1 6.3V Ceramic AC

C914 9DK001-42156 J 1 6.3V Ceramic AC

C915 9DK001-42157 J 0.1 25V Ceramic AC

C916 9DK001-42115 J 10p 50V Ceramic AC

C917 9DK001-42156 J 1 6.3VC eramic AC

C918 9DK001-42157 J 0.1 25V Ceramic AC

C919 9DK001-40109 J 150 4V Electrolytic

C920 9DK001-42115 J 10p 50V Ceramic AC

C921 9DK001-40091 J 100 4V Electrolytic AF

C922 9DK001-42154 J 0.33 10V Ceramic AB

C923 9DK001-42157 J 0.1 25V Ceramic AC

C924 9DK001-42157 J 0.1 25V Ceramic AC

C925 9DK001-42131 J 10 10V Ceramic AE

RESISTORS

R1 9DK001-51030 J 10k 1/16W AD

R2 9DK001-50149 J 0 1/16W Chip AB

R3 9DK001-50179 J 2.2k 1/16W Chip1608 AA

R4 9DK001-50149 J 0 1/16W Chip AB

R8 9DK001-51030 J 10k 1/16W AD

R9 9DK001-50219 J 47k 1/16W Chip1608 AA

R11 9DK001-51045 J 100 1/16W Chip AA

R12 9DK001-50185 J 10k 1/16W Chip1608 AA

R13 9DK001-50165 J 100 1/16W Chip1608 AA

R14 9DK001-50074 J 100 1/4W Chip3216 AA

R17 9DK001-50183 J 4.7k 1/16W Chip1608 AA

R18 9DK001-50177 J 1k 1/16W Chip1608 AB

R19 9DK001-50149 J 0 1/16W Chip AD

R22 9DK001-51030 J 10k 1/16W AB

R23 9DK001-50149 J 0 1/16W Chip AD

R25 9DK001-51030 J 10k 1/16W AD

R26 9DK001-51037 J 6.8k 1/16W Chip AD

R27 9DK001-51030 J 10k 1/16W AB

R28 9DK001-50149 J 0 1/16W Chip AB

R29 9DK001-50275 J 6.8 1/16W Chip1608 AA

R32 9DK001-50150 J 10 1/16W Chip1608 AA

R33 9DK001-50161 J 47 1/16W Chip1608 AA

R34 9DK001-50185 J 10k 1/16W Chip1608 AA

R35 9DK001-50185 J 10k 1/16W Chip1608 AA

R36 9DK001-50177 J 1k 1/16W Chip1608 AA

R37 9DK001-50159 J 22 1/16W Chip1608 AA

R38 9DK001-50150 J 10 1/16W Chip1608 AA

R39 9DK001-50150 J 10 1/16W Chip1608 AA

R40 9DK001-50044 J 68 1/10W Chip2125 AB

R41 9DK001-50275 J 6.8 1/16W Chip1608 AB

R42 9DK001-50159 J 22 1/16W Chip1608 AA

R45 9DK001-50044 J 68 1/10W Chip2125 AB

R46 9DK001-50275 J 6.8 1/16W Chip1608 AB

R47 9DK001-50159 J 22 1/16W Chip1608 AA

R48 9DK001-50044 J 68 1/10W Chip2125 AB

R50 9DK001-50149 J 0 1/16W Chip AB

R51 9DK001-50149 J 0 1/16W Chip AB

R54 9DK001-50149 J 0 1/16W Chip AB

R63 9DK001-50236 J

910

1/16W Chip1608 AB

R64 9DK001-50213 J 2.0k 1/16W Chip1608 AB

R65 9DK001-50181 J 3.3k 1/16W Chip1608 AA

R66 9DK001-50181 J 3.3k 1/16W Chip1608 AA

R67 9DK001-51037 J 6.8k 1/16W Chip AD

R69 9DK001-50149 J 0 1/16W Chip AB

R70 9DK001-50119 J 150 1/10W Chip2125 AB

R71 9DK001-50119 J 150 1/10W Chip2125 AB

R72 9DK001-50119 J 150 1/10W Chip2125 AA

R73 9DK001-50185 J 10k 1/16W Chip1608 AA

R74 9DK001-50185 J 10k 1/16W Chip1608 AA

R75 9DK001-50159 J 22 1/16W Chip1608 AA

R80 9DK001-50044 J 68 1/10W Chip2125 AB

R83 9DK001-50159 J 22 1/16W Chip1608 AA

R88 9DK001-50044 J 68 1/10W Chip2125 AB

R89 9DK001-50149 J 0 1/16W Chip AB

R91 9DK001-50159 J 22 1/16W Chip1608 AA

R93 9DK001-50300 J 18 1/10W Chip2125 AA

R96 9DK001-50044 J 68 1/10W Chip2125 AB

R97 9DK001-50185 J 10k 1/16W Chip1608 AA

R104 9DK001-50149 J 0 1/16W Chip AB

R105 9DK001-50149 J 0 1/16W Chip AB

R106 9DK001-50149 J 0 1/16W Chip AB

R107 9DK001-50149 J 0 1/16W Chip AB

R109 9DK001-51037 J 6.8k 1/16W Chip AD

R110 9DK001-51037 J 6.8k 1/16W Chip AD

R111 9DK001-50149 J 0 1/16W Chip AB

R113 9DK001-50149 J 0 1/16W Chip AB

R114 9DK001-50297 J 39 1/16W Chip1608 AA

R116 9DK001-50300 J 18 1/10W Chip2125 AA

R117 9DK001-50298 J 120 1/4W Chip3216 AB

R118 9DK001-50149 J 0 1/16W Chip AB

R119 9DK001-50149 J 0 1/16W Chip AB

R121 9DK001-50292 J 3.9 1/4W Chip3216 AA

R122 9DK001-50292 J 3.9 1/4W Chip3216 AA

R123 9DK001-50149 J 0 1/16W Chip AB

R124 9DK001-50149 J 0 1/16W Chip AB

R127 9DK001-50149 J 0 1/16W Chip AB

R130 9DK001-50173 J 470 1/16W Chip1608 AA

R131 9DK001-50159 J 22 1/16W Chip1608 AA

R134 9DK001-50149 J 0 1/16W Chip AB

R138 9DK001-50177 J 1k 1/16W Chip1608 AA

R139 9DK001-50177 J 1k 1/16W Chip1608 AA

R140 9DK001-50177 J 1k 1/16W Chip1608 AA

R143 9DK001-50177 J 1k 1/16W Chip1608 AA

R150 9DK001-51046 J 1k 1/16W Chip AA

R151 9DK001-50302 J 560 1/16W Chip1608 AA

R152 9DK001-42105 J

0.047

50V Ceramic AC

R153 9DK001-42105 J

0.047

50V Ceramic AC

R155 9DK001-42105 J

0.047

50V Ceramic AC

R156 9DK001-42105 J

0.047

50V Ceramic AC

R158 9DK001-42105 J

0.047

50V Ceramic AC

R159 9DK001-42105 J

0.047

50V Ceramic AC

R160 9DK001-42105 J

0.047

50V Ceramic AC

R161 9DK001-50201 J 18 1/16W Chip1608 AA

R162 9DK001-50183 J 4.7k 1/16W Chip1608 AA

R165 9DK001-50181 J 3.3k 1/16W Chip1608 AA

R166 9DK001-50149 J 0 1/16W Chip AB

R170 9DK001-50150 J 10 1/16W Chip1608 AA

R172 9DK001-50185 J 10k 1/16W Chip1608 AA

R174 9DK001-50149 J 0 1/16W Chip AB

R176 9DK001-50224 J 150 1/4W Chip3216 AB

R178 9DK001-50185 J 10k 1/16W Chip1608 AA

R180 9DK001-50149 J 0 1/16W Chip AB

R191 9DK001-50150 J 10 1/16W Chip1608 AA

R192 9DK001-50150 J 10 1/16W Chip1608 AA

R193 9DK001-50150 J 10 1/16W Chip1608 AA

R194 9DK001-50149 J 0 1/16W Chip AB

R196 9DK001-50149 J 0 1/16W Chip AB

R199 9DK001-51037 J 6.8k 1/16W Chip AD

CPCi-0057CE01 (PG-M20X)

CPCi-0057CE31 (PG-M20S)

PC I/F UNIT (Continued)

165

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

R201 9DK001-50149 J 0 1/16W Chip AB

R648 9DK001-50165 J 100 1/16W Chip1608 AA

R649 9DK001-50165 J 100 1/16W Chip1608 AA

R654 9DK001-50204 J 150 1/16W Chip1608 AA

R685 9DK001-50150 J 10 1/16W Chip1608 AA

R688 9DK001-50201 J 15 1/16W Chip1608 AA

R689 9DK001-50173 J 470 1/16W Chip1608 AA

R690 9DK001-50205 J 1.8k 1/16W Chip1608 AA

R692 9DK001-50159 J 22 1/16W Chip1608 AA

R693 9DK001-50159 J 22 1/16W Chip1608 AA

R694 9DK001-50159 J 22 1/16W Chip1608 AA

R695 9DK001-50159 J 22 1/16W Chip1608 AA

R696 9DK001-50185 J 10k 1/16W Chip1608 AA

R697 9DK001-50185 J 10k 1/16W Chip1608 AA

R698 9DK001-50185 J 10k 1/16W Chip1608 AA

R699 9DK001-50185 J 10k 1/16W Chip1608 AA

R700 9DK001-50218 J 20k 1/16W Chip1608 AA

R701 9DK001-50257 J 75 1/16W Chip1608 AA

R704 9DK001-50185 J 10k 1/16W Chip1608 AA

R750 9DK001-50177 J 1k 1/16W Chip1608 AA

R751 9DK001-50177 J 1k 1/16W Chip1608 AA

R752 9DK001-50170 J 270 1/16W Chip1608 AA

R753 9DK001-50170 J 270 1/16W Chip1608 AA

R787 9DK001-50244 J 3.9k 1/16W Chip1608 AA

R788 9DK001-50177 J 1k 1/16W Chip1608 AA

R789 9DK001-50177 J 1k 1/16W Chip1608 AA

R790 9DK001-50179 J 2.2k 1/16W Chip1608 AA

R791 9DK001-50244 J 3.9k 1/16W Chip1608 AA

R792 9DK001-50179 J 2.2k 1/16W Chip1608 AA

R801 9DK001-50205 J 1.8k 1/16W Chip1608 AA

R867 9DK001-50275 J 6.8 1/16W Chip1608 AB

R868 9DK001-50275 J 6.8 1/16W Chip1608 AB

R869 9DK001-50275 J 6.8 1/16W Chip1608 AB

R977 9DK001-50150 J 10 1/16W Chip1608 AA

R994 9DK001-50236 J 910 1/16W Chip1608 AB

R995 9DK001-50199 J

2.15k

1/16W Chip1608 AB

R998 9DK001-50177 J 1k 1/16W Chip1608 AA

R999 9DK001-50303 J 39 1/10W Chip2125 AA

RE1 9DK001-94001 J FTR-B3 GA 003Z-B10 AV

RE2 9DK001-94001 J FTR-B3 GA 003Z-B10 AV

MISCELLANEOUS PARTS

P1 9DK001-60053 J 74320-1004 AZ

P8 9DK001-60077 J FX8C-80P-SV4 AT

P9 9DK001-60075 J FX6-40P-0.8SV AP

SC1 9DK001-60076 J FH16-80S-0.3SHW AV

PSLDCA002WJZZ J Shield AN

CPCi-0057CE01 (PG-M20X)

CPCi-0057CE31 (PG-M20S)

PC I/F UNIT (Continued)

166

PG-M20S

PG-M20X

CABINET AND MECHANICAL PARTS/

GEHÄUSE UND MACHANISCHE BAUTEILE

654321

2-4

2-5

2-3

2-1

2-8

14 21

5-2

5-1

2-6

2-7

2-2-9

2-9

3-1 3-2 3-3

3-4

2-2-2

2-2-4

2-2

2-3-3

2-3-1

2-3-2

2-1-5

2-2-12

2-2-6

2-2-7

2-2-8

2-1-4

2-1-3

2-1-2

2-1-1

2-2-5

2-2-10

2-2-1

2-2-11

23 49

4-1

4-2

UVW

752

44 55

1-1-7

1-1-8

1-1-6

1-1-10

1-3

1-1

1-5

1-2

1-4

1-6

1-1-4

1-1-2

1-1-9

1-1-1

1-1-3

1-1-5

167

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

CABINET AND MECHANICAL PARTS

Not Available

–Top Body Unit —

1-1 DBDYT1210CE01 J Top Body Ass'y (PG-M20X) BL

1-1 DBDYTA004WJ01 J Top Body Ass'y (PG-M20S)

1-1-1

Not Available

–Top Body —

1-1-2

Not Available

–LED Cover —

1-1-3

Not Available

–RC Cover —

1-1-4

Not Available

–Badge, "SHARP" —

1-1-5 HiNDPA057WJSA J IQ Label

1-1-6

Not Available

–Operation Button —

1-1-7 PSLDHA006WJK0 J Heat Shield AG

1-1-8 PSLDHA007WJK0 J Heat Shielding Sheet AM

1-1-9 PSPAZA025WJZZ J Tape AB

1-1-10 QEARPA021WJFW J Earth Angle AE

1-2 LANGS0127CEFW J Speaker Fixing Angle AF

1-3 PMLT-A006WJZZ J Spacer AB

1-4 PSPAT0013CEZZ J Spacer AC

1-5 RSP-ZA004WJN1 J Speaker AQ

1-6 XEPSD26P06000 J Screw, x2 AA

2 CBDYU1143CE01 J Bottom Body Unit BQ

(PG-M20X)

2 CBDYU1143CE03 J Bottom Body Unit

(PG-M20S)

2-1

Not Available

–Lamp Door Unit —

2-1-1 DDORU1019CE01 J Lamp Door Ass'y BQ

2-1-2 GLEGP9135CESA J Leg(Rear) AD

2-1-3 LX-BZ3449CEFF J Screw, x1 AC

2-1-4 MSPRC0215CEFW J Spring AC

2-1-5 XREUW20-04000 J E-Ring AA

2-2 DBDYU1143CE01 J Bottom Body Ass'y BM

(PG-M20X)

2-2 DBDYU1143CE03 J Bottom Body Ass'y

(PG-M20S)

2-2-1

Not Available

–Bottom Body —

2-2-2 HiNDP5957CEZZ J Model Label (PG-M20X) AK

2-2-2 HiNDPA113WJZZ J Model Label (PG-M20S)

2-2-3 HiNDP5958CEZZ J Caution Label AL

2-2-4 HiNDPA050WJSA J Heat Caution Label AD

(PG-M20S)

2-2-4 HiNDPA114WJSA J Heat Caution Label AD

(PG-M20X)

2-2-5

Not Available

–Kensington Security —

Standard Connector

2-2-6 LHLDZ2193CEK0 J Holder AD

2-2-7

Not Available

–Insert Nut, x3 —

2-2-8

Not Available

–Insert Nut, x4 —

2-2-9 PSLDHA008WJKZ J Heak Sink Spacer AD

2-2-10 PSPAT0013CEZZ J Tape, x7 AC

2-2-11 PZETK0146CEKZ J Cover AK

2-2-12

Not Available

–Earth Angle —

2-3 DCOVA2092CE01 J Exhaust Cover Ass'y AQ

2-3-1

Not Available

–Exhaust Cover —

2-3-2

Not Available

–Spacer, Heat Shielding —

2-3-3

Not Available

–Exhaust Cover —

2-4 GLEGP1034CESA J Leg, Right AM

2-5 GLEGP3034CESA J Leg, Left AM

2-6 PSPAT0013CEZZ J Tape AC

2-7 QCNW-A317WJZZ J Leaf SW AF

2-8 XEBSD26P08000 J Screw, x1 AA

2-9 XEBSN26P08000 J Screw, x2 AA

Not Available

–Terminal Cover Unit —

3-1 DCOVA2091CE01 J Terminal Cover Ass'y AT

3-3 HiNDP5954CESA J Indication Label AD

4 CHLDZ2191CE01 J Ballast Unit Holder Ass'y AM

4-1

Not Available

–Ballast Unit Holder —

4-2 PSPAT0013CEZZ J Tape, x2 AC

5 CHLDZ2200CE01 J Fan Holder Ass'y AK

5-1

Not Available

–Fan Holder —

5-2 PMLT-A007WJZZ J Spacer, x5 AB

6 Refer to Optical Mechanism Parts

7 CCAPHA001WJ01 J Lens Cap AH

8 GCOVD0103CESA J Terminal Cover AK

9 LANGHA001WJFW J Cover Angle AF

10 LHLDW0106CEZZ J Wire Holder AF

11 LX-BZ3248CEFD J Screw, x5 AA

12 LX-LZ1011GE00 J Clip Screw, x2 AC

13 NFANR0129CEZZ J Cooling Fan AU

14 NFANR0130CEZZ J Cooling Fan AU

15 NSFTZ0170CEFW J Hexagon Screw, x3 AD

16 NSFTZ0183CEFW J Hexagon Screw, x2 AD

17 PSLDM4719CEFW J Terminal Shield AF

18 QEARPA033WJFW J Earth Angle AD

19 PSPAT0013CEZZ J Tape, x14 AC

20 PSPAZA034WJZZ J Spacer for Fan, x7 AD

21 PSPAZA035WJZZ J Spacer for Fan, x4 AB

22 PZETK0143CEKZ J Ballast Unit Cover AL

23 PZETK0144CEKZ J Cover(Top) AM

24 PZETK0145CEKZ J Cover(Bottom) AL

25 PSPAGA036WJZZ J Spacer for Fan, x4 AE

26 QCNW-A074WJZZ J Connecting Cord(CW) AD

27 QCNW-A075WJZZ J Connecting Cord(BA) AF

28 QCNW-A076WJZZ J Connecting Cord(FB) AD

29 QCNW-A078WJZZ J Connecting Cord(KY) AE

30 QCNW-A515WJZZ J Connecting Cord(DE) AP

31 QPWBHA073WJZZ J Connecting Cord AE

32 TLABN0433CEZZ J Serial No. Label AE

(PG-M20XU)

32 TLABN0458CEZZ J Serial No. Label AE

(PG-M20XE)

32 TLABNA002WJZZ J Serial No. Label AF

(PG-M20XX)

32 TLABNA090WJZZ J Serial No. Labe

(PG-M20SU)

32 TLABNA091WJZZ J Serial No. Labe

(PG-M20SE)

32 TLABNA092WJZZ J Serial No. Labe

(PG-M20SK)

33 DUNTKB065DE01 J Formatter Unit (PG-M20X) CP

33 DUNTKB065DE03 J Formatter Unit (PG-M20S)

34 DUNTKB066DE01 –Input Unit (PG-M20X) —

34 DUNTKB066DE01 –Input Unit (PG-M20S) —

35 DUNTKB067DE01 –Operation Unit (PG-M20X) —

35 DUNTKB067DE01 –Operation Unit (PG-M20S) —

36 CPCi-0057CE01 J PC I/F Unit (PG-M20X) CW

36 CPCi-0057CE31 J PC I/F Unit (PG-M20S)

37 RDENCA004WJZZ –PFC Unit (PG-M20X) —

37 RDENCA004WJN1 –PFC Unit (PG-M20S) —

38 RDENCA005WJZZ J Ballast Unit BZ

39 RDENCA010WJZZ –Power Unit —

40 PSLDCA002WJZZ J Noise Shield AN

41 XBBSN26P06000 J Screw AA

42 XBPSD26P06JS0 J Screw AA

43 XBPSD30P08KS0 J Screw AA

44 XBPSD30P12JS0 J Screw AA

45 XBPSF30P06000 J Screw AA

46 XEBSD26P08000 J Screw AA

47 XEBSN26P08000 J Screw AA

48 XEBSN30P06000 J Screw AA

49 XEPSD26P09WS0 J Screw AB

50 XEPSF26P06000 J Screw AA

51 XEPSF30P25XS0 J Screw AB

52 UBNDT0013CEZZ J Lens Cap Strap AF

53 LHLDZ0140CEKZ J Outer Flame AE

54 CHLDZ0141CE01 J Backer Plate Ass'y AV

(PG-M20XE)

55 PRDARA042WJFW J Heat Sink

56 XBPSD30P08KS0 J Screw, x2 AA

57 LANGQA004WJ00 J Thermistor Fixing Angle AG

58 LANGQA006WJFW J Thermistor Fixing Angle AE

59 PSPAKA006WJZZ J Spacer for Thermistor AC

60 XBBSF26P05000 J Screw, x3 AA

61 PSPAZA051WJZZ J Spacer for Exhaust Duct AL

62 PSPAZA058WJZZ J

Spacer fot Exhaust Duct(Lower)

63 XBPSF30P06000 J Screw, x1 AA

168

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

CABINET AND MECHANICAL

PARTS (Continued)

64 PCOVNA002WJK0 J Exhaust Guide Plate AE

65 RDMDPA002WJZZ J DMD Unit (PG-M20X)

65 RDMDPA003WJZZ J DMD Unit (PG-M20S)

66 QSOCZA015WJZZ J C-spring (PG-M20X) BK

66 QSOCZA038WJZZ J C-spring (PG-M20S)

67 QCNW-A522WJZZ J Thermistor AF

68 XEBSD26P10000 J Screw, x6 AA

69 PSPAZA099WJZZ J Spacer for Cooling Fan

OPTICS MECHANISM PARTS

6 CCHSK0106CE01 J Optics Engine Ass'y DK

(PG-M20X)

6 CCHSKA004WJ01 J Optics Engine Ass'y

(PG-M20S)

6-1 95U10A1018602 J Optics Engine Unit

6-1-1

Not Available

–Optics Engine —

6-1-2 RMOTBA001WJZZ J Color Wheel

6-1-3 95U41B1018017 J Color Wheel Fixing Angle

6-1-4 95U110M200353M J Screw, x3

6-1-5 XBBSF26P05000 J Screw, x3 AA

6-1-6 95U11B1018812 J Color Wheel Fixing Cover

6-1-7 95U49B1019446 J Heat Shielding Plate

6-1-8 95U12B1018810 J Lamp Box

6-1-9 95U71B1018838 J Duct

6-1-10 XBPSF30P06000 J Screw, x1 AA

6-1-11 95U60B1035321 J Spacer

6-1-12 95U72B1018840 J Exhaust Punching

6-1-13 95U72B1019698 J Exhaust Punching

6-1-14 NFANR0140CEZZ J Cooling Fan(Front)

6-1-15 NFANR0139CEZZ J Cooling Fan(rear)

6-1-16 95U60B1035437 J Partition Plate

6-1-17 95U55B1035320 J

Oscillation Prevent Rubber, x6

6-1-18 95U53B1019321 J Screw, x6

6-1-19 95U187B1019601 J Tape

6-1-20 95U72B1018837 J Shield(Top)

6-1-21 95U110A1018253 J Sensor Unit Ass'y

6-1-22 95U53K108340 J Screw

6-1-23 NFANSA001WJZZ J Blow Fan

6-1-24 95U41B1019319 J Lamp Fixing Plate

6-1-25 95U71B1019323 J Lamp Cooling Duct(Upper)

6-1-26 95U71B1019327 J Lamp Cooling Duct(Lower)

6-1-27 XBBSF26P05000 J Screw, x2 AA

6-1-28 95U110M302000N J Screw, x2

6-1-29 95U55B994086 J

Oscillation Prevent Washer, x2

6-1-30 XBPSF30P06000 J Screw, x1 AA

6-1-31 95U39B1035436 J Exhaust Guide Plate

6-1-32 95U187B1035323 J Tape

6-1-33 95U27B1018652 J DMD Aperture

6-1-34 95U60B1018653 J DMD Sealing Sapcer

6-1-35 XBPSD30P06J00 J Screw, x2 AA

6-1-36 XBBSF26P05000 J Screw, x1 AA

6-1-37 95U187B1035566 J Tape

6-2 PLNS-0243CEZZ J Projection Lens CE

6-3 BQC-PGM20X//1 J Lamp Case Ass'y

6-4 95U280M30107K J Screw, x4

169

PG-M20S

PG-M20X

OPTICS MECHANISM PARTS

654321

6-1-16

6-1-11

6-1-36

6-1-32

6-1-10

6-1-9

6-1-18

6-1-14

6-1-37

6-1-19

6-1-12

6-2

6-1

6-4

6-1-1

6-1-34

6-1-33

6-1-4 6-1-2

6-1-4 6-1-3

6-1-20

6-1-27

6-1-35

6-1-25

6-1-31

6-1-23

6-1-28

6-1-27

6-3

6-1-22

6-1-26

6-1-21

6-1-24

6-1-18

6-1-6

6-1-7

6-1-17

6-1-15

6-1-13

6-1-29

6-1-30

170

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

SUPPLIED ACCESSORIES

CCAPHA001WJ01 J Lens Cap AH

GCASN0005CESA J Carrying Bag BC

GCOVD0103CESA J Terminal Cover AK

åQACCB5024CENA J

Power Cord (PG-M20X)

(for U.K.,Hong Kong

and

Singapore)

åQACCBA012WJPZ J

Power Cord (PG-M20SA)

(for U.K.,Hong Kong

and

Singapore)

åQACCDA007WJPZ J

Power Cord(for U.S., Canada)

åQACCL3022CEZZ J

Power Cord(for Australia,

New Zealand and Oceania)

åQACCV4002CEZZ J Power Cord(for Europe) AZ

QCNWG0001WJPZ J USB Cable AL

QCNWGA010WJZZ J DVI to 15-pin D-sub Cable AU

RRMCGA013WJSA J Remote Control AW

TCADE3018CEZZ J Questionnaire Card AF

(PG-M20X)

TCADEA013WJZZ J Questionnaire Card

(PG-M20S)

TGAN-1710CEZZ J Guarantee Card(for U.S.)

(PG-M20X)

TGAN-A018WJZZ J Guarantee Card(for U.S.)

TGAN-A019WJZZ J

Guarantee Card(for Canada)

TGAN-A020WJZZ J

Guarantee Card(for Canada)

TGAN-A037WJZZ J

Guarantee Card

(for U.S.)

(PG-M20S)

TGANE0050TAZZ J

Guarantee Card

(PG-M20XX, PG-M20SK)

TiNS-7609CEZZ J Operation Manual AQ

(PG-M20X)

TiNS-7610CEZZ J Quick Reference Guides AG

TiNS-7612CEZZ J Quick Reference Guides AG

(for Europe) (PG-M20X)

TiNS-7614CEZZ J Quick Reference Guides AG

(for Europe) (PG-M20X)

TiNS-A209WJZZ J Operation Manual

(PG-M20S)

TiNS-A210WJZZ J Quick Reference Guides

(PG-M20S)

TiNS-A211WJZZ J Quick Reference Guides

(PG-M20SE)

TiNS-A212WJZZ J Quick Reference Guides

(PG-M20SE/SK)

UBNDT0013CEZZ J Lens Cap Strap AF

UDSKA0058CEN1 J CD-ROM (PG-M20X) AM

UDSKAA009WJZZ J CD-ROM (PG-M20S)

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKAA015WJZZ –Partation Board —

SPAKC5669CEZZ –Packing Case (PG-M20X) —

SPAKCA165WJZZ –Packing Case (PG-M20S) —

SPAKF0552CEZZ –Sleeve —

SPAKPA016WJZZ –Polystylene Cover —

SPAKX2992CEZZ –Buffer Material —

SSAKA0170CEZZ –Polystylene Cover, —

for Accessories

TLABK0001TAZZ –Carton Label —

SERVICE JIGS

(Use for servicing)

QCNW-A294WJZZ J Extension Cable 80-pin

INPUT-PC I/F

QCNW-A295WJZZ J Extension Cable 13-pin

PFC-INPUT

QCNW-A296WJZZ J Extension Cable 32-pin

INPUT-KEY

QCNW-A297WJZZ J Extension Cable 30-pin

INPUT-FORMATTER

QCNW-A298WJZZ J Extension Cable 80-pin

FORMATTER-PC I/F

QCNW-A521WJZZ J Extension Cable 20-pin

INPUT-Gyro

171

PG-M20S

PG-M20X

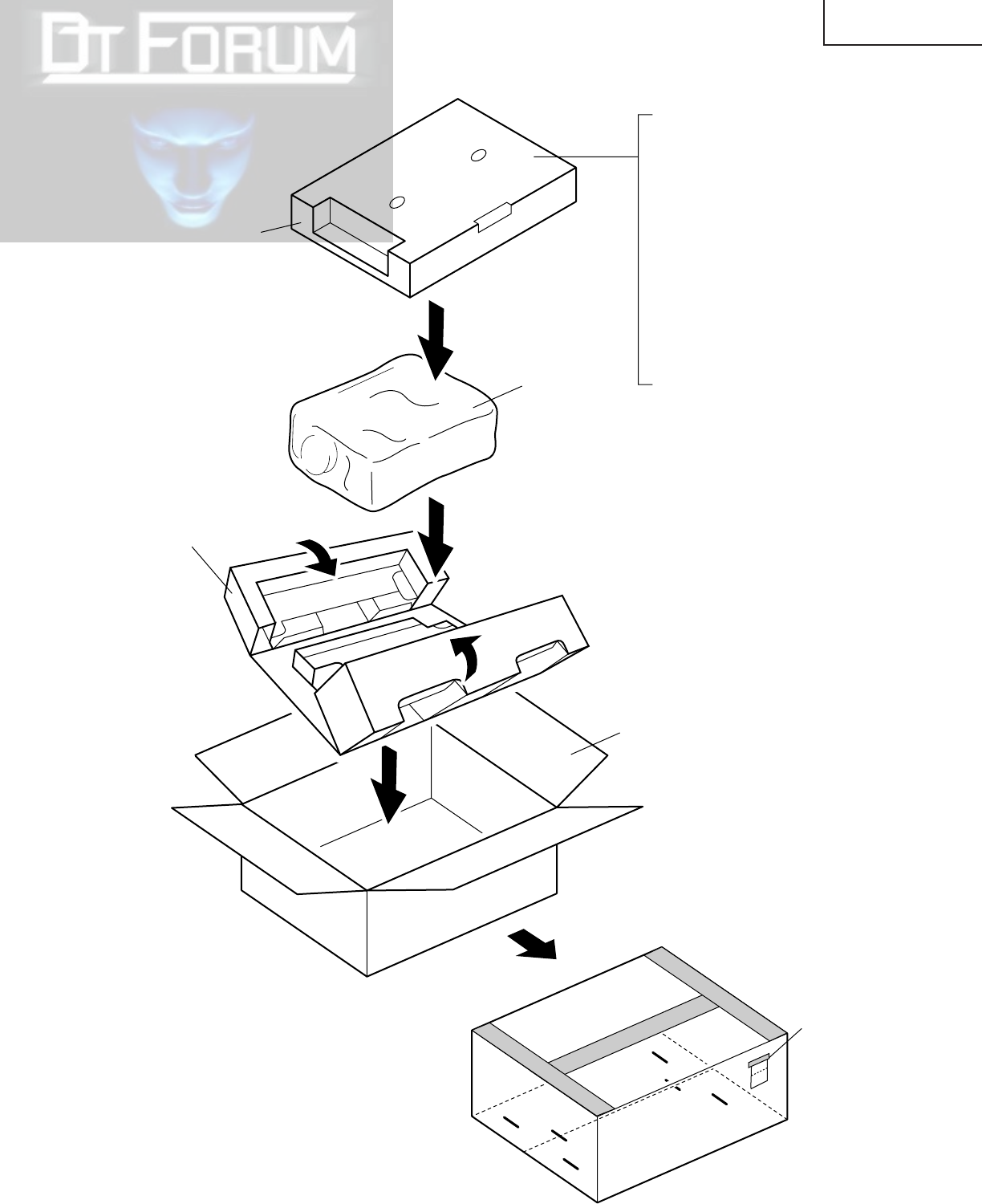

PACKING OF THE SET/VERPACKEN DES GERÄTS

Carton Label

(TLABK0001TAZZ)

Packing Case

(SPAKC5669CEZZ:PG-M20X)

(SPAKCA165WJZZ:PG-M20S)

Front

Buffer Material

(SPAKX2992CEZZ)

Polystylene Cover

(SPAKPA016WJZZ)

Sleeve

(SPAKFA066WJZZ)

Remote Control

R-03 Batteries (2pcs.)

Power Cord

DVI to 15-pin D-sub Cable

USB Cable

Carrying Case

Lens Cap Strap

CD-ROM

Operation Manual

Quick Reference Guides

Terminal Cover

Questionnaire Card

Guarantee Card

Partition Board

Use tape to fix the top

side of packing case.

Use 6 staples to

fix the bottom side

of packing case.

172

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PG-M20S

PG-M20X

SUPPLIED ACCESSORIES

9AQAN-60KT-K01 –Packing Case —

9AQAN-60KT-K02 –Pad (Bottom) —

9AQAN-60KT-K03 –Pad (Top) —

9AQAN-60KT-K04 –Mirror Mat —

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

PARTS LIST

PARTS REPLACEMENT

Parts marked with "å" are important for maintaining the safety of

the set. Be sure to replace these parts with specified ones for main-

taining the safety and performance of the set.

Les pieces marquées "å" sont importantes pour maintenir la sécurité

de l'appareil. Ne remplacer ces pieces que par des pieces dont le

numéro est spécifié pour maintenir la sécurité et protéger le bon

fonctinnement de l'appareil.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the

following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

5. CODE 6. QUANTITY

in USA: Contact your nearest SHARP Parts Distributor.

For location of SHARP Parts Distributor,

Please call Toll-Free; 1-800-BE-SHARP

in CANADA: Contact SHARP Electronics of Canada Limited

Phone (416) 890-2100.

★ MARK: SPARE PARTS-DELIVERY SECTION

ERSATZTEILLISTE

AUSTAUSCH VON TEILEN

Ersatzteile, die besondere Sicherheitseigenschften haben, sind in

dieser Anleitung markiert. Elektrische Komponenten mit solchen

Eigenshaften sind in den Ersatzteil durch "å" gekenn-zeichnet.

Der Gebrauch von Ersatzteilen, die nicht deselben Sicherheits-

eigenschaften haben wie die vom Hersteller empfohlenen ud in der

Bedienungsanleitung angegebenen, können zur Ursache von

Blitzeinschlägen, Bränden und anderen Gefahren werden.

"WIE MAN ERSATSTEILE BESTELLT"

Damit Ihre Bestellung promt und korrekt ausgeführt wird, geben Sie

bitte folgende Informationen.

1. MODELL NR. 2. REF. NR.

3. ERSATZTEIL NR. 4. BESCHREIBUNG

5. KODE 6. QUANTITÄT

★ MARKIERUNG : ERSATZTEILE-LIEFERUNG

AN-60KT

1 9AQAN-60KT-01 J Installation Adapter

2 9AQAN-60KT-02 J Model Label

PACKING PARTS

(NOT REPLACEMENT ITEM)

3 9AQAN-Z7T-13 J Screw M3x10 AM

4 9AQAN-NV4T-15 J Screw M4x12

9AQAN-60KT-03 J Operation Manual

9AQAN-15AG2-08 J Polystyrene Bag AN

9AQAN-NV4T-16 J Polystyrene Bag AM



AN-60KT ACCESSORIES

173

PG-M20S

PG-M20X

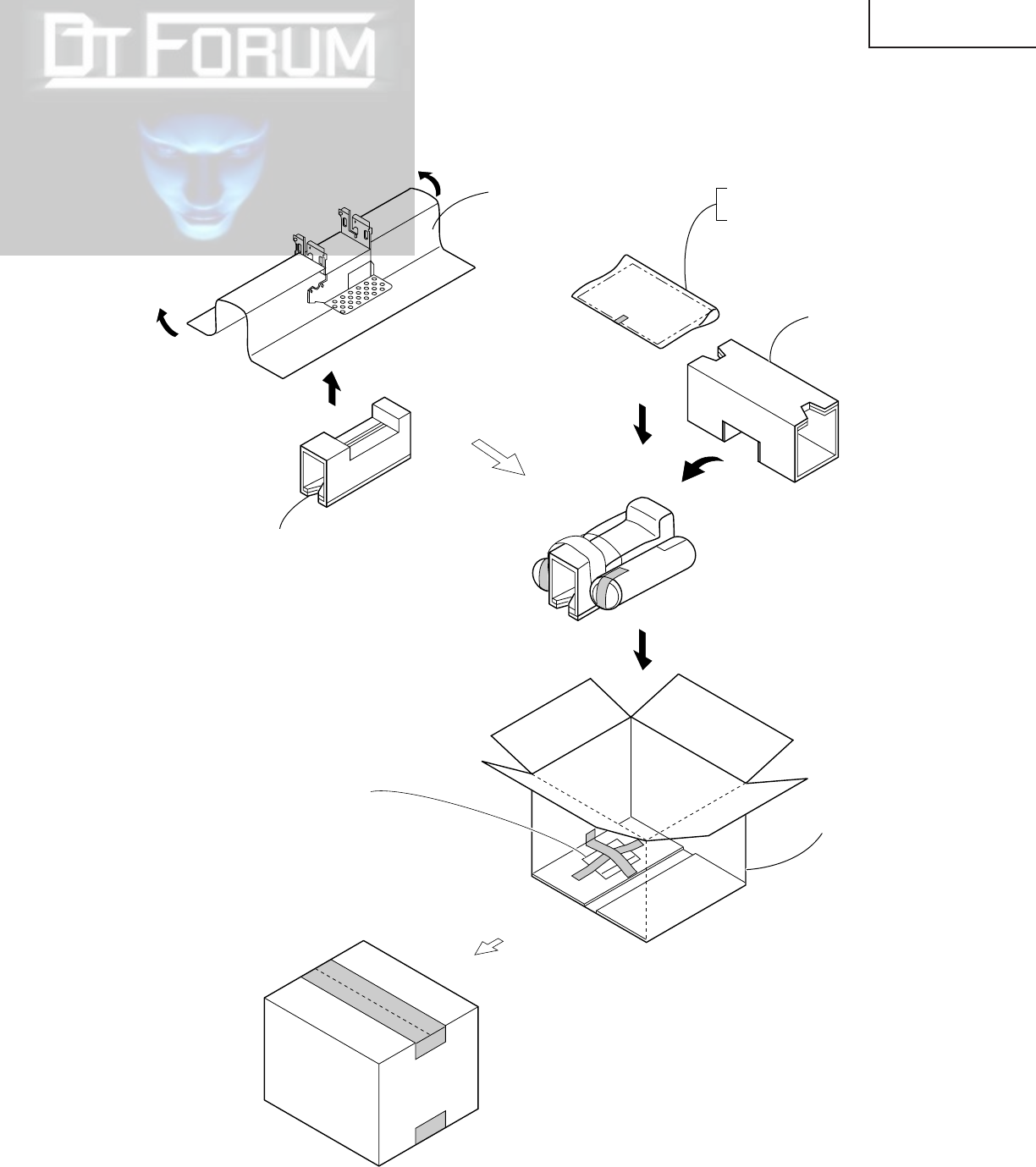

PACKING OF THE SET/VERPACKEN DES GERÄTS

Mirror Mat

(9AQAN-60KT-K04)

Screw M3x10

(9AQAN-Z7T-13)

Screw M4x12

(9AQAN-NV4T-15)

Polystyrene Bag

(9AQAN-NV4T-16)

Pad (Bottom)

(9AQAN-60KT-K02)

Pad (Top)

(9AQAN-60KT-K03)

Paking Case

(9AQAN-60KT-K01)

Use 2 tapes

fix the packing case.

Operation Manual

(9AQAN-60KT-03)

Polystyrene Bag

(9AQAN-15AG2-08)

PG-M20S

PG-M20X

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

SHARP CORPORATION

AV Systems Group

Quality & Reliability Control Center

Yaita, Tochigi 329-2193, Japan

D Japan P Japan TQ1354-S

Aug. 2002 Printed in Japan

In Japan gedruckt

SY. KG

PGM20X

Navigation menu

Versions of this User Manual:

Views

Navigation
