PL-2303HX Edition (Chip Rev D)
USB to Serial Bridge Controller
Product Datasheet
Document Revision: 1.4.2
Document Release: June 25, 2012
Prolific Technology Inc.
7F, No. 48, Sec. 3, Nan Kang Rd.
Nan Kang, Taipei 115, Taiwan, R.O.C.
Telephone: +886-2-2654-6363
Fax: +886-2-2654-6161
E-mail: sales@prolific.com.tw
Website: http://www.prolific.com.tw
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 2 - Document Version 1.4.2
Disclaimer
All the information in this document is subject to change without prior notice. Prolific Technology Inc.
does not make any representations or any warranties (implied or otherwise) regarding the accuracy
and completeness of this document and shall in no event be liable for any loss of profit or any other
commercial damage, including but not limited to special, incidental, consequential, or other damages.
Trademarks
The Prolific logo is a registered trademark of Prolific Technology Inc. All brand names and product
names used in this document are trademarks or registered trademarks of their respective holders.
Copyrights
Copyright © 2012 Prolific Technology Inc., All rights reserved.
No part of this document may be reproduced or transmitted in any form by any means without the
express written permission of Prolific Technology Inc.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 3 - Document Version 1.4.2
Revision History
Revision
Description
Date
1.4.2
Modify Section 12.0 Ordering Information Part Number
June 25, 2012
1.4.1
Modify Reel Tape Packing (MOQ) Information
May 25, 2012
1.4
Added Windows 8 Driver Support
Added OTPROM Configuration Section
Modified BaudRate Support Table
Added Reference Schematic Diagram
Added Chip Marking Information
Added Tube Packing Information
Added Worldwide Distributors Information
March 16, 2012
1.3
Added Windows 7 Logo Driver Information
Modified Operating Temperature Characteristics
Modified Baud Rate Settings Table
September 9, 2010
1.2
Sec. 9.0: Modified DC & Temperature Characteristics
June 27, 2008
1.1
Added Windows Vista and XP Logo Driver information
Added USB-IF Logo TID information
April 16, 2007
1.0B
Sec. 4.2: Modified QFN diagram to add IC bottom PAD
information
June 30, 2006
1.0A
PL-2303HX (Chip Rev D) Datasheet – Formal Release
November 23, 2005
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 4 - Document Version 1.4.2
Table of Contents
1.0 FEATURES........................................................................................................ 6
2.0 FUNCTIONAL BLOCK DIAGRAM .................................................................... 7
3.0 INTRODUCTION ............................................................................................... 8
4.0 PIN ASSIGNMENT OUTLINE ........................................................................... 9
4.1 SSOP28 Package ................................................................................................ 9
4.2 QFN32 Package................................................................................................. 10
5.0 PIN ASSIGNMENT & DESCRIPTION ............................................................. 11
5.1 SSOP28 Package .............................................................................................. 11
5.2 QFN32 Package................................................................................................. 12
6.0 OTPROM CONFIGURATION .......................................................................... 13
7.0 DATA FORMATS & PROGRAMMABLE BAUD RATE GENERATOR ............ 15
8.0 PL2303HXD REFERENCE SCHEMATIC DIAGRAM ..................................... 16
9.0 DC & TEMPERATURE CHARACTERISTICS ................................................. 17
9.1 Absolute Maximum Ratings ................................................................................ 17
9.2 DC Characteristics ............................................................................................. 17
9.3 Clock Characteristics ......................................................................................... 18
9.4 Temperature Characteristics .............................................................................. 19
9.5 Leakage Current and Capacitance ..................................................................... 19
9.6 Power-On Reset................................................................................................. 19
10.0 OUTLINE DIAGRAM ....................................................................................... 20
10.1 SSOP28 Package .............................................................................................. 20
10.2 QFN32 Package................................................................................................. 21
11.0 REEL PACKING INFORMATION .................................................................... 22
11.1 Carrier Tape (SSOP-28) ..................................................................................... 22
11.2 Reel Dimension .................................................................................................. 23
11.3 Tube Packing ..................................................................................................... 24
12.0 ORDERING AND CHIP MARKING INFORMATION ....................................... 25
13.0 CONTACT INFORMATION ............................................................................. 26
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 5 - Document Version 1.4.2
List of Figures
Figure 2-1 Block Diagram of PL-2303HX (Rev D) ................................................................... 7
Figure 4-1 Pin Assignment Outline of PL-2303HX (Rev D) SSOP28 ....................................... 9
Figure 4-2 Pin Assignment Outline of PL-2303HX (Rev D) QFN32 ....................................... 10
Figure 6-1 PL2303 EEPROM Writer Program ....................................................................... 13

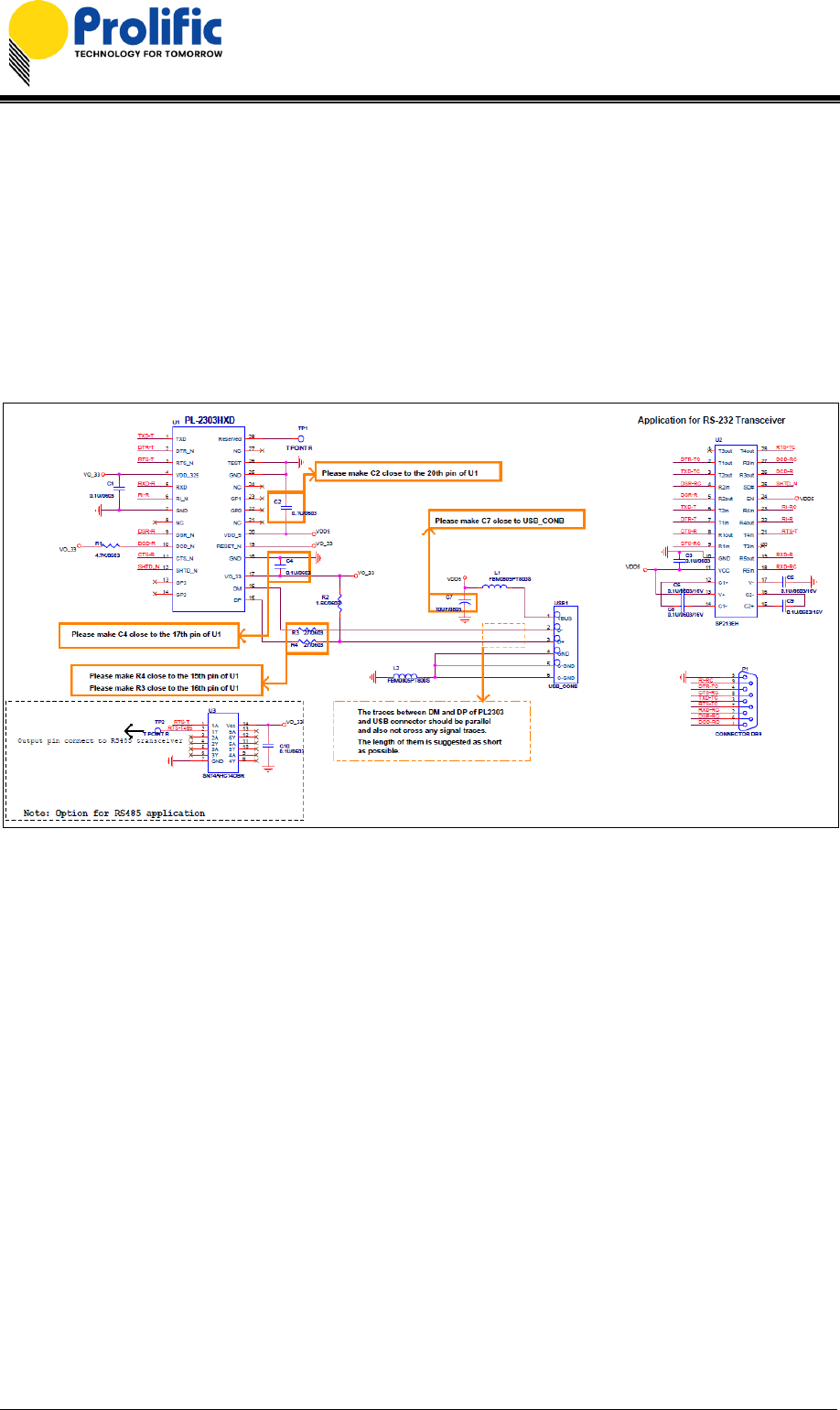

Figure 8-1 PL2303HX (Chip Rev D) Reference Schematic Diagram ..................................... 16
Figure 10-1 Power-On Reset Diagram .................................................................................. 19

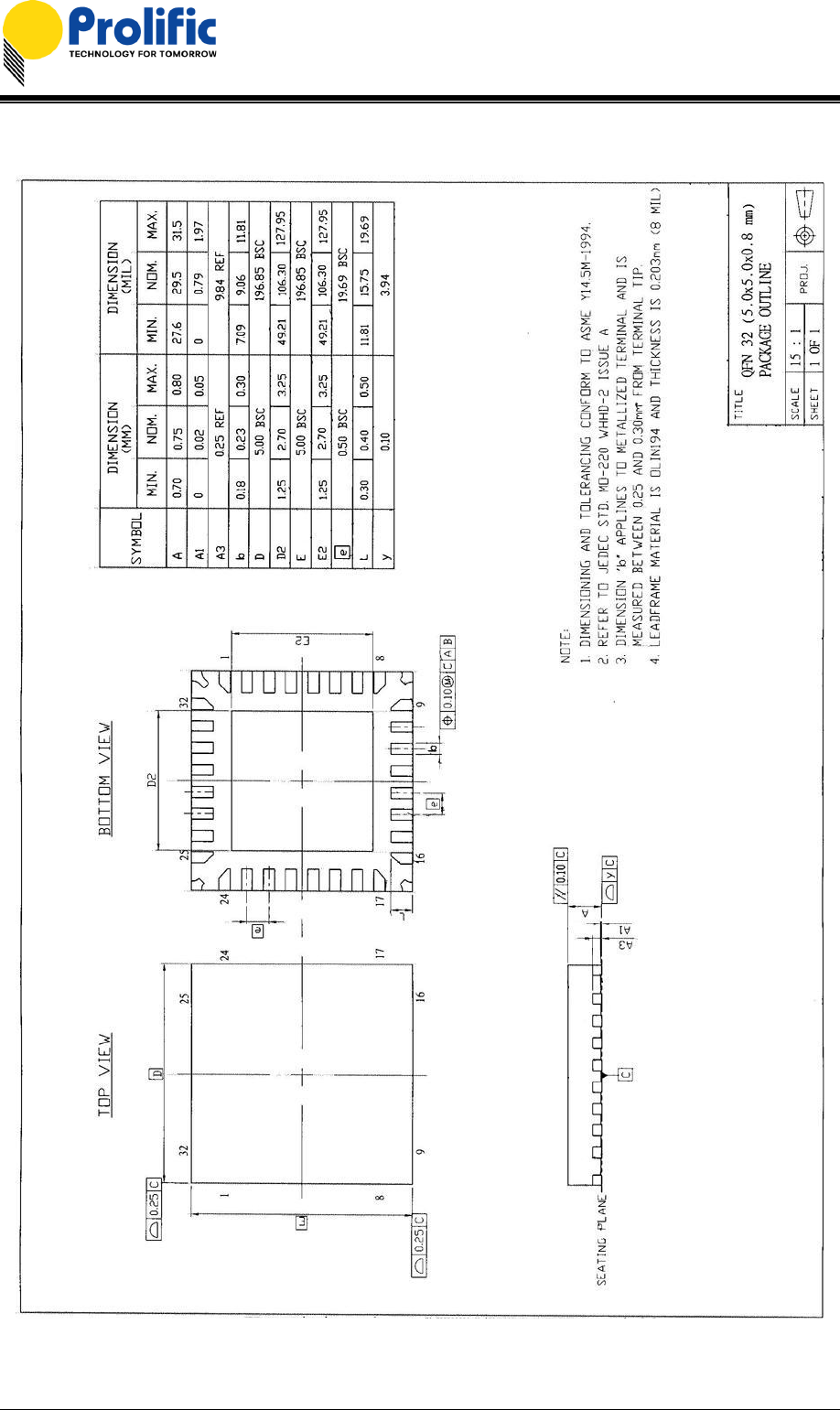

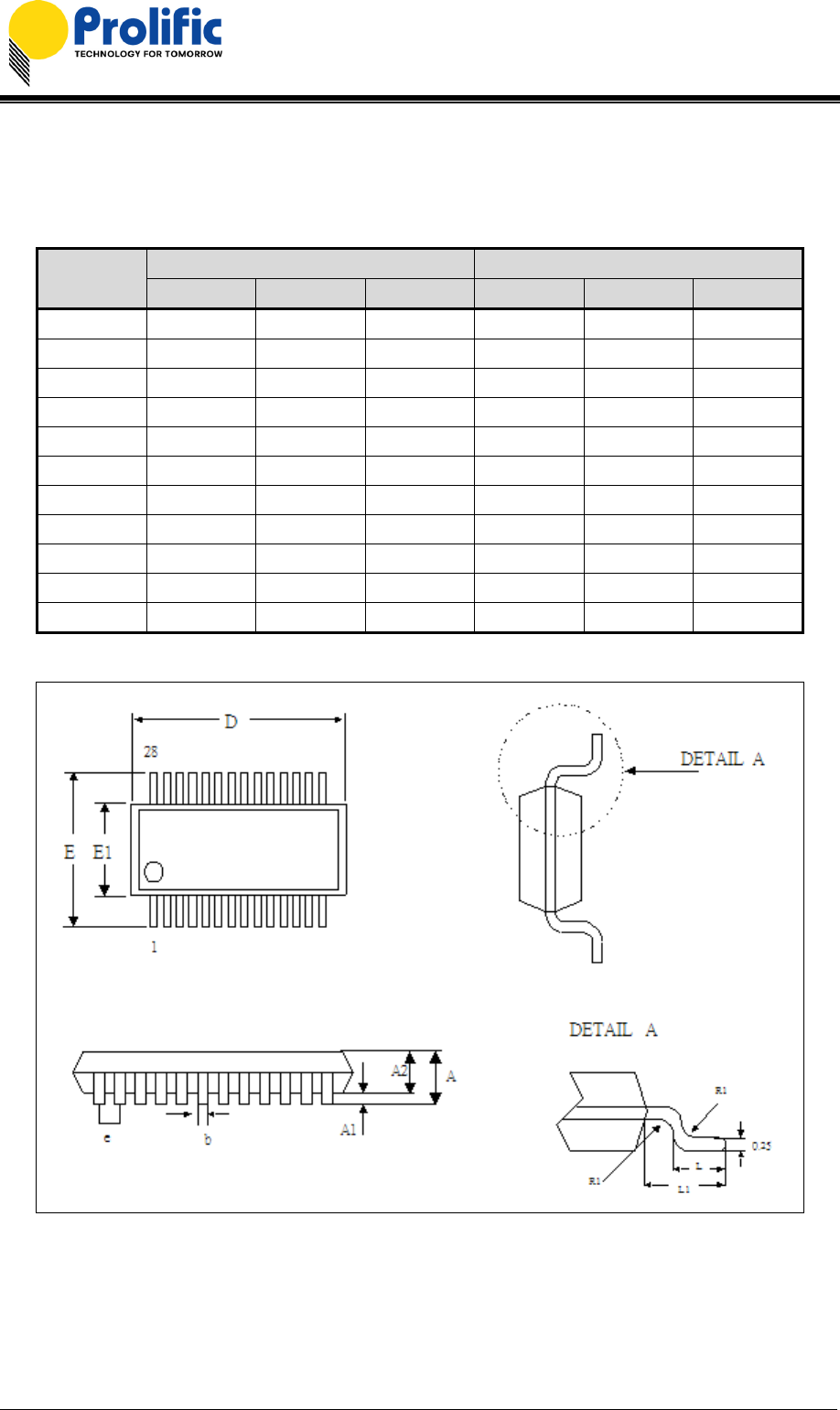

Figure 10-1 Outline Diagram of PL-2303HX (Rev D) SSOP28 .............................................. 20
Figure 10-2 Outline Diagram of PL-2303HX (Rev D) QFN32 ................................................ 21
Figure 11-1 SSOP28 Carrier Tape ......................................................................................... 22
Figure 11-2 IC Reel Placements ............................................................................................ 22

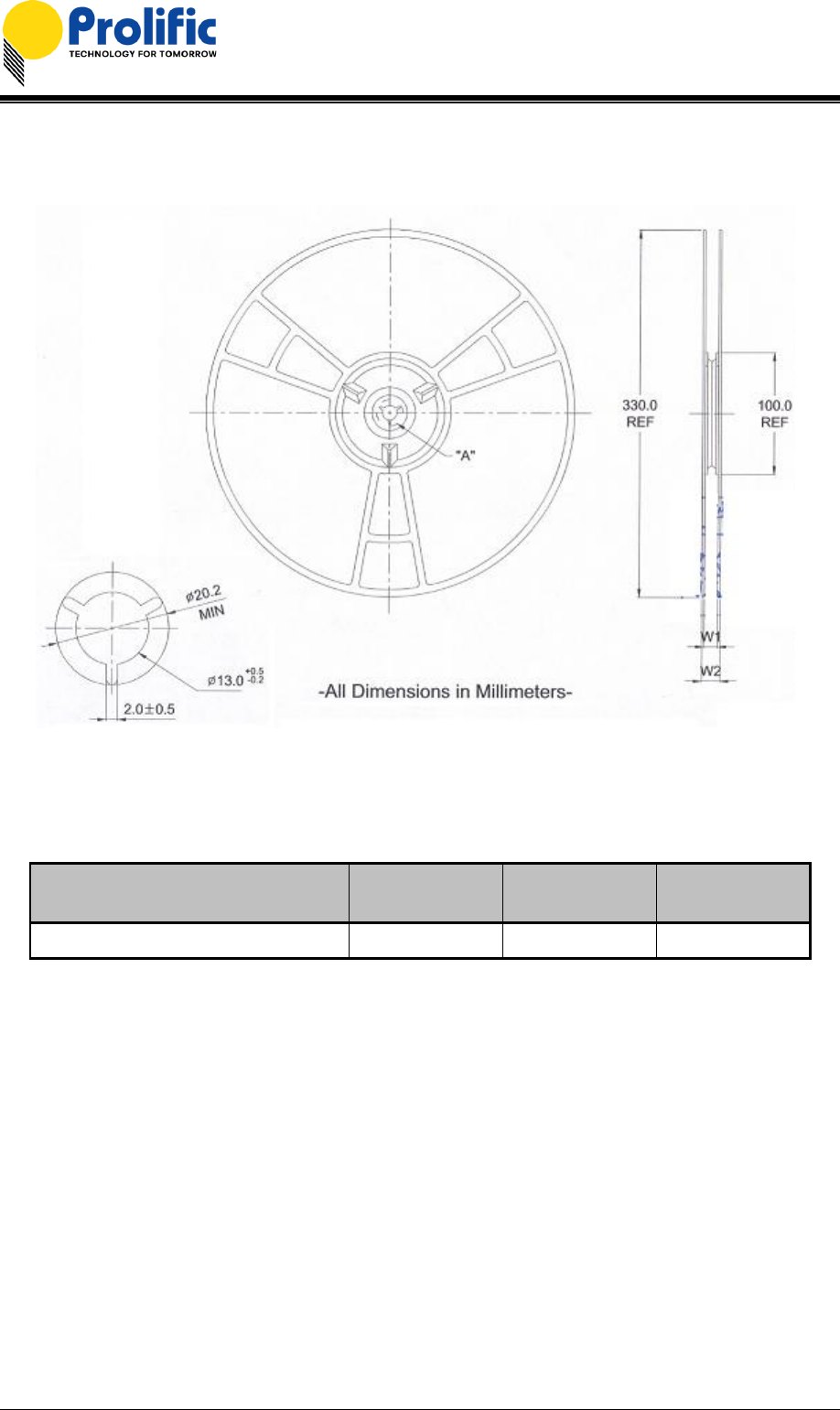

Figure 11-3 Reel Dimension .................................................................................................. 23

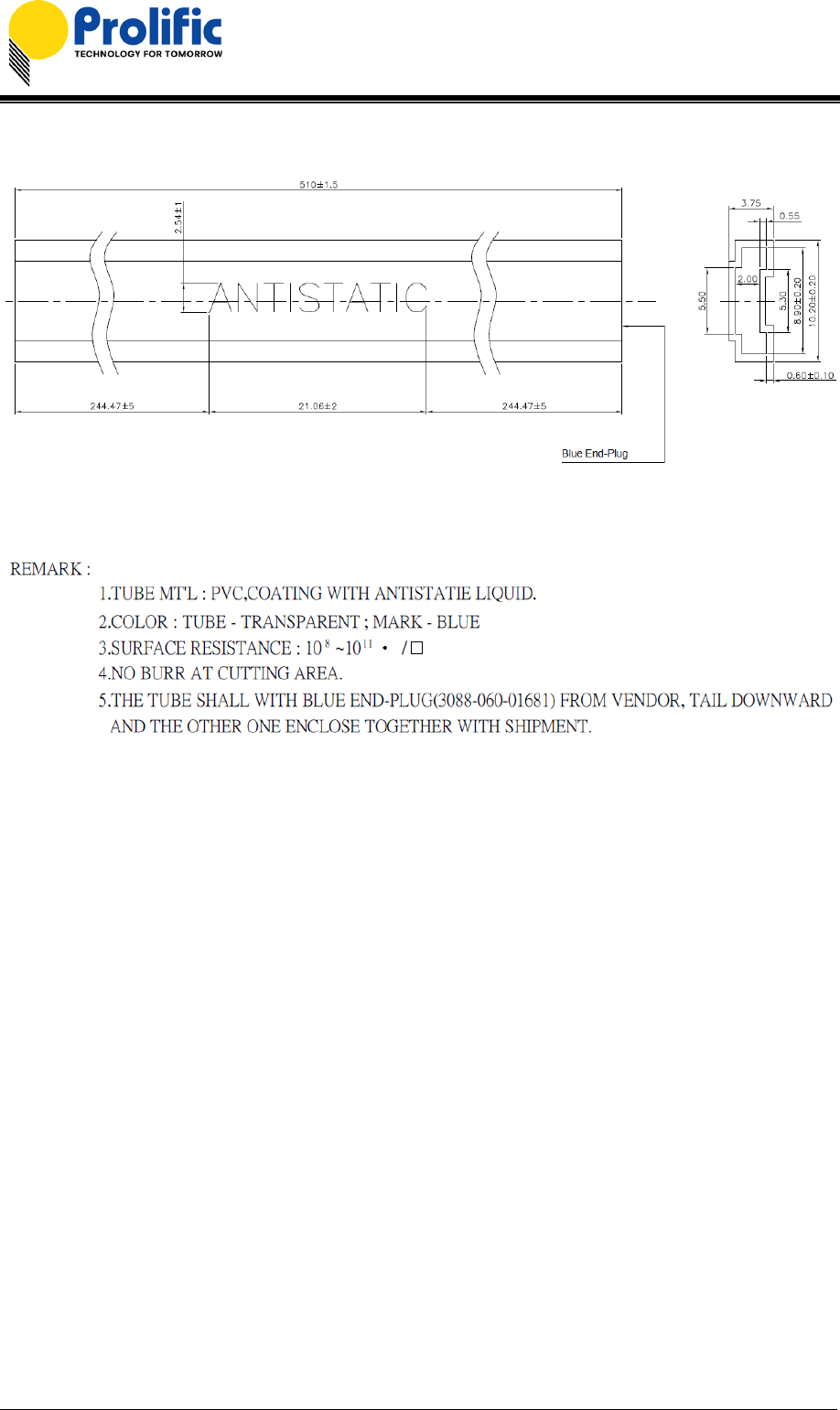

Figure 11-4 Tube Packing Dimension .................................................................................... 24

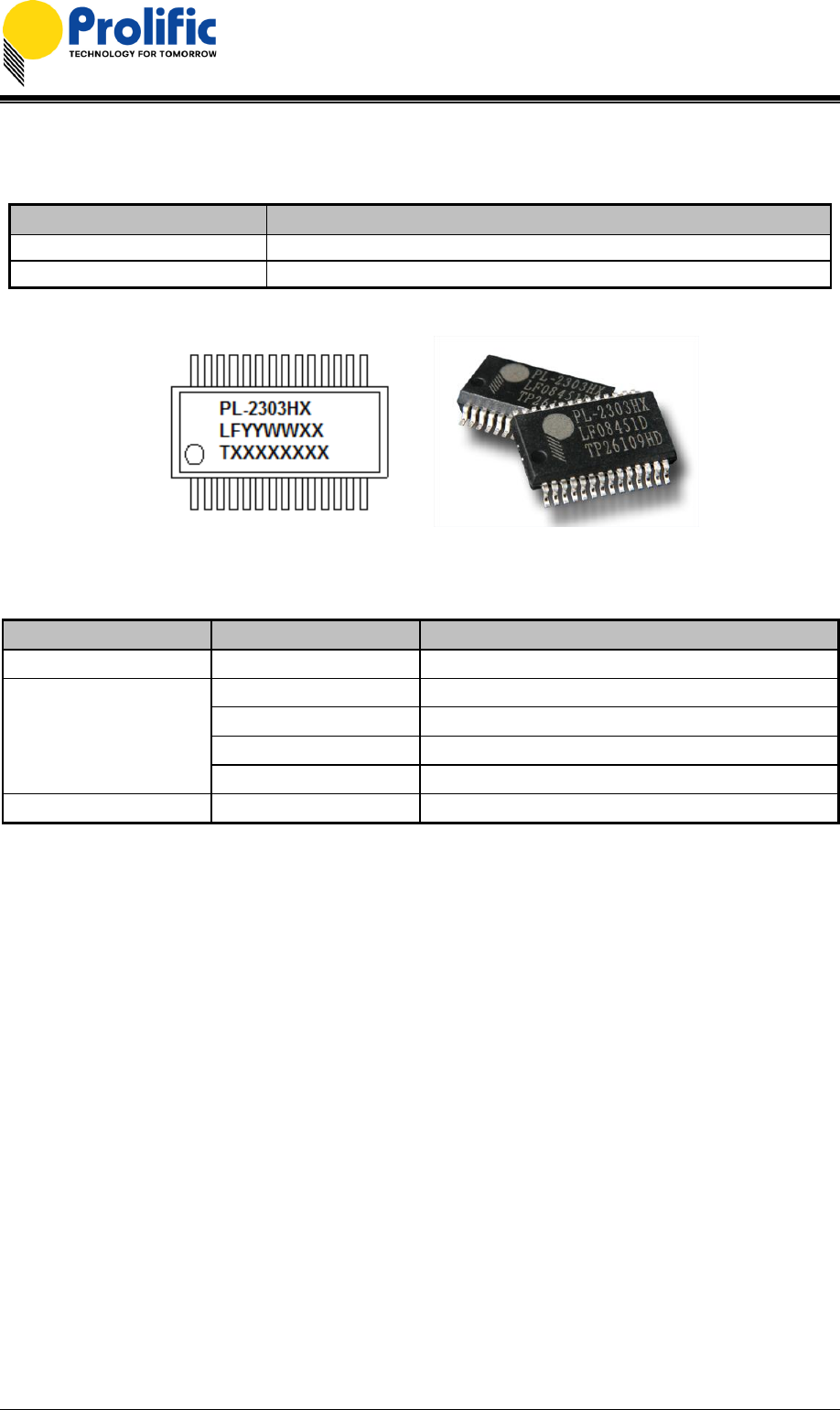

Figure 12-1 Chip Part Number Information (SSOP) .............................................................. 25
List of Tables
Table 5-1 Pin Assignment & Description (SSOP28) ............................................................... 11
Table 5-2 Pin Assignment & Description (QFN32) ................................................................. 12
Table 6-1 EEPROM Writer Configuration .............................................................................. 13
Table 7-1 Supported Data Formats ....................................................................................... 15
Table 7-2 Baud Rate Settings (Supported by Driver) ............................................................. 15
Table 9-1 Absolute Maximum Ratings ................................................................................... 17
Table 9-2a Operating Voltage and Suspend Current ............................................................. 17
Table 9-2b 3.3V I/O Pins ....................................................................................................... 17
Table 9-2c VDD_325@3.3V Serial I/O Pins ........................................................................... 18
Table 9-2d VDD_325@2.5V Serial I/O Pins .......................................................................... 18
Table 9-2e VDD_325@1.8V Serial I/O Pins .......................................................................... 18
Table 9-3 Clock Characteristics ............................................................................................. 18
Table 9-4 Temperature Characteristics .................................................................................. 19
Table 9-5 Leakage Current and Capacitance ........................................................................ 19
Table 9-6 Power-On Reset .................................................................................................... 19
Table 10-1 Package Dimension ............................................................................................. 20
Table 11-2 Reel Part Number Information ............................................................................. 23
Table 12-1 Ordering Information ............................................................................................ 25
Table 12-2 Chip Marking Information ..................................................................................... 25
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 6 - Document Version 1.4.2
1.0 Features
Fully Compliant with USB Specification v2.0 (Full-Speed)
USB-IF Logo Compliant with TID 40000100
UHCI/OHCI (USB1.1), EHCI (USB 2.0), xHCI (USB 3.0) Host Controller Compatible
On Chip USB 1.1 transceiver, 5V3.3V regulator
On-chip 96MHz clock generator
Supports RS-422/RS-485 like serial interface (TXD, DTR_N, and RTS_N pins should be
externally pulled-up to 5V)
Supports RS232-like Serial Interface
o Full-duplex transmitter and receiver (TXD and RXD)
o Six MODEM control pins (RTS, CTS, DTR, DSR, DCD, and RI)
o 5, 6, 7 or 8 data bits
o Odd, Even, Mark, Space, or None parity mode
o One, one and a half, or two stop bits
o Parity error, frame error, and serial break detection
o Programmable baud rate from 75 bps to 12M bps
o External RS232 driver power down control
o Independent power source for serial interface
Extensive Flow Control Mechanism
o Adjustable high/low watermark level
o Automatic hardware flow control with CTS/RTS or DSR/DTR
o Automatic software flow control with XON/XOFF
o Inbound data buffer overflow detection
Configurable 512-byte bi-directional data buffer
o 256-byte outbound buffer and 256-byte inbound buffer; or
o 128-byte outbound buffer and 384-byte inbound buffer
Supports Remote Wake-up from RS232 input pin signals (RI, RXD, DSR, DCD, CTS)
Four (4) General Purpose I/O (GP0, GP1, GP2, & GP3) pins & Four (4) Auxiliary General
Purpose I/O (RI_N, DSR_N, DCD_N, & CTS_N) pins.
On-chip OTP (One Time Programming) ROM for startup device configurations
Supports Windows Selective Suspend by OTPROM configuration (Remote Wakeup enable)
Provides royalty-free Virtual COM Port (VCP) drivers for:
o Windows 2000, XP, Vista, and 7 (Microsoft Certified WHQL Drivers)
o Windows 8
o Windows Server 2003, 2008, 2008 R2
o Windows CE 4.2, 5.0, 6.0, and Windows Embedded Compact 7
o Windows XP Embedded (XPe), Point-of-Service (WEPOS), and POSReady
o Mac OS 8/9, OS X
o Linux/Android kernel 2.4.31 and above includes built-in drivers
o Provides Driver Customization for Customer USB VID/PID and special baud rates
-40oC to 85oC Operating Temperature
Small footprint 28-pin SSOP or 32-pin QFN IC package
o RoHS compliant and Pb-free Green Compound
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 7 - Document Version 1.4.2
2.0 Functional Block Diagram
96MHz Clock Generator USB 1.1
Transceiver 5 to 3.3V
Regulator
Power
Management USB Digital Lock
Loop USB to Serial Interface Engine
Control Endpoint Interrupt Endpoint Bulk-in
Endpoint Bulk-Out
Endpoint
256/384Byte
Inbound Data
Buffer
256/128Byte
Outbound Data
Buffer
RS232 / RS-422 / RS-485 Like
Serial Interface Engine
256-Bytes
OTP ROM
Hardware ROM
Default Descriptor
PL-2303HXD
RS-232/RS-422/RS-485 Like Interface
USB Host

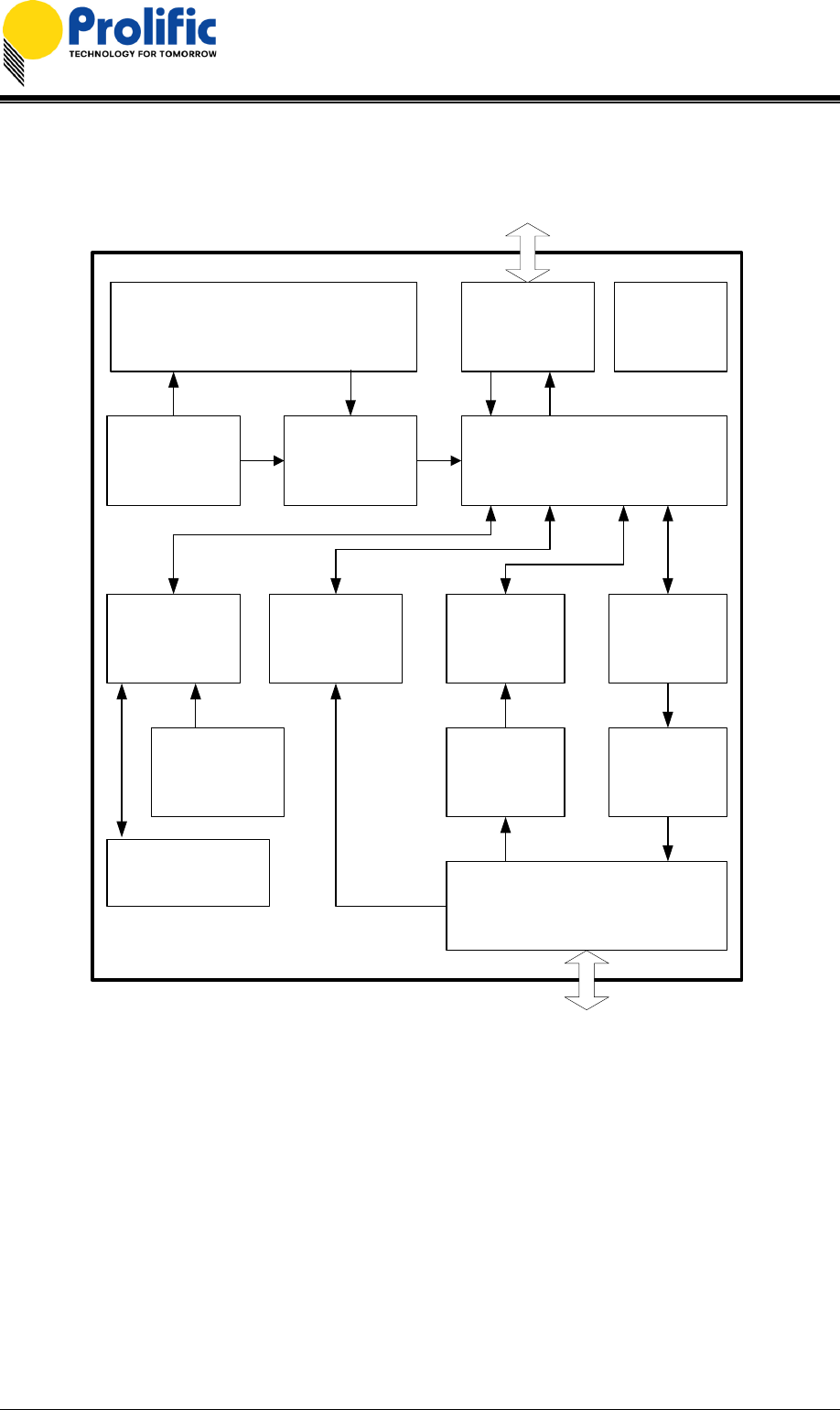

Figure 2-1 Block Diagram of PL-2303HX (Rev D)
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 8 - Document Version 1.4.2
3.0 Introduction
PL-2303HX (Chip Rev D) or PL-2303HXD provides a convenient solution for connecting an RS232-like
full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. PL-2303HXD
highly compatible drivers could simulate the traditional COM port on most operating systems allowing
the existing applications based on COM port to easily migrate and be made USB ready.
By taking advantage of USB bulk transfer mode, large data buffers, and automatic flow control,
PL-2303HXD is capable of achieving higher throughput compared to traditional UART (Universal
Asynchronous Receiver Transmitter) ports. When real RS232 signaling is not required, baud rate
higher than 115200 bps could be used for even higher performance. The flexible baud rate generator of
PL-2303HXD could be programmed to generate any rate between 75 bps to 12M bps.
PL-2303HXD is exclusively designed for mobile and embedded solutions in mind, providing a small
footprint that could easily fit in to any connectors and handheld devices. With very small power
consumption in either operating or suspend mode, PL-2303HXD is perfect for bus powered operation
with plenty of power left for the attached devices. Flexible signal level requirement on the RS232-like
serial port side also allows PL-2303HXD to connect directly to any 3.3V~1.8V range devices.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 9 - Document Version 1.4.2
4.0 Pin Assignment Outline

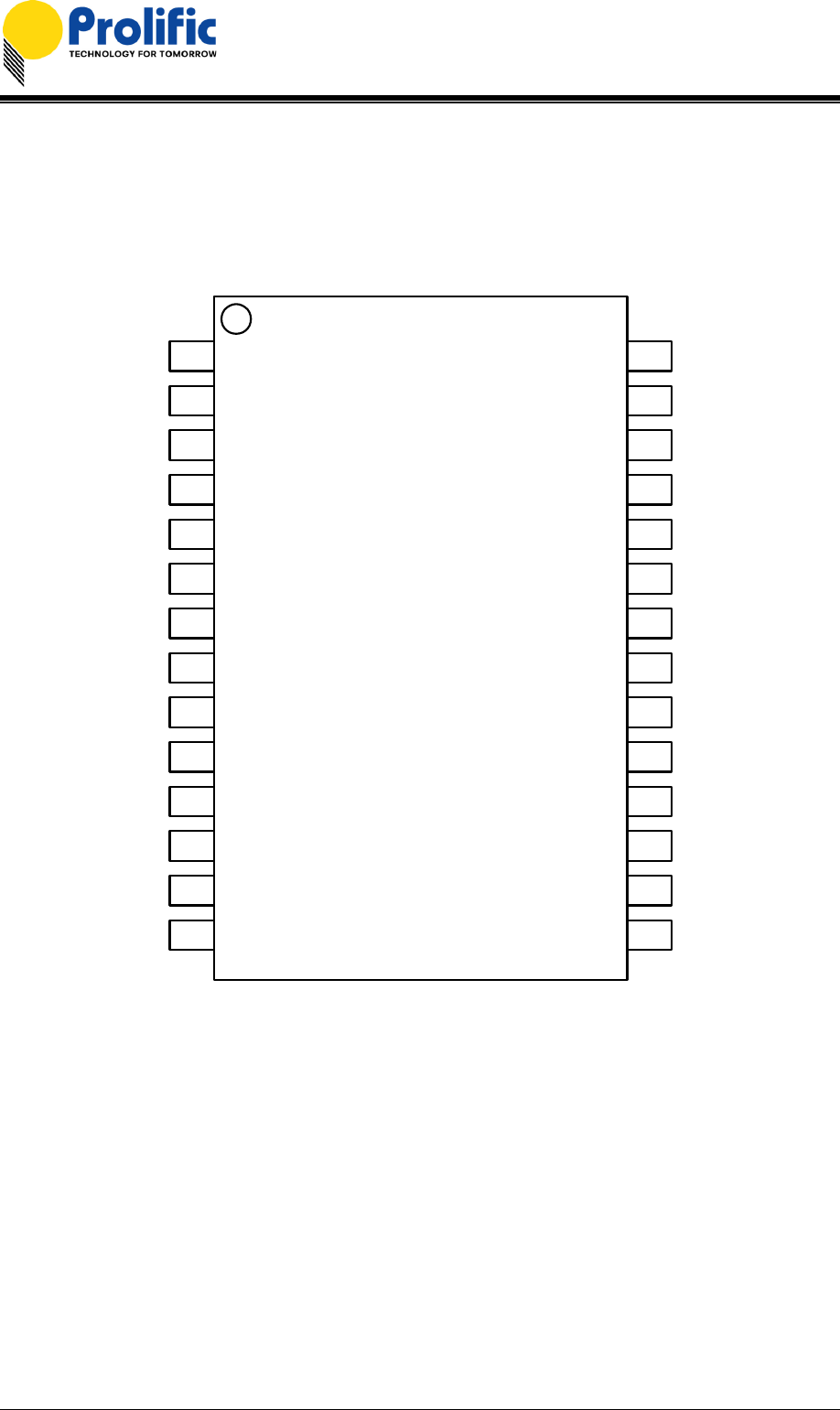

4.1 SSOP28 Package
PL-2303HX (Rev D)
1 TXD
2 DTR_N
3 RTS_N
4 VDD_325
5 RXD
6 RI_N
7 GND
8NC
9 DSR_N
10 DCD_N
11 CTS_N
12 SHTD_N
13 GP3
14 GP2
28RESERVED
27NC
26TEST
25GND
24NC
23GP1
22GP0
21NC
20VDD_5
19RESET_N
18GND
17VO_33
16DM
15DP
Figure 4-1 Pin Assignment Outline of PL-2303HX (Rev D) SSOP28
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 10 - Document Version 1.4.2
4.2 QFN32 Package
R T S_N
NC
GN D
GN D
TEST
RESERVED
NC
NC
TXD
D T R _N
V D D _ 3 2 5
R XD
R I_N
GN D
V D D _ 3 3
D SR _N
DCD_N
C T S_N
SH T D _N
G P 3
G P 2
NC
NC
DP
DM
NC
G P 1
G P 0
NC
V D D _ 5
R ESET _N
V O _ 3 3
PL-2303HXD
Exposed Die Pad connects to VO_33
1

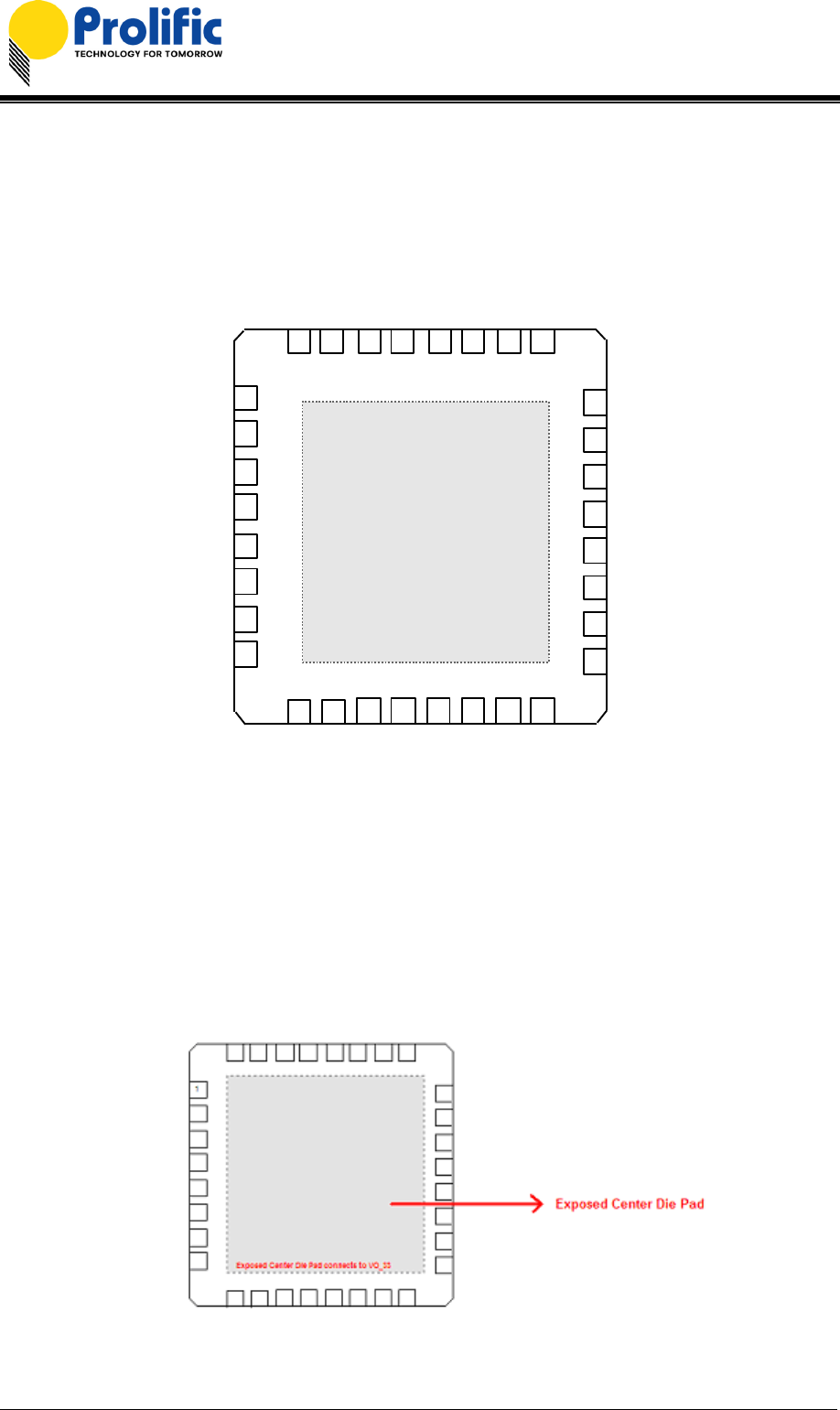

Figure 4-2 Pin Assignment Outline of PL-2303HX (Rev D) QFN32
Warning: The exposed center die pad of the PL-2303HX QFN package is connected (bonded) to the
pin VO_33 so it is very important to design the PCB layout wherein this exposed die pad
won’t get grounded on the PCB when mounted.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 11 - Document Version 1.4.2
5.0 Pin Assignment & Description
Pin Type Abbreviation:
O: Output
B: Bidirectional I/O
P: Power/Ground
5.1 SSOP28 Package
Table 5-1 Pin Assignment & Description (SSOP28)
Pin #
Name
Type
Description
1
TXD
O (1)
Serial Port (Transmitted Data)
2
DTR_N
O (1)
Serial Port (Data Terminal Ready)
3
RTS_N
O (1)
Serial Port (Request To Send)
4
VDD_325
P
RS232 VDD. The power pin for the serial port signals. When
the serial port is 3.3V, this should be 3.3V. When the serial port
is 2.5V, this should be 2.5V. The range can be from 1.8V~3.3V.
5
RXD
I (2)
Serial Port (Received Data)
6
RI_N
B (2)
Serial Port (Ring Indicator); or Auxiliary General Purpose I/O
Port when enabled(7).
7
GND
P
Ground
8
NC
-
No Connection
9
DSR_N
B (2)
Serial Port (Data Set Ready); or Auxiliary General Purpose I/O
Port when enabled(7).
10
DCD_N
B (2)
Serial Port (Data Carrier Detect); or Auxiliary General Purpose
I/O Port when enabled(7).
11
CTS_N
B (2)
Serial Port (Clear to Send); or Auxiliary General Purpose I/O
Port when enabled(7).
12
SHTD_N
O (3)
RS232 Transceiver Shut Down Control
13
GP3
I/O
Auxiliary GPIO Pin 3 (Default output high mode) (6)
14
GP2
I/O
Auxiliary GPIO Pin 2 (Default output high mode) (6)
15
DP
B
USB Port D+ signal
16
DM
B
USB Port D- signal
17
VO_33
P
Regulator Power Output, 3.3V
18
GND
P
Ground
19
RESET_N
I (4)
External System Reset (Active Low)
20
VDD_5
P
USB Port VBUS, 5V Power. (6.5V for OTPROM writing voltage).
21
NC
-
No Connection
22
GP0
B (5)
General Purpose I/O Pin 0
23
GP1
B (5)
General Purpose I/O Pin 1
24
NC
-
No Connection
25
GND
-
Ground
26
TEST
I
Test mode control
27
NC
-
No Connection
28
Reserved
-
Reserved pin (Must be floating)
Notes:
(1) – Tri-State, Output Pad. Level and Driving Capability decided by VDD_325.
(2) – Tri-State, CMOS Input/Output Pad with level shifter. Level and Driving Capability decided by VDD_325.
(3) – CMOS Output Pad.
(4) – CMOS Input Pad, 5V tolerant.
(5) – Tri-State, CMOS Input/Output Pad. (Default mode: Input)
(6) – Default output high mode; do not connect to ground.
(7) – Enabling Auxiliary GPIO requires special customized driver.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 12 - Document Version 1.4.2
5.2 QFN32 Package
Table 5-2 Pin Assignment & Description (QFN32)
Pin #
Name
Type
Description
1
VDD_325
P
RS232 VDD. The power pin for the serial port signals.
When the serial port is 3.3V, this should be 3.3V. When
the serial port is 2.5V, this should be 2.5V. The range can
be from 1.8V~3.3V.
2
RXD
I (2)
Serial Port (Received Data)
3
RI_N
B (2)
Serial Port (Ring Indicator); or Auxiliary General Purpose
I/O Port when enabled(6).
4
GND
P
Ground
5
VDD_33
P
Primary Power (3.3V)
6
DSR_N
B (2)
Serial Port (Data Set Ready); or Auxiliary General Purpose
I/O Port when enabled(6).
7
DCD_N
B (2)
Serial Port (Data Carrier Detect); or Auxiliary General
Purpose I/O Port when enabled(6).
8
CTS_N
B (2)
Serial Port (Clear to Send); or Auxiliary General Purpose
I/O Port when enabled(6).
9
SHTD_N
O (3)
RS232 Transceiver Shut Down Control
10
GP3
I/O
Auxiliary GPIO Pin 3 (Default output high mode) (5)
11
GP2
I/O
Auxiliary GPIO Pin 2 (Default output high mode) (5)
12
NC
-
No Connection
13
NC
-
No Connection
14
DP
B
USB Port D+ signal
15
DM
B
USB Port D- signal
16
NC
-
No Connection
17
VO_33
P
Regulator Power Output, 3.3V
18
GND
P
Ground
19
RESET_N
I
External System Reset (Active Low)
20
VDD_5
P
USB Port VBUS, 5V Power.
21
NC
-
No Connection
22
GP0
B (4)
General Purpose I/O Pin 0
23
GP1
B (4)
General Purpose I/O Pin 1
24
NC
-
No Connection
25
GND
P
Ground
26
TEST
I
Test mode control
27
Reserved
-
Reserved pin (Must be floating)
28
NC
-
No Connection
29
NC
-
No Connection
30
TXD
O (1)
Serial Port (Transmitted Data)
31
DTR_N
O (1)
Serial Port (Data Terminal Ready)
32
RTS_N
O (1)
Serial Port (Request To Send)
IC Bottom PAD
P
Connects to VO_33 (Regulator Power Output, 3.3V)
Notes:
(1) – Tri-State, Output Pad. Level and Driving Capability decided by VDD_325.
(2) – Tri-State, CMOS Input/Output Pad with level shifter. Level and Driving Capability decided by VDD_325.
(3) – CMOS Output Pad.
(4) – Tri-State, CMOS Input/Output Pad. (Default mode: Input)
(5) – Default output high mode; do not connect to ground.
(6) – Enabling Auxiliary GPIO requires special customized driver.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 13 - Document Version 1.4.2
6.0 OTPROM Configuration
The default configuration descriptors are stored in the chip internally which will be loaded during
power-on reset or USB bus reset whenever OTPROM (One-Time Programmable ROM) is empty.
Several of the USB descriptors could be modified and stored to the PL2303HXD OTPROM during
device startup like Vendor ID (VID), Product ID (PID), Serial Number, Product String, and other
configuration descriptors. The OTPROM can be programmed twice using the Prolific PL2303 EEPROM
Writer utility software which can be requested from Prolific or authorized distributors.
Figure 6-1 PL2303 EEPROM Writer Program
Table 6-1 EEPROM Writer Configuration
Descriptors
Default Value
Description
Vendor ID (VID)
067B (hex)
USB unique Vendor ID of Company or
Manufacturer. This ID is applied and
registered from USB-IF.
Refer to this website for applying VID:
http://www.usb.org/developers/vendor/
Product ID (PID)
2303 (hex)
USB Product ID assigned by Company or
Manufacturer.
Rel. No. (BCD)
0400
This field reports the release number of USB
the device. This item is fixed and cannot be
modified.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 14 - Document Version 1.4.2
Serial No. (8 hex characters)
Disabled
This field sets the product USB serial number.
Entering a unique serial number allows the
device to be assigned the same COM Port
number even when plug to other USB ports of
the same PC.
Product String Descriptor
None
This field when entered will be the string
displayed by Windows and other OS when
device is first detected and before driver is
loaded or driver not installed.
Enable for RS422/RS485
Disabled
Enable this for RS422 or RS485 support.
Remains
2
PL2303HXD has an integrated OTPROM
which allows to write EEPROM settings
without the use of an external one. However,
the OTPROM can only be written twice and
cannot be erased. PL2303HXD does not
support external EEPROM.
Functions
Default Value
Description
Serial Port Output
Disable
This option allows setting the serial port output
pin signals (TXD, RTS, DTR) to HIGH during
suspend mode.
USB Load Mode
Light Load (100mA)
This option sets the USB device maximum
power if 100mA (low-power) or 500mA (high
power).
Flow Control Setting
No Flow Control
This option allows to set the flow control initial
setting to none, H/W, or S/W control.
Note: H/W and S/W flow control can also be
set and configured on customer/user serial
communication software.
Wakeup Trigger Pin
Wakeup trigger on
RI
This option allows setting the trigger pin for
remote wakeup function. When in suspend
mode, changes on the enabled serial port
input signals could trigger a wakeup event.
NOTE: To support Selective Suspend function, you
need to write and enable this option in OTPROM.
Shutdown Pin Mode
Output LOW during
suspend
This option allows setting the Shutdown pin
mode to Output HIGH or LOW on normal
mode or Suspend mode.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 15 - Document Version 1.4.2
7.0 Data Formats & Programmable Baud Rate Generator
The PL-2303HXD controller supports versatile data formats and has a programmable baud rate
generator. The supported data formats are shown on Table 7-1. The programmable baud rate
generator supports baud rates up to 12M bps and standard driver already supports several baud rate
settings as shown in Table 7-2.
Table 7-1 Supported Data Formats
Description
Stop bits
1
1.5
2
Parity type
None
Odd
Even
Mark
Space
Data bits
5, 6, 7, 8
Table 7-2 Baud Rate Settings (Supported by Driver)
Baud Rates
(bps)
Baud Rates
(bps)
Baud Rates
(bps)
Baud Rates
(bps)
Baud Rates
(bps)
12000000
6000000
460800
134400
19200
1800
3000000
403200
128000
14400
1200
2457600
268800
115200
9600
600
1228800
256000
57600
7200
300
921600
230400
56000
4800
150
806400
201600
38400
3600
110
614400
161280
28800
2400
75
Note: For special baud rate requirements, please contact Prolific FAE for driver customization support.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 16 - Document Version 1.4.2
8.0 PL2303HXD Reference Schematic Diagram
Below is an example of using the PL-2303HX (Chip Rev D) as a USB to RS232 converter (with RS485
option) where a RS232 transceiver (Sipex SP213EHCA) is used to convert the TTL levels serial
interface of the PL2303TA to RS232 levels as well as converting the +5V nominal VCC to the ±9V
required by RS232. The SP213EHCA transceiver provides up to 500Kbps data rate transmission which
is ideal for many designs requiring high speed performance. Contact Prolific FAE for more PCB design
support.
Figure 8-1 PL2303HX (Chip Rev D) Reference Schematic Diagram
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 17 - Document Version 1.4.2
9.0 DC & Temperature Characteristics
9.1 Absolute Maximum Ratings
Table 9-1 Absolute Maximum Ratings
Items
Ratings
Power Supply Voltage - VDD_5
-0.3 to 6.5 V
Input Voltage of 3.3V I/O
-0.3 to VO_33+0.3 V
Input Voltage of 3.3V I/O with 5V Tolerance I/O
-0.3 to VDD_5+0.3V
Output Voltage of 3.3V I/O
-0.3 to VDD_5 +0.3 V
Storage Temperature
-40 to 150 oC
9.2 DC Characteristics
9.2.1 Operating Voltage and Suspend Current
Table 9-2a Operating Voltage and Suspend Current
Parameter
Symbol
Min
Typ
Max
Unit
Operating Voltage Range
VDD_5
4.5
5
6.5
V
Output Voltage of Regulator
VO_33
2.97
3.3
3.63
V
Operating Current(1) (Power Consumption)
IDD
-
20
25
mA
Suspend Current
ISUS
-
260
450
A
Note: (1) – No device connected.
9.2.2 3.3V I/O Pins
Table 9-2b 3.3V I/O Pins
Parameter
Symbol
Min
Typ
Max
Unit
Output Driving Capability
IDD
4
mA
Power Supply for 3.3V I/O Pins
VO_33
2.97
3.3
3.63
V
Input Voltage (CMOS)
Low
High
VIL
VIH
--
0.7* VO_33
--
--
0.3* VO_33
--
V
V
Input Voltage (LVTTL)
Low
High
VIL
VIH
--
2.0
--
--
0.8
--
V
V
Output Voltage, 3.3V
Low
High
VOL
VOH
--
2.4
--
--
0.4
--
V
V
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 18 - Document Version 1.4.2
9.2.3 Serial I/O Pins
Table 9-2c VDD_325@3.3V Serial I/O Pins
Parameter
Symbol
Min
Typ
Max
Unit
Output Driving Capability
IDD
8
mA
Power Supply for Serial I/O Pins
VDD_325
2.97
3.3
3.63
V
Input Voltage
Low
High
VIL
VIH
--
0.7* VDD_325
--
--
0.25* VDD_325
--
V
V
Output Voltage
Low
High
VOL
VOH
--
2.4
--
--
0.4
--
V
V
Table 9-2d VDD_325@2.5V Serial I/O Pins
Parameter
Symbol
Min
Typ
Max
Unit
Output Driving Capability
IDD
5.2
mA
Power Supply for Serial I/O Pins
VDD_325
2.25
2.5
2.75
V
Input Voltage
Low
High
VIL
VIH
--
0.7* VDD_325
--
--
0.25* VDD_325
--
V
V
Output Voltage
Low
High
VOL
VOH
--
1.85
--
--
0.4
--
V
V
Table 9-2e VDD_325@1.8V Serial I/O Pins
Parameter
Symbol
Min
Typ
Max
Unit
Output Driving Capability
IDD
4.4
mA
Power Supply for Serial I/O Pins
VDD_325
1.65
1.8
1.95
V
Input Voltage
Low
High
VIL
VIH
--
0.7* VDD_325
--
--
0.25* VDD_325
--
V
V
Output Voltage
Low
High
VOL
VOH
--
1.25
--
--
0.4
--
V
V
9.3 Clock Characteristics
Table 9-3 Clock Characteristics
Parameter
Min
Typ
Max
Units
Frequency of Operation
11.97
12.0
12.03
MHz
Clock Period
83.1
83.3
83.5
ns
Duty Cycle
45
50
55
%
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 19 - Document Version 1.4.2
9.4 Temperature Characteristics
Table 9-4 Temperature Characteristics
Parameter
Symbol
Min
Typ
Max
Unit
Operating Temperature
--
-40
--
85
oC
Junction Operation Temperature
TJ
-40
25
105
oC
9.5 Leakage Current and Capacitance
Table 9-5 Leakage Current and Capacitance
Parameter
Symbol
Min
Typ
Max
Unit
Input Leakage Current*1
IL
-10
1
10
A
Tri-state Leakage Current
Ioz
-10
1
10
A
Input Capacitance
CIN
--
2.8
--
pF
Output Capacitance
COUT
2.7
--
4.9
pF
Bi-directional Buffer Capacitance
CBID
2.7
--
4.9
pF
*1. No pull-up or pull-down resistor.
9.6 Power-On Reset

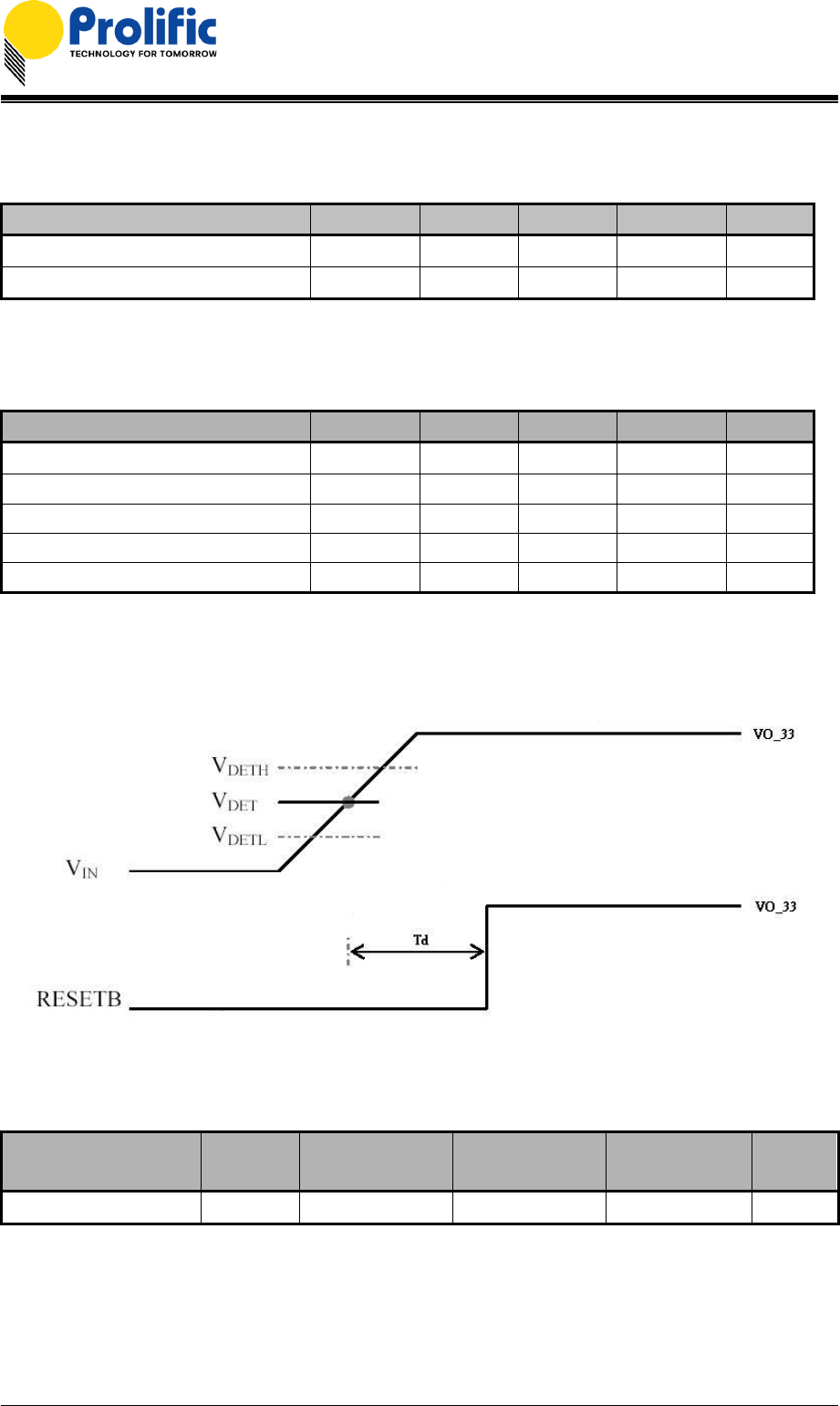

Figure 10-1 Power-On Reset Diagram
Table 9-6 Power-On Reset
Parameter
Symbol
FF@70oC
VO_33=3.63V
TT@25oC
VO_33=3.3V
SS@0oC
VO_33=2.97V
Unit
Output Delay Time
Td
1.18
2.68
182.5
sec
Note: The delay time is simulated with VIN ramp of 1V/sec.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 20 - Document Version 1.4.2
10.0 Outline Diagram
10.1 SSOP28 Package
Table 10-1 Package Dimension
Symbol
Millimeter
Inch
Min
Nom
Max
Min
Nom
Max
b
0.22
0.38
0.009
0.015
E
7.40
7.80
8.20
0.291
0.307
0.323
E1
5.00
5.30
5.60
0.197
0.209
0.220
L
0.55
0.75
0.95
0.021
0.030
0.037
R1
0.09
0.004
D
9.9
10.2
10.5
0.390
0.402
0.413
A
2.0
0.079
e
0.65
0.0256
L1
1.25
0.050
A1
0.05
0.020
A2
1.65
1.75
1.85
0.065
0.069
0.073
Figure 10-1 Outline Diagram of PL-2303HX (Rev D) SSOP28
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 21 - Document Version 1.4.2
10.2 QFN32 Package
Figure 10-2 Outline Diagram of PL-2303HX (Rev D) QFN32
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 22 - Document Version 1.4.2
11.0 Reel Packing Information
11.1 Carrier Tape (SSOP-28)

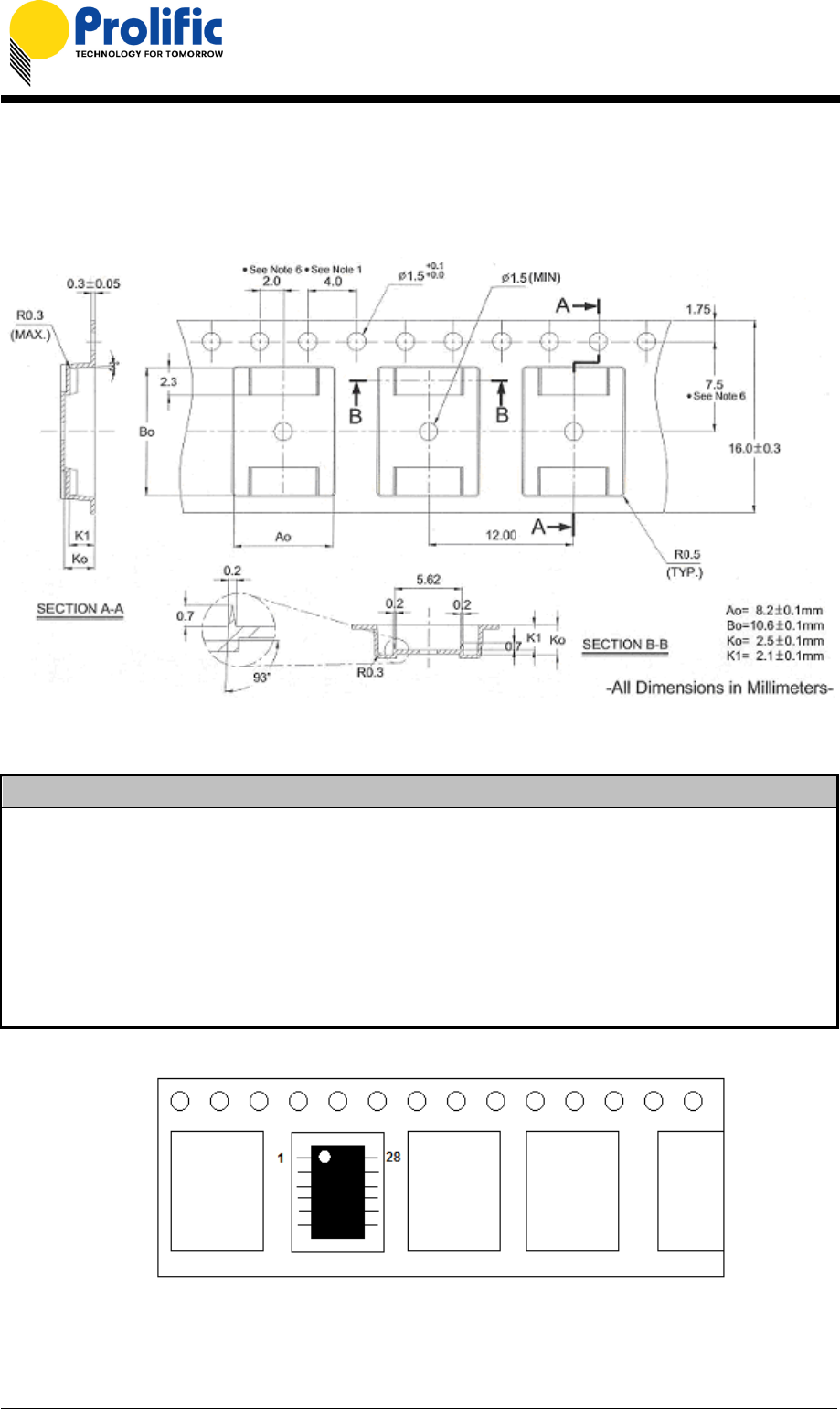

Figure 11-1 SSOP28 Carrier Tape
Notes:
10 sprocket hole pitch cumulative tolerance 0.2
Camber not to exceed 1mm in 100mm.
Material: Black Polystyrene.
Ao and Bo measured on a plane 0.3mm above the bottom of the pocket.
Ko measured from a plane on the inside bottom of the pocket to the top surface of the carrier.
Pocket position relative to sprocket hole measured as true position of pocket, not pocket hole.
IC quantity per one reel: 2,000 pieces (MOQ)
Figure 11-2 IC Reel Placements
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 23 - Document Version 1.4.2
11.2 Reel Dimension
Figure 11-3 Reel Dimension
Table 11-2 Reel Part Number Information
Part Number
Normal Hub
Width
W1 +0.3mm
-0.2mm
W2 Max
RD33008SW-T + RD33008SW-T
16mm
16.8mm
22.2mm
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 24 - Document Version 1.4.2
11.3 Tube Packing
Figure 11-4 Tube Packing Dimension
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 25 - Document Version 1.4.2
12.0 Ordering and Chip Marking Information
Table 12-1 Ordering Information
Part Number
Package Type
PL-2303HXD LF
28-pin SSOP (Lead Free or Pb-Free)
PL-2303HXD QFN32 LF
32-pin QFN (Lead Free or Pb-Free)
Figure 12-1 Chip Part Number Information (SSOP)
Table 12-2 Chip Marking Information
Line
Marking
Description
First Line
PL-2303HX
Chip Product Name
Second Line
(LFYYWWXX)
LF
Lead-Free (Pb-free) packing material
YY
Last two digits of the manufacturing year
WW
Week number of the manufacturing year
XX
HX Chip Version (Rev D)
Third Line
TXXXXXXXX
Manufacturing LOT code
Example: “LF08451D” – means Lead-Free packing + Year 2008 + Week no. 45 + 1D chip version.
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 26 - Document Version 1.4.2
13.0 Contact Information
Taiwan Headquarter
7F, No.48, Sec. 3, Nan Kang Rd.,
Nan Kang, Taipei, Taiwan 115, R.O.C.
Tel: +886-2-2654-6363 Fax: +886-2-2654-6161
Website: www.prolific.com.tw
E-mail: sales@prolific.com.tw
Shenzhen Office
Room 1908, Building, No.A. jiahehuaqiang Building,
Shennanzhong Rd. Futian District, Shenzhen, China
Tel: +86-1350-285-4191
E-mail: alexyang@prolific.com.tw
Distributors Contact: http://www.prolific.com.tw/eng/contact-distributors.asp
Taiwan Distributors
Maxtek Technology Co., Ltd.
5F, No. 13-20, Sec. 6, Ming-Chuang E.RD., Nei-Hu, Taipei, Taiwan, R.O.C.
Tel: +886-2-2794-6060 Ext.662
Fax: +886-2-8792-8921
Website: http://www.maxtek-icrep.com.tw
E-mail: sales@maxtek.icrep.com.tw
Morrihan International Corp.
4F, No. 3-2, YuanCyu Street, NanKang District , Taipei 115, Taiwan, R.O.C.
Tel: +886-2-2788-5511
Fax: +886-2-2788-9366
Website: http://www.morrihan.com
U-CHEER Company Co., Ltd.
4F, No. 48, Chow-Tze ST., Nei-Hu, Taipei, Taiwan, R.O.C.
Tel: +886-2-8797-6789
Fax: +886-2-8797-3388
E-mail: arthur.lu36@ucheer.com.tw
USA and Canada
ProlificUSA.com / Tectona Electronics Inc.
250 Wyecroft Road, Unit 6, Oakville, Ontario, Canada L6K 3T7
Tel: +905-827-2206
Fax: +905-847-9412
Corporate Website: http://www.tectona.com
Product Website: http://www.prolificUSA.com
Japan
Hitachi High-Tech Trading Corporation
1-24-14, Nishi-Shimbashi, Minato-ku, Tokyo, 105-8418 Japan
Dept.: Electronic Devices 4th Dept., Electonic Devices Sales Div
Tel: +81-3-3504-3859
Fax: +81-3-3504-7903
Website: http://www.hitachi-hitec-trading.com
Revised Date:
June 25, 2012
ds_pl2303HXD_v1.4.2
PL-2303HX (Rev D) Product Datasheet - 27 - Document Version 1.4.2
China
Lacewood International Corp.
Hong Kong Office
Unit B1-B3, 21/F, Block B, Kong Nam Industrial Building, 603-609 Castle peak Road,
Tsuen Wan N.T, Hong Kong
Tel: +852-2690-9898
Fax: +852-2690-9300
Shenzhen Office
Room401-3,East, CEC Information Building, No.1 Xin Wen Road, Shenzhen, P.R.C.,
518034
Tel:+86-755-8296-7018
Fax: +86-775-8330-7119
Shanghai Office
Rm 208,District B, Building 3,NO.7,Guiqin Rd, Xuhui Area, Shanghai
Tel : +86-21-5426-2182 ~6
Fax: +86-21-5426-2180
China Freelink Asia Limited
Room 307, 3F Block6, AnHua Industrial Zone, Tairan 8th Road,
CheGongMiao, Futian District, Shenzhen, China
Tel: +86-755-8302-0469
China Shenzhen Shiqixinji Science and Technology Co., Ltd.
Room 1908, Building NO.A, Jiahehuaqiang Building,
Shennanzhong Rd., Futian District, Shenzhen, China
Tel: +86-755-8329-5310
Korea
Nevora Technology
Rm 502, Citylife, 441, Amsa-Dong, Kangdong-Gu, Seoul, 134-855, Korea
Tel: +82-2-3426-0050
Fax: +82-2-3426-0070
Website: http://www.nevora.co.kr
T&C Semitech Co.,LTD
#703 J-dong, Gongku-sangga, 636-62, Kuro-dong, Kuro-ku, Seoul. Korea
Tel: +82-2-2672-9531
Fax: +82-2-2672-9532
Website: http://www.tncsemi.co.kr

Navigation menu
