QCA-PLC-SG-firmware-v1.0.0 第1页

PLC Chipset SG Programmers Guide

MKG-xxxxx Ver. 1.0

May, 2013

Confidential and Proprietary - Qualcomm Atheros,

Inc.

Not to be used, copied, reproduced in whole or in part, nor its contents revealed in any manner to others without the

express written permission of Qualcomm Atheros, Inc.

QUALCOMM is registered trademark of Qualcomm Incorporated. ATHEROS is a registered trademark of

Qualcomm Atheros, Inc. All other registered and unregistered trademarks are the property of Qualcomm

Incorporated, Qualcomm Atheros, Inc. or their respective owners and used with permission. Registered marks owned

by Qualcomm Incorporated and Qualcomm Atheros, Inc. are registered in the United States of America and may be

registered in other countries.

This technical data may be subject to U.S. and international export, re-export, or transfer (“export”) laws. Diversion

contrary to U.S. and international law is strictly prohibited.

Qualcomm Atheros,

Inc.

1700 Technology

Drive

San Jose, CA

95110-1383

U.S.A.

Copyright © 2011 QUALCOMM

Incorporated.

All rights

reserved.

QCA-PLC-SG-firmware-v1.0.0 第2页

Revision History

Revision

Date

Desc

rip

t

ion

Ver. 1.0

April, 2013

Initial version

QCA-PLC-SG-firmware-v1.0.0 第3页

Contents

1 Acronyms and Abbreviations .................................................................................................................... 5

2 Architecture Overview .............................................................................................................................. 6

2.1 Power line Frequency ........................................................................................................................ 6

2.2 SG System architecture ..................................................................................................................... 6

3 UART Data transparent TX/RX................................................................................................................... 7

3.1 UART Data transmit ........................................................................................................................... 7

3.2 UART Data receive............................................................................................................................. 8

3.3 Power Meter Address and MAC address Mapping ........................................................................... 8

4 Communication protocol .......................................................................................................................... 9

4.1 Protocol ............................................................................................................................................. 9

4.2 Ethernet MME packet header ........................................................................................................... 9

4.3 Get power meter data request (VS_UART_CMD_Req MME) ........................................................... 9

4.4 Get power meter data response (VS_UART_CMD_Cnf) ................................................................. 10

4.5 Get topology request and response (VS_AVLN_TOPO_Req VS_AVLN_TOPO_Cnf) ....................... 11

4.6 Network information request (VS_NW_INFO_STATS_Req)............................................................ 14

4.7 Network information response (VS_NW_INFO_STATS_Cnf) .......................................................... 15

4.8 Get software version request (VS_SW_VER_Req) .......................................................................... 16

4.9 Get software version response (VS_SW_VER_Cnf) ......................................................................... 17

4.10 Software reset request (VS_RS_DEV_Req) ..................................................................................... 17

4.11 Software reset response (VS_RS_DEV_Cnf) .................................................................................... 17

4.12 MME timeout .................................................................................................................................. 18

Appendix : Example for Concentrator raw socket programming ................................................................... 19

QCA-PLC-SG-firmware-v1.0.0 第4页

Table and Figure

Figure 2-1：QCA broadband PLC Smart Grid system block diagram ....................................................... 6

Figure 3-1：UART data transparently transmit ........................................................................................ 7

Figure 3-2：UART data transparently receive .......................................................................................... 8

Figure 4-1：MME packet captured by wireshark ................................................................................... 10

Figure 5-2：Raw UART Data sent ........................................................................................................... 10

Table 2-1：Acronyms and Abbreviations ................................................................................................. 5

Table 4-1：MME Packet Header .............................................................................................................. 9

Table 4-2：VS_UART_CMD_Req .............................................................................................................. 9

Table 4-3：VS_UART_CMD_Cnf ............................................................................................................. 10

Table 4-4：VS_AVLN_TOPO_Req ........................................................................................................... 11

Table 4-5：VS_AVLN_TOPO_Cnf ............................................................................................................ 11

Table 4-6：VAR field for Get tree command .......................................................................................... 12

Table 4-7：VAR field for Get trace command ........................................................................................ 12

Table 4-8：STA’s Info .............................................................................................................................. 13

Table 4-9： VS_NW_INFO_STATS_Req .................................................................................................. 14

Table 4-10： VS_NW_INFO_STATS_Cnf ................................................................................................. 16

Table 4-11： VS_SW_VER_Req ............................................................................................................... 16

Table 4-12： VS_SW_VER_Cnf................................................................................................................ 17

Table 4-13： VS_RS_DEV_Req ................................................................................................................ 17

Table 4-14： VS_RS_DEV_Cnf ................................................................................................................. 17

QCA-PLC-SG-firmware-application-notes v1.0.0 page 5

1 Acronyms and Abbreviations

Acronyms

Definition

Power Meter

One phase Smart meter and three phase Smart meter

CCO module

CCO module is placed into concentrator. It included 3 QCA6411, 1 5-ports-switch.

STA module

STA module is placed into smart meter. It included 1 QCA7000.

CCO

Central Coordinator

STA

Station

NSTA

Normal STA

PSTA

Proxy STA

HSTA

Hidden STA

AVLN

HomePlug AV Logical Network

Relay

CCO cannot communicate with 1 HSTA, but via PSTA with relay, it can communicate with each other.

n Relay

Multi- relay

MME

MAC Management Message

PB

PHY Block

TEI

Terminal Equipment Identifier

QCA6411

Lynx chip used for CCO

QCA7000

Lynx chip used for STA

DA

Destination Address，Destination MAC address

SA

Source Address，Source MAC address。

Table 1-1：Acronyms and Abbreviations

QCA-PLC-SG-firmware-application-notes v1.0.0 page 6

2 Architecture Overview

2.1 Power line Frequency

To comply with the HomePlug GP specification, the Powerline frequency must be 50Hz±3.0% or 60

Hz±3.5%. Powerline frequency outside of this range will cause the firmware to reboot the device.

2.2 SG System architecture

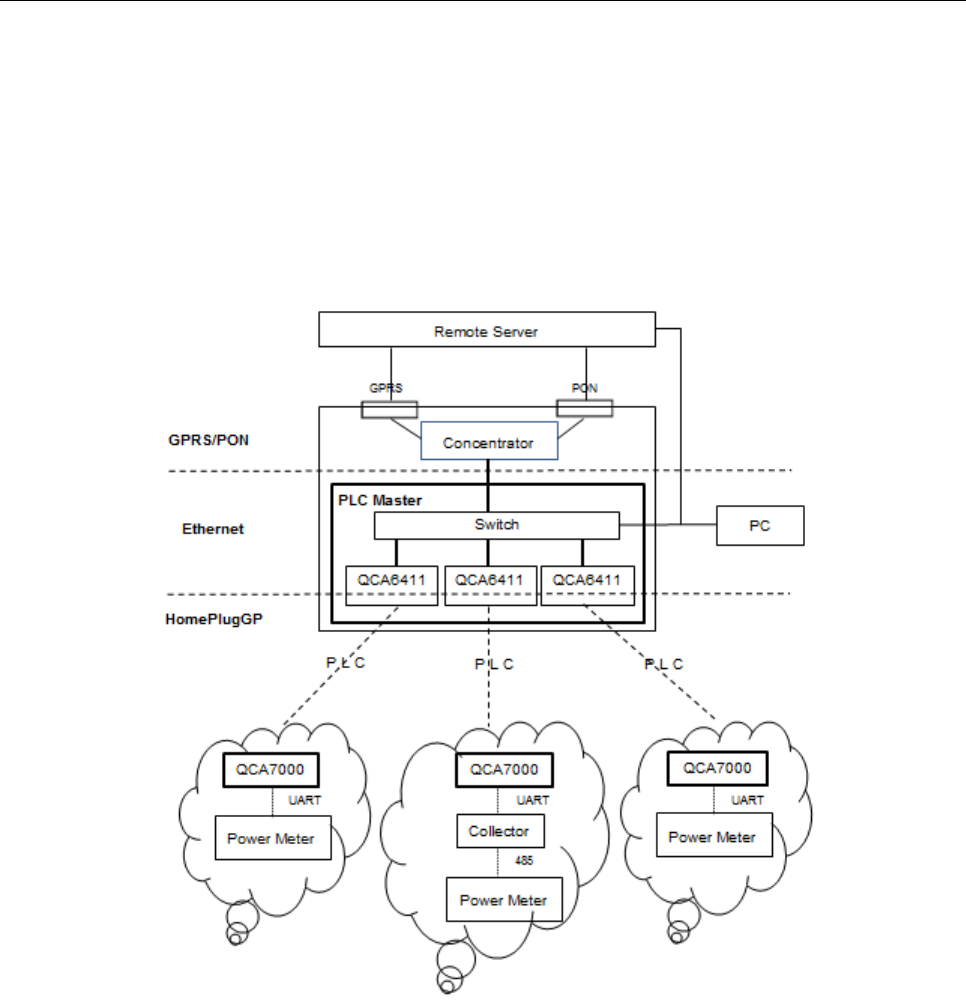

Figure 2-1：QCA broadband PLC Smart Grid system block diagram

CCO module was plugged into concentrator, which had 3 QCA6411 corresponding to 3 phase

power line, per QCA6411 use different Network password to indicate 3 different AVLAN. Per VLAN support

253 STAs.

STA module was plugged into power meter, which deployed with 1 QCA7000.STA module fetch

power meter data via UART @2400 baud rate. UART baud rate can be configured with AVITAR

tools.(@1200 @9600 not recommend to use high baud rate)

3 QCA6411 connect with switch and communicate with concentrator via Ethernet port.

QCA-PLC-SG-firmware-application-notes v1.0.0 page 7

3 UART Data transparent TX/RX

3.1 UART Data transmit

Payload was raw UART data user wants to send to power meter. Maxim UART data length is within

256 Bytes.

This transmit is initiated by Concentrator, so user need to fill in MME packet, refer chapter 4 for

sending MME Data.

UART data will transparently send to power meter, so the UART data should be valid and can be

recognized by power meter. Here Payload is UART RAW data.

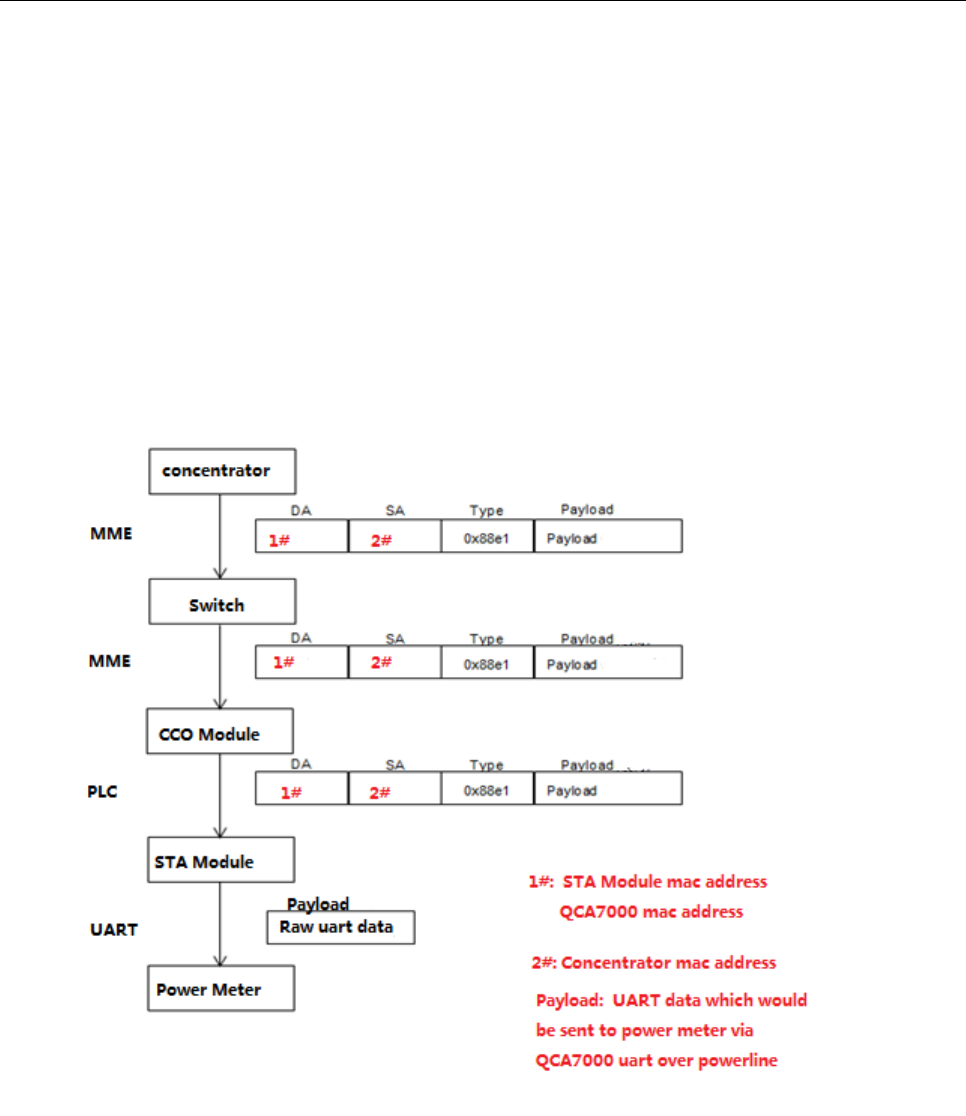

Figure 3-1：UART data transparently transmit

QCA-PLC-SG-firmware-application-notes v1.0.0 page 8

3.2 UART Data receive

Payload was raw UART data which power meter response. Maxim UART data length is within 256

Bytes. UART data will be sent to concentrator transparently. Received MME packet, concentrator can

recognize which STA Module response. Further UART data analysis will be handled by concentrator.

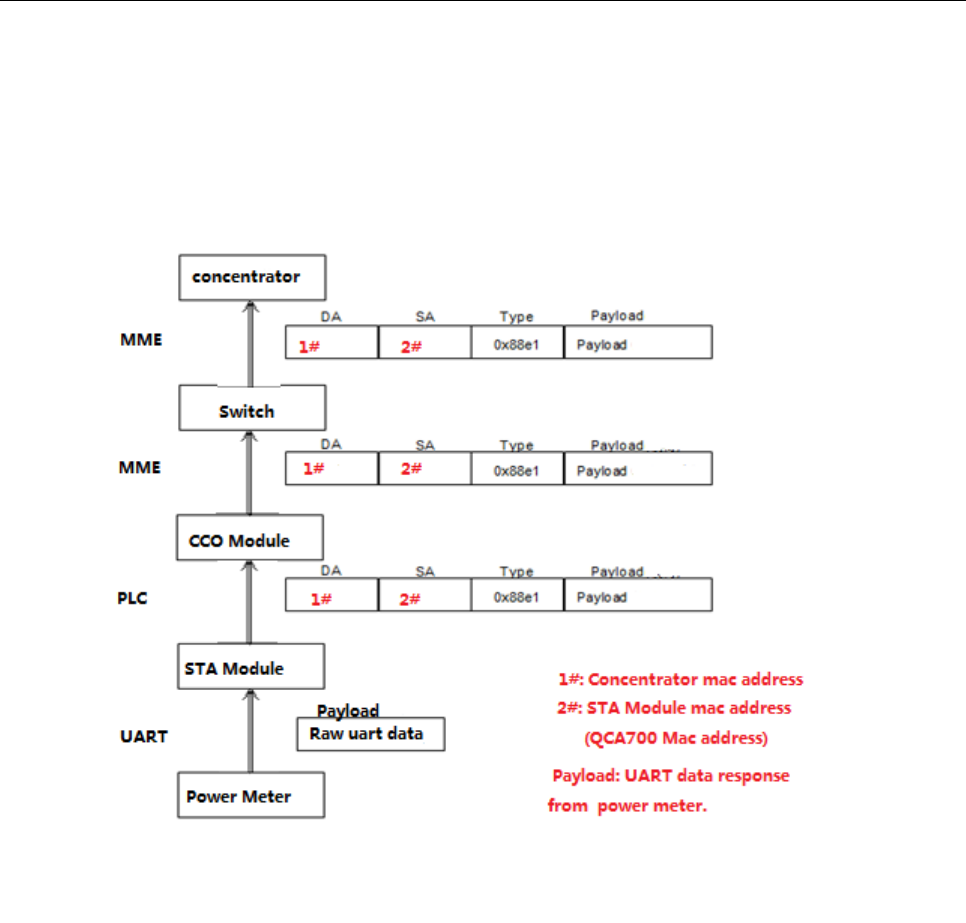

Figure 3-2：UART data transparently receive

3.3 Power Meter Address and MAC address Mapping

Per STA module has own mac address (QCA7000 MAC Address), which was stored in NVM. This mac

address can be configured by AVITAR tools. The mapping relationship between QCA7000 module

MAC address and Meter ID should be maintained by Concentrator program. Power meter address

and mac address mapping can be realized by following steps:

1. Concentrator sends VS_NW_INFO_STATS_Req MME to fetch how many STA modules are online.

2. Concentrator initially sends unicast MME frame to online STA module. Payload (UART Data)

should be data to fetch the power meter address or other packet which power meter can recognize.

3. Concentrator analysis the received payload, and extract the power meter ID.

4. Maintain the mapping with STA module MAC address with power meter ID.

QCA-PLC-SG-firmware-application-notes v1.0.0 page 9

4 Communication protocol

4.1 Protocol

- Concentrator communicates with CCO Module via MME.

- CCO communicate with remote server via private protocol, such as 372.1 etc.

- CCO Module communicates with STA Module via HomePlugAV protocol.

The user just focus on protocol (MME) between Concentrator with CCO module, low level

communication is invisible to user.

4.2 Ethernet MME packet header

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

MME Type

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

Table 4-1：MME Packet Header

Different Ethernet MME is raw mac frame which shared same packet heard, refer table 4-1.

4.3 Get power meter data request (VS_UART_CMD_Req MME)

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

0xA400 (Request)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

0x0014

2

LENGTH

UART raw data length

0x0016

Variable

DATA

UART raw data

Table 4-2：VS_UART_CMD_Req

 ODA: STA module mac address

 OSA: Concentrator mac address

 MTYPE: 0x88, 0xE1 (constant )

 MMV: 0 (constant )

 MMTYPE: 0xA400(constant )

 OUI: 0x00, 0xB0, 0x52(constant )

 LENGTH: Length of DATA, size in bytes

 DATA: UART command(raw data)

QCA-PLC-SG-firmware-application-notes v1.0.0 page 10

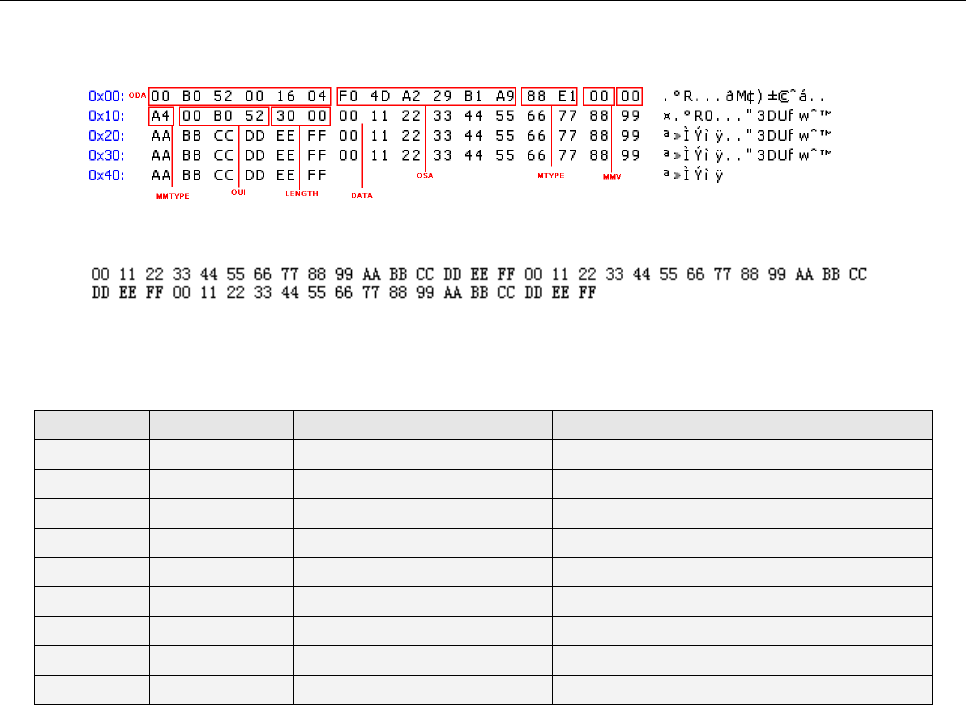

Use wire shark tools to monitor the data you send, the captured data should be like Figure 5-1.

Figure 4-1：MME packet captured by wireshark

Figure 4-2：Raw UART Data sent

4.4 Get power meter data response (VS_UART_CMD_Cnf)

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

0xA401 (Confirm)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

0x0014

6

RSVD

Reserved

0x001A

2

LENGTH

UART raw data length

0x001C

Variable

DATA

UART raw data

Table 4-3：VS_UART_CMD_Cnf

 ODA: Concentrator mac address

 OSA: STA module mac address

 MTYPE: 0x88, 0xE1 (constant )

 MMTYPE: 0xA401(constant )

 MMV: 0 (constant )

 OUI: 0x00, 0xB0, 0x52(constant )

 LENGTH: Length of DATA, size in bytes

 DATA: UART response(raw data)

This mac frame is generated by STA module, so concentrator need to further analysis the data.

QCA-PLC-SG-firmware-application-notes v1.0.0 page 11

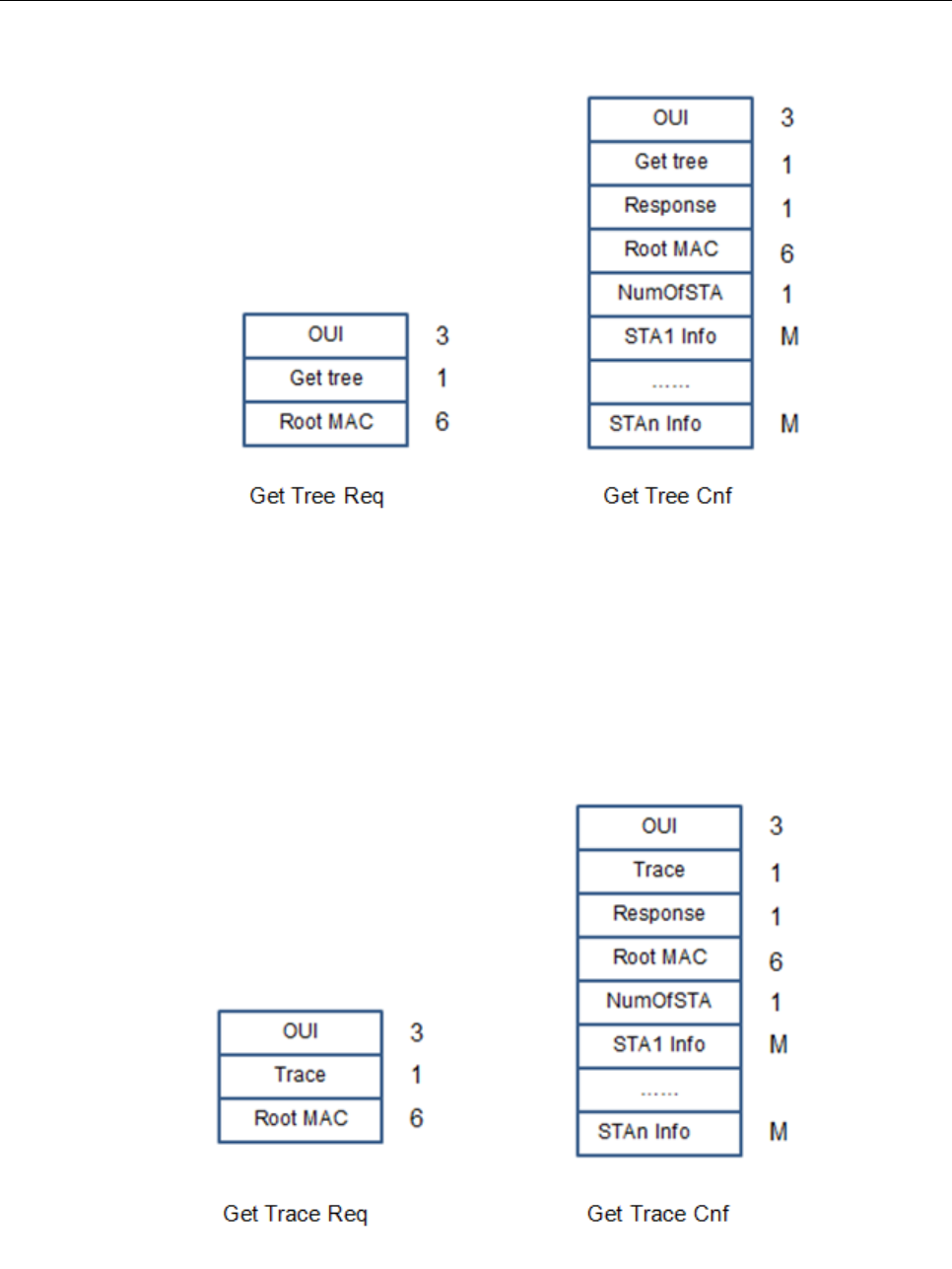

4.5 Get topology request and response (VS_AVLN_TOPO_Req

VS_AVLN_TOPO_Cnf)

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

0xA308 (Request)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

0x0012

1

COMMAND

0x01: get tree

0x02: trace

0x03-0xff: reserved

0x0013

n

VAR

Base on command type

Table 4-4：VS_AVLN_TOPO_Req

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

0xA309 (Confirm)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

0x0014

1

COMMAND

0x01: get tree

0x02: trace

0x03-0xff: reserved

0x0015

1

RESPONSE

LSB 0th bit: show whether the response is

successful or not. “1” is fail, “0” is

successful.

MSB 7th bit: show whether current MME

has more MME followed. “1” is yes, “0”

means “no” and current is the last MME.

Other bits: reserved

0x0016

n

VAR

Base on command type

Table 4-5：VS_AVLN_TOPO_Cnf

This MME is sent by concentrator, it shows all the directly connected STA information under the

given STA. Further, it can be used to show the whole topology of one AVLN.

QCA-PLC-SG-firmware-application-notes v1.0.0 page 12

Table 4-6：VAR field for Get tree command

 Response: only for Cnf MME. If the response is successful or not. “1” is fail, “0” is successful

 Root MAC: the MAC of chosen STA to query

 NumOfSTA: the number of STA directly under the chosen STA

 STAn Info: the Nth STA’s Info. Check table 4-8.

Table 4-7：VAR field for Get trace command

QCA-PLC-SG-firmware-application-notes v1.0.0 page 13

 Root MAC: the chosen STA’s MAC

 NumOfSTA: the number of STA in the path from chosen STA to CCO

 STAn Info: the Nth STA’s Info. Check table 4-8.

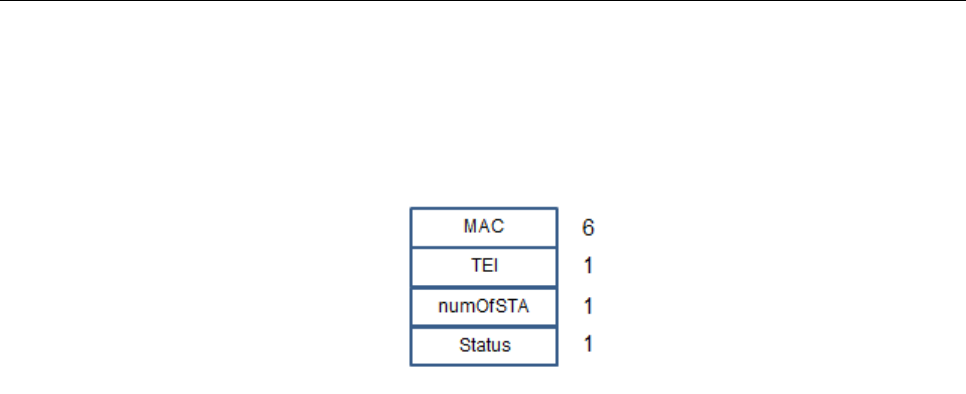

Table 4-8：STA’s Info

 MAC: STA MAC

 TEI: STA TEI

 NumOfSTA: the number of STA directly under this STA

 Status: the status of this STA. currently “1” means authenticated, “0” is associated

For Trace subcommand, numOfSTA and Status can be ignored

Following could be used as guide to develop application feature at concentrator to get topology related

information.

In order to get the topology of CCo, App should follow below steps:

1. Send a get tree command to CCo, “root MAC” is CCo’s MAC

2. CCo will return the list of STAs directly connected to it.

3. App check each STA’s info, if any STA has at least one STA under it (numOfSTA is non-zero in

Error! Reference source not found.), App should send a similar get tree command to CCo with

“root MAC” set to STA’s mac instead. (NOTE: STAs having other STA under it are the non-leaf

node in the tree topology, STAs not having other STA under it are the leaf node in the tree topology)

4. Loop 3 until complete sending request MME to CCo for querying all the non-leaf STA (loop all the

non-leaf STAs by sending a get tree command)

5. App construct the tree topology based on the information above and show it out.

To get the data path (relay path) for a STA, App should follow below steps:

1. Send a trace command to CCo, “root MAC” is the STA’s MAC

2. CCo will return a response with the STA list where all STAs on the path between STA and CCo are

listed.

3. App show it out.

QCA-PLC-SG-firmware-application-notes v1.0.0 page 14

4.6 Network information request (VS_NW_INFO_STATS_Req)

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

0xA074 (Request)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

0x0014

1

FIRST_TEI

First TEI requested.

If FIRST_TEI is Zero the NUMSTAS field will be valid and up to 96

sets of Station Information will be returned. Otherwise the

NUMSTAS field will list the number of sets of Station

Information returned and all the existent sets of Station

Information will be return at or after the FIRST_TEI (up to 96).

Table 4-9： VS_NW_INFO_STATS_Req

This MME is sent by concentrator to get the network information, which devices registered in the network,

and get the MAC address of each device, if some expected devices not exist in the network, concentrator

cannot communicate with these devices.

Notes: If FIRST_TEI is set to 0, NUMSTAS in the response stands for total stations in the network, if the

number is bigger than 96, users should send the second or maybe third request to get the information(max

station number in a network is 253), since the max size of Ethernet frame is 1514 octets.

The first request, FIRST_TEI = 0,

The second request, FIRST_TEI = 98,

The third request, FIRST_TEI = 194,

Station TEI starts from 2, the MAX TEI is 254.

QCA-PLC-SG-firmware-application-notes v1.0.0 page 15

4.7 Network information response (VS_NW_INFO_STATS_Cnf)

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

0xA075 (Confirm)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

0x0014

1

FIRST_TEI

First TEI from Request.

0x0015

1

IN_AVLN

Station is a Member of an AVLN

0x0016

7

NID

Network Identifier

The least significant 54 bits of this field

contains the NID of the AVLN. The

remaining 2 bits are set to 0b00.

0x001D

1

SNID

Short Network Identifier

The last significant 4 bits of this field

contains the Short Network Identifier. The

remaining 4 bits are set to 0x0

0x001E

1

TEI

Terminal Equipment Identifier of the STA in

the AVLN

0x001F

1

STATIONROLE

Role of the station in the AVLN

0x00 = STA

0x01 = Proxy Coordinator

0x02 = CCo

0x03 – 0xFF = reserved

0x0020

6

CCO_MACADDR

MAC Address of the CCo of the network.

0x0026

1

ACCESS

Access Network

0x00 = This NID corresponds to an in-home

network

0x01 = This NID corresponds to an Access

Network

0x02 - 0xFF = reserved

0x0027

1

NumCordNWs

Number of Neighbor Networks that are

coordinating with the AVLN

0x00 = none (Un-Coordinated mode)

0x01 = one Coordinating network, and so

on

0x0028

1

CCO_TEI

Terminal Equipment Identifier of the CCo in

the AVLN

0x0029

1

NUMSTAS

Number of AV STAs in the AVLN = L

0x00 = None,

0x01 = One, and so on.

0x002A

6

DA[0]

MAC Address of the STA – 0

0x0030

1

TEI[0]

TEI of the STA – 0

0x0031

6

1stBDA[0]

MAC Address of the first Node bridged by

STA – 0

QCA-PLC-SG-firmware-application-notes v1.0.0 page 16

0x0037

1

AvgPHYDR_TX[0]

Average PHY Data Rate in Mega Bits per

second from STA to DA[0].

0x00 = unreachable/unknown

0x01 = 1 Mbps, and so on

0x0038

1

AvgPHYDR_RX[0]

Average PHY Data Rate in Mega Bits per

second from DA[0] to STA.

0x00 = unreachable/unknown

0x01 = 1 Mbps, and so on

* * *

6

DA[L-1]

MAC Address of STA – (L-1)

1

TEI[L-1]

TEI of the STA – (L-1)

6

1stBDA[L-1]

MAC Address of the first Node bridged by

STA – (L-1)

1

AvgPHYDR_TX[L-1]

Average PHY Data Rate in Mega Bits per

second from STA to DA[0].

0x00 = unreachable/unknown

0x01 = 1 Mbps, and so on

1

AvgPHYDR_RX[L-1]

Average PHY Data Rate in Mega Bits per

second from DA[0] to STA.

0x00 = unreachable/unknown

0x01 = 1 Mbps, and so on

Table 4-10： VS_NW_INFO_STATS_Cnf

4.8 Get software version request (VS_SW_VER_Req)

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (=0)

0x000F

2

MMTYPE

0xA000 (Request)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

Table 4-11： VS_SW_VER_Req

This MME is sent by concentrator to get software version of devices, the destination could be

QCA6411 or QCA7000.

QCA-PLC-SG-firmware-application-notes v1.0.0 page 17

4.9 Get software version response (VS_SW_VER_Cnf)

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

0xA001 (Confirm)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

0x0014

1

MSTATUS

MME Status (0x00=Success)

0x0015

1

MDEVICEID

Device ID

0x0016

1

MVERLENGTH

Length of Version String (including null)

0x0017

128

MVERSION

Version String

0x0097

5

RSVD

Table 4-12： VS_SW_VER_Cnf

4.10 Software reset request (VS_RS_DEV_Req)

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

0xA01C (Request)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

Table 4-13： VS_RS_DEV_Req

This MME is sent by concentrator to reset target device.

4.11 Software reset response (VS_RS_DEV_Cnf)

Offset

Size

Field Name

Description

0x0000

6

ODA

Original Destination Address

0x0006

6

OSA

Original Source Address

0x000C

2

MTYPE

Ethertype (0x88, 0xE1)

0x000E

1

MMV

MME Version (0)

0x000F

2

MMTYPE

0xA01D (Confirm)

0x0011

3

OUI

Intellon OUI (0x00, 0xb0, 0x52)

0x0014

1

MSTATUS

MME Status (0x00=Success, 0x01 = Failure)

Table 4-14： VS_RS_DEV_Cnf

QCA-PLC-SG-firmware-application-notes v1.0.0 page 18

4.12 MME timeout

The ODA of MME should be existed in the network information. If not, there will be no response.

The time out is defined by user; it can be 3 or 5 seconds.

QCA-PLC-SG-firmware-application-notes v1.0.0 page 19

Appendix : Example for Concentrator raw socket programming

Filename: plc.h

#ifndef __PLC_H__

#define __PLC_H__

#include <linux/if_ether.h>

typedef unsigned short uint16;

typedef unsigned char byte;

typedef unsigned char uint8;

#define CMD_REQ_HDR_SZ ( sizeof(struct cmd_req_hdr) )

#define CMD_IND_HDR_SZ ( sizeof(struct cmd_ind_hdr) )

/* Default settings of cmd_req_hdr */

#define REQ_MTYPE 0x88e1

#define REQ_MMV 0x00

#define REQ_MMTYPE 0xA400

#define REQ_OUI0 0x00

#define REQ_OUI1 0xB0

#define REQ_OUI2 0x52

/*mme type*/

#define MMTYPE_CMD_IND 0xa402

/*Ether packet type*/

#define ETH_P_HPAV 0x88e1

/*struct type */

struct cmd_req_hdr

{

struct ethhdr eth_hdr;

uint8 mmv;

uint16 mmtype;

char oui[3];

uint16 length;

byte data[0];

} __attribute__((packed));

struct cmd_cnf_hdr

{

struct ethhdr eth_hdr;

uint8 mmv;

uint16 mmtype;

char oui[3];

uint16 length;

byte data[0];

} __attribute__((packed));

QCA-PLC-SG-firmware-application-notes v1.0.0 page 20

struct cmd_ind_hdr

{

struct ethhdr eth_hdr;

uint8 mmv;

uint16 mmtype;

char oui[3];

byte address[ETH_ALEN];

uint16 length;

byte data[0];

} __attribute__((packed));

extern void cmd_req_hdr_init( struct cmd_req_hdr* p_req_hdr, const uint8* const dest_mac,

const uint8* const src_mac, uint16 len);

#endif

Filename: plc.c

#include <string.h>

#include "plc.h"

void cmd_req_hdr_init( struct cmd_req_hdr* p_req_hdr, const uint8* const dest_mac, const uint8* const src_mac, uint16 len)

{

memcpy( p_req_hdr->eth_hdr.h_dest, dest_mac, ETH_ALEN );

memcpy( p_req_hdr->eth_hdr.h_source, src_mac, ETH_ALEN );

p_req_hdr->eth_hdr.h_proto = htons( REQ_MTYPE );

p_req_hdr->mmv = REQ_MMV;

p_req_hdr->mmtype = REQ_MMTYPE;

p_req_hdr->oui[0] = REQ_OUI0;

p_req_hdr->oui[1] = REQ_OUI1;

p_req_hdr->oui[2] = REQ_OUI2;

/*p_req_hdr->length = htons( len );*/

p_req_hdr->length = len;

}

Filename: common.h

extern int str2hex( const char* str, char byte[], int *psize );

extern int find_char( char str[], int len, char ch );

Filename: common.c

#include <stddef.h>

int str2hex( const char* str, char byte[], int *psize )

{

char ch; int i = 0;

if( str == NULL ) return -1;

while ( (ch = *str++) != '\0' )

{

if (ch >= 'a' && ch <= 'f') ch = ch - 'a' + 0x0a;

QCA-PLC-SG-firmware-application-notes v1.0.0 page 21

else if (ch >= 'A' && ch <= 'F') ch = ch - 'A' + 0x0a;

else if (ch >= '0' && ch <= '9') ch = ch - '0';

else continue;

if ( i % 2 == 0 ) byte[ i++ / 2 ] = ch << 4;

else byte[ i++ / 2 ] += ch;

}

if ( i % 2 == 0 ) *psize = i / 2;

else return -1;

return 0;

}

/* Count char */

int find_char( char str[], int len, char ch )

{

int i = 0;

for (i = 0; i < len; i++) if ( str[i] == ch ) return i;

return -1;

}

Filename: eth_plc.c

#include <unistd.h>

#include <stdio.h>

#include <stdlib.h>

#include <string.h>

#include <netdb.h>

#include <sys/ioctl.h>

#include <sys/types.h>

#include <sys/socket.h>

#include <netinet/ip.h>

#include <netinet/in.h>

#include <netpacket/packet.h>

#include <net/ethernet.h>

#include <net/if.h>

#include <arpa/inet.h>

#include <errno.h>

#include <time.h>

#include "plc.h"

#include "config.h"

#define RCV_BUF_SIZE 1024 * 1 /* Receive buffer size */

#define SND_BUF_SIZE 1024 * 1 /* Send buffer size */

#define MAX_PKT_LEN 256

#define RCV_TO 1

const char zero_mac[ETH_ALEN] = {0x00, 0x00, 0x00, 0x00, 0x00, 0x00};

struct eth_pkt

{

struct ether_header eth_head;

char eth_data[0];

}__attribute__ ((__packed__));

QCA-PLC-SG-firmware-application-notes v1.0.0 page 22

/* This is a list of interface name prefixes which are `bad' in the sense

* that they don't refer to interfaces of external type on which we are

* likely to want to listen. We also compare candidate interfaces to lo. */

static char *bad_interface_names[] =

{

"lo:",

"lo",

"stf", /* pseudo-device 6to4 tunnel interface */

"gif", /* psuedo-device generic tunnel interface */

"dummy",

"vmnet",

NULL /* last entry must be NULL */

};

/* Receive buffer size */

static int rcv_buf_szie = RCV_BUF_SIZE;

static char rcv_buff[RCV_BUF_SIZE] = { 0 };

/*Send buffer size*/

static int snd_buf_szie = SND_BUF_SIZE;

static char snd_buff[SND_BUF_SIZE] = { 0 };

/* Interface name */

static char if_name[10] = "eth0";

/* Host MAC */

static char host_mac[ETH_ALEN] = { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 };

static char dest_mac[ETH_ALEN] = { 0xff, 0xff, 0xff, 0xff, 0xff, 0xff };

static void reverse_char_array( char eth_mac[], int len )

{

int i;

char tmp;

for (i = 0; i < len / 2; i++)

{

tmp = eth_mac[i];

eth_mac[i] = eth_mac[len - 1 - i];

eth_mac[len - 1 - i] = tmp;

}

}

static void eth_show_mac(const int type, const char eth_mac[])

{

int i = 0;

if (0 == type) printf("SMAC=[");

else printf("DMAC=[");

for(i = 0; i < ETH_ALEN - 1; i++) printf("%02x:", *((unsigned char *)&(eth_mac[i])));

printf("%02x] ", *((unsigned char *)&(eth_mac[i])));

}

QCA-PLC-SG-firmware-application-notes v1.0.0 page 23

/* Set interface as promiscuous mode */

static int set_promisc( const char *ifname, int fd, int flags)

{

int ret = -1;

struct ifreq st_ifr;

/* Get interface flags */

strcpy( st_ifr.ifr_name, ifname);

ret = ioctl(fd, SIOCGIFFLAGS, &st_ifr );

if (ret < 0)

{

perror("[Error]Get Interface Flags");

return -1;

}

if (flags == 0)

{

/* reset promiscuous mode */

st_ifr.ifr_flags &= ~IFF_PROMISC;

}

/* Set promiscuous mode */

st_ifr.ifr_flags |= IFF_PROMISC;

ret = ioctl(fd, SIOCSIFFLAGS, &st_ifr);

if (ret < 0)

{

perror("[Error]Set Interface Flags");

return -1;

}

return 0;

}

int plc_init_socket( void )

{

int ret = -1;

int fd = -1;

struct ifreq st_ifr;

struct sockaddr_ll st_local = {0};

struct timeval rcv_timeout = {0, 10000}; /* 100 minisecond */

/* Create a socket */

fd = socket( PF_PACKET, SOCK_RAW, htons( ETH_P_ALL ));

if (fd < 0)

{

perror("[Error]Initinate L2 raw socket");

return -1;

}

/* Set if name */

set_ifname( if_name );

/* Set the interface as promiscuous mode */

set_promisc( if_name, fd, 1 );

/* Set the timeout value of receiving, the default value is 0, which means will never time out */

ret = setsockopt( fd, SOL_SOCKET, SO_RCVTIMEO, (char*)&rcv_timeout, sizeof(struct timeval) );

QCA-PLC-SG-firmware-application-notes v1.0.0 page 24

if (ret < 0)

{

perror("[Error]Set socket receive timeout");

close(fd);

return -1;

}

/* Get index of interface */

strcpy( st_ifr.ifr_name, if_name );

ret = ioctl(fd, SIOCGIFINDEX, &st_ifr);

if (ret < 0)

{

perror("[Error]Ioctl operation");

close(fd);

return -1;

}

/* Bind interface */

st_local.sll_family = PF_PACKET;

st_local.sll_ifindex = st_ifr.ifr_ifindex;

/*st_local.sll_protocol = htons( ETH_P_ALL );*/

st_local.sll_protocol = htons( ETH_P_HPAV );

ret = bind(fd, (struct sockaddr *)&st_local, sizeof(st_local) );

if (ret < 0)

{

perror("[Error]Bind the interface");

close(fd);

return -1;

}

if ( memcmp( host_mac, zero_mac, ETH_ALEN ) == 0)

{

/* Get MAC address */

ret = ioctl( fd, SIOCGIFHWADDR, &st_ifr );

if (ret < 0)

{

perror("[Error]Get the MAC address");

close(fd);

return -1;

}

memcpy( host_mac, st_ifr.ifr_hwaddr.sa_data, sizeof(host_mac) );

}

return fd;

}

int plc_exit_socket( fd )

{

return close( fd );

}

QCA-PLC-SG-firmware-application-notes v1.0.0 page 25

int eth_recv( const int fd, char** pp_packet)

{

int pkt_len = -1;

/* Receive frame */

memset( rcv_buff, 0, RCV_BUF_SIZE );

pkt_len = recvfrom( fd, rcv_buff, rcv_buf_szie, 0, NULL, NULL );

if (pkt_len < 0)

{

return -1;

}

*pp_packet = rcv_buff;

#ifdef DB_RCV_ETH_RAW

int i;

printf( "\nReceive raw ether frame:\n");

for (i = 0; i < pkt_len; i++)

{

printf( "%02X ", (unsigned char)(*pp_packet)[i] );

}

printf( "\n" );

#endif

return pkt_len;

}

int eth_plc_recv( const int fd, char* const plc_packet )

{

int i;

int pkt_len = -1;

struct cmd_ind_hdr* p_packet = NULL;

i = 0;

/*while (i++ <= RCV_RETRY_CNT)*/

time_t start_time;

time_t current_time;

start_time = time( (time_t*)NULL );

if (start_time < 0)

{

return -1;

}

do

{

current_time = time( (time_t*)NULL );

if (current_time < 0)

{

return -1;

}

QCA-PLC-SG-firmware-application-notes v1.0.0 page 26

pkt_len = eth_recv( fd, (char**)&p_packet );

if (pkt_len < 0)

{

continue;

}

if ( memcmp( dest_mac, p_packet->address, ETH_ALEN ) == 0 && p_packet->mmtype == MMTYPE_CMD_IND )

{

if (pkt_len > MAX_PKT_LEN)

{

pkt_len = MAX_PKT_LEN;

}

pkt_len -= CMD_IND_HDR_SZ;

memcpy( plc_packet, p_packet->data, pkt_len );

return pkt_len;

}

}

while (current_time - start_time < RCV_TO);

return -1;

}

int eth_send( const int fd, const char* const packet, const int len )

{

int ret = -1;

int pkt_len = -1;

int plc_addr_pos = 0;

struct eth_pkt* eth_packet;

/*char dest_mac[ETH_ALEN];*/

if (packet == NULL) return -1;

pkt_len = len;

eth_packet = (struct eth_pkt*)malloc( pkt_len );

if (eth_packet == NULL) return -1;

memcpy( eth_packet, packet, len );

/* Send packet */

pkt_len = sendto( fd, eth_packet, pkt_len, 0, NULL, 0 );

if (pkt_len < 0)

{

free( eth_packet );

return -1;

}

free( eth_packet );

return pkt_len;

}

QCA-PLC-SG-firmware-application-notes v1.0.0 page 27

int eth_plc_send( const int fd, const char* const plc_packet, const int len )

{

int ret = -1;

int pkt_len = -1;

int plc_addr_pos = 0;

struct cmd_req_hdr* req_header;

if (plc_packet == NULL) return -1;

pkt_len = len + CMD_REQ_HDR_SZ;

req_header = (struct cmd_req_hdr*)malloc( pkt_len );

if (req_header == NULL) return -1;

/* Find the address starting position */

while (plc_packet[ plc_addr_pos++ ] != 0x68)

{

if (plc_addr_pos >= len)

{

free( req_header );

return -1;

}

}

memcpy( dest_mac, (char*)plc_packet + plc_addr_pos, ETH_ALEN );

/*reverse_char_array( dest_mac, ETH_ALEN );*/

cmd_req_hdr_init( req_header, dest_mac, host_mac, len );

memcpy( req_header->data, plc_packet, len );

#ifdef DB_SND_ETH_RAW

int i;

printf( "\nSend raw ether frame:\n");

for (i = 0; i < pkt_len; i++)

{

printf( "%02X ", (unsigned char)(((char*)req_header)[i])) ;

}

printf( "\n" );

#endif

/* Send packet */

pkt_len = sendto( fd, req_header, pkt_len, 0, NULL, 0 );

if (pkt_len < 0)

{

free( req_header );

return -1;

}

free( req_header );

return pkt_len;

}

QCA-PLC-SG-firmware-application-notes v1.0.0 page 28

static int is_bad_interface_name(char *interface_name)

{

char **p;

for (p = bad_interface_names; *p; ++p)

if (strncmp(interface_name, *p, strlen(*p)) == 0) return 1;

return 0;

}

/* This finds the first interface which is up and is not the loopback

* interface or one of the interface types listed in bad_interface_names. */

int set_ifname( char interface_name[] )

{

struct if_nameindex * nameindex;

int i;

nameindex = if_nameindex();

if(nameindex == NULL)

{

return -1;

}

/* Try to find a interface named if_name */

i = 0;

while(nameindex[i].if_index != 0)

{

if (strcmp(nameindex[i].if_name, "lo") != 0 && !is_bad_interface_name(nameindex[i].if_name))

{

if (strcmp( interface_name, nameindex[i].if_name ) == 0)

{

if_freenameindex(nameindex);

return 0;

}

}

i++;

}

/* If no interface named if_name is found, copy the first interface name found to if_name */

i = 0;

while(nameindex[i].if_index != 0)

{

if (strcmp(nameindex[i].if_name, "lo") != 0 && !is_bad_interface_name(nameindex[i].if_name))

{

strcpy( interface_name, nameindex[i].if_name );

if_freenameindex(nameindex);

return 0;

}

i++;

}

return -1;

}

QCA-PLC-SG-firmware-application-notes v1.0.0 page 29

void plc_set_ifname( char interface_name[] )

{

strcpy( if_name, interface_name );

}

void plc_set_host_mac( char mac_addr[] )

{

int i;

for (i = 0; i < ETH_ALEN; i++)

{

host_mac[i] = mac_addr[i];

}

}

Filename: config.h

#ifdef DEBUG

#define DB_SND_ETH_RAW

#define DB_RCV_ETH_RAW

#define DB_TEMP

#endif

Filename: main.c

#include <stdio.h>

#include <string.h>

#include "common.h"

#define COM_RETRY_CNT 3

/*#define RCV_CNT 32*/

const static char host_mac_addr[6] = { 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 };

int main( int argc, char* argv[] )

{

char recv_to_flag = 0;

char input_flag = 1;

/*char send_buf[32] = { 0 };*/

/*char input_buf[100];*/

char send_buf[1024] = { 0 };

char input_buf[1024];

int com_len;

int str_len;

char const send_com[32] = { 0xfe, 0xfe, 0xfe, 0xfe, 0x68, 0x32, 0x00, 0x00, 0x00,

0x00, 0x00, 0x68, 0x13, 0x00, 0x15, 0x16 };

char receive_buf[300];

int rcv_len = 0;

int fd;

int i;

char *p;

QCA-PLC-SG-firmware-application-notes v1.0.0 page 30

plc_set_ifname( "eth0" );

plc_set_host_mac( host_mac_addr );

fd = plc_init_socket();

printf( "\n\n" );

printf("/********QCA7000 Remote meter module test********/");

printf( "\n" );

printf("FE FE FE 68 32 00 00 00 00 00 68 11 04 33 34 34 35 E7 16");

printf( "\n" );

printf("FE FE FE 68 32 00 00 00 00 00 68 11 04 33 34 35 35 E8 16");

while (1)

{

printf( "\n\n" );

printf("------------------------------------------------------------------");

while( 1 )

{

printf( "\n" );

printf("Input: ");

gets( input_buf );

if (str2hex( input_buf, send_buf, &com_len ))

{

printf( "\nInput error!\n");

}

else

{

break;

}

}

if (eth_plc_send( fd, send_buf, com_len ) < 0 )

{

printf( "\neth_send error\n" );

continue;

}

/* Retry COM_RETRY_CNT times */

for (i = 0; i < COM_RETRY_CNT; i++)

{

rcv_len = eth_plc_recv( fd, receive_buf );

if (rcv_len > 0)

{

str_len = find_char( receive_buf, rcv_len, 0x16 );

if (str_len > 0) break;

else i--;

}

}

if (i == COM_RETRY_CNT) printf( "\nReceive time out!" );

else

{

QCA-PLC-SG-firmware-application-notes v1.0.0 page 31

printf( "\nReceive %d data: ", str_len + 1 );

for (i = 0; i < str_len + 1; i++) printf( "%02X ", (unsigned char)receive_buf[i] );

}

}

plc_exit_socket( fd );

}

Filename: makefile

TARGET = eth_plc_7000

OBJS = main.c common.c eth_plc.c plc.c

#CC = /opt/nxp/gcc-4.3.2-glibc-2.7/bin/arm-vfp-linux-gnu-gcc

CC = gcc

all: $(TARGET)

$(TARGET): $(OBJS)

@$(CC) -I. -o $@ $(OBJS)

@echo "Compile completed!"

@#cp $(TARGET) ~/nfs_dir/for_lpc3250/test

clean:

@rm -vf $(TARGET) *.o *~
