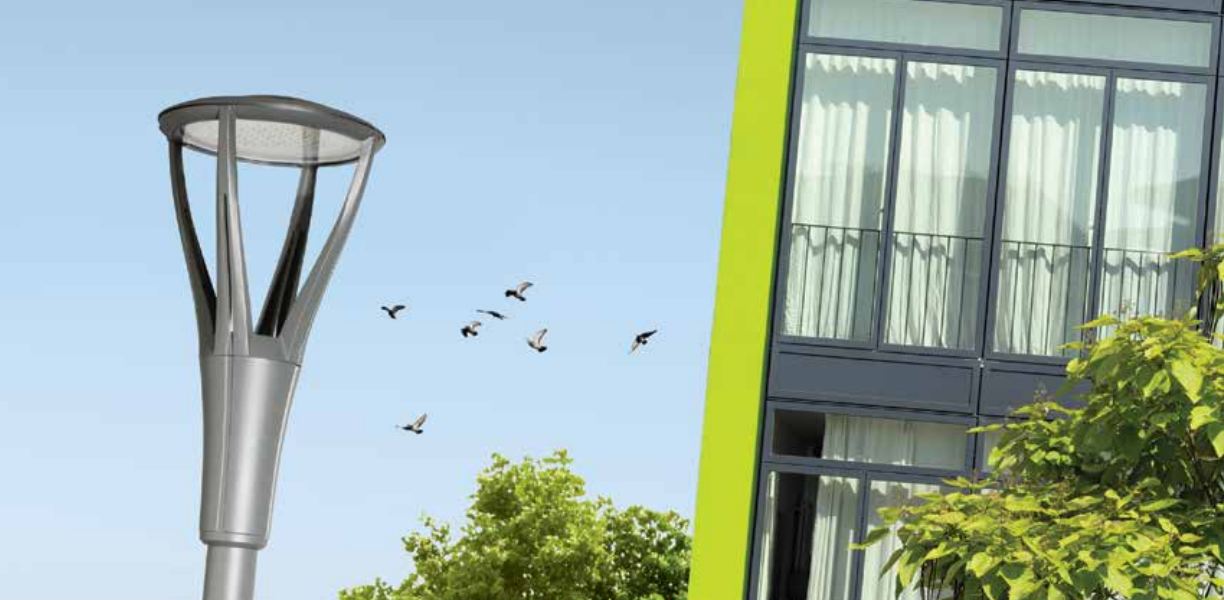

UrbanScape LED Pendant
and Post-Top Luminaires
Modern styling meets advanced lighting technology
2 Philips Lumec
The Philips Lumec UrbanScape family of LED pendant and post-top luminaires is
ideal for enhancing the architectural identity of environments with a modern-day
appeal. Perfectly scaled in both proportion and performance for the demands of
various pedestrian and roadway applications, UrbanScape provides a consistent
style for entire lighting project.
Substantially more energy-ecient than HID luminaires thanks to industry leading
LED technology, UrbanScape is the right choice for cities and utilities seeking cost
eective, relamping-free outdoor lighting. Its IP66 rating, multiple lumen outputs
and energy-saving control options are well suited to meet wide range of project
requirements, including those of intersection lighting. In addition, exceptional
thermal management extends LED component life while helping to maximize
operations and maintenance savings.
Designed for simplicity.
Focused on performance.
All you need to meet the most demanding path
and street lighting requirements.
Outdoor Lighting | UrbanScape
3
Modern
Styling
Bold Statment

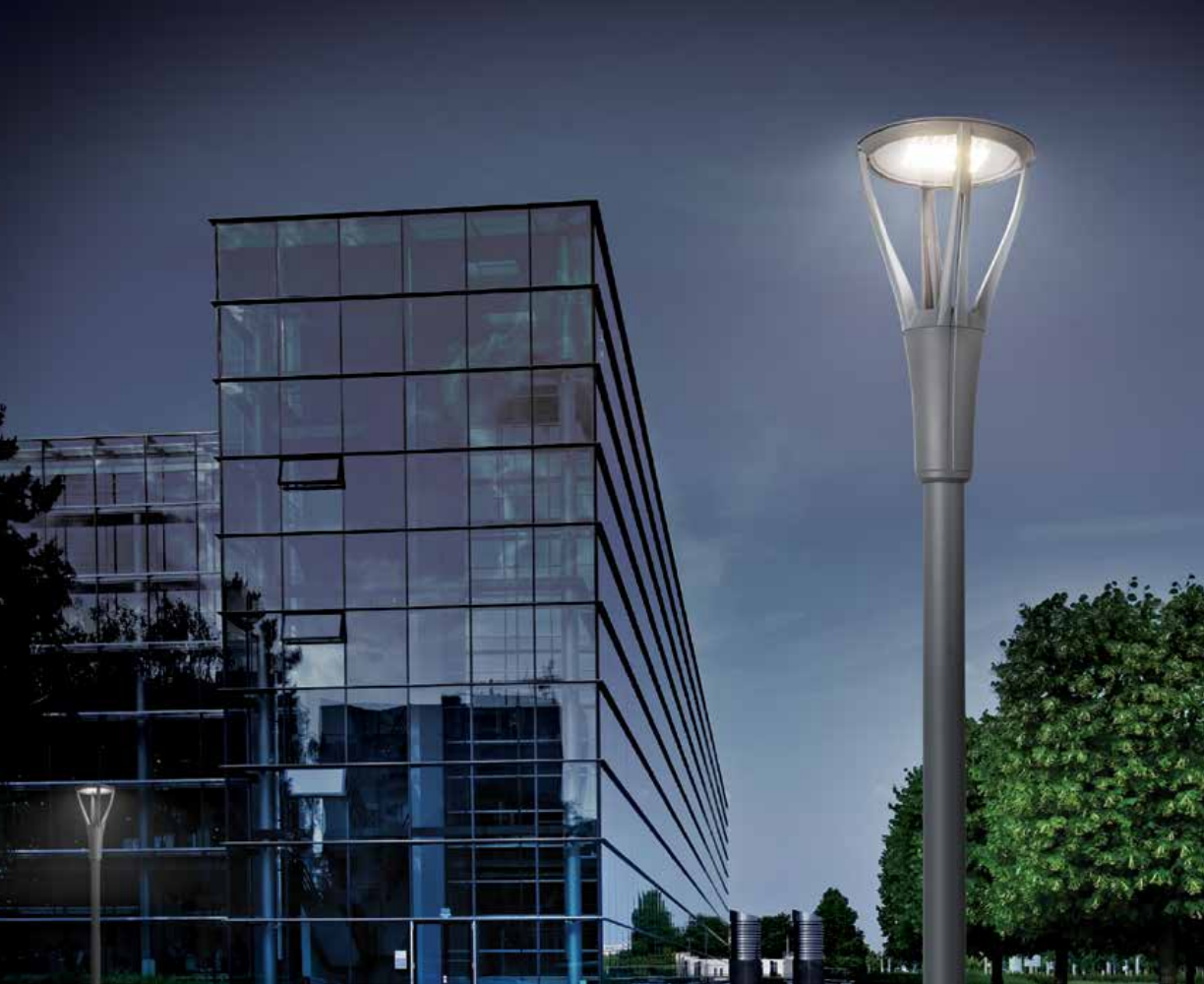

UrbanScape LED luminaires allow you to create durable, visually
appealing outdoor lighting projects while providing energy savings
and a sense of security. They are well suited for municipal projects
that range from simple recreational settings to more extensive
boulevard lighting right through to architectural installations. Their
minimalistic silhouette draws on avant-garde design, adding warmth
and character to the surrounding environment and integrates
especially well with forward-looking constructions and revitalized
neighborhoods
State-of-the-art Optics
The optical system is composed of high-performance polymer
refractor lenses which not only deliver pole spacing up to seven times
the mounting height, but also optimize target lumens for superior
lighting uniformity and intensity on the ground or street. The at
lens design eliminates uplight, which addresses the light pollution
concerns of municipalities.
Environmentally Engineered
UrbanScape oers several sustainable features, starting with industry-
leading LED drivers for minimal power loss and exceptional longevity.
Luminaires are eco-designed for end-of-life disassembly and
recycling, while LEDs contain no mercury nor hazardous materials.
The end result is a reduced ecological footprint and the ability to
project a greener image to stakeholders.
Advanced
Technology
High-Performance LEDs
Both UrbanScape luminaire versions are optimized for LED lighting
and powered by the LEDgine platform. LEDgine is compatible with the
most advanced digital technology and lighting control options. Also,
there are many lumen packages to choose from (up to 20,000 lm) with
dierent combinations between the number of LEDs and the power
of the driver. This provides the exibility to meet virtually any outdoor
lighting requirement by selecting the mix of energy savings, lifespan,
light output and life-cycle cost best suited to your project.
Thermal Eciency
The luminaire’s innovative design includes electronic components
located in the tter. As a result, the driver and optional lighting
controls are situated away from heat generated by the LEDs, ensuring
improved thermal dissipation and, consequently, maximum system
life of all components.
Flexibility of Connected Lighting
Every UrbanScape luminaire is controls-ready and able to
accommodate the most advanced technology. Philips oers a range
of outdoor lighting control solutions that feature superior exibility,
including real-time monitoring capabilities that help optimize the
management of lighting assets. Designed to meet your specic needs,
these systems are scalable from a few luminaires in a park to an entire
network of luminaires throughout the city.
4 Philips Lumec4 Philips Lumec
Outdoor Lighting | UrbanScape
5
Parks and
Recreation
Green
Projects
City
Centers
Pedestrian
Areas
and
Bicycle
Paths
Campuses Public
Areas
City
Streets
5
Recommended
Applications
UrbanScape is valued for more than aesthetics. It is
a family of cutting-edge LED luminaires engineered
to cover a lot of ground by meeting the most
demanding lighting requirements of multiple park,
path and street lighting projects.
For architects and urban planners, this translates into better light rendering, improved ambience lighting and convenient
style matching across post-top and pendant applications.
For municipalities and utilities, this results in considerable savings on electricity and relamping costs, providing an exceptional
return on investment for heritage-site revitalization projects and other low-energy, sustainable urban developments.
5
6 Philips Lumec

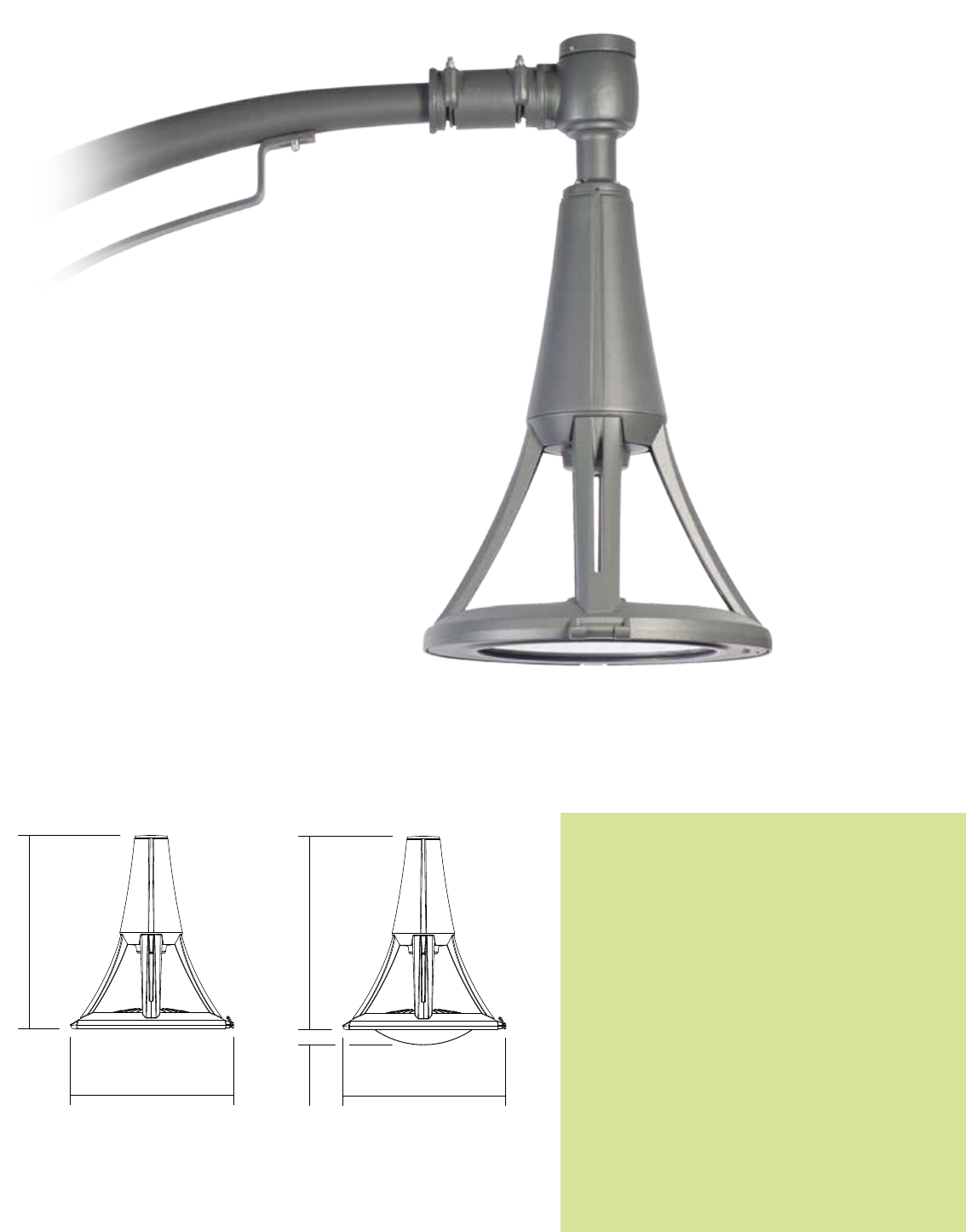

UrbanScape
LED pendant

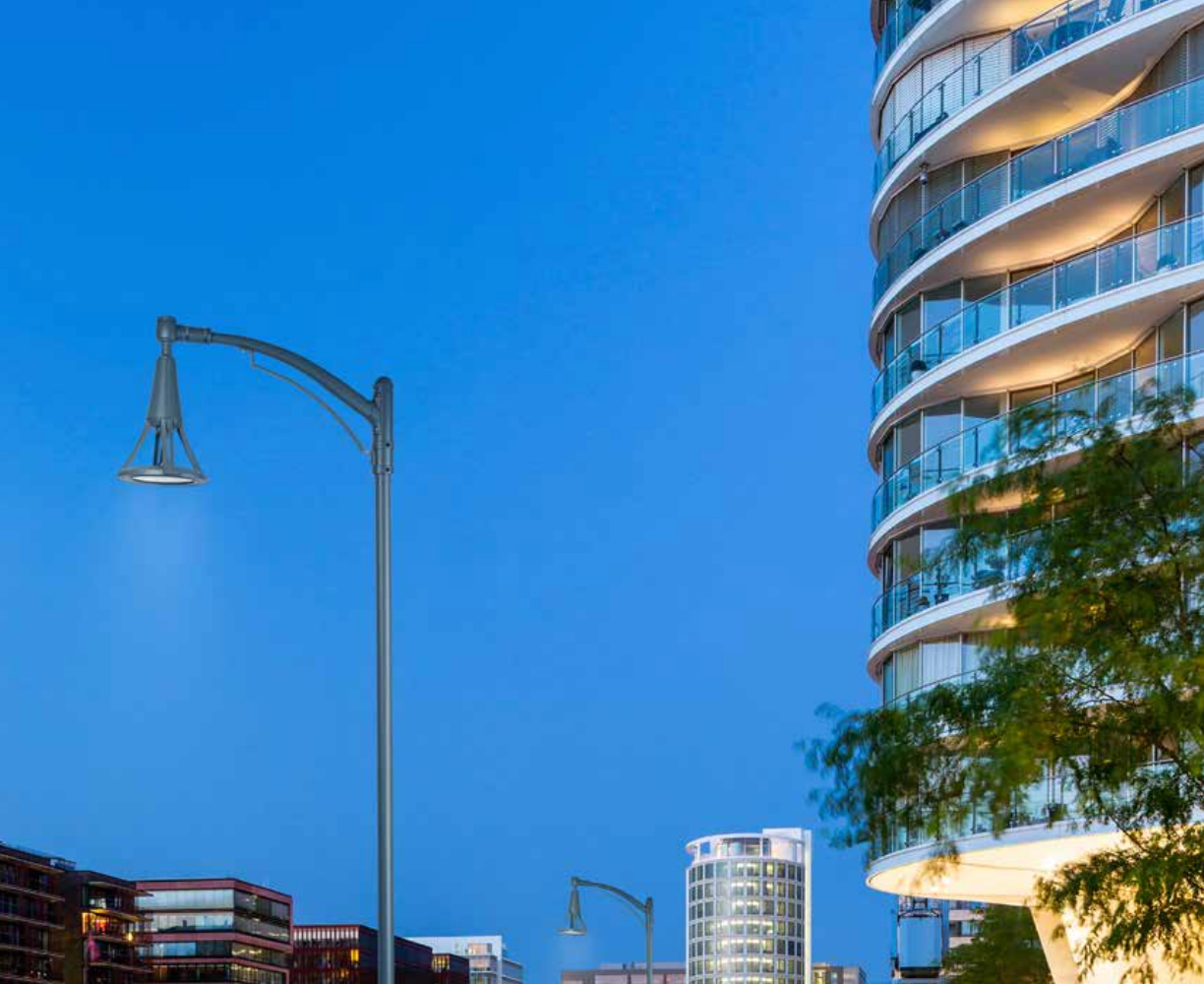

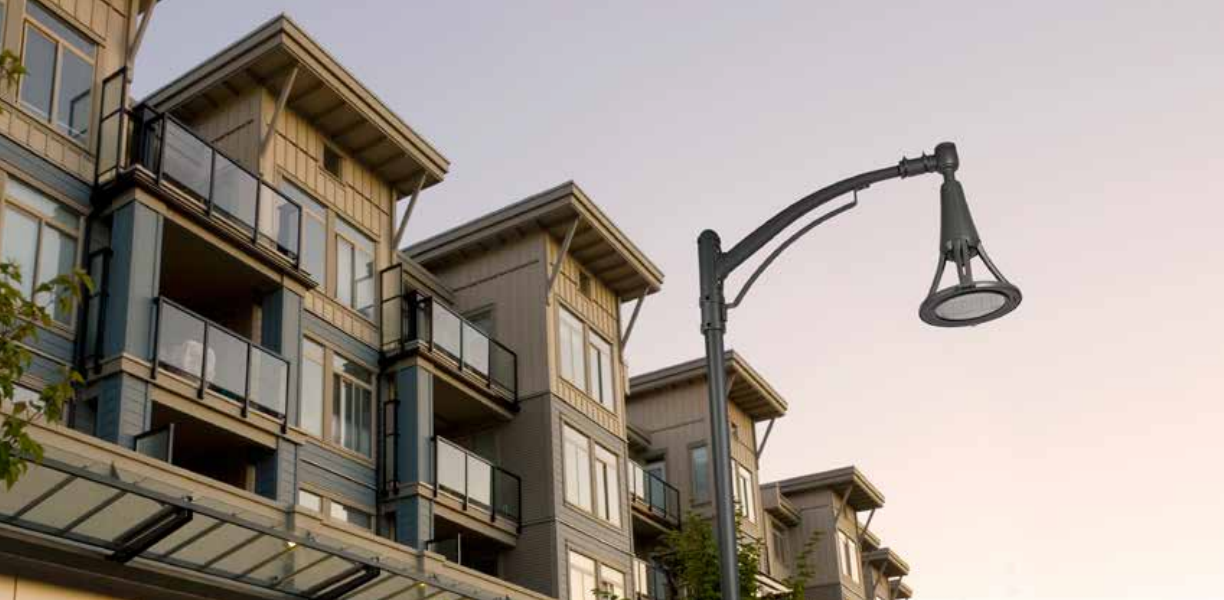

The UrbanScape LED Pendant luminaire combines style and performance
to create exible, durable and attractive energy-saving solutions that blend
in well with modern-styled urban architecture. Thanks to the open design
it is capable of more powerful lumen packages suited to the higher visibility
requirements of roads and intersections – up to 96 LEDs can deliver over
20,000 lumens, equivalent to 400 W HID. The pendant model comes with a
choice of at or sag lens and an optional white opaque globe.
Showing the way to cost-eective pedestrian
and roadway lighting with a minimalistic look
Outdoor Lighting | UrbanScape
7
Flat Lens Sag Lens
Key features
• Up to 96 high performance white LEDs
• Can deliver over 20,000 lumens equivalent
to 400 W HID
• Complete IP66 rated luminaire
• Dedicated LED optics (types 2,3,4 and 5)
• Operating lifespan of 100,000 hours.
(with L70 lumen maintenance at 25° C)
• Ships standard with dimmable (0-10 V) driver
MSC
7
MSC-Flat lens MSC-Sag lens SMB
584mm
23"
692mm
27 1/4"
23"
584mm
27 1/4"
692mm
2 1/8"
54mm
MSC-Flat lens MSC-Sag lens SMB
584mm
23"
692mm
27 1/4"
23"
584mm
27 1/4"
692mm
2 1/8"
54mm
8 Philips Lumec

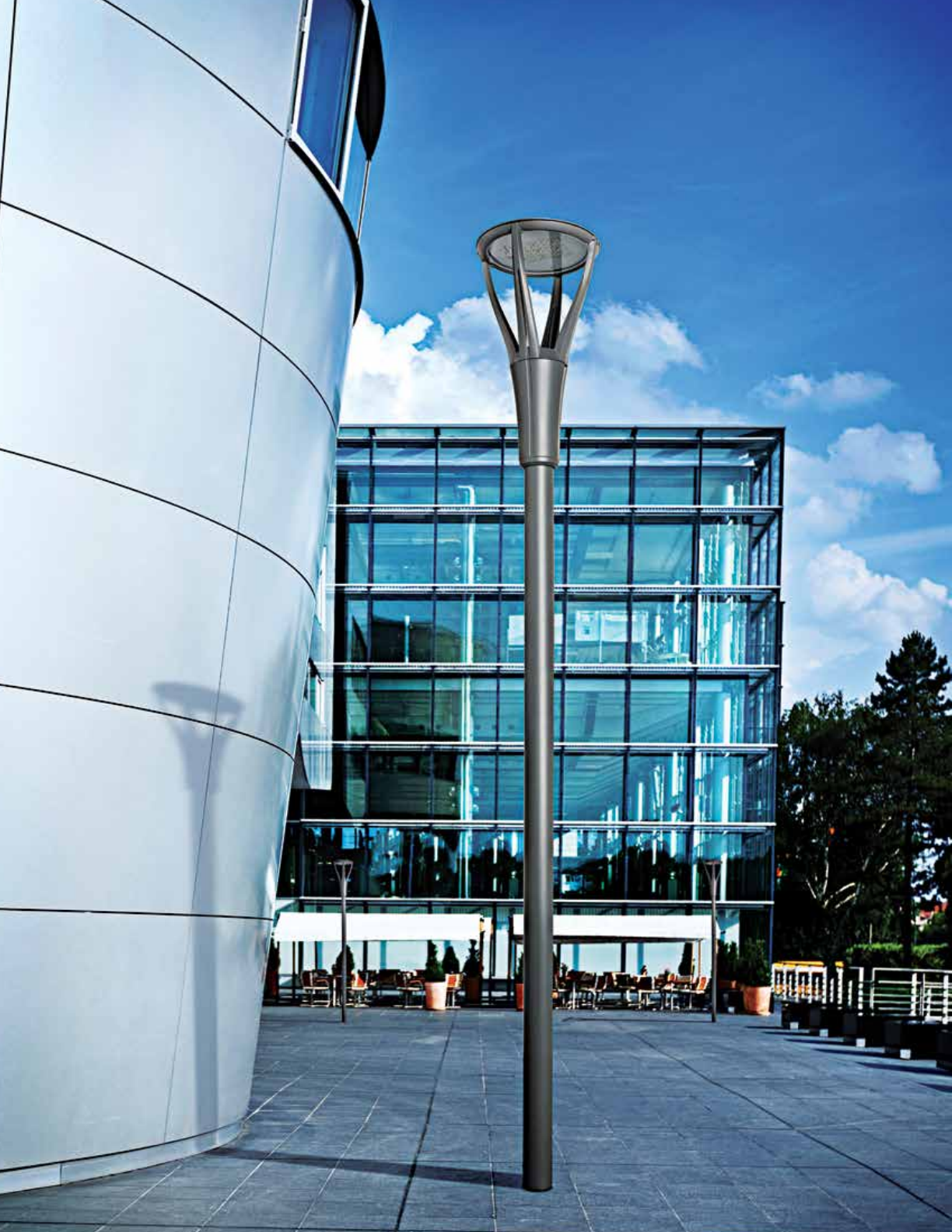

The UrbanScape LED post-top luminaire features exible, robust energy-saving
solutions for modern-styled urban architectural lighting. The post-top model
comes with a at lens to highlight the thinness of the LEDs. The luminaire
provides attractive lighting at night, adding appeal to the surroundings and
promoting safe use of the environment.
The height of style and performance for park
and pathway lighting

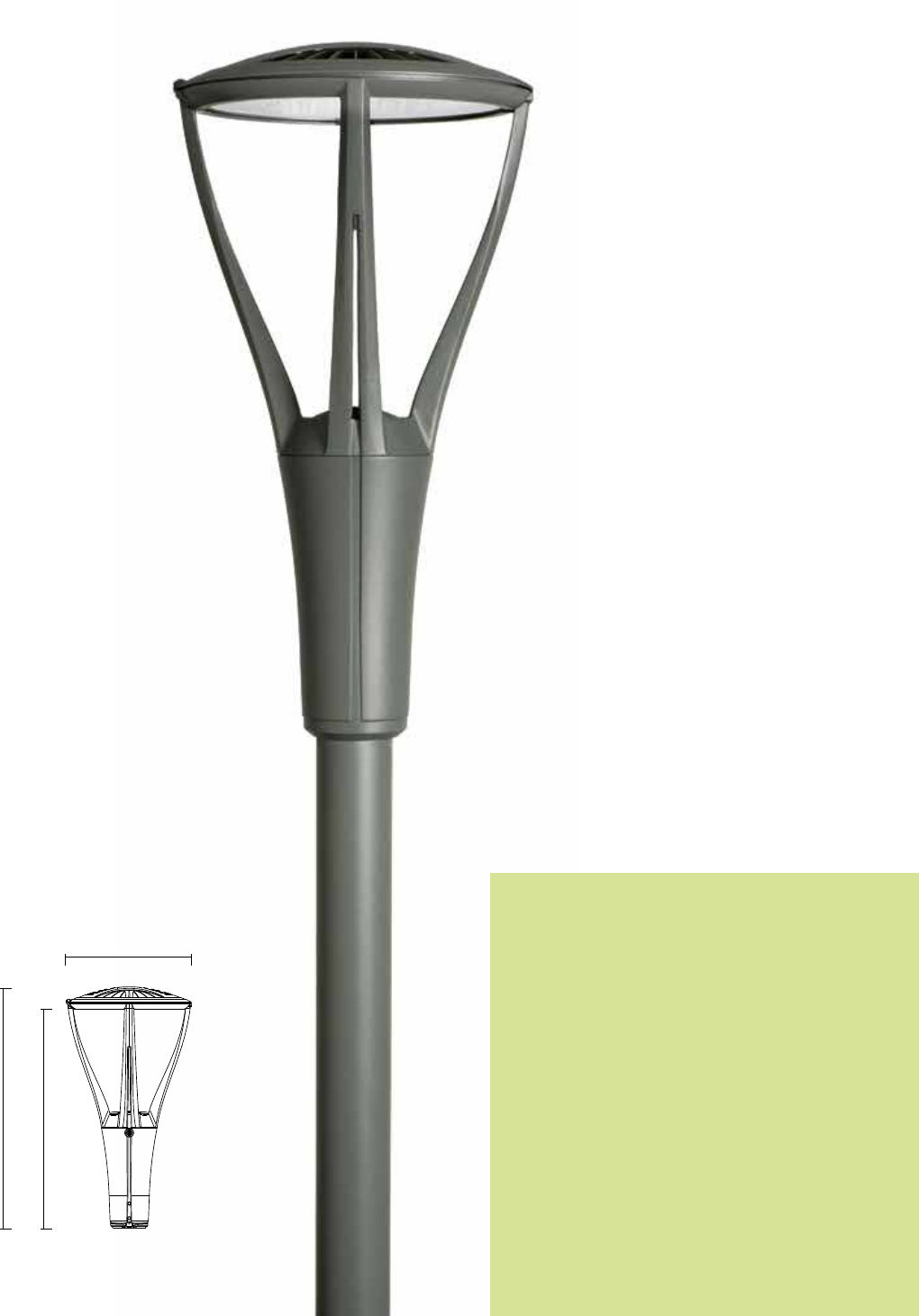

UrbanScape
LED post-top
Outdoor Lighting | UrbanScape
9
MPTC
Key features
• Up to 80 high performance white LEDs
• Many lumen packages to choose from
• Complete IP66 rated luminaire
• Dedicated LED optics (types 2,3,4 and 5)
• Operating lifespan of 100,000 hours.
(with L70 lumen maintenance at 25° C)
• Ships standard with dimmable (0-10 V) driver
• Motion Response option available
9
17 3/4" (451 mm)
34 7/8" (886 mm)
31 1/2" (880 mm) L.C.
10 Philips Lumec
Features Benets
LED heat sink made of die cast aluminum) Optimizes the LEDs’ eciency and life
Placement of the electronic components
in the tter
Reduces degradation of light output over the lifespan
Operating lifespan of 100,000 hours L70 at 25 ° C.
Optimal thermal design
Suitable for operation in an ambient temperature up to 40
o C / 104
o F
UL certied (Runs cool in almost every climate).
Features & Benets
Longevity

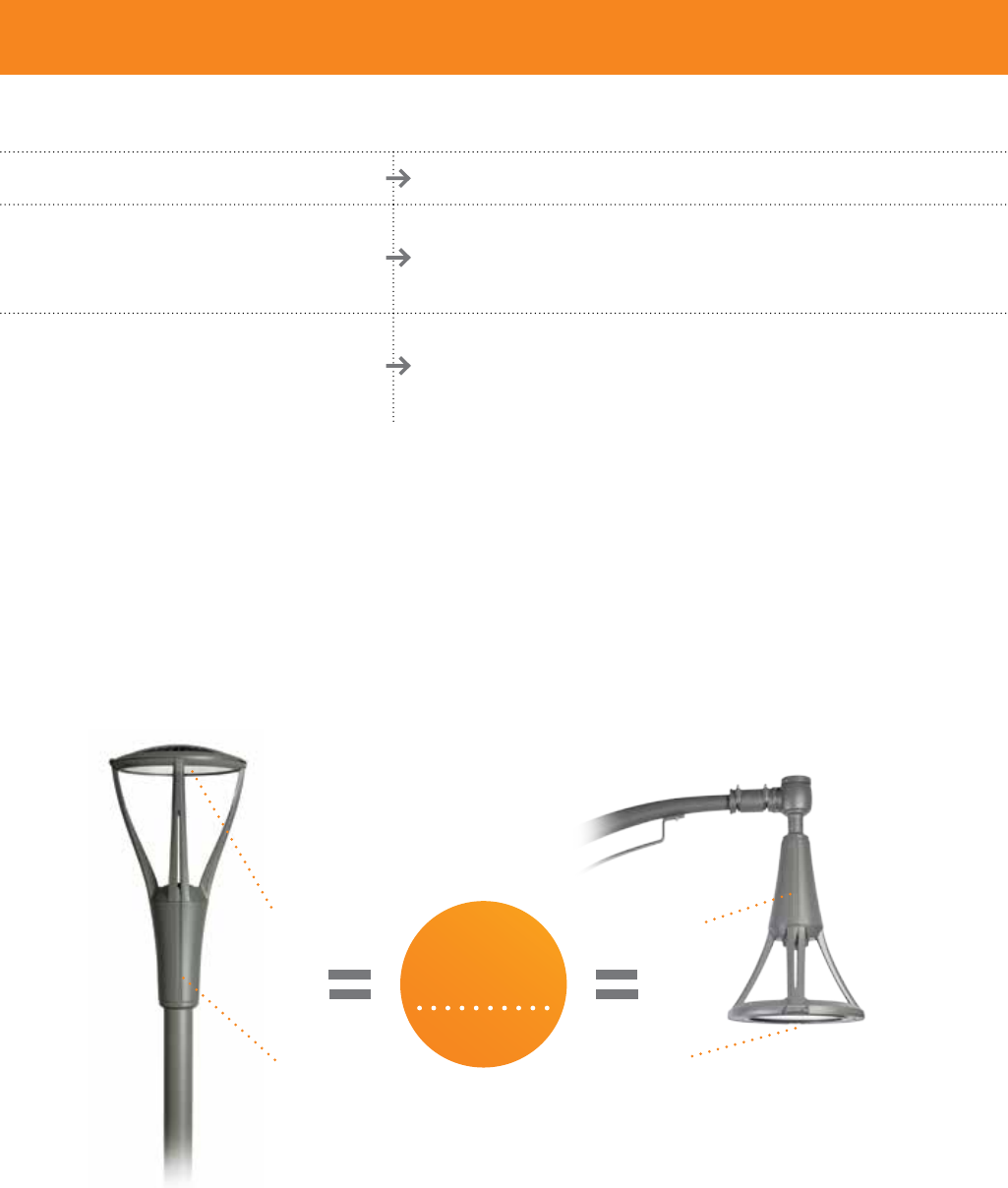

Our longevity story is more than just using LEDs. During the design phase, industrial designers and engineers made sure that
critical components (such as the LED board and the driver) are isolated from each other, located in the xture to better manage
the heat and maximize overall system life.
Unparalleled performance in thermal management
Because of the high eciency thermal design, both LEDs and driver achieve 100,000 hours L70 at 25 ° C.
LED
Driver
hrs
100,000
Driver
LED
Thermal Mastery
Outdoor Lighting | UrbanScape
11
Features Benets
Flat lens of the luminaire 0% uplight (full cut-o / U=0 (bug rating)).
Optical system composed of high
performance refractor lenses
Spacing up to 7 x mounting height (depending on the luminaire
version chosen and your application).
Optimizes target lumens for superior lighting uniformity
and intensity.
Dedicated LED optics / types 2,3,4 and 5
Provides high quality, uniform light distribution.
Better control on light trespass.
Features Benets
0% uplight (full cut-o / U=0 (bug rating))
(with at lens) Reduces light pollution, dark sky friendly.
Complete LED luminaire rated IP66
Protects the light source and electrical components from
degradation caused by environmental pollutants such as rain, ice,
snow, dust, sand, etc.
Improved lifetime.
Energy ecient luminaire
Uses less energy compared to HID luminaires.
The Philips Xitanium driver oers market leading power
management and longevity due to superior heat management.
Made of sustainable materials
(93% of the product can be recycled) Projects a green image that pleases citizens and investors.
Eco-designed Can be taken apart upon end-of-life for recycling.
Philips Lumileds LUXEON LEDs
UrbanScape’s light engine uses the latest Philips LED technology to answer the needs of the most
demanding projects and industry standards. LUXEON LEDs deliver a high color rendering index
(CRI) and exceptional lumen output at an optimal color temperature required by municipalities and
various type of applications.
Sustainability
Photometry
12 Philips Lumec
Control ready solutions
Features Benets
Ships standard with 0-10 V driver Dimming compatible.
Optional 5-pin receptacle for dimming
Control ready for future proong.
Compatible with dimming control as per ANSI C136.41.
Luminaire solutions
Features Benets
Dynadimmer control ready
Schedules and dimming optimized for safety and economy.
Pre-programmed scenarios make the Dynadimmer a simple
solution.
Motion Response option available with
post-top version
Ensure maximum light level when needed without
compromising savings.
Ecient sensing with wide angle coverage and adjustable aiming
Constant light output Management of light output to maintain lighting uniformity
and intensity.

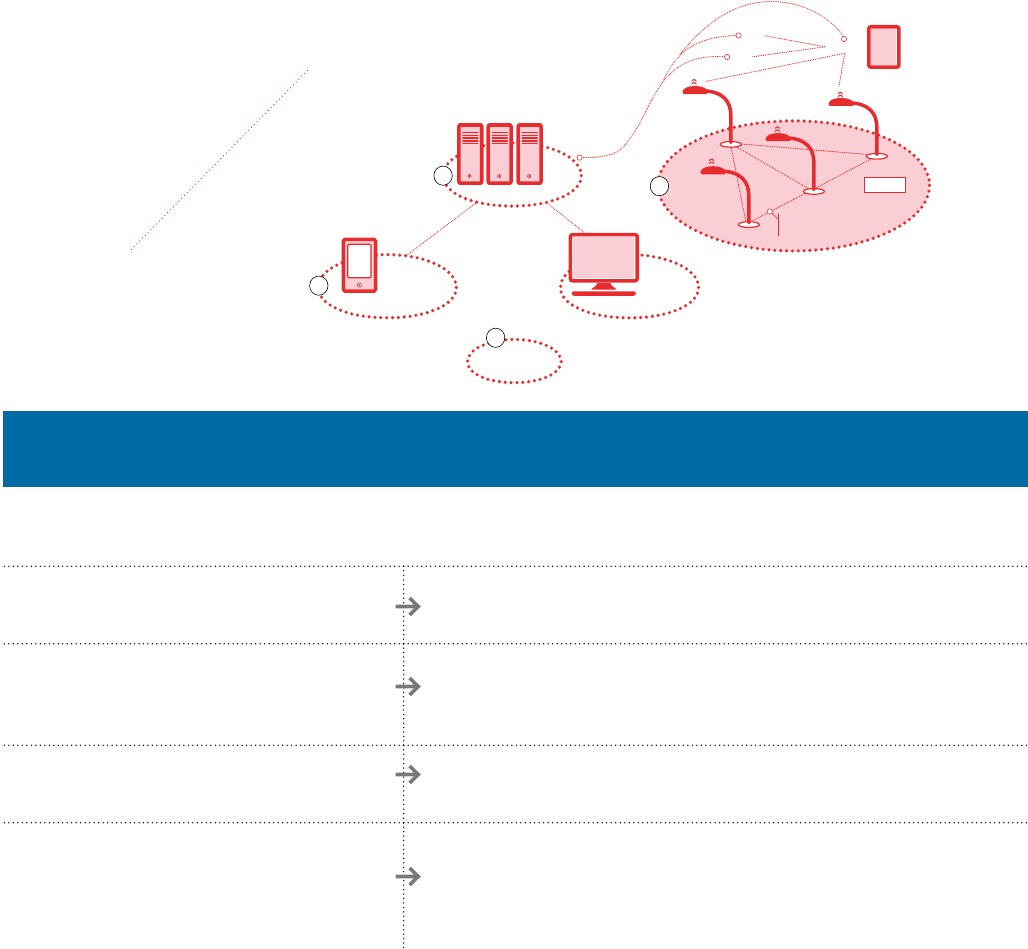

Site solutions
Dierent options are available according to your needs. Please contact us for more information.
City solutions
Features Benets
CityTouch ready with Starsense
(Dim and On/O)
Gives you the power to make the lighting in your city dynamic,
intelligent and totally exible.
Makes planning, analyzing and managing your lighting
infrastructure very simple.
Dimming capability through industry standard twist lock receptacle.
Amplight control ready
Intelligent monitoring and control, automated management system
that makes it easy to monitor and manage the entire system,
in real time.
Advanced Outdoor Lighting Solutions
Outdoor Lighting | UrbanScape
13
Features Benets
Philips LEDgine platform Reduced maintenance costs, lower electrical bills, superior
photometric performance, reduces light trespass and uplight.
Up to 80 high performance white LEDs
(96 in the pendant version only)
Creates ambience and makes architecture look more authentic.
Ensures maximum reliability and safety for drivers and citizens
The LEDgine comes with dierent driver
possibilities and dierent LED boards
Optimized scenarios oering superior longevity and energy savings
or maximum lumen output.
Available in standard neutral
4000 Kelvin, 70 CRI
(Consult factory for other temperatures /
Warm 3000 Kelvin and Cool 5700 Kelvin)
Produces improved color rendering vs. HID for greater perception.
Creates dierent lighting ambiences.
* Calculated with an ambient temperature of 25°C / 77°F.
Set your lighting management on the right path for the future.
Make your city a smart city with connected lighting solutions.
Starsense Lighting Control System Dimmable is a revolutionary telemanagement system that connects your urban luminaires
to Philips CityTouch Lighting Management Software, a web-based remote lighting asset management software solution that
makes planning, analyzing, and managing your lighting infrastructure very simple with its intuitive user interface, map-based
visualizations, and simple charts and diagrams. When combined with Starsense Dimmable, with just a few simple mouse clicks,
you can monitor, adjust and control the lighting in your city. You are automatically informed when a failure occurs, enabling you
to immediately initiate the work process. You can boost light levels to improve sense of security and visibility, or the lighting them
to save energy and prevent light pollution. The scalability of CityTouch allows administrators to directly address individual light
points, streets, or an entire district, empowering cities to deliver precisely the right amount of light at any place or time.
server
gateway
web
cell
2
mobile device
o-site
on-site
instant access
3user control
center
(www.)
4
cloud services
(node)
RF communication
or communication via
existing power lines
1SITE 1
Starsense and CityTouch,
awless communication
Starsense photo-cell control
node for dimming or on-o
LED Lifespan
14 Philips Lumec
Post-Top Ordering guide example: MPTC-42W32LED4K-T-LE3-120-CDMGM25-PH8-BKTX
Luminaire LED Module
Optical
System Voltage
Driver
Options
Luminaire
Options Mounting Pole Accessories Finish
MPTC — —
Consult the Philips
web site for details
and the complete line
of Poles
MPTC 1: UrbanScape
Post-Top LED
Luminaire
16W16LED4K-T
2
24W16LED4K-T
2
30W16LED4K-T
2
48W16LED4K-T
2
35W32LED4K-T
2
55W32LED4K-T
2
72W32LED4K-T
97W32LED4K-T
2
55W48LED4K-T
80W48LED4K-T
108W48LED4K-T
140W48LED4K-T
2
70W64LED4K-T
110W64LED4K-T
90W80LED4K-T
135W80LED4K-T
LE2:
Type II
(ASYM)
at lens
LE3:
Type III
(ASYM)
at lens
LE3W 4:
Type III
(ASYM)
wide at
lens
LE4:
Type IV
(ASYM)
at lens
LE5:
Type V
(SYMM)
at lens
120: 120V
208: 208V
240: 240V
277: 277V
347: 347V 5
480: 480V 5
CDMG: Dynadimmer for standard dimming
(Consult UrbanScape spec sheet on the Philips web site for complete Dynadimmer scenarios)
CLO: Pre-set driver to manage lumen depreciation
AST: Pre-set driver for progressive start-up
OTL: Pre-set driver to signal end of life of the lamp
DALI: Pre-set driver compatible with the DALI control system
HS: House Side Shield
OVR: Dynadimmer
override function
PH8: Photoelectric cell
PH8XL: Photoelectric cell,
extended life
PH9: Shorting Cap
RCD 7: 5-Pin receptacle
for dimming
photoelectric cell
TN3 10:Fitter to t over a
3’’ (76 mm) O.D. by
4” (102 mm) long
tenon
TN3.5 10:Fitter to t over
a 3 1/2’’ (89 mm)
O.D. by 4” (102
mm) long tenon
Consult the Philips web site for details and
the complete line of Mountings
SPC 8,9: Starsense
Photo-cell
Control Node
On-O
SPCD 8,9:Starsense
Photo-cell
Control Node
Dimming
BE2TX
BE6TX
BE8TX
BG2TX
BKTX
BRTX
GN4TX
GN6TX
GN8TX
GNTX
GR
GY3TX
NP
RD2TX
RD4TX
TG
TS
WHTX
(Consult UrbanScape spec
sheet on the Philips web
site for complete Finish
code descriptions)
Pendant Ordering guide example: MSC-145W64LED4K-T-LE3F-120-CDMGM25-SMA-RCD-BKTX
Luminaire LED Module
Optical
System Voltage
Driver
Options Adaptor
Luminaire
Options Accessories Mounting Pole Finish
MSC — —
LE2F:
Type II
(ASYM)
at lens
LE3F:
Type III
(ASYM)
at lens
LE3WF 4:
Type III
(ASYM)
wide at
lens
LE4F:
Type IV
(ASYM)
at lens
LE5F:
Type V
(SYMM)
at lens
LE2S:
Type II
(ASYM)
sag lens
LE3S:
Type III
(ASYM)
sag lens
LE3WS 4:
Type III
(ASYM)
wide sag
lens
LE4S:
Type IV
(ASYM)
sag lens
LE5S:
Type V
(SYMM)
sag lens
MSC 1: UrbanScape
Pendant
LED
Luminaire
120: 120V
208: 208V
240: 240V
277: 277V
347: 347V 5
480: 480V 5
MA1: 1 ¼" NPT threaded hole adaptor accepting a threaded tube.
MA2: 1 ½" NPT threaded hole adaptor accepting a threaded tube.
SMA: Decorative retro side-mounted cast-aluminum, accepts
tubes from 1 ⅝" to 2 ⅜"
SMB: Decorative contemporary side-mounted
cast-aluminum, accepts tubes from 1 ⅝" to 2 ⅜"
BX 6:Bird repellent
DH: Opaque
decorative hood
HS: House Side Shield
PH8: Photoelectric cell
PH8XL: Photoelectric cell,
extended life
PH9: Shorting Cap
RCD 7: 5-Pin receptacle
for dimming
photoelectric cell
SPC 8,9: Starsense Photo-cell
Control Node On-O
SPCD 8,9:Starsense Photo-cell
Control Node Dimming
BE2TX
BE6TX
BE8TX
BG2TX
BKTX
BRTX
GN4TX
GN6TX
GN8TX
GNTX
GR
GY3TX
NP
RD2TX
RD4TX
TG
TS
WHTX
(Consult UrbanScape spec
sheet on the Philips web site
for complete Finish code
descriptions)
Consult the Philips
web site for details
and the complete line
of Mountings
Consult the Philips
web site for details
and the complete line
of Poles
CDMG: Dynadimmer for
standard dimming
(Consult MetroScape
spec sheet on the Philips
web site for complete
Dynadimmer scenarios)
CLO: Pre-set driver to
manage lumen
depreciation
AST: Pre-set driver for
progressive start-up
OTL: Pre-set driver to signal
end of life of the lamp
DALI: Pre-set driver
compatible with the
DALI control system
1. Luminaire is always shipped with a dimmable 0-10V driver
(except for 35W32LED4K).
2. 347V and 480V not available.
3. Not available with DH option.
4. Not available with HS option.
5. Not available with driver options.
6. Can not be used with DH, PH8, PH8XL, PH9 or RCD.
7. Use of photoelectric cell or shorting cap is required to ensure
proper illumination.
8. Luminaire option RCD is required with this accessory.
9. CDMG, CDMGP and DALI are not available with SPC and SPCD.
10. Not available with Motion Response.
35W32LED4K-T 2
55W32LED4K-T 2
72W32LED4K-T
97W32LED4K-T 2
55W48LED4K-T
80W48LED4K-T
108W48LED4K-T
140W48LED4K-T
70W64LED4K-T
110W64LED4K-T
145W64LED4K-T 2
195W64LED4K-T 2
90W80LED4K-T
135W80LED4K-T
180W80LED4K-T
110W96LED4K-T
160W96LED4K-T
215W96LED4K-T 3
Outdoor Lighting | UrbanScape
15
Adaptors:
Pendant Only
SMBSMAMA2MA1
SMBSMAMA2MA1
SMBSMAMA2MA1
MA1: 1 ¼" NPT threaded
hole adaptor accepting a
threaded tube.
MA2: 1 ½" NPT threaded
hole adaptor accepting a
threaded tube.
SMA: Decorative retro
side-mounted cast-
aluminum, accepts tubes
from 1 ⅝" to 2 ⅜"
SMB: Decorative
contemporary
side-mounted cast-
aluminum, accepts tubes
from 1 ⅝" to 2 ⅜"

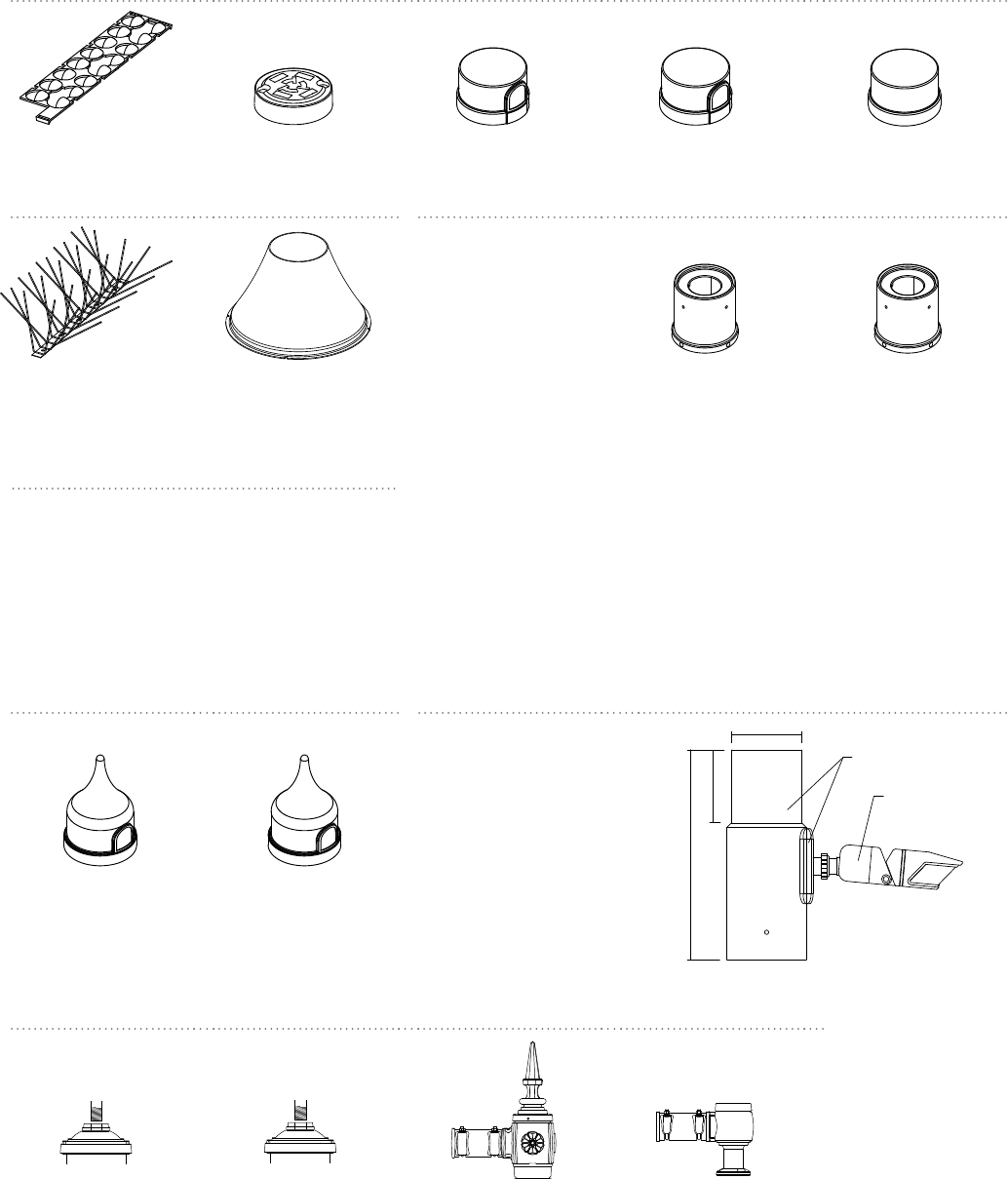

Luminaire Options:
Pendant and Post-Top
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
HS: House Side Shield RCD: 5-Pin receptacle for
dimming photoelectric cell
PH8:Photoelectric cell PH8XL: Photoelectric cell,
extended life
PH9: Shorting Cap
Pendant Only Post-Top Only
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
BX: Bird repellent DH: Opaque decorative
hood
OVR: Dynadimmer
override function
TN3: Fitter to t over a
3" (76 mm) O.D. by
4" (102 mm) long tenon
TN3.5: Fitter to t over a
3 1/2" (89 mm) O.D. by
4" (102 mm) long tenon
Luminaire Accessories:
Pendant and Post-Top Post-Top Only
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
HS DHRDC BXPH8
Pendant
PH9
Pendant
SPC
and
SPCD
TN3
and
TN3.5
Motion Response: Tenon
mount motion response
provides 270º coverage on
an adjustable knuckle. The
coverage equals to up to 6
times the sensor height. It is
an option oered jointly with
the Dynadimmer OVR option,
that can bring the light up
to 100% when the motion
response is triggered. It is
available in a single or double
mounting option. The tenon
mount is fully rotatable 360°.
MR4PG1
or
MR4PW1
MR4PG2
or
MR4PW2
11 1/2" (292mm)
4" (102mm)
4" (102mm)
Select color finish
Motion Response
color dark Grey
or White
SPC: Starsense
Photo-cell control node,
on-o
SPCD: Starsense
Photo-cell control node,
dimming
Driver Options:
Pendant and Post-Top
CDMG: Dynadimmer for standard dimming
CLO: Pre-set driver to manage lumen depreciation
AST: Pre-set driver for progressive start-up
OTL: Pre-set driver to signal end of life of the lamp
DALI: Pre-set driver compatible with the DALI
control system
© 2014 Koninklijke Philips N.V. All rights reserved.
Specications are subject to change without notice.
www.philips.com/luminaires
Philips Lighting
North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873
Phone: 855-486-2216
PLu-1314BR UrbanScape Brochure 06/14
Imported by: Philips Lighting,
a division of Philips Electronics Ltd.
281 Hillmount Rd
Markham, ON L6C 2S3
Phone: 800-668-9008

Navigation menu
