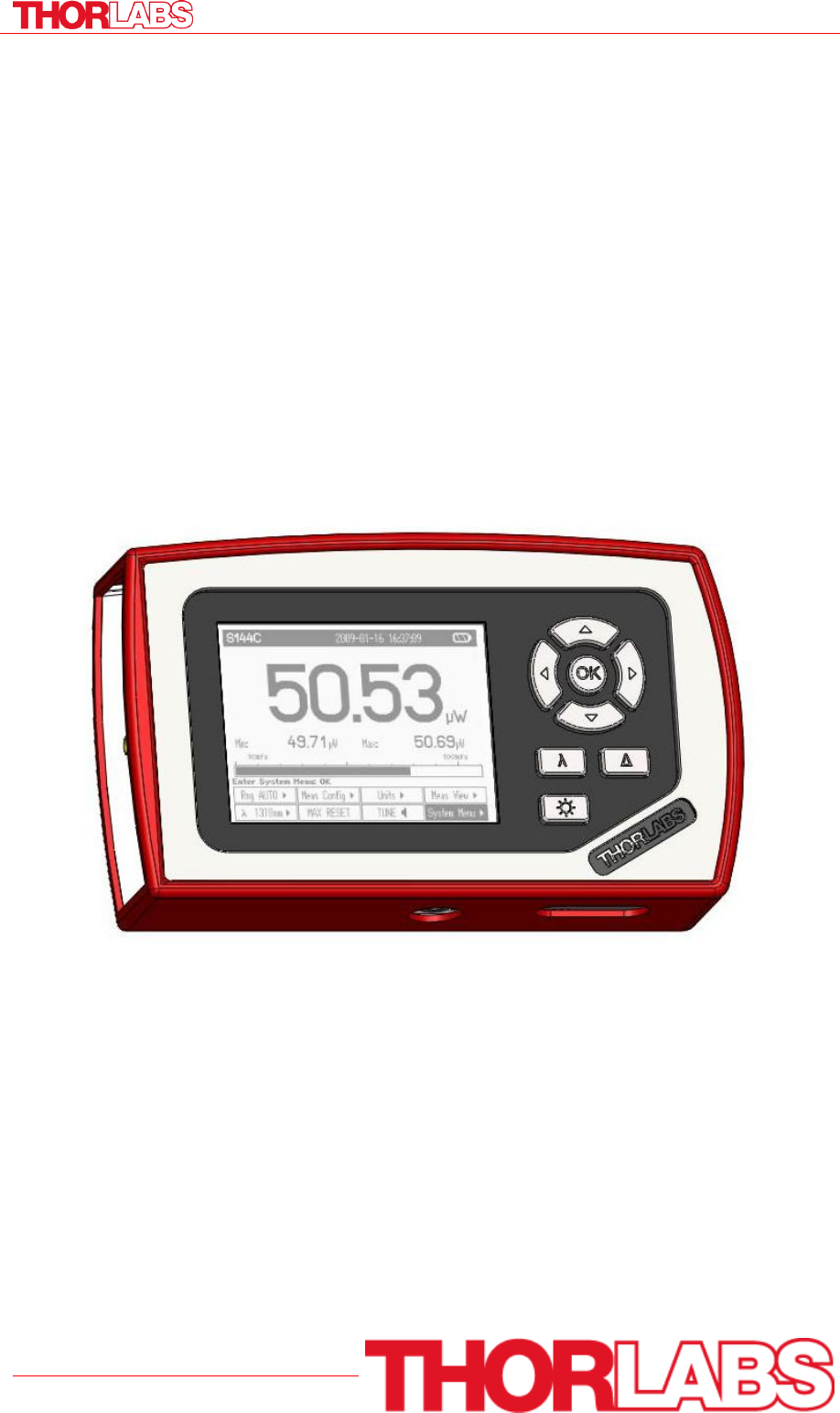

Operation Manual

Thorlabs Instrumentation

Optical Power and Energy Meter

PM100D

2017

Version: 17654-D02 REV H

Date: 20.9.2017

Contents page

1General Information 4

1.1Safety 5

1.2Ordering Codes and Accessories 7

2Getting Started 9

3Unpacking 9

3.1Preparation 9

3.2Physical Overview 10

3.2.1Front Panel 10

3.2.2Side Panel 10

3.2.3Bottom 11

3.2.4Rear Panel 11

3.2.5Display Options 12

4Operating the PM100D 15

4.1Connecting a Power or Energy Sensor 15

4.2Controlling the PM100D 15

4.2.1Navigating the Menus 15

4.2.2System Settings 16

4.2.3Power and Energy Measurement in the Numeric Display 17

4.2.3.1Range Control 17

4.2.3.2Wavelength Correction 18

4.2.3.3Readout Configuration 19

4.2.3.4Zeroing 19

4.2.3.5Setting an Attenuation / Gain Factor 20

4.2.3.6Light Intensity Measurements 20

4.2.3.7Min / Max Monitor 21

4.2.3.8Relative Power / Energy Measurements 21

4.2.3.9Sensor Temperature Measurements 21

4.2.3.10Frequency Measurements 21

4.2.4Sensor Dependent Functions 22

4.2.4.1Photodiode Sensors 22

4.2.4.2Thermal Power Sensors 24

4.2.4.3Pyroelectric Energy Sensors 26

4.2.5Display Options 28

4.2.6Statistics Display 28

4.2.7Needle Display 28

4.2.8Tune Graph and Pulse Graph Display 29

4.3Analog Output 29

4.4Tuning Sound 29

4.5SD Memory Card 29

4.6Battery Charging 30

5Measurement Considerations 32

5.1Choosing the right Sensor 32

5.2Reducing Noise for High Accuracy Measurements 32

5.3Power Measurement of Pulsed Signals 33

5.4Line width of Light Sources 33

5.5Temperature Effects on Thermal Sensors 33

5.6Ambient and Stray Light 34

5.7Back Reflection 34

5.8Beam Diameter vs. Active Sensor Area 34

5.9Fiber Based Measurements 35

6Computer Interface 37

6.1PM100D Utility Software 37

6.1.1Front Panel 38

6.1.2Description of the Front Panel Elements: 38

6.2Firmware Update 41

6.3Using the Instrument Drivers 42

6.3.1Instrument Driver Installation 42

6.3.2Instrument Driver Example 42

6.4PM100D SCPI Commands 43

6.4.1An Introduction to the SCPI language 43

6.4.2IEEE488.2 Common Commands 46

6.4.2.1Command summary 46

6.4.2.2Command reference 47

6.4.2.3PM100D specific SCPI Command Reference 48

6.4.3Simple LabVIEW Example using SCPI Commands 58

7Maintenance and Repair 62

7.1Maintenance 62

7.2Troubleshooting 63

8Appendix 64

8.1Warranty 64

8.2Certifications and compliances 65

8.3Technical data 66

8.4Pin Assignment of the Sensor Connector 69

8.5Thorlabs ‘End of Life’ policy (WEEE) 70

8.5.1Waste treatment on your own responsibility 70

8.5.2Ecological background 71

8.6List of figures 72

8.7Addresses 73

1.1 Safety

We aim to develop and produce the best solution for your application in the

field of optical measurement technique. To help us to live up to your

expectations and develop our products permanently we need your ideas and

suggestions. Therefore, please let us know about possible criticism or ideas.

We and our international partners are looking forward to hearing from you.

Thorlabs

This part of the instruction manual contains every specific information on the

PM100D handheld optical power and energy meter. A general description is followed

by explanations of how to operate the unit manually. You will also find information

about a simple remote control of the unit.

Attention

This manual contains ‘WARNINGS” and ‘ATTENTION” labels in this

form, to indicate danger for persons or possible damage to equip-

ment.

Please read these advises carefully!

NOTE

This manual also contains ‘NOTES” and ‘HINTS” written in this form.

1.1 Safety

1 General Information

The PM100D Handheld Optical Power and Energy Meter is designed to measure the

optical power of laser light or other monochromatic or near monochromatic light

sources and the energy of pulsed light sources.

The space-saving, battery powered design and compatibility to all Thorlabs “C-Type”

Photodiode, Thermal, Pyroelectric sensors, and custom Photodiode, Thermal and

Pyroelectric detectors, combined with a fast USB device interface open a wide range

of applications in Manufacturing, Quality Control, Quality Assurance, and R&D for

stationary and field use.

The provided software, including drivers and applications for LabVIEW and C makes

it easy to integrate the instrument in test and measurement systems.

A rechargeable lithium polymer battery allows long intervals between the charging

cycles. The unit can be recharged with the supplied AC adapter or via USB

connection to a PC or laptop.

1.1 Safety

 Attention 

All statements regarding safety of operation and technical data in this

instruction manual will only apply when the unit is operated correctly.

The power meter PM100D must not be operated in explosion endan-

gered environments!

Sensor, photodiode and control inputs and outputs must only be

connected with duly shielded connection cables.

Only with written consent from Thorlabs may changes to single compo-

nents be carried out or components not supplied by Thorlabs be used.

Do not remove covers!

Refer servicing to qualified personal!

 Attention 

Mobile telephones, cellular phones or other radio transmitters are

not to be used within the range of three meters of this unit since the

electromagnetic field intensity may then exceed the maximum

allowed disturbance values according to IEC 61326-1.

This product has been tested and found to comply with the limits

according to IEC 61326-1 for using connection cables shorter than 3

meters (9.8 feet).

1.1 Safety

 Attention 

The following statement applies to the products covered in this

manual, unless otherwise specified herein. The statement for other

products will appear in the accompanying documentation.

Note: This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the FCC

Rules and the Canadian Interference-Causing Equipment Standard

ICES-003 for digital apparatus. These limits are designed to provide

reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of

this equipment in a residential area is likely to cause harmful inter-

ference in which case the user will be required to correct the

interference at his own expense.

Thorlabs GmbH is not responsible for any radio television interfer-

ence caused by modifications of this equipment or the substitution

or attachment of connecting cables and equipment other than those

specified by Thorlabs GmbH. The correction of interference caused

by such unauthorized modification, substitution or attachment will

be the responsibility of the user.

The use of shielded I/O cables is required when connecting this

equipment to any and all optional peripheral or host devices. Failure

to do so may violate FCC and ICES rules.

1.2 Ordering Codes and Accessories

Order Code Description

PM100D Handheld Power/Energy Meter Console

Photodiode Power Sensors:

Order Code Type Detector Aperture

Wavelength

Power

S120C Compact Sensor Si  9.5 400 - 1100 50n - 50m

S120VC Compact Sensor UV-Si  9.5 200 - 1100 50n - 50m

S121C Compact Sensor Si  9.5 400 - 1100 500n - 500m

S122C Compact Sensor Ge  9.5 700 - 1800 50n - 40m

S130C Slim Sensor

Dual Range

Si  9.5 400 - 1100 5n - 5m

500n - 500m

S130VC Slim Sensor

Dual Range

UV-Si  9.5 200 - 1100 5n - 5m

50n - 50m

S132C Slim Sensor

Dual Range

Ge  9.5 700 - 1800

1200 - 1800

5n - 5m

500n - 500m

S140C Integr. Sphere (1”) Si  5.0 350 - 1100 1µ - 500m

S144C Integr. Sphere (1”) InGaAs  5.0 800 - 1700 1µ - 500m

S142C Integr. Sphere (2”) Si  12 350 - 1100 10µ - 20

S145C Integr. Sphere (2”) InGaAs  12 800 - 1700 1µ - 3

S145C Integr. Sphere (2”) InGaAs  12 800 - 1700 10µ - 20

S150C Fiber Head Si 3.6 x 3.6 350 - 1100 100p - 5m

S151C Fiber Head Si 3.6 x 3.6 400 - 1100 1n - 20m

S154C Fiber Head InGaAs

 2.0 700 - 1700 100p - 5m

S155C Fiber Head InGaAs

 2.0 700 - 1700 1n – 20m

Thermal Power Sensors:

Order Code Type Aperture

Wavelength

Power

S302C Thermally Stabilized

Thermal Absorber

 12 190 - 25000 100µ - 2

S310C Thermal Surface Absorber  20 190 - 25000 10m - 10

S314C Thermal Surface Absorber  25 190 - 10600 10m - 60

S322C Thermal Surface Absorber  25 190 - 10600 100m - 250

S350C Thermal Surface Absorber

Excimer Coating

 40 190 - 1100

and 10600

10m - 60

S370C Thermal Volume Absorber

for high peak power lasers

 25 400 - 5200 10m - 15

1.2 Ordering Codes and Accessories

Pyroelectric Energy Sensors:

Order Code Type Aperture

Wavelength

Energy

ES111C Pyroelectric Sensor with

broadband coating

 11 185 - 25000 10µ - 150m

ES120C Pyroelectric Sensor with

broadband coating

 20 185 - 25000 100µ - 500m

ES145C Pyroelectric Sensor with

broadband coating

 45 185 - 25000 500µ - 2

ES220C Pyroelectric Sensor with

ceramic coating

 20 185 - 25000 500µ - 3

ES245C Pyroelectric Sensor with

ceramic coating

 45 185 - 25000 1m -15

Please visit our homepage http://www.thorlabs.com for various accessories like fiber

adapters, posts and post-holders, data sheets and further information.

3.1 Preparation

2 Getting Started

3 Unpacking

Inspect the shipping container for damage.

If the shipping container seems to be damaged, keep it until you have inspected the

contents and you have inspected the PM100D mechanically and electrically.

Verify that you have received the following items within the hard-case:

1. PM100D power/energy meter console

2. 1GB SD memory card – installed in PM100D

3. Power supply with power cord according to the country of operation

4. USB cable, type ‘A’ to ‘mini-B’

5. Quick-start guide

6. USB memory stick with instrument drivers, user application and operation

manual

7. Certificate of Calibration

3.1 Preparation

Configure the plug-in power supply with the primary plug for your local power supply.

Connect a suitable power or energy sensor. The sensors have a self-fixing

mechanism. To plug or unplug a sensor slightly press from both sides on the pins in

the connector housing.

Turn the unit on by pressing the power button in the side panel.

After switching on the unit, the graphics display will show the device status and then

jump to the last measurement screen before power down.

The PM100D is immediately ready to use after turning on.

3.2 Physical Overview

3.2.1 Front Panel

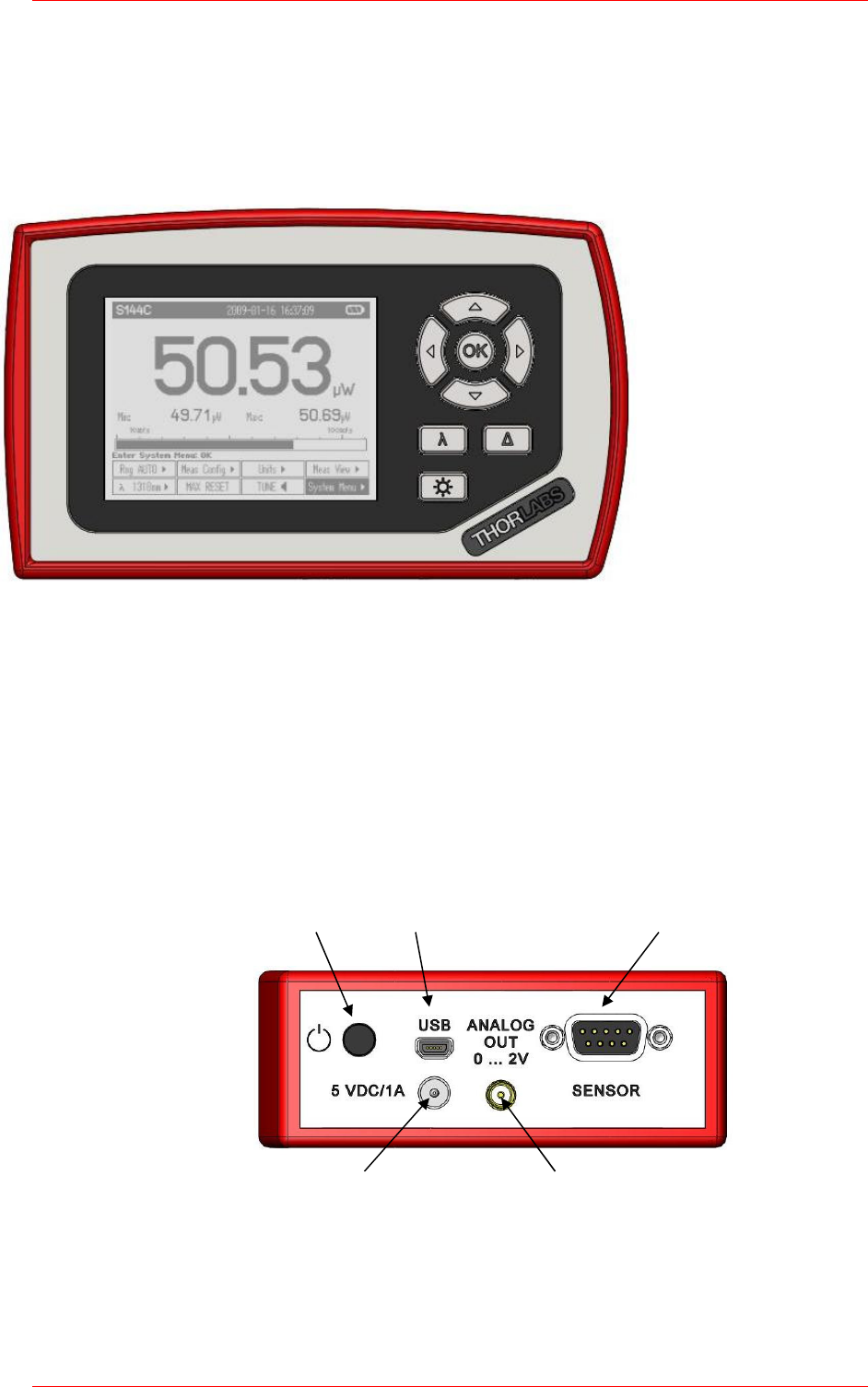

Figure 1 Physical Overview Front Panel

3.2.2 Side Panel

Figure 2 Physical Overview Side Panel

Navigation Keys 

Enter/Edit Key OK

Wavelength Key λ

Relative Meas. Key ∆

Backlight Key 

On/Off Switch USB Connector Sensor Connector (DB9 female)

DC Input (Charger) Analog Output (SMA)

3.2 Physical Overview

3.2.3 Bottom

Figure 3 Physical Overview Bottom View

3.2.4 Rear Panel

Figure 4 Rear View

Mounting Thread 1/4“-20 SD Card Slot

Pull here to lift the support Removable Protective

Rubber Boot

3.2 Physical Overview

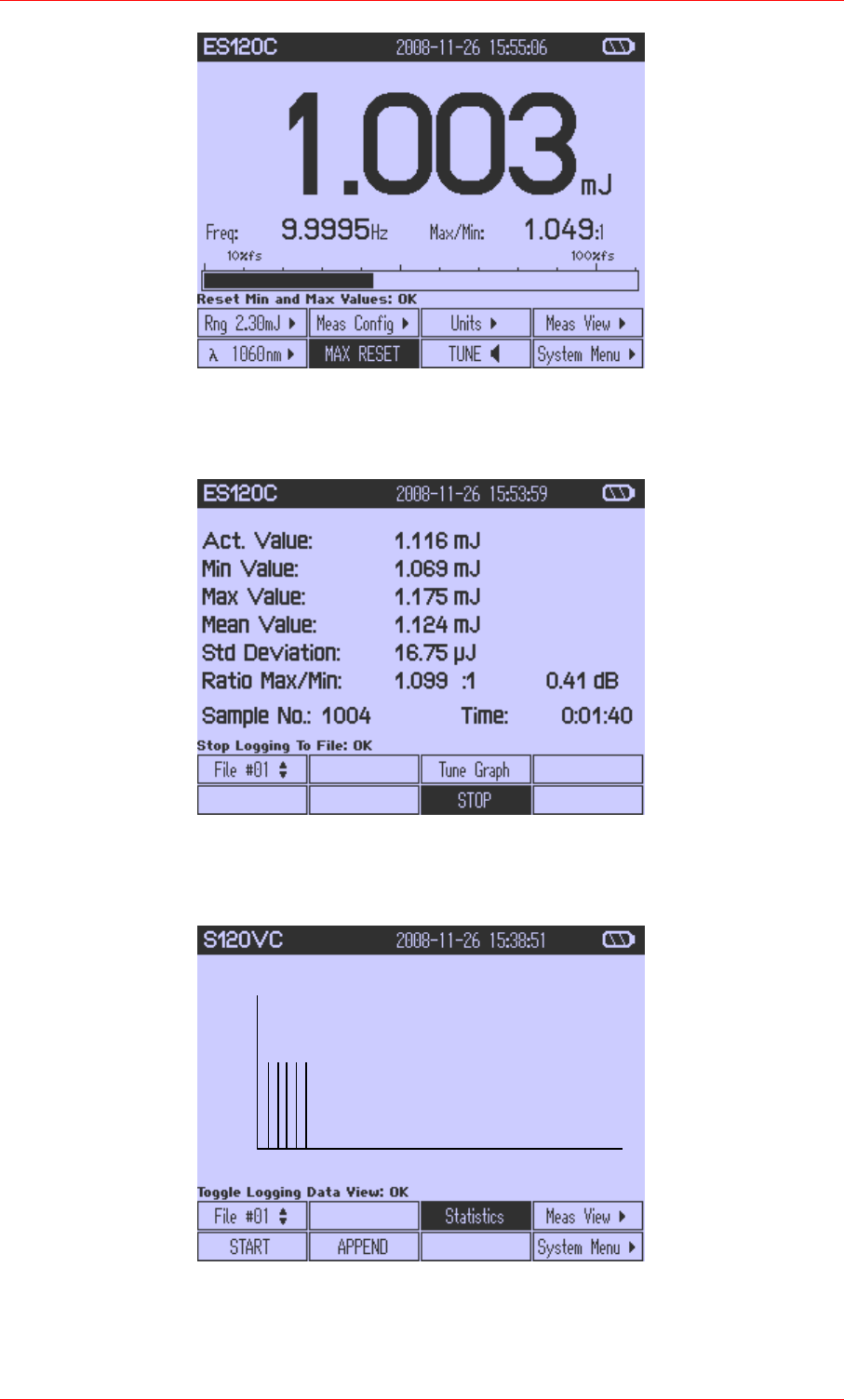

3.2.5 Display Options

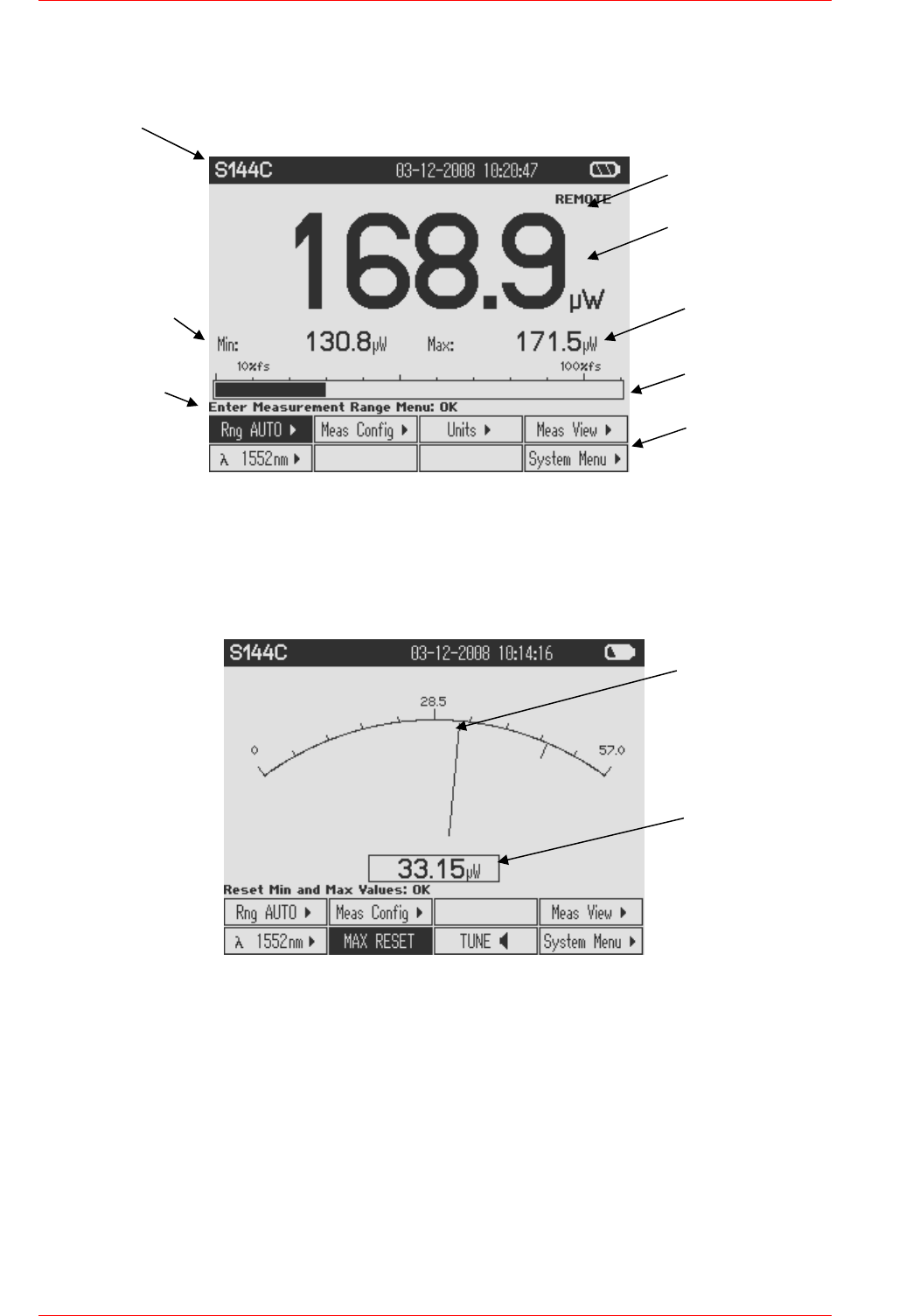

Figure 5 Numeric Screen (Power and Energy Mode)

Figure 6 Needle Tuning (Power Mode)

Header Line with Sensor Information, Date/Time and Battery state

Status Line with

Warning Annunciators

Main Display

Configurable

Right Sub Display

Configurable

Left Sub Display

Tool Tip Text Bar Graph

Menu Soft Buttons

Maximum value

indicator

Current power

value

3.2 Physical Overview

Figure 7 Statistics Screen (Power Mode)

Figure 8 Trend Graph (Power Mode)

3.2 Physical Overview

Figure 9 Numeric Screen (Energy Mode)

Figure 10 Statistics Screen (Energy Mode)

Figure 11 Pulse Chart (Energy Mode)

120mW

200 100

4.1 Connecting a Power or Energy Sensor

4 Operating the PM100D

4.1 Connecting a Power or Energy Sensor

The PM100D supports all Thorlabs ‘C-Series’ photodiode, thermal and pyroelectric

sensors. These can easily identified against older versions of Thorlabs power or

energy sensors by their red connector housing. The console will not recognize

sensors from the ‘A’ and ‘B’ series. Please contact Thorlabs for upgrading of old

sensors with ‘C-Series’ connectors.

To plug or remove a sensor slightly press the two bolts in the connector housing.

Sensors can be ‘hot-swapped’ to the console, after recognizing a new valid sensor

the type and calibration data will be downloaded to the console in less than 2

seconds and the unit is ready to operate with the new sensor.

The PM100D also supports custom detectors, please refer to chapter 4.2.2 for the

console measurement settings and chapter 8.4 for the connector pin-out.

4.2 Controlling the PM100D

4.2.1 Navigating the Menus

Each measurement screen contains eight soft buttons arranged in 2 rows at the

bottom of the graphics display. These can be controlled by the four navigation

(), and the enter/edit (OK) key. An interactive help text above shortly

describes shortly the function of each selected button.

The soft buttons may be configured with the following functions:

Type Indicator Function when pressing ‘OK’ Example

Menu  Shows a sub menu, by rearranging

the soft button labels

Meas Config 

Ring Control Scrolls up and down the ring with

the up and down navigation buttons.

The changes are valid immediately.

A blinking button frame indicates

that the control is active.

Confirm with ‘OK’

Range

Function key Label in

capitals

Proceeds the described function RESET

4.2 Controlling the PM100D

Radio button  Selects the function of the pressed

key. The active key gets the

‘checked’ mark ()

 W

Numeric Key label

contains a

number

The button goes in the ‘edit’ mode.

This is indicated by a blinking frame

and one digit with a blinking

underline. With the  buttons

navigate the digit to change; with

the  keys increment or

decrement the digit.

Confirm with ‘OK’

1.550µm

Button Appearance

Focus: Text Negative .

Edit Mode: Blinking frame .

All sub menus can be left by navigating to the EXIT button at the down right

soft button location or to any empty … e …… button, and pressing the OK key.

4.2.2 System Settings

To enter the system settings press the System Menu  button that is located at the low

right soft button position in the top level measurement screens. The following sub

menus will appear:

- Measurement Settings

 Remote state PM100D can be switched back to local mode

 Line filter Sets the unit to the local line frequency 50Hz/60Hz

to avoid aliasing effects

 Default sensor Sets the PM100D in a mode to measure photo

current, thermal voltage with custom detectors, or

the peak voltage from a custom pyroelectric detec-

tor. See chapter 8.4 about connecting custom

detectors.

- Console Settings

 Language User interface language setting

 Backlight Switches the LCD and key backlight on and off

4.2 Controlling the PM100D

(Same function as the  key)

 Brightness Sets the brightness of the LCD and key backlight.

The setting range is 0 – 100% in 1% increments

 LCD Contrast Adjusts the LCD contrast.

The setting range is 0 – 100% in 1% increments

 Sound Switches on and off the key and warning sounds

 Shutdown The unit automatically powers off in battery

operation after a certain time without user action.

This feature can be set to 10 minutes, 1 hour or

switched off; and is not active when an external

power supply (AC adapter or USB) is connected.

 Firmware Upload Needs to be ‘enabled’ before uploading a new

firmware version. The function will automatically re-

set to ‘disabled’ when powering down.

- File Explorer Administrates the log files on the SD memory card.

- Date and Time Enters a submenu to set date and time. It is

possible to chose various date and time formats.

- Console Info Shows the console related information.

- Sensor Info Shows the related information of the currently

connected power or energy sensor.

4.2.3 Power and Energy Measurement in the Numeric Display

The numeric display contains a large configurable measurement value, two small sub

displays for additional measurement information, and a bar-graph that shows the

saturation degree of the chosen measurement range.

To control and configure the numeric display the soft buttons in the top level are

arranged as following:

Range Control Measurement

Configuration

Readout

Configuration

Measurement

Representation

Wavelength

Correction

Min/Max Monitor

Reset

Tuning Sound System Menu

4.2.3.1 Range Control

The PM100D provides six decades of power corresponding current and four decades

of power corresponding voltage ranges. The ranges are displayed in the respectively

applicable unit, depending on sensor and chosen unit. (Exception: When displaying

4.2 Controlling the PM100D

the power in dBm, the ranges will still display in Watts) Combined with a 16 bit linear

A/D converter and a 4 digit numeric display the meter allows very precise

measurements with a dynamic range of over 100 dB with one photodiode power

sensor. For laser energy measurements four decades energy corresponding voltage

ranges are available.

Each current or voltage range measures precisely from -10% up to 110% of the

nominal range limits. At the low end this is helpful to identify badly zeroed detectors

by a negative power display; at the high end it adds more dynamic when switching to

a less sensitive range.

For power measurements an auto-ranging function is available. This is very

convenient for measuring an unknown steady CW power level, or when using the

logarithmic representation of the power reading (‘dBm’ units). Switching to auto-range

can be done by entering the range menu Rng 123.4 W  (upper left soft button),

navigating to the AUTO OFF button and confirming with the OK key.

For tasks like laser tuning or measuring pulsed laser sources manual ranging is often

the better choice. To switch back to manual mode enter the range menu with the OK

key and use the  or  keys to select a manual range or confirm the . AUTO ON .

button. The bar-graph in the numeric display gives a good visualization of the

saturation level in the selected range.

In the energy measurement mode only manual ranging is available.

4.2.3.2 Wavelength Correction

Most power and energy sensors show a dependent behaviour in their spectral

response. For accurate measurements it is important to set the PM100D to the

wavelength of the light to measure.

To quickly change an operating wavelength the PM100D offers eight user adaptable

soft buttons in the wavelength menu. Therefore press the wavelength key λ or

navigate to, and enter the λ 12345 nm  button in the menu located at the left side on

the lower row. The menu will change and it is possible to chose out of the eight

wavelengths by navigating and confirming with OK.

If the wavelength of a button should be changed it can be edited by pressing the OK

key for longer than 2 seconds. After then the appearance of the button will change to

edit mode and the wavelength can be adjusted by the navigation keys .

When a custom sensor is connected that doesn’t have an EEPROM with calibration

data (adapter mode), the user can set a calibration value in A/W for photodiode

detectors, or V/W for thermal or pyroelectric detectors. The control therefore replaces

the wavelength button in the main menu. It can be edited by pressing the OK key and

adjusted by the navigation keys .

4.2 Controlling the PM100D

4.2.3.3 Readout Configuration

The numeric display can be configured in terms of units of measure and also by

selecting additional functions for the two small sub displays.

To enter the readout configuration menu press the Units  button. A menu will

appear where the large measurement value for power sensors can be displayed in

linear (W) or logarithmic (dBm) representation; further in its direct sensor response in

Amperes for photodiode sensors and Volts for thermal sensors. For energy sensors

the large display can be configured to Joules and Volts to measure the energy or

Watts to measure the average power.

The min-max monitor and manual range setting automatically switches to the same

unit that is selected for the main display; exception is the average power

measurement for energy sensors, the ranges will stay in Joules.

The left sub display Sub Left  can be configured to measure the minimum value,

frequency / repetition rate, sensor temperature or hiding the display.

For the right display Sub Right  following functions are available: Maximum value,

ratio max/min, power density, energy density, alternate unit of main display and

hidden display.

4.2.3.4 Zeroing

The zeroing function can be accessed in the Meas Config  measurement configuration

menu. To perform a zero adjustment it is important to properly cover the power

sensor with a light-tight shield and after then pressing the ZERO button. The zero

adjustment will fail and show a warning, when the detected zero value is too large for

the connected sensor; e.g. when accidentally hitting the zero button under light

exposure to the sensor.

Do not hold a sensor in the hand, especially a thermal sensor, when

performing a zero adjustment. Temperature effects will influence the

quality of the zeroing result!

When measuring very small power levels dark current of photodiode sensors or zero

voltage on thermal sensors will have an influence on the measurement result and

must be compensated by the zero adjustment. An indicator that a sensor needs to be

zeroed is when with covered sensor either a negative power reading or a reading

4.2 Controlling the PM100D

much greater than zero is displayed. At negative power readings additionally a

‘ZERO!’ warning appears in the status display.

After performing a zero adjustment, the detected zero value will be included in all

power readings in Watts or dBm. The basic units (A, V) will still measure the absolute

values without zero correction. The detected zero value may influence the

wavelength corrected calculated full scale power range values in the lower power

ranges; there will also be a zero shift in the bar graph representation.

In logarithmic (dBm) representation the unit cannot display negative values. In this

case the display will ‘---‘.

Photodiode sensors emit small current levels, even when no photons hit the active

area – the so called dark current, that is temperature dependent and in the region of

some nA for silicon and InGaAs sensors and up to some µA for germanium sensors.

Thermopile sensors need to be zeroed when thermal differences between active area

(thermal disk) and the sensor heat sink appear when no light hits the active area or

when the heat sink gets hot under light exposure. The zero value will be negative

when the heat sink is hotter than the active area and positive, when the active area is

hotter than the heat sink. When both heat sink and active area are at room

temperature a zero voltage of some µV is normal.

4.2.3.5 Setting an Attenuation / Gain Factor

To set an attenuation or gain factor that will be taken into account when calculating

the displayed power or energy enter the Meas Config  measurement configuration

menu and navigate to Att 0.00 dB button. When confirming this button with the OK

key an attenuation or gain factor from 60dB to -60dB can be entered. A positive value

will set an attenuation factor.

This feature can be used to display the origin laser or probe power, with having a

filter or beam splitter in the system; or to enlarge the measurement range of a power

or energy sensor with a calibrated filter.

4.2.3.6 Light Intensity Measurements

To display the power or energy density or the light intensity value in W/cm² or J/cm²

in the right sub display it is necessary to enter the diameter of the incident beam or at

an overfilled sensor the diameter of the sensor aperture.

After entering the Meas Config  measurement configuration menu the beam diameter

can be set in millimeters from 10µm up to the diameter of the sensor aperture of the

connected sensor in the  1.23 mm button.

Round beam shapes: enter the 1/e² beam diameter

4.2 Controlling the PM100D

Square beams with the edge length (a): the input diameter calculates to 1.128 x a.

Rectangular beams with edge lengths (a, b): the input value calculates to 1.128 x (a x b).

To show the intensity value navigate: Units  / Sub Disp 2  /  Area .

4.2.3.7 Min / Max Monitor

The sub displays can be configured to display a minimum and a maximum value or a

ratio out of both values. See chapter 4.2.3.3 to configure the numeric display. These

values will update permanently. The MAX RESET button will reset the displays to

zero and restart the measurement sampling.

The ratio value will show ‘---‘ when a negative reading occurs.

4.2.3.8 Relative Power / Energy Measurements

This feature can be used to observe power drifts, adjust power to a certain level, or

quickly subtract ambient light. To switch to the relative mode press the ∆ key. The

main display will set to zero, the offset and the absolute power or energy value will be

displayed in the sub displays. The bar graph will change to a measurement range

from -10% to +10% of the set range.

The power / energy display then will show negative values for levels smaller than the

offset value. In logarithmic representation the power difference to the offset value is

displayed in dB.

4.2.3.9 Sensor Temperature Measurements

Most Thorlabs photodiode and thermal sensors are equipped with a NTC Thermistor

to control the temperature of the sensor head. To show the sensor temperature in the

left sub display navigate : Units  / Sub Left  /  Temperature .

In addition to this feature the PM100D will give a warning when a sensor surface gets

hotter than approximately 60° C to prevent from injury when touching the sensor

housing, or damaging the sensor.

4.2.3.10 Frequency Measurements

The PM100D can measure and display frequencies of pulsed, modulated or chopped

light sources up to 100kHz. The maximum measurable frequency is depending on

the sensor type and instrument settings.

To show the frequency value in the left sub display navigate:

Units  / Sub Left  /  Frequency .

4.2 Controlling the PM100D

4.2.4 Sensor Dependent Functions

4.2.4.1 Photodiode Sensors

The PM100D works with all Thorlabs S100C series photodiode power sensors. The

sensor is ready to operate few seconds after plugging to the DB9 connector.

 Attention 

Refer to the sensor data sheet and pay attention to the optical

damage threshold!

Exceeding these values will permanently destroy the sensor!

For the measurement of power levels from nano-watts up to 20 W Thorlabs offers

photodiode sensors that show big advantages in sensitivity, stability and drift against

thermal sensors. The sensors are built up in a combination of a photodiode and a

neutral density filter or a photodiode in combination with an integrating sphere. They

provide linearity over several decades and show a very good sensitivity at smallest

power levels down to the pW range. Handling fairly small power levels the sensor

size can be held small, further the response time of such sensors is very fast down

to the sub-microsecond range.

Photodiodes, neutral density filters and also integrating sphere materials show a

wavelength dependent behaviour and therefore each sensor is individually calibrated

over the whole spectral working range in 5 or 10nm steps. Thereby the sensors

spectral response data gets stored in a non-volatile memory inside the DB-9 sensor

connector and downloaded to the PM100D when plugged to the unit. To perform an

accurate measurement it is necessary to enter the operating wavelength of the light

to measure so that the PM100D can calculate the laser power from the measured

photo current and the right response value from the wavelength calibration table.

4.2.4.1.1 Bandwidth Setting (Signal Filtering)

The analogue bandwidth setting influences the power reading and the analogue

output. The bandwidth can be selected in the Meas Config  measurement configuration

menu to ‘HI’ (range dependent bandwidth up to 100kHz) or ‘LO’ (15 Hz bandwidth) by

toggling the BW HI/LOW button.

For measuring CW or average power from pulsed sources the bandwidth should be

set to ‘LO’. When using the analogue output to control external equipment or

4.2 Controlling the PM100D

measuring peak power levels the ‘HI’ setting is required so that the meter can follow

the signal.

4.2.4.1.2 Power Measurements with Photodiodes

Common photodiodes can be used for power measurements with the PM100D.

Therefore the PM100D needs to be set to the ‘Photodiode’ default setting in the

‘System Menu \ Measurement Settings’. A photodiode and an interlock must be

connected to the sensor input (see chapter 8.4 for the connector pin out); it is

important to attend to the right polarity (the anode needs to be connected to ground).

The operation is similar to photodiode power sensors with the exception that at the

soft button position of the wavelength menu a response value in A/W for one

wavelength can be set.

4.2 Controlling the PM100D

4.2.4.2 Thermal Power Sensors

The PM100D is compatible to the Thorlabs S300C series thermal power sensors.

The sensor will be ready to operate few seconds after plugging to the DB9 connector.

 Attention 

Refer to the sensor data sheet and pay attention to the optical

damage threshold!

Exceeding these values will permanently destroy the sensor!

Thermal sensors absorb the incident laser power, whereby the developing heat gets

turned into a small voltage caused by heat flow through thermocouple elements

between absorbing area and sensor heat sink. Thorlabs offers with its S3xxC series

thermal sensors that cover a wide range of applications. The sensors are available

with different coatings. Black broad band coating as absorber does not need a

wavelength correction because the response is nearly flat from the UV to the mid-IR.

Special hard coatings can withstand high power levels and show also a good spectral

flatness. Further Thorlabs offers special heads for Excimer lasers with large beam

diameters and short pulse lasers with coatings for very high peak power levels.

The output voltage of a thermal sensor is linear to the incident laser power, as long

the thermal system is properly zeroed. The main application area for thermal sensors

is the measurement of high power levels from 100mW. Thorlabs offers also a special

thermally isolated thermal head with flat response and on power levels starting in the

µW range.

4.2.4.2.1 Readout acceleration

Thermal sensors show a fairly slow response. When laser power hits the active area

it takes, depending on the sensor type, from some 1 up to 20 seconds until the

system has settled and the power reading shows the right value.

Through special circuitry this time can be shortened to approximately 1-3 seconds by

‘predicting’ the final power value. The PM100D automatically uses the right

adjustment of the electronics to the time constant of the thermal sensor.

Nevertheless this circuitry has the disadvantage of inducing some noise to the

measurement value. Therefore the acceleration circuit can be disabled / enabled in

the Meas Config  measurement configuration menu by the Acc AUTO/ON/OFF button.

In ‘AUTO’ mode the accelerator will switch on when a power change larger than 5%

of the measurement range is detected and switch off after 5 times of the time

4.2 Controlling the PM100D

constant of the sensor. This feature provides a fast response and keeps the noise

level to a minimum on constant power levels.

4.2.4.2.2 Custom Thermal Elements

Custom thermal elements can be used for power measurements with the PM100D.

Therefore the PM100D needs to be set to the ‘Thermopile’ default setting in the

‘System Menu \ Measurement Settings’. A thermal element and an interlock must be

connected to the sensor input (see chapter 8.4 for the connector pin out). The

operation is similar to thermal power sensors with two exceptions:

- The soft button position of the wavelength menu is replaced by a button to

enter a response value for one wavelength in V/W.

- In the Meas Config  measurement configuration menu a button Tau XX.X s to

enter a thermal time constant is available. This time constant adjusts the

acceleration circuit for the measurement prediction.

4.2 Controlling the PM100D

4.2.4.3 Pyroelectric Energy Sensors

With pyroelectric sensors the PM100D measures laser pulse energy of single and

continuously repeating laser pulses (short pulse). Pyroelectric sensors of the

Thorlabs ES100C and ES200C series can work with the PM100D console. The

sensor will be ready to operate few seconds after plugging.

 Attention 

Refer to the sensor data sheet and pay attention to the optical

damage threshold!

Exceeding these values will permanently destroy the sensor!

A pyroelectric sensor permits widely independent of the incident radiation

wavelength, the direct transformation of a radiation energy pulse into a voltage pulse.

The height of this voltage pulse that is proportional to the laser pulse energy is

measured by a peak detector circuit.

When a pyroelectric sensor is connected the PM100D cannot be switched in auto-

range mode. The measurement value will be updated with each incoming pulse.

When no pulses appear the measurement display will be held on the last measured

value until the Reset button in the Meas Config  menu will be pressed.

4.2.4.3.1 Trigger Level

The trigger level can be set in the Meas Config  menu with the Trig XXX % button.

When an incoming pulse exceeds the set trigger level, the peak detector circuit gets

armed and is waiting until the pulse peak is reached. After finding the maximum

voltage the level is kept and the microprocessor reads the AD converted voltage for

displaying the pulse energy. Finally the peak detector circuit gets a reset and is ready

for the next pulse.

The trigger level can be adjusted between 1% and 70% of each selected energy

range. Only pulses that are higher than the adjusted trigger level are recognized by

the PM100D. The trigger level should be set between the noise level and the

expected pulse height.

4.2 Controlling the PM100D

4.2.4.3.2 Average Power Measurement

With continuously repeating pulses the PM100D calculates the average power from

the pulse energy and the repetition rate. For displaying the average power enter

Units  /  Watt .

4.2.4.3.3 Repetition Rate

The pulse repetition rate in Hz can be displayed in the left sub display.

Navigate: Units  / Sub Left  /  Rep Rate .

4.2.4.3.4 Area Calculation

When the right beam diameter of the incident beam is entered, this function returns

either the average power density in W/cm² or the energy density in J/cm².

Navigate: Units  / Sub Right  /  Area P . or  Area E .

4.2.4.3.5 Custom Pyroelectric Sensors

Custom pyro detectors can be used for energy measurements with the PM100D.

Therefore the PM100D needs to be set to the ‘Pyro Electric’ default setting in the

‘System Menu \ Measurement Settings’. A pyro detector and an interlock must be

connected to the sensor input (see chapter 8.4 for the connector pin out). The pyro

detector must provide a positive signal. The operation is similar to pyro-electric

energy sensors with exception that at the soft button position of the wavelength menu

a response value in V/J for one wavelength can be set.

4.2 Controlling the PM100D

4.2.5 Display Options

The PM100D offers several options like graphics or statistics for the measurement

value representation in the Meas View  menu

Power Sensors:

Numeric

Display

Tune Graph

Display

Statistics

Display

Needle

Display

Energy Sensors:

Numeric

Display

Pulse Graph

Display

Statistics

Display

To select a display navigate to the desired option and click the OK key. Depending

on the display type measurement range, wavelength and measurement configuration

can be set. Further each graphical and statistical display has a Setup  button for

the function configuration.

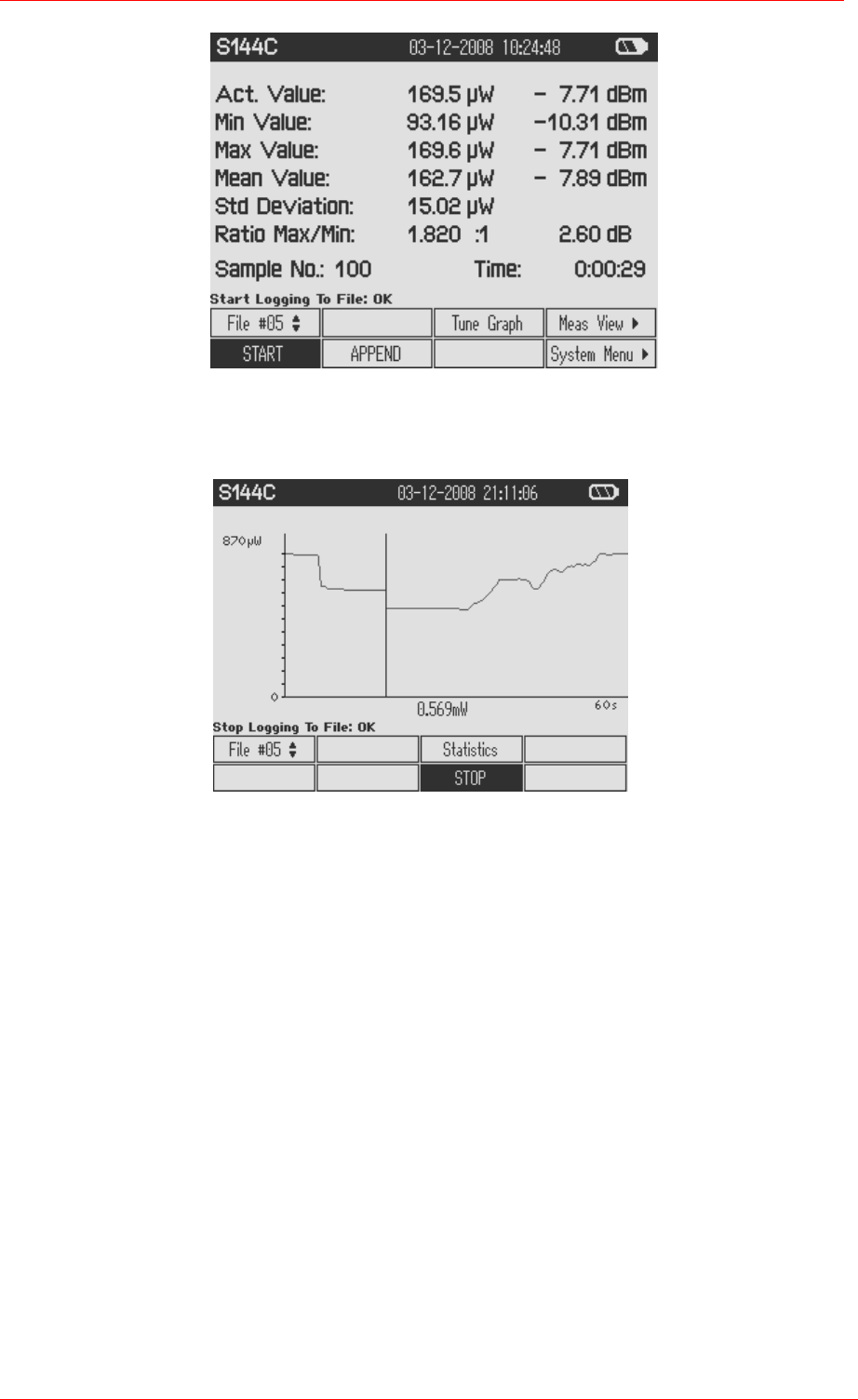

4.2.6 Statistics Display

The statistics function can be accessed by navigating to the Meas View  and then

choosing the Statistics button. The sampling will start and stop manually after

pressing the START button. The values will be stored to the SD memory card on

the chosen file number.

The display contains at a glance actual, minimum, maximum and mean value in

linear (power & energy) and logarithmic (power) representation, further the standard

deviation, the max/min ratio, the number of samples and the elapsed time.

The statistics function supports auto-ranging in power mode. Measurement data

during ranging will be suppressed in the log data.

4.2.7 Needle Display

This display for power measurement simulates an analogue needle and is designed

to support laser tuning tasks. The exact power value can be read on a small

numerical display within this screen; a special feature is a resettable max hold

indicator and the shiftable tuning sound.

The power is always displayed in Watts.

4.3 Analog Output

4.2.8 Tune Graph and Pulse Graph Display

The graph functions can be accessed by navigating to the Meas View  and then

choosing the Statistics button. The sampling will start and stop manually after

pressing the START button. The values will be stored to the SD memory card on

the chosen file number.

The power graph function supports auto-ranging. Measurement data during ranging

will be suppressed in the log data.

4.3 Analog Output

The analog output provides the amplified photo-diode current or the amplified thermal

or pyroelectric sensor voltage.

With thermal sensors the analog output shows the direct amplified and accelerated

voltage response from the sensor. With pyroelectric sensors the signal from the

analog output is the pulse response from the sensor prior to the peak detection

circuit.

The signals from the analog outputs are not wavelength and zero corrected.

The analog output voltage is range dependent and can be calculated to:

UAnalog Out [V] = 2V / full scale range value [V, A] x measurement value [V, A]

The analog output voltage can go from -0.3V to +2.3V.

4.4 Tuning Sound

For power measurements in the numeric and needle display a sound support can be

added to adjust to the maximum power level without the need of watching the

display. The tone will increase its repetition frequency with the height of the power

level until a local maximum is reached.

To switch on the tuning sound navigate and confirm the TUNE  button. The

sound shuts off by pressing any of the keys.

4.5 SD Memory Card

Measurement data can be stored on a SD memory card. The memory card is located

in the instrument bottom and can be removed / inserted with a push pull mechanism.

The data logging function is available in the statistics and graphical screen. Up to 99

files can be selected to store data, old data in the selected file will be overwritten.

When a statistics or a graph is running, the data automatically will be written to the

4.6 Battery Charging

selected file. Each log file contains a header with sensor information, start time stamp

and the unit of measure (Watts or Joules). The data itself are tab-stop separated and

contain the measurement value in engineering notation with ‘.’ decimal separator and

the elapsed time in milliseconds since start time. To load the log data to a computer,

the card currently must be removed from the PM100D and read by an external card

reader. The files can easily be edit with text pad or imported to an Excel spreadsheet

(chose tab stop separator and, when necessary the right decimal separator).

The system is tested with the SD card type and memory size that came with the

instrument, though it should work with most available SD cards, Thorlabs does not

guarantee proper function with other SD cards. In any case the SD card has to be

formatted to ‘FAT32’ file system.

4.6 Battery Charging

The PM100D is powered by a 1 cell LiPo+ battery that needs to be recharged

intermittently by plugging the AC adapter or plugging the USB cable to a computer.

To fully charge the battery it takes approximately 3-4 hours. A built in charging circuit

automatically regulates and terminates the charging.

Following battery icons in the display header show the charging state from empty to

full battery

The empty battery symbol starts blinking for one minute until the unit shuts off.

When an external power supply is plugged the symbols above change sequent until

the battery is fully charged.

The following icon will appear when the battery gets not fully loaded after a given

time of approximately four hours. This can happen when the unit is switched on, the

charging is done via USB link and the computer cannot supply sufficient charging

current. The symbol will disappear after 2 seconds when disconnecting the external

power supply and show the actual battery charging state.

Should the ‘arrow icon’ permanently remain there may be a malfunction

either in the battery itself or in the charging circuitry, please refer to

chapter 0 for maintenance and repair.

4.6 Battery Charging

The AC adapter for charging the system battery that comes with the PM100D

provides a wide range power input from 100VAC to 240VAC and an output voltage

from 5VDC. The mains connectors for US, Europe, UK and Australia can be switched

by pressing the lever and pulling off; the new connector easily clicks into the socket.

Do not use other than the provided power supply at the DC input. Higher

input voltages may damage the unit.

When charging the battery via USB link it will take longer until the battery is fully

charged or it never gets completely fully charged. It depends on the connected

computer what charging current can be supplied. The maximum current that can be

drained via USB is limited to 500mA. Some laptop computers just can drive 100mA

via USB interface.

5.1 Choosing the right Sensor

5 Measurement Considerations

5.1 Choosing the right Sensor

The question of the right sensor depends on many factors starting with the light

source to measure and the application. No sensor can cover all applications; the

following table shows the main pros and contras of the different power sensor types.

Of course this can only be a rough guide because within each sensor group there

are special models best suitable for specific applications.

Power Sensors:

Photodiode Thermal

Light Source Si Ge InGaAs BB HTC Volume

Diode UV - NIR +++ + - ++ - -

Diode NIR - + +++ ++ - -

High Power

Fiber Lasers

- - ++ ++ ++ -

ASE sources - - ++ ++ - -

fs Laser - + ++ ++ + -

Gas Laser ++ - - ++ + -

Excimer - - - - +++ +

YAG - - - - + +++

LED + - - +++ + -

5.2 Reducing Noise for High Accuracy Measurements

Main disturbing influence on each measurement is noise from grounding, the cable

capacitance, temperature effects, stray and ambient light and detector noise.

- The housing of power sensors are connected to the digital ground of the meter

and should be linked to earth ground (e.g. via a post); energy sensors should

be mounted isolated, because the housing is connected to the meter analog

ground.

- The sensor cable must handle very small current or voltage signals. Moving

the cable will induce disturbances given through the cable capacitance. For

measuring small power or energy levels the cable should be fixed in position.

- With photodiode sensors the bandwidth should be set to ‘LOW’ setting; with

thermal sensors the acceleration circuit should be shut off or set to ‘AUTO’.

5.3 Power Measurement of Pulsed Signals

- The detector noise is lowest with silicon or InGaAs sensors.

- For long term measurements in free space applications it is necessary to

provide constant ambient light conditions, or shielding the beam.

- The temperature should be stable over the time of the measurement.

5.3 Power Measurement of Pulsed Signals

The PM100D will read the average value of a pulsed signal when the following

conditions apply: For a thermal sensor pulse length, repetition rate and peak power is

uncritical as long as the peak power is lower than the damage threshold of the

sensor. A thermal sensor reacts very slow and will integrate the power incident on the

active area of the sensor.

With a photodiode sensor that can follow short pulses in the ns range it is important

that the pulse peak power is within the maximum power range of the sensor. It is also

important that the power range is set that accordingly the peak power is within this

range, otherwise the reading will clip at the range end and lead to a wrong average

value. Further it is important to use a power range in manual mode that can measure

the peak value, therefore the Min-Max function is very helpful. Depending on the

pulse length and repetition rate the bandwidth setting will influence the power

reading. It is recommended to use the low bandwidth setting for a stable display;

when the pulse should be monitored via the analog output, the bandwidth should be

set to ‘HI’.

5.4 Line width of Light Sources

The line width of light sources can be neglected only when using a broadband

thermal or pyro-electric sensor. Photodiode sensors show a strong dependency of

the operating wavelength so if the line width of light sources is greater than 10nm

(e.g. LED) there may be an influence on the displayed power. To achieve the best

result for broadband light sources with a photodiode sensor it is necessary that the

response curve is nearly linear over the line width. When entering the center

wavelength of the light source as operation wavelength the PM100D will nearly show

the right optical power for a symmetrical spectral response shape.

5.5 Temperature Effects on Thermal Sensors

Thermal sensors react on any temperature differences that occur between thermal

disc and heat sink. Influence to the measurement result can be caused by airflow

5.6 Ambient and Stray Light

disturbances or by heating up the heat sink through long enough exposure of the

laser beam to the thermal disc.

To avoid disturbances it is recommended to shield the sensor as good as possible

from airflow and to zero it properly in the operating condition. That means for short

term measurements zero the cold sensor, for long term measurements zero the

sensor when it is in a state of thermal stability (e.g. after 10 minutes light exposure).

5.6 Ambient and Stray Light

Ambient or stray light can strongly affect the measurement accuracy in free-space

applications. A permanent background light level can be subtracted by conducting a

zero adjustment. More complicated is varying ambient light like daylight or turning

on/off room light. In such cases the only solution is a proper light shielding of the

sensor.

5.7 Back Reflection

Photodiodes, ND filters and even black coatings of thermal sensors show a certain

kind of back reflection of the incoming light. Back reflection for example to a diode or

HeNe laser can distort the power stability of the laser, therefore it is recommended to

slightly tilt the power meter sensor in the laser beam.

When back reflection must be avoided it is advised to use an integrating sphere

based S14xC series sensor where the incoming light gets nearly completely

absorbed in the sensor.

5.8 Beam Diameter vs. Active Sensor Area

Most sensors are not completely uniform in their response over the active area;

except are sensors that are using an integrating sphere as filter and diffuser.

To overcome uniformity issues the incident beam should have a diameter larger than

10% sensor area.

A second topic to follow are the maximum allowed power and energy densities of the

sensor. The maximum ratings are given in the sensor spec-sheet. The PM100D can

display the actual power or energy density for a known beam diameter. For high

power or high energy beams a good efficiency can be reached to chose a detector

that is about 20% - 30% larger than the beam diameter.

5.9 Fiber Based Measurements

Laser light emits from an optical fiber in a conical shape, with an angle twice the

acceptance angle of the fiber. The acceptance angle is calculated by the numerical

aperture of the fiber and is defined as the inverse sine of the numerical aperture.

Fore typical single mode fibers the total angle of the emitted light is between 15° and

25°, for an angled connector (APC) the cone shifts by approximately 4° from the fiber

axis.

This expansion of the beam has to be considered to avoid overfilling the detector and

getting wrong results. On the other hand for measurements with high power fiber

lasers a certain gap between fiber tip and detector surface has to be kept to

decrease the power density.

Thorlabs offers fiber adapters with the most common connectors that are verified with

the S12xC series optical sensors and with most thermal sensors.

For large divergence angles or fiber measurements that are critical to back-

reflections it is recommended to use an integrating sphere based sensor from the

S14xC series.

Another good choice for fiber based measurements are the new ‘Fiber-Heads’ of the

S15xC series. They plug directly to the meter and go without a disturbing cable

between sensor and console.

5.10 Energy Measurement with Pyroelectric Sensors

The application depending best suitable pyroelectric energy sensor must be chosen

with respect to the following parameters:

- Energy to Measure

The maximum load allowed is determined from the absorption layer (too high

load causes mechanical damages on the layer); and also by the sensor mate-

rial, that must remain in a certain temperature level. It is important to pay

attention to the maximum power density during a pulse, the maximum energy

density and the average power.

The detection limit on the low side is given by the resolution and the minimum

settable trigger level of the display unit, as well as the noise level. To minimize

the noise level and ground loops it is advisable to mount the detectors isolated

with the supplied isolation adapters.

- Beam Diameter

The active area of the detector should be chosen that it has a slightly larger

cross section than the beam diameter. It is not a must that the beam should

5.10 Energy Measurement with Pyroelectric Sensors

cover most of the sensor area, but it has to be considered the maximum

allowed energy density.

- Repetition Rate

The maximum pulse repetition rate depends on the combination of the internal

capacitance of the detector and the load resistor. The display unit has an input

resistor of 1MΩ (like the typical input resistor of an Oscilloscope).

- Pulse Length

Thorlabs energy sensors detect and measure pulses from sub nano-seconds

up to approximately 2 ms.

The pyroelectric effect allows generally just the measurement of a temperature

change given by radiation pulses or modulated radiation. In regards to shorter

impulses there are no restrictions, as the energy of the shortest impulse is

converted into heat flow in the absorption layer. The maximum impulse dura-

tion possible is influenced from the size of the R-C constant, given by the

detector capacity and the load resistance, as well as the precondition that the

thermal time constant of the detector must have no influence up to the point of

the measurement evaluation.

- Wavelength

The sensors are typically calibrated at one wavelength, for other wavelengths

a sensor specific correction curve is stored in the memory in the sensor con-

nector. The black coating is nearly linear flat over a wavelength range from

185nm to > 25µm; the ceramic coating is also suitable for this wavelength

range, but is not spectrally linear.

6.1 PM100D Utility Software

6 Computer Interface

The PM100D optical power meter has a USB 2.0 interface that allows to send

commands from a host computer to the instrument. The connection between PC and

PM100D is accomplished by a USB cable with a male type ‘A’ connector at the PC

side and a type ‘Mini B’ connector on the instrument side.

When connecting the PM100D to the PC first time, a new hardware will be found. For

proper installing the PM100D it requires a NI-VISA runtime version on the PC

(available on the National Instruments website www.ni.com or from the data carrier

that comes with the instrument. Allow installing and follow the dialog instructions.

6.1 PM100D Utility Software

The PM100D comes with a utility software that easily enables remotely operating the

PM100D and visualizing and logging measurement data. The software is written in

LabVIEW 8.5.1 and can either be installed from the data carrier as executable where

LabVIEW isn’t required on the PC; or can be run with LabVIEW 8.5.1 or higher.

The source code of the application is included on the data carrier and can be used to

build own applications or to modify the utility program to specific requirements.

The PM100D utility software does not require the installation of the instrument

drivers that are described under 6.3.

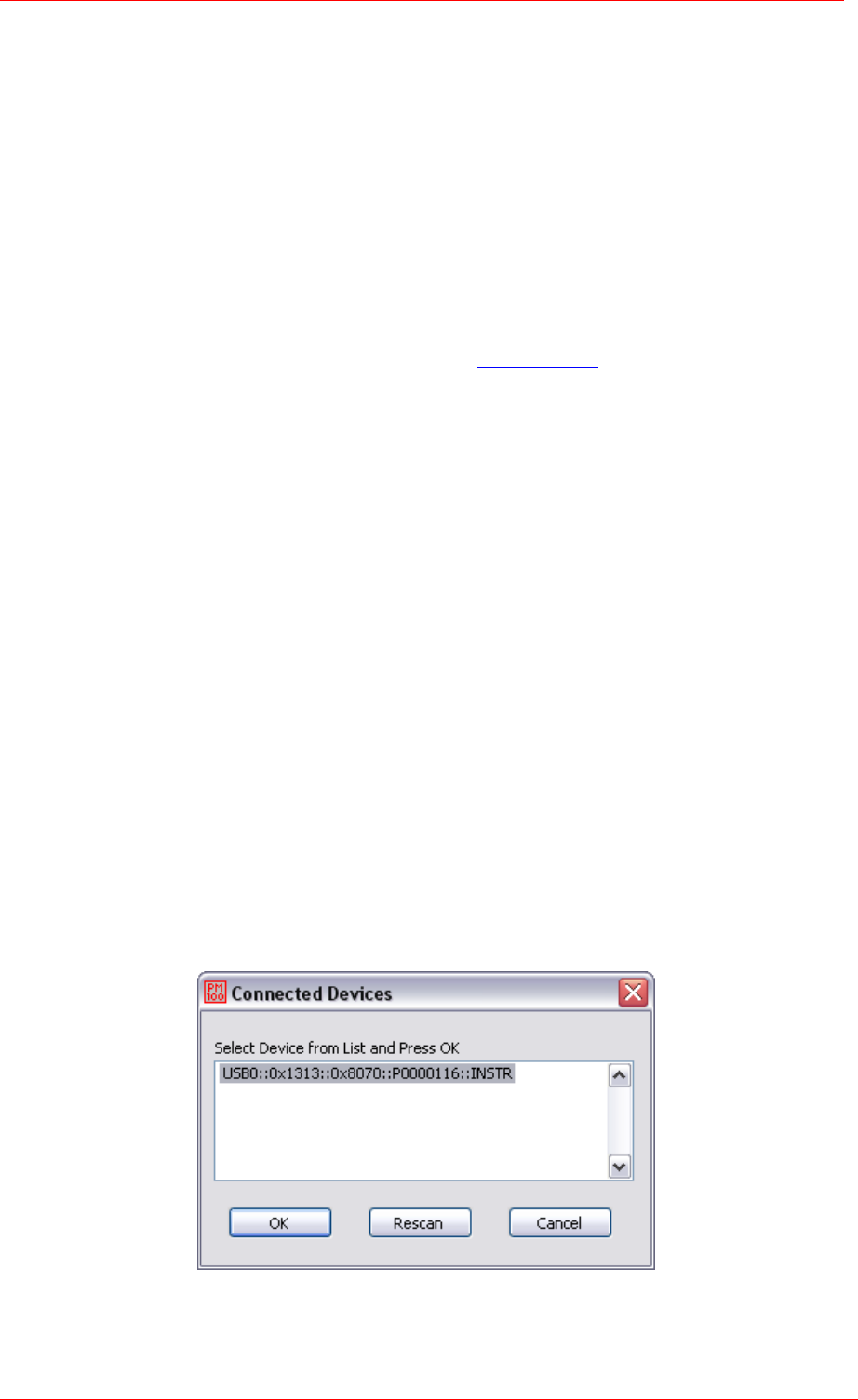

After launching the PM100D utility program it will automatically screen for connected

PM100D series devices. Select the desired device and press o.k. In case that the

connected PM100D is not yet recognized, press Rescan to perform a new search for

connected PM100D devices.

6.1 PM100D Utility Software

The identification string contains the following items:

USB Port number

Thorlabs Vendor ID = 0x1313

Product ID = 0x8070 = PM100D

Instrument serial number

Measurement instrument device

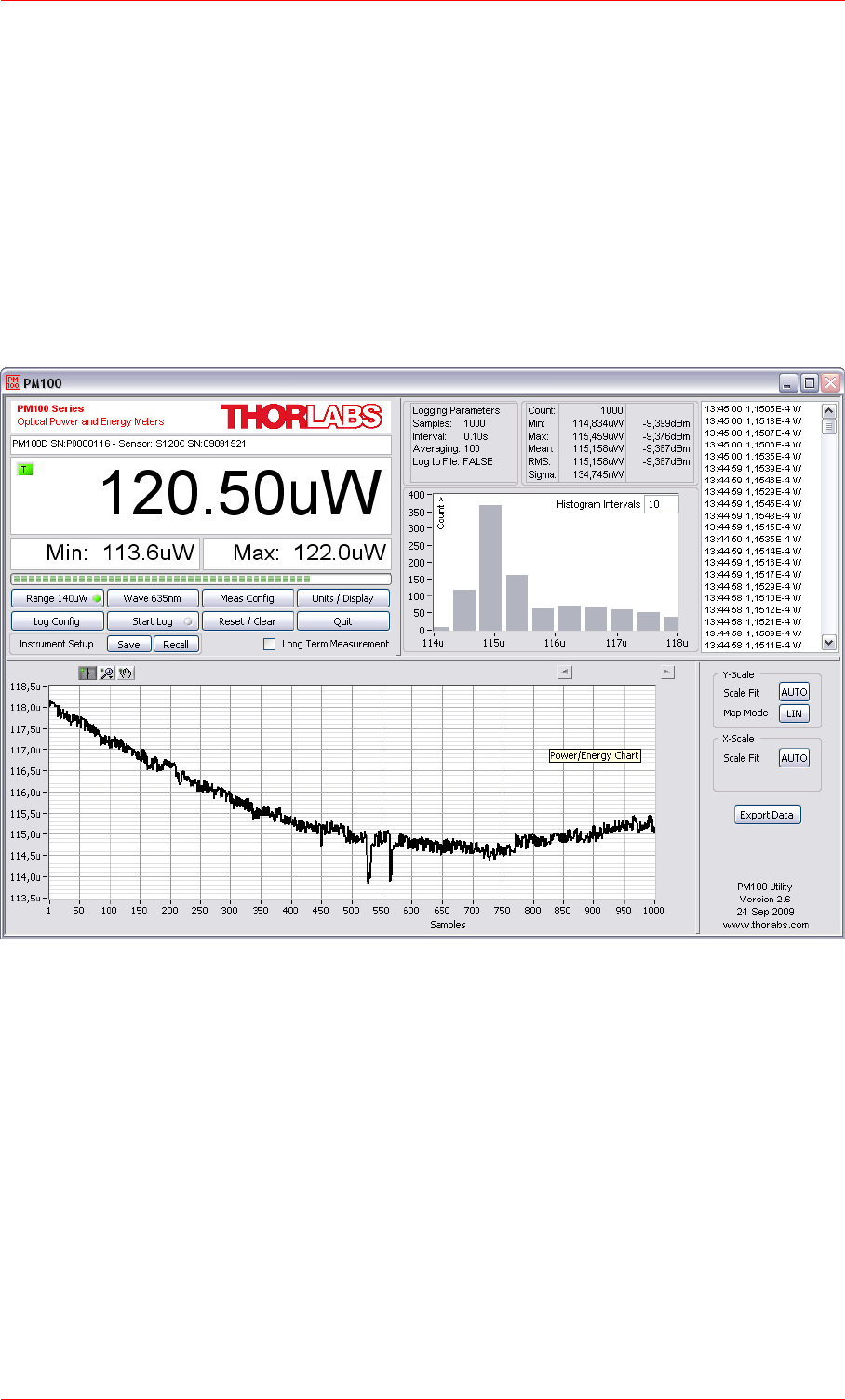

6.1.1 Front Panel

6.1.2 Description of the Front Panel Elements:

Header

This indicator shows the device setup:

- console type (PM100D)

- serial number of the console

- sensor type

- sensor serial number

Main Display

The display has a configurable display resolution. Independent from the

measurement range the display always has the full number of the selected digits.

To achieve best AD converter resolution it is necessary to set the measurement

range according to the signal to measure.

trigger indicator shows whether the unit is sampling data ‘A’ indicator or a new

6.1 PM100D Utility Software

measurement value gets displayed ‘T’ indicator and green light.

Left Sub Display

The display has the following configurable items:

- no display

- maximum value - sampling until reset

- ratio max/min value - sampling until reset

- power or energy density

- alternate unit depending on connected sensor

the possible choices depend on the connected sensor

Right Sub Display

The display has the following configurable items, the possible choices depend on

the connected sensor::

- no display

- minimum value - sampling until reset

- frequency or repetition rate

- temperature

- resistance of temperature sensor

Bargraph indicator

The bargraph indicator shows the incidence or the used measurement range.

Statistics screen

Statistical values in linear and logarithmic representation

Data logging screen

Shows the logging history data

Histogram Power / Energy histogram

- displays histogram data

Chart display

Power/Energy Chart

Range button

Press to open a dialog box for setting the measurement range

The indicator in the button shows the currently used measurement range in the

chosen unit. A green light indicates 'auto-ranging'

Shortcut: [Shift + F1]

Wavelength / Response button

Press this button to open a dialog box for setting the correction wavelength, or in

adapter mode to enter the responsivity value in A/W or V/W.

The currently used parameter is indicated in the button label.

Shortcut: [Shift + F2]

Measurement configuration button

Depending on the connected sensor the following parameters can be set in the

dialog box:

- display resolution - set number of digits

6.1 PM100D Utility Software

- averaging rate, a rate of 3000 averages the incoming measurement values fo

approx. 1 second

- photodiode bandwidth HI and LO

- acceleration circuit for thermal sensors ON, AUTO and OFF

- trigger level for pyroelectric sensors

- Zeroing for photodiode and thermal sensors

Shortcut: [Shift + F3]

Units / Display button

A dialog box with the following items appears:

- configure unit of measure, depending on the connected sensor in W, J, dBm, V

and A

- configure the left sub display

- configure the right sub display

Shortcut: [Shift + F4]

Logging configuration button

Open dialog box to:

- set averaging rate for logging

- set interval between samples

- set number of samples

- configure logging into data file

Shortcut: Shift + F5

Start/Stop log button

- start and stop data logging

Shortcut: [Shift + F6]

Reset / Clear button

- reset min/max monitor

- clear power / energy graph

- clear power / energy histogram

- clear power / energy statistics

- clear log screen

Shortcut: [Shift + F7]

Quit button

- stops the PM100D application

- to restart press the white arrow in the tool bar

Shortcut: [Shift + F8]

Instrument Setup Save / Recall

- save / recall remote control specific parameters

Shortcut: [Shift + F9]

Long Term Measurement

- sets the device to local mode between the measurement intervals

Shortcut: [Shift + F10]

6.2 Firmware Update

Firmware upgrades can be done by the user via the USB interface. Therefore install

the DFU (device firmware upgrade) wizard from the distribution data carrier.

Switch on the PM100D and enable the firmware download in the system menu:

System Menu  \ Console Settings \ Firmware Upload \ Enabled

(This setting will be reset to ‘Disabled’ when the unit was shut off.)

Connect the PM100D to an USB port of your PC, the PC will find a DFU device;

when proceeding the DFU wizard the first time a new DFU device will be recognized,

please allow installing.

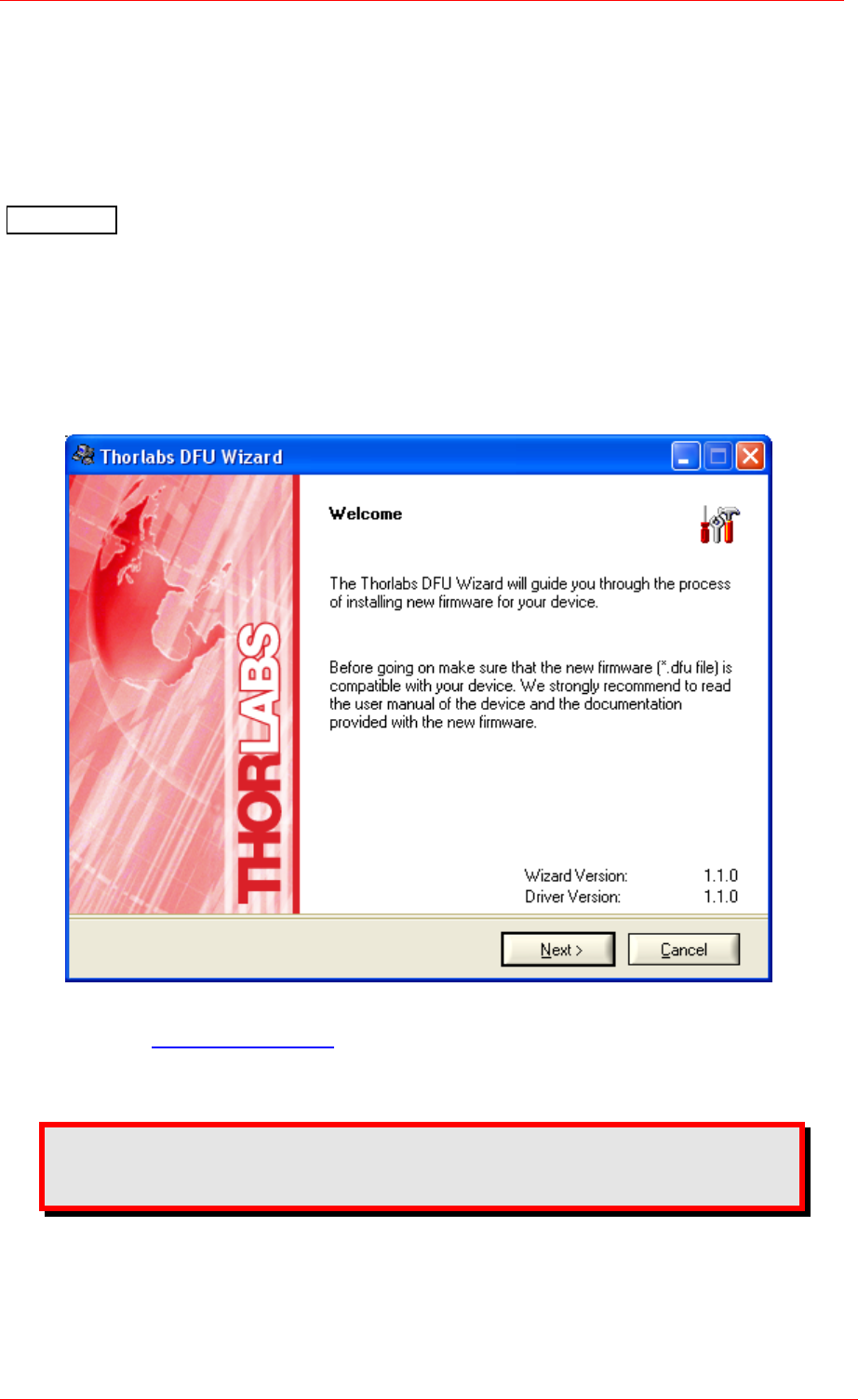

After then launch the DFU wizard from the start bar. Follow the wizard instructions.

Please refer to www.thorlabs.com for the latest PM100D firmware version that can be

downloaded as a *.dfu file.

Do not switch off the PM100D or disconnect the USB cable while the

firmware is downloading!

6.3 Using the Instrument Drivers

6.3.1 Instrument Driver Installation

The PM100D software package contains a set of instrument drivers that allow

conveniently remote controlling the instrument in most common programming

languages. The instrument drivers must be installed, please follow the setup dialog

instructions.

To successfully complete the install of the PM100D USB driver you

must have Administrator privileges on the PC which you are perform-

ing the install.

Prior to connecting the PM100D with a PC, please check if NI-VISA is installed on the

PC, otherwise install NI-VISA that is available for free from the National Instruments

website www.ni.com of from the data carrier that came with the instrument.

After successfully installing the drivers connect the PM100D to a USB port of your

PC. The PC will find a PM100D test and measurement device. Please follow the

instructions of the dialog screens and allow the installing.

6.3.2 Instrument Driver Example

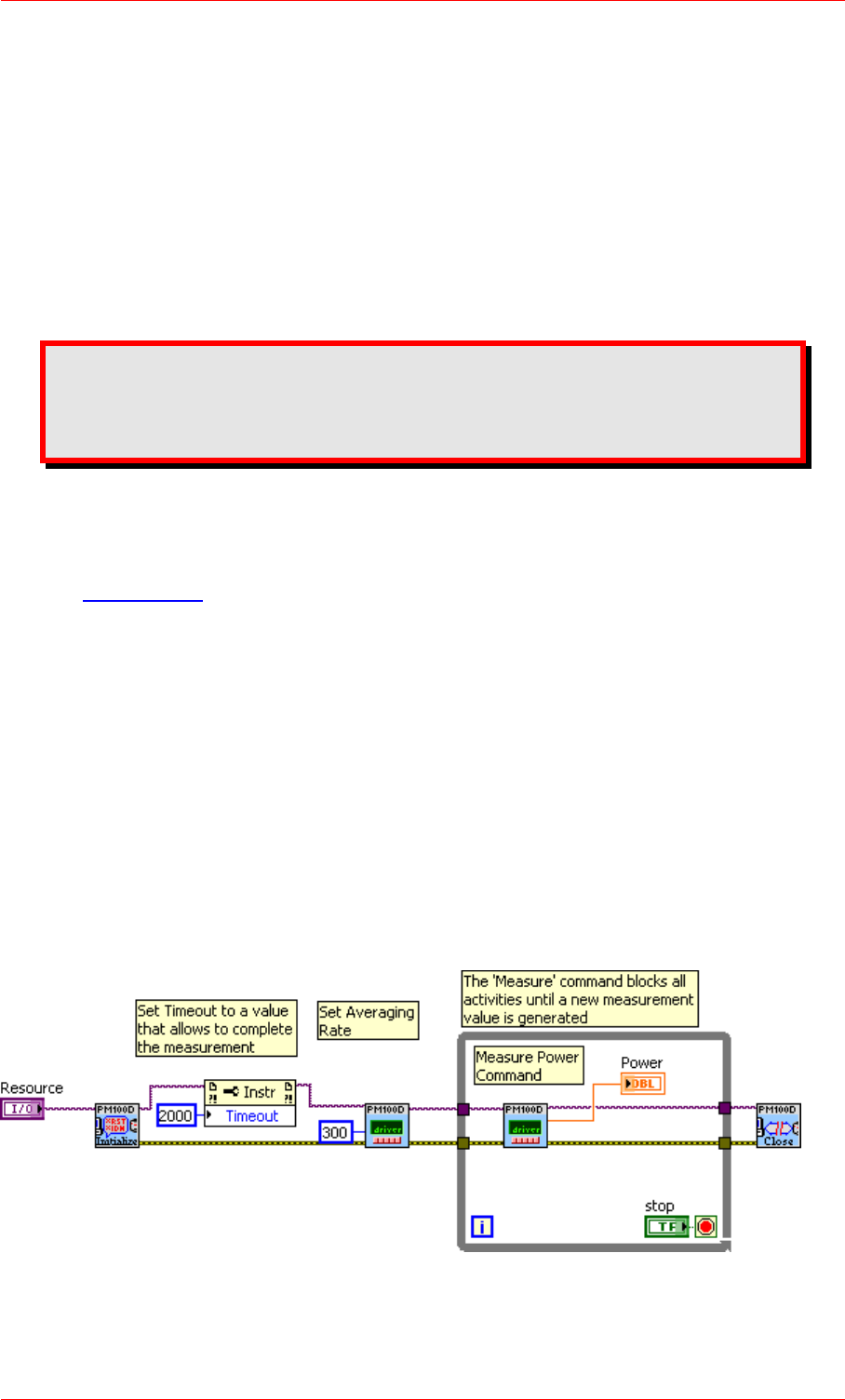

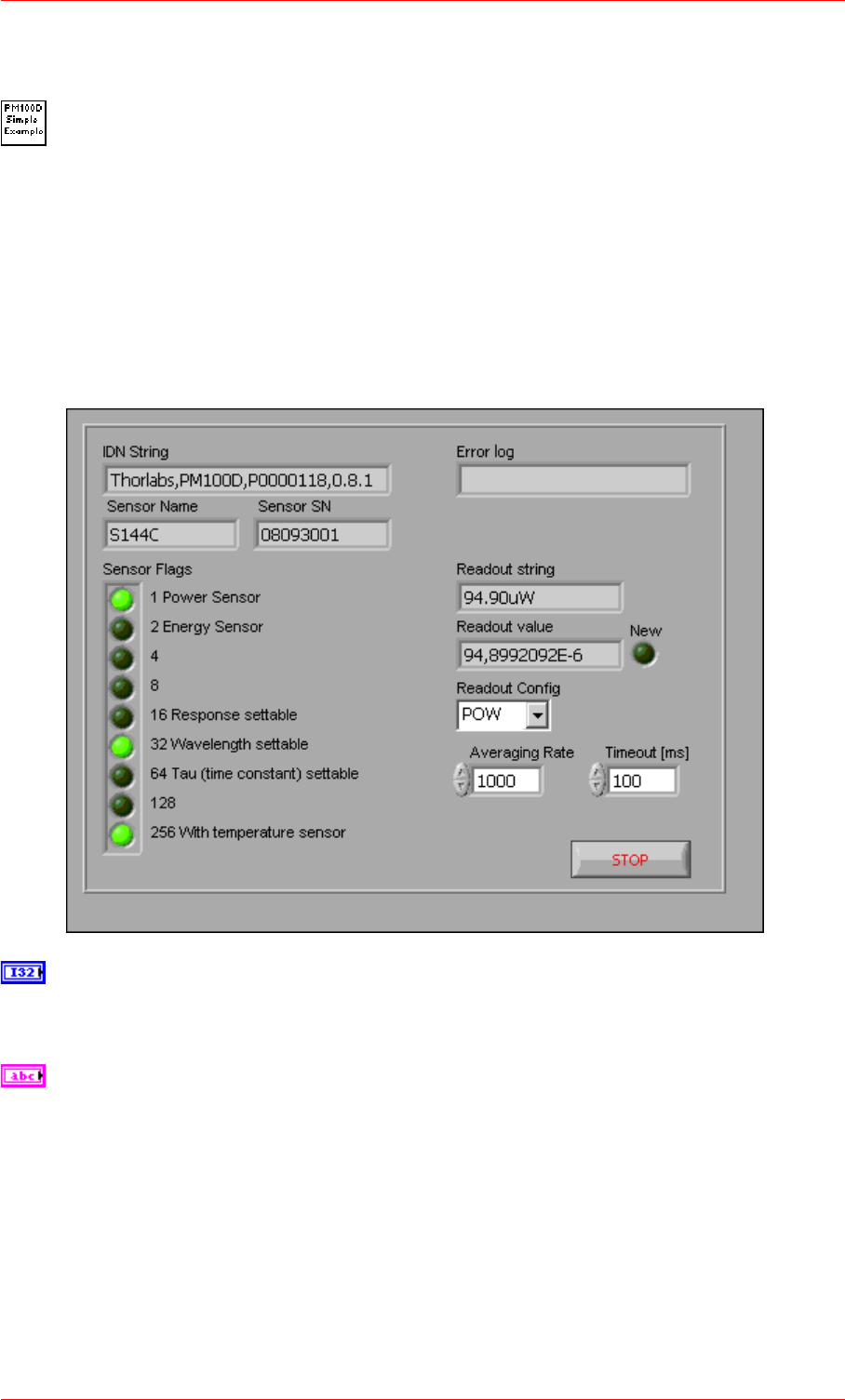

The following LabVIEW example demonstrates how to use the instrument drivers for

measurement tasks. The example is included on the data carrier that came with the

instrument.

6.4 PM100D SCPI Commands

6.4.1 An Introduction to the SCPI language

The PM100D interface commands use the SCPI (Standard Commands for Pro-

grammable Instruments), ASCII-based command language that was designed for test

and measurement instruments.

SCPI commands are based on a hierarchical structure, also known as a tree system.

In this system, associated commands are grouped together under a common node or

root, thus forming subsystems. A portion of the SENSE subsystem is shown below to

illustrate the tree system.

[SENSe:]

CORRection

:COLLect

:ZERO

[:INITiate]

:ABORt

:STATe?

:MAGNitude?

:BEAMdiameter {MINimum|MAXimum|DEFault|<numeric_value>[mm]}

:BEAMdiameter? [{MINimum|MAXimum|DEFault}]

:WAVelength {MINimum|MAXimum|<numeric_value>[nm]}

:WAVelength? [{MINimum|MAXimum}]

:POWer

[:PDIode]

[:RESPonse] MINimum|MAXimum|DEFault|<numeric_value>[A]}

[:RESPonse]? [{MINimum|MAXimum|DEFault}]

:THERmopile

[:RESPonse] {MINimum|MAXimum|DEFault|<numeric_value>[V]}

[:RESPonse]? [{MINimum|MAXimum|DEFault}]

SENSe is the root keyword of the command, CORRection is the second-level

keyword, and COLLect and BEAMdiameter are third-level keywords, and so on.

A colon ( : ) separates a command keyword from a lower-level keyword.

Command Format

The format used to show commands in this manual is shown below:

CURRent[:DC]:RANGe {MINimum|MAXimum|<numeric_value>[A]}

CORRection:BEAMdiameter {MINi-

mum|MAXimum|DEFault|<numeric_value>[mm]}

The command syntax shows most commands (and some parameters) as a mixture

of upper- and lower-case letters. The upper-case letters indicate the abbreviated

spelling for the command. For shorter program lines, send the abbreviated form. For

better program readability, send the long form.

For example, in the above syntax statement, CURR and CURRENT are both

acceptable forms. You can use upper- or lower-case letters. Therefore, CURRENT,

current, and Current are all acceptable. Other forms, such as CUR and CURREN,

will generate an error.

6.4 PM100D SCPI Commands

Braces ( { } ) enclose the parameter choices for a given command string. The braces

are not sent with the command string. A vertical bar ( | ) separates multiple

parameter choices for a given command string.

Triangle brackets ( < > ) indicate that you must specify a value for the enclosed

parameter. For example, the above syntax statement shows the range parameter

enclosed in triangle brackets. The brackets are not sent with the command string.

You must specify a value for the parameter (such as "CURR:DC:RANG 50E-6").

Some parameters are enclosed in square brackets ( [ ] ). The brackets indicate that

the parameter is optional and can be omitted. The brackets are not sent with the

command string. In this example [:DC] can be omitted, so the command string can be

shortened to “CURR:RANG 50E-6”. If you do not specify a value for an optional

parameter, the power/energy meter chooses a default value.

Command Separators

A colon ( : ) is used to separate a command keyword from a lower-level keyword.

You must insert a blank space to separate a parameter from a command keyword. If

a command requires more than one parameter, you must separate adjacent

parameters using a comma as shown below:

"SYST:TIME 10, 34, 48"

A semicolon ( ; ) is used to separate commands within the same subsystem, and can

also minimize typing. For example, sending the following command string:

"CORR:BEAM 1; WAVE 1310"

... is the same as sending the following two commands:

"CORR:BEAM 1"

"CORR:WAVE 10"

Use a colon and a semicolon to link commands from different subsystems. For

example, in the following command string, an error is generated if you do not use

both the colon and semicolon:

"CORR:BEAM 1;:AVER 300"

Using the MIN and MAX Parameters

You can substitute MINimum or MAXimum in place of a parameter for many

commands. For example, consider the following command:

CURRent[:DC]:RANGe {MINimum|MAXimum|<numeric_value>[A]}

Instead of selecting a specific current range, you can substitute MIN to set the range

to its minimum value or MAX to set the range to its maximum value.

Querying Parameter Settings

You can query the current value of most parameters by adding a question mark ( ? )

to the command. For example, the following command sets the operating wavelength

to 1550 nm: "CORR:WAVE 1550"

You can query the operating wavelength by executing: "CORR:WAVE?"

You can also query the minimum or maximum operating wavelength allowed as

follows:

"CORR:WAVE? MIN"

"CORR:WAVE? MAX"

Caution If you send two query commands without reading the response from the

first, and then attempt to read the second response, you may receive some data from

6.4 PM100D SCPI Commands

the first response followed by the complete second response. To avoid this, do not

send a query command without reading the response. When you cannot avoid this

situation, send a device clear before sending the second query command.

SCPI Command Terminators

A command string sent to the power/energy meter must terminate with a <new line>

character. The IEEE-488 EOI (end-or-identify) message is interpreted as a <new

line> character and can be used to terminate a command string in place of a <new

line> character. A <carriage return>

followed by a <new line> is also accepted. Command string termination will always

reset the current SCPI command path to the root level.

IEEE-488.2 Common Commands

The IEEE-488.2 standard defines a set of common commands that perform functions

like reset, self-test, and status operations. Common commands always begin with an

asterisk ( * ), are four to five characters in length, and may include one or more

parameters. The command keyword is separated from the first parameter by a blank

space. Use a semicolon ( ; ) to separate multiple commands as shown below:

"*RST; *CLS; *ESE 32; *OPC?"

SCPI Parameter Types

The SCPI language defines several different data formats to be used in program

messages and response messages.

Numeric Parameters Commands that require numeric parameters will accept all

commonly used decimal representations of numbers including optional signs, decimal

points, and scientific notation.

Special values for numeric parameters like MINimum, MAXimum, and DEFault are

also accepted. You can also send engineering unit suffixes with numeric parameters

(e.g., M, K, or u). If only specific numeric values are accepted, the power/energy meter

will automatically round the input numeric parameters. The following command uses

a numeric parameter:

POWer:REFerence {MINimum|MAXimum|DEFault|<numeric_value>[W]}

Discrete Parameters Discrete parameters are used to program settings that have a

limited number of values (like W, DBM). They can have a short form and a long form

just like command keywords. You can mix upper- and lower-case letters. Query

responses will always return the short form in all upper-case letters. The following

command uses discrete parameters:

POW:UNIT {W|DBM}

Boolean Parameters Boolean parameters represent a single binary condition that is

either true or false. For a false condition, the power/energy meter will accept “OFF” or

“0”. For a true condition, the meter will accept “ON” or “1”. When you query a boolean

setting, the instrument will always return “0” or “1”. The following command uses a

boolean parameter:

CURRent:RANGe:AUTO {OFF|0|ON|1}

String Parameters String parameters can contain virtually any set of ASCII

characters. A string must begin and end with matching quotes; either with a single

quote or with a double quote. You can include the quote delimiter as part of the string

by typing it twice without any characters in between. The following command uses a

string parameter:

DIAG:CALString <quoted string>

6.4 PM100D SCPI Commands

6.4.2 IEEE488.2 Common Commands

Common commands are device commands that are common to all devices according

to the IEEE488.2 standard. These commands are designed and defined by this

standard. Most of the commands are described in detail in this section. The following

common commands associated with the status structure are covered in the “Status

Structure” section: *CLS, *ESE, *ESE?, *ESR?, *SRE, *SRE?, *STB?

6.4.2.1 Command summary

Mnemonic Name Description

*CLS Clear status Clears all event registers and Error Queue

*ESE <NRf> Event enable command Program the Standard Event Enable Register

*ESE? Event enable query Read the Standard Event Enable Register

*ESR? Event status register query Read and clear the Standard Event Register

*IDN? Identification query Read the unit’s identification string

*OPC Operation complete command Set the Operation Complete bit in the Standard Event

*OPC? Operation complete query Places a “1” into the output queue when all device

operations have been completed

*RST Reset command Returns the unit to the *RST default condition

*SRE <NRf> Service request enable command Programs the Service Request Enable Register

*SRE? Service request enable query Reads the Service Request Enable Register

*STB? Status byte query Reads the Status Byte Register

*TST? Self-test query Performs the unit’s self-test and returns the result.

*WAI Wait-to-continue command Wait until all previous commands are executed

6.4 PM100D SCPI Commands

6.4.2.2 Command reference

6.4.2.2.1 *IDN? – identification query - read identification code

The identification code includes the manufacturer, model code, serial number, and

firmware revision levels and is sent in the following format:

THORLABS,MMM,SSS,X.X.X

Where: MMM is the model code

SSS is the serial number

X.X.X is the instrument firmware revision level

6.4.2.2.2 *OPC – operation complete - set OPC bit

6.4.2.2.3 *OPC? – operation complete query – places a “1” in output queue

When *OPC is sent, the OPC bit in the Standard Event Register will set after all

pending command operations are complete. When *OPC? is sent, an ASCII “1” is

placed in the Output Queue after all pending command operations are complete.

Typically, either one of these commands is sent after the INITiate command. The

INITiate command is used to take the instrument out of idle in order to perform

measurements. While operating within the trigger model layers, many sent

commands will not execute. After all programmed operations are completed, the

instrument returns to the idle state at which time all pending commands (including

*OPC and/or *OPC?) are executed. After the last pending command is executed, the

OPC bit and/or an ASCII “1” is placed in the Output Queue.

When *OPC is sent, the OPC bit in the Standard Event Register will set after all

pending command operations are complete. When *OPC? is sent, an ASCII “1” is

placed in the Output Queue after all pending command operations are complete.

6.4.2.2.4 *RST – reset – return instrument to defaults

When the *RST command is sent, the instrument performs the following operations:

 Returns the instrument to the default conditions

 Cancels all pending commands.

 Cancels response to any previously received *OPC and *OPC? commands.

6.4.2.2.5 *TST? – self-test query – run self test and read result

Use this query command to perform the instrument self-test routine. The command

places the coded result in the Output Queue. A returned value of zero (0) indicates

that the test passed, other values indicate that the test failed.

6.4.2.2.6 *WAI – wait-to-continue – wait until previous commands are completed

6.4 PM100D SCPI Commands

The *WAI command is a no operation command for the instrument and thus, does

not need to be used. It is there for conformance to IEEE488.2.

6.4.2.3 PM100D specific SCPI Command Reference

See also SCPI Specification, Version 1999.0, May, 1999,

http://www.scpiconsortium.org . All commands with a ’SCPI’ checkmark are

described in the SCPI specification.

All described commands work also with the PM100A and PM100USB instruments.

(With some limitations due to the hardware capabilities)

6.4.2.3.1 SYSTem subsystem commands

Command Description

SYSTem Path to SYSTem subsystem. (SCPI Vol.2 §21)

:BEEPer

[:IMMediate] Issue an audible signal. (SCPI Vol.2 §21.2.2)

:STATe {ON|1|OFF|0} Activate/deactivate the beeper. (SCPI Vol.2 §21.2.3)

:STATe? Return the state of the the beeper (SCPI Vol.2 §21.2.3)

:ERRor

[:NEXT]? Returns the latest <error code, “message”>. (SCPI Vol.2 §21.8.8)

:VERSion? Query level of SCPI standard (1999.0) . (SCPI Vol.2 §21.21)

:DATE <year>,<month>,<day> Sets the instrument’s calendar. (SCPI Vol.2 §21.7)

:DATE? Query the instrument’s calendar. (SCPI Vol.2 §21.7)

:TIME <hour>,<min>,<sec> Sets the instrument’s clock. (SCPI Vol.2 §21.19)

:TIME? Query the instrument’s clock. (SCPI Vol.2 §21.19)

:LFRequency <numeric value> Sets the instrument’s line frequency setting to 50 or 60Hz. (SCPI

Vol.2 §21.13)

:LFRequency? Query the instrument’s line frequency setting. (SCPI Vol.2

§21.13)

6.4 PM100D SCPI Commands

:SENSor

:IDN? Query information about the connected sensor. This is a query

only command. The resopnse consists of the following fields:

<name>: Sensor name in string response format

<sn>: Sensor serial number in string response format

<cal_msg>: calibration message in string response format

<type>: Sensor type in NR1 format

<subtype>: Sensor subtype in NR1 format

<flags>: Sensor flags as bitmap in NR1 format.

Flag: Dec.value:

Is power sensor 1

Is energy sensor 2

Response settable 16

Wavelength settable 32

Tau settable 64

Has temperature sensor 256

6.4 PM100D SCPI Commands

6.4.2.3.2 STATus subsystem commands

Command Description

STATus Path to STATus subsystem. (SCPI Vol.2 §20)

:MEASurement Path to control measurement event registers

[:EVENt]? Read the event register

:CONDition? Read the condition register

:PTRansition <value> Program the positive transition filter

:PTRansition? Read the positive transition filter

:NTRansition <value> Program the negative transition filter

:NTRansition? Read the negative transition filter

:ENABle <value> Program the enable register

:ENABle? Read the enable register

:AUXillary Path to control measurement event registers

[:EVENt]? Read the event register

:CONDition? Read the condition register

:PTRansition <value> Program the positive transition filter

:PTRansition? Read the positive transition filter

:NTRansition <value> Program the negative transition filter

:NTRansition? Read the negative transition filter

:ENABle <value> Program the enable register

:ENABle? Read the enable register

:OPERation Path to control operation event registers

[:EVENt]? Read the event register

:CONDition? Read the condition register

:PTRansition <value> Program the positive transition filter

:PTRansition? Read the positive transition filter

:NTRansition <value> Program the negative transition filter

:NTRansition? Read the negative transition filter

:ENABle <value> Program the enable register

:ENABle? Read the enable register

6.4 PM100D SCPI Commands

:QUEStionable Path to control questionable event registers

[:EVENt]? Read the event register

:CONDition? Read the condition register

:PTRansition <value> Program the positive transition filter

:PTRansition? Read the positive transition filter

:NTRansition <value> Program the negative transition filter

:NTRansition? Read the negative transition filter

:ENABle <value> Program the enable register

:ENABle? Read the enable register

:PRESet Return status registers to default states.

6.4.2.3.3 DISPlay subsystem commands

Command Description

DISPlay Path to DISPlay subsystem. (SCPI Vol.2 §8)

:BRIGhtness <value> Set the display birghtness. (SCPI Vol.2 §8.2)

:BRIGhtness? Return the display birghtness value. (SCPI Vol.2 §8.2)

:CONTrast <value> Set the display contrast. (SCPI Vol.2 §8.4)

:CONTrast? Return the display conrast value. (SCPI Vol.2 §8.4)

6.4.2.3.4 CALibration subsystem commands

Command Description

CALibration Path to CALibration subsystem. (SCPI Vol.2 §5)

:STRing? Returns a human readable calibration string. This is a query

only command. The response is formatted as string response

data.

6.4 PM100D SCPI Commands

6.4.2.3.5 SENSe subsystem commands

Command Description

[SENSe] Path to SENSe subsystem. (SCPI Vol.2 §18)

AVERage

[:COUNt] <value Sets the averaging rate (1 sample takes approx. 3ms)

[:COUNt]? Queries the averaging rate

CORRection

[:LOSS[:INPut[:MAGNitude]]]

{MINimum|MAXimum|DEFault|

<numeric_value>}

Sets a user attenuation factor in dB

[:LOSS[:INPut[:MAGNitude]]]?

[{MINimum|MAXimum|DEFault}]

Queries the user attenuation factor

COLLect

ZERO

[:INITiate] Performs zero adjustment routine

ABORt Aborts zero adjustment routine

STATe? Queries the zero adjustment routine state

MAGNitude? Queries the zero value

BEAMdiameter {MINimum|

MAXimum|DEFault|

<numeric_value>[mm]}

Sets the beam diameter in mm

BEAMdiameter? [{MINimum|

MAXimum|DEFault}]

Queries the beam diameter

WAVelength {MINimum|

MAXimum|

<numeric_value>[nm]}

Sets the operation wavelength in nm

WAVelength? [{MINimum|

MAXimum}]

Queries the operation wavelength

6.4 PM100D SCPI Commands

POWer

[:PDIOde] Sets the photodiode response value in A/W

[:RESPonse] {MINimum|

MAXimum|DEFault|

<numeric_value>[A]}

[:RESPonse]?

[{MINimum|MAXimum|

DEFault}]

Queries the photodiode response value

:THERmopile

[:RESPonse] {MINimum|

MAXimum|DEFault|

<numeric_value>[V]}

Sets the thermopile response value in V/W

[:RESPonse]?

[{MINimum|MAXimum|

DEFault}]

Queries the thermopile response value

ENERgy

[:PYRO]

[:RESPonse] {MINimum|

MAXimum|DEFault|

<numeric_value>[V]}

Sets the pyro-detector response value in V/J

[:RESPonse]?

[{MINimum|MAXimum|

DEFault}]

Queries the pyro-detectro response value

CURRent[:DC]

RANGe

AUTO {OFF|0|ON|1} Switches the auto-ranging function on and off

AUTO? Queries the auto-ranging function state

[:UPPer] {MINmum|MAXimum|

<numeric_valuje>[A]}

Sets the current range in A

[:UPPer]? [{MINimum|

MAXimum}]

Queries the current range

REFerence {MINimum|

MAXimum|DEFault|

<numeric_value>[A]}

Sets a delta reference value in A

6.4 PM100D SCPI Commands

REFerence? [{MINimum|

MAXimum|DEFault}]

Queries the delta reference value

STATe {OFF|0|ON|1} Switches to delta mode

STATe? Queries the delta mode state

ENERgy

RANGe

[:UPPer] {MINmum|MAXimum|

<numeric_valuje>[J]}

Sets the energy range in J

[:UPPer]? [{MINimum|

MAXimum}]

Queries the energy range

REFerence {MINimum|

MAXimum|DEFault|

<numeric_value>[J]}

Sets a delta reference value in J

REFerence? [{MINimum|

MAXimum|DEFault}]

Queries the delta reference value

STATe {OFF|0|ON|1} Switches to delta mode

STATe? Queries the delta mode state

FREQuency

Range

[UPPer]? Queries the frequency range

LOWer?

POWer[:DC]

RANGe

AUTO {OFF|0|ON|1} Switches the auto-ranging function on and off

AUTO? Queries the auto-ranging function state

[:UPPer] {MINmum|MAXimum|

<numeric_valuje>[W]}

Sets the current range in W

[:UPPer]? [{MINimum|

MAXimum}]

Queries the current range

REFerence {MINimum|

MAXimum|DEFault|

<numeric_value>[W]}

Sets a delta reference value in W

REFerence? [{MINimum|

MAXimum|DEFault}]

Queries the delta reference value

STATe {OFF|0|ON|1} Switches to delta mode

6.4 PM100D SCPI Commands

STATe? Queries the delta mode state

UNIT {W|DBM} Sets the power unit W or dBm

UNIT? Queries the power unit

VOLTage[:DC]

RANGe

AUTO {OFF|0|ON|1} Switches the auto-ranging function on and off

AUTO? Queries the auto-ranging function state

[:UPPer] {MINmum|MAXimum|

<numeric_valuje>[V]}

Sets the current range in V

[:UPPer]? [{MINimum|

MAXimum}]

Queries the current range

REFerence {MINimum|

MAXimum|DEFault|

<numeric_value>[V]}

Sets a delta reference value in V

REFerence? [{MINimum|

MAXimum|DEFault}]

Queries the delta reference value

STATe {OFF|0|ON|1} Switches to delta mode

STATe? Queries the delta mode state

PEAKdetector

[:THReshold] {MINimum|

MAXimum|DEFault|

<numeric_value>

Sets the trigger level in % for the energy mode

[:THReshold]? [{MINimum|

MAXimum|DEFault}

Queries the trigger level setting

6.4 PM100D SCPI Commands

6.4.2.3.6 INPut subsystem commands

Command Description

INPut

[:PDIode]

:FILTer

[:LPASs]

[STATe] {OFF|0|ON|1}

[STATe]?

Sets the bandwidth of the photodiode input stage

Queries the bandwidth of the photodiode inut stage

:THERmopile

:ACCelerator

[STATe] {OFF|0|ON|1}

[STATe]?

:AUTO {OFF|0|ON|1}

:TAU {MINimum|

MAXimum|DEFault|

<numeric_value>[s]}

:TAU? [{MINimum|

MAXimum|DEFault}]

Sets the thermopile accelerator state

Queries the thermopile accelerator state

Sets the thermopile accelerator to auto mode

Queries thermopile accelerator auto mode

Sets thermopile time constant 0-63% in s

Queries the thermopile time constant in s

:ADAPter

[:TYPE] {PHOTodiode|

THERmal|PYRo}

[:TYPE]?

Sets default sensor adapter type

Queries default sensor adapter type

6.4 PM100D SCPI Commands

6.4.2.3.7 Measurement commands

Command Description

INITiate[:IMMediate] Start measurement

ABORt Abort measurement

CONFigure[:SCALar]

[:POWer] Configure for power measurement

:CURRent[:DC] Configure for current measurement

:VOLTage[:DC] Configure for voltage measurement

:ENERgy Configure for energy measurement

:FREQuency Configure for frequency measurement

:PDENsity Configure for power density measurement

:EDENsity Configure for energy density measurement

:RESistance Configure for sensor presence resistance measurement

:TEMPerature Configure for sensor temperature measurement

MEASure[:SCALar]

[:POWer] Performs a power measurement

:CURRent[:DC] Performs a current measurement

:VOLTage[:DC] Performs a voltage measurement

:ENERgy Performs a energy measurement

:FREQuency Performs a frequency measurement

:PDENsity Performs a power density measurement

:EDENsity Performs a energy density measurement

:RESistance Performs a sensor presence resistance measurement

:TEMPerature Performs a sensor temperature measurement

FETCh? Read last measurement data (SCPI Vol.2 §3.2)

READ? Start new measurement and read data (SCPI Vol.2 §3.3)

CONFigure? Query the current measurement configuration.

6.4 PM100D SCPI Commands

6.4.3 Simple LabVIEW Example using SCPI Commands

PM100D Simple Example.vi

This VI shows how to communicate with a PM100D optical power/energy

meter with SCPI commands. The following steps are demonstrated within this

application:

- Initializing the instrument

- Getting system info

- Setting parameters

- Measurement configuration

- Measuring queue

- Fetching and displaying a measurement value

- Closing the application

Averaging Rate

Sets the averaging rate - 3000 averages take approximately 1s fo

performing a new measurement value

Readout Config

Selects the measurement parameter

- POW power measurement in W

- CURR current measurement in A

- VOLT voltage measuremetn in V

- ENER energy measurement in J

- FREQ frequency / repetition rate measurement in Hz

- PDEN power density measurement in W/cm²

- EDEN energy density measurement in J/cm²

- RES thermistor resistance measurement in Ohm

- TEMP temperature measurement in °C

6.4 PM100D SCPI Commands

Stop

Stops application

Timeout [ms]

Sets a timeout value in ms that allows the instrument to sample.

The timeout must be longer than it takes to perform a new measurement.

This has especially to be considered when performing single shot energy

measurements.

Error log

Error indicator, 'no error' is suppressed

Readout string

Formatted measurement value

- limitation to 4 significant digits

- SI notation

- '.' decimal separator

- appended unit according readout configuration

New

Indicator lights up, when a new measurement value is processed

Sensor Flags

Sensor flag bitmap:

1 Is power sensor

2 Is energy sensor

16 Response settable

32 Wavelength settable

64 Tau settable

256 Has temperature sensor

Sensor Name

Name of connected power/energy sensor

Sensor SN

Serial number of connected power/energy sensor

IDN String

Answer from instrument on *idn? command:

- manufacturer

- model number

- serial number

- firmware version

Readout value

Plain readout value in full resolution

6.4 PM100D SCPI Commands

Block diagram

6.4 PM100D SCPI Commands

PM100D_Initialize.vi

This VI scans for connected devices, that can be selected in a dialog box.

Next steps

- setting timeout

- performing identification query

- configuring the operation register to '512'; flag gets to HI when a new

measurement

value is ready to fetch

- clear operation register

PM100D_Write.vi

Writes a SCPI command to the connected instrument

PM100D_Read.vi

Reads data from the connected instrument. All query commands

according the SCPI command table are terminated by a question mark (?)

PM100D_SensorFlag.vi

This VI queries all relevant sensor info with SYST:SENS:IDN?

- sensor name

- sensor serial number

- calibration message

- sensor type

- sensor sub-type

- sensor flags

PM100D_ConfMeas.vi

- CONFigure measurement; CONF:<parameter> (POW, ENER, etc.)

- ABORt measurement

- Clear operation register with STAT:OPER?

- INITiate measurement

PM100D_SYST-ERR.vi

This VI lists all errors coming from the instrument with the command

SYST:ERR?

'no error' is suppressed

PM100D_Close.vi

Closes the VISA session

Sets the connected instrument in local mode (default option)

7.1 Maintenance

7 Maintenance and Repair

7.1 Maintenance

Protect the PM100D from adverse weather conditions. The PM100D is not water

resistant.

 Attention 

To avoid damage to the PM100D, do not expose it to spray, liquids or

solvents!

The unit does not need a regular maintenance by the user.

If necessary the unit and the display can be cleaned with a cloth dampened with

water.

The PM100D does not contain any modules that could be repaired by the user

himself. If a malfunction occurs, the whole unit has to be sent back to Thorlabs. Do

not remove covers!

To guarantee the specifications given in chapter 8.3 over a long period it is

recommended to have the unit calibrated by Thorlabs every year.

7.2 Troubleshooting

In case that your PM100D shows malfunction please check the following items:

 Unit does not work at all (no display at the front):

 PM100D turned on?

 Press On switch in the left side panel.

 PM100D battery discharged / defect

 Plug in AC Adapter

 Unit automatically switches off

 Check auto-shutoff setting

 Check battery charging symbol

 Plug in AC Adapter

 Display gets or remains blank while or after connecting a new sensor

 Power down and up the unit with the On switch in the left side panel

 Power or Energy reading is negative

 A photodiode or thermal sensor is connected

 Check if the unit is in relative measurement mode

 Conduct the dark current adjustment procedure

 A photodiode is connected

 Check the polarity of the connected photodiode

 A thermal element is connected

 Check the polarity of the connected thermal element

 A pyro-electric element is connected

 Check the polarity of the connected pyro element

 Pulse energy measurement cannot be measured or is measured wrongly

 Check for the right trigger level between noise level and expected pulse height

 Check if energy sensor can handle the laser pulse repetition rate

 Data logging to SD card doesn’t work

 Check for inserted SD card

 Check write protection switch on SD card

 Check for enough free memory

If you don’t find the error source by means of the trouble shooting list please first

contact the Thorlabs-Hotline ( europe@thorlabs.com) before sending the PM100D for

checkup and repair to Thorlabs - Germany.

 (refer to section 8.7, ‘Addresses” on page 73)

8.1 Warranty

8 Appendix

8.1 Warranty

Thorlabs warrants material and production of the PM100D for a period of 24 months

starting with the date of shipment. During this warranty period Thorlabs will see to

defaults by repair or by exchange if these are entitled to warranty.

For warranty repairs or service the unit must be sent back to Thorlabs or to a place

determined by Thorlabs. The customer will carry the shipping costs to Thorlabs, in

case of warranty repairs Thorlabs will carry the shipping costs back to the customer.

If no warranty repair is applicable the customer also has to carry the costs for back

shipment.

In case of shipment from outside EU duties, taxes etc. which should arise have to be

carried by the customer.

Thorlabs warrants the hard- and software determined by Thorlabs for this unit to

operate fault-free provided that they are handled according to our requirements.

However, Thorlabs does not warrant a fault free and uninterrupted operation of the

unit, of the soft- or firmware for special applications nor this instruction manual to be

error free. Thorlabs is not liable for consequential damages.

Restriction of warranty

The warranty mentioned before does not cover errors and defects being the result of

improper treatment, software or interface not supplied by us, modification, misuse or

operation outside the defined ambient stated by us or unauthorized maintenance.

Further claims will not be consented to and will not be acknowledged. Thorlabs does

explicitly not warrant the usability or the economical use for certain cases of

application.

Thorlabs reserves the right to change this instruction manual or the technical data of

the described unit without notice.

8.2 Certifications and compliances

8.3 Technical data

General Data

Detector Compatibility Photodiode Sensors S100C Series

Thermal Sensors S300C Series

Pyroelectric Sensors ES100C/ES200C Series

Photodiodes (max. 5.5mA)

Thermopiles (max. 1.1V)

Pyros (max. 110V)

Display Type 4“ Graphical LCD 320 x 240 pixels

Viewing Area 81,4 x 61,0 mm

Display Update Rate (max) 20 Hz

Display Format Numerical, Bargraph, Trendgraph, Histogram, Statistics,

Simulated Analog Needle

Backlight Display and Keypad LED

Dimensions (H x W x D) Overall 183 x 109 x 40 mm³ with rubber boot

Options Kickstand; 1/4“-20 Post thread

Weight < 0.5 kg

Operating Temperature 0°C - +40°C

Storage Temperature -40°C - +70°C

Relative Humidity Max. 80% up to 31 °C, decreasing to 50% at 40 °C

Operation Altitude < 3000 m

Current Input (Photodiode Sensors)

Connector DB9F, left side

Units W, dBm, W/cm², A

Measurement Ranges 6 decades; 50 nA … 5 mA

Ranges selectable in W or A, sensor depending

Display Resolution 1 pA / responsivity value (A/W)

AD Converter 16 bit

Accuracy +/- 0.2% f.s. (5 µA – 5 mA)

+/- 0.5% f.s. (50nA)

Bandwidth DC – 100 kHz, depending on sensor and settings

Photodiode Polarity Cathode ground

Max. Photodiode Impedance 10 nF

Input Resistance 0 Ω (virtual ground)

Wavelength Correction nm (A/W)

Beam Diameter Setting 1/e²

Voltage Input (Thermopile Sensors)

Connector DB9F, left side

Units W, dBm, W/cm², V

Measurement Ranges 4 decades; 1 mV … 1V

Ranges selectable in W or V, sensor depending

Display Resolution 1 µV / responsivity value (V/W)

AD Converter 16 bit

Accuracy +/- 0.5% f.s.

Bandwidth DC - 10Hz, depending on sensor and settings

Input Impedance 1 MΩ

Time Constant Correction Range 1 s – 30 s

Wavelength Correction Sensor depending; nm, (V/W)

Beam Diameter Setting 1/e²

8.3 Technical data

Voltage Input (Pyro Sensors)

Connector DB9F, left side

Units J, J/cm², W, W/cm², V

Measurement Ranges 4 decades; 100mV … 100V

Ranges selectable in J or V, sensor depending

Display Resolution 100µV / responsitivity value (V/J)

AD Converter 16 bit

Accuracy +/- 0.5% f.s.

Trigger Threshold 0.1% - 99.9% f.s.

max. Repetition Rate 3 kHz

Input Impedance 1 MΩ

Wavelength Correction Sensor depending; nm, (V/J)

Beam Diameter Setting 1/e²

Analog Outputs

Connector SMA, left side

Signal amplified input signal

Voltage Range 0 .. 2 V

Bandwidth up to 100 kHz, depending on sensor and settings

Sensor Temperature Control

Supported temperature sensor Thermistor

Temperature measurement range -10 °C .. +80 °C

Sound

Type Speaker 300 Hz – 5 kHz

Function Laser tuning support, console function support

Memory

Type SD Card

Size 2 GB

Interface

Type USB2.0

Connector Mini USB, left side

Power Management

Battery LiPo 3.7 V 1300 mAh

External power supply DC Input 5 VDC

AC adapter input 100 V – 240 V; 50 Hz – 60 Hz

Accessories

AC Adapter X

Hardcase X

Instrument Drivers on USB Stick X

Application Software on USB Stick X

User Manual X

SD Memory Card 1GB X

8.3 Technical data

Current Input Phtodiode Sensors

Current Range Display

Resolution

Measurement

Accuracy

Analog Output

Gain

Analog Output

Bandwidth

5 mA 1 µA +/- 0.2% f.s. 4 x 102 V/A 100 kHz / 25 Hz

500 µA 100 nA +/- 0.2% f.s. 4 x 103 V/A 100 kHz / 25 Hz

50 µA 10 nA +/- 0.2% f.s. 4 x 104 V/A 100 kHz / 25 Hz

5 µA 1 nA +/- 0.2% f.s. 4 x 105 V/A 100 kHz / 25 Hz

500 nA 100 pA +/- 0.2% f.s. 4 x 106 V/A 10 kHz / 25 Hz

50 nA 10 pA +/- 0.5% f.s. 4 x 107 V/A 1 kHz / 25 Hz

Voltage Input Thermal Sensors

Voltage Range Display

Resolution

Measurement

Accuracy

Analog Output

Gain

Analog Output

Bandwidth

1 V 100 µV +/- 0.5% f.s. 2 x 100 10 Hz

100 mV 10 µV +/- 0.5% f.s. 2 x 101 10 Hz

10 mV 1 µV +/- 0.5% f.s. 2 x 102 7 Hz

1 mV 0.1 µV +/- 1.0% f.s. 2 x 103 0.7 Hz

Voltage Input Pyroelectrical Sensors

Voltage Range Display

Resolution

Measurement

Accuracy

Analog Output

Gain

Analog Output

Bandwidth

100 V 100 mV +/- 0.5% f.s. 2 x 10-2 50 kHz

10 V 10 mV +/- 0.5% f.s. 2 x 10-1 50 kHz

1 V 1 mVV +/- 0.5% f.s. 2 x 100 50 kHz

0.1V 100µV +/- 0.5% f.s. 2 x 101 50 kHz

8.4 Pin Assignment of the Sensor Connector

The PM100D is capable to support custom made detectors. Please read carefully the

following instruction prior to connecting a self made sensor.

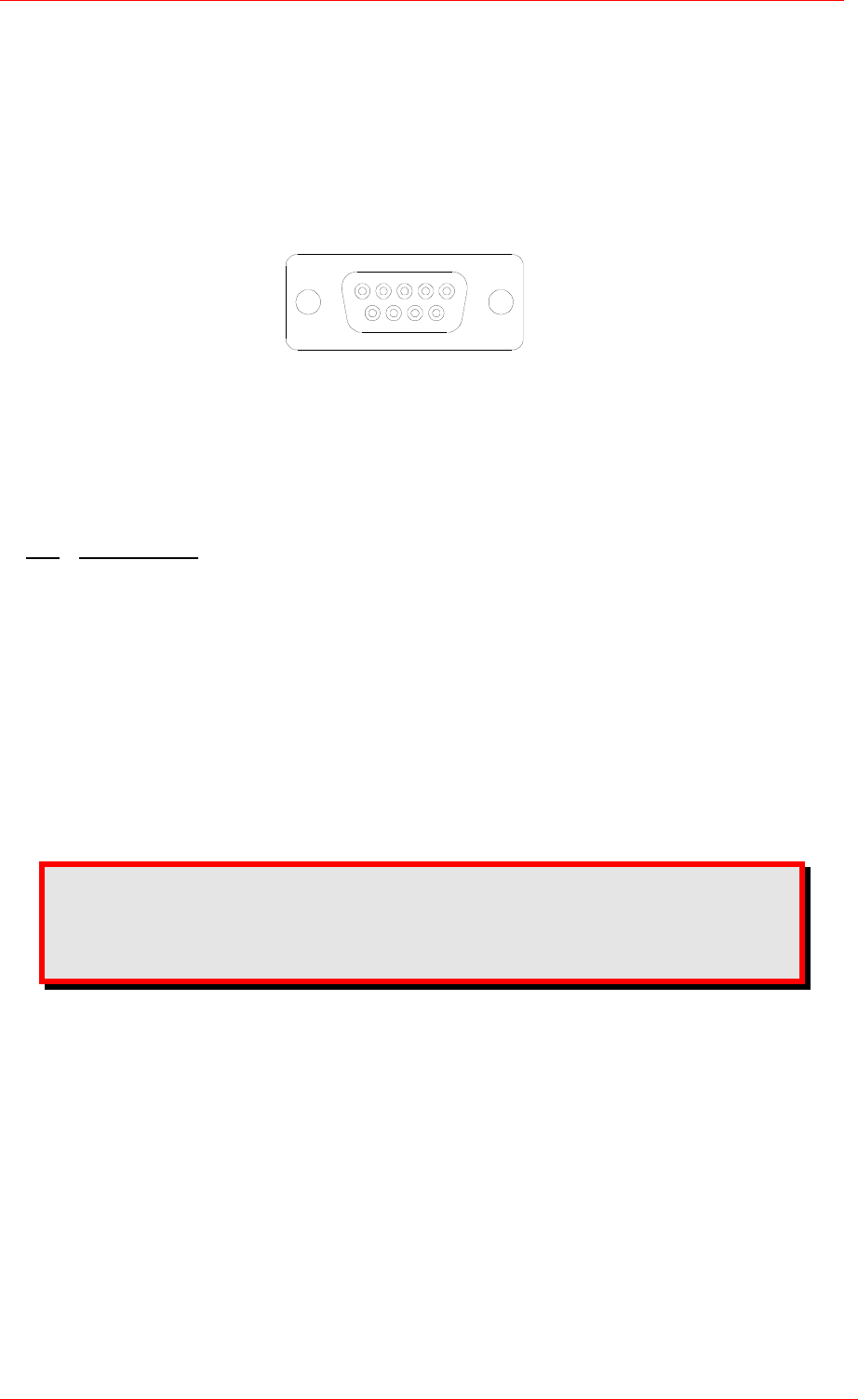

Figure 12 Pin assignment of the sensor connector jack(s) (female)

pin connection

3 photodiode ground (anode), thermal and pyro sensor ground, analog ground

4 photodiode cathode

5 pyro-electric sensor +

8 thermal sensor +

7 PRESENT connect this pin via a 1kΩ – 10kΩ resistor to Pin 3 (AGND)

1 +5V drive max. 50mA from this pin

6 DGND

9 n.c.

The following described pin is uniquely used for the memory in the sensor

head and may not be used. Connecting this pin may cause malfunction of

the PM100D.

2 EEPROM Digital I/O

5-4-3-2-1

9-8-7-6

8.5 Thorlabs ‘End of Life’ policy (WEEE)

As required by the WEEE (Waste Electrical and Electronic Equipment Directive) of

the European Community and the corresponding national laws, Thorlabs offers all

end users in the EC the possibility to return ‘end of life” units without incurring

disposal charges.

This offer is valid for Thorlabs electrical and electronic equipment

 sold after August 13th 2005

 marked correspondingly with the crossed out ‘wheelie bin” logo (see Figure

13)

 sold to a company or institute within the EC

 currently owned by a company or institute within the EC

 still complete, not disassembled and not contaminated

As the WEEE directive applies to self contained operational electrical and electronic

products, this ‘end of life” take back service does not refer to other Thorlabs

products, such as

 pure OEM products, that means assemblies to be built into a unit by the user

(e. g. OEM laser driver cards)

 components

 mechanics and optics

 left over parts of units disassembled by the user (PCB’s, housings etc.).

If you wish to return a Thorlabs unit for waste recovery, please contact Thorlabs or

your nearest dealer for further information.

8.5.1 Waste treatment on your own responsibility

If you do not return an ‘end of life” unit to Thorlabs, you must hand it to a company

specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public

waste disposal site.

8.5 Thorlabs ‘End of Life’ policy (WEEE)

8.5.2 Ecological background

It is well known that WEEE pollutes the environment by releasing toxic products

during decomposition. The aim of the European RoHS directive is to reduce the

content of toxic substances in electronic products in the future.

The intent of the WEEE directive is to enforce the recycling of WEEE. A controlled

recycling of end of live products will thereby avoid negative impacts on the

environment.

Figure 13 Crossed out ‘wheelie bin” symbol

8.6 List of figures

Figure 1Physical Overview Front Panel 10

Figure 2 Physical Overview Side Panel 10

Figure 3 Physical Overview Bottom View 11

Figure 4 Rear View 11

Figure 5 Numeric Screen (Power and Energy Mode) 12

Figure 6 Needle Tuning (Power Mode) 12

Figure 7 Statistics Screen (Power Mode) 13

Figure 8 Trend Graph (Power Mode) 13

Figure 9 Numeric Screen (Energy Mode) 14

Figure 10 Statistics Screen (Energy Mode) 14

Figure 11 Pulse Chart (Energy Mode) 14

Figure 12Pin assignment of the sensor connector jack(s) (female) 69

Figure 13Crossed out ‘wheelie bin” symbol 71

8.7 Addresses

Our Company is represented by several distributors and sales offices throughout the

world.

Europe

Thorlabs GmbH

Hans-Boeckler-Str. 6

85221 Dachau

Germany

Sales and Support

Phone: +49 (0)8131-5956-0

Fax: +49 (0)8131-5956-99

Email: europe@thorlabs.com

Web: www.thorlabs.com

USA

Thorlabs, Inc.

435 Route 206 North

Newton, NJ 07860

USA

Sales and Support

Phone: 1-973-579-7227

Fax: 1-973-300-3600

Email: sales@thorlabs.com

techsupport@thorlabs.com

Web: www.thorlabs.com

Japan

Thorlabs Japan, Inc.

3-6-3 Kitamachi

Nerima-ku,

Tokyo 179-0081

Japan

Sales and Support

Phone: +81-3-6915-7701

Fax: +81-3-6915-7716

Email: sales@thorlabs.jp

Web: www.thorlabs.co.jp

China

Thorlabs China

Oasis Middlering Centre

3 Building 712 Room

915 Zhen Bei Road

Shanghai

China

Sales and Support

Phone: +86 (0)21-32513486

Fax: +86 (0)21-32513480

Email: chinasales@thorlabs.com

Web: www.thorlabs.com

Please call our hotlines, send an Email to ask for your nearest distributor or just visit

our homepage

http://www.thorlabs.com

17654 D02 PM100D Rev H Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
