85 1035 0 PRO12 Upright Parts List

User Manual: 85-1035-0

Open the PDF directly: View PDF PDF.
Page Count: 8

Diagram # Part Description Item Numbe
r
1 Handle Caster 86.2002.0
2 Handle Caster Shaft 86.1002.0
3 Handle (Left) 86.0002.19
4 Gray Handle Grip 86.2001.32
5 Handle (Right) 86.0001.19
6 Screw M3 x 12 Self tapped 85.1008.0
7 Soft touch Handle Grip 86.2003.32
8 Screw M5 x 43 86.1003.0
9 Screw Parker 2.9 x 16 73.0004.1
10 Clip Fixation for Cas/Yellow Cable 73.0006.8
11 Screw M5 x 30 86.1009.0
12 Aluminum Handle Tube 86.1001.0
13
Nut M5 (Black)
86 1004 0
PARTS LIST PRO 12
ORECK PARTS LIST
PRO 12 UPRIGHT VACUUM
100 Armstrong Rd., Suite 101 Plymouth, MA 02360
(888) 23-ORECK (800) 242-1378 Fax (508) 732-9171
13
Nut
M5
(Black)
86
.
1004
.
0
14 Cable Hook Shaft 86.0030.8
15 Cable Hook 86.0031.8
16 Hose 35mm 88.2001.0
17 Hose Connector (Left) 88.0001.01
18 Hose Connector (Right) 88.0001.02
19 Upholstery Tool Bristle 02.0030.0
19 Upholstery Tool without Bristle ABS 32mm 02.0031.0/01
20 Tool Adapter 35 - 32mm 88.0006.0
21 Crevice Tool 32mm 177mm ABS 02.0032.2
22 Thumb Screw 5 x 20 11.0103.0
23 Cable Restraint Cable Side 03.0041.0
24 Cable Restraint Can Side 03.0038.0
25 Metal Ring 30mm 03.0040.0
26 Top Handle Hose Connector 88.0020.39
27 Bag Full Indicator Top Cover 04.0011.0
28 Main Cable 87.3001.0
29 Hose Clip 02.0025.1/1
30 3 Prong Inlet Receptacle 75.0002.8
31 4 Prong Power Switch 04.0009.30
32 Screw M5 x 55 Self tapped 87.1011.0
33 Carry Handle Back 87.0003.39
34 Front door Alignment Slot 87.0007.0
35 Nut M5 Nylon 04.0048.0
36 Spring 12 x 0.6 04.0018.1
37 Paper Bag Sensor Bracket 87.0031.8
38 Screw M5 x 26 04.0017.0
39 Soft Touch Back Handle 87.2009.0
40 Screw M4 x 20 Self tapped 85.1025.0
Oreck Commercial 800-242-1378
Diagram # Part Description Item Numbe
r
PARTS LIST PRO 12
41 Back Handle 87.0009.0
42 Screw M4 x 20 Self tapped 85.1025.0
43 Spring Plate for Height Adjustment 87.1006.0
44 Aluminum Handle Tube Clip Plate 87.0018.8
45 Wand Lock 87.0016.8
46 Hose Connector 88.0020.0
47 Hose Clip 02.0025.1/1
48 Felt EVA ID 35 - OD 47 x 2.5mm 88.2002.0
49 Wand Click Part 88.0003.0
50 Powder Coated Wand with Yellow Button 88.1001.0
51 Screw M4 x 8 Self tapped 00.0104.0
52C Wand Handle Complete (49,50,51,52,53 &54) P.88.0003.0
52 Wand Handle (Top) 88.0004.0
53 Wand Handle (Bottom) 88.0005.0
54 Screw M3 x 12 Self tapped 85.1008.0
55 Screw 3.5 x 16 00.0020.0
56 Wizzo Top Cover 77.0024.8
57 Wizzo Top Sealing Ring 77.0019.01
58 Wizzo Sound Detector 77.0029.1
59 Wizzo Spring Plate 77.0030.0
60 Wizzo Lower Sealing Ring 77.0025.01
61 Wizzo Inner Frame 77.0028.0
62 Wizzo Spring Cover 77.0026.0
63 Spring 36 x 22.9 x .9mm 77.0029.21
64 Wizzo Outer Can 77.0027.0
65 Rear Body 87.0005.39
66 Cable Cover 87.0015.39
67
Screw M3 5 x 15 Self tapped
87 1007 0
67
S
crew
M3
.
5
x
15
S
e
lf
t
appe
d
87
.
1007
.
0
68 Sealing Ring 3mm 87.2013.0
69 Power Cord 03.0026.65
70 Paper Bag Tube Holder 87.0017.8
71 Sealing Ring 1.5mm 87.2012.0
72 Paper Bag Holder Push Handle 87.0006.8
73 Standard Filter (Black) 87.2002.0
74 Rubber Filter Cassette 87.2003.0
75 Front Door Seal 87.2001.0
76 Rubber Carry Handle 87.2001.32
77 Carry Handle Front 87.0004.39
78 Door Release lever 87.0100.0
79 Front Door 87.0200.39
80 Screw M4 x 8 Self tapped 00.0104.0
81 Rear Body Little Cover 87.0020.0
82 Rubber Stopper 87.2011.0
83 Screw M3 x 12 Self tapped 85.1008.0
84 Sensor Filter Spring Bracket 87.1012.0
85 Sensor Filter Bracket 87.0019.8
86 Screw M4 x 14 Self tapped 85.1018.0
87 Spring Plate 87.1018.0
88 Steel Wire Fixation Rear 87.0013.0
89 Pression V Spring 87.1017.0
90 Steel Wire Release Rear 87.1004.0
91 Steel Wire Fixation Front 87.0012.0
92 Park Release Pedal 87.0014.8
93 Back Lower Release Handle Spring 87.1005.0
94 Contact Block Cover 87.2007.0
95 Wire Connector Housing 85.0035.0
Oreck Commercial 800-242-1378
Diagram # Part Description Item Numbe
r
PARTS LIST PRO 12
96 Swivel Base 87.0010.0
97 Inferoanterior Release Shaft 87.1003.0
98 Steel Wire Release 87.1002.0
99 Quick Release Handle 87.0011.0
100 Felt Swivel Base 87.2005.0
101 Felt Swivel Neck 87.2006.0
102 Felt 23.5 x 9.5 x 4mm 87.2010.0
103 Support Bracket 85.1009.0
104 Copper Bushing Support Bracket 85.1036.0
105 Spring Support Bracket 85.1040.2
106 Screw M5 Coin Head 85.1039.0
107 Transparent Name Card Cover 85.0005.996
108 Name Card 88.4011.0
109 Filter Bracket 85.0006.19
110 Felt Air Outlet Filter 85.2003.1
111 Brush Cover Housing 85.0004.19
112 Felt 188 x 4.5 x 3mm 85.2011.01
113 Felt 80 x 6 x 3mm 85.2011.02
114 LED Light Cover 85.0040.996
115 Height Adjustment Knob 85.0008.0
116 Clutch to Roller Belt 85.2007.0
117 Gear 16X for Clutch PA 50% 85.0030.0
118 Bearing Cover 85.0034.0
119 Bearing 686 DDU NSK 85.1014.0
120 Screw M3 x 12 Self tapped 85.1008.0
121 Clutch Gear Cover 85.0033.0
122 Clutch Gear 60X 85.0032.0
123
Clutch Magnet
85 1013 0
123
Cl
u
t
c
h
M
agne
t
85
.
1013
.
0
124 Screw M4 x 20 Self tapped 85.1025.0
125 Main PCB Board 52 x 100.5 x 5mm 85.3002.0
126 LED Light with PCB Board 85.3005.0
127 Adjustable Wheel Spring Shaft 85.1004.0
128 Housing Height Adjustment Clip Plate 85.0009.0
129 Screw M3.5 x 15 Self tapped 87.1007.0
130 Wire Fixation Bracket 85.0012.0
131 Motor to Clutch Belt 85.2008.0
132 Motor Gear 14 x PA6 85.0031.0
133 Brush Housing 85.0100.19
134 Bottom Cover 85.0003.8
135 Bottom Cover Spring 85.1031.0
136 Bumper 85.0011.390
137 Screw M3 x 15 Self tapped 85.1015.0
138 Castor Heat Treated Shaft 85.1016.0
139 Bearing 635ZZ 85.1049.0
140 Rear Castor 85.0037.32
141 Steel Washer (Black) 85.1032.0
142 E-Circle Clip 85.1034.0
143 Star lock 6mm 14.1401.5
144 Front Castor 85.0038.32
145 Screw M5 x 40 Self tapped 85.1003.0
146 Shaft Height Adjustment 85.1005.0
147 Front Caster Shaft Fix Plate 14.0101.0
148 Screw M3 x 10 Self tapped 85.1035.0
149 Brush Roller Bracket (Right) 85.0015.0
150 Brush Roller Bearing 698Z 85.1007.0
151 Brush Roller Bearing Cover (Left) 85.0018.0
Oreck Commercial 800-242-1378
Diagram # Part Description Item Numbe
r
PARTS LIST PRO 12
152C Brush Roller Complete (149,150,151,153,154,207,208 & 209) S.85.0013.0
152 Brush Roller 85.0013.0
153 Star lock 6mm 14.1401.5
154 Brush Roller Gear (Right) 85.0019.0
155 Brush Roller Bracket Left 85.0014.0
156 Brush Housing Bottom Plate 85.0200.0
157 Steel Wire 85.1023.0
158 Brush Protector 85.1001.0
159 Brush Protector Rubber Strip 85.1001.1
160 Bottom Plate Coin Nut 85.1043.0
161 Screw M3.5 x 8 Countersunk Self tapped 85.1002.0
162 Screw M4 x 20 Self tapped 85.1025.0
163 Motor Cover (Right) 85.0029.19
164 Park Height Bracket 85.0010.0
165 Spring for Park Bracket 85.1006.0
166 Shaft for Park Height Bracket 85.1033.0
167 Screw M4 x 14 Self tapped 85.1018.0
168 Motor Cover Top (Outside) 85.0028.19
169 Felt 145 x 10 x 7mm 85.2015.0
170 Motor Cover Top (Inside) 85.0026.0
170B Motor Cover Bottom (Inside) 85.0025.0
171 Screw M4 x 10 Crosshead Self tapped 00.0121.0
172 Motor Rubber Ring 130 x 9.5 x 7mm 85.2005.0
173 Motor 1000 Watt 21.6342.61
174 Rubber Pad Top of Motor 85.2006.0
175 Felt 100 x 10 x 7mm 85.2016.0
176 Motor Cover Bottom (Outside) 85.0027.19
177
Screw M3 5 x 15 Self tapped
87 1007 0
177
S
crew
M3
.
5
x
15
S
e
lf
t
appe
d
87
.
1007
.
0
178 Seal Support ID 43 - OD 55 x 4mm 85.2004.0
179 Felt ID 60.5mm - OD 84mm x 3mm 85.2013.0
180 Felt ID 94.5mm - OD 130mm x 3mm 85.2012.0
181 Air Intake Support (Right) 85.0024.0
182 Motor Cover & Support Plate Rubber Ring 85.2010.0
183 Felt ID 70mm - OD 123mm x 2mm 85.2014.0
184 Housing Inlet Wire Connector 85.0036.0
185 Swivel Outlet 85.0022.0
186 Swivel Inlet 85.0021.0
187 Screw M3 x 12 Self tapped 85.1008.0
188 Screw M4 x 10 Crosshead Self tapped BL-NI 00.0105.0
189 Swivel Bushing 85.0039.0
190 Air Intake Support Plate (Left) 85.0020.0
191 Felt EVA ID 35 - OD 47 x 2.5mm 88.2002.0
192 Screw M3.5 x 30 Self tapped 87.1008.0
193 Screw M3 x 10 Self tapped 85.1035.0
194 Rubber 75 x 38.5 x 3mm 87.2008.0
195 Screw M3 x 12 Self tapped 85.1008.0
196 Screw M3 x 15 Self tapped 85.1015.0
197 Screw M5 x 25 Self tapped 87.1009.0
198 V-Spring 85.1030.0
199 Felt 45 x 20 x 2mm 85.2003.01
200 Felt 57.5 x 44 x 2mm 85.2003.0
201 Base Felt for Brush Unit 85.2009.0
202 Felt White Left for Brush Unit 85.2009.01
203 Felt White Right for Brush Unit 85.2009.02
204 Felt 106 x 2.8 x 1.66mm 85.2001.02
205 Felt Strip (EVA) 236 x 1.6 x 2.8mm 85.2001.01
Oreck Commercial 800-242-1378
Diagram # Part Description Item Numbe
r
PARTS LIST PRO 12
206 Main Wire Brush Housing 600mm 85.3007.0
207 Bearing 626ZZ NSK 85.1047.0
208 End Cap (Left) 85.0019.01
209 Brush Roller Sleeve Bracket (Left) 85.0045.0
210 Fiber Ring 11 x 4.5 x 1 11.0104.0
211 V Spring 85.1030.0
212 RFI Hoov with Term 05.0077.2
213 Screw M4 x 14 Self tapped 85.1018.0
214 3P Connection Bracket 04.0030.03
215 Housing Inlet Wire Connector 18AWG 85.3006.0
216 Gray Wire 400mm Isolation 85.3004.0
217 Thermal Switch 110C 85.0044.2
Oreck Commercial 800-242-1378

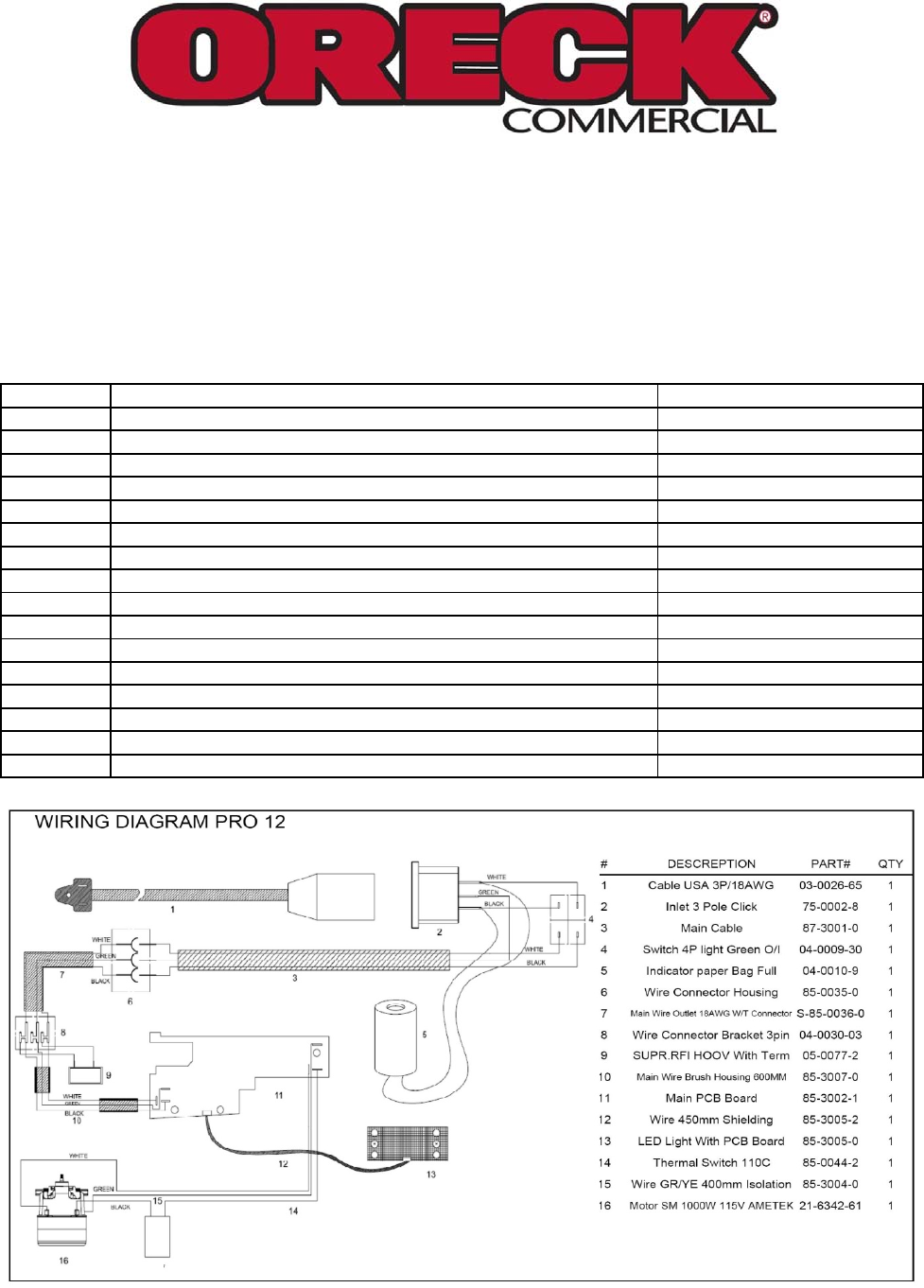

WIRING PARTS
Diagram # Part Description Item Numbe
r
1 Power Cord 03.0026.65
2 3 Prong Inlet Receptacle 75.0002.8
3 Main Cable 87.3001.0
4 4 Prong Power Switch 04.0009.30
5 Paper Bag Full Indicator 04.0010.9
6 Wire Connector Housing 85.0035.0
7 Main Wire Outlet 18 AWG with T-Connector S.85.3006.0
8 3P Connection Bracket 04.0030.03
9 RFI Hoov with Term 05.0077.2
10 Main Wire Brush Housing 600mm 85.3007.0
11 Main PCB Board 52 x 100.5 x 5mm 85.3002.0
12 Wire 450mm Shielding 85.3005.2
13
LED Light with PCB Board
85 3005 0
ORECK PARTS LIST
PRO 12 UPRIGHT VACUUM
100 Armstrong Rd., Suite 101 Plymouth, MA 02360
(888) 23-ORECK (800) 242-1378 Fax (508) 732-9171
13
LED
Li
g
ht
w
ith
PCB
B
oar
d
85
.
3005
.
0
14 Thermal Switch 110C 85.0044.2
15 Gray Wire 400mm Isolation 85.3004.0
16 Motor 1000 Watt 21.6342.61
