P-touch EDGE® PT-E300

industrial handheld labeling tool

with rechargeable Li-ion battery

Designed by industry pros for industry pros

Electrical

Data Communication

Security

Audio Visual

Comes with a patch panel ruler –

Easy to measure port spacing tool

for labels that fit any patch panel

The full-featured labeling tool your

crews will actually use …

Producing professional labels with text, symbols and barcodes

shouldn’t take hours of training or constant trips to the manual.

At least that’s what we think.

That’s why the PT-E300 was engineered to deliver pro labeling

features you can use right away.

It offers a wide range of professional features labeling pros want.

But it makes those features easy to find and easy to use through

clearly marked buttons and on-screen menus.

With a PT-E300 practically anyone can be producing labels like a

pro in seconds. Multi-line labels. Labels that address ANSI/EIA/

TIA-606A/B standards. Labels with text, symbols and barcodes.

All without ever reading a manual.

Accurate marking with durable machine-printed labels has always

been the sign of a pro. Now it’s being written into project specs by

customers. Standardized labeling practices are more common.

So give your crews a labeler that helps them mark their work fast

and efficiently with durable, professional, machine printed labels.

The full-featured labeling tool so easy to use, they’ll actually use it.

The P-touch EDGE® PT-E300.

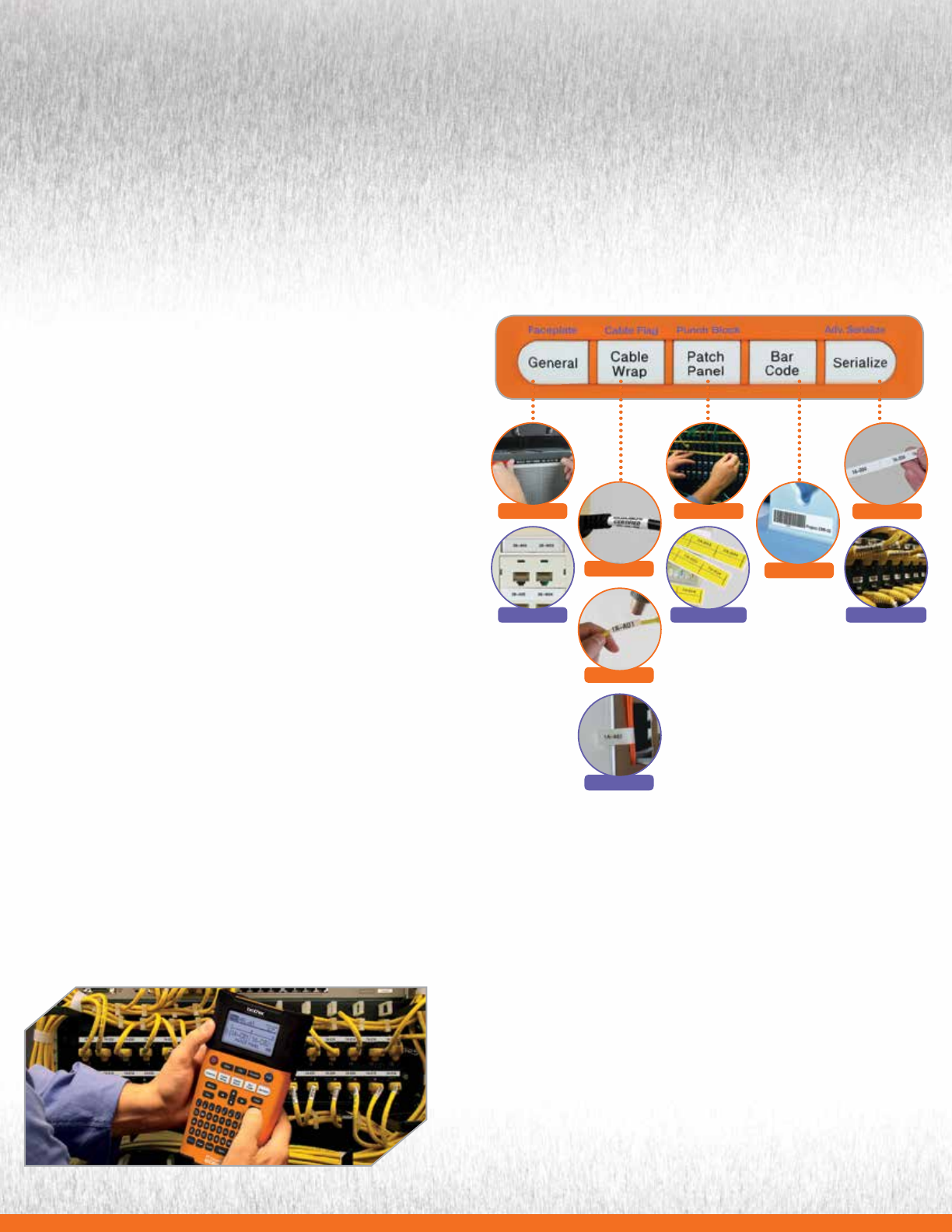

Smart label application keys offer preformatted templates for

the types of labels electrical, datacom contractors, and A/V and

security system installers, use frequently.

These can help almost anyone make the right label every time,

quickly and easily.

The PT-E300 was designed from the start to be remarkably easy

to use, without compromising on versatility and performance.

It prints durable laminated labels with up to five lines of text on

labels up to 18mm wide. It offers hundreds of built-in symbols

and nine industry-standard barcode symbologies you can include

on your labels. It has the ability to store and recall up to 50 of

your most-used label templates, and can increment content on

labels by alpha/numeric automatically.

And it gives access to a number of preformatted templates for

common datacom and electrical labeling applications simply by

using its clearly marked buttons.

It’s a powerful labeling tool. Yet it’s also easy to use,

by design.

A thoughtfully engineered labeling tool

The professional labeler that’s easy to use Smart label application keys save time

The PT-E300 uses interchangeable, drop-in HGe and TZe tape

cassettes that already contain all the materials required to produce

durable thermal transfer laminated labels in the color, size or adhesive

type you want. Changing label colors, sizes or adhesive types takes

seconds. Just pop in the cassette you need and you’re good to go.

When you make a label with the PT-E300, your text, symbols and

barcodes are printed on the underside of a clear protective laminate

and then bonded to the adhesive and other substrates as the label is

printed. So the label that emerges is already laminated, includes an

easy-peel backer, and is ready to cut, peel and apply.

The laminated labels you can produce with the PT-E300 have been

engineered to stand up to harsh environments, indoors and outdoors.

They can withstand temperatures from -80 degrees C to 100 degrees

C, moisture, harsh UV, abrasion, grease and industrial solvents like

acetone, and remain affixed and clearly readable for years.

Change supplies fast with drop-in

tape cassettes

General

Cable Wrap

Patch Panel

Adv. Serialize

Faceplate

Cable Flag

Bar Code

Punch Block

Serialize

Heat Shrink

The full-featured labeling tool your

crews will actually use …

Make bigger projects more manageable with these features

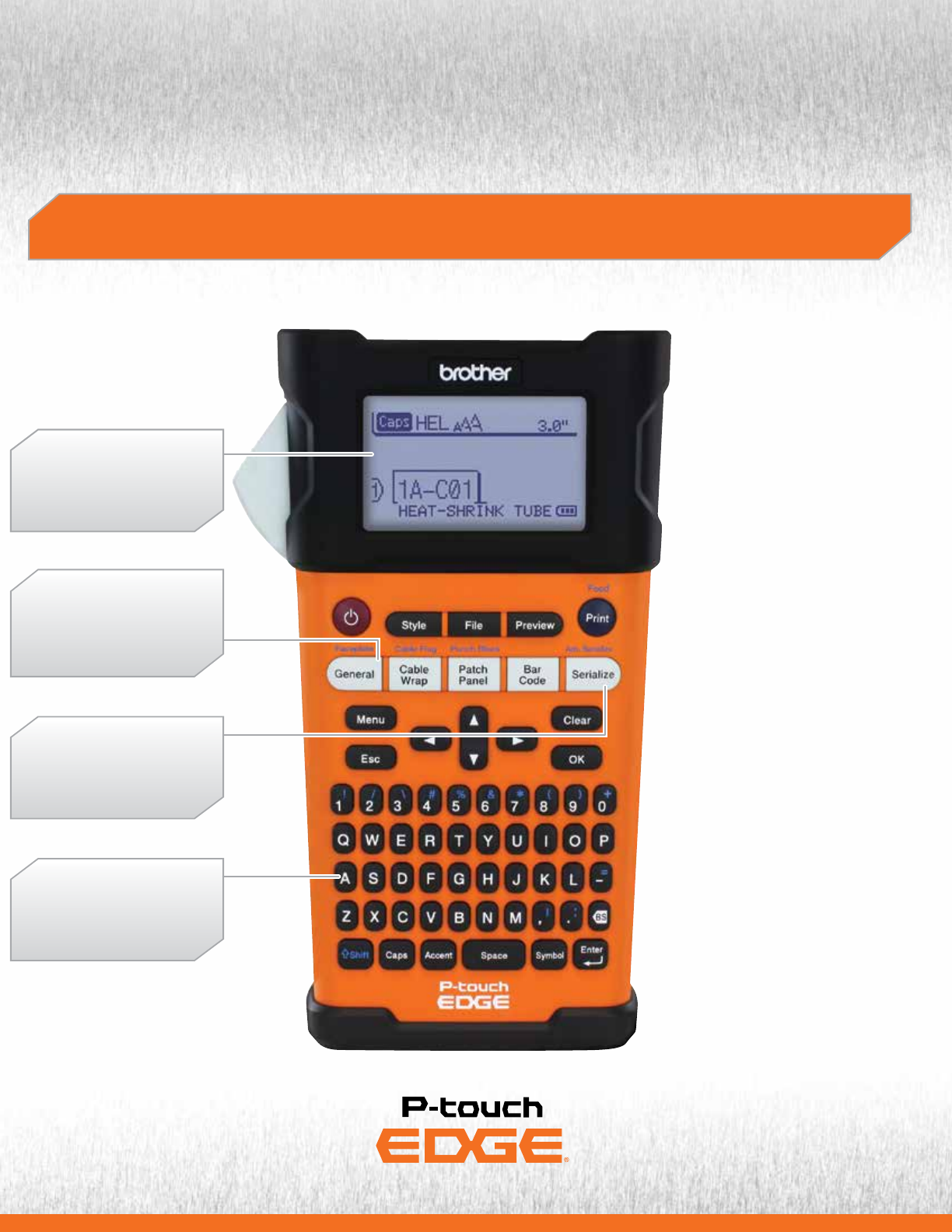

Easy to Use

• Large, backlit graphic LCD display …

See and edit your label before you print, even

in poorly lit areas

• Large QWERTY keyboard …

Enter data as naturally as texting or sending

a message

• Smart label application keys …

Make the labels you need, fast, with

preformatted layouts

• Advanced serialization features …

Easily make labels auto-incremented by up

to two alpha/numeric characters (A101, B102),

and within distinct ranges as well

(A101-A148; B101-B148)

• Store up to 50 labels in memory …

Store and quickly retrieve label files you use

most often

• Print labels up to 18mm(0.70in) wide …

With up to 5 lines of text, plus symbols

and barcodes

• Built-in symbols and barcode symbologies …

386 industrial symbols and 9 industry-standard

barcode symbologies

• Smart media sensing …

The PT-E300 senses the tape size you’re using

and adjusts layout settings to fit

• Built-in cutter …

Easy access manual cutter

• Multiple power options …

Operates on included rechargeable Li-ion

battery, or included AC adapter/charger, or on

6 “AA” batteries (not included)

Turn on the labeling tool, the

bright large LCD display helps

you see clearly what you are

doing

Intuitive label application

keys and smart technology

takes the guess work out to

get the right type of label for

your application every time

QWERTY keyboard helps you

to enter data naturally like

texting or sending a message

Advanced serialization does

the repetitive work for making

single or multiple patch panel

labels simultaneously

BMS 01-2013 013

For more information, call 1-800-543-6144,

or visit www.brothermobilesolutions.com

www.edgelabeling.com

BROTHER MOBILE SOLUTIONS, INC.

© 2013 Brother Mobile Solutions, Inc., 100 Technology Drive, Suite 250A, Broomfield, CO 80021

Brother™ is a trademarks or registered trademark of Brother Industries, Ltd. in the United States.

All other trademarks and registered trademarks are the properties of their respective companies.

Easy to use. Powerful features. The PT-E300.

Specifications

The PT-E300 was clearly designed to help make projects go faster

and more efficiently – from start to finish. Drop in an HGe or TZe tape

cassette for the tape color, size and adhesive type you need. Choose

the application you want. Enter the text into a preformatted template or

one you’ve created and stored on the PT-E300 already. Add industrial

symbols from the hundreds built-in, and create and add industry-

standard barcodes using the 9 built-in symbologies.

Then print and cut your label. Peel and apply. That’s how it’s done.

Print Speed Up to 0.78 ips (20mm/sec) – HGe, TZe Tape

Lines per Label Up to 5 Lines (Horizontal)

Rotated Characters Up to 16 Alpha-Numeric Characters (18mm tape)

Label Application

Keys

Cable Wrap,Cable Flag,Patch Panel, Punch Block,

Faceplate,BarCode and Std/Adv Serialize

Serializing Range

Increments 1 or 2 Fields Individually or Simultaneously

(Up to 50 Alpha or Numeric Characters, Up to 9

Units/Increment)

Print Bar Codes Code39, Code128, ITF, UPC-A/E, EAN-8/13, GS1-128

[UCC/EAN-128] and Codabar

Media Sizes (width) 18mm, 12mm, 9mm, 6mm, 3.5mm

Power Supply

BA-E001 Li-ion Battery Pack, AD-E001 AC Adapter

(Both Standard)

6 AA Alkaline Batteries (Optional)

Dimensions/Weight 4.3in x 2.3in x 8.2in (w x h x d) / 0.86 lbs

(without tape and batteries)

Warranty 2 Year Limited Exchange Warranty

HGe and TZe tape cassettes are available in a wide range of colors,

sizes and adhesive types to match your labeling application.

For wrapping and flagging wires and cables – there’s Flexible ID

Tape (TZeFX.)

For rough, textured and powder-coated surfaces – there’s

Extra-Strength Adhesive Tape (TZeS & HGeS.)

For flat, smooth surfaces – there’s Standard Laminated Tape (TZe & HGe.)

And now, for the PT-E300, there’s Heat Shrink Tube (HSe.)

All of these tapes are available on easy-swap, drop-in cassettes.

So it only takes seconds to go from using Flexible ID Tape to wrap

and flag cables and wires, to Extra-Strength Adhesive Tape to mark

load centers and electrical panels, to Standard Adhesive Tape

to mark outlet covers and faceplates.

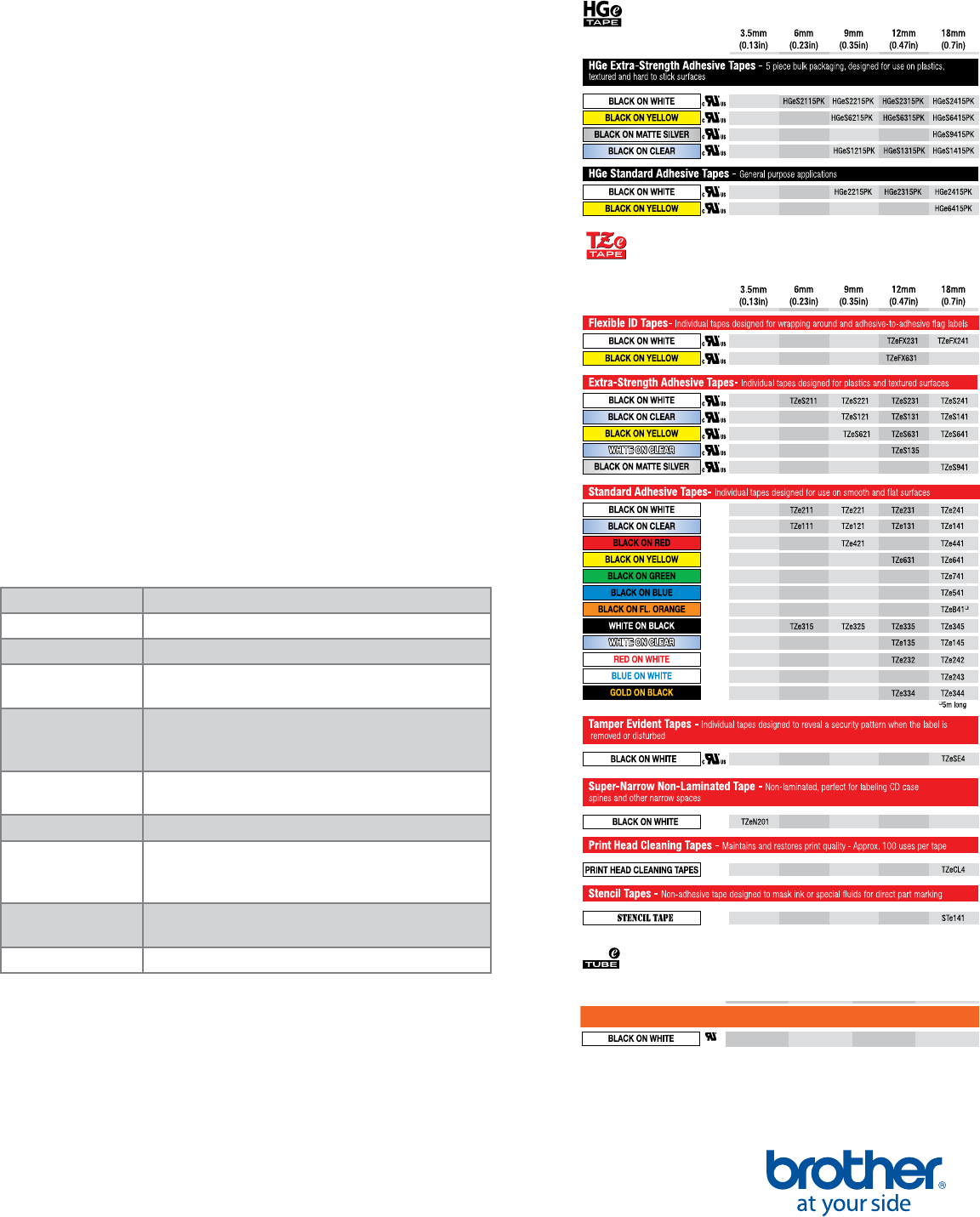

Tapes for practically every application

Available tapes*

*Requires additional purchase

HGe tape is a new tape designed for commercial and industrial labeling applications, specifically for

the model PT-E300 to print laminated labels up to 2x faster than any current P-touch

®

TZ tape model.

TZe tapes feature the same laminated structure and durability of HGe tapes, but without the faster

print speeds and higher resolution of up to 360 X 720 dpi offered by HGe tapes. TZe tapes are

compatible with the PT-E100,PT-E300, PT-7500, PT-7600, PT-18RKT, PT-9700PC and

PT-9800PCN, as well as all other P-touch

®

and P-touch EDGE

®

TZe compatible labelers.

HSe211 HSe221 HSe231 HSe241

HSe tube is a printable heat shrink tubing designed for the model PT-E300 handheld labeling tool

to mark cables, fiber and wires.

Only for PT-E300, will not work in other models.

WARNING: This product contains a chemical known to the State of California to cause cancer.

HEA

T SHRINK TUBE WIDTH:

RECOMMENDED FOR (OUTSIDE DIAMETER)

:

HS

5.8mm (0.23in)

1.7-3.2mm (0.07-0.13in)

8.8mm (0.34in)

2.6-5.1mm (0.10-0.20in)

11.7mm (0.46in)

3.6-7.0mm (0.14-0.28in)

17.7mm (0.69in)

5.4-10.6mm (0.21-0.42in)

HSe Heat Shrink Tube - Individual heat shrink tube designed for the model PT-E300. 1.5m (4.9ft) long.

2:1 shrink ratio / 300V / 125˚C / VW-1
