ProgrammerManual PTXS809
Contents1260070001A
Introduction
This publication provides information about the commands supported by your printer. The commands are
organized by function groups. Each command has both a brief and a detailed description.
Each command has the following structure:
Name and function description. Information about protocol (IBM® Proprinter XL24-XL24AGM, IBM Personal
2391+, EPSON FX Series, ANSI 3.64, DBCS ).
The hexadecimal and decimal codes for the command: n represents variable parameters of the command.
The functions of these parameters are explained in its corresponding command description.
Index of Contents
Chapters Page
Contents 1
Introduction 1
Index of Contents 1
Index of Command Summary in Alphabetical Order 7
Common commands for the Printronix S809 model printers. 7
Commands for the Printronix S809 model printer with the DBCS feature present 11
Preface 13
Chapter 1. EPSON/IBM Mode Commands 15
Print and Line Feed Execution 15
Format Control 16
Print Mode 27
Character Set 40
Download Character 42
Bit Image 45
Data Input Control 48
Miscellaneous 50
Chapter 2. Native Emulation Commands 55
Format Control 55
Native Character Set 56
Bar Codes 58
Miscellaneous 64
Chapter 3. ANSI Emulation Commands 69
Character Set Control 70
Character Pitch and Print Modes 72
Horizontal Movements 74
Vertical Movements 76
Interface Control 80
Operating System Control 81
Paper Path Selection 83
Graphics Control Functions 84
Barcode Functions 85
Basic Program Sample 88
Basic Program Printed Output 89
ProgrammerManual PTXS809
Contents2260070001A
Chapters Page
Chapter 5. Epson LQ1600K Emulation Commands 91

Appendix A. Code Pages 99
ASCII Code Pages 99
Character Sets 161
Hexadecimal to Decimal Table 163
Epson FX-series Code Pages 164
ANSI National Variations 167
AppendixB‐Interfaces169
The Parallel Interface 169
The Serial Interface 175
LAN Interface Port 176
USB Interface Port 176
AppendixC–NetworkInterfaceReference177
Network Configuration Parameters 177
Managing a Single Printer Configuration Using the Internal Webpage 179
Managing Multiple Printers Using the Remote Printer 179
Network Interface Summary 179
AppendixDLanInterfaceMIBSupport183
Appendix E- The Remote Printer Management Utility 189
Operating System Compatibility 189
Software Installation and Documentation 189
AppendixFPrinterDriverSupport191
Appendix G- Bar Code and OCR Printing Options 193
AppendixHConfigurationMenuLockout197
AppendixIAddendum(BarCodes)199
Notices 219
Customer Support 223
ProgrammerManual PTXS809
Contents3260070001A
Figures Page

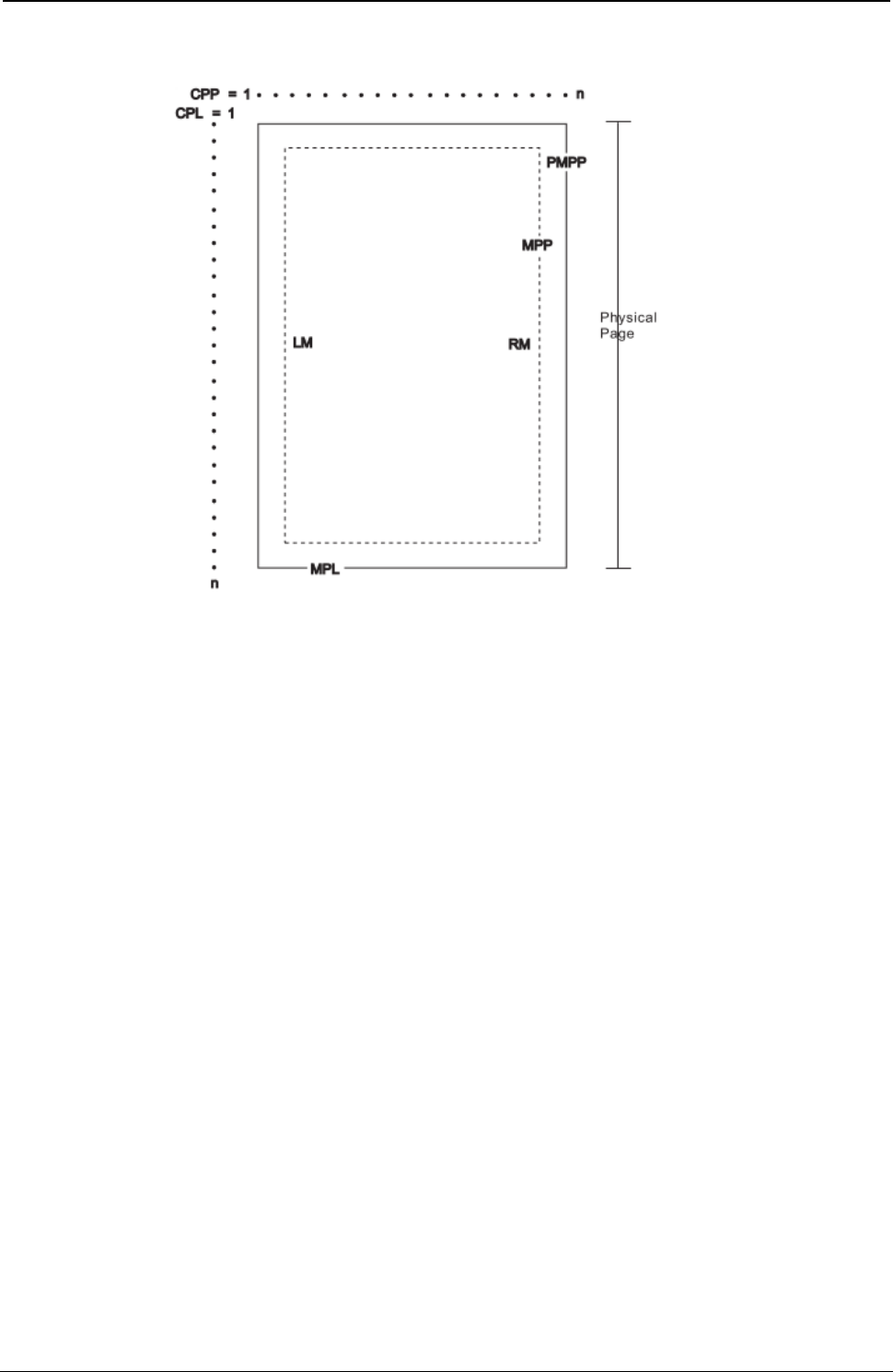

Figure 1.Page Presentation 13

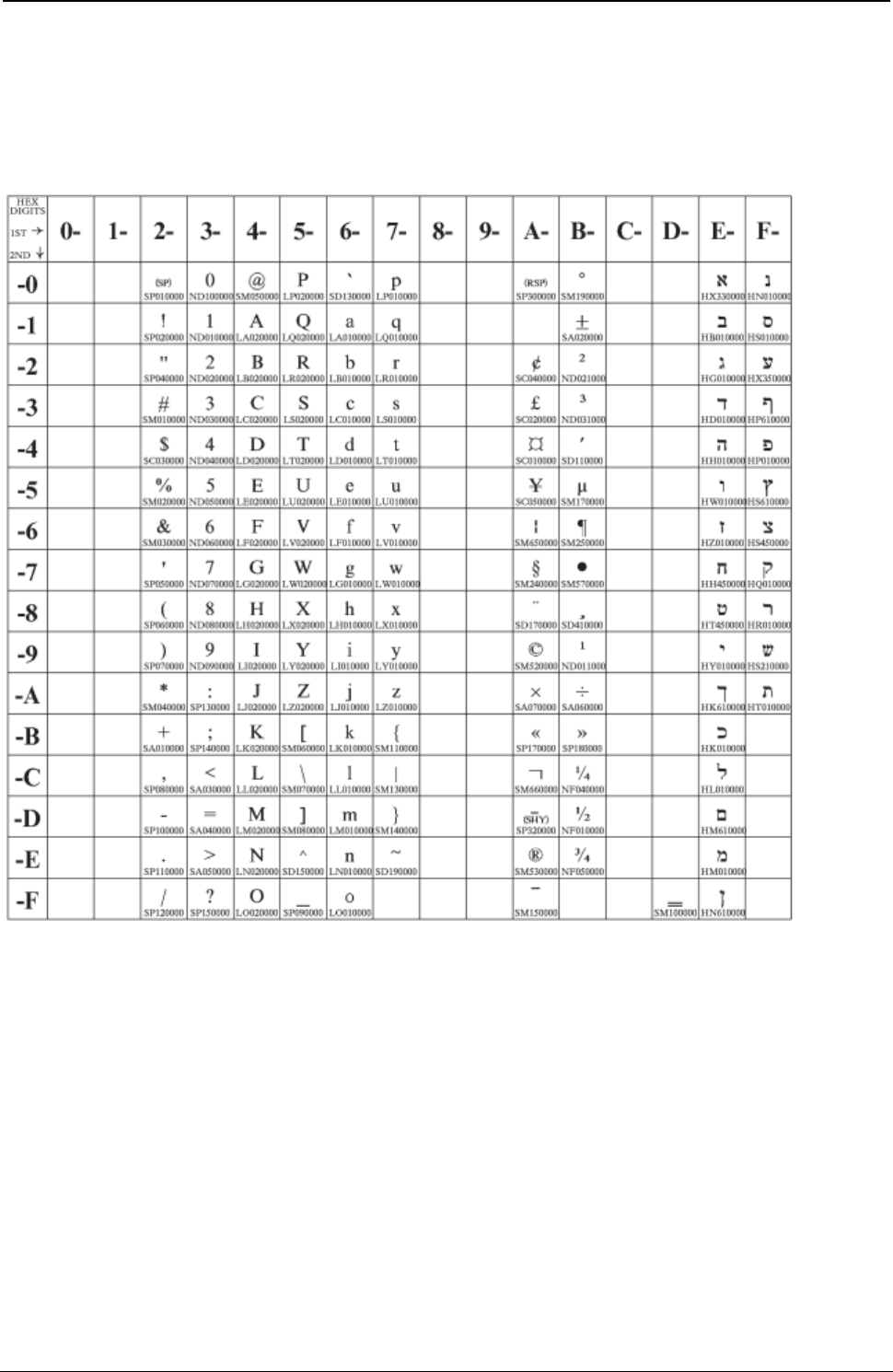

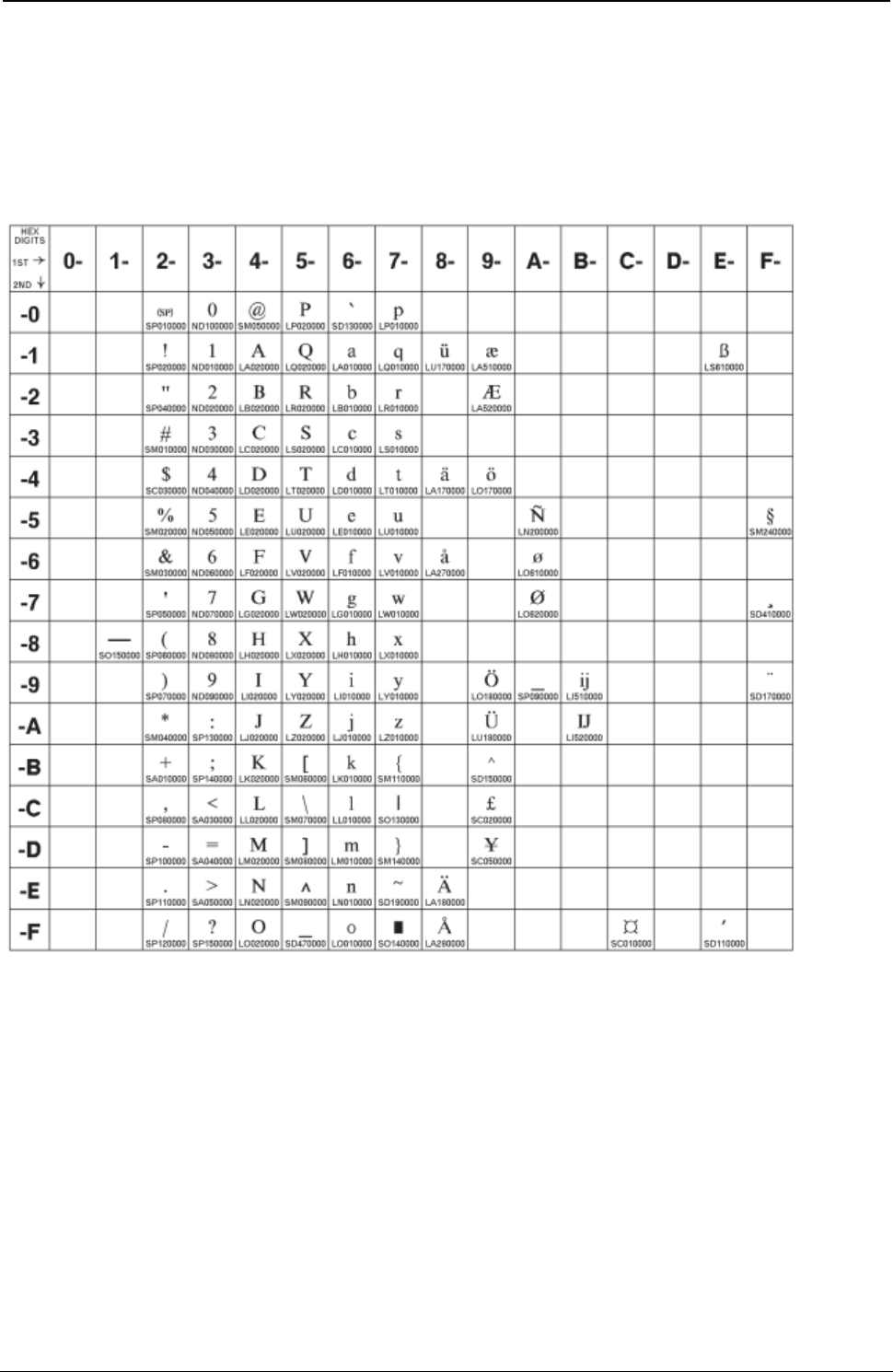

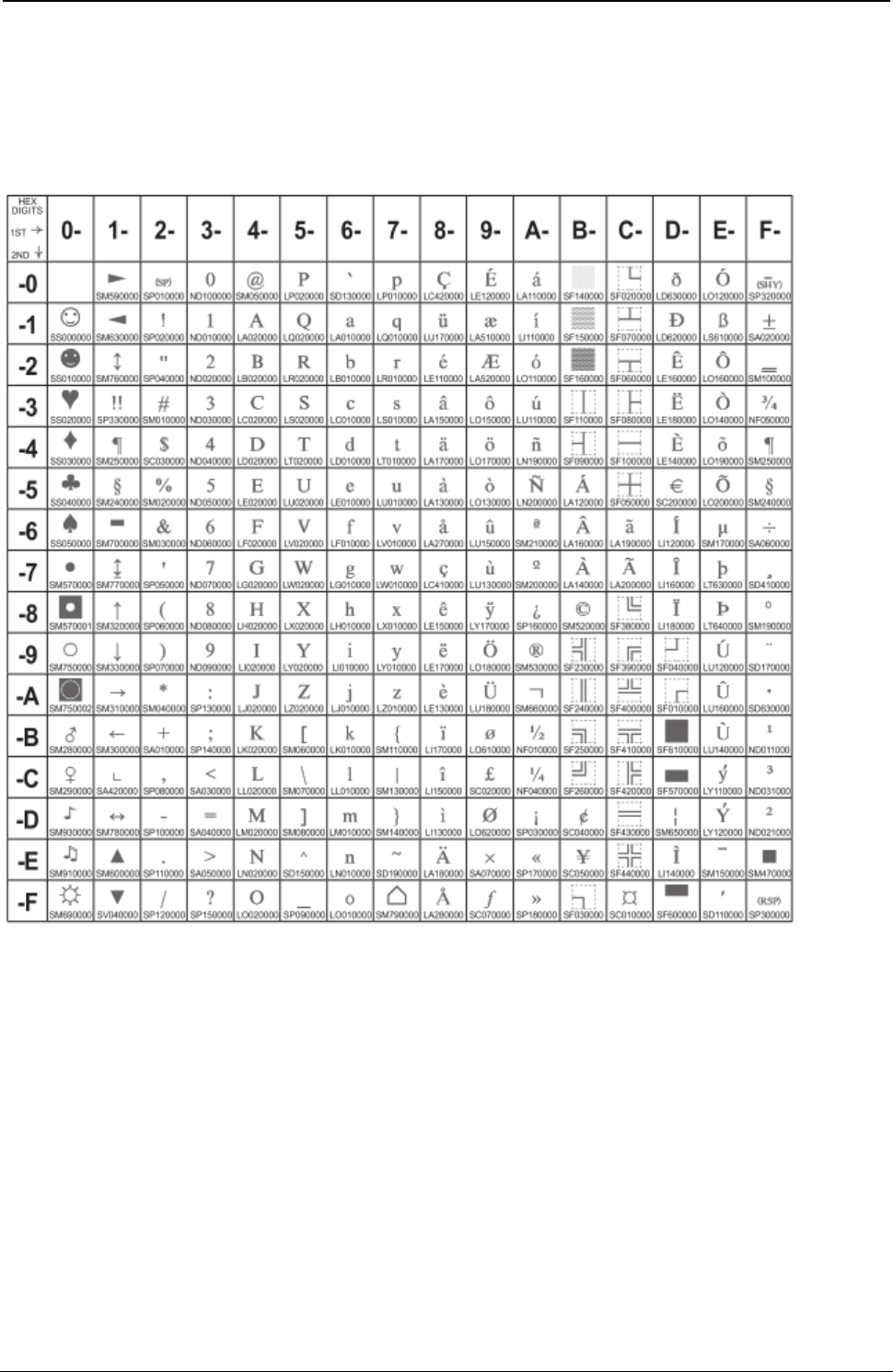

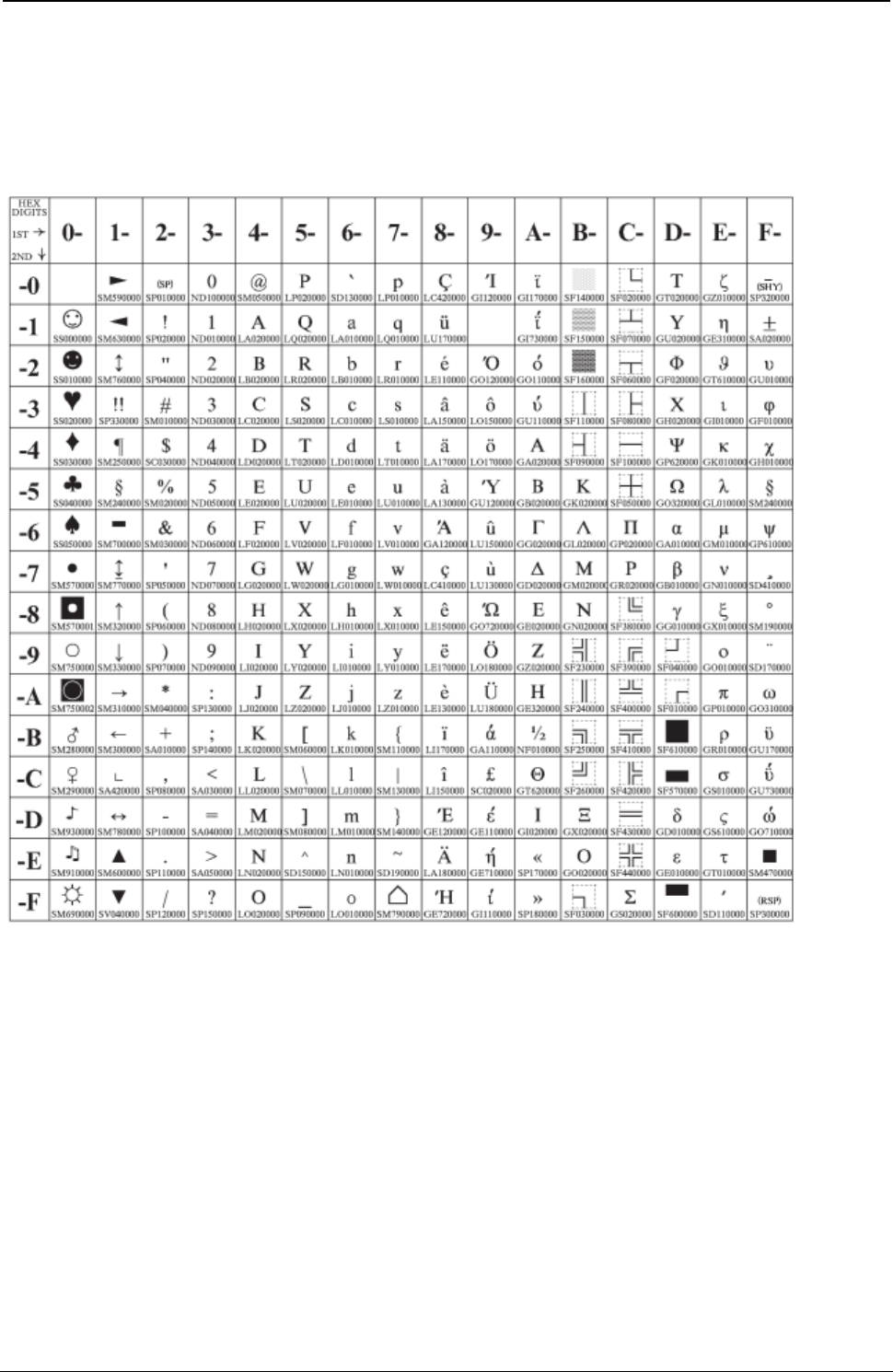

Figure 2. USA(CP437) 101
Figure 3. Greek(CP437-G) 102
Figure 4. Croatian(CP437-SLAVIC) 103
Figure 5. Greek/Latin (ISO 8859-7) 104
Figure 6 .ISO8859/1(Latin1) 105
Figure 7.Multilingual(CP850) 106
Figure 8.Old Greek(CP851) 107
Figure 9.EasternEurope(CP852) 108
Figure 10.Turkish(CP853) 109
Figure 11.Cyrillic(CP855) 110
Figure 12.Turkish(CP857) 111

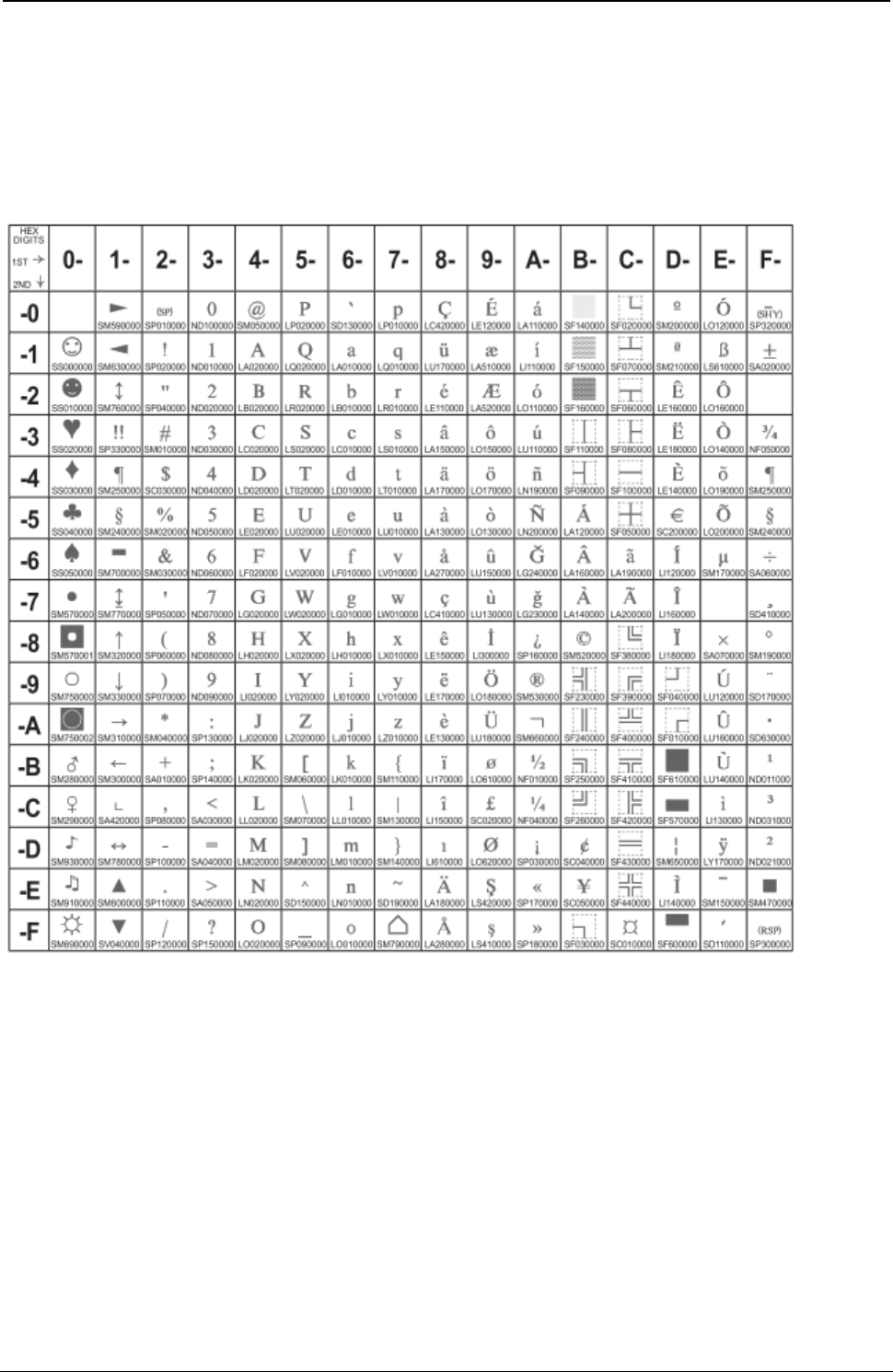

Figure 13.EuroPCMultilingual(CP858) 112
Figure 14.Portugal(CP860) 113
Figure 15.Hebrew(CP862) 114
Figure 16.Canada/France(CP863) 115

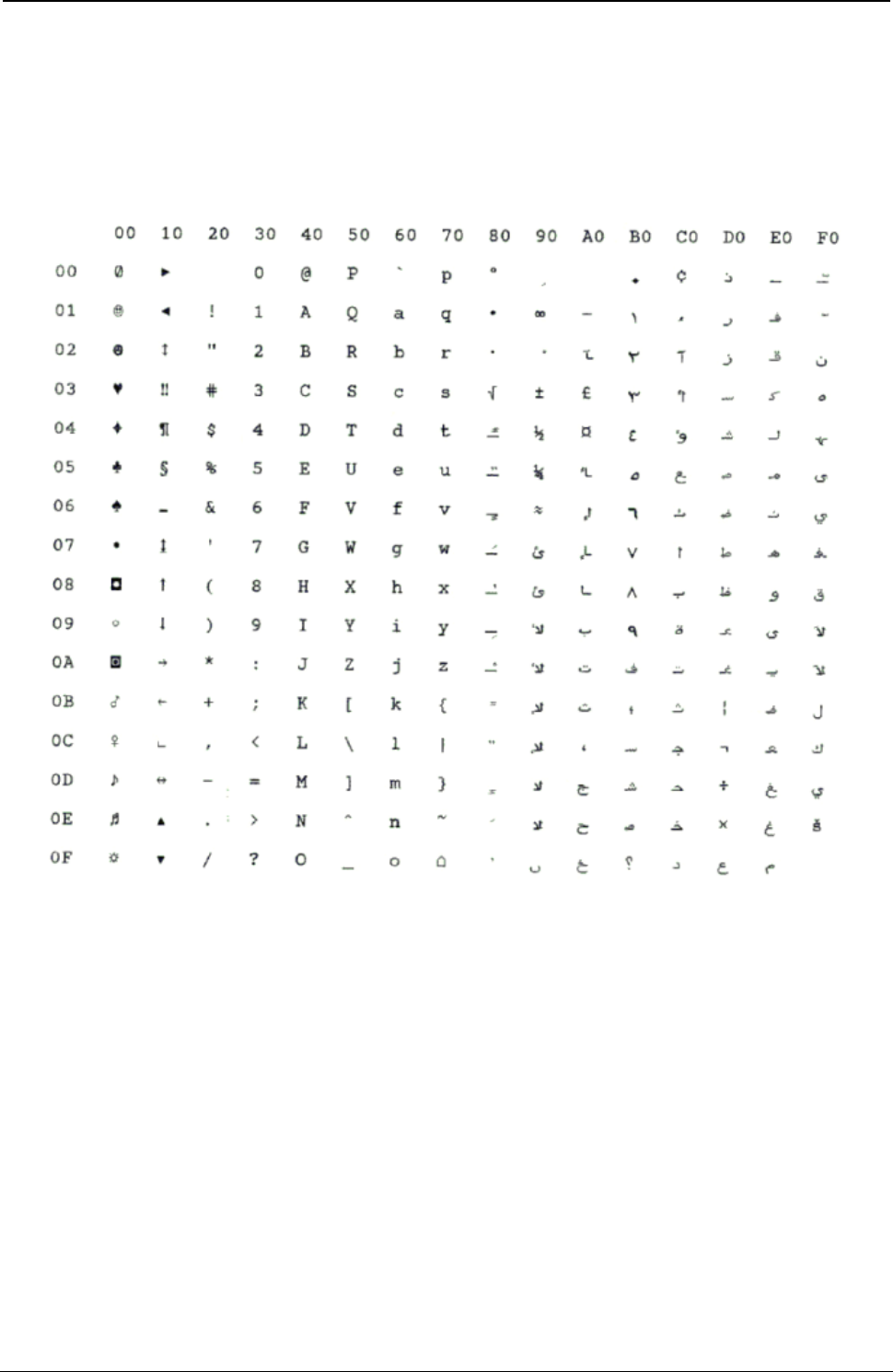

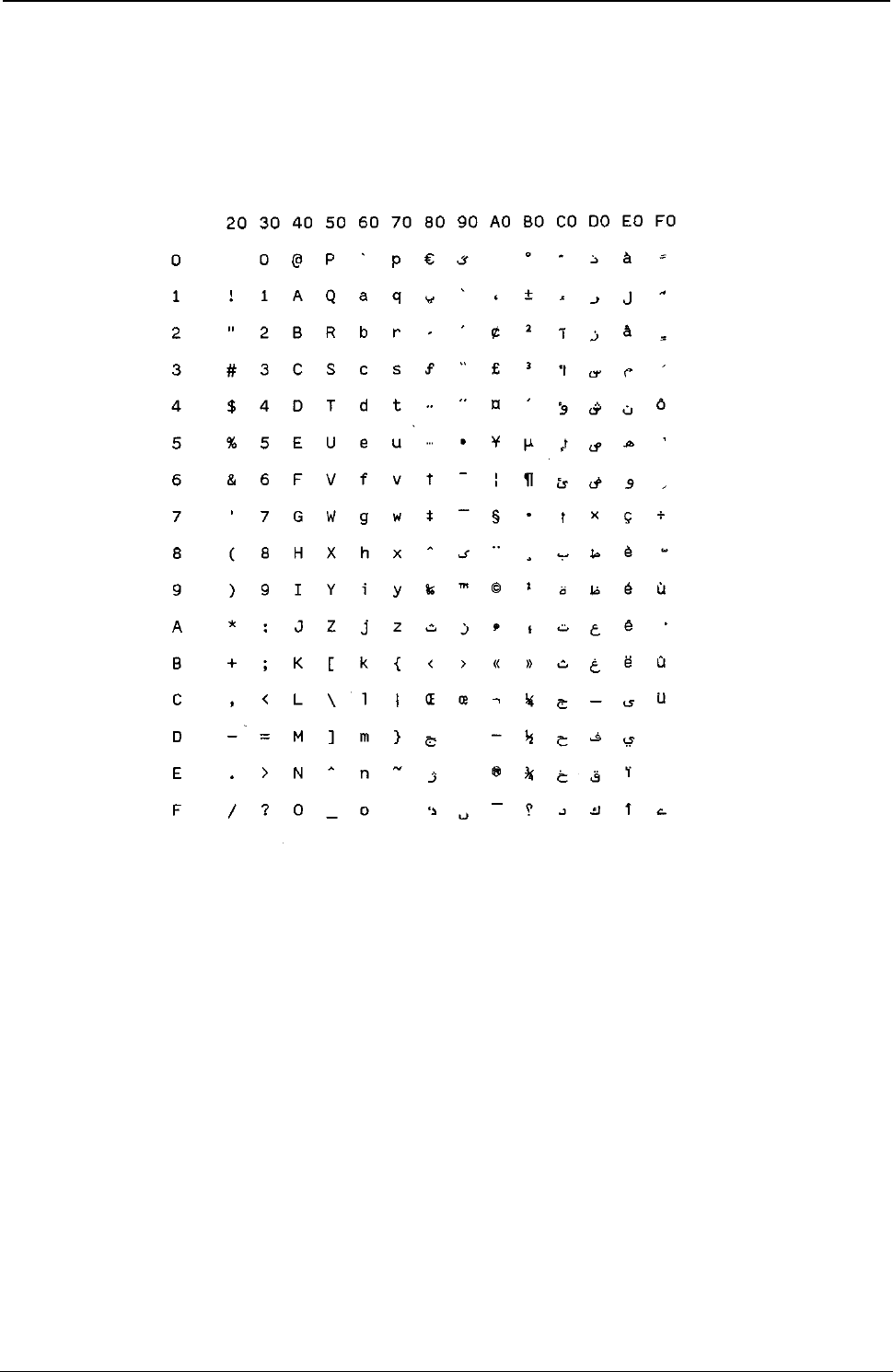

Figure 17.Arabic(CP864) 116
Figure 18.CP864E(Arabic) 117
Figure 19.Denmark/Norway(CP865) 118

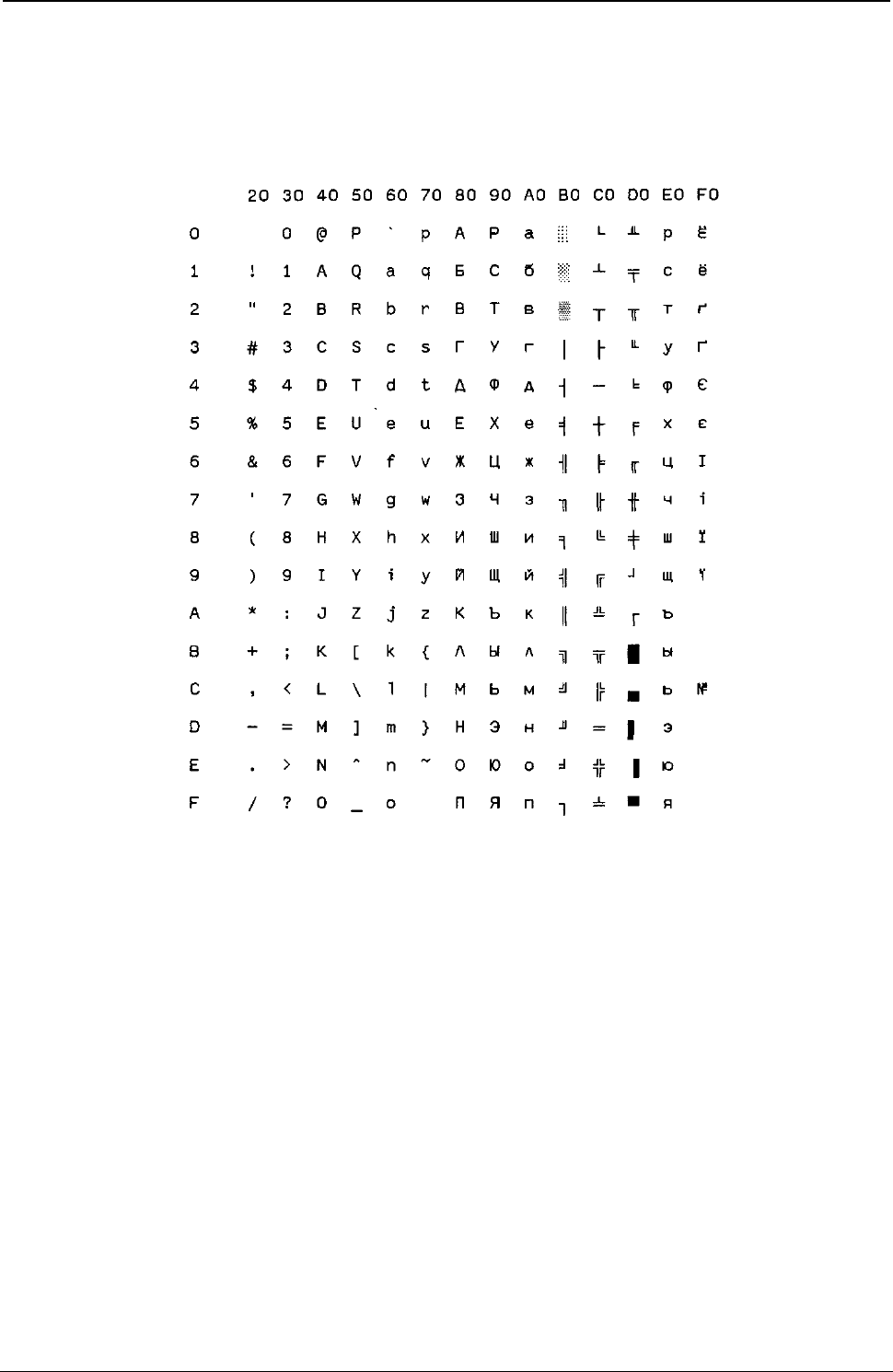

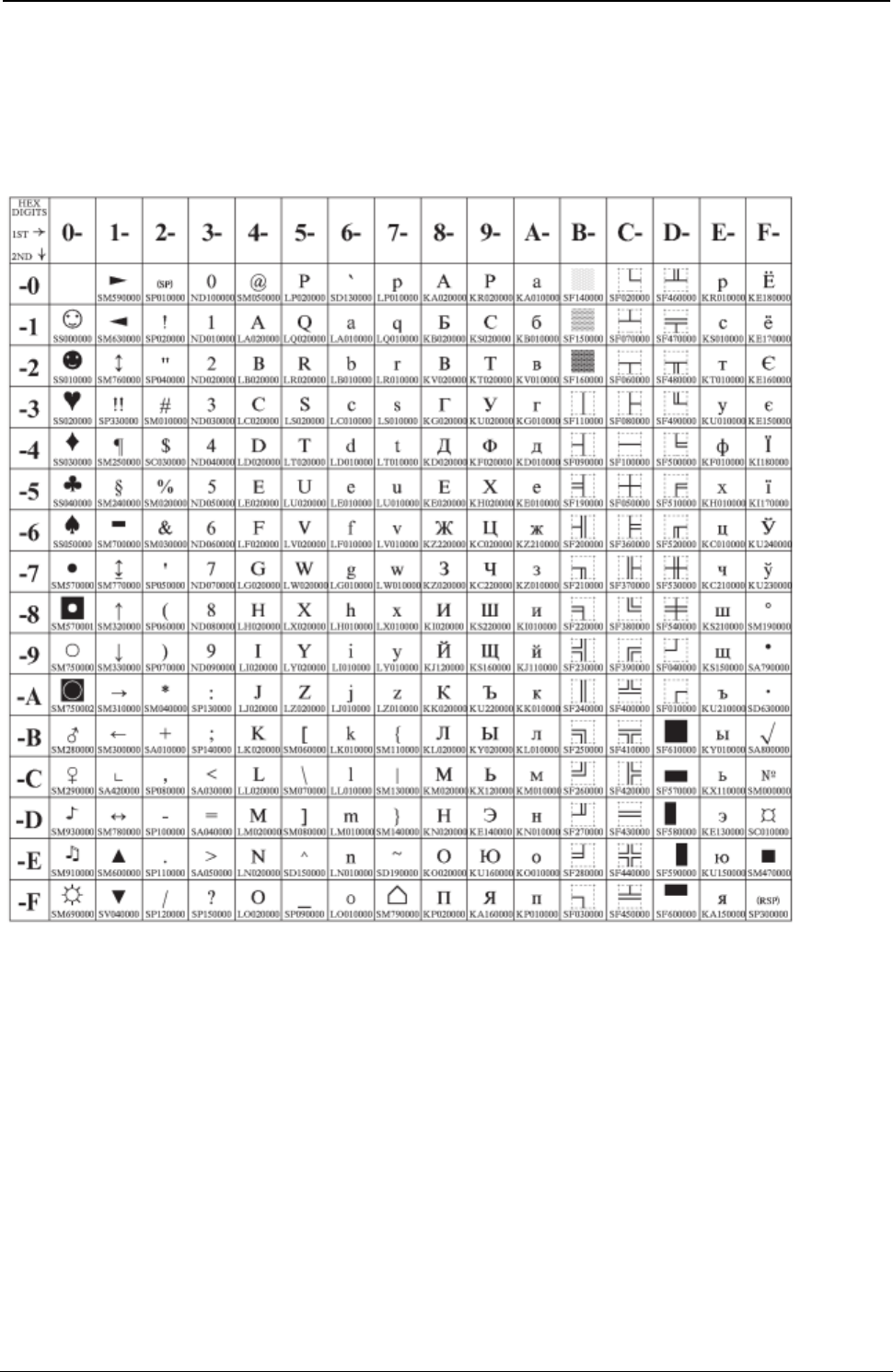

Figure 20Russian(CP866) 119
Figure 21.Turkish2(CP867) 120
Figure 22.OCR-A(CP876) 121
Figure 23.OCR-B(CP877) 122

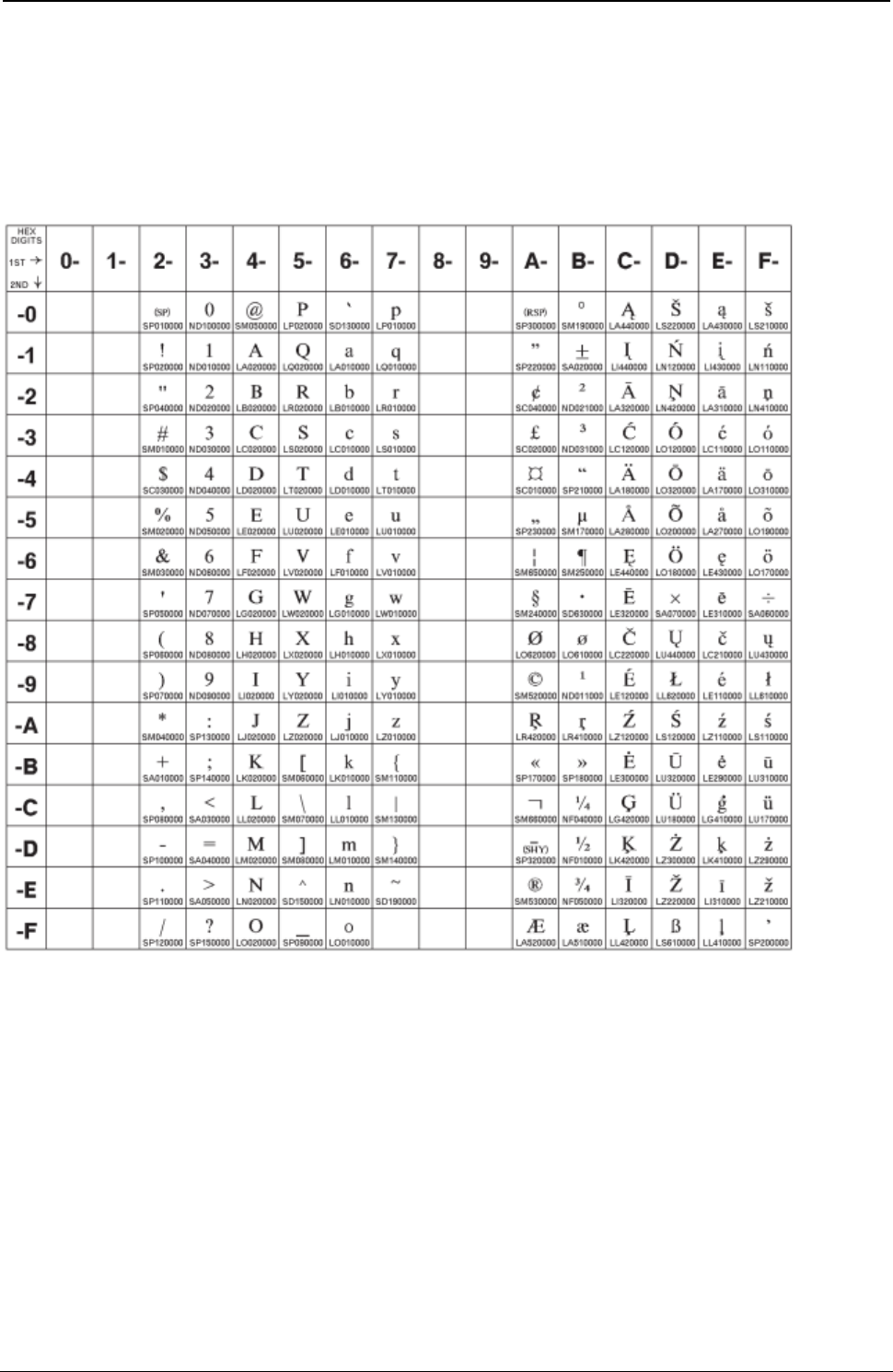

Figure 24.ISO8859/2(Latin2) 123
Figure 25.ISO8859/3(Latin3) 124
Figure 26.ISO8859/4(Latin4) 125

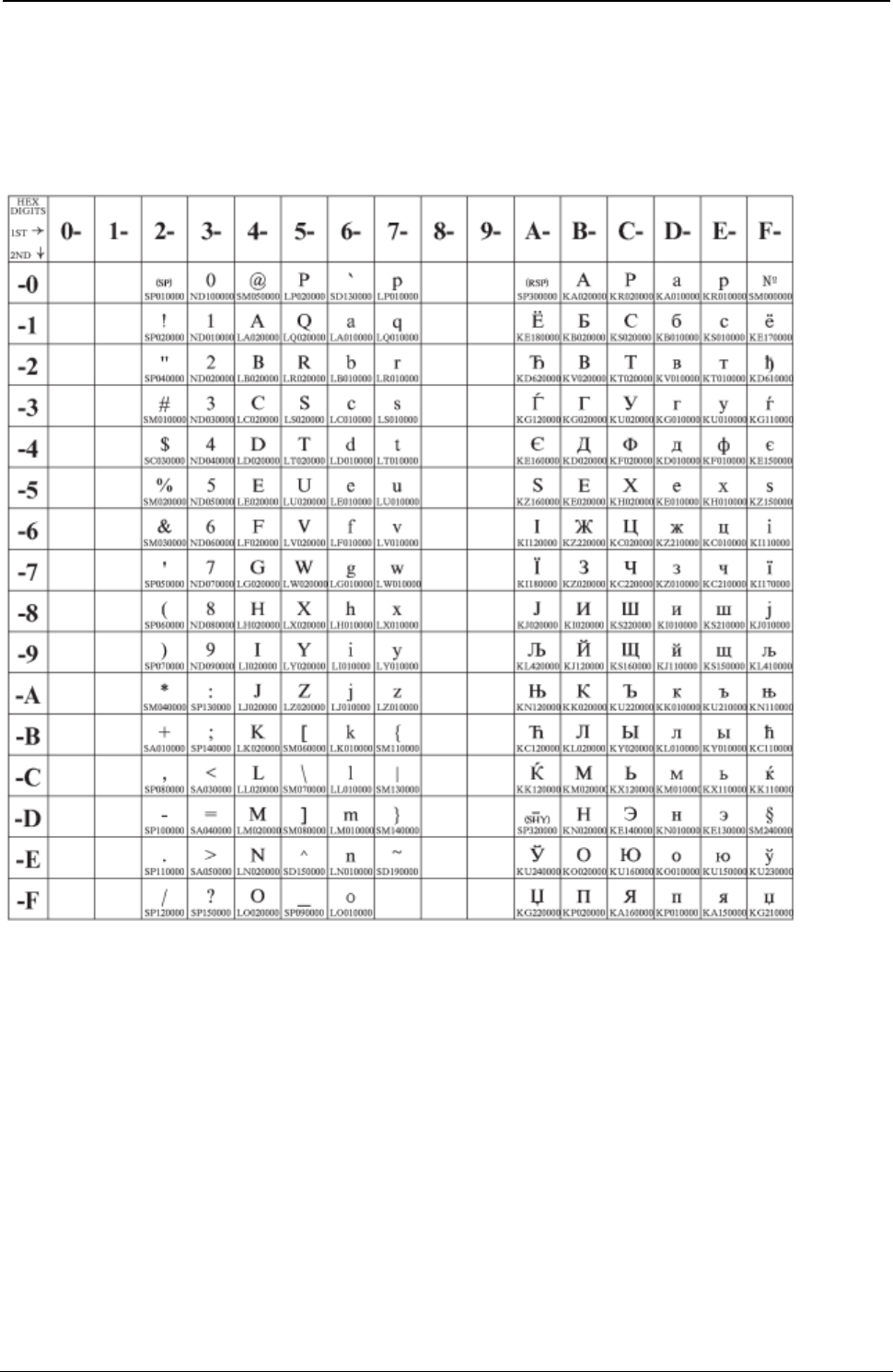

Figure 27.ISO8859/5(Latin/Cyrillic) 126
Figure 28.ISO8859/8 (Latin 8) 127
Figure 29.ISO8859/9(Latin5) 128
Figure 30.BalticWindows(CP921) 129
Figure 31.Estonian (CP922) 130
Figure 32.ISO8859/15(Latin9) 131
Figure 33.Urdu (CP01006) 132
Figure 34.Arabic Extended (CP1046) 133
Figure 35.ISO8859/6(Latin/Arabic) 134
Figure 36.Farsi(CP1098) 135
Figure 37.Estonian (CP1116) 136
Figure 38.Latvian (Personal Computer) (CP1117) 137
Figure 39.Lthuanian (Personal Computer) (CP1118) 138
Figure 40.CentralEurope(CP1250) 139
Figure 41.Cyrillic(CP1251) 140
Figure 42.Latin1AnsiWindows(CP1252) 141
Figure 43.GreekWindows(CP1253) 142
Figure 44.TurkishWindows(CP1254) 143
Figure 45.HebrewWindows(CP1255) 144
Figure 46.ArabicWindows(CP1256) 145
Figure 47.Batlic Windows (CP1257) 146
Figure 48.MAZOWIA(Polish) 147
Figure 49.GOST(Russian) 148
ProgrammerManual PTXS809
Contents4260070001A
Figures Page
Figure 50.TASS(Cyrillic) 149
Figure 51.UKRANIAN(oldversion) 150
Figure 52.KOI8-U(newversion) 151
Figure 53. Farsi 1 152
Figure 54. Farsi 2 153
Figure 55.Kamenicky 154
Figure 56.CWI 155
Figure 57.Roman-8 156
Figure 58.IN2 157
Figure 59.Turkish 158
Figure 60. Bulgarian 159
Figure 61.96GREEK 160

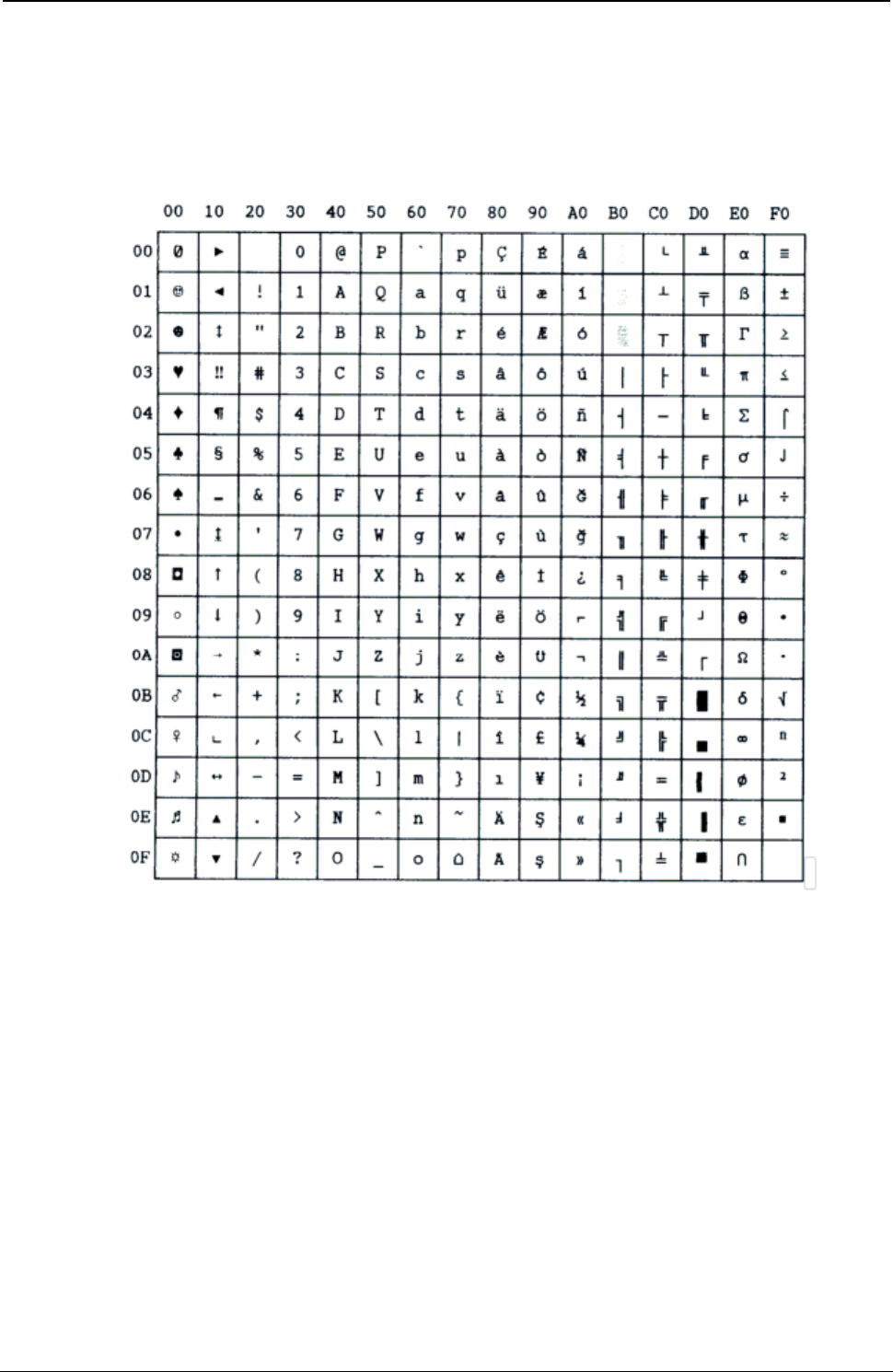

Figure 62.CharacterSet1 161

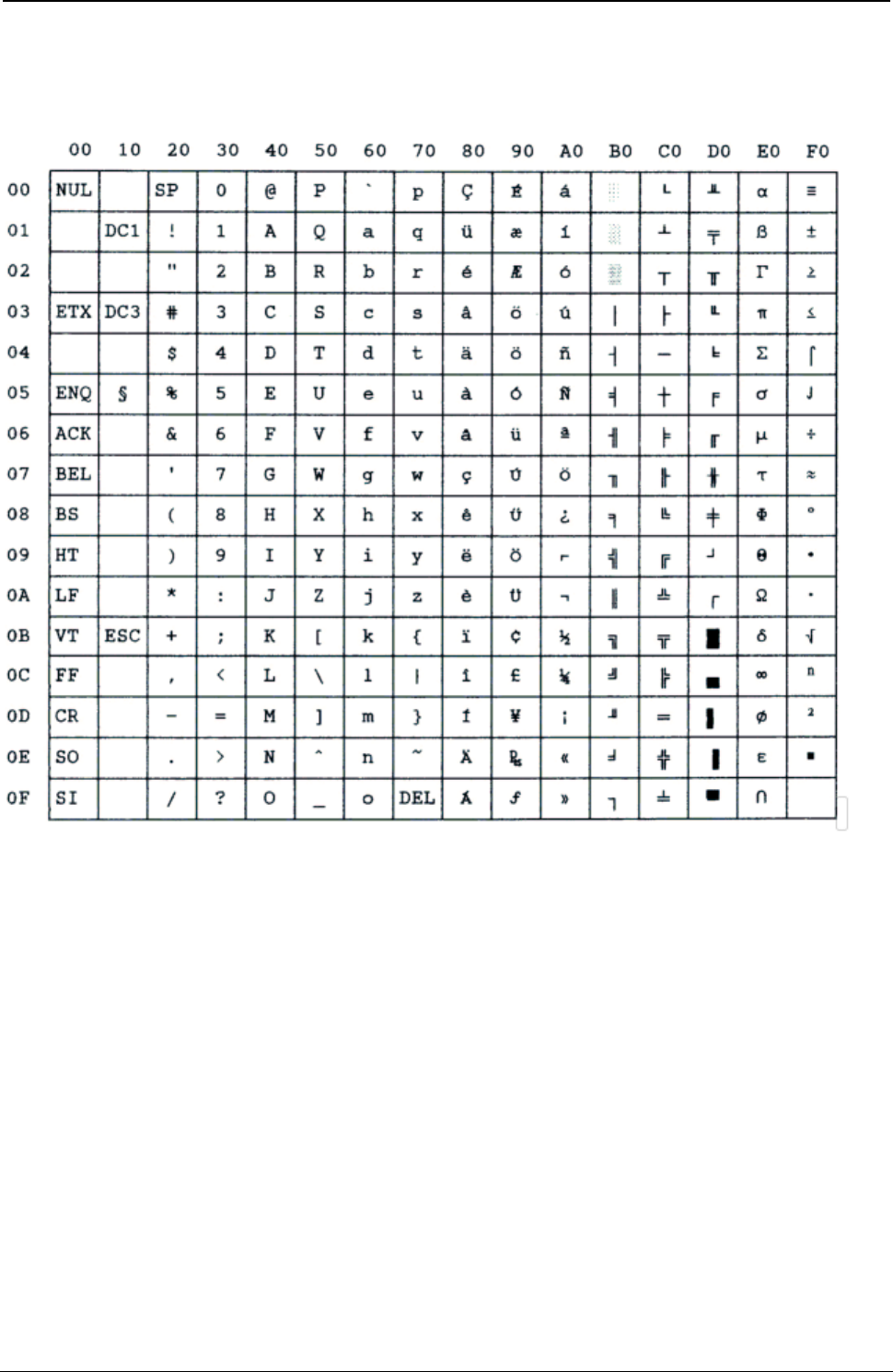

Figure 63.CharacterSet2 162
Figure 64.Hexadecimal to Decimal Table 163
Figure 65. Epson Extended Graphics Character 164
Figure 66. Epson Italic Character 165
Figure 67. Epson Extended Character Variables 166

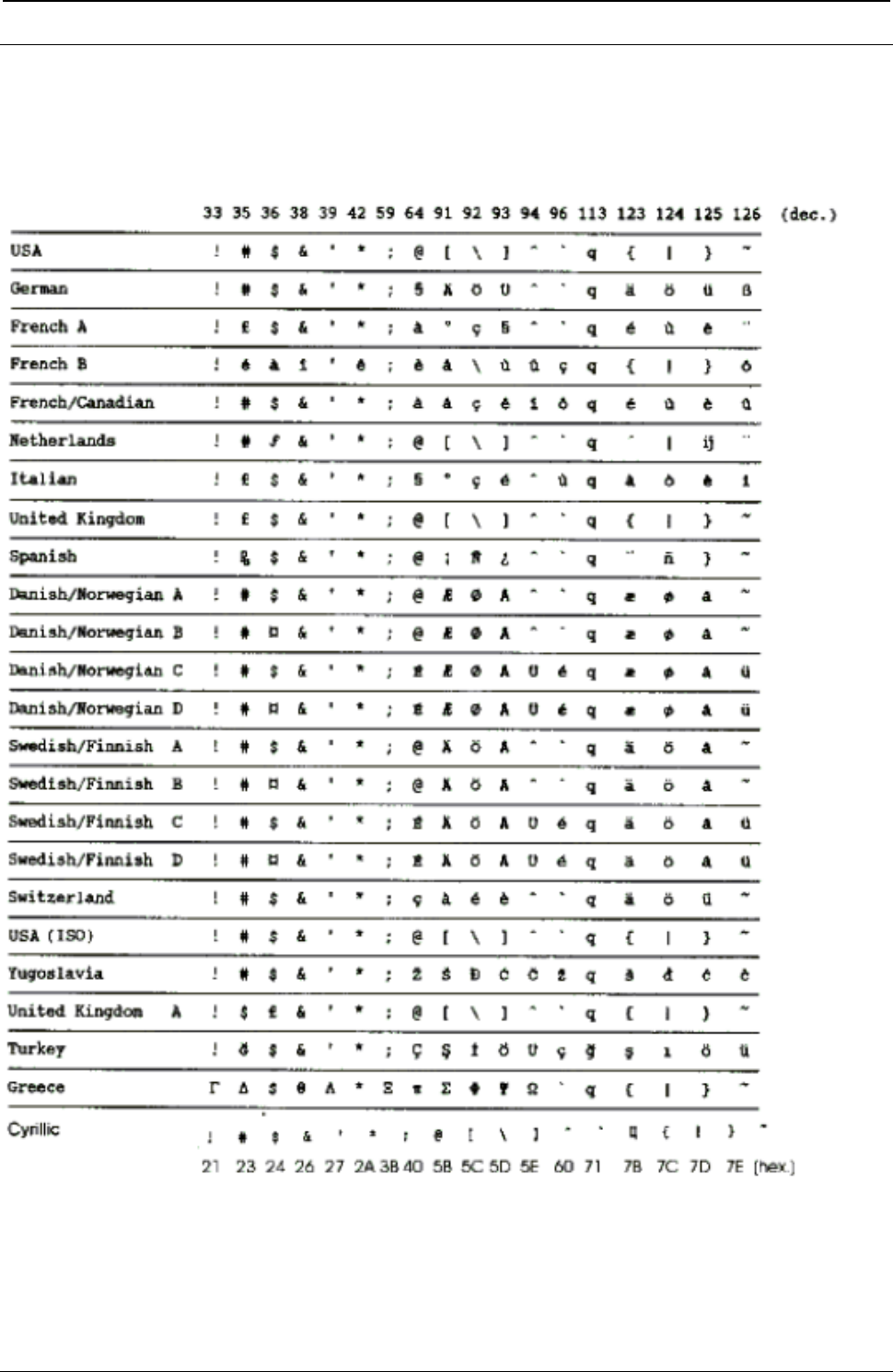

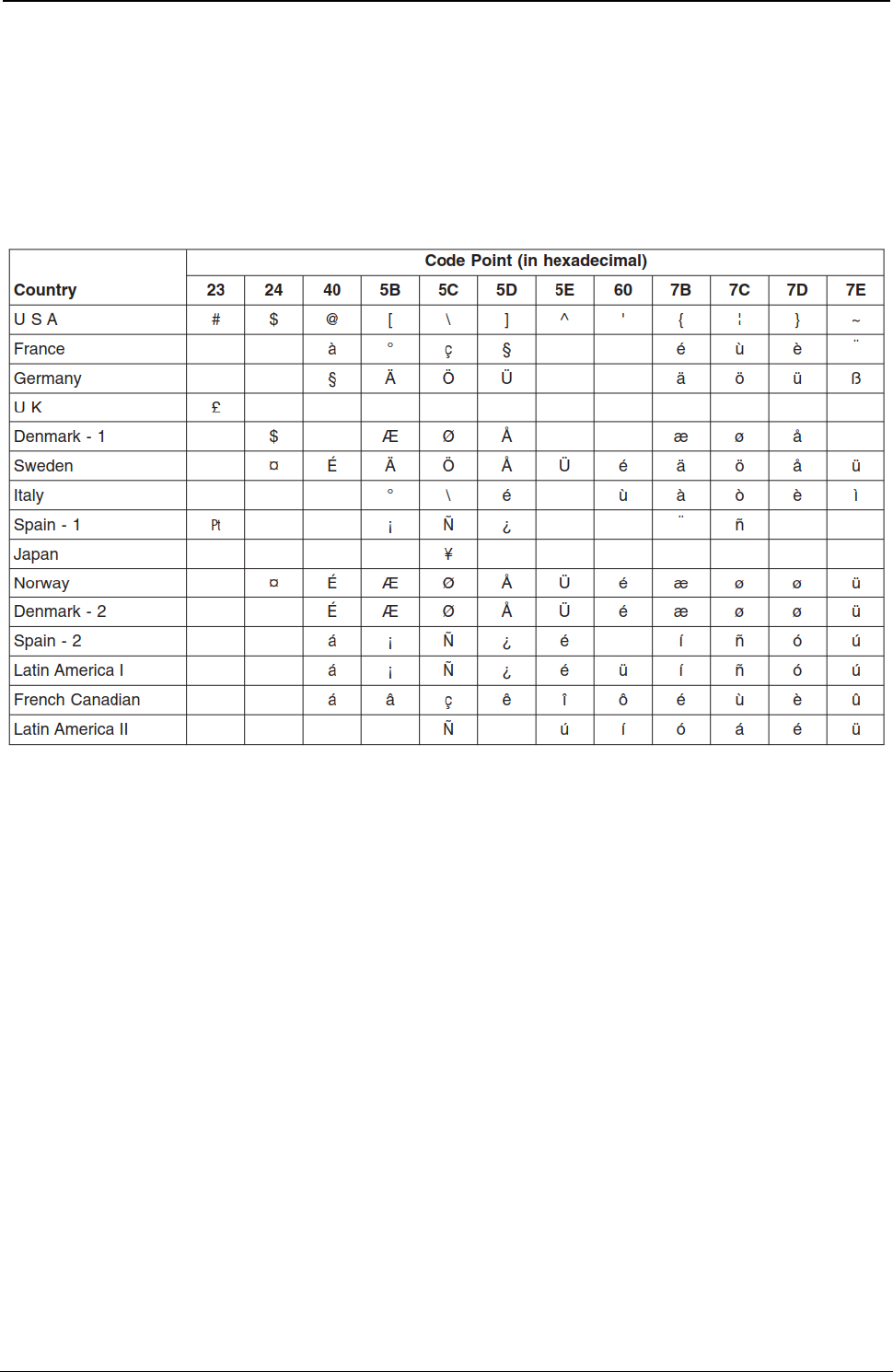

Figure 68. ANSI National Variations 167

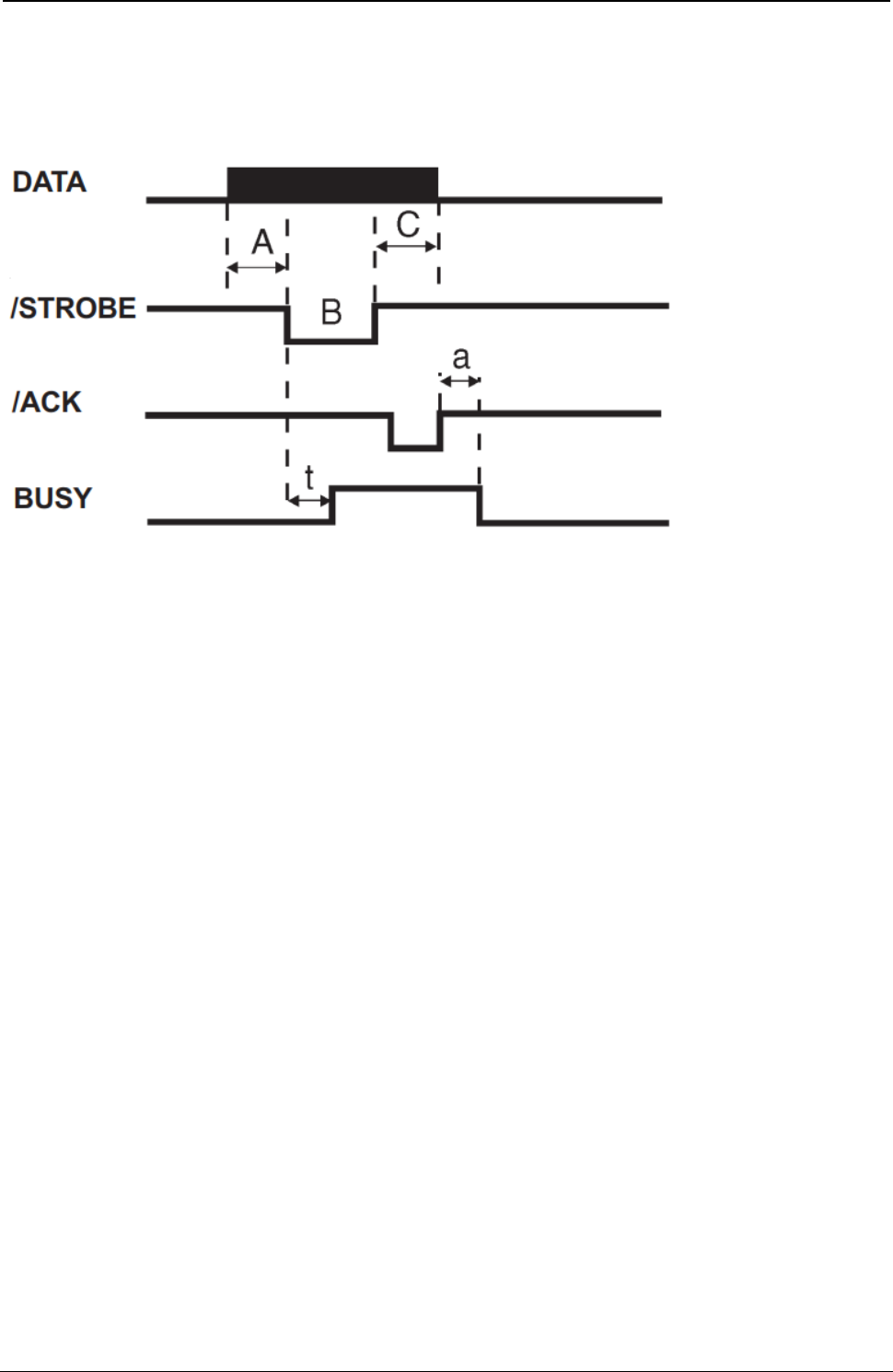

Figure 69. Mode Centronics 174

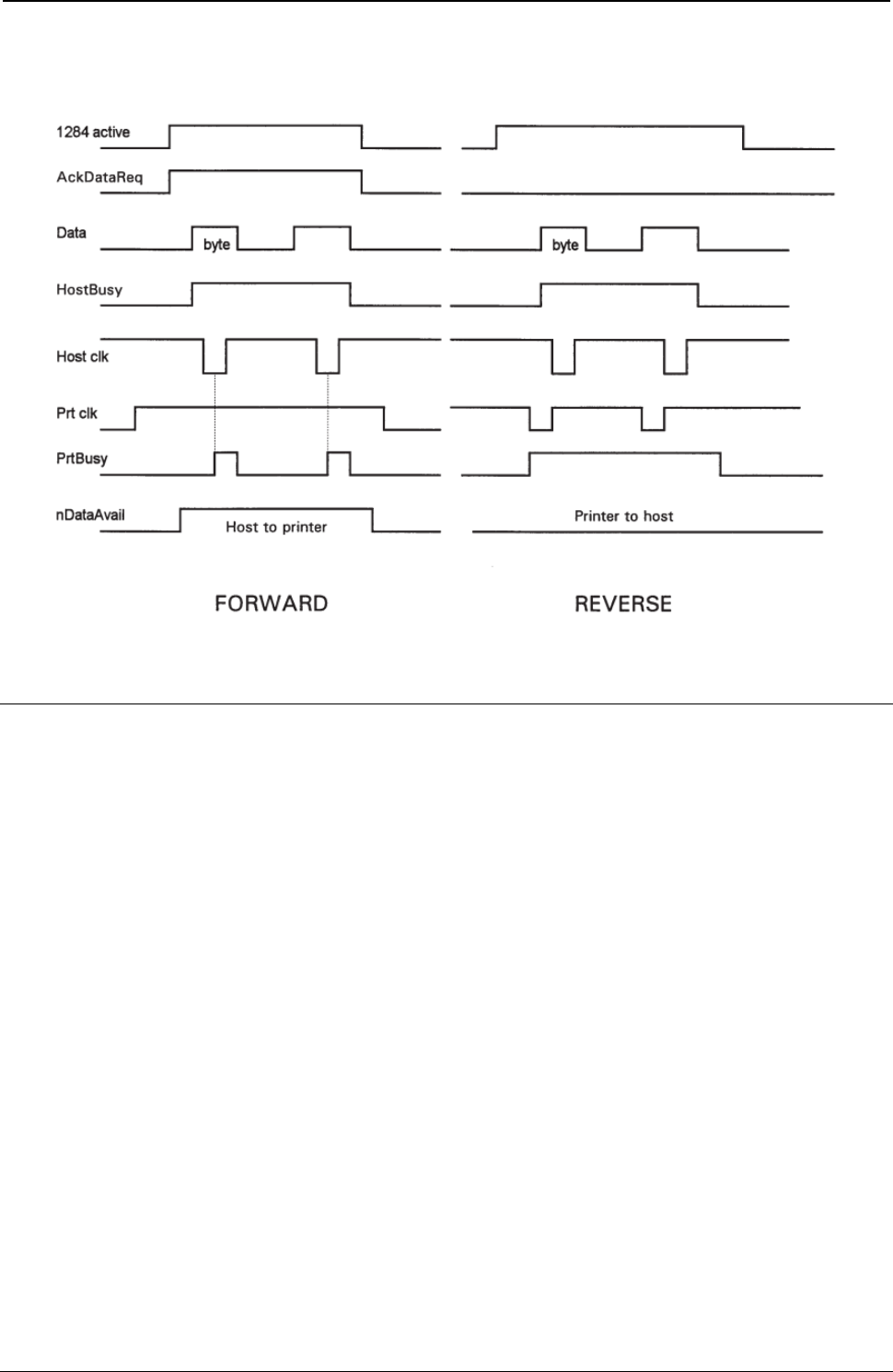

Figure 70. Mode IEEE 1284 175

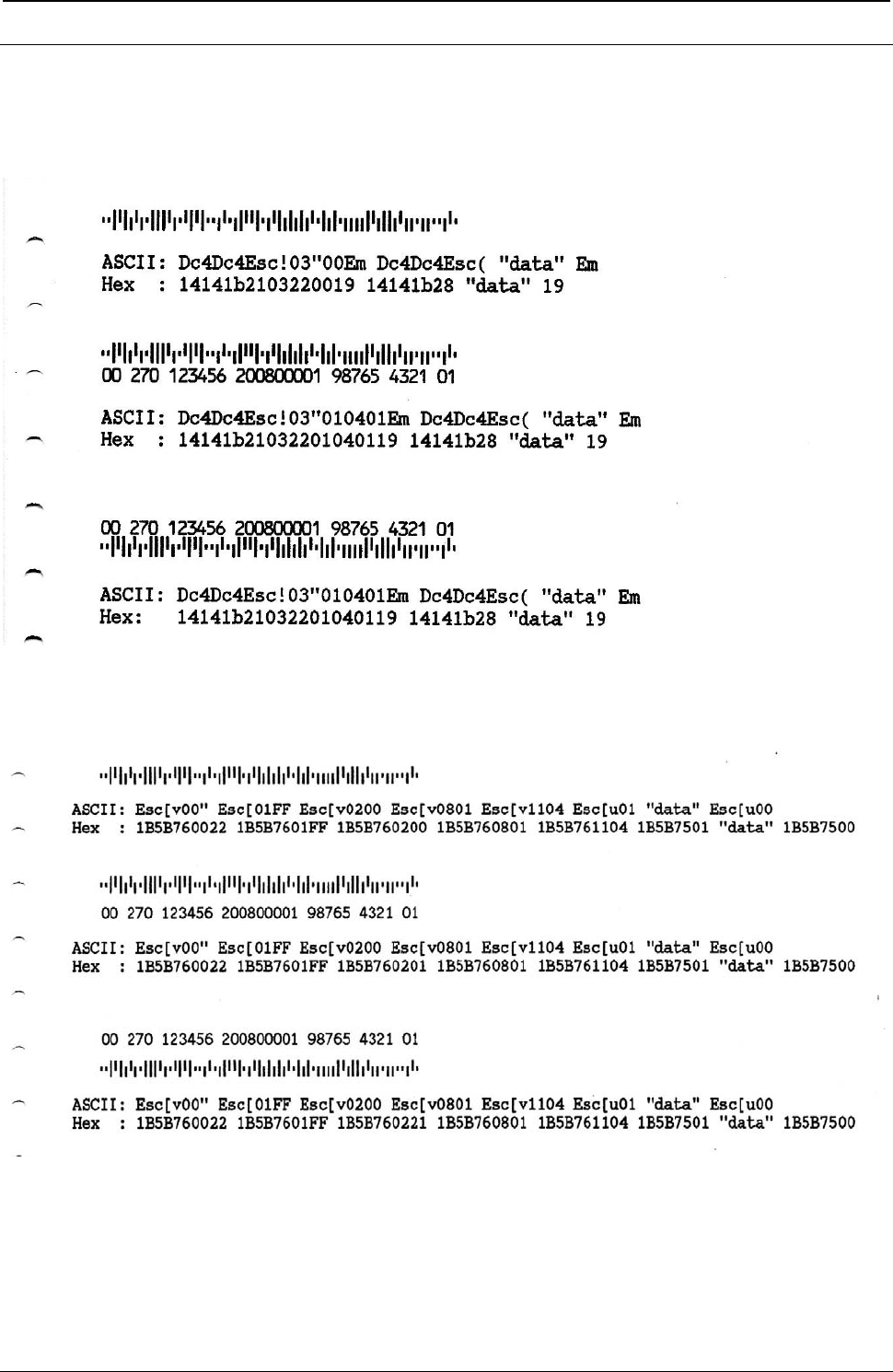

Figure 71. Intelligent Mail Bar Code in Native Commands Example (Bar Code Mode Native) 203
Figure 72. Intelligent Mail Bar Code in Epson/IBM Commands Example (Bar Code Mode Alt. 1) 203
Figure 73. Intelligent Mail Bar Code in ANSI Commands Example 204

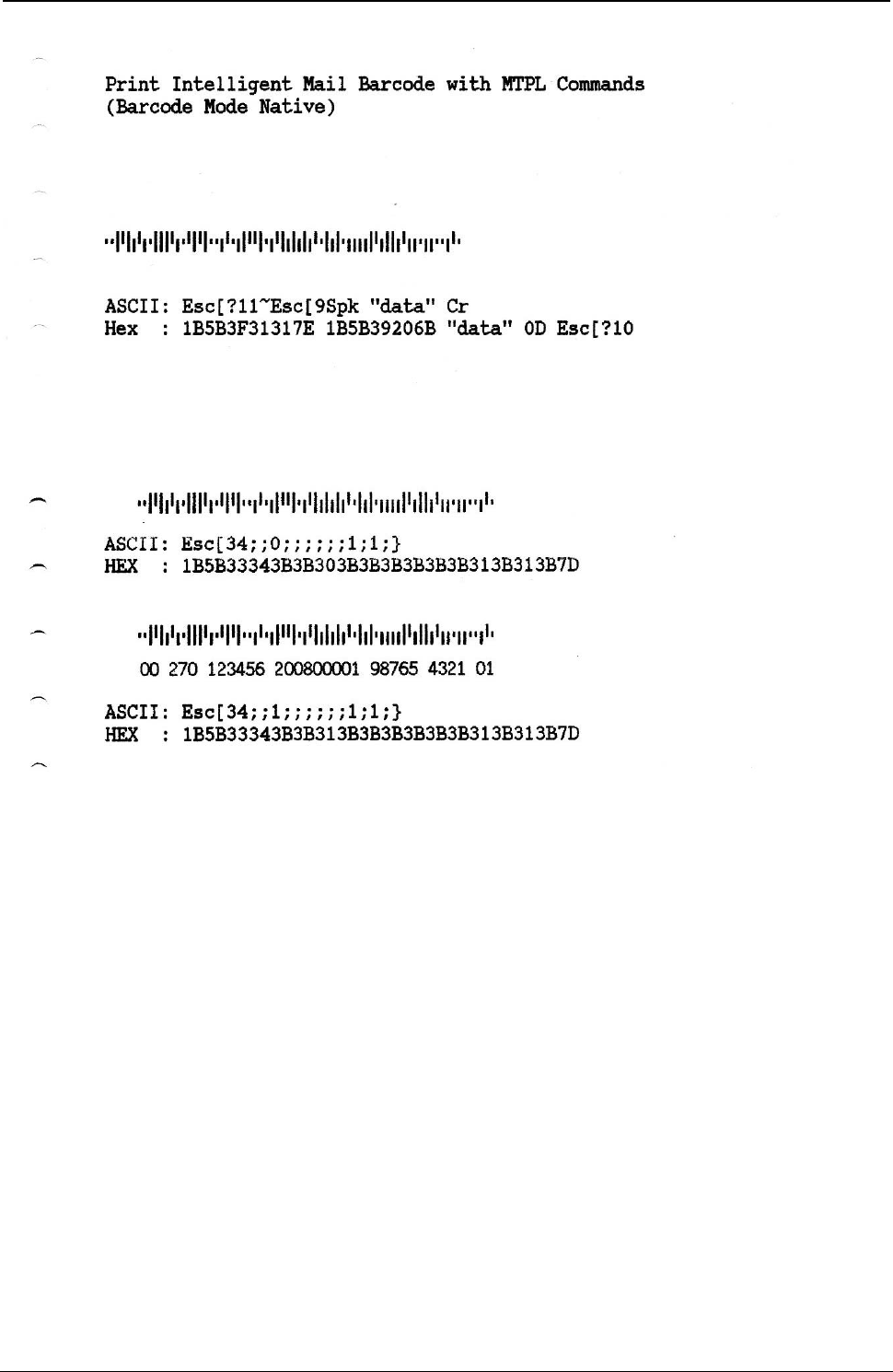

Figure 74. Intelligent Mail Bar Code in MTPL Commands Example (Bar Code Mode Alt. 1) 204

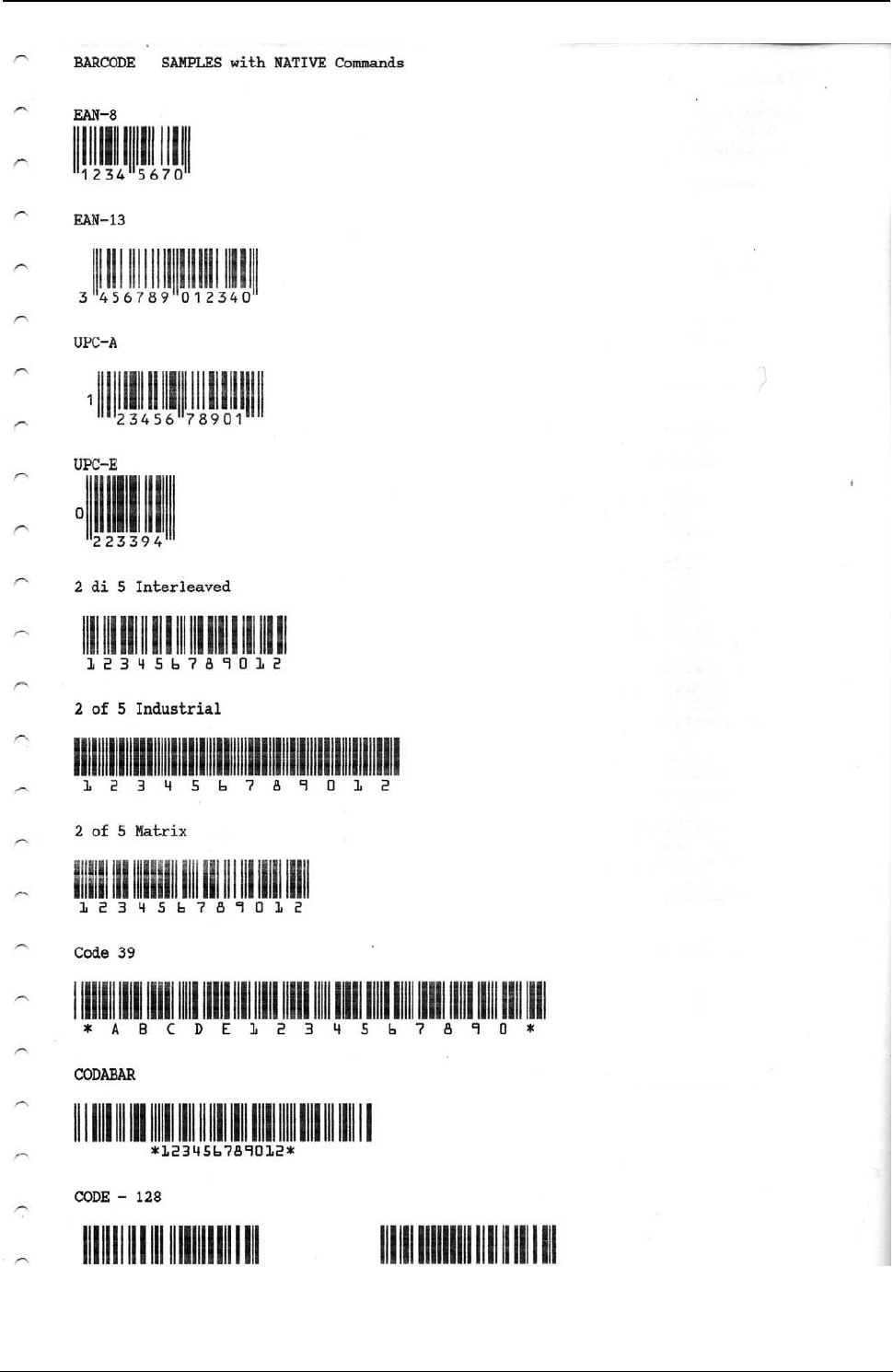

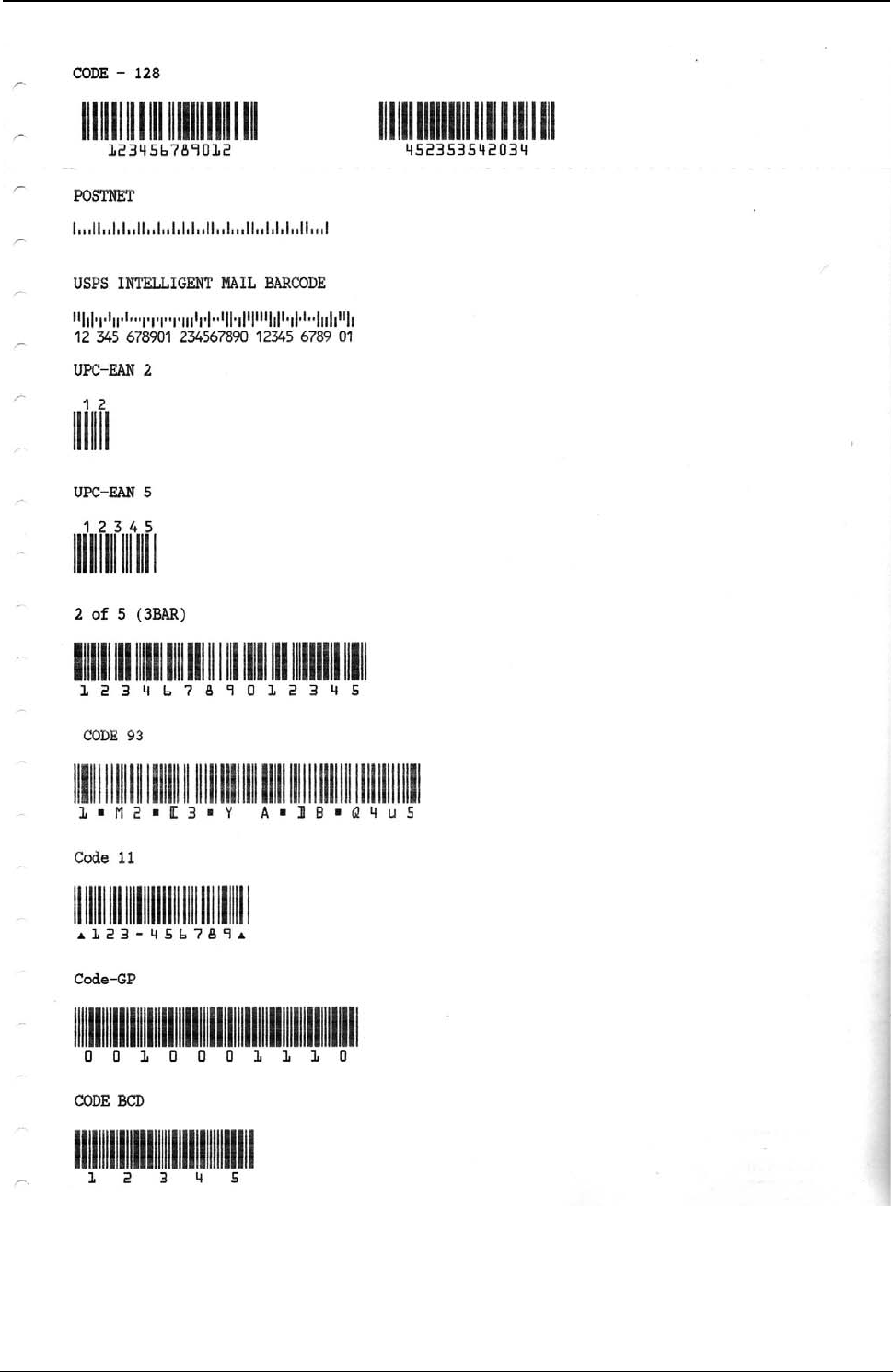

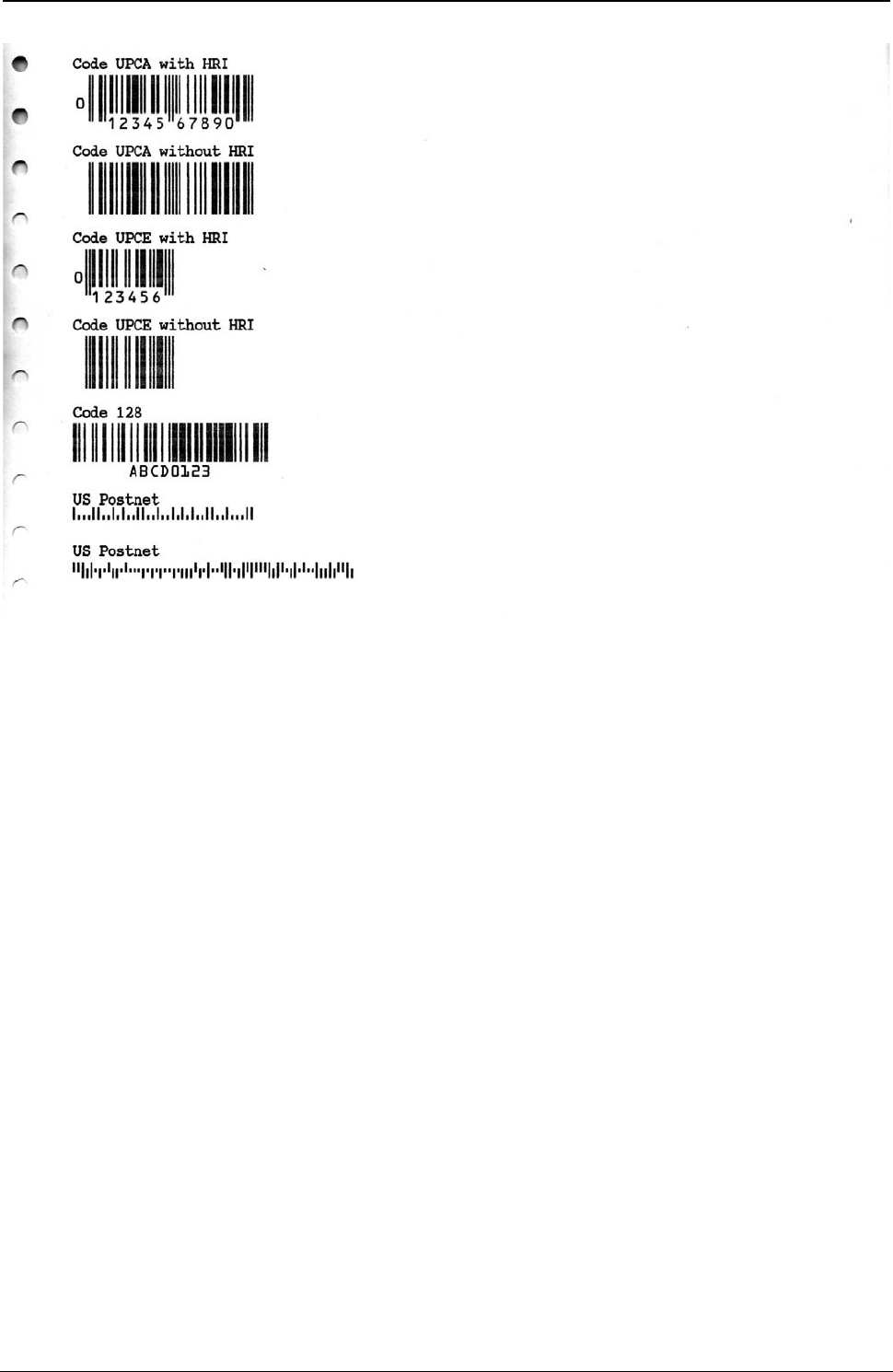

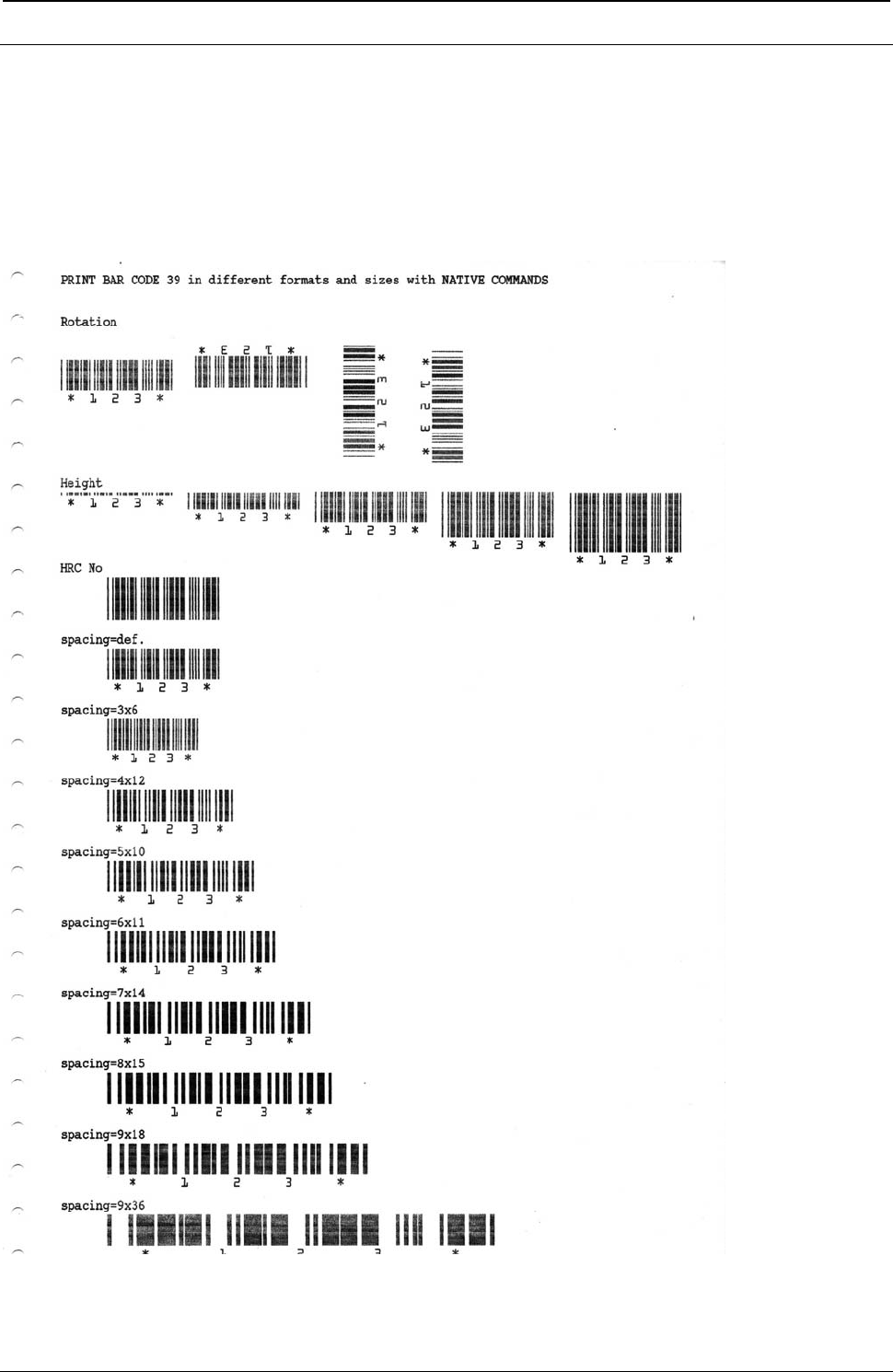

Figure 75. Bar Code Examples with NATIVE Commands Example (Bar Code Mode Native) 205

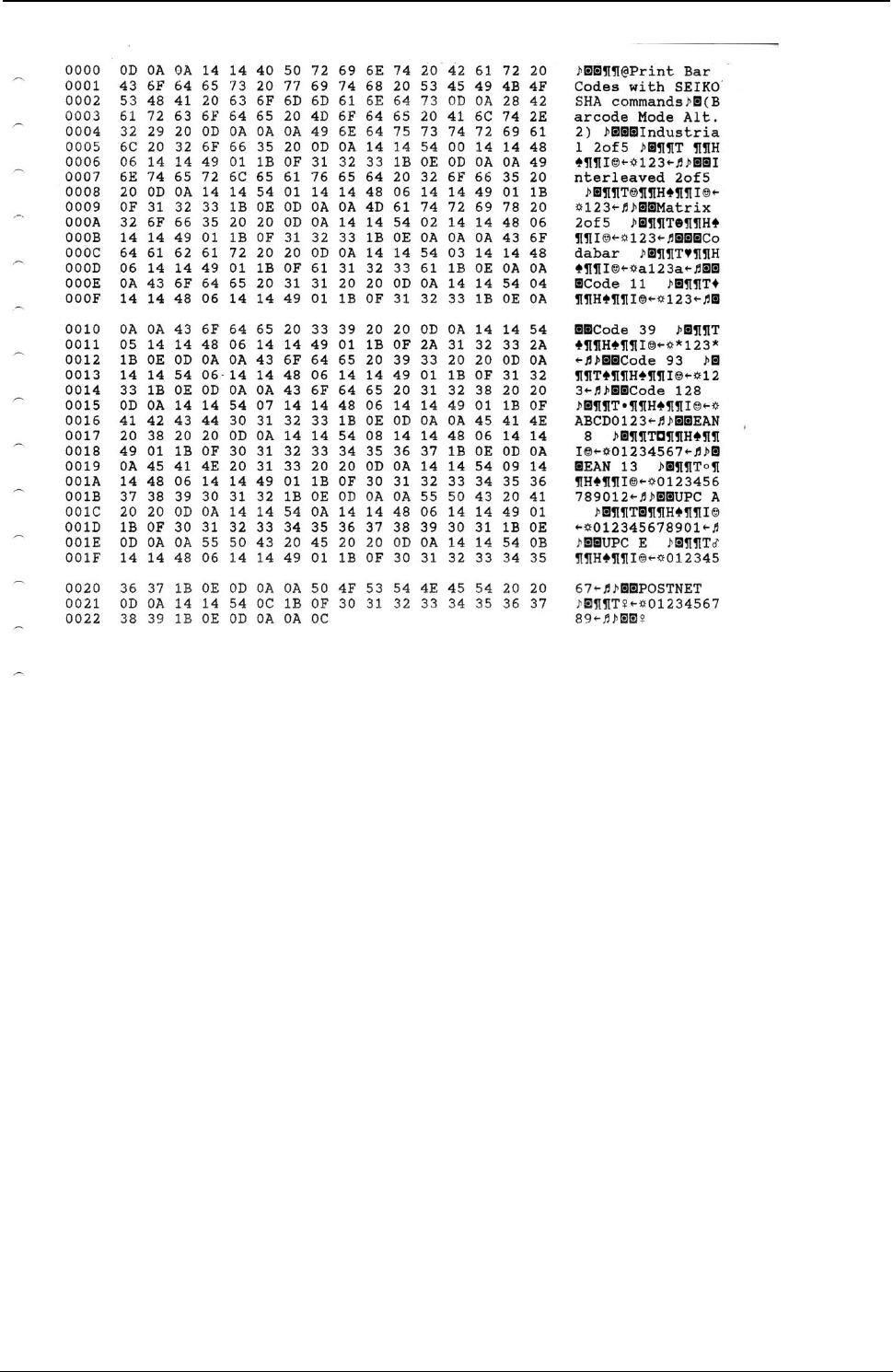

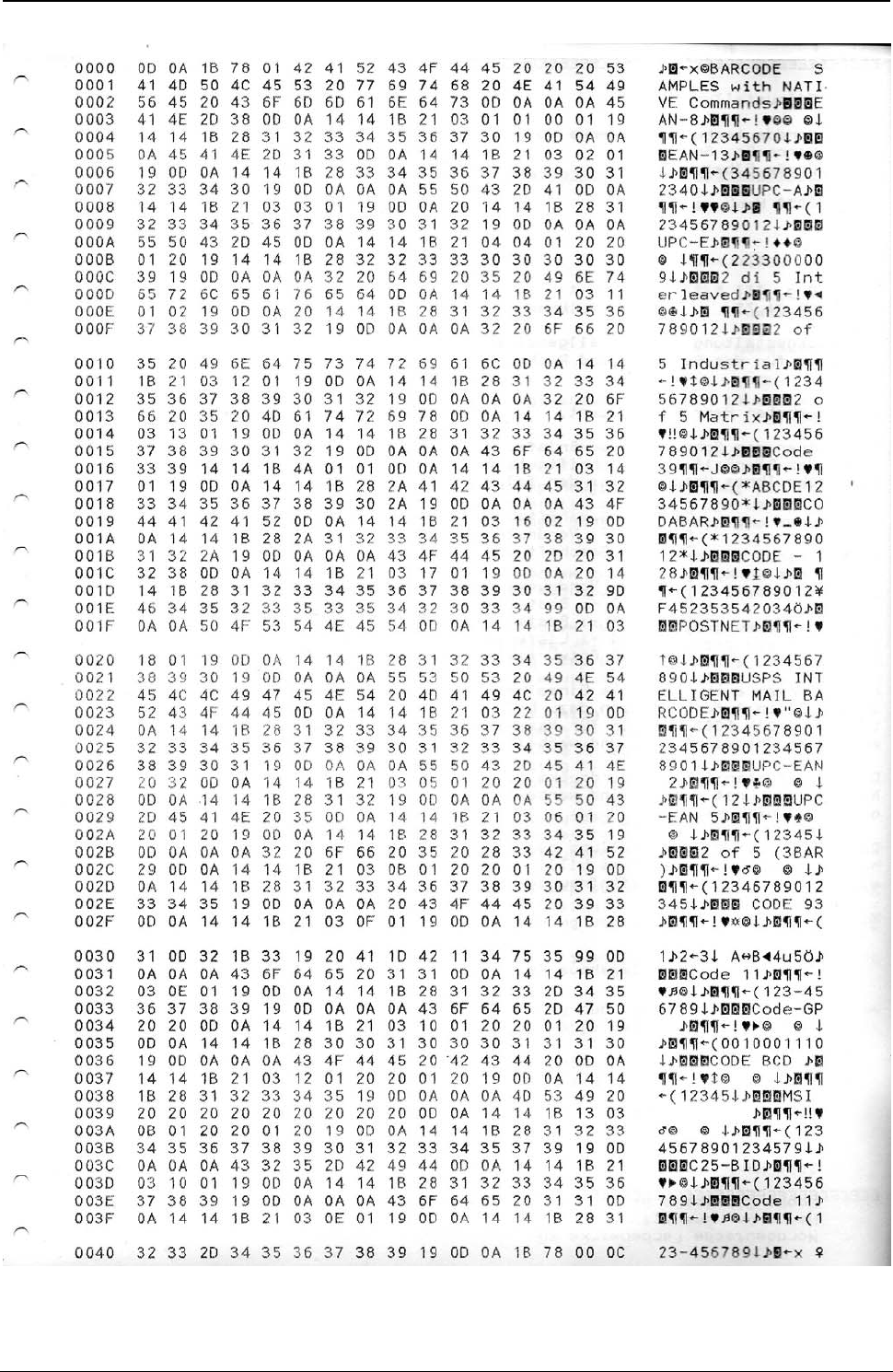

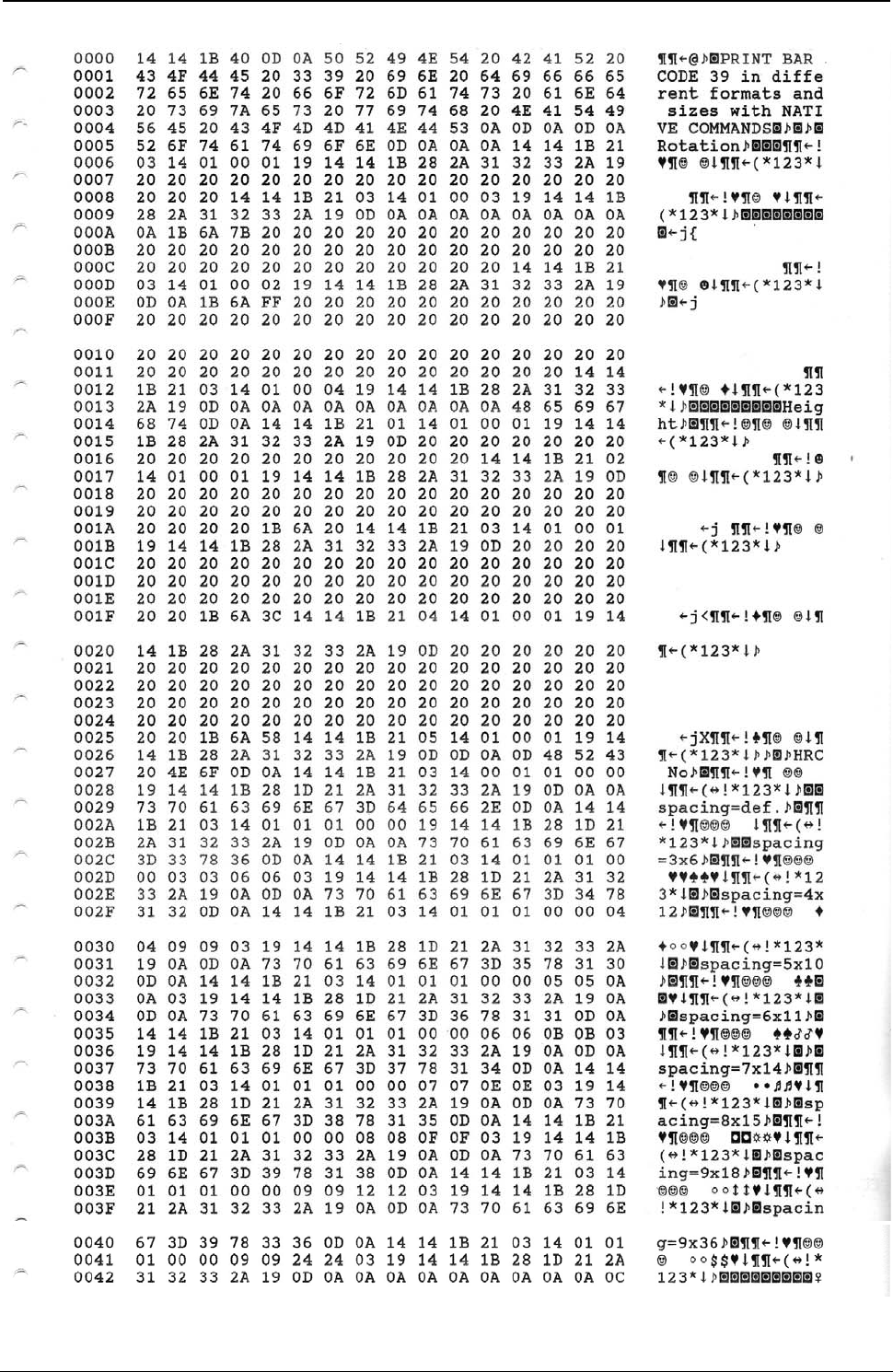

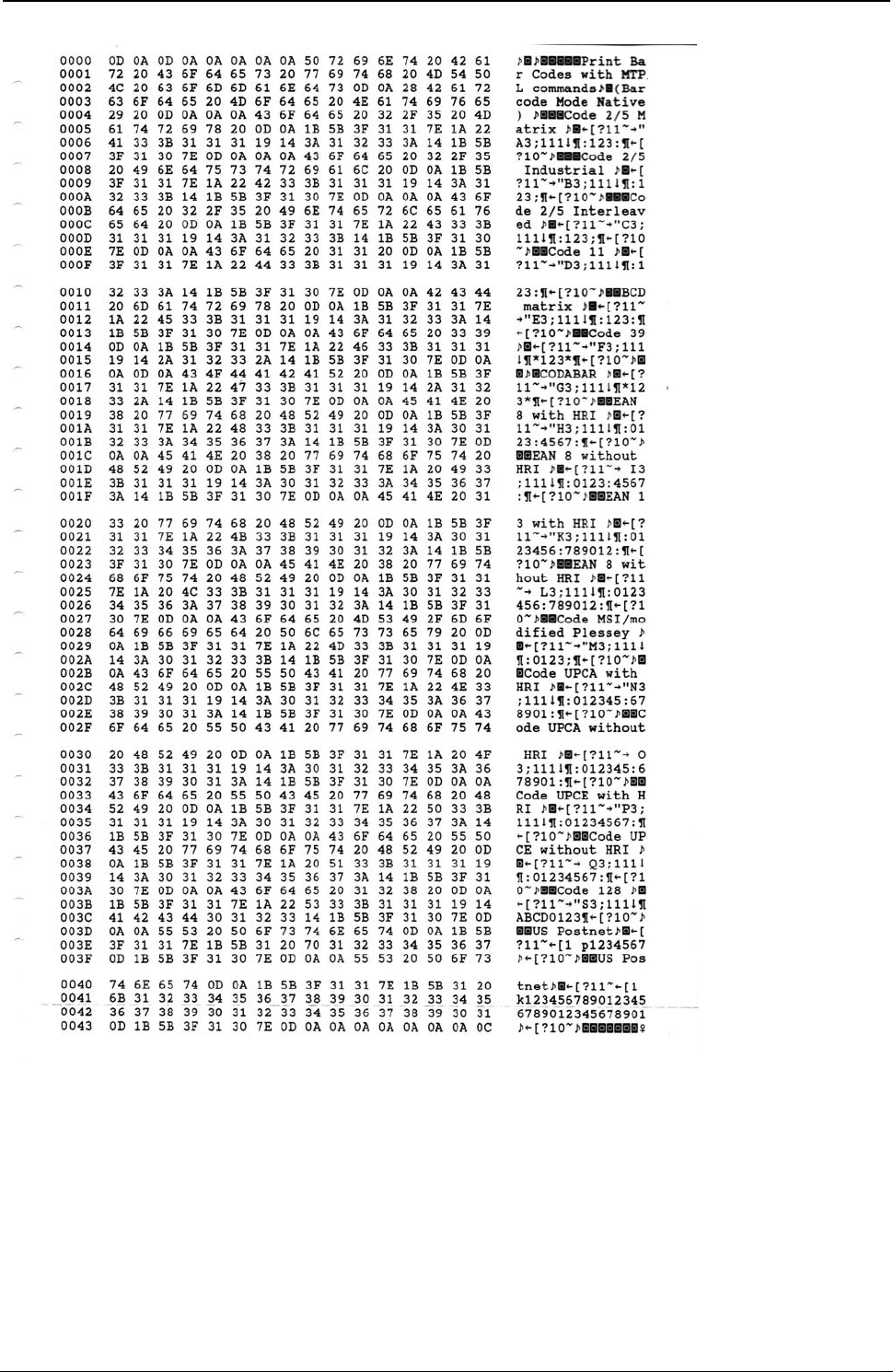

Figure 76. Hex Dump of example on figure 75 206
Figure 77. Bar Code Examples with NATIVE Commands Example (Bar Code Mode Native) 207
Figure 78. Bar Code Examples with NATIVE Commands Example (Bar Code Mode Native) 208
Figure 79. Bar Code Examples with NATIVE Commands Example (Bar Code Mode Native) 209
Figure 80. Hex Dump of example on figures 77, 78, 79 210
Figure 81. Bar Code Examples with MTPL Commands (Bar Code Mode Alt. 1) 212
Figure 82. Bar Code Examples with MTPL Commands (Bar Code Mode Alt. 1) 213
Figure 83. Hex Dump of example on figures 81, 82 214

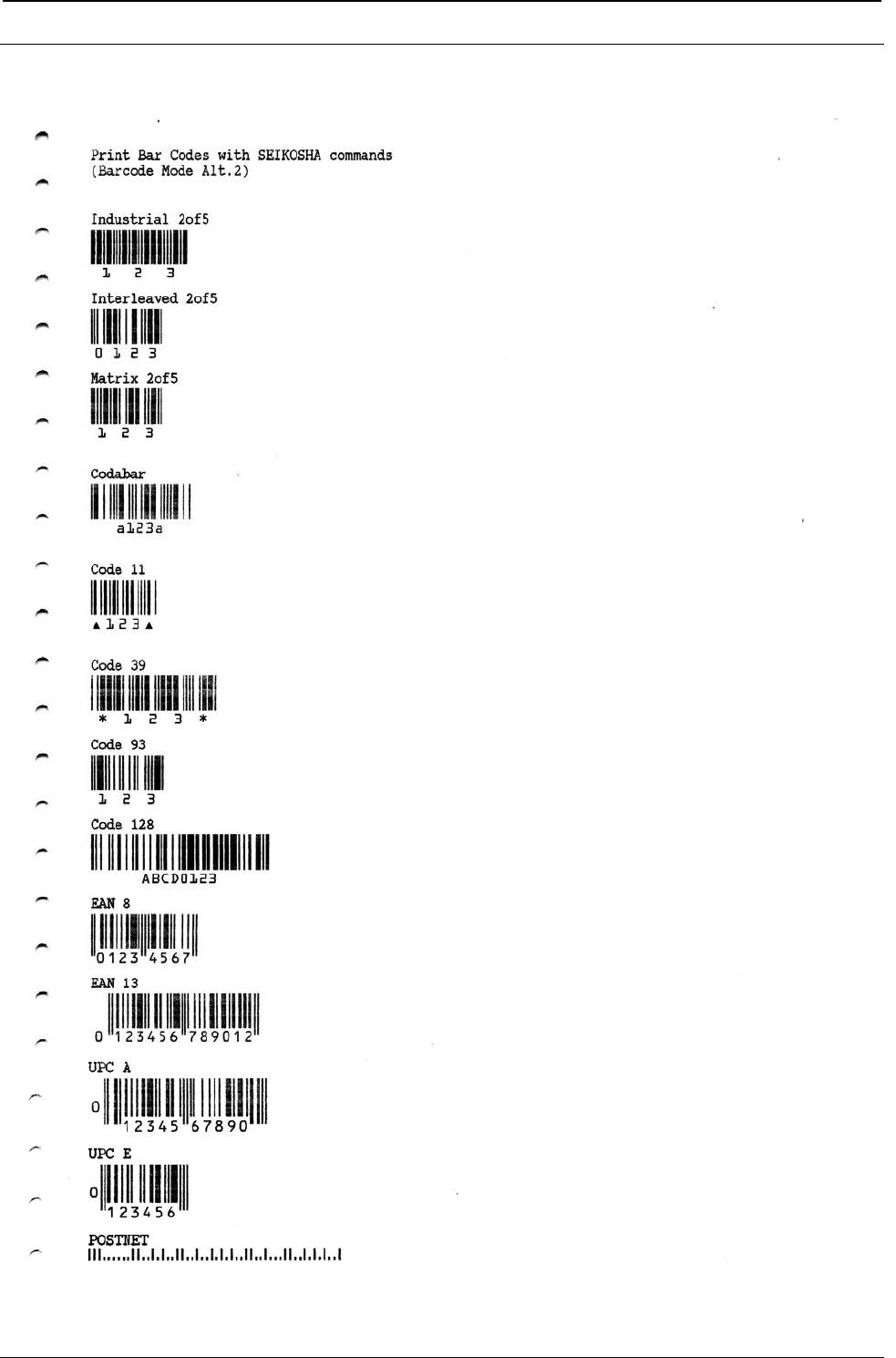

Figure 84. Bar Code Examples with SEIKOSHA Commands (Bar Code Mode Alt. 1) 216
Figure 85. Hex Dump of example on figure 84 217
ProgrammerManual PTXS809
Contents5260070001A
Tables Page
Table 1. 7-bit Substitution 70
Table 2. 8-bit Substitution 71
Table 3. 6-bit mapping 84
Table 4. 24-bit mapping 85
Table 5. Network Interface Summary 179
Table 6. List of the MIB of the printer 183

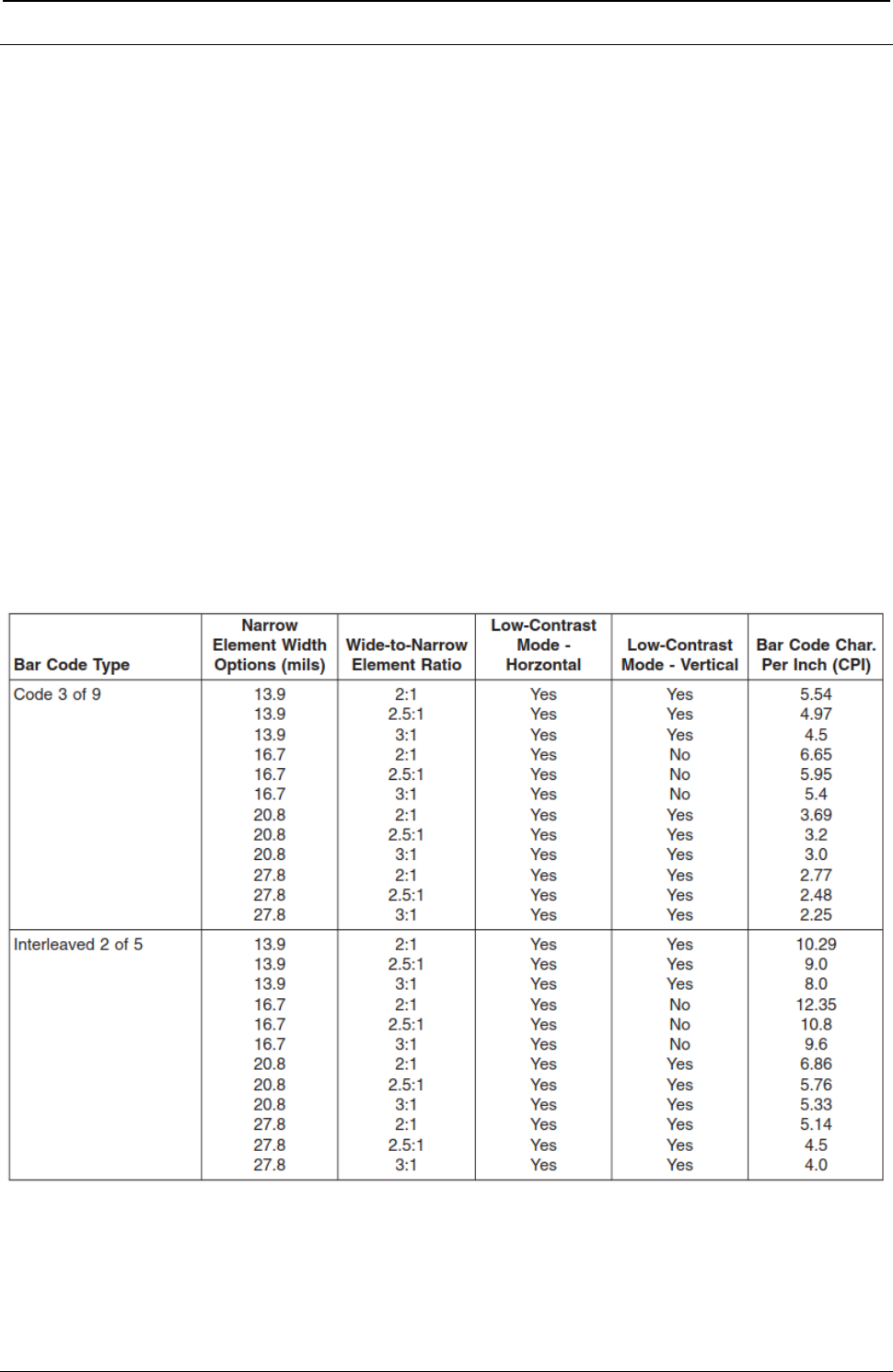

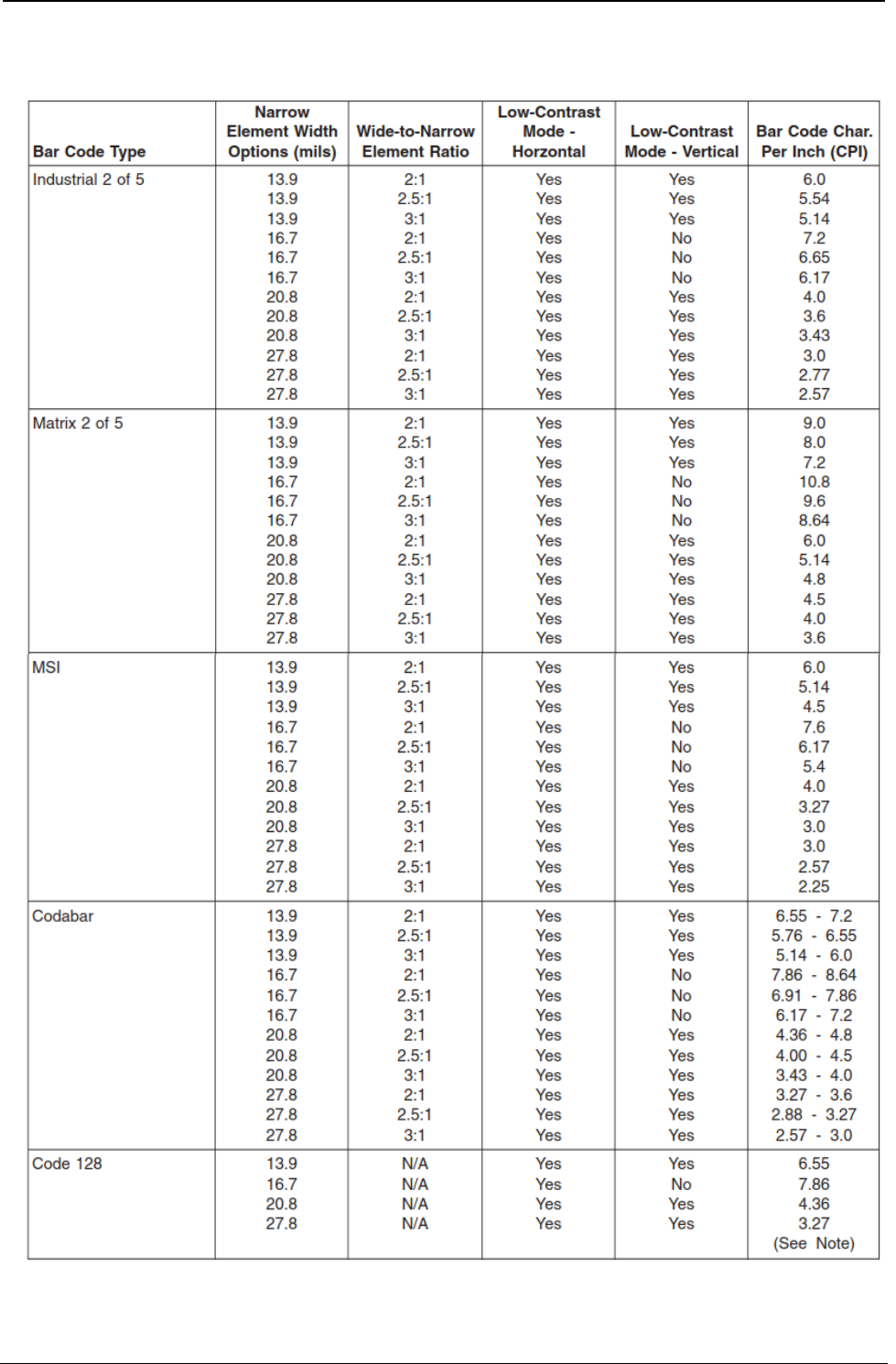

Table 7. Bar Code Printing Options for Non-UPC Family Bar Codes 193

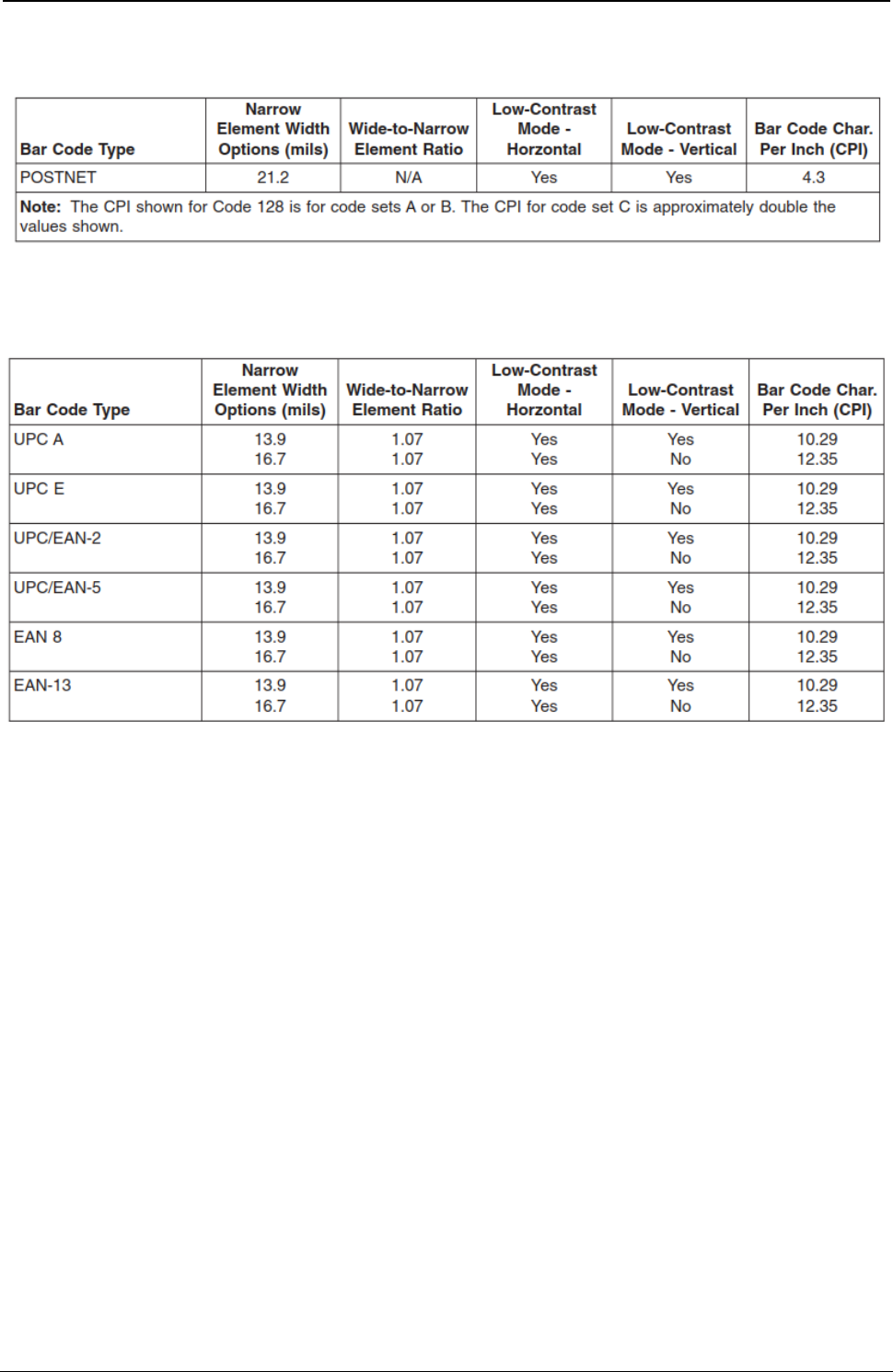

Table 8. Bar Code Printing Options for UPC Family Bar Codes 195

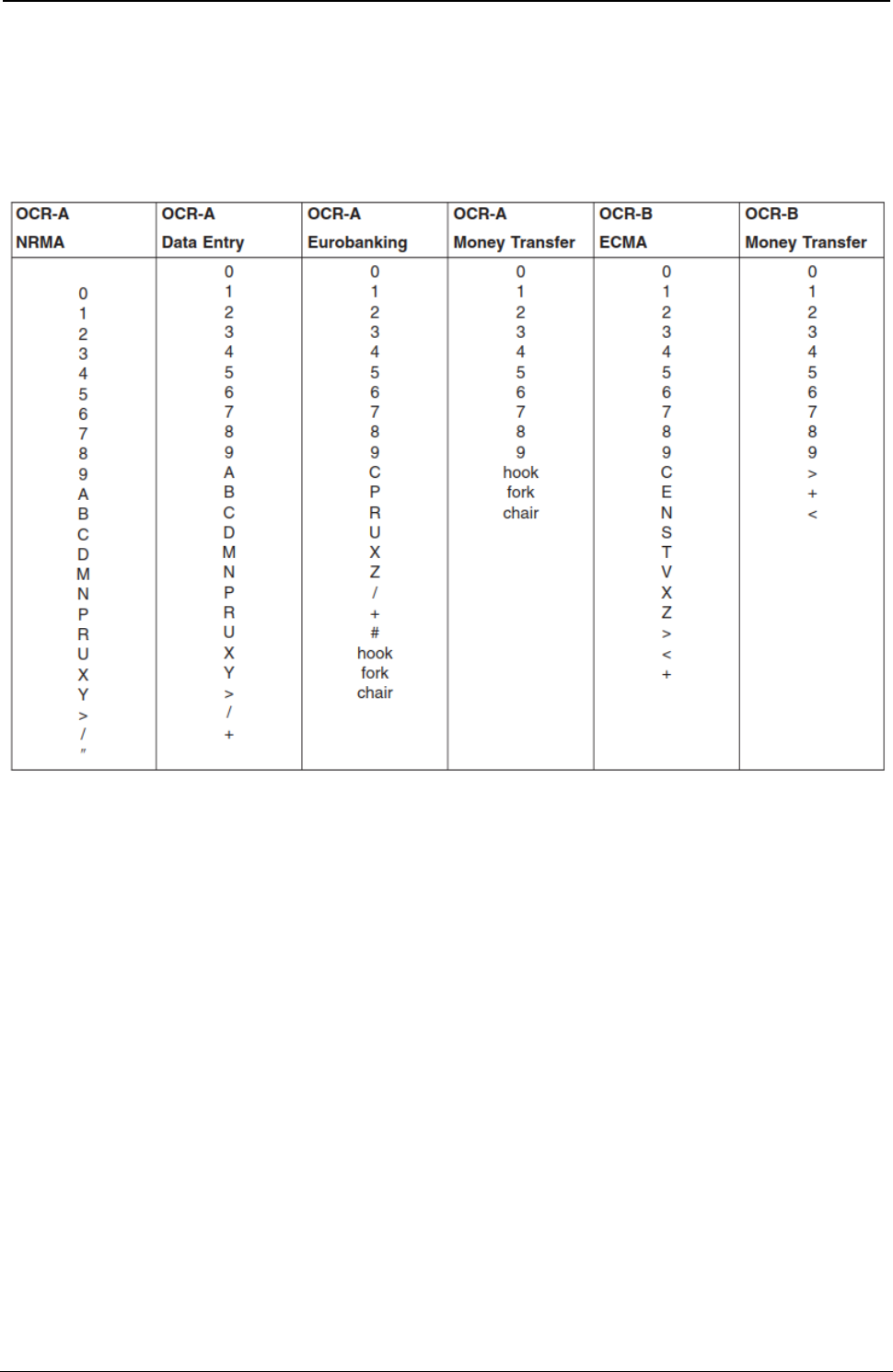

Table 9. OCR Symbol Subsets 196
ProgrammerManual PTXS809
Contents6260070001A
ProgrammerManual PTXS809
Contents7260070001A
Index of Command Summary in Alphabetical Order
This section contains a summary of commands used on the Printronix S809 model printer. It is divided into
2 separate sections. “Common commands for the Printronix S809 model printers” lists all the commands
common to both the Single Byte Character Set (SBCS) and Double Byte Character Set (DBCS) features.
“Commands for the Printronix S809 model printer with the DBCS feature present” lists commands that can
only be used when the DBCS feature is present.
Common commands for the Printronix S809 model printers
Command Description Page
BEL Buzzer (IBM/EPSON). 50
BEL Bell (ANSI). 81
BS Print and space back one position (IBM/EPSON). 50
BS Back space (ANSI). 74
CAN Cancels line. (EPSON) 48
CAN Cancels data. (IBM) 48
CR Prints all received data and the column counter is set to the left margin
IBM/EPSON) 15
CR Carriage return (ANSI). 74
DC1 Selects printer. (IBM) 49
DC1 Selects printer. (EPSON) 49
DC1 Selects printer (Data Control 1) (ANSI) 80
DC2 Sets 10 cpi printing. (IBM) 27
DC2 Cancels compressed printing. (EPSON) 27
DC3 Deselects printer. (EPSON) 49
DC3 Deselects printer (Data Control 3) (ANSI) 80
DC4 Cancels double width printing (IBM/EPSON) 27
DC4 DC4 ESC ! Bar Code Selection 58
DC4 DC4 ESC (GS Prints bar code symbols. 64
DC4 DC4 ESC @ Re-initializes the printer. 64
DC4 DC4 ESC 1 Sets vertical spacing n/180 inch. 55
DC4 DC4 ESC 3 1 Sets vertical spacing 12 lines/30 mm. 55
DC4 DC4 ESC 3 3 Sets vertical spacing to 3 lines/30 mm. 55
DC4 DC4 ESC 3 4 Sets vertical spacing 4 lines/30 mm. 55
DC4 DC4 ESC 3 6 Sets vertical spacing 6 lines/30 mm. 56
DC4 DC4 ESC 3 8 Sets vertical spacing 8 lines/30 mm. 56
DC4 DC4 ESC A Sets the horizontal spacing to 15, 17.1, 20, 24 CPI. 56
DC4 DC4 ESC D Sends the operator panel messages to the serial I/F. 66
DC4 DC4 ESC g Selects LQ fonts. 56
DC4 DC4 ESC J Sets amplification factor. 64
DC4 DC4 ESC N Selects/loads or parks the fanfold from the Front 2 path. 65
DC4 DC4 ESC p Sets quality printing. 57
DC4 DC4 ESC R String rotation. 65
DC4 DC4 ESC r Digit rotation. 65
DC4 DC4 ESC S Selects character set ISO Character Sets or Code Pages. 57
DC4 DC4 ESC T Selects/loads or parks the fanfold from the Front1 path. 65
DC4 DC4 ESC u Selects the user macros. 66
ProgrammerManual PTXS809
Contents8260070001A
Command Description Page
DC4 DC4 ESC Y Selects emulation. 66
DC4 DC4 ESC Z Makes AGA in column. 66
DEL Deletes the last character. (EPSON) 49
DEL Delete (ANSI). 81
ENQ Enquiry (ANSI). 80
ESC Escape (ANSI). 81
ESC - Sets or cancels underlined printing (IBM/EPSON). 27
ESC [ p1 a Horizontal position relative (HPR) (ANSI). 75
ESC [ p1; pn h Sets mode (SM) (ANSI). 82
ESC [ p1 d Vertical position absolute (VPA) (ANSI). 77
ESC [ p1 q Select graphics mode/density (GRM) (ANSI). 84
ESC p1; pn l Resets mode (RM) (ANSI) 82
ESC [ p1; pn v Sets vertical tab stops at specified positions
(Multiple Vertical Tab Set -VTS) (ANSI) 79
ESC ! Sets printing style. (EPSON) 28
ESC # Cancels MSB control. (EPSON) 49
ESC $ Sets the absolute printing position. (EPSON) 16
ESC % Selects user-defined character set. (EPSON) 42
ESC & Defines the user-defined download characters. (EPSON) 42
ESC ( - Sets score line. (EPSON) 28
ESC * Sets dot graphics printing. (IBM , EPSON) 45
ESC / Selects the Vertical Format Unit (VFU) channel. (EPSON) 17
ESC : Sets 12 CPI. (IBM) 29
ESC : Copies characters from ROM to RAM. (EPSON) 44
ESC ? Reassigns dot graphics mode. (EPSON) 46
ESC @ Initializes the printer. (EPSON) 51
ESC [ - Selects the score line. (IBM 2391 + only) 29
ESC [ I Sets font and pitch of a character. (IBM 2391 + only) 32
ESC [ p1 ' Horizontal position absolute (HPA) (ANSI). 75
ESC [ p1 k Vertical position backward (VPB) (ANSI). 78
ESC [ p1 x Selects national character set (Select National Characters -SNC) (ANSI). 70
ESC [ p1; p2 f Horizontal and vertical position absolute (HVP) (ANSI). 78
ESC [ p1; p2 SP~ Selects emulation (EMU) (ANSI). 83
ESC [ p1; pn { Unidirectional printing (UDP) (ANSI). 74
ESC [ p1; pn } Sets bar code parameters (BC) (ANSI). 85
ESC [ p1; pn u Sets horizontal tab stops at specified positions multiple horizontal
tab set (HTS) (ANSI) 76
ESC [ @ Selects the printing type style. (IBM 2391 + only) 30
ESC [ @ Sets double high printing and double line feed. (IBM) 30
ESC [ \ Sets vertical units. (IBM) 17
ESC [ d Set the print quality. (IBM 2391 + only) 31
ESC [ g Selects 8 or 24 needle dot graphics mode. (IBM) 48
ESC [ K Sets initial conditions. (IBM 2391 + only) 51
ESC [ p1 e Vertical position relative (VPR) (ANSI). 77
ESC [ p1 j Horizontal position backward (HPB) (ANSI). 75
ESC [ p1 t Special print mode (Oversize/Expanded/Bar code Mode -SPM) (ANSI). 73
ESC [ p1; p2 <SP> G Sets the line/character spacing (ANSI). 80
ESC [ p1; p2 s Left/right margin set (SLR) (ANSI). 75
ESC [ p1; p2 SP B Graphic size modification (GSM) (ANSI). 73
ESC [ p1; p2; p3 r Form definition (FD) (ANSI). 79
ProgrammerManual PTXS809
Contents9260070001A
Command Description Page
ESC [ p1; pn g Tab clear (TBC) (ANSI). 78
ESC [ p1; pn m Select graphics rendition (SGR) (ANSI). 72
ESC [ T Selects a Code page (IBM). 40
ESC [ u n Bar Codes selection. (IBM -Epson) 53
ESC [ v nm Sets Barcode parameters. (IBM -Epson) 53
ESC \ Sets the relative dot position. (EPSON) 17
ESC \ Prints characters from all characters table. (IBM) 40
ESC \ or ST String terminator (ANSI). 81
ESC ] Sets a reverse line feed. (IBM) 15
ESC ^ Prints a single character from the all characters table. (IBM) 41
ESC _ Sets or cancels overscore printing. (IBM) 33
ESC + Sets n/360-inch line spacing. (IBM) 18
ESC < Prints characters for one line from left to right. (EPSON) 29
ESC = Defines downloaded characters. (IBM) 44
ESC = Sets MSB to 0. (EPSON) 50
ESC > Sets MSB to 1. (EPSON) 50
ESC 0 Sets vertical spacing to 1/8 inch (IBM/EPSON). 18
ESC 1 Sets vertical spacing to 7/72 inch. (IBM) 18
ESC 2 Sets the vertical spacing to 1/6 inch. (EPSON) 18
ESC 2 Enables the vertical spacing set by ESC A. (IBM) 18
ESC 3 Sets vertical spacing to n/180 inch. (IBM , EPSON) 19
ESC 3 Sets vertical spacing to n/216 inch. (IBM XL24, 2391 +) 19
ESC 4 Sets the current position as top of form (first printable line). (IBM) 19
ESC 4 Sets italics printing mode. (EPSON) 33
ESC 5 Sets an automatic line feed after a carriage return. (IBM) 15
ESC 5 Cancels italics printing. (EPSON) 33
ESC 6 Selects the Character Set 2 (IBM). 41
ESC 7 Selects the Character Set 1 (IBM). 41
ESC 7 Cancel Printable Code Area Expansion (EPSON) 34
ESC A Sets variable vertical spacing to n/60 inch. (IBM , EPSON) 19
ESC A Sets variable vertical spacing to n/72 inch. (IBM XL24, 2391 +) 19
ESC a Sets Letter Quality justification printing. (EPSON) 33
ESC B Sets vertical tab stops (IBM/EPSON). 20
ESC b Sets vertical tab stops in one of the 8 Vertical Format Unit channels
Available (EPSON) 20
ESC B NUL Resets vertical tab stops (IBM/EPSON). 20
ESC b NUL Resets vertical tab stops in one of the 8 Vertical Format Unit channels
Available (EPSON) 21
ESC c Resets to initial state (RIS) (ANSI). 82
ESC C 0 n Sets form length to n inches (IBM/EPSON). 21
ESC C n Sets form length to n lines (IBM/EPSON). 21
ESC D Sets horizontal tab stops (IBM/EPSON). 21
ESC d Spaces forwards relative dot position. (IBM) 22
ESC D or IND Index (ANSI). 76
ESC e Spaces backward relative dot position. (IBM) 22
ESC E Sets emphasized printing (IBM/EPSON). 34
ESC E or NEL Next line (ANSI). 76
ESC F Cancels emphasized printing (IBM/EPSON). 35
ESC G Sets double strike printing (IBM/EPSON). 35
ESC g Sets 15 CPI. (EPSON) 34
ProgrammerManual PTXS809
Contents10260070001A
Command Description Page
ESC H Cancels double strike printing (IBM/EPSON). 34
ESC H or HTS Horizontal tab setting (ANSI). 76
ESC I Selects printing type for resident and DLL characters. (IBM) 35
ESC J Advances paper n/216 inch (IBMXL24 and 2391) 16
ESC j Feed paper n/216 in reverse direction (EPSON) 16
ESC J or VTS Vertical tab setting (ANSI). 79
ESC k Selects the LQ fonts. (EPSON) 41
ESC K Normal density dot graphics printing (60 dpi) (IBM/EPSON). 46
ESC k Prints test character (PTC) (ANSI). 82
ESC K or PLD Partial line down (ANSI). 77
ESC I Sets left margin. (EPSON) 22
ESC L Double density dot graphics printing (120 dpi) (IBM/EPSON). 46
ESC L or PLU Partial line up (ANSI). 78
ESC M Selects 10.5 point. 12 CPI. (EPSON) 35
ESC M or RI Reverse index (ANSI). 77
ESC N Sets the skip over perforation to n lines (IBM/EPSON). 23
ESC O Disables the skip over perforation (IBM/EPSON). 24
ESC P Selects 10.5 point, 10 cpi (EPSON) 35
ESC P Sets or cancels proportional printing. (IBM) 36
ESC p Sets or cancels proportional printing. (EPSON) 36
ESC P data Enter dot graphics mode (Device Control String) (ANSI). 84
ESC Q Sets the right margin. (EPSON) 24
ESC Q Deselects Printer. (IBM) 50
ESC Q or PU1 Executes Self test (ANSI). 81
ESC R Sets horizontal and vertical tab stops to default values. (IBM) 24
ESC R Selects Nation character set. (EPSON) 41
ESC S Sets subscript or superscript printing (IBM/EPSON). 36
ESC s Sets and resets Quiet printing. (EPSON) 37
ESC SP Sets inter character space. (EPSON) 25
ESC T Cancels subscript or superscript printing (IBM/EPSON). 37
ESC t Selects characters table. (EPSON) 42
ESC U Sets printing direction (IBM/Epson). 53
ESC W Sets or cancels double width printing (IBM/EPSON). 38
ESC w Sets or cancels double height printing. (EPSON) 38
ESC X Sets left and right margins. (IBM) 25
ESC x Selects Letter Quality or Draft. (EPSON) 38
ESC Y Double density dot graphics printing at double-speed graphics
(120 virtual dpi) (IBM/EPSON) 47
ESC Z Quadruple density dot graphics printing (240 virtual dpi) (IBM/EPSON) 47
FF Advances paper to the top of the next page (IBM/EPSON). 28
FF Form feed (ANSI). 79
HT Logically moves the print carriage to the next horizontal tab stop
(IBM/EPSON). 26
HT Horizontal tab (ANSI). 75
LF Line Feed (IBM/EPSON). 16
LF Line feed (ANSI). 76
NUL Ignored (ANSI). 80
SI Sets compressed printing. (EPSON) 39
SI Shift in (ANSI). 72
SI or ESC SI Sets compressed printing (IBM/EPSON). 36
ProgrammerManual PTXS809
Contents11260070001A
Command Description Page
SO Sets double width printing (one line) (IBM/EPSON). 39
SO Shift out (ANSI). 73
SO or ESC SO Sets double width printing (one line) (IBM/EPSON). 37
SP Space (ANSI). 74
VT Advances paper to the next vertical tab stop of the selected
VFU channel (IBM/EPSON). 26
VT Vertical tab (ANSI) 78
Commands for the Printronix S809 model printer with the the DBCS feature present.
Command Description Page
ESC ¦ n Sets – Resets double width and double height print modes. 92
ESC ( X n1 n2 a1 a2 a3 Defines a special printing effect. 97
FS & Enter the DBCS print mode. 91
FS . Exit the DBCS print mode. 91
FS ! n Sets multiple print attribute at once. 96
FS -n Sets -Resets underline mode. 93
FS 2 a1 a2 n1.. n72 Sets user-defined character (DownLoading). 96
FS b n Sets the DBCS standard line. 97
FS c nl nh Sets the HMI (Horizontal Motion Index) 97
FS D d1 d2 Composes two half-width, rotated characters into a normal size rotated
character space. 93
FS DC2 Cancels half-sized and 1/4-sized print and restores normal size print. 93
FS DC4 Resets double width mode. 92
FS J Sets 90 degrees counterclockwise character rotation. 92
FS K Resets character rotation. 93
FS S n1 n2 Defines the left and right empty character space of a normal-sized character. 94
FS SI Sets the print of half-sized characters. 95
FS SO Sets double width mode. 92
FS rn Sets superscript or subscript print mode (1/4 normal size). 95
FS T n1 n2 Defines the left and right empty character space of a half-sized character. 94
FS U Define half-sized character as half of a normal sized character. 94
FS vn Sets -Cancels line drawing character connection mode. 97
FS V Resets print of half-sized characters. 95
FS W n Sets -Resets quadruple print mode. 92
FS xn Sets print quality level for the DBCS font set. 96
ProgrammerManual PTXS809
Contents12260070001A
This page is intentionally left blank
ProgrammerManual PTXS809
Preface13260070001A
Preface
Print Job Processing
There are no EPSON/IBM controls that explicity define print job boundaries. A print job for the Printronix
S809 is established by the host system and consists of any set of related print objects. A print job could be
as short as one character or could be many pages long.
As an aid to the printer operator, the printer provides a DATA indicator on the operator panel. When the
DATA indicator is flashing, it indicates that data is currently being received, processed, or printing, or that
data is buffered in the printer but cannot be immediately printed. If the DATA indicator is not lit, then all print
jobs have been completed.
Configuration parameter values can be changed at any time; however, to obtain predictable results,
changes to operator panel configuration parameter values should be made before the print job is sent to
the printer and after the previous print job has completed printing. Changing configuration parameter
values while a print job is in progress may cause unpredictable results.
Printronix Company recommends the following to ensure that your print jobs run correctly:
Establish a known print environment, and end any previous print job. Start each print job with a Set
Initial Conditions control or an Initialize Printer controlr. This control resets the printer environment to the
default settings. You can then set additional controls depending on your print job environment.
End each print job with a FORM FEED control. This control causes all data to be printed, and the
current position is set to the top-of-form position.
If a print job is abnormally terminated, the job should be canceled. See “Cancel Print” in “Chapter 2.
Understanding the Operator Panel” in the Administrator’s Guide for your printer.
Page Printing Concept
The Printronix S809 processes print jobs in terms of pages, as well as in lines and columns. A page is a
logical entity
whose boundaries are defined by the width and the page length. These boundaries are established during
printer initialization using the printer defaults, and can be changed using the Configuration Menu or by
issuing the appropriate data stream controls.
As a job prints, the printer controller maintains both the logical position and the physical position on the
page. If a print job does not end with a proper job terminator (for example, FORM FEED), then:
All data for the current page may not print
The next print job may be misaligned on the form
Residual data from a previous job could print with the new job.
Page Presentation
Many EPSON/IBM commands (tabs, margins, line spacing, for example) are described in terms of the
presentation surface. A presentation surface is a two-dimensional surface upon which the printer positions
symbols according to controls embedded in the incoming data stream. The presentation surface is defined
in absolute terms by the width and depth parameters of the page size control commands (Set Page
Length, Set Horizontal Margins, for example). The physical print position does not move outside the range
of these two parameters. The left margin (LM) and right margin (RM) are variable parameters within the
presentation surface. The logical print position does not move outside the range of the vertical margins nor
outside the horizontal margins + 1. The following figure shows the presentation surface and the
ProgrammerManual PTXS809
Preface14260070001A
relationships of some of these parameters.
Figure 1 Page Presentation
CPP Current Print Position (LM = CPP = RM).
CPL Current Print Line
MPP Maximum Print Position (in characters at current CPI)
PMPP Physical Maximum Print Position. The largest number of characters that can be placed on one line
of the surface (the largest value that MPP can assume).
LM Left Margin
RM Right Margin
MPL Maximum Page Length (in lines at current LPI)
Notes:
1. The host should set the limits of the presentation surface if the default or previous values are not
acceptable.
2. The operator should align the physical paper so that it matches the logical presentation surface.
Also created with this surface is a pair of numbers (CPL and CPP) which specify the line number and
column number where the next graphic will be printed. These internal values are the logical position on the
presentation surface.
The variable parameters have default values which are established when the printer is initialized. The
standard power-on defaults are:
MPP (width) Operator panel setting
MPL (depth) Operator panel setting
CPI Operator panel setting
LPI Operator panel setting
LM 0 inches (Column 1)
RM Equal to MPP
HT Horizontal tabs are set at each 8th column, starting with column 9 (9, 17, 25, 33, and so on.)
VT Vertical tabs are all cleared
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands15260070001A
Chapter 1. EPSON/IBM Commands
The following printer commands are supported by this printer according to the IBM Proprinter XL24-XL24
AGM, IBM 2391+ and EPSON LQ Series.
Print and Line Feed Execution
CR
Prints all received data and the column counter is set to the left margin (IBM/EPSON).
ASCII Code CR
Hexadecimal Value X'0D'
Decimal Value 13
This code is a terminator code; when received, it causes any data in the buffer to be printed out. The print
head then moves logically to the left margin position. The column counter is set to the left margin value
and a line feed is inserted automatically after the carriage return (see the automatic carriage return
function in the printer setup). The code cancels the double width printing set by the SO or ESC SO
command.
ESC ]
Sets a reverse line feed. (IBM)
ASCII Code ESC ]
Hexadecimal Value X'1B' X'5D'
Decimal Value 27 93
This is a terminator code; it therefore causes the current contents of the print buffer to be printed before
advancing the paper by one line at the current vertical spacing. If no data precedes the LF code, or if the
preceding data consists of spaces, the code only causes a line feed.
When the line counter reaches the last line of the form (defined by the software or the function menu), the
LF code causes a skip to the first line of the next form. This code cancels the double width printing set by
the SO code. In IBM mode, the column counter is set to the first column if the automatic carriage return is
selected. In EPSON mode, the column is always set to the first column.
ESC 5
Sets an automatic line feed after a carriage return. (IBM)
ASCII Code ESC 5 n
Hexadecimal Value X'1B' X'35' n
Decimal Value 27 53 n
If n is equal to 1, this command sets an automatic line feed on receiving of a CR code. If n is equal to 0,
this command cancels the automatic line feed.
n Automatic line feed
0 Disabled
1 Enabled
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands16260070001A
ESC J
Advances paper n/216 inch. (EPSON/IBMXL24)
Advance paper n/180 inch. (EPSON/IBM XL24AGM)
ASCII Code ESC J n
Hexadecimal Value X'1B' X'4A' n
Decimal Value 27 74 n
Range 1 = n = 255
This is a terminator code; it causes the current contents of the print buffer to be printed before performing
a single line feed of n/216 or n/180 of an inch. This command is cancelled after the line feed has been
performed. The printing restarts after a line feed from the column at which the command was sent.
ESC j
Feed paper n/216 in reverse direction (EPSON)
ASCII Code ESC J n
Hexadecimal Value X'1B' X'6A' n
Decimal Value 27 106 n
Range 1 = n = 255
This is a terminator code; it causes the current contents of the print buffer to be printed. Then the paper is
moved backward of n/216 of an inch. The printing restarts from the column at which the command was sent.
LF
Line Feed (IBM/EPSON).
ASCII Code LF
Hexadecimal Value X'0A'
Decimal Value 10
This is a terminator code; it causes the current contents of the print buffer to be printed before advancing
the paper by one line at the current vertical spacing. If no data precedes the LF code, or if the preceding
data consists of spaces, the code only causes a line feed.
When the line counter reaches the last line of the form (defined by software or function menu), the LF
code causes a skip to the first line of the next form. This code cancels the double width printing set by the
SO code. In IBM mode, the column counter is set to the first column if the automatic carriage return is
selected. In EPSON mode, the column is always set to the first column.
Format Control
ESC $
Sets the absolute printing position. (EPSON)
ASCII Code ESC & n1 n2
Hexadecimal Value X'1B' X'24' n1 n2
Decimal Value 27 36 n1 n2
Range 0 = n1 n2 = 255
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands17260070001A
This command specifies the distance from the left margin to where you want to print subsequent
characters. The distance is in number of dots and must be calculated using the following formula:
Margin distance = n1 +(n2 x 256) where n2 is the integer result of the number of dots divided by 256 and
n1 is the remainder. 1 dot = 1/60 inch. If the selected position is outside the current right margin, the
sequence is ignored.
ESC[ \
Sets vertical units. (IBM)
ASCII Code ESC [ \ m1 m2 t1 ... t4
Hexadecimal Value X'1B' X'5B' X'5C' m1 m2 t1 ... t4
Decimal Value 27 91 92 m1 m2 t1 ... t4
Range m1 =4
m2 =0
0 = t1 = 255
0 = t2 = 255
t3 =0
t4 = 180 or 216
This command changes the base units for the graphics line spacing commands (ESC J, ESC 3). The
default is 1/216 or 1/180 inch.
ESC /
Selects the Vertical Format Unit (VFU) channel. (EPSON)
ASCII Code ESC / m
Hexadecimal Value X'1B' X'2F' m
Decimal Value 27 47 m
Range 0 = m = 7
This sequence selects the VFU channel that you want to use. Eight different channels are available. The
m parameter represents the channel you want to select.
ESC \
Sets the relative dot position. (EPSON)
ASCII Code ESC \ n1 n2
Hexadecimal Value X'1B' X'5C' n1 n2
Decimal Value 27 92 n1 n2
Range 0 = n1, n2 = 255
This command specifies the distance between the current print head position and the position where you
want to print subsequent characters (relative position). The distance is a number of dots and must be
calculated using the following formula:
Current position distance = n1 +(n2 x 256)
where n2 is the integer result of the number of dots divided by 256 and the n1 is the remainder. The unit of
dots is 1/120 inch for Draft or 1/180 inch for Letter Quality printing. If the distance is negative (Most
Significant Bit of m2 equal to 1), the print head is moved to the left of the current position by the number of
dots equal to the complement on two of n1 +(n2 x 256).
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands18260070001A
ESC 0
Sets vertical spacing to 1/8 inch (IBM/EPSON).
ASCII Code ESC 0
Hexadecimal Value X'1B' X'30'
Decimal Value 27 48
This code causes vertical spacing to be set to 1/8 inch.
ESC 1
Sets vertical spacing to 7/72 inch. (IBM)
ASCII Code ESC 1
Hexadecimal Value X'1B' X'31'
Decimal Value 27 49
This command causes vertical spacing to be set to 7/72 inch.
ESC +
Sets n/360-inch line spacing. (IBM)
ASCII Code ESC + n
Hexadecimal Value X'1B' X'2B' n
Decimal Value 27 43 n
Range 0 = n = 255
This command sets the line spacing to n/360 inch. If the line spacing is changed, it does not affect
previous settings for vertical tabs or page length.
ESC 2
Sets the vertical spacing to 1/6 inch. (EPSON)
ASCII Code ESC 2
Hexadecimal Value X'1B' X'32'
Decimal Value 27 50
This command causes the vertical spacing to be set to 1/6 inch.
ESC 2
Enables the vertical spacing set by ESC A. (IBM)
ASCII Code ESC 2
Hexadecimal Value X'1B' X'32'
Decimal Value 27 50
This command enables the vertical spacing sets by ESC A.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands19260070001A
ESC 3
Sets vertical spacing to n/180 inch. (IBM XL24AGM, EPSON)
ASCII Code ESC 3 n
Hexadecimal Value X'1B' X'33' n
Decimal Value 27 51 n
Range 1 = n = 255
This sequence sets the vertical spacing to n/180 inch. It is ignored if n is equal to 0.
ESC 3
Sets vertical spacing to n/216 inch. (IBM XL24/ 2391+)
ASCII Code ESC 3 n
Hexadecimal Value 1B 33 n
Decimal Value X'27' X'51' n
Range 0 = n = 255
This sequence sets the vertical spacing to n/216 inch.
ESC 4
Sets the current position as top of form (first printable line). (IBM)
ASCII Code ESC 4
Hexadecimal Value X'1B' X'34'
Decimal Value 27 52
This sequence sets the first line of the fanfold paper as the current paper position of the form.
ESC A
Sets variable vertical spacing to n/60 inch. (EPSON/IBM XL24AGM)
ASCII Code ESC A n
Hexadecimal Value X'1B' X'41' n
Decimal Value 27 65 n
This command changes the default vertical spacing to n/60 inch. The new vertical spacing value is
immediately activated.
ESC A
Sets variable vertical spacing to n/72 inch. (IBM XL24 AGM/IBM 2391+)
ASCII Code ESC A n
Hexadecimal Value X'1B' X'41' n
Decimal Value 27 65 n
This command changes the default vertical spacing to n/72 inch. The vertical spacing value is stored and
activated only after the ESC 2 code is received.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands20260070001A
ESC B
Sets vertical tab stops (IBM/EPSON).
ASCII Code ESC B n1 ... nx 0
Hexadecimal Value X'1B' X'42' n1 ... nx 0
Decimal Value 27 66 n1 ... nx 0
Range 1 = n = 255
In EPSON mode, it sets the vertical tab stops in the 0 Vertical Format Unit (VFU) channel. This code sets
up to 16 vertical tab stops at the line specified by n1, n2 and so on in the 0 VFU channel. The tab stops
are memorized as physical positions. In IBM mode, this code sets up to 64 vertical tab stops at the line
number specified by n1, n2 and so on in the 0 VFU channel. The tab stops are retained as logical
positions.
ESC B NUL
Resets vertical tab stops (IBM/EPSON).
ASCII Code ESC B NUL
Hexadecimal Value X'1B' X'42' 00
Decimal Value 27 66 00
This command resets the vertical tab stops in the 0 Vertical Format Unit (VFU) channel.
ESC b
Sets vertical tab stops in one of the 8 Vertical Format Unit channels available. (EPSON)
ASCII Code ESC b mn1 ... nx 0
Hexadecimal Value X'1B' X'62' mn1 ... nx 00
Decimal Value 27 98 mn1 ... nx 0
Range 0 = m = 7
1 = n1 ... nx = 255
This sequence sets vertical tabulations in the VFU channel specified by the parameter m.
The VFU channel can be imagined as a blank page where you can set up to 16 vertical tabulations in
order to format your page as you like. 8 channels are available and in each of them you can create a
sample page that you can recall later. n1 to n16 specify the lines at which vertical tabulations must be set.
The values of n must be in ascending order. If you change the vertical spacing, the vertical tabulations set
are not cancelled and they maintain their physical position on the page.
The vertical tabulations set in the channel specified by the m parameter are executed by the VT code
when the specific channel is selected by the ESC / command, this code is executed as a line feed.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands21260070001A
ESC b NUL
Resets vertical tab stops in one of the 8 Vertical Format Unit channels available. (EPSON)
ASCII Code ESC b NUL
Hexadecimal Value X'1B' X'62' X'00'
Decimal Value 27 98 0
This command resets the vertical tab stops in one of the 8 Vertical Format Unit channels available.
ESC C 0 n
Sets form length to n inches (IBM/EPSON).
ASCII Code ESC C 0 n
Hexadecimal Value X'1B' X'43' X'00' n
Decimal Value 27 67 0 n
Range 1 = n = 24
This command sets the form length to the number of inches specified by n. The current position of the
paper is assumed as the top-of-form.
ESC C n
Sets form length to n lines (IBM/EPSON).
ASCII Code ESC C n
Hexadecimal Value X'1B' X'43' n
Decimal Value 27 67 n
Range 1 = n = 255
This command sets the form length to the number of lines specified by n at the current vertical spacing.
The current position of the paper is assumed as top-of-form.
ESC D
Sets horizontal tab stops (IBM/EPSON).
ASCII Code ESC D n1 n2 ... nx 0
Hexadecimal Value X'1B' X'44' n1 n2 ... nx 00
Decimal Value 27 68 n1 n2 ... nx 0
Range 1 = n = 255
This sequence sets up to 28 (IBM mode) or 32 (EPSON mode) horizontal tab stops after canceling the
current setting. The n1 to nx parameters specify the number of columns at which horizontal tab stops are
required and must be entered in the sequence in ascending numerical order. Any value outside this range
is ignored. In IBM mode, the tab stop position is retained as a logical position in the page so that it is
affected by changing the horizontal spacing. The columns are numbered 1 through 136. In EPSON mode,
the tab stop position set by ESC D is retained as the physical position on the page and therefore it is not
affected by changing the horizontal spacing. The physical position of the tab stop depends on the
horizontal spacing in operation when ESC D is used. The ESC D 0 cancels all active tab stops.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands22260070001A
ESC d
Spaces forwards relative dot position. (IBM)
ASCII Code ESC d n1 n2
Hexadecimal Value X'1B' X'64' n1 n2
Decimal Value 27 100 n1 n2
Range 0 = n1 n2 = 255
This command moves the print carriage (n1 +(n2*256))/120 of an inch displacement on the right of its
current dot position. If the selected position is outside the current right margin, it is forced to the last
column.
ESC e
Spaces backward relative dot position. (IBM)
ASCII Code ESC e n1 n2
Hexadecimal Value X'1B' X'65' n1 n2
Decimal Value 27 101 n1 n2
Range 0 = n1 n2 = 255
This command moves the print carriage (n1 +(n2*256))/120 of an inch displacement on the left of its
current dot position. If the selected position is outside the current left margin, it is forced to the first
column.
ESC I
Sets left margin. (EPSON)
ASCII Code ESC I n
Hexadecimal Value X'1B' X'6C' n
Decimal Value 27 108 n
Range 0 = n = 255
This code sets the left margin at the current horizontal spacing. It must be sent at the beginning of the
line. The n parameter specifies the number of columns. For each type of horizontal spacing there is a
different range of possible values, as shown in the following table:
Character Width Horizontal Spacing Range of columns
Double Width 5 cpi 0 = n = 67
6 cpi 0 = n = 80
7.5 cpi 0 = n = 100
8.5 cpi 0 = n = 114
10 cpi 0 = n = 134
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands23260070001A
Character Width Horizontal Spacing Range of columns
Normal 10 cpi 0 = n = 134
12 cpi 0 = n = 160
15 cpi 0 = n = 201
17 cpi 0 = n = 229
20 cpi 0 = n = 255
24 cpi 0 = n = 255
Any value outside the accepted range is ignored and the previous setting remains in effect. The left margin
must be smaller than the right margin. The physical position set for the left margin does not change if the
horizontal spacing is modified. This command overrides the menu setting.
ESC N
Sets the skipover perforation to n lines (IBM/EPSON).
ASCII Code ESC N n
Hexadecimal Value X'1B' X'4E' n
Decimal Value 27 78 n
Range 1 = n = 127 (EPSON mode)
1 = n = 255 (IBM mode)
The skipover perforation is the sum of the top and bottom margin values at the selected vertical spacing.
The n parameter must be less than the current form length. The skipover is retained as the physical
position on the page. It is cancelled by ESC O or changing the form length.
The skipover value, when accepted, sets the top and bottom margins according to the operator panel
setting (see the Administrator’s Manual):
If the top margin set using the operator panel is greater than the skipover value, the following value of the
margins is set:
Top margin = skipover value
Bottom margin = 0
If the top margin set using the operator panel is less than or equal to the skipover value, then the following
value of the margins is set:
Top margin = operator panel value
Bottom margin = the difference between skipover value and top margin value
If the sum of the top and bottom margins values set using the operator panel is less than the skipover
value, the following values for the margins is set:
Top margin = operator panel value
Bottom margin = the difference between skipover value and top margin value
Changing the vertical spacing does not affect the skipover distance. This can be changed by another ESC
N command or can be reset by the ESC O command, which resets the skipover value to 0. The skipover
perforation is performed when the end of the page is reached with a LF, VT or FF code and not with the
ESC J or ESC C command. The skipover perforation is cancelled and must be reset.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands24260070001A
ESC O
Disables the skipover perforation (IBM/EPSON).
ASCII Code ESC O
Hexadecimal Value X'1B' X'4F'
Decimal Value 27 79
This sequence sets the number of lines of the skipover perforation to the value 0. Any skip perforation set
by ESC N is cancelled.
ESC Q
Sets the right margin. (EPSON)
ASCII Code ESC Q n
Hexadecimal Value X'1B' X'51' n
Decimal Value 27 81 n
Range 1 = n = 225
This code sets the line length at the current horizontal spacing. It must be sent at the beginning of the line.
The n parameter specifies the number of columns and for each type of horizontal spacing there is a range
of values, as shown in the following table:
Character Width Horizontal Spacing Range of columns
Double Width 5 cpi 1 <= n <= 67
6 cpi 1 <= n <= 81
7.5 cpi 1 <= n <= 101
8.5 cpi 1 <= n <= 111
10 cpi 1 <= n <= 135
Normal 10 cpi 1 <= n <= 135
12 cpi 1 <= n <= 162
15 cpi 1 <= n <= 203
17 cpi 1 <= n <= 232
20 cpi 1 <= n <= 255
24 cpi 1 <= n <= 255
Any value outside the accepted range is ignored and the previous setting remains in effect. The right
margin must be greater than the left margin. The physical position set for the right margin does not change
if the horizontal spacing is modified.
ESC R
Sets horizontal and vertical tab stops to default values. (IBM)
ASCII Code ESC R
Hexadecimal Value X'1B' X'52'
Decimal Value 27 82
This command sets horizontal tab stops every eight columns starting from column 9 and cancels all
vertical tab stops.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands25260070001A
ESC SP
Sets intercharacter space. (EPSON)
ASCII Code ESC SP™ n
Hexadecimal Value X'1B' X'20' n
Decimal Value 27 32 n
Range 0 = n = 225
This command sets the intercharacter space to n/120 inch in Draft printing and n/180 inch in Quality
printing.
ESC X
Sets left and right margins. (IBM)
ASCII Code ESC X n1 n2
Hexadecimal Value X'1B' X'58' n1 n2
Decimal Value 27 88 n1 n2
Range 0 = n = 134 (left margin)
2 = n = 136 (right margin)
This command sets the left and right margins at the same time. The n1 and n2 parameters indicate
respectively the number of columns for the left and right margins at the current spacing. These margins
are retained in terms of absolute displacement from the physical left edge of the page. Use a CR
immediately after ESC X n to establish the print head position relative to the new margin setting.
If n1 is equal to 0, the current left margin of the page is used. If n2 is equal to 1, the current right margin of
the page is used. The left margin value must be less than the right margin value. The right margin value
must not exceed the physical right edge of the paper; otherwise the maximum acceptable value for the
right margin will be set.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands26260070001A
FF
Advances paper to the top of the next page (IBM/EPSON).
ASCII Code FF
Hexadecimal Value X'0C'
Decimal Value 12
This code is a terminator code, when received, causes all data in the print buffer to be printed out. Then it
advances the paper to the first printable line of the next form. The line counter is set to the first line value
and the column counter is set to the left margin value. This code cancels the double width printing set by
SO code.
HT
Logically moves the print carriage to the next horizontal tab stop (IBM/EPSON).
ASCII Code HT
Hexadecimal Value X'09'
Decimal Value 9
This code logically moves the print carriage to the next horizontal tab stop as defined by ESC D. Up to 28
(IBM mode) or 32 (EPSON mode) horizontal tab stops can be set. The HT code is ignored if no tab stop is
set, the current print carriage position is moved past the last tab position, or the tab stop is on or beyond
the right margin. When the printer is powered on, the tab stops are set every eight columns (default).
In EPSON mode, the default tab stops are retained as logical positions in the page that are affected by
changing the horizontal spacing. The tab stop positions set by ESC D are retained as physical positions
on the page and are not affected by changing the horizontal spacing. When double width printing is
selected, the tab stop setting must take into account that each character occupies two columns. In IBM
mode, the tab stops, both the default and those set by ESC, are retained as logical positions in the page
that are affected by changing the horizontal spacing. The horizontal tab stops can be changed by the ESC
D command.
VT
Advances paper to the next vertical tab stop of the selected VFU channel (IBM/EPSON).
ASCII Code VT
Hexadecimal Value X'0B'
Decimal Value 11
This is a terminator code and when received causes the contents of the print buffer to be printed before
advancing the paper to the next vertical tab stop set by the ESC B or the ESC b commands.
This code is run normally if vertical tab stops follow the current print position. It runs like an FF code
(EPSON mode) or like a LF code (IBM mode), if the vertical tab stops follow the bottom of form position (
corresponding to the form length if the bottom of the form has not been set), or if the current position is
beyond the last vertical tab stop. It runs like an LF code if no vertical tab stops have been set by the ESC
B or ESC b commands.
In EPSON mode, the vertical tabulations are referred to the VHF channel selected by the ESC / m.Ifno
VFU channels have been selected, the printer assumes the default channel 0.
This command cancels the double width printing set by SO or ESC SO command.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands27260070001A
Print Mode
DC2
Sets 10 cpi printing. (IBM)
ASCII Code DC2
Hexadecimal Value X'12'
Decimal Value 18
This is a terminator code. It causes all data present in the print buffer to be printed. This command is
accepted at any position within the line. The character that follows this command is printed at 10 cpi.
DC2
Cancels compressed printing. (EPSON)
ASCII Code DC2
Hexadecimal Value X'12'
Decimal Value 18
This is a terminator code. It causes all data present in the print buffer to be printed. This command is
accepted at any position within the line. The character that follows this command is printed as follows:
17 CPI . 10 CPI
20 CPI . 12 CPI
DC4
Cancels double width printing (IBM/EPSON).
ASCII Code DC4
Hexadecimal Value X'14'
Decimal Value 20
This code cancels the double width printing set by SO or ESC SO code. It has no effect if the ESC W or
ESC ! command is set to double width.
ESC -
Sets or cancels underlined printing (IBM/EPSON).
ASCII Code ESC - n
Hexadecimal Value X'1B' X'2D' n
Decimal Value 27 45 n
Enables or disables underlined printing. See the following table:
n Underlined Printing
1 enabled
0 disabled
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands28260070001A
ESC !
Sets printing style. (EPSON)
ASCII Code ESC ! n
Hexadecimal Value X'1B' X'21' n
Decimal Value 27 33 n
This command is used to select any valid combination of printing attributes. Each printing attribute is
selected by the nparameter, as specified in the following page:
n Attribute
0 10 cpi
1 12 cpi
2 Proportional
4 Compressed
8 Emphasized
16 Double Strike
32 Double Width
64 Italics
128 Underline
To print the desired combination of printing attributes, calculate the nparameter by adding up the values of
each attribute.
ESC(-
Sets score line. (EPSON)
ASCII Code ESC ( - n1 n2 m d1 d2
Hexadecimal Value X'1B' X'28' X'2D' n1 n2 m d1 d2
Decimal Value 27 40 45 n1 n2 md1 d2
Range n1 =3
n2 =0
m=1
1 = d1 = 3
d2 =0,1,2,5,6
This command enables or disables scoring of all characters and spaces following the command according
to the following parameters:
d1 Line
1 Underline
2 Strikethrough
3 Overscore
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands29260070001A
d2 Line
0 Cancel score line
1 Single continuous line
2 Double continuous line
5 Single broken line
6 Single broken line
Any combination of scoring may be used at the same time and are independent of each other. Graphics
characters are not scored.
ESC [ -
Selects the score line. (IBM 2391 + only)
ASCII Code ESC [ - n1 n2 loc type
Hexadecimal Value X'1B' X'5B' X'2D' n1 n2 loc type
Decimal Value 27 91 45 n1 n2 loc type
Range n1 =2
n2 =0
This command selects several forms of overscore, underscore, and strikethrough.
To select loc: To select type:
loc Selection type Selection
1 Underscore 0 Cancles Line
2 Strikethrough 1 Single Line
3 Overscore 2 Double Line
255 Cancels all score selections
ESC :
Sets 12 CPI. (IBM)
ASCII Code ESC :
Hexadecimal Value X'1B' X'3A'
Decimal Value 27 58
This is a terminator code. It causes all data present in the print buffer to be printed. Subsequent data is
printed at 12 cpi. This command is accepted at any position within the line. The setting of another
horizontal spacing resets this command.
ESC <
Prints characters for one line from left to right. (EPSON)
ASCII Code ESC <
Hexadecimal Value X'1B' X'3C'
Decimal Value 27 60
This command causes the printing of one line from left to right.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands30260070001A
ESC [ @
Selects the printing type style. (IBM 2391 + only)
ASCII Code ESC [ @ 40m1 0m3 m4
Hexadecimal Value X'1B' X'5B' X'40' 04*00*m1 00*m3 m4
Decimal Value 27 91 64 40m1 0m3 m4
(*) These values are constants.
This command is used to modify the type style of the character and the number of line spacing. Use this
command for:
1. Italic printing
2. Single-high character
3. Double-high character
4. Single-wide character
5. Double-wide character
6. Single Line Feed
7. Double Line Feed
These selections may be combined, for example, italic print with double height or doublewide character
and double line feed.
See the following tables for m1, m3 and m4 selections:
m1 Selection m3 Selection m4 Selection
0 No Change 0 No Change 0 No Change
1 Start Italic Printing 1 Single-High Character 1 Single-Wide Character
2 Stop Italic Printing 2 Double-High Character 2 Double-Wide Character
4 Start Outline 4 Single Line Feed 4 Single Line Feed
8 Stop Outline 8 Double Line Feed 8 Double Line Feed
16 Start Shadow 16
32 Stop Shadow 32
ESC [ @
Sets double high printing and double line feed. (IBM)
ASCII Code ESC [ @ l h m1 m2 m3 m4
Hexadecimal Value X'1B' X'5B' X'40' l h m1 m2 m3 m4
Decimal Value 27 91 64 l h m1 m2 m3 m4
l= normally 4, h= normally 0, m1 =0, m2 =0
This command sets height, width, and vertical spacing.
The land hparameters specify the number of mode bytes mx contained in the sequence.
The m3 and m4 parameters specify the printing characteristics.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands31260070001A
The m3 parameter controls both line spacing and character height. It has two parts: a high-order half-byte
of m3 controls the line spacing and the low-order half-byte controls the character height.
m3 Character Height Line Spacing
0 No Change No Change
1 Standard character height Line feeds unchanged
2 Double character height Line feeds unchanged
16 Character height unchanged Normal line feeds
17 Standard character height Normal line feeds
18 Double character height Normal line feeds
32 Character height unchanged Double line feeds
33 Standard character height Double line feeds
34 Double character height Double line feeds
The m4 parameter specifies the character width. Only the low-order half-byte is significant in this mode
byte. The high-order half-byte is ignored.
m4 Character Width Line Spacing
0 No change Standard width character
1 Double width character No change
2 No change No change
ESC [ d
Set the print quality. (IBM 2391 + only)
ASCII Code ESC [ d 10n
Hexadecimal Value X'1B' X'5B' X'64' 0100n
Decimal Value 27 91 100 10n
This command sets the print quality to draft or LQ print.
n Types
0 No Change
From 64 to 127 Draft
From 128 to 254 Letter Quality
255 Initialization on NVRAM values
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands32260070001A
ESC [ I
Sets font and pitch of a character. (IBM 2391 + only)
ASCII Code ESC [ I 2 0 m n
Hexadecimal Value X'1B' X'5B' X'49' 02 00 m n
Decimal Value 27 91 73 2 0 m n
This command allows you to modify the character's font and style of pitch type.
The values 2 and 0 are constants. If font and pitch locks are active, this command is ignored. To select the
values for the variables m and n, which identify the pitch and the font type style to use, refer to the table
below.
1. Identify the type style (pitch and font) to use in the left column (pitch).
2. For the hexadecimal values of m and n, look across the row to the second column (Hex mn)
3. For the decimal values for m and n, look across the row to the third column (Decimal mn).
4. Substitute these values for m and n in the printer command syntax.
Pitch Hexadecimal Decimal Dec. Value
m n m n (m x 256 + n)
Courier
10 X'00' X'00B' 0 11 11
12 X'01' X'EB' 1 235 491
15 X'01' X'EC' 1 236 492
17 X'01' X'ED' 1 237 493
20 X'01' X'EE' 1 238 494
24 X'01' X'1E' 1 30 286
Pitch Hexadecimal Decimal Dec. Value
m n m n (m x 256 + n)
Gothic
10 X'00' X'24' 0 36 36
12 X'01' X'8F' 1 143 399
15 X'01' X'8E' 1 236 398
17 X'01' X'8D' 1 237 397
20 X'01' X'8C' 1 238 396
24 X'01' X'20' 1 30 288
PS X'01' X'AE' 1 174 174
Script
10 X'01' X'D4' 1 212 468
12 X'01' X'D5' 1 213 469
15 X'01' X'D6' 1 214 470
17 X'01' X'D7' 1 215 471
20 X'01' X'D8' 1 216 472
24 X'01' X'24' 1 36 292
PS X'01' X'C8' 0 200 200
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands33260070001A
ESC _
Sets or cancels overscore printing. (IBM)
ASCII Code ESC _ n
Hexadecimal Value X'1B' X'5F' n
Decimal Value 27 95 n
Enables or disables overscore printing. See the following table:
n Overscore Printing
1 Enabled (all spaces and characters that follow are overscored)
0 Disabled
ESC 4
Sets italics printing mode. (EPSON)
ASCII Code ESC 4
Hexadecimal Value X'1B' X'34'
Decimal Value 27 52
Sets the style attribute of the font to italic. This command selects italic printing even if the italic character
table is not selected.
ESC 5
Cancels italics printing. (EPSON)
ASCII Code ESC 5
Hexadecimal Value X'1B' X'35'
Decimal Value 27 53
Sets the style attribute of the font to normal (cancels the italic style attribute previously selected with the
ESC 4 command).
ESC a
Sets Letter Quality justification printing. (EPSON)
ASCII Code ESC a n
Hexadecimal Value X'1B' X'61' n
Decimal Value 27 97 n
Range 0 = n = 3
Selects from four types of justification, as follows:
n Justification
0 Left
1 Centered
2 Right
3 Allows an uniform printing between the margins when the buffer is full.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands34260070001A
ESC E
Sets emphasized printing (IBM/EPSON).
ASCII Code ESC E
Hexadecimal Value X'1B' X'45'
Decimal Value 27 69
This command starts emphasized printing. The print head strikes each dot twice to produce a darker,
bolder character. The second strike is offset horizontally.
ESC F
Cancels emphasized printing (IBM/EPSON).
ASCII Code SC F
Hexadecimal Value X'1B' X'46'
Decimal Value 27 70
This command ends emphasized printing. This escape sequence cancels emphasized printing that was
started by ESC E.
ESC G
Sets double strike printing (IBM/EPSON).
ASCII Code ESC G
Hexadecimal Value X'1B' X'47'
Decimal Value 27 71
This command starts double-strike printing. ESC G may be canceled by ESC H.
ESC g
Sets 15 CPI. (EPSON)
ASCII Code ESC g
Hexadecimal Value X'1B' X'67'
Decimal Value 27 103
Subsequent data is printed at 15 cpi. This command is accepted at any position within the line. If you
change the pitch during proportional mode (selected with the ESC p command), the change takes effect
when the printer exits proportional mode.
ESC H
Cancels double strike printing (IBM/EPSON).
ASCII Code ESC H
Hexadecimal Value X'1B' X'48'
Decimal Value 27 72
This command cancels double-strike printing set with the ESC G command.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands35260070001A
ESC I
Selects printing type for resident and DLL characters. (IBM)
ASCII Code ESC I n
Hexadecimal Value X'1B' X'49' n
Decimal Value 27 73 n
This command selects the resident or the download font in Draft or LQ printing mode. It is ignored if you
select a font that has not been downloaded or has been overwritten. See the following table:
n Resident font n Download font
0 Draft 10 cpi 4 Draft 10 cpi
2 LQ10cpi 6 LQ10cpi
3 Proportional 7 Proportional
8 Draft 12 cpi 12 Draft 12 cpi
10 LQ 12 cpi 14 LQ 12 cpi
16 Draft 17 cpi 20 Draft 17 cpi
18 LQ 17 cpi 22 LQ 17 cpi
ESC M
Selects 10.5 point, 12 CPI. (EPSON)
ASCII Code ESC M
Hexadecimal Value X'1B' X'4D'
Decimal Value 27 77
This is a terminator code. It causes all data present in the print buffer to be printed. Subsequent data is
printed at 12 cpi, if you previously set the compressed spacing by sending the SI or ESC SI command. If
you select proportional printing, this command is stored.
ESC P
Selects 10.5 point, 10 cpi. (EPSON)
ASCII Code ESC P n
Hexadecimal Value X'1B' X'50' n
Decimal Value 27 80 n
This command selects 10.5 point, 10 cpi character printing. If you change the pitch during proportional
mode (selected with the ESC p command) the change takes effect when the printer exits proportional
mode.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands36260070001A
ESC P
Sets or cancels proportional printing. (IBM)
ASCII Code ESC P n
Hexadecimal Value X'1B' X'50' n
Decimal Value 27 80 n
Range 1 = n = 255
This code is a terminator code. It causes all data in the print buffer to be printed. Then if the n parameter
is equal to 1, the subsequent data is printed in proportional mode. If the n parameter is equal to 0,
proportional mode is reset. If the any horizontal spacing command is sent to the printer when the
proportional printing is set, the command is stored and activated as soon as the proportional printing is
reset.
ESC p
Sets or cancels proportional printing. (EPSON)
ASCII Code ESC p n
Hexadecimal Value X'1B' X'70' n
Decimal Value 27 112 n
Range 1 = n = 255
This command selects the proportional or fixed spacing according to the following values:
n Proportional Printing
0 Returns to current fixed character pitch
1 Selects proportional character spacing
ESC S
Sets subscript or superscript printing (IBM/EPSON).
ASCII Code ESC S n
Hexadecimal Value X'1B' X'53' n
Decimal Value 27 83 n
Selects subscript or superscript printing. See the following table:
n Selection
0 Subscript Print enabled
1 Superscript Print enabled
Proportional printing of subscript or superscript characters is performed at 2/3 of the proportional character
width. Use the ESC T command to cancel subscript or superscript printing.
ESC SI
Sets 17/20 cpi (IBM).
ASCII Code SI or ESC SI
Hexadecimal Value X'0F' or X'1B' X'0F'
Decimal Value 15 or 27 15
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands37260070001A
This command sets horizontal spacing to 17 or 20 cpi. DC2 code cancels this mode and returns spacing to
10 characters per inch.
ESC SI
Sets compressed printing (EPSON).
ASCII Code SI or ESC SI
Hexadecimal Value X'0F' or X'1B' X'0F'
Decimal Value 15 or 27 15
This command is accepted at any position within the line. The setting of this command depends on the
horizontal spacing previously set:
10 CPI 17 CPI
12 CPI 20 CPI
Proportional ½ width
The DC2 code cancels the compressed printing.
ESC SO
Sets double width printing (one line) (IBM/EPSON).
ASCII Code SO or ESC S0
Hexadecimal Value X'0E' or X'1B' X'0E'
Decimal Value 14 or 27 14
This code causes subsequent data in the same line to be printed as double width characters. It is
canceled by the CR, LF, VT, FF and DC4 codes or when the buffer is full.
ESC s
Sets and resets Quiet printing. (EPSON)
ASCII Code ESC s n
Hexadecimal Value X'1B' X'73' n
Decimal Value 27 115 n
This command controls print speed as follows:
n Selection
0 Normal speed printing
1 Quiet speed printing
ESC T
Cancels subscript or superscript printing (IBM/EPSON).
ASCII Code ESC T
Hexadecimal Value X'1B' X'54'
Decimal Value 27 84
This command cancels subscript or superscript printing started with the ESC S command.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands38260070001A
ESC W
Sets or cancels double width printing (IBM/EPSON).
ASCII Code ESC W n
Hexadecimal Value X'1B' X'57' n
Decimal Value 27 87 n
Range 0 = n = 1
Enables or disables double width printing. See the following table:
n Selection
0 Double Width Printing disabled
1 Double Width Printing enabled
ESC w
Sets or cancels double height printing. (EPSON)
ASCII Code ESC w n
Hexadecimal Value X'1B' X'77' n
Decimal Value 27 119 n
Range 0 = n = 255
Enables or disables double-height printing of all characters. The first line of a page is not doubled if the
ESC w command is sent on the first line; all following lines are printed at double-height. Double-height
printing overrides superscript, subscript, and condensed. Superscript, subscript, and condensed print
resumes when double-height printing is canceled. See the following table:
n Selection
0 Double Height Printing disabled
1 Double Height Printing enabled
ESC x
Selects Letter Quality or Draft. (EPSON)
ASCII Code ESC x n
Hexadecimal Value X'1B' X'78' n
Decimal Value 27 120 n
This command selects either LQ or Draft printing according to the following values:
n Selection
0 Draft printing
1 Letter Quality printing
If you select proportional spacing with the ESC p command during Draft printing, the printer prints an LQ
font instead. When you cancel proportional spacing with the ESC p command, the printer returns to Draft
printing.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands39260070001A
SI
Sets compressed printing. (IBM)
ASCII Code SI
Hexadecimal Value X'0F'
Decimal Value 15
This command sets horizontal spacing to 17 or 20 cpi. DC2 code cancels this mode and returns spacing to
10 characters per inch.
SI
Sets compressed printing. (EPSON)
ASCII Code SI
Hexadecimal Value X'0F'
Decimal Value 15
This command is accepted at any position within the line. DC2 code cancels compressed printing. The
setting of this command depends on the horizontal spacing previously set
10 CPI . 17 CPI
12 CPI . 20 CPI
Proportional ½ widtth
DC2 code cancels compressed printing.
SO
Sets double width printing (one line) (IBM/EPSON).
ASCII Code SO
Hexadecimal Value X'0E'
Decimal Value 14
This code causes subsequent data in the same line to be printed as double width characters. It is
cancelled by the CR, LF, VT, FF and DC4 codes or when the buffer is full.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands40260070001A
Character Set

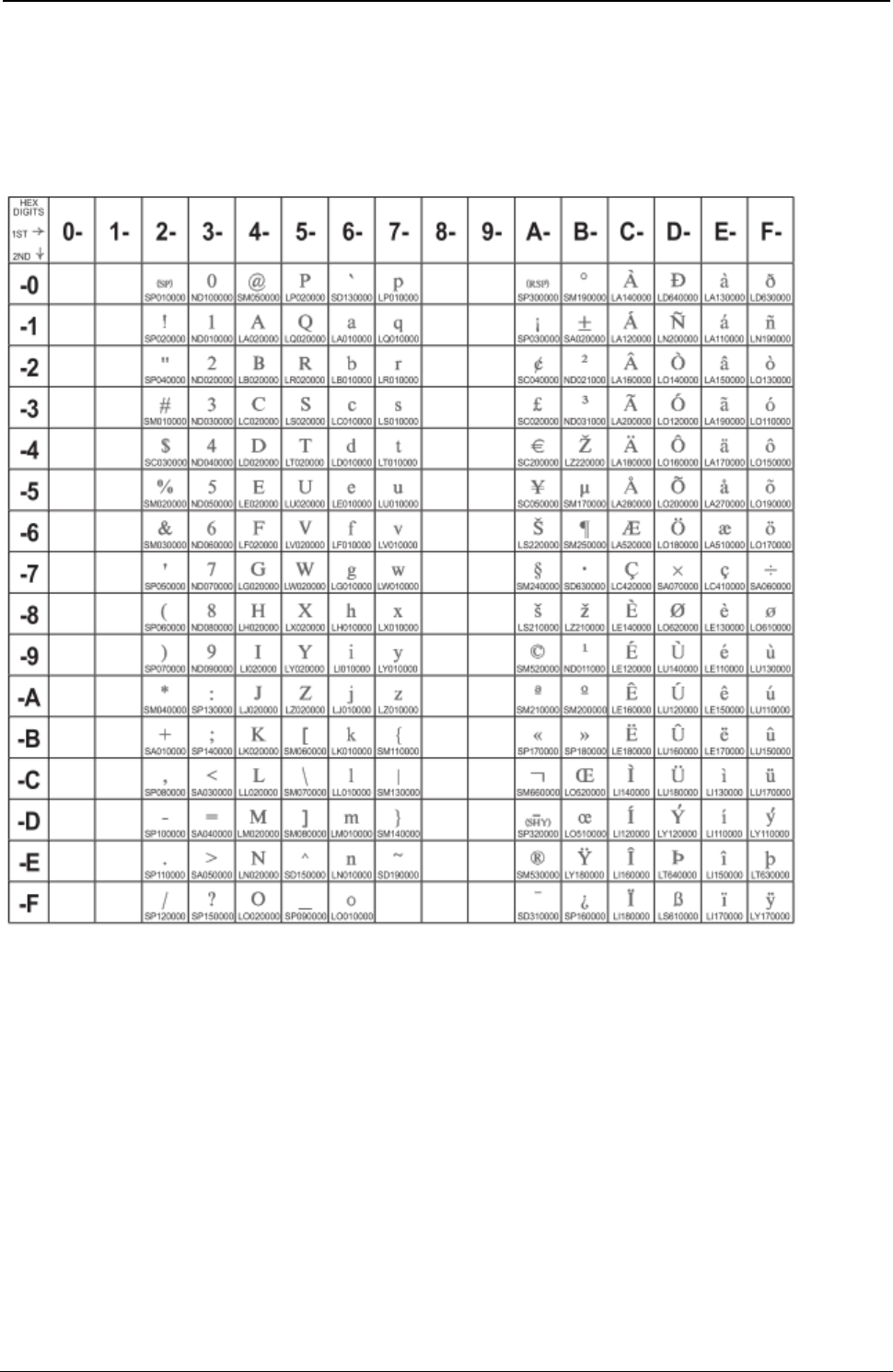

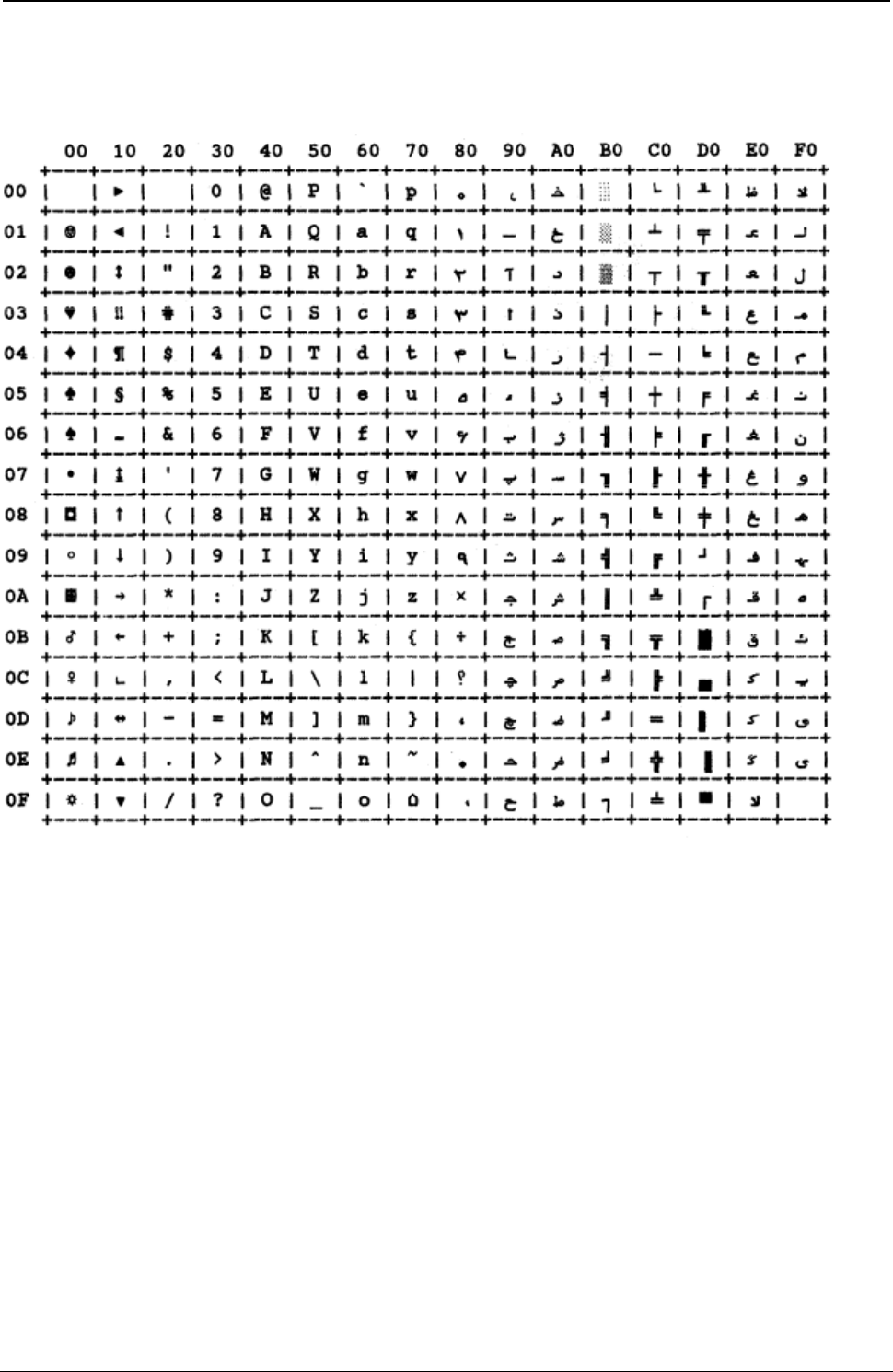

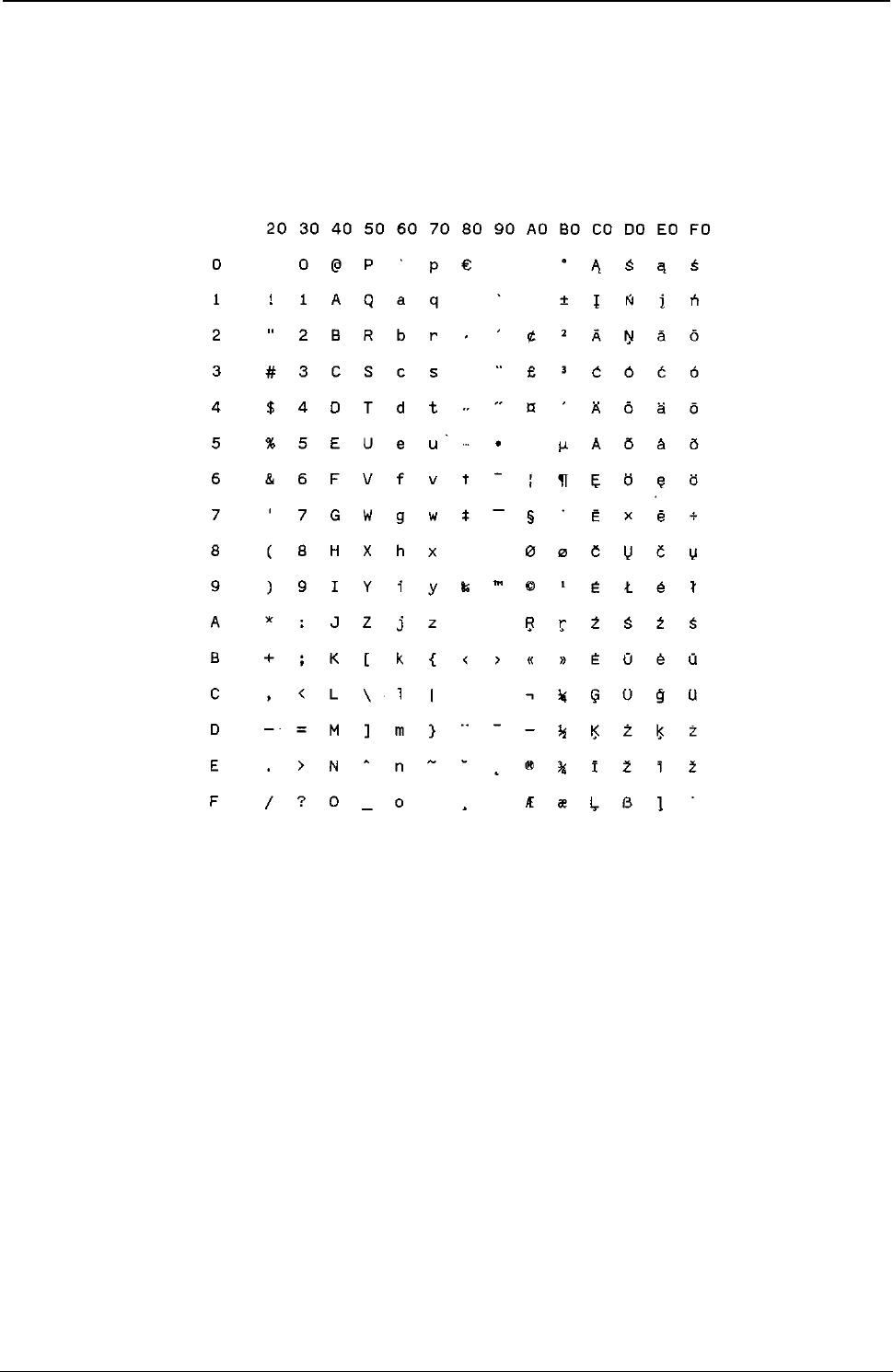

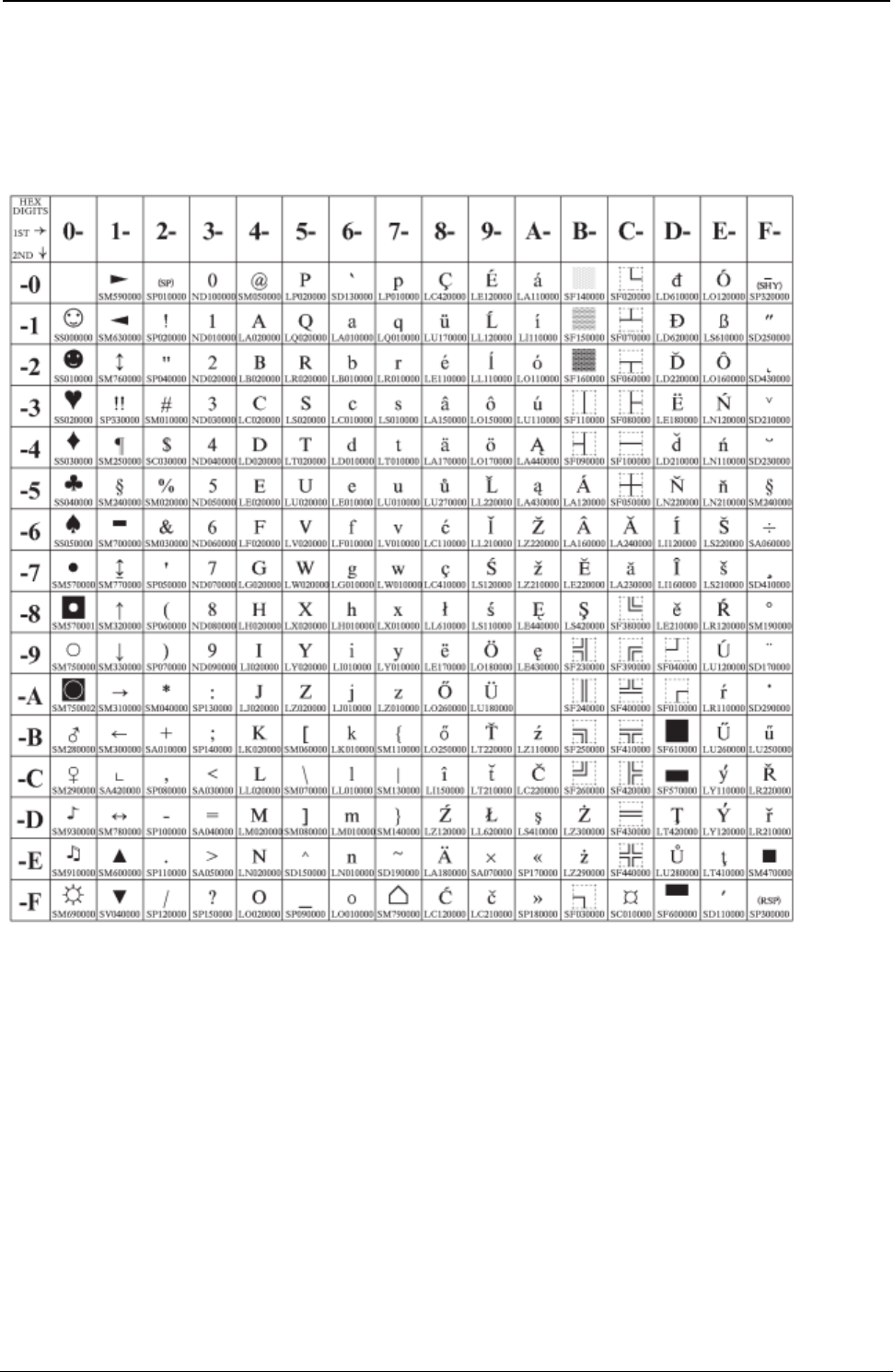

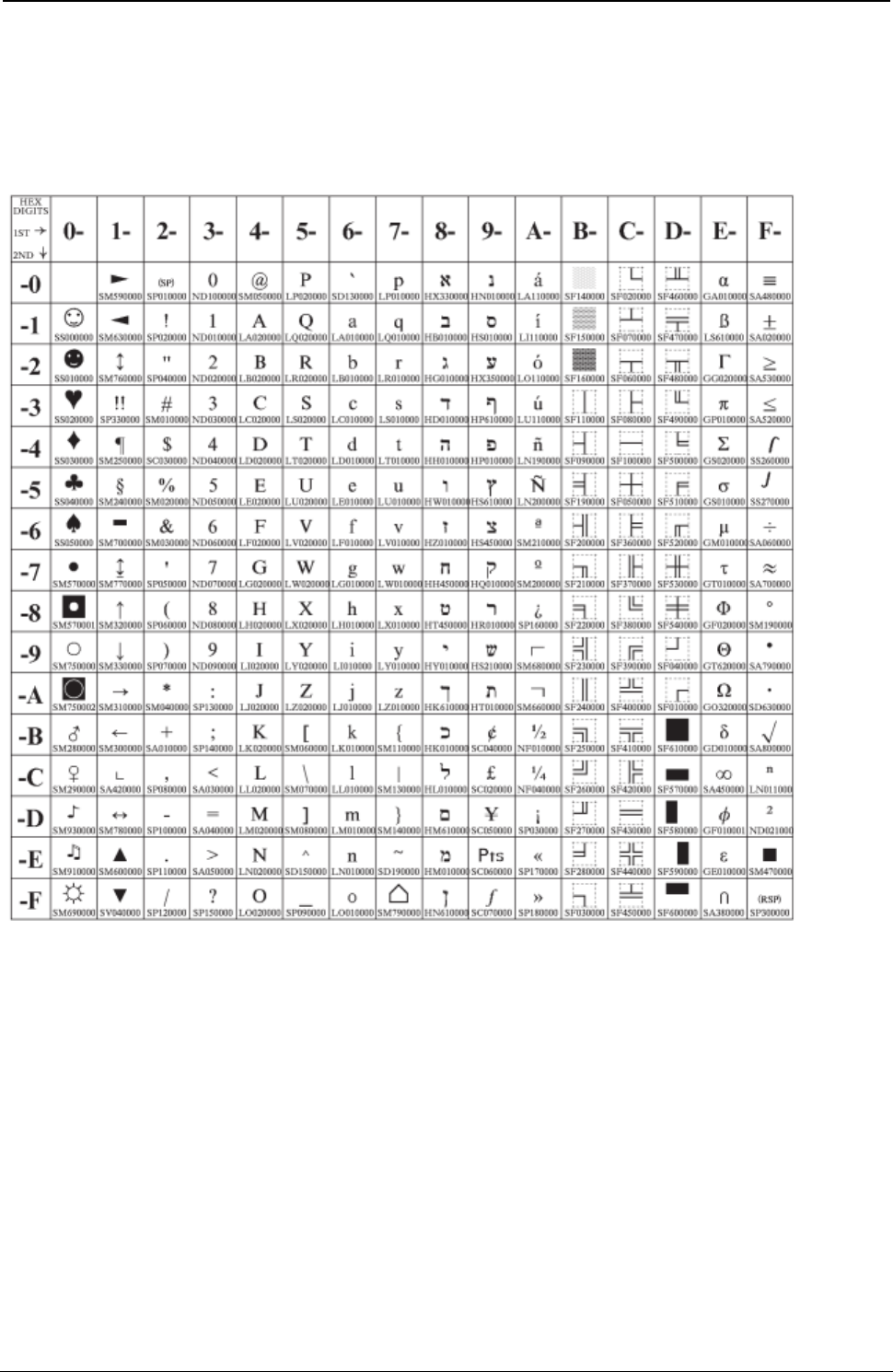

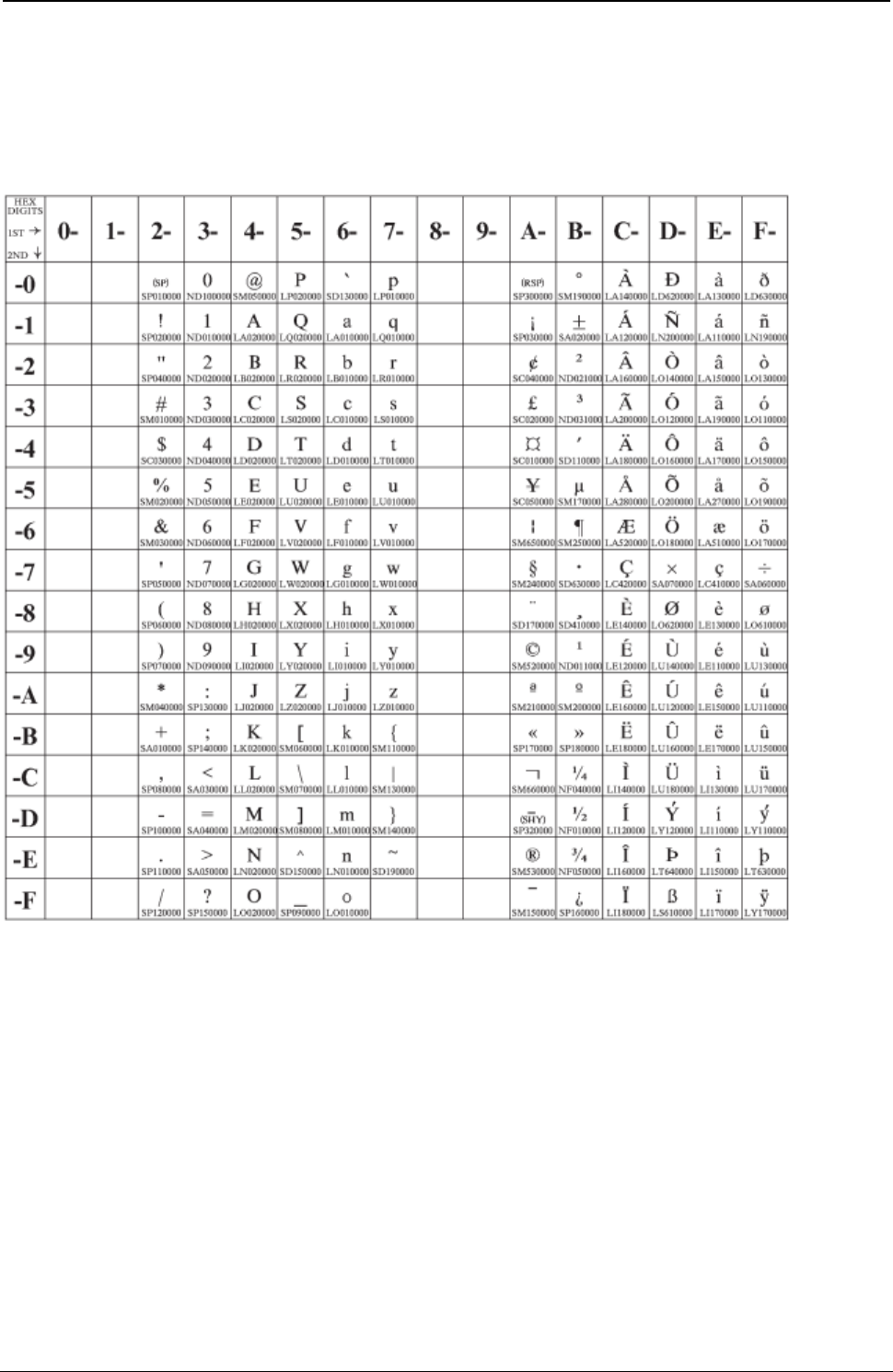

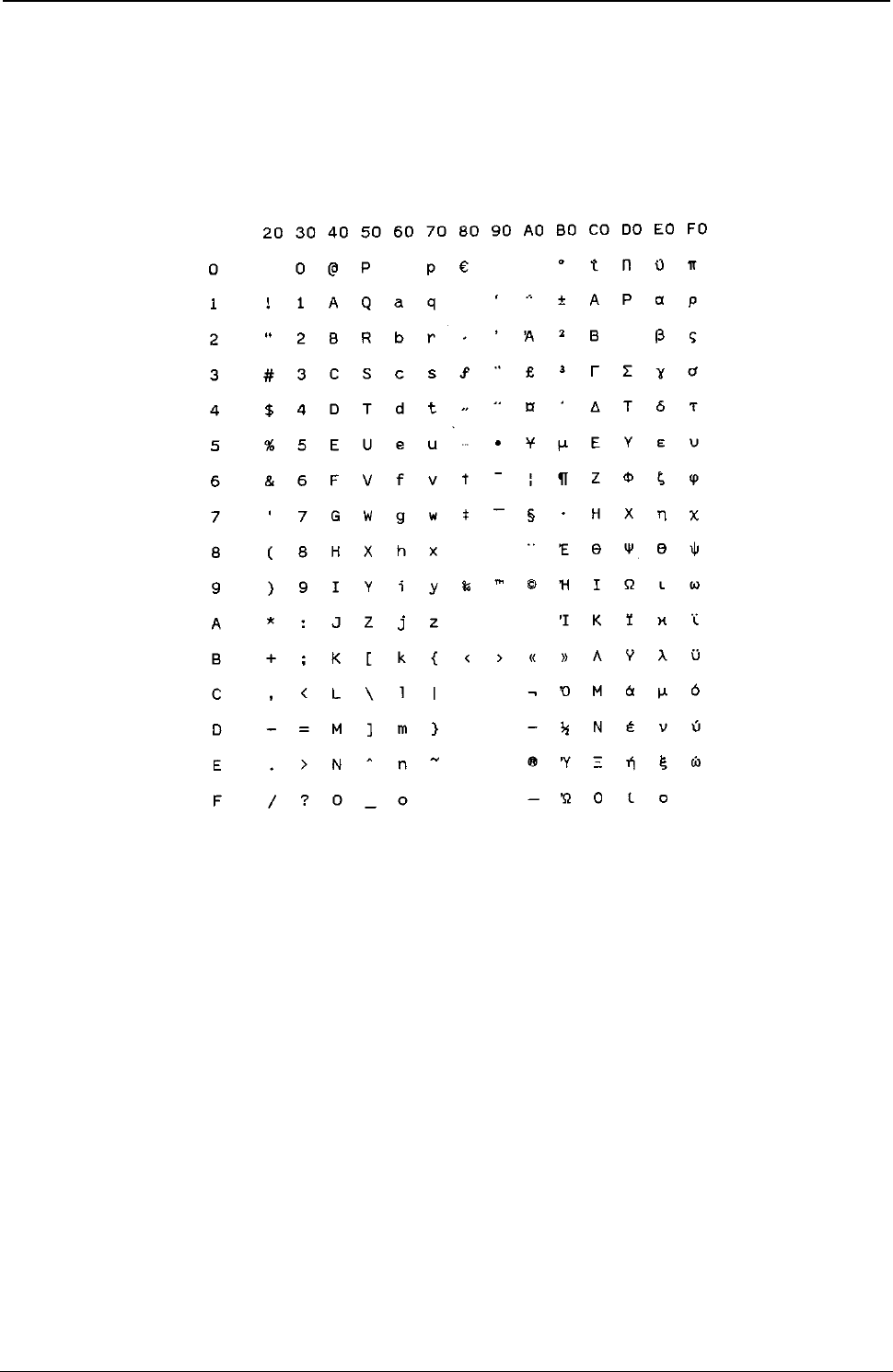

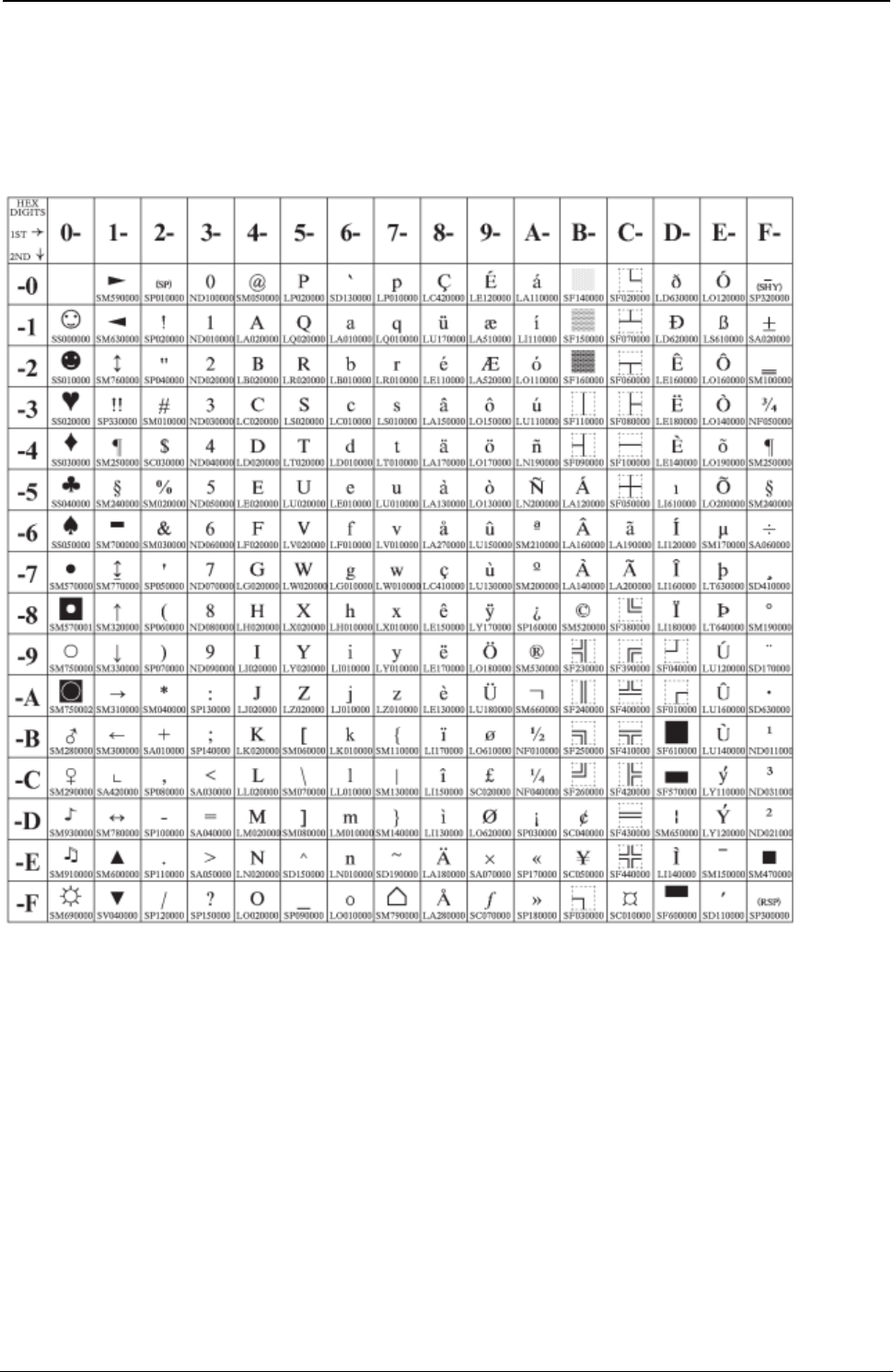

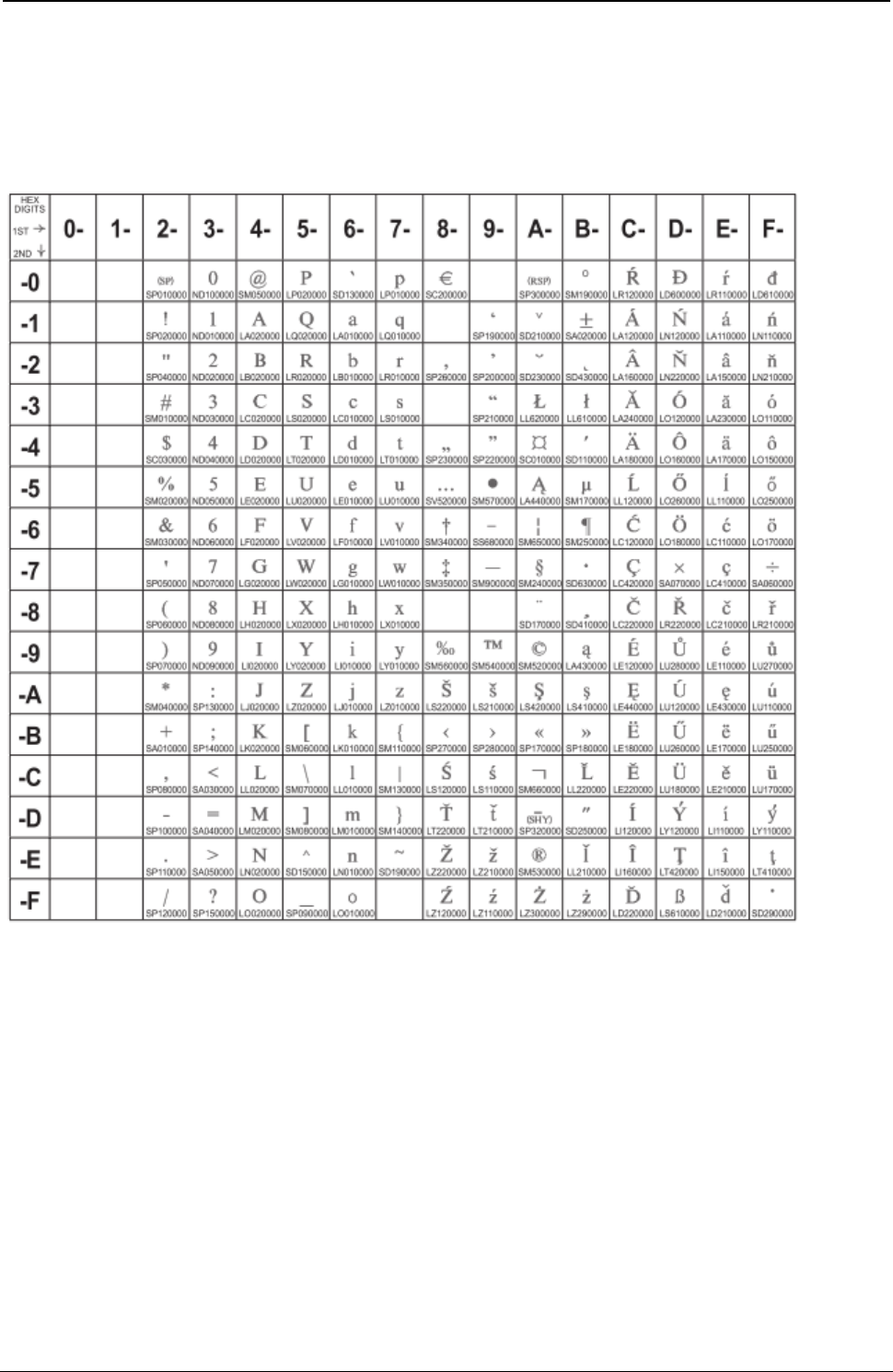

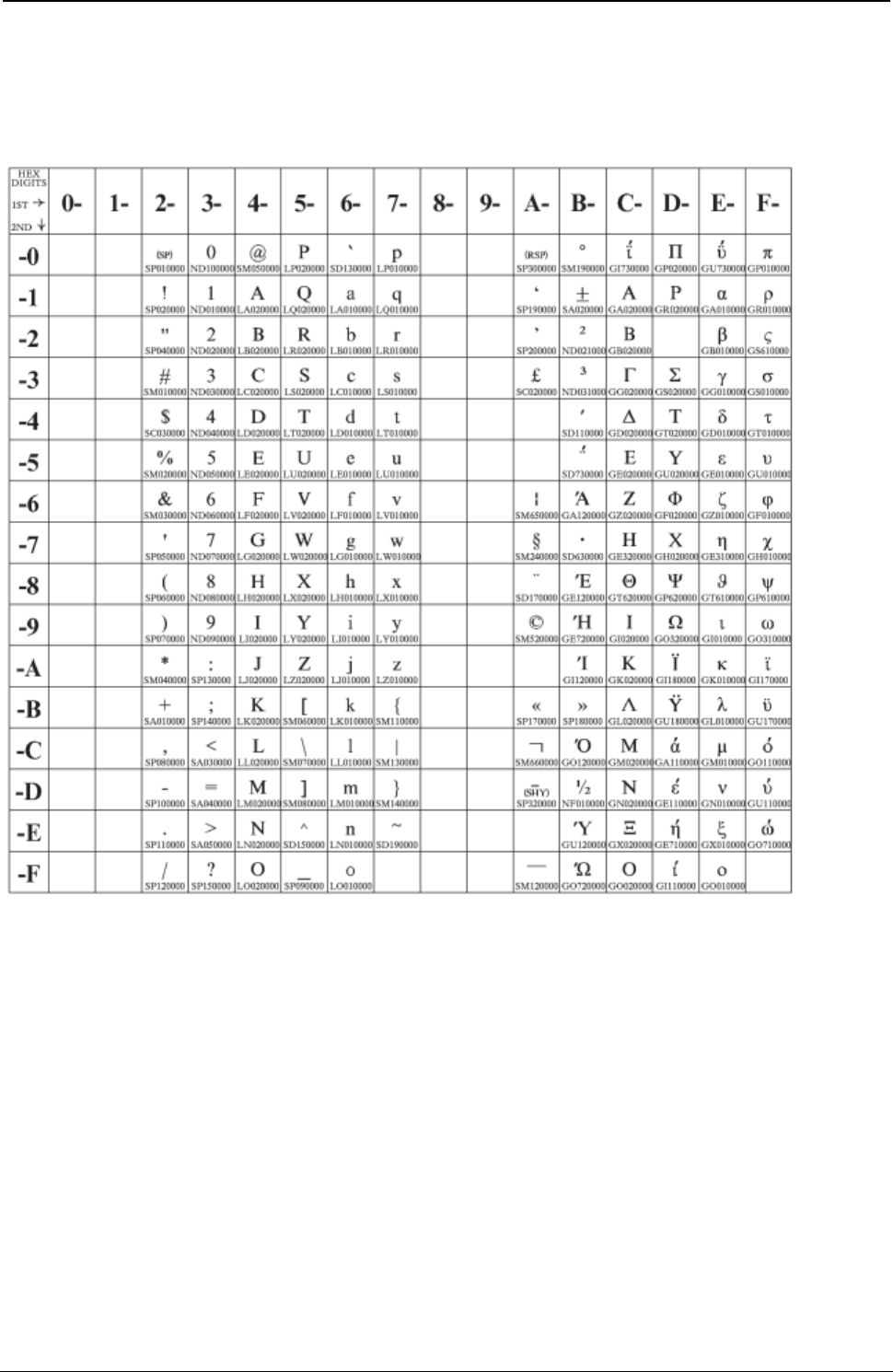

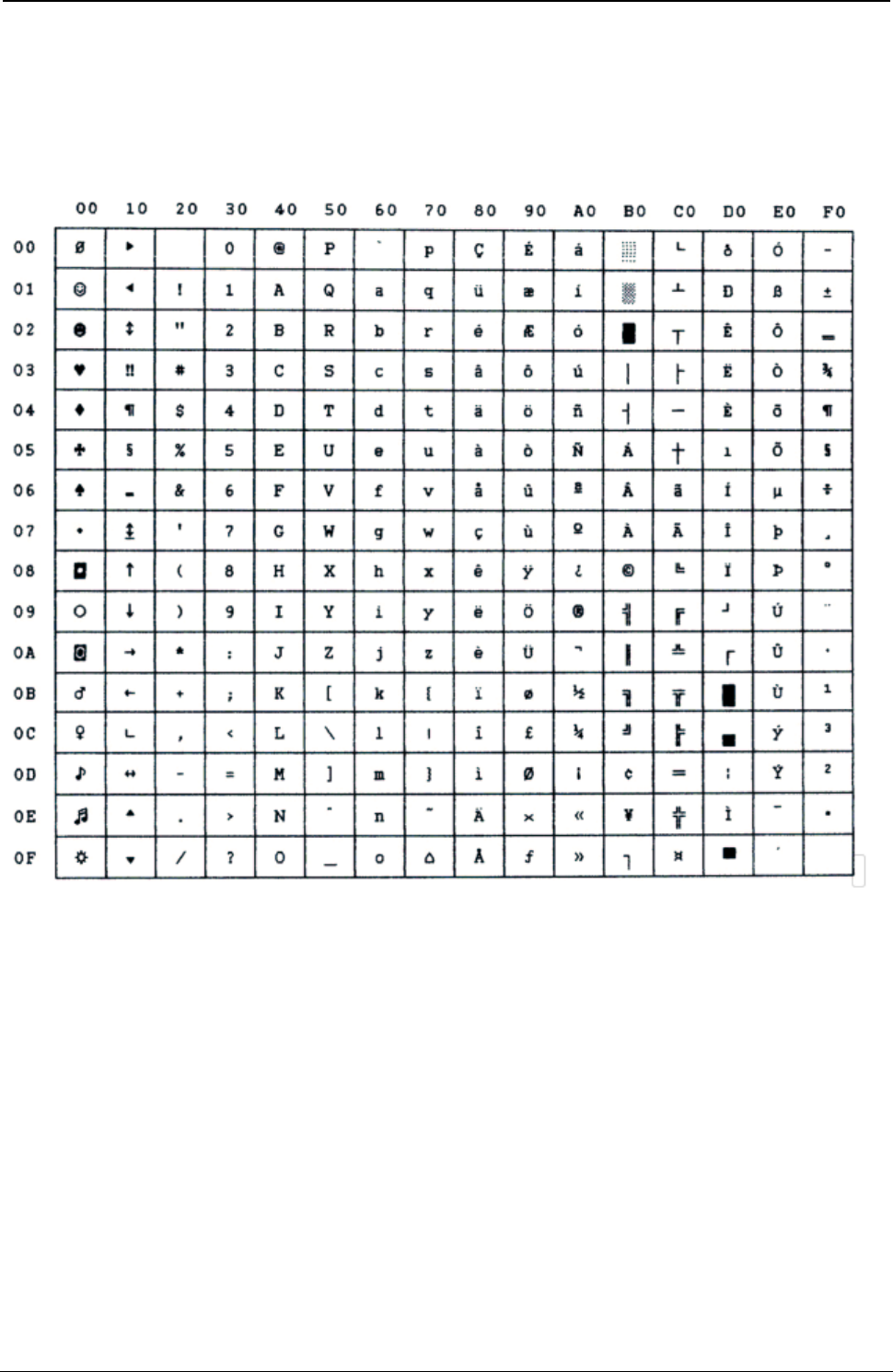

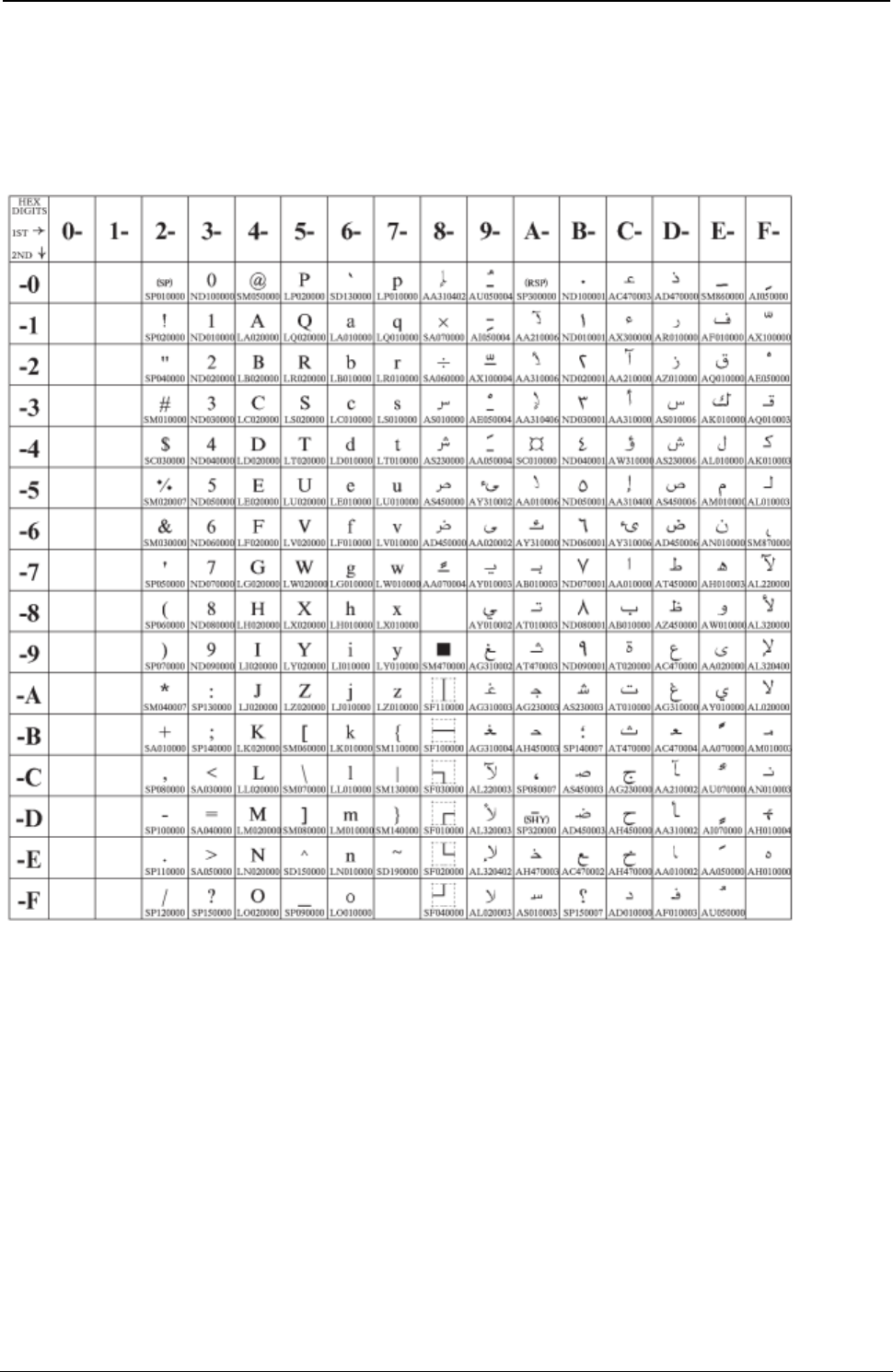

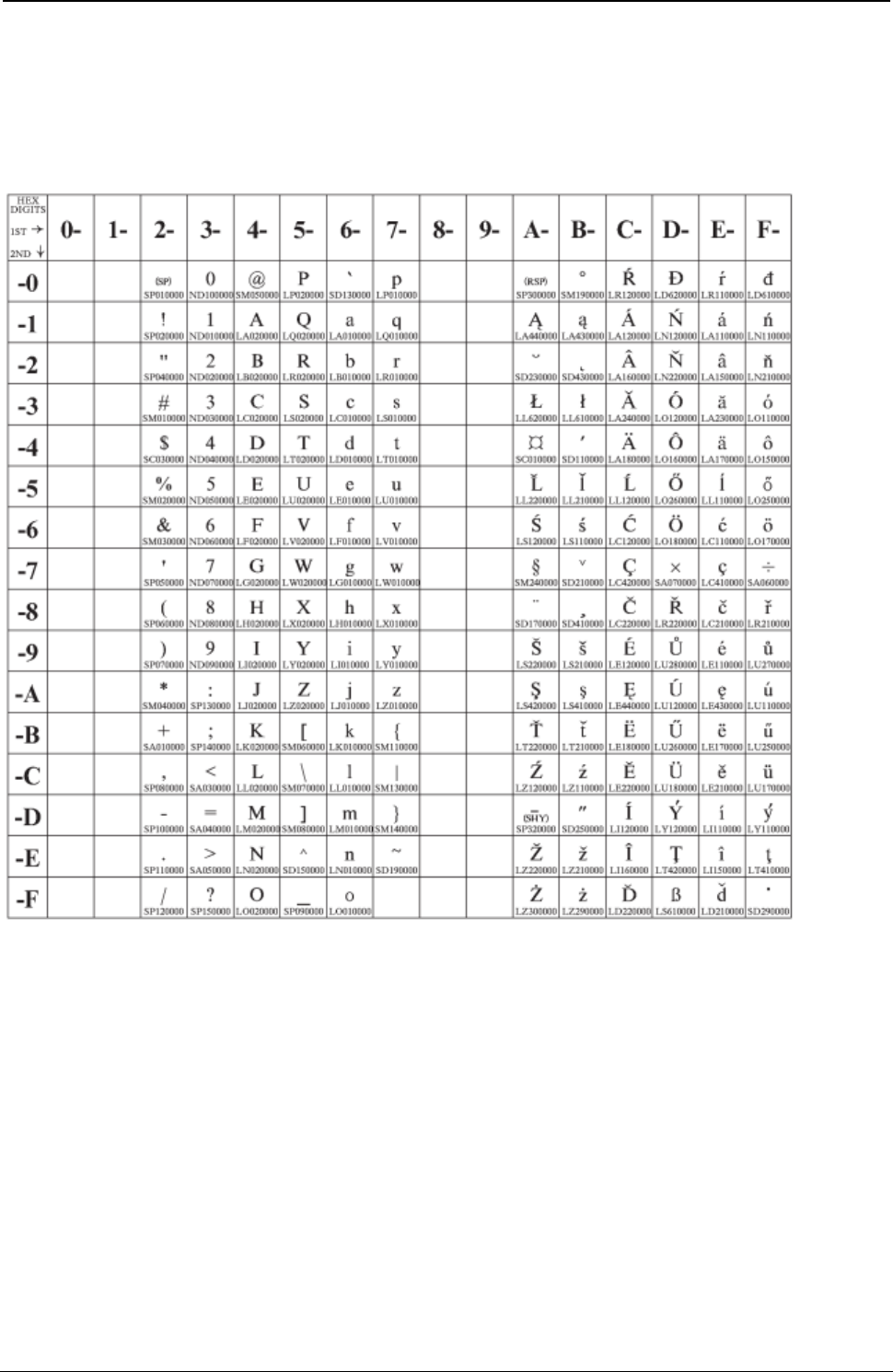

ESC [ T
Selects a Code page (IBM).
ASCII Code ESC [ T 4000HcLc
Hexadecimal Value X'1B' X'5B' X'54' 04000000HcLc
Decimal Value 7 91 84 4000HcLc
This sequence allows you to change the current code page. If an unavailable code page is specified, this
command is ignored. The digits 04000000(hexadecimal) and 4000(decimal) are constant. To
calculate Hc Lc for a code page that is not shown: If your code page has an alphabetic character, such as
437G, add 10,000 to the code page number, then divide by 256.
The whole number result is the Hc value
The remainder is the Lc value.
Hc Lc Hc Lc Hc Lc Hc Lc
1 181 CP437 3 96 CP864 33 143 8859/1 4 229 CP1253
3 122 CP437G 3 97 CP865 33 144 8859/2 4 230 CP1254
33 129 CP437 Slavic 3 98 CP866 33 145 8859/3 4 231 CP1255
33 82 CP850 3 99 CP867 33 146 8859/4 4 232 CP1256
3 83 CP851 3 108 CP876 33 147 8859/5 4 233 CP1257
3 84 CP852 3 109 CP877 33 148 8859/6 33 130 FARSI 1
3 85 CP853 4 74 CP1098 33 149 8859/7 33 131 FARSI 2
3 87 CP855 33 123 96 GREEK 33 150 8859/8
3 89 CP857 33 124 GOST 33 151 8859/9
3 90 CP858 33 125 TASS 3 155 8859/15
3 92 CP860 33 126 MAZOWIA 4 226 CP1250
3 94 CP862 33 128 UKRANIAN 4 227 CP1251
3 95 CP863 33 138 KOI8-U 4 228 CP1252
ESC \
Prints characters from all characters table. (IBM)
ASCII Code ESC \ n1 n2
Hexadecimal Value X'1B' X'5C' n1 n2
Decimal Value 27 92 n1 n2
Range 0 = n1 = 255
0 = n2 = 255
This command prints the next n1 + n2 x 256 characters from the table of all printable characters.
The total number of characters that will be printed from the table of all printable characters is equal to n1 +
(n2 x 256). For example, to print 300 characters from the table of all printable characters: n1 = 44, n2 =1.
The control codes are not recognized as long as this sequence is active. The space character is printed as
an unassigned character.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands41260070001A
ESC ^
Prints a single character from the all characters table. (IBM)
ASCII Code ESC ^ n
Hexadecimal Value X'1B' X'5E' n
Decimal Value 27 94 n
Range 0 = n = 255
This command prints the next character from the all characters table. This sequence prints only one
character from the all character table.
ESC 6
Selects the Character Set 2 (EPSON, IBM).
ASCII Code ESC 6
Hexadecimal Value X'1B' X'36'
Decimal Value 27 54
This command selects the character set 2.
ESC 7
Selects the Character Set 1 (IBM).
ASCII Code ESC 7
Hexadecimal Value X'1B' X'37'
Decimal Value 27 55
This command selects the character set 1.
ESC k
Selects the LQ fonts. (EPSON)
ASCII Code ESC k n
Hexadecimal Value X'1B' X'6B' n
Decimal Value 27 107 n
Selects one of the available fonts in Letter Quality. If Draft mode is selected when this command is sent,
the new LQ font is selected when the printer returns to LQ printing.
n Types n Types n Types n Types n Types
1 Gothic 2 Courier 3 Prestige 4 Script 5 OCR-B
6 OCR-A 7 Presentor 11 Boldface Prop. 181 Block Char.
Boldface available if the Command ESC p1 (proportional) is sent.
ESC R
Selects Nation character set. (EPSON)
ASCII Code ESC R n
Hexadecimal Value X'1B' X'52' n
Decimal Value 27 82 n
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands42260070001A
Range 0 = n = 13
This code causes the national character set to be selected according to the parameter n. See the following
table:
n National Character Sets n National Character Sets n National Character Sets
0 USA 5 Sweden 10 Denmark-II
1 France 6 Italy 11 Spain-II
2 Germany 7 Spain-I 12 Latin America
3 United Kingdom 8 Japan
4 Denmark-I 9 Norway

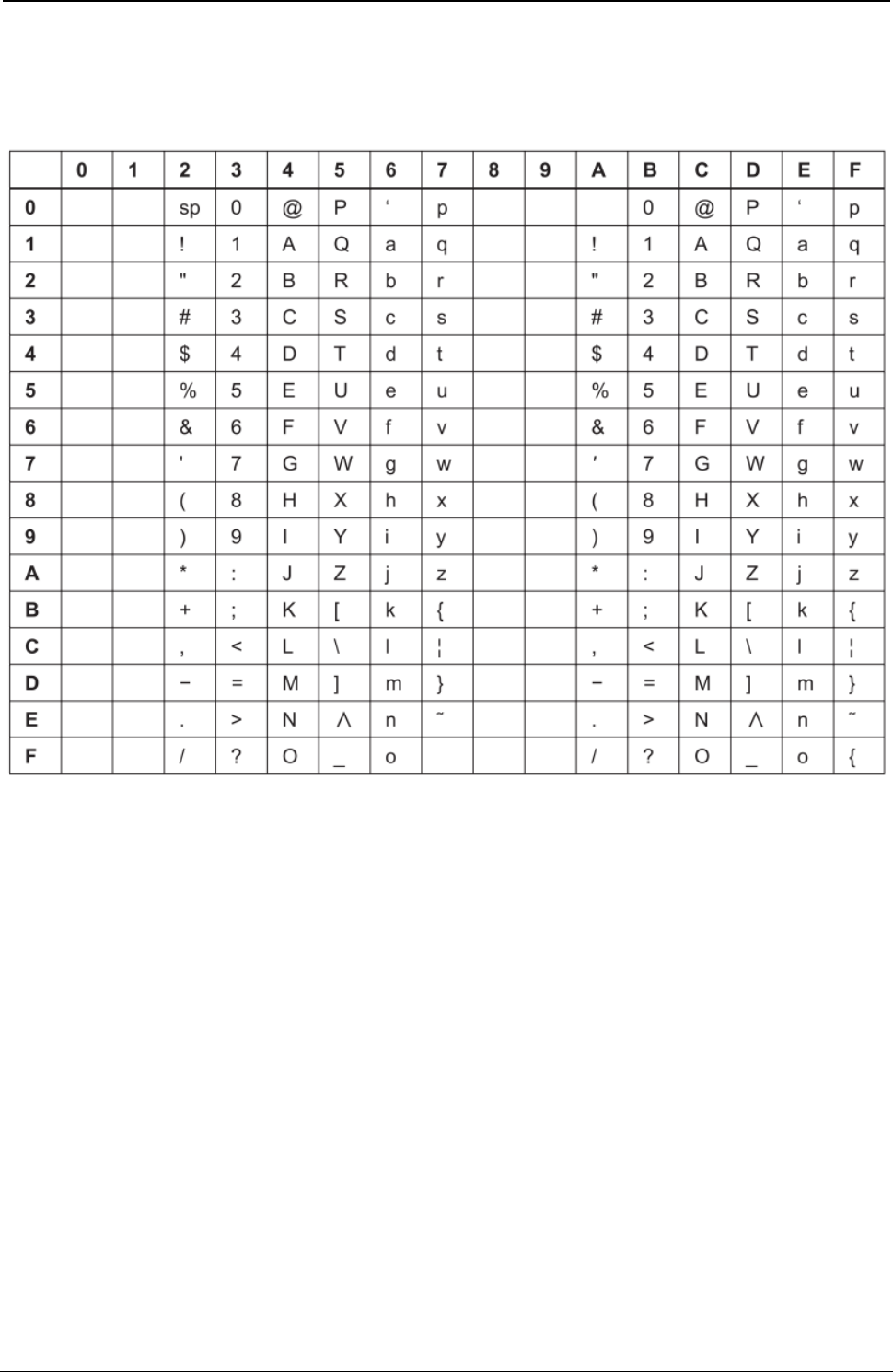

ESC t
Selects characters table. (EPSON)
ASCII Code ESC t n
Hexadecimal Value X'1B' X'74' n
Decimal Value 27 116 n
Range 0 = n = 3
Selects the upper half (from 128 to 255) from the character table.
n Character Tables
0 Standard Italic Character Set
1 ASCII Character Set
2 Remaps DLL Character Set from position 0-127 to 128-255
Download Character
ESC %
Selects user-defined character set. (EPSON)
ASCII Code ESC & n
Hexadecimal Value X'1B' X'25' n
Decimal Value 27 37 n
This command switches between normal (resident) and user-defined (downloaded) characters:
n Selection
1 Selects the use of downloaded character set in RAM
0 Selects the use of resident character set in ROM
ESC &
Defines the 24-pin download characters. (EPSON)
ASCII Code ESC & NUL n m a0 a1 a2 d1 ... dx
Hexadecimal Value X'1B' X'26' 00 n m a0 a1 a2 d1 ... dx
Decimal Value 27 38 00 n m a0 a1 a2 d1 ... dx
Range 0 = n= 127
0 = m= 127
0<= dx < = 255
a0 a1 a2: see below
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands43260070001A
This escape sequence is used to download fonts to the printer. Once fonts have been downloaded, they
can be selected by ESC % n.
Parameter nis the character position of the first character and parameter mis the character position of the
last character to be downloaded. For example, to download character “RST” the user would specify n=52H
and m=54H. Characters must be downloaded to consecutive positions after the first character. The
parameters a0, a1, and a2 must be sent for each character being downloaded and are known as the
attribute bytes. Parameter a0 specifies the number of dot columns to be added before the character.
Parameter a1 specifies the width of the character. Parameter a2 specifies the number of dot columns to
add after the character. The parameters d1 ... dx represent the dot column data being downloaded for each
character. 2 or 3 data bytes represent 1 column of dots depending upon the print mode type as shown
below. Draft, Letter Quality, superscript, and subscript fonts can be downloaded. It is necessary to select
the desired print mode prior to sending the download data. Each dot column has a width of 1/120" in Draft
and 1/360 in Letter Quality. Following are limits of parameters a0, a1, and a2 for LQ Draft and
Super/Subscript print mode at various character pitches.
LQ DRAFT
10 cpi 12 cpi 15 cpi Prop Script Norm Script
a1 29 23 15 39 23 9 7
a0 + a1 + a2 36 30 24 42 36 12 12
The mapping of data bits to wires is as follows:
SUBSCRIPT SUBSCRIPT
BYTE # BIT # LQ WIRE # DRAFT WIRE # WIRE # WIRE #
1 7 1 1 1 9
6 2 2 2 10
5 3 3 3 11
4 4 4 4 12
3 5 5 5 13
2 6 6 6 14
1 7 7 7 15
0 8 8 8 16
2 7 9 9 9 17
6 10 10 10 18
5 11 11 11 19
4 12 12 12 20
3 13 13 13 21
2 14 14 14 22
1 15 15 15 23
0 16 16 16 24
3 7 17 17 Note: Only 2 Bytes are required for
6 18 18 superscript/subscript characters.
5 19 19
4 20 20
3 21 21
2 22 22
1 23 23
0 24 24
If a data bit has a value of 1, the corresponding wire is fired. If a data bit has a value of 0, the wire is not
fired. In general, the user of this feature must be careful that the number of bytes of downloaded
information is equal to 3 x width of the character being defined (a1) or the results will be unpredictable.
Only one print mode type may be downloaded at a time. That is, if draft characters have been
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands44260070001A
downloaded, then selecting Letter Quality and downloading characters will cause the draft download
characters to be cleared. This applies similarly to script characters.
ESC :
Copies characters from ROM to RAM. (EPSON)
ASCII Code ESC : NULn0
Hexadecimal Value X'1B' X'3A' 00n00
Decimal Value 27 58 n0
This code copies the draft character generator in ROM into RAM area dedicated to the user-defined
characters. Also Courier or Gothic character generator font from ROM is copied to RAM memory according
to the following values of n parameter:
n Selection n Selection n Selection
1 Gothic 2 Courier 4 Script
5 OCR-B 6 OCR-A 182 DLL
ESC =
Defines downloaded characters. (IBM)
ASCII Code ESC = n m id p [a1 a2 d1 … d 11 ]
Hexadecimal Value 1B 3D n m id p [a1 a2 d1 … d 11 ]
Decimal Value 27 61 n m id p [a1 a2 d1 … d 11 ]
This sequence allows to design and then down-line load special characters not present in the character set
in use. Whenever you would like to start the DLL setting procedure, it should be better to copy the character
generator in ROM into RAM by sending the ESC = {0} {0} sequence that causes the DLL to be reset. Up to
256 characters can be defined using the DLL function.
The parameters in the command line have the following meaning:
n and m Indicate how many characters you should down-line load. n and m are calculated as follows:
{number of characters x 13}+2 = {total}
If {total} is less than {256}
{n} = {t}
{m} = {0}
If {total} is greater than {256}
{n} = {remainder of {t} divided by 256}
{m} = {integer result of {t} divided by 256}
id Indicates the printer model. In this case it is fixed to {20}.
Each DLL character is described using the following parameters:
p This is the decimal code of the first character of the character set in use that should be
replaced by the DLL character.
a1 This is the first attribute byte and it has the following meaning:
Bit 7: {0} indicates that the character is not a true descender.
{1} indicates that the character is a true descender.
This bit is ignored if bit 0 or bit 1 is set to 1.
Bit 6 to 2 Ignored
Bit 1, 0 Character description:
{00} no 12-high expansion. The bit 7 is valid.
{01} line drawing character. The dots in row 8 are extended
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands45260070001A
downward to rows 9, 10, 11 and 12. The bit 7 is ignored. It is
advisable to use this mode to create characters that should
replace 179 to 223 code characters.
{11} shading characters. The dots in row 1, 2, 3 and 4 are
repeated as rows 9, 10, 11 and 12. The Quality printing is
ignored. It is advisable to use this mode to create characters
that should replace 176 to 178 code characters.
a2 This is the second attribute byte. It specifies the proportional printing information. If
you do not wish to define a proportional character, set the bit 6 – 0 to {0}. When you
use the proportional printing for a DLL character with bit 6 – 0 set to {0}, the databytes
of the character will be printed.
Bit 7: Ignored
Bit 6, 5, 4 Interpreted as binary number. These bits specify the number
of leading bytes that should be ignored. This number is the
offset. Up to 7 bytes can be ignored. The counts begins with
byte 1.
Bit 3 to 0 Interpreted as binary number. These bits specify the number
of dots-columns that should be printed. Each character must
be followed by a blank byte that is not included in the count
of the character width. Character widths greater than 11 are
treated as 11.
Bit-Image
ESC *
Sets dot graphics printing. (EPSON, IBMXL24, IBMXL24 AGM)
ASCII Code ESC * m n1 n2 p1 p2 ... px
Hexadecimal Value X'1B' X'2A' m n1 n2 p1 p2 ... px
Decimal Value 27 42 m n1 n2 p1 p2 ... px
Range m = 0,1,2,3,4,5,6,7;
0 < n1 < 255;
0 < n2 < 31
This command prints dot-graphics in 8-dot columns, depending on the following parameters: number of dot
columns = (n1 + (n2 x 256))
Selects 8-dot graphic or 24-dot graphic modes according to the table below.
The m parameter determinates the horizontal density as well as the number of wires to be fired.
For 8-dot images, the total number of data bytes (p) to be sent is determined by the following formula: n1+
n2 x 256.
m DPI # DOTS DENSITY NAME Other ESC
0 60 8 Normal density ESC K
1 120 8 Dual density ESC L
2 120 (virtual) 8 Double speed, Dual density ESC Y
3 240 (virtual) 8 Quadruple-density ESC Z
4 80 8 CTR Graphic I
6 90 8 CTR Graphic II
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands46260070001A
For 24-dot images, the total number of data bytes (px) to be sent is determined by the following formula:
3.x.(n1+ n2 x256).
m DPI # DOTS DENSITY NAME
32 60 24 Normal density
33 120 24 Double density
38 90 24 CRT Graphic III
39 180 24 Triple-density
40 360 (virtual) 24 Hex-density
ESC ?
Reassigns dot graphics mode. (EPSON)
ASCII Code ESC ? nm
Hexadecimal Value X'1B' X'3F' nm
Decimal Value 27 63 nm
Reassigns one of the dot graphics mode (described in the command ESC *) to one of the following
commands: ESC K, ESC L, ESC Y and ESC Z. The nparameter specifies a character (K, L, Y, or Z)
which is reassigned to specific mode m= 0,1,2,3.
m n m n
0 (K): ESC K graphic command 2 (Y): ESC Y graphic command
1 (L): ESC L graphic command 3 (Z): ESC Z graphic command
ESC K
Normal density dot graphics printing (60 dpi) (IBM/EPSON).
ASCII Code ESC K n1 n2 p1 p2 ... px
Hexadecimal Value X'1B' X'4B' n1 n2 p1 p2 ... px
Decimal Value 27 75 n1 n2 p1 p2 ... px
Range 0 = n1 = 255
0 = n2 = 31
0 = p= 255
Terminator code. This command prints dot graphics at 60 horizontal dots per inch (dpi) by 180 vertical dpi.
The parameter values are calculated as follows:
n1 Remainder of the number of columns divided by 256.
n2 Integer result of the previous division.
p1 Sum of the values corresponding to the dots that should be printed in the first column of the
graphics pattern.
p2 Sum of the values corresponding to the dots that should be printed in the second column of the
graphics pattern.
px Sum of the values corresponding to the dots that should be printed in the last column of the
graphics pattern.
ESC L
Double density dot graphics printing (120 dpi) (IBM/EPSON).
ASCII Code ESC L n1 n2 p1 p2 ... px
Hexadecimal Value X'1B' X'4C' n1 n2 p1 p2 ... px
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands47260070001A
Decimal Value 27 76 n1 n2 p1 p2 ... px
Range 0 = n1 = 255
0 = n2 = 31
0 = p = 255
Terminator code. This command prints dot graphics at 120 horizontal dpi by 180 vertical dpi.
The parameter values should be calculated as follows:
n1 Remainder of the number of columns divided by 256.
n2 Integer result of the previous division.
p1 Sum of the values corresponding to the dots that should be printed in the first column of the
graphics pattern.
p2 Sum of the values corresponding to the dots that should be printed in the second column of the
graphics pattern.
px Sum of the values corresponding to the dots that should be printed in the last column of the
graphics pattern.
ESC Y
Double density dot graphics printing at double-speed graphics (120 virtual dpi) (IBM/EPSON).
ASCII Code ESC Y n1 n2 p1 p2 ... px
Hexadecimal Value X'1B' X'59' n1 n2 p1 p2 ... px
Decimal Value 27 89 n1 n2 p1 p2 ... px
Range 0 = n1 = 255
0 = n2 = 31
0 = p = 255
Terminator code. This command prints dot graphics at 120 horizontal dpi by 180 vertical dpi.
The parameter values should be calculated as follows:
n1 Remainder of the number of columns divided by 256.
n2 Integer result of the previous division.
p1 Sum of the values corresponding to the dots that should be printed in the first column of the
graphics pattern.
p2 Sum of the values corresponding to the dots that should be printed in the second column of the
graphics pattern.
px Sum of the values corresponding to the dots that should be printed in the last column of the
graphics pattern.
ESC Z
Quadruple density dot graphics printing (240 virtual dpi) (IBM/EPSON).
ASCII Code ESC Z n1 n2 p1 p2 ... px
Hexadecimal Value X'1B' X'5A' n1 n2 p1 p2 ... px
Decimal Value 27 90 n1 n2 p1 p2 ... px
Range 0 = n1 = 255
0 = n2 = 31
0 = p = 255
Terminator code. This command prints dot graphics at 240 horizontal dot per inch by 180 vertical dpi.
The parameter values should be calculated as follows:
n1 Remainder of the number of columns divided by 256.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands48260070001A
n2 Integer result of the previous division.
p1 Sum of the values corresponding to the dots that should be printed in the first column of the
graphics pattern.
p2 Sum of the values corresponding to the dots that should be printed in the second column of the
graphics pattern.
ESC [ g
Selects 8 or 24 needle dot graphics mode. (IBM)
ASCII Code ESC [ g l h m n 1 ... nk
Hexadecimal Value X'1B' X'5B' X'67' l h m n 1 ... nk
Decimal Value 27 91 103 l h m n 1 ... nk
This command selects dot graphics in 8 or 24 needle configuration. h*256+l represents the number of data
+ l. The m parameter represents the dot graphics modes as shown in the following table:
m DENSITY NEEDLE FUNCTION
0 60 8 Same as ESC K (8 needles)
1 120 8 Same as ESC L (8 needles)
2 120 8 Same as ESC Y (8 needles)
3 240 8 Same as ESC Z (8 needles)
8 60 24 Same as ESC * (32)
9 120 24 Same as ESC * (33)
11 240 24 Same as ESC * (39)
12 360 24 Same as ESC * (40)
The n1, n2 up to nk parameters are dot graphics data. If you select the 8 needle dot graphics mode, one
byte of data is needed for each column so that the formula h*256+l = number of columns + l is valid. If
you select the 24 needle dot graphics mode, three bytes of data is needed for each column so that the
formula h*256+l = number of columns *3-l is valid.
Data Input Control
CAN
Cancels line. (EPSON)
ASCII Code CAN
Hexadecimal Value X'18'
Decimal Value 24
This code clears all printable characters and bit-image graphics on the current line. This code moves the
print position to the left-margin position.
CAN
Cancels data. (IBM)
ASCII Code CAN
Hexadecimal Value X'18'
Decimal Value 24
This code clears all data stored in the preceding print buffer but does not change the current print position.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands49260070001A
DC1
Selects printer. (IBM)
ASCII Code DC1
Hexadecimal Value X'11'
Decimal Value 17
This command causes the printer to be enabled after it has been disabled by the ESC Q command.
DC1
Selects printer. (EPSON)
ASCII Code DC1
Hexadecimal Value X'11'
Decimal Value 17
This command causes the printer to be enabled after it has been disabled by the DC3 command.
DC3
Deselects printer. (EPSON)
ASCII Code DC3
Hexadecimal Value X'13'
Decimal Value 19
This code deselects the printer. The printer remains deselected until it receives a DC1 command or power
is turned off then on again. The printer ignores the ESC @ command (initialize printer) when it is
deselected.
DEL
Deletes the last character. (EPSON)
ASCII Code DEL
Hexadecimal Value X'7F'
Decimal Value 127
This command causes the printer to delete the last printable character sent to the printer. Printer control
codes are not affected. The printer ignores this command if it follows a command that moves the
horizontal print position (ESC $, ESC \, or HT).
ESC #
Cancels MSB control. (EPSON)
ASCII Code ESC #
Hexadecimal Value X'1B' X'23'
Decimal Value 27 35
This command cancels any controls on the Most Significant Bit (MSB) (bit number 7) set by ESC = or
ESC > commands. The printer then accepts all MSB data as is.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands50260070001A
ESC =
Sets MSB to 0. (EPSON)
ASCII Code ESC =
Hexadecimal Value X'1B' X'3D'
Decimal Value 27 61
This command sets the MSB (bit number 7) of all incoming data to 0. All data is affected, including
graphics data.
ESC >
Sets MSB to 1. (EPSON)
ASCII Code ESC >
Hexadecimal Value X'1B' X'3E'
Decimal Value 27 62
This command sets the MSB (bit number 7) of all incoming data to 1. All data is affected, including
graphics data.
ESC Q
Deselects Printer. (IBM)
ASCII Code ESC Q n
Hexadecimal Value X'1B' X'51' n
Decimal Value 27 81 n
This sequence tells the printer not to accept data from the host. The host must reset the printer or select
the printer by using DC1 (Select Printer) to accept data. To deselect the printer, use ESC Q35.
Miscellaneous
BEL
Buzzer (IBM/EPSON).
ASCII Code BEL
Hexadecimal Value X'07'
Decimal Value 7
This code sounds the printer buzzer.
BS
Print and space back one position (IBM/EPSON).
ASCII Code BS
Hexadecimal Value X'08'
Decimal Value 8
This code causes printing to be continued from one column to the left of the current carriage position. The
printer ignores this command if it would move the print position to the left of the left margin.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands51260070001A
ESC @
Initializes the printer. (EPSON)
ASCII Code ESC @
Hexadecimal Value X'1B' X'40'
Decimal Value 27 64
This sequence causes the printer:
To go back to the current printer setup settings
To cancel any selected print attributes
To reset the column counter
To set the horizontal tabulations every 8 columns
To clear all vertical tabulations
Only the selection of the Draft or Quality printing DLL, and the selected character generator are
maintained.
ESC [ K
Sets initial conditions. (IBM 2391 + only)
ASCII Code
ESC [ K n1 n2 init id
Hexadecimal Value X'1B' X'5B' X'4B' n1 n2 init id
Decimal Value
27 91 75 n1 n2 init id
This command causes the printer to reset to its initial status:
n1, n2 The n1 and n2 parameters specify the number of bytes in the escape sequence normally,
n1 = 2 and n2 = always 0.
init The init parameter specifies which condition the printer should be initialized: normally init =
0,1,4,5,254,255.
init Description
0 Initializes the printer to user-default settings. The download font remains unchanged.
If parameters are specified, they overwrite the default settings. If the emulation mode
is changed, the download font is initialized. This command only copies data from the
selected macro, adds parameter changes, if any, and stores it in working RAM. The
data stored in the macro's nonvolatile RAM is not affected.
1 Initializes the printer to user-default settings. The download font is initialized. If
parameters are specified, they overwrite the default settings. This command only
copies data from the selected macro, adds parameter changes, if any, and stores it
in working RAM. The data stored in the macro's nonvolatile RAM is not affected.
4 Initializes the printer to factory settings. The download font remains unchanged. If
parameters are specified, they overwrite the default settings. If the emulation mode
is changed, the download font is initialized. This command only copies the default
settings from ROM, adds parameter changes, if any, and stores it in working RAM.
The data stored in the macro's nonvolatile RAM is not affected.
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands52260070001A
5 Initializes the printer to factory settings. The download font is initialized. If
parameters are specified, they overwrite the default settings. This command only
copies the default settings from ROM, adds parameter changes, if any, and stores it
in working RAM. The data stored in the macro's nonvolatile RAM is not affected.
254 Initializes the printer to user-default settings. The download font is initialized. If
parameters are specified, they overwrite the default settings.
This command changes the data stored in the selected macro. It copies data from
the selected macro, adds parameter changes, if any, and stores it in working RAM
and in the selected macro. It also changes the default macro to the value of parm 3.
255 Initializes the printer to default settings. The download font is initialized. If
parameters are specified, they overwrite the default settings. This command
changes the data stored in the macro's nonvolatile RAM. It copies default settings
from ROM, adds parameter changes, if any, and stores it in working RAM and all
macros. It also sets the default macro to
disable.
id The id parameter specifies the printer for which the following parameter bytes are
intended. If the ID does not address your printer, the mode bytes that follow are ignored.
The ID values are Hex = X'B6', Dec = 182.
parm1 Specifies the following functions:
Bit Not set Set
7 Discard byte Process this byte Ignore this byte
6 Reserved
5 Alarm Alarm enabled Alarm disabled
4 Automatic CR No CR on vertical movement CR on vertical movement
3 Automatic LF No LF after CR LF after CR
2 Page length 11 inches 12 inches
1 Slashed zero Zero without slash Zero with slash
0 Character set CS1 CS2
parm2 Specifies the following functions:
Bit Not set Set
7 Discard byte Process this byte Ignore this byte
6 Pass over from CP437 CP850
CP437-CP850
5 Reserved
4 Reserved
3 Reserved
2 Reserved
1 Line length 13.6 inch 8 inch
0 Reserved
Only the selection of the Draft or Quality printing DLL, and the selected character generator are maintained.
ESC j
Stops printing. (IBM)
ASCII Code ESC j n
Hexadecimal Value X'1B' X'6A' n
Decimal Value 27 106 n
This command stops the printer. The printer goes offline and a BUSY signal is sent to the computer. To
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands53260070001A
place the printer online, press the ON LINE key.
ESC U
Sets printing direction (IBM/Epson).
ASCII Code ESC U n
Hexadecimal Value X'1B' X'55' n
Decimal Value 27 85 n
Selects bidirectional or unidirectional printing according to the parameters below:
n Direction
0 Bidirectional printing
1 Unidirectional (left to right) printing
Unidirectional printing provides better alignment of vertical lines while bidirectional printing is faster.
ESC [ u n
Bar Codes selection. (IBM -Epson)
ASCII Code ESC [ u n
Hexadecimal Value X'1B' X'5B' X'75' n
Decimal Value 27 91 117 n
This command is recognized only if the Bar Code menu option is set to “Alternate” mode.
n
0 Exit Bar Code mode
1 Enter Bar Code mode. Subsequent data are barcode data strings as set by ESC [ v n
ESC [ v n m
Sets Barcode parameters. (IBM -Epson)
ASCII Code ESC [ vnm
Hexadecimal Value X'1B' X'5B' X'76' nm
Decimal Value 27 91 118 nm
Set barcode parameters according to the table below. Parameter values that are not supported result in
the command being ignored.
n Parameter Description m values m default
0 Barcode style see below table 4
1 Barcode height 1-120 (1/12" increments) 12
2 Human readable line 0=disable 1=enable 1
3 Narrow bar width 2-225 3
4 Wide bar width 2-225 7
5 Narrow space width 2-225 3
6 Wide space width 2-225 7
7 Intercharacter space width 2-225 3
8 Rotation and HRC font 0.1=no rotation and current font for HRC 0
2=90 3=180 4=270 and special HRC font
ProgrammerManual PTXS809
Chapter1EPSON/IBMCommands54260070001A
9 Horizontal print density 1=120 2=144 3=180 dpi 1
10 Check digit 0=disable 1=enable 0
11 HRC font for rotate barcode 3=OCRA 4=OCRB 3
12 Barcode height 0-240 (1/24" increments) 24
Supported Bar Code Styles
m Style
0 Interleaved 2 of 5
1 Bidirectional 2 of 5
2 Matrix 2 of 5
3 Industrial 2 of 5
Supported Bar Code Styles
m Style
4 Code 3 of 9 (default)
5 EAN-8
6 EAN-13
7 Code 11
9 Codabar (default start/stop = a/t)
10 Codabar (default start/stop = b/n)
11 Codabar (default start/stop = c/*)
12 Codabar (default start/stop = d/e)
13 UPC-A
14 UPS-E
15 Code 93
16 Code 128 (subset A, B, and C)
17 Code 128 (subset A, B, and C)
18 Code 128 (subset A, B, and C)
19 MSI
20 UPC 2 Supplemental
21 UPC 5 Supplemental
22 EAN 2 Supplemental
23 EAN 5 Supplemental
50 Postnet
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands55260070001A
Chapter 2. Native Emulation Commands
The printer in the Native Mode supports the following printer commands.
Format Control
DC4 DC4 ESC 1
Sets vertical spacing n/180 inch.
ASCII Code DC4 DC4 ESC 1 n
Hexadecimal Value X'14' X'14' X'1B' X'31' n
Decimal Value 20 20 27 49 n
Range 0 = n = 255
This command sets vertical spacing to n/180 inch for subsequent line feeds.
DC4 DC4 ESC 3 1
Sets vertical spacing 12 lines/30 mm.
ASCII Code DC4 DC4 ESC 3 1
Hexadecimal Value X'14' X'14' X'1B' X'33' X'31'
Decimal Value 20 20 27 51 49
This command sets vertical spacing to 12 lines per 30 mm.
DC4 DC4 ESC 3 3
Sets vertical spacing to 3 lines/30 mm.
ASCII Code DC4 DC4 ESC 3 3
Hexadecimal Value X'14' X'14' X'1B' X'33' X'33'
Decimal Value 20 20 27 51 51
This command sets vertical spacing to 3 lines per 30 mm.
DC4 DC4 ESC 3 4
Sets vertical spacing 4 lines/30 mm.
ASCII Code DC4 DC4 ESC 3 4
Hexadecimal Value X'14' X'14' X'1B' X'33' X'34'
Decimal Value 20 20 27 51 52
This command sets vertical spacing to 4 lines per 30 mm.
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands56260070001A
DC4 DC4 ESC 3 6
Sets vertical spacing 6 lines/30 mm.
ASCII Code DC4 DC4 ESC 3 6
Hexadecimal Value X'14' X'14' X'1B' X'33' X'36'
Decimal Value 20 20 27 51 54
This command sets vertical spacing to 6 lines per 30 mm.
DC4 DC4 ESC 3 8
Sets vertical spacing 8 lines/30 mm.
ASCII Code DC4 DC4 ESC 3 8
Hexadecimal Value X'14' X'14' X'1B' X'33' X'38'
Decimal Value 20 20 27 51 56
This command sets vertical spacing to 8 lines per 30 mm.
DC4 DC4 ESC A
Sets the horizontal spacing to 15, 17.1, 20,24 CPI.
ASCII Code DC4 DC4 ESC A n
Hexadecimal Value X'14' X'14' X'1B' X'41' n
Decimal Value 20 20 27 65 n
This is terminator code and causes the current contents of the print buffer to be printed. The subsequent
characters are printed at the horizontal spacing specified by the n parameter.
n Spacing
4 15 cpi
5 17 cpi
6 20 cpi
7 24 cpi
Native Character Set
DC4 DC4 ESC g
Selects LQ fonts.
ASCII Code DC4 DC4 ESC g n
Hexadecimal Value X'14' X'14' X'1B' X'67' n
Decimal Value 20 20 27 103 n
Range 0 = n = 255
If down-line loading is selected, the command is stored and activated as soon as the down-line loading is
canceled.
Boldface is available if the ESC p1 (proportional) is sent.
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands57260070001A
n Types n Types n Types n Types
1 Gothic 2 Courier 3 Prestige 4 Script
5 OCR-B 6 OCR-A 7 Presentor 11 Boldface Prop.
182 DLL
The OCR-A and OCR-B print styles are selected by the DC4 DC4 ESC S command.
DC4 DC4 ESC S

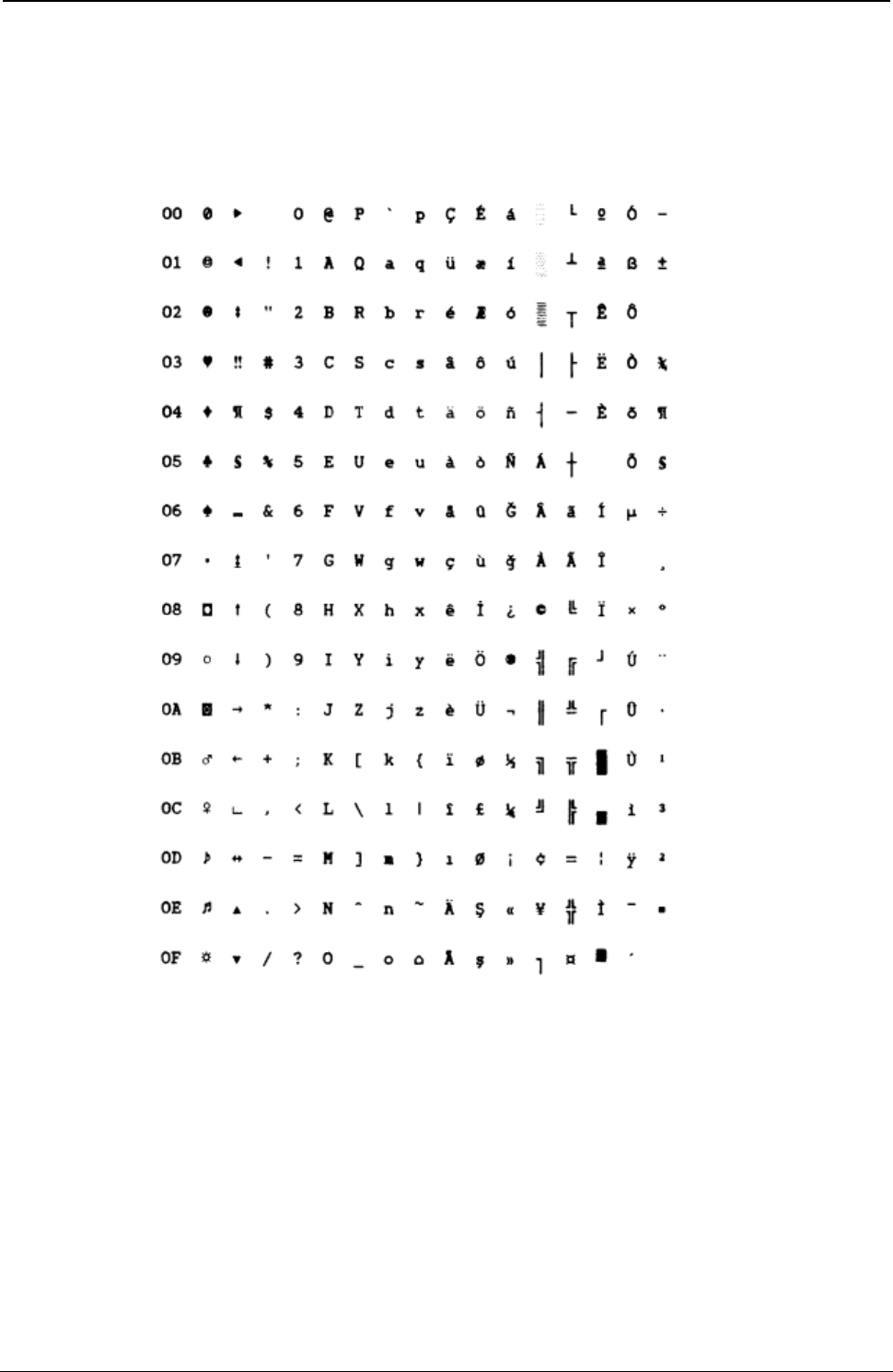

Selects character set ISO Character Sets or Code Pages.
ASCII Code DC4 DC4 ESC S n
Hexadecimal Value X'14' X'14' X'1B' X'53' n
Decimal Value 20 20 27 83 n

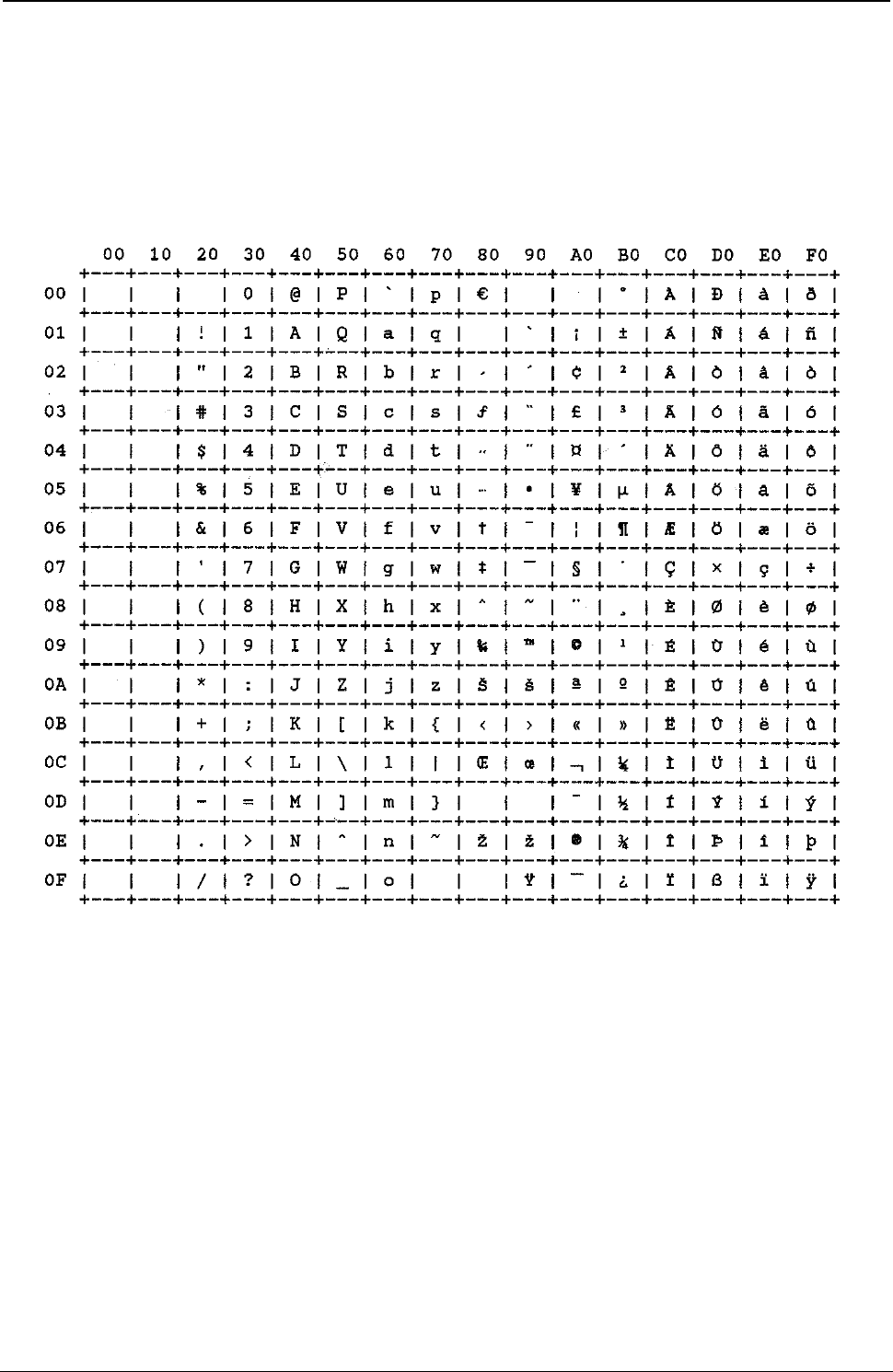

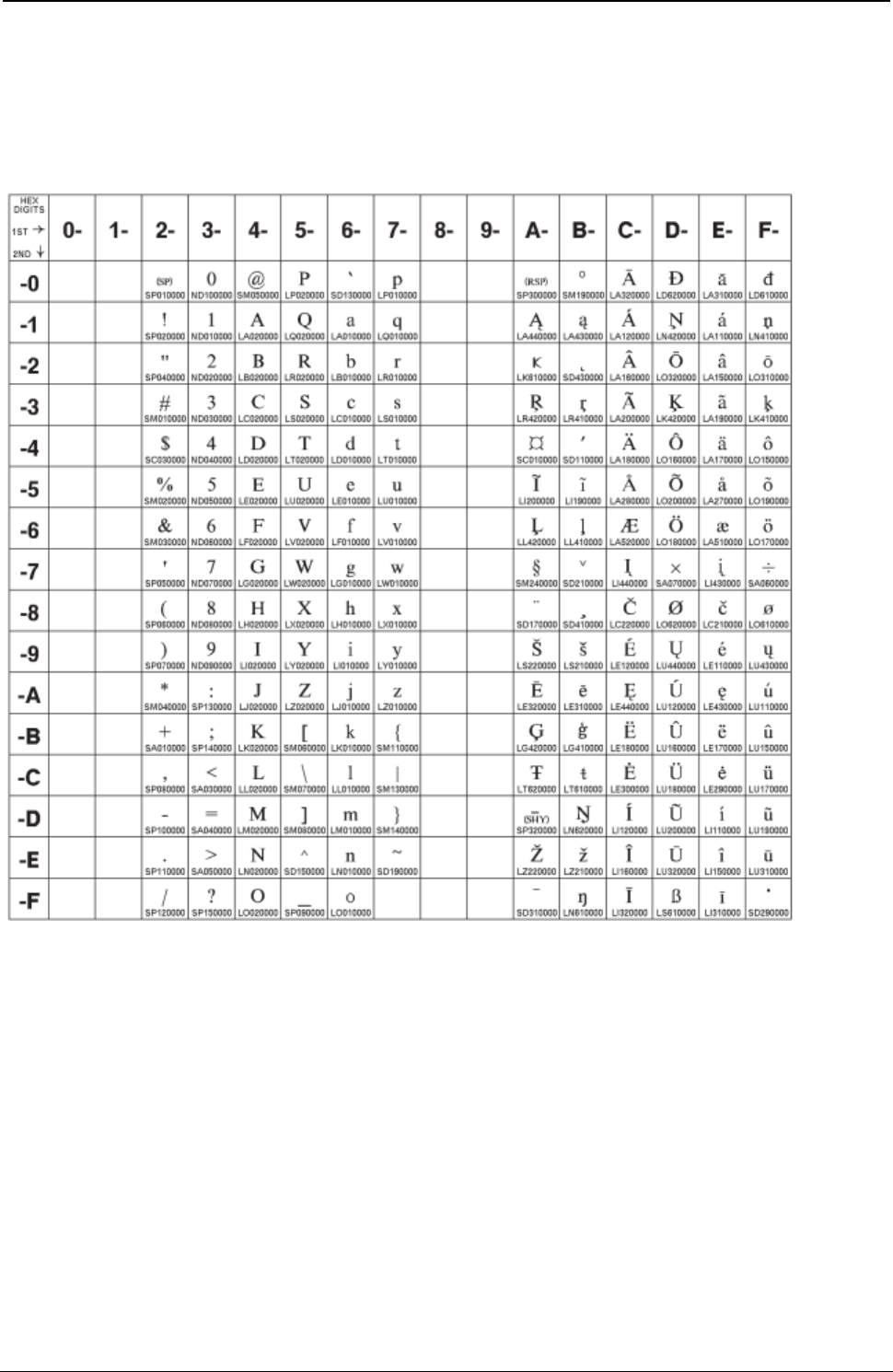

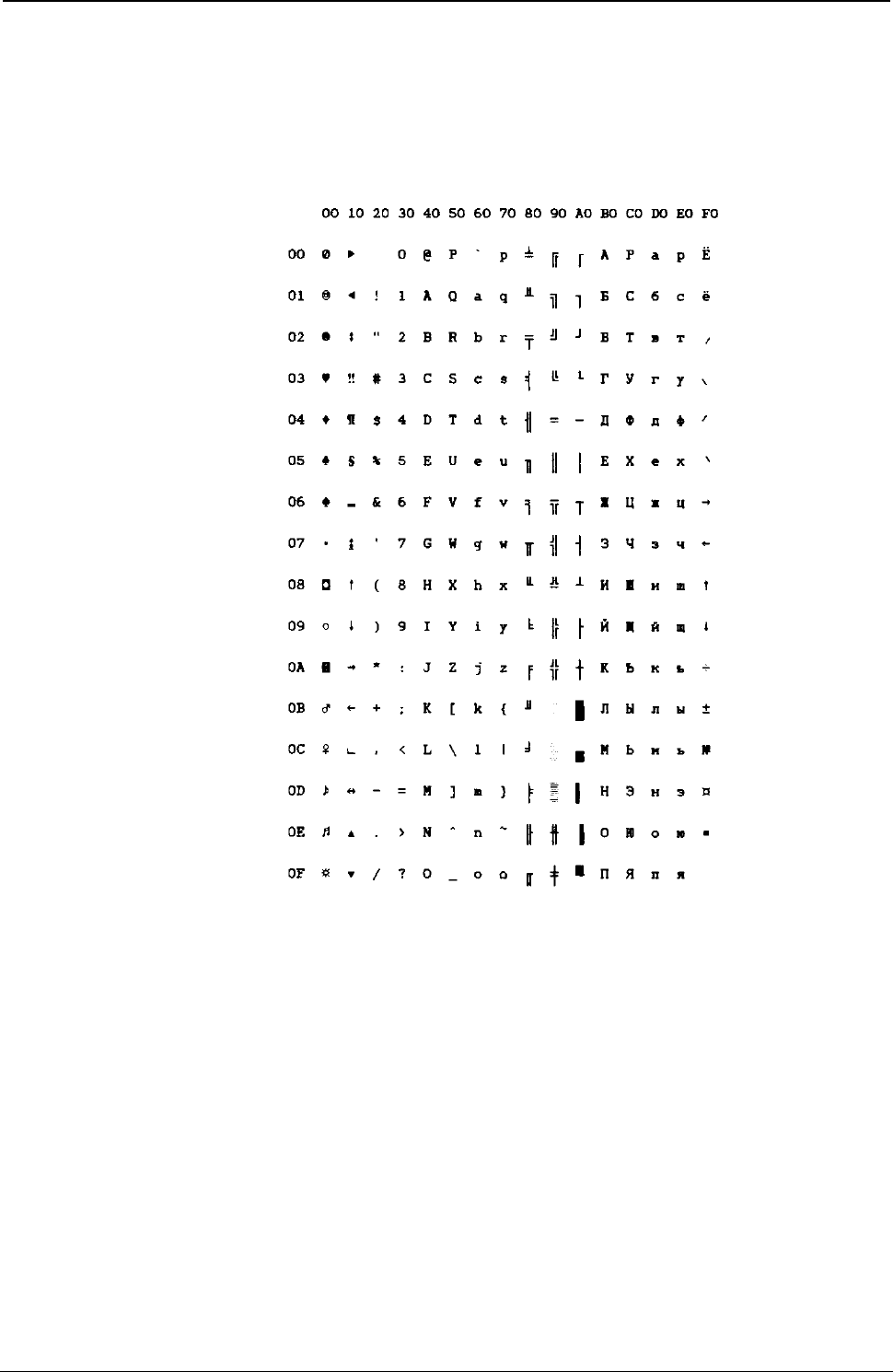

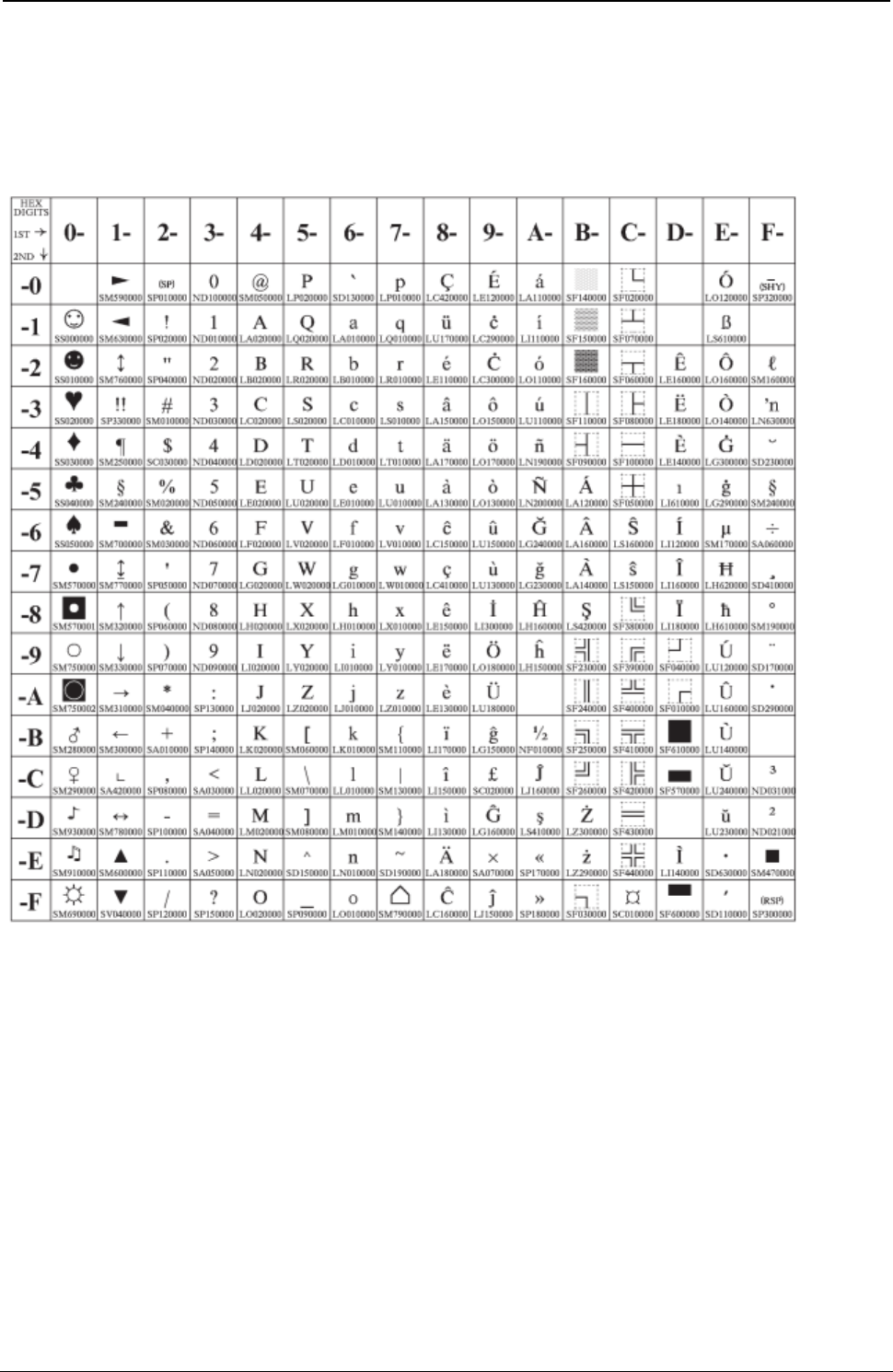

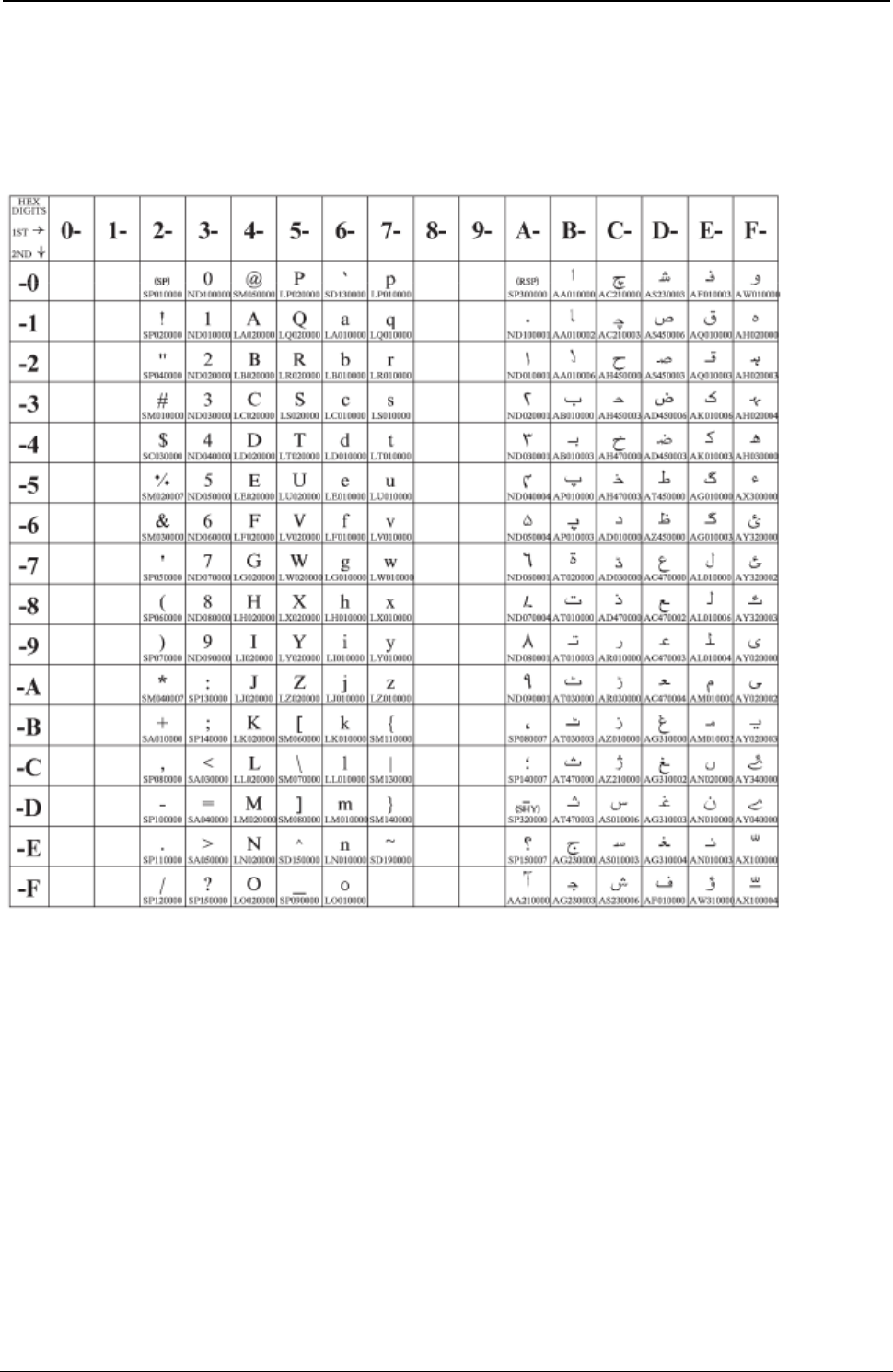

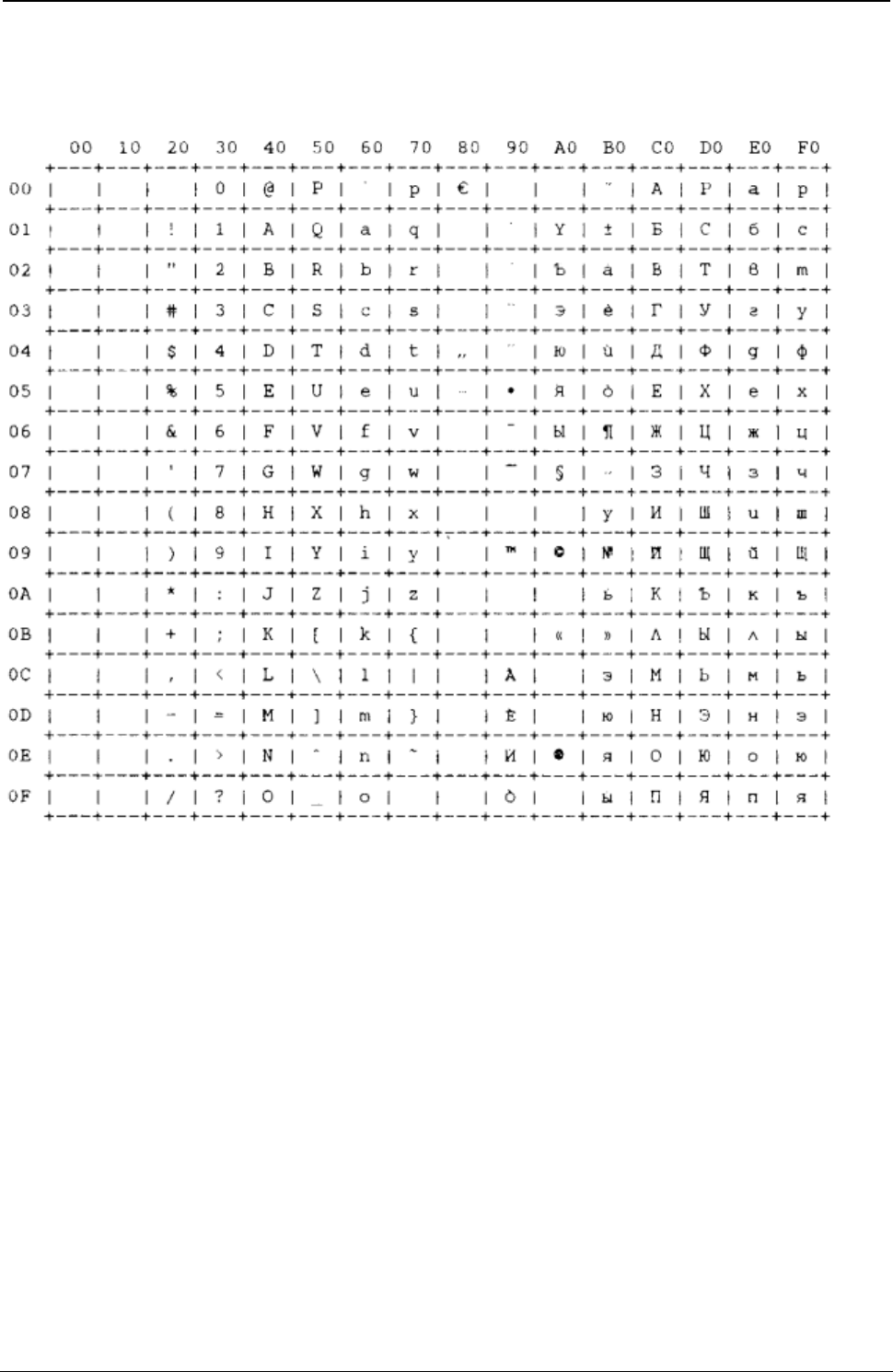

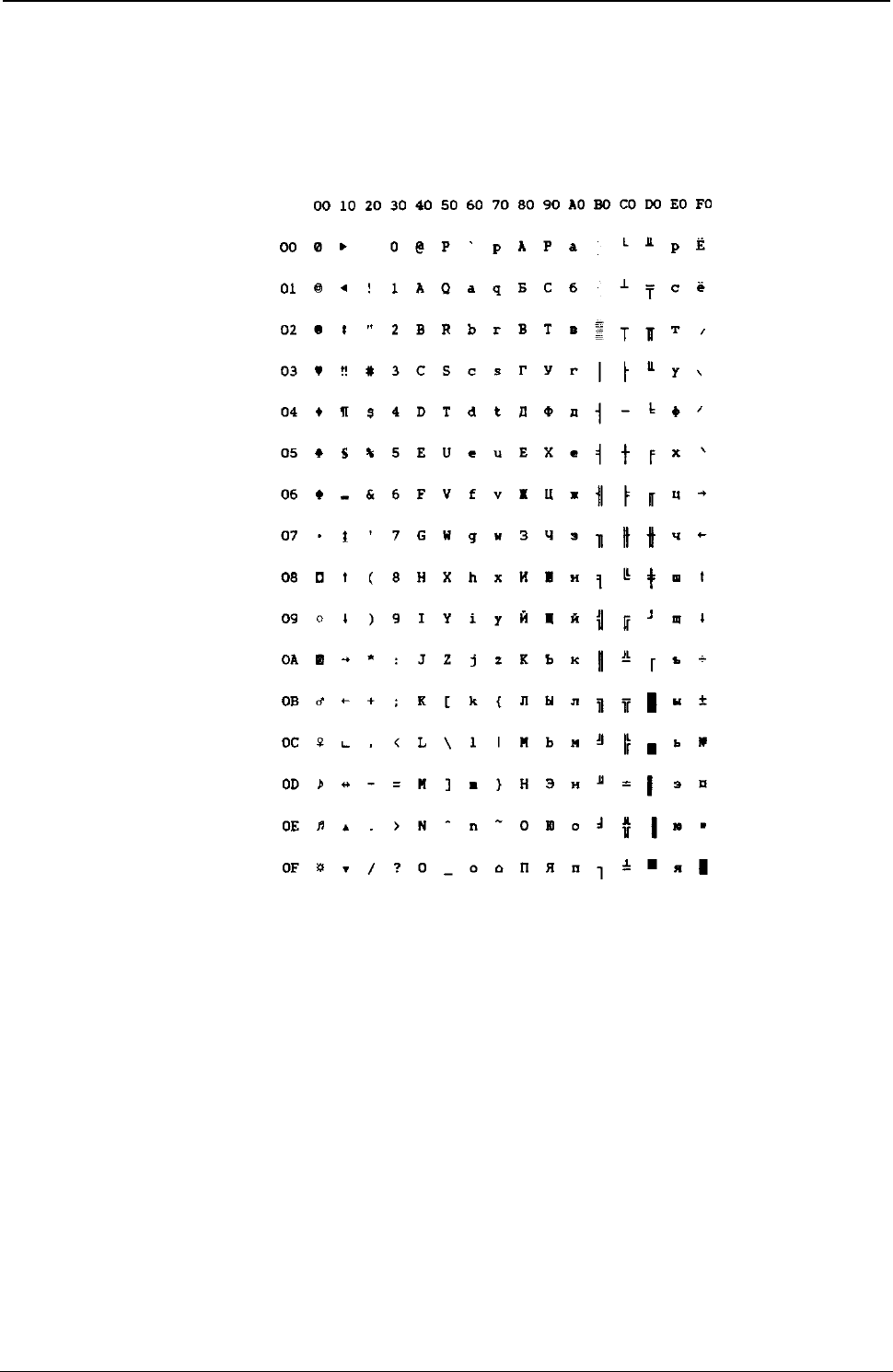

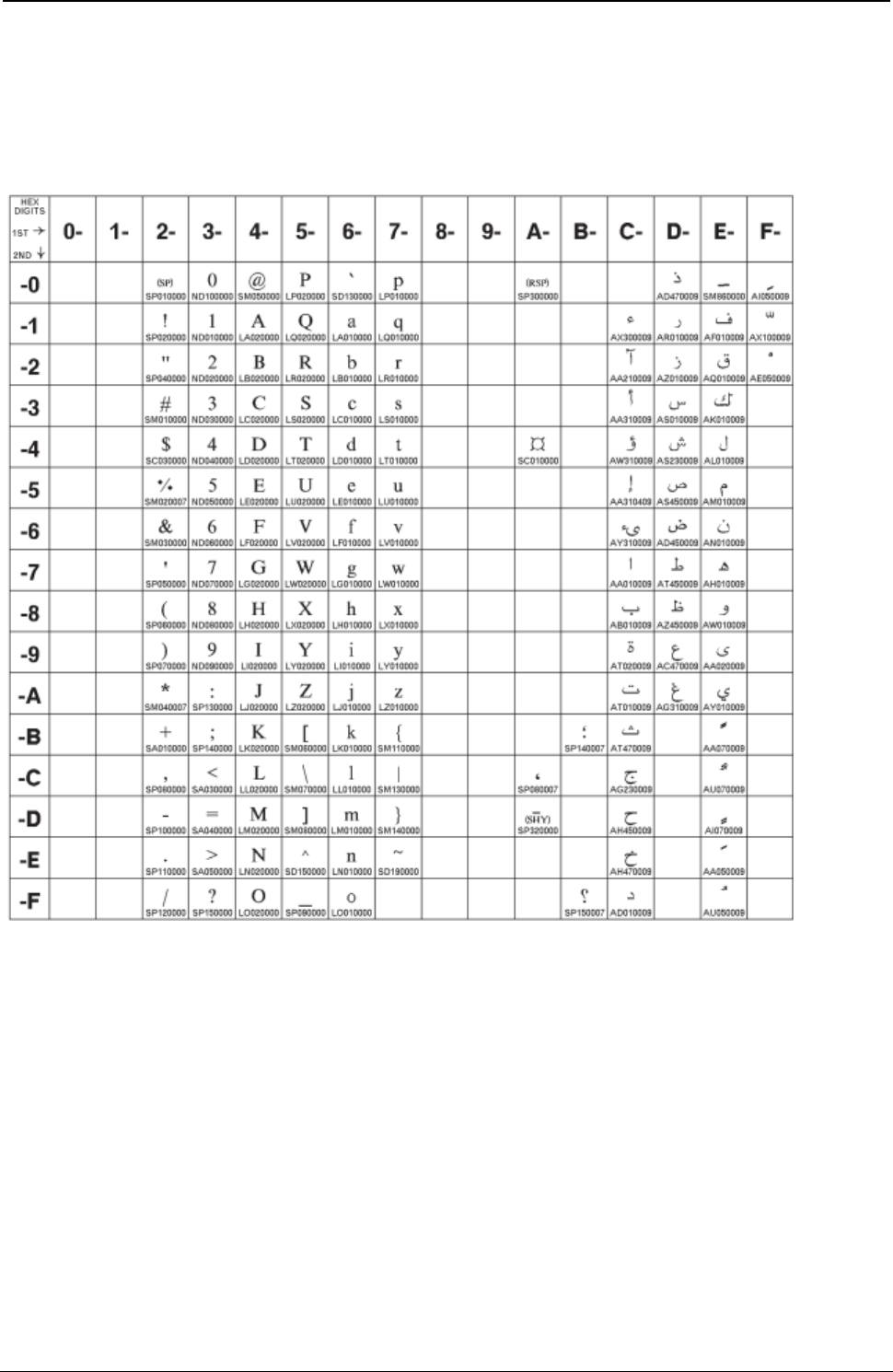

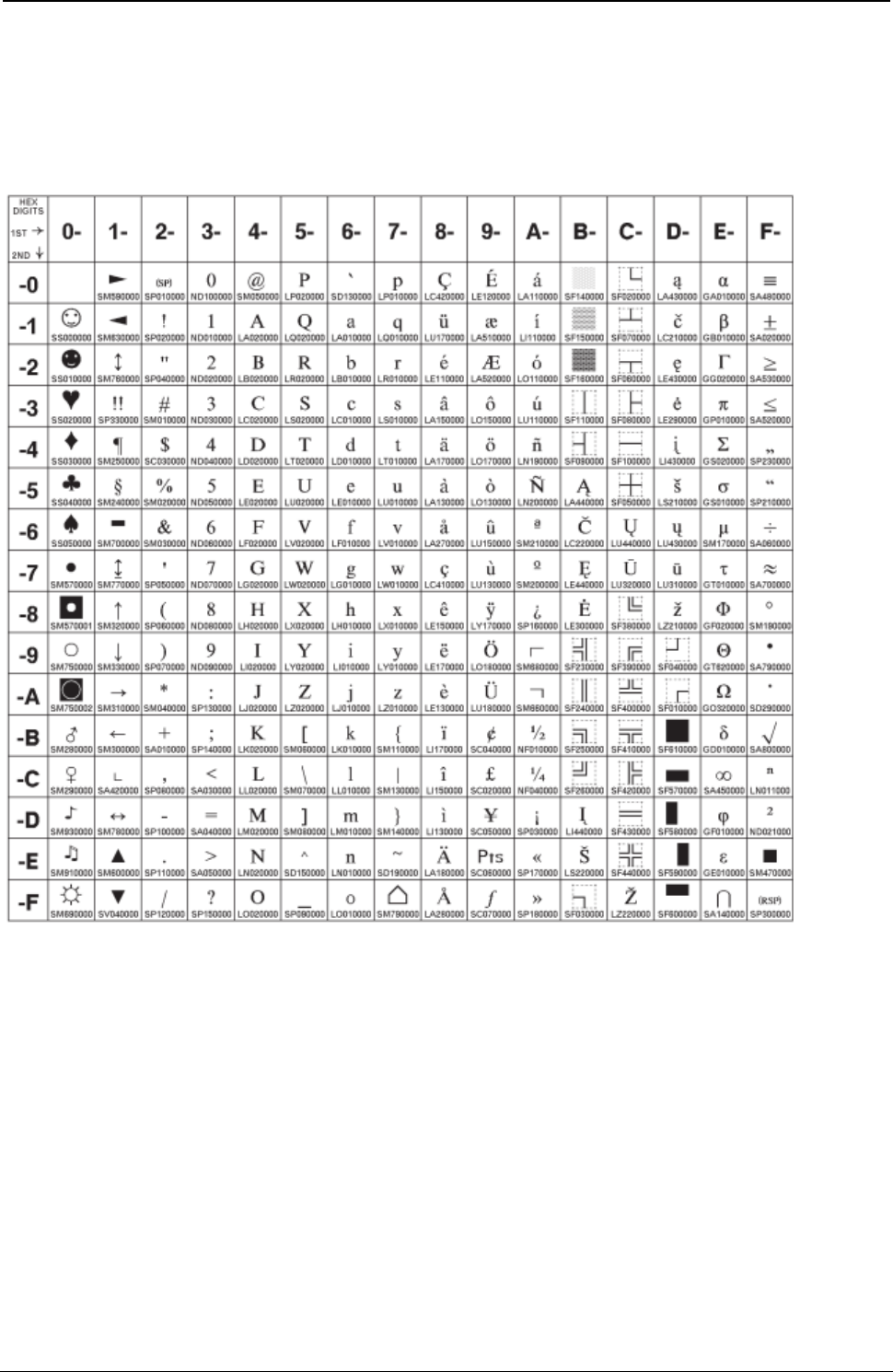

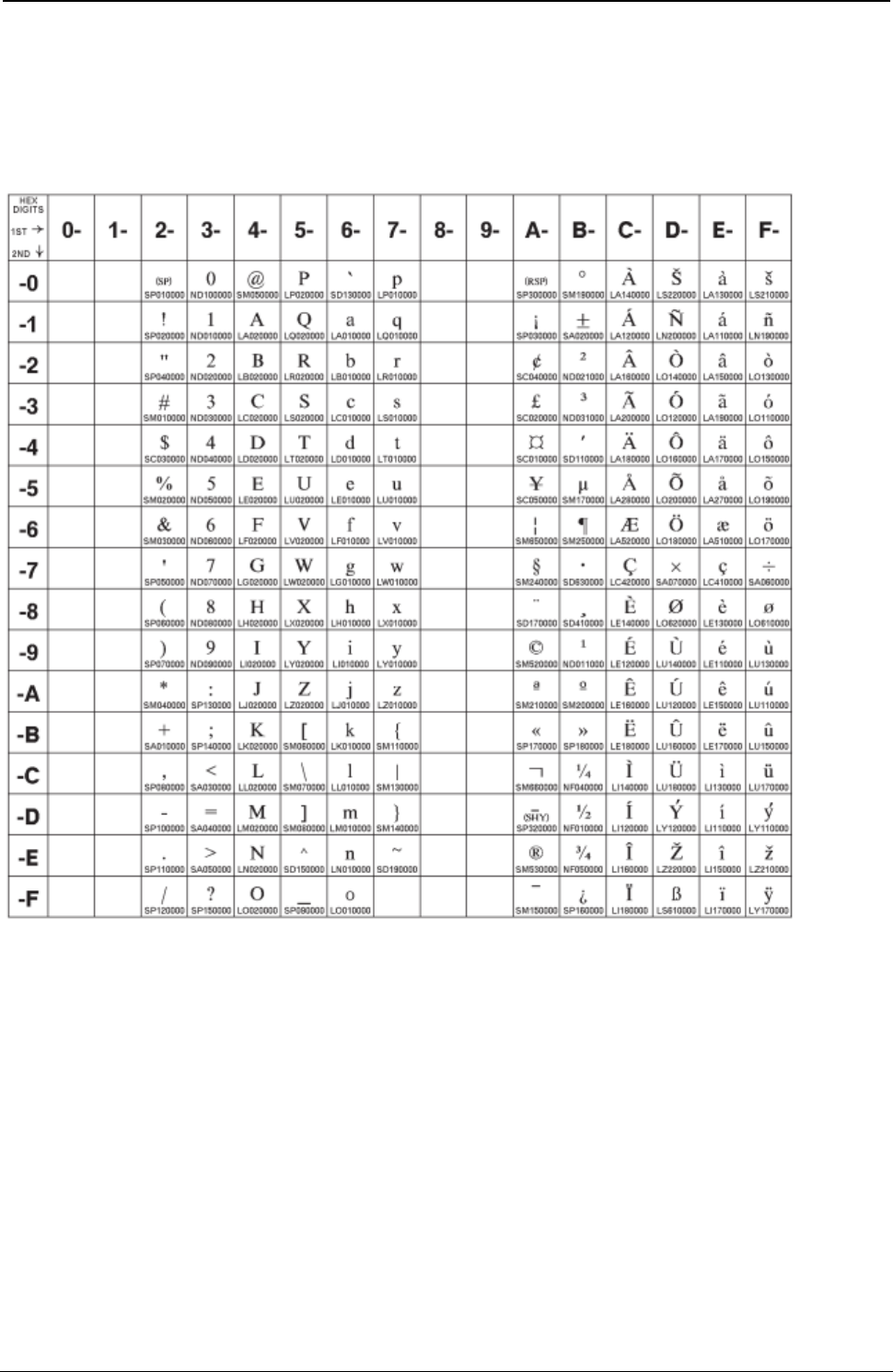

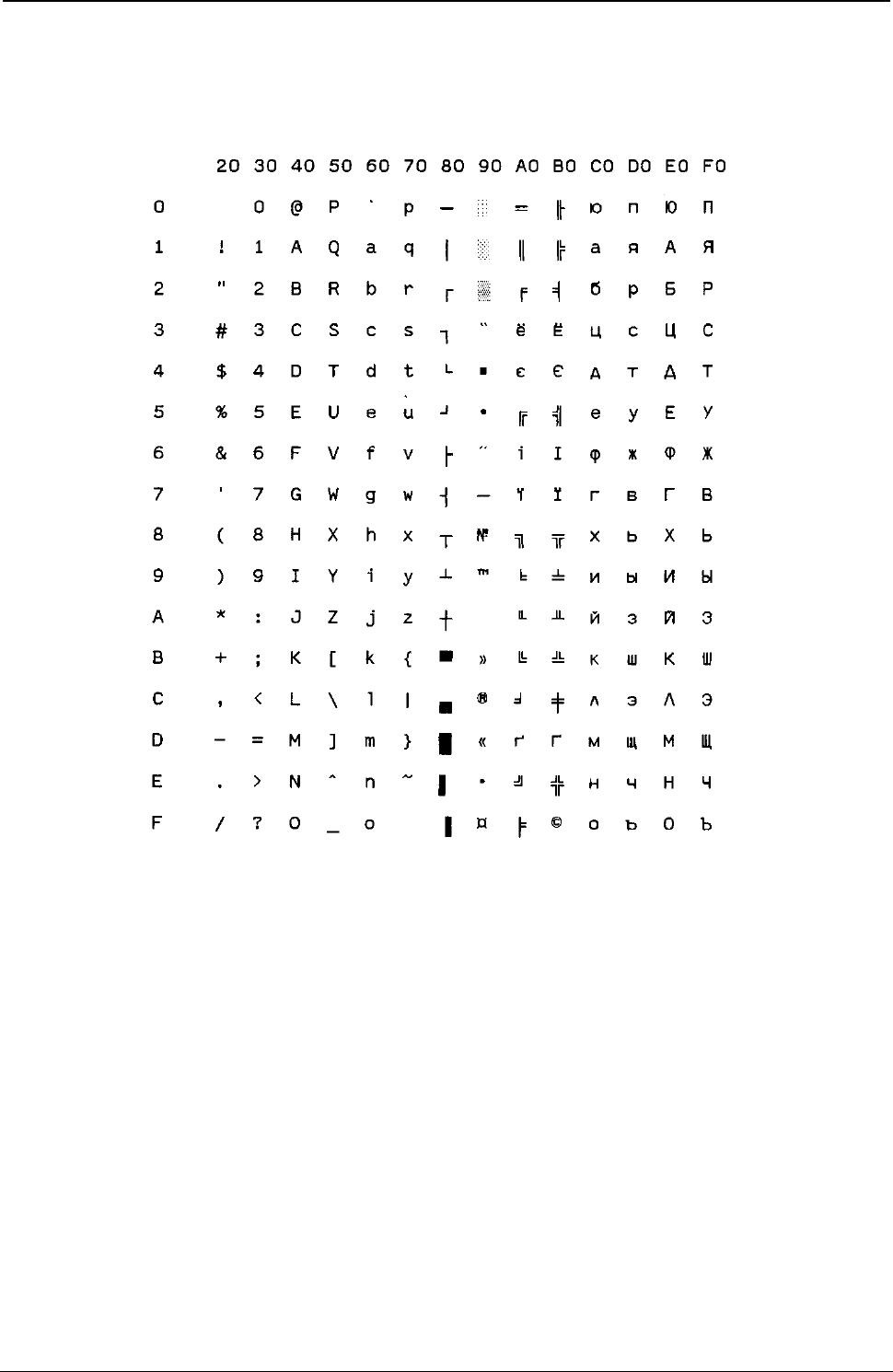

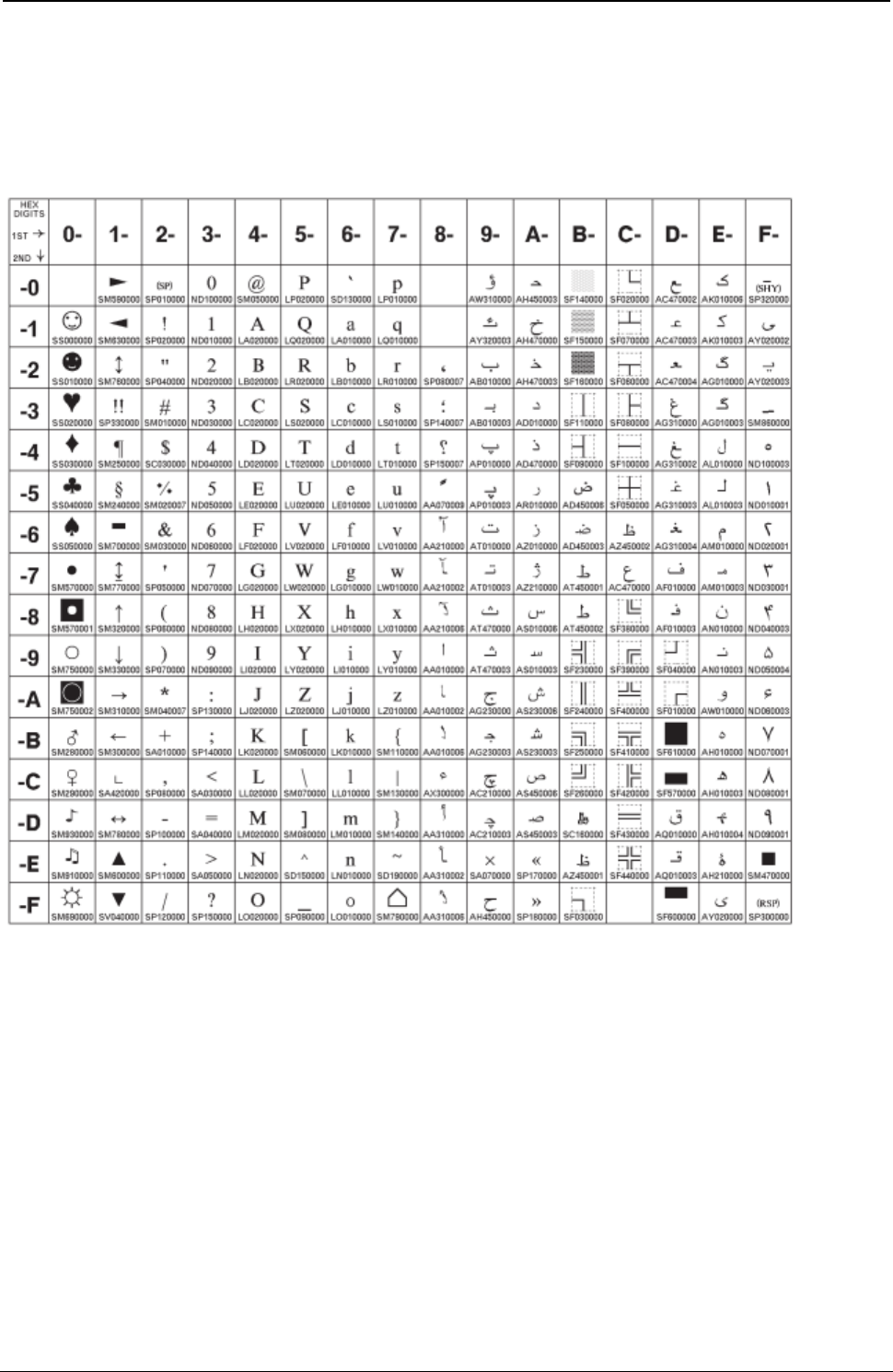

n Types n Types
1 ISO 8859/1 Latin 1 137 CP 852 Eastern Europe
2 ISO 8859/2 Latin 2 138 CP 876 OCR-A
3 ISO 8859/3 Latin 3 139 CP 877 OCR-B
4 ISO 8859/4 Latin 4 140 CP 855 Cyrillic
5 ISO 8859/5 Latin/Cyrillic 141 CP 866 Russian
6 ISO 8859/6 Latin/Arabic 142 GOST Cyrillic
7 ISO 8859/7 Latin/Greek 145 CP 437G Greek
8 ISO 8859/8 Latin/Hebrew 146 CP 853 Turkish
9 ISO 8859/9 Latin 5 147 CP 857 Turkish
15 ISO 8859/15 Latin 9 148 CP 867 Turkish
128 CP 437 USA 149 CP 858 Euro PC Multilingual
129 CP 850 Multilingual 199 96 Greek
130 CP 860 Portugal 200 CP 1250
131 CP 863 Canada/France 201 MAZOWIA
132 CP 865 Denmark/Norway 202 CP 1251
133 CP 851 Greek 203 CP 1252
134 CP 862 Hebrew
135 CP 864 Arab
136 TASS Cyrillic
DC4 DC4 ESC p
Selects printing style type.
ASCII Code DC4 DC4 ESC p n
Hexadecimal Value X'14' X'14' X'1B' X'70' n
Decimal Value 20 20 27 112 n
n Setting
0 HS Draft
1 Best Draft
2 Normal Draft
3 NLQ
4 LQ
5 DLL
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands58260070001A
Bar Codes
DC4 DC4 ESC !
Bar Code Selection.
ASCII Code DC4 DC4 ESC ! htfFroqbsBSiEM
Hexadecimal Value X'14' X'14' X'1B' X'21' ! htfFroqbsBSiEM
Decimal Value 20 20 27 33 ! htfFroqbsBSiEM
This command is recognized only if the menu option “BAR CODE” is set to “NATIVE” mode.
h = Bar Code Height at n/6”, 1 < h < 30
t = Standard Bar Code to use
t Name
1 8-digits European Article Numbering EAN-8
2 13-digits European Article Numbering EAN-13
3 Universal Product Code Type A UPC-A
4 Universal Product Code Type E UPC-E
5 UPC/EAN 2 Digit Supplement UPC-EAN 2
6 UPC/EAN 5 Digit Supplement UPC-EAN 5
7, 8, 9 8-digits European Article Numbering EAN-8
10 General Purpose Bar Code Code-GP
11 Code 2 of 5 3-BAR (Data Logic) C25-3BAR
12 Binary Coded Decimal CODE BCD
13 MSI-Plessey MSI
14 AIM-USD-8 / Code-11 Code 11
15 AIM-USD-7 / Code-93 Code 93
16 Code 2 of 5 Bidirectional C25-BID
17 Code 2 of 5 Interleaved C25-INT
18 Code 2 of 5 Industrial C25-IND
19 Code 2 of 5 Matrix C25-MTX
20 Code 3 of 9 Code-39
21 8-digits European Article Numbering EAN-8
22 Codabar (all types) CODABAR
23 Code 128 CODE-128
24 USPS-PostNet POSTNET
f = Readable character printing
f = 1 printing enabled
f = 0 printing disabled
F = Font selection for the printable characters
F Selection
0 Selected font by r value
1 Default font for text
1 Special font for OCR-A o OCR-B bar codes according to the t value
3 Special font for OCR-A bar codes
4 Special font for OCR-B bar codes
r = Bar code rotation
r Selection
0 No rotation
1 Rotation at 0°
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands59260070001A
2 Rotation at 90°
3 Rotation at 180°
4 Rotation at 270°
o = A check digit is inserted as the last character of the received string according to the bar code
q = The horizontal graphic density of the bar code
q Selection
0 1/120"
1 1/180"
b = Narrow bar width in n/180", 3 < b <18
s = Narrow space width in n/180", 3 < s <18
B = Wide bar width in n/180", 6 < B <72
S = Wide space width in n/180", 6 < S <72
i = Spacing between characters in n/180", 3 < i <72
EM = Check sequence terminator
Bar Code Description
EAN-8 DC4 DC4 ESC ! n1pEM
The EAN-8 bar code data field must only contain numeric data and must be eight bytes long
including the check digit. The EAN-8 character repertoire provides 0 to 9 ASCII numeric
figures. n indicates the bar code height in units of 1/6 inch and must be in the range 1 to 12.
pmust be NUL (hex. X'00') if no Human Readable Characters are to be printed, and 1 (hex.
X'01') if they are to be printed. The range of values for the nand pparameters can be
increased of 32 dec.
EAN-13 DC4 DC4 ESC ! n2pEM
The EAN-13 bar code data field must only contain numeric data and must be 13 bytes long
including the check digit. The EAN-13 character repertoire provides 0 to 9 ASCII numeric
figures. n indicates the bar code height in units of 1/6 inch and must be in the range 1 to 12.
If you want to print the Human Readable Characters, pmust have the value 1 (hex. X'01');
otherwise this value must be NUL (hex. X'00'). The range of values for the nand pparameters
can be increased of 32 dec.
UPC-A DC4 DC4 ESC ! n3pEM
The UPC-A bar code data field allows 10 numeric characters plus one system number digit
and one check digit at the leftmost and rightmost positions, respectively. The UPC-A
character repertoire provides 0 to 9 ASCII numeric figures. nindicates the bar code height in
units of 1/6 inch and must be in the range 1 to 12. pmust be NUL (hex. X'00') if no Human
Readable Characters are to be printed, and 1 (hex. X'01') if they are to be printed. The range
of values for the nand pparameters can be increased of 32 dec.
UPC-E DC4 DC4 ESC ! n4pEM
If 11-digit strings are received and the ocheck digit field is missing or takes values 0 or 2,
question marks are printed in place of the HRC string, when possible. If the ofield takes a
value of 1, the 12th digit is inserted by the printer as a result of the internally available
algorithm applied to the received string.
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands60260070001A
If 10-digit strings are received and the ocheck-digit is missing or takes NULL value, question
marks are printed in place of HRC string, if possible. If the ofield takes a value of 1, a default
0 System-Digit is automatically inserted by the printer and the 12th digit is also inserted as
result of he internally available algorithm applied to the final string.
If the final UPC-A string cannot be compressed to an 8-digits string, or the received System-
Digit is different than 0 or 1, question marks are printed in place of the HRC string, if
possible.
The LEFT and RIGHT delimiters, System-Digit, and the Check-Digit are printed as
descending bars to make a field to host a 6-digits HRC string. The System-Digit HRC to the
left of the LEFT delimiter (at about the middle of the symbol) when the ffield is missing or set
to 1. In this case, the Check-Digit shows in HRC to the right of the RIGHT delimiter (at about
the middle of the symbol), when ofield takes values 2 or 3. Otherwise it never shows on the
HRC string.
UPC-EAN 2 DC4 DC4 ESC ! n5pEM
The ADD ON-2 bar code data fields contain numeric data only. Otherwise question marks
are printed in place of the HRC string, if possible.
If 3-digit strings are received within a DC4 DC4 ESC (... EM control sequence and the o
check-digit option field is missing or takes NULL value, the symbol encodes the first 2 digits
and the 3rd received digit is used as the check digit, even though this may affect its
readability. If the o field takes a value of 1, the 3rd digit is matched as opposed to the
internally generated check-digit. Question marks are printed in place of HRC string when
mismatched, if possible.
If 2-digit strings are received and ocheck digit field is missing or takes NULL value, question
marks are printed in place of the HRC string, when possible. If the ofield takes a value of 1,
the check digit are computed applying the internally available algorithm to the received string
in order to properly encode the symbol.
If the ffield is missing or takes a value of 1, the 2-digit HRC string is printed above the
Bar/Spaces symbol and its height is part of the overall symbol's height. The check-digit never
shows on the HRC string. If the ffield takes a value of 0, the symbol's encoding prints at full
height.
UPC-EAN 5 DC4 DC4 ESC ! n6pEM
The ADD ON-5 bar code data field contains numeric data only. Otherwise question marks
are printed in place of the HRC string, if possible.
If 6-digit strings are received within a DC4 DC4 ESC (... EM control sequence and ocheck-
digit option field is missing or takes NULL value, the symbol encodes the first 5 digits and the
6th received digit is used as a check digit, even though this may affect its readability. If the
ocheck digit option takes a value of 1, the 6th digit is matched as opposed to the internally
generated check digit. Question marks are printed in place of the HRC string when
mismatching, if possible.
If 5-digit strings are received and the ocheck digit field is missing or takes a NULL value,
question marks are printed in place of the HRC string, if possible. If the ofield takes a value
of 1, the check digit is computed applying the internally available algorithm to the received
string in order to properly encode the symbol If the ffield is missing or takes a value of 1, the
5-digit HRC string is printed above the Bar/Spaces symbol and its height is part of the overall
symbol's height; the check-digit never shows on the HRC string. If the ffield takes a value of
0, the symbol’s encoding prints at full height.
CODE GP DC4 DC4 ESC ! n10pEM
The CODE-GP bar code allows bar codes to be constructed from the two basic elements
(BAR and SPACE) by sending 0,1 digits: digit 0 produces a BAR and digit 1 produces a
SPACE.
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands61260070001A
These two elements may be combined in any sequence, giving the possibility of producing
bars and spaces of any width that is a multiple of the basic element width. The default
bar/spaces width is 1/60" (q= 0,1) but these values may be set by the user according to its
specific needs. Data fields do not have a defined format length and contain 0,1 data only.
Otherwise question marks are printed in place of HRC string, if possible.
No Human Readable Interpretation is possible No TEXT STRING below or above the
bar/space symbol can be printed. The fand ofields are ignored.
C25-3BAR DC4 DC4 ESC ! n11pEM
The C25-3BAR bar code data fields do not have a defined format length and contain numeric
data only. Otherwise, question marks are printed in place of the HRC string, if possible. If the
ocheck digit option field takes a value of 1, an internally generated check digit complying with
general 2/5 family algorithm is added to the encoded string. However, it will not show on the
required HRC string.
Code BCD DC4 DC4 ESC ! n12pEM
The CODE-BCD bar code data fields do not have a defined format length and contain
numeric data only. Otherwise question marks will be printed in place of the HRC string, if
possible. No internal check digit algorithm is available for this standard. The ofield is
meaningless.

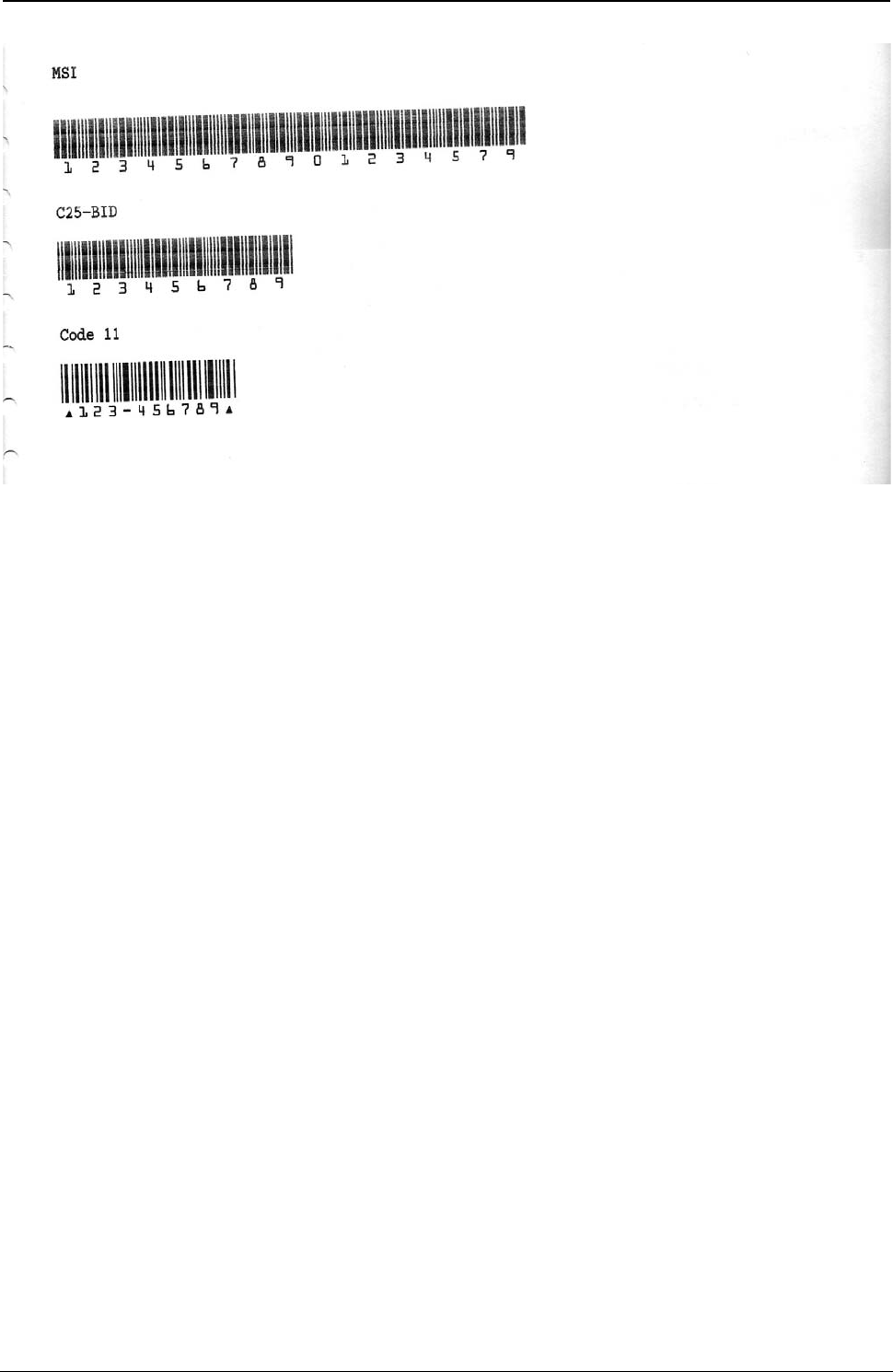

MSI Plessey DC4 DC4 ESC ! n13pEM
The MSI bar code data fields do not have a defined format length and must contain numeric
data only. Otherwise question marks are printed in place of the HRC string, if possible. To
releave the host from calculating the MSI check digits, internal algorithms are provided that
are accessible by the host application program, giving the proper supported value to the
ocheck-digit option field, according to the following options:
0 Print the bar code symbol with no
printer-generated check digits
1 Print the bar code symbol with IBM
Modulus-10 check digit -generated
by the printer and put at the end of
the numeric string. This is the 2nd
check digit. The 1st check digit is
IBM Modulus-10 also.
2 Print the bar code symbol with both
check digits generated by the printer and
put at the end of the data. The 2nd check
digit is IBM Modulus-10. The 1st check
digit is also IBM Modulus-10.
3 Print the bar code symbol with both
check digits generated by the printer
and put it at the end of the data. The
2nd check digit is IBM Modulus-10.
The 1st check digit is NCR Modulus-
11. If the modulus is 10, it is an error
and question marks are printed in
place of the HRC string, if possible.
4 Print the bar code symbol with both
check digits generated by the printer and
put it at the end of the data. The 2nd
check digit is IBM Modulus-10. The 1st
check digit is IBM Modulus-11. If the
modulus is 10, it is an error and question
marks are printed in place of the HRC
string, if possible.
5 Print the bar code symbol with both
check digits generated by the printer
and put it at the end of the data. The
2nd check digit is IBM Modulus-10.
The 1st check digit is the
complement to 11 of NCR Modulus-
11 algorithm applied to the received
string, If the modulus is 0 or 1, the
check digit is 0.
6 Print the bar code symbol with both
check digits generated by the printer and
put it at the end of the data. The 2nd
check digit is IBM Modulus-10. The 1st
check digit is the complement to 11 of
IBM Modulus-11 algorithm applied to the
received string. If the modulus is 0 or 1,
the check digit is 0.
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands62260070001A
7 Print the bar code symbol with both
check digits generated by the printer
and put at the end of the data. The
2nd check digit is IBM Modulus-10.
The 1st check digit is the
complement to 11 of NCR Modulus-
11 algorithm applied to the received
string. If the modulus is 0 or 1, it is
an error and question marks are
printed in place of the HRC string, if
possible.
8 Print the bar code symbol with both
check digits generated by the printer and
put at the end of the data. The 2nd check
digit is IBM Modulus-10. The 1st check
digit is the complement to 11 of IBM
Modulus-11 algorithm applied to the
received string. If the modulus is 0 or 1,
it is an error and question marks are
printed in place of the HRC string, if
possible.
The printer-generated second check digit does not show on the required HRC string.
Code 11 DC4 DC4 ESC ! n14pEM
The CODE-11 bar code fields do not have a defined format length and contain data
belonging to the character set listed below:
0123456789
Otherwise question marks are printed in place of the HRC string, if possible.
This barcode type defines a variable WIDE/NARROW ratio. The bar code is printed at 1/180"
horizontal and vertical graphical printing resolution to ensure high readability rate. Each digit
encoding is separated from the next by a 1/90"—1/60" wide default Intercharacter Gap.
CODE-11 has unique a START/STOP character. The printer generates the couple related to
each symbol. It is visually interpreted by an OPEN TRIANGLE and will always appear on the
HRC string because its size is usually varied to signify the number of check digits being used
in the particular symbol:
SMALL open triangle means ONE check-digit
LARGE open triangle means TWO check-digit
The ffield is meaningless and always defaults to the HRC string print.
Code 93 DC4 DC4 ESC ! n15pEM
The CODE-93 bar code fields do not have a defined format length and contain data
belonging to the standard ASCII character set, including control codes.
Since the GS and EM control codes are used, the DC4 DC4 ESC (... EM “Print bar-code”
control sequence is part of the supported character set. The host application must SET THE
HIGHER-ORDER BIT of the above control codes to allow the printer to distinguish between
encodable data and string terminators.
The complete ASCII standard character set is encoded using 47 combinations of 9
bar/space narrow elements arranged into 3 variable width bars with their adjacent variable
width spaces. Each of the bars in the supported combinations can be 1, 2, or 3 modules
wide. The START/STOP character has a 4-module wide bar. CODE-93 directly implements
the basic subset as shown below:
0123456789 A BCDEFGHIJKL MNOP QRS T UVWX Y Z-.SPACES$/+%
($) (%) (/) (+) (as special control characters)
# (as unique START/STOP character)
The other STANDARD-ASCII codes not presented above are represented by means of a
combination of one control character in the above set followed by a symbol in the
alphabetical set. The HRC string is printed BELOW the symbol when ffield is set to 1 without
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands63260070001A
check digits. Non-printable ASCII characters are represented in the “control code” format (for
example, CR is ^M, where “control” is represented as DARK-SQUARE symbol).
2of5 DC4 DC4 ESC ! n16pEM
Bidirectional The BID-25 bar code data fields do not have a defined format length and
contain numeric data only. Otherwise, question marks are printed in place of the HRC string,
if possible. If the ocheck digit option field takes a value of 1, an internally generated check
digit is added to the encoded string that will not show on the required HRC string.
2of5 DC4 DC4 ESC ! n17pEM
Interleaved The 2/5-INTERLEAVED bar code does not have a defined format length.
However, the total sum of the characters must be even. nindicates the bar code height and
must be in the range 1 to 12. p must be NUL (hex. X'00') if no Human Readable Characters
are to be printed, and 1 (hex. X'01') if they are to be printed.
2of5 DC4 DC4 ESC ! n18pEM
Industrial The 2/5 INDUSTRIAL bar code. Data format length is variable and the supported
character set only provides ASCII numeric figures 0 to 9. nindicates the bar code height in
units of 1/6 inch and must be in the range 1 to 12. pmust be NUL (hex. X'00') if no Human
Readable Characters are to be printed, and 1 (hex. X'01') if they are to be printed.
2of5 DC4 DC4 ESC ! n19pEM
The 2/5 MATRIX bar code. Data format length is variable and the supported character set
only provides ASCII numeric figures 0 to 9. nindicates the bar code height in units of 1/6 inch
and must be in the range 1 to 12. pmust be NUL (hex. X'00') if no Human Readable
Characters are to be printed, and 1 (hex. X'01') if they are to be printed.
Code 39 DC4 DC4 ESC ! n20pEM
The CODE 39 bar code. Data format length is variable and must always start and end with
an asterisk. It can contain the alphanumeric character listed below:
0123456789
ABCDEFGHIJKL MNOP QRS T UVWX Y Z -. SPACE$/+%*(as start / stop character)
The parameter indicates the bar code height in units of 1/6 inch and must be in the range 1
to 12. The pparameter must be NUL (hex. X'00') if no Human Readable Characters are to be
printed, and 1 (hex. X'01') if they are to be printed.
CODABAR DC4 DC4 ESC ! n22pEM
The Codabar bar code data fields do not have a defined format length and contain data
belonging to the character set listed hereafter:
0123456789-$:/.+
ABCDEN T *abcdent (only as START/STOP characters)
The printer allows any combination of START/STOP characters. If the first and last
characters of the received string do not belong to the START/STOP characters subset,
question marks are printed in place of the HRC string, if possible
CODE 128 DC4 DC4 ESC ! n23pEM
The CODE-128 bar code data fields do not have a defined format length and contain data
belonging to the standard ASCII character set, including control codes. Since the GS and
EM control codes used within the DC4 DC4 ESC (...EM “Print Bar Code” control sequence
are part of the supported character set, the host application must SET THE HIGHER-
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands64260070001A
ORDER BIT of the above control codes to allow the printer to distinguish between encodable
data and string terminators.
POSTNET DC4 DC4 ESC ! n24pEM
The POSTNET bar code data fields contain only numeric data and do not have a defined
format length. POSTNET bar codes have no printed HRC string. The LOW/TALL bars that
encode the symbol comply with the U.S.P.S standard regardless of the p field value.
DC4 DC4 ESC (GS data EM
Prints bar code symbols.
ASCII Code DC4 DC4 ESC (GS n1 data GS n2 data ... EM
Hexadecimal Value X'14' X'14' X'1B' X'28' X'1D' n1 data ... 19
Decimal Value 20 20 27 40 29 n1 data ... 25
Range 1 = n = 12
0 = p = 1
This sequence prints the bar code symbol according to the previous selection. If you want to print more
than one bar code symbol of the same type and height, GS n defines the distance from the beginning of
the line or between two bar code symbols in multiples of 1/60 or 1/90 of an inch, depending upon the
selected barcode density (120 or 180 dpi). At the end of the line EM must close this command.
Miscellaneous
DC4 DC4 ESC @
Re-initializes the printer.
ASCII Code DC4 DC4 ESC @
Hexadecimal Value X'14' X'14' X'1B' X'40'
Decimal Value 20 20 27 64
This command resets the printer mode and clears the buffer of printable data.
DC4 DC4 ESC J
Sets amplification factor.
ASCII Code DC4 DC4 ESC J hv
Hexadecimal Value X'14' X'14' X'1B' X'4A' hv
Decimal Value 20 20 27 74 hv
This command sets the required amplification factor to be applied to the current font.
h It is the horizontal amplification factor; the value range is 1 to 4. It is applied to the basic symbols.
It is the vertical amplification factor; the value range is 1 to 4.
0 values for either the hand vparameters keep the related current amplification factor unchanged.
The internally available symbol's amplification algorithms support the following character attributes that
may be selected by means of the available control sequences within the currently active emulation: double
width, double-height, emphasized, double strike, subscript, superscript, italics, proportional, and
compressed.
Doublewide and double-high attributes must be lower than 2.
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands65260070001A
DC4 DC4 ESC N
Selects/loads or parks the fanfold from the Front 2 path.
ASCII Code DC4 DC4 ESC N n
Hexadecimal Value X'14' X'14' X'1B' X'4E' n
Decimal Value 20 20 27 78 n
Range 0 = n= 1
n Selection
0 Selects and loads the fanfold from the Front2 path. If the paper is present, the printer automatically
parks the fanfold that is not requested before loading the new one (after having pressed the PARK
key in response to the TEAR IF NECESS/PARK PAPER message).
1 Parks the fanfold loaded from the Front2 path to allow the tear off function (after having pressed the
PARK key in response to the TEAR IF NECESS/PARK PAPER message).
DC4 DC4 ESC R
String rotation.
ASCII Code DC4 DC4 ESC R n string EM
Hexadecimal Value X'14' X'14' X'1B' X'52' n string EM
Decimal Value 20 20 27 82 n string EM
n Selection
0 No rotation.
1 Rotation at 0°
2 Rotation at 90°
3 Rotation at 180°
4 Rotation at 270°
DC4 DC4 ESC r
Digit rotation.
ASCII Code DC4 DC4 ESC r
Hexadecimal Value X'14' X'14' X'1B' X'72'
Decimal Value 20 20 27 144
This command is used to set the required character rotation to be applied to the selected font.
n Selection
0 No rotation.
1 Rotation at 0°
2 Rotation at 90°
3 Rotation at 180°
4 Rotation at 270°
DC4 DC4 ESC T
Selects/loads or parks the fanfold from the Front1 path.
ASCII Code DC4 DC4 ESC T n
Hexadecimal Value X'14' X'14' X'1B' X'54' n
Decimal Value 20 20 27 84 n
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands66260070001A
Range 0 = n = 1
n Selection
0 Selects and loads the fanfold from the Front1 path. If the paper is present (cut sheet/fanfold), the
printer automatically parks this fanfold that is not requested before loading the new one (after having
pressed the PARK key in response to the TEAR IF NECESS/PARK PAPER message).
1 Parks the fanfold loaded from the Front1 path to allow the tear off function (after having pressed the
PARK key in response to the TEAR IF NECESS/PARK PAPER message).
DC4 DC4 ESC Y
Selects emulation.
ASCII Code DC4 DC4 ESC Y n
Hexadecimal Value X'14' X'14' X'1B' X'59' n
Decimal Value 20 20 27 89 n
Selects the printer emulation type according to the n parameter value:
n Emulation
0 Default printer emulation
1 EPSON LQ Series
2 IBM Proprinter XL24
5 IBM 2391+
DC4 DC4 ESC Z
Makes AGA in column.
ASCII Code DC4 DC4 ESC Z n
Hexadecimal Value X'14' X'14' X'1B' X'5A' n
Decimal Value 20 20 27 90 n
The n parameter is the column number at 10 cpi where the AGA (Automatic Gap Adjustment) is made.
DC4 DC4 ESC u
Selects the user macros.
ASCII Code DC4 DC4 ESC u n
Hexadecimal Value X'14' X'14' X'1B' X'75' n
Decimal Value 20 20 27 117 n
Range 0 = n = 4
n Selection
1 Selects User Macro 1
2 Selects User Macro 2
4 Selects User Macro 3
5 Selects User Macro 4
DC4 DC4 ESC D
Sends the operator panel messages to the serial I/F.
ASCII Code DC4 DC4 ESC D n
Hexadecimal Value X'14' X'14' X'1B' X'44' n
Decimal Value 20 20 27 68 n
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands67260070001A
This command enables or disables sending operator panel messages to the serial I/F. The string to send
is the following: STX “message (16 ASCII byte-characters)”EXT.
n Selection
0 enabled
1 disabled
DC4 DC4 ESC v
Selects graphics print speed.
ASCII Code DC4 DC4 ESC v n
Hexadecimal Value X'14' X'14' X'1B' X'76' n
Decimal Value 20 20 27 118 n
n Selection
0 Selects graphics printing at high vertical density (180 dpi) -reduced print speed.
1 Selects graphics printing at low vertical density (90 dpi) -high print speed.
ProgrammerManual PTXS809
Chapter2NativeEmulationCommands68260070001A
This page is intentionally left blank
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands69260070001A
Chapter 3. ANSI Emulation Commands
The following printer commands are supported by this printer according to the ANSI X3.64 emulation.
Most dimensional parameters in ANSI protocol are expressed in “decipoints”. For example:
1 decipoint = 1/720 inch
72 decipoints = 1/10 inch
120 decipoints = 1/6 inch
720 decipoints = 1 inch
2880 decipoints = 4 inches
All parameter values must be expressed as ASCII numeric rather than binary values.
Parameters, within commands with multiple parameters, must be separated by a semicolon “;”.
See “Basic Program Sample” at the end of this chapter and result printed by the printer.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands70260070001A
Character Set Control
ESC [ p1 x
Selects national character set (Select National Characters -SNC).
ASCII Code ESC [ p1 x
Hexadecimal Value X'1B' X'5B' p1 X'78'
Decimal Value 27 91 p1 120
This command selects the national character set table according to the p1 parameter value. See the
following tables:
Table 1. 7-bit Substitution
p1 NATION p1 NATION
0 USA 13 Swedish/Finnish A
1 Germany 14 Swedish/Finnish B
2 French A 15 Swedish/Finnish C
3 French B 16 Swedish/Finnish D
4 French Canadian 17 Switzerland
5 Netherlands 18 USA (ISO)
6 Italian 19 Yugoslavia
7 United Kingdom 20 United Kingdom A
8 Spanish 21 Turkey
9 Danish/Norwegian A 22 Greece
10 Danish/Norwegian B 25 Cyrillic
11 Danish/Norwegian C
12 Danish/Norwegian D
See the tables in “ANSI National Variations”.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands71260070001A
Table 2. 8-bit Substitution
p1 CHARACTER SETS p1 CHARACTER SETS
437 Code Page 437 8579 Kamenicky
850 Code Page 850 8580 CWI
851 Code Page 851 8581 Roman-8
852 Code Page 852 8582 IN2
853 Code Page 853 8583 Code Page 864E
855 Code Page 855 8584 Reserved
858 Code Page 858 8585 Bulgarian
(Euro symbol included) 8586 to 8590 Reserved
860 Code Page 860 8591 ISO 8859-1 Western Europe
863 Code Page 863 8592 SO 8859-2 Eastern Europe
864 Code Page 864 8593 ISO 8859-3 Southern Europe
865 Code Page 865 8594 ISO 8859-4 Northern Europe
866 Code Page 866 8595 ISO 8859-5 Cyrillic
867 Code Page 867 8596 ISO 8859-6 Arabic
1250 Code Page 1250 8597 ISO 8859-7 Greek
5915 ISO 8859-15 8598 ISO 8859-8 Hebrew
(Euro symbol included) 8599 ISO 8859-9 Southern Europe 2
8570 to 8575 Reserved 8600 to 8700 Reserved for other ISO Tables
8576 Mazowia
8577 Turkish
8578 Greek
See the tables in “Character Sets”.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands72260070001A
Character Pitch and Print Modes
ESC [ p1; ... pn m
Select graphics rendition (SGR).
ASCII Code ESC [ p1; ... pn m
Hexadecimal Value X'1B' X'5B' p1 X'3B' ... pn X'6D'
Decimal Value 27 91 p1 59 ... pn 109
This command selects fonts, pitch, print modes, and character styles according to the parameter settings:
p DEFINITION
p DEFINITION
0 Normal Print Mode
1 Bold Print Mode
2 Subscript Mode
3 Superscript Mode
4 Underline Mode
5 Expanded Mode
6 Proportional
7 Italic Mode
8, 9 Reserved
10 Draft Font
11 Draft Font
12 LQ Gothic
13 Draft Font
14 LQ Courier
15 Draft Italic
16 LQ Gothic Italic
17 Draft Italic
18 LQ Courier Italic
19 Draft
20 Reserved
21 Double Underline Mode
22 Cancel Bold Mode
23 Reserved
24 Cancel Underline Mode (Single & Double)
25 Cancel Expanded Mode
26 Cancel Proportional Mode
Subscript and Superscript modes are enabled through the System Menu (ANSI OPTIONS-S/SCRIPT YES).
Refer to the Administrator’s Manual.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands73260070001A
ESC [ p1; p2 SP B
Graphic size modification (GSM).
ASCII Code ESC [ p1; p2 SP B
Hexadecimal Value X'1B' X'5B' p1 X'3B' p2 X'20' X'42'
Decimal Value 27 91 p1 59 p2 32 66
This command sets the height and/or width of expanded and oversized characters.
The p1 and p2 parameters are the percentages by which the height and width will be multiplied,
respectively. The default values of p1 and p2 are 100%.
The maximum expansion factor is18700 for oversize mode and 800 for expanded mode, respectively.
ESC [ p1 t
Special print mode (Oversize/Expanded/Bar code Mode -SPM).
ASCII Code ESC [ p1 t
Hexadecimal Value X'1B' X'5B' p1 X'74'
Decimal Value 27 91 p1 116
This sequence selects or deselects oversize expanded or bar code mode according to the p1 parameter
value. See the following table:
p1 FUNCTION
0 Cancel special mode
1 Select oversize mode
2 Select expanded mode
3 Select bar code mode
It can select just one special print mode at a time.
SO
Shift out.
ASCII Code SO
Hexadecimal Value X'0E'
Decimal Value 14
This code enables Expanded/Oversize mode as determined by the last received ESC [ p1 t command.
SI
Shift in.
ASCII Code SI
Hexadecimal Value X'0F'
Decimal Value 15
This code disables Expanded/Oversize mode as determined by the last received ESC [ p1 t command.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands74260070001A
ESC [ p1; pn {
Unidirectional printing (UDP).
ASCII Code ESC [ p1; pn {
Hexadecimal Value X'1B' X'5B' p1 X'3B' pn X'7B'
Decimal Value 27 91 p1 59 pn 123
This command selects the unidirectional or bidirectional printing according to the p parameter values. See
the following table:
p FUNCTION
0 Cancel unidirectional printing
1 Print unidirectional LQ and DP
2 Print unidirectional Dot Graphics
Horizontal Movements
BS
Back space.
ASCII Code BS
Hexadecimal Value X'08'
Decimal Value 8
The BS code moves the print head one character to the left at the current cpi.
CR
Carriage return.
ASCII Code CR
Hexadecimal Value X'0D'
Decimal Value 13
This code causes the print head to be moved to the left margin on the current line.
SP
Space.
ASCII Code SP
Hexadecimal Value X'20'
Decimal Value 32
This code positions one character space to the right of the print position.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands75260070001A
ESC [ p1 '
Horizontal position absolute (HPA).
ASCII Code ESC [ p1 '
Hexadecimal Value X'1B' X'5B' p1 X'60'
Decimal Value 27 91 p1 96
This command causes the print position to be moved to the decipoint location specified by p1. This
sequence can be used to print within the left, top, and bottom margins.
ESC [ p1 a
Horizontal position relative (HPR).
ASCII Code ESC [ p1 a
Hexadecimal Value X'1B' X'5B' p1 X'61'
Decimal Value 27 91 p1 97
This command moves the print position to the right, relative to the current position. The p1 parameter
specifies the number of decipoints. This command cannot be used to move beyond the right margin.
ESC [ p1; p2 s
Left/right margin set (SLR).
ASCII Code ESC [ p1; p2 s
Hexadecimal Value X'1B' X'5B' p1 X'3B' p2 X'73'
Decimal Value 27 91 p1 59 p2 115
This command sets the left and right margin values. The p1 parameter specifies the decipoint value of the
left margin. The p2 parameter specifies the decipoint value of the right margin value. The default value for
the left margin is 0. The value for the right margin is the maximum width supported by the printer
configuration (that is 13.6*720=9792).
ESC [ p1 j
Horizontal position backward (HPB).
ASCII Code ESC [ p1 j
Hexadecimal Value X'1B' X'5B' p1 X'6A'
Decimal Value 27 91 p1 106
This command causes the current horizontal position to be moved backwards as specified by the p1
parameter (decipoints).
HT
Horizontal tab.
ASCII Code HT
Hexadecimal Value X'09'
Decimal Value 9
This code causes the print head to be moved to the next tab stop.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands76260070001A
ESC H or HTS
Horizontal tab setting.
ASCII Code ESC H or HTS
Hexadecimal Value X'1B' X'48' (7-bit) or X'88' (8-bit)
Decimal Value 27 72 (7-bit) or 136 (8-bit)
This command causes a horizontal tab stop to be set to the decipoint value of the current print position.
ESC [ p1; pn u
Sets horizontal tab stops at specified positions multiple horizontal tab set (HTS).
ASCII Code ESC [ p1; pn u
Hexadecimal Value X'1B' X'5B' p1 X'3B' pn X'75'
Decimal Value 27 91 p1 59 pn 117
This command sets up to 22 horizontal tab stops at each decipoint position specified by p parameters.
When specifying more than one position, enter the parameters in ascending order.
Vertical Movements
LF
Line feed.
ASCII Code LF
Hexadecimal Value X'0A'
Decimal Value 10
This code positions the paper one line space as indicated by the current line spacing value.
ESC D or IND
Index.
ASCII Code ESC D or IND
Hexadecimal Value X'1B' X'44' (7-bit) or X'84' (8-bit)
Decimal Value 27 68 (7-bit) or 132 (8-bit)
This command causes the paper to be positioned down one line space as indicated by the current line
spacing value.
ESC E or NEL
Next line.
ASCII Code ESC E or NEL
Hexadecimal Value X'1B' X'45' (7-bit) or X'85' (8-bit)
Decimal Value 27 69 (7-bit) or 133 (8-bit)
This command causes the paper to be positioned down one line space as indicated by the current line
spacing value. The column counter is reset to the left margin value.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands77260070001A
ESC K or PLD
Partial line down.
ASCII Code ESC K or PLD
Hexadecimal Value X'1B' X'4B' (7-bit) or X'8B' (8-bit)
Decimal Value 27 75 (7-bit) or 139 (8-bit)
This command causes the paper to be positioned down one half line space at the current line spacing
value. This can create an appearance of subscripting. This sequence is also used after an ESC L (partial
line up sequence) to recover the original active vertical position.
ESC L or PLU
Partial line up.
ASCII Code ESC L or PLU
Hexadecimal Value X'1B' X'4C' (7-bit) or X'8C' (8-bit)
Decimal Value 27 76 (7-bit) or 140 (8-bit)
This command causes the paper to be positioned up one half line space at the current line spacing value.
This can create an appearance of superscripting. This sequence is also used after an ESC K (partial line
down sequence) to recover the original active vertical position.
ESC M or RI
Reverse index.
ASCII Code ESC M or RI
Hexadecimal Value X'1B' X'4D' (7-bit) or X'8D' (8-bit)
Decimal Value 27 77 (7-bit) or 141 (8-bit)
This command causes the paper to be positioned up one line space at the current line spacing value.
ESC [ p1 d
Vertical position absolute (VPA).
ASCII Code ESC [ p1 d
Hexadecimal Value X'1B' X'5B' p1 X'64'
Decimal Value 27 91 p1 100
This command causes the current vertical position to be set to the decipoint value specified by the p1
parameter relative to the top most line of the current form length. This sequence can be used to print
within the top and the bottom margins.
ESC [ p1 e
Vertical position relative (VPR).
ASCII Code ESC [ p1 e
Hexadecimal Value X'1B' X'5B' p1 X'65'
Decimal Value 27 91 p1 101
This command causes the current vertical position to be advanced to the position specified by the p1
parameter (in decipoints) relative to the current print line position.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands78260070001A
ESC [ p1; p2 f
Horizontal and vertical position absolute (HVP).
ASCII Code ESC [ p1; p2 f
Hexadecimal Value X'1B' X'5B' p1 X'3B' p2 X'66'
Decimal Value 27 91 p1 59 p2 102
This command causes the current print position to be moved to the vertical (p1) and horizontal (p2)
decipoint locations specified relative to the top left corner of the page.
This sequence can be used to print within the right, left, top and bottom margins.
ESC [ p1 k
Vertical position backward (VPB).
ASCII Code ESC [ p1 k
Hexadecimal Value X'1B' X'5B' p1 X'6B'
Decimal Value 27 91 p1 107
This command causes the current vertical position to be moved backwards as specified by the p1
parameter (decipoints) relative to the current print line position.
ESC [ p1; pn g
Tab clear (TBC).
ASCII Code ESC [ p1; pn g
Hexadecimal Value X'1B' X'5B' p1 X'3B' pn X'67'
Decimal Value 27 91 p1 59 pn 103
This command clears horizontal and vertical tab stops. If no parameter is present, the horizontal tab stop
at the current position is cleared (default).
p DESCRIPTION
0 (default) Clear horizontal tab at current position
1 Clear vertical tab at current position
2 Clear all horizontal tab stops
3 Clear all vertical tab stops
VT
Vertical tab.
ASCII Code VT
Hexadecimal Value X'0B'
Decimal Value 11
This code causes printing to be moved to the left margin at the next vertical tab stop.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands79260070001A
ESC J or VTS
Vertical tab setting.
ASCII Code ESC J or VTS
Hexadecimal Value X'1B' X'4A' (7-bit) or X'8A' (8-bit)
Decimal Value 27 74 (7-bit) or 138 (8-bit)
This command causes a vertical tab stop to be set to the decipoint value of the current vertical position.
ESC [ p1; pn v
Sets vertical tab stops at specified positions (Multiple Vertical Tab Set -VTS).
ASCII Code ESC [ p1; pn v
Hexadecimal Value X'1B' X'5B' p1 X'3B' pn X'76'
Decimal Value 27 91 p1 59 pn 118
This command sets up to 12 vertical tab stops at each decipoint position specified by p parameters. The
tab stops are measured from the top of the page. When specifying more than one position, enter the
parameters in ascending order.
FF
Form feed.
ASCII Code FF
Hexadecimal Value X'0C'
Decimal Value 12
This code causes the data in the print buffer to be printed out and then advances the paper to the top of
the next form.
ESC [ p1; p2; p3 r
Form definition (FD).
ASCII Code ESC [ p1; p2; p3 r
Hexadecimal Value X'1B' X'5B' p1 X'3B' p2 X'3B' p3 X'72'
Decimal Value 27 91 p1 59 p2 59 p3 114
This command sets the page length, top and bottom margins.
The p1, p2 and p3 parameters specify the decipoint values.
pn FUNCTION
p1 Page Length
p2 Top Margin Position From the Beginning of the Page
p3 Bottom Margin Position From the End of the Page
The maximum page length value is 15840 decipoints (22 inches).
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands80260070001A
ESC [ p1; p2 <SP> G
Sets the line/character spacing.
ASCII Code ESC [ p1; p2 <SP> G
Hexadecimal Value X'1B' X'5B' p1 X'3B' p2 X'20' X'47'
Decimal Value 27 91 p1 59 p2 32 71
This command sets the spacing between lines (p1 parameter) and the horizontal character pitch (p2
parameter) in decipoints.
If the vertical spacing value exceeds the current form length, this setting is ignored.
Interface Control
NUL
Ignored.
ASCII Code NUL
Hexadecimal Value X’00’ or NUL
Decimal Value 00
This code is ignored.
ENQ
Enquiry.
ASCII Code ENQ
Hexadecimal Value X'05'
Decimal Value 5
This code is used to request the message string defined by the OSC command when parameter p1=8 is
transmitted to the host.
DC1
Selects printer (Data Control 1).
ASCII Code DC1
Hexadecimal Value X'11'
Decimal Value 17
In parallel interface, this code reselects the printer after the printer has been deselected by a DC3 code.
In serial interface, this code is sent from the printer to the host to indicate that the printer is ready to
receive data.
DC3
Deselects printer (Data Control 3).
ASCII Code DC3
Hexadecimal Value X'13'
Decimal Value 19
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands81260070001A
In parallel interface, this code causes the printer to enter the standby condition until a DC1 code is
received.
In serial interface, this code is sent from the printer to the host to indicate that it is not ready to receive
data.
Operating System Control
BEL
Bell.
ASCII Code BEL
Hexadecimal Value X'07'
Decimal Value 7
This code causes the buzzer to sound for about 0.5 second.
DEL
Delete.
ASCII Code DEL
Hexadecimal Value X'7F'
Decimal Value 127
In parallel interface, this code causes the last received character to be deleted.
ESC
Escape.
ASCII Code ESC
Hexadecimal Value X'1B'
Decimal Value 27
This code is used as an escape sequence introducer.
ESC \ or ST
String terminator.
ASCII Code ESC \ or ST
Hexadecimal Value X'1B' X'5C' (7-bit) or X'9C' (8-bit)
Decimal Value 27 92 (7-bit) or 156 (8-bit)
This command closes the other escape sequences including the operating system and dot graphics
commands.
ESC Q or PU1
Executes Selftest.
ASCII Code ESC Q or PU1
Hexadecimal Value X'1B' X'51' (7-bit) or X'91' (8-bit)
Decimal Value 27 81 (7-bit) or 145 (8-bit)
In serial interface, upon receipt of this command the printer transmits 1B 50 30 1B 5C.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands82260070001A
ESC c
Resets to initial state (RIS).
ASCII Code ESC c
Hexadecimal Value X'1B' X'63'
Decimal Value 27 99
This command writes the printer parameters from the stored format assigned to the current path into the
current format.
ESC k
Prints test character (PTC).
ASCII Code ESC k
Hexadecimal Value X'1B' X'6B'
Decimal Value 27 107
This sequence causes one line of the print head test character to be printed.
ESC [ p1; ... pn h
Sets mode (SM).
ASCII Code ESC [ p1; ... pn h
Hexadecimal Value X'1B' X'5B' p1 X'3B' ... pn X'68'
Decimal Value 27 91 p1 59 ... pn 104
This command sets a specific print mode according to the parameter value. If the first parameter (p1)is
preceded by a “>” symbol then all parameters are interpreted as proprietary defined parameters. If the “>”
character is not specified, all parameters are interpreted as ANSI defined parameters.
The proprietary defined parameter values are:
p MNEMONIC MODE FUNCTION
1 PRM0 Proportional Print Mode
2 CSI Single Character CSI Mode
3 BLD Bold Mode
4 CS2 Character Set 2 Mode
The ANSI defined parameter values are:
p MNEMONIC MODE FUNCTION
0 Ignored
20 LNM Auto CR on LF
ESC p1; pn l
Resets mode (RM).
ASCII Code ESC p1; pn l
Hexadecimal Value X'1B' X'5B' p1 X'3B' pn X'6C'
Decimal Value 27 91 p1 59 pn 108
This sequence resets the print mode(s) indicated by the p1/pn parameter(s).
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands83260070001A
ESC [ p1; p2 SP~
Selects emulation (EMU).
ASCII Code ESC [ p1; p2 SP~
Hexadecimal Value X'1B' X'5B' p1 X'3B' p2 X'20' X'7E'
Decimal Value 27 91 p1 59 p2 32 126
This sequence selects the emulation according to p values. The p1 parameter is an emulation identifier
value while p2 is a reset control value.
The proprietary defined parameter values are:
p1 p2 FUNCTION
0 ANSI
1 -20 Reserved
21 IBM Proprinter XL 24/24E
22 EPSON LQ 1050
0 Hold values (default). The current settings remain valid after changing the printer
emulation.
1 Full reset. The status of such parameters reverts to defaults dependent on the
selected emulation.
To select ANSI mode from the Proprinter XL 24 mode and maintain the parameters, the sequence would
be: <ESC>[0; 0<SP>~ Leading zeros and defaulting parameters are not guaranteed to be parsed and
therefore should not be used by the application. Parameter p1 & p2 will be expressed as ASCII, not binary,
values. In the example above, “0” is “30H”, not “00H”.
Paper Path Selection
ESC [ p1; pn p
Assign source for forms.
ASCII Code ESC [ p1; p2 p
Hexadecimal Value X'1B' X'5B' p1 X'3B' pn X'70'
Decimal Value 27 91 p1 59 pn 32 112
This command controls the modes of paths for parking, loading paper. The p parameter is an ASCII value.
See the following table:
P PAPER PATH CONTROL
0-7 Reserved
8 Park paper in the current path. Fanfold can be moved backwards for two form lengths. This creates a
“Paper Out” fault condition that exists until paper is loaded from the control panel.
9 Load Paper from the selected paper path.
10 Select and load paper from the Front2 (is the optional Front 2 push tractor assembly is installed).
The current paper will be parked or ejected.
11 Select and load paper from the Front 1. The current paper will be parked.
13 Select and load paper from the Front 2. (is the optional Front 2 push tractor assembly is installed).
The current paper will be parked or ejected.
14 Reserved
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands84260070001A
Graphics Control Functions
ESC [ p1 q
Select graphics mode/density (GRM).
ASCII Code ESC [ p1 q
Hexadecimal Value X'1B' X'5B' p1 X'71'
Decimal Value 27 91 p1 113
This command selects the density of the graphics mode.
p DPI (Horizontal) Image dpi vertical #bytes/dot-column
AGM=N AGM=Y
0 72 60 real 72 1 (6-bit mode)
1 144 120 real 72 1 (6-bit mode)
3 216 180 real 72 1 (6-bit mode)
10 180 180 real 180 4 (24-bit mode)
11 360 360 virtual 180 4 (24-bit mode)
If ASF has not been selected (n=15/16/17 or via operator panel), then n=1—4 is ignored. The appropriate
path option must be selected from the System Menu in order for the sheet feeder to work.
ESC P data
Enter dot graphics mode (Device Control String).
ASCII Code ESC P data
Hexadecimal Value X'1B' X'50' data
Decimal Value 27 80
This command enables the dot graphics mode. The density is selected according to the GRM command.
The line spacing value automatically changes if 72-dpi resolution (6-bit mode) is active.
The line spacing value for 180-dpi resolution (24-bit mode) must be selected prior to entering graphics
mode.
In 6-bit mode, only 6 bits of a data byte are required to determine which wires are fired. Therefore, only
one byte is required for each graphics dot column.
In 24-bit mode, 24 bits of four data bytes are required to determine which wires are fired. Only 6 bits of
each byte are used. Therefore, four bytes are required for each graphics dot column.
Table 3. 6-bit mapping
PRINT HEAD WIRE
6 BITS IN 1 BYTE DATA BIT
1 2 & 3 0
3 4 & 5 1
6 7 & 8 2
8 9 & 10 3
11 12 & 13 4
13 14 & 15 5
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands85260070001A
Since bits6&7are ignored, wires 16-24 are not used. The state (0 or 1) of bits 6 and 7 must be conditioned so
as to make the entire byte fall within the range 20H through 7EH.
Table 4. 24-bit mapping
24 BITS IN 1 BYTE
BYTE PRINT HEAD WIRE DATA BIT
1 0
2 1
1 3 2
4 3
5 4
6 5
7 0
8 1
2 9 2
10 3
11 4
12 5
13 0
Table 5. 24-bit mapping (cont.)
24 BITS IN 1 BYTE
BYTE PRINT HEAD WIRE DATA BIT
14 1
3 15 2
16 3
17 4
18 5
19 0
20 1
4 21 2
22 3
23 4
24 5
Barcode Functions
ESC [ p1; pn }
Sets bar code parameters (BC).
ASCII Code ESC [ p1; pn }
Hexadecimal Value X'1B' X'5B' p1 X'3B' pn X'7D'
Decimal Value 27 91 p1 59 pn 125
This command allows selection of the bar code characteristics such as style height, symbol rotation and so
on. The command ESC [3 t enables the bar code mode while ESC [0 t disables the mode.
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands86260070001A
p1: Bar code style
p1 FUNCTION
0 Interleaved 2 of 5
1 Bidirectional 2 of 5
2 Matrix 2 of 5
3 Industrial 2 of 5
4 Code 3 of 9 (default)
5 EAN-8
6 EAN-13
7 Code 11
9 Codabar (default start/stop = a/t)
10 Codabar (default start/stop = b/n)
11 Codabar (default start/stop = c/*)
12 Codabar (default start/stop = d/e)
13 UPC-A
14 UPC-E
15 Code 93
16 Code 128 (subset A, B and C)
17 Code 128 (subset A, B and C)
18 Code 128 (subset A, B and C)
19 MSI
20 UPC 2 Supplemental
21 UPC 5 Supplemental
22 EAN 2 Supplemental
23 EAN 5 Supplemental
50 Postnet
p2: Barcode Height
p2 FUNCTION
1 Minimum bar code height (1/12 inch)
120 Maximum bar code height (10 inches)
12 Default bar code height (1 inch)
p3: Human Readable Input (HRI)
p3 FUNCTION
0 Disables printing of the HRI
1 Enables printing of the HRI (default)
p4: Narrow Bar
Default width value: 2 (120, 144 and 180 dpi)
p5: Wide Bar Width
Default width value: 3 (120, 144 dpi), 4 (180 dpi)
p6: Narrow Space Width
Default width value: 6 (120, 144 and 180 dpi)
p7: Wide Space Width
Default width value: 7 (120, 144 dpi), 8 (180 dpi)
p8: Intercharacter Space Width
Default width value: 3 (120, 144 dpi), 4 (180 dpi)
p9: Rotation
p9 FUNCTION
0 0 degrees using current font
1 0 degrees using special HRI font
2 90 degrees using special HRI font
3 180 degrees using special HRI font
4 270 degrees using special HRI font
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands87260070001A
p10: Horizontal Print Density for Bar Codes Printed
p10 FUNCTION
1 120 dpi horizontal density
2 144 dpi horizontal density (Reserved)
3 180 dpi horizontal density
p11: Check Digit
p11 FUNCTION
0 No check digit requested (default)
1 Check digit requested
p12: Human Readable Font -Reserved
p13: Bar Code Height (in 1/24th-inch increments) -Reserved
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands88260070001A
Basic Program Sample
100 DEFSTR
110 WIDTH
120 LPRINT
121 LPRINT
130 LPRINT
140 LPRINT
150 LPRINT
160 LPRINT
170 LPRINT
180 LPRINT
190 LPRINT
200 LPRINT
210 LPRINT
220 LPRINT
230 LPRINT
240 LPRINT
250 LPRINT
260 LPRINT
270 LPRINT
280 LPRINT
290 LPRINT
300 LPRINT
310 LPRINT
320 LPRINT
340 LPRINT
350 LPRINT
260 LPRINT
370 LPRINT
371 LPRINT
380 LPRINT
381 LPRINT
390 LPRINT
400 LPRINT
410 REM
420 LPRINT
430 REM
440 LPRINT
441 LPRINT
450 LPRINT
460 REM
470 LPRINT
471 LPRINT
480 LPRINT
490 LPRINT
500 LPRINT
510 LPRINT
520 FOR
530 LPRINT
540 NEXT
550 LPRINT
560 LPRINT
570 FOR
580 LPRINT
590 NEXT
600 LPRINT
610 LPRINT
620 END
DEFSTR
WIDTH
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
LPRINT
REM
LPRINT
REM
LPRINT
LPRINT
LPRINT
E:ESC=CHRS(27) ’Define Escape character
.LPT1:*,255
.FOLLOWING ARE SOME OF THIS PRINTER’S .;
.FEATURES USING THE ANSI EMULATION.
ESC;.[;72 C.;.10 CPI (PICA).
ESC;.[;60 G.;.12 CPI (ELITE).
ESC;.[;48 G.;.15 CPI.
ESC;.[;72 C.;.10 CPI.
ESC;.[6m.;.PROPOERTIONAL MODE.
ESC;.[0m.;.BACK TDO NORMAL.
ESC;.5m.;.DOUBLE-WIDE MODE.
LPRINT ESC;.0m’:.BACK TO NORMAL.
LPRINT ESC;.[1m.;.BOLD PRINTING.
LPRINT ESC;.[0m.;.BACK TO NORMAL.
LPRINT ESC;.[1m.;.BOLD PRINTING.
LPRINT ESC;.[0m.;.BACK TO NORMAL.
ESC;.L.;.PARTIAL LINE UP .;
ESC;.K.;./ .;
ESC;.L.;.BACK TO NORMAL.
ESC;.[4m.;.UNDERLINE MODE.
ESC;.[0m.;.BACK TO NORMAL.
.
123.;
’456.
.1234567890123456789012345678901234567890.;
.12345678901234567890.
ESC;.[10m.;.DRAFT PRINT MODE.
ESC;.[720;2880s.
.LEFT MARGIN NOW BEGINS AT 1 INCH AND .;
.RIGHT MARGIN NOW ENDS AT 4 INCHES.
ESC;.[0;9792S.
.LEFT MARGIN NOW BEGINS AT 0 INCH AND .;
.RIGHT MARGIN NOW ENDS AT 13.6 INCHES.
ESC;.[62m.;.LQ PRINT MODE .
ESC;.[120; G.;
[=1 TO 3
.1/6 INCH LINE FEED.
I
ESC;.[90; G.;
J=1 TO 3
.1/8 INCH LINE FEED.
J
ESC;.[120; G.;.NOW 1/6 INCH LINE FEED.
.A FORMFEED <FF> FOLLOWS THIS LINE.;CHR$(12)
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands89260070001A
Basic Program Printed Output
ProgrammerManual PTXS809
Chapter3ANSIEmulationCommands90260070001A
ProgrammerManual PTXS809
Chapter4LQ1600KEmulationCommands(DBCS)91260070001A
Chapter 4 LQ1600K Emulation Commands (DBCS)
Note: These commands are only valid for DBCS printing with the DBCS feature present.
DBCS mode is a special printer feature allowing the managing of specific commands dedicated to the
handling and printing of the Double Byte Character Set (DBCS) as the GB18030 Standard Chinese set.
The DBCS mode feature is available by the selection the Epson LQ 1600K emulation at the “EMULATION”
menu setting parameter. Other emulation selections do not support the DBCS mode.
Once the Epson LQ1600K has been selected, the DBCS mode is activated and deactivated through
dedicated commands (FS & and FS).
When DBCS mode is activated, the printer prints the DBCS (GB18030) and recognizes and manages the
incoming data and commands via the FS sequences.
In both cases, the Epson LQ 1600K emulation includes all the other Epson LQ standard ESC sequences,
some of which can take effect immediately, even if DBCS mode is active, while some others are postponed
until the printer exits the DBCS mode.
The following EPSON LQ Standard ESC sequences will work in DBCS mode:
ESC(W)n Set or cancel double width printing.
ESC(w)n Set or cancel double height printing.
Please refer to the other chapters of this manual for the complete list and description of the available ESC
sequences.
FS &
Enter the DBCS print mode.
ASCII Code FS &
Hexadecimal Value X'1C' X'26'
Decimal Value 28 38
This command puts the printer in DBCS mode and recognizes all other FS commands, Epson standard
ESC sequences, and prints all of the symbols of the GB18030 font set addressed by way of a single byte,
two byte, and four byte address.
FS .
Exit the DBCS print mode.
ASCII Code FS .
Hexadecimal Value X'1C' X'2E'
Decimal Value 28 46
This command exits DBCS mode and the printer exits the GB18030 font set, prints with western font set,
and recognizes all Epson standard ESC sequences. Only the FS & command is accepted to re-enter the
DBCS mode.
ProgrammerManual PTXS809
Chapter4LQ1600KEmulationCommands(DBCS)92260070001A
FS SO
Sets double width mode.
ASCII Code FS SO
Hexadecimal Value X'1C' X'0E'
Decimal Value 28 14
All of the characters following this command are printed horizontally, enlarged two times. This print mode
is reset by DC4, FS DC4 commands and automatically resets at the end of the line with a line terminator
(LF, FF, CR, ...)
FS DC4
Resets double width mode.
ASCII Code FS DC4
Hexadecimal Value X'1C' X'14'
Decimal Value 28 20
This command resets the double width print mode previously set by the FS SO command.
FS W n
Sets -Resets quadruple print mode.
ASCII Code FS W n
Hexadecimal Value X'1C' X'57' n
Decimal Value 28 87 n
Range n = 1 set
n = 0 reset
This command sets (n=1) double width and double height print mode. The character dimension will be 2x2
the normal dimension.
With n=0 the double width/height print mode is reset.
FS J
Sets 90 degrees counterclockwise character rotation.
ASCII Code FS J
Hexadecimal Value X'1C' X'4A'
Decimal Value 28 74
Printable data after this command are rotated 90 degrees counterclockwise. This mode is also called
vertical print.
ProgrammerManual PTXS809
Chapter4LQ1600KEmulationCommands(DBCS)93260070001A
FS K
Resets character rotation.
ASCII Code FS K
Hexadecimal Value X'1C' X'4B'
Decimal Value 28 75
This command resets the vertical print which was set by FS J and resumes horizontal printing.
FS D d1 d2
Composes two half-width, rotated characters into a normal size rotated character space.
ASCII Code FS D d1 d2
Hexadecimal Value X'1C' X'44' d1 d2
Decimal Value 28 68 d1 d2
d1 = 1' character address
d2 = 2' character address
The d1 character is printed in half width and rotated 90° counterclockwise.
The d2 character is composed in half width, rotated 90° counterclockwise, and it is printed above the d1
character.
The occupied space is the same as a normal size rotated character.
FS -n
Sets -Resets underline mode.
ASCII Code FS -n
Hexadecimal Value X'1C' X'2D' n
Decimal Value 28 45 n
Range
n = 0 resets underline mode.
n = 1 sets single underline mode.
n = 2 sets double underline mode.
This command sets two different types of underline:
n=1 A single dotted line.
n=2 A double dotted line.
Unrelining character will terminate when a new FS-n command is received and n=0.
ProgrammerManual PTXS809
Chapter4LQ1600KEmulationCommands(DBCS)94260070001A
FS S n1 n2
Defines the left and right empty character space of a normal-sized character.
ASCII Code FS S n1 n2
Hexadecimal Value X'1C' X'53' n1 n2
Decimal Value 28 83 n1 n2
n1 and n2 are in n/180 of an inch.
n1 (1 to 127) defines the empty space at the left of the character cell. n2 (1 to 127) defines the empty
space at the right of the character cell of each normal sized character.
The default values are: n1=0, n2=1.5.
For example, if a normal sized character cell is 12/180 wide, with the default values, the equivalent
character per inch is 180/13.5 = 13.3 characters per inch.
FS T n1 n2
Defines the left and right empty character space of a half-sized character.
ASCII Code FS T n1 n2
Hexadecimal Value X'1C' X'54' n1 n2
Decimal Value 28 84 n1 n2
n1 and n2 are in n/180 of an inch.
n1 (1 to 127) defines the empty space at the left of the character cell. n2 (1 to 127) defines the empty
space at the right of the character cell of each half sized character.
The default values are: n1=0, n2=1.5.
For example, if a half sized character cell is 12/180 wide, with the default values, the equivalent character
per inch is 180/13.5 = 13.3 char./inch.
FS U
Define half-sized character as half of a normal sized character.
ASCII Code FS U
Hexadecimal Value X'1C' X'55'
Decimal Value 28 85
This command sets the size of the character to be half of the normal size including the left and right empty
space so that two half sized characters occupy the same space of one normal sized character.
ProgrammerManual PTXS809
Chapter4LQ1600KEmulationCommands(DBCS)95260070001A
FS SI
Sets the print of half-sized characters.
ASCII Code FS SI
Hexadecimal Value X'1C' X'0F'
Decimal Value 28 15
This command sets the print of half sized characters as defined by the FS U and FS T commands.
FS V
Resets print of half-sized characters.
ASCII Code FS V
Hexadecimal Value X'1C' X'56'
Decimal Value 28 86
This command cancels the print of half sized characters.
FS r n
Sets superscript or subscript print mode (1/4 normal size).
ASCII Code FS rn
Hexadecimal Value X'1C' X'72' n
Decimal Value 28 114 n
n=0 set superscript print
n=1 set subscript print
This command sets printing of superscript and subscript characters. The size of the characters is 1/4 of
normal size. The character prints in the upper area (superscript) or lower area (subscript). For example,
superscript and subscript.
FS DC2
Cancels half-sized and 1/4-sized print and restores normal size print.
ASCII Code FS DC2
Hexadecimal Value X'1C' X'12'
Decimal Value 28 18
This command cancels printing of superscript and subscript characters. Normal sized printing is resumed.
ProgrammerManual PTXS809
Chapter4LQ1600KEmulationCommands(DBCS)96260070001A
FS x n
Sets print quality level for the DBCS font set.
ASCII Code FS xn
Hexadecimal Value X'1C' X'78' n
Decimal Value 28 120 n
n=0 set Draft (high speed)
n=1 set Quality (low speed)
There are four type of print quality level, two for Draft mode and two for Quality mode. A specific Menu
Item (see the Administrator’s Manual) assigns which of the two Draft modes is activated when the parameter
n is
equal to 0 and which of the two Quality modes is activated when the parameter n is equal to 1.
n=0 Activate the NLQ or LQ mode as specified with the “SW Qual-Level” menu item.
n=1 Activates the Draft or Best Draft mode as specified with the “SW Qual-Level” menu item.
FS 2 a1 a2 n1... n72
Sets user-defined character (DownLoading).
ASCII Code FS 2 a1 ... n72
Hexadecimal Value X'1C' X'32' ...
Decimal Value 28 50 ...
a1 a2 = The address of the GB18030 character set where the character to download has to be allocated.
The address must be included in the following ranges: X'AAA1' to X'AFFE', X'F8A1' to X'FEFE', X'A140' to
X'A7A0'.
n1 ... n72 = The shape of the character in dots as defined over a matrix of 24vx24h dot matrix.
Three bytes in vertical are equivalent to the 24 dots of any column; when multiplied by 24 columns it is
equal to 72 bytes in total per character.
FS ! n
Sets multiple print attribute at once.
ASCII Code FS ! n
Hexadecimal Value X'1C' X'21' n
Decimal Value 28 33 n
This command sets multiple print attributes depending on the nparameter as follows:
Bit=1 Bit=0
Bit 7 underline –
Bit 6 – –
Bit 5 subscript superscript
Bit 4 1/4 size –
Bit 3 double height –
Bit 2 double width –
Bit 1 half size –
Bit 0 rotate print normal print
ProgrammerManual PTXS809
Chapter4LQ1600KEmulationCommands(DBCS)97260070001A
FS v n
Sets -Cancels line drawing character connection mode.
ASCII Code FS vn
Hexadecimal Value X'1C' X'76' n
Decimal Value 28 118 n
When n=1, this command allows the printer to fill the horizontal and vertical breaking point of a table that
is being printed. This is accomplished by adding special horizontal or vertical line drawing characters.
These characters are in the following address ranges: X'A854' to X'A970', X'A9A4' to X'A9A7', X'A9B0' to
X'A9BF'.
When n=0, the function is cancelled.
FS c nl nh
Sets the HMI (Horizontal Motion Index)
ASCII Code FS c nl nh
Hexadecimal Value X'1C' X'63' nl nh
Decimal Value 28 99 nl nh
This command defines the horizontal motion (space) occupied by a full size character. The horizontal
motion is specified in n/180 of inch and its value is: HMI = ((nh* 256) + nl) * 1/180".
FS b n
Sets the DBCS standard line.
ASCII Code FS bn
Hexadecimal Value X'1C' X'62' n
Decimal Value 28 98 n
This command defines the position of the base line of the character.
n=0 The base line is the current print position.
n=1 The base line is 24/180 of and inch below the current position.
ESC ( X n1 n2 a1 a2 a3
Defines a special printing effect.
ASCII Code ESC ( X
Hexadecimal Value X'1B' X'28' X'58' ...
Decimal Value 27 40 88 ...
n=1 Fixed to 3.
n=2 Fixed to 0.
a=0 Applies the special effect externally to the characters.
a=1 Applies the special effect internally to the character (if the character is outlined) – function not
supported
a=0 Resets any special effect.
a=1 Reverse the print (white character on a black background).
ProgrammerManual PTXS809
Chapter4LQ1600KEmulationCommands(DBCS)98260070001A
a=2 Fills the area with light gray tone.
a=3 Fills the area with medium gray tone.
a=4 Fills the area with high grey tone.
ESC ¦ n
Sets – Resets double width and double height print modes.
ASCII Code ESC ¦ n
Hexadecimal Value X'1B' X'49' n
Decimal Value 27 73 n
This command sets and resets the following print modes as follows:
n=A Resets double width and double height.
n=B Sets double width.
a=C Sets double height.
a=D Sets double width and height.
ProgrammerManual PTXS809
AppendixA.CodePages99260070001A
Appendix A. Code Pages
See the “ASCII Code Pages” for information about the code pages for Ethernet ASCII attachments.
You can use the following charts to determine the actual character printed for any code page and font
combination.
ASCII Code Pages
The table below lists the ASCII code pages used by the S809 Printer, and also provides page references
so you can determine what code page contains the characters you want to use.
These Code Pages can be found in the EPSON/IBM/ANSI emulations.
Code
Page Character Set Name
437 USA (Personal Computer) A-54
437-G Greek
437-SL Croatian
850 PC Multilingual
851 Old Greek
852 Latin 2/ROECE
853 Latin 3 (PC)
855 Cyrillic (PC)
857 Latin 5-Turkey + euro
858 PC Multilingual + euro
860 Portuguese
862 Hebrew
863 Canadian French
864E Arabic
865 Danish/Norwegian
866 PC Data, Cyrillic, Russian
867 Turkish 2
876 OCR-A
877 OCR-B
1098 Farsi (Personal Computer)
1250 Central Europe Latin 2
1251 Cyrillic
1252 Latin 1 Ansi Windows
1253 Greek Windows
1254 Turkish Windows
1255 Hebrew Windows
1256 Arabic Windows
1257 Baltic Windows
MAZOWIA Polish
GOST Russian
TASS Cyrillic
UKRANIAN old version
KOI8-U new version
FARSI 1
FARSI 2
ProgrammerManual PTXS809
AppendixA.CodePages100260070001A
Code
Page Character Set Name Page
Kamenicky
CWI
Roman-8
IN2
Turkish
Bulgarian
ISO 8859-1 Latin 1
ISO 8859/2 Latin 2
ISO 8859/3 Latin 3
ISO 8859/4 Latin 4
ISO 8859-5 Latin/Cyrillic 281
ISO 8859-6 Latin/Arabic 300
ISO 8859-7 Latin/Greek 301
ISO 8859-8 Latin/Hebrew 302
ISO 8859-9 Latin 5 305
ISO 8859-15 Latin 9 308
96 GREEK
Extended Graphics Character Table 318
Italic Character Table 319
Epson Extended Character Variables 320
ANSI National Variations
ProgrammerManual PTXS809
AppendixA.CodePages101260070001A

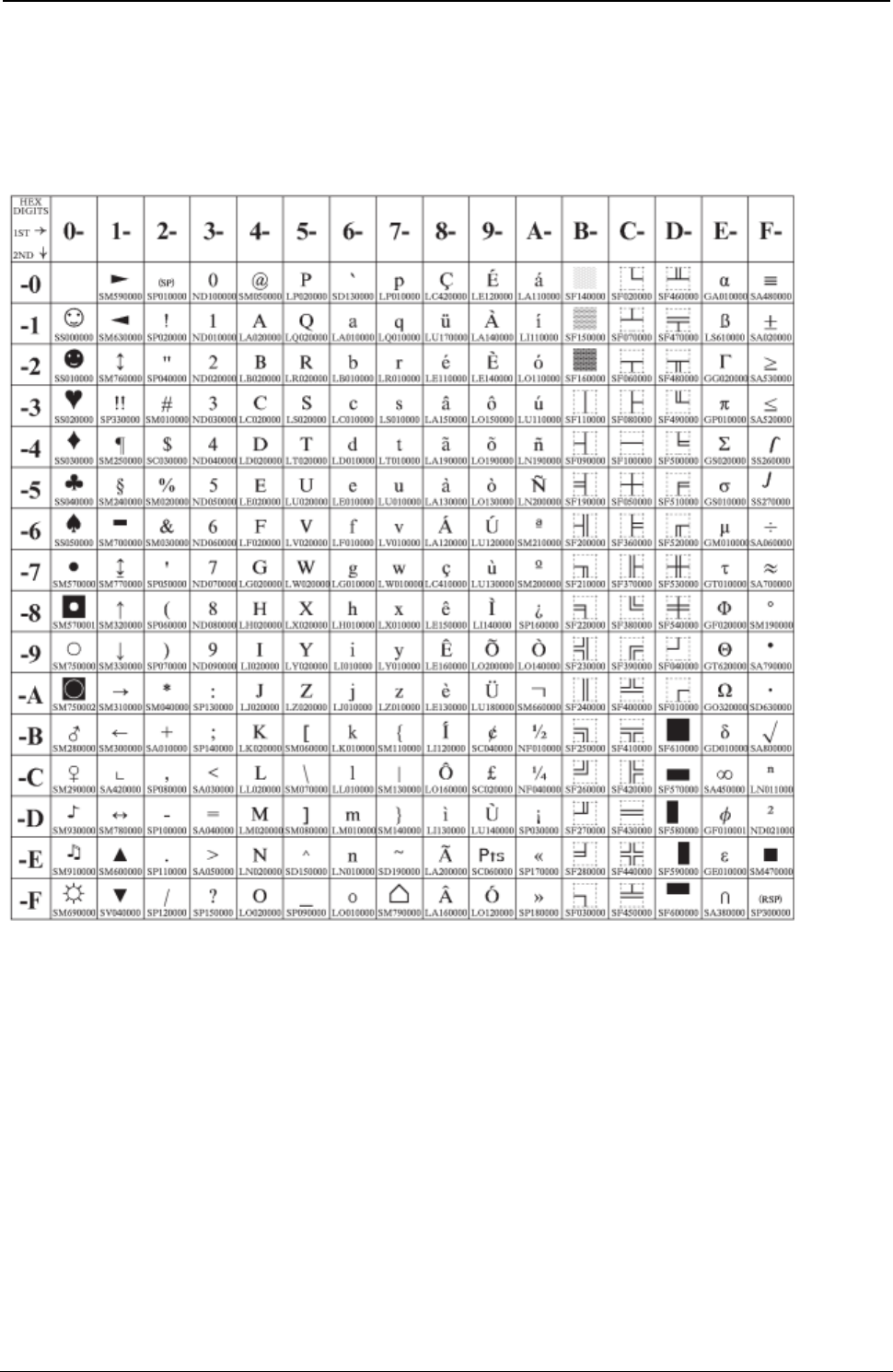

USA (Personal Computer) A-54
Code Page 00437
Figure 2. USA(CP437)
ProgrammerManual PTXS809
AppendixA.CodePages102260070001A
Greek
Code Page 00437-G
00 10 20 30 40 50 60 70 80 90 A0 B0 C0 D0 E0 F0
00 Ø 0 @ P p
o
01 ! 1 A Q a q
±
02 “ 2 B R b r -
03 !! # 3 C S c s
04 $ 4 D T d t
05 § % 5 E U e u
06 & 6 F V f v ÷
07 7 G W g w
08 ( 8 H X h x °
09 ° ) 9 I Y i y
£
0A * : J Z j z
¥
0B + ; K [ k {
0C , < L \ l |
0D - = M ] m } ²
0E . > N ^ n ~
0F / ? O _ o
Figure 3.Greek(CP437-G)
ProgrammerManual PTXS809
AppendixA.CodePages103260070001A

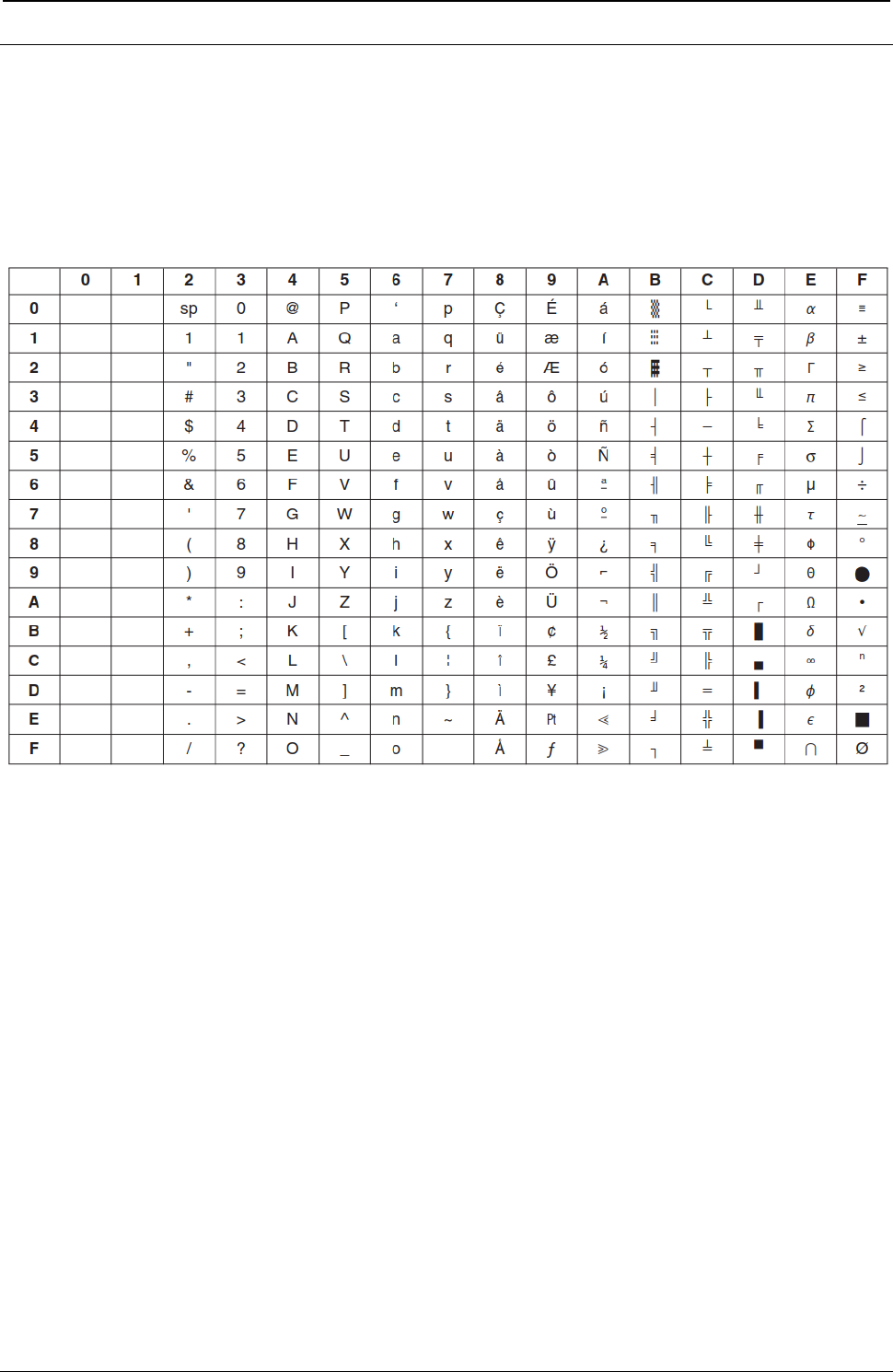

Croatian
Code Page 00437-SL
Figure 4.Croatian(CP437-SLAVIC)
ProgrammerManual PTXS809
AppendixA.CodePages104260070001A
Greek/Latin (ISO 8859-7)
Code Page 00813
Figure 5. Greek/Latin (ISO 8859-7)
ProgrammerManual PTXS809
AppendixA.CodePages105260070001A
Latin 1 (ISO 8859-1)
Code Page 00819
Figure 6 .ISO8859/1(Latin1)
ProgrammerManual PTXS809
AppendixA.CodePages106260070001A
PC Multilingual
Code Page 00850
Figure 7.Multilingual(CP850)
ProgrammerManual PTXS809
AppendixA.CodePages107260070001A
Old Greek
Code Page 00851
Figure 8.Old Greek(CP851)
ProgrammerManual PTXS809
AppendixA.CodePages108260070001A
Latin 2/ROECE
Code Page 00852
Figure 9.EasternEurope(CP852)
ProgrammerManual PTXS809
AppendixA.CodePages109260070001A
Latin 3 (PC)
Code Page 00853
Figure 10.Turkish(CP853)
ProgrammerManual PTXS809
AppendixA.CodePages110260070001A
Cyrillic (PC)
Code Page 00855
Figure 11.Cyrillic(CP855)
ProgrammerManual PTXS809
AppendixA.CodePages111260070001A
Latin 5-Turkey + euro
Code Page 00857
Figure 12.Turkish(CP857)
ProgrammerManual PTXS809
AppendixA.CodePages112260070001A
PC Multilingual + euro
Code Page 00858
Figure 13.EuroPCMultilingual(CP858).
ProgrammerManual PTXS809
AppendixA.CodePages113260070001A
Portuguese
Code Page 00860
Figure 14.Portugal(CP860)
ProgrammerManual PTXS809
AppendixA.CodePages114260070001A
Hebrew
Code Page 00862
Figure 15.Hebrew(CP862)
ProgrammerManual PTXS809
AppendixA.CodePages115260070001A
Canadian French
Code Page 00863
Figure 16.Canada/France(CP863)
ProgrammerManual PTXS809
AppendixA.CodePages116260070001A
Arabic
Code Page 00864
Figure 17.Arabic(CP864)
ProgrammerManual PTXS809
AppendixA.CodePages117260070001A
Arabic
Code Page 00864E
Figure 18.CP864E(Arabic)
ProgrammerManual PTXS809
AppendixA.CodePages118260070001A
Danish/Norwegian
Code Page 00865
Figure 19.Denmark/Norway(CP865)
ProgrammerManual PTXS809
AppendixA.CodePages119260070001A
PC Data, Cyrillic, Russian
Code Page 00866
Figure 20. Russian(CP866)
ProgrammerManual PTXS809
AppendixA.CodePages120260070001A
Turkish 2
Code Page 00867
Figure 21.Turkish2(CP867)
ProgrammerManual PTXS809
AppendixA.CodePages121260070001A
OCR-A
Code Page 00876
Figure 22.OCR-A(CP876)
ProgrammerManual PTXS809
AppendixA.CodePages122260070001A
OCR-B
Code Page 00877
Figure 23.OCR-B(CP877)
ProgrammerManual PTXS809
AppendixA.CodePages123260070001A
Latin 2 (ISO 8859-2)
Code Page 00912
Figure 24.ISO8859/2(Latin2)
ProgrammerManual PTXS809
AppendixA.CodePages124260070001A
Latin 3 (ISO 8859-3)
Code Page 00913
Figure 25.ISO8859/3(Latin3)
ProgrammerManual PTXS809
AppendixA.CodePages125260070001A
Latin 4 (ISO 8859-4)
Code Page 00914
Figure 26.ISO8859/4(Latin4)
ProgrammerManual PTXS809
AppendixA.CodePages126260070001A
Cyrillic (ISO 8859-5)
Code Page 00915
Figure 27.ISO8859/5(Latin/Cyrillic)
ProgrammerManual PTXS809
AppendixA.CodePages127260070001A
Latin 8 (ISO 8859-8)
Code Page 00916
Figure 28. ISO8859/8
ProgrammerManual PTXS809
AppendixA.CodePages128260070001A

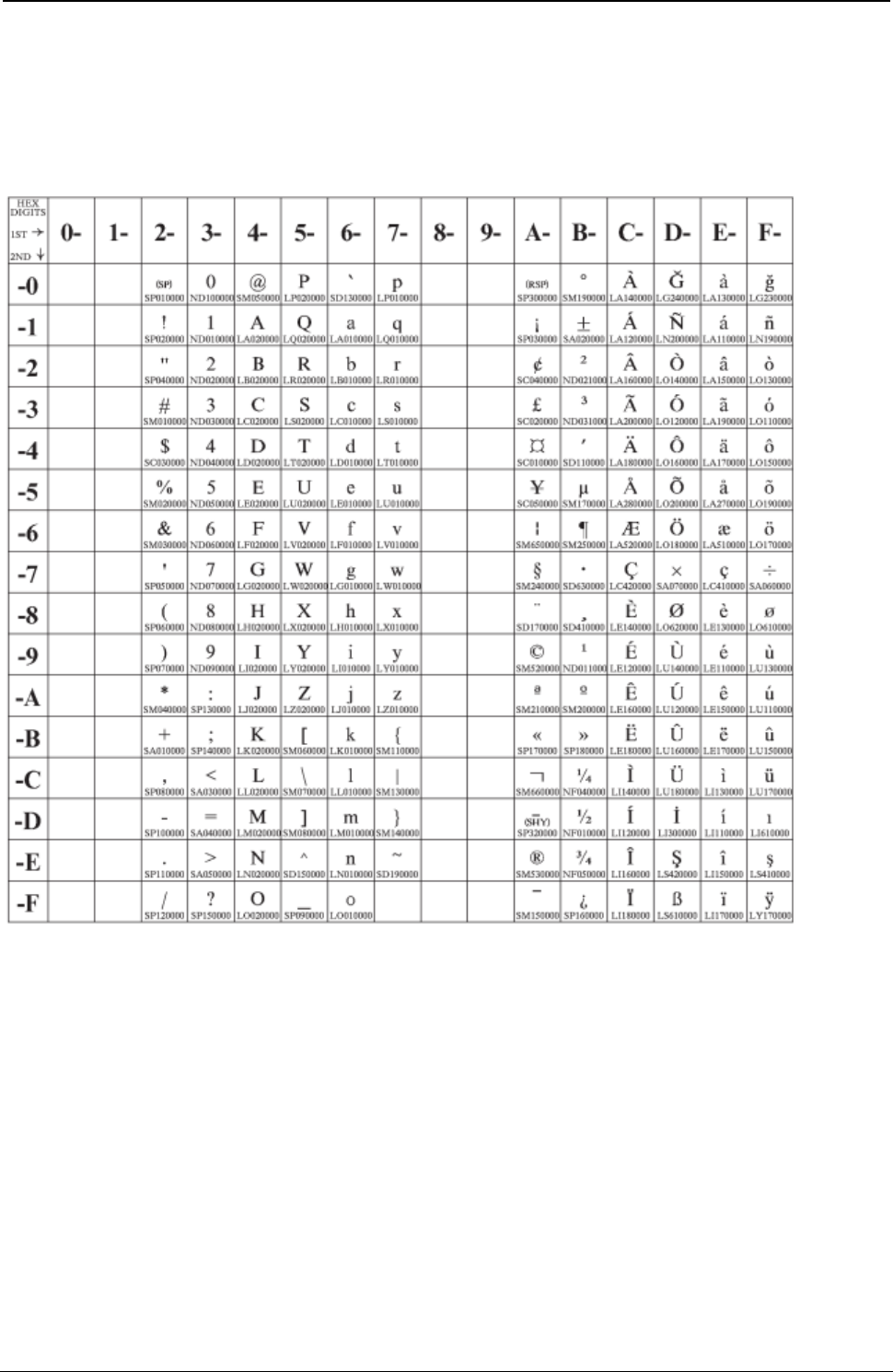

Latin 5 (ISO 8859-9)
Code Page 00920
Figure 29. ISO8859/9(Latin5)
ProgrammerManual PTXS809
AppendixA.CodePages129260070001A
Baltic Multilingual
Code Page 00921
Figure 30. BalticWindows(CP921)
ProgrammerManual PTXS809
AppendixA.CodePages130260070001A
Estonian
Code Page 00922
Figure 31.Estonian (CP922)
ProgrammerManual PTXS809
AppendixA.CodePages131260070001A
Latin 9 (ISO 8859-15) + euro
Code Page 00923
Figure 32.ISO8859/15(Latin9) .151
ProgrammerManual PTXS809
AppendixA.CodePages132260070001A
Urdu
Code Page 01006
Figure 33.Urdu (CP01006)
ProgrammerManual PTXS809
AppendixA.CodePages133260070001A
Arabic Extended
Code Page 01046
Figure 34.Arabic Extended (CP1046)
ProgrammerManual PTXS809
AppendixA.CodePages134260070001A
Latin 6 (ISO 8859-6)
Code Page 01089
Figure 35.ISO8859/6(Latin/Arabic)
ProgrammerManual PTXS809
AppendixA.CodePages135260070001A
Farsi (Personal Computer)
Code Page 01098
Figure 36.Farsi(CP1098)
ProgrammerManual PTXS809
AppendixA.CodePages136260070001A
Estonian (Personal Computer)
Code Page 01116
Figure 37.Estonian (CP1116)
ProgrammerManual PTXS809
AppendixA.CodePages137260070001A
Latvian (Personal Computer)
Code Page 01117
Figure 38.Latvian (Personal Computer) (CP1117)
ProgrammerManual PTXS809
AppendixA.CodePages138260070001A
Lithuanian (Personal Computer)
Code Page 01118
Figure 39.Lthuanian (Personal Computer) (CP1118)
ProgrammerManual PTXS809
AppendixA.CodePages139260070001A
Central Europe Latin 2
Code Page 01250
Figure 40.CentralEurope(CP1250)
ProgrammerManual PTXS809
AppendixA.CodePages140260070001A

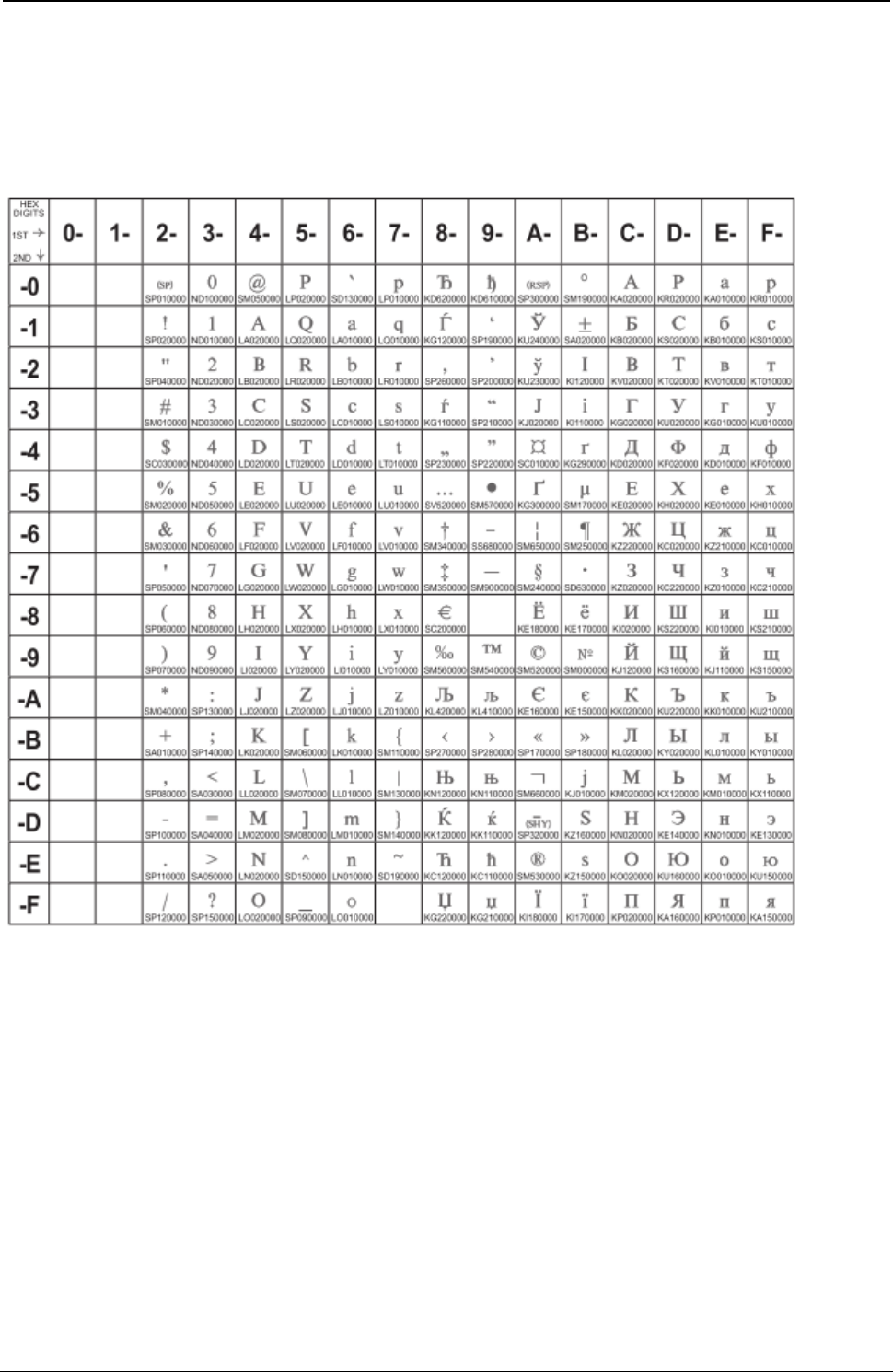

Cyrillic Windows + euro
Code Page 01251
Figure 41.Cyrillic(CP1251)
ProgrammerManual PTXS809
AppendixA.CodePages141260070001A
Latin1 Ansi Windows
Code Page 01252
Figure 42.Latin1AnsiWindows(CP1252)
ProgrammerManual PTXS809
AppendixA.CodePages142260070001A
Greek Windows
Code Page 01253
Figure 43.GreekWindows(CP1253)
ProgrammerManual PTXS809
AppendixA.CodePages143260070001A

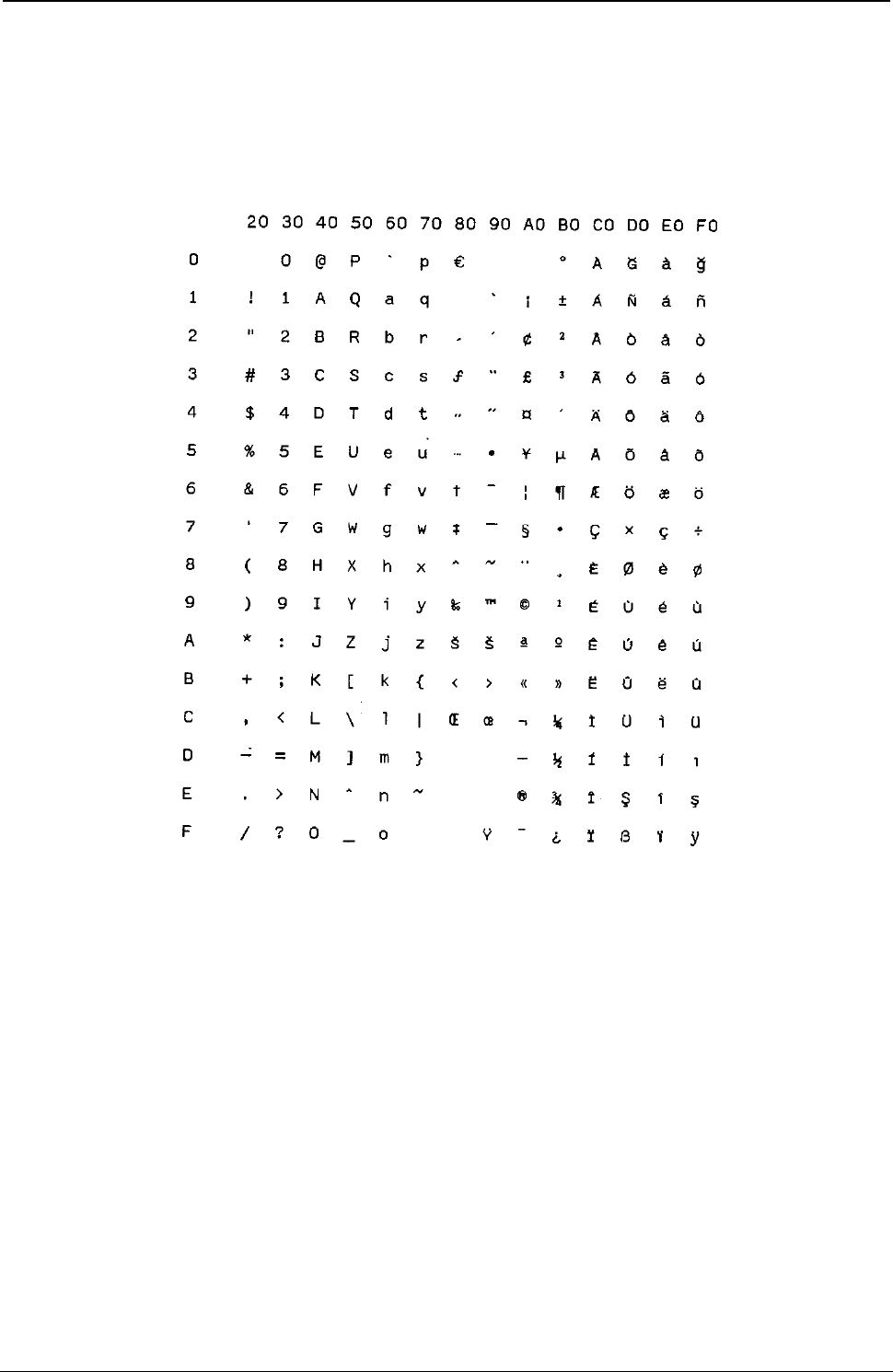

Turkish Windows
Code Page 01254
Figure 44.TurkishWindows(CP1254)
ProgrammerManual PTXS809
AppendixA.CodePages144260070001A
Hebrew Windows
Code Page 01255
Figure 45.HebrewWindows(CP1255)
ProgrammerManual PTXS809
AppendixA.CodePages145260070001A
Arabic Windows
Code Page 01256
Figure 46.ArabicWindows(CP1256)
ProgrammerManual PTXS809
AppendixA.CodePages146260070001A
Baltic Windows
Code Page 01257
Figure 47.Batlic Windows (CP1257)
Programm
AppendixA
MAZO
Figure 48.
M
e
rManual
A
.CodePage
s
W
IA (Poli
s
M
AZOWIA(P
o
s
s
h)
o
lish)
147
2
PTXS80
9
60070001
A
9
A
ProgrammerManual PTXS809
AppendixA.CodePages148260070001A
GOST (Russian)
Figure 49.GOST(Russian)
ProgrammerManual PTXS809
AppendixA.CodePages149260070001A
TASS (Cyrillic)
Figure 50.TASS(Cyrillic)
ProgrammerManual PTXS809
AppendixA.CodePages150260070001A
UKRANIAN (old version)
Figure 51.UKRANIAN(oldversion)
ProgrammerManual PTXS809
AppendixA.CodePages151260070001A
KOI8-U (new version)
Figure 52.KOI8-U(newversion)
ProgrammerManual PTXS809
AppendixA.CodePages152260070001A
FARSI 1
Figure 53. Farsi 1
ProgrammerManual PTXS809
AppendixA.CodePages153260070001A
FARSI 2
Figure 54. Farsi 2
ProgrammerManual PTXS809
AppendixA.CodePages154260070001A

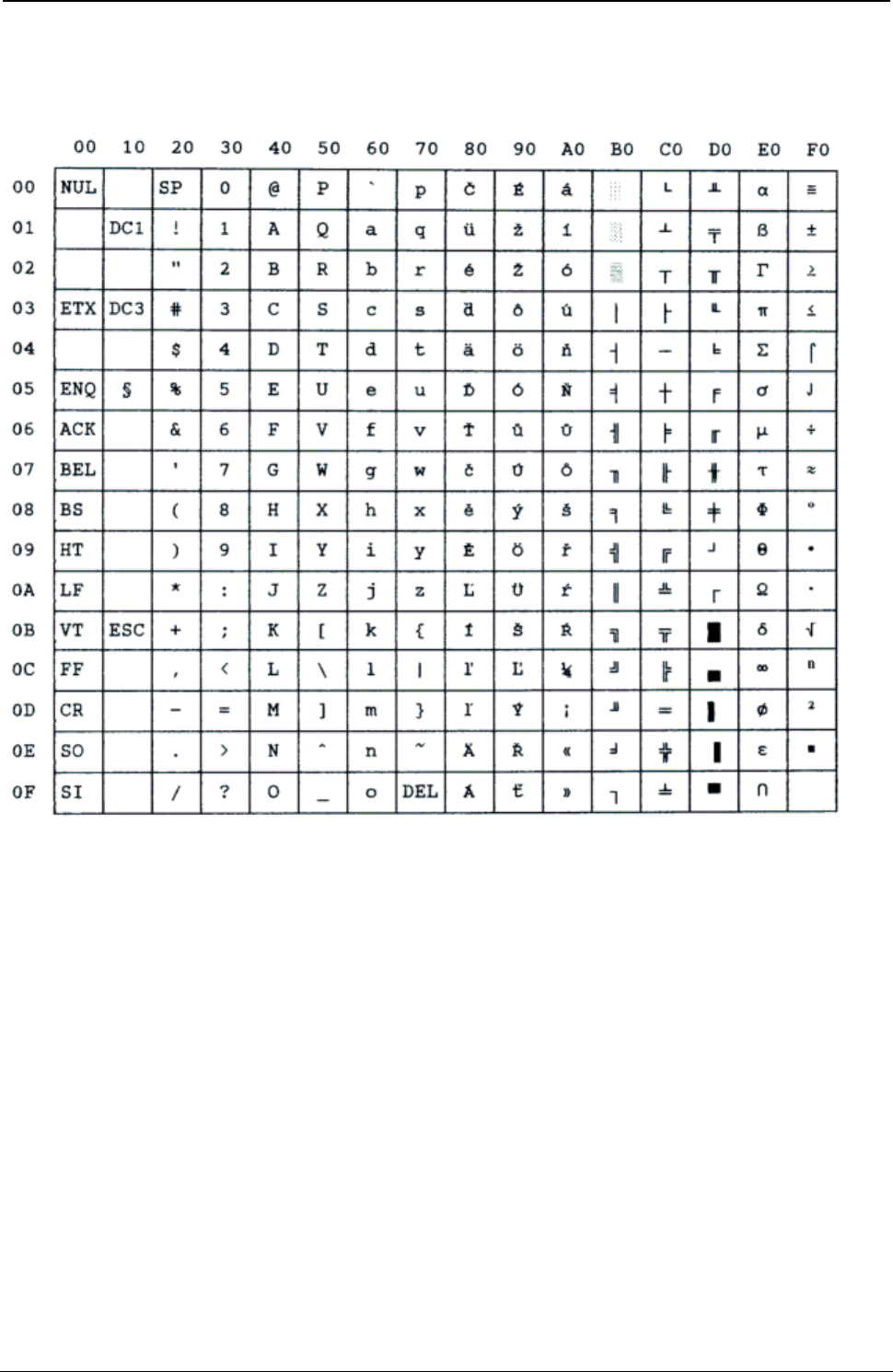

Kamenicky
Figure 55.Kamenicky
ProgrammerManual PTXS809
AppendixA.CodePages155260070001A
CWI
Figure 56.CWI
ProgrammerManual PTXS809
AppendixA.CodePages156260070001A

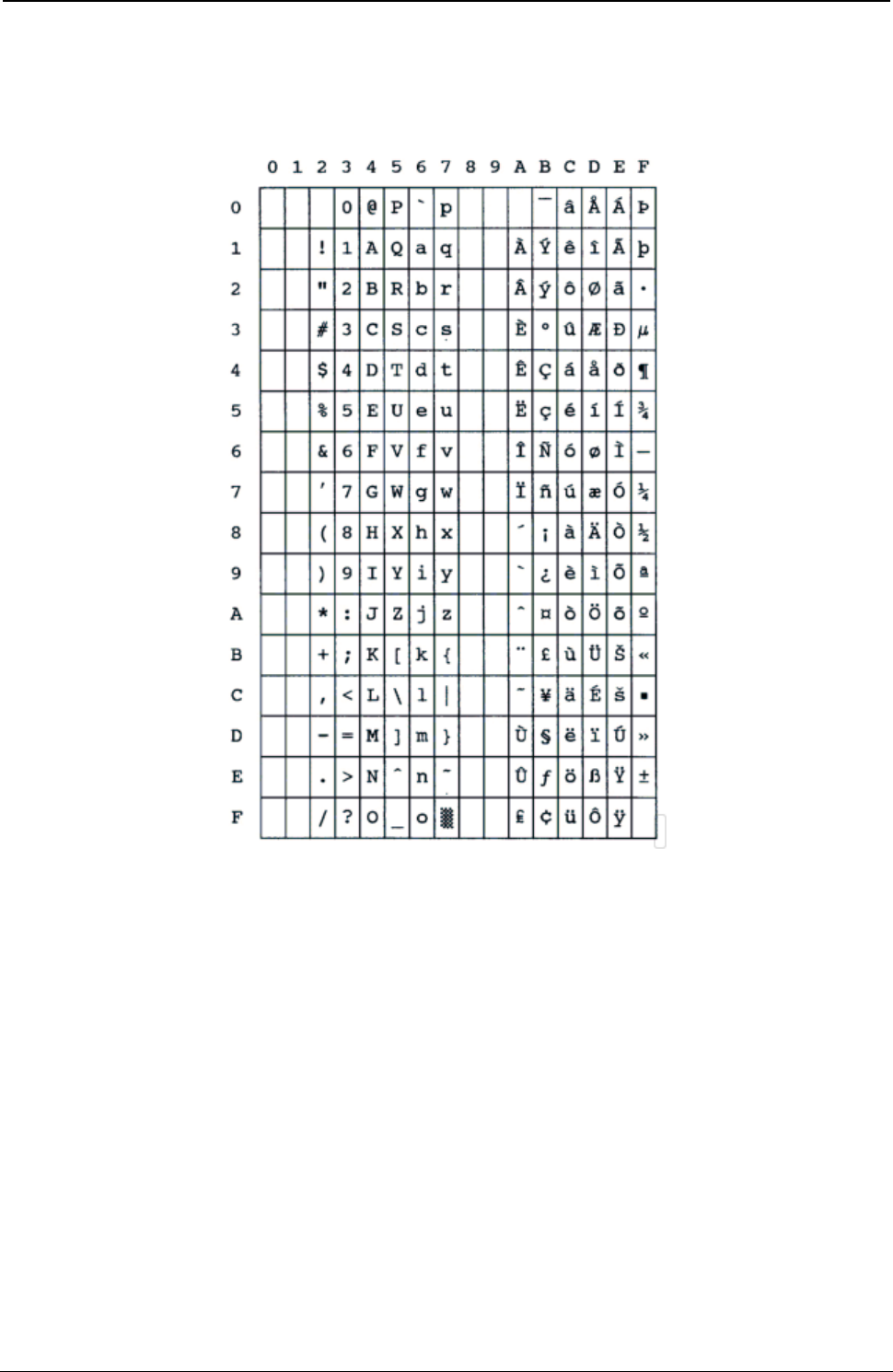

Roman-8
Figure 57.Roman-8
ProgrammerManual PTXS809
AppendixA.CodePages157260070001A
IN2
Figure 58.IN2
ProgrammerManual PTXS809
AppendixA.CodePages158260070001A
Turkish
Figure 59.Turkish
ProgrammerManual PTXS809
AppendixA.CodePages159260070001A
Bulgarian
Figure 60. Bulgarian
ProgrammerManual PTXS809
AppendixA.CodePages160260070001A

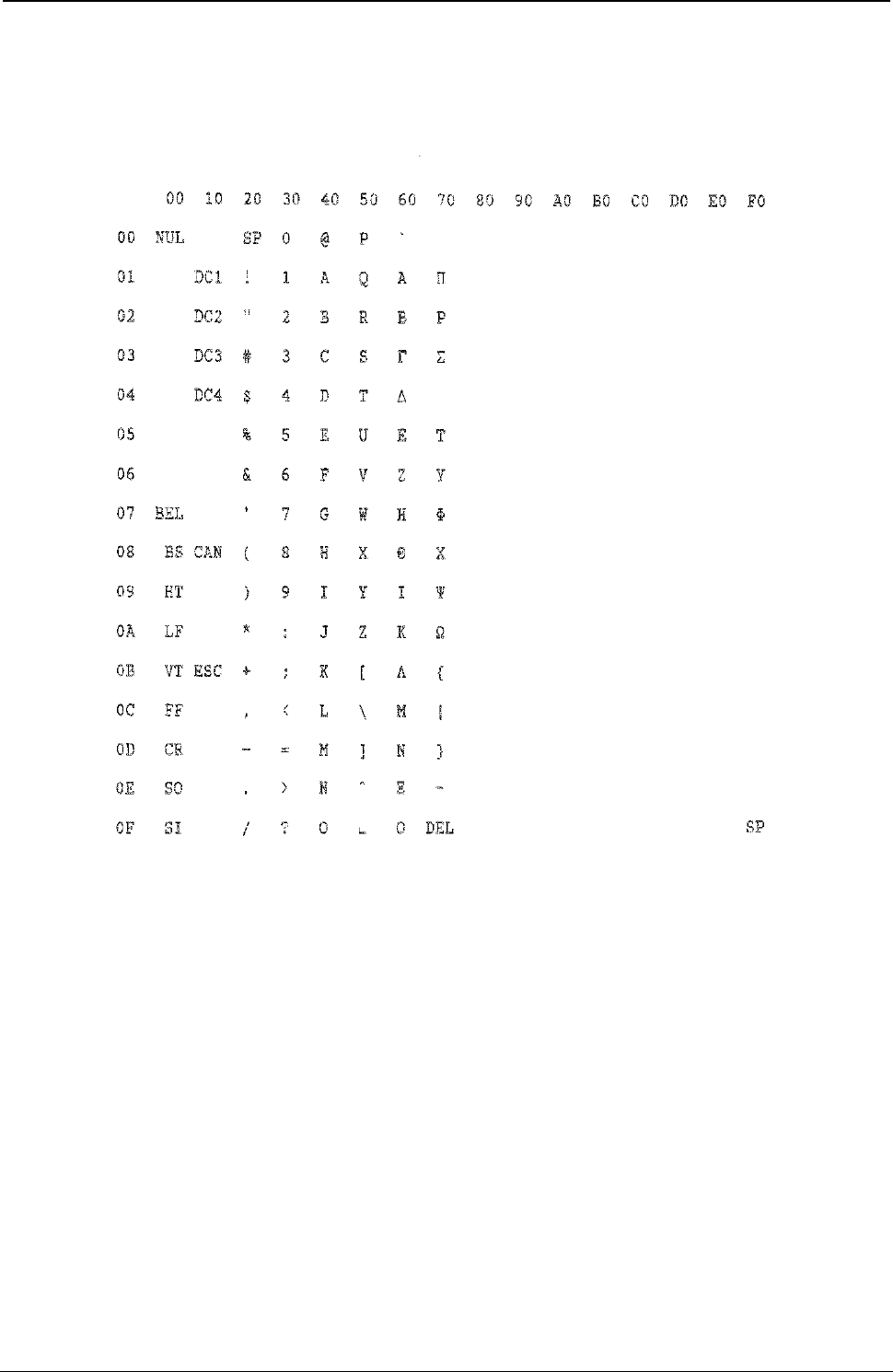

96 GREEK
Figure 61. 96GREEK
ProgrammerManual PTXS809
AppendixA.CodePages161260070001A
Character Sets
Character Set 1
00 10 20 30 40 50 60 70 80 90 A0 B0 C0 D0 E0 F0
00 NUL
SP 0 @ P p NUL
á
α
01 DC1 ! 1 A Q a q DC1
í ß ±
02 DC2 2 B R b r DC2
ó Γ
03 DC3 # 3 C S c s DC3
ú π
04 DC4 $ 4 D T d t DC4
ñ Σ
05 % 5 E U e u Ñ
σ
06 & 6 F V f v ª
µ ÷
07 BEL
7 G W g w BEL
º τ
08 BS CAN ( 8 H X h x BS CAN
¿ Φ °
09 HT ) 9 I Y i y HT Θ ·
0A LF * : J Z j z LF ¬ ·
0B VT ESC + ; K [ k { VT ESC
½ δ
0C FF , < L \ l | FF ¼
0D CR - = M ] m } CR ¡ φ ²
0E SO . > N ^ n ~ SO « ε
0F SI / ? O _ o DEL
SI » SP
Figure 62.CharacterSet1
ProgrammerManual PTXS809
AppendixA.CodePages162260070001A
Character Set 2
00 10 20 30 40 50 60 70 80 90 A0 B0 C0 D0 E0 F0
00 NUL
SP 0 @ P p Ç É á α
01 DC1 ! 1 A Q a q ü æ í ß ±
02 ` DC2 2 B R b r é Æ ó Γ
03 DC3 # 3 C S c s â ô ú π
04 DC4 $ 4 D T d t ä ö ñ Σ
05 § % 5 E U e u à ò Ñ σ
06 & 6 F V f v å û ª µ ÷
07 BEL
7 G W g w ç ù
º τ
08 BS CAN ( 8 H X h x ê ÿ ¿ Φ °
09 HT ) 9 I Y i y ë ö Θ ·
0A LF * : J Z j z è Ü
¬ ·
0B VT ESC + ; K [ k { ï ¢ ½ δ
0C FF , < L \ l | î £ ¼
0D CR - = M ] m } ì ¥ ¡ φ ²
0E SO . > N ^ n ~ Ä « ε
0F SI / ? O _ o DEL
Å ƒ » SP
Figure 63.CharacterSet2
ProgrammerManual PTXS809
AppendixA.CodePages163260070001A
Hexadecimal to Decimal Table
00 10 20 30 40 50 60 70 80 90 A0 B0 C0 D0 E0 F0
00 0 16 32 48 64 80 96 112 128 144 160 176 192 208 224 240
01 1 17 33 49 65 81 97 113 129 145 161 177 193 209 225 241
02 2 18 34 50 66 82 98 114 130 146 162 178 194 210 226 242
03 3 19 35 51 67 83 99 115 131 147 163 179 195 211 227 243
04 4 20 36 52 68 84 100 116 132 148 164 180 196 212 228 244
05 5 21 37 53 69 85 101 117 133 149 165 181 197 213 229 245
06 6 22 38 54 70 86 102 118 134 150 166 182 198 214 230 246
07 7 23 39 55 71 87 103 119 135 151 167 183 199 215 231 247
08 8 24 40 56 72 88 104 120 136 152 168 184 200 216 232 248
09 9 25 41 57 73 89 105 121 137 153 169 185 201 217 233 249
0A 10 26 42 58 74 90 106 122 138 154 170 186 202 218 234 250
0B 11 27 43 59 75 91 107 123 139 155 171 187 203 219 235 251
0C 12 28 44 60 76 92 108 124 140 156 172 188 204 220 236 252
0D 13 29 45 61 77 93 109 125 141 157 173 189 205 221 237 253
0E 14 30 46 62 78 94 110 126 142 158 174 190 206 222 238 254
0F 15 31 47 63 79 95 111 127 143 159 175 191 207 223 239 255
Figure 64.Hexadecimal to Decimal Table
ProgrammerManual PTXS809
AppendixA.CodePages164260070001A
Epson FX-series Code Pages
The following Epson code charts provide information on the character tables available for Epson FX-series
emulation mode.
Extended Graphics Character
Figure 65. Epson Extended Graphics Character
ProgrammerManual PTXS809
AppendixA.CodePages165260070001A
Italic Character Table
Figure 66. Epson Italic Character
ProgrammerManual PTXS809
AppendixA.CodePages166260070001A
Epson Extended Character Variables
The following table shows characters that vary, by language, from the Epson Extended Character Graphics
set.
The code points shown are the only ones that vary. For example, in the United Kingdom, only code point
X'23' is different from the basic Epson table, shown on previous pages.
Figure 67. Epson Extended Character Variables
ProgrammerManual PTXS809
AppendixA.CodePages167260070001A
ANSI National Variations
The following table shows characters that vary, by language, from the ANSI Extended Character Graphics
set.
Figure 68. ANSI National Variations
ProgrammerManual PTXS809
AppendixA.CodePages168260070001A
This page is intentionally left blank
ProgrammerManual PTXS809
AppendixB‐Interfaces169260070001A
Appendix B. Interfaces
This section provides technical information for the parallel and serial interfaces.
The Parallel Interface
The parallel interface of this printer fully supports the Centronics protocol plus the specific features
requested by the EPSON and IBM printer connection in monodirectional mode and the Compatibility and
Nibbles modes in bidirectional mode, plus the negotiation phases and the device identifier (as IEEE
P1284).
The parallel interface is available on a specific 36 contact connector type AMPHENOL 57-40360- 12-D56
or equivalent connector for 1284 Type B.
Drive Capability
Up to 15 feet (5 m) on AWG26 min. wire size of twisted conductors on TTL receiver. The max.
reachable distance is conditioned by the host drive capability and by the noise level along the interface
cable path.
Printer Connector Type
36 pins, 1284 Type B
Cable Connector
25 pin, 1284 A Type
Signals Description
According to the IEEE - P1284 Standard, the pins assume different meanings and are identified by
different names depending on the actual handshaking mode as follows:
Compatibility mode (Centronics)
This is the lower level mode provides an asynchronous, byte-wide forward (host-to-peripheral) channel
with data and status lines used according to their original definitions. The interfaces power up in the
compatibility Mode Idle phase.
Nibble Mode
This mode provides an asynchronous, reverse (peripheral-to-host) channel, under control of the host. In
this mode, peripheral device to host data bytes are sent as two sequential, four-bit nibbles using the
four peripheral-to-host status lines. These two modes cannot be active simultaneously.
Byte Mode
This mode provides an asynchronous, byte-wide reverse (peripheral-to host) channel based on eight
data lines of the interface for data and the control/status lines for handshaking. Byte mode is under host
control and it cannot be simultaneously active with compatibility mode.
Operating Phases
The link protocol is mainly based on the following three phases:
Negotiation Phase
This phase is activated always by the host, only when in compatibility mode, and defines:
– whether a bidirectional link protocol can be established.
– the handshaking mode as well as the communications mode to be used.
– the device identification, if supported.
Communication Phase
This phase is based on well defined handshaking rules which depend upon the selected link mode.
Termination Phase
ProgrammerManual PTXS809
AppendixB‐Interfaces170260070001A
This phase is initiated by the host and returns the interface to the compatibility mode.
Parallel Interface Signals
Description of the signals in monodirectional link:
Signal Name Pin N° Source Description
STROBE 1 HOST Clock signal which controls data transmission with its falling edge.
ACK 10 PRINTER Negative pulsed signal indicating that the printer has received data
and is ready to accept the next set of data. Also sent when the
printer is switched from off-line to on-line and at the end of the
initialization time. The BUSY line is always active.
DATA BIT 1 2 PRINTER / Data 8 is the most significant bit. These are the data lines used by
HOST host or printer to transfer control code or ASCII codes.
DATA BIT 2 3
DATA BIT 3 4
DATA BIT 4 5
DATA BIT 5 6
DATA BIT 6 7
DATA BIT 7 8
DATA BIT 8 9
BUSY 11 PRINTER When high, this signal indicates that the printer cannot accept data
or control codes. This signal goes high during data processing, in
test and program modes, during initialization, when the buffer is full,
and when a paper jam, paper end or paper size error occurs, in case
of a power-on reset, the reception of a STROBE signal, while the
register was not yet read, or when the INIT line is still active.
PE 12 PRINTER When high, this signal indicates that the automatic input bin is out of
paper and paper cannot be loaded from an other bin.
SELECT 13 PRINTER When high, this signal indicates that the printer is on-line. It is put to
low state in case of initialization or test and program mode. In IBM
Proprinter emulation in low condition this signal signals a off-line
request from the operator panel, paper jam, paper end or paper size
errors.
AUTOFEEDXT 14 HOST Active low level signal. Indicates whether a LF is performed after a
CR or not.
GND 16 Logical ground level (0V).
CHASSIS GND 17 Frame ground.
+5 VDC 18 PRINTER Is the DC voltage supplied by a component that limits the driven
capability up to 100 mA.
SIGNAL GND 19-30 Signal ground.
INIT 31 HOST Active low level signal. Indicates, that the printer is initializing. The
BUSY signal is forced high.
ERROR 32 PRINTER When low, this signal indicates that the printer is offline, there is an
offline request from the operator panel, or the printer is in an error
state because of: paper jam, paper end or paper size error, engine
error, output bin full or cover open condition.
+5V 35 PRINTER Pulled up to signal.
SELECTIN 36 HOST Active low level signal. Enables the printer.
ProgrammerManual PTXS809
AppendixB‐Interfaces171260070001A
The pins 1 to 14 of the printer are connected to the pins with the same number of the parallel port of the
host.
The pins 19 to 30 of the printer are connected to the pins 18 to 25 of the parallel port of the host.
The pins 31, 32 and 36 of the printer are connected respectively to the pins 16, 15 and 17 of the parallel port
of the host.
1284 Mode signal names are shown with their Compatibility mode (Centronics) names in parenthesis ( ) for
the bidirectional link.
Signal Name Pin N° for Pin N° for
Signal Wire Return Wire Source
HostClk (nStrobe) 1 19 HOST
AD1 (Data 1) 2 20 HOST in Compatibility mode and negotiation
phase.
AD2 (Data 2) 3 21
AD3 (Data 3) 4 22 NOT USED in Nibble mode.
AD4 (Data 4) 5 23
AD5 (Data 5) 6 24 BIDIRECTIONAL in Byte mode.
AD6 (Data 6) 7 25
AD7 (Data 7) 8 26
AD8 (Data 8) 9 27
PrtClk (nAck) 10 28 PRINTER
PrtBusy (Busy) 11 29 PRINTER
AckDataReq (PError) 13 28 PRINTER
Xflag (Select) 14 28 PRINTER
HostBusy (nAutofd) 15 30 HOST
Peripheral Logic High 18 PRINTER
(+5 V)
n.a. (nInit) 31 30 HOST
nDataAvail (NFault) 32 29 PRINTER
1284 Active (NSelectIn) 36 30
Common Logic Ground 16 and Return Wires
Chassis Ground 17
Parallel Interface Signals Behaviour
HostClk /nWrite (nStrobe)
Compatibility Mode: Set Active low to transfer data into printer input latch. Data is valid while nStrobe is
low.
Negotiation Phase: Set active low to transfer extendibility request value into printer input latch. Data is
valid on the falling edge of HostClk.
Reverse Data Transfer Set high during Nibble Mode transfer to avoid latching data into printer. Pulsed
Phase: low during Byte Mode transfers to acknowledge transfer of data from the printer.
The printer shall ensure that this pulse does not transfer a new data into the printer
input latch.
AD1 ... AD8 (Data 1 ... Data 8)
Compatibility Mode: Forward channel data.
Negotiation Phase: Extendibility request value.
Reverse Data Transfer Nibble Mode: NOT USED.
Phase: Byte Mode: Reverse channel data.
ProgrammerManual PTXS809
AppendixB‐Interfaces172260070001A
PrtClk (nAck)
Compatibility Mode: Pulsed low by the printer to acknowledge the transfer of a data from the host.
Negotiation Phase: Set low to acknowledge 1284 support, then set high to indicate that the Xflag
(Select) and data available flags may be read.
Reverse Data Transfer Used in both Nibble and Byte Modes to qualify data being sent to the host.
Phase:
PrtBusy (Busy)
Compatibility Mode: Driven high to indicate that the printer is not ready to receive data.
Negotiation Phase: Reflects the present state of the printer’s forward channel.
Reverse Data Transfer Nibble Mode: Data bits 3 then 7, then forward channel busy status
Phase: Byte Mode: Forward channel busy status.
Reverse Idle phase: Forward channel busy status.
AckDataReq (PError)
Compatibility Mode: Driven high to indicate that the printer has encountered an error in the paper path.
The printer shall set nFault low whenever it sets PError high.
Negotiation Phase: Set high to indicate 1284 support, then follows nDataAvail (nFault).
Reverse Data Transfer Nibble Mode: Data bits then 6.
Phase: Byte Mode: same as nDataAvail (nFault)
Reverse Idle phase: Set high until host requests data transfer, then follows nDataAvail (nFault).
Xflag (Select)
Compatibility Mode: Set high to indicate that the printer in on-line.
Negotiation Phase: The Xflag refers to extendibility flag. Used by the printer to reply to the requested
extendibility byte sent by the host during the negotiation phase. The signal level is
low for Nibble Mode, high for Byte Mode.
Reverse Data Transfer Nibble Mode: Data bits 1 then 5.
Phase: Byte Mode: Same as negotiation phase.
Reverse Idle phase: Same as negotiation phase.
Xflag (Select)
Compatibility Mode: Set low by host to put the printer into auto-line feed mode.
Negotiation Phase: Set low in conjunction with 1284 Active (NSelectIn) being set high to request a
1284 mode.
Then set high after printer sets PtrClk (nAck) low.
Xflag (Select)
Reverse Data Transfer Nibble Mode: Set low to indicate that host can receive printer-to-host data then set
Phase: high to acknowledge receipts of that nibble.
Byte Mode: Same as Nibble Mode to request and acknowledge bytes. Following a
reverse channel transfer the interface transitions to idle phase when
HostBusy (nAutoFd) is set low and printer‘s no data available.
Reverse Idle phase: Set high in response to PtrClk (nAck) low pulse to re-enter reverse data transfer
phase.
Is set high with 1284 Active (nSelectIn) being set low, the 1284 idle phase is being
aborted and the interface returns to Compatibility Mode.
Peripheral Logic High (+ 5V)
Set high to indicate that all other signals sourced by the printer are in valid state. Set low to indicate the
printer is off.
ProgrammerManual PTXS809
AppendixB‐Interfaces173260070001A
n.a. (nInit)
Compatibility Mode: Pulsed low in conjunction with 1284 Active low to reset the interface and force to
return to Compatibility Mode idle phase.
Negotiation Phase: Set HIGH.
Reverse Data Transfer Set HIGH.
Phase:
nDataAvail (NFault)
Compatibility Mode: Set low to indicate that an internal printer error has occurred.
Negotiation Phase: Set high to acknowledge 1284 compatibility. In Nibble or Byte Mode it is then set low
to indicate printer-to-host data is available following host setting HostBusy (nAutoFd)
high.
Reverse Data Transfer Nibble Mode: Set low to indicate that printer is ready to send to host. Then used to
Phase: send data bits 0 then 4.
Byte Mode: Used to indicate that data is available.
Reverse Idle phase: Used to indicate that data is available.
nDataAvail (NFault)
Compatibility Mode: Set low to indicate that an internal printer error has occurred.
Negotiation Phase: Set high to acknowledge 1284 compatibility. In Nibble or Byte Mode it is then set low
to indicate printer-to-host data is available following host setting HostBusy (nAutoFd)
high.
Reverse Data Transfer Nibble Mode: Set low to indicate that printer is ready to send to host. Then used to
Phase: send data bits 0 then 4.
Byte Mode: Used to indicate that data is available.
Reverse Idle phase: Used to indicate that data is available.
1284 Active (NSelectIn)
Compatibility Mode: Set low by host to select printer.
Negotiation Phase: Set high in conjunction with Host Busy being set low to request a 1284 mode.
Reverse Data Transfer Set high to indicate that bus direction is printer to host. Set low to terminate 1284
Phase: mode and set bus direction host to printer.
Reverse Idle Phase: Same as Reverse Data Transfer phase.
ProgrammerManual PTXS809
AppendixB‐Interfaces174260070001A
Interface Timing
Timing and Handshaking depend upon the connection mode.
Figure 69. Mode Centronics
Our Centronics mode supports the BUSY-WHILE-STROBE busy signal timing and ACK-INBUSY as
BUSY-ACK relationship.
Legend Time interval Min. Max.
A Data Setup Time 1.0
B Strobe pulse width 1.0 500
C Data hold time 1.0 all times in µs
t Busy while Strobe 0.25 1.0
a Ack in Busy 0 2.5
ProgrammerManual PTXS809
AppendixB‐Interfaces175260070001A
Mode IEEE 1284
Figure 70. Mode IEEE 1284
The Serial Interface
This printer provides the RS-232/C serial interfaces. The interface mode is selected via menu.
Transmission Type
Data is sent and received in start/stop (asynchronous) transmission.
Character Format
Each character is transmitted in the following format:
1 START BIT + 8 DATA BITS + 1 PARITY BIT + 1 STOP BIT
The least significant bit of the data bits is sent first after the start bit. The number of data bits is selected
via menu. The parity bit, when present, follows the data bits. The start bit is a logical “0” and the stop bit
is a logical “1”. The start and stop bits are used as character framing bits.
Printer Connector
Male DB9 or equivalent connector.
Drive Capability
Max. 50 feet (15 m) for all supported data rates. The RS-422/A interface is effective up to 1200 m.
ProgrammerManual PTXS809
AppendixB‐Interfaces176260070001A
Serial Interface Signals
The following table lists the RS-232/C serial interface signals:
Local Remote
Connect. Connect.
Signal Name Pin Number Source Source Description
SIGNAL 5 Always connected to the 0 Volts of the
GROUND Power Supply
TXD 3 Printer Printer Transmitted Data Signal (an output from
printer). A MARK condition is held during
IDLE communication state. An indeterminate
state is present when printer is powered off.
RXD 2 Host Data Set Received data signal (an input to printer).
RTS 7 Printer Printer Request to Send Signal (an output from
printer). Active HIGH level signal. It is HIGH
until the printer is powered off, then an
indeterminate state is present .
CTS 8 Data Set Active HIGH level signal indicates that the
host or data set is ready to receive data from
the printer.
DSR 6 Data Set Active HIGH level signal. Indicates that the
host or data set is ready to be connected to
the printer and is ready for data transfer.
DCD 1 Data Set Active HIGH level signal. Indicates that the
host is transmitting or the data set is r
receiving the Data Carrier signal.
2nd RTS 9 Printer Functionally equivalent to the DTR signal.
DTR 4 Printer Printer Data Terminal Ready. Normally HIGH (ON).
Indicates that the printer is ready to initiate a
connection.
LAN Interface Port
LAN Interface Port
1. Ethernet 10/100BaseT Connector
2. Green 10/100Mbit/sec. Transmission Speed LED
3. Yellow Traffic LED
LED Indicators
The LED indicator modes are described in the following table:
LED Status Description
Yellow LED Unlit Transmission speed at 10Mbit/sec.
Lit Transmission speed at 100Mbit/sec.
Green LED Blinks Transmitting or receiving packets from the network.
USB Interface Port
USB 2.0 full speed 12/Mbit/sec. interface.
ProgrammerManual PTXS809
AppendixC–NetworkInterfaceReference177260070001A
Appendix C. Network Interface Technical Reference
Network Configuration Parameters
IP Address Assignment
Fixed: Assigns the static or fixed IP address.
DHCP: Assigns the dynamic IP address (DHCP protocol).
Default value is DHCP.
Fixed and DHCP assignments of IP addresses are supported. On most networks, you will want to assign a
permanent IP address and disable DHCP.
IP Address
These values set the IP Address. The address is represented by a decimal notation where the decimal
values are divided by points in four fields.
Each field ranges between 0 and 255.
Default is 127.000.000.000.
Subnet Mask
These values set the Subnet Mask number. This number is represented by a decimal notation where the
decimal values are divided by points in four fields. Each field ranges between 0 and 255.
Default is 255.255.254.000.
Default Gateway
These values set the Default Gateway address. This address is represented by a decimal notation where the
decimal values are divided by points in four fields. Each field ranges between 0 and 255.
Default is 000.000.000.000.
The gateway address tells the printer which router or gateway to use to access other subnets or hosts.
Simply add your router’s IP address as the default gateway. All packets destined for other subnets will be
forwarded to the default gateway for delivery to the destination host.
Host Name
The host is identified by a name in the NetBIOS protocol over TCP/IP. This function allows creating the name
of the host using a 14-character string.
Default is PTX_xxxxxx where xxxxxx are the last 6-digits of the MAC address...
Workgroup Name
The workgroup is identified by a name in the NetBIOS protocol over TCP/IP in Windows. This function allows
creating the name of the workgroup using a 14-character string.
Default is Workgroup.
ProgrammerManual PTXS809
AppendixC–NetworkInterfaceReference178260070001A
SMTP Service
SMTP (Simple Mail Transfer Protocol) allows a mail server address to be entered into the printer
configuration to send automated e-mail notifications with printer alert conditions.
Disabled: Disables the SMTP (Simple Mail Transfer Protocol) service, that is disables the
reception/transfer/error service of the e-mail.
Enabled: Enables the SMTP service, that is it enables the reception/transfer/error service of the e-
mail.
Default is Disabled.
Mail Server Address
These values set the mail server address. This number is represented by a decimal notation where the
decimal values are divided by points in four fields. Each field ranges between 0 and 255.
Default is 000.000.000.000.
Note: Item selection on the printer menu allowed only if the “SMTP Service” function choice is Enabled.
E-mail Address (Receiver)
This function allows writing the e-mail address where you can notify the failures using a 48-character
string. Default is an empty string.
Note: Item selection on the printer menu allowed only if the “SMTP Service” function choice is Enabled.
E-mail Address (Sender)
This function allows to write the sender e-mail address using a 48-character string.
Default is an empty string.
Note: Item selection on the printer menu allowed only if the “SMTP Service” function choice is Enabled.
Location
You can enter the physical location of the printer into this field.
Contact
You can enter a network support contact’s name and phone number into this field.
ProgrammerManual PTXS809
AppendixC–NetworkInterfaceReference179260070001A
Managing a Single Printer Configuration Using the Internal Webpage
Configuration Password
The Printronix S809's configuration settings can be protected by a password to keep unauthorized users
from making changes. When you try to submit any Printronix S809 configuration change, you will be asked
for your user name and password. At the prompt, enter the default user name = root and default
password = root, unless you have setup another user name and password with root privileges.
Storing and Saving Settings
When settings are configured on the Printronix S809 and the SUBMIT button on the related page has been
pressed, you will be reminded to Reboot the printer to ensure the latest settings are in use. To reset the
Printronix S809, go to the Home page, enter the Power On Reset page, and Click on the REBOOT
PRINTER button.
Managing Multiple Printers Using the Remote Printer
Management Utility
The Remote Printer Management Utility (RPMU) is a software tool for network administrator’s that allows
the configuration and control of Printronix S809 printers remotely over a LAN. With this tool the installed
printers can be controlled, configured and organized easily. The main features are:
Device Discovery - Searches for the devices within a range of IP addresses.
Printer Organization - Printers connected to the network can be organized into logical groups in a
hierarchically structured tree.
Printer Status Report - Checks the printer's status and reports alarms.
Printer Configuration - Printers may be configured as needed from the administrator's workstation.
Change the configuration of single printers, or simultaneously change the configuration of multiple
printers in your enterprise, anywhere, and anytime.
Firmware Updating - Provides a firmware download function to upgrade the printer's firmware.
Remote Operator Panel Management - Provides a virtual operator panel for the remotely connected
printer at the administrator's workstation that allows performing all functions normally achieved pressing
the operator panel keys. The RPMU also provides the basic status management for third-party printers
compliant to the standard MIB objects. Visit our website to download this free software utility program.
Network Interface Summary
Table 5. Network Interface Summary
INSTALLATION INTEGRATION
Network speed / connection 10/100 BASET
Auto-detection 10/100 network speed Yes
Manual network speed selection No
Parallel interface free Yes
Network configuration through printer operator panel Yes
Web page network setting configuration Yes
Web page login password protection Yes
Web page default user-id and default password Root, Root
Windows Port Monitor and Drivers Yes, download from www.Printronix.com
NIC configuration printout Yes
ProgrammerManual PTXS809
AppendixC–NetworkInterfaceReference180260070001A
Table 5. Network Interface Summary (cont.)
DHCP Yes
WINS Yes
DDNS Yes
SYSTEM / OS
IBM System i OS 400 Yes
IBM pSeries® AIX Yes
Sun Solaris Yes
Unix Yes
Linux® Yes
Windows 95,98,2000,NT,XP, 2003 Server Yes
Windows VISTA, Win7, Win8, Win10 Yes
NETBIOS over TCP Yes
NETBEUI No
Novell Netware No
OS2 No
MacIntosh / Apple EtherTalk No
PRINTING METHODS
Raw Port 9100 Yes
LPD/LPR Port 515 Yes
LPR print queue name Any name (PR1, d1PRN, etc.) can be used.
IPDS Port 5100 Yes (with IPDS option on some models)
Interleaved multi-protocol communications Yes
Hot Interface switching Yes between Parallel and LAN interfaces
Hot Port switching Yes between Raw 9100, LPR/LPD 515,
and IPDS 5100 (with IPDS option on some models)
Multiple internal print server queues No
String substitutions No
String before/after job No
DATASTREAMS
S809 ASCII native Yes
ASCII text and single byte escapes Yes
IBM Proprinter III emulation Yes (on some models)
IBM Personal Printer 2391 emulation Yes (on some models)
IBM Proprinter III emulation Yes (on some models)
IBM Personal Printer 2391 emulation Yes (on some models)
Epson LQ series emulation Yes (on some models)
Epson - FX emulation Yes (on some models)
Epson LQ1600K with GB18030 Yes (with DBCS option on some models)
character set emulation
IPDS Yes (with IPDS option on some models. See
“Intelligent Printer Data Stream,” for
application program compatibility considerations)
PRINTER SERVER FACILITIES SUPPORT
PSF AIX Yes
PSF OS400 Yes
ProgrammerManual PTXS809
AppendixC–NetworkInterfaceReference181260070001A
Table 5. Network Interface Summary (cont.)
PSF MVS™ Yes
PSF VSE Yes
PSF VM Yes
NETWORK MANAGEMENT
S809 Remote Printer Management Utility Yes, download from www.Printronix.com
IBM NPM Yes (generic printer)
HP JetAdmin Yes (generic printer)
E-mail SMTP Yes
Internal Web page Yes
PRINTER STATUS AND ERROR REPORTING
Ready Yes
Not ready Yes
Paper out Yes
Paper jam Yes
Cover open Yes
Machine check (carriage fault, ribbon blocked...) Yes
NETWORK CONFIGURATION PARAMETERS (see above)
LINK LAYER
Ethernet II Yes
802.2 Yes
802.3 Yes
2/SNAP Yes
Link disconnect (no data timeout) 15 second fixed setting
PROTOCOLS
IP Yes
TCP Yes
UDP Yes
ARP Yes
RARP Yes
SMP Yes
Telnet Yes
DHCP Yes
DDNS Yes
WINS Yes
BOOTP Yes
FTP Yes
TFTP Yes
ICMP Yes
LPR/LPD Yes
DHCP Yes
SNMP Yes
SMTP Yes
ProgrammerManual PTXS809
AppendixC–NetworkInterfaceReference182260070001A
Table 5. Network Interface Summary (cont.)
Direct Socket Printing Yes
HTTP Yes
PING Yes
SNMP Yes
MIB II (RFC 1514) Yes (see note)
Host Resource MIB (RFC 1514) Yes
Printer MIB (RFC1759) Yes
S809 Private MIB Yes
Reverse Telnet No
PROS No
IPP No
SLPv2 No
HARDWARE
RISC processor Yes
Flash memory 4MB
RAM 16MB
Attachment connector type RJ-45
Network traffic led Yes (green)
Network speed led Yes (yellow)
FIRMWARE UPGRADE
Firmware upgrade over network Yes
Firmware upgrade through parallel interface Yes
Note: All relevant parts of MIB-II (RFC1231) required to support HP JetAdmin are implemented.
The following IP table group OIDs are not implemented: ipForwarding, ipDefaultTTL , ipInReceives
,ipInHdrErrors,ipInAddrErrors, ipForwDatagrams, ipInUnknownProtos, ipInDiscards, ipInDelivers,
ipOutRequests, ipOutDiscards, ipOutNoRoutes, ipReasmTimeout ,ipReasmReqds,
ipReasmOKs,ipReasmFails,ipFragOKs, ipFragFails, ipFragCreates
The ipRouteTable OIDs are not implemented.
The ipNetToMediaTable OIDs are not implemented.
The icmp group OIDs are not implemented.
The tcp group OIDs are not implemented.
The udp group OIDs are not implemented.
The snmp group OIDs are not implemented.
ProgrammerManual PTXS809
AppendixDLanInterfaceMIBSupport183260070001A
Appendix D. LAN Interface MIB Support
Table 6 List of the MIB of the printer.
Description MIB
prtButton 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 1
prtBaseCodeVersion 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 2
prtHtmlContact 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 3
prtRebootPrinter 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 4
prtRestoreToMfg 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 5
prtGetPrinterStatus 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 6
prtMenuLocked 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 7
prtPowerOnCycles 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 8
prtPowerOnMinutes 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 9
prtBarCodes 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 10
prtPageWithGraphics 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 11
prtHSDraftCharacters 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 12
prtDPCharacters 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 13
prtDPTextCharacters 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 14
prtNLQCharacters 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 15
prtBESTDraftCharacters 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 16
prtLQCharacters 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 17
prtPrintedPageNumber 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 18
prtLPD_Timeout 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 19
LPD_Reboot 1, 3, 6, 1, 4, 1, 6345, 1, 2, 1, 20
prtMenuUserMacro 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2
prtMenuUserMacroTable 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1
prtUserMacroEntry 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1
prtUserMacroIndex 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 1
prtUserMacroLineSpace 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 2
prtUserMacroLineSpaceLock 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 3
prtUserMacroLength 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 4
prtUserMacroTopOfForm 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 5
prtUserMacroSkiPover 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 6
prtUserMacroDraftMode 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 7
prtUserMacroFont 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 8
prtUserMacroPitch 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 9
prtUserMacroPitchLock 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 10
prtUserMacroLeftMargin 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 11
prtUserMacroRightMargin 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 12
prtUserMacroSlashZero 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 13
prtUserMacroPath 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 14
prtUserMacroTear 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 15
prtUserMacroImpact 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 16
prtUserMacroPerforSave 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 17
prtUserMacroGap 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 18
prtUserMacroTuningHor 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 19
prtUserMacroTuningVer 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 20
prtUserMacroIgnoreFF 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 21
prtUserMacroQuality 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 22
prtUserMacro1524Cpi 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 23
ProgrammerManual PTXS809
AppendixDLanInterfaceMIBSupport184260070001A
Table 6 List of the MIB of the printer.
Description MIB
prtUserMacroTearDelay 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 24
prtUserMacroQuiet 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 25
prtUserMacroDBCS 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 26
prtUserMacroDBCS_Cpi 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 27
prtUserMacroDBCS_Lpi 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 28
prtUserMacroTH_Space 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 29
/* IPDS SETTINGS START */
prtUserMacroI_Pitch 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 30
prtUserMacroI_LineSpace 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 31
prtUserMacroI_RightMargin 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 32
prtUserMacroI_FormLength 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 33
prtUserMacroI_Font 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 34
prtUserMacroI_NLQ_Font 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 35
prtUserMacroI_HostFastDraft 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 36
prtUserMacroI_Nation 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 37
prtUserMacroI_Emulation 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 38
prtUserMacroI_MediaSizePriority 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 39
prtUserMacroI_BcMode 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 40
prtUserMacroI_GraMode 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 41
prtUserMacroFontLock 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 2, 1, 1, 42
/* IPDS SETTINGS END */
prtMenuConfig 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3
prtMenuConfigTable 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1
prtMenuConfigEntry 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1
prtMenuConfigMacroWork 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 1
prtMenuConfigIfType 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 2
prtMenuConfigEmulation 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 3
prtMenuConfigCharset 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 4
prtMenuConfigNation 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 5
prtMenuConfigAutoCR 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 6
prtMenuConfigAutoLF 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 7
prtMenuConfigIBM20CPI 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 8
prtMenuConfigBarcode 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 9
/* ANSI SETTINGS START */
prtMenuConfigA_CharSet 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 10
prtMenuConfigA_CharTable 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 11
prtMenuConfigA_Nation 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 12
prtMenuConfigA_RIS_Enable 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 13
prtMenuConfigA_SI_SO_Control 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 14
prtMenuConfigA_AutoCR 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 15
prtMenuConfigA_PrimeOnDEL 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 16
prtMenuConfigA_ControlInDg 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 17
prtMenuConfigA_ExpandUp 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 18
prtMenuConfigA_AltGraph 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 19
prtMenuConfigA_8BitControl 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 20
prtMenuConfigA_ENQ_Code 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 21
prtMenuConfigA_SubSuperScript 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 22
prtMenuConfigA_ControlInESC 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 23
prtMenuConfigA_VT_NotSet 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 24
ProgrammerManual PTXS809
AppendixDLanInterfaceMIBSupport185260070001A
Table 6 List of the MIB of the printer.
Description MIB
prtMenuConfigA_DoubleLF 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 25
prtMenuConfigA_AutoWrap 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 26
prtMenuConfigA_ClearMargin 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 27
prtMenuConfigA_Backup 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 28
prtMenuConfigA_GuardBar 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 29
/* ANSI SETTINGS END */
prtMenuConfigParType 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 30
prtMenuConfigParSelectIn 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 31
prtMenuConfigParDataBits 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 32
prtMenuConfigParDedicBuffer 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 33
prtMenuConfigSerType 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 34
prtMenuConfigSerBaudRate 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 35
prtMenuConfigSerDataBits 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 36
prtMenuConfigSerParity 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 37
prtMenuConfigSerProtocol 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 38
prtMenuConfigSerLocRem 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 39
prtMenuConfigSerDedicBuffer 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 40
prtMenuConfigBuzzer 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 45
prtMenuConfigSequence 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 46
prtMenuConfigRibbon 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 47
prtMenuConfigBarCodeDpi 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 48
prtMenuConfigTextDirect 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 49
prtMenuConfigGraphDirect 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 50
prtMenuConfigBarCodeDirect 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 51
prtMenuConfigGraphHighSpeed 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 52
prtMenuConfigPowerOnPath 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 53
prtMenuConfigMenuLanguage 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 54
prtMenuConfigLowerJamSensor 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 55
prtMenuConfigUpperJamSensor 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 56
prtMenuConfigTearAdjust 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 57
prtMenuConfigQuick 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 58
prtMenuConfigOverlay 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 59
prtMenuConfigA_AutoLF 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 60
prtMenuConfigD_G0_CharSet 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 61
prtMenuConfigD_UP_CharSet 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 62
prtMenuConfigD_AutoCR 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 63
prtMenuConfigD_AutoLF 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 64
prtMenuConfigD_AutoWrap 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 65
prtMenuConfigCondensed 1, 3, 6, 1, 4, 1, 6345, 1, 2, 3, 3, 1, 1, 66
printserver 1, 3, 6, 1, 4, 1, 6345, 1, 1
csystem 1, 3, 6, 1, 4, 1, 6345, 1, 1, 1
csystemVersion 1, 3, 6, 1, 4, 1, 6345, 1, 1, 1, 1
cinetd 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2
cinetdnum 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 1
cinetdNumber 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 1, 1
cinetdlpd 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 2
cinetdDescr1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 2, 1
cinetdType1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 2, 2
ProgrammerManual PTXS809
AppendixDLanInterfaceMIBSupport186260070001A
Table 6 List of the MIB of the printer.
Description MIB
cinetdUdp1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 2, 3
cinetdWait1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 2, 4
cinetdInstance1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 2, 5
cinetdUserID1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 2, 6
cinetdProgram1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 2, 7
cinetdProgram11 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 2, 8
cinetdftp 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 3
cinetdDescr2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 3, 1
cinetdType2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 3, 2
cinetdUdp2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 3, 3
cinetdWait2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 3, 4
cinetdInstance2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 3, 5
cinetdUserID2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 3, 6
cinetdProgram2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 3, 7
cinetdProgram12 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 3, 8
cinetdtelnet 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 4
cinetdDescr3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 4, 1
cinetdType3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 4, 2
cinetdUdp3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 4, 3
cinetdWait3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 4, 4
cinetdInstance3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 4, 5
cinetdUserID3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 4, 6
cinetdProgram3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 4, 7
cinetdProgram13 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 4, 8
cinetddipd 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 5
cinetdDescr4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 5, 1
cinetdType4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 5, 2
cinetdUdp4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 5, 3
cinetdWait4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 5, 4
cinetdInstance4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 5, 5
cinetdUserID4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 5, 6
cinetdProgram4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 5, 7
cinetdProgram14 1, 3, 6, 1, 4, 1, 6345, 1, 1, 2, 5, 8
cservices 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3
cservnum 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 1
cservNumber 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 1, 1
cservftp 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 2
cservDescr1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 2, 1
cservPort1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 2, 2
cservType1 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 2, 3
cservtelnet 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 3
cservDescr2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 3, 1
cservPort2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 3, 2
cservType2 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 3, 3
cservlpd 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 4
cservDescr3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 4, 1
cservPort3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 4, 2
cservType3 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 4, 3
ProgrammerManual PTXS809
AppendixDLanInterfaceMIBSupport187260070001A
Table 6 List of the MIB of the printer.
Description MIB
cservdipd 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 5
cservDescr4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 5, 1
cservPort4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 5, 2
cservType4 1, 3, 6, 1, 4, 1, 6345, 1, 1, 3, 5, 3
cqueue 1, 3, 6, 1, 4, 1, 6345, 1, 1, 4
cinit 1, 3, 6, 1, 4, 1, 6345, 1, 1, 5
cintAddr 1, 3, 6, 1, 4, 1, 6345, 1, 1, 5, 1
cdefRout 1, 3, 6, 1, 4, 1, 6345, 1, 1, 5, 3
cnetMask 1, 3, 6, 1, 4, 1, 6345, 1, 1, 5, 2
cinitHost 1, 3, 6, 1, 4, 1, 6345, 1, 1, 5, 4
cinitWorkg 1, 3, 6, 1, 4, 1, 6345, 1, 1, 5, 5
cinitDescr 1, 3, 6, 1, 4, 1, 6345, 1, 1, 5, 6
cinitBoot 1, 3, 6, 1, 4, 1, 6345, 1, 1, 5, 7
cprinter 1, 3, 6, 1, 4, 1, 6345, 1, 1, 6
cconfig 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7
csnmpd 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 1
csnmpdEnb 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 1, 1
csnmpdReadCommunity 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 1, 2
csnmpdSetCommunity 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 1, 3
csnmpdSetCommunityCrypt 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 1, 4
chttpd 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 2
chttpdEnb 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 2, 1
csamba 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 3
csambaEnb 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 3, 1
cnovell 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 4
cnovellEnb 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 4, 1
cnovellFrmType 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 4, 2
cnovellNwServer 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 4, 3
cnovellPrtName 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 4, 4
cnovellQueueName 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 4, 5
csmtp 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 5
csmtpEnb 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 5, 1
csmtpEmailAddr 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 5, 2
csmtpSMTPAddr 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 5, 3
csmtpTrap 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 5, 4
csmtpEmailMittAddr 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 5, 6
csecurity 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 6
csecUser 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 6, 1
csecPwd 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 6, 2
csecPwdCrypt 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 6, 3
cipds 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 7
cipdsEnb 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 7, 1
cipdsPort 1, 3, 6, 1, 4, 1, 6345, 1, 1, 7, 7, 2
ProgrammerManual PTXS809
AppendixDLanInterfaceMIBSupport188260070001A
ProgrammerManual PTXS809
AppendixETheRPMU189260070001A
Appendix E. The Remote Printer Management Utility
The Remote Printer Management Utility (RPMU) is a software tool for network administrators that allows the
configuration and control of Printronix Company printers remotely connected to the Ethernet LAN.
With this tool the installed printers may be controlled, configured and organized easily.
The main features are:
Device Discovery Searches for the devices within a range of IP addresses.
Printer Organization The printers connected to the network can be organized into logical
groups in a hierarchically structured tree.
Printer Status Report Checks the printer's status and reports alarms.
Printer Configuration The remotely connected printers may be configured as needed from
the administrator's workstation.
Firmware Updating Provides a firmware downloading function to upgrade both the base
and the LAN card firmware.
Remote Operator Panel Provides a virtual operator panel for the remotely connected
Management printer at the administrator's workstation that allows to perform all
functions normally achieved pressing the operator panel keys.
The Remote Printer Management Utility also provides the basic status management for third-party printers
compliant to the standard MIB objects.
Operating System Compatibility
The Remote Printer Management Utility is a Java™ based application and can be run on any platform
supporting the Java Run Time Environment version 1.6 or newer.
Software Installation and Documentation
The Remote Printer Management Utility software and Administrator's Guide can be downloaded from our
website at : www.printronix.com
ProgrammerManual PTXS809
AppendixETheRPMU190260070001A
This page is intentionally left blank
ProgrammerManual PTXS809
AppendixFPrinterDriverSupport191260070001A
Appendix F. Print Driver Support
Microsoft Windows drivers, IBM pSeries AIX color files, and IBM System i workstation customization objects
can be downloaded from our website: www.Printronix.com
ProgrammerManual PTXS809
AppendixFPrinterDriverSupport192260070001A
This page is intentionally left blank.
ProgrammerManual PTXS809
AppendixG193260070001A
Appendix G. S809 Bar Code and OCR Printing Options
This appendix contains information about the options that are available for printing bar codes and Optical
Character Recognition (OCR) characters. The bar code charts detail the element (bar/space) width
options, the wide-to-narrow element ratios, the magnification percentages, and the characters printed per
inch plus whether the bar codes can be printed in low-contrast or high-contrast modes. Low-contrast mode
provides the best throughput, while high-contrast mode results in the best bar code printing quality.
The OCR section contains the Optical Character Recognition symbol subsets that can be printed.
Bar Code Printing Options Charts
Keep the following statements in mind when printing bar codes.
All bar codes printed by the S809 Printer can print in high-contrast mode. Not all of them, however, can
print in low-contrast mode. If you specify low-contrast mode for a bar code that is not supported in that
mode, the printer will not return an error but will default to high-contrast mode instead.
Vertically-rotated bar codes may not consistently meet bar/space width specifications. Users should test
for application suitability.
Bar codes printed in low-contrast mode may not consistently meet specifications. Users should test for
application suitability.
Table 7. Bar Code Printing Options for Non-UPC Family Bar Codes
ProgrammerManual PTXS809
AppendixG194260070001A
Table 7. Bar Code Printing Options for Non-UPC Family Bar Codes (continued)
ProgrammerManual PTXS809
AppendixG195260070001A
Table 7. Bar Code Printing Options for Non-UPC Family Bar Codes (continued)
Table 8. Bar Code Printing Options for UPC Family Bar Codes
Optical Character Recognition (OCR) Printing
OCR Symbols
The S809 prints a comprehensive set of OCR-A and OCR-B characters derived from standards developed
by the International Standards Organization (ISO) and the American National Standards Institute (ANSI).
All OCR character shapes produced by the S809 Printer are not identical with the shapes defined in these
standards. Users should test OCR printing with their scanning equipment to verify satisfactory
performance.
ProgrammerManual PTXS809
AppendixG196260070001A
OCR Scanning
Printronix Company has tested the following OCR symbol subsets for readability:
Table 9. OCR Symbol Subsets
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)19726007X001A
Appendix H. Configuration Menu Lockout
Configuration Menu Lockout should be used by the application programmer or printer operator to lock the
Configuration Menu when you want to prevent a casual operator from changing parameter values that
have been set for print jobs.
To set Configuration Menu Lockout:
1. Press ON LINES if the READY indicator is on. The printer goes to the NOT READY state.
2. In the NOT READY state, press and hold ALTERNATE + MACRO + ONLINE keys in the same time.
The printer displays MENU LOCKED.
3. To unlock the Configuration Menu repeat the step 1 and 2. The printer display MENU UNLOCKED.
Press STOP
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)19826007X001A
This page is intentionally left blank.
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)19926007X001A
Appendix I Addendum (Bar Codes)
The following chapter integrates the Bar Code information already present in this manual adding the
Intelligent Mail Barcode explanation with examples in different emulations.
Furthermore it describes some features in specific Emulation Commands present in the firmware but not
described in the previous chapters.
Bar Code Mode
The S809 printer has three different Bar Code Modes selectable in the Power-on Configuration Setup.
1) Native selection enables bar code printing using :
The Native commands as indicated in chapter 2 and also in this chapter as examples
MTPL commands as indicated later on in this chapter.
2) Alt.1 selection enables bar code printing using :
EPSON or IBM commands as indicated in chapter 1.
3) Alt.2 selection enables bar code printing using:
SEIKOSHA commands as indicated later on in this chapter.
The S809 can print Bar Code using also :
ANSI commands as indicated in chapter 3 (see example in this chapter)
USPS Intelligent Mail Bar Code 4-state
The S809 can print the USPS Intelligent Mail Bar Code 4-state in different emulations.
The 4-statebarcode data must contains only ASCII numeric (from 0 to 9) and must be converted into only 0,
1, 2 or 3. Each number represents one of the four possible bars.
The Intelligent Mail barcode is a 65-bar Postal Service™ barcode used to sort and track letters and flats. It
allows mailers to use a single barcode to participate in multiple Postal Service programs simultaneously,
expands mailers’ ability to track individual mail pieces, and provides greater mail stream visibility.
The Intelligent Mail barcode consists of a 20-digit tracking code (Barcode Identifier, Service Type Identifier,
Mailer Identifier, and Serial Number) and a Routing Code (ZIP Code™) field of up to 11 digits.
An encoder converts the digits into a 65-character string representing the bars of the IMb® tracking code,
EXAMPLE:
Service Type ID of 270 (First-Class Mail®, Intelligent Mail Full-Service option, with IMb Tracing® service,
no address correction), Mailer ID 123456, uniquely identified by Serial Number 200800001, going to ZIP
Code 98765-4321(01), is encoded like this:
Digit String:
0027012345620080000198765432101
Intelligent Mail barcode encoder > Encoded string (T=Tracker, F=Full Bar, A=Ascender, D=Descender):
TTFAFDADTFFFADTAFAFTTDATDFAAFTDAFDFDFDATFDFTDDDDFADFFDADDTDDTTDAT
More information on website: https://postalpro.usps.com/mailing/intelligent-mail-barcode
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20026007X001A
Intelligent Mail Bar Code 4-state with Native Commands Mode
(Native Bar Code Mode)
DC4 DC4 ESC ! h “ f EM
UPPS Bar Code Selection.
ASCII Code DC4 DC4 ESC ! h “ f F r EM
Hexadecimal Value X'14' X'14' X'1B' X'21' h X’22’ f F r X’19’
Decimal Value 20 20 27 33 h 34 f F r 25
h = Bar Code Height at n/6”, 1 < h < 30
f = Readable character printing
f = 0 printing disabled
f = 1 printing enabled, characters below barcode, justified position
f = 21 printing enabled, characters above barcode, justified position
f = 81 printing enabled, characters below barcode, middle position
f = A1 printing enabled, characters above barcode, middle position
F = Font selection for the printable characters
0 Selected font by r value
1 Default font for text
1 Special font for OCR-A o OCR-B bar codes according to the t value
3 Special font for OCR-A bar codes
4 Special font for OCR-B bar codes
r = Bar code rotation
r Selection
0 No rotation
1 Rotation at 0°
2 Rotation at 90°
3 Rotation at 180°
4 Rotation at 270°
EM = Check sequence terminator
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20126007X001A
Intelligent Mail Bar Code 4-state with Epson/IBM Emulations Commands
(Alt. 1 Bar Code Mode)
See chapter 1, pages 54, 55 for details of these commands.
Remark: these commands are not handled in DEC emulations.
ESC [ v n m
Sets Barcode parameters. (IBM -Epson)
ASCII Code ESC [ vnm
Hexadecimal Value X'1B' X'5B' X'76' nm
Decimal Value 27 91 118 nm
Set barcode parameters according to the table below. Parameter values that are not supported result in
the command being ignored.
n Parameter Description m values
0 Barcode style IMB 4-state X ‘22’, 34 dec
2 Human readable line 0=disable
1, 21 =enable below barcode
81, A1 =enable above barcode
8 Rotation and HRC font 0.1=no rotation and current font for HRC
2=90 3=180 4=270 and special HRC font
11 HRC font for rotate barcode 3=OCRA 4=OCRB
Intelligent Mail Bar Code 4-state with MTPL Commands
(Native Bar Code Mode)
ESC [ 9 SP k CR
Sets bar code parameters (BC).
ASCII Code ESC [ 9 SP k CR
Hexadecimal Value X'1B' X'5B' X’39’ X'20' X’6B’ X’0D’
Decimal Value 27 91 57 32 109 13
In next pages a specific sub-chapter describes the MTPL (Mannesmann-Tally Printer Language) commands
which can be handled by S809 printer.
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20226007X001A
Intelligent Mail Bar Code 4-state with ANSI Emulation Commands
See chapter 3, pages 86 and 87 for details of these commands.
ESC [ p1; ; ; pn }
Sets bar code parameters (BC).
ASCII Code ESC [ p1; pn }
Hexadecimal Value X'1B' X'5B' p1 X'3B' pn X'7D'
Decimal Value 27 91 p1 59 pn 125
This command allows selection of the bar code characteristics such as style height, symbol rotation and so
on. The command ESC [3 t enables the bar code mode while ESC [0 t disables the mode.
p1: Bar code style
p1 FUNCTION
X ’33 34’, dec 48 49 IMB 4-state
p3: Human Readable Input (HRI)
p3 FUNCTION
0 Disables printing of the HRI
1 Enables printing of the HRI
p9: Rotation
p9 FUNCTION
0 0 degrees using current font
1 0 degrees using special HRI font
2 90 degrees using special HRI font
3 180 degrees using special HRI font
4 270 degrees using special HRI font
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20326007X001A
USPS Intelligent Mail Bar Code 4-state Examples
The following are samples for USPS Intelligent Mail Bar Code 4-state printed with the S809 Printer with
related hex commands:
Figure 71. Intelligent Mail Bar Code in Native Commands Example (Bar Code Mode Native)
Figure 72. Intelligent Mail Bar Code in Epson/IBM Commands Example (Bar Code Mode Alt. 1)
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20426007X001A
Figure 73. Intelligent Mail Bar Code in ANSI Commands Example
Figure 74. Intelligent Mail Bar Code in MTPL Commands Example (Bar Code Mode Alt. 1)
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20526007X001A
Bar Codes handled in NATIVE Commands
(Native Bar Code Mode)
The S809 integrates in the firmware the handling of the Bar Codes with the NATIVE commands.
The complete and detailed information for these commands can be found on chapter 2 of this Programmer
Manual. Here are reported some examples how these commands work.
Figure 75. Bar Code Examples with NATIVE Commands Example (Bar Code Mode Native)
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20626007X001A
Figure 76. Hex Dump of example on figure 75
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20726007X001A
Figure 77. Bar Code Examples with NATIVE Commands Example (Bar Code Mode Native)
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20826007X001A
Figure 78. Bar Code Examples with NATIVE Commands Example (Bar Code Mode Native)
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)20926007X001A
Figure 79. Bar Code Examples with NATIVE Commands Example (Bar Code Mode Native)
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)21026007X001A
Figure 80. Hex Dump of example on figures 77, 78, 79
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)21126007X001A
Bar Codes handled in MTPL Commands
(Native Bar Code Mode)
The S809 integrates in the firmware a sub-set handling of the MTPL emulation Bar Codes commands.
The complete and detailed information for these commands can be found on specific MTPL Programmer
Manual available on web.
Bar Code Description
Before the data, which contain the Barcode information, are transmitted to the printer, the Barcode header
must be sent. Otherwise the standard parameter values are used (see section "Header Format"). In the
header, the printing parameters, the Barcode size and the Barcode Type are de-fined. This header only
needs to be transferred once, unless settings are to be changed or the printer has been turned off.
Header Format Format: SUB [F] a [n] [;xyz] [;p] EM
[ ] Specification is optional
x, y unregarded at EAN/UPC-Barcode!
For Code 128 and EAN 128 (Type S+T) only the X parameter is valid. This is automatically used for the Y
parameter. The Z parameter is not evaluated.
Meaning of the characters:
SUB (hex.1A, dec.26) Start header
F Print feature
SP (hex. 20, dec. 32): HRI OFF, Normal Print, Double Pass, Unidirectional (def.)
! (hex. 22, dec. 34): HRI ON, Normal Print, Double Pass, Unidirectional
a ASCII a = "A"..."S" Barcode Types (def. “A”, see later on)
n ASCII n = "0"..."90" Barcode height in n/6 inch. At n="0" the Barcode height equals to 1/12 inch. (def. 1)
; ASCII Separation character
x ASCII x = "0"..."3" Width of the narrow bar (def.0 )
y ASCII y = "0"..."3" Width of the narrow space (def.0 )
z ASCII z = "0"..."3" Ratio of wide to narrow (def.0 )
p ASCII p = "0"…"9" Barcode orientation (def. 0, horizontal)
EM (hex.19, dec.25) End of header
Barcode Types
A = 2/5 matrix (default) B = 2/5 industrial C = 2/5 interleaved
D = Code 11 E = Code BCD matrix F = Code 39
G = Codabar H = EAN 8 with HRI I = EAN 8 without HRI
J = 2/5 matrix (default) K = EAN 13 with HRI L = EAN 13 without HRI
M = MSI/modified Plessey N = UPC A with HRI O = UPC A without HRI
P = UPC E with HRI Q = UPC E without HRI S = Code 128
T = EAN 128/GSI-128
Post Office Barcode Types
US Postnet Barcode = ESC [ 1 SP p
Planet Barcode = ESC [ 2 SP p <data> EM
KIX Barcode = ESC [ 2 SP k
Royal Mail Customer Barcode = ESC [ 1 SP k
USPS Intelligent Mail Barcode (IMB) = ESC [ 9 SP k
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)21226007X001A
MTPL Bar Codes Commands Examples
Figure 81. Bar Code Examples with MTPL Commands (Bar Code Mode Alt. 1)
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)21326007X001A
Figure 82. Bar Code Examples with MTPL Commands (Bar Code Mode Alt. 1)
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)21426007X001A
Figure 83. Hex Dump of example on figures 81, 82
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)21526007X001A
Bar Codes handled in SEIKOSHA Commands
(Alt. 2 Bar Code Mode)
The S809 partially integrates in the firmware a sub-set handling of the SEIKOSHA BP-9000 Bar Codes
specific commands.
The complete and detailed information for these can be found in specific SEIKOSHA BP-9000 programmer
manual available on web.
# Function Bar Code Commands
1. Bar code type DC4 DC4 T n
2. Element width DC4 DC4 E n1 n2
3. Bar code height DC4 DC4 H n
4. Setting HRI on and off DC4 DC4 I n
5. HRI font DC4 DC4 F n
6. Check character DC4 DC4 C n
7. Starting the bar code data sequence ESC SI
8. Ending the bar code data seqence ESC SO
9. Bar code data sequence DC4 DC4 B n d1 d2 ... dk
10. Printing density DC4 DC4 D n
11. Guard bar expansion DC4 DC4 G n
12. Start and stop characters DC4 DC4 N n1 n2
13. Bar code rotational angle DC4 DC4 R n
14. Disabling HRI of the start and stop characters DC4 DC4 S n
15. Value input mode DC4 DC4 V n
16. Initializing the bar code mode DC4 DC4 @
Bar Code Type (n)
0 Industrial 2 of 5 5 Code39 10 UPC-A
1 Interleaved 2 of 5 6 Code93 11 UPC-E
2 Matrix 2 of 5 7 Code128 12 Postnet
3 Codabar 8 EAN-8
4 Code11 9 EAN-13
ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)21626007X001A
SEIKOSHA Commands Bar Codes Examples
Figure 84. Bar Code Examples with SEIKOSHA Commands (Bar Code Mode Alt. 1)

ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)21726007X001A
Figure 85. Hex Dump of example on figure 84

ProgrammerManual PTXS809
AppendixI.Addendum(BarCodes)21826007X001A
This page is intentionally left blank
ProgrammerManual PTX-S809
Notices219260070001A
Notices
These terms are trademarks or registered trademarks of Ricoh Co., Ltd., in the United States, other
countries, or both:
IBM
Infoprint Solutions
Ricoh
Advanced Function Printing
AFP
Intelligent Printer Data Stream
IPDS
These terms are trademarks or registered trademarks of International Business Machines Corporation in
the United States, other countries, or both:
AIX
AS400
i5/OS
IBM
iSeries
MVS
OS/400
Print Services Facility
PSF
System i
z/OS
zSeries
Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks
of Adobe Systems Incorporated in the United States and/or other countries.
Intel, Intel Inside (logos), MMX, and Pentium are trademarks of Intel Corporation in the United States,
other countries, or both.
Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both.
Microsoft, Windows, Windows NT, and the Windows logo are trademarks of Microsoft Corporation in the
United States, other countries, or both.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Other company, product, or service names may be trademarks or service marks of others.
ProgrammerManual PTX-S809
Notices220260070001A
This page is intentionally left blank.
ProgrammerManual PTX-S809
Notices221260070001A
This page is intentionally left blank.
ProgrammerManual PTX-S809
Notices222260070001A
This page is intentionally left blank.
ProgrammerManual PTX-S809
CustomerSupport223260070001A
Customer Support
Printronix Customer Support Center
IMPORTANT Please have the following information available prior to calling the Printronix
Customer Support Center:
Model number
Serial number (located on the back of the printer)
Installed options (i.e., interface and host type if applicable to the problem)
• Configuration printout:
Press the ON LINE ke
y
to take the
p
rinter OFF LINE
Press the PROGRAM ke
y
PRINT OUT? NO Is displayed
Press the ke
y
PRINT OUT? YES The PROGRAM SETUP
PRINTOU
T
is printed
Press the key until PRINT STATS? NO Is displayed
Press the ke
y
PRINT OUT? YES The USAGE STATISTICS
DATA PRINTOUT is printed
Press the key until CONFIG MENU NO Is displayed
Press the key to displa
y
CONFIG MENU YES
Press the ke
y
PRINT OUT? NO Is displayed
Press the ke
y
PRINT OUT? YES The CONFIGURATION
SETUP PRINTOUT is
p
rinted
Press the PROGRAM ke
y
Press the TEAR ke
y
and tear off the
p
rintout at the
p
erforation
Is the problem with a new install or an existing printer?
Description of the problem (be specific)
Good and bad samples that clearly show the problem (faxing or emailing these samples
may be required)
Americas (714) 368-2686
Europe, Middle East, and Africa (31) 24 6489 311
Asia Pacific (65) 6548 4114
China (86) 800-999-6836
http://www.printronix.com/support.aspx
Printronix Supplies Department
Contact the Printronix Supplies Department for genuine Printronix supplies.
Americas (800) 733-1900
Europe, Middle East, and Africa (33) 1 46 25 19 07
Asia Pacific (65) 6548 4100
China (86) 400-886-5598
http://www.printronix.com/supplies-parts.aspx
ProgrammerManual PTX-S809
CustomerSupport224260070001A
Corporate Offices
Printronix, LLC.
6440 Oak Canyon Rd, Suite 200
Irvine, CA 92618
U.S.A.
Phone: (714) 368-2300
Fax: (714) 368-2600
Printronix Inc.
c/o Printronix Nederland BV
Bijsterhuizen 11-38
6546 AS Nijmegen
The Netherlands
Phone: (31) 24 6489489
Fax: (31) 24 6489499
Printronix Schweiz GmbH
3Changi Business Park Vista
#04-05 AkzoNobelHouse
Singapore 486051
Phone: (65) 6548 4100
Fax: (65) 6548 4111
Printronix Commercial (Shanghai) Co. Ltd
Room 903, 9thFloor
No. 199, North Xizang Road
200070 Shanghai P.R. China
Phone: (86) 400 886 5598
Fax: (8621) 61171256
Printronix India PvtLtd
B-808/809, BSEL Tech Park 8thFloor, Sector 30A
VashaiNaviMumbai 400705 India
Toll Free No.: 1800 102 7896 Fax: (9211) 4158 5555
Visit the Printronix web site at www.printronix.com
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
This manual refers to various company and products by their trade names.
In most of the cases, these designations are claimed as trademarks or
registered tramarkers by their respective companies.
Copyright 2017 PRINTRONIX s.r.l. - Printed in Italy
