PVCAM 2.7 User Manual

User Manual:

Open the PDF directly: View PDF .
Page Count: 168 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Table of Contents
Chapter 1: SDK
- What is the SDK?
- Contact Information
Chapter 2: PVCAM, A High-Level C Library
Chapter 3: Camera Communications (Class 0)
Chapter 4: Error Reporting (Class 1)
Chapter 5: Configuration/Setup (Class 2)
Chapter 6: Data Acquisition (Class 3)
Chapter 7: Buffer Manipulation (Class 4)
Chapter 8: Code Examples
Appendix A: Error Codes
Appendix B: Obsolete Functions
Index

4411-0094

Version 2.7.0

December 28, 2004

4411-0094

a division of Roper Scientific, Inc.

3660 Quakerbridge Rd.

Trenton, NJ 08619

TEL: 800-874-9789 / 609-587-9797

FAX: 609-587-1970

permission of Princeton Instruments, a division of Roper Scientific, Inc. ("Princeton Instruments").

Printed in the United States of America.

Macintosh is a registered trademark of Apple Computer, Inc.

Roper Scientific and PVCAM are registered trademarks of Roper Scientific, Inc.

UNIX was a registered trademark of UNIX System Laboratories, Inc. and now is registered to the X/Open

Consortium.

Windows is a registered trademark of Microsoft Corporation.

The information in this publication is believed to be accurate as of the publication release date. However,

Roper Scientific, Inc. does not assume any responsibility for any consequences including any damages

resulting from the use thereof. The information contained herein is subject to change without notice.

Revision of this publication may be issued to incorporate such change.

iii

Table of Contents

Chapter 1: SDK 1

What is the SDK? ............................................................................................................................ 1

Contact Information......................................................................................................................... 1

Chapter 2: PVCAM, A High-Level C Library 3

Introduction...................................................................................................................................... 3

System Overview............................................................................................................................. 3

Hardware Support............................................................................................................................ 3

Library Classes ................................................................................................................................ 4

Documentation Style........................................................................................................................ 4

Defined Types.................................................................................................................................. 5

Naming Conventions ....................................................................................................................... 6

Include Files..................................................................................................................................... 6

Parameter Passing and const............................................................................................................7

CCD Coordinates Model.................................................................................................................. 7

Regions and Images...................................................................................................................7

Binning Factors .........................................................................................................................8

Data Array.................................................................................................................................8

Display Orientation ...................................................................................................................8

Port and Speed Choices ................................................................................................................... 8

Frame Transfer............................................................................................................................... 10

Interline.......................................................................................................................................... 10

Kinetics.......................................................................................................................................... 10

Custom Chip .................................................................................................................................. 11

Custom Timing .............................................................................................................................. 11

Image Smear .................................................................................................................................. 11

Sequences....................................................................................................................................... 12

Sequence Parameters IDs/Constants.............................................................................................. 13

Circular Buffer............................................................................................................................... 13

Clear Modes................................................................................................................................... 15

Exposure Modes ............................................................................................................................ 16

Exposure: TIMED_MODE .....................................................................................................16

Exposure: VARIABLE_TIMED_MODE ...............................................................................16

Exposure: TRIGGER_FIRST_MODE....................................................................................17

Exposure: STROBED_MODE................................................................................................17

Exposure: BULB_MODE .......................................................................................................18

Exposure: FLASH_MODE .....................................................................................................18

Open Delay, Close Delay............................................................................................................... 19

Shutter Control............................................................................................................................... 20

iv PVCAM Manual Version 2.7

Exposure Loops ............................................................................................................................. 20

Image Buffers ................................................................................................................................ 24

Source Code Examples .................................................................................................................. 25

Chapter 3: Camera Communications (Class 0) 27

Introduction.................................................................................................................................... 27

List of Available Class 0 Functions............................................................................................... 27

List of Available Class 0 Parameter IDs........................................................................................ 27

Class 0 Functions........................................................................................................................... 28

Class 0 Parameter IDs.................................................................................................................... 38

Chapter 4: Error Reporting (Class 1) 41

Introduction.................................................................................................................................... 41

Error Codes.................................................................................................................................... 42

List of Available Class 1 Functions............................................................................................... 42

Class 1 Functions........................................................................................................................... 43

Chapter 5: Configuration / Setup (Class 2) 45

Introduction.................................................................................................................................... 45

List of Available Class 2 Functions............................................................................................... 46

List of Available Class 2 Parameter IDs........................................................................................ 46

Class 2 Functions........................................................................................................................... 48

Class 2 Parameter IDs.................................................................................................................... 53

Chapter 6: Data Acquisition (Class 3) 67

Introduction.................................................................................................................................... 67

List of Available Class 3 Functions............................................................................................... 67

List of Available Class 3 Parameter IDs........................................................................................ 67

Defining Exposures........................................................................................................................ 68

New Structures............................................................................................................................... 68

Exposure Mode Constants ............................................................................................................. 69

Class 3 Functions........................................................................................................................... 70

Class 3 Parameter IDs.................................................................................................................... 90

Chapter 7: Buffer Manipulation (Class 4) 93

Introduction.................................................................................................................................... 93

List of Available Class 4 Functions............................................................................................... 93

New Constants ............................................................................................................................... 94

Image Handles and Pointers........................................................................................................... 94

Class 4 Functions........................................................................................................................... 95

Chapter 8: Code Examples 111

Example 1: pl_get_param & pl_get_enum_param ......................................................................111

Example 2: pl_set_param............................................................................................................. 115

Example 3: Circular Buffer.......................................................................................................... 117

Table of Contents v

Latest Frame Mode (FOCUS) ...............................................................................................117

Oldest Frame Mode (NFRAME)...........................................................................................119

Example 4: Standard Mode Acquisition...................................................................................... 121

Appendix A: Error Codes 123

Appendix B: Obsolete Functions 133

Obsolete Class 0 Functions.......................................................................................................... 136

Obsolete Class 2 Functions.......................................................................................................... 143

Obsolete Class 3 Functions.......................................................................................................... 153

Index 157

List of Tables

Table 1. New Number Types.......................................................................................................... 5

Table 2. New Pointer Types............................................................................................................ 6

Table 3. Standard Abbreviations..................................................................................................... 6

Table 4. Two Port Camera Example...............................................................................................9

Table 5. Error Codes................................................................................................................... 123

Table 6. Obsolete Class 0 Functions and Their pl_set_param/pl_set_param Equivalents..........133

Table 7. Obsolete Class 2 Functions and Their pl_set_param/pl_set_param Equivalents..........133

Table 8. Obsolete Class 3 Functions and Their pl_set_param/pl_set_param Equivalents..........135

vi PVCAM Manual Version 2.7

This page intentionally left blank.

Chapter 1:

SDK

What is the SDK?

SDK — Roper Scientific’s Software Development Kit — allows programmers to access and use the

capabilities of PVCAM

— Programmable Virtual Camera Access Method Library. (PVCAM is

described in detail in the chapters that follow.)

Both the SDK and PVCAM are designed to be platform independent, so the functions described in this

manual work with all supported operating systems. Specific information for installing and using the

library with your particular platform (Windows

, Macintosh

, or UNIX

) is contained in the Read Me

file included on the disk that came with your SDK. Please consult this Read Me file for information on:

• System requirements

• Linking PVCAM to your software

• Initializing PVCAM

• Device drivers

• Platform specific files

Contact Information

Princeton Instruments' manufacturing facility is located at the following address:

Roper Scientific, Inc.

3660 Quakerbridge Road

Trenton, NJ 08619 (USA)

TEL: 800-874-9789 / 609-587-9797

TEL: 609-587-1970

Customer Support E-mail: techsupport@princetoninstruments.com

For technical support and service outside the United States, see our web page at

www.princetoninstruments.com. An up-to-date list of addresses, telephone numbers, and e-mail addresses

of Princeton Instruments' overseas offices and representatives is maintained on the web page.

2 PVCAM Manual Version 2.7

This page intentionally left blank.

Chapter 2:

PVCAM, A High-Level C Library

Introduction

PVCAM is an ANSI C library of camera control and data acquisition functions. This library, which is

identical across platforms and operating systems, provides an interface that allows developers to specify

the camera's setup, exposure, and data storage attributes.

Note: Many Photometrics cameras support ICL scripting language that provides detailed low-level

control of exposure and CCD readout. None of the Princeton Instruments cameras support ICL scripting.

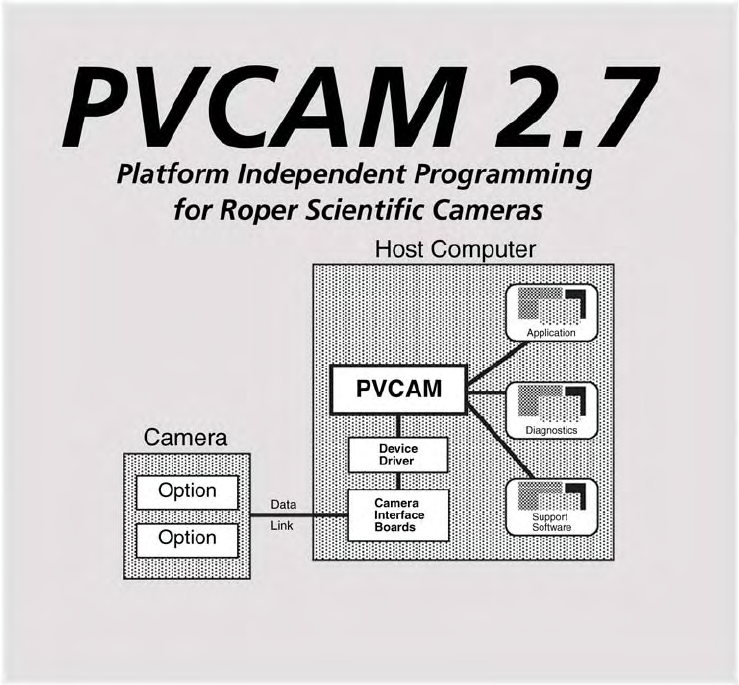

System Overview

To use PVCAM, a system must include camera hardware and software, a host computer, and the

PVCAM library.

Host Computer

Data

Link

Device

Driver

Camera

Interface

Boards

Support

Software

Diagnostics

Application

PVCAM

Camera

Option

Hardware Support

Roper Scientific produces two lines of hardware: Photometrics brand and Princeton Instruments

brand. Version 2.7 of the PVCAM library supports the following Princeton Instruments hardware:

• PentaMAX Version 5.0

• ST-133 Controlled Cameras (PCI and USB 2.0)

• PIXIS

Note: Macintosh

computers are not currently supported for Princeton Instruments hardware.

4 PVCAM Manual Version 2.7

Library Classes

The basic PVCAM library supports the following five classes of camera and buffer control:

0. Camera Communications These functions establish communication paths between

the high-level application software and the device driver.

They also establish some low-level functions for

controlling the camera hardware.

1. Error Reporting These functions monitor and report on other library

functions. When an error occurs, a function can be called

to return a unique error code.

2. Configuration/Setup These functions initialize the library and set up the

hardware and software environments. They also control

and monitor the camera hardware, and allow the user to

set parameters such as camera gain and temperature.

3. Data Acquisition These functions define how the image data are collected.

4. Buffer Manipulation These functions report buffer information and control

buffer allocation and editing.

Note: Other classes are supported in optional plug-ins. Contact the factory for more information

about plug-ins for PVCAM.

Documentation Style

This manual describes the functional aspects of using PVCAM and various controls for Roper

Scientific

® cameras (Chapter 2), gives reference pages for all of the function calls (Chapter 3

through Chapter 7), gives code examples (Chapter 8), provides a list of the defined error codes

(Appendix A) and lists the function calls that are obsolete but still supported in the library

(Appendix B).

Chapter 2: PVCAM, A High-Level C Library 5

Defined Types

In order to work effectively across platforms, the number of bytes in a variable must be consistent.

Therefore, new types have been defined for PVCAM. These typedefs are given in the header file

master.h

Type Explanation

rs_bool* true (non-0) or false (0) value

int8 signed 8-bit integral value

uns8 unsigned 8-bit integral value

int16 signed 16-bit integral value

uns16 unsigned 16-bit integral value

int32 signed 32-bit integral value

uns32 unsigned 32-bit integral value

enum treat as unsigned 32-bit integral value

flt64 64-bit floating point value

Table 1. New Number Types

*Note: The type ‘rs_bool’ has replaced the deprecated ‘boolean’ type. This is due to a size

difference of the ‘boolean’ type on the Windows platform. Namely, <windows.h> defines a

‘boolean’ type of a different size. Including <windows.h> in the same translation unit as

“master.h” compiles the wrong ‘boolean’ and causes subtle memory access violations. It is

strongly recommended to use the new ‘rs_bool’ type instead to avoid this potential clash.

Since Roper Scientific® camera data and analyses depend on bit depth, the new types give values

that are consistent with the size of the bit depth.

Each new type is composed of the appropriate combinations of int, short, long, or other types that

give the appropriate length for each value. The 8-bit types are the smallest type that holds 8 bits,

16-bit types are the smallest type holding 16 bits, and so forth.

The following list includes the new types defined for use in PVCAM. Additional derived types

always begin with the base name followed by

_ptr

_const_ptr

Type Pointer Pointer to Constant Type

rs_bool rs_bool_ptr rs_bool_const_ptr

char char_ptr char_const_ptr

int8 int8_ptr int8_const_ptr

uns8 uns8_ptr uns8_const_ptr

int16 int16_ptr int16_const_ptr

uns16 uns16_ptr uns16_const_ptr

int32 int32_ptr int32_const_ptr

uns32 uns32_ptr uns32_const_ptr

flt64 flt64_ptr flt64_const_ptr

6 PVCAM Manual Version 2.7

Type Pointer Pointer to Constant Type

rgn_type rgn_ptr rgn_const_ptr

export_ctrl_type export_ctrl_ptr export_ctrl_const_ptr

Table 2. New Pointer Types

Naming Conventions

To shorten names and improve readability, standard abbreviations are used for common words and

phrases. These abbreviations are used in function and variable names.

adc=analog-to-digital converter dly=delay num=number

addr=address dup=duplicate ofs=offset

bin=binning err = error par=parallel

buf=buffer exp=exposure pix=pixel

cam=camera expt=export ptr=pointer

cfg=configuration hbuf=buffer handle rpt=report

chan=channel hcam=camera handle rgn=region

clr=clear hi=high ser=serial

cmd=command hrgn=region handle shtr=shutter

comm=communication init=initialize spd=speed

ctr=counter len=length tmp=temp

ctrl=control lo=low totl=total

diag=diagnostics mem=memory xfr=transfer

Table 3. Standard Abbreviations

In PVCAM,

num

always means current selection number, while

totl

entries

is used for

total different possibilities.

A leading

usually signifies a type of handle, such as the camera handle (

hcam

). A handle is a

16-bit number that refers to an object.

Include Files

Any program using PVCAM must include the following files:

•

master.h

system-specific definitions and types

•

pvcam.h

constants and prototypes for all functions

master.h

must be included before

pvcam.h

Chapter 2: PVCAM, A High-Level C Library 7

Parameter Passing and const

When parameters are passed in or out of functions, it may be difficult to determine which

parameters the user should set and which parameters are set by the function. This is particularly

difficult in PVCAM, because virtually all information is exchanged through parameters (the

function return value is reserved for indicating errors).

A few simple rules help resolve the confusion:

• Pointers generally return information

from

a function.

• Non-pointers always send information

a function.

In a few cases, such as structures and arrays, a pointer is passed even though the data are being sent in

to the function. This is done to reduce overhead and to speed function calls, but it conflicts with the

rules above. To solve this problem, when a structure or array (pointer) is sent as input to a function,

the _const_ptr type is used to indicate that the function will not (and can not) change the data.

Note: const_ptr (pointers to const) always sends data into a function. The data is not altered.

CCD Coordinates Model

In many cameras, the CCD orientation is fixed. This fixed position places the origin in a

predetermined location and gives each pixel an x,y location.

In Roper Scientific cameras, the CCD orientation is not only different from camera to camera, but

the orientation may also change when the application changes. Therefore, we use a serial, parallel

(s,p) coordinates system. In this system, the origin is located in the corner closest to the serial

diagram below illustrates how the coordinates are unaffected by the CCD orientation.

(

s2, p2)

(s1, p1)

Serial Register

Serial Direction

(0, 0)

CCD

Parallel Direction

CCD

Serial Register

Serial Direction

(0, 0)

(

s2, p2)

(s1, p1)

Regions and Images

A region is a user-defined, rectangular exposure area on the CCD. As seen in the diagram above,

the user defines the region by selecting s1,p1 and s2,p2,the diagonal corners of the region.

An image is the data collected from a region. PVCAM reads out the image, then stores it in a buffer.

8 PVCAM Manual Version 2.7

Binning Factors

For data collection, two other parameters are needed: the serial and parallel binning factors. A

binning of 1 in both directions reads out each pixel at full lateral resolution. A binning of 2 in both

directions combines four pixels, cutting the lateral resolution in half, but quadrupling the light-

collecting area. The number of pixels read out are determined as (s2-s1+1)/sbin in the serial

direction, and (p2-p1+1)/pbin in the parallel direction. If these equations do not produce an integer

result, the remaining pixels are ignored.

Including binning, a data collection region can be fully specified with six parameters: s1,

p1,s2,p2,sbin,pbin. Since these values are 0 indexed, the following is true:

smax = serial size -1

pmax = parallel size -1

Data Array

When pixels are read out, they are placed in the data array indicated by the pointer passed into

pl_exp_start_cont or pl_exp_start_seq

. The pixels are placed into an array in the

following order:

1413121110987654321 15161718

19 20 21 22 23 24

25 26 27 28 29 30

31 32 33 34 3635

Serial Register

CCD

Data Array

Display Orientation

Some users have expressed an interest in having the data in video coordinates. With video

coordinates, 0,0 is displayed in the upper left corner, and subsequent pixels are painted from left to

right. Although video coordinate configuration can be done in the display routine, factors such as

the optical path, the camera rotation, and which readout port is selected may cause the image to

appear in a different position.

Port and Speed Choices

The CCD in a camera will have one or more output nodes from which the analog pixel stream will

be read. These nodes are referred to as “Readout Ports”. The signal from a readout port is passed to

an analog signal processing chain and then passed to an analog to digital converter (ADC). The

ADC operates at one or more digitization rates and has a set of parameters associated with it. In

PVCAM, the choice of speed (digitization rate) and associated ADC parameters are organized into

a Speed Table. In some cameras, different readout ports will be connected to different analog

processing chains and different ADCs. The most general method for setting up the port and speed

choices is to make the speed choices dependent upon the port selection.

To view the port settings, call

pl_get_param

with

PARAM_READOUT_PORT

with the

ATTR_COUNT

attribute to determine how many ports are available in your camera. Next, iterate

through each choice, calling

pl_get_enum_param

with

PARAM_READOUT_PORT

and record the

enumerated types returned for each valid port. Next, iterate through each of the enumerated valid

Chapter 2: PVCAM, A High-Level C Library 9

ports calling pl_set_param with

PARAM_READOUT_PORT

. For each valid port, build a speed table

that will then be associated with that port.

Camera speed is determined by CCD readout speed. Since readout speed is determined by a number

of constraints, getting consistent results depends on using the appropriate camera and hardware

settings. To maintain consistency, each camera has the appropriate readout speeds and associated

hardware controls loaded into the speed table. To build the speed table, for each valid port call

pl_get_param

with

PARAM_SPDTAB_INDEX

with the

ATTR_COUNT

attribute to determine how

many speed entries are allowed on your camera. Then iterate through each choice to get the

associated information for that entry. The steps you should take in setting up the readout ports and

associated speed tables are as follows:

pl_get_param

with

PARAM_READOUT_PORT

with

ATTR_COUNT

to get the total number

of valid ports.

pl_get_enum_param

with

PARAM_READOUT_PORT

to get the enumerated port constants.

3. For each port constant,

pl_set_param

with

PARAM_READOUT_PORT

, and build a speed

table for each.

Table 4 is an example of a camera with two readout ports. Port 1 has one speed associated with it

and Port 2 has three speeds. Note that the terms "Port 1" and "Port 2" are generic and are only being

used to illustrate the example.

The user chooses the port and then the speed table entry number, and the camera is configured

accordingly. The user can then choose one of the gain settings available for that speed table entry

number. For example, the user chooses Port 2 and speed index one. This selection provides a 16-bit

camera with a pixel time of 500 nanoseconds (a 2 MHz readout rate). The CCD is reading out of

Port 2. The gain is set to 2.

Readout

Port Entry

Bit

Depth

Pixel

Time

Current

Gain

Max

Gain

PARAM_SPDTAB_INDEX PARAM_BIT

_DEPTH

PARAM_PIX

_TIME

PARAM_GAIN

_INDEX

PARAM_GAIN

_INDEX with ATTR_MAX

PORT 1 0 12 500 2 16

0 12 100 1 3

1 16 500 2 3

PORT 2

2 12 500 2 3

Table 4. Two Port Camera Example

It is the responsibility of the application program to remember variables associated with port and

speed selections. For example, the camera maintains one gain value. Changing this value will

change it for all port and speed choices. However, the application program may maintain gain

values for each setting and then write them to the camera when the user changes the current port or

speed. Read-only values, such as bit depth, may be read at time of open and saved in variables in

the application or may be read each time a user selection changes.

Once a selection is made, all settings remain in effect until the user resets them or until the camera

hardware is powered down or reset. If a camera has multiple speed entry numbers, you may choose

to view the settings located in the speed table. To view the speed table settings, call

pl_get_param

with

PARAM_SPDTAB_INDEX

with the

ATTR_MAX

attribute to determine how

many speed entries are allowed on your camera. Then iterate through each choice to get the

associated information for that entry.

10 PVCAM Manual Version 2.7

Frame Transfer

With a non-frame transfer CCD, the entire CCD is exposed, and the image read out before the CCD

is exposed again. A frame transfer CCD is divided into two areas: one for image collection and one

for image storage. After the CCD is exposed, the image is shifted to the storage array. A split clock

allows the CCD to expose the next frame of the image array while simultaneously reading out from

the storage array.

Since shifting an image to the storage array is many times faster than reading out the same image,

frame transfer speeds up many sequences.

In a standard frame transfer device, the storage array is usually masked and covers half the CCD.

With this standard configuration, the image in the storage array must be completely read out before

the next image is shifted into the storage array. Therefore, assuming that the

exposure_time

for

each image within a sequence is equal, the shortest possible

exposure_time

would be exactly

equal to the image readout time.

Image shift to Storage Array

Read out

Storage ArrayImage Array

Interline

Interline (PMODE_INTERLINE) CCDs have a parallel register that has been subdivided into stripes so

that the opaque storage register fits between columns of pixels. The electronic image accumulates

in the exposed area of the parallel register. During CCD readout, the entire image is shifted under

the interline mask into a hidden shift register. Register readout then proceeds in normal CCD

fashion. Since the signal is transferred in microseconds, smearing will be undetectable for typical

exposures.

Image shift to

Storage Registers

Read out

Storage Register

Image Array

Kinetics

Kinetics (PMODE_KINETICS) is a special type of operation in which most of the CCD is

mechanically or optically masked, leaving a small section (window) open to light. This section is

Chapter 2: PVCAM, A High-Level C Library 11

then shifted under the mask very quickly. The defined clean cycles are used to keep charge from

accumulating on the array while it is waiting for a start exposure signal and after the data has been

readout of the array. The window size is set by PARAM_KIN_WIN_SIZE and must be at least 1 and less

than or equal to the PARAM_PAR_SIZE.

This mode of operation is available for full frame CCDs and requires a mechanical window.

Custom Chip

Normally, not all of the pixels in a CCD array are exposed and read out: a frame of “dummy” pixels

bounds the active area. These dummy pixels are usually masked and are not normally read out.

However, they could be read out by changing the chip definition. For example, in the case of the

EEV 576 × 384, the 576 active rows are preceded by one dummy row and followed by 2 dummy

rows. In addition, there are 12 dummy columns on one side of the active region and 13 dummy

columns on the other side. By changing the chip definition to increase the active area while

decreasing the dummy settings, the dummy cells would be read out. By doing so, one could

measure the dark charge with every readout. (Note that F.T. Dummies are chip-specific and are

dummy rows at the boundary of the masked and visible areas of a frame transfer device.)

It is also possible to increase image acquisition speed by reducing the size of the active area in the

definition. The result will be faster but lower resolution data acquisition. Operating in this mode

would ordinarily require that the chip be masked so that only the reduced active area is exposed. This

will prevent unwanted charge from spilling into the active area or being transferred to the shift

Changing a chip definition requires that the custom chip feature is enabled via PARAM_CUSTOM_CHIP.

This allows the ATTR_ACCESS of the following parameters to change from ACC_READ_ONLY to

ACC_READ_WRITE: PARAM_PREMASK, PARAM_PRESCAN, PARAM_POSTMASK, PARAM_POSTSCAN,

PARAM_PAR_SIZE, PARAM_SER_SIZE, and PARAM_FTSCAN (for CCDS that have frame transfer

dummies between the active and the masked areas).

Custom Timing

Custom Timing (enabled via PARAM_CUSTOM_TIMING) allows you to change the parallel

(PARAM_PAR_SHIFT_TIME) and serial (PARAM_SER_SHIFT_TIME) shift rates for a CCD. Acceptable

shift times must be within the minimum value (ATTR_MIN) and the maximum value (ATTR_MAX),

and use the increment (ATTR_INCREMENT) or a multiple of the increment that falls within the

minimum and maximum values. Increments are in terms of nanoseconds.

Normally, the default timing parameter values have been determined to give the fastest possible

performance without compromising data acquisition performance.

Image Smear

If an image is shifted while the shutter is open, the charge that collects while the image is moving

makes the image look smeared. Smearing can occur in several situations: if the camera is set to read

out without closing the shutter, if the shutter is set to close too slowly, or in frame transfer

sequences where the shutter stays open while the image is shifted to the storage array.

12 PVCAM Manual Version 2.7

In most frame transfer applications, the shutter opens before the sequence begins and closes after

the sequence ends. The charge gathered during the shift creates a smear across the image array.

Image is exposed

Storage ArrayImage Array

Image is shifted to storage array

Storage ArrayImage Array

Although the frame transfer time is usually only a few milliseconds, smearing cannot be eliminated

when the shutter is left open for the entire sequence. The higher the ratio of the

exposure_time

to the frame transfer time, the brighter the image is in comparison to the pattern caused by

smearing. An

exposure_time

that is too long will saturate the pixels and cause the image to lose

all contrast.

Sequences

A sequence is a programmed series of exposures that is started by a single command. In the least

complex sequences, a setup is called, then the camera takes a series of exposures with a complete

readout between each exposure. In these simple sequences, all the variables in the setup apply to all

the exposures in the sequence. The diagram below illustrates a sequence of exposures taken as the

day passes.

Chapter 2: PVCAM, A High-Level C Library 13

In most camera modes, you must load a new setup into the camera if you want to change a variable

between sequences. PVCAM offers a few exceptions to this rule. Since several PVCAM exposure

modes ignore the setup exposure_time, an external trigger begins each sequence or each exposure in

the sequence. In one exposure mode, calling a command between sequences sets the exposure_time

for the next sequence.

Sequence Parameters IDs/Constants

When constructing a sequence, the following three items determine how the camera behaves before

reading out:

• PARAM_CLEAR_MODE parameter id: Determines if and when the CCD is cleared of

charge.

• BULB_MODE, FLASH_MODE, STROBED_MODE, TIMED_MODE,

TRIGGER_FIRST_MODE, or VARIABLE_ TIMED_MODE constant : Determines if a

program command or an external trigger starts and ends the exposure/nonexposure time

within a sequence.

• PARAM_SHTR_OPEN_MODE parameter id: Determines if and when the shutter opens.

Although a single exposure may be considered a sequence of one, some options in triggering,

shuttering, and CCD clearing only apply to multiple image sequences.

Circular Buffer

Note: Because some cameras do not support circular buffer, use the

parameter id

PARAM_CIRC_BUFFER

with

pl_get_param

to see if the

system can perform circular buffer operations.

Circular buffers are a special case of sequences. In a sequence, you specify

the number of frames to acquire and allocate a buffer large enough to hold all

of the frames. Using a circular buffer allows you to acquire a continuous

sequence; the camera will continue to acquire frames until you decide to stop

it, rather than acquiring a specified number of frames. For a circular buffer,

you allocate a buffer to hold a certain number of frames, and the data from

the camera is stored in the buffer sequentially until the end of the buffer is

Assumes 1 Mb frames

1 Oldest

4 Latest

Data

reached. When the end is reached, the data is stored starting at the beginning of the buffer again,

and so on as shown in the above figure.

The image buffer used for a circular buffer is passed to

pl_exp_start_cont

. The buffer is either

allocated by your application or obtained from the driver as a preallocated contiguous block of

physical memory. The driver buffer pointer is retrieved using the

pl_exp_get_driver_buffer

function. Data read out of the camera is stored in the designated circular buffer until it is retrieved by

the user's data processing routine, it is overwritten, or the buffer is filled. The selected circular buffer

mode determines whether or not buffer data can be overwritten before being retrieved by the

application.

When a circular buffer is running in

CIRC_OVERWRITE

mode, the frames in the buffer are filled as

data becomes available, regardless of whether the application has retrieved the data. This allows for

the fastest possible data display (on the host computer monitor) and is equivalent to the Princeton

Instruments Focus mode. If all frames in the buffer are filled before the application retrieves the

data, the oldest frame will be overwritten with new data. By fetching and displaying the most

14 PVCAM Manual Version 2.7

recently stored frame, image data display can be virtually real-time. Briefly, this mode of circular

buffer is set up and runs as follows:

•

pl_exp_init_seq ()

: The camera is prepared to acquire and readout data.

•

pl_exp_setup_cont (circ_overwrite)

: The circular buffer mode is selected.

•

pl_exp_start_cont ()

: Continuous data acquisition is started.

• Frames begin arriving in the buffer.

•

pl_exp_check_cont_status ()

: The status of the buffer is checked.

•

pl_exp_get_latest_frame ()

: If there are one or more frames of data, the most

recently stored frame is read out.

• Data is processed (for example, the data is displayed).

• The loop is repeated until continuous data acquisition is stopped with

pl_exp_stop_cont ()

pl_exp_finish_seq ()

,and

pl_exp_uninit_seq ()

When a circular buffer is running in

CIRC_NO_OVERWRITE

mode, the frames in the buffer are

filled as data becomes available until all frames are filled. This mode allows for the fastest possible

frame rate (with regard to data storage) with no skipping of frames and is equivalent to the

Princeton Instruments Nframe mode. If all frames in the buffer are filled before the application

retrieves the data, the latest frame will be lost because the oldest frame will not be overwritten.

Therefore, the user's routine must be able to read the data out of the buffer faster than the camera

can fill the buffer. Briefly, this mode of circular buffer is set up and runs as follows:

•

pl_exp_init_seq ()

: The camera is prepared to acquire and readout data.

•

pl_exp_setup_cont (circ_no_overwrite)

: The circular buffer mode is selected.

•

pl_exp_start_cont ()

: Continuous data acquisition is started.

• Frames begin arriving in the buffer.

•

pl_exp_check_cont_status ()

: The status of the buffer is checked.

•

pl_exp_get_oldest_frame ()

: If there are one or more frames of data, the oldest frame is

read out.

• Data is processed (for example, stored elsewhere).

•

pl_exp_unlock_oldest_frame ()

: The oldest frame is unlocked so it becomes

available for data storage.

• The loop is repeated until the buffer fills up or continuous data acquisition is stopped with

pl_exp_stop_cont ()

pl_exp_finish_seq ()

,and

pl_exp_uninit_seq ()

Refer to Example 3: Circular Buffer in Chapter 8 for two examples of code for circular buffer

operation.

Chapter 2: PVCAM, A High-Level C Library 15

Clear Modes

Clearing removes charge from the CCD by clocking the charge to the serial register then directly to

ground. This process is much faster than a readout, because the charge does not go through the

readout node or the amplifier. Note that not all clearing modes are available for all cameras. Be

sure to check availability of a mode before attempting to set it.

The clear modes are described below:

•

CLEAR_NEVER:

Don't ever clear the CCD. Useful for performing a readout after an

exposure has been aborted.

•

CLEAR_PRE_EXPOSURE:

Before each exposure, clears the CCD the number of times

specified by the clear_cycles variable. This mode can be used in a sequence. It is most useful

when there is a considerable amount of time between exposures.

•

CLEAR_PRE_SEQUENCE:

Before each sequence, clears the CCD the number of times

specified by the clear_cycles variable. If no sequence is set up, this mode behaves as if the

sequence has one exposure. The result is the same as using CLEAR_PRE_EXPOSURE.

•

CLEAR_POST_SEQUENCE:

Clears continuously after the sequence ends. The camera

continues clearing until a new exposure is set up or started, the abort command is sent, the

speed entry number is changed, or the camera is reset.

•

CLEAR_PRE_POST_SEQUENCE:

Clears clear_cycles times before each sequence and clears

continuously after the sequence ends. The camera continues clearing until a new exposure is

set up or started, the abort command is sent, the speed entry number is changed, or the

camera is reset.

•

CLEAR_PRE_EXPOSURE_POST_SEQ:

Clears clear_cycles times before each exposure and

clears continuously after the sequence ends. The camera continues clearing until a new

exposure is set up or started, the abort command is sent, the speed entry number is changed,

or the camera is reset.

Normally during the idle period, the Camera Control Subsystem (CCS) parallel and serial clock

drivers revert to a low power state that saves both power and heat. When CLEAR_..._POST options are

used, the continuous clearing prevents these systems from entering low-power mode. This state

generates a small amount of additional heat in the electronics unit and the camera head.

The pl_exp_abort() function stops the data acquisition and the camera goes into the clean cycle.

Again, the CCD chip is continuously being cleaned.

Clear Modes decide when to clean the CCD arrays. However, since PI cameras always clean the

CCDs at idle times, Clear Modes do not apply to PI cameras and therefore the feature is not

available for PI cameras.

16 PVCAM Manual Version 2.7

Exposure Modes

During sequences, the exposure mode determines how and when each exposure begins and ends:

TIMED_MODE STROBED_MODE

VARIABLE_ TIMED_MODE BULB_MODE

TRIGGER_FIRST_MODE FLASH_MODE

In general, the settings in

pl_exp_setup_seq

apply to each exposure within a sequence. They

also apply to every sequence until the setup is reset. The only exceptions are in

VARIABLE_TIMED_MODE

and

BULB_MODE

. These two modes ignore the

exposure_time

parameter in setup, and rely on a function or trigger to determine the exposure time.

Every sequence has alternating periods of exposure and nonexposure time. During the time the CCD

is not exposing, the camera could be in several states, such as waiting for

pl_exp_start_seq

reading out, or performing continuous clearing. In the diagrams that follow, each exposure mode

shows the exposure time in white and the time between exposures in gray.

Exposure: TIMED_MODE

TIMED_MODE

, all settings are read from the setup parameters, making the duration of each

exposure time constant and the interval times between exposures constant. In this mode, every

sequence has the same settings.

The diagram below represents a sequence in

TIMED_MODE

Time in ms

Nonexposure Time Exposure Time

0 50 100 150 200 250 300 350 400

Exposure: VARIABLE_TIMED_MODE

Use

VARIABLE_TIMED_MODE

when you want to change the exposure_time between sequences.

VARIABLE_TIMED_MODE

, all settings except

exposure_time

are read from the setup

parameters. The

exposure_time

must be set with parameter id

PARAM_EXP_TIME

. If you do not

call

PARAM_EXP_TIME

before the first sequence, a random time will be assigned. The camera will

not read the first exposure time from the

exposure_time

in setup, because this mode ignores the

exposure_time

parameter.

Application example: A filter wheel is used to change the filter color between sequences. The

exposure time needed for the darkest filter saturates the pixels when lighter filters are used. The

diagram on the next page shows two sample sequences from this example.

Chapter 2: PVCAM, A High-Level C Library 17

Time in ms

Nonexposure Time Exposure Time

0 50 100 150 200 250 300 350 400

The first sequence runs with a filter that uses exposure and nonexposure times that are equal. In the

second sequence, the exposure time is longer, but the time between exposures remains the same as

in the first sequence.

Exposure: TRIGGER_FIRST_MODE

Use

TRIGGER_FIRST_MODE

when you want an external trigger to signal the start of the sequence.

Time in ms

Nonexposure Time Exposure Time

0 50 100 150 200 250 300 350 400

Trigger Signal

TRIGGER_FIRST_MODE

pl_exp_start_seq

starts the camera, which enters the clear mode

while it waits for a trigger signal. The black line in the diagram illustrates a trigger signal coming

from an external trigger source.

Once the outside event triggers the camera to start exposing, the sequence follows the conditions

generated in

pl_exp_setup_seq

. Note that all exposure times are equal, and the time intervals

between exposures are equal.

You must have an external trigger signal connected to your camera for

TRIGGER_FIRST_MODE

function. If your equipment fails to send a trigger signal, you can stop the sequence by calling

pl_exp_abort

Note: If you do not use one of the

CLEAR_PRE_EXPOSURE

modes, the CCD will begin exposing

immediately after

pl_exp_start_seq

is called. Once the trigger is received, the CCD will

continue to expose for the

exposure_time

specified in

pl_exp_setup_seq

. In other words, the

first exposure in your sequence may have a longer exposure time than the subsequent exposures.

Exposure: STROBED_MODE

Use

STROBED_MODE

when you want an external trigger to start each exposure in the sequence.

Time in ms

Nonexposure Time Exposure Time

0 50 100 150 200 250 300 350 400

Trigger Signal

18 PVCAM Manual Version 2.7

STROBED_MODE, pl_exp_start_seq

starts the camera. The camera enters clear mode

while it waits for the first trigger signal to start the first exposure. As shown in the diagram above,

each new exposure waits for an external trigger signal. Notice that the intervals between exposures

can vary greatly, but the exposure times are constant.

You must have an external trigger signal connected to your camera for this mode to function. If your

equipment fails to send a trigger signal, you can stop the sequence by calling

pl_exp_abort

Application example: In a nature study of birds passing through a restricted area, the motion of

each bird sends a trigger signal to the camera. The camera exposes, reads out, and waits for the next

trigger signal. The result is an image of each bird as it crosses the camera's field of view.

Note: If you do not use one of the

CLEAR_PRE_EXPOSURE

modes, the CCD will begin exposing

immediately after

pl_exp_start_seq

is called. Once the trigger is received, the CCD will

continue to expose for the

exposure_time

specified in

pl_exp_setup_seq

. In other words, the

first exposure in your sequence may have a longer exposure time than the subsequent exposures.

Exposure: BULB_MODE

Use

BULB_MODE

, when you want an external trigger signal to control the beginning and end of

each exposure.

Time in ms

Nonexposure Time Exposure Time

0 50 100 150 200 250 300 350 400

Trigger Signal

450

BULB_MODE, pl_exp_start_seq

calls the setup. The camera enters clear mode while it

waits for a true external trigger signal to start each exposure. The CCD continues to expose until a

false trigger signal ends the exposure. In the diagram above, the trigger signal line moves up to

represent a true trigger and down to represent a false trigger.

Notice that the exposure times and the intervals between exposures vary greatly. Since the true and

false signals determine exposure time, the

exposure_time

set in

pl_exp_setup_seq

is ignored.

You must have an external trigger signal connected to your camera for

BULB_MODE

to function. If

your equipment fails to send a trigger signal, you can stop the sequence by calling

pl_exp_abort

Note: If you do not use one of the

CLEAR_PRE_EXPOSURE

modes, the CCD exposes until

receiving a false trigger signal, then reads out. After reading out, the CCD exposes again without

clearing and waits for the true trigger. Once the external event causes a true trigger, the CCD

continues to expose until receiving a false trigger, then reads out. In other words, the CCD will

expose from the end of readout until the next false trigger.

Exposure: FLASH_MODE

Some PVCAM cameras include a flash port—several outside pins with a software-controllable

signal. Photometrics uses these pins to drive factory test fixturing. However, the signal can be used

to drive other equipment. Aside from the signal on the pins,

FLASH_MODE

is identical to

TIMED_MODE

. Consult your camera hardware documentation to see flash port availability and

electrical specifications.

Chapter 2: PVCAM, A High-Level C Library 19

Open Delay, Close Delay

In order to ensure that the entire CCD is exposed for the specified

exposure_time

, the

mechanical limitations of the shutter must be considered. Open delay

(

PARAM_SHTR_OPEN_DELAY

), close delay (

PARAM_SHTR_CLOSE_DELAY

), and time units

(

PARAM_SHTR_CLOSE_DELAY_UNIT)

account for the time necessary for the shutter to open and

close. Remember that the camera is exposing while the shutter is opening and closing, so some

pixels are exposed longer than others.

Iris Shutter

An Iris shutter opens in an expanding circular pattern.

Barn Door Shutter

A Barn Door shutter slides across the exposure area.

If the shutter is still closing when the image shifts for a frame transfer or readout, the image will

smear. (See the section "Image Smear", page 11, for a more complete explanation on smearing.)

PARAM_SHTR_CLOSE_DELAY

allows time for the shutter to close before the image shifts.

The default open and close delay values will vary depending on the brand of camera and the shutter

used. Open delay may be up to 15 milliseconds with a close delay of up to 30 milliseconds. Change

the default values only if you are using a shutter other than the shutter shipped with your camera. If

you are using a standard Photometrics or Princeton Instruments shutter, changing

PARAM_SHTR_OPEN_DELAY/CLOSE_DELAY

default values will not increase the frame transfer

rate.

20 PVCAM Manual Version 2.7

Shutter Control

The shutter open modes determine how the shutter in a camera behaves when a single exposure is

taken or when a sequence is run. Remember that the camera is exposing while the shutter is

opening. Because not all supported cameras have programmable shutter control, remember to

check for availability of a particular mode.

•

OPEN_PRE_EXPOSURE:

Opens the shutter before every exposure, then closes the shutter

after the exposure is finished.

•

OPEN_PRE_SEQUENCE:

Opens the shutter before the sequence begins, then closes the shutter

after the sequence is finished.

•

OPEN_PRE_TRIGGER:

Opens the shutter, then clears or exposes (set in clear mode) until a

trigger signal starts the exposure.

•

OPEN_NEVER:

Keeps shutter closed during the exposure. Used for dark exposures.

•

OPEN_NO_CHANGE:

Sends no signals to open or close the shutter.

Exposure Loops

Within an exposure loop, the interaction of the exposure, clear, and shutter open modes determines

how the camera behaves during a sequence. In the following pages, sample command sequences

show how each exposure mode acts in combination with each clear and shutter open mode. As

mentioned above in "Shutter Control", not all supported cameras have programmable shutter

control, remember to check for availability of a particular mode.

Key Description

ClearN Clear CCD N times as specified in clear_cycles

OS Open shutter and perform PARAM_SHTR_OPEN_DELAY

CS Close shutter and perform PARAM_SHTR_CLOSE_DELAY

EXP Expose CCD for exposure_time

I->S Transfer image array to storage array (frame transfer)

Readout Readout CCD (readout storage array for frame transfer)

WaitT Wait until trigger

EXP Until notT Expose CCD until trigger end

(

BULB_MODE)

Items in ITALICS repeat M times for a sequence of M exposures.

Items in BOLD are outside of the sequence loop.

EXPOSURE: TIMED_MODE

Chapter 2: PVCAM, A High-Level C Library 21

EXPOSURE: TIMED_MODE

Clear Mode Shutter Mode Command Sequence Notes

CLEAR_PRE_EXPOSURE OPEN_PRE_EXPOSURE

OPEN_PRE_SEQUENCE

OPEN_PRE_TRIGGER

OPEN_NO_CHANGE

OPEN_NEVER

ClearN, OS, EXP, CS, I->S, Readout

OS , ClearN, EXP, I->S, Readout, CS

ClearN, OS, EXP, CS, I->S, Readout

ClearN, EXP, I->S, Readout

CS, ClearN, EXP, I->S, Readout

Photometrics

only

CLEAR_PRE_SEQUENCE OPEN_PRE_EXPOSURE

OPEN_PRE_SEQUENCE

OPEN_PRE_TRIGGER

OPEN_NO_CHANGE

OPEN_NEVER

ClearN,OS, EXP, CS, I->S, Readout

OS, ClearN, EXP, I->S, Readout, CS

ClearN, OS, EXP, CS, I->S, Readout

ClearN, EXP, I->S, Readout

CS, ClearN, EXP, I->S, Readout

CLEAR_NEVER OPEN_PRE_EXPOSURE

OPEN_PRE_SEQUENCE

OPEN_PRE_TRIGGER

OPEN_NO_CHANGE

OPEN_NEVER

OS, EXP, CS, I->S, Readout

OS, EXP, I->S, Readout, CS

OS, EXP, CS, I->S, Readout

EXP, I->S, Readout

CS, EXP, I->S, Readout

Photometrics

only

EXPOSURE: TRIGGER_FIRST_MODE

Clear Mode Shutter Mode Command Sequence Notes

CLEAR_PRE_EXPOSURE OPEN_PRE_EXPOSURE EXP+WaitT, ClearN, OS, EXP, CS,

I->S, Readout

Photometrics

only

OPEN_PRE_SEQUENCE OS, EXP+WaitT, ClearN, EXP, I->S,

Readout, CS

OPEN_PRE_TRIGGER EXP+WaitT, OS, ClearN, EXP, CS,

I->S, Readout

OPEN_NO_CHANGE EXP+WaitT, ClearN, EXP, I->S,

Readout

OPEN_NEVER CS, EXP+WaitT, ClearN, EXP, I->S,

Readout

CLEAR_PRE_SEQUENCE OPEN_PRE_EXPOSURE Clear+WaitT, ClearN, OS, EXP, CS,

I->S, Readout

OPEN_PRE_SEQUENCE OS, Clear+WaitT, EXP, I->S,

Readout, CS

OPEN_PRE_TRIGGER Clear+WaitT, OS, EXP, CS, I->S,

Readout

OPEN_NO_CHANGE Clear+WaitT, EXP, I->S, Readout

OPEN_NEVER CS, Clear+WaitT, EXP, I->S, Readout

CLEAR_NEVER OPEN_PRE_EXPOSURE EXP+WaitT, ClearN, OS, EXP, CS,

I->S, Readout Photometrics

only

OPEN_PRE_SEQUENCE OS, EXP+WaitT, EXP, I->S, Readout,

22 PVCAM Manual Version 2.7

EXPOSURE: TRIGGER_FIRST_MODE

Clear Mode Shutter Mode Command Sequence Notes

OPEN_PRE_TRIGGER EXP+WaitT, OS, EXP, CS, I->S,

Readout

OPEN_NO_CHANGE EXP+WaitT, EXP, I->S, Readout

OPEN_NEVER CS, EXP+WaitT, EXP, I->S, Readout

EXPOSURE: STROBED_MODE

Clear Mode Shutter Mode Command Sequence Notes

CLEAR_PRE_EXPOSURE OPEN_PRE_EXPOSURE Clear+WaitT, OS, EXP, CS, I->S,

Readout

OPEN_PRE_SEQUENCE OS, Clear+WaitT, EXP, I->S, Readout,

Uses

Continuous

Cleans

OPEN_PRE_TRIGGER OS, Clear+WaitT, EXP, CS, I->S,

Readout

OPEN_NO_CHANGE Clear+WaitT, EXP, I->S, Readout

OPEN_NEVER CS, Clear+WaitT, EXP, I->S, Readout

CLEAR_PRE_SEQUENCE OPEN_PRE_EXPOSURE ClearN, EXP+WaitT, OS, EXP, CS,

I->S, Readout

OPEN_PRE_SEQUENCE OS, ClearN, EXP+WaitT, EXP, I->S,

Readout, CS

OPEN_PRE_TRIGGER ClearN, OS, EXP+WaitT, EXP, CS,

I->S, Readout

OPEN_NO_CHANGE ClearN, EXP+WaitT, EXP, I->S,

Readout

OPEN_NEVER CS, ClearN, EXP+WaitT, EXP, I->S,

Readout

CLEAR_NEVER OPEN_PRE_EXPOSURE EXP+WaitT, OS, EXP, CS, I->S,

Readout

Photometrics

only

OPEN_PRE_SEQUENCE OS, EXP+WaitT, EXP, I->S, Readout,

OPEN_PRE_TRIGGER OS, EXP+WaitT, EXP, CS, I->S,

Readout

OPEN_NO_CHANGE EXP+WaitT, EXP, I->S, Readout

OPEN_NEVER CS, EXP+WaitT, EXP, I->S, Readout

Chapter 2: PVCAM, A High-Level C Library 23

EXPOSURE: BULB_MODE

Clear Mode Shutter Mode Command Sequence Notes

CLEAR_PRE_EXPOSURE OPEN_PRE_EXPOSURE Clear+WaitT, OS, EXP Until notT,

CS, I->S, Readout

Photometrics

only

OPEN_PRE_SEQUENCE OS, Clear+WaitT, EXP Until notT,

I->S, Readout, CS

OPEN_PRE_TRIGGER OS, Clear+WaitT, EXP Until notT,

CS, I->S, Readout

OPEN_NO_CHANGE Clear+WaitT, EXP Until notT, I->S,

Readout

OPEN_NEVER CS, Clear+WaitT, EXP Until notT,

I->S, Readout

CLEAR_PRE_SEQUENCE OPEN_PRE_EXPOSURE ClearN, EXP+WaitT, OS, EXP Until

notT, CS, I->S, Readout

Photometrics

only

OPEN_PRE_SEQUENCE OS, ClearN, EXP+WaitT, EXP Until

notT,

I->S, Readout, CS

OPEN_PRE_TRIGGER ClearN, OS, EXP+WaitT, EXP Until

notT, CS, I->S, Readout

OPEN_NO_CHANGE ClearN, EXP+WaitT, EXP Until notT, I-

>S, Readout

OPEN_NEVER CS, ClearN, EXP+WaitT, EXP Until

notT, I->S, Readout

CLEAR_NEVER OPEN_PRE_EXPOSURE EXP+WaitT, OS, EXP Until notT, CS,

I->S, Readout

Photometrics

only

OPEN_PRE_SEQUENCE OS, EXP+WaitT, EXP Until notT,

I->S, Readout, CS

OPEN_PRE_TRIGGER OS, EXP+WaitT, EXP Until notT, CS,

I->S, Readout

OPEN_NO_CHANGE EXP+WaitT, EXP Until notT, I->S,

Readout

OPEN_NEVER CS, EXP+WaitT, EXP Until notT,

I->S, Readout

24 PVCAM Manual Version 2.7

Image Buffers

When exposures include multiple images and complex sequences, you may choose to store the

images in a buffer. PVCAM has a number of buffer routines that handle memory allocation and

freeing. The following list describes images you may choose to store in a buffer.

• Full CCD: A single exposure where the entire CCD is treated as one region and image data

are collected over the full CCD. All the data are stored in a single buffer.

• Single Exposure, Multiple Images: A single exposure with multiple regions. The data are

stored in several image arrays that are stored inside a single buffer.

• Sequences: A series of exposures with identical regions. The data are stored in several image

arrays that are stored inside a single buffer.

• Multiple Exposures, Multiple Images: A series of exposures with multiple regions. Each

exposure must have identical regions. The data are stored in several image arrays that are

stored inside a single buffer.

Class 4 places the following constraints on data stored in buffers:

• All exposures in a buffer must have the same set of images (the size, position, and binning

must match).

• All data in a buffer must be at the same bit depth (16-bit signed, 16- bit unsigned, 32-bit

signed, and so forth.)

• All data in an image are stored in a standard C, two-dimensional array, with the second

subscript varying most rapidly.

Chapter 2: PVCAM, A High-Level C Library 25

PVCAM collects data very efficiently, but moving the data in and out of a buffer involves extra

processing time. If speed is crucial, the following options may minimize processing time:

• Don’t use a buffer. The data are collected in a user-specified pixel stream at maximum

efficiency (see

pl_exp_start_seq

). As discussed in "Data Array", this array can be

accessed directly. However, when multiple regions are collected, the stream becomes more

complex. If the regions overlap in the serial direction, the data from one region are

interleaved with the data from another region.

• Use a buffer. If the data are in multiple regions,

pl_exp_finish_seq

decodes the

pixel_stream

data into the regions. Once decoded, each region can be retrieved as a

simple array (see "Data Array"). Even though it takes extra time to decode the data and load

the buffer, retrieving the data is simple.

• Defer decoding. The original call to

pl_exp_setup_seq

sets up internal structures used to

decode

pixel_stream

into a buffer structure. However,

pl_exp_finish_seq

does not

need to be called immediately. As long as the camera (and library) remain open, and

pl_exp_setup_seq

is not called with a new setup, the decoding structures remain valid.

This allows a program to collect data quickly, then decode the data when more time is

available. Of course, this is impossible if users must be given immediate feedback.

Source Code Examples

Refer to Chapter 8, pages 111-122, for code examples.

26 PVCAM Manual Version 2.7

This page intentionally left blank.

Chapter 3:

Camera Communications (Class 0)

Introduction

The functions in this category provide a pipeline for bidirectional communications. The table below

lists the current Class 0 functions, and the "Class 0 Functions" section provides detailed

descriptions of each. If the Class 0 functions you are interested in are not listed below, check

"Appendix B: Obsolete Functions". The Class 0 functions that have been made obsolete now have

equivalent

pl_get_param

and

pl_set_param

functions. For more information about the

pl_get_param

and

pl_set_param

parameter ids, refer to "Chapter 5:Configuration/Setup

(Class 2)", starting on page 45.

List of Available Class 0 Functions

Library Camera

pl_pvcam_init pl_cam_check

pl_pvcam_uninit pl_cam_close

pl_pvcam_get_ver pl_cam_get_diags

pl_cam_get_name

Device Driver

pl_cam_get_total

pl_ddi_get_ver

pl_cam_open

List of Available Class 0 Parameter IDs

The following are available Class 0 parameters used with

pl_get_param()

pl_set_param()

pl_get_enum_param()

, and

pl_enum_str_length()

functions specified in Chapter 5.

PARAM_DD_INFO PARAM_DD_TIMEOUT

PARAM_DD_INFO_LENGTH PARAM_DD_VERSION

PARAM_DD_RETRIES

28 PVCAM Manual Version 2.7

Class 0 Functions

PVCAM Class 0: Camera Communications pl_cam_check(0)

NAME

pl_cam_check —

fails if hcam is not the handle of an open camera.

SYNOPSIS

rs_bool

pl_cam_check(int16 hcam)

DESCRIPTION This is a fast check, used internally by many other functions before they access

hardware. This function checks whether the input handle, hcam, refers to an open

camera.

RETURN VALUE TRUE for a valid handle, FALSE for an invalid handle.

SEE ALSO

pl_cam_open(0), pl_cam_close(0)

NOTES Since this function is a frequent call, it is designed to be highly efficient. It does

not access hardware, it checks the internal state tables that are set by

pl_cam_open

and

pl_cam_close

Chapter 3: Camera Communications (Class 0) 29

PVCAM Class 0: Camera Communications pl_cam_close(0)

NAME

pl_cam_close —

frees the current camera, prepares it for power-down.

SYNOPSIS

rs_bool

pl_cam_close(int16 hcam)

DESCRIPTION This has two effects. First, it removes the listed camera from the reserved list,

allowing other users to open and use the hardware. Second, it performs all

cleanup, close-down, and shutdown preparations needed by the hardware. A

camera can only be closed if it was previously opened;

hcam

must be a valid

camera handle.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_cam_open(0),pl_pvcam_init(0),pl_pvcam_uninit(0)

NOTES pl_pvcam_uninit automatically calls a

pl_cam_close

on all cameras opened

by the current user.

30 PVCAM Manual Version 2.7

PVCAM Class 0: Camera Communications pl_cam_get_diags(0)

NAME

pl_cam_get_diags —

fails and returns an error if there are any problems with

the camera.

SYNOPSIS

rs_bool

pl_cam_get_diags(int16 hcam)

DESCRIPTION All functions that open or reset the camera perform a short set of checks and

diagnostics. The error codes set in these diagnostics are stored in a table. When

hcam

is a valid camera handle,

pl_cam_get_diags

(called immediately after

pl_cam_open

) reads the table and reports any critical error condition by

returning FALSE.

Both critical and noncritical subsystem error codes are set, although only critical

subsystem failures return a FALSE. Critical subsystems are defined as systems

that, if they fail, may prevent the camera from acquiring or reading out an image.

Critical and noncritical errors are listed in

pl_error_code

RETURN VALUE FALSE indicates that a critical subsystem is not working, and therefore the

camera may not be able to acquire or read out an image. TRUE indicates that no

error codes have been set for critical subsystems, but there may be error codes

set for noncritical subsystems. Noncritical subsystem errors are considered

warnings. Critical and noncritical errors are listed in

pl_error_code

SEE ALSO

pl_cam_open(0)

NOTES This function call is designed to be fast, therefore to ensure that camera hardware

is attached and functional,

pl_cam_get_diags

can be called before every

exposure.

Chapter 3: Camera Communications (Class 0) 31

PVCAM Class 0: Camera Communications pl_cam_get_name(0)

NAME

pl_cam_get_name —

returns the name of a camera.

SYNOPSIS

rs_bool

pl_cam_get_name(int16 cam_num,char_ptr cam_name)

DESCRIPTION This function allows a user to learn the string identifier associated with every

camera on the current system. This is a companion to the

pl_cam_get_total

function. Cam_num input can run from 0 to (

total_cams

- 1), inclusive. The

user must pass in a string that is at least

CAM_NAME_LEN

characters long;

pl_cam_get_name

then fills that string with an appropriate null-terminated

string.

Cam_name

can be passed directly into the

pl_cam_open

function. It has

no other use, aside from providing a brief description of the camera.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_cam_get_total(0),pl_cam_open(0),pl_cam_close(0)

NOTES This call reports the names of all cameras on the system, even if all the cameras

are not available. If the hardware is turned off, or if another user has a camera

open, the camera name is reported, but is not available.

Pl_cam_get_name

returns a name, and

pl_cam_open

gives information on

availability of that camera. This function actually searches for all device drivers

on the system, without checking hardware. To build a complete list of every

camera on the system, it is necessary to cycle through all entries, as shown

below:

int total_cameras;

char cam_name[CAM_NAME_LEN];

…

pl_cam_get_total(&total_cameras );

for( I=0; I<total_cameras; I++ ) {

pl_cam_get_name(I,cam_name);

printf("Camera%d is called '%s’\n",I,cam_name);

}

32 PVCAM Manual Version 2.7

PVCAM Class 0: Camera Communication pl_cam_get_total(0)

NAME

pl_cam_get_total —

returns the number of cameras attached to the system.

SYNOPSIS

rs_bool

pl_cam_get_total(int16_ptr total_cams)

DESCRIPTION This reports on the number of cameras on the system. All listed cameras may not

all be available; on multi-tasking systems, some cameras may already be in use

by other users. A companion function,

pl_cam_get_name

, can be used to learn

the string identifier associated with each camera.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_cam_get_name(0),pl_cam_open(0),pl_cam_close(0)

NOTES This function actually searches for all device drivers on the system, without

checking hardware. The list of cameras is obtained during

pl_pvcam_init

Thus, if a new camera (new device driver) is added after the library was opened,

the system won't know that the new camera is there. The system also won't

notice if a camera is removed. (Obviously, this is only important on multi-

tasking systems). A cycle of

uninit/init

regenerates the list of available

cameras, updating the system for any additions or deletions.

Chapter 3: Camera Communications (Class 0) 33

PVCAM Class 0: Camera Communications pl_cam_open(0)

NAME

pl_cam_open —

reserves and initializes the camera hardware.

SYNOPSIS

rs_bool

pl_cam_open(char_ptr cam_name,int16_ptr hcam,int16 o_mode)

DESCRIPTION The string cam_name should be identical to one of the valid camera names

returned by

pl_cam_get_name

. If the name is valid,

pl_camera_open

completes a short set of checks and diagnostics as it attempts to establish

communications with the camera electronics unit. If successful, the camera is

opened and a valid camera handle is passed back in

hcam

. Otherwise,

pl_cam_open

returns with a failure. An explanation is shown in

pl_error_code

The

o_mode

setting controls the mode under which the camera is opened.

Currently, the only possible choice is

OPEN_EXCLUSIVE

. On multi-user

systems, opening a camera under the exclusive mode reserves it for the current

user, locking out all other users on the system. If

pl_cam_open

is successful,

the user has sole access to that camera until the camera is closed or

pl_pvcam_uninit

is called.

WARNING Despite the above paragraph, a successful

pl_cam_open

does not mean that the

camera is in working order. It does mean that you can communicate with the

camera electronics unit. After a successful

pl_cam_open

, call

pl_cam_get_diags

, which reports any error conditions.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_cam_get_diags(0), pl_cam_get_name(0),

pl_cam_get_total(0), pl_cam_close(0), pl_pvcam_init(0),

pl_pvcam_uninit(0)

NOTES

34 PVCAM Manual Version 2.7

PVCAM Class 0: Camera Communications pl_ddi_get_ver(0)

NAME

pl_ddi_get_ver —

returns version number of the current DDI (device driver

interface)

SYNOPSIS

rs_bool

pl_ddi_get_ver(uns16_ptr version)

DESCRIPTION This returns a version number for the current device driver interface. The version

is a formatted hexadecimal number, of the style:

low byte

------------ -------------

high byte hi nibble low nibble

major version minor version trivial version

For example, the number 0x11F1 indicates major release 17, minor release 15,

and trivial change 1.

A major release is defined as anything that alters the interface, calling sequence,

parameter list, or parameter interpretation of any function in the DDI library. A

new major release will often require a change in the PVCAM library, but,

wherever possible, major releases will be backward compatible with earlier

releases.

A minor release should be completely transparent to higher-level software

(PVCAM), but may include internal enhancements. The trivial version is

reserved for use by the software staff to keep track of extremely minor

variations. The last digit may also be used to flag driver versions constructed for

unique customers or situations. Minor and trivial releases should require no

change in the calling software.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_ddi_get_ver(0),

parameter id

param_dd_version

NOTES

36 PVCAM Manual Version 2.7

PVCAM Class 0: Camera Communication pl_pvcam_init(0)

NAME

pl_pvcam_init —

opens and initializes the library.

SYNOPSIS

rs_bool

pl_pvcam_init(void)

DESCRIPTION The PVCAM library requires significant system resources: memory, hardware

access, etc.

pl_pvcam_init

prepares these resources for use, as well as

allocating whatever static memory the library needs. Until

pl_pvcam_init

called, every PVCAM function (except for the error reporting functions) will fail

and return an error message that corresponds to "

library has not been

initialized

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code.

SEE ALSO

pl_pvcam_uninit(0),pl_cam_open(0),pl_error_code(1)

NOTES If this call fails,

pl_error_code

contains the code that lists the reason for

failure.

Chapter 3: Camera Communications (Class 0) 37

PVCAM Class 0: Camera Communication pl_pvcam_uninit(0)

NAME

pl_pvcam_uninit —

closes the library, closes all devices, frees memory.

SYNOPSIS

rs_bool

pl_pvcam_uninit(void)

DESCRIPTION This releases all system resources that

pl_pvcam_init

acquired. It also

searches for all cameras that the user has opened. If it finds any, it will close

them before exiting. It will also unlock and free memory, and clean up after itself

as much as possible.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_pvcam_init(0),pl_cam_close(0),pl_error_code(1)

KNOWN BUGS If the hardware is involved in acquiring data, the system may not be able to

disconnect immediately.

38 PVCAM Manual Version 2.7

Class 0 Parameter IDs

The following parameter IDs are used with

pl_get_param

pl_set_param

pl_get_enum_param

, and

pl_enum_str_length

functions described in Chapter 5.

Note:

Camera Dependent

indicates that this parameter or function is not available to all

Roper Scientific cameras. If a parameter or function is marked

Camera Dependent

, an

ATTR_AVAIL should be called to see if the camera supports it.

Class 0 Parameter ID Description

PARAM_DD_INFO

Camera Dependent

Returns an information message for each device. Some

devices have no message. The user is responsible for

allocating enough memory to hold the message string

(

PARAM_DD_INFO_LENGTH

Datatype:

char_ptr

PARAM_DD_INFO_LENGTH

Camera Dependent

Returns the length of an information message for each

device. Some devices have no message. In other words,

they return a value of 0 for bytes.

Datatype:

int16

PARAM_DD_RETRIES

Camera Dependent

Reads/sets the maximum number of command

retransmission attempts that are allowed. When a

command or status transmission is garbled, the system

signals for a retransmission. After a certain number of

failed transmissions (an initial attempt + max_retries),

the system abandons the attempt and concludes that the

communications link has failed. The camera won't

close, but the command or status read returns with an

error. The maximum number of retries is initially set by

the device driver, and is matched to the

communications link, hardware platform, and operating

system. It may also be reset by the user.

Datatype:

uns16

PARAM_DD_TIMEOUT

Camera Dependent

Reads/sets the maximum time the driver waits for

acknowledgment (i.e., the slowest allowable response

speed from the camera). This is a crucial factor used in

the device driver for communications control. If the

driver sends a command to the camera and doesn't

receive acknowledgment within the timeout period, the

driver times out and returns an error. Unless reset by

the user, this timeout is a default setting that is

contained in the device driver and is matched to the

communications link, hardware platform, and operating

system.

Datatype:

uns16

Chapter 3: Camera Communications (Class 0) 39

Class 0 Parameter ID Description

PARAM_DD_VERSION

Returns a version number for the device driver used to

access the camera

hcam

. The version is a formatted

hexadecimal number, of the style:

high byte low byte

------------ ------------ -------------

hi nibble low nibble

major version minor version trivial version

For example, the number 0xB1C0 indicates major

release 177, minor release 12, and trivial change 0.

A major release is defined as anything that alters the

user interface, calling sequence, or parameter

interpretation of any device driver interface function

(anything that would alter the driver's API). A new

major release often requires the calling software to

change, but wherever possible, major releases are

backward compatible with earlier releases.

A minor release should be completely transparent to

higher level software, but may include internal

enhancements. A trivial change is reserved for use by

the software staff to keep track of extremely minor

variations. The last digit may also be used to flag

versions of the driver constructed for unique customers

or situations. Minor and trivial releases should require

no change in the calling software.

Open the camera before calling this parameter. Note

that different cameras on the same system may use

different drivers. Thus, each camera can have its own

driver, and its own driver version.

Datatype:

uns16

40 PVCAM Manual Version 2.7

This page intentionally left blank.

Chapter 4:

Error Reporting (Class 1)

Introduction

Virtually every PVCAM function resets the error code to 0 (no error). This means that

pl_error_code only reports the error status of the most recent function used. Since all PVCAM

functions universally return a TRUE for no error/success, and a FALSE for a failure, you can use

the following construction to report errors:

char msg[ERROR_MSG_LEN];

if (! pl_pvcam_do_something(. . .) ) {

pl_error_message ( pl_errror_code(),msg ) ;

printf("pvcam_do_thing failed with message ’%s’/n",msg):

}

If you need to check whether the function works before executing further code, you could use the

sample construction below:

if(pl_pvcam_do_something(. . .) ) { /* function succeeded */

. . . code . . .

}

else { /* function failed, print msg*/

pl_error_message(pl_error_code(),msg);

printf("pvcam_do_thing failed with message’%s’/n",msg):

}

Although the (

function==TRUE

) style works well in many cases, you may prefer a more

explanatory comparison. In that case, the following two constants are defined for your use:

#define PV_OK TRUE

#define PV_FAIL FALSE

Using these two constants, the code above can be rewritten as follows:

if(pvcam_do_thing()==PV_OK){ /*func succeeded */

. . .

if(pvcam_do_thing()==PV_FAIL){/*func failed, print msg*/

. . .

Use any of the styles illustrated above in any mix. The differences are only a matter of stylistic

preference.

42 PVCAM Manual Version 2.7

Error Codes

All successful functions reset

pl_error_code

to 0, which produces the message "

No error".

All unsuccessful functions return a numeric value, where that value corresponds to a number linked

to a published list of error code messages. Appendix A of this manual lists all error code messages.

List of Available Class 1 Functions

Class 1 Error Code functions are listed below:

pl_error_code

pl_error_message

Chapter 4: Error Reporting (Class 1) 43

Class 1 Functions

PVCAM Class 1: Error Reporting pl_error_code(1)

NAME

pl_error_code —

returns the most recent error condition.

SYNOPSIS

int16

pl_error_code(void)

DESCRIPTION As every PVCAM function begins, it resets the error code to 0. If an error occurs

later in the function, the error code is set to a corresponding value. Consult

Appendix A in this manual for a complete list of error codes.

RETURN VALUE The current error code. Note that a call to

pl_error_code

does not reset the

error code.

SEE ALSO

pl_error_message(1)

NOTES

pl_error_code

works even before

pl_pvcam_init

is called. This allows a

message to be returned if

pl_pvcam_init

fails.

In the error codes structure, the thousands digit indicates the class of the failed

function.

KNOWN BUGS The PVCAM library does not intercept signals. Errors that interrupt the normal

process (divide by zero, etc.) may cause the software to crash, and

pl_error_code

may or may not contain useful information.

44 PVCAM Manual Version 2.7

PVCAM Class 1: Error Reporting pl_error_message(1)

NAME

pl_error_message —

returns a string explaining input error code.

SYNOPSIS

rs_bool

pl_error_message(int16 err_code,char_ptr msg)

DESCRIPTION This function fills in the character string

msg

with a message that corresponds to

the value in

err_code

. The msg string is allocated by the user, and should be at

least

ERROR_MSG_LEN

elements long.

RETURN VALUE TRUE if a message is found corresponding to the input code, FALSE if the code

is out of range or does not have a corresponding message (

msg

will be filled with

the string "

unknown error

"). Even if a FALSE is returned, the value of

pl_error_code

is not altered.

SEE ALSO

pl_error_code(1)

NOTES

pl_error_message

works even before

pl_pvcam_init

is called. This

allows a message to be printed if

pl_pvcam_init

fails.

Most error messages are lower case sentence fragments with no ending period.

Chapter 5:

Configuration / Setup (Class 2)

Note:

pl_pvcam_init

must be called before any other function in the library! Until it is called,

all functions will fail and return a FALSE.

pl_pvcam_init

is necessary, even if no hardware

interaction is going to occur.

Introduction

The basic idea of Get/Set functions is to determine if a feature exists in a camera set, what its

attributes are, and how can it be changed (if at all). The main function is

pl_get_param

. This

function is called with a parameter id (

param_id

) and an attribute (

param_attrib

) and returns

the attribute for that parameter. Usually, the user would start off with

ATTR_AVAIL

, which checks

to see if the

param_id

is supported in the software and hardware. If FALSE is returned in the

param_value

, the

param_id

is not supported in either the software or the hardware. If TRUE is

returned, the

param_id

is supported and the user can get the access rights (

ATTR_ACCESS

tells if the

param_id

can be written to or read or, if it cannot be written to or read,

tells whether a feature is possible. If the parameter can be either written to or read the next step is to

determine its data type.

Data type determination can be done by calling the parameter id with the attribute of data type

(

ATTR_TYPE

), this will report the data type: string (

TYPE_CHAR_PTR

), integer (

TYPE_INT8,

TYPE_UNS8, TYPE_INT16, TYPE_UNS16, TYPE_INT32, TYPE_UNS32

), floating point

(

TYPE_FLT64

), boolean (

TYPE_BOOLEAN

), or an enumerated type (

TYPE_ENUM

). The user can

then get the current value (

ATTR_CURRENT

) and the default value (

ATTR_DEFAULT

) for the

parameter id. If the data type is not the enumerated type, the user can also get the minimum value

(

ATTR_MIN

), the maximum value (

ATTR_MAX

), and the increment (

ATTR_INCREMENT

). Finally, if

the data type is enumerated, the user can get the number of enumerated types that are legal

(

ATTR_COUNT

), and passing the parameter id and index (which has to be between 0 and less than

ATTR_COUNT

), the user can call

pl_get_enum_param

and get the exact enumerated value along

with a string that describes the enumerated type.

Notes:

•

hcam

specifies which camera and which device driver are being used.

hcam

must be a valid

camera handle.

• If the data type coming back from

ATTR_TYPE

TYPE_CHAR_PTR

(and not an enumerated

type), then the

ATTR_COUNT

is the number of characters in the string plus a

NULL

terminator.

46 PVCAM Manual Version 2.7

List of Available Class 2 Functions

Class 2 functions represent camera settings. The current Class 2 functions are listed below

according to their respective types and are further described in the "Class 2 Functions" section,

starting on page 48. If the Class 2 functions you are interested in are not listed below, check

"Obsolete Functions" in Appendix B (page 143). Although these functions have been superseded

pl_get_param

and

pl_set_param

parameter ids, the list of these functions and their

descriptions have been included for reference purposes.

Camera Settings

pl_get_param

pl_set_param

pl_get_enum_param

pl_enum_str_length

List of Available Class 2 Parameter IDs

The following are available Class 2 parameters used with

pl_get_param()

pl_set_param()

pl_get_enum_param()

, and

pl_enum_str_length()

functions specified in Chapter 5.

CCD Clearing CCD Physical Attributes

PARAM_ANTI_BLOOMING PARAM_COLOR_MODE

PARAM_CLEAR_CYCLES PARAM_CUSTOM_CHIP

PARAM_CLEAR_MODE PARAM_FTSCAN

PARAM_CONT_CLEARS PARAM_FWELL_CAPACITY

PARAM_MIN_BLOCK PARAM_KIN_WIN_SIZE

PARAM_NUM_MIN_BLOCK PARAM_PAR_SIZE

PARAM_NUM_OF_STRIPS_PER_CLR PARAM_PIX_PAR_DIST

PARAM_SKIP_AT_ONCE_BLK PARAM_PIX_PAR_SIZE

PARAM_PIX_SER_DIST

Temperature Control

PARAM_PIX_SER_SIZE

PARAM_COOLING_MODE PARAM_POSTMASK

PARAM_TEMP PARAM_POSTSCAN

PARAM_TEMP_SETPOINT PARAM_PIX_TIME

PARAM_PREMASK

PARAM_PRESCAN

PARAM_SER_SIZE

PARAM_SUMMING_WELL

Chapter 5: Configuration / Setup (Class 2) 47

Gain CCD Readout

PARAM_GAIN_INDEX PARAM_CCS_STATUS

PARAM_GAIN_MULT_ENABLE PARAM_CUSTOM_TIMING

PARAM_GAIN_MULT_FACTOR PARAM_EDGE_TRIGGER

PARAM_INTENSIFIER_GAIN PARAM_PAR_SHIFT_TIME

PARAM_PREAMP_DELAY PARAM_PMODE

PARAM_PREAMP_OFF_CONTROL PARAM_READOUT_PORT

PARAM_READOUT_TIME

Shutter

PARAM_SER_SHIFT_TIME

PARAM_EXPOSURE_MODE

PARAM_PREFLASH

ADC Attributes

PARAM_SHTR_CLOSE_DELAY PARAM_ADC_OFFSET

PARAM_SHTR_CLOSE_DELAY_UNIT PARAM_BIT_DEPTH

PARAM_SHTR_GATE_MODE PARAM_SPDTAB_INDEX

PARAM_SHTR_OPEN_DELAY

PARAM_SHTR_OPEN_MODE

Cabilities

PARAM_SHTR_STATUS PARAM_ACCUM_CAPABLE

PARAM_FRAME_CAPABLE

I/O

PARAM_MPP_CAPABLE

PARAM_IO_ADDR

PARAM_IO_BITDEPTH

Other

PARAM_IO_DIRECTION PARAM_CAM_FW_VERSION

PARAM_IO_STATE PARAM_CHIP_NAME

PARAM_IO_TYPE PARAM_CONTROLLER_ALIVE

PARAM_LOGIC_OUTPUT PARAM_HEAD_SER_NUM_ALPHA

PARAM_PCI_FW_VERSION

PARAM_SERIAL_NUM

48 PVCAM Manual Version 2.7

Class 2 Functions

PVCAM Class 2: Configuration/Setup pl_get_param(2)

NAME

pl_get_param —

returns the requested attribute for a PVCAM parameter.

SYNOPSIS

rs_bool

pl_get_param (int16 hcam,uns32 param

id,int16 param

attrib,

void_ptr param_value)

DESCRIPTION This function returns the requested attribute for a PVCAM parameter.

param_id

is an enumerated type that indicates the parameter in question. See

"Class 0 Parameter IDs", "Class 2 Parameter IDs", and "Class 3 Parameter

IDs" for information about valid parameter ids.

param_value

points to the value of the requested attribute for the parameter. It

is a

void_ptr

because it can be different data types: the user is responsible for

passing in the correct data type (see attribute descriptions that follow).

param_attrib

is used to retrieve characteristics of the parameter. Possible

values for

param_attrib

are:

ATTR_ACCESS ATTR_INCREMENT

ATTR_AVAIL ATTR_MAX

ATTR_COUNT ATTR_MIN

ATTR_CURRENT ATTR_TYPE

ATTR_DEFAULT

ATTR_ACCESS

Reports if the

param_id

can be written to and/or read or (if it cannot be written

to and/or read) tells whether a feature exists. If the

param_id

can be either

written to or read, the next step is to determine its data type.

The access types are enumerated:

ACC_ERROR ACC_EXIST_CHECK_ONLY

ACC_READ_ONLY ACC_WRITE_ONLY

ACC_READ_WRITE

The data type for this attribute is

TYPE_UNS16

Note: This is an exception where an enum type is not treated as an unsigned 32-

bit integral value

ATTR_AVAIL

Feature available with attached hardware and software. The data type for this

attribute is

TYPE_BOOLEAN

Chapter 5: Configuration / Setup (Class 2) 49

PVCAM Class 2: Configuration/Setup pl_get_param(2)

ATTR_COUNT

Number of possible values for enumerated and/or array data types. If the data

type returned by

ATTR_TYPE

TYPE_CHAR_PTR

(and not an enumerated

type), then the

ATTR_COUNT

is the number of characters in the string plus a

NULL terminator. If 0 or 1 is returned,

ATTR_COUNT

is a scalar (single

element) of the following data types:

TYPE_INT8

TYPE_UNS8

TYPE_INT16

TYPE_UNS16

TYPE_INT32

TYPE_UNS32

TYPE_FLT64

TYPE_BOOLEAN

The data type for

ATTR_COUNT

TYPE_UNS32

ATTR_CURRENT

Current value. The data type for this attribute is defined by

ATTR_TYPE

ATTR_DEFAULT

Default value. The data type for this attribute is defined by

ATTR_TYPE

ATTR_INCREMENT

Step size for values (zero if non-linear or has no increment). The data type for

this attribute is defined by

ATTR_TYPE

ATTR_MAX

Maximum value. The data type for this attribute is defined by

ATTR_TYPE

ATTR_MIN

Minimum value. The data type for this attribute is defined by

ATTR_TYPE

Data type of parameter (int16, float 64, enumerated, etc.). The data type for this

TYPE_UNS16

. If the data type coming back from

ATTR_TYPE

TYPE_CHAR_PTR

(and not an enumerated type), then the

ATTR_COUNT

is the

number of characters in the string plus a NULL terminator.

Data type used by

pl_get_param

with attribute type (

ATTR_TYPE

TYPE_CHAR_PTR

string

TYPE_INT8

TYPE_UNS8

TYPE_INT16

TYPE_UNS16

TYPE_INT32

TYPE_UNS32

TYPE_FLT64

TYPE_ENUM

treat as uns32

TYPE_BOOLEAN

TYPE_VOID_PTR

ptr to void

TYPE_VOID_PTR_PTR

ptr to a void ptr

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_set_param and pl_get_enum_param

NOTES The data type of

param_value

is documented in

PVCAM.H

for each

param_id

. It can be retrieved using the

pl_get_param

function, with the

ATTR_TYPE

attribute.

50 PVCAM Manual Version 2.7

PVCAM Class 2: Configuration/Setup pl_set_param(2)

NAME

pl_set_param —

sets the current value for a PVCAM parameter.

SYNOPSIS

rs_bool

pl_set_param(int16 hcam,uns32 param_id,void_ptr

param_value)

DESCRIPTION This function sets the current value for a PVCAM parameter.

param_id

is an enumerated type that indicates the parameter in question. See

"Class 0 Parameter IDs", "Class 2 Parameter IDs", and "Class 3 Parameter

IDs" for information about valid parameter ids.

param_value

points to the new value of the parameter.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_get_param(2)

NOTES The data type of

param_value

is documented in

PVCAM.H

for each

param_id

. It can be retrieved using the

pl_get_param

function, using the

ATTR_TYPE

attribute.

The user should call the

pl_get_param

function with the attribute

ATTR_ACCESS

, to verify that the parameter id is writeable (settable), before

calling the

pl_set_param

function.

Chapter 5: Configuration / Setup (Class 2) 51

PVCAM Class 2: Configuration/Setup pl_get_enum_param(2)

NAME

pl_get_enum_param —

returns the enumerated value of the parameter

param_id

index

SYNOPSIS

rs_bool

pl_get_enum_param (int16 hcam,uns32 param_id,uns32

index,int32_ptr value,char_ptr

desc,uns32 length)

DESCRIPTION This function will return the enumerated value of the parameter

param_id

index

. It also returns a string associated with the enumerated type (

desc

length

indicates the maximum length allowed for the returned description. See

"Class 0 Parameter IDs", "Class 2 Parameter IDs", and "Class 3 Parameter

IDs" for information about valid parameter ids.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_get_param, pl_set_param, and pl_enum_str_length

NOTES The user should call the

pl_get_param

function with the attribute

ATTR_TYPE

, to verify that the parameter id is an enumerated data type before

calling the

pl_get_enum_param

. The user should also call the

pl_get_param

function with the attribute

ATTR_COUNT

to determine how

many valid enumerated values the parameter id has.

Example: Suppose there is a parameter for camera readout speed. This

parameter can be set to 1MHz, 5MHz, or 10MHz. If the readout speed is

currently set to 5MHz, a call to

pl_get_param

returns a value of 1. A call to

pl_get_enum_param

for the readout speed parameter at

index

1 returns the

enumerated type

5MHz

(which may or may not be equal to 1). The

desc

would

contain "5Mhz".

52 PVCAM Manual Version 2.7

PVCAM Class 2: Configuration/Setup pl_enum_str_length(2)

NAME

pl_enum_str_length —

returns the length of the descriptive string for the

parameter param_id at index.

SYNOPSIS

rs_bool

pl_enum_str_length(int16 hcam,uns32 param_id,uns32 index,

uns32_ptr length)

DESCRIPTION This function will return the length (length) of the descriptive string for the

parameter param_id at index. The length includes the terminating null ("\0")

character.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_get_enum_param

NOTES This function can be used to determine the amount of memory to allocate for the

descriptive string when calling the

pl_get_enum_param

function. Using the

example in

pl_get_enum_param

, the length returned would be 5 (4 printable

characters plus 1 null character).

Chapter 5: Configuration / Setup (Class 2) 53

Class 2 Parameter IDs

The following parameter IDs are used with

pl_get_param

pl_set_param

pl_get_enum_param

, and

pl_enum_str_length

functions described in Chapter 5.

Note:

Camera Dependent

indicates that this parameter or function is not available to all

Roper Scientific cameras. If a parameter or function is marked

Camera Dependent

, an

ATTR_AVAIL should be called to see if the camera supports it.

Class 2 Parameter ID Description

PARAM_ACCUM_CAPABLE

Camera Dependent

Returns TRUE if the camera has accumulation capability.

Accumulation functionality is provided with the Class 93

FF plug-in.

Datatype:

rs_bool

PARAM_ADC_OFFSET

Camera Dependent

Bias offset voltage. The units do not correspond to the

output pixel values in any simple fashion (the conversion

rate should be linear, but may differ from system to

system) but a lower offset voltage will yield a lower

value for all output pixels. Pixels brought below zero by

this method will be clipped at zero. Pixels raised above

saturation will be clipped at saturation. Before you can

change the offset level, you must read the current offset

level. The default offset level will also vary from system

to system and may change with each speed and gain

setting.

Note: THIS VALUE IS SET AT THE FACTORY AND

SHOULD NOT BE CHANGED. If you would like to

change this value, please contact customer service before

doing so.

Datatype:

int16

PARAM_ANTI_BLOOMING

Camera Dependent

Does not apply to all cameras. Enables or disables anti-

blooming. Possible values are:

ANTIBLOOM_NOTUSED

ANTIBLOOM_INACTIVE

ANTIBLOOM_ACTIVE

Note: The

ATTR_AVAIL

attribute can be used to tell the

application if this feature is supported.

Datatype:

enum

PARAM_BIT_DEPTH

Number of bits output by the currently selected speed

choice. Although this number might range between 6 and

16, the data will always be returned in an unsigned 16-bit

word. This value indicates the number of valid bits within

that word.

Datatype:

int16

54 PVCAM Manual Version 2.7

Class 2 Parameter ID Description

PARAM_CAM_FW_VERSION

Camera Dependent

Returns the firmware version of the camera, as a

hexadecimal number in the form MMmm, where MM is

the major version and mm is the minor version. For

example, 0x0814 corresponds to version 8.20.

Datatype:

uns16

PARAM_CCS_STATUS

Camera Dependent

This holds sixteen bits of status data from the Camera

Control Subsystem (CCS). Only the lowest 2 bits are

currently implemented. These 2 bits give the status of the

CCS:

Value CCS State

0 idle

1 initializing

2 running

3 continuously clearing

A running state occurs any time the CCS is in the process

of performing a camera operation (including opening or

closing the shutter, exposing, clearing the CCD before a

sequence or exposure, parallel or serial shifting, and

readout/digitization). After the CCD has finished reading

out, the setup determines if the CCS goes to idle or enters

continuous clearing mode.

Datatype:

int16

PARAM_CHIP_NAME

The name of the CCD. The name is a null-terminated text

string. The user must pass in a character array that is at

least

CCD_NAME_LEN

elements long.

Datatype:

char_ptr

PARAM_CLEAR_CYCLES

This is the number of times the CCD must be cleared to

completely remove charge from the parallel register.

Datatype:

uns16

Chapter 5: Configuration / Setup (Class 2) 55

Class 2 Parameter ID Description

PARAM_CLEAR_MODE

Camera Dependent

This defines when clearing takes place. See enum below

for possible values.

CLEAR_NEVER

CLEAR_PRE_EXPOSURE

CLEAR_PRE_SEQUENCE

CLEAR_POST_SEQUENCE

CLEAR_PRE_POST_SEQUENCE

CLEAR_PRE_EXPOSURE_POST_SEQ

CLEAR_NEVER

Don't ever clear the CCD.

CLEAR_PRE_EXPOSURE

Clear clear_cycles times before each exposure starts.

CLEAR_PRE_SEQUENCE

Clear clear_cycles times before the sequence starts.

CLEAR_POST_SEQUENCE

Do continuous clearing after the sequence ends.

CLEAR_PRE_POST_SEQUENCE

Clear clear_cycles times before the sequence starts

and continuous clearing after the sequence ends.

CLEAR_PRE_EXPOSURE_POST_SEQ

Clear clear_cycles times before each exposure starts

and continuous clearing after the sequence ends.

The

CLEAR_NEVER

setting is particularly useful for

performing a readout after an exposure has been aborted.

Note that normally during the idle period, the CCS

parallel clock drivers and serial drivers revert to a low

power state. This saves on both power and heat. If any

CLEAR_..._POST

options are used, these systems will

not enter low power mode. This will generate extra heat

in both the electronics unit and the camera head.

Datatype:

enum

PARAM_COLOR_MODE

Camera Dependent

The color mode of the CCD. See enum below for

possible values.

COLOR_NONE=0

COLOR_RGGB=2

COLOR_NONE

= monochrome

COLOR_RGGB

= RGGB color mask

Datatype:

enum

56 PVCAM Manual Version 2.7

Class 2 Parameter ID Description

PARAM_CONTROLLER_ALIVE

This is a general parameter that checks to see if the

controller is on and running. Returns a TRUE if the

controller is "alive".

Datatype:

rs_bool

PARAM_COOLING_MODE

This is the type of cooling used by the current camera.

See enum below for possible values.

NORMAL_COOL=TE_COOLED

CRYO_COOL=LN_COOLED

NORMAL_COOL

This is a thermo-electrically (TE)-cooled camera with

air or liquid assisted cooling.

CRYO_COOL

The camera is cryogenically cooled. A camera cooled

via Liquid Nitrogen (LN) in an attached Dewar is an

example of a cryo-cooled camera.

Datatype:

enum

PARAM_CUSTOM_CHIP

Camera Dependent

Enables the custom chip option. This option allows the

user to change the CCD's dimensions in software. The

ROI setting after the custom chip has been defined are

based on the custom chip dimensions, not on the the

actual physical dimensions of the array. This feature

enables over-scans, TDI (Time-delay integration) data

acquisitions, and virtual chip operations.

When the custom chip option is enabled, the

ATTR_ACCESS of the following parameters changes from

ACC_READ_ONLY to ACC_READ_WRITE:

PARAM_PREMASK PARAM_PRESCAM

PARAM_POSTMASK PARAM_POSTSCAN

PARAM_PAR_SIZE PARAM_SER_SIZE

Datatype:

rs_bool

PARAM_CUSTOM_TIMING

Camera Dependent

Enables the custom timing option. This option allows the

user to change the shift time. This capability is mostly

used for kinetics operation but may also be used with

frame transfer chips. Readout time will be recalculated

for the new speed. PARAM-PAR_SHIFT_TIME and

PARAM_SER_SHIFT_TIME are the params used to change

the shift time.

Datatype:

rs_bool

Chapter 5: Configuration / Setup (Class 2) 57

Class 2 Parameter ID Description

PARAM_EDGE_TRIGGER

Camera Dependent

Does not apply to all cameras. Edge Trigger defines

whether the external sync trigger is positive or negative

edge active. This is for the ST133 family (1 and 5 MHz)

and PentaMAX V5.0. Possible values:

EDGE_TRIG_POS=2

EDGE_TRIG_NEG

Note: The

ATTR_AVAIL

attribute can be used to tell the

application if this feature is supported.

Datatype:

enum

PARAM_EXPOSURE_MODE

This parameter cannot be set but its value can be

retrieved. Possible values:

TIMED_MODE

STROBED_MODE

BULB_MODE

TRIGGER_FIRST_MODE

FLASH_MODE

VARIABLE_TIMED_MODE

Note: See "Exposure Mode Constants" on page 69 for

information about these modes.

Datatype:

enum

PARAM_FRAME_CAPABLE

Camera Dependent

If true, this camera can run in frame transfer mode (set

through

PARAM_PMODE

Datatype:

rs_bool

PARAM_FTSCAN

Camera Dependent

This is the number of frame transfer dummies between

the active and masked areas.

Datatype:

uns16

PARAM_FWELL_CAPACITY

Camera Dependent

Gets the full-well capacity of this CCD, measured in

electrons.

Datatype:

uns32

PARAM_GAIN_INDEX

Gain setting for the current speed choice. The valid range

for a gain setting is 1 through

PARAM_GAIN_INDEX

with

ATTR_MAX

, where the max gain may be as high as 16.

Values outside this range will be ignored. Note that gain

settings may not be linear! Values 1-16 may not

correspond to 1x - 16x, and there are holes between the

values. However, when the camera is initialized, and every

time a new speed is selected, the system will always reset

to run at a gain of 1x.

Datatype:

int16

58 PVCAM Manual Version 2.7

Class 2 Parameter ID Description

PARAM_GAIN_MULT_ENABLE

Camera Dependent

Gain multiplier on/off indicator for cameras with the

multiplication gain functionality.

This parameter may be read-only, in which case the gain

is always on.

Datatype:

rs_bool

PARAM_GAIN_MULT_FACTOR

Camera Dependent

Gain multiplication factor for cameras with multiplication

gain functionality. The valid range is 1 through

PARAM_GAIN_MULT_FACTOR

with

ATTR_MAX

Datatype:

uns1

PARAM_HEAD_SER_NUM_ALPHA

Camera Dependent

Returns the alphanumeric serial number for the camera

head. The serial number for Photometrics-brand cameras

has a maximum length of

MAX_ALPHA_SER_NUM_LEN

Datatype:

char_ptr

PARAM_INTENSIFIER_GAIN

Camera Dependent

Does not apply to all cameras. Intensifier gain has a range

of 0-255.

Note: The

ATTR_AVAIL

attribute can be used to tell the

application if this feature is supported.

Datatype:

int16

PARAM_IO_ADDR

Camera Dependent

Sets and gets the currently active I/O address. The

number of available I/O addresses can be obtained using

the

ATTR_COUNT

attribute with the

PARAM_IO_ADDR

parameter ID.

Datatype:

uns16

PARAM_IO_BITDEPTH

Camera Dependent

Gets the bit depth for the signal at the current address.

The bit depth has different meanings, depending on the

I/O Type:

IO_TYPE_TTL

The number of bits read or written at this address.

IO_TYPE_DAC

The number of bits written to the DAC.

Datatype:

uns16

PARAM_IO_DIRECTION

Camera Dependent

Gets the direction of the signal at the current address.

Possible values are:

IO_DIR_INPUT

IO_DIR_OUTPUT

IO_DIR_INPUT_OUTPUT

Datatype:

enum

Chapter 5: Configuration / Setup (Class 2) 59

Class 2 Parameter ID Description

PARAM_IO_STATE

Camera Dependent

Sets and gets the state of the currently active I/O signal.

The new (when setting) or return (when getting) value

has different meanings, depending on the I/O Type:

IO_TYPE_TTL

A bit pattern, indicating the current state (0 or 1) of

each of the control lines (bit 0 indicates line 0 state,

etc.).

IO_TYPE_DAC

The value of the desired analog output (only applies

to pl_set_param).

The minimum and maximum range for the signal can be

obtained using the

ATTR_MIN

and

ATTR_MAX

attributes, respectively, with the

PARAM_IO_ADDR

parameter ID.

When outputting signals, the state is the desired output.

For example, when setting the output of a 12-bit DAC

with a range of 0-5V to half-scale, the state should be 2.5

(volts), not 1024 (bits).

Datatype:

flt64

PARAM_IO_TYPE

Camera Dependent

Gets the type of I/O available at the current address.

Possible values are:

IO_TYPE_TTL

IO_TYPE_DAC

Datatype:

enum

PARAM_KIN_WIN_SIZE

Camera Dependent

This is used to enter the size of the kinetics window

(a partial area that is exposed to light). Data is

acquired in this area and then shifted to the masked

area repeatedly until the CCD array is full and is then

read out. The window size must be 1 or greater and

less than or equal to the number of rows on the array.

Datatype:

unsign16

PARAM_LOGIC_OUTPUT

Camera Dependent

Kinds of output are:

OUTPUT_NOT_SCAN

OUTPUT_SHUTTER

OUTPUT_NOT_RDY

OUTPUT_LOGIC0

OUTPUT_CLEARING

OUTPUT_NOT_FT_IMAGE_SHIFT

OUTPUT_RESERVED

OUTPUT_LOGIC1

Datatype:

enum

60 PVCAM Manual Version 2.7

Class 2 Parameter ID Description

PARAM_MIN_BLOCK

Camera Dependent

This is the CCD skip parameter for the amount to group

on the shift register and throw away.

Datatype:

int16

PARAM_MPP_CAPABLE

Camera Dependent

Indicates whether this CCD runs in MPP mode. The

actual value returned is equal to one of four constants:

Possible values.

MPP_UNKNOWN

MPP_ALWAYS_OFF

MPP_ALWAYS_ON

MPP_SELECTABLE

Datatype:

enum

PARAM_NUM_MIN_BLOCK

Camera Dependent

This is the CCD skip parameter for the number of

minimum block groups to use before valid data.

Datatype:

int16

PARAM_NUM_OF_STRIPS_PER_CLR

Camera Dependent

This is the CCD skip parameter for the number of strips

per clear. Used to define how many clears to use for

continuous clears and used with clears to define the clear

area at the beginning of an experiment.

Datatype:

int16

PARAM_PAR_SHIFT_TIME

Camera Dependent

This is the parallel shift time that can be changed after

custom timing has been enabled

(PARAM_CUSTOM_TIMING). The time must fall with the

ATTR_MIN and ATTR_MAX and the ATTR_INCREMENT or a

multiple of the increment that falls within the minimum

and maximum values. Increments are in terms of

nanoseconds.

SEE ALSO

pl_exp_abort(3),pl_exp_check_status(3),

pl_exp_setup_seq(3),pl_exp_start_seq(3)

NOTES This function is only necessary when multiple sequences or multiple regions are

defined, or when information such as image data, time, and size needs to be

stored with the

pixel_stream

data. This function and the Class 4 functions

are not required for a single region, single exposure; the pixel stream is the raw

data for that image.

The final format of the image buffer will be the same as that of the readout.

Individual exposures may be appended together to create a single, multiple

exposure image buffer. See "Chapter 7: Buffer Manipulation (Class 4)" for more

information on the use of buffers.

Chapter 6: Data Acquisition (Class 3) 71

PVCAM Class 3: Data Acquisition pl_exp_get_driver_buffer(3)

NAME

pl_exp_get_driver_buffer -

retrieves a pointer to a preallocated image

buffer.

SYNOPSIS

rs_bool

pl_exp_get_driver_buffer(int16 hcam, void_ptr_ptr

pixel_stream, uns32_ptr byte_cnt)

DESCRIPTION This function returns a pointer in

pixel_stream

to the image buffer that has

been previously allocated by a camera device driver. A pointer to the size of the

buffer is returned in

byte_cnt

This function is used to retrieve a pointer to the buffer that may be allocated by

the driver. If the driver did not allocate an image buffer, a value of NULL will

be returned for

pixel_stream

, and a value of zero will be returned for

byte_cnt

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

NOTES This image buffer is a block of contiguous physical memory that is set aside for

data storage when the operating system is started. This preallocation of memory

ensures that you will have a contiguous memory block to store data when you

are performing continuous data acquisition. A contiguous memory block may be

necessary in some situations in which the host computer is heavily loaded with

tasks. When the buffer is used for Circular Buffer operation, the number of

frames that can be held in the buffer depends on the size of the buffer and the

image size.

72 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_get_latest_frame(3)

NAME

pl_exp_get_latest_frame -

returns pointer to most recent frame in

circular buffer.

SYNOPSIS

rs_bool

pl_exp_get_latest_frame(int16 hcam, void_ptr_ptr frame)

DESCRIPTION This function returns a pointer to the most recently acquired frame in the circular

buffer.

frame

is a pointer to the most recent frame.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_exp_get_driver_buffer(3), pl_exp_setup_cont(3),

pl_exp_start_cont(3), pl_exp_check_cont_status(3),

and

pl_exp_stop_cont(3)

NOTES If the camera in use is not able to return the latest frame for the current operating

mode, this function will fail. For example, some cameras cannot return the latest

frame in

CIRC_NO_OVERWRITE

mode. Use the parameter id

PARAM_CIRC_BUFFER

with

pl_get_param

to check to see if the system can

perform circular buffer operations.

Chapter 6: Data Acquisition (Class 3) 73

PVCAM Class 3: Data Acquisition pl_exp_get_oldest_frame(3)

NAME

pl_exp_get_oldest_frame -

locks oldest frame in circular buffer and

returns pointer to that frame.

SYNOPSIS

rs_bool

pl_exp_get_oldest_frame(int16 hcam, void_ptr_ptr frame)

DESCRIPTION This function locks the oldest unretrieved frame in the circular buffer, and

returns a pointer to that frame.

frame

is a pointer to the oldest unretrieved

frame.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_exp_get_driver_buffer(3), pl_exp_setup_cont(3),

pl_exp_start_cont(3), pl_exp_check_cont_status(3),

pl_exp_unlock_oldest_frame(3),

and

pl_exp_stop_cont(3)

NOTES If the camera in use is not able to return the oldest frame for the current

operating mode, this function will fail. For example, some cameras cannot

return the oldest frame in

CIRC_OVERWRITE

mode. Use the parameter id

PARAM_CIRC_BUFFER

with

pl_get_param

to check to see if the system can

perform circular buffer operations.

74 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_init_seq(3)

NAME

pl_exp_init_seq —

initializes the data collection functions.

SYNOPSIS

rs_bool

pl_exp_init_seq(void)

DESCRIPTION This function prepares the portion of the library associated with the exposure

control for operation and must be called before any other Class 3 function.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_pvcam_init(0),pl_pvcam_uninit(0),pl_exp_uninit_seq(3)

NOTES You must explicitly call this function after calling

pl_pvcam_init

and before

calling any other

pl_exp_

function.

Chapter 6: Data Acquisition (Class 3) 75

PVCAM Class 3: Data Acquisition pl_exp_setup_cont(3)

NAME

pl_exp_setup_cont -

sets circular buffer mode.

SYNOPSIS

rs_bool

pl_exp_setup_cont(int16 hcam,uns16 rgn_total,rgn_const_ptr

rgn_array,int16 mode,uns32

exposure_time,uns32_ptr stream_size,

int16 circ_mode)

DESCRIPTION This function sets the mode of operation for the circular buffer. This function

uses the array of regions, exposure mode, exposure time passed in, and circular

buffer mode and transmits them to the camera.

The pointer

rgn_array

points to

rgn_total

region definitions.

mode

specifies the exposure mode.

exposure_time

specifies the exposure time in the currently selected

exposure time resolution (see

PARAM_EXP_RES

and

PARAM_EXP_RES_INDEX

The pointer

stream_size

points to a variable that will be filled with

number of bytes in the pixel stream.

circ_mode

can be set to either

CIRC_OVERWRITE

CIRC_NO_OVERWRITE

. This function must be called before calling

pl_exp_start_cont()

The settings are then downloaded to the camera. If there is any problem

(overlapping regions or a frame-transfer setting for a camera that lacks that

capability), this function aborts and returns with a failure.

pl_error_code

indicates the definition problem.

The

stream_size

pointer is filled with the number of bytes of memory needed

to buffer the full sequence. (It is the developer's responsibility to allocate a

memory buffer for the pixel stream.)

When this function returns, the camera is ready to begin the exposure.

pl_exp_start_cont

initiates exposure and readout.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_exp_get_driver_buffer(3), pl_exp_start_cont(3),

pl_exp_check_cont_status(3), pl_exp_get_oldest_frame(3),

pl_exp_get_latest_frame(3),

pl_exp_unlock_oldest_frame(3),

and

pl_exp_stop_cont(3)

NOTES Use the parameter id

PARAM_CIRC_BUFFER

with

pl_get_param

to see if the

system can perform circular buffer operations. The circular buffer is passed to

pl_exp_start_cont

. The buffer is either allocated by your application or

obtained from the driver as a preallocated block of memory, using the

pl_exp_get_driver_buffer

function.

Refer to Example 3: Circular Buffer in "Code Examples" for two examples of

code for circular buffer operation.

76 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_setup_seq(3)

NAME

pl_exp_setup_seq —

prepares the camera to perform a readout.

SYNOPSIS

rs_bool

pl_exp_setup_seq(int16 hcam,uns16 exp_total,uns16

rgn_total,rgn_const_ptr rgn_array,int16

mode,uns32 exposure_time,uns32_ptr

stream_size)

DESCRIPTION This function uses the array of regions, exposure mode, and exposure time

passed in and transmits them to the camera.

exp_total

specifies the number

of images to take. The pointer

rgn_array

points to

rgn_total

region

definitions,

mode

specifies the exposure mode,

exposure_time

specifies the

exposure time in the currently selected exposure time resolution (see

PARAM_EXP_RES

and

PARAM_EXP_RES_INDEX

). The pointer

stream_size

points to a variable that will be filled with number of bytes in the pixel stream.

The settings are then downloaded to the camera. If there is any problem

(overlapping regions or a frame-transfer setting for a camera that lacks that

capability), this function aborts and returns with a failure.

pl_error_code

indicates the definition problem.

The

stream_size

pointer is filled with the number of bytes of memory needed

to buffer the full sequence. (It is the developer's responsibility to allocate a

memory buffer for the pixel stream.)

When this function returns, the camera is ready to begin the exposure.

pl_exp_start_seq

initiates exposure and readout.

RETURN VALUE TRUE for success, FALSE for a failure. Failure

sets pl_error_code

SEE ALSO

pl_exp_abort(3),pl_exp_check_status(3),

pl_exp_start_seq(3),pl_exp_finish_seq(3)

NOTES This function downloads new settings. After receiving the settings, the camera

merely waits in an idle state. The

pl_exp_abort

command may be used to

place the camera into some other state, such as continuous clearing, but this will

not alter or affect the downloaded settings. Essentially, the camera is still holding

the exposure sequence and waiting to start, while it clears the CCD charge.

Chapter 6: Data Acquisition (Class 3) 77

PVCAM Class 3: Data Acquisition pl_exp_start_cont(3)

NAME

pl_exp_start_cont -

begins continuous readout into circular buffer

SYNOPSIS

rs_bool

pl_exp_start_cont(int16 hcam, void_ptr pixel_stream,uns32

size)

DESCRIPTION This function will initiate a continuous readout from the camera into a

circ

ular

buffer.

pixel_stream

is a pointer to the circular buffer, and

size

indicates

the number of bytes the buffer can hold.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_exp_get_driver_buffer(3),

pl_exp_setup_cont(3),

pl_exp_check_cont_status(3),

pl_exp_get_oldest frame(3),

pl_exp_get_latest_frame(3),

pl_exp_unlock_oldest_frame(3),

and

pl_exp_stop_cont(3)

NOTES If

pixel_stream

points to a buffer that is not an integer-multiple of the frame

size for the exposure, this function will return FALSE and set an appropriate

error code in

pl_error_code

. For example, a buffer size of 1000 with a frame

size of 250 is OK, but a buffer size of 900 would cause a failure.

Use the parameter id

PARAM_CIRC_BUFFER

with

pl_get_param

to check to

see if the system can perform circular buffer operations.

78 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_start_seq(3)

NAME

pl_exp_start_seq —

begins exposing, returns immediately.

SYNOPSIS

rs_bool

pl_exp_start_seq(int16 hcam,void_ptr pixel_stream)

DESCRIPTION This is a companion function to

pl_exp_setup_seq

must be called first to define the exposure and program this information into the

camera. After that,

pl_exp_start_seq

may be called one or more times. Each

time it is called, it starts one sequence and returns immediately (a sequence may

be one or more exposures).

Progress can be monitored through

pl_exp_check_status

. The next sequence

may be started as soon as the readout has finished or an abort has been performed

(

pl_exp_abort

). The

hcam

parameter defines which camera is used.

The user must allocate an appropriately sized memory buffer for data collection,

pointed to by

pixel_stream

. This buffer must be at least

stream_size

bytes, where

stream_size

is the value returned from

pl_exp_setup_seq

In addition, this memory must be page-locked or similarly protected on virtual

memory systems — these requirements are system specific and the responsibility

of the application.

There is a special case for those users who want to use their own frame grabber

(with an appropriately equipped camera). If a null pointer is passed in for

pixel_stream

pl_exp_start_seq

will assume that the user is routing the

data to a frame grabber or other device under their control. Under these

conditions,

pl_exp_start_seq

initiates the exposure, but does not attempt to

collect incoming data.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets pl_error_code.

SEE ALSO

pl_exp_check_status(3),pl_exp_setup_seq(3,

pl_exp_finish_seq(3)

NOTES Technically, this only changes the state of the CCS program. Regardless of

whether the CCS is idle or continuously clearing, this forces the CCS program

into the busy state. The camera settings are not altered by this command, but it

does begin executing. If the CCS is idle, there is no delay and the camera will

begin running immediately. If the CCS is continuously clearing, the system

finishes the current parallel shift (it finishes the current single parallel row) and

then begins running. This produces a delay of up to the parallel-shift time for this

CCD (1–300 microseconds, depending on the CCD). If the camera has been set

up with one of the

CLEAR_PRE_

clearing modes, it will also explicitly clear the

CCD as its first action.

Chapter 6: Data Acquisition (Class 3) 79

PVCAM Class 3: Data Acquisition pl_exp_abort(3)

Name

pl_exp_abort —

stops collecting data, cleans up device driver, halts camera.

SYNOPSIS

rs_bool

pl_exp_abort(int16 hcam,int16 cam_state)

DESCRIPTION

pl_exp_abort

performs two functions: it stops the host device driver, and it

may halt the camera (

hcam

specifies which camera and which device driver are

being used.) Halting the camera halts

readout,clearing,

and all other

camera activity. On the host side, data collection is controlled by a device driver.

If data collection is currently enabled (the image data active state), this function

stops collection, returns the low-level communication hardware and software to

an image data idle state, and disables collection. In the idle state, any data that

arrives is ignored and discarded. The idle state is the normal system default. On

the camera side, the Camera Control Subsystem (CCS) may be in the process of

collecting data, or it may be in one of several idle states (see

pl_get_param

parameter id

PARAM_CCS_STATUS

This function always stops the data collection software. In addition, it has the

option of forcing the CCS into a new state by setting the

cam_state

variable to

one of the following constants, which are camera dependent:

CCS_NO_CHANGE

Do not alter the current state of the CCS.

CCS_HALT

Halt all CCS activity, and put the CCS into the

idle state.

CCS_HALT_CLOSE_SHTR

Close the shutter, then halt all CCS activity, and

put the CCS into the idle state.

CCS_CLEAR

Put the CCS into the continuous clearing state.

CCS_CLEAR_CLOSE_SHTR

Close the shutter, then put the CCS into the

continuous clearing state.

CCS_OPEN_SHTR

Open the shutter, then halt all CCS activity, and

put the CCS into the idle state.

CCS_CLEAR_OPEN_SHTR

Open the shutter, then put the CCS into the

continuous clearing state.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO Class 3 data collection functions,

pl_get_param

parameter id

PARAM_CCS_STATUS(2)

80 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_abort(3)

NOTES This may also be called outside of an exposure. It can explicitly open the shutter,

close the shutter, or stop the CCS.

In the idle state, the system takes the least possible amount of action when image

data arrives. On some systems, this involves placing the hardware in reset state,

so it is inactive. On SCSI systems, the driver does not initiate any data transfers,

although a buffer on the camera end may be filling up.

If the CCS is halted and the shutter is closed (

CCS_HALT_CLOSE_SHTR

), the

current image remains on the CCD (although dark charge continues to

accumulate). If

clear_cycles

is zero or the clear mode is

CLEAR_NEVER

, the

image may be read off by performing a bias readout.

In frame transfer mode, you may not want to close the shutter when halting the

CCS. Some frame transfer systems do not include a shutter, in which case an

attempt to open or close the shutter is ignored, but does not cause an error.

Chapter 6: Data Acquisition (Class 3) 81

PVCAM Class 3: Data Acquisition pl_exp_stop_cont(3)

NAME

pl_exp_stop_cont -

stops continuous readout acquisition.

SYNOPSIS

rs_bool

pl_exp_stop_cont(int16 hcam, int16 cam_state)

DESCRIPTION This function halts a continuous readout acquisition into a circular buffer.

cam_state

defines the new state of the Camera Control Subsystem, as

described in the documentation for the

pl_exp_abort()

function.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_exp_get_driver_buffer(3), pl_exp_setup_cont(3),

pl_exp_start_cont(3), pl_exp_check_cont_status(3),

pl_exp_get_oldest frame(3), pl_exp_get_latest_frame(3),

and pl_exp_unlock_oldest_frame(3)

NOTES Use the parameter id

PARAM_CIRC_BUFFER

with

pl_get_param

to check to

see if the system can perform circular buffer operations.

82 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_check_status(3)

NAME

pl_exp_check_status —

checks the status of the current exposure.

SYNOPSIS

rs_bool

pl_exp_check_status(int16 hcam, int16_ptr status,

uns32_ptr byte_cnt)

DESCRIPTION This is only useful when data collection has been set up and started, as with a

call to the Class 3 functions

pl_exp_setup_seq

and

pl_exp_start_seq

In general, Class 3 functions start an exposure then immediately return, allowing

the progress to be monitored. The status gives a quick evaluation of progress.

The variable status returns one of the following values:

READOUT_NOT_ACTIVE

The system is idle, no data is expected. If any

arrives, it will be discarded.

EXPOSURE_IN_PROGRESS

The data collection routines are active. They are

waiting for data to arrive, but none has arrived yet.

READOUT_IN_PROGRESS

The data collection routines are active. The data

has started to arrive.

READOUT_COMPLETE

All the expected data has arrived. Data collection

is complete, and the driver has returned to idle

state.

FRAME_AVAILABLE

See "READOUT_COMPLETE".

READOUT_FAILED

Something went wrong. The function returns a

FALSE and

pl_error_code

is set. (See Return

Value below for more information.)

ACQUISITION_IN_PROGRESS

Indicates that a Princeton Instruments brand

camera is either exposing

(

EXPOSURE_IN_PROGRESS

) or reading out the

data (

READOUT_IN_PROGRESS

); these individual

states are not available with this camera brand.

More detailed information is returned in

byte_cnt

. This reports on exactly how

many bytes of data have arrived so far (divide by two to get the number of

pixels). This level of feedback is unimportant to many users.

RETURN VALUE TRUE means the status was checked successfully, FALSE indicates a bad

handle, a problem communicating with the camera or driver, or some type of

readout failure. In the last case,

pl_error_code

will be set to one of the

following values:

C0_EXP_FIFO_OVERFLOW C0_EXP_XFER_ERR

C0_EXP_NO_ACK C0_EXP_MISSING_DATA

C0_EXP_EXTRA_DATA DDI_UNKNOWN_IM_STATUS

SEE ALSO

pl_exp_setup_seq(3),pl_exp_start_seq(3)

NOTES

Chapter 6: Data Acquisition (Class 3) 83

PVCAM Class 3: Data Acquisition pl_exp_check_cont_status(3)

NAME

pl_exp_check_cont_status

—

checks the continuous readout status from

the camera into a circular buffer.

SYNOPSIS

rs_bool

pl_exp_check_cont_status(int16 hcam, int16_ptr

status,uns32_ptr byte_cnt,

uns32_ptr buffer_cnt)

DESCRIPTION This function will return the status of a continuous readout from the camera into

a circular buffer. status is a pointer to one of the following values:

READOUT_NOT_ACTIVE EXPOSURE_IN_PROGRESS,

READOUT_IN_PROGRESS ACQUISITION_IN_PROGRESS,

READOUT_FAILED READOUT_COMPLETE=FRAME_AVAILABLE

byte_cnt

points to the number of bytes currently stored in the buffer.

buffer_cnt

points to the number of times the buffer has been filled.

ACQUISITION_IN_PROGRESS

indicates that a Princeton Instruments brand

camera is either exposing (

EXPOSURE_IN_PROGRESS

) or reading out the data

(

READOUT_IN_PROGRESS

); the two individual states are not available for a

Princeton Instruments brand camera.

The total number of bytes transferred can be determined as follows:

total_bytes

(buffer_cnt * buffer_size)

+ byte_cnt

RETURN VALUE TRUE is returned for success, FALSE for a failure. Failure will set

pl_error_code

SEE ALSO

pl_exp_setup_cont(3), pl_exp_start_cont(3),

pl_exp_get_oldest frame(3), pl_exp_get_latest_frame(3),

pl_exp_unlock_oldest_frame(3),

and

pl_exp_stop_cont(3)

NOTES This function only returns meaningful results if a continuous readout from the

camera has been initiated by a call to

pl_exp_start_cont().

Use the

parameter id

PARAM_CIRC_BUFFER

with

pl_get_param

to check to see if the

system can perform circular buffer operations.

84 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_uninit_seq(3)

NAME

pl_exp_uninit_seq —

uninitializes the data collection functions.

SYNOPSIS

rs_bool

pl_exp_uninit_seq(void)

DESCRIPTION This function undoes the preparations done by

pl_exp_init_seq

. After

executing this function, acquisition cannot take place.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_pvcam_init(0),pl_pvcam_uninit(0),pl_exp_init_seq(3)

NOTES You must explicitly call this function before calling

pl_pvcam_uninit

Chapter 6: Data Acquisition (Class 3) 85

PVCAM Class 3: Data Acquisition pl_exp_unlock_oldest_frame(3)

NAME

pl_exp_unlock_oldest_frame -

makes oldest frame in circular buffer

overwriteable.

SYNOPSIS

rs_bool

pl_exp_unlock_oldest_frame(int16 hcam)

DESCRIPTION This function unlocks the oldest frame in the circular buffer; the frame should

have been locked previously by a call to

pl_exp_get_oldest_frame

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_exp_get_driver_buffer(3), pl_exp_setup_cont(3),

pl_exp_start_cont(3), pl_exp_check_cont_status(3),

pl_exp_get_oldest frame(3),

pl_exp_unlock_oldest_frame(3),

and

pl_exp_stop_cont(3)

NOTES Failure to call this function after using the frame will cause the continuous

acquisition progress to halt eventually, because the frame cannot be overwritten

when it is locked.

Use the parameter id

PARAM_CIRC_BUFFER

with

pl_get_param

to check to

see if the system can perform circular buffer operations.

86 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_unravel(3)

NAME

pl_exp_unravel -

unravels a single or multiple ROIs from the current data

stream.

SYNOPSIS

rs_bool

pl_exp_unravel(int16 hcam, uns16 exposure, void_ptr

pixel_stream, uns16 rgn_total,

rgn_const_ptr rgn_array, uns16_ptr *

array_list)

DESCRIPTION This function will separate a single or multiple Region of Interest from the data

stream.

int16 hcam

is the handle to open camera

uns16 exposure

is the index into the buffer pointing to a specific frame.

void_ptr pixel_stream

is the pointer to the buffer containing the frame

data.

uns16 rgn_total:

is the total number of ROIs in the frame.

rgn_const_ptr:

is the pointer to the array of region(s).

uns16_ptr* array_list

is the pointer to the array of buffers that the

function unravels the data into.

RETURN VALUE TRUE for success, FALSE for a failure.

SEE ALSO

pl_exp_setup_cont(3), pl_exp_start_cont(3),

pl_exp_check_cont_status(0), pl_exp_get_oldest frame(3),

and

pl_exp_unlock_oldest_frame(3)

NOTES Code example using circular buffer:

rgn_type r[]={{0,19,1,0,9,1},{40,59,1,20,24,1}};

uns32 nBytes;

uns16 numFrames = 5;

if(!pl_exp_setup_cont(hCam, 2, r, TIMED_MODE, 500,

&nBytes,CIRC_NO_OVERWRITE)) return -1;

// Allocating 3x the frame size for a decent circular

buffer

nBytes *= 3;

uns16 *pStream [( nBytes / sizeof(uns16)];

uns16 *pRoi1 [ 200 ]; // size of rgn1{0,19,1,0,9,1}

uns16 *pRoi2 [ 100 ]; // size of

rgn2{40,59,1,20,24,1}

uns16 *pUnraveledData[]={pRoi1,pRoi2};

if(!pl_exp_start_cont(hCam, pStream, nBytes))

return -1;

int16 eStatus;

{

Chapter 6: Data Acquisition (Class 3) 87

PVCAM Class 3: Data Acquisition pl_exp_unravel(3)

// Passing 'nBytes' twice as filler since the value of

nBytes isn’t needed.

if(!pl_exp_check_cont_status(hCam, &eStatus,

&nBytes, &nBytes))

return -1;

if(eStatus == READOUT_COMPLETE)

{

uns16 *pFrame;

if(!pl_exp_get_oldest_frame(hCam,

reinterpret_cast<void **>

(&pFrame)))return -1;

if(!pl_exp_unravel(hCam, 0, pFrame, 2, r,

pUnraveledData)) return -1;

if(!pl_exp_unlock_oldest_frame(hCam)) return -1;

--numFrames;

}

while( numFrames );

88 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_io_clear_script_control(3)

NAME

pl_io_clear_script_control -

Clears the current setup for control of

the available I/O lines within a camera script.

SYNOPSIS

rs_bool

pl_io_clear_script_control(int16 hcam)

DESCRIPTION This function allows the application program to clear the current setup for

control of the available I/O lines within the script. This allows the user to enter a

new setup for these lines.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_io_script_control(3)

NOTES

Chapter 6: Data Acquisition (Class 3) 89

PVCAM Class 3: Data Acquisition pl_io_script_control(3)

NAME

pl_io_script_control -

Defines control of an I/O line from within a

camera script.

SYNOPSIS

rs_bool

pl_io_script_control(int16 hcam, uns16 addr, flt64 state,

uns32 location)

DESCRIPTION This function allows the application program to define control of the available

I/O lines from within a script. This allows for more precise control of external

devices. For example, the application could request that a linear stage be indexed

immediately after integration, instead of waiting until after the data is read out,

the shutter is closed, etc.

addr

specifies which I/O address to control.

state

specifies the desired setting for the address being controlled.

state

has different meanings depending on the I/O type:

IO_TYPE_TTL

The bit pattern written to this address.

IO_TYPE_DAC

The value of the desired analog output written to the DAC

at this address.

location

can be set to the following values:

SCR_PRE_OPEN SHTR SCR_POST_OPEN_SHTR

SCR_PRE_FLASH SCR_POST_FLASH

SCR_PRE_INTEGRATE SCR_POST_INTEGRATE

SCR_PRE_READOUT SCR_POST_READOUT

SCR_PRE_CLOSE_SHTR SCR_POST_CLOSE_SHTR

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_io_clear_script_control(3)

NOTES

90 PVCAM Manual Version 2.7

Class 3 Parameter IDs

Note:

Camera Dependent

indicates that this parameter or function is not available to all

Roper Scientific cameras. If a parameter or function is marked

Camera Dependent

, an

ATTR_AVAIL should be called to see if the camera supports it.

Class 3 Parameter ID Description

PARAM_BOF_EOF_CLR

Camera Dependent

Clears the BOF-EOF count when a

pl_set_param

performed. This is a write-only parameter.

Datatype:

rs_bool

PARAM_BOF_EOF_COUNT

Camera Dependent

Returns the Begin-Of-Frame and/or End-Of-Frame

count.

BOF_EOF

counting is enabled and configured

with

PARAM_BOF_EOF_ENABLE

Datatype:

uns32

PARAM_BOF_EOF_ENABLE

Camera Dependent

Enables and configures the

BOF_EOF

interrupts.

Possible values are:

NO_FRAME_IRQS

BEGIN_FRAME_IRQS

END_FRAME_IRQS

BEGIN_END_FRAME_IRQS

Datatype:

enum

PARAM_CIRC_BUFFER

Tests to see if the hardware/software can perform

circular buffer. When a TRUE is returned, the circular

buffer function can be used.

Datatype:

rs_bool

PARAM_EXP_MIN_TIME

Gets the minimum effective exposure time that can be

set for the camera. For example, the exposure time

may be limited by the required overhead for shifting the

data through the array. This minimum time will be a

floating point value, in seconds. Note that the

minimum exposure time returned by this function will

be greater than zero; any camera can provide a

minimum exposure time of zero.

Datatype:

flt64

PARAM_EXP_RES

Gets the resolution for the current resolution index, as

described for

PARAM_EXP_RES_INDEX

. This value is

an enumerated type, representing the resolution.

Possible values are :

EXP_RES_ONE_MILLISEC

EXP_RES_ONE_MICROSEC

EXP_RES_ONE_SEC

Datatype:

enum

Chapter 6: Data Acquisition (Class 3) 91

Class 3 Parameter ID Description

PARAM_EXP_RES_INDEX

Gets and sets the index into the exposure resolution

table for the camera. The table contains the resolutions

supported by the camera. The value at this index

(PARAM_EXP_RES) is an enumerated type as given by

PARAM_EXP_RES. The number of supported resolutions

can be obtained by using the

ATTR_MIN

and

ATTR_MAX

attributes with the

PARAM_EXP_RES_INDEX

parameter.

Datatype:

uns16

PARAM_EXP_TIME

This is used to examine and change the exposure time

VARIABLE_TIMED_MODE

Datatype:

uns16

PARAM_HW_AUTOSTOP

Camera Dependent

Sets the number of frames to acquire synchronously

into a register for PI brand cameras. At the data

acquisition, the hardware counts the number of frames

transferred, then stops the acquisition when it reaches

the count set with

PARAM_HW_AUTOSTOP

. The

maximum number the application can set is 254. If an

application needs more than 254, it must set it to

ZERO, i.e., a continuous acquisition and issue the

STOP command manually to halt the acquisition. For

focusing mode, an application should set this parameter

to ZERO.

Datatype:

int16

92 PVCAM Manual Version 2.7

This page intentionally left blank.

Chapter 7:

Buffer Manipulation (Class 4)

Introduction

Class 4 places the following constraints on data stored in buffers:

• All exposures in a buffer must have the same set of images (the size, position, and binning

must match).

• All data in a buffer must be at the same bit depth (16-bit signed, 16-bit unsigned, 32-bit

signed, etc.).

• All data in an image is stored in a standard C two-dimensional array, with the second

subscript varying most rapidly.

In addition to the image data itself, a significant amount of auxiliary information is recorded in a

buffer. There is no facility for setting the information (besides setting the date), but you can read the

information with the

get_

functions in the Buffer Information category below.

List of Available Class 4 Functions

The buffer manipulation functions are divided into three categories: Buffer Information, Allocation

and Saving, and Initialization.

Buffer Information Allocation and Saving

pl_buf_get_bits pl_buf_alloc

pl_buf_get_exp_date pl_buf_free

pl_buf_get_exp_time

pl_buf_get_exp_total

pl_buf_get_img_bin

Initialization

pl_buf_get_img_handle pl_buf_init

pl_buf_get_img_ofs pl_buf_uninit

pl_buf_get_img_ptr

pl_buf_get_img_size

pl_buf_get_img_total

pl_buf_get_size

pl_buf_set_exp_date

94 PVCAM Manual Version 2.7

New Constants

Several new constants are used to indicate the bit depth of image data. Since these are constants, not

system-dependent types, they are defined in pvcam.h:

PRECISION_INT8

This is 8-bit, signed data, in the range -128 to 127.

PRECISION_UNS8

This is 8-bit, unsigned data, in the range 0 to 255.

PRECISION_INT16

This is 16-bit, signed data, in the range -32768 to 32767.

PRECISION_UNS16

This is 16-bit, unsigned data, in the range 0 to 65535.

PRECISION_INT32

This is 32-bit, signed data, in the range -2,147,483,648 to

+2,147,483,647.

PRECISION_UNS32

This is 32-bit, unsigned data, in the range 0 to 4 GB-1.

Image Handles and Pointers

An image handle specifies the image. Like camera handles (

hcam

) and buffer handles (

hbuf

), an

image handle (

himg

) is an integer that is an index into a table kept by the PVCAM library. The

image handle, usually having the variable name

himg

, specifies the source buffer, exposure

number, and image number. If that buffer is freed, the handle becomes invalid, causing the table

entry to clear and be freed for new assignment. The handle for any image can be obtained through

pl_buf_get_img_handle

A slightly different item is an image pointer. Internally, each image is organized as a flat two-

dimensional array with the following organization:

i0,j0 i0,j1 i0,j2 i0,j3 .... i0,j(j_size-1)i1,j0 i1, j1 i1,

j2 .... i(i_size-1),j(j_size-1)

In other words, this is a standard C two-dimensional array, with the second subscript varying most

rapidly. Immediately after creation, the j dimension is equivalent to the serial direction of the CCD,

while the i dimension is equivalent to the parallel direction. As processing may quickly blur this

relationship, the image buffers are presented with the more neutral i, j scheme instead of the

concepts serial and parallel.

The

pl_buf_get_img_ptr

function returns the address of element 0 of this array. Since

alignment depends on both the current operating system and the current bit depth, a void pointer is

returned. The user is responsible for the details of alignment and array organization.

In addition, no information is given concerning the data that follows the last element. This data may

be a following image, a following exposure, buffer header information, or operating system

memory. In other words, as in normal C memory usage, you are not prevented from writing past the

end of affected memory, but this may have unpredictable consequences.

Chapter 7: Buffer Manipulation (Class 4) 95

Class 4 Functions

PVCAM Class 4: Buffer Manipulation pl_buf_alloc(4)

NAME

pl_buf_alloc —

allocates a buffer based on the current exposure setup.

SYNOPSIS

rs_bool

pl_buf_alloc(int16_ptr hbuf,int16 exp_total,int16

bit_depth,int16 rgn_total,rgn_const_ptr

rgn_array)

DESCRIPTION This routine examines the region definition array pointed to by

rgn_array

determine the memory required to store the images from a single exposure. This

routine takes this array as a template for each exposure, and then allows the user

to specify the number of exposures in

exp_total

and the amount of storage per

pixel in

bit_depth

must use one of the following constants:

PRECISION_INT8, PRECISION_UNS8, PRECISION_INT16,

PRECISION_UNS16, PRECISION_INT32,

and

PRECISION_UNS32

With this information, enough memory is allocated to hold the data from the set

of exposures. A handle to this buffer is passed back in

hbuf

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets pl_error_code.

SEE ALSO

pl_buf_free(4),pl_buf_get_bits(4)

NOTES When using this function, the definitions must match the region definitions in the

exposure setup, otherwise memory may be corrupted. If the region definition

changes, the buffer must be freed, and another buffer is allocated. Note that

bit_depth

must be equal to one of the

PRECISION_

constants as described at

the start of this section.

96 PVCAM Manual Version 2.7

PVCAM Class 4: Buffer Manipulation pl_buf_free(4)

NAME

pl_buf_free —

frees the memory and handle used by a buffer.

SYNOPSIS

rs_bool

pl_buf_free(int16 hbuf)

DESCRIPTION This routine frees the memory associated with

hbuf

. The memory is released

and the buffer handle becomes invalid.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_copy(4),pl_buf_load(4)

NOTES Although the memory is freed, garbage collection is another issue. Many small

buffers may fragment memory, even if most of them are later freed. Garbage

collection is a system-dependent operation.

Chapter 7: Buffer Manipulation (Class 4) 97

PVCAM Class 4: Buffer Manipulation pl_buf_get_bits(4)

NAME

pl_buf_get_bits —

returns the buffer precision.

SYNOPSIS

rs_bool

pl_buf_get_bits(int16 hbuf,int16_ptr bit_depth)

DESCRIPTION Every exposure and every image in a buffer must be at the same bit depth. This

function returns the depth for the images in

hbuf

. The parameter

bit_depth

will be set to one of the following constants (defined in

pvcam.h

PRECISION_INT16

PRECISION_UNS16

PRECISION_INT32

Notice that these use the standard PVCAM types (

int16, uns16, int32

)

capitalized with the word

PRECISION_

added.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_change_bits(4)

NOTES

98 PVCAM Manual Version 2.7

PVCAM Class 4: Buffer Manipulation pl_buf_get_exp_date(4)

NAME

pl_buf_get_exp_date —

returns when a picture was taken.

SYNOPSIS

rs_bool

pl_buf_get_exp_date(int16 hbuf,int16 exp_num,int16_ptr

year,uns8_ptr month,uns8_ptr

day,uns8_ptr hour,uns8_ptr min,

uns8_ptr sec,uns16_ptr msec)

DESCRIPTION This returns the time when the specified exposure was decoded. The format is:

Year current year (i.e. , 2002)

month 1-12 (January through December)

day 1-31 (day number in the current month)

hour 0-23 (24-hour format)

min 0-59

sec 0-59

msec 0-999 milliseconds

To get a time for the entire buffer, it is usually adequate to examine the time for

exp_num 0

, but, depending on the sequence and timing parameters, successive

exposures may be taken hours or even days later. To examine the exact exposure

time for any successive exposure in the sequence, merely specify a different

exp_num

. The exposure end time may be obtained by adding the exposure

duration, obtained from the

pl_buf_get_exp_time

function.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_set_exp_date(4),pl_buf_get_exp_time(4),

pl_do_exp(3)

KNOWN BUGS If the host computer clock is inaccurate, the time recorded will also be

inaccurate. Although most clocks are not accurate to a millisecond, the recorded

time should help differentiate between the exposures in a fast sequence.

Impossible time values (all 0, for example) usually indicate that the start time

was never set.

Chapter 7: Buffer Manipulation (Class 4) 99

PVCAM Class 4: Buffer Manipulation pl_buf_get_exp_time(4)

NAME pl_buf_get_exp_time — returns exposure duration.

SYNOPSIS

rs_bool

pl_buf_get_exp_time(int16 hbuf,int16 exp_num,uns32_ptr

exp_msec)

DESCRIPTION This returns the exposure duration in milliseconds, in the parameter

exp_msec

In most cases, the timing for the first exposure is identical for all exposures. In

BULB_MODE

, however, the exposure time is unknown and can be adjusted for

every exposure. This allows the actual time to be read for the individual

exposures, by specifying the exposure number in

exp_num

(which is zero-

indexed).

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_get_exp_date(4)

NOTES

100 PVCAM Manual Version 2.7

PVCAM Class 4: Buffer Manipulation pl_buf_get_exp_total(4)

NAME

pl_buf_get_exp_total —

returns number of exposures in the buffer.

SYNOPSIS

rs_bool

pl_buf_get_exp_total(int16 hbuf,int16_ptr total_exps)

DESCRIPTION This returns the number of exposures in the specified buffer, inside the variable

totl_exps

. When referring to exposures by number, the first exposure will be

exposure number 0 (in typical C fashion). Therefore, the highest allowable

exposure number is

totl_exps

-1.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_get_img_total(4),pl_buf_append_exp(4)

NOTES

Chapter 7: Buffer Manipulation (Class 4) 101

PVCAM Class 4: Buffer Manipulation pl_buf_get_img_bin(4)

NAME

pl_buf_get_img_bin —

returns binning factors for the image.

SYNOPSIS

rs_bool

pl_buf_get_img_bin(int16 himg,int16_ptr ibin,int16_ptr

jbin)

DESCRIPTION Default binning is

ibin

=1,

jbin

=1 (no binning, 1 CCD pixel becomes one

image pixel). Binning is set when a buffer is created. This function reports on the

binning that was used during acquisition, for the image indicated by

himg

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_get_img_size(4)

NOTES It is assumed that the binning is identical for each exposure. In other words, each

image in an exposure has its own binning values, but this information is only

entered once; it is not repeated for every exposure in the buffer. The value for

exposure 0 will always be identical to the value for every other exposure.

This is usually a safe assumption, but a user might use functions like

pl_buf_get_img_ptr

to insert images that fit, but were taken under radically

different conditions, including different binning. In such a case, the value

reported for binning will not change, but it will no longer be accurate. It then

becomes the user's responsibility to keep track of the binning.

102 PVCAM Manual Version 2.7

PVCAM Class 4: Buffer Manipulation pl_buf_get_img_handle(4)

NAME

pl_buf_get_img_handle —

obtains handle that refers to a single image in

buffer.

SYNOPSIS

rs_bool

pl_buf_get_img_handle(int16 hbuf,int16 exp_num,int16

img_num,int16_ptr himg )

DESCRIPTION The image handle,

himg

, is a special handle that is used by the other image

functions and many higher analysis functions. The handle is a shorthand method

for referring to this image. It specifies the buffer handle,

hbuf

, the exposure

number,

exp_num

, and the image number

img_num

. In most cases, this is an

extremely fast call. It merely fills in table values, assigns a handle, and returns.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_get_img_ptr(4)

NOTES A pointer to the data in this image is a completely different thing. This address is

given by the function

pl_buf_get_img_ptr

, which requires an image handle

as input. In general, the handle is useful to other PVCAM functions, while the

address is useful to programmers who require direct access to the pixel stream.

Many of the image definition factors: size, offset, and binning, are assumed to be

the same across all exposures in the buffer. In other words, the parameters

reported for

img_num

in exposure 0 are identical to the parameters reported for

img_num

in every exposure.

Note that both

exp_num

and

img_num

are zero-indexed.

Chapter 7: Buffer Manipulation (Class 4) 103

PVCAM Class 4: Buffer Manipulation pl_buf_get_img_ofs(4)

NAME

pl_buf_get_img_ofs —

returns offset position of the image.

SYNOPSIS

rs_bool

pl_buf_get_img_ofs(int16 himg,int16_ptr s_ofs,int16_ptr

p_ofs)

DESCRIPTION Pixel coordinates in an image begin at 0,0, despite its original position on the

CCD. The offset allows that original position to be recreated. The original

coordinates are saved in the offset, so that:

s_ofs = s_offset = s1

(starting serial position)

p_ofs = p_offset = p1

(starting parallel position)

Each exposure in a sequence shares the same setup, therefore only the image

number (specified through

himg

) affects the reported offset. The exposure

number (also specified through

himg

) has no effect.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

NOTES It is assumed that the offset is identical for each exposure. In other words, each

image has its own offset values, but this information is only entered once; it is

not repeated for every exposure in the buffer. The value reported for exposure 0

will always be identical to the value reported for every other exposure.

This is usually a safe assumption, but a user might use the image address and

direct access to insert images that fit, but were taken under radically different

conditions, including different offset. In such a case, the value reported for offset

will not change, but it will no longer be accurate. It then becomes the user's

responsibility to keep track of the offset.

104 PVCAM Manual Version 2.7

PVCAM Class 4: Buffer Manipulation pl_buf_get_img_ptr(4)

NAME

pl_buf_get_img_ptr —

returns the address of an image in the data buffer.

SYNOPSIS

rs_bool

pl_buf_get_img_ptr(int16 himg,void_ptr_ptr img_addr)

DESCRIPTION This requires an image handle as input. Given that input, this function returns the

address of the first data element inside that image. The user can then directly

manipulate or rewrite the data, as desired. It allows optimum efficiency for data

manipulation, while still staying inside the PVCAM image buffer structure. The

address is returned in

img_addr

, which is defined as a pointer to type void. A

void pointer must be used, since alignment may vary from buffer to buffer. The

user is responsible for knowing the word size and indexing conventions, based

on the

bit_depth, i_size,

and

j_size

of the image.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_get_img_handle(4)

NOTES

Chapter 7: Buffer Manipulation (Class 4) 105

PVCAM Class 4: Buffer Manipulation pl_buf_get_img_size(4)

NAME

pl_buf_get_img_size —

returns number of pixels in region.

SYNOPSIS

rs_bool

pl_buf_get_img_size(int16 himg,int16_ptr i_size, int16_ptr

j_size)

DESCRIPTION This examines the image specified by the image handle

himg

, and determines

the i and j dimensions. The sizes are returned in

I_size

and

j_size

in pixels.

Since the pixel addresses begin with 0 (following typical C conventions), the

following relationship is true:

i_maximum_element_num = i_size - 1

j_maximum_element_num = j_size - 1

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_get_img_handle(4)

NOTES This size is not necessarily the same as the number of pixels exposed on the

CCD. If the region was binned, the CCD area may have had many more pixels

than the final data set.

The set of images must be the same for every exposure in the buffer. For

example, image 3, exposure 0 must have the same size (and offset and binning)

as image 3, exposure 2. The sizes reported for the images in exposure 0 will

always be identical to the sizes reported for every other exposure.

106 PVCAM Manual Version 2.7

PVCAM Class 4: Buffer Manipulation pl_buf_get_img_total(4)

NAME

pl_buf_get_img_total —

returns number of images in each exposure.

SYNOPSIS

rs_bool

pl_buf_get_img_total(int16 hbuf,int16_ptr img_total)

DESCRIPTION This returns the number of images in the first exposure. Every exposure in the

same buffer will have exactly this many images, no more, no less. When

referring to images by number, counting begins at 0 (in typical C fashion), so the

highest allowed image number is actually

img_total

-1.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_get_exp_total(4),pl_buf_get_img_ofs(4),

pl_buf_get_img_size(4)

NOTES Every exposure in the buffer must have exactly this many images.

Chapter 7: Buffer Manipulation (Class 4) 107

PVCAM Class 4: Buffer Manipulation pl_buf_get_size(4)

NAME

pl_buf_get_size —

returns size of buffer, in bytes.

SYNOPSIS

rs_bool

pl_buf_get_size(int16 hbuf,uns32_ptr buf_size)

DESCRIPTION This returns the size of a buffer, in bytes, inside the variable

buf_size

. This

value is useful when memory or disk space is tight, before performing operations

such as

pl_buf_copy

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

NOTES Buffer size can be estimated if you know the bit depth, number of exposures, and

the size of each image. This isn't completely accurate, though, since other

information is stored in a buffer: the exposure time and date, exposure duration,

size and offset values, etc.

108 PVCAM Manual Version 2.7

PVCAM Class 4: Buffer Manipulation pl_buf_set_exp_date(4)

NAME

pl_buf_set_exp_date —

(re)writes the time that this picture was taken.

SYNOPSIS

rs_bool

pl_buf_set_exp_date(int16 hbuf,int16 exp_num,int16

year,uns8 day,uns8 hour,uns8 min,uns8

sec,uns16 msec)

DESCRIPTION This allows the time of any exposure to be recorded or rewritten. This should be

the time when the exposure started. The format is:

Year current year (i.e. 1995)

month 1-12 (January through December)

day 1-31 (day number in the current month)

hour 0-23 (24-hour format)

min 0-59

sec 0-59

msec 0-999 milliseconds

To set a single time for the entire buffer, it is usually adequate to set the time for

exp_num 0

. (Conversely, this is the time that will be examined when a single

reading is desired for an entire sequence.) But, depending on the sequence and

timing parameters, successive exposures may be taken hours or even days later.

To set the exact exposure date and time for any successive exposure in the

sequence, specify a different

exp_num

. The exposure end time may be obtained

by adding the exposure duration that is obtained from

pl_buf_get_exp_time

function.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_get_exp_date(4),pl_buf_get_exp_time(4),

pl_exp_start_seq(3)

NOTES In most cases, the system will be unable to obtain a highly accurate value of the

time. (The milliseconds may be particularly inaccurate.) All inputs are checked

for proper ranges on input (using the ranges shown above). The inputs will

generate appropriate errors if they are out of range. Any value is allowed for the

year.

For most exposures, the start of exposure is easy to determine. (Time is

measured immediately before a call to

pl_exp_start_seq

.) In some cases

(such as triggered exposures), determining the start time may be more difficult.

Depending on the communication link to the camera,

pl_exp_check_status

may be a few seconds out of date.

Chapter 7: Buffer Manipulation (Class 4) 109

PVCAM Class 4: Buffer Manipulation pl_buf_init(4)

NAME

pl_buf_init —

initializes the buffer functions.

SYNOPSIS

rs_bool

pl_buf_init(void)

DESCRIPTION This initializes the pointers and memory needed to use the buffer functions.

Since the buffer functions depend on internal tables, these tables must be

allocated and initialized before any buffer functions can be used. This function

should be called soon after

pl_pvcam_init

RETURN VALUE TRUE for success. FALSE for a failure. Failure sets

pl_error_code

. If the

initialization fails, the buffer functions may not be used.

SEE ALSO

pl_buf_uninit(4),pl_pvcam_init(0)

NOTES Currently, buffers are only needed if the exposure includes multiple regions or a

complex sequence. In that case, the function

pl_exp_finish_seq

will decode

a pixel stream and put the output onto the buffer.

For simple exposures, it may be easier and more efficient to examine the output

directly, by using the

pixel_stream

array that was passed into

pl_exp_start_seq

. If this is done, the buffer routines will never be needed. It

will save space and time if the buffer routines are never referred to and never

initialized.

110 PVCAM Manual Version 2.7

PVCAM Class 4: Buffer Manipulation pl_buf_uninit(4)

NAME

pl_buf_uninit —

frees and releases the buffer functions.

SYNOPSIS

rs_bool

pl_buf_uninit(void)

DESCRIPTION This frees and releases all pointers and memory allocated by the buffer

initialization. It should be called before calling

pl_pvcam_uninit

. Once the

buffers are uninitialized, buffer functions may not be used until the buffer library

has been reinitialized.

It is safe to call this function redundantly. If the buffer functions were never

initialized, or, if they have already been freed, this does no harm.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_buf_init(4), pl_pvcam_uninit(0)

NOTES

111

Chapter 8:

Code Examples

Example 1: pl_get_param & pl_get_enum_param

/* This example displays information for currently defined parameter IDs. */

/* Note: depending on the camera system connected the results will change */

/* This example is broken into 3 functions main calls DisplayParamIdInfo */

/* which calls DisplayEnumInfo to display enumerated data types and */

/* DisplayIntsFltsInfo to display non-enum data types. */

#include <stdio.h>

#include <stdlib.h>

#include "master.h"

#include "pvcam.h"

/* Prototype functions */

static void DisplayIntsFltsInfo (int16 hcam, uns32 param_id);

static void DisplayEnumInfo (int16 hcam, uns32 param_id);

static void DisplayParamIdInfo (int16 hcam, uns32 param_id);

int main(int argc, char **argv)

{

char cam_name[CAM_NAME_LEN]; /* camera name */

int16 hCam; /* camera handle */

/* Initialize the PVCam Library and Open the First Camera */

pl_pvcam_init();

pl_cam_get_name( 0, cam_name );

pl_cam_open(cam_name, &hCam, OPEN_EXCLUSIVE );

printf( "\nAnti_Blooming\n");

DisplayParamIdInfo (hCam, PARAM_ANTI_BLOOMING);

printf( "\nLogic Output\n");

DisplayParamIdInfo (hCam, PARAM_LOGIC_OUTPUT);

printf( "\nEdge Trigger\n");

DisplayParamIdInfo (hCam, PARAM_EDGE_TRIGGER);

printf( "\nIntensifier Gain\n");

DisplayParamIdInfo (hCam, PARAM_INTENSIFIER_GAIN);

printf( "\nGate Mode\n");

DisplayParamIdInfo (hCam, PARAM_SHTR_GATE_MODE);

printf( "\nMin Block\n");

DisplayParamIdInfo (hCam, PARAM_MIN_BLOCK);

printf( "\nNum Min Block\n");

DisplayParamIdInfo (hCam, PARAM_NUM_MIN_BLOCK);

printf( "\nStrips Per Clean\n");

DisplayParamIdInfo (hCam, PARAM_NUM_OF_STRIPS_PER_CLR);

printf( "\nReadout Port\n");

DisplayParamIdInfo (hCam, PARAM_READOUT_PORT);

printf( "\nController Alive\n");

DisplayParamIdInfo (hCam, PARAM_CONTROLLER_ALIVE);

printf( "\nReadout Time\n");

DisplayParamIdInfo (hCam, PARAM_READOUT_TIME);

printf( "\nCircular Buffer Support\n");

DisplayParamIdInfo (hCam, PARAM_CIRC_BUFFER);

pl_cam_close( hCam );

pl_pvcam_uninit();

return 0;

}

/* This will display information we can get from parameter id */

void DisplayParamIdInfo (int16 hcam, uns32 param_id)

112 PVCAM Manual Version 2.7

{

rs_bool status, status2; /* status of pvcam functions */

rs_bool avail_flag; /* ATTR_AVAIL, param is available */

uns16 access; /* ATTR_ACCESS, param is read, write or exists */

uns16 type; /* ATTR_TYPE, param data type */

status = pl_get_param(hcam, param_id, ATTR_AVAIL, (void *)&avail_flag);

/* check for errors */

if (status) {

/* check to see if parameter id is supported by hardware or software */

if (avail_flag) {

/* we got a valid parameter, now get access writes and data type

status = pl_get_param(hcam, param_id, ATTR_ACCESS, (void *)&access);

status2 = pl_get_param(hcam, param_id, ATTR_TYPE, (void *) &type);

if (status && status2) {

if (access == ACC_EXIST_CHECK_ONLY) {

printf(" param id %x exists\n", param_id);

}

else if ((access == ACC_READ_ONLY) ||

(access == ACC_READ_WRITE)) {

/* now we can start displaying information */

/* handle enumerated types separate from other data */

if (type == TYPE_ENUM) {

DisplayEnumInfo(hcam, param_id);

}

else {/* take care of the rest of the data types */

DisplayIntsFltsInfo(hcam, param_id);

}

else {

printf(" error in access check for param_id %x\n",

param_id);

}

else { /* error occurred calling function */

printf( "functions failed pl_get_param, with error code %ld\n",

pl_error_code());

}

else { /* parameter id is not available with current setup */

printf( " parameter %x is not available with current hardware"

" or software setup\n", param_id);

}

else { /* error occurred calling function print out error code */

printf( "functions failed pl_get_param, with error code %ld\n",

pl_error_code());

}

printf( "Press Enter to Continue..." );

getchar();

fflush( stdin );

} /* end of function DisplayParamIdInfo */

/* This routine assumes the param id is an enumerated type,

it will print out all the enumerated values that are allowed

with the param id and display the associated ASCII text. */

static void DisplayEnumInfo (int16 hcam, uns32 param_id)

{

rs_bool status; /* status of pvcam functions */

uns32 count, index; /* counters for enumerated types */

char enumStr[100]; /* string for enum text */

uns32 enumValue; /* enum value returned for index & param id */

/* get number of enumerated values */

status = pl_get_param(hcam, param_id, ATTR_COUNT, (void *)&count);

if (status) {

printf(" enum values for param id %x\n", param_id);

for (index=0; index < count; index++) {

/* get enum value and enum string */

status = pl_get_enum_param(hcam, param_id, index, &enumValue,

enumStr, 100);

Chapter 8: Code Examples 113

/* if everything alright print out the results */

if (status) {

printf(" index =%ld enum value = %ld, text = %s\n",

index, enumValue, enumStr);

}

else {

printf( "functions failed pl_get_enum_param, "

"with error code %ld\n", pl_error_code());

}

else {

printf( "functions failed pl_get_param, with error code %ld\n",

pl_error_code());

}

} /* end of function DisplayEnumInfo */

/* This routine displays all the information associated with the parameter id

given. This routine assumes that the data is either uns8, uns16, uns32,

int8, int16, int32, or flt64 */

static void DisplayIntsFltsInfo (int16 hcam, uns32 param_id)

{

/* current, min&max, & default values of parameter id */

union {

flt64 dval;

uns32 ulval;

int32 lval;

uns16 usval;

int16 sval;

uns8 ubval;

int8 bval;

} currentVal, minVal, maxVal, defaultVal, incrementVal;

uns16 type; /* data type of parameter id */

rs_bool status, status2, status3,

status4, status5; /* status of pvcam functions */

/* get the data type of parameter id */

status = pl_get_param(hcam, param_id, ATTR_TYPE, (void *)&type);

/* get the default, current, min and max values for parameter id */

/* Note : since the data type for these depends on the parameter */

/* id you have to call pl_get_param with the correct data type */

/* passed for param_value. */

if (status) {

switch (type) {

case TYPE_INT8:

status = pl_get_param(hcam, param_id, ATTR_CURRENT,

(void *)&currentVal.bval);

status2 = pl_get_param(hcam, param_id, ATTR_DEFAULT,

(void *)&defaultVal.bval);

status3 = pl_get_param(hcam, param_id, ATTR_MAX,

(void *)&maxVal.bval);

status4 = pl_get_param(hcam, param_id, ATTR_MIN,

(void *)&minVal.bval);

status5 = pl_get_param(hcam, param_id, ATTR_INCREMENT,

(void *)&incrementVal.bval);

printf(" param id %x\n", param_id);

printf(" current value = %c\n", currentVal.bval);

printf(" default value = %c\n", defaultVal.bval);

printf(" min = %c, max = %c\n", minVal.bval, maxVal.bval);

printf(" increment = %c\n", incrementVal.bval);

break;

case TYPE_UNS8:

status = pl_get_param(hcam, param_id, ATTR_CURRENT,

(void *)&currentVal.ubval);

status2 = pl_get_param(hcam, param_id, ATTR_DEFAULT,

(void *)&defaultVal.ubval);

status3 = pl_get_param(hcam, param_id, ATTR_MAX,

(void *)&maxVal.ubval);

status4 = pl_get_param(hcam, param_id, ATTR_MIN,

(void *)&minVal.ubval);

status5 = pl_get_param(hcam, param_id, ATTR_INCREMENT,

(void *)&incrementVal.ubval);

114 PVCAM Manual Version 2.7

printf(" param id %x\n", param_id);

printf(" current value = %uc\n", currentVal.ubval);

printf(" default value = %uc\n", defaultVal.ubval);

printf(" min = %uc, max = %uc\n", minVal.ubval, maxVal.ubval);

printf(" increment = %uc\n", incrementVal.ubval);

break;

case TYPE_INT16:

status = pl_get_param(hcam, param_id, ATTR_CURRENT,

(void *)&currentVal.sval);

status2 = pl_get_param(hcam, param_id, ATTR_DEFAULT,

(void *)&defaultVal.sval);

status3 = pl_get_param(hcam, param_id, ATTR_MAX,

(void *)&maxVal.sval);

status4 = pl_get_param(hcam, param_id, ATTR_MIN,

(void *)&minVal.sval);

status5 = pl_get_param(hcam, param_id, ATTR_INCREMENT,

(void *)&incrementVal.sval);

printf(" param id %x\n", param_id);

printf(" current value = %i\n", currentVal.sval);

printf(" default value = %i\n", defaultVal.sval);

printf(" min = %i, max = %i\n", minVal.sval, maxVal.sval);

printf(" increment = %i\n", incrementVal.sval);

break;

case TYPE_UNS16:

status = pl_get_param(hcam, param_id, ATTR_CURRENT,

(void *)&currentVal.usval);

status2 = pl_get_param(hcam, param_id, ATTR_DEFAULT,

(void *)&defaultVal.usval);

status3 = pl_get_param(hcam, param_id, ATTR_MAX,

(void *)&maxVal.usval);

status4 = pl_get_param(hcam, param_id, ATTR_MIN,

(void *)&minVal.usval);

status5 = pl_get_param(hcam, param_id, ATTR_INCREMENT,

(void *)&incrementVal.usval);

printf(" param id %x\n", param_id);

printf(" current value = %u\n", currentVal.usval);

printf(" default value = %u\n", defaultVal.usval);

printf(" min = %uh, max = %u\n", minVal.usval, maxVal.usval);

printf(" increment = %u\n", incrementVal.usval);

break;

case TYPE_INT32:

status = pl_get_param(hcam, param_id, ATTR_CURRENT,

(void *)&currentVal.lval);

status2 = pl_get_param(hcam, param_id, ATTR_DEFAULT,

(void *)&defaultVal.lval);

status3 = pl_get_param(hcam, param_id, ATTR_MAX,

(void *)&maxVal.lval);

status4 = pl_get_param(hcam, param_id, ATTR_MIN,

(void *)&minVal.lval);

status5 = pl_get_param(hcam, param_id, ATTR_INCREMENT,

(void *)&incrementVal.lval);

printf(" param id %x\n", param_id);

printf(" current value = %ld\n", currentVal.lval);

printf(" default value = %ld\n", defaultVal.lval);

printf(" min = %ld, max = %ld\n", minVal.lval, maxVal.lval);

printf(" increment = %ld\n", incrementVal.lval);

break;

case TYPE_UNS32:

status = pl_get_param(hcam, param_id, ATTR_CURRENT,

(void *)&currentVal.ulval);

status2 = pl_get_param(hcam, param_id, ATTR_DEFAULT,

(void *)&defaultVal.ulval);

status3 = pl_get_param(hcam, param_id, ATTR_MAX,

(void *)&maxVal.ulval);

status4 = pl_get_param(hcam, param_id, ATTR_MIN,

(void *)&minVal.ulval);

status5 = pl_get_param(hcam, param_id, ATTR_INCREMENT,

(void *)&incrementVal.ulval);

printf(" param id %x\n", param_id);

printf(" current value = %ld\n", currentVal.ulval);

printf(" default value = %ld\n", defaultVal.ulval);

printf(" min = %ld, max = %ld\n", minVal.ulval, maxVal.ulval);

Chapter 8: Code Examples 115

printf(" increment = %ld\n", incrementVal.ulval);

break;

case TYPE_FLT64:

status = pl_get_param(hcam, param_id, ATTR_CURRENT,

(void *)&currentVal.dval);

status2 = pl_get_param(hcam, param_id, ATTR_DEFAULT,

(void *)&defaultVal.dval);

status3 = pl_get_param(hcam, param_id, ATTR_MAX,

(void *)&maxVal.dval);

status4 = pl_get_param(hcam, param_id, ATTR_MIN,

(void *)&minVal.dval);

status5 = pl_get_param(hcam, param_id, ATTR_INCREMENT,

(void *)&incrementVal.dval);

printf(" param id %x\n", param_id);

printf(" current value = %g\n", currentVal.dval);

printf(" default value = %g\n", defaultVal.dval);

printf(" min = %g, max = %g\n", minVal.dval, maxVal.dval);

printf(" increment = %g\n", incrementVal.dval);

break;

default:

printf(" data type not supported in this functions\n");

break;

}

if (!status || !status2 || !status3 || !status4 || !status5) {

printf( "functions failed pl_get_param, with error code %ld\n",

pl_error_code());

}

else {

printf( "functions failed pl_get_param, with error code %ld\n",

pl_error_code());

}

Example 2: pl_set_param

This example assumes data type to set is int16. This routine does do the error checks to make sure

you can write to the param and that its param id is an int16.

#include <stdio.h>

#include <stdlib.h>

#include "master.h"

#include "pvcam.h"

/* Prototype functions */

static rs_bool SetParamExample (int16 hcam, uns32 param_id, int16 value);

int main(int argc, char **argv)

{

char cam_name[CAM_NAME_LEN]; /* camera name */

int16 hCam; /* camera handle */

/* Initialize the PVCam Library and Open the First Camera */

pl_pvcam_init();

pl_cam_get_name( 0, cam_name );

pl_cam_open(cam_name, &hCam, OPEN_EXCLUSIVE );

/* Change the min skip block and number of min blocks to 2 and 100 */

SetParamExample(hCam, PARAM_MIN_BLOCK, 2);

SetParamExample(hCam, PARAM_NUM_MIN_BLOCK, 100);

pl_cam_close( hCam );

pl_pvcam_uninit();

return 0;

}

rs_bool SetParamExample (int16 hcam, uns32 param_id, int16 value)

116 PVCAM Manual Version 2.7

{

rs_bool status; /* status of pvcam functions */

rs_bool avail_flag; /* ATTR_AVAIL, param is available */

uns16 access; /* ATTR_ACCESS, param is read, write or exists */

uns16 type; /* ATTR_TYPE, param data type */

status = pl_get_param(hcam, param_id, ATTR_AVAIL, (void *)&avail_flag);

/* check for errors */

if (status) {

/* check to see if parameter id is supported by hardware or software */

if (avail_flag) {

/* we got a valid parameter, now get access rights and data type */

status = pl_get_param(hcam, param_id, ATTR_ACCESS, (void *)&access);

if (status) {

if (access == ACC_EXIST_CHECK_ONLY) {

printf(" error param id %x is an exists check, "

"and not writable\n", param_id);

}

else if (access == ACC_READ_ONLY) {

printf(" error param id %x is a readonly variable, "

"and not writeable\n", param_id);

}

else if (access == ACC_READ_WRITE) {

/* we can set it, let's be safe and check to make sure

it is the right data type */

status = pl_get_param(hcam, param_id, ATTR_TYPE,

(void *) &type);

if (status) {

if (type == TYPE_INT16) {

/* OK lets write to it */

pl_set_param(hcam, param_id, (void *)&value);

printf( "param %x set to %i\n", param_id, value );

}

else {

printf( "data type mismatch for param_id "

"%x\n", param_id );

status = FALSE;

}

else {

printf( "functions failed pl_get_param, with "

"error code %ld\n", pl_error_code());

}

else {

printf(" error in access check for param_id "

"%x\n", param_id);

}

else { /* error occurred calling function */

printf( "functions failed pl_get_param, with error code %ld\n",

pl_error_code());

}

else { /* parameter id is not available with current setup */

printf(" parameter %x is not available with current hardware or "

"software setup\n", param_id);

}

else { /* error occurred calling function; print out error code */

printf( "functions failed pl_get_param, with error code %ld\n",

pl_error_code());

}

return(status);

}

Chapter 8: Code Examples 117

Example 3: Circular Buffer

Latest Frame Mode (FOCUS)

The following is an example of a circular buffer with the latest frame mode set. The example takes

the proper steps to set the camera up beforehand. (i.e., pl_cam_open, etc. and that

pl_get_param

with parameter id

PARAM_CIRC_BUFFER

was used to verify that the system could perform circular

buffer operations) The following code will return the latest frame in the buffer.

#include <stdio.h>

#include <stdlib.h>

#include "master.h"

#include "pvcam.h"

static void FocusContinuous( int16 hCam );

int main(int argc, char **argv)

{

char cam_name[CAM_NAME_LEN]; /* camera name */

int16 hCam; /* camera handle */

rs_bool avail_flag; /* ATTR_AVAIL, param is available */

/* Initialize the PVCam Library and Open the First Camera */

pl_pvcam_init();

pl_cam_get_name( 0, cam_name );

pl_cam_open(cam_name, &hCam, OPEN_EXCLUSIVE );

/* check for circular buffer support */

if( pl_get_param( hCam, PARAM_CIRC_BUFFER, ATTR_AVAIL, &avail_flag ) &&

avail_flag )

FocusContinuous( hCam );

else

printf( "circular buffers not supported\n" );

pl_cam_close( hCam );

pl_pvcam_uninit();

return 0;

}

void FocusContinuous( int16 hCam )

{

rgn_type region = { 0, 511, 1, 0, 511, 1 };

uns32 buffer_size, frame_size;

uns16 *buffer;

int16 status;

uns32 not_needed;

void_ptr address;

uns16 numberframes = 5;

/* Init a sequence set the region, exposure mode and exposure time */

pl_exp_init_seq();

pl_exp_setup_cont( hCam, 1, &region, TIMED_MODE, 100, &frame_size,

CIRC_OVERWRITE );

/* set up a circular buffer of 3 frames */

buffer_size = frame_size * 3;

buffer = (uns16*)malloc( buffer_size );

/* Start the acquisition */

printf( "Collecting %i Frames\n", numberframes );

pl_exp_start_cont(hCam, buffer, buffer_size );

/* ACQUISITION LOOP */

while( numberframes ) {

/* wait for data or error */

while( pl_exp_check_cont_status( hCam, &status, &not_needed,

&not_needed ) &&

118 PVCAM Manual Version 2.7

(status != READOUT_COMPLETE && status != READOUT_FAILED) );

/* Check Error Codes */

if( status == READOUT_FAILED ) {

printf( "Data collection error: %i\n", pl_error_code() );

break;

}

if ( pl_exp_get_latest_frame( hCam, &address )) {

/* address now points to valid data */

printf( "Center Three Points: %i, %i, %i\n",

*((uns16*)address + frame_size/sizeof(uns16)/2 - 1),

*((uns16*)address + frame_size/sizeof(uns16)/2),

*((uns16*)address + frame_size/sizeof(uns16)/2 + 1) );

numberframes--;

printf( "Remaining Frames %i\n", numberframes );

}

} /* End while */

/* Stop the acquisition */

pl_exp_stop_cont(hCam,CCS_HALT);

/* Finish the sequence */

pl_exp_finish_seq( hCam, buffer, 0);

/*Uninit the sequence */

pl_exp_uninit_seq();

free( buffer );

}

Chapter 8: Code Examples 119

Oldest Frame Mode (NFRAME)

The following is an example of a circular buffer with the oldest frame mode set. The example takes

the proper steps to set the camera up beforehand. (i.e., pl_cam_open, etc. and that

pl_get_param

with parameter id

PARAM_CIRC_BUFFER

was used to verify that the system could perform circular

buffer operations) This code will return the frames in the order in which they arrived in the buffer,

without skipping a frame.

#include <stdio.h>

#include <stdlib.h>

#include "master.h"

#include "pvcam.h"

static void AcquireContinuous( int16 hCam );

int main(int argc, char **argv)

{

char cam_name[CAM_NAME_LEN]; /* camera name */

int16 hCam; /* camera handle */

rs_bool avail_flag; /* ATTR_AVAIL, param is available */

/* Initialize the PVCam Library and Open the First Camera */

pl_pvcam_init();

pl_cam_get_name( 0, cam_name );

pl_cam_open(cam_name, &hCam, OPEN_EXCLUSIVE );

/* check for circular buffer support */

if( pl_get_param( hCam, PARAM_CIRC_BUFFER, ATTR_AVAIL, &avail_flag ) &&

avail_flag )

AcquireContinuous( hCam );

else

printf( "circular buffers not supported\n" );

pl_cam_close( hCam );

pl_pvcam_uninit();

return 0;

}

void AcquireContinuous( int16 hCam )

{

rgn_type region = { 0, 511, 1, 0, 511, 1 };

uns32 buffer_size, frame_size;

uns16 *buffer;

int16 status;

uns32 not_needed;

void_ptr address;

uns16 numberframes = 5;

/* Init a sequence set the region, exposure mode and exposure time */

pl_exp_init_seq();

pl_exp_setup_cont( hCam, 1, &region, TIMED_MODE, 100, &frame_size,

CIRC_NO_OVERWRITE );

/* set up a circular buffer of 3 frames */

buffer_size = frame_size * 3;

buffer = (uns16*)malloc( buffer_size );

/* Start the acquisition */

printf( "Collecting %i Frames\n", numberframes );

pl_exp_start_cont(hCam, buffer, buffer_size );

/* ACQUISITION LOOP */

while( numberframes ) {

/* wait for data or error */

while( pl_exp_check_cont_status( hCam, &status, &not_needed,

&not_needed ) &&

(status != READOUT_COMPLETE && status != READOUT_FAILED) );

120 PVCAM Manual Version 2.7

/* Check Error Codes */

if( status == READOUT_FAILED ) {

printf( "Data collection error: %i\n", pl_error_code() );

break;

}

if ( pl_exp_get_oldest_frame( hCam, &address )) {

/* address now points to valid data */

printf( "Center Three Points: %i, %i, %i\n",

*((uns16*)address + frame_size/sizeof(uns16)/2 - 1),

*((uns16*)address + frame_size/sizeof(uns16)/2),

*((uns16*)address + frame_size/sizeof(uns16)/2 + 1) );

numberframes--;

printf( "Remaining Frames %i\n", numberframes );

pl_exp_unlock_oldest_frame( hCam );

}

} /* End while */

/* Stop the acquisition */

pl_exp_stop_cont(hCam,CCS_HALT);

/* Finish the sequence */

pl_exp_finish_seq( hCam, buffer, 0);

/*Uninit the sequence */

pl_exp_uninit_seq();

free( buffer );

}

Chapter 8: Code Examples 121

Example 4: Standard Mode Acquisition

The following is a simple example of standard mode acquisitions from PVCAM with the minimum

set of functions for data acquisition. Note the example is hard-coded for a particular image size of

512 x 512; these normally should be variables.

#include <stdio.h>

#include <stdlib.h>

#include "master.h"

#include "pvcam.h"

static void AcquireStandard( int16 hCam );

int main(int argc, char **argv)

{

char cam_name[CAM_NAME_LEN]; /* camera name */

int16 hCam; /* camera handle */

/* Initialize the PVCam Library and Open the First Camera */

pl_pvcam_init();

pl_cam_get_name( 0, cam_name );

pl_cam_open(cam_name, &hCam, OPEN_EXCLUSIVE );

AcquireStandard( hCam );

pl_cam_close( hCam );

pl_pvcam_uninit();

return 0;

}

void AcquireStandard( int16 hCam )

{

rgn_type region = { 0, 511, 1, 0, 511, 1 };

uns32 size;

uns16 *frame;

int16 status;

uns32 not_needed;

uns16 numberframes = 5;

/* Init a sequence set the region, exposure mode and exposure time */

pl_exp_init_seq();

pl_exp_setup_seq( hCam, 1, 1, &region, TIMED_MODE, 100, &size );

frame = (uns16*)malloc( size );

/* Start the acquisition */

printf( "Collecting %i Frames\n", numberframes );

/* ACQUISITION LOOP */

while( numberframes ) {

pl_exp_start_seq(hCam, frame );

/* wait for data or error */

while( pl_exp_check_status( hCam, &status, &not_needed ) &&

(status != READOUT_COMPLETE && status != READOUT_FAILED) );

/* Check Error Codes */

if( status == READOUT_FAILED ) {

printf( "Data collection error: %i\n", pl_error_code() );

break;

}

/* frame now contains valid data */

printf( "Center Three Points: %i, %i, %i\n",

frame[size/sizeof(uns16)/2 - 1],

frame[size/sizeof(uns16)/2],

frame[size/sizeof(uns16)/2 + 1] );

122 PVCAM Manual Version 2.7

numberframes--;

printf( "Remaining Frames %i\n", numberframes );

} /* End while */

/* Finish the sequence */

pl_exp_finish_seq( hCam, frame, 0);

/*Uninit the sequence */

pl_exp_uninit_seq();

free( frame );

}

123

Appendix A:

Error Codes

All successful functions reset

pl_error_code

to 0, which produces the message "

no error

All unsuccessful functions return a numeric value, where that value corresponds to a number linked

to an error message. All of the PVCAM error numbers and their linked error messages are listed in

the table that follows. This table will be updated as new error messages are added.

Table 5. Error Codes

Error # Error Message Meaning

0 PVCAM_SUCCESS No error

1 C0_UNKNOWN_ERROR Unexpected, unanticipated, or undocumented

2 DDI_NOT_PV_DEVICE This device driver is not a Roper device

3 DDI_BAD_DEV_NAME No driver found with the specified name

4 DDI_DRIVER_IN_USE This driver is already in use by another user

5 DDI_ALREADY_OPEN This driver has already been opened

6 DDI_CANT_OPEN_DRIVER The driver was found, but could not be opened

7 DDI_CANT_CLOSE_DRIVER Driver is not currently open; it can't be closed

8 DDI_CLOSE_ERROR An error occurred while trying to close the driver

9 DDI_ALREADY_ACTIVE Camera is already taking data; finish or abort

10 DDI_ZERO_SEND_SIZE Invalid request: transmit zero bytes

11 DDI_ZERO_RECV_SIZE Invalid request: receive zero bytes

12 DDI_IOPORT_CONFLICT 2 cameras are using the same I/O port

13 DDI_BOARD_NOT_FOUND Communications board is not at expected location

14 DDI_CABLE_DISCONNECTED Camera electronics unit cable is not connected

15 DDI_MEM_ALLOC_FAILED Device driver could not allocate needed memory

16 DDI_IRQID_CONFLICT 2 open cameras are using the same interrupt ID

17 DDI_DRV_CLOS_CLOSE_CAM Driver not yet opened: pd_cam_close

18 DDI_DRV_CLOS_READ_BYTE Driver not yet opened: pd_cam_write_read, read

19 DDI_DRV_CLOS_SEND_BYTE Driver not yet opened: pd_cam_write_read, write

20 DDI_DRV_CLOS_GET_RETRY Driver not yet opened: pd_driver_get_retries

21 DDI_DRV_CLOS_SET_RETRY Driver not yet opened: pd_driver_set_retries

22 DDI_DRV_CLOS_GET_TIME Driver not yet opened: pd_driver_get_timeout

23 DDI_DRV_CLOS_SET_TIME Driver not yet opened: pd_driver_set_timeout

24 DDI_DRV_CLOS_INFO_LEN Driver not yet opened: pd_driver_get_info_length

25 DDI_DRV_CLOS_INFO_DUMP Driver not yet opened: pd_driver_get_info_dump

124 PVCAM Manual Version 2.7

Error # Error Message Meaning

26 DDI_DRV_CLOS_DRV_VER Driver not yet opened: pd_driver_get_ver

27 DDI_DRV_CLOS_IM_STATUS Driver not open: pd_driver_get_image_data_status

28 DDI_DRV_CLOS_IM_ABORT Driver not open: pd_driver_set_image_data_idle

29 DDI_DRV_CLOS_IM_ACTIVE Driver not open: pd_driver_set_image_data_active

30 DDI_DRV_CLOS_IM_GRAN Driver not open: pd_driver_get_image_data_gran

31 DDI_BAD_DEVH_CLOSE_CAM Illegal device handle: pd_cam_close

32 DDI_BAD_DEVH_READ_BYTE Illegal device handle: pd_cam_write_read, read

33 DDI_BAD_DEVH_SEND_BYTE Illegal device handle: pd_cam_write_read, write

34 DDI_BAD_DEVH_GET_RETRY Illegal device handle: pd_driver_get_retries

35 DDI_BAD_DEVH_SET_RETRY Illegal device handle: pd_driver_set_retries

36 DDI_BAD_DEVH_GET_TIME Illegal device handle: pd_driver_get_timeout

37 DDI_BAD_DEVH_SET_TIME Illegal device handle: pd_driver_set_timeout

38 DDI_BAD_DEVH_INFO_LEN Illegal device handle: pd_driver_get_info_length

39 DDI_BAD_DEVH_INFO_DUMP Illegal device handle: pd_driver_get_info_dump

40 DDI_BAD_DEVH_DRV_VER Illegal device handle: pd_driver_get_ver

41 DDI_BAD_DEVH_IM_STATUS Bad dev handle: pd_driver_get_image_data_status

42 DDI_BAD_DEVH_IM_ABORT Bad dev handle: pd_driver_set_image_data_idle

43 DDI_BAD_DEVH_IM_ACTIVE Bad dev handle: pd_driver_set_image_data_active

44 DDI_BAD_DEVH_IM_GRAN Bad dev handle: pd_driver_get_image_data_gran

45 DDI_SYS_ERR_DEV_DRIVER System error while accessing the device driver

46 DDI_SYS_ERR_INIT System error in pd_ddi_init

47 DDI_SYS_ERR_UNINIT System error in pd_ddi_uninit

48 DDI_SYS_ERR_TOTL_CAMS System error in pd_ddi_get_total_cams

49 DDI_SYS_ERR_CAM_NAME System error in pd_ddi_get_all_cam_names

50 DDI_SYS_ERR_OPEN_CAM System error in pd_cam_open

51 DDI_SYS_ERR_CLOSE_CAM System error in pd_cam_close

52 DDI_SYS_ERR_READ_BYTE System error in pd_cam_write_read, read

53 DDI_SYS_ERR_SEND_BYTE System error in pd_cam_write_read, write

54 DDI_SYS_ERR_GET_RETRY System error in pd_driver_get_retries

55 DDI_SYS_ERR_SET_RETRY System error in pd_driver_set_retries

56 DDI_SYS_ERR_GET_TIME System error in pd_driver_get_timeout

57 DDI_SYS_ERR_SET_TIME System error in pd_driver_set_timeout

58 DDI_SYS_ERR_INFO_LEN System error in pd_driver_get_info_length

59 DDI_SYS_ERR_INFO_DUMP System error in pd_driver_get_info_dump

60 DDI_SYS_ERR_DRV_VER System error in pd_driver_get_ver

Appendix A: Error Codes 125

Error # Error Message Meaning

61 DDI_SYS_ERR_IM_STATUS System error in pd_driver_get_image_data_status

62 DDI_SYS_ERR_IM_ABORT System error in pd_driver_set_image_data_idle

63 DDI_SYS_ERR_IM_ACTIVE System error in pd_driver_set_image_data_active

64 DDI_SYS_ERR_IM_GRAN System error in pd_driver_get_image_data_gran

65 DDI_UNKNOWN_DEV_DRIVER Unknown error while accessing the device driver

66 DDI_UNKNOWN_INIT Unknown error in pd_ddi_init

67 DDI_UNKNOWN_UNINIT Unknown error in pd_ddi_uninit

68 DDI_UNKNOWN_TOTL_CAMS Unknown error in pd_ddi_get_total_cams

69 DDI_UNKNOWN_CAM_NAME Unknown error in pd_ddi_get_all_cam_names

70 DDI_UNKNOWN_OPEN_CAM Unknown error in pd_cam_open

71 DDI_UNKNOWN_CLOSE_CAM Unknown error in pd_cam_close

72 DDI_UNKNOWN_READ_BYTE Unknown error in pd_cam_write_read, read

73 DDI_UNKNOWN_SEND_BYTE Unknown error in pd_cam_write_read,write

74 DDI_UNKNOWN_GET_RETRY Unknown error in pd_driver_get_retries

75 DDI_UNKNOWN_SET_RETRY Unknown error in pd_driver_set_retries

76 DDI_UNKNOWN_GET_TIME Unknown error in pd_driver_get_timeout

77 DDI_UNKNOWN_SET_TIME Unknown error in pd_driver_set_timeout

78 DDI_UNKNOWN_INFO_LEN Unknown error in pd_driver_get_info_length

79 DDI_UNKNOWN_INFO_DUMP Unknown error in pd_driver_get_info_dump

80 DDI_UNKNOWN_DRV_VER Unknown error in pd_driver_get_ver

81 DDI_UNKNOWN_IM_STATUS Unknown error in pd_driver_get_image_data_status

82 DDI_UNKNOWN_IM_ABORT Unknown error in pd_driver_set_image_data_idle

83 DDI_UNKNOWN_IM_ACTIVE Unknown error in pd_driver_set_image_data_active

84 DDI_UNKNOWN_IM_GRAN Unknown error in pd_driver_get_image_data_gran

85 DDI_SCSI_NOT_PV_CAMERA This SCSI device is not a Tucson camera

86 DDI_SCSI_NO_PROTOCOL SCSI protocol breakdown: no device or termination

87 DDI_SCSI_NO_ARBITRATE SCSI arbitration failure: the bus is busy

88 DDI_SCSI_BAD_XFER SCSI bad instruction in transfer instruction bloc

89 DDI_SCSI_PHASE_ERROR SCSI phase error: host & camera disagree on type

90 DDI_SCSI_DATA_ERROR SCSI data comparison error verifying transfer

91 DDI_SCSI_MGR_BUSY SCSI manager is busy with another operation

92 DDI_SCSI_SEQUENCE_ERR SCSI sequencing error

93 DDI_SCSI_BUS_TIMEOUT SCSI bus timeout waiting for data transfer

94 DDI_SCSI_COMPLETE_ERR SCSI completion error

95 DDI_SCSI_INTERNAL_ERR SCSI device indicates an internal error

126 PVCAM Manual Version 2.7

Error # Error Message Meaning

96 DDI_XM_SNDOK XMODEM

97 DDI_XM_NOSOH XMODEM

98 DDI_XM_OVERFLOW XMODEM

99 DDI_XM_RCVOK XMODEM

100 DDI_XM_RCVCAN XMODEM

101 DDI_XM_NOACK XMODEM no ACKnowledge signal received

102 DDI_XM_LASTACK XMODEM

103 DDI_XM_SNDACK XMODEM

104 DDI_XM_SNDCAN XMODEM

105 DDI_XM_MSGEND XMODEM

106 DDI_XM_BADCKV XMODEM

107 DDI_XM_BADSOH XMODEM

108 DDI_XM_NODATA XMODEM

109 DDI_XM_BADPAK XMODEM

110 DDI_XM_PAKNUM XMODEM

111 DDI_XM_PAKSEQ XMODEM

112 DDI_XM_NOSYNC XMODEM no SYNC character seen

113 DDI_XM_SYNCTOUT XMODEM timout while waiting for SYNC

character

114 DDI_XM_XMITLOCK XMODEM transmit ... ?

115 DDI_XM_BADCMD XMODEM bad command

116 C0_INVALID_HANDLE This is not the handle of an open camera

117 C0_CAM_ALREADY_OPEN This user has already opened this camera

118 C0_CAM_NEVER_OPENED Camera was not opened, so this task can't be done

119 C0_CAM_RESERVED The camera is in use by another user

120 C0_DRIVER_OUT_OF_MEM Driver or DDI ran out of (specialized?) memory

121 C0_CANT_READ_TIMEOUT System couldn't read the timeout for this driver

122 C0_CANT_WRIT_TIMEOUT System couldn't set the timeout for this driver

123 C0_CANT_READ_RETRIES System couldn't read the retries for this driver

124 C0_CANT_WRIT_RETRIES System couldn't set the retries for this driver

125 C0_CAM_TIMEOUT No response at all from the camera

126 C0_CAM_TIMEOUT_NOISE Timeout, but some response (noisy line?)

127 C0_RETRIES_EXCEEDED Not a timeout, but retries didn't work (noisy?)

128 C0_CAM_NAME_OUT_OF_RNG The number must be in the range

1<=num<=totl_cams

129 C0_CAM_NAME_NOT_FOUND This is not a valid name for opening the camera

Appendix A: Error Codes 127

Error # Error Message Meaning

130 C0_PACKET_TOO_LARGE A send or read request used a packet >32768 bytes

131 C0_STATUS_TOO_LARGE The status info returned contained too many bytes

132 C0_STATUS_TOO_SMALL The status info returned contained too few bytes

133 C0_NEED_POSITIVE_VAL The input value must be greater than zero

134 C0_NEED_ZERO_OR_MORE The input value must be zero or above

135 C0_NULL_POINTER Input pointer is null, it must be a legal address

136 C0_STSF_EU_CPU Subsystem fault: electronics unit main CPU

137 C0_STSF_EU_SYS_INTEG Subsystem fault: EU internal communications

138 C0_STSF_EU_TO_HOST Subsystem fault: EU-to-host cables

139 C0_STSF_POWER_SUPPLY Subsystem fault: power supply voltage error

140 C0_STSF_CCS_CHIP Subsystem fault: CCS chip or memory

141 C0_STSF_CCS_SCRIPT_MEM Subsystem fault: CCS script memory

142 C0_STSF_CCS_PORTS Subsystem fault: CCS ports

143 C0_STSF_DISPLAY Subsystem fault: EU front panel display

144 C0_STSF_SHUTTER_DRIVE Subsystem fault: shutter driver circuit

145 C0_STSF_TEMP_CONT Subsystem fault: temperature control circuit

146 C0_STSF_PAR_CLOCK_DRV Subsystem fault: parallel clock driver

147 C0_STSF_CH_CABLES Subsystem fault: camera head cables

148 C0_STSF_CH_CPU Subsystem fault: camera head CPU board

149 C0_STSF_CH_CLOCK_BRD Subsystem fault: camera head clock board

150 C0_STSF_CH_POWER_BRD Subsystem fault: camera head power board

151 C0_STSF_CH_VID_BRD_1 Subsystem fault: camera head video board #1

152 C0_STSF_CH_VID_BRD_2 Subsystem fault: camera head video board #2

153 C0_STSF_CH_VID_BRD_3 Subsystem fault: camera head video board #3

154 C0_STSF_CH_VID_BRD_4 Subsystem fault: camera head video board #4

155 C0_STSF_ADC_BOARD_1 Subsystem fault: A/D board #1

156 C0_STSF_ADC_BOARD_2 Subsystem fault: A/D board #2

157 C0_STSF_ADC_BOARD_3 Subsystem fault: A/D board #3

158 C0_STSF_ADC_BOARD_4 Subsystem fault: A/D board #4

159 C0_STSF_OPTION_CARD_1 Subsystem fault: option card #1

160 C0_STSF_OPTION_CARD_2 Subsystem fault: option card #2

161 C0_STSF_OPTION_CARD_3 Subsystem fault: option card #3

162 C0_STSF_OPTION_CARD_4 Subsystem fault: option card #4

163 C0_NO_IMG_DATA Can't collect data: expected data is zero bytes

164 C0_CCL_SCRIPT_INVALID Can't collect data: CCS script is invalid

128 PVCAM Manual Version 2.7

Error # Error Message Meaning

165 C0_EXP_FIFO_OVERFLOW AIA input buffer has overflowed

166 C0_EXP_NO_ACK Camera didn't acknowledge request for image data

167 C0_EXP_XFER_ERR Last data transfer from the camera was garbled

168 C0_EXP_EXTRA_DATA Finished data transfer, but extra data exists

169 C0_EXP_MISSING_DATA Finished data transfer, some data was missing

170 C0_OPEN_MODE_UNAVAIL Camera may not be opened in the mode specified

171 C0_WRONG_READ_CLASS Read operations require the HOST_COMMANDS

class

172 C0_WRITE_BYTES_TOO_SML Command sent to camera must be at least 1 byte

173 C0_WRITE_BYTES_TOO_LRG Cannot send over 32768 bytes in one transaction

174 C0_READ_BYTES_TOO_SML A read transaction must transfer at least 1 byte

175 C0_READ_BYTES_TOO_LRG Cannot read over 32768 bytes in one transaction

176 C0_WRONG_READ_CMD 'read' command is improperly formatted

177 DDI_DRV_CLOS_GET_PIXTIME Driver not yet opened: pd_driver_get_pixtime

178 DDI_SYS_ERR_GET_PIXTIME System error in pd_driver_get_pixtime

179 DDI_BAD_DEVH_GET_PIXTIME Bad dev handle: pd_driver_get_pixtime

180 DDI_UNKNOWN_GET_PIXTIME Unknown error in pd_driver_get_pixtime

181 DDI_CAM_XOFF Camera can't communicate after sending an X-OFF

182 C0_BAD_CONTROLLER Controller for camera not valid

183 C0_CNTRL_CREATE_FAILED Could not create controller object for camera

184 C0_NO_CONT_STATUS Status not available for continuous exposure

185 C0_STAT_CNTRL_ERROR Controller error while requesting status

186 C0_STAT_CMD_ERROR Command error while requesting status

187 C0_STAT_DMA_OVERRUN DMA data overrun has occurred

188 C0_STAT_TAXI_VIOLATION Violation in TAXI communication protocol occurred

189 C0_STAT_MAILBOX_ERROR Mailbox error while requesting status

190 C0_STAT_CH0_ERROR Channel 0 transfer not enabled

191 C0_STAT_CH1_ERROR Channel 1 transfer not enabled

192 C0_CANT_READ_ID System couldn't read the subsystem part numbers

193 C0_CANT_READ_NAME System couldn't read the name for this subsystem

194 C0_DEV_HANDLE_UNAVAIL Camera device handle unavailable

195 C0_PVCAM_NOT_INITED Camera library not initialized

196 C0_NOT_INITIALIZED The pg_decode_info structure is not initialized

1000 C01_START_ERROR unknown error

2000 C2_UNKNOWN_ERROR Unexpected, unanticipated, undocumented

Appendix A: Error Codes 129

Error # Error Message Meaning

2001 C2_PVCAM_ALREADY_INITED Init_pvcam has been called twice without closing

2002 C2_PVCAM_NOT_INITED The PVCAM library was never initialized

2003 C2_FAILED_TO_SET_VALUE The camera did not accept the new setting

2004 C2_NEED_POSITIVE_VAL The input value must be greater than zero

2005 C2_NEED_ZERO_OR_MORE The input value must be zero or above

2006 C2_NULL_POINTER Input pointer is null, it must be a legal address

2007 C2_FRAME_XFER_ILLEGAL This CCD does not allow frame transfer operation

2008 C2_FRAME_XFER_REQUIRED This CCD must be operated in frame transfer mode

2009 C2_MPP_MODE_ILLEGAL This CCD does not allow mpp-mode clocking

2010 C2_MPP_MODE_REQUIRED This CCD requires mpp-mode clocking

2011 C2_CLEAR_MODE_INVALID Requested clear mode is not an allowed choice

2012 C2_SPEED_INVALID No valid speeds between camera/electronics/host

2013 C2_SPEED_OUT_OF_RANGE Selected a non-existant speed table entry

2014 C2_CANT_SET_ADC_OFFSET Camera does not allow offset to be read or set

2015 C2_BAD_CONTROLLER Controller for camera not valid

2016 C2_NOT_AVAILABLE Parameter is not available for camera

2017 C2_FAILED_TO_GET_VALUE The camera did not return the setting

2018 C2_PARAMETER_INVALID The requested parameter is invalid

2019 C2_ATTRIBUTE_INVALID The requested attribute is invalid

2020 C2_INDEX_OUT_OF_RANGE The requested parameter index is out of range

2021 C2_NOT_INPUT The requested I/O port is not an input port

2022 C2_IO_TYPE_INVALID The requested I/O port type is not supported

2023 C2_ADDR_OUT_OF_RANGE The I/O address is out of range

2024 C2_ACCESS_ATTR_INVALID The I/O port returned access attribute is invalid

2025 C2_CANT_SET_PARAMETER The requested parameter cannot be set

2026 C2_IO_DIRECTION_INVALID The returned direction for the I/O port is invalid

2027 C2_NO_ALPHA_SER_NUM Alphanumeric serial # unavailable for this camera

2028 C2_CANT_OVERSCAN Camera does not allow overscanning the CCD

2029 C2_CANT_SET_GAIN_MULT Camera does not allow setting the gain multiplier

3000 C3_INVALID_PIC_TRIGGER_MODE Invalid PIC trigger mode

3001 C3_NO_COMMUNICATIONS_LINK Bogus temp

3002 C3_INVALID_SCRIPT CCL program is not loaded or is invalid

3003 C3_EXP_EXTRA_DATA Extra data acquired during exposure

3004 C3_EXP_NO_DATA_ACQ No data acquired during exposure

3005 C3_EXP_FIFO_OVERFLOW FIFO overflow during exposure

130 PVCAM Manual Version 2.7

Error # Error Message Meaning

3006 C3_EXP_NO_ACKNOWLEDGE Camera did not acknowledge request during exp

3007 C3_EXP_TRANSFER_ERROR Transfer error during exposure

3008 C3_EXP_UNKNOWN_STATE Camera went into unknown state during exp

3009 C3_CANT_DECODE_IN_PROGRESS Can't decode while readout is in progress

3010 C3_RGN_MAX_EXCEEDED Trying to exceed the maximum # of regions

3011 C3_RGN_ILLEGAL_DEFN Dimensions of region to be added is illegal

3012 C3_RGN_ILLEGAL_BINNING Binning of region to be added is illegal

3013 C3_RGN_OUTSIDE_CCD_DIMENS Region def extends beyond CCD dimensions

3014 C3_RGN_OVERLAP Region to be added overlaps a previous region

3015 C3_RGN_INVALID_NUM Invalid region number

3016 C3_RGN_NOT_FOUND Region not found

3017 C3_STREAM_PTR_NOT_DEFINED Pointer to pixel stream is not defined

3018 C3_GROUPS_PTR_NOT_DEFINED Pointer to decode info structure undefined

3019 C3_NOT_INITIALIZED pl_init_exp_seq() has not been called

3020 C3_FAILED_TO_SET_VALUE The value can not be set in the camera

3021 C3_EVENT_NUMBER_INVALID Frame count for generating event <= 0

3022 C3_EVENT_NOT_SUPPORTED Specified event is not supported by the O.S.

3023 C3_BAD_CONTROLLER Controller for camera not valid

3024 C3_EVENT_NOT_SET Event was not set up

3025 C3_CNTRL_INIT_FAILED Controller initialization failed

3026 C3_EXP_MODE_NOT_SUPPORTED Exposure mode not supported by this camera

3027 C3_ILLEGAL_BUFFER_SIZE Buffer must be integer-multiple of frame size

3028 C3_GET_FRAME_NOT_SUPPORTED Camera cannot return the specified frame

3029 C3_FRAME_NOT_RETURNED Specified frame could not be returned

3030 C3_FRAME_BAD_MODE Frame could not be returned in current mode

3031 C3_NO_DRIVER_BUFFER Camera does not provide a driver buffer

3032 C3_BUF_NOT_RETURNED Pointer to buffer could not be returned

3033 C3_BUFFER_OVERRUN Data Buffer is full no place to xfer data

3034 C3_TAXI_VIOLATION Communication with device failed, link broken

3035 C3_EXP_RES_OUT_OF_RANGE Exposure resolution index non-existent

3036 C3_NOT_AVAILABLE Parameter is not available for camera

3037 C3_IO_PORT_INVALID Specified I/O port is invalid

3038 C3_FAILED_TO_GET_VALUE The camera did not return the setting

3039 C3_IO_STATE_OUT_OF_RANGE Requested I/O state out of range for port

3040 C3_IO_LOCATION_INVALID Specified script location is invalid

Appendix A: Error Codes 131

Error # Error Message Meaning

3041 C3_IO_NOT_OUTPUT Specified I/O port is not an output port

3042 C3_EXP_XFER_ERR Last data transfer from the camera was garbled

3043 C3_EXP_MISSING_DATA Finished data transfer, some data was missing

3044 C3_STAT_CNTRL_ERROR Controller error while requesting status

3045 C3_STAT_CMD_ERROR Command error while requesting status

3046 C3_CAM_NEVER_OPENED Camera was not opened, so this task can't be done

3047 C3_STAT_DMA_OVERRUN DMA data overrun has occurred

3048 C3_STAT_TAXI_VIOLATION Violation in TAXI communication protocol occurred

3049 C3_STAT_MAILBOX_ERROR Mailbox error while requesting status

3050 C3_STAT_CH0_ERROR Channel 0 transfer not enabled

3051 C3_STAT_CH1_ERROR Channel 1 transfer not enabled

3052 C3_UNKNOWN_ERROR Unexpected, unanticipated, undocumented

4000 C04_HBUF_OUTOFRANGE HBUF is out of range

4001 C04_HIMG_OUTOFRANGE HIMG is out of range

4002 C04_NO_FREE_BUFFER_HANDLES No free buffer handles available

4003 C04_NO_FREE_IMAGE_HANDLES No free image handles available

4004 C04_BUFFER_ENTRY_ALREADY_SET Buffer entry is already set

4005 C04_BUFFER_ENTRY_ALREADY

_CLEARED Buffer entry is already cleared

4006 C04_IMAGE_ENTRY_ALREADY_SET Image entry is already set

4007 C04_IMAGE_ENTRY_ALREADY

_CLEARED Image entry is already cleared

4008 C04_INVALID_IMAGE_HANDLE Invalid image handle

4009 C04_INVALID_BUFFER_HANDLE Invalid buffer handle

4010 C04_INVALID_BITDEPTH_VALUE Bit depth must be enum PRECISION_...

4011 C04_INVALID_IMAGE_NUMBER Invalid image number

4012 C04_INVALID_EXPOSURE_NUMBER Invalid exposure number

4013 C04_INVALID_TIME The time or date is out of range

4014 C04_INVALID_REGION A region is out of range

14000 C14_UNKNOWN_ERROR Unexpected, unanticipated, undocumented

14001 C14_CANT_READ_INI_FILE Unable to read the current INI file. Please run

RSConfig.exe

29000 C29_UNKNOWN_ERROR Unexpected, unanticipated, undocumented

29001 C29_BDEPTH_ILLEGAL Bit depth must be enum PRECISION_...

29002 C29_BDEPTH_DIFFER Bit depth source much match destination

29003 C29_BUF_NEEDS_1_EXP A buffer needs at least 1 exposure

132 PVCAM Manual Version 2.7

Error # Error Message Meaning

29004 C29_BUF_NEEDS_1_IMG A buffer needs at least 1 image

29005 C29_IMG_DEF_TOO_LARGE Image definition used too large a value

29006 C29_IMG_DEF_TOO_SMALL Image size/bin must be larger than zero

29007 C29_IMG_DEF_DIFFER Image source definition must match dest

29008 C29_IMG_NUM_DIFFER Source # of images must match dest

30000 C30_UNKNOWN_ERROR Unexpected, unanticipated, undocumented

30001 C30_CANT_READ_TIME Unable to read the current system time

30002 C30_END

31000 C31_INVALID_HEAP Invalid heap ID: PUBLIC_MEM, PRIVATE_MEM

31001 C31_MEMALLOC_FAILED Not enough memory to perform alloc

31002 C31_MEMCALLOC_FAILED Not enough memory to perform calloc

31003 C31_MEMREALLOC_FAILED Not enough memory to perform realloc

31004 C31_PRIV_MEM_BLOCK_TOO_BIG Excceeds 64k limit for PRIVATE_MEM

31005 C31_MEMLOCK_FAILED Memory page locking failed

32000 CCL_TOO_COMPLEX Too many script entries

32001 CCL_CANT_FRAME_TRANSFER No frame transfer hardware support

32002 CCL_SCRIPT_IS_NOT_VALID Invalid script

32003 CCL_REGIONS_OVERLAP Regions contain some of the same pixels

32004 CCL_INVALID_SERIAL_BINNING Serial binning == 0 or > region size

32005 CCL_INVALID_PARALLEL_BINNING Parallel binning == 0 or > region size

32006 CCL_NONMATCHED_PARALLEL

_BINNING Conflicting parallel binning values

32007 CCL_PARALLEL_BINNING_MISALIGNED Conflicting parallel binning alignment

32008 CCL_INVALID_REGION Region is not on the CCD

32009 CCL_INVALID_IO_PORT_TYPE Requested I/O port is not a valid type

32010 C32_NOT_INITIALIZED The pg_decode_info structure is not initialized

133

Appendix B:

Obsolete Functions

The following list of functions have been made obsolete through the use of

pl_get_param

pl_set_param

pl_get_enum_param

, and

pl_enum_str_length

functions. They still

function correctly and are still supported, but for future programming, the following functions

should not be used. For more information about the

pl_get_param

and

pl_set_param

parameter ids, refer to Chapter 5.

Table 6. Obsolete Class 0 Functions and Their pl_set_param/pl_set_param Equivalents

Obsolete Class 0 Function pl_set_param/pl_get_param Equivalent

pl_dd_get_info PARAM_DD_INFO

pl_dd_get_info_length PARAM_DD_INFO_LENGTH

pl_dd_get_retries PARAM_DD_RETRIES

pl_dd_set_retries PARAM_DD_RETRIES

pl_dd_get_timeout PARAM_DD_TIMEOUT

pl_dd_set_timeout PARAM_DD_TIMEOUT

pl_dd_get_ver PARAM_DD_VERSION

Table 7. Obsolete Class 2 Functions and Their pl_set_param/pl_set_param Equivalents

Obsolete Class 2 Function pl_set_param/pl_get_param Equivalent

pl_ccd_get_adc_offset PARAM_ADC_OFFSET

pl_ccd_get_chip_name PARAM_CHIP_NAME

pl_ccd_get_clear_cycles PARAM_CLEAR_CYCLES

pl_ccd_get_clear_mode PARAM_CLEAR_MODE

pl_ccd_get_color_mode PARAM_COLOR_MODE

pl_ccd_get_cooling_mode PARAM_COOLING_MODE

pl_ccd_get_frame_capable PARAM_FRAME_CAPABLE

pl_ccd_get_fwell_capacity PARAM_FWELL_CAPACITY

pl_ccd_get_mpp_capable PARAM_MPP_CAPABLE

pl_ccd_get_par_size PARAM_PAR_SIZE

pl_ccd_get_pix_par_dist PARAM_PIX_PAR_DIST

pl_ccd_get_pix_par_size PARAM_PIX_PAR_SIZE

pl_ccd_get_pix_ser_dist PARAM_PIX_SER_DIST

pl_ccd_get_pix_ser_size PARAM_PIX_SER_SIZE

134 PVCAM Manual Version 2.7

Obsolete Class 2 Function pl_set_param/pl_get_param Equivalent

pl_ccd_get_pmode PARAM_PMODE

pl_ccd_get_postmask PARAM_POSTMASK

pl_ccd_get_postscan PARAM_POSTSCAN

pl_ccd_get_preamp_dly PARAM_PREAMP_DELAY

pl_ccd_get_preamp_off_control PARAM_PREAMP_OFF_CONTROL

pl_ccd_get_preflash PARAM_PREFLASH

pl_ccd_get_premask PARAM_PREMASK

pl_ccd_get_prescan PARAM_PRESCAN

pl_ccd_get_ser_size PARAM_SER_SIZE

pl_ccd_get_serial_num PARAM_SERIAL_NUM

pl_ccd_get_summing_well PARAM_SUMMING_WELL

pl_ccd_get_tmp PARAM_TEMP (pl_get_param only)

pl_ccd_get_tmp_range PARAM_TEMP_SETPOINT (from the

attributes of the get you can get the min

and max allowed temperature settings)

pl_ccd_get_tmp_setpoint PARAM_TEMP_SETPOINT

pl_ccd_set_adc_offset PARAM_ADC_OFFSET

pl_ccd_set_clear_cycles PARAM_CLEAR_CYCLES

pl_ccd_set_clear_mode PARAM_CLEAR_MODE

pl_ccd_set_pmode PARAM_PMODE

pl_ccd_set_preamp_off_control PARAM_PREAMP_OFF_CONTROL

pl_ccd_set_tmp_setpoint PARAM_TEMP_SETPOINT

pl_ccs_get_status PARAM_CCS_STATUS

pl_shtr_get_close_dly PARAM_SHTR_CLOSE_DELAY

pl_shtr_get_open_dly PARAM_SHTR_OPEN_DELAY

pl_shtr_get_open_mode PARAM_SHTR_OPEN_MODE

pl_shtr_get_status PARAM_SHTR_STATUS

pl_shtr_set_close_dly PARAM_SHTR_CLOSE_DELAY

pl_shtr_set_open_dly PARAM_SHTR_OPEN_DELAY

pl_shtr_set_open_mode PARAM_SHTR_OPEN_MODE

pl_spdtab_get_bits PARAM_BIT_DEPTH

pl_spdtab_get_entries PARAM_SPDTAB_INDEX with ATTR_MAX

pl_spdtab_get_max_gain PARAM_GAIN_INDEX with ATTR_MAX

pl_spdtab_get_port PARAM_READOUT_PORT

Appendix B: Obsolete Functions 135

Obsolete Class 2 Function pl_set_param/pl_get_param Equivalent

pl_spdtab_get_port_total PARAM_READOUT_PORT with

ATTR_COUNT

pl_spdtab_get_time PARAM_PIX_TIME

pl_spdtab_get_gain PARAM_GAIN_INDEX

pl_spdtab_get_num PARAM_SPDTAB_INDEX

pl_spdtab_set_gain PARAM_GAIN_INDEX

pl_spdtab_set_num PARAM_SPDTAB_INDEX

Table 8. Obsolete Class 3 Functions and Their pl_set_param/pl_set_param Equivalents

Obsolete Class 3 Function pl_set_param/pl_get_param Equivalent

pl_exp_check_progress

pl_exp_get_time_seq PARAM_EXP_TIME

pl_exp_set_time_seq PARAM_EXP_TIME

pl_exp_set_cont_mode

136 PVCAM Manual Version 2.7

Obsolete Class 0 Functions

PVCAM Class 0: Camera Communications pl_dd_get_info(0)

NAME

pl_dd_get_info —

reads text information about the current device driver.

SYNOPSIS

rs_bool

pl_dd_get_info(int16 hcam,int16 bytes,char_ptr text)

DESCRIPTION This function returns information from the current device driver (specified by

hcam

) including unusual conditions and special information. Since the

information may change from system to system, it is presented as unformatted

text. The input string text must be allocated to be at least bytes characters long.

No more than bytes characters are written into the string text. The size of the

complete message can be obtained from the associated parameter id

PARAM_DD_INFO_LENGTH

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_dd_get_info(0)

NOTES Many devices have no message. In other words, they return a value of 0 for

bytes.

138 PVCAM Manual Version 2.7

PVCAM Class 0: Camera Communications pl_dd_get_retries(0)

NAME

pl_dd_get_retries —

reads the maximum number of command

retransmission attempts that are allowed.

SYNOPSIS

rs_bool

pl_dd_get_retries(int hcam,uns16_ptr max_retries)

DESCRIPTION When a command or status transmission is garbled, the system signals for a

retransmission. After a certain number of failed transmissions (an initial attempt

+ max_retries), the system abandons the attempt and concludes that the

communications link has failed. The camera won't close, but the command or

status read returns with an error. The maximum number of retries is initially set

by the device driver, and is matched to the communications link, hardware

platform, and operating system. It may also be reset by the user.

hcam

must be a

valid camera handle.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_dd_set_retries(0),pl_dd_get_timeout(0),pl_dd_set_timeo

ut(0)

NOTES When the camera is initially opened, the driver uses a default

timeout

and

max_retries

. These numbers, representing reasonable values, were

specifically set for that communications link, hardware platform, and operating

system. Those values can be examined by calling

pl_dd_get_timeout

and

pl_dd_get_retries

. Both of these values can be changed, but only after the

camera has successfully opened. If both numbers are known, the worst-case

device driver response may be approximated. See

pl_dd_set_timeout

for a

discussion.

The number of retries applies to status communications as well as commands. In

other words, if the camera electronics unit sends status data, but the message is

garbled, the device driver requests a retransmission.

Max_retries

sets the

upper limit to the number of retransmissions that will be requested.

Appendix B: Obsolete Functions 139

PVCAM Class 0: Camera Communications pl_dd_set_retries(0)

NAME

pl_dd_set_retries

— sets the maximum command retry count.

SYNOPSIS

rs_bool

pl_dd_set_retries(int hcam,uns16 max_retries)

DESCRIPTION When a command or status transmission is garbled, the system signals for a

retransmission. After a certain number of failed transmissions (the initial

transmission plus

max_retries

), the system abandons the attempt and

concludes that the communications link has failed. The camera won't close, but

the command or status read returns with an error. This command sets the number

of allowable retries, before an error is generated.

hcam

must be a valid camera

handle.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_dd_get_retries(0),pl_dd_get_timeout(0),pl_dd_set_timeo

ut(0)

NOTES When the camera is initially opened, the driver uses a default

timeout

and

max_retries

. These numbers were specifically set for that communications

link, hardware platform, and operating system, and represent reasonable values.

Those values may be examined by calling

pl_dd_get_timeout

and

pl_dd_get_retries

, and they can both be changed, but only after the camera

has successfully opened. If both numbers are known, the worst-case device

driver response may be approximated. See

pl_dd_set_timeout

for a

discussion.

Setting

max_retries

to 0 is theoretically reasonable, but in practice, many

systems, such as SCSI, require retries.

140 PVCAM Manual Version 2.7

PVCAM Class 0: Camera Communications pl_dd_get_timeout(0)

NAME

pl_dd_get_timeout —

reads the maximum time the driver waits for

acknowledgment.

SYNOPSIS

rs_bool

pl_dd_get_timeout(int hcam,uns16_ptr m_sec)

DESCRIPTION When

hcam

is a valid camera handle, this function reads the slowest allowable

response speed from the camera. This is a crucial factor used in the device driver

for communications control. If the driver sends a command to the camera, and

doesn't receive acknowledgment within

m_sec

milliseconds, the driver times out

and returns an error. Unless reset by the user, this time out is a default setting

that is contained in the device driver, and is matched to the communications link,

hardware platform, and operating system.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_dd_set_timeout(0),pl_dd_get_retries(0),pl_dd_set_retri

es(0)

NOTES When the camera is initially opened, the driver uses a default

timeout

and

max_retries

. These numbers, representing reasonable values, were

specifically set for that communications link, hardware platform, and operating

system. Those values can be examined by calling

pl_dd_get_timeout

and

pl_dd_get_retries

. They can both be changed, but only after the camera

has successfully opened.

Appendix B: Obsolete Functions 141

PVCAM Class 0: Camera Communications pl_dd_set_timeout(0)

NAME

pl_dd_set_timeout —

sets the worst-case communications response.

SYNOPSIS

rs_bool

pl_dd_set_timeout(int hcam,uns16 m_sec)

DESCRIPTION When

hcam

is a valid camera handle, this function sets the slowest allowable

response speed from the camera. This is a crucial factor in device driver

communications. If the driver sends a command to the camera, and doesn't

receive some sort of acknowledgment within

m_sec

milliseconds, the driver

times out and returns with an error.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_dd_get_timeout(0),pl_dd_get_retries(0),pl_dd_set_retri

es(0)

NOTES When the camera is initially opened, the driver uses a default timeout and

max_retries. These numbers, representing reasonable values, were specifically

set for that communications link, hardware platform, and operating system.

Those values may be examined by immediately calling

pl_dd_get_timeout

and

pl_dd_get_retries

. They can both be changed, but only after the

camera has successfully opened.

Changing timeout does not mean that each driver call returns within

m_sec

milliseconds. Retries and other factors must be considered. The driver then sends

the command again.

Timeout

only applies to each send-acknowledge cycle.

The worst-case driver dead time would be given by

timeout * (max_retries+1)

+ overhead

where overhead may involve minor but unpredictable effects like time slicing,

system latency, communications turn around, and driver housekeeping.

When setting

timeout

, it is usually wise to set things a little higher than

expected. When waiting for a response, a few milliseconds extra is not

catastrophic, but terminating prematurely may be.

142 PVCAM Manual Version 2.7

PVCAM Class 0: Camera Communications pl_dd_get_ver(0)

NAME

pl_dd_get_ver —

returns current device driver version number.

SYNOPSIS

rs_bool

pl_dd_get_ver (int16 hcam, uns16_ptr version)

DESCRIPTION This returns a version number for the device driver used to access the camera

hcam

. The version is a formatted hexadecimal number, of the style:

low byte

------------ -------------

high byte hi nibble low nibble

major version minor version trivial version

For example, the number 0xB1C0 indicates major release 177, minor release 12,

and trivial change 0.

A major release is defined as anything that alters the user interface, calling

sequence, or parameter interpretation of any device driver interface function

(anything that would alter the driver's API). A new major release often requires

the calling software to change, but wherever possible, major releases are

backward compatible with earlier releases.

A minor release should be completely transparent to higher level software, but

may include internal enhancements. A trivial change is reserved for use by the

software staff to keep track of extremely minor variations. The last digit may

also be used to flag versions of the driver constructed for unique customers or

situations. Minor and trivial releases should require no change in the calling

software.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_ddi_get_ver(0),pl_pvcam_get_ver(0)

NOTES Open the camera before calling this function. Note that different cameras on the

same system may use different drivers. Thus, each camera can have its own

driver, and its own driver version.

Appendix B: Obsolete Functions 143

Obsolete Class 2 Functions

PVCAM Class 2: Configuration/Setup pl_ro_get_value(2)

NAME

pl_ro_get_value —

gets a read-only value from the camera hardware.

SYNOPSIS

rs_bool

pl_ccd_get_chip_name(int16 hcam, char_ptr chip_name )

pl_ccd_get_color_mode (int16 hcam, uns16_ptr color_mode)

pl_ccd_get_cooling_mode(int16 hcam, int16_ptr

cooling_mode)

pl_ccd_get_frame_capable(int16 hcam, rs_bool_ptr

frame_capable)

pl_ccd_get_fwell_capacity(int16 hcam, uns32_ptr

fwell_capacity )

pl_ccd_get_mpp_capable(int16 hcam, int16_ptr mpp_capable )

pl_ccd_get_par_size(int16 hcam, uns16_ptr par_size )

pl_ccd_get_pix_par_dist(int16 hcam, uns16_ptr

pix_par_dist)

pl_ccd_get_pix_par_size(int16 hcam, uns16_ptr

pix_par_size)

pl_ccd_get_pix_ser_dist(int16 hcam, uns16_ptr

pix_ser_dist)

pl_ccd_get_pix_ser_size(int16 hcam, uns16_ptr

pix_ser_size)

pl_ccd_get_postmask(int16 hcam, uns16_ptr postmask )

pl_ccd_get_postscan(int16 hcam, uns16_ptr postscan )

pl_ccd_get_preamp_dly(int16 hcam, uns16_ptr preamp_dly )

pl_ccd_get_preflash(int16 hcam, uns16_ptr preflash )

pl_ccd_get_premask(int16 hcam, uns16_ptr premask )

pl_ccd_get_prescan(int16 hcam, uns16_ptr prescan )

pl_ccd_get_ser_size(int16 hcam, uns16_ptr ser_size )

pl_ccd_get_serial_num(int16 hcam, uns16_ptr serial_num )

pl_ccd_get_summing_well(int16 hcam, rs_bool_ptr

s_well_exists)

pl_ccd_get_tmp(int16 hcam, int16_ptr cur_tmp )

pl_ccd_get_tmp_range(int16 hcam, int16_ptr

tmp_hi_val,int16_ptr tmp_lo_val )

pl_ccs_get_status(int16 hcam, int16_ptr ccs_status )

pl_shtr_get_status(int16 hcam, int16_ptr shtr_status )

144 PVCAM Manual Version 2.7

PVCAM Class 2: Configuration/Setup pl_ro_get_value(2)

pl_spdtab_get_bits(int16 hcam, int16_ptr spdtab_bits )

pl_spdtab_get_entries(int16 hcam, int16_ptr

spdtab_entries)

pl_spdtab_get_max_gain(int16 hcam, int16_ptr

spdtab_max_gain)

pl_spdtab_get_port(int16 hcam, int16_ptr spdtab_port )

pl_spdtab_get_port_total(int16 hcam, int16_ptr

total_ports )

pl_spdtab_get_time(int16 hcam, uns16_ptr spdtab_time )

DESCRIPTION When the camera is configured at the factory, it is preset with values based on

the CCD specifications, characterization tests, and other sources. Some of these

functions return information directly from the camera head memory. Some

functions return dynamic conditions (such as temperature) while other settings

are based on several inputs. In all cases, the

hcam

parameter indicates the piece

of hardware from which the information is read.

hcam

must be a valid camera

handle obtained from

pl_cam_open

All of these variables are read-only – they are informational parameters and

cannot be reset. The read/write parameters are documented under

pl_rw_get_values

and

pl_values_set

The full list of parameters and their meanings are:

chip_name

The name of the CCD. The name is a null-terminated text string. The user must

pass in a character array that is at least

CCD_NAME_LEN

elements long.

ccs_status

This variable holds sixteen bits of status data from the Camera Control

Subsystem. Only the lowest 2 bits are currently implemented. These 2 bits

(

ccs_status

0x03

) give the status of the CCS:

Value CCS State

0 idle

1 initializing

2 running

3 continuously clearing

A running state occurs any time the CCS is in the process of performing a

camera operation (including opening or closing the shutter, exposing, clearing

the CCD before a sequence or exposure, parallel or serial shifting, and

readout/digitization). After the CCD has finished reading out, the setup

determines if the CCS goes to idle or enters continuous clearing mode.

color_mode

The color mode of the CCD. Where 0 = mono and 1 = color mosaic RGGB.

This value is stored in the pv_cam_reads structure.

Appendix B: Obsolete Functions 145

PVCAM Class 2: Configuration/Setup pl_ro_get_value(2)

cooling_mode

This is the type of cooling used by the current camera. The value returned will

be one of the following constants:

NORMAL_COOL –

This is an air or water-cooled system.

CRYO_COOL –

The camera has an attached Dewar.

cur_tmp

This reads the current temperature of the CCD in C°x 100. For example, a

temperature of -35° would be read as -3500. Note that this returns the

measured temperature, not the setpoint (which is reported in

pl_ccd_get_tmp_setpoint

frame_capable

If true, this camera can run in frame transfer mode (set through

pl_ccd_set_pmode

fwell_capacity

The full-well capacity of this CCD, measured in electrons.

mpp_capable

Indicates whether this CCD runs in MPP mode. The actual value returned is

equal to one of the following four constants:

MPP_UNKNOWN

MPP_ALWAYS_ON

MPP_ALWAYS_OFF

MPP_SELECTABLE

par_size

Parallel size of the CCD, in active rows. The full size of the parallel register is

actually

( par_size + premask + postmask

pix_par_size

Size of the active area of a pixel, in the parallel direction, measured in

nanometers.

pix_par_dist

Center-to-center distance between pixels (in the parallel direction) measured in

nanometers. This is identical to

pix_par_size

, if there are no interpixel dead

areas.

pix_ser_size

Size of a single pixel’s active area, in the serial direction, measured in

nanometers.

pix_ser_dist

Center-to-center distance between pixels (in the serial direction), in nanometers.

This is identical to

pix_ser_size

, if there are no dead areas.

postmask

The number of masked lines at the far end of the parallel register (away from

the serial register). This is the number of additional parallel shifts which needs

to be done after readout to clear the parallel register.

postscan

Number of pixels to discard from the serial register after the last real data pixel.

These must be read or discarded to clear the serial register.

preflash

The number of milliseconds needed to illuminate the CCD using the flash diode

ring before an exposure, dark, or bias.

146 PVCAM Manual Version 2.7

PVCAM Class 2: Configuration/Setup pl_ro_get_value(2)

premask

The number of masked lines at the near end of the parallel register, next to the

serial register. 0=no mask (no normal mask). If the premask is equal to

par_size

, this probably indicates a frame transfer device with an ordinary

mask. Accordingly, the CCD should probably be run in frame transfer mode.

preamp_dly

Number of milliseconds required for the CCD output preamp to stabilize, after

it is turned on.

prescan

Number of pixels discarded from the serial register before the first real data

pixel.

s_well_exists

If true, this CCD includes a summing well.

serial_num

This is the serial number of the camera head (not the electronics unit).

ser_size

Serial size of the CCD active area, in pixels.

shtr_status

The current state of the camera shutter (actually, the current state of the driver

voltage to the shutter). The returned value will be equal to one of the following

constants:

SHTR_OPENING,SHTR_OPEN,SHTR_CLOSED,SHTR_CLOSING,

SHTR_FAULT

. If the shutter is run too fast, it will overheat and trigger

SHTR_FAULT

. The shutter electronics will disconnect until the temperature

returns to a suitable range. Note that even though the electronics have reset the

voltages to open or close the shutter, there is a lag time for the physical

mechanism to respond. See

pl_shtr_get_open_dly

and

pl_shtr_get_close_dly

in the

pl_rw_get_value

function list.

spdtab_bits

Number of bits output by the currently selected speed choice. Although this

number might range between 6 and 16, the data will always be returned in an

unsigned 16-bit word. This value indicates the number of valid bits within that

word.

spdtab_entries

The number of entries in the speed table. Valid entries range from 0 to

spdtab_entries-1

(inclusive). The current selection may be altered through

pl_spdtab_set_num

. Zero entries is possible and indicates that there are no

valid speeds that span the requirements of the camera head video board, A/D

board, communication channel, and host throughput.

spdtab_max_gain

This reports the maximum gain index setting for the current speed selection, not

the actual gain. The minimum gain index is always 1. The maximum gain index

is usually 16.

spdtab_port

This reports on the CCD readout port being used by the currently selected

speed. Different readout ports (used for alternate speeds) flip the image in X, Y,

or both.

Appendix B: Obsolete Functions 147

PVCAM Class 2: Configuration/Setup pl_ro_get_value(2)

spdtab_time

This is the actual speed for the currently selected speed choice. It returns the

time for each pixel, in nanoseconds. This can be converted to a camera speed in

kiloHertz through the following formula:

camera_speed (kHz) = pixel_time (nanoseconds)

This readout time will change as new speed choices are selected.

tmp_hi_val

tmp_lo_val

These two values contain the legal range for temperature settings (using the

pl_ccd_set_tmp_setpoint

command) in hundredths of degrees Celsius.

Any number inside this range is legal and will be accepted (-3500 = -35°C).

Numbers outside the range are ignored. However, just because a temperature is

legal does not mean it is possible. The environment and circumstances will

dramatically affect which temperatures can be achieved. An air-cooled camera

in Antarctica will be able to reach much lower temperatures than a water-cooled

camera in the Sahara.

total_ports

1, 2, 3, or 4. The number of ports on the system. This affects the CCS program,

but most users will probably not care since multi-port operation is transparent at

the level of PVCAM.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets pl_error_code.

SEE ALSO

pl_rw_value(2),pl_set_value(2),pl_cam_open(2),

pl_cam_close(2)

NOTES PVCAM interfaces to some cameras that do not support the full PVCAM

features or variable set. If the user attempts to get a variable that doesn't exist,

the system may either synthesize a value (based on available information) or

return an error.

148 PVCAM Manual Version 2.7

PVCAM Class 2: Configuration/Setup pl_rw_get_value(2)

NAME

pl_rw_get_value—

returns a read/write value from the camera hardware.

SYNOPSIS

rs_bool

pl_ccd_get_adc_offset (int16 hcam, int16_ptr offset)

pl_ccd_get_clear_cycles (int16 hcam, uns16_ptr

clear_cycles)

pl_ccd_get_clear_mode (int16 hcam,int16_ptr

clear_mode)

pl_ccd_get_pmode (int16 hcam, int16_ptr pmode)

pl_ccd_get_preamp_off_control (int16 hcam, uns32_ptr

preamp_off_control)

pl_ccd_get_tmp_setpoint (int16 hcam,int16_ptr tmp_setpoint)

pl_shtr_get_close_dly (int16 hcam, uns16_ptr shtr_close_dly)

pl_shtr_get_open_dly(int16 hcam, uns16_ptr shtr_open_dly)

pl_shtr_get_open_mode (int16 hcam,int16_ptr shtr_open_mode)

pl_spdtab_get_gain (int16 hcam,int16_ptr spdtab_gain)

pl_spdtab_get_num (int16 hcam,int16_ptr spdtab_num)

DESCRIPTION These functions are very similar. Each returns operating conditions and variables

from the camera hardware. The

hcam

parameter indicates from which piece of

hardware to read the setting, and must be a valid camera handle obtained from

pl_cam_open

This set of variables is read/write – all values may be altered and written to the

hardware. The write functions are nearly identical, except that they begin with

set_

, and accept non-pointer arguments. A more extensive set of read-only

values are documented under the

pl_ro_get_value

heading.

The full list of parameters and their meaning is listed under

pl_set_values

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_ro_get_value(2),pl_cam_open(2),pl_cam_close(2)

NOTES PVCAM interfaces to some cameras that do not support the full PVCAM

features or variable set. If the user attempts to get a variable that doesn't exist, the

system may either synthesize a value (based on available information) or return

an error.

Appendix B: Obsolete Functions 149

PVCAM Class 2: Configuration/Setup pl_set_value(2)

NAME

pl_set_value —

sets a value in the camera hardware.

SYNOPSIS

rs_bool

pl_ccd_set_adc_offset (int16 hcam, int16 offset)

pl_ccd_set_clear_cycles (int16 hcam, uns16 clear_cycles)

pl_ccd_set_clear_mode (int16 hcam, int16 clear_mode)

pl_ccd_set_pmode(int16 hcam, int16 pmode)

pl_ccd_set_preamp_off_control (int16 hcam, uns32

preamp_off_control)

pl_ccd_set_tmp_setpoint (int16 hcam,int16 tmp_setpoint)

pl_shtr_set_close_dly (int16 hcam, uns16 shtr_close_dly)

pl_shtr_set_open_dly (int16 hcam, uns16 shtr_open_dly)

pl_shtr_set_open_mode (int16 hcam, int16 shtr_open_mode)

pl_spdtab_set_gain (int16 hcam, int16 spdtab_gain)

pl_spdtab_set_num (int16 hcam, int16 spdtab_num)

DESCRIPTION These functions set operating conditions and variables in the camera hardware.

The

hcam

parameter indicates which piece of hardware to apply the setting to,

and must be a valid camera handle obtained from

pl_cam_open

. A camera

handle of 0 (normally an invalid handle) will simultaneously send the setting to

all open cameras (if this is possible).

A complementary set of functions allows all of these values to be read back from

the hardware. They are documented under

pl_rw_get_values

. Many of these

settings are also dependent on ranges or capabilities documented in the

pl_ro_get_values

functions, such as

pl_ccd_get_frame_capable

and

pl_ccd_get_tmp_range

The full list of parameters and their meanings are:

clear_cycles

This is the number of times the CCD must be cleared to completely remove

charge from the parallel register.

150 PVCAM Manual Version 2.7

PVCAM Class 2: Configuration/Setup pl_set_value(2)

clear_mode clear_mode

defines when clearing takes place:

CLEAR_NEVER Don't ever clear the CCD.

CLEAR_PRE_EXPOSURE Clear clear_cycles times before each

exposure starts.

CLEAR_PRE_SEQUENCE Clear clear_cycles times before the

sequence starts.

CLEAR_POST_SEQUENCE Do continuous clearing after the sequence

ends.

CLEAR_PRE_POST_SEQUENCE Clear clear_cycles times before the

sequence starts and continuous clearing

after the sequence ends.

CLEAR_PRE_EXPOSURE_POST_SEQ Clear clear_cycles times before each

exposure starts and continuous clearing

after the sequence ends.

The

CLEAR_NEVER

setting is particularly useful for performing a readout after

an exposure has been aborted.

Note that normally during the idle period, the CCS parallel clock drivers and

serial drivers revert to a low power state. This saves on both power and heat. If

any

CLEAR_..._POST

options are used, these systems will not enter low power

mode. This will generate extra heat in both the electronics unit and the camera

head.

offset

This allows the user to determine the bias offset voltage. Accepts a signed 16-bit

argument: the new bias voltage to be set; returns a signed 16-bit value listing the

bias offset voltage. The units do not correspond to the output pixel values in any

simple fashion (the conversion rate should be linear, but may differ from system

to system) but a lower offset voltage will yield a lower value for all output

pixels. Pixels brought below zero by this method will be clipped at zero. Pixels

raised above saturation will be clipped at saturation. Plainly, before users can

alter the offset level, they must read the current offset level. The default offset

level will also vary from system to system and may change with each speed and

gain setting.

pmode

This allows the user to select the parallel clocking method. The following list

includes all valid constants:

PMODE_NORMAL PMODE_MPP PMODE_FT

PMODE_FT_MPP PMODE_ALT_NORMAL PMODE_ALT_MPP

PMODE_ALT_FT PMODE_ALT_FT_MPP

where

indicates frame transfer mode, FT_MPP indicates both frame transfer

and

MPP

mode.

ALT

indicates that custom parameters may be loaded.

preamp_off_

control

This is the exposure time limit in milliseconds above which the preamp is turned

off during exposure.

Appendix B: Obsolete Functions 151

PVCAM Class 2: Configuration/Setup pl_set_value(2)

shtr_close_dly

The shutter close delay. This is the number of milliseconds required for the

shutter to close. The software default values compensate for the standard

Photometrics shutter that is shipped with all cameras. You only need to set this

value if you are using a shutter with characteristics that differ from the standard

shutter. Valid inputs are any number in the range 0 to 65535 milliseconds.

shtr_open_dly

The shutter open delay. This is the number of milliseconds required for the

shutter to open. The software default values compensate for the standard

Photometrics shutter that is shipped with all cameras. You only need to set this

value if you are using a shutter with characteristics that differ from the standard

shutter. Valid inputs are any number in the range 0 to 65535 milliseconds.

shtr_open_mode

Shutter opening conditions, set to one of the following

OPEN_NEVER

The shutter closes before the exposure and stays closed

during the exposure.

OPEN_PRE_EXPOSURE

Opens each exposure. Normal mode.

OPEN_PRE_SEQUENCE

Opens the shutter at the start of each sequence. Useful

for frame transfer and external strobe devices.

OPEN_PRE_TRIGGER

If using a triggered mode, this function causes the

shutter to open before the external trigger is armed. If

using a non-triggered mode, this function operates

identical to

OPEN_PRE_EXPOSURE

OPEN_NO_CHANGE

Sends no signals to open or close the shutter. Useful for

frame transfer when you want to open the shutter and

leave it open (see

pl_exp_abort).

spdtab_gain

The new gain setting for the current speed choice. The valid range for a gain

setting is 1 through

spdtab_max_gain

, where the max gain may be as high as

16. Values outside this range will be ignored. Note that gain settings may not be

linear! Values 1-16 may not correspond to 1x - 16x, and there are holes between

the values. However, when the camera is initialized, and every time a new speed

is selected, the system will always reset to run at a gain of 1x.

spdtab_num

This selects the CCD readout speed from a table of available choices. Entries

may range from 0 to

spdtab_entries

- 1. This setting affects all other

_spdtab_

values including

spdtab_bits, spdtab_gain,

spdtab_max_gain ,spdtab_time, and spdtab_port

. After this call,

the gain setting always resets to a value that corresponds to 1x. To use a gain

other than 1x,

pl_spdtab_set_gain

must be called after

pl_spdtab_set_num

152 PVCAM Manual Version 2.7

PVCAM Class 2: Configuration/Setup pl_set_value(2)

tmp_setpoint

This sets the desired CCD temperature in hundredths of degrees Celsius (-35 °C

is represented as -3500). The hardware attempts to heat or cool the CCD to this

temperature. The min/max allowable temperatures are given by

tmp_hi_val

and

tmp_lo_val

, from the

pl_ccd_get_tmp_range

function. Settings

outside this range are ignored. Note that this function only sets the desired

temperature. Even if the desired temperature is in a legal range, it still may be

impossible to achieve. If the ambient temperature is too high, it's difficult to get

much cooling on an air-cooled camera.

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets pl_error_code.

SEE ALSO

pl_ro_get_value(2),pl_rw_get_value(2),pl_cam_open(0),pl_c

am_close(0)

NOTES PVCAM interfaces to some cameras that do not support the full PVCAM

features or variable set. If the user attempts to get a variable that doesn't exist, the

system may either synthesize a value (based on available information) or return

an error.

Appendix B: Obsolete Functions 153

Obsolete Class 3 Functions

PVCAM Class 3: Data Acquisition pl_exp_check_progress(3)

NAME

pl_exp_check_progress —

checks the progress of the current exposure.

SYNOPSIS

rs_bool

pl_exp_check_progress(int16 hcam, int16_ptr status,

uns32_ptr byte_cnt)

DESCRIPTION This function is similar to

pl_exp_check_status

except that it only returns

one of the following values:

EXPOSURE_IN_PROGRESS

The data collection routines are active. They are

waiting for data to arrive, but none has arrived yet.

READOUT_IN_PROGRESS

The data collection routines are active. The data

has started to arrive.

READOUT_COMPLETE

All the expected data has arrived. Data collection

is complete, and the driver has returned to idle

state.

In order to detect errors during the acquisition process, you must use

pl_exp_check_status

byte_cnt

points to the number of bytes of data that

have arrived so far (divide by two to get the number of pixels). This level of

feedback is unimportant to many users.

RETURN VALUE TRUE means the progress was checked successfully. FALSE indicates a bad

handle or a problem communicating with the camera.

SEE ALSO

pl_exp_setup_seq(3),pl_exp_start_seq(3),

pl_exp_check_status(3)

NOTES When using

pl_exp_check_progress

you could call it inside a loop with a

timeout. If the timeout expires, then you could call

pl_exp_check_status

determine if an error occurred (

READOUT_FAILED

154 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_get_time_seq(3)

NAME

pl_exp_get_time_seq —

only used with

VARIABLE_TIMED_MODE

, this

function returns the exposure time from the camera.

SYNOPSIS

rs_bool

pl_exp_get_time_seq(init16 hcam,uns16_ptr exposure_time)

DESCRIPTION This is a companion function to pl_exp_set_time_seq. The two functions are

used to examine and change the exposure time in

VARIABLE_TIMED_MODE

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_exp_set_time_seq(3),pl_exp_setup_seq(3),Exposure Mode

Constants(3)

NOTES

Appendix B: Obsolete Functions 155

PVCAM Class 3: Data Acquisition pl_exp_set_time_seq(3)

NAME

pl_exp_set_time_seq —

only used with

VARIABLE_TIMED_MODE

, this

function sets the exposure time for the next sequence.

SYNOPSIS

rs_bool

pl_exp_set_time_seq(init16 hcam,uns16 exposure_time)

DESCRIPTION This is a companion function to

pl_exp_get_time_seq

. The two functions

are used to examine and change the exposure time in

VARIABLE_TIMED_MODE

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_exp_get_time_seq(3),pl_exp_setup_seq(3),Exposure Mode

Constants(3)

NOTES When using

VARIABLE_TIMED_MODE

, this function must be called before the

first sequence is run, because

VARIABLE_TIMED_MODE

ignores the exposure

time in the

pl_exp_setup_seq

156 PVCAM Manual Version 2.7

PVCAM Class 3: Data Acquisition pl_exp_set_cont_mode(3)

NAME

pl_exp_set_cont_mode -

sets circular buffer mode.

SYNOPSIS

rs_bool

pl_exp_set_cont_mode(int16 hcam, int16 mode)

DESCRIPTION This function sets the mode of operation for the circular buffer. mode can be set

to either

CIRC_OVERWRITE

CIRC_NO_OVERWRITE

. This function must be

called before calling

pl_exp_start_cont()

RETURN VALUE TRUE for success, FALSE for a failure. Failure sets

pl_error_code

SEE ALSO

pl_exp_get_driver_buffer(3), pl_exp_start_cont(3),

pl_exp_check_cont_status(0), pl_exp_get_oldest_frame(3),

pl_exp_get_latest_frame(3),

pl_exp_unlock_oldest_frame(3),

and

pl_exp_stop_cont(3)

NOTES Use the parameter id

PARAM_CIRC_BUFFER

with

pl_get_param

to see if the

system can perform circular buffer operations. The circular buffer is passed to

pl_exp_start_cont

. The buffer is either allocated by your application or

obtained from the driver as a preallocated block of memory, using the

pl_exp_get_driver_buffer

function.

Refer to Example 3: Circular Buffer in "Chapter 8" for two examples of code

for circular buffer operation.

This function has been replaced by

pl_exp_setup_cont

157

Index

_const_ptr type...........................................................7

Allocation and saving, buffers.................................93

ANSI C library ..........................................................3

Arrays ........................................................................7

ATTR_ACCESS......................................................48

ATTR_AVAIL ........................................................48

ATTR_COUNT.......................................................49

ATTR_CURRENT..................................................49

ATTR_DEFAULT...................................................49

ATTR_INCREMENT .............................................49

ATTR_MAX ...........................................................49

ATTR_MIN.............................................................49

ATTR_TYPE...........................................................49

Binning......................................................................8

Bit depth ....................................................................5

Buffer handle...........................................................94

Buffer manipulation..............................................4, 93

Buffers.....................................................................24

BULB_MODE.............................................18, 57, 69

Camera

Communication...............................................4, 27

handle..................................................................94

speed......................................................................9

Camera settings .......................................................46

CCD

coordinates model .................................................7

orientation .............................................................7

readout port ...........................................................8

Circular buffers.......13, 72, 73, 75, 77, 81, 83, 85, 90,

117, 119, 156

Class 0 Functions

list of ...................................................................27

pl_cam_check......................................................28

pl_cam_close.......................................................29

pl_cam_get_diags................................................30

pl_cam_get_name ...............................................31

pl_cam_get_total.................................................32

pl_cam_open.......................................................33

pl_ddi_get_ver.....................................................34

pl_pvcam_get_ver...............................................35

pl_pvcam_init......................................................36

pl_pvcam_uninit..................................................37

Class 1 Functions

list of ...................................................................42

pl_error_code ......................................................43

pl_error_message ................................................44

Class 2 Functions

list of ...................................................................46

pl_enum_str_length.............................................52

pl_get_enum_param............................................51

pl_get_param.......................................................48

pl_set_param.......................................................50

Class 3 Functions

list of ...................................................................67

pl_exp_abort........................................................79

pl_exp_check_cont_status...................................83

pl_exp_check_status............................................82

pl_exp_finish_seq ...............................................70

pl_exp_get_driver_buffer....................................71

pl_exp_get_latest_frame .....................................72

pl_exp_get_oldest_frame ....................................73

pl_exp_init_seq ...................................................74

pl_exp_setup_cont...............................................75

pl_exp_setup_seq................................................76

pl_exp_start_cont................................................77

pl_exp_start_seq..................................................78

pl_exp_stop_cont ................................................81

pl_exp_uninit_seq ...............................................84

pl_exp_unlock_oldest_frame ..............................85

pl_exp_unravel....................................................86

pl_io_clear_script_control...................................88

pl_io_script_control ............................................89

Class 4 Functions

list of ...................................................................93

pl_buf_alloc.........................................................95

pl_buf_free..........................................................96

pl_buf_get_bits....................................................97

pl_buf_get_exp_date...........................................98

pl_buf_get_exp_time...........................................99

pl_buf_get_exp_total.........................................100

pl_buf_get_img_bin..........................................101

pl_buf_get_img_handle.....................................102

pl_buf_get_img_ofs ..........................................103

pl_buf_get_img_ptr...........................................104

pl_buf_get_img_size.........................................105

pl_buf_get_img_total........................................106

pl_buf_get_size .................................................107

pl_buf_init.........................................................109

pl_buf_set_exp_date..........................................108

pl_buf_uninit.....................................................110

Clear modes.............................................................13

clear_mode ..............................................................55

158 PVCAM Manual Version 2.7

CLEAR_NEVER...............................................15, 55

CLEAR_NEVER (obsolete)..................................150

CLEAR_POST_SEQUENCE............................15, 55

CLEAR_POST_SEQUENCE (obsolete)...............150

CLEAR_PRE_EXPOSURE..............................15, 55

CLEAR_PRE_EXPOSURE (obsolete) .................150

CLEAR_PRE_EXPOSURE_POST_SEQ...............55

CLEAR_PRE_EXPOSURE_POST_SEQ (obsolete)150

CLEAR_PRE_EXPOSURE_POST_SEQUENCE..15

CLEAR_PRE_POST_SEQUENCE ..................15, 55

CLEAR_PRE_POST_SEQUENCE (obsolete) .....150

CLEAR_PRE_SEQUENCE..............................15, 55

CLEAR_PRE_SEQUENCE (obsolete).................150

Close delay ..............................................................19

Code examples

circular buffer............................................117, 119

Latest Frame Mode............................................117

Oldest Frame Mode...........................................119

pl_get_param & pl_get_enum_param...............111

pl_param_set.....................................................115

standard mode acquisition.................................121

color mode...............................................................55

Configuration/setup.............................................4, 45

Constants .................................................................94

Contact information...................................................1

Custom timing.........................................................11

Customer service .......................................................1

Data acquisition ....................................................4, 67

Data arrays.................................................................8

Defined types.............................................................5

Defining exposures..................................................68

Display orientation ....................................................8

Error code list ........................................................123

Error conditions.......................................................41

Error reporting......................................................4, 41

Example code

circular buffer............................................117, 119

Latest Frame Mode............................................117

Oldest Frame Mode...........................................119

pl_get_param & pl_get_enum_param...............111

pl_set_param.....................................................115

standard mode acquisition.................................121

Exposure loops ........................................................20

Exposure mode constants ........................................69

Exposure modes.................................................13, 16

Exposure scripts.......................................................20

exposure_time..........................................................16

FLASH_MODE...........................................18, 57, 69

Frame transfer..........................................................10

Full lateral resolution.................................................8

Full-CCD image in buffer........................................24

Gain ...........................................................................9

Get and Set Parameter Functions

pl_get_enum_param............................................45

pl_get_param.......................................................45

pl_set_param.......................................................45

Handle .......................................................................6

hbuf..........................................................................94

hcam ........................................................................94

himg.........................................................................94


array ....................................................................10

buffers .................................................................24

handle..................................................................94

pointer .................................................................94

smear...................................................................11

Include files...............................................................6

Initialization functions.............................................27

buffer...................................................................93

Interline CCD ..........................................................10

Kinetics....................................................................10

Latest Frame Mode code example.........................117

Library classes...........................................................4

master.h .................................................................5, 6

Multiple exposures in buffer....................................24

Multiple speed options...............................................9

Non-pointers..............................................................7

Obsolete Class 0 Functions

pl_dd_get_info ..................................................136

pl_dd_get_info_length ......................................137

pl_dd_get_retries...............................................138

pl_dd_get_timeout.............................................140

pl_dd_get_ver....................................................142

pl_dd_set_retries ...............................................139

pl_dd_set_timeout.............................................141

Obsolete Class 2 Functions

pl_ccd_get_adc_offset.......................................148

pl_ccd_get_chip_name......................................143

pl_ccd_get_clear_cycles....................................148

pl_ccd_get_clear_mode.....................................148

pl_ccd_get_color_mode ....................................143

pl_ccd_get_cooling_mode ................................143

pl_ccd_get_frame_capable................................143

pl_ccd_get_fwell_capacity................................143

Index 159

Obsolete Class 2 Functions (cont.)

pl_ccd_get_mpp_capable..................................143

pl_ccd_get_par_size..........................................143

pl_ccd_get_pix_par_dist ...................................143

pl_ccd_get_pix_par_size...................................143

pl_ccd_get_pix_ser_dist....................................143

pl_ccd_get_pix_ser_size ...................................143

pl_ccd_get_pmode ............................................148

pl_ccd_get_postmask........................................143

pl_ccd_get_postscan..........................................143

pl_ccd_get_preamp_dly ....................................143

pl_ccd_get_preamp_off_control .......................148

pl_ccd_get_preflash ..........................................143

pl_ccd_get_premask..........................................143

pl_ccd_get_prescan...........................................143

pl_ccd_get_ser_size ..........................................143

pl_ccd_get_serial_num......................................143

pl_ccd_get_summing_well................................143

pl_ccd_get_tmp.................................................143

pl_ccd_get_tmp_range......................................143

pl_ccd_get_tmp_setpoint ..................................148

pl_ccd_set_adc_offset.......................................149

pl_ccd_set_clear_cycles....................................149

pl_ccd_set_clear_mode.....................................149

pl_ccd_set_pmode.............................................149

pl_ccd_set_preamp_off_control........................149

pl_ccd_set_tmp_setpoint...................................149

pl_ccs_get_status...............................................143

pl_ro_get_value.................................................143

pl_rw_get_value................................................148

pl_set_value.......................................................149

pl_shtr_get_close_dly........................................148

pl_shtr_get_open_dly........................................148

pl_shtr_get_open_mode ....................................148

pl_shtr_get_status..............................................143

pl_shtr_set_close_dly........................................149

pl_shtr_set_open_dly ........................................149

pl_shtr_set_open_mode.....................................149

pl_spdtab_get_bits.............................................143

pl_spdtab_get_entries........................................144

pl_spdtab_get_gain............................................148

pl_spdtab_get_max_gain...................................144

pl_spdtab_get_num ...........................................148

pl_spdtab_get_port............................................144

pl_spdtab_get_port_total...................................144

pl_spdtab_get_time ...........................................144

pl_spdtab_set_gain............................................149

pl_spdtab_set_num............................................149

Obsolete Class 3 Functions

pl_exp_check_progress.....................................153

pl_exp_get_time_seq.........................................154

pl_exp_set_cont_mode......................................156

pl_exp_set_time_seq.........................................155

Oldest Frame Mode code example ........................119

Open delay, close delay...........................................19

OPEN_NEVER .................................................20, 65

OPEN_NEVER (obsolete).....................................151

OPEN_NO_CHANGE ......................................20, 65

OPEN_NO_CHANGE (obsolete) .........................151

OPEN_PRE_EXPOSURE.................................20, 65

OPEN_PRE_EXPOSURE (obsolete)....................151

OPEN_PRE_SEQUENCE.................................20, 65

OPEN_PRE_SEQUENCE (obsolete)....................151

OPEN_PRE_TRIGGER....................................20, 65

OPEN_PRE_TRIGGER (obsolete) .......................151

Orientation of CCD ...................................................7

Parallel.......................................................................7

Parallel binning..........................................................8

PARAM_ACCUM_CAPABLE ..............................53

PARAM_ADC_OFFSET........................................53

PARAM_ANTI_BLOOMING................................53

PARAM_BIT_DEPTH............................................53

PARAM_BOF_EOF_CLR......................................90

PARAM_BOF_EOF_COUNT................................90

PARAM_BOF_EOF_ENABLE..............................90

PARAM_CAM_FW_VERSION.............................54

PARAM_CCS_STATUS ........................................54

PARAM_CHIP_NAME..........................................54

PARAM_CIRC_BUFFER.......................................90

PARAM_CLEAR_CYCLES...................................54

PARAM_CLEAR_MODE......................................55

PARAM_COLOR_MODE......................................55

PARAM_CONTROLLER_ALIVE.........................56

PARAM_COOLING_MODE .................................56

PARAM_CUSTOM_CHIP .....................................56

PARAM_CUSTOM_TIMING................................56

PARAM_DD_INFO................................................38

PARAM_DD_INFO_LENGTH..............................38

PARAM_DD_RETRIES.........................................38

PARAM_DD_TIMEOUT .......................................38

PARAM_DD_VERSION........................................39

PARAM_EDGE_TRIGGER...................................57

PARAM_EXP_MIN_TIME....................................90

PARAM_EXP_RES................................................90

PARAM_EXP_RES_INDEX..................................91

PARAM_EXP_TIME........................................16, 91

PARAM_EXPOSURE_MODE...............................57

PARAM_FRAME_CAPABLE...............................57

PARAM_FTSCAN..................................................57

PARAM_FWELL_CAPACITY..............................57

PARAM_GAIN_INDEX.........................................57

PARAM_GAIN_MULT_ENABLE........................58

PARAM_GAIN_MULT_FACTOR........................58

PARAM_HEAD_SER_NUM_ALPHA..................58

PARAM_HW_AUTOSTOP....................................91

PARAM_INTENSIFIER_GAIN.............................58

PARAM_IO_ADDR ...............................................58

PARAM_IO_BITDEPTH........................................58

PARAM_IO_DIRECTION .....................................58

PARAM_IO_STATE ..............................................59

160 PVCAM Manual Version 2.7

PARAM_IO_TYPE.................................................59

PARAM_KIN_WIN_SIZE......................................59

PARAM_LOGIC_OUTPUT...................................59

PARAM_MIN_BLOCK..........................................60

PARAM_MPP_CAPABLE.....................................60

PARAM_NUM_MIN_BLOCK ..............................60

PARAM_NUM_OF_STRIPS_PER_CLR...............60

PARAM_PAR_SHIFT_TIME ................................60

PARAM_PAR_SIZE...............................................60

PARAM_PCI_FW_VERSION................................60

PARAM_PIX_PAR_DIST......................................61

PARAM_PIX_PAR_SIZE ......................................61

PARAM_PIX_SER_DIST ......................................61

PARAM_PIX_SER_SIZE.......................................61

PARAM_PIX_TIME...............................................61

PARAM_PMODE...................................................61

PARAM_POSTMASK............................................62

PARAM_POSTSCAN.............................................62

PARAM_PREAMP_DELAY..................................62

PARAM_PREAMP_OFF_CONTROL...................62

PARAM_PREFLASH.............................................62

PARAM_PREMASK..............................................62

PARAM_PRESCAN...............................................62

PARAM_READOUT_PORT..................................63

PARAM_READOUT_TIME ..................................63

PARAM_SER_SHIFT_TIME.................................63

PARAM_SER_SIZE...............................................63

PARAM_SERIAL_NUM........................................63

PARAM_SHTR_CLOSE_DELAY.........................64

PARAM_SHTR_CLOSE_DELAY_UNIT.............64

PARAM_SHTR_GATE_MODE ............................63

PARAM_SHTR_OPEN_DELAY...........................64

PARAM_SHTR_OPEN_MODE.............................65

PARAM_SHTR_STATUS......................................65

PARAM_SKIP_AT_ONCE_BLK ..........................66

PARAM_SPDTAB_INDEX ...................................66

PARAM_SUMMING_WELL.................................66

PARAM_TEMP ......................................................66

PARAM_TEMP_SETPOINT..................................66

Parameter passing......................................................7

pbin............................................................................8

pl_buf_alloc.............................................................95

pl_buf_free ..............................................................96

pl_buf_get_bits........................................................97

pl_buf_get_exp_date ...............................................98

pl_buf_get_exp_time...............................................99

pl_buf_get_exp_total.............................................100

pl_buf_get_img_bin...............................................101

pl_buf_get_img_handle.........................................102

pl_buf_get_img_ofs...............................................103

pl_buf_get_img_ptr ...............................................104

pl_buf_get_img_size .............................................105

pl_buf_get_img_total.............................................106

pl_buf_get_size......................................................107

pl_buf_init .............................................................109

pl_buf_set_exp_date..............................................108

pl_buf_uninit .........................................................110

pl_cam_check..........................................................28

pl_cam_close...........................................................29

pl_cam_get_diags....................................................30

pl_cam_get_name....................................................31

pl_cam_get_total .....................................................32

pl_cam_open............................................................33

pl_ccd_get_adc_offset (obsolete)..........................148

pl_ccd_get_chip_name (obsolete) .........................143

pl_ccd_get_clear_cycles (obsolete).......................148

pl_ccd_get_clear_mode (obsolete)........................148

pl_ccd_get_color_mode (obsolete)........................143

pl_ccd_get_cooling_mode (obsolete)....................143

pl_ccd_get_frame_capable (obsolete) ...................143

pl_ccd_get_fwell_capacity (obsolete) ...................143

pl_ccd_get_mpp_capable (obsolete)......................143

pl_ccd_get_par_size (obsolete) .............................143

pl_ccd_get_pix_par_dist (obsolete).......................143

pl_ccd_get_pix_par_size (obsolete) ......................143

pl_ccd_get_pix_ser_dist (obsolete) .......................143

pl_ccd_get_pix_ser_size (obsolete).......................143

pl_ccd_get_pmode (obsolete)................................148

pl_ccd_get_postmask (obsolete)............................143

pl_ccd_get_postscan (obsolete).............................143

pl_ccd_get_preamp_dly (obsolete)........................143

pl_ccd_get_preamp_off_control (obsolete)...........148

pl_ccd_get_preflash (obsolete)..............................143

pl_ccd_get_premask (obsolete) .............................143

pl_ccd_get_prescan (obsolete)...............................143

pl_ccd_get_ser_size (obsolete)..............................143

pl_ccd_get_serial_num (obsolete).........................143

pl_ccd_get_summing_well (obsolete)...................143

pl_ccd_get_tmp (obsolete).....................................143

pl_ccd_get_tmp_range (obsolete)..........................143

pl_ccd_get_tmp_setpoint (obsolete)......................148

pl_ccd_set_adc_offset (obsolete)...........................149

pl_ccd_set_clear_cycles (obsolete)........................149

pl_ccd_set_clear_mode (obsolete).........................149

pl_ccd_set_pmode (obsolete) ........................148, 149

pl_ccd_set_preamp_off_control (obsolete) ...........149

pl_ccd_set_tmp_setpoint (obsolete) ......................149

pl_ccs_get_status (obsolete)..................................143

pl_dd_get_info (obsolete)......................................136

pl_dd_get_info_length (obsolete)..........................137

pl_dd_get_retries (obsolete) ..................................138

pl_dd_get_timeout (obsolete)................................140

pl_dd_get_ver (obsolete).......................................142

pl_dd_set_retries (obsolete)...................................139

pl_dd_set_timeout (obsolete).................................141

pl_ddi_get_ver.........................................................34

pl_enum_str_length.................................................52

pl_error_code.....................................................42, 43

pl_error_message...............................................42, 44

pl_exp_abort............................................................79

pl_exp_check_cont_status.......................................83

pl_exp_check_progress (obsolete).........................153

Index 161

pl_exp_check_status................................................82

pl_exp_finish_seq....................................................70

pl_exp_get_driver_buffer ........................................71

pl_exp_get_latest_frame..........................................72

pl_exp_get_oldest_frame.........................................73

pl_exp_get_time_seq (obsolete)............................154

pl_exp_init_seq........................................................74

pl_exp_set_cont_mode (obsolete) .........................156

pl_exp_set_time_seq (obsolete).............................155

pl_exp_setup_cont...................................................75

pl_exp_setup_seq...............................................16, 76

pl_exp_start_cont.....................................................77

pl_exp_start_seq..................................................8, 78

pl_exp_stop_cont.....................................................81

pl_exp_uninit_seq....................................................84

pl_exp_unlock_oldest_frame...................................85

pl_exp_unravel ........................................................86

pl_get_enum_param ................................................51

pl_get_param...........................................................48

pl_io_clear_script_control.......................................88

pl_io_script_control.................................................89

pl_pvcam_get_ver ...................................................35

pl_pvcam_init....................................................36, 45

pl_pvcam_uninit......................................................37

pl_ro_get_value (obsolete) ....................................143

pl_rw_get_value (obsolete) ...................................148

pl_set_param............................................................50

pl_set_value (obsolete)..........................................149

pl_shtr_get_close_dly (obsolete)...........................148

pl_shtr_get_open_dly (obsolete) ...........................148

pl_shtr_get_open_mode (obsolete)........................148

pl_shtr_get_status (obsolete) .................................143

pl_shtr_set_close_dly (obsolete) ...........................149

pl_shtr_set_open_dly (obsolete)............................149

pl_shtr_set_open_mode (obsolete) ........................149

pl_spdtab_get_bits (obsolete)................................143

pl_spdtab_get_entries (obsolete) ...........................144

pl_spdtab_get_gain (obsolete)...............................148

pl_spdtab_get_max_gain (obsolete) ......................144

pl_spdtab_get_port (obsolete) ...............................144

pl_spdtab_get_port_total (obsolete) ......................144

pl_spdtab_get_time (obsolete)...............................144

pl_spdtab_set_gain (obsolete) ...............................149

pl_spdtab_set_num (obsolete) ...............................149

PMODE_ALT_FT...................................................61

PMODE_ALT_FT (obsolete)................................150

PMODE_ALT_FT_MPP.........................................61

PMODE_ALT_FT_MPP (obsolete)......................150

PMODE_ALT_MPP ...............................................61

PMODE_ALT_MPP (obsolete).............................150

PMODE_ALT_NORMAL......................................61

PMODE_ALT_NORMAL (obsolete) ...................150

PMODE_FT ............................................................61

PMODE_FT (obsolete)..........................................150

PMODE_FT_MPP...................................................61

PMODE_FT_MPP (obsolete)................................150

PMODE_INTERLINE ............................................61

PMODE_KINETICS...............................................61

PMODE_MPP.........................................................61

PMODE_MPP (obsolete) ......................................150

PMODE_NORMAL................................................61

PMODE_NORMAL (obsolete).............................150

Pointers......................................................................7

PVCAM.................................................................1, 3

pvcam.h .....................................................................6

Readout port selection ...............................................8

Region .......................................................................7

s,p coordinates...........................................................7

sbin ............................................................................8

SDK...........................................................................1

Sequence parameters ...............................................13

Sequences................................................................13

Sequences in buffer .................................................24

Serial binning.............................................................8

Serial register.............................................................7

shtr_open_mode ......................................................65

Shutter open mode.............................................13, 20

Single exposure, multiple images in buffer .............24

Smearing..................................................................11

Source code example...............................................25

Specifying regions.....................................................7

Speed choices ............................................................9

Standard shutter.......................................................19

Storage array............................................................10

STROBED_MODE.....................................17, 57, 69

Structures and arrays ..................................................7

System overview........................................................3

Technical support ......................................................1

TIMED_MODE...........................................16, 57, 69

TRIGGER_FIRST_MODE .........................17, 57, 69

VARIABLE_TIMED_MODE.....................16, 57, 69

Video coordinates......................................................8

162 PVCAM Manual Version 2.7

This page intentionally left blank.

PVCAM 2.7 User Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
