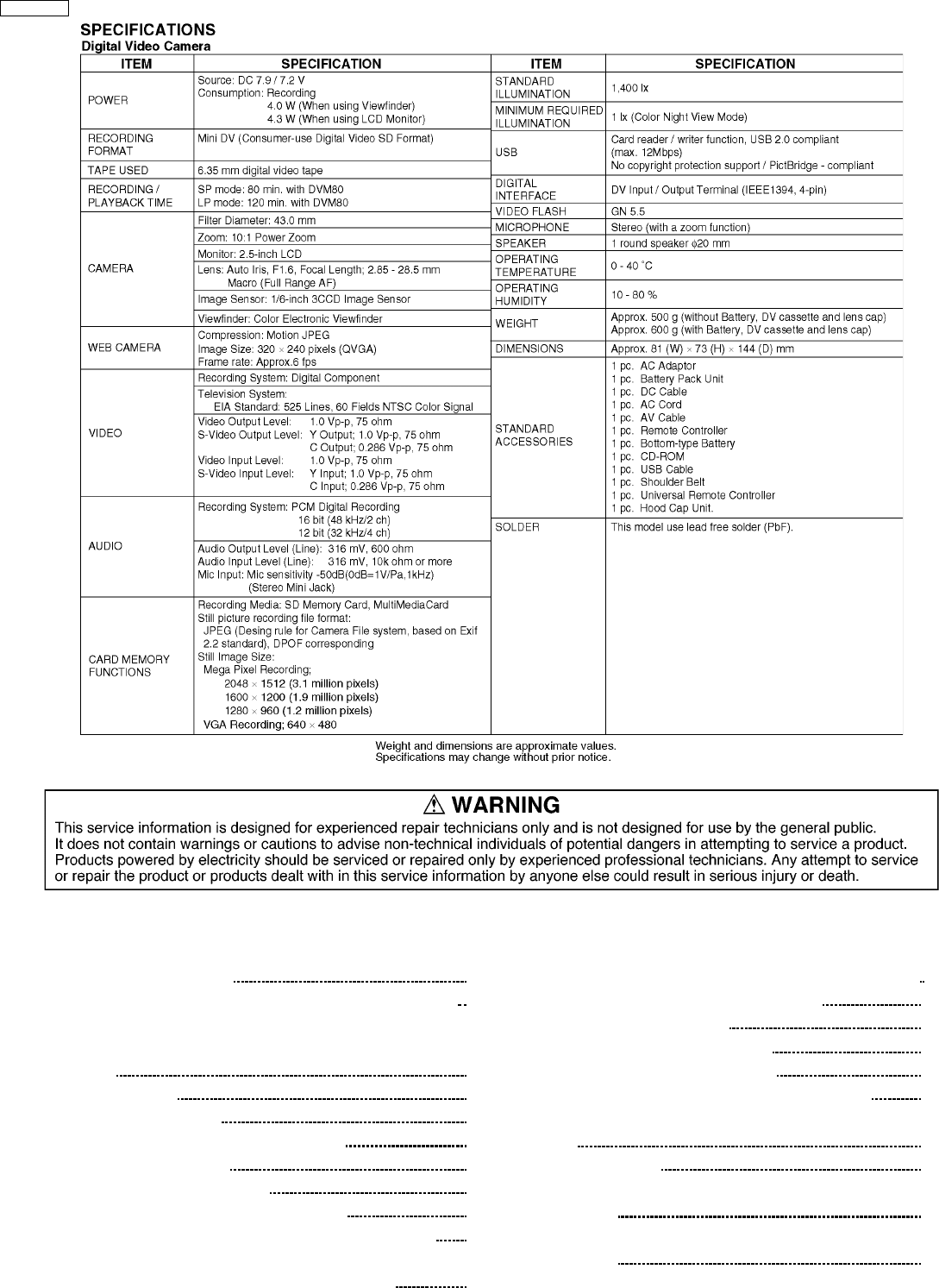

PV-GS250PP

A-MECHANISM

Color

(S)...... Silver Type

Digital Video Camcorder

ORDER NO.MKE0501404C1

1 SERVICE INFORMATION 4

1.1. Service Information Regarding IC2001 of PV-GS250PP 4

1.2. Service Information Regarding Simultaneous Exchange of

MONITOR C.B.A. and LCD PANEL UNIT of PV-GS250PP

2 INTRODUCTION 7

2.1. INTRODUCTION 7

2.2. ABOUT LEAD FREE SOLDER (PbF) 7

3 SAFETY PRECAUTIONS 8

3.1. GENERAL GUIDELINES 8

3.2. LEAKAGE CURRENT COLD CHECK 8

3.3. LEAKAGE CURRENT HOT CHECK (See Figure. 1) 8

4 PREVENTION OF ELECTRO STATIC DISCHARGE (ESD) TO

ELECTROSTATICALLY SENSITIVE (ES) DEVICES 9

5 HOW TO REPLACE THE LITHIUM BATTERY (PROCEDURE) 10

6 HOW TO RECYCLE THE LITHIUM BATTERY 11

7 ADJUSTMENT PROCEDURES 12

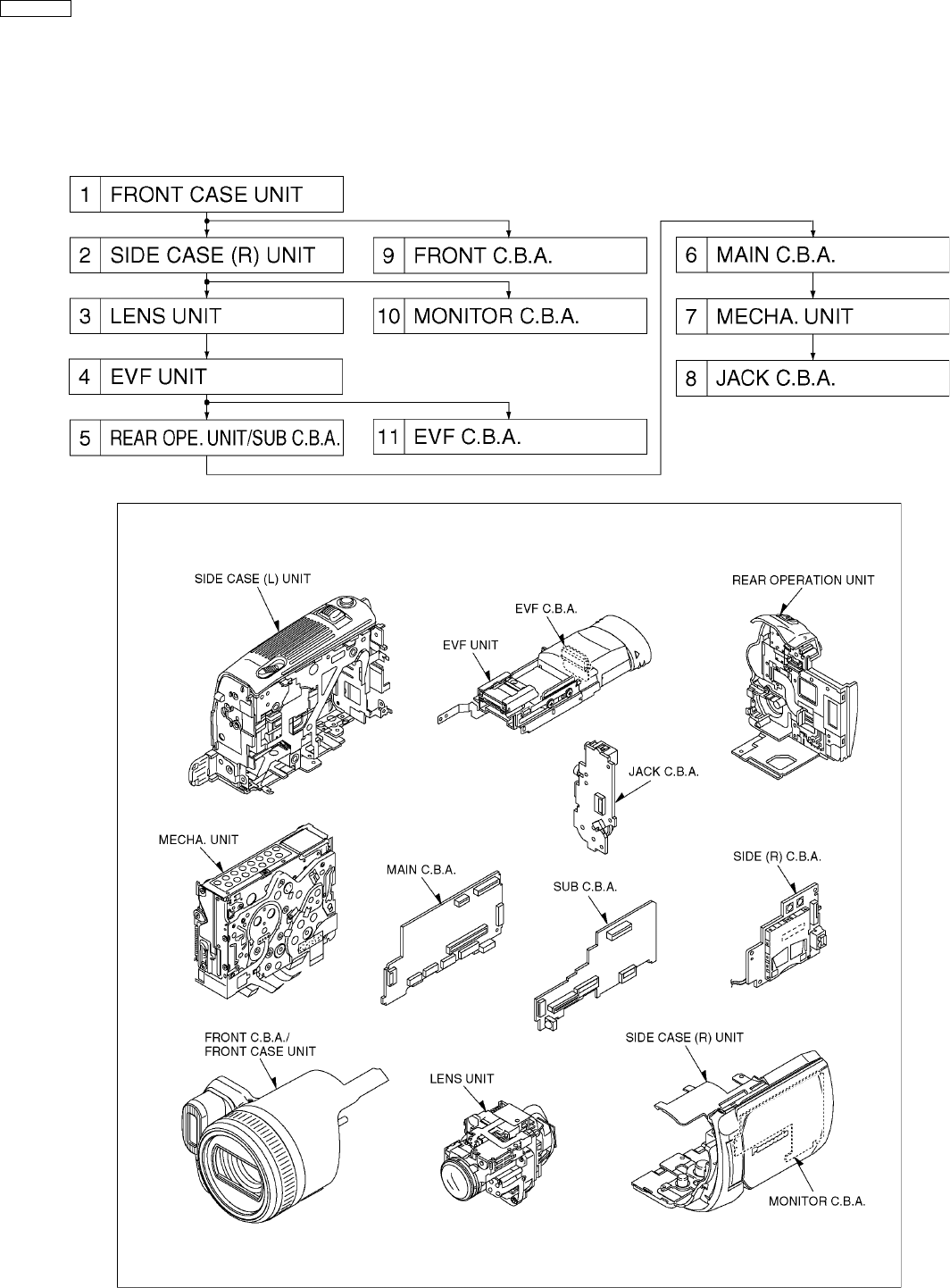

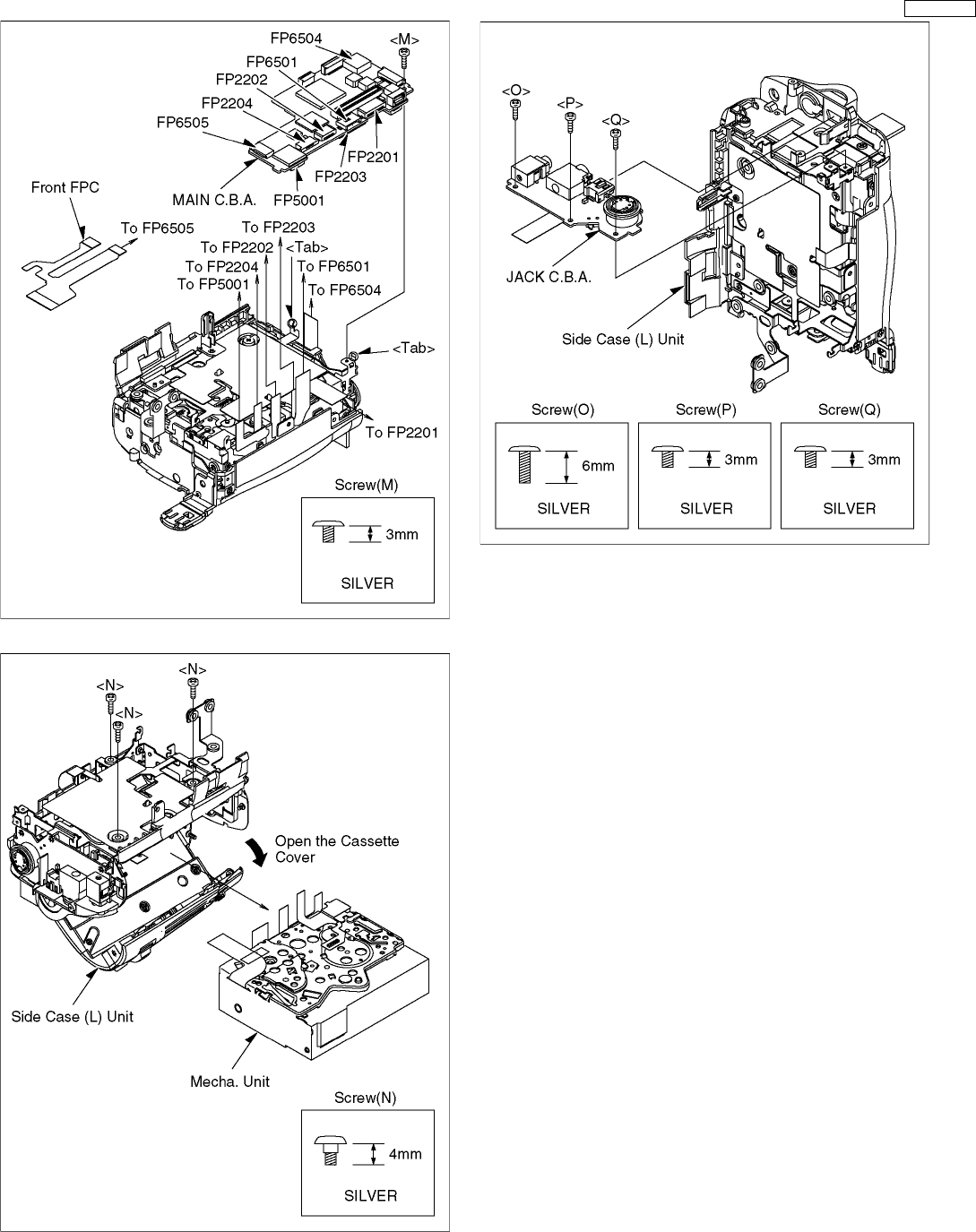

7.1. DISASSEMBLE FLOW CHART 12

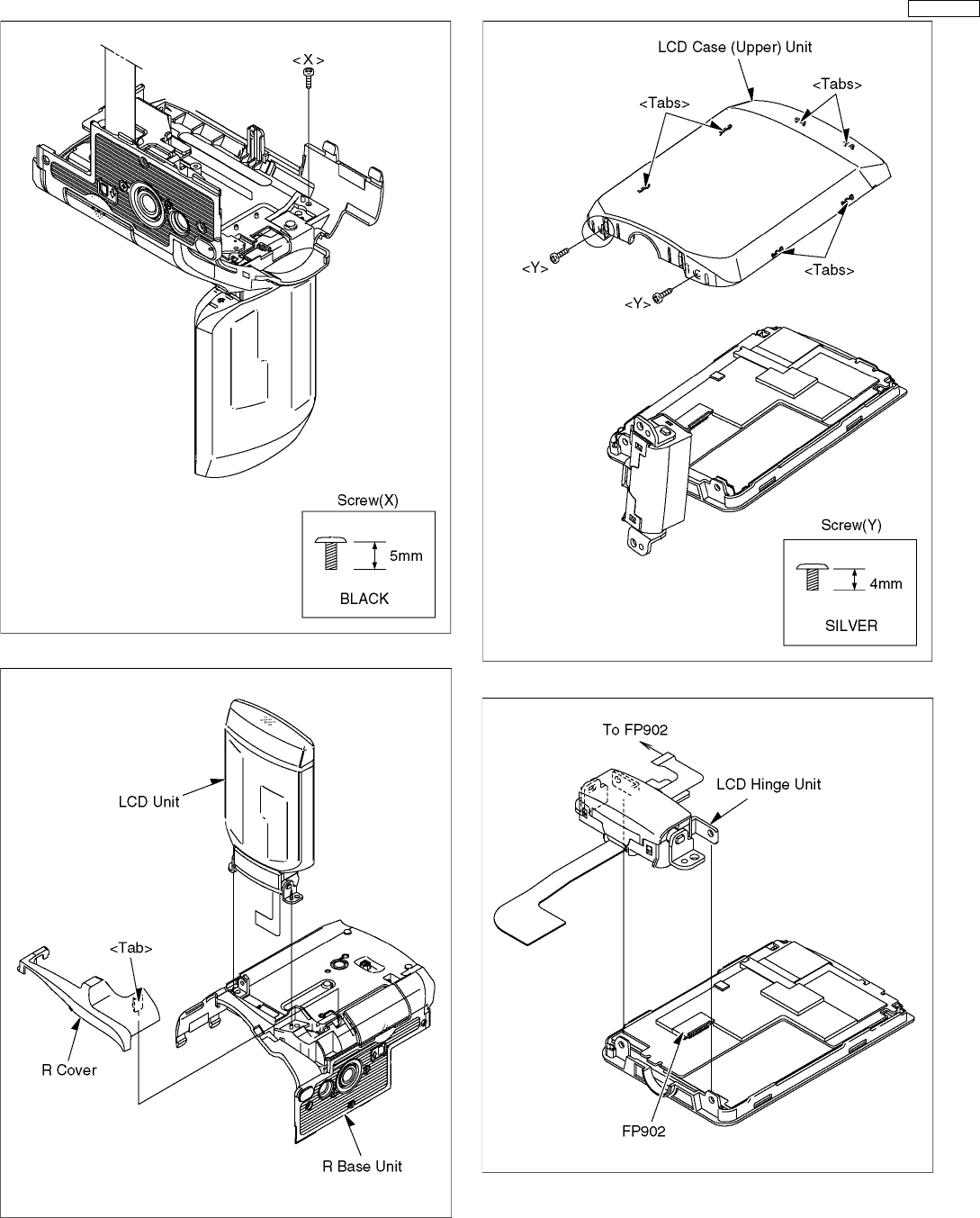

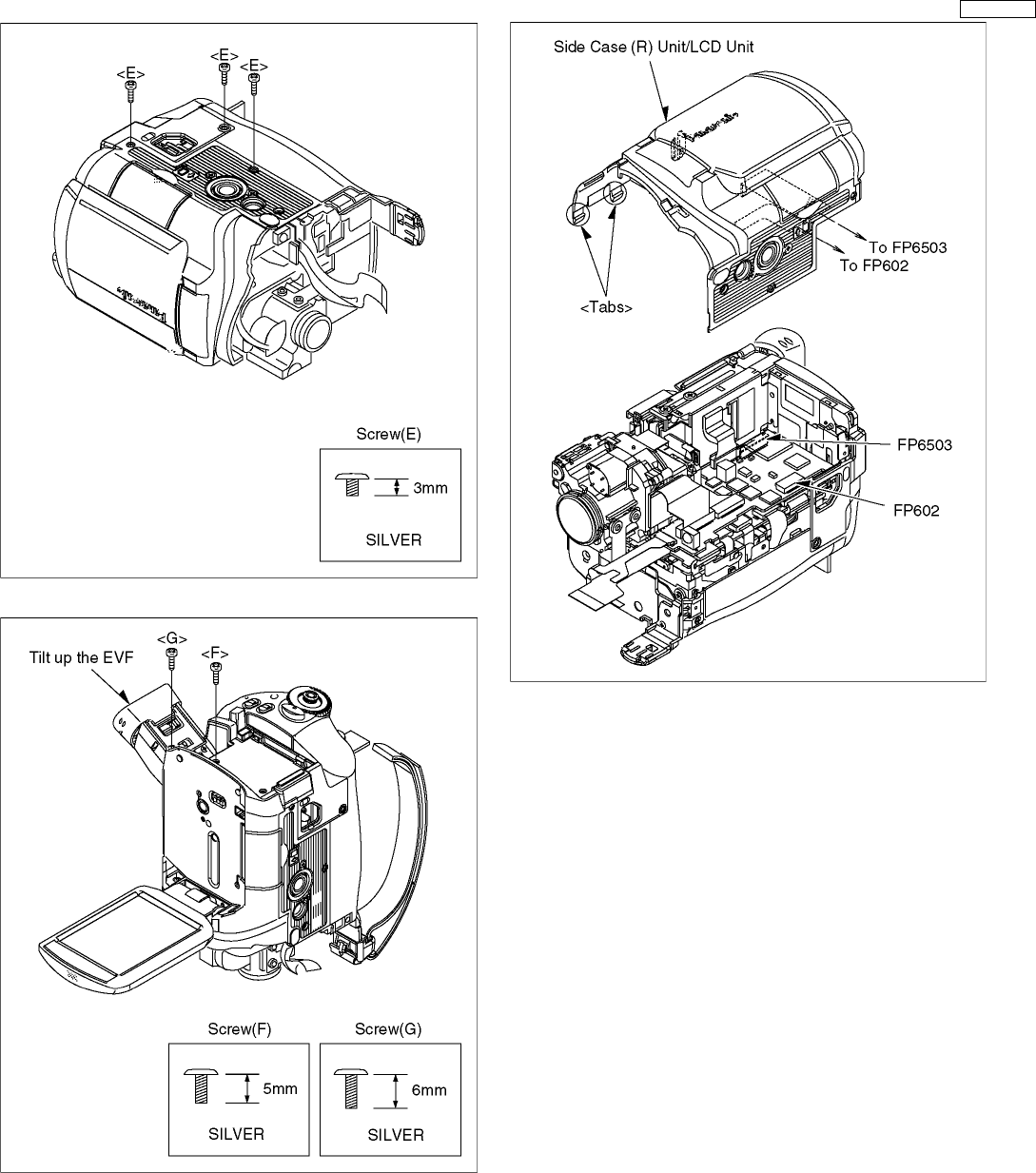

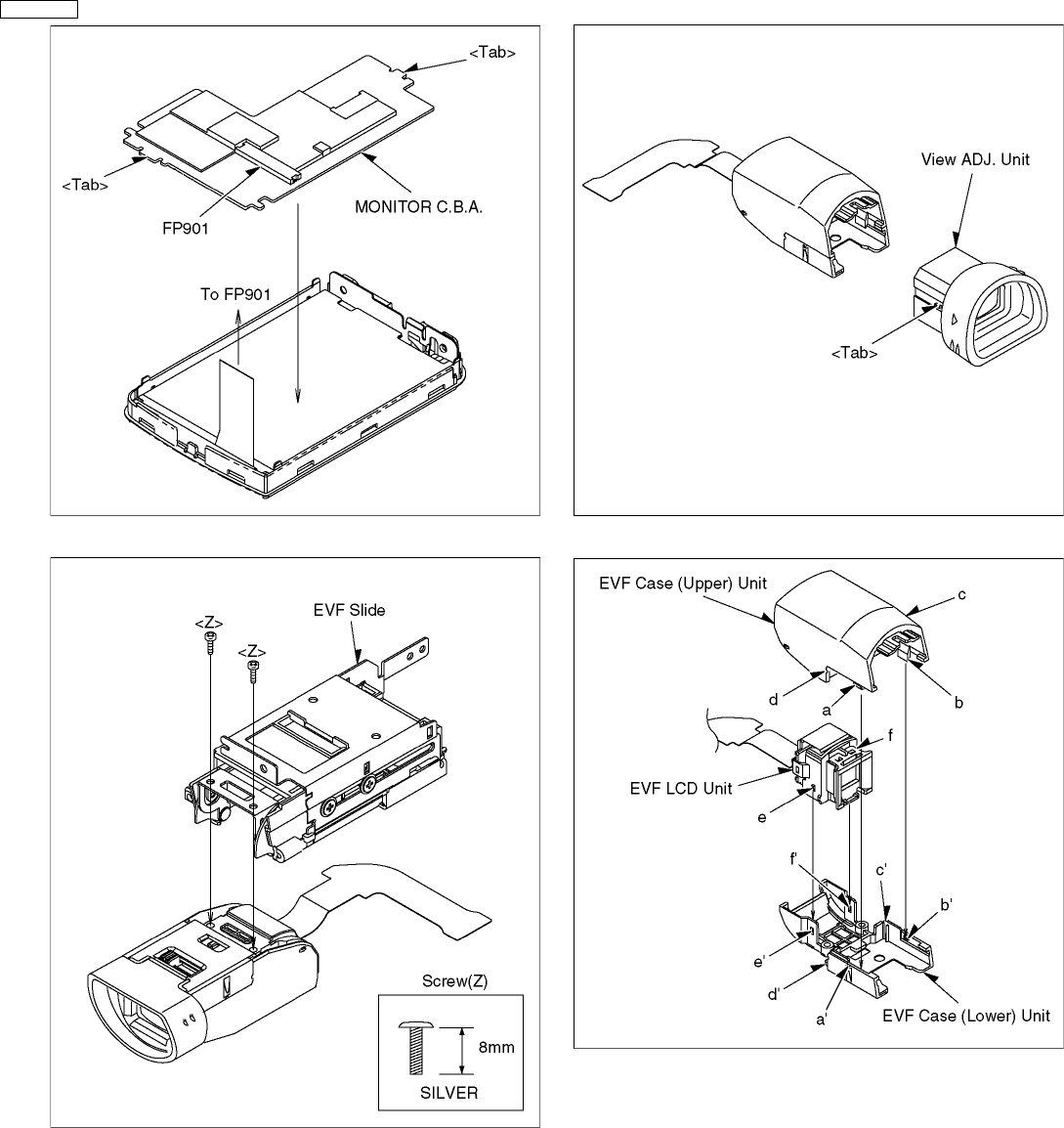

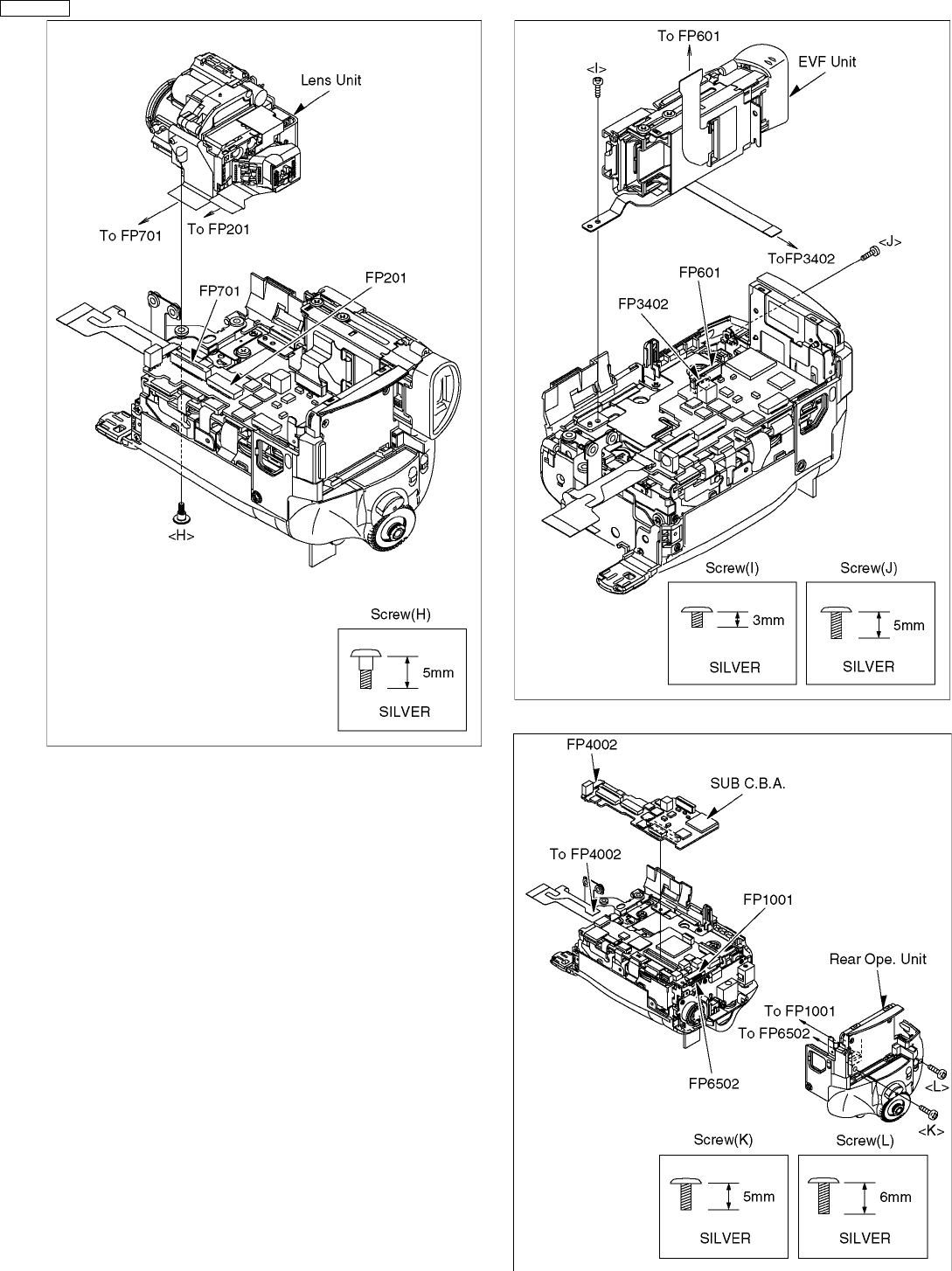

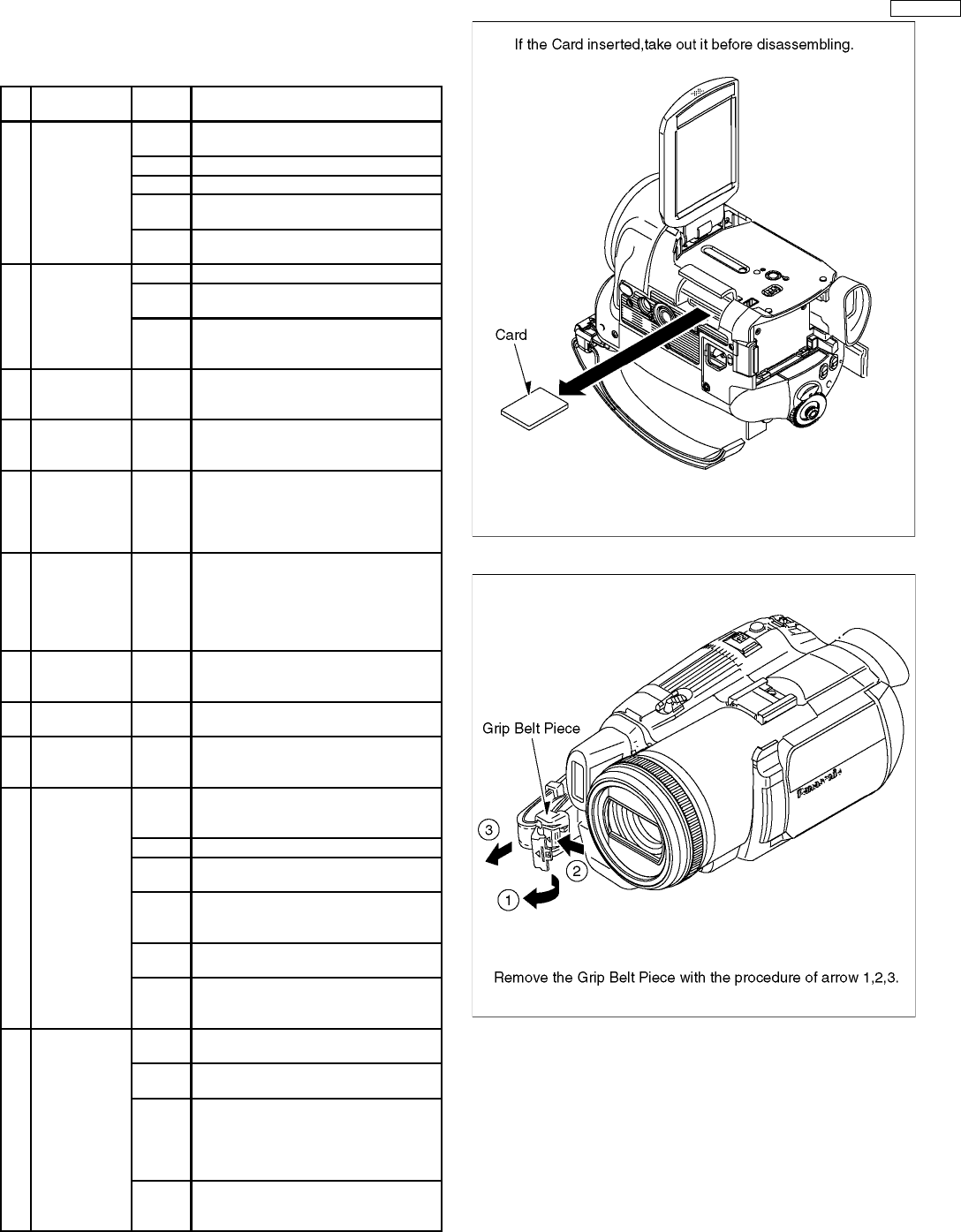

7.2. DISASSEMBLY PROCEDURES 13

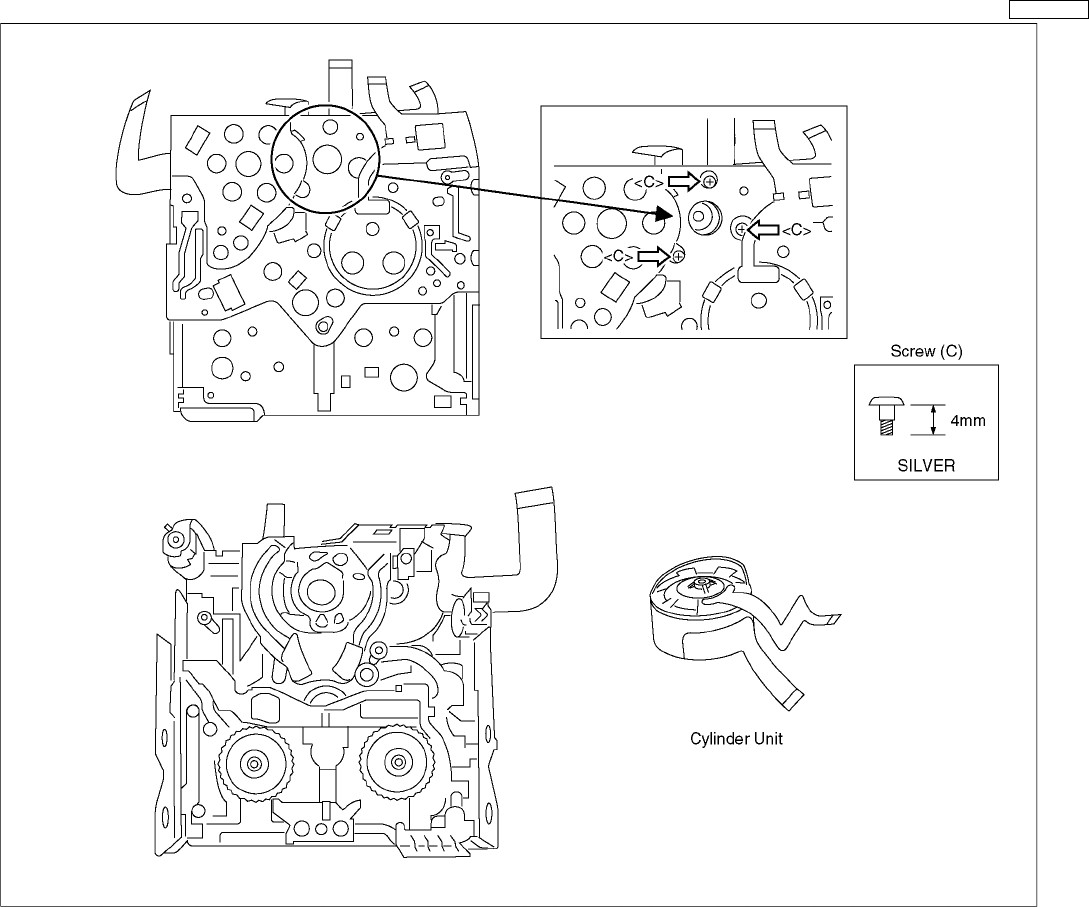

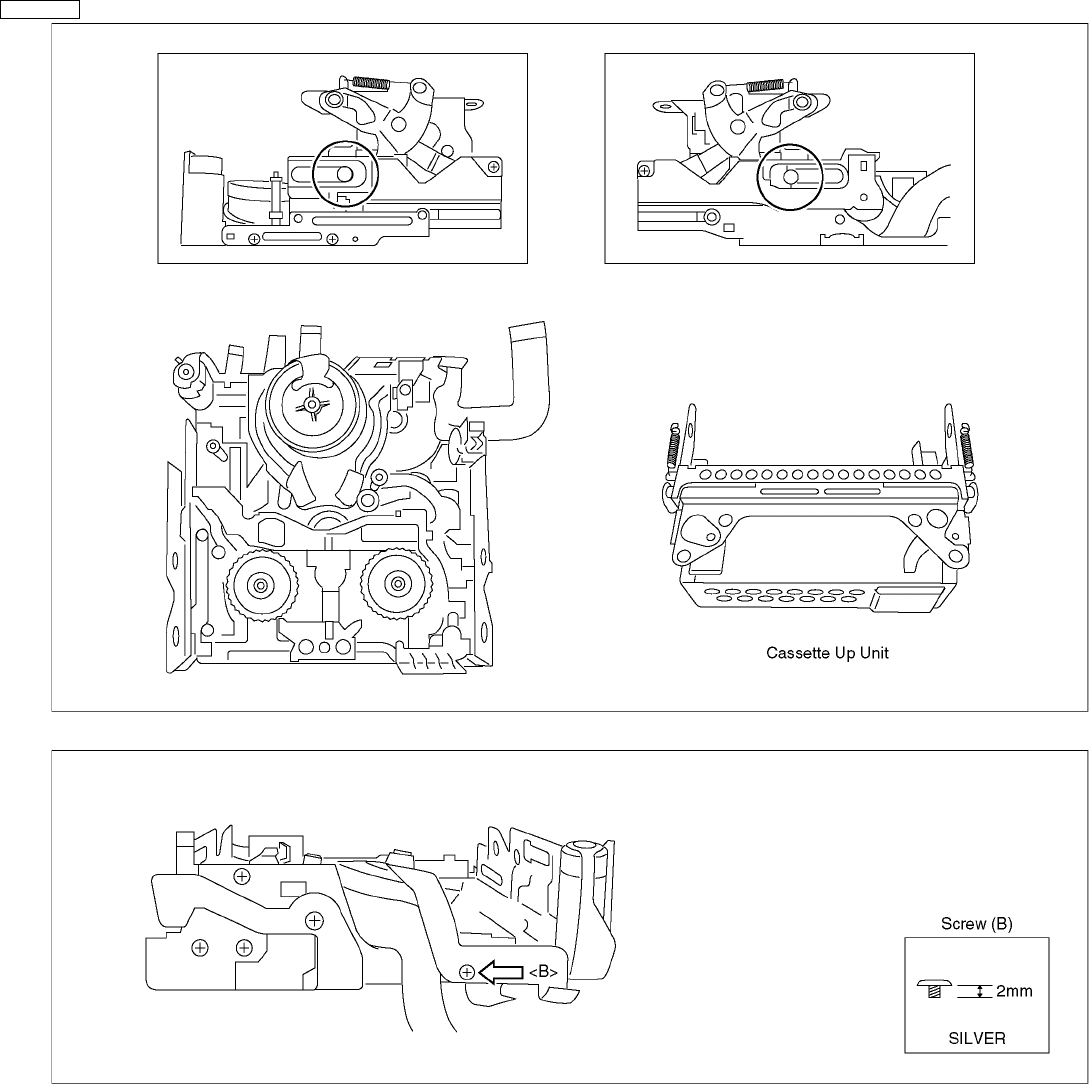

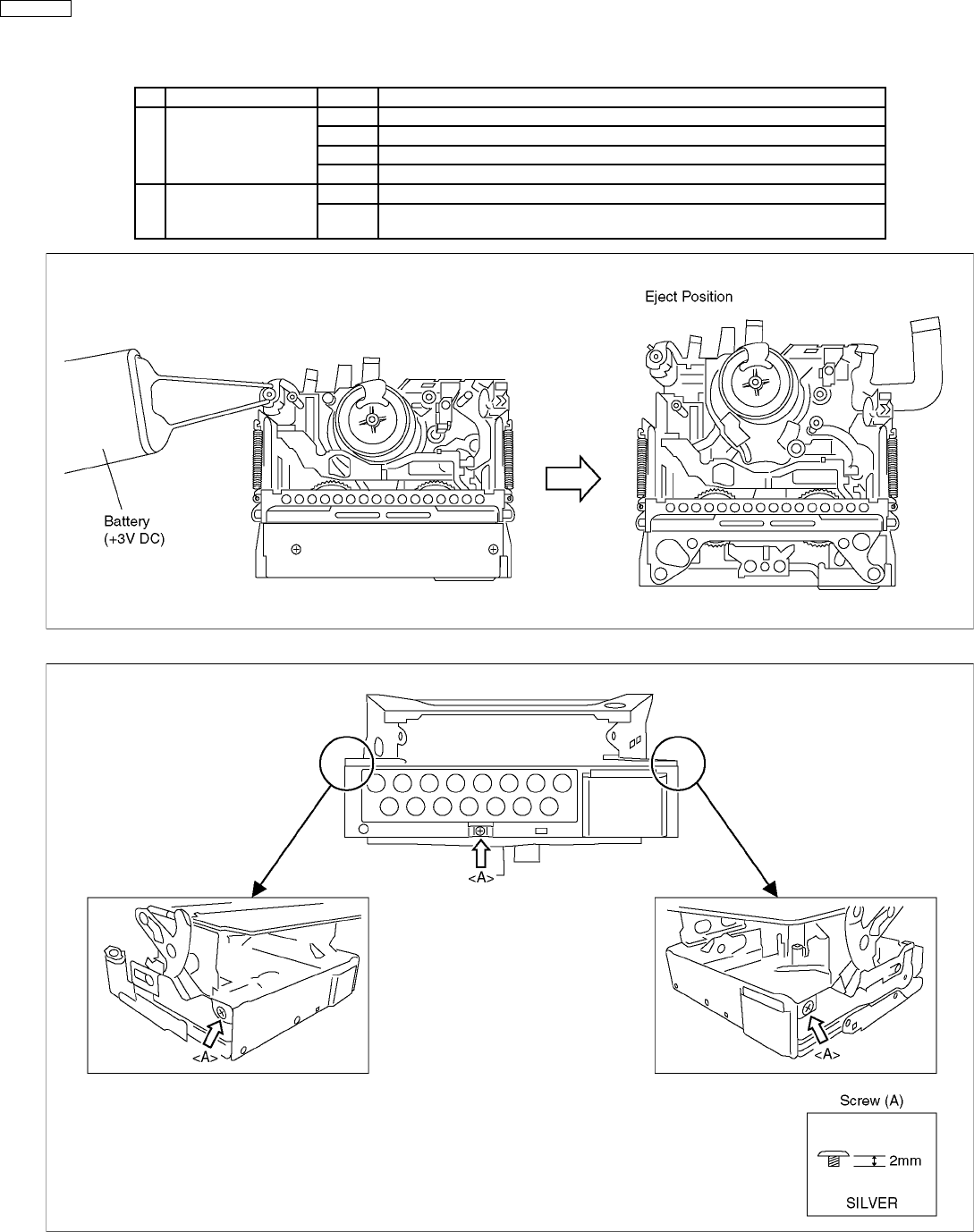

7.3. DISASSEMBLY PROCEDURES MECHA. UNIT 22

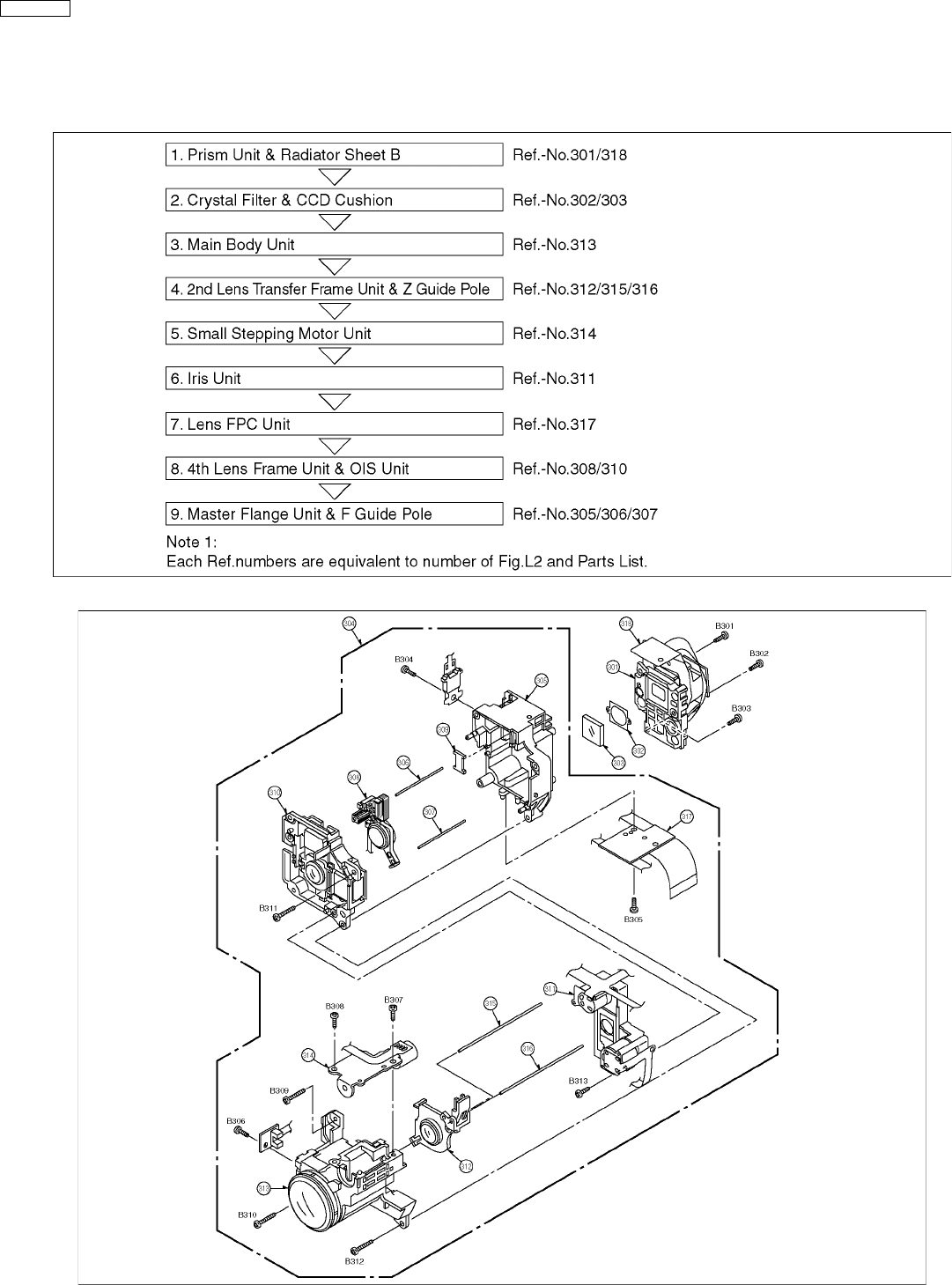

7.4. DISASSEMBLY PROCEDURES OF CAMERA LENS UNIT

8 SERVICE CAUTION 27

8.1. HOW TO DISCHARGE THE CAPACITOR ON FRONT

C.B.A. 27

8.2. EEPROM DATA FOR SPARE PARTS OF THE MAIN

C.B.A. 27

CONTENTS

Page Page

PV-GS250PP

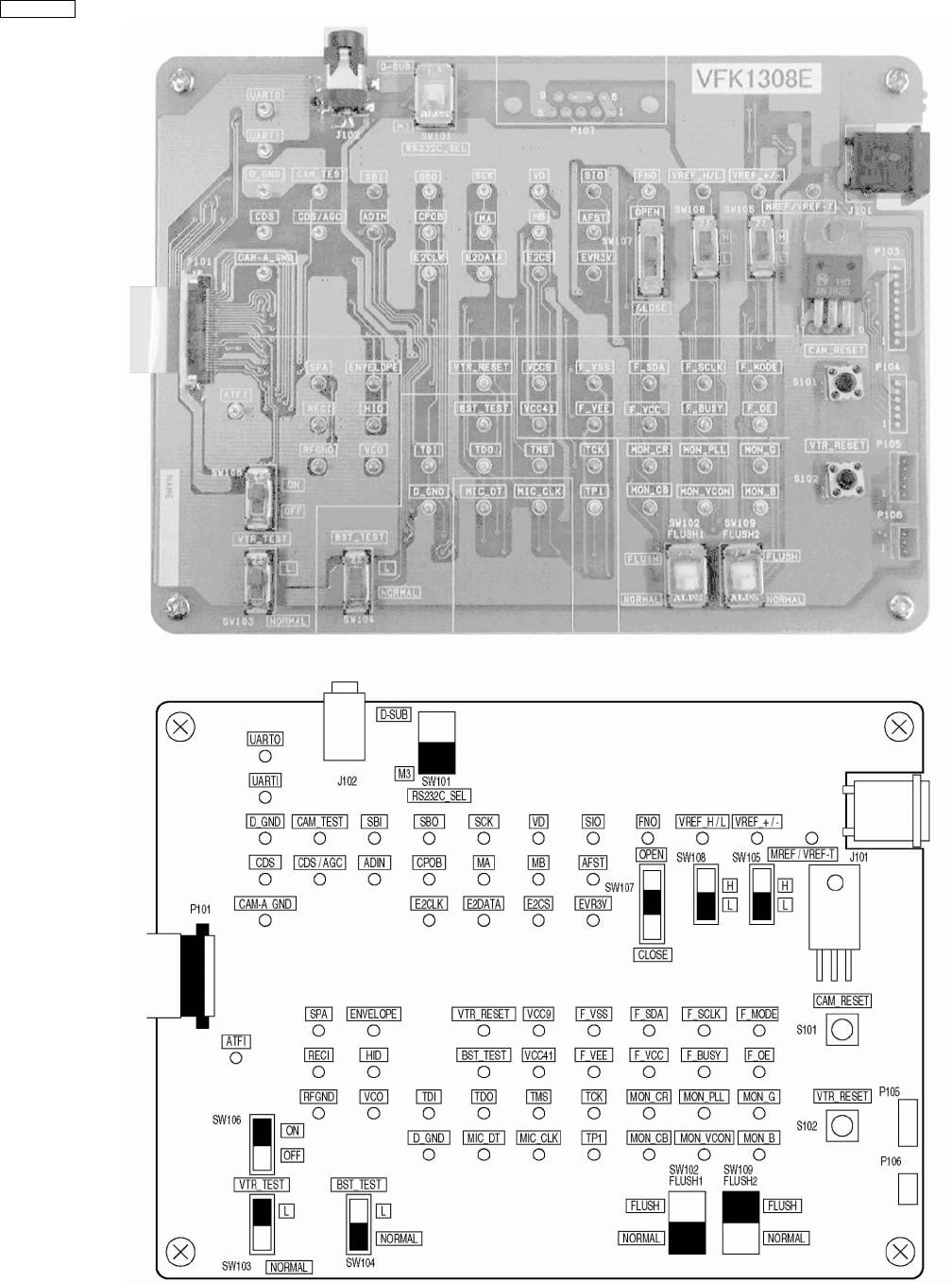

8.3. SERVICE EXTENSION CABLE FOR ALL C.B.A.

INCLUDED IN MODULE UNIT 27

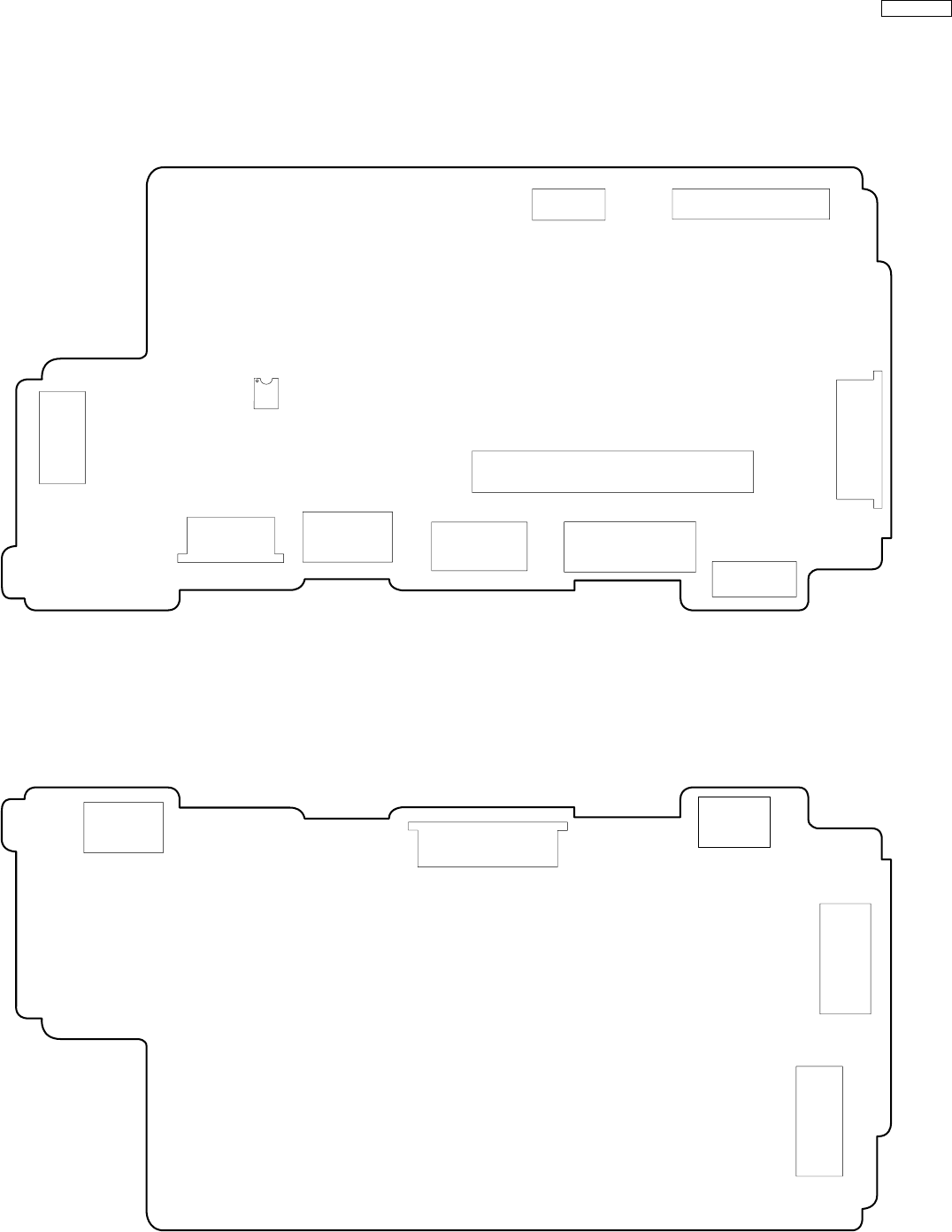

8.4. LOCATION FOR CONNECTORS OF THE MAIN C.B.A. &

SUB C.B.A. 29

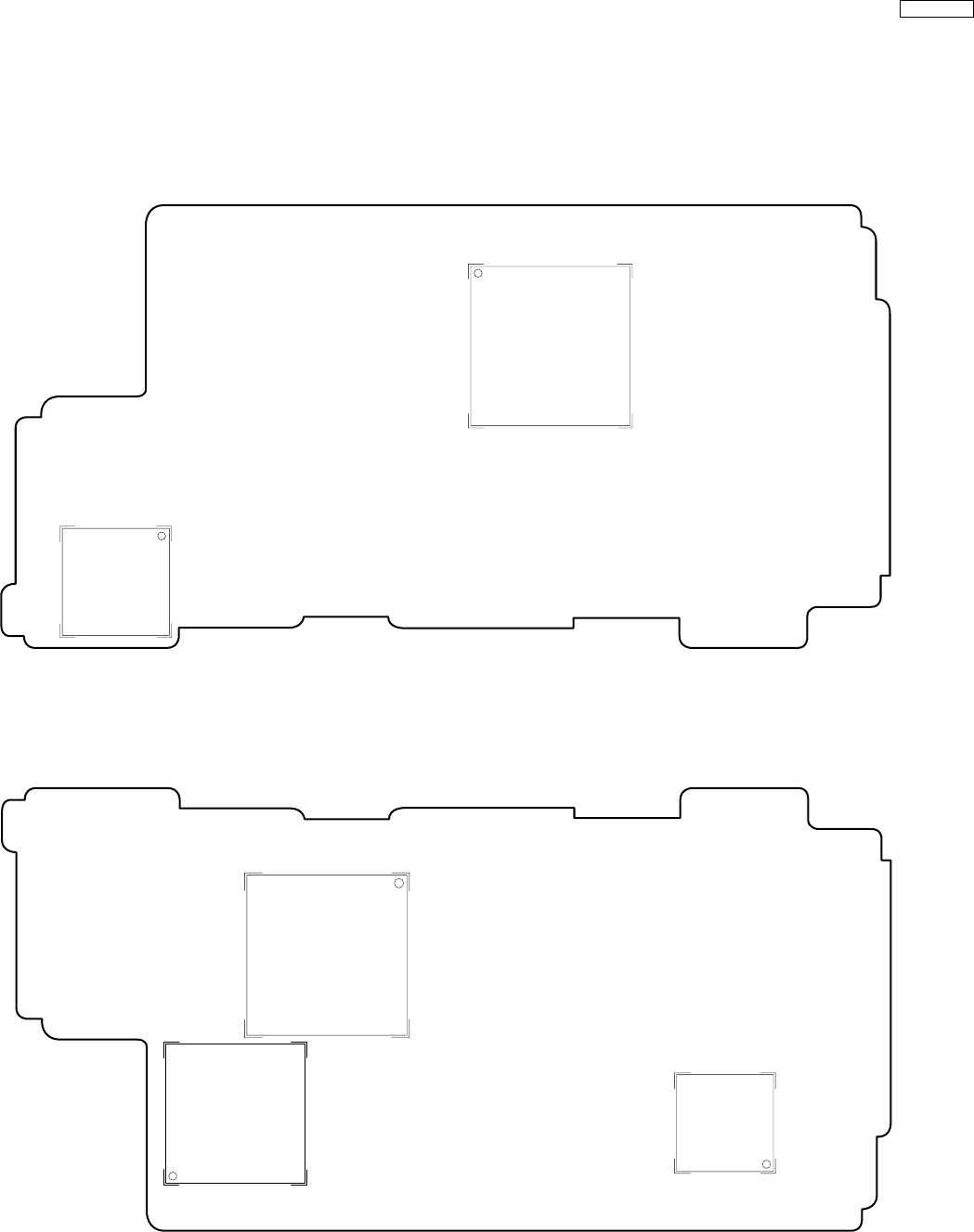

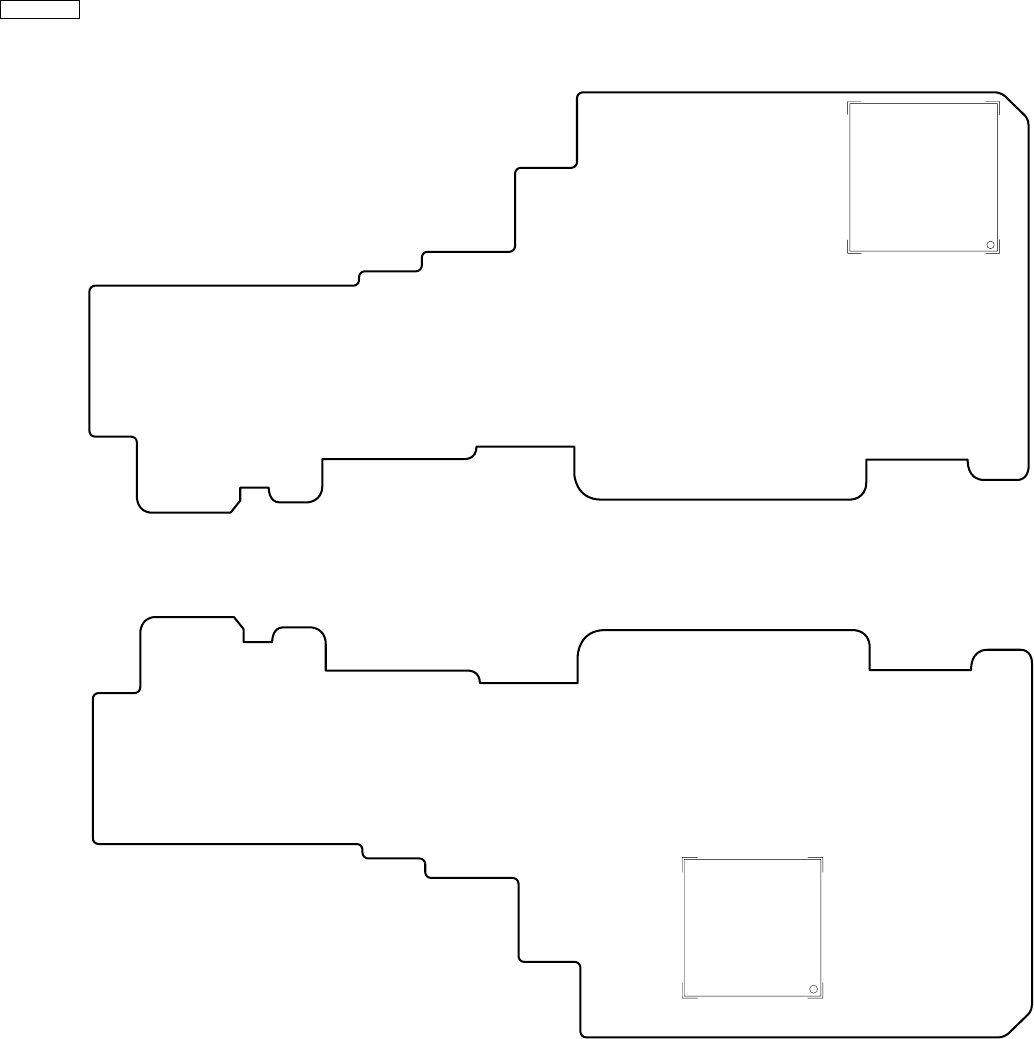

8.5. CSP IC LOCATION OF THE MAIN C.B.A. & SUB C.B.A.

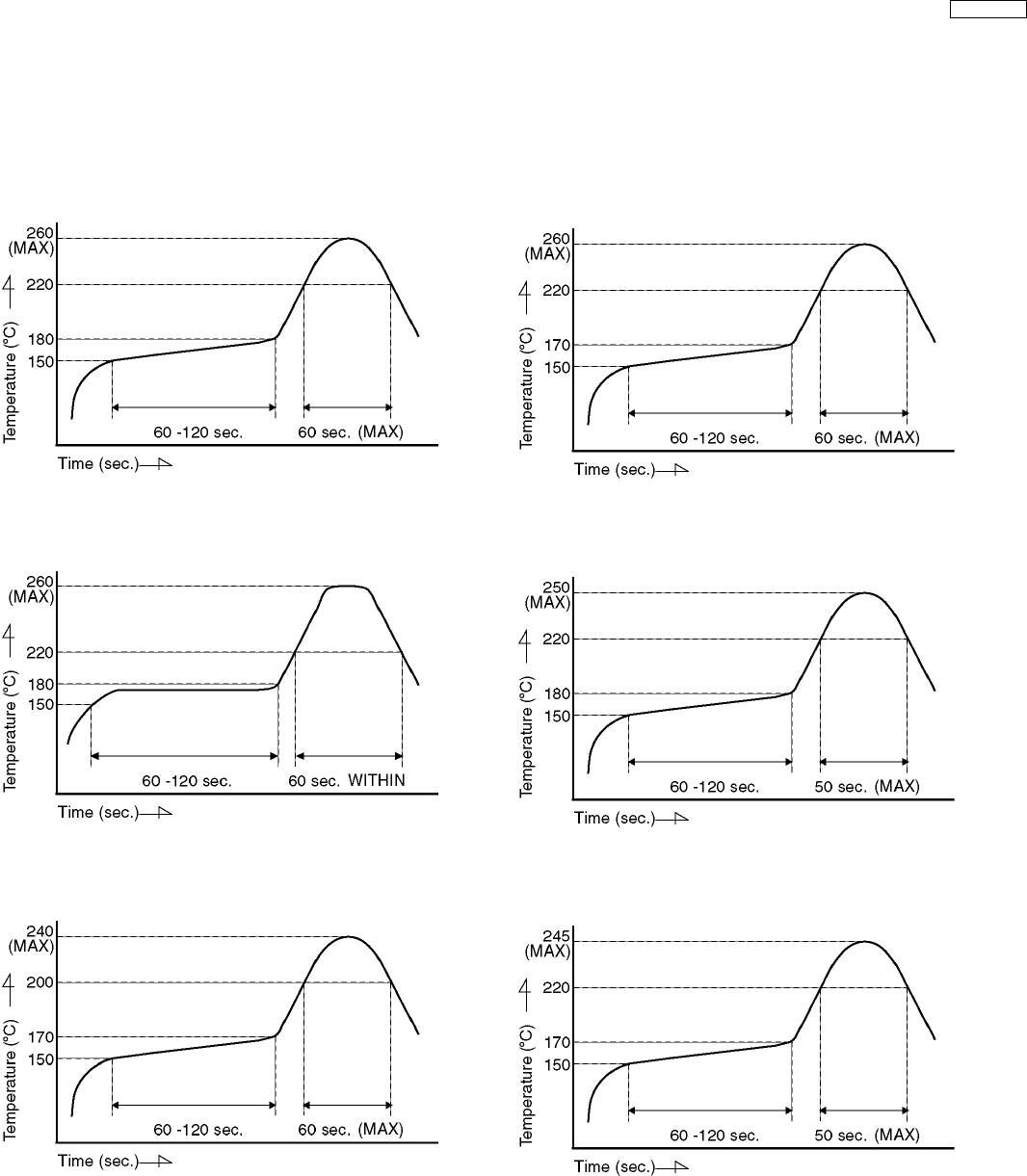

8.6. TEMPERATURE PROFILE FOR HEAT RESISTANCE OF

CSP IC 33

9 ELECTRICAL ADJUSTMENT PROCEDURES 34

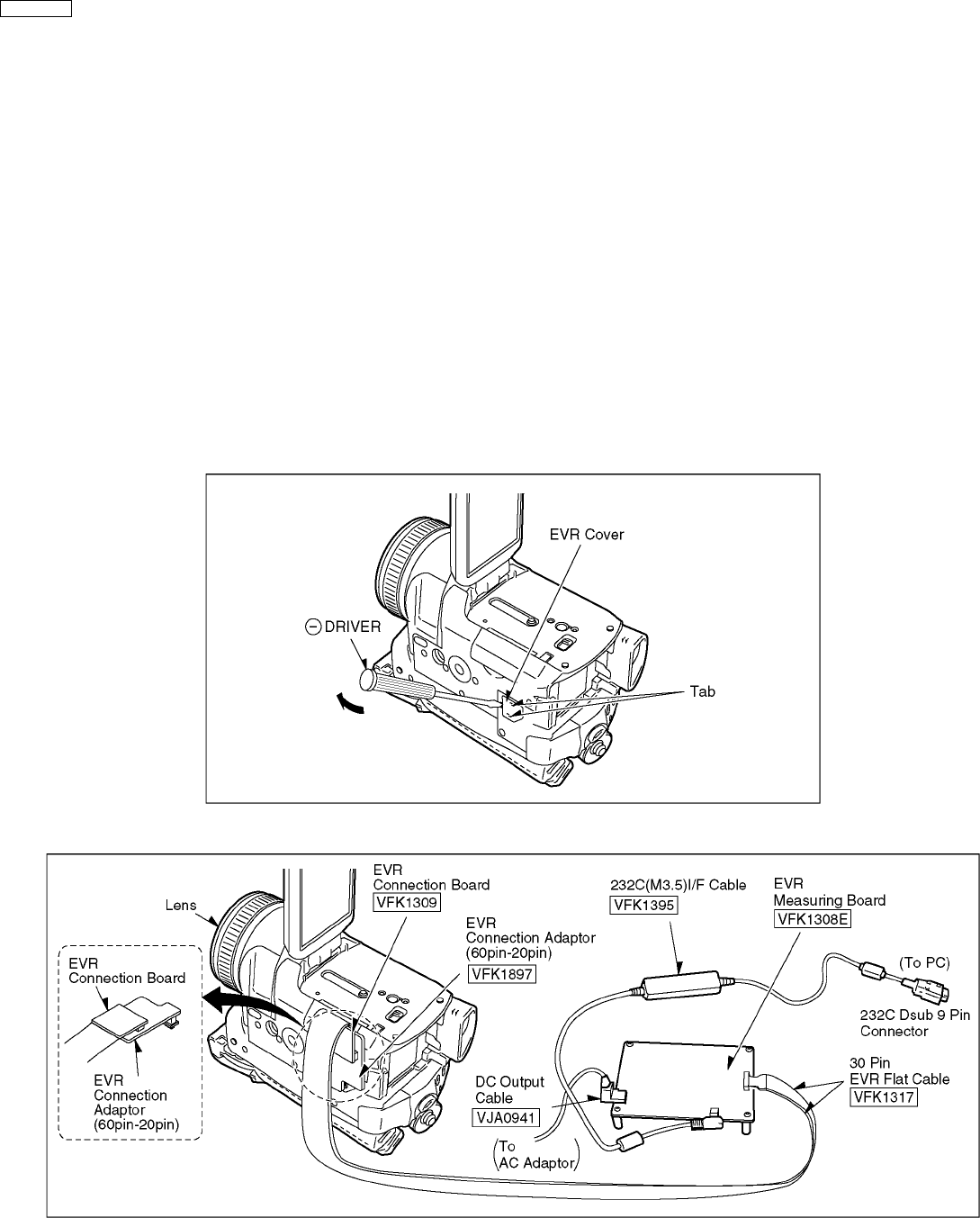

9.1. COMPUTER ASSISTED ADJUSTMENT SYSTEM

<TATSUJIN> ADJUSTMENT. 34

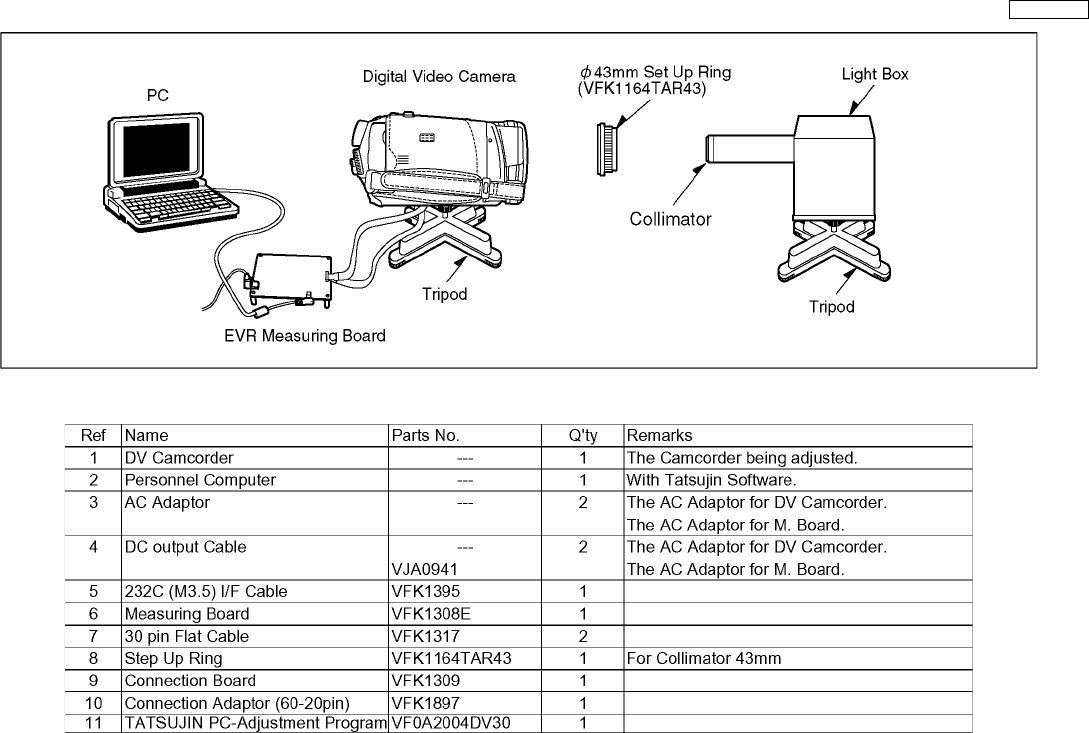

9.2. SET-UP MANUAL FOR DV-Camcorder. 34

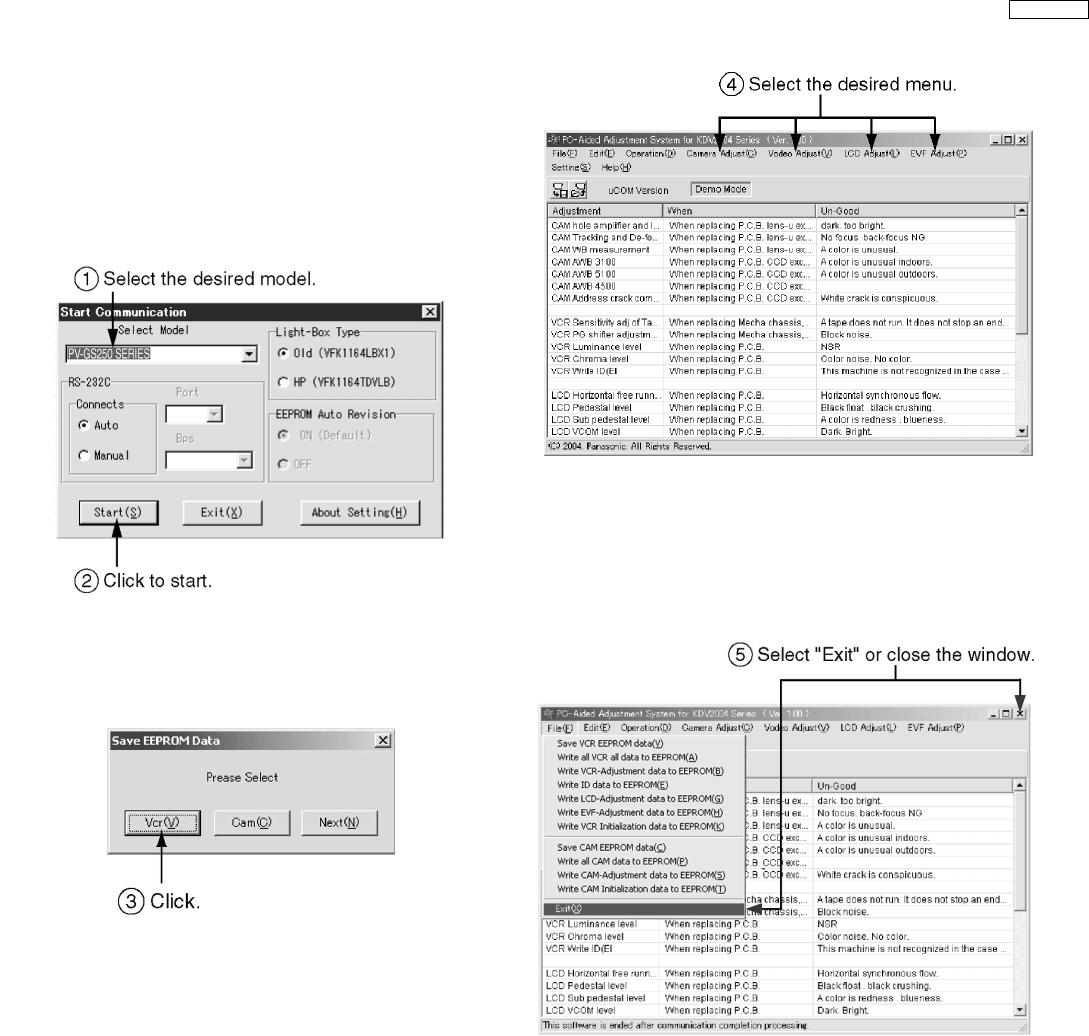

9.3. SET UP PC-EVR ADJUSTMENT PROGRAM 37

9.4. INITIAL GUIDELINE 38

10 MECHANICAL ADJUSTMENT PROCEDURES 39

10.1. ADJUSTMENT ITEM 39

10.2. ADJUSTMENT PROCEDURES 39

11 SERVICE MODE 41

11.1. ERROR DISPLAY 41

11.2. SERVICE MENU 41

12 ABBREVIATIONS 43

13 BLOCK DIAGRAM 51

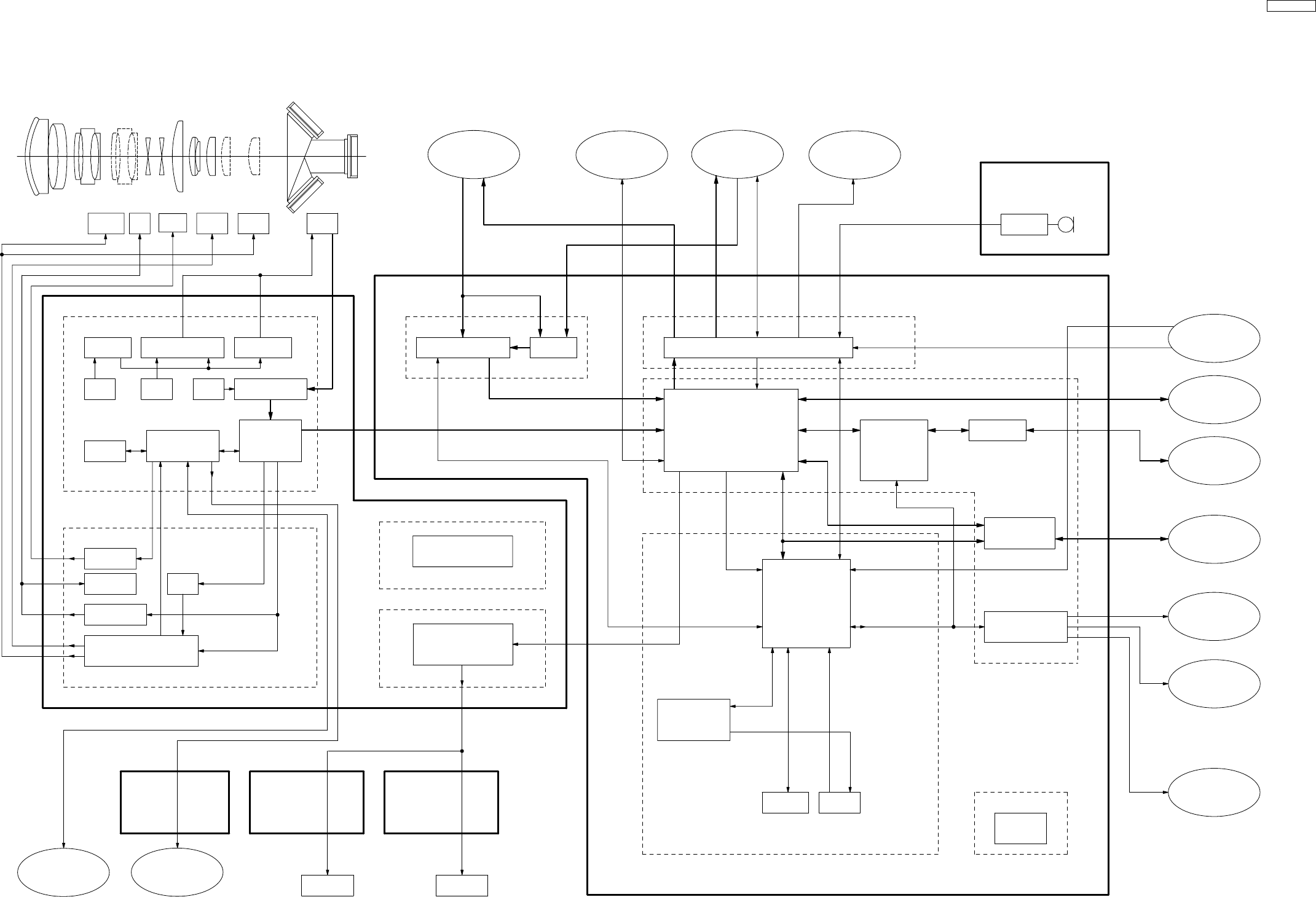

13.1. OVERALL BLOCK DIAGRAM 51

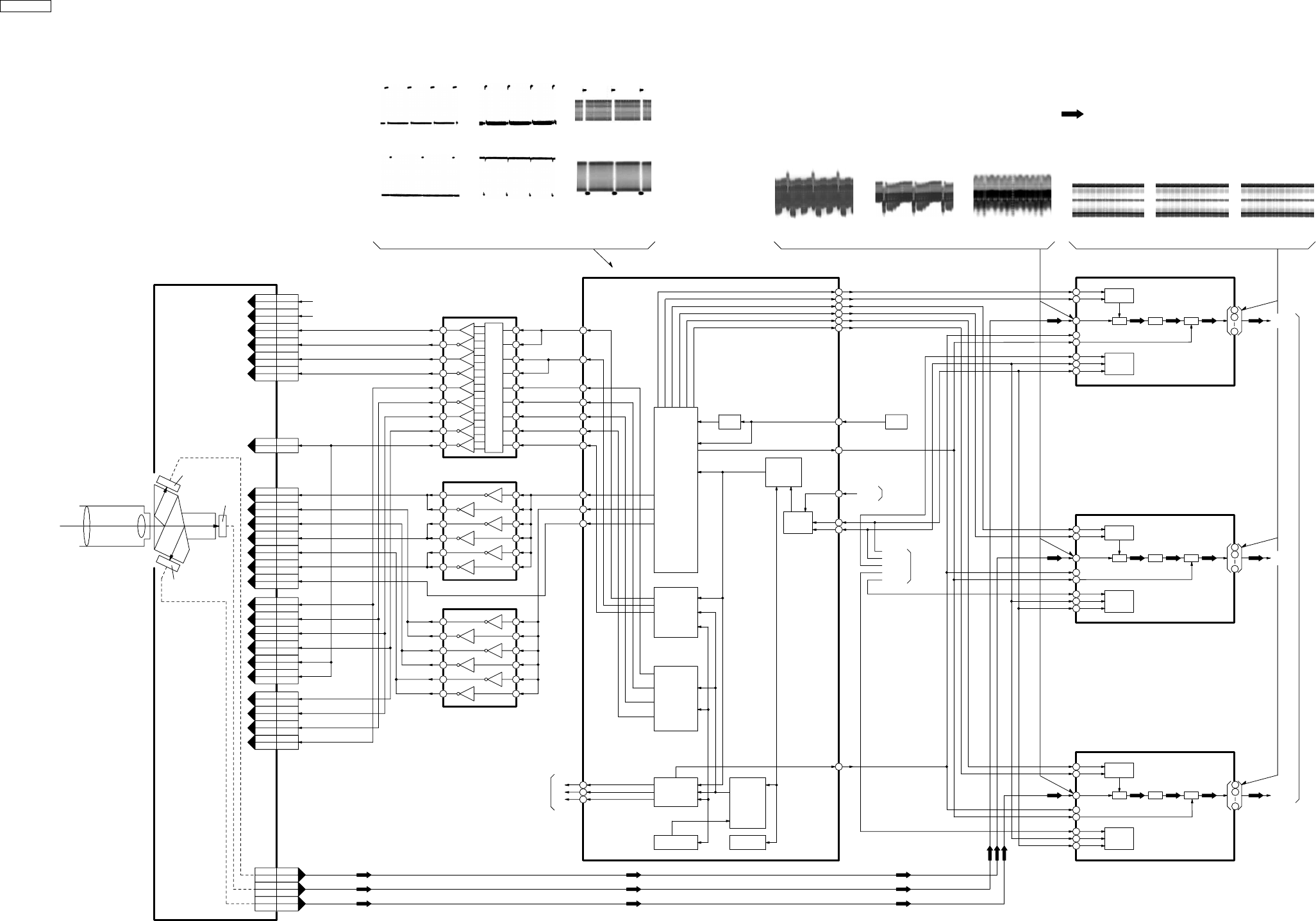

13.2. CAMERA 1 BLOCK DIAGRAM (SENSOR BLOCK

DIAGRAM) 52

13.3. CAMERA 2 BLOCK DIAGRAM (PROCESS BLOCK

DIAGRAM) 53

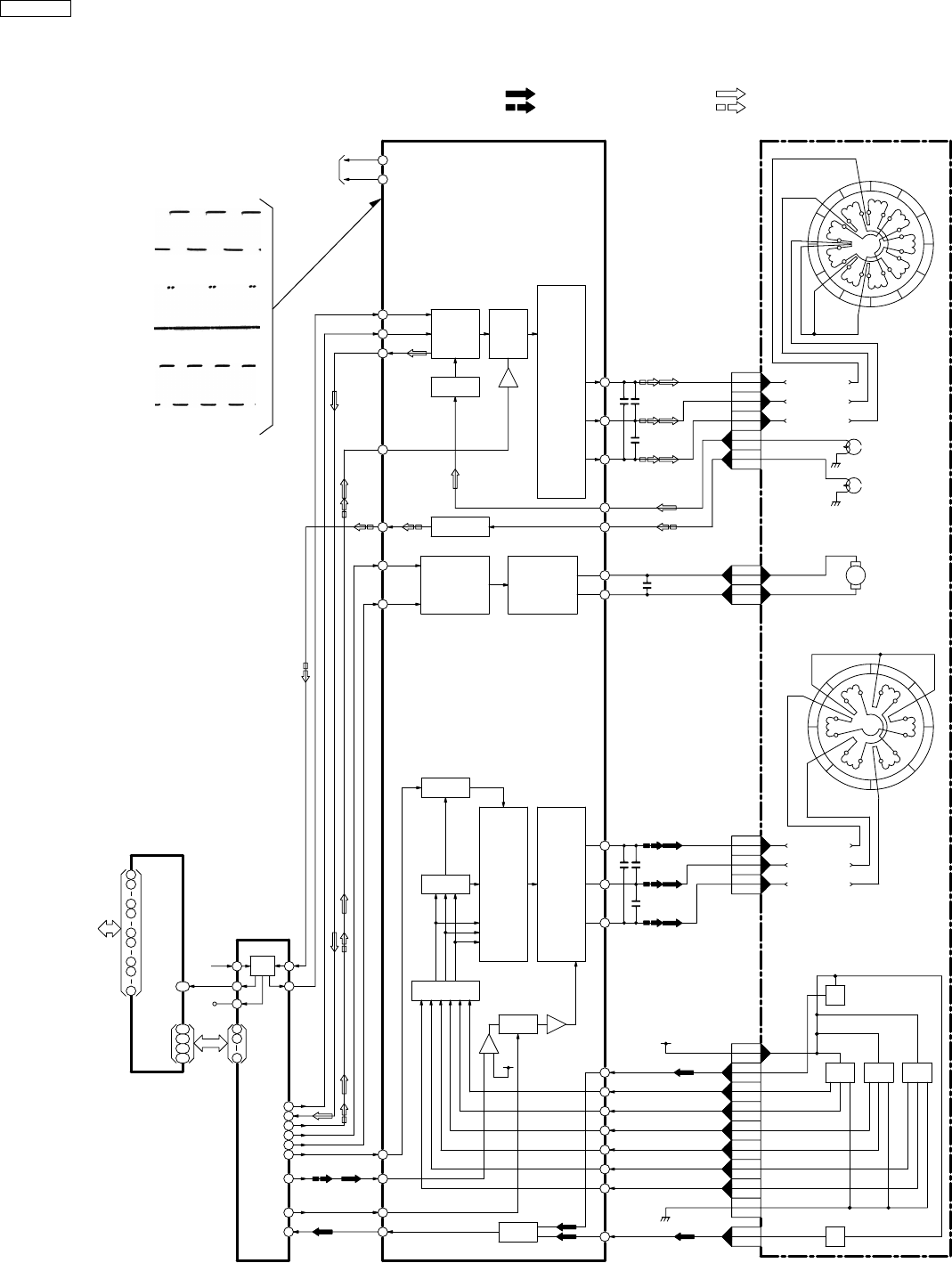

13.4. LENS DRIVE BLOCK DIAGRAM 54

13.5. CONTROL 1 BLOCK DIAGRAM 55

13.6. CONTROL 2 BLOCK DIAGRAM 56

13.7. VIDEO BLOCK DIAGRAM 57

13.8. MONITOR BLOCK DIAGRAM 58

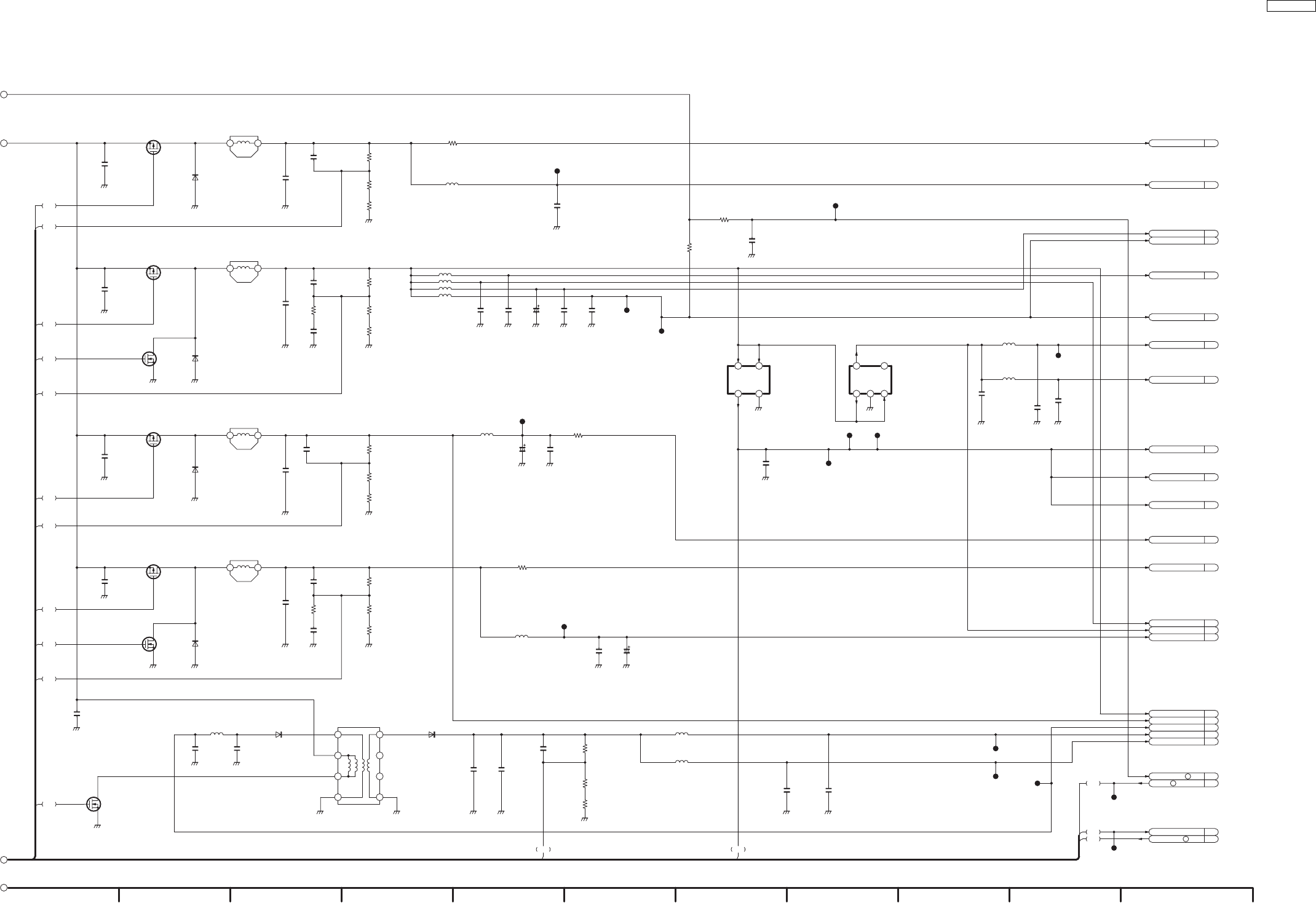

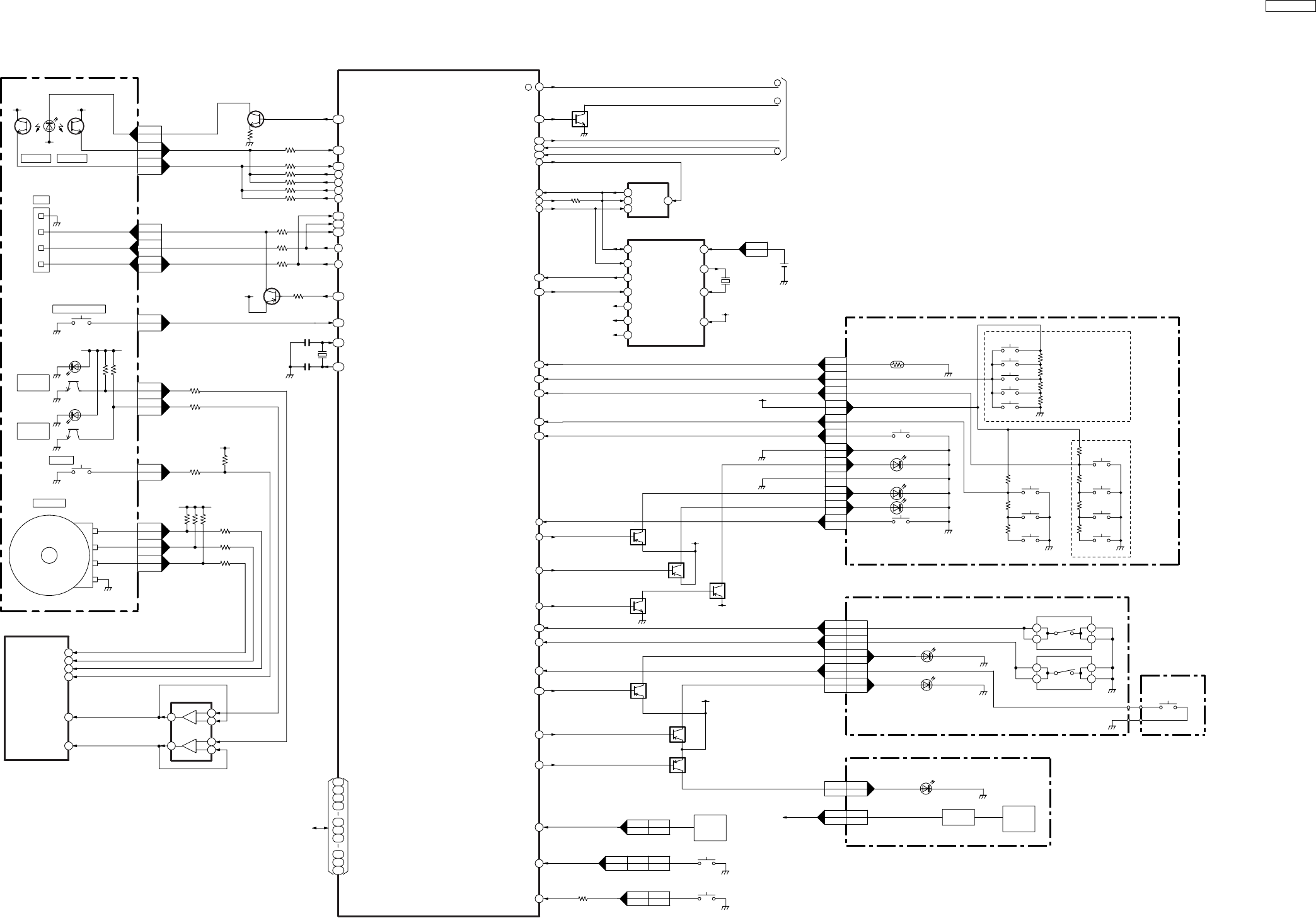

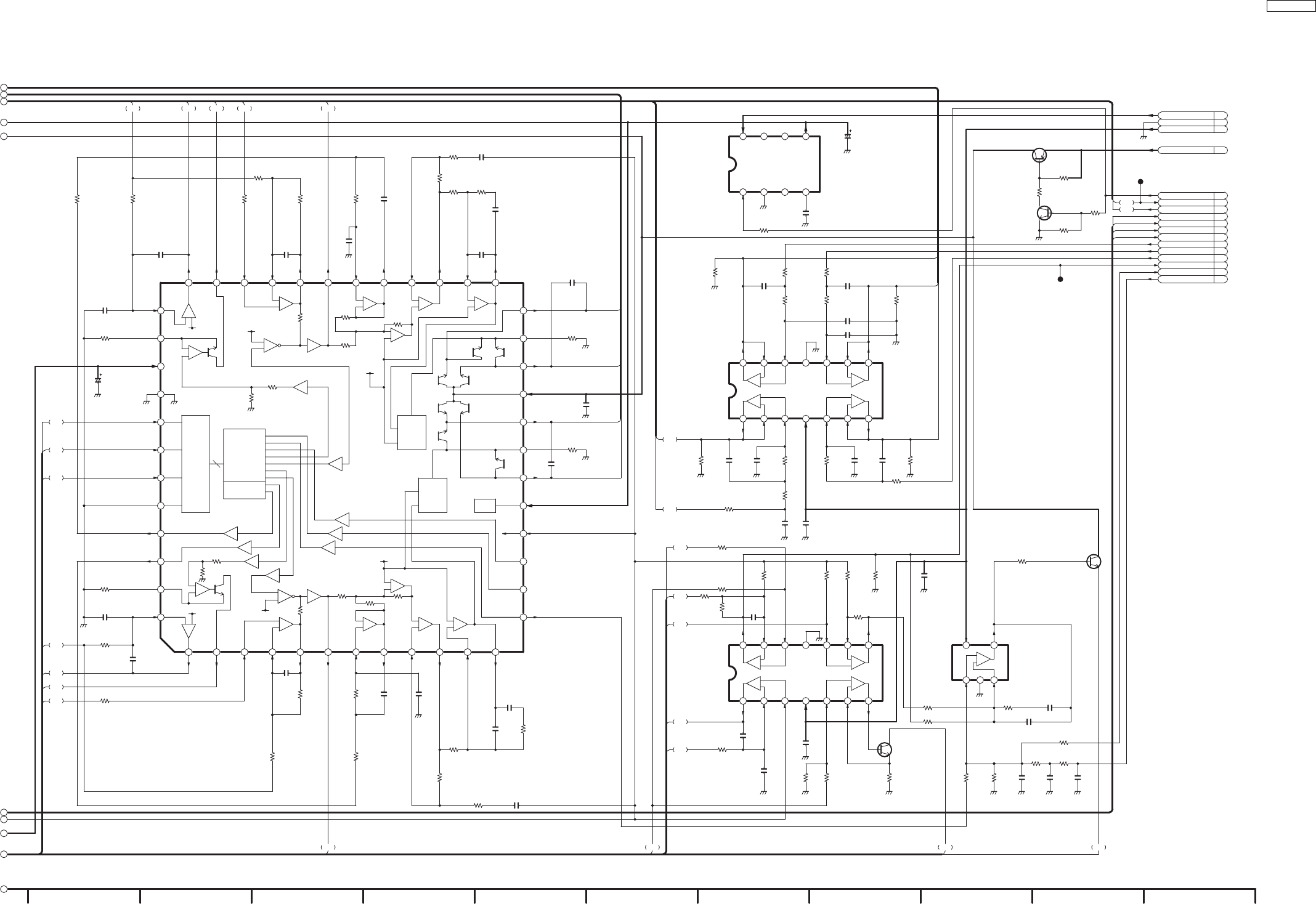

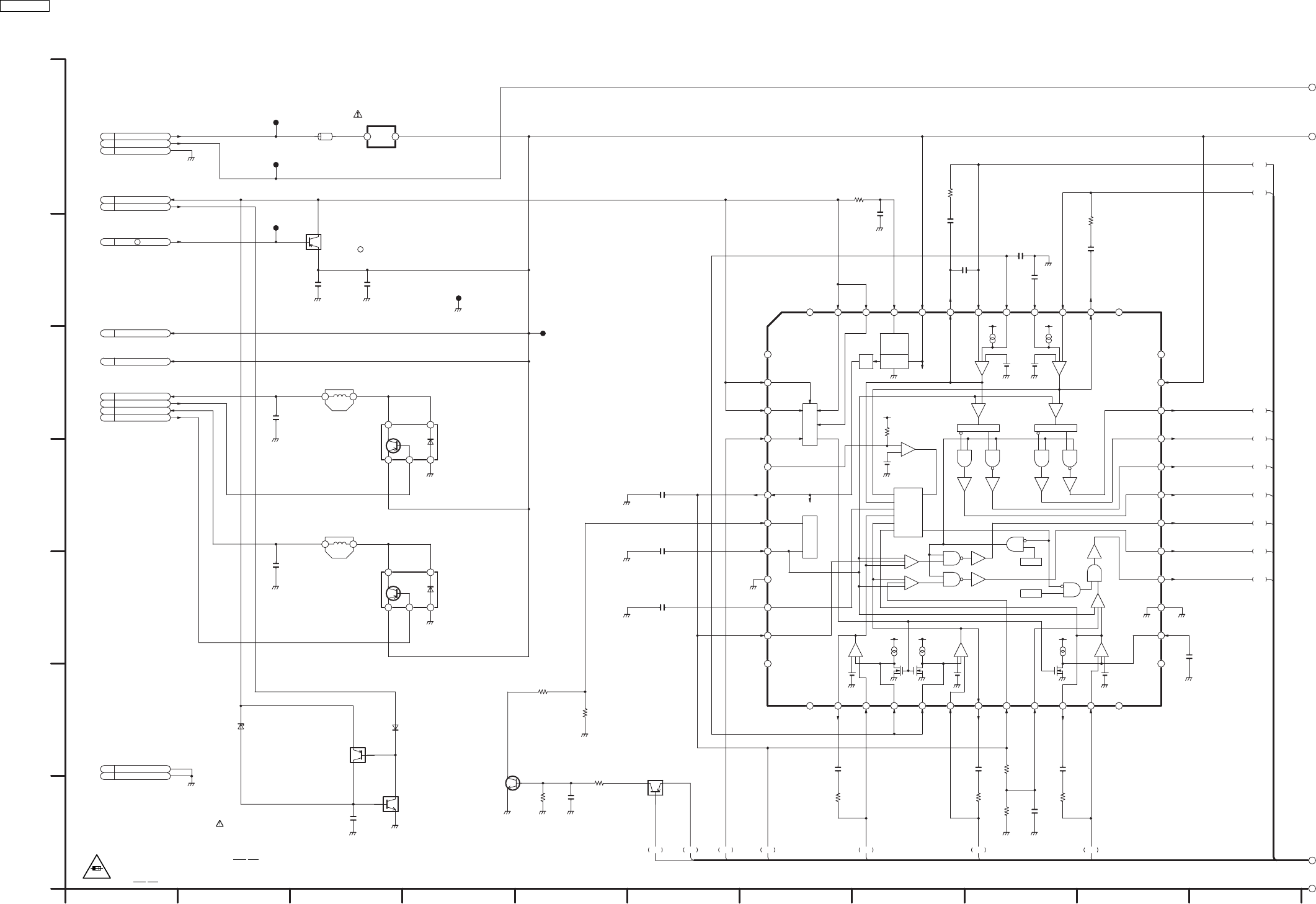

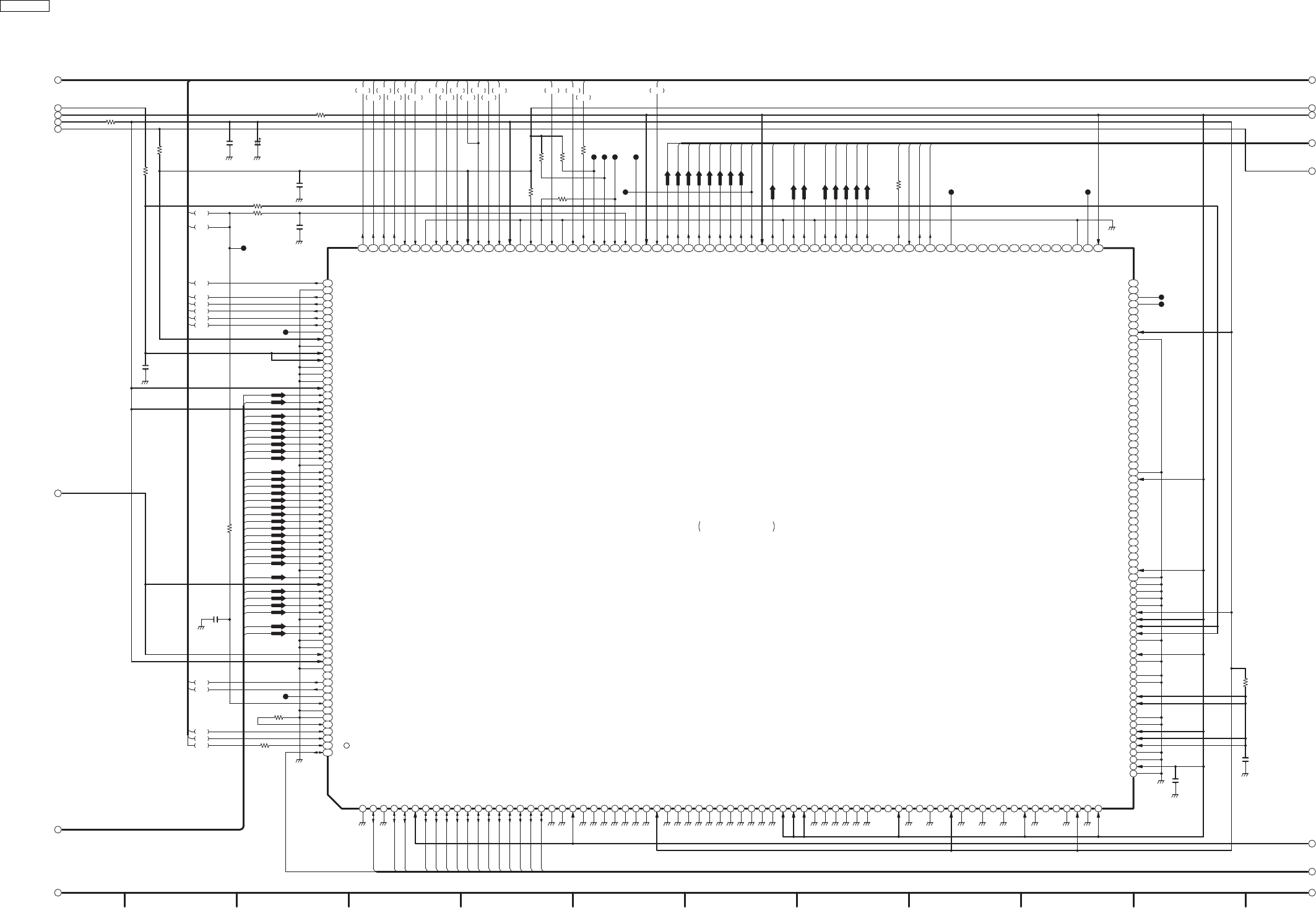

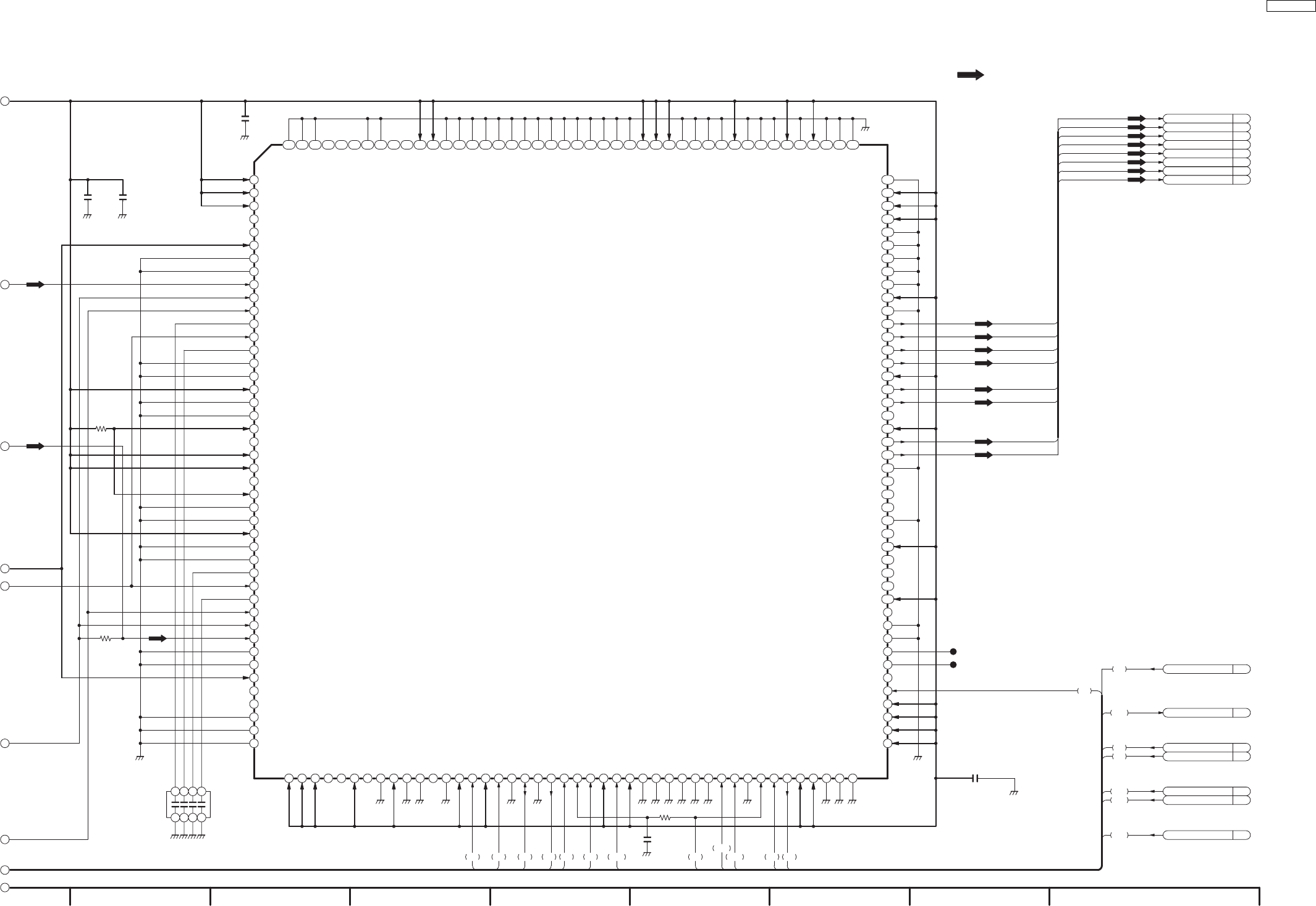

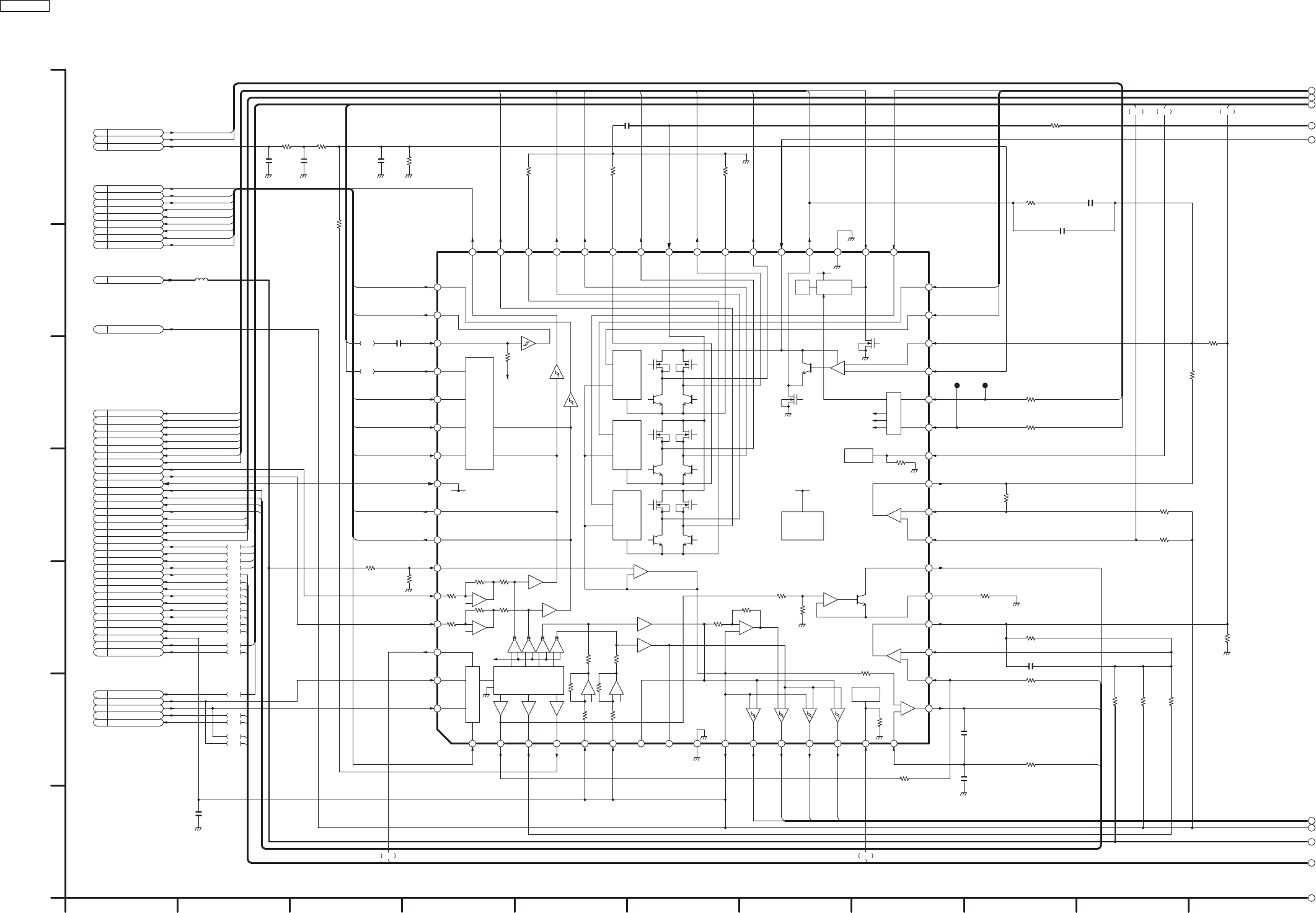

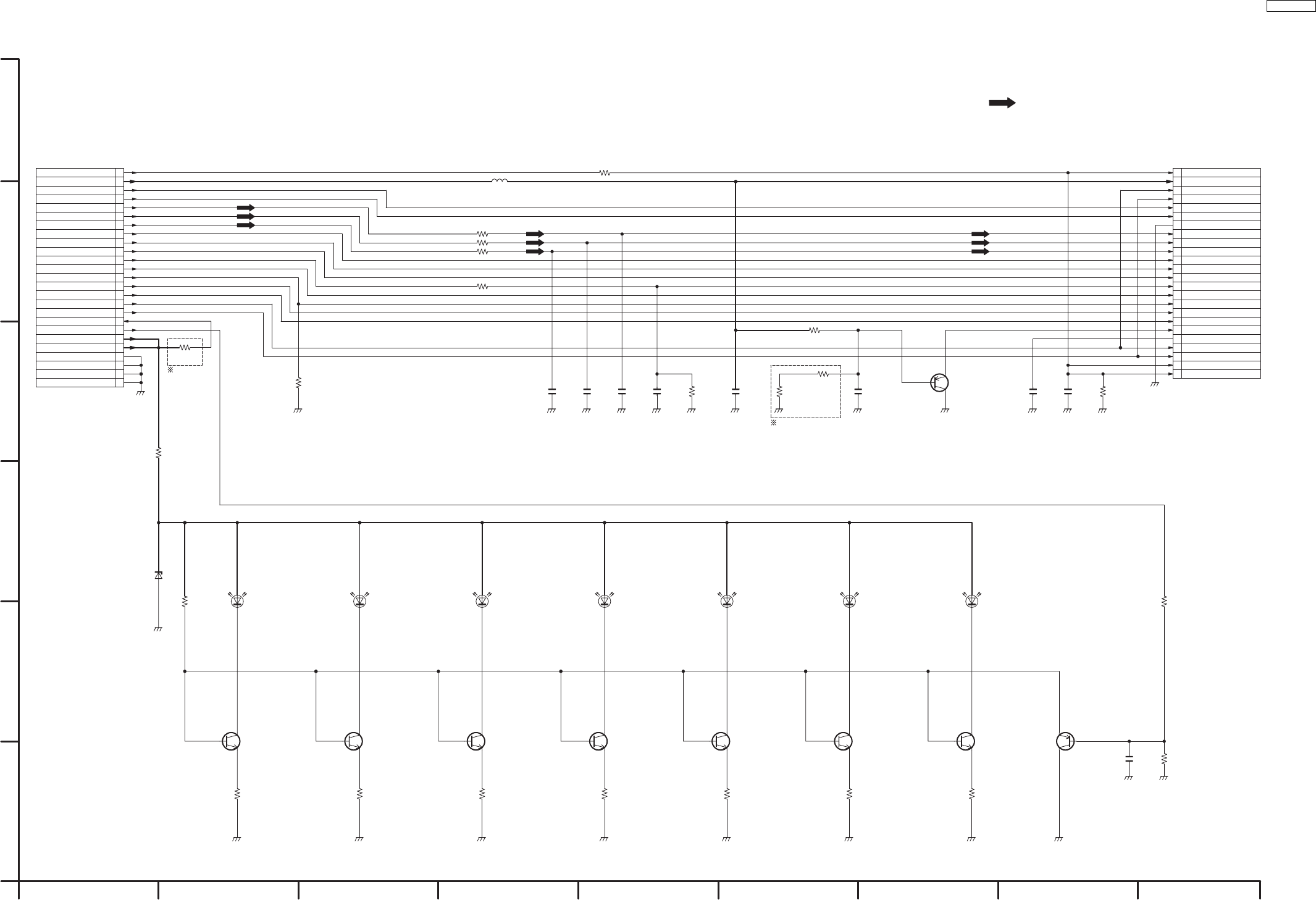

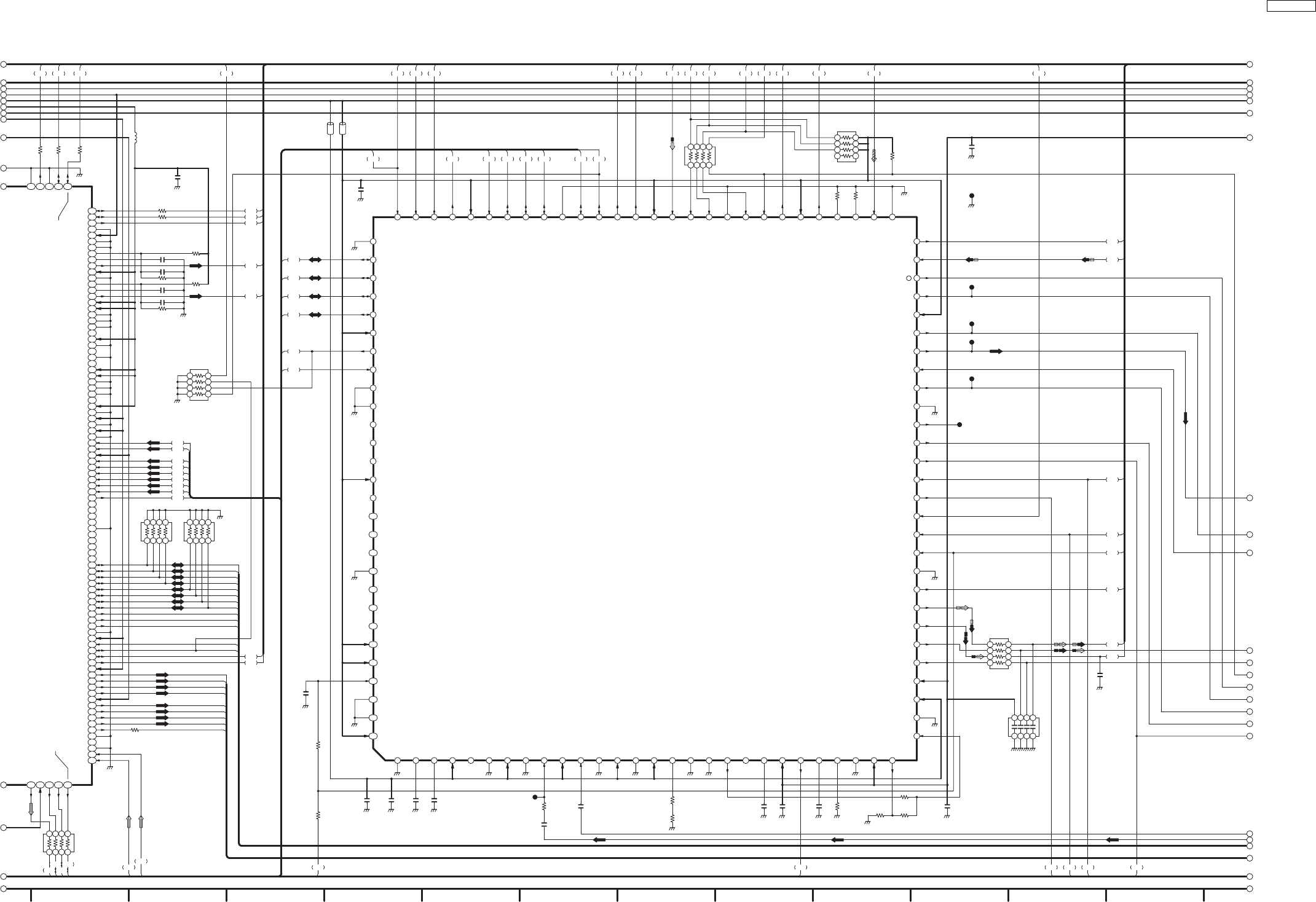

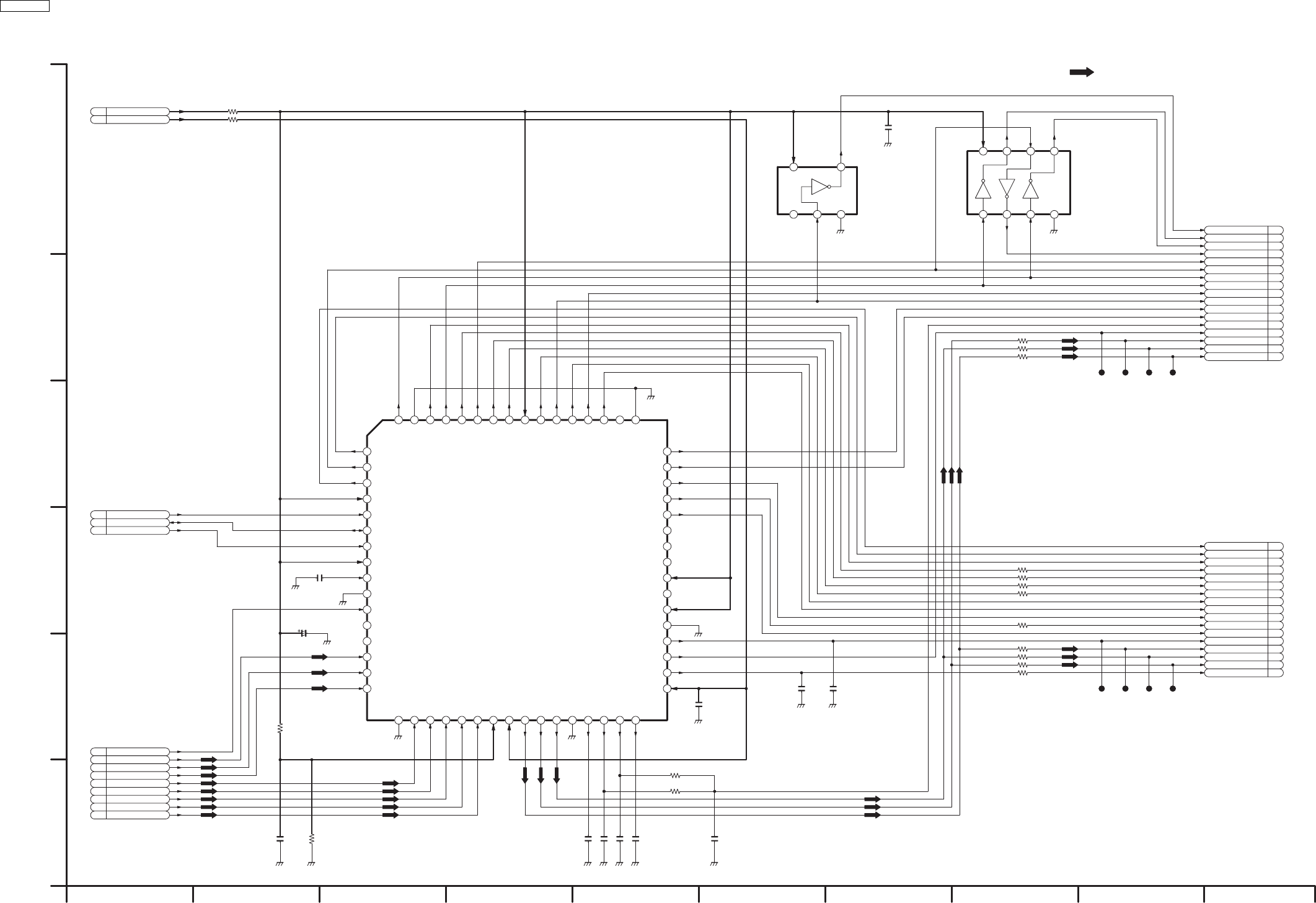

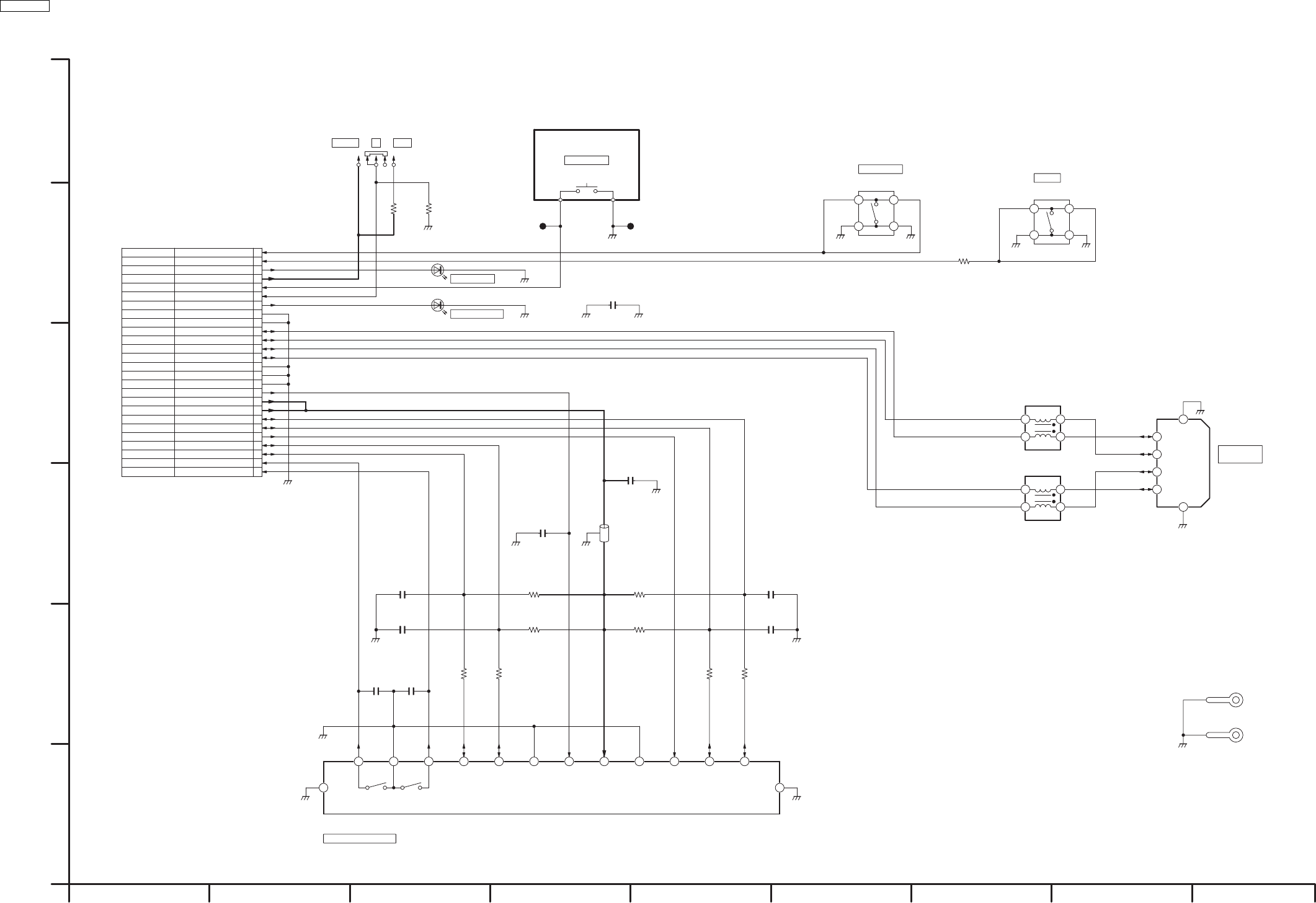

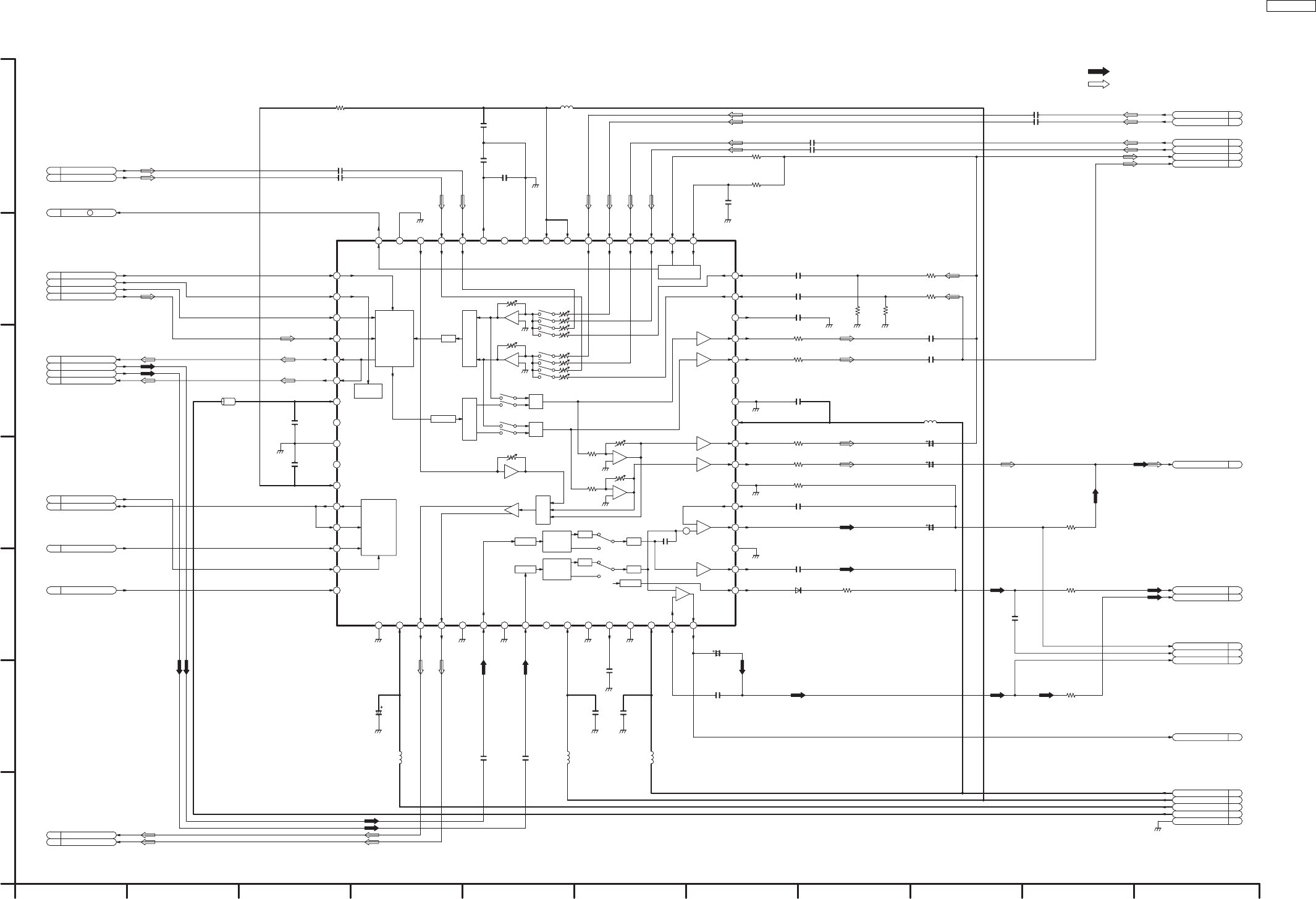

14 SCHEMATIC DIAGRAMS 59

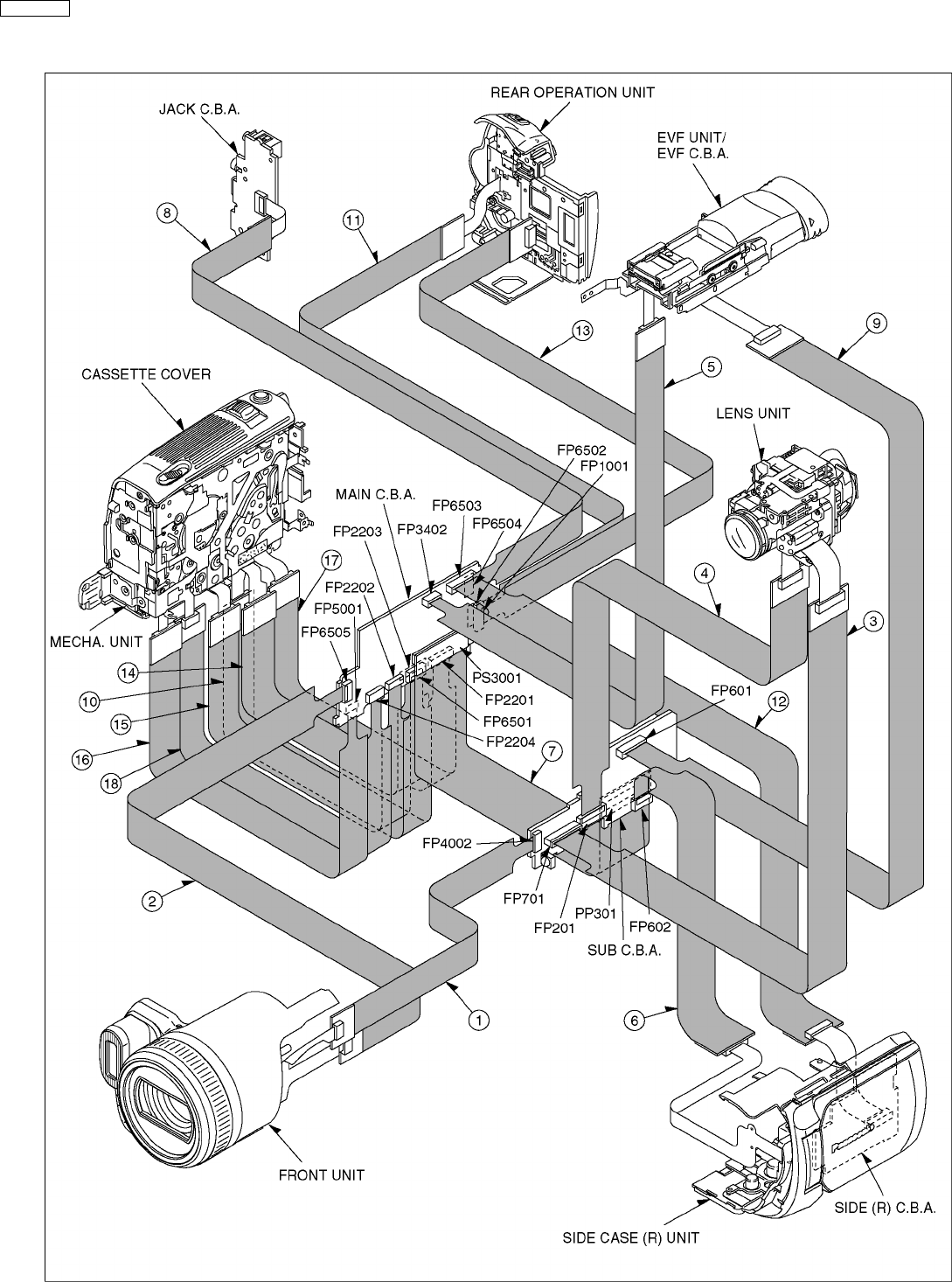

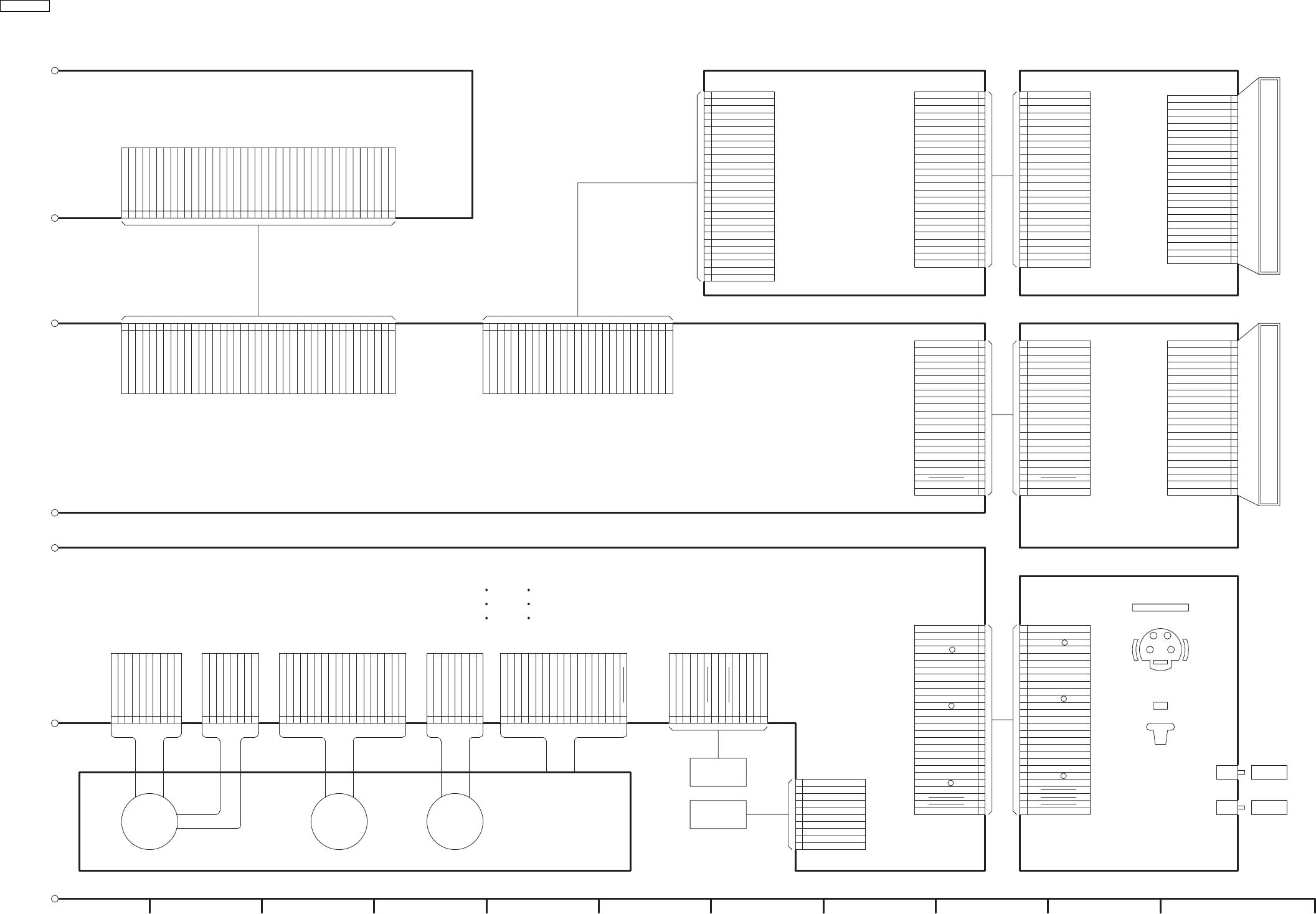

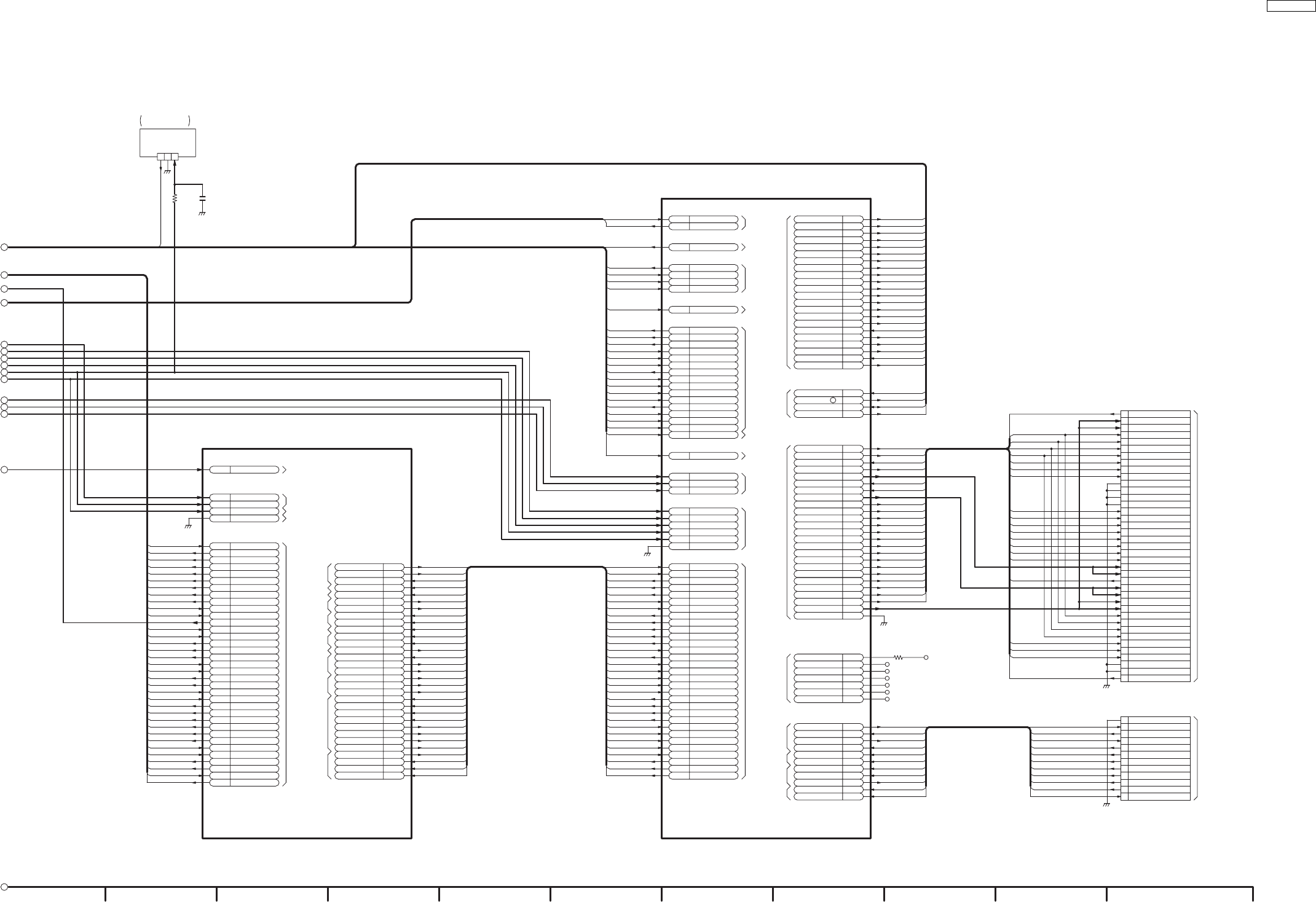

14.1. INTERCONNECTION SCHEMATIC DIAGRAM 59

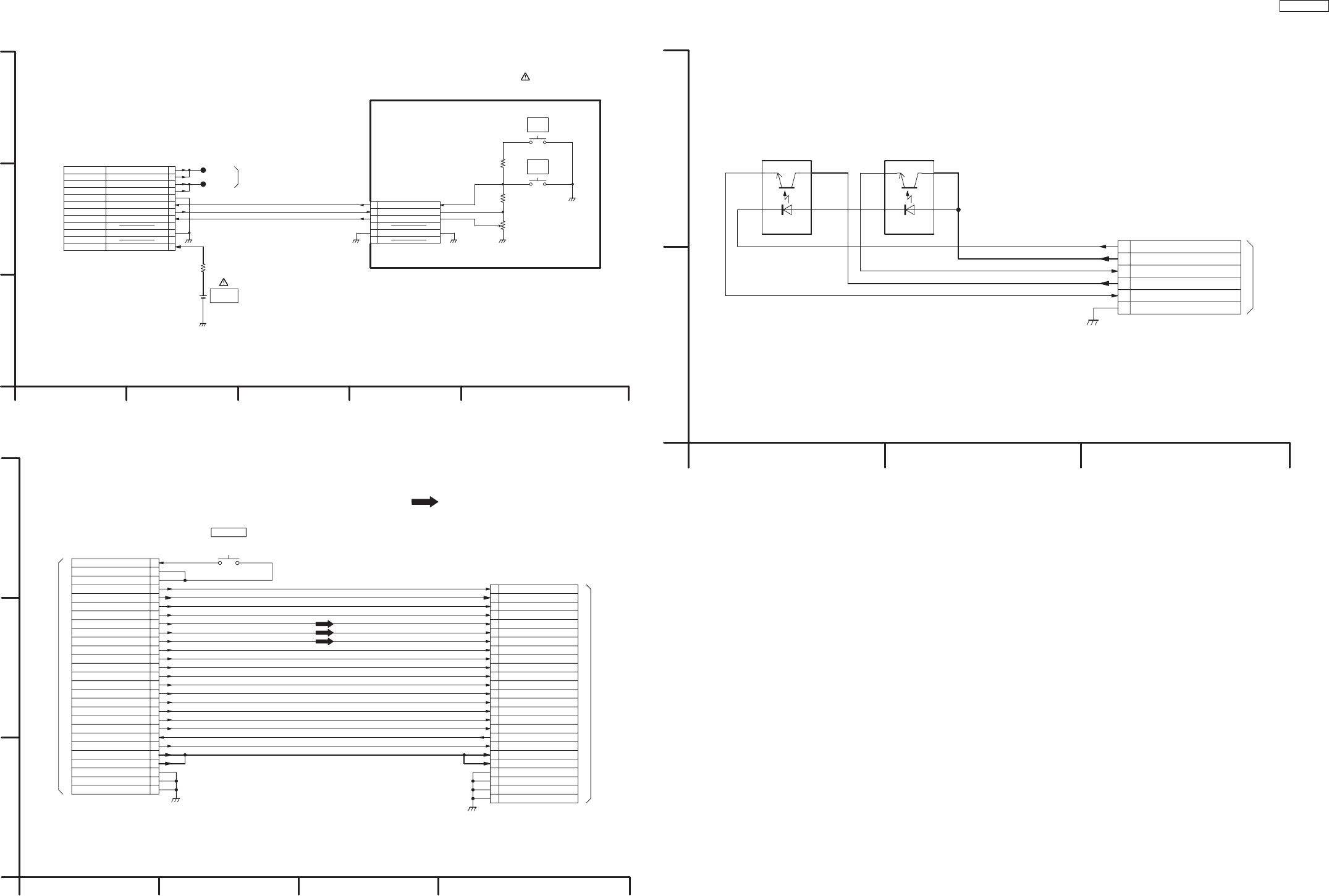

14.2. SIDE (L) FLEX. CARD / CASSETTE COVER

SCHEMATIC DIAGRAM 61

14.3. LCD HINGE (MONITOR FLEX.) SCHEMATIC DIAGRAM

14.4. MF SENSOR SCHEMATIC DIAGRAM 61

14.5. REAR OPERATION UNIT SCHEMATIC DIAGRAM 62

14.6. EVF SCHEMATIC DAIGRAM 62

14.7. CCD FLEX. CARD SCHEMATIC DIAGRAM 63

14.8. FRONT SCHEMATIC DIAGRAM 64

14.9. JACK SCHEMATIC DIAGRAM 65

14.10. SIDE (R) / LCD DET. SCHE MATIC DIAGRAM 66

14.11. MONITOR SCHEMATIC DIAGR AM 67

14.12. SUB (SUB CONN ECTION) SCHEMATIC DIAGRAM 68

14.13. SUB (LCD) SCHEMATI C DIA GRAM 70

14.14. SUB (SUB POW ER) SCHEMAT IC DIAG RAM 71

14.15. SUB (LENS DRIVE ) SCHE MATIC DIAG RAM 72

14.16. SUB (CAME RA) SCHE MATIC DIAGRAM 74

14.17. MAIN (MAIN CONNECTIO N) SCHE MATIC DIAGR AM 80

14.18. MAIN (AVIO ) SCHEMAT IC DIAGR AM 83

14.19. MAIN (EX INPUT ) SCHE MATIC DIAGR AM 84

14.20. MAIN (VIDEO) SCHE MATIC DIAGRAM 86

14.21. MAIN (POW ER) SCHE MATIC DIAGRAM 90

14.22. MAIN (CONTROL) SCHEMATIC DIAGRAM 92

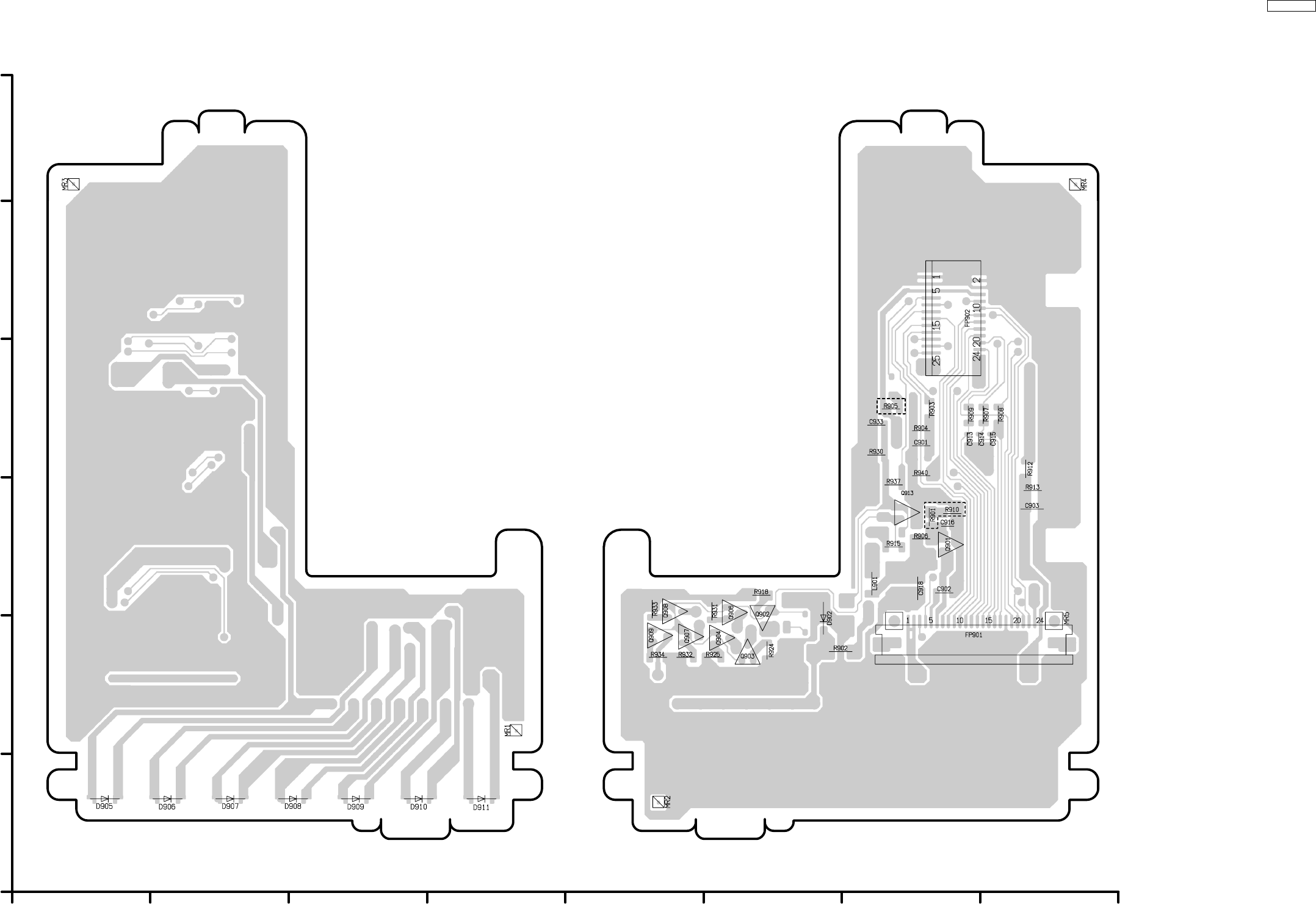

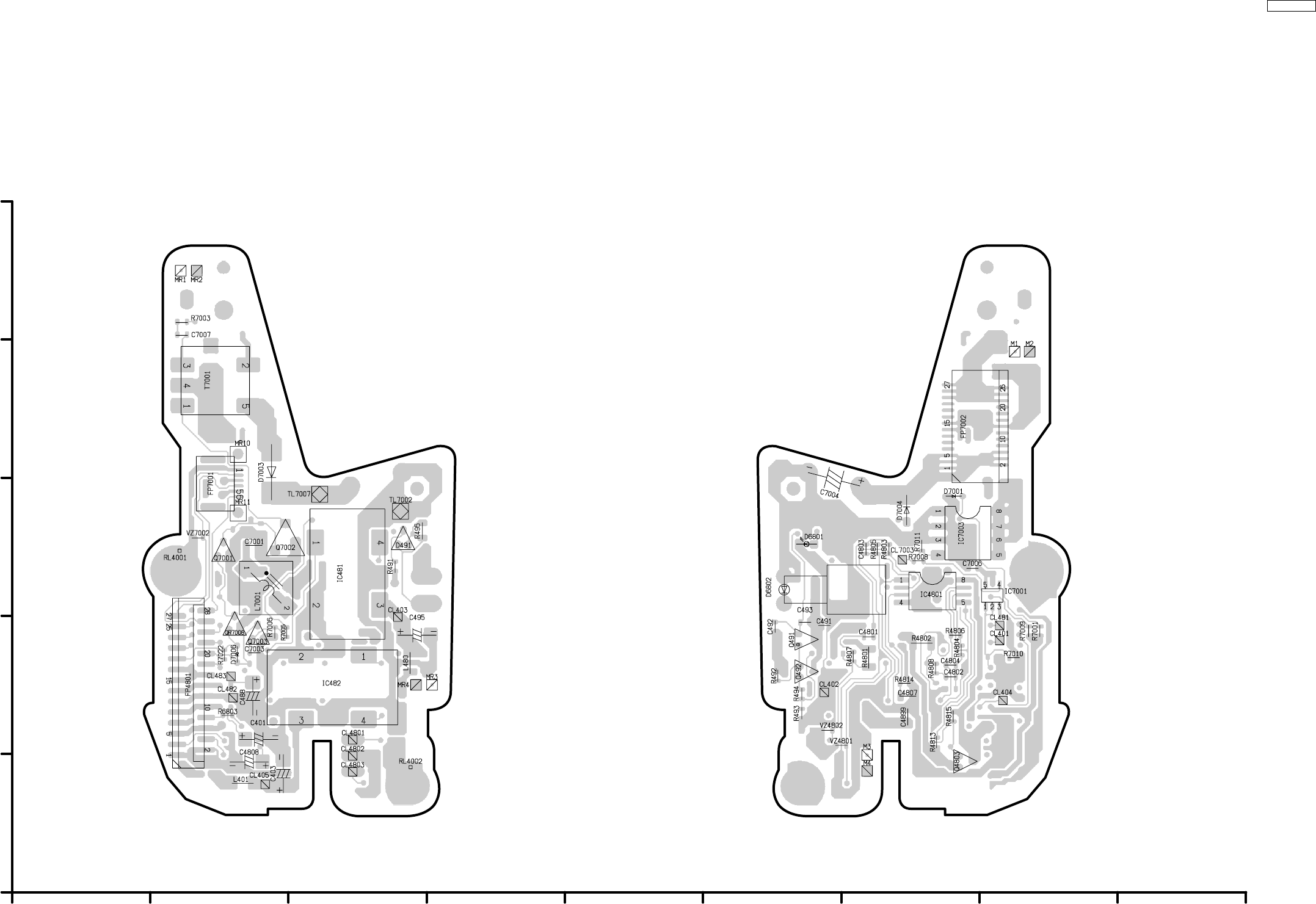

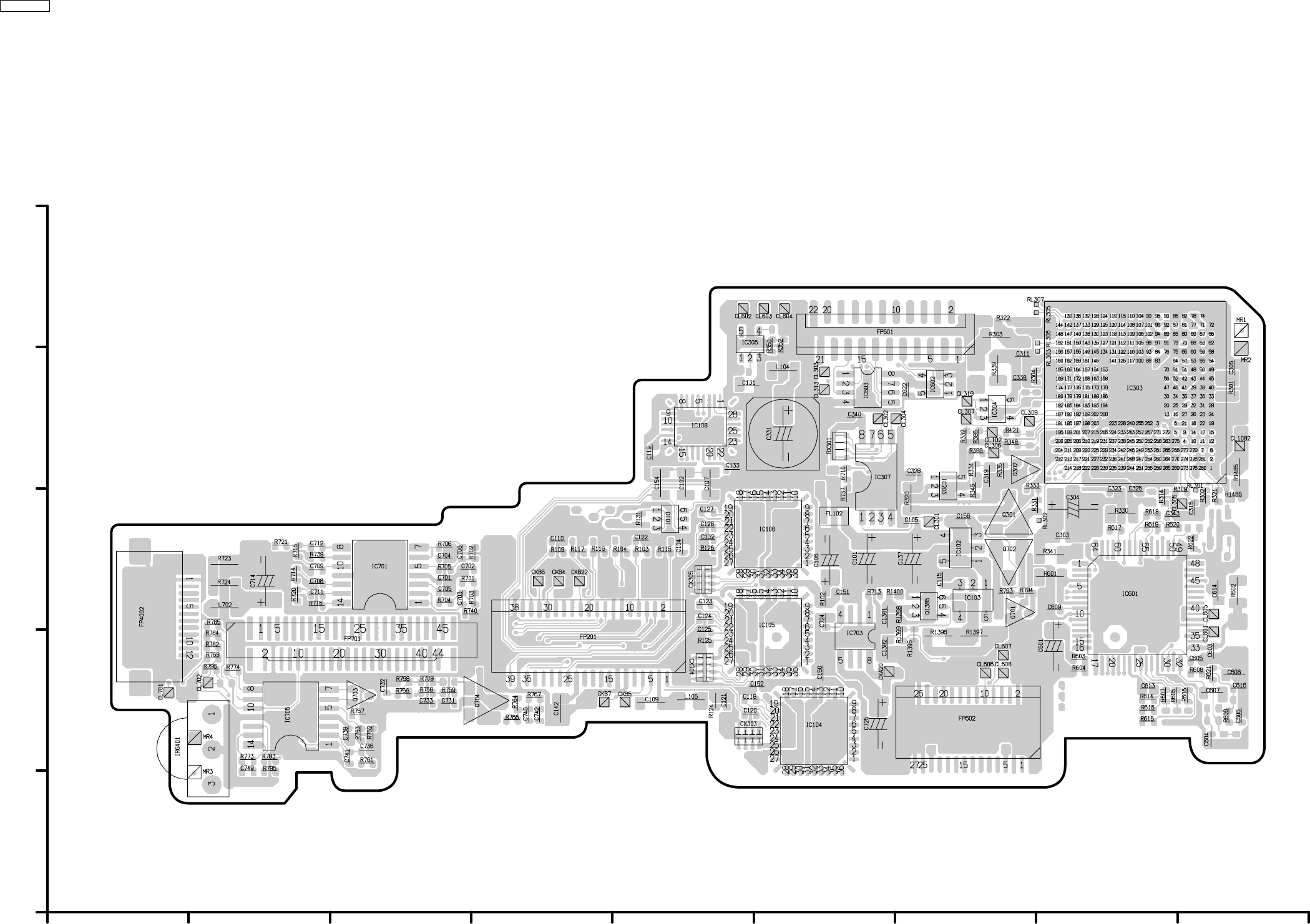

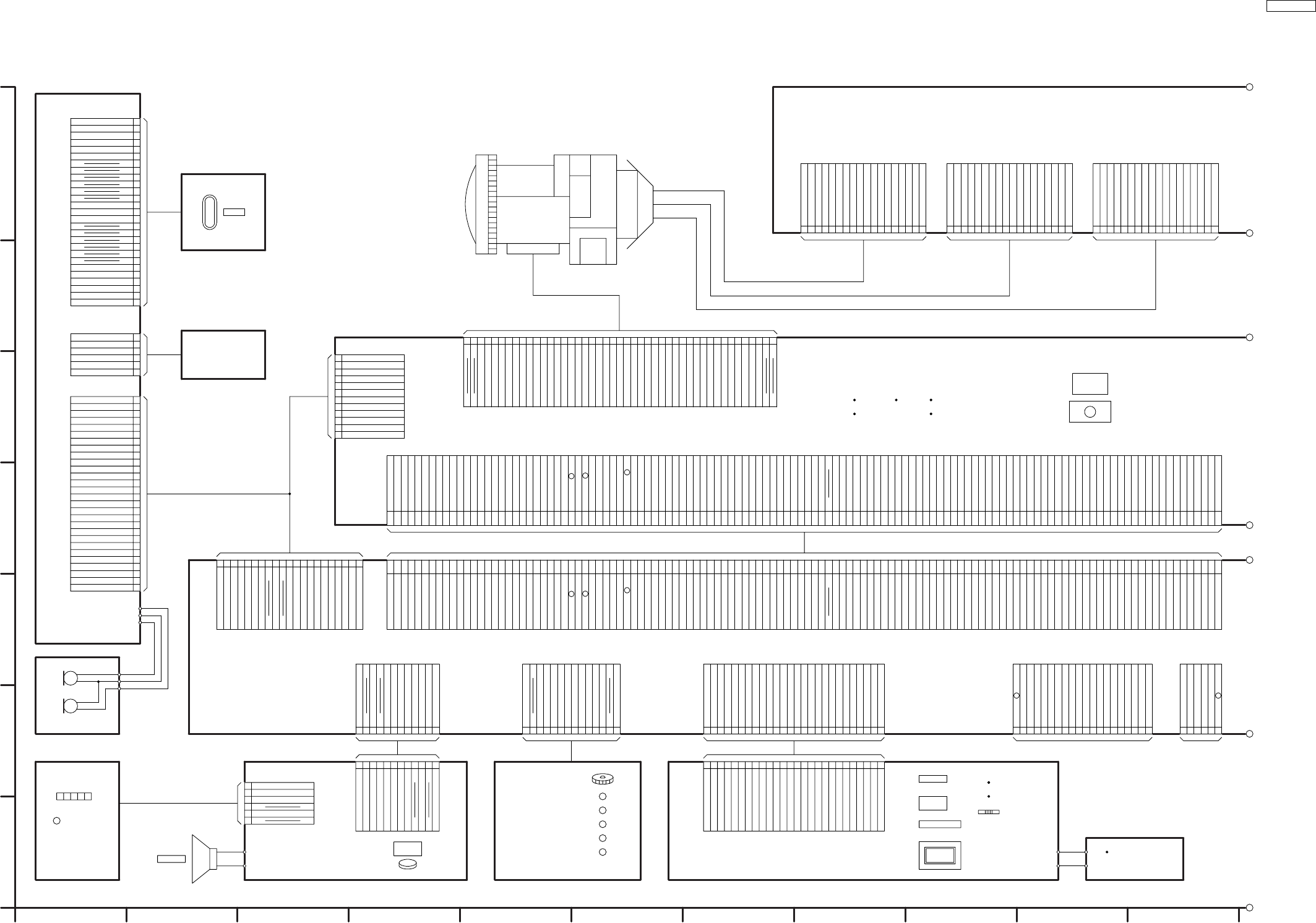

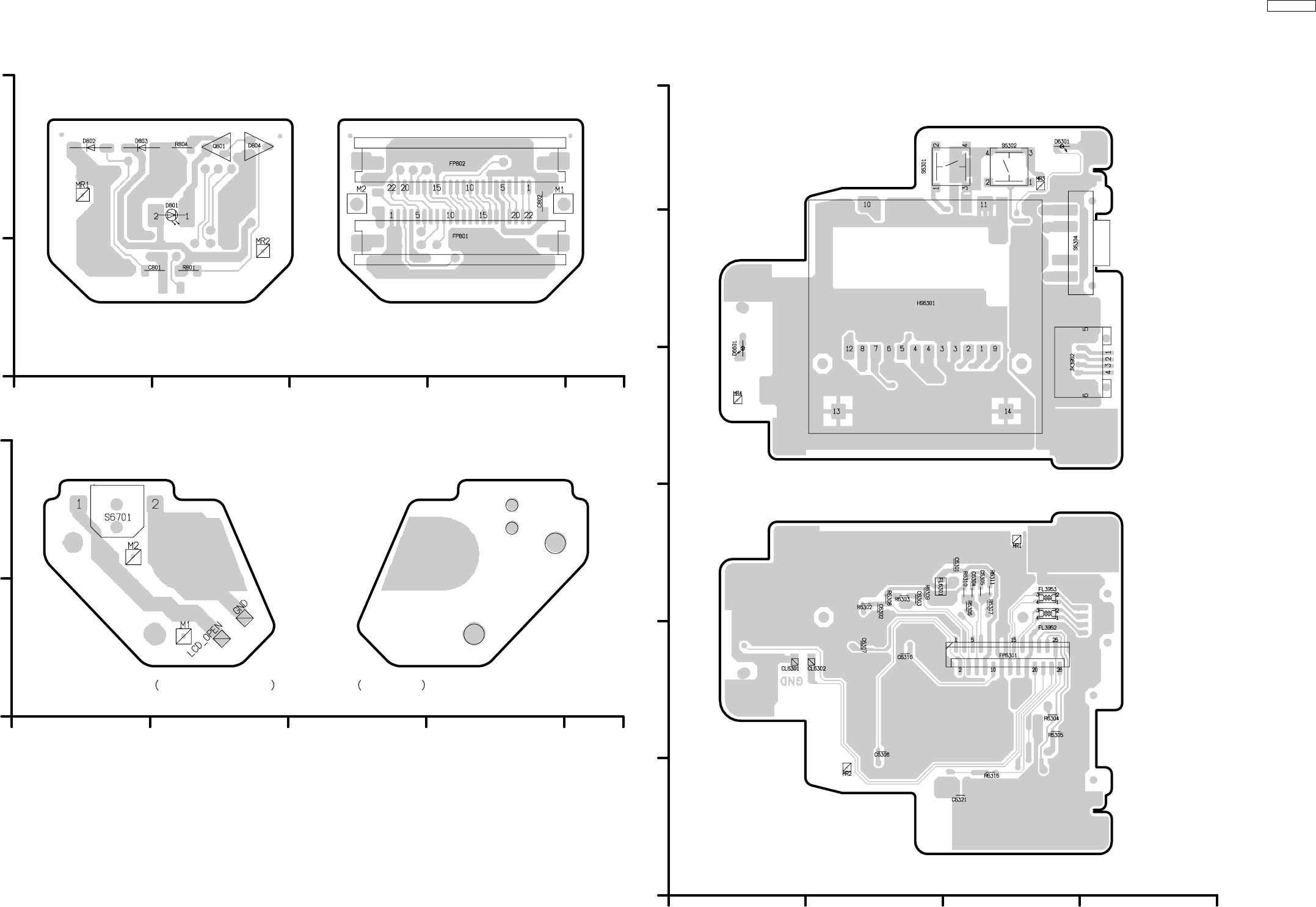

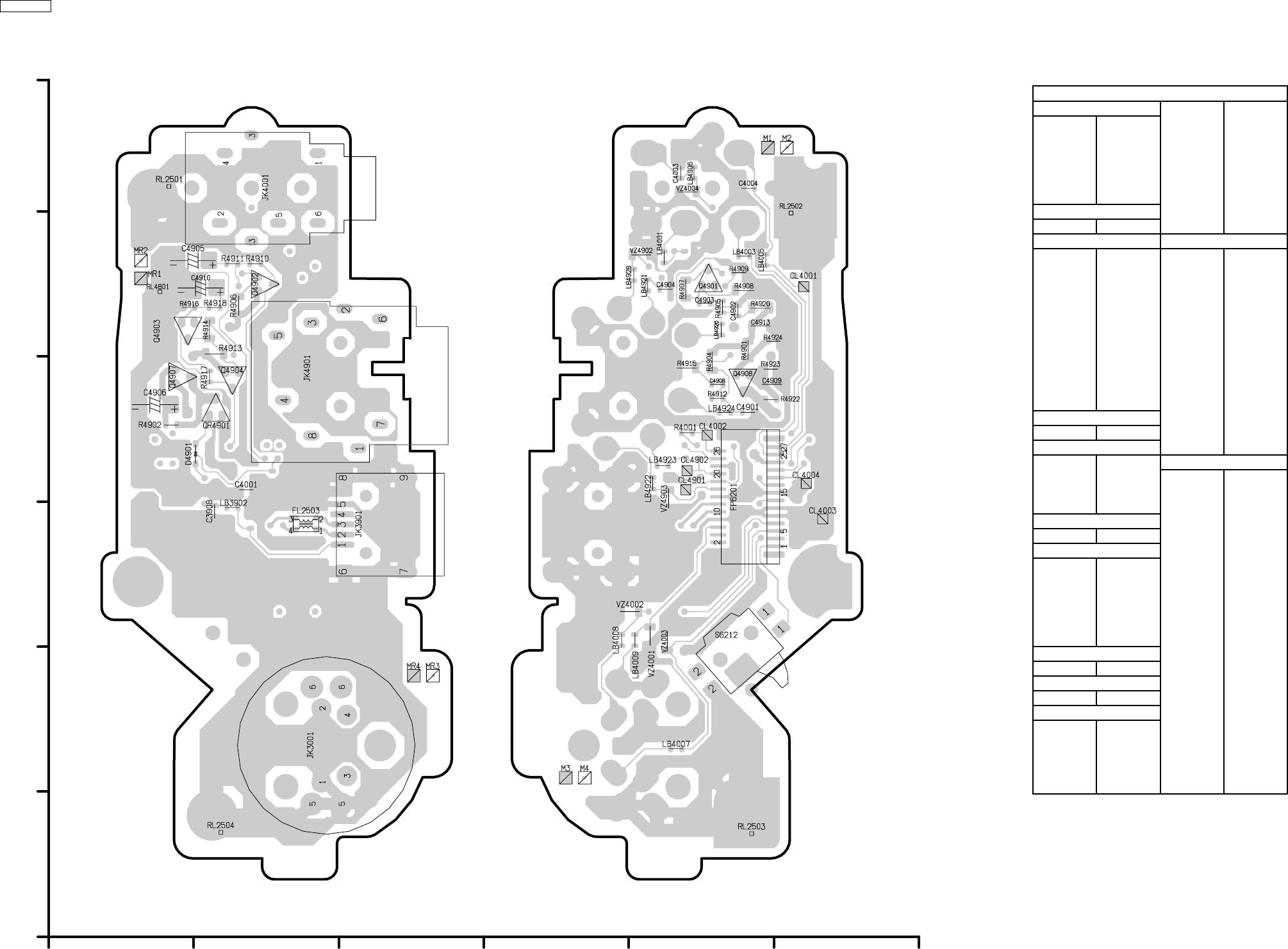

15 CIRCUIT BOARD ASSEMBLIES 97

15.1. EVF C.B.A. 97

15.2. LCD DET C.B.A. 97

15.3. SIDE (R) C.B.A. 97

15.4. CCD FLEX. CARD C.B.A. 98

15.5. FRONT C.B.A. 99

15.6. JACK C.B.A. 100

15.7. MONITOR C.B.A. 101

15.8. SUB C.B.A. (COMPONENT SIDE) 102

15.9. SUB C.B.A. (FOIL SIDE) 103

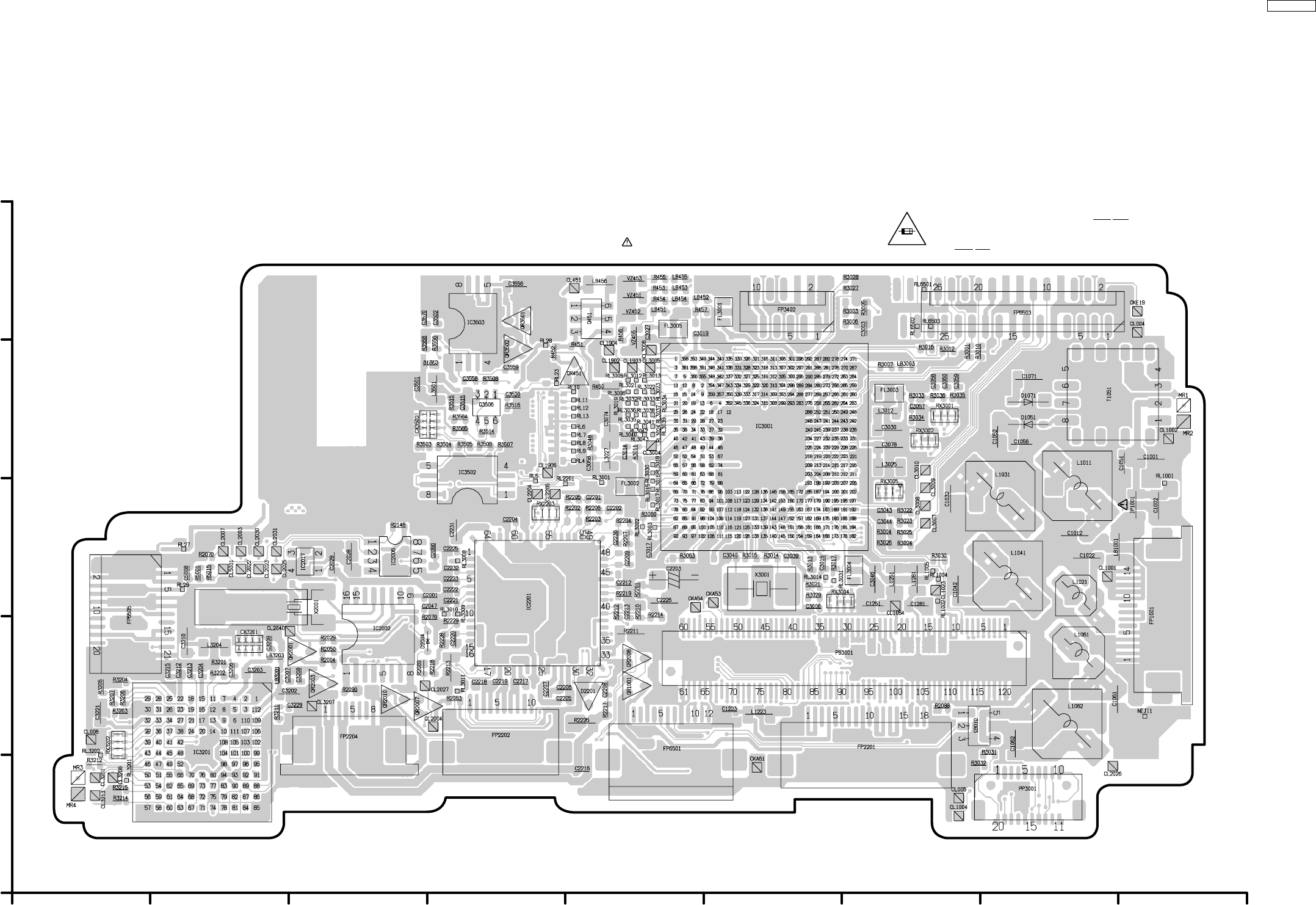

15.10. MAIN C.B.A. (COMPO NENT SIDE) 105

15.11. MAIN C.B.A. (FOIL SIDE) 106

16 CHECKING POINT OF THE CSP IC 109

16.1. CHECKING POINT TABLE 109

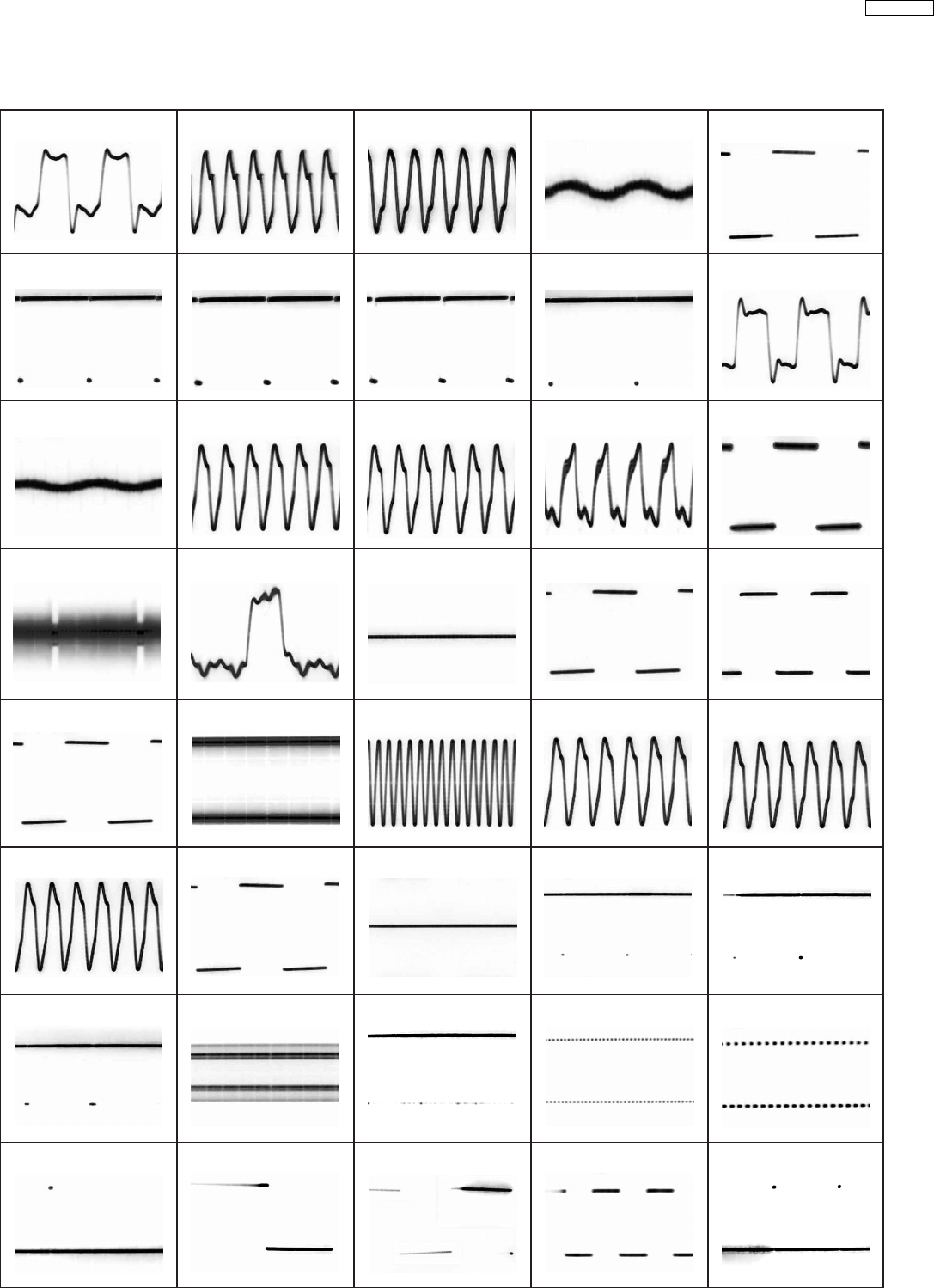

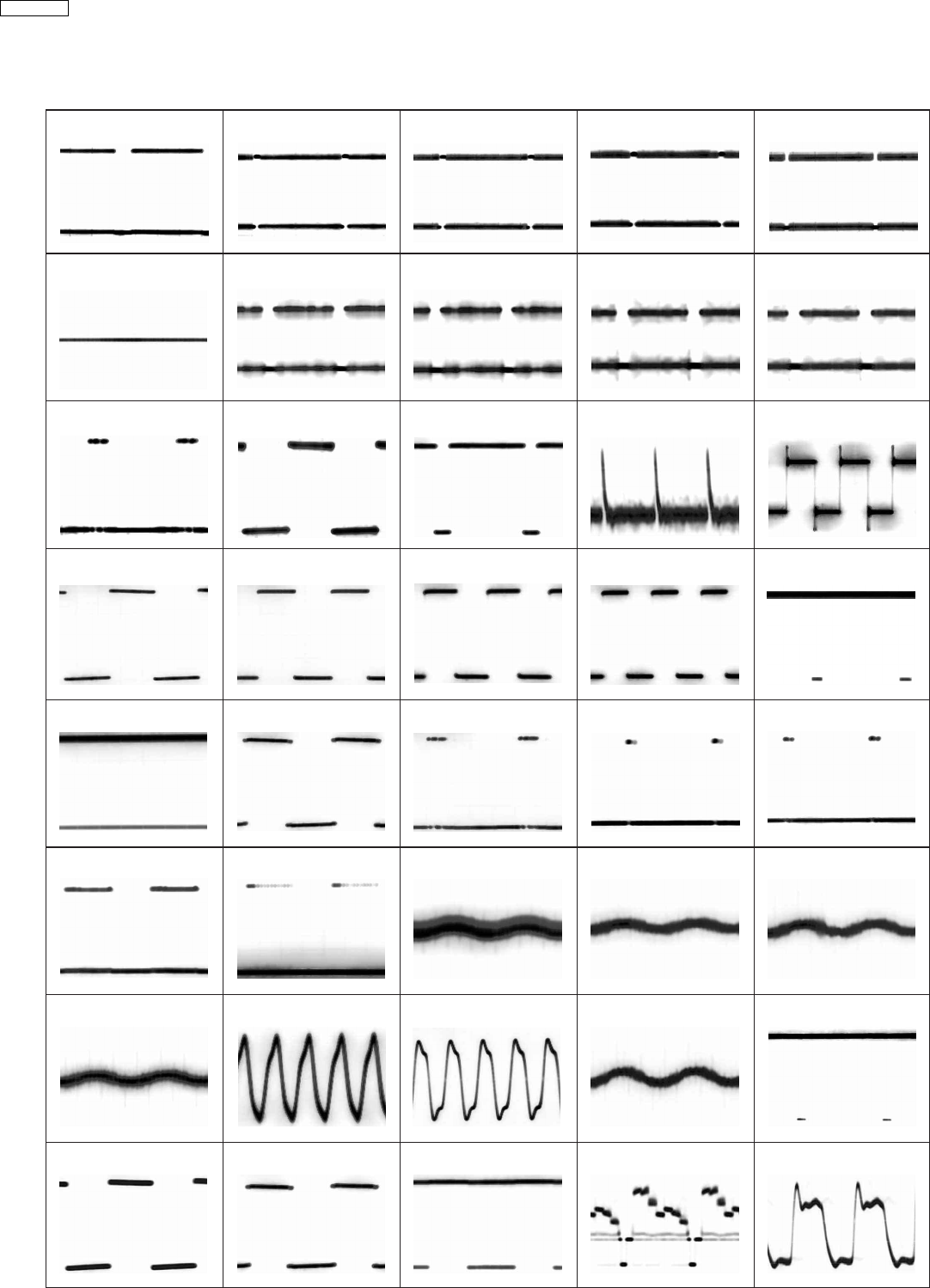

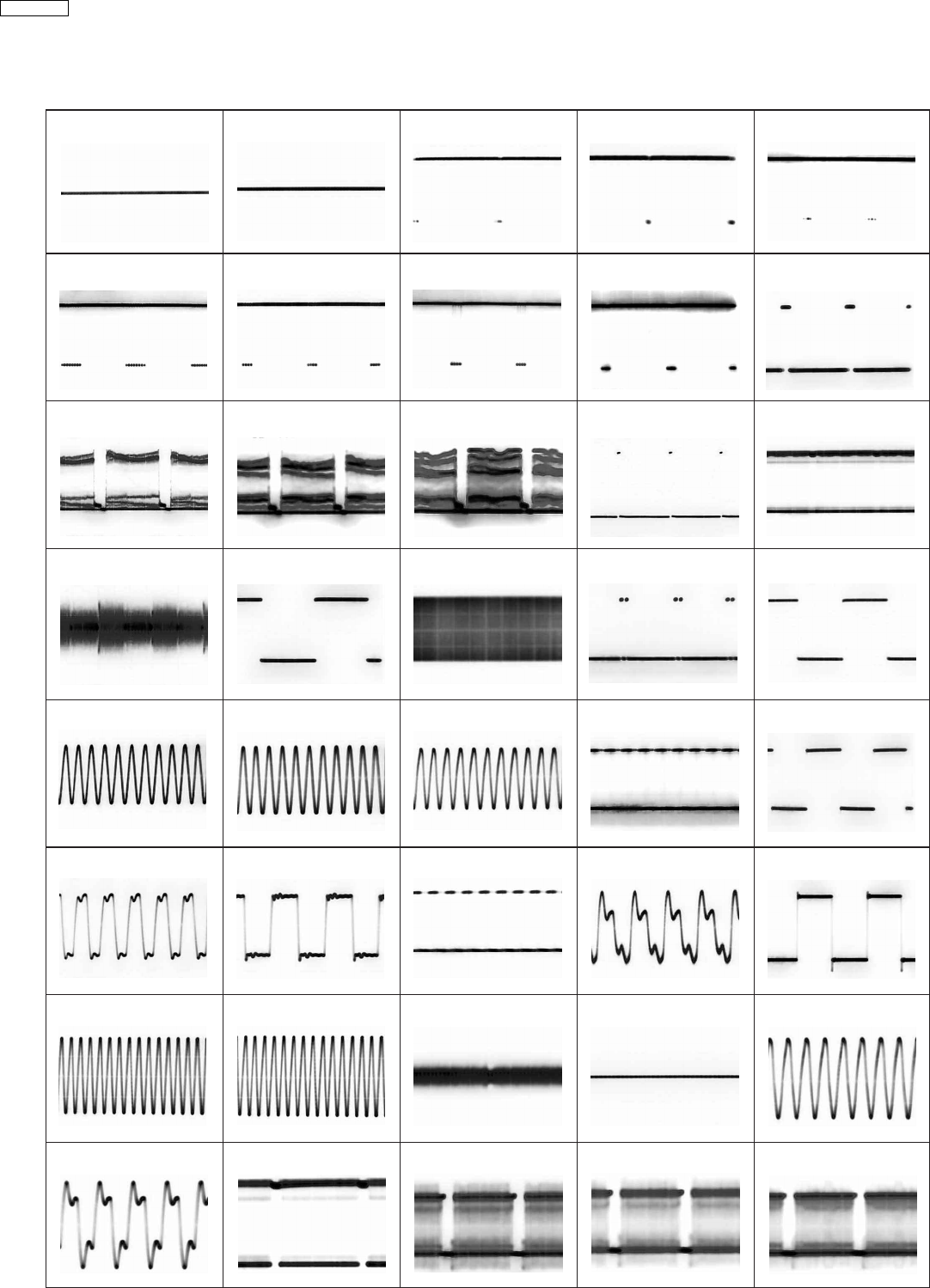

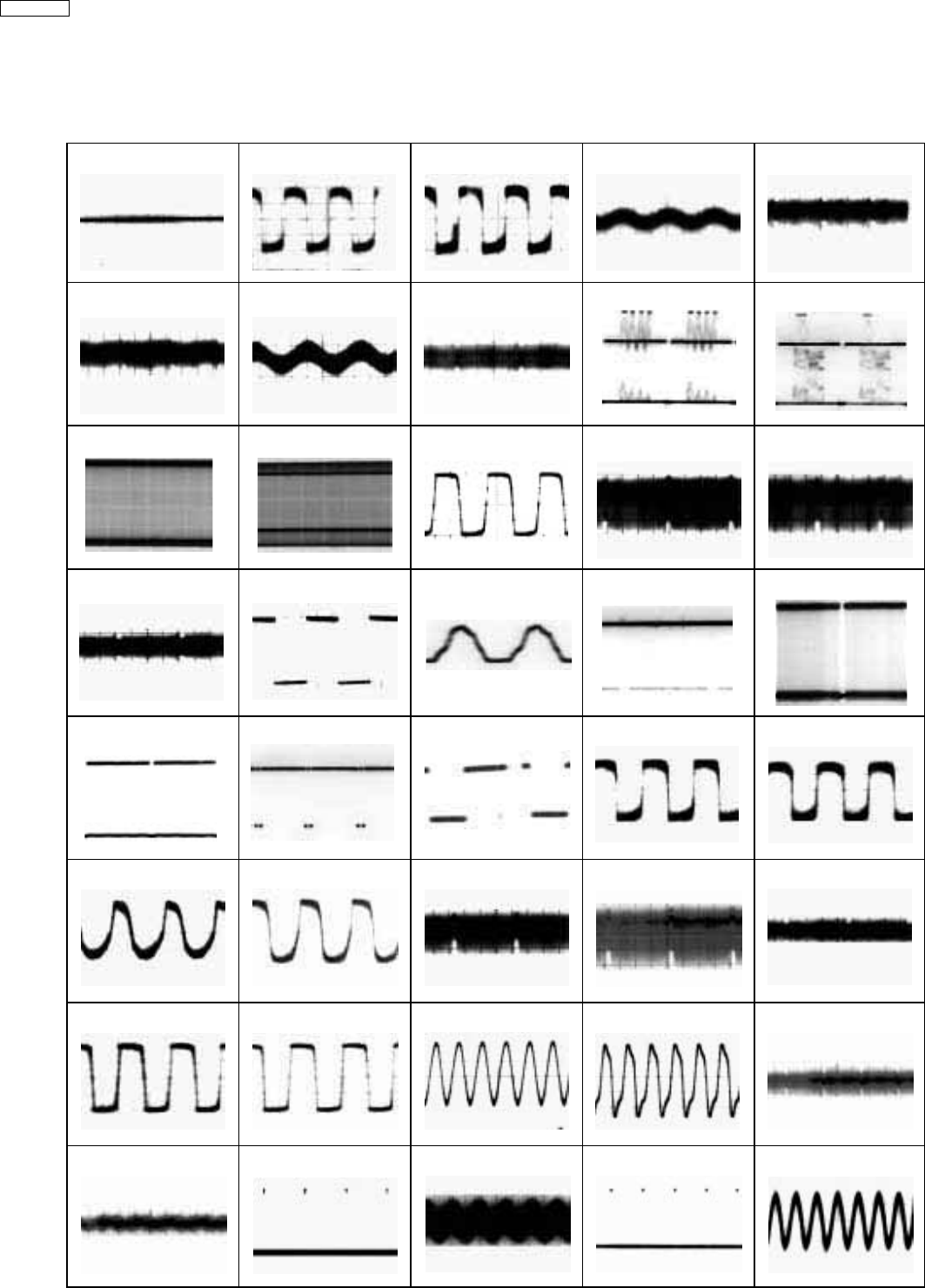

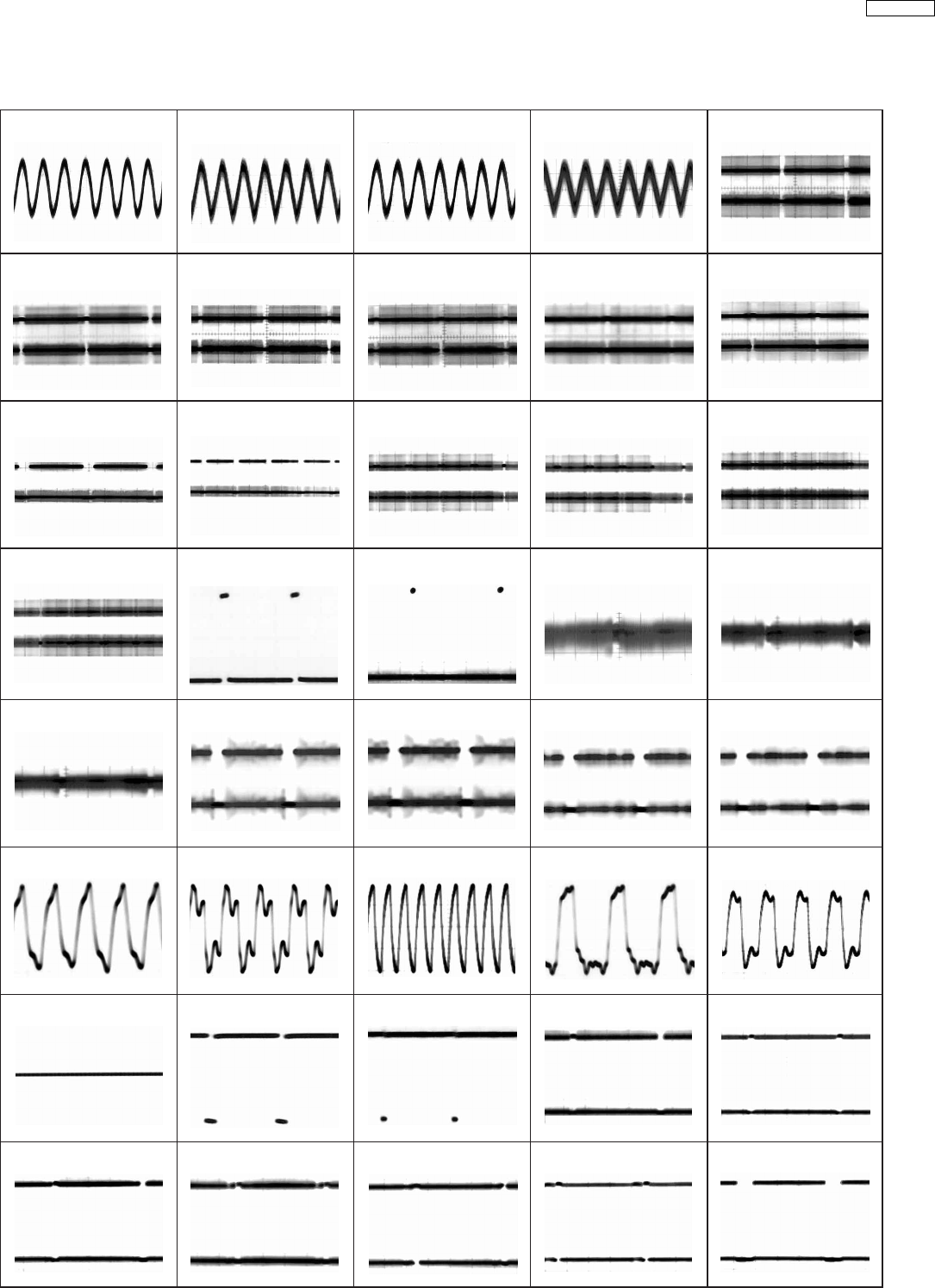

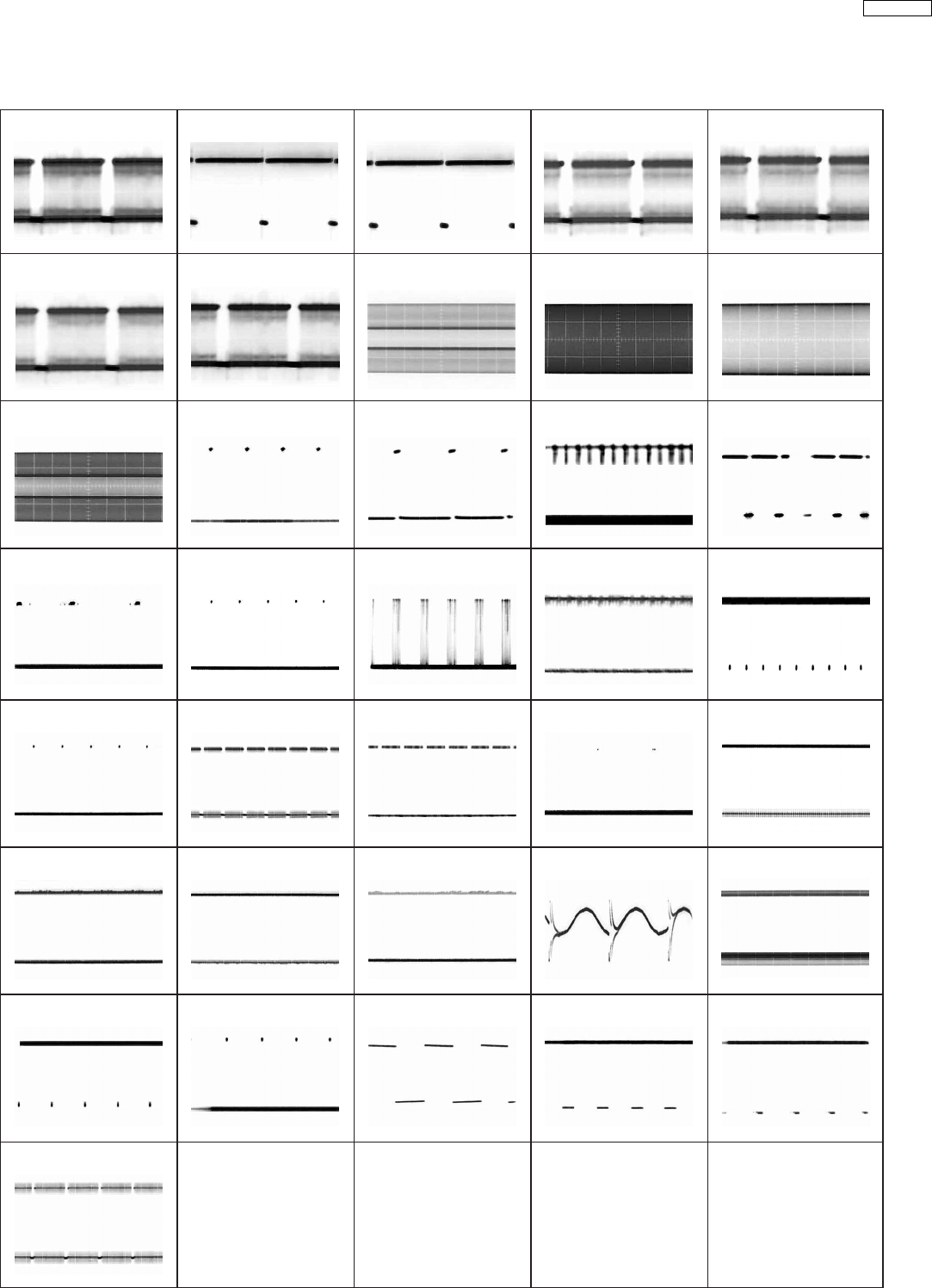

16.2. WAVEFORM TABLE (PLAY MODE) 124

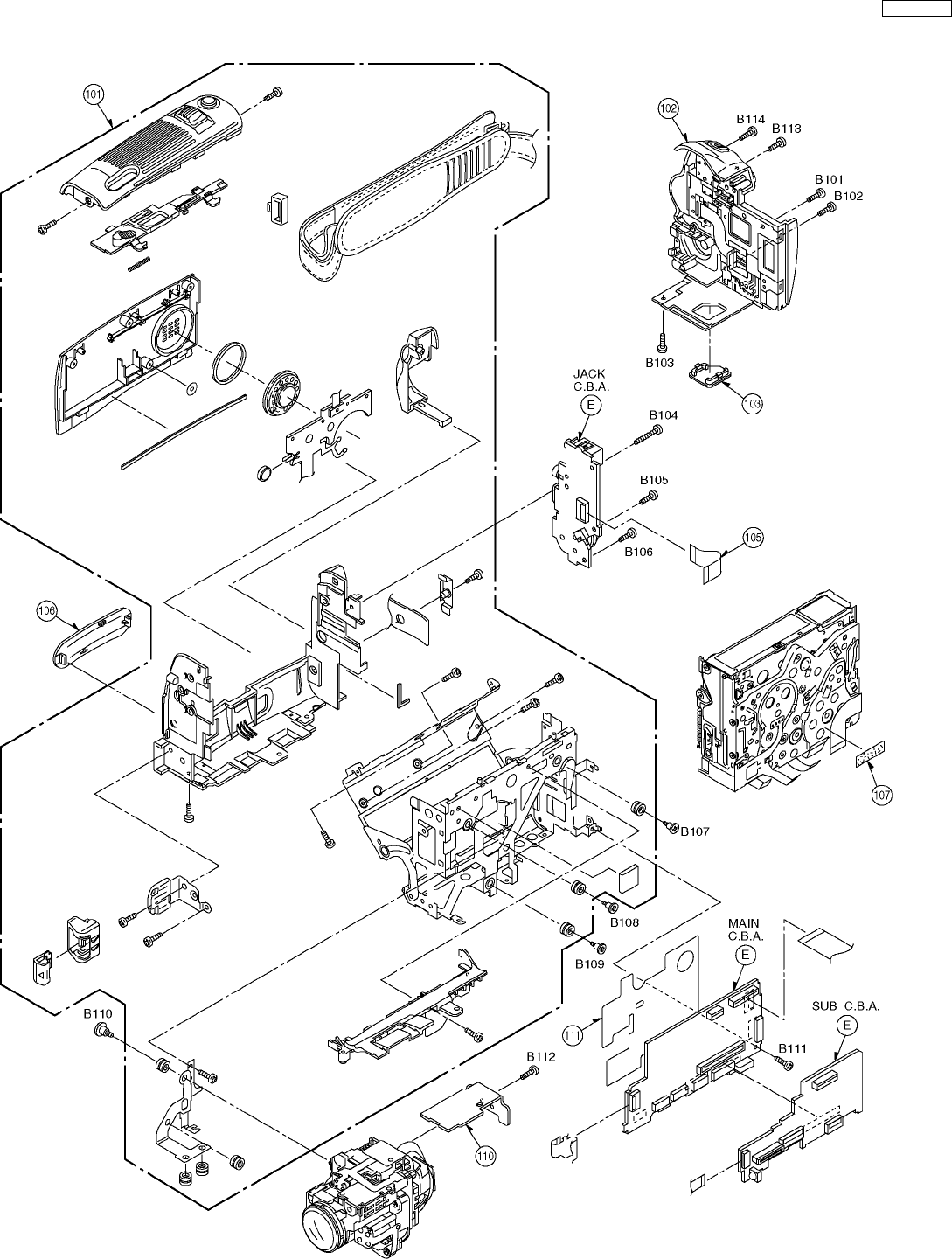

17 EXPLODED VIEWS 130

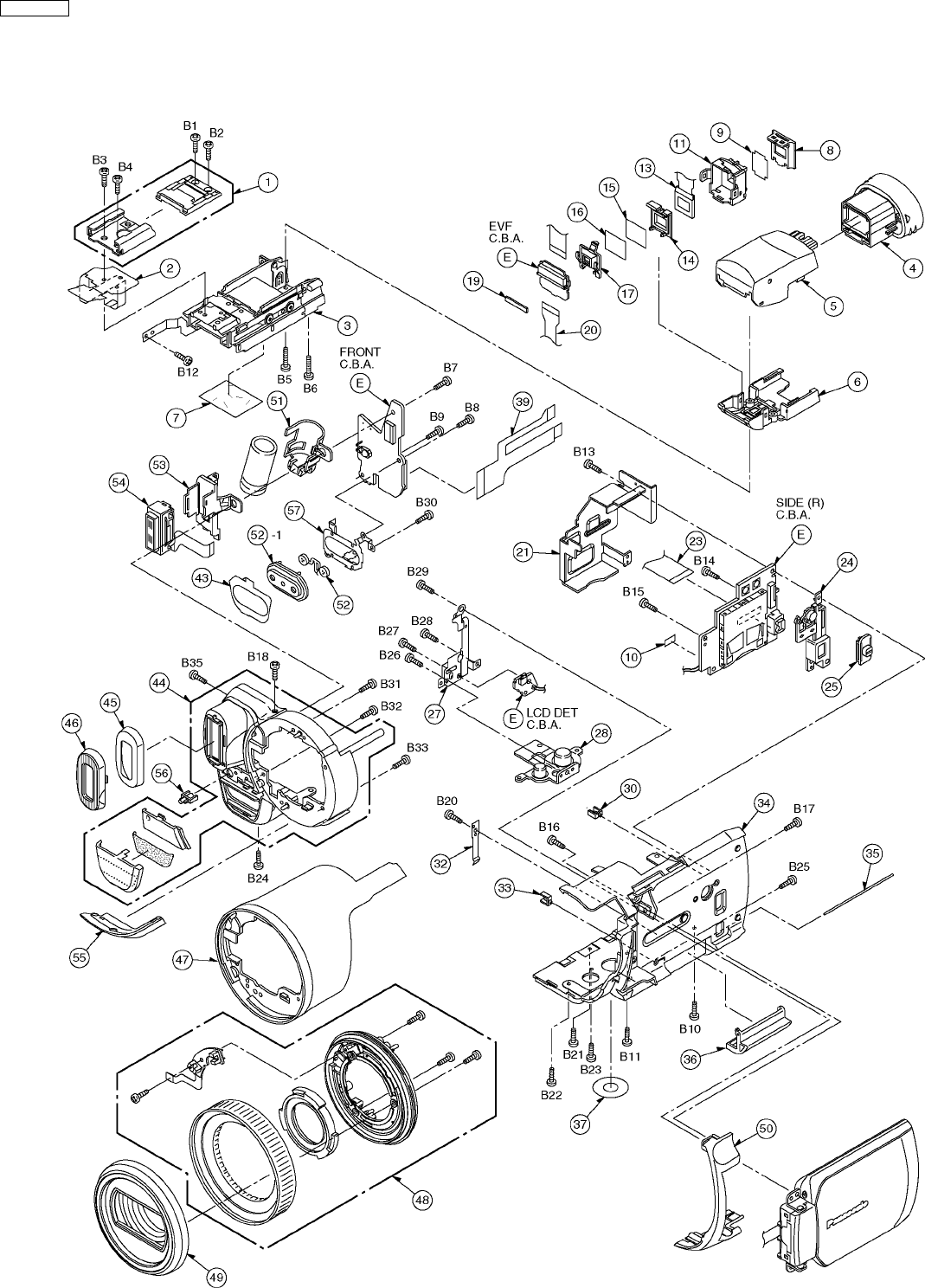

17.1. FRAME & CASING SECTION (1) 130

17.2. FRAME & CASING SECTION (2) 131

17.3. LCD SECTION 132

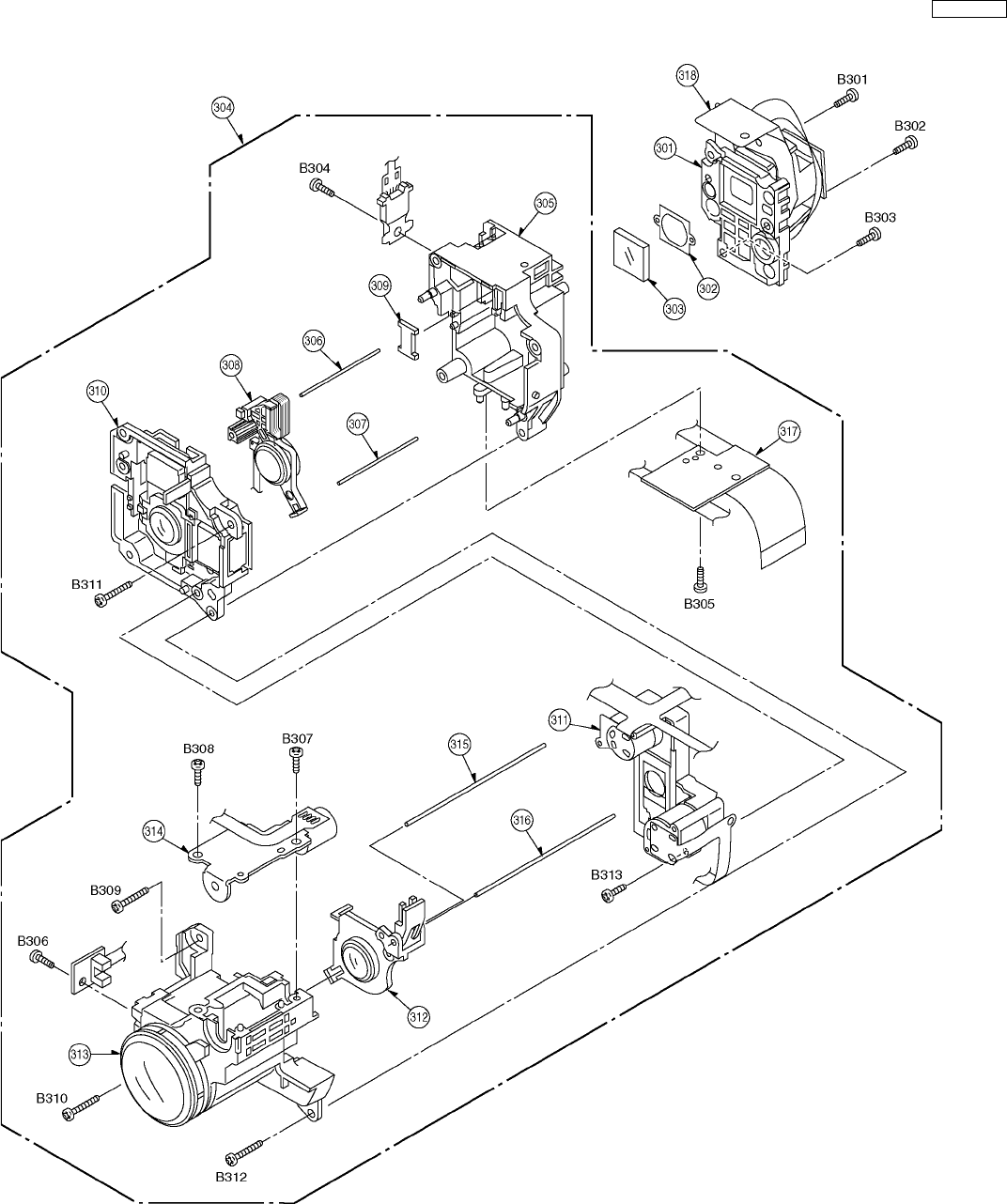

17.4. CAMERA LENS SECTION 133

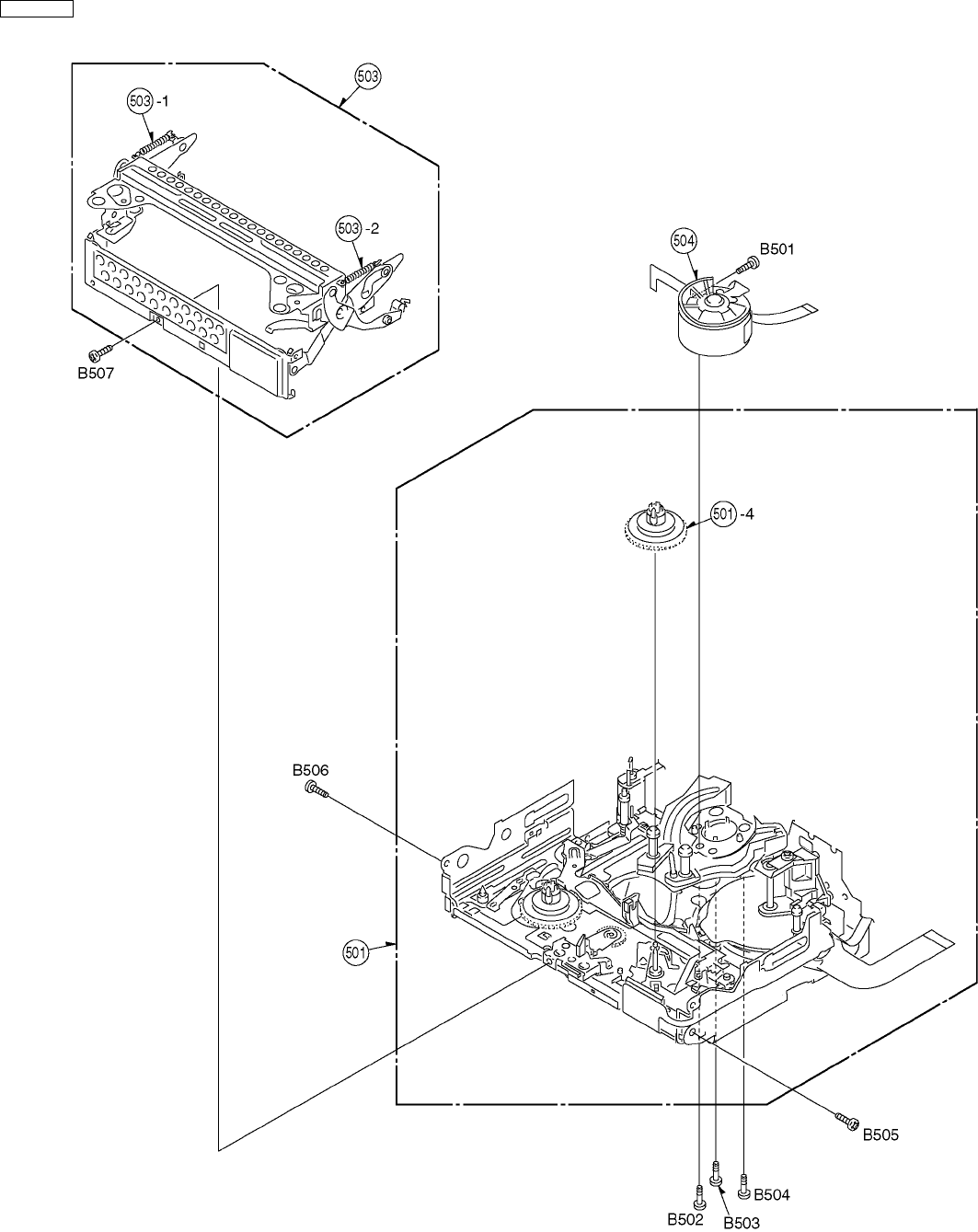

17.5. VCR MECHANISM SECTION 134

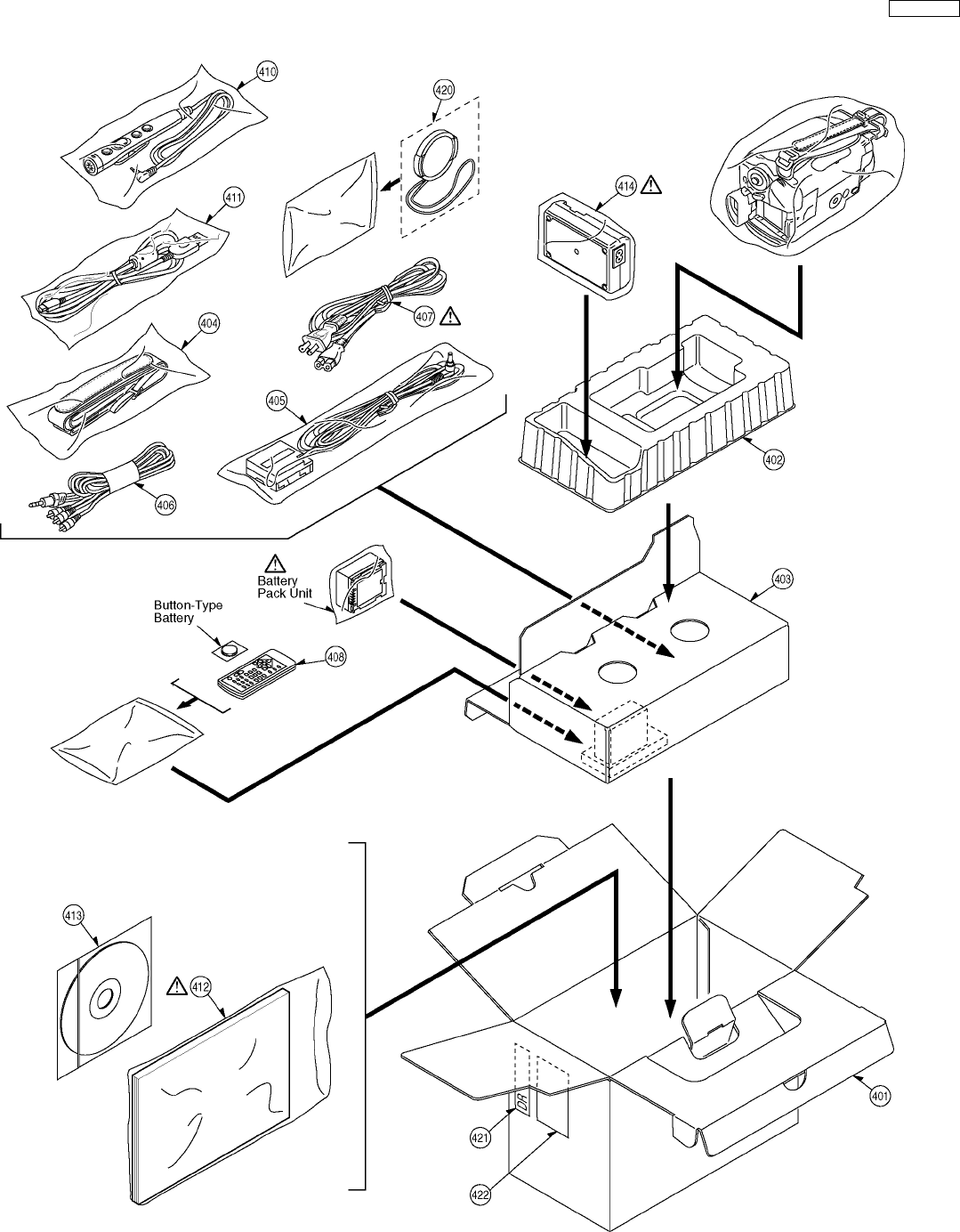

17.6. PACKING PARTS & ACCESSORIES SECTION 135

18 REPLACEMENT PARTS LIST 136

18.1. FRAME & CASING SECTION (1) PARTS LIST 136

18.2. FRAME & CASING SECTION (2) PARTS LIST 136

18.3. LCD SECTION PARTS LIST 136

18.4. CAMERA LENS SECTION PARTS LIST 137

18.5. VCR MECHANISM SECTION PARTS LIST 137

18.6. PACKING PARTS & ACCESSORIES SECTION PARTS

LIST 137

18.7. ELECTRICAL REPLACEMENT PARTS LIST 138

PV-GS250PP

1 SERVICE INFORMATION

1.1. Service Information Regarding IC2001 of PV-GS250PP

1.1.1. Overview

DVC model PV-GS250PP will be manufactured 2 distinctly different IC2001.

These 2 version of IC2001 will be referred to as IC type “FLASH” and “MASK”.

Supply of the replacement part asks to cause with only “MASK TYPE”.

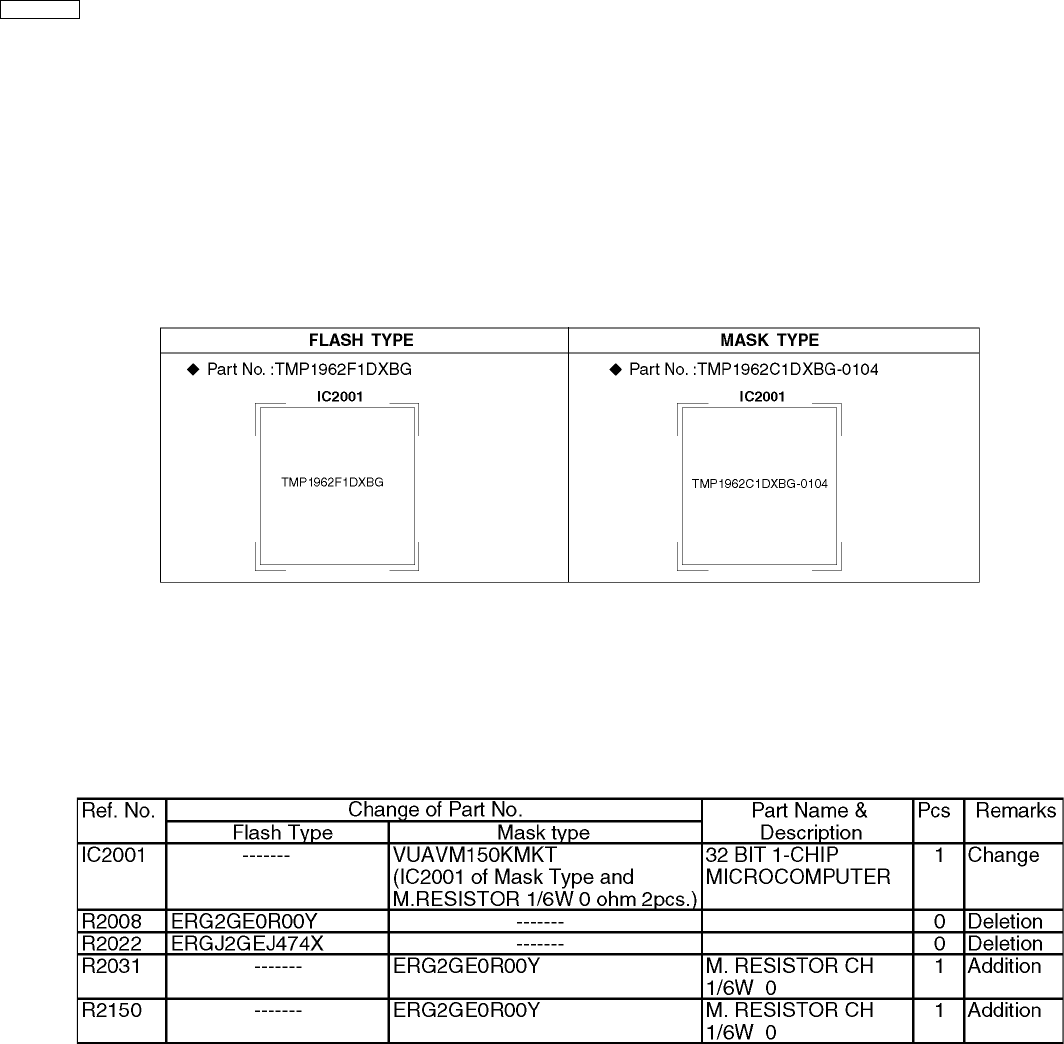

1.1.2. How to Distinguish the Types of IC2001

1.1.3. Attention for exchanges the IC2001

There are not the exchangeability between the “FLASH TYPE” and “MASK TYPE” of IC2001.

Do the addition (R2031and R2150) and also deletion (R2008 and R2022) of the following part simultaneously, when exchange

to the “MASK TYPE” from the “FLASH TYPE” of IC2001.

It exchange only IC, in the case that IC2001 is “MASK TYPE”. (The exchange of the chip resistor is not necessary.)

PV-GS250PP

1.2. Service Information Regarding Simultaneous Exchange of MONITOR

C.B.A. and LCD PANEL UNIT of PV-GS250PP

1.2.1. Overview

DVC model PV-GS250PP will be manufactured 4 distinctly different MONITOR C.B.A. and 2 distinctly different LCD PANEL

UNIT.

These 4 version of MONITOR C.B.A. will be referred to as C.B.A. type “A”, “B”, “C” and “D”.

These 2 version of LCD PANEL UNIT will be referred to as UNIT type “A” and “B”.

There are not the exchangeability between the “A”, “B”, “C” and “D” of MONITOR C.B.A..

There are not the exchangeability between the “A” and “B” of LCD PANEL UNIT.

MONITOR C.B.A. and LCD PANEL UNIT supply it the kit.

(Do not supply it in one of each individually MONITOR C.B.A. and LCD PANEL UNIT.)

1.2.2. How to Distinguish the Types of MONITOR C.B.A. and LCD PANEL UNIT

PV-GS250PP

1.2.3. Difference Comparison Chart

1.2.4. Attention for exchange the MONITOR C.B.A..

In the case that the LCD PANEL UNIT is TYPE “A”.

Replace the chip resistor of R901 and R910 to the chip resistor that is doing the same pack to the kit.

R901 ERJ3RBD182 ®ERJ3GEY0R00

R910 ERJ3RBD822 ®ERJ3RBD682

In the case that the LCD PANEL UNIT is TYPE “B”.

Exchange only the MONITOR C.B.A..

1.2.5. Attention for exchange the LCD PANEL UNIT.

In the case that the MONITOR C.B.A. is TYPE “A” and “B”.

Replace the chip resistor of R901 and R910 to the chip resistor that is doing the same pack to the kit.

R901 ERJ3RBD182 ®ERJ3GEY0R00

R910 ERJ3RBD822 ®ERJ3RBD682

In the case that the MONITOR C.B.A. is TYPE “C” and “D”.

Exchange only the LCD PANEL UNIT.

CAUTION:

It does the confirmation of the MONITOR C.B.A. and LCD PANEL UNIT without fail on the occasion of the repair and please

do the part exchange.

PV-GS250PP

2 INTRODUCTION

2.1. INTRODUCTION

This service manual contains technical information which will allow service personnel´s to understand and service this

model.Please place orders using the parts list and not the drawing reference numbers.

If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service

manual.

Note 1:

These movie camera uses AC Adaptor is PV-DAC14D

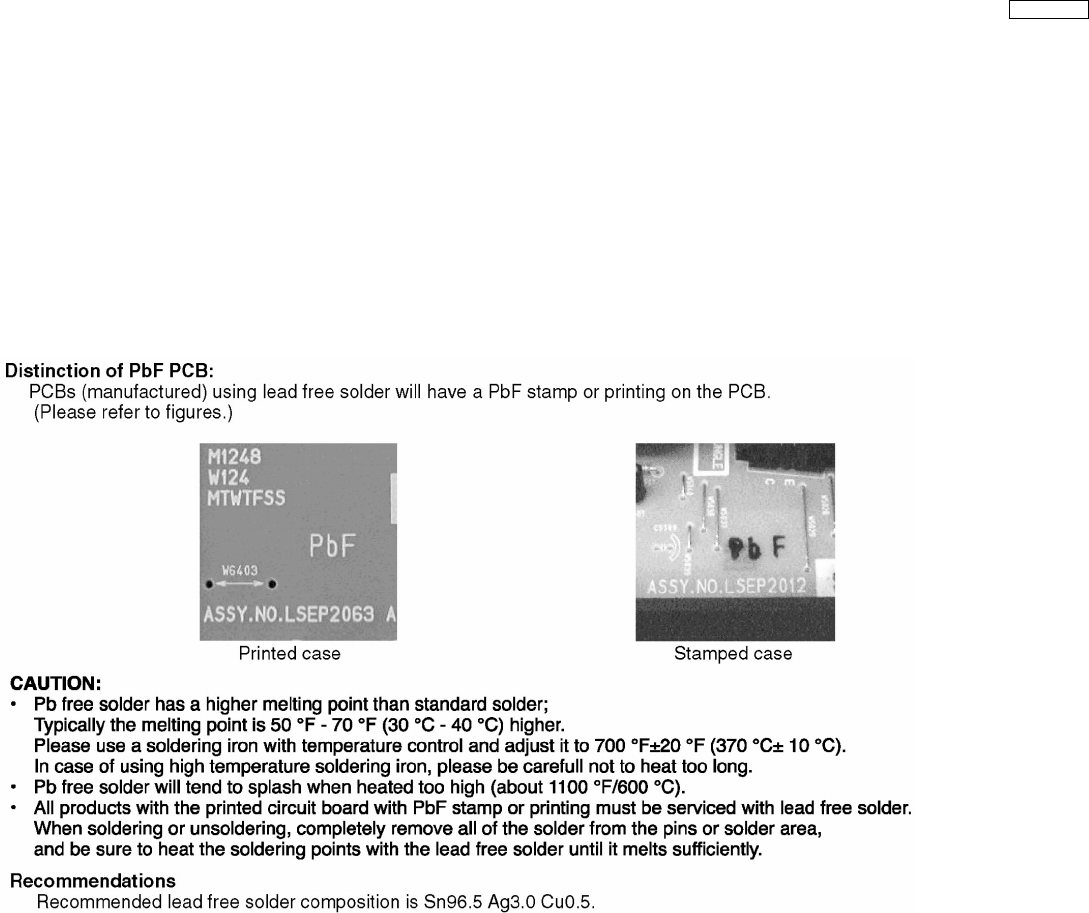

2.2. ABOUT LEAD FREE SOLDER (PbF)

PV-GS250PP

1. Plug the AC cord directly into the AC outlet. Do not use an

isolation transformer for this check.

2. Connect “A” to exposed metallic part on the set. And

connect “B” to a good earth ground, as shown in Figure 1.

3. Use an AC voltmeter, with 1 kW/V or more sensitivity, to

measure the potential across the resistor.

4. Check each exposed metallic part, and measure the

voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the

above measurements.

6. The potential at any point should not exceed 0.25 V RMS.

A leakage current tester (Simpson Model 229 or equivalent)

may be used to make the hot checks, leakage current must

not exceed 1/2 mA. In case a measurement is outside of

the limits specified, there is a possibility of a shock hazard,

and the equipment should be repaired and rechecked

before it is returned to the customer.

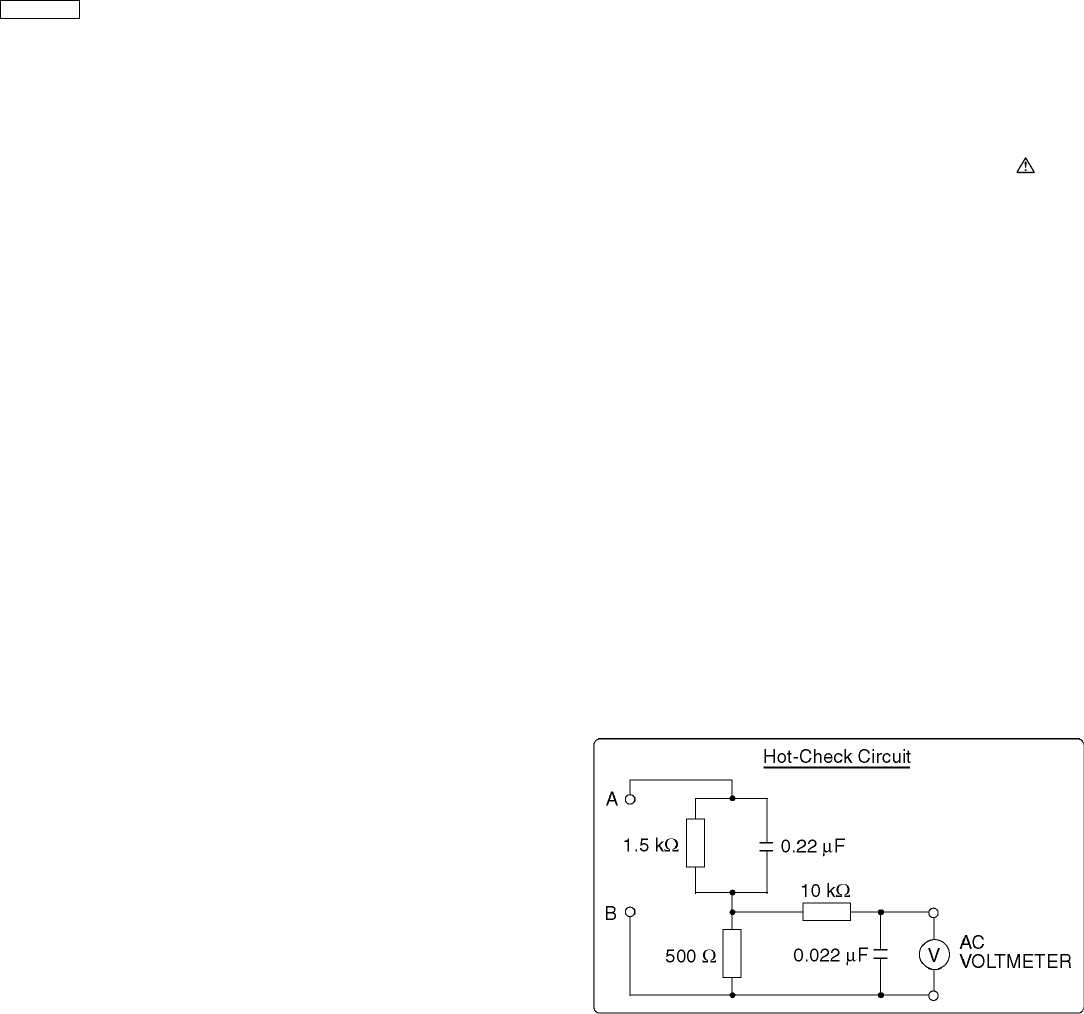

Figure 1

3 SAFETY PRECAUTIONS

3.1. GENERAL GUIDELINES

1. IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are marked by in the

Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List. It is essential that these critical parts

should be replaced with manufacturer’s specified parts to prevent X-RADIATION, shock fire, or other hazards. Do not modify

the original design without permission of manufacturer.

2. An Isolation Transformer should always be used during the servicing of AC Adaptor whose chassis is not isolated from the AC

power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury

from electrical shocks. It will also protect AC Adaptor from being damaged by accidental shorting that may occur during

servicing.

3. When servicing, observe the original lead dress. It a short circuit is found, replace all parts which have been overheated or

damaged by the short circuit.

4. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly

installed.

5. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

3.2. LEAKAGE CURRENT COLD CHECK

1. Unplug the AC cord and connect a jumper between the two prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on

the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the

chassis, the reading should be between 1MWand 5.2MW. When the exposed metal does not have a return path to the chassis,

the reading must be infinity.

3.3. LEAKAGE CURRENT HOT CHECK (See Figure 1)

PV-GS250PP

4 PREVENTION OF ELECTRO STATIC DISCHARGE (ESD)

TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called

Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and

semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage

caused by electro static discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your

body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,

which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as

aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an antistatic solder removal device. Some solder removal devices not classified as “antistatic (ESD protected)” can

generate electrical charge sufficient to damage ES devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most

replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable

conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material

to the chassis or circuit assembly into which the device will be installed.

CAUTION:

Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the

brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)

sufficient to damage an ES device).

PV-GS250PP

5 HOW TO REPLACE THE LITHIUM BATTERY

(PROCEDURE)

1. Remove the Side Case (L) C.B.A.. (Refer to Disassembly Procedures.)

2. Unsolder the Lithium Battery “ML920S/F9D” and then replace the new one. (See Fig. B1.)

3. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Fig. B1

Note:

The lithium battery is a critical component. (Type No.: N9ZZ00000297.)

It must never be subjected to excessive heat or discharge.

It must therefore only be fitted in equipment designed specifically for its use.

Replacement batteries must be of the same type and manufacture.

They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed.

Do not attempt to re-charge the old battery or re-use it for any other purpose.

It should be disposed of in waste products destined for burial rather than incineration.

PV-GS250PP

6 HOW TO RECYCLE THE LITHIUM BATTERY

PV-GS250PP

7 ADJUSTMENT PROCEDURES

7.1. DISASSEMBLE FLOW CHART

This flow chart indicates the disassembly steps the cabinet parts, C.B.A. and Mecha. Unit in order to access to be serviced. When

reinstalling, perform the steps in the reverse order.

PV-GS250PP

7.2. DISASSEMBLY PROCEDURES

Flow-Chart for Disassembly Procedure

No. Item / Part Fig. Removal (Screw,Connector,Flex. &

Other)

1Front Case

Unit Fig. D2 Remove the Grip Belt Piece with the

procedure of arrow 1,2,3.

Fig. D3 2-Screws (A), 2-Screws (B)

Fig. D4 2-Screws (C)

Fig. D5 Open the LCD Unit

1-Screw (D)

Fig. D6 1-Connector FP4801

Front Case Unit

2Side Case (R)

Unit / LCD Unit Fig. D7 3-Screws (E)

Fig. D8 Tilt up the EVF

1-Screw (F), 1-Screw (G)

Fig. D9 2-Connectors FP602, FP6503

2-Tabs

Side Case (R) Unit / LCD Unit

3Lens Unit Fig. D10 1-Screw (H)

2-Connectors FP201, FP701

Lens Unit

4EVF Unit Fig. D11 1-Screw (I), 1-Screw (J)

2-Connectors FP601, FP3402

EVF Unit

5Rear

Operation Unit

/ Sub C.B.A.

Fig. D12 1-Screw (K), 1-Screw (L)

2-Connectors FP1001, FP6502

Rear Operation Unit

1-Connector FP4002

Sub C.B.A.

6Main C.B.A. Fig. D13 8-Connectors FP2201, FP2202,

FP2203, FP2204, FP5001, FP6501,

FP6504, FP6505

1-Screw (M)

2-Tabs

Main C.B.A.

7Mecha. Unit Fig. D14 Open the Cassette Cover

3-Screws (N)

Mecha. Unit

8Jack C.B.A. Fig. D15 1-Screw (O), 1-Screw (P), 1-Screw (Q)

Jack C.B.A.

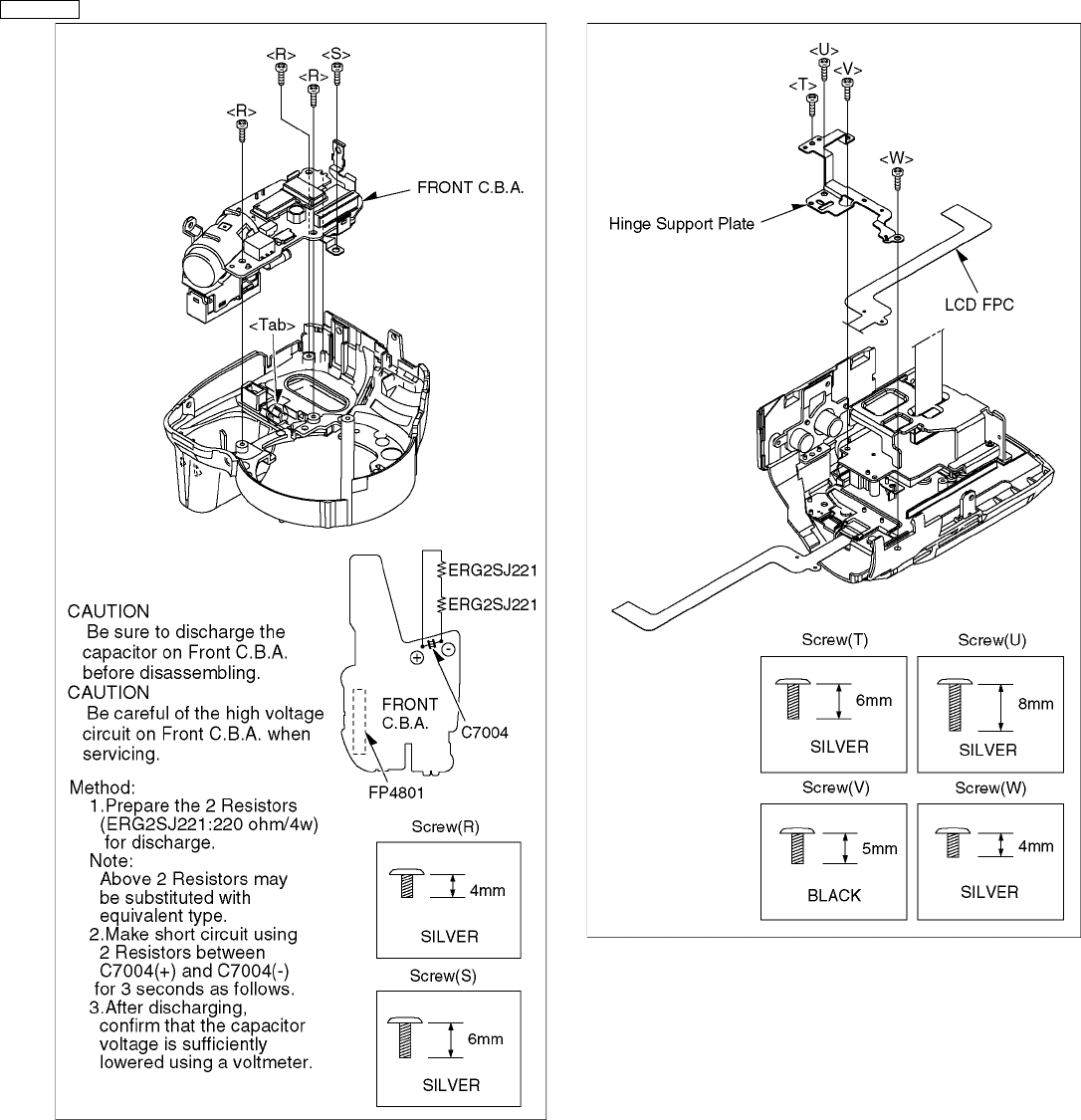

9Front C.B.A. Fig. D16 3-Screws (R), 1-Screw (S)

1-Tab

Front C.B.A.

10 Monitor C.B.A. Fig. D17 1-Screw (T), 1-Screw (U), 1-Screw (V),

1-Screw (W)

Hinge Support Plate

Fig. D18 1-Screw (X)

Fig. D19 1-Tab

R Cover / LCD Unit

Fig. D20 2-Screws (Y)

6-Tabs

LCD Case (Upper) Unit

Fig. D21 1-Connector FP902

LCD Hinge Unit

Fig. D22 1-Connector FP901

2-Tabs

Monitor C.B.A.

11 EVF C.B.A. Fig. D23 2-Screws (Z)

EVF Slide

Fig. D24 1-Tab

View ADJ. Unit

Fig. D25 Remove a,b,c,d department (remove

department previously).

EVF Case (Upper) Unit

Remove e,f department.

EVF Case (Lower) Unit

Fig. D26 2-Connectors FP801,FP802

2-Tabs

EVF C.B.A.

Fig. D1

Fig. D2

PV-GS250PP

Fig. D3

Fig. D4

Fig. D5

Fig. D6

PV-GS250PP

Fig. D7

Fig. D8

Fig. D9

PV-GS250PP

Fig. D10

Fig. D11

Fig. F12

PV-GS250PP

Fig. D13

Fig. D14

Fig. D15

PV-GS250PP

Fig. D16

Fig. D17

PV-GS250PP

Fig. D18

Fig. D19

Fig. D20

Fig. D21

PV-GS250PP

Fig. D22

Fig. D23

Fig. D24

Fig.D25

PV-GS250PP

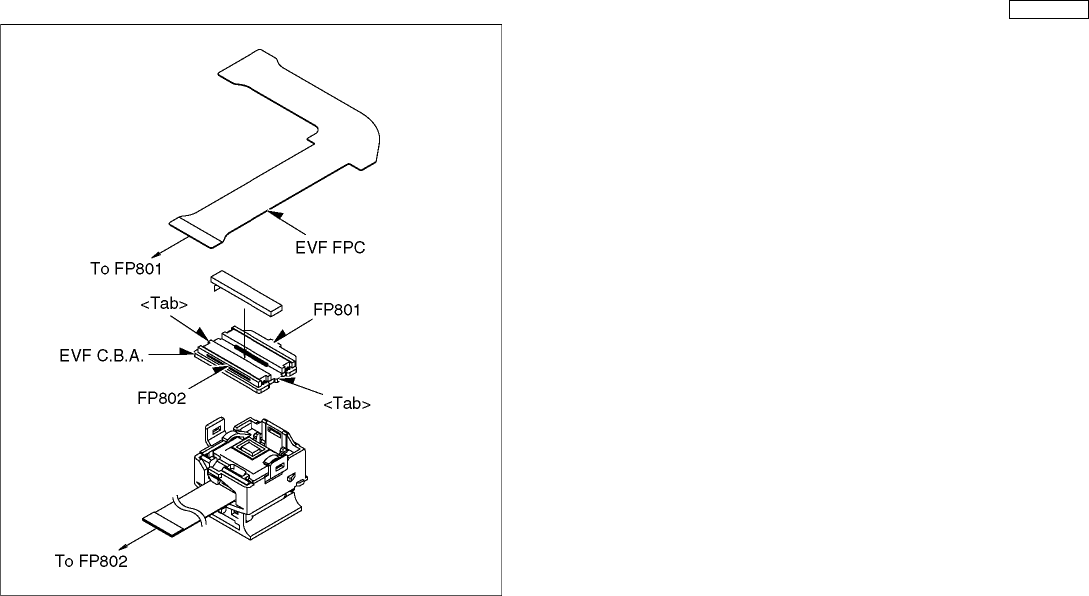

Fig. D26

PV-GS250PP

7.3. DISASSEMBLY PROCEDURES MECHA. UNIT

Flow-Chart for Disassmbly Procedures

No. Item / Part Fig. Removal (Screw, Connector, Flex. & Other)

1Cassette Up Unit Fig. M1 It makes the mechanism position in Eject condition (For Battery)

Fig. M2 3-Screws (A)

Fig. M3 3-Tabs

Fig. M4 It remove the piece arrangement unit from rail department

2Cylinder Unit Fig. M5 1-Screw (B)

Fig. M6 3-Screw (C)

Cylinder Unit

Fig. M1

Fig. M2

PV-GS250PP

Fig. M3

PV-GS250PP

Fig. M4

Fig. M5

PV-GS250PP

Fig. M6

PV-GS250PP

7.4. DISASSEMBLY PROCEDURES OF CAMERA LENS UNIT

The following flowchart describes order or steps for removing the Camera lens unit and certain printed circuit boards in order to

make access to the item needing service.

To reassemble the unit follow the steps in reverse order.

Fig. L1

Fig. L2

PV-GS250PP

8 SERVICE CAUTION

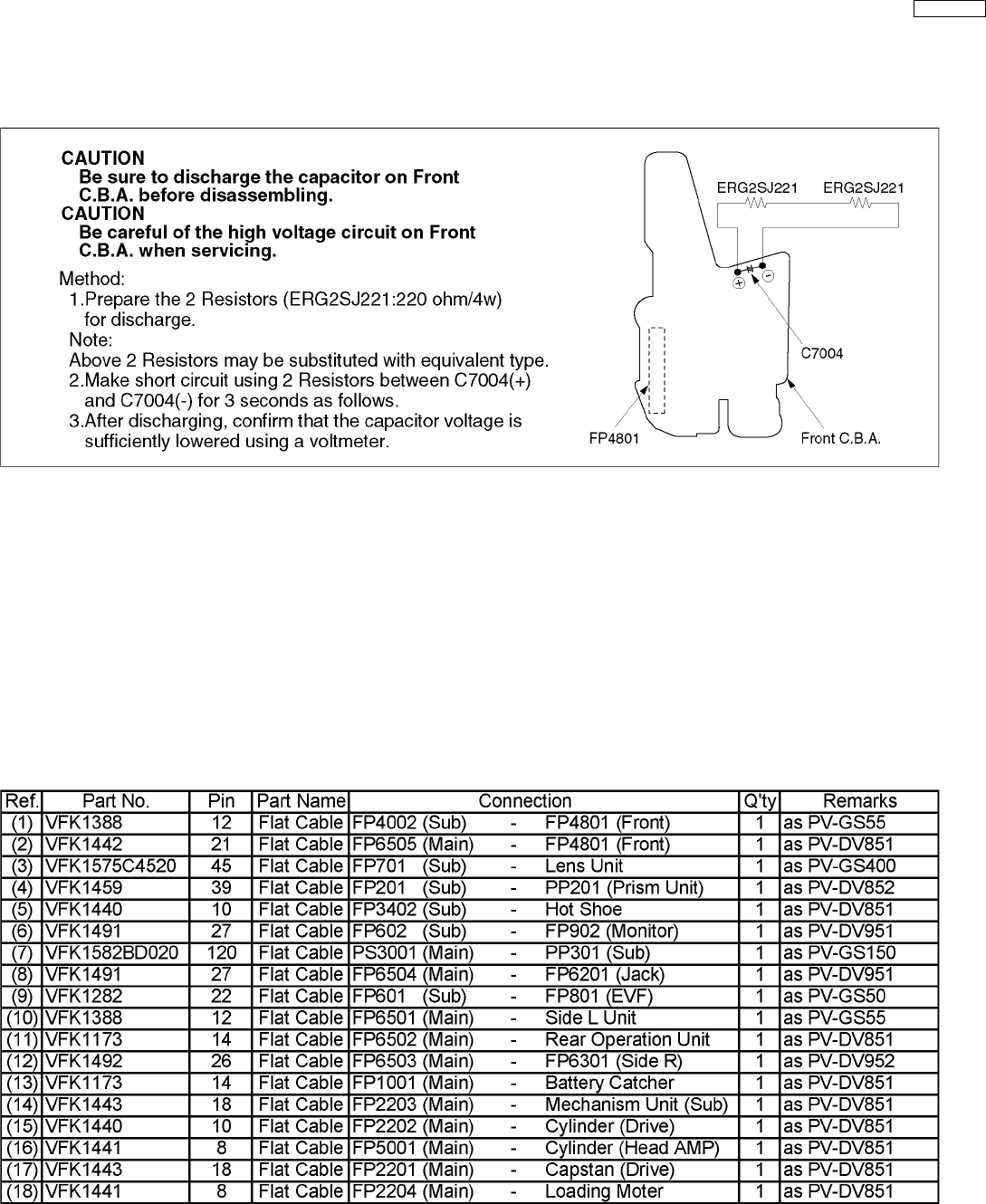

8.1. HOW TO DISCHARGE THE CAPACITOR ON FRONT C.B.A.

8.2. EEPROM DATA FOR SPARE PARTS OF THE MAIN C.B.A.

When the Main C.B.A. is replaced, the fixed and average data must be changed by Tatsujin kit according to the Movie Camera’s

suffix.

Then, confirm and/or adjust the VTR and Camera section one by one.

8.3. SERVICE EXTENSION CABLE FOR ALL C.B.A. INCLUDED IN MODULE

UNIT

This models is required the following extension cables for all connections.

Use the following extension cables when checking or adjusting individual circuit boards.

PV-GS250PP

How to use extension cables.

Fig. T1

PV-GS250PP

8.4. LOCATION FOR CONNECTORS OF THE MAIN C.B.A. & SUB C.B.A.

8.4.1. MAIN C.B.A.

FP2001

K1MN06BA0107

(FOIL SIDE)

(COMPONENT SIDE)

FP2203

K1MN18BA0010

FP6502

K1MN14BA0061

FP6504

K1MN27BA0058

FP5001

K1MN08BA0009

IC2006

(EEPROM)

FP6505

K1MN21BA0058

FP6501

K1MN12BA0059

FP2202

K1MN10BA0008

FP2204

K1MN08BA0010

FP1001

K1MN14BA0062

PP3001

K1KA20B00154

FP2201

K1MN18BA0008

PS3001

K1KBC0A00037

FP3402

K1MN10A00074

FP6503

K1MN26A00068

PV-GS250PP

8.4.2. SUB C.B.A.

(FOIL SIDE)

(COMPONENT SIDE)

FP602

K1MN27BA0058

FP201

K1MN39BA0058

FP4002

K1MN12BA0067

FP601

K1MN22A00065

PP301

K1KAC0A00014

FP701

K1MN45AA0017

PV-GS250PP

8.5. CSP IC LOCATION OF THE MAIN C.B.A. & SUB C.B.A.

Make sure to install CSP IC in the correct position of the Main C.B.A. & Sub C.B.A. as shown.

8.5.1. MAIN C.B.A.

IC3001

IC3201

(COMPONENT SIDE)

(FOIL SIDE)

IC2001

IC3801

IC3501

PV-GS250PP

8.5.2. SUB C.B.A.

(COMPONENT SIDE)

IC303

(FOIL SIDE)

IC305

PV-GS250PP

8.6.1. IC TEMPERATURE PROFILE

(IC303)

8.6.2. IC TEMPERATURE PROFILE

(IC305)

8.6.3. IC TEMPERATURE PROFILE

(IC2001)

8.6.4. IC TEMPERATURE PROFILE

(IC3001, IC3501)

8.6.5. IC TEMPERATURE PROFILE

(IC3201)

8.6.6. IC TEMPERATURE PROFILE

(IC3801)

8.6. TEMPERATURE PROFILE FOR HEAT RESISTANCE OF CSP IC

When using equipment other than the Pre-Heater, refer to the temperature profile.

CSP ICs for Model of PV-GS250 have the following temperature profile.

PV-GS250PP

9 ELECTRICAL ADJUSTMENT PROCEDURES

9.1. COMPUTER ASSISTED ADJUSTMENT SYSTEM <TATSUJIN>

ADJUSTMENT.

This unit employs the computer assisted system named; “TATSUJIN PC-Adjustment”for Electrical adjustment.

9.2. SET-UP MANUAL FOR DV-Camcorder.

1. SAVE THE SOFTWARE

Install the effective model’s TATSUJIN Software to PC: Personal Computer.

2. SET-UP (CONNECTION)

a. Remove the EVR cover of the DV Camcorder.

Unlock the locking tab and remove the EVR cover as shown in Fig. E1.

b. Make a connection.

Connect the PC, the PC/IF Unit and the DV Camcorder as shown in Fig.E2 and E3.

c. Check the SW position on Measuning Board.

The position of SW on Measuning Board checks as shown in Fig. E4.

Fig. E1

Fig. E2 Necessary Equipment & Tools for Connection.

PV-GS250PP

Fig. E3 Rough image of set-up connection

PV-GS250PP

Fig. E4

(Extension cables (VFK1317 ×2pcs) ----- Measuring Board (VFK1308E) ----- 232C I/F Cable (VFK1395))

PV-GS250PP

1. Turn on the PC and install the TATSUJIN Adjustment

Program into the PC.

2. Execute the “Gs250.exe“file by double clicking to start up

the PC-EVR Adjustment Program.

The main menu will be displayed.

3. Select the desired model.

4. Turn on the camcorder. Then, click “Start.”

Fig. E5-1

5. The communication is complete, and the dialog will appear.

Then, click “VCR (V) or Cam (C)”to save the EEPROM

data,

Fig. E5-2

6. Saving for EEPROM data is complete, menu will appear.

To perform each adjustment, display the adjustment menu

by selecting the desired menu from “Camera Adjust,”

“Video Adjust,”“LCD Adjust”or “EVF Adjust”and select

each adjustment item.

Fig. E5-3

Note:

The adjustment data is stored to the EEPROM IC after

each adjustment.

7. After adjustment, to end the software, select “Exit”in File

menu or close the window.

Fig. E5-4

9.3. SET UP PC-EVR ADJUSTMENT PROGRAM

PV-GS250PP

9.4. INITIAL GUIDELINE

The table below shows which adjustments are necessary according to the unit parts and individual parts to be replaced. Make sure

to perform these adjustments shown below as necessary.

PV-GS250PP

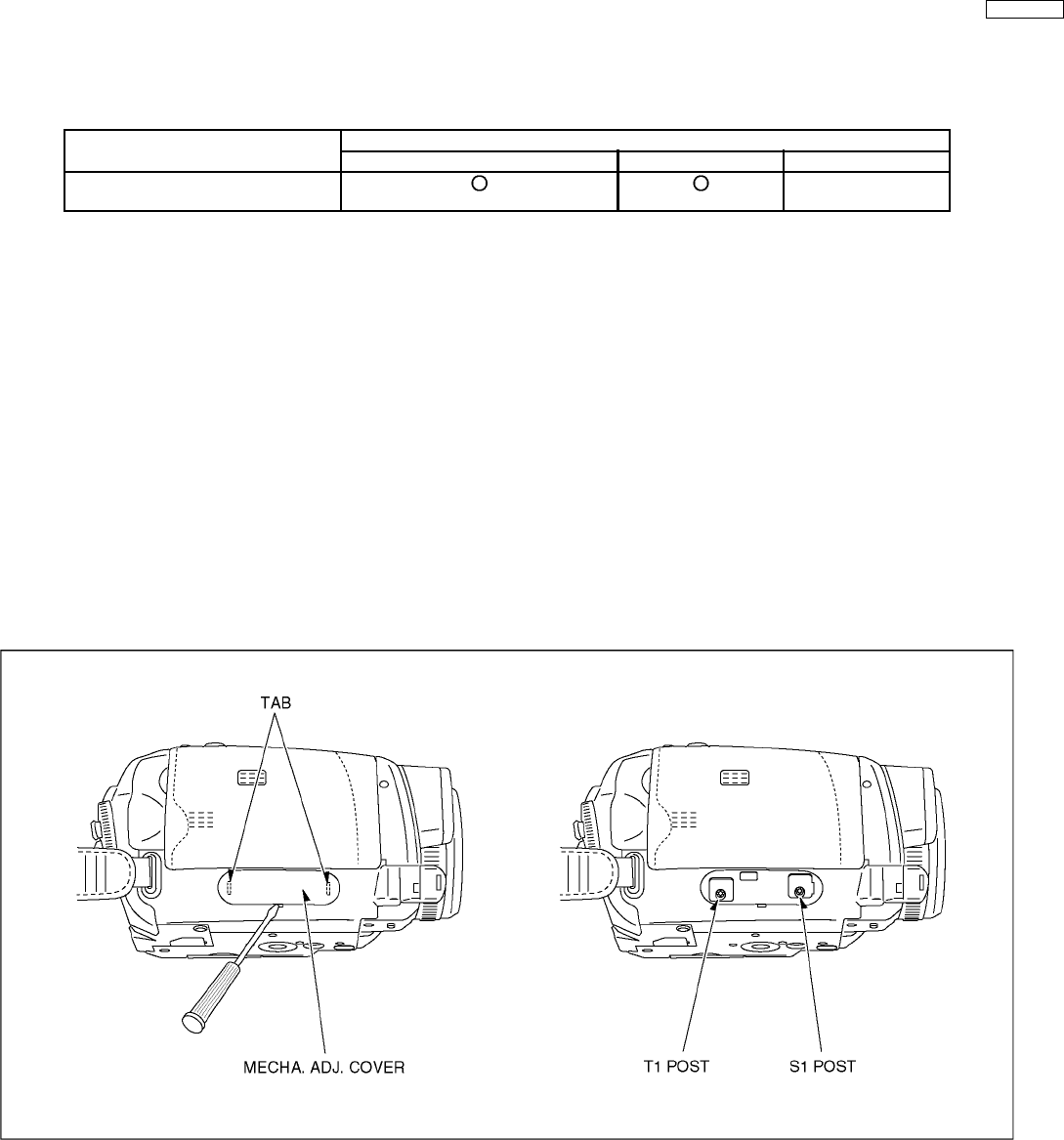

10 MECHANICAL ADJUSTMENT PROCEDURES

10.1. ADJUSTMENT ITEM

Item Adjustment at the time of the part exchange

Half finished goods mechanism Clyinder Remarks

Linearlty adjustment& BER value

confirmation

10.2. ADJUSTMENT PROCEDURES

lLinearlty adjustment & BER value confirmation

1. Remove the mechanism adjustment cover of tis machine as shown in Fig. D1.

2. The spcial tool at the time of electricity adjustment is connected.

Reference of the connection figure of electricity adjustment.

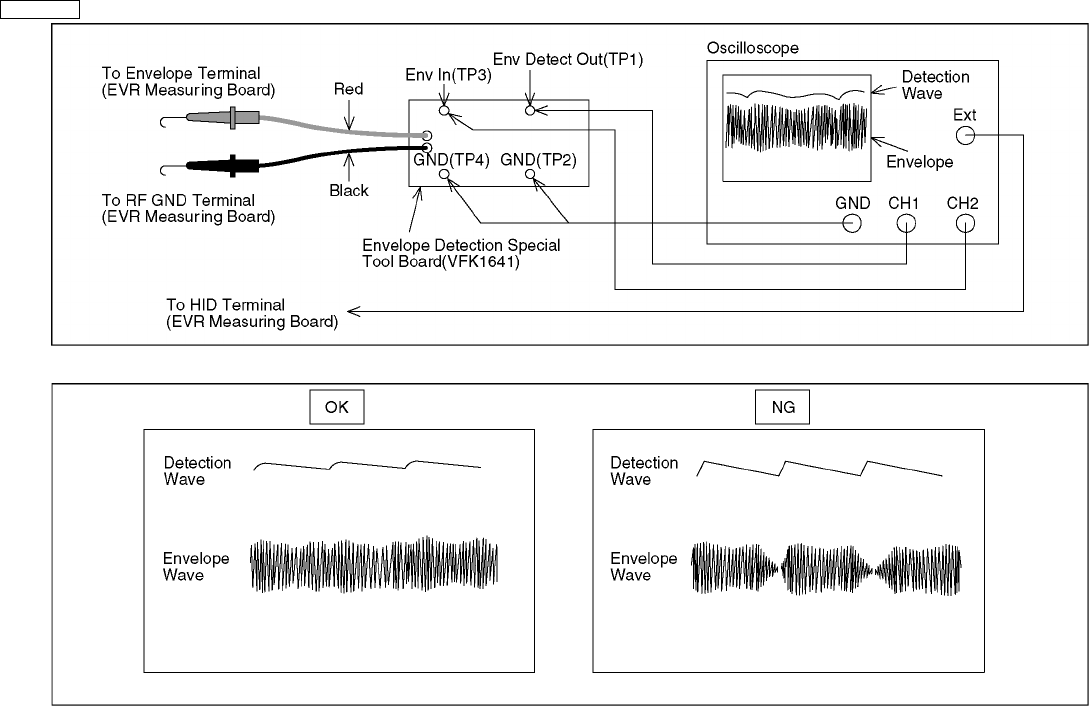

3. The enbelope detection spcial tool board (VFK1641) is connected to EVR adjustment board as shown in Fig. D2.

4. The enbelope detection spcial tool board is connected to oscilloscope as shown in Fig. D2.

5. The post is adjusted with the post driver(VFK1899) so that recycles the standard tape and the detection wave-link become

a flat as shown in Fig. D3.

*At the time of the clyinder unit exchange unnecessary.

6. The post is adjusted with the post driver so that recycles a alignment tape(VFM3010EDS) and the detection wave-link

become a flat once again.

7. Recycling the tape that video-taped it wirh this machine after adjustment, the BER value is confirmed withthe item of the

BER the item of the BER confirmation of expert soft inside.

Fig. D1

PV-GS250PP

Fig. D2

Fig. D3

PV-GS250PP

11 SERVICE MODE

11.1. ERROR DISPLAY

“PUSH THE RESET SWITCH”is displayed automatically on the EVF or the LCD Monitor when an undesirable condition has

occured.

11.2. SERVICE MENU

When abnormal detection contents are confirmed a When I do the following operation automatic diagnosis cord is

displayed. (Service Menu)

To enter the Service Menu

Press the [QUICK START] button and [JOYSTICK LEFT ] button and [PHOTO SHOT] button simultaneously for 3 seconds

(with no SD card inserted).

NOTE:

In the case that a tape or SD card is included the above operation does not work.

This function displays the following items in the Service Menu.

*1 ... Cylinder elapsed time reset

After replacint the Cylinder Unit, clear the Cylinder elapsed time to 0.

Set to Service Menu.

Item [8] is selected with the [JOYSTICK UP or DOWN /] button.

It modes to the [OFF/ON] screen with the [JOYSTICK RIGHT ] button.

[ON] is selected with the [JOYSTICK UP or DOWN /] button.

Press the [JOYSTICK CENTER] button.

*2 ... Cylinder elapsed time

This item displays the Cylinder elapsed time (in Base 16).

Set to Service Menu.

Item [3] is selected with the [JOYSTICK UP or DOWN /] button.

It modes to the [OFF/ON] screen with the [JOYSTICK RIGHT ] button.

[ON] is selected with the [JOYSTICK UP or DOWN /] button.

Press the [JOYSTICK CENTER] button.

PV-GS250PP

Calculation method of the Cylinder elapsed time:

*3 ... Mechanism lock code record

The current lock code, the last lock code and the lock code before last are displayed in the Item [3] screen.

*4 ... Lens motor lock code record

The current lock code, the last lock code and the lock code before last are displayed in the Item [3] screen.

Cylinder elapsed time and lock code (Item [3] screen)

Mechanism & Lens motor lock code

DISPLAY CONDITION

01 T-REEL LOCK

02 S-REEL LOCK

03 UNLOADING LOCK

04 LOADING LOCK

05 CYLINDER

51 ZOOM MOTOR LOCK

52 FOCUS MOTOR LOCK

To exit the Service Menu

Unplug the AC Cord.

Please do the error cord backup record the clear after repair completion.

CLEAR METHOD

If the Card and Tape inserted, take out it before Service Mode operation.

Making the mode dial of This Machine a PC connection mode, push [QUICK START] button and [JOYSTICK LEFT ]

button and [RECORDING START/STOP] button simultaneously for 3 seconds.

NOTE:

Do not operate items 1 ~ 7(Except for 3) in the Service Menu.

PV-GS250PP

12 ABBREVIATIONS

A A GND Analogue GND

A HASW Audio Head Amp Switching Pulse

A HSW Audio Switching Pulse

A MUTE Audio Mute

A ORP Audio Overlap Pulse

A. TR Auto Tracking

A0-8, 0-17 Memory Address

A3V2 AD Converter Reference Voltage

AB0-4 Address Bus

AB0-4, AB12-15 Address Bus Line 0-4, 12-15

ABSF Focus Encoder Input

ACI Analogue Channel Cording IC

AD AD Converter

AD Auto Date, Analogue Digital Converter

AD CLK AD Clock

AD REC Audio Delayed REC

AD0-6 Address

AD0-6, ADR0-6 Address Data Line

ADCLK Analogue Digital Converter Clock

ADCNT Analogue Digital Control

ADCS Analogue Digital Chip Select

A-DET Audio Detect

ADREC Audio Delaied Rec

ADUB Audio Dubbing

AE Auto Expose

AECNT Auto Expose Control

AEE(H) Audio E-E (H)

AEH Audio Erase Head

AEIRQ Auto Expose Interrupt Request

AF/MF Auto Focus/Manual Focus

AF DIS CS AF DIS Chip Select

A-FADE(L) Audio Fade (L)

AF-AMP AF HALL Bias

AFCS Auto Focus Chip Select

AFRP Audio PLL Voltage Control

AF-VN Zoom Encoder V-Ref (–)

AF-VP Zoom Encoder VREF (+)

AGC Automatic Gain Control

AGCCNT Automatic Gain Control Control

AGND Analogue Ground/Audio Ground

AGS Anti Ground Shooting

AH(P) / (R) Audio Head (Play) / (Record)

AHASW Audio Head Amp Switch Pulse

AHSW Audio Head Switch Pulse

AI, AO Buffer Input, Output

AIBCK Bit Clock (to A/D Converter)

AIDAT Serial Data (to A/D Converter)

AILRCK L/R Clock (to A/D Converter)

AIMCK Master Clock (to A/D Converter)

ALC CNT Auto Level Control Control

ALC MAIN Auto Level Control Drive

ALE Address Latch Enable

A-LOCK Full Auto Switch

A-MUT(H) Audio Mute (H)

ANLPTH Analogue Loop Through High

AORP Audio Overlap Pulse

APCNT Aperture Control

APS Auto Power Save

ART VH Artifical Vertical Sync

AT CNT Automatic Tracking Gain Adjust

ATF Automatic Track Finding

ATFCLK 41.85MHz Clock

ATFG Auto Track Gain

ATL Auto Lock Select

ATN Absolute Track Number

ATR OFF(H) Auto Tracking Off (H)

ATV Advanced TV

AUDIO(N) Audio (Normal)

AUX Auxiliary

AVDD Analogue VDD

AVSS Analogue Ground

AWTB Auto White Balance B-Y

AWTR Auto White Balance R-Y

B BACK Back-up

BACK UP Microcomputer Back-up

BACK VDD Back-up Power

BATT Battery

BATT ALARM Battery Alarm

BATT REF Reference Voltage for Battery

BCB B Carrier Balance

BCBM(B-Y) B-Y Carrier Balance

BCBM(R-Y) R-Y Carrier Balance

BD0-7 REC/Play In/Out Buss

BDCK Standard Bus Data Clock (9MHz)

BDEN Standard Bus Data Enable

BEND Data Block End Request

BF Burst Flag Pulse

BFA Burst Flag Pulse for Encorder

BFO/BFI Burst Flug Input/Output

BI, BO Buffer Input, Output

BL Back Light

BL ON Back Light ON (L)

BL4V Back Light 4V

BLC 0, 1 Back Light Y Control Out, In

BLDI/O Back Light Drive Input/Output

BLK Blanking Pulse

BLKA Blanking for Encorder

BLKA Blanking Pulse for Encorder

BLKI/O Blanking Pulse In/Out

INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS

PV-GS250PP

BLKZ Blanking Pulse for Zoom Encorder

BM Balance Modulator

BQUIET Bus Out Control Signal

BUF IN/OUT Buffer In/Out

B-Y KB B-Y Carrier Balance

B-YO B-Y Signal Out

C C A In/Out Pre-Aperture In/Out

CAPSTP Capstan Stop Flag

C CNT Colour Control

C SYNC Composite Sync Signal

C/N Carrier/Noise

C0-7, C00-07 Chrominance Signal 0-7

CAGAIN Aperture Gain Control

CAM Camera

CAM CLK Camera Clock

CAM RST Camera Reset

CAM SIOC Camera Serial In/Out Contol

CAM T Camera Test

CAM TL Capstan Trque Limit

CAP EC Capstan Trque Control

CAP P(H) Capstan Power On (H)

CAP R/F/S Capstan Reverse (H)/Stop (M)/Forward (L)

CAP SW Capstan Power Control Switch

CAPSTP H Capstan Stop Flag (Stop High)

CAPVM Capstan Motor Current

CAPVS Capstan Motor Power Control Switch

CAS

Compresion, Audio Process, Shuffling/Deshuffling

CAS Memory Address Strobe (Active Low)

CASDOWN, DWN Cassette Down (L)

CB, CR Chroma B, Chroma R

CBLK Composite Blanking Pulse

CC Channel Cording

CCA Curent Drive Control

CCA Current Control Amp

CCD Charge Coupled Devise

CCW Counterclockwise

CD SP0-7 Digital Chroma

CDS Correlate Double Sampling Signal

CDS1, 2 Sampling Pulse for CCD Output Signal

CE Chip Enable

CE Control Pulse Erase

CEC Capstan Error Code

C-ERA(H) Control Erase (H)

CFEM Chrominance Memory Signal

CFM Chrominance Field Memory

CFM1-4 Chroma Field Memory Signal

CG CLK Character Generator Clock

CG CLK DATA Clock Generator Data

CG DATA Character Generator Data

CGC Chrominance Gain Control

CGCS Character Generator Chip Select

CGO Character Generator Serial Data

CH Charge

CH1 Channel 1 (Odd Field)

CHR Character

CHR BACK Character Back-up

CHR MIX Character Mix

CI, CO Buffer In/Out

CI,CO Buffer Input & Output

CIF Control Signal Forward Input

CIF, CIR

Positive Control Pulse, Negative Control Pulse

CIR Control Signal Reverse Input

CK Clock

CL/CLK Clock

CLASS

Classeffication Signal for Compress (DCT/VLC)

CLASS 0.1 Class Control Signal Durring DCT/VLC

CLK135 13.5MHz System Clock

CLK18 18MHz System Clock

CLK2 Clock 2 (824XFH: 12.875MHz)

CLK246 24.576MHz Clock

CLK27 27MHz System Clock

CLK450 450KHz Clock

CLKDCLK Digital Clock

CLK-PH Clock Phase Control

CLK-REF Reference Clock

CLP-RST-H Clamp Reset High Signal

CLX TFT X-axis Transmission Clock

CLX, CLX1-4 Shift Clock for X Direction (LCD Panel)

CLY Shift Clock for Y Direction (LCD Panel)

CLY TFT Y-axis Transmission Clock

CLY FG Cylinder FG Signal

CMEMO0-3 Chroma Memory Output Signal 0-3

CMIX Character Mix

CMO Chrominance Memory Output

COMPC Position Detection Pulse

COM RDY Serial Enable Signal

CMODE Camera Mode

CNCLK Clock

CNR Chrominance Noise Reduction

CNT, CONT Control

CO Control Out

CO0-7 Chrominance Output 0 to 7 (Digital)

COM Common

COM RDY Serial Transmission Enable

COMB Comb Filter

COS EQ Cosin Equalizer

CP Clamp Pulse

CP ON(H) Camera Power On(H)

CP2, 20 Clamp Pulse

CP2A, CP2O Encoder Clamp Pulse

CPN Component Signal

CPOB Clamp Pulse for Optical Blanking

CPS Composite Signal

CPV Gate Scan Clock

CR OUT Pre Apature Out

CR POW SW Camera Remote Power On Switch

CRA Aperture Gain Control

INITIAL/LOGOINITIAL/LOGO ABBREVIATIONS ABBREVIATIONS

PV-GS250PP

CRA Pre Apature Gain Control

CRST Camera Reset

CS Chip Select

CS 0-7 Chrominance Signal Out 0-7

CSEL Clock Phase Select

CSI 0-7 Chrominance Signal In 0-7

CTSW Crosstalk Switch

CURR Current

CW Clockwise

CYL EC Cylinder Motor Trque Control

CYL PG Cylinder Motor PG

CYL VM Cylinder Motor Current or Power

D D CLK Digital Clock

D MODE Digital Mode Switch Signal

D01-03 Zoom 01-03

DA UV SEL D/A Convertor U/V Select

DAC Digital Analogue Converter

DAG Digital Analogue Ground

DB0-7 Data 0-7

DB0-7 Microprocessor Data

DCC DC Clamp Control

DCCNT DC Control

DCI Digital Channel Cording IC

DCLR Digital Clear

DCP Digital Clamp Pulse

DCS-CLK, DA CAS & DV I/F Serial Clock

DC-STP1 DCS Serial Start

DC-STP2 DCS Serial Stop

DCT Discrete Cosine Transform (Compression)

DCX7 Serial Data

DEDP 0-3 Playback Data

DEDR 0-3 Rec Data

DEMO Demodulation

DEMP A/D Convertor Empahsis Control

DEMP De-Emphasis

DFD 0-7

Encode Data In/Out Between Shaffling Memory

DFD0-7

Encode Input/Output Signal for Shuffling Memory

DIBDCK Bit Clock

DICLK Digital Clock

DIDAT Serial Data

DIDAT Serial Data Durring Digital Audio In

DIF Digital Interface

DILRCK L/R Clock

DILRCK Serial Clock Durring Digital Audio In

DIMCK Master Clock

DIMCK Mater Clock Durring Digital Audio In

DIO 1-8 Data In/Out

DIOS Data In/Out Select Control Signal

DIOS Select Signal for Digital In/Out

DIS Digital Image Stabilizer

DIS R/B Digital Image Stabilizer Read (H)/Busy (L)

DIS R/B DIS IC Rady/Busy

DIS/KAND Digital Image Stabilizer/Sensitivity

DISCS Dis Chip Select

DISP Display

DL Delay Line

DOBCK Audio A/D Convertor Bit Clock

DOCTL Data Output Control Signal

DODAT Serial Data (to D/A Converter)

DOLRCK Audio A/D Converter LR Clock

DOLRCK L/R Clock (to D/A Converter)

DOMCK Audio A/D Converter Master Clock

DOMCK Master Clock (to D/A Converter)

DQ 1-16 Memory Data

DRAM CAS D-RAM Colum Address Strobe

DRAM OE D-RAM Out Enable

DRAM RAS D-RAM Read Address Strobe

DREC AV Delayed REC Start Pulse

DRK Dark (LPF Switch for Auto Focus)

DS1, 2 Double Sampling Pulse

DSF 0-7 Data In/Out for Shaffling Memory

DSF 0-7

Input/Output Data to Shuffling Memory (18MHz)

DSP Digital Signal Processor

DSP R/B DSP IC Rady/Busy

DSP-48K-H DSP IC Clock Select

DSTB Data Stobe Signal

DSV Digital Sum Variation

DV Digital Video

DVB Digital Video Broadcast

DVC Digital Video Cassette

DVDD Digital VDD

DVIO Digital Video Input Output

DVSS Digital Ground

DX Shift Data for X Direction (for LCD)

DY Shift Data for Y Direction (for LCD)

DY TFT Y-axis Shift Data

DZ Digital Zoom

E E Snap Electric Snap Shot

E ZM Electric Zoom

E2 CS or E2P CS EEPROM Chip Select

E2 R/B EEPROM Rady/Busy

E2P EEPROM

EARP Earphone

EC Torque Control

ECC Error Correction Cording

ECM Electric Condencer Mic

ECR Reference Voltage for Capstan Torque

EDA Error Correction, DCI, ATF Servo

EE CS EEPROM Chip Select

EE R/B EEPROM Read (H)/Busy (L)

EEPROM

Electric Erasable Programable Read Only Memory

EIS Electric Image Stabilizer (DIS)

EMP A/D Convertor Emphasis Control

ENAB Enable

ENV Enverope

EOB End of Block

INITIAL/LOGOINITIAL/LOGO ABBREVIATIONSABBREVIATIONS

PV-GS250PP

EQ Equalizer

EVF Electric View Finder

EXT DC External DC (AC Adaptor)

EXT DC(H) AC Adaptor DC (H)

EXT NOREG AC Adaptor 6V

EXT S DATA Serial Data for Edit

EXT SCK Serial Clock for Edit

EZOOM Electric Zoom

F ENC Lens F-Value

FACT MODE Factry Mode (not used in the service)

FB Feed Back

FC Saw Tooth Signal In

FCK Clock

FCO Saw Tooth Signal Generator

FENC Focus Encoder

FEND Frame End Pulse

FH2B FH/2 (15.625KHz / 2=7.8125KHz)

FIX OSD Auto Tracking Off (H)

FLICK Flicker Output

FM Field Memory

FM0-7 Field Memory 0-7

FMCO0-3 Field Memory Chrominance Out 0-4

FMDIR Focus Motor Direction

FMOEM Field Memory Enable

FMOEO Field Memory Enable

FMT1-4 Focus Motor Terminal 1-4

FMY00-07 Field Memory Luminance Out 0-7

FMYI0-07 Field Memory Luminance In 0-7

FNO F Value

FPS Frame Refference Signal

FR Capstan Reverse High

FRP Frame Refference Pulse

FRPSO Frame Start Pulse

G G1, G2, G3 Gap 1, 2 and 3

GCA Gain Control AMP

GCNT Gain Control

G-CNT AGC Adjustment

GCTRL Gain Control

GENE Generator

GF FG AMP Terminal

GSW Ground for Switching Power

H H/M/N Hi-Fi / Mix / Normal

H/N Hi-Fi / Normal

H1, 2 H. CCD Drive Pulse

HAP Horizontal Aperture

HASW Head AMP Switching Pulse

HB Hall Bias

HBR SET High Brightness Set

HBRST High Brightness Set

HCLR High Clear

HCP Shift Clock for Horizontal Drive

HD Horizontal Drive Pulse

HDTV High Definition TV

HEX Hexadecimal

HG Hall Gain

HID Head Switching Pulse

HLT High Bright Signal

HALL IN(+), (–) Input Signal from Hall IC

HP Headphone

HPF High Pass Filter

HSE Modulated Data Output

HSP Timing Pulse for Shaffling Memory

HSS Horizontal Sync Signal

HSW Head Switching Pulse

HS-WT High Speed Zoom

HSZ High Speed Zoom

I I/F Interface

I-2 C Inter Integrated Circuit

ID(H) Wide Television (H)

IMP Inter Microprocessor Protocol

INF CCD Input Signal 1

INF Input Frame Signal

INS CCD Input SIgnal 2

INTER Interval Recording

INV Inverter

IOU R-Y Analogue Signal Output

IOV B-Y Analogue Signal Output

IOY Y Analogue Signal Output

IR Infrared Rays

IRDET Imfrared Ray Detection

IREF Current Adjustment Terminal

IRIS/SH Iris / Shutter Control

IRQ Interrupt Request

ITI Insert & Track Information

J JPEG

Joint Photographic Image Cording Experts Group

K KANDO Digital Gain Up

KB Carrier Balance

KEY IN Key Scan

KND Digital Gain Up

KNEE Luminance Compensate

L LCD Liquid Crystal Display

LCD P(L) LCD Power On (L)

LD Load Pulse

LDD Liquid Direct Drive

LEDCNT LED Control

LI-BATT Lithium Battery

LOAD Loading

LOAD F, R Loading Direction (F: Forward / R: Reverse)

LPF Low Pass Filter

LRMONO Monoral Audio (L + R)

LSB Least Significant Bit

INITIAL/LOGOINITIAL/LOGO ABBREVIATIONS ABBREVIATIONS

PV-GS250PP

LVL LPF Switch for Auto Focus

M M1-3 Motor Coil Terminal 1 to 3

MA0-5 Microprocessor Address Data 0-5

Mbps Megahertz Bit Per Second

MD Modulation

MD0-7 Microprocessor Data 0-7

MDT0-7 Microprocessor Data 0-7

ME (TAPE) Metal Evaporated (Tape)

MENB Focus Motor Enable

MFF Manual Focus Far

MFN Manual Focus Near

MHSYNC Monitor Horizontal Sync Signal

MIC Memory In Cassette

MIG Meta In Gap

MIX N.R.D. Non Rec Data Mix

MOD Modulation

MOUT Mic Out

MP (TAPE) Metal Particle (Tape)

MPEG Moving Picture Image Cording Experts Group

MPEG2

Moving Picture Image Cording Experts Group Phase 2

MRST Focus Motor Reset

MSB Most Signal Bit

MVSYNC Monitor Vertical Sync Signal

N N/F Near/Far Focus

N/P NTSC/PAL

NB1-3 Base for NPN Transistor

NC No Connection

NC1-3 Corrector of NPN Transistor

NCLR Power On Reset

NCP1 Clamp Pulse

NCP2+VDH Clamp Pulse + Horizontal Drive Pulse

NCP2+VDM Clamp Pulse + Gate Pulse

NDE Non Liner De-Emphasis

NE Emitor of NPN Transistor

NLE Non Liner Emphasis

NR Noise Reduction

NRD Non Rec Data

NRD BLK Non Rec Data Blanking

NRD CLK No Rec Data Clock

NRE Read Enable Input (Low Active)

NWE Write Enable (Low Active)

O OB Optical Black

OBCNT Optical Black Control

OBREF Reference Voltage for Optical Black Control

OE Output Enable

OFH

Horizontal Counted Down Clock Signal (Reference)

OFS Offset

OP Operation AMP Output

OSD ON Screen Display

OVL Overlap Pulse

OZ Optical Zoom

P P SW Power Switch

PB1-3 PNP Base 1-3

PBCTL Play Back Control

PBCTL Pre-Branking Control

PBH Head Amp Switch

PBLK Pre-Blanking (Pulse)

PC1-3 Corrector of PNP Transistor

PCBM Carrier Balance

PCH Phase Compensator (Hall AMP)

PCI Phase Compensator (Current)

PCO Phase Compensator Out

PCS Switching Power Control

PCV Phase Compensator (Voltage)

PE Emitter of PNP Transistor

PED Pedestal

PEDECNT Pedestal Control

PENO Alarm (L)

PFP Pilot Frame Position

PGA, B Power Ground A, B

PGC Pulse Generator Comparator

PGI Pulse Generator Input

PGMM Pulse Generator Monostable Multivibrator

PGO Output of Pulse Generator AMP

PMODE Select Signal for Normal / Wide Screen

PON Power On

POR Power On Reset

POSCOM Common Position

PREAMP Pre-AMP

PREBLK Pre-Blanking

PT Protect for V Voltage

PWM Pulse Width Modulation

PWMB Pulse Width Modulation Pulse

Q Q2H Source Output Select

R R CTL P Recorded Control Pulse (+)

R CTL R Recorded Control Pulse (–)

R/B Read/Busy

R/L Direction Control for Data Transmition

RA Recording AMP

RA1 Rec AMP 1

RAC AC Rec Audio Current

RAD Read Address Data

RAE Read Address Enable

RB Read Busy

R-B R Bias

RCB R Carrier Balance

RE Read Enable

RE(F), (S) Rotary Erase Head Transformer

REB R Bias

REC CC Rec Current Control

REC CCNT Rec Current Control

RECCTRL Recording Control Pulse

RECI Rec Amp Switch

INITIAL/LOGOINITIAL/LOGO ABBREVIATIONS ABBREVIATIONS

PV-GS250PP

RENCF Lens Control (Forward)

RENCR Lens Control (Reverse)

RERASE Rotary Erase Head

RGBIV1-2 1V Inverted Signal 1-2

RGO R/G OFF Offset Voltage for AWT R

RSF Capstan Direction (Reverse / Stop / Forward)

RST Reset

RSTB R Strobe

RSTPWD Reset Power Down Input

RSTR Reset Read

RSTW Reset Write

RT Saw Tooth Terminal

RVCO Resister for Oscillation

RW Read Write

RWAE Read Write Enable

S S PHOT Supply Photo Transistor

S/H Sampling Hold

S/S Start/Stop

SBD Serial Data

SBI Serial Data Input

SBO Serial Data Output

SBT Serial Clock

SCAN0-5 Key Scan 0-5

SCK Serial Clock

SCR Search

SCR, S.C.R. Still Cue Review

SEG. Segment

SET White Balance Set

SH/IRIS Shutter/Iris Control

SHIFT Capasitor for Phase Shift

SI Serial Data Input

SIC Shift In Clock Input

SIOC Serial In/Out Control

SMCE Shaffling Memory Chip Enable

SMRS Shaffling Memory Read Strobe

SMWE Shaffling Memory Write Enable

SMWS Shaffling Memory Read Strobe

SNAP Snap Shot

SNS LED Sensor LED

SO Serial Data Output

SPA ATF Smapling Pulse

SPEN 8 Bit Shift Register Enable

SPK Speaker

SPO Reset for Switcing Power

SPST 8 Bit Shift Register Strobe

SREELP Supply Reel Pulse

SRT Start

SSA Start Sync block Area

SSW Select Signal for Low Pass Filter

ST5V Safety Tab 5V

STAB Safety Tab Switch

STB Stand by Signal

STB Strobe

SWB Switching Pre-Drive Pulse

SYL EC Cylinder Torque Control

SYL FG Cylinder FG

T T PHOT Take-up Photo Transistor

TBC Time Base Conntrol

TFT Thim Film Transistor

TH Thermostat for Battery

TI Test Mode Select

TL Torque Limit

TM Sub Code

TMD Sub Code Data

TRE Tracking Error Signal

TREEL(P) Take-up Reel (Pulse)

TRFIX Tracking Fix

TRIWAVE Tracking Wave

TRP Tracking Position

TRP Trap

TSR Head Switching Refference

TST Time Scale Transfer

U U/V SEL R-Y/B-Y Select Signal

UNLOAD Un-Loading

UNRE Microprocessor Read Enable

UNWE Microprocessor Write Enable

UV R-Y/B-Y

UV SEL R-Y/B-Y Select Signal

V V1-V4 V. CCD Drive Pulse

VB VH Filter Switching

VCE Power Terminal

VCNTL Video Control

VCO Voltage Control Oscillator

VCP Shift Clock Output for Vertical Drive

VCTLD Video Control

VCTRL Voltage Charge Control

VD Vertical Drive Pulse

VDDX X Drive Power for Colour LCD

VDDXY XY Drive Power for Colour LCD

VDDY Y Drive Power for Colour LCD

VDREC Video Delayed Rec

Vgg Voltage for Gate IC

Vgl Gate off Voltage

VID Video Signal Out

VIN Video In

VITC Vertical Interval Time Code

VITERBI One of Signal Detection Method

VL Low Voltage

VLC Variable Length Cording

VLOCKP Artificial Sync Pulse

VLP Artificial Sync Pulse

VM Motor Voltage

VMD Velocity Mode Data

VMD1-3 Electric Shutter Mode

INITIAL/LOGOINITIAL/LOGO ABBREVIATIONS ABBREVIATIONS

PV-GS250PP

VMODE NTSC/PAL Select Switch

VMVH VH Filter Switching

VORP Video Overlap

VRB Voltage Refference Bottom

VRBS Voltage Refference Bottom Output

VREF1R3V Refference Voltage 1.3V

VREF3R3V Refference Voltage 3.3V

VREFH Refference Voltage High Side

VREFL Refference Voltage Low Side

VRI Refference Voltage Input

VRO Refference Voltage Output

VRT Voltage Refference Top

VRTS Voltage Refference Top Output

VS Switching Comparator

VSS Vertical Sync Signal

VSSX X Driver Power for Colour LCD

VSSXY X-Y Driver Power for Colour LCD

W W/N Mode Select for Window Mode

W/N Wide / Normal

WAD Write Address Enable

WAE Write Address Enable

WAERAE Write Address Enable

WARI Interrupt

WB White Balance

WE Write Enable

WEM Memory Write Enable

WHD Wide Horizontal Drive Pulse

WIDE A Wide Zoom

WSB B AGC Control

WSR R AGC Control

WTV Wide TV

X XP FG Logic Reset

Y Y FM0-7 Y Field Memory 0-7

YCE Cylinder Error Code

YGC Y Gain Control

YMO 0-7 Y Field Memory 0-7

YNCST Noize Canceller

YNR Luminance Noise Reduction

YSDP 0-7 Digital Y Out 0-7

Z Z.ENC Zoom Encoder

Z.MIC Zoom Mic

ZENC Zoom Encoder Output

ZMDIR Zoom Drive

ZMEN Zoom Enable

ZMT Zoom Motor Tele Side

ZMT (+)/(–) Zoom Motor (+)/(–)

ZMTER Zoom Motor Tele Side

ZMW Zoom Motor Wide Side

ZSW Zoom Switch

INITIAL/LOGO ABBREVIATIONS

PV-GS250PP

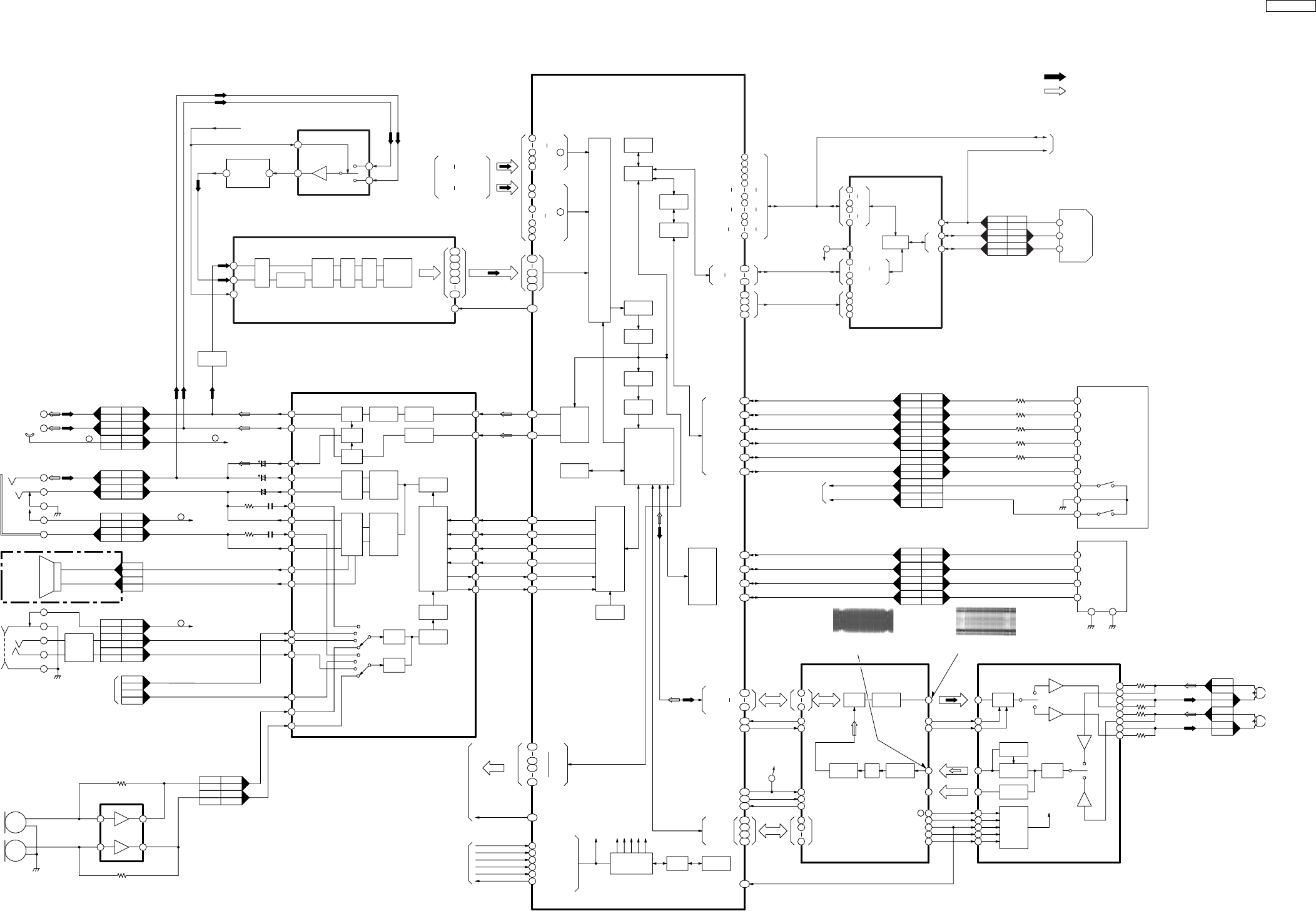

13 BLOCK DIAGRAM

13.1. OVERALL BLOCK DIAGRAM

IC1001

(POWER)

POWER

TERMINAL

EXT MIC/

FREE STYLE

REMOTE

CONTROL

SPEAKER

VIDEO/AUDIO

IN/OUTPUT

MMC/SD

IC101

(CG/SSG) IC3301 AVIO

(D/A,A/D,AV OUT AMP)

IC3001 DUO

(VIDEO I/O,VCO,COMPRESOR,

SHUFFLE,SHUFFLE MEMORY,

AUDIO PROCESSOR,ECC,

ECC MEMORY,1394 I/F,JPEG

COMPRESSION/EXPANSION,

CARD I/F,DAC)

IC2201

(CYL/CAP/LOADING

MOTOR DRIVE)

IC3801

(USB 2.0

DRIVER)

MAIN C.B.A.

CAMERA AVIO

CONTROL

(2/2)

FRONT

C.B.A.

2.5"LCD

S VIDEO

IN/OUTPUT

CCD

IC601

(CONTROLLER & SIGNAL

PROCESSOR)

LCD

IC107,110

(INVERTER) IC108

(V DRIVER)

IC102

REG IC103

REG

2FCK

X101 IC104,105,106

(CDS,AGC,AD)

IC303

(DIGTAL

SIGNAL

PROCESSOR)

IC305

(CAMERA

MICROCOMPUTER)

IC307

(EEPROM)

SUB POWER

MONITOR

C.B.A. EVF

C.B.A.

0.33"LCD

IC3201

RIP

(MODULATION,

VITERBI,EQ,

MOTOR DRIVE

CONTROL)

IC5001

(HEAD AMP)

VIDEO

IC2001

(CONTROL

MICROCOMPUTER)

FLASH

HOT

SHOE

POWER SUPPLY

CONTROL CIRCUIT

IC2006

(EEPROM) IC2017

(RESET)

HEAD

USB

TERMINAL

CYLINDER

MOTOR

CAPSTAN

MOTOR

IC4801

(MIC AMP)

MIC

FRONT(1/2) C.B.A.

SUB C.B.A.

IC2002

(RTC/POWER

CONTROL)

ZOOM IRIS

ND FOCUS

IC705

(HOLE AMP)

IC704

(OIS DRIVE)

IC706

(ND DRIVER)

IC701

(LPF)

LENS DRIVE

IC702

(MOTOR DRIVE)

OIS

LENS UNIT

IC3501

(A/D)

EX INPUT

IC3502,3

(SW&AMP)

PV-GS250PP

OVERALL BLOCK DIAGRAM

PV-GS250PP

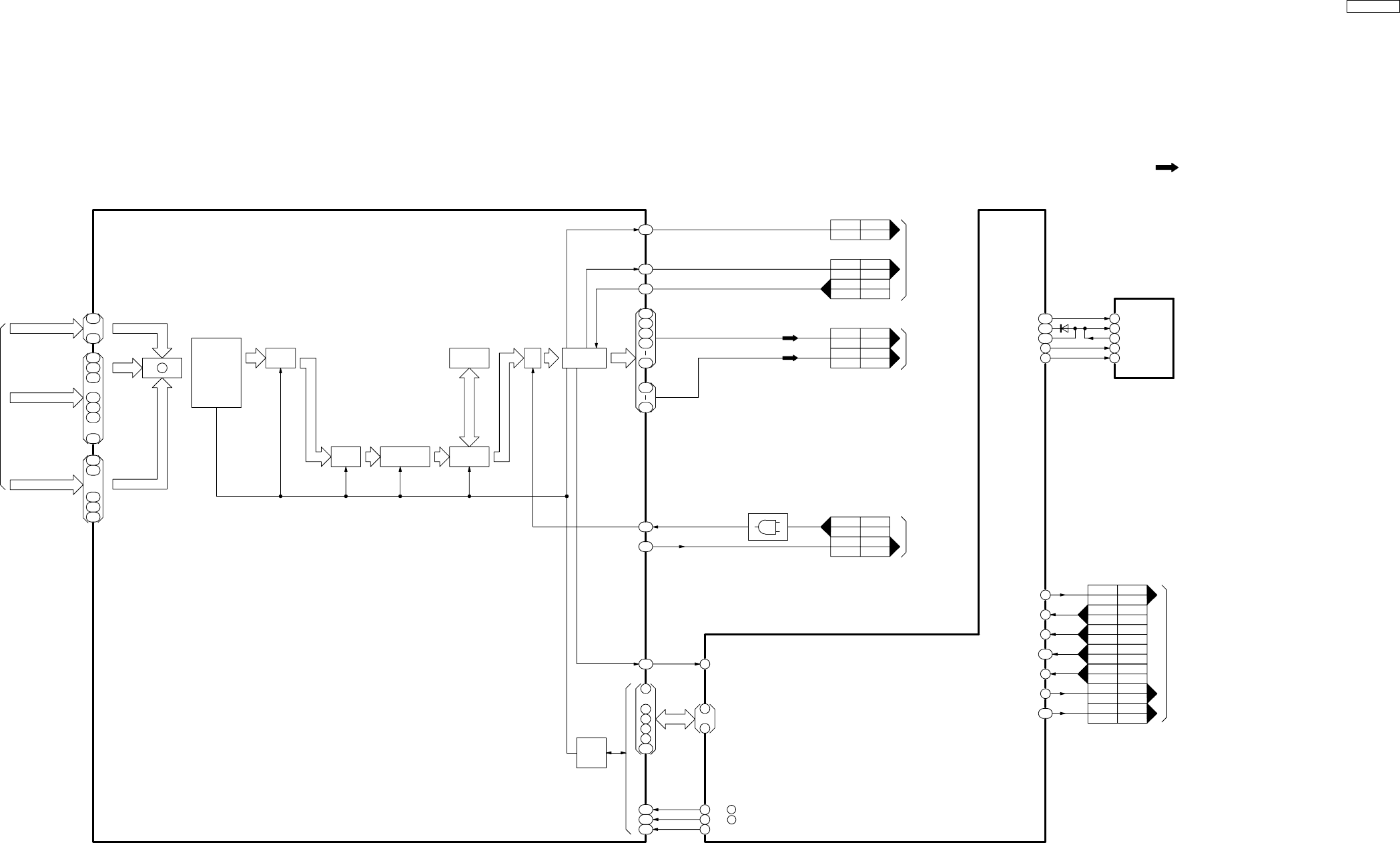

13.2. CAMERA 1 BLOCK DIAGRAM (SENSOR BLOCK DIAGRAM)

SERIAL

DATA

INPUT

IC303

SUB

CH1

CH2

26,27

23,24

26,27

23,24

SUB

IC305

FROM

FCK2I

DS1R

DS2R

X101

OSC

DS1 TIMMING

GEN.

CDS AGC A/D R DATA

DS2

CG CLK

CG DAT

APS1 CS FROM

IC305

PROCESS

APS3 CS

APS2 CS

FP201PP201

PP201 FP201

FP201PP201

PP201 FP201

PRISM UNIT

LIGHT

LENS UNIT

3CCD METHOD

B CCD

R CCD

G CCD

(CCD DRIVE,PULSE GEN)

(V DRIVE)

IC101

CG CS

DATA IN

SERIAL

CONTROL

SUB PULSE

SHUTTER

ELECTRIC

1/2

DECODER

PULSE

HIGHSPEED

H TIMINGHCLR GEN

V TIMING

DECODER

PULSE

PROCESS

DECODER

V PULSE

DECODER

CH PULSE

H2 B

H1 B

H2 R

H1 R

H1 G

H2 G

15V

SUB G

V4 B

V3 B

V2 B

V1 B

SUB

FP201PP201

PP201 FP201

V1 R

SIG G

SIG R

SIG B

V2 R

V3 R

V4 R

CH1

CH3

CH4

SUB

INPUT

I/F

IC108

SUB B

SUB R

V4 G

V3 G

V2 G

V1 G

CH2

IC107

IC110

CDS IN

CPOB

15 AD CLK

33 S DATA

34 S CK

(CDS/AGC/AD,R)

IC104

:MAIN SIGNAL PATH IN REC MODE

SERIAL

DATA

INPUT

DS1 TIMMING

GEN.

CDS AGC A/D B DATA

DS2

CDS IN

CPOB

15 AD CLK

33 S DATA

34 S CK

(CDS/AGC/AD,B)

IC106

SERIAL

DATA

INPUT

DS1 TIMMING

GEN.

CDS AGC A/D G DATA

DS2

CDS IN

CPOB

15 AD CLK

33 S DATA

34 S CK

(CDS/AGC/AD,G)

IC105

DS1G

DS2G

DS1B

DS2B

AD CLK1

S CS

S CLK

S DATA

CPOB

IC101-36 STOP

3.0Vp-p(20usec.div.)

IC101-37 STOP

3.0Vp-p(20usec.div.)

IC104-22 REC

0.25Vp-p(20usec.div.) IC105-22 REC

0.5Vp-p(20usec.div.) IC106-22 REC

0.2Vp-p(20usec.div.) IC104-1 REC

4.0Vp-p (20usec.div.) IC105-1 REC

4.0Vp-p (20usec.div.) IC106-1 REC

4.0Vp-p (20usec.div.)

IC101-17 STOP

3.0Vp-p (5msec.div.)

IC101-16 STOP

3.0Vp-p (20usec.div.)

IC101-29,30 STOP

3.0Vp-p (20usec.div.)

IC101-27,28 STOP

3.0Vp-p (20usec.div.)

PV-GS250PP

CAMERA 1 BLOCK DIAGRAM

(SENSOR BLOCK DIAGRAM)

PV-GS250PP

13.3. CAMERA 2 BLOCK DIAGRAM (PROCESS BLOCK DIAGRAM)

MAIN

SUB

BEND

I/F

uCOM

DSP

CONTROL

TO/FROM

PS3001

PP301

PS3001

PP301

PS3001

VIDEO

TO/FROM

VIDEO

MAIN

SUB

8181

PP301

PS3001

MAIN

SUB

IC304

45 - -

52 45 52

37 44 37 44

PP301

PS3001

PP301

PS3001

VIDEO

TO/FROM

8080

PP301

PS3001

7979

PP301

PS3001

7676

PP301

PS3001

7777

PP301

PS3001

PP301

MEMO END

203

WINK END

RTN FLD

CAM RTN

120

CAM SCLK

V C DATA

C V DATA

IC307(EEP ROM)

E2 RB

E2 CS

E2 SCK

E2 SDO DI

E2 SDI DO

198

199

200

DAS

RE H

DATA

ADDRESS

IC305(CAMERA MICROCOMPUTER)

279

280

281

271

278

MAIN

SUB

53 53

PP301

PS3001

CLK45

CLK27A

162

BUSY

DSTBO

MEGA PIX

MEGA Y C DATA

Y C DATA

160

159

161

3636

PP301

PS3001

VTR 45M

BEND

DD FCK

185

174

172

171

169

165

184

177

I/F

DSC

IC303(DIGITAL SIGNAL PROCESSOR)

MEMORY

V ZOOM

D NR

CONVERTER

ZOOM

CNR

YCP D/D

PROCESSOR

Y/C

---

241

233

231

239

230

242

251

264

263

261

258

256

254

252

IC105(G)

IC104(R)

IC106(B)

FROM

B DATA

R DATA

G DATA

:MAIN SIGNAL PATH IN REC MODE

PV-GS250PP

CAMERA 2 BLOCK DIAGRAM

(PROCESS BLOCK DIAGRAM)

PV-GS250PP

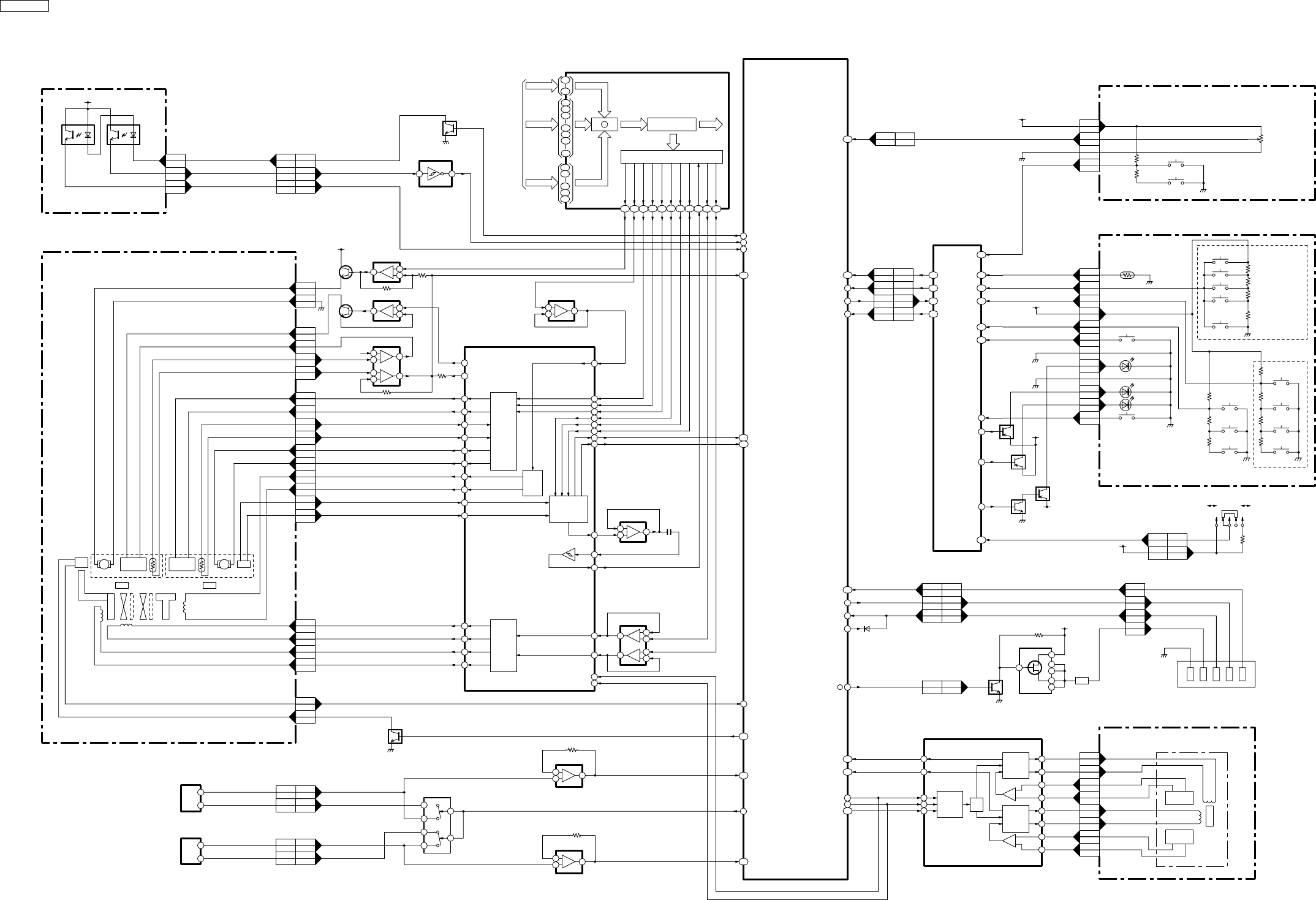

13.4. LENS DRIVE BLOCK DIAGRAM

STOP

QUICK

START

SET

REV

PLAY

JOYSTICK

IC305

(CAMERA MICROCOMPUTER)

IC303

IC701

(DIGITAL SIGNAL PROCESSOR)

IC702

(LENS DRIVE)

EAF

H5+

ND DRV(+)

ND DRV(-)

ND H IN(-)

ND H IN(+)

ND HO(-)

ND HO(+)

H IN(-)

H IN(+)

H OUT(-)

H OUT(+)

ALC M(+)

ALC M(-)

FM T(+)

FM T(-)

FMR A

FMR B

PWM HZB

ND FNO

PWM HZA

SIG

F2 C

FC B

FC A

IRIS OPEN

IRIS CLOSE

PWM IRIS

PWM LIN

151

DRIVE

HALL

SENSOR

HALL

SENSOR

X DRIVE (-)

X HO(-)

X DRIVE (+)

Y DRIVE (-)

Y DRIVE (+)

X HO(+)

Y HO(-)

Y HO(+)

DRIVE

DECODER DAC

FM A

FM B

154

FP701

SUB

FP701

AF/ZOOM

Y/C

PROCESSOR

IRIS

DRIVE

ZOOM

DRIVE

FOCUS

DRIVE

MOD

H3O

NDHB

NDHG

REF

FP701

SUB

FP701

SUB

FP701

SUB

ZAN FP701

SUB

Z ABS FP701

SUB

FP701

ZAP

ZBN

ZBP

FP701

Z LED

FP701

IRISND

HALL

SENSOR

HALL

SENSOR

Q703

Q704

QR303

LENS 3V

H1O

H1-

H2+

IRM+

IRM-

G DATA

12 +

13 14

IC704

(OIS DRIVE)

OIS UNIT

LENS UNIT

IC705

-6

IC706

-3

IC701

+10

-6

IC705

12 +

13 14

IC701

2922

Z ABS

FM+

FM-

A IN

B IN

ZA-

ZA+

ZB-

ZB+

I CLOSE 28

I OPEN 27

FC A 53

FC B 54

F2 C 55

MA 57

MIXO

LCI

LCMP

PWM ND

R DATA

FROM

SENSOR

B DATA

ENC

EZA 32

EZB 33

DI 63

CK 64

LED CONT

GYRO Y

X POS

Y POS

OIS DA SDO

OIS DA SCK

OIS DA LD

GYRO X

SENS SW

Y SENS

Y REF

FP4801

FP4002

FP4801

FP4002

IC482

(GYRO Y)

FRONT SUB

161

160

IC308

Q303

129

211212204218219220216217214213210

251

242

264

263

252

261

258

256

254

241

239

233

231

230

153

X SENS

X REF

FP4801

FP4002

FP4801

FP4002

IC481

(GYRO X)

FRONT SUB

IC308

IC2001

REAR OPERATION

SIDE L FLEX. CARD

SHOE DET

SHOE SCK 65

CAM SCLK 57

CAM RTN

C V DATA 55

V C DATA 56

SHOE SDI 64

SHOE SDO 63

VTR

KEY1

VTR

KEY2

159

Z SW 148

120 DEW

SS SW

VTR

KEY5

CAM

RTN

CAM

SCK

C V

DATA

V C

DATA

276

263

271

104

272

116

111

VTR

KEY3

POWER SW

STANDBY LED

QR2006

QR2005

QR2007

POWER LED

269

121

VTR KEY4 264

FP6503

MAIN

VTR KEY4

FP6301

SIDE R

FP6503

FP6301

FP6502 DEW

MODE DIAL

TAPE

PLAYBACK MODE

CARD

RECORDING MODE


PLAYBACK MODE

PC MODE

TAPE

RECORDING MODE

QUICK START

START/STOP

STANDBY LED

POWER LED

POWER SW

MANUAL FOCUSAUTO

S6304

AVREF ZOOM SW

ZOOM AD

GND

MAIN

DEW

VTR KEY1

VTR KEY2

VTR KEY3

STANDBY

LED

POWER

LED

GUI LED

SS SW

FP3402

MAIN

FP3402

9,10

FP6502

PP301

PS3001

SUB MAIN

SUB MAIN AVREF

VTR KEY5

ZOOM AD

MAIN

PP301

102

PS3001

102

109

PP301

PS3001

5656

PP301

PS3001

8383

PP301

MAINSUB

PP301

PS3001

8686

PP301

MAINSUB

FP6501

PHOTO SHOT1

PHOTO SHOT2

FP6501

FP6502

LB456

Q451

QR451

HOT SHOE

SHOE ON

QR2010

GUI LED 66

MF SENSOR

MF RING2

MF RING1

MF LED CTL47

FP4002

SUB

FP4801

FRONT

FP4002

FP4801

FP4002

FP4801

MF LED

MF L1

MF L2

FP7001

FRONT

FP7001

+5V

Q710Q711

IC306

QR302

LENS UNIT

162

163

181

PV-GS250PP

LENS DRIVE BLOCK DIAGRAM

PV-GS250PP

13.5. CONTROL 1 BLOCK DIAGRAM

263

276

270

268

257

128

114

272

269

121

113

228

STOP

S6302

POWER LCD

S6701

LCD OPEN

QUICK

START

122

SET

REV

PLAY

JOYSTICK

ADM(5)

ADM(6)

ADM(7)

ADM(4)

XWE H

XWE L

(RIP)

65 POS1

POS2

POS3

S TAB

S-REEL

T-REEL

IC3201

IC2202

(EEPROM)

IC2006

5SIO

(RTC/POWER CONTROL)

VDD

OSC IN

VCC

OSC OUT

SCLK

/INTR

2.4/1.62.5V 1

2.8V2.8V 14

3.4V3.4V 15

IC2002

MECHA.UNIT

214

212

13.5MHz

X2202

32.768MHz

X2001

S.PHOTO

FP2203

MAIN

Q2005

MIC ON

FP2204

MAIN

FP2203

MAIN

FP2203

CASSETTE DOWN

FP2203

MAIN

S TAB

Q2003

MODE SW

SENSOR

T.REEL

AMP

REMOTE

CONTROL

SENSOR

WHITE

BALANCE

SENSOR

Q491,492

IR6401

D6802

MIC DATA

MIC CLK

MIC AD1

MIC AD2

MIC AD3

C DOWN

S PHOTO SW1

S PHOTO SW2

T PHOTO SW1

T PHOTO SW2

S PHOTO

T PHOTO

SNS LED

112

124

259

260

261

258

256

115

SENSOR

S.REEL

MIC

POWER

FROM/TO

0V PROTECT

VREF

POWER ON

INN BATT

QR2008

3V3V

NOREG

T.PHOTO

IC2001

(CONTROL MICROCOMPUTER)

VTR KEY1

VTR KEY2

DEW

BATTERY

POWER ON

BATT REF

BATT D

EEP CS

ERF DI

ERF DO

ERF CLK

TIMER INT

RTC CS

VTR KEY3

SS SW

POWER SW

STANDBY LED

GUI LED

QR2006

QR2005 QR2007

QR2010

POWER LED

P LCD LED

POWER LCD SW

RESET

LCD OPEN SW

ACCESS LED

TALLY LED

EJECT SW

REAR OPERATION

SIDE R

FRONT

FP6502

SCK

DEW

MODE DIAL

TAPE PLAYBACK MODE

CARD RECORDING MODE

PICTURE PLAYBACK MODE

PC MODE

TAPE RECORDING MODE

STANDBY LED

POWER LED

QUICK START

START/STOP

POWER SW

MAIN

DEW

VTR KEY1

VTR KEY2

VTR KEY3

SS SW

STANDBY LED

POWER SW

POWER LED

GUI LED

FP6501

MAIN

FP6502

FP6303

FP4002

FP4801

FP6505

FP4801

FP6502

FP6503

POWER LCD

RESET

P LCD LED

LCD OPEN

ACCESS LED

TALLY

IR OUT

TO IC305

FP6503

QR2001

QR2005

QR2006

POWER LCD LED

CARD ACCESS LED

TALLY LED

S6301

RESET

FP6301

D6301

D6601

FP6301

FP6502

FP6504 FP6201

MAIN JACK

27 1

EJECT SW

S6212

M RVS PP301 FP602

SUBMAIN SUB

PS3001

93 1

LCD REV

S601

LITHIUM

BATTERY

162

159

154

FROM/TO

VIDEO/USB DATA

ADDRESS/

166

163

171

169

188

179

176

PS3001 PP301

MAIN SUB

68 68

REMOCON

MAIN

SUB

D6801

PV-GS250PP

CONTROL 1 BLOCK DIAGRAM

PV-GS250PP

M2 M3

M2 M1

(RIP)

( DUO)

IC3001

IC3201

MAIN

MECHA.UNIT

FP2201

11,12

FP2201

MAIN

13,14

FP2201

1,2

FP2201

1,2

FP2204

3,4

FP2204

MOTOR

FP2202

3,4

FP2202

7,8

FP2202

5,6

FP2202

DATA/

ADDRESS

DATA/

ADDRESS

TO/FROM

CONTROL

IC2001,IC3801

DATA/

ADDRESS

FROM

IC5001

168

169

171

173

159

MAIN COIL 1

MAIN COIL 2

MAIN COIL 3

UNLOAD

LOAD

CONTROL

TRANSISTOR

DRIVE

DECORDER

AFG+

H3-

H3+

H2-

H2+

H1-

H1+

AFG-

PG+

FG+

M UNLOAD

M LOAD

M1A

M2A

M3A

CAP FG

LIMIT

TORQUE

CAP ERR

CAP RSF

CYL ERR

CYL FG

CYL ON

HID

POWER

CYL SW

CAP SW

:CAPSTAN SERVO SPEED LOOP

:CAPSTAN SERVO PHASE LOOP

:CYLINDER SERVO PHASE LOOP

:CYLINDER SERVO SPEED LOOP

IC3

HALL

IC2

HALL

IC1

HALL

(CYL/CAP LOADING DRIVE)

DD CAPSTAN MOTOR

IC2201

DD CYLINDER MOTOR

CAP RSF

MAIN COIL 3

MAIN COIL 2

MAIN COIL 1

MATRIX

COMP.

FG AMP

CAP ERR

LIMIT

TORQUE

CAP FG

LIMITER

DRIVE

ATFIN

CYL PG

DRIVE CLK

IC5001 REC

DETECTOR

DIRECTION SWITCHING

DIRECTION

LOGIC

DIRECTION

CYL ERR

CYL PG

UNLOAD

LOAD

COMPARATOR

PG AMP

COMPARATOR

FG AMP

CYL FG

DRIVE CLK

CONTROL

TRANSISTOR

DRIVE

LOGIC

SWITCHING

COIL

ACTIVE

ADDITION

SLOPE

CONTROL

TRANSISTOR

DRIVE

CYL ON L

IC2201-54 REC/PLAY

1.8Vp-p (0.5msec.div.)

IC2201-55 REC/PLAY

1.8Vp-p (2msec.div.)

IC2201-57 REC/PLAY

1.8Vp-p (1msec.div.)

PV-GS250PP

CONTROL 2 BLOCK DIAGRAM

13.6. CONTROL 2 BLOCK DIAGRAM

PV-GS250PP

13.7. VIDEO BLOCK DIAGRAM

CL3208 REC

3.4Vp-p (20usec.div.)

CL3203 PLAY

0.35Vp-p (20usec.div.)

PLUG IN

IC4801

ECM L

ECM R

R PLUG

CONTROL

AMP

LPF

LPF AUDIO

I/F

CONT-

ROLLER

LRCK

MCLK

BCLK

SDI

SDO0

MIC L

61 H MIC R

IN/OUT PUT

CHANNEL CLOCK

AUDIO

I/F

MASTER CLOCK

AUDIO SERIAL

DATA CLOCK

AUDIO

SERIAL DATA

AUDIO

SERIAL DATA1

AUDIO

SERIAL DATA2

VCO

DAC

SC IO

SY IO

DAC

IC3301

Y OUT0 Y C0

Y OUT7 Y C7

C OUT0 MEGA Y C0

C OUT7 MEGA Y C7

FROM

CAMERA

Y IN0

Y IN7

Y IN6

Y IN5

C IN2

C IN5

C IN6

C IN7

IC3001

(DUO)

Vin

SEC

VITERBI

HSE

PB IN

CH2F

CH1F

CH1S

CH2S

HEAD

ATF IN

C OUT

Y OUT

V OUT

HP R

HP L

L IN

L OUT

R IN

R OUT

SP OUT1

SP OUT2

EX MIC L

H MIC L

MIC R

JK4001

<AV4P>

JK3001

JK4901

DATA

ADDRESS

DBR0

DBR3

DATA

C OUT

Y OUT

C IN

Y IN

SD CLK

CMD

SD DATA3

JPEG

DRAM 10M

EFECT

DV FORMAT

DRAM 4M

COMP I/F

SHUFF

I/F ENCODER

EQ RF AMP

SD DATA2

SD DATA1

SD DATA0

SD I/F

TRANS

L Y C IO0

L Y C IO7

CLK27C

FCK45

CAMERA HD

MEGA BUSY

MEGA DSTB

MEGA PIX CAMERA VD

ZD COMP

SIG

ALC PWM

ARM DRAM 2MUCOM I/F

REQ OUT

ACKIN

CONTROL

CARD PRO

CARD DET

TPB N

TPB P

TPA N

TPA P

275

274

273

272

271

277

145

148

150

151

164

161

167

166

102

174

175 81

173

171

169

168 78

159

189

192

194

197

188

180

181

182

178

1835

SDO1 1846

HPF

ADC

GCA

MIX

GCA

BUFF CLAMP

BUFF

264

259

C IN1

C IN0

51 10

11 39

GCA

AGC DET

AGC AMP

LPF

LOGIC

FP5001

MAIN

FP5001

MIC

AMP

Q4901-

Q4904

FP4801 FP6505

FP6505FP4801

319

418

FRONT MAIN

FP6201

FP6504

722

524

623

JACK MAIN

FP6201

FP6504

24 5

27 1,2

JACK MAIN

FP6201

FP6201 FP6504

FP6504

25 4

26 3

MAIN

FP6501

9,10

11,12

JACK MAIN

FP6201 FP6504

FP6201

FP6504

17 12

18 11

20 9

MAIN SIDE R

FP6503 FP6301

FP6503

FP6301

23 4

24 3

MAIN SIDE R

FP6503

FP6301

FP6503

10 17

1413

IC3201

(RIP) (HEAD/REC AMP)

IC5001

HS6301

CLK

CMD

C.DET

TPB(-)

TPB(+)

TPA(-)

TPA(+)

SD CARD CONNECTOR

DV TERMINAL

JK3952

LCD

FROM

HOT SHOE

(MIC)

FROM/TO

CAMERA

DATA/ADDRESS

CLK27A

ADDRESS STROBE

READ ENABLE PB H

RECI

HID1

HID2

REC CTL

REC CUR

REC CLK

CLK27A

ADDRESS STROBE

READ ENABLE

S C IO

S Y IO

S PLUG L

V/HP R

L/HP L

FP3402

MAIN H MIC L

H MIC R

R/GND

EX MIC L

EX MIC R

TPB(-)

TPB(+)

TPA(-)

TPA(+)

HSE

(AVIO)

SIDE L FLEX. CARD

1394

I/O

REQR

ACKR

HID

ATF IN

MAIN SIGNAL PATH IN REC MODE

MAIN SIGNAL PATH IN PLAYBACK MODE

ADM(15)

ADM(12)

ADM(11)

ADM(8)

ADM(7)

ADM(4)

ADM(3)

ADM(2)

ADM(1)

ADM(0)

(USB2.0 DRIVE)

IC3801

202

205

206

207

215

208

A65

D15

SH MFI D7

SH MFI CS

SH MFI RS

SH MFI WR

SH MFI RD

SH MFI D0

D15

D12

D11

VBUS

SH MFI RD

SH MFI WR

SH MFI RS

SH MFI CS

USB IF

D(+)

D(-)

VBUS

CONTROL

TO/FROM

FP6201FP6504

19 10

FP6201FP6504

17 12

MAIN JACK

FP6504 FP6201

JK3901

USB TERMINAL

SH MFI D7

SH MFI D6

SH MFI D0

CLK27 DP

INPUT SELECT FROM

CONTROL

CLK27B

AMP

Q3503

DATA

EX INPUT

CLK27M

S VIDEO

AMP

Q3504,5

751

227

232

234

235

10059

121

118

116

115

112

111

(A/D)

IC3501

IC3503

SEP

Y/C AFC TBC CHANGE

CLK

CLAMP

Y IN

C IN

A/D

S PLUG L

YC IN0-YC IN7

VBUS

ADM0 - ADM15

PV-GS250PP

VIDEO BLOCK DIAGRAM

PV-GS250PP

13.8. MONITOR BLOCK DIAGRAM

EVF BL 5V

D801 EVF

BACKLIGHT

Q801

D804

FP601

IC603

IC602 FP802

FP802

E ENB

E CKV1

E STV

G OUT

R OUT

B OUT

STV2

CKV2

ENB2

PCG2

XSTB2

STH2

CKH3

CKH4

VREF H

VREF L

COM OUT

X STB1

PCG1

ENB1

STH1

CKH2

CKH1

STV1

CKV1

COM H

PCD

BL CONT1

FP601

:VIDEO MAIN SIGNAL PATH

EVF

4,22

3,21

MONITOR

FP901

M STV

M CSV

M CKH1

M CKH2

M STH

M CSH

M OEV

M PCG

M OEVE

M FR

M CKV

M VCSH

M COM

M PWM

(DUO)

SUB

MAIN

PP301

PS3001

FP901

LIGHT

(Q902-904,

Q906-909,

Q913,

D905-911)

BACK

MONITOR

FP901

MONITOR

FP902

SUB

FP602

FP901

FP902

FP602

1,2,24

FP901

FP902

FP602

FP902

FP602

LCD PANEL

MONITOR

PANEL

EVF LCD

FP802

FP601

FP801

FP802

FP601 FP801

FP802

FP601 FP801

FP802

FP601 FP801

FP802

FP601 FP801

FP802

FP601 FP801

FP801

EVFSUB

FP801

FP601

GENERATOR

TIMING

E DSG

E XSTH

E STH

(CONTROL/PROCESSOR:EVF LCD,MONITOR LCD)

IC601

VIDEO

DAC

(8BIT)

CONTRAST,

BRIGHT,

GAMMA,

SUB-BRIGHT

SERIAL

I/F

PEDESTAL,LPF,

SCAN CONVERTER,

SHARPNESS

DATA

INPUT

HUE,COLOR

MATRIX

22 DATA0

PP301

PS3001

21 DATA1

PP301

PS3001

20 DATA2

PP301

PS3001

19 DATA3

PP301

PS3001

18 DATA4

PP301

PS3001

16 DATA5

PP301

PS3001

15 DATA6

PP301

PS3001

14 DATA7

PP301

PS3001

11 CLK IN

PP301

PS3001

SUBMAIN

576 S CS

100

PP301

100

PS3001

6S DATA

101

PP301

101

PS3001

7S CLK

IC3001

(CONTROL)

IC2001

L Y C IO0

L Y C IO1

L Y C IO2

L Y C IO3

L Y C IO4

L Y C IO5

L Y C IO6

L Y C IO7

CLK27C

189

190

191

192

194

195

196

197

188

LCD DI

LCD CS

LCD DO 102

LCD SCK 93

IC601-26(REC/PLAY)

3.0Vp-p (20usec.div.)

IC601-22(REC/PLAY)

2.0Vp-p (20usec.div.)

IC601-27(REC/PLAY)

3.0Vp-p (20usec.div.)

IC601-25(REC/PLAY)

3.0Vp-p (20usec.div.)

E CKH1

E CKH2

E COM

IC601-6(REC/PLAY)

2.8Vp-p (20usec.div.)

IC601-7(REC/PLAY)

2.8Vp-p (5usec.div.)

IC601-11(REC/PLAY)

1.0Vp-p (20usec.div.)

PV-GS250PP

MONITOR BLOCK DIAGRAM

PV-GS250PP

14 SCHEMATIC DIAGRAMS

14.1. INTERCONNECTION SCHEMATIC DIAGRAM

C.B.A.

SENSOR

MF LED

MF VCC

MF L2

MF VCC

MF L1

GND

FP7001

FP7002

KCENON(K)

GND G

KCENON(K)

KCENON(A)

GND G

D GND

TRIG END

MF LED

MF L2

MF L1

X REF

X SEN

Y REF

28MF LED

MF L2

MF L1

X REF

X SEN

Y REF

SIDE(R) C.B.A.

VTR KEY 5

SP OUT2

SP OUT1

LIBATT+

GND

ZOOM AD

GND

VTR KEY 5

7AVREF

FP6301

CARD PRO

CARD DET

SD DATA1

SD DATA0

CMD O

SD DATA3

SD DATA2

SD D33V

SD CLK O

DSC GND

TPA(+)

TPA(-)

TPB(+)

TPB(-)

GND

CARD LED

VTR KEY 4

LCD DET

REG D3V

P LCD LED

RESET

POWER LCD

D GND

ST NOREG

Y SEN

IR OUT

CHARGE

CHA END

TRIG END

D GND

NOREG GND

REG D3V

TALLY

REG A5V

MIC 5V

MIC(R)

MIC(L)

MIC GND

ST NOREG

FP4801

5V B

V3 B

V2 B

V4 B

H1 B

H2 B

SUB B

15V

A GND

SIG B

V1 B

A GND

5V RG

V3 G

V2 G

V4 G

H1 G

H2 G

SUB G

15V

A GND

SIG G

V1 G

A GND

5V RG

V3 R

V2 R

V4 R

H1 R

H2 R

SUB R

15V

A GND

SIG R

V1 R

A GND

FP4002

CHA END

CHARGE

IR OUT

Y SEN

FP701

D GND

CAM 0

D GND

L Y C IO5

L Y C IO0

L Y C IO1

L Y C IO2

D GND

ZOOM AD

LCD SCLK

LCD SD

LCD CS

EVF H/L

TV MD

EVF BL

M BL

LCD ON

M RVS

CCD ON

CAM VD

EVR SBI

EVR SBO

EVR SCK

FLM D0

SHOE ON

SHOE DET

SHOE DAT

SHOE CLK

VTR T

MEGA PIX

MEGA DSTB

MEGA BUSY

V C DEST

MEMO END

WINK END

M REQUEST

CAM SEND END

CAM RTN

CAM SCK

SS DET

CAM RST

CAM D3 OFF

REMOCON

VREF

D GND

INST ST

RTN FLD

C V DATA

V C DATA

CLK27 CAM

CLK45

MEGA Y C0

MEGA Y C1

MEGA Y C2

MEGA Y C3

MEGA Y C4

MEGA Y C5

MEGA Y C6

MEGA Y C7

Y C0

Y C1

Y C2

Y C3

Y C4

Y C5

Y C6

Y C7

CLK27A

CAM 1.5V

SW 3V

REG 3.1V

REG D2.5V

REG A5V

REG -8V

REG 15V

NOREG

REG 9V

M BL POWER

REG D3V

SUB 1.8V

CLK27C

L Y C IO7

L Y C IO6

L Y C IO4

L Y C IO3

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

PP301

POWER ON

POWER LED

STANDBY LED

VTR KEY 3

REG D3V

GND

GUI LED

VTR KEY 2

VTR KEY 1

GND

SS SW

DEW

CARD PRO

CARD DET

SD DATA1

SD DATA0

CMD O

POWER LCD

RESET

P LCD LED

REG D3V

LCD DET

VTR KEY 4

CARD LED

GND

TPB(-)

TPB(+)

TPA(-)

TPA(+)

DSC GND

SD CLK O

SD D33V

SD DATA2

SD DATA3

FP6503

CAM VD

SYSTEM RST

UARTO

UARTI

CAM A GND

DBGE

SDAO PTC

SDI DINT

DRESET

V/HP R

PCST3

PCST2

TEST

EVR 3.4V

ATF1

ENVELOPE

HID1

PCST1

PCST07

DCLK

PP3001

EVR SCK

EVR SBI

EVR SBO

FLM DI

CAM RST

FP2001

P ON

SP OUT2

SP OUT1

LIBATT+

GND

ZOOM AD

GND

VTR KEY 57

AVREF

FP6501

D GND

ST NOREG

NOREG GND

REG D3V

TALLY

REG A5V

MIC 5V

MIC(R)

MIC(L)

MIC GND

PS3001

D GND

ZOOM AD

LCD SCK

LCD SD

LCD CS

M EVF HL

TV MD

EVF BL

M BL

LCD ON

M RVS

CCD ON

CAM VD

EVR SBI

EVR SBO

EVR SCK

FLM D1

SHOE ON

SHOE DET

SHOE DAT

SHOE CLK

VTR T

MEGA PIX

MEGA DSTB

MEGA BUSY

V C DSET

MEMO END

WINK END

M REQUEST

CAM SEND END

CAM RTN

CAM SCK

SS DET

CAM RST

CAM D3 OFF

REMOCON

VREF

D GND

INST ST

RTN FLD

CAM 0

C V DATA

V C DATA

CLK27 CAM

CLK45

MEGA Y C0

MEGA Y C1

MEGA Y C2

MEGA Y C3

MEGA Y C4

MEGA Y C5

MEGA Y C6

MEGA Y C7

Y C0

Y C1

Y C2

Y C3

Y C4

Y C5

Y C6

Y C7

CLK27A

CAM 1.5V

SW 3V

REG 3.1V

REG D2.5V

REG A5V

REG -8V

REG 15V

NOREG

REG 9V

M BL POWER

REG D3V

SUB 1.8V

CLK27C

L Y C IO7

L Y C IO6

L Y C IO5

L Y C IO4

L Y C IO3

L Y C IO2

L Y C IO1

L Y C IO0

113

114

112

115

116

117

118

120

111

110

109

108

107

102

119

100

105

103

106

104

101

SD CARD

HS6301

LCD DET C.B.A.

LCD OPEN

POWER LCD

QUICK START

STOP

FLASH

EVR1

PHOTO SHOT

MIC UNIT

CCD FLEX.CARD C.B.A.

ECM(L)

ECM(R)

RECEIVER

CONTROL

REMOTE

FRONT C.B.A.

SUB CONNCTOR

SUB POWERLCDCAMERA

SUB C.B.A.

LENS DRIVE

EVR2

COVER UNIT

CASSETTE FLEX.CARD C.B.A.

SIDE(L)

JK3952

DV TERMINAL

FP6502

FP6505

GND

AVREF

ZOOM AD

AUTO/MANUAL/MF

JOYSTICK

MODE DIAL/

POWER

START/STOP

REAR OPERATION UNIT

RESET

ZOOM

BATTERY

LITHIUM

SPEAKER

LENS UNIT

1110987654321

FMR A

FMR GND

FMR B

FMR VCC

ZAP

ZBN

ZAN

ZBP

ALC M(+)

H IN(+)

H OUT(+)

H IN(-)

H OUT(-)

ALC M(-)

ALC CNT(-)

ALC CNT(+)

Z ABS

Z LED

ZENC VCC

X DRV(-)

X VH(-)

X HO(+)

X VH(+)

X HO(-)

Y HO(-)

FM T(+)

FM T(-)

Y VH(+)

Y HO(+)

Y VH(-)

Y DRV(+)

Y DRV(-)

X DRV(+)

ND CNT(+)

ND DRV(+)

ND H IN(+)

ND HO(+)

ND H IN(-)

ND HO(-)

ND DRV(-)

ND CNT(-)

PV-GS250PP

INTERCONNECTION SCHEMATIC DIAGRAM

PV-GS250PP

FLEX.CARD C.B.A.

LCD HINGE MONITOR

PP201

SIG B

A GND

SUB B

H2 B

H1 B

V4 B

V3 B

V2 B

V1 B

5V B

SIG G

15V

SUB G

H2 G

H1 G

V4 G

V3 G

V2 G

V1 G

A GND

SUB R

H2 R

H1 R

V4 R

V3 R6

V1 R

5V RG

V2 R

SIG R

5V RG

L/HP L

EXT MIC

EXT MIC(R)

EJECT SW

S Y IO

S PLUG

D GND

S C IO

V/HP R24

MIC 5V

USB D(-)

D GND

USB D(+)

MIC GND

CR POWER

R PLUG

EXT MIC(L)

WD REMO

PLUG IN

R/GND

FP6201

VBUS

22XSTH

STH

VSS

E COM

E CKV1

STV

FP802

CKH1

CKH2

VDD

CSH

DSG

XDSG

DSD

VBB

CSV

ENB

CKV2

CKV1

COM

D GND

XENB

XSTV

D GND

E CKV2

E STV

E XSTV

E XENB

E ENB

E DSD

E XDSG

E DSG

E B OUT

E R OUT

E G OUT

EVF 8.5V

E CKH2

FP801

EVF BL 5V

E CKH1

E STH

E XSTH22

CSV

FP902

CKV

VCSH

OEVE

PCG

OEV

VREF

VVSS

CKD1

CKD2

V COM

VSS

V COM

VDD

CKH1

CSH

STH

CKH2

FP901

M COM

M G

M R

M B

M CSH

M STH

M 8.5V

M CSV

M STV

D GND

M LED 5V

M PWM

M CKH2

M CKH1

M OEV

M PCG

M OEVE

M FR

M VCSH

M CKV

STV

D GND

M CKH2

M H/L

M CKH1

PWM

M LED 5V

M OEV

M PCG

M RVS

D GND

M COM

M 8.5V

M STH

M CSH

M G

M R

M B

M CSV

M STV

M CKV13

M VCSH

M COM

D GND

M G

M R

M B

M CSH

M STH

M 8.5V

M CSV

M STV

D GND

M LED 5V

M PWM

M CKH2

M CKH1

M OEV

M PCG

M OEVE

M FR

M VCSH

M CKV

D GND

M OEVE

M FR

D GND

M PWM

M H/L

M LED 5V

D GND

E CKV1

E DSG

D GND

E XSTV

E DSD

EVF 8.5V

E CKH1

1E XSTH

E STH

E CKH2

E G OUT

E R OUT

E B OUT

E STV

E CKV2

E COM

EVF BL 5V

E XENB

E XDSG

E ENB

FP601

M CKH2

M CKH1

M OEV

M PCG

M OEVE

M FR

M VCSH

M CKV

M STV

M CSV

M B

M R

M G

M CSH

M STH

M 8.5V

M COM

M RVS

D GND

SIG B

A GND

SUB B

H2 B

H1 B

V3 B

V2 B

V1 B

D GND

5V B

SIG G

15V

SUB G

H2 G

H1 G

V4 G

V3 G

V2 G

V1 G

A GND

SUB R

H2 R

H1 R

5V RG

V4 R

V1 R

V2 R

5V RG

FP602

SIG R

V3 R

FP201

V4 B

27EJECT

S Y IO

S PLUG

S C IO

L/HP L

R/GND

PLUG IN

V/HP R

MIC 5V

EXT MIC

EX MIC(R)

WD REMO

EX MIC(L)

R PLUG

CR POWER

MIC GND

VBUS

USB D(-)

D GND

USB D(+)

D GND

FP6504

SHOE UNREG

DATA

CLK

DET

H MIC(R)

H MIC GND

H MIC(L)

SHOE GND

FP3402

MONITOR LCD PANELEVF LCD PANEL

JACK C.B.A.

EX INPUT

VIDEO

MAIN CONNECTION

AVIO

CONTROL

POWER

MAIN C.B.A.

CONNECTOR

HOT SHOE

S-VIDEO IN/OUT

JK3001

USB

JK3901

EVF C.B.A.

MONITOR C.B.A.

CATCHER

BATTERY

D GND

POS1

POS2

POS3

M UNLOAD

M LOAD

FP2204

GND

FP1001

AFG2

AFG1

VMR

D GND

H2(+)

VH(-)

H1(+)

H3(+)

VH(+)

H3(-)

H1(-)

FP2201

H2(-)

S TAB

MIC CLK

MIC DT

MIC VDD

D GND

C DOWN

SENS LED K

SENS LED A

VH(-)

T REEL(-)

T REEL(+)

VH(+)

S REEL(+)

S REEL(-)

S PHOTO

V OUT 3V

T PHOTO

FP2203

FG(+)

COM

M2A

M1A

M3A

PG(+)

D GND

FP2202

M3A

GND

CH 1F

CH 1S

CH 2S

CH 2F

GND

FP5001

JK4901 REMOTE

MIC/

JK4001 AV/HP

LOAD

MECHA.UNIT

CAPSTANCYLINDER

2221201918171615141312

M H/L M H/L

PV-GS250PP

INTERCONNECTION SCHEMATIC DIAGRAM

PV-GS250PP

INTERCONNECTION SCHEMATIC DIAGRAM

PV-GS250PP

14.2. SIDE (L) FLEX. CARD / CASSETTE COVER SCHEMATIC DIAGRAM

SPEAKER

ML-621S/F9D

BATTERY

LITHIUM

(CASSETTE COVER)

10K

SHOT2


VTR KEY 5

AVREF

ZOOM AD

GND

SP OUT1

SP OUT2

FP6501-1

FP6501-2

FP6501-3

FP6501-4

FP6501-5

FP6501-6

FP6501-7

FP6501-8

FP6501-9

FP6501-10

FP6501-11

FP6501-12

SP OUT2

10K SHOT1


LIBATT+

GND

ZOOM AD

AVREF

VTR KEY 5

GND

SP OUT1

SP OUT2

MAIN CONNECTION

(SIDE L FLEX.CARD C.B.A.)

413

PV-GS250PP

SIDE (L) FLEX.CARD/

CASSETTE COVER SCHEMATIC DIAGRAM

IMPORTANT SAFETY NOTICE:

COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL

CHARACTERISTICS FOR SAFETY. WHEN REPLACING ANY OF THESE

COMPONENTS, USE ONLY THE SAME TYPE.

14.3. LCD HINGE (MONITOR FLEX.) SCHEMATIC DIAGRAM

LCD RVS

K0L1BA000101

S601

D GND

FP602

SUB CONNECTION

D GND

M CKH2

M H/L

M CKH1

PWM

M LED 5V

M OEV

M PCG

M RVS

D GND

M COM

M 8.5V

M STH

M CSH

M G

M R

M B

M CSV

M STV

M CKV

M VCSH

M FR

M OEVE FP902

D GND

M LED 5V

M PWM

M CKH2

M CKH1

M OEV

M PCG

M OEVE

M FR

M VCSH

M CKV

M STV

M CSV

M B

M R

M G

M CSH

M STH

M 8.5V

M COM

MONITOR

:VIDEO MAIN SIGNAL PATH

(LCD HINGE MONITOR FLEX.CARD C.B.A.)

4321

M H/L

PV-GS250PP

LCD HINGE(MONITOR FLEX.)

SCHEMATIC DIAGRAM

14.4. MF SENSOR SCHEMATIC DIAGRAM

3.3

4.1

4.9

4.1

4.9

(MF SENSOR C.B.A.)

CNA1312K01VT

Q711

(FOCUS SENSOR)(FOCUS SENSOR)

CNA1312K01VT

Q710

GND

MF L1

MF VCC

MF L2

MF VCC

MF LED

TO FP7001

FRONT

321

PV-GS250PP

MF SENSOR

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

PV-GS250PP

14.5. REAR OPERATION UNIT SCHEMATIC DIAGRAM

MODE DIALJOYSTICK

10K10K

START

QUICK

STOP

START/

STANDBY

POWER

STOP

QUICK START

5.7K

2.84K REV

SET

PLAY

17.36K

5.7K

2.84K

FP6502

10K

TAPE REC

TAPE PLAY

CARD REC

PICTURE PLAY

POWER

DEW

SS SW

GND

VTR KEY 1

VTR KEY 2

GUI LED

GND

REG D3V

VTR KEY 3

STANDBY LED

POWER LED

POWER SW

MAIN CONNECTION

(REAR OPERATION UNIT)

413

PV-GS250PP

REAR OPERATION UNIT SCHEMATIC DIAGRAM

14.6. EVF SCHEMATIC DAIGRAM

C802

1.3

0.6

1.7 MAZ80470ML

D802

0.47

C801

FP601-22

FP601-21

FP601-20

FP601-19

FP601-18

FP601-17

FP601-16

FP601-15

FP601-14

FP601-13

FP601-12

FP601-11

FP601-10

FP601-9

FP601-8

FP601-7

FP601-6

FP601-5

FP601-4

FP601-3

FP601-2

FP601-1

22E XSTH

E STH

E CKH1

EVF BL 5V

FP801

SUB CONNECTION

E CKH2

EVF 8.5V

E G OUT

E R OUT

E B OUT

E DSG

E XDSG

E DSD

E ENB

E XENB

E XSTV

E STV

E CKV2

D GND

E CKV1

E COM

XSTH

STH

VSS

4700

R801

MA3S13300L

D804

R804

(BACKLIGHT CONTROL)

2SD2216J0L

Q801

BACKLIGHT

EVF

B3AFB0000081

D801

B0BC6R100025

D803

COM

CKV1

CKV2

(EVF C.B.A.)

STV

XSTV

XENB

ENB

CSV

VBB

DSD

XDSG

DSG

CSH

VDD

CKH2

CKH1

FP802

EVF LCD PANEL

:VIDEO MAIN SIGNAL PATH

413

PV-GS250PP

EVF

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON THIS SCHEMATIC DIAGRAM

FOR ORDERING.WHEN YOU ORDER A PART,PLEASE REFER TO PARTS LIST.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED

HEREIN SHALL BE REGARDED AS REFERENCE

NFORMATION WHEN PROBING DEFECT POINT,

BECAUSE IT MAY DIFFER FROM AN ACTUAL

MEASURING VALUE DUE TO DIFFERENCE OF

MEASURINGINSTRUMENT AND ITS MEASURING

CONDITION AND PRODUCT ITSELF.

NOTE:

THE MEASUREMENT MODE OF THE DC VOLTAGE ON THIS

DIAGRAM IS STOP MODE.(EVF:ON)

PV-GS250PP

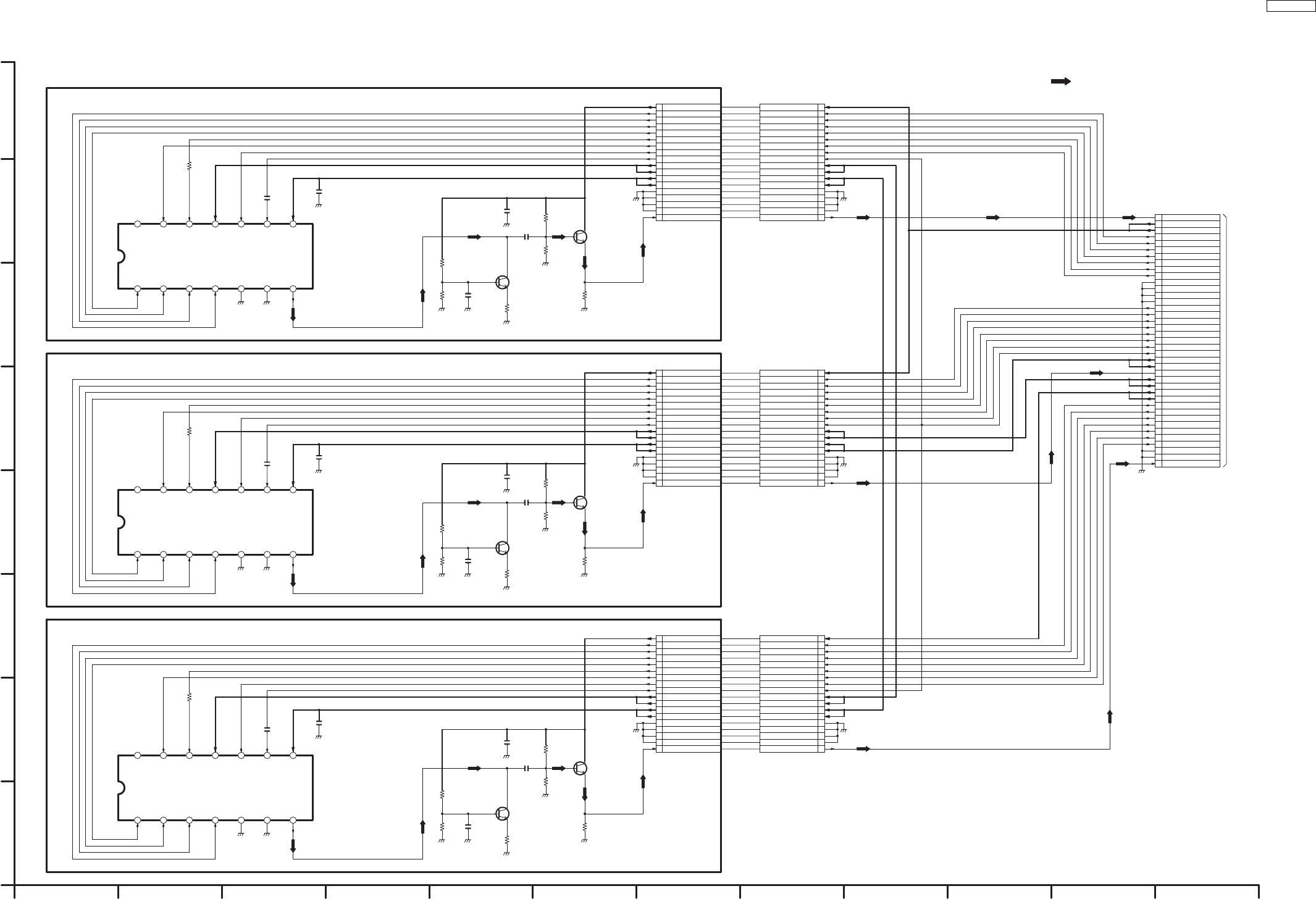

14.7. CCD FLEX. CARD SCHEMATIC DIAGRAM

R218

12.0

14.912.49.4

0.6

-7.8

0.6

2.1

-7.1

1.4

-7.1

12.0

14.912.49.4

0.6

-7.8

0.6

2.1

-7.1-7.1

1.4

12.0

14.912.49.4

0.6

-7.8

0.6

2.1

-7.1

1.4

-7.1

12.0

1.7

2.4

2.3

1.6

4.9

12.0

1.7

2.4

2.3

1.6

4.9

1.6

2.4

12.0

1.7

2.3

4.9

PP201

SUB CONNECTION

R(NC)

NC(H2)

OUT

V3 H2(H1)

H1(R)

V1 PT

SUB

GND(NC)

GND

VDD

R(NC)

NC(H2)

OUT

V3 H2(H1)

H1(R)

V1 PT

SUB

GND(NC)

GND

VDD

OUT

R(NC)

GND

GND(NC) SUB

V2 H1(R)

H2(H1)

V4 NC(H2)

FP201

5V B

V3 B

V2 B

V4 B

H1 B

H2 B

SUB B

15V

A GND

SIG B

V1 B

A GND

(CCD B C.B.A.)

A GND

0.1

C221

C226

12K

R221

820

R224

10K

R223

12K

R225

10K

R226

C225

820

R222

1234567

14 13 12 11 10 9 8

C222

(CCD,B)

C4AZJ0000004

IC203

(FILTER)

2SC4627JCL

Q222

(AMP)

2SC4627JCL

Q221

R228

0.1

C223

SUB

15V

A GND

SIG

A GND

5V RG

V3 G

V2 G

V4 G

H1 G

H2 G

SUB G

15V

A GND

SIG G

V1 G

A GND

(CCD G C.B.A.)

A GND

0.1

C201

C206

12K

R201

820

R204

10K

R203

12K

R205

10K

R206

C205

820

R202

1234567

14 13 12 11 10 9 8

C202

(CCD,G)

C4AZJ0000004

IC201

(FILTER)

2SC4627JCL

Q202

(AMP)

2SC4627JCL

Q201

R208

0.1

C203

SUB

15V

A GND

SIG

A GND

SIG B

A GND

SUB B

H2 B

H1 B

V4 B

V3 B

V2 B

V1 B

5V B

SIG G

15V

SUB G

H2 G

H1 G

V4 G

V3 G

V2 G

V1 G

A GND

SUB R

H2 R

H1 R

V4 R

V3 R

SIG R

V1 R

5V RG

V2 R

5V RG

V3 R

V2 R

V4 R

H1 R

H2 R

SUB R

15V

A GND

V1 R

A GND

SIG R

A GND

(CCD R C.B.A.)

(CCD FLEX.CARD C.B.A.)

C216

12K

R215

820

R212

820

R214

0.1

C211

12K

R211

10K

R213

C215

10K

R216

0.1

C213

2SC4627JCL

Q211

(FILTER)

(AMP)

2SC4627JCL

Q212

(CCD,R)

C4AZJ0000004

IC202

C212

GSIG

A GND

15V

SUB

891011121314

7654321

:VIDEO MAIN SIGNAL PATH

987654321

PV-GS250PP

CCD FLEX.CARD

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

PV-GS250PP

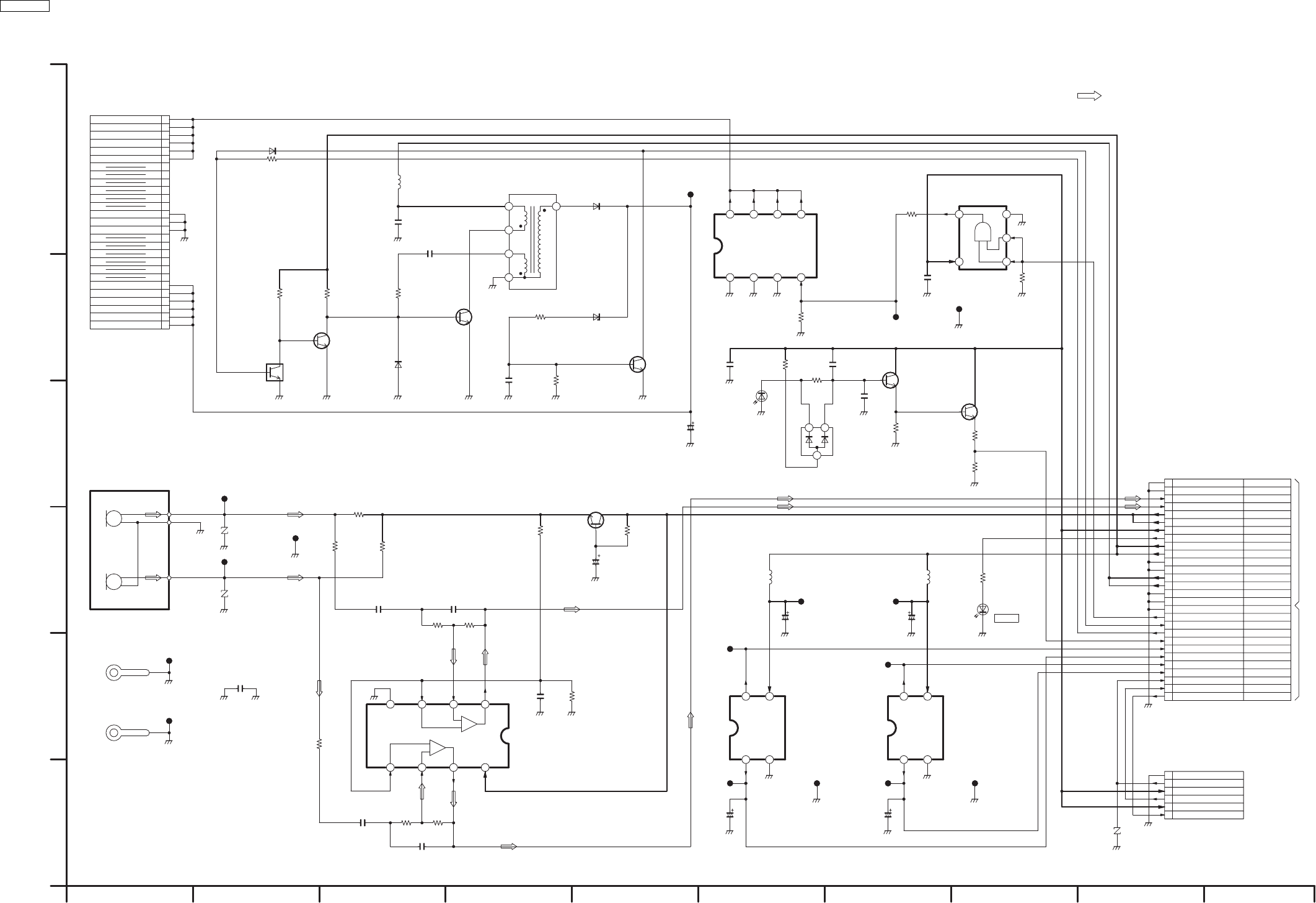

14.8. FRONT SCHEMATIC DIAGRAM

D4ED1270A003

VZ7002

10K

R4808

CL401

CL481

OUT VCC

GNDVREFVREF GND

VCCOUT

1.31.3

2.91.22.91.2

R4804

10K

R4807

CL7003

100K

R7011

F2AZZ6500002

C7004

10u

L480

6V22

C495

6V22

C488

CL482

CL403

CL483

L2ES00000013

IC481

(GYRO X SENSOR)

10u

L401

CL402

6V22

C403

6V22

C401

CL404

CL402

(GYRO Y SENSOR)

L2ES00000012

IC482

FP6505-15

FP6505-16

FP4002-12

FP4002-11

FP4002-10

FP4002-9

MF LED

MF L2

MF L1

X REF

8.0

0.7

0.6

0.7

C7001

G5DYA0000084

T7001

56u

L7001

47K

R7001

10K

R7009

R7022 1K

B0JCDD000002

D7006

560K

R7006

B1ABBE000002

Q7003

(POWER CONTROL)

B0BC30000001

D7004

0.01

C7003

R7005 330K

B0ECKT000001

D7003

MA2S11100L

D7001

120

R7003

(SWITCHING)

2SD2216J0L

Q7001

(INV.)

(POWER CONTROL)

UNR9214J0L

QR7008

B1ABPF000009

Q7002

0.01

C7007

FRAME GND2

TO RL4002

3.2

3.7

4.93.7

3.4

4.9

4.92.42.42.4

2.42.42.4

4.2

4.94.8

4.9

249249249249

(FRONT C.B.A.)

B1ABBE000002

Q492

(AMP)

CL4802

CL4803

CL4801

(FLASH DRIVE)

:AUDIO MAIN SIGNAL PATH

C4899

RL4001

FRAME GND1

330

R6803

TALLY

B3AAB0000037

D6801

TL7007

TL7002

MF LED

MF VCC

MF L2

MF VCC

MF L1

SE GND

FP7001

MF SENSOR

FP6505

TO MAIN CONNECTION

FP4002

TO SUB CONNECTION

FP4002-8

FP4002-7

FP4002-6

FP4002-5

FP4002-4

FP4002-3

FP4002-2

FP4002-1

FP6505-1,2,3

FP6505-4,5,6

FP6505-7,8,9

FP6505-10

FP6505-11

FP6505-13

FP6505-17

FP6505-18

FP6505-19

FP6505-20

FP6505-21

D GND

ST NOREG

X SENS

Y REF

Y SENS

IR OUT

CHARGE

CHA END

TRIG END

D GND

NOREG GND

REG D3V

TALLY

REG A5V

MIC 5V

MIC (R)

MIC (L)

MIC GND

FP4801

MAIN/SUB CONNECTION

4700

R493

1800

R494

330K

R492

(AMP)

B1ABCF000100

Q491

0.22

C492

0.22

C493

10M

R495

MA3S132D0L

D491

2.2M

R491

B3GA00000047

D6802

0.1

C491

(R.FILTER)

B1ABBE000002

Q4803

4700

R4815

6V22

C4808

33K

R4814

4.7

C4807

22K

R4813

(MIC AMP)

C0ABBB000105

IC4801

0.047

C4802

680P

C4804

56K

R4806

680P

C4803

56K

R4805

R4803

0.047

C4801

3900

R4802

3900

R4801

D4ED1270A003

VZ4801

D4ED1270A003

VZ4802

VCC

GND

8765

4321

MIC UNIT

M4802

ECM(L)

M4801

ECM(R)

47K

R7010

0.1

C7006

C0JBAA000345

IC7001

R7008

B1JBLP000004

IC7003

KCENON(A)

GND G

KCENON(K)

KCENON(K) 27

FP7002

FLASH FLEX.

987654321

PV-GS250PP

FRONT

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

PV-GS250PP

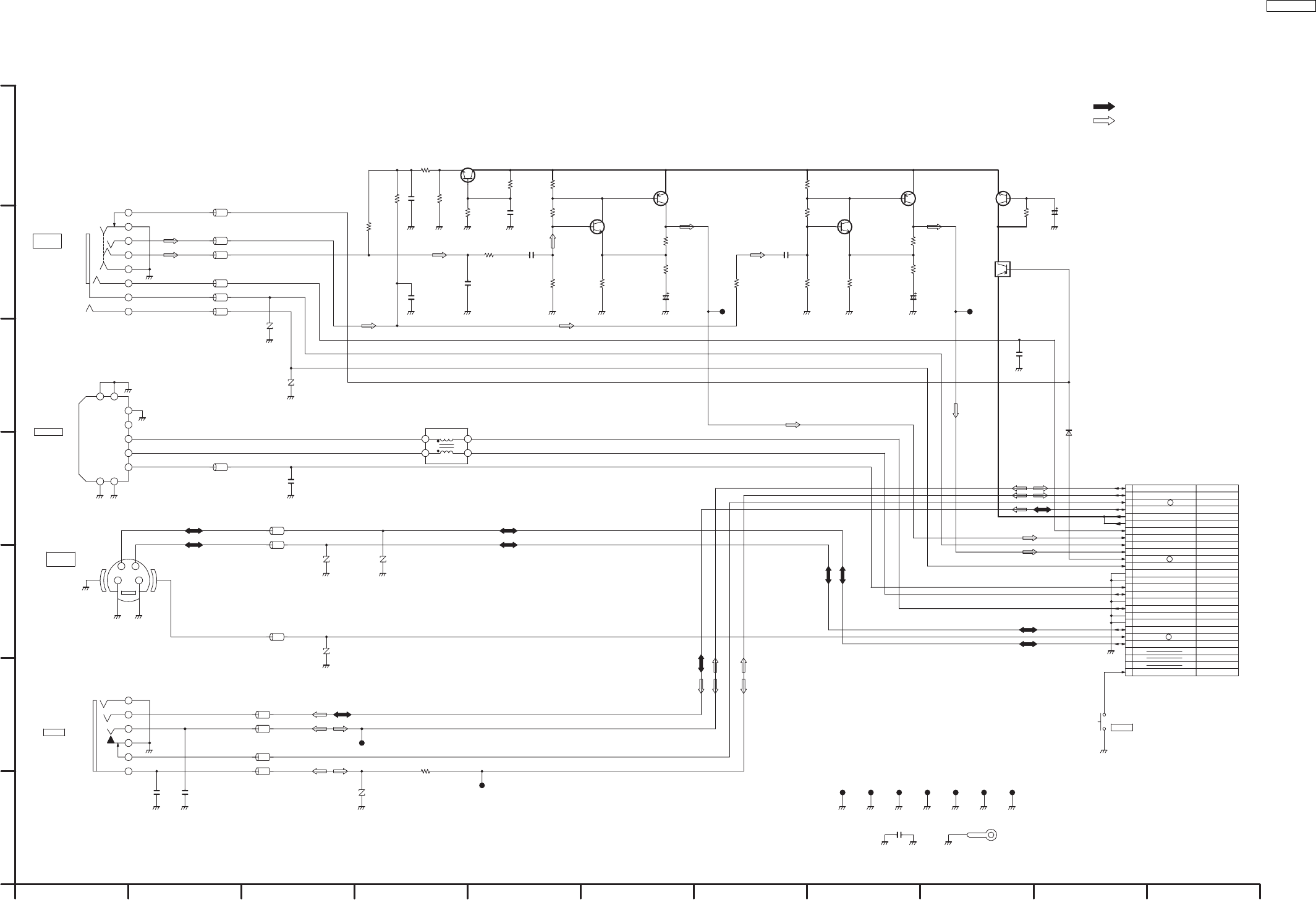

14.9. JACK SCHEMATIC DIAGRAM

FP6504-27

FP6504-1,2L/HP L

J0MAB0000140

FL2503

C3908

4.9

4.8

4.2

2.1

4.8

3.5

0.9

3.5

0.4

4.8

2.3

3.5

0.4

0.9

4.2

4.84.8

C4904

FP6504-3

EJECT

K0L1BA000050

S6212

B0JCDD000002

D4901

(R.FILTER)

D4ED1270A008

VZ4002 D4ED1270A008

VZ4003

EXT MIC(R)

EXT MIC

FP6504-4

FP6504-5

FP6504-6

FP6504-7

FP6504-8

FP6504-9

FP6504-10

FP6504-11

FP6504-12

FP6504-13

FP6504-14

FP6504-15

FP6504-16

FP6504-17

FP6504-18

FP6504-19

FP6504-20

FP6504-21

FP6504-22

FP6504-23

FP6504-24

FP6504-25,26

56K

R4915

RL2501RL2503 RL2502RL2504RL4801

GND

D+

D-

VBUS

CL4902

D4ED1120A002

VZ4001

4700P

C4901

4700P

C4902

CL4901

USB

K2HZ105E0006

JK3901

LB4009 J0JAC0000014

LB4007 J0JBC0000054

LB4008 J0JBC0000054

IN/OUT

S VIDEO

K2HZ104A0002

JK3001

B1ABBE000002

Q4908

R4901 330

4.7

C4913 47K

R4924

5600

R4904

5600

R4920

D4ED1120A002

VZ4902

D4ED1120A002

VZ4903

LB4928 J0JAC0000015

C4909

22K

R4922

68K

R4923

CL4002

CL4001

D4ED1270A006

VZ4004

R4001 100

CL4004CL4003

(POWER SUPPLY)

(R.FILTER)

6V22

C4906

4700

R4902

B1GDBEHH0001

QR4901

B1ABBE000002

Q4907

2SB1462JHL

Q4904

2SD2216J0L

Q4903

(AMP)

5600

R4917

150

R4918

(AMP)

6V22

C4910

470

R4912

C4908

10K

R4913

150K

R4914

R4916

(AMP)

2SB1462JHL

Q4902

2SD2216J0L

Q4901

5600

R4910

150

R4911

6V22

C4905

R4909

150K

R4907

10K

R4906

470

R4905 1

C4903

56K

R4908

4700P

C4003 4700P

C4004

C4001 1

LB4003 J0JAC0000014

LB4005 J0JAC0000014

LB4001 J0JBC0000054

LB4006 J0JAC0000014

LB4921 J0JAC0000015

LB4926 J0JAC0000015

LB4924 J0JAC0000015

LB4923 J0JAC0000015

S C IO

D GND

S PLUG

S Y IO

EJECT SW

MIC 5V

24 V/HP R

LB4922 J0JAC0000015

LB3902 J0JAC0000014

(JACK C.B.A.)

FP6201

MAIN CONNECTION

VBUS

USB D(-)

D GND

USB D(+)

MIC GND

CR POWER

R PLUG

EXT MIC(L)

WD REMO

PLUG IN

R/GND

11109876

:AUDIO MAIN SIGNAL PATH

:VIDEO MAIN SIGNAL PATH

AV/HP

REMOTE

MIC/

FRAME GND

5432

K2HC107B0003

JK4901

K2HC106B0018

JK4001

PV-GS250PP

JACK

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

PV-GS250PP

14.10. SIDE (R) / LCD DET. SCHEMATIC DIAGRAM

RESET

POWER LCD

CL6302 CL6301

470

R6316

FRAME GND2

FRAME GND1

47K

R6305

47K

R6304

FP6301

MAIN CONNECTION

K0H1BA000436

S6302

4.7

C6301

C6310

47P

C6304

47P

C6305

4700

R6311

4700

R6310

4700

R6309

4700

R6308

47P

C6302

47P

C6303

R6307

R6306

R6303

R6302

0.1

C6307

0.1

C6306

SD CARD CONNECTOR

K1NA09E00038

HS6301

GND

D2D3CMDGNDVCCCLKGNDD0D1

TPA(+)

TPA(-)

TPB(+)

TPB(-)

TERMINAL

K1FA104A0017

JK3952

C6321

CARD ACCESS

POWER LCD

D6601 B3AAB0000037

D6301 B3ABB0000086

GNDLCD DET

LCD DET C.B.A.

LCD OPEN

K0L1BA000101

S6701

K0H1BA000436

S6301

K0D113B00027

S6304

MFMAUTO

F1H0J1050022

FL6301

WPC.DET

GND 1314

912345678121110

J0MAB0000116

FL3953

J0MAB0000116

FL3952

CARD PRO

CARD DET

SD DATA1

SD DATA0

CMD O

SD DATA3

SD DATA2

SD D33V

SD CLK O

DSC GND

TPA(+)

TPA(-)

TPB(+)

TPB(-)

GND

CARD LED

VTR KEY 4

LCD DET

REG D3V

P LCD LED

RESET

POWER LCD

FP6503-25

FP6503-24

FP6503-23

FP6503-22

FP6503-21

FP6503-20

FP6503-19

FP6503-18

FP6503-17

FP6503-16

FP6503-15

FP6503-14

FP6503-13

FP6503-12

FP6503-11

FP6503-10

FP6503-9

FP6503-8

FP6503-7

FP6503-6

FP6503-5

FP6503-4

FP6503-3

FP6503-2

FP6503-26

FP6503-1

(SIDE R C.B.A.)

987654321

PV-GS250PP

SIDE (R)/LCD DET.

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

PV-GS250PP

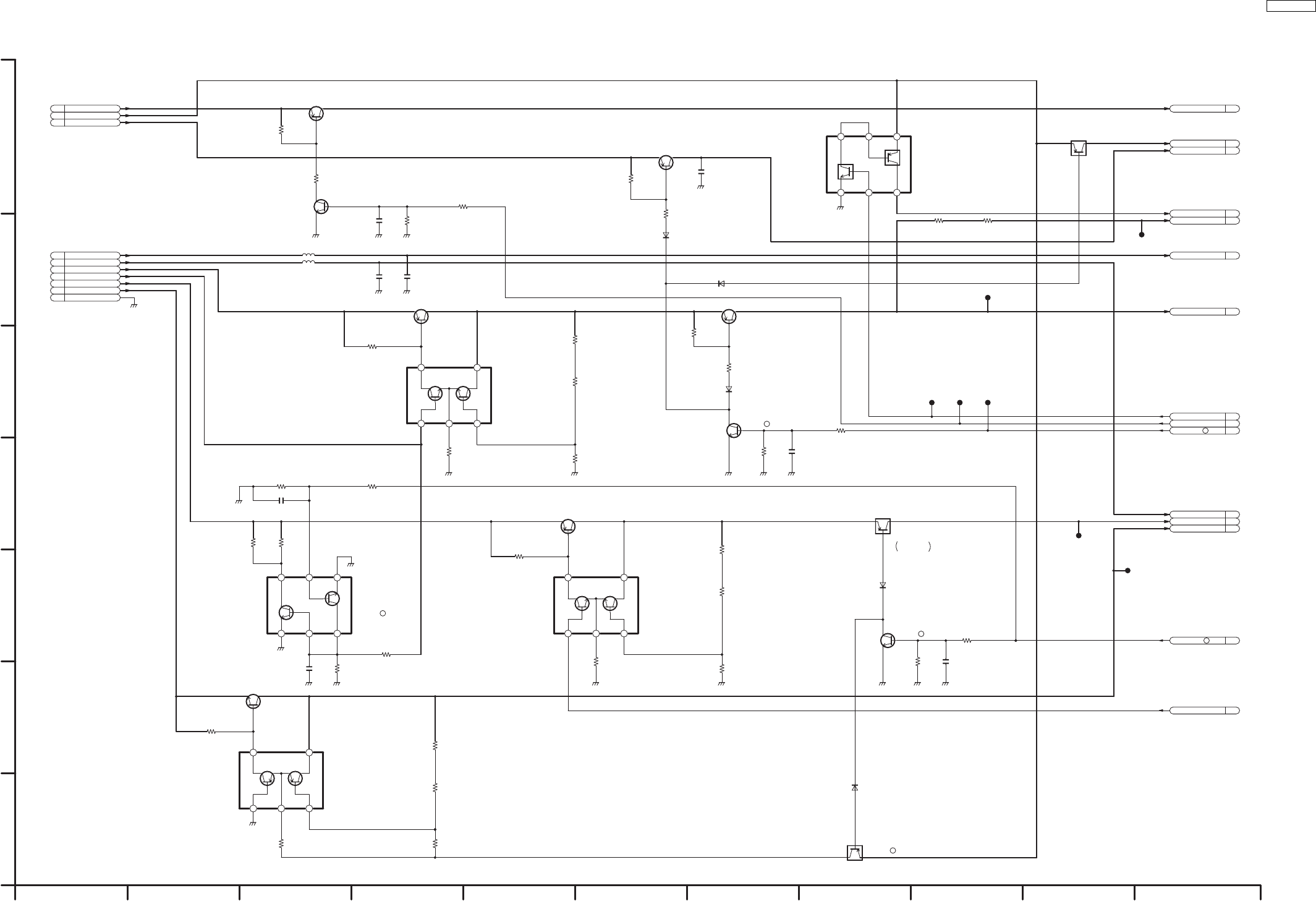

14.11. MONITOR SCHEMATIC DIAGRAM

1.0

1.5

(VREF)

1.1

0.3

1.4 1.1

0.5

1.1

1.4

0.3

1.1

1.4

0.3

1.1

1.4

0.3

1.1

1.4

0.3

1.1

0.3

1.4

1.1

0.3

1.4

B1ADBE000001

Q901

10K

R940

47K

R937

10K

R930

C933

4700

R913

4.7

C903

10V1

C902

1800

R901

0.1

C916

8200

R910

4.7

C918

15K

R904

C901

39P

C913 39P

C915

39P

C914

R903 1800

R909 330

R907 330

R908 330

R912 1K

L901 100u

R906 56K

R902

B1ADBE000001

Q913

(BACKLIGHT ON/OFF)

R915

B0BC6R100025

D902

B3AFB0000082

D911

R934

(BACKLIGHT)

2SD2216J0L

Q909

2SD2216J0L

Q908

(BACKLIGHT)

R933

B3AFB0000082

D910

B3AFB0000082

D909

R932

(BACKLIGHT)

2SD2216J0L

Q907

2SD2216J0L

Q906

(BACKLIGHT)

R931

B3AFB0000082

D908

B3AFB0000082

D907

R925

(BACKLIGHT)

2SD2216J0L

Q904

2SD2216J0L

Q903

(BACKLIGHT)

R924

B3AFB0000082

D906

B3AFB0000082

D905

R918

(BACKLIGHT)

2SD2216J0L

Q902

FP901

LCD PANEL

CKH2

STH

CSH

CKH1

VDD

V COM

VSS

V COM

CKD2

CKD1

VVSS

VREF

OEV

PCG

OEVE

VCSH

CKV

STV

CSV

D GND

M LED 5V

M PWM

M CKH2

M H/L

M CKH1

M OEV

M PCG

M OEVE

M FR

M VCSH

M CKV

M STV

M CSV

M B

M R

M G

M CSH

M STH

M 8.5V

M COM

FP902

MONITOR FLEX.

:VIDEO MAIN SIGNAL PATH

(MONITOR C.B.A.)

987654321

182K

R905

NOTE:

Refer

to "1.2. Service Information Regarding MONITOR C.B.A. and LCD PANEL of PV-GS250PP".

PV-GS250PP

MONITOR

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

NOTE:

THE MEASUREMENT MODE OF THE DC VOLTAGE ON THIS

DIAGRAM IS STOP MODE.(MONITOR:ON)

PV-GS250PP

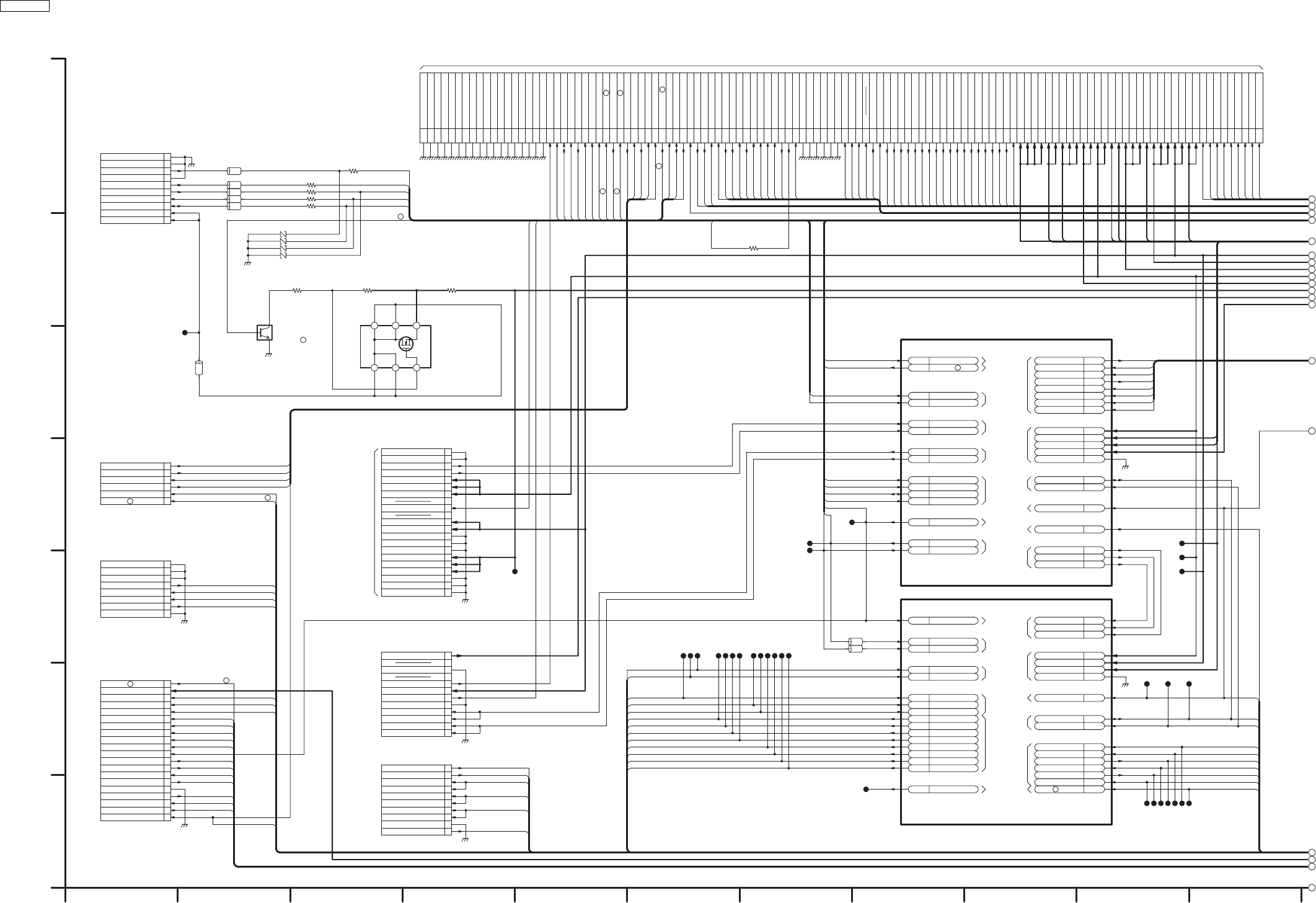

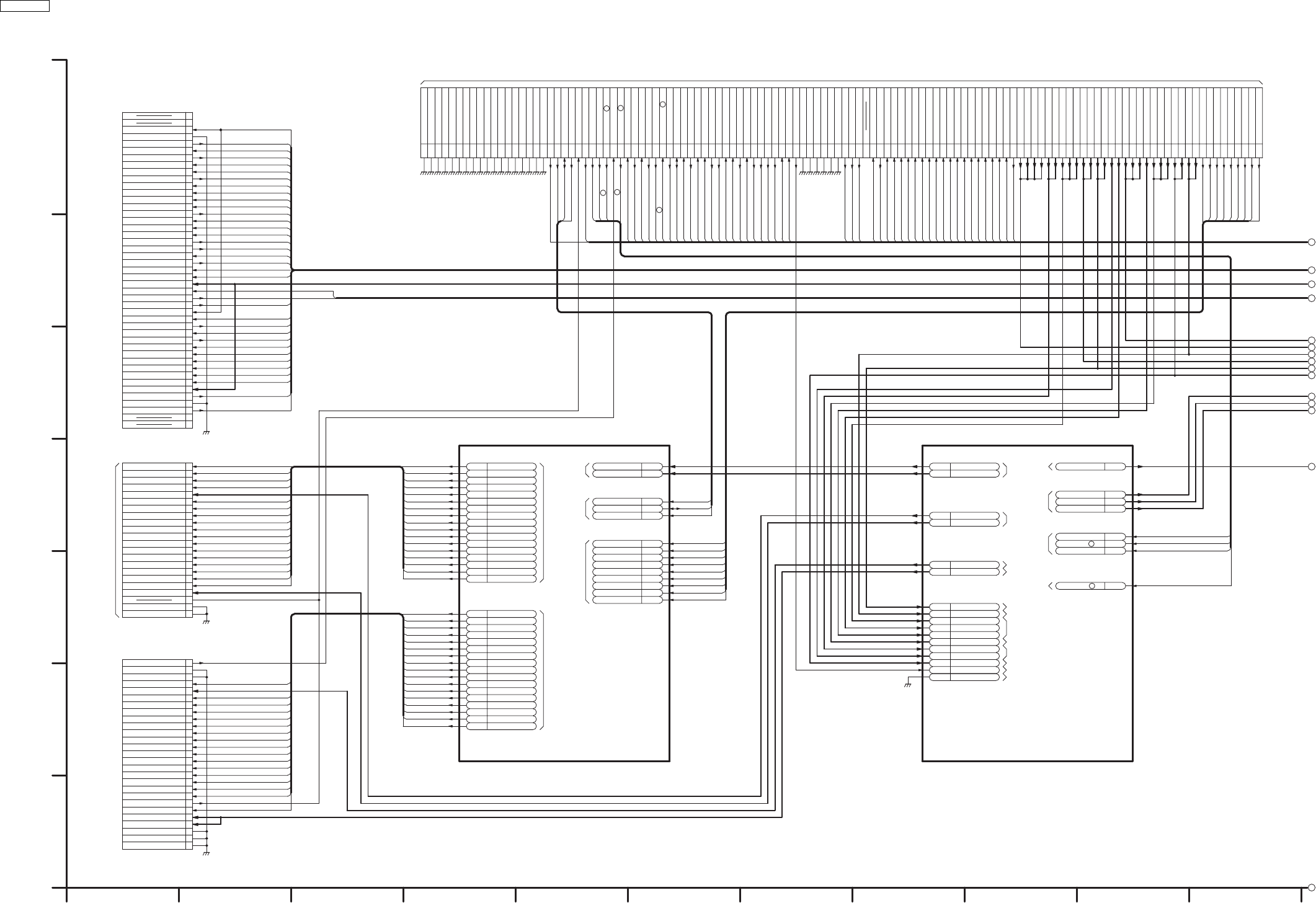

14.12. SUB (SUB CONNECTION) SCHEMATIC DIAGRAM

(F-1)

(B-11)

(G-1)

(F-1)

(G-1)

(F-1)

(G-1)

(G-11)

(F-11)

(G-11)

(C-11)

(E-11)

(D-11)

(F-11)

(F-1)

(C-1)

B-1)

(A-1/

C-10)

(B-10/

F-10)

(E-10/

FP801

C22

C24

C23

C21

C20

C19

C18

C25

C16

C15

C14

C13

C12

C11

C10

TO CONTROL

TO VIDEO

A48

A47

A46

A45

A44

A43

A42

A41

A40

A39

A38

A37

A36

M PWM

M CKH2

M CKH1

M OEV

M PCG

M OEVE

M FR

M VCSH

M CKV

M STV

M CSV

M B

M R

M G

M CSH

M STH

M COM

E COM

E CKV1

E CKV2

E STV

E XSTV

E XENB

E ENB

E DSD

E XDSG

E DSG

E B

E R

E G

E XSTH

E STH

E CKH1

E CKH2

FMR A

FMR B

ZAP

ZBN

ZAN

ZBP

ALC M(+)

H IN(+)

H OUT(+)

H IN(-)

H OUT(-)

ALC M(-)

ALC CNT(+)

Z ABS

Z LED

X DRV(-)

X VH(-)

X HO(+)

X VH(+)

X HO(-)

Y HO(-)

FM T(+)

FM T(-)

Y VH(+)

Y HO(+)

Y VH(-)

Y DRV(+)

Y DRV(-)

X DRV(+)

ND CNT(+)

ND DRV(+)

ND H IN(+)

ND HO(+)

ND H IN(-)

ND HO(-)

M REF

ZOOM AD

REMOCON

TO CONTROL/POWER

EVF BL

LCD ON

CCD ON

M BL

TO CONTROL

3CCD 3V

CAM 15V

CAM -8V

TO CAMERA

D GND

VREF

REG D3V

REG -8V

SW 3V

M BL POWER

REG 9V

REG 15V

REG 3.1V

SUB 1.8V

M LED 5V

M 8.5V

TO MONITOR

EVF BL 5V

EVF 8.5V

TO EVF

REG A5V

TO POWER

LCD 3V

LENS 3V

SUB POWER

C17

TO LENS DRIVE

TO LCD

LCD 5V

A34

A33

A32

A31

A30

A29

A28

A27

A26

A25

A24

A23

A22

A21

A20

A19

A17

A16

A15

A14

A13

A12

A11

A10

L Y C IO0

L Y C IO1

L Y C IO2

L Y C IO3

L Y C IO4

L Y C IO5

L Y C IO6

L Y C IO7

CLK27C

LCD SCLK

LCD SD

LCD CS

LCD 3V

LCD 5V

M PWM

M STH

M CSH

M G

M R

M B

M CSV

M STV

M CKV

M VCSH

M FR

M OEVE

M PCG

M OEV

M CKH2

M CKH1

M COMA18

TO MONITOR

E B

E R

E G

E COM

E DSD

E XDSG

E DSG

E CKH2

E CKH1

E XSTH

E STH

E XENB

E ENB

E CKV2

E CKV1

E XSTV

E STV

LCD

A35

TO SUB POWER

TO EVF

D GND

M LED 5V

M PWM

M H/L

M CKH2

M CKH1

M OEV

M PCG

M OEVE

M FR

M VCSH

M CKV

M STV

M CSV

M B

M R

M G

M CSH

M STH

M 8.5V

M COM

D GND

M RVS

D GND

EVF BL 5V

E COM

E CKV1

E CKV2

E STV

E XSTV

E XENB

E ENB

E DSD

E XDSG

E DSG

E B

E R

E G

EVF 8.5V

E CKH2

E CKH1

E STH

E XSTH

FP602

MONITOR FLEX.

FP601

EVF

FP701

LENS

FMR A

FMR GND

FMR B

FMR VCC

ZAP

ZBN

ZAN

ZBP

ALC M(+)

H IN(+)

H OUT(+)

H IN(-)

H OUT(-)

ALC M(-)

ALC CNT(-)

ALC CNT(+)

Z ABS

Z LED

ZENC VCC

X DRV(-)

X VH(-)

X HO(+)

X VH(+)

X HO(-)

Y HO(-)

FM T(+)

FM T(-)

Y VH(+)

Y HO(+)

Y VH(-)

Y DRV(+)

Y DRV(-)

X DRV(+)

ND CNT(+)

ND DRV(+)

ND H IN(+)

ND HO(+)

ND H IN(-)

ND HO(-)

ND DRV(-)

ND CNT(-)

CCD ON

L Y C IO0

L Y C IO1

L Y C IO2

L Y C IO3

L Y C IO4

L Y C IO5

L Y C IO6

L Y C IO7

CLK27C

CLK27A

Y C7

Y C6

Y C5

Y C4

Y C3

Y C2

Y C1

Y C0

MEGA Y C7

MEGA Y C6

MEGA Y C5

MEGA Y C4

MEGA Y C3

MEGA Y C2

MEGA Y C1

MEGA Y C0

CLK45

CLK27 CAM

V C DATA

C V DATA

CAM 0

RTN FLD

INST ST

CAM D3 OFF

CAM RST

SS DET

CAM SCK

CAM RTN

CAM SEND END

M REQUEST

WINK END

MEMO END

V C DSET

MEGA BUSY

MEGA DSTB

MEGA PIX

VTR T

FLM D1

EVR SCK

EVR SBO

EVR SBI

CAM VD

M RVS

LCD ON

M BL

EVF BL

TV MD

M EVF HL

LCD CS

LCD SCLK

LCD SD

TO PS3001

SHOE ON

SHOE DET

SHOE DAT

SHOE CLK

PP301

MAIN CONNECTION

L Y C IO0

L Y C IO1

L Y C IO2

L Y C IO3

L Y C IO4

L Y C IO5

L Y C IO6

L Y C IO7

CLK27C

SUB 1.8V

REG D3V

M BL POWER

REG 9V

NOREG

REG 15V

REG -8V

REG A5V

REG D2.5V

REG 3.1V

SW 3V

CAM 1.5V

CLK27A

Y C7

Y C6

Y C5

Y C4

Y C3

Y C2

Y C1

Y C0

MEGA Y C7

MEGA Y C6

MEGA Y C5

MEGA Y C4

MEGA Y C3

MEGA Y C2

MEGA Y C1

MEGA Y C0

CLK45

CLK27 CAM

V C DATA

C V DATA

CAM 0

RTN FLD

INST ST

D GND

VREF

REMOCON

CAM D3 OFF

CAM RST

SS DET

CAM SCK

CAM RTN

CAM SEND END

M REQUEST

WINK END

MEMO END

V C DSET

MEGA BUSY

MEGA DSTB

MEGA PIX

VTR T

SHOE CLK

SHOE DAT

SHOE DET

SHOE ON

FLM D1

EVR SCK

EVR SBO

EVR SBI

CAM VD

CCD ON

M RVS

LCD ON

M BL

EVF BL

TV MD

M EVF H/L

LCD CS

LCD SD

LCD SCLK

ZOOM AD

D GND

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

(SUB C.B.A.)

1110987654321

PV-GS250PP

SUB (SUB CONNECTION)

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

PV-GS250PP

(C-53)

(F-56)

E-56)

(D-56/

(B-1)

(E-56)

(G-1)

(G-56)

(B-53)

(G-56)

(E-56)

D-56)

(C-56/

F-1)

E-1/

(D-1/

(G-56)

G-53)

(F-53/

G-1)

(F-1/

G-22)

(F-22/

(F-1)

(B-1)

(G-22)

(G-1)

(F-1)

(B-1)

(G-1)

(G-22)

(G-1)

(F-22)

E-1)

D-1/

(C-1/

(G-22)

(F-1)

(G-22)

C-56)

B-56/

(A-56/

C6401

R6402

REMOCON

RECIEVER

REMOTE CONTROL

B3RAB0000045

IR6401

OUT

VCC

GND

R481 0

SIG R

FP4801

PP201

D122

D121

D120

D119

D118

D117

D116

D103

D102

D101

D100

D114

D113

D112

D111

D110

D109

D108

D115

D77

D76

D75

D74

D73

D72

D71

D70

D69

D68

D67

D66

D65

D64

D63

D62

D61

D60

D59

D58

D57

D56

D55

D54

D107

D106

D105

D104

D99

D98

D97

D96

D95

D94

D93

D92

D91

D90

D89

D88

D87

D86

D85

D84

D83

D82

D81

D80

D79

D78

D134

D133

D132

D131

D130

D129

D128

D127

D126

D125

D124

D123

D43

D42

D41

D40

D36

D35

D39

D38

D37

D34

D33

D32

D31

D30

D29

D25

D28

D27

D24

D52

D51

D50

D49

D48

D47

D46

D45

D44

D53

D23

D22

D20

D19

D18

D17

D16

D15

D14

D13

D12

D11

D10

B49

B48

B50

B47

B75

B74

B73

B72

B52

B51

B55

B63

B58

B57

B59

B69

B65

B68

B43

B54

B53

B60

B67

B66

B46

B45

B64

B56

B62

B61

B44

MF LED

MF L2

MF L1

X REF

X SENS

Y REF

Y SENS

IR OUT

TRIG END

CHA END

CHARGE

SIG B

SUB B

H2 B

H1 B

SIG G

SUB G

H2 G

H1 G

V4 G

V3 G

V2 G

V1 G

SUB R

H2 R

H1 R

V4 RB

V3 RB

V2 RB

V1 RB

D GNDB41

SHOE CLK

SHOE DAT

SHOE ON

SHOE DET

TO SHOE

D DO

D DI

D MS

D CK

D RST

CAM TEST

AFST

TO SUB CN

Y REF

Y SENS

MF LED

MF L2

MF L1

X REF

X SENS

IR OUT

CHARGE

CHA END

TRIG END

TO FRONT

Y C0

MEGA Y C7

MEGA DSTB

MEGA BUSY

MEGA PIX

CLK45

CLK27 CAM

CLK27A

Y C7

Y C6

Y C5

Y C4

Y C3

Y C2

Y C1

MEGA Y C6

MEGA Y C5

MEGA Y C4

MEGA Y C3

MEGA Y C2

MEGA Y C1

MEGA Y C0

TO VIDEO

A GND

CCD 5V

V2 RB

V1 RB

SUB R

H1 R

H2 R

H1 B

H2 B

H1 G

H2 G

SUB G

V2 G

V1 G

V4 G

V3 G

SIG G

SIG R

15V

SUB B

SIG B

V4 RB

V3 RB

TO CCD

ZOOM AD

TO SIDE L

D GND

REG D3V

REG A5V

REG D2.5V

SUB 1.8V

CAM 1.5V

TO POWER

SCCD 3V

CAM 15V

CAM -8V

TO SUB POWER

FC B

FC A

F2 C

COM P C

ZER B

ZER A

LIN PWM

FCP CNT

FM B

FM A

M REF

Y POS

X POS

OIS CS

FNO

IRIS CLSE

IRIS OPEN

LEN CS

OIS CK

OIS DATA

A COM P

B COM P

LSTBY

IRIS PWM

ND PWM

ND OPEN

ND FNO

TO LENS DRIVE

TV MD

V C DSET

SS DET

INST ST

CAM D3 OFF

CAM 0

RTN FLD

CAM RTN

VTR T

C V DATA

V C DATA

CAM SCLK

M REQUEST

WINK END

MEMO END

CAM SEND END

TO CONTROL

TO EVR2

CAM RST

TO CONTROL/EVR2

FLM DO

EVR SCK

EVR SBI

CAM VDD1

TO EVR1/VIDEO

EVR SBOD2

Z ABS

D136 Z LED

TO LENS

D135

CAMERA

FC B

FC A

F2 C

COM P C

ZER B

ZER A

LIN PWM

FCP CNT

FM B

FM A

M REF

Y POS

X POS

OIS CS

FNO

IRIS CLSE

IRIS OPEN

LEN CS

OIS CK

OIS DATA

A COM P

B COM P

LSTBY

IRIS PWM

ND PWM

ND OPEN

ND FNO

TO CAMERA

REG D3V

REG A5V

NOREG

LENS 3V

B38

B39

B40

B42

TO SUB POWER

TO POWER

TO LENS

M REF

ND CNT(+)

ND DRV(+)

ND H IN(-)

ND HO(-)

ND HO(+)

ND H IN(+)

Y DRV(-)

Y DRV(+)

X DRV(-)

X DRV(+)

Y VH(-)

Y HO(-)

Y HO(+)

Y VH(+)

X VH(-)

X HO(-)

X HO(+)

X VH(+)

H IN(+)

H IN(-)

H OUT(+)

H OUT(-)

LENS VCC

FMR B

FMR A

FM T(+)

FM T(-)

ZAN

ZBN

ZAP

ZBP

ALC M(-)

ALC M(+)

ALC CNT(+)

B37

B36

B35

B34

B33

B32

B31

B30

B29

B28

B27

B26

B25

B24

B23

B22

B21

B20

B19

B18

B17

B16

B15

B14

B13

B12

LENS DRIVE

SIG R

5V RG

MF LED

MF L2

MF L1

X REF

X SEN

Y REF

Y SEN

IR OUT

FP201

CCD FLEX.CARD

FP4002

FRONT

D GND

TRIG END

CHA END

SIG B

A GND

SUB B

H2 B

H1 B

V4 B

V3 B

V2 B

V1 B

5V B

SIG G

15V

SUB G

H2 G

H1 G

V4 G

V3 G

V2 G

V1 G

A GND

SUB R

H2 R

H1 R

V4 R

V3 R

V2 R

V1 R

5V RG

CHARGE

2221201918171615141312

PV-GS250PP

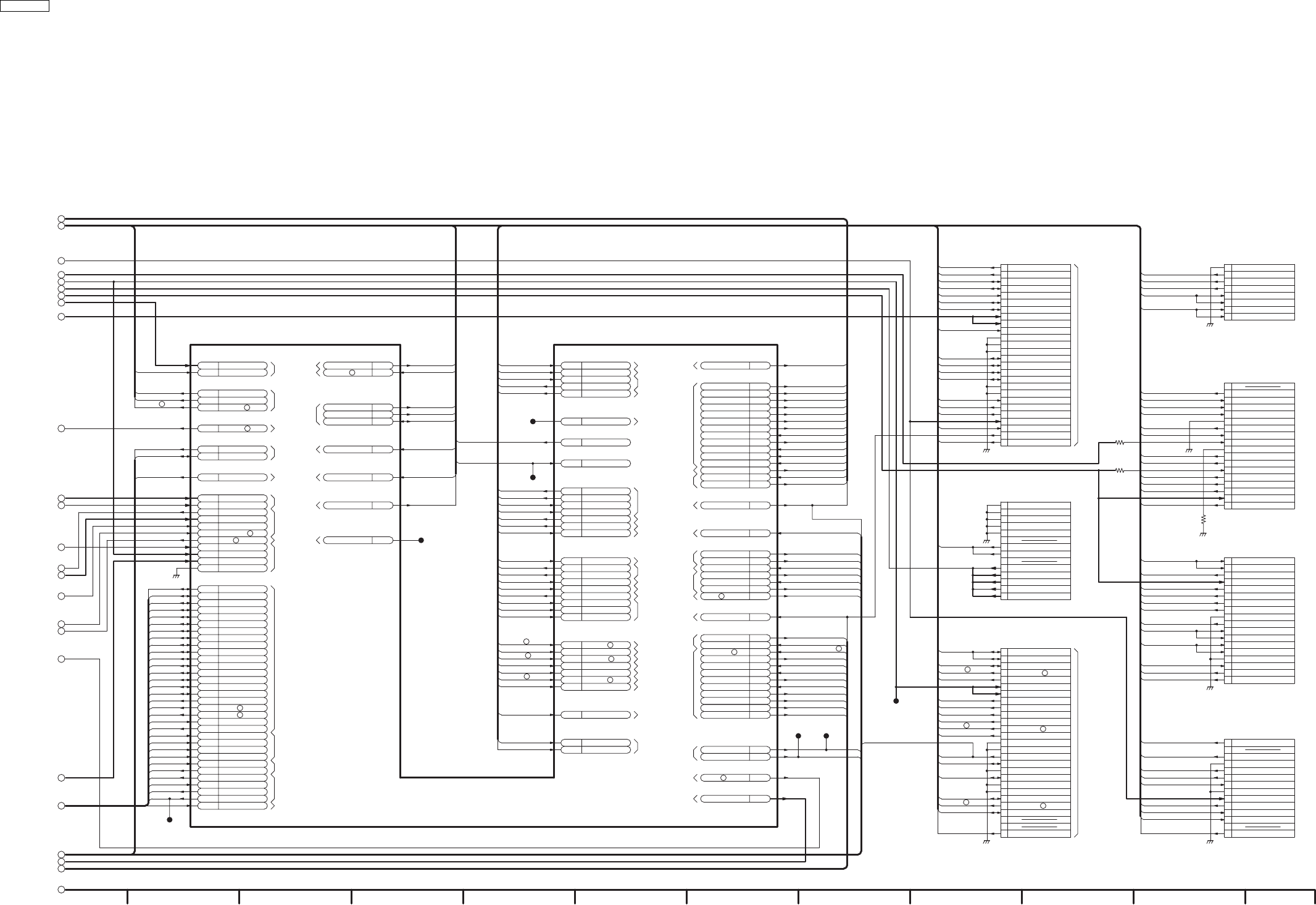

SUB (SUB CONNECTION)

SCHEMATIC DIAGRAM

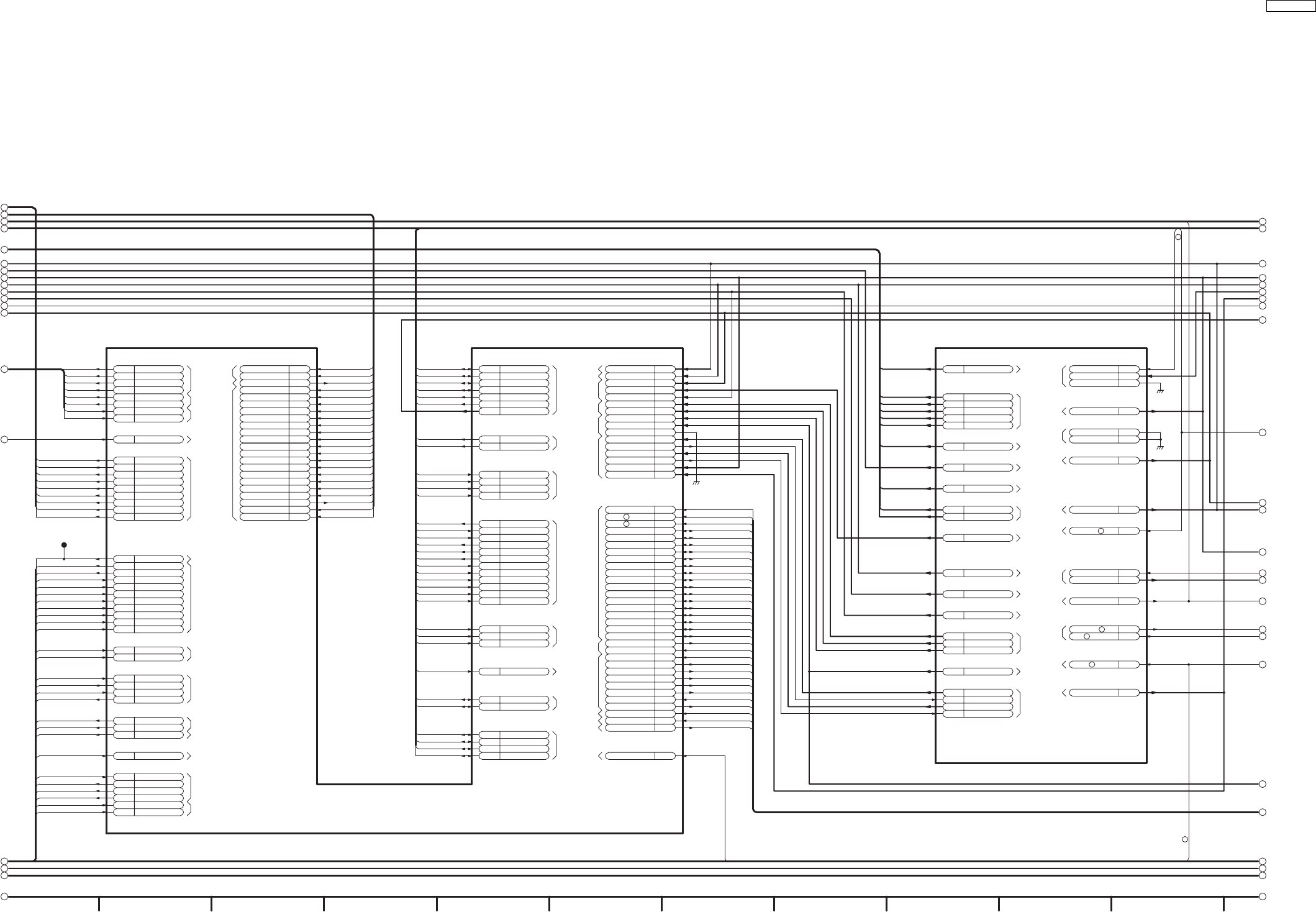

PV-GS250PP

SUB (SUB CONNECTION)

SCHEMATIC DIAGRAM

PV-GS250PP

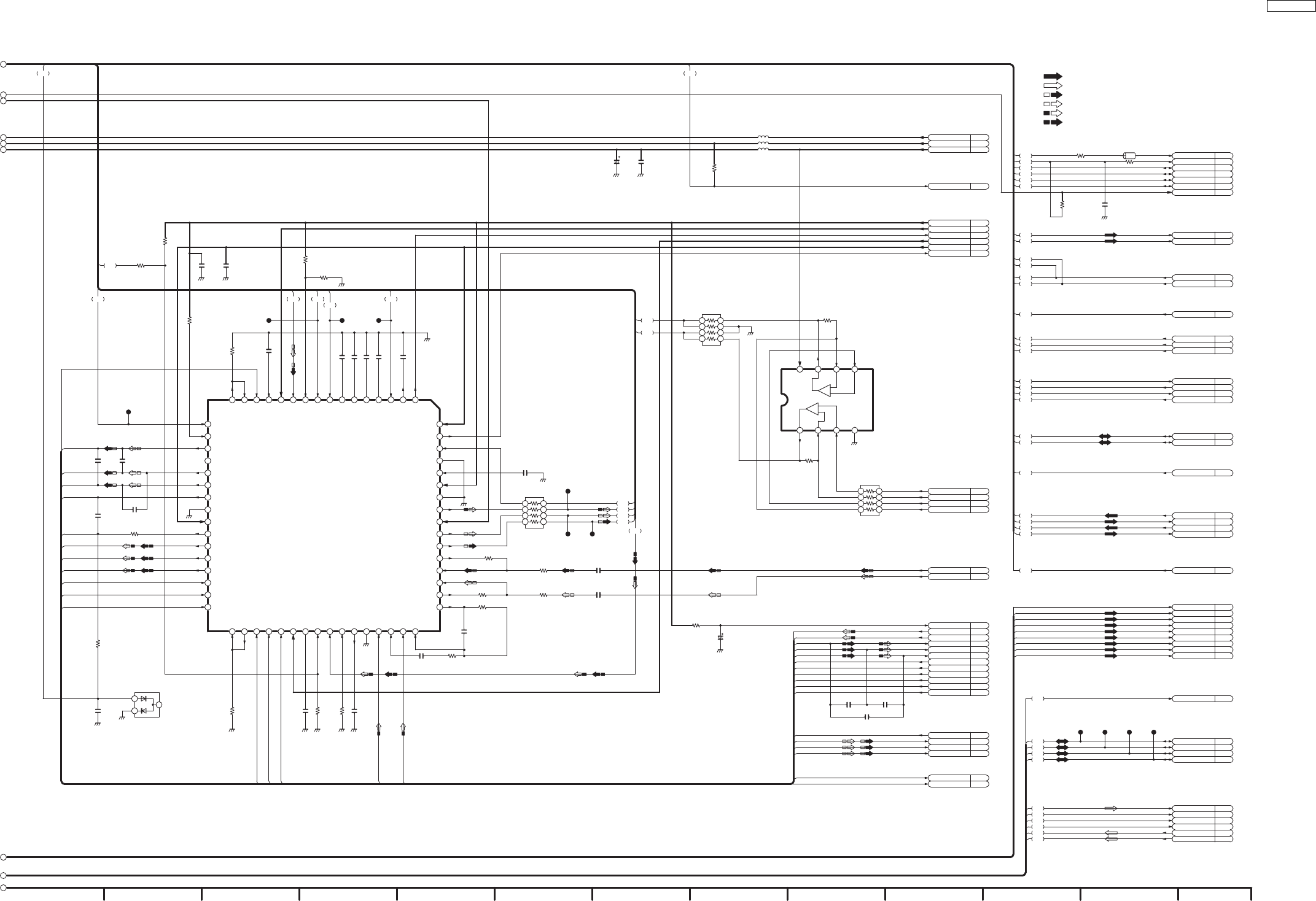

14.13. SUB (LCD) SCHEMATIC DIAGRAM

0.4

0.7

4.3

4.5

2.5

4.9

1.9

0.8

1.0

0.7

0.8

1.2

0.1

2.8

0.1

2.9

1.4

0.7

0.1

2.5

0.1

1.4

2.8

0.3

2.9

2.6

4.1

4.90.7

0.9

1.1

0.9

2.9

2.8

2.9

0.1

R622 0

2.80.1

0.1

2.82.5

2.9

0.1

2.82.9 VCC

GND2A3Y1A

2Y3A1Y

C603

A17

A16

A15

A14

A13

A10

A11

TO SUB CN(C-4/D-4)

A12

A31

A30

A29

A25

A18

A34

A28

A32

A24

A23

A22

A20

A19

A33

A21

A26

A27

TO SUB CN(B-4/C-4)

LCD 5V

LCD 3V

TO SUB CN(D-6)

A35

A36

L Y C IO0

L Y C IO1

L Y C IO2

L Y C IO3

L Y C IO4

L Y C IO5

L Y C IO6

L Y C IO7

CLK27C

A48

A47

A46

A45

A44

A43

A42

A41

A40

TO SUB CN(C-6/D-6)

TO SUB CN(D-6)

A39

A38

A37

LCD SCLK

LCD SD

LCD CS

C601 4V47

C607 2.2

C606 0.1

C605 0.1

C604 1

C616

R604

C613

510

R603

0.1

C609

0.1

C622

R605 100

R606 100

R607 100

R617 0

R618 0

R619 0

R620 0

R614 0

R615 0

R616 0

R621 0

2.2

C614

2.2

C608

CL604CL603CL601 CL602

CL608CL607CL606CL605

E XDSG

E XENB

E CKV2

E XSTV

E STH

E STV

E CKV1

E ENB

E XSTH

E DSG

E CKH1

E CKH2

E DSD

E COM

E G

E R

E B

M STV

M CKV

M OEV

M STH

M CKH1

M CKH2

M PCG

M OEVE

M FR

M CSH

M CSV

M PWM

M COM

M VCSH

M B

M R

R609 10K

R608 10K

4321

678

C0JBAB000633

IC603

GND

VCC

INANC

OUT

C0JBAB000660

IC602

M G

R601 0

R602 0

D GND

WIDE

X STB1

X STB2

PCG2

PCG1

VDD1(2.85V)

CKH2

CKH1

STH2

STH1

ENB2

ENB1

CKH3

CKH4

COM L

CKV1

D GND

DATA1

BL CONT1

BL CONT2

TEST1

TEST0

UCOM SEL

CLK27 SEL

VDD1(2.85V)

AGND

PCD

COM OUT

COM H

CKV2

VCC1(4.7V)

D GND

DATA4

DATA3

DATA2

6064 63

DATA0

DATA7

VDD2(1.8V)

VCC1(4.7V)

B OUT

G OUT

R OUT

A GND

VREF

V REFH

VREF L

DATA5

DATA6

V SYNC

H SYNC

CLK IN

DGND

RESET

VDD1(2.85V)

S CLK

S DATA

S CS

(LCD DRIVE)

C1AB00002022

IC601

STV2

STV1

58 57 56 55 54

VDD1(2.85V)

4950

5152

3231302928272625242322212017 19

:VIDEO MAIN SIGNAL PATH

REFER TO SUB CONNECTION

(SUB C.B.A.)

987654321

PV-GS250PP

SUB (LCD)

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

NOTE:

THE MEASUREMENT MODE OF THE DC VOLTAGE ON THIS

DIAGRAM IS STOP MODE.(MONITOR:ON)

PV-GS250PP

14.14. SUB (SUB POWER) SCHEMATIC DIAGRAM

0.5

5.05.0

1.8 4.9

5.000

2.3

3.03.0

15.015.4

14.8

2.31.62.0

15.014.8

0.715.1

-12.2 -7.8

-11.5

-0.10.5

-7.8-11.5

0.5

4.9 5.0

0.6

0.5

14.915.0

0.6

7.8

8.58.5

1.81.31.8

8.514.8

14.8

8.515.4

0.7

4.4

5.05.1

CL1086 CL1087 CL1084

(LCD BACKLIGHT CONT.)

B1ABBE000002

Q1413

(SWITCHING LCD 5V)

UNR911NJ0L

QR1401

LCD 3V C2

TO SUB CN(D-8)

LCD 5V C1

MA2J11100L

D1481

C7M LED 5V

TO SUB CN(C-8)

CL1082

R1485

R1486

C4EVF 8.5V

C5EVF BL 5V

TO SUB CN(D-8)

C6M 8.5V

TO SUB CN(C-8)

C24EVF BL

C21M BL

(EVF:ON BACKLIGHT 5V)

321

456

XP0431N00L

QR1411

R1415 3300

47K

R1416

4.7

C1411

47K

R1413

1500

R1414

(SWITCHING M LED5V)

2SB0970X0L

Q1412

C15

C12 M BL POWER

REG D3V

REG A5V

TO SUB CN(B-8/C-8)

47K

R1421

2200

R1422

(SWITCHING LCD 3V)

MA2J11100L

D1421

2SB0970X0L

Q1421

C23LCD ON

TO SUB CN(D-10)

22K

R1482

47K

R1481

(LCD ON :ON)

(SWITCHING M8.5V)

C1481 18K

R1483

220K

R1484

MA2J11100L

D1482

CL1081

B1ADGD000005

Q1481

B1ABBE000002

Q1482

(SWITCHING M9V)

(POWER CONTROL)

10K

R1389

47K

R1380

56K

R1386

5100

R1387

18K

R1388

321

B1ADBE000001

Q1383

XP0150100L

Q1384

1110

(POWER CONTROL)

(SWITCHING CAM -8V)

(CCD ON :ON)

10K

R1354

(SWITCHING CAM 15V)

(POWER CONTROL)

(CCD ON :ON)

CAM 12V

SWITCHING

R1399 22K

2700

R1400

C25

C14

C10

C11

C13

C16

C22

C18

C19

C20

C17

VREF

CCD ON

CAM -8V

CAM 15V

3CCD 3V

LENS 3V

12K

R1374 10K

R1373

9100

R1372

15K

R1371

10K

R1375

10K

R1452

4.7

C1451

47K

R1451

MA2J11100L

D1451

18K

R1353

16K

R1352

100K

R1351

47K

R1355

47K

R1398

4.7

C1381

3300

R1396 3300

R1397

C1382 4.7

R1395 100K

C1227

C1231

L1227 4.7u

L1231 4.7u

B1GDBEKM0001

QR1471

B1ABBE000002

Q1451

CL1271

CL1251

B1GDBEKM0001

QR1451

TO SUB CN(B-8)

TO SUB CN(C-10)

TO SUB CN(D-10)

TO SUB CN(D-10)

TO SUB CN(B-8/C-8)

D GND

REG -8V

REG 15V

SUB 1.8V

REG 9V

REG 3.1V

SW 3V

321

456

321

B1ABBE000002

Q1371

MA2J11100L

D1471

B1ADBE000001

Q1351

XP0140100L

Q1372

XP0150100L

Q1352

XP0450100L

Q1385

REFER TO SUB CONNECTION

(SUB C.B.A.)

987654321

C1421

PV-GS250PP

SUB (SUB POWER)

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

PV-GS250PP

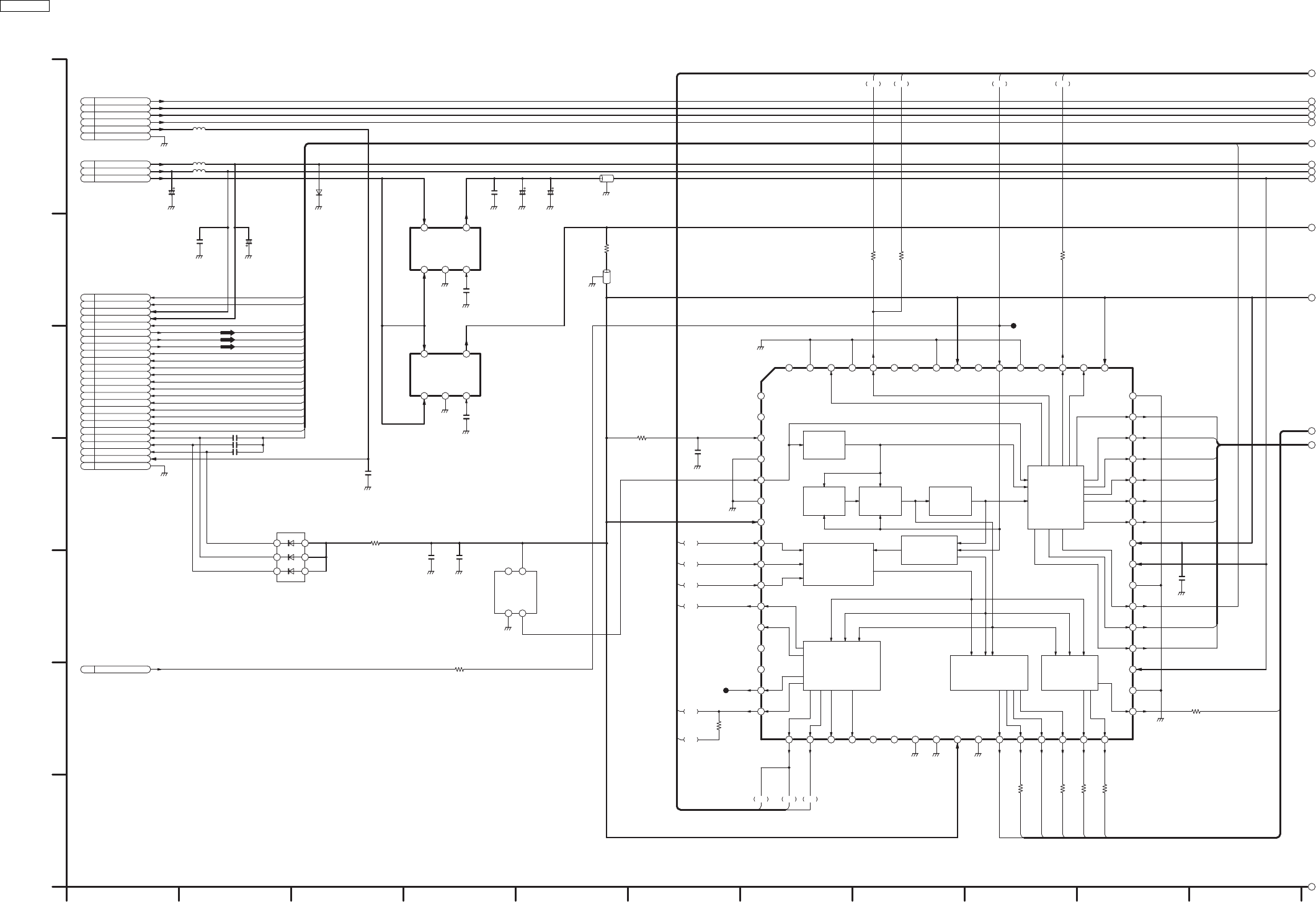

14.15. SUB (LENS DRIVE) SCHEMATIC DIAGRAM

2.0

1.4

2.2

0.1

0.8

1.4

2.6

1.9

1.5

1.4

1.402.72.82.802.75.95.905.95.905.90

1.41.32.82.82.72.71.41.41.41.81.41.42.6

2.6

1.4

1.7

1.3

2.8

1.4

2.6

(LENS DRIVE)

C1AB00002147

IC702

A10A9A5

B16B15

B14

B13

B12

B11

B10

(SUB C.B.A.)

1110987654321

IRIS OPEN

H OUT(-)

H IN(+)

H OUT(+)

H IN(-)

R711 0

270K

R719

4700

R718

1.5M

R746

R717 4700

47K

R738

4700

R729

10K

R730

1000P

C716

0.22

C717

47K

R728

10K

R725

10K

R726

220K

R727

EZB

EAF

EZA

C713 470P

R722 220K

150

R708

0.1

C715

IRIS CLSE

4700

R742

4700

R743

CL704CL703

(-)

ALC M

(+)

ALC M

(+)

FM T

(-)

FM T

ZAP

ZAN

ZBP

ZBN

3.9

R736

2.2

R735

2.2

R734

C721

LEN CS

FM B

FM A

F2 C

FC B

FC A

COM P C

B COM P

A COM P

470K

R797

C723

B59

TO SUB CN(B-26)

M REF

4700

R712

0.01

C707

4700P

C710

82K

R731

B69 Y POS

B68 OIS CS

4700

R723

4700

R724

L702 22u

B36 ND CNT(+)

B1 ALC CNT(+)

B37 M REF

B35 ND DRV(+)

B34 ND H IN(-)

B33 ND HO(-)

B32 ND HO(+)

B31 ND H IN(+)

B24 Y HO(+)

B26 Y VH(-)

B23 Y VH(+)

B25 Y HO(-)

B21 X HO(-)

B19 X VH(+)

B22 X VH(-)

B20 X HO(+)

B30 Y DRV(-)

B27

B28

B29 Y DRV(+)

X DRV(-)

X DRV(+)

B16 H OUT(+)

B17 H IN(-)

B18 H IN(+)

B15 H OUT(-)

B14 LENS VCC

B13 FMR B

B12 FMR A

B9 FM T(+)

B8 FM T(-)

B7 ZAN

B6 ZBN

B5 ZAP

B4 ZBP

ALC M(-)

(A-25/B-25/C-25/D-25)

TO SUB CN

ALC M(+)

B65

B66

B67 OIS CK

OIS DATA

TO SUB CN(B-26/C-26)

X POS

B38

TO SUB CN(D-25)

REG D3V

B60

B58

B57

B47

B45

B46

B50

B49

B48

LEN CS

FM B

FM A

COM P C

B COM P

A COM P

F2 C

FC B

TO SUB CN(B-26/C-26)

FC A

56K

R733

33K

R732

220K

R799

C720

0.22

C719

150P

C718

B54 IRIS CLSE

B56 IRIS PWM

IRIS OPEN

REFER TO SUB CONNECTION

B53

TO SUB CN(C-26)

EZB

IRM-

MGND

IRM+

VIR

FM+

ARS

FM-

ZA+

ZARS

ZA-

ZB+

ZB-

ZBRS

ACMP

H1O

H2+

H2-

H2O

H3+

H3O

H4+

H4-

H4O

STBY

EAF

EZA

H5-

H5+

I CLOSE

I OPEN

H1-

NDHB

REFO

GND

ZBO

ZAO

ZBIN

ZAIN

PWMB

NDHG

BIN

AIN

REFI

VCC

F2 C

FC B

FC A

MIXO

LCI

BCMP

LCMP

REFO

REFI

+++---+

ZBZAMBMA

H.BH.G

DAC1

DAC2

8bit DAC

6V REG.

REFO

ZOOM

V-I

ZOOM

V-I

4.5V REG.

ANALOG

V-I

IRIS LOGIC

DISABLE

CIRCUIT

+-+-+-+-

DISABLE

ZOOM

4321 5 6 7 8 9 10 11 12 13 14 15 16

47 4648 45 44 43 42 41 40 39 38 37 36 35 34 33

MIX

DECORDER

PWMB

PV-GS250PP

SUB (LENS DRIVE) SCHEMATIC DIAGRAM

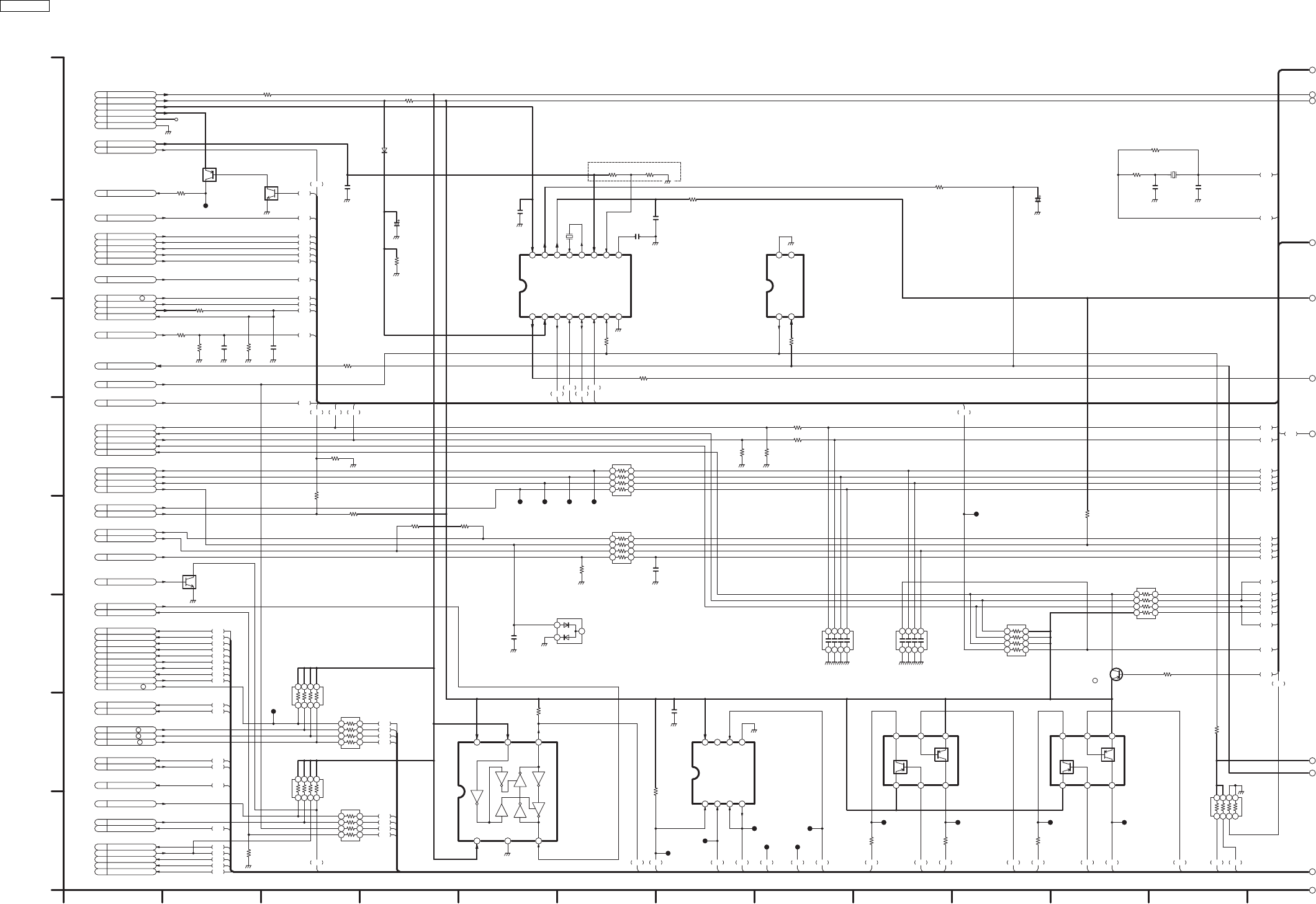

PV-GS250PP

NDR

NDG

CL702

CL701

10K

R710

R737 10K

B42LENS 3V

TO SUB CN(D-25)

4V100

C714

220

R709

2.6

(P.SUPPLY CONTROL)

(POWER SUPPLY) 2.2

2.8 2.8

2.8

(AMP)

VCC

GND

0.80.6

04.7

(INV.)

0.6

0.1

0.9

0.60.10.14.71.41.41.9

1.41.4

1.4

1.41.40.5

B-B+A+A-A0

C0C-C+D- D+D0

1.41.41.44.71.31.31.3

1.41.401.41.41.4

(REG.6V)

NBNCGNDCNT

OUTNCNCIN

1.21.9

5.97.8

1.11.41.41.41.41.41.41.21.41.40.82.0

1.4

0.2

1.4

2.6

1.4

2.8

0.2

1.4

1.61.41.41.41.41.41.41.51.41.40.82.0

1.4

5.9

2.7

0.1

2.2

2.8

2.5

2.7

(OIS DRIVE)

C1AB00001262

IC704

47K

R787

A6A1A2A3A4

A10

0.1

C759

B9B8B15

B10

B16

10K

R785

B12

B11

B13

B14

17 18 19 20 21 2212 14 1613 15

0.01

C735

100K

R763

-+VDD+-0

0-+VSS-+0

EZB

EZA

EAF

Y DRV(-)

Y DRV(+)

X DRV(-)

X DRV(+)

321

VCC

GND

4321

5678

2200

R794

47K

R793

B1ABBE000002

Q701

2SB0970X0L

Q702

20V4.7

C725

100K

R713 0.1

C724

C0CBAEC00006

IC703

2SD0601A0L

Q704

R772

0.1

C744

4700

R796

C0ABAA000043

IC706

56K

R758

82K

R756 220K

R798 1

C732 150P

C731

0.22

C733

33K

R759

R764 4700

R766 10K

C740 1000P

0.22

C742

68K

R767

4700

R716

C709 2200P

C708 2700P

0.01

C711

33K

R714

33K

R720 47K

R721

0.01

C712

47K

R715 4700

R739

10K

R701

C701

47K

R702

4700

R706

0.01

C706

2200P

C704

47K

R705

270P

C702

10K

R740 1000P

C703

10K

R703

22P

C705 10K

R704

C0ABCA000064

IC701

10K

R783

680K

R769

10K

R784

1000P

C749

330K

R773

560K

R795 10K

R782

56K

R774

C0ABCA000064

IC705

100

R757

2SD2216J0L

Q703

10K

R761 4700P

C741

0.01

C736

6800

R762

C739

C748

3.3

R768

3.3

R771

0.1

C758

10K

R779

4700P

C750

10K

R777

0.01

C753

10K

R789

3900P

C752

47K

R781

27K

R776

0.1

C757

1800

R788

39K

R786

0.1

C754

0.047

C755

47K

R778

220K

R780

470P

C751

10K

R748 47K

R749

0.047

C729

47K

R755

180K

R754

470P

C734

0.1

C727

1800

R741

47K

R751

3900P

C730

39K

R750

0.1

C728

33K

R752

R753 10K

4700P

C737

10K

R760

0.01

C738

100

R765

100

R770

0.01

C747

891011121314

7654321

891011121314

7654321

ND PWM B62

ND OPEN B61

ND FNO B44

ZER B B52

ZER A B51

LIN PWM B55

ZA B72

B43

B64

B75

B74

ZB B73

LSTBY

TO SUB CN(B-26/C-26)

FNO

B63

B40

B41

REG A5V B39

D GND

NO REG

TO SUB CN(D-25)

FCP CNT

10K

90K

REF

EVR

REF

10K

30K

100K

45K

REF

MIX

V-I

REF

V-I

REF

REG

4.5V

REF

MIX

45K

30K

10K

REF

DECODER DAC

8bit

YER

XER

YOFS

XOFS

NDG

NDB

NDPB

DAC

10bit

90K

10K

REF

2627282930313233

3536 34

YV+

YH+

YV-

YINV

YHO

YPOS

YIN

YFI

YFO

YFI2

YFO2

XH+

XV-

XINV

XHO

XPOS

XIN

XFI

XFO

XFI2

XFO2

XH-

XHR

VCC

GND

DGND

XER

YER

YHR

YH-

126

XV+

2109

XDR+

XCS

XDR-

YDR+

YCS

YDR-

REF

NDPWMB

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON THIS SCHEMATIC DIAGRAM FOR

ORDERING. WHEN YOU ORDER A PART,PLEASE REFER TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

PV-GS250PP

SUB (LENS DRIVE) SCHEMATIC DIAGRAM

PV-GS250PP

SUB (LENS DRIVE) SCHEMATIC DIAGRAM

PV-GS250PP

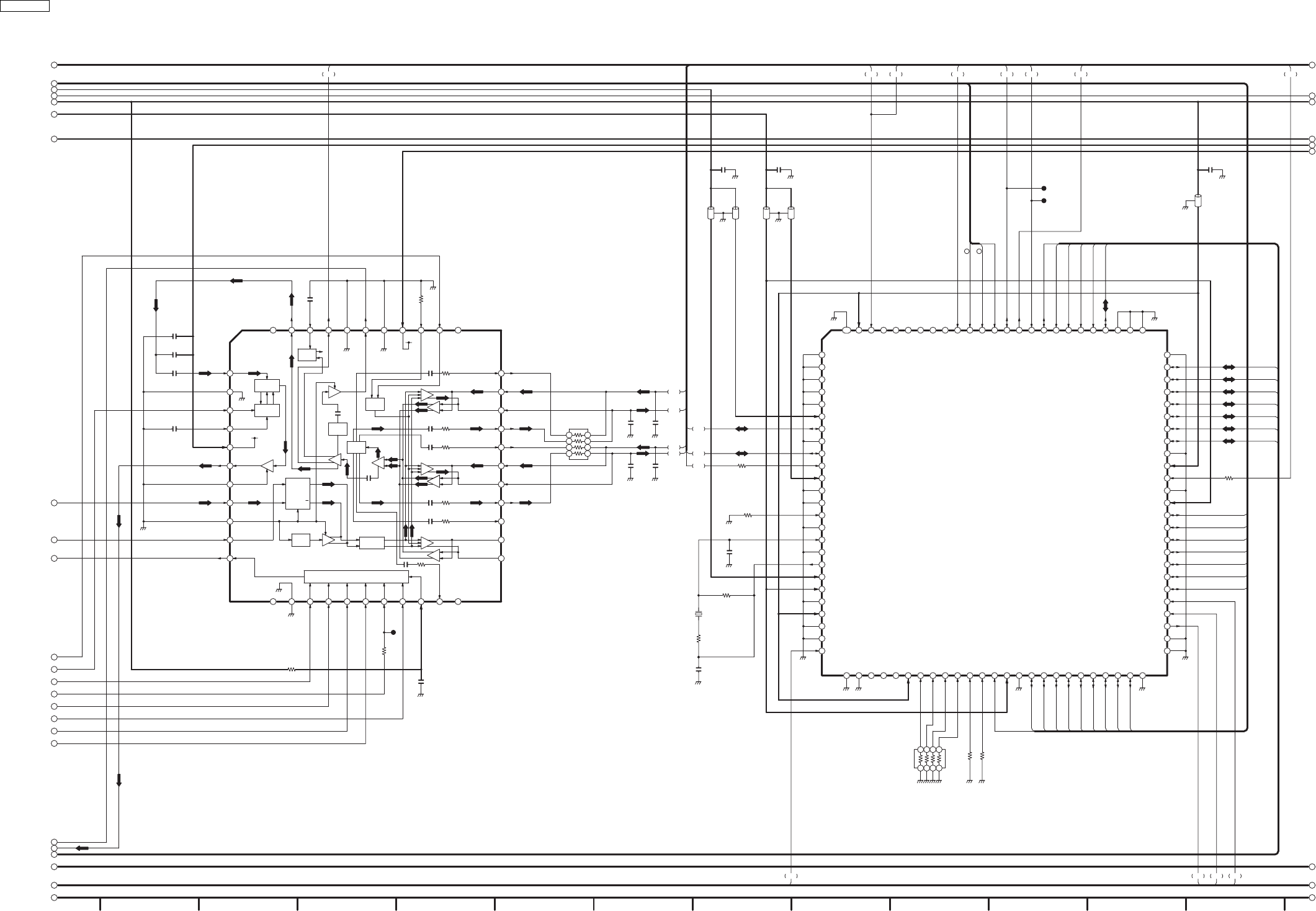

14.16. SUB (CAMERA) SCHEMATIC DIAGRAM

R106

R131 0

16V22

C331

2.81.402.81.3

2.92.92.72.70.10.12.8

1.40.1

2.9

1.5

1.3

0.6

2.9

2.1

2.2

0.3

0.1

2.6

1.9

2.6

2.8

1.4

2.9

1.33.1

2.83.1

1.33.1

3.03.1

A13A12A11A10

A9A8A7

(CCD DRIVE,PULSE)

MN52B0

IC101

0.01

C115

0.22

C156

TO SUB CN(E-29)

3.3

C142 20V10

C129

OSUB

V2 RB

V1 RB

H1 R

H2 R

H1 B

H2 B

H1 G

H2 G

V2 G

V1 G

V4 G

V3 G

SIG B

SIG G

SIG R

V3 RB

V4 RB

0.1

C104

SUB

CH2

CH1

R147 3300

R132 3300

R114 0

R112 0

R148 3300

DS 1G

DS 2G

DS 1R

DS 2R

DS 1B

DS 2B

R127

R145

R146

C103

R105 100K

R108

TV MDD23

D77

D115

D57

D74

D67

D76

D75

D73

D72

D71

D70

D69

D68

D65

D64

D63

D62

D56

D60

D59

D66

D61

D58

D55

D54

TO SUB CN(C-30/D-30)

H1A5405B0011

X101

0.1

C114

C113

MA6Z12100L

D101

C154 1

C107 1

C102 1

C109

L105 10u

L104 10u

L101 10u

B0JCDD000002

D102 4V100

C137

4V100

C101

C105 F1H0J1050022

FL102

D46

D45

D44

D52

D50

D51

D47

D48

D49

R101 0

CL103

CL101

F1H0J1050022

FL101

A GND

CCD 5V

SUB B

SUB R

SUB G

V2 RB

V1 RB

H1 R

H2 R

H1 B

H2 B

H1 G

H2 G

V2 G

V1 G

V4 G

V3 G

SIG B

SIG G

SIG R

15V

V4 RB

V3 RB

CAM 15V

CAM -8V

3CCD 3V

D GND

REG.A5V

REG.D3V

CAM 1.5V

SUB 1.8V

REG.D2.5V

TO SUB CN(D-29)

TO SUB CN(D-29)

(REG.2.8V)

C0CBCAD00020

IC103

BYPASS

NOISE

V IN

GNDCONT.

BYPASS

NOISE

V IN

V OUT

GND

V OUT

CONT.

(REG.3V)

C0CBCAD00021

IC102

CH2

CH1

TEST3

VDD

VSS

TEST2

HCLR

PBLK

VDD

FCK20

FCK0

NSEL1

TEST4

TVMD

VDD

VSS

AD CLK1

TEST5

AD CLK2

TEST6

SUB

VSS

VDD2

VSS

VDD2

VDD

DS 1G

DS 2G

DS 1R

DS 2R

DS 1B

VSS

DS 2B

CCD HD

CLR

TEST1

FCK2I

VSS

VDD

S CLK

S DATA

SCS

CPOB

CPDM

THD

INPUT

DATA

SERIAL S/R

V TIMING

GEN.

HCLR

S/R

H TIMING

GEN.

H PULSE

1/2f

DECODER

PULSE

Hi-SPEED

DECODER

V PULSE DECODER

CH PULSE

DECODER

PULSE

PROCESS

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

323130292827262517 18 19 20 21 22 23 24

REFER TO SUB CONNECTION

(SUB C.B.A.)

1110987654321

PV-GS250PP

SUB (CAMERA)

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

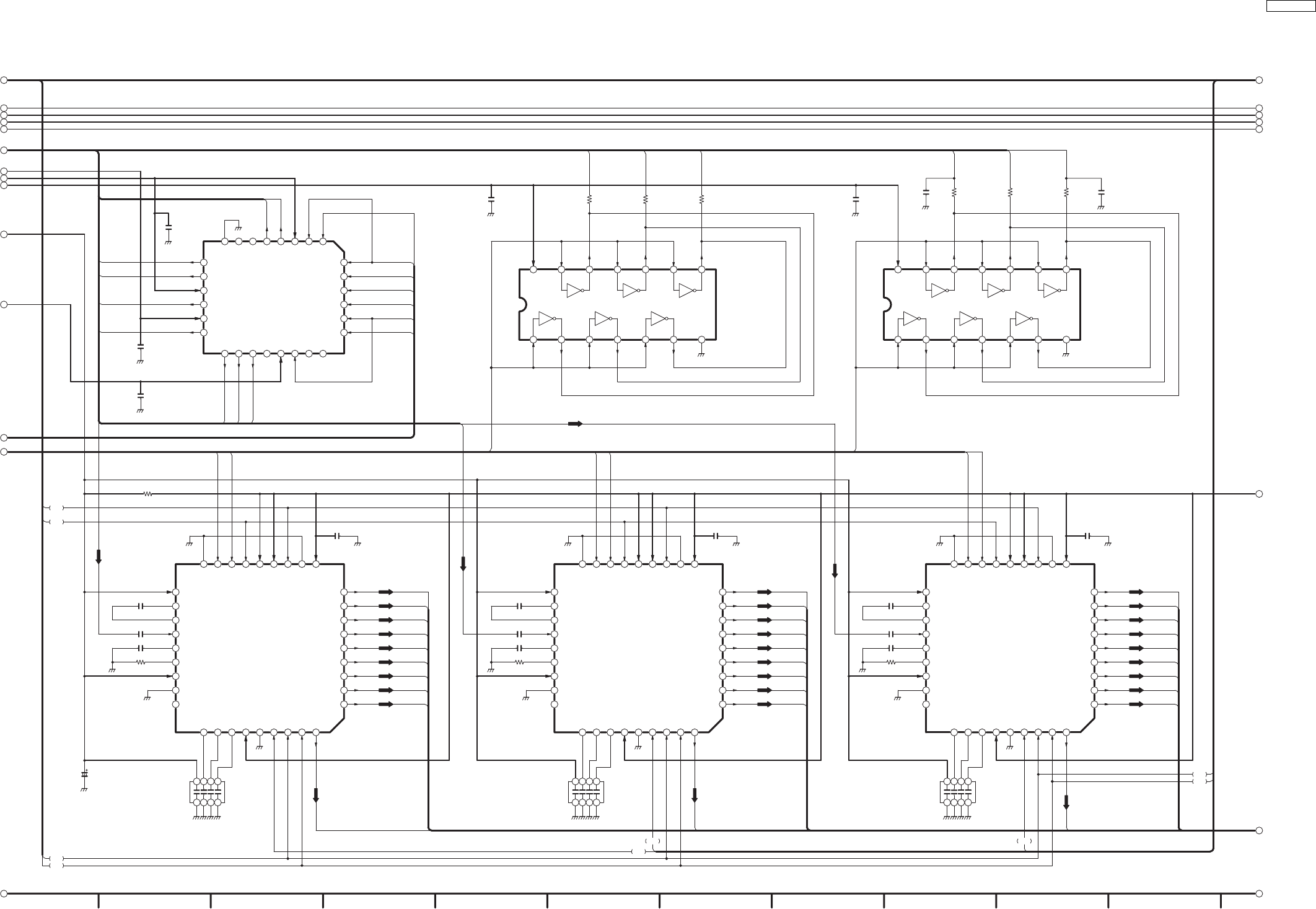

PV-GS250PP

10P

C110

15P

C122

R102 0

SIG R

1.5

1.51.3

1.5 1.3

1.51.31.51.3

1.3 1.52.9 1.31.4

1.41.5

1.4 1.5

1.41.5

1.51.4

1.41.5

1.52.9

2.8

1.3

2.8

0.1

2.2

1.5

2.6

1.9

2.6

2.8

0.9

1.9

1.4

2.2

1.6

1.3

1.4

1.8

0.8

2.8

1.2

1.9

2.0

2.0 0.4

2.8

0.11.9

2.8

1.3

2.8

0.1

2.1

1.5

2.6

1.9

2.6

2.8

0.9

1.9

1.4

2.2

1.6

1.3

1.4

1.8

0.8

2.8

1.2

1.9

2.0

2.0 0.4

1.9

2.8

0.1

2.8

1.3

2.8

0.1

2.2

1.6

2.6

1.9

2.6

2.8

0.9

1.9

1.4

0.1

1.6

1.3

0.9

2.0

0.5

2.8

1.2

1.9

2.0

1.9

2.8

2.9

2.8

0.6

-7.1

-7.8

9.4

14.8

0.6

2.7

2.9

14.8

-7.1

0.1

2.9

2.7

2.9

0.1

2.9

0.1

C111

0.1

C108

A14

A15 A16

A18

A17

C152 0.01C151 0.01C150 0.01

6V22

C106

A10

DS 1B

DS 2B

DS 1G

DS 2G

DS 1R

DS 2R

C132 820P

C128 0.1

C127 1

C125 820P

C124 0.1

C123 1

0.1X4

CX305

0.1X4

CX304

0.1X4

CX303

C121 820P

C120 0.1

C118 1

8.2

R117

8.2

R116

8.2

R115 5.6

R109

5.6

R104

5.6

R103

H1 B

H1 G

H1 R

H2 B

H2 G

H2 R

SIG B

SIG G

V3 G

V3 RB

V1 G

V1 RB

V4 RB

V4 G

OSUB

V2 G

V2 RB

C131

0.1

C133

0.1

C119

CH2

SUB

CH1

R126 33KR124 33K R125 33K

1234

5678

1234

8765

4321

5678

(INV.)

C0JBAB000276

IC110

(INV.)

C0JBAB000276

IC107

CH2

IV2

ISUB

IV4

CH1

(V DRIVE)

MN3114QFN-E1

IC108

IV1

CH3

VDC

OV5

OV1

OV4

0V8

OSUB

VHH

OV6

OV2

22212019181716

OV3

8765432

IV3

CH4

234567

VDD

GND

14 13 12 11 10 9 8

1 1

891011121314

GND

VDD

765432

OV7

(A/D CONVERTER,B)

C1AB00001791

IC106

(A/D CONVERTER,G)

C1AB00001791

IC105

(A/D CONVERTER,R)

C1AB00001791

IC104

DS1

D VDD

AD CLK

D VSS

VRT

DR D VDD

VRB

101112131415161718

CPOB

PBLK

29 30 31 32 33 34 35 36

DS2

A VSS

A VDD

VRM

BLK SH

BLK FB

CDS IN

BLK C

BIAS

A VDD

A VSS

AD CIN

D VDD

D VSS

S DATA

SCK

DS1

D VDD

AD CLK

D VSS

VRT

DR D VDD

VRB

101112131415161718

CPOB

PBLK

29 30 31 32 33 34 35 36

DS2

A VSS

A VDD

VRM

BLK SH

BLK FB

CDS IN

BLK C

BIAS

A VDD

A VSS

AD CIN

D VDD

D VSS

S DATA

SCK

S DATA

D VSS

D VDD

AD CIN

A VSS

A VDD

BIAS

BLK C

CDS IN

BLK FB

BLK SH

VRM

A VDD

A VSS

DS2

3635343332313029

PBLK

CPOB

18 17 16 15 14 13 12 11 10

VRB

DR D VDD

VRT

D VSS

AD CLK

D VDD

DS1

2221201918171615141312

PV-GS250PP

SUB (CAMERA)

SCHEMATIC DIAGRAM

PV-GS250PP

SUB (CAMERA) SCHEMATIC DIAGRAM

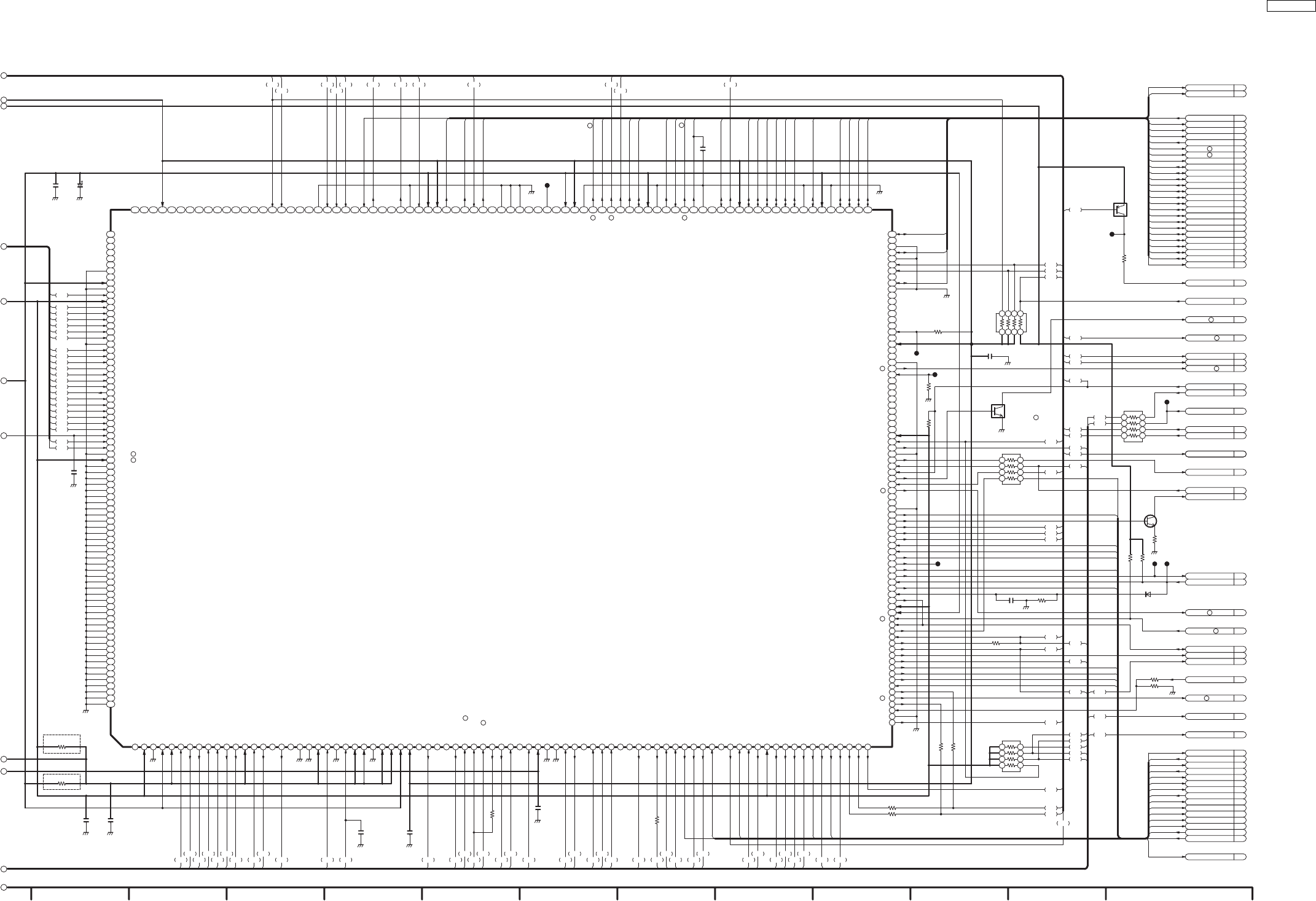

PV-GS250PP

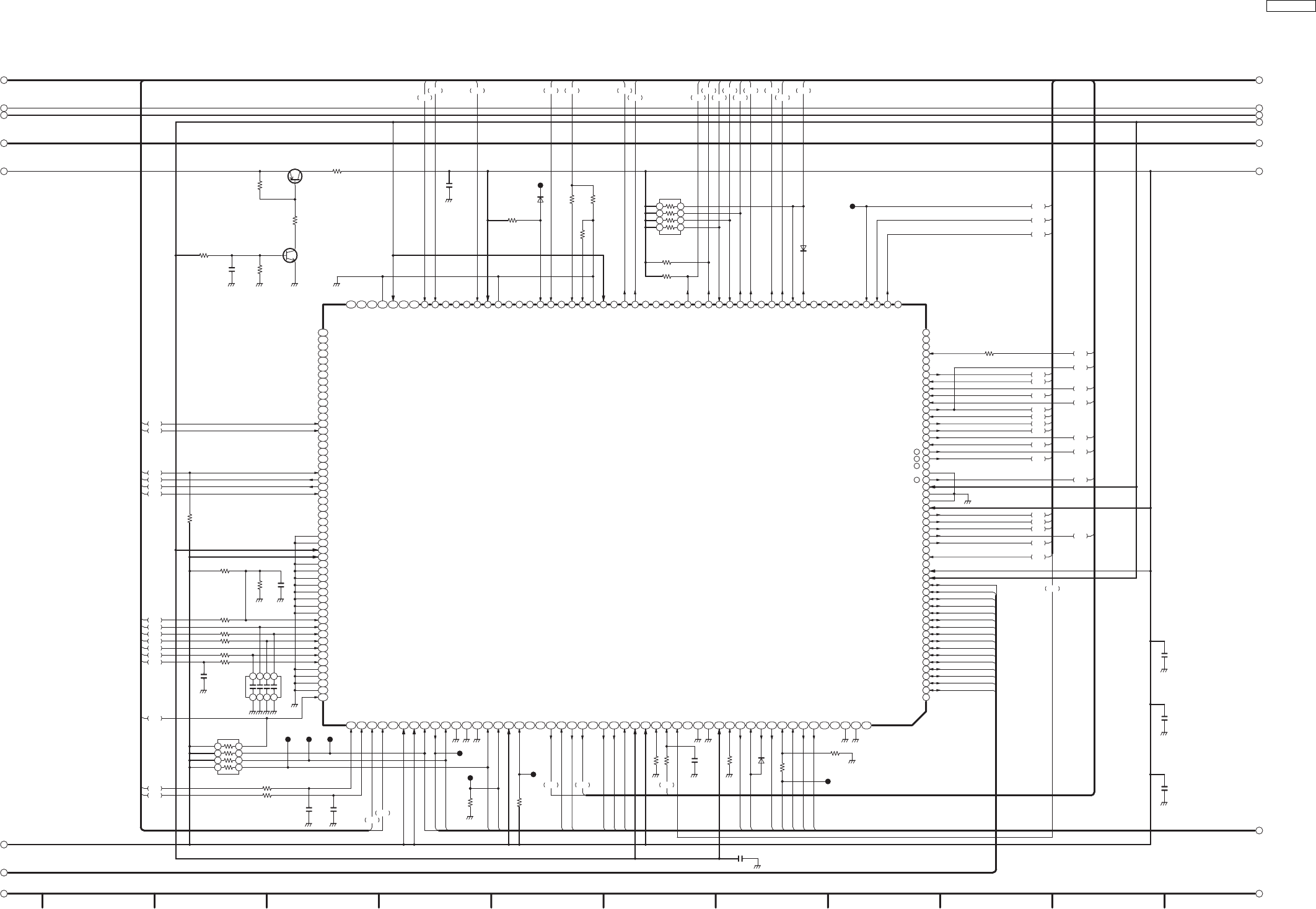

R301

CL311

A83A81

A84A82A80

A76

A79

A78

A77

A87

A86

A85

CL305

1.7

1.4

1.7

1.4

1.7

1.4

2.9

1.7

1.4

1.7

1.4

1.7

2.4

1.7

1.4

1.7

1.4

1.7

1.4

0.9

0.1

1.7

0.3

1.1

0.9

1.7

0.5

1.6

1.7

2.8

1.3

1.4

2.9

1.4

0.1

0.3

2.9

1.4

2.8

2.7

1.4

1.5

1.4

2.9

1.4

2.9

2.4

1.4

0.1

1.4

0.4

0.8

1.8

1.4

1.3

1.6

1.5

0.1

0.4

0.8

1.8

1.4

1.3

1.6

1.5

0.1

0.5

2.8

2.0

0.9

1.3

1.6

2.8

1.4

0.8

2.0

2.6

R421 0

A31

A30

A11A9A7

A29

0.015

C315

R309

R321

A28

A27

A26

A25

A24

A23

A22

A21

A20

A19

C325

R330

R339 0

0.1

C306

C311

MAD15

MAD0

MAD1

MAD2

MAD3

MAD4

MAD5

MAD6

MAD7

MAD8

MAD9

MAD10

MAD11

MAD12

MAD13

C323

4V100

C304

0.1

C303

0.015

C343

RL307

RL306

RL305RL303

R385 47K

R332 47K

47K

R386

R348

R314 1200

CL306

CL307

CL102

CL309

MAD14

R341 0

R322

R303 0

R302 0

RL301

RL302

R304

Y C0

Y C1

Y C2

Y C3

Y C4

Y C5

Y C6

Y C7

CLK27 CAM

MEGA Y C0

MEGA Y C1

MEGA Y C2

MEGA Y C3

MEGA Y C4

MEGA Y C5

MEGA Y C6

MEGA Y C7

CLK45

MEGA BUSY

MEGA PIX

MEGA DSTB

DIGITAL SIGNAL PROCESSOR

3-CCD CAMERA

C1AB00001929

IC303

VDD VTR

TSTO13

VSS

TSTO12

TSTO11

TSTO10

TSTO9

TSTO8

TSTO7

TSTO6

TSTO5

TSTO4

TSTO3

TSTO2

TSTO1

TSTO0

DSTBO

MEGA PIX

BUSY

VTR 45M

INV

INH

C OUT7

C OUT6

C OUT5

C OUT4

C OUT3

VSS

C OUT2

C OUT1

VSS

C OUT0

VDD VTR

VTR CKO

Y OUT7

Y OUT6

Y OUT5

Y OUT4

Y OUT3

Y OUT2

Y OTU1

Y OUT0

DD FCK

VDD VTR

TDO

TRST

TCK

TDI

TMS

P DOWN

FCK

SEL ON

2F CK

CLK RST

VSS

VDDI

TVD

THD

CCD HD

VDD CAM

SIG

ZD COMP

ZC COMP

VSS

ZB COM P

ZA COM P

PWM ND

PWM HZB

PWM HZA

PWM LIN

VDD VTR

VSS

VDDI

VSS

VDD VTR

VSS

VDDI

VSS

VDD VTR

TESTIN0

TESTIN1

TETSIN2

TESTIN3

TESTIN4

SCANNT

VDD VTR

VSS

MSPA0

MSPA1

MSPA2

MSPA3

MSPA4

MSPA5

MSPA6

VSS

VDDI

MSPA7

MSPA8

MSPA9

MSPA10

MSPA11

MSPA12

MSPA13

VDD CPU

VSS

MSPA14

VDD CPU

MAD B0

MAD B1

MAD B2

MAD B3

MAD B4

MAD B5

MAD B6

MAD B7

MAD B8

MAD B9

MAD B10

MAD B11

MAD B12

MAD B13

VSS

MAD B14

TEST

VSS

VDD VTR

VSSD

VDD 15D

DTMB

VSSD

VDD 15D

VSSD

VSS

VDD VTR

DVM

VSS

VDD 25D

VDD VTR

VDDI

TMODE5

TMODE4

TMODE3

TMODE2

TMODE1

TMODE0

TSTO50

TSTO49

TSTO48

TSTO47

TSTO46

TSTO45

TSTO44

TSTO43

TSTO42

TSTO41

TSTO40

TSTO39

VDD VTR

VSS

TSTO38

TSTO37

TSTO36

TSTO35

TSTO34

TSTO33

TSTO32

TSTO31

TSTO30

TSTO29

TSTO28

TSTO27

TSTO26

TSTO25

TSTO24

TSTO23

TSTO22

TSTO21

VSS

VDDI

TSTO20

TSTO19

TSTO18

TSTO17

TSTO16

TSTO15

TSTO14

MAD B15

ASTB

BUS SEL1

BUS SEL2

POR

M VD

V1 V2

BEND

RDY

VDDI

VDD RGB

ACK

DTCLK

R IN0

R IN1

VSS

R IN2

R IN3

R IN4

R IN5

VDD RGB

R IN6

VSS

R IN7

R IN8

R IN9

G IN0

G IN1

G IN2

G IN3

G IN4

G IN5

G IN6

G IN7

G IN8

G IN9

B IN0

VSS

B IN1

B IN2

B IN3

B IN4

B IN5

B IN6

B IN7

VDDI

B IN8

B IN9

VDDI

VSS

PLL DVS

PLL AVS

PLL AVD

PLL DVD

VSS

VDD CAM

VCO OUT

FC A

FC B

F2 C

IRIS CLOSE

IRIS OPEN

VSS

PWM IRIS

281

280

279

278

277

276

275

274

273

272

271

270

269

268

267

266

265

264

263

262

261

260

259

258

257

256

255

254

253

252

251

250

249

248

247

246

245

244

243

242

241

240

239

238

237

236

235

234

233

232

231

230

229

228

227

226

225

224

223

222

221

220

219

218

217

216

215

214

213 212 211 210 209 208 207 206 205 204 203 202 201 200 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

7170696867666564636261605958575655545352515049484746454443424140393837363534333231302928272625242322212019181716151413121110987654321

343332313029282726252423

PV-GS250PP

SUB (CAMERA)

SCHEMATIC DIAGRAM

PV-GS250PP

SUB (CAMERA) SCHEMATIC DIAGRAM

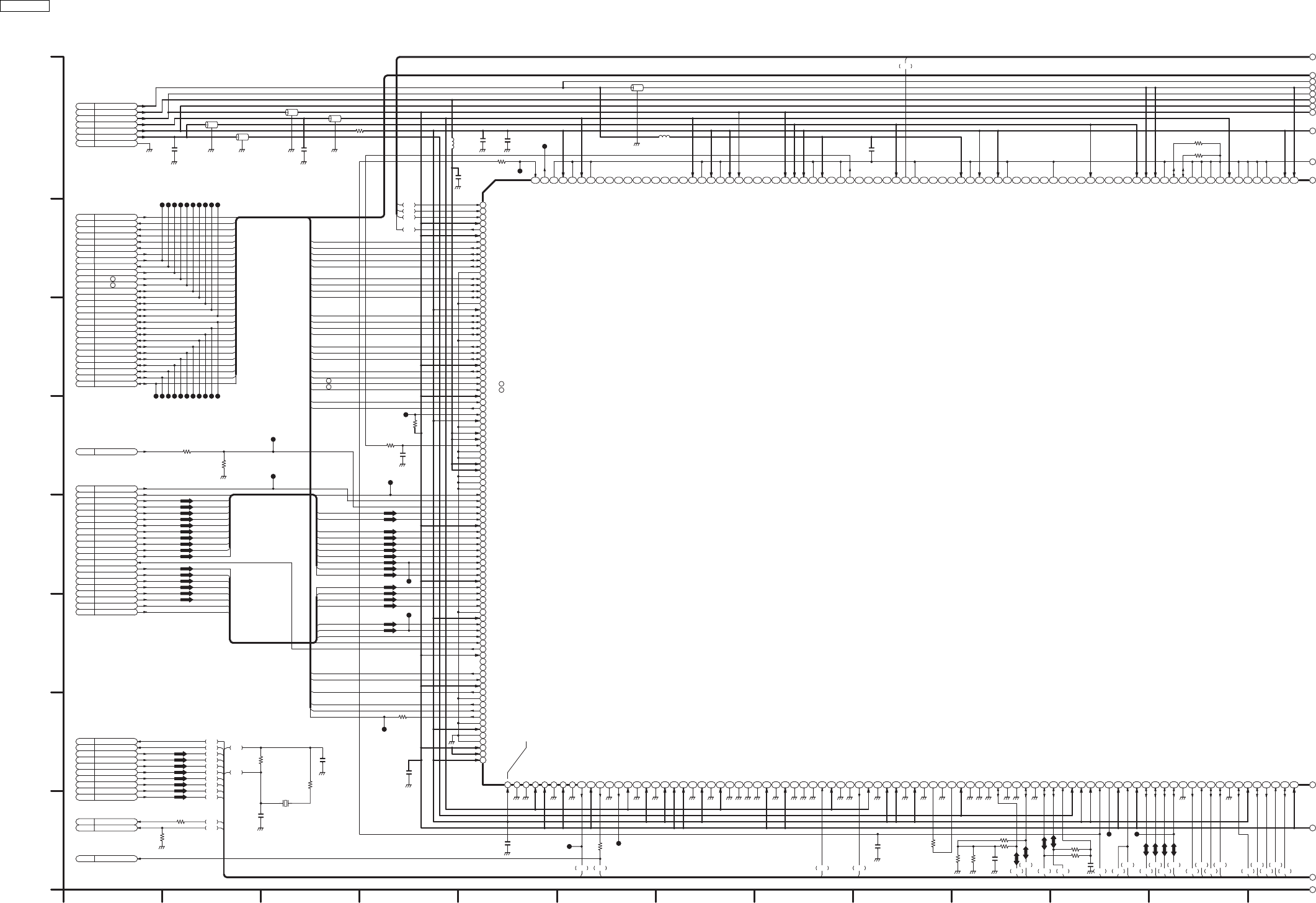

PV-GS250PP

R324 0

A100

A99

A98

A97

A96

LED CONT

A95

A94

CL316

A92

A91

A90

A93

CL325

A73

A74

0.01

C350

0.01

C351

R359 10K

R358 10K

ND OPEN

0.1X4

CX301

4321

5678

0.1

C334

R388 10K

R387 10K

R310 1K

A70

A69

A68

A71

A72

A75

0.1

C328

0.7

2.3

2.93.0

2.6

2.0

2.6

1.9

2.6

2.5

2.8

2.6

2.5

2.9

0.3

2.7

0.1

2.5

0.1

2.9

2.6

2.5

2.9

2.8

2.6

2.8

2.9

2.5

1.4

2.8

2.1

2.8

1.4

2.5

1.2

2.0

2.9

2.5

2.6

2.9

2.5

2.9

2.5

0.1

2.9

1.4

2.6

2.2

2.3

2.6

1.7

1.3

1.4

0.5

2.9

2.5

2.6

A14

A28

A26

A27

A24

A25

A12

A67

A66

A65

A63

A62

A61

A60

A59

A58

4.7KX4

RX304

A57

A56

A17A18

A55

A54

A53

A52

A51A50

A3A49A48A29A47

A46

C305

A16 A15 A19

C321 10

A44

A43

A42

A41

A36

A35

A34

A33

0.1

C314

0.1

C340

2SB0970X0L

Q301

(POWER SUPPLY)

(P.SUPPLY C0NT.)

B1ABBE000002

Q302

1800

R333

47K

R331

47K

R335

2.2

C319

R320 0

R334 15K

CL310

6800

R313

R312 4700

R344 0

4.7KX4

RX303

CAM O

CHARGE

TRIG END

0.015

C318

R343 0

CL315CL317CL312

CL314

47K

R338

D DI

D DO

D CK

D MS

D RST

AFST

E2 DATA

E2 CLK

CAM TEST

VTR T

MEMO END

SEND END

CAM

B0JCDD000002

D301

R315 1K

CL318

2200

R337

MAD0

MAD1

MAD2

MAD3

MAD4

MAD5

MAD6

MAD7

MAD8

MAD9

MAD10

MAD11

MAD12

MAD13

MAD14

MAD15

0.1

C309

R306 1M

R305 1M

R308 1K

R307 100

47K

R336

B0JCDD000002

D303

R326 3300

R327 3300

R345 0

10K

R328

R347

R318 1K

B0JCDD000002

D302

CL308

E VSS

VSS

CAM SEND END

MEMO END

VTR T

CAM T

E2 SCK

E2 SDO

E2 SDI

AFST

PLL SEL

P VDD

C VSS

P VSS

RESET

CK SEL1

C VDD

VDD

ND OPEN

CHARGE

TRIG END

ASP2 CS

LED CNT

CAM O

ASP3 CS

XWAIT

MODE J

E VDD

TRST

TMS

VSS

E VSS

A VSS

TCK

TDO

TDI

A VDD

A VREF

GYRO X

GYRO Y

X POS

Y POS

C V DATA

V C DATA

CAM SCLK

SHOE SDO

SHOE SDI

SHOE SCK

CG ASP DAT

CG ASP SCK

EVR SBO

SVR SBI

SVR SCK

OIS DA SDO

OIS DA SCK

E2 CS

CG CS

VDD

VSS

MODE0

MODE1

MEGA REQUEST

BST

E VSS

E VDD

FLSDLY

B COM P

A COM P

VDD

VSS

MAD0

MAD1

MAD2

MAD3

MAD4

MAD5

MAD6

MAD7

MAD8

MAD9

MAD10

MAD11

MAD12

MAD13

MAD14

MAD15

VDD

E VDD

MF RING2

LENS DAC CS

ASP1 CS

E2 RB

L STBY

E2 RST

E VDD

VSS

E VSS

VDD

F OPEN

F UP

SHOE ON

Z ABS

DAS

WINK END

SENS SW

V C DSET

MVD

BEND

RTN FLD

V1 V2

MF RING1

MF LED CNT

TV MD

SHOE DET

ZM B

ZM A

FM B

FM A

M REF

ND FNO

FNO

Z SW

E VDD

VDD

E VSS

VSS

SS DET

OIS DA LD

FCP CNT

CHA END

INST ST

CAM RTN

(CAMERA MICRO COMPUTER)

C2DBLJ000108

IC305

209208207206205204203202201200199198197196195194193192191190189188187186185184183182181180179178177176175174173172171170169168167166165164163162161160

159

158

157

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 6362 61 60 59 58 57 56 55 54

4544434241403938373635

PV-GS250PP

SUB (CAMERA)

SCHEMATIC DIAGRAM

PV-GS250PP

SUB (CAMERA) SCHEMATIC DIAGRAM

PV-GS250PP

2.8

02.9

4700

R329

(SENSOR CONTROL)

1.401.4

(BUFFER)

1.41.41.4

1.41.41.42.9

0.47

C349

A103

A101

A104

A102

A98 A96

A97

A100

A99

VDD

GND

A104

A103

A102

A101

A95

A94

10K

R378

R379 1K

R380 1K

4700

R374

R372 270K

C348 2200P

270K

R369 2200P

C347

390K

R371

4700

R370

R367 3300

R365 3300

0.015

C342

0.015

C336

0.015

C344

0.015

C337

C346 10

C345 10

C341 10

C339 10

R366 3900

R364 3900

1000

R368

390K

R377

1000

R479

321

456

XP0450100L

Q303

UNR9215J0L

QR302

UNR9215J0L

QR303

R356 100

R357 15K

R342 100

18K

R323

LED CONT

D117

D116

D122

D121

X REF

X SENS

Y REF

Y SENS

TO SUB CN(A-30/B-30)

A75

A87

A86

D133

D134FC B

FC A

M REF D41A68

FM A D42A69

FM B D43A70

OIS CS D35A72

X POS D36A73

Y POS D40A74

A COM P D31A46

B COM P D30A47

LSTBY D29A66

FNO D39A43

OIS CK D33A51

OIS DATA D32A52

ND FNO D24A71

ND OPEN D27

LEN CS D34A67

D123FCP CNT

D37IRIS OPENA22

IRIS CLSE D38A23

A21 D25IRIS PWM

A76 D28ND PWM

A81

R350

33K

R352

TO SUB CN(A-30/B-30)

D119MF L2

D120MF LED

D118MF L1

D136Z LED

D135

TO SUB CN(F-29)

Z ABS

A90

A92

A91

A93

+C0JBAB000008

IC306

4321

678

C0ABHA000049

IC308

R346

E2 DATA

CL301

5655545352515049484746

1.31.31.4

1.22.92.92.9

2.9

2.82.8

02.8

2.8

2.9

2.92.5 1.01.0

0.91.7

(REG.2.5V)

CONT.

V OUT

GNDNC

V IN

C0CBCAB00014

IC302

CL319

A50

A85

A84

A83

A82

A80

A79

A78

A77

A30

A48

A36

A59

A60

A58

A61

A33

A34

A63

A35

A42

A41

A20

A55

A54

A53

A62

A49

A65

A44

A56

A57

A13 A31

0.1

C338

3.3KX4

RX301

UNR9215J0L

QR301

(INV.)

D132

D131

D130

D129

D128

D127

D126

D125

D124

D109

D108

D114

D113

D112

D111

D110

D18

D10

D17

D22

D14

D20

D12

D13

D11

D16

D15

D19

D100

D102

D101

D103

D53

D105

D104

D107

D106

D96

D94

D99

D97

D98

D95

D93

D92

D91

D90

D89

D88

D87

D86

D85

D84

D83

D82

D81

D80

D79

D78

GND

VCC

C0JBAB000636

IC304

CL302

CL304

CL313

E2 CLK

IR OUT

TRIG END

CHA END

CHARGE

TO SUB CN(B-30)

SHOE ON

SHOE DET

SHOE CLK

SHOE DAT

TO SUB CN(E-30)

TO SUB CN(F-29)

TO SUB CN(F-29)

TO SUB CN(F-29)

TO SUB CN(F-29)

TO SUB CN(E-29)

TO SUB CN(D-29)

TO SUB CN(B-30/C-30)

TO SUB CN(B-29/C-29)

FLM D0

CAM VD

CAM TEST

EVR SCK

EVR SBI

EVR SBO

CAM RST

V C DSET

WINK END

MEMO END

INST ST

CAM RTN

RTN FLD

CAM SCLK

C V DATA

V C DATA

VTR T

M REQUEST

CAM 0

SS DET

CAM SEND END

CAM D3 OFF

ZOOM AD

D RST

D CK

D MS

D DI

D DO

AFST

LIN PWM

ZER A

ZER B

COM P C

F2 C

CL303

TO SUB CN(E-30/F-30)

CLK45

CLK27A

MEGA DSTB

MEGA PIX

MEGA BUSY

CLK27 CAM

Y C7

Y C6

Y C5

Y C4

Y C3

Y C2

Y C1

Y C0

MEGA Y C7

MEGA Y C6

MEGA Y C5

MEGA Y C4

MEGA Y C3

MEGA Y C2

MEGA Y C1

MEGA Y C0

GND

CK VCC

C0JBAF000567

IC301

(EEPROM)

432

GND

HOLD

VCC

C3EBHC000032

IC307

(D-FLIP FLOP)

234

:VIDEO MAIN SIGNAL PATH

47K

R361

PV-GS250PP

SUB (CAMERA)

SCHEMATIC DIAGRAM

PV-GS250PP

SUB (CAMERA)

SCHEMATIC DIAGRAM

PV-GS250PP

14.16.1. CAMERA I/O TABLE

1NC -NC

2 MAD0 I/O Address Data

3 MAD1 I/O Address Data

4 MAD2 I/O Address Data

5 MAD3 I/O Address Data

6 MAD4 I/O Address Data

7 MAD5 I/O Address Data

8 MAD6 I/O Address Data

9 MAD7 I/O Address Data

10 MAD8 I/O Address Data

11 MAD9 I/O Address Data

12 MAD10 I/O Address Data

13 MAD11 I/O Address Data

14 MAD12 I/O Address Data

15 MAD13 I/O Address Data

16 MAD14 I/O Address Data

17 MAD15 I/O Address Data

18 VDD I Voltage

19 E VDD I Voltage

20 NC - NC

21 MF RING 2 I MF Ring 2

22 NC - NC

23 LENS DAC CS O Lens Chip Select

24 APS1 CS O APS1 Chip Select

25 E2 RB O EEPROM Ready/Busy

26 LSTBY O Standby

27 E2 RST O EEPROM Reset

28 E VDD I Voltage

29 VSS - GND

30 E VSS - GND

31 VDD I Voltage

32 WE L O Write Enable ON/OFF

33 F OPEN - NC

34 F UP H - NC

35 SHOE ON H O SHOE Power ON/OFF

36 RE H O Write Enable ON/OFF

37 Z ABS I Zoom Encoder

38 DAS O Address Strobe

39 WINK END O WINK END

40 SENS SW O Sensor Level Control

41 V C DSET I DMA Forwarding Timing

42 MVD O VD To DSP LSI

43 BEND I Data Block End Request

44 RTN FLD I Camera Microcomputer Field Signal

45 V1 V2 I ACT Detect End

46 MF RING 1 I MF Ring 1

47 MF LED CNT O MF LED Drive Control

48 NC - NC

49 NC - NC

50 TV MD I NTSC/PAL Select

51 NC - NC

52 NC - NC

53 NC - NC

54 NC - NC

55 C V DATA O VTR Serial Data Output

56 V C DATA I VTR Serial Data Input

57 CAM SCLK I VTR Serial Clock

58 NC - NC

59 NC - NC

60 NC - NC

61 NC - NC

No.

IC305 : CAMERA MICROCOMPUTER

Signal Name I/O Explanation

62 NC - NC

63 SHOE SDO O SHOE Serial Data Output

64 SHOE SDI I SHOE Serial Data Input

65 SHOE SCK O SHOE Serial Clock

66 CG ASP DAT O Character Generation Serial Data

67 NC - NC

68 CG ASP SCK O Character Generation Clock

69 EVR SBO O EVR Serial Data Output

70 SVR SBI I EVR Serial Data Input

71 SVR SCK I EVR Serial Clock

72 OIS DA SDO O OIS DAC Serial Data Output

73 NC - NC

74 OIS DA SCK O OIS DAC Serial Clock

75 NC - NC

76 NC - NC

77 NC - NC

78 NC - NC

79 E2 CS O EEPROM Chip Select

80 CG CS O Character Generation Chip Select

81 NC - NC

82 VDD I Voltage

83 VSS - GND

84 MODE0 I Mode Select

85 MODE1 I Mode Select

86 NC - NC

87 MEGA REQUEST I Mega Pixel Request

88 BST I Boundary Scan Test SW

89 NC - NC

90 NC - NC

91 NC - NC

92 E VSS - GND

93 E VDD I Voltage

94 FLSDLY I Flashing Delay

95 NC - NC

96 NC - NC

97 NC - NC

98 B COMP I Liner Adjust (B COMP Capture)

99 A COMP I Liner Adjust (A COMP Capture)

100 NC - NC

101 NC - NC

102 VDD I Voltage

103 VSS - GND

104 NC - NC

105 NC - NC

106 NC - NC

107 NC - NC

108 NC - NC

109 NC - NC

110 NC - NC

111 NC - NC

112 NC - NC

113 NC - NC

114 NC - NC

115 NC - NC

116 NC - NC

117 NC - NC

118 NC - NC

119 NC - NC

120 CAM RTN I Camera Clock Deference Signal

121 INST ST I REC Control

122 NC - NC

No. Signal Name I/O Explanation

123 NC - NC

124 NC - NC

125 NC - NC

126 NC - NC

127 CHA END I Flash Charge End

128 FCP CNT O Powre Supply Control

129 OIS DA LD O OIS DAC Data Output

130 SS DET I Start/Stop Detect

131 NC - NC

132 NC - NC

133 NC - NC

134 NC - NC

135 NC - NC

136 VSS - GND

137 E VSS - GND

138 VDD I Voltage

139

E VDD

I Voltage

140

-NC

141

-NC

142

-NC

143

-NC

144

-NC

145

-NC

146 NC - NC

147 NC - NC

148 Z SW I Zoom SW Voltage

149 IR I IR Sensor

150 FNO I F Value

151 ND FNO I ND F Value

152 M REF I Voltage

153 FM A I Auto Focus FG A Monitor

154 FM B I Auto Focus FG B Monitor

155 ZM A - NC

156 ZM B - NC

157 NC - NC

158 NC - NC

159 SHOE DET I SHOE Detect

160 Y POS I Y Position Detect (OIS)

161 X POS I X Position Detect (OIS)

162 GYRO Y I Y Position Detect

163 GYRO X I X Position Detect

164 NC - NC

165 A VREF I Voltage

166 A VDD I Voltage

No. Signal Name I/O Explanation

167 TDI I TEST Serial Data Input

168 TDO O TEST Serial Data Output

169 TCK I TEST Serial Clock

170 A VSS - GND

171 E VSS - GND

172 VSS - GND

173 TMS I TEST Master Clock

174 TRST I TEST Reset

175 E VDD I Voltage

176 MODE J I Mode Select

177 XWAIT - NC

178 NC - NC

179 ASP3 CS O ASP3 Chip Select

180 CAM 0 I

CAM Microcomputer Communication

181 LED CNT O LED Drive Control

182 ASP2 CS O ASP2 Chip Select

183 NC - NC

184 TRIG END O Flash Trigger End

185 CHARGE O Flash Cherge

186 ND OPEN - GND

187 VDD I Voltage

188 C VDD I Voltage

189

CK SEL1

I Clock Select

190 RESET I Reset

191

I OSC In

192 X2 - NC

193 P VSS - GND

194 C VSS - GND

195 P VDD I Voltage

196 PLL SEL I PLL Select

197 AFST O Process Timing Pulse

198 E2 SDI I EEPROM Serial Data In

199 E2 SDO O EEPROM Serial Data Out

200 E2 SCK O EEPROM Serial Clock

201 CAM T I Camera Test

202 VTR T I Sync Serial Communication Enable

203 MEMO END O Memory End

204 CAM SEND END O CAM SEND END

205 NC - NC

206 NC - NC

207 VSS - GND

208 E VSS - GND

209 NC - NC

No. Signal Name I/O Explanation

PV-GS250PP

CAMERA I/O TABLE

PV-GS250PP

14.17. MAIN (MAIN CONNECTION) SCHEMATIC DIAGRAM

C-1)

(B-1

(F-1)

(B-17)

(E-1)

(A-1)(B-17)

(F-17)

(A-17)

(C-1)

R6910 0

(E-1/F-1)

(A-11)

(D-1)

(C-1)

(B-11)

(C-11)

(D-11)

(G-11)

(A-1)

(G-11)

(G-1)

(C-1)

RL14

RL33

F33EXT

RL28

S Y IO TRSW F30

S C IO TRSW F31

TO AVIO

V HP R TRSW F32

S Y IO TRSW E36

S C IO TRSW E35

E34V HP R TRSW

TO EX INPUT

REG D3V F34

FP4801

7.900

7.9

SUB 1.8V

REG 9V

REG 15V

REG -8V

REG 3.1V

SW 3V

CAM 1.5V

H MIC(R)

H MIC(L)

J0JBC0000054

LB3501

J0JBC0000054

LB3502

V/HP R

L/HP L

R/GND

EX MIC(R)

EX MIC(L)

RL29

VZ455 D4ED1270A006

PG(+)

M3A

M1A

M2A

COM CYL

FG(+)

EVR SCK

EVR SBI

EVR SBO

FLM DI

CAM RST

P ON

CH 2F

CH 2S

CH 1S

CH 1F

CAM VD

VTR TEST

SYSTEM RST

UARTO

UARTI

DBGE

SDAO TCP

SDI DINT

DREST

PCST3

PCST2

PCST1

PCST0

DCLK

CAM VD

ATF1

HA OUT

HID

RL16

RL15

RL25

RL24

RL23

RL22

RL21

RL20

RL18 RL19RL17

RL27

RL26

SP OUT2E16

E15

TO SIDE L

SP OUT1

TALLY

VTR KEY 5

S C IO

S Y IO

REMOCON

CCD ON

RL6

RL7

RL8

RL9

RL5

RL10

RL11

RL12

RL13

RL4

RL1

RL3

RL2

TO MAIN CN

SIF TDOF1

CL1906

SP OUT2

SP OUT1

LIBATT+

GND

ZOOM AD

GND

VTR KEY 5 7

AVREF

FP6501

SIDE L

TO CONTROL

TO CONTROL/AVIO

TO CONTROL/VIDEO/AVIOTO VIDEO

TO VIDEO/CONTROL

TO JACK/AVIO/EVR1

TO JACK/AVIO

F25EXT 5V SW

F24SYNC DET

F23SIF CS

F22WIDE DET

F21INPUT SEL

F20SIF P SAVE

F27SBA SIF CLK

F26SBA SIF SDA

F28XRST

F19D GND

EX INPUT

Y C IN7F13

Y C IN6F12

Y C IN5F11

Y C IN4F10

Y C IN3F9

Y C IN2F8

Y C IN1F7

Y C IN0F6

CLK27BF29

CLK27XF5

USB TDOF2

2V TMSF4

2V TCK

V/HP R

F14

F18

TO POWER

REG A5V

SIF 1.8V

F17

S Y IO

S C IO

F16

F15

L Y C IO0

L Y C IO1

L Y C IO2

L Y C IO3

L Y C IO4

L Y C IO5

L Y C IO6

L Y C IO7

CLK27C

CLK27A

Y C7

Y C6

Y C5

Y C4

Y C3

Y C2

Y C1

Y C0

MEGA Y C7

MEGA Y C6

MEGA Y C5

MEGA Y C4

MEGA Y C3

MEGA Y C2

MEGA Y C1

MEGA Y C0

FCK

CLK27 CAM

V C DATA

C V DATA

CCD STBY

CAM 0

RTN FLD

INST ST

VREF

CAM D3 OFF

CAM RST

SS DET

CAM SCK

CAM RTN

CAM SEND END

M REQUEST

WINK END

MEMO END

V C DSET

MEGA BUSY

MEGA DSTB

MEGA PIX

VTR T

FLM D1

EVR SCK

EVR SBO

EVR SBI

CAM VD

M RVS

LCD ON

M BL

EVF BL

TV MD

M EVF HL

LCD CS

LCD SCK

LCD SD

VZ451 D4ED1270A006

VZ452 D4ED1270A006

VZ453 D4ED1270A006

TO PP301

SHOE ON

SHOE DET

SHOE DAT

SHOE CLK

H MIC(L)

H MIC(R)

SHOE DET

SHOE CLK

SHOE DAT

SHOE ON

AVIO

SBA SIF CLK E32

SD I E24

E23BCLK

E22MCLK

R/GND

E12

E13

L/HP L

S Y IOE9

TO JACK/EX INPUT

S C IO

MIC(R)E7

TO FRONT

MIC(L)

TO VIDEO/CONTROL/EX INPUT

E25Y LEVEL

TO CONTROL

XRST

TO CONTROL/EX INPUT

SBA SIF SDA

E28

E27

E33

E26

REG D3.2V

SPK 3V

E31

TO POWER

E30

REG A5V

E29

D GND

REG D1.8V

EX MIC(R)

E10

E11

EX MIC(L)

TO JACK

E14

TO JACK/EVR1/EX INPUT

V/HP R

H MIC(R)E5

TO HOT SHOE E21

E17

E19

E18

E20

SD OI

DUO Y OUT

DUO C OUT

LRCK

TO VIDEO

H MIC(L)

HP DET

SBA CS

SD O0

TO CONTROL

EVR SCK

EVR SBI

EVR SBO

FLM DI

CAM RST

P ON

FP2001

EVR2

FP2202

CYLINDER

PG(+)

D GND

M3A

M1A

M2A

COM

FG(+)

CAM VD

SYSTEM RST

UARTO

UARTI

CAM A GND

DBGE

SDAO PTC

SDI DINT

DRESET

V/HP R

PCST3

PCST2

TEST

EVR 3.4V

ATF1

ENVELOPE

HID1

DCLK

PP3001

EVR1

PCST0

PCST1

GND

CH 2F

CH 2S

CH 1S

CH 1F

GND

FP5001

HEAD

1D GND

D GND

ST NOREG

NOREG GND

REG D3V

TALLY

REG A5V

MIC 5V

MIC(R)

MIC(L)

MIC GND

FP6505

FRONT

SHOE UNREG

DATA

CLK

DET

H MIC(R)

H MIC GND

H MIC(L)

SHOE GND

100

R456

R457 100

R453 100

R454 100

R455 100

CL451

J0JHC0000018

LB456

R450

47K

R451

R452

(SHOE ON :ON)

UNR9214J0L

QR451

321

456

(POWER SUPPLY)

B1DDCB000002

Q451

LB455 J0JAC0000014

LB454 J0JAC0000014

LB453 J0JAC0000014

LB452 J0JAC0000014

LB451 J0JAC0000014

FP3402

HOT SHOE

PS3001

SUB CONNECTION

L Y C IO0

L Y C IO1

L Y C IO2

L Y C IO3

L Y C IO4

L Y C IO5

L Y C IO6

L Y C IO7

CLK27C

SUB 1.8V

REG D3V

M BL POWER

REG 9V

NOREG

REG 15V

REG -8V

REG A5V

REG D2.5V

REG 3.1V

SW 3V

CAM 1.5V

CLK27A

Y C7

Y C6

Y C5

Y C4

Y C3

Y C2

Y C1

Y C0

MEGA Y C7

MEGA Y C6

MEGA Y C5

MEGA Y C4

MEGA Y C3

MEGA Y C2

MEGA Y C1

MEGA Y C0

CLK45

CLK27 CAM

V C DATA

C V DATA

CAM 0

RTN FLD

INST ST

D GND

VREF

REMOCON

CAM D3 OFF

CAM RST

SS DET

CAM SCK

CAM RTN

CAM SEND END

M REQUEST

WINK END

MEMO END

V C DSET

MEGA BUSY

MEGA DSTB

MEGA PIX

VTR T

SHOE CLK

SHOE DAT

SHOE DET

SHOE ON

FLM D1

EVR SCK

EVR SBO

EVR SBI

CAM VD

CCD ON

M RVS

LCD ON

M BL

EVF BL

TV MD

M EVF HL

LCD CS

LCD SD

LCD SCK

ZOOM AD

D GND

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

(MAIN C.B.A.)

1110987654321

PV-GS250PP

MAIN (MAIN CONNECTION) SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

NOTE:

THE MEASUREMENT MODE OF THE DC VOLTAGE ON THIS

DIAGRAM IS STOP MODE. (HOT SHOE: OFF)

PV-GS250PP

(B-1)

(G-1)

(E-1)

(D-22)

(F-22)

(A-22)

(G-1)

(A-22)

(F-1)

(F-22)

(E-1)

(D-22)

(C-22)

(E-22)

(E-1)

(G-22)

(E-22)

(F-22)

(D-22)

(G-22)

(C-22)

(B-22)

(D-22)

(H-51)

(B-48)

(D-48/E-48)

(C-48)

(F-51)

(E-51)

(B-51)

(E-51)

(F-51)

(G-1)

(F-51)

(G-1)

(F-51)

G-1)

(F-1/

(G-48)

(H-1)

(H-48)

(H-1)

(H-48)

(H-1)

(C-1/D-1)

(A-1)

(E-1)

(D-48)

(B-48)

(E-1)

(H-48)

(A-1)

(D-51)

(G-51)

(A-1/B-1)

(B-51)

(C-51)

(D-51)

(A-51)

(G-51)

(A-51)

VREF

CCD ON

P ON

TPB(-)

TPB(+)

TPA(-)

TPA(+)

USB D(+)

USB D(-)

S TAB

POS3

POS2

POS1

H2(-)

H2(+)

H1(-)

H1(+)

H3(-)

H3(+)

AFG(+)

AFG(-)

VMR

T REEL(+)

T REEL(-)

S REEL(+)

S REEL(-)

M UNLOAD

M LOAD

SD CLK O

CMD O

SD DATA0

SD DATA1

SD DATA2

SD DATA3

MEGA PIX

MEGA DSTB

MEGA BUSY

MEGA Y C0

MEGA Y C1

MEGA Y C2

MEGA Y C3

MEGA Y C4

MEGA Y C5

MEGA Y C6

MEGA Y C7

Y C0

Y C1

Y C2

Y C3

Y C4

Y C5

Y C6

Y C7

CLK27A

FCK

CLK27 CAM

CL19

PG(+)

FG(+)

M3A

M2A

M1A

COM CYL

CAM VD

HA OUT

ATF1

HID

CH 2F

CH 2S

CH 1F

CH 1S

L Y C IO6

L Y C IO7

L Y C IO5

L Y C IO4

L Y C IO3

L Y C IO2

L Y C IO1

L Y C IO0

CLK27C

VBUS

POWER

TO VIDEO/MECHA/CAPSTAN

H39DRIVE 3V

H38P ON

TO EVR2/CONTROL

TO CONTROL

TO CONTROL/SUB POWER

TO CONTROL

TO CONTROL/SUB POWER

SUB POWER/REAR OPE

SIDE L/SIDE R/

EX INPUT/FRONT/

CAMERA/LENS DRIVE/

TO VIDEO/CONTROL/

TO VIDEO/CONTROL/AVIO

TO MAIN CN

LENS DRIVE

TO CONTROL/VIDEO/

H37PS

H36INN BATT

H35VREF

H34SW NOREG

H33OV PROTECT

H32CCD ON

H31REG D3V

H30REG D1.8V

H29D GND

H28FRAME

H27NOREG

H26GND

H25+B

H24D

TO BATT

TO VIDEO/CONTROL

TO VIDEO

H23 CAP SW

CAP VMH22

H21 CYL SW

H20 CYL VM

DUO 3.2VH19

H18 REG D1.5V

H17 RIP 2.5V

TO VIDEO

TO VIDEO/CAMERA

TO FRONT

FRONT/JACK/SUB POWER

EX INPUT/VIDEO/LENS DRIVE/

TO CAMERA/CONTROL/AVIO/

TO VIDEO

TO AVIO

TO EX INPUT

TO SUB POWER

TO CAMERA

H16 RF 3V

H15 REG D2.5V

H14 ST NOREG

H13 REG A5V

H12 REG A2.5V

H11 REG D3.2V

H10 SPK 3V

H9 SIF 1.8V

H8 M BL POWER

H7 CAM 1.5V

H6 REG 3.1V

REG 9VH5

H4 SW 3V

H3 REG 15V

TO SUB POWER

H2 REG -8V

TO CAMERA/SUB POWER

SUB 1.8V

TO SIDE R

TO JACK

TO MECHA

TO MECHA1

G132

TO CAPSTAN

TO MECHA

TO MECHA1

G151 TPB(-)

G150 TPB(+)

G149 TPA(-)

G148 TPA(+)

G147 USB D(+)

G146 USB D(-)

G145 S TAB

G144 POS3

G143 POS2

G142 POS1

G141 H2(-)

G140 H2(+)

G139 H1(-)

G138 H1(+)

G137 H3(-)

G136 H3(+)

G135 M3

G134 M2

G133 M1

G131

AFG(+)

AFG(-)

G130 VMR

G128 T REEL(+)

G129 T REEL(-)

G127 S REEL(+)

G126 S REEL(-)

G125 M UNLOAD

G124 M LOAD

G68 SD D33V

G67 SD CLK O

G66 CMD O

G65 SD DATA0

G64 SD DATA1

G63 SD DATA2

G62

TO SIDE R

SD DATA3

G123DRIVE 3V

G122NOREG

G89CAP SW

G121LOAD LOCK DET

G120ALE

G119CTL TDO

G118XREADY

G117HOST ACK

G116HOST REQ

G115DUO INT3

G114DUO INT2

G113DUO INT1

G112DUO INT0

G111XDUO CS

G110XUSB CS

G109USB INT

G108ADM15

G107ADM14

G106ADM13

G105ADM12

G104ADM11

G103ADM10

G102ADM9

G101ADM8

G100ADM7

G99ADM6

G98ADM5

G97ADM4

G96ADM3

G95ADM2

G94ADM1

G93ADM0

G92XWE

G91XWE

G90XRE

TO CONTROL

G88CAP VM

G87CYL SW

G86CYL VM

G85D GND

G84DUO 3.2V

G83REG D1.5V

G82RIP 2.5V

G81RF 3V

G80REG D2.5V

G79REG A2.5V

G78REG D1.8V

G77REG A5V

G76REG D3V

TO POWER

PG(+)G75

FG(+)G74

M3AG73

M2AG72

TO CYLINDER

M1AG71

COM CYLG70

TO CAMERA/EVR1

CAM VDG69

HA OUTG61

ATF1G60

TO EVR1

HIDG59

TO CONTROL/JACK

VBUS G58

CH 1SG57

G56 CH 1F

CH 2SG55

G54 CH 2F

TO HEAD

VIDEO

G53 2V TMS

G52 2V TCK

TO CONTROL/EX INPUT

G40 L Y C IO7

G51 Y C IN7

G50 Y C IN6

G49 Y C IN5

G48 Y C IN4

G47 Y C IN3

G46 Y C IN2

G45 Y C IN1

G44 Y C IN0

G43 CLK27B

G42 CLK27X

G41 USB TDO

TO EX INPUT

G39 L Y C IO6

G38 L Y C IO5

G37 L Y C IO4

G36 L Y C IO3

G35 L Y C IO2

G34 L Y C IO1

G33 L Y C IO0

G32 CLK27C

TO LCD

G31 XRST

TO CONTROL/AVIO/EX INPUT

G30 SD O0

G29 SD O1

G28 DUO C OUT

G27 DUO Y OUT

G26 SD I

G25 LRCK

G24 MCLK

BCLKG23

TO AVIO

MEGA PIX G22

MEGA DSTB G21

MEGA BUSY G20

MEGA Y C0 G19

MEGA Y C1 G18

MEGA Y C2 G17

MEGA Y C3 G16

MEGA Y C4 G15

MEGA Y C5 G14

MEGA Y C6 G13

MEGA Y C7 G12

Y C0 G11

Y C1 G10

Y C2 G9

Y C3 G8

Y C4 G7

Y C5 G6

Y C6 G5

Y C7 G4

CLK27A G3

G2FCK

CLK27 CAM G1

TO CAMERA

2221201918171615141312

PV-GS250PP

MAIN (MAIN CONNECTION) SCHEMATIC DIAGRAM

PV-GS250PP

MAIN (MAIN CONNECTION) SCHEMATIC DIAGRAM

PV-GS250PP

TO CAMERA

(E-25)

B-25)

(A-25/

(E-25)

(A-25)

(F-1)

(A-1)

(E-1)

(A-1)

(C-25)

(F-1)

(D-25)

(C-1)

(H-25)

(F-25)

(F-1)

(E-25)

(D-1)

(F-25)

(B-1)

(F-25)

(D-1)

(B-1)

(D-1)

(B-1)

(E-1)

(H-1)

(G-25)

(E-1)

(B-1)

(E-25)

(E-1)

(E-25)

(E-1)

(B-25)

(D-1)

(G-25)

(A-1)

(D-1)

(G-1)

I72EXT

(G-1)

(A-25)

(A-1)

(D-1)

(C-25)

(B-1)

(G-1)

(G-25/H-25)

(C-1)

(G-1)

H-25)

(G-25/

(H-1)

(C-25)

(F-1)

(H-1)

(B-25)

(B-1)

(F-25)

(H-1)

LCD ON

VTR KEY 5

EVF BL

M BL

R6905

CAM RST

FP6201

FP6301

RL6501

VBUS

SYSTEM RST

CL1903CL1904

V C DSET

CAM SEND END

M REQUEST

WINK END

MEMO END

C V DATA

V C DATA

CAM D3 OFF

INST ST

CAM RTN

RTN FLD

CAM 0

VTR T

CAM SCK

SS DET

CCD STBY

CAM RST

PCST3

PCST2

PCST1

PCST0

DREST

SDAO TPC

SDI DINT

DBGE

DCLK

VTR TEST

UARTI

UARTO

RL6502

RL6503

VBUS

EJECT SW

VTR KEY 3

VTR KEY 2

VTR KEY 1

GUI LED

SS SW

DEW

STANDBY LED

POWER LED

POWER SW

S PLUG

C DOWN

MIC VDD

SENS LED

T PHOTO

S PHOTO

MIC DT

MIC CLK

WD REMO

PLUG IN

REMOCON

TALLY

EXT MIC

CR POWER

R PLUG

P LCD LED

ACCESS LED

LCD OPEN

VTR KEY 4

POWER LCD

TV MD

M RVS

M EVF HL

LCD SD

LCD CS

LCD SCK

M LOAD

M UNLOAD

POS3

POS2

POS1

T PHOTO

S PHOTO

S REEL(-)

S REEL(+)

T REEL(+)

T REEL(-)

SENS LED

C DOWN

MIC VDD

MIC DT

MIC CLK

S TAB

H3(-)

H3(+)

H1(-)

H2(-)

H1(+)

H2(+)

VMR

AFG(+)

AFG(-)

POWER SW

POWER LED

STANDBY LED

VTR KEY 3

GUI LED

VTR KEY 2

VTR KEY 1

SS SW

DEW

EJECT SW

S Y IO

S PLUG

S C IO

L/HP L

R/GND

PLUG IN

V/HP R

EXT MIC

EX MIC(R)

WD REMO

EX MIC(L)

R PLUG

CR POWER

VBUS

USB D(-)

USB D(+)

CARD PRO

CARD DET

SD DATA1

SD DATA0

CMD O

POWER LCD

P LCD LED

LCD OPEN

VTR KEY 4

ACCESS LED

TPB(-)

TPB(+)

TPA(-)

TPA(+)

SD CLK O

SD DATA2

SD DATA3

CL1902

R6908

R6901

FP6502

REAR OPERATION

FP2201

CAPSTAN

FP2203

MECHA

FP2204

MECHA1

POWER ON

POWER LED

STANDBY LED

VTR KEY 3

REG D3V

GND

GUI LED

VTR KEY 2

VTR KEY 1

GND

SS SW

DEW

H3(-)

VH(+)

H3(+)

H1(-)

H2(-)

H1(+)

VH(-)

H2(+)

D GND

VMR

AFG1

AFG2

T PHOTO

V OUT 3V

S PHOTO

S REEL(-)

S REEL(+)

VH(+)

T REEL(+)

T REEL(-)

VH(-)

SENS LED A

SENS LED K

C DOWN

D GND

MIC VDD

MIC DT

MIC CLK

S TAB

M LOAD

M UNLOAD

POS3

POS2

POS1

D GND

GND

FP1001

BATTERY

27 EJECT

S Y IO

S PLUG

S C IO

L/HP L

R/GND

PLUG IN

V/HP R

MIC 5V

EXT MIC

EX MIC(R)

WD REMO

EX MIC(L)

R PLUG

CR POWER

MIC GND

VBUS

USB D(-)

D GND

USB D(+)

D GND

FP6504

JACK

CARD PRO

CARD DET

SD DATA1

SD DATA0

CMD O

POWER LCD

RESET

P LCD LED

REG D3V

LCD DET

VTR KEY 4

CARD LED

GND

TPB(-)

TPB(+)

TPA(-)

TPA(+)

DSC GND

SD CLK O

SD D33V

SD DATA2

SD DATA3

FP6503

SIDE R

CONTROL

I70EVR 3.4V

TO EVR1

I69P ON

TO EVR2/POWER

I682V TMS

I672V TCK

TO VIDEO/EX INPUT

CL1905I66CTL TDI

TO MAIN CN

I65PCST3

I64PCST2

I63PCST1

I62PCST0

I61DREST

I60SDAO TPC

I59SDI DINT

I58DBGE

I57DCLK

I56VTR TEST

I55UARTI

UARTO I54

TO EVR1

I137EXT 5V SW

I136SYNC DET

I135SIF CS

I134WIDE DET

I133INPUT SEL

TO EX INPUT

I132SIF P SAVE

TO AVIO

I131Y LEVEL

CARD DETI130

TO SIDE R

I129 CARD PRO

TO VIDEO/JACK

I128 VBUS

I127 EJECT SW

I126 R PLUG

I125 CR POWER

I124 EXT MIC

I123 PLUG IN

I122 WD REMO

I121 S PLUG

TO JACK

TO REAR

TO MECHA

TO FRONT

TO MAIN CN

TO SUB CN

I120 VTR KEY 3

I119 VTR KEY 2

I118 VTR KEY 1

I117 GUI LED

I116 SS SW

I115 DEW

I114 STANDBY LED

I113 POWER LED

I112 POWER SW

I94 C DOWN

I93 MIC VDD

I92 SENS LED

I91 T PHOTO

I90 S PHOTO

I89 MIC DT

I88 MIC CLK

I81 REMOCON

I80 TALLY

I79 VTR KEY 6

I78 P LCD LED

I77 ACCESS LED

I76 LCD OPEN

I75 VTR KEY 4

TO MAIN CN

V C DSET I111

CAM SEND END I110

M REQUEST I109

WINK END I108

MEMO END I107

C V DATA I106

V C DATA I105

CAM D3 OFF I104

INST ST I103

CAM RTN I102

RTN FLD I101

CAM 0 I100

VTR T I99

CAM SCK I98

SS DET I97

CCD STBY I96

TO CAMERA/EVR2

CAM RST I95I87TV MD

TO CAMERA

I86M RVS

TO MONITOR

I85M EVF HL

TO EVF/MONITOR

I84LCD SD

I83

I82LCD CS

TO LCD

LCD SCK

I73HP DET

I74 POWER LCD

TO SIDE R

I71SBA CS

TO AVIO

LOAD LOCK DETI53

CTL TDOI52

I49 XUSB CS

I51

USB INT

ALE

I50

HOST ACKI48

HOST REQI47

DUO INT3I46

DUO INT2I45

TO VIDEO

TO EVR1/SIDE R

TO POWER

TO AVIO/EX INPUT/VIDEO

TO AVIO/EX INPUT

TO SUB POWER/POWER

TO SUB POWER

DUO INT1I44

DUO INT0I43

XDUO CSI42

XREADYI41

XWEI40

XWEI39

XREI38

ADM0I37

ADM1I36

ADM2I35

ADM3I34

ADM4I33

ADM5I32

ADM6I31

ADM7I30

ADM8I29

ADM9I28

ADM10I27

ADM11I26

ADM12I25

ADM13I24

ADM14I23

ADM15I22

RESET I21

D GNDI20

DUO 3.2VI19

REG A5VI18

NOREGI17

PSI16

INN BATTI15

VREFI14

SW NOREGI13

OV PROTECTI12

REG D3VI11

REG D1.8VI10

XRSTI9

SBA SIF SDAI8

SBA SIF CLKI7

CCD ONI6

LCD ONI5

I4 M BL

EVF BLI3

I2 VTR KEY 5

TO SIDE L

RTC 3V

343332313029282726252423

(B-25)

PV-GS250PP

MAIN (MAIN CONNECTION) SCHEMATIC DIAGRAM

PV-GS250PP

MAIN (MAIN CONNECTION)

SCHEMATIC DIAGRAM

PV-GS250PP

14.18. MAIN (AVIO) SCHEMATIC DIAGRAM

0.1

C3323

S Y IO TRSW E36

E35S C IO TRSW

E34

TO MAIN CN(C-10)

V HP R TRSW

(1.6)

E17 SD 01

C3320 1

C3309 1

E25Y LEVEL

C3341 1

C3342 1

C3344 1

C3343 1

E5 H MIC (R)

TO MAIN CN(E-8)

E4 H MIC (L)

2.9 1.1 1.1 1.1 2.9 2.9 1.2 1.2 1.2 1.2 1.1 1.1

1.2

4.4

1.2

4.9

2.2

3.4

2.2

1.11.14.91.42.90.81.21.41.42.9

1.8

1.9

1.4

2.9

1.7

(1.6)

(0.1)

1.4

0.9

0.6

0.9

B0JCDD000002

D3301

I/F

CONTROL

WIDE

CLAMP BUFFER

LPF

GCA

LPF

BUFFERCLAMP

S-DC

MIX

DAC

ADCHPF

DE-EMP

MIX

DETECTION

LINE OUT/HP

DIVIDER

CLOCK

CONTROLLER

AUDIO I/F

SDC OUT

C OUT

V OUT

V SAG

HP R

HP L

HVDD

HVSS

R OUT

L OUT

MUTET

R IN

L IN

HDT

DTCNT

INT L1

INT R1

INT L0

INT R0

VREF

AVDD

AVSS

VCOM

EXT L

EXT R

BEEP

TEST

HDT0

Y OUT

Y SAG

WDD2

WSS2

VCA P

WSS1

WDD1

Y IN

C IN

SP P

SP N

SVDD

SVSS

PDN

CCLK

CSN

SDTI

CDTO

DVDD

DVSS

TVDD

SDTO1

SDTO0

SDTI

BCLK

MCLK

LRCK

(AV DRIVER,A/D,D/A)

C1AB00001894

IC3301

C3313 10

:AUDIO MAIN SIGNAL PATH

R3320 10

2.2

C3316

C3312

0.1

C3317

L3305 10u

0.01

C3311

R3330 47K

R3318 47K

R3325 68

R3323 68

R3321 68

15K

R3317

15K

R3312

C3318 1

C3327 1

R3309 33K

R3311 33K

R3315 560

R3316 560

C3308 0.22

C3322 1

C3321 1

C3332 6V100

C3304 6V22

C3314 6V22

L3303 10u

R3313 100

R3314 100

R3308 10K

C3315 1

C3333 0.1

R3310 7500

C3331

6V100

C3330

10u

L3304

C3307

0.1

C3306

C3305

10u

L3301

0.1

C3303

0.01

C3319

33u

L3302

6V22

C3310

E30D GND

E29REG D1.8V

E27SPK 3V

E28REG D3.2V

TO MAIN CN(D-10/E-10)

E26REG A5V

TO MAIN CN(D-10)

E9S Y IO

TO MAIN CN(D-8)

S C IO

E14

TO MAIN CN(D-8)

V/HP R

E13R/GND

E12L/HP L

E10EX MIC(L)

E11

TO MAIN CN(D-8)

EX MIC(R)

J0JAC0000014

LB3301

C3302

4.7

C3301

E16

E15

E33

E31

E32

E19

E18

E20

E24

E23

E22

E21

SP OUT2

SP OUT1

TO MAIN CN(D-8)

TO MAIN CN(D-10)

TO MAIN CN(E-8)

TO MAIN CN(D-10)

TO MAIN CN(E-10)

XRST

SBA CS

SBA SIF SDA

SBA SIF CLK

DUO Y OUT

DUO C OUT

SD O0

SDI

BCLK

MCLK

TO MAIN CN(E-10)

LRCK

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

32313029282726252423222120191817

E6MIC(L)

TO MAIN CN(E-8)

MIC(R)

TO MAIN CN(E-8)

HP DET

:VIDEO MAIN SIGNAL PATH

REFER TO MAIN CONNECTION

(MAIN C.B.A.)

10987654321

PV-GS250PP

MAIN (AVIO)

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

PV-GS250PP

14.19. MAIN (EX INPUT) SCHEMATIC DIAGRAM

R3324

R3326

220

R3302

0.01

C3324

EXTF33

TO MAIN CN(A-10)

R3322

(MUTING)

B1ABBE000002

Q3303

(MUTING)

B1ABBE000002

Q3302

(MUTING)

B1ABBE000002

Q3301

S Y IO TRSWF30

S C IO TRSWF31

F32 V HP R TRSW

TO MAIN CN(C-10)

0.01X4

CX3502

2134

8765

F19 D GND

22K

R3514

TO MAIN CN(C-8)

TO MAIN CN(B-10)

1.11.11.1

1.61.61.64.9

0.60.1

0.61.11.7

1.6

2.4

4.9

0.34.9 0.9

2.2

4.41.61.81.5

4.94.90.9

2.9

0.1

4.9

0.1

4.9

+IN1

C3501

0.1

C3570

4.7

C3556

1000P

C3514

+IN2

-IN2

OUT2

VCC

GND

-IN1

OUT1

2200

R3555

CTL2

IN2

CTL1

IN1

IN3

VCC

OUT

GND

4321

5678

4321

5678

10u

L3501

R3503

1200

R3504

3900

R3507

R3506

R3505

330

R3515

0.01

C3520 10K

R3516

0.01

C3566

100K

R3565

120K

R3564

18K

R3568

10K

R3556

820

R3550

0.01

C3569

33u

L3509

33u

L3508

R3561

(AMP)

B1ABBE000002

Q3505

2200

R3563

39P

C3563

56P

C3562

22P

C3561

R3562

(AMP)

2SB1218AHL

Q3504

0.01

C3560

0.01

C3559

100

R3508

0.01

C3558

33K

R3558

33K

R3557 2200

R3560

R3553 33u

L3507

33u

L3506

1800

R3554

2700

R3549

22P

C3554

56P

C3553

56P

C3552

22P

C3551

(P.SUPPLY CONT)

B1GBBEKK0001

QR3502

(POWER SUPPLY)

B1GDBEFH0001

QR3501

33u

L3505

XP0460100L

Q3503

(AMP)

LOGIC

(SWITCHING)

C1AB00000647

IC3503

(WIDE DET)

XP0460100L

Q3506

(VREF)

C0ABBA000075

IC3502

654

321

654

321

F14

S C I/OF15

S Y I/O

TO MAIN CN(C-8)

V/HP R

F16

F26

F25 EXT 5V SW

SBA SIF CLKF27

SYNC DET

SBA SIF SDA

F24

F20

F23 SIF CS

WIDE DETF22

INPUT SEL

TO MAIN CN(A-10/B-10)

SIF P SAVE

F21

REG D3VF34

F18 SIF 1.8V

F17

1000P

C3515

REFER TO MAIN CONNECTION

(MAIN C.B.A.)

98765432

TO MAIN CN(B-10/C-10)

REG A5V

PV-GS250PP

MAIN (EX INPUT) SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

PV-GS250PP

TO MAIN CN(B-8)

TO MAIN CN(B-8)

0.1X4

CX3501

3421

5678

1.7

H13 F5CLK27X

H12

H11

F42V TMS

F32V TCK

TO MAIN CN(B-8)

H11

H12

0.01

C3511

H13

R3582

1.7

0.1

1.7

0.1

1.7

0.8

1.7

1.8

1.7

1.4

1.7

1.8

0.8

1.7

0.8

1.2

1.6

0.4

1.7

2.4

1.7

2.4

1.7

0.4

1.6

1.2

0.8

1.7

1.7 F13

F12

F11

F10

Y C IN0

Y C IN1

Y C IN2

Y C IN3

Y C IN4

Y C IN5

Y C IN6

Y C IN7

0.1

C3516

0.1

C3506

F28

F29

(ANALOG INPUT)

:MAIN SIGNAL PATH REC MODE

Y C IN6

H10

H10H9H7

H1H5H4H3H2

SIF TDO

TO MAIN CN(A-8)

XRST

TO MAIN CN(B-10)

USB TDO

CLK27B

TO MAIN CN(B-8)

C1AB00001904

IC3501

VSS

CAM IN SEL

P M SEL

TDO

TDI

TRST

VSS

TCK

TMS

MONI SEL I(0)

MONI SEL I(1)

MONI SEL I(2)

MONI SEL I(3)

MONI SEL I(4)

MONI SEL I(5)

135SEL

CLK27P

VDDC

LSI RESET

YC SCK

NOSYNC

VSS

YC SDA

VSS

YC STP

VDDC

CLK27M

VDD

FS ENBL

CLK 135P

INF I

FS MODE

VDD

VSS

MONI 0(0)

VDD

MONI 0(1)

MONI 0(2)

VDD

VSS

CAM Y(4)

VDD

CAM Y(5)

VDD

CAM INH

CAM INV

VSS

VDD

CAM C(0)

VSS

CLK135M

VDD

CAM C(1)

CAM C(2)

CAM C(3)

CAM C(4)

VSS

CAM C(5)

VSS

CAM C(6)

CAM C(7)

VSS

CAM Y(6)

CAM Y(7)

CAM Y(8)

CAM Y(9)

VDD

ALL HIZ N

NANDTREE1

NANDTREE2

VSS

MONI 0(7)

MONI 0(8)

MONI 0(9)

VSS

VDD

VIDEO S I

INH

CPSYNC

COLOR FRAM

VSS

C O O(0)

VDD

C O O(1)

C O O(2)

C O O(3)

VDD

C O O(4)

VSS

C O O(5)

C O O(6)

C O O(7)

VSS

Y O O(0)

Y O O(1)

VDD

INV

Y O O(2)

Y O O(3)

VDD

Y O O(4)

Y O O(5)

Y O O(6)

Y O O(7)

OUT SEL

SEL1

VSS

CAM Y(0)

CAM Y(1)

CAM Y(2)

CAM Y(3)

VDD

VSS

MONI 0(3)

MONI 0(4)

AVDD2.5

AVSS

AVBB

C AINT

C AINC

C REFBOT

C CML

C REFTOP

C ITEST

C STBY

C SPEEDUP

VDD2

AVBB

DVSS

DVDD2.5

C EOC

C STC

Y STC

Y EOC

DVDD2.5

AVBB

DVSS

VCD2

Y SPEEDUP

Y STBY

Y ITEST

Y REFTOP

Y CML

Y REFBOT

Y AINC

Y AINT

AVBB

AVSS

AVDD2.5

MONI 0(5)

MONI 0(6)

VDD

C3502

R3501 1K

C3503

1716151413121110

R3580 47K

CL3503

CL3504

Y C IN7

Y C IN5

Y C IN4

Y C IN3

Y C IN2

Y C IN1

Y C IN0

45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88

176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

PV-GS250PP

MAIN (EX INPUT) SCHEMATIC DIAGRAM

PV-GS250PP

MAIN (EX INPUT) SCHEMATIC DIAGRAM

PV-GS250PP

14.20. MAIN (VIDEO) SCHEMATIC DIAGRAM

0.8(0)

3.2

1.5

2.4

0.1

3.2

2.9

1.5

3.2

0.1

2.9

3.2

1.5

2.9

1.7

1.5

2.4

1.5

1.2

1.8

1.7

1.0

1.5

1.1

2.6

1.7

(1.9)0

1.7

0.2

1.8

1.5

2.9

1.7

(1.7)0.7

0.1

2.9

1.7

1.5

2.4

0.9

2.4

0.9

1.7

2.4

1.5

1.7

1.5

2.4

1.1

0.9

1.7

0.9

1.7

2.4

1.5

1.7

1.5

1.7

1.0

1.7

0.1

1.5

1.7

1.1

1.7

0.1

0.3

0.9

2.4

0.8(0)

2.4

1.5

1.7

0.1

1.7

0.1

1.5

0.1

1.7

0.4

1.6

B34

B33

B32

B31

B30

B29

B28

B27

B26

B25

B24

B23

B22

B21

B11B20B19B18

B17

B16

B13B14B15B1

0.1

C3006

RL3034

RL3033

RL3032

RL3023

RL3022

RL3021

RL3019

RL3013

RL3012

RL3006

RL3035

RL3036

RL3037

RL3038

RL3039

RL3041

RL3042

RL3043

RL3024

RL3040

RL3005

B14

B13

R3060

RL3018

RL3017

RL3016

ALE

C3027

C3046

RL3001

(24.576MHz)

H0J245500021

X3001

ALEG120

B12

B11

B10

R3017 0

0.1

C3014

RL3031

CL3005

R3028 47K

R3027 47K

R3021 0

CL3006

RL3002

22P

C3039

22P

C3040

270

R3014

R3015

G3 CLK27A

TO MAIN CN(E-14)

6800

R3032

3900

R3031

G118

G117

R3063

G21 MEGA DSTB

G22 MEGA PIX

G19 MEGA Y C0

G18 MEGA Y C1

G17 MEGA Y C2

G16 MEGA Y C3

G15 MEGA Y C4

MEGA Y C5G14

0.1

C3017

B1CLK27BG43

RL3030

MEGA Y C5

MEGA Y C4

MEGA Y C3

MEGA Y C2

MEGA Y C1

MEGA Y C0

MEGA PIX

MEGA DSTB

MEGA BUSYG20

C3030

10K

R3026

10K

R3004 220P

C3044

117

10u

L3012

FL3003 F1H0J1050022

FL3004 F1H0J1050022

C3074

R3212

220

R3203

G60 ATF1

TO MAIN CN(B-13)

HIDG59

0.1

C3019

22K

R3048

RL3014

R3024 56

R3025 56

C3043

R3023 56

R3022 56

0.1

C3015 12K

R3013

RL3003

RL3015

YC IN0

YC IN1

YC IN2

YC IN3

YC IN4

YC IN5

YC IN6

YC IN7

CLK27X

G44

G45

G46

G47

G48

G49

G50

G51

G42

TO MAIN CN(C-13)

MEGA Y C6

MEGA Y C7

Y C 0

Y C 1

Y C 2

Y C 3

Y C 4

Y C 5

Y C 6

Y C 7

MEGA Y C6

MEGA Y C7

Y C0

Y C1

Y C2

Y C3

Y C4

Y C5

Y C6

Y C7

G13

G12

G11

G10

CLK27 CAMG1

TO MAIN CN(D-14/E-14)

CAM VDG69

TO MAIN CN(B-13)

FCKG2 FCK

C3068

DUO INT1

DUO INT2

DUO INT3

HOST ACK

HOST REQ

DUO INT0

XREADY

XRE

XWE

ADM0

ADM1

ADM2

ADM3

CL3004

ADM4

ADM5

ADM6

ADM7

ADM8

ADM9

ADM10

ADM11

ADM12

ADM13

ADM14

ADM15

ADM14

ADM13

ADM12

ADM11

ADM10

ADM9

ADM8

ADM7

ADM6

ADM5

ADM4

ADM3

ADM2

ADM1

ADM0

XWE

XRE

XREADY

HOST ACK

HOST REQ

DUO INT3

DUO INT2

DUO INT1

DUO INT0

XDUO CS

G108

G107

G106

G105

G104

G103

G102

G101

G100

G99

G98

G97

G96

G95

G94

G93

G92

G91

G90

G116

G115

G114

G113

G112

G111

TO MAIN CN(B-17/C-17/D-17)

XDUO CS

47K

R3011

FL3002 F1H0J1050022

FL3001 F1H0J1050022

FL3005 F1H0J1050022

10u

L3027

D GND

REG D1.8V

REG D3V

REG D2.5V

REG D1.5V

DUO 3.2V

REG A2.5V

G85

G78

G76

G80

G83

G84

G79

TO MAIN CN(E-17)

REFER TO MAIN CONNECTION

(MAIN C.B.A.)

(DUO)

C1AB00002028

IC3001

XTRST

RTCK

VSS

SD VDD 15

SD VSS

SD VDD 25

VSS

A15

PIPE STAT(2)

PIPE STAT(1)

PIPE STAT(0)

TRACE PKT(7)

TRACE PKT(6)

TRACE PKT(5)

TRACE PKT(4)

TRACE PKT(3)

TRACE PKT(2)

SD VDD 25

TRACE SYNC

SD VSS

SD VDD 15

VSS

VDD 15

VDD 18

TRACE PKT(1)

TRACE PKT(0)

TRACE CLK

VDD 18

VDD 30

FAD VDD 15

FAD VSS

FAD VDD 32

DVM

DT CLK

FS LPF0

OSD CLK

LIN PWM

AFDR VD

CLK45M ZB

VDD 30

LCD POL

VSS

LCD HD

LCD VBLK

OSD VD

OSD HD

FAD VDD 32

FAD VSS

FAD VDD 15

OSD BLK B

VDD 15

VSS

OSD BLK A

OSD VB

OSD VG

OSD VR

VSS

CAM AFE CS

CAM CG CS

CAM CG AFE CLK

VDD 30

CAM CG AFE DTO

CAM LENS CS

CAM LENS CLK

CAM LENS DTO

VDD 30

USB VDD 32

VSS

USB DM

USB DP

VSS

VDD 25

CLK48I

CLK48O

VDD 15

SD VDD 32

VDD 18

INTSEG

REACH

VAL

ADDA(0)

VDD 15

ADDA(1)

VSS

ADDA(2)

ADDA(3)

REQR

ACKR

VSS

DBR0

DBR1

DBR2

DBR3

VDD 18

HID

VDD 18

SSP

XRST

VDD 15

1394 A VDD 15

1394 A VDD 30

TP BIAS

TPA P

TPA N

TPB P

TPB N

1394 A VSS

1394 A VDD 30

R(0)

R(1)

1394 A VSS

1394 A VDD 15

1394 A VSS

VDD 15

SD VDD 15

SD VSS

SD VDD 25

CLK24 O

VDD 25

CLK24 I

VSS

BIAS 2K

S400

VDD 18

VSS

TEST MD(5)

TEST MD(4)

TEST MD(3)

SD VDD 25

SD VSS

SD VDD 15

TEST MD(2)

TEST MD(1)

TEST MD(0)

VDD 15

VSS

SD VDD 15

SD VSS

SD VDD 25

CLK135

CLK SEL1

CLK27A

CLK SEL0

CLK27B

CLK SEL2

VDD 18

SCLK541

VDD 18

SD VDD 25

SD VSS

SD VDD 15

VDD18 30

VSS

VDD 15

VSS

DUO INT0

DUO INT1

DUO INT2

VSS

DUO INT3

VDD18 30

HOST ACK

HOST REQ

IRIS OPEN

IRIS CLOSE

VDD18 30

ALC PWM

SIG

ZD COMP

ZC COMP

ZB COMP

VDD 15

VSS

ZA COMP

F2C

FCB

FCA

VDD18 30

ADIN(0)

ADIN(1)

ADIN(2)

ADIN(3)

ADIN(4)

ADIN(5)

ADIN(6)

ADIN(7)

VDD18 30

ADIN(8)

ADIN(9)

CAM VD

CAM HD

FCK45

VSS

PLL A VSS

PLL A VDD 25

VCO A VSS

FS LPFI

VCO A VDD 25

VSS

VDD 15

XRST ARM

XREADY

XRE

VDD 18

XWE

ALE

ADM(0)

VDD 18

ADM(1)

ADM(2)

ADM(3)

VSS

ADM(4)

ADM(5)

ADM(6)

ADM(7)

VDD 15

VSS

ADM(8)

ADM(9)

ADM(10)

ADM(11)

VSS

ADM(12)

ADM(13)

ADM(14)

ADM(15)

XDUO CS

VDD 18

TDO

VDD 18

TDI

TCK

TMS

361 360 359 358 357 356 355 354 353 352 351 350 349 348 347 346 345 344 343 342 341 340 339 338 337 336 335 334 333 332 331 330 329 328 327 326 325 324 323 322 321 320 319 318 317 316 315 314 313 312 311 310 309 308 307 306 305 304 303 302 301 300 299 298 297 296 295 294 293 292 291 290 289 288 287 286 285 284 283 282 281 280 279

1771761751741731721711701691681671661651641631621611601591581571561551541531521511501491481471461451441431421411401391381371361351341331321311301291281271261251241231221211201191181161151141131121111101091081071061051041031021011009998979695949392

13121110987654321

PV-GS250PP

MAIN (VIDEO) SCHEMATIC DIAGRAM

PV-GS250PP

B21

0.10001.700.1001.7(1.0)

1.9

1.7(1.4)

0.2

01.0-----1.7-4.6

4.6

0.9

1.0

0.1

(0)

1.8

(1.9)

1.7

(0.9)

0.8

(1.9)

1.6

1.8

1.4

(0.8)

0.2

0.7

(1.4)

1.7

2.4

1.7

1.3

0.62.41.21.21.22.41.21.80.91.71.7

(0)

0.21.71.01.71.7

(0)

0.5

(0)

0.8

2.6

1.7

1.1

1.7

0.1

3.2

0.8

1.2

2.4

1.2

0.8

2.4

1.7

1.5

1.4

0.1

1.7

0.2

1.7

1.1

0.9

0.7

1.2

1.5

0.8

0.7

1.0

0.8

1.4

0(1.6)

0.1

0.9

0.6

0.9

1.7

(0.1)1.4

1KX4

RX3203

8642

7513

B43B42B41B12

A36

A35

A34

A33

A32

A31

RL3202

RL3201

A30

A29

B20

B26

B27

B22

B23

B24

B25

A13

A12

A11

A10

B10

A15

A14

B40

B39

B38

B37

B36

B35

A8A7A6

R3029

0.1X4

CX3201

47KX4

RX3004

47KX4

RX3002

47KX4

RX3001

8642

7513

8642

7513

MFI INT

0.01

C3209

A16

B15

D D

218

1234

8756

C3078

R3001 22

R3010 22

R3012

R3016

R3030 0

10u

L3025

B34B31B30B29B28B32B33

A4A28A27A26A25A24A23A22A21A20A19A18A17

4.7

C3221

CL3207

0.1

C3215

0.1

C3212

0.1

C3204 4.7

C3203

4.7

C3202

CLK27D

10K

R3219

47KX4

RX3201

CL3213

CL3208

CL3201

10KX4

RX3202

220

R3205

3300

R3207

2200

R3206

2700

R3204

0.1

C3213

C3210

1800

R3201

270

R3202

0.1

C3206

0.1

C3205

R3260

CL3203

0.1

C3208

0.1

C3207

R3211

0.1

C3229

J0JAC0000014

LB3203 J0JAC0000014

LB3201

10K

R3215

10K

R3214

R3006

CLK27C

L Y C IO0

L Y C IO1

L Y C IO2

L Y C IO3

L Y C IO4

L Y C IO5

L Y C IO6

L Y C IO7

MFI RD

MFI WR

MFI RS

MFI CS

MFI D0

MFI D1

MFI D2

MFI D3

MFI D4

MFI D5

MFI D6

MFI D7

47X4

RX3005

8642

7513

R3035 12K

C3059 0.01

10K

R3036

R3034 10K

C3057 0.01

10K

R3033

C3060 0.1

C3058 0.1

(RIP)

C1AB00001695

IC3201

GESW

TSTMD

XRST

D VDD 18

VPD

TSTDT(9)

TSTDT(8)

TSTDT(7)

D VSS

TSTDT(6)

TSTDT(5)

TSTDT(4)

TSTDT(3)

D VDD 18

TSTDT(2)

TSTDT(1)

TSTDT(0)

D VSS

TSTCKI

ACKR

REQR

D VDD 18

DBR(3)

DBR(2)

DBR(1)

DBR(0)

D VSS

CLK27A

XWEH

XWEL

XRE

D VDD 18

ADM(15)

ADM(14)

ADM(13)

D VSS

ADM(12)

ADM(11)

ADM(10)

ADM(9)

D VDD 18

ADM(8)

ADM(7)

ADM(6)

D VSS

ADM(5)

ADM(4)

ADM(3)

D VDD 18

ADM(2)

ADM(1)

ADM(0)

CYL PG

D VSS

DRIVE CLK

CYL FG

REC CTL

D VDD 18

REC CLK

HSE

EQ HLD

RECI

D VSS

SPA

HID2

HID1

TCK

TDO

TDI

TMS

TRST

D VSS

CAP RSF

CYL ERR

CAP ERR

REC CUR

AGC CTL

D VDD 25

AVD11(VCO)

AVS11(VCO)

VCO IN

FPO

AVD21(DAC1)

AVS21(DAC1)

FPORP

VREF1

AFT0

AVD22(DAC2/3)

VREF2

VREF3

OSO

AVS22(DAC2/3)

AVS16(VREF)

VCORP

AVD16(VREF)

AVS13(ADC1/2)

AVD13(ADC1/2)

AVS15(ADC2)

ATF IN

AVD15(ADC2)

PB IN

AVD14(AMP1)

AVD12(ADC1)

AD TEST

AVD12(ADC1)

VRL

VRH

D VSS

112

111

110

109

108

107

106

105

104

103

102

101

100

84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57

18 282726252423222120191716151413121110987654321

CMD

DATA(0)DATA(1)

DATA(2)

DATA(3)

SD CLK

VSS

VDD 32

VSS

DAC A VSS

C REF

C VBS

C OUT

DAC A VDD 25

DAC A VSS

Y REF

Y VBS

Y OUT

DAC A VDD 25

DAC A VSS

LCD B VBS

LCD B OUT

DAC A VDD 25

DAC A VSS

LCD REF

LCD G VBS

LCD G OUT

DAC A VDD 25

DAC A VSS

LCD R VBS

LCD R OUT

DAC A VDD 25

VSS

VDD 18

BUS MODE

VDD 18

VSS

Y C IN(7)

Y C IN(6)

VDD 15

Y C IN(5)

Y C IN(4)

Y C IN(3)

Y C IN(2)

Y C IN(1)

Y C IN(0)

CLK27X

Y C IO(7)

Y C IO(6)

Y C IO(5)

Y C IO(4)

VSS

Y C IO(3)

Y C IO(2)

Y C IO(1)

Y C IO(0)

SH MFI D7

SH MFI D6

SH MFI D5

SH MFI D4

SH MFI D3

SH MFI D2

SH MFI D1

SH MFI D0

SH MFI CS

SH MFI RS

SH MFI WR

VSS

VDD 18

SH MFI RD

SH MFI INT

INF

FRP

VDD 18

L Y C IO7

L Y C IO6

L Y C IO5

L Y C IO4

VDD 15

L Y C IO3

L Y C IO2

L Y C IO1

L Y C IO0

CLK27C

VSS

ADEC DAT

VSS

AI DAT2

AI DAT1

DO BCK

DO MCK

DO LRCK

VDD 18

DO DAT

278 277 276 275 274

222

273

272

271

270

269

268

267

266

265

264

263

262

261

260

259

258

257

256

255

254

253

252

251

250

249

248

247

246

245

244

243

242

241

240

239

238

237

236

235

234

233

232

231

230

229

228

227

226

225

224

223

221

220

219

217

216

215

214

213

212

211

210

209

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182181180179178

252423222120191817161514

PV-GS250PP

MAIN (VIDEO) SCHEMATIC DIAGRAM

PV-GS250PP

MAIN (VIDEO) SCHEMATIC DIAGRAM

PV-GS250PP

0.1

1.7

0.2

1.7

1.8

1.7

R3802

0.1

1.7

0.9

1.4

0.1

1.7

0.1

1.4

1.7

1.4

3.2

1.2

1.4

0.1

3.2

(2.8)

2.1 0.7(0.8)

4.9(2.3)

1.2

(2.8)

2.0

(2.3)

1.7

(3.9)

1.8

(3.9)

1.8

(3.9)

1.8

(3.9)

1.8

(3.9)

1.8

(3.9)

1.8

(3.9)

1.8

(3.9)

1.8

(0.9)

(0)

1.8

(1.9)

00.1

(0.9)

(0.6)

0.9

2.9

(0.2)

1.7

(0)

1.1

(2.8)

B43 B42B41B44

A16A47A15A14A46A45A33A37

C3802 10C3803 10C3801 10

A44

A43

A42

A41

A40

A39

A38

GND 18

VIF 18

RST N

DEMO1 N

DACK1 N/DSTB0 N

DREQ1 N

TEST P IN5

TEST P IN4

TEST P IN3

CS N

WR1 N

WR0 N

RD N

INF

INT N

FRP/SSP

MFI INT

MFI RD/ACKU

MFI WR

MFI RS

MFI CS

MFI 7

MFI 6

MFI 5

MFI 4/REQU

MFI 3/DBU3

MFI 2/DBU2

MFI 1/DBU1

MFI 0/DBU0

GND 18

VIF 18

CLK27

GND 15

VDD 15

D15

D14

D13

D12

D11

D10

TMS

TDI

TDO

D6/AD6

D5/AD5

D4/AD4

D3/AD3

D2/AD2

D1/AD1

GND 15

VDD 15

A7/ALE

MPBUS

TEST P IN2

TEST P IN1

TEST P IN0

(USB2.0 DRIVER)

C1AB00001932

IC3801

R3804

47KX4

RX3003 47K

R3037 47K

R3038

ADM15

ADM14

ADM13

ADM12

ADM11

ADM10

ADM9

ADM8

ADM7

ADM6

ADM5

ADM4

ADM3

ADM2

ADM1

ALE

ADM0

TCK

GND 18

TEST

VIF 18

AFED 15G

AFED 15V

AFEA 33V

X OUT

X IN

AFEA 33G

REFR IN

AFEA 15G

AFEA 15V

VBUS

AFED 33V

AFED 33G

CL3803

CL3804

XRE

XWE

MFI D0

MFI D1

MFI D2

MFI D3

MFI D4

MFI D5

330

R3806

(48MHz)

H0J480000002

X3801

R3801

10P

C3805

10P

C3804

5600

R3805

MFI D7

MFI CS

MFI RS

MFI WR

MFI RD

MFI INT

MFI D6

F1H0J1050022

FL3805

F1H0J1050022

FL3804

F1H0J1050022

FL3803

F1H0J1050022

FL3802

F1H0J1050022

FL3801

8642

7513

767778798081828384858687888990919293949596979899100

50494847464544434241403938373635343332313029282726

(HEAD REC AMP)

AN3732FJMEFV

IC5001

0.1

C5012 1800

R5004

C5024

C5023

C5022

C5021

10KX4

RX5001

R5001

0.1

C5003

0.01

C5008

CL5001

R5015

C5002

47P

C5014

680P

C5005

AC3Y

VCC4

RECI

PBH

HID1

HID2

ACIL

SIAB

DGND

VWC

VCC1

GND1

LPF OUT

GND

HANP OUT

CTL

ENV

PB OUT

NC NC

H3Y

H3X

AC3X

ACTY

H1Y

H1X

AC1X

AC2Y

H2Y

AC2X

H2X

EQ HOLD

4th CLK IN

3rd REC IN

4th REC IN

GAIN CTL

AGC OUT

VCC2

AGC DET

ADJ

AGC

GND2

AGC IN

AGC

DET

AGC

/0dB

7.5dB

I/F

AMP

DIF

LOGIC BLOCK

DRIVER

PRE

RA3

AC FB

HA3

HA2

RA2

GCA

HA1

RA1

LPF

/0dB

14dB

AMP

2nd

AMP

3rd

DET

ENV

44 43 42 41 40 39 38 37 36 35 34

12 13 14 15 16 17 18 19 20 21

383736353433323130292827

PV-GS250PP

MAIN (VIDEO) SCHEMATIC DIAGRAM

PV-GS250PP

MAIN (VIDEO) SCHEMATIC DIAGRAM

PV-GS250PP

4.6

4.9

7.6

1.8

1.7

0.3

1.0

1.7

1.4

3.2

2.1

1.6

1.0

(0)

1.8

(1.4)

0.2

(1.8)

0.2

(1.4)

0.2

(1.2)

2.1

7.9

(2.1)

1.2

(1.0)

1.4

(1.4)

0.5

(1.4)

7.9

7.2

1.0

1.8

2.9

(1.0)

1.9

1.8

0.1

1.0

1.10.5

2.3

0.5

7.9

1.6

2.8

B40

B39

B38

B37

B36

B35

B19

B18

B17

B16

B44

A45

A41

A40

A39

A38

A46

A47

A48

A22

A23

A24

A25

A31

A32

A13

A12

A10

A11

A44

A43

A42

TO MAIN CN(B-17)

A37

A18

A17

A36

A30

A28

A21

A29

RL3008RL3010RL3009

A19

A27

A26A35

C2231

C2226

RL3011

A34

A20

A48

TO MAIN CN(C-16)

COM CYL

G110XUSB CS

USB INT G109

CFG11

CFG(-)

CFG0

CFG(+)

CGND

CPCS

CEC

CTL

CPCI

CVM

H1(+)

H1(-)

H2(-)

CSS

CATC

H2(+)

H3(+)

H3(-)

CN3

CN2

CN1

OUT2

LGND

OUT1

YM1

YM2

YM3

YCSEL

CRSF

YATC

YCS

YCOM

YPCI

YVM

YEC

VCONT

IN1

IN2

REF

SUL2

SUL1

AGC

STB

YPCS

YSW

CFG10

YPGO

YPGI

YFGI

YFGO

YFG

YPG

VCC2

CFG

GND

VCC

YGND

YCK

CSW

NOREG

C2204 47P

:CAPSTAN SERVO PHASE LOOP

:CAPSTAN SERVO SPEED LOOP

:CYLINDER SERVO PHASE LOOP

MA3S13300L

D2201

0.1

C2208

22K

R2217

R2212 15K

27K

R2214

R2229 18K

10K

R2228

10K

R2218

C2225 1

C2232 0.01

C2223 4700P

C2222 4700P

C2221 1

0.1

C2220

R2213

C2212 1

R2219 27K

R2210 2400

C2213 0.01

R2211

AFG(-)

AFG(+)

H1(+)

H1(-)

H2(-)

H2(+)

H3(+)

H3(-)

M UNLOAD

M LOAD

M1A

M2A

M3A

1KX4

RX2203

R2202 470K

R2203 820K R2206 10K C2202 0.1

C2201 0.1R2205 10K

C2205 0.1

C2206 0.1C2207 0.1

6V10

C2203

R2201 100

TO MAIN CN(E-16)

TO MAIN CN(A-13/B-13)

M UNLOAD G125

M LOAD G124

M1A G71

M2A G72

M3A G73

COM CYL G70

H2(-) G141

H2(+) G140

H1(-) G139

H1(+) G138

H3(-) G137

H3(+) G136

M3 G135

M2 G134

M1 G133

AFG(-) G131

AFG(+) G132

TO MAIN CN(C-16/D-16)

VMR G130

CL2205CL2204

RL2201

PG(+) G75

FG(+)

TO MAIN CN(A-13)

G74

39K

R2255

10KX4

RX2202

56K

R2256

1KX4

RX2201

S REEL(-) G126

S REEL(+) G127

T REEL(-) G129

T REEL(+) G128

TO MAIN CN(D-16)

(BUFFER AMP)

4321

678

C0ABBA000160

IC2202

C2216 C2217 0.1

0.1

C2218

0.1

C2219

R2226 68

R2204 100K

100P

C2230

R2207 10KC2209 0.1

G89CAP SW

G122NOREG

G88CAP VM

G87CYL SW

G86CYL VM

G123

TO MAIN CN(D-17/E-17)

DRIVE 3V

C1AB00002122

IC2201

(CYL/CAP LOADING MOTOR DRIVE)

USB TDO G41

TO MAIN CN(C-13)

TO MAIN CN(B-17/C-17)

LOAD LOCK DET G121

33 34 35 36 37 4638 4539 4442 4741 4840 43

17 64

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

40 4139 42 49 504746454443 48

4700

R3003

EX INPUT>

<TO CONTROL/AVIO/

TO MAIN CN(E-13)

G31XRST

G29SD O1

G68SD D33V

:AUDIO MAIN SIGNAL PATH

:CYLINDER SERVO SPEED LOOP

:VIDEO MAIN SIGNAL PATH

2200

R5006

G57

G56

G55

G54

CH 1S

CH 1F

CH 2S

CH 2F

TO MAIN CN(B-13)

G144

G143

G142

G145

POS3

POS2

POS1

S TAB

TO MAIN CN(B-16)

G58

G147

G146

VBUS

USB D(+)

USB D(-)

2V TCK

G532V TMS

TO MAIN CN(C-13)

G52

G119CTL TDO

TO MAIN CN(B-16)

HA OUT G61

TO MAIN CN(B-13)

6V47

C5001 0.01

C5013

L5001 100u

L5002 22u

G77REG A5V

G81RF 3V

100u

L3204

G82

TO MAIN CN(E-17)

RIP 2.5V

R3005 22

J0JBC0000115

LB3003

C3003

100

R3007

G62

G63

G64

G65

G66

G67

SD DATA3

SD DATA2

SD DATA1

SD DATA0

CMD O

SD CLK O

TO MAIN CN(E-16)

G30SD O0

L Y C IO7

L Y C IO6

L Y C IO5

L Y C IO4

L Y C IO3

L Y C IO2

L Y C IO1

L Y C IO0

CLK27C

G40

G39

G38

G37

G36

G35

G34

G33

G32

TO MAIN CN(D-13)

BCLK

MCLK

LRCK

SD I

G23

G24

G25

G26

TO MAIN CN(E-13)

G27

G28

DUO Y OUT

DUO C OUT

TO MAIN CN(E-13)

CL3010CL3009CL3008CL3007

G148

G149

G150

G151

TPA(+)

TPA(-)

TPB(+)

TPB(-)

TO MAIN CN(B-16)

PV-GS250PP

MAIN (VIDEO) SCHEMATIC DIAGRAM

PV-GS250PP

MAIN (VIDEO)

SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON

THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER

TO PARTS LIST.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

NOTE:

THE MEASUREMENT MODE OF THE DC VOLTAGE

ON THIS DIAGRAM IS PLAYBACK MODE.

THE MEASUREMENT MODE OF THE DC VOLTAGE

IN THE BRACKETS( )ON THIS DIAGRAM IS RECORD

MODE.(SP MODE)

PV-GS250PP

14.21. MAIN (POWER) SCHEMATIC DIAGRAM

7.9

2.8

2.0

0.7

0.6

2.0

7.9

6.5

6.3

5.0

4.8

3.0

4.8

3.8

1.9

2.00.61.2 0.70.7 1.91.2 1.21.9 1.2

0.61.21.91.91.20.67.97.87.97.9

1.8

1.80

7.9

7.2

7.9 7.9

7.9

7.67.9

3.23.2

7.8

7.9

(POWER SWITCHING CONTROL)

C0DBAZZ00094

IC1001

CL1004

C16

C15

0.01

C1153

270

R1151

0.047

C1151

0.01

C1154

15K

R1153

0.047

C1131

270

R1131

270

R1111

0.047

C1111

0.047

C1141

270

R1141

0.033

C1113

0.015

C1143

0.047

C1122

0.047

C1121

270

R1121

10K

R1103

0.1

C1104

C1103 0.033

C1102 100P

C1101 0.1

C14

C13

C12

C11

C10

C7C6C5C3

CL1003

22K

R1152

H38

TO MAIN CN(C-22)

P ON

FB1

-INE1

CS1

CS2

-INE2

FB2

VCC

CTL

CTL1

CTL2

VCC O

OUT1-1

OUT1-2

OUT2-1

OUT2-2

OUT3

OUT4

OUT5

GND 0

CS5

-INE5

FB5

DTC5

DTC4

FB4

-INE4

CS4

CS3

-INE3

FB3

DTC3

CSCP

GND

VREF

-INS

CTL5

CTL4

CTL3

AMP5

ERROR

AMP4

ERROR

AMP3

ERROR

BIAS

COMP

SCP

SCP COMP

ERROR AMP

COMP5

PWM

COMP4

PWM

COMP3

PWM

AMP

ERROR

AMP

ERROR

COMP1

PWM

COMP2

PWM

DRIVE2-2

DRIVE2-1

DRIVE1-2

DRIVE1-1

PNPN

DRIVE5 N

DRIVE4

DRIVE3

+-+-+++-+

-++

-++-

+UVL02

UVL01

VREFVREFVREF

SCP

VREF

OSC

DEAD TIMEDEAD TIME

VREF

+-+

VREF

++-

VRVREF

CONTROL

ON/OFF

POWER

CH CONTROL

242322212019181716151413

373839404142434445464748

RL1001

C2C1

12K

R1101

11K

R1102

CL1002

TO MAIN CN(E-22)

H29 D GND

H28 FRAME

100K

R1106

C1105

220K

R1105

H21

H20

H23

H22

TO MAIN CN(B-20)

CYL SW

CYL VM

CAP SW

CAP VM

C1106

B1ABBE000002

Q1101

(OSC CONTROL) (OSC CONTROL)

UNR9114J0L

QR1103

B0ACCJ000027

D1102

MAZ81100ML

D1101

(OVER LOAD PROTECTOR)

B1GDBEHH0002

QR1102

B1GBBEHH0001

QR1101

(OVER LOAD PROTECTOR)

3.3

C1062

3.3

C1061

(SWITCHING CYL VM)

180u

L1062

B1ZBZ0000040

Q1062

123

4.7

C1002

H33 OV PROTECT

H27

TO MAIN CN(E-22)

NOREG

(SWITCHING CAP VM)

(POWER ON :ON)

H26

H24

H25

H34

H14

REFER TO MAIN CONNECTION

(MAIN C.B.A)

TO MAIN CN(E-22)

TO MAIN CN(C-22)

TO MAIN CN(C-20)

B1GDBEHH0001

QR1001

J0JHC0000018

LB1001

K5H4021A0004

IP1001

4.7

C1001

CL1001

GND

SW NOREG

ST NOREG

33u

L1061

B1ZBZ0000040

Q1061

123

1110987654321

PV-GS250PP

MAIN (POWER) SCHEMATIC DIAGRAM

CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE 4.0A 24V FUSE.

ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES

D’ INCENDIE N’ UTILISERQUE DES FUSIBLE DE MÉME

TYPE 4.0A 24V

4.0A 24V

IMPORTANT SAFETY NOTICE:

COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL

CHARACTERISTICS FOR SAFETY. WHEN REPLACING ANY OF THESE

COMPONENTS, USE ONLY THE SAME TYPE.

PV-GS250PP

2.5

3.13.11.8

3.13.1

330

R1046

0.022

C1044

3.8

4.3

6.3

1.6

4.8

3.1

7.9 1.6

6.5

7.9 3.3

4.8

5.0

3.17.9

3.0

5.17.9

CL1052

TO MAIN CN(B-20)

C13

(SWITCHING 3V)

B1DFCD000012

Q1022

C15

C10

C11

C16

C2C7

C12

C14

TO MAIN CN(C-22)

(POWER CONTROL)

B1DFCG000011

Q1051

R1211 0

4V47

C1249

C1241

CL1041

CL1101

CL1071

CL1054

CL1022

CL1005

2700

R1055

33K

R1051

1000P

C1053

C1056

C1052

MA2J11100L

D1051

4.7u

L1271

C1271 1

C1071

MA2J11100L

D1071

C1051

R1241 0

L1241 4.7u

CL1031

R1331

C1232

6V10

C1239

CL1021

C1221

C1226

6V10

C1228

C1223

C1224

2200P

C1043

C1042

2200

R1045

1300

R1041

560

R1044

3300P

C1033

C1032

2700

R1035

4700

R1031

110

R1034

0.022

C1024

100

R1026

1000P

C1023

C1022

2700

R1025

120

R1024

3900

R1021

0.01

C1401

R1402

10K

R1401

CL1011

C1211

2700

R1015

200

R1014

8200

R1011

4700P

C1013

C1012

CL1102

H35VREF

H32CCD ON

TO MAIN CN(C-22/D-22)

H37PS

H36INN BATT

H2REG -8V

TO MAIN CN(E-20)

REG 3.1V

REG 15V

SW 3V

REG 9V

H17

H16

H19

H18

TO MAIN CN(C-20)

RIP 2.5V

RF 3V

DUO 3.2V

REG D1.5V

H10

TO MAIN CN(D-20)

H11REG D3.2V

SPK 3V

TO MAIN CN(D-20)

M BL POWER

CAM 1.5V

TO MAIN CN(D-20)

TO MAIN CN(C-20)

H15REG D2.5V

SIF 1.8V

TO MAIN CN(D-20)

JACK/AVIO/CONTROL/SUB POWER>

VIDEO/FRONT/EX INPUT/

<TO CAMERA/LENS DRIVE/

TO MAIN CN(C-20)

H13REG A5V

TO MAIN CN(D-20)

H12REG A2.5V

4.7

C1328

C1322 1

C1323

L1322 4.7u

L1321 4.7u

TO MAIN CN(B-22)

H39DRIVE 3V

REG D1.8V

TO MAIN CN(D-22)

H30

TO MAIN CN(E-20)

H1SUB 1.8V

RL1004RL1002

C1326

CL1023

H31

FRONT/SUB POWER/REAR OPE.>

EX INPUT/LENS DRIVE/

CAMERA/SIDE L/SIDE R/

<TO VIDEO/CONTROL/

TO MAIN CN(D-22)

REG D3V

C1251

C1281

RL1005

L1251 4.7u

L1281 4.7u

R1054

(REG.2.5V)

C0CBCAC00214

IC1321

(REG.1.8V)

C0CBCAC00117

IC1322

L1221 4.7u

L1226 4.7u

L1224 4.7u

L1223 4.7u

L1211 4.7u

4.7u

L1232

(SWITCHING 1.5V)

B1DFCD000012

Q1042

C1041

(POWER CONTROL)

B0JCMD000022

D1041

B1DHBC000008

Q1041

10u

L1041

C1031

(POWER CONTROL)

B0JCMD000022

D1031

B1DHBC000008

Q1031

33u

L1031

C1021

(POWER CONTROL)

B0JCMD000022

D1021

B1DHBC000008

Q1021

10u

L1021

(POWER CONTROL)

B1DHBC000008

Q1011

B0JCMD000022

D1011

C1011

68u

L1011

321

G5DYA0000096

T1051

2221201918171615141312

PV-GS250PP

MAIN (POWER) SCHEMATIC DIAGRAM

PV-GS250PP

MAIN (POWER) SCHEMATIC DIAGRAM

NOTE:

DO NOT USE ANY PART NUMBER SHOWN ON THIS SCHEMATIC DIAGRAM FOR ORDERING.

WHEN YOU ORDER A PART,PLEASE REFER TO PARTS LIST.

NOTE:

THE MEASUREMENT MODE OF THE DC

VOLTAGE ON THIS DIAGRAM IS STOP MODE.

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

PV-GS250PP

14.22. MAIN (CONTROL) SCHEMATIC DIAGRAM

R2150 0R2022 470K

R2001

C2028

C2029

100K

R2035

R2069 47K

CL2031CL2030

J32J31

47K

R2020

J22

DIR BVCC B

VCC A GND A

C0JBAZ002390

IC2019

123

456

1800

R2073

A40

A39

A38

A37

A36

A35

A34

A33

A32

A31

A30

A29

A28

A27

A26

A25

A24

A23

A22

A42

CL2005

R2045 100

R2046 100

12K

R2055

12K

R2054

J43J42J41J40J39J10J38J15J37J11J36J35J34 J33

CL2012

J30

J29

J28

J27

J26

J25

J24

J23

J21

J20

J19

J18

J17

J16

J15

J14

J13

J12

J11

J10

22K

R2010 0.01

C2017

A41I53 LOAD LOCK DET

A52A51A14

A13

A12

A11

A10

A21

A20

A18

A17

A16

A15

6V22

C2002

C2090

CL2003

CL2022

CL2025

CL2023

R2011

R2088 0

CL2033CL2036CL2034CL2002

I133

I135

I132

I136

I137

I77

I76

I86

I71

I123

I121

I126

I113

I114

I56

I61

I57

I58

I59

I60

I64

I63

I62

I65

I48

I47

I128

I85

I122

I124

I79

I75

I115

I119

I118

I120

I93

I89

I90

I88

I91

I134

I21

I70

I131

I12

I13

I14

I15

I66

I43

I44

I45

I46

I74

CL2004

R2063

I117

I20

I19

I18

I17

I11

I10

10P

C2062

10P

C2063

(13.5MHz)

H0J135500008

X2002

220

R2047

R2155 1M

6V22

C2008

OUT GND

VDD

VTEST

SIO OSC OUT

VSL

SCLK

/VDRG1

VSS

3.4V

OSC IN

2.4/1.6 VMB

2.8V

VCC

/INTR

MA3S13300L

D2003

0.01

C2004

R2018

CL2001CL2009

470

R2003

CL2010

470

R2002

CL2011

P/B

GND

CS VDD

RESET

SCK

0.1

C2058

UNR9215J0L

QR2010

(LED DRIVE)

B1GDBEHM0001

QR2007

10KX4

RX2007

TO MAIN CN(D-26)

CTL TDI

(INV.)

B1GBBEMK0001

QR2003

TO MAIN CN(B-28)

VBUS

47KX4

RX2006

7531

8624

47KX4

RX2002

1KX4

RX2001

RESET

TO MAIN CN(C-29)

HOST ACK

TO MAIN CN(D-26)

M RVS

LCD OPEN

1KX4

RX2009

R2090

DUO INT0

DUO INT1

DUO INT2

TO MAIN CN(A-24/B-24)

DUO INT3

TO MAIN CN(E-28)

POWER LCD

POWER LED

STANDBY LED

TO MAIN CN(C-28)

TO MAIN CN(E-28)

ACCESS LED

TO MAIN CN(C-28)

2200

R2133

2SB0970X0L

Q2005

(MIC ON :ON)

0.01

C2050

33K

R2032

(RESET)

C0EBE0000240

IC2017

390K

R2059

R2006

R2026

R2025 47K

DREST

DCLK

DBGE

SDI DINT

SDAO TPC

PCST2

PCST1

PCST0

PCST3

TO MAIN CN(B-29/C-29)

TO MAIN CN(B-24)

HOST REQ

VTR TEST

PLUG IN

S PLUG

TO MAIN CN(B-28/C-28)

R PLUG

TO MAIN CN(E-26)

SBA CS

SBA SIF SDA

TO MAIN CN(D-24)

SBA SIF CLK

8642

7513

EXT 5V SW

SYNC DET

SIF P SAVE

SIF CS

INPUT SEL

TO MAIN CN(C-29)

0.1

C2013

10K

R2056

4700

R2005

TO MAIN CN(D-29)

Y LEVEL

TO MAIN CN(C-29)

WIDE DET

VTR KEY 6

TO MAIN CN(A-29)

GUI LED

R2009 68K

TO MAIN CN(D-24)

INN BATT

VREF

SW NOREG

OV PROTECT

TO MAIN CN(D-26)

TO MAIN CN(C-28)

TO MAIN CN(E-28)

TO MAIN CN(C-28)

TO MAIN CN(D-28)

VTR KEY 5

MIC VDD

M EVF HL

R2030 22KR2013 22K

WD REMO

EXT MIC

5678

1234

0.01X4

CX2002

5678

1234

0.01X4

CX2003

1KX4

RX2013

3.3KX4

RX2003

330X4

RX2004

VTR KEY 4

3.3KX4

RX2008

VTR KEY 3

VTR KEY 1

VTR KEY 2

DEW

MIC DT

S PHOTO

MIC CLK

T PHOTO

(LED DRIVE)

321

456

XP0411500L

QR2006

(LED DRIVE)

321

456

XP0411500L

QR2005

C3EBGG000016

IC2006

(16K BITS EEPROM)

8642

7513

4700

R2146

R2004 0

R2007 0

39K

R2027

876

432

(32.768MHz)

H0A327200106

X2001

0.01

C2001

(RTC/POWER CONTROL)

C1ZBZ0002602

IC2002

87654321

910111213141516

TO MAIN CN(E-24)

EVR 3.4V

RTC 3V

D GND

DUO 3.2V

REG A5V

NOREG

REG D3V

REG D1.8V

TO MAIN CN(C-24/D-24)

REFER TO MAIN CONNECTION

(MAIN C.B.A.)

13121110987654321

B0JCDD000002

D2010

R2091

PV-GS250PP

MAIN (CONTROL) SCHEMATIC DIAGRAM

NOTE:

Refer

to "1.1. Service Information Regarding IC2001 of PV-GS250PP".

PV-GS250PP

R2031 0

TO MAIN CN(D-29)

TO MAIN CN(E-26)

C2012 0.1

CL2007

R2017 100K

R2034 39K

J40 I80TALLY

J49

J48

J47

J44

J45

J46

J50

J49

J48

J35

J34

J33

A52

A51

A34

A37

A18

A17

A39

A47

A16

A50

A15

J50

A45

J36

A49

A48

A42

A46

A43

A44

J31J47

J38

J30

J37

J39

J41

J22

J32

J20J46

J45

J44J19J21

J26

J28

J18

J27J17

J25

J16

J24

J13

J23

J14J12J29J9J3

J7J5

J42

J43

0.1

C2005

0.1

C2037

0.01

C2064

0.1

C2084

0.1

C2016

RL2001

A50

A49

A48

A47

33P

C2027

A46

A45

A44A8A20A21A43A4

6V22

C2006

0.1

C2010

A13

A30

A29

A31

A12

A28

A26

A38

A11

A24

A10

A36

A40

A14

A27

A25

A35

A32

A33

A23

A22

A41

I95

I110

I107

I99

I111

I87

I103

I100

I104

I97

I102

I101

I108

I105

I106

I98

I81

I16

I83

I82

I84

I73

I72

I55

I54

I92

I94

I96

I109

I129

I130

I112

I125

I127

I69

I116

I78

I52

I37

I36

I35

I34

I33

I32

I31

I30

I29

I28

I27

I26

I25

I24

I23

I22

I38

I39

I40

I41

I42

I51

I49

I50

I68

I67

F VSS

F VCC 2

TEST0

D10

D13

D11

D12

D VCC 33

EVF BL

D15

D VSS

XDUO CS

XWE

XREADY

XRE

F VSS

F VCC 2

D14

XSUB CS

CCD STBY

CCD ON

ALE

XWE

TEST2

D VCC 33

D VCC 2

XRAM CS

NC(XT1)

CVCCH

CAP1

CAP2

NC(XT2)

TDO

TDI

TMS

TRST

TCK

D VCC 34

C VCC 2

C VSS

M BL

USB INT

DUO INT3

DUO INT2

DUO INT1

D VSS

DUO INT0

POWER LCD SW

D VCC 34

D VSS

TEST3

CARD DET

SD PROTECT

TEST4

MODE14

D VCC 33

D VSS

LCD ON

FACT MODE

D VCC 32

TIMER INT

E2 PROTECT

R STP UP

M REQUEST

C DOWN

CR POWER

POWER ON

SS SW

EXT

D VSS

CAM SCK

SNS LED

RTC CS

P LCD LED

MIC ON

C V DATA

WINK END

V C DATA

CPU VCC SW

RTN FLD

232C TXD

232C RXD

CAM RTN

PC RST

LCD DO

D VCC 32

D VCC 2

HP DET

LCD DI

CAM RST

ERF DI

ERF DO

ERF CLK

LCD SCK

EEP CS

CAM O

ZNST ST

SS DET

CAM D3 OFF

T PHOTO SW2

S PHOTO SW1

REMOCON

D VSS

A VCC 31

A VSS

D VCC 2

ENDIAN

BOOT

PCTS3

PCTS0

INTLV

SDI DINT

PCTS2

SDA0 TPC

BW0

/DBGE

DCLK

PCTS1

SYS RDY

D VSS

TEST1

BUSMD

/DRESET

TEST5

RESET

PLL ON

F VCC 2

F VSS

NMI

BW1

D VCC 2

D VCC 31

SBA SIF CLK

SBA CS

VTR TEST

SBA SIF DTI

R PLUG

SBA SIF DTO

EXT 5V SW

S PLUG

SYNC DET

F VCC 3

F VSS

D VSS

M RVS

SIF P SAVE

LCD OPEN SW

AV PLUG

USB DET

ARB

SIF CS

XRST

POWER SW

EJECT SW

TV MD

INPUT SEL

FLASH WP

CAM SEND END

GUI LED

MEMO END

HOST REQ

TALLY LED

D VCC 32

STANDBY LED

POWER LED

HOST ACK

ACCESS LED

VTR T

LCD CS

V C DSET

FLASH CS

S PHOTO SW2

T PHOTO SW1

VREF

WIDE DET

UNI REMO

AWP DET

DEW

MON EVF HL

Y LEVEL

EXT MIC

VTR KEY 2

VTR KEY 5

BATTERY

VTR KEY 3

BATT REF

REG D3V DET

VTR KEY 6

VTR KEY 4

VTR KEY 1

AVSS

MIC AD3

MIC AD2

MIC AD1

S PHOTO

BATT D

T PHOTO

A VCC 32

LOAD LOCK DET

A VSS

D VCC2

D VSS

R2112 8200

R2109 2200

R2110 8200

R2111 2200

(CONTROL MICRO COMPUTER)

VUAVM150KMKT

IC2001

R2097 0

R2177 1K

TO MAIN CN(D-24)

XRST

R2014 47K

VTR T

V C DSET

MEMO END

CAM SEND END

TV MD

CAM D3 OFF

SS DET

INST ST

CAM 0

CAM RTN

RTN FLD

V C DATA

WINK END

C V DATA

CAM RST

R2089 8200

R2050 47K

CL2027CL2026

C DOWN

TO MAIN CN(D-28)

TO MAIN CN(C-28)

SS SW

CL2008

CAM SCK

R2079 1MC2047 0.01 B0JCDD000002

D2004

R2029

CL2040

(LED DRIVE)

UNR9115J0L

QR2001

TO MAIN CN(E-28)

P LCD LED

1KX4

RX2011

100KX4

RX2012

HP DET

EXT

TO MAIN CN(C-29)

CCD STBY

0.01

C2019

R2040 18K

CR POWER

CL2006

R2070 47K

(POWER ON :ON)

UNR921FJ0L

QR2008

TO MAIN CN(B-29)

P ON

EVF BL

TO MAIN CN(E-24)

CCD ON

M BL

TO MAIN CN(E-24)

CCD STBY

TO MAIN CN(B-29)

(A-24/B-24/C-24)

TO MAIN CN

TO MAIN CN(D-26/D-29/E-29)

TO MAIN CN(D-29)

CAM SCK

C V DATA

V C DATA

WINK END

RTN FLD

CAM RTN

SS DET

CAM D3 OFF

CAM 0

INST ST

TV MD

V C DSET

VTR T

MEMO END

CAM SEND END

CAM RST

R2124

(LED DRIVE)

2SD182000L

Q2003

SENS LED

TO MAIN CN(E-29)

M REQUEST

CARD PRO

TO MAIN CN(B-28)

CARD DET

TO MAIN CN(D-28)

POWER SW

TO MAIN CN(B-28)

EJECT SW

UARTO

UARTI

TO MAIN CN(C-29)

1KX4

RX2010

47KX4

RX2005

8642

75 13

LCD CS

LCD SD

R2080 1500

REMOCON

TO MAIN CN(D-28)

TO MAIN CN(D-28)

TO MAIN CN(D-24)

TO MAIN CN(E-26)

LCD SCK

CTL TDO

ADM0

ADM1

ADM2

ADM3

ADM4

ADM5

ADM6

ADM7

ADM8

ADM9

ADM10

ADM11

ADM12

ADM13

ADM14

ADM15

XRE

XWE

XREADY

XDUO CS

ALE

XUSB CS

USB INT

2V TMS

2V TCK

LCD ON

ADM2

ADM0

ADM1

ADM6

ADM3

ADM5

ADM4

ADM9

ADM8

ADM7

ADM10

ADM13

ADM11

ADM12

ADM15

XDUO CS

XWE

XREADY

XRE

ADM14

XUSB CS

ALE

XWE

CTL TDO

2V TMS

2V TCK

USB INT

R2008 0

RL2002

282

321

320

319

318

317

316

315

314

313

312

311

310

309

308

307

306

305

304

303

302

301

300

299

298

297

296

295

294

293

292

291

290

289

288

287

286

285

284

283

281

280

279

278

277

276

275

274

273

272

271

270

269

268

267

266

265

264

263

262

261

260

259

258

257

256

255

254

253

252

251

250

249

248

247

246

245

244

243 242 241 240 239 238 237 236 235 234 233 232 231 230 229 228 227 226 225 224 223 222 221 220 219 218 217 216 215 214 213 212 211 210 209 208 207 206 205 204 203 202 201 200 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163

162

161

160

159

158

157

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

DATA

MIC

MIC CLK

818079787776757473727170696867666564636261605958575655545352515049484746454443424140393837363534333231302928272625242322212019181716151413121110987654321

252423222120191817161514

NOTE: DO NOT USE ANY PART NUMBER SHOWN ON THIS SCHEMATIC DIAGRAM

FOR ORDERING.WHEN YOU ORDER A PART,PLEASE REFER TO PARTS LIST.

PV-GS250PP

MAIN (CONTROL) SCHEMATIC DIAGRAM

PV-GS250PP

MAIN (CONTROL) SCHEMATIC DIAGRAM

NOTE:

Refer

to "1.1. Service Information Regarding IC2001 of PV-GS250PP".

PV-GS250PP

Ref. No.

MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

STOP - 2.8 - 2.5 2.5 2.5 - - 2.5 - - - 2.5 -------

PLAY -2.8-2.52.52.5--2.5---2.5-------

REC -2.8-2.52.52.5--2.5---2.5-------

F.F. - 2.8 - 2.5 2.5 2.5 - - 2.5 - - - 2.5 -------

REW -2.8-2.52.52.5--2.5---2.5-------

Ref. No.

MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

STOP 2.5 - - 2.1 2.5 2.5 - 2.5 2.5 2.5 1.8 - 1.8 - - 1.8 1.8 1.4 1.8 1.4

PLAY 2.5 - - 2.1 2.5 2.5 - 2.5 2.5 2.5 1.8 - 1.8 - - 1.8 1.8 1.4 1.8 1.4

REC 2.5 - - 2.1 2.5 2.5 - 2.5 2.5 2.5 1.8 - 1.8 - - 1.8 1.8 1.4 1.8 1.4

F.F. 2.5 - - 2.1 2.5 2.5 - 2.5 2.5 2.5 1.8 - 1.8 - - 1.8 1.8 1.4 1.8 1.4

REW 2.5 - - 2.1 2.5 2.5 - 2.5 2.5 2.5 1.8 - 1.8 - - 1.8 1.8 1.4 1.8 1.4

Ref. No.

MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

STOP 2.9 1.8 - 1.7 3.4 - - 0 1.8 - 1.8 1.8 1.7 - - 1.8 - 1.8 0 0

PLAY 2.9 1.8 - 1.7 3.4 - - 0 1.8 - 1.8 1.8 1.7 - - 1.8 - 1.8 0 0

REC 2.9 1.8 - 1.7 3.4 - - 0 1.8 - 1.8 1.8 1.7 - - 1.8 - 1.8 0 0

F.F. 2.9 1.8 - 1.7 3.4 - - 0 1.8 - 1.8 1.8 1.7 - - 1.8 - 1.8 0 0

REW 2.9 1.8 - 1.7 3.4 - - 0 1.8 - 1.8 1.8 1.7 - - 1.8 - 1.8 0 0

Ref. No.

MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

STOP 0 1.8 2.6 - - 2.8 - 2.8 2.8 2.8 2.8 0 0.6 0 - 0 0 2.7 0 0

PLAY 0 1.8 2.6 - - 2.8 - 2.8 2.8 2.8 2.8 0 0.6 0 - 0 0 2.7 0 0

REC 0 1.8 2.6 - - 2.8 - 2.8 0 2.8 2.8 0 0.6 0 - 0 0 2.7 0 0

F.F. 0 1.8 2.6 - - 2.8 - 2.8 2.8 2.8 2.8 0 0.6 0 - 0 0 2.7 0 0

REW 0 1.8 2.6 - - 2.8 - 2.8 2.8 2.8 2.8 0 0.6 0 - 0 0 2.7 0 0

Ref. No.

MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

STOP 2.8 2.8 - 3.6 0 2.8 0 0 - - - 2.8 1.2 2.8 0 2.7 2.0 0 2.8 2.5

PLAY 2.8 2.8 - 0 0 2.8 0 0 - - - 2.8 1.2 2.8 0.5 2.7 2.0 0.7 2.8 2.5

REC 2.8 2.8 - 0 0 2.8 0 2.8 - - - 2.8 1.2 2.8 0.5 2.7 2.0 0.7 2.8 2.5

F.F. 2.8 2.8 - 0 0 2.8 0 0 - - - 0 1.2 2.8 0 2.7 2.0 0 2.8 2.5

REW 2.8 2.8 - 0 0 2.8 0 0 - - - 0 1.2 2.8 0 2.7 2.0 0 2.8 2.5

Ref. No.

MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120

STOP 2.8 0 2.5 - 2.7 2.7 - 2.8 - - - 0 2.8 1.9 2.8 ----0

PLAY2.80.72.5-2.72.7-2.8---02.81.92.4----0

REC 2.80.72.5-2.72.7-2.8---02.81.92.8----0

F.F. 2.8 0 2.5 - 2.7 2.7 - 2.8 - - - 0 2.8 1.9 2.4 ----0

REW2.802.5-2.72.7-2.8---02.81.92.4----0

Ref. No.

MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140

STOP2.82.82.802.5-02.62.8---------01.8

PLAY2.82.82.802.5-02.62.8---------01.8

REC 2.82.82.802.5-02.62.8---------01.8

F.F. 2.8 2.8 2.8 0 2.5 - 0 2.6 2.8 ---------01.8

REW2.82.82.802.5-02.62.8---------01.8

Ref. No.

MODE 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160

STOP ---1.8-1.8-------0.1-1.81.8-0.1-

PLAY ---1.8-1.8-------0.1-1.81.8-0.1-

REC ---1.8-1.8-------0.1-1.81.8-0.1-

F.F. - - - 1.8 - 1.8 -------0.1-1.81.8-0.1-

REW ---1.8-1.8-------0.1-1.81.8-0.1-

Ref. No.

MODE 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180

STOP - 0.1 0.1 0.1 0.1 0.1 - 2.5 0.1 - 0.1 0.1 0.1 0.1 0.1 0.1 1.8 2.9 0.1 -

PLAY - 0.1 0.1 0.1 0.1 0.1 - 2.5 0.1 - 0.1 0.1 0.1 0.1 0.1 0.1 1.8 2.9 0.1 -

REC - 0.1 0.1 0.1 0.1 0.1 - 2.5 0.1 - 0.1 0.1 0.1 0.1 0.1 0.1 1.8 2.9 0.1 -

F.F. - 0.1 0.1 0.1 0.1 0.1 - 2.5 0.1 - 0.1 0.1 0.1 0.1 0.1 0.1 1.8 2.9 0.1 -

REW - 0.1 0.1 0.1 0.1 0.1 - 2.5 0.1 - 0.1 0.1 0.1 0.1 0.1 0.1 1.8 2.9 0.1 -

Ref. No.

MODE 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200

STOP - 0.1 1.7 1.7 1.7 - 2.5 0.1 - 1.8 0 0 1.7 - 1.8 2.5 - 0.1 - -

PLAY - 0.1 1.7 1.7 1.7 - 2.5 0.1 - 1.8 0 0 1.7 - 1.8 2.5 - 0.1 - -

REC - 0.1 1.7 1.7 1.7 - 2.5 0.1 - 1.8 1.8 0 1.7 - 1.8 2.5 - 0.1 - -

F.F. - 0.1 1.7 1.7 1.7 - 2.5 0.1 - 1.8 0 0 1.7 - 1.8 2.5 - 0.1 - -

REW - 0.1 1.7 1.7 1.7 - 2.5 0.1 - 1.8 0 0 1.7 - 1.8 2.5 - 0.1 - -

Ref. No.

MODE 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220

STOP -----0.11.6-01.82.51.1-1.1--1.8---

PLAY -----0.11.6-01.82.51.1-1.1--1.8---

REC -----0.11.6-01.82.51.1-1.1--1.8---

F.F. -----0.11.6-01.82.51.1-1.1--1.8---

REW -----0.11.6-01.82.51.1-1.1--1.8---

Ref. No.

MODE 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240

STOP -------1.8-----------1.8

PLAY -------1.8-----------1.8

REC -------1.8-----------1.8

F.F. -------1.8-----------1.8

REW -------1.8-----------1.8

IC2001

ICs DC VOLTAGE CHART (SP MODE)

IC2001

Ref. No.

MODE 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260

STOP -----------2.5-02.802.802.82.8

PLAY -----------2.5-02.802.802.82.8

REC -----------2.5-02.802.802.82.8

F.F. -----------2.5-02.802.802.82.8

REW -----------2.5-02.802.802.82.8

Ref. No.

MODE 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280

STOP 2.8 - 1.4 2.8 2.8 0 2.8 2.8 2.1 2.8 2.1 1.4 0 1.1 2.8 2.8 2.8 2.8 0.1 -

PLAY 2.8 - 2.1 2.8 2.8 0 2.8 2.8 2.1 2.8 2.1 0.7 2.8 1.1 2.8 2.8 2.8 2.8 0.1 -

REC 2.8 - 2.1 2.8 2.8 0 2.8 2.8 2.1 2.8 2.1 2.1 0 1.1 2.8 2.8 2.8 2.8 0.1 -

F.F. 2.8 - 2.1 2.8 2.8 0 2.8 2.8 2.1 2.8 2.1 2.1 1.4 1.1 2.8 2.8 2.8 2.8 0.1 -

REW 2.8 - 2.1 2.8 2.8 0 2.8 2.8 2.1 2.8 2.1 1.4 1.4 1.1 2.8 2.8 2.8 2.8 0.1 -

Ref. No.

MODE 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300

STOP2.8-------------------

PLAY2.8-------------------

REC 2.8-------------------

F.F. 2.8 -------------------

REW2.8-------------------

Ref. No.

MODE 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320

STOP --------------------

PLAY --------------------

REC --------------------

F.F. --------------------

REW --------------------

Ref. No. IC2001

MODE 321 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

STOP - 2.5 2.9 2.6 0 2.7 2.8 2.3 0 3.3 2.9 3.0 0.5 0.3 2.8 3.4 7.9

PLAY - 2.5 2.9 2.6 0 2.7 2.8 2.3 0 3.3 2.9 3.0 0.5 0.3 2.8 3.4 7.9

REC - 2.5 2.9 2.6 0 2.7 2.8 2.3 0 3.3 2.9 3.0 0.5 0.3 2.8 3.4 7.9

F.F. - 2.5 2.9 2.6 0 2.7 2.8 2.3 0 3.3 2.9 3.0 0.5 0.3 2.8 3.4 7.9

REW - 2.5 2.9 2.6 0 2.7 2.8 2.3 0 3.3 2.9 3.0 0.5 0.3 2.8 3.4 7.9

Ref. No.

MODE 12345678 1234 123456

STOP 2.8 2.8 2.7 2.7 0 0 - 2.9 2.3 3.4 - 0 1.8 0 1.7 2.8 1.8 2.9

PLAY 2.8 2.8 2.7 2.7 0 0 - 2.9 2.3 3.4 - 0 1.8 0 1.7 2.8 1.8 2.9

REC 2.8 2.8 2.7 2.7 0 0 - 2.9 2.3 3.4 - 0 1.8 0 1.7 2.8 1.8 2.9

F.F. 0 2.8 2.7 2.7 0 0 - 2.9 2.3 3.4 - 0 1.8 0 1.7 2.8 1.8 2.9

REW 0 2.8 2.7 2.7 0 0 - 2.9 2.3 3.4 - 0 1.8 0 1.7 2.8 1.8 2.9

Ref. No. Q2003

MODE E C B E C B

STOP 0 0 2.8 2.9 2.8 0

PLAY 0 0 2.4 2.9 2.8 0

REC 0 0 2.8 2.9 2.8 0

F.F. 0 0 2.4 2.9 2.8 0

REW 0 0 2.4 2.9 2.8 0

Ref. No.

MODE E C B E C B 123456

STOP 2.9 0 2.8 0 1.7 0 2.9 0 2.8 2.9 0 2.8

PLAY 2.9 0 2.8 0 1.7 0 2.9 0 2.8 2.9 0 2.8

REC 2.9 0 2.8 0 1.7 0 2.9 0 2.8 2.9 0 2.8

F.F. 2.9 0 2.8 0 1.7 0 2.9 0 2.8 2.9 0 2.8

REW 2.9 0 2.8 0 1.7 0 2.9 0 2.8 2.9 0 0

Ref. No.

MODE 1 2 3 4 5 6 E C B E C B E C B

STOP 2.9 2.8 0 2.9 2.8 0 4.9 5.0 0 0 0 2.8 0 0 2.8

PLAY 2.9 2.8 0 2.9 2.8 0 4.9 5.0 0 0 0 2.8 0 0 2.8

REC 2.9 2.8 2.8 2.9 0 0 4.9 5.0 0 0 0 2.8 0 0 2.8

F.F. 2.9 2.8 0 2.9 2.8 0 4.9 5.0 0 0 0 2.8 0 0 2.8

REW 2.9 2.8 0 2.9 2.8 0 4.9 5.0 0 0 0 2.8 0 0 2.8

NOTE:

CIRCUIT VOLTAGE AND WAVEFORM DESCRIBED HEREIN SHALL BE REGARDED

AS REFERENCE INFORMATION WHEN PROBING DEFECT POINT,BECAUSE IT MAY

DIFFER FROM AN ACTUAL MEASURING VALUE DUE TO DIFFERENCE OF MEASURING

INSTRUMENT AND ITS MEASURING CONDITION AND PRODUCT ITSELF.

IC2001

TRs DC VOLTAGE CHART (SP MODE)

Q2005

IC2001

IC2002

IC2017 IC2019IC2006

QR2010

QR2003 QR2005

QR2006 QR2007 QR2008

QR2001

14.22.1. CONTROL DC VOLTAGE CHART (SP MODE)

PV-GS250PP

14.22.2. CONTROL I/O TABLE

1NC -NC

2 A VCC 31 I Voltage

3 A VSS - GND

4 D VCC 2 I Voltage

5 ENDIAN I Voltage

6 BOOT I BOOT

7 PCTS3 O PCTS3 (EVR2)

8 PCTS0 O PCTS2 (EVR2)

9 INTLV I Inter Leave Mode

10 SDI DINT I SDI DINT (EVR2)

11 PCTS2 O PCTS2 (EVR2)

12 SDAO TPC O SDAO (EVR2)

13 BW0 I Voltage

14 /DBGE I /DBGE (EVR2)

15 DCLK O DCLK (EVR2)

16 NC - NC

17 PCTS1 O PCTS1 (EVR2)

18 SYS RDY - NC

19 D VSS - GND

20 TEST1 - GND

21 BUSMD I Voltage

22 /DRESET I /DRESET (EVR2)

23 TEST5 - GND

24 RESET I System Reset

25 PLL ON I Voltage

26 F VCC 2 I Voltage

27 F VSS - GND

28 NMI I Voltage

29 BW1 I Voltage

30 D VCC 2 I Voltage

31 D VCC 31 I Voltage

32 NC - NC

33 SBA SIF CLK O Sub Audio Serial Clock

34 NC - NC

35 NC - NC

36 SBA CS O Sub Audio Chip Select

37 VTR TEST L I VTR Test

38 SBA SIF DTI I Sub Audio Serial Data Input

39 R PLUG L I AV Jack Connection: L

40 SBA SIF DTO O Sub Audio Serial Data Output

41 EXT 5V SW O Power Supply Control

42 S PLUG I S-Jack Detection

43 NC - NC

44 SYNC DET I SYNC Detection

45 F VCC 3 I Voltage

46 F VSS - GND

47 D VSS - GND

48 M RVS I LCD Panel Reversal Input

49 SIF P SAVE O SIF Power Save

50 NC - NC

LCD OPEN SW

I LCD Panel Open SW Input

52 AV PLUG I AV Jack Detection

53 USB DET I USB Cable Connection Detect

54 NC - NC

55 ARB - NC

56 SIF CS O SIF Serial Chip Select

57 NC - NC

58 XRST O System Reset

59 POWER SW I Power SW Input

60 EJECT SW I EJECT SW Input

61 TV MD O NTSC/PAL Select

No.

IC2001 : VTR CONTROL MICROCOMPUTER

Signal Name I/O Explanation

62 INPUT SEL O S/AV Input Terminal Change

63 FLASH WP O Flash Write Protect

64 C

AM SEND END

I CAM SEND END

65 NC - NC

66 GUI LED O GUI LED

67 MEMO END I Memory End

68 HOST REQ I Camera Microcomputer Request

69 TALLY LED O TALLY LED

70 D VCC 32 I Voltage

71 STANDBY LED O STANDBY LED

72 POWER LED O POWER LED

73 HOST ACK O Camera Microcomputer ACK

74 ACCESS LED O ACCESS LED

75 VTR T O Sync Serial Communication Enable

76 LCD CS O LCD Chip Select

77 V C DSET O DMA Forwarding Timing

78 FLASH CS O Flash Chip Select

S PHOTO SW2

O Tape Supply Photo Sensor SW2

T PHOTO SW1

O Tape Take-up Photo Sensor SW1

81 MIC CLK O MIC Serial Clock

82 MIC DATA O MIC Serial Data Output

83 D VSS - GND

84 REMOCON I IR Remote Control Input

S PHOTO SW1

O Tape Supply Photo Sensor SW1

86 PS L O

Power Save Terminal Control (Standby: L)

T PHOTO SW2

O Tape Take-up Photo Sensor SW2

88 CAM D3 OFF I Camera Power Control

89 SS DET O Start/Stop Detect

90 ZNST ST O REC Control

91 CAM 0 O

CAM Microcomputer Communication

92 EEP CS O EEPROM Chip Select

93 LCD SCK O LCD (Monitor) Serial Clock

94 ERF CLK O EEPROM Serial Clock

95 ERF DO O EEPROM Serial Data Output

96 ERF DI I EEPROM Serial Data Input

97 CAM RST O Camera Reset

98 LCD DI I LCD (Monitor) Serial Data Input

99 HP DET L I Headphone Detect

100 D VCC 2 I Voltage

101 D VCC 32 I Voltage

102 LCD DO O LCD (Monitor) Serial Data Output

103 PC RST I RS232C Reset

104 CAM RTN O Camera Clock Deference Signal

105 232C RXD I RS232C Data Input

106 232C TXD O RS232C Data Output

107 RTN FLD O Camera Microcomputer Field Signal

108 CPU VCC SW O

Microcomputer Power Supply Change

109 V C DATA O VTR Serial Data Output

110 WINK END I WINK END

111 C V DATA I VTR Serial Data Input

112 MIC ON O MIC Power Supply: L

113 P LCD LED O LCD Backlight

114 RTC CS O RTC Chip Select

115 SNS LED O LED Illumination: H

116 CAM SCK O Camera Serial Clock

117 D VSS - GND

118 NC - NC

119 NC - NC

120 EXT H O Analog Input: H

121 SS SW I Start/Stop SW Input

122 POWER ON O Power ON: H

No. Signal Name I/O Explanation

123 CR POWER I AWP Power Supply Control

124 C DOWN I Cassette Down

125 MEGA REQ O Mega Pixel Request

126 R STP UP - GND

127 E2 PROTECT O EEPROM Reset

128 TIMER INT I Clock Interruption

129 D VCC 32 I Voltage

130 NC - NC

131 NC - NC

132 NC - NC

133 NC - NC

134 NC - NC

135 NC - NC

136 NC - NC

137 NC - NC

138 NC - NC

139 FACT MODE I Factory Mode

140 LCD ON H O LCD Power ON/OFF

141 D VSS - GND

142 NC - NC

143 NC - NC

144 D VCC 33 I Voltage

145 NC - NC

146 MODE 14 - GND

147 NC - NC

148 NC - NC

149 NC - NC

150 NC - NC

151 NC - NC

152 NC - NC

153 TEST4 - GND

154 D2 I/O Data Bus

155 NC - NC

156 SD PROTECT I SD Card Protect

157 CARD DET I SD Card Detect

158 TEST3 - GND

159 D0 I/O Data Bus

160 D VSS - GND

161 NC - NC

162 D1 I/O Data Bus

163 D6 I/O Data Bus

164 D3 I/O Data Bus

165 D5 I/O Data Bus

166 D4 I/O Data Bus

167 F VSS - GND

168 F VCC 2 I Voltage

169 D9 I/O Data Bus

170 TEST0 - GND

171 D8 I/O Data Bus

172 D7 I/O Data Bus

173 D10 I/O Data Bus

174 D13 I/O Data Bus

175 D11 I/O Data Bus

176 D12 I/O Data Bus

177 D VCC 33 I Voltage

178 EVF BL O EVF Backlight ON: H

179 D15 I/O Data Bus

180 NC - NC

181 D VSS - GND

182 XDUO CS O DUO Chip Select

183 XWE H O X Write Strobe H

No. Signal Name I/O Explanation

184 XREADY I X Ready Strobe

185 XRE O X Read Strobe

186 F VSS - GND

187 F VCC 2 I Voltage

188 D14 I/O Data Bus

189 XSUB CS O USB Chip Select

190 CCD STBY O CCD Standby

191 CCD ON H O CCD Power ON/OFF

192 ALE O Address Latch Enable

193 XWE L O X Write Strobe L

194 TEST2 - GND

195 D VCC 33 I Voltage

196 D VCC 2 I Voltage

197 NC - NC

198 X RAM CS - NC

199 NC - NC

200 NC(XT1) - NC

201 CVCCH - GND

202 CAP1 - GND

203 CAP2 - GND

204 NC(XT2) - NC

205 TDO O Test Data Output

206 TDI I Test Data Input

207 TMS O Test Mode Select Output

208 TRST - NC

209 TCK O Test Clock Output

210 D VCC 34 I Voltage

211 C VCC 2 I Voltage

212 X1 I Crystal 13.5MHz

213 C VSS - GND

214 X2 O Crystal 13.5MHz

215 NC - NC

216 NC - NC

217 M BL O LCD Backlight ON: H

218 USB INT I USB IC Interruption

219 NC - NC

220 DUO INT3 I VIDEO IC Interruption 3

221 DUO INT2 I VIDEO IC Interruption 2

222 DUO INT1 I VIDEO IC Interruption 1

223 D VSS - GND

224 NC - NC

225 NC - NC

226 NC - NC

227 DUO INT0 I VIDEO IC Interruption 0

228 POWER LCD SW I LCD Power SW

229 NC - NC

230 NC - NC

231 NC - NC

232 NC - NC

233 NC - NC

234 NC - NC

235 NC - NC

236 NC - NC

237 NC - NC

238 NC - NC

239 NC - NC

240 D VCC 34 I Voltage

241 NC - NC

242 NC - NC

243 NC - NC

244 NC - NC

No. Signal Name I/O Explanation

PV-GS250PP

CONTROL I/O TABLE

PV-GS250PP

245 NC - NC

246 NC - NC

247 NC - NC

248 NC - NC

249 NC - NC

250 D VSS - GND

251 NC - NC

252 D VCC 2 I Voltage

253 A VSS - GND

254 LOAD LOCK DET I Finger Scissors Detection

255 A VCC 32 I Voltage

256 T PHOTO I Tape Take-up Photo Sensor Detect

257 BATT D I D Terminal Input

258 S PHOTO I Tape Supply Photo Sensor Detect

259 MIC AD1 I Contact ID Input 1

260 MIC AD2 I Contact ID Input 2

261 MIC AD3 I Contact ID Input 3

262 A VSS - GND

263

VTR KEY 1

I Analog Key Input 1

264

VTR KEY 4

I Analog Key Input 4

265

VTR KEY 6

I Analog Key Input 6

266 NC - NC

267 REG D3V DET I Shutdown Detect

268 BATT REF I Battery Input

269

VTR KEY 3

I Analog Key Input 3

270 BATTERY I Battery Protect

271

VTR KEY 5

I Analog Key Input 5

272

VTR KEY 2

I Analog Key Input 2

273 EXT MIC I

Free Style Remote Control Detection

274 Y LEVEL I Y Level

275 MON EVF HL I EVF Select

276 DEW I DEW Sensor

277 AWP DET I AWP Connection Detection

278 UNI REMO I Wire Remote Control SW

279 WIDE DET I Cinema/Wide Discrimination

280 VREF L I GND

281 VREF H I Voltage

282 NC - NC

283 NC - NC

No. Signal Name I/O Explanation

284 NC - NC

285 NC - NC

286 NC - NC

287 NC - NC

288 NC - NC

289 NC - NC

290 NC - NC

291 NC - NC

292 NC - NC

293 NC - NC

294 NC - NC

295 NC - NC

296 NC - NC

297 NC - NC

298 NC - NC

299 NC - NC

300 NC - NC

301 NC - NC

302 NC - NC

303 NC - NC

304 NC - NC

305 NC - NC

306 NC - NC

307 NC - NC

308 NC - NC

309 NC - NC

310 NC - NC

311 NC - NC

312 NC - NC

313 NC - NC

314 NC - NC

315 NC - NC

316 NC - NC

317 NC - NC

318 NC - NC

319 NC - NC

320 NC - NC

321 NC - NC

No. Signal Name I/O Explanation

PV-GS250PP

CONTROL I/O TABLE

PV-GS250PP

15.1. EVF C.B.A.

(VEP29163A)

(COMPONENT SIDE) (FOIL SIDE)

2345

PV-GS250PP

EVF C.B.A.

15.2. LCD DET C.B.A.

(VEP001J2A)

COMPONENT SIDE FOIL SIDE PV-GS250PP

LCD DET C.B.A.

2345

15.3. SIDE (R) C.B.A.

PV-GS250PP

SIDE (R) C.B.A.

234

(VEP001H8B)

(COMPONENT SIDE)

(FOIL SIDE)

15 CIRCUIT BOARD ASSEMBLIES

PV-GS250PP

15.4. CCD FLEX. CARD C.B.A.

2345

(VXQ1288)

PV-GS250PP

CCD FLEX.CARD C.B.A.

(COMPONENT SIDE)

(FOIL SIDE)

NOTE:MULTILAYER C.B.A.

THIS C.B.A. IS Multi-Layer C.B.A. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN

FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH

SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.

PV-GS250PP

15.5. FRONT C.B.A.

(VEP04883A)

23456789

(COMPONENT SIDE) (FOIL SIDE)

NOTE:MULTILAYER C.B.A.

THIS C.B.A. IS Multi-Layer C.B.A. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN

FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH

SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.

PV-GS250PP

FRONT C.B.A.

PV-GS250PP

15.6. JACK C.B.A.

Transister LB4007 B-5

Q4901 E-5 LB4008 B-4

Q4902 E-2 LB4009 B-5

Q4903 E-1 LB4921 E-5

Q4904 D-2 LB4922 C-5

Q4907 D-1 LB4923 D-5

Q4908 D-5 LB4924 D-5

Transister &Resister LB4926 E-5

QR4901 D-2 LB4928 E-5

Test Point Capacitor

CL4001 E-6 C3908 C-2

CL4002 D-5 C4001 C-2

CL4003 C-6 C4003 F-5

CL4004 D-6 C4004 F-5

CL4901 C-5 C4901 D-5

CL4902 D-5 C4902 E-5

RL2501 F-1 C4903 E-5

RL2502 E-6 C4904 E-5

RL2503 A-5 C4905 E-1

RL2504 A-2 C4906 D-1

RL4801 E-1 C4908 D-5

Connector C4909 D-5

FP6201 C-5 C4910 E-2

Jack C4913 E-5

JK3001 B-2 Resistor

JK3901 C-3 R4001 D-5

JK4001 F-2 R4901 D-5

JK4901 D-2 R4902 D-1

Diode R4904 D-5

D4901 D-1 R4905 E-5

Absorber R4906 E-2

VZ4001 B-5 R4907 E-5

VZ4002 C-5 R4908 E-5

VZ4003 B-5 R4909 E-5

VZ4004 F-5 R4910 E-2

VZ4902 E-5 R4911 E-2

VZ4903 C-5 R4912 D-5

Filter R4913 D-2

FL2503 C-2 R4914 E-2

Switch R4915 D-5

S6212 B-5 R4916 E-1

Coil R4917 D-2

LB3902 C-2 R4918 E-2

LB4001 E-5 R4920 E-5

LB4003 E-5 R4922 D-6

LB4005 E-5 R4923 D-5

LB4006 F-5 R4924 D-5

Jack C.B.A.

(VEP001H7A)

23456

(COMPONENT SIDE) (FOIL SIDE)

NOTE:MULTILAYER C.B.A.

THIS C.B.A. IS Multi-Layer C.B.A. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN

FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH

SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.

PV-GS250PP

JACK C.B.A.

PV-GS250PP

100

15.7. MONITOR C.B.A.

NOTE:

Refer

to "1.2. Service Information Regarding MONITOR C.B.A. and LCD PANEL of PV-GS250PP".

(VEP08340CKIT)

2345678

(COMPONENT SIDE) (FOIL SIDE)

PV-GS250PP

MONITOR C.B.A.

PV-GS250PP

101

15.8. SUB C.B.A. (COMPONENT SIDE)

PV-GS250PP

SUB C.B.A.

(COMPONENT SIDE)

NOTE:MULTILAYER C.B.A.

THIS C.B.A. IS Multi-Layer C.B.A. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN

FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH

SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.

(VEP23613C)

23456789

PV-GS250PP

102

15.9. SUB C.B.A. (FOIL SIDE)

NOTE:MULTILAYER C.B.A.

THIS C.B.A. IS Multi-Layer C.B.A. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN

FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH

SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT. PV-GS250PP

SUB C.B.A.

(FOIL SIDE)

(VEP23613C)

23456789

PV-GS250PP

103

Integrated Circuit CL310 D-2 FC101 C-6 CC604 B-9 CC1451 A-3 FR345 C-4 FR721 C-2 CR797 A-7 F

IC101 B-5 FCL311 C-4 FC102 D-5 CC605 B-9 CC1481 B-1 FR346 C-7 CR722 B-9 FR798 B-3 C

IC102 C-7 CCL312 A-3 FC103 B-4 FC606 B-9 CC6401 A-8 FR347 C-3 FR723 C-2 CR799 B-9 F

IC103 C-7 CCL313 D-6 CC104 C-5 CC607 B-9 CCX301 D-4 FR348 D-7 CR724 C-2 CR1351 C-2 F

IC104 B-6 CCL314 A-3 FC105 C-7 CC608 B-9 CCX303 B-5 CR350 D-6 CR725 A-8 FR1352 C-2 F

IC105 B-6 CCL315 A-3 FC106 C-6 CC609 C-8 CCX304 B-5 CR352 D-6 CR726 A-8 FR1353 C-2 F

IC106 C-6 CCL316 A-3 FC107 D-5 CC613 B-8 CCX305 C-5 CR356 C-3 FR727 B-8 FR1354 C-2 F

IC107 C-5 FCL317 A-3 FC108 C-5 FC614 C-9 C Resistor R357 D-3 FR728 B-8 FR1355 C-2 F

IC108 D-5 CCL318 D-4 FC109 B-5 CC616 B-9 CR101 C-4 FR358 D-4 FR729 B-9 FR1371 B-2 F

IC110 C-4 FCL319 D-7 CC110 C-4 CC622 D-7 CR102 C-6 CR359 D-4 FR730 B-8 FR1372 B-2 F

IC301 C-4 FCL325 D-2 FC111 C-5 FC701 C-3 CR103 C-5 CR361 D-3 FR731 B-9 FR1373 B-2 F

IC302 D-7 CCL601 B-9 CC113 B-4 FC702 C-3 CR104 C-5 CR364 D-2 FR732 C-9 FR1374 B-2 F

IC303 D-8 CCL602 E-5 CC114 C-4 FC703 C-3 CR105 B-4 FR365 D-2 FR733 B-9 FR1375 B-2 F

IC304 D-7 CCL603 E-6 CC115 C-7 CC704 C-3 CR106 A-4 FR366 D-3 FR734 C-8 FR1380 C-2 F

IC305 D-3 FCL604 E-6 CC118 B-5 CC705 C-3 CR108 B-6 FR367 D-2 FR735 C-8 FR1386 C-1 F

IC306 E-5 CCL605 C-9 CC119 D-5 CC706 C-3 CR109 C-4 CR368 D-2 FR736 B-8 FR1387 C-1 F

IC307 D-6 CCL606 B-7 CC120 B-5 CC707 A-7 FR112 C-6 FR369 D-2 FR737 C-6 CR1388 C-1 F

IC308 D-2 FCL607 B-7 CC121 B-5 CC708 C-2 CR114 C-6 FR370 D-2 FR738 B-9 FR1389 C-1 F

IC601 C-8 CCL608 B-7 CC122 C-5 CC709 C-2 CR115 C-5 CR371 D-2 FR739 C-2 CR1395 B-7 C

IC602 D-7 CCL701 B-1 CC123 C-5 CC710 B-7 FR116 C-4 CR372 D-2 FR740 C-3 CR1396 B-7 C

IC603 D-6 CCL702 B-2 CC124 C-5 CC711 C-2 CR117 C-4 CR374 D-2 FR741 B-6 FR1397 B-7 C

IC701 C-3 CCL703 B-8 FC125 B-5 CC712 C-2 CR124 B-5 CR377 D-2 FR742 A-8 FR1398 C-7 C

IC702 B-8 FCL704 B-8 FC127 C-5 CC713 B-9 FR125 B-5 CR378 D-2 FR743 A-8 FR1399 B-7 C

IC703 B-6 CCL1081 B-1 FC128 C-5 CC714 C-2 CR126 C-5 CR379 D-2 FR746 B-8 FR1400 C-7 C

IC704 B-6 FCL1082 D-9 CC129 C-6 FC715 C-8 FR127 C-4 FR380 D-2 FR748 C-6 FR1413 B-3 F

IC705 B-2 CCL1084 B-1 FC131 D-5 CC716 B-8 FR131 C-5 CR385 D-7 CR749 B-6 FR1414 B-3 F

IC706 B-6 FCL1086 B-1 FC132 C-5 CC717 B-8 FR132 C-5 FR386 D-7 CR750 B-6 FR1415 B-3 F

Transister CL1087 B-4 FC133 D-5 CC718 C-9 FR145 C-4 FR387 C-4 FR751 B-6 FR1416 B-4 F

Q301 C-7 CCL1251 C-2 FC137 C-7 CC719 C-9 FR146 C-4 FR388 D-4 FR752 B-6 FR1421 B-2 F

Q302 D-7 CCL1271 B-2 FC142 B-4 CC720 B-9 FR147 C-5 FR421 D-7 CR753 C-6 FR1422 B-2 F

Q303 D-2 FRL301 C-9 CC150 B-6 CC721 B-8 FR148 C-5 FR479 D-2 FR754 C-6 FR1451 B-3 F

Q701 C-7 CRL302 C-8 CC151 C-6 CC723 B-7 FR301 D-9 CR481 D-3 FR755 B-6 FR1452 B-3 F

Q702 C-7 CRL303 D-8 CC152 B-6 CC724 C-6 CR302 C-9 CR601 C-8 CR756 B-3 CR1481 C-1 F

Q703 B-3 CRL305 E-7 CC154 D-5 CC725 B-6 CR303 E-7 CR602 C-9 CR757 B-3 CR1482 C-1 F

Q704 B-4 CRL306 E-8 CC156 C-7 CC727 B-6 FR304 D-7 CR603 B-8 CR758 B-3 CR1483 B-1 F

Q1351 C-3 FRL307 E-7 CC303 C-8 CC728 B-6 FR305 D-4 FR604 B-8 CR759 B-3 CR1484 B-1 F

Q1352 C-2 F Connector C304 C-8 CC729 B-6 FR306 D-4 FR605 B-8 CR760 C-6 FR1485 D-9 C

Q1371 B-2 FFP201 B-4 CC305 D-4 FC730 B-6 FR307 D-4 FR606 B-9 CR761 B-3 CR1486 C-9 C

Q1372 B-2 FFP601 E-6 CC306 D-9 CC731 B-3 CR308 D-4 FR607 B-8 CR762 B-3 CR6402 A-8 F

Q1383 C-2 FFP602 B-7 CC309 D-4 FC732 B-3 CR309 C-9 CR608 B-9 CR763 B-3 CRX301 D-6 C

Q1384 C-1 FFP701 B-3 CC311 D-7 CC733 B-3 CR310 C-4 FR609 B-9 CR764 B-4 CRX303 D-4 F

Q1385 C-7 CFP4002 C-1 CC314 C-4 FC734 C-6 FR312 D-3 FR614 B-8 CR765 C-6 FRX304 C-3 F

Q1412 B-3 FPP301 B-3 FC315 C-9 CC735 B-6 FR313 D-3 FR615 B-8 CR766 B-4 C

Q1413 B-3 F Diode C318 E-3 FC736 B-3 CR314 C-8 CR616 B-8 CR767 B-4 C

Q1421 C-2 FD101 C-5 CC319 D-7 CC737 C-6 FR315 D-3 FR617 C-8 CR768 B-6 F

Q1451 A-3 FD102 D-5 FC321 C-4 FC738 C-6 FR318 C-3 FR618 C-8 CR769 B-2 C

Q1481 C-1 FD301 D-3 FC323 C-8 CC739 B-3 CR320 C-7 CR619 C-8 CR770 C-7 F

Q1482 B-1 FD302 C-4 FC325 C-8 CC740 B-4 CR321 C-9 CR620 C-8 CR771 B-7 F

D303 C-3 FC328 D-7 CC741 B-3 CR322 E-7 CR621 B-9 CR772 B-6 F

QR301 C-2 FD1421 B-2 FC331 D-6 CC742 B-4 CR323 D-3 FR622 C-9 CR773 B-2 C

QR302 C-3 FD1451 C-3 FC334 D-4 FC744 B-6 FR324 C-2 FR701 C-3 CR774 B-2 C

QR303 D-4 FD1471 B-3 FC336 D-2 FC747 C-7 FR326 C-3 FR702 C-4 CR776 B-7 F

QR1401 B-1 FD1481 B-1 FC337 D-2 FC748 B-6 FR327 C-3 FR703 C-4 CR777 C-7 F

QR1411 B-1 FD1482 C-1 FC338 D-7 CC749 A-2 CR328 C-3 FR704 C-3 CR778 B-7 F

QR1451 C-3 F Ir Recever C339 D-3 FC750 C-7 FR329 D-2 FR705 C-3 CR779 C-7 F

QR1471 A-3 FIR6401 B-2 CC340 D-6 CC751 B-7 FR330 C-8 CR706 C-3 CR780 B-7 F

Test Point Filter C341 D-2 FC752 B-7 FR331 C-8 CR708 A-7 FR781 B-7 F

CL101 B-6 FFL101 B-4 FC342 D-3 FC753 B-7 FR332 D-7 CR709 B-3 CR782 B-2 C

CL102 D-7 CFL102 C-6 CC343 C-8 CC754 B-7 FR333 C-7 CR710 D-6 CR783 B-2 C

CL103 D-2 F Crystal Ocillator C344 D-2 FC755 B-7 FR334 D-7 CR711 B-8 FR784 B-2 C

CL301 C-7 CX101 B-4 FC345 D-2 FC757 B-7 FR335 D-7 CR712 B-7 FR785 C-2 C

CL302 D-6 C Coil C346 D-2 FC758 B-7 FR336 C-4 FR713 C-6 CR786 B-7 F

CL303 D-6 CL101 D-4 FC347 D-2 FC759 B-6 FR337 D-4 FR714 C-2 CR787 C-7 F

CL304 D-7 CL104 D-6 CC348 D-2 FC1227 C-3 FR338 D-4 FR715 C-2 CR788 B-7 F

CL305 C-9 CL105 B-5 CC349 D-2 FC1231 C-4 FR339 D-7 CR716 C-2 CR789 C-7 F

CL306 D-7 CL702 C-2 CC350 D-4 FC1381 C-6 CR341 C-8 CR717 B-7 FR793 C-7 C

CL307 D-7 CL1227 C-3 FC351 D-4 FC1382 B-6 CR342 D-4 FR718 A-7 FR794 C-7 C

CL308 C-4 FL1231 C-3 FC601 B-8 CC1411 B-4 FR343 D-3 FR719 B-7 FR795 A-2 C

CL309 D-7 C Capacitor C603 B-9 CC1421 C-3 FR344 D-3 FR720 C-2 CR796 B-2 C

ADDRESS INFORMATION C...COMPONENT SIDE F...FOIL SIDE

Sub C.B.A.

Transister &Resister

PV-GS250PP

104

15.10. MAIN C.B.A. (COMPONENT SIDE)

(VEP03G74E)

23456789

PV-GS250PP

MAIN C.B.A.

(COMPONENT SIDE)

NOTE:MULTILAYER C.B.A.

THIS C.B.A. IS Multi-Layer C.B.A. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN

FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH

SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.

4.0A 24V

CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE 4.0A 24V FUSE.

ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUES

D’ INCENDIE N’ UTILISERQUE DES FUSIBLE DE MÉME

TYPE 4.0A 24V

IMPORTANT SAFETY NOTICE:

COMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL CHARACTERISTICS FOR SAFETY.

WHEN REPLACING ANY OF THESE COMPONENTS, USE ONLY THE SAME TYPE.

PV-GS250PP

105

15.11. MAIN C.B.A. (FOIL SIDE)

NOTE:

Refer

to "1.1. Service Information Regarding IC2001 of PV-GS250PP".

(VEP03G74E)

23456789

PV-GS250PP

MAIN C.B.A.

(FOIL SIDE)

NOTE:MULTILAYER C.B.A.

THIS C.B.A. IS Multi-Layer C.B.A. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN

FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH

SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT.

PV-GS250PP

106

Integrated Circuit CL1011 C-3 FRL12 D-5 CRL6503 E-7 CL1241 C-3 FC1122 B-2 FC2226 C-5 CC3343 E-4 FR1046 B-2 FR2124 C-5 FR3212 A-1 CRX2005 C-7 F

IC1001 B-3 FCL1021 C-4 FRL13 D-5 C Connector L1251 C-7 CC1131 B-3 FC2230 C-5 CC3344 E-4 FR1051 C-3 FR2133 C-5 FR3214 A-1 CRX2006 A-6 F

IC1321 C-4 FCL1022 C-4 FRL14 D-6 FFP1001 C-9 CL1271 D-3 FC1141 B-2 FC2231 C-4 CC3501 D-3 CR1054 C-4 FR2146 C-3 CR3215 A-1 CRX2007 A-6 F

IC1322 B-4 FCL1023 C-7 CRL15 D-5 FFP2001 A-2 FL1281 C-7 CC1143 B-2 FC2232 C-4 CC3502 E-4 CR1055 B-4 FR2150 C-7 FR3219 B-8 FRX2008 B-5 F

IC2001 B-6 FCL1031 D-3 FRL16 D-5 FFP2201 B-7 CL1321 C-4 FC1151 B-3 FC3003 E-7 CC3503 C-7 FR1101 A-3 FR2155 C-5 FR3260 B-8 FRX2009 A-6 F

IC2002 B-3 CCL1041 C-3 FRL17 C-7 FFP2202 B-4 CL1322 C-4 FC1153 C-3 FC3006 C-6 CC3506 E-8 FR1102 A-3 FR2177 B-6 FR3302 D-6 FRX2010 B-7 F

IC2006 C-3 CCL1052 C-3 FRL18 C-8 FFP2203 B-5 FL3012 D-7 CC1154 B-3 FC3014 D-5 CC3511 D-6 FR1103 B-2 FR2201 C-5 CR3308 D-5 FRX2011 C-7 F

IC2017 C-3 CCL1054 C-7 CRL19 C-7 FFP2204 B-3 CL3025 D-7 CC1211 C-3 FC3015 C-6 CC3514 C-6 FR1105 B-3 FR2202 C-5 CR3309 E-5 FRX2012 B-8 F

IC2019 C-5 FCL1071 D-3 FRL20 C-8 FFP3402 E-6 CL3027 D-5 CC1221 C-4 FC3017 C-5 CC3515 D-4 CR1106 A-3 FR2203 C-5 CR3310 D-5 FRX2013 B-4 F

IC2201 C-4 CCL1101 A-3 FRL21 C-7 FFP5001 A-8 FL3204 B-2 CC1223 B-6 CC3019 E-5 CC3516 D-4 CR1111 B-3 FR2204 C-5 CR3311 E-5 FRX2201 B-4 F

IC2202 B-4 FCL1102 A-3 FRL22 C-7 FFP6501 A-5 CL3301 C-4 FC1224 A-2 FC3027 E-5 CC3520 D-4 CR1121 B-2 FR2205 C-5 CR3312 E-5 FRX2202 B-5 F

IC3001 D-6 CCL1902 D-5 CRL23 D-4 CFP6502 C-1 FL3302 D-4 FC1226 C-4 FC3030 D-7 CC3551 D-6 FR1131 B-3 FR2206 C-5 CR3313 D-5 FRX2203 C-4 C

IC3201 B-2 CCL1903 D-5 CRL24 C-8 FFP6503 E-8 CL3303 D-5 FC1228 C-4 FC3039 C-6 CC3552 D-6 FR1141 B-2 FR2207 C-5 CR3314 D-5 FRX3001 D-7 C

IC3301 D-4 FCL1904 D-5 CRL25 C-8 FFP6504 D-2 FL3304 C-4 FC1232 C-3 FC3040 C-6 CC3553 E-6 FR1151 B-3 FR2210 C-5 CR3315 E-5 FRX3002 D-7 C

IC3501 D-7 FCL1905 C-5 FRL26 E-6 FFP6505 C-1 CL3305 D-3 FC1239 D-3 FC3043 C-7 CC3554 E-7 FR1152 B-3 FR2211 B-5 CR3316 E-5 FRX3003 C-2 F

IC3502 D-4 CCL1906 D-4 CRL27 C-2 CPP3001 A-8 CL3501 D-4 CC1241 C-3 FC3044 C-7 CC3556 E-4 CR1153 B-4 FR2212 C-5 CR3317 E-5 FRX3004 C-7 C

IC3503 E-4 CCL2001 B-8 FRL28 D-4 CPS3001 B-7 CL3505 E-6 FC1249 C-3 FC3046 C-7 CC3558 D-4 CR1211 C-2 FR2213 B-4 CR3318 E-5 FRX3005 C-7 C

IC3801 D-2 FCL2002 B-5 FRL29 C-2 C Fuse L3506 E-6 FC1251 C-7 CC3057 D-7 CC3559 D-4 CR1241 C-3 FR2214 C-5 CR3320 D-4 FRX3201 B-8 F

IC5001 B-9 FCL2003 C-2 CRL30 D-6 FIP1001 C-9 CL3507 E-6 FC1271 D-3 FC3058 D-7 CC3560 C-6 FR1331 D-3 FR2217 B-5 CR3321 D-5 FRX3202 B-1 C

Transister CL2004 B-4 CRL31 D-6 F Diode L3508 D-6 FC1281 C-7 CC3059 D-7 CC3561 D-6 FR1401 C-4 FR2218 B-4 CR3322 D-6 FRX3203 B-8 F

Q451 E-5 CCL2005 C-5 FRL32 D-6 FD1011 C-2 FL3509 D-6 FC1322 C-4 FC3060 D-7 CC3562 C-6 FR1402 C-4 FR2219 C-5 CR3323 D-5 FRX5001 B-8 F

Q1011 C-2 FCL2006 C-7 FRL33 D-6 FD1021 C-2 FL5001 A-7 FC1323 C-4 FC3068 D-5 CC3563 D-6 FR2001 A-6 FR2226 B-5 CR3324 D-6 F

Q1021 B-2 FCL2007 C-2 CRL1001 C-9 CD1031 C-3 FL5002 A-7 FC1326 B-4 FC3074 D-5 CC3566 D-6 FR2002 B-7 FR2228 B-4 CR3325 D-5 F

Q1022 C-2 FCL2008 C-7 FRL1002 C-7 CD1041 C-2 FLB451 E-5 CC1328 C-4 FC3078 D-7 CC3569 D-6 FR2003 B-7 FR2229 B-4 CR3326 D-6 F

Q1031 C-3 FCL2009 B-7 FRL1004 C-7 CD1051 D-8 CLB452 E-5 CC1401 C-4 FC3202 B-2 CC3570 E-3 CR2004 B-3 CR2255 B-4 FR3330 E-5 F

Q1041 C-2 FCL2010 B-7 FRL1005 C-7 CD1071 D-8 CLB453 E-5 CC2001 C-4 CC3203 B-2 CC3801 E-2 FR2005 D-5 FR2256 B-5 FR3501 D-6 F

Q1042 C-3 FCL2011 B-7 FRL2001 C-8 FD1101 A-4 FLB454 E-5 CC2002 C-8 FC3204 B-2 CC3802 E-3 FR2006 B-6 FR3001 D-7 CR3503 D-3 C

Q1051 C-2 FCL2012 B-5 FRL2002 C-6 FD1102 B-4 FLB455 E-5 CC2004 C-5 FC3205 B-8 FC3803 E-3 FR2007 C-7 FR3003 E-7 CR3504 D-4 C

Q1061 B-2 FCL2022 C-2 CRL2011 A-7 FD2003 C-4 FLB456 E-5 CC2005 A-7 FC3206 B-2 CC3804 E-2 FR2009 B-5 FR3004 C-7 CR3505 D-4 C

Q1062 B-7 CCL2023 C-2 CRL2201 C-5 CD2004 B-3 CLB1001 C-8 CC2006 C-5 FC3207 B-3 CC3805 E-2 FR2010 B-5 FR3005 E-7 CR3506 D-4 C

Q1101 A-3 FCL2025 C-2 CRL3001 D-5 CD2010 B-7 FLB3003 D-7 CC2008 A-6 FC3208 B-3 CC5001 A-9 FR2011 A-6 FR3006 E-7 CR3507 D-4 C

Q2003 C-5 FCL2026 A-8 CRL3002 C-5 CD2201 B-5 CLB3201 B-2 CC2010 C-6 FC3209 B-2 CC5002 A-9 FR2013 C-5 FR3007 D-7 CR3508 D-4 C

Q2005 C-5 FCL2027 B-3 CRL3003 C-5 CD3301 D-5 FLB3203 B-2 CC2012 C-7 FC3210 B-2 CC5003 B-8 FR2014 C-7 FR3010 D-7 CR3514 D-4 C

Q3301 D-6 FCL2030 C-2 CRL3005 D-5 C Absorber LB3301 D-3 FC2013 B-5 FC3212 B-2 CC5005 B-9 FR2017 B-7 FR3011 D-5 CR3515 D-4 C

Q3302 E-6 FCL2031 C-2 CRL3006 D-5 CVZ451 E-5 CLB3501 D-5 FC2016 B-5 FC3213 B-2 CC5008 C-2 CR2018 B-7 FR3012 D-7 CR3516 D-4 C

Q3303 D-6 FCL2033 C-5 FRL3008 C-4 CVZ452 E-5 CLB3502 D-5 FC2017 B-5 FC3215 B-2 CC5012 B-9 FR2020 C-5 FR3013 C-6 CR3549 E-7 F

Q3503 E-7 FCL2034 C-5 FRL3009 C-4 CVZ453 E-5 C Capacitor C2019 C-7 FC3221 B-1 CC5013 B-9 FR2025 C-4 FR3014 C-6 CR3550 E-7 F

Q3504 C-6 FCL2036 C-5 FRL3010 C-4 CVZ455 D-5 CC1001 D-9 CC2027 C-6 FC3229 B-3 CC5014 B-9 FR2026 C-4 FR3015 C-6 CR3553 D-6 F

Q3505 D-6 FCL2040 B-3 CRL3011 B-4 C Transformer C1002 C-9 CC2028 C-3 CC3301 D-4 FC5021 B-8 FR2027 B-6 FR3016 D-7 CR3554 E-7 F

Q3506 D-4 CCL2204 C-4 CRL3012 D-5 CT1051 D-8 CC1011 C-3 FC2029 C-3 CC3302 D-4 FC5022 B-8 FR2029 B-3 CR3017 C-6 CR3555 E-7 F

CL2205 C-4 CRL3013 D-5 C Filter C1012 C-8 CC2037 B-6 FC3303 D-4 FC5023 B-8 FR2030 C-5 FR3021 C-6 CR3556 D-4 C

QR451 D-5 CCL3004 D-5 CRL3014 C-6 CFL3001 E-6 CC1013 B-4 FC2047 C-4 CC3304 D-5 FC5024 B-8 FR2031 B-6 FR3022 C-7 CR3557 D-6 F

QR1001 B-5 CCL3005 D-5 CRL3015 C-5 CFL3002 C-5 CC1021 B-2 FC2050 B-4 FC3305 D-4 FCX2002 C-5 FR2032 C-4 FR3023 C-7 CR3558 C-6 F

QR1101 B-4 FCL3006 D-5 CRL3016 D-5 CFL3003 D-7 CC1022 C-8 CC2058 C-8 FC3306 D-5 FCX2003 B-5 FR2034 B-7 FR3024 C-7 CR3560 D-6 F

QR1102 A-4 FCL3007 C-7 CRL3017 C-5 CFL3004 C-7 CC1023 B-2 FC2062 C-5 FC3307 D-4 FCX3201 B-2 CR2035 B-7 FR3025 C-7 CR3561 D-6 F

QR1103 B-3 FCL3008 C-7 CRL3018 D-5 CFL3005 E-5 CC1024 B-2 FC2063 D-5 FC3308 E-5 FCX3501 E-7 FR2040 C-7 FR3026 C-7 CR3562 D-6 F

QR2001 B-3 CCL3009 C-7 CRL3019 D-5 CFL3801 E-2 FC1031 C-3 FC2064 B-6 FC3309 E-5 FCX3502 D-4 CR2045 B-5 FR3027 E-7 CR3563 D-6 F

QR2003 B-3 CCL3010 D-7 CRL3021 D-5 CFL3802 E-2 FC1032 C-7 CC2084 B-5 FC3310 C-4 F Resistor R2046 B-5 FR3028 E-7 CR3564 D-4 C

QR2005 B-7 FCL3201 A-1 CRL3022 D-5 CFL3803 E-3 FC1033 B-4 FC2090 C-4 CC3311 E-4 FR450 D-5 CR2047 D-5 FR3029 C-6 CR3565 D-4 C

QR2006 B-7 FCL3203 B-8 FRL3023 D-5 CFL3804 E-3 FC1041 C-3 FC2201 C-5 CC3312 E-4 FR451 D-5 CR2050 B-3 CR3030 C-7 CR3568 D-3 C

QR2007 B-3 CCL3207 B-3 CRL3024 D-5 CFL3805 E-3 FC1042 C-7 CC2202 C-5 CC3313 D-5 FR452 D-4 CR2054 C-5 FR3031 B-8 CR3580 D-6 F

QR2008 B-5 CCL3208 A-1 CRL3030 D-5 C Crystal Ocillator C1043 B-2 FC2203 C-5 CC3314 E-5 FR453 E-5 CR2055 C-5 FR3032 A-7 CR3582 E-7 F

QR2010 B-3 CCL3213 A-1 CRL3031 C-6 CX2001 C-3 CC1044 B-2 FC2204 C-4 CC3315 D-5 FR454 E-5 CR2056 B-5 FR3033 D-7 CR3801 E-2 F

QR3501 E-4 CCL3503 C-7 FRL3032 D-5 CX2002 D-5 FC1051 D-9 CC2205 B-4 CC3316 E-4 FR455 E-5 CR2059 B-5 FR3034 D-7 CR3802 D-3 F

QR3502 D-4 CCL3504 C-7 FRL3033 D-5 CX3001 C-6 CC1052 D-8 CC2206 B-4 CC3317 E-4 FR456 E-5 CR2063 B-4 CR3035 D-7 CR3804 E-1 F

Test Point CL3803 E-3 FRL3034 D-5 CX3801 E-2 FC1053 C-3 FC2207 B-4 CC3318 E-5 FR457 E-5 CR2069 C-4 FR3036 D-7 CR3805 E-2 F

CL1 A-5 FCL3804 E-3 FRL3035 D-5 C Coil C1056 D-8 CC2208 B-5 CC3319 D-4 FR1011 B-4 FR2070 C-2 CR3037 D-2 FR3806 E-2 F

CL2 D-5 FCL5001 C-2 CRL3036 D-5 CL1011 C-8 CC1061 B-8 CC2209 C-5 CC3320 E-5 FR1014 B-4 FR2073 B-6 FR3038 C-2 FR5001 C-2 C

CL3 A-2 FRL1 D-6 FRL3037 D-5 CL1021 C-8 CC1062 B-8 CC2212 C-5 CC3321 E-5 FR1015 B-4 FR2079 B-4 CR3048 D-5 CR5004 B-8 F

CL4 E-9 CRL2 C-7 FRL3038 D-5 CL1031 C-8 CC1071 D-8 CC2213 C-5 CC3322 E-5 FR1021 B-2 FR2080 B-7 FR3060 C-5 CR5006 B-9 F

CL5 A-7 CRL3 C-7 FRL3039 D-5 CL1041 C-8 CC1101 A-3 FC2216 A-5 CC3323 D-5 FR1024 B-2 FR2088 B-7 CR3063 C-5 CR5015 C-2 C

CL6 B-1 CRL4 D-5 CRL3040 D-5 CL1061 B-8 CC1102 A-3 FC2217 B-4 CC3324 D-6 FR1025 B-2 FR2089 B-3 CR3201 B-2 CR6901 B-5 F

CL19 D-3 FRL5 D-4 CRL3041 D-5 CL1062 B-8 CC1103 A-3 FC2218 B-4 CC3327 E-5 FR1026 B-2 FR2090 B-3 CR3202 B-2 CR6905 B-4 F

CL451 E-5 CRL6 D-5 CRL3042 D-5 CL1211 C-3 FC1104 B-2 FC2219 B-4 CC3330 D-5 FR1031 B-4 FR2091 C-8 FR3203 B-1 CR6908 B-4 F

CL1001 C-8 CRL7 D-5 CRL3043 D-5 CL1221 C-4 FC1105 B-3 FC2220 B-4 CC3331 D-5 FR1034 B-4 FR2097 A-7 FR3204 B-1 CR6910 B-7 F

CL1002 D-9 CRL8 D-5 CRL3201 A-1 CL1223 B-6 CC1106 B-4 FC2221 C-4 CC3332 D-5 FR1035 B-4 FR2109 B-7 FR3205 B-1 CRX2001 B-5 F

CL1003 C-4 FRL9 D-5 CRL3202 A-1 CL1224 A-2 FC1111 B-3 FC2222 C-4 CC3333 D-5 FR1041 B-2 FR2110 B-7 FR3206 B-1 CRX2002 B-5 F

CL1004 A-7 CRL10 D-5 CRL6501 E-7 CL1226 C-4 FC1113 B-2 FC2223 C-4 CC3341 E-3 FR1044 B-2 FR2111 B-7 FR3207 B-1 CRX2003 C-5 F

CL1005 C-4 FRL11 D-5 CRL6502 E-7 CL1232 D-3 FC1121 B-2 FC2225 C-4 CC3342 E-3 FR1045 B-2 FR2112 B-7 FR3211 B-2 CRX2004 C-5 F

ADDRESS INFORMATION C...COMPONENT SIDE F...FOIL SIDE

Main C.B.A.

Transister &Resister

PV-GS250PP

107

PV-GS250PP

108

16 CHECKING POINT OF THE CSP IC

16.1. CHECKING POINT TABLE

CSP IC Check Point WF NO. Remarks

Pin Name

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC303

(C): (F): COMPONENT SIDE FOIL SIDE

TEST

MAD B14

VSS

MAD B13

MAD B12

VDD CPU

MAD B11

MAD B10

MAD B9

MAD B8

MAD B7

MAD B6

MAD B5

MAD B4

MAD B3

MAD B2

MAD B1

MAD B0

MSPA14

VSS

VDD CPU

MSPA13

MSPA12

MSPA11

MSPA10

MSPA9

MSPA8

MSPA7

VDDI

VSS

MSPA6

MSPA5

MSPA4

MSPA3

MSPA2

MSPA1

MSPA0

VSS

VDD VTR

SCANNT

TRST IN4

TRST IN3

TRST IN2

TRST IN1

TEST IN0

VDD VTR

VSS

VDDI

VSS

VDD VTR

VSS

VDDI

VSS

VDD VTR

VSS

VDD VTR

VSSD

VDD 15D

DTMB

VSSD

VDD 15D

VSSD

VSS

VDD VTR

DVM

VSS

VDD 25D

VDD VTR

VDDI

TMODE5

TMODE4

TMODE3

TMODE2

TMODE1

TMODE0

TSTO50

TSTO49

TSTO48

TSTO47

TSTO46

TSTO45

TSTO44

TSTO43

TSTO42

TSTO41

TSTO40

TSTO39

VDD VTR

VSS

TSTO38

TSTO37

TSTO36

TSTO35

TSTO34

109

PV-GS250PP

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

CSP IC Check Point WF NO. Remarks

Pin Name Name

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

CSP IC Check Point WF NO. Remarks

Check Point of the IC303

(C): (F): COMPONENT SIDE FOIL SIDE

TSTO33

TSTO32

TSTO31

TSTO30

TSTO29

TSTO28

TSTO27

TSTO26

TSTO25

TSTO24

TSTO23

TSTO22

TSTO21

VSS

VDDI

TSTO20

TSTO19

TSTO18

TSTO17 RL307 E-7 WF-1 SUB C.B.A. (C)

TSTO16 RL306 E-8 WF-1 SUB C.B.A. (C)

TSTO15

TSTO14

VDD VTR

TSTO13 RL305 E-7 WF-1 SUB C.B.A. (C)

VSS

TSTO12

TSTO11

TSTO10

TSTO9

TSTO8

TSTO7

TSTO6

TSTO5

TSTO4

TSTO3

TSTO2

TSTO1 RL303 D-8 WF-1 SUB C.B.A. (C)

TSTO0

DSTB O

MEGA PIX

BUSY

VTR 45M R304 (UPPER) D-7 WF-12 SUB C.B.A. (C)

INV

INH

C OUT7

C OUT6

C OUT5

C OUT4

C OUT3

VSS

C OUT2

C OUT1

VSS

C OUT0 RL3015 C-5 WF-1 MAIN C.B.A. (C)

VDD VTR

VTR CKO CL311 C-4 WF-122 SUB C.B.A. (F)

Y OUT7

Y OUT6

Y OUT5

Y OUT4

Y OUT3

Y OUT2

Y OUT1

Y OUT0 RL3030 D-5 WF-1 MAIN C.B.A. (C)

DD FCK IC304-4 D-7 WF-1 SUB C.B.A. (C)

VDD VTR

TDO CL309 D-7 WF-1 SUB C.B.A. (C)

TRST C343 (LEFT) C-8 WF-1 SUB C.B.A. (C)

TCK CL306 D-7 WF-1 SUB C.B.A. (C)

TDI CL307 D-7 WF-1 SUB C.B.A. (C)

TMS CL102 D-7 WF-1 SUB C.B.A. (C)

P DOWN R421 (RIGHT) D-7 WF-1 SUB C.B.A. (C)

FCK R145 (LEFT) C-4 WF-1 SUB C.B.A. (F)

SEL ON

FI IC101-18 B-5 WF-1 SUB C.B.A. (F)

2F CK

CLK RST R348 (RIGHT) D-7 WF-1 SUB C.B.A. (C)

VSS

VDDI

TVD IC101-17 B-5 WF-1 SUB C.B.A. (F)

THD R108 (RIGHT) B-6 WF-1 SUB C.B.A. (F)

CCD HD IC101-16 B-5 WF-1 SUB C.B.A. (F)

VDD CAM

SIG IC702-50 B-8 WF-1 SUB C.B.A. (F)

ZD COM P IC702-14 B-8 WF-4 SUB C.B.A. (F)

ZC COM P IC702-13 B-8 WF-4 SUB C.B.A. (F)

VSS

ZB COM P IC702-12 B-8 WF-2 SUB C.B.A. (F)

ZA COM P IC702-11 B-8 WF-3 SUB C.B.A. (F)

PWM ND C731 (RIGHT) B-3 WF-1 SUB C.B.A. (C)

PWM HZB R702 (UPPER) C-4 WF-159 SUB C.B.A. (C)

PWM HZA R721 (LEFT) C-2 WF-159 SUB C.B.A. (C)

PWM LIN R720 (LOWER) C-2 WF-159 SUB C.B.A. (C)

PWM IRIS C718 (RIGHT) C-9 WF-1 SUB C.B.A. (F)

VSS

IRIS OPEN R742 (LOWER ) A-8 WF-1 SUB C.B.A. (F)

IRIS CLOSE R743 (LOWER) A-8 WF-1 SUB C.B.A. (F)

F2 C IC702-55 B-8 WF-140 SUB C.B.A. (F)

FC B IC702-54 B-8 WF-140 SUB C.B.A. (F)

FC A IC702-53 B-8 WF-140 SUB C.B.A. (F)

VCO OUT RL302 C-8 WF-181 SUB C.B.A. (C)

VDD CAM

VSS

PLL DVD

PLL AVD

PLL AVS

PLL DVS

VSS

VDDI

B IN9 IC106-9 C-6 WF-1 SUB C.B.A. (C)

B IN8 IC106-8 C-6 WF-39 SUB C.B.A. (C)

VDDI

B IN7 IC106-7 C-6 WF-39 SUB C.B.A. (C)

B IN6 IC106-6 C-6 WF-39 SUB C.B.A. (C)

B IN5 IC106-5 C-6 WF-127 SUB C.B.A. (C)

B IN4 IC106-4 C-6 WF-207 SUB C.B.A. (C)

B IN3 IC106-3 C-6 WF-207 SUB C.B.A. (C)

B IN2 IC106-2 C-6 WF-207 SUB C.B.A. (C)

B IN1 IC106-1 C-6 WF-207 SUB C.B.A. (C)

VSS

110

PV-GS250PP

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC303

(C): (F): COMPONENT SIDE FOIL SIDE

B IN0 IC106-36 C-6 WF-207 SUB C.B.A. (C)

G IN9 IC105-9 B-6 WF-39 SUB C.B.A. (C)

G IN8 IC105-8 B-6 WF-39 SUB C.B.A. (C)

G IN7 IC105-7 B-6 WF-93 SUB C.B.A. (C)

G IN6 IC105-6 B-6 WF-207 SUB C.B.A. (C)

G IN5 IC105-5 B-6 WF-207 SUB C.B.A. (C)

G IN4 IC105-4 B-6 WF-207 SUB C.B.A. (C)

G IN3 IC105-3 B-6 WF-207 SUB C.B.A. (C)

G IN2 IC105-2 B-6 WF-207 SUB C.B.A. (C)

G IN1 IC105-1 B-6 WF-207 SUB C.B.A. (C)

G IN0 IC105-36 B-6 WF-207 SUB C.B.A. (C)

R IN9 IC104-9 B-6 WF-39 SUB C.B.A. (C)

R IN8 IC104-8 B-6 WF-207 SUB C.B.A. (C)

R IN7 IC104-7 B-6 WF-207 SUB C.B.A. (C)

VSS

R IN6 IC104-6 B-6 WF-207 SUB C.B.A. (C)

VDD RGB

R IN5 IC104-5 B-6 WF-207 SUB C.B.A. (C)

R IN4 IC104-4 B-6 WF-207 SUB C.B.A. (C)

R IN3 IC104-3 B-6 WF-207 SUB C.B.A. (C)

R IN2 IC104-2 B-6 WF-207 SUB C.B.A. (C)

VSS

R IN1 IC104-1 B-6 WF-207 SUB C.B.A. (C)

R IN0 IC104-36 B-6 WF-207 SUB C.B.A. (C)

DT CLK

ACK

VDD RGB

VDDI

RDY

BEND

V1 V2

M VD RL301 C-9 WF-1 SUB C.B.A. (C)

POR C315 (UPPER) C-9 WF-1 SUB C.B.A. (C)

BUS SEL2

BUS SEL1

CE R302 (UPPER) C-9 WF-1 SUB C.B.A. (C)

ASTB

WE L R321 (UPPER) C-9 WF-203 SUB C.B.A. (C)

MAD B15

111

PV-GS250PP

CSP IC Check Point WF NO. Remarks

Pin Name

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC305

(C): (F): COMPONENT SIDE FOIL SIDE

MAD0

MAD1

MAD2

MAD3

MAD4

MAD5

MAD6

MAD7

MAD8

MAD9

MAD10

MAD11

MAD12

MAD13

MAD14

MAD15

VDD

E VDD

MF RING2 R323 (LOWER) D-3 WF-1 SUB C.B.A. (F)

LENS DAC CS IC702-1 B-8 WF-1 SUB C.B.A. (F)

APS1 CS IC104-33 B-6 WF-1 SUB C.B.A. (C)

E2 RB IC307-3 D-6 WF-1 SUB C.B.A. (C)

L STBY IC702-26 B-8 WF-1 SUB C.B.A. (F)

E2 RST IC307-7 D-6 WF-1 SUB C.B.A. (C)

E VDD

VSS

E VSS

VDD

WE L R321 (LOWER) C-9 WF-203 SUB C.B.A. (C)

F OPEN

F UP H

SHOE ON H QR451-B D-5 WF-1 MAIN C.B.A. (C)

RE H

Z ABS R361 (UPPER) D-3 WF-1 SUB C.B.A. (F)

DAS

WINK END

SENS SW R378 (LEFT) D-2 WF-1 SUB C.B.A. (F)

V C DSET QR301-C C-2 WF-1 SUB C.B.A. (F)

MVD IC101-17 B-5 WF-1 SUB C.B.A. (F)

BEND

RTN FLD

V1 V2

MF RING1 IC306-4 E-5 WF-1 SUB C.B.A. (C)

MF LED CNT Q302-B C-3 WF-1 SUB C.B.A. (F)

TV MD R324 (RIGHT) C-2 WF-1 SUB C.B.A. (F)

C V DATA

V C DATA

CAM SCLK CL325 D-2 WF-1 SUB C.B.A. (F)

SHOE SDO D303-K C-3 WF-18 SUB C.B.A. (F)

SHOE SDI D303-A C-3 WF-18 SUB C.B.A. (F)

SHOE SCK R454 (LEFT) E-5 WF-153 MAIN C.B.A. (C)

CG ASP DAT IC101-9 B-5 WF-23 SUB C.B.A. (F)

CG ASP SCK IC106-35 C-6 WF-1 SUB C.B.A. (C)

EVR SBO RX304-5 C-3 WF-1 SUB C.B.A. (F)

SVR SBI RX304-3 C-3 WF-1 SUB C.B.A. (F)

SVR SCK RX304-1 C-3 WF-1 SUB C.B.A. (F)

OIS DA SDO IC702-63 B-8 WF-1 SUB C.B.A. (F)

OIS DA SCK IC702-64 B-8 WF-153 SUB C.B.A. (F)

E2 CS IC307-1 D-6 WF-1 SUB C.B.A. (C)

CG CS IC101-10 B-5 WF-1 SUB C.B.A. (F)

VDD

VSS

MODE0 R345 (LOWER) C-4 WF-1 SUB C.B.A. (F)

MODE1 R347 (UPPER) C-3 WF-1 SUB C.B.A. (F)

MEGA REQ RX2010-2 B-7 WF-1 MAIN C.B.A. (F)

BST D302-A C-4 WF-1 SUB C.B.A. (F)

E VSS

E VDD

FLSDLY IC101-16 B-5 WF-1 SUB C.B.A. (F)

B COM P IC702-49 B-8 WF-1 SUB C.B.A. (F)

A COM P IC702-48 B-8 WF-1 SUB C.B.A. (F)

VDD

VSS

CAM RTN

112

PV-GS250PP

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

CSP IC Check Point WF NO. Remarks

Pin Name Name

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

CSP IC Check Point WF NO. Remarks

Check Point of the IC305

(C): (F): COMPONENT SIDE FOIL SIDE

INST ST

CHA END R336 (UPPER) C-4 WF-1 SUB C.B.A. (F)

FCP CNT R710 (LOWER) D-6 WF-1 SUB C.B.A. (C)

OIS DA LD IC704-43 B-6 WF-1 SUB C.B.A. (F)

SS DET

VSS

E VSS

VDD

E VDD

Z SW C309 (LEFT) D-4 WF-1 SUB C.B.A. (F)

IR CX301-7 D-4 WF-1 SUB C.B.A. (F)

FNO CX301-5 D-4 WF-1 SUB C.B.A. (F)

ND FNO CX301-6 D-4 WF-1 SUB C.B.A. (F)

M REF IC702-10 B-8 WF-1 SUB C.B.A. (F)

FM A CX301-8 D-4 WF-1 SUB C.B.A. (F)

FM B R388 (UPPER) D-4 WF-1 SUB C.B.A. (F)

ZM A

ZM B

SHOE DET RX303-2 D-4 WF-1 SUB C.B.A. (F)

Y POS C351 (UPPER) D-4 WF-1 SUB C.B.A. (F)

X POS C350 (LOWER) D-4 WF-1 SUB C.B.A. (F)

GYRO Y R368 (LEFT) D-2 WF-1 SUB C.B.A. (F)

GYRO X R479 (UPPER) D-2 WF-1 SUB C.B.A. (F)

A VREF

A VDD

TDI CL315 A-3 WF-1 SUB C.B.A. (F)

TDO CL316 A-3 WF-1 SUB C.B.A. (F)

TCK CL317 A-3 WF-1 SUB C.B.A. (F)

A VSS

E VSS

VSS

TMS CL312 A-3 WF-1 SUB C.B.A. (F)

TRST CL314 A-3 WF-1 SUB C.B.A. (F)

E VDD

MODE J CL318 D-4 WF-1 SUB C.B.A. (F)

XWAIT

ASP3 CS IC106-33 C-6 WF-1 SUB C.B.A. (C)

CAM 0

LED CNT QR303-B D-4 WF-1 SUB C.B.A. (F)

ASP2 CS IC105-33 B-6 WF-1 SUB C.B.A. (C)

TRIG END IC7001-1 B-8 WF-1 FRONT C.B.A. (F)

CHARGE R7022 (LOWER) B-2 WF-1 FRONT C.B.A. (C)

ND OPEN R709 (RIGHT) B-3 WF-1 SUB C.B.A. (C)

VDD

C VDD

CK SEL1 R343 (LOWER) D-3 WF-1 SUB C.B.A. (F)

RESET C318 (RIGHT) E-3 WF-1 SUB C.B.A. (F)

X1 IC301-5 C-4 WF-211 SUB C.B.A. (F)

P VSS

C VSS

P VDD

PLL SEL R344 (LOWER) D-3 WF-1 SUB C.B.A. (F)

AFST R481 (LOWER) D-3 WF-1 SUB C.B.A. (F)

E2 SDI D301-A D-3 WF-1 SUB C.B.A. (F)

E2 SDO D301-K D-3 WF-1 SUB C.B.A. (F)

E2 SCK IC307-6 D-6 WF-1 SUB C.B.A. (C)

CAM T R313 (LOWER) D-3 WF-1 SUB C.B.A. (F)

VTR T

MEMO END

CAM SEND END

VSS

E VSS

113

PV-GS250PP

CSP IC Check Point WF NO. Remarks

Pin Name

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC2001

(C): (F): COMPONENT SIDE FOIL SIDE

A VCC 31

A VSS

D VCC 2

ENDIAN

BOOT RX2007-3 A-6 WF-1 MAIN C.B.A. (F)

PCTS3

PCTS0

INTLV RX2007-1 A-6 WF-1 MAIN C.B.A. (F)

SDI DINT

PCTS2

SDAO TPC

BW0

/DBEG

DCLK

PCTS1

SYS RDY

D VSS

TEST1

BUSMD

/DRESET

TEST5

RESET C2064 (LOWER) B-6 WF-1 MAIN C.B.A. (F)

PLL ON

F VCC 2

F VSS

NMI

BW1

D VCC 2

D VCC 31

SBA SIF CLK IC3301-15 D-4 WF-1 MAIN C.B.A. (F)

SBA CS IC3301-14 D-4 WF-217 MAIN C.B.A. (F)

VTR TEST L RX2001-2 B-5 WF-1 MAIN C.B.A. (F)

SBA SIF DTI IC3301-12 D-4 WF-1 MAIN C.B.A. (F)

R PLUG L RX2001-4 B-5 WF-1 MAIN C.B.A. (F)

SBA SIF DTO R2177 (UPPER) B-6 WF-1 MAIN C.B.A. (F)

EXT 5V SW RL20 C-8 WF-1 MAIN C.B.A. (F)

S PLUG RX2001-6 B-5 WF-1 MAIN C.B.A. (F)

SYNC DET RX2006-5 A-6 WF-1 MAIN C.B.A. (F)

F VCC 3

F VSS

D VSS

M RVS RX2009-7 A-6 WF-1 MAIN C.B.A. (F)

SIF P SAVE RL25 C-8 WF-1 MAIN C.B.A. (F)

LCD OPEN SW RX2009-5 A-6 WF-1 MAIN C.B.A. (F)

AV PLUG RX2001-8 B-5 WF-1 MAIN C.B.A. (F)

USB DET RX2006-7 A-6 WF-1 MAIN C.B.A. (F)

ARB

SIF CS RL22 C-7 WF-217 MAIN C.B.A. (F)

XRST R2097 (LOWER) A-7 WF-1 MAIN C.B.A. (F)

POWER SW RX2012-3 B-8 WF-1 MAIN C.B.A. (F)

EJECT SW RX2012-5 B-8 WF-1 MAIN C.B.A. (F)

TV MD R101 (LEFT) C-4 WF-1 SUB C.B.A. (F)

INPUT SEL RL24 C-8 WF-1 MAIN C.B.A. (F)

FLASH WP CL2031 C-2 WF-1 MAIN C.B.A. (C)

CAM SEND END

GUI LED QR2010-B B-3 WF-1 MAIN C.B.A. (C)

MEMO END

HOST REQ IC2019-4 C-5 WF-1 MAIN C.B.A. (F)

TALLY LED QR2006-5 B-7 WF-1 MAIN C.B.A. (F)

D VCC 32

STANDBY LED QR2006-2 B-7 WF-1 MAIN C.B.A. (F)

POWER LED QR2005-2 B-7 WF-1 MAIN C.B.A. (F)

HOST ACK RX2009-1 A-6 WF-1 MAIN C.B.A. (F)

ACCESS LED QR2005-5 B-7 WF-1 MAIN C.B.A. (F)

VTR T

LCD CS IC601-5 C-8 WF-1 SUB C.B.A. (C)

V C DSET QR301-B C-2 WF-1 SUB C.B.A. (F)

FLASH CS CL2030 C-2 WF-1 MAIN C.B.A. (C)

S PHOTO SW2 R2112 (UPPER) B-7 WF-1 MAIN C.B.A. (F)

T PHOTO SW1 R2109 (UPPER) B-7 WF-1 MAIN C.B.A. (F)

MIC CLK RX2004-4 C-5 WF-1 MAIN C.B.A. (F)

MIC DATA RX2004-6 C-5 WF-1 MAIN C.B.A. (F)

D VSS

REMOCON R2017 (LOWER) B-7 WF-131 MAIN C.B.A. (F)

S PHOTO SW1 R2111 (UPPER) B-7 WF-1 MAIN C.B.A. (F)

PS L CL1102 A-3 WF-1 MAIN C.B.A. (F)

T PHOTO SW2 R2110 (UPPER) B-7 WF-1 MAIN C.B.A. (F)

CAM D3 OFF R421 (LEFT) D-7 WF-1 SUB C.B.A. (C)

SS DET

ZNST ST

CAM 0

EEP CS CL2022 C-2 WF-160 MAIN C.B.A. (C)

LCD SCK IC601-7 C-8 WF-163 SUB C.B.A. (C)

ERF CLK CL2025 C-2 WF-163 MAIN C.B.A. (C)

ERF DO R2080 (UPPER) B-7 WF-164 MAIN C.B.A. (F)

ERF DI R2080 (LOWER) B-7 WF-165 MAIN C.B.A. (F)

CAM RST RX2010-7 B-7 WF-1 MAIN C.B.A. (F)

LCD DI IC601-6 C-8 WF-164 SUB C.B.A. (C)

HP DET L R2050 (RIGHT) B-3 WF-1 MAIN C.B.A. (C)

D VCC 2

D VCC 32

LCD DO IC601-6 C-8 WF-164 SUB C.B.A. (C)

PC RST C2047 (LEFT) C-4 WF-1 MAIN C.B.A. (C)

CAM RTN

232C RXD CL2027 B-3 WF-1 MAIN C.B.A. (C)

232C TXD CL2026 A-8 WF-1 MAIN C.B.A. (C)

RTN FLD

CPU VCC SW RL2001 C-8 WF-1 MAIN C.B.A. (F)

V C DATA

WINK END

C V DATA

MIC ON R2133 (RIGHT) C-5 WF-1 MAIN C.B.A. (F)

P LCD LED QR2001-B B-3 WF-1 MAIN C.B.A. (C)

RTC CS IC2002-4 B-3 WF-131 MAIN C.B.A. (C)

SNS LED Q2003-B C-5 WF-161 MAIN C.B.A. (F)

CAM SCK CL325 D-2 WF-1 SUB C.B.A. (F)

D VSS

EXT H RL33 D-6 WF-1 MAIN C.B.A. (F)

114

PV-GS250PP

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

CSP IC Check Point WF NO. Remarks

Pin Name Name

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

CSP IC Check Point WF NO. Remarks

Check Point of the IC2001

(C): (F): COMPONENT SIDE FOIL SIDE

SS SW RX2010-5 B-7 WF-1 MAIN C.B.A. (F)

POWER ON QR2008-B B-5 WF-1 MAIN C.B.A. (C)

CR POWER R2040 (LOWER) C-7 WF-1 MAIN C.B.A. (F)

C DOWN RX2010-3 B-7 WF-1 MAIN C.B.A. (F)

MEGA REQ RX2010-1 B-7 WF-1 MAIN C.B.A. (F)

R STP UP

E2 PROTECT CL2003 C-2 WF-1 MAIN C.B.A. (C)

TIMER INT IC2002-3 B-3 WF-1 MAIN C.B.A. (C)

D VCC 32

FACT MODE CL2007 C-2 WF-1 MAIN C.B.A. (C)

LCD ON H CL1084 B-1 WF-1 SUB C.B.A. (F)

D VSS

D VCC 33

MODE 14 CL2006 C-7 WF-1 MAIN C.B.A. (F)

TEST4

D2 RL3037 D-5 WF-1 MAIN C.B.A. (C)

SD PROTECT RX2005-5 C-7 WF-1 MAIN C.B.A. (F)

CARD DET RX2005-3 C-7 WF-1 MAIN C.B.A. (F)

TEST3

D0 RL3039 D-5 WF-1 MAIN C.B.A. (C)

D VSS

D1 RL3038 D-5 WF-1 MAIN C.B.A. (C)

D6 RL3033 D-5 WF-1 MAIN C.B.A. (C)

D3 RL3036 D-5 WF-1 MAIN C.B.A. (C)

D5 RL3034 D-5 WF-1 MAIN C.B.A. (C)

D4 RL3035 D-5 WF-1 MAIN C.B.A. (C)

F VSS

F VCC 2

D9 RL3022 D-5 WF-1 MAIN C.B.A. (C)

TEST0

D8 RL3023 D-5 WF-1 MAIN C.B.A. (C)

D7 RL3032 D-5 WF-1 MAIN C.B.A. (C)

D10 RL3021 D-5 WF-1 MAIN C.B.A. (C)

D13 RL3012 D-5 WF-1 MAIN C.B.A. (C)

D11 RL3019 D-5 WF-1 MAIN C.B.A. (C)

D12 RL3013 D-5 WF-1 MAIN C.B.A. (C)

D VCC 33

EVF BL CL1086 B-1 WF-1 SUB C.B.A. (F)

D15 RL3005 D-5 WF-1 MAIN C.B.A. (C)

D VSS

XDUO CS C2027 (LEFT) C-6 WF-1 MAIN C.B.A. (F)

XWE H RL3041 D-5 WF-1 MAIN C.B.A. (C)

XREADY RL3024 D-5 WF-1 MAIN C.B.A. (C)

XRE RL3043 D-5 WF-1 MAIN C.B.A. (C)

F VSS

F VCC 2

D14 RL3006 D-5 WF-1 MAIN C.B.A. (C)

XSUB CS

CCD STBY

CCD ON H QR1103-B B-3 WF-1 MAIN C.B.A. (F)

ALE RL3040 D-5 WF-1 MAIN C.B.A. (C)

XWE L RL3042 D-5 WF-1 MAIN C.B.A. (C)

TEST2

D VCC 33

D VCC 2

X RAM CS RL2002 C-6 WF-1 MAIN C.B.A. (F)

NC(XT1)

CVCCH

CAP1

CAP2

NC(XT2)

TDO CL1902 D-5 WF-1 MAIN C.B.A. (C)

TDI CL1905 C-5 WF-1 MAIN C.B.A. (F)

TMS RL3 C-7 WF-1 MAIN C.B.A. (F)

TRST

TCK RL2 C-7 WF-1 MAIN C.B.A. (F)

D VCC 34

C VCC 2

X1 C2062 (LEFT) C-5 WF-143 MAIN C.B.A. (F)

C VSS

X2 R2155 (UPPER) C-5 WF-143 MAIN C.B.A. (F)

M BL CL1087 B-4 WF-1 SUB C.B.A. (F)

USB INT

DUO INT3

DUO INT2

DUO INT1

D VSS

DUO INT0

POWER LCD SW RX2005-7 C-7 WF-1 MAIN C.B.A. (F)

D VCC 34

115

PV-GS250PP

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

CSP IC Check Point WF NO. Remarks

Pin Name Name

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

CSP IC Check Point WF NO. Remarks

Check Point of the IC2001

(C): (F): COMPONENT SIDE FOIL SIDE

D VSS

D VCC 2

A VSS

LOAD LOCK DET C2208 (LOWER) B-5 WF-1 MAIN C.B.A. (C)

A VCC32

T PHOTO CX2003-4 B-5 WF-1 MAIN C.B.A. (F)

BATT D CL1005 C-4 WF-1 MAIN C.B.A. (F)

S PHOTO CX2003-3 B-5 WF-1 MAIN C.B.A. (F)

MIC AD1 RX2004-2 C-5 WF-1 MAIN C.B.A. (F)

MIC AD2 RX2004-4 C-5 WF-1 MAIN C.B.A. (F)

MIC AD3 RX2004-6 C-5 WF-1 MAIN C.B.A. (F)

A VSS

VTR KEY 1 CX2003-2 B-5 WF-1 MAIN C.B.A. (F)

VTR KEY 4 CX2003-1 B-5 WF-1 MAIN C.B.A. (F)

VTR KEY 6 R2069 (RIGHT) C-4 WF-1 MAIN C.B.A. (F)

NC RX2007-5 A-6 WF-1 MAIN C.B.A. (F)

REG D3V DET RX2004-8 C-5 WF-1 MAIN C.B.A. (F)

BATT REF CL1101 A-3 WF-1 MAIN C.B.A. (F)

VTR KEY 3 CX2002-3 C-5 WF-1 MAIN C.B.A. (F)

BATTERY C2017 (UPPER) B-5 WF-1 MAIN C.B.A. (F)

VTR KEY 5 CX2002-4 C-5 WF-1 MAIN C.B.A. (F)

VTR KEY 2 CX2002-2 C-5 WF-1 MAIN C.B.A. (F)

EXT MIC RX2013-2 B-4 WF-1 MAIN C.B.A. (F)

Y LEVEL C2013 (UPPER) B-5 WF-1 MAIN C.B.A. (F)

MON EVF HL RX2013-8 B-4 WF-1 MAIN C.B.A. (F)

DEW RX2013-4 B-4 WF-1 MAIN C.B.A. (F)

AWP DET C2019 (LEFT) C-7 WF-1 MAIN C.B.A. (F)

UNI REMO CX2002-1 C-5 WF-1 MAIN C.B.A. (F)

WIDE DET RL23 D-4 WF-1 MAIN C.B.A. (C)

VREF L

VREF H

116

PV-GS250PP

CSP IC Check Point WF NO. Remarks

Pin Name

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC3001

(C): (F): COMPONENT SIDE FOIL SIDE

TMS RL3 C-7 WF-1 MAIN C.B.A. (F)

TCK RL2 C-7 WF-1 MAIN C.B.A. (F)

TDI CL1902 D-5

WF-1

MAIN C.B.A. (C)

VDD 18

TDO

VDD 18

XDUO CS C2027 (LEFT) C-6 WF-1 MAIN C.B.A. (F)

ADM (15) RL3005 D-5 WF-1 MAIN C.B.A. (C)

ADM (14) RL3006 D-5 WF-1 MAIN C.B.A. (C)

ADM (13) RL3012 D-5 WF-1 MAIN C.B.A. (C)

ADM (12) RL3013 D-5 WF-1 MAIN C.B.A. (C)

VSS

ADM (11) RL3019 D-5 WF-1 MAIN C.B.A. (C)

ADM (10) RL3021 D-5 WF-1 MAIN C.B.A. (C)

ADM (9) RL3022 D-5 WF-1 MAIN C.B.A. (C)

ADM (8) RL3023 D-5 WF-1 MAIN C.B.A. (C)

VSS

VDD 15

ADM (7) RL3032 D-5 WF-1 MAIN C.B.A. (C)

ADM (6) RL3033 D-5 WF-1 MAIN C.B.A. (C)

ADM (5) RL3034 D-5 WF-1 MAIN C.B.A. (C)

ADM (4) RL3035 D-5 WF-1 MAIN C.B.A. (C)

VSS

ADM (3) RL3036 D-5 WF-1 MAIN C.B.A. (C)

ADM (2) RL3037 D-5 WF-1 MAIN C.B.A. (C)

ADM (1) RL3038 D-5 WF-1 MAIN C.B.A. (C)

VDD 18

ADM (0) RL3039 D-5 WF-1 MAIN C.B.A. (C)

ALE RL3040 D-5 WF-1 MAIN C.B.A. (C)

XWE H RL3041 D-5 WF-1 MAIN C.B.A. (C)

XWE L RL3042 D-5 WF-1 MAIN C.B.A. (C)

VDD 18

XRE RL3043 D-5 WF-1 MAIN C.B.A. (C)

XREADY RL3024 D-5 WF-1 MAIN C.B.A. (C)

XRST ARM CL3004 D-5 WF-1 MAIN C.B.A. (C)

VDD 15

VSS

VCO A VDD 25

FS LPFI C3068 (UPPER) D-5 WF-1 MAIN C.B.A. (C)

VCO A VSS

PLL A VDD 25

PLL A VSS

VSS

FCK45 RL3016 D-5 WF-12 MAIN C.B.A. (C)

CAM HD RL3017 C-5 WF-122 MAIN C.B.A. (C)

CAM VD RL3018 D-5 WF-1 MAIN C.B.A. (C)

ADIN (9)

ADIN (8)

VDD18 30

ADIN (7)

ADIN (6)

ADIN (5)

ADIN (4)

ADIN (3)

ADIN (2) RL3030 D-5 WF-1 MAIN C.B.A. (C)

ADIN (1)

ADIN (0)

VDD18 30

FCA

FCB

F2C

ZA COMP

VSS

VDD 15

ZB COMP

ZC COMP RL3015 C-5 WF-1 MAIN C.B.A. (C)

ZD COMP

SIG

ALC PWM

VDD 18 30

IRIS CLOSE

IRIS OPEN

HOST REQ IC2019-3 C-5 WF-1 MAIN C.B.A. (F)

HOST ACK RX2009-2 A-6 WF-1 MAIN C.B.A. (F)

VDD 18 30

DUO INT3

VSS

DUO INT2

DUO INT1

DUO INT0

VSS

VDD 15

VSS

VDD18 30

SD VDD 15

SD VSS

SD VDD 25

VDD 18

SCLK541

VDD 18

CLK SEL2

CLK27B RL3001 D-5 WF-183 MAIN C.B.A.(C)

CLK SEL0

CLK27A R3063 (RIGHT) C-5 WF-183 MAIN C.B.A. (C)

CLK SEL1

CLK135 RL3003 C-5 WF-183 MAIN C.B.A. (C)

SD VDD 25

SD VSS

SD VDD 15

VSS

VDD 15

TEST MD (0)

TEST MD (1)

TEST MD (2)

SD VDD 15

SD VSS

SD VDD 25

TEST MD (3)

TEST MD (4)

TEST MD (5)

VSS

VDD 18

117

PV-GS250PP

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

CSP IC Check Point WF NO. Remarks

Pin Name

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC3001

(C): (F): COMPONENT SIDE FOIL SIDE

VDD 18

S400

BIAS 2K

VSS

CLK24 I C3040 (RIGHT) C-6 WF-132 MAIN C.B.A. (C)

VDD 25

CLK24 O C3039 (LEFT) C-6 WF-132 MAIN C.B.A. (C)

SD VDD 25

SD VSS

SD VDD 15

VDD 15

1394 A VSS

1394 A VDD 15

1394 A VSS

R (1) R3013 (LOWER) C-6 WF-1 MAIN C.B.A. (C)

R (0) R3013 (UPPER) C-6 WF-1 MAIN C.B.A. (C)

1394 A VDD 30

1394 A VSS

TPB N CL3007 C-7 WF-1 MAIN C.B.A. (C)

TPB P CL3008 C-7 WF-1 MAIN C.B.A. (C)

TPA N CL3009 C-7 WF-1 MAIN C.B.A. (C)

TPA P CL3010 D-7 WF-1 MAIN C.B.A. (C)

TP BIAS C3043 (RIGHT) C-7 WF-1 MAIN C.B.A. (C)

1394 A VDD 30

1394 A VDD 15

VDD 15

XRST C3006 (RIGHT) C-6 WF-1 MAIN C.B.A. (C)

SSP RL3031 C-6 WF-1 MAIN C.B.A. (C)

VDD 18

HID IC5001-17 B-9 WF-140 MAIN C.B.A. (F)

VDD 18

DBR3

DBR2

DBR1

DBR0 RL3014 C-6 WF-1 MAIN C.B.A. (C)

VSS

ACKR

REQR RX3004-5 C-7 WF-1 MAIN C.B.A. (C)

ADDA (3)

ADDA (2)

VSS

ADDA (1)

VDD 15

ADDA (0)

VAL

REACH

INTSEG RX3004-7 C-7 WF-218 MAIN C.B.A. (C)

VDD 18

DO DAT RX3005-2 C-7 WF-184 MAIN C.B.A. (C)

VDD 18

DO LRCK RX3005-4 C-7 WF-185 MAIN C.B.A. (C)

DO MCK RX3005-6 C-7 WF-186 MAIN C.B.A. (C)

DO BCK RX3005-8 C-7 WF-187 MAIN C.B.A. (C)

AI DAT1 IC3301-5 D-4 WF-1 MAIN C.B.A. (F)

AI DAT2 IC3301-6 D-4 WF-1 MAIN C.B.A. (F)

VSS

ADEC DAT

VSS

CLK27C R3030 (LEFT) C-7 WF-122 MAIN C.B.A. (C)

L Y C IO0 IC601-22 C-8 WF-210 SUB C.B.A. (C)

L Y C IO1 IC601-21 C-8 WF-210 SUB C.B.A. (C)

L Y C IO2 IC601-20 C-8 WF-210 SUB C.B.A. (C)

L Y C IO3 IC601-19 C-8 WF-210 SUB C.B.A. (C)

VDD 15

L Y C IO4 IC601-18 C-8 WF-210 SUB C.B.A. (C)

L Y C IO5 IC601-16 C-8 WF-210 SUB C.B.A. (C)

L Y C IO6 IC601-15 C-8 WF-210 SUB C.B.A. (C)

L Y C IO7 IC601-14 C-8 WF-210 SUB C.B.A. (C)

VDD 18

FRP CL3803 E-3 WF-1 MAIN C.B.A. (F)

INF CL3804 E-3 WF-1 MAIN C.B.A. (F)

SH MFI INT RX3004-3 C-7 WF-1 MAIN C.B.A. (C)

SH MFI RD

VDD 18

VSS

SH MFI WR

SH MFI RS

SH MFI CS

SH MFI D0 RX3002-7 D-7 WF-1 MAIN C.B.A.(C)

SH MFI D1 RX3002-5 D-7 WF-1 MAIN C.B.A.(C)

SH MFI D2 RX3002-3 D-7 WF-1 MAIN C.B.A.(C)

SH MFI D3 RX3002-1 D-7 WF-1 MAIN C.B.A.(C)

SH MFI D4 RX3001-7 D-7 WF-1 MAIN C.B.A.(C)

SH MFI D5 RX3001-5 D-7 WF-1 MAIN C.B.A.(C)

SH MFI D6 RX3001-3 D-7 WF-1 MAIN C.B.A.(C)

SH MFI D7 RX3001-1 D-7 WF-1 MAIN C.B.A.(C)

CLK27D

Y C IO (0)

Y C IO (1)

Y C IO (2)

Y C IO (3)

VSS

Y C IO (4)

Y C IO (5)

Y C IO (6)

Y C IO (7)

CLK 27X RL4 D-5 WF-1 MAIN C.B.A. (C)

Y C IN (0) RL6 D-5 WF-1 MAIN C.B.A. (C)

Y C IN (1) RL7 D-5 WF-1 MAIN C.B.A. (C)

Y C IN (2) RL8 D-5 WF-1 MAIN C.B.A. (C)

Y C IN (3) RL9 D-5 WF-1 MAIN C.B.A. (C)

Y C IN (4) RL10 D-5 WF-1 MAIN C.B.A. (C)

Y C IN (5) RL11 D-5 WF-1 MAIN C.B.A. (C)

VDD 15

Y C IN (6) RL12 D-5 WF-1 MAIN C.B.A. (C)

Y C IN (7) RL13 D-5 WF-1 MAIN C.B.A. (C)

VSS

VDD 18

BUS MODE

VDD 18

VSS

118

PV-GS250PP

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

CSP IC Check Point WF NO. Remarks

Pin Name Name

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

CSP IC Check Point WF NO. Remarks

Check Point of the IC3001

(C): (F): COMPONENT SIDE FOIL SIDE

DAC A VDD 25

LCD R OUT

LCD R VBS

DAC A VSS

DAC A VDD 25

LCD G OUT

LCD G VBS

LCD REF

DAC A VSS

DAC A VDD 25

LCD B OUT

LCD B VBS

DAC A VSS

DAC A VDD 25

Y OUT C3303 (LEFT) D-4 WF-171 MAIN C.B.A. (F)

Y VBS C3060 (LOWER) D-7 WF-1 MAIN C.B.A. (C)

Y REF C3059 (LOWER) D-7 WF-1 MAIN C.B.A. (C)

DAC A VSS

DAC A VDD 25

C OUT C3319 (LEFT) D-4 WF-1 MAIN C.B.A. (F)

C VBS C3058 (LOWER) D-7 WF-1 MAIN C.B.A. (C)

C REF C3057 (LEFT) D-7 WF-1 MAIN C.B.A. (C)

DAC A VSS

VSS

VDD 32

VSS

SD CLK R3007 (LEFT) D-7 WF-1 MAIN C.B.A. (C)

DATA (3) R3001 (LOWER) D-7 WF-1 MAIN C.B.A. (C)

DATA (2) R3010 (LOWER) D-7 WF-1 MAIN C.B.A. (C)

DATA (1) R3012 (LEFT) D-7 WF-1 MAIN C.B.A. (C)

DATA (0) R3016 (LEFT) D-7 WF-1 MAIN C.B.A. (C)

CMD R3006 (LEFT) E-7 WF-1 MAIN C.B.A. (C)

SD VDD 32

VDD 15

CLK48 O

CLK48 I

VDD 25

VSS

USB DP R3028 (LEFT) E-7 WF-1 MAIN C.B.A. (C)

USB DM R3027 (LEFT) E-7 WF-1 MAIN C.B.A. (C)

VSS

USB VDD 32

VDD 30

CAM LENS DTO

CAM LENS CLK

CAM LENS CS

CAM C G AFE DTO

VDD 30

CAM CG AFE CLK

CAM CG CS

CAM AFE CS

VSS

OSD VR

OSD VG

OSD VB

OSD BLK A

VSS

VDD 15

OSD BLK B

FAD VDD 15

FAD VSS

FAD VDD 32

OSD HD

OSD VD

LCD VBLK

LCD HD

VSS

LCD POL RX3004-1 C-7 WF-1 MAIN C.B.A. (C)

VDD 30

CLK45M ZB

AFDR VD

LIN PWM

OSD CLK

FS LPF0 R3048 (UPPER) D-5 WF-1 MAIN C.B.A. (C)

DT CLK

DVM

FAD VDD 32

FAD VSS

FAD VDD 15

VDD 30

VDD 18

TRACE CLK

TRACE SYNC

TRACE PKT (0)

TRACE PKT (1)

VDD 18

VDD 15

VSS

SD VDD 15

SD VSS

SD VDD 25

TRACE PKT (2)

TRACE PKT (3)

TRACE PKT (4)

TRACE PKT (5)

TRACE PKT (6)

TRACE PKT (7)

PIPE STAT (0)

PIPE STAT (1)

PIPE STAT (2)

A15

VSS

SD VDD 25

SD VSS

SD VDD 15

VSS

RTCK CL3005 D-5 WF-1 MAIN C.B.A. (C)

XTRST CL3006 D-5 WF-1 MAIN C.B.A. (C)

119

PV-GS250PP

CSP IC Check Point WF NO. Remarks

Pin Name

100

101

102

103

104

105

106

107

108

109

110

111

112

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC3201

(C): (F): COMPONENT SIDE FOIL SIDE

D VSS

VRH C3207 (LOWER) B-3 WF-1 MAIN C.B.A. (C)

VRL C3208 (LOWER) B-3 WF-1 MAIN C.B.A. (C)

AVD12 (ADC1)

AD TEST

AVD12 (ADC1)

AVD14 (AMP1)

PB IN CL3203 B-8 WF-142 MAIN C.B.A. (F)

AVD15 (ADC2)

ATF IN C3206 (LOWER) B-2 WF-176 MAIN C.B.A. (C)

AVS15 (ADC2)

AVD13 (ADC1/2)

AVS13 (ADC1/2)

AVD16 (VREF)

VCORP R3202 (LEFT) B-2 WF-2 MAIN C.B.A. (C)

AVS16 (VREF)

AVS22 (DAC2/3)

OSO R3206 (UPPER) B-1 WF-1 MAIN C.B.A. (C)

VREF3

VREF2 C3210 (LOWER) B-2 WF-1 MAIN C.B.A. (C)

AVD22 (DAC2/3)

ATF0 R3203 (LEFT) B-1 WF-1 MAIN C.B.A. (C)

VERF1 C3213 (LOWER) B-2 WF-1 MAIN C.B.A. (C)

FPORP R3204 (RIGHT) B-1 WF-1 MAIN C.B.A. (C)

AVS21 (DAC1)

AVD21 (DAC1)

FPO R3207 (UPPER) B-1 WF-1 MAIN C.B.A. (C)

VCO IN R3207 (LOWER) B-1 WF-1 MAIN C.B.A. (C)

AVS11 (VCO)

AVD11 (VCO)

D VDD 25

AGC CTL RX3202-7 B-1 WF-1 MAIN C.B.A. (C)

REC CUR RX3202-3 B-1 WF-1 MAIN C.B.A. (C)

CAP ERR RX3202-5 B-1 WF-1 MAIN C.B.A. (C)

CYL ERR RX3202-1 B-1 WF-1 MAIN C.B.A. (C)

CAP RSF RL3011 B-4 WF-1 MAIN C.B.A. (C)

DVSS

TRST R3029 (LEFT) C-6 WF-1 MAIN C.B.A. (C)

TMS RL3 C-7 WF-1 MAIN C.B.A. (F)

TDI

TDO

TCK RL2 C-7 WF-1 MAIN C.B.A. (F)

HID1 IC5001-17 B-9 WF-140 MAIN C.B.A. (F)

HID2 IC5001-16 B-9 WF-1 MAIN C.B.A. (F)

SPA CL3201 A-1 WF-1 MAIN C.B.A. (C)

D VSS

RECI IC5001-19 B-9 WF-1 MAIN C.B.A. (F)

EQ HLD IC5001-11 B-9 WF-1 MAIN C.B.A. (F)

HSE CL3208 A-1 WF-1 MAIN C.B.A. (C)

REC CLK CL3213 A-1 WF-190 MAIN C.B.A. (C)

DVDD18

REC CTL IC5001-15 B-9 WF-1 MAIN C.B.A. (F)

PB H R5015 (UPPER) C-2 WF-1 MAIN C.B.A. (C)

CYL FG CL2205 C-4 WF-180 MAIN C.B.A. (C)

DRIVE CLK RX2203-2 C-4 WF-178 MAIN C.B.A. (C)

D VSS

CYL PG CL2204 C-4 WF-179 MAIN C.B.A. (C)

ADM (0) R3215 (RIGHT) A-1 WF-1 MAIN C.B.A. (C)

ADM (1) R3214 (RIGHT) A-1 WF-1 MAIN C.B.A. (C)

ADM (2) RL3010 C-4 WF-1 MAIN C.B.A. (C)

D VDD 18

ADM (3) RL3009 C-4 WF-1 MAIN C.B.A. (C)

ADM (4) RX3203-7 B-8 WF-1 MAIN C.B.A. (F)

ADM (5) RX3203-5 B-8 WF-1 MAIN C.B.A. (F)

D VSS

ADM (6) RX3203-3 B-8 WF-1 MAIN C.B.A. (F)

ADM (7) RX3203-1 B-8 WF-1 MAIN C.B.A. (F)

ADM (8) RL2201 C-5 WF-98 MAIN C.B.A. (C)

D VDD 18

ADM (9) R2212 (LOWER) C-5 WF-1 MAIN C.B.A. (C)

ADM (10) RL3008 C-4 WF-1 MAIN C.B.A. (C)

ADM (11) RX3004-7 C-7 WF-218 MAIN C.B.A. (C)

ADM (12)

D VSS

ADM (13)

ADM (14)

ADM (15)

D VDD 18

XRE

XWEL RX2202-5 B-5 WF-157 MAIN C.B.A. (F)

XWEH RX2202-3 B-5 WF-158 MAIN C.B.A. (F)

CLK27A R3063 (LEFT) C-5 WF-183 MAIN C.B.A. (C)

D VSS

DBR (0) RL3014 C-6 WF-1 MAIN C.B.A. (C)

DBR (1)

DBR (2)

DBR (3)

D VDD 18

REQR RX3004-5 C-7 WF-1 MAIN C.B.A. (C)

ACKR

TSTCKI

D VSS

TSTDT (0)

TSTDT (1)

TSTDT (2)

D VDD 18

TSTDT (3)

TSTDT (4)

TSTDT (5)

TSTDT (6)

D VSS

TSTDT (7)

TSTDT (8)

TSTDT (9)

VPD

D VDD 18

XRST R3211 (UPPER) B-2 WF-1 MAIN C.B.A. (C)

TSTMD

GE SW

120

PV-GS250PP

CSP IC Check Point WF NO. Remarks

Pin Name

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC3501

(C): (F): COMPONENT SIDE FOIL SIDE

VDD

MONI 0 (6)

MONI 0 (5)

AVDD 2.5

AVSS

AVBB

Y AINT Q3503-1 E-7 WF-1 MAIN C.B.A. (F)

Y AINC CX3502-6 D-4 WF-1 MAIN C.B.A. (C)

Y REFBOT IC3502-1 D-4 WF-1 MAIN C.B.A. (C)

Y CML CX3501-5 E-7 WF-1 MAIN C.B.A. (F)

Y REFTOP IC3502-7 D-4 WF-1 MAIN C.B.A. (C)

Y ITEST CX3501-6 E-7 WF-1 MAIN C.B.A. (F)

Y STBY

Y SPEEDUP

VCD2

DVSS

AVBB

DVDD2.5

Y EOC

Y STC

C STC

C EOC

DVDD2.5

DVSS

AVBB

VDD2

C SPEEDUP

C STBY

C ITEST CX3501-7 E-7 WF-1 MAIN C.B.A. (F)

C REFTOP IC3502-7 D-4 WF-1 MAIN C.B.A. (C)

C CML CX3501-8 E-7 WF-1 MAIN C.B.A. (F)

C REFBOT IC3502-1 D-4 WF-1 MAIN C.B.A. (C)

C AINC CX3502-6 D-4 WF-1 MAIN C.B.A. (C)

C AINT C3569 (RIGHT) D-6 WF-1 MAIN C.B.A. (F)

AVBB

AVSS

AVDD2.5

MONI 0 (4)

MONI 0 (3)

VSS

VDD

MONI 0 (2)

MONI 0 (1)

VDD

MONI 0 (0)

VSS

VDD

FS MODE

INF I

CLK 135P

FS ENBL

VDD

CLK27M RL5 D-4 WF-143 MAIN C.B.A. (C)

VDDC

YC STP RL22 C-7 WF-217 MAIN C.B.A. (F)

VSS

YC SDA IC3301-12 D-4 WF-1 MAIN C.B.A. (F)

VSS

NOSYNC RX2006-5 A-6 WF-1 MAIN C.B.A. (F)

YC SCK IC3301-15 D-4 WF-1 MAIN C.B.A. (F)

LSI RESET R3501 (UPPER) D-6 WF-1 MAIN C.B.A. (F)

PS RL25 C-8 WF-1 MAIN C.B.A. (F)

VDDC

CLK27P RL4 D-5 WF-143 MAIN C.B.A. (C)

135SEL

MONI SEL I (5)

MONI SEL I (4)

MONI SEL I (3)

MONI SEL I (2)

MONI SEL I (1)

MONI SEL I (0)

TMS RL3 C-7 WF-1 MAIN C.B.A. (F)

TCK RL2 C-7 WF-1 MAIN C.B.A. (F)

VSS

TRST R3501 (LOWER) D-6 WF-1 MAIN C.B.A. (F)

TDI RL1 D-6 WF-1 MAIN C.B.A. (F)

TDO CL1906 D-4 WF-1 MAIN C.B.A. (C)

P M SEL

CAM IN SEL

VSS

VDD

VIDEO S I R3568 (LOWER) D-3 WF-1 MAIN C.B.A. (C)

INH

CPSYNC CL3503 C-7 W-F131 MAIN C.B.A. (F)

COLOR FRAM CL3504 C-7 WF-131 MAIN C.B.A. (F)

VSS

C O O (0)

VDD

C O O (1)

C O O (2)

C O O (3)

VDD

C O O (4)

VSS

C O O (5)

C O O (6)

C O O (7)

VSS

Y O O (0) RL6 D-5 WF-1 MAIN C.B.A. (C)

Y O O (1) RL7 D-5 WF-1 MAIN C.B.A. (C)

VDD

INV

Y O O (2) RL8 D-5 WF-1 MAIN C.B.A. (C)

Y O O (3) RL9 D-5 WF-1 MAIN C.B.A. (C)

VDD

Y O O (4) RL10 D-5 WF-1 MAIN C.B.A. (C)

Y O O (5) RL11 D-5 WF-1 MAIN C.B.A. (C)

Y O O (6) RL12 D-5 WF-1 MAIN C.B.A. (C)

121

PV-GS250PP

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC3501

(C): (F): COMPONENT SIDE FOIL SIDE

Y O O (7) RL13 D-5 WF-1 MAIN C.B.A. (C)

OUT SEL

SEL 1

VSS

CAM Y (0)

CAM Y (1)

CAM Y (2)

CAM Y (3)

VDD

VSS

CAM Y (4)

VDD

CAM Y (5)

VDD

CAM INH

CAM INV

VSS

VDD

CAM C (0)

VSS

CLK 135M

VDD

CAM C (1)

CAM C (2)

CAM C (3)

CAM C (4)

VSS

CAM C (5)

VSS

CAM C (6)

CAM C (7)

VSS

CAM Y (6)

CAM Y (7)

CAM Y (8)

CAM Y (9)

VDD

ALL HIZ N

NANDTREE 1

NANDTREE 2

VSS

MONI 0 (7)

MONI 0 (8)

MONI 0 (9)

VSS

122

PV-GS250PP

CSP IC Check Point WF NO. Remarks

Pin Name

100

CSP IC Check Point WF NO. Remarks

Pin Name

Check Point of the IC3801

(C): (F): COMPONENT SIDE FOIL SIDE

AFED 33G

AFED 33V

DM FL2503-4 C-2 WF-1 JACK C.B.A. (C)

DP FL2503-3 C-2 WF-1 JACK C.B.A. (C)

VBUS R3804 (LOWER) E-1 WF-1 MAIN C.B.A. (F)

AFEA 15V

AFEA 15G

REFR IN R3805 (LOWER) E-2 WF-1 MAIN C.B.A. (F)

AFEA 33G

X IN C3804 (RIGHT) E-2 WF-143 MAIN C.B.A. (F)

X OUT C3805 (LEFT) E-2 WF-143 MAIN C.B.A. (F)

AFEA 33V

AFED 15V

AFED 15G

VIF 18

TEST

GND 18

TCK RL2 C-7 WF-1 MAIN C.B.A. (F)

TEST P IN0

TEST P IN1

TEST P IN2

MPBUS

A1 RX3003-2 C-2 WF-1 MAIN C.B.A. (F)

A2 RX3003-4 C-2 WF-1 MAIN C.B.A. (F)

A3 RX3003-6 C-2 WF-1 MAIN C.B.A. (F)

A4 RX3003-8 C-2 WF-1 MAIN C.B.A. (F)

A5 R3037 (RIGHT) D-2 WF-1 MAIN C.B.A. (F)

A6 R3038 (UPPER) C-2 WF-1 MAIN C.B.A. (F)

A7/ALE RL3040 D-5 WF-1 MAIN C.B.A. (C)

VDD 15

GND 15

D0 RL3039 D-5 WF-1 MAIN C.B.A. (C)

D1/AD1 RL3038 D-5 WF-1 MAIN C.B.A. (C)

D2/AD2 RL3037 D-5 WF-1 MAIN C.B.A. (C)

D3/AD3 RL3036 D-5 WF-1 MAIN C.B.A. (C)

D4/AD4 RL3035 D-5 WF-1 MAIN C.B.A. (C)

D5/AD5 RL3034 D-5 WF-1 MAIN C.B.A. (C)

D6/AD6 RL3033 D-5 WF-1 MAIN C.B.A. (C)

D7 RL3032 D-5 WF-1 MAIN C.B.A. (C)

D8 RL3023 D-5 WF-1 MAIN C.B.A. (C)

TDO RL1 D-6 WF-1 MAIN C.B.A. (F)

TDI

TMS RL3 C-7 WF-1 MAIN C.B.A. (F)

D9 RL3022 D-5 WF-1 MAIN C.B.A. (C)

D10 RL3021 D-5 WF-1 MAIN C.B.A. (C)

D11 RL3019 D-5 WF-1 MAIN C.B.A. (C)

D12 RL3013 D-5 WF-1 MAIN C.B.A. (C)

D13 RL3012 D-5 WF-1 MAIN C.B.A. (C)

D14 RL3006 D-5 WF-1 MAIN C.B.A. (C)

D15 RL3005 D-5 WF-1 MAIN C.B.A. (C)

VDD 15

GND 15

CLK27 R3802 (RIGHT) D-3 WF-183 MAIN C.B.A. (F)

VIF 18

GND 18

MFI 0/DBU0 RX3002-7 D-7 WF-1 MAIN C.B.A. (C)

MFI 1/DBU1 RX3002-5 D-7 WF-1 MAIN C.B.A. (C)

MFI 2/DBU2 RX3002-3 D-7 WF-1 MAIN C.B.A. (C)

MFI 3/DBU3 RX3002-1 D-7 WF-1 MAIN C.B.A. (C)

MFI 4/REQU RX3001-7 D-7 WF-1 MAIN C.B.A. (C)

MFI 5 RX3001-5 D-7 WF-1 MAIN C.B.A. (C)

MFI 6 RX3001-3 D-7 WF-1 MAIN C.B.A. (C)

MFI 7 RX3001-1 D-7 WF-1 MAIN C.B.A. (C)

MFI CS

MFI RS

MFI WR

MFI RD/ACKU

MFI INT RX3004-3 C-7 WF-1 MAIN C.B.A. (C)

FRP/SSP CL3803 E-3 WF-1 MAIN C.B.A. (F)

INT N

INF CL3804 E-3 WF-1 MAIN C.B.A. (F)

RD N RL3043 D-5 WF-1 MAIN C.B.A. (C)

WR0 N RL3042 D-5 WF-1 MAIN C.B.A. (C)

WR1 N RL3041 D-5 WF-1 MAIN C.B.A. (C)

CS N

TEST P IN3

TEST P IN4

TEST P IN5

DREQ1 N

DACK1 N/DSTB0 N

DEMO1 N

RST N R3029 (LEFT) C-6 WF-1 MAIN C.B.A. (C)

VIF 18

GND 18

123

PV-GS250PP

16.2. WAVEFORM TABLE (PLAY MODE)

WF-1

WF-6

WF-11

WF-16

WF-21

WF-26

WF-31

WF-36

WF-2

WF-7

WF-12

WF-17

WF-22

WF-27

WF-32

WF-37

WF-3

WF-8

WF-13

WF-18

WF-23

WF-28

WF-33

WF-38

WF-4

WF-9

WF-14

WF-19

WF-24

WF-29

WF-34

WF-39

WF-5

WF-10

WF-15

WF-20

WF-25

WF-30

WF-35

WF-40

124

PV-GS250PP

WF-41

WF-46

WF-51

WF-56

WF-61

WF-66

WF-71

WF-76

WF-42

WF-47

WF-52

WF-57

WF-62

WF-67

WF-72

WF-77

WF-43

WF-48

WF-53

WF-58

WF-63

WF-68

WF-73

WF-78

WF-44

WF-49

WF-54

WF-59

WF-64

WF-69

WF-74

WF-79

WF-45

WF-50

WF-55

WF-60

WF-65

WF-70

WF-75

WF-80

125

PV-GS250PP

WF-81

WF-86

WF-91

WF-96

WF-101

WF-106

WF-111

WF-116

WF-82

WF-87

WF-92

WF-97

WF-102

WF-107

WF-112

WF-117

WF-83

WF-88

WF-93

WF-98

WF-103

WF-108

WF-113

WF-118

WF-84

WF-89

WF-94

WF-99

WF-104

WF-109

WF-114

WF-119

WF-85

WF-90

WF-95

WF-100

WF-105

WF-110

WF-115

WF-120

126

PV-GS250PP

WF-121

WF-126

WF-131

WF-136

WF-141

WF-146

WF-151

WF-156

WF-122

WF-127

WF-132

WF-137

WF-142

WF-147

WF-152

WF-157

WF-123

WF-128

WF-133

WF-138

WF-143

WF-148

WF-153

WF-158

WF-124

WF-129

WF-134

WF-139

WF-144

WF-149

WF-154

WF-159

WF-125

WF-130

WF-135

WF-140

WF-145

WF-150

WF-155

WF-160

127

PV-GS250PP

WF-161

WF-166

WF-171

WF-176

WF-181

WF-186

WF-191

WF-196

WF-162

WF-167

WF-172

WF-177

WF-182

WF-187

WF-192

WF-197

WF-163

WF-168

WF-173

WF-178

WF-183

WF-188

WF-193

WF-198

WF-164

WF-169

WF-174

WF-179

WF-184

WF-189

WF-194

WF-199

WF-165

WF-170

WF-175

WF-180

WF-185

WF-190

WF-195

WF-200

128

PV-GS250PP

WF-201

WF-206

WF-202

WF-207

WF-203 WF-204 WF-205

WF-208 WF-209 WF-210

WF-211 WF-212 WF-213 WF-214 WF-215

WF-216 WF-217 WF-218 WF-219 WF-220

WF-221 WF-222 WF-223 WF-224 WF-225

WF-226 WF-227 WF-228 WF-229 WF-230

WF-231 WF-232 WF-233 WF-234 WF-235

WF-236

129

PV-GS250PP

17 EXPLODED VIEWS

17.1. FRAME & CASING SECTION (1)

130

PV-GS250PP

17.2. FRAME & CASING SECTION (2)

131

PV-GS250PP

17.3. LCD SECTION

132

PV-GS250PP

17.4. CAMERA LENS SECTION

133

PV-GS250PP

17.5. VCR MECHANISM SECTION

134

PV-GS250PP

17.6. PACKING PARTS & ACCESSORIES SECTION

135

PV-GS250PP

18.1. FRAME & CASING SECTION

(1) PARTS LIST

Ref.

No.

Part No. Part Name &

Description

Pcs Remarks

1K1FB108H0021 HOT SHOE 1

2VWJ1760 HOT SHOE FPC 1

3VXA7934 EVF SLIDEU 1

4VYK1M15 EVF VIEW ADJ. U. 1

5VKM6659 EVF TOP CASE 1

6VKM6662 EVF BOTTOM CASE 1

7VGQ7909 TAPE 1

8VGQ8335 POLARIZING PLATE

HOLDER

9VGL1146 LENS POLARIZATION

PLATE

10 VGQ6816 SHEET 1

11 VGQ8336 LCD PIECE 1

13 L5BDDXH00014 EVF PANEL 1

14 VGQ8346 LCD OSAE PIECE 1

15 VGL1145 BL PANEL 1

16 VGL1144 EVF DIFFUSION

SHEET

17 VGQ7102 BL PIECE 1

19 VGQ8431 EVF PORON 1

20 VWJ1759 EVF FPC 1

21 VSC5691 IC HEAT

DISSIPATION PLATE

23 VWJ1771 SIDE-R FPC 1

24 VGQ8280 KNOB HOLDER 1

25 VGU9729 MODE CHANGE KNOB 1

27 VMP8255 HINGE SUPPORT

PLATE

28 VMP8207 TRIPOD PLATE 1

30 VGL1142 PANEL LIGHT 1

32 VMC1956 SD DOOR SPRING 1

33 VGL1142 PANEL LIGHT 1

34 VYK1M68 R BASE (1) UNIT 1

35 VMS7555 SD SHAFT 1

36 VKF3974 SD DOOR 1

37 VGQ8212 SHEET 1

39 VWJ1757 FRONT FPC 1

43 VGQ8347 MIC SOUNDPROOF

SHEET

44 VYK1M09 FRONT CASE (1) U 1

45 VKM6669 FLASH MIDDLE CASE 1

46 VKM6668 FLASH TOP CASE 1

47 VGK3110 LENS ORNAMENT 1

48 VYQ3274 MFU 1

49 VYQ3275 HOOD U 1

50 VKM6672 R COVER 1

51 VGQ8345 CONDENSER HOLDER 1

52 VEP04887A ECM C.B.A. 1

52-1 VMT1532 MIC DUMPER GUM 1

53 VKM6670 FLASH BOTTOM CASE 1

54 EFN-MVT34 FLASH 1

55 VKW3267 SENSOR WINDOR 1

56 VGL1140 PANEL LIGHT 1

57 VSC5693 MIC ANGLE 1

B1 VHD1526 SCREW 1

B2 VHD1526 SCREW 1

B3 XQS2+A25FN SCREW 1

B4 XQS2+A25FN SCREW 1

B5 XQN16+BJ8FN SCREW 1

B6 XQN16+BJ8FN SCREW 1

B7 XQN16+BJ4FN SCREW 1

Ref.

No.

Part No. Part Name &

Description

Pcs Remarks

B8 XQN16+BJ4FN SCREW 1

B9 XQN16+BJ4FN SCREW 1

B10 XQN16+B3FN SCREW 1

B11 XQN16+B3FN SCREW 1

B12 XQN16+B3FN SCREW 1

B13 XQN16+BJ6FN SCREW 1

B14 XQN16+BJ6FN SCREW 1

B15 XQN16+BJ6FN SCREW 1

B16 XQN16+BJ5FJK SCREW 1

B17 XQN16+BJ6FN SCREW 1

B18 XQN16+BJ5FN SCREW 1

B20 XQN16+BJ35FN SCREW 1

B21 XQN16+B3FN SCREW 1

B22 XQN16+B3FN SCREW 1

B23 XQN16+B3FN SCREW 1

B24 XQN16+B3FN SCREW 1

B25 XQN16+BJ6FN SCREW 1

B26 XQN16+BJ6FN SCREW 1

B27 VHD1756 SCREW 1

B28 XQN16+BJ5FJK SCREW 1

B29 VHD1776 SCREW 1

B30 XQN16+BJ6FN SCREW 1

B31 XQN16+BJ6FN SCREW 1

B32 XQN16+BJ6FN SCREW 1

B33 XQN16+BJ6FN SCREW 1

B35 XQN16+BJ5FN SCREW 1

18.2. FRAME & CASING SECTION

(2) PARTS LIST

Ref.

No.

Part No. Part Name &

Description

Pcs Remarks

101 N9ZZ00000294 SIDE CASE (L) 1U 1

102 N9ZZ00000296 REAR OPERATION U 1

103 VKF3963 EVR COVER 1

105 VWJ1752 JACK FPC 1

106 VKF3965 MECHA ADJ. COVER 1

107 VGQ6407 SHEET 1

110 VSC5692 CCD RADIATION

PLATE

111 VGQ8435 SHIELD BARRIER 1

B101 XQN16+B5FN SCREW 1

B102 XQN16+B5FN SCREW 1

B103 XQN16+B3FN SCREW 1

B104 XQN16+B6FN SCREW 1

B105 XQN16+BJ3FN SCREW 1

B106 XQN16+B3FN SCREW 1

B107 VHD1133 SCREW 1

B108 VHD1133 SCREW 1

B109 VHD1133 SCREW 1

B110 VHD1353 SCREW 1

B111 XQN16+B3FN SCREW 1

B112 XQN16+BJ6FN SCREW 1

B113 XQN16+BJ6FN SCREW 1

B114 XQN16+B5FN SCREW 1

18.3. LCD SECTION PARTS LIST

18 REPLACEMENT PARTS LIST

136

PV-GS250PP

Ref.

No.

Part No. Part Name &

Description

Pcs Remarks

201 VYK1M60 LCD TOP CASE U 1

202 VKM6667 LCD BOTOM CASE 1

203 VSC5681 LCD SHIELD CASE 1

204 VUALCD150KIT LCD (MONITOR) 1

205 VGQ8351 MONITOR SHEET 1

206 VGL1137 PRISM SHEET A 1

207 VGL1138 PRISM SHEET B 1

208 VGL1109 SHEET 1

209 VKW3178 POLARIZATION PLATE 1

210 VGL1143 REFLECTION SHEET 1

212 VXD0444 LCD HINGE (1) U 1

213 VGQ8338 HINJI BOTOM COVER 1

214 VGQ8337 HINJI TOP COVER 1

B201 VHD1675 SCREW 1

B202 VHD1675 SCREW 1

18.4. CAMERA LENS SECTION

PARTS LIST

Ref.

No.

Part No. Part Name &

Description

Pcs Remarks

301 VXQ1288 PRISM UNIT 1

302 VDL1646 CRYSTAL OPTICS

FILTER

303 VMX3456 CUSHION 1

304 VXW0695 LENS UNIT 1

305 VXQ1292 MASTER FLANGE UNIT 1

306 VMS6838 F GUIDE POLE 1

307 VMS6838 F GUIDE POLE 1

308 VXP2435 4TH LENS FRAME

UNIT

309 VMA0S74 SIDE YORK 1

310 VXQ1290 OIS UNIT 1

311 L9ZZ00000218 IRIS UNIT 1

312 VXP2424 2ND LENS TRANSFER

FRAME U

313 VXQ1289 MAIN BODY UNIT 1

314 L6HA66NC0006 SMALL STEPPING

MOTORS

315 VMS7424 Z GUIDE POLE 1

316 VMS7424 Z GUIDE POLE 1

317 VEK0H21 LENS FPC UNIT 1

318 VGQ8430 RADIATOR SHEET B 1

B301 XQN16+CJ5FJ SCREW 1

B302 XQN16+CJ5FJ SCREW 1

B303 XQN16+CJ5FJ SCREW 1

B304 XQN16+CJ5FJ SCREW 1

B305 XQN16+CJ5FJ SCREW 1

B306 XQN16+CJ5FJ SCREW 1

B307 XQN16+CJ5FJ SCREW 1

B308 XQN16+CJ5FJ SCREW 1

B309 XQN16+CJ7FJ SCREW 1

B310 XQN16+CJ7FJ SCREW 1

B311 XQN16+CJ7FJ SCREW 1

B312 XQN16+CJ7FJ SCREW 1

B313 XQN16+CJ5FJ SCREW 1

18.5. VCR MECHANISM SECTION

PARTS LIST

Ref.

No.

Part No. Part Name &

Description

Pcs Remarks

501 VXA8014 MECHA. CHASSIS 1

501-4 VXR0403 T REEL U 1

503 VXA7932 CASSETTE UP U 1

503-1 VMB3766 CASSETTE UP SPRING 1

503-2 VMB3766 CASSETTE UP SPRING 1

504 VEG1663 CYLINDER U 1

B501 VHD1632 SCREW 1

B502 VHD1757 SCREW 1

B503 VHD1757 SCREW 1

B504 VHD1757 SCREW 1

B505 VHD1754 SCREW 1

B506 VHD1754 SCREW 1

B507 VHD1754 SCREW 1

18.6. PACKING PARTS &

ACCESSORIES SECTION

PARTS LIST

Ref.

No.

Part No. Part Name &

Description

Pcs Remarks

401 VPG1B71 PACKING CASE 1

402 VPN6278 CUSHION 1

403 VPK2942 ACCESSORIES BOX 1

404 VFC3506-1A SHOULDER BELT 1

405 K2GJ2DZ00017 DC CABLE 1

406 K2KC4CB00018 AV CABLE 1

407 K2CA2CA00025 AC CABLE 1

408 N2QAEC000012 REMOTE CONTROLLER 1

410 N2QCBD000030 UNIVERSAL 1

REMOTECONTROLLER

411 VFA0444 USB CABLE 1

412 LSQT0862A OPERATING

INSTRUCTIONS

(ENGLISH,

CANADIAN-FRENCH,

SPANISH)

413 VFF0265-S CD-ROM 1See “Notes”

414 PV-DAC14D AC ADAPTOR 1

420 VYF2992 HOOD CAP U. 1

421 N9ZZ00000027 SECURITY TAG 1

422 N9ZZ00000158 SECURITY TAG 1

137

PV-GS250PP

18.7. ELECTRICAL REPLACEMENT

PARTS LIST

Ref.

No. Part No. Part Name &

Description Pcs Remarks

nVEP03G74E MAIN C.B.A. 1(RTL)

nVEP23613C SUB C.B.A. 1(RTL)

nVEP001H7A JACK C.B.A. 1(RTL)

nVEP001H8B SIDE (R) C.B.A. 1(RTL)

nVEP001J2A LCD-DET C.B.A. 1(RTL)

nVEP08340CKIT MONITOR C.B.A. 1(RTL)

nVEP29163A EVF B/L C.B.A. 1(RTL)

nVEP20B18A MF SENSOR C.B.A. 1(RTL)

nVEP04883A FRONT C.B.A. 1(RTL)

nVEP03G74E MAIN C.B.A. (RTL)

C1001 F1J1A475A023 C.CAPACITOR CH 10V

4.7U 1

C1002 F1J1A475A023 C.CAPACITOR CH 10V

4.7U 1

C1011 ECJ1VB1A105K C.CAPACITOR CH 10V

1U 1

C1012 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C1013 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C1021 ECJ1VB1A105K C.CAPACITOR CH 10V

1U 1

C1022 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C1023 ECJ0EB1E102K C.CAPACITOR CH 25V

1000P 1

C1024 ECJ0EB1C223K C.CAPACITOR CH 16V

0.022U 1

C1031 ECJ1VB1A105K C.CAPACITOR CH 10V

1U 1

C1032 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C1033 ECUE1E332KBQ C.CAPACITOR CH 25V

3300P 1ECJ0EB1E332K

C1041 ECJ1VB1A105K C.CAPACITOR CH 10V

1U 1

C1042 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C1043 ECJ0EB1E222K C.CAPACITOR CH 25V

2200P 1

C1044 ECJ0EB1C223K C.CAPACITOR CH 16V

0.022U 1

C1051 ECJ1VB1A105K C.CAPACITOR CH 10V

1U 1

C1052 ECJ1VB1C105K C.CAPACITOR CH 16V

1U 1

C1053 ECJ0EB1E102K C.CAPACITOR CH 25V

1000P 1

C1056 ECJ1VB1C105K C.CAPACITOR CH 16V

1U 1

C1061 ECUV1A335KBN C.CAPACITOR CH 10V

3.3U 1F1J1A335A005

C1062 ECUV1A335KBN C.CAPACITOR CH 10V

3.3U 1F1J1A335A005

C1071 F1J1E105A080 C.CAPACITOR CH 25V

1U 1

C1101 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C1102 ECJ0EC1H101J C.CAPACITOR CH 50V

100P 1

C1103 ECUE1C333KBQ C.CAPACITOR CH 16V

0.033U 1F1G1C333A004

C1104 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C1105 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1106 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1111 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C1113 ECUE1C333KBQ C.CAPACITOR CH 16V

0.033U 1F1G1C333A004

C1121 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C1122 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C1131 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C1141 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C1143 ECJ0EB1C153K C.CAPACITOR CH 16V

0.015U 1

C1151 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C1153 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C1154 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C1211 ECJ1VB1A105K C.CAPACITOR CH 10V

1U 1

C1221 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1223 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1224 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1226 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1228 F3F0J106A055 E.CAPACITOR CH

6.3V 10U 1

C1232 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1239 F3F0J106A055 E.CAPACITOR CH

6.3V 10U 1

C1241 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1249 RCST0GY476RG T.CAPACITOR CH 4V

47U 1F3F0G4760001

C1251 ECJ1VB1C105K C.CAPACITOR CH 16V

1U 1

C1271 F1J1E105A080 C.CAPACITOR CH 25V

1U 1

C1281 ECJ1VB1C105K C.CAPACITOR CH 16V

1U 1

C1322 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1323 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1326 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1328 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C1401 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C2001 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C2002 ECST0JY226Z T.CAPACITOR CH

6.3V 22U 1F3F0J226A007

C2004 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C2005 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2006 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C2008 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C2010 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2012 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2013 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2016 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

138

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C2017 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C2019 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C2027 ECJ0EC1H330J C.CAPACITOR CH 50V

33P 1

C2028 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C2029 ECJ1VB1C105K C.CAPACITOR CH 16V

1U 1

C2037 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2047 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C2050 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C2058 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2062 ECJ0EC1H100D C.CAPACITOR CH 50V

10P 1

C2063 ECJ0EC1H100D C.CAPACITOR CH 50V

10P 1

C2064 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C2084 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2090 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C2201 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2202 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2203 F3F0J106A055 E.CAPACITOR CH

6.3V 10U 1

C2204 F1G1H470A566 C.CAPACITOR CH 50V

47P 1

C2205 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2206 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2207 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2208 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2209 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2212 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C2213 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C2216 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C2217 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2218 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2219 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2220 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C2221 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C2222 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C2223 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C2225 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C2226 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C2230 ECJ0EC1H101J C.CAPACITOR CH 50V

100P 1

C2231 ECJ1VB1C105K C.CAPACITOR CH 16V

1U 1

C2232 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3003 ECJ0EC1H050C C.CAPACITOR CH 50V

5P 1

C3006 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C3014 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3015 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3017 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3019 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3027 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3030 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3039 ECJ0EC1H220J C.CAPACITOR CH 50V

22P 1

C3040 ECJ0EC1H220J C.CAPACITOR CH 50V

22P 1

C3043 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3044 ECJ0EC1H221J C.CAPACITOR CH 50V

220P 1

C3046 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3057 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3058 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3059 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3060 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3068 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3074 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3078 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3202 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C3203 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C3204 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3205 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3206 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3207 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3208 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3209 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3210 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3212 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3213 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3215 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3221 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C3229 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3301 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C3302 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3303 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3304 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C3305 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3306 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3307 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3308 F1G0J224A004 C.CAPACITOR CH

6.3V 0.22U 1

139

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C3309 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3310 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C3311 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3312 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3313 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3314 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C3315 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3316 F1H0J2250003 C.CAPACITOR CH

6.3V 2.2U 1

C3317 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3318 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3319 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3320 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3321 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3322 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3323 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3324 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3327 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3330 F3G0J1070004 E.CAPACITOR CH

6.3V 100U 1

C3331 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3332 F3G0J1070004 E.CAPACITOR CH

6.3V 100U 1

C3333 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3341 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3342 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3343 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3344 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3501 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3502 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3503 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C3506 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3511 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3514 ECJ0EB1E102K C.CAPACITOR CH 25V

1000P 1

C3515 ECJ0EB1E102K C.CAPACITOR CH 25V

1000P 1

C3516 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3520 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3551 ECJ0EC1H220J C.CAPACITOR CH 50V

22P 1

C3552 ECJ0EC1H560J C.CAPACITOR CH 50V

56P 1

C3553 ECJ0EC1H560J C.CAPACITOR CH 50V

56P 1

C3554 ECJ0EC1H220J C.CAPACITOR CH 50V

22P 1

C3556 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C3558 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C3559 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3560 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3561 ECJ0EC1H220J C.CAPACITOR CH 50V

22P 1

C3562 ECJ0EC1H560J C.CAPACITOR CH 50V

56P 1

C3563 ECJ0EC1H390J C.CAPACITOR CH 50V

39P 1

C3566 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3569 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C3570 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C3801 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3802 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3803 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C3804 ECJ0EC1H100D C.CAPACITOR CH 50V

10P 1

C3805 ECJ0EC1H100D C.CAPACITOR CH 50V

10P 1

C5001 F3F0J4760002 E.CAPACITOR CH

6.3V 47U 1

C5002 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C5003 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C5005 ECUX1E681KBQ C.CAPACITOR CH 25V

680P 1ECJ0EB1E681K

C5008 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C5012 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C5013 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C5014 F1G1H470A566 C.CAPACITOR CH 50V

47P 1

C5021 ECUM1H080DCQ C.CAPACITOR CH 50V

8P 1

C5022 ECUM1H080DCQ C.CAPACITOR CH 50V

8P 1

C5023 ECUM1H080DCQ C.CAPACITOR CH 50V

8P 1

C5024 ECUM1H080DCQ C.CAPACITOR CH 50V

8P 1

CX2002 F1L1E103A065 C.CAPACITOR CH 25V

0.01U 1

CX2003 F1L1E103A065 C.CAPACITOR CH 25V

0.01U 1

CX3201 F1L0J104A020 C.CAPACITOR CH

6.3V 0.1U 1

CX3501 F1L0J104A020 C.CAPACITOR CH

6.3V 0.1U 1

CX3502 F1L1E103A065 C.CAPACITOR CH 25V

0.01U 1

D1011 B0JCMD000022 DIODE 1

D1021 B0JCMD000022 DIODE 1

D1031 B0JCMD000022 DIODE 1

D1041 B0JCMD000022 DIODE 1

D1051 MA2J11100L DIODE 1

D1071 MA2J11100L DIODE 1

D1101 MAZ81100ML DIODE 1

D1102 B0ACCJ000027 DIODE 1

D2003 MA3S13300L DIODE 1

D2004 B0JCDD000002 DIODE 1

D2010 B0JCDD000002 DIODE 1

D2201 MA3S13300L DIODE 1

D3301 B0JCDD000002 DIODE 1

FL3001 F1H0J1050022 FILTER 1

FL3002 F1H0J1050022 FILTER 1

FL3003 F1H0J1050022 FILTER 1

140

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

FL3004 F1H0J1050022 FILTER 1

FL3005 F1H0J1050022 FILTER 1

FL3801 F1H0J1050022 FILTER 1

FL3802 F1H0J1050022 FILTER 1

FL3803 F1H0J1050022 FILTER 1

FL3804 F1H0J1050022 FILTER 1

FL3805 F1H0J1050022 FILTER 1

FP1001 K1MN14BA0062 CONNECTOR 14P 1

FP2201 K1MN18BA0067 CONNECTOR 18P 1

FP2202 K1MN10BA0067 CONNECTOR 10P 1

FP2203 K1MN18BA0060 CONNECTOR 18P 1

FP2204 K1MN08BA0060 CONNECTOR 8P 1

FP3402 K1MN10A00074 CONNECTOR 10P 1

FP5001 K1MN08BA0107 CONNECTOR 8P 1

FP6501 K1MN12BA0059 CONNECTOR 12P 1

FP6502 K1MN14BA0061 CONNECTOR 14P 1

FP6503 K1MN26A00068 CONNECTOR 26P 1

FP6504 K1MN27BA0058 CONNECTOR 27P 1

FP6505 K1MN21BA0058 CONNECTOR 21P 1

IC1001 C0DBAZZ00094 IC 1

IC1321 C0CBCAC00214 IC 1

IC1322 C0CBCAC00117 IC 1

IC2001 VUAVM150KMKT IC 1

IC2002 C1ZBZ0002602 IC 1

IC2006 C3EBGG000016 IC 1

IC2017 C0EBE0000240 IC 1

IC2019 C0JBAZ002390 IC 1

IC2201 C1AB00002122 IC 1

IC2202 C0ABBA000160 IC 1

IC3001 C1AB00002028 IC 1

IC3201 C1AB00001695 IC 1

IC3301 C1AB00001894 IC 1

IC3501 C1AB00001904 IC 1

IC3502 NJM2904V IC 1C0ABBA000084

IC3503 BA7653AFV IC 1C9ZB00000281

IC3801 C1AB00001932 IC 1

IC5001 AN3732FJMEFV IC 1

IP1001 K5H4021A0004 FUSE 1

L1011 G1C680MA0133 INDUCTOR 1

L1021 G1C100MA0084 CHIP INDUCTOR 10UH 1

L1031 G1C330MA0133 CHIP INDUCTOR 33UH 1

L1041 G1C100MA0133 CHIP INDUCTOR 10UH 1

L1061 G1C330MA0085 CHIP INDUCTOR 33UH 1

L1062 G1C181MA0133 CHIP INDUCTOR

180UH 1

L1211 G1C4R7MA0073 COIL 4.7UH 1

L1221 G1C4R7MA0073 COIL 4.7UH 1

L1223 G1C4R7MA0076 COIL 4.7UH 1

L1224 G1C4R7MA0076 COIL 4.7UH 1

L1226 G1C4R7MA0073 COIL 4.7UH 1

L1232 G1C4R7MA0076 COIL 4.7UH 1

L1241 G1C4R7MA0073 COIL 4.7UH 1

L1251 G1C4R7MA0076 COIL 4.7UH 1

L1271 G1C4R7MA0076 COIL 4.7UH 1

L1281 G1C4R7MA0076 COIL 4.7UH 1

L1321 G1C4R7MA0076 COIL 4.7UH 1

L1322 G1C4R7MA0076 COIL 4.7UH 1

L3012 G1C100MA0060 CHIP INDUCTOR 10UH 1

L3025 G1C100KA0055 CHIP INDUCTOR 10UH 1

L3027 G1C100KA0055 CHIP INDUCTOR 10UH 1

L3204 G1C101KA0055 CHIP INDUCTOR

100UH 1

L3301 G1C100KA0055 CHIP INDUCTOR 10UH 1

L3302 G1C330MA0111 CHIP INDUCTOR 33UH 1

L3303 G1C100KA0055 CHIP INDUCTOR 10UH 1

L3304 G1C100KA0055 CHIP INDUCTOR 10UH 1

L3305 G1C100KA0055 CHIP INDUCTOR 10UH 1

L3501 G1C100KA0055 CHIP INDUCTOR 10UH 1

L3505 G1C330K00017 CHIP INDUCTOR 33UH 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

L3506 G1C330K00017 CHIP INDUCTOR 33UH 1

L3507 G1C330K00017 CHIP INDUCTOR 33UH 1

L3508 G1C330K00017 CHIP INDUCTOR 33UH 1

L3509 G1C330K00017 CHIP INDUCTOR 33UH 1

L5001 G1C101KA0055 CHIP INDUCTOR

100UH 1

L5002 G1C220KA0055 CHIP INDUCTOR 22UH 1

LB451 J0JAC0000014 FILTER 1J0JAC0000016

LB452 J0JAC0000014 FILTER 1J0JAC0000016

LB453 J0JAC0000014 FILTER 1J0JAC0000016

LB454 J0JAC0000014 FILTER 1J0JAC0000016

LB455 J0JAC0000014 FILTER 1J0JAC0000016

LB456 VLP0332A420 CHIP BEAD 1J0JHC0000017

LB1001 VLP0332A420 CHIP BEAD 1J0JHC0000017

LB3003 J0JBC0000115 INDUCTOR 1

LB3201 J0JAC0000014 FILTER 1J0JAC0000016

LB3203 J0JAC0000014 FILTER 1J0JAC0000016

LB3301 J0JAC0000014 FILTER 1J0JAC0000016

LB3501 J0JBC0000054 INDUCTOR 1J0JBC0000059

LB3502 J0JBC0000054 INDUCTOR 1J0JBC0000059

PP3001 K1KA20B00154 CONNECTOR 20P 1

PS3001 K1KBC0A00037 CONNECTOR 1

Q451 B1DDCB000002 TRANSISTOR 1

Q1011 B1DHBC000008 TRANSISTOR 1

Q1021 B1DHBC000008 TRANSISTOR 1

Q1022 B1DFCD000012 TRANSISTOR 1

Q1031 B1DHBC000008 TRANSISTOR 1

Q1041 B1DHBC000008 TRANSISTOR 1

Q1042 B1DFCD000012 TRANSISTOR 1

Q1051 B1DFCG000011 TRANSISTOR 1

Q1061 B1ZBZ0000040 TRANSISTOR 1

Q1062 B1ZBZ0000040 TRANSISTOR 1

Q1101 B1ABBE000002 TRANSISTOR 1

Q2003 2SD1820 TRANSISTOR 1

Q2005 2SB970-R TRANSISTOR 12SB09700R

Q3301 B1ABBE000002 TRANSISTOR 1

Q3302 B1ABBE000002 TRANSISTOR 1

Q3303 B1ABBE000002 TRANSISTOR 1

Q3503 XP0460100L TRANSISTOR 1

Q3504 2SB1218A-R TRANSISTOR 12SB1218AR

Q3505 B1ABBE000002 TRANSISTOR 1

Q3506 XP0460100L TRANSISTOR 1

QR451 UN9214JTX TRANSISTOR-

RESISTOR 1

QR1001 B1GDBEHH0001 TRANSISTOR-

RESISTOR 1

QR1101 B1GBBEHH0001 TRANSISTOR-

RESISTOR 1

QR1102 B1GDBEHH0002 TRANSISTOR-

RESISTOR 1

QR1103 UN9114 TRANSISTOR-

RESISTOR 1UNR9114

QR2001 UNR9115J0L TRANSISTOR 1

QR2003 B1GBBEMK0001 TRANSISTOR-

RESISTOR 1

QR2005 XP4115 TRANSISTOR-

RESISTOR 1XP04115

QR2006 XP4115 TRANSISTOR-

RESISTOR 1XP04115

QR2007 B1GDBEHM0001 TRANSISTOR-

RESISTOR 1

QR2008 UN921F TRANSISTOR 1

QR2010 UNR9215J0L TRANSISTOR-

RESISTOR 1

QR3501 B1GDBEFH0001 TRANSISTOR-

RESISTOR 1

QR3502 B1GBBEKK0001 TRANSISTOR-

RESISTOR 1

R450 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

141

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R451 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R452 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R453 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R454 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R455 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R456 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R457 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R1011 ERJ6RBB822 M.RESISTOR CH

1/10W 8.2K 1

R1014 ERJ2RHD201 M.RESISTOR CH

1/16W 200 1

R1015 ERJ6RBB272 M.RESISTOR CH

1/10W 2.7K 1

R1021 ERJ2RHD392 M.RESISTOR CH

1/16W 3.9K 1

R1024 ERJ2RHD121 M.RESISTOR CH

1/16W 120 1

R1025 ERJ2RHD272 M.RESISTOR CH

1/16W 2.7K 1

R1026 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R1031 ERJ2RHD472 M.RESISTOR CH

1/16W 4.7K 1

R1034 ERJ2RHD111 M.RESISTOR CH

1/16W 110 1

R1035 ERJ2RHD272 M.RESISTOR CH

1/16W 2.7K 1

R1041 ERJ2RHD132 M.RESISTOR CH

1/16W 1.3K 1

R1044 ERJ2RHD561 M.RESISTOR CH

1/16W 560 1

R1045 ERJ2RHD222 M.RESISTOR CH

1/16W 2.2K 1

R1046 ERJ2GEJ331 M.RESISTOR CH

1/16W 330 1

R1051 ERJ6RBB333 M.RESISTOR CH

1/10W 33K 1

R1054 ERJ2RKD820 M.RESISTOR CH

1/16W 82 1

R1055 ERJ6RBB272 M.RESISTOR CH

1/10W 2.7K 1

R1101 ERJ2RHD123 M.RESISTOR CH

1/16W 12K 1

R1102 ERJ2RHD113 M.RESISTOR CH

1/16W 11K 1

R1103 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R1105 ERJ2GEJ224 M.RESISTOR CH

1/16W 220K 1

R1106 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R1111 ERJ2GEJ271 M.RESISTOR CH

1/16W 270 1

R1121 ERJ2GEJ271 M.RESISTOR CH

1/16W 270 1

R1131 ERJ2GEJ271 M.RESISTOR CH

1/16W 270 1

R1141 ERJ2GEJ271 M.RESISTOR CH

1/16W 270 1

R1151 ERJ2GEJ271 M.RESISTOR CH

1/16W 270 1

R1152 ERJ2RHD223 M.RESISTOR CH

1/16W 22K 1

R1153 ERJ2RHD153X M.RESISTOR CH

1/16W 15K 1

R1211 ERJ3GEY0R00 M.RESISTOR CH

1/10W 0 1

R1241 ERJ3GEY0R00 M.RESISTOR CH

1/10W 0 1

R1331 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R1401 ERJ2RHD103 M.RESISTOR CH

1/16W 10K 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R1402 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R2001 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2002 ERJ2GEJ471 M.RESISTOR CH

1/16W 470 1

R2003 ERJ2GEJ471 M.RESISTOR CH

1/16W 470 1

R2004 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2005 ERJ2RHD472 M.RESISTOR CH

1/16W 4.7K 1

R2006 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2007 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2009 ERJ2RHD683 M.RESISTOR CH

1/16W 68K 1

R2010 ERJ2RHD223 M.RESISTOR CH

1/16W 22K 1

R2011 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2013 ERJ2GEJ223 M.RESISTOR CH

1/16W 22K 1

R2014 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R2017 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R2018 ERJ2GEJ470 M.RESISTOR CH

1/16W 47 1

R2020 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R2025 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R2026 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2027 ERJ2GEJ393 M.RESISTOR CH

1/16W 39K 1

R2029 ERJ2GEJ470 M.RESISTOR CH

1/16W 47 1

R2030 ERJ2GEJ223 M.RESISTOR CH

1/16W 22K 1

R2031 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2032 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R2034 ERJ2GEJ393 M.RESISTOR CH

1/16W 39K 1

R2035 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R2040 ERJ2GEJ183 M.RESISTOR CH

1/16W 18K 1

R2045 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R2046 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R2047 ERJ2GEJ221 M.RESISTOR CH

1/16W 220 1

R2050 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R2054 ERJ2GEJ123 M.RESISTOR CH

1/16W 12K 1

R2055 ERJ2GEJ123 M.RESISTOR CH

1/16W 12K 1

R2056 ERJ2RHD103 M.RESISTOR CH

1/16W 10K 1

R2059 ERJ2GEJ394 M.RESISTOR CH

1/16W 390K 1

R2063 ERJ2GEJ820 M.RESISTOR CH

1/16W 82 1

R2069 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R2070 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R2073 ERJ2GEJ182 M.RESISTOR CH

1/16W 1.8K 1

R2079 ERJ2GEJ105 M.RESISTOR CH

1/16W 1M 1

R2080 ERJ2GEJ152 M.RESISTOR CH

1/16W 1.5K 1

142

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R2088 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2089 ERJ2GEJ822 M.RESISTOR CH

1/16W 8.2K 1

R2090 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2091 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2097 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2109 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R2110 ERJ2GEJ822 M.RESISTOR CH

1/16W 8.2K 1

R2111 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R2112 ERJ2GEJ822 M.RESISTOR CH

1/16W 8.2K 1

R2124 ERJ6GEYJ330V M.RESISTOR CH

1/10W 33 1

R2133 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R2146 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R2150 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R2155 ERJ2GEJ105 M.RESISTOR CH

1/16W 1M 1

R2177 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R2201 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R2202 ERJ2GEJ474 M.RESISTOR CH

1/16W 470K 1

R2203 ERJ2GEJ824 M.RESISTOR CH

1/16W 820K 1

R2204 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R2205 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R2206 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R2207 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R2210 ERJ2RHD242 M.RESISTOR CH

1/16W 2.4K 1

R2211 D1BDR270A053 RESISTOR 1

R2212 ERJ2GEJ153 M.RESISTOR CH

1/16W 15K 1

R2213 D1BDR270A053 RESISTOR 1

R2214 ERJ2RHD273 M.RESISTOR CH

1/16W 27K 1

R2217 ERJ2GEJ223 M.RESISTOR CH

1/16W 22K 1

R2218 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R2219 ERJ2RHD273 M.RESISTOR CH

1/16W 27K 1

R2226 D1BDR680A053 RESISTOR 1

R2228 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R2229 ERJ2GEJ183 M.RESISTOR CH

1/16W 18K 1

R2255 ERJ2GEJ393 M.RESISTOR CH

1/16W 39K 1

R2256 ERJ2GEJ563 M.RESISTOR CH

1/16W 56K 1

R3001 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R3003 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R3004 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R3005 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R3006 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R3007 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R3010 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R3011 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R3012 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R3013 ERJ2RHD123 M.RESISTOR CH

1/16W 12K 1

R3014 ERJ2GEJ271 M.RESISTOR CH

1/16W 270 1

R3015 ERJ2GEJ105 M.RESISTOR CH

1/16W 1M 1

R3016 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R3017 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3021 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3022 ERJ2RKD560 M.RESISTOR CH

1/16W 56 1ERJ2RKD560X

R3023 ERJ2RKD560 M.RESISTOR CH

1/16W 56 1ERJ2RKD560X

R3024 ERJ2RKD560 M.RESISTOR CH

1/16W 56 1ERJ2RKD560X

R3025 ERJ2RKD560 M.RESISTOR CH

1/16W 56 1ERJ2RKD560X

R3026 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R3027 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R3028 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R3029 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3030 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3031 ERJ2GEJ392 M.RESISTOR CH

1/16W 3.9K 1

R3032 ERJ2GEJ682 M.RESISTOR CH

1/16W 6.8K 1

R3033 ERJ2RHD103 M.RESISTOR CH

1/16W 10K 1

R3034 ERJ2RHD103 M.RESISTOR CH

1/16W 10K 1

R3035 ERJ2GEJ123 M.RESISTOR CH

1/16W 12K 1

R3036 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R3037 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R3038 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R3048 ERJ2GEJ223 M.RESISTOR CH

1/16W 22K 1

R3060 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3063 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3201 ERJ2RHD182 M.RESISTOR CH

1/16W 1.8K 1

R3202 ERJ2GEJ271 M.RESISTOR CH

1/16W 270 1

R3203 ERJ2GEJ221 M.RESISTOR CH

1/16W 220 1

R3204 ERJ2RHD272 M.RESISTOR CH

1/16W 2.7K 1

R3205 ERJ2GEJ221 M.RESISTOR CH

1/16W 220 1

R3206 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R3207 ERJ2GEJ332 M.RESISTOR CH

1/16W 3.3K 1

R3211 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R3212 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R3214 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R3215 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

143

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R3219 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R3260 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3302 ERJ2GEJ221 M.RESISTOR CH

1/16W 220 1

R3308 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R3309 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R3310 ERJ2RHD752 M.RESISTOR CH

1/16W 7.5K 1

R3311 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R3312 ERJ2GEJ153 M.RESISTOR CH

1/16W 15K 1

R3313 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R3314 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R3315 ERJ2GEJ561 M.RESISTOR CH

1/16W 560 1ERJ2RMJ561X

R3316 ERJ2GEJ561 M.RESISTOR CH

1/16W 560 1ERJ2RMJ561X

R3317 ERJ2GEJ153 M.RESISTOR CH

1/16W 15K 1

R3318 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R3320 ERJ2GEJ100 M.RESISTOR CH

1/16W 10 1

R3321 ERJ2RKD680 M.RESISTOR CH

1/16W 68 1

R3322 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R3323 ERJ2RKD680 M.RESISTOR CH

1/16W 68 1

R3324 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R3325 ERJ2RKD680 M.RESISTOR CH

1/16W 68 1

R3326 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R3330 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R3501 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R3503 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3504 ERJ2RHD122 M.RESISTOR CH

1/16W 1.2K 1

R3505 ERJ2RHD102 M.RESISTOR CH

1/16W 1K 1

R3506 ERJ2RHD102 M.RESISTOR CH

1/16W 1K 1

R3507 ERJ2RHD392 M.RESISTOR CH

1/16W 3.9K 1

R3508 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R3514 ERJ2GEJ223 M.RESISTOR CH

1/16W 22K 1

R3515 ERJ2GEJ331 M.RESISTOR CH

1/16W 330 1

R3516 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R3549 ERJ2RHD272 M.RESISTOR CH

1/16W 2.7K 1

R3550 ERJ2GEJ821 M.RESISTOR CH

1/16W 820 1

R3553 ERJ2RHD102 M.RESISTOR CH

1/16W 1K 1

R3554 ERJ2GEJ182 M.RESISTOR CH

1/16W 1.8K 1

R3555 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R3556 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R3557 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R3558 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R3560 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R3561 ERJ2RHD102 M.RESISTOR CH

1/16W 1K 1

R3562 ERJ2RHD102 M.RESISTOR CH

1/16W 1K 1

R3563 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R3564 ERJ2GEJ124 M.RESISTOR CH

1/16W 120K 1

R3565 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R3568 ERJ2GEJ183 M.RESISTOR CH

1/16W 18K 1

R3580 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R3582 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3801 ERJ2GEJ105 M.RESISTOR CH

1/16W 1M 1

R3802 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3804 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R3805 ERJ2RHD562 M.RESISTOR CH

1/16W 5.6K 1

R3806 ERJ2GEJ331 M.RESISTOR CH

1/16W 330 1

R5001 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R5004 ERJ2GEJ182 M.RESISTOR CH

1/16W 1.8K 1

R5006 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R5015 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R6901 ERJ6GEYJ330V M.RESISTOR CH

1/10W 33 1

R6905 ERJ2GEJ330 M.RESISTOR CH

1/16W 33 1

R6908 ERJ2GEJ330 M.RESISTOR CH

1/16W 33 1

R6910 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

RX2001 D1H81024A024 RESISTOR 1

RX2002 D1H84734A024 RESISTOR 1

RX2003 D1H83324A013 RESISTOR 1

RX2004 D1H83314A024 RESISTOR 1

RX2005 D1H84734A024 RESISTOR 1

RX2006 D1H84734A024 RESISTOR 1

RX2007 EXB28V103JX RESISTOR NETWORKS 1

RX2008 D1H83324A013 RESISTOR 1

RX2009 D1H81024A024 RESISTOR 1

RX2010 D1H81024A024 RESISTOR 1

RX2011 D1H81024A024 RESISTOR 1

RX2012 EXB28V104JX RESISTOR NETWORKS 1

RX2013 D1H81024A024 RESISTOR 1

RX2201 D1H81024A024 RESISTOR 1

RX2202 EXB28V103JX RESISTOR NETWORKS 1

RX2203 D1H81024A024 RESISTOR 1

RX3001 D1H84734A024 RESISTOR 1

RX3002 D1H84734A024 RESISTOR 1

RX3003 D1H84734A024 RESISTOR 1

RX3004 D1H84734A024 RESISTOR 1

RX3005 EXB28V470JX RESISTOR NETWORKS 1

RX3201 D1H84734A024 RESISTOR 1

RX3202 EXB28V103JX RESISTOR NETWORKS 1

RX3203 D1H81024A024 RESISTOR 1

RX5001 EXB28V103JX RESISTOR NETWORKS 1

T1051 G5DYA0000096 SWITCHING

TRANSFORMER 1

VZ451 D4ED1270A006 TRANSIENT/SURGE

ABSORBER 1

VZ452 D4ED1270A006 TRANSIENT/SURGE

ABSORBER 1

144

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

VZ453 D4ED1270A006 TRANSIENT/SURGE

ABSORBER 1

VZ455 D4ED1270A006 TRANSIENT/SURGE

ABSORBER 1

X2001 H0A327200106 CRYSTAL OSCILLATOR 1

X2002 H0J135500008 CRYSTAL OSCILLATOR 1

X3001 H0J245500021 CRYSTAL OSCILLATOR 1

X3801 H0J480000002 CRYSTAL OSCILLATOR

48MHZ 1

nVEP23613C SUB C.B.A. (RTL)

C101 F3G0G107A034 E.CAPACITOR CH 4V

100U 1

C102 F1J1E105A080 C.CAPACITOR CH 25V

1U 1

C103 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C104 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C105 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C106 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C107 F1J1E105A080 C.CAPACITOR CH 25V

1U 1

C108 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C109 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C110 ECJ0EC1H100D C.CAPACITOR CH 50V

10P 1

C111 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C113 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C114 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C115 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C118 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C119 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C120 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C121 ECJ0EB1E821K C.CAPACITOR CH 25V

820P 1

C122 ECJ0EC1H150J C.CAPACITOR CH 50V

15P 1

C123 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C124 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C125 ECJ0EB1E821K C.CAPACITOR CH 25V

820P 1

C127 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C128 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C129 F3G1D106A020 E.CAPACITOR CH 20V

10U 1

C131 ECJ1VB1C105K C.CAPACITOR CH 16V

1U 1

C132 ECJ0EB1E821K C.CAPACITOR CH 25V

820P 1

C133 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C137 F3G0G107A034 E.CAPACITOR CH 4V

100U 1

C142 F1J1C335A121 C.CAPACITOR CH 16V

3.3U 1

C150 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C151 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C152 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C154 F1J1E105A080 C.CAPACITOR CH 25V

1U 1

C156 F1G0J224A004 C.CAPACITOR CH

6.3V 0.22U 1

C303 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C304 F3G0G107A034 E.CAPACITOR CH 4V

100U 1

C305 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C306 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C309 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C311 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C314 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C315 ECJ0EB1C153K C.CAPACITOR CH 16V

0.015U 1

C318 ECJ0EB1C153K C.CAPACITOR CH 16V

0.015U 1

C319 F1H0J2250003 C.CAPACITOR CH

6.3V 2.2U 1

C321 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C323 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C325 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C328 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C331 F2G1C2200010 E.CAPACITOR 16V

22U 1

C334 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C336 ECJ0EB1C153K C.CAPACITOR CH 16V

0.015U 1

C337 ECJ0EB1C153K C.CAPACITOR CH 16V

0.015U 1

C338 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C339 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C340 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C341 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C342 ECJ0EB1C153K C.CAPACITOR CH 16V

0.015U 1

C343 ECJ0EB1C153K C.CAPACITOR CH 16V

0.015U 1

C344 ECJ0EB1C153K C.CAPACITOR CH 16V

0.015U 1

C345 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C346 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

C347 ECJ0EB1E222K C.CAPACITOR CH 25V

2200P 1

C348 ECJ0EB1E222K C.CAPACITOR CH 25V

2200P 1

C349 ECJ1VB0J474K C.CAPACITOR CH

6.3V 0.47U 1

C350 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C351 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C601 RCST0GY476RG T.CAPACITOR CH 4V

47U 1F3F0G4760001

C603 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C604 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C605 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C606 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C607 F1H0J2250003 C.CAPACITOR CH

6.3V 2.2U 1

145

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C608 F1H0J2250003 C.CAPACITOR CH

6.3V 2.2U 1

C609 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C613 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C614 F1H0J2250003 C.CAPACITOR CH

6.3V 2.2U 1

C616 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C622 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C701 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C702 ECUX1E271KBQ C.CAPACITOR CH 25V

270P 1

C703 ECJ0EB1E102K C.CAPACITOR CH 25V

1000P 1

C704 ECJ0EB1E222K C.CAPACITOR CH 25V

2200P 1

C705 ECJ0EC1H220J C.CAPACITOR CH 50V

22P 1

C706 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C707 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C708 ECUE1E272KBQ C.CAPACITOR CH 25V

2700P 1ECJ0EB1E272K

C709 ECJ0EB1E222K C.CAPACITOR CH 25V

2200P 1

C710 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C711 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C712 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C713 ECUX1E471KBQ C.CAPACITOR CH 25V

470P 1ECJ0EB1E471K

C714 F3G0G107A034 E.CAPACITOR CH 4V

100U 1

C715 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C716 ECJ0EB1E102K C.CAPACITOR CH 25V

1000P 1

C717 F1G0J224A004 C.CAPACITOR CH

6.3V 0.22U 1

C718 ECJ0EC1H151J C.CAPACITOR CH 50V

150P 1

C719 F1G0J224A004 C.CAPACITOR CH

6.3V 0.22U 1

C720 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C721 ECJ1VB0J105K C.CAPACITOR CH

6.3V 1U 1

C723 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C724 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C725 F3F1D475A041 E.CAPACITOR CH 20V

4.7U 1

C727 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C728 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C729 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C730 ECUE1E392KBQ C.CAPACITOR CH 25V

3900P 1F1G1E392A056

C731 ECJ0EC1H151J C.CAPACITOR CH 50V

150P 1

C732 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C733 F1G0J224A004 C.CAPACITOR CH

6.3V 0.22U 1

C734 ECUX1E471KBQ C.CAPACITOR CH 25V

470P 1ECJ0EB1E471K

C735 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C736 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C737 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C738 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C739 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C740 ECJ0EB1E102K C.CAPACITOR CH 25V

1000P 1

C741 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C742 F1G0J224A004 C.CAPACITOR CH

6.3V 0.22U 1

C744 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C747 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C748 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C749 ECJ0EB1E102K C.CAPACITOR CH 25V

1000P 1

C750 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C751 ECUX1E471KBQ C.CAPACITOR CH 25V

470P 1ECJ0EB1E471K

C752 ECUE1E392KBQ C.CAPACITOR CH 25V

3900P 1F1G1E392A056

C753 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C754 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C755 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C757 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C758 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C759 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C1227 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1231 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1381 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C1382 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C1411 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C1421 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C1451 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C1481 ECJ2FB0J106K C.CAPACITOR CH

6.3V 10U 1

C6401 F1J0J106A025 C.CAPACITOR CH

6.3V 10U 1

CX301 F1L0J104A020 C.CAPACITOR CH

6.3V 0.1U 1

CX303 F1L0J104A020 C.CAPACITOR CH

6.3V 0.1U 1

CX304 F1L0J104A020 C.CAPACITOR CH

6.3V 0.1U 1

CX305 F1L0J104A020 C.CAPACITOR CH

6.3V 0.1U 1

D101 MA6S121 DIODE 1MA6Z121

D102 B0JCDD000002 DIODE 1

D301 B0JCDD000002 DIODE 1

D302 B0JCDD000002 DIODE 1

D303 B0JCDD000002 DIODE 1

D1421 MA2J11100L DIODE 1

D1451 MA2J11100L DIODE 1

D1471 MA2J11100L DIODE 1

D1481 MA2J11100L DIODE 1

D1482 MA2J11100L DIODE 1

FL101 F1H0J1050022 FILTER 1

FL102 F1H0J1050022 FILTER 1

146

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

FP201 K1MN39BA0058 CONNECTOR 39P 1

FP601 K1MN22A00065 CONNECTOR 22P 1

FP602 K1MN27BA0058 CONNECTOR 27P 1

FP701 K1MN45AA0017 CONNECTOR 48P 1

FP4002 K1MN12BA0067 CONNECTOR 12P 1

IC101 MN52B0 IC 1

IC102 C0CBCAD00021 IC 1

IC103 C0CBCAD00020 IC 1

IC104 C1AB00001791 IC 1

IC105 C1AB00001791 IC 1

IC106 C1AB00001791 IC 1

IC107 C0JBAB000276 IC 1

IC108 MN3114QFN-E1 IC 1

IC110 C0JBAB000276 IC 1

IC301 C0JBAF000567 IC 1

IC302 C0CBCAB00014 IC 1

IC303 C1AB00001929 IC 1

IC304 C0JBAB000636 IC 1

IC305 C2DBLJ000102 IC 1

IC306 TC7SH14FU IC 1C0JBAZ001259

IC307 C3EBHC000032 IC 1

IC308 C0ABHA000049 IC 1

IC601 C1AB00002022 IC 1

IC602 C0JBAB000660 IC 1

IC603 C0JBAB000633 IC 1

IC701 C0ABCA000064 IC 1

IC702 C1AB00002147 IC 1

IC703 C0CBAEC00006 IC 1

IC704 C1AB00002145 IC 1

IC705 C0ABCA000064 IC 1

IC706 NJM2125F IC 1C0ABAA000042

IR6401 B3RAB0000045 IR RECEIVER 1

L101 G1C100KA0055 CHIP INDUCTOR 10UH 1

L104 G1C100KA0055 CHIP INDUCTOR 10UH 1

L105 G1C100KA0055 CHIP INDUCTOR 10UH 1

L702 G1C220KA0055 CHIP INDUCTOR 22UH 1

L1227 G1C4R7MA0073 COIL 4.7UH 1

L1231 G1C4R7MA0072 COIL 4.7UH 1

PP301 VJP4263A120 CONNECTOR (MALE)

120P 1

Q301 2SB970-R TRANSISTOR 12SB09700R

Q302 B1ABBE000002 TRANSISTOR 1

Q303 XP4501 TRANSISTOR-

TRANSISTOR 1XP04501

Q701 B1ABBE000002 TRANSISTOR 1

Q702 2SB970-R TRANSISTOR 12SB09700R

Q703 2SD2216J0L TRANSISTOR 1

Q704 2SD0601ARL TRANSISTOR 1

Q1351 B1ADBE000001 TRANSISTOR 1

Q1352 XP1501 TRANSISTOR-

TRANSISTOR 1XP01501

Q1371 B1ABBE000002 TRANSISTOR 1

Q1372 XP1401 TRANSISTOR-

TRANSISTOR 1XP01401

Q1383 B1ADBE000001 TRANSISTOR 1

Q1384 XP1501 TRANSISTOR-

TRANSISTOR 1XP01501

Q1385 XP4501 TRANSISTOR-

TRANSISTOR 1XP04501

Q1412 2SB970-R TRANSISTOR 12SB09700R

Q1413 B1ABBE000002 TRANSISTOR 1

Q1421 2SB970-R TRANSISTOR 12SB09700R

Q1451 B1ABBE000002 TRANSISTOR 1

Q1481 B1ADGD000005 TRANSISTOR 1

Q1482 B1ABBE000002 TRANSISTOR 1

QR301 UNR9215J0L TRANSISTOR-

RESISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

QR302 UNR9215J0L TRANSISTOR-

RESISTOR 1

QR303 UNR9215J0L TRANSISTOR-

RESISTOR 1

QR1401 UNR911NJ0L TRANSISTOR-

RESISTOR 1

QR1411 XP0431N00L TRANSISTOR 1

QR1451 B1GDBEKM0001 TRANSISTOR-

RESISTOR 1

QR1471 B1GDBEKM0001 TRANSISTOR-

RESISTOR 1

R101 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R102 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R103 ERJ2GEJ5R6X M.RESISTOR CH

1/16W 5.6 1ERJ2RMJ5R6X

R104 ERJ2GEJ5R6X M.RESISTOR CH

1/16W 5.6 1ERJ2RMJ5R6X

R105 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R106 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R108 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R109 ERJ2GEJ5R6X M.RESISTOR CH

1/16W 5.6 1ERJ2RMJ5R6X

R112 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R114 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R115 ERJ2GEJ8R2 M.RESISTOR CH

1/16W 8.2 1

R116 ERJ2GEJ8R2 M.RESISTOR CH

1/16W 8.2 1

R117 ERJ2GEJ8R2 M.RESISTOR CH

1/16W 8.2 1

R124 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R125 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R126 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R127 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R131 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R132 ERJ2GEJ332 M.RESISTOR CH

1/16W 3.3K 1

R145 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R146 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R147 ERJ2GEJ332 M.RESISTOR CH

1/16W 3.3K 1

R148 ERJ2GEJ332 M.RESISTOR CH

1/16W 3.3K 1

R301 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R302 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R303 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

R304 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R305 ERJ2GEJ105 M.RESISTOR CH

1/16W 1M 1

R306 ERJ2GEJ105 M.RESISTOR CH

1/16W 1M 1

R307 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R308 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R309 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R310 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R312 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

147

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R313 ERJ2GEJ682 M.RESISTOR CH

1/16W 6.8K 1

R314 ERJ2GEJ122 M.RESISTOR CH

1/16W 1.2K 1

R315 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R318 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R320 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

R321 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R322 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R323 ERJ2GEJ183 M.RESISTOR CH

1/16W 18K 1

R324 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R326 ERJ2GEJ332 M.RESISTOR CH

1/16W 3.3K 1

R327 ERJ2GEJ332 M.RESISTOR CH

1/16W 3.3K 1

R328 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R329 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R330 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

R331 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R332 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R333 ERJ2GEJ182 M.RESISTOR CH

1/16W 1.8K 1

R334 ERJ2GEJ153 M.RESISTOR CH

1/16W 15K 1

R335 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R336 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R337 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R338 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R339 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

R341 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

R342 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R343 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R344 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R345 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R346 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R347 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R350 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R352 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R356 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R357 ERJ2GEJ153 M.RESISTOR CH

1/16W 15K 1

R358 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R359 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R361 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R364 ERJ2GEJ392 M.RESISTOR CH

1/16W 3.9K 1

R365 ERJ2GEJ332 M.RESISTOR CH

1/16W 3.3K 1

R366 ERJ2GEJ392 M.RESISTOR CH

1/16W 3.9K 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R367 ERJ2GEJ332 M.RESISTOR CH

1/16W 3.3K 1

R368 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R369 ERJ2GEJ274 M.RESISTOR CH

1/16W 270K 1

R370 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R371 ERJ2GEJ394 M.RESISTOR CH

1/16W 390K 1

R372 ERJ2GEJ274 M.RESISTOR CH

1/16W 270K 1

R374 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R377 ERJ2GEJ394 M.RESISTOR CH

1/16W 390K 1

R378 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R379 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R380 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R385 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R386 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R387 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R388 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R421 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R479 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R481 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R601 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

R602 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

R603 ERJ2RHD511 M.RESISTOR CH

1/16W 510 1

R604 ERJ2RHD102 M.RESISTOR CH

1/16W 1K 1

R605 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R606 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R607 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R608 ERJ2RHD103 M.RESISTOR CH

1/16W 10K 1

R609 ERJ2RHD103 M.RESISTOR CH

1/16W 10K 1

R614 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R615 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R616 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R617 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R618 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R619 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R620 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R621 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R622 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R701 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R702 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R703 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R704 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

148

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R705 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R706 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R708 ERJ2GEJ151 M.RESISTOR CH

1/16W 150 1

R709 ERJ2GEJ221 M.RESISTOR CH

1/16W 220 1

R710 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R711 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R712 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R713 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R714 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R715 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R716 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R717 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R718 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R719 ERJ2GEJ274 M.RESISTOR CH

1/16W 270K 1

R720 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R721 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R722 ERJ2GEJ224 M.RESISTOR CH

1/16W 220K 1

R723 ERJ6RBB472 M.RESISTOR CH

1/10W 4.7K 1

R724 ERJ6RBB472 M.RESISTOR CH

1/10W 4.7K 1

R725 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R726 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R727 ERJ2GEJ224 M.RESISTOR CH

1/16W 220K 1

R728 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R729 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R730 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R731 ERJ2GEJ823 M.RESISTOR CH

1/16W 82K 1

R732 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R733 ERJ2GEJ563 M.RESISTOR CH

1/16W 56K 1

R734 ERJ3GEYJ2R2 M.RESISTOR CH

1/10W 2.2 1

R735 ERJ3GEYJ2R2 M.RESISTOR CH

1/10W 2.2 1

R736 ERJ6GEYJ3R9 M.RESISTOR CH

1/10W 3.9 1

R737 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R738 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R739 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R740 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R741 ERJ2GEJ182 M.RESISTOR CH

1/16W 1.8K 1

R742 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R743 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R746 ERJ2GEJ155 M.RESISTOR CH

1/16W 1.5M 1

R748 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R749 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R750 ERJ2GEJ393 M.RESISTOR CH

1/16W 39K 1

R751 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R752 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R753 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R754 ERJ2GEJ184 M.RESISTOR CH

1/16W 180K 1

R755 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R756 ERJ2GEJ823 M.RESISTOR CH

1/16W 82K 1

R757 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R758 ERJ2GEJ563 M.RESISTOR CH

1/16W 56K 1

R759 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R760 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R761 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R762 ERJ2GEJ682 M.RESISTOR CH

1/16W 6.8K 1

R763 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R764 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R765 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R766 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R767 ERJ2GEJ683 M.RESISTOR CH

1/16W 68K 1

R768 ERJ3GEYJ3R3 M.RESISTOR CH

1/10W 3.3 1

R769 ERJ2GEJ684 M.RESISTOR CH

1/16W 680K 1

R770 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R771 ERJ3GEYJ3R3 M.RESISTOR CH

1/10W 3.3 1

R772 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R773 ERJ2GEJ334 M.RESISTOR CH

1/16W 330K 1

R774 ERJ2GEJ563 M.RESISTOR CH

1/16W 56K 1

R776 ERJ2GED273X M.RESISTOR CH

1/16W 27K 1ERJ2RHD273X

R777 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R778 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R779 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R780 ERJ2GEJ224 M.RESISTOR CH

1/16W 220K 1

R781 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R782 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R783 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R784 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R785 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R786 ERJ2GEJ393 M.RESISTOR CH

1/16W 39K 1

R787 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R788 ERJ2GEJ182 M.RESISTOR CH

1/16W 1.8K 1

R789 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

149

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R793 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R794 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R795 ERJ2GEJ564 M.RESISTOR CH

1/16W 560K 1

R796 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R797 ERJ2GEJ474 M.RESISTOR CH

1/16W 470K 1

R798 ERJ2GEJ224 M.RESISTOR CH

1/16W 220K 1

R799 ERJ2GEJ224 M.RESISTOR CH

1/16W 220K 1

R1351 ERJ2RHD104 M.RESISTOR CH

1/16W 100K 1

R1352 ERJ2RHD163 M.RESISTOR CH

1/16W 16K 1

R1353 ERJ2RHD183 M.RESISTOR CH

1/16W 18K 1

R1354 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R1355 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R1371 ERJ2RHD153X M.RESISTOR CH

1/16W 15K 1

R1372 ERJ2RHD911 M.RESISTOR CH

1/16W 910 1

R1373 ERJ2RHD103 M.RESISTOR CH

1/16W 10K 1

R1374 ERJ2GEJ123 M.RESISTOR CH

1/16W 12K 1

R1375 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R1380 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R1386 ERJ2RHD563 M.RESISTOR CH

1/16W 56K 1

R1387 ERJ2RHD512 M.RESISTOR CH

1/16W 5.1K 1

R1388 ERJ2RHD183 M.RESISTOR CH

1/16W 18K 1

R1389 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R1395 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R1396 ERJ6GEYJ332V M.RESISTOR CH

1/10W 3.3K 1

R1397 ERJ6GEYJ332V M.RESISTOR CH

1/10W 3.3K 1

R1398 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R1399 ERJ2GEJ223 M.RESISTOR CH

1/16W 22K 1

R1400 ERJ2RHD272 M.RESISTOR CH

1/16W 2.7K 1

R1413 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R1414 ERJ2GEJ152 M.RESISTOR CH

1/16W 1.5K 1

R1415 ERJ2GEJ332 M.RESISTOR CH

1/16W 3.3K 1

R1416 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R1421 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R1422 ERJ2GEJ222 M.RESISTOR CH

1/16W 2.2K 1

R1451 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R1452 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R1481 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R1482 ERJ2GEJ223 M.RESISTOR CH

1/16W 22K 1

R1483 ERJ2GEJ183 M.RESISTOR CH

1/16W 18K 1

R1484 ERJ2GEJ224 M.RESISTOR CH

1/16W 220K 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R1485 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

R1486 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R6402 ERJ2GEJ330 M.RESISTOR CH

1/16W 33 1

RX301 D1H83324A013 RESISTOR 1

RX303 D1H84724A024 RESISTOR 1

RX304 D1H84724A024 RESISTOR 1

X101 H1A5405B0011 CRYSTAL OSCILLATOR 1

nVEP001H7A JACK C.B.A. (RTL)

C3908 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C4001 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C4003 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C4004 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C4901 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C4902 ECJ0EB1E472K C.CAPACITOR CH 25V

4700P 1

C4903 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C4904 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C4905 ECST0JY226Z T.CAPACITOR CH

6.3V 22U 1F3F0J226A007

C4906 ECST0JY226Z T.CAPACITOR CH

6.3V 22U 1F3F0J226A007

C4908 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

C4909 ECJ1VB0J105K C.CAPACITOR CH

6.3V 1U 1

C4910 ECST0JY226Z T.CAPACITOR CH

6.3V 22U 1F3F0J226A007

C4913 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

D4901 B0JCDD000002 DIODE 1

FL2503 J0MAB0000140 FILTER 1

FP6201 K1MN27B00036 CONNECTOR 27P 1

JK3001 VJJ0670 S-JACK 1K2HZ104A0002

JK3901 K2HZ105E0008 JACK 1

JK4001 K2HC106B0018 JACK 1

JK4901 K2HC107B0003 JACK 1

LB3902 J0JAC0000014 FILTER 1J0JAC0000016

LB4001 J0JBC0000054 INDUCTOR 1J0JBC0000059

LB4003 J0JAC0000014 FILTER 1J0JAC0000016

LB4005 J0JAC0000014 FILTER 1J0JAC0000016

LB4006 J0JAC0000014 FILTER 1J0JAC0000016

LB4007 J0JBC0000054 INDUCTOR 1J0JBC0000059

LB4008 J0JBC0000054 INDUCTOR 1J0JBC0000059

LB4009 J0JAC0000014 FILTER 1J0JAC0000016

LB4921 J0JAC0000015 FILTER 1J0JAC0000017

LB4922 J0JAC0000015 FILTER 1J0JAC0000017

LB4923 J0JAC0000015 FILTER 1J0JAC0000017

LB4924 J0JAC0000015 FILTER 1J0JAC0000017

LB4926 J0JAC0000015 FILTER 1J0JAC0000017

LB4928 J0JAC0000015 FILTER 1J0JAC0000017

Q4901 2SD2216J0L TRANSISTOR 1

Q4902 2SB1462JHL TRANSISTOR 1

Q4903 2SD2216J0L TRANSISTOR 1

Q4904 2SB1462JHL TRANSISTOR 1

Q4907 B1ABBE000002 TRANSISTOR 1

Q4908 B1ABBE000002 TRANSISTOR 1

150

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

QR4901 B1GDBEHH0001 TRANSISTOR-

RESISTOR 1

R4001 ERJ2GEJ101 M.RESISTOR CH

1/16W 100 1

R4901 ERJ3RBD331 M.RESISTOR CH

1/16W 330 1

R4902 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R4904 ERJ3RBD562 M.RESISTOR CH

1/16W 5.6K 1

R4905 ERJ2GEJ471 M.RESISTOR CH

1/16W 470 1

R4906 ERJ3RBD103 M.RESISTOR CH

1/16W 10K 1

R4907 VRE0071E154 M.RESISTOR 150K 1D0HB154ZA004

R4908 ERJ3RBD563 M.RESISTOR CH

1/16W 56K 1ERJ3RBD563V

R4909 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R4910 ERJ2GEJ562 M.RESISTOR CH

1/16W 5.6K 1

R4911 ERJ2GEJ151 M.RESISTOR CH

1/16W 150 1

R4912 ERJ2GEJ471 M.RESISTOR CH

1/16W 470 1

R4913 ERJ3RBD103 M.RESISTOR CH

1/16W 10K 1

R4914 VRE0071E154 M.RESISTOR 150K 1D0HB154ZA004

R4915 ERJ3RBD563 M.RESISTOR CH

1/16W 56K 1ERJ3RBD563V

R4916 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

R4917 ERJ2GEJ562 M.RESISTOR CH

1/16W 5.6K 1

R4918 ERJ2GEJ151 M.RESISTOR CH

1/16W 150 1

R4920 ERJ3RBD562 M.RESISTOR CH

1/16W 5.6K 1

R4922 ERJ2GEJ223 M.RESISTOR CH

1/16W 22K 1

R4923 ERJ2GEJ683 M.RESISTOR CH

1/16W 68K 1

R4924 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

S6212 ABC1111P SWITCH 1K0L1BA000050

VZ4001 D4ED1120A002 TRANSIENT/SURGE

ABSORBER 1

VZ4002 D4ED1270A008 TRANSIENT/SURGE

ABSORBER 1

VZ4003 D4ED1270A008 TRANSIENT/SURGE

ABSORBER 1

VZ4004 D4ED1270A006 TRANSIENT/SURGE

ABSORBER 1

VZ4902 D4ED1120A002 TRANSIENT/SURGE

ABSORBER 1

VZ4903 D4ED1120A002 TRANSIENT/SURGE

ABSORBER 1

nVEP001H8B SIDE (R) C.B.A. (RTL)

C6301 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C6302 F1G1H470A566 C.CAPACITOR CH 50V

47P 1

C6303 F1G1H470A566 C.CAPACITOR CH 50V

47P 1

C6304 F1G1H470A566 C.CAPACITOR CH 50V

47P 1

C6305 F1G1H470A566 C.CAPACITOR CH 50V

47P 1

C6306 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C6307 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C6310 ECJ0EC1H050C C.CAPACITOR CH 50V

5P 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

C6321 F1G0J105A001 C.CAPACITOR CH

6.3V 1U 1

D6301 SML-310MT LED 1B3ABB0000091

D6601 B3AAB0000037 LED 1

FL3952 J0MAB0000116 FILTER 1

FL3953 J0MAB0000116 FILTER 1

FL6301 F1H0J1050022 FILTER 1

FP6301 K1MN26A00068 CONNECTOR 26P 1

HS6301 K1NA09E00038 SD CARD SLOT 1

JK3952 K1FA104A0017 JACK 1

R6302 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R6303 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R6304 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R6305 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R6306 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R6307 ERJ2GEJ220 M.RESISTOR CH

1/16W 22 1

R6308 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R6309 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R6310 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R6311 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R6316 ERJ2GEJ471 M.RESISTOR CH

1/16W 470 1

S6301 K0H1BA000436 SWITCH 1

S6302 K0H1BA000436 SWITCH 1

S6304 VSS0533 SLIDE SWITCH 1K0D112A00116

nVEP001J2A LCD-DET C.B.A. (RTL)

S6701 K0L1BA000101 SWITCH 1

nVEP08340CKIT MONITOR C.B.A. (RTL)

C901 ECJ1VB0J105K C.CAPACITOR CH

6.3V 1U 1

C902 ECJ1VB1A105K C.CAPACITOR CH 10V

1U 1

C903 F1J1A475A023 C.CAPACITOR CH 10V

4.7U 1

C913 ECJ0EC1H390J C.CAPACITOR CH 50V

39P 1

C914 ECJ0EC1H390J C.CAPACITOR CH 50V

39P 1

C915 ECJ0EC1H390J C.CAPACITOR CH 50V

39P 1

C916 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C918 F1J1A475A023 C.CAPACITOR CH 10V

4.7U 1

C933 ECJ1VB0J105K C.CAPACITOR CH

6.3V 1U 1

D902 B0BC6R100025 DIODE 1

D905 B3AFB0000082 LED 1

D906 B3AFB0000082 LED 1

D907 B3AFB0000082 LED 1

D908 B3AFB0000082 LED 1

D909 B3AFB0000082 LED 1

D910 B3AFB0000082 LED 1

D911 B3AFB0000082 LED 1

151

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

FP901 K1MN24BA0055 CONNECTOR 24P 1

FP902 K1MN25B00072 CONNECTOR 25P 1

L901 G1C101KA0055 CHIP INDUCTOR

100UH 1

Q901 B1ADBE000001 TRANSISTOR 1

Q902 2SD2216J0L TRANSISTOR 1

Q903 2SD2216J0L TRANSISTOR 1

Q904 2SD2216J0L TRANSISTOR 1

Q906 2SD2216J0L TRANSISTOR 1

Q907 2SD2216J0L TRANSISTOR 1

Q908 2SD2216J0L TRANSISTOR 1

Q909 2SD2216J0L TRANSISTOR 1

Q913 B1ADBE000001 TRANSISTOR 1

R901 ERJ3RBD122 M.RESISTOR CH

1/16W 1.2K 1

R902 ERJ6GEY0R00V M.RESISTOR CH

1/10W 0 1D0GBR00JA017

R903 ERJ3RBD182 M.RESISTOR CH

1/16W 1.8K 1

R904 ERJ3RBD153 M.RESISTOR CH

1/16W 15K 1

R906 ERJ3RBD563 M.RESISTOR CH

1/16W 56K 1ERJ3RBD563V

R907 ERJ3GEYJ331 M.RESISTOR CH

1/10W 330 1

R908 ERJ3GEYJ331 M.RESISTOR CH

1/10W 330 1

R909 ERJ3GEYJ331 M.RESISTOR CH

1/10W 330 1

R910 ERJ3RBD822 M.RESISTOR CH

1/16W 8.2K 1

R912 ERJ3RBD102 M.RESISTOR CH

1/16W 1K 1

R913 ERJ3RBD472 M.RESISTOR CH

1/16W 4.7K 1

R915 ERJ3GEYJ102V M.RESISTOR CH

1/10W 1K 1

R918 ERJ3RED270 M.RESISTOR CH

1/16W 27 1

R924 ERJ3RED270 M.RESISTOR CH

1/16W 27 1

R925 ERJ3RED270 M.RESISTOR CH

1/16W 27 1

R930 ERJ3RBD103 M.RESISTOR CH

1/16W 10K 1

R931 ERJ3RED270 M.RESISTOR CH

1/16W 27 1

R932 ERJ3RED270 M.RESISTOR CH

1/16W 27 1

R933 ERJ3RED270 M.RESISTOR CH

1/16W 27 1

R934 ERJ3RED270 M.RESISTOR CH

1/16W 27 1

R937 ERJ3RBD473 M.RESISTOR CH

1/16W 47K 1

R940 ERJ3GEYJ103V M.RESISTOR CH

1/10W 10K 1D0GB103JA002

nVEP29163A EVF B/L C.B.A. (RTL)

C801 ECJ1VB0J474K C.CAPACITOR CH

6.3V 0.47U 1

C802 ECJ1VB1A105K C.CAPACITOR CH 10V

1U 1

D801 B3AFB0000081 LED 1

D802 MA8047M DIODE 1MAZ80470M

D803 B0BC6R100025 DIODE 1

D804 MA3S13300L DIODE 1

FP801 K1MN22BA0055 CONNECTOR 22P 1

FP802 K1MN22BA0050 CONNECTOR 22P 1

Q801 2SD2216J0L TRANSISTOR 1

Ref.

No. Part No. Part Name &

Description Pcs Remarks

R801 ERJ3GEYJ472 M.RESISTOR CH

1/10W 4.7K 1

R804 ERJ3RED470 M.RESISTOR CH

1/16W 47 1

nVEP20B18A MF SENSOR C.B.A. (RTL)

Q710 CNA1312K01VT PHOTO SENSOR 1

Q711 CNA1312K01VT PHOTO SENSOR 1

nVEP04883A FRONT C.B.A. (RTL)

C401 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C403 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C488 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C491 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C492 F1G0J224A004 C.CAPACITOR CH

6.3V 0.22U 1

C493 F1G0J224A004 C.CAPACITOR CH

6.3V 0.22U 1

C495 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C4801 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C4802 ECJ0EB1A473K C.CAPACITOR CH 10V

0.047U 1

C4803 ECUX1E681KBQ C.CAPACITOR CH 25V

680P 1ECJ0EB1E681K

C4804 ECUX1E681KBQ C.CAPACITOR CH 25V

680P 1ECJ0EB1E681K

C4807 F1H0J475A009 C.CAPACITOR CH

6.3V 4.7U 1

C4808 F3F0J226A055 C.CAPACITOR CH

6.3V 22U 1

C4899 ECJ1VB0J105K C.CAPACITOR CH

6.3V 1U 1

C7001 ECJ1VB1C105K C.CAPACITOR CH 16V

1U 1

C7003 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

C7004 F2AZZ6500002 E.CAPACITOR 1

C7006 ECJ0EB1A104K C.CAPACITOR CH 10V

0.1U 1

C7007 ECJ0EB1C103K C.CAPACITOR CH 16V

0.01U 1

D491 MA3S132D0L DIODE 1

D6801 B3AAB0000037 LED 1

D6802 B3GA00000047 PHOTO DETECTORS 1

D7001 MA2S11100L DIODE 1

D7003 B0ECKT000001 DIODE 1

D7004 B0BC30000001 DIODE 1

D7006 B0JCDD000002 DIODE 1

FP4801 K1MN28A00042 CONNECTOR 28P 1

FP7001 K1MN06BA0108 CONNECTOR 6P 1

FP7002 K1MN27BA0058 CONNECTOR 27P 1

IC481 L2ES00000013 IC 1

IC482 L2ES00000012 IC 1

IC4801 NJM2115V IC 1C0ABBB000104

IC7001 C0JBAA000345 IC 1

IC7003 B1JBLP000010 IC 1

L401 G1C100KA0055 CHIP INDUCTOR 10UH 1

L480 G1C100KA0055 CHIP INDUCTOR 10UH 1

L7001 G1C560MA0024 CHIP INDUCTOR 56UH 1

Q491 B1ABCF000100 TRANSISTOR 1

Q492 B1ABBE000002 TRANSISTOR 1

Q4803 B1ABBE000002 TRANSISTOR 1

Q7001 2SD2216J0L TRANSISTOR 1

Q7002 B1ABPF000009 TRANSISTOR 1

152

PV-GS250PP

Ref.

No. Part No. Part Name &

Description Pcs Remarks

Q7003 B1ABBE000002 TRANSISTOR 1

QR7008 UN9214JTX TRANSISTOR-

RESISTOR 1

R491 ERJ2GEJ225 M.RESISTOR CH

1/16W 2.2M 1ERJ2RMJ225X

R492 ERJ2GEJ334 M.RESISTOR CH

1/16W 330K 1

R493 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R494 ERJ2GEJ182 M.RESISTOR CH

1/16W 1.8K 1

R495 ERJ3GEYJ106 M.RESISTOR CH

1/10W 10M 1

R4801 ERJ6GEYG392 M.RESISTOR CH

1/10W 3.9K 1

R4802 ERJ6GEYG392 M.RESISTOR CH

1/10W 3.9K 1

R4803 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R4804 ERJ2GE0R00X M.RESISTOR CH

1/16W 0 1

R4805 ERJ2GEJ563 M.RESISTOR CH

1/16W 56K 1

R4806 ERJ2GEJ563 M.RESISTOR CH

1/16W 56K 1

R4807 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R4808 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R4813 ERJ2GEJ223 M.RESISTOR CH

1/16W 22K 1

R4814 ERJ2GEJ333 M.RESISTOR CH

1/16W 33K 1

R4815 ERJ2GEJ472 M.RESISTOR CH

1/16W 4.7K 1

R6803 ERJ2GEJ331 M.RESISTOR CH

1/16W 330 1

R7001 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R7003 ERJ2GEJ121 M.RESISTOR CH

1/16W 120 1

R7005 ERJ2GEJ334 M.RESISTOR CH

1/16W 330K 1

R7006 ERJ2GEJ564 M.RESISTOR CH

1/16W 560K 1

R7008 ERJ2GEJ330 M.RESISTOR CH

1/16W 33 1

R7009 ERJ2GEJ103 M.RESISTOR CH

1/16W 10K 1

R7010 ERJ2GEJ473Y M.RESISTOR CH

1/16W 47K 1

R7011 ERJ2GEJ104 M.RESISTOR CH

1/16W 100K 1

R7022 ERJ2GEJ102X M.RESISTOR CH

1/16W 1K 1ERJ2RMJ102X

T7001 G5DYA0000084 SWITCHING

TRANSFORMER 1

VZ4801 D4ED1270A003 TRANSIENT/SURGE

ABSORBER 1

VZ4802 D4ED1270A003 TRANSIENT/SURGE

ABSORBER 1

VZ7002 D4ED1270A003 TRANSIENT/SURGE

ABSORBER 1

153

PV-GS250PP

PVGS250

Navigation menu

Versions of this User Manual:

Views

Navigation
