Basic Owner’s Manual
Digital Camera
Model No. DMC-TS3
Before connecting, operating or adjusting this product,
please read the instructions completely.
More detailed instructions on the
operation of this camera are
contained in “Owner’s Manual for
advanced features (PDF format)” in the supplied
CD-ROM. Install it on your PC to read it.
PC
VQT3L23
until
2011/2/28
For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or
send e-mail to: lumixconcierge@ca.panasonic.com
DMC-TS3PC-VQT3L23_eng.book 1 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
2
Dear Customer,
Thank you for choosing Panasonic!
You have purchased one of the most sophisticated and reliable products on
the market today. Used properly, we’re sure it will bring you and your family
years of enjoyment. Please take time to fill in the information on the below.
The serial number is on the tag located on the underside of your Camera. Be
sure to retain this manual as your convenient Camera information source.
Please note that the actual controls and components, menu items, etc. of
your Digital Camera may look somewhat different from those shown in the
illustrations in this Owner’s Manual.
Carefully observe copyright laws.
•Recording of pre-recorded tapes or discs or other published or broadcast
material for purposes other than your own private use may infringe copyright
laws. Even for the purpose of private use, recording of certain material may be
restricted.
A lithium ion battery that is recyclable powers the product
you have purchased. Please call 1-800-8-BATTERY for
information on how to recycle this battery.
Model No.
Serial No.
DMC-TS3PC-VQT3L23_eng.book 2 ページ ２０１１年１月２１日　金曜日　午後４時５９分
3
(ENG) VQT3L23
Information for Your Safety
∫Product identification marking
WARNING:
To reduce the risk of fire, electric shock or product damage,
•Do not let water or other liquids drip or splash inside the unit.
•Do not expose accessories (battery pack, battery charger, AC adaptor,
SD memory card and etc.) to rain, moisture, dripping or splashing.
•Do not place objects filled with liquids, such as vases, on accessories.
•Use only the recommended accessories.
•Do not remove covers.
•Do not repair this unit by yourself. Refer servicing to qualified service
personnel.
THE SOCKET OUTLET SHALL BE INSTALLED NEAR THE
EQUIPMENT AND SHALL BE EASILY ACCESSIBLE.
Product Location
Digital camera Bottom
Battery charger Bottom
This Class B digital apparatus complies with Canadian ICES-003.
DMC-TS3PC-VQT3L23_eng.book 3 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
4
∫About the battery pack
•Do not heat or expose to flame.
•Do not leave the battery(ies) in an automobile exposed to direct sunlight for a
long period of time with doors and windows closed.
∫About the battery charger
CAUTION
Battery pack (Lithium ion battery pack)
•Use the specified unit to recharge the battery pack.
•Do not use the battery pack with equipment other than the specified unit.
•Do not get dirt, sand, liquids, or other foreign matter on the terminals.
•Do not touch the plug terminals (i and j) with metal objects.
•Do not disassemble, remodel, heat or throw into fire.
If any electrolyte should come into contact with your hands or clothes,
wash it off thoroughly with water.
If any electrolyte should come into contact with your eyes, never rub the
eyes. Rinse eyes thoroughly with water, and then consult a doctor.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s instructions.
Warning
Risk of fire, explosion and burns. Do not disassemble, heat above 60 xC
(140 oF) or incinerate.
CAUTION!
DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT
IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK
OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT
CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
DMC-TS3PC-VQT3L23_eng.book 4 ページ ２０１１年１月２１日　金曜日　午後４時５９分
5
(ENG) VQT3L23
∫Cautions for Use
•Do not use any other AV cables except the supplied one.
•Always use a genuine Panasonic HDMI micro cable (RP-CHEU15; optional).
Part numbers: RP-CHEU15 (1.5 m) (5 feet)
•Do not use any other USB connection cables except the supplied one.
Keep this unit as far away as possible from electromagnetic equipment
(such as microwave ovens, TVs, video games etc.).
•If you use this unit on top of or near a TV, the pictures and/or sound on this unit
may be disrupted by electromagnetic wave radiation.
•Do not use this unit near cell phones because doing so may result in noise
adversely affecting the pictures and/or sound.
•Recorded data may be damaged, or pictures may be distorted, by strong
magnetic fields created by speakers or large motors.
•Electromagnetic wave radiation generated by microprocessors may adversely
affect this unit, disturbing the pictures and/or sound.
•If this unit is adversely affected by electromagnetic equipment and stops
functioning properly, turn this unit off and remove the battery or disconnect AC
adaptor (DMW-AC5PP; optional). Then reinsert the battery or reconnect AC
adaptor and turn this unit on.
Do not use this unit near radio transmitters or high-voltage lines.
•If you record near radio transmitters or high-voltage lines, the recorded pictures
and/or sound may be adversely affected.
Battery charger
This battery charger operates on AC between 110 V and 240 V.
But
•In the U.S.A. and Canada, the battery charger must be connected to a 120 V
AC power supply only.
•When connecting to an AC supply outside of the U.S.A. or Canada, use a
plug adaptor to suit the AC outlet configuration.
DMC-TS3PC-VQT3L23_eng.book 5 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
6
-If you see this symbol-
Information on Disposal in other Countries outside
the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your
local authorities or dealer and ask for the correct
method of disposal.
DMC-TS3PC-VQT3L23_eng.book 6 ページ ２０１１年１月２１日　金曜日　午後４時５９分
7
(ENG) VQT3L23
Contents
Information for Your Safety ...........................................................................3
Standard Accessories ................................................................................... 8
When inner side of the lens is fogged (condensation) .................................. 9
(Important) About the Waterproof/
Dustproof and Anti-shock Performance of the Camera ..............................10

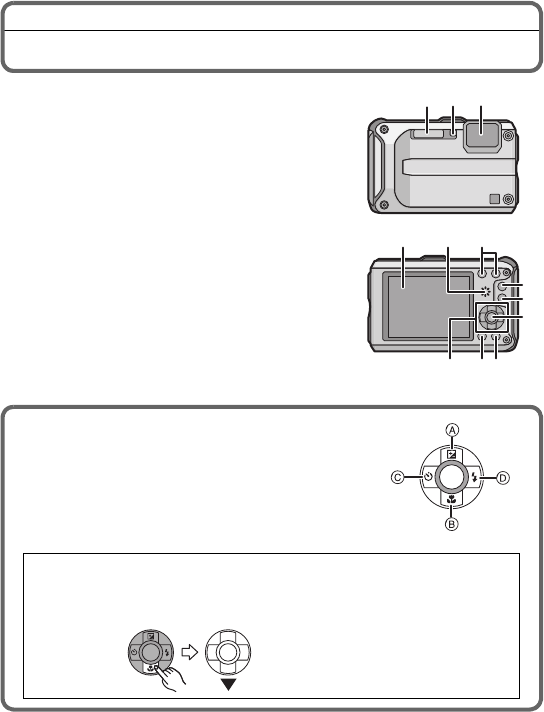

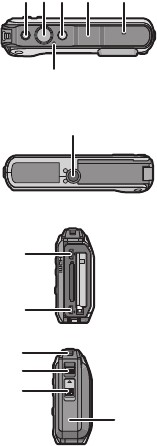

Names of the Components ......................................................................... 15

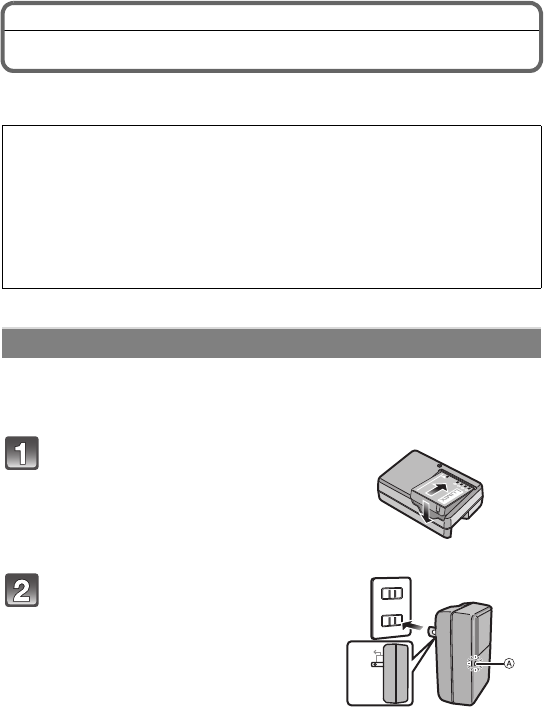

Charging the Battery ................................................................................... 17
• Charging ............................................................................................... 17
• Approximate operating time and number of recordable pictures .......... 18
About the Built-in Memory/the Card ............................................................ 19

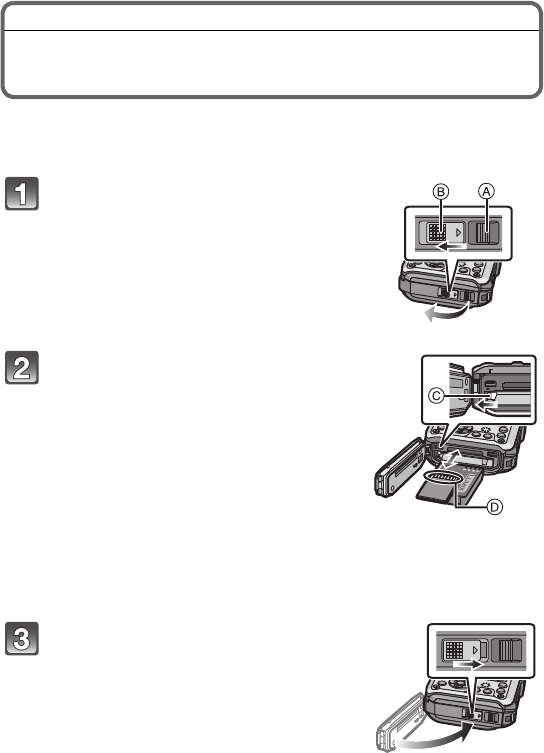

Inserting and Removing the Card (optional)/the Battery ............................. 20

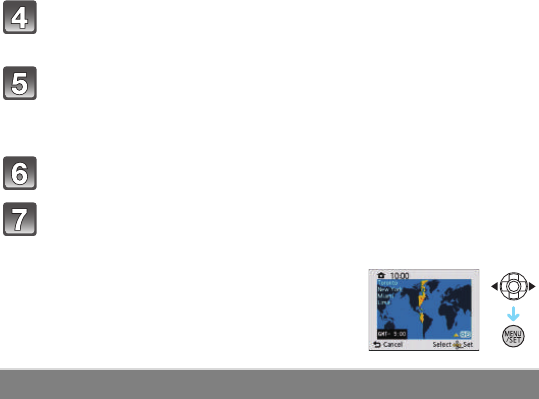

Setting Date/Time (Clock Set)..................................................................... 21
• Changing the clock setting.................................................................... 22

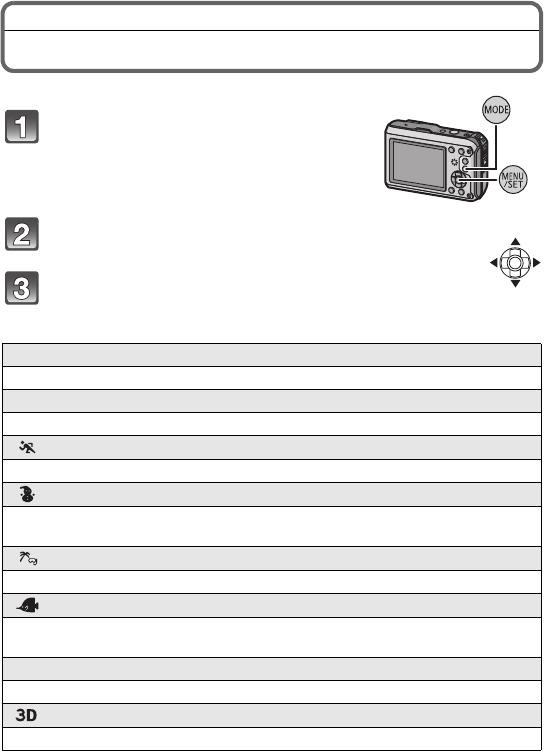

Selecting the [Rec] Mode............................................................................ 23

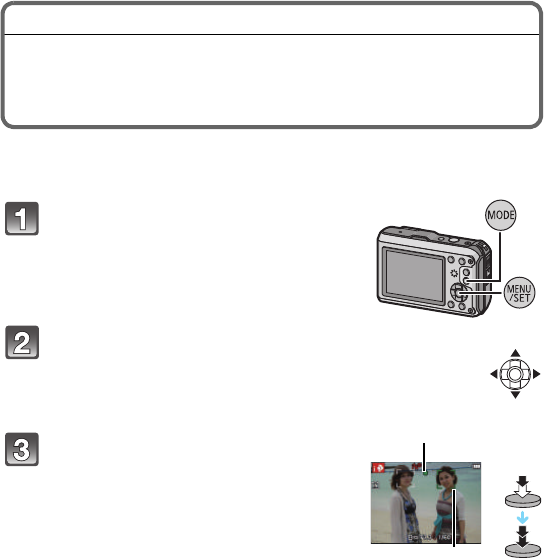

Taking Pictures Using the Automatic Function
(ñ: Intelligent Auto Mode) ......................................................................... 24

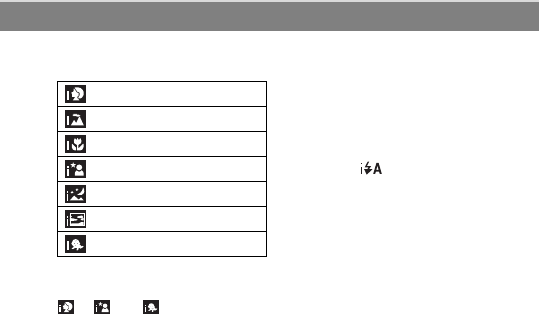

• Scene Detection.................................................................................... 25

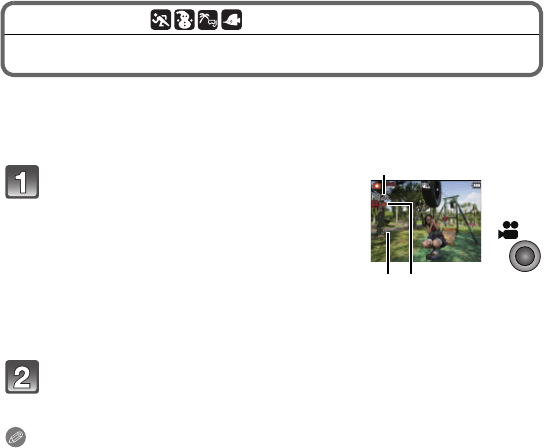

Recording Motion Pictures.......................................................................... 26

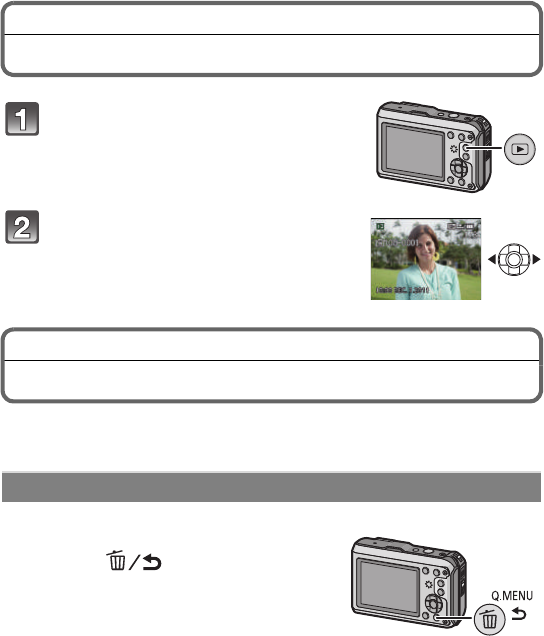

Playing Back Pictures ([Normal Play]) ........................................................27
Deleting Pictures ......................................................................................... 27
• To delete a single picture...................................................................... 27

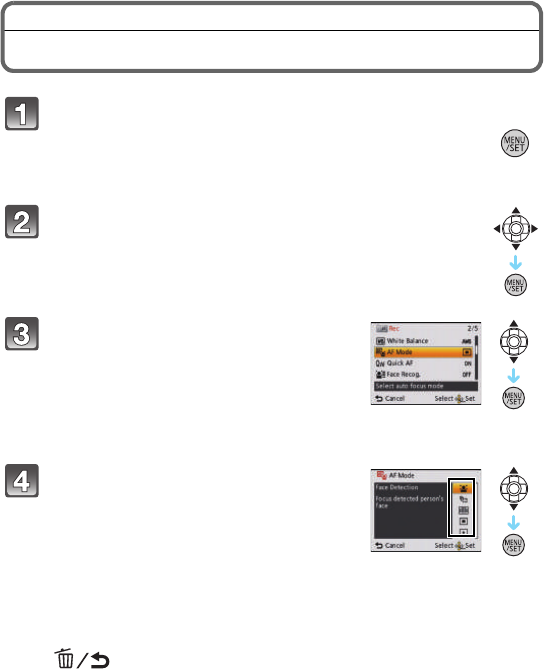

Setting the Menu......................................................................................... 28

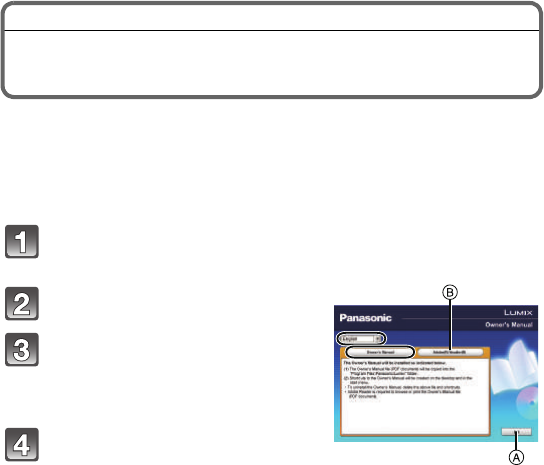

Reading the Owner’s Manual (PDF format) ................................................ 29
Specifications.............................................................................................. 31

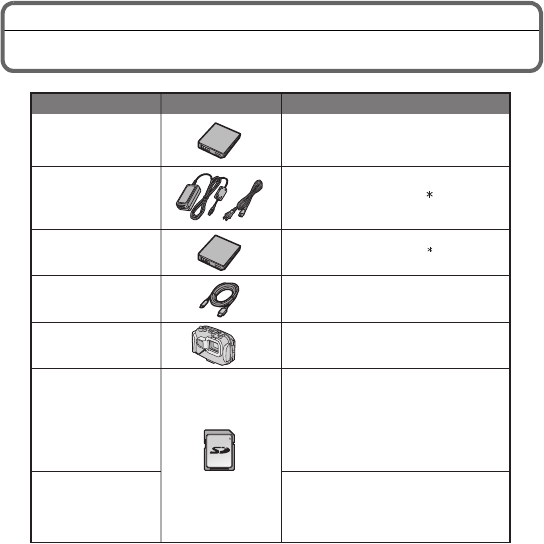

Digital Camera Accessory System.............................................................. 35
DMC-TS3PC-VQT3L23_eng.book 7 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
8

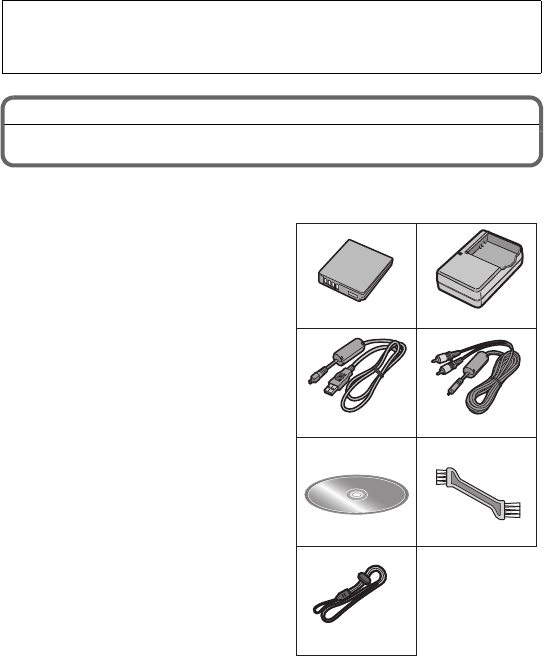

Standard Accessories
Check that all the accessories are supplied before using the camera.
Product numbers correct as of January 2011. These may be subject to change.
1 Battery Pack
(Indicated as battery pack or
battery in the text)
Charge the battery before use.
2 Battery Charger
(Indicated as battery charger or
charger in the text)
3 USB Connection Cable
4AV Cable
5 CD-ROM
•Software:
Use it to install the software to your
PC.
•Owner’s Manual

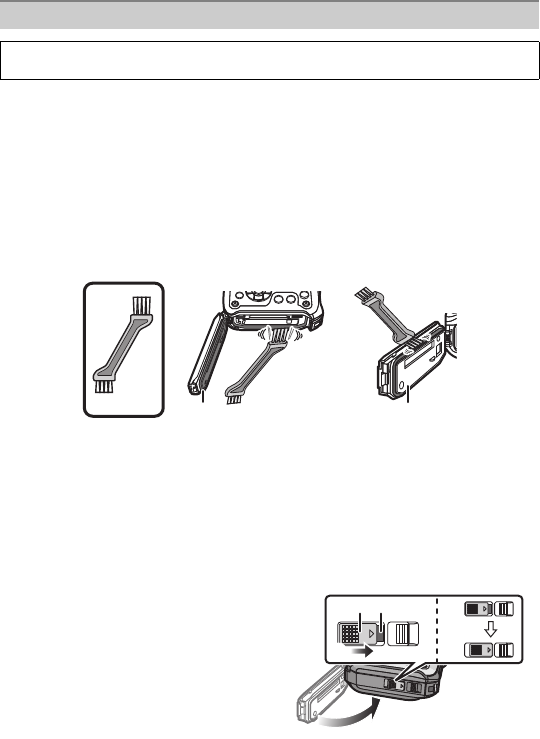

6Brush
7 Hand Strap
•Supplied accessories are not waterproof
(excluding strap).
•Keep the Brush out of reach of children
to prevent swallowing.
•SD Memory Card, SDHC Memory Card
and SDXC Memory Card are indicated
as card in the text.
•The card is optional.
You can record or play back pictures
on the built-in memory when you are
not using a card.
•For information about optional accessories, refer to the “Digital Camera
Accessory System”.
•If any accessories are lost, customers in Canada should contact
1 800 99-LUMIX (1-800-995-8649) for further information about obtaining
replacement parts.
Please be sure to read “(Important) About the Waterproof/Dustproof and
Anti-shock Performance of the Camera” (P10) before using this unit
underwater to prevent the unit from being mishandled, which may cause
water to seep in.
DMW-BCF10PP DE-A59B
12
K1HY08YY0018K1HY08YY0017
7
VFC4393
5
VFF0787
6
VFC4588
4
3
DMC-TS3PC-VQT3L23_eng.book 8 ページ ２０１１年１月２１日　金曜日　午後４時５９分
9
(ENG) VQT3L23

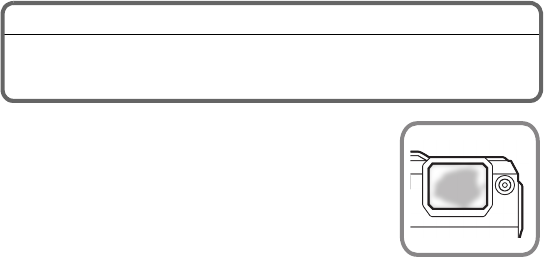

When inner side of the lens is fogged
(condensation)
It is not a malfunction or failure of the camera. It may
be caused by the environment in which the camera is
used.
What to do when inner side of the lens is fogged
•Turn off the power and open the side door in a place
with constant ambient temperature, away from high
temperatures, humidity, sand and dust. The fog will
disappear naturally in 10 minutes to 2 hours with the
side door open when the temperature of the camera
gets close to the ambient temperature.
•Contact Panasonic’s Service Center if the fogging does not disappear.
Conditions in which inner side of the lens may be fogged
Condensation may occur and the inner side of the lens may be fogged when the
camera is used in areas that undergo a significant change in temperature or in
high humidity, such as the following:
•When the camera is used underwater suddenly after being on a hot beach
etc.
•When the camera is moved to a warm area from a cold area, such as at a
ski resort or at high altitude
•When the side door is opened in a high-humidity environment
DMC-TS3PC-VQT3L23_eng.book 9 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
10

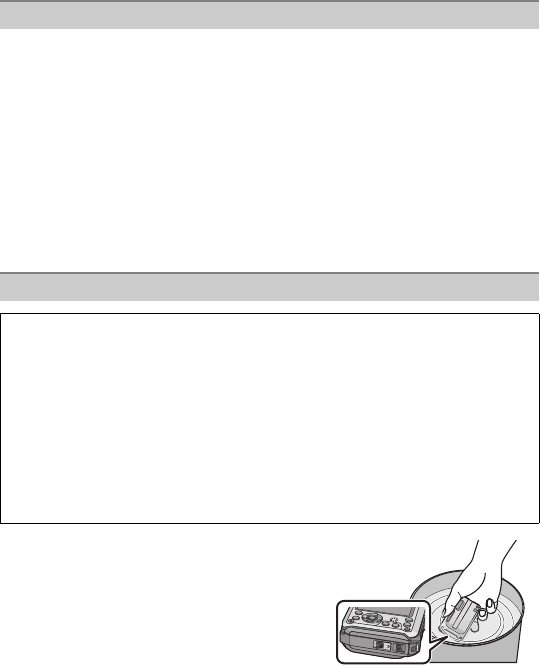

(Important) About the Waterproof/
Dustproof and Anti-shock Performance of
the Camera
This does not guarantee no destruction, no malfunction, or waterproofing in
all conditions.
¢1 This means that the camera can be used underwater for specified time in
specified pressure in accordance with the handling method established by
Panasonic.
¢2 “MIL-STD 810F Method 516.5-Shock” is the test method standard of the U.S.
Defense Department, which specifies performing drop tests from a height of
122 cm (4.0 feet), at 26 orientations (8 corners, 12 ridges, 6 faces) using 5
sets of devices, and passing the 26 orientation drops within 5 devices. (If
failure occurs during the test, a new set is used to pass the drop orientation
test within a total of 5 devices)
Panasonic’s test method is based on the above “MIL-STD 810F Method
516.5-Shock”. However, the drop height was changed from 122 cm (4.0 feet)
to 200 cm (6.6 feet) dropping onto 3 cm (0.10 feet) thick plyboard. This drop
test was passed.
(Disregarding appearance change such as loss of paint or distortion of the
part where drop impact is applied.)
Waterproof/Dustproof Performance
This camera’s waterproof/dustproof rating complies with the “IPX8” and
“IP6X” ratings. Provided the care and maintenance guidelines described
in this document are strictly followed, this camera can operate
underwater, to a depth not exceeding 12 m (40 feet) for a time not
exceeding 60 minutes. (¢1)
Anti-shock Performance
This camera also complies with “MIL-STD 810F Method 516.5-Shock”.
The camera has cleared a drop test from a height of 2 m (6.6 feet) onto
3 cm (0.10 feet) thick plywood. In most cases this camera should not
sustain any damage if dropped from a height not exceeding 2 m
(6.6 feet). (¢2)
DMC-TS3PC-VQT3L23_eng.book 10 ページ ２０１１年１月２１日　金曜日　午後４時５９分
11
(ENG) VQT3L23
∫Handling of the camera
•Waterproofing is not guaranteed if the unit is subject to an impact as a result of
being hit or dropped etc. If an impact to the camera occurs, it should be
inspected (subject to a fee) by a Panasonic’s Service Center to verify that the
waterproofing is still effective.
•When the camera is splashed with detergent, soap, hot spring, bath additive,
sun oil, sun screen, chemical, etc., wipe it off immediately.
•Waterproof function of the camera is for sea water and fresh water only.
•Any malfunction caused by customer misuse, or mishandling will not be covered
by the warranty.
•The inside of this unit is not waterproof. Water leakage will cause malfunction.
•Supplied accessories are not waterproof (excluding strap).
•Card and battery are not waterproof. Do not handle with a wet hand. Also, do not
insert wet card or battery into the camera.
•Do not leave the camera for a long period of time in places where temperature is
very low (at ski resorts or at high altitude etc.) or very high [above 40 oC
(104 °F)], inside a car under strong sunlight, close to a heater, on the beach, etc.
Waterproof performance may be degraded.
∫About the [Precautions] demonstration display
•[Precautions] is displayed when the power is turned on for the first time after
purchase, with the side door completely closed.
•Please check beforehand to maintain the waterproof performance.
1Press 2 to select [Yes], and press [MENU/SET].
•It will automatically skip to the clock setting screen if [No] is selected before
it starts.
2Press 2/1 to select the picture.
•It can be forcefully ended by pressing [MENU/SET].
•When it is forcefully ended while checking by turning the power off or
pressing [MENU/SET], [Precautions] is displayed every time the power is
turned on.
3After the final screen (12/12), press [MENU/SET] to finish.
•When [MENU/SET] is pressed after the final screen (12/12), [Precautions]
is not displayed from the next time the power is turned on.
•This can also be viewed from [Precautions] in the [Setup] menu.
2: Return to the previous screen
1: View the next screen
DMC-TS3PC-VQT3L23_eng.book 11 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
12
1
Check that there are no foreign objects on the inner side of the side door.
•If there is any foreign object, such as lint, hair, sand, etc., on the
surrounding area, water will leak within a few seconds causing malfunction.
•
Wipe it off with a dry soft cloth if there is any liquid.
It may cause water leaks and malfunction if you use the camera with liquid adhered.
•If there is any foreign material, remove with supplied brush.
•Be extremely careful to remove the small pieces of sand etc. that may have
adhere to the sides and corners of the rubber seal.
•Remove large foreign objects, wet sand, etc., using the shorter (harder)
side of the brush.
ABrush (supplied)
BSide door
2
Check for cracks and deformation of the rubber seal on the side door.
•The integrity of the rubber seals may decrease after about 1 year, with use
and age. To avoid permanently damaging the camera the seals should be
replaced once each year. Please contact Panasonic’s Service Center for
related costs and other information.
3Close the side door securely.
•Lock the [LOCK] switch securely until the red part is no longer visible.
•To prevent water seeping into the camera, be careful not to trap foreign
objects such as liquids, sand, hair or dust etc.
Check before using underwater
Do not open or close the side door in places with sand and dust, close to
water, or with wet hands. Sand or dust adhering may cause water leaks.
C:Red part
D:[LOCK] switch (gray part)
E:Released state
F:Locked state
ロヰヤレ
ロヰヤレ
ロヰヤレ
DMC-TS3PC-VQT3L23_eng.book 12 ページ ２０１１年１月２１日　金曜日　午後４時５９分
13
(ENG) VQT3L23
•Use the camera underwater at a depth of up to 12 m (40 feet) with the water
temperature between 0 oC and 40 oC (32 oF to 104 °F).
•Do not use for scuba diving (Aqualung).
•Do not use the camera at a depth of over 12 m (40 feet).
•Do not use it in the hot water over 40 oC (104 °F) (in the bath or hot spring).
•Do not use the camera underwater for longer than 60 minutes continuously.
•Do not open or close the side door.
•Do not apply shock to the camera underwater. (Waterproof performance may not
be maintained, and there is a chance of a water leak.)
•Do not dive into the water holding the camera. Do not use the camera in a
location where the water will splash strongly, such as near rapids or waterfalls.
(Strong water pressure may be applied, and it may cause malfunction.)
•The camera will sink in the water. Take care not to drop the camera and lose it
underwater by securely placing the strap around your wrist or similar measure.
1Rinse with water with the side door
closed.
•After use at the seaside or underwater,
soak the unit in fresh water pooled in a
shallow container for 10 minutes or less.
•If the zoom button or camera [OFF/ON]
button do not move smoothly, it may be
caused by an adhesion of foreign
objects. Using in such a state may cause
malfunctions, such as locking up, so wash off any foreign objects by
shaking the camera in fresh water.
•Bubbles may come out of the drainage hole when you immerse the camera
in water, but this is not a malfunction.
Using the camera underwater
Caring of the camera after using it underwater
Do not open or close the side door until the sand and dust is removed by
rinsing the camera with water.
Make sure to clean the camera after using it.
•Thoroughly wipe off any water droplets, sand, and saline matter on your hands,
body, hair, etc.
•It is recommended to clean the camera indoors, avoiding places where water
spray or sand may fall.
Do not leave the camera uncared for more than 60 minutes after using it
underwater.
•Leaving the camera with foreign objects or saline matter on it may cause
damage, discoloration, corrosion, unusual odour, or deterioration of the
waterproof performance.
DMC-TS3PC-VQT3L23_eng.book 13 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
14
2Drain water by holding the camera
upside down and shaking it lightly a
few times.
•After using the camera at the seaside or
under water, or after washing it, water
will remain at the speaker site of the
camera for a while and it may cause
lower sound or sound distortion.
•Fasten the strap firmly to prevent the
camera from dropping.
3Wipe off water drops on the camera
with a dry soft cloth and dry the
camera in a shaded area which is
well ventilated.
•Dry the camera by standing it on a dry
cloth. This unit incorporates drain
design, draining water in gaps in the
camera [OFF/ON] button and zoom button etc.
•Do not dry the camera with hot air from dryer or similar. Waterproof
performance will deteriorate due to deformation.
•Do not use chemicals such as benzine, thinner, alcohol, or cleanser, or
soap or detergents.
4Confirm that there are no water droplets, open the side door, and
wipe off any water droplets or sand left inside using a soft dry
cloth.
•Water droplets may adhere to the card or battery when the side door is
opened without thoroughly drying. Also, water may accumulate in the gap
around the card/battery compartment or the terminal connector. Be sure to
wipe any water off with a soft dry cloth.
•The water droplets may seep into the camera when the side door is closed
while it is still wet, causing condensation or failure.
DMC-TS3PC-VQT3L23_eng.book 14 ページ ２０１１年１月２１日　金曜日　午後４時５９分
15
(ENG) VQT3L23
Names of the Components
1Flash
2 Self-timer indicator/
AF Assist Lamp/LED light
3Lens
4 LCD monitor
5 Speaker
6 Zoom button
7 Playback button
8 [MODE] button
9 [MENU/SET] button
10 [Q.MENU]/Delete/Cancel button
11 [DISP.] button
12 Cursor buttons
A: 3/Exposure compensation
Auto Bracket
B: 4/Macro Mode
AF Tracking
C: 2/Self-timer
D: 1/Flash setting
In this Owner’s Manual, the cursor buttons are described as shown in
the figure below or described with 3/4/2/1.
e.g.: When you press the 4 (down) button
or Press 4
21 3
456
1110
12
8
9
7
MENU
/SET
MENU
/SET
VQT3L23~Body1_eng.fm 15 ページ ２０１１年１月２４日　月曜日　午前１１時３３分
VQT3L23 (ENG)
16
13 Motion picture button
14 Shutter button
15 Camera [OFF/ON] button
16 GPS antenna
17 Microphone
18 GPS status indicator
19 Tripod receptacle
20 [HDMI] socket
21 [AV OUT/DIGITAL] socket
22 Strap eyelet
•Be sure to attach the strap when using the
camera to ensure that you will not drop it.
23 Release lever
24 [LOCK] switch
25 Side door
•When using an AC adaptor, ensure that
the Panasonic DC coupler (DMW-DCC4;
optional) and AC adaptor (DMW-AC5PP;
optional) are used.
•Always use a genuine Panasonic AC
adaptor (DMW-AC5PP; optional).
•It is recommended to use a fully charged
battery or AC adaptor (DMW-AC5PP;
optional) and DC coupler (DMW-DCC4;
optional) when recording motion pictures.
•If while recording motion pictures using the
AC adaptor and the power supply is cut off
due to a power outage or if the AC adaptor
is disconnected etc., the motion picture
being recorded will not be recorded.
13 1415 16
18
17
19
ロヰヤレ
モヷチヰヶヵチバチュリヨリヵモロ
20
21
ロヰヤレ
23
24
22
2
5
DMC-TS3PC-VQT3L23_eng.book 16 ページ ２０１１年１月２１日　金曜日　午後４時５９分
17
(ENG) VQT3L23
Charging the Battery
∫About batteries that you can use with this unit
The battery that can be used with this unit is DMW-BCF10PP.
•Use the dedicated charger and battery.
•The battery is not charged when the camera is shipped. Charge the battery
before use.
•Charge the battery with the charger indoors.
It has been found that counterfeit battery packs which look very similar
to the genuine product are made available to purchase in some markets.
Some of these battery packs are not adequately protected with internal
protection to meet the requirements of appropriate safety standards.
There is a possibility that these battery packs may lead to fire or
explosion. Please be advised that we are not liable for any accident or
failure occurring as a result of use of a counterfeit battery pack. To
ensure that safe products are used we would recommend that a genuine
Panasonic battery pack is used.
Charging
Attach the battery paying
attention to the direction of the
battery.
Connect the charger to the
electrical outlet.
•Disconnect the charger from the
electrical socket and detach the battery
after charging is completed.
90
DMC-TS3PC-VQT3L23_eng.book 17 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
18
∫ About the [CHARGE] indicator
The [CHARGE] indicator turns on:
The [CHARGE] indicator A is turned on during charging.
The [CHARGE] indicator turns off:
The [CHARGE] indicator A will turn off once the charging has completed without
any problem.
•When the [CHARGE] indicator flashes
–The battery temperature is too high or too low. It is recommended to charge
the battery again in an ambient temperature of between 10 oC to 30 oC (50 oF
to 86 oF).
–The terminals of the charger or the battery are dirty. In this case, wipe off the
dirt with a dry cloth.
∫Charging time
Recording conditions by CIPA standard
•CIPA is an abbreviation of [Camera & Imaging Products Association].
•Normal Picture Mode
•Temperature: 23 oC (73.4 oF)/Humidity: 50%RH when LCD monitor is on.
•Using a Panasonic SD Memory Card (32 MB).
•Using the supplied battery.
•Starting recording 30 seconds after the camera is turned on. (When the Optical
Image Stabilizer function is set to [ON].)
•Recording once every 30 seconds with full flash every second recording.
•Changing the zoom magnification from Tele to Wide or vice versa in every
recording.
•Turning the camera off every 10 recordings and leaving it until the temperature
of the battery decreases.
•Not using the GPS function.
Charging time Approx. 130 min
Approximate operating time and number of recordable pictures
Number of recordable
pictures Approx. 310 pictures
Recording time Approx. 155 min
Playback time Approx. 300 min
DMC-TS3PC-VQT3L23_eng.book 18 ページ ２０１１年１月２１日　金曜日　午後４時５９分
19
(ENG) VQT3L23
About the Built-in Memory/the Card
•You can copy the recorded pictures to a card.
•Memory size: Approx. 19 MB
•
The access time for the built-in memory may be longer than the access time for a card.
The following cards which conform to the SD video standard can be used with this unit.
(These cards are indicated as card in the text.)
¢SD Speed Class is the speed standard regarding continuous writing. Check
via the label on the card, etc.
•Please confirm the latest information on the following website.
http://panasonic.jp/support/global/cs/dsc/
(This Site is English only.)
Note
•Keep the Memory Card out of reach of children to prevent swallowing.
Built-in Memory
Card
Type of card which
can be used with this
unit
Remarks
SD Memory Card
(8 MB to 2 GB) •Use a card with SD Speed Class¢ with “Class 4”
or higher when recording motion pictures in
[AVCHD]. Also, use a card with SD Speed Class
with “Class 6” or higher when recording motion
pictures in [Motion JPEG].
•SDHC Memory Card can be used with SDHC
Memory Card or SDXC Memory Card compatible
equipment.
•SDXC Memory Card can only be used with SDXC
Memory Card compatible equipment.
•Check that the PC and other equipment are
compatible when using the SDXC Memory Cards.
http://panasonic.net/avc/sdcard/information/
SDXC.html
•Only the cards with capacity listed left can be used.
SDHC Memory Card
(4 GB to 32 GB)
SDXC Memory Card
(48 GB, 64 GB)
e.g.:
DMC-TS3PC-VQT3L23_eng.book 19 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
20
Inserting and Removing the Card
(optional)/the Battery
•Check that this unit is turned off.
•Confirm that there is no foreign object.
•We recommend using a Panasonic card.
1:Slide the [LOCK] switch B, and
release the lock.
2:Slide the release lever A and
open the side door.
•Always use genuine Panasonic batteries
(DMW-BCF10PP).
•If you use other batteries, we cannot
guarantee the quality of this product.
Battery: Being careful about the
battery orientation, insert all the way
until you hear a locking sound and
then check that it is locked by lever
C. Pull the lever C in the direction
of the arrow to remove the battery.
Card: Push it securely all the way
until you hear a “click” while being
careful about the direction in which you insert it. To
remove the card, push the card until it clicks, then pull the
card out upright.
D: Do not touch the connection terminals of the card.
Close the side door until it clicks,
and then lock the [LOCK] switch by
sliding it toward [1].
•Confirm that the red part on the release
lever is not showing.
ロヰヤレ
モヷチヰヶヵチバチュリヨ リヵモロ
ロヰヤレ
DMC-TS3PC-VQT3L23_eng.book 20 ページ ２０１１年１月２１日　金曜日　午後４時５９分
21
(ENG) VQT3L23
Setting Date/Time (Clock Set)
•The clock is not set when the camera is shipped.
•[Precautions] is displayed. Be sure to check this so that you can maintain
the waterproof performance. [Please set the clock] is displayed by
selecting [No] before it starts or by pressing [MENU/SET] after viewing
the last screen (12/12).
For details about the [Precautions] demo, refer to P11.
Press [MENU/SET].
Press 2/1 to select the items (year,
month, day, hour, minute, display
sequence or time display format), and
press 3/4 to set.
•You can cancel without setting the clock by
pressing [ ].
Press the [OFF/ON] button.
DMC-TS3PC-VQT3L23_eng.book 21 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
22
Press [MENU/SET] to set.
•A setting screen for automatic clock correction is displayed.
Select [Yes] to automatically correct the clock, and then
press [MENU/SET].
•[GPS Setting] will be set to [ON], and the clock is automatically corrected
to the current time.
Press [MENU/SET] in the message display screen.
Press 2/1 to select the home area, and then press
[MENU/SET].
Select [Clock Set] in the [Rec] or [Setup] menu, and press [MENU/SET].
•It can be changed in steps 3 and 4 to set the clock.
Changing the clock setting
DMC-TS3PC-VQT3L23_eng.book 22 ページ ２０１１年１月２１日　金曜日　午後４時５９分
23
(ENG) VQT3L23
Selecting the [Rec] Mode
∫List of [Rec] Modes
Press [MODE].
Press 3/4/2/1 to select the mode.
Press [MENU/SET].
!Normal Picture Mode
The subjects are recorded using your own settings.
¦Intelligent Auto Mode
The subjects are recorded using settings automatically selected by the camera.
Sports Mode
Use this mode to take pictures of sporting events, etc.
Snow Mode
This allows you to take pictures that show the snow as white as possible at a ski
resort or a snow-covered mountain.
Beach & Snorkeling Mode
This mode is optimal for taking pictures underwater and at the beach.
Underwater Mode
This is optimal for taking pictures underwater deeper than 12 m (40 feet) by the
use of the marine case (DMW-MCFT3; optional).
ÛScene Mode
This allows you to take pictures that match the scene being recorded.
3D Photo Mode
Takes a 3D picture.
DMC-TS3PC-VQT3L23_eng.book 23 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
24
[Rec] Mode: ñ
Taking Pictures Using the Automatic
Function
(ñ: Intelligent Auto Mode)
The camera will set the most appropriate settings to match the subject and the
recording conditions so we recommend this mode for beginners or those who
want to leave the settings to the camera and take pictures easily.
Press [MODE].
Press 3/4/2/1 to select
[Intelligent Auto], and then press
[MENU/SET].
Press the shutter button halfway to
focus and then press it fully to take
the picture.
1 Focus indication
•The AF area 2 is displayed around the
subject’s face by the Face Detection function.
In other cases, it is displayed at the point on
the subject which is in focus.
1
2
DMC-TS3PC-VQT3L23_eng.book 24 ページ ２０１１年１月２１日　金曜日　午後４時５９分
25
(ENG) VQT3L23
When the camera identifies the optimum scene, the icon of the scene concerned
is displayed in blue for 2 seconds, after which its color changes to the usual red.
•[¦] is set if none of the scenes are applicable, and the standard settings are
set.
•When [ ], [ ] or [ ] is selected, the camera automatically detects a person’s
face, and it will adjust the focus and exposure. (Face Detection)
Scene Detection
¦>[i-Portrait]
[i-Scenery]
[i-Macro]
[i-Night Portrait] •Only when [ ] is selected
[i-Night Scenery]
[i-Sunset]
[i-Baby]
DMC-TS3PC-VQT3L23_eng.book 25 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
26
[Rec] Mode: ñ· ¿
Recording Motion Pictures
This can record full high definition motion pictures that are compatible with the
AVCHD format or motion pictures recorded in Motion JPEG.
Audio will be recorded in monaural.
Note
•Maximum time to record motion pictures continuously with [GFS]/[FSH] in
[AVCHD] is 29 minutes 59 seconds.
•Motion picture recorded continuously in [Motion JPEG] is up to 2 GB. Only the
maximum recordable time for 2 GB is displayed on the screen.
Start recording by pressing the
motion picture button.
A Available recording time
B Elapsed recording time
•You can record motion pictures fitting each
Recording Mode.
•Release the motion picture button right after
you press it.
•The recording state indicator (red) C will flash
while recording motion pictures.
Stop the recording by pressing the motion picture button
again.
B
A
C
DMC-TS3PC-VQT3L23_eng.book 26 ページ ２０１１年１月２１日　金曜日　午後４時５９分
27
(ENG) VQT3L23
[Playback] Mode: ¸
Playing Back Pictures ([Normal Play])
Press 2 or 1.
•After selecting the motion picture, press 3 to
start playback.
[Playback] Mode: ¸
Deleting Pictures
Once deleted, pictures cannot be recovered.
•Pictures on the built-in memory or the card, that are being played back will be
deleted.
Press [(].
•Normal Playback is displayed automatically
when the power is turned on by pressing and
holding the [(] button.
To delete a single picture
Select the picture to be deleted, and
then press [ ].
•Confirmation screen is displayed.
Picture is deleted by selecting [Yes].
VQT3L23~Body1_eng.fm 27 ページ ２０１１年１月２４日　月曜日　午前１１時３４分
VQT3L23 (ENG)
28
Setting the Menu
∫Close the menu
Press [ ] several times or press the shutter button halfway.
Press [MENU/SET].
Press 3/4/2/1 to select menu and
then press [MENU/SET].
Press 3/4 to select the menu item
and then press [MENU/SET].
•It will switch to next page when you reach the
bottom. (It will also switch by pressing the
zoom button)
•Screen to the right is an example of selecting
[AF Mode] in [Rec] mode Menu.
Press 3/4 to select the setting and
then press [MENU/SET].
•Depending on the menu item, its setting may
not appear or it may be displayed in a different
way.
•Screen at right is an example to set the
[AF Mode] from [Ø] (1-area-focusing) to [š]
(Face Detection).
VQT3L23~Body1_eng.fm 28 ページ ２０１１年１月２１日　金曜日　午後６時０分
29
(ENG) VQT3L23
Reading the Owner’s Manual
(PDF format)
More detailed instructions on the operation of this camera are
contained in “Owner’s Manual for advanced features (PDF
format)” in the supplied CD-ROM. Install it to your PC to read it.
∫For Windows
Turn the PC on and insert the CD-ROM containing the
Owner’s Manual (supplied).
Click the [Owner’s Manual].
Select the desired language
and then click [Owner’s
Manual] to install.
ATo return to the install menu.
Double click the “Owner’s
Manual” shortcut icon on the
desktop.
DMC-TS3PC-VQT3L23_eng.book 29 ページ ２０１１年１月２１日　金曜日　午後４時５９分
VQT3L23 (ENG)
30
∫When the Owner’s Manual (PDF format) will not open
You will need Adobe Acrobat Reader 5.0 or later or Adobe Reader 7.0 or later to
browse or print the Owner’s Manual (PDF format).
Insert the CD-ROM containing the Owner’s Manual (supplied), click B and then
follow the messages on the screen to install.
(Compatible OS: Windows 2000 SP4/Windows XP SP3/Windows Vista SP2/
Windows 7)
•You can download and install a version of Adobe Reader that you can use with
your OS from the following website.
http://get.adobe.com/reader/otherversions
∫To uninstall the Owner’s Manual (PDF format)
Delete the PDF file from the “Program Files\Panasonic\Lumix\” folder.
•When the contents in the Program Files folder cannot be displayed, click the
[Show the contents of this folder] to display them.
∫For Macintosh
Turn the PC on and insert the CD-ROM containing the
Owner’s Manual (supplied).
Open the “Manual” folder in the CD-ROM and then copy
the PDF file with the desired language inside the folder.
Double click the PDF file to open it.
DMC-TS3PC-VQT3L23_eng.book 30 ページ ２０１１年１月２１日　金曜日　午後４時５９分
31
(ENG) VQT3L23
Specifications
Digital Camera:
Information for your safety
Power Source: DC 5.1 V
Power
Consumption: 1.4 W (When recording)
0.7 W (When playing back)
Camera effective
pixels
12,100,000 pixels
Image sensor 1/2.33q CCD, total pixel number 12,500,000 pixels,
Primary color filter
Lens Optical 4.6kzoom, fl4.9 mm to 22.8 mm (35 mm film
camera equivalent: 28 mm to 128 mm)/F3.3 (Wide) to
F5.9 (Tele)
Digital zoom Max. 4k
Extended
optical
zoom
Max. 9.1k (When set to 3,000,000 pixels [3M] or less)
Focus range Normal 30 cm (0.99 feet) to
Macro/
Intelligent auto/
Motion Picture
5 cm (0.17 feet) (Wide)/30 cm
(0.99 feet) (Tele) to
Scene Mode There may be differences in the above
settings.
Shutter system Electronic shutteriMechanical shutter
Burst recording
Burst speed Approx. 3.7 pictures/second
Number of
recordable
pictures
Max. 7 pictures
VQT3L23~Body3_eng.fm 31 ページ ２０１１年１月２６日　水曜日　午後１時３４分
VQT3L23 (ENG)
32
Hi-speed burst
Burst speed Approx. 10 pictures/second (Speed priority)
Approx. 7 pictures/second (Image priority)
3M (4:3), 2.5M (3:2), 2M (16:9), 2.5M (1:1) is selected as
the picture size.
Number of
recordable
pictures
When using the built-in memory:
Approx. 15 pictures (immediately after formatting)
When using a Card: Max. 100 pictures (differs depending
on the type of Card and the recording conditions)
Minimum
Illumination
Approx. 12 lx (when i-low light is used, the shutter speed
is 1/30th of a second)
Shutter speed 8 seconds to 1/1300th of a second
[Starry Sky] Mode: 15 seconds, 30 seconds, 60 seconds
Exposure (AE) Program AE
Exposure compensation (1/3 EV Step, j2EV to i2EV)
Metering mode Multiple
LCD monitor 2.7q TFT LCD
(Approx. 230,000 dots) (field of view ratio about 100%)
Flash range Approx. 30 cm (0.99 feet) to 5.6 m (18.4 feet)
(Wide, [ISO AUTO] is set)
Microphone Monaural
Speaker Monaural
Recording media Built-in Memory (Approx. 19 MB)/SD Memory Card/
SDHC Memory Card/SDXC Memory Card
Recording file
format
Still Picture JPEG (based on “Design rule for Camera File system”,
based on “Exif 2.3” standard, DPOF corresponding)/
MPO
Motion pictures
with audio
AVCHD/QuickTime Motion JPEG
Interface
Digital “USB 2.0” (High Speed)
Analog video
audio
NTSC,
Audio line output (monaural)
VQT3L23~Body3_eng.fm 32 ページ ２０１１年１月２４日　月曜日　午前１１時３４分
33
(ENG) VQT3L23
Terminal
[AV OUT/
DIGITAL]
Dedicated jack (8 pin)
[HDMI] MicroHDMI TypeD
Dimensions
(excluding the
projecting parts)
Approx. 103.5 mm (W)k64 mm (H)k26.5 mm (D)
[4.07q
(W)
k2.52q
(H)
k1.04q
(D)]
Mass (weight) Approx. 197 g/0.434 lb (with card and battery)
Approx. 175 g/0.386 lb
(excluding card and battery)
Operating
temperature
j10 oC¢ to 40 oC (14 oF¢ to 104 oF)
¢The performance of the battery (number of
recordable pictures/operating time) may decrease
temporarily when using the camera in a temperature
between j10 oC to 0 oC (14 oF to 32 oF) (at the cold
climate such as ski resorts).
Operating humidity 10%RH to 80%RH
Bearing sensor 8 bearing detection (with angular position correction
function by the 3 axes acceleration sensor, with
automatic declination correction, and with automatic
offset adjustment function)
Atmospheric
pressure/altitude
sensor
Atmospheric
pressure
Measurement range 300 hPa to 1100 hPa, with 24 hour
memory function in 1 hPa unit (every 1.5 hours)
Altitude Convert atmospheric pressure to altitude using
International Standard Atmosphere (ISA), accuracy:
j5 m (–16.4 feet) to i5m (16.4feet)
Depth Displays in 3 levels (displays 0 m (0 feet) to 12 m
(40 feet) in 3 levels)
GPS Reception frequency: 1575.42 MHz (C/A code)
Geographical coordinate system: WGS84
Waterproof
performance
Equivalent to IEC 60529 “IPX8”.
(Usable for 60 minutes in 12 m (40 feet) water depth)
VQT3L23~Body3_eng.fm 33 ページ ２０１１年１月２４日　月曜日　午後４時４２分
VQT3L23 (ENG)
34
Battery Charger (Panasonic DE-A59B):
Information for your safety
Battery Pack (lithium-ion) (Panasonic DMW-BCF10PP):
Information for your safety
Crash resistance
perfomance
The test method of the camera is in compliance with
“MIL-STD 810F Method 516.5-Shock”¢.
¢“MIL-STD 810F Method 516.5-Shock” is the test
method standard of the U.S. Defense Department,
which specifies performing drop tests from a height
of 122 cm (4.0 feet), at 26 orientations (8 corners,
12 ridges, 6 faces) using 5 sets of devices, and
passing the 26 orientation drops within 5 devices.
(If failure occurs during the test, a new set is used to
pass the drop orientation test within a total of 5
devices)
•Panasonic’s test method is based on the above
“MIL-STD 810F Method 516.5-Shock”. However, the
drop height was changed from 122 cm (4.0 feet) to
200 cm (6.6 feet) dropping onto 3 cm (0.10 feet) thick
plyboard. This drop test was passed.
(Disregarding appearance change such as loss of paint
or distortion of the part where drop impact is applied.)
There is no guarantee of not breaking or
malfunctioning under all conditions.
Dustproof
performance
Equivalent to IEC 60529 “IP6X”.
Input: 110 V to 240 V 50/60 Hz, 0.2 A
Output: 4.2 V 0.65 A
Operating
temperature: 0oC¢ to 40 oC (32 oF¢ to 104 oF)
¢The battery cannot be recharged in a temperature
less than 0 oC (32 oF). (The [CHARGE] indicator
blinks when the battery cannot be recharged.)
Equipment mobility: Movable
Voltage/capacity: 3.6 V/940 mAh
DMC-TS3PC-VQT3L23_eng.book 34 ページ ２０１１年１月２１日　金曜日　午後４時５９分
35
(ENG) VQT3L23
Digital Camera Accessory System
Product numbers correct as of January 2011. These may be subject to change.
¢The AC Adaptor (optional) can only be used with the designated Panasonic
DC Coupler (optional). The AC adaptor (optional) cannot be used by itself.
•NOTE: Accessories and/or model numbers may vary between countries.
Consult your local dealer.
DMW-MCFT3
DMW-AC5PP
DMW-BCF10PP Battery Pack
Marine Case
Accessory# Description
Illustration
AC Adaptor
RP-CHEU15 HDMI micro Cable
Class 10 64 GB SDXC Memory Card
Class 10 48 GB SDXC Memory Card
Class 10 32 GB SDHC Memory Card
Class 10 16 GB SDHC Memory Card
Class 10 8 GB SDHC Memory Card
Class 10 4 GB SDHC Memory Card
Class 4 16 GB SDHC Memory Card
Class 4 8 GB SDHC Memory Card
Class 4 4 GB SDHC Memory Card
Class 4 2 GB SD Memory Card
RP-SDW64GU1K
RP-SDW48GU1K
RP-SDW32GU1K
RP-SDW16GU1K
RP-SDW08GU1K
RP-SDW04GU1K
RP-SDN16GU1A
RP-SDN08GU1A
RP-SDN04GU1A
RP-SDN02GU1A
DMW-DCC4 DC Coupler
DMC-TS3PC-VQT3L23_eng.book 35 ページ ２０１１年１月２１日　金曜日　午後４時５９分
•SDXC Logo is a trademark of SD-3C, LLC.
•The “AVCHD” and the “AVCHD” logo are trademarks of Panasonic
Corporation and Sony Corporation.
•Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
•HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
•VIERA Link™ is a trademark of Panasonic Corporation.
•EZ Sync™ is a trademark of Panasonic Corporation.
•HDAVI Control™ is a trademark of Panasonic Corporation.
•QuickTime and the QuickTime logo are trademarks or registered trademarks
of Apple Inc., used under license therefrom.
•This product uses “DynaFont” from DynaComware Corporation. DynaFont is a
registered trademark of DynaComware Taiwan Inc.
•
Other names, company names, and product names printed in these instructions
are trademarks or registered trademarks of the companies concerned.
This product is licensed under the AVC patent portfolio license for the personal
and non-commercial use of a consumer to (i) encode video in compliance with
the AVC Standard (“AVC Video”) and/or (ii) decode AVC Video that was
encoded by a consumer engaged in a personal and non-commercial activity
and/or was obtained from a video provider licensed to provide AVC Video. No
license is granted or shall be implied for any other use. Additional information
may be obtained from MPEG LA, LLC. See http://www.mpegla.com.
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
(905) 624-5010
www.panasonic.ca
 Panasonic Corporation 2011
Printed in Japan
DMC-TS3PC-VQT3L23_eng.book 36 ページ ２０１１年１月２１日　金曜日　午後４時５９分

Navigation menu
