Control Systems
PRODUCT FEATURES
202
®
16
WV-CU151
System
Controller
PRODUCT FEATURES
• Preset control (only with WV-CS654/
BS504 Series): 64 positions (position,
focus, zoom ratio, rotation mode, etc.)
• Pan/Tilt Control: manual pan, manual
tilt, auto pan, random pan
• Housing Control: wiper, defroster, AUX
1-2
• Camera Control: home position, camera
setting
• Alarm
• Lens Control: zoom ratio, focus, iris
The WV-CU151 system controller, when
combined with the WV-CS654/BS504
Series, enables remote control of the
various functions of Panasonic cameras.
The WV-CS654/BS504 Series are highly
advanced unitized dome cameras,
featuring 64 presettable positions, speed
of 240° per second panning, 360° endless
panning, auto focus 10X zoom lens and
progressive digital functions. WV-CU151
allows for accurate control of the unitized
surveillance devices. WV-CU151 also
accepts basic digital dome cameras
WV-CS404/BS304 Series. The basic
system consisting of 1 camera and 1
controller, is capable of handling many
applications. Controls preset position,
pan/tilt, camera digital function, zoom
lens and housing.

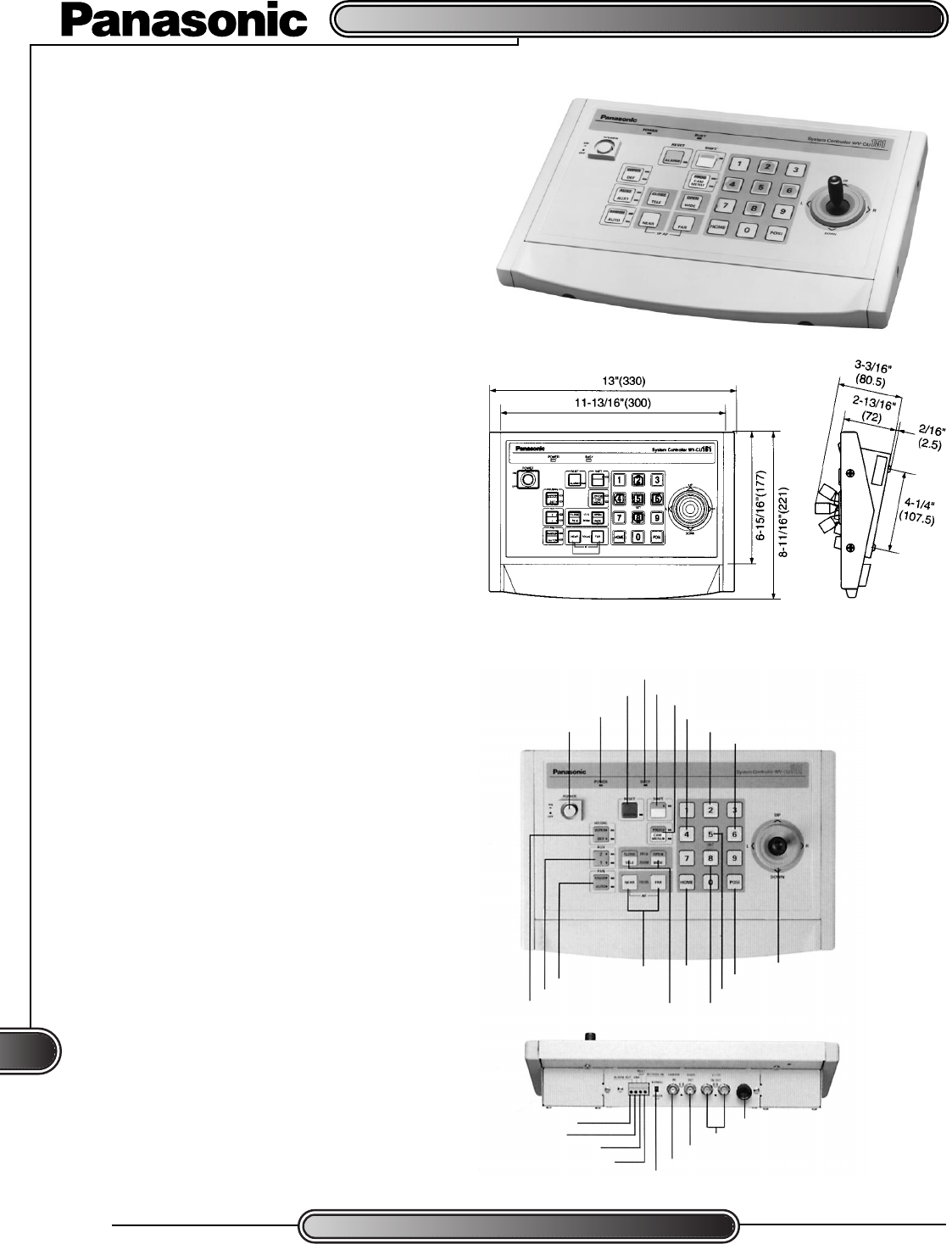

Unit: inches (mm)
Rear View
Alarm Output Terminal
Ground Terminal
Reset Output Terminal
Recover Input Terminal
External Gen-lock Input / Output Connector
Video Output Connector
Camera Input Connector
Mode Selection Switch
Power Cord
Joystick Controller
Position Switch
Set Switch
Down Switch
Home
Position
Switch
Zoom / Iris Control Switch
Focus Control Switch
Panning Selection Switch
Auxiliary 1/2 Selection Switch
Housing Switch
Power ON/OFF Switch
Power Indicator
Alarm Reset Switch
Busy Indicator
Up Switch
Right Switch
Left Switch
Camera / Program Menu Selection Switch
Shift Switch
MAJOR OPERATING CONTROLS
Control Systems 203
TECHNICAL SPECIFICATIONS ®
16
The system controller shall be a Panasonic model WV-CU151 or equivalent. This multiple function controller
shall be used for setup, camera control and video routing of the Panasonic Miniature Unitized Surveillance
Device Series WV-CS654/CS404/BS304/BS504. Function keys shall provide simple and easy operation. The
following are the minimum features the unit shall provide. A single coaxial cable used for both video signal and
control data transmission of up to 3000' over (Belden 9259 or equivalent) coaxial cable for easy installation.
Equivalent coaxial cable used shall feature a DC resistance rating of less than 15 ohm/1000', solid copper center
conductor and 95% braided, pure copper shield. Switches and controls shall include: numeric keypad and auto
focus functions keys. Lens functions shall include: iris open/close, focus near/far, zoom tele/wide. Joystick: tilt
up/down, pan right/left, preset. The Controller shall access on-screen camera menus of the Panasonic Miniature
Unitized Surveillance Device Series WV-CS654/CS404/BS304/BS504 and support scene file, preset position,
digital motion detector and electronic sensitivity up features of the WV-CS654 and WV-BS504 Series. The unit
shall be rack-mountable with optional rack-mount bracket. The power source shall be 120VAC, 60Hz. The unit
shall be UL listed.
ARCHITECTS’ AND ENGINEERS’ BID SPECIFICATIONS
WV-CU151 System Controller
GENERAL SPECIFICATIONS
Power Source 120VAC, 60Hz
Power Consumption 5W
Ambient Operating
Temperature 14°F – 122°F (-10°C – +50°C)
Ambient Operating
Humidity Less than 90%
Dimensions 215⁄16"H x 13"W x 811⁄16"D
(74.5 x 330 x 221mm)
Weight 5.28 lbs. (2.4kg)
Camera Input Composite video signal
1.0Vp-p/75 ohms
VS/VD Input/Output VS input/output signal: 1.0Vp-p/
75 ohms, switchable with internal
SW; VD input/output signal:
4.0Vp-p/75 ohms, switchable with
internal SW
Video Output Composite video signal
1.0Vp-p/75 ohms
Alarm Output Open collector output 16VDC,
100mA max.
Lens Control Zoom: tele/wide;
Focus: near/far/auto focus;
Iris: open/close/preset
Pan/Tilt Control Manual pan: right/left (variable
speed control); Manual tilt:
up/down (variable speed control);
Auto pan: on/off; Random pan:
on/off
Housing Control Wiper: on/off; Defroster: on/off;
AUX 1-2: on/off
Camera Control Position select: selectable 1–64
(max.); Home position: 1; Camera
setting: possible
Alarm Alarm buzzer: on/off;
Alarm display: on/off;
Auto reset/manual reset: possible
OPTIONAL ACCESSORIES
WV-CS654 Unitized surveillance device
WV-CS404 Unitized surveillance device
WV-RC100 Indoor receiver
WV-RC150 Outdoor receiver
WV-Q62 Rack-mount angle
Weights and dimensions shown are approximate.
Specifications subject to change without notice.

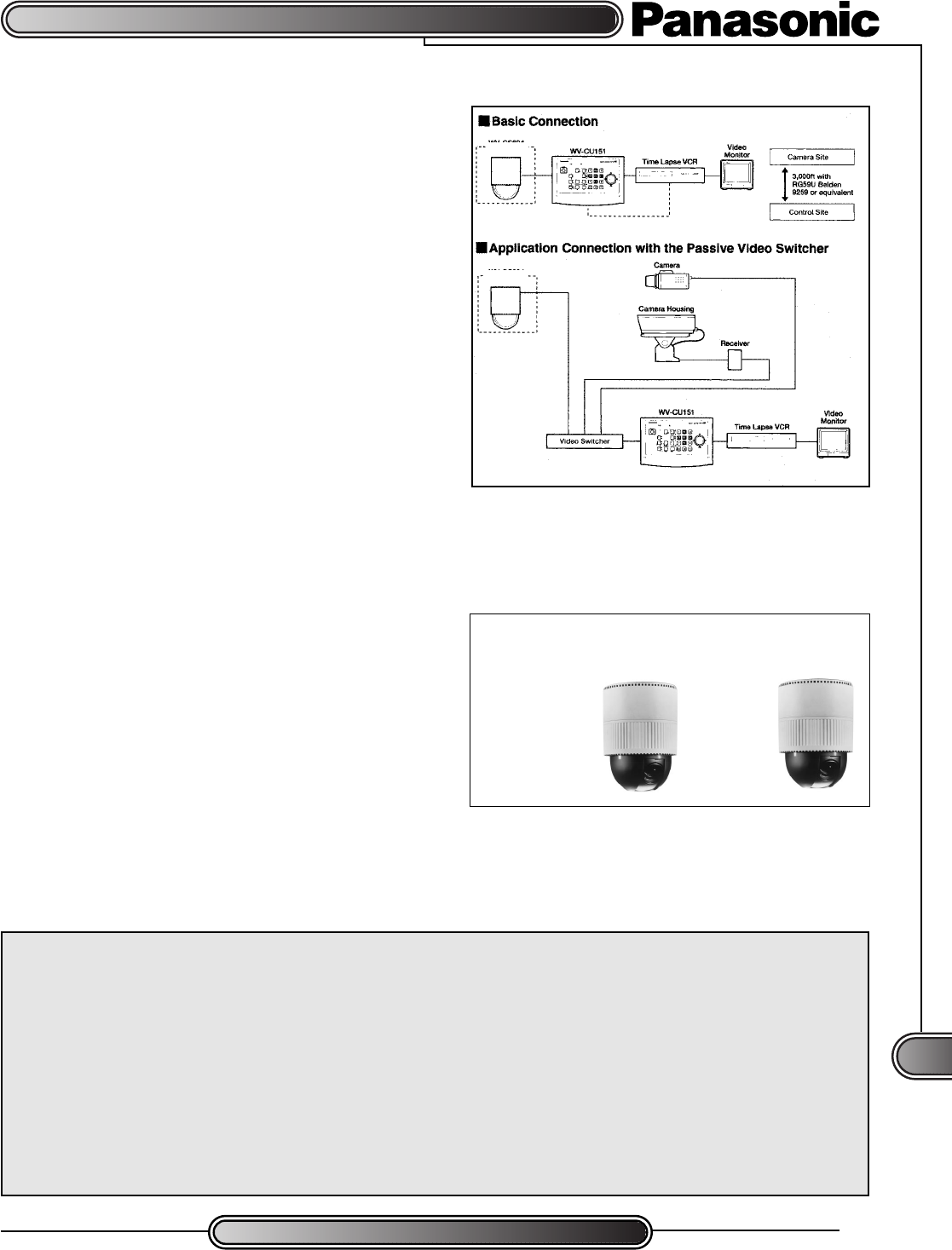

SYSTEM
*3000' maximum cable distance from WV-CS404/CS654/BS304/BS504
Series Unitized Surveillance Devices to WV-CU151 System Controller.
WV-CS654*
WV-CS654*
WJ-SW208
Combination Camera
WV-CS654 WV-CS404
• 64 positon presettable • Manual pan/tilt
• Digital motion detector • Electronic shutter
• Electronic sensitivity up
• Automatic focus
• Max. 240˚/second
panning
OPTIONAL ACCESSORIES
