1
835 HIP SLED SYSTEM
CLASS H
PART # 7078901
REV. B Revision: 06/27/01
USER’S GUIDE
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
Version: 835107
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
j
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
IMPORTANT SAFETY INFORMATION
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3

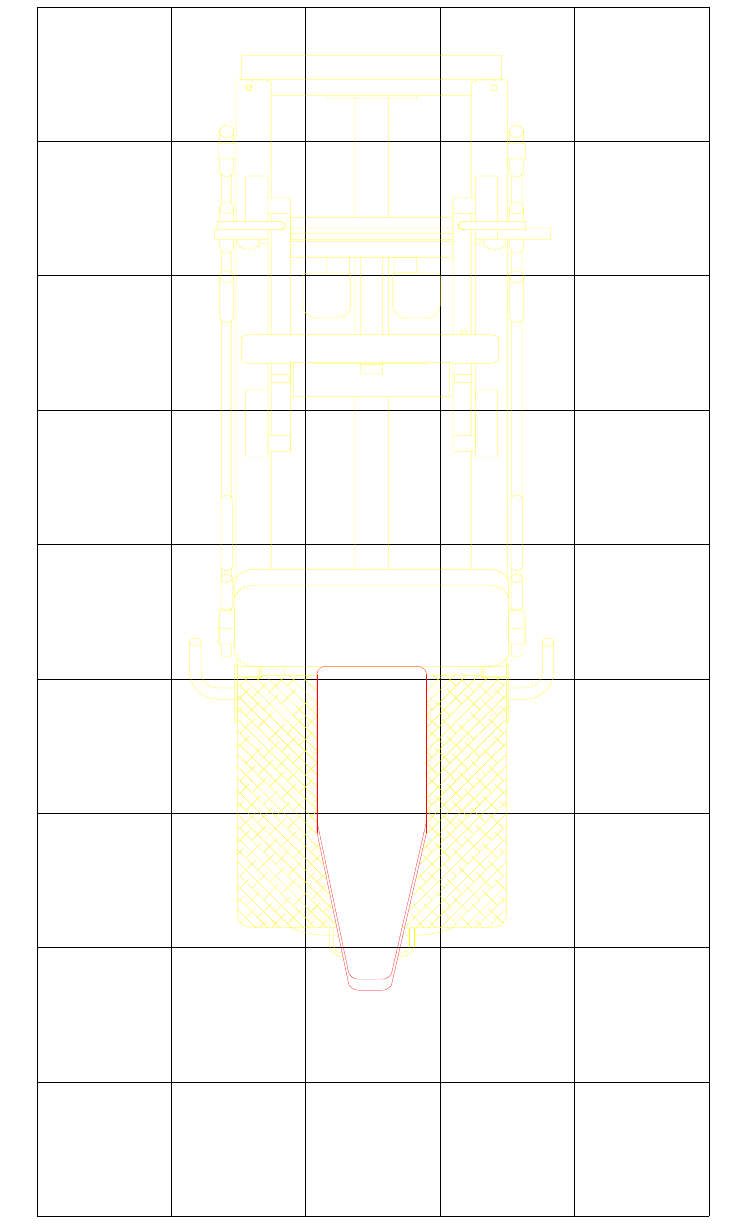

Gym Layout.....................4
NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
Parts list..........................5
Assembly Instructions.....6-21
General Maintenance.......22
Warranty Statement..........23
Product Services..............24
Insert-Registration Card
©
IMPORTANT NOTES
Please note:
Tools Required for Assembly
* Thank you for purchasing the ParaBody 835 Hip Sled System. Please read these
instructions thoroughly and keep them for future reference. This product must be assembled
on a flat, level surface to assure its proper function.
3

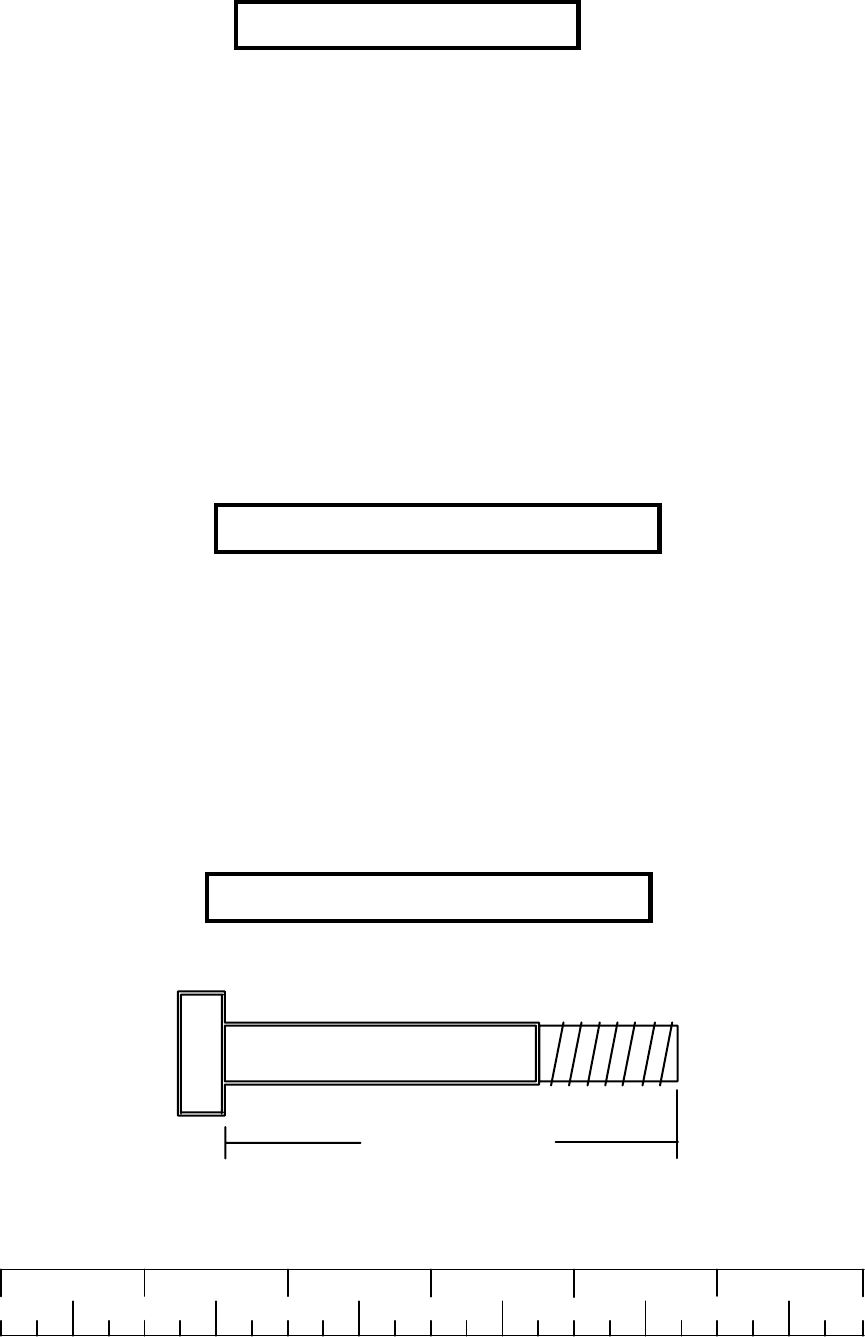

NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT.
BOLT LENGTH RULER:
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
Bolt Length Ruler
0123456
1/2 1/2 1/2 1/2 1/2 1/2
BOLT LENGTH
* 3/4” wrench
* 9/16” wrench
* Ratchet with 3/4” and 9/16” sockets
* Adjustable wrench
* Tape measure
1 Square = 1’ X 1’
4
1’
7’
6’
5’
4’
3’
2’
8’
1’ 2’ 3’ 4’ 5’
9’
5
PARTS LIST
PART #
6504908
6506808
6507408
6507708
6507808
6667808
6505902
6504108
6504208
6504402
6504702
6506602
6507002
6521202
6534302
6667902
6509221
6666921
6667321
6500501
6500601
3103101
3103104
3116001
KEY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
QTY
1
1
2
1
1
1
2
1
1
1
1
1
1
2
1
1
2
1
1
4
4
2
2
2
PART #
6270501
6405201
6416601
6467001
3102501
3102601
3102802
3102502
3102801
3102804
3102909
3102933
3102904
3102935
3202101
3102953
3102918
3102917
3102937
3102944
3110002
6020601
6466901
DESCRIPTION
4 X 14” NON-SKID STRIP
2” SQ. END CAP
1-1/2” X 3/4” PARAGLIDE
2” SQ. COVER CAP
3/8” WASHER
3/8” LOCK WASHER
3/8” LOCK NUT
1/2” WASHER
1/2” LOCK NUT
1/2” LOW HEIGHT LOCK NUT
3/8 X 1” BOLT
3/8 X 2” BOLT
3/8 X 3” BOLT
3/8 X 4-1/2” BOLT
1/2 X 1-1/4” BOLT
1/2 X 2-3/4” BOLT
1/2 X 3-1/4” BOLT
1/2 X 4” BOLT
1/2 X 4-1/2” BOLT
1/2 X 5” BOLT
1-1/4” ROLL PIN
1/2” FLANGE BEARING
1/2” DIA. SPRING PIN
QTY
1
8
1
2
24
8
8
32
14
8
2
4
8
2
2
2
6
2
8
2
2
8
2
DESCRIPTION
BASE
PLATFORM SLEEVE
PAD SUPPORT
RIGHT HANDLE
LEFT HANDLE
REAR UPRIGHT
CARRIAGE STOP BAR
LEFT RAIL
RIGHT RAIL
FOOT PLATE
PLATFORM
PLATFORM ADJUSTMENT
WEIGHT SUPPORT
ADJ. WHEEL BRACKET
PAD STOP
CARRIAGE
SHOULDER PAD
SEAT PAD
BACK PAD
3” DIA. WHEEL
2” DIA. WHEEL
1-1/4 X 5” GRIP
1 X 5” GRIP
1-1/4” SQ. RUBBER BUMPER
KEY
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
• Insert two 2” SQ. END CAPS (26) into each end of the BASE (1) as shown in FIGURE 1.
FIGURE 1
STEP 1:
• SECURELY assemble the RIGHT (4) and LEFT HANDLES (5) to the BASE (1) on their respective sides using four 3/8 X 3”
BOLTS (37), eight 3/8” WASHERS (29), and four 3/8” LOCK NUTS (31).
0123456
1/2 1/2 1/2 1/2 1/2 1/2
• Slide two 1 X 5” GRIPS (23) over the ends of the RIGHT (4) and LEFT HANDLES (5) as shown in FIGURE 1.
• Attach two 2” SQ. COVER CAPS (28) over each end of the base of the REAR UPRIGHT (6).
• SECURELY assemble the REAR UPRIGHT (6) to the BASE (1) as shown in FIGURE 1 using two 1/2 X 3-1/4” BOLTS (41), four
1/2” WASHERS (32), and two 1/2” LOCK NUTS (33).
6
6
41 1/2 X 3-1/4”
33
31
5
29
26
23
28
32
1
4
3/8 X 3” 37
3/8 X 3” 37
29
FIGURE 2
STEP 2:
7

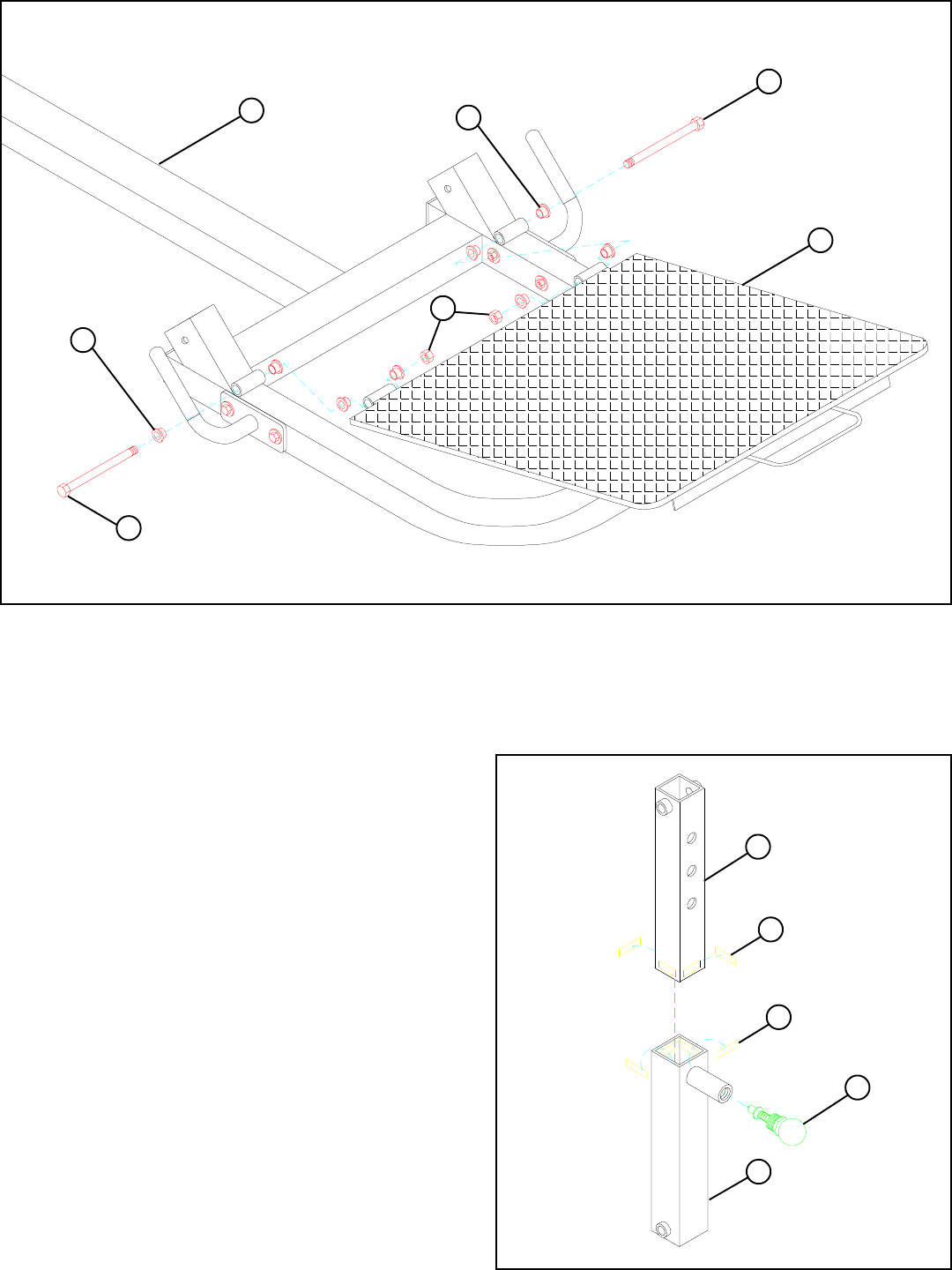

• Insert four 1/2” FLANGE BEARINGS (46) into the BUSHINGS on the BASE (1), and four 1/2” FLANGE BEARINGS (46) into
the BUSHINGS on the PLATFORM (11) as shown in FIGURE 2.
• Assemble the PLATFORM (11) between the BUSHINGS on the BASE (1) as shown in FIGURE 2 using two 1/2 X 5” BOLTS (44)
and two 1/2” LOCK NUTS (33). (TIGHTEN THE CONNECTION ENOUGH TO REMOVE THE PLAY, YET ALLOWING
THE PLATFORM TO ROTATE FREELY)
FIGURE 3
STEP 3:
• Attach four 1-1/2 X 3/4” PARAGLIDE STRIPS (27) to the end of
the PLATFORM ADJUSTMENT (12), and four 1-1/2 X 3/4”
PARAGLIDE STRIPS (27) to the end of the PLATFORM SLEEVE
as shown in FIGURE 3 using the following steps:
• Thoroughly clean all surfaces where the PARAGLIDE
STRIPS (27) are to be attached.
• Remove the PARAGLIDE STRIPS (27) from the paper
backing and firmly apply them to all shown surfaces.
• SECURELY Assemble one 1/2” DIA. SPRING PIN (47) to the
SPRING PIN HOUSING, on the PLATFORM SLEEVE (2) as
shown in FIGURE 3. (!!! IMPORTANT !!! TIGHTEN THE
NUT OF THE SPRING PIN SECURELY)
44 1/2 X 5”
46
33
11
1
12
2
47
27
46
27
44 1/2 X 5”
STEP 4:
8
0123456
1/2 1/2 1/2 1/2 1/2 1/2
• Assemble the PLATFORM SLEEVE (2) to the BASE (1) as shown in FIGURE 4 using one 1/2 X 4” BOLT (42), and one 1/2”
LOCK NUT (33). (TIGHTEN THE CONNECTION ENOUGH TO REMOVE THE PLAY, YET ALLOWING THE PLAT-
FORM SLEEVE TO ROTATE FREELY)
• Pull back the 1/2” DIA. SPRING PIN (47) on the PLATFORM SLEEVE (2) and insert the PLATFORM ADJUSTMENT (12) into
it. Slide the PLATFORM ADJUSTMENT (12) down to the first adjustment hole and release the SPRING PIN (47).
• Assemble the PLATFORM ADJUSTMENT (12) to the PLATFORM (11) as shown in FIGURE 4 using one 1/2 X 4” BOLT (42),
and one 1/2” LOCK NUT (33). (TIGHTEN THE CONNECTION ENOUGH TO REMOVE THE PLAY, YET ALLOWING
THE PLATFORM ADJUSTMENT TO ROTATE FREELY)
1/2 X 4” 42
1
2
33
12
47
11
FIGURE 4 33
1/2 X 4” 42
FIGURE 5
STEP 5:
9

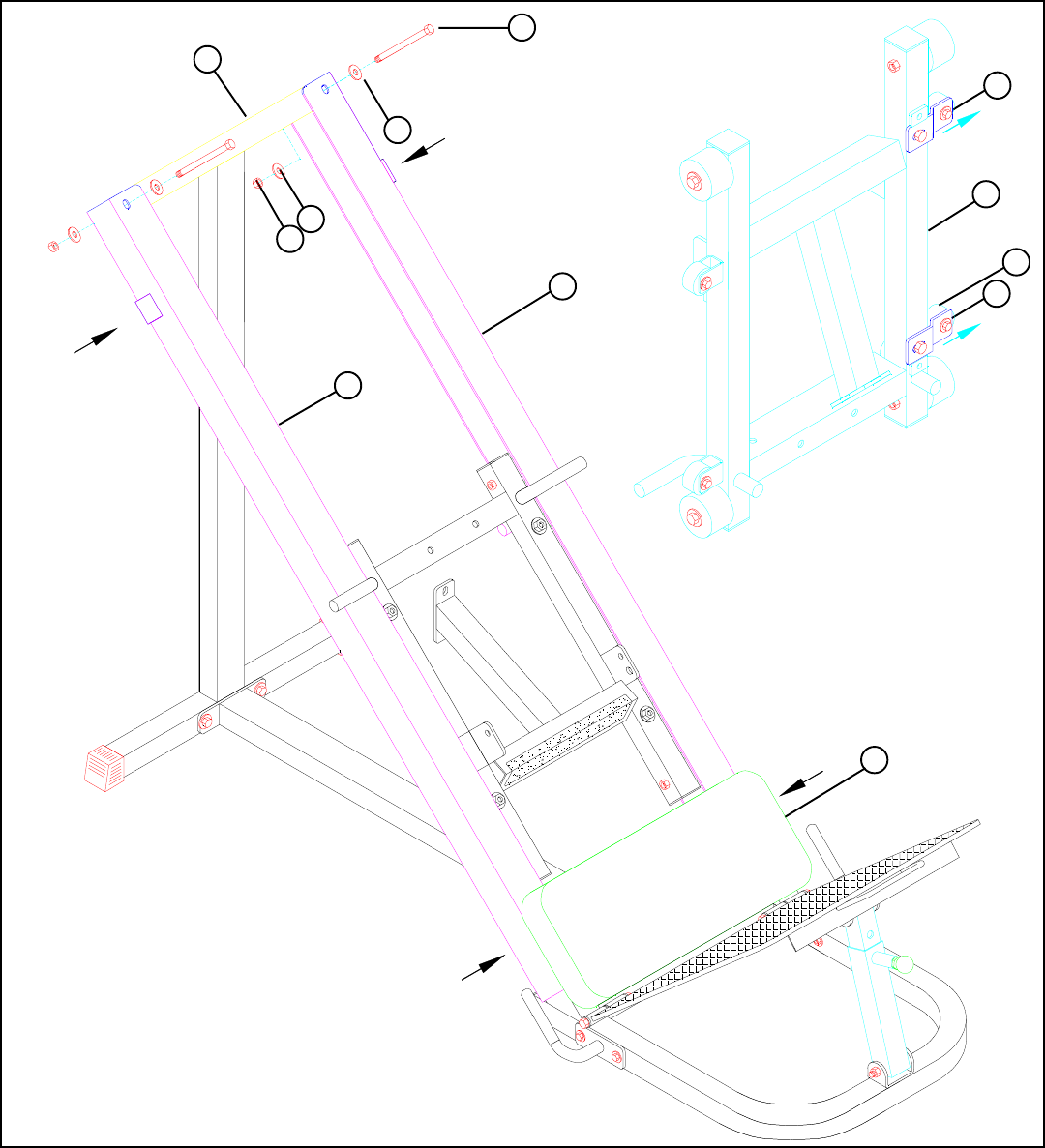

• LOOSELY assemble the LEFT (8) and RIGHT RAILS (9), along with the SEAT PAD (18) to the BASE (1) as shown in FIGURE 5
using two 3/8 X 4-1/2” BOLTS (38), two 3/8” LOCK WASHERS (30), and two 3/8” WASHERS (29). Temporarily assemble the
RAILS to the REAR UPRIGHT (6) using two 1/2 X 4-1/2” BOLTS (43) to aid in the assembly of this step.
43 1/2 X 4-1/2”
3/8 X 4-1/2” 38
30 29
1
18
8
9
6
FIGURE 6
STEP 6:
10
0123456
1/2 1/2 1/2 1/2 1/2 1/2

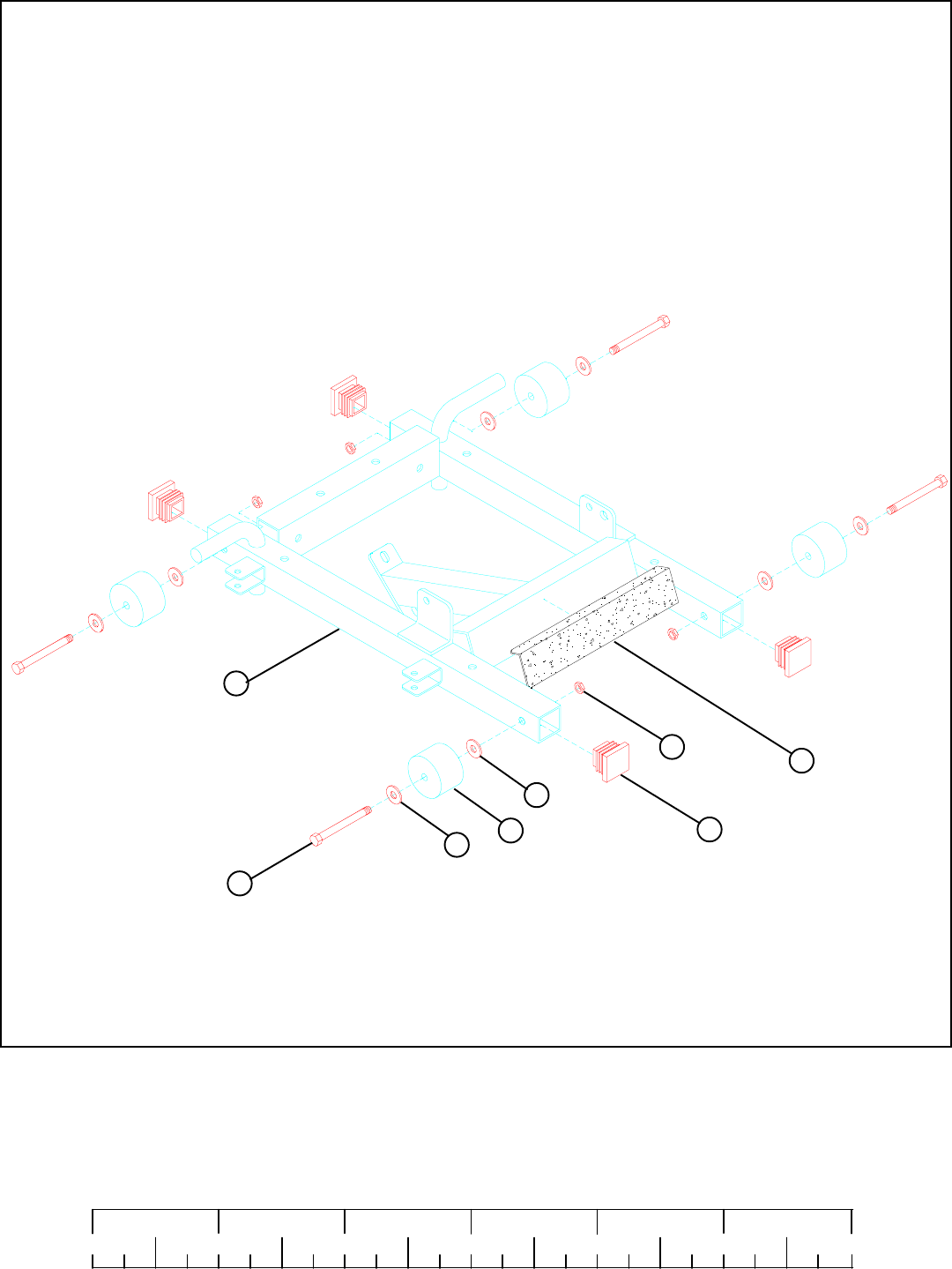

• Insert four 2” SQ. END CAPS (26) into the each end of the CARRIAGE (16) as shown in FIGURE 6.
• SECURELY assemble four 3” DIA. WHEELS (20) to the sides of the CARRIAGE (16) as shown in FIGURE 6 using four 1/2 X
4-1/2” BOLTS (43), eight 1/2” WASHERS (32), and four 1/2” LOW HEIGHT LOCK NUTS (34).
32
16
1/2 X 4-1/2” 43
34 LOW
HEIGHT
26
25
20
32
• Attach one 4 X 14” NON SKID STRIP (25) to the CARRIAGE (16) as shown in FIGURE 6.
FIGURE 7
STEP 7:
11

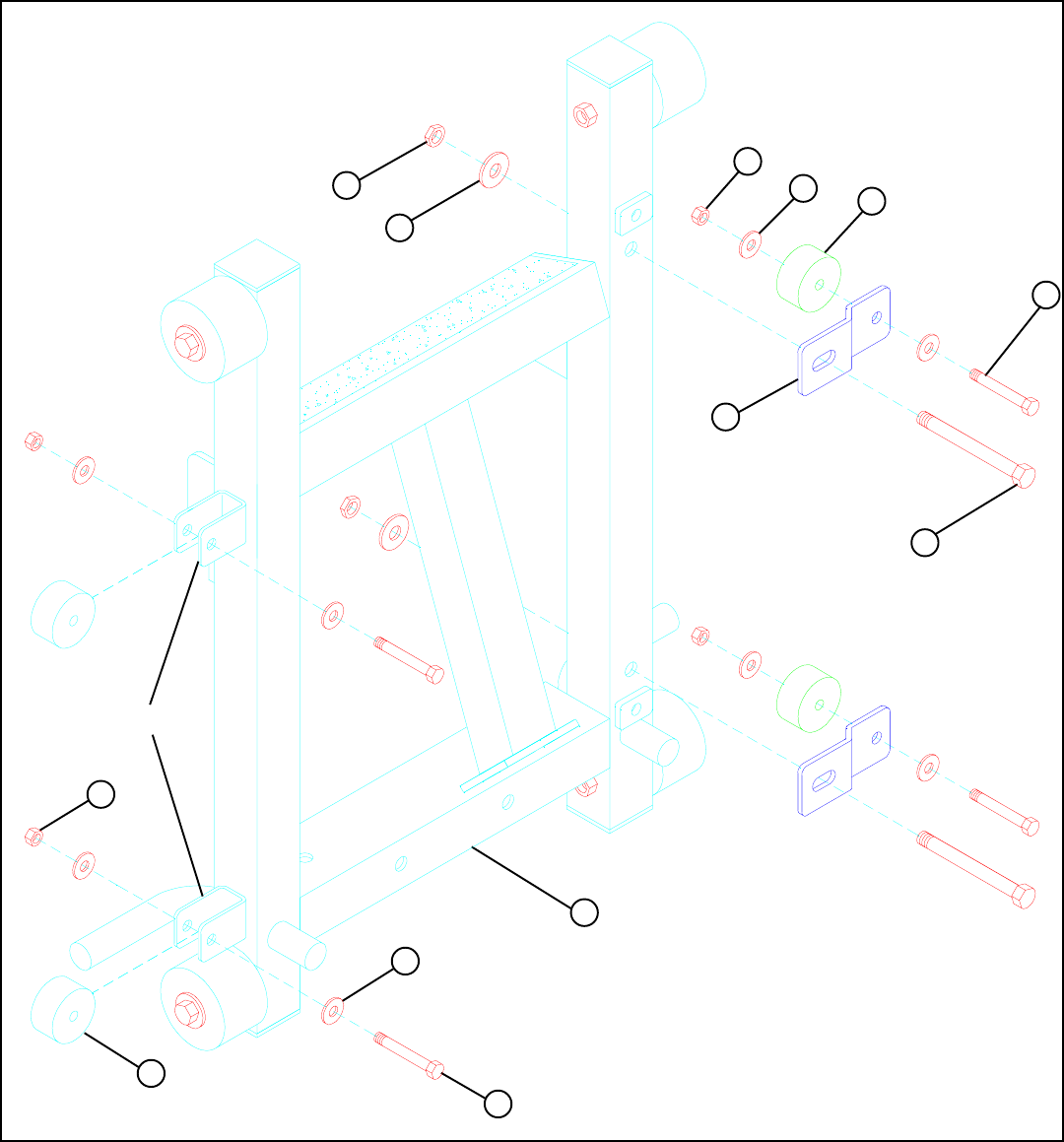

• SECURELY assemble two 2” DIA. WHEELS (21) to the BRACKETS on the left side of the CARRIAGE (16) as shown in
FIGURE 7 using two 3/8 X 2” BOLTS (36), four 3/8” WASHERS (29), and two 3/8” LOCK NUTS (31).
• Assemble the two ADJ. WHEEL BRACKETS (14) to the right side of the CARRIAGE (16) as shown in FIGURE 7 using two 1/2
X 2-3/4” BOLTS (40), two 1/2” WASHERS (32), and two 1/2” LOW HEIGHT LOCK NUTS (34). (NOTE: TIGHTEN BRACK-
ETS SECURELY TO THE CARRIAGE, THEN BACK NUT OFF 1/2 TURN TO ALLOW FOR ADJUSTMENT IN A
LATTER STEP).
• SECURELY assemble two 2” DIA. WHEELS (21) to the ADJ. WHEEL BRACKETS (14) on the right side of the CARRIAGE
(16) as shown in FIGURE 7 using two 3/8 X 2” BOLTS (36), four 3/8” WASHERS (29), and two 3/8” LOCK NUTS (31).
29
36 3/8 X 2”
3/8 X 2” 36
LOW HEIGHT 34
32
14
21
29
31
16
21
31
1/2 X 2-3/4” 40
BRACKETS
FIGURE 8
STEP 8:
0123456
1/2 1/2 1/2 1/2 1/2 1/2
12

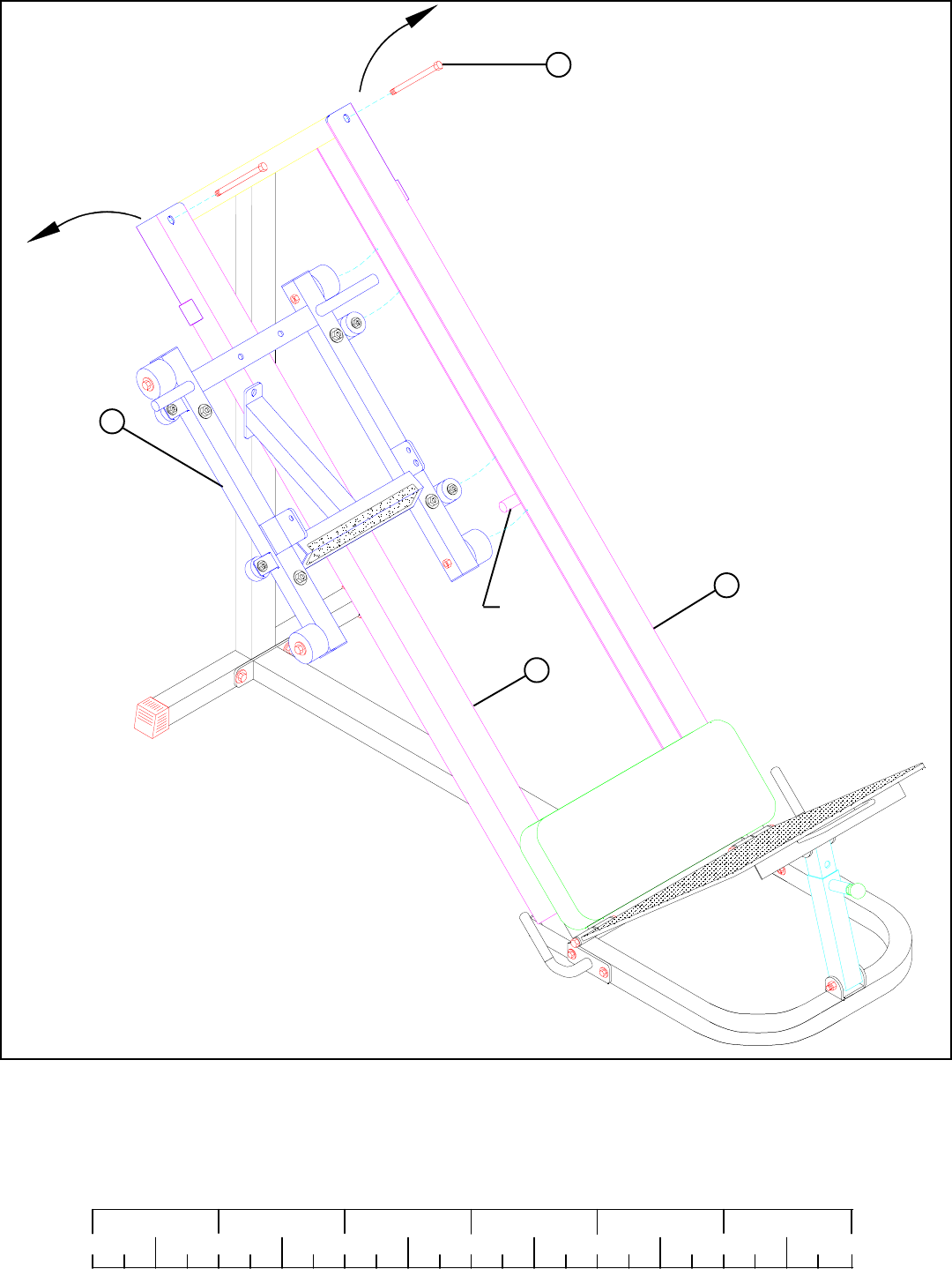

• Remove the two temporary 1/2 X 4-1/2” BOLTS (43) from STEP 5.
• Swing the LEFT (8) and RIGHT (9) RAILS out enough to insert the CARRIAGE ASSEMBLY (16) in between them. Allow the
CARRIAGE (16) to rest on the SAFETY STOPS underneath the RAILS. See FIGURE 8.
43 1/2 X 4-1/2”
16
8
9
SAFTEY
STOP
FIGURE 9
13
• SECURELY reassemble the LEFT (8) and RIGHT (9) RAILS to the REAR UPRIGHT (6) as shown in FIGURE 9 using the two 1/2
X 4-1/2” BOLTS (43), four 1/2” WASHERS (32), and two 1/2” LOCK NUTS (33). (!!! IMPORTANT !!! BEFORE TIGHTENING
MOVE THE RAILS IN AS FAR AS POSSIBLE)
STEP 9:
• SECURELY tighten the two 3/8 X 4-1/2” BOLTS (38) holding the SEAT PAD (18) from STEP 5. (!!! IMPORTANT !!! BEFORE
TIGHTENING MOVE THE RAILS IN AS FAR AS POSSIBLE)
• To adjust the side to side movement of the CARRIAGE (16), start by sliding the CARRIAGE (16) as far to the left as possible
inside the RAILS (8 & 9). Adjust the ADJ. WHEEL BRACKETS (14) out until the 2” DIA. WHEELS (21) contact the RIGHT
RAIL (9). SECURELY tighten bolt connection. See FIGURE 9 and REVERSE CARRIAGE VIEW.
43 1/2 X 4-1/2”
14
32
32
33
14
16
6
8
9
6
21
REVERSE VIEW
FOR ASSEMBLY
STEP 10:
14
0123456
1/2 1/2 1/2 1/2 1/2 1/2

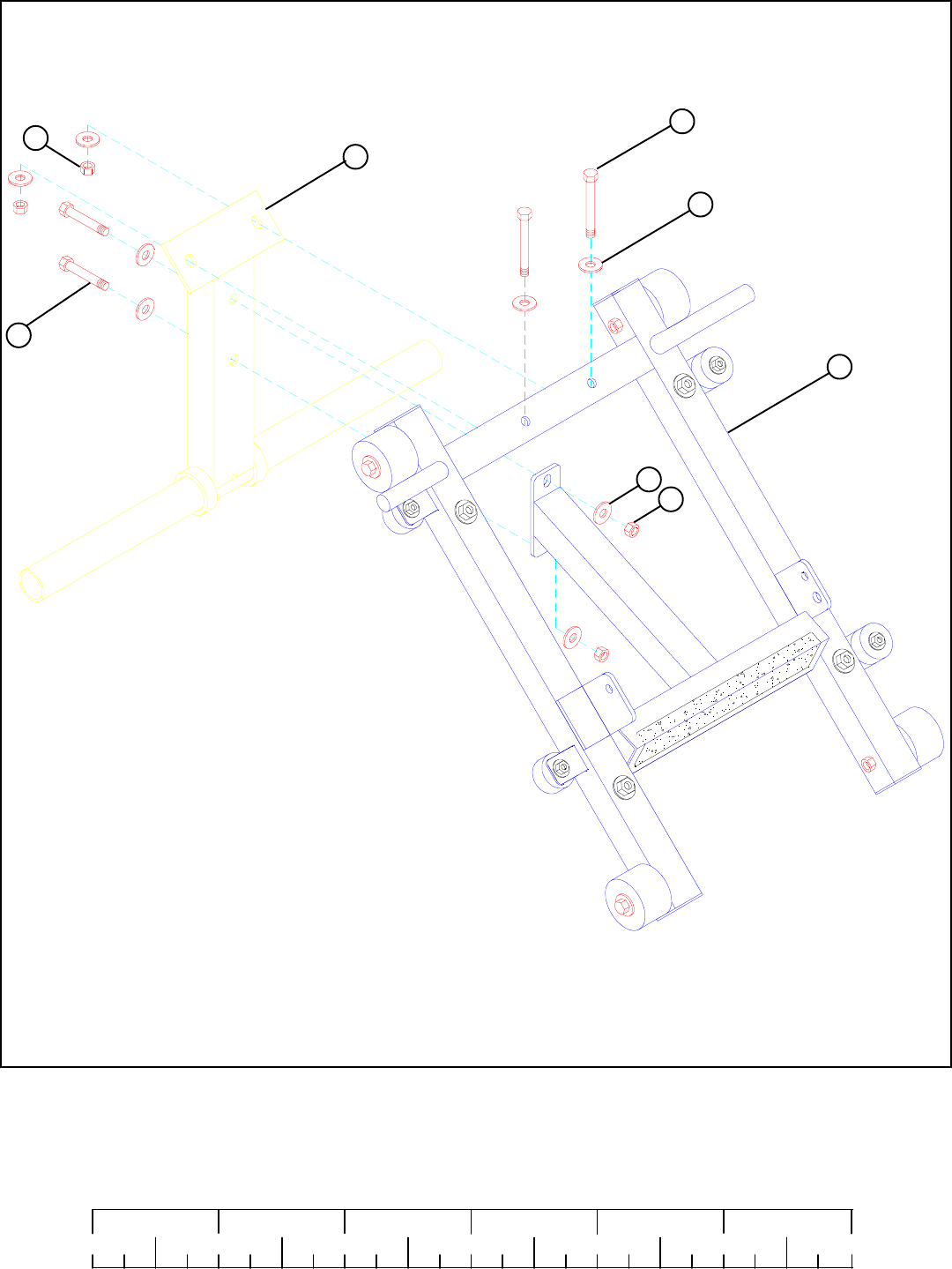

• SECURELY assemble the WEIGHT SUPPORT (13) to the CARRIAGE (16) as shown in FIGURE 10 using two 1/2 X 4-1/2”
BOLTS (43), two 1/2 X 3-1/4” BOLTS (41), eight 1/2” WASHERS (32), and four 1/2” LOCK NUTS (33).
FIGURE 10
43 1/2 X 4-1/2”
41 1/2 X 3-1/4”
16
13
32
33
32
33
FIGURE 11
STEP 11:
15

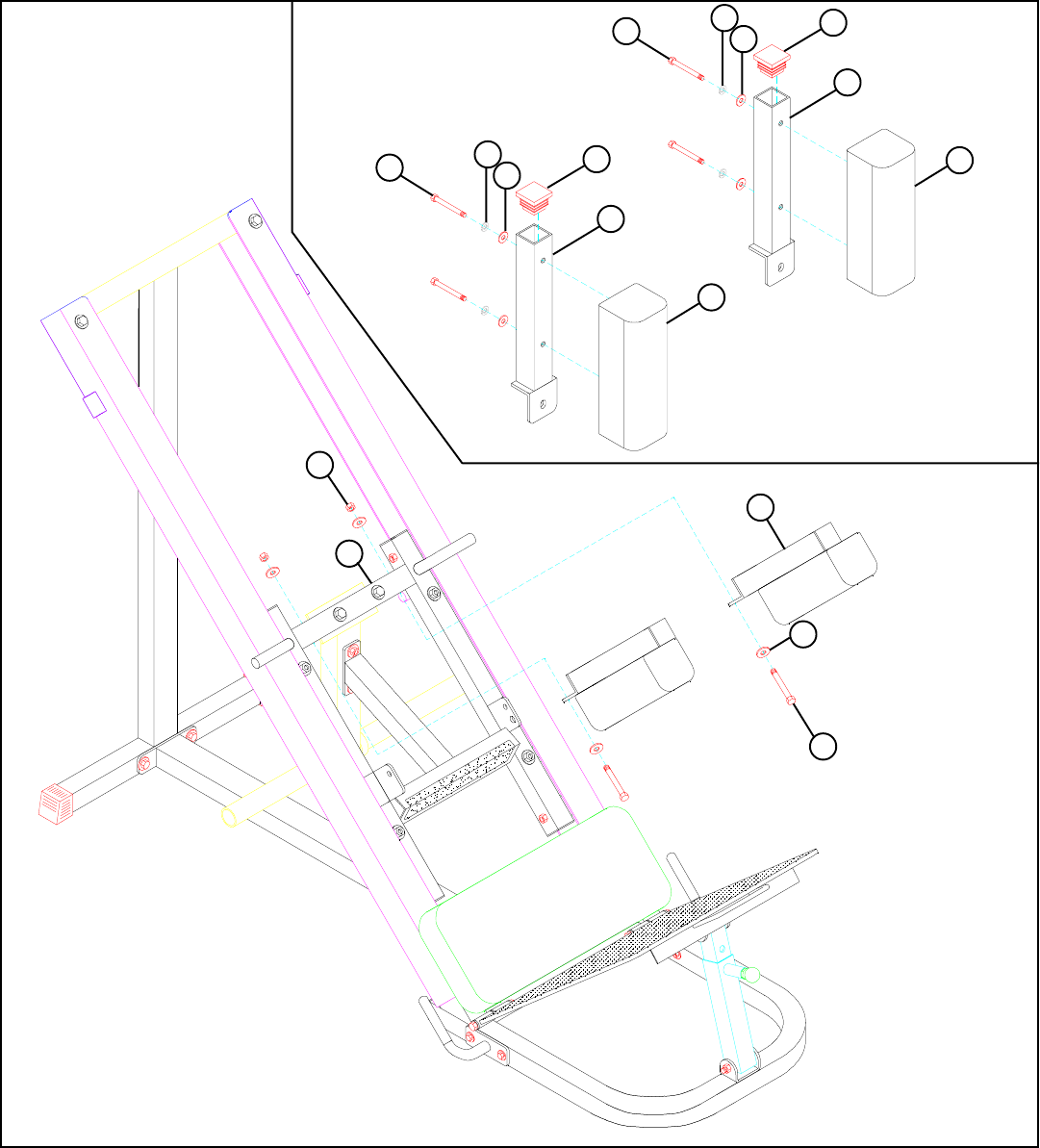

• Insert two 2” SQ. END CAPS (26) into the ends of each PAD SUPPORT (3) as shown in FIGURE 11.
• SECURELY assemble the two PAD SUPPORTS (3) to the CARRIAGE (16) as shown in FIGURE 11 using two 1/2 X 3-1/4”
BOLTS (41), four 1/2” WASHERS (32), and two 1/2” LOCK NUTS (33).
• SECURELY assemble two SHOULDER PADS (17) to the PAD SUPPORTS (3) on the CARRIAGE (16) as shown in FIGURE 11
using four 3/8 X 3” BOLTS (37), four 3/8” LOCK WASHERS (30), and four 3/8” WASHERS (29).
41 1/2 X 3-1/4”
3/8 X 3” 37
33
29 26
17
3
16
3
32
30
3/8 X 3” 37 29 26
17
3
30
FIGURE 12
STEP 12:
16
0123456
1/2 1/2 1/2 1/2 1/2 1/2
• Attach two 1-1/4” SQ. RUBBER BUMPERS (24) to the ends of the ANGLES of the FOOT PLATE (10) as shown in FIGURE 12.
• SECURELY assemble one 1/2” DIA. SPRING PIN (47) to the SPRING PIN HOUSING on the FOOT PLATE (10) as shown in
FIGURE 12. (!!! IMPORTANT !!! TIGHTEN THE NUT OF THE SPRING PIN SECURELY)
10
47
24
FIGURE 13
STEP 13:
17

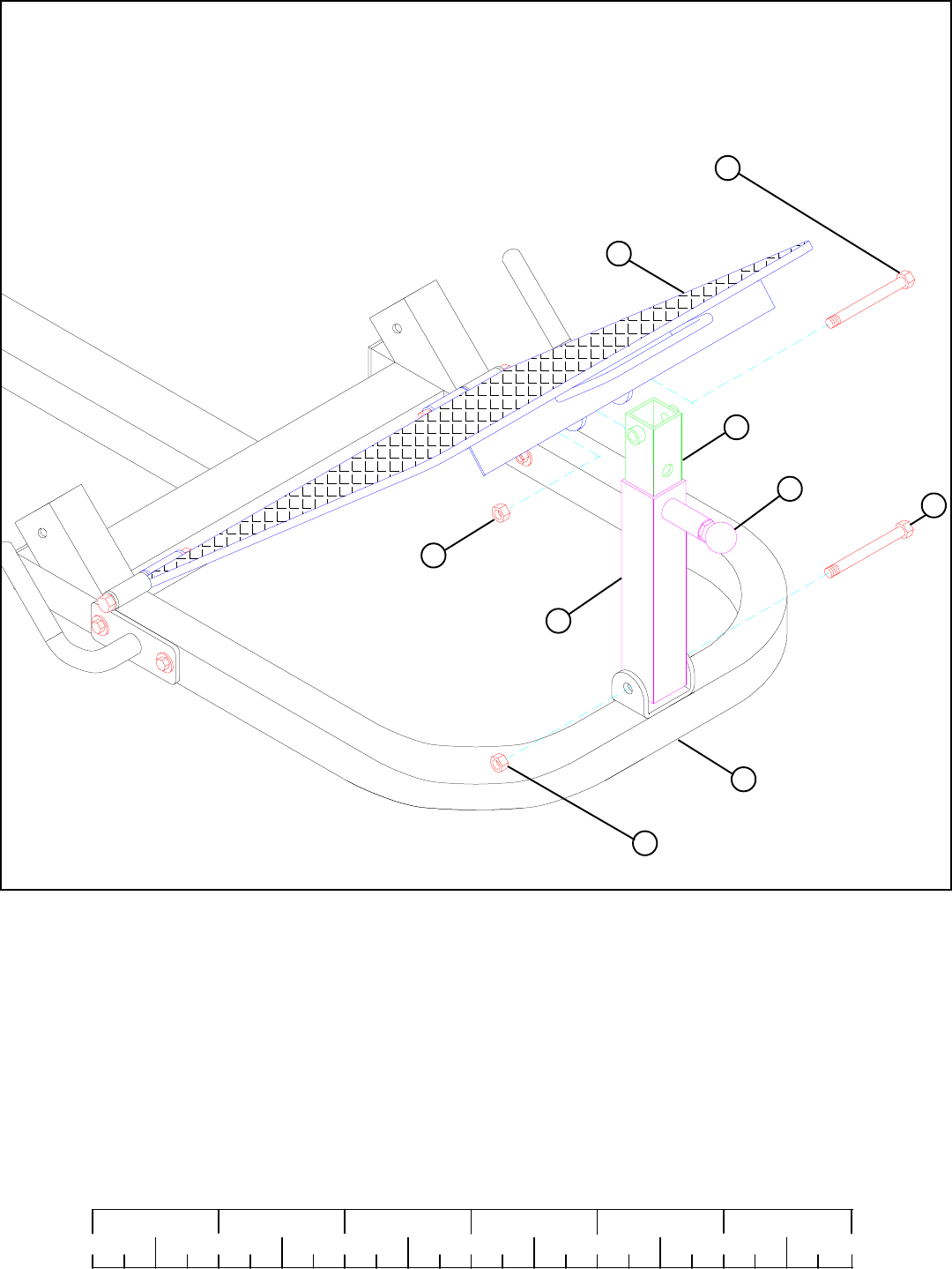

• Assemble the FOOT PLATE (10) to the CARRIAGE (16) as shown in FIGURE 13, using two 1/2 X 1-1/4” BOLTS (39), two 1/2”
WASHERS (32), and two 1/2” LOW HEIGHT LOCK NUTS (34). (TIGHTEN THE CONNECTION COMPLETELY, THEN
BACK THE NUTS OFF 1/4 TURN)
34 LOW HEIGHT
39 1/2 X 1-1/4”
10
16
32
FIGURE 14

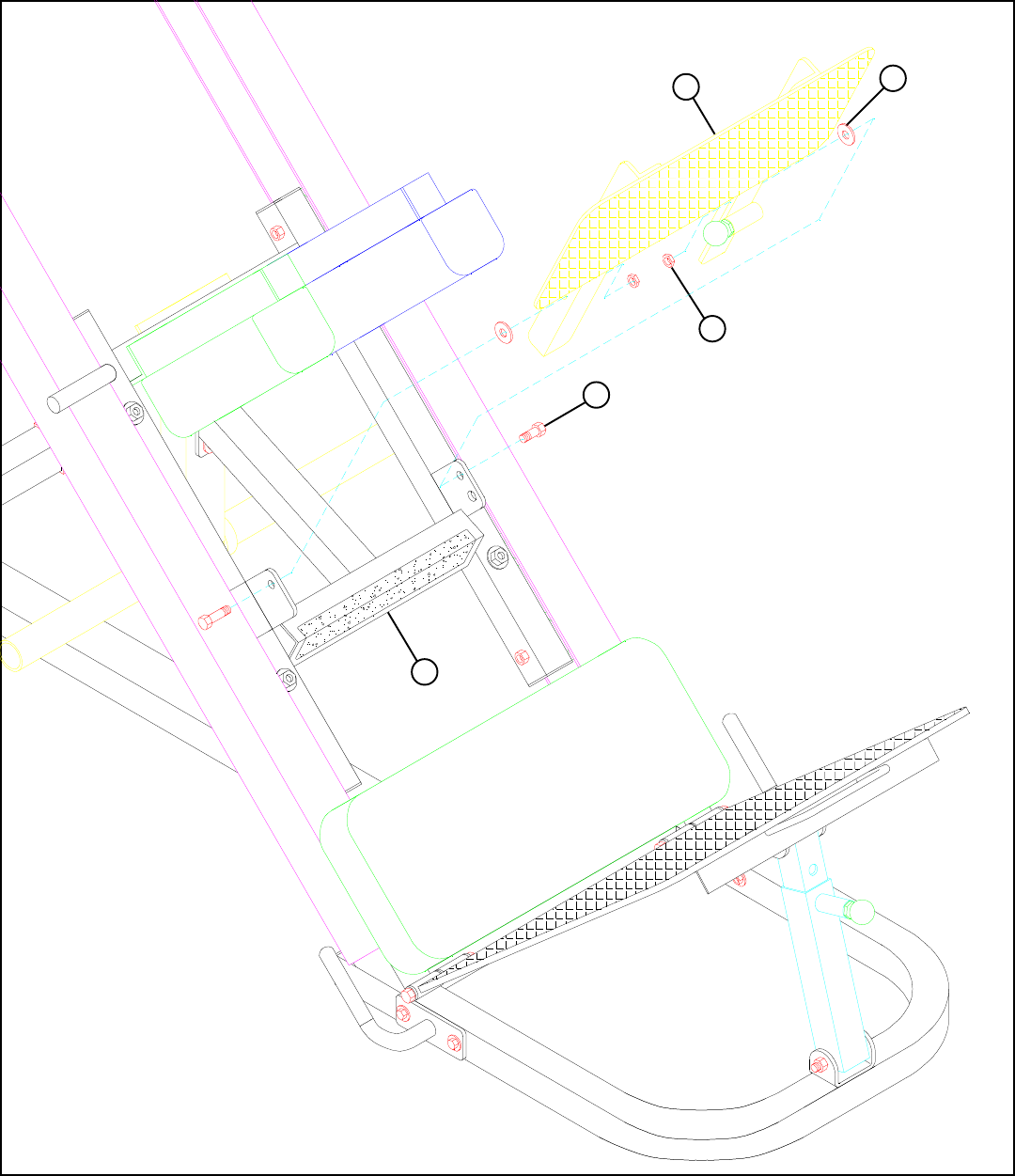

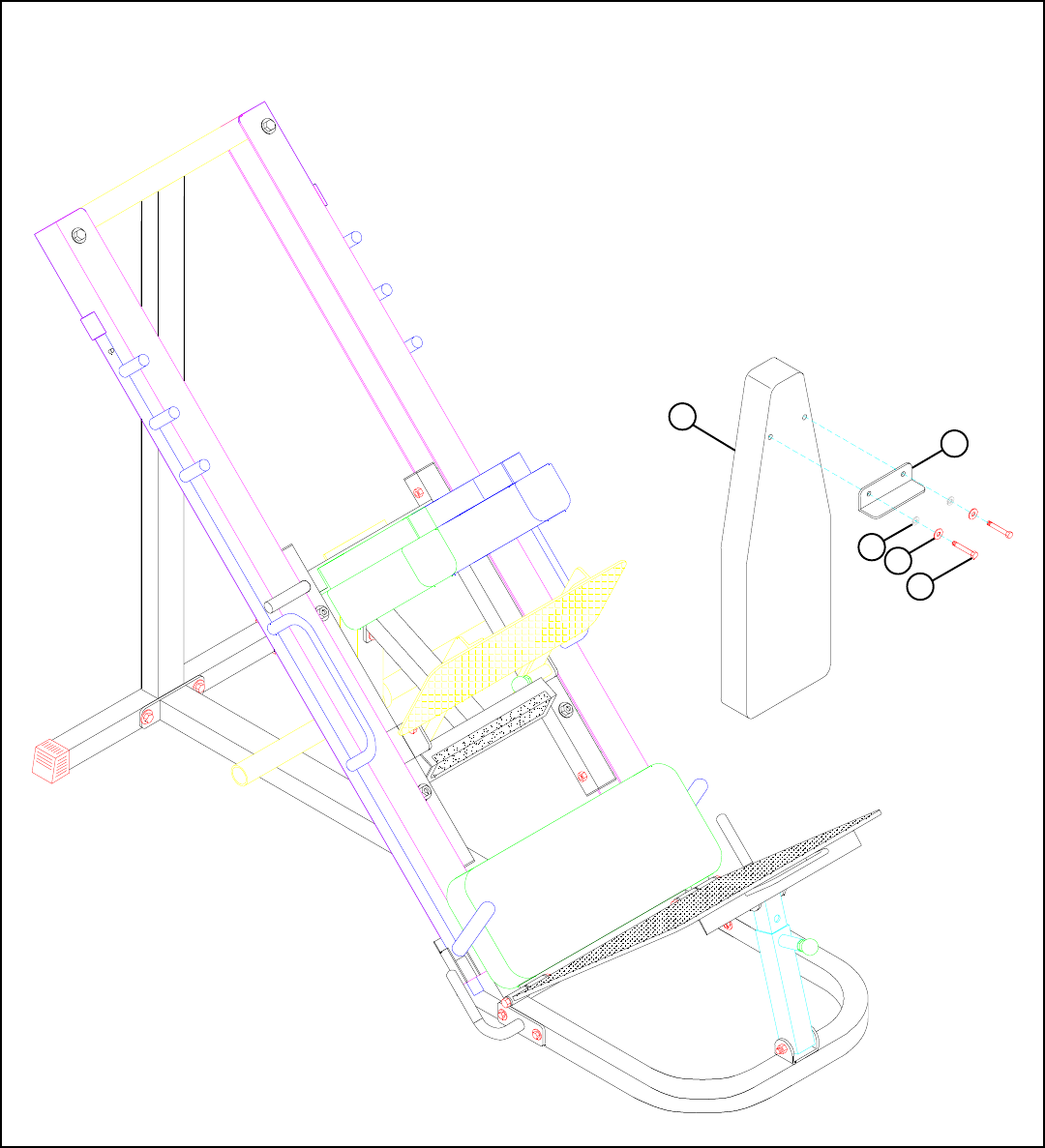

STEP 14:
18
• To assemble the CARRIAGE STOP BAR (7) to the side of the LEFT RAIL (8), start by inserting the top of the BAR (7) into the
BUSHING at the top of the RAIL as far as possible, then lower the BAR (7) into the SURE-LOC BUSHING at the bottom of the
RAIL. (MAKE SURE THE STOP PEGS ARE VERTICAL), then insert one 1-1/4” ROLL PIN (45) into the hole at the top of
the BAR (7). (DO NOT LET THE ROLL PIN PROTRUDE BENEATH THE BAR) Repeat this step on the RIGHT RAIL (9).
• Slide two 1-1/4 X 5” GRIPS (22) over the HANDLES on the CARRIAGE STOP BARS (7) as shown in FIGURE 14.
22
7
9
8
45
SURE-LOC
BUSHING
BUSHING
FIGURE 15

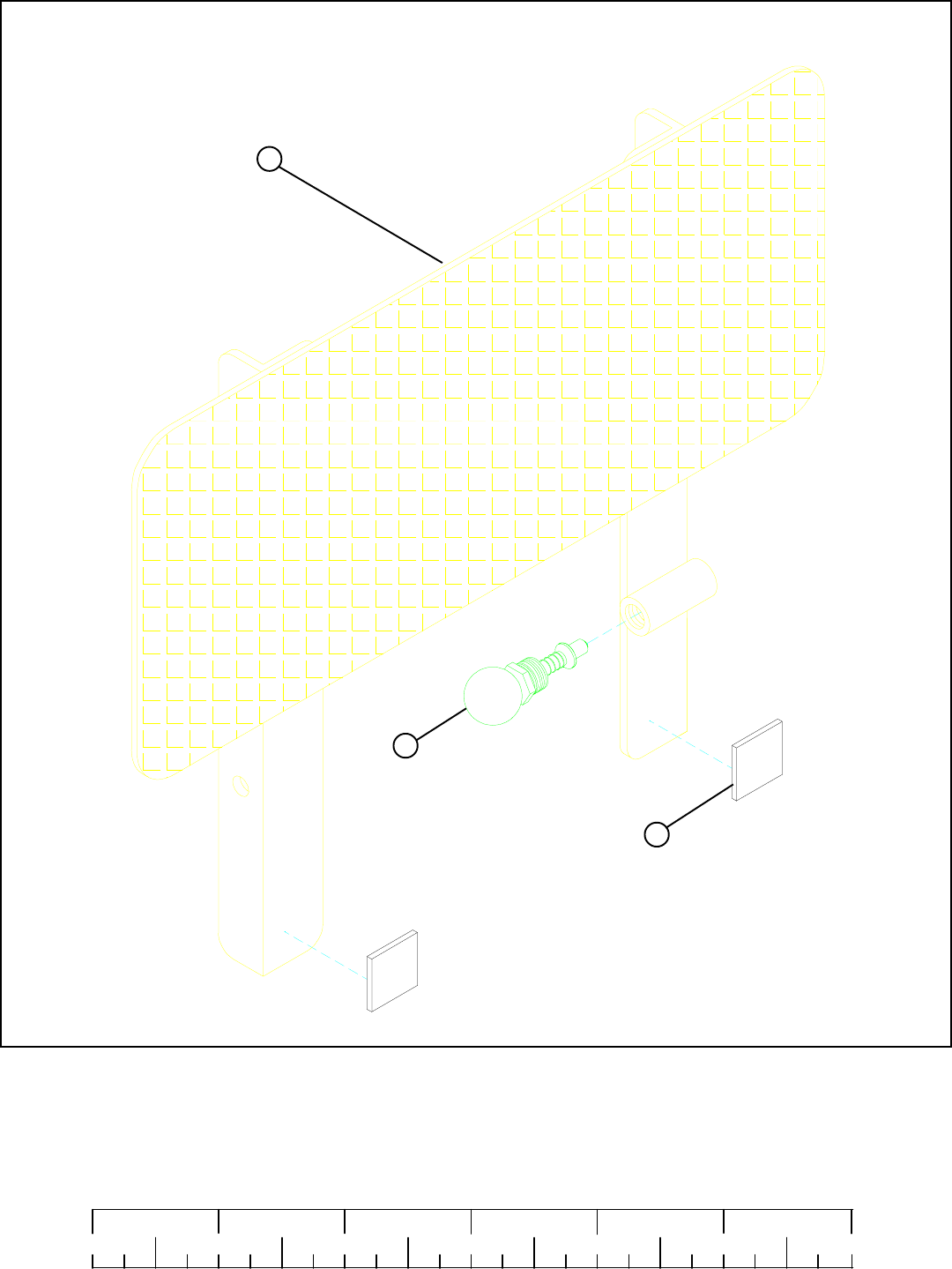

19
STEP 15:
• SECURELY assemble the PAD STOP (15) to the BACK PAD (19) as shown in FIGURE 15 using two 3/8 X 1” BOLTS (35), two
3/8” LOCK WASHERS (30), and two 3/8” WASHERS (29).
3/8 X 1” 35
30
29
15
19
MAKE SURE ALL CONNECTIONS ARE SECURELY TIGHTENED.
STEP 16:
20
0123456
1/2 1/2 1/2 1/2 1/2 1/2

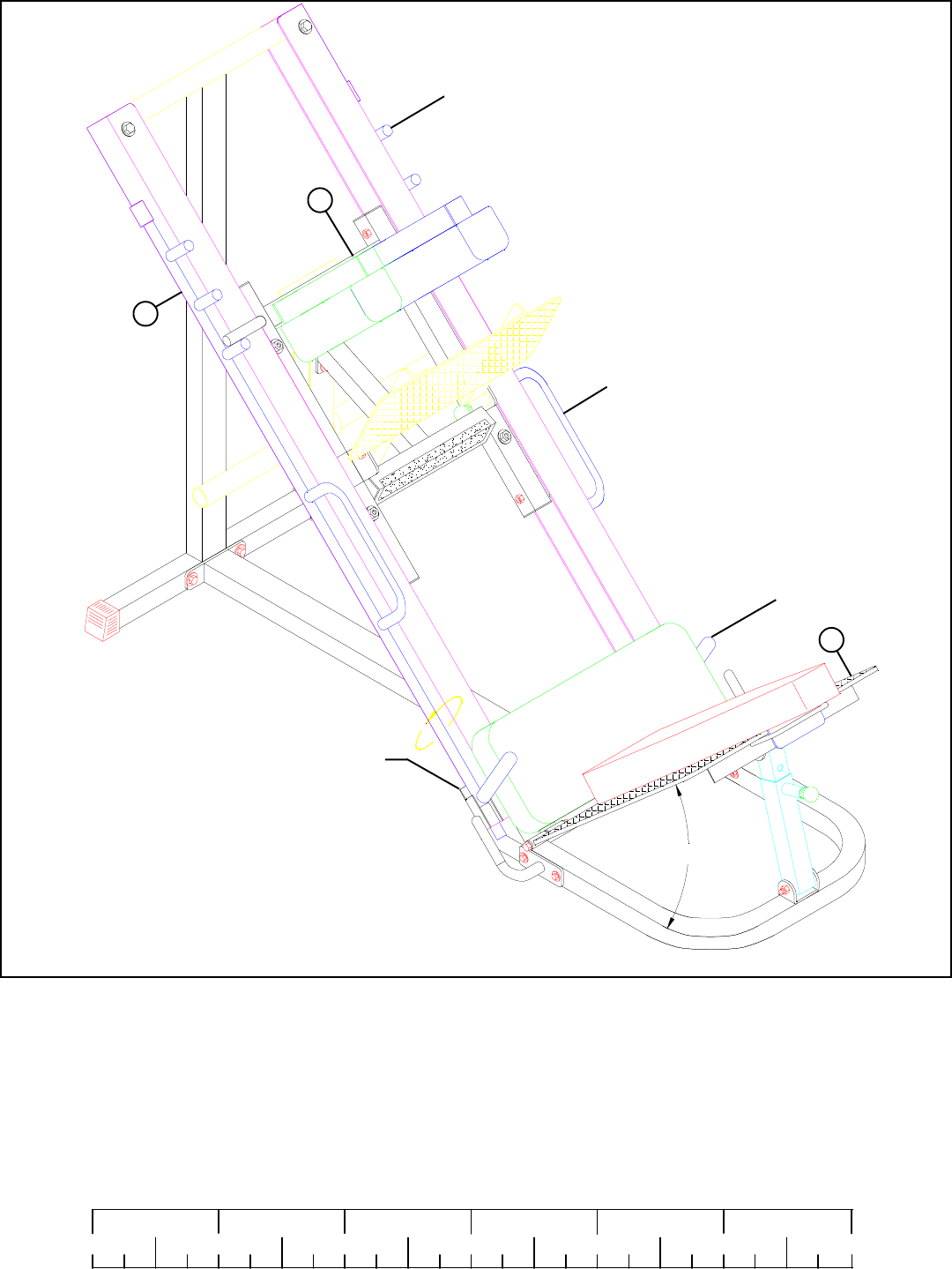

FIGURE 16
• The PLATFORM (11) can adjust into three positions: 35, 40, and 45 degrees
• The HIP SLED was designed with the SURE-LOC SYSTEM for ultimate safety. To activate the CARRIAGE STOP BARS (7)from
either the LEG PRESS or HACK SQUAT position, begin by moving the CARRIAGE (16) up. Grasp the (HANDLES or BAR) on
the CARRIAGE STOP BARS (7) and (push or pull) up and rotate them out. Now the stops are out of the way to perform the
exercise.
• To stop the CARRIAGE (16) on one of the three carriage stops simply rotate the CARRIAGE STOP BARS (7) back up and allow
them to drop down into the SURE-LOC SYSTEM.
11
16
7
SURE-LOC
BUSHING
BAR
CARRIAGE
STOPS
HANDLES
35°,40°,45°

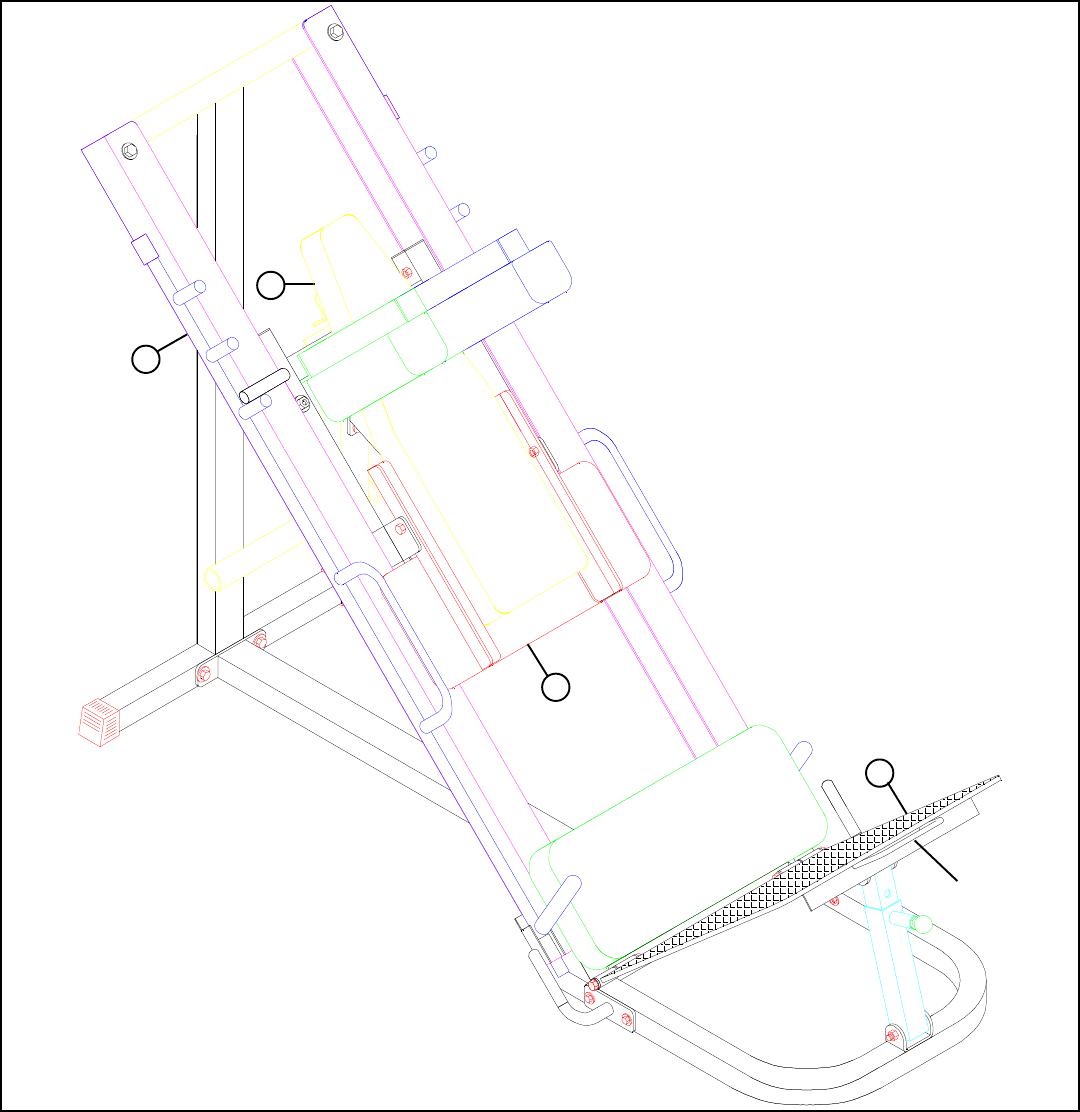

FIGURE 17
STEP 17:
21
• To perform LEG PRESSES, center the BACK PAD (19) down on top of the PLATFORM (11) and lock the PAD STOP (15) on the
back of the BACK PAD (19) behind the PLATFORM HANDLE then rotate the FOOT PLATE (10) on the CARRIAGE (16) up
until the SPRING PIN engages the hole
• To perform HACK SQUATS, make sure that the FOOT PLATE (10) of the CARRIAGE (16) is down. Position the BACK PAD
(19) between the SHOULDER PADS of the CARRIAGE (16). (MAKE SURE THAT THE PAD STOP IS RESTING ABOVE
THE CROSS TUBE ON THE CARRIAGE)
• To perform CALF RAISES, move the CARRIAGE (16) to the top carriage stop of the CARRIAGE STOP BAR (7). Place feet on
the HORIZONTAL TUBE of the CARRIAGE (16). (WHERE THE NON-SKID STRIP IS LOCATED) (DO NOT ROTATE
THE CARRIAGE STOP BARS DOWN FOR THIS EXERCISE)
11
10
19
7
THIS CONCLUDES THE ASSEMBLY OF THE 835 HIP SLED SYSTEM.
PLATFORM
HANLDE
MAINTENANCE
MODEL #________________________
SERIAL #_________________________
DATE OF PURCHASE: _____________
DEALERS NAME: _________________
DEALERS PHONE #_______________
22
* We recommend cleaning your product (pads and frame) on a regular basis, using warm soapy
water. Touch-up paint can be purchased from your ParaBody customer service representative
at (800) 328-9714.
* Inspect equipment daily. Tighten all loose connections are replace worn parts immediately.
Failure to do so may result in serious injury
* Lubricate guide rods with a teflon based (or equivalent) lubricant on a regular basis
Thank you for purchasing the ParaBody 835 Hip Sled System.
Please note:
* PLEASE RECORD THE INFORMATION REQUESTED BELOW. IN THE EVENT
YOU MAY NEED SERVICE YOU WILL BE ASKED FOR THIS INFORMATION.
REMEMBER TO FILL OUT YOUR WARRANTY REGISTRATION CARD AND
MAIL BACK.
23
NOTES:
LIMITED WARRANTY
ParaBody extends the following LIMITED WARRANTY to the original owner of the ParaBody products. The Warranty terms apply to IN HOME USE ONLY.
1. LIMITED WARRANTY ON FRAME AND WELDS. If the frame of the ParaBody product or a weld should crack or break, it will be repaired
or replaced by ParaBody. Terms: Lifetime – for so long as the Customer owns the ParaBody product.
2. LIMITED WARRANTY ON PARTS. If the following parts are defective in material or workmanship, ParaBody will supply replacement parts:
all bolts, nuts, washers, bearings, bushings, pulleys, thumbscrews, collars, cable retaining clips, adjustable pre-stretch slides, roller pad
shafts, allen head bolts, weight selector pin, weight stack shaft, set screws, protector caps, adjustment chain, cotter pin, plunger, spring
and knob. Terms: Lifetime – for so long as the Customer owns the ParaBody product.
3. LIMITED WARRANTY ON CABLES AND UPHOLSTERY. If the coated cables or upholstery are defective in material or workmanship,
ParaBody will repair or replace them, at its option. Terms: Three (3) years.
4. CONDITIONS AND EXCEPTIONS. Any product misuse, abuse or alteration, any attempt to repair by a person other than an authorized
ParaBody Service Center, any improper assembly, accident, or any other condition resulting from occurrences beyond the control of
ParaBody will void this Limited Warranty.
5. REPLACEMENT AND REPAIR EXPENSES. ParaBody will provide only replacement parts or repair under this warranty. The Owner is
responsible for all other costs. Such costs may include, but are not limited to: a. labor charges for service, removal, repair or reinstallation
of the ParaBody product or any component part; b. shipping, delivery, handling and administrative charges for returning parts to ParaBody;
and c. all necessary or incidental costs related to installation of the replacement parts.
6. SHIPPING. If shipping by the Owners is deemed necessary (in sole discretion of ParaBody), parts should be shipped in their original carton
or equivalent packaging, fully insured with shipping charges prepaid. ParaBody will not assume any responsibility for any loss or damage
incurred in shipping.
7. CLAIM PROCEDURES. If service on your ParaBody product is required during the warranty period, please contact our Customer Service
Department at 1-800-328-9714 for instructions regarding returning or replacing parts. Please have available the following information: (i) the
dealer’s name; (ii) the date of purchase; (iii) the serial # (s) of your product (the serial number location is called out on the final assembly
drawing included with your assembly instruction); (iv) a description of the nature of the problem.
8. OWNER’S RIGHT. This Limited Warranty gives you specific legal rights. You may also have other rights, which vary depending on local law.
9. LIMITATION OF IMPLIED WARRANTIES. All implied warranties, except to the extent prohibited by applicable law, shall have no greater
duration than the warranty period set forth above. There are no warranties which extend beyond the description in this Limited Warranty.
Because local laws do not allow limitations on how long an implied warranty lasts, the above limitations may not apply to you.
10. DISCLAIMER. No other express warranty has been made or will be made on behalf of ParaBody with respect to any ParaBody product or
the operation, repair or replacement of any ParaBody product. ParaBody shall not be responsible for injury, loss of use of the ParaBody
product, inconvenience, loss or damage to personal property, whether direct or indirect, and incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
INTERNATIONAL OFFICES
Life FitnessAtlantic BV
Atlantic Headquarters
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: (180) 646 666
Fax: (180) 646 703
Life Fitness Japan
8/F, Nippon Brunswick Building
5-27-7 Sendagaya
Shibuya-Ku, Tokyo 151-0051
Japan
Phone: 81 (3) 3359-4309
Fax: 81 (3) 3359-4307
Life Fitness (UK) Ltd.
Queen Adelaide
Ely, Cambs CB7 4UB
United Kingdom
Phone CSS: (01353) 665507
Fax CSS: (01353) 666719
Life Fitness Benelux N.V.
Bijdorpplein 25-31
2992 LB Barendrecht
The Netherlands
Phone: 31 (180) 64 66 69
Fax: 31 (180) 64 66 99
LIFE FITNESS
14150 Sunfish Lake Blvd. Ramsey Minnesota, 55303 U.S.A.
Tel: 763.323.4500 Fax: 763.323.4797
800.328.9714 (Toll-free within the U.S. and Canada)
www.parabody.com
24
Life Fitness EUROPE GmbH
Siemensstrasse 3
85716 Unterschleissheim
Germany
Phone: (089) 31 77 51-0
Fax: (089) 31 77 51 99
Life Fitness Italia S.R.L.
Via Elvas 92
39042 Bressanone
Italy
Phone: 39 (472) 835-470
Fax: 39 (472) 833-150
Life Fitness Asia Pacific Limited
Room 2610, Miramar Tower
132 Nathan Road, Tsimshatsui
Kowloon, Hong Kong
Phone: (852) 2891-6677
Fax: (852) 2575-6001
Life Fitness Do Brazil
Al. Rio Negro, 433-Predio 2-Sala 2
3º andar (Confab)
Aplhaville-Barueri-Sao Paulo
CEP: 06454-904
Brazil
Phone: 55 (11)7295-2217
Fax: 55 (11) 7295-2218
