For your convenience, you can
unfold this cover to view all of our
standard finishes as you browse
our product catalog.
Details matter.
When every aspect of a design is carefully considered, the
resulting creation is truly distinctive.
And when a brand pays fanatical attention to every product
detail - deliberately curating every collection, year after year -
exceptional design becomes its defining signature.
Since 1992, Paris Texas Hardware has been devoted to providing
exclusive collections of drapery hardware, featuring nothing but
one-of-a-kind products. Our designs have always been, and will
always be, uniquely our own. Whether it’s a finial silhouette that
has never been seen before or an Old World classic with a new
world twist, we promise to provide you with something different –
something that you cannot find anywhere else in the world.
We painstakingly pore over every detail and edit each collection
of our drapery hardware products – always with your ultimate
creative inspiration in mind.
Paris Texas Hardware Mission
With a dedication to exceptional design and superior service,
Paris Texas Hardware will provide a unique, elegant, and high
quality selection of decorative drapery hardware and accessories.
We believe all of our products will be unrivaled in their ability to
stand alone as decorative, durable, and functional. Paris Texas
Hardware will offer an enjoyable customer experience that
includes honest dialogue and responsive feedback.
DESIGNED TO INSPIRE.
TIMBER (TIM) SILVER MAPLE (SM) PARCHMENT (PAR)
NEW AGE BRONZE (NAB) FIRELIGHT (FL) SHIMMER (SH)
CINNAMON (CIN) JAVA (JA) STARLET (ST)
TITANIUM (TTM) URBAN BRONZE (URB) AMULET (AM)
ART BRONZE (AB) MYSTIC (MYS) HALO (HA)
BRUSHED NICKEL BLACK ANTIQUE BRASS
QSLXBN QSLXBK QSLXAB
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
PLATINUM WALNUT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSPL QSWAL QSRG QSAB QSORB
Photography may not accurately represent the true color of a fi nish. A fi nish may show slight variation when painted on
different materials, such as wood or steel. For best possible fi nish match, please refer to the actual sample chip.
ANTIQUE GOLD LEAF (AGL) GOSSAMER (GOS) SPUN GOLD (SPG)
DARK CHOCOLATE (DC) ANTIQUE GOLD (AG) ETERNAL (ET)
ANDIRON (AND) LINEN (LIN) SPICEWOOD (SPW)
MINK (MK) MOONLIGHT (ML) BLACK (BL)
GOLDENROD (GR) BARNWOOD (BW) WHITE (WH)
METAL FINISHES
LUXE LINE FINISHES
WOOD AND RESIN FINISHES
CUSTOM HAND-PAINTED FINISHES
Quick Ship ships in 1 business day
Portfolio ships in 10 - 15 business days
Item #
System
Length
(6'- 40')*
Custom
Cut
Length
Fascia
Pole
Diameter
Fascia
Finish
Code Bracket
Preference Draw Preference
Center One-way Motor Type
Motor
Location
L R
Carrier
pinch pleat OR
Ripplefold® style** Qty Price
per Unit Subtotal
L R
L R
L R
Item # Finish Code Description Qty Price
per Unit Subtotal
* BTX-DC-60 and BTX-DC-120 Systems are available in continuous lengths up to 20' and in spliced lengths up to 40'.
BTX-DCS-45 Systems are available in continuous lengths up to 18'.
Somfy Glydea 35 Systems are available in continuous lengths up to 20' and in spliced lengths up to 32'.
Somfy Glydea 60e Systems are available in continuous lengths up to 20' and in spliced lengths up to 36'.
For a system more than the maximum spliced length, two one-way systems can butt against each other behind fascia. Must be specified.
** Ripplefold® style carriers incur a 10% upcharge per track. Must specify carrier fullness.
SPECIAL INSTRUCTIONS
**When ordering Ripplefold® style carriers, answer these questions:
1. Select Ripplefold® style fullness: 80% 100% 120%
2. Select Ripplefold® style masters: Buttmaster Overlap
MOTORIZED TRAVERSE SYSTEMS - Consult Price List for detailed specifications.
Specified custom cut length indicates track length including drive gears; fascia will be 1/4" longer at each end of track (1/2" total); mitered fascia will be 1 1/2" longer at each end of track (3” total).
Company Information Shipping Information
Company Name Acct # Company Name Acct #
Contact Person Contact Person
Street Address Street Address
City State ZIP City State ZIP
Email Email
Phone Fax Phone Fax
MOTORIZED TRAVERSE COORDINATING ACCESSORIES - Order finials, additional motors for tandem applications, and accessories here.

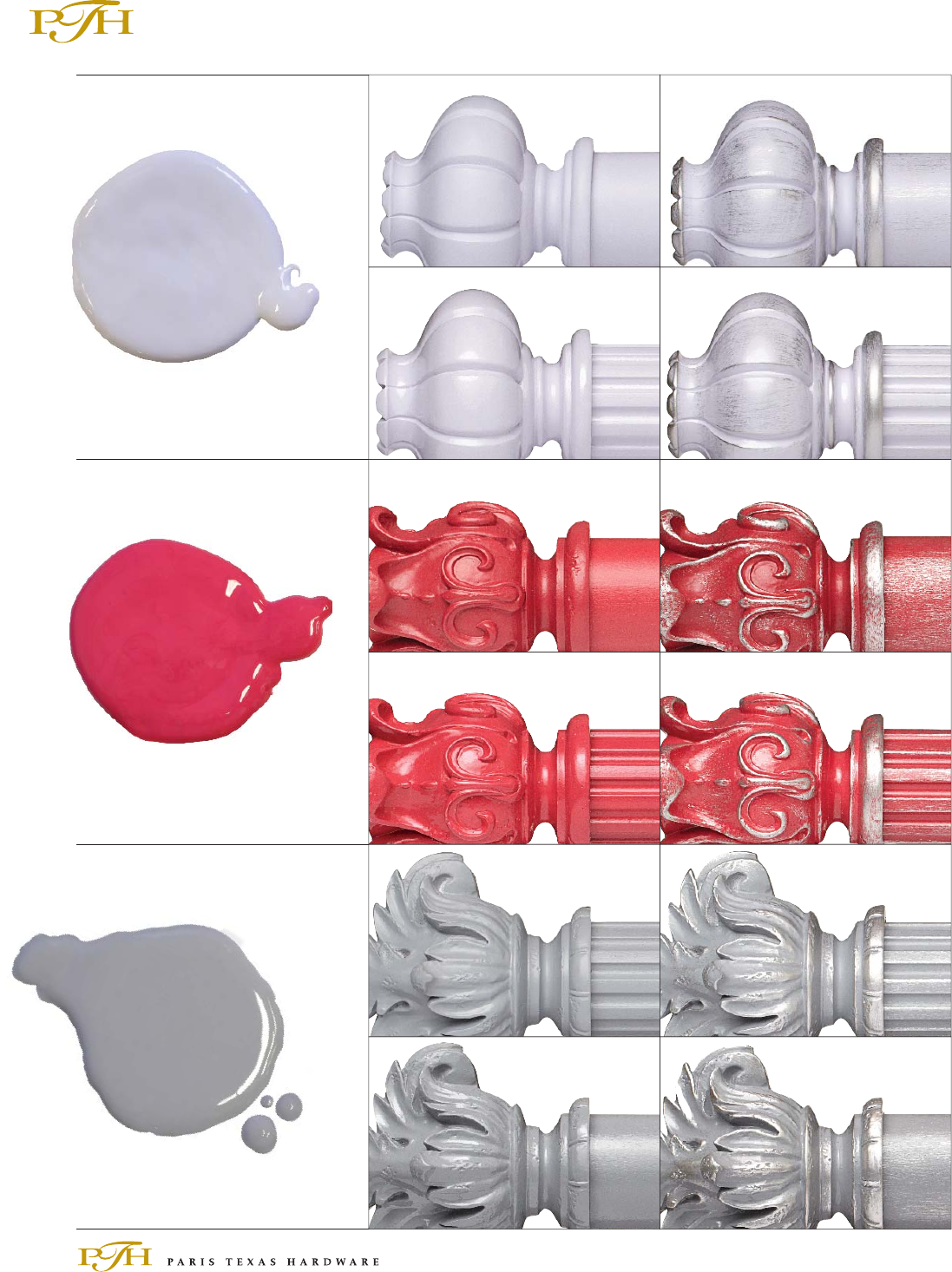

PTH Perfect Match™
Color # Color Name
Highlights Sheen Level
High-Gloss Eggshell
PO # Side Mark Ship via
Motorized Traverse Order Form
Fluted
Smooth
Portfolio
Table of Contents:
Portfolio Ships in 10 - 15 business days
30 custom hand-painted finishes
Portfolio 1" .............................................................................................................1
1" Hand Drawn Traverse System ................................................................15
Portfolio 11⁄4" ........................................................................................................17
Portfolio 13⁄8" ........................................................................................................25
Portfolio 2" ...........................................................................................................33
Portfolio 21⁄4" ........................................................................................................39
Portfolio Holdbacks ............................................................................................49
Portfolio Finishes .................................................................................................53
PTH Perfect Match™ ..................................................................................56
Corded and Motorized Traverse Ships in 10 - 15 business days
30 Portfolio and 5 Quick Ship Wood and Resin finishes
Corded Traverse .................................................................................................61
EasyPull™ Heavy-Duty System ....................................................................62
EasyPull™ Light-Duty Basic White System .................................................63
Heavy-Duty Ball Bearing System ................................................................65
Motorized Traverse .............................................................................................67
BTX DC Motorized System ..........................................................................67
Somfy Glydea™ Motorized System ...........................................................67
Quick Ship Ships in 1 business day
5 Quick Ship Metal finishes
Quick Ship Metal 1" .............................................................................................69
1" Hand Drawn Traverse System .................................................................79
3 Luxe Line finishes
Quick Ship Luxe Line Hand Drawn Traverse System .......................................81
5 Wood and Resin finishes
Quick Ship Wood and Resin 13⁄8" ........................................................................85
Quick Ship Wood and Resin 21⁄4" ........................................................................89
Portfolio
Portfolio
The complete range of Paris Texas Hardware fi nials and
accessories, including all hardware from
Quick Ship Metal and Quick Ship Wood and Resin.
PTH Perfect Match™:
thousands of Benjamin Moore® colors
10 -15 business day lead time
30 custom hand-painted fi nishes
1", 11⁄4", 13⁄8", 2", and 21⁄4" diameters
1
Portfolio
1"
Available in 30 Portfolio fi nishes (shown on pages 54-55) and unlimited PTH Perfect Match™ fi nishes (see pages 56-60).
2
PORTFOLIO 1"
Nora
PO100NOFI
2" W
21⁄4" DIA
Firelight
1" Modern Metal Finials Not compatible with 1" Hand Drawn Traverse System.
Luna End Cap*
PO100LUEC
3⁄4" W
11⁄4" DIA
Antique Gold
Cole
PO100COFI
31⁄4" W
11⁄2" DIA
Mink
Knox - Crystal
PO100KNFI
11⁄4" W
21⁄4" DIA
pole shown in Starlet
Ella
PO100ELAFI
11⁄2" W
15⁄8" DIA
Shimmer
Elm
PO100EMFI
11⁄8" W
2" DIA
Halo
Elm - Smoke Glass
PO100EMFIGL
11⁄8" W
2" DIA
Urban Bronze
Lex
PO100LXFI
13⁄4" W
2" DIA
Dark Chocolate
Nora - Mercury Glass
PO100NOFIGL
21⁄8" W
23⁄8" DIA
Black
*Remember:
Luna End Cap
covers 5⁄8" of the
pole. Finished
pole length may
need to be
increased
accordingly.
3
1"
1" Modern Metal Finial Accessories
• Only for use with 1" diameter pole.
• Not recommended for 1" Hand Drawn Traverse.
(only fi t 1” diameter pole; not recommended of 1” Hand Drawn Traverse)
Enhance your Modern Finial
Position a 1" Band against the base
of your 1" Modern Metal Finial.
Embellish your Pole
Install 1" Bands anywhere along the length
of your pole… spread them out or stack
them side by side for a dramatic effect.
1" Crystal Band
PO100CRMEBAND
5⁄8" W
15⁄8" DIA
• Metal; available only
in dark metal with inlaid
crystals.
1" Braided Band
PO100BRBAND
5⁄8" W
15⁄8" DIA
Antique Gold Leaf
• Resin; available in
any Portfolio Finish.
"B id dB d
Install fi nials. Secure
each Band by
tightening set screw.
Before installing
your 1" Modern
Metal Finials, simply
slide each Band into
position on your 1"
pole.
How To Add Your Band:
Need Some Glamour?
Dress up your Modern Finial: Add a 1" Band
TIP:
1” Bands cover
/8"of pole!
5
4
PORTFOLIO 1"
1" Transitional Metal Finials* Compatible with 1" Hand Drawn Traverse System. See page 15.
Luna End Cap
PO100LUEC
3⁄4" W
11⁄4" DIA
Titanium
Ella with Cuff
PO100ELAFICU
21⁄4" W
15⁄8" DIA
Andiron
Elm with Cuff
PO100EMFICU
17⁄8" W
2" DIA
Parchment
Elm - Smoke Glass
with Cuff
PO100EMFIGLCU
17⁄8" W
2" DIA
New Age Bronze
Lex with Cuff
PO100LXFICU
21⁄2" W
2" DIA
Mystic
Nora with Cuff
PO100NOFICU
23⁄4" W
21⁄4" DIA
Firelight
Nora - Mercury Glass
with Cuff
PO100NOFIGLCU
27⁄8" W
23⁄8" DIA
Barnwood
Cole with Cuff
PO100COFICU
4" W
11⁄2" DIA
Java
*Remember:
Each fi nial on
this page covers
5⁄8" of the pole.
Finished pole
length may
need to be
increased
accordingly.
Knox - Crystal
with Cuff
PO100KNFICU
2" W
2
1
⁄
4
" DIA
Antique Gold
5
1"
TIP:
Traditional Collar
also looks great
in a
contrasting
finish!
1" Transitional Metal Finial Accessory
Today's Traditional
Refi ne your Transitional Finial: Add a Traditional Collar!
Screw Finial into the
Traditional Collar.
Screw Traditional
Collar into the Cuff.
Unscrew the
Transitional Finial
from its Cuff.
How To Make It
Traditional:
Traditional Collar
POTRADCO
5⁄8" W
11⁄8" DIA
Titanium
• Metal; available in any
Portfolio fi nish.
• Can only be added to
1" Transitional Metal Finials.
(Finials maintain compatibility
with 1" Hand Drawn Traverse.)
Enhance your Transitional Finial
Install the Traditional Collar between the
Finial and its Cuff. The Collar’s turned
design and classic contour add
Traditional styling to an otherwise
Transitional look.
6
PORTFOLIO 1"
PORTFOLIO
1"

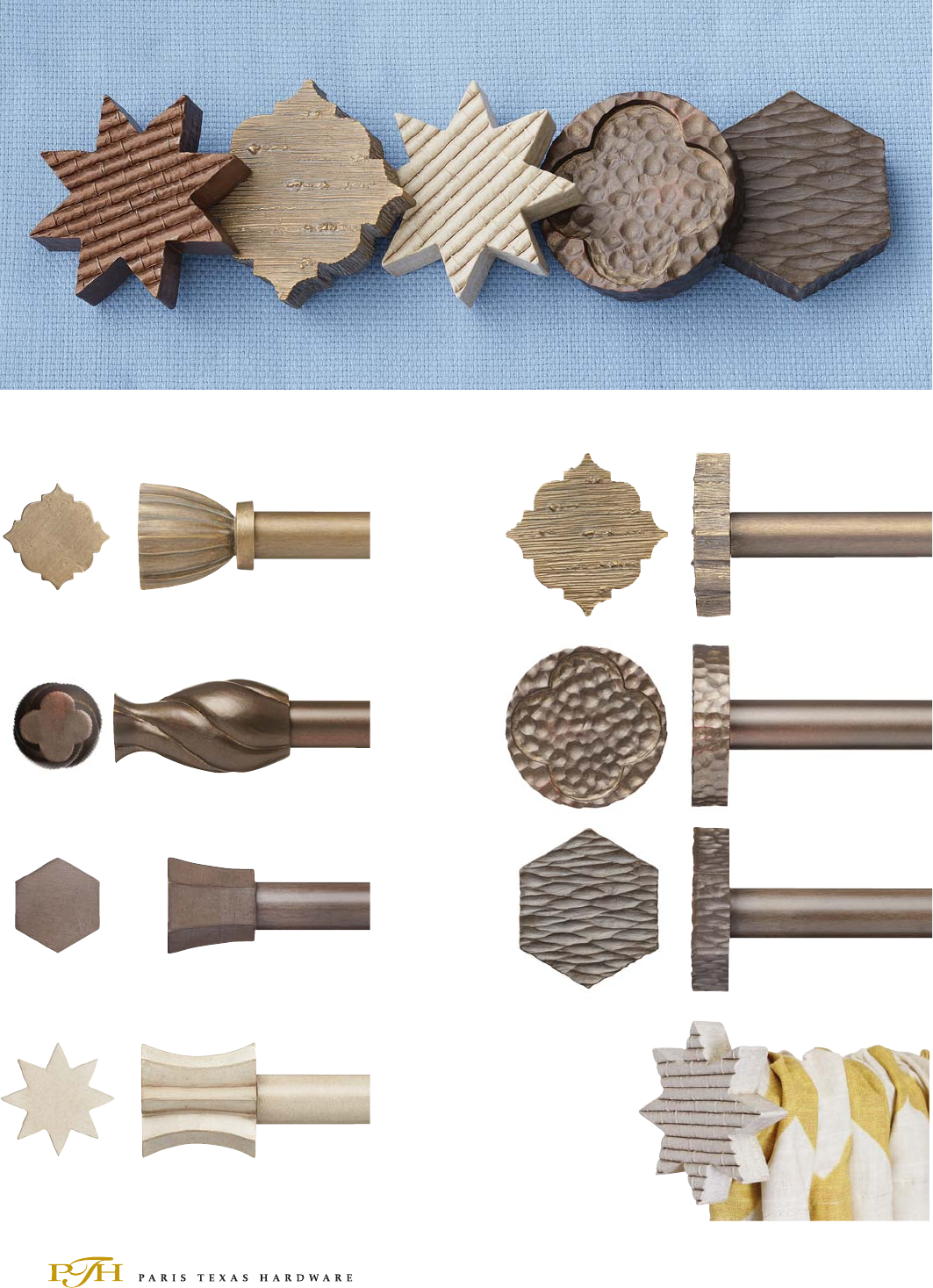

1" Textured Metal Finials Can be adapted to fi t 1" Hand Drawn Traverse System by adding a 1" Cuff. See page 13.
Marcus End Cap
PO100MREC
1⁄2" W
11⁄2" DIA
Linen
Tybalt
PO100TBFI
1
7
⁄
8
" W
15⁄8" DIA
Firelight
Achilles
PO100ACFI
41⁄4" W
13⁄4" DIA
Urban Bronze
Grapefern
PO100GPFI
5" W
3
3
⁄
4
" DIA
Amulet
Larkspur
PO100LRFI
6
3
⁄
8
" W
5
1
⁄
8
" H
1
1
⁄
2
” D
Andiron
Hector
PO100HEFI
5
7
⁄
8
" W
5
3
⁄
8
" H
1
1
⁄
2
" D
Gossamer
Ach
ill
es
7
Cassia
PO100CSFI
4
1
⁄
2
" W
2
3
⁄
8
" DIA
New Age Bronze
Demetrius
PO100DMFI
3" W
2
3
⁄
8
" DIA
Starlet
Nerissa
PO100NEFI
4
1
⁄
2
" W
3
1
⁄
4
" DIA
Mystic
Patience
PO100PAFI
55⁄8" W
55⁄8" H
11⁄2" D
Titanium
Strato
PO100STFI
31⁄8" W
31⁄8" DIA
New Age Bronze
S
tr
ato
PO1
00S
TFI
3
1
⁄
1
8
⁄
⁄
" W
3
1
⁄
1
8
⁄
⁄
"DIA
1"
1" Textured Metal Finials look great with these 1" Finial
1" Textured Metal Finials look great with these 1" Finial
Accessories.
Accessories. MUST BE ORDERED SEPARATELY. SEE PAGE 13.
Patience
+
1" Crystal
Band
Achilles
+
1" Cuff
8
PORTFOLIO 1"
1" Glamour Resin Finials Can be adapted to fi t 1" Hand Drawn Traverse System by adding a 1" Cuff. See page 13.
Chaplin
PO100CHFI
1
3
⁄
4
" W
2" DIA
Black
Clara
PO100CLRFI
21⁄4" W
25⁄8" DIA
Starlet
Pickford
PO100PIFI
21⁄4" W
1
7
⁄
8
" DIA
Amulet
Fairbanks
PO100FBFI
31⁄8" W
2" DIA
Halo
1” Glamour Resin Finials look great with these 1” Finial Accessories
1” Glamour Resin Finials look great with these 1” Finial Accessories
.
MUST BE ORDERED SEPARATELY. SEE PAGE 13.
Turner
PO100TUFI
2
1
⁄
4
" W
23⁄4" DIA
Moonlight
Astor
PO100ASFI
13⁄8” W
23⁄8” DIA
Firelight
Astor
+
1" Crystal Band
Astor
+
1" Cuff
Astor
+
1" Braided Band
Astor
+
Traditional Collar
+
1" Cuff
9
1"
1” Modern Pearl Resin Finials look great with these 1” Finial Accessories.
1” Modern Pearl Resin Finials look great with these 1” Finial Accessories. MUST BE ORDERED SEPARATELY. SEE PAGE 13.
1" Pearl Resin Finials: 3 Pearl Colors. 3 Gorgeous Styles.
1" Jewel Pearl Resin Finials
Pearl available in white, cream, or grey. Base available in any Portfolio Finish.
White Pearl Jewel
PO100PEJWFI - WH
21⁄4" W
23⁄8" DIA
Base and pole
shown in Halo
Cream Pearl Jewel
PO100PEJWFI - CR
21⁄4" W
23⁄8" DIA
Base and pole
shown in Halo
Grey Pearl Jewel
PO100PEJWFI - GY
21⁄4" W
23⁄8" DIA
Base and pole
shown in Halo
Grey Pearl
PO100PEFI - GY
11⁄2" W
15⁄8" DIA
pole shown in
Dark Chocolate
1" Modern Pearl Resin Finials
Pearl available in white, cream, or grey.
Cream Pearl
PO100PEFI - CR
11⁄2" W
15⁄8" DIA
pole shown in
Dark Chocolate
White Pearl
PO100PEFI - WH
11⁄2" W
15⁄8" DIA
pole shown in
Dark Chocolate
1" Transitional Pearl Resin Finials
Compatible with 1” Hand Drawn Traverse System!
Compatible with 1” Hand Drawn Traverse System!
Pearl available in white, cream, or grey. Cuff available in any Portfolio Finish.
White Pearl with Cuff
PO100PEFICU - WH
21⁄4" W
15⁄8" DIA
Cuff and pole shown
in Spun Gold
Cream Pearl with Cuff
PO100PEFICU - CR
21⁄4" W
15⁄8" DIA
Cuff and pole shown
in Spun Gold
Grey Pearl with Cuff
PO100PEFICU - GY
21⁄4" W
15⁄8" DIA
Cuff and pole shown
in Spun Gold
Modern Grey Pearl
+
1" Crystal Band
Modern White Pearl
+
1" Braided Band
TIP:
TIP:
1" Cuff and Traditional Collar
1" Cuff and Traditional Collar
are available in
are available in
Quick Ship Brushed Nickel finish.
Quick Ship Brushed Nickel finish.
Refer to Quick Ship Metal 1" Price List
Refer to Quick Ship Metal 1" Price List
for more information.
for more information.
10
PORTFOLIO 1"
1" California Resin Finials Can be adapted to fi t 1" Hand Drawn Traverse System by adding a 1" Cuff. See page 13.
Melrose
PO100MEFI
23⁄8" W
21⁄4" DIA
Mystic
Beverly
PO100BEFI
31⁄2" W
2" DIA
Gossamer
Wilshire
PO100WIFI
23⁄8" W
23⁄8" DIA
Parchment
Rodeo
PO100ROFI
13⁄4" W
2" DIA
Barnwood
Sunset End Cap
PO100SUEC
3⁄4" W
31⁄2" DIA
Mystic
Newport End Cap
PO100NEEC
3⁄4" W
31⁄4" DIA
Gossamer
Laguna End Cap
PO100LGEC
3⁄4" W
33⁄8" DIA
Barnwood
Venice End Cap
PO100VEEC
3⁄4" W
31⁄2" DIA
Parchment
11
1"
1" California Front-Facing Finial Kits
Sunset Finial Kit
PO100SUKIT
3⁄4" W
31⁄2" DIA
Mystic
Newport Finial Kit
PO100NEKIT
3⁄4" W
31⁄4" DIA
Gossamer
Laguna Finial Kit
PO100LGKIT
3⁄4" W
33⁄8" DIA
Barnwood
Venice Finial Kit
PO100VEKIT
3⁄4" W
31⁄2" DIA
Parchment
Kits include the following:
• 1 pair 1” Luna End Caps
• 1 pair 1” Holdback Medallion Bands
• 1 pair California End Caps
TOP VIEW WHEN INSTALLED
12
PORTFOLIO 1"
1" Tried & True Resin Finials – Never go wrong with these timeless classics.
Paige End Cap
PO100PAEC
1" W
11⁄2" DIA
Silver Maple
Verne
PO100VNFI
17⁄8" W
2” DIA
Timber
Seraphine
PO100SEFI
41⁄2" W
23⁄8" DIA
Urban Bronze
Celia End Cap
PO100CEEC
11⁄8" W
11⁄2" DIA
Dark Chocolate
Violet
PO100VLFI
35⁄8" W
21⁄2" DIA
Gossamer
Eleri
PO100ELFI
31⁄4" W
31⁄8" DIA
Shimmer
Marion
PO100MAFI
21⁄8" W
23⁄8" DIA
Antique Gold
Odette
PO100ODFI
23⁄8" W
13⁄4" DIA
Urban Bronze
Nicolette
PO100NIFI
33⁄4" W
23⁄4" DIA
Spicewood
Keaton
PO100KEFI
23⁄8" W
25⁄8" DIA
[17⁄8" square]
Titanium
Clementine
PO100CLFI
23⁄4” W
2” DIA
Barnwood
Ser
aph
ine
PO1
00S
EFI
13
1"
Verify the compatibility
of your chosen Finial
and Accessory in the
chart below.
1” Rings
Ring Drop indicates distance from bottom of pole to bottom of ring.
Jacqueline Ring
PO100JARI
3⁄8" W
15⁄8" H
11⁄4" ID
15⁄8" OD
1⁄2" drop
Antique Gold
Swing Ring
PO100SWRI
3⁄16" W
11⁄2" ID
2" OD
3⁄4" drop
Antique Gold Leaf
Small C-Ring
PO100SCRI
3⁄16" W
11⁄2" ID
2" OD
3⁄4" drop
Gossamer
• use this bypass ring
with Gregory Bypass
Support Brackets
Ava Ring
PO100AVRI
1⁄4" W
15⁄8" H
11⁄4" ID
15⁄8" OD
1⁄2" drop
Spun Gold
1" Finial Accessories & Rings
1” Finial Accessories
1" Braided Band
PO100BRBAND
5⁄8" W
11⁄16" ID, 15⁄8" OD
Antique Gold Leaf
1" Crystal Band
PO100CRMEBAND
5⁄8" W
11⁄16" ID, 15⁄8" OD
1" Cuff
PO100CUFF
3⁄4" W
11⁄4" DIA
Barnwood
Traditional Collar
POTRADCO
5⁄8" W
11⁄8" DIA
Titanium
" Bra
ide
dBa
Common uses for 1" Medallion Bands:
1. repeated decorative embellishment
along the length of a pole
2. hold gathered rod pocket drapery
panel in place
3. ring stop
1" Modern Metal Finials ••
1" Transitional Metal Finials (included) •
1" Textured Metal Finials •••
1" Glamour Resin Finials •••
must use with 1" Cuff,
ordered separately
1" Transitional Pearl Resin Finials (included)
1" Modern Pearl Resin Finials ••
1" California Resin Finials •••
1" Tried and True Resin Finials •••
• metal; available in any
Portfolio Finish
• must be used with
the 1" Cuff
• installs between the
Finial and 1" Cuff
These 1" Bands can be used on a 1" pole in 2 ways:
1. against the base of a 1" fi nial for a touch of glamour
2. anywhere on the 1" pole for additional decoration
Slide these onto your 1" pole for a Glamorous look.
Slide these onto your 1" pole for a Glamorous look.
1" Holdback
Medallion Band
POMEBAND
3⁄4" W
11⁄16" ID
13⁄16" OD
Parchment
1" Rosaline
Medallion Band
POROBAND
Antique Gold
(includes 1" Holdback
Medallion Band)
• Attaches any
Holdback Medallion
to the front of a 1" pole.
Holdback Medallion sold
separately. See page 50.
• metal; available in any
Portfolio Finish
• covers 5⁄8" of the pole;
fi nished pole length may
need to be increased
accordingly
• metal; available only in
dark metal with inlaid
crystals
• not recommended for
1" Hand Drawn Traverse
System
• resin; available in any
Portfolio Finish
• not recommended for
1" Hand Drawn Traverse
System
1" Medallion Bands
1" Finials
look great with
these accessories.
Add this for a Transitional
Add this for a Transitional
look or to gain compatibility
look or to gain compatibility
with the 1” Hand Drawn
with the 1” Hand Drawn
Traverse System.
Traverse System.
Add this turned element
Add this turned element
for a Tradtional
for a Tradtional
look.
look.
TIP: These two items are also available in Quick
Ship Brushed Nickel finish. Refer to Quick Ship
Metal 1" Price List for more information.
21⁄8" DIA
7⁄8" deep
14
PORTFOLIO 1"
Gregory Double*
PO100GRDBK
3⁄4" W
33⁄4" H backplate
6" front return
3" back return
Both cradles hold
1" diameter pole.
New Age Bronze
Gregory Single*
PO100GRSBK
3⁄4" W
33⁄4" H backplate
31⁄2" return
Titanium
Bypass Support Brackets
• Use with Small C Ring
*CAUTION: Gregory Brackets do not have full cradles.
Self-threading screw installs through bottom of cradle
and into 1" pole to secure it. Laurence Brackets must
be installed at each end to secure 1" pole.
1" Hinged Resin
Elbow
PO100REL
11⁄8" DIA
31⁄4" overall length
15⁄8" length of each
side when bent
Black
1" Accessories
36" Clear Acrylic Wand
POAC36WAND
1
⁄
2
" DIA
36" L
Acrylic, clear only
48" Clear Acrylic Wand
POAC48WAND
1
⁄
2
" DIA
48" L
Acrylic, clear only
41" Metal Wand
POME41WAND
5
⁄
8
" DIA
41" L
New Age Bronze
1" metal poles are sold in 2 foot increments.
2 foot minimum. Poles will be cut to specifi ed
lengths. Fall off will not be saved or shipped.
Custom cut metal poles are produced with
steel threaded ends.
Maximum continuous length is 16 feet.
Every pole ships with a splicing screw.
1” Metal Pole
Smooth
PO100SM
Firelight
Laurence 6" Single
PO100LAS6BK
3⁄4" W
33⁄4" H backplate
6" return
Mink
Laurence 6" Double
PO100LADBK
3⁄4" W
33⁄4" H backplate
6" front return
3" back return
Both cradles hold
1" diameter pole.
Mink
1" Metal Brackets
Return indicates distance from wall to center of pole.
Laurence 3" Single
PO100LASBK
3⁄4" W
33⁄4" H backplate
31⁄2" return
Urban Bronze
1" Metal Ceiling Mount
PO100MCMBK
2" DIA ceiling plate
21⁄4" H
21⁄8" drop (distance
from ceiling to
bottom of pole)
Firelight
1" Metal Inside
Mount
PO100MIBK
3⁄4" W
11⁄8" H
15⁄8" D
Gossamer
(Sold in pairs)
Front view when installed.
Cerise Single
PO100CESBK
31⁄8" DIA base
31⁄2" return
Mystic
Cerise Double
PO100CEDBK
31⁄8" DIA base
61⁄2" front return
31⁄2" back return
Both cradles hold
1" diameter pole.
Mystic
1" Brackets, Poles & Accessories
15
1"
1" Hand Drawn Traverse System RECOMMENDED FOR LIGHTWEIGHT DRAPERIES
1" Hand Drawn Traverse System INCLUDES:
• Track(s): Continuous track available up to 8';
spliced lengths available up to 16'.
• Brackets
• Components: Glides and Glide Stop(s)*
• 48" Clear Acrylic Wand(s)*
*Note: Each Center Draw Track includes 2 Glide
Stops and 2 Acrylic Wands. Each One-Way
Draw Track includes 1 Glide Stop and
1 Acrylic Wand.
Finials sold separately.
• 1" Finials with a Cuff must be ordered with
all 1" Hand Drawn Traverse Systems.
• Only 1" Transitional Metal Finials and 1"
Transitional Pearl Resin Finials can
attach to the track without modifi cation.
(Their Cuff is included.)
• Any 1" Portfolio Finial can be modifi ed
to fi t the 1" Hand Drawn Traverse track
with the addition of a 1" Cuff,
sold separately.
• Finials must have a Cuff to attach to
the track.
• If a Traditional Collar is added to the
1" Transitional Finial or the 1" Glamour
Finial with Cuff, it will still fi t the track.
Maximum drapery weight - 2 lbs/ft.
Available in any Portfolio Finish.
Single 1" Hand Drawn Traverse System
shown in Moonlight Finish;
Elm with Cuff Finial sold separately.
Double 1" Hand Drawn Traverse System
shown in Barnwood Finish;
Cole with Cuff Finial and Luna End Cap
sold separately.
1" Hand Drawn Traverse System
Single Center Draw
PO100TR01
Single One-Way Draw
PO100TR03
Double Center Draw
PO100TR05
Double One-Way Draw
PO100TR07
Available Brackets
31⁄2" Single
6" Single
Ceiling Mount
Available Brackets
31⁄2" Single
6" Single
Ceiling Mount
Available Brackets
Double Bracket
Ceiling Mount
Available Brackets
Double Bracket
Ceiling Mount
Order in 3 Easy Steps:
Order in 3 Easy Steps:
Step 1: Select your Draw. Step 2: Select your Bracket.
Step 1: Select your Draw. Step 2: Select your Bracket.
Step3: Purchase your Finials, sold separately. See pages 4-12.
Step3: Purchase your Finials, sold separately. See pages 4-12.
To ensure your 1" Portfolio Finial fits the 1" Hand Drawn Traverse Track, a 1" Cuff must be
added. (Purchase separately; see page 13.)
Remember:
Remember: 1" Transitional Metal and 1" Transitional Pearl Resin Finials fit the 1" track without
modification — additional Cuff is not necessary. 1" Cuff
16
PORTFOLIO 1"
ANTIQUE GOLD
ANTIQUE GOLD LEAF
ETERNAL
FIRELIGHT
GOLDENROD
MYSTIC
INCLUDED IN SYSTEM: 1" Hand Drawn Traverse Brackets
Available in 30 Portfolio fi nishes. Brackets must be installed every 3-4 feet. Bracket return indicates distance from wall
to center of track. See System Quantity Chart below for quantity of brackets included with each system. Additional
brackets may be ordered separately.
1" Traverse 31⁄2" Single Bracket
PO100TRSBK
21⁄8" DIA backplate
31⁄2" return
Moonlight
1" Traverse 6" Single Bracket
PO100TRS6BK
21⁄8" DIA backplate
6" return
Dark Chocolate
1" Traverse Double Bracket
PO100TRDBK
21⁄8" DIA backplate
6" front return
3" back return
Barnwood
1" Traverse Ceiling Mount
Bracket
PO100TRCMBK
21⁄8" DIA ceiling plate
21⁄4" H
23⁄4" return
21⁄2" drop (distance from ceiling
to bottom of track)
Firelight
Standard Wheeled Glide
PO100GLIDE
3⁄8" W
5⁄8" drop (distance from
bottom of track to
bottom of eyelet
interior when installed)
Glide Stop anchors the drapery panel at the end of the track.
PO100GSTOP
3⁄8" W
1⁄4" drop (distance from
bottom of track to
bottom of eyelet
interior when installed)
Bronze Champagne Gold
BZ CH GO Bronze Champagne Gold
BZ CH GO
White
WH White
WH
White Glide may be
substituted; please
specify on order.
White Glide Stop may
be substituted; please
specify on order.
1” Hand Drawn Traverse System Component Color Chart
Bracket style must be specifed on your order.
INCLUDED IN SYSTEM: 1" Hand Drawn Traverse Components
Components will be provided in the color that best matches the Portfolio fi nish, unless otherwise specifi ed. See
Component Color Chart below. See System Quantity Chart below for quantity of glides included with each system.
Additional components may be ordered separately.
Track Splicer
PO100TRSPL
• connects the ends of
two tracks
• installs into top channel
• included with all systems
over 8'
Component* Color Champagne Bronze Gold White
*White may be substituted Yes Yes Yes -
(Must be specifi ed on order.)
*Components include Standard Wheeled Glide and Glide Stop.
ANDIRON
CINNAMON
HALO
SHIMMER
SILVER MAPLE
SPUN GOLD
STARLET
TITIANIUM
URBAN BRONZE
AMULET
ART BRONZE
BARNWOOD
BLACK
DARK CHOCOLATE
GOSSAMER
JAVA
MINK
MOONLIGHT
NEW AGE BRONZE
SPICEWOOD
TIMBER
LINEN
PARCHMENT
WHITE
Portfolio Finish
SYSTEM QUANTITY CHART
Quantity included per set will be based on total system length 2' 3' 4' 5' 6' 7' 8' 9' 10' 11' 12' 13' 14' 15' 16’
Glides (4 per foot, includes Glide Stop) 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64
Brackets (1 per every 3-4 feet) 222333444555666
Continuous Track Length Spliced Track Length
17
Portfolio
11⁄4"
Available in 30 Portfolio fi nishes (shown on pages 54-55) and unlimited PTH Perfect Match™ fi nishes (see pages 56-60) .
18
PORTFOLIO 11⁄4"
11⁄4" Modern Metal Finials
Nora
PO114NOFI
2" W
21⁄4" DIA
Firelight
Skye End Cap*
PO114SKEC
3⁄4" W
11⁄2" DIA
Antique Gold
Cole
PO114COFI
31⁄4" W
11⁄2" DIA
Mink
Ella
PO114ELAFI
11⁄2" W
15⁄8" DIA
Shimmer
Elm
PO114EMFI
11⁄8" W
2" DIA
Halo
Elm - Smoke Glass
PO114EMFIGL
11⁄8" W
2" DIA
Urban Bronze
Lex
PO114LXFI
13⁄4" W
2" DIA
Dark Chocolate
Nora - Mercury Glass
PO114NOFIGL
21⁄8" W
23⁄8" DIA
Black
Knox - Crystal
PO114KNFI
11⁄4" W
21⁄4" DIA
pole shown in Starlet
*Remember:
Skye End Cap
covers 5⁄8" of the
pole. Finished
pole length may
need to be
increased
accordingly.
19
11⁄4"
11⁄4" Transitional Metal Finials*
Skye End Cap
PO114SKEC
3⁄4" W
11⁄2" DIA
Titanium
Cole with Cuff
PO114COFICU
4" W
11⁄2" DIA
Java
Knox -Crystal
with Cuff
PO114KNFICU
2" W
21⁄4" DIA
Antique Gold
Ella with Cuff
PO114ELAFICU
21⁄4" W
15⁄8" DIA
Andiron
Elm with Cuff
PO114EMFICU
17⁄8" W
2" DIA
Parchment
Elm - Smoke Glass
with Cuff
PO114EMFIGLCU
17⁄8" W
2" DIA
New Age Bronze
Nora with Cuff
PO114NOFICU
23⁄4" W
21⁄4" DIA
Firelight
Nora - Mercury Glass
with Cuff
PO114NOFIGLCU
27⁄8" W
23⁄8" DIA
Barnwood
Lex with Cuff
PO114LXFICU
21⁄2" W
2" DIA
Mystic
1
1
1
1
/
/
4
4
" Transitional Metal Finials look great with a Traditional Collar.
" Transitional Metal Finials look great with a Traditional Collar. MUST BE ORDERED SEPARATELY. SEE PAGE 24.
Lex with Cuff
+
Traditional Collar
*Remember:
Each fi nial on
this page covers
5⁄8" of the pole.
Finished pole
length may
need to be
increased
accordingly.
20
PORTFOLIO 11⁄4"
11⁄4" Glamour Resin Finials
Chaplin
PO114CHFI
13⁄4" W
2" DIA
Mink
Clara
PO114CLRFI
21⁄4" W
25⁄8" DIA
Spicewood
Pickford with Cuff
PO114PIFICU
3" W
17⁄8" DIA
Urban Bronze
(11⁄4" Cuff included)
Fairbanks
PO114FBFI
31⁄8" W
2" DIA
Mystic
Astor
PO114ASFI
13⁄8" W
23⁄8" DIA
Shimmer
11
1
/4
4
" Glamour Resin Finials look great with these 1
" Glamour Resin Finials look great with these 1
1
1
/4
4
" Finial Accessories.
" Finial Accessories. MUST BE ORDERED SEPARATELY. SEE PAGE 24.
Turner
PO114TUFI
21⁄4" W
23⁄4" DIA
Silver Maple
Astor
+
1
1
⁄
4
" Cuff
Astor
+
Traditional Collar
+
1
1
⁄
4
" Cuff
21
11⁄4"
11⁄4" Modern Pearl Resin Finials
Pearl available in white, cream, or grey.
Grey Pearl
PO114PEFI - GY
11⁄2" W
15⁄8" DIA
pole shown in
Dark Chocolate
Cream Pearl
PO114PEFI - CR
11⁄2" W
15⁄8" DIA
pole shown in
Dark Chocolate
White Pearl
PO114PEFI - WH
11⁄2" W
15⁄8" DIA
pole shown in
Dark Chocolate
11⁄4" Jewel Pearl Resin Finials
Pearl available in white, cream, or grey. Base available in any Portfolio Finish.
White Pearl Jewel
PO114PEJWFI - WH
21⁄4" W
23⁄8" DIA
Base and pole
shown in Halo
Cream Pearl Jewel
PO114PEJWFI - CR
21⁄4" W
23⁄8" DIA
Base and pole
shown in Halo
Grey Pearl Jewel
PO114PEJWFI - WH
21⁄4" W
23⁄8" DIA
Base and pole
shown in Halo
White Pearl with Cuff
PO114PEFICU - WH
21⁄4" W
15⁄8" DIA
Cuff and pole shown
in Spun Gold
Cream Pearl with Cuff
PO114PEFICU - CR
21⁄4" W
15⁄8" DIA
Cuff and pole shown
in Spun Gold
Grey Pearl with Cuff
PO114PEFICU - GY
21⁄4" W
15⁄8" DIA
Cuff and pole shown
in Spun Gold
11⁄4" Transitional Pearl Resin Finials
Pearl available in white, cream, or grey. Cuff available in any Portfolio Finish.
1
1
/
4
" Pearl Resin Finials: 3 Pearl Colors. 3 Gorgeous Styles.
22
PORTFOLIO 11⁄4"
Rachel
PO114RAFI
4" W
3" DIA
Art Bronze
Beale End Cap
PO114BEEC
1
⁄
2
" W
2" DIA
Eternal
Agnes
PO114AGFI
2" W
21⁄2" DIA
Java
Sophie
PO114SOFI
31⁄2" W
13⁄4" DIA
Antique Gold Leaf
Ruby
PO114RBFI
21⁄2" W
21⁄2" DIA
Halo
Elisabeth
PO114EBFI
21⁄2" W
31⁄8" DIA
Firelight
Eleanor
PO114ELFI
25⁄8" W
3" DIA
[21⁄8" square]
Mystic
R
achel
PO1
14R
AFI
4"
W
Sebastian
PO114SBFI
2
1
⁄2" W
23⁄4" DIA
Starlet
Never go wrong with these timeless classics.
1
1
⁄
4
" Baroque Resin Finials 11⁄4" Tried & True Resin Finials –
To mimic the look
of marble, leave
your
1
1
1
1/
4
4" Baroque
Resin Finials
unfinished.
Resin Leaf Rings
can be found in
Portfolio
1
3
3/
8
8". See
page 31.
23
11⁄4" Mid-Century Modern Resin Finials
Fever End Cap
PO114FEEC
11⁄4" W
15⁄8" DIA
New Age Bronze
Shimmy
PO114SHFI
3" W
31⁄2" DIA
Timber
Rock
PO114ROFI
33⁄4" W
2" DIA
Titanium
Shag
PO114SGFI
33⁄4" W
2" DIA
Art Bronze
Dazzle
PO114DAFI
51⁄4" W
21⁄2" DIA
Andiron
Fev
er
End
Ca
p
11⁄4"
24
PORTFOLIO 11⁄4"
11⁄4" Finial Accessories, Brackets, Poles, Rings & Accessories
Gregory Double
PO114GRDBK
3⁄4" W
33⁄4" H backplate
6" front return
3" back return
Both cradles hold
11⁄4" diameter pole.
New Age Bronze
11⁄4" Finial Accessories
11⁄4" Cuff
PO114CUFF
3⁄4" W
11⁄2" DIA
Barnwood
Traditional Collar
POTRADCO
5⁄8" W
11⁄8" DIA
Titanium
11⁄4" Metal Ceiling Mount
PO114MCMBK
2" DIA ceiling plate
23⁄4" H
25⁄8" drop (distance from
ceiling to bottom of pole)
Firelight
11⁄4" Metal Inside
Mount
PO114MIBK
1" W
11⁄4" H
21⁄8" D
Black
(Sold in pairs)
Front view when installed.
Gregory Single
PO114GRSBK
3⁄4" W
33⁄4" H backplate
31⁄2" return
Titanium
T
5
T
Winston 6" Single
PO114WSS6BK
3⁄4" W
33⁄4" H backplate
6" return
Eternal
Winston 6" Double
PO114WSDBK
3⁄4" W
33⁄4" H backplate
6" front return
3" back return
Both cradles hold
11⁄4" diameter pole.
Gossamer
Winston 3" Single
PO114WSSBK
3⁄4" W
33⁄4" H backplate
31⁄2" return
Spicewood
11⁄4" Metal Brackets
Return indicates distance from wall to center of pole.
1
P
3
⁄
3
⁄
⁄
1
B
Bypass Support Brackets
• Use with Medium C Ring
Verify the compatibility
of your chosen Finial
and Accessory in the
chart below.
*CAUTION: Gregory Brackets do not have full cradles.
Self-threading screw installs through bottom of cradle
and into 11⁄4" pole to secure it. Winston Brackets must
be installed at each end to secure 11⁄4" pole.
11⁄4" Rings
Ring Drop indicates distance from bottom of pole to bottom of ring.
Swing Ring
PO114SWRI
3
⁄
16
16" W
1
1
⁄
2
" ID
2" OD
1⁄2" drop
Antique Gold Leaf
Medium C-Ring
PO114MCRI
3
⁄
16
16" W
2" ID
23⁄8" OD
1" drop
Gossamer
• use this bypass ring
with Gregory Bypass
Support Brackets
Maddox Ring
PO114MARI
3⁄16" W
2" ID
23⁄8" OD
1" drop
Gossamer
11⁄4" metal poles are sold in 2 foot increments.
2 foot minimum. Poles will be cut to specifi ed
lengths. Fall off will not be saved or shipped.
Custom cut metal poles are produced with
steel threaded ends.
Maximum continuous length is 16 feet.
Every pole ships with a splicing screw.
11⁄4" Metal Pole
Smooth
PO114SM
Antique Gold Leaf
11⁄4" Hinged Resin
Elbow
PO114REL
17⁄16" DIA
33⁄4" overall length
17⁄8" length of each
side when bent
Black
11⁄4" Accessories
36" Clear
Acrylic Wand
POAC36WAND
1
⁄
2
" DIA
36" L
Acrylic, clear only
48" Clear
Acrylic Wand
POAC48WAND
1
⁄
2
" DIA
48" L
Acrylic, clear only
41" Metal Wand
POME41WAND
5
⁄
8
" DIA
41" L
New Age Bronze
• metal; available in
any Portfolio Finish
• must be used with
the 11⁄4" Cuff
• installs between the
Finial and 11⁄4" Cuff
• metal; available in any
Portfolio Finish
• covers 5⁄8" of the
pole; fi nished pole
length may need to be
increased accordingly
Add for a Tradtional
Add for a Tradtional
look.
look.
Add for a Transitional look.
Add for a Transitional look.
11⁄4" Transitional Metal Finials (included) •
11⁄4" Glamour Resin Finials •must use with 11⁄4" Cuff, order separately
25
Portfolio
1
3
⁄
8
"
Available in 30 Portfolio fi nishes (shown on pages 54-55) and unlimited PTH Perfect Match™ fi nishes (see pages 56-60).
26
PORTFOLIO 13⁄8"
Bradford
PO138BRFI
31⁄4" W
21⁄4" DIA
Titanium
Lillian
PO138LIFI
4" W
33⁄8" DIA
Linen
Lillian - Mercury Glass
PO138LIFIGL
4" W
31⁄2" DIA
Amulet
Lowell End Cap
PO138LOEC
1" W
13⁄4" DIA
Art Bronze
Rose - Crystal
PO138ROFI
23⁄4" W
23⁄4" DIA
Art Bronze
June
PO138JUFI
23⁄4" W
23⁄4" DIA
Cinnamon
13⁄8" Tried & True Resin Finials – Never go wrong with these timeless classics.
Harper
PO138HAFI
3" W
23⁄4" DIA
Moonlight
Easton
PO138EAFI
2
3
⁄
8
" W
3
1
⁄
2
" DIA
Spicewood
Lane
PO138LAFI
31⁄2" W
35⁄8" DIA
Spun Gold
27
13⁄8" Tried & True Resin Finials – Never go wrong with these timeless classics.
Everette
PO138EVFI
2
7
⁄
8
" W
3
3
⁄
8
" DIA
[2
1
⁄
2
" square]
Urban Bronze
Essex End Cap
PO138ESEC
3
⁄
4
” W
2” DIA
Java
Aubrie End Cap
PO138AUEC
3
⁄
4
" W
2
1
⁄
4
" DIA
Silver Maple
Lyla
PO138LYFI
25⁄8" W
25⁄8" DIA
Barnwood
Brielle
PO138BLFI
4” W
3” DIA
Halo
Mae
PO138MAFI
31⁄4" W
23⁄4" DIA
Firelight
Leo
PO138LEFI
3
5
⁄
8
" W
2
3
⁄
4
" DIA
Mink
Jolette
PO138JLFI
1
5
⁄
8
" W
2
1
⁄
4
" DIA
Eternal
13⁄8"
Daphne
PO138DPFI
31⁄4" W
21⁄2" DIA
Titanium
28
PORTFOLIO 13⁄8"
Clara Jewel
PO138CLRJWFI
31⁄2" W
25⁄8" DIA
Antique Gold
Pickford Jewel
PO138PIJWFI
31⁄2" W
21⁄8" DIA
Antique Gold Leaf
Turner Jewel
PO138TUJWFI
31⁄2" W
23⁄4" DIA
Urban Bronze
Chaplin Jewel
PO138CHJWFI
3" W
21⁄8" DIA
Goldenrod
13⁄8" Jewel Resin Finials
Fairbanks Jewel
PO138FBJWFI
43⁄8" W
21⁄8" DIA
Black
Astor Jewel
PO138ASJWFI
25⁄8" W
23⁄8" DIA
Mink
29
13⁄8" Traditional Resin Finials
Amboise
PO138AMFI
51⁄4" W
3" DIA
Barnwood
Joan of Arc
PO138JOFI
31⁄2" W
31⁄2" DIA
Amulet
Small Carved
End Cap
PO138SCEC
7⁄8" W
17⁄8" DIA
Linen
Pierre
PO138PIFI
41⁄2" W
33⁄8" DIA
Moonlight
Avon
PO138AVFI
35⁄8" W
33⁄4" DIA
White
Marcel
PO138MRFI
43⁄4" W
37⁄8" DIA
Halo
Gabriella
PO138GAFI
33⁄4" W
3" DIA
Shimmer
Gaston
PO138GSFI
31⁄2" W
33⁄8" DIA
Parchment
Severn
PO138SEFI
31⁄2" W
3" DIA
New Age Bronze
13⁄8"
30
PORTFOLIO 13⁄8"
Bypass Support Brackets
• Use with Medium C Ring
*CAUTION: Gregory Brackets do not
have full cradles. Self-threading screw
installs through bottom of cradle and
into 13⁄8" pole to secure it. Winston
Brackets must be installed at each
end to secure 13⁄8" pole.
Front view when installed.
13⁄8" Metal Inside
Mount
PO138MIBK
1" W
11⁄4" H
21⁄8" D
Titanium
(Sold in pairs)
13⁄8" Metal Ceiling
Mount
PO138MCMBK
2" DIA ceiling plate
23⁄4" H
25⁄8" drop (distance
from ceiling to
bottom of pole)
Firelight
Winston 6" Single
PO138WSS6BK
3⁄4" W
33⁄4" H backplate
6" return
Mystic
Gregory Double
PO138GRDBK
3⁄4" W
33⁄4" H backplate
6" front return
3” back return
Both cradles hold
13⁄8" diameter pole.
New Age Bronze
William 6" Single
PO138WIS6BK
1" W
31⁄2" H backplate
63⁄4" return
Firelight
Winston 6" Double
PO138WSDBK
3⁄4" W
33⁄4" H backplate
6" front return
3" back return
Both cradles hold
13⁄8" diameter pole.
Gossamer
William 6" Double
PO138WIDBK
1" W
33⁄8" H backplate
63⁄4" front return
31⁄4" back return
Both cradles hold
13⁄8" diameter pole.
Mystic
13⁄8" Metal Brackets
Return indicates distance from wall to center of pole. 13⁄8" Resin Brackets
Return indicates distance from wall to center of pole.
13⁄8" Wood Brackets
Winston 3" Single
PO138WSSBK
3⁄4" W
33⁄4" H backplate
31⁄2" return
Spicewood
Gregory Single
PO138GRSBK
3⁄4" W
33⁄4" H backplate
31⁄2" return
Gossamer
William 3" Single
PO138WISBK
1" W
31⁄2" H backplate
33⁄4" return
Spicewood
13⁄8" Brackets
13⁄8" Wood Ceiling Mount
PO138WOCBK
3⁄4" W
31⁄4" H
61⁄8" D
23⁄8" drop (distance
from ceiling to
bottom of pole)
Urban Bronze
13⁄8" Wood Inside Mount
PO138WOIBK
1" W
23⁄8" H
23⁄8" D
Urban Bronze
(Sold in pairs)
Grace
PO138GRBK
13⁄8" W
73⁄4" H
35⁄8" return
Java
Shelburne
PO138SHBK
11⁄4" W
51⁄4" H
33⁄4" return
Spun Gold
Gra
ce
PO1
38G
RBK
1
3
⁄
3
8
⁄
⁄
" W
7
3
⁄
3
4
⁄
⁄
" H
3
5
⁄
5
8
⁄
⁄
" r
etu
rn
Jav
a
G
re
g
ory S
i
PO
1
38G
R
SB
Edison Double
PO138EDDBK
1" W
4" H backplate
63⁄4" front return
33⁄4" back return
Both cradles hold
13⁄8" diameter pole.
Cinnamon
Edison Single
PO138EDSBK
1" W
4" H backplate
33⁄4" front return
Barnwood
31
13⁄8"
13⁄8” Poles, Rings & Accessories
13⁄8" smooth and fl uted wood poles are sold in
2 foot increments. 2 foot minimum. Poles will
be cut to specifi ed lengths. Fall off will not be
saved or shipped.
Maximum continuous length is 12 feet.
Every pole ships with a splicing screw.
13⁄8" Hinged Resin Elbow
PO138REL
15⁄8" DIA
37⁄8" overall length
115⁄16" length each side
when bent
Mink
13⁄8" Wood Ring
PO138WRI
1⁄2" W
13⁄4" ID
25⁄8" OD
3⁄4" drop
Titanium
13⁄8" Metal Ring
PO138MRI
3⁄16" W
13⁄4" ID
21⁄4" OD
1⁄2" drop
Firelight
13⁄8" Wood Poles
Smooth
PO138SM
Amulet
Fluted
PO138FL
Amulet
13⁄8" Rings
Ring Drop indicates distance from bottom of pole to bottom of ring.
41" Metal Wand
POME41WAND
5
⁄
8
" DIA
41" L
New Age Bronze
13⁄8" Accessories
36" Clear Acrylic Wand
POAC36WAND
1⁄2" DIA
36" L
Acrylic, clear only
48" Clear Acrylic Wand
POAC48WAND
1⁄2" DIA
48" L
Acrylic, clear only
Leaf Ring
PO138LERI
5⁄8" W
17⁄8" ID
31⁄8" OD
11⁄4" drop
New Age Bronze
Maddox Ring
PO138MARI
3⁄16" W
2" ID
23⁄8" OD
3⁄4" drop
Gossamer
Medium C-Ring
PO138MCRI
3⁄16" W
2" ID
23⁄8" OD
3⁄4" drop
Dark Chocolate
• use this bypass
ring with Gregory
Bypass Support
Brackets
32
PORTFOLIO
Warm
Modern
Transitional
Luxe
Today's
Traditional
Dark
Glamour
Rustic
Charm
Bohemian
Chic
Cozy
Cottage
What's Your Inspiration?
Portfolio 13⁄8" has a style for every window.
Aubrie End Cap on smooth pole
Finish: Silver Maple
Leo Finial on smooth pole
Finish: Mink
Lillian Finial on fl uted pole
Finish: Linen
Fairbanks Jewel Finial on fl uted pole
Finish: Black
June Finial on smooth pole
Finish: Cinnamon
Jolette Finial on smooth pole
Finish: Eternal
Rose - Crystal Finial on smooth pole
Finish: Art Bronze
33
Portfolio
2"
Available in 30 Portfolio fi nishes (shown on pages 54-55) and unlimited PTH Perfect Match™ fi nishes (see pages 56-60).
34
PORTFOLIO 2"
2" Glamour Resin Finials
Marin
PO200MNFI
4" W
41⁄8" DIA
Amulet
Sapphire
PO200SAFI
31⁄4" W
33⁄8" DIA
Mystic
Eva
PO200EVFI
51⁄2" W
33⁄4" DIA
Firelight
Emerald
PO200EMFI
3" W
33⁄4" DIA
[23⁄4" square]
Halo
Lainey
PO200LAFI
37⁄8" W
31⁄2" DIA
Java
35
2" Tried & True Resin Finials – Never go wrong with these timeless classics.
Cosette End Cap
PO200COEC
17⁄8" W
23⁄4" DIA
Barnwood
Anneliese
PO200AEFI
5" W
41⁄2" DIA
Linen
Nicholas
PO200NIFI
41⁄2" W
33⁄8" DIA
Amulet
Andre
PO200ADFI
37⁄8" W
33⁄8" DIA
Art Bronze
Mariele
PO200MAFI
41⁄4" W
31⁄2" DIA
Dark Chocolate
Madelaine
PO200MDFI
53⁄4" W
33⁄4" DIA
Andiron
2"
36
PORTFOLIO 2"
Margot End Cap
PO200MAEC
3⁄4" W
3" DIA
Antique Gold Leaf
Imogene
PO200IMFI
43⁄4" W
41⁄2" DIA
Moonlight
Eirwen
PO200EIFI
41⁄2" W
33⁄4" DIA
Starlet
Ophelia
PO200OPFI
51⁄4" W
31⁄8" DIA
Urban Bronze
Cayley
PO200CAFI
35⁄8" W
4" DIA
Antique Gold Leaf
2" Tried & True Resin Finials – Never go wrong with these timeless classics.
37
2"
2" Brackets
Front view when installed.
2" Metal Inside Mount
PO200MIBK
1" W
15⁄8" H
27⁄8" D
Mystic
(Sold in pairs)
2" Metal Ceiling Mount
PO200MCMBK
1" W
33⁄4" H
3
1
⁄
4
" D
35⁄8" drop (distance
from ceiling to bottom
of pole)
Dark Chocolate
Camille Double
PO200CMDBK
3
1
⁄
4
” DIA base
7" front return
31⁄2" back return
Front cradle holds
2" diameter pole;
back cradle holds
1" diameter pole.
Moonlight
Harlan 6" Double
PO200HADBK
3⁄4" W
33⁄4" H backplate
6" front return
23⁄8" back return
Front cradle holds
2" diameter pole;
back cradle holds
1" diameter pole.
Gossamer
2" Metal Brackets
Return indicates distance from wall to center of pole.
2" Wood Brackets
Harlan 3" Single
PO200HASBK
3⁄4" W
33⁄4" H backplate
4" return
Halo
Camille Single
PO200CMSBK
31⁄4" DIA base
4" return
Moonlight
2" Wood Ceiling Mount
PO200WOCBK
1" W
41⁄8" H
83⁄8" D
33⁄8" drop (distance from
ceiling to bottom of pole)
Titanium
2" Wood Inside Mount
PO200WOIBK
1" W
31⁄8" H
47⁄8" D
Linen
(Sold in pairs)
Harlan 6" Single
PO200HAS6BK
3⁄4" W
33⁄4" H backplate
6" return
Titanium
38
PORTFOLIO 2"
41" Metal Wand
POME41WAND
5
⁄
8
" DIA
41" L
New Age Bronze
2" Poles, Rings & Accessories
2" Hinged Resin Elbow
PO200REL
21⁄16" DIA
43⁄8" overall length
23⁄16" length each
side when bent
Firelight
2" Wood Ring
PO200WRI
1⁄2" W
21⁄4" ID
31⁄4" OD
3⁄4" drop
Gossamer
Forrest Ring
PO200FORI
3⁄16" W
23⁄4" ID
31⁄8" OD
1" drop
Titanium
Christelle Ring
PO200CHRI
1⁄2" W
31⁄4" H
21⁄2" ID
33⁄8" OD
7⁄8" drop
Antique Gold
Ivanna Ring
PO200IVRI
1⁄2" W
31⁄4" H
21⁄2" ID
31⁄4" OD
7⁄8" drop
New Age Bronze
Duncan Ring
PO200DURI
3⁄16" W
21⁄2" ID
27⁄8" OD
3⁄4" drop
Urban Bronze
2" Rings
Ring Drop indicates distance from bottom of pole to bottom of ring.
2" Accessories
36" Clear Acrylic Wand
POAC36WAND
1⁄2" DIA
36" L
Acrylic, clear only
48" Clear Acrylic Wand
POAC48WAND
1⁄2" DIA
48" L
Acrylic, clear only
2" smooth and fl uted wood poles are sold in
2 foot increments. 2 foot minimum. Poles will
be cut to specifi ed lengths. Fall off will not be
saved or shipped.
Maximum continuous length is 16 feet.
Every pole ships with a splicing screw.
2" Wood Poles
Smooth
PO200SM
Antique Gold Leaf
Fluted
PO200FL
Moonlight
39
Portfolio
21⁄4"
Available in 30 Portfolio fi nishes (shown on pages 54-55) and unlimited PTH Perfect Match™ fi nishes (see pages 56-60).
PORTFOLIO 21⁄4"
40
Brinley End Cap
PO214BREC
1
1
⁄
2
" W
23⁄4" DIA
White
2
1
⁄
4
" Tried & True Resin Finials – Never go wrong with these timeless classics.
Edward
PO214EDFI
41⁄4" W
31⁄4" DIA
Dark Chocolate
Gage End Cap
PO214GAEC
1" W
3" DIA
Cinnamon
Large Carved
End Cap
PO214LCEC
1" W
23⁄4" DIA
Mystic
Durham End Cap
PO214DUEC
7⁄8" W
3" DIA
Art Bronze
Stella
PO214STFI
21⁄4" W
31⁄4" DIA
Halo
41
21⁄4"
2
1
⁄
4
" Tried & True Resin Finials – Never go wrong with these timeless classics.
eless
classics.
Oliver
PO214OLFI
33⁄4" W
33⁄4" DIA
Andiron
Fiona
PO214FIFI
4" W
51⁄4" DIA
Silver Maple
Adelaide
PO214ADFI
5" W
31⁄2" DIA
Titanium
Adelaide - Mercury Glass
PO214ADFIGL
5" W
33⁄8" DIA
Mink
Hazel - Crystal
PO214HZFI
23⁄4" W
31⁄4" DIA
New Age Bronze
Beatrice
PO214BEFI
41⁄4" W
4" DIA
Amulet
PORTFOLIO 21⁄4"
42
Versailles
PO214VEFI
8" W
31⁄2" H
23⁄4" D
Goldenrod
2
1
⁄
4
" Glamour Resin Finials
Quincy
PO214QUFI
53⁄4" W
23⁄4" DIA
Cinnamon
Opal
PO214OPFI
31⁄8" W
33⁄4" DIA
Moonlight
Beau
PO214BUFI
4" W
33⁄8" DIA
Spicewood
Louise
PO214LOFI
41⁄4" W
4" DIA
Timber
Davies
PO214DAFI
41⁄8" W
31⁄2" DIA
Mystic
Our Flagship Finial
43
21⁄4"
2
1
⁄
4
" Glamour Resin Finials 2
1
⁄
4
" Traditional Resin Finials
Maribel
PO214MRFI
17⁄8" W
3" DIA
Antique Gold
Ema
PO214EAFI
51⁄4" W
3" DIA
Halo
Sidney
PO214SIFI
31⁄4" W
41⁄4" DIA
[3" square]
Dark Chocolate
Lyon
PO214LYFI
43⁄4" W
47⁄8" DIA
Firelight
Kenley
PO214KEFI
53⁄4" W
5" DIA
Java
Paris
PO214PAFI
25⁄8" W
31⁄2" DIA
Antique Gold Leaf
PORTFOLIO 21⁄4"
44
2
1
⁄
4
" Traditional Resin Finials
Cambria
PO214CMFI
71⁄4" W
4" H
23⁄4" D
Spun Gold
Bordeaux
PO214BOFI
43⁄4" W
41⁄8" DIA
Barnwood
Landon
PO214LNFI
51⁄2" W
4" DIA
Titanium
Rydal
PO214RYFI
53⁄4" W
43⁄8" DIA
Amulet
Greek
PO214GKFI
5" W
4" DIA
Firelight
Artichoke
PO214ARFI
63⁄4" W
33⁄4" DIA
Andiron
45
21⁄4"
2
1
⁄
4
" Traditional Resin Finials
Natasha
PO214NAFI
43⁄8" W
33⁄4" DIA
Gossamer
Marie Antoinette
PO214MAFI
5" W
5" DIA
Antique Gold
Michael
PO214MIFI
63⁄4" W
4" DIA
Shimmer
Greer
PO214GRFI
73⁄8" W
43⁄4" DIA
Moonlight
PORTFOLIO 21⁄4"
46
21⁄4" Brackets
Front view when installed.
21⁄4" Metal
Inside Mount
PO214MIBK
1" W
15⁄8" H
27⁄8" D
Mystic
(Sold in pairs)
21⁄4" Metal Ceiling
Mount
PO214MCMBK
1" W
33⁄4" H
31⁄4" D
35⁄8" drop (distance
from ceiling to bottom
of pole)
Gossamer
William 6" Single
PO214WIS6BK
1" W
4" H backplate
71⁄8" return
Spicewood
Harlan 6" Double
PO214HADBK
3⁄4" W
33⁄4" H backplate
6" front return
23⁄8" back return
Front cradle holds
21⁄4" diameter pole;
back cradle holds
13⁄8" diameter pole.
Antique Gold Leaf
William 6" Double
PO214WIDBK
1" W
37⁄8" H backplate
71⁄8" front return
31⁄4" back return
Front cradle holds 21⁄4"
diameter pole; back cradle
holds 13⁄8" diameter pole.
Spicewood
21⁄4” Metal Brackets
Return indicates distance from wall to
center of pole.
21⁄4” Resin Brackets
Return indicates distance from wall to center of pole.
Harlan 3" Single
PO214HASBK
3⁄4" W
33⁄4" H backplate
4" return
Halo
William 3" Single
PO214WISBK
1" W
4" H backplate
41⁄8” return
Halo
21⁄4" Wood Ceiling
Mount
PO214WOCBK
1" W
41⁄8" H
83⁄8" D
33⁄8" drop (distance from
ceiling to bottom of pole)
Titanium
21⁄4" Wood Inside Mount
PO214WOIBK
1" W
31⁄8" H
47⁄8" D
Linen
(Sold in pairs)
Harlan 6" Single
PO214HAS6BK
3⁄4" W
33⁄4" H backplate
6" return
Titanium
Dunmore Single
PO214DUSBK
1" W
43⁄4" H backplate
41⁄4" return
Barnwood
Dunmore Double
PO214DUDBK
1" W
43⁄4" H backplate
71⁄8" front return
33⁄4" back return
Front cradle holds 21⁄4"
diameter pole; back
cradle holds 13⁄8"
diameter pole.
Parchment
Preston
PO214PRBK
11⁄2" W
51⁄2" H
41⁄8" return
Mystic
Lyon
PO214LYBK
15⁄8" W
71⁄2" H backplate
41⁄8" return
Firelight
Accessory*
PO214ACBK
1" W
31⁄2" H backplate
43⁄8" return
Gossamer
*Attach any resin Portfolio Holdback Medallion to
the front of this bracket. Holdback Medallions are
sold separately. See page 50.
21⁄4" Wood Brackets
47
21⁄4"
Fluted
PO214FL
Mystic
Lyon Ring
PO214LYRI
5⁄8" W
3" ID
41⁄4" OD
13⁄8" drop
Art Bronze
41" Metal Wand
POME41WAND
5
⁄
8
" DIA
41" L
New Age Bronze
21⁄4" Poles, Rings & Accessories
21⁄4" Hinged Resin Elbow
PO214REL
23⁄8" DIA
51⁄8" overall length
29⁄16" length each
side when bent
Firelight
21⁄4" Wood Ring
PO214WRI
1⁄2" W
25⁄8" ID
35⁄8" OD
7⁄8" drop
Mystic
Forrest Ring
PO214FORI
3⁄16" W
23⁄4" ID
31⁄8" OD
3⁄4" drop
Titanium
21⁄4" Metal Ring
PO214MRI
1⁄4" W
21⁄2" ID
3" OD
1⁄2" drop
Gossamer
21⁄4" Rings
Ring Drop indicates distance from bottom of pole to bottom of ring.
21⁄4" Accessories
36" Clear Acrylic Wand
POAC36WAND
1⁄2" DIA
36" L
Acrylic, clear only
48" Clear Acrylic Wand
POAC48WAND
1⁄2" DIA
48" L
Acrylic, clear only
21⁄4" smooth and fl uted wood poles are sold in
2 foot increments. 2 foot minimum. Poles will
be cut to specifi ed lengths. Fall off will not be
saved or shipped.
Maximum continuous length is 16 feet.
Every pole ships with a splicing screw.
21⁄4" Wood Poles
Smooth
PO214SM
Mystic
48
PORTFOLIO End Cap Chart
Marcus End Cap
PO100MREC
1⁄2" W
11⁄2" DIA
Brinley End Cap
PO214BREC
1
1
⁄
2
" W
23⁄4" DIA
Large Carved End Cap
PO214LCEC
1" W
23⁄4" DIA
Durham End Cap
PO214DUEC
7⁄8" W
3" DIA
Margot End Cap
PO200MAEC
3⁄4" W
3" DIA
Small Carved
End Cap
PO138SCEC
7⁄8" W
17⁄8" DIA
Paige End Cap
PO100PAEC
1" W
11⁄2" DIA
Celia End Cap
PO100CEEC
11⁄8" W
11⁄2" DIA
Beale End Cap
PO114BEEC
1
⁄
2
" W
2" DIA
Fever End Cap
PO114FEEC
11⁄4" W
15⁄8" DIA
Lowell End Cap
PO138LOEC
1" W
13⁄4" DIA
Gage End Cap
PO214GAEC
1" W
3" DIA
Luna End Cap
PO100LUEC
3⁄4" W
11⁄4" DIA
covers 5/8" of pole
Cosette End Cap
PO200COEC
17⁄8" W
23⁄4" DIA
Skye End Cap
PO114SKEC
3⁄4" W
11⁄2" DIA
covers 5/8" of pole
Essex End Cap
PO138ESEC
3
⁄
4
” W
2” DIA
Aubrie End Cap
PO138AUEC
3
⁄
4
" W
2
1
⁄
4
" DIA
End Cap Chart
1"
11⁄4"
13⁄8"
2"
21⁄4"
49
1"
Portfolio
Holdbacks
Available in 30 Portfolio fi nishes (shown on pages 54-55) and unlimited PTH Perfect Match™ fi nishes (see pages 56-60).
50
Laguna
POLGHB
31⁄4" DIA
3⁄4" thick
Barnwood
PORTFOLIO Holdbacks
Achilles
POACHB
21⁄2" square
1⁄2" thick
Titanium
Marcus
POMAHB
11⁄2" DIA
1⁄2" thick
Linen
Jem
POJEHB
21⁄2" DIA
3⁄8" thick
Black
Mara
POMARHB
3" DIA
7⁄8" thick
New Age Bronze
Blake -
Mercury
Glass
POBKHB
3" DIA
23⁄8" thick
Barnwood
Octavia
POOCHB
57⁄8" DIA
1⁄2" thick
Art Bronze
Larkspur
POLAHB
6" DIA
3⁄4" thick
Firelight
Metal Holdback Medallions –
ONLY FIT METAL HOLDBACK STEMS.
Chenonceau
POCHHB
33⁄4" DIA
3⁄4" thick
Shimmer
Clark
POCKHB
3" DIA
1" thick
Mystic
Hustle
POHUHB
31⁄2" DIA
1" thick
Titanium
Sunset
POSUHB
31⁄2" DIA
3⁄4" thick
Mystic
Venice
POVEHB
31⁄2" DIA
3⁄4" thick
Parchment
Newport
PONEHB
31⁄4" DIA
3⁄4" thick
Gossamer
Twirl
POTWHB
31⁄2" DIA
1" thick
Spicewood
Resin Holdback Medallions –
FIT METAL, RESIN, OR TRADITIONAL RESIN HOLDBACK STEMS.
Brooks
POBRHB
4" DIA
11⁄4" thick
Firelight
Blois
POBLHB
33⁄4" DIA
3⁄4" thick
Urban Bronze
Metal Holdback Stems
Sold in pairs.
Projection indicates distance
from wall to back of medallion.
Base: 2" DIA
Stem: 1⁄2" DIA
Firelight
Order 2", 4", or 6" projection:
POMESTEM2
2" projection
POMESTEM4
4" projection
POMESTEM6
6" projection
Metal Holdback Medallions
Sold in pairs. Resin Holdback Medallions
Sold in pairs.
Holdback Medallions and Holdback Stems sold separately. Available in any Portfolio fi nish.
Don't forget
Don't forget
to order your
to order your
Holdback Stems
Holdback Stems
separately.
separately.
51
Holdbacks
Braxton
POBXHB
5" DIA
11⁄2" thick
Gossamer
to
n
Claude
POCLHB
51⁄2" DIA
1" thick
Cinnamon
Drake
PODRHB
41⁄2" DIA
11⁄8" thick
Barnwood
Genette
POGEHB
4" DIA
11⁄4" thick
New Age Bronze
Trudy
POTRHB
43⁄4" DIA
3⁄4" thick
Andiron
Gloria
POGLHB
5" DIA
13⁄8" thick
Mystic
Lyon
POLYHB
43⁄4" DIA
21⁄2" thick
Moonlight
Swindon
POSWHB
51⁄8" DIA
11⁄4" thick
Timber
Mirna
POMRHB
41⁄2" DIA
11⁄4" thick
Mink
Resin Holdback Stems
Sold in pairs.
Projection indicates distance
from wall to back of medallion.
Base: 31⁄8" DIA
Stem: 3⁄4" DIA
Halo
Order 2", 4", or 6" projection:
Metal Holdback Stems
Sold in pairs.
Projection indicates distance
from wall to back of medallion.
Base: 2" DIA
Stem: 1⁄2" DIA
Firelight
Order 2", 4", or 6" projection:
Bernadette
POBEHB
41⁄2" DIA
11⁄4" thick
Silver Maple
Miranda
POMIHB
5" DIA
11⁄2" thick
Amulet
Isabelle
POISHB
51⁄2" DIA
11⁄4" thick
Art Bronze
Savannah
POSAHB
41⁄2" DIA
3⁄4" thick
Firelight
POMESTEM2
2" projection
POMESTEM4
4" projection
POMESTEM6
6" projection
PORESTEM2
2" projection
PORESTEM4
4" projection
PORESTEM6
6" projection
Traditional Resin Holdback Stems
Sold in pairs.
Projection indicates distance from wall
to back of medallion.
Base: 21⁄2" DIA
Stem: 11⁄2" DIA
Barnwood
Order 2", 4", or 6" projection:
POSTEM2
2" projection
POSTEM4
4" projection
POSTEM6
6" projection
Don't forget
Don't forget
to order your
to order your
Holdback Stems
Holdback Stems
separately.
separately.
52
PORTFOLIO Holdbacks
Metal Holdback Arm
POHBARM
7" W
1⁄2" DIA stem
15⁄8" H backplate
5
1
⁄
2
" deep
4
1
⁄
2
" projection
Black
Metal Holdback Arm
shown with Hector Finial
Mystic
Metal Holdback Arm
shown with Achilles Finial
Urban Bronze
Common uses for 1" Medallion Band:
1. repeated decorative embellishment along the length of a pole
2. hold gathered rod pocket drapery panel in place
3. ring stop
1" Holdback
Medallion Band
POMEBAND
3⁄4" W
11⁄16" ID
13⁄16" OD
Parchment
• Attaches any Holdback
Medallion to the front of a
1" pole. Holdback
Medallion sold separately.
See page 50.
• Metal Holdback Arms look
best wth 1" Textured Metal
Finials, see pages 6-7.
• May be used with any
1" metal or resin fi nial
without Cuff. Finials are
sold separately.
Holdback Accessories sold separately. Available in any Portfolio fi nish.
53
Portfolio
Finishes
54
PORTFOLIO Finishes
TIMBER SILVER MAPLE PARCHMENT
NEW AGE BRONZE FIRELIGHT SHIMMER
CINNAMON JAVA STARLET
TITANIUM URBAN BRONZE AMULET
ART BRONZE MYSTIC HALO
Photography may not accurately represent the true color of a fi nish. A fi nish may show slight variation when painted on
different materials, such as wood or steel. For best possible fi nish match, please refer to the actual sample chip.
55
Finishes
ANTIQUE GOLD LEAF GOSSAMER SPUN GOLD
DARK CHOCOLATE ANTIQUE GOLD ETERNAL
ANDIRON LINEN SPICEWOOD
Photography may not accurately represent the true color of a fi nish. A fi nish may show slight variation when painted on
different materials, such as wood or steel. For best possible fi nish match, please refer to the actual sample chip.
MINK MOONLIGHT BLACK
GOLDENROD BARNWOOD WHITE
PORTFOLIO Finishes
Perfect MatchTM
56
Cayley Finial
Smoke Gray – eggshell
2120-40
with Silver Highlights
Perfect
Match
Avon Finial
Million Dollar Red - high-gloss
2003-10
with Gold Highlights
w
i
th S
i
lver H
ig
hl
ig
hts
Cambria Finial
Hazy Skies – eggshell
OC-48
with Gold Highlights
Perfect MatchTM
57
PPM
Here’s how it works:
Choose any Benjamin Moore® color
in either high-gloss or eggshell sheen level.
For a minimal service charge, we
will apply your specified color to your Paris
Texas Hardware selection and responsibly
dispose of any leftover paint.
Make it your own:
For a minimal service charge, we will add highlights to your PTH Perfect Match™ hardware selections.
Highlights are only available on PTH Perfect Match™ finishes.
Choose from 4 highlight options:
Silver Gold Rose Gold Glitter
(Shown applied to Benjamin Moore® Fuchsine 1343 – eggshell below)
Multiple factors affect the final look of your chosen PTH Perfect Match™ finish:
• High-gloss and eggshell sheen levels affect colors differently. High-gloss sheen tends to deepen your
chosen color, causing it to seem slightly darker than it would with an eggshell sheen.
• Smooth and textured surfaces accept highlights in different ways. Products with sculptural relief and
texture will receive more noticeable highlights than smooth products.
• Pay attention to the contrast between your chosen Benjamin Moore® color and your chosen
highlight. Greater contrast in lightness, brightness, or hue creates a bold highlight. Lower
contrast produces a subtle highlight.
• We offer strike-offs to make sure you love your finish and sheen level before you order.
Turn the page to compare various Benjamin Moore® colors with different sheen levels and highlights.
Looking for that perfect hardware finish to match your
wall, fabric, or furniture?
Allow PTH Perfect Match™ to stir your
imagination and inspire you to
create your own unique
window treatment.
Imogene Finial
Englewood Cliffs – high-gloss
1607
Imogene Finial
Englewood Cliffs – eggshell
1607
PORTFOLIO Finishes
58
Perfect MatchTM HIGHLIGHT COMPARISON CHART
Light
Light EGGSHELL
Cayley Finial,2" Smooth Pole
HIGH-GLOSS
Cayley Finial, 2" Fluted Pole
Benjamin Moore®
Lavender Mist
2070-60
Bright
Bright EGGSHELL
Ophelia Finial,2" Smooth Pole
HIGH-GLOSS
Ophelia Finial, 2" Fluted Pole
Benjamin Moore®
Fuchsine
1343
Neutral
Neutral EGGSHELL
Imogene Finial,2" Fluted Pole
HIGH-GLOSS
Imogene Finial, 2" Smooth Pole
Benjamin Moore®
Englewood Cliffs
1607
NO HIGHLIGHT SILVER HIGHLIGHT
59
PPM
GOLD HIGHLIGHT ROSE GOLD HIGHLIGHT GLITTER HIGHLIGHT
Note: Glitter is very subtle on
light colors and smooth surfaces.
PORTFOLIO Finishes
Perfect MatchTM
60
Choose any Benjamin Moore® color – and make it your own
with highlights – for an unlimited color palette.
Fabrics
are a great
source of
inspiration
for your
hardware
finish.
Adelaide Finial
Mid Summer Night – high-gloss
2134-20
with Gold Highlights
Newport End Cap
Island Sunset – high-gloss
1346
Sunset End Cap
Electric Orange – high-gloss
2015-10
Laguna End Cap
Stratton Blue – eggshell
HC-142
Venice End Cap
Passion Plum – high-gloss
2073-30
Cambria Finial
Hazy Skies – eggshell
OC-48
with Silver Highlights
Ophelia Finial
Fuchsine – eggshell
1343
with Rose Gold Highlights
Happy colors make happy kids…
Benjamin Moore® paints brighten
nurseries and play rooms.
Little girls’ bedrooms are the
perfect venue for magical
Glitter Highlights.
California Finials
California Finials
found on page 10.
found on page 10.
Their fun and fresh shapes make them
Their fun and fresh shapes make them
perfect for kids’ rooms!
perfect for kids’ rooms!
Traverse Systems
Traverse Systems
Corded & Motorized
Traverse Systems
Corded & Motorized Traverse
Light-Duty, Standard, and Heavy-Duty Systems
5 Quick Ship Wood and Resin fi nishes
30 Portfolio custom hand-painted fi nishes
2" and 21⁄4" wood fascia: smooth and fl uted
PTH Perfect Match™:
thousands of Benjamin Moore® colors
10 -15 business day lead time
See Retail Price List for more traverse system details.
61
EasyPullTM
Heavy-Duty
Traverse
pinch pleat
EasyPullTM
Light-Duty
Traverse
pinch pleat
Heavy-Duty
Ball Bearing
Traverse
pinch pleat or
Ripplefold® style
BTX DC and
Somfy GlydeaTM
Motorized
Traverse
pinch pleat or
Ripplefold® style
• • • •
Single Traverse System without Rings
•
Single Traverse System with Rings
• • • •
Double Traverse System without Rings
•
Double Traverse System with Rings
• • • •
Single or Double System
with Mitered Return
• • • •
Double System with Back Traverse
and Stationary Pole in Front
CORDED AND MOTORIZED TRAVERSE CONFIGURATIONS
(Pictured with EasyPullTM Heavy-Duty Corded Traverse System.)
All traverse systems are available with or without decorative wood fascia.
See Retail Price List for more traverse system details.
TRAVERSE SYSTEMS
See Retail Price List for more traverse system details.
TRAVERSE SYSTEMS
62
System Features:
• Heavy-Duty EasyPull™ System supports up to 8 pounds per foot
• center and one-way draw available
• right or left pull option built-in; no restringing required
• simple pull and release action operates draperies with ease
• continuous track available up to 20’; spliced lengths available up to 38’
• color coordinated track, brackets, and components available in Gold or Bronze
• decorativewoodfasciaavailablein2"or2¼"utedorsmoothproles
• allPortfolio,QuickShipWoodandResin,andPTHPerfectMatch™nishesavailable
BenetsofEasyPull™ Heavy-Duty Traverse Systems:
• Heavy-Duty System is perfect for heavier treatments
• longer lengths are versatile for residential or commercial projects
• adjustable one cord feature allows user to determine placement of pull cord
• pre-corded with glides and master carriers installed for easy installation; C-rings ship separately
and easily snap into glides
• easy to install – track snaps into brackets, fascia clips onto track
EasyPull™ Heavy-Duty Traverse System
How to Order:
1.chooseastyle 2.chooseafasciaandnish
•singleordoublesystem •2"or2¼"fascia •30Portfolionishes
•withorwithout2¼"C-Rings •utedorsmoothprole •5QuickShipWoodandResinnishes
• PTH Perfect Match™
Finialsaresoldseparately.2"or2¼"PortfolioandQuickShipWoodandResinnialsarecompatible.
Gold Bronze
Available colors for EasyPull™ Heavy-Duty Traverse System:
For Pinch Pleat
See Retail Price List for more traverse system details.
63
How to Order:
1.chooseastyle 2.chooseafasciaandnish
•singleordoublesystem •2"or2¼"fascia •30Portfolionishes
•withoutringsonly •utedorsmoothprole •5QuickShipWoodandResinnishes
• PTH Perfect Match™
Finialsaresoldseparately.2"or2¼"PortfolioandQuickShipWoodandResinnialsarecompatible.
EasyPull™ Light-Duty Basic White Traverse System
White
Available color for EasyPull™ Light-Duty Traverse System:
System Features:
• Light-Duty Basic White Traverse System supports up to 4 pounds per foot
• center and one-way draw available
• right or left pull option built-in; no restringing required
• simple pull and release action operates draperies with ease
• continuous track available up to 20’; spliced lengths available up to 38’
• track, brackets and components available in White
• decorativewoodfasciaavailablein2"or2¼"utedorsmoothproles
• allPortfolio,QuickShipWoodandResin,andPTHPerfectMatch™nishesavailable
• not available for use with rings
BenetsofEasyPull™ Light-Duty Traverse Systems:
• Light-Duty Basic White Traverse System is a perfect application for sheers as well as medium weight fabrics
• Light-Duty Basic White Traverse System without fascia is an ideal solution behind cornices and valances
• longer lengths are versatile for residential or commercial projects
• adjustable one cord feature allows user to determine placement of pull cord
• pre-corded for easy installation with glides and master carriers installed
• easy to install – track snaps into brackets, fascia clips onto track
For Pinch Pleat
See Retail Price List for more traverse system details.
TRAVERSE SYSTEMS
64
Brackets and Glides
quantity per system
BRACKETS: Brackets designed for easy installation – simply snap track into plastic tab on bracket.
SeeRetailPriceListfordiagramsandspecications.
GLIDES: Available for Standard Pinch Pleat Treatments.
3" EasyPull™ Single Bracket
EZ5023⁄8" H x 11⁄8" W backplate
• available in Gold, Bronze, or White
• included in Single Systems
6" EasyPull™ Double Bracket
EZ5123⁄8" H x 11⁄8" W backplate
• available in Gold, Bronze, or White
• included in Double Systems; may be
substituted in Single Systems when
6" return is needed
Ceiling Mount Bracket
EZ523⁄8" H x 2 ½" Deep x 7⁄8" W
• available in White
• single bracket; may be substituted
in Single or Double Systems
EasyPull™ Over-Bracket
PO214OVBKS 31⁄4" H x 1 1⁄8" W backplate,
67⁄8" Return
• availablein30Portfolio,5QuickShipWoodand
Resin,andPTHPerfectMatch™nishes
• used to combine 2" or 2 ¼" wood pole with Single Systems
• traverse mounting bracket simply installs under
Over-Bracket using the same screws
• matching shims are provided for other traverse brackets
No Ring Heavy-Duty EasyPull™ Glide
EZ55
• available in Gold or Bronze
• 3-wheeled glides nest together
for a tighter stack-back
No Ring Light-Duty EasyPull™ Glide
EZ59
• available in White
• Light-Duty Basic White glide does not include wheels and creates
the tightest stack-back of EasyPull™ systems
2¼" C-Ring with Glide
EZ54
• available in Gold or Bronze
• 3-wheeled design allows glides to nest
together for a tighter stack-back
• C-Ring available in 30 Portfolio,
5QuickShipWoodandResin,and
PTHPerfectMatch™nishes
• ring simply snaps into glide for easy
installation
• ring molded from polymer material;
will never warp or crack
• only for use with 2 1⁄4" fascia
EasyPull™ Traverse Systems Include:
TRACK:
65⁄8"
23⁄8"
31⁄2"
23⁄8"
Heavy-Duty Track
• available in Gold or Bronze
• colorcoordinatedtocomplementfascianish
• may be ordered with or without wood fascia
Snap-in Traverse Ring,
shown attached to a
ring glide
Light-Duty Track
• available in White only
• may be ordered with or without wood fascia
See Retail Price List for more traverse system details.
65
Heavy-Duty Ball Bearing Traverse System
How to Order:
1. choose a style 2. choose a glide
• single or double system • Standard Pinch Pleat
• without rings only • Ripplefold® style
3. chooseafasciaandnish
•2"or2¼"fascia •30Portfolionishes
•utedorsmoothprole •5QuickShipWoodandResinnishes
• PTH Perfect Match™
Finialsaresoldseparately.2"or2¼"PortfolioandQuickShipWoodandResinnialsarecompatible.
System Features:
• Heavy-Duty System supports up to 8 lbs/ft
• center and one-way draw available
• rightorleftcordplacementavailable;mustbespecied
• Pinch Pleat or Ripplefold® style glides available (80%, 100%, or 120% fullness)
• continuous track available up to 20’; spliced lengths available up to 38’ (center draw only)
• color coordinated track and brackets in Gold or Bronze
• glides and pulleys available in White only
• decorativewoodfasciaavailablein2"or2¼"utedorsmoothproles
• allPortfolio,QuickShipWoodandResin,andPTHPerfectMatch™nishesavailable
• fascia may not be used with ceiling mount system
• not available for use with rings
BenetsofHeavy-DutyBallBearingTraverseSystems:
• Heavy-Duty System is recommended for heavier treatments with lining
• idealsolutionfortreatmentsmountedover10’fromoor
• longer lengths are versatile for residential or commercial projects
WhiteGold Bronze
Available colors for Heavy-Duty Ball Bearing track and brackets:
Components available in white only.
For Pinch Pleat or Ripplefold® style
See Retail Price List for more traverse system details.
TRAVERSE SYSTEMS
66
BRACKETS: SeeRetailPriceListfordiagramsandspecications.
GLIDES: Available for Standard Pinch Pleat or Ripplefold® Style treatments.
Double Traverse Bracket
BB5133⁄8" H x 11⁄2" W backplate
• adjustable5½"–6¼"frontreturn;
adjustable 2 ½" – 3 ½" back return
• available in Gold, Bronze, and White
• included in Double Systems; may be
substituted for Single Systems when
6" return is needed
Single Ceiling Mount Bracket
BBCM 3⁄8" H x 25⁄8" Deep x 7⁄8" W
• available in White
• may only be used in systems without fascia
• single bracket; may be substituted for Single
or Double Systems
• for double ceiling mount installation, install two
individual bracket clips into ceiling
• ceiling mount bracket clips are also used to
attach fascia L-bracket to track
Ball Bearing Over-Bracket
BBOVBKS 31⁄2" H x 3⁄4" W backplate, 73⁄4" front pole return; 3" back track return
• availablein30Portfolio,5QuickShipWoodandResin,and
PTHPerfectMatch™nishes
• use to combine 2” or 2 ¼" full wood pole with Single Traverse Systems
• traverse mounting bracket simply attaches directly into the bottom of the Over-Bracket
• mustspecify: A. 2"or2¼"smoothorutedwoodpole
B. back fascia, if desired
Ripplefold® Style Glides
BBRF
• available in White
• 80%, 100% and 120% fullness available; please specify fullness on order
• overlap master carriers are standard
• buttmastercarriersavailable;donotfeatureoverlap,allowingsomelighttolterbetweendraperiesoncenterdrawtreatments
• buttmastercarriersmustbespeciedforsubstitution
Heavy-Duty Ball Bearing Traverse System Includes:
TRACK:
Heavy-Duty Track
• available in Gold, Bronze, or White
• trackandbracketscolorcoordinatedtocomplementfascianish;endpulleyandglidesinWhiteonly
• may be ordered with or without wood fascia
Single Traverse Brackets
BB5025⁄8" H x 11⁄2" W backplate
• adjustable 3 ½" – 4 ½" return
• available in Gold, Bronze, and White
• included in Single System
Traverse Fascia L-Bracket
BBLB 1⁄2" H x 11⁄2" W
• combines with bracket clip to attach fascia to Ball Bearing
Traverse System
• included in system; additional L-Brackets may be ordered separately
No Ring Heavy-Duty Ball Bearing
Pinch Pleat Glide
BB55
• available in White
Brackets and Pinch Pleat Carriers
quantity per system
6' 7' 8' 9' 10' 11' 12' 13' 14' 15' 16'
24 28 32 36 40 44 48 52 56 60 64
3 3 4 4 4 5 5 5 6 6 6
pinch pleat carriers
brackets
Standard carriers are 4 per foot. Standard brackets are 1 every 3–4 feet.
PINCH PLEAT RIPPLEFOLD® STYLE
See Retail Price List for more traverse system details.
67
BTX DC MOTORIZED TRAVERSE SYSTEM
Shown: 21⁄4" Smooth Fascia and Fiona Finial in Silver Maple nish, single BTX-DC-60 motorized system, pinch pleat.
• color-coordinated track, brackets, components
• standard 60lb. motor, heavy duty 120lb. motor, and solar
powered45lb.motoravailable
• tandem motors for increased weight capacity
• standard pinch pleat, Graber® Rollpleat style, or Kirsch
Ripplefold® style carriers available
• new Ripplefold® style master carrier allows continuous
rippling effect
SOMFY GLYDEA
™ RANGE MOTORIZED TRAVERSE SYSTEM
Shown: 2" Smooth Fascia and Mariele Finial in Andiron, single Glydea 35® motorized system, Ripplefold® style, 100% fullness.
• color-coordinated track and brackets; components are White only
• standard 77lb. motor or heavy-duty 132lb. motor available
• can integrate with other Somfy motorized products
• My Position (set your favorite drapery position)
• standard pinch pleat or Kirsch Ripplefold® style carriers available
• table top control, sun sensor, programmable timer with
on-screen display available
Graber is a registered trademark of Springs Window Fashions, Inc. Ripplefold is a registered trademark of Kirsch, Inc.
WhiteGold Bronze
Standard colors for BTX and Somfy track and brackets. BTX components available in all three colors. Somfy components available in White only.
System Features:
• Standard and Heavy-Duty Systems available
• center and one-way draw available
• plug and play power supply for standard wall outlets (110V or 220V AC)
• individual or multi-system control
• wireless wall control available
• manual override and touch control
• Pinch Pleat or Ripplefold® style glides available (80%, 100%, or 120% fullness)
• continuous track available up to 20'; spliced lengths available up to 40'
• decorativewoodfasciaavailablein2"or2¼"utedorsmoothproles
• allPortfolio,QuickShipWoodandResin,andPTHPerfectMatch™nishesavailable
• not available for use with rings
Motorized Traverse System
For Pinch Pleat or Ripplefold® style
See Retail Price List for more traverse system details.
TRAVERSE SYSTEMS
68
BenetsofMotorizedTraverseSystems:
• Motorized System is perfect for all treatments – from lightweight sheers to heavily lined fabrics
• ideal solution for treatments mounted where corded systems are not easily reached
• longer lengths are versatile for residential or commercial projects
• network integration available
• ceiling mount systems may be used with or without fascia
• Motorized Systems ship with fascia and brackets installed for easy installation
Brackets and Pinch Pleat Carriers
quantity per system
6' 7' 8' 9' 10' 11' 12' 13' 14' 15' 16'
24 28 32 36 40 44 48 52 56 60 64
3 3 4 4 4 5 5 5 6 6 6
pinch pleat carriers
brackets
Standard carriers are 4 per foot. Standard brackets are 1 every 3–4 feet.
How to Order:
1. choose a style
• single or double system
• without rings only
2. chooseafasciaandnish
•2"or2¼"fascia •30Portfolionishes
•utedorsmoothprole •5QuickShipWoodandResinnishes
• PTH Perfect Match™
3. choose a motor
• 3 BTX motors
• 2 Somfy Glydea™ motors
4. choose a carrier
• Standard Pinch Pleat
• Ripplefold® style
Finialsaresoldseparately.2"or2¼"Portfolioand2¼"QuickShipWoodandResinnialsarecompatible.
• carriers available in White
• 80%, 100% and 120% fullness available; please specify
fullness on order
Somfy System:
• overlap master carriers are standard
• butt master carriers available; do not feature overlap,
allowingsomelighttolterbetweendraperiesoncenter
draw treatments
• buttmastercarriersmustbespeciedforsubstitution
BTX System:
• butt master carriers are standard and feature an
underlap arm, allowing continuous rippling effect
while also blocking light
• carriers available in Gold or Bronze or White
on BTX System
• carriers available in White only on Somfy System
STANDARD PINCH PLEAT RIPPLEFOLD® STYLE
Quick Ship
Quick Ship
Quick Ship
Quick Ship
A carefully edited collection of drapery hardware.
And you get it fast . . .
Metal 1"
• metal fi nials you can accessorize
• 1" smooth metal poles or 1" Hand Drawn Traverse System
• 5 Quick Ship Metal fi nishes
Luxe Line
• fl at rail Hand Drawn Traverse System
• 3 Luxe Line fi nishes
Wood and Resin 1
3
⁄
8
"
• 13⁄8" smooth or fl uted wood poles
• 5 Quick Ship Wood and Resin fi nishes
Wood and Resin 2
1
⁄
4
"
• 21⁄4" smooth or fl uted wood poles
• 5 Quick Ship Wood and Resin fi nishes
1 business day lead time
69
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
Quick Ship METAL FINISHES
Quick Ship
Metal
1"
70
QUICK SHIP Metal 1"
Modern
Modern Metal Finials
Located on page 72
Make It Glamorous!
Add a 1" Crystal Band
Located on page 73
The Modern Metal Finials and the
1" Crystal Band fi t the 1" Metal Pole. The 1” Crystal Band is a Finial
Accessory. Position it next to
a Modern Metal Finial or
anywhere on the 1” Metal Pole
for a sparkling treatment.
classic shapes. 4 gorgeous styles.
Plus, a great little end cap that goes with every style!
8
[ Orders received by noon CST ship the same day! ]
71
1"
The Transitional Metal Finials fi t the
1" Metal Pole and the 1" Hand
Drawn Traverse System.
(1" Hand Drawn Traverse System, see pages 78-80.)
The Collar is a Finial Accessory.
Add it to the Transitional Metal
Finial for a Traditional look.
Transitional
Transitional Metal Finials
Located on page 74
Make It Traditional!
Add a Traditional Collar
Located on page 75
Oh, and did we mention . . . ?
1" Metal now has a Hand Drawn Traverse track.
72
QUICK SHIP Metal 1"
Nora
QS100NOFI
2" W
21⁄4" DIA
Oil Rubbed Bronze
1" Modern Metal Finials Not compatible with 1" Hand Drawn Traverse System.
Luna End Cap*
QS100LUEC
3⁄4" W
11⁄4" DIA
Midnight
Cole
QS100COFI
31⁄4" W
11⁄2" DIA
Brushed Nickel
Knox - Crystal
QS100KNFI
11⁄4" W
21⁄4" DIA
pole shown in Antique Brass
Ella
QS100ELAFI
11⁄2" W
15⁄8" DIA
Oil Rubbed Bronze
Elm
QS100EMFI
11⁄8" W
2" DIA
Midnight
Elm - Smoke Glass
QS100EMFIGL
11⁄8" W
2" DIA
Rose Gold
Lex
QS100LXFI
13⁄4" W
2" DIA
Antique Brass
Nora - Mercury Glass
QS100NOFIGL
21⁄8" W
23⁄8" DIA
Brushed Nickel
1" Modern Metal Finials ARE AVAILABLE IN 5 QUICK SHIP METAL FINISHES:
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
Modern Metals
Simple designs blend into any contemporary environment.
Lex Finial, Laurence 3" Single Bracket, and 1" Metal Rings shown in Rose Gold.
*Remember:
Luna End Cap
covers 5⁄8" of the
pole. Finished
pole length may
need to be
increased
accordingly.
[ Orders received by noon CST ship the same day! ]
73
1"
1" Crystal Band
QS100CRMEBAND
5⁄8" W
15⁄8" DIA
• Metal, only available in dark
metal with inlaid crystals.
• Only fi ts 1" diameter pole.
• Not recommended for
1" Hand Drawn Traverse.
Buy a pair of
1" Modern
Finials.
1
2Buy two 1"
Crystal Bands.
Slide each
1" Crystal Band
onto the pole
before install-
ing fi nials.
3
Install fi nials.
Slide Crystal
Bands against
fi nials and
tighten set
screws.
TIP:
TIP:
1" Crystal
1" Crystal
Band covers
Band covers
5/8" of pole!
5/8" of pole!
Don’t forget:
Don’t forget:
Bling can be
Bling can be
added anywhere
added anywhere
on the pole!
on the pole!
Need Some Glamour?
Dress up your Modern Finial: Add a 1" Crystal Band
4
How To Add Your Bling:
74
QUICK SHIP Metal 1"
1" Transitional Metal Finials* Compatible with 1" Hand Drawn Traverse System, see page 78.
Luna End Cap
QS100LUEC
3⁄4" W
11⁄4" DIA
Rose Gold
Cole with Cuff
QS100COFICU
4" W
11⁄2" DIA
Midnight
Knox - Crystal
with Cuff
QS100KNFICU
2" W
21⁄4" DIA
Midnight
Ella with Cuff
QS100ELAFICU
21⁄4" W
15⁄8" DIA
Antique Brass
Elm with Cuff
QS100EMFICU
17⁄8" W
2" DIA
Oil Rubbed Bronze
Elm - Smoke Glass
with Cuff
QS100EMFIGLCU
17⁄8" W
2" DIA
Oil Rubbed Bronze
Lex with Cuff
QS100LXFICU
21⁄2" W
2" DIA
Rose Gold
Nora with Cuff
QS100NOFICU
23⁄4" W
21⁄4" DIA
Brushed Nickel
Nora - Mercury Glass
with Cuff
QS100NOFIGLCU
27⁄8" W
23⁄8" DIA
Antique Brass
Lex with Cuff
Elm
wi
th
Cuf
f
Elm
-
Smoke Gla
ss
Transitional Metals
Versatile styling gives you more flexibility.
Elm with Cuff Finial, Laurence 3” Single Bracket, and 1” Metal Rings: shown in Oil Rubbed
Bronze.
*Remember:
Each fi nial on
this page covers
5⁄8" of the pole.
Finished pole
length may
need to be
increased
accordingly.
[ Orders received by noon CST ship the same day! ]
1" Transitional Metal Finials ARE AVAILABLE IN 5 QUICK SHIP METAL FINISHES:
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
75
TIP:
TIP:
Traditional Collar
Traditional Collar
also looks great
also looks great
in a contrasting
in a contrasting
finish like
finish like
Brushed Nickel!
Brushed Nickel!
1"
Today’s Traditional
Refine your Transitional Finial: Add a Traditional Collar!
Refine your Transitional Finial: Add a Traditional Collar!
(Maintains compatibility with 1” Hand Drawn Traverse.)
(Maintains compatibility with 1” Hand Drawn Traverse.)
Attach the fi nial
to the end of
the pole by
tightening the
set screw on
the Cuff.
Traditional Collar
QSTRADCO
5⁄8" W
11⁄8" DIA
Brushed Nickel
• Available in any Quick Ship
Metal fi nish.
• Can only be added to Metal
Transitional Finials!
How To Make It
Traditional:
Buy a pair of
1" Transitional
Finials.
1
2Buy a pair of
Traditional
Collars.
Unscrew the
fi nial from
its Cuff.
3
Screw fi nial into
the Traditional
Collar. Screw
Traditional Collar
into the Cuff.
4
5
2" projection
4" projection
6" projection
Metal Holdback Stems
Base: 2" DIA
Stem: 1⁄2" DIA
Rose Gold
2", 4", or 6" projection
must be selected.
76
QUICK SHIP Metal 1"
1" Metal Holdbacks INCLUDE STEMS
(Select 2", 4", or 6" stem projection.)
Holdback projection indicates distance from wall to
back of medallion. Sold in pairs.
[ Orders received by noon CST ship the same day! ]
1" Metal Holdbacks ARE AVAILABLE IN 5 QUICK SHIP METAL FINISHES:
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
Blake - Mercury Glass
3” DIA
23⁄8” thick
Rose Gold
2” projection QSBKHB2
4” projection QSBKHB4
6" projection QSBKHB6
Jem
21⁄2” DIA
3⁄8” thick
Midnight
2” projection QSJEHB2
4” projection QSJEHB4
6" projection QSJEHB6
Mara
3” DIA
7⁄8” thick
Oil Rubbed Bronze
2” projection QSMARHB2
4” projection QSMARHB4
6" projection QSMARHB6
77
1"
1" Metal Brackets, Poles, Rings & Accessories ARE AVAILABLE IN 5 QUICK SHIP METAL FINISHES:
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
1" Metal Brackets, Poles, Rings & Accessories
1" Hinged Resin Elbow
QS100REL
11⁄8" DIA
31⁄4" overall length
15⁄8" length of each side
when bent
Midnight
1" Metal Inside Mount
QS100MIBK
3⁄4" W
11⁄8" H
15⁄8" D
Oil Rubbed Bronze
(Sold in pairs)
Laurence 6" Single
QS100LAS6BK
3⁄4” W
33⁄4" H backplate
6" return
Antique Brass
Laurence 6" Double
QS100LADBK
3⁄4" W
33⁄4" H backplate
6" front return
3" back return
Both cradles hold
1" diameter pole.
Oil Rubbed Bronze
1" Metal Brackets
Return indicates distance from wall to center of pole.
1" Metal Ring
QS100MRI
3⁄16" W
11⁄2" ID
17⁄8" OD
3⁄4" drop
Rose Gold
1" Ring
Ring Drop indicates distance from bottom
of pole to bottom of ring.
1" Accessories
Laurence 3" Single
QS100LASBK
3⁄4" W
33⁄4" H backplate
31⁄2" return
Walnut
36" Clear Acrylic Wand
QSAC36WAND
1⁄2" DIA
36" L
Acrylic, clear only
48" Clear Acrylic Wand
QSAC48WAND
1⁄2" DIA
48" L
Acrylic, clear only
1" Metal Ceiling Mount
QS100MCMBK
2" DIA ceiling plate
21⁄4" H
21⁄8" drop (distance from
ceiling to bottom of pole)
Rose Gold
Front view when installed.
1" metal poles are sold in 2 foot incre-
ments. 2 foot minimum. Poles will be cut
to specifi ed lengths. Fall off will not be
saved or shipped.
Custom cut metal poles are produced
with steel threaded ends.
Maximum continuous length is 12 feet.
Every pole ships with a splicing screw.
1” Metal Pole
QS100SM
Rose Gold
1" Want the 1" Hand Drawn Traverse
System instead of a 1" pole?
TURN THE PAGE â â â â
78
QUICK SHIP Metal 1"
1" Hand Drawn Traverse Finials
Transitional
Transitional Metal Finials
Transitional Metal Finials
Located on page 74
Make It Traditional
Add a Traditional Collar
Add a Traditional Collar
Located on page 75
[ Orders received by noon CST ship the same day! ]
1" Transitional Metal Finials and Traditional Collars ARE AVAILABLE IN 5 QUICK SHIP METAL FINISHES:
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
79
1"
1" Hand Drawn Traverse System RECOMMENDED FOR LIGHTWEIGHT DRAPERIES
1" Hand Drawn Traverse System INCLUDES:
• Track(s): Continuous track available up to 8';
spliced lengths available up to 16'.
• Brackets
• Components: Glides and Glide Stop(s)*
• 48" Clear Acrylic Wand(s)*
*Note: Each Center Draw Track includes 2 Glide
Stops and 2 Acrylic Wands. Each One-Way
Draw Track includes 1 Glide Stop and
1 Acrylic Wand.
Finials sold separately.
• Transitional Finials must be ordered with
all 1" Hand Drawn Traverse Systems.
• Only 1" Transitional Metal Finials can
attach to the track.
• If a Traditional Collar is added to the
1" Transitional Finial, it will still fi t the track.
Maximum drapery weight - 2 lbs/ft.
Single 1" Hand Drawn Traverse System
shown in Antique Brass Finish;
Elm with Cuff Finial sold separately.
Double 1" Hand Drawn Traverse System
shown in Brushed Nickel Finish;
Cole with Cuff Finial and Luna End Cap
sold separately.
1" Hand Drawn Traverse System
Single Center Draw
QS100TR01
Single One-Way Draw
QS100TR03
Double Center Draw
QS100TR05
Double One-Way Draw
QS100TR07
Available Brackets
31⁄2" Single
6" Single
Ceiling Mount
Available Brackets
31⁄2" Single
6" Single
Ceiling Mount
Available Brackets
Double Bracket
Ceiling Mount
Available Brackets
Double Bracket
Ceiling Mount
Order in 3 Easy Steps:
Order in 3 Easy Steps:
Step 1: Select your Draw. Step 2: Select your Bracket.
Step 1: Select your Draw. Step 2: Select your Bracket.
Step 3: Purchase your Transitional Finials, sold separately. See page 74.
Step 3: Purchase your Transitional Finials, sold separately. See page 74.
1" Hand Drawn Traverse Systems ARE AVAILABLE IN 5 QUICK SHIP METAL FINISHES:
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
80
QUICK SHIP Metal 1"
INCLUDED IN SYSTEM: 1" Hand Drawn Traverse Brackets
Available in 5 Quick Ship Metal fi nishes. Brackets must be installed every 3-4 feet. Bracket return indicates distance from
wall to center of track. See System Quantity Chart below for quantity of brackets included with each system. Additional
brackets may be ordered separately.
1" Traverse 31⁄2" Single Bracket
QS100TRSBK
21⁄8" DIA backplate
31⁄2" return
Antique Brass
1" Traverse 6" Single Bracket
QS100TRS6BK
21⁄8" DIA backplate
6" return
Oil Rubbed Bronze
1
"
Traverse 6
"
Single Bracket
1" Traverse Double Bracket
QS100TRDBK
21⁄8" DIA backplate
6" front return
3" back return
Brushed Nickel
1" Traverse Ceiling Mount
Bracket
QS100TRCMBK
21⁄8" DIA ceiling plate
21⁄4" H
23⁄4" return
21⁄2" drop (distance from ceiling
to bottom of track)
Rose Gold
Standard Wheeled Glide
QS100GLIDE
3⁄8" W
3⁄4" drop (distance from
bottom of track
to bottom of eyelet
interior when installed)
Glide Stop anchors the drapery panel at the end of the track.
QS100GSTOP
3⁄8" W
1⁄4" drop (distance from
bottom of track
to bottom of eyelet
interior when installed)
Bronze Champagne Gold
BZ CH GO Bronze Champagne Gold
BZ CH GO
White
WH White
WH
White Glide may be
substituted; please
specify on order.
White Glide Stop may
be substituted; please
specify on order.
[ Orders received by noon CST ship the same day! ]
1” Hand Drawn Traverse System Component Color Chart
SYSTEM QUANTITY CHART
Bracket style must be specifed on your order.
Component* Color Champagne Bronze Gold Gold Bronze
White may be substituted Yes Yes Yes Yes Yes
(Must be specifi ed on order.)
*Components include Standard Wheeled Glide and Glide Stop.
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
INCLUDED IN SYSTEM: 1" Hand Drawn Traverse Components
Components will be provided in the color that best matches the Quick Ship Metal fi nish, unless otherwise specifi ed. See
Component Color Chart below. See System Quantity Chart below for quantity of glides included with each system.
Additional components may be ordered separately.
Quantity included per set will be based on total system length 2' 3' 4' 5' 6' 7' 8' 9' 10' 11' 12' 13' 14' 15' 16’
Glides (4 per foot, includes Glide Stop) 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64
Brackets (1 per every 3-4 feet) 2 2 2333444555666
Continuous Track Length Spliced Track Length
Track Splicer
QS100TRSPL
• connects the ends of
two tracks
• installs into top channel
• included with all systems
over 8'
81
BRUSHED NICKEL BLACK ANTIQUE BRASS
QSLXBN QSLXBK QSLXAB
Quick Ship LUXE LINE FINISHES
Quick Ship
Luxe Line
Hand Drawn
Traverse System
82
Luxe Line Hand Drawn Traverse System RECOMMENDED FOR LIGHTWEIGHT DRAPERIES
Luxe Line Finials only fi t Luxe Line Hand
Drawn Traverse System. Sold Separately.
QUICK SHIP Luxe Line
Mode
QSLXMOFI
27⁄8" W
11⁄4" H
1⁄2" D
Brushed Nickel
Vogue
QSLXVOFI
17⁄8" W
11⁄4" H
1⁄2" D
Antique Brass
Haute
QSLXHTFI
27⁄8" W
11⁄4" H
1⁄2" D
Brushed Nickel
Chic
QSLXCHFI
23⁄8" W
11⁄4" H
1⁄2" D
Antique Brass
Luxe End Cap
QSLXEC
1⁄8" W
11⁄4" H
1⁄2" D
Black
Luxe Line
Single Luxe Line System with Vogue Finial and 31⁄2" Single Bracket; shown in Brushed Nickel.
Single and Double Systems Available
FUN FACT:
FUN FACT:
These are
These are
the same finial—
the same finial—
just reversed!
just reversed!
[ Orders received by noon CST ship the same day! ]
Luxe Line Finials ARE AVAILABLE IN 3 QUICK SHIP LUXE LINE FINISHES:
BRUSHED NICKEL BLACK ANTIQUE BRASS
QSLXBN QSLXBK QSLXAB
83
LUXE
LINE
Luxe Line Hand Drawn Traverse System RECOMMENDED FOR LIGHTWEIGHT DRAPERIES
Luxe Line Hand Drawn Traverse System INCLUDES:
• Track(s): Continuous track available up to 8';
spliced lengths available up to 16'.
• Brackets
• Components: Glides and Glide Stop(s)*
• 48" Clear Acrylic Wand(s)*
*Note: Each Center Draw Track includes 2 Glide
Stops and 2 Acrylic Wands. Each One-Way
Draw Track includes 1 Glide Stop and
1 Acrylic Wand.
Finials sold separately.
• Luxe Line Finials must be ordered with all Luxe
Line Hand Drawn Traverse Systems.
• Only Luxe Line Finials can attach to the track.
Maximum drapery weight - 2 lbs/ft.
Single Center Draw
QSLX01
Single One-Way Draw
QSLX03
Double Center Draw
QSLX05
Double One-Way Draw
QSLX07
Single Luxe Line Traverse System
Shown in Antique Brass Finish.
Haute Finial sold separately.
Double Luxe Line Traverse System
Shown in Black Finish.
Chic Finial and Luxe End Cap sold
separately.
Available Brackets
31⁄2" Single
61⁄2" Single
Ceiling Mount
Available Brackets
31⁄2" Single
61⁄2" Single
Ceiling Mount
Available Brackets
Double Bracket
Ceiling Mount
Available Brackets
Double Bracket
Ceiling Mount
Order in 3 Easy Steps:
Order in 3 Easy Steps:
Step 1: Select your Draw. Step 2: Select your Bracket.
Step 1: Select your Draw. Step 2: Select your Bracket.
Step 3: Purchase your Luxe Line Finials, sold separately. See page 82.
Step 3: Purchase your Luxe Line Finials, sold separately. See page 82.
BRUSHED NICKEL BLACK ANTIQUE BRASS
QSLXBN QSLXBK QSLXAB
Luxe Line Hand Drawn Traverse System IS AVAILABLE IN 3 QUICK SHIP LUXE LINE FINISHES:
84
QUICK SHIP Luxe Line
Standard Wheeled Glide
QSLXGLIDE
3⁄8" W
3⁄4" drop (distance from
bottom of track to
bottom of eyelet
interior when installed)
Glide Stop anchors the drapery panel at the end of the track.
QSLXGSTOP
3⁄8" W
1⁄4" drop (distance from
bottom of track to
bottom of eyelet
interior when installed)
Luxe 31⁄2" Single Bracket
QSLXTRSBK
27⁄8" H backplate
11⁄4" W
31⁄2" return
Brushed Nickel
Luxe 61⁄2" Single Bracket
QSLXTRS6BK
27⁄8" H backplate
11⁄4" W
61⁄2" return
Antique Brass
INCLUDED IN SYSTEM: Luxe Line Hand Drawn Traverse Brackets
Available in 3 Quick Ship Luxe Line fi nishes. Brackets must be installed every 3-4 feet. Bracket return indicates distance
from wall to center of track. See System Quantity Chart below for quantity of brackets included with each system.
Additional brackets may be ordered separately.
Luxe Double Bracket
QSLXTRDBK
27⁄8" H backplate
11⁄4" W
61⁄2" front return
33⁄8" back return
Black
Luxe Ceiling Mount Bracket
QSLXTRCMBK
25⁄8" H
27⁄8" W ceiling plate
13⁄8" return
3" drop (distance from ceiling
to bottom of track)
Brushed Nickel
Luxe Line Hand Drawn Traverse System Component Color Chart
Component* Color Champagne Gold Bronze
*White may be substituted Yes Yes Yes
(Must be specifi ed on order.)
*Components include Standard Wheeled Glide and Glide Stop.
BRUSHED NICKEL ANTIQUE BRASS BLACK
QSLXBN QSLXAB QSLXBK
Bronze Champagne Gold
BZ CH GO Bronze Champagne Gold
BZ CH GO
White
WH White
WH
SYSTEM QUANTITY CHART
Quantity included per set will be based on total system length 2' 3' 4' 5' 6' 7' 8' 9' 10' 11' 12' 13' 14' 15’ 16'
Glides (4 per foot, includes Glide Stop) 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64
Brackets (1 per every 3-4 feet) 222333444555666
Continuous Track Length Spliced Track Length
INCLUDED IN SYSTEM: Luxe Line Hand Drawn Traverse Components
Components will be provided in the color that best matches the Quick Ship Luxe Line fi nish, unless otherwise specifi ed.
See Component Color Chart below. See System Quantity Chart below for quantity of glides included with each system.
Additional components may be ordered separately.
White Glide may be
substituted; please
specify on order.
White Glide Stop may
be substituted; please
specify on order.
[ Orders received by noon CST ship the same day! ]
Bracket style must be specifed on your order.
Track Splicer
QSLXSPL
• Connects the ends of
two tracks
• Installs into top channel
• included with all systems
over 8'
85
Quick Ship
Wood and Resin
13⁄8"
PLATINUM WALNUT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSPL QSWAL QSRG QSAB QSORB
Quick Ship WOOD AND RESIN FINISHES
86
QUICK SHIP Wood and Resin 13⁄8"
Bradford
QS138BRFI
31⁄4" W
21⁄4" DIA
Walnut
Lillian
QS138LIFI
4" W
33⁄8" DIA
Rose Gold
Lillian - Mercury Glass
QS138LIFIGL
4" W
31⁄2" DIA
Platinum
Lowell End Cap
QS138LOEC
1" W
13⁄4" DIA
Walnut
Rose - Crystal
QS138ROFI
23⁄4" W
23⁄4" DIA
Antique Brass
June
QS138JUFI
23⁄4" W
23⁄4" DIA
Oil Rubbed Bronze
13⁄8" Resin Finials
Moderate Size. Big Statement.
With poles small enough for a rod pocket and finials that make a BIG statement,
13⁄8" may be your perfect size.
Harper
QS138HAFI
3" W
23⁄4" DIA
Platinum
Easton
QS138EAFI
23⁄8" W
31⁄2" DIA
Oil Rubbed Bronze
Lane
QS138LAFI
31⁄2" W
35⁄8" DIA
Rose Gold
Lillian - Mercury Glass Finial shown in Platinum.
[ Orders received by noon CST ship the same day! ]
Clark
3" DIA
1" thick
Antique Brass
Brooks
4" DIA
11⁄4" thick
Rose Gold
2" projection QSCKHB2 2" projection QSBRHB2
4" projection QSCKHB4 4" projection QSBRHB4
6" projection QSCKHB6 6" projection QSBRHB6
Trudy
43⁄4” DIA
3⁄4” thick
Walnut
Miranda
5" DIA
11⁄2" thick
Platinum
2” projection QSTRHB2 2" projection QSMIHB2
4” projection QSTRHB4 4" projection QSMIHB4
6" projection QSTRHB6 6" projection QSMIHB6
Blake -
Mercury Glass
3" DIA
23⁄8" thick
Rose Gold
2" projection QSBKHB2
4" projection QSBKHB4
6" projection QSBKHB6
13⁄8" Holdbacks INCLUDE STEMS
(Select 2", 4", or 6" stem projection.)
Holdback projection indicates distance from wall to
back of medallion. Sold in pairs.
Resin Holdbacks include Resin Holdback Stems
2" projection
4" projection
6" projection
Metal Holdback Stems
Base: 2" DIA
Stem: 1⁄2" DIA
Rose Gold
2", 4", or 6" projection
must be selected.
Resin Holdback Stems
Base: 31⁄8" DIA
Stem: 3⁄4" DIA
Platinum
2", 4", or 6" projection
must be selected.
2" projection
4" projection
6" projection
Metal Holdbacks include Metal Holdback Stems
87
13⁄8"
Quick Ship Finishes
work beautifully with
natural materials
and earthy textures.
13⁄8" Finials & Holdbacks ARE AVAILABLE IN 5 QUICK SHIP WOOD AND RESIN FINISHES:
PLATINUM WALNUT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSPL QSWAL QSRG QSAB QSORB
88
QUICK SHIP Wood and Resin 13⁄8" [ Orders received by noon CST ship the same day! ]
13⁄8" Brackets, Poles, Rings & Accessories ARE AVAILABLE IN 5 QUICK SHIP WOOD AND RESIN FINISHES:
Front view when installed. 13⁄8" smooth and fl uted wood poles are sold in
2 foot increments. 2 foot minimum. Poles will
be cut to specifi ed lengths. Fall off will not be
saved or shipped.
Maximum continuous length is 12 feet.
Every pole ships with a splicing screw.
13⁄8" Hinged Resin Elbow
QS138REL
15⁄8" DIA
37⁄8" overall length
115⁄16" length each side when
bent
Oil Rubbed Bronze
13⁄8" Wood Ring
QS138WRI
1⁄2" W
13⁄4" ID
25⁄8" OD
3⁄4" drop
Platinum
13⁄8" Metal Ring
QS138MRI
3⁄16" W
13⁄4" ID
21⁄4" OD
1⁄2" drop
Rose Gold
13⁄8" Metal Inside
Mount
QS138MIBK
1" W
11⁄4" H
21⁄8" D
Platinum
(Sold in pairs)
13⁄8" Metal Ceiling Mount
QS138MCMBK
2" DIA ceiling plate
23⁄4" H
25⁄8" drop (distance from ceiling
to bottom of pole)
Rose Gold
Winston 6" Single
QS138WSS6BK
3⁄4" W
33⁄4" H backplate
6" return
Antique Brass
William 6" Single
QS138WIS6BK
1" W
31⁄2" H backplate
63⁄4" return
Rose Gold
Winston 6" Double
QS138WSDBK
3⁄4" W
33⁄4" H backplate
6" front return
3" back return
Both cradles hold
13⁄8" diameter pole.
Oil Rubbed Bronze
William 6" Double
QS138WIDBK
1" W
33⁄8" H backplate
63⁄4" front return
31⁄4" back return
Both cradles hold
13⁄8" diameter pole.
Antique Brass
13⁄8" Metal Brackets
Return indicates distance from wall to center
of pole.
13⁄8" Resin Brackets
Return indicates distance from wall to center
of pole.
Smooth
QS138SM
Rose Gold
Fluted
QS138FL
Rose Gold
13⁄8" Rings
Drop indicates distance from bottom of pole
to bottom of ring.
13⁄8" Accessories
Winston 3" Single
QS138WSSBK
3⁄4" W
33⁄4" H backplate
31⁄2" return
Walnut
William 3" Single
QS138WISBK
1" W
31⁄2" H backplate
33⁄4" return
Walnut
36" Clear Acrylic Wand
QSAC36WAND
1⁄2" DIA
36" L
Acrylic, clear only
48" Clear Acrylic Wand
QSAC48WAND
1⁄2" DIA
48" L
Acrylic, clear only
13⁄8" Brackets, Poles, Rings & Accessories
PLATINUM WALNUT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSPL QSWAL QSRG QSAB QSORB
13⁄8" Wood Poles
Quick Ship
Wood and Resin
21⁄4"
89
PLATINUM WALNUT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSPL QSWAL QSRG QSAB QSORB
Quick Ship WOOD AND RESIN FINISHES
QUICK SHIP Wood and Resin 2
1
⁄
4
"
90
21⁄4" Resin Finials
Oliver
QS214OLFI
33⁄4" W
33⁄4" DIA
Platinum
Fiona
QS214FIFI
4" W
51⁄4" DIA
Oil Rubbed Bronze
Brinley End Cap
QS214BREC
11⁄2" W
23⁄4" DIA
Antique Brass
Large Scale. Fine Details.
With an update on tradition and an upgrade in size,
21⁄4" adds sophistication to any window.
Adelaide
QS214ADFI
5" W
31⁄2" DIA
Antique Brass
Edward
QS214EDFI
41⁄4" W
31⁄4" DIA
Oil Rubbed Bronze
Adelaide -
Mercury Glass
QS214ADFIGL
5" W
33⁄8" DIA
Rose Gold
Hazel - Crystal
QS214HZFI
23⁄4" W
31⁄4" DIA
Walnut
Stella
QS214STFI
21⁄4" W
31⁄4" DIA
Platinum
Beatrice
QS214BEFI
41⁄4" W
4" DIA
Walnut
Beatrice Resin Finial, William 3
1
1⁄
2
2” Single Bracket, and Wood Rings: shown in Walnut.
[ Orders received by noon CST ship the same day! ]
91
12
21⁄4"
Elegant and dramatic,
large scale fi nials provide
instant distinction
to any window.
Clark
3" DIA
1" thick
Antique Brass
Brooks
4" DIA
11⁄4" thick
Rose Gold
2" projection QSCKHB2 2" projection QSBRHB2
4" projection QSCKHB4 4" projection QSBRHB4
6" projection QSCKHB6 6" projection QSBRHB6
Trudy
43⁄4” DIA
3⁄4” thick
Walnut
Miranda
5" DIA
11⁄2" thick
Platinum
2” projection QSTRHB2 2" projection QSMIHB2
4” projection QSTRHB4 4" projection QSMIHB4
6" projection QSTRHB6 6" projection QSMIHB6
Blake -
Mercury Glass
3" DIA
23⁄8" thick
Rose Gold
2" projection QSBKHB2
4" projection QSBKHB4
6" projection QSBKHB6
21⁄4" Holdbacks INCLUDE STEMS
(Select 2", 4", or 6" stem projection.)
Holdback projection indicates distance from wall to
back of medallion. Sold in pairs.
Resin Holdbacks include Resin Holdback Stems
2" projection
4" projection
6" projection
Metal Holdback Stems
Base: 2" DIA
Stem: 1⁄2" DIA
Rose Gold
2", 4", or 6" projection
must be selected.
Resin Holdback Stems
Base: 31⁄8" DIA
Stem: 3⁄4" DIA
Platinum
2", 4", or 6" projection
must be selected.
2" projection
4" projection
6" projection
Metal Holdbacks include Metal Holdback Stems
21⁄4" Finials & Holdbacks ARE AVAILABLE IN 5 QUICK SHIP WOOD AND RESIN FINISHES:
PLATINUM WALNUT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSPL QSWAL QSRG QSAB QSORB
QUICK SHIP Wood and Resin 2
1
⁄
4
"
92
[ Orders received by noon CST ship the same day! ]
21⁄4" Brackets, Poles, Rings & Accessories ARE AVAILABLE IN 5 QUICK SHIP WOOD AND RESIN FINISHES:
21⁄4" Quick Ship Finials, Fascia, and
Finishes available in Corded and
Motorized Traverse.
10 - 15 DAY LEAD TIME.
SEE PAGES 61 - 68.
Pinch Pleat
Ripplefold® Style
Front view when installed.
21⁄4" smooth and fl uted wood poles are sold in 2 foot
increments. 2 foot minimum. Poles will be cut to
specifi ed lengths. Fall off will not be saved or shipped.
Maximum continuous length is 12 feet.
Every pole ships with a splicing screw.
21⁄4" Brackets, Poles, Rings & Accessories
21⁄4" Hinged Resin Elbow
QS214REL
23⁄8" DIA
51⁄8" overall length
29⁄16" length each side when
bent
Antique Brass
21⁄4" Wood Ring
QS214WRI
1⁄2" W
25⁄8" ID
35⁄8" OD
7⁄8" drop
Antique Brass
21⁄4" Metal Ring
QS214MRI
1⁄4" W
21⁄2" ID
3" OD
1⁄2" drop
Oil Rubbed Bronze
21⁄4" Metal
Inside Mount
QS214MIBK
1" W
15⁄8" H
27⁄8" D
Antique Brass
(Sold in pairs)
21⁄4" Metal Ceiling
Mount
QS214MCMBK
1" W x 31⁄4" D ceiling plate
1" W
33⁄4" H
31⁄4" D
35⁄8" drop (distance
from ceiling to bottom
of pole)
Oil Rubbed Bronze
21⁄4" William 6" Single
QS214WIS6BK
1" W
4" H backplate
71⁄8" return
Walnut
Harlan 6" Double
QS214HADBK
3⁄4" W
33⁄4" H backplate
6" front return
23⁄8" back return
Front cradle holds 21⁄4"
diameter pole; back cradle
holds13⁄8" diameter pole.
Walnut
21⁄4" William 6" Double
QS214WIDBK
1" W
37⁄8" H backplate
71⁄8" front return
31⁄4" back return
Front cradle holds 21⁄4"
diameter pole; back
cradle holds 13⁄8" diameter
pole.
Rose Gold
21⁄4" Metal Brackets
Return indicates distance from wall to
center of pole.
21⁄4" Resin Brackets
Return indicates distance from wall to center
of pole.
21⁄4" Wood Poles
Smooth
QS214SM
Platinum
Fluted
QS214FL
Platinum
21⁄4" Rings
Ring Drop indicates distance from bottom of pole
to bottom of ring.
21⁄4" Accessories
Harlan 3" Single
QS214HASBK
3⁄4" W
33⁄4" H backplate
41⁄8" return
Oil Rubbed Bronze
21⁄4" William 3" Single
QS214WISBK
1" W
4" H backplate
41⁄8” return
Platinum
36" Clear Acrylic Wand
QSAC36WAND
1⁄2" DIA
36" L
Acrylic, clear only
48" Clear Acrylic Wand
QSAC48WAND
1⁄2" DIA
48" L
Acrylic, clear only
Harlan 6" Single
QS214HAS6BK
3⁄4" W
33⁄4" H backplate
6" return
Platinum
PLATINUM WALNUT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSPL QSWAL QSRG QSAB QSORB
93
GENERAL INFO
PORTFOLIO FINISHES
AM Amulet
AND Andiron
AG Antique Gold
AGL Antique Gold Leaf
AB Art Bronze
BW Barnwood
BL Black
CIN Cinnamon
DC Dark Chocolate
ET Eternal
FL Firelight
GR Goldenrod
GOS Gossamer
HA Halo
JA Java
LIN Linen
MK Mink
ML Moonlight
MYS Mystic
NAB New Age Bronze
PAR Parchment
SH Shimmer
SM Silver Maple
SPW Spicewood
SPG Spun Gold
ST Starlet
TIM Timber
TTM Titanium
URB Urban Bronze
WH White
PTH PERFECT MATCH™ FINISHES
PPMEF Eggshell Sheen Level
PPMHGF High-Gloss Sheen Level
PPMGLITTER Glitter Highlights
PPMGOLD Gold Highlights
PPMROSEGOLD Rose Gold Highlights
PPMSILVER Silver Highlights
QUICK SHIP FINISHES
1" METAL
QSAB Antique Brass
QSBN Brushed Nickel
QSMID Midnight
QSORB Oil Rubbed Bronze
QSRG Rose Gold
LUXE LINE
QSLXAB Antique Brass
QSLXBN Brushed Nickel
QSLXBK Black
WOOD AND RESIN 13⁄8" and 21⁄4"
QSAB Antique Brass
QSORB Oil Rubbed Bronze
QSPL Platinum
QSRG Rose Gold
QSWAL Walnut
Finishes
Finishes with antiquing, dusting, or glazing will vary from product
to product depending on the level of detail. Areas with deeper
recesses will appear darker than smooth areas.
For the best possible finish match, refer to the 2014 Paris Texas
Hardware Finish Chips. These chips have smooth, fluted, and
carved detailed areas, enabling you to see the beautiful shadings
and highlights that make our finishes so special.
Strike-offs: For an additional fee, Paris Texas Hardware can
provide a sample of your Portfolio or PTH Perfect Match™ finish on
any wood or metal pole as requested. Customer approval of the
strike-off sample is required before production will begin.
Touch up paint can be sent to the customer on request, for an
additional charge.
Materials
Some finials, brackets, holdbacks, and rings are made of resin
composite materials. Resin may be damaged by cutting, drilling,
or attempting to alter the size or shape of products. Some items
are made of cast aluminum or stamped steel. Wood poles and
wood rings are made of various hardwoods. Metal poles and
metal rings are made of steel.
Poles & Rods
Poles may be spliced together using a dowel splicing screw,
which is included with each pole. We recommend a center
support bracket for pole lengths in excess of four feet. We cannot
guarantee against sagging caused by unsupported spans greater
than our recommended four feet.
Finials & Holdbacks
All finials and holdbacks are sold as pairs. Most resin finial bases
have a 1⁄8" recess for a clean pole fit. Resin finials are fitted with
a dowel screw that may not be removed without damaging the
finial
Brackets
Brackets are sold individually. Depending on the style of the
bracket, there are three wall mounting styles; key lock, round
mounting plate, or front drill. Some heavier treatments may require
stronger fasteners (mollies and screws) than those included with
the brackets. Brackets should be installed securely into wall studs.
Rings
Rings are sold individually. Eyelets are not detachable from resin
rings. Excessive movement of rings on the top of the pole will
naturally abrade the finish. We discourage using heavy treatments
with the 1" resin rings. We recommend three to four rings per foot
of finished pole length, or six to seven rings per width of fabric.
General Info
GENERAL INFO
94
Production Time
Purchase orders are processed once they are received by Paris Texas Hardware. Incomplete information
will delay processing and shipping. Quick Ship collections are in stock and ship within 24 hours. Quick
Ship orders received before noon CST ship the same day. Portfolio custom collection is hand finished and
ships within 10-15 business days.
Corded and Motorized Traverse Systems
Traverse systems are available for 2" and 21⁄4" Portfolio and 21⁄4" Quick Ship Wood and Resin. Production
time for traverse system orders is 10-15 business days. Please refer to pages 61-68 for available pole sizes
and finishes.
Pricing and Terms
Pricing found in the Paris Texas Hardware Price List are our Suggested Retail Prices. Prices are subject to
change without notice. Prices are quoted exclusive of Freight and Packaging. The Buyer should always
inspect the product upon receipt.
IMPORTANT: Please note that your order will be placed with an authorized Paris Texas Hardware Distributor.
While most of the following will generally apply, your distributor may have terms and conditions of the
sale that will vary from what is stated here.
Returns, Changes, and Cancellations
All Portfolio and PTH Perfect Match™ products are custom painted and may not be returned. Orders
may not be changed or cancelled once production has begun.
Quick Ship items may be returned if poles are uncut and all products are received in sellable condition.
A restocking fee of 40% will apply and the customer will prepay freight. All returns must be authorized
by the Paris Texas Hardware customer service department, and are authorized at our discretion, given
the circumstances and nature of each order. A Return Authorization Number (RA#) must be issued by
customer service, and the RA# must be noted on all return packages. Return Credit is issued on returned
goods that are inspected and deemed undamaged. Customers should exercise care to adequately
package return goods. Return Credit will not be issued for unauthorized returns or damaged returns.
Shipping
All hardware orders are shipped FOB Dallas, Texas. Poles over 100" MUST be shipped by common carrier.
Please see the Paris Texas Hardware Retail Price List for applicable Freight and Packaging fees.
Damaged Goods and Freight Claims
Immediately upon receipt, your order should be inspected to ensure that there is no concealed damage
from shipping. To report a claim, contact your Paris Texas Hardware distributor. Damage and freight
claims must be made within 15 days of receipt of goods. Claims reported after 15 days will not be
accepted. To expedite the claim process, please provide your distributor with the following information:
purchase order number, Paris Texas Hardware order number, shipping phone number and address, and
a complete list of damaged items. Freight companies require all packaging materials and damaged
items to be kept for inspection. Merchandise damaged in shipping will be replaced. Our policy is that
we replace damaged product per the original order.
Please note on the Bill of Lading If there is any possibility of concealed damage.
Installation
We recommend using a professional installer. Installation hardware is included. The fasteners (screws and
mollies) may not be appropriate for every installation or wall material. Brackets and holdbacks should
be installed securely into wall studs when possible. Paris Texas Hardware will not assume responsibility for
damages incurred by improperly mounted or inadequately supported hardware.
— Special thanks to Duralee and RM Coco for providing many of the gorgeous fabrics featured in our catalog.
Item #
System
Length
(per 2')
Custom
Cut
Length
Fascia
Pole
Diameter
Fascia
Finish
Code Bracket
Preference Draw Preference
One-way Cord Length
(if over 72") Qty Price per Unit Subtotal
L R
L R
L R
Item # Finish Code Description Qty Price per Unit Subtotal
Additional Information
Quantity included per set based on cut pole length 6' 7' 8' 9' 10' 11' 12' 13' 14' 15' 16' 17' 18' 19' 20'
Glides [4 per foot, includes master carriers (2) & end caps (2)] 24 28 32 36 40 44 48 52 56 60 64 68 72 76 60
Brackets (1 per every 3-4 feet) 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8
SPECIAL INSTRUCTIONS
Company Information Shipping Information
Company Name Acct # Company Name Acct #
Contact Person Contact Person
Street Address Street Address
City State ZIP City State ZIP
Email Email
Phone Fax Phone Fax
EasyPull™ TRAVERSE SYSTEMS - Consult Price List for detailed specifications.
EasyPull™ TRAVERSE COORDINATING ACCESSORIES - Order finials, extra brackets, and accessories here.
PTH Perfect Match™
Color # Color Name
Highlights Sheen Level
High-Gloss Eggshell
PO # Side Mark Ship via
EasyPull™ Traverse Order Form
Fluted
Smooth
Center
Item #
System
Length
(per 2')
Custom
Cut
Length
Fascia
Pole
Diameter
Fascia
Finish
Code Bracket
Preference Draw Preference
One-way Cord
Location
Cord
Length
(standard: 120")
Carrier
pinch pleat OR
Ripplefold® style* Qty Price
per Unit Subtotal
L R L R
L R L R
L R L R
Item # Finish Code Description Qty Price
per Unit Subtotal
Additional Information
Quantity included per set based on cut pole length 4' 6' 7' 8' 9' 10' 11' 12' 13' 14' 15' 16' 17' 18' 19' 20'
Glides [4 per foot, includes master carriers (2) & end caps (2)] 16 24 28 32 36 40 44 48 52 56 60 64 68 72 76 60
Brackets (1 per every 3-4 feet) 2334445556667778
SPECIAL INSTRUCTIONS
*When ordering Ripplefold® style carriers, answer these questions:
1. Select Ripplefold® style fullness: 80% 100% 120%
2. Select Ripplefold® style masters: Buttmaster Overlap
Company Information Shipping Information
Company Name Acct # Company Name Acct #
Contact Person Contact Person
Street Address Street Address
City State ZIP City State ZIP
Email Email
Phone Fax Phone Fax
HEAVY-DUTY BALL BEARING TRAVERSE SYSTEMS - Consult Price List for detailed specifications.
HEAVY-DUTY BALL BEARING TRAVERSE COORDINATING ACCESSORIES - Order finials, extra brackets, and accessories here.
PTH Perfect Match™
Color # Color Name
Highlights Sheen Level
High-Gloss Eggshell
PO # Side Mark Ship via
Heavy-Duty Ball Bearing Corded Traverse Order Form
Fluted
Smooth
Center
Details matter.
When every aspect of a design is carefully considered, the
resulting creation is truly distinctive.
And when a brand pays fanatical attention to every product
detail - deliberately curating every collection, year after year -
exceptional design becomes its defining signature.
Since 1992, Paris Texas Hardware has been devoted to providing
exclusive collections of drapery hardware, featuring nothing but
one-of-a-kind products. Our designs have always been, and will
always be, uniquely our own. Whether it’s a finial silhouette that
has never been seen before or an Old World classic with a new
world twist, we promise to provide you with something different –
something that you cannot find anywhere else in the world.
We painstakingly pore over every detail and edit each collection
of our drapery hardware products – always with your ultimate
creative inspiration in mind.
Paris Texas Hardware Mission
With a dedication to exceptional design and superior service,
Paris Texas Hardware will provide a unique, elegant, and high
quality selection of decorative drapery hardware and accessories.
We believe all of our products will be unrivaled in their ability to
stand alone as decorative, durable, and functional. Paris Texas
Hardware will offer an enjoyable customer experience that
includes honest dialogue and responsive feedback.
DESIGNED TO INSPIRE.
TIMBER (TIM) SILVER MAPLE (SM) PARCHMENT (PAR)
NEW AGE BRONZE (NAB) FIRELIGHT (FL) SHIMMER (SH)
CINNAMON (CIN) JAVA (JA) STARLET (ST)
TITANIUM (TTM) URBAN BRONZE (URB) AMULET (AM)
ART BRONZE (AB) MYSTIC (MYS) HALO (HA)
BRUSHED NICKEL BLACK ANTIQUE BRASS
QSLXBN QSLXBK QSLXAB
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
PLATINUM WALNUT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSPL QSWAL QSRG QSAB QSORB
Photography may not accurately represent the true color of a fi nish. A fi nish may show slight variation when painted on
different materials, such as wood or steel. For best possible fi nish match, please refer to the actual sample chip.
ANTIQUE GOLD LEAF (AGL) GOSSAMER (GOS) SPUN GOLD (SPG)
DARK CHOCOLATE (DC) ANTIQUE GOLD (AG) ETERNAL (ET)
ANDIRON (AND) LINEN (LIN) SPICEWOOD (SPW)
MINK (MK) MOONLIGHT (ML) BLACK (BL)
GOLDENROD (GR) BARNWOOD (BW) WHITE (WH)
METAL FINISHES
LUXE LINE FINISHES
WOOD AND RESIN FINISHES
CUSTOM HAND-PAINTED FINISHES
Quick Ship ships in 1 business day
Portfolio ships in 10 - 15 business days
Item #
System
Length
(6'- 40')*
Custom
Cut
Length
Fascia
Pole
Diameter
Fascia
Finish
Code Bracket
Preference Draw Preference
Center One-way Motor Type
Motor
Location
L R
Carrier
pinch pleat OR
Ripplefold® style** Qty Price
per Unit Subtotal
L R
L R
L R
Item # Finish Code Description Qty Price
per Unit Subtotal
* BTX-DC-60 and BTX-DC-120 Systems are available in continuous lengths up to 20' and in spliced lengths up to 40'.
BTX-DCS-45 Systems are available in continuous lengths up to 18'.
Somfy Glydea 35 Systems are available in continuous lengths up to 20' and in spliced lengths up to 32'.
Somfy Glydea 60e Systems are available in continuous lengths up to 20' and in spliced lengths up to 36'.
For a system more than the maximum spliced length, two one-way systems can butt against each other behind fascia. Must be specified.
** Ripplefold® style carriers incur a 10% upcharge per track. Must specify carrier fullness.
SPECIAL INSTRUCTIONS
**When ordering Ripplefold® style carriers, answer these questions:
1. Select Ripplefold® style fullness: 80% 100% 120%
2. Select Ripplefold® style masters: Buttmaster Overlap
MOTORIZED TRAVERSE SYSTEMS - Consult Price List for detailed specifications.
Specified custom cut length indicates track length including drive gears; fascia will be 1/4" longer at each end of track (1/2" total); mitered fascia will be 1 1/2" longer at each end of track (3” total).
Company Information Shipping Information
Company Name Acct # Company Name Acct #
Contact Person Contact Person
Street Address Street Address
City State ZIP City State ZIP
Email Email
Phone Fax Phone Fax
MOTORIZED TRAVERSE COORDINATING ACCESSORIES - Order finials, additional motors for tandem applications, and accessories here.
PTH Perfect Match™
Color # Color Name
Highlights Sheen Level
High-Gloss Eggshell
PO # Side Mark Ship via
Motorized Traverse Order Form
Fluted
Smooth
For your convenience, you can
unfold this cover to view all of our
standard finishes as you browse
our product catalog.
Details matter.
When every aspect of a design is carefully considered, the
resulting creation is truly distinctive.
And when a brand pays fanatical attention to every product
detail - deliberately curating every collection, year after year -
exceptional design becomes its defining signature.
Since 1992, Paris Texas Hardware has been devoted to providing
exclusive collections of drapery hardware, featuring nothing but
one-of-a-kind products. Our designs have always been, and will
always be, uniquely our own. Whether it’s a finial silhouette that
has never been seen before or an Old World classic with a new
world twist, we promise to provide you with something different –
something that you cannot find anywhere else in the world.
We painstakingly pore over every detail and edit each collection
of our drapery hardware products – always with your ultimate
creative inspiration in mind.
Paris Texas Hardware Mission
With a dedication to exceptional design and superior service,
Paris Texas Hardware will provide a unique, elegant, and high
quality selection of decorative drapery hardware and accessories.
We believe all of our products will be unrivaled in their ability to
stand alone as decorative, durable, and functional. Paris Texas
Hardware will offer an enjoyable customer experience that
includes honest dialogue and responsive feedback.
DESIGNED TO INSPIRE.
TIMBER (TIM) SILVER MAPLE (SM) PARCHMENT (PAR)
NEW AGE BRONZE (NAB) FIRELIGHT (FL) SHIMMER (SH)
CINNAMON (CIN) JAVA (JA) STARLET (ST)
TITANIUM (TTM) URBAN BRONZE (URB) AMULET (AM)
ART BRONZE (AB) MYSTIC (MYS) HALO (HA)
BRUSHED NICKEL BLACK ANTIQUE BRASS
QSLXBN QSLXBK QSLXAB
BRUSHED NICKEL MIDNIGHT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSBN QSMID QSRG QSAB QSORB
PLATINUM WALNUT ROSE GOLD ANTIQUE BRASS OIL RUBBED BRONZE
QSPL QSWAL QSRG QSAB QSORB
Photography may not accurately represent the true color of a fi nish. A fi nish may show slight variation when painted on
different materials, such as wood or steel. For best possible fi nish match, please refer to the actual sample chip.
ANTIQUE GOLD LEAF (AGL) GOSSAMER (GOS) SPUN GOLD (SPG)
DARK CHOCOLATE (DC) ANTIQUE GOLD (AG) ETERNAL (ET)
ANDIRON (AND) LINEN (LIN) SPICEWOOD (SPW)
MINK (MK) MOONLIGHT (ML) BLACK (BL)
GOLDENROD (GR) BARNWOOD (BW) WHITE (WH)
METAL FINISHES
LUXE LINE FINISHES
WOOD AND RESIN FINISHES
CUSTOM HAND-PAINTED FINISHES
Quick Ship ships in 1 business day
Portfolio ships in 10 - 15 business days
Item #
System
Length
(6'- 40')*
Custom
Cut
Length
Fascia
Pole
Diameter
Fascia
Finish
Code Bracket
Preference Draw Preference
Center One-way Motor Type
Motor
Location
L R
Carrier
pinch pleat OR
Ripplefold® style** Qty Price
per Unit Subtotal
L R
L R
L R
Item # Finish Code Description Qty Price
per Unit Subtotal
* BTX-DC-60 and BTX-DC-120 Systems are available in continuous lengths up to 20' and in spliced lengths up to 40'.
BTX-DCS-45 Systems are available in continuous lengths up to 18'.
Somfy Glydea 35 Systems are available in continuous lengths up to 20' and in spliced lengths up to 32'.
Somfy Glydea 60e Systems are available in continuous lengths up to 20' and in spliced lengths up to 36'.
For a system more than the maximum spliced length, two one-way systems can butt against each other behind fascia. Must be specified.
** Ripplefold® style carriers incur a 10% upcharge per track. Must specify carrier fullness.
SPECIAL INSTRUCTIONS
**When ordering Ripplefold® style carriers, answer these questions:
1. Select Ripplefold® style fullness: 80% 100% 120%
2. Select Ripplefold® style masters: Buttmaster Overlap
MOTORIZED TRAVERSE SYSTEMS - Consult Price List for detailed specifications.
Specified custom cut length indicates track length including drive gears; fascia will be 1/4" longer at each end of track (1/2" total); mitered fascia will be 1 1/2" longer at each end of track (3” total).
Company Information Shipping Information
Company Name Acct # Company Name Acct #
Contact Person Contact Person
Street Address Street Address
City State ZIP City State ZIP
Email Email
Phone Fax Phone Fax
MOTORIZED TRAVERSE COORDINATING ACCESSORIES - Order finials, additional motors for tandem applications, and accessories here.
PTH Perfect Match™
Color # Color Name
Highlights Sheen Level
High-Gloss Eggshell
PO # Side Mark Ship via
Motorized Traverse Order Form
Fluted
Smooth
For your convenience, you can
unfold this cover to view all of our
standard finishes as you browse
our product catalog.
