RRV3328 VSX 916 K Pioneer 816, Receiver
User Manual: VSX-916-K
Open the PDF directly: View PDF
.
Page Count: 144 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- VSX-816-K
- <グラフィック>
- CONTENTS
- CONTENTS
- 1. SPECIFICATIONS
- 2. EXPLODED VIEWS AND PARTS LIST

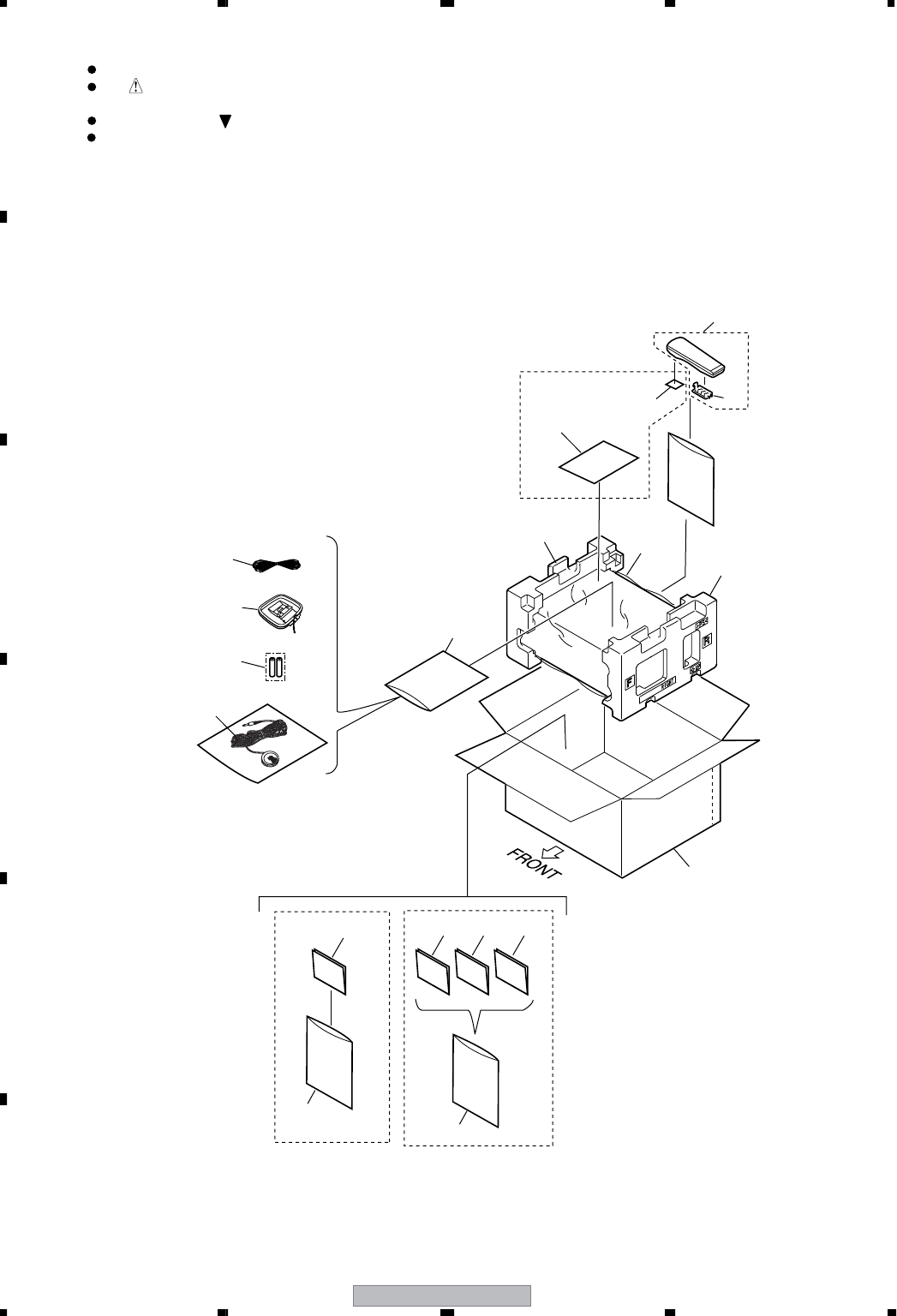

- 2.1 PACKING
- 2.2 EXTERIOR SECTION

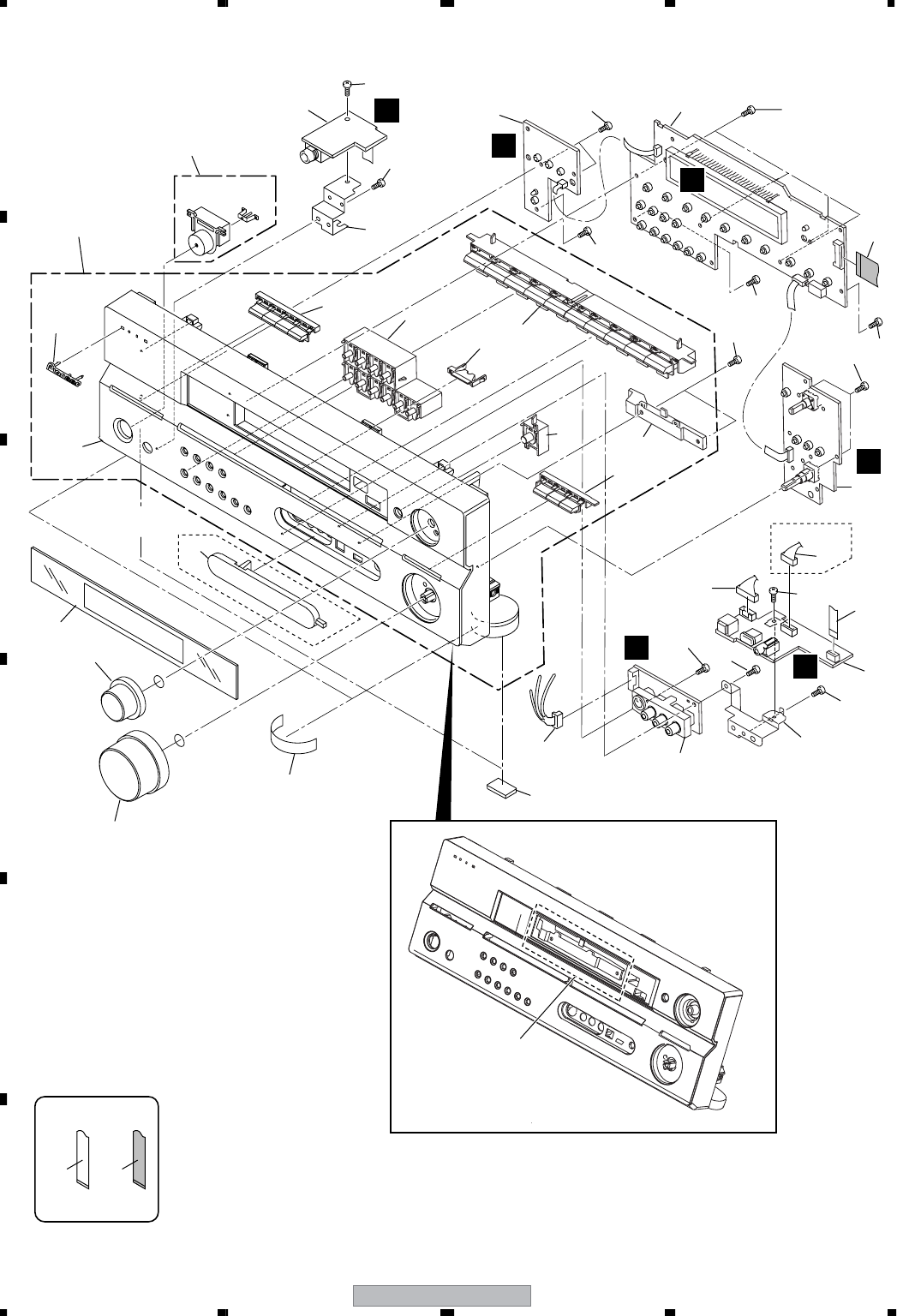

- 2.3 FRONT PANEL SECTION

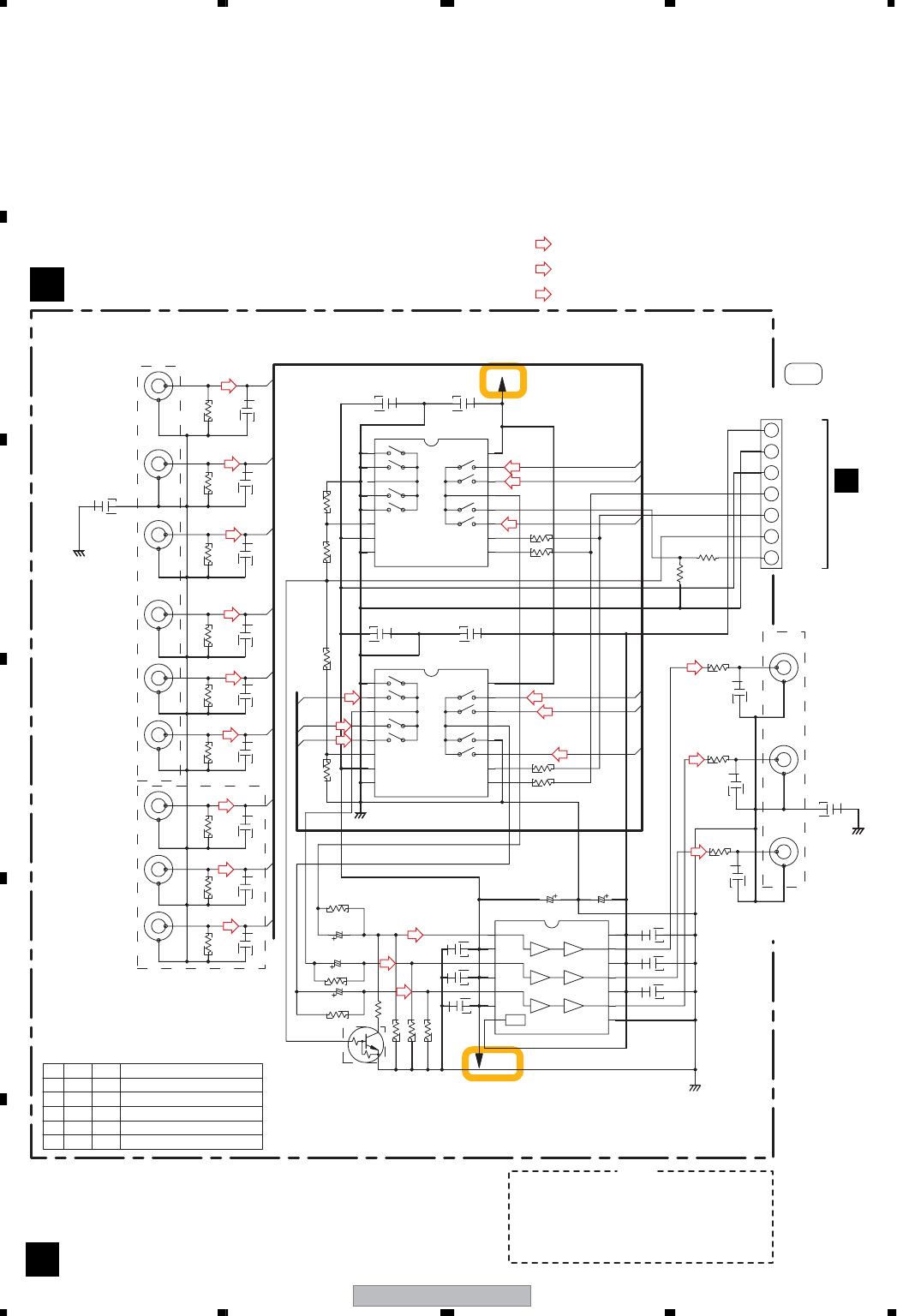

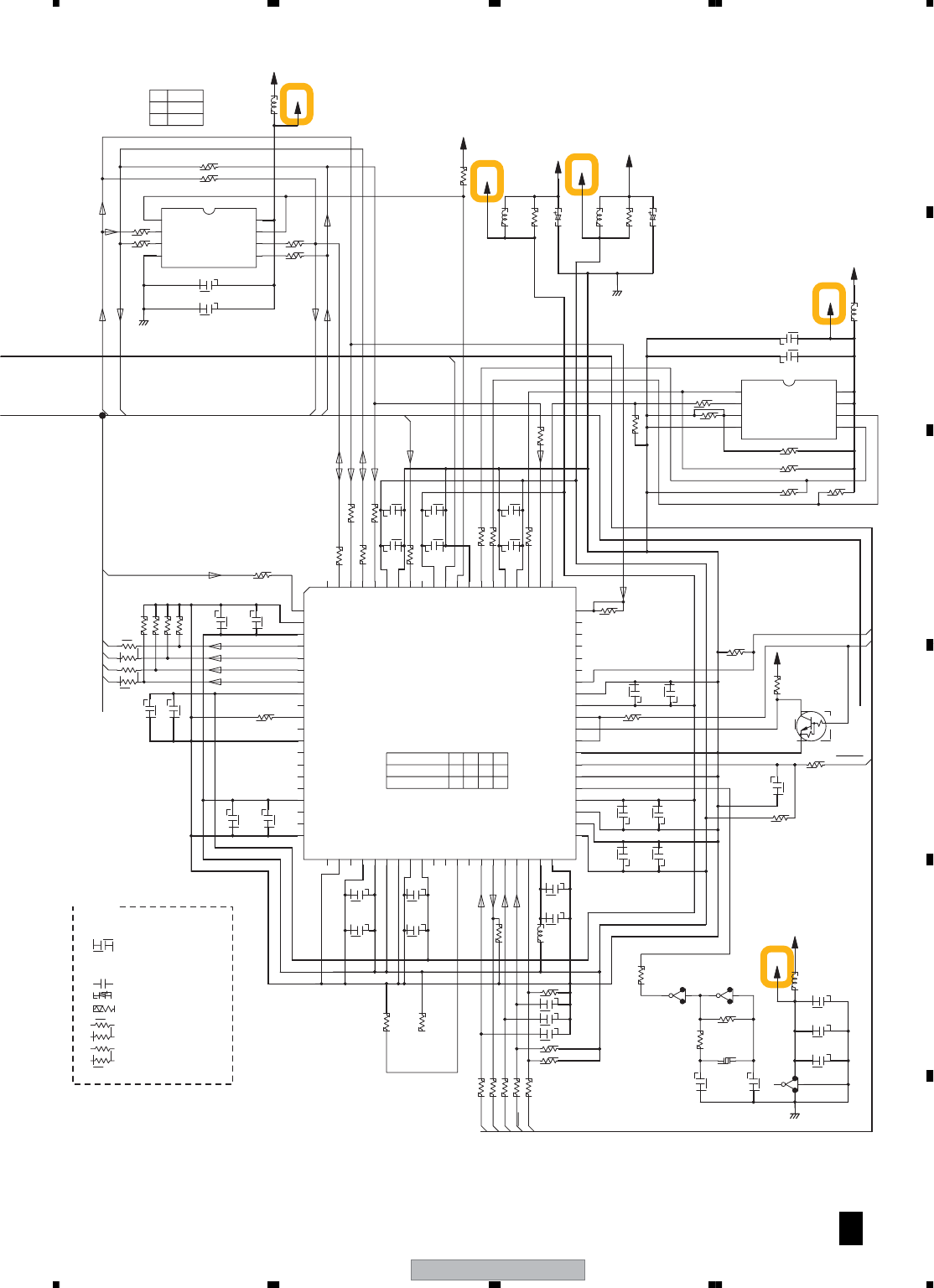

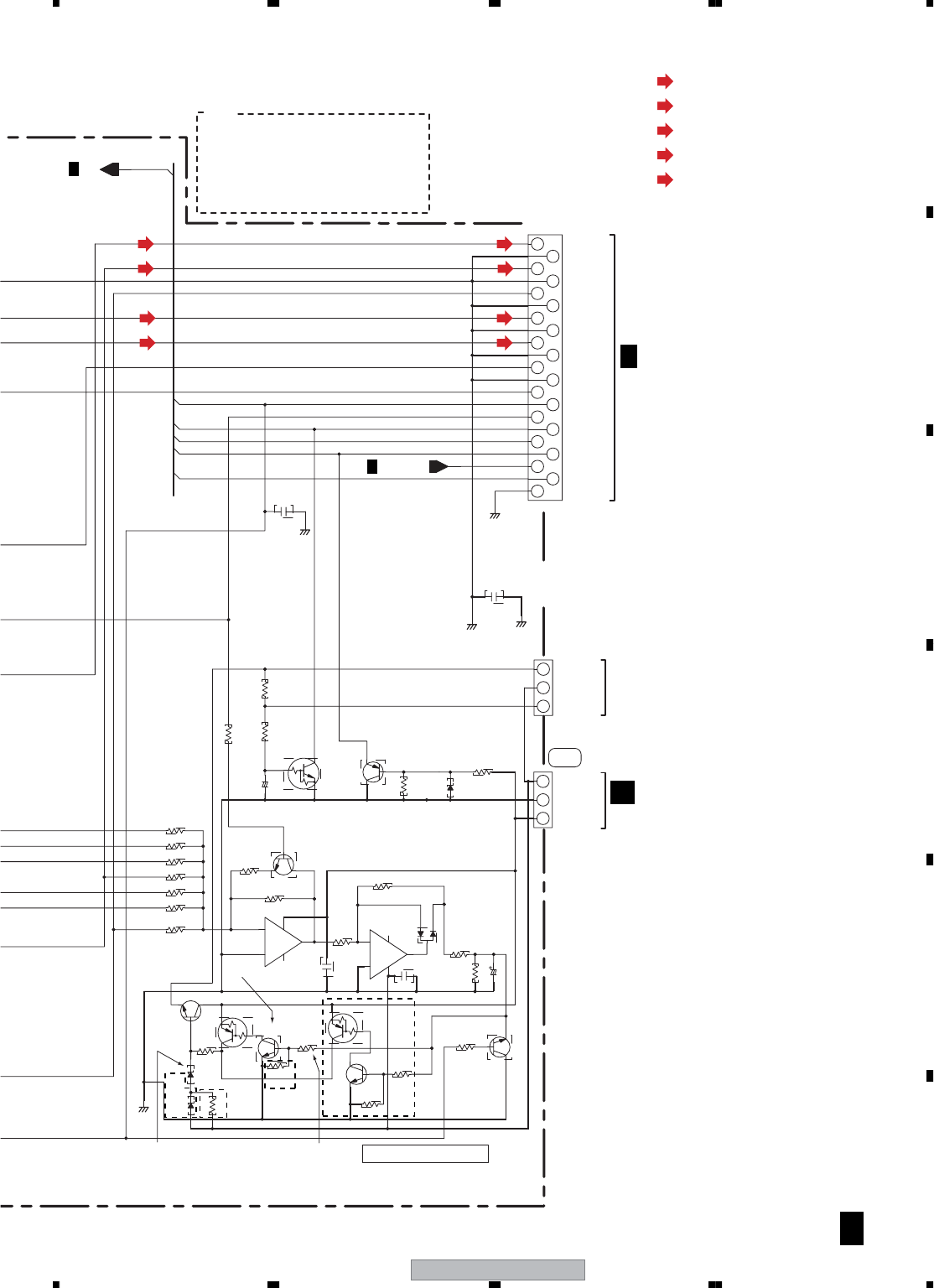

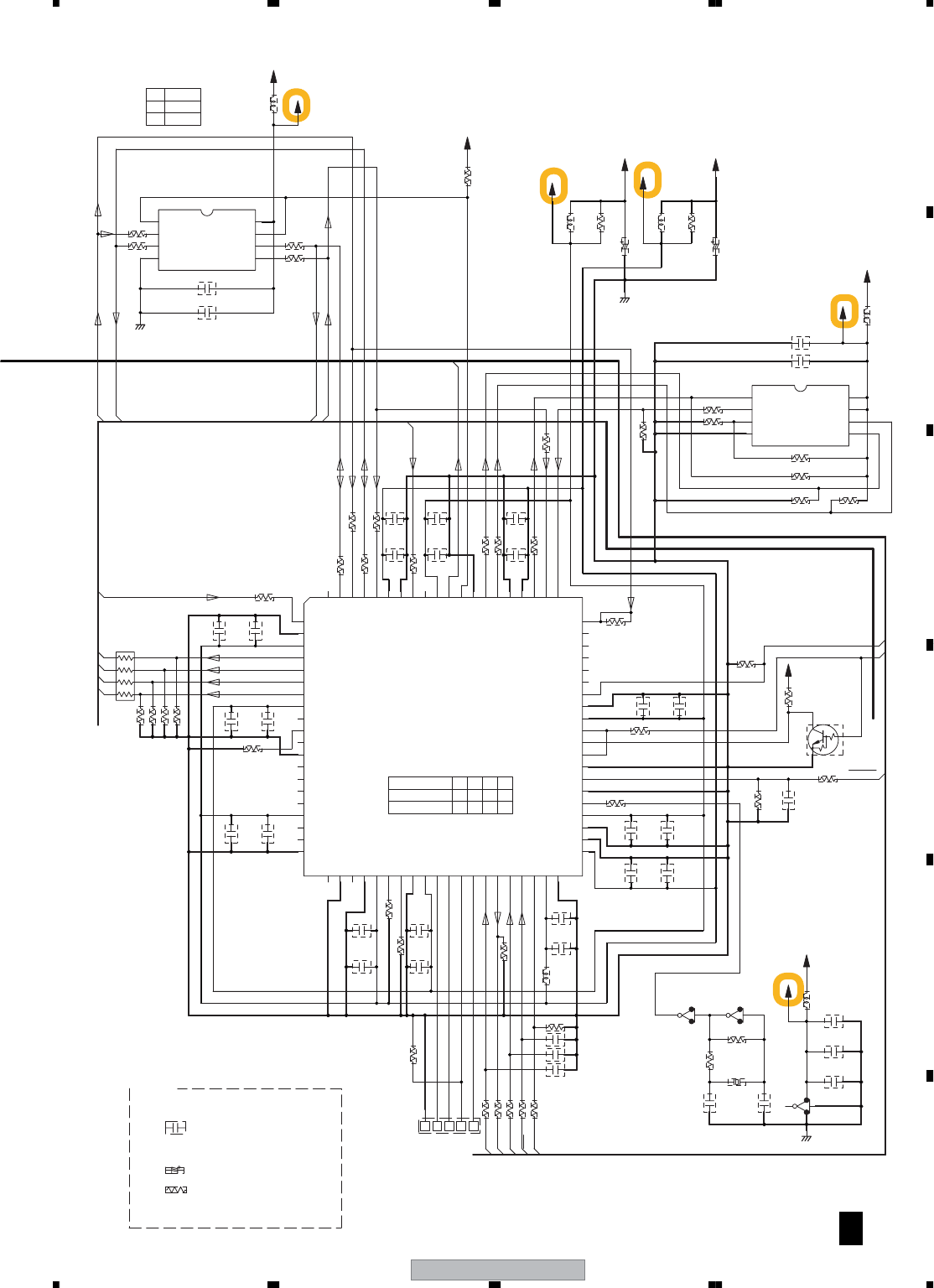

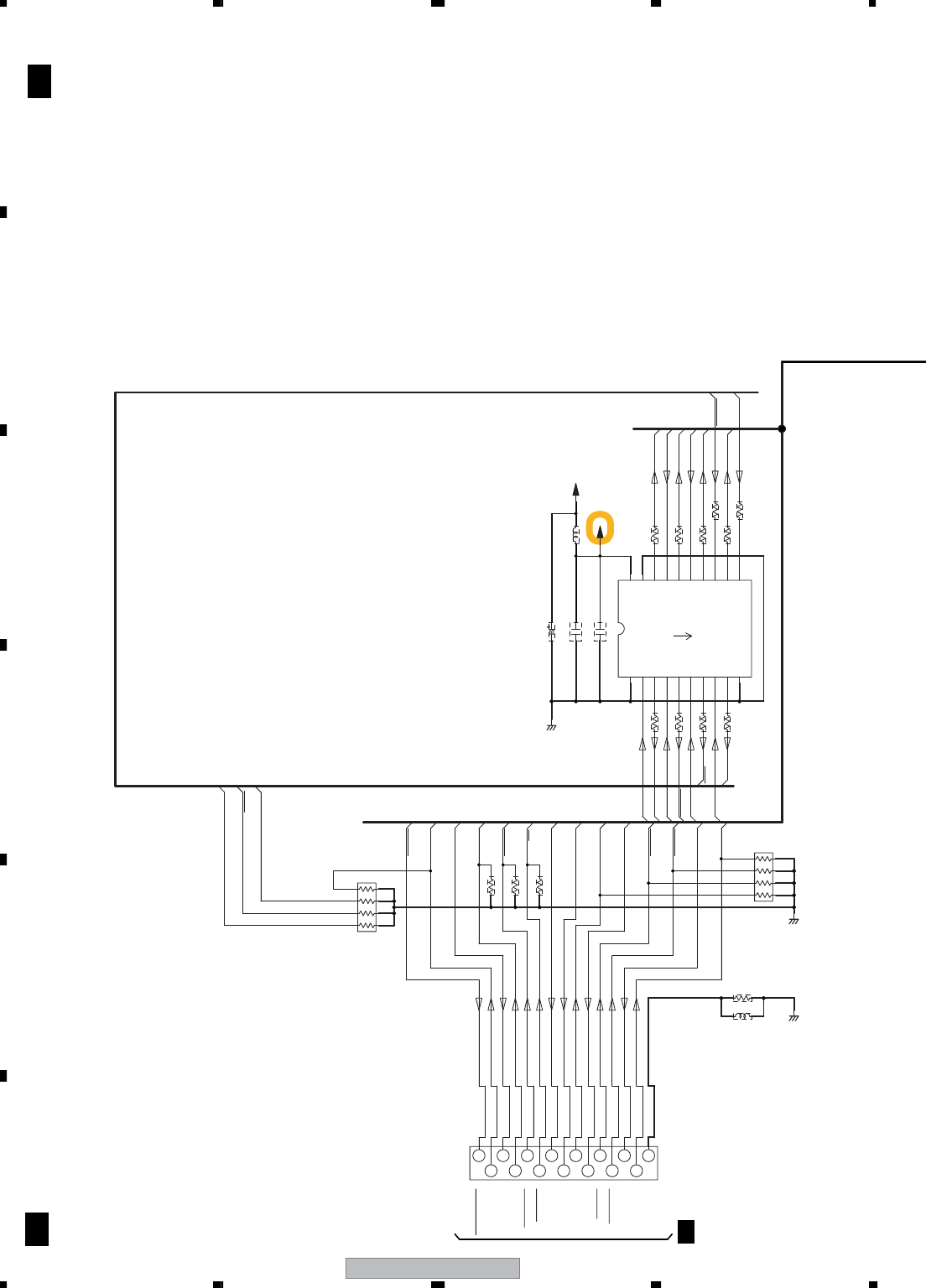

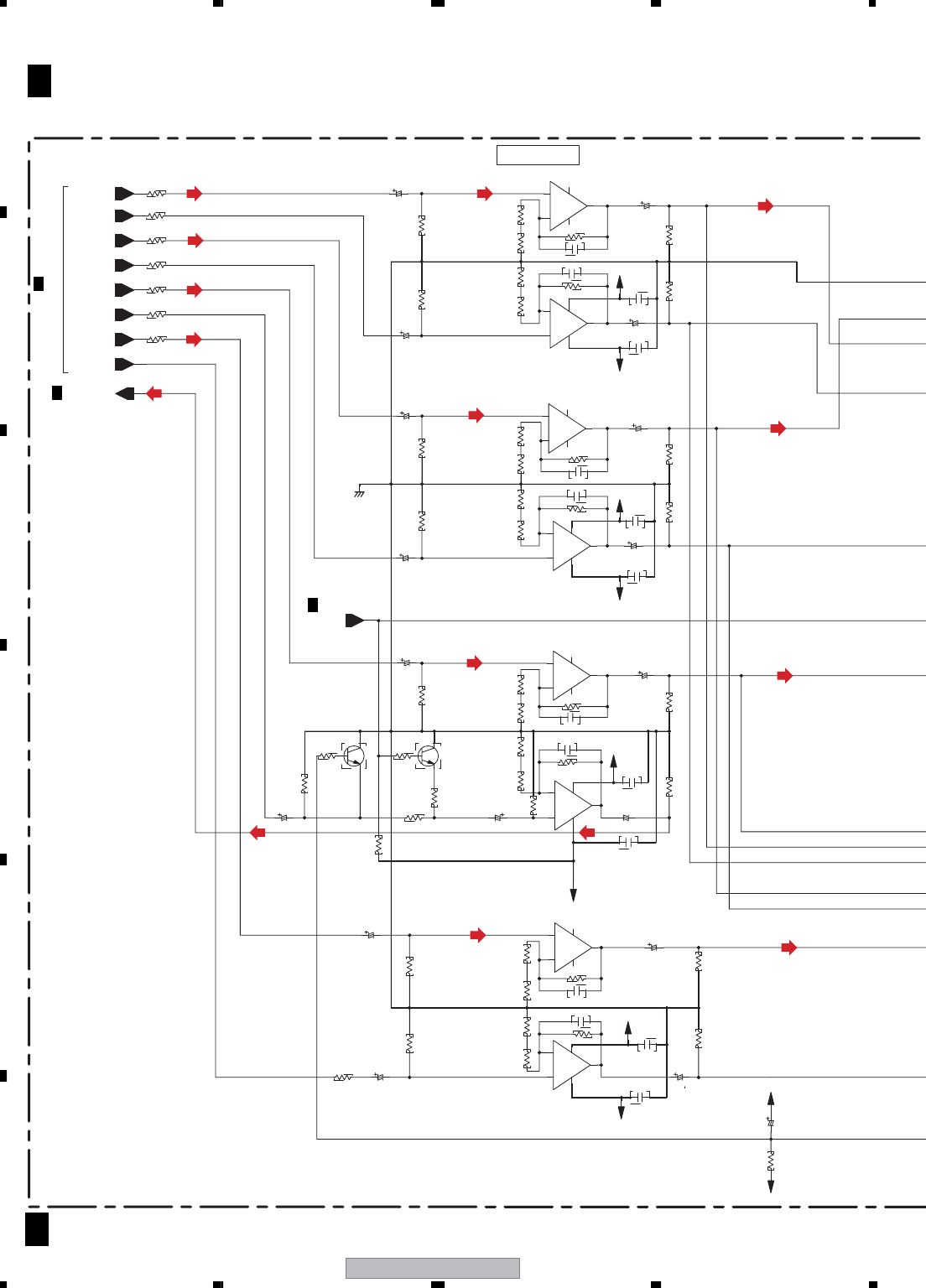

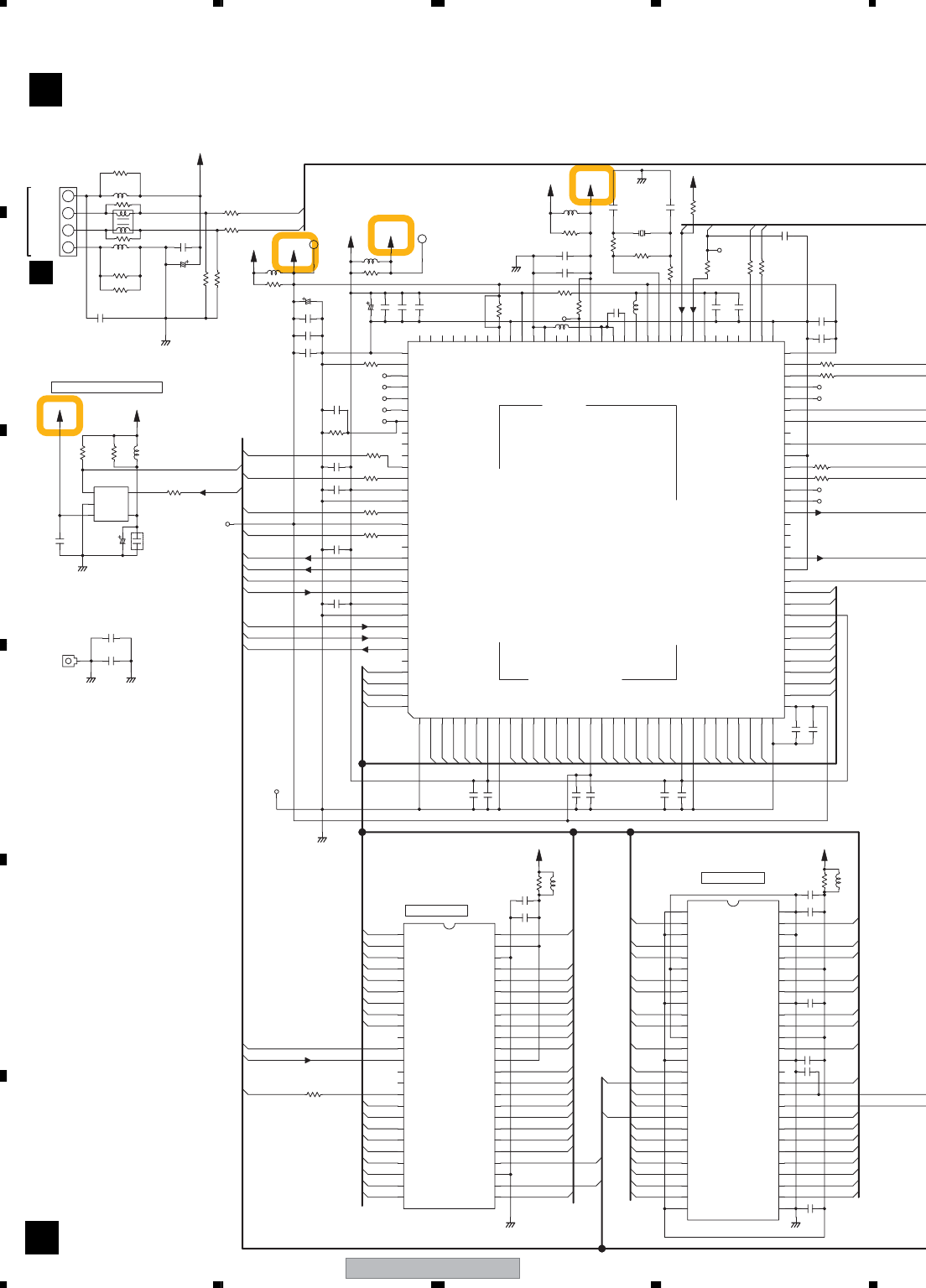

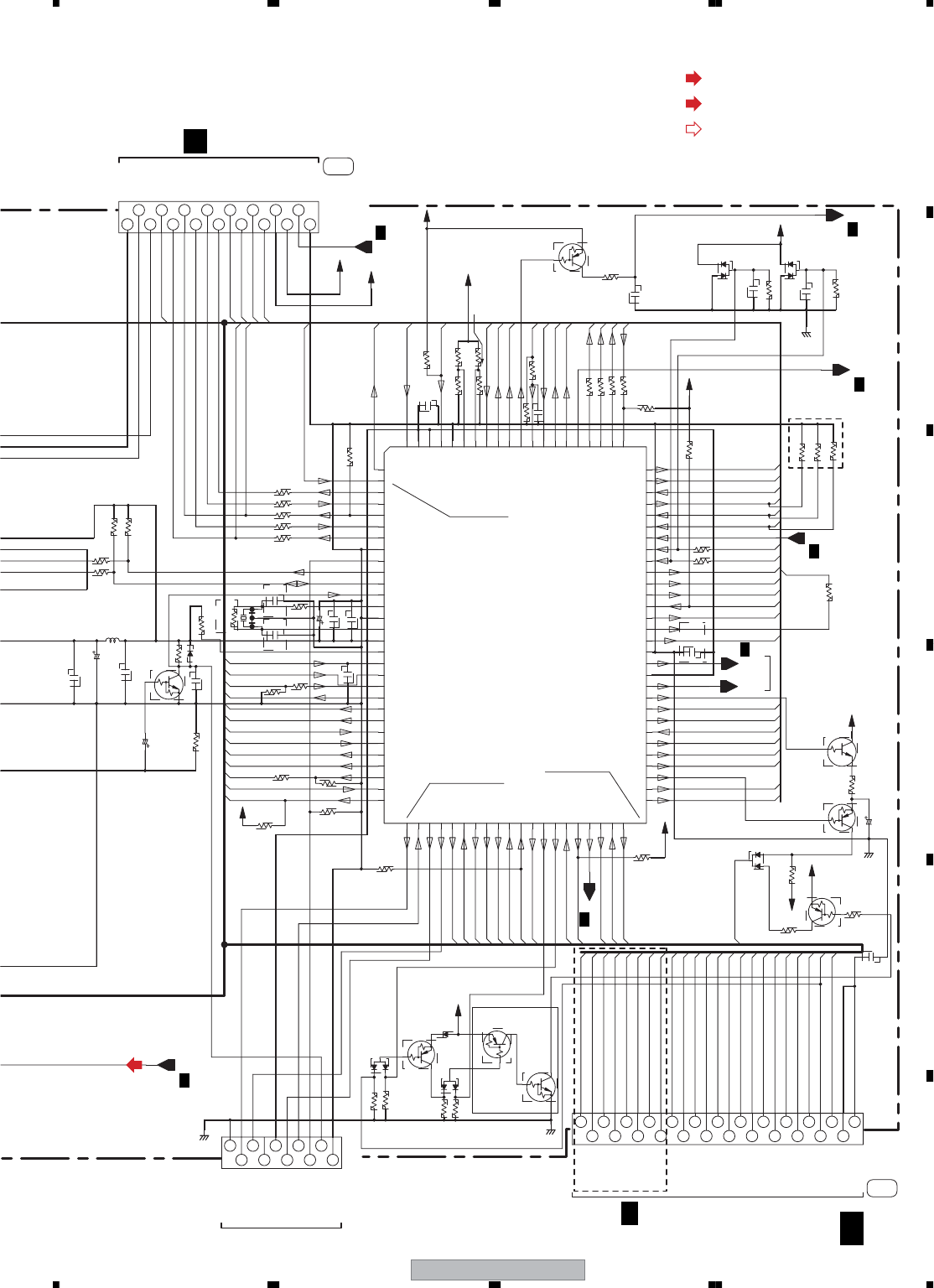

- 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

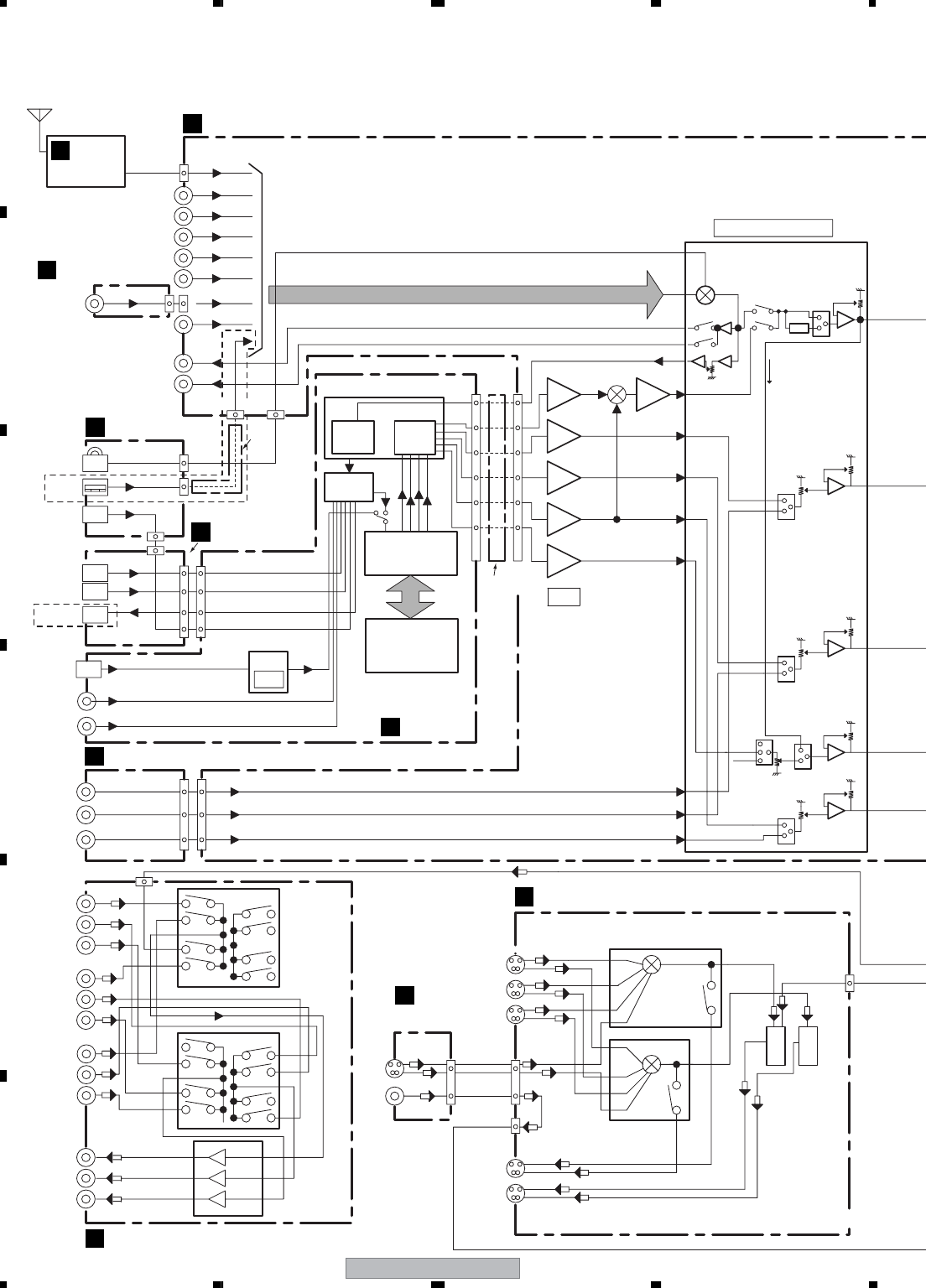

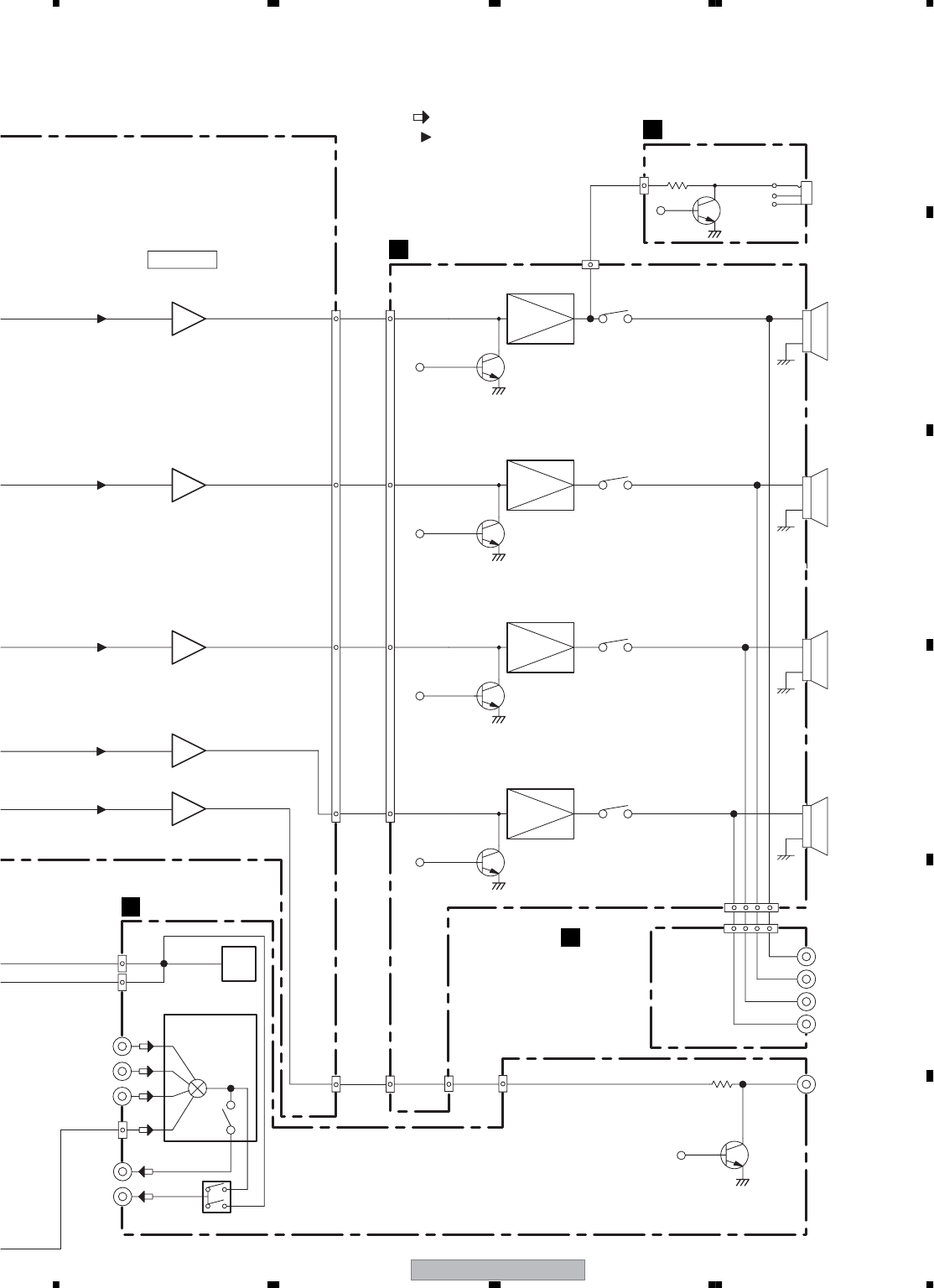

- 3.1 BLOCK DIAGRAM

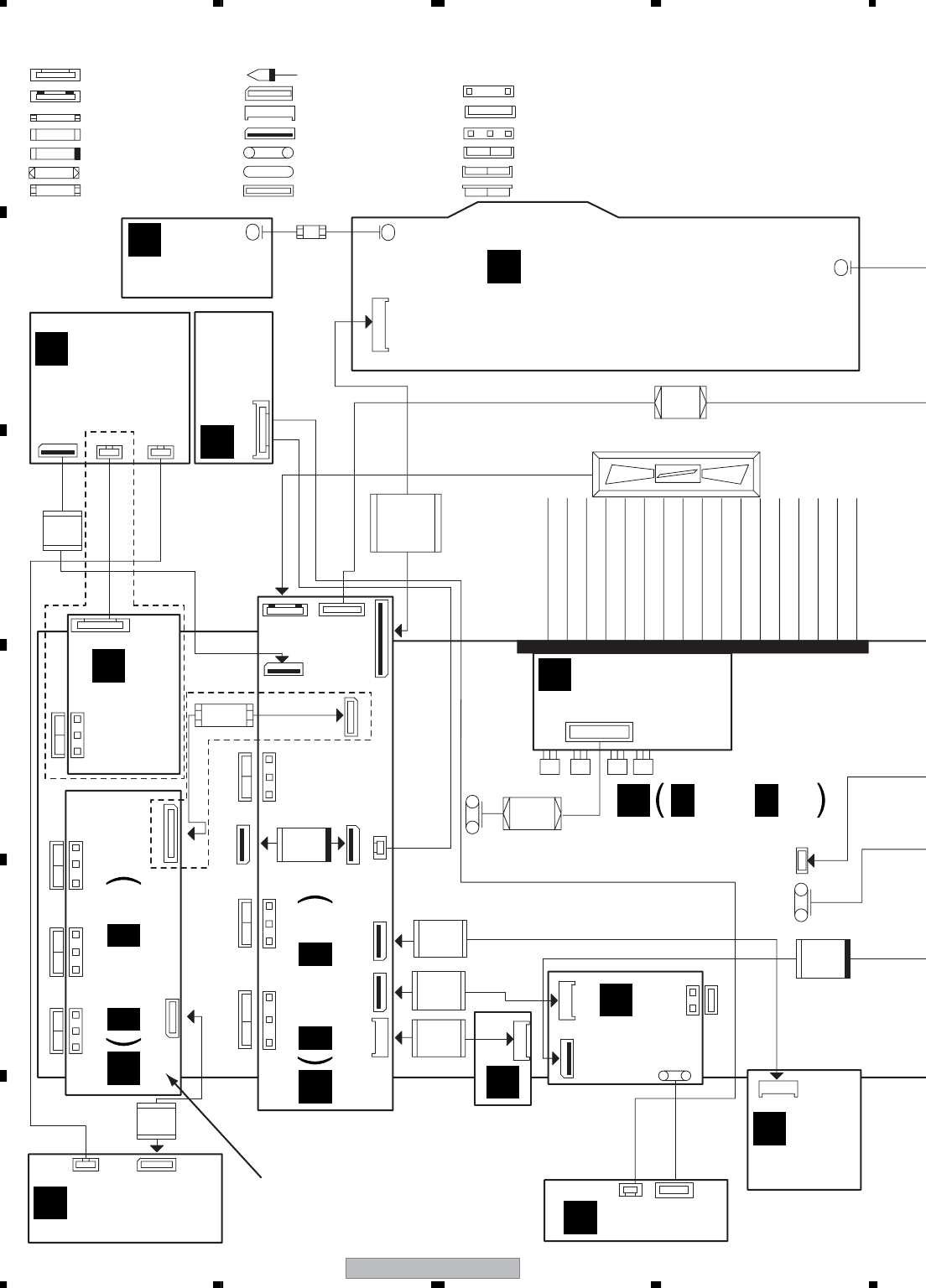

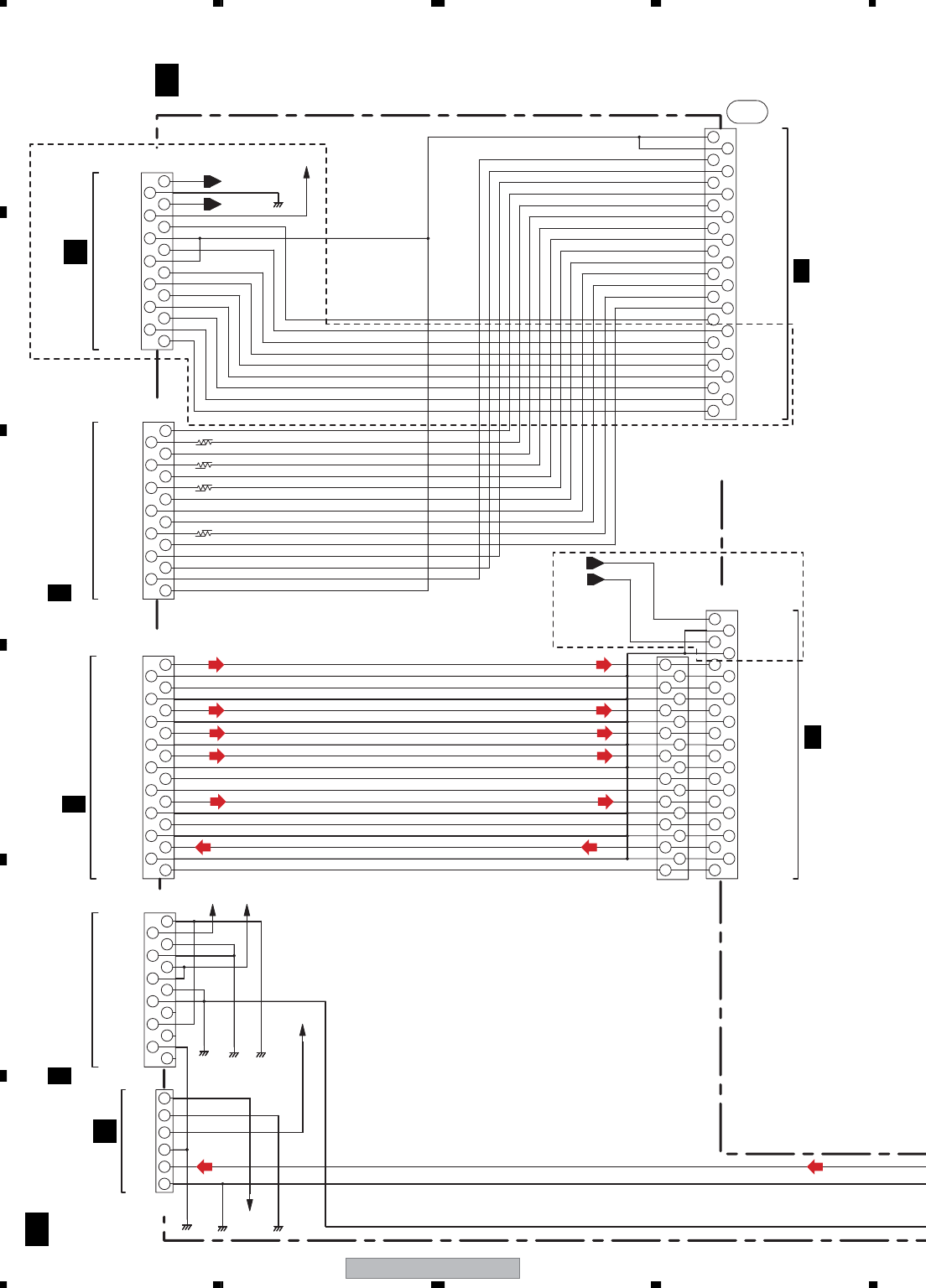

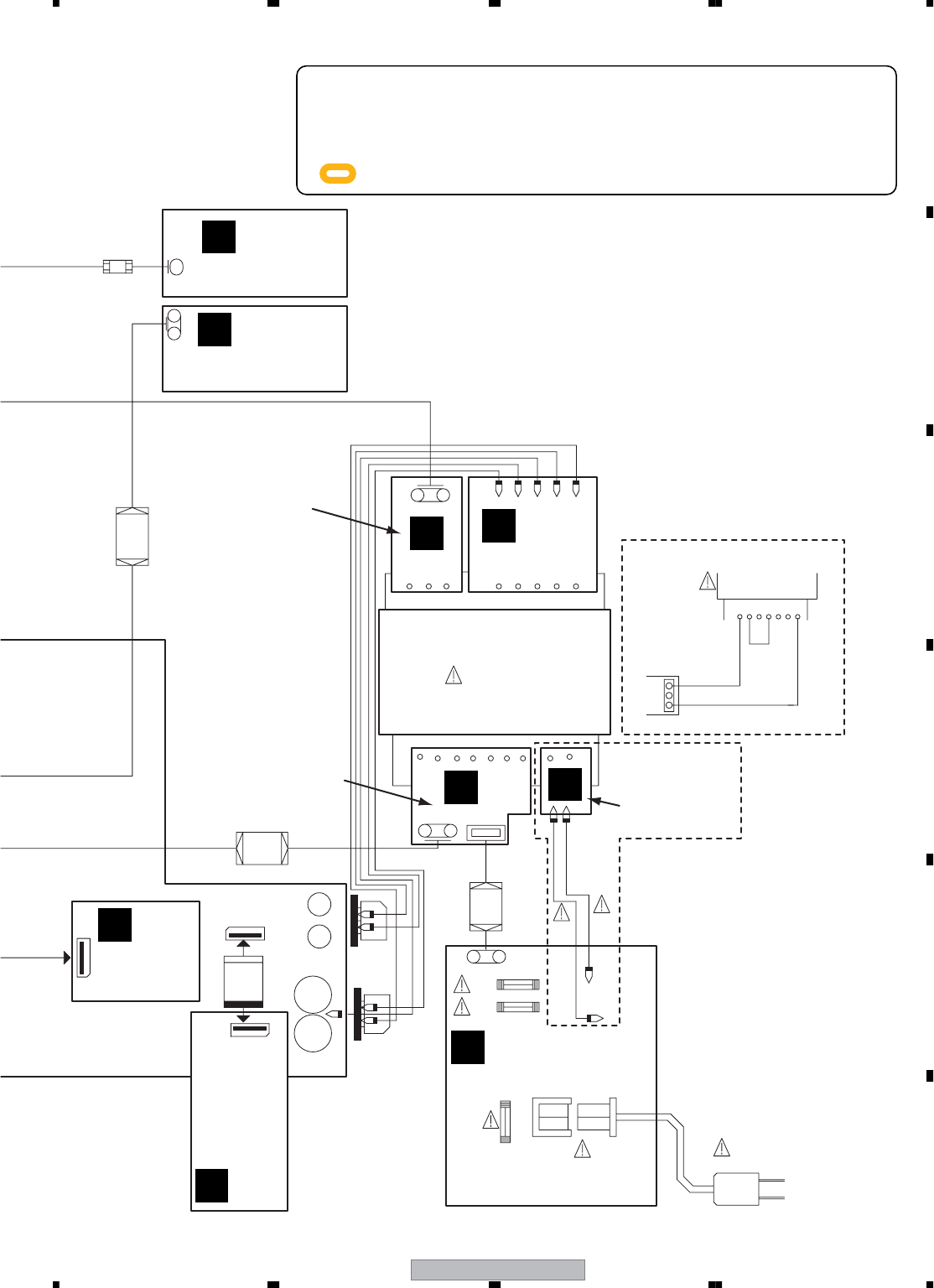

- 3.2 OVERALL WIRING CONNECTION DIAGRAM
- 3.3 MAIN ASSY (1/3)
- 3.4 MAIN ASSY (2/3)
- 3.5 MAIN ASSY (3/3)
- 3.6 DSP ASSY (1/2) (for VSX-816)
- 3.7 DSP ASSY (2/2) (for VSX-816)
- 3.8 DSP ASSY (1/2) (for VSX-916)
- 3.9 DSP ASSY (2/2) (for VSX-916)
- 3.10 POWER PACK (1/2), TRANS 2 and TRANS 3 ASSYS
- 3.11 POWER PACK ASSY (2/2)
- 3.12 COMPONENT ASSY
- 3.13 HEADPHONE, PRE-OUT and 5.1CHIN ASSYS

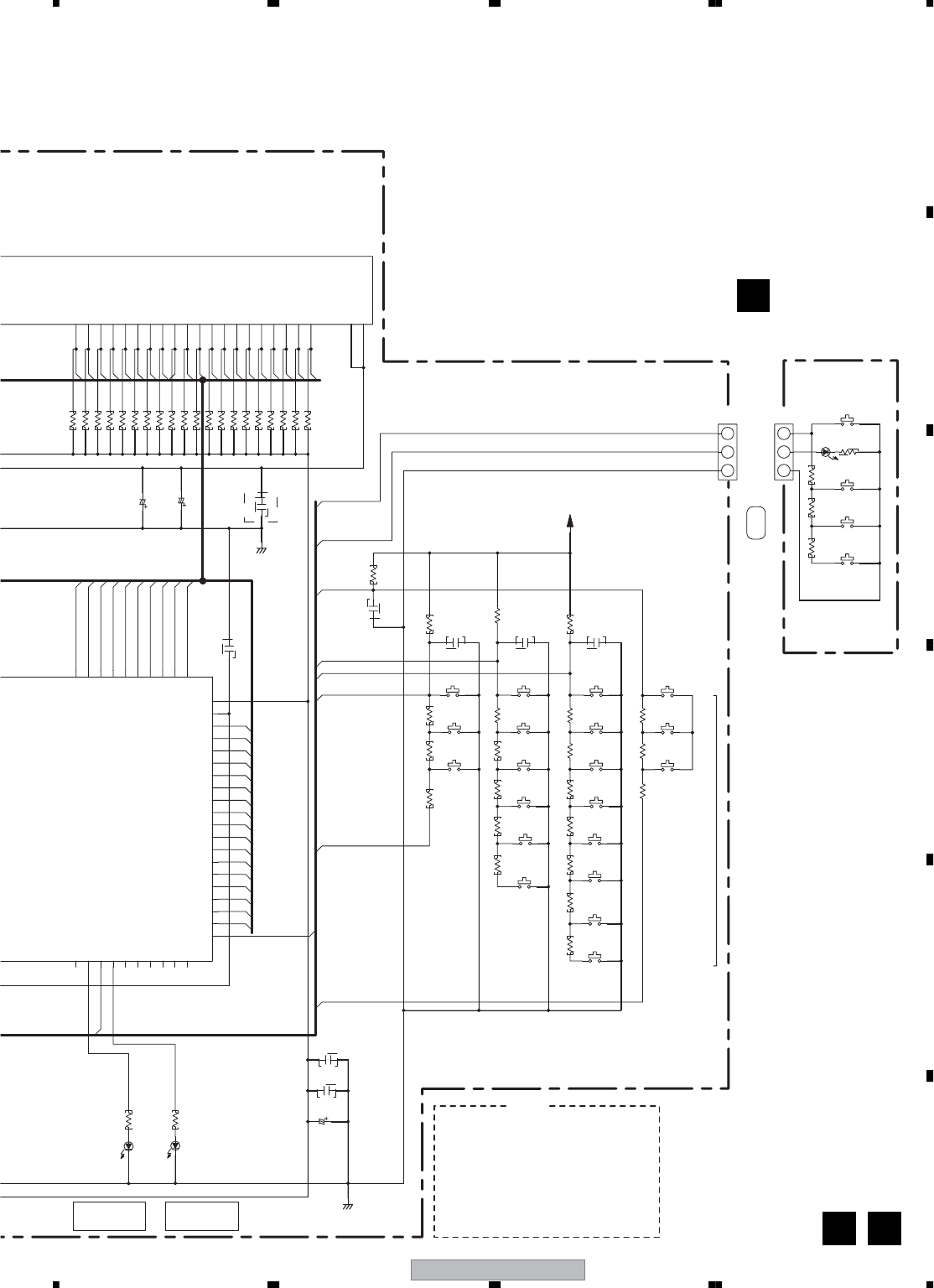

- 3.14 FRONT DISPLAY, R. ENCODER and POWER KEY ASSYS
- 3.15 S. VIDEO, TRANS 4 and REGULATOR ASSYS
- 3.16 VIDEO, DIGITAL IN, FRONT VIDEO, PRIMARY and TRANS 1 ASSYS
- 3.17 USB ASSY
- 3.18 USB IN ASSY

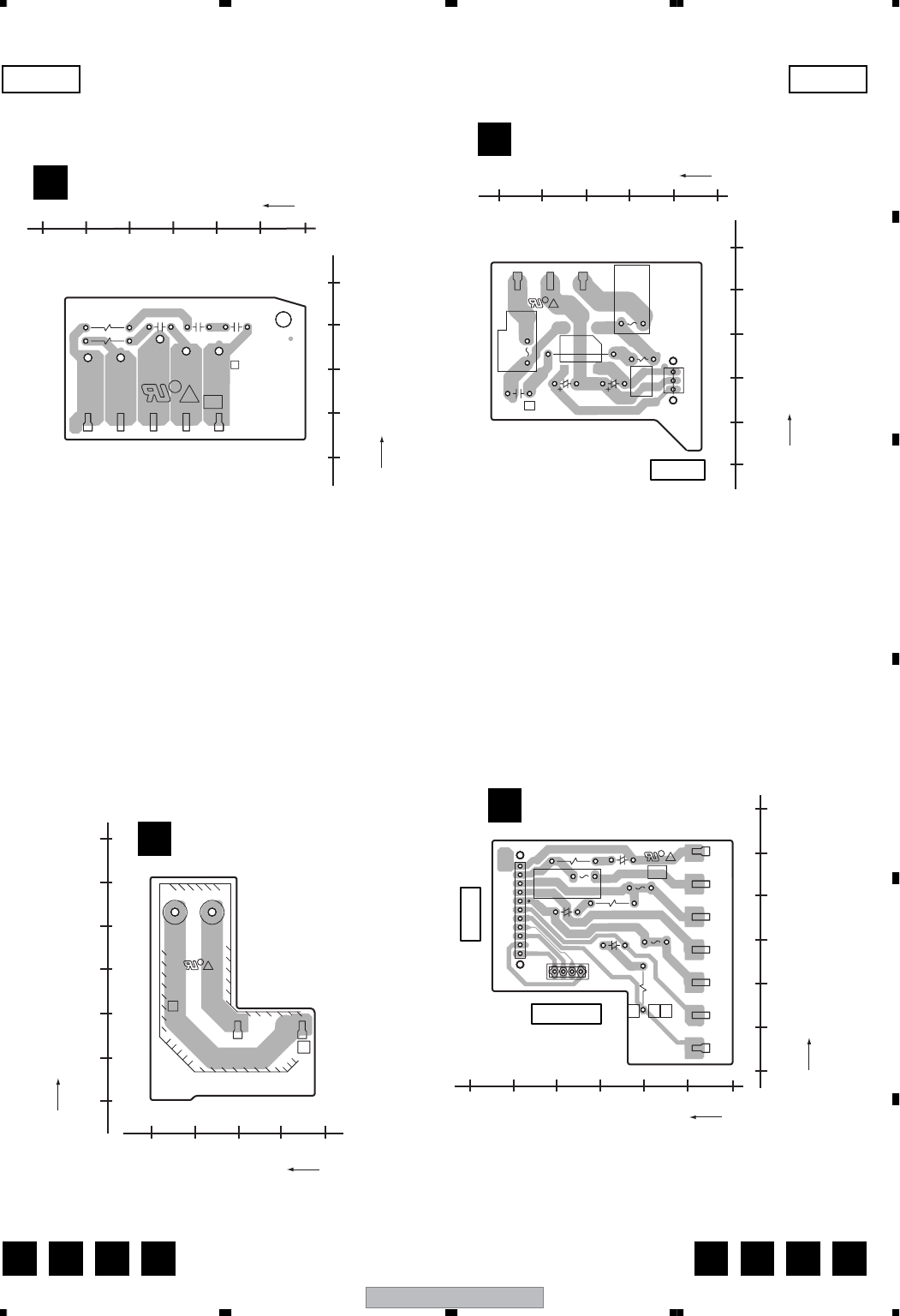

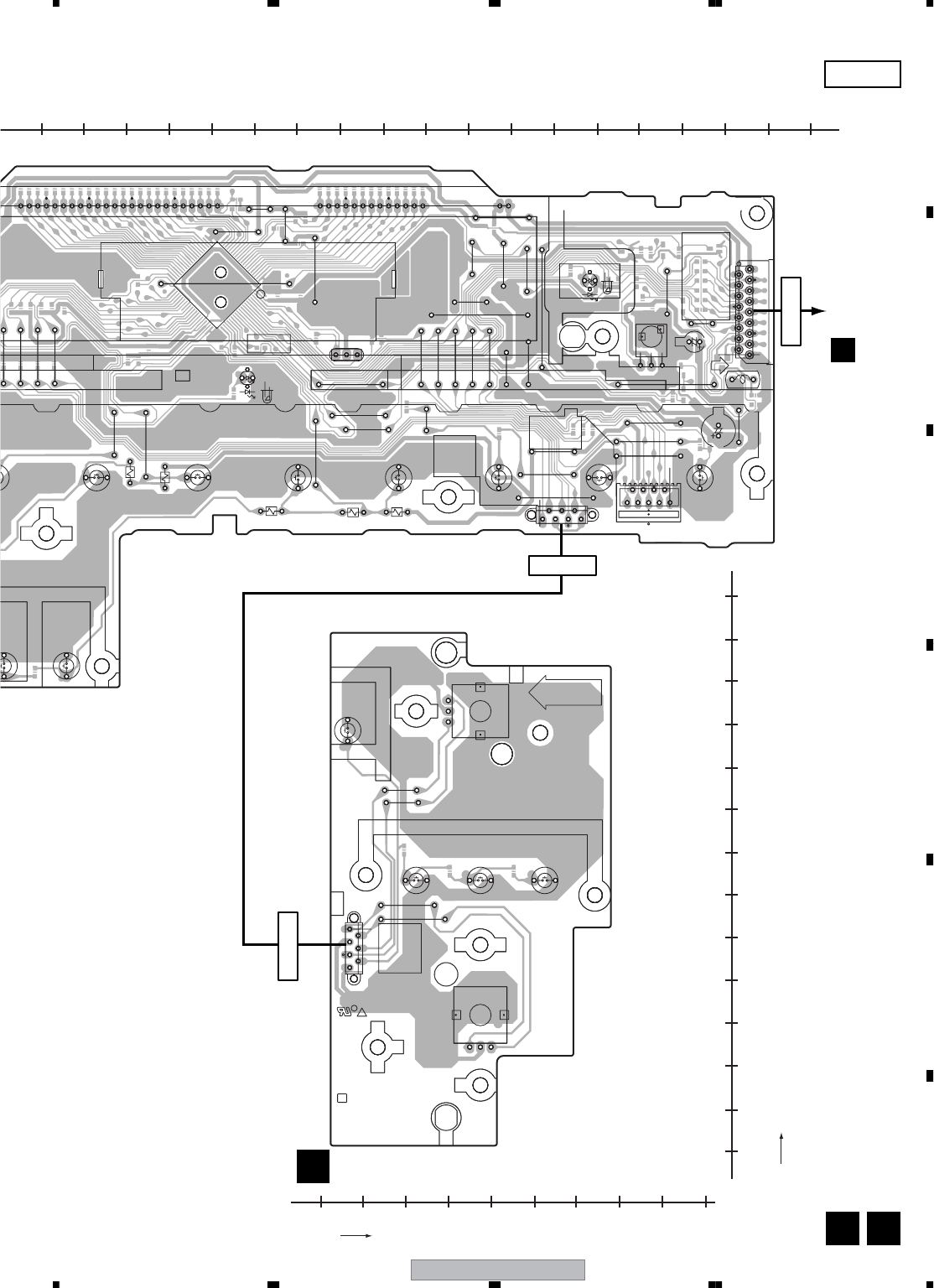

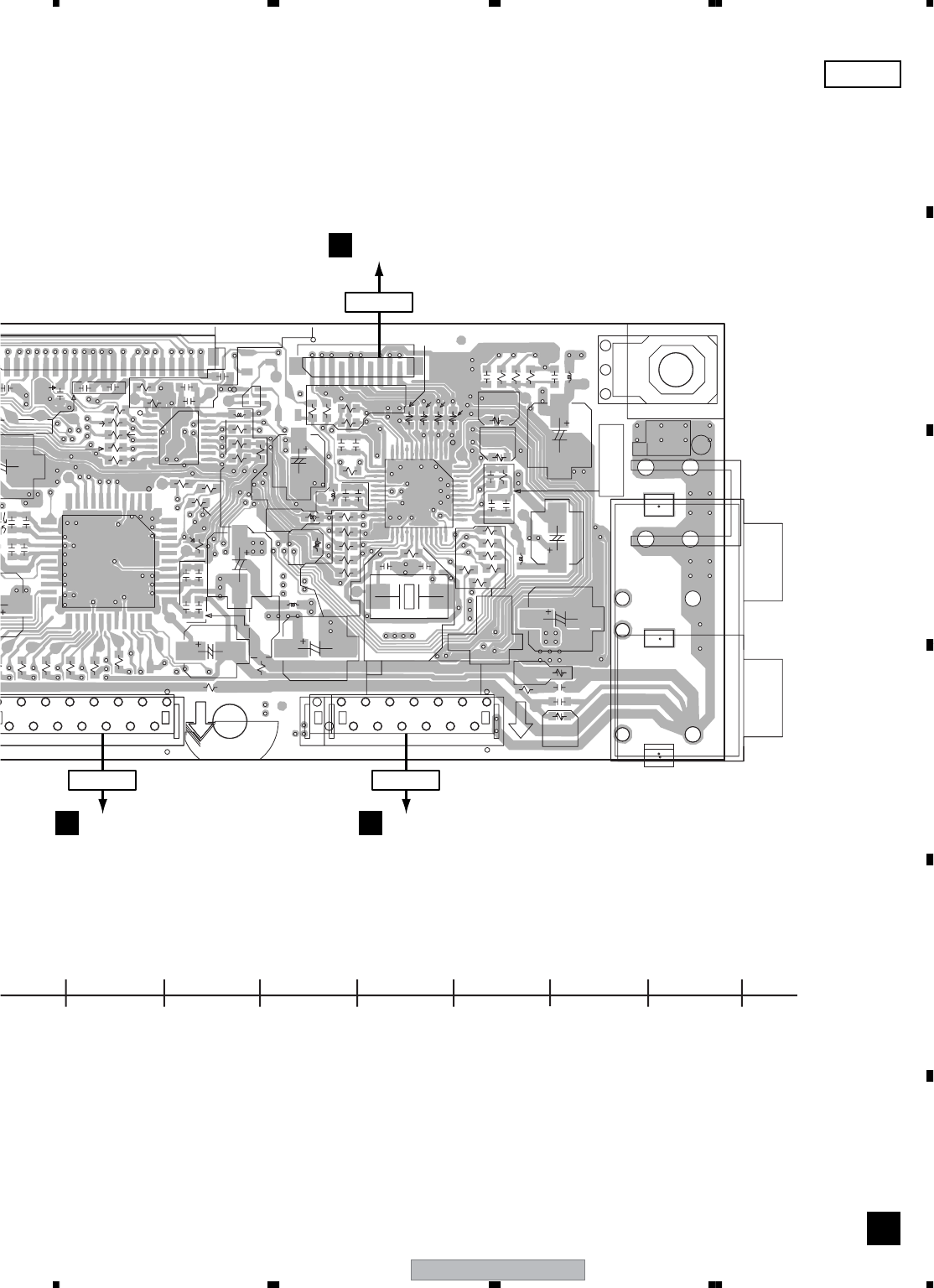

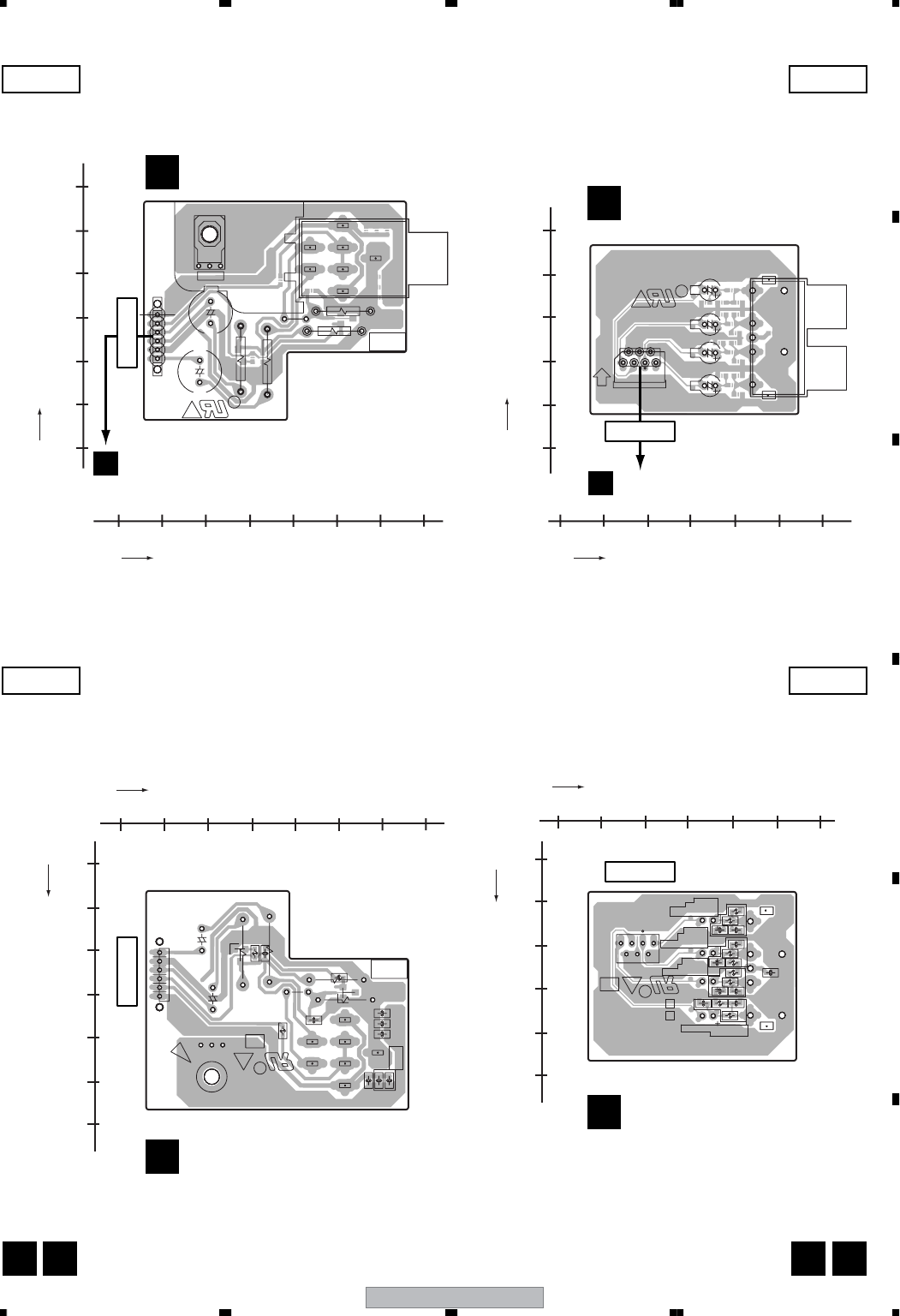

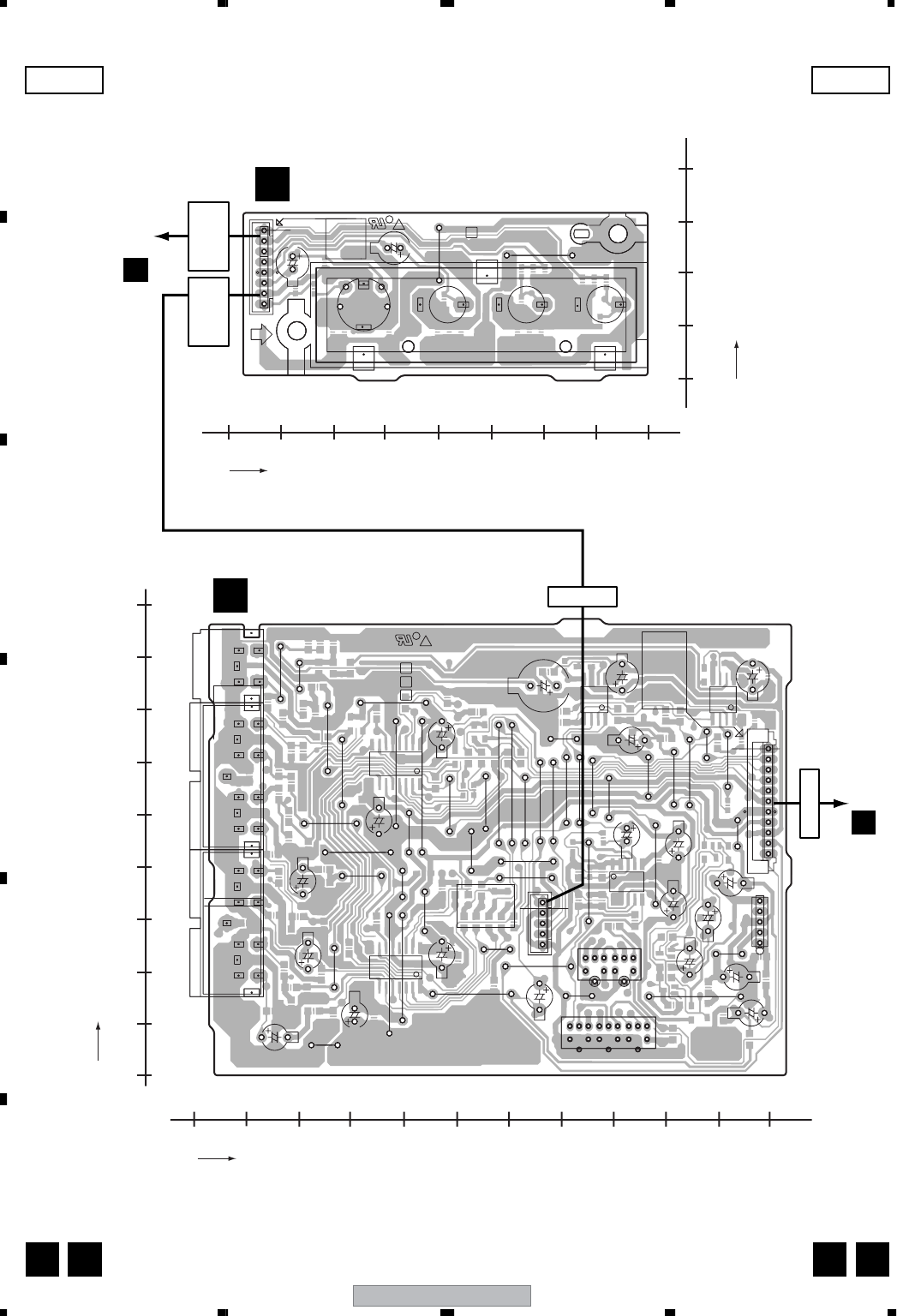

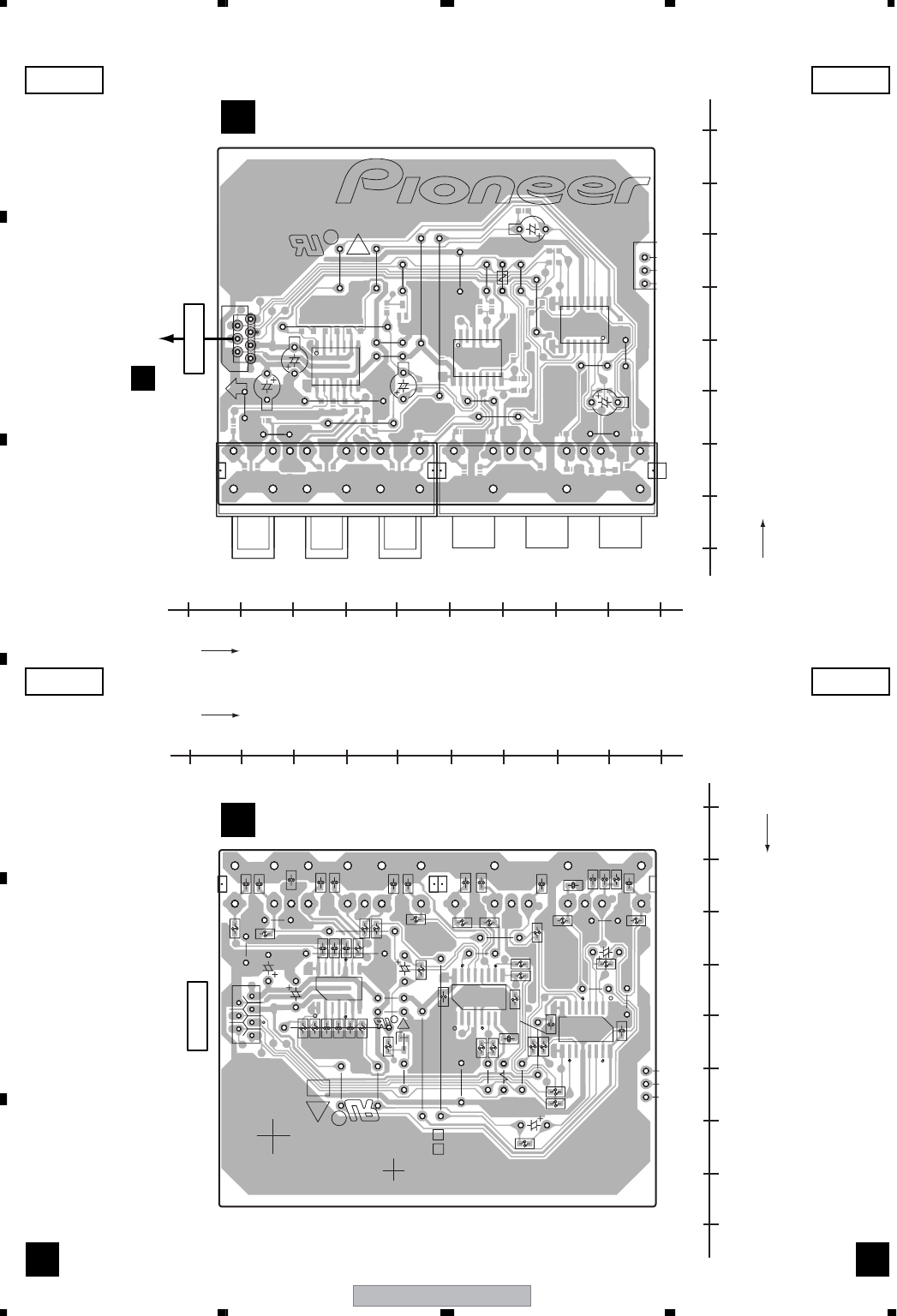

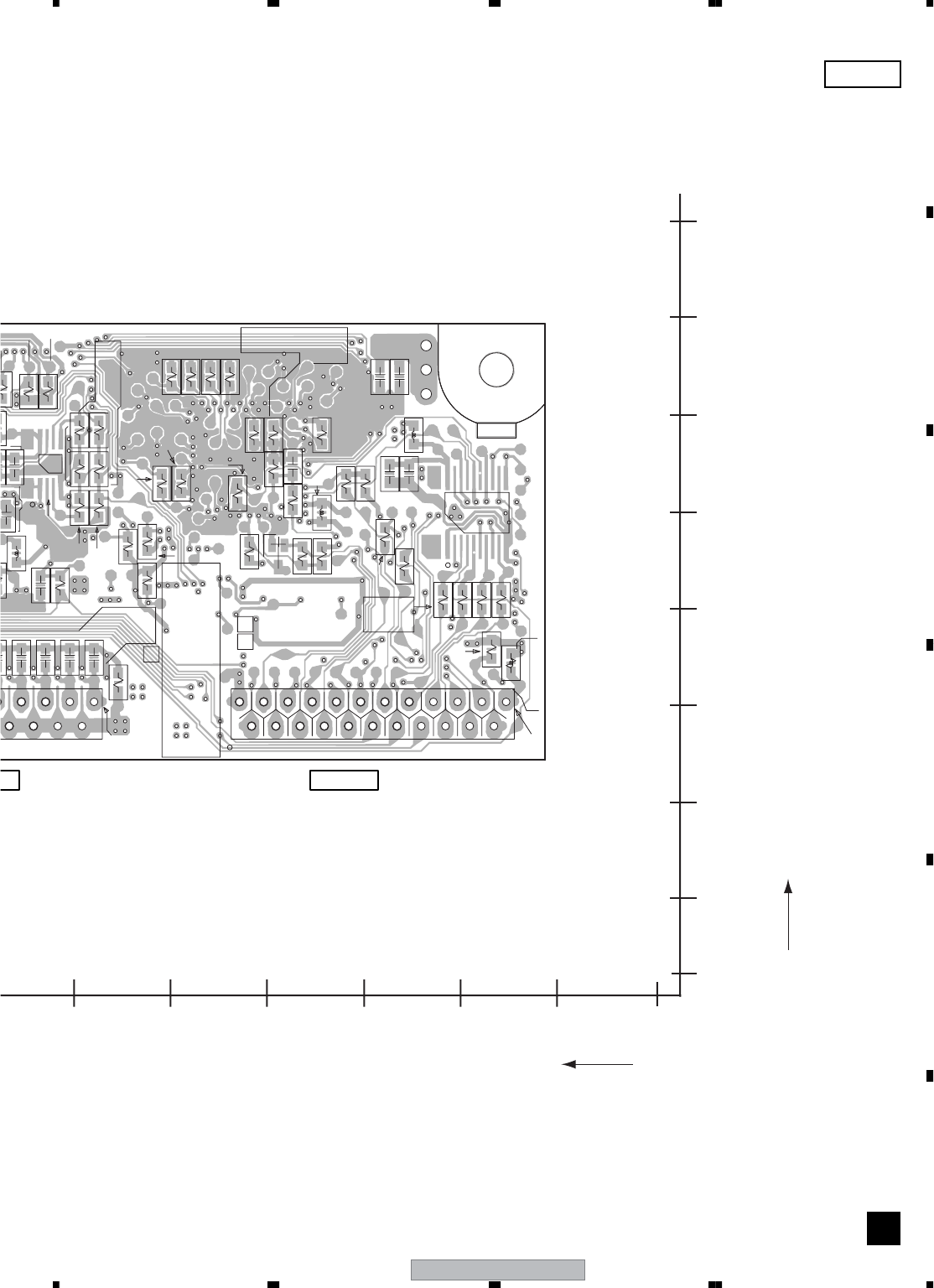

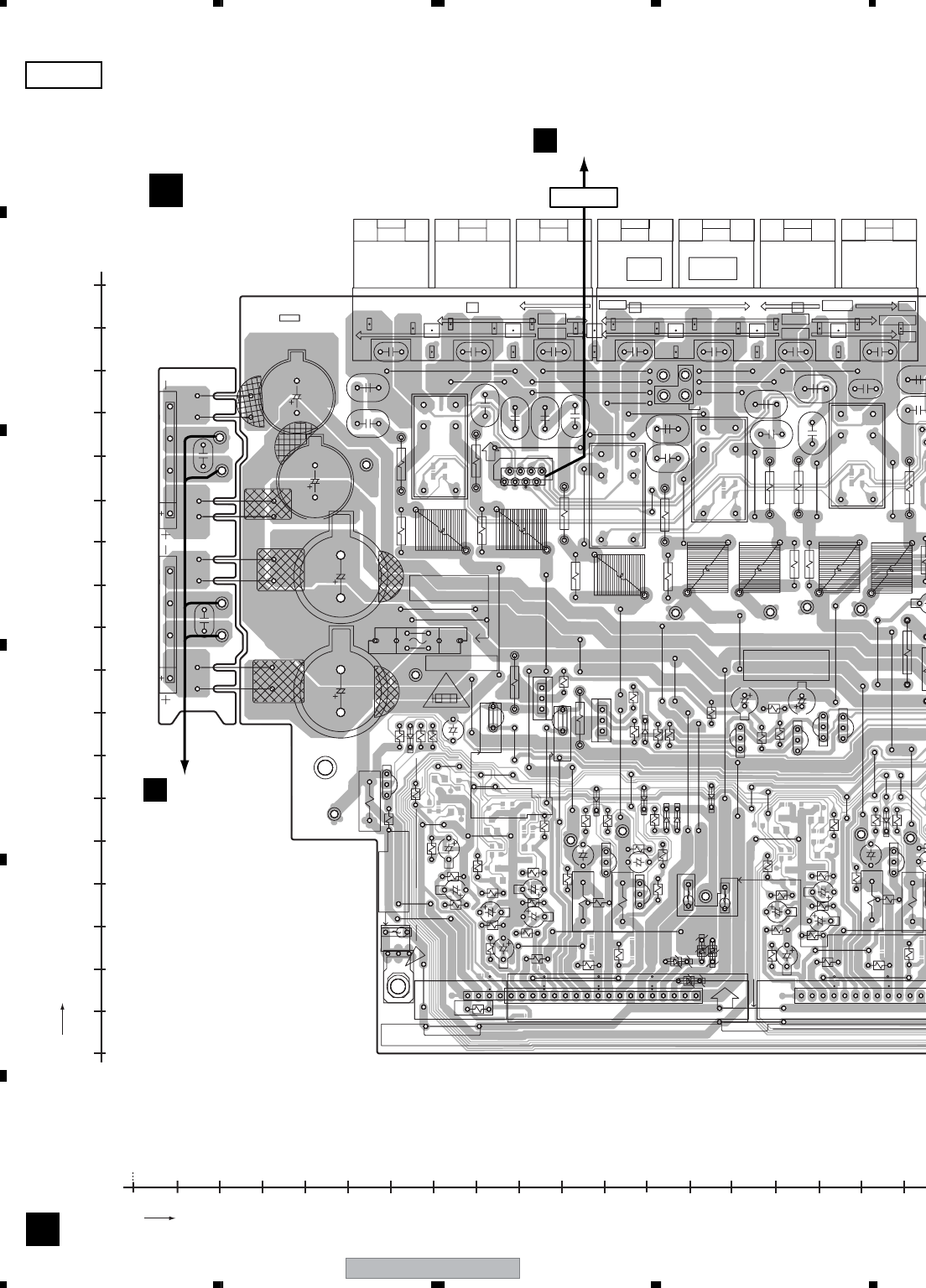

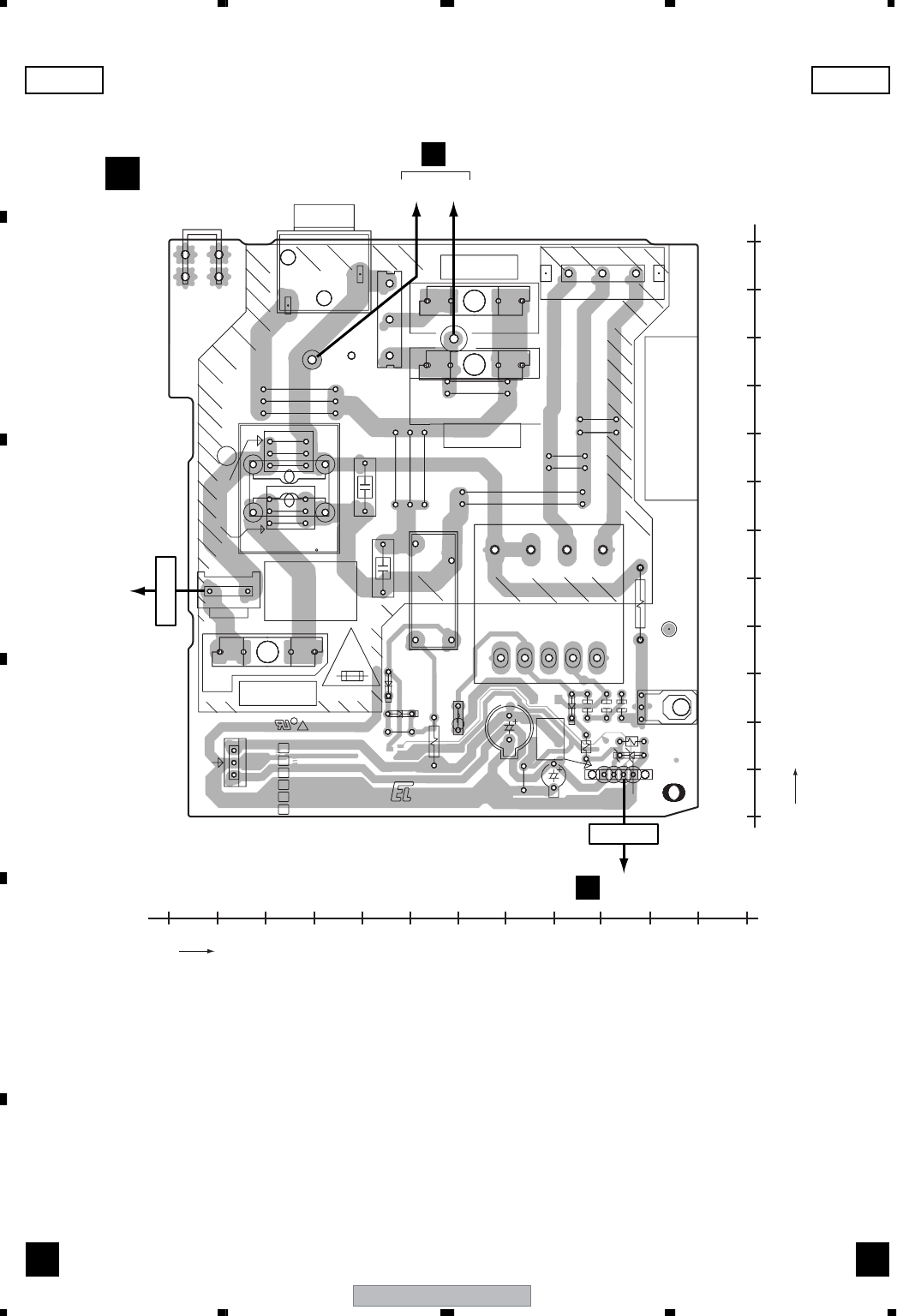

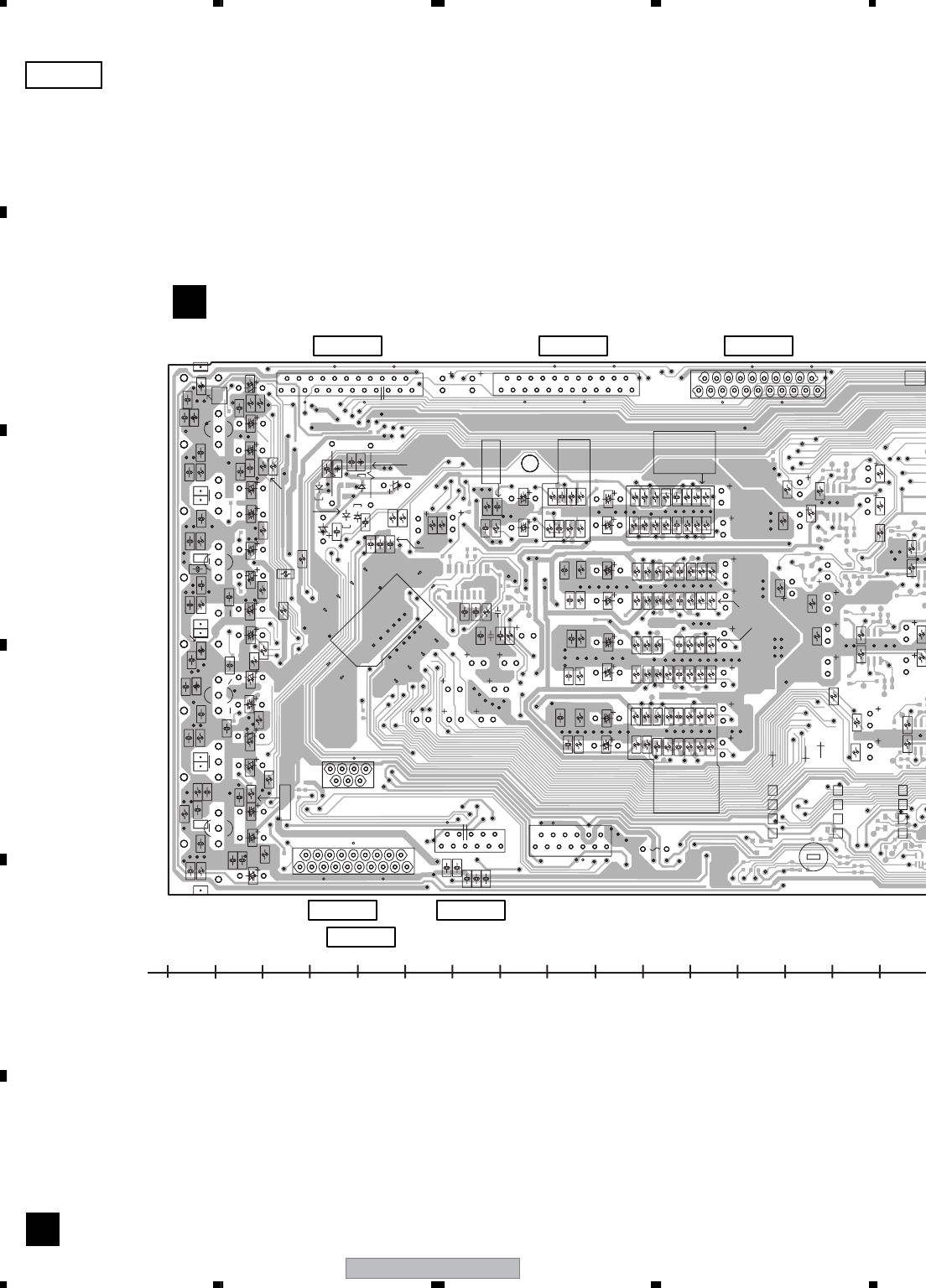

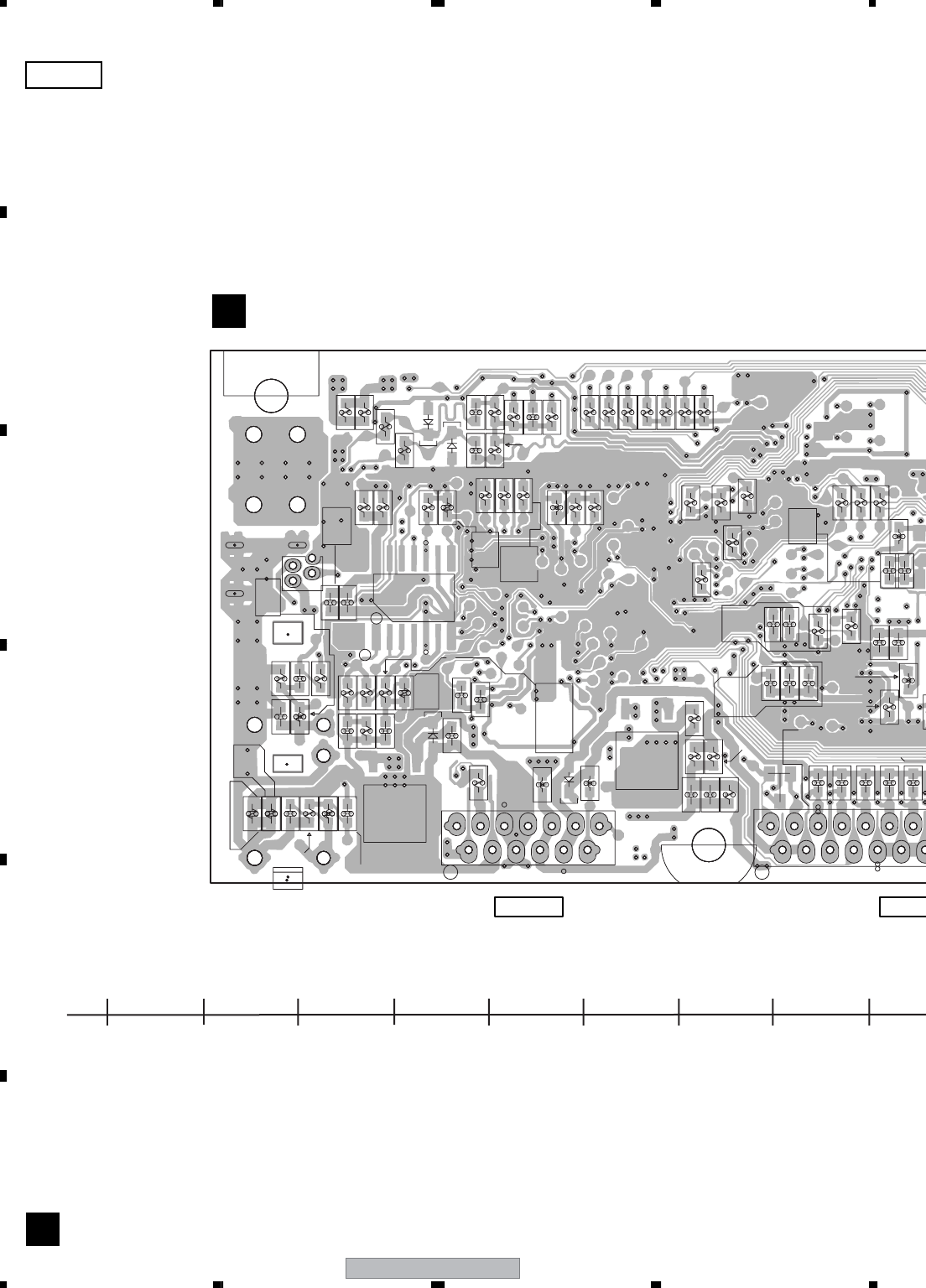

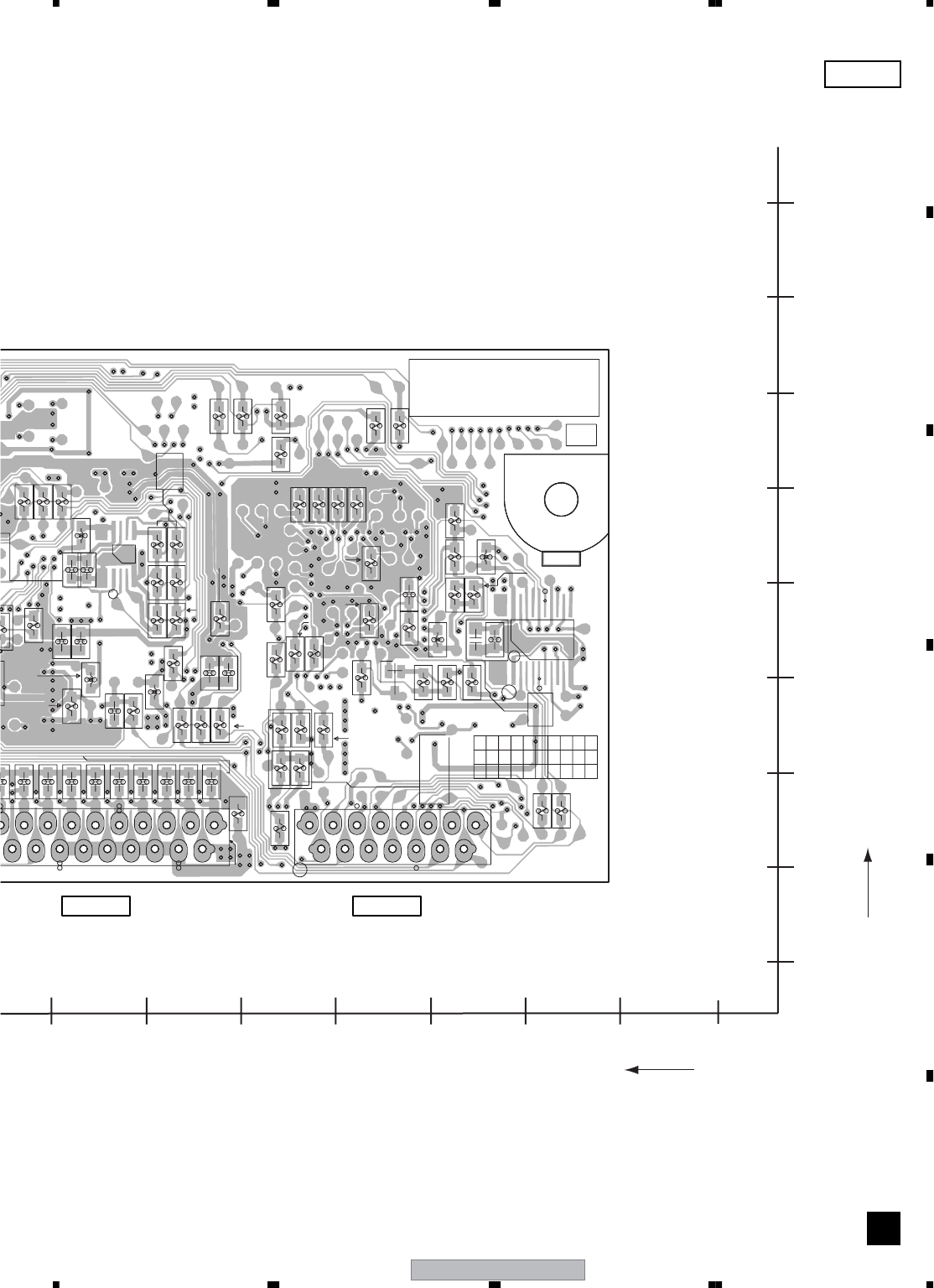

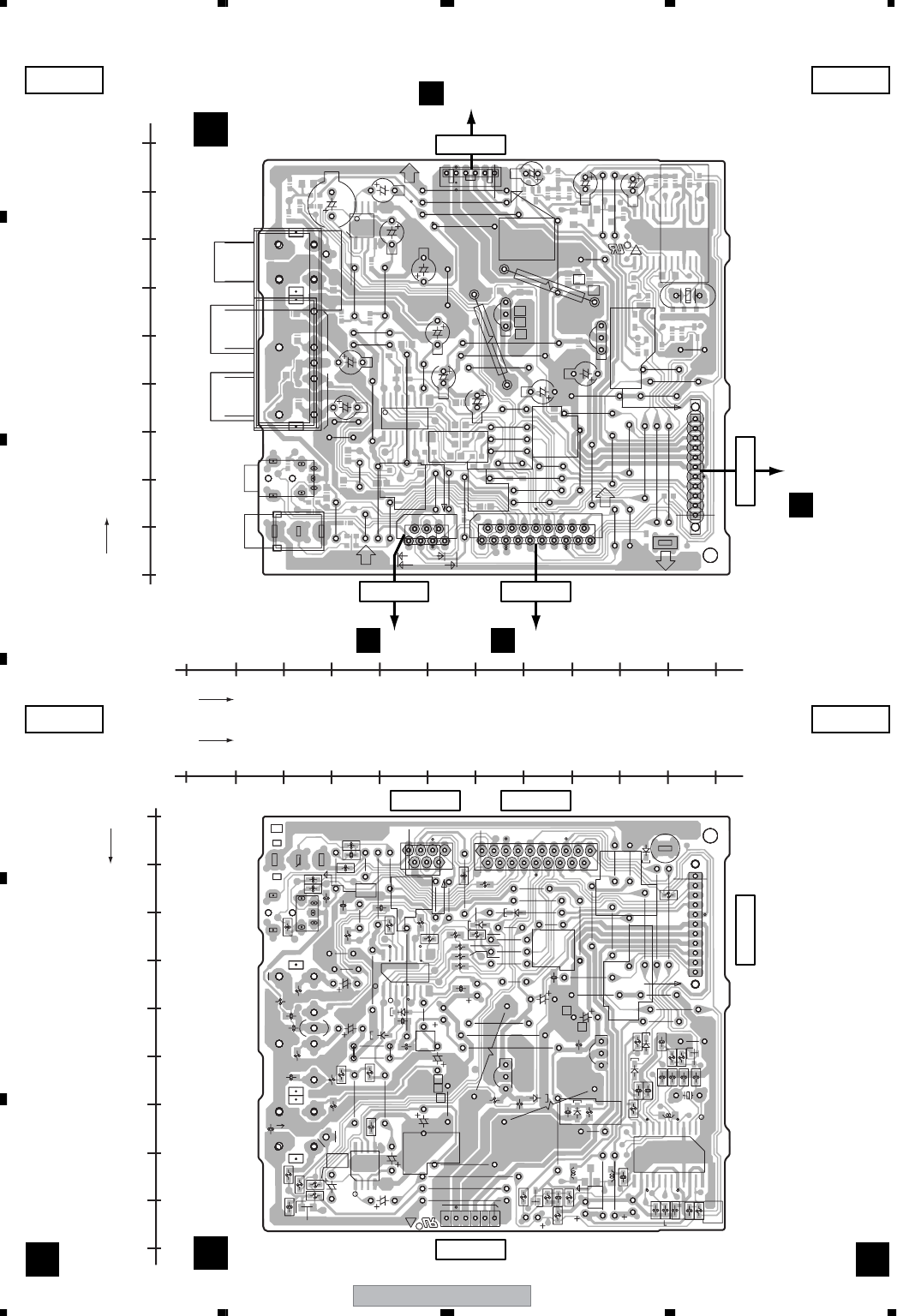

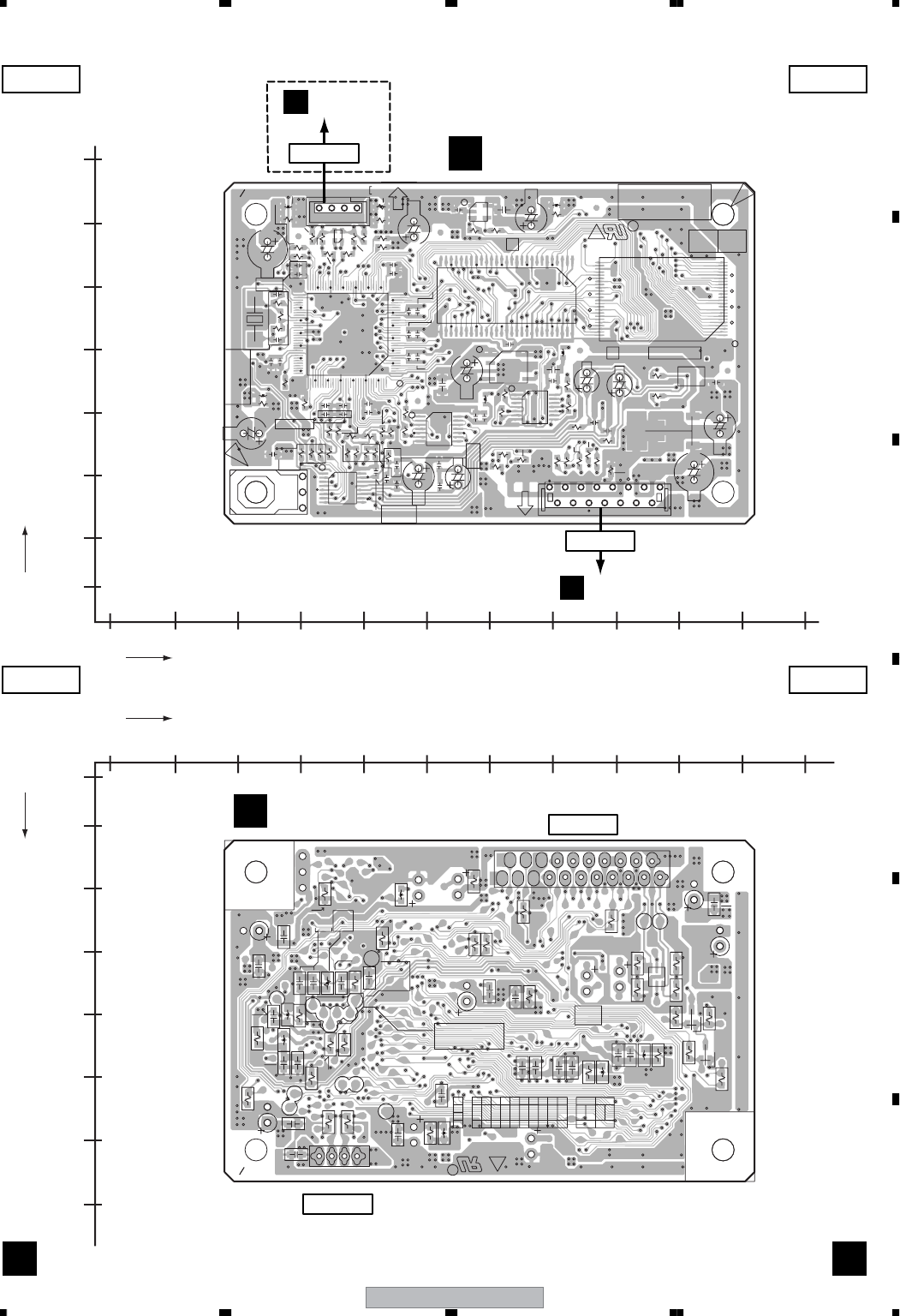

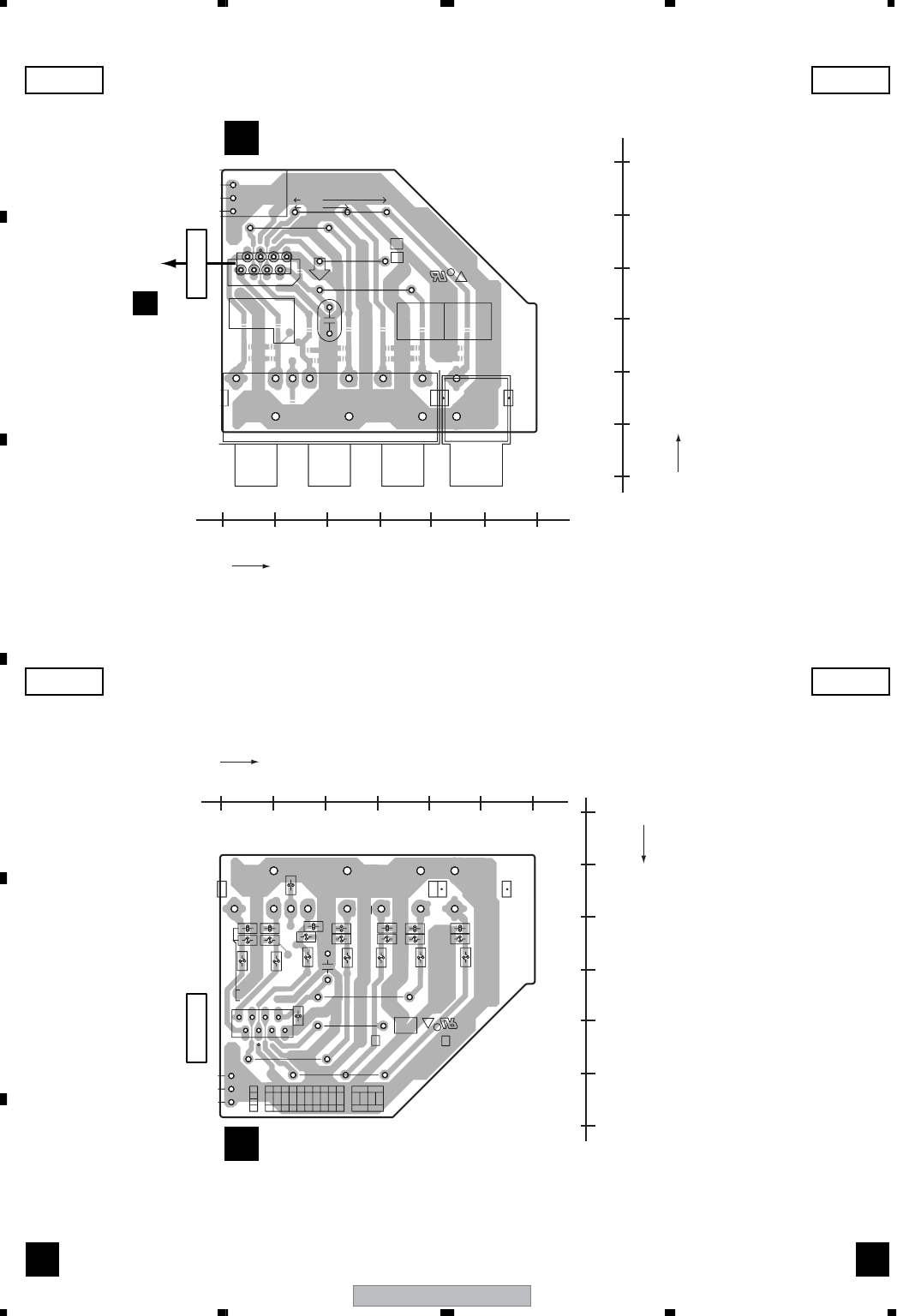

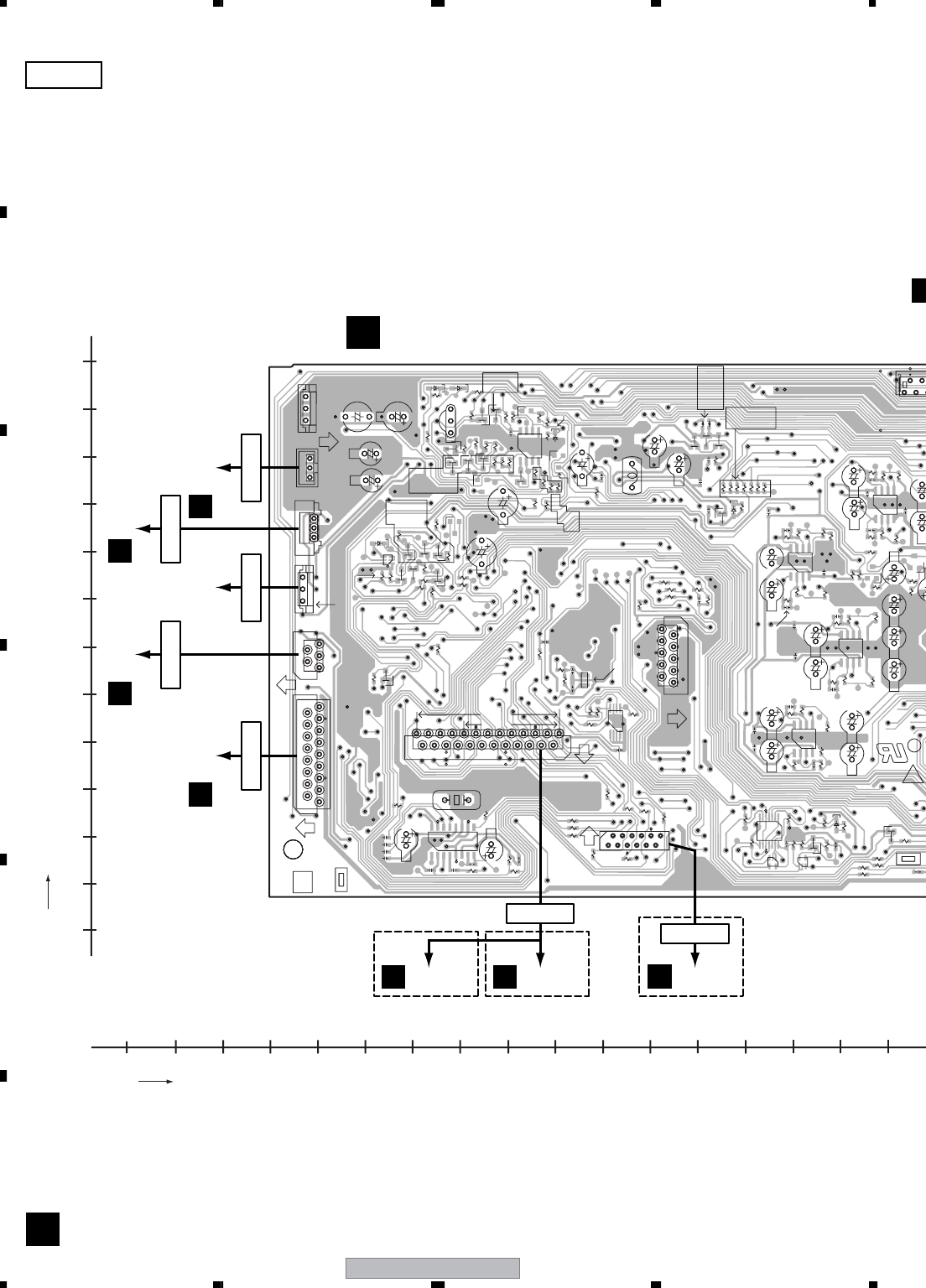

- 4. PCB CONNECTION DIAGRAM
- 4.1 USB IN ASSY
- 4.2 MAIN ASSY
- 4.3 DSP ASSY (FOR VSX-916)
- 4.4 DSP ASSY (FOR VSX-816)
- 4.5 POWER PACK ASSY
- 4.6 TRANS2, TRANS3, TRANS4 and TRANS1 ASSYS
- 4.7 COMPONENT ASSY
- 4.8 HEADPHONE and 5.1 CHIN ASSYS
- 4.9 FRONT DISPLY, R. ENCODER and POWER KEY ASSYS
- 4.10 S. VIDEO and FRONT VIDEO ASSYS
- 4.11 PRE-OUT ASSY
- 4.12 REGULATOR and DIGITAL IN ASSYS
- 4.13 PRIMARY ASSY
- 4.14 VIDEO ASSY
- 4.15 USB ASSY
- 5. PCB PARTS LIST
- 6. ADJUSTMENT
- 7. GENERAL INFORMATION
- 7.1 DIAGNOSIS

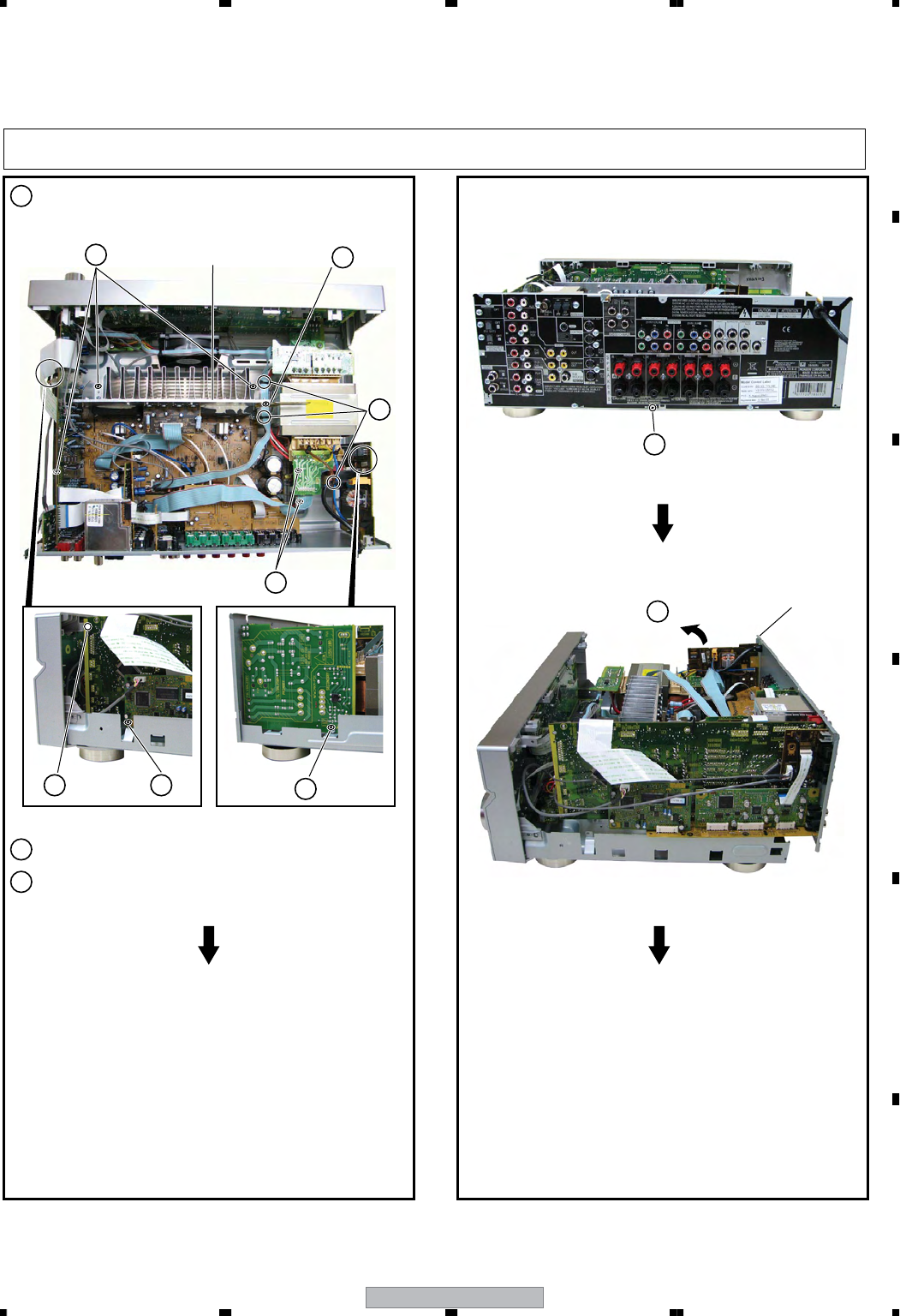

- 7.1.1 DISASSEMBLY
- 7.2 PARTS

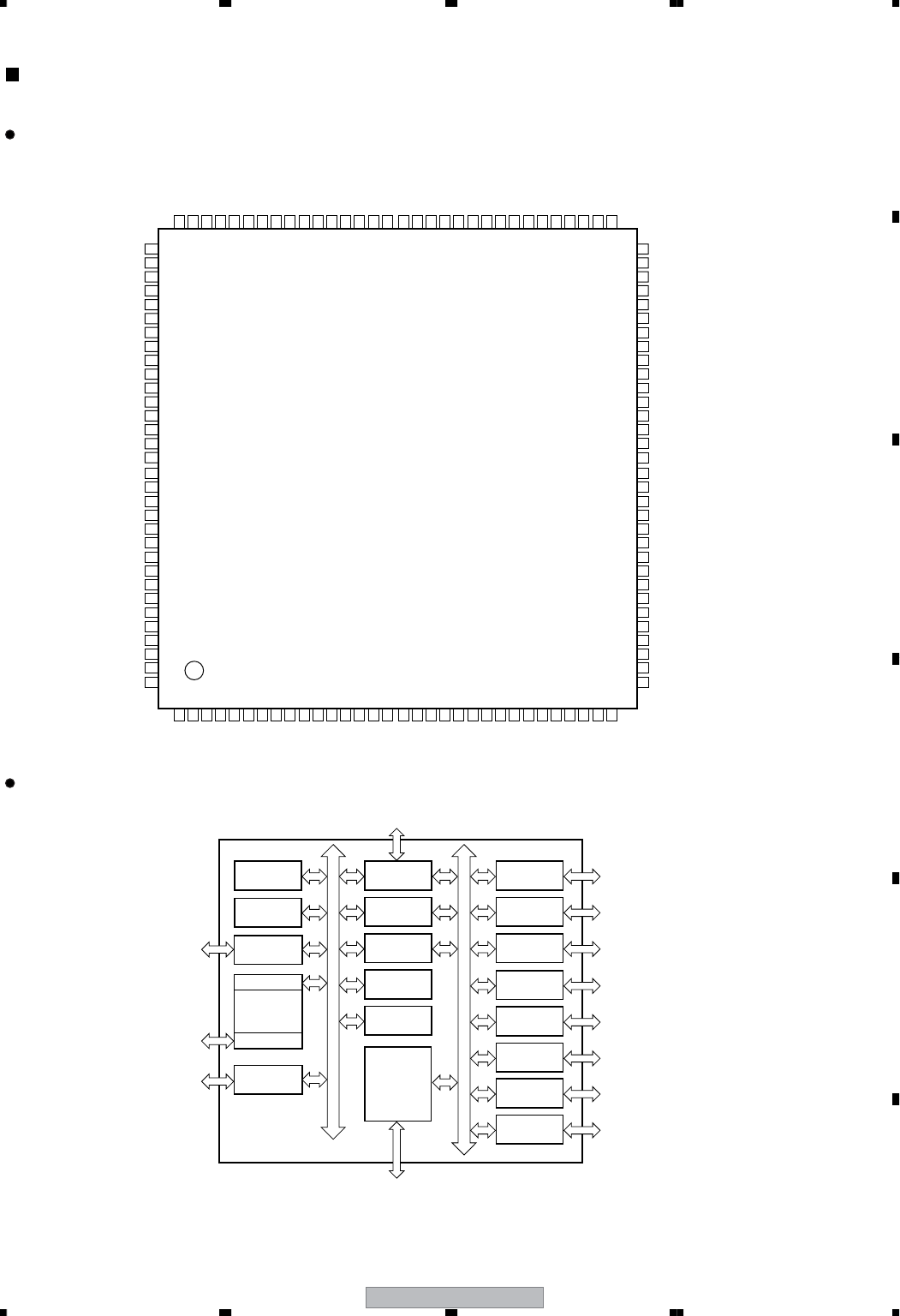

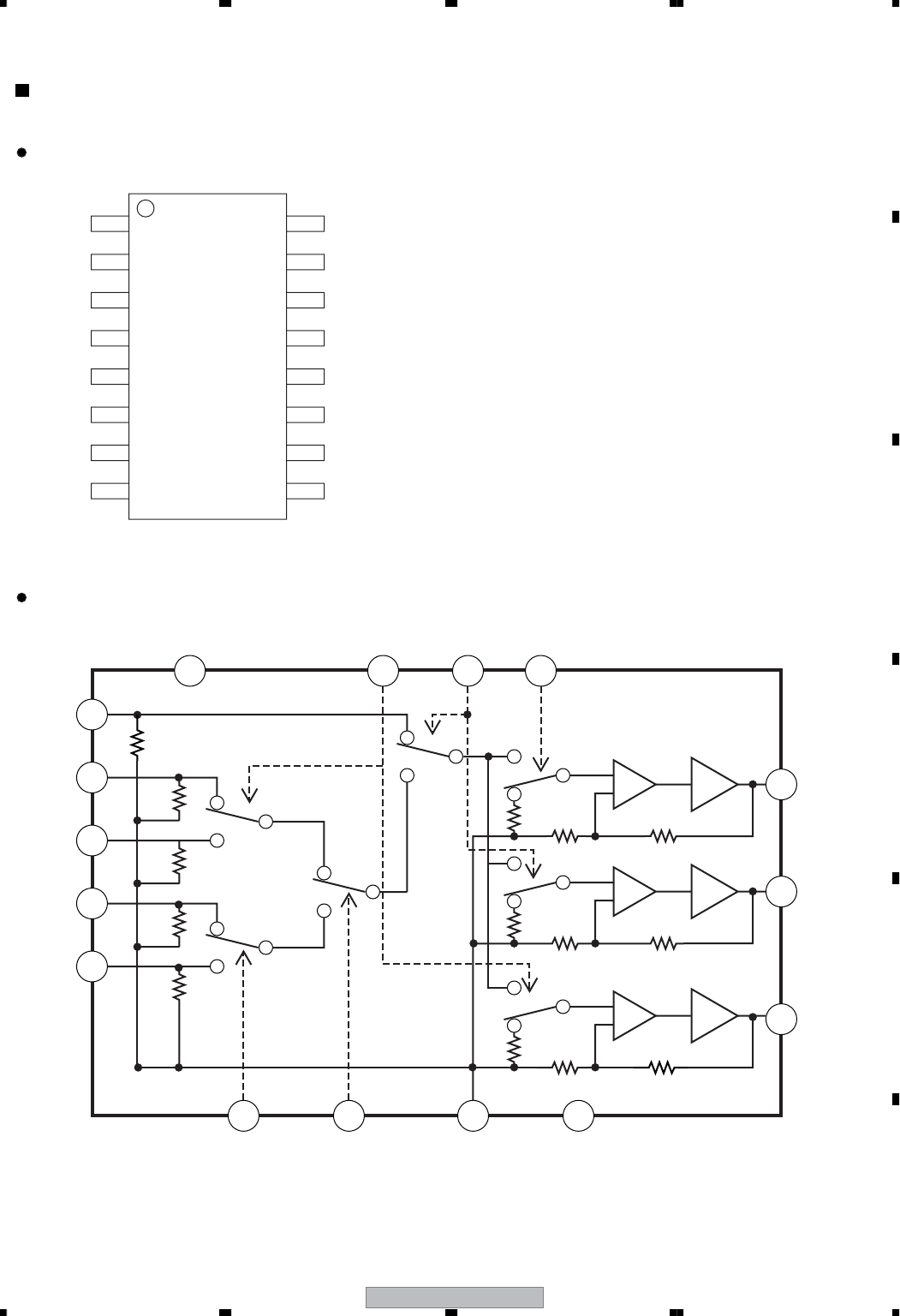

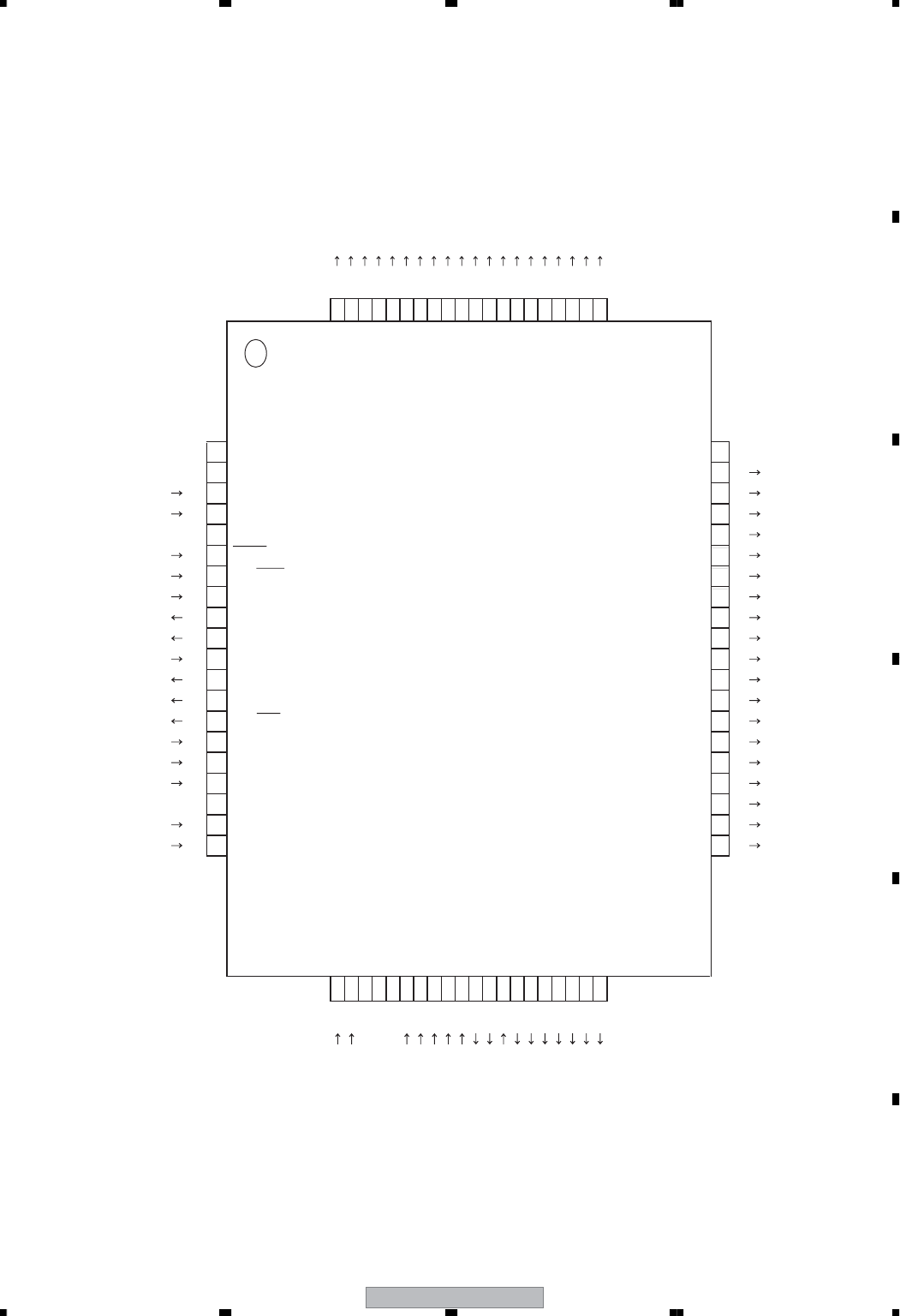

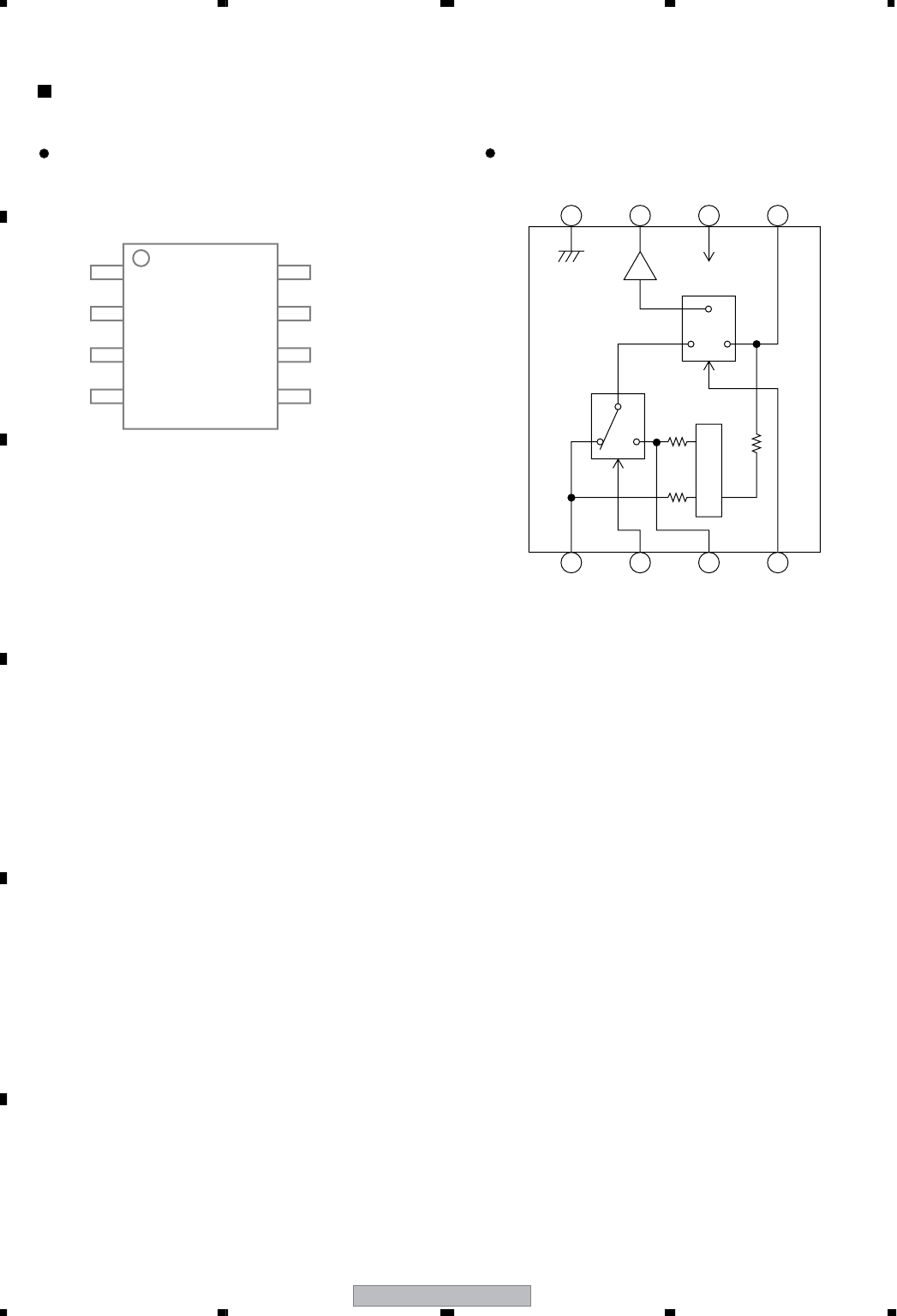

- 7.2.1 IC
- 7.3 EXPLANATION

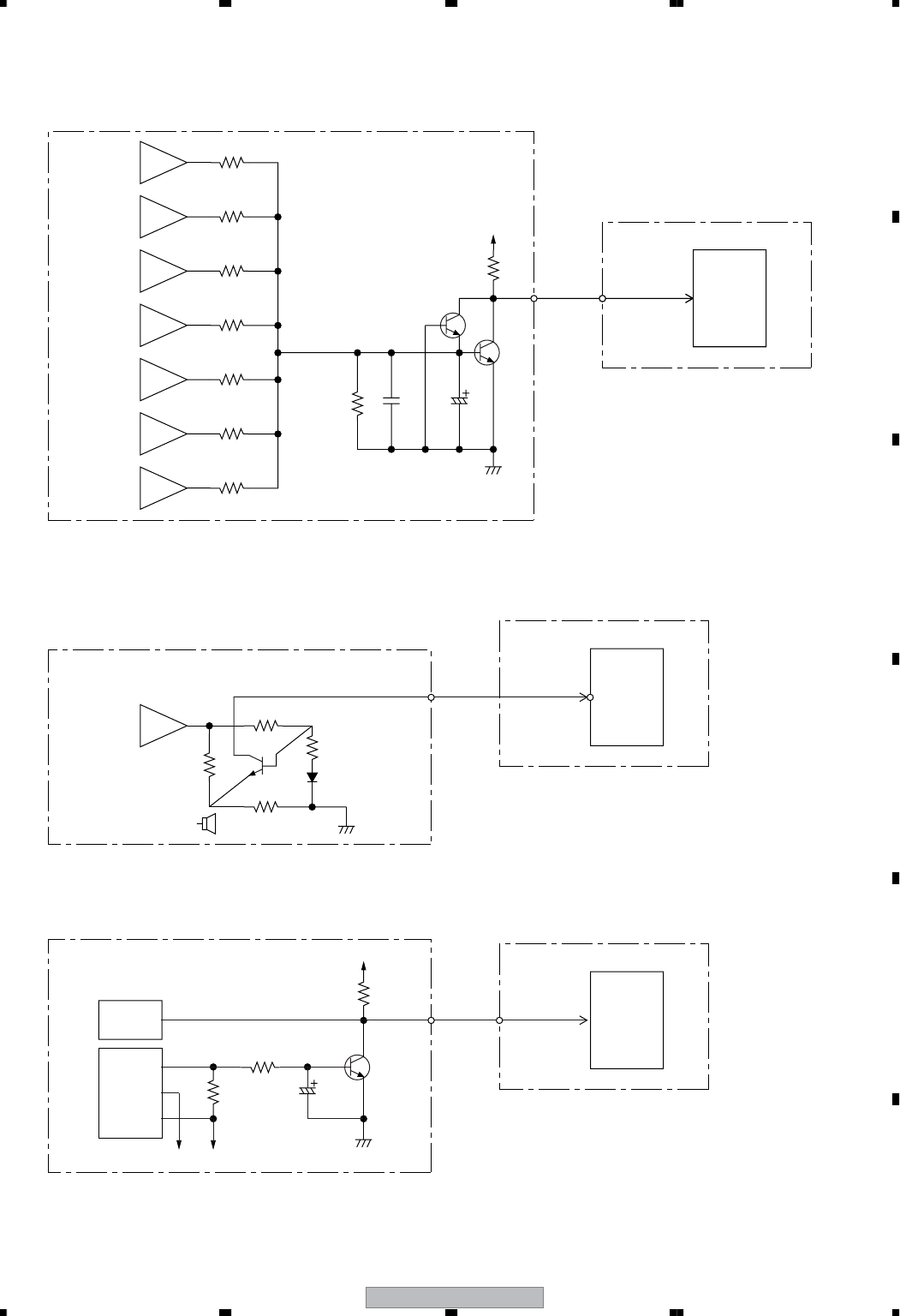

- 7.3.1 DETECTION CIRCUIT
- 7.3.2 AMPLIFIER SYSTEM PROTECTION OPERATION SPECIFICATION

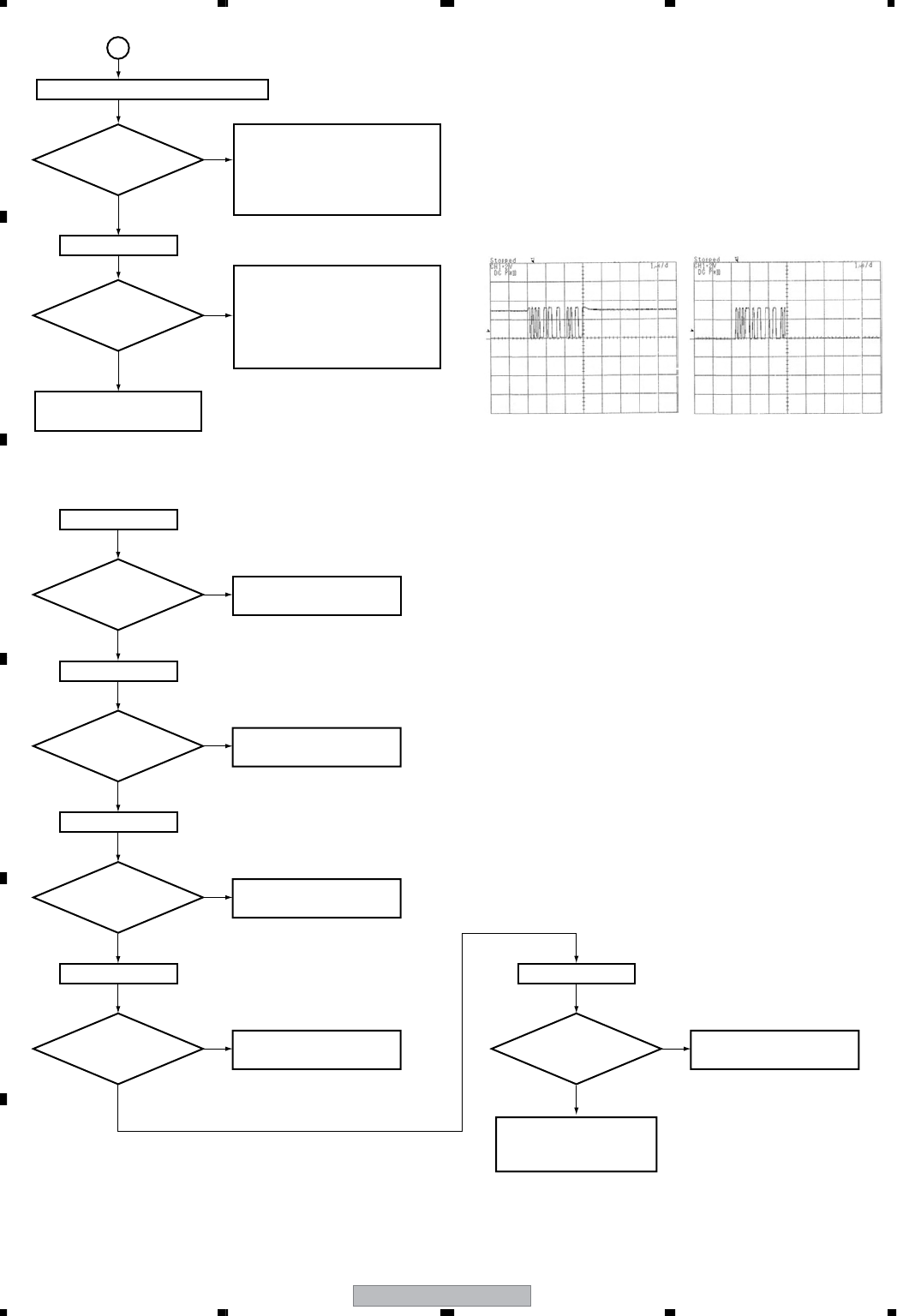

- 7.3.3 AMPLIFIER FAILURE DIAGNOSIS FLOW CHART
- 7.3.4 USB Module

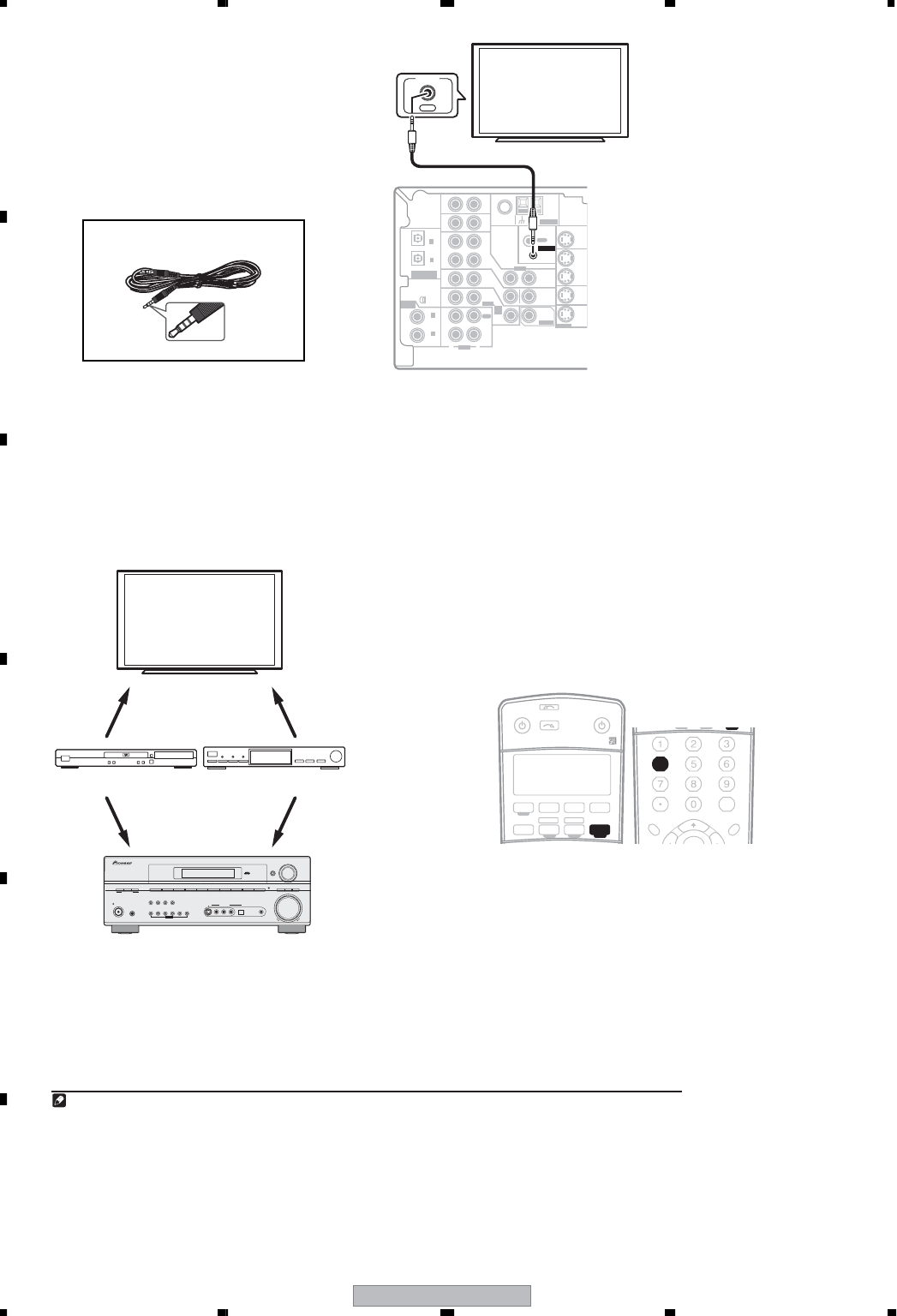

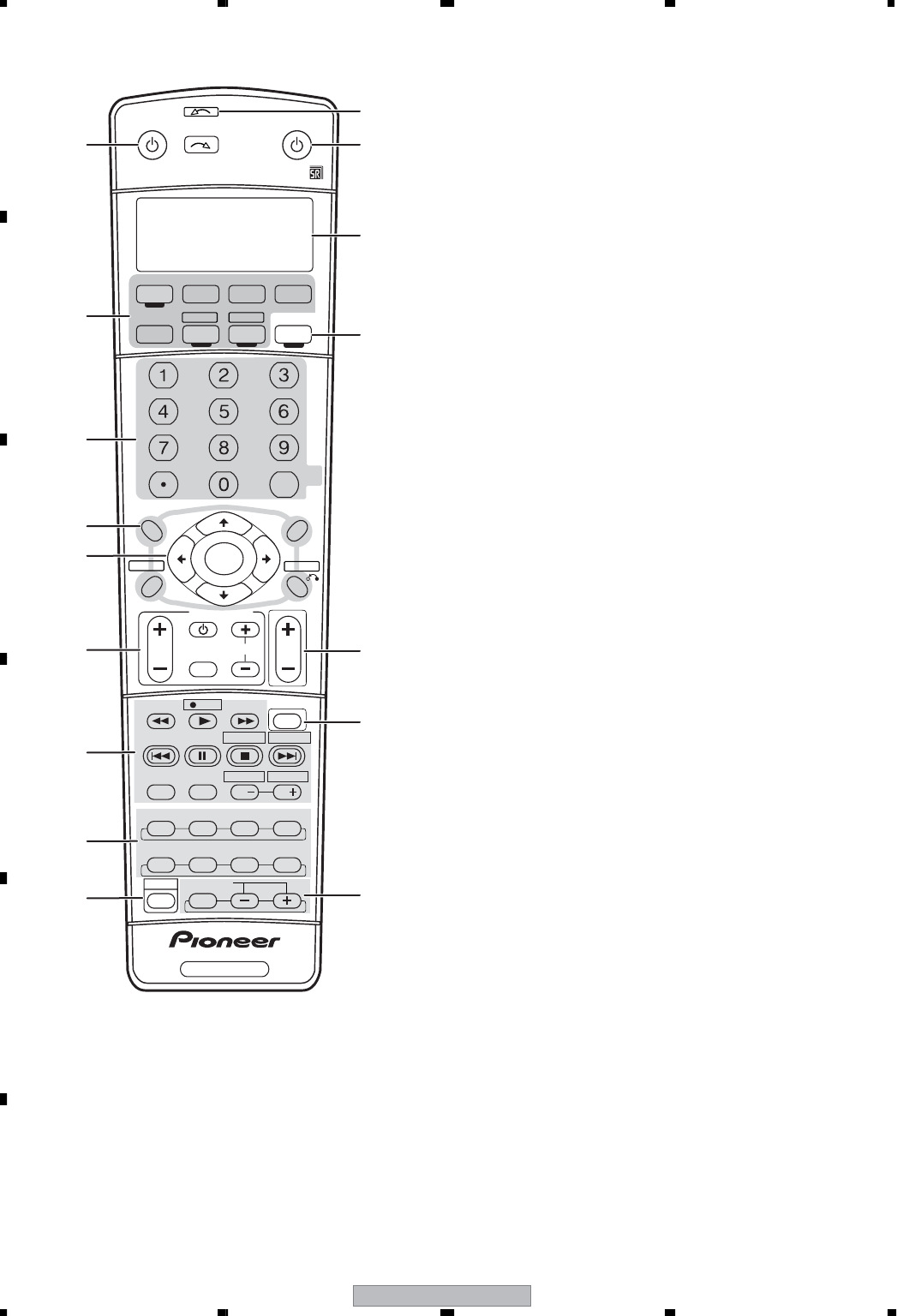

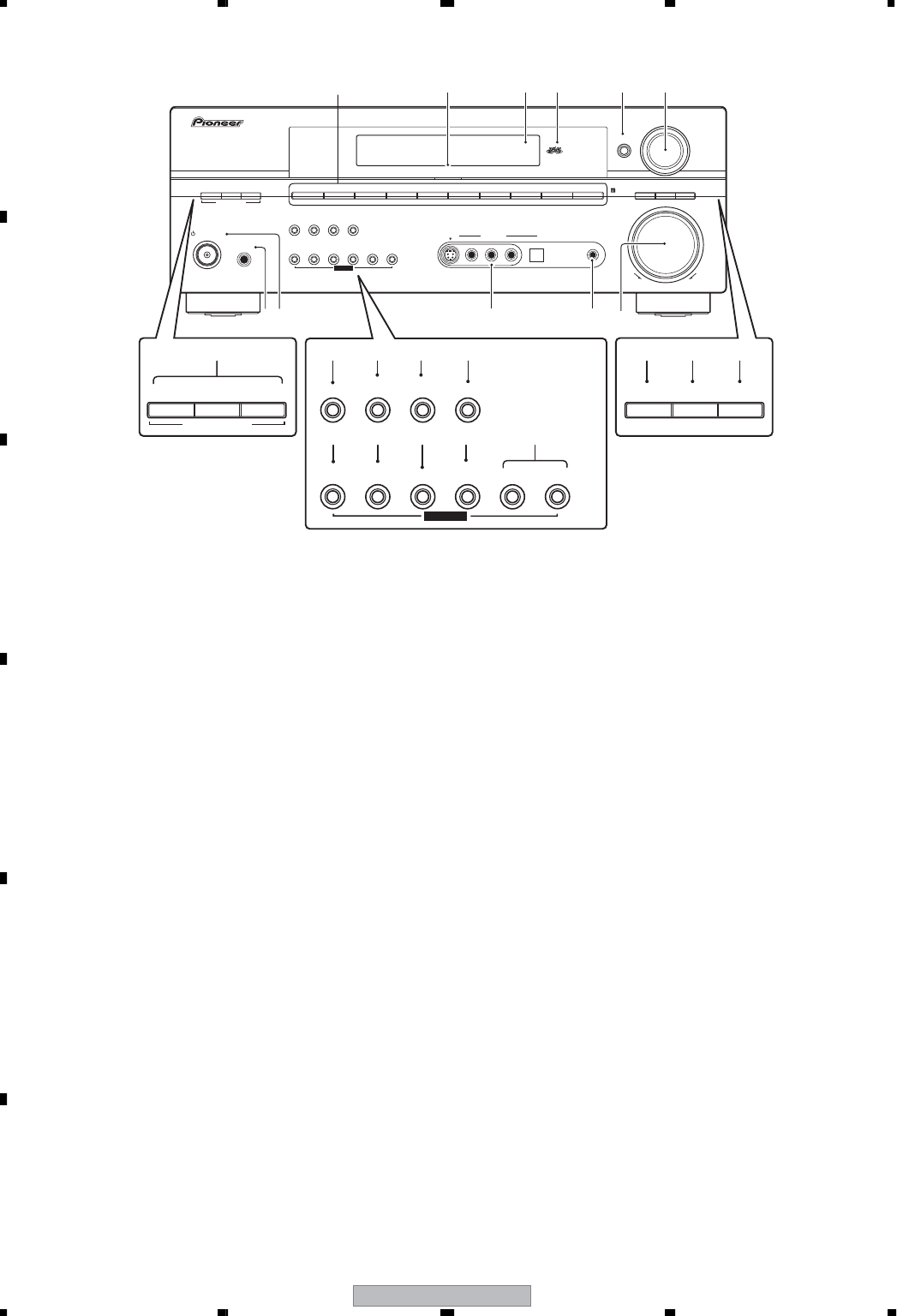

- 8. PANEL FACILITIES
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2006
UPDOWN
MULTI JOG
MASTER
VOLUME
ENTER
AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-816
STANDBY/ON
PHONES
DVD/LD TV/SAT DVR/VCR VIDEO CD CD-R/TAPE/MD FM AM
STANDARD
MIDNIGHT/
LOUDNESS
ADVANCED
SURR
ST/DIRECT/
AUTO SURR
LISTENING MODE
QUICK
SETUP SETUP RETURN
TUNING/
STATION TONE
ANALOG
ATT SPEAKERS
TUNER
EDIT
DIMMER
MULTI JOG
XM
MCACC
SETUP MIC
DIGITAL INAUDIO RLVIDEO
VIDEO INPUT
S-VIDEO
AUX SIGNAL
SELECT
SB ch
PROCESSING
ACOUSTIC
EQ
DIGITAL PRECISION
PROCESSING
DIGITAL PRECISION
PROCESSING
VSX-816-K
RRV3328
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-816-K
VSX-816-S
VSX-916-K
VSX-916-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWINGMODEL(S) AND TYPE(S).
Model Type Power Requirement Remarks
VSX-816-K KUXJ/CA AC 120 V
VSX-816-S KUXJ/CA AC 120 V
VSX-916-K MYXJ5 AC 220 V to 230 V
VSX-916-S MYXJ5 AC 220 V to 230 V
For details, refer to "Important Check Points for Good Servicing".
T-ZZK MAY 2006 printed in Japan
VSX-816-K
2
1234
1234
C
D
F
A
B
E
SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que
les pièces de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.

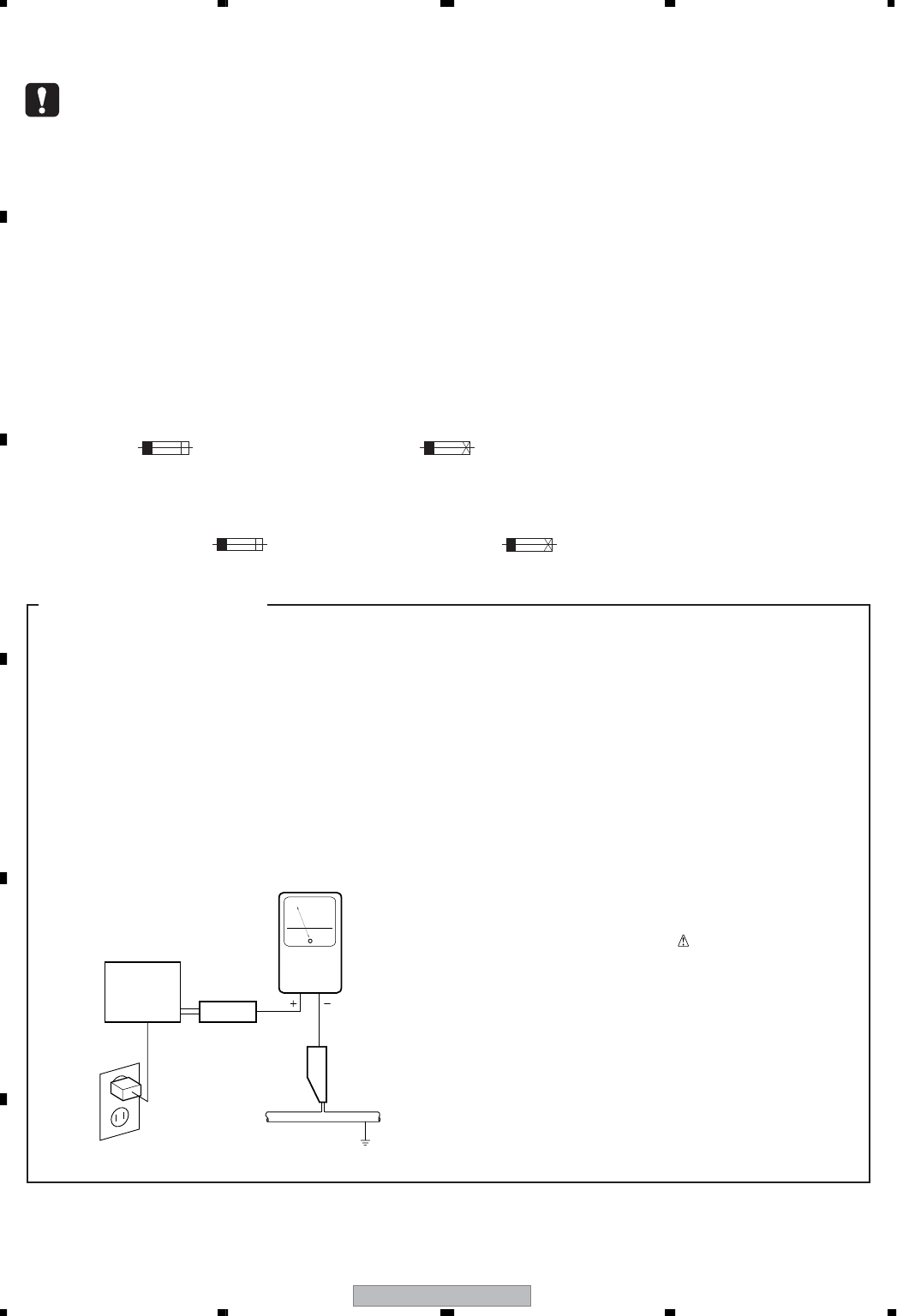

LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Device
under
test
Leakage
current
tester
Earth
ground
Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)
Test all
exposed metal
surfaces
AC Leakage Test
VSX-816-K 3
5678
5678
C
D
F
A
B
E
[Important Check Points for Good Servicing]
In this manual, procedures that must be performed during repairs are marked with the below symbol.
Please be sure to confirm and follow these procedures.
1. Product safety
Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by
following the safety instructions described in this manual.
1 Use specified parts for repair.
Use genuine parts. Be sure to use important parts for safety.
2 Do not perform modifications without proper instructions.
Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as
radio/TV interference and foreign noise.
3 Make sure the soldering of repaired locations is properly performed.
When you solder while repairing, please be sure that there are no cold solder and other debris.
Soldering should be finished with the proper quantity. (Refer to the example)
4 Make sure the screws are tightly fastened.
Please be sure that all screws are fastened, and that there are no loose screws.
5 Make sure each connectors are correctly inserted.
Please be sure that all connectors are inserted, and that there are no imperfect insertion.
6 Make sure the wiring cables are set to their original state.
Please replace the wiring and cables to the original state after repairs.
In addition, be sure that there are no pinched wires, etc.
7 Make sure screws and soldering scraps do not remain inside the product.
Please check that neither solder debris nor screws remain inside the product.
8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.
Damaged power cords may lead to fire accidents, so please be sure that there are no damages.
If you find a damaged power cord, please exchange it with a suitable one.
9 There should be no spark traces or similar marks on the power plug.
When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure
connections and suitable usage. Please exchange the power cord if necessary.
0 Safe environment should be secured during servicing.
When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries.
Please pay attention to your surroundings and repair safely.
2. Adjustments
To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.
Adjustments should be performed in accordance with the procedures/instructions described in this manual.
4. Cleaning
For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper
cleaning should be performed to restore their performances.
3. Lubricants, Glues, and Replacement parts
Use grease and adhesives that are equal to the specified substance.
Make sure the proper amount is applied.
5. Shipping mode and Shipping screws
To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be
installed before shipment. Please be sure to follow this method especially if it is specified in this manual.
VSX-816-K
4
1234
1234
C
D
F
A
B
E
CONTENTS
SAFETY INFORMATION..................................................................................................................................... 2
1. SPECIFICATIONS ............................................................................................................................................ 5
2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 6
2.1 PACKING ................................................................................................................................................... 6
2.2 EXTERIOR SECTION................................................................................................................................ 8
2.3 FRONT PANEL SECTION ....................................................................................................................... 10
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..........................................................................................12
3.1 BLOCK DIAGRAM ................................................................................................................................... 12
3.2 OVERALL WIRING CONNECTION DIAGRAM........................................................................................ 14
3.3 MAIN ASSY (1/3) ..................................................................................................................................... 16
3.4 MAIN ASSY (2/3) ..................................................................................................................................... 18
3.5 MAIN ASSY (3/3) ..................................................................................................................................... 20
3.6 DSP ASSY (1/2) (for VSX-816)................................................................................................................ 22
3.7 DSP ASSY (2/2) (for VSX-816)................................................................................................................ 24
3.8 DSP ASSY (1/2) (for VSX-916)................................................................................................................ 26
3.9 DSP ASSY (2/2) (for VSX-916)................................................................................................................ 28
3.10 POWER PACK (1/2), TRANS 2 and TRANS 3 ASSYS.......................................................................... 30
3.11 POWER PACK ASSY (2/2) .................................................................................................................... 32
3.12 COMPONENT ASSY ............................................................................................................................. 34
3.13 HEADPHONE, PRE-OUT and 5.1CHIN ASSYS ................................................................................... 35
3.14 FRONT DISPLAY, R. ENCODER and POWER KEY ASSYS ................................................................ 36
3.15 S. VIDEO, TRANS 4 and REGULATOR ASSYS .................................................................................... 38
3.16 VIDEO, DIGITAL IN, FRONT VIDEO, PRIMARY and TRANS 1 ASSYS................................................ 40
3.17 USB ASSY ............................................................................................................................................. 42
3.18 USB IN ASSY ........................................................................................................................................ 44
4. PCB CONNECTION DIAGRAM ..................................................................................................................... 46
4.1 USB IN ASSY .......................................................................................................................................... 47
4.2 MAIN ASSY ............................................................................................................................................. 48
4.3 DSP ASSY (FOR VSX-916)..................................................................................................................... 52
4.4 DSP ASSY (FOR VSX-816)..................................................................................................................... 56
4.5 POWER PACK ASSY............................................................................................................................... 60
4.6 TRANS2, TRANS3, TRANS4 and TRANS1 ASSYS ................................................................................ 64
4.7 COMPONENT ASSY ............................................................................................................................... 66
4.8 HEADPHONE and 5.1 CHIN ASSYS ...................................................................................................... 67
4.9 FRONT DISPLY, R. ENCODER and POWER KEY ASSYS..................................................................... 68
4.10 S. VIDEO and FRONT VIDEO ASSYS .................................................................................................. 72
4.11 PRE-OUT ASSY .................................................................................................................................... 74
4.12 REGULATOR and DIGITAL IN ASSYS .................................................................................................. 75
4.13 PRIMARY ASSY .................................................................................................................................... 76
4.14 VIDEO ASSY ......................................................................................................................................... 78
4.15 USB ASSY ............................................................................................................................................. 79
5. PCB PARTS LIST ........................................................................................................................................... 80
6. ADJUSTMENT ............................................................................................................................................. 108
7. GENERAL INFORMATION........................................................................................................................... 109
7.1 DIAGNOSIS ........................................................................................................................................... 109
7.1.1 DISASSEMBLY................................................................................................................................ 109
7.2 PARTS.................................................................................................................................................... 112

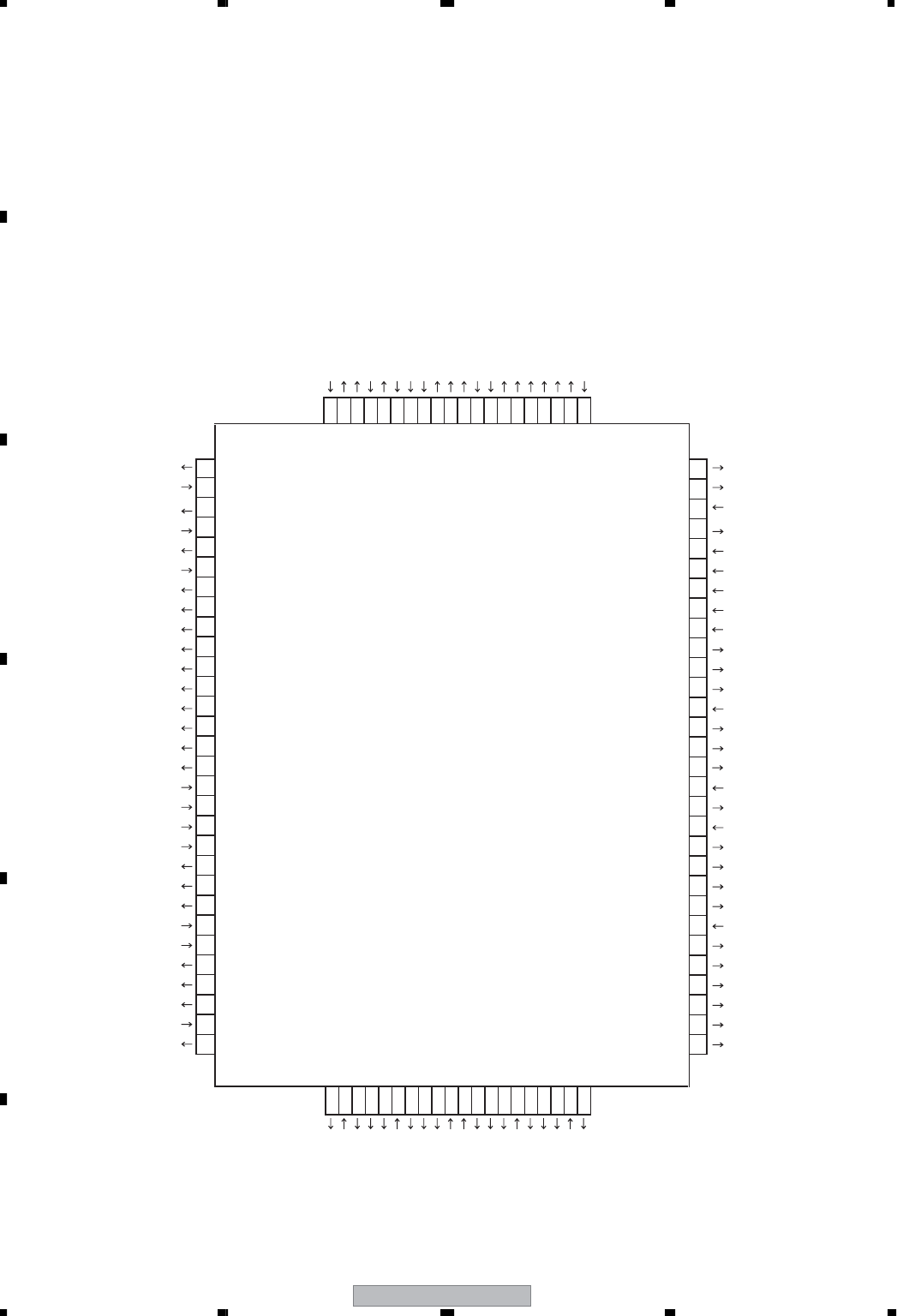

7.2.1 IC ..................................................................................................................................................... 112
7.3 EXPLANATION ...................................................................................................................................... 127
7.3.1 DETECTION CIRCUIT .................................................................................................................... 127
7.3.2 AMPLIFIER SYSTEM PROTECTION OPERATION SPECIFICATION............................................ 129
7.3.3 AMPLIFIER FAILURE DIAGNOSIS FLOW CHART ........................................................................ 131
7.3.4 USB Module .................................................................................................................................... 132

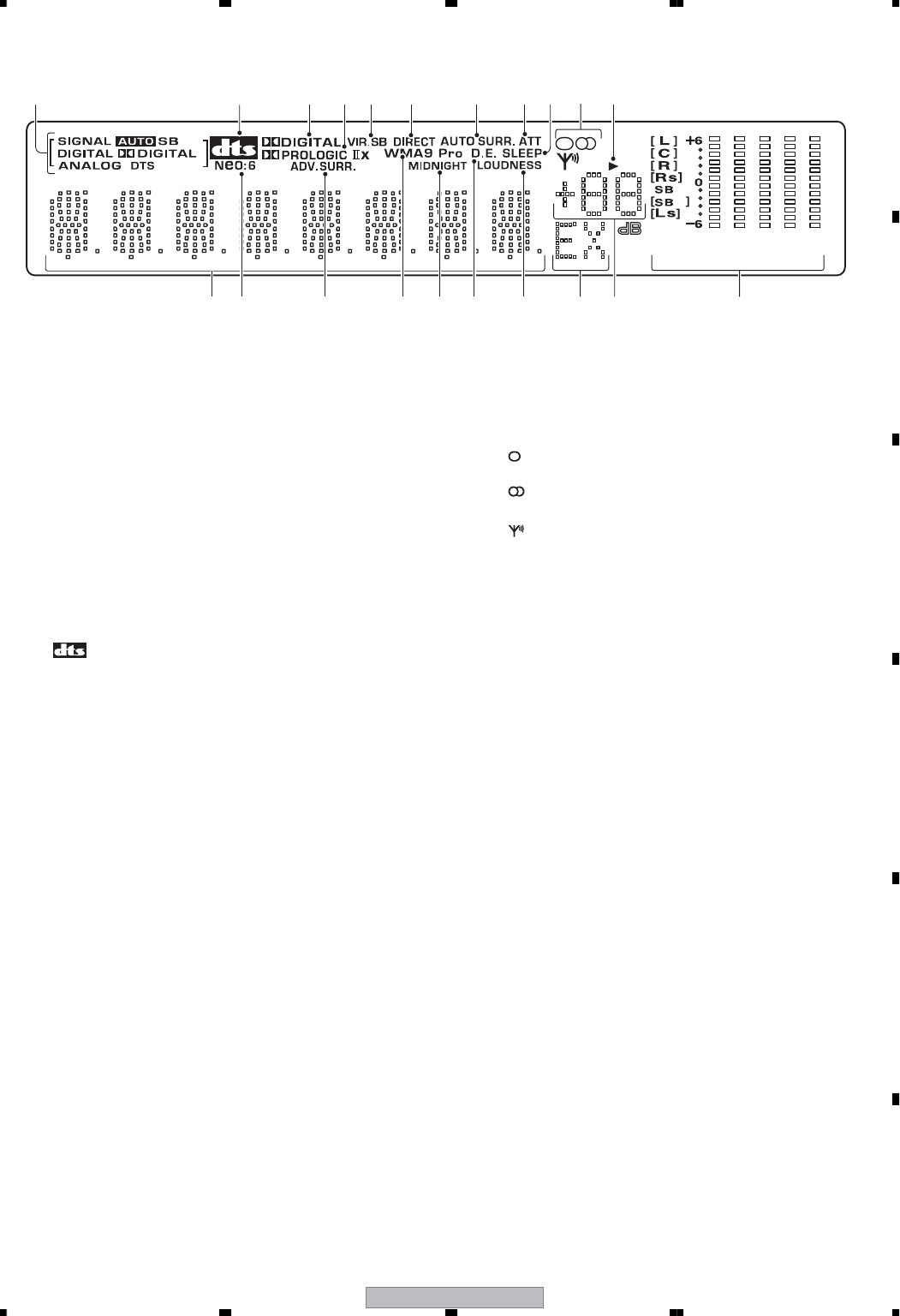

8. PANEL FACILITIES ...................................................................................................................................... 138
VSX-816-K 5
5678
5678
C
D
F
A
B
E
1. SPECIFICATIONS
Amplifier section
• Continuous power output (stereo)
Front. . 110 W (20 to 20 000 Hz, THD 0.7 %, 8 Ω)1
• Continuous power output (surround)
Front. . . . . 110 W per channel (1 kHz, 1.0 %, 8 Ω)
Center . . . . . . . . . . . . . 110 W (1 kHz, 1.0 %, 8 Ω)
Surround . . . . . . . . . . . . . . . . . 110 W per channel
(1 kHz, 1.0 %, 8 Ω)
Surround Back . . . . . . . . . . . . 110 W per channel
(1 kHz, 1.0 %, 8 Ω)
Audio section
• Input (Sensitivity/Impedance)
CD, DVR/VCR, CD-R/TAPE/MD,
DVD/LD, TV/SAT . . . . . . . . . . . . . . 200 mV/47 kΩ
• Frequency response
CD, DVR/VCR, CD-R/TAPE/MD, DVD/LD,
TV/SAT . . . . . . . . . . . . . . 5 Hz to 100,000 Hz dB
• Output (Level/Impedance)
DVR/VCR REC, CD-R/TAPE/
MD REC. . . . . . . . . . . . . . . . . . . . . 200 mV/2.2 kΩ
• Tone control
Bass. . . . . . . . . . . . . . . . . . . . . . . .± 6 dB (100 Hz)
Treble. . . . . . . . . . . . . . . . . . . . . . .± 6 dB (10 kHz)
Loudness. . . . . . . . +10 dB/+5 dB (100 Hz/10 kHz)
(at volume level –50 dB)
• Signal-to-Noise Ratio (IHF, short circuited,
A network)
CD, DVR/VCR, CD-R/TAPE/MD,
DVD/LD, TV/SAT . . . . . . . . . . . . . . . . . . . . . 96 dB
• Signal-to Noise Ratio [EIA, at 1 W (1 kHz)]
CD, DVR/VCR, CD-R/TAPE/MD,
DVD/LD, TV/SAT . . . . . . . . . . . . . . . . . . . . . 79 dB
Video Section
• Input (Sensitivity/Impedance)
DVR/VCR, DVD/LD, TV/SAT. . . . . . . .1 Vp-p/75 Ω
• Output (Level/Impedance)
DVR/VCR, MONITOR OUT. . . . . . . . .1 Vp-p/75 Ω
• Frequency response
DVR/VCR, DVD/LD,
TV/SAT MONITOR . . . . . . . 5 Hz to 7 MHz dB
Signal-to-Noise Ratio. . . . . . . . . . . . . . . . . . . 55 dB
Crosstalk. . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 dB
Component video section
• Input (Sensitivity)
DVD/LD, TV/SAT, DVR/VCR . . . . . . . 1 Vp-p/75 Ω
• Output (Level/Impedance)
MONITOR OUT. . . . . . . . . . . . . . . . . . 1 Vp-p/75 Ω
• Frequency response
DVD/LD, TV/SAT,
DVR/VCR MONITOR . . . . 5 Hz to 40 MHz dB
Signal-to-Noise Ratio. . . . . . . . . . . . . . . . . . .60 dB
• FM Tuner Section
Frequency Range . . . . . . . . 87.5 MHz to 108 MHz
Usable Sensitivity . . . . . . . . . . Mono:13.2 dBf, IHF
(1.3 µV/ 75 Ω)
50 dB Quieting Sensitivity. . . . . . . . Mono: 20.2 dB
Stereo: 38.6 dBf
Signal-to-Noise Ratio. . . . .Mono: 73 dB (at 85 dBf)
Stereo: 70 dB (at 85 dBf)
Distortion . . . . . . . . . . . . . . . Stereo: 0.5 % (1 kHz)
Alternate Channel Selectivity . . . . . . . . . . . . 60 dB
(400 kHz)
Stereo Separation . . . . . . . . . . . . . . .40 dB (1 kHz)
Frequency Response . . . . . . . . . . 30 Hz to 15 kHz
(±1 dB)
Antenna Input (DIN) . . . . . . . . . . 75 Ω unbalanced
Note
1 Continuous average power output of 110 watts* per channel, min., at 8ohms, from 20 Hz to 20 000 Hz with no
more than 0.7 %** total harmonic distortion (front).
* Measured pursuant to the Federal Trade Commission’s Trade Regulation rule on Power Output Claims for
Amplifiers.
** Measured by Audio Spectrum Analyzer.
AM Tuner Section
Frequency Range. . . . . . . . . 530 kHz to 1700 kHz
Sensitivity (IHF, Loop antenna). . . . . . . . 350 µV/m
Signal-to-Noise Ratio. . . . . . . . . . . . . . . . . . .50 dB
Antenna . . . . . . . . . . . . . . . . . . . . . . Loop antenna
Miscellaneous
Power requirements . . . . . . . . . . .AC 120V / 60Hz
Power consumption . . . . . . . . . . . 370 W / 480 VA
In standby. . . . . . . . . . . . . . . . . . . . . . . . . 0.5 W
Dimensions
. . . . . . . . 169/16 (W) in. x 61/4 (H) in. x 137/8 (D) in.
420 (W) mm x 158 (H) mm x 352.5 (D) mm
Weight (without package). . . . . . . . 20.3 lb (9.2 kg)
Furnished Parts
Microphone (for Auto MCACC setup). . . . . . . . . . 1
Dry cell batteries (AA size IEC R6) . . . . . . . . . .2
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . .1
AM loop antenna. . . . . . . . . . . . . . . . . . . . . . . . . .1
FM wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . .1
Operating instructions
Note
• Specifications and the design are subject to
possible modifications without notice, due to
improvements.
VSX-816/KUXJ/CA
Manufactured under license from Dolby
Laboratories. "Dolby", "Pro Logic",
"Surround EX", and the double-D symbol
are trademarks of Dolby Laboratories.
"DTS" ,"DTS-ES" ,"DTS 96/24" and
"Neo:6" are trademarks of Digital Theater
Systems, Inc.

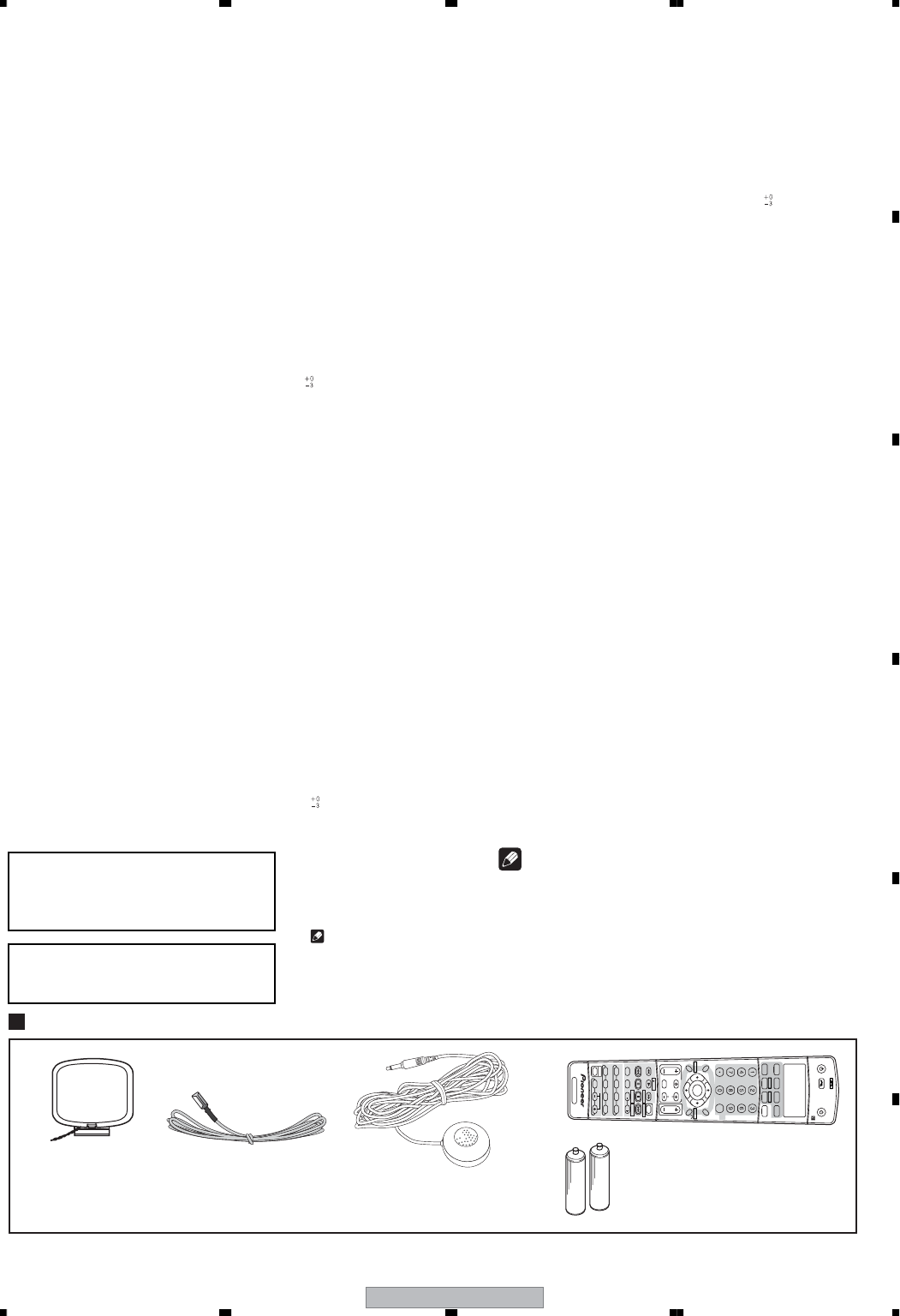

Accessories
Remote control
(KUXJ/CA : XXD3105)
(MYXJ5 : XXD3107)
AM loop antenna
(ATB7013) FM wire antenna
(ADH7030) AA size IEC R6
Dry cell batteries (x2)
Microphone
(for Auto MCACC setup)
(APM7008)
ANALOG
ATT
MIDNIGHT/
LOUDNESS
SB ch
DIMMER
SLEEP
SR+
+10
D.ACCESS CLASS
DISC
RECEIVER SOURCE
INPUT
SELECT
ENTER
TV CONTROL
SHIFT
VOL
TV DVR
TV CTRL
CD
TUNE
TUNE
ST ST
AUTO SURR
STANDARD
ADV.SURR
S.RETRIEVER SIGNAL SEL
STEREO
INPUT
SELECT TVCH
MPX
AUDIO
DISP
SUBTITLE
DIALOG E
EFFECT/CH SEL
ACOUSTIC EQ
REC
MUTE
TV VOL
ENTER
REC STOP
JUKEBOX
HDD
CH CH
DVD
TOP MENU
DTV MENU
DTV ON/OFF DTV INFO
T.EDIT
MENU
RETURN
GUIDE
SETUP
CATEGORY
RECEIVER
DVD
FM AM
RECEIVER
CD-R/TAPE XM RADIO
AUDIO/VIDEO PRE-PROGRAMMED
REMOTE CONTROL UNIT
VSX-816-K
6
1234
1234
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
1
3
2
2
4
11
13
14
2
12
67 8 9
5
16 15
10
17
VSX-916-K
VSX-916-S
ONLY
VSX-816-K
VSX-816-S
ONLY
VSX-916-K
VSX-916-S
ONLY
VSX-816-K 7
5678
5678
C
D
F
A
B
E
(1) PACKING SECTION PARTS LIST
(2) CONTRAST TABLE
VSX-816-S/KUXJ/CA, VSX-916-K/MYXJ5, VSX-916-S/MYXJ5 and VSX-816-K/KUXJ/CA are constracted the same
except for the following:
Mark No. Description Part No.
1 FM Antenna ADH7030
NSP 2 Polyethylene Bag See Contrast table(2)
3 Microphone Assy APM7008
4 AM Loop Antenna ATB7013
NSP 5 Battery (AA/R6) 2P XEX3001
6 Operating Instructions (English) See Contrast table(2)
7 Operating Instructions See Contrast table(2)
(English/Italian)
8 Operating Instructions See Contrast table(2)
(French/German)
9 Operating Instructions See Contrast table(2)
(Dutch/Spanish)
10 Remote control See Contrast table(2)
11 Packing Sheet AHG7069
12 Left Pad V3 XHA3158
13 Right Pad V3 XHA3159
14 Packing Case See Contrast table(2)
15 Battery Cover XZN3140
16 Label (WEEE) See Contrast table(2)
NSP 17 Warranty Card See Contrast table(2)
Mark No. Description Part No.
Mark No. Symbol and Description VSX-816-K
/KUXJ/CA
VSX-816-S
/KUXJ/CA
VSX-916-K
/MYXJ5
VSX-916-S
/MYXJ5
NSP 2 Polyethylene Bag AHG7117 AHG7117 Z21-038 Z21-038
6 Operating Instructions (English) XRB3056 XRB3056 Not used Not used
7 Operating Instructions (English/Italian) Not used Not used XRE3117 XRE3117
8 Operating Instructions (French/German) Not used Not used XRC3226 XRC3226
9 Operating Instructions (Dutch/Spanish) Not used Not used XRC3225 XRC3225
10 Remote control XXD3105 XXD3105 XXD3107 XXD3107
14 Packing Case XHD3576 XHD3583 XHD3587 XHD3588
16 Label (WEEE) Not used Not used ARW7322 ARW7322
NSP 17 Warranty Card Not used Not used ARY7065 ARY7065
VSX-816-K
8
1234
1234
C
D
F
A
B
E
2.2 EXTERIOR SECTION
CONTACT SIDE
NON-CONTACT
SIDE
A
C
C
D
D
E
E
B
B
P
P
J
J
J
K
K
I
I
A
F
G
G
H
H
L
L
M
M
N
N
O
O
Q
X
X
Q
R
S
T
T
U
U
V
V
W
W
F
UV
48
2
42
23
23
41
44
35
26
28
24
25
30
29
27
37
1
40
38
38
43
38
5
34
20
21
6
6
9
10
11
51
49 8
3
7
39
19
13
13
15
4
36
47
48
48
48
48
48
48
48
48
48
48
48
47
48
48
32
31
46
14
48
43
43
43
43
45
48
48
48
48
48 48
48
48
51
50
50
36
33
17
Refer to
"2.3 FRONT PANEL SECTION"
16
12
48
48
VSX-916-K
VSX-916-S
ONLY
VSX-916-K
VSX-916-S
ONLY
VSX-916-K
VSX-916-S
ONLY
VSX-816-K
VSX-816-S
ONLY
VSX-816-K
VSX-816-S
ONLY VSX-816-K
VSX-816-S
ONLY
VSX-916-K
VSX-916-S
ONLY
VSX-916-K
VSX-916-S
ONLY
VSX-916-K
VSX-916-S
ONLY
VSX-916-K
VSX-916-S
ONLY
VSX-916-K
VSX-916-S
ONLY
VSX-816-K
VSX-816-S
ONLY
B
P
A
N
W
R
I
F
H
C
D
E
O
V
Q
U
Y
51
Cleaning paper
GED-008
R
S
48
43
22
VSX-816-K 9
5678
5678
C
D
F
A
B
E
(1) EXTERIOR SECTION PARTS LIST
(2) CONTRAST TABLE
VSX-816-S/KUXJ/CA, VSX-916-K/MYXJ5, VSX-916-S/MYXJ5 and VSX-816-K/KUXJ/CA are constracted the same
except for the following:
Mark No. Description Part No.
1 DSP ASSY See Contrast table(2)
2 FM/AM TUNER UNIT See Contrast table(2)
3POWER PACK ASSY See Contrast table(2)
4 MAIN ASSY See Contrast table(2)
5 USB ASSY See Contrast table(2)
6 DIGITAL IN ASSY See Contrast table(2)
7 VIDEO ASSY XWZ4062
8S VIDEO ASSY XWZ4065
9 5.1 CH IN ASSY XWZ4069
10 COMPONENT VIDEO ASSY XWZ4097
11 PRE-OUT ASSY See Contrast table(2)
12 PRIMARY ASSY See Contrast table(2)
13 REGULATOR ASSY See Contrast table(2)
14 TRANS 1 ASSY See Contrast table(2)
15 TRANS 2 ASSY See Contrast table(2)
16 TRANS 3 ASSY XWZ4079
17 TRANS 4 ASSY XWZ4093
18 • • • • • •
19 BINDER ASSY XWZ4199
>
20 Transformer See Contrast table(2)
>
21 Fuse See Contrast table(2)
22 Fuse Card See Contrast table(2)
>
23 AC Power Cord See Contrast table(2)
24 11P F. F. C/30V XDD3189
25 19P F. F. C/30V XDD3190
26 7P F. F. C/30V XDD3192
27 7P F. F. C/30V XDD3191
28 8P F. F. C/30V XDD3195
29 10P F. F. C/30V XDD3196
30 12P F. F. C/30V See Contrast table(2)
31 17P F. F. C/30V See Contrast table(2)
32 25P F. F. C/30V See Contrast table(2)
33 DC Fan Motor XXM3012
NSP 34 Chassis XNA3026
35 R Panel See Contrast table(2)
36 H/S Angle V3 XNG3145
NSP 37 H/Sink XNH3043
NSP 38 Spacer AEB7092
NSP 39 PCB Spacer AEC7156
40 Push Rivet AEC7205
41 Cord Stopper See Contrast table(2)
42 Insulator PNW2766
NSP 43 Binder (BK-1) ZCA-BK1
44 Bonnet See Contrast table(2)
NSP 45 Label VRW1629
46 ICP Label See Contrast table(2)
47 Screw BBZ30P060FCC
48 Screw BBZ30P080FNI
49 Screw BBZ30P140FTC
50 Screw BBZ40P080FNI
51 Screw See Contrast table(2)
Mark No. Description Part No.
Mark No. Symbol and Description VSX-816-K
/KUXJ/CA
VSX-816-S
/KUXJ/CA
VSX-916-K
/MYXJ5
VSX-916-S
/MYXJ5
1 DSP ASSY AWX8699 AWX8699 AWX8572 AWX8572
2FM/AM TUNER UNIT AXX7210 AXX7210 AXX7170 AXX7170
3POWER PACK ASSY XWZ4087 XWZ4087 XWZ4088 XWZ4088
4 MAIN ASSY XWK3233 XWK3233 XWK3234 XWK3234
5 USB ASSY Not used Not used AWX8704 AWX8704
6 DIGITAL IN ASSY XWZ4067 XWZ4067 XWZ4068 XWZ4068
11 PRE-OUT ASSY XWZ4098 XWZ4098 XWZ4200 XWZ4200
12 PRIMARY ASSY XWZ4072 XWZ4072 XWZ4073 XWZ4073
13 REGULATOR ASSY XWZ4129 XWZ4129 XWZ4116 XWZ4116
14 TRANS 1 ASSY XWZ4078 XWZ4078 Not used Not used
15 TRANS 2 ASSY XWZ4166 XWZ4166 XWZ4092 XWZ4092
>
20 Transformer XTS3101 XTS3101 XTS3102 XTS3102
>
21 Fuse (10A) REK1154 REK1154 Not used Not used
>
21 Fuse (T3.15A) Not used Not used REK1027 REK1027
22 Fuse Card Not used Not used AAX7493 AAX7493
>
23 AC Power Cord ADG7024 ADG7024 VDG1080 VDG1080
30 12P F. F. C/30V XDD3198 XDD3198 Not used Not used
31 17P F. F. C/30V XDD3203 XDD3203 Not used Not used
32 25P F. F. C/30V Not used Not used XDD3201 XDD3201
35 R Panel XNC3409 XNC3426 XNC3410 XNC3428
41 Cord Stopper CM-22-C CM-22-C CM-22-B CM-22-B
44 Bonnet XZN3183 XZN3184 XZN3183 XZN3184
46 ICP Lavel XAX3120 XAX3120 XAX3121 XAX3121
51 Screw BBZ30P080FTB BBZ30P080FNI BBZ30P080FTB BBZ30P080FNI
VSX-816-K
10
1234
1234
C
D
F
A
B
E
2.3 FRONT PANEL SECTION
CONTACT SIDE
NON-CONTACT
SIDE
No. 20
(2/2)
12
53
14
24
13
30
30
30 30
30
30
30
26
27
29
28
19
10
30
25
23
2
30
30
30
6
30
20(1/2) 20(2/2)
21
15
16
17
1
30
9
22
8
11
7
4
18
VSX-916-K
VSX-916-S
ONLY
VSX-916-K
VSX-916-S
ONLY
G
M
K
L
SX
VSX-816-K 11
5678
5678
C
D
F
A
B
E
(1) FRONT PANEL SECTION PARTS LIST
(2) CONTRAST TABLE
VSX-816-S/KUXJ/CA, VSX-916-K/MYXJ5, VSX-916-S/MYXJ5 and VSX-816-K/KUXJ/CA are constracted the same
except for the following:
Mark No. Description Part No.
1FRONT DISPLAY ASSY XWZ4054
2R. ENCODER ASSY XWZ4055
3POWER KEY ASSY XWZ4057
4 USB IN ASSY See Contrast table(2)
5 HP ASSY XWZ4095
6FRONT VIDEO ASSY XWZ4109
7 JOG Knob See Contrast table(2)
8VOL Knob See Contrast table(2)
9 STDBY BTN Assy See Contrast table(2)
10 D Panel V3MCACC XAK3528
NSP 11 Gold Foil Lavel XAX3487
NSP 12 F PANEL Assy See Contrast table(2)
13 Tuner BTN See Contrast table(2)
14 SUB BTN See Contrast table(2)
15 FUNC BTN See Contrast table(2)
16 LISTEN BTN See Contrast table(2)
17 JOG Button See Contrast table(2)
18 C Lens V3 (PLS) XAK3534
19 PIONEER Badge See Contrast table(2)
20 FRT Panel See Contrast table(2)
21 Input Cover See Contrast table(2)
22 Earth Plate HP V2 XNG3131
23 Earth Plate FR V3 XNG3144
24 8P Shield Cable XDX3026
25 4P Shield Cable See Contrast table(2)
26 5P Shield Cable XDX3027
27 5P F.F.C/30V XDD3199
28 17P F.F.C/30V XDD3200
29 Rubber Sheet AEB1111
30 Screw BPZ30P080FTC
Mark No. Description Part No.
Mark No. Symbol and Description VSX-816-K
/KUXJ/CA
VSX-816-S
/KUXJ/CA
VSX-916-K
/MYXJ5
VSX-916-S
/MYXJ5
4 USB IN ASSY XWK3249 XWK3249 XWK3250 XWK3250
7 JOG Knob XAB3046 XAB3047 XAB3046 XAB3047
8VOL Knob XAB3049 XAB3050 XAB3049 XAB3050
9 STDBY BTN Assy XAD3216 XAD3217 XAD3216 XAD3217
NSP 12 F Panel Assy XXG3240 XXG3241 XXG3242 XXG3243
13 Tuner BTN XAD3230 XAD3248 XAD3230 XAD3248
14 SUB BTN XAD3231 XAD3249 XAD3231 XAD3249
15 FUNC BTN XAD3232 XAD3250 XAD3232 XAD3250
16 LISTEN BTN XAD3233 XAD3251 XAD3233 XAD3251
17 JOG Button XAD3240 XAD3252 XAD3240 XAD3252
19 PIONEER Badge XAM3006 VAM1129 XAM3006 VAM1129
20 FRT Panel XMB3218 XMB3219 XMB3220 XMB3221
21 Input Cover Not used Not used XAK3532 XAK3533
25 4P Shield Cable Not used Not used XDX3028 XDX3028
VSX-816-K
12
1234
1234
C
D
F
A
B
E
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

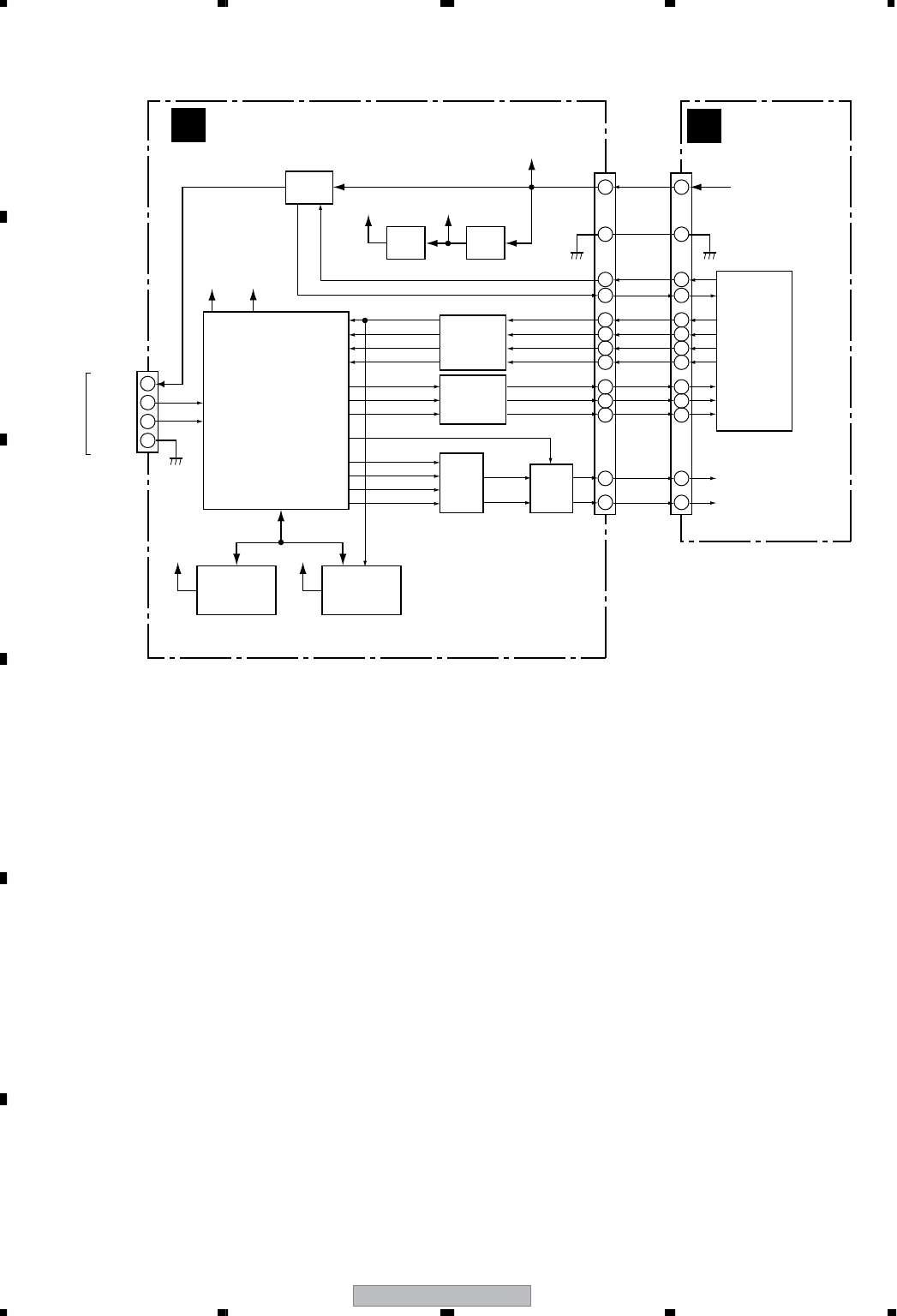

3.1 BLOCK DIAGRAM
Cr IC553
DRIVER
NJM2581M
6dB
6dB
Cb
Y
TC74HC4052AF
Cr3
Cb2
6dB
Cr
Cb
Y
Cr2
Cr1
Cr
Cb3
Cb1
Cb
MONITOR
VCR REC
IC351
(Front)
VIDEO
CN901 CN354
CN351 C SEL
NJM2595M
VIDEO
(Front)
CN351
IC1102
IC1103
SW
VIDEO
VIDEO
SW
Y
Cb
Cr
TC74HC4052AF
Y2
IC552
Cr
Cb
COMPONENT1COMPONENT2COMPONENT3COMPONENT
OUT
Y
Y3
Y1 YIC551
COMPO SEL
COMPO SEL
SW
C
MULTI CH IN
SL/SR
OPT1 OUT
OPT3 (Front)
OPT1
OPT2
XMDT
8 bit Serial ROM
VSX-816: PDC145A8
VSX-916: PDC121A8
IC851
XM RADIO
COAX2
COAX1
F2602E-01
IC401
USB
A-TYPE
VCR/DVR OUT
IC601
ADC
DIR+DIT
CD-R OUT
CD-R/TAPE
L/R
VCR
DVD/LD
TV/SAT
Y SEL
NJM2595M
IC352
BA4560F
IC106
LPF
IC801
CN701
CN601
CN951
CN307 CN105
CN1903
CN1902
CN109
(SW)
IC104
(SB)
DAC
AK4114VQ
IC103
(SL/SR)
(C)
IC104
VSX-816: AK4628AVQ
VSX-916: AK4628VQE
IC701 CODEC IC105
(FL/FR) LFE MIX
IC108
R2S15205FP
8ch VOL IC /
FUNCTION SELECTOR
IC107
BiAmp
2nd ZOne
VIDEO (Front)
DVD/LD
TV/SAT
L/R
L/R
L/R
L/R
AUX
CD
VCR/DVR
L/R
L/R
L/R
(Mono)
MIC
L/R
(For Setup)
Tone
EVOL/SELECTOR
MAIN ASSY
FM/AM TUNER
UNIT
A
DSP ASSY
B
DIGITAL IN
ASSY
Pass through
USB ASSY
and
POWER PACK
ASSY
R
USB IN ASSY
VSX-916
ONLY
VSX-916
ONLY
X
5.1CHIN ASSY
I
FRONT VIDEO
ASSY (2/2)
S
FRONT VIDEO
ASSY (1/2)
S
Y
DSP IC (for DECODE)
DSPC56371AF180
COMPONENT ASSY
F
S. VIDEO ASSY
N
CN551
CN103
CN953
CN952
CN901 CN107
CN109 CN108
Pass through
POWER PACK
ASSY
VSX-816-K 13
5678
5678
C
D
F
A
B
E
MONITOR
VIDEO/OSD SEL
NJM2243M
IC303
VCR REC
301
CN310
301
TV/SAT
DVD/LD
VCR COMPOSITE SEL
CN111
A. MUTE
A. MUTE
A. MUTE
A. MUTE
A. MUTE
A. MUTE
Q303
CN816
CN803 CN302
CN1575
CN604
SW PREOUT
NJM2595M
OSD
IC301
IC312
IC851
(SBL/SBR)
SW
IC315
IC312
C
(SL/SR)
IC311
Q501
30dB
RY501 SBL/SBR
Q601
C
30dB
Q631, Q652
RY753
30dB
RY752 SL/SR
Q651, Q602
IC602, IC601
IC602, IC601
IC603
IC603
(FL/FR) IC310
BA4560F
CN114 CN705
PRE-AMP
POWER PACK
POWER PACK
POWER PACK
POWER PACK
30dB
RY751
FL/FR
FL/FR PREOUT
SL/SR PREOUT
C PREOUT
SBL/SBR PREOUT
Q1551
1551
CN702
PHONES
VIDEO ASSY
Q
HEADPHONE ASSY
G
PRE-OUT
ASSY
H
POWER PACK ASSY
C
: AUDIO SIGNAL FLOW
: VIDEO SIGNAL FLOW
VSX-816-K
14
1234
1234
C
D
F
A
B
E
3.2 OVERALL WIRING CONNECTION DIAGRAM
1.5mm FLAT CABLE
1.25mm REVERSE FFC
2.0mm FLAT CABLE
1.25mm FFC
B*B-EH
EH CONNECTOR
1.0mm FFC
B*B-PH-K-S
PH CONNECTOR
CN1902 CN1903
AC CODE CONNECTOR
2.0mm CABLE CONNECTOR
2.0mm CABLE HOLDER
1.25mm FFC CONNECTOR
1.5mm CABLE HOLDER AC CODE SOCKET
1.25mm BOARD to BOARD PLUG
1.25mm BOARD to BOARD SOCKET
BOARD IN
1.0mm FFC CONNECTOR
1.25mm FFC CONNECTOR(L) 2.0mm BOARD to BOARD PLUG
2.0mm BOARD to BOARD SOCKET
CN354 CN351
J30
XDD3196
J37
10/70
CN805
CN601
CN111
CN816
CN806
13 21
CN701
CN109
21
CN815
CN807
CN952
J45
15
CN705
CN114
CN812
12/170
J50
XDD3198
CN702
15
21
CN108
CN701
CN251CN252
XDD3199
5/120
J32
XDX3028
5/400
XDX3027
4/230
CN953
J28
CN952
J30
CN951 J29
5/650
3/350
CN901
XDX3026
J29
D20PYY1110E
J44
10/100
CN307
11/120
CN103
J34
XDD3189
CN310 CN303
301
CN302
CN803
19/100
J33
CN104 CN105
J48
7/140
XDD3190
XDD3192
6
7/120
J38
CN107
CN112
XDD3191
J29
CN702CN701
11/200
D20PYY1120E
J43
810
CN106
CN800
CN101
J31
17/110 XDD3200
FAN
7/125
J42
511
D15A07-125-2651
3/300
D20PYY0330E
CN401 404
J22
471
A1/3 - A3/3
A
FRONT DISPLAY ASSY
(XWZ4054)
K
X
USB ASSY
(AWX8704)
VSX-916
ONLY
VSX-816
ONLY
CN817 : VSX-816
CN813 : VSX-916
CN901 : VSX-816
CN902 : VSX-916
CN951 : VSX-816
CN952 : VSX-916
XDD3203 (17P) VSX-816
XDD3201 (25P) VSX-916
W
5.1CHIN ASSY
(XWZ4069)
I
S. VIDEO ASSY
(XWZ4065)
N
Y
R
VIDEO ASSY
(XWZ4062)
Q
P
MAIN ASSY
MAIN ASSY
(VSX-816 : XWK3233)
(VSX-916 : XWK3234)
FM/AM TUNER UNIT
(VSX-816 : AXX7210)
(VSX-916 : AXX7170)
POWER PACK ASSY
(VSX-816 : XWZ4087)
(VSX-916 : XWZ4088)
REGULATOR ASSY
(VSX-816 : XWZ4129)
(VSX-916 : XWZ4116)
USB IN ASSY
(VSX-816 : XWK3249)
(VSX-916 : XWK3250)
DSP ASSY
(VSX-816 : AWX8699)
(VSX-916 : AWX8572)
DIGITAL IN ASSY
(VSX-816 : XWZ4067)
(VSX-916 : XWZ4068)
DSP ASSY
B1/2 - B2/2
B
C1/2 - C2/2
C
R. ENCODER ASSY
(XWZ4055)
L
FRONT VIDEO
ASSY
(XWZ4109)
S
(Note : No schematic diagram)
VSX-816-K 15
5678
5678
C
D
F
A
B
E

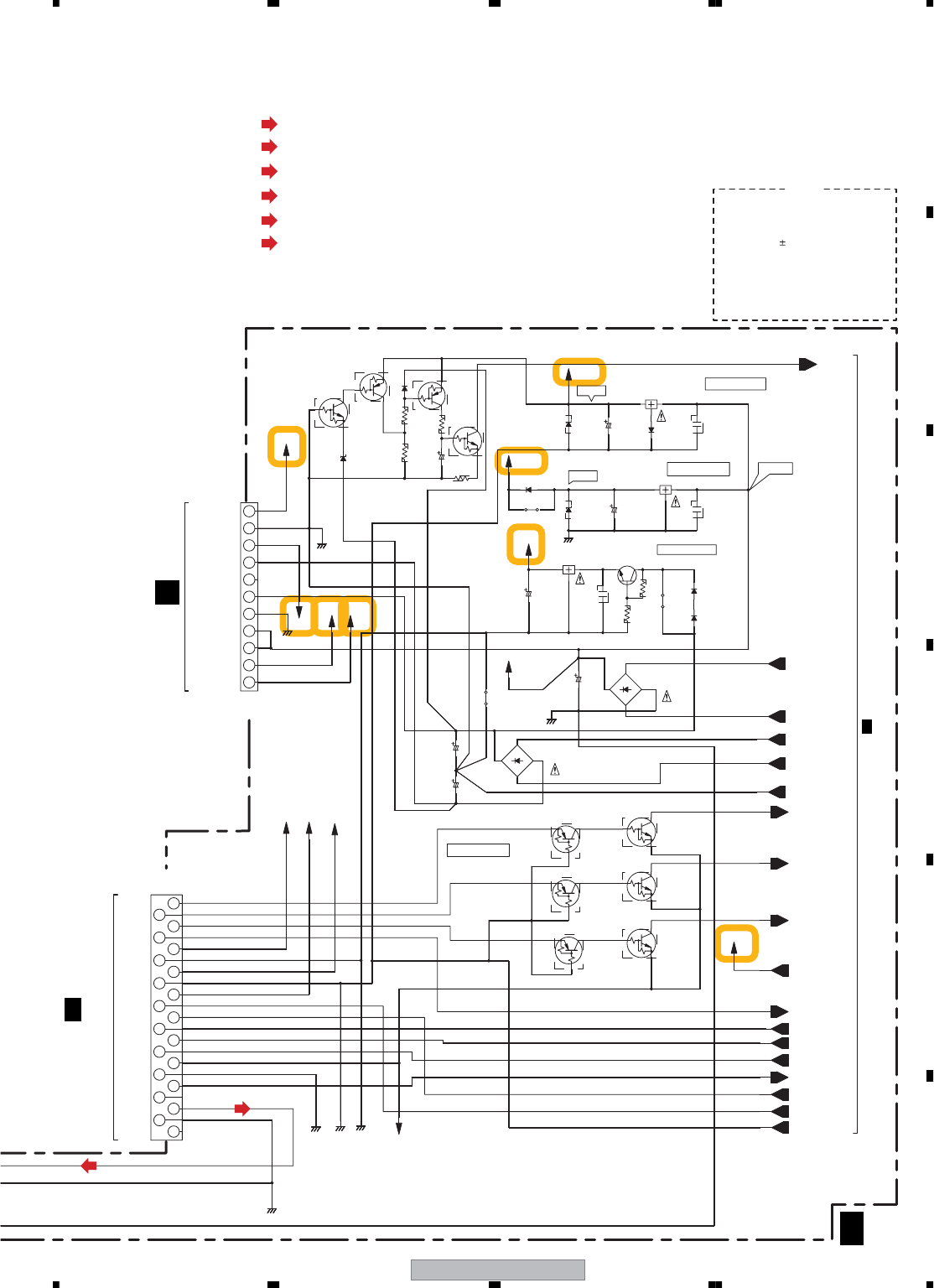

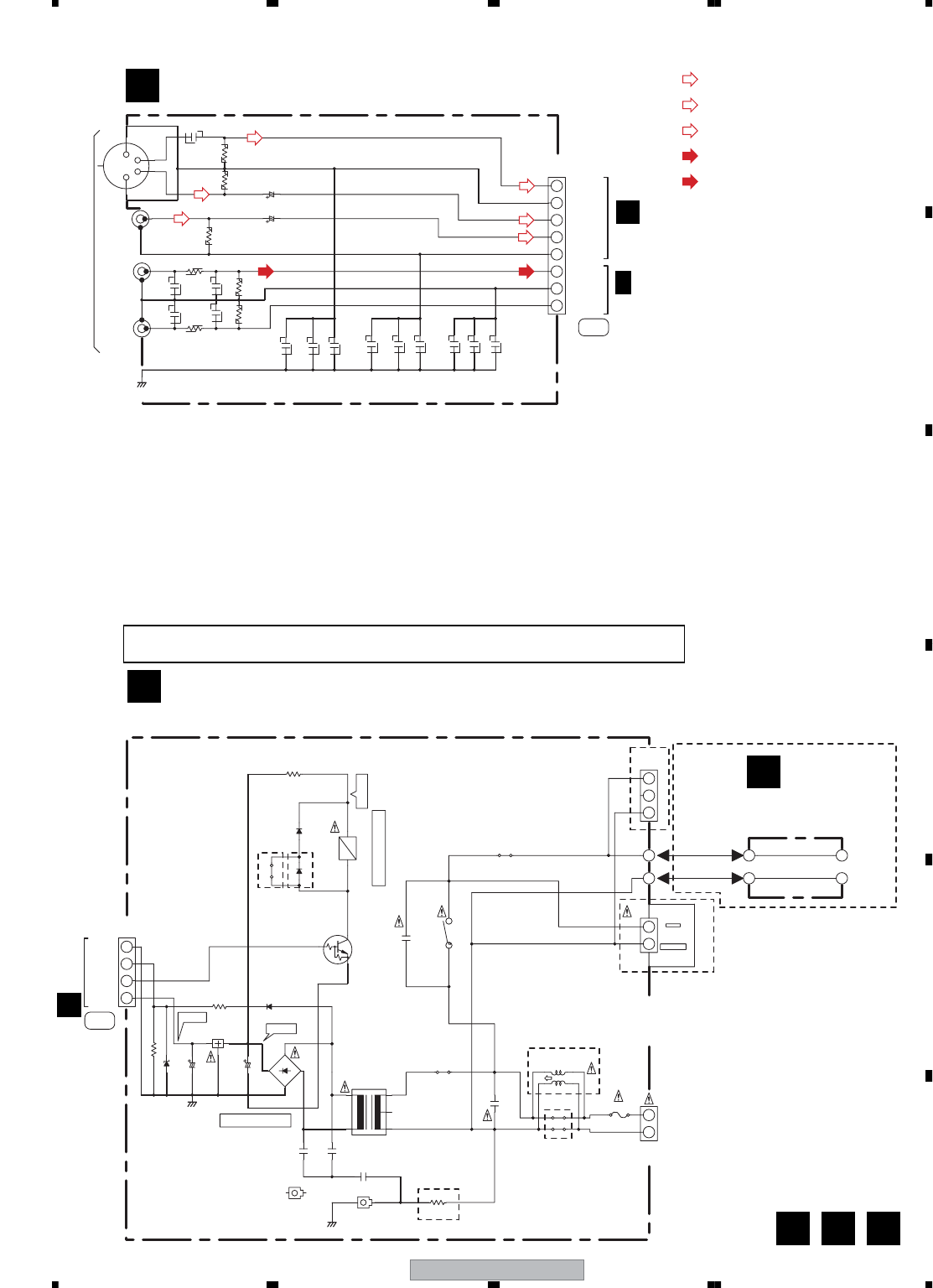

POWER CORD
AC IN
CN1575
CN551
8/130
J46
XDD3195
FU1
CN51
FU3
FU2
55
J2
J1
CN604
11/300
J21
D20PYY1130E
D20PYY0410E
4/100
J52
851 CN1201
MAIN TRANS
ZWNH1672G22-6-21J
BLUE
D20PYY0640E
J47
6/400
Y2 (L)
Y1 (N)
Y6 (L) BROWN
YELLOW
22-4-15J
ZWNH1672G
ZWNH1672G22-1-22J
891 J5J7 J3 J4 J6
120V
10V
67
Y7Y6
YELLOW
BROWN
TRANS
230V,50Hz
Y9
0V
3241
Y5Y3Y4 Y1
YELLOW
BLUE
110V
5
Y8
D15A03-100-2651
1551
3/100
J42
501
FOR VSX-916
COMPONENT
ASSY
(XWZ4097)
F
DV
E
O
U
H
TRANS 2 ASSY
(VSX-816 : XWZ4166)
(VSX-916 : XWZ4092)
TRANS 1 ASSY
(XWZ4078)
PRIMARY ASSY
(VSX-816 : XWZ4072)
(VSX-916 : XWZ4073)
PRE-OUT ASSY
(VSX-816 : XWZ4098)
(VSX-916 : XWZ4200)
TRANS 3 ASSY
(XWZ4079)
TRANS 4 ASSY
(XWZ4093)
POWER KEY ASSY
(XWZ4057)
M
HEADPHONE ASSY
(XWZ4095)
G
÷When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS
LIST" or "PCB PARTS LIST".
÷The > mark found on some component parts indicates the importance of the safety
factor of the part. Therefore, when replacing, be sure to use parts of identical
designation.
÷: The power supply is shown with the marked box.
VSX-816
ONLY
VSX-816-K
16
1234
1234
C
D
F
A
B
E

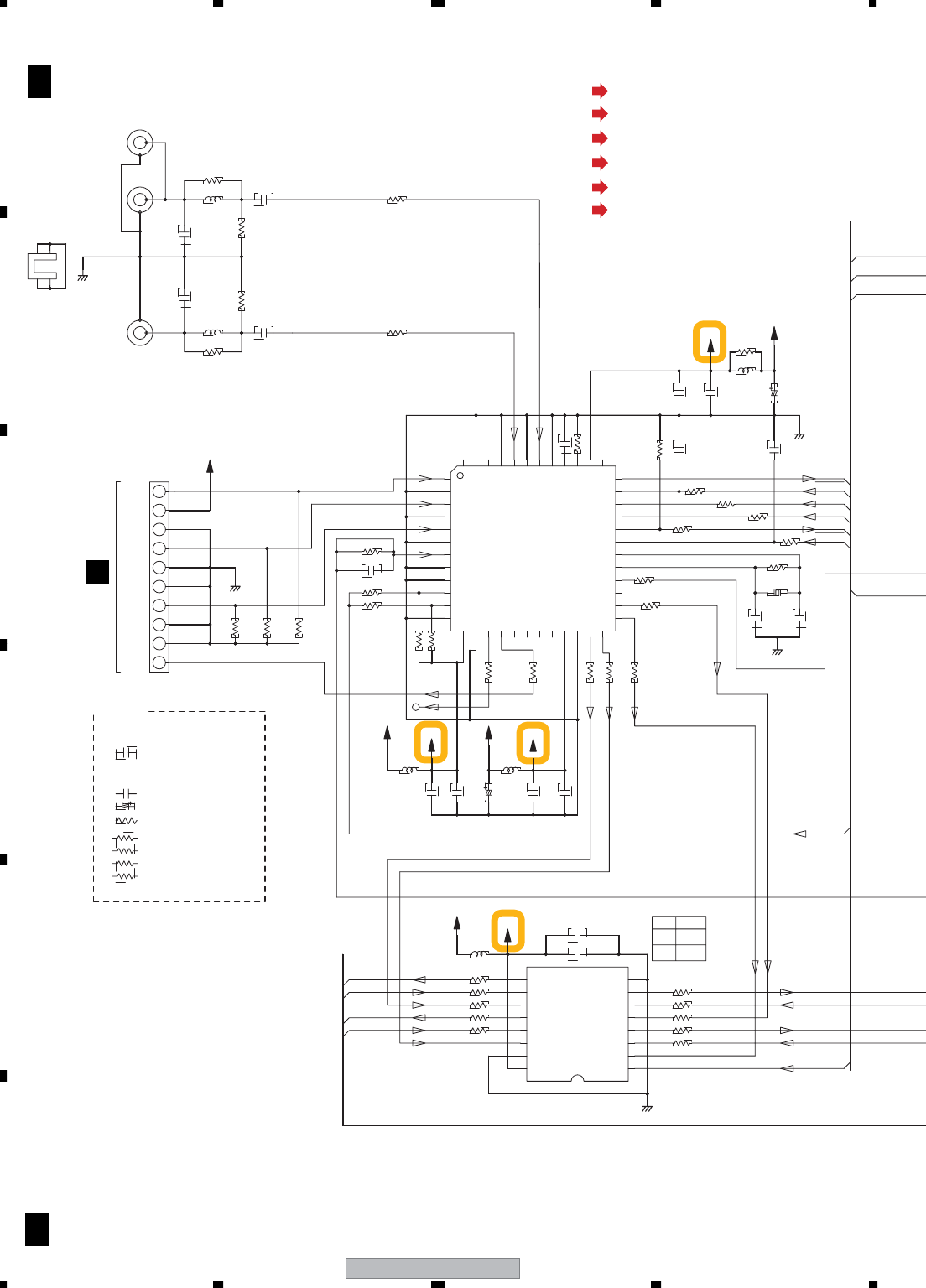

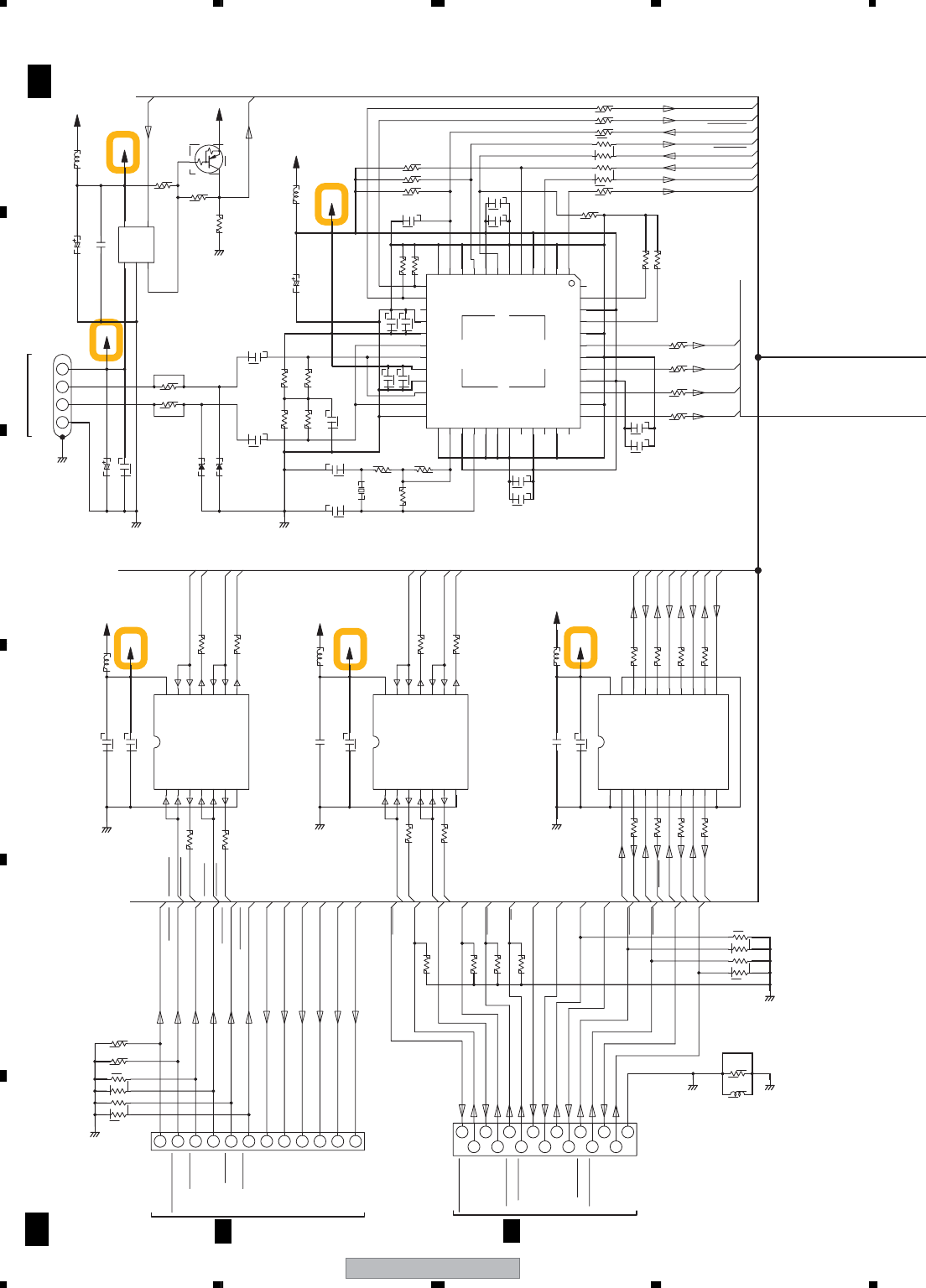

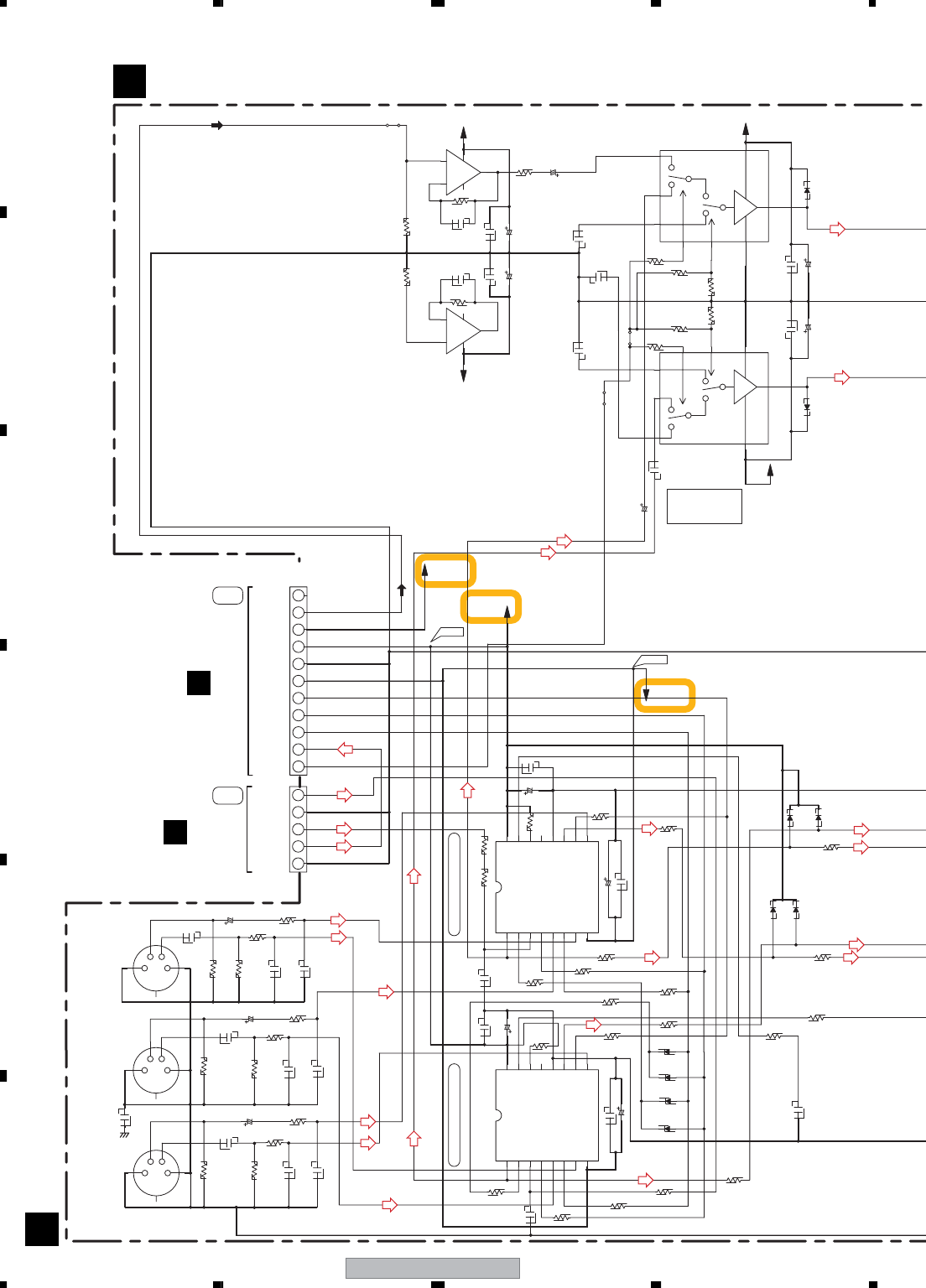

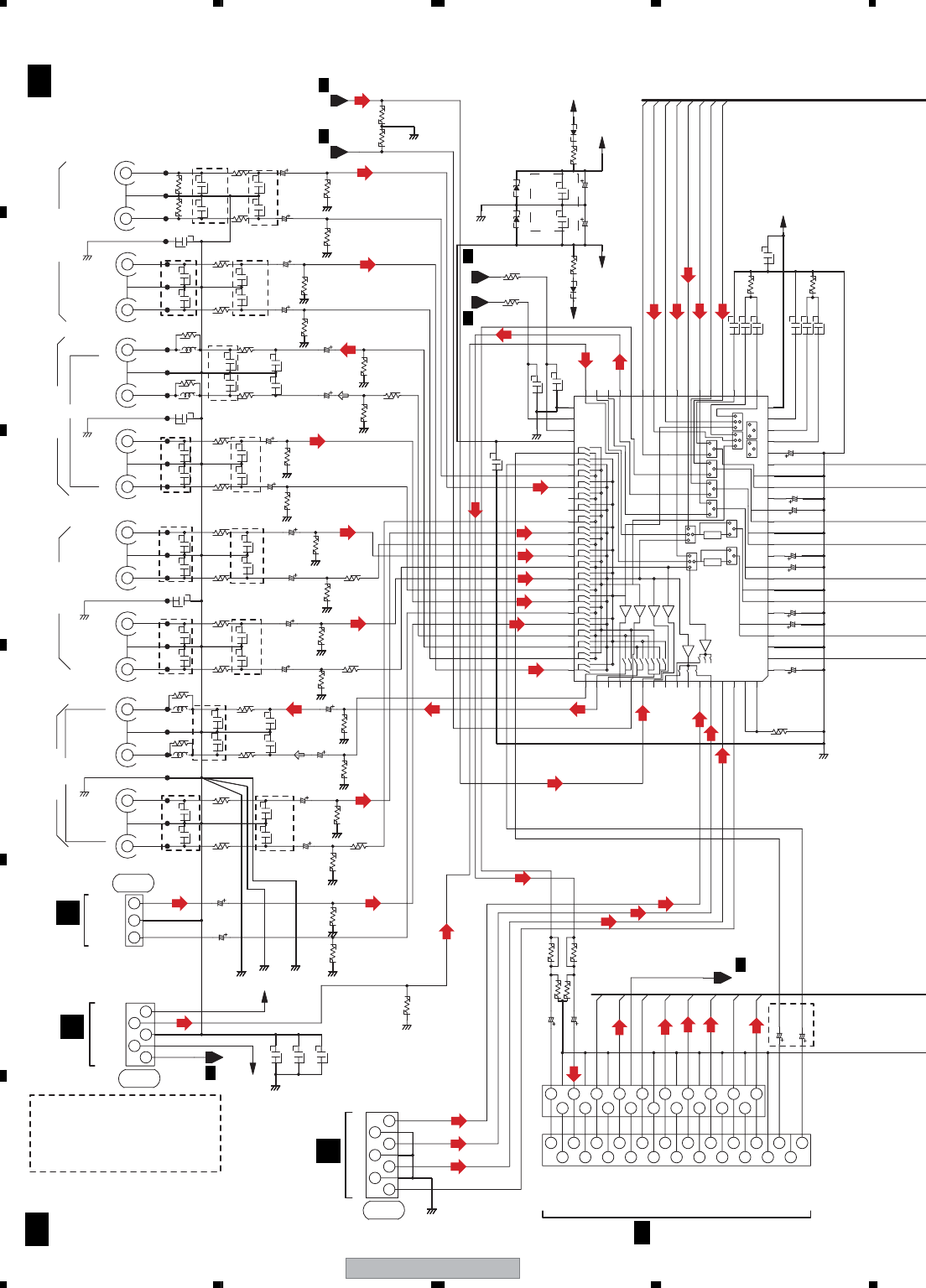

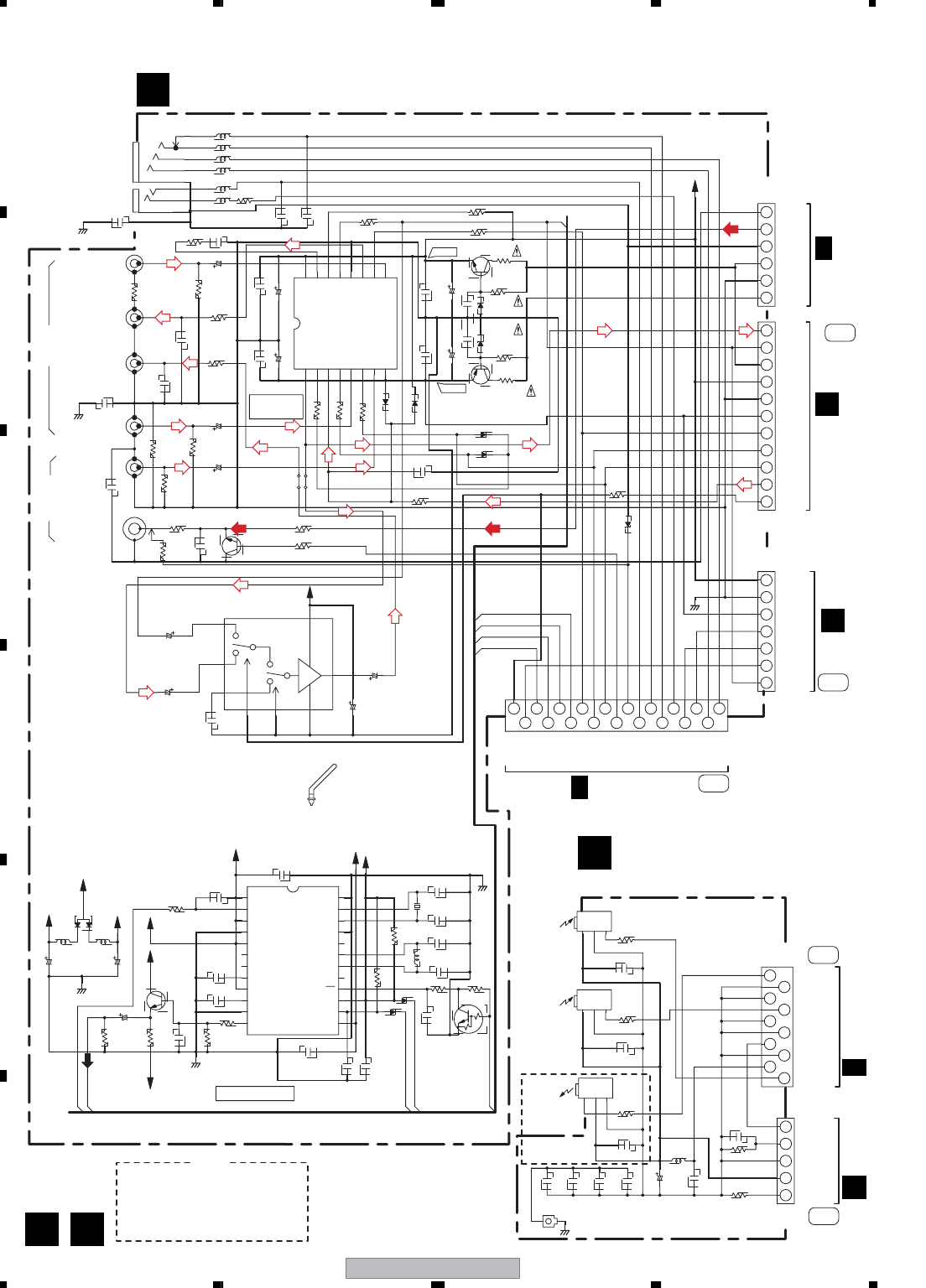

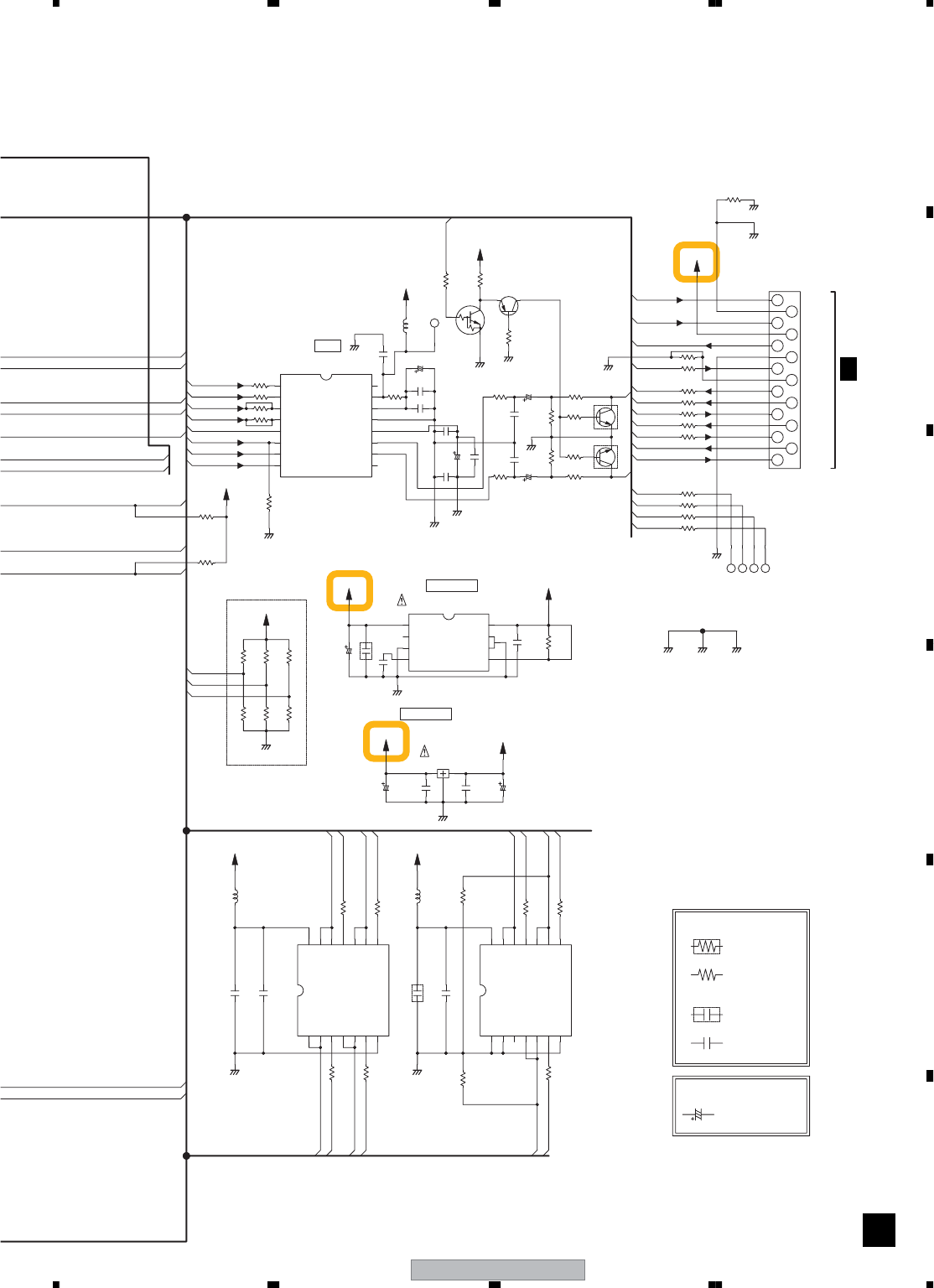

3.3 MAIN ASSY (1/3)
FR
FL
SR
SL
SW
C
SBR
SBL
CIN1
SLIN1
FRIN1
SRIN1
FLIN1
SWIN1
SBRIN1
SBLIN1
C9018
C9019
CN108
CN105
C9020
R143
C166
C165
R158
R161
CN109
C170
C171
C140
CN107
C139
C114
R114
C192
C138
CN118
C113
R113
L112
C191
C137
C118
C136
CN118
R156
C112 C111
L111
R157
R112
C117
R111
R134
CN117
C110
R110
C109
R109
C190
C134
C189
R133
C133
C179
C107C108
R108
C132
R132
C188 C187
C131
R131
CN117 R107
C106
R106
C105
R128
C186
C128
C185
R127
CN116 R105
C199
L104
R104
C127
C104
C1041
C126
CN116
R154
L103
C102
R155
C103
C1031
R103
R124
C125
R140 R139
R159
R162
R180
R138 R137 R136 R135
C135
R182
R181
R149
IC108
C162
C160
C161
C159
C158
R126
R183
C147
C145
R125
C146
C157
C156
C155
C148
C150
C149
C152
C153
C154
CN115
C101
R102
R101
C183C184
C124
R123
C123
R122
CN115
VSX-916
ONLY
VSX-916
ONLY
VSX-916 ONLY
VSX-916 ONLY
VSX-916 ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-916 ONLY
VSX-916
ONLY
VSX-916
ONLY VSX-916
ONLY
VSX-916
ONLY
C180
R116
C198
R115
C197
100P
100P100P
100P100P
100P
100P100P
100P
100P
100P100P
100P
100P
100P100P
100P
100P100P
100P
100P100P
100P
100P
100P
100P
100P100P
R130
C122
C182 C181
R121
R129 C121
R146
R145
D332
D312
R312
C334
D331
C332 C331
C333
R311
R142 R141
D311
R147
R148
C151
5
4
1
2
3
2
1
5
6
3
4
7
19
20
17
18
23
21
22
16
17 15
16
13
14
19
18 12
14
13
15
12
10
11
9
8
7
1
2
3
6
5
4
9
8
711 5
4
3
10 6 2
1
2
3
1
68
69
66
67
65
6364 6162 60 59 58 57 55 5456 53 52
71
72
70
74
75
73
78
77
76
80
79
21346578910111213
5051 4849 47 46 4445 4243 41
40
39
38
36
37
1514 1716 1918
33
35
34
30
32
31
29
28
27
20 21 22 23 24
25
26
MICSW
CHASSIS
V-7
YB
0.1
STBY
CK53370-
GNDA V+7
GNDA1 GNDA0
GNDA
STBY
CK533172-
GNDA
STBY
GNDA
1/50
1/50
STBY
STBY
XKP3055-
VSX-916
ONLY
FOR
VSX-916
FOR
VSX-816
XKP3054
10/16
10/16
B3B-PH-K-S
10/50
10/50
GNDA
330
CH
GNDA
10/50
GNDA
CH
CH
330
STBY
10/50
CH
GNDA
2.2K
CH
10/50
0
STBY
0
330
CH
22p22p
GNDA
2.2K
CH
CH
10/50
10/50
CH
330
CH
0.01
YB
CH
GNDA
CH
10/50
GNDA
330
CH CH
330
10/50
CH
GNDA
CH
10/50
330
CH CH
10/50
GNDA
STBY
CH CH
GNDA
STBY
0.01
330
YB
STBY
0
10/50
2.2K
CH
22p
CH
10/50
STBY
0
330
CH
22p
CH
10/50
2.2K GNDA
STBY
10/50
STBY STBY
STBY
STBY
STBY
0
STBY STBY
DSPOL
GNDA
STBY
0
STBY
GNDA
STBY
0
STBY
STBY
100k
R2S15205FP
100/16
100/16
100/16
100/16
100/16
GNDA
STBY
0
YB
0.01
100p
GNDD
CH
CH
GNDA
STBY
1K
100p
V-12
100/16
100/16
100/16
0.022
YB
0.15
YB
0.15
0.047
0.022
0.047
CH CH
0.01
YB
CH
GNDA
STBY
330 10/50
CH
10/50
STBY STBY
330
CH
CH
CH
CH
330
10/50
TR
TL
GNDA
STBY
VLDT 1K
VLCK
UDZS6R8(B)
1SS355
100/1W
V-7
100/10
GNDA
STBY
GNDA
UDZS6R8(B)
0.01
YB
0.01
YB
100/10
100/1W
STBY
GNDA
STBY
1SS355
V+12
V+7
YB
4.7K
YB
YB
YB
4.7K
0.01
YB
V+7
( ) (SQ):CKSQ.CCSQ
NOTES: NO INDICATED PARTS IS....
RESISTOR: RS1/16S***J-T, RS1/10S***J-T
CHEMICAL CAPACITOR: CEAT***M**-T,-TS
CERAMIC CAPACITOR: CCSRCH****50-T
CKSRYB****50-T
J32
V-7
MICSW
V+7
MICOUT
GNDA
J48
GNDA(DAG)
GNDA(DAG)
VCOMG
VCOMG2
GNDA(DAG)
USBL/XML
USBR/XMR
GNDA(DAG)
GNDA(DAG)
GNDA(DAG)
GNDA(DAG)
GNDA(DAG)
AG
C
SL
AG
SW
SR
AG
RIN
FLO
FRO
LIN
RCMUT/OVF
SLO
SRO
SWO
SBRO
CO
CN109
SBLO
FRONT L
GNDA
FRONT R
R
J29
PLAY
(CHASSIS)
GNDGND
MD
CN118
L
CD-R/TAPE
R
L
REC
(R)
TV
L
R
(CHASSIS)
GND
CN117
L
R
DVD/LD
(CHASSIS)
R
PLAY
VCR/DVR
CN116
R
L
GND
R
L
REC
TR
CDRREC(L)
CDRREC(R)
VCRREC(R)
VCRREC(L)
FRONT(L)
FRONT(R)
AUX(L)
AUX(R)
DVD/LD(L)
DVD/LD(R)
VCR(L)
VCR(R)
TV(R)
TV(L)
CDR(L)
TL
C
SR
SL
SW
LIN
LIN
REC
ATT
TONE
TONE
USBL/XML
CDR(R)
CD(L)
CD(R)
(R)
USBR/XMR AVEE
CLOCK
DATA
DGND
MICOUT
RIN
LIN
SRIN1
CIN1
SWIN1
SLIN1
SBLIN1
SBRIN1
AVCC
FRIN1
FLIN1
0.047
0.047
0.15
0.15
L
GND
(CHASSIS)
AKB7114
AKB7114
AKB7114
AKB7114
CN115
AUX
L
R
CD STBY
CN815
C2/2
CN307
I
CN952
X
CN901
S
A1/3
MAIN ASSY
(VSX-816 : XWK3233)
(VSX-916 : XWK3234)
A1/3
A3/3
A3/3
A3/3
A3/3
A3/3
A3/3
(SL)
(SL)
(FL)
(SL)
(SBL)
(SW)
(C)
(C)
(C)
(C)
(SW)
(SW)
(SW)
(SL)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(M)
(FL)
(SL)
(C) (SW)
(SBL)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L)
(L) (L)
(L)
(L)
(L)
(L)
(L)
(M)
(M)
VSX-816-K 17
5678
5678
C
D
F
A
B
E
-
+
-
+
-
+
-
+
-
+
-
+
+
-
+
-
-
+
-
+
IN1
SWIN1
SBR
FR
SBLIN1
SBRIN1
FRIN1
FLIN1
CIN1
SR
MP
SLIN1
SRIN1
R270
R262
C264
C262 R264 R266
C266
R272 R274
R268
R276
C278
C270 R278
IC104
C268
R289
R295
R281
C281
R282
C282
C283
C285
R283 R285
IC106
R287
R293
R291
C289
R260
C297
R297
C284
C286
C287
R290
R294
R292
C292
R296
C298
R284 R286 R288
IC106
C290
R259
C288
R298
C291
R202
C202
R201
C204
C206
R210
R212 R214
C210
R216
C218
R204 R206 R208
IC105
C208
R240
C217
C203
C205
R209
R211 R213
C209
R215
Q232
C201
C261
R261 R242
R205 R207R203
IC105 R239
C207
R269
C263
C265
R263 R265 R267
R271 R273
C269
R275
C277
C272
R277
C271
IC104
C244
C246
R236
C267
R250
R252 R254
C258
R256
R218
R220
C212
R222
IC107
R234
C216
C214 R228
R224
C221
R238 R226
R231
C222
IC110
Q231
R217
R219
R223
C211
R237
C220
R221
R233
C215
C213 R227
IC107
C219
R225
D107
D103
D105
C242
R241
C241
R244 R246 R248
IC103
C250
R235
C248
R258
C243
C245
R249
R251 R253
C249
R255
C252
C257
R257
C251
R243 R245 R247
IC103 R232
C247
8
2
34
1
28
34
1
8
6
54
7
8
2
1
34
8
6
54
7
8
6
5
7
4
3
1
4
28
7
6
5
8
10
9
4
3
2
1
12
11
13
14
5
7
4
68
8
2
1
34
68
7
54
GDAC
GDAC
1.2K
47K
0.022u
YB
TS
2.2/50 3.3K 6.8K
0.01u
2.7K 270
YB
39K
STBY
10/50TS 100
GDAC
5600p
3.3K
01.8K
YB
STBY
4700p
TS
2.2/50
TS
2.2/50
47K
100p
330p
3.3K 3.3K
CH
CH
3.3K
GDAC
10/50
4700p
TS 100
47K
CH
100p
CH
330p
330p
3.3K
1.8K 0
10/50
CH
V-12
STBY
YB
0.01
4700p
3.3K 3.3K 3.3K
GDAC 330p
STBY
TS 100
YB
0.01
V-12
CH V+12
TS
2.2/50
(SBL)
(SBR)
(COUT)
47K
LSSN
(SLOUT)
(SWOUT)
2.2/50
TS
47K
470p
330p
3.9K 3.9K
CH
3.9K
CH
3.9K
683.3K
STBY
STBY
YB
0.01
GDAC
330p
STBY
YB
0.01
GNDU
CH V+12
RT1N241M
470p
330p
CH
CH
3.9K 3.9K 3.9K
3.9K
3.3K 68
STBY
STBY
RT1P241M
(SROUT)
(FROUT)
(FLOUT)
TS
2.2/50
GDAC
STBY
330p
3.3K
1.8K 0
V-12
CH
47K
100p
330p
3.3K
CH
3.3K 3.3K
CH
10/50
STBY
STBY
4700p
YB0.01
TS 100
0.01 YB
GDAC
47K
100p
330p
330p
3.3K
1.8K 0
CH
STBY
V+12
4700p
GDAC
STBY
0
V-7
4.7K
STBY
4.7K
YB
1.2K
470K
YB
0.01
10/50 100
TS
GDAC
0.01
3.9K
TC4066BFN
V-7
100K
GDAC 4.7K V-12
V+7
0.01
0
STBY
V+7
1.2K
0.1
4.7K
STBY
YB
YB
470K
0.01
YB
10/50 100
YB
0.1
TS
3.9K
V+12
GNDA
GNDA
GDAC
DAN217U
GNDU
DAN217U
DAN217U
GDAC GNDU
TS
2.2/50
2.2/50
TS
3.3K
CH
3.3K
CH
3.3K
GDAC
10/50
STBY
330p
100
TS
V-12
CH
100p
47K
CH
CH
330p
3.3K 3.3K 3.3K
3.3K
1.8K 0
10/50
STBY
0.01
4700p
YB
100
TS
0.01
STBY
BA4560F-TBB
330p
V+12
YB
CH
(2/2)
(1/2)
(1/2)
(2/2)
(FR)
(1/2)
(1/2)
(SBR)
(1/2)
(FR)
LFE MIX
(1/2)
Low Pass Filter
(2/2)
(SR)
(1/2)
VEF1040-A VEF1040-A
For Wire Styling
101 102
A1/3
A2/3
A3/3
BA4560F-TBB
BA4560F-TBB
BA4560F-TBB
BA4560F-TBB
BA4560F-TBB
BA4560F-TBB
BA4560F-TBB
BA4560F-TBB
BA4560F-TBB
(L) : Audio Signal Route (L ch)
(M) : Audio Signal Route (Mic ch)
(FL) : Audio Signal Route (Front L ch)
(SL) : Audio Signal Route (Surround L ch)
(C) : Audio Signal Route (Center ch)
(SBL) : Audio Signal Route (Surround Back L ch)
(SW) : Audio Signal Route (SubWoofer ch)
(C)
(C) (C) (C)
(SBL)
(SBL)
(SW)
(SBL) (SBL)
(SW) (SW)
(FL)
(FL)
(FL)
(FL)
(FL)
(SL)
(SL)
(SL) (SL)
VSX-816-K
18
1234
1234
C
D
F
A
B
E
3.4 MAIN ASSY (2/3)
+
-
-
+
+
-
-
+
+
-
-
+
+
-
-
+
R505 C385
R513
IC315 C390
R300 C300
C389
R485
R484
C362
R507
R509 R508
C386
R515 C393
C387
R506
C384
R512
R514
IC315
C388
R488
R489
IC312
C368
R517 R516
R490
Q362
R486
C370
R502
R494
R498
C364
R496
C366
R500
C367
Q361
R483
C361
R495
C363
R493
R497
R499
C365
IC311
IC312
C342
R482
R474 R476
C348
C346
R478 C347
R481
C343
R475 R473
C344
R477
R479
C345
C341
IC310
IC311
C328
R480
R504
R308
R307
R306
R305
R304
R303
R462
C322
R454
R458
R456
C324
C326
C327
C321
R461
R455
C323
R453
R457
IC310
C325
R460 R459
2.2K TS
10/50
1K
V-12
BA4560 0.01 YB
0.01
V-12
STBY
22/50 V+5U
STBY
10/50 TS
100K
4.7K
SWPR
(SBLOUT)
(SBROUT)
2.2K
100K
2.7K
2.7K
YB
CH
100p V+12
100p
CH
100K
TS 10/50
1K
22/50
BA4560
V-12
0
STBY
4.7/50
BA4560
0.01 YB
4.7/50
10k 10k
STBY
STBY
STBY
200K
910 2.7K
TS
0.01
YB
4700p
YB V+12
2SD2704K
100K
10/50
TS
2.7K 1K
100p
CH
22/50
BA4560
BA4560
V-12 YB
0.01
10k 10k
GNDA
TS 10/50
100K
1K 2.7K
22/50
YB0.01
CH V+12
100K
TS 10/50
2.7K 1K
100p
CH
100p
TS
22/50
TS 10/50
BA4560
BA4560
V-12 YB
0.01
10k 10k
(SROUT)
(SWOUT)
(COUT)
100
100
100
(SLOUT)
(FLOUT)
(FROUT)
100
100
100
100K
1K 2.7K
TS 22/50
0.01
YB
100p
CH
CH
V+12
100K
TS 10/50
2.7K 1K
15K
15K
15K
15K
15K
15K
15K
15K
100p
22/50
BA4560
TS
10k 10k
MVRATT
(1/2)
SBR
SBL (2/2)
(2/2)
SW
C
(1/2)
(1/2)
SR
SL
(1/2)
(2/2)
FR
FL
(2/2)
PRE-AMP
A2/3
A2/3
MAIN ASSY
(VSX-816 : XWK3233)
(VSX-916 : XWK3234)
A1/3
A3/3
A3/3
(FL) (FL)
(FL)
(SL)
(SL)
(SL)
(C)
(C)
(C)
(SBL)
(SBL)
(SBL)
(SW)
(SW)
(SW)

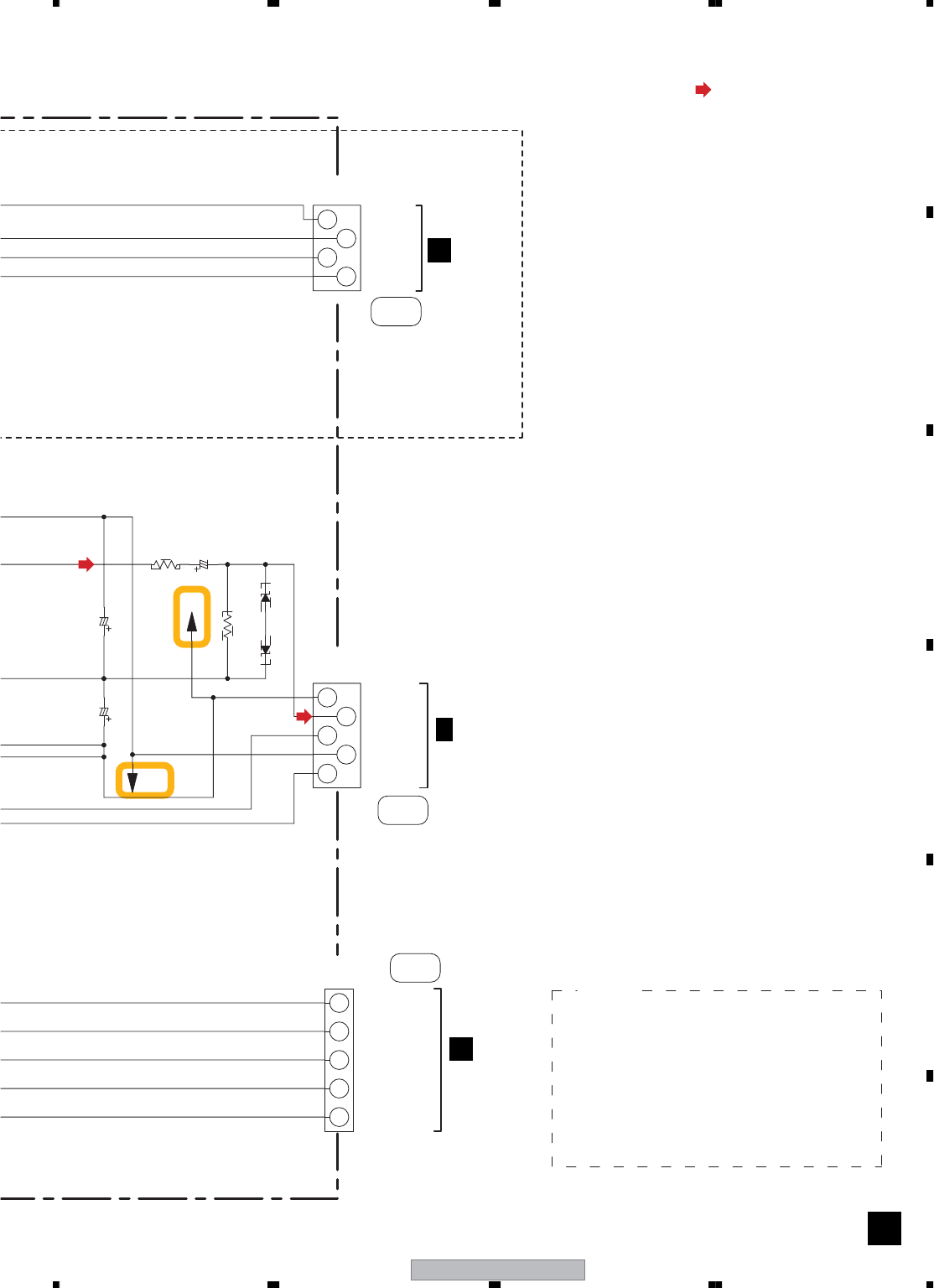

VSX-816-K 19
5678
5678
C
D
F
A
B
E
DCDT
OLDT
XPROTECT
NECK
AMUTE
CONTROL
+
+
-
-
3
1
2
3
1
2
211715
16 2018
19
10
913
14
12
11
4
3
82
7
6
51
D255
R280 D253
Q255
R466
R463
22K
R464
Q260 R465
R443
Q252
Q254
Q259
C256
R447
R442
R427
R436
IC251
R439
IC253
C253
R441
D251
R435
R434
R432 R437
R433
R431
R440
Q251
R438
R445
C255
R444
Q253
R448
D254
Q257
R449
R446
C392
Q256
C254
CN251
CN252
C320
CN114
GNDU
0
D253
VSX-816 : UDZS27(B)
VSX-916 : UDZS13(B)
R464
VSX-816 : 0
VSX-916 : 22K
Q255
VSX-816 : RT1N241M
VSX-916 : U2SC4081(QR)
VSX-816
ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-916
ONLY
470
22K
2SC4081
22K
(QR) 4.7K
(QR)
2SD1858X RT1P241M RT1P241M
HA17558AF
0.01
CKPU
2SD2704K
0.01 CKPU
100K
100K
100K
(2/2)
100K
HA17558AF
750K
2.2K
DAN217U
100K
(1/2)
100K
100K
100K STBY
100K
100K
STBY
4.7/25
NP
STBY
RT1N241M
22k
100K
UDZS5R1(B)
1K
2SA1576A (QR)
100k
GNDA
GNDU
YB
1000p GNDU
100/25
52147-0310
B3B-EH
GNDCH
YB
1000p
6 OHM
GNDU
FL
GNDA
SR
GNDA
FR
GNDA
SBL
GNDA
SBR/SW
GNDA
SL
GNDA
XKP3091-
C
6_OHM
FAN CONTROL
SBR
SR
FL
SL
SBL
FR
C+12V
GNDU
-12V
J22
FAN+
FAN-
FAN STOP
ATT
DCDT
XPROTECT
OLDT
NECK
AMUTE
JA:CEJA
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
2.CAPACITORS
1.RESISTORS
Tolerance: (J) 5% unless otherwise noted.
Unit: p-pF or µF unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
NOTE
+
-
A2/3
CN705
FAN
C1/2
891
O
A3/3
A3/3
UDZS13(B)
(FL) : Audio Signal Route (Front L ch)
(SL) : Audio Signal Route (Surround L ch)
(C) : Audio Signal Route (Center ch)
(SBL) : Audio Signal Route (Surround Back L ch)
(SW) : Audio Signal Route (SubWoofer ch)
(FL) (FL)
(SL) (SL)
(C) (C)
(SBL) (SBL)
VSX-816-K
20
1234
1234
C
D
F
A
B
E
3.5 MAIN ASSY (3/3)
HPDET
SPA_RY
R/C_RY
SPB_RY
AC_WP
AC_RY
RDS_DT
XM_ERR
93
RDS_CLK
29
78
77
80
30
79
91
52
SRTX
SW2
SRRX
SW1
MUTE
SROUT
V3
SRIN
RMC
SWDET
OSD_CLK
OSD_RST
OSD_CS
OSD_DT
INH
V1
V2
IPRX
V4
UART2
SRRX
IPTX
RDS_CLK
RDS_DT
TX
SRTX
RX
RDS_ON_/_OFF
T_DO
T_CLK
T_CE
T_DI
CONTROL
CN111
L9001
L9002
L102
L101
CN106
VSX-816
ONLY
R9070
R9059
R9058
R9056
R9057
R9055
R9053
R9054
R9052
R9051
R9049
R9050
R6003
R5007
CN104
R5005
R5016
C5008
R5009 Q5009
R5006
L5002
D9003
D9002
D101
C116 C115
D9001
R6007
R6009
C6001
R6001
R6002
IC6001
R6010
R6004 D6001
R5013
R5012
R5020 C5020
R5011
C5012
C5017
IC9002
C5028
C5027
C5025
C5026
CN103
R5004
R5003
C5002
R5002
R5001
C5001
C5003
C5005
C5004
C5018
C5010
C5011
IC5001
X5001
C5013
C5014
C5015
C5016
R5010
20 1618
21 19 17
14 1012 8
15 13 11 9 7
462
531
123456789101112
15
16
19
18
17 13
14
11
10
9
8
12
7
2
5
64
31
10
11
9
7
5
6
8
9
10
4
3
1
2
11
12
14
13
4
1
3
2
5
6
8
7
8
7
6
5
4
3
1
2
2
1
4
5
3
8
6
7
16
15
14
13
12
9
11
10
GNDTGNDU
XKP3091-
ATL7002
ATL7002
GNDU
GAV
QTL1013
QTL1013
GNDA
VKN1243
STBY
STBY
STBY
STBY
STBY
STBY
220
220
220
220
220
220
0
STBY
GNDT
CKS3384-
GNDT 0STBY STBY
STBY
QTL1013
VT+9
DAN202U
SM+5V
DAP202U
V-12
D+5.6
STBY
0.010.01
V+12
V+5U
YBYB
GNDU
DAP202U
ST+5.6
V+5U
1K
GNDU
100
YB
100k
0.1/16
GNDU
100k
100k
TC74VHCT125AFTS1
1.8k
100 1SS355
V+5U
STBY
0
1K
4700p
10/50
560p
STBY
BR24L16FV
TR
TL
1000p
1000p
1000p
52044-1145
STBY
STBY
22p 1000p
VT+9
CHASSIS
STBY
STBY
YB
YB
0.01
YB
STBY
1u
STBY
STBY
1K
STBY
47K
AL
LC72725M
GNDU
47K
STBY
27p
27p
47/16
CH
CH
ASS7004- -T
YB
0.01
AL
V+5U
+
-
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
2.CAPACITORS
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
Tolerance: (J) 5% unless otherwise noted.
Unit: p-pF or µF unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
1.RESISTORS
NOTE
GNDT
T+12V
HP. SW
SP-A RY
R/C RY
SP-B RY
-12V
FL AC1
FL AC2
-VF
AC WP
AC RY
D+5.6V
GNDU
ST5.6V
GNDA
SWOUT
+12V
GAV
GNDA
NC
XMOL5
XMLNK
XMLSDT1
XMFS
XMTX1
XMRQ1
XMRST
XMCS
XM_SW
XMDI
XMDAC_RST
J50 XMPOW
SRTXD
SRRXD
SW1
SW2
NC
SRIN
RMC
SWDET
AMUTE
SROUT
VIDEO2
VIDEO3
INH
OSD CLK
OSD CS
OSD RST
VIDEO1
OSD DT
J33 VIDEO4
GNDT
RDS
VSM
GND
2Y
2A
3Y
3A
3OE
2OE
1Y
1OE
1A
4A
4Y
VCC
4OE
A0
A1
A2
GND
SCL
SDA
Vcc
WP
E2PROM
TUNER CLK
+9V
TR
GNDT
TL
TUNER DO
TUNER CE
TUNER DI
J34 (RCA Jack)
RDS-ID/READY
MPXIN
VREF
RDDA
FLOUT
VSSA
VDDA
CIN
RDCL
XIN
XOUT
RST
MODE
VSSD
VDDD
TEST
4.332MHz *2
CN816
C2/2
A3/3
A3/3
MAIN ASSY
(VSX-816 : XWK3233)
(VSX-916 : XWK3234)
VSX-916
ONLY
Y
CN303
Q
CN952
B2/2
A1/3
A1/3
A2/3
(L)
(SW)
(SW)
VSX-816-K 21
5678
5678
C
D
F
A
B
E
24
36
35
37
46
42
41
39
40
45
38
29
30
26
28
27
24
25
23
22
1W_WP
UART2
19
AC_WP
EE_DT
EE_CLK
OSD_CLK
OSD_DT
IPOD_POW
OSD_CS
OSD_RST
100
22
23
19
1
27
26
46
2
45
42
41
38
39
40
35
37
36
50
21
48
49
49
48
50
MUTE
XM_ERR
52
SPA_RY
R/C_RY
SPB_RY
NECK
V4
AC_RY
SWDET
V3
V2
INH
SW2
DCDT
V1
OLDT
RDS_CLK
RDS_DT
SW1
78
77
80
79
T_CLK
28
SRIN
RMC
SROUT
1W_WP
1
2
100
HPDET
91
93
21
GCTRL
T_CE
T_DO
T_DI
CN102
R9065
R9064
R9067
R9066
D9065
D9064 D9068
Q9065
CN112
VSX-916
ONLY
R9080
Q9064 Q9065
R9010
R9031
C9005
R9013
R9037
Q9001
C9001
C9004
C9002
R9002
C9006
D9010
R9033
L9003
R9046
R9039
R9004
C9009
C9010
X9001
R9041
R9062
C9015
R9005
C9019
IC9001
R9045
R9048
R9047
R9016
R9018
R9017
R9014
R9015
C9008
C9007
R9038
C9012
R9026
R9025
R9060
R9023
R9024
R9082
C9081
R9081
R9009
D9011
R9011
C9000
R9012
Q9003
R9032
C9013
Q9002
R9030
Q9007
C9018
R9068
R9008
R9036
R9028
R9042
R9043
R9044
R9021
R9020
R9019
R9022
R9034
CN101
C9017
R9007
C9014
R9006
C9011
R9063
Q9004
D9007 D9006
1
2
3
4
6
7
5
10
8
9
25
2224 20 1618
23 21 19 17
14 12 10 8
1315 11 9 7
462
531
31
33
34
32
36
35
37
30
40
39
38
42
43
41
46
44
45
292827262523 241817 19 2120 2210 11 12 13 14 15 1665 94 87321
100
97
98
99
95
96
94
91
92
93
89
88
90
86
85
87
47
48
49
50
5153 525455565758596062 6164 6366 6569 68 6771 7073 72747577 76787980
83
82
84
81
4
3
2
1
12
9
10
1311
68
7515
16
17
14
GNDU
SWPR
STBY
10K
10K
10K
10K
DAP202U
GNDU
UMD2N
DAP202U 1SS355
RT1P241M UMD2N
CKS5390-(VSX-916)
CKS3382-(VSX-816)
V+5U
10K
V+5U
100K
LSSN
5.1k
JQ
2.2/50
100K
RT1N431M
STBY
0.01
STBY
YB
YB
1u/10
100K
1SS355
47K
LFCA2R2J
470
100K
STBY
*
XSS3004- STBY
100K
470
470
1000p
YB
0
STBY
470
10k
10k
330/6.3
YB
0.01
470
470
470
470
470
STBY
STBY
47K
270K
0.01
220
STBY
V-12
1K
0
RT1P241M
47K
100K
V+5U
DAN202U
RT1P241M
V+12 GNDU
STBY
DTC143TK
47
VLDT
VLCK
SM+5V
STBY
0
220
220 DSPOL
100K
10K
10K
10K
STBY
470
470
470
470
V+5U
6_OHM
4.7K
4.7K
4.7K
CKS3382-
ST+5.6
D+5.6 SM+5V
MICSW
V+5U
STBY
STBY
0.047/16
470K
YB
470K
GNDU
0.047/16
YB
STBY
DAN217U
V+5U
DAN217U
MVRATT
SR_TXD
NC
T_BUSY
VSS
T_RST
T_PGM/OE/MD
T_SCLK
T_VDD
VSS
SR_RXD
1
XFLAG
5
4
2
MUTE_OUT
3
DIR CS
USCLK
USB XRST
USDAO
USDAI
USCS
USB CTL
USB HREQ
USB TREQ
DSP DO
DSP DI
DIR DO
DSP MODE
DSP HREQ
BUSY
DSP SS
DSP RST
DSP CLK
DEC MUTE
DIR RST
DIR ERR
XTLO
GNDD
GNDD
J45
DMUTE
XMTX
232C CTS
CLK
DSP CLK
DSP DO
DSP DI
BUSY
DSP SS
DSP RST
DSP MUTE
DSP MODE
DSP HREQ
DIR CS
DIR DO
ADMODE
STBY
15.7MHZ
XM RX
DISP RST 32.RX(SR+/IPOD)
USCS
USB XRST
31.TX(SR+/IPOD)
XFLAG
IPOD SENSE
51.NECK SELECT
USB CTL
USB HREQ
1W WUP
USB TREQ
UART SW2
ACIN(WAKEUP)
LOW_CONSUMPTION
MAIN µ-COM
PEG216-K
12C DT EEPROM
NMI
+5V
XIN
GND
XOUT
XRESET
12C CLK EEPROM
CNVSS
GND
DISP CLK/OSD CLK
DISP DO
DISP DI/OSD DT 3.DISP EN
2.USCLK
RDS CLK/XM LOW SPD
RDS DT/XM LINK ACTIVE
DISP RDY 1.USDAI
USDAO
HPDET
AVCC
VREF
AVSS
SIMUKE2
SIMUKE1
IPOD POW
DECO MUTE
XPROTECT
XM POW
XM Fs
MVRATT
OSD RST
OSD CS
6 OHM
A
DIR ERR
DIR CDC RST
LSSN
XTLO
AMUTE
XMDCS
RY_C/R
RY_B
XM ERR
RY_A
VIDEO4
RY-AC
EVR CLK
EVR DT
+5V
COMP VIDEO B
COMP VIDEO INH
GND
COMP VIDEO A
SW DET
VIDEO2
VIDEO3
DC PROT
VIDEO1
DSP OVERLOAD
OL DET
WAKE_UPB(XM)
RDS FM+/XM RST
XM SIGNAL SW
T_CE
T_DI
T_CLK
T_DO
XM CS
VSX-916
ONLY
J31
FLAC 2
FLAC 1
-VF
DISP RST
DISP DI
DISP CLK
DISP DO
SRIN
SROUT
RMC
1W WP
DISP EN
DISP RDY
GNDU
ST5.6V
D+5.6V
MIC DET
FLASH U-COM
CN817 (VSX-816)
CN813 (VSX-916)
C2/2
A3/3
CN401
K
A2/3
A1/3 A2/3
A2/3
A1/3
A1/3
A1/3
R9026
VSX-816 : 750
VSX-916 : 3.3K
(L) : Audio Signal Route (L ch)
(V) : Video Signal Route
(SW) : Audio Signal Route (SubWoofer ch)
(SW)
VSX-816-K
22
1234
1234
C
D
F
A
B
E

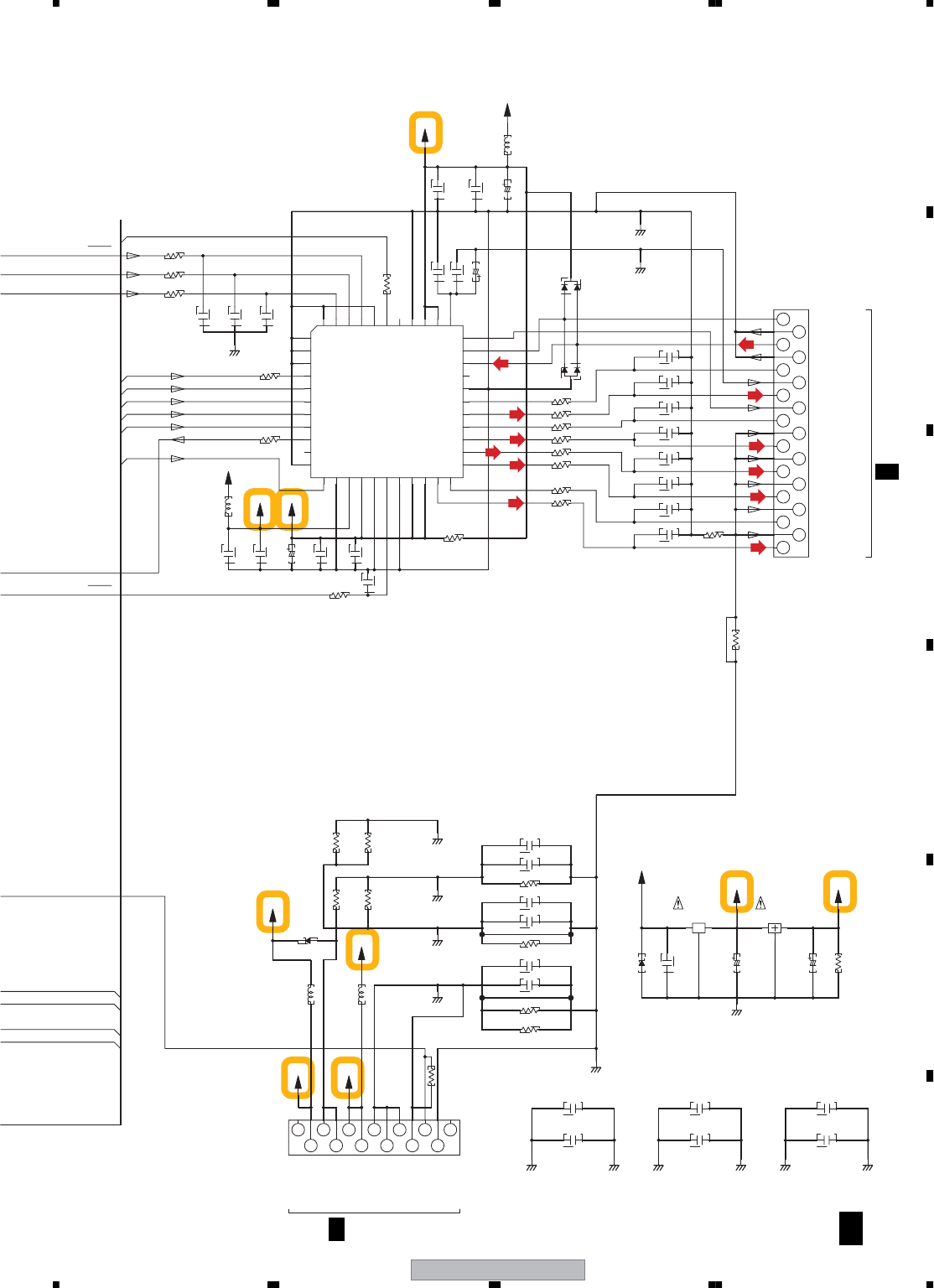

3.6 DSP ASSY (1/2) (for VSX-816)
XMLK
LCKI
XMMK
MCLK
XMSW3
XTL0
DRRT
MOSI
DRDO
DRCS
SCK
ERR3
MC
R606
R605
R604
CN601
R566
R565 IC551
R564
R563
R562
L551 C552
C551
R567
R569
R568
R570
R571
L601
C605
C606
C607
C608
C609
L602
R613
R614
R615
R617
R616
R609
R610
R611
R618
C612
C613
R608
R607
C604
IC601
R620
R627
R628
R517
C621
R621
R623
X601
R622
R626
R625
R624
C617
C614
C620
C619
L605
C618
C502
JA501
R515
C504
L502
R502
KN502
C501
JA501
R501
L501
C503
JA502
R514
R516
R629
1
2
3
4
6
5
7
8
10
9
16
15
13
14
12
116
1
3
2
4
5
9
10
8
7
13 1514 17 1816
12
11
2119 20 23 2422
25
26
10
9
8
6
7
4
5
28
27
31
29
30
33
32
2
3
1
48 47 46 45 4344
34
35
42 4041 38 3739
36
4
2
3
1
1
2
GNDD
GNDD
100k
100k
100k
V5D1
VKN1414
0YB
100
100
TC74VHC157FTS1
47
100
QTL1013
47
V3D V33
CH 470p
YB 0.1
100
47
100
100
47
QTL1013
CH
470p
YB
47/6.3
0.1
QTL1013
YB 0.1
CH470p
V5D1 V53 V3D V32
0
0
stby
100
100
47
100
100
100
12.288MHz
GNDD
CH
CH
12p
12p
stbystby
stby AK4114VQ
18k
10
0.47 YB
47 ASS7046
0
100
100
stby
0
100
YB
10k
1000p
YB
GNDD
0.1
CH470p
0.1
QTL1013
YB
47/6.3
VNE1948
GCH
AKB7173 stby
0.01
stby
75
AKB7173
CH
stby
stby YB
0.01
75
0
VKB1159
10
V31 stby
V3D
UNLESS OTHERWISE NOTED
RAB4C***J-T
RS1/16S***J-T
CEVW***M**-T
CKSQYB105K16-T
CKSRYB104K16-T
CKSRYB105K6R3-T
CKSRYB****50-T
INDICATEDNO
CCSRCH****50-T
PARTS IS...
NOTES:
GNDD
RX6
TX1
GNDD
GNDD
GNDD
GNDD
RX5
RX4
V+5D
VCC
ST
4B
4A
3A
4Y
(SN74LV157APW)
2B
SEL
1A
1B
1Y
2A
3B
3Y GND
2Y
DIRL
XM
SEL
H
Y
DVSS
TX0
TVDD
TX1
COUT
BOUT
XTL1
VIN
VOUT
UOUT
DVDD
DVSS
LRCK
MCKO1
SDTO
BICK
IIC
P/SN
XTL0 (CAD1/0=00)
DIR&DIT
AVSS
RX7(BtoB)
AVSS
RX6(FFC)
XTO
DAUX
MCKO2
PDN
XTI
CDTI
CDTO
AVSS
RX4(FFC)
RX5(FFC)
RX1(COAX2)
AVSS
RX2
RX3
AVSS
AVSS
RX0(COAX1)
CSN
CCLK
AVSS
VCOM
AVDD
R
INT0
INT1 F%
stby
(2/2)
COAX2
RX1
(1/2)
COAX1
RX0
COAX(STBY)
CN1903
R
B1/2
DSP ASSY (AWX8699)
B1/2
(FL) : Audio Signal Route (Front L ch)
(SL) : Audio Signal Route (Surround L ch)
(C) : Audio Signal Route (Center ch)
(SBL) : Audio Signal Route (Surround Back L ch)
(SW) : Audio Signal Route (SubWoofer ch)
(L) : Audio Signal Route (L ch)
VSX-816-K 23
5678
5678
C
D
F
A
B
E
XMBK
XMFD
FDTI
BCKI
DRRT
BDTO
CDTO
SDTO
BCKO
FDTO
LCKO
MOSI
SCK
DRCS
MD
MCLK
R905
CN901 C763 C917 C919
C764 C916 C918
L902
L901
R910
R911
D902
C906
C905
R909
R907 R917
R916 R918
C903
C904
R908
C902
C901
L701C701
R703
C702
C703
C704
C705
C706
R704
R702
R705
R706
R707
R709
R708
R701 IC701
R710
R711
R712
D701
C907
D901
C908
R915
C909
IC902
IC901
R913
C707
R914
C708
C709
C710
C711
C712
C713
C714
C722
C721
R715
R716
R714
C723
R713
D702
C718
C720
C717
C719
C715
C716
L702
CN701
10
12
6
8
2
4
13
11
9
7
5
3
1
14
12
13
11910
15
17
16
20
19
18
21
22
232425
7864523
27 2629 2830
3
32 31
12
1233
12
19
16
17
18
15
14
13
12
10
11
9
8
6
7
5
4
3
1
42
44
43
41
40
39
36
37
38
35
34
33
2
3
1
2
1
ADJ
OUTIN
GNDD
YB
CH
V2 V1
100k
XKP3077
GNDD
0.1
GDAC
470p
GDAC
YB 0.01
CH 470p
GDAC
0.1
CH 470p
YB
GNDD
ATL7002
ATL7002
GNDD
stby
stby
UDZS5R6(B) V5D1 GDAC
stby
stby
stby
stby
V5A
stby
stby
GVCM
stby
stby
GVC2
stby
0
stby
stby
YB
V3D
GDAC
470p
0
0.01
CH
100/16
0.1 YB
QTL1013
YB0.1
100p
4.7
CH
V34 V55
100
100
100
100
100
100
47
AK4628AVQ
100
100
100
GCH
GNDD
UDZS5R6(B)
100/16
YB 0.1
1k
100/4
V5D1
V3D
LM1117DT-ADJ
NJM2391DL1-33
V1R2
stby
470p CH
470p CH
stby
470p CH
470p CH
470p CH
470p CH
MA152WA
470p CH
470p CH
stby
100
100
100
stby
stby
47
YB
47/6.3
CH
stby 470p
0.1
YB 0.1
100/16
V54
QTL1013
V5A
MA152WK
GVCM
XKP3080
GDAC
GNDA (DAG)
GNDA (DAG)
NC
V+5A
V+5D
V+5D
DGRTN
GNDD
DGRTN
uGRTN
DGRTN
NC
RX7
(XM) (DSP)(DAC) (CODEC) (CODEC) (DIR)
SDTI4
DFS
DZFE
SDTO
DAUX
TVDD
DVDD
DVSS
PDN
TST
CAD1
CAD0
LOUT4
ROUT4
(CAD1/0=11) LOUT2
ROUT3
LOUT3
SDTI1
SDTI2
SDTI3
LRCK
BICK
SMUTE
I2C RIN
ROUT2
LOUT1
ROUT1
(TST)NC
8ch CODEC
NC
LIN
SBLO
GNDA(DAG)
SBRO
GNDA(DAG)
SLO
SWO
CO
GNDA(DAG)
GNDA(DAG)
GNDA(DAG)
FRO
GNDA(DAG)
FLO
SRO
RCMUT/OVF
VCOMG
SDOS
TDM
CDTI
CSN
CCLK
P/S
AVSS
DZF1
MCLK
VCOM
VREFH
AVDD
DZF2/OVF
RIN
LIN
GNDA(DAG)
CN805
C2/2
CN806
C2/2
B1/2
(FL)
(FL)
(SL)
(SL)
(C)
(C)
(SBL)
(SBL)
(SW)
(SW)
(L)
(L)
VSX-816-K
24
1234
1234
C
D
F
A
B
E
3.7 DSP ASSY (2/2) (for VSX-816)
XMSW5
XMDRS
XMPOW
XMDI5
XMCS5
XMFS5
XMLSD5
XMREQ5
XMLNK5
XMDO5
XMRST5
XMRST5
XMRST3
XMCS3
XMCS5
XMSW3
XMSW5
XMDI5
XMDI3
DSDO
DECM
MOSI
XMOL5
SCK
DSRT
BUS5
DSRQ
DRRT
DRCS
DRD5
DSM5
XMLNK3
XMLNK5
XMFS5
XMFS3
SS
MISO
BUS5
DECM
DRDO
XTL0
ERR5 HREQ
XMOL5
ERR3
XMREQ5
XMLSD5
XMDO3
XMLSD3
XMDO5
DRD5
BUS3
DSDO
XMOL3
MUT
DSRQ
ERR5
XMREQ3
XMFD
XMBK
XMLK MC
XMMK
XMPOW
XMOL3
XMLSD3
XMCS3
XMDI3
XMDO3
XMREQ3
XMLNK3
XMRST3
XMFS3
10 9 812 11 672345
14
10
7
8
11
12
9
15
13
5
3
4
6
2
1
1
1
2
3
4
6
7
510
9
12
13
11
14
8
4
3
2
1
1
3
2
4
6
7
5
1
3
2
5
4
6
7
9
8
10
13
12
11
14
8
10
9
20
19
18
17
16
15
11
14
13
12
25
23 2421 22
28
29
26
27
31
30
32
34
35
33
36
38 373940
19 2017 181614 15
42 4145 434447 46
1
3
2
5
4
BC
E
13
12
8
9
11
10
6
7
5
4
2
3
48
1
CN952
R964
R965
R963
CN951
L954
R974
R978
R977
C951
C952
IC953
C957
C956
L951
R980
R979
L953
C407
C408
D401
D402
C410
R409
C409
C406
R406
R407
C404
R405
R404
CN401
R408
C405
C401
R962
R967
R968
R969
R971
R972
R954
R955
C954
R970
R956
R957
IC951
C955
IC952
R966
R973
L952
R961
R960
R959
R958
X401
R411
R410 R412
C417
C416
C421
C420
C419
C418
C403
C402
IC401
R426
R427
R428
R429
C413
C412
IC402
R422
L402
R430
R431
L401
Q401
R402
R401
R415
R414
C411
R421
R419
R420
C414
C415 R417
R416
R418
R423
R424
R425
XMDI
XMDAC RESET
XMPOW
XM SW
XMCS
XMLNK
XMFS
XMLSDT1
XMRST
XMRQ1
XMTX1
DEC MUTE
DSP HREQ
DSP MODE
XMOL5
BUSY
DSP SS
DSP DO
DSP RST
DSP CK
DSP DI
XTL0
GNDD
DIR ERR
DIR RST
DIR CS
DIR DO
stby
1A
1B
for XM
1Y
2B
2Y
2A
GND
3B
3A
4A
4Y
4B
VCC
(SN74AHC08PW)
Level shifter
5V -> 3V
3Y
TR-
TR+
GND
+5V
1Y
1B
1A
for XM
2A
2Y
2B
GND
2Y4
1A1
1G
2Y3
1A3
1A2
1A4
2Y1
2Y2
GND
(SN74AHCT08PW)
Level shifter
3V -> 5V
VCC
4B
4Y
3A
3B
4A
3Y
Level shifter
for DSP,DIR,XM
(SN74LV244ATPW)
3V -> 5V
VCC
1Y1
2G
2A3
2A4
1Y2
2A1
2A2
1Y4
1Y3
OSC_OUT
VSS7
COMM_TX_M
VDD5
OSC_IN
VSS8
VSS9
TEST
HSDP_DATA
VDD6
VSS10
HSDP_CLK
PCM_CLK
HSDP_EN
VSS5
COMM_RX_M
VDD4
VDD3
COMM_RX_P
VSS4
SLAVE_SEL
ASYNC_RESETB
COMM_RX_DIG
PCM_LRCLK
COMM_TX_EN
VSS6
SAII_EN
COMM_TX_P
PCM_OCLK
PCM_DATA
VSS11
SAII_CLK
COMMAND_SEL
SC_TX_OUT
SAII_DATA
VDD8
COMM_TX_DIG
VDD7
VSS12
VSS13
LSDP_TXRX
MC
(RT1P441M)
WAKE_UPB
VDD2
VSS3
SC_RX_IN
VSS2
VSS
VDD
VKN1416
GNDD
100k
100k
100k
XKP3078
QTL1013
GNDC2 GNDD
stby
GNDD
100
100
GNDD GNDD
YB1
CH 470p
TC74VHC08FTS1
YB1
V3D
V38
QTL1013
100
V5D6
100
V5D1
QTL1013
GNDD
GCH
10p
45.1584MHz
GNDD
10p CH
CH
100/16
0.1
YB
UDZS5R6(B)
UDZS5R6(B)
stby
YB
0.1
1k
100
1k
100
V5X2
AKP7201
stby YB
0.1
100k
100k
100k
100k
330
330
GNDD
100
100
100k
100
100
CH
TC74VHCT08AFTS1
470p
1
CH
470p
YB
TC74VHCT244AFTS1
330
330
QTL1013
V56
100
100
V5D1
100
100
ASS7065
1M
470 stby stby
stby
YB0.1
stby
stby
stby
stby
CH
470p
0.1
F2602E-01
100
100
100
100
stby
YB
1
AAT4618IGV-0.5-1
stby
GNDD
47/6.3
ATL7002
0
10k
V32C
V3D
QTL1013
V1
V5X1
V3D
stby
YB
stby
stby
100k
100k
stby
100k
100k
100k
stby
stby 100k
100
100
100
100
100
B2/2
DSP ASSY (AWX8699)
CN807
C2/2
CN106
A3/3
B2/2
VSX-816-K 25
5678
5678
C
D
F
A
B
E
MOSI
SS
SCK
MISO
HREQ
FDTO
BDTO
CDTO
SDTO
FDTI
LCKI
BCKO
MD
BCKI
LCKO
MCLK
BUS3
DSRT
DSM5
MUT
1
8
4
7
44
22
21
25
24
23
28
27
26
30
31
29
32
33
34
37
36
35
39
38
40
19
20
18
17
15
16
9
10
12
13
8
11
14
7
6
5
4
3
2
1
80 77 767879 7475 73 707172 68 6769 6466 65 63 62 61
26
853
8
42
41
44
43
45
46
47
48
50
51
49
52
53
E
C
B
54
55
56
57
58
59
60
4
3
1
2
5
8
6
7
4
3
2
1
5
6
7
8
R953
R952
R951
R812
R840
R810
R809
C816
C817
IC802
R842
R843
C811
C812
C813
R816
X801
R815
C818
C819
C806
C808 C810
R811
L804
C815
C807 C809 C814
C805
C804
C803
R802
C802
R806
R805
R804
R803
R807
IC801
C801
R801
R836
R834
R832
C832 C830
R830
R829
C828
R828
C872
R833
R835
C833 C831 C829
R827
R813
R817
IC802IC802
C820
L801
C821
C822
C823
C824
R844
C825
R819
R821
C826
C827
R822
Q801
R823
R826
R856
R855
R857
R852
R854
R853
R851
IC851
C851
C852
L851
C871
R872
IC871
R876
R875
R871
R873
R874
L803
R839
C835
R841
L871
L802
R838
C834
UNLESS OTHERWISE NOTED
RS1/16S***J-T
RAB4C***J-T
CEVW***M**-T
(3/3)
INDICATEDNO
CCSRCH****50-T
CKSRYB****50-T
CKSRYB105K6R3-T
PARTS
CKSRYB104K16-T
IS...
CKSQYB105K16-T
NOTES:
SCAN
PF9
VDDIO
GNDIO
PF10
GNDCO
PB1
PB0
TDI
TDO
VDDCO
TMS
TCK
MOSI
SCK
SS
MISO
GNDPA
VDDPA
HREQ
GNDSP
PF0
PF1
VDDIO
PF3
PF5
PF4 DECODER
UCOM
RESET
PINIT
EXTAL
VDDPD
1
00
01
01
0
GNDPP
GNDPD
PF7
PF2
PF8
VDDCO
GNDCO
PF6
BOOT MODE MODD
DCAB
VDDCO
GNDCO
MODA
MODB
MODC
SDO0
SDO1
SDO3
SDO2
VDDIO
GNDIO
VDDCO
GNDIO
VDDIO
96DTS
FST_1
SCKT_1
VDDIO
GNDIO
GNDCO
MUTE
PE8
SDI1_1
SDI0_1
PE9
PE10
FST
SDI0
SDI1
SCKT
SCKR
FSR
HCKT
BUSY
PC2
PE2
PE5
PE1
PE0
(1/3)
(2/3)
VDDPP
/W
Vss
Q
/S
C
D
/HOLD
Vcc
GND
Y2
A1
G1
YG
HI-ZH
LON
A2
Y1
G2
Vcc
100
100
10k
47k
100
100
100
8pCH
CH 8p
TC7WU04FU
GNDD
CH 470p
stby
stby
stby
stby
10k
stby
VSS1171
20MHz
1M
470
YB 0.1
stby
YB YB
0.1 0.1 YB
4.7k
QTL1013
0.1
CH
470p CH
470p CH
470p
0.1
470p
CH
YB
0.1
470p
100
YB
CH
YB0.1
10k
10k
10k
10k
47k
DSP
DSPC56371AF180
470p
CH
47
47
CH CH
47
470p
47
470p CH
470p
YB 0.1
GNDD
47
YB
0.1 YB
0.1
47
47
47
YB
0.1
47
47
100
TC7WU04FU TC7WU04FU
V37
QTL1013
V3D
CH
470p
YB
0.1
CH
470p
YB
0.1
stby
0.01
100
YB
0
CH
470p
YB
0.1
RT1N241M
47k
10k
V3D
stby
10k
10k
10k
2.2k
stby
PDC145A8
47
stby
1M ROM
470p CH
QTL1013
YB0.1
CH 470p
47
TC7WH125FU
stby
47
stby
47
47
ATL7002
stby
47k
V11
V1R2
V35
V3D
QTL1013
V3D
GNDD
ATL7002
100/16
V3D
V32E
100/4
stby
V36
V3D
B2/2
VSX-816-K
26
1234
1234
C
D
F
A
B
E
3.8 DSP ASSY (1/2) (for VSX-916)
R554
R551
R552
R553
R577
R579
R606
R605
R604
C603
R603
C602
R602
CN601
C601
R601
R573 R572
R574 R575
L601
C605
C606
C607
C608
C609
L603
R612
L602
R613
R614
R615
R617
R616
R610
R609
C610 C611
R619
R618
C612
C613
R607
C604
IC601
R620
R623
C623
R630 R629
R627
R628
IC501
R504
C622
IC501
R511
C621
L604 X601 ASS7046
12.288MHz
R621
R622
R626
R625
R624
C617
C616
C615
C614
C620
C619
L605
C618
KN502
JA501
L502 C504
C502
R502
KN501
JA501
C501
R501
L501 C503
R505
R507
R509
C506
C508
IC501
C510
R506
C505
C507
R508
C511
C509
R510
IC501
R512
R503
IC501 IC501
C512
C513
R513 L503
R561
R560
R559
LOCK
ERR3
LCKI
CDTI
SDTI
BDTI
MCLK
FDTI
BCKI
XTL0
DRRT
DRRT
MOSI
DRDO
DRCS
SCK
LOCK
SCK
MOSI
MC
DRCS
UNLESS OTHERWISE NOTED
CEVW***M**-T
CKSRYB333K16-T
CKSRYB104K16-T
CKSRYB105K6R3-T
CKSRYB****50-T
RS1/16S***J-T
NO INDICATED
NOTES:
CCSRCH****50-T
PARTS IS...
GNDD
OPT IN2
OPT OUT
GNDD
OPT IN3
GNDD
GNDD
GNDD
OPT IN1
V+5D
DVSS
TVDD
TX1
TX0
BOUT
XTL1
VIN
UOUT
COUT
VOUT
DVDD
DVSS
MCKO1
LRCK
SDTO
BICK
IIC
P/SN
XTL0
DIR&DIT
AVSS
RX7
AVSS
RX6
DAUX
MCKO2
XTO
PDN
XTI
CDTI
CDTO
RX5
AVSS
AVSS
RX4
RX3
RX2
AVSS
RX1
CCLK
CSN
RX0
AVSS
AVSS
VCOM
R
AVDD
INT0
INT1 F%
(1/6) (2/6)
stby
stby
(2/2)
COAX2
(1/2)
COAX1
(4/6)
(6/6) (5/6)
(3/6)
IEDO
IEIT
PWR
IEE5
IE
1
2
3
4
6
5
8
7
9
10
13 14 15 1716
11
12
18 19 20 2221 23 24
25
26
9
10
8
6
7
4
5
28
27
31
29
30
32
33
2
3
1
48 47 46 45 44
34
35
43 42 41 383940
36
37
4
2
1
3
13 14
7
12 14
11
7
10
8
914
7
2
114
77
314 4
7
514 6
100k
100k
100k
100k
GNDD
100k
GNDD
0
100k
100k
GNDD
100k
stby
0
stby
0
VKN1414
V5D1
stby
0
GCH YB
00
00
QTL1013
CH
470p
YB
47/6.3
0.1
QTL1013
GNDD
CH470p
stby
YB
0
0.1
V5D1 V53 V3D V32
0
100
0
100
47
100
100
stby
stby
GNDD
stby
100
stby
GNDD
CH
CH
stby
0AK4114VQ 0
0
stby
0
18k
TC74HCU04AFTC74HCU04AF
0
stby
stby
0.47 YB
47
100
100
0
stby
100
10k
YB
12p
12p
stby
stby
YB 0.1
GNDD
CH470p
QTL1013
0.1
YB
47/6.3
VNE1948
AKB7131
QTL1013 0.01
stby
75
VNF1084
AKB7131
stby CH
YB
0.01
75
QTL1013
100
47p
CH
stby
TC74HCU04AF
stby
TC74HCU04AF
2.2k
2.2k
47k
CH 47p
100
stby
stby
stby
TC74HCU04AF
47k
TC74HCU04AF
V51
V52
GNDD
V31
V3D
CH
YB
470p
1
100/16
100
100
QTL1013
V5D1
100k
100k
100k
GNDD
B1/2
B1/2
DSP ASSY (AWX8572)
CN1903
R
VSX-816-K 27
5678
5678
C
D
F
A
B
E
KN901
CN902
C915 C917 C919
C914 C916
C913
C918
R906
R905
R904
R902
L902
R901
L901
R912
R911
R910
D902 C906
C905
R909
R916
R907
C904
C903
R908
R703
C706
C902
C901
L701C701
C702
C703
C704
C705
R704
R702
R706
R705
R707
R708
R709
R701 IC701
R711
R710
D701
R712
C912
C911
C910
C907
D901
C908
IC901 IC902
C909
R915
C707
R913
R914
C708
C710
C709
C711
C712
C713
C714
C721
R716
R715
R714
C723
C722
R713
D702
C718
C720
C717
C719
C716
C715 L702
CN701
BDTO
CDTO
SDTO
FDTO
LCKO
BCKO
MCLK
MD
(1394)
(DAG)
(DAG)
GNDD
GNDA
GNDA
OPTOUT
OPTIN
OPTIN
DGRTN
DGRTN
uGRTN
stby
V+5A
V+5D
V+5D
GNDD
(DSP)(DSP) (DIR)
SDTI4
DFS
DZFE
SDTO
DAUX
TVDD
DVDD
DVSS
PDN
TST
CAD1
CAD0
LOUT4
ROUT4
LOUT2
ROUT3
LOUT3
SDTI1
SDTI2
SDTI3
LRCK
BICK
SMUTE
I2C
NC
LIN
RIN
ROUT2
LOUT1
ROUT1
(TST)NC
8ch CODEC
SBLO
GNDA(DAG)
SBRO
CO
GNDA(DAG)
GNDA(DAG)
SWO
GNDA(DAG)
GNDA(DAG)
SLO
SRO
RCMUT/OVF
FLO
VCOMG
FRO
GNDA(DAG)
SDOS
TDM
CDTI
P/S
CSN
CCLK
MCLK
AVSS
DZF1
VCOM
VREFH
AVDD
DZF 2/OVF
RIN
LIN
GNDA(DAG)
13
12
11
10
8
4
6
2
7
9
5
3
1
12
13
11 910
15
16
14
19
17
18
22
21
20
23 2524
87 45623
26 27 3028 29
3
31 32
1
1231
32
19
16
17
18
15
14
12
13
10
11
2
9
8
6
7
5
4
3
1
44
43
41
40
42
37
39
38
34
36
35
33
21
3
2
1
VNF1084
GCH2
XKP3077
GNDDGNDD
stby
GDAC GDAC
YB 0.01
GNDD
470pCH
stby CH 470p
stby
stby
YB 0.1
100K
100k
100k
GIE
stby
ATL7002
stby
ATL7002
GNDD
stby
stby
stby
UDZS5R6(B)
V5A V5D1 GDAC
stby
stby
stby
stby
GVCM
stby
stby
stby
0
YB 0.1
0
stby
stby
V3D
GDAC
YB
0.01
CH
100/16
470p
YB
0.1
QTL1013
CH
100p
4.7
V34 V55
100
47
AK4628VQE
stby
stby
GCH
UDZS5R6(B)
YB
100/16
GNDD
100/16
0.1
NJM2391DL1-33 LM1117DT-ADJ
1k
V5D1
V3D V1R2
CH470p
CH470p
0
stby
100
100 470p CH
100 470p CH
100
100 470p CH
100
100 470p CH
100
DAP202K
470p CH
470p CH
stby
100
100
100
stby
stby
47
YB
47/6.3
470p
0.1 CH
stby
YB 0.1
100/16
V54
QTL1013
V5A
GVCM
DAN202K
XKP3080
GDAC
ADJ
OUTIN
B1/2
CN806
C2/2
CN805
C2/2
(FL) : Audio Signal Route (Front L ch)
(SL) : Audio Signal Route (Surround L ch)
(C) : Audio Signal Route (Center ch)
(SBL) : Audio Signal Route (Surround Back L ch)
(SW) : Audio Signal Route (SubWoofer ch)
(L) : Audio Signal Route (L ch)
(FL)
(FL)
(SL)
(SL)
(C)
(C)
(SBL)
(SBL)
(SW)
(SW)
(L)
(L)
VSX-816-K
28
1234
1234
C
D
F
A
B
E
3.9 DSP ASSY (2/2) (for VSX-916)
B2/2
IECK
IERT
IEDI
DSDO
MOSI
DECM
BUS5
DSRT
SCK
SS
DSRQ
DSM5
DRD5
DRCS
DRRT
BUS5
MISO
DECM
DRDO
HREQ
ERR5 INT
XTL0 ERR3
13DO
BUS3
DRD5
MUT
DSDO
DSRQ
ERR5
IEDO
IEIT
IE
MC
10
12
14
15
13
11
7
8
9
5
4
6
3
2
1
1
3
2
5
4
6
20
19
18
15
17
16
7
9
10
813
12
14
11
CN952
R962
R967
R968
R969
L953
R974
R970
R954
R955
R956
C956
C955
C954
IC952
R957
L952
R961
R959
R960
R958
R976
R975
DEC MUTE
DSP DI
DSP CK
DSP RST
DSP DO
DSP SS
BUSY
DSP MODE
DSP HREQ
DIR DO
DIR CS
DIR RST
DIR ERR
GNDD
XTL0
stby
1G
1A1
2Y4
1A2
1A3
2Y3
Level shifter
3V 5V
VCC
2G
1Y1
2A3
1Y2
2A4
2Y2
2Y1
1A4
GND
1Y3
1Y4
2A2
2A1
XKP3078
GNDDQTL1013
100k
RAB4C104J
100k
100k
100k
0
GNDD
100k
RAB4C104J
GNDD
330
330
YB
10/16
CH
470p
0.1
QTL1013
TC74VHCT244AFT
330
330
V5D1
V56
330
330
330
330
100
100
B2/2
DSP ASSY (AWX8572)
CN807
C2/2
VSX-816-K 29
5678
5678
C
D
F
A
B
E
4
3
1
2
5
6
8
7
R856
R855
R857
R854
R853
IC851
R851
C851
C852
L851
Vss
/W
/S
Q
C
D
Vcc
/HOLD
10k
10k
10k
0PDC121A8
47
stby
ROM
CH470p
QTL1013
YB0.1
V3D
V3R
R828 47
R830
R829
47
47
DSM5
R821 0
C
E
B
Q801
UN5212
B2/2
MOSI
SS
MISO
SCK
HREQ
CDTO
BDTO
FDTO
SDTO
FDTI
LCKI
BCKO
MD
LCKO
BCKI
MCLK
BUS3
DSRT
MUT
71
4
8
44
21
23
22
26
25
24
29
28
27
30
32
31
33
34
35
37
38
36
39
40
19
20
18
17
15
16
14
13
10
12
11
9
8
7
6
5
4
3
2
1
80 79 767778 737475 71 7072 676869 66 65 64 63 62 61
2358
6
8
41
42
44
43
45
46
47
48
49
50
51
53
52
54
55
56
57
58
59
60
4
3
2
1
5
6
7
8
DECODER
UCOM
0
1
00
10
1
0
BOOT MODE A B C D
TP3
TP2
TP1 TP4
TP5
R812
R953
R951
R952
R840
R810
C817
C816
IC802
C811
C813
C812
R813
R816
X801
R815
C818
C819
C806
R809
C808 C810
L804
R811
C815
R808
C807 C809
C814
C805
R802
R805
R804
R806
R803
C804
C802
C803
R807 IC801
C801
R801
R836
R834
R832
C832 C830 C828
C872
R835
R833
C833 C831 C829
R827
IC802 IC802
L801
C820
C821
C822
C823
C824
R817
R818
C825
R819
C826
C827
R822
R823
R826
R852
C871
R872
IC871
R871
R873
R874
L803
R841
L871
C835
C834
R839
L802
R838
UNLESS OTHERWISE NOTED
CKSRYB104K16-T
CKSRYB105K6R3-T
CEVW***M**-T
RS1/16S***J-T
NOTES:
NO
CCSRCH****50-T
CKSRYB****50-T
INDICATED PARTS IS...
JTAG
(3/3)
SCAN
PF9
PF10
GNDIO
VDDIO
PB0
PB1
GNDCO
VDDCO
TDO
TDI
TCK
TMS
MOSI
MISO
SCK
SS
HREQ
VDDPA
GNDPA
GNDSP
PF0
PF1
VDDIO
PF4
PF5
PF3
VDDPD
EXTAL
PINIT
RESET
GNDPD
GNDPP
GNDCO
PF2
PF7
PF6
PF8
VDDCO
MODD
MODC
MODB
MODA
GNDCO
VDDCO
SDO1
SDO0
SDO2
SDO3
VDDIO
GNDIO
VDDIO
GNDIO
VDDCO
GNDIO
VDDIO
SCKT_1
GNDCO
96DTS
PE10
PE9
SDI0_1
SDI1_1
PE8
MUTE
FST_1
SDI1
SDI0
FST
FSR
SCKR
SCKT
HCKT
PC2
BUSY
PE2
PE5
PE0
PE1
(2/3) (1/3)
VDDPP
GND
Y2
A1
G1 Vcc
Y
ONL
H HI-Z
G
A2
G2
Y1
100
100
47k
100
100
100
CH 8p
CH 8p
TC7WU04FU
GNDD
CH 470p
stby
10k
stby
stby
20MHz
VSS1171
470
1M
YB 0.1
YB 0.01
YB
0.1 YB
0.1
CH
470p
4.7k
CH
470p
YB
QTL1013
0.1
4.7k
CH
4.7k
470p
0.1
CH
470p
YB
DSPC
56371AF180
RAB4C101J
10k
10k
10k
10k
100
YB0.1
47k
0.1
470p
YB
CH
DSP
470p
CH
47
47
CH CH
47
47
470p 470p CH
470p
GNDD 0.1YB
47
YB
0.1 YB
0.1
47
YB
0.1
47
TC7WU04FU TC7WU04FU
V37
V3D
QTL1013
CH
470p
0.1
YB
CH
470p
0.1
100
YB
stby
YB 0.01
100
CH
470p
YB
0.1
47k
10k
V3D
stby
2.2k
CH 470p
47
TC7WH125FU
47
47
47
V11
47k
QTL1013
V35
V3D
V3D
GNDD
ATL7002
100/16
ATL7002
100/16
stby
V36
stby
V3D
V1R2
VSX-816-K
30
1234
1234
C
D
F
A
B
E
3.10 POWER PACK (1/2), TRANS 2 and TRANS 3 ASSYS
20
21
18
19
16
17
10
15 13
14 12
11
8
79
6
5
4
3
2
1
R682
R681
Q681
C683
R684
C682
R683
C681
Q682
C777
R779
KN601
Q503
C684
R685
R686
R690
R692
R691
R693
C685
R687
C686 C687
C688
D683
IC610
C782
C781
R783
R782
C783
C784 R787
R785
Q683 D684
R694
R788
Q505
R778
R777
R780
C778
Q501
C779
C601
Q603
R605
R603
R601
R607
C603
Q601
C605
C631
Q632
R633
R1106
R632
R634
C632
Q631
R631
C651
R655
R653
Q653
R657
C653
Q651
R1102
R651
R652
R1107
R654
Q652
R658
C654
R781
C780
R784
R786
D777
C609
C613C611
R611
R613
R695
D677
R689
R688
R677
D681
D678
R696
C696
R678
D682
R609
C607
D601
C615 R621
R617
R619
D778
C697
Q696 Q697
R623
Q605
D603
C635
C637C636
R615
R636
R637
R635
C634
IC602(2/2)
R639
D631 R640
C633
C659
R699
D645
R647
R648
R645
R638
D646
R646
C630
R642
Q633
R641
D632
R661
C663C661
R659
R663
C657
D647
IC602(1/2)
D648
D651
C665
R667
R669
R671
C655 R665
R666
R672
C656
C658
R660
R662
R664
IC601(2/2)
C666
R670
R668
D652
R673
Q655
D653
D654
Q656
R674
C652
R656
C602
Q654
Q604
CN705
R727
R726
R725
R1108
R606
R604
R608
C604
Q602
R602 C606
C660
C662
C610
C664
D675
R630
R616
R675
R618
D676
R676
R610
R612
R614
C612
C608
C614 D602
IC601(1/2)
D604
R622
C616
D606
R626
R624
R620
R698 R697
Q698
R1101
R628
Q606
D608
SBL
AMUTE
ATT
ATT
AMUTE
ATT
AMUTE
C
ATT
AMUTE
SL
ATT
AMUTE
6OHM
OLDT
NECK
XPROTECT
DCDT
FL
ATT
AMUTE
SR
FR
SR AMUTE
ATT
FL
SL
SBR/SW
SBL/SB
C
ATT
AMUTE
FR
XPROTECT
601_5
P6
FRO
P1
P13
P1
STBY
STBY STBY
20
SBL 22
19
21
712 13
SBR/SB/SW
18

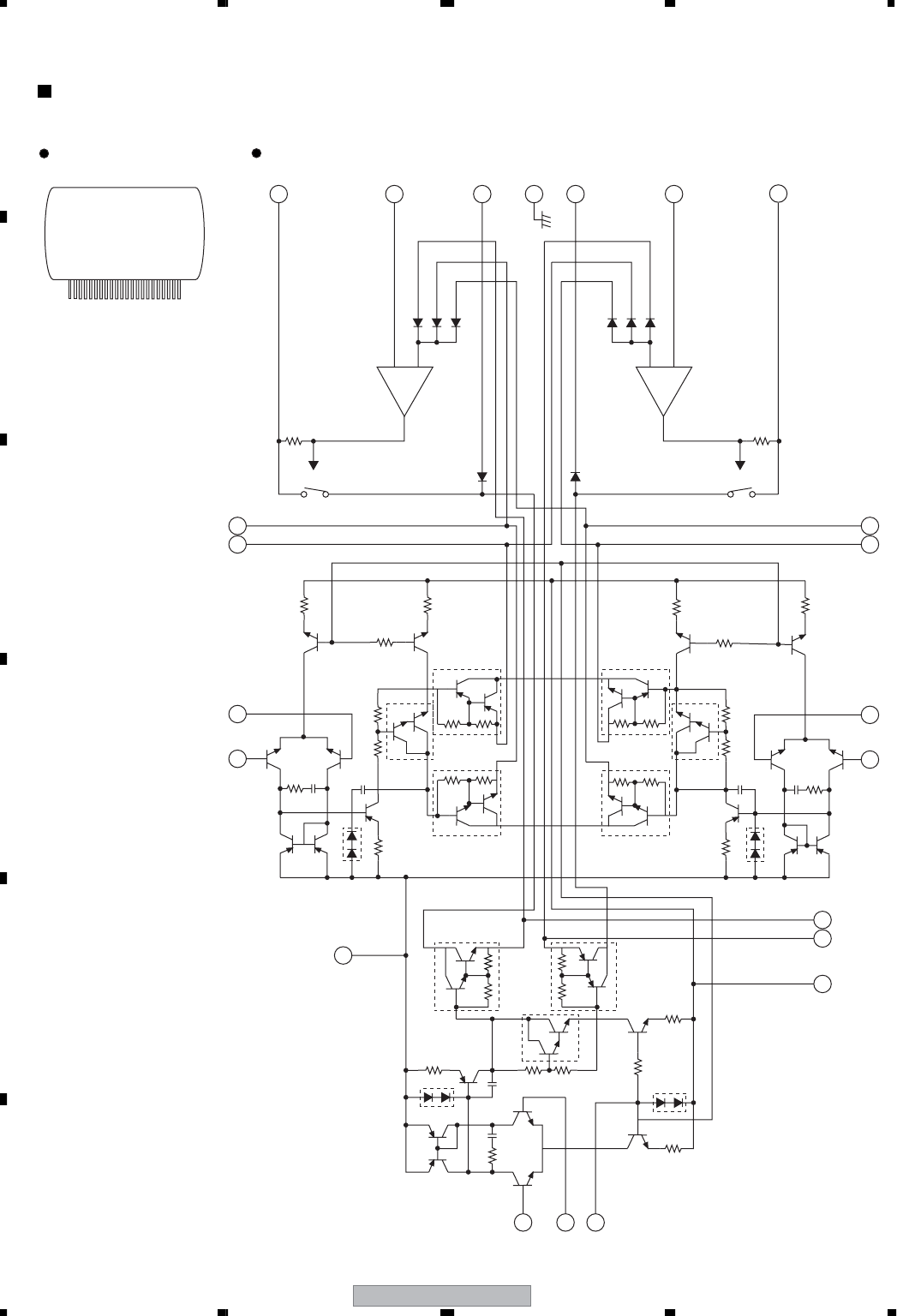

IC603 (1/3)
STK413-230C
IC603 (2/3)
STK413-230C
IC603 (3/3)
STK413-230C
10
11
O.L.
STBY
STBY
STBY
STBY
STBY
STBY
STBY
STBY
STBY
FL
GNDA
SR
GNDA
FR
AMUTE
NECK
OLDT
6OHM
GNDU
XPROTECT
ATT
DCDT
STBY
(SR)
STBY
17
15 16 23
C456
14 1
9
8
O.L.
O.L.
13
7
SL
17 10
12
11
18
O.L.
16 4
3
2
5
15 FL
1
69
8
(2ch POWER PACK)
IC602:
POWER AMP
14
7
SR
18 12 13 10
17
11
GNDA
SBR/SW
SBL
GNDA
SL
GNDA
GNDA
STBY STBY
C
XKM3011-
STBY
(FR)
16
FR
15 3
2
6
5
4
1
9
8
IC601:
POWER AMP
(2ch POWER PACK)
14
O.L.
GNDA
2.2k
10k
4.7/50
2SD2704K(VW)
YB
430
330p
STBY
1000p YB
STBY
CHASSIS
VNF1084
STBY
1000p
STBY
YB
YB
CH 47p 820
27k
330
1.8k
0.22
ACN7094
100/16
27k
47pCH
AEK7009
(1A)
47p
47p CH
47p
1SS133
CH
100/16
27k
820
CH
2.2/50
NP
0.22
ACN7094
820
330
(GBRL) 1SS133
2SC2240
2.2/50
820
NP 22k
(GBRL)
2SC2240
22k
2.2k
10k
430
330p
2SD2704K(VW) 4.7/50
4.7k
1000p YB
STBY
10K
2.2K
430
330p
YB
2SD2704K(VW) 4.7/50
4.7k
YB
STBY
1000p
2SD2704K(VW)
010k
2.2k
YB
430
330p
4.7/50
GNDU
1000p
4.7k
2SD2704K(VW)
10k
2.2k
YB
STBY
430
330p
YB
4.7/50
0
2.2k 4.7/50
010k
STBY
2SD2704K(VW)
430
330p
YB
CH
27k
47p
1SS133
1.8k
100/16
47p
CH
820
27k
33k
stby
5.6k
47p CH stby
MTZJ15A
5.6k
stby
10k
stby
MTZJ15A
2SC4081
27k
47pCH
1SS133
0.22
ACN7094
330
1.8k
1SS133
1000p
220/0.30
YB
(QR)
(QR)
2SC4081
2.2/50
22k
NP (GBRL)
820
2SC2240
1SS133
100/16
47pCH CH
47p
820
27k
27k
CH 47p
STK412-230C
NP
1SS133
ACN7094
0.22
330
1.8k
100/16
47pCH
33k
stby
5.6k
47p CH
stby
MTZJ15A
stby
5.6k
stby
22k
(GBRL)
2.2/50
2SC2240
820
22k
1SS133
820
27k
27k
47p CH
STK412-230C
MTZJ15A
NP
ACN7094
2.2/50
1SS133
0.22
820
1.8k
330
330
CH 47p
27k
820
47pCH
27k
STK412-230C
47p CH
0.22
ACN7094
1.8k 1SS133
(GBRL)
2SC2240
1SS133
820 2.2/50
1SS133
2SC2240NP (GBRL)
22k
STBY
1000p
STBY
1000p
YB
STBY
10k
10k
10k
010K
2.2k
330p
2SD2704K(VW)
430
YB
4.7/50
D+5V
100/16 100/16
47p
CH
stby
33k
stby
5.6k
47p CH MTZJ15A
stby
5.6k
stby
MTZJ15A
820
27k
CH
27k
47p
STK412-230C
ACN7094
0.22
1SS133
1.8k
330
33k
RT1N241M
10k 0
D+5V 22k
2.2/50
NP
820
2SC2240
1SS133
(GRBL)
C1/2
POWER PACK ASSY (VSX-816 : XWZ4087)
(VSX-916 : XWZ4088)
C1/2
CN114
A2/3
(FL)
(FL) (FL)
(FL)
(SL)
(SL) (SL)
(SL)
(C)
(C) (C)
(C)
(SBL)
(SBL) (SBL)
(SBL)
VSX-816-K 31
5678
5678
C
D
F
A
B
E
XPROTECT
XPROTECT
5
8
6
7
4
3
1
2
11
3
11
412
910 78563412
12 3 456
7610 8 593412
D752
R1105
D751
RY752(3/3)
RY751(3/3)
RY753(3/3)
RY501(3/3)
CN604
D754 D753
R1104
D758 D757
R1103
L754
R772
R789
L501
R755
L753
RY501(2/3)
RY501(1/3)
R756 C755
R790
R771
RY753(1/3)
C517
∗1
C517, C751, C752, C755,
C761, C762, C771
0.1 (VSX-816)
0.22 (VSX-916)
C771
W240
C756
W244
C763
W247
C764
C761
C762
C785
W238
C772
W236
C753
W248
C754
W272
C751
C752
L761
R761
R762
L762
L751
R751
R752
Q705(2/2)
L752
C709
R716
R1110
R763
R764
R753
R754
RY752(2/3)
RY751(1/3)
RY751(2/3)
RY752(1/3)
Q705(1/2)
R714
R715
Q707(1/2)
D703
IC608
IC609
IC606
C704
IC607
IC604
IC605
C703
R710
Q707(2/2) W201
R712 R711
D712
C712
D711
C711
C702
D702
H701
C708 H702
C701
C707
CN1201
C765 C766 C759 C521 C773 C757 C758
CN701
851
C1250
R1250
CN702
C1251 R1251
R1252
IC853
IC853
AEK7019 (5A)(VSX-816)
AEK7021 (7A)(VSX-916)
IC851
IC852
IC702
R707
C706
Q702
R702
R704
R706
R705
R708
C705
D713 R713
Q703 Q704
R703
R722
R721
IC701
ICP-N10(400mA)
ICP-N10(400mA)
R701
5.6K (VSX-816)
6.8K (VSX-916)
20K (VSX-816)
68K (VSX-916)
180K (VSX-816)
120K (VSX-916)
6.8K (VSX-816)
8.2K (VSX-916)
5.6K (VSX-816)
6.8K (VSX-916)
Q721
Q701
R709 2.7K
2.7K
D701
J6
R724
J4
J3
J5
J7
R881
Q722
R882
C882 C883
C881
R723
C1252
OL
P13
P12
SBLO
SBRO/SBO/SWO
600/3_5
600/3_2
SBLO
OL
SBRO/SBO/SWO
CO
DC_DET
P6
CO
P1
OL
P13
P12 SLO
SRO
SLO FLO
FRO
OL
602_5
602_2
FLO
XPROTECT
P6
OL
P6
602_5
P1
P12 602_2
P13 600/3_5
OL 601_5
600/3_2
601_2
SRO
601_2 P12
XPROTECT
NECK
( ) DC OUTPUT DETECTOR
GNDU
Q696,697:
Q605,606,633,655,656,683,
Q505: OVERLOAD DETECTOR
FR/FL RY
+12V 1SS355
1SS355
1SS355
SBL/SBR RY
R/C RY
SL
FR
FL
Indicated in 1SS133-T
SB/
C
SR
SBL
SBR
GAMP
Rated Voltage:50V except for
electrolytic capacitors.
3.DIODES
Unit: p-pF or µF unless otherwise
noted.
Ratings:Capacity(µF)/Voltage(V)
unless otherwise noted.
Tolerance:(J) 5% unless otherwise
noted.
2.CAPACITORS
1.RESISTORS
Unit:k-kΩ,M-MΩ or unless otherwise
noted.
Rated power:1/4W unless otherwise
noted.
NOTE
DB917NB0
WHITEJ603
DC DET.
J601 WHITE
DB923NB0
(SBR)
DB919NB0
WHITEJ602
DB118NB0
J607 BROWN
DB621NB0
J606 BLUE (FR)
2.4K (VSX-816)
2.2K (VSX-916) -29.7V
ST +5.6V
D
W175
STANDBY C
B
MTZJ
6.8B
-22.9V
D20PYY1130E
J21J21
STBY5V
Stby 5V
AC WUP
STBY
AKR7001-A-T
A
GNDU
AC RY
0.012 0.012 0.012 0.012 0.012 0.012 0.012
SBL
+
-
+
-
NO SIGNAL
CN752
SBR
/KU Others
C.D
A.B
39.538.6
61.467.0
C
+
-
SITUATION
A-D POINT VOLTAGE (V)
-
+
-
+SR
SL
XKE3039 (VSX-816)
XKE3042 (VSX-916)
XKE3040 (VSX-816)
XKE3043 (VSX-916)
CN751
-FL
+
-
+FR
FL AC1
FL AC2
REG B
GNDU
AC WUP
AC RY
REG G
REG B
DREG
DREG
-VF
HP.SW
A.MUTE
GNDU
AC WUP
FL AC1
AC RY
FL AC2
REG B
52147-1110
REG B
REG G
DREG
DREG
GNDU
HP.SW
A.MUTE
HP G
HP R
HP L
51048-1100
STANDBY
52147-0610
J47
1237
ACH
W177
DB230NB0
DB232NB0
DB932NB0
DB025NB0
DB927NB0
STBY
6ohm
STANDBY
STANDBY
CKS3373
XSR3012
XSR3012
XSR3012
XSR3012
0
0
0
PUF 100 1/4W
VSX-916
ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-816
ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-816
ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-916
ONLY
ATH1004
PUF 100 1/4W
ATH1004
PUF 100 1/4W
ATH1004
1W
4.7
4.7
1W
4.7
1W
PUF 100 1/4W
ATH1004
PUF 100 1/4W
PUF
ATH1004
100 1/4W
ATH1004
PUF 100 1/4w
RN4903
ATH1004
1/50
10k
1W
4.7
0.22
0.22
0.22
0.22
0.22
0.220.22
1W
4.7
4.7
1W
4.7
1W
CHASSIS
0
stby
RN4903
D+5V
1k
10k 1SS355
RN4903
D+5V
XCH3012--F
3300u/42
(10A)
(10A)
(10A)
XCH3012--F
3300u/42
2SA2005(E)
(10A)
(10A)
(10A)
D5SBA20(B)
RN4903
100/10 100/35
MTZJ22D
XCH3026
5600/71 5600/71
XCH3026
0.01/250
D5SBA20(B)
0.01/250
52147-0410
CHASSIS
1/4W
4.7
NP
4.7
1/4W
NP
STBY
STBY
GNDU
10/100
47k
47k
1SS133 1k
2SC2240
(GRBL)
2SA1145
10/100
(GRBL)
2SA1145
2SC5511(E)
47k
1/4W
4.7
2SC2240
(GBRL)
NP
NP
47k
NP
ACH
1237
1/4W
4.7
NP
+-
~
~
+-
~
~
C1/2
CN1575
H
55
U
1551
G
TRANS 3 ASSY
(XWZ4079)
E
TRANS 2 ASSY
(VSX-816 : XWZ4166)
(VSX-916 : XWZ4092)
D
D E
C2/2
C2/2
∗1
∗1∗1
∗1
∗1
∗1
CAUTION : FOR CONTINUED PROTECTION AGAINST
RISK OF FIRE. REPLACE ONLY WITH
SAME TYPE NO. ICP-N10, MFD BY ROHM
CO., LTD. FOR IC701 and IC702.
CAUTION : FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME
TYPE NO. AEK7019 or AEK7021
MFD, BY LITTELFUSE INK. FOR
IC853.
(FL)
(FL)
(SL)
(C)
(SBL)
: Audio Signal Route (Front L ch)
(SL) : Audio Signal Route (Surround L ch)
(C) : Audio Signal Route (Center ch)
(SBL) : Audio Signal Route (Surround Back L ch)
(FL)
(FL) (FL) (FL)
(FL)(FL)
(FL)
(SL)
(SL) (SL)
(SL)
(C)
(C) (C)
(C)
(SBL)
(SBL) (SBL)
(SBL)
VSX-816-K
32
1234
1234
C
D
F
A
B
E
3.11 POWER PACK ASSY (2/2)
C2/2
CN815
RIN
GNDA(DAG)
LIN
GNDA(DAG)
FRO
GNDA(DAG)
RCMUT
FLO
GNDA(DAG)
GNDA(DAG)
GNDA(DAG)
CO
SWO
SLO
SRO
GNDA(DAG)
SBRO
SBLO
GNDA(DAG)
GNDA(DAG)
XMR0/USBRO
XML0/USBLO
GNDA(DAG)
XFLAG
USB CTL
USB TREQ
USB HREQ
USDAO
USDAI
USCS
DSP HREQ
DSP MODE
DIR DO
DIR CS
USB_XRST
USCLK
DEC MUTE
DSP DI
DSP DO
DSP CLK
DSP RST
DSP SS
BUSY
GNDD
XTLO
DIR ERR
DIR RST
GNDD
USBLO
USBRO
USBLO
213 645
3
2
1
4
5
6
9
10
7
8
12
11
13
2
15
4
3
8
7
6
11
10
91513
14
12 16
1917
18
3
2
1
8
10
4
7
6
9
5
11
12
13
14
15
23
2220
2119
18
1715
1610
9
14
13
12
11
8
75
64
31
2
252119
20
23
2422
11
12
1513
14
5
10
79
862
13
4
12 14
13
16
17
18
151197
8106
15
2
3
4
1-B3
CN803
CN805
CN806
R888
R887
R886
CN807
R885 CN817
CN813
CN812
SWOUT
GNDU
GNDA
-12V
GAV
+12V
NC
OPTIN
GNDD
DGRTN
DGRTN
UGRTN
V+5D
GNDA(DAG)
GNDA(DAG)
V+5A
V+5D
DGRTN
RIN
GNDA(DAG)
NC
VCOMG
FLO
RCMUT/OVF
LIN
FRO
GNDA(DAG)
SLO
SWO
GNDA(DAG)
GNDA(DAG)
CO
SRO
GNDA(DAG)
SBLO
GNDA(DAG)
GNDA(DAG)
SBRO
GNDD
XTLO
DIR ERR
DIR RST
BUSY
DSP SS
DSP HREQ
DSP MODE
DIR DO
DIR CS
DSP CK
DSP DO
DSP DI
DEC MUTE
DSP RST
CN815
/OVF
USB TREQ
USB HREQ
USB CTL
XFLAG
GNDD
USCLK
GNDD
USCS
USDAO
USB_XRST
USDAI
V+5USB
ROUT
GNDA
LOUT
J45
GNDA GAVGNDU
-12V
KM200TA6
GDAC
DGRTN GNDD
+12V
XKP3066 AD+5V V+5D
XKP3069
220
220
XKP3067
220
220
XKM3005
USBRO
XKM3006-
CKS3382 (VSX-816)
CKS3390 (VSX-916)
XKP3067
GNDA
V+5USB
C2/2
POWER PACK ASSY (VSX-816 : XWZ4087)
(VSX-916 : XWZ4088)
CN702
VSX-916 ONLY
VSX-916
ONLY
VSX-916
ONLY
W
CN302
Q
CN951 (VSX-816)
CN952 (VSX-916)
B2/2
CN901 (VSX-816)
CN902 (VSX-916)
B1/2
CN701
B1/2
CN112
A3/3
CN109
A1/3
(FL)
(L)
(L)
(SL)
(C)
(SBL)
(SW)
(FL)
(SL)
(C)
(SBL)
(SW)
(SW)
(SW)
VSX-816-K 33
5678
5678
C
D
F
A
B
E
C2/2
+12V
HP_SW
R/C_RY
FL/FR_RY
SBL/SBR_RY
XPROTECT
1721
18 16
19
20 12
15
10
13 11
14 48
7
6
59 31
2
E
EE
123 6475810 119
B
C
C
E
B
B
E
C
B
B
C
C
E
B
C
+-
~
~
OUT IN
1-C6
1-B6
1-C6
+-
~
~
1-C6
OUT IN
OUT IN
CN816
Q801
810
C801
C802
D801
C813
IC804
W205
D828
D806
C806
R806 R807
R808
R1109 D832
Q808(2/2)
Q808(1/2)
Q807(1/2)
D807
Q807(2/2)
Q805
Q806
Q803
Q804
Q802
C808
D829
R809
C812
R810
D831 D830
W208
Q809
C809
C807
IC803
D827
C810
D805
C811
IC805
GNDA
NC
+12V
NC
SWOUT
AC RY
-VF
FL AC2
AC WP
-12V
GAV
FL AC1
T+9V
GNDT
GNDU
ST+5.6V
HP.SW
D+5.6V
SP-B RY
SP-A RY
R/C RY
SP Relay Drive
DREG INPUT
V+5USB
V+5D
-12V INPUT
REG G
+12V INPUT
GNDD
DREG INPUT
+12V
GAV
-12V
stby
T.+9V REG.IC
5.0V 11.1V
AD+5V REG IC
5.6V D+5.6V REG.IC
electrolytic capacitors.
Umit: p-pF or µF unless otherwise noted.
Ratings:Capacity(µF)/Voltage(V)
unless otherwise noted.
Rated Voltage:50V except for
2.CAPACITORS
NOTE
1.RESISTORS
Rated power:1/4W unless otherwise noted.
Tolerance:(J) 5% unless otherwise noted.
Unit:k-kΩ,M-MΩ or unless otherwise noted.
GNDA
GNDV GNDU
-12V
GNDT
AC_RY
GNDU
AC_WUP
FL_AC2
FL_AC1
-VF
XKM3011-
D+5.6V
T+9V ST+5.6V
2200/25
RT1P241M
51048-1100
2200/25 S1WB(A)60SD
DGRTN
GNDD
VIPOD
-12V
V+5DV+5USB
100/16
GAV
T+9V
TA7809S
0
1SS133
MTZJ6.2B
+12V
1/50
10K 10K
1K
AD+5V
RTN1903(2/2)
RTN1903(1/2)
RN2903(1/2)
1SS133
RN2903(2/2)
RT1N241M
RT1P241M
ST+5.6V
ST+5.6V
RT1P241M
RT1N241M
RT1N241M
REG_G
REG_B
DREG
REG_B
4700/16
D3SBA20(B)
DREG
0.01
1.2K
270
YF
2SD1858X(QR)
STBY STBY
GDAC
MTZJ6.2B
100/10
YB0.01
TA7805S
MTZJ6.2B
100/10
1SS133
0.01 YB
BA178M05FP-TLB
D+5.6V
CN800
P
CN111
A3/3
C1/2
(FL) : Audio Signal Route (Front L ch)
(SL) : Audio Signal Route (Surround L ch)
(C) : Audio Signal Route (Center ch)
(SBL) : Audio Signal Route (Surround Back L ch)
(SW) : Audio Signal Route (SubWoofer ch)
(L) : Audio Signal Route (L ch)
(SW)
(SW)
VSX-816-K
34
1234
1234
C
D
F
A
B
E
3.12 COMPONENT ASSY
6
78
9
5
4
2
3
1
10
11
12
13
14
8
6
7
4
5
2
3
1
8
7
5
6
4
3
2
1
9
11
10
13
12
14
15
16
9
76
12
11
10
13
14
16
15
43521
CR3
CB3
Y3
CR2 CR3
CB2
CR2
CR1
Y2
CR1
CB1
Y1
CB2
CB3
CB1
C52B
Y2
Y1
Y3
C52A
R577
Q500
R575
C575
R576
R561
C563
R574
C574
C573
R579
R578
IC553
C578
C577
C576
C583
C582
C581
R560
C562
R559
C561
R573
R558
C560
R570
R557
C559
R556
C558
R569
R555
C557
C571
R566
C567
R554
C556
R565
JA551
R553
C555
C569
IC551
C579 C580
C566
R564
R572
R571
C565
R563
IC552
C564
R562
C568
R568
C572
R582
R581
R567
C570 CN551
STBY
0
STBY
STBY
10K
STBY
75
0
STBY
STBY
GNDV
V-5.6V
0.01
10K
10K
NJM2581M
0.01
0.01
0.01
100/16
0.01
100/16
0.01
STBY
75 75
STBY
0
GNDV
75
STBY
STBY
STBY
75
STBY
75
1k
TC74HC4052AF
0.047
CHASSIS
STBY
75
1k
0.01YB
STBY
75
STBY
XKB3025
STBY
75
0.047
STBY
75
1k
1k
STBY
75
0.047
STBY
75
CHASSIS
0.01 YB
1k
1k
2.2K
2.2K
TC74HC4052AF
0.047
V+5.6V
CKS3372
H
LH
*
H
*
3X,3Y
NONE
L
L
HL
L
L 0X,0Y
1X,1Y
L
H
L
2X,2Y
INH C52B
TC74HC4052
C52A
(MUTE)
(IN1)
OUT
(OSD)
(IN3)
(IN2)
Cr
REF
Vee3
GND
Vee2
6dB
6dB
Vee1
6dB
Driver Vcc3
Driver
Driver
Vcc2
Vcc1 XKB3025
JA552 (2/2)
XKB3025
JA552 (1/2)
Y
COMPO
IN3
Cb
Cr
GND
VEE
INH
1Y
IN2
Cb
COMPO
2Y
YCOM
3Y
0Y
Cr
Y
VEE
GND
Cb
INH
1Y
YCOM
3Y
2Y
0Y
COMPO Y
IN1
B
A
Cb
3X
0X
Cr
2X
XCOM
1X
VCC
Cr
COMPONENT OUT
Cb
Y
B
AINH
OSD
3X
YXCOM
0X
1X
VCC
2X V-5.6V
GNDV
VIDEO B
VIDEO A
V+5.6V
J38
COMPONENT ASSY (XWZ4097)
F
F
2.CAPACITORS
1.RESISTORS
+
-
Tolerance: (J) 5% unless otherwise noted.
Unit: p-pF or µF unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
NOTE
CN310
Q
(Y) : Video Signal Route (Component Y ch)
(Cb) : Video Signal Route (Component Cb ch)
(Cr) : Video Signal Route (Component Cr ch)
(Cb)
(Cb)
(Cr)
(Y)
(Y)
(Y)
(Y)
(Y)
(Y)
(Cb)
(Cb)
(Cb)
(Cb)
(Cb)
(Cb)
(Cr)
(Cr)
(Cr)
(Cr)
(Cr)
(Cr)
(Cr)
(Y)
(Y)
VSX-816-K 35
5678
5678
C
D
F
A
B
E

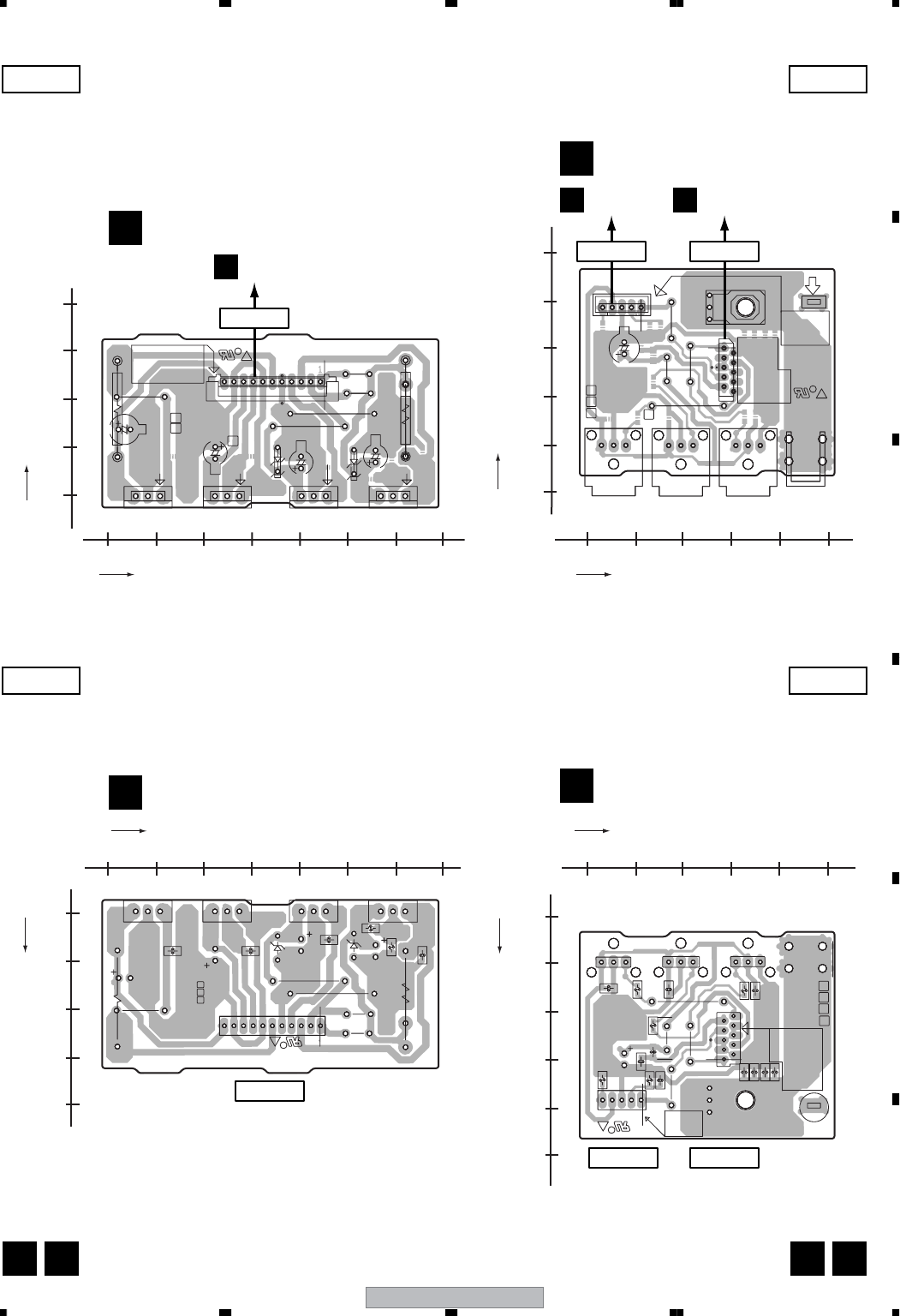

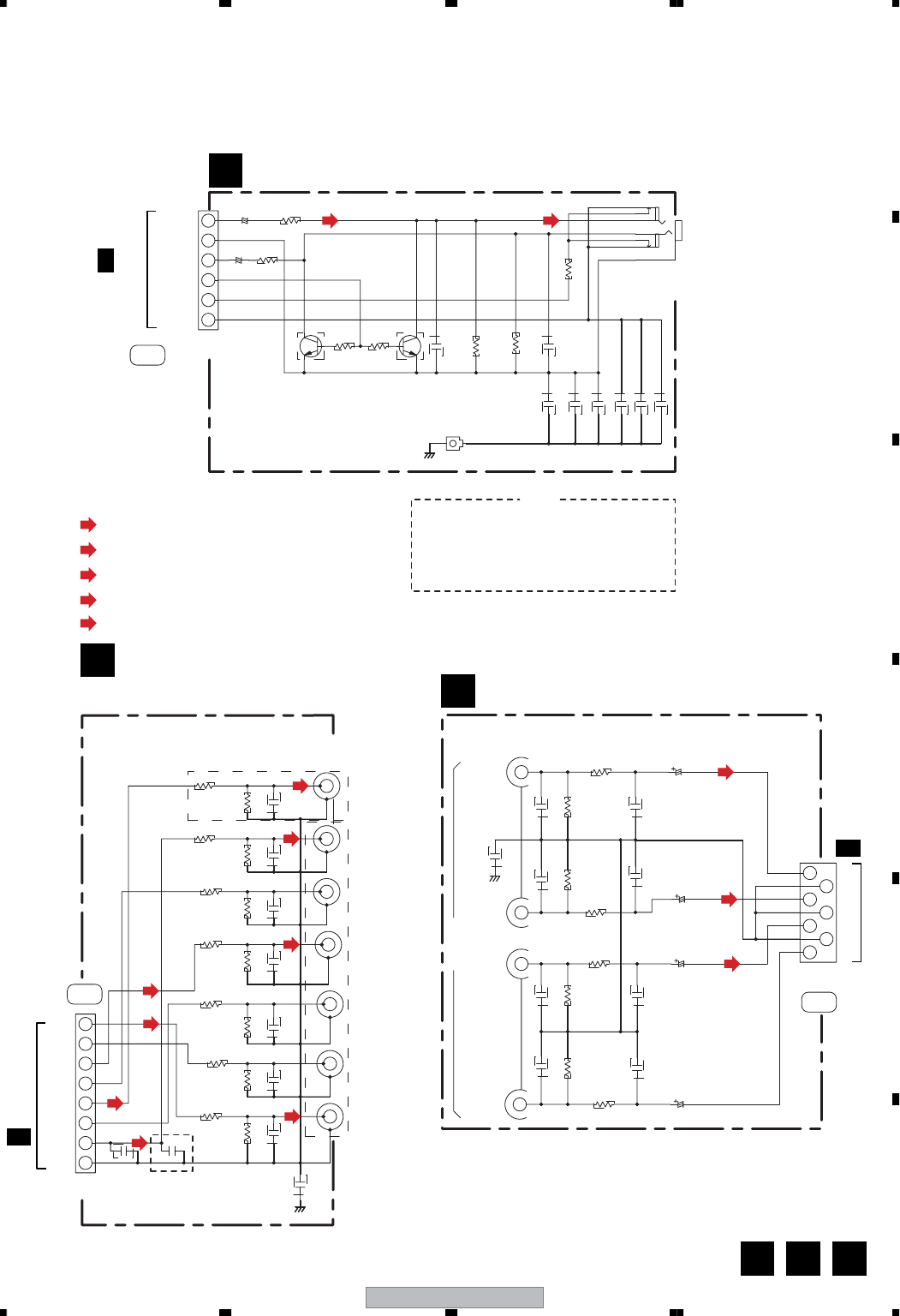

3.13 HEADPHONE, PRE-OUT and 5.1CHIN ASSYS
3
1
4
2
6
5
Q1551
R1556
1551
JA1551
C1554
C1553
C1557
C1558
C1556
C1555
Q1552
R1555
C1551
R1553
R1554
C1552
C1562 R1552
R1551
C1561
R1557
4.7k
2SD2704K
51048-0600
CHASSIS
VNF1084
KN1551
2SD2704K
0.022
4.7k
YB
0.01
CH
470p
YB
150 1W
150 1W
0.022 YB
0.1
YB
0.01
0.1
470p
YB
YB
CH
NP
47/50 2W
330
47/50 330 2W
NP
1k
RKB1014
PHONES
HP R
AMUTE
HP SW
GNDU
HP L
HP G
J47
D20PYY0640E
1
2
4
5
6
7
3
8
4
175
62
3
CN1575 C1584
C1582
C1581
R1583
C1579
R1585
R1584
C1580
R1586
R1576
C1575
R1575
R1577
C1577
R1579
R1578
C1576
R1580
R1587
C1583
R1581
R1582
C1578
R1588
R1002
C1002
R1004
C1004
CN1576
C1001
R1001
C1003
C1013
R1009
R1003
R1011
C1015
C1012
C1014
R1010
C1016
R1012
C1010
CN307
C1022
C1009
C1021
CHASSIS
CKS3373
VSX-916
ONLY
1000p
STBY
STBY
2k
22k
22k
2k
STBY STBY
2k
22k
STBY
2k
YB0.01
22k
22k
2k
STBY
22k
STBY
2k
22k
STBY
2k
XKB3033
CN1575
100p CH
47k
YB220p
330
AKB7042
100p CH
220p
47k
330
YB
100p
CHASSIS
0.01
330
220p
47k
YB
CH CH
YB 220p
47k
YB
330
4.7/50
4.7/50 52044-0745
4.7/50
4.7/50
SB/SBL
GAMP
SR
FR
SL
SBR
C
J46
FL
FR
FL
SBR
SR
SL
SBL
C
SR
SL
XKB3035
SW
CN309
C
J48
SW
SL
AG
AG
SR
AG
C
100p
HEADPHONE ASSY (XWZ4095)
G
PRE-OUT ASSY
(VSX-816 : XWZ4098)
(VSX-916 : XWZ4200)
H5.1CHIN ASSY (XWZ4069)
I
CN702
C1/2
CN604
C1/2
CN105
A1/3
2.CAPACITORS
1.RESISTORS
+
-
Tolerance: (J) 5% unless otherwise noted.
Unit: p-pF or µF unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
NOTE
G AH I
(FL) : Audio Signal Route (Front L ch)
(FL) (FL)
(SL) : Audio Signal Route (Surround L ch)
(C) : Audio Signal Route (Center ch)
(SBL) : Audio Signal Route (Surround Back L ch)
(SW) : Audio Signal Route (SubWoofer ch)
(SL)
(SW)
(C)
(FL)
(FL)
(SL)
(SL)
(C)
(C)
(SBL)
(SBL)
VSX-816-K
36
1234
1234
C
D
F
A
B
E

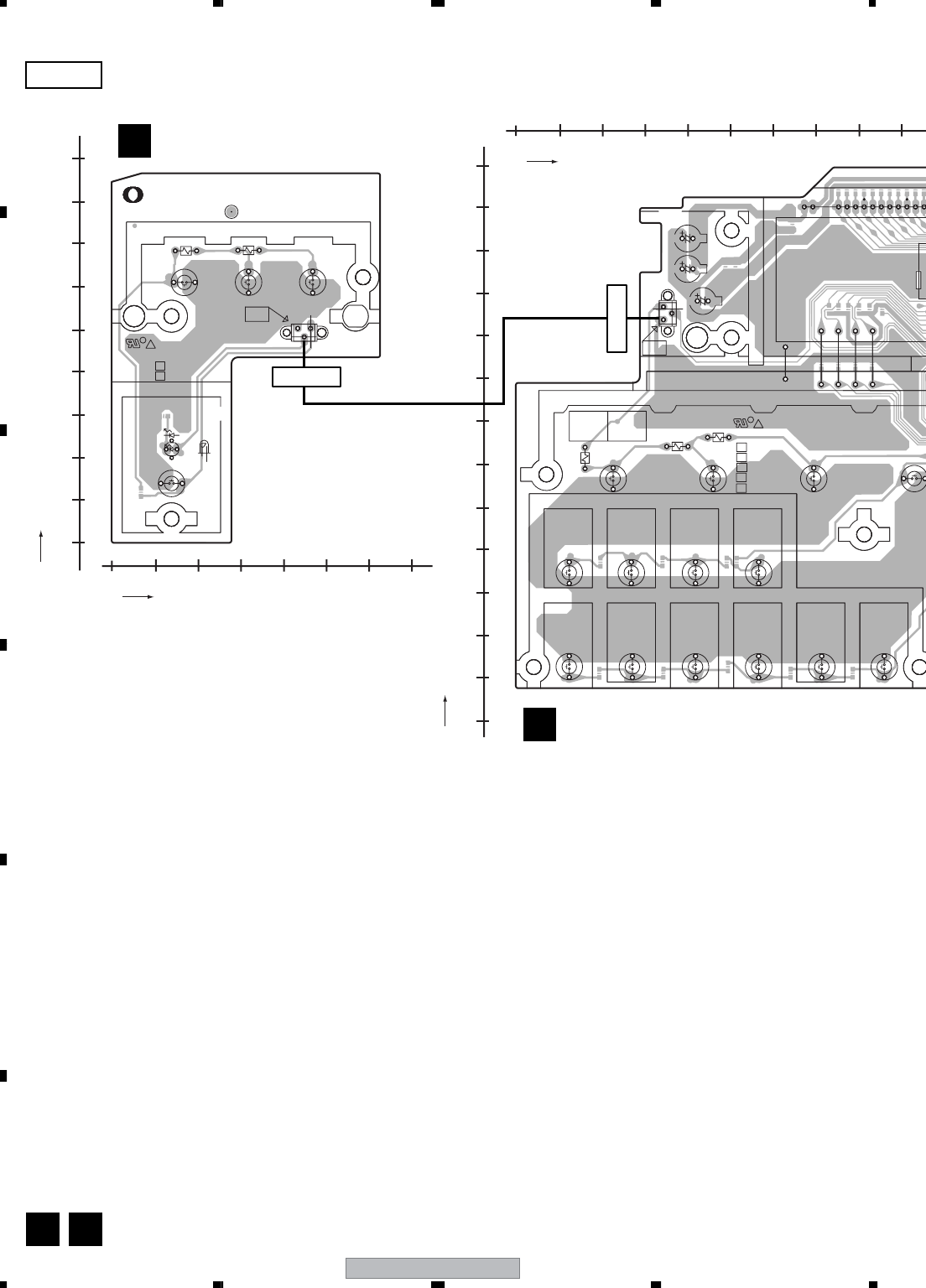

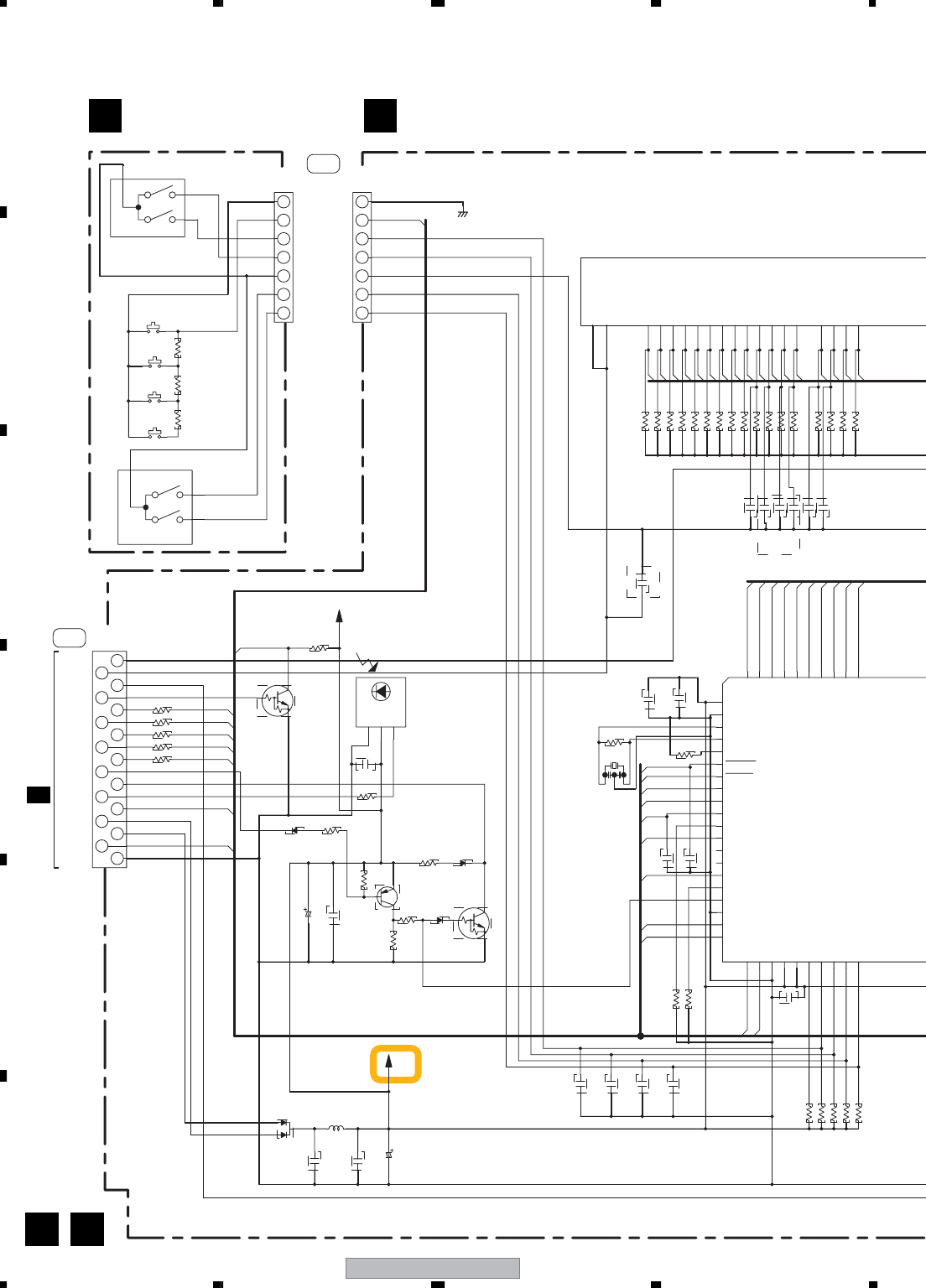

3.14 FRONT DISPLAY, R. ENCODER and POWER KEY ASSYS
GND
Vout
Vcc
1
2
75
4
3
6
1311
12
9
10814
3
E
1715
16
C
B
E
CB
E
BC
23
22
21
27
26
25
24
30
29
28
19
20
16
17
18
14
15
1
2
12
13
9
8
11
10
6
7
3
5
4
2
1
77 7576787980 74 7273 71
1
12
342
5634
657
7
1WUP
MICDET
DEN
DDO
DRDY
DDI
DCK
DRST
KEY4
KEY3
DEN
KEY1
KEY2
1WUP
DRDY
DDI
DDO
DCK
DRST
VAC1
G6
G3
G1
G2
G4
G7
G5
G8
G10
G9
BUS1
G1
G2
G5
G3
G4
KEY4-2
G8
G7
G6
G11
G9
G10
G12
S1
G13
S2
S4
S3
GNDU
MICDET
Stby+5.6V
D+5.6V
1WUP
RMC
SROUT
DISPEN
DISPRDY
SRIN
DISPDO
DISPDI
DISPCK
J31
FLAC1
FLAC2
-VF
DISPRST
ACOUSTIC
EQ
SBCH
KEY1
KEY2
VSS0
AVDD
VDD0
NC
EN A
FEN A
FEN B
EN B
KEY3
KEY4
AVSS
NC
SRIN
NC
DISPEN
NC
TEST
1W_WUP
DISPDTI
DISPDTO
DISPCK
DISPRDY
DISPRST
IC(VPP)
X2
X1
VDD1
VSS1
G10
G3
G1
G2
G6
G5
G4
G7
G8
G9
SIGNAL
SELECT
ENTER ENA
GNDU
ENB
KEY4-2
FEN B
FEN A
J42
D15A07-125-2651
GNDU
2
11211
XAV3025 (XAV3024)
13 14 15
V401
181716 212019 2322 373635 38
C401
C402
D401 L401
C403
R424
R408
R409
R407
R410
C441
C442
R403
D403 R402
R417
R414
R412
R413
R415
R416 C400
CN401
Q442
R411
S513
S457
R515 R514
S516
C487
C488
C489
C490
R423
R425
R406
Q441
D405
R405
Q484
C422
C421
C416
D404R404
X401
R401
R422
C417
C418
IC402
C413
R483
R482
R481
R484
R486
R485
C482
C486
C484
C485
C483
C481
R488
R489
R487
R517
R490
R518
R519
R492
R495
R493
R494
S515
R513
S514
S512 511 404
0.01
YB
2.2u
YB
DAN202K
LFCA2R2J
220/6.3
-TS
0.01
1000p
1000p
1000p
1000p
100k
47k
47k
47k
47k
47/10
0.01
52044-1745
YB
CEAL-TS
1SS355 100k
100
220
220
220
RT1N241M-
220
220
STBY
47k
VDD
XSX3005-A
5.1k 2.7k
VDD
10k
1SS355
RT1N241M-
100k
100k
1k
100k
2SA1576A(QR)
4.7k 1SS355
STBY
0.1
STBY
YB
VSS1142
5MHz
1M
100k
STBY
0.1
GP1UM27XKOVF
YB
STBY 47k
47k
47k
47k
47k
STBY CH
CH
470p
220p
CH 220p
47k
47k
47k
47k
47k
47k
47k
47k
100k
100k
100k
100k
1.6k
XSX3008-A
51063-0705 51063-0705
GNDU
CN101
A3/3
AK L
R. ENCODER ASSY
(XWZ4055)
LFRONT DISPLAY ASSY
(XWZ4054)
K
VSX-816-K 37
5678
5678
C
D
F
A
B
E
36
31
34
32
33
35
37
40
38
39
41
42
44
43
45
47
46
49
48
50
51
52
53
54
55
56
57
58
60
59
68 676970 66 62 6165 6364
3
2
3
1
2
1
GNDU
MICDET
S24
S23
S21
S22
S19
S20
KEY1_2
PWRLED
S18
S17
S15
S16
S14
S13
S12
S11
S10
S9
S8
BUS2
KEY4_2
KEY3
KEY4
KEY2
S2
S1
G13
S3
G12
G11
S6
S5
S7
S4
PWRLED
KEY1
KEY1_2
S7
S5
S6
S10
S9
S8
S13
S12
S11
S14
S15
S16
S17
S19
S18
VAC2
S22
S20
S21
S23
S24
MCACC LED
(ORANGE) (BLUE)
CENTRE LED
MICDET
NC
CENTER_LED
MCACC_LED
NC
NC
NC
NC
PWRLED
NC
NC
S24
S23
S21
S22
S20
S19 *Tact Switch
function names are
example of 816/KU
FL DIMMER
DISPLAY UCOM
S18
S17
S16
S15
S14
S13
S12
G12
G11
G13
S11
S10
S9
S8
VF
VDD2
S2
S1
S6
S5
S4
S3
S7
AM
ATT
LOUDLESS
MIDNIGHT/
SPEAKERS
XM
AUX
VIDEO
CD
STATION
TUNING/
EDIT
4.2
TUNER
TONE
SETUP
3.0
3.6
KEY IN VOLTAGE [V]
QUICK
SETUP
SYSTEM
RETURN DVD/LD
2.4
1.8
CDR/TAPE TV/SAT
FM DVR/VCR
0.6
1.2
390
0.0
SLR-343BBT(FGHJ)
D15A03-100-2651
J41
2.4
POWER 1.8
STANDARD
GNDU
LED
1.2
SURROUND
ADVANCED 0.6
PWRON
KEY1 STEREO/
DIRECT
0.0
414039 444342 474645 48 49 50
(402 FL HOLDER VNF1096)
535251 54 5655 5857 6261
3.TACT SWITCHES
Rated Voltage: 50V expect for electrolytic capacitors.
Indicated in VSG1024
NOTE
2.CAPACITORS
1.RESISTORS
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
Tolerance: (J) 5% unless otherwise noted.
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
Unit: p-pF or µF unless otherwise noted.
-
+
D500 R550
R551
D502
C412
C411
C410
R473 R471
R464
S458
R470
IC401
C419
R454
R463
S463
R469
R462
S462
R468
R453
S453
R452
S452
R461
S461
R467
R460
R466
S460
S451
C454
R451
C451
S459
R459
C452
R465
C423
C414
C420
R498
R496
R497
R520
R499
R500
R521
R522
R523
R524
R525
R526
R529
R527
R528
R472
R532
R531
R530
R534
R533
S471
S470
S469
S468
S467
R457
S466
R456
S456
R455
S465 S455
S464 S454
C453
R504
S504
R503
S503
R502
S502
501
471
D501 R501
S501
180
SLI-343DCW(STU)
SLR-343BBT(FGHJ)
390
GNDU
0.01
47/50
-TS
YB
YB
0.01
13k 5.1k
2.7k
2.7k
PE5550
0.01
1.2k
1.6k
1.6k
1.2k
1.2k
820 680
820
680
1000p
1000p
4.7k
YB 1000p YB
4.7k
YB
GNDU
STBY
100/35
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
YB
4.7k
STBY
VDD
100k
100k
100k
100k
100k
1.2k
820
820
680
680
1000p YB
4.7k
51063-0305
5.1k
51063-0305
2.7K 1.6K
AK M
POWER KEY
ASSY (XWZ4057)
M
S462 : MIDNIGHAT/LOUDNESS
S463 : ATT
S464 : FM
S465 : CDR/TAPE
S466 : RETURN
S467 : SYSTEM SETUP
S468 : QUICK SETUP
S469 : TONE
S470 : TUNER EDIT
S471 : TUNING/STATION
FRONT DISPLAY ASSY
S451 : AUX
S452 : XM
S453 : AM
S454 : DVD/VCR
S455 : TV/SAT
S456 : DVD/LD
S458 : FL DIMMER
S459 : CD
S460 : VIDEO
S461 : SPEAKERS
POWER KEY ASSY
S501 : ST/DIRECT/
AUTO SURR
S502 : ADVANCED
SURR
S503 : STANDARD
S504 : POWER
STANDBY/ON
R.ENCODER ASSY
S512 : MULTI JOG DIAL
S513 : MASTER VOLUME
S514 : ENTER
S515 : SIGNAL SELECT
S516 : SBch PROCESSING
S457 : ACOUSTIC EQ
VSX-816-K
38
1234
1234
C
D
F
A
B
E
3.15 S. VIDEO, TRANS 4 and REGULATOR ASSYS
+
-
-
+
4
5
68
7
214
38
1
1
4
2
3
6
7
5
8
16
14
13
15
12
11
10
9
5
1
2
3
4
1
2
3
4
7
5
8
6
11
9
10
1
4
3
2
5
6
7
8
16
14
13
15
12
11
10
9
1
3
5
2
6
84
7
2
3
5
1
84
7
6
R355
R356
C385
C386
C373
C359 R380
C358 R379
R353
R354
C356
C355
R378
C384
C383
R377
C376
R358
R357
R360
R359
C367
C366
D352
D351
C357
C363
R361
D353
R372
D354
R362
R374
C370
R369
R370
R351
R352
C382
C381
R376
C352
C353
R375
CN354
CN351
C375
R365
R364
R386
R363
R373
R366
C354
C361
R385
R368
R371
R367
R381
D357
D358
D355
R383
D356
C362
C351
C1131
C1130
IC1103
C1114
D362
IC1101
R1106
R1104
C1106
C1102
C1104
R1123
R1131
R1103
C1105
R1105
C1113
C1101
C1103
R1122
C1132 R1130
IC1101
R1109 C1107
IC1102
R1125
C1110
R1124
C1109
C1112 C1111
D361
VCR1
CN352
(2/2)
YC
Y
TV/SAT
CN353(2/2) C
S-C FUNC.SELECTOR
Vout1
SW5
Vin5
SW3
Vin4
SW4
Vin3
VEE
Vout3
SW2
Vin1
GND
SW1
Vout2
VCC
Vin2
CN353(1/2)
YC
LD/DVD
GAV
J29 FRONT C
GAV
FRONT Y
FRONT V
V4
FRONT V
V3
V2
J44
V1
V+5.6V
ADG
V-5.6V
VOUT
OSD
+12V
S-Y FUNC.SELECTOR
Vout1
SW5
Vin5
SW3
SW4
Vin4
Vin3
Vout2
Vin1
Vout3
VEE Vin2
VCC
SW1
SW2
GND
-5.6V
+5.6V
(OSD)
SELECTOR
VIDEO SIGNAL
OSD-INPUT
(2/2)
(OSD)
+8dB
+6dB
(1/2)
XKB3051
75
75
CH
CH47p
47p
YB
0.01
CHASSIS
0.1 YB 100
47/25 100
XKB3051
75
75
0.1 100
YB
47/25
CH47p
CH47p
100
47p
1k
1k
CH
1k
150
NJM2595M
IC351
0.1
1SS355
1SS355
YB
47/25
1SS355
0.1
1k
47/25
YB
1SS355
1k
0
75
STBY
YB220p
75
75
XKB3051
75
75
0.1 YB 100
CH47p
CH47p
47/25 100
B5B-PH-K-S
52147-1110
47p
1k
CH
1k
1k
STBY
NJM2595M
150
IC352
0.1 YB
47/25
0
1k
47/25
75
1k
0
1SS355
1SS355
STBY
STBY
STBY
YB
0.1
V-56VCON
V+12VCON
V+56VCON
100/16
0.1
TK15420M
V-56VCON
0.1
1k
NJM2243M
V+12VCON
1SS355
0.047
100/16
STBY
0.1 STBY
STBY
10K10K
STBY
0
0
0.047
100/16
0.1
1k
V+56VCON
0100/16
TK15420M
0
0.047
0
0.047
100/16 100/16
1SS355
V+12VCON
NJM2243M
N
S. VIDEO ASSY (XWZ4065)
N
301
Q
CN901
S
(SY)
(SY)
(SY)
(SY)
(SC)
(SC)
(SC) (SC)
(SY)
(SY)
(SC)
(SC)
(SC)
(SC)
(SY)
(SY)
(SY)
(SY)
(SC)
(SC)
(SY)
(V)
(V)
(SC)
(SC)
VSX-816-K 39

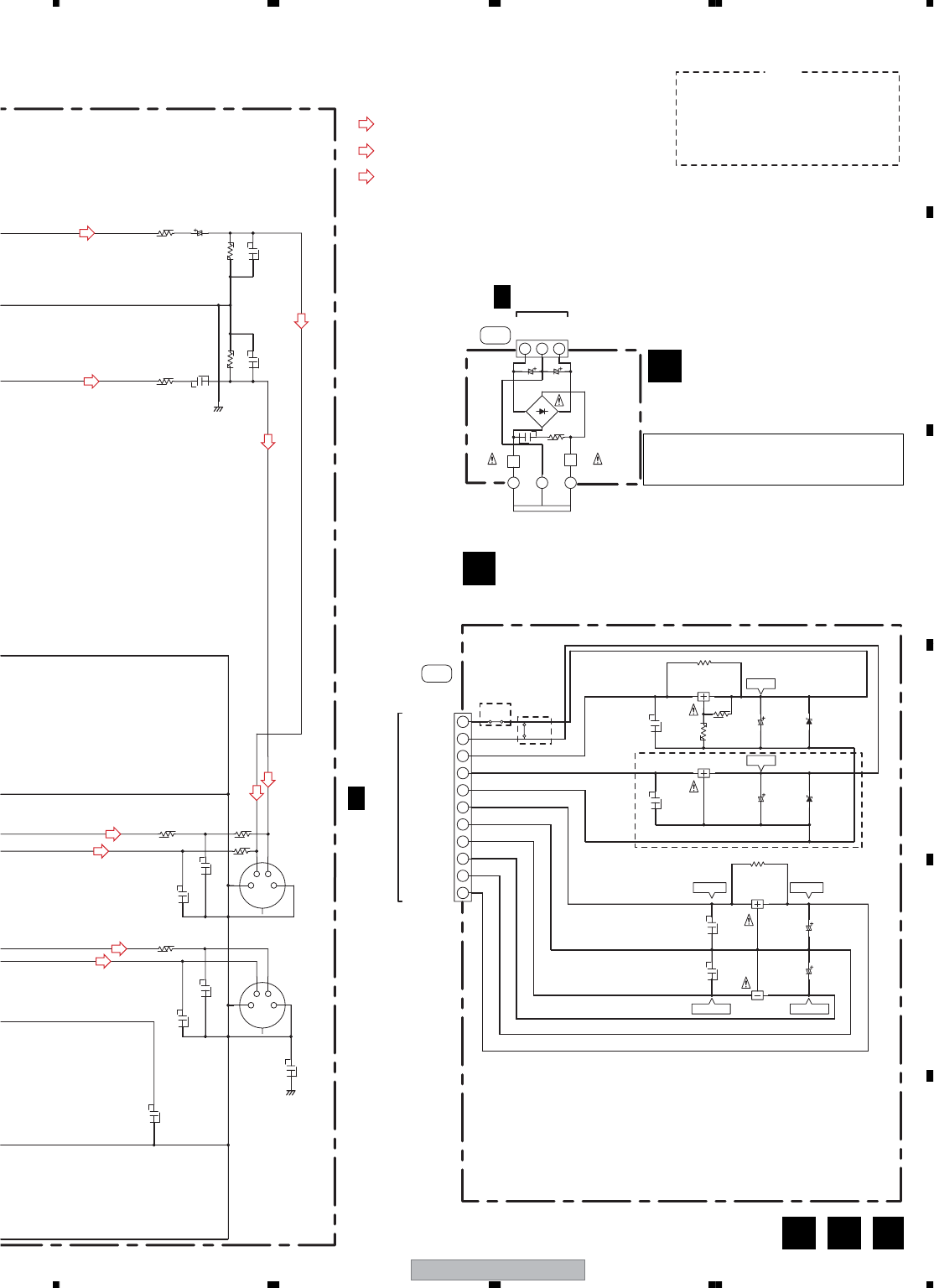

5678
5678
C
D
F
A
B
E
10811934 75612
1
3
2
C371
C368
C372
C369
R382
C364
C365
R384
R349
R350
CN800
R1112 C1116
C1118
R1114
IC891
IC892
C893
R891.
C804
IC802
C806
C803
C805
IC801
R801
C818
C819
D810
R819
IC803
C817
R818
C816
D813
IC807
R802
R1111 C1115
R1113
C1117
C892
D891
C891
891
+-
~
~
OUTIN
OUTIN
OUTIN
OUTIN
Y
VCR OUT
CN352(1/2)
C
MON OUT
CN355
CY
GAV
+12V
-12V INPUT
-12V
+12V INPUT
DREG INPUT
DREG INPUT
GNDD
REG G
W378
V+5USB
V+5D W379
J43
IC807 -18.7V -11.9V
IC801:
IC802:
-12V REG.IC
+12V REG.IC
18.5V 11.8V
GNDD
5.0V IC803:
V+5D REG.IC
5.0V
V+5D REG.IC (VSX-816)
V+5USB REG.IC (VSX-916)
GNDD
IC807:
J22
GNDu
+12V
-12V
Rated Voltage: 50V expect for electrolytic capacitors.
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
2.CAPACITORS
1.RESISTORS
Tolerance: (J) 5% unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Unit: p-pF or µF unless otherwise noted.
+
-
NOTE
YB220p
0.01
CHASSIS
220p
YB
YB
0
220p YB
XKB3051
STBY
STBY
STBY STBY AKP7179
STBY
52147-1110
VSX-916
ONLY
VSX-916
ONLY
VSX-816
ONLY
75 0.1
GVCON
CH
10k
180p
AEK7008
(0.8A)
(0.8A)
AEK7008
STBY STBY
TA79012S
0.01
100/16
0.01
100/16
CEJQ
TA7812S
330/3W
0.01
TA7805S
100/10
MTZJ6.2B
TA7805S
0.01
0
100/10
0
STBY
MTZJ6.2B
220/2W
180p
75 1000/10
10k
CH
470/35
S1WB(A)60SD
470/35
51048-0300
TRANS 4 ASSY
(XWZ4093)
O
REGULATOR ASSY
(VSX-816 : XWZ4129)
(VSX-916 : XWZ4116)
P
CN251
A2/3
810
C2/2
AN O P
CAUTION : FOR CONTINUED PROTECTION AGAINST
RISK OF FIRE. REPLACE ONLY WITH
SAME TYPE NO. AEK7008 MFD, BY
LITTELFUSE INK. FOR IC891 and IC892.
(SY) : S-Video Signal Route (Y ch)
(V) : Video Signal Route
(SC) : S-Video Signal Route (C ch)
(SY)
(SY)
(SY)
(SC)
(SC)
(SC)
(SY)
(SY)
(SC) (SC)
VSX-816-K
40
1234
1234
C
D
F
A
B
E
3.16 VIDEO, DIGITAL IN, FRONT VIDEO, PRIMARY and TRANS 1 ASSYS
5
3
4
5
3
84
7
2
1
6
1
2
4
3
132
1
2
10
132
6
7
4
59
8
132
13
2
16
19 17
18 14 10
12 8
15
13 11 9 7
6
5
4
31
2
7563421
5
6
7
8
1
2
3
4
5
6
7
8
9
1
3
16
14
13
15
2
11
10
12
9
11
10
6
5
2
3
1
4
STBY
V-5_6VS
GAVS
2.2k
STBY
10K
220
0.047
STBY
VNE1948-A
CHASSIS
STBY
1SS355
CH
47p
STBY
YB
0.1
0.01
CH
100p
CH
1000p
YB
0.1 YB
CEAL-TS
100/10
0.01
DTF1067
YB
STBY
STBY
GAVS 2SC4081
100/16 TS
100/16 TS
100/16 TS
10u 10u
0.047
0.047
V+5_6VS
VOS1 DAP202K
VOS2
V+5_6VS
VOS2 1k
CH 100p
PDC131B
VOS1
0.047
0.1
100/16
YB
100/16
+12V
NJM2243M
1k
330p
YB
1k
2SC5938A
(QR)
4.7k
1.2k
YB
0.01
75
47/25
0
75
47/25
0.01
CHASSIS
YB
220p YB
75
1k
0.1
47/25
470
10k
1SS355
33u
0
CH
CH
24p
GP1FA51TK0F
VSX-916
ONLY
10k
ASS1056
CH
24p
CH
18p
15p GAVS
GP1FA51RKBF
VOS2
VOS1
100 100p
B5B-PH-K-S
CH
0.1 YB
100
0.1 YB
100
VKN1186
GP1FAV51RKBF
100/16
1000/10
CKS3384
GAVS
UDZS5.1B
CH47p
150
1SS355
1SS355
0
1k
1k
1SS355
1SS355 YB
2SA1515(QR)
STBY
1.5k
51048-1100
CKS3372
220p YB
75
0
75
YB
-TS
0.1
47/25
NJM2595M
CHASSIS
0.01
47/25
75
YB
4.7k
YB220p
YB
-TS STBY
STBY
XKN3015
CKS4124-
QTL1013
0.047 YB 0.047
47/25
UDZS6.2B
UDZS6.2B
47/25
STBY
1.5k
STBY
39/3W
39/3W
2SC3377(QR)
1k
1k
V+5_6VS
KM200TA6
R859
C864
R858
C863
R857
C854
C865
KN1902
C866
D360
C859
Q851
C1906
C1905
C1907
C1908
C1903
C1904
R1903
R1904
C851
Q852
C852
R856
C860
C861
L851 L852
D651 R855
C862 IC851
C853
C444
C380
C350
IC303
R390
C333
R317
Q303 R319
R318
C1360
R302
R392
R305
C308
C302
C309
C306
R306
R308
R307
C338
C340
R853
D359 R852
C858
L853
R892
JA1902
R854
C857
C856
X851 C855
JA1901
C1902
R1902
C1909
F1901
CN1902
C1901
R1901
C1900
R1900
CN1903
JA1900
C391
C390
CN303
D307
R309
C347
D305
D306
R320
R310
D301
D302 C313
Q302
C314
R316
301
CN310
R391
C305
R304
R303
IC301
C339
C310
C379
C307
R301 C304
C377
C378
JA351
JA352 L302
L301 R393
L305
L306
L303
L304
C311
C335
D304
R315
C334
D303
C312
R314
R860
Q301 R313
R311
R312
CN302
OSDRT
OSDVIN1
OSDCK
OSDDT
OSDCS
OSDCK
OSDDT
OSDCS
OSDRT
OSDVIN1
OSD BLOCK
(OSD)
CVout VDD2
2.CAPACITORS
Unit: p-pF or µF unless otherwise noted.
1.RESISTORS
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
Tolerance: (J) 5% unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
+
-
NOTE GNDD
D+5V
SHEILD
VSS2
CVin
DT
CK
VDD1
SYNin
SEPc
CS
CHARA
OSCout
SEPout
SEPin
OSCin
BLANK
C2
C3
C1
Xout
RST
VDD1 OSD
Xin
VSS1
(D+5V)
VEF1040
390
CN306
XKB3041
SW OUT
LD/DVD
TV/SAT
AKB7100
JA305
MONI
SELECTOR
FUNCTION
Vout1
SW5
Vin5
SW3
14.32MHz
(A+5V)
FRONT OPT
SHEILD
J30
OPT1
FRONT OPT
GNDD
D+5V
OPT2
GNDD
GNDD
J37
OPTOUT
GNDD
GNDD
VIDEO4
OSD RT
OSD CS
INH
VIDEO2
VIDEO1
OSD CLK
OSD DT
SR IN
SR OUT
SW DET
A.MUTE
VIDEO3
J33
SW1
SW2
FURN
RMC
SRTXD
SRRXD
VIDEO A
J38
OSD
VIDEO INH
V+5.6V
GAV
V-5.6V
VIDEO B
FOR VIDEO FUNC. SW
Q301, Q302 RIPPLE FILTER
-5.6V
Vin4
SW4
Vin3
VEE
J44
D20PYY1110E
VIDEO4
V1
FRONT V
V3
V2
+12V
ADG
V-5.6V
V+5.6V
RECVCR
VCC
Vin1
Vout2
SW1
VCR PLAY
SR OUT
SR IN
SR PLUS
1
2
3
4
6
FURN
RXD
TXD
SR OUT
RMC
SR IN
Vout3
SW2
GND
Vin2
+5.6V
VOUT
OSD
-12V
GAV
+12V
GNDU
SWOUT
GNDA
Q AR
VIDEO ASSY (XWZ4062)
Q
DIGITAL IN ASSY
(VSX-816 : XWZ4067)
(VSX-916 : XWZ4068)
R
CN803
C2/2
CN104
A3/3
CN601
B1/2
CN351
N
CN551
F
CN951
X
(V)
(V)
(V)
(V)
(V) (V)
(V) (V)
(V)
(V)
(V)
(V)
(V)
(V)
(V)
(V)
(V)
(V)
(V)
(V)
(SW)
(SW)(SW)
VSX-816-K 41
5678
5678
C
D
F
A
B
E
1
51
3
4 132
2
3
4
1
2
3
6
5
4
2
8
7
3
1
2
CHASSIS
0.01
470p
330
100p
100p
100p
CH
100p
470k
YB
YB
CH
470k
0.01
470p
0.1
470p
0.1
0.01
YB
YB
YB
0.1
YB
YB
YB
YB
CH
330
75
CH
47/25 CEAL-TS
YB0.1
47/25 CEAL-TS
75 75
VNE1948-A
VNF1084
CHASSIS
RCN1080
YF0.01
0.01
0.01 YF
YF
GNDU
MTZJ5.1B
47/25
10k
TA78057S
51048-0400
DF06SA-TRB
1000/16
0.01/AC250V
ACE7013
3.3k 1SR139-400-T
RT1N431M-TLB
0.01/AC250V
XCG3009
B8B-PH-K-S
H51 H52
XTF3004
RKP1751
1SS133 1SS133
XSR3013
(1/2)
27 1/2W
AKC-081
C902
R902
C916
C901
C915
C914
C913
R904 R903
C911
C912
C910
C909
C908
C907
C906
R901
R905
R906
C903
R907
C905
C904
KN51 R51
KN3001
C56
C57
C55
T51
D58
C54
R54
55
D51
C53
C51
IC51
R53 D55
Q51
C52
CN901
L51
FUSE1
CN51
AC IN
51
D57 D56
RY51
R52
J2
J1
530
OUT IN
+-
~
~
R
FRONT R
J29
AKX7014
JA902
L
V
Y
C
ATT7043: VSX-816
ATT7040: VSX-916
J52
D20PYY0410E
STBY 5V
5.6V
AC RY
GNDU
AC WUP
U+5V REG.IC
12.2V
RY51
XSR3013
(2/2)
FRONT L
GNDA
FRONT Y
GAV
FRONT V
GAV
FRONT C
N
AKR7001-
L
AKP1060
L
N
AC Outlet
POWER RELAY
11.7V
J2:DB617NB0
J1:DB117NB0
PRIMARY ASSY
(VSX-816 : XWZ4072)
(VSX-916 : XWZ4073)
U
FRONT VIDEO ASSY
(XWZ4109)
S
TRANS 1 ASSY
(XWZ4078)
VSX-816 ONLY
VSX-916
ONLY
VSX-916
ONLY
VSX-816
ONLY
VSX-816
ONLY
VSX-816
ONLY
VSX-816
ONLY
VSX-916
ONLY
V
CN107
A1/3
CN354
N
CN1201
D
AS U V
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS ONLY.
CAUTION -
(V) : Video Signal Route
(V)
(V)
(SY) : S-Video Signal Route (Y ch)
(SY)
(SY)
(SC) : S-Video Signal Route (C ch)
(L) : Audio Signal Route (L ch)
(SW) : Audio Signal Route (SubWoofer ch)
(L)(L)
(SC)
(SC)
FUSE1
KUXJ/CA : REK1154 (10 A)
MYXJ5 : REK1027 (T 3.15 A)
VSX-816-K
42
1234
1234
C
D
F
A
B
E
3.17 USB ASSY
IC762
R763
IC761
C766
C764
C765
KN791
C799
C798
C773 C772 C771
R772
IC771
R771
R773
L772
C767
C768
R762
L762
C763
R761
C761
C762
L761
C701 C702 C703 C704
C729
C705 C706
C708
C707
C728
R720
IC701
C727 R718
R719
C726
R727
R730
R704
R703
R705
C733
R735
C723
C724
C722
R716
L732
C731
R736
C732 R738
L733
R733
L704
CN701 L731
R731
R732 R737
R717
C721
C719
C720
C725
C718
R714
L705
R729
R709 C715
R715
L703
P187 P188
C717
C716
R713
C714
L702
L701
C712
R706
C711
C709
C710
R712
R755
R710
X701
R711
R708
R707
A1
A2
A3
A0
/CE
VSS
LABEL: VRW1773
A4
A5
/OE
DQ0
A6
A7
DQ8
DQ1
A17
A18
DQ9
DQ2
/RY/BY
NC
DQ10
DQ3
NC
/RESET
/WE
DQ11
VCC
DQ4
NC
A19
DQ12
DQ5
VDD
A3
A2
A1
VSS
A4
A5
A6
A0
A10/AP
BA1
BA0
/CS
/RAS
A8
A9
A11
NC
CKE
A7
/CAS
/WE
LDQM
VDD
DQ7
VSSQ
DQ6
UDQM
CLK
VSS
NC
DQ8
VDDQ
DQ9
GNDD
(REQ OUT)
(REQ IN)
VDDIO
USB POWER CONTROL
A8
A9
DQ13
DQ6
A10
A11
DQ14
DQ7
A12
A13
DQ15/A-1
VSS
FLASH ROM
/BYTE
A16
A14
A15
DQ5
VDDQ
DQ3
DQ4
VSSQ
DQ2
DQ10
VSSQ
DQ11
DQ12
VDDQ
DQ13
64M SDRAM
VDDQ
DQ0
DQ1
VDD
DQ14
VSSQ
DQ15
VSS
XD4
VSSIO
XD7
XD6
XD5
VSSI
VDDI
XD8
XD0
EXINT3/GPIO_A15
XD11
XD10
XD9
XD14
XD13
XD12
XA0
VDDIO
XD15
XD3
XD2
EXINT2/GPIO_A14
EXINT1/GPIO_A13
EXINT0/GPIO_A12
VSSI
VDDI
SDI2/GPIO_A11
SFRM2/GPIO_A10
XD1
XA3
XA2
XA1
XA6
XA5
XA4
VSSI
XA7
VDDI
XA13/BA0
VDDIO
XA16/nRAS/ALE
XA10
XA9
XA8
VSSIO
XA12
XA11
XA15/nCAS
XA14/BA1 XA17/CLE
XA18
XA19
VDDI
XA20/DQM1
XA21/DQM0
SD_CLK/GPO
SCK2/GPIO_A9
SDO2/GPIO_A8
SDI1/GPIO_A7
SFRM1/GPIO_A6
VDDIO
SCK1/GPIO_A5
VSSI
VDDI
SDO1/GPIO_A4
SDI0/GPIO_A3
SFRM0/GPIO_A2
SCK0/GPIO_A1
SDO0/GPIO_A0 TDI
ND_NWE/GPIO_B7
UT_TX/GPIO_B8
UT_RX/IDE_nCS1/GPIO_B9
BCLK/GPIO_B21
TCK
TMS
nTRST
TDO
TCK
TMS
TDI
nTRST
TDO
MODE1
GPIO_D20
GPIO_D21
GPIO_D17
GPIO_D18
GPIO_D19
GPIO_D15
GPIO_D16
PKG1
LRCK/GPIO_B22
VBBA_PLL
VDDA_ADC
ADIN0
ADIN2
ADIN4
VSSA_ADC
VBBA_ADC
VDDI_ADC
VSSI_ADC
VSSIO
SD_nCS/GPIO_B1
nCS0/nOE0/GPIO_B2
nCS1/nOE1/GPIO_B3
nCS2/nOE2/GPIO_B4
nCS3/nOE3/GPIO_B5
VSSIO
nWE
nOE
USB_DP/GPIO_B26
USB_DN/GPIO_B27
USBH_DP/GPIO_B28
USBH_DN/GPIO_B29
SD_CKE/GPIO_B0
VSSI
USB_DP
USB_DN
VDD_USB
VDO_OSC
nRESET
READY
XIN
XOUT
VDDIO
VDDA_PLL
XFILT
VSSA_PLL
DAI/GPIO_B25
MCLK/GPIO_B23
DAO/GPIO_B24
XTIN
XTOUT
VSSIO
UT_RX
UT_TX
GND
D+
D-
V5USB
XRST
GNDD1
AYW7088
STBY
HY57V641620ETP-6 GNDD1
CH 470p
470p
STBY
GNDC GNDD1
STBY
STBY STBY
YB
0.1/16
GNDD2
YB
STBY 1/16
AAT4618IGV-0.5-1
220
0
100k
STBY
V5USB V+5D
470p
0.1/16 YB
CH
QTL1013
STBY
GNDD1
CH
V+3R3
YB
CH
470p
CH
0.1/16
YB
470p
STBY
QTL1013
CH
V+3R3
0.1/16
YB
470p 0.1/16 470p
470p CH
0.1/16
YB
470p
470p
CH
YB
0.1/16
0.1/16
YB
100
TCC760HC01-AG
470p CH 100
100
YB 0.1/16
1k 100
0
0
47
YB
0.1/16
GNDD2
15k
0.1/16
470p/50
STBY
STBY
100/16
JQ
STBY YB
0.1/16 10
VTH1043
15k
QTL1013
V+3R3 V3D
VTL1169
B4B-PH-K-S
STBY
STBY 10
V5USB
CH 0.1/16
47k
YB
100/6.3
STBY
YB
CH
470p
STBY
STBY
10k
VTL1169
0
330p
QTL1013
STBY
V18D V+1R8
GNDD1
470p
CH
YB STBY
0.1/16
QTL1013
V3AV+3R3
10
YB CH
CH
470p
0.1/16
YB
0.1/16
YB
470p
47
4.7M
0
CSS1614
12MHz
CH
4.7k
0
47
47
CH
V3D
(S29AL016D70TFI010-K)
ADIN
23
24
26
25
22
20
21
19
18
17
16
27
28
29
30
31
33
32
14
13
12
15
11
10
34
35
37
36
39
38
27
26
25
28
30
29
24
23
22
21
20
18
19
34
36
37
35
33
32
31
17
16
14
15
12
13
38
39
40
41
42
43
1
2
5
34
8
9
6
7
4
5
3
41
42
40
44
43
46
45
1
2
48
47
10
11
9
8
7
5
6
44
45
46
48
47
50
49
3
4
1
2
52
51
53
54
124
128
125
126
127
2
1
5
3
4
8
7
6
10
9
11
12
13
14
15
18
16
17
122
123
120
121
118
119
21
20
19
23
24
22
25
27
26
30
29
28
31
32
33
35
34
36
37
43
42
41
40
39
38
117
116
113
114
115
111
112
109
110
107
108
105
106
103
104
100
101
102
98
99
49
50
45
48
46
47
44
52
51
54
53
56
55
58
57
61
60
59
62
63
432
12
1
43
97
96
95
93
92
94
90
89
91
88
87
86
85
83
84
82
79
80
81
78
76
77
73
74
75
71
70
72
67
69
68
65
66
64
XRST
MODE0
WE
XA2
XA1 XA0
FLCS
XA5
XA4
XA3
XA7
XA6
XA18
XA17
XD0
OE
XD8
XD1
XD2
XD9 SDCS
XD12
XD4
XD11
XD3
XD10
XA3
XA2 XA5
XA4
XA10
XA1
XA0
XA14
XA13
XA16
XA8
XA12
XA7
XA9
XA6
XA11
WE
XA15
XA21
XD7 XD8
XA20
USDAI
HREQ
USCS
TREQ1
USCLK1
DAC_SCK
XMUTE
DACS
USDAO1
RSTN
DAC_SD
CTL
XFLAG
XA10
XA11
XA13
XA19
XA12
XA8
XA9
XD15
XD7
XD6
XD13
XD14
XD5
XA15
XA14
XA16
XD6
XD5
XD4
XD3
XD2
XD11
XD10
XD9
XD13
XD12
XD1
XD0
XD14
XD15
RAM/ROM
XD4
XD7
XD6
XD5
XD8
XD11
XD12
XD9
XD10
XD14
XD13
XD15
XA0
XA1
XD3
XD2
XD1
XD0
XA2
XA4
XA3
XA5
XA6
XA8
XA7
XA9
XA11
XA10
XA12
XA13
XA14
XA16
XA15
XA17
XA20
XA21
XA18
XA19
USBH_D+
USBH_D-
USB
MODE0
XRST
DATA
MCLK
W
USB ASSY (AWX8704)
W
CN953
X
0.01
YB
C734
GNDD1
C713
12p
12p
4.7k
R756
YB
0.01
C735
0
0
R757
R734
STBY
VSX-816-K 43
5678
5678
C
D
F
A
B
E
TC74VHC08FTS1 TC74VHCT08AFTS1
R978
R977
R952
R972
C951
C952
C956
IC953 IC951
C957
L951
R980
R979
L953
R966
R951
C743
C744 C742
C741
IC703
R724
R725
R726
R721
R722
R723
C730
C747
C746
C745
IC702
R701
R702
R780
C785 C792
C786
C787
R785
R787
R786
R784
IC781
C781
C782
R788
C788
C783
C784
R789 C791
R973
R754
P075
P076
P078
P077
R752
R751
R750
R792
R796
Q784
R749
R748
R791
Q784
R795
R747
R746
R744
R745
R743
R741
L781
R799
P169
R797
R798
Q782
Q783 CN702
R753
1A
2A
1Y
1B
for XM
GND
2Y
2B
1A
for XM
2A
1Y
1B
JQ : CEJQ***M**
GND
2Y
2B
ELECTRIC CAPS
CKSQ**~
: 1608 Size
CCSR**~
CKSR**~
VCC
level shifter
3Y
3A
3B
4Y
4A
4B
5V -> 3V
4B
level shifter
3V -> 5V
VCC
4Y
4A
for BOOT MODE
3.3VReg.
Cn
GND
Cont
Vo
NC
1.8VReg.
Sub
Vin
DAC_SD
DACS
RSTN
DAC_SCK
NC
VCOM
AOUTR
AOUTL
LRCK
DATA
MCLK
BCLK
AVDD
VSS
DZF
DVDD
3Y
3A
3B
CAPACITOR
RS1/16S~
: 1608 Size
RS1/10S~
: 2125Size
RESISTOR
Chip Size
: 2125 Size
XFLAG
TREQ
HREQ
CTL
USDAI
USDAO
USCS
GNDD
USCLK
GNDD
DAC
V+5D
XRST
LOUT
GNDA
ROUT
GNDD1
100
100
GNDD1
4.7k
100
CH
YB 1
470p
(SN74AHC08PW)
YB 1
(SN74AHCT08PW)
CH470p
QTL1013
100
100
QTL1013
4.7k
V+3R3 V+5D
JQ
GNDD0
STBY
GNDD1
1/6.3
V+3R3
STBY
YB
0.1/16
YB
100/16
BD7802FP
V+5D
4.7k
4.7k
4.7k
STBY
STBY
STBY
GNDD0
470p
CH
STBY
2.2/10
YB
V3D
YB
MM1561JF
V+1R8
47k
GNDD1
STBY
GNDA0
GNDD1
V3D STBY
STBY
JQ
10/16
10/16
JQ
GNDA0
CH
STBY
STBY
47
47
AK4387ET
470p
4.7
47/16
GNDD1
0.1/16
CH 0.1/16
YB
CH
YB
JQ
0.1/16 JQ
10/16
GNDD1 GNDA0
100
100
1/6.3
STBY
GNDD0GNDD2 GNDD1
V+3R3
GNDD0
STBY
STBY
STBY
100k
4.7k IMX9
IMX9
STBY
100
100k
4.7k
GNDD0
100
100
100
100
100
QTL1013
V+5D
10k
1k
DTC114YUA
2SA1576A(RS)
1k
V+5D
STBY
XKP3078
V+5D
STBY
GNDA0
GNDD1
OUT IN
2
1
4
3
5
6
7
1
4
2
3
7
6
5
13
14
12
11
10
8
9
12
11
13
14
45
3
2
17
6
5
8
6
7
9
12
11
10
4
3
2
1
14
13
16
15
8
10
9
B2
C2
E2
E
15
13
14
B
C10
11
12
8
9
7
6
5
4
3
2
1
SDCKE
SDCLK
XRST1
HREQ
HREQ1
XRST
USCLK
USCLK1
USDAI1
USDAI
USCS1
USCS
TREQ
TREQ1
BCLK
DATA
LRCK
SDCS
SDCLK
FLCS
USBH_D-
USBH_D+
DAC_SCK
DAC_SD
SDCKE RSTN
DACS
WE DATA
LRCK
OE
MCLK
BCLK
BCLK
LRCK
USDAO1
USDAO
DATA
BCLK
LRCK
ROUT MCLK
XFLAG
TREQ
CTL
LOUT
USDAO
HREQ1
USDAI1
USCS1
USCLK
MAIN
XMUTE
XRST1
LOUT
ROUT
CN812
C2/2
W
R793
100
R794
100
R790
C790
C789
470
1000p
1000p
470
VSX-816-K
44
1234
1234
C
D
F
A
B
E

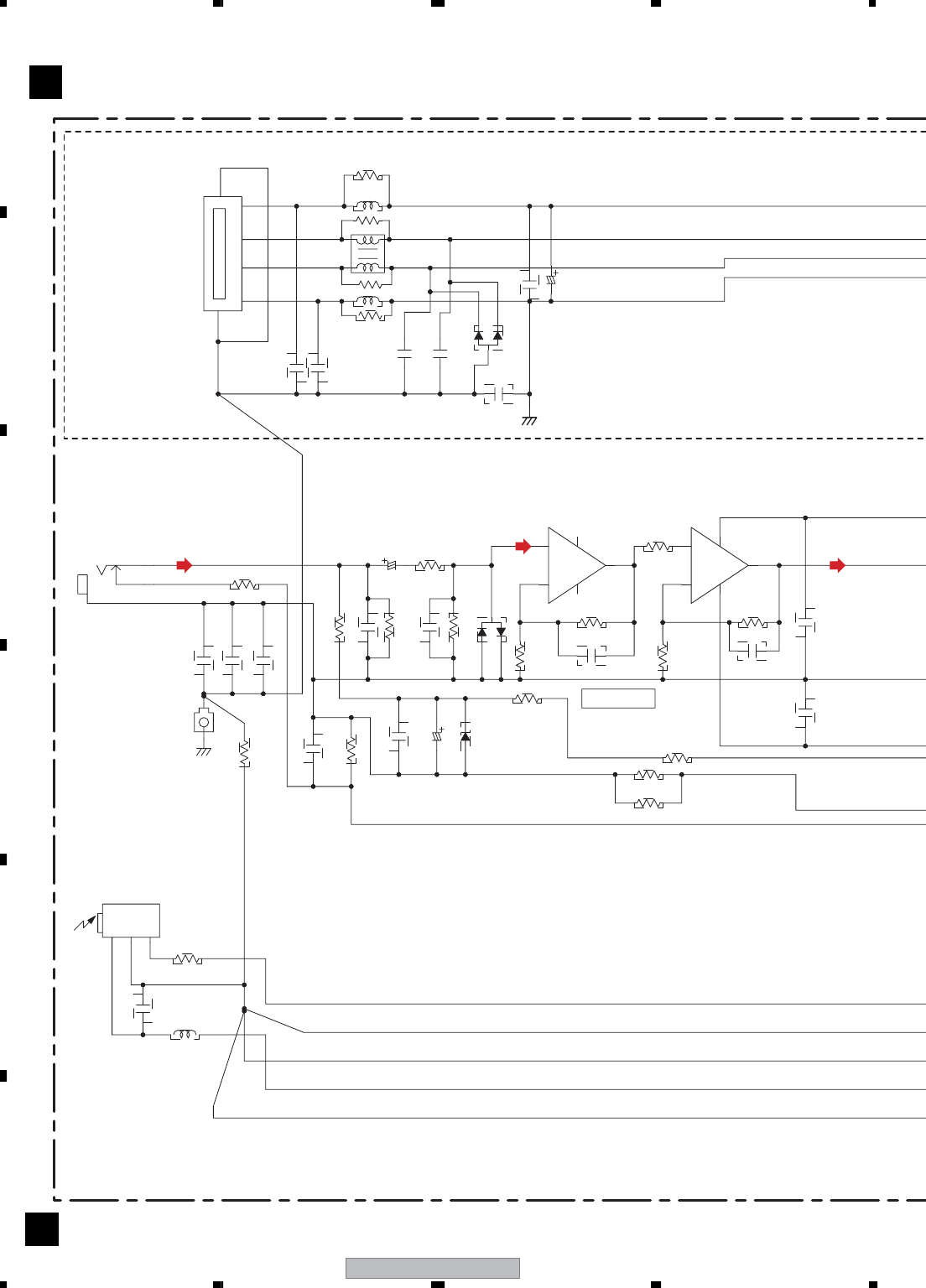

3.18 USB IN ASSY
--
++
0.1 YB
DTF1067
100
GP1FMV51RK0F
STBY
VNF1084
STBY
100K
STBY
10/50
RKN1004
0.01
0.1
STBY
1k
6.8k
470p
100k
100p
100k
10/50 100
STBY
STBY
STBY
STBY
STBY
0
STBY
ATH7015
STBY
0
STBY
0
UDZS5R1(B)
1k
0
0
0.01
4.7k
33p
DAN217
33k
100
4.7k
33p
33k
0.01
HA17558AFHA17558AF
STBY
GNDD
STBY
DAP202U
100/16
JQ
0.1
C951
L951
R951
JA951
R952
C961
KN951
R958
C955
C956 C960
C952
C953
C954
R956
R953
C959
R955
R957
C967 R954
JA952
C972
C973
C981
C980
D975
R980
L972 R970
L970
R969
L971
R979
R974
R975
D951
R972
R973
C962
R960
C965
D957
R959
R966
C964
C957
R967
R961
IC951 IC951
C971
C969
C970
FRONT OPT
123
(CHASSIS)
GNDCH
MIC IN
1
3
2
4
USB
D-
D+
V5
3
2
1
GND
XKP3086-
JA953
MIC AMP
(1/2) (2/2)
USB IN ASSY (VSX-816 : XWK3249)
(VSX-916 : XWK3250)
X
X
(M)(M)
(M)
VSX-816-K 45
5678
5678
C
D
F
A
B
E
V-7
10/50
B5B-PH-K-S
UDZS5R1(B)
10/50
100k
V+7
100 10/50
UDZS5R1(B)
CKS3370
B4B-PH-K-S
C963
CN951
C958
R963
D953
R962 C968
D952
CN952
CN953
5
4
1
2
3
3
1
2
5
4
1
4
2
3
J30
SHIELD
D+5V
SHIELD
FRONT OPT
GNDD
J32
V+7
MICOUT
GNDA
MICSW
V-7
D-
D+
V5 USB
GNDD
J28
Unit: k-kΩ, M-MΩ or Ω unless otherwise noted.
1.RESISTORS
NOTE
2.CAPACITORS
Rated Voltage: 50V expect for electrolytic capacitors.
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
Unit: p-pF or µF unless otherwise noted.
Tolerance: (J) 5% unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
-
+
X
VSX-916
ONLY
CN108
A1/3
CN1902
R
CN701
W
(M) : Audio Signal Route (Mic ch)
(M)
(M)
VSX-816-K
46
1234
1234
C
D
F
A
B
E
4. PCB CONNECTION DIAGRAM

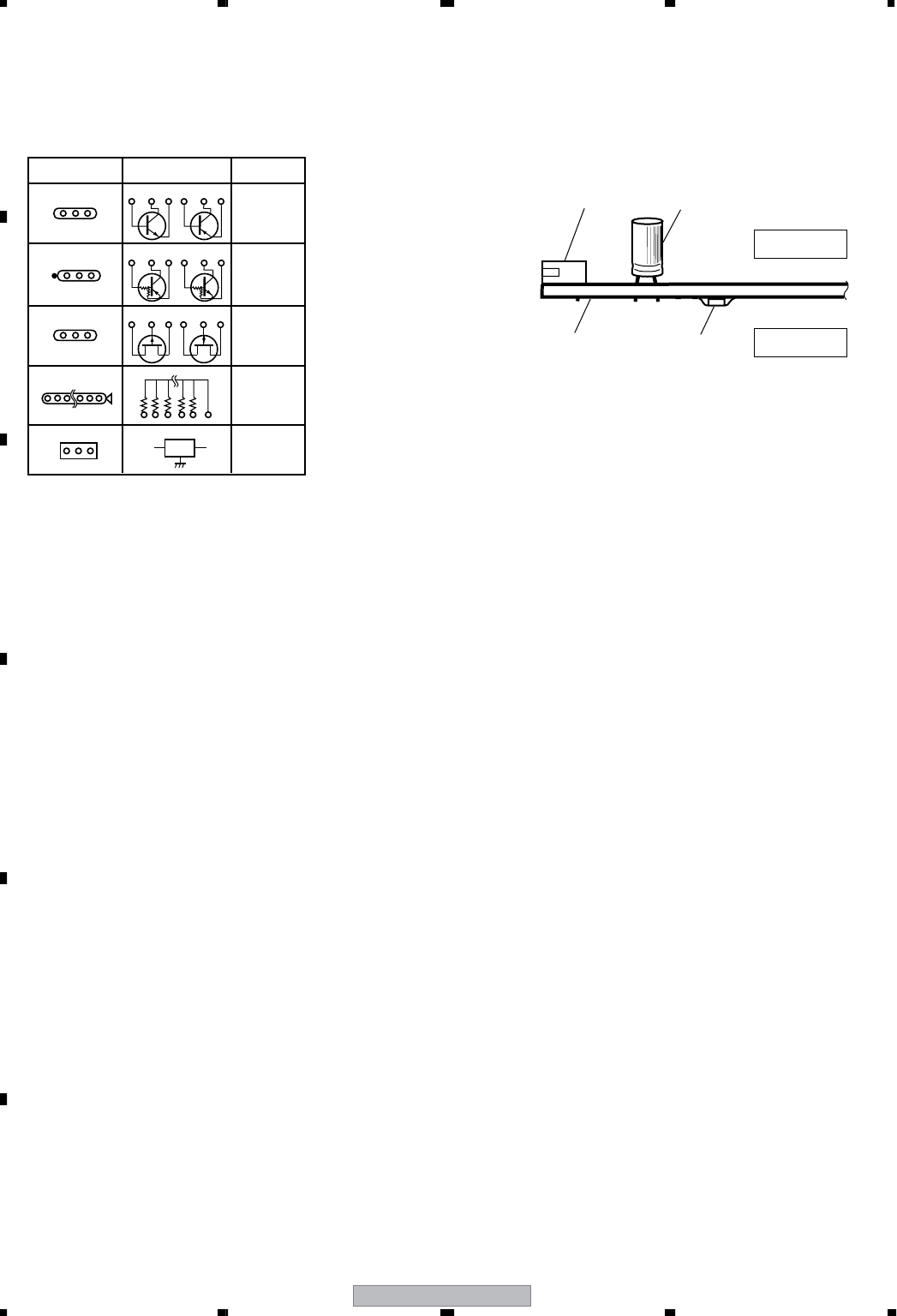

NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Symbol In PCB
Diagrams
Symbol In Schematic
Diagrams Part Name
BCE
D
D
G
G
S
S
BCE
BCE
DGS
BCEBCE
BCE
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
Capacitor
Connector
P.C.Board Chip Part
SIDE A
SIDE B
VSX-816-K 47
5678
5678
C
D
F
A
B
E

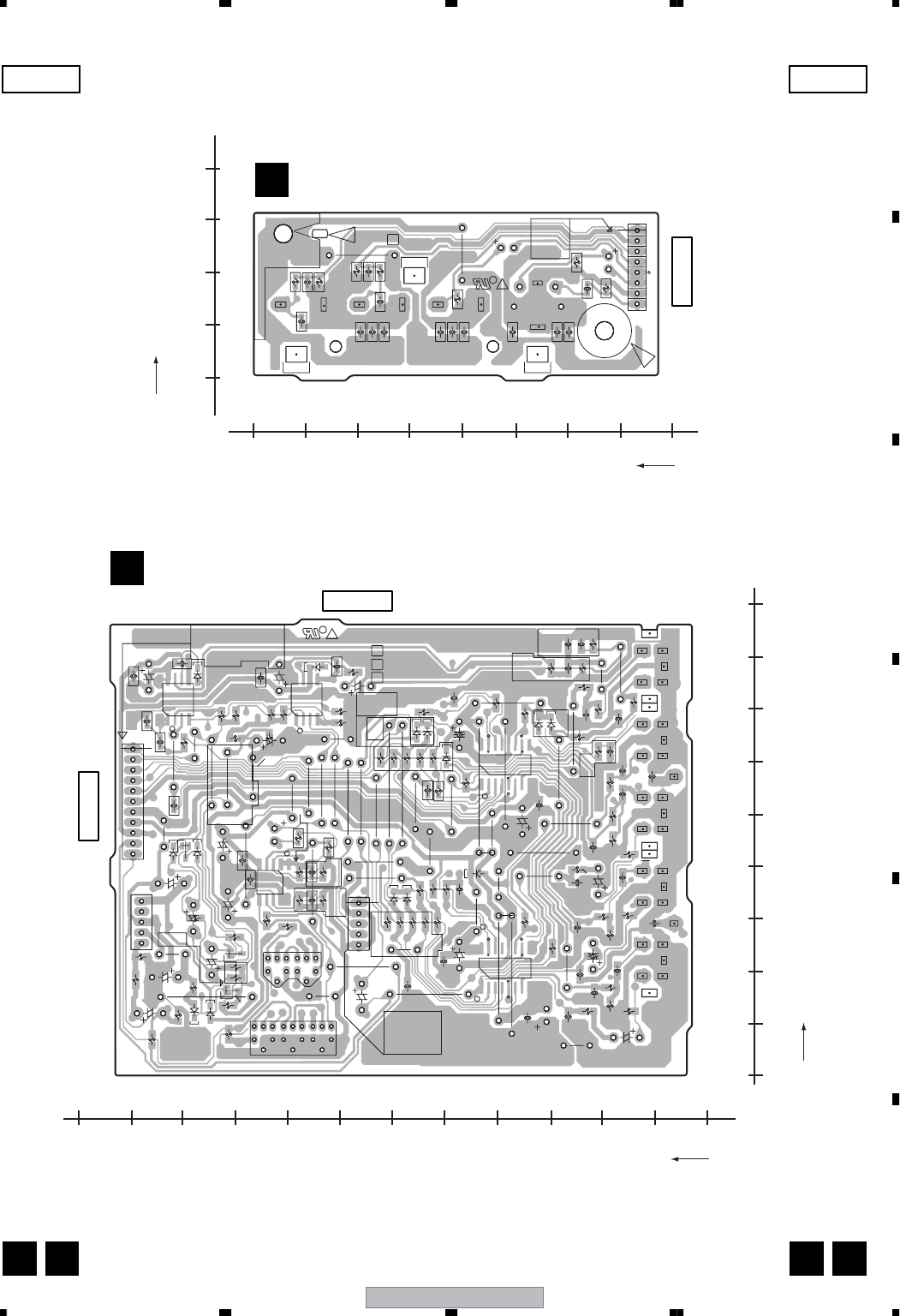

4.1 USB IN ASSY
10 0
10
0
20
30
40
50
60
70
80
90
100
110
120
2030405060708090
X
Y
10
0
10
0
20
30
40
50
60
70
80
90
100
110
120
20 30 40 50 60 70 80
X
Y
12 5
15
12 4
14
15
14
R
C968
D953
D952
C962
C963
R975
R974
CN951
C958 CN952
R963
C967
KN951
CN953
JA951
L970
C970
JA952
R954
R955
C959
R953
C960
C957
R972
C956
JA953
R973
D-
D+
GNDD
XNP3106-A
ICT
LF
CMKM-G3X
FRT OPT
V5 USB
SHIELD
GNDD
D+5V
SHIELD
ASSY
USB I/P
1
V+7
MICOUT
GNDA
V-7
MICSW
1
XWK3247
XWK3248
XWK3249
XWK3250
PRODUCTION CODE
15
15
14
4
85
1
C951
F951
R962
C964
C954
C952
C953
R952
R970
R969
C973
C969
C981
D975
R979
C972
R980
L972
IC951
R960
R951
R961
R956
R957
D957
C965 R966
R967
D951
R958
C955
C961
R959
C980
L971
C971
CN952
CN953
FRT OPT
GNDD
D+5V
SHIELD
USB I/P ASSY
MICSW
V-7
MICOUT
GNDA
V+7
CN951
V5 USB
D-
D+
GNDD
SHIELD
USB IN ASSY
X
USB IN ASSY
X
(XNP3106-A)
(XNP3106-A)
SIDE A SIDE A
SIDE B SIDE B
X X
CN701
W
CN953
CN1902
R
CN951
CN953
CN951
CN108
A
CN952
CN952
VSX-916
ONLY
VSX-816-K
48
1234
1234
C
D
F
A
B
E

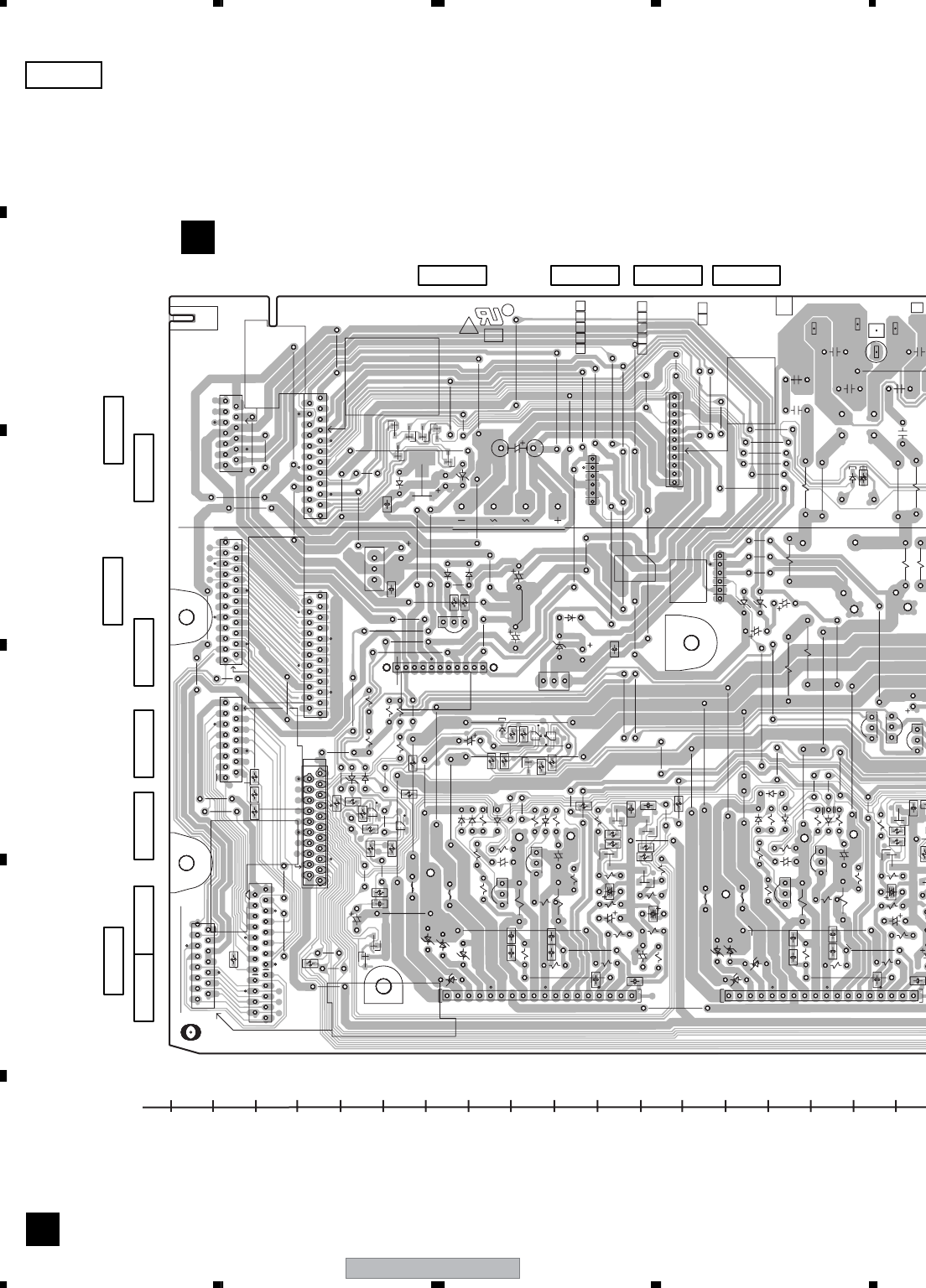

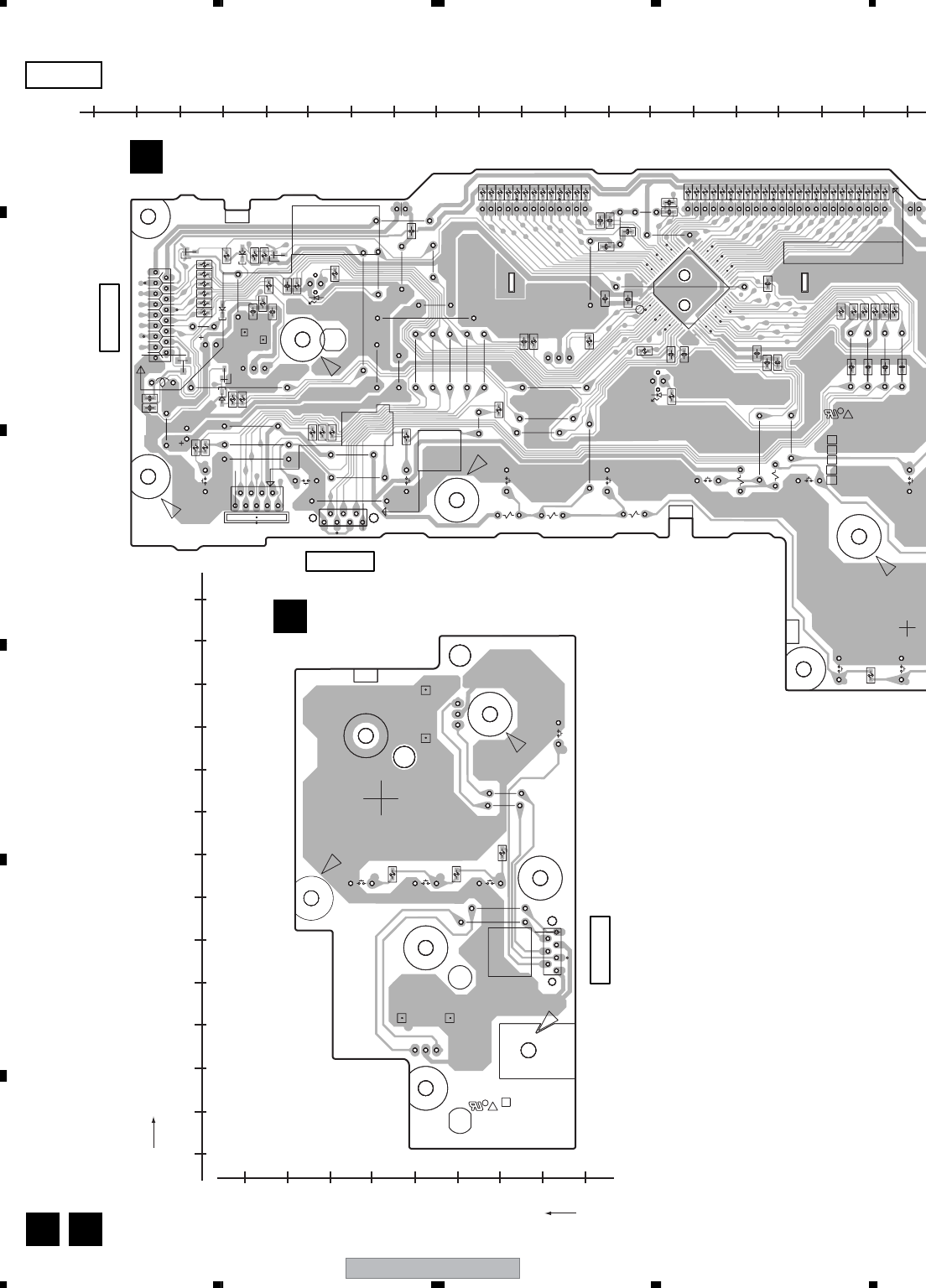

4.2 MAIN ASSY
10
0
10
0
20
30
40
50
60
70
80
90
100
110
120
20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
X
Y
14
58
14
58
14
58
NP
14
58
14
5
8
NP
16
1
9
8
8
1
5
4
21
12
1
17
814
13
54
13
54
NP
R
CN107
C139 C140
R146
R145
R488
R490
C370
IC312
R494
C368
C367
R486
R496
R493
C364
R498
C363
R497
C365
C345
R475
R473
IC311
R477
C343
R476
R474
C348
C346
C344
R478
C347
R300
R454
IC310
C326
C300
R456
R455
C328
C323
C324
R458
R457
R453
C325
R489
C327
C502
5
C361
C341
C342
C321 C322
R484
R9082
Q362
C366
Q
R485
R512
R513
R515
C387
C393
IC315
R514
C386
C388
C389
C390
R508
R509
R495
R447
D253
R443
R442
R441
R439
C256
R427
CN255
R438
R440
R437
R436
R432
R434
R435
R450
R431
R433
R444
CN251
R449
D254
R448
R445
R446
CN252
Q254
Q255
Q253
IC251
D251
Q251
Q256
Q258
Q257
Q252
CN102
C9010 C9009
R9004
R463
X9001
C5011
IC5001
R5013
C5015
C5016
X5001
C5013
C5014 R5012
C5010
C5018
C5012
R5001
R5002 R5003
R5004
C9005
C9002
L9003
C9004 C9001
D9010
R9002
C9013
R9009
R9011
C9007
C9006
R9008
L9002
L9001
C9015
C9000
R9032
R9036
Q9001
Q9002
Q9003
C5017
R9037
R9039
R9030
C5020
R5020
Q9064
R9065
R9064
R9067
R9066
D9068
R9061
Q9006
R9068
Q9065
R9012
IC9002
R9046
R9045
R9047
R9048
D9064
D9065
D9011
D9001
D9002
D9003
CN114
R451
CN106
IC6001
IC6003
R6003
C6001
R6004
D6001
R5010
R5011
R6009
R6001
R6010
R6002
R9003
Q9012
Q9007
R9005
CN108
C254
CN101
R550
CN112
IC6004
Q6001
R6005
R6006
C6002
R9049
R9080
R9057
C255
R9070
R9081
C9081
R9056
R9058
R9059
C9019
R9050
R9051
R9052
R9053
R9054
R9055
R466
Q260
R465
Q259
R464
D255
R280
1
GNDU
T RST
T PGM
110
25
1
13
13
17
5
1
FOR FAN FOR THERMISTOR
31
CN127
1
MICSW
X
N
3
T SCLK
CMKM-G3X
1
SR RXD
GNDA
SBR
GNDA
C
GNDA
SL
FAN-
MICOUT
GNDA
V-7
DISP RST
-VF
FLAC 1
FLAC 2
XM_SW
XMDAC_RST
XMPOW
MIC DET
RMC
SROUT
SRIN
DISP EN
SBL/SB
XMLNK
XMFS
XML SDT1
XMTX1
V+7
FAN+
-12V
FRNT L
T BUSY
VSS
SR TXD
GNDA
FRNT R
GNDU
+12V
FAN STOP
XMCS
XM_SW
GNDU
ST5.6V
D+5.6V
1W WP
DISP RDY
DISP D0
DISP DI
DISP CLK
XMOL5
XMRQ1
XMRST
NC
T VDD
XFLAG
USB CTL
USB TRQ
USB HRQ
USDA0
USCS
USCLK
USB XRT
DIR CS
DIR D0
DSP MOD
DSP HRE
BUSY
DSP SS
DSP RST
DSP CLK
DSP D0
DSP DI
DEC MUT
DIR RST
DIR ERR
XTL0
GNDD
GNDD
USBDA1
GNDA
MAIN
ASSY
SIDE A
A
MAIN ASSY
A
CN901
S
CN107
CN401
K
CN101
FAN
CN252
891
O
CN251
CN952
X
CN108
C
CN952
VSX-816 ONLY
VSX-916VSX-816
B
CN106
CN813
C
CN112
CN817
C

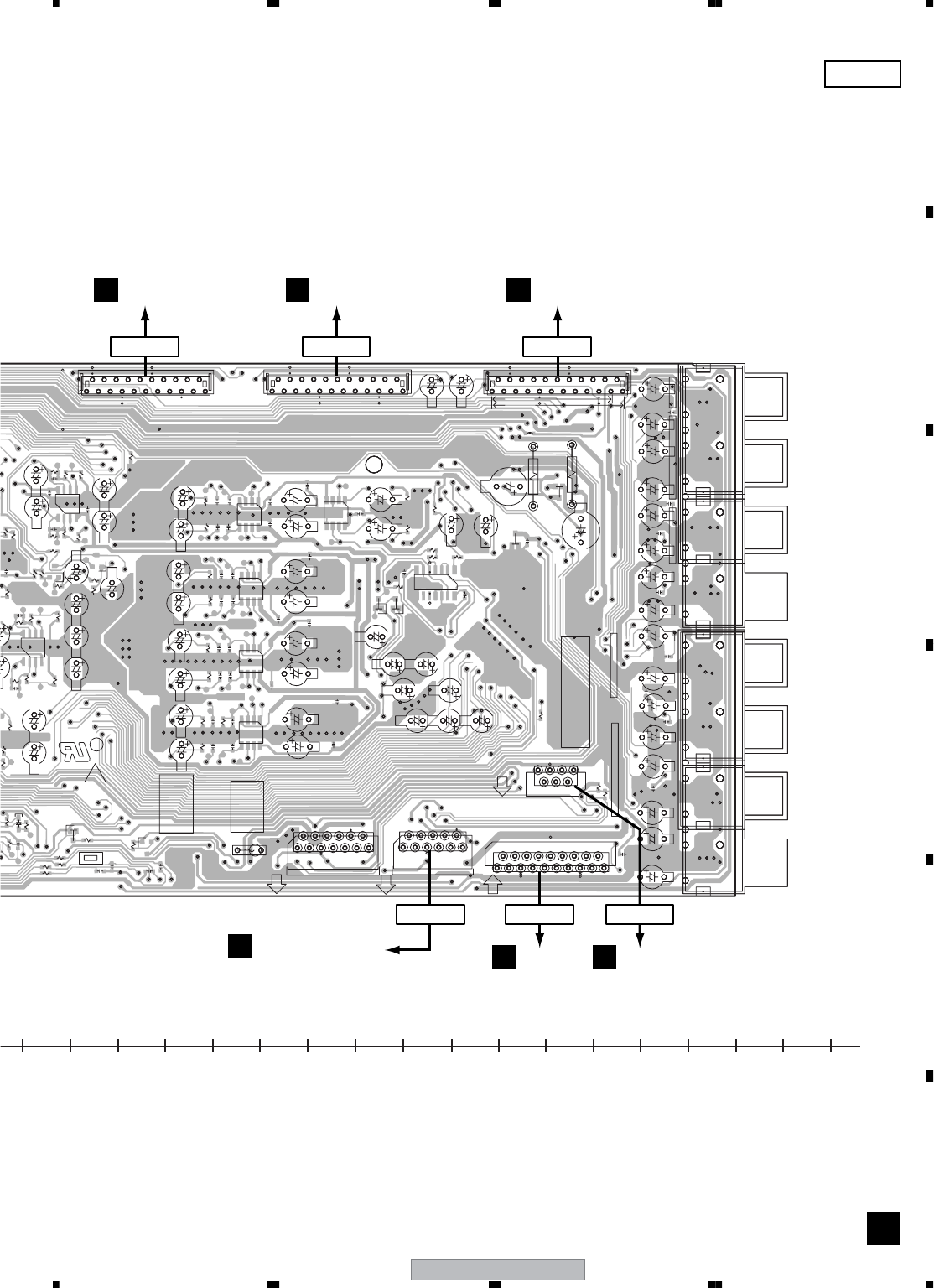

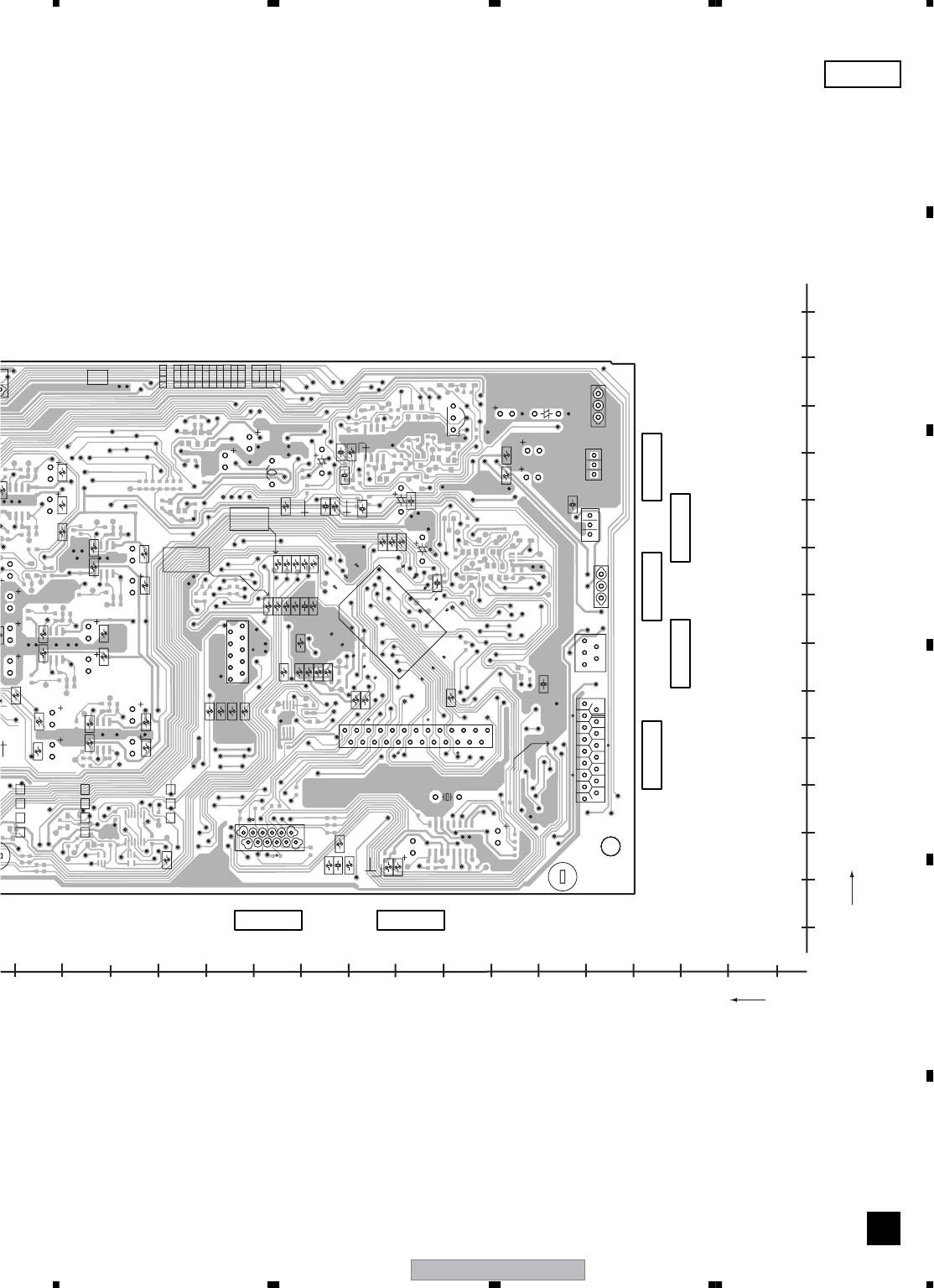

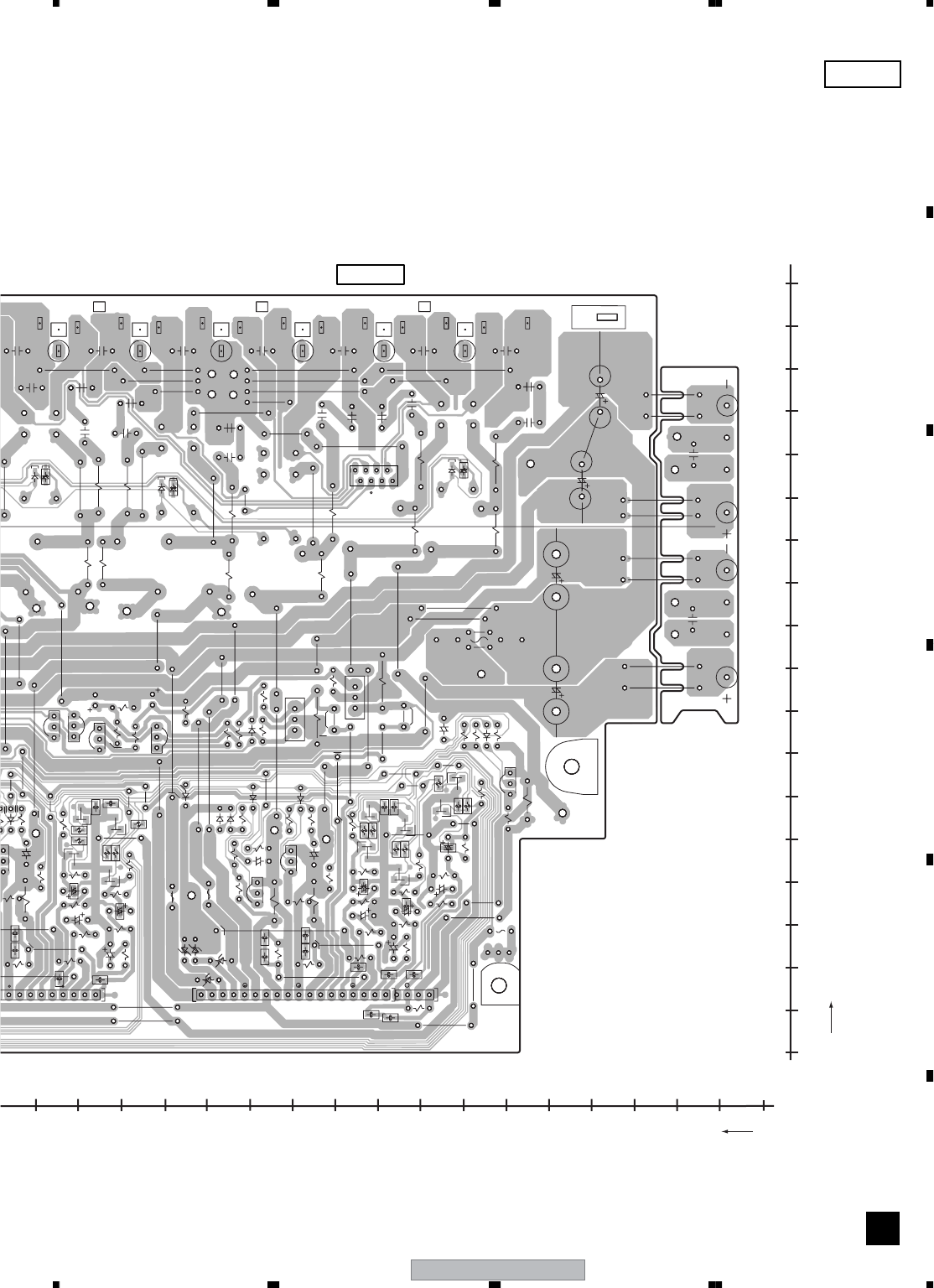

VSX-816-K 49
5678
5678
C
D
F
A
B
E
150 160 170 180 190 200 210 220 230 240 250 260 270 280 300 310 320290
1
85
4
1
85
4
1
85
4
85
4
11
85
4
23
1
14
58
14
58
21
1
123
14
1
8
7
7
1
113
R
C180
CN117
CN115
C199
CN116
C1031
IC103
C252
C246
C244
C250
C251
C242
R242
C245
C243
R241
C241
C249
C266
C264
C270
C272
C271
R262
C262
IC104
C206
C204
C210
R202
C202
C205
C203
C209
C218
C217
R201
C201
C285
C281
R281
C283
IC106
C289
C265
C261
R261
C263
C292
C291
C269
IC107
C219
C220
R223
C214
R224
C213
R231
CN118
IC105
C122
C121
C124
C123
C126
C125
C128
C127
C132
C131
C136 C135
C138 C137
C134
C133
R237
R238
R233
R234
Q232
Q231
C222
C117
R141
R142
R143
C181
C188
C187
C189
C290
C286
C284
R282
C282
R279
R149
C162
C161
C160
C159
C157
C158
C156
C334
C333
R312
CN109
C185
R488
R490
C370
IC312
C368
R486
R496
R475
R473
IC311
R477
C343
R476
R474
4
6
C344
R478
IC310
R456
R455
R453
R489
C5025
C361
C341
C342
C321 C322
C362
R484
Q362
Q361
R485
R512
R513
R515
C387
C393
IC315
R514
C386
C388
C389
C390
C384
C385
R508
R509
R495
C141
R5001
R5002 R5003
R5004
L5002
D101
CN114
R6003
R6004
D6001
R6010
R9001
Q9011
R9003
Q9012
C5028
C171
CN111
C165
R311
C170
C5027
IC110
C221
CN105
CN113
C166
CN103
R550
Q6001
R6005
R6006
C6002
IC6005
CN104
C5026
CN125
CN126
D109
C155
1
SWOUT
SP-B RY
TL
VIDEO 3
SP-A RY
ICT
GAV
11
TUNER DO
IPOD R
GNDA
IPOD L
AMUTE
+9V
TUNER CLK
GAV
-12V
FLAC1
FC
XNP3102-C
HP SW
R/C RY
FLAC2
OSD RST
-VF
CMKM-G3X
AC WP
OSD CS
IP_DET
+12V
GNDU
GNDA
SBR
GNDA
C
GNDA
SL
C
SBL/SB
XM/USB L
CN127
SW
SL
AG
SR
AG
AG
RMC
SW DET
SR OUT
GNDT
V+7V
OSD CLK
ST5.6V
GNDU
D+5.6
AC RY
T+9
GNDT
GNDA
GNDA
VIPOD
GNDU
V-7V
OSD DT
VIDEO 1
VIDEO 2
IP_TX
IP_RX
V+5.6V
VIDEO 4
INH
SRRXD
SRTXD
TUNER CE
TUNER DI
NC
SR IN
SW2
SW1
TR
VSM
RDS
GNDT
GNDV
VIPOD
GNDU
GNDA
FL
GNDA
SR
GNDA
FR
AMUTE
ATT
DCDT
OLDT
6 OHM
GNDU
NECK
XPROT
VCOMG2
XM/USB R
GNDA
SBR0
GNDA
SBL0
GNDA
CO
GNDA
SWO
GNDA
SLO
GNDA
SRO
RCMUT
FLO
VCOMG
FRO
GNDA
LIN
GNDA
RIN
PRODUCTION CODE
M
AIN
A
SSY
19
1
SIDE A
A
(XNP3102-C)
CN705
C
CN114
CN815
C
CN109
CN816
C
CN111
CN303
Q
CN104
FM/AM
TUNER UNIT
Y
CN103
CN307
I
CN105
VSX-816-K
50
1234
1234
C
D
F
A
B
E
150 1
4
160170180190200210220230240250260270280290300
41
4025
24
1
80 65
123
21 1 123
71
1
13
1
11
19 1
LF
R102
R101
R104
R103
R105
R106
R107
R108
R111
R112
R113
R114
R109
R110
C113
C114
C111 C112 C109C110
C107 C108
C105
C106
C103
C104 C102
C101
C179
R129
R130
C198
C197
C1041
L111
L112
C248
R248
R244
R246
R252
R254
R250
R256
R253
R249
R251
R247
R245
C247
R243
R255
R270
R272
R268
R264
R266
R274
R276
C268
R210
R212
R208
R204
R206
R214
R216
C208
R209
R211
R207
R203
R205
R213
R215
C207
R293
R291
R289
R287
R285
R283
C287
R295
R273
R271
R269
R267
R265
R263
C267
R275
R220
R222
R226
R218
C212
R228
C216
C215
C211
R217
R219
R221
R225
R227
R122
R121
R124
R123
R126
R125
R128
R132
R131 R134R133
R136
R135
R138
R137
R127
L104
L103
R258
C258
R278
C278
R257C257
R297
C297
R277C277
R116
R115
C118
R518
C182
C184
C183
C190
C192
C191
R298
R296
C298
R294
R288
R292
R290
R284
C288
R286
C147
R148
IC108
C146
C145
C152
C153
C154
R147
C150
C149
C148
D312 C332
C331
D331
D332
D311
R235
R232 R236
R240 R239 R260 R259
C186
R502 R479
R480
R303
R304
R308
R305
R306
R307
R461R462
R482
R483
R481
R516
R517
R504
R506R507
R505
R157
R155
C5003
C5002
C5001
C5004
C5005
L101
L102
C116
C115
R159
R162
R161
R181
R158
R156
R180
R183
R154
D107
D105
R182
D103
-12V
GNDU
VIPOD
GNDA
GNDA
+12V
SWOUT
-VF
FLAC1
FLAC2
GAV
GAV
M
X
W
X
W
GNDU
D+5.6
XWK3228
XWK3245
XWK3244
T+9
GNDT
ST5.6V
SP-B RY
64
LIN
GNDA
GNDA
RIN
C
GNDA
GNDA
GNDA
FRO
VCOMG
SWO
GNDA
SLO
GNDA
SRO
RCMUT
FLO
XM/USB R
GNDA
SBR0
GNDA
SBL0
GNDA
CO
VCOMG2
GNDA
XM/USB L
HP SW
SP-A RY
R/C RY
X
W
X
W
XWK3231
XWK3230
XWK3229
XWK3246
FL
GNDA
XWK3227
AC WP
SBR
SBL/SB
SL
GNDA
SR
FR
IP_RX
V+5.6V
V-7V
GNDU
V+7V
IPOD R
GNDA
IPOD L
GNDT
RDS
VSM
TR
+9V
TL
GNDT
TUNER DO
TUNER CLK
TUNER DI
TUNER CE
SRTXD
SRRXD
SW1
SW2
NC
RMC
SR IN
SR OUT
SW DET
AMUTE
VIDEO 3
VIDEO 2
VIDEO 1
OSD DT
OSD CLK
OSD CS
OSD RST
INH
VIDEO 4
C
AG
SW
AG
SL
AG
SR
GNDU
NECK
6 OHM
OLDT
XPROT
DCDT
ATT
AMUTE
GNDA
IP_TX
IP_DET
GNDV
VIPOD
GNDU
AC RY
CN127(23P)
CN105
CN104
CN103
CN113
CN109
CN114
CN111(21P)
SIDE B
A
MAIN ASSY
A
CN114CN109CN111
CN104
CN103
CN105
VSX-816-K 51
5678
5678
C
D
F
A
B
E
10
0
10
0
20
30
40
50
60
70
80
90
100
110
120
130
2030405060708090100110120130
150 140160
X
Y
13
31
1
31
10
1
21
1
12
15 117
1
25
1
0123456789
0123
0
01
C
B
A
LF
R139
R140
R518
C151
R502
R500 R499
R479
R480
R460 R459
R303
R304
R305
R306
R461R462
R482
R483
R481
C392
R516
R517
R506R507
C253
R9010
R9006
R9013
R9014
IC9001
R9026
R9025
C9012
R5009
R9015
R9016
R9017
R9018
R9022
R9021
R9020
R9019
C9014
C9011
R9023
R9024
C9008
R9028
R9031
R9033
R9034
Q9004
R9038
R9041
R9042
R9043
R9044
R9062
R9063
C9017
Q5009
R5006
R5007
C5008
R5016
R5005
D9006
D9007
R9007
R9060
D105
C9018
R6007
XWK****
MAIN ASSY
XWK****
XWK3235
XWK3234
2
28
2
45
XWK****
2
44
C
GNDA
GNDA
XFLAG
USB CTL
USB TRQ
FAN-
FAN STOP
V+7
MICOUT
GNDA
V-7
MICSW
FAN+
GNDD
FRNT R
GNDA
+12V
GNDU
XTL0
GNDD
FRNT L
DSP CLK
DSP RST
DSP SS
BUSY
DIR RST
DEC MUT
DSP DI
DSP D0
USDA0
DSP MOD
DIR D0
DIR CS
USB XRT
USCLK
USCS
USBDA1
-12V
DIR ERR
DSP HRE
USB HRQ
XWK3233
XWK3232
XWK3231
XWK3230
XWK3229
XWK3246
2
27
SBR
SBL/SB
GNDA
XMPOW
XMDAC_RST
XM_SW
XM_SW
XMCS
XMRST
XMRQ1
XMTX1
XML SDT1
XMFS
XMLNK
XMOL5
VSS
SR TXD
T BUSY
NC
T VDD
T SCLK
SR RXD
T PGM
T RST
GNDU
GNDU
MIC DET
ST5.6V
D+5.6V
1W WP
RMC
SROUT
SRIN
DISP EN
DISP RDY
DISP D0
DISP DI
DISP CLK
DISP RST
-VF
FLAC 1
FLAC 2
81
100
50
31
51
80
30
1
CN106
CN112 (25P)
CN127(17P)
CN101
CN252
CN108
CN251
CN255
CN107
CN102
CN114
SIDE B
A
(XNP3102-C)
CN107CN101 CN252
CN251CN108
CN106 CN112
VSX-816-K
52
1234
1234
C
D
F
A
B
E

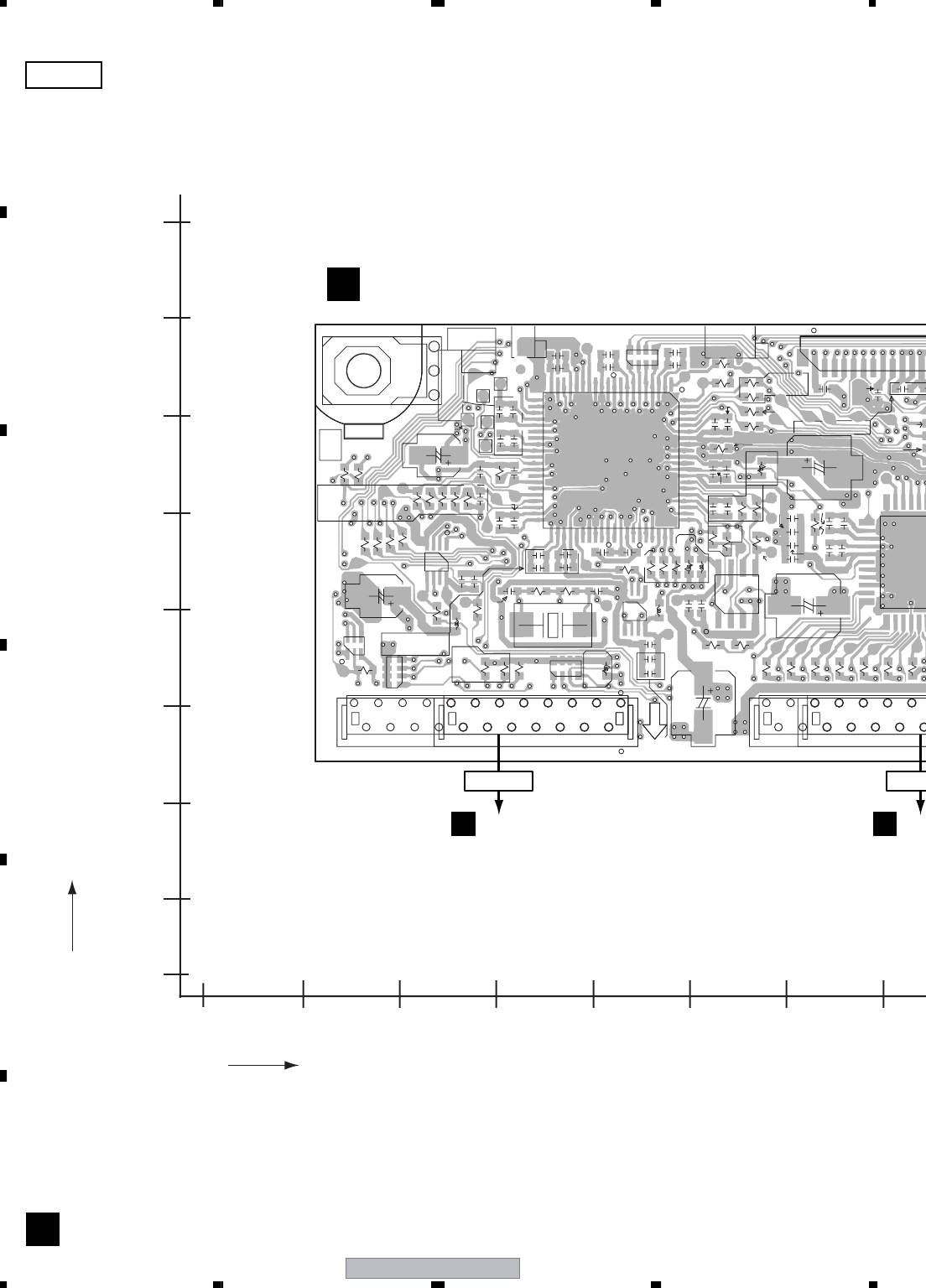

4.3 DSP ASSY (FOR VSX-916)
10
0
10
0
20
30
40
50
60
70
80
20 30 40 50 60 70
X
Y
11
22
23
21 40
61
1
LF
1
23
R962
C807
L803
L801
C817
IC802
L953
R801
C802
R839
C819
C703
C812
Q951
C818
C810
C851
R816
R851
C811
C821
C806
R813
IC701
C813
IC801
C704
R
5
CN952
C852
R967
R975
R976
R969
IC851
R952
R980
R960
R961
R959
C554
C555
R841
C705
C701
C823
C826
C702
C827
R856
R802
R968
R953
C833
R951
R570
R
R568
C952
C956
C953
C804
C803
C824
R817
CN55
C829
C831
R828
C830
C556
R840
R830
R829
C828
R836
C951
C801
X801
C816
C805
KN901
CN702
C808
R982
IC951
C557
C814
R815
R835
R833
R854
C822
C913
C912
C911
C910
CN701
C834
R832
R834
C832
CN951
R974
C835
C809
R853
L951
R958
C820
R708
R710
R711
R709
R707
R706
R705
R979
R810
R837
C815
R970
C
C
D
D
A
FC
ICT
TP4
TP5
TP1
TP2
TP3
14
5
8
12
120
41 60
80
15
14
58
1
15
14
5
8
19
SIDE A
B
DSP ASSY
B
C
N
C
CN
7
CN807
C
CN952

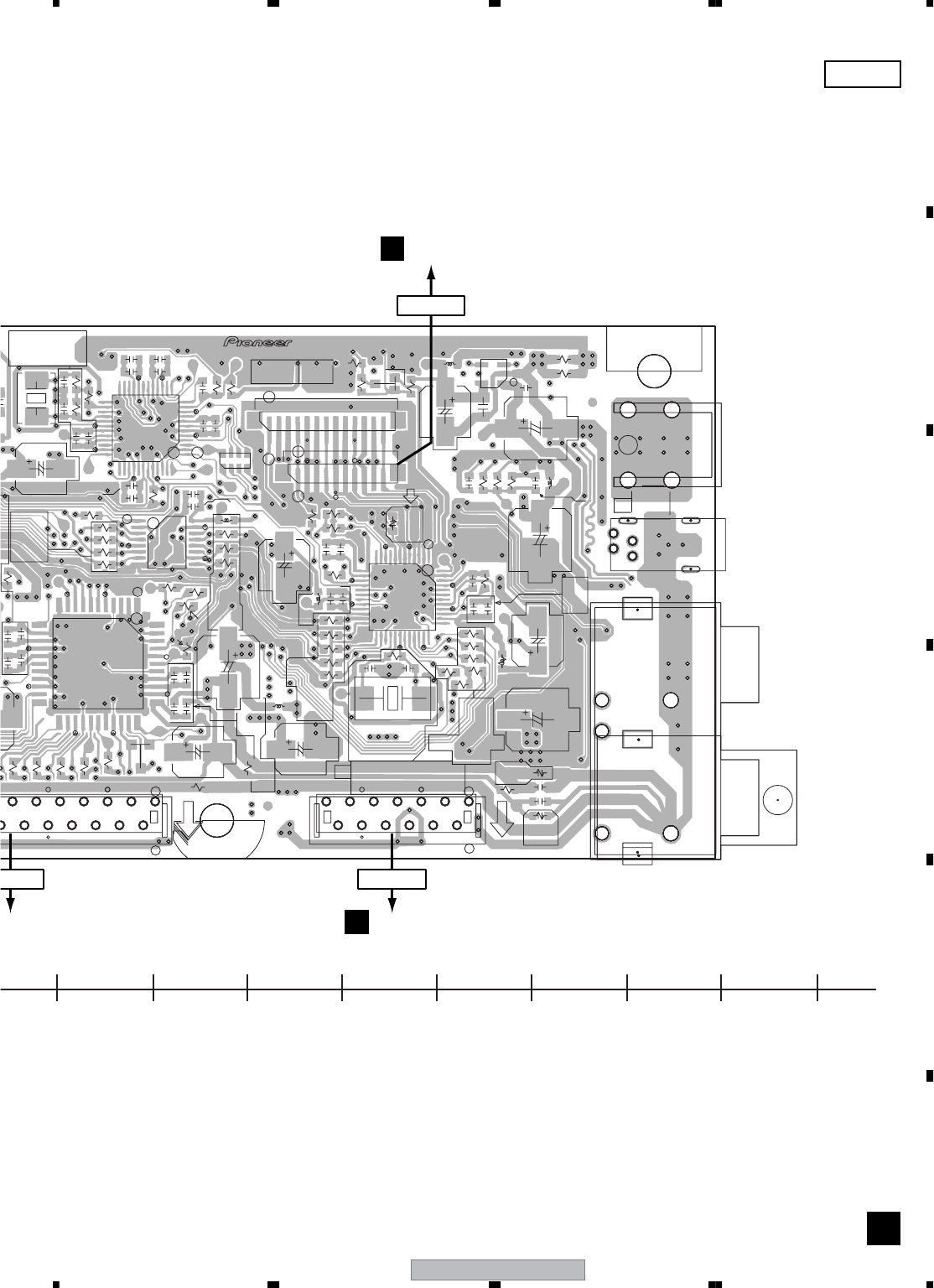

VSX-816-K 53
5678
5678
C
D
F
A
B
E
70 80 90 100 110 120 130 140
111
22
23 33
34
8
916
110
13
25 36
37 48
1
13
11
L702
C718 R909
C720
R612
L603
Q551
R619
R572
C715
C703
R601
R602
R603
R622
IC701
R916
C
704
R629
IC551
R566
R567
R607
C622
R630
C623
R621
R620
R913
CN601
R907
KN501
JA502
L851
C554
5
55
R841
C705
C701
C702
C717
R613
R908
R825
R826
C903
C716
C904
R824
C901
C902
C719
R580
R581
R579
C553
C908
R507
C506
L503
C513
R614
C604
C508
R564
R569
R570
R562
R571
R568
C909
C607
R505
IC601
C618
C605
R616
R618
C606
R617
R615
R628
C621
C620
C619
L605
L602
C613
C608
C609
C552
X601
L551
CN551
C612
R627
R623
D553
D551
C551
R625
R626
R624
JA501
6
R504
CN902
L604
CN901
R608
R609
N
702
R838
L802
C557
R716
R715
R713
R714
R712
KN502
C835
D701
R708
R710
R711
R709
C603
C602
C601
B
B
A
4
12
44
16
1
9
1
23
24
12
1
22
15
1
SIDE A
B
(ANP7525-A)
CN1903
R
CN601
CN805
C
CN902
CN806
C
CN701
VSX-816-K
54

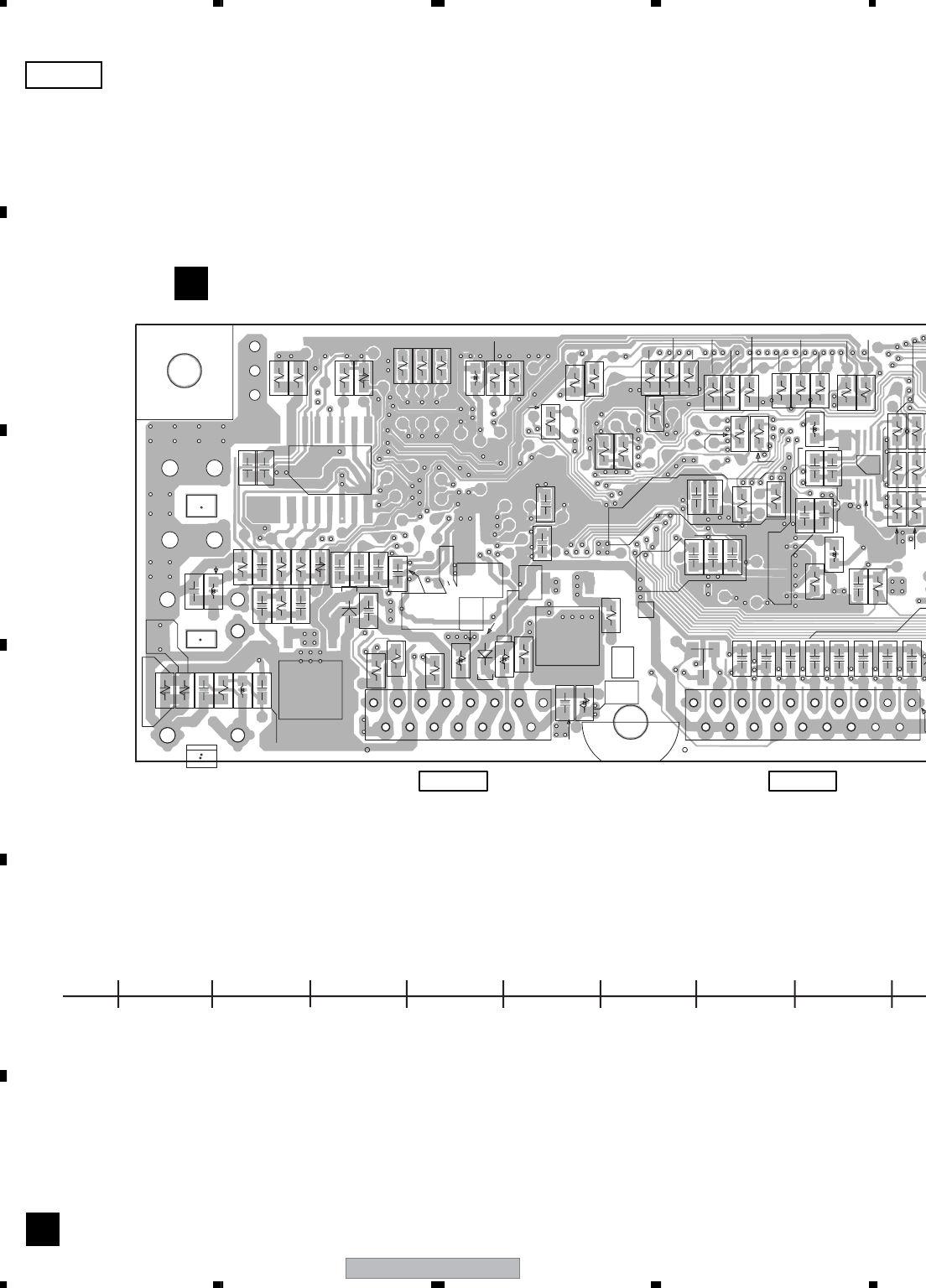

1234
1234
C
D
F
A
B
E
60708090100110120130140
LF
13
15115 119
5
4
C917
C920
R573
R510
R910
C616
C615
R906
R559
R912
R911
L871
R552
R553
R554
R555
R556
C610
R558
C509
R557
R905
R904
C906
R606 R551
C905
IC902
R915
D902
C907
R506
C505
R512
R513
R508
C511
C512
R509
R604
R605
C507
R563
R565
R576
R511
C611
D901
R575
R574
L601
C614
C617
L903
R903
R577
R578
L501
L502
IC501
R501
R502
C501
C502
C503
C504
R503
L902
R902
L901
R611
R610 R560
R561
C916
C919
C918
R701
R702
R704
L701
C723
C722
C721
C711
C712
C714
C713
C872
R703
C706
R901
IC871
R875
IC901
R873
C871
R871
R872
D702
85
C510
1
AWX8414
DSP ASSY
IN
GND
OUT
14
17
885
4
1
IN
GND
OUT
SIDE B
B
DSP ASSY
B
CN902 CN701
VSX-816-K 55
5678
5678
C
D
F
A
B
E
10 0
10
0
20
30
40
50
60
70
80
2030405060
X
Y
115 1519123
5
4
IC952
L952
R977
R552
53
R978
R822
C914
R823
R818 R819
R551
C825
R855
R812
R804
R803
R806
R805
R807
R820
Q801
R821
R955
R956
R954
C955
R957
R852
R876
R983
L954
C915
0
4
L701
C711
R831
C708
C707
C710
C709
R827
R703
C706
C954
IC871
R875
R874
R873 R871
R872
L804
R811
R914
R857
R981
R808
R809
1
1
AWX8572
AWX8619
19 23
AWX8573
PRODUCTION CODE
20 11
101
85
4
1
SIDE B
B
(ANP7525-A)
0
1 CN952
VSX-816-K
56
1234
1234
C
D
F
A
B
E
4.4 DSP ASSY (FOR VSX-816)
10
0
10
0
20
30
40
50
60
70
80
20 30 40 50 60 70
X
Y
R569
R570
R571
R568
C851
C952
C956
C951
R956
C801
R957
R801
C802
IC801
IC851
L851
R952
R953
R951
C804
C803 R802
X801
C816 C817
IC802
C703
R968
R567
C809
C818
C810
CN952
R967
C852
R969
C833
C829
C831
C830
C828
R836 R832
R834
C832
R962
R838
R711
R710
R709
R708
R707
R706
R705
R856
R
7
IC70
1
C704
C705 C701
C702
C834
CN951
R974
C835
L951
R958
C820
R839
L803
C805
C819
C808
R816
C815
C814
R815
L802
R960
R961
R959
C812
C811
R813
C813
L953
C806
R851
R810
R970
C807
L801
R835
R833
L954
C401
C409
C410 C416C417
C419
C751
C752
C753
C757
C758
C759
C957
CN801
C754
C755
C756
IC751
IC953
L401
C762
R410
R411
R412
R758
R759
R963
R964
R966 R971
R972
R973
X401
IC951
R755
R756
R841
R840
61
60
80
120
21 40
41
85
4
1
14
5
8
CONTACT SIDE
112
23
22
23
11
12
15
1
17
4
25
36
3
18
9
16
17
8
14
17
8
14
LF
A
SIDE A
B
DSP ASSY
B
CN106
A
CN952
CN806
C
CN701
CN807
C
CN951
VSX-816-K 57
5678
5678
C
D
F
A
B
E
70 80 90 100 110 120 130 140 150
IC601
C618
C605
R616
R618
C606
R617
R615
R628
C621
C620
C619
L605
L602
C613
C608
C609
C552
X601
L551
C612
R627
R623
C551
R625
R626
R624
JA501
R504
R507
C506
L503
C513
R614
C604
C508
R564
R569
R570
R562
R571
R568
C956
C824
R817
C823 C826
C827
C715
C703
L702
C718
C720
R622
R621
R430
CN901
R909
R613
R908
C903
C904
C901
C902
R608
R609
C719
C607
R505
IC551
R566
R567
R607
R620
CN601
R913
R907
JA502
C908
C909
KN502
D701
R711
R710
R709
R708
R707
R712
CN701
IC701
C705 C702
C717
C716
R713
R714
R715
R716
C822
C821
L953
C401
C402
C403
C407
C408
C409
C410
C411
C412
C413
C414
C415
C416C417
C418
C419
C420
C421
7
53
CN401
CN602
IC401
IC402
L402
Q401
R410
R411
R412
R418
R421
R422
R423
R429
X401
R451
R452
R841
R629
R916
R431
112
13 24
25 36
37 48
CONTACT SIDE
113
13
1
16 9
8
1
10
1
1
22
23 33
34 44
111
12
112
13 24
25 36
37 48
4
3
1
5
1
B
B
A
FCICT
DIGITAL CORE ENGINE
SIDE A
B
(ANP7551-A)
CN1903
R
CN601
CN805
C
CN901
C
N806
N
701
VSX-816-K
58
1234
1234
C
D
F
A
B
E
140150 708090100110120130
L601
C614
C617
L501
L502
IC501
R501
R502
C501
C502
C503
C504
R503 R506
C505
R512
R513
R508
C511
C512
R509
R604
R605
C507
R563
R565
L902
L901
R910
R905
C906
R606
C905
R611
R610
C510
C509
R511
R510
R912
R911
C907
D901
D902
IC901
IC902 R915
L871
D702
C708
C707
C710
C709
C712
C711
C714
C713
C706
R704
L701
C723
C722
C721
R702
R701
C872
C871
C916
C919
C918
C917
C920
C404
C405
C406
C760
C761
C921
D401
D402
R401
R402
R404
R405
R406
R407
R408
R409
R414
R415
R416
R417
R419
R420
R424
R425
R426
R427
R428
R514
R515
R516
R517
R917
R918
R453
R454
14 8
71
1
13
8
1
1
13
SIDE B
B
DSP ASSY
B
CN901 CN7
0
VSX-816-K 59
5678
5678
C
D
F
A
B
E
10
0
10
0
20
30
40
50
60
70
80
203040506070
X
Y
R955
R954
R822
R823
R804
R803
R806
R805 R807
R820
Q801
R821
R819
C825
R826
R812 R852
IC871
R875
L871
R828
R830
R829
C955
C954
L952
IC952
R811
R914
R855
R857
C708
C707
C710
C709
C711
R703
C706
R704
L701
R702
R827
R979 R853
R874
R873
R871
R872
L804
R876
R977
R978
R980
R809
R854
C916
C917
C760
C761
L751
R426
R427
R428
R753
R754
R761 R762
R763
R842
R843
R844
R965
C763
C764
85
4
120 11
10
1
23
115
LF
000
111
222
333
444
555
666
777
888
999
PRODUCTION CODE
DSP ASSY
AWX8
23
SIDE B
B
(ANP7551-A)
CN701 CN951
VSX-816-K
60
1234
1234
C
D
F
A
B
E

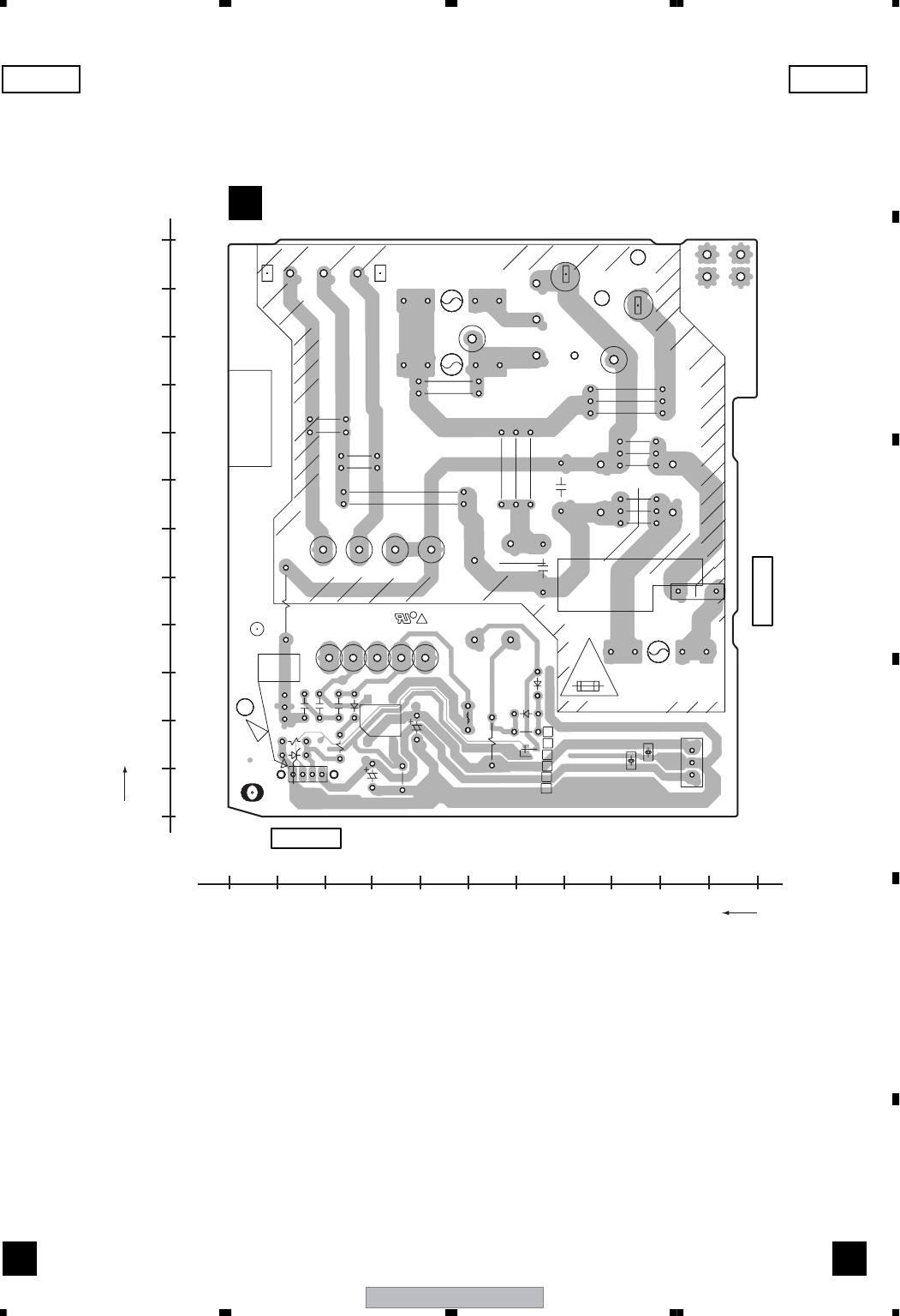

4.5 POWER PACK ASSY
10
0
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180
X
Y
NP
NP
NP
NP
word surface
18
NP
8
1
R703
R702
D701 D702
C701
C702
C703
C704
R613 R617
R609
R611
C609
R607
C615
R621
D603
R619
D601R615
IC600
C605
R601
D778
C784
R787
D777
R786
R785
R781
C779
R780
R777
R783
C781
R782
R687
R691
R685
R686
C685
R684
C688
R693
D684
R692
R690
C683
R681
R701
R688
R689
R623
R695
L751
R751
R756
C756 C755
R752
R755
C
C752
R754
C751
C753
R753
R761
L761
R762
R763
C761
C763
R764
C762
C764
L752
L753 L762
D681
D682
C
R711
R694
R788
R704
C757 C758
C766
C765
R708
R707
C759
H701 H702
IC607
IC606
R642
R641
C630
R640
R639
R637
C635
R636
R635
D632
R638
C633
R634
R631
C772
C771
R771
R772
L754
C773
C770
IC702
IC701
D677
D678
R677
R678
R721
R722
R
C659
R667
R663
R661
R659
R657
C655
R651
D653
R699
D683
IC603
R790
C517
C785
R789
L501
CN604
IC610
C521
R710
R712
D713
Q721
Q722
Q704
Q703
Q633
Q605
Q505
Q683
RY752
RY753
RY501
RY751
R713
R709
W151
W235
W106
W197
W125
W192
W171
W120
W127
W179
C707
KN601
W103
W101
W105
W128
W100
W196
W245
W246
W241
W215
W2
5
W249
C708
W191
W193
W266
W173
W269
W242
W268
C706 C705
W172
W234
W214
W213
W178
W270
W267
W216
W265
W271
W239
W243
W154
W152
W119
Q701
W111
W147
R784
W153
W129
W155
Q702
W195
W108
W102
W199
W107
W236
W238
W122
W240
W109
W177
W244
W247
W248
W272
W146
W110
W123
W174
W180
W200
W198
W176
W149
W121
W145
W194
W130
W148
W144
W143
W297
W150
W175
W287
W97
W98
W201
W298
W288
W282
W96
SBL
FU701
J701
CONTACT
SIDE
916
GREY
J604
CN751 316/516
416
CN752
CN754
CN753
CN755
RED
J607
BROWN
J605
YELLOW
J606
BLUE
WHITE
WHITE
J601
J602
J603
GREY
J604
RED
YELLOW
J605
J5
RED J4
RED J6
WHITE J7
BLACK
J3
SR FRSL FL
CSBR
J701
cFR
FL
SR
SL
SBR/
SBL
491010
491001
ICP-N10
ICP-N10
ROHM.CO.LTD
AS MARKED. MFD. AS
REPLACE IC LINKS
CAUTION
A
S
BOND
SBL
8.FL
7.FR
6.SL
5.SR
4.C
3.SBR
2.SB/
1.GAMP
PRINTED SIDE
PRINTED SIDE
BOND
VH-
VH-
VL-
VL+
VH+
VH+
NECK-
NECK+
NECK-
SBROUT
/SWOUT
COUT
SBLOUT
SBROUT
/SWOUT
SWOUT
COUT
NECK+
SLOUT
NECK-
FLOUT
FLOUT
S.GND
S.GND
GNDA
GNDA
GNDA GNDA
FR
FL
SR
SL
C
CHASSIS
CHASSIS
VL-
P
O
Production Code
WHITE
CN751
word surface
J603
BOND
BOND
BOND
BOND
BOND
18
22
1
LITTLE FUSE INC.
AS MARKED. MFD. AS
REPLACE IC LINKS
CAUTION
MARKED.
REPLACE FUSE AS
RISK OF FIRE
SIDE A
C
POWER PACK ASSY
C
CN1575
H
CN604
J3 - J7
E
VSX-816-K 61
5678
5678
C
D
F
A
B
E
6
0170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340
NP
NP
1
word surface
NP
18 1
NP
11
10
1
1
15
13
1
111
231
23
11
15
231
R
21
1
2516
1
16
C697
W116
L751
R752
C754
C752
R754
L752
D711
C711
D712
C712
R705
R706
R711
C758
D652
C666
R668
C656
R658
R652
R674
R664
R662
R660
R642
C660
R641
C630
R640
D631
R639
R637
D632
R638
IC605
R618
D604
D602
R616
R630
C610
IC604
R614
R612
R610
R608
R628
C616
D606
R622
C606
R670
R672
D654
R666
R624
R620
R626
IC601
D608
C770
CN702
R725
D675
D676
R675
R676
R724
R723
R673
C659
C665
D651
R667
R663
1
R659
R657
R671 R669
C655
R651
R665
D653
IC602
R645
D645
R647
D647
R646
D646
D648
R648
R699
IC608
IC609
R712
CN701
W137
C709
W165
Q722
Q704
Q656
Q655 Q606
Q633
RY751
W163
CN807
CN805
810
CN815
CN814
C813
D831
D830
IC804
C808
IC803
D828
C809
D832
C810
D827
D829
C802
C801
CN812
CN816
W113
W164
W293
W229
W289
W263
W220
W292
W233
W114
W179
W262
W264
W104
W142
W186
W232
W260
W261
W281
W279
W259
W255
W190
W222
W206
W228
W251
W249
W188
W166
R602
W231
W134
W274
W275
W277
W276
W227
W280
W278
W208
W135
W159
W189
W138
W139
W290
W291
W117
W118
W299
0
5
W115
W183
D805
W223
W205
W254
W258
W271
W212
W226
W126
W154
W161
W111
W250
W217
W153
W129
W155
W296
W253
4
8
W272
W110
W252
W170
D806
C806
D807
W187
W141
W140
W169
W168
W162
W167
W219
W210
W273
W225
W230
W207
W256
W180
W257
W221
W224
W209
W136
W218
W203
W132
W157
W200
W185
W133
W184
W181
W112
W131
W182
W158
W130
W156
Q809
W204
W160
W284
W201
CN705
W283
W294
W295
CN813
W285
W286
CN817
W282
CN803
XWZ4084
XWZ4083
XWZ4082
XWZ4081
XWZ4080 XWZ4117
XWZ4089
XWZ4088
20.GNDA
VL-
VL+
VH-
Q702
491010
PRINTED SIDE
CONTACT
SIDE
916
316/516
416
CN754
6
05
L
OW
J606
BLUE
J602
WHITE
J601
WHITE
BLUE
J606
BROWN
J607
21
CN825
GNDA
416 Only
FR
24.USB CTL
21.NC
FR
FL
19.SWOUT
16.GAV
15.-12V
19.+12V
17.GAV
14.FL AC1
13.FL AC2
22.VIPOD
23.GNDIPOD 12.-VF
11.AC WP
10.AC RY
9. D+5.6V
8.GNDU
7.ST+5.6V
6.GNDT
5.T+9V
4.HP. SW
3.SP-A RY
2.R/C RY
1.SP-B RY
2.GNDA(DAC)
1.XML0/USBLO
3.XMR0/USBRO
4.GNDA(DAG)
5.SBLO
6.GNDA(DAG)
7.SBRO
8.GNDA(DAG)
9.CO
10.GNDA(DAG)
11.SWO
12.GNDA(DAG)
23.RIN
22.GNDA(DAG)
21.LIN
20.GNDA(DAG)
19.FRO
18.GNDA(DAG)
17.FLO
16.RCMUT/OVF
15.SRO
14.GNDA(DAG)
13.SLO
1.C
2.GNDA
3.SBL
4.GNDA
5.SBR(SW)
6.GNDA
7.SL
8.GNDA
9.FL
10.GNDA
11.SR
12.GNDA
13.FR
14.AMUTE
15.ATT
16.DC_DET
18.OLDT
19.6OHM
20.NECK
21.GNDU
17.XPROTECT
1.GNDD
2.GNDA
3.XTLO
4.DIR ERR
5.DIR RST
6.DEC MUTE
7.DSP DI
8.DSP DO
9.DSP CLK
10.DSP RST
11.DSP SS
12.BUSY
13.DSP HREQ
14.DSP MODE
15.DIR DO
16.DIR CS
17.USB_XRST
18.USCLK
19.USCS
20.USDAI
21.USDAO
22.USB HREQ
23.USB TREQ
25.XFLAG
1.ROUT
2.GNDA
3.LOUT
4.V+5USB
5.USB_XRST
6.GNDD
7.USCLK
8.GNDD9.USCS
10.USDAI
11.USDAO
12.USB HREQ
14.USB CTL
13.USB TREQ
15.XFLAG
1.GNDD
2.XTLO
3.DIR ERR
4.DIR RST
5.DIR CS
6.DIR DO
7.DSP MODE
8.DSP HREQ
9.BUSY
10.DSP SS
11.DSP RST
12.DSP CK
13.DSP DO
14.DSP DI
15.DEC MUTE
1.RIN
2.GNDA(DAG)
3.LIN
4.GNDA(DAG)
5.FRO
6.VCOMG
7.FLO
8.RCMUT/OVF
9.SRO
10.GNDA
11.SLO
12.GNDA
13.SWO
14.GNDA
15.CO
16.GNDA
17.SBRO
18.GNDA
19.SBLO
20.GNDA
21.XMR0
22.VCOMG2
23.XML0
1.NC
2.UGRTN
3.NC
4.GNDD
5.NC
6.DGRTN
7.DGRTN
8.V+5D
9.V+5D
10.GNDA(DAG)
11.GNDA(DAG)
12.V+5A
13.GNDD
1.GNDA
2.SWOUT
3.GNDU
4.+12V
5.GAV
6.-12V
11.STBY 5V
9.AC WUP
10.GNDU
8.AC RY
2.DREG
1.DREG
5.REG B
4.REG G
3.REG B
7.FL AC1
6.FL AC2
6.HP L
5.HP G
4.HP R
3.A.MUTE
2.HP.SW
1.GNDU
1.V+5USB
2.V+5D
3.DREG
4.DREG
5.GNDD
6.REGB
8.REG B
7.REG G
9.-12V
10.GAV
11.+12V
61
491010
PNE-E67640
CN806
ASSY
J43
PRINTED SIDE
XWZ4087
TA7809S
VH-
VL-
VL+
VL+
VH+
VH+
NECK-
NECK+
SLOUT
NECK-
FLOUT
FLOUT
VH-
S.GND
GNDA
GNDD
GNDD
GNDD
GNDD
GNDD
GNDD
GNDU
GNDU
GNDU
GNDU
GNDU
GNDU
GAV
GAV
GAV
IN
OUT
IN OUT
GNDD
D+5.6V
GNDA
GNDD
D+5.6V
D+5.6V
D+5.6V
GNDU
V+5D
T+9V
-12V
-12V
-12V
+12V
+12V
+12V
GNDD
V+5D
GNDT
REGB
REGB
DREG
GNDU
HP L
HP G
HP R
A.MUTE
FL AC2
FL AC1
FL AC2
-VF
SBL/SBR/SP-B
FL/FR
R/C SP
FR
NECK+
CHASSIS
CHASSIS
CHASSIS
POWERPACK
d
e
XWZ4086
TA7805S
XWZ4118
XWZ4119
Q807
Q707
Q808
word surface
LITTLE FUSE INC.
AS MARKED. MFD. AS
CAUTION
REPLACE IC LINKS
19
SIDE A
C
(XNP3101-C)
CN111
A
CN816
CN302
Q
CN803
CN800
P
810
851
D
CN701
1551
G
CN702
CN114
A
CN705
CN902 (VSX-916)
B
CN901 (VSX-816)
B
CN952 (VSX-916)
B
CN951 (VSX-816)
B
CN805
CN109
A
CN815
CN701
B
CN806CN807
CN702
W
CN812
VSX-916 ONLY
VSX-916VSX-816
CN112
A
CN813
CN112
A
CN817
VSX-816-K
62
1234
1234
C
D
F
A
B
E
160170180190200210220230240250260270280290300310320330
118
1
6
18
1
115 1
13
11110
123
123
-+
~~
15 1
123
NP
NP
121
1
25 1
1016
R
LF
16
C696
R696
D751
D752
R1108
C658
C664
C662
C654
C652
R656
R654
C637C636
C6
3
C
R633
C614
C612
C602
C604
R604
R606
C608
C663 C661
C651
C653
R653
R655
C657
R697
R698
R715
R714
D703
R716
Q698
Q696
Q697
Q631
Q63
2
Q653
Q651
Q652
Q654
Q604
Q602
C812
C811
IC805
D801
Q802
Q801
Q804
Q803
Q805
Q806
R727
R1110
R885
R886
R1105
R808
R806
R1101
R807
R1109
R1102
Q807
Q808
R1107
R809
R810
Q707
Q705
R726
R680
C807
R887
R888
XWZ4082
XWZ4081
2.V+5D
1.V+5USB
3.DREG
4.DREG
5.GNDD
6.REGB
7.REG G
8.REG B
9.-12V
10.GAV
11.+12V
23.RIN
22.GNDA(DAG)
21.LIN
20.GNDA(DAG)
19.FRO
17.FLO
18.GNDA(DAC)
16.RCMUT/OVF
15.SRO
14.GNDA(DAG)
13.SLO
12.GNDA(DAG)
11.SWO
10.GNDA(DAG)
9.CO
8.GNDA(DAG)
7.SBRO
6.GNDA(DAG)
5.SBLO
4.GNDA(DAG)
3.XMR0/USBRO
2.GNDA(DAG)
1.XML0/USBLO
17.XPROTECT
21.GNDU
20.NECK
19.6OHM
18.OLDT
16.DC_DET
15.ATT
14.AMUTE
13.FR
12.GNDA
11.SR
10.GNDA
9.FL
8.GNDA
7.SL
6.GNDA
5.SBR(SW)
4.GNDA
3.SBL
2.GNDA
1.C
25.XFLAG
24.USB CTL
23.USB TREQ
22.USB HREQ
21.USDAO
20.USDAI
19.USCS
18.USCLK
17.USB_XRST
16.DIR CS
15.DIR DO
14.DSP MODE
13.DSP HREQ
12.BUSY
11.DSP SS
10.DSP RST
9.DSP CLK
8.DSP DO
7.DSP DI
6.DEC MUTE
5.DIR RST
4.DIR ERR
3.XTLO
2.GNDA
1.GNDD
15.XFLAG
14.USB CTL
13.USB TREQ
12.USB HREQ
11.USDAO
10.USDAI
9.USCS
8.GNDD
7.USCLK
6.GNDD
5.USB_XRST
4.V+5USB
3.LOUT
2.GNDA
1.ROUT
15.DEC MUTE
14.DSP DI
13.DSP DO
12.DSP CK
11.DSP RST
10.DSP SS
9.BUSY
8.DSP HREQ
7.DSP MODE
5.DIR CS
6.DIR DO
4.DIR RST
3.DIR ERR
2.XTLO
1.GNDD
23.XML0
22.VCOMG2
21.XMR0
20.GNDA(DAG)
19.SBLO
18.GNDA(DAG)
17.SBRO
16.GNDA(DAG)
15.CO
14.GNDA(DAG)
13.SWO
12.GNDA(DAG)
11.SLO
10.GNDA(DAG)
9.SRO
8.RCMUT/OVF
7.FLO
6.VCOMG
5.FRO
4.GNDA(DAG)
3.LIN
2.GNDA (DAG)
1.RIN
13.GNDD
12.V+5A
11.GNDA (DAG)
10.GNDA (DAG)
9.V+5D
8.V+5D
7.DGRTN
6.DGRTN
5.NC
4.GNDD
3.NC
2.UGRTN
1.NC
1.SP-B RY
2.R/C RY
3.SP-A RY
5.T+9V
6.GNDT
4.HP. SW
7.ST+5.6V
8.GNDU
9. D+5.6V
10.AC RY
11.AC WP
12.-VF
23.GNDIPOD
22.VIPOD
21.NC
20.GNDA
19.T+12V
18.SWOUT
17.GAV
16.GAV
15.-12V
14.FL AC1
13.FL AC2
6.-12V
5.GAV
4.+12V
3.GNDU
2.SWOUT
1.GNDA
6.FL AC2
7.FL AC1
3.REG B
4.REG G
5.REG B
1.DREG
2.DREG
8.AC RY
9.AC WUP
10.GNDU
11.STBY 5V
6.HP L
5.HP G
4.HP R
3.A.MUTE
2.HP.SW
1.GNDU
PNE-E67640
ASSY
FLIN+
FLIN-
NECK+
SLIN+
SLIN-
NECK-
VH+
VL+
COMP+
FLOUT
S.GND
VH-
SLOUT
COMP-
VL-
COMP+
SROUT
SRIN+
COMP-
SRIN-
NECK-
VL-
S.GND
VH+
VL+
VH-
FROUT
FRIN+
FRIN-
NECK+
XWZ4118
XWZ4117
XWZ4119
GNDU
V+5D
GNDU
GNDU
GNDT
GNDU
GNDD
GNDD
GNDD
-12V
GNDD
GNDU
-12V
GAV
+12V
GNDU
FL AC2
FL AC1
+12V
SBL/SBR/SP-B
FL/FR
R/C SP
-VF
FL AC2
FR
FL
GNDD
DREG
D+5.6V
OUT
IN
GNDD
GNDA
D+5.6V
REGB
REGB
GAV
GNDD
GNDD
GNDD
CHASSIS
VH+
CHASSIS
VL-
VH-
VH-
GNDU
V+5D
D+5.6V
VH+
VL+
VL-
VH-
A.MUTE
GNDA
NECK-
NECK+
S.GND
CHASSIS
FLOUT
SLOUT
NECK-
FLOUT
NECK+
GNDU
GAV
+12V
-12V
VL+
HP G
HP L
HP R
XWZ4083
XWZ4084
XWZ4086
XWZ4087
XWZ4088
XWZ4089
XWZ4080
AMP
19 CN805
CN816
CN806
CN815
CN807
CN705
CN812
CN817
CN813
810
CN803
CN701
CN702
SIDE B
C
POWER PACK ASSY
C
CN803810 CN701 CN702
CN805
CN815 CN816
CN806
CN807CN705CN813 CN817
CN812
VSX-816-K 63
5678
5678
C
D
F
A
B
E
10
0
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
2030405060708090100110120130140150160170
0
X
Y
1
22
18
18
81
C611
C601
C603
R603
R605
R778
C782
R779
C777
C686
C681
R682
R683
C682
C778
C607
C613
C687
C783
D751
R1104
D752
D753
D754
R1103
C684
C780
R1106
C637C636
C632
C631
R633
R632
C634
C651
C653
R653
R655
C657
Q681
Q682
Q501
Q503
Q603
Q601
Q631
Q632
Q653
Q651
D757
D758
R1105
SBROUT
1.GAMP
2.SB/
SBL
3.SBR
4.C
5.SR
6.SL
7.FR
8.FL
SBL+
SBLOUT
SBL-
SBR/SW-
SBR/SW+
/SWOUT
NECK-
VL-
COUT
VH-
S.GND
CIN+
NECK+
CIN-
COMP-
COMP+
VH+
VL+
FLIN+
FLIN-
NECK+
SLIN+
SLIN-
NECK-
FLOUT
SLOUT
FR
FL
SR
SL
CHASSIS
C
SLOUT
NECK-
FLOUT
GNDA
S.GND
GNDA S.GND
GNDA
CHASSIS
NECK-
NECK+
NECK-
VH+
COUT
VL-
VH-
VL+
VL-
VH-
GNDA
COUT
SBROUT
/SWOUT
SBLOUT
SBROUT
/SWOUT
VH+
NECK+
1
CN604
SIDE B
C
(XNP3101-C)
CN604
VSX-816-K
64
1234
1234
C
D
F
A
B
E
4.6 TRANS2, TRANS3, TRANS4 and TRANS1 ASSYS
200
210
220
60 70 80 90 100 110 120
Y
120
130
140
150
160
170
180
Y
X
290 300 310 320 330 340
230
240
250
10
0
210
220
20 30 40 50 60
X
Y
230
240
250
10
0
160
170
180
190
200
210
220
20 30 40 50 60
X
Y
X
R
XWZ 4078
TRAN 1 ASSY
CMKM-P3X
BLUE
J2 J1
BROWN
PRIMARY
1
R
C892
891
IC891
W295
R891
IC892
C893
C891
CMKM-P3X
3 +12V
ATTENTION
LITTELFUSE INC.
2 GND
J22
491.800
IC LINKS COMME
INDIGUE DE CHEZ
491.800
REMPLACER LE
1 -12V
XWZ4093
TRANS 4 ASSY R
C882
R882
C883
C881
R881
PNE-E67640
RED
XWZ4048
TRANS3
XWZ4079
BLACK
WHITE
J4
J3
J5
J7
J6
14
R
NP
NP
NP
111
CN1201
C1252 C1251
IC851
C1250
R1252
R1250
R1251
IC852
IC853
851
LITTLEFUSE INC.
ATTENTION
DE CHEZ
REMPLACER LE IC COMME INDIQUE.
PNE-E67640
5V
4.STBY
1.GNDU
3.AC WUP
2.AC RY
XWZ4166
J21
REG B
REG Q
AC WUP
AC RY
XWZ4091 XWZ4092
XWZ4090
TRANS2
FL AC1
FL AC2
REG B
DREG
DREG
5V
GNDU
STBY
J6 J4 J3J5 J7
J2 J1
CN251
MAIN TRANSFORMER
A
891
CN701
C
851
55
U
CN1201
C
U
SIDE A SIDE A
D E O V D E O V
TRANS4 ASSY
OTRANS3 ASSY
E
TRANS2 ASSY
D
TRANS1 ASSY
V
(XNP3100-C)
(XNP3100-C)
(XNP3101-C)
(XNP3101-C)
VSX-816-K 65
5678
5678
C
D
F
A
B
E
60708090100110
290300310
320330
200
210
220
230
240
250
X
Y
120
130
140
150
160
170
180
Y
X
210
220
230
240
250
Y
10
0
2030405060
X
160
170
180
190
200
210
220
Y
10
0
2030405060
X
R
PRIMARY
CMKM-P3X
J2
J1
TRANS1
XWZ3958
ASSY
31
R
-+
~~
D891
MFD.BY LITTELFUSE INC.
TRANS 4 ASSY
J22
3 +12V
XWZ4093
1 -12V
IC892
491.800
491.800
2 GND
CAUTION
CMKM-P3X
IC891
LINKS AS MARKED.
REPLACE IC
CN891
R
LF
201
PNE-E67640
J7
R882
C881
C883 C882
R881
J3 J4
J6
XWZ4079
Y8
J5
TRANS3
CN1201
851 41
LF
10 111
R
STBY
5V
MFD. BY LITTLEFUSE INC.
REPLACE IC LINKS AS
AS MARKED.
CAUTION
PNE-E67640
491004
GNDU
AC WUP
AC RY
DREG
DREG IC853
TRANS2
XWZ4092
FL AC1
FL AC2
AC WUP
AC RY
STBY
5V
GNDU
REG B
REG B
REG Q
XWZ4090
XWZ4091
SIDE B SIDE B
D E O V D E O V
TRANS4 ASSY
O
TRANS3 ASSY
E
TRANS2 ASSY
D
TRANS1 ASSY
V
(XNP3100-C)
(XNP3100-C)
(XNP3101-C)
(XNP3101-C) 891
851
CN1201
VSX-816-K
66
1234
1234
C
D
F
A
B
E
4.7 COMPONENT ASSY
Y
170
180
190
200
210
220
230
240
250
180 190 200 210 220 230 240 250 260 270
180 190 200 210 220 230 240 250 260 270
X
X
170
180
190
200
210
220
Y
230
240
250
LF
R
R
1
7
16
9
8
1
1
16
8
9
14
8
71
R567
R568
C570
IC551
IC552
R571
R572
IC553
C572
R573
R575
R574
C576
C577
C582
C581
C583
C569
R565
R566
C571
R569
R570
Q500
R576
R579
R578
R577
C578
R559
C561
R560
C562
R561
C563
C555
C556
C557
C558
C559
C560
C566
C565
C564
R563
R564
R562
CN551
C568
C567
R553
R554
R555
R558
R557
R556
R581
XWZ4097
Y3
COMPONENT VIDEO
Y out
Cr1
XWZ4096
PNE-E67640
1.V+5.6V
2.GNDV
3.V-5.6V
4.VIDEO B
5.VIDEO A
6.INH
7.OSD
R
17
W310
W313
W304
W316
W322
W323
W303
W306
W311
W319
W301
W308
W318
W315
JA553
W317
W307
W309
W305 JA551
W321
W312
JA552
W302
W320
CN551
C579
C580
C575
C574
C573
R582
IC551
IC552
OUTOUT
CONTACT
SIDE
OUT
PNE-E67640
IC553
1.V+5.6V
GNDV
V+5.6V
GNDV
V-5.6V
V+5.6V
2.GNDV
3.V-5.6V
4.VIDEO B
5.VIDEO A
6.INH
7.OSD
SIDE A SIDE A
SIDE B SIDE B
F F
COMPONENT ASSY
F
COMPONENT ASSY
F
(XNP3101-C)
(XNP3101-C)
CN310
Q
CN551
CN551
VSX-816-K 67
5678
5678
C
D
F
A
B
E
4.8 HEADPHONE and 5.1 CHIN ASSYS
190
200
210
220
50 60 70 80 90 100 110 120
50 60 70 80 90 100 110 120
X
X
Y
230
240
250
200
210
220
110 120 130 140 150 160 170
110 120 130 140 150 160 170
X
X
Y
230
240
250
190
200
210
220
230
240
250
Y
200
210
220
230
240
250
Y
16
R
LF
C1552
C1551
R1555
R1556
C1557
C1558
C1556
C1553
C1554
C1555
R1557
Q1551
Q1552
PNE-E67640
H.P. XWZ4095
1.GNDU
2.HP SW
3.AMUTE
4.HP R
5.HP GND
6.HP L
17
RLF
C1012
C1001
C1002
R1001
R1002
R1003
R1004
C1003
C1004
C1013
C1014
C1015
C1016
R1009
R1010
R1011
R1012
PNE-E67640
5.1CHIN
SL
XWZ4069
XWZ4070
SR
SW
C
CN307
NP
NP
16
R
C1562
C1561
KN1551
1551
1551
JA1551
R1551
R1552
R1553
R1554
W99
HPR
PNE-E67640
J47
HPL
H.P.
XWZ4095
6.HP L
2.HP SW
1.GNDU
3.AMUTE
4.HP R
5.HP GND
17
R
CN309
CN307
C1009
C1010
C1021
C1022
PNE-E67640
CONTACT
SIDE
SL
SRSWC
SIDE A SIDE A
SIDE B SIDE B
G I IG
HEADPHONE ASSY
G
HEADPHONE ASSY
G
5.1 CHIN ASSY
I
5.1 CHIN ASSY
I
(XNP3101-C)
(XNP3101-C)
(XNP3101-C)
(XNP3101-C)
CN702
C
15511551
CN105
A
CN307
CN307
VSX-816-K
68
1234
1234
C
D
F
A
B
E
4.9 FRONT DISPLY, R. ENCODER and POWER KEY ASSYS
10
0
80
90
100
110
120
130
140
150
160
170
180
190
200
210
20 30 40 50 60 70 80 90
X
Y
10
0
160
170
180
190
200
210
220
20 30 40 50 60 70
X
Y
230
240
250
31
R
S501
D501
501
R503 R504
S503
S502 S504
STEREO/
DIRECT
ADV.SUR
STANDARD
POWER
2 PWPON
3 GNDU
XNP3100-C
1 KEY1
CMKM-P3X
POWER KEY ASSY
XWZ 4056
XWZ 4057
J41
58
62
31
R
FCICT
C420
C423
W113
W112
W111
W110
W109
471
W11
C412
S456
S458
S454
S463 S462 S461
S455
S471 S470 S469 S468 S467 S466
S460
R457
R456
R455
XWZ 4165
1 KEY1
2 PWPON
DVD/LD TV/SAT DVR/VCR VIDE
O
DIMMER ANALOG MID/ SPEAKERS
TUNER TONE QUICK
SETUP SETUP
SYSTEM RETURN
LOUDNESSATT
EDIT
XWZ 4054
XWZ 4053
XWZ 4052
XWZ 4051
FRONT DISPLAY ASSY
CMKM-P3X
3 GNDU
TUNING/
STATION
J41
SIDE A
K M
POWER KEY ASSY
M
FRONT DISPLAY ASSY
K
(XNP3100-C)
471
501
VSX-816-K 69
5678
5678
C
D
F
A
B
E
0
80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260
X
250 260 270 280 290 300 310 320
120
130
140
150
160
170
180
190
200
210
220
Y
330 340
230
240
250
71
DI P
R
W146
W139
W138
W145
511
S514
S515 S516
S513
S457
S512
EQ
ENTER
SIGNAL
SELECT SBch PROC ACOUSTIC
R. ENCODER ASSY
XWZ 4055
7 VOL_LED
4 FEN B
5 FEN A
6 KEY4-2
1 ENA
2 ENB
3 GNDU
J42
CMKM-P3X
1
9
71
1
11
23
35
58
17
1
W142
W127
W143
W124
W125
W108
W116
W144
W113
W107
W140
D502
W112
D500
W111
W100
W102
W133
W103
W136
W134
W123
W122
W137
W120
CN402
W130
W141
W104
W121
404
V401
CN401
W105
W119
W106
W117
W101
S451
W118
W115
C442
C403
L401
IC402
X401
W128
W132
W131
W135
W126
S464
S465
S459
4
4
67 S466
S460 S452
S453
R459
R460
R467 R466 R465
R
/VCR VIDEO CD CDR/TAPE/MD TUNER XM IPOD
E
TUP
S
TEM RETURN
6 RMC
1 ENA
8 VPP(IC)
7 VDD
6 RESET
2 ENB
3 GNDU
4 FEN B
5 FEN A
6 KEY4-2
17 FLAC2
16 FLAC1
1 VSS0
15 -VF
2 SI1
5 1WUP
3 STBY+5.6V
2 MIC DET
1 GNDU
14 DISPRST
13 DISPCK
12 DISPIN
7 VOL_LED
11 DISPDO
10 DISPRDY
9 DISPEN
8 SRIN
7 SROUT
Y
ASSY
9 NC
5 NC
4 SCK1
3 SO1
3
X
AUX
VDD1
VDD1
FLAC2
VSS1
VSS1
VSS1
VDD1
VDD1
VSS1
VDD1
VSS1
-VF
IC401
GNDU
4 D+5.6V
J42
J31
SIDE A
LK
SY
R. ENCODER ASSY
L
(XNP3100-C)
(XNP3100-C)
CN101
A
CN401
511
404
VSX-816-K
70
1234
1234
C
D
F
A
B
E
708090100110120130140150160170180190200210220230240250260
X
250260270280290300310320330
120
130
140
150
160
170
180
190
200
210
220
230
240
250
Y
511
7
1
R
R513
R514
R515
R.ENCODER
XWZ4055
CMKM-P3X
J42
7 VOL_LED
6 KEY4-2
5 FEN A
4 FEN B
3 GNDU
2 ENB
1 ENA
19
1
80
20
21 40
41 60
1
7
6258
35
23
11
1
1
17
R
C416
R493
R550
R401
R523
C422
R492
C483
R496
C402
R497
D405
C421
R425
R430
R498
R422
R424
C485
R423
R551
C482
R499
R500
D403
C454
IC401
R520
D401
CN401
404
C400
C486
C484
R533
R534
R519
R518
R517
C481
R419
R420
R421
R521
R522
R495
R494
C487
C488
R482
R483
R484
C417
C418
R486
R485
R487
R488
R489
R490
R416
C419
R412
R407
R408
R413
R404
R411
R481
R524
C441
D404
R525
R526
R527
C401
R528
R415
R414
R452
R410
R453
R451
R409
R454
R531
R530
R529
R532
R472
R417
R406
R405
R403
R402
R468
C413
C453
C452
C451
Q442
Q484
Q441
C490
C489
CMKM-P3X
XWZ 4165
9 NC
8 VPP(IC)
7 VDD
6 RESET
5 NC
4 SCK1
3 SO1
2 SI1
1 VSS0
7 VOL_LED
6 KEY4-2
5 FEN A
4 FEN B
3 GNDU
2 ENB
1 ENA
VDD1
VDD1
FLAC2
VSS1
VSS1
VSS1
VDD1
VDD1
VSS1
VDD1
VSS1
-VF
61
FRONT DISPLAY AS
XWZ 4054
XWZ 4053
XWZ 4052
XWZ 4051
17 FLAC2
16 FLAC1
15 -VF
14 DISPRST
6 RMC
5 1WUP
3 Stby+5.6V
2 MIC DET
1 GNDU
13 DISPCK
12 DISPIN
4 D+5.6V
7 SROUT
8 SRIN
9 DISPEN
10 DISPRDY
11 DISPDO
SIDE B
K L
FRONT DISPLAY ASSY
K
R. ENCODER ASSY
L
(XNP3100-C)
CN401
511
404
VSX-816-K 71
5678
5678
C
D
F
A
B
E
10
0
80
90
100
110
120
130
140
150
160
170
180
190
200
210
220
20304050607080
9
0
X
Y
10
0
160
170
180
190
200
210
220
203040506070
230
240
250
X
Y
6258
13
R
R523
R424
R499
R500
C410
R520
471
R473
R471
R470
R533
R534
R469
R521
R522
C487
C488 R407
R408
C414
R524
R525
R526
R527
C411
R528
R410
R409 R531
R530
R529
R532
R464
R463
R462
R461
R472
R468
C490
C489
CMKM-P3X
3 GNDU
2 PWPON
1 KEY1
XWZ 4165
FRONT DISPLAY ASSY
XWZ 4054
XWZ 4053
XWZ 4052
XWZ 4051
1
0123456789
0123
0
01
C
B
A
13
R
R501
R502
CMKM-P3X
1 KEY1
XWZ 4057
XWZ 4056
2 PWPON
3 GNDU
POWER ASSY
501
SIDE B
MK
POWER KEY ASSY
M
(XNP3100-C)
(XNP3100-C)
471
501
VSX-816-K
72
1234
1234
C
D
F
A
B
E
4.10 S. VIDEO and FRONT VIDEO ASSYS
10
0
20
30
40
50
60
70
80
90
110 120 130 140 150 160 170 180 190 200 210
110 120 130 140 150 160 170 180 190
220
X
Y
Y
X
210
220
230
240
250
R
18
C903
CN901
JA902
C905
W911
W910
CMKM-P3X
XWZ 4109
FRONT INPUT ASSY
2 GNDA
3 FRONT L
4 GAV
5 FRONT V
6 FRONT Y
7 GAV
8 FRONT C
1 FRONT R
J29
15
R
1
11
1
18
W230
W220
W212
W218
W222
C1120
W247
W221
W249
W227
W213
W201
C1115
CN354
W215
W228
C358
C1121
W243
L1102
W250
C362
W214
CN353
C1124
W225
W234
W211
W244
C363
W209
IC1104
W229
C1103
W217
C1123
C352
W210
C1119
W237
C1122
W240
C1131
W239
W202
W235
CN352
W226
W246
C366
C1111
W203
W219
W204
C361
CN351
W233
C355
W248
C1104
L1101
W245
W238
C1107
W216
W251
W232
CN355
W200
W208
C1112
W242
W236
W206
4 V2
VCR REC
11 VOUT
Y C
MON1
VCR PLAY
61
8 +5.6V
12
10 OSD
DVD TV/SAT
XWZ 4064
2 F.V
3 V3
7 ADG
9 +12V
2 GAV
6 -5.6V
4 FRONT V
1 FRONT C
3 FRONT Y
5 GAV
1 V4
5 V1
CMKM-P3X
XWZ 4065
V2 V2
V1
-5.6V
V1
-5.6V
V1
IC1101
IC1103
IC352
IC351
S VIDEO ASSY
XWZ 4063
J44
J29
SIDE A SIDE A
S N NS
FRONT VIDEO ASSY
S
S. VIDEO ASSY
N
(XNP3100-C)
(XNP3100-C)
301
Q
CN351
CN354
CN107
A
CN901
(1-3 pin)
CN901
(4-8 pin)
VSX-816-K 73
5678
5678
C
D
F
A
B
E
10
0
20
30
40
50
60
70
80
90
110120130140150160170180190200210
110120130140150160170180190
220230
X
Y
210
220
230
240
250
Y
X
R
1
16
8
9
5
1
1
85
4
1
16
8
9
11 1
14
5
8
14
5
8
R386
C1105
R1107
C1132
R1105
R350
C1102
R1123
R1130
C371
D1104
D351
C1118
C386
R379
D1103
D1101
R365
R351
C368
D358
R1106
IC351
R1108
R354
R1121
C1101
R1104
C365
C1113
R362
R1112
R381
D353
R353
R1125
C1108
CN351
CN354
C375
R375
R370
R368
R369
D362
R1131
R1124
R1126
C367
R358
C385
R1127
C353
R1114
R1116
R367
C383
C357
Q1102
R363
C351
C1117
R376
C1114
D356
C372
R378
R355
R374
D355
R364
C356
R1120
D361
C382
R384
D357
D354
R366
R356
R361
R1115
R360
R357
C1110
R359
R352
R383
R373
C359
R1150
Q1103
R1111
R382
D352
R349
Q1101
C354 C1116
R371
IC1101
R1119
C1106
R1117
R1118
R377
C1109
IC352
C381
R1122
C373
C369
C384
R380
IC1102
IC1103
C370
C364
C1130
D1102
R372
R1110
R1113
R1101
R1102
R1129
R1128
R1103
R1109
R385 C376
VCR OUT
C
1
5 V1
C
1
DVD/LD
Y
4 V2
3 V3
11 VOUT
8 +5.6V
C
YY
2 F.V
MON OUT
C
9 +12V
7 ADG
6 -5.6V
1
TV/SAT
C
VCR PLAY
Y
1 V4
10 OSD
V2 V2
V1
-5.6V
V1
-5.6V
V1
XWZ 4064
XWZ 4065
S VIDEO ASSY
XWZ 4063
1 FRONT C
2 GAV
3 FRONT Y
4 FRONT V
5 GAV
CMKM-P3X
Y
R
18
C907
C906
C909
C908
C911
C910
C913
C914
C912
R903
R904
C901
C915
R902
C902
C916
R901
R905
R907
C904
R906
FRONT INPUT ASSY
CMKM-P3X
CN901
8 FRONT C
7 GAV
6 FRONT Y
5 FRONT V
4 GAV
3 FRONT L
XWZ4109
2 GNDA
1 FRONT R
SIDE B SIDE B
S N NS
FRONT VIDEO ASSY
S
S. VIDEO ASSY
N
(XNP3100-C)
(XNP3100-C)
CN351
CN901
CN354
VSX-816-K
74
1234
1234
C
D
F
A
B
E
4.11 PRE-OUT ASSY
270 280 290 300 310 320
X
170
180
190
200
210
220
Y
Y
X
330
270 280 290 300 310 320 330
230
170
180
190
200
210
220
230
1
8
RLF
1
0123456789
0123
0
01
C
B
A
C1577
R1577
R1581
R1586
R1587
C1578
C1579
R1575
C1575
R1582
R1578
R1579
C1580
C1581
R1580
R1585
R1584
CN1575
R1588
C1583
R1583
C1576
R1576
C1584
PRE-OUT J46
4 C
XWZ4098
8 FL
5 SR
7 FR
1 GAMP
6 SL
2 SB/SBL
3 SBR
XWZ4200
1
8
FCICT
R
C1582
W327
W330
1575
CN1575
W328
CN1576
W326
W329
W346
W345
W344
CONTACT
SIDE PNE-E67640
816/916 Only
XWZ4200
2 SB/SBL
SBR
SL
C
5 SR
6 SL
7 FR
J46
1 GAMP
SB/SBL
4 C
3 SBR
XWZ4098
PRE-OUT
8 FL
SIDE A SIDE A
SIDE B SIDE B
H H
PRE-OUT ASSY
H
PRE-OUT ASSY
H
(XNP3101-C)
(XNP3101-C)
CN604
C
CN1575CN1575
VSX-816-K 75
5678
5678
C
D
F
A
B
E
4.12 REGULATOR and DIGITAL IN ASSYS
90
100
110
120
130
150 160 170 180 190 200 210 220
150 160 170 180 190 200 210 220
200 210 220 230 240 250
200 210 220 230 240 250
X
X
Y
Y Y
Y
X
X
200
210
220
230
240
250
90
100
110
120
130
200
210
220
230
240
250
R11
110
C817
C804
C818
C803
R818
R819
CMKM-P3X
6 REG B
7 REG G
8 REG B
11 +12V
10 GAV
9 -12V
CN800
2 V+5D
1 V+5USB
3 DREG
4 DREG
5 GNDD
XWZ 4077
ASSY
GNDD
REGULATOR
XWZ 4129
XWZ 4116
51
CN1902
10
1
R
R1904
C1903
C1908
C1907
C1906
C1905
R1903
C1909
F1901
C1902
R1902
R1901
C1901
C1900
R1900
XWZ 4068
XWZ 4067
XWZ 4066
DIGITAL IN ASSY
CMKM-P3X
10 OPT1
9 D+5V
6 GNDD
5 GNDD
4 OPT2
2 GNDD
7 FRONT OPT
1 OPTOUT
3 GNDD
8 GNDD
CN1903
5 SHEILD
2 SHEILD
1 FRONT OPT
3 GNDD
4 D+5V
XWZ 4127
R
1
5
T R R
10
1
KN1902
C1904
KN1901
CN1902
JA1902
JA1901
JA1900
W390
W391
CN1903
W7394
W392
100
CMKM-P3X
XWZ 4067
XWZ 4066
DIGITAL IN ASSY
XWZ 4068
8 GNDD
10 OPT1
9 D+5V
6 GNDD
5 GNDD
4 OPT2
2 GNDD
3 GNDD
1 OPTOUT
7 FRONT OPT
5 SHIELD
4 D+5V
3 GNDD
2 SHIELD
1 FRONT OPT
J30
J37
XWZ 4127
R
11110
IC801
C819
R801
IC802
C806
W378
IC803
D810
W376
IC807
W379
C816
W377
D813
R803
W375
CN800
C805
R802
TA7805S
1 V+5USB
2 V+5D
3 DREG
4 DREG
5 GNDD
6 REG B
7 REG G
8 REG B
9 -12V
10 GAV
11 +12V
PRINTED
J43
XWZ 4077
GNDD
XWZ 4129
REGULATOR ASSY
CMKM-P3X
TA7812S TA79012S
TA7805S
SIDEPRINTED
SIDE
SIDE
PRINTED
SIDE
PRINTED
XWZ 4116
SIDE A SIDE A
SIDE B SIDE B
P R RP
REGULATOR ASSY
P
DIGITAL IN ASSY
R
REGULATOR ASSY
PDIGITAL IN ASSY
R
(XNP3100-C)
(XNP3100-C)
(XNP3100-C)
(XNP3100-C)
810
C
CN800
CN800
CN951
X
CN1902
CN601
B
CN1903
CN1902 CN1903
VSX-816-K
76
1234
1234
C
D
F
A
B
E
4.13 PRIMARY ASSY
220 230 240 250 260 270 280 290 300 310 320
X
10
0
20
30
40
50
60
70
80
90
100
110
120
Y
330 340
R
1
4
W683
R52
T51
W276
C51
KN3001
51
C55
KN51
W680
W292
C57
530
W290
W291
W278
W279
55
W293
R54
L51
W289
C53
D55
W283
W285
S51
W277
C56
R53
R51
IC52
H56
H55
H54
H53
H52H51
W281
D58
D57
D56
W280
RY51
CN51
C54
W286
W288
C52
W282
W284
W287
W275
IC51
W296
W682
W294
J2
N
L
N
L
FU2
FU3
FU1
PRIMARY ASSY
XWZ 4072
XWZ 4073
1 GNDU
PRIMARY
L
2 AC_RY
J1
4 STBY5V
3 AC_WUP
N
REPLACE FUSE
CMKM-P3X
RISK OF
SECONDARY
AS MARKED
FIRE
/KU & /J
EXCEPT
/F ONLY
/F ONLY
XWZ 4075
XWZ 4076
XWZ 4074
PRINTED SIDE
J52
XWZ 4128
TA78057S
SIDE A SIDE A
U U
PRIMARY ASSY
U
(XNP3100-C)
POWER CORD
CN51
CN1201
D
J1J2
V
55
VSX-816-K 77
5678
5678
C
D
F
A
B
E
220230240250260270280290300310320330
X
10
0
20
30
40
50
60
70
80
90
100
110
120
Y
R
4
1
+-
~~
C61
Q51
C60
D51
XWZ 4076
XWZ 4075
XWZ 4074
XWZ 4073
XWZ 4072
PRIMARY ASSY
CMKM-P3X
J2
J1
FU3
FU2
FU1
NL
CN51
55
SECONDARY
RISK OF FIRE
AS MARKED
REPLACE FUSE
PRIMARY
4 STBY5V
3 AC_WUP
2 AC_RY
1 GNDU
XWZ 4128
SIDE B SIDE B
U U
PRIMARY ASSY
U
(XNP3100-C)
CN51
55
VSX-816-K
78
1234
1234
C
D
F
A
B
E
4.14 VIDEO ASSY
10
0
10
0
20
30
40
50
60
70
80
90
20 30 40 50 60 70 80 90 100 110
10
020 30 40 50 60 70 80 90 100 110
X
X
Y
Y
10
0
20
30
40
50
60
70
80
90
12
1
24 13
6
1
1
16
9
8
R
1
11 10
19 115
71
14
5
8
R308
R391
C866
C865
R857
R858
L301
R310
C863
R859
C339
R892
Q851
R852
C859
R853
R854
C854
R856
C860
Q852
C858
C857
R312
L853
C861
L852
C304
R319
L851
C856
C855
IC851 C862
R855
D651
C853
D359
D360
R390
C377
C333
D305
L303
D303
D304
D306
IC301
D302
R315
D307
C340
C313
L302
R303
L306
R392
R860
C311
R305
Q303
R311
R309
D301
R320
C305
R304
R393
R301
R307
L304
C378 R302
C335
C334
C1360
L305
R306
R314
R318
C302
C347
R317
C306
C379
C444
R334
IC303
6 VIDEO INH
4 VIDEO B
TV
15 OSD CLK
LD/DVD
XWZ4059
RMC
8 V+5.6V
7 ADG
3 V-5.6
4 +12V
VCR
16 OSD CS
J33CN303 CN310
CN302
6 -12V
2 SRRXD
6 RMC
3 SW1
2 ADG
TXD
7 SRIN
1 V+5.6
2 F.V
3 V3
19 V4
RXD
G
1 V4
4 V2
G
REC
5 FURN.
17 OSD RT
18 INH
11J38
14 OSD DT
PLAY
7 OSD
4 SW2
FUR
9 +12V
G
11 VOUT
8 SROUT
SW
9 SWDET
5 V1
10 OSD
G
SR OUT
6 V-5.6V
3 uG
SRIN
G
CMKM-P3X
MONI
CG
12 V2
13 V1
10 AMUTE
11 V3
VIDEO ASSY
1 SRTXD
SB
5 ADG
XWZ4058
5 VIDEO A
ADG
301
V-5.6V
ADG
ADG
ADG
ADG
1 AG
2 SW.OUT
XWZ4062
XWZ4061
XWZ4060
1
6
R
111
19
1
5
W300
Q302
W355
W327
W344
W324
W319
W359
W353
JA308
W308
W322
C864
W338
390
C852
C851
W349
W347
X851
W304
C309
CN302
C314
W342
W341
W351
W348
CN306
W335
R313
W334
C312
C307
W302
W301
W311
W303
W326
W325
W343
W360
W337
Q301
W306
W321
W331
JA305
W316
C308
W345
W336
W317
W330
W358
W339
W312
W320
W328
W340
W318
301
R316
JA351
C310
W305
W313
W333
JA352
W329 W346
W307
W315
W332
C338
C391
CN303
CN305
CN310
W356
C380
C350
C390
5 V1
6 RMC
2 SW.OUT
J38
8 SROUT
ADG
6 -12V
11 V3
3 V3
1 AG
4 SW2
7 ADG
4 VIDEO B
+5V
J33
XWZ4058
3 uG
14 OSD DT
13 V1
10 AMUTE
VIDEO ASSY
4 V2
6 VIDEO INH
CMKM-P3X
2 F.V
10 OSD
2 ADG
1 V+5.6
3 V-5.6
3 SW1
7 OSD
1 V4
4 +12V
7 SRIN
6 V-5.6V
1 SRTXD
5 VIDEO A
9 SWDET
2 SRRXD
XWZ4061
XWZ4062
15 OSD CLK
18 INH
XWZ4060
17 OSD RT
19 V4
12 V2
5 FURN.
-5V
8 V+5.6V
XWZ4059
Production Code
9 +12V
11 VOUT
16 OSD CS
5 ADG
V-5.6V
ADG
ADG
ADG
ADG
IC301
IC303
1
7J44
1
SIDE A SIDE A
SIDE B SIDE B
Q Q
VIDEO ASSY
Q
VIDEO ASSY
Q
(XNP3100-C)
(XNP3100-C)
CN351
N
301301
CN803
C
CN302
CN302
CN104
A
CN551
F
CN303CN310
CN303CN310
VSX-816-K 79
5678
5678
C
D
F
A
B
E
4.15 USB ASSY
10
0
10
0
20
30
40
50
60
70
20 30 40 50 60 70 80 90 100 110
10
020 30 40 50 60 70 80 90 100 110
X
Y
X
10
0
20
30
40
50
60
70
Y
C733
CN701
C734
R709
R713
C735
R716
C722
C720
C716
R711
C732
R780
L781
R799
R797
R798
R761
C761
C762
R762
C768
C767
R763 C742
R708
R707
C745
R754
R732
R733
Q782
Q783
R749
R753
L762
L761
C763
C764
C766
Q784
R793
R794
R791
R792
C730
R741
R710
C799
C711
C712
L701
C717
L702
L704
C715
R979
R980
L705
R729
R730
R951
R41
115
NP
LF
A
B
C
1
0
0
321
0987654321
0
1
4 4
V18D
ADIN
V5USB
V+1R8
ROUT LOUT
UTTX
UTRX
USBDN
USBDP
V3D
TDI
TMS
TCK
TDO
nTRST
XRST
GNDD
V+5D CN702
V+3R3
128
97
9665
64
33
32
1
127
28
54
48
1
25
24
41
9
81
16
75
41
151
2
13
14 8
71
14 8
71
IC701
IC761
R773
IC762
R757
CN701
R714
C724
C723
C725
R715
C726
X701
R712
C714
C713
C701
C707
C703
C719
C718
C721
R706
R705
R702
R701
R737
R738
R735
R736
R784
R786
R788
C781
C782
C783
C784
C786
R756
C787
C785
R789
R790
C789C790
R795
R796
IC781
C743
C744
R704
R703
IC702
C746 C747
C771
R731 R734
L731 L732
L733
C772
L772
R771
R772
IC771
CN702
IC703
R744
R745
R747
R746
R748
R750
R751
R752
C765
C741
C791
C792
C731
C773
C798
KN791
C727 C729
C728
C702
C704 C705
C706
C708
C709
C710
L703
R743
R721
R722
R723
R726
R725
R724
R717
R718
R719
R720
R785
R787
C788
C951
C952
C956
C957
IC951
IC953
L951
L953
R966
R972
R973
R977
R978
R727
R755
R952
AWX8704
4 4
1
48 25
41
5
4
31
LF
ICT FC
PC
R
USB ASSY
AWX
SIDE A SIDE A
SIDE B SIDE B
W W
USB ASSY
W
USB ASSY
W
(ANP7571-B)
(ANP7571-B)
CN953
X
CN701
CN701
CN812
C
CN702
CN702
VSX-916
ONLY
VSX-816-K
80
1234
1234
C
D
F
A
B
E
5. PCB PARTS LIST
LIST OF ASSEMBLIES
77
77 CONTRAST OF PCB ASSEMBLIES
XWZ4092 and XWZ4166 are constructed the same except for the following:
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
561
473
R50
1R0
5621
NOTES:
560 Ω
47k Ω
0.5 Ω
1 Ω
RD1/4PU J
RD1/4PU J
RN2H K
RS1P K
56 x 10
1
47 x 10
3
R50
1R0
561
473
5.62k Ω
RN1/4PC F562 x 10
1
5621
Meaning of the figures and others in the parentheses in the parts list.
Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding
PC board.
IC 301 (A, 91, 111) IC NJM2068V
Mark Symbol and Description VSX-816
/KUXJ/CA
VSX-916
/MYXJ5
1..MAIN ASSY XWK3233 XWK3234
1..DSP ASSY AWX8699 AWX8572
NSP 1..AMP ASSY XWK3224 XWK3225
2..POWER PACK ASSY XWZ4087 XWZ4088
2..TRANS2 ASSY XWZ4166 XWZ4092
2..TRANS3 ASSY XWZ4079 XWZ4079
2..HEADPHONE ASSY XWZ4095 XWZ4095
2..COMPONENT ASSY XWZ4097 XWZ4097
2..PRE-OUT ASSY XWZ4098 XWZ4200
2..5.1CH INPUT ASSY XWZ4069 XWZ4069
2..BINDER ASSY XWZ4199 XWZ4199
NSP 1..COMPLEX ASSY XWK3214 XWK3215
2..FRONT DISPLAY ASSY XWZ4054 XWZ4054
2..R. ENCODER ASSY XWZ4055 XWZ4055
2..POWER KEY ASSY XWZ4057 XWZ4057
2..VIDEO ASSY XWZ4062 XWZ4062
2..S. VIDEO ASSY XWZ4065 XWZ4065
2..DIGITAL IN ASSY XWZ4067 XWZ4068
2..FRONT VIDEO ASSY XWZ4109 XWZ4109
2..PRIMARY ASSY XWZ4072 XWZ4073
2..REGULATOR ASSY XWZ4129 XWZ4116
2..TRANS1 ASSY XWZ4078 Not used
2..TRANS4 ASSY XWZ4093 XWZ4093
1..USB IN ASSY XWK3249 XWK3250
1..USB ASSY Not used AWX8704
1..FM/AM TUNER UNIT AXX7210 AXX7170
DTRANS2 ASSY
Mark Symbol and Description XWZ4166 XWZ4092
>IC853 PROTECTOR(5A) AEK7019 Not used
>IC853 PROTECTOR(7A) Not used AEK7021
VSX-816-K 81
5678
5678
C
D
F
A
B
E
XWZ4200 and XWZ4098 are constructed the same except for the following:
XWZ4116 and XWZ4129 are constructed the same except for the following:
XWZ4068 and XWZ4067 are constructed the same except for the following:
XWZ4073 and XWZ4072 are constructed the same except for the following:
XWK3250 and XWK3249 are constructed the same except for the following:
77
77 PCB PARTS LIST FOR VSX-816/KUXJ/CA UNLESS OTHER WISE NOTED
HPRE-OUT ASSY
Mark Symbol and Description XWZ4098 XWZ4200
C1582 Not used CQMBA102J50
PREGULATOR ASSY
Mark Symbol and Description XWZ4129 XWZ4116
D810 Not used MTZJ6.2B
>IC803 Not used TA7805S
C818 Not used CKSRYB103K25
C819 Not used CEAT101M10
RDIGITAL IN ASSY
Mark Symbol and Description XWZ4067 XWZ4068
JA1902 OPT. LINK OUT Not used GP1FAV51TK0F
R1902 Not used RS1/16S101J
C1902 Not used CQMBA102J50
UPRIMARY ASSY
Mark Symbol and Description XWZ4072 XWZ4073
D57 Not used 1SS133
>L51 Not used XTF3004
>T51 STANDBY TRANSFORMER ATT7043 ATT7040
>51 AC SOCKET 1-P AKP1060 Not used
>530 3P TERMINAL Not used AKC-081
>R51 (2.2M, 1/2W) RCN1080 Not used
XUSB IN ASSY
Mark Symbol and Description XWK3249 XWK3250
L970 Not used ATH7015
CN953 KR CONNECTOR Not used B4B-PH-K-S
JA953 USB CONNECTOR Not used XKP3086
R979, R980 Not used RS1/16S0R0J
C969 Not used CKSRYB104K16
C970 Not used CEVW101M16
Mark No. Description Part No.
COMPLEX ASSY
MISCELLANEOUS
J41 JUMPER WIRE D15A03-100-2651
J42 JUMPER WIRE D15A07-125-2651
AMAIN ASSY (XWK3233)
MISCELLANEOUS
IC 103 (A,198,72) OP-AMP IC BA4560RF
IC 104 (A,198,56) OP-AMP IC BA4560RF
IC 105 (A,198,87) OP-AMP IC BA4560RF
IC 106 (A,198,41) OP-AMP IC BA4560RF
IC 107 (A,216,88) OP-AMP IC BA4560RF
IC 108 (B,255,64) 8CH E-VOL R2S15205FP
IC 110 (A,237,73) IC TC4066BFN
IC 251 (A,85,102) OP-AMP IC HA17558AF
IC 310 (A,142,40) OP-AMP IC BA4560RF
IC 311 (A,152,59) OP-AMP IC BA4560RF
IC 312 (A,142,77) OP-AMP IC BA4560RF
IC 315 (A,160,90) OP-AMP IC BA4560RF
IC 6001(A,135,21) IC
TC74VHCT125AFTS1
IC 9001(B,82,64) CPU PEG216A
IC 9002(A,103,44) EEPROM BR24L16FV-W
Mark No. Description Part No.
VSX-816-K
82
1234
1234
C
D
F
A
B
E
Q231 (A,225,69) DIGITAL TR(SC-70) RT1P241M
Q232 (A,229,69) TRANSISTOR RT1N241M
Q252 (A,68,105) TRANSISTOR 2SD1858X
Q253 (A,75,108) TRANSISTOR RT1N241M
Q254 (A,72,98) DIGITAL TR(SC-70) RT1P241M
Q255 (A,75,98) TRANSISTOR RT1N241M
Q256 (A,75,94) CHIP TRANSISTOR 2SD2704K
Q257 (A,78,108) TRANSISTOR 2SA1576A
Q361 (A,166,78) CHIP TRANSISTOR 2SD2704K
Q9001(A,125,87) DIGITAL TR(SC-70) RT1N431M
Q9002(A,66,80) DIGITAL TR(SC-70) RT1P241M
Q9003(A,65,75) DIGITAL TR(SC-70) RT1P241M
Q9007(A,69,85) TRANSISTOR DTC143TK
Q9064(A,59,80) DIGITAL TR(SC-70) RT1P241M
Q9065(A,55,78) TRANSISTOR UMD2N
D103 (B,173,35) DIODE DAN217U
D105 (B,163,37) DIODE DAN217U
D107 (B,166,37) DIODE DAN217U
D251 (A,83,96) DIODE DAN217U
D253 (A,70,114) DIODE UDZS27(B)
D254 (A,90,104) DIODE UDZS5R1(B)
D311 (B,259,93) DIODE 1SS355
D312 (B,268,93) DIODE 1SS355
D331 (B,260,87) DIODE UDZS6R8(B)
D332 (B,263,87) DIODE UDZS6R8(B)
D6001(A,149,22) DIODE 1SS355
D9001(A,125,103) DIODE DAP202U
D9002(A,119,103) DIODE DAP202U
D9003(A,122,103) DIODE DAN202U
D9006(B,99,89) DIODE DAN217U
D9007(B,91,89) DIODE DAN217U
D9010(A,128,88) DIODE 1SS355
D9011(A,60,75) DIODE DAN202U
D9064(A,58,75) DIODE DAP202U
D9065(A,63,80) DIODE DAP202U
D9068(A,53,81) DIODE 1SS355
L101 (B,260,98) CHIP SOLID INDUCTOR QTL1013
L102 (B,265,97) CHIP SOLID INDUCTOR QTL1013
L5002(A,257,104) CHIP SOLID INDUCTOR QTL1013
L9001(A,123,107) CHIP SOLID INDUCTOR ATL7002
L9002(A,121,107) CHIP SOLID INDUCTOR ATL7002
L9003(A,106,98) RADIAL INDUCTOR LFCA2R2J
X9001(A,96,53) CERAMIC RESONATOR XSS3004
(15.7 MHz)
CN101 (A,41,27) CONNECTOR CKS3382
CN103 (A,230,17) 11P CONNECTOR 52044-1145
CN104 (A,250,13) CONNECTOR CKS3384
CN105 (A,266,34) CONNECTOR CKS3372
CN106 (A,101,18) 12P CONNECTOR VKN1243
CN107 (A,39,99) CONNECTOR POST B3B-PH
CN108 (A,41,55) CONNECTOR CKS3370
CN109 (A,230,113) 19P SOCKET XKP3054
CN111 (A,276,113) 21P SOCKET XKP3091
CN112 (A,91,41) CONNECTOR CKS3382
CN114 (A,189,113) 21P SOCKET XKP3091
CN115 (A,302,21) PIN JACK(4P) AKB7114
CN116 (A,302,49) PIN JACK(4P) AKB7114
CN117 (A,302,77) PIN JACK(4P) AKB7114
CN118 (A,302,105) PIN JACK(4P) AKB7114
CN251 (A,39,83) 3P JUMPER CONNECTOR 52147-0310
Mark No. Description Part No.
CN252 (A,37,69) 3P TOP POST B3B-EH
101 PCB BINDER VEF1040
102 PCB BINDER VEF1040
RESISTORS
R101 (B,282,19) RS1/16S331J
R102 (B,293,12) RS1/16S331J
R103 (B,283,62) RS1/16S222J
R104 (B,283,52) RS1/16S222J
R105 (B,283,47) RS1/16S331J
R106 (B,293,40) RS1/16S331J
R107 (B,283,87) RS1/16S331J
R108 (B,293,81) RS1/16S331J
R109 (B,283,73) RS1/16S331J
R110 (B,293,68) RS1/16S331J
R111 (B,283,115) RS1/16S222J
R112 (B,283,106) RS1/16S222J
R113 (B,283,101) RS1/16S331J
R114 (B,293,96) RS1/16S331J
R129 (B,283,34) RS1/16S331J
R130 (B,283,25) RS1/16S331J
R145 (A,71,73) RS1/16S102J
R146 (A,71,74) RS1/16S102J
R147 (B,233,67) RS1/16S472J
R148 (B,228,62) RS1/16S472J
R149 (A,259,45) RS1/16S104J
R154 (B,294,51) RS1/16S0R0J
R155 (B,293,58) RS1/16S0R0J
R156 (B,295,107) RS1/16S0R0J
R157 (B,293,114) RS1/16S0R0J
R180 (B,278,97) RS1/16S0R0J
R181 (B,272,78) RS1/16S0R0J
R182 (B,275,75) RS1/16S0R0J
R183 (B,276,67) RS1/16S0R0J
R201 (A,189,85) RS1/16S473J
R202 (A,189,90) RS1/16S473J
R203 (B,187,85) RS1/16S392J
R204 (B,187,91) RS1/16S392J
R205 (B,189,85) RS1/16S392J
R206 (B,189,91) RS1/16S392J
R207 (B,191,85) RS1/16S392J
R208 (B,191,91) RS1/16S392J
R209 (B,198,85) RS1/16S392J
R210 (B,198,91) RS1/16S392J
R211 (B,200,85) RS1/16S332J
R212 (B,200,91) RS1/16S332J
R213 (B,202,85) RS1/16S680J
R214 (B,202,91) RS1/16S680J
R219 (B,216,84) RS1/16S0R0J
R220 (B,215,91) RS1/16S0R0J
R221 (B,220,84) RS1/16S472J
R222 (B,219,91) RS1/16S472J
R223 (A,242,78) RS1/16S472J
R224 (A,236,78) RS1/16S472J
R225 (B,225,84) RS1/16S392J
R226 (B,225,91) RS1/16S392J
R227 (B,231,84) RS1/16S101J
R228 (B,233,89) RS1/16S101J
R231 (A,229,72) RS1/16S104J
R233 (A,231,91) RS1/16S474J
Mark No. Description Part No.
VSX-816-K 83
5678
5678
C
D
F
A
B
E
R234 (A,231,84) RS1/16S474J
R237 (A,237,88) RS1/16S122J
R238 (A,236,80) RS1/16S122J
R241 (A,190,69) RS1/16S473J
R242 (A,190,74) RS1/16S473J
R243 (B,186,69) RS1/16S332J
R244 (B,186,75) RS1/16S332J
R245 (B,188,69) RS1/16S332J
R246 (B,188,75) RS1/16S332J
R247 (B,190,69) RS1/16S332J
R248 (B,190,75) RS1/16S332J
R249 (B,197,69) RS1/16S332J
R250 (B,197,75) RS1/16S332J
R251 (B,199,69) RS1/16S182J
R252 (B,199,75) RS1/16S182J
R253 (B,202,69) RS1/16S0R0J
R254 (B,202,75) RS1/16S0R0J
R257 (B,213,69) RS1/16S101J
R258 (B,213,75) RS1/16S101J
R261 (A,189,53) RS1/16S473J
R262 (A,189,59) RS1/16S473J
R263 (B,186,53) RS1/16S332J
R264 (B,186,60) RS1/16S332J
R265 (B,188,53) RS1/16S332J
R266 (B,188,60) RS1/16S682J
R267 (B,190,53) RS1/16S332J
R268 (B,190,60) RS1/16S393J
R269 (B,197,53) RS1/16S332J
R270 (B,197,60) RS1/16S122J
R271 (B,199,53) RS1/16S182J
R272 (B,199,60) RS1/16S272J
R273 (B,202,53) RS1/16S0R0J
R274 (B,202,60) RS1/16S271J
R277 (B,214,53) RS1/16S101J
R278 (B,213,61) RS1/16S101J
R280 (A,65,113) RS1/16S0R0J
R281 (A,188,44) RS1/16S473J
R282 (A,188,38) RS1/16S473J
R283 (B,186,45) RS1/16S332J
R284 (B,186,38) RS1/16S332J
R285 (B,188,45) RS1/16S332J
R286 (B,188,38) RS1/16S332J
R287 (B,191,45) RS1/16S332J
R288 (B,191,38) RS1/16S332J
R289 (B,197,45) RS1/16S332J
R290 (B,197,38) RS1/16S332J
R291 (B,200,45) RS1/16S182J
R292 (B,199,39) RS1/16S182J
R293 (B,202,45) RS1/16S0R0J
R294 (B,202,39) RS1/16S0R0J
R297 (B,214,44) RS1/16S101J
R298 (B,214,39) RS1/16S101J
R303 (B,156,37) RS1/16S101J
R304 (B,155,43) RS1/16S101J
R305 (B,160,49) RS1/16S101J
R306 (B,164,61) RS1/16S101J
R307 (B,165,68) RS1/16S101J
R308 (B,171,72) RS1/16S101J
R311 (A,258,102) METAL OXIDE RESISTOR RS1LMF101J
R312 (A,266,102) METAL OXIDE RESISTOR RS1LMF101J
Mark No. Description Part No.
R427 (A,133,93) RS1/16S104J
R431 (A,131,93) RS1/16S104J
R432 (A,127,93) RS1/16S104J
R433 (A,128,93) RS1/16S104J
R434 (A,134,93) RS1/16S104J
R435 (A,126,93) RS1/16S104J
R436 (A,130,93) RS1/16S104J
R438 (A,81,98) RS1/16S104J
R439 (A,86,96) RS1/16S104J
R440 (A,81,108) RS1/16S754J
R441 (A,79,98) RS1/16S222J
R442 (A,77,98) RS1/16S104J
R443 (A,63,104) RS1/16S471J
R445 (A,73,108) RS1/16S223J
R446 (A,74,113) RS1/16S104J
R447 (A,88,94) RS1/16S472J
R448 (A,89,104) RS1/16S104J
R449 (A,80,108) RS1/16S102J
R453 (A,146,35) RS1/16S102J
R454 (A,142,46) RS1/16S102J
R455 (A,146,38) RS1/16S272J
R456 (A,147,43) RS1/16S272J
R457 (A,140,35) RS1/16S153J
R458 (A,140,46) RS1/16S153J
R459 (B,133,38) RS1/16S103J
R460 (B,133,43) RS1/16S103J
R461 (B,145,39) RS1/16S104J
R462 (B,145,43) RS1/16S104J
R464 (A,78,102) RS1/16S0R0J
R473 (A,151,53) RS1/16S102J
R474 (A,152,65) RS1/16S102J
R475 (A,157,52) RS1/16S272J
R476 (A,158,66) RS1/16S272J
R477 (A,149,52) RS1/16S153J
R478 (A,150,65) RS1/16S153J
R479 (B,142,57) RS1/16S103J
R480 (B,142,62) RS1/16S103J
R481 (B,154,58) RS1/16S104J
R482 (B,154,62) RS1/16S104J
R483 (B,144,76) RS1/16S104J
R484 (A,165,71) RS1/16S104J
R485 (A,157,80) RS1/16S472J
R488 (A,165,73) RS1/16S0R0J
R493 (A,141,71) RS1/16S102J
R494 (A,141,83) RS1/16S911J
R495 (A,147,71) RS1/16S272J
R496 (A,148,83) RS1/16S272J
R497 (A,139,69) RS1/16S153J
R498 (A,139,83) RS1/16S153J
R499 (B,133,72) RS1/16S103J
R500 (B,133,79) RS1/16S103J
R502 (B,144,80) RS1/16S204J
R504 (B,171,86) RS1/16S222J
R505 (B,170,92) RS1/16S222J
R506 (B,165,87) RS1/16S104J
R507 (B,163,92) RS1/16S104J
R508 (A,162,82) RS1/16S272J
R509 (A,162,96) RS1/16S272J
R512 (A,159,83) RS1/16S102J
R513 (A,159,96) RS1/16S102J
Mark No. Description Part No.
VSX-816-K
84
1234
1234
C
D
F
A
B
E
R514 (A,157,83) RS1/16S153J
R515 (A,157,96) RS1/16S153J
R516 (B,150,89) RS1/16S103J
R517 (B,150,96) RS1/16S103J
R6001(A,132,18) RS1/16S104J
R6002(A,139,24) RS1/16S104J
R6003(A,140,18) RS1/16S104J
R6004(A,151,22) RS1/16S101J
R6007(B,128,14) RS1/16S102J
R6009(A,130,23) RS1/16S101J
R6010(A,147,23) RS1/16S182J
R9002(A,129,89) RS1/16S473J
R9005(A,91,55) RS1/16S0R0J
R9006(B,103,89) RS1/16S474J
R9007(B,93,89) RS1/16S474J
R9008(A,86,90) RS1/16S221J
R9009(A,65,85) RS1/16S473J
R9010(B,115,45) RS1/16S512J
R9011(A,63,76) RS1/16S102J
R9012(A,63,73) RS1/16S0R0J
R9013(B,112,45) RS1/16S471J
R9014(B,104,54) RS1/16S471J
R9015(B,101,54) RS1/16S471J
R9016(B,99,54) RS1/16S471J
R9017(B,97,54) RS1/16S471J
R9018(B,95,54) RS1/16S471J
R9019(B,98,76) RS1/16S471J
R9020(B,99,76) RS1/16S471J
R9021(B,101,76) RS1/16S471J
R9022(B,103,76) RS1/16S471J
R9023(B,103,68) RS1/16S472J
R9024(B,105,68) RS1/16S472J
R9025(B,101,68) RS1/16S472J
R9026(B,107,68) RS1/16S751J
R9028(B,119,45) RS1/16S104J
R9030(A,68,79) RS1/16S470J
R9031(B,69,48) RS1/16S104J
R9032(A,66,59) RS1/16S104J
R9033(B,89,48) RS1/16S104J
R9036(A,88,89) RS1/16S221J
R9037(A,124,99) RS1/16S104J
R9039(A,87,58) RS1/16S104J
R9041(B,117,45) RS1/16S104J
R9042(B,83,81) RS1/16S103J
R9043(B,81,81) RS1/16S103J
R9044(B,79,81) RS1/16S103J
R9045(A,98,46) RS1/16S471J
R9046(A,107,45) RS1/16S471J
R9047(A,99,46) RS1/16S103J
R9048(A,98,43) RS1/16S103J
R9049(A,114,72) RS1/16S221J
R9050(A,108,68) RS1/16S221J
R9051(A,101,29) RS1/16S221J
R9052(A,109,25) RS1/16S221J
R9053(A,106,26) RS1/16S221J
R9054(A,105,15) RS1/16S221J
R9060(B,98,68) RS1/16S473J
R9062(B,87,48) RS1/16S471J
R9064(A,54,74) RS1/16S103J
R9065(A,56,74) RS1/16S103J
Mark No. Description Part No.
R9066(A,62,72) RS1/16S103J
R9067(A,57,83) RS1/16S103J
R9068(A,64,71) RS1/16S0R0J
R9080(A,98,16) RS1/16S103J
R9081(A,120,72) RS1/16S221J
R9082(A,122,69) RS1/16S274J
CAPACITORS
C115 (B,262,98) CKSRYB103K50
C116 (B,267,97) CKSRYB103K50
C117 (A,287,109) CCSRCH220J50
C118 (B,285,109) CCSRCH220J50
C121 (A,280,34) CEAT100M50
C122 (A,280,25) CEAT100M50
C123 (A,280,19) CEAT100M50
C124 (A,280,11) CEAT100M50
C125 (A,280,62) CEAT100M50
C126 (A,280,53) CEAT100M50
C127 (A,280,47) CEAT100M50
C128 (A,280,40) CEAT100M50
C131 (A,280,87) CEAT100M50
C132 (A,280,80) CEAT100M50
C133 (A,280,74) CEAT100M50
C134 (A,280,67) CEAT100M50
C135 (A,280,114) CEAT100M50
C136 (A,280,106) CEAT100M50
C137 (A,280,101) CEAT100M50
C138 (A,280,93) CEAT100M50
C139 (A,53,95) CEAT100M50
C140 (A,53,100) CEAT100M50
C141 (A,256,82) CKSRYB104K50
C145 (B,256,81) CCSRCH101J50
C146 (B,258,81) CCSRCH101J50
C147 (B,253,81) CKSRYB103K50
C148 (B,238,67) CKSRYB223K25
C149 (B,235,67) CKSRYB473K25
C150 (B,231,67) CKSQYB154K16
C151 (B,49,51) CKSRYB103K50
C152 (B,230,62) CKSRYB223K25
C153 (B,234,62) CKSRYB473K25
C154 (B,232,62) CKSQYB154K16
C155 (A,226,62) CEAT101M16
C156 (A,229,56) CEAT101M16
C157 (A,236,56) CEAT101M16
C158 (A,232,50) CEAT101M16
C159 (A,241,50) CEAT101M16
C160 (A,234,44) CEAT101M16
C161 (A,241,44) CEAT101M16
C162 (A,248,44) CEAT101M16
C165 (A,240,86) CEAT1R0M50
C166 (A,248,86) CEAT1R0M50
C179 (B,294,76) CKSRYB103K50
C180 (A,277,16) CKSRYB103K50
C199 (A,281,50) CKSRYB103K50
C201 (A,183,85) CEAT2R2M50
C202 (A,184,92) CEAT2R2M50
C203 (A,191,85) CCSRCH471J50
C204 (A,191,90) CCSRCH471J50
C205 (A,193,85) CCSRCH331J50
Mark No. Description Part No.
VSX-816-K 85
5678
5678
C
D
F
A
B
E
C206 (A,194,90) CCSRCH331J50
C207 (B,193,85) CCSRCH331J50
C208 (B,193,91) CCSRCH331J50
C213 (A,223,84) CEAT100M50
C214 (A,223,90) CEAT100M50
C215 (B,233,84) CKSRYB103K50
C216 (B,231,89) CKSRYB103K50
C217 (A,202,85) CKSRYB103K50
C218 (A,202,90) CKSRYB103K50
C219 (A,221,87) CKSRYB104K16
C220 (A,210,93) CKSRYB104K16
C221 (A,230,75) CKSRYB103K50
C222 (A,243,70) CKSRYB103K50
C241 (A,183,70) CEAT2R2M50
C242 (A,183,77) CEAT2R2M50
C243 (A,192,69) CCSRCH101J50
C244 (A,192,74) CCSRCH101J50
C245 (A,194,69) CCSRCH331J50
C246 (A,194,74) CCSRCH331J50
C247 (B,193,69) CCSRCH331J50
C248 (B,193,75) CCSRCH331J50
C249 (A,205,69) CEAT100M50
C250 (A,205,75) CEAT100M50
C251 (A,204,65) CKSRYB103K50
C252 (A,211,78) CKSRYB103K50
C253 (B,43,89) CKSRYB103K50
C254 (A,58,108) ELECT. CAPACITOR CEAT101M25
C255 (A,51,108) ELECT. CAPACITOR CEANP470M25
C256 (A,81,105) CKSRYB103K50
C257 (B,216,69) CKSRYB472K50
C258 (B,217,75) CKSRYB472K50
C261 (A,183,54) CEAT2R2M50
C262 (A,183,62) CEAT2R2M50
C263 (A,192,53) CCSRCH101J50
C264 (A,191,59) CKSRYB223K25
C265 (A,194,53) CCSRCH331J50
C266 (A,194,59) CKSRYB103K50
C267 (B,193,53) CCSRCH331J50
C268 (B,193,60) CKSRYB562K50
C269 (A,205,54) CEAT100M50
C270 (A,205,60) CEAT100M50
C271 (A,203,51) CKSRYB103K50
C272 (A,210,64) CKSRYB103K50
C277 (B,216,53) CKSRYB472K50
C278 (B,215,61) CKSRYB472K50
C281 (A,183,46) CEAT2R2M50
C282 (A,184,39) CEAT2R2M50
C283 (A,190,44) CCSRCH101J50
C284 (A,190,38) CCSRCH101J50
C285 (A,194,44) CCSRCH331J50
C286 (A,194,38) CCSRCH331J50
C287 (B,193,45) CCSRCH331J50
C288 (B,193,38) CCSRCH331J50
C289 (A,205,44) CEAT100M50
C290 (A,206,38) CEAT100M50
C291 (A,216,39) CKSRYB103K50
C292 (A,216,48) CKSRYB103K50
C297 (B,218,44) CKSRYB472K50
C298 (B,216,39) CKSRYB472K50
C321 (A,153,38) CEAT100M50
Mark No. Description Part No.
C322 (A,153,45) CEAT100M50
C323 (A,145,35) CCSRCH101J50
C324 (A,140,47) CCSRCH101J50
C325 (A,136,39) ELECT. CAPACITOR CEAT220M50
C326 (A,136,46) ELECT. CAPACITOR CEAT220M50
C327 (A,132,42) CKSRYB103K50
C328 (A,132,38) CKSRYB103K50
C333 (A,255,93) CEAT101M10
C334 (A,268,81) CEAT101M10
C341 (A,161,56) CEAT100M50
C342 (A,161,63) CEAT100M50
C343 (A,149,51) CCSRCH101J50
C344 (A,150,66) CCSRCH101J50
C345 (A,145,56) ELECT. CAPACITOR CEAT220M50
C346 (A,145,63) ELECT. CAPACITOR CEAT220M50
C347 (A,140,64) CKSRYB103K50
C348 (A,141,58) CKSRYB103K50
C361 (A,161,70) CEAT100M50
C362 (A,169,70) CEAT100M50
C363 (A,139,68) CCSRCH101J50
C364 (A,139,84) CKSRYB472K50
C365 (A,136,73) ELECT. CAPACITOR CEAT220M50
C366 (A,136,80) ELECT. CAPACITOR CEANP4R7M50
C367 (A,135,88) CKSRYB103K50
C368 (A,147,75) CKSRYB103K50
C370 (A,161,74) CEAT4R7M50
C384 (A,167,87) CEAT100M50
C385 (A,167,94) CEAT100M50
C386 (A,157,84) CCSRCH101J50
C387 (A,157,95) CCSRCH101J50
C388 (A,153,90) ELECT. CAPACITOR CEAT220M50
C389 (A,153,97) ELECT. CAPACITOR CEAT220M50
C390 (A,164,88) CKSRYB103K50
C392 (B,91,95) CKSRYB102K50
C393 (A,156,92) CKSRYB103K50
C1031(A,286,57) CCSRCH220J50
C1041(B,287,55) CCSRCH220J50
C5001(B,233,10) CKSRYB102K50
C5002(B,235,10) CKSRYB103K50
C5003(B,237,10) CKSRYB105K10
C5025(A,166,12) CKSRYB102K50
C5026(A,169,13) CKSRYB102K50
C5027(A,177,12) CKSRYB102K50
C5028(A,179,13) CCSRCH220J50
C6001(A,139,18) CKSRYB104K16
C9004(A,121,94) CKSRYB103K50
C9005(A,116,99) CEJQ2R2M50
C9006(A,122,88) CKSRYB105K10
C9007(A,79,92) ELECT. CAPACITOR CEAT331M6R3
C9008(B,77,90) CKSRYB103K50
C9011(B,95,89) CKSRYB473K16
C9014(B,87,88) CKSRYB473K16
C9015(A,100,95) CKSRYB102K50
C9018(B,72,72) CKSRYB104K50
C9081(A,120,69) CKSRYB103K50
AMAIN ASSY (XWK3234)
MISCELLANEOUS
Mark No. Description Part No.
VSX-816-K
86
1234
1234
C
D
F
A
B
E
IC 103 (A,198,72) OP-AMP IC BA4560RF
IC 104 (A,198,56) OP-AMP IC BA4560RF
IC 105 (A,198,87) OP-AMP IC BA4560RF
IC 106 (A,198,41) OP-AMP IC BA4560RF
IC 107 (A,216,88) OP-AMP IC BA4560RF
IC 108 (B,255,64) 8CH E-VOL R2S15205FP
IC 110 (A,237,73) IC TC4066BFN
IC 251 (A,85,102) OP-AMP IC HA17558AF
IC 310 (A,142,40) OP-AMP IC BA4560RF
IC 311 (A,152,59) OP-AMP IC BA4560RF
IC 312 (A,142,77) OP-AMP IC BA4560RF
IC 315 (A,160,90) OP-AMP IC BA4560RF
IC 5001(A,69,19) RDS DECORDER IC LC72725M
IC 6001(A,135,21) IC
TC74VHCT125AFTS1
IC 9001(B,82,64) CPU PEG216A
IC 9002(A,103,44) EEPROM BR24L16FV-W
Q231 (A,225,69) DIGITAL TR(SC-70) RT1P241M
Q232 (A,229,69) TRANSISTOR RT1N241M
Q252 (A,68,105) TRANSISTOR 2SD1858X
Q253 (A,75,108) TRANSISTOR RT1N241M
Q254 (A,72,98) DIGITAL TR(SC-70) RT1P241M
Q255 (A,75,98) TRANSISTOR 2SC4081
Q256 (A,75,94) CHIP TRANSISTOR 2SD2704K
Q257 (A,78,108) TRANSISTOR 2SA1576A
Q259 (A,69,97) DIGITAL TR(SC-70) RT1P241M
Q260 (A,68,101) TRANSISTOR 2SC4081
Q361 (A,166,78) CHIP TRANSISTOR 2SD2704K
Q9001(A,125,87) DIGITAL TR(SC-70) RT1N431M
Q9002(A,66,80) DIGITAL TR(SC-70) RT1P241M
Q9003(A,65,75) DIGITAL TR(SC-70) RT1P241M
Q9007(A,69,85) TRANSISTOR DTC143TK
Q9064(A,59,80) DIGITAL TR(SC-70) RT1P241M
Q9065(A,55,78) TRANSISTOR UMD2N
D103 (B,173,35) DIODE DAN217U
D105 (B,163,37) DIODE DAN217U
D107 (B,166,37) DIODE DAN217U
D251 (A,83,96) DIODE DAN217U
D253 (A,70,114) DIODE UDZS13(B)
D254 (A,90,104) DIODE UDZS5R1(B)
D255 (A,65,114) DIODE UDZS13(B)
D311 (B,259,93) DIODE 1SS355
D312 (B,268,93) DIODE 1SS355
D331 (B,260,87) DIODE UDZS6R8(B)
D332 (B,263,87) DIODE UDZS6R8(B)
D6001(A,149,22) DIODE 1SS355
D9001(A,125,103) DIODE DAP202U
D9002(A,119,103) DIODE DAP202U
D9003(A,122,103) DIODE DAN202U
D9006(B,99,89) DIODE DAN217U
D9007(B,91,89) DIODE DAN217U
D9010(A,128,88) DIODE 1SS355
D9011(A,60,75) DIODE DAN202U
D9064(A,58,75) DIODE DAP202U
D9065(A,63,80) DIODE DAP202U
D9068(A,53,81) DIODE 1SS355
L101 (B,260,98) CHIP SOLID INDUCTOR QTL1013
L102 (B,265,97) CHIP SOLID INDUCTOR QTL1013
L5002(A,257,104) CHIP SOLID INDUCTOR QTL1013
L9001(A,123,107) CHIP SOLID INDUCTOR ATL7002
L9002(A,121,107) CHIP SOLID INDUCTOR ATL7002
Mark No. Description Part No.
L9003(A,106,98) RADIAL INDUCTOR LFCA2R2J
X5001(A,67,27) CRYSTAL RESONATOR ASS7004
(4.332 MHz)
X9001(A,96,53) CERAMIC RESONATOR XSS3004
(15.7 MHz)
CN101 (A,41,27) CONNECTOR CKS3382
CN103 (A,230,17) 11P CONNECTOR 52044-1145
CN104 (A,250,13) CONNECTOR CKS3384
CN105 (A,266,34) CONNECTOR CKS3372
CN107 (A,39,99) CONNECTOR POST B3B-PH
CN108 (A,41,55) CONNECTOR CKS3370
CN109 (A,230,113) 23P SOCKET XKP3055
CN111 (A,276,113) 21P SOCKET XKP3091
CN112 (A,91,41) CONNECTOR CKS3390
CN114 (A,189,113) 21P SOCKET XKP3091
CN115 (A,302,21) PIN JACK(4P) AKB7114
CN116 (A,302,49) PIN JACK(4P) AKB7114
CN117 (A,302,77) PIN JACK(4P) AKB7114
CN118 (A,302,105) PIN JACK(4P) AKB7114
CN251 (A,39,83) 3P JUMPER CONNECTOR 52147-0310
CN252 (A,37,69) 3P TOP POST B3B-EH
101 PCB BINDER VEF1040
102 PCB BINDER VEF1040
RESISTORS
R101 (B,282,19) RS1/16S331J
R102 (B,293,12) RS1/16S331J
R103 (B,283,62) RS1/16S222J
R104 (B,283,52) RS1/16S222J
R105 (B,283,47) RS1/16S331J
R106 (B,293,40) RS1/16S331J
R107 (B,283,87) RS1/16S331J
R108 (B,293,81) RS1/16S331J
R109 (B,283,73) RS1/16S331J
R110 (B,293,68) RS1/16S331J
R111 (B,283,115) RS1/16S222J
R112 (B,283,106) RS1/16S222J
R113 (B,283,101) RS1/16S331J
R114 (B,293,96) RS1/16S331J
R129 (B,283,34) RS1/16S331J
R130 (B,283,25) RS1/16S331J
R145 (A,71,73) RS1/16S102J
R146 (A,71,74) RS1/16S102J
R147 (B,233,67) RS1/16S472J
R148 (B,228,62) RS1/16S472J
R149 (A,259,45) RS1/16S104J
R154 (B,294,51) RS1/16S0R0J
R155 (B,293,58) RS1/16S0R0J
R156 (B,295,107) RS1/16S0R0J
R157 (B,293,114) RS1/16S0R0J
R180 (B,278,97) RS1/16S0R0J
R181 (B,272,78) RS1/16S0R0J
R182 (B,275,75) RS1/16S0R0J
R183 (B,276,67) RS1/16S0R0J
R201 (A,189,85) RS1/16S473J
R202 (A,189,90) RS1/16S473J
R203 (B,187,85) RS1/16S392J
R204 (B,187,91) RS1/16S392J
R205 (B,189,85) RS1/16S392J
R206 (B,189,91) RS1/16S392J
Mark No. Description Part No.
VSX-816-K 87
5678
5678
C
D
F
A
B
E
R207 (B,191,85) RS1/16S392J
R208 (B,191,91) RS1/16S392J
R209 (B,198,85) RS1/16S392J
R210 (B,198,91) RS1/16S392J
R211 (B,200,85) RS1/16S332J
R212 (B,200,91) RS1/16S332J
R213 (B,202,85) RS1/16S680J
R214 (B,202,91) RS1/16S680J
R219 (B,216,84) RS1/16S0R0J
R220 (B,215,91) RS1/16S0R0J
R221 (B,220,84) RS1/16S472J
R222 (B,219,91) RS1/16S472J
R223 (A,242,78) RS1/16S472J
R224 (A,236,78) RS1/16S472J
R225 (B,225,84) RS1/16S392J
R226 (B,225,91) RS1/16S392J
R227 (B,231,84) RS1/16S101J
R228 (B,233,89) RS1/16S101J
R231 (A,229,72) RS1/16S104J
R233 (A,231,91) RS1/16S474J
R234 (A,231,84) RS1/16S474J
R237 (A,237,88) RS1/16S122J
R238 (A,236,80) RS1/16S122J
R241 (A,190,69) RS1/16S473J
R242 (A,190,74) RS1/16S473J
R243 (B,186,69) RS1/16S332J
R244 (B,186,75) RS1/16S332J
R245 (B,188,69) RS1/16S332J
R246 (B,188,75) RS1/16S332J
R247 (B,190,69) RS1/16S332J
R248 (B,190,75) RS1/16S332J
R249 (B,197,69) RS1/16S332J
R250 (B,197,75) RS1/16S332J
R251 (B,199,69) RS1/16S182J
R252 (B,199,75) RS1/16S182J
R253 (B,202,69) RS1/16S0R0J
R254 (B,202,75) RS1/16S0R0J
R257 (B,213,69) RS1/16S101J
R258 (B,213,75) RS1/16S101J
R261 (A,189,53) RS1/16S473J
R262 (A,189,59) RS1/16S473J
R263 (B,186,53) RS1/16S332J
R264 (B,186,60) RS1/16S332J
R265 (B,188,53) RS1/16S332J
R266 (B,188,60) RS1/16S682J
R267 (B,190,53) RS1/16S332J
R268 (B,190,60) RS1/16S393J
R269 (B,197,53) RS1/16S332J
R270 (B,197,60) RS1/16S122J
R271 (B,199,53) RS1/16S182J
R272 (B,199,60) RS1/16S272J
R273 (B,202,53) RS1/16S0R0J
R274 (B,202,60) RS1/16S271J
R277 (B,214,53) RS1/16S101J
R278 (B,213,61) RS1/16S101J
R281 (A,188,44) RS1/16S473J
R282 (A,188,38) RS1/16S473J
R283 (B,186,45) RS1/16S332J
R284 (B,186,38) RS1/16S332J
R285 (B,188,45) RS1/16S332J
Mark No. Description Part No.
R286 (B,188,38) RS1/16S332J
R287 (B,191,45) RS1/16S332J
R288 (B,191,38) RS1/16S332J
R289 (B,197,45) RS1/16S332J
R290 (B,197,38) RS1/16S332J
R291 (B,200,45) RS1/16S182J
R292 (B,199,39) RS1/16S182J
R293 (B,202,45) RS1/16S0R0J
R294 (B,202,39) RS1/16S0R0J
R297 (B,214,44) RS1/16S101J
R298 (B,214,39) RS1/16S101J
R303 (B,156,37) RS1/16S101J
R304 (B,155,43) RS1/16S101J
R305 (B,160,49) RS1/16S101J
R306 (B,164,61) RS1/16S101J
R307 (B,165,68) RS1/16S101J
R308 (B,171,72) RS1/16S101J
R311 (A,258,102) METAL OXIDE RESISTOR RS1LMF101J
R312 (A,266,102) METAL OXIDE RESISTOR RS1LMF101J
R427 (A,133,93) RS1/16S104J
R431 (A,131,93) RS1/16S104J
R432 (A,127,93) RS1/16S104J
R433 (A,128,93) RS1/16S104J
R434 (A,134,93) RS1/16S104J
R435 (A,126,93) RS1/16S104J
R436 (A,130,93) RS1/16S104J
R438 (A,81,98) RS1/16S104J
R439 (A,86,96) RS1/16S104J
R440 (A,81,108) RS1/16S754J
R441 (A,79,98) RS1/16S222J
R442 (A,77,98) RS1/16S104J
R443 (A,63,104) RS1/16S471J
R445 (A,73,108) RS1/16S223J
R446 (A,74,113) RS1/16S104J
R447 (A,88,94) RS1/16S472J
R448 (A,89,104) RS1/16S104J
R449 (A,80,108) RS1/16S102J
R453 (A,146,35) RS1/16S102J
R454 (A,142,46) RS1/16S102J
R455 (A,146,38) RS1/16S272J
R456 (A,147,43) RS1/16S272J
R457 (A,140,35) RS1/16S153J
R458 (A,140,46) RS1/16S153J
R459 (B,133,38) RS1/16S103J
R460 (B,133,43) RS1/16S103J
R461 (B,145,39) RS1/16S104J
R462 (B,145,43) RS1/16S104J
R463 (A,76,102) RS1/16S223J
R464 (A,78,102) RS1/16S223J
R465 (A,74,102) RS1/16S223J
R466 (A,71,101) RS1/16S223J
R473 (A,151,53) RS1/16S102J
R474 (A,152,65) RS1/16S102J
R475 (A,157,52) RS1/16S272J
R476 (A,158,66) RS1/16S272J
R477 (A,149,52) RS1/16S153J
R478 (A,150,65) RS1/16S153J
R479 (B,142,57) RS1/16S103J
R480 (B,142,62) RS1/16S103J
R481 (B,154,58) RS1/16S104J
Mark No. Description Part No.
VSX-816-K
88
1234
1234
C
D
F
A
B
E
R482 (B,154,62) RS1/16S104J
R483 (B,144,76) RS1/16S104J
R484 (A,165,71) RS1/16S104J
R485 (A,157,80) RS1/16S472J
R488 (A,165,73) RS1/16S0R0J
R493 (A,141,71) RS1/16S102J
R494 (A,141,83) RS1/16S911J
R495 (A,147,71) RS1/16S272J
R496 (A,148,83) RS1/16S272J
R497 (A,139,69) RS1/16S153J
R498 (A,139,83) RS1/16S153J
R499 (B,133,72) RS1/16S103J
R500 (B,133,79) RS1/16S104J
R502 (B,144,80) RS1/16S204J
R504 (B,171,86) RS1/16S222J
R505 (B,170,92) RS1/16S222J
R506 (B,165,87) RS1/16S104J
R507 (B,163,92) RS1/16S104J
R508 (A,162,82) RS1/16S272J
R509 (A,162,96) RS1/16S272J
R512 (A,159,83) RS1/16S102J
R513 (A,159,96) RS1/16S102J
R514 (A,157,83) RS1/16S153J
R515 (A,157,96) RS1/16S153J
R516 (B,150,89) RS1/16S103J
R517 (B,150,96) RS1/16S103J
R5005(B,80,13) RS1/16S0R0J
R5010(A,76,24) RS1/16S473J
R5011(A,81,15) RS1/16S473J
R5012(A,82,12) RS1/16S102J
R5013(A,57,26) RS1/16S102J
R5016(B,82,13) RS1/16S0R0J
R5020(A,73,13) RS1/16S0R0J
R6001(A,132,18) RS1/16S104J
R6002(A,139,24) RS1/16S104J
R6003(A,140,18) RS1/16S104J
R6004(A,151,22) RS1/16S101J
R6007(B,128,14) RS1/16S102J
R6009(A,130,23) RS1/16S101J
R6010(A,147,23) RS1/16S182J
R9002(A,129,89) RS1/16S473J
R9005(A,91,55) RS1/16S0R0J
R9006(B,103,89) RS1/16S474J
R9007(B,93,89) RS1/16S474J
R9008(A,86,90) RS1/16S221J
R9009(A,65,85) RS1/16S473J
R9010(B,115,45) RS1/16S512J
R9011(A,63,76) RS1/16S102J
R9012(A,63,73) RS1/16S0R0J
R9013(B,112,45) RS1/16S471J
R9014(B,104,54) RS1/16S471J
R9015(B,101,54) RS1/16S471J
R9016(B,99,54) RS1/16S471J
R9017(B,97,54) RS1/16S471J
R9018(B,95,54) RS1/16S471J
R9019(B,98,76) RS1/16S471J
R9020(B,99,76) RS1/16S471J
R9021(B,101,76) RS1/16S471J
R9022(B,103,76) RS1/16S471J
R9023(B,103,68) RS1/16S472J
Mark No. Description Part No.
R9024(B,105,68) RS1/16S472J
R9025(B,101,68) RS1/16S472J
R9026(B,107,68) RS1/16S332J
R9028(B,119,45) RS1/16S104J
R9030(A,68,79) RS1/16S470J
R9031(B,69,48) RS1/16S104J
R9032(A,66,59) RS1/16S104J
R9033(B,89,48) RS1/16S104J
R9036(A,88,89) RS1/16S221J
R9037(A,124,99) RS1/16S104J
R9039(A,87,58) RS1/16S104J
R9041(B,117,45) RS1/16S104J
R9042(B,83,81) RS1/16S103J
R9043(B,81,81) RS1/16S103J
R9044(B,79,81) RS1/16S103J
R9045(A,98,46) RS1/16S471J
R9046(A,107,45) RS1/16S471J
R9047(A,99,46) RS1/16S103J
R9048(A,98,43) RS1/16S103J
R9060(B,98,68) RS1/16S473J
R9062(B,87,48) RS1/16S471J
R9064(A,54,74) RS1/16S103J
R9065(A,56,74) RS1/16S103J
R9066(A,62,72) RS1/16S103J
R9067(A,57,83) RS1/16S103J
R9068(A,64,71) RS1/16S0R0J
R9081(A,120,72) RS1/16S221J
R9082(A,122,69) RS1/16S274J
CAPACITORS
C101 (B,293,18) CCSRCH101J50
C102 (B,295,12) CCSRCH101J50
C103 (B,295,56) CCSRCH101J50
C104 (B,296,51) CCSRCH101J50
C105 (B,293,45) CCSRCH101J50
C106 (B,296,40) CCSRCH101J50
C107 (B,293,86) CCSRCH101J50
C108 (B,296,81) CCSRCH101J50
C109 (B,293,72) CCSRCH101J50
C110 (B,296,68) CCSRCH101J50
C111 (B,296,111) CCSRCH101J50
C112 (B,297,107) CCSRCH101J50
C113 (B,293,100) CCSRCH101J50
C114 (B,296,96) CCSRCH101J50
C115 (B,262,98) CKSRYB103K50
C116 (B,267,97) CKSRYB103K50
C117 (A,287,109) CCSRCH220J50
C118 (B,285,109) CCSRCH220J50
C121 (A,280,34) CEAT100M50
C122 (A,280,25) CEAT100M50
C123 (A,280,19) CEAT100M50
C124 (A,280,11) CEAT100M50
C125 (A,280,62) CEAT100M50
C126 (A,280,53) CEAT100M50
C127 (A,280,47) CEAT100M50
C128 (A,280,40) CEAT100M50
C131 (A,280,87) CEAT100M50
C132 (A,280,80) CEAT100M50
C133 (A,280,74) CEAT100M50
C134 (A,280,67) CEAT100M50
Mark No. Description Part No.
VSX-816-K 89
5678
5678
C
D
F
A
B
E
C135 (A,280,114) CEAT100M50
C136 (A,280,106) CEAT100M50
C137 (A,280,101) CEAT100M50
C138 (A,280,93) CEAT100M50
C139 (A,53,95) CEAT100M50
C140 (A,53,100) CEAT100M50
C141 (A,256,82) CKSRYB104K50
C145 (B,256,81) CCSRCH101J50
C146 (B,258,81) CCSRCH101J50
C147 (B,253,81) CKSRYB103K50
C148 (B,238,67) CKSRYB223K25
C149 (B,235,67) CKSRYB473K25
C150 (B,231,67) CKSQYB154K16
C151 (B,49,51) CKSRYB103K50
C152 (B,230,62) CKSRYB223K25
C153 (B,234,62) CKSRYB473K25
C154 (B,232,62) CKSQYB154K16
C155 (A,226,62) CEAT101M16
C156 (A,229,56) CEAT101M16
C157 (A,236,56) CEAT101M16
C158 (A,232,50) CEAT101M16
C159 (A,241,50) CEAT101M16
C160 (A,234,44) CEAT101M16
C161 (A,241,44) CEAT101M16
C162 (A,248,44) CEAT101M16
C165 (A,240,86) CEAT1R0M50
C166 (A,248,86) CEAT1R0M50
C170 (A,236,116) CEAT100M50
C171 (A,242,116) CEAT100M50
C179 (B,294,76) CKSRYB103K50
C180 (A,277,16) CKSRYB103K50
C181 (A,283,30) CCSRCH101J50
C182 (B,285,28) CCSRCH101J50
C183 (B,287,14) CCSRCH101J50
C184 (B,285,14) CCSRCH101J50
C185 (A,286,44) CCSRCH101J50
C186 (B,288,42) CCSRCH101J50
C187 (A,286,90) CCSRCH101J50
C188 (A,284,83) CCSRCH101J50
C189 (A,284,71) CCSRCH101J50
C190 (B,287,70) CCSRCH101J50
C191 (B,283,97) CCSRCH101J50
C192 (B,285,96) CCSRCH101J50
C197 (B,292,29) CCSRCH101J50
C198 (B,294,25) CCSRCH101J50
C199 (A,281,50) CKSRYB103K50
C201 (A,183,85) CEAT2R2M50
C202 (A,184,92) CEAT2R2M50
C203 (A,191,85) CCSRCH471J50
C204 (A,191,90) CCSRCH471J50
C205 (A,193,85) CCSRCH331J50
C206 (A,194,90) CCSRCH331J50
C207 (B,193,85) CCSRCH331J50
C208 (B,193,91) CCSRCH331J50
C213 (A,223,84) CEAT100M50
C214 (A,223,90) CEAT100M50
C215 (B,233,84) CKSRYB103K50
C216 (B,231,89) CKSRYB103K50
C217 (A,202,85) CKSRYB103K50
C218 (A,202,90) CKSRYB103K50
Mark No. Description Part No.
C219 (A,221,87) CKSRYB104K16
C220 (A,210,93) CKSRYB104K16
C221 (A,230,75) CKSRYB103K50
C222 (A,243,70) CKSRYB103K50
C241 (A,183,70) CEAT2R2M50
C242 (A,183,77) CEAT2R2M50
C243 (A,192,69) CCSRCH101J50
C244 (A,192,74) CCSRCH101J50
C245 (A,194,69) CCSRCH331J50
C246 (A,194,74) CCSRCH331J50
C247 (B,193,69) CCSRCH331J50
C248 (B,193,75) CCSRCH331J50
C249 (A,205,69) CEAT100M50
C250 (A,205,75) CEAT100M50
C251 (A,204,65) CKSRYB103K50
C252 (A,211,78) CKSRYB103K50
C253 (B,43,89) CKSRYB103K50
C254 (A,58,108) ELECT. CAPACITOR CEAT101M25
C255 (A,51,108) ELECT. CAPACITOR CEANP470M25
C256 (A,81,105) CKSRYB103K50
C257 (B,216,69) CKSRYB472K50
C258 (B,217,75) CKSRYB472K50
C261 (A,183,54) CEAT2R2M50
C262 (A,183,62) CEAT2R2M50
C263 (A,192,53) CCSRCH101J50
C264 (A,191,59) CKSRYB223K25
C265 (A,194,53) CCSRCH331J50
C266 (A,194,59) CKSRYB103K50
C267 (B,193,53) CCSRCH331J50
C268 (B,193,60) CKSRYB562K50
C269 (A,205,54) CEAT100M50
C270 (A,205,60) CEAT100M50
C271 (A,203,51) CKSRYB103K50
C272 (A,210,64) CKSRYB103K50
C277 (B,216,53) CKSRYB472K50
C278 (B,215,61) CKSRYB472K50
C281 (A,183,46) CEAT2R2M50
C282 (A,184,39) CEAT2R2M50
C283 (A,190,44) CCSRCH101J50
C284 (A,190,38) CCSRCH101J50
C285 (A,194,44) CCSRCH331J50
C286 (A,194,38) CCSRCH331J50
C287 (B,193,45) CCSRCH331J50
C288 (B,193,38) CCSRCH331J50
C289 (A,205,44) CEAT100M50
C290 (A,206,38) CEAT100M50
C291 (A,216,39) CKSRYB103K50
C292 (A,216,48) CKSRYB103K50
C297 (B,218,44) CKSRYB472K50
C298 (B,216,39) CKSRYB472K50
C321 (A,153,38) CEAT100M50
C322 (A,153,45) CEAT100M50
C323 (A,145,35) CCSRCH101J50
C324 (A,140,47) CCSRCH101J50
C325 (A,136,39) ELECT. CAPACITOR CEAT220M50
C326 (A,136,46) ELECT. CAPACITOR CEAT220M50
C327 (A,132,42) CKSRYB103K50
C328 (A,132,38) CKSRYB103K50
C333 (A,255,93) CEAT101M10
C334 (A,268,81) CEAT101M10
Mark No. Description Part No.
VSX-816-K
90
1234
1234
C
D
F
A
B
E
C341 (A,161,56) CEAT100M50
C342 (A,161,63) CEAT100M50
C343 (A,149,51) CCSRCH101J50
C344 (A,150,66) CCSRCH101J50
C345 (A,145,56) ELECT. CAPACITOR CEAT220M50
C346 (A,145,63) ELECT. CAPACITOR CEAT220M50
C347 (A,140,64) CKSRYB103K50
C348 (A,141,58) CKSRYB103K50
C361 (A,161,70) CEAT100M50
C362 (A,169,70) CEAT100M50
C363 (A,139,68) CCSRCH101J50
C364 (A,139,84) CKSRYB472K50
C365 (A,136,73) ELECT. CAPACITOR CEAT220M50
C366 (A,136,80) ELECT. CAPACITOR CEANP4R7M50
C367 (A,135,88) CKSRYB103K50
C368 (A,147,75) CKSRYB103K50
C370 (A,161,74) CEAT4R7M50
C384 (A,167,87) CEAT100M50
C385 (A,167,94) CEAT100M50
C386 (A,157,84) CCSRCH101J50
C387 (A,157,95) CCSRCH101J50
C388 (A,153,90) ELECT. CAPACITOR CEAT220M50
C389 (A,153,97) ELECT. CAPACITOR CEAT220M50
C390 (A,164,88) CKSRYB103K50
C392 (B,91,95) CKSRYB102K50
C393 (A,156,92) CKSRYB103K50
C1031(A,286,57) CCSRCH220J50
C1041(B,287,55) CCSRCH220J50
C5001(B,233,10) CKSRYB102K50
C5002(B,235,10) CKSRYB103K50
C5003(B,237,10) CKSRYB105K10
C5011(A,77,16) CEJQ100M50
C5013(A,54,17) CCSRCH270J50
C5014(A,54,18) CCSRCH270J50
C5015(A,59,20) CEJQ470M16
C5016(A,54,15) CKSRYB103K50
C5017(A,73,14) CCSRCH561J50
C5020(A,69,13) CKSRYB472K50
C5025(A,166,12) CKSRYB102K50
C5026(A,169,13) CKSRYB102K50
C5027(A,177,12) CKSRYB102K50
C5028(A,179,13) CCSRCH220J50
C6001(A,139,18) CKSRYB104K16
C9004(A,121,94) CKSRYB103K50
C9005(A,116,99) CEJQ2R2M50
C9006(A,122,88) CKSRYB105K10
C9007(A,79,92) ELECT. CAPACITOR CEAT331M6R3
C9008(B,77,90) CKSRYB103K50
C9011(B,95,89) CKSRYB473K16
C9014(B,87,88) CKSRYB473K16
C9015(A,100,95) CKSRYB102K50
C9018(B,72,72) CKSRYB104K50
C9081(A,120,69) CKSRYB103K50
BDSP ASSY (AWX8699)
MISCELLANEOUS
IC 401 (A,80,54) XM/DT IC F2602E-01
IC 402 (A,116,59) LOAD SWITCHING AAT4618IGV-0.5-1
IC 551 (A,82,42) IC TC74VHC157FTS1
Mark No. Description Part No.
IC 601 (A,107,36) DA I/F TRANSCEIVER AK4114VQ
IC 701 (A,75,29) CODEC IC AK4628AVQ
IC 801 (A,37,39) DSP IC DSPC56371AF180
IC 802 (A,33,24) IC TC7WU04FU
IC 851 (A,48,17) FLASH ROM IC PDC145A8
FLASH ROM IC LE25FW106M
IC 871 (B,63,43) IC TC7WH125FU
>IC 901 (B,120,16) IC NJM2391DL1-33
>IC 902 (B,94,22) REGULATOR IC LM1117DT-ADJ
IC 951 (A,58,56) IC
TC74VHCT08AFTS1
IC 952 (B,19,34) OCTAL BUS BUFFER IC
TC74VHCT244AFTS1
IC 953 (A,48,56) IC TC74VHC08FTS1
Q801 (B,34,29) TRANSISTOR RT1N241M
D401 (B,117,57) DIODE UDZS5R6(B)
D402 (B,114,54) DIODE UDZS5R6(B)
D701 (A,79,19) DIODE MA152WA
D702 (B,80,18) DIODE MA152WK
D901 (B,116,24) DIODE UDZS5R6(B)
D902 (B,102,19) DIODE UDZS5R6(B)
L401 (A,64,49) CHIP SOLID INDUCTOR QTL1013
L402 (A,112,60) CHIP SOLID INDUCTOR ATL7002
L551 (A,88,44) CHIP SOLID INDUCTOR QTL1013
L601 (B,103,48) CHIP SOLID INDUCTOR QTL1013
L602 (A,98,36) CHIP SOLID INDUCTOR QTL1013
L605 (A,117,29) CHIP SOLID INDUCTOR QTL1013
L701 (B,66,30) CHIP SOLID INDUCTOR QTL1013
L702 (A,94,24) CHIP SOLID INDUCTOR QTL1013
L801 (A,35,25) CHIP SOLID INDUCTOR QTL1013
L802 (A,44,29) CHIP SOLID INDUCTOR ATL7002
L803 (A,53,38) CHIP SOLID INDUCTOR ATL7002
L804 (B,30,34) CHIP SOLID INDUCTOR QTL1013
L851 (A,45,23) CHIP SOLID INDUCTOR QTL1013
L871 (B,67,45) CHIP SOLID INDUCTOR QTL1013
L901 (B,105,19) CHIP SOLID INDUCTOR ATL7002
L902 (B,100,19) CHIP SOLID INDUCTOR ATL7002
L951 (A,53,54) CHIP SOLID INDUCTOR QTL1013
L952 (B,24,43) CHIP SOLID INDUCTOR QTL1013
L953 (A,64,53) CHIP SOLID INDUCTOR QTL1013
JA 501 (A,140,22) PIN JACK(2P) AKB7173
X401 (A,68,57) CRYSTAL RESONATOR ASS7065
(145.1584MHz)
X601 (A,106,25) CRYSTAL RESONATOR ASS7046
(12.288MHz)
X801 (A,25,22) CRYSTAL RESONATOR VSS1171
(20 MHz)
CN401 (A,141,41) 4P SOCKET AKP7201
CN601 (A,100,49) 10P CONNECTOR VKN1414
CN701 (A,81,14) 19P SOCKET XKP3080
CN901 (A,114,14) 13P SOCKET XKP3077
CN951 (A,43,14) 15P SOCKET XKP3078
CN952 (A,25,59) 12P CONNECTOR VKN1416
RESISTORS
R404 (B,110,58) RS1/16S101J
R405 (B,104,57) RS1/16S102J
R406 (B,110,54) RS1/16S101J
R407 (B,108,57) RS1/16S102J
R410 (A,72,58) RS1/16S471J
R411 (A,72,56) RS1/16S105J
R414 (B,83,49) RS1/16S104J
R415 (B,86,48) RS1/16S104J
Mark No. Description Part No.
VSX-816-K 91
5678
5678
C
D
F
A
B
E
R416 (B,89,48) RS1/16S101J
R417 (B,98,58) RS1/16S104J
R418 (A,89,50) RAB4C101J
R419 (B,100,58) RS1/16S104J
R420 (B,96,58) RS1/16S104J
R421 (A,89,58) RS1/16S104J
R423 (A,87,58) RS1/16S101J
R424 (B,90,58) RS1/16S101J
R425 (B,94,58) RS1/16S101J
R426 (B,69,48) RS1/16S101J
R427 (B,71,48) RS1/16S101J
R428 (B,73,48) RS1/16S101J
R429 (A,80,46) RS1/16S101J
R430 (A,107,58) RS1/16S103J
R431 (A,102,58) RS1/16S0R0J
R501 (B,129,16) RS1/16S750J
R502 (B,132,30) RS1/16S750J
R514 (B,127,16) RS1/16S0R0J
R515 (B,130,26) RS1/16S0R0J
R516 (B,123,28) RS1/16S100J
R517 (B,128,30) RS1/16S100J
R562 (A,88,39) RS1/16S470J
R563 (B,85,44) RS1/16S101J
R564 (A,88,41) RS1/16S470J
R565 (B,88,40) RS1/16S101J
R566 (A,88,42) RS1/16S101J
R567 (A,74,44) RS1/16S101J
R568 (A,75,43) RS1/16S101J
R569 (A,75,42) RS1/16S470J
R570 (A,75,41) RS1/16S101J
R571 (A,75,39) RS1/16S470J
R604 (B,111,49) RS1/16S104J
R605 (B,109,49) RS1/16S104J
R606 (B,107,49) RS1/16S104J
R609 (A,99,43) RS1/16S0R0J
R610 (B,101,48) RS1/16S0R0J
R613 (A,99,38) RS1/16S101J
R614 (A,97,44) RS1/16S101J
R615 (A,99,33) RS1/16S470J
R616 (A,99,32) RS1/16S101J
R617 (A,99,30) RS1/16S101J
R618 (A,99,29) RS1/16S101J
R620 (A,99,28) RS1/16S470J
R622 (A,111,28) RS1/16S0R0J
R623 (A,114,28) RS1/16S0R0J
R624 (A,114,29) RS1/16S101J
R625 (A,114,31) RS1/16S101J
R626 (A,114,32) RS1/16S101J
R627 (A,113,27) RS1/16S103J
R628 (A,115,38) RS1/16S1802F
R701 (B,76,35) RS1/16S470J
R702 (B,72,35) RS1/16S101J
R703 (B,62,26) RS1/16S0R0J
R704 (B,68,27) RS1/16S4R7J
R705 (A,58,18) RS1/16S101J
R706 (A,61,18) RS1/16S101J
R707 (A,63,18) RS1/16S101J
R708 (A,66,18) RS1/16S101J
R709 (A,68,18) RS1/16S101J
R710 (A,71,18) RS1/16S101J
Mark No. Description Part No.
R711 (A,73,18) RS1/16S101J
R712 (A,76,18) RS1/16S101J
R713 (A,84,30) RS1/16S470J
R714 (A,84,35) RS1/16S101J
R715 (A,85,36) RS1/16S101J
R716 (A,82,37) RS1/16S101J
R801 (A,49,49) RS1/16S470J
R802 (A,40,50) RAB4C101J
R803 (B,44,48) RS1/16S103J
R804 (B,42,48) RS1/16S103J
R805 (B,40,48) RS1/16S103J
R806 (B,38,48) RS1/16S103J
R807 (B,37,42) RS1/16S473J
R810 (A,26,38) RS1/16S473J
R811 (B,28,46) RS1/16S472J
R812 (B,28,43) RS1/16S101J
R813 (A,22,37) RS1/16S103J
R815 (A,26,26) RS1/16S105J
R816 (A,24,26) RS1/16S471J
R817 (A,35,28) RS1/16S101J
R819 (B,26,29) RS1/16S101J
R821 (B,31,29) RS1/16S0R0J
R822 (B,38,30) RS1/16S103J
R823 (B,37,36) RS1/16S473J
R827 (B,47,38) RS1/16S470J
R828 (B,42,24) RS1/16S470J
R829 (B,45,32) RS1/16S470J
R830 (B,47,32) RS1/16S470J
R832 (A,48,41) RS1/16S470J
R833 (A,50,45) RS1/16S470J
R834 (A,54,46) RS1/16S470J
R835 (A,50,47) RS1/16S470J
R836 (A,54,48) RS1/16S470J
R840 (A,17,37) RS1/16S101J
R841 (A,65,38) RS1/16S473J
R851 (A,45,26) RS1/16S470J
R852 (B,44,24) RS1/16S222J
R855 (B,44,20) RS1/16S103J
R856 (A,52,19) RS1/16S103J
R857 (B,46,24) RS1/16S103J
R871 (B,57,36) RS1/16S470J
R872 (B,59,36) RS1/16S470J
R873 (B,59,44) RS1/16S470J
R874 (B,57,44) RS1/16S470J
R905 (B,111,19) RS1/16S104J
R908 (A,121,13) RS1/16S0R0J
R915 (B,89,26) RS1/16S102J
R951 (A,24,32) RS1/16S101J
R952 (A,23,32) RS1/16S101J
R953 (A,20,37) RS1/16S101J
R954 (B,19,16) RS1/16S101J
R955 (B,17,16) RS1/16S101J
R956 (A,15,31) RS1/16S101J
R957 (A,17,31) RS1/16S101J
R958 (A,18,31) RS1/16S101J
R959 (A,19,31) RS1/16S101J
R960 (A,21,31) RS1/16S101J
R961 (A,21,34) RS1/16S101J
R962 (A,27,18) RS1/16S104J
R963 (A,29,52) RS1/16S104J
Mark No. Description Part No.
VSX-816-K
92
1234
1234
C
D
F
A
B
E
R964 (A,26,52) RESISTOR ARRAY RAB4C104J
R965 (B,34,56) RS1/16S104J
R966 (A,53,61) RS1/16S331J
R967 (A,28,18) RS1/16S104J
R968 (A,30,18) RS1/16S104J
R969 (A,31,18) RS1/16S104J
R970 (A,34,18) RESISTOR ARRAY RAB4C104J
R971 (A,59,61) RS1/16S331J
R972 (A,56,61) RS1/16S331J
R973 (A,53,59) RS1/16S331J
R977 (B,46,57) RS1/16S101J
R978 (B,50,57) RS1/16S101J
R979 (B,46,53) RS1/16S101J
R980 (B,53,57) RS1/16S101J
CAPACITORS
C401 (A,69,49) CEVW470M6R3
C402 (A,81,60) CKSRYB104K16
C403 (A,81,61) CCSRCH471J50
C404 (B,106,57) CKSRYB104K16
C405 (B,112,58) CKSRYB104K16
C406 (B,112,54) CKSRYB104K16
C407 (A,121,54) CEVW101M16
C408 (A,120,58) CKSRYB104K16
C409 (A,71,58) CCSRCH100D50
C410 (A,71,56) CCSRCH100D50
C413 (A,115,56) CKSQYB105K16
C503 (B,125,16) CKSRYB103K50
C504 (B,130,30) CKSRYB103K50
C551 (A,85,47) CKSRYB104K16
C552 (A,85,45) CCSRCH471J50
C605 (A,99,41) CCSRCH471J50
C606 (A,100,41) CKSRYB104K16
C607 (A,94,39) CEVW470M6R3
C608 (A,99,36) CCSRCH471J50
C609 (A,100,36) CKSRYB104K16
C612 (A,103,28) CCSRCH120J50
C613 (A,107,28) CCSRCH120J50
C614 (B,111,28) CKSRYB104K16
C617 (B,113,28) CKSRYB102K50
C618 (A,121,31) CEVW470M6R3
C619 (A,116,35) CKSRYB104K16
C620 (A,114,35) CCSRCH471J50
C621 (A,114,38) CKSRYB474K10
C701 (A,65,32) CKSRYB103K50
C702 (A,66,32) CCSRCH471J50
C703 (A,62,23) CEVW101M16
C704 (A,65,29) CKSRYB104K16
C705 (A,66,29) CCSRCH101J50
C706 (B,64,26) CKSRYB104K16
C707 (B,58,19) CCSRCH471J50
C708 (B,61,19) CCSRCH471J50
C709 (B,63,19) CCSRCH471J50
C710 (B,66,19) CCSRCH471J50
C711 (B,68,19) CCSRCH471J50
C712 (B,71,19) CCSRCH471J50
C713 (B,73,19) CCSRCH471J50
C714 (B,76,19) CCSRCH471J50
C715 (A,88,29) CEVW101M16
C716 (A,84,27) CKSRYB104K16
Mark No. Description Part No.
C717 (A,83,27) CCSRCH471J50
C718 (A,85,20) CEVW470M6R3
C720 (A,83,24) CKSRYB104K16
C763 (B,52,30) CCSRCH471J50
C764 (B,54,30) CKSRYB104K16
C801 (A,44,49) CCSRCH471J50
C802 (A,44,50) CKSRYB104K16
C803 (A,37,49) CCSRCH471J50
C804 (A,37,50) CKSRYB104K16
C805 (A,32,49) CCSRCH471J50
C806 (A,32,50) CKSRYB104K16
C807 (A,27,44) CCSRCH471J50
C808 (A,26,44) CKSRYB104K16
C809 (A,27,41) CCSRCH471J50
C810 (A,26,41) CKSRYB104K16
C814 (A,27,33) CCSRCH471J50
C815 (A,26,33) CKSRYB104K16
C816 (A,21,26) CCSRCH8R0D50
C817 (A,29,26) CCSRCH8R0D50
C818 (A,35,22) CCSRCH471J50
C819 (A,37,22) CKSRYB104K16
C821 (A,30,30) CCSRCH471J50
C822 (A,30,28) CKSRYB104K16
C823 (A,32,30) CCSRCH471J50
C824 (A,32,28) CKSRYB104K16
C825 (B,33,39) CKSRYB103K50
C826 (A,38,30) CCSRCH471J50
C827 (A,38,29) CKSRYB104K16
C828 (A,48,35) CCSRCH471J50
C829 (A,49,35) CKSRYB104K16
C830 (A,48,38) CCSRCH471J50
C831 (A,49,38) CKSRYB104K16
C832 (A,48,43) CCSRCH471J50
C833 (A,49,43) CKSRYB104K16
C834 (A,41,23) CEVW101M16
C835 (A,55,42) CHIP ELECT.CAPACITOR CEVW101M4
C851 (A,45,18) CCSRCH471J50
C852 (A,43,18) CKSRYB104K16
C871 (B,66,41) CCSRCH471J50
C872 (B,68,41) CKSRYB104K16
C907 (B,114,24) CKSRYB104K16
C908 (A,121,23) CEVW101M16
C909 (A,96,20) CHIP ELECT.CAPACITOR CEVW101M4
C916 (B,67,34) CCSRCH471J50
C917 (B,69,34) CKSRYB103K50
C918 (B,79,36) CKSRYB104K16
C919 (B,80,36) CCSRCH471J50
C951 (A,52,56) CCSRCH471J50
C952 (A,54,56) CKSRYB105K6R3
C954 (B,24,34) CCSRCH471J50
C955 (B,26,34) CKSQYB105K16
C956 (A,64,56) CKSQYB105K16
C957 (A,62,56) CCSRCH471J50
BDSP ASSY (AWX8572)
MISCELLANEOUS
IC 501 (B,118,52) IC TC74HCU04AF
IC 601 (A,107,50) DA I/F TRANSCEIVER AK4114VQ
Mark No. Description Part No.
VSX-816-K 93
5678
5678
C
D
F
A
B
E
IC 701 (A,75,43) CODEC IC AK4628AVQ
IC 801 (A,42,53) DSP IC DSPC56371AF180
IC 802 (A,44,38) IC TC7WU04FU
IC 851 (A,55,39) FLASH ROM IC PDC145A8
FLASH ROM IC LE25FW106M
IC 871 (B,63,53) IC TC7WH125FU
>IC 901 (B,120,30) IC NJM2391DL1-33
>IC 902 (B,94,36) REGULATOR IC LM1117DT-ADJ
IC 952 (B,19,48) OCTAL BUS BUFFER IC
TC74VHCT244AFTS1
Q801 (B,39,43) TRANSISTOR UN5212
D701 (A,79,33) DIODE DAP202K
D702 (B,80,32) DIODE DAN202K
D901 (B,116,38) DIODE UDZS5R6(B)
D902 (B,102,33) DIODE UDZS5R6(B)
L501 (B,127,29) CHIP SOLID INDUCTOR QTL1013
L502 (B,130,40) CHIP SOLID INDUCTOR QTL1013
L503 (A,122,62) CHIP SOLID INDUCTOR QTL1013
L601 (B,103,62) CHIP SOLID INDUCTOR QTL1013
L602 (A,98,49) CHIP SOLID INDUCTOR QTL1013
L605 (A,117,43) CHIP SOLID INDUCTOR QTL1013
L701 (B,66,43) CHIP SOLID INDUCTOR QTL1013
L702 (A,94,38) CHIP SOLID INDUCTOR QTL1013
L801 (A,47,38) CHIP SOLID INDUCTOR QTL1013
L802 (A,50,42) CHIP SOLID INDUCTOR ATL7002
L803 (A,58,52) CHIP SOLID INDUCTOR ATL7002
L804 (B,35,48) CHIP SOLID INDUCTOR QTL1013
L851 (A,51,42) CHIP SOLID INDUCTOR QTL1013
L871 (B,68,56) CHIP SOLID INDUCTOR QTL1013
L901 (B,105,32) CHIP SOLID INDUCTOR ATL7002
L902 (B,100,33) CHIP SOLID INDUCTOR ATL7002
L952 (B,25,56) CHIP SOLID INDUCTOR QTL1013
JA 501 (A,140,35) JACK AKB7131
X601 (A,106,39) CRYSTAL RESONATOR ASS7046
(12.288MHz)
X801 (A,36,36) CRYSTAL RESONATOR VSS1171
(20 MHz)
CN601 (A,100,63) 10P CONNECTOR VKN1414
CN701 (A,81,28) 19P SOCKET XKP3080
CN902 (A,114,28) 13P SOCKET XKP3077
CN952 (A,43,28) 15P SOCKET XKP3078
RESISTORS
R501 (B,129,29) RS1/16S750J
R502 (B,127,42) RS1/16S750J
R503 (B,123,42) RS1/16S473J
R504 (A,117,62) RS1/16S473J
R505 (A,115,62) RS1/16S0R0J
R506 (B,123,38) RS1/16S222J
R507 (A,118,62) RS1/16S222J
R508 (B,121,42) RS1/16S101J
R509 (B,117,62) RS1/16S101J
R512 (B,121,62) RS1/16S101J
R513 (B,123,62) RS1/16S101J
R551 (B,63,60) RS1/16S104J
R552 (B,65,60) RS1/16S104J
R553 (B,67,60) RS1/16S104J
R554 (B,69,60) RS1/16S104J
R555 (B,71,60) RS1/16S104J
R556 (B,75,60) RS1/16S104J
R557 (B,77,60) RS1/16S104J
R558 (B,79,60) RS1/16S104J
Mark No. Description Part No.
R559 (B,81,62) RS1/16S104J
R560 (B,83,62) RS1/16S104J
R561 (B,85,62) RS1/16S104J
R572 (A,90,54) RS1/16S0R0J
R573 (B,90,54) RS1/16S0R0J
R574 (B,76,56) RS1/16S0R0J
R575 (B,74,56) RS1/16S0R0J
R577 (B,93,61) RS1/16S104J
R579 (A,96,58) RS1/16S0R0J
R601 (A,110,57) RS1/16S0R0J
R602 (A,109,57) RS1/16S0R0J
R603 (A,107,57) RS1/16S0R0J
R604 (B,111,63) RS1/16S104J
R605 (B,109,63) RS1/16S104J
R606 (B,107,63) RS1/16S104J
R607 (A,106,57) RS1/16S0R0J
R609 (A,99,57) RS1/16S0R0J
R610 (B,101,62) RS1/16S0R0J
R612 (A,96,47) RS1/16S0R0J
R613 (A,99,52) RS1/16S101J
R614 (A,97,58) RS1/16S101J
R615 (A,99,47) RS1/16S470J
R616 (A,99,46) RS1/16S101J
R617 (A,99,44) RS1/16S101J
R618 (A,99,43) RS1/16S101J
R620 (A,99,41) RS1/16S470J
R622 (A,111,42) RS1/16S0R0J
R623 (A,114,42) RS1/16S0R0J
R624 (A,114,43) RS1/16S101J
R625 (A,114,44) RS1/16S101J
R626 (A,114,46) RS1/16S101J
R627 (A,113,40) RS1/16S103J
R628 (A,115,51) RS1/16S1802F
R629 (A,115,53) RS1/16S0R0J
R630 (A,115,57) RS1/16S0R0J
R701 (B,76,49) RS1/16S470J
R702 (B,72,49) RS1/16S101J
R703 (B,62,40) RS1/16S0R0J
R704 (B,68,41) RS1/16S4R7J
R705 (A,58,32) RS1/16S101J
R706 (A,61,32) RS1/16S101J
R707 (A,63,32) RS1/16S101J
R708 (A,66,32) RS1/16S101J
R709 (A,68,32) RS1/16S101J
R710 (A,71,32) RS1/16S101J
R711 (A,73,32) RS1/16S101J
R712 (A,76,32) RS1/16S101J
R713 (A,84,44) RS1/16S470J
R714 (A,84,49) RS1/16S101J
R715 (A,85,50) RS1/16S101J
R716 (A,82,51) RS1/16S101J
R801 (A,54,63) RS1/16S470J
R802 (A,45,64) RAB4C101J
R803 (B,50,62) RS1/16S103J
R804 (B,48,62) RS1/16S103J
R805 (B,46,62) RS1/16S103J
R806 (B,44,62) RS1/16S103J
R807 (B,42,56) RS1/16S473J
R808 (B,35,56) RS1/16S472J
R809 (B,40,56) RS1/16S472J
Mark No. Description Part No.
VSX-816-K
94
1234
1234
C
D
F
A
B
E
R810 (A,31,52) RS1/16S473J
R811 (B,30,51) RS1/16S472J
R812 (B,32,51) RS1/16S101J
R813 (A,27,49) RS1/16S103J
R815 (A,38,40) RS1/16S105J
R816 (A,35,40) RS1/16S471J
R817 (A,44,42) RS1/16S101J
R819 (B,38,49) RS1/16S101J
R821 (B,37,43) RS1/16S0R0J
R822 (B,42,44) RS1/16S103J
R823 (B,43,50) RS1/16S473J
R827 (B,51,51) RS1/16S470J
R828 (A,54,44) RS1/16S470J
R829 (A,56,48) RS1/16S470J
R830 (A,57,48) RS1/16S470J
R832 (A,53,54) RS1/16S470J
R833 (A,57,57) RS1/16S470J
R834 (A,57,58) RS1/16S470J
R835 (A,57,60) RS1/16S470J
R836 (A,57,61) RS1/16S470J
R840 (A,23,49) RS1/16S101J
R841 (A,63,46) RS1/16S473J
R851 (A,53,45) RS1/16S470J
R852 (B,53,45) RS1/16S222J
R853 (A,56,34) RS1/16S0R0J
R855 (B,53,41) RS1/16S103J
R856 (A,57,45) RS1/16S103J
R857 (B,55,44) RS1/16S103J
R871 (B,58,48) RS1/16S470J
R872 (B,60,48) RS1/16S470J
R873 (B,60,56) RS1/16S470J
R874 (B,58,56) RS1/16S470J
R904 (B,113,31) RS1/16S104J
R905 (B,111,33) RS1/16S104J
R906 (B,107,31) RS1/16S104J
R908 (A,121,27) RS1/16S0R0J
R913 (A,85,30) RS1/16S0R0J
R915 (B,89,37) RS1/16S102J
R951 (A,26,49) RS1/16S101J
R952 (A,25,49) RS1/16S101J
R953 (A,22,49) RS1/16S101J
R954 (B,22,39) RS1/16S331J
R955 (B,20,39) RS1/16S331J
R956 (B,18,39) RS1/16S331J
R957 (B,16,39) RS1/16S331J
R958 (A,17,44) RS1/16S331J
R959 (A,18,44) RS1/16S331J
R960 (A,19,45) RS1/16S331J
R961 (A,21,45) RS1/16S331J
R962 (A,20,31) RESISTOR ARRAY RAB4C104J
R967 (A,29,32) RS1/16S104J
R968 (A,31,32) RS1/16S104J
R969 (A,33,32) RS1/16S104J
R970 (A,37,32) RESISTOR ARRAY RAB4C104J
R974 (A,42,32) RS1/16S0R0J
R975 (A,15,52) RS1/16S101J
R976 (A,16,52) RS1/16S101J
R983 (B,15,32) RS1/16S0R0J
Mark No. Description Part No.
CAPACITORS
C503 (B,125,29) CKSRYB103K50
C504 (B,125,42) CKSRYB103K50
C505 (B,125,38) CCSRCH470J50
C506 (A,121,62) CCSRCH470J50
C511 (B,125,52) CCSRCH471J50
C512 (B,127,52) CKSRYB105K6R3
C513 (A,121,56) CEVW101M16
C605 (A,99,55) CCSRCH471J50
C606 (A,100,55) CKSRYB104K16
C607 (A,94,53) CEVW470M6R3
C608 (A,99,49) CCSRCH471J50
C609 (A,100,49) CKSRYB104K16
C612 (A,103,42) CCSRCH120J50
C613 (A,107,42) CCSRCH120J50
C614 (B,111,41) CKSRYB104K16
C617 (B,117,42) CKSRYB102K50
C618 (A,121,45) CEVW470M6R3
C619 (A,116,48) CKSRYB104K16
C620 (A,114,48) CCSRCH471J50
C621 (A,114,51) CKSRYB474K10
C701 (A,65,47) CKSRYB103K50
C702 (A,66,47) CCSRCH471J50
C703 (A,62,38) CEVW101M16
C704 (A,65,44) CKSRYB104K16
C705 (A,66,44) CCSRCH101J50
C706 (B,64,40) CKSRYB104K16
C707 (B,58,33) CCSRCH471J50
C708 (B,61,33) CCSRCH471J50
C709 (B,63,33) CCSRCH471J50
C710 (B,66,33) CCSRCH471J50
C711 (B,68,33) CCSRCH471J50
C712 (B,71,33) CCSRCH471J50
C713 (B,73,33) CCSRCH471J50
C714 (B,76,33) CCSRCH471J50
C715 (A,88,42) CEVW101M16
C716 (A,84,41) CKSRYB104K16
C717 (A,83,41) CCSRCH471J50
C718 (A,85,33) CEVW470M6R3
C720 (A,83,38) CKSRYB104K16
C801 (A,49,63) CCSRCH471J50
C802 (A,49,64) CKSRYB104K16
C803 (A,42,63) CCSRCH471J50
C804 (A,42,64) CKSRYB104K16
C805 (A,37,63) CCSRCH471J50
C806 (A,37,64) CKSRYB104K16
C807 (A,32,58) CCSRCH471J50
C808 (A,31,58) CKSRYB104K16
C809 (A,32,55) CCSRCH471J50
C810 (A,31,55) CKSRYB104K16
C814 (A,32,47) CCSRCH471J50
C815 (A,31,47) CKSRYB104K16
C816 (A,32,40) CCSRCH8R0D50
C817 (A,41,40) CCSRCH8R0D50
C818 (A,46,34) CCSRCH471J50
C819 (A,46,33) CKSRYB104K16
C820 (A,46,31) CKSRYB103K50
C821 (A,35,43) CCSRCH471J50
C822 (A,35,42) CKSRYB104K16
C823 (A,37,43) CCSRCH471J50
Mark No. Description Part No.
VSX-816-K 95
5678
5678
C
D
F
A
B
E
C824 (A,37,42) CKSRYB104K16
C825 (B,38,52) CKSRYB103K50
C826 (A,44,44) CCSRCH471J50
C827 (A,41,44) CKSRYB104K16
C828 (A,53,48) CCSRCH471J50
C829 (A,54,48) CKSRYB104K16
C830 (A,53,52) CCSRCH471J50
C831 (A,54,52) CKSRYB104K16
C832 (A,53,57) CCSRCH471J50
C833 (A,54,57) CKSRYB104K16
C834 (A,52,28) CEVW101M16
C835 (A,63,52) CEVW101M16
C851 (A,51,38) CCSRCH471J50
C852 (A,50,38) CKSRYB104K16
C871 (B,66,52) CCSRCH471J50
C872 (B,68,52) CKSRYB104K16
C907 (B,114,38) CKSRYB104K16
C908 (A,121,37) CEVW101M16
C909 (A,96,34) CEVW101M16
C916 (B,67,47) CCSRCH471J50
C917 (B,69,47) CKSRYB103K50
C918 (B,79,49) CKSRYB104K16
C919 (B,80,49) CCSRCH471J50
C954 (B,26,52) CCSRCH471J50
C955 (B,28,52) CKSRYB104K16
C956 (A,24,54) CEVW100M16
CPOWER PACK ASSY (XWZ4087)
MISCELLANEOUS
>IC 601 (A,265,14) POWER PACK 2CH STK412-230C
>IC 602 (A,199,14) POWER PACK 2CH STK412-230C
>IC 603 (A,132,14) POWER PACK 3CH STK413-230C
>IC 610 (A,59,28) PROTECTOR(1A) AEK7009
>IC 803 (A,238,87) IC TA7805S
>IC 804 (A,282,111) REGULATOR IC TA7809S
>IC 805 (B,271,135) IC BA178M05FP
Q501 (B,85,42) CHIP TRANSISTOR 2SD2704K
Q505 (A,111,47) TRANSISTOR 2SC2240
Q601 (B,93,47) CHIP TRANSISTOR 2SD2704K
Q602 (B,227,45) CHIP TRANSISTOR 2SD2704K
Q605 (A,118,40) TRANSISTOR 2SC2240
Q606 (A,252,40) TRANSISTOR 2SC2240
Q631 (B,153,42) CHIP TRANSISTOR 2SD2704K
Q633 (A,178,47) TRANSISTOR 2SC2240
Q651 (B,161,45) CHIP TRANSISTOR 2SD2704K
Q652 (B,219,42) CHIP TRANSISTOR 2SD2704K
Q655 (A,186,40) TRANSISTOR 2SC2240
Q656 (A,244,47) TRANSISTOR 2SC2240
Q681 (B,72,63) CHIP TRANSISTOR 2SD2704K
Q683 (A,59,65) TRANSISTOR 2SC2240
Q696 (B,284,22) TRANSISTOR 2SC4081
Q697 (B,282,26) TRANSISTOR 2SC4081
Q698 (B,246,67) TRANSISTOR RT1N241M
>Q701 (A,110,75) TRANSISTOR 2SC5511
>Q702 (A,96,86) TRANSISTOR 2SA2005
Q703 (A,155,76) TRANSISTOR 2SA1145
Q704 (A,166,79) TRANSISTOR 2SC2240
Q705 (B,245,74) CHIP TRANSISTOR RN4903
Q707 (B,241,74) CHIP TRANSISTOR RN4903
Mark No. Description Part No.
Q721 (A,142,71) TRANSISTOR 2SA1145
Q722 (A,161,74) TRANSISTOR 2SC2240
Q801 (B,277,141) DIGITAL TR(SC-70) RT1P241M
Q802 (B,274,145) TRANSISTOR RT1N241M
Q803 (B,265,140) DIGITAL TR(SC-70) RT1P241M
Q804 (B,268,145) TRANSISTOR RT1N241M
Q805 (B,277,146) DIGITAL TR(SC-70) RT1P241M
Q806 (B,271,145) TRANSISTOR RT1N241M
Q807 (B,276,53) CHIP TR(2*PNP) RN2903
Q808 (B,283,56) CHIP TRANSISTOR RN1903
Q809 (A,266,101) TRANSISTOR 2SD1858X
D601 (A,125,57) DIODE 1SS133
D602 (A,267,17) ZENER DIODE MTZJ15A
D603 (A,119,57) DIODE 1SS133
D604 (A,261,21) ZENER DIODE MTZJ15A
D606 (A,259,57) DIODE 1SS133
D608 (A,253,52) DIODE 1SS133
D631 (A,192,61) DIODE 1SS133
D632 (A,176,52) DIODE 1SS133
D647 (A,200,17) ZENER DIODE MTZJ15A
D648 (A,196,21) ZENER DIODE MTZJ15A
D651 (A,192,57) DIODE 1SS133
D652 (A,262,57) DIODE 1SS133
D653 (A,186,52) DIODE 1SS133
D654 (A,242,52) DIODE 1SS133
D681 (A,132,17) ZENER DIODE MTZJ15A
D682 (A,129,22) ZENER DIODE MTZJ15A
D683 (A,135,58) DIODE 1SS133
D684 (A,65,72) DIODE 1SS133
>D701 (A,9,88) DIODE D5SBA20(B)
>D702 (A,9,126) DIODE D5SBA20(B)
D703 (B,252,76) DIODE 1SS355
D711 (A,196,103) ZENER DIODE MTZJ22D
D712 (A,192,103) DIODE MTZJ6R8(B)
D713 (A,120,78) DIODE 1SS133
D752 (B,170,135) DIODE 1SS355
D754 (B,141,132) DIODE 1SS355
D758 (B,73,136) DIODE 1SS355
D777 (A,127,57) DIODE 1SS133
D778 (A,108,57) DIODE 1SS133
>D801 (B,221,113) BRIDGE DIODE S1WB(A)60SD
D805 (A,276,131) DIODE 1SS133
D806 (A,287,62) DIODE MTZJ6R2(B)
D807 (A,284,67) DIODE 1SS133
D827 (A,262,133) DIODE MTZJ6R2(B)
D828 (A,239,98) DIODE MTZJ6R2(B)
>D829 (A,239,128) DIODE D3SBA20(B)
L501 (A,97,118) COIL ATH1004
L751 (A,160,108) COIL ATH1004
L752 (A,173,108) COIL ATH1004
L753 (A,120,107) COIL ATH1004
L754 (A,78,118) COIL ATH1004
L761 (A,130,108) COIL ATH1004
L762 (A,142,108) COIL ATH1004
J43 JUMPER WIRE 11P D20PYY1120E
KN601 (A,65,23) WRAPPING TERMINAL VNF1084
RY501 (A,75,132) RELAY XSR3012
RY751 (A,173,130) RELAY XSR3012
RY752 (A,141,126) RELAY XSR3012
RY753 (A,117,120) RELAY XSR3012
Mark No. Description Part No.
VSX-816-K
96
1234
1234
C
D
F
A
B
E
CN604 (A,87,134) CONNECTOR CKS3373
CN701 (A,212,134)
11PJUMPER CONNECTOR
52147-1110
CN702 (A,201,106)
6P JUMPER CONNECTOR
52147-0610
CN705 (A,295,40) 21P PLUG XKM3011
CN751 SP TERMINAL 8-P(V0) XKE3039
CN752 SP TERMINAL 6-P(V0) XKE3040
CN803 (A,231,129) 6P PLUG KM200TA6
CN805 (A,317,153) 13P PLUG XKP3066
CN806 19P PLUG XKP3069
CN807 (A,317,82) 15P PLUG XKP3067
CN815 (A,295,79) 19P PLUG XKM3005
CN816 (A,295,126) 21P PLUG XKM3011
CN817 (A,308,38) CONNECTOR CKS3382
810 (A,277,90) 11P CABLE HOLDER 51048-1100
RESISTORS
R601 (A,96,56) RD1/4PU222J
R602 (A,230,52) RD1/4PU222J
R603 (B,93,52) RS1/16S103J
R604 (B,226,49) RS1/16S103J
R609 (A,91,35) RD1/4PU273J
R610 (A,225,35) RD1/4PU273J
R611 (A,90,28) RD1/4PU821J
R612 (A,223,28) RD1/4PU821J
R613 (A,114,21) RD1/4PU273J
R614 (A,247,21) RD1/4PU273J
R615 (A,123,36) RD1/4PU331J
R616 (A,270,29) RD1/4PU562J
>R617 (A,114,31) RESISTOR (0.22, 5W) ACN7094
R618 (A,266,28) RD1/4PU562J
R619 (A,122,52) RD1/4PU182J
R620 (A,257,36) RD1/4PU331J
R621 (A,124,49) RD1/4PU821J
>R622 (A,248,31) RESISTOR (0.22, 5W) ACN7094
R623 (A,116,48) RD1/4PU223J
R624 (A,257,52) RD1/4PU182J
R626 (A,258,49) RD1/4PU821J
R628 (A,250,48) RD1/4PU223J
R630 (A,230,21) RD1/4PU333J
R631 (A,148,46) RD1/4PU222J
R632 (B,152,47) RS1/16S103J
R635 (A,153,29) RD1/4PU273J
R636 (A,149,25) RD1/4PU821J
R637 (A,172,21) RD1/4PU273J
R638 (A,174,36) RD1/4PU331J
>R639 (A,173,31) RESISTOR (0.22, 5W) ACN7094
R640 (A,179,57) RD1/4PU182J
R641 (A,174,52) RD1/4PU821J
R642 (A,169,39) RD1/4PU223J
R647 (A,202,27) RD1/4PU562J
R648 (A,199,27) RD1/4PU562J
R651 (A,164,56) RD1/4PU222J
R652 (A,215,41) RD1/4PU222J
R653 (B,160,50) RS1/16S103J
R654 (B,219,46) RS1/16S103J
R659 (A,159,35) RD1/4PU273J
R660 (A,220,29) RD1/4PU273J
R661 (A,156,28) RD1/4PU821J
R662 (A,216,20) RD1/4PU821J
R663 (A,181,21) RD1/4PU273J
Mark No. Description Part No.
R664 (A,238,21) RD1/4PU273J
R665 (A,190,36) RD1/4PU331J
R666 (A,240,35) RD1/4PU331J
>R667 (A,182,31) RESISTOR (0.22, 5W) ACN7094
>R668 (A,239,31) RESISTOR (0.22, 5W) ACN7094
R669 (A,189,52) RD1/4PU182J
R670 (A,245,52) RD1/4PU182J
R671 (A,192,49) RD1/4PU821J
R672 (A,240,57) RD1/4PU821J
R673 (A,184,48) RD1/4PU223J
R674 (A,236,38) RD1/4PU223J
R681 (A,66,63) RD1/4PU222J
R682 (B,76,63) RS1/16S103J
R685 (A,77,41) RD1/4PU273J
R686 (A,78,35) RD1/4PU821J
R687 (A,83,10) RD1/4PU273J
R688 (A,135,27) RD1/4PU562J
R689 (A,133,27) RD1/4PU562J
R690 (A,60,52) RD1/4PU331J
>R691 (A,55,55) RESISTOR (0.22, 5W) ACN7094
R692 (A,70,72) RD1/4PU182J
R693 (A,67,77) RD1/4PU821J
R694 (A,62,72) RD1/4PU223J
R695 (A,97,22) RD1/4PU333J
R696 (B,281,38) RS1/16S103J
R697 (B,255,68) RS1/16S103J
R698 (B,243,67) RS1/16S333J
R699 (A,165,21) RD1/4PU333J
R701 (A,117,78) RD1/4PU562J
R702 (A,101,84) RD1/4PU562J
R703 (A,151,72) RD1/4PU203J
R704 (A,147,76) RD1/4PU203J
R705 (A,283,85) RD1/4PU473J
R706 (A,283,75) RD1/4PU473J
R707 (A,135,77) RD1/4PU184J
R708 (A,147,81) RD1/4PU184J
>R709 (A,104,72) METAL OXIDE RESISTOR RS1LMF272J
>R710 (A,89,93) METAL OXIDE RESISTOR RS1LMF272J
>R711 (A,181,86) METAL OXIDE RESISTOR RS2LMF242J
R713 (A,117,81) RD1/4PU102J
R714 (B,252,68) RS1/16S102J
R715 (B,250,75) RS1/16S103J
R716 (B,247,75) RS1/16S103J
R721 (A,125,77) RD1/4PU682J
R722 (A,123,77) RD1/4PU682J
R723 (A,276,78) RD1/4PU473J
R724 (A,279,83) RD1/4PU473J
R725 (A,276,74) RD1/4PU103J
R726 (B,291,59) RS1/16S103J
R727 (B,287,59) RS1/16S103J
>R751 (A,158,119)
CARBON FILM RESISTOR
RD1/4PUF101J
>R752 (A,185,120)
CARBON FILM RESISTOR
RD1/4PUF101J
>R753 (A,156,126)
METAL OXIDE RESISTOR
RS1LMF4R7J
>R754 (A,181,126)
METAL OXIDE RESISTOR
RS1LMF4R7J
>R755 (A,103,117)
CARBON FILM RESISTOR
RD1/4PUF101J
>R756 (A,101,120)
METAL OXIDE RESISTOR
RS1LMF4R7J
>R761 (A,125,117)
CARBON FILM RESISTOR
RD1/4PUF101J
>R762 (A,155,119)
CARBON FILM RESISTOR
RD1/4PUF101J
>R763 (A,124,132)
METAL OXIDE RESISTOR
RS1LMF4R7J
>R764 (A,149,139)
METAL OXIDE RESISTOR
RS1LMF4R7J
Mark No. Description Part No.
VSX-816-K 97
5678
5678
C
D
F
A
B
E
>R771 (A,63,144) METAL OXIDE RESISTOR RS1LMF4R7J
>R772 (A,63,127) CARBON FILM RESISTOR RD1/4PUF101J
R777 (A,81,41) RD1/4PU222J
R778 (B,84,48) RS1/16S103J
R781 (A,87,30) RD1/4PU273J
R782 (A,84,22) RD1/4PU821J
R783 (A,104,21) RD1/4PU273J
R784 (A,111,35) RD1/4PU331J
>R785 (A,105,31) RESISTOR (0.22, 5W) ACN7094
R786 (A,111,57) RD1/4PU182J
R787 (A,106,57) RD1/4PU821J
R788 (A,102,38) RD1/4PU223J
R789 (A,82,127) CARBON FILM RESISTOR RD1/4PUF101J
>R790 (A,80,145) METAL OXIDE RESISTOR RS1LMF4R7J
R806 (B,283,48) RS1/16S103J
R807 (B,278,48) RS1/16S103J
R808 (B,283,52) RS1/16S102J
R809 (B,261,105) RS1/16S122J
R810 (B,264,105) RS1/16S271J
R885 (B,310,57) RS1/16S221J
R886 (B,310,61) RS1/16S221J
R887 (B,310,65) RS1/16S221J
R888 (B,315,22) RS1/16S221J
R1101(B,273,68) RS1/16S0R0J
R1102(B,274,61) RS1/16S0R0J
R1103(B,70,136) RS1/16S0R0J
R1104(B,138,132) RS1/16S0R0J
R1105(B,168,135) RS1/16S0R0J
R1106(B,146,53) RS1/16S0R0J
R1107(B,211,58) RS1/16S0R0J
R1108(B,233,58) RS1/16S0R0J
R1109(B,285,56) RS1/16S0R0J
R1110(B,241,68) RS1/16S0R0J
CAPACITORS
C517 (A,82,154) FILM CAPACITOR CQMBA104J50
C603 (B,94,39) CKSRYB331K50
C604 (B,227,38) CKSRYB331K50
C605 (A,96,38) CEAT4R7M50
C606 (A,230,38) CEAT4R7M50
C607 (B,95,20) CCSRCH470J50
C608 (B,230,17) CCSRCH470J50
C609 (A,91,32) CEAT101M16
C610 (A,225,32) CEAT101M16
C611 (B,117,22) CCSRCH470J50
C612 (B,250,24) CCSRCH470J50
C613 (B,117,27) CCSRCH470J50
C614 (B,250,28) CCSRCH470J50
C615 (A,116,45) CEANP2R2M50
C616 (A,250,45) CEANP2R2M50
C630 (A,172,44) CEANP2R2M50
C632 (B,151,33) CKSRYB331K50
C633 (A,148,33) CEAT4R7M50
C634 (B,155,17) CCSRCH470J50
C635 (A,153,25) CEAT101M16
C636 (B,175,28) CCSRCH470J50
C637 (B,175,24) CCSRCH470J50
C653 (B,161,38) CKSRYB331K50
C654 (B,217,33) CKSRYB331K50
C655 (A,164,38) CEAT4R7M50
Mark No. Description Part No.
C656 (A,215,33) CEAT4R7M50
C657 (B,165,17) CCSRCH470J50
C658 (B,221,17) CCSRCH470J50
C659 (A,158,31) CEAT101M16
C660 (A,219,25) CEAT101M16
C661 (B,184,23) CCSRCH470J50
C662 (B,241,27) CCSRCH470J50
C663 (B,184,27) CCSRCH470J50
C664 (B,241,24) CCSRCH470J50
C665 (A,184,45) CEANP2R2M50
C666 (A,239,49) CEANP2R2M50
C682 (B,74,48) CKSRYB331K50
C683 (A,74,50) CEAT4R7M50
C684 (B,82,18) CCSRCH470J50
C685 (A,78,38) CEAT101M16
C686 (B,92,9) CCSRCH470J50
C687 (B,87,8) CCSRCH470J50
C688 (A,75,78) CEANP2R2M50
C696 (B,281,35) CKSRYB102K50
C697 (A,286,34) CEAT221M6R3
C701 (A,49,80) ELECT.CAPACITOR XCH3026
C702 (A,49,107) ELECT.CAPACITOR XCH3026
C703 (A,43,130) ELECT.CAPACITOR XCH3012
C704 (A,38,150) ELECT.CAPACITOR XCH3012
C705 (A,156,81) ELECT. CAPACITOR CEAT100M2A
C706 (A,143,84) ELECT. CAPACITOR CEAT100M2A
C707 (A,17,99) MYLAR FILM CAPACITOR CQMA103K2E
C708 (A,16,137) MYLAR FILM CAPACITOR CQMA103K2E
C709 (A,257,73) CEAT1R0M50
C711 (A,195,99) ELECT. CAPACITOR CEAT101M35
C712 (A,189,105) CEAT101M10
C751 (A,159,143) FILM CAPACITOR CQMBA104J50
C752 (A,181,150) FILM CAPACITOR CQMBA104J50
C755 (A,103,147) FILM CAPACITOR CQMBA104J50
C761 (A,122,139) FILM CAPACITOR CQMBA104J50
C762 (A,152,145) FILM CAPACITOR CQMBA104J50
C771 (A,52,147) FILM CAPACITOR CQMBA104J50
C778 (B,84,34) CKSRYB331K50
C779 (A,81,33) CEAT4R7M50
C780 (B,88,18) CCSRCH470J50
C781 (A,87,27) CEAT101M16
C782 (B,107,27) CCSRCH470J50
C783 (B,107,24) CCSRCH470J50
C784 (A,105,49) CEANP2R2M50
C801 (A,248,114) ELECT. CAPACITOR CEAT222M25
C802 (A,249,100) ELECT. CAPACITOR CEAT222M25
C806 (A,288,55) CEAT1R0M50
C807 (B,226,95) CKSRYB103K25
C808 (A,245,142) ELECT. CAPACITOR CEAT472M16
C809 (A,234,95) CEAT101M10
C810 (A,266,133) CEAT101M10
C811 (B,279,128) CKSRYB103K25
C812 (B,278,109) CKSRYB103K25
C813 (A,276,118) CEAT101M16
CPOWER PACK ASSY (XWZ4088)
MISCELLANEOUS
>IC 601 (A,265,14) POWER PACK 2CH STK412-230C
Mark No. Description Part No.
VSX-816-K
98
1234
1234
C
D
F
A
B
E
>IC 602 (A,199,14) POWER PACK 2CH STK412-230C
>IC 603 (A,132,14) POWER PACK 3CH STK413-230C
>IC 610 (A,59,28) PROTECTOR(1A) AEK7009
IC 701 (A,100,75) IC PROTECTOR ICP-N10
IC 702 (A,84,81) IC PROTECTOR ICP-N10
>IC 803 (A,238,87) IC TA7805S
>IC 804 (A,282,111) REGULATOR IC TA7809S
>IC 805 (B,271,135) IC BA178M05FP
Q501 (B,85,42) CHIP TRANSISTOR 2SD2704K
Q505 (A,111,47) TRANSISTOR 2SC2240
Q601 (B,93,47) CHIP TRANSISTOR 2SD2704K
Q602 (B,227,45) CHIP TRANSISTOR 2SD2704K
Q605 (A,118,40) TRANSISTOR 2SC2240
Q606 (A,252,40) TRANSISTOR 2SC2240
Q631 (B,153,42) CHIP TRANSISTOR 2SD2704K
Q633 (A,178,47) TRANSISTOR 2SC2240
Q651 (B,161,45) CHIP TRANSISTOR 2SD2704K
Q652 (B,219,42) CHIP TRANSISTOR 2SD2704K
Q655 (A,186,40) TRANSISTOR 2SC2240
Q656 (A,244,47) TRANSISTOR 2SC2240
Q681 (B,72,63) CHIP TRANSISTOR 2SD2704K
Q683 (A,59,65) TRANSISTOR 2SC2240
Q696 (B,284,22) TRANSISTOR 2SC4081
Q697 (B,282,26) TRANSISTOR 2SC4081
Q698 (B,246,67) TRANSISTOR RT1N241M
>Q701 (A,110,75) TRANSISTOR 2SC5511
>Q702 (A,96,86) TRANSISTOR 2SA2005
Q703 (A,155,76) TRANSISTOR 2SA1145
Q704 (A,166,79) TRANSISTOR 2SC2240
Q705 (B,245,74) CHIP TRANSISTOR RN4903
Q707 (B,241,74) CHIP TRANSISTOR RN4903
Q721 (A,142,71) TRANSISTOR 2SA1145
Q722 (A,161,74) TRANSISTOR 2SC2240
Q801 (B,277,141) DIGITAL TR(SC-70) RT1P241M
Q802 (B,274,145) TRANSISTOR RT1N241M
Q803 (B,265,140) DIGITAL TR(SC-70) RT1P241M
Q804 (B,268,145) TRANSISTOR RT1N241M
Q805 (B,277,146) DIGITAL TR(SC-70) RT1P241M
Q806 (B,271,145) TRANSISTOR RT1N241M
Q807 (B,276,53) CHIP TR(2*PNP) RN2903
Q808 (B,283,56) CHIP TRANSISTOR RN1903
Q809 (A,266,101) TRANSISTOR 2SD1858X
D601 (A,125,57) DIODE 1SS133
D602 (A,267,17) ZENER DIODE MTZJ15A
D603 (A,119,57) DIODE 1SS133
D604 (A,261,21) ZENER DIODE MTZJ15A
D606 (A,259,57) DIODE 1SS133
D608 (A,253,52) DIODE 1SS133
D631 (A,192,61) DIODE 1SS133
D632 (A,176,52) DIODE 1SS133
D647 (A,200,17) ZENER DIODE MTZJ15A
D648 (A,196,21) ZENER DIODE MTZJ15A
D651 (A,192,57) DIODE 1SS133
D652 (A,262,57) DIODE 1SS133
D653 (A,186,52) DIODE 1SS133
D654 (A,242,52) DIODE 1SS133
D681 (A,132,17) ZENER DIODE MTZJ15A
D682 (A,129,22) ZENER DIODE MTZJ15A
D683 (A,135,58) DIODE 1SS133
D684 (A,65,72) DIODE 1SS133
Mark No. Description Part No.
>D701 (A,9,88) DIODE D5SBA20(B)
>D702 (A,9,126) DIODE D5SBA20(B)
D703 (B,252,76) DIODE 1SS355
D711 (A,196,103) ZENER DIODE MTZJ22D
D712 (A,192,103) DIODE MTZJ6R8(B)
D713 (A,120,78) DIODE 1SS133
D751 (B,168,135) DIODE 1SS355
D752 (B,170,135) DIODE 1SS355
D753 (B,138,132) DIODE 1SS355
D754 (B,141,132) DIODE 1SS355
D757 (B,70,136) DIODE 1SS355
D758 (B,73,136) DIODE 1SS355
D777 (A,127,57) DIODE 1SS133
D778 (A,108,57) DIODE 1SS133
>D801 (B,221,113) BRIDGE DIODE S1WB(A)60SD
D805 (A,276,131) DIODE 1SS133
D806 (A,287,62) DIODE MTZJ6R2(B)
D807 (A,284,67) DIODE 1SS133
D827 (A,262,133) DIODE MTZJ6R2(B)
D828 (A,239,98) DIODE MTZJ6R2(B)
>D829 (A,239,128) DIODE D3SBA20(B)
L501 (A,97,118) COIL ATH1004
L751 (A,160,108) COIL ATH1004
L752 (A,173,108) COIL ATH1004
L753 (A,120,107) COIL ATH1004
L754 (A,78,118) COIL ATH1004
L761 (A,130,108) COIL ATH1004
L762 (A,142,108) COIL ATH1004
J43 JUMPER WIRE 11P D20PYY1120E
KN601 (A,65,23) WRAPPING TERMINAL VNF1084
RY501 (A,75,132) RELAY XSR3012
RY751 (A,173,130) RELAY XSR3012
RY752 (A,141,126) RELAY XSR3012
RY753 (A,117,120) RELAY XSR3012
CN604 (A,87,134) CONNECTOR CKS3373
CN701 (A,212,134)
11PJUMPER CONNECTOR
52147-1110
CN702 (A,201,106)
6P JUMPER CONNECTOR
52147-0610
CN705 (A,295,40) 21P PLUG XKM3011
CN751 SP TERMINAL 8-P(V0) XKE3042
CN752 SP TERMINAL 6-P(V0) XKE3043
CN803 (A,231,129) 6P PLUG KM200TA6
CN805 (A,317,153) 13P PLUG XKP3066
CN806 19P PLUG XKP3069
CN807 (A,317,82) 15P PLUG XKP3067
CN812 (A,323,30) 15P PLUG XKP3067
CN813 (A,308,38) CONNECTOR CKS3390
CN815 (A,295,79) 23P PLUG XKM3006
CN816 (A,295,126) 21P PLUG XKM3011
810 (A,277,90) 11P CABLE HOLDER 51048-1100
RESISTORS
R601 (A,96,56) RD1/4PU222J
R602 (A,230,52) RD1/4PU222J
R603 (B,93,52) RS1/16S103J
R604 (B,226,49) RS1/16S103J
R609 (A,91,35) RD1/4PU273J
R610 (A,225,35) RD1/4PU273J
R611 (A,90,28) RD1/4PU821J
R612 (A,223,28) RD1/4PU821J
R613 (A,114,21) RD1/4PU273J
R614 (A,247,21) RD1/4PU273J
Mark No. Description Part No.
VSX-816-K 99
5678
5678
C
D
F
A
B
E
R615 (A,123,36) RD1/4PU331J
R616 (A,270,29) RD1/4PU562J
>R617 (A,114,31) RESISTOR (0.22, 5W) ACN7094
R618 (A,266,28) RD1/4PU562J
R619 (A,122,52) RD1/4PU182J
R620 (A,257,36) RD1/4PU331J
R621 (A,124,49) RD1/4PU821J
>R622 (A,248,31) RESISTOR (0.22, 5W) ACN7094
R623 (A,116,48) RD1/4PU223J
R624 (A,257,52) RD1/4PU182J
R626 (A,258,49) RD1/4PU821J
R628 (A,250,48) RD1/4PU223J
R630 (A,230,21) RD1/4PU333J
R631 (A,148,46) RD1/4PU222J
R632 (B,152,47) RS1/16S103J
R635 (A,153,29) RD1/4PU273J
R636 (A,149,25) RD1/4PU821J
R637 (A,172,21) RD1/4PU273J
R638 (A,174,36) RD1/4PU331J
>R639 (A,173,31) RESISTOR (0.22, 5W) ACN7094
R640 (A,179,57) RD1/4PU182J
R641 (A,174,52) RD1/4PU821J
R642 (A,169,39) RD1/4PU223J
R647 (A,202,27) RD1/4PU562J
R648 (A,199,27) RD1/4PU562J
R651 (A,164,56) RD1/4PU222J
R652 (A,215,41) RD1/4PU222J
R653 (B,160,50) RS1/16S103J
R654 (B,219,46) RS1/16S103J
R659 (A,159,35) RD1/4PU273J
R660 (A,220,29) RD1/4PU273J
R661 (A,156,28) RD1/4PU821J
R662 (A,216,20) RD1/4PU821J
R663 (A,181,21) RD1/4PU273J
R664 (A,238,21) RD1/4PU273J
R665 (A,190,36) RD1/4PU331J
R666 (A,240,35) RD1/4PU331J
>R667 (A,182,31) RESISTOR (0.22, 5W) ACN7094
>R668 (A,239,31) RESISTOR (0.22, 5W) ACN7094
R669 (A,189,52) RD1/4PU182J
R670 (A,245,52) RD1/4PU182J
R671 (A,192,49) RD1/4PU821J
R672 (A,240,57) RD1/4PU821J
R673 (A,184,48) RD1/4PU223J
R674 (A,236,38) RD1/4PU223J
R681 (A,66,63) RD1/4PU222J
R682 (B,76,63) RS1/16S103J
R685 (A,77,41) RD1/4PU273J
R686 (A,78,35) RD1/4PU821J
R687 (A,83,10) RD1/4PU273J
R688 (A,135,27) RD1/4PU562J
R689 (A,133,27) RD1/4PU562J
R690 (A,60,52) RD1/4PU331J
>R691 (A,55,55) RESISTOR (0.22, 5W) ACN7094
R692 (A,70,72) RD1/4PU182J
R693 (A,67,77) RD1/4PU821J
R694 (A,62,72) RD1/4PU223J
R695 (A,97,22) RD1/4PU333J
R696 (B,281,38) RS1/16S103J
R697 (B,255,68) RS1/16S103J
Mark No. Description Part No.
R698 (B,243,67) RS1/16S333J
R699 (A,165,21) RD1/4PU333J
R701 (A,117,78) RD1/4PU682J
R702 (A,101,84) RD1/4PU682J
R703 (A,151,72) RD1/4PU683J
R704 (A,147,76) RD1/4PU683J
R705 (A,283,85) RD1/4PU473J
R706 (A,283,75) RD1/4PU473J
R707 (A,135,77) RD1/4PU124J
R708 (A,147,81) RD1/4PU124J
>R711 (A,181,86) METAL OXIDE RESISTOR RS2LMF222J
R713 (A,117,81) RD1/4PU102J
R714 (B,252,68) RS1/16S102J
R715 (B,250,75) RS1/16S103J
R716 (B,247,75) RS1/16S103J
R721 (A,125,77) RD1/4PU822J
R722 (A,123,77) RD1/4PU822J
R723 (A,276,78) RD1/4PU473J
R724 (A,279,83) RD1/4PU473J
R725 (A,276,74) RD1/4PU103J
R726 (B,291,59) RS1/16S103J
R727 (B,287,59) RS1/16S103J
>R751 (A,158,119)
CARBON FILM RESISTOR
RD1/4PUF101J
>R752 (A,185,120)
CARBON FILM RESISTOR
RD1/4PUF101J
>R753 (A,156,126)
METAL OXIDE RESISTOR
RS1LMF4R7J
>R754 (A,181,126)
METAL OXIDE RESISTOR
RS1LMF4R7J
>R755 (A,103,117)
CARBON FILM RESISTOR
RD1/4PUF101J
>R756 (A,101,120)
METAL OXIDE RESISTOR
RS1LMF4R7J
>R761 (A,125,117)
CARBON FILM RESISTOR
RD1/4PUF101J
>R762 (A,155,119)
CARBON FILM RESISTOR
RD1/4PUF101J
>R763 (A,124,132)
METAL OXIDE RESISTOR
RS1LMF4R7J
>R764 (A,149,139)
METAL OXIDE RESISTOR
RS1LMF4R7J
>R771 (A,63,144) METAL OXIDE RESISTOR RS1LMF4R7J
>R772 (A,63,127) CARBON FILM RESISTOR RD1/4PUF101J
R777 (A,81,41) RD1/4PU222J
R778 (B,84,48) RS1/16S103J
R781 (A,87,30) RD1/4PU273J
R782 (A,84,22) RD1/4PU821J
R783 (A,104,21) RD1/4PU273J
R784 (A,111,35) RD1/4PU331J
>R785 (A,105,31) RESISTOR (0.22, 5W) ACN7094
R786 (A,111,57) RD1/4PU182J
R787 (A,106,57) RD1/4PU821J
R788 (A,102,38) RD1/4PU223J
R789 (A,82,127) CARBON FILM RESISTOR RD1/4PUF101J
>R790 (A,80,145) METAL OXIDE RESISTOR RS1LMF4R7J
R806 (B,283,48) RS1/16S103J
R807 (B,278,48) RS1/16S103J
R808 (B,283,52) RS1/16S102J
R809 (B,261,105) RS1/16S122J
R810 (B,264,105) RS1/16S271J
R885 (B,310,57) RS1/16S221J
R886 (B,310,61) RS1/16S221J
R887 (B,310,65) RS1/16S221J
R888 (B,315,22) RS1/16S221J
R1101(B,273,68) RS1/16S0R0J
R1102(B,274,61) RS1/16S0R0J
R1106(B,146,53) RS1/16S0R0J
R1107(B,211,58) RS1/16S0R0J
R1108(B,233,58) RS1/16S0R0J
Mark No. Description Part No.
VSX-816-K
100
1234
1234
C
D
F
A
B
E
R1109(B,285,56) RS1/16S0R0J
R1110(B,241,68) RS1/16S0R0J
CAPACITORS
C517 (A,82,154) FILM CAPACITOR CQMBA224J50
C521 (A,120,164) FILM CAPACITOR CQMBA123J50
C603 (B,94,39) CKSRYB331K50
C604 (B,227,38) CKSRYB331K50
C605 (A,96,38) CEAT4R7M50
C606 (A,230,38) CEAT4R7M50
C607 (B,95,20) CCSRCH470J50
C608 (B,230,17) CCSRCH470J50
C609 (A,91,32) CEAT101M16
C610 (A,225,32) CEAT101M16
C611 (B,117,22) CCSRCH470J50
C612 (B,250,24) CCSRCH470J50
C613 (B,117,27) CCSRCH470J50
C614 (B,250,28) CCSRCH470J50
C615 (A,116,45) CEANP2R2M50
C616 (A,250,45) CEANP2R2M50
C630 (A,172,44) CEANP2R2M50
C632 (B,151,33) CKSRYB331K50
C633 (A,148,33) CEAT4R7M50
C634 (B,155,17) CCSRCH470J50
C635 (A,153,25) CEAT101M16
C636 (B,175,28) CCSRCH470J50
C637 (B,175,24) CCSRCH470J50
C653 (B,161,38) CKSRYB331K50
C654 (B,217,33) CKSRYB331K50
C655 (A,164,38) CEAT4R7M50
C656 (A,215,33) CEAT4R7M50
C657 (B,165,17) CCSRCH470J50
C658 (B,221,17) CCSRCH470J50
C659 (A,158,31) CEAT101M16
C660 (A,219,25) CEAT101M16
C661 (B,184,23) CCSRCH470J50
C662 (B,241,27) CCSRCH470J50
C663 (B,184,27) CCSRCH470J50
C664 (B,241,24) CCSRCH470J50
C665 (A,184,45) CEANP2R2M50
C666 (A,239,49) CEANP2R2M50
C682 (B,74,48) CKSRYB331K50
C683 (A,74,50) CEAT4R7M50
C684 (B,82,18) CCSRCH470J50
C685 (A,78,38) CEAT101M16
C686 (B,92,9) CCSRCH470J50
C687 (B,87,8) CCSRCH470J50
C688 (A,75,78) CEANP2R2M50
C696 (B,281,35) CKSRYB102K50
C697 (A,286,34) CEAT221M6R3
C701 (A,49,80) ELECT.CAPACITOR XCH3026
C702 (A,49,107) ELECT.CAPACITOR XCH3026
C703 (A,43,130) ELECT.CAPACITOR XCH3012
C704 (A,38,150) ELECT.CAPACITOR XCH3012
C705 (A,156,81) ELECT. CAPACITOR CEAT100M2A
C706 (A,143,84) ELECT. CAPACITOR CEAT100M2A
C707 (A,17,99) MYLAR FILM CAPACITOR CQMA103K2E
C708 (A,16,137) MYLAR FILM CAPACITOR CQMA103K2E
C709 (A,257,73) CEAT1R0M50
Mark No. Description Part No.
C711 (A,195,99) ELECT. CAPACITOR CEAT101M35
C712 (A,189,105) CEAT101M10
C751 (A,159,143) FILM CAPACITOR CQMBA224J50
C752 (A,181,150) FILM CAPACITOR CQMBA224J50
C753 (A,157,155) FILM CAPACITOR CQMBA224J50
C754 (A,181,158) FILM CAPACITOR CQMBA224J50
C755 (A,103,147) FILM CAPACITOR CQMBA224J50
C756 (A,96,151) FILM CAPACITOR CQMBA224J50
C757 (A,157,164) FILM CAPACITOR CQMBA123J50
C758 (A,177,164) FILM CAPACITOR CQMBA123J50
C759 (A,101,164) FILM CAPACITOR CQMBA123J50
C761 (A,122,139) FILM CAPACITOR CQMBA224J50
C762 (A,152,145) FILM CAPACITOR CQMBA224J50
C763 (A,122,146) FILM CAPACITOR CQMBA224J50
C764 (A,150,152) FILM CAPACITOR CQMBA224J50
C765 (A,63,164) FILM CAPACITOR CQMBA123J50
C766 (A,82,164) FILM CAPACITOR CQMBA123J50
C771 (A,52,147) FILM CAPACITOR CQMBA224J50
C772 (A,52,156) FILM CAPACITOR CQMBA224J50
C773 (A,138,164) FILM CAPACITOR CQMBA123J50
C778 (B,84,34) CKSRYB331K50
C779 (A,81,33) CEAT4R7M50
C780 (B,88,18) CCSRCH470J50
C781 (A,87,27) CEAT101M16
C782 (B,107,27) CCSRCH470J50
C783 (B,107,24) CCSRCH470J50
C784 (A,105,49) CEANP2R2M50
C785 (A,89,146) FILM CAPACITOR CQMBA224J50
C801 (A,248,114) ELECT. CAPACITOR CEAT222M25
C802 (A,249,100) ELECT. CAPACITOR CEAT222M25
C806 (A,288,55) CEAT1R0M50
C807 (B,226,95) CKSRYB103K25
C808 (A,245,142) ELECT. CAPACITOR CEAT472M16
C809 (A,234,95) CEAT101M10
C810 (A,266,133) CEAT101M10
C811 (B,279,128) CKSRYB103K25
C812 (B,278,109) CKSRYB103K25
C813 (A,276,118) CEAT101M16
DTRANS2 ASSY
MISCELLANEOUS
>IC 853 (A,32,204) PROTECTOR(5A) AEK7019
J21 JUMPER WIRE 11P D20PYY1130E
CN1201(A,35,183)
4P JUMPER CONNECTOR
52147-0410
851 (A,49,207) 11P CABLE HOLDER 51048-1100
ETRANS3 ASSY
TRANS3 ASSY has no service part.
FCOMPONENT ASSY
MISCELLANEOUS
IC 551 (B,235,206) LOGIC IC TC74HC4052AF
IC 552 (B,256,212) LOGIC IC TC74HC4052AF
IC 553 (B,209,204) VIDEO IC NJM2581M
JA 551 (A,249,176) 6P RCA PINJACK XKB3025
JA 552 (A,207,176) 6P RCA PINJACK XKB3025
CN551 (A,192,206) CONNECTOR CKS3372
Mark No. Description Part No.
VSX-816-K 101
5678
5678
C
D
F
A
B
E
RESISTORS
R553 (B,237,192) RS1/16S750J
R554 (B,251,191) RS1/16S750J
R555 (B,265,191) RS1/16S750J
R556 (B,232,192) RS1/16S750J
R557 (B,246,194) RS1/16S750J
R558 (B,262,184) RS1/16S750J
R559 (B,195,194) RS1/16S750J
R560 (B,216,193) RS1/16S750J
R561 (B,223,191) RS1/16S750J
R562 (B,189,193) RS1/16S750J
R563 (B,212,197) RS1/16S750J
R564 (B,214,193) RS1/16S750J
R566 (B,238,216) RS1/16S102J
R567 (B,243,200) RS1/16S102J
R568 (B,243,202) RS1/16S102J
R569 (B,246,216) RS1/16S102J
R571 (B,250,226) RS1/16S102J
R572 (B,250,224) RS1/16S102J
R573 (B,224,201) RS1/16S0R0J
R574 (B,260,200) RS1/16S0R0J
R575 (B,244,234) RS1/16S0R0J
R577 (B,202,212) RS1/16S103J
R578 (B,204,212) RS1/16S103J
R579 (B,213,212) RS1/16S103J
R581 (B,242,207) RS1/16S222J
R582 (A,240,219) RD1/4PU222J
CAPACITORS
C567 (B,257,184) CKSRYB103K50
C568 (B,200,184) CKSRYB103K50
C569 (B,241,214) CKSRYB473K50
C570 (B,229,206) CKSRYB473K50
C571 (B,249,211) CKSRYB473K50
C572 (B,263,212) CKSRYB473K50
C576 (B,206,212) CKSRYB103K50
C577 (B,209,212) CKSRYB103K50
C578 (B,211,212) CKSRYB103K50
C579 (A,200,203) CEAT101M16
C580 (A,195,203) CEAT101M16
C581 (B,206,197) CKSRYB103K50
C582 (B,208,197) CKSRYB103K50
C583 (B,210,197) CKSRYB103K50
GHEAD PHONE ASSY
MISCELLANEOUS
Q1551(B,78,211) CHIP TRANSISTOR 2SD2704K
Q1552(B,102,219) CHIP TRANSISTOR 2SD2704K
J47 JUMPER WIRE D20PYY0640E
JA 1551(A,117,233) HEADPHONE JACK RKB1014
KN1551(A,69,231) WRAPPING TERMINAL VNF1084
1551(A,59,220) 6P CABLE HOLDER 51048-0600
RESISTORS
>R1551(A,84,202) METAL OXIDE RESISTOR RS2LMF331J
>R1552(A,78,203) METAL OXIDE RESISTOR RS2LMF331J
>R1553(A,108,221)
METAL OXIDE RESISTOR
RS1LMF151J
>R1554(A,93,216) METAL OXIDE RESISTOR RS1LMF151J
R1555(B,100,216) RS1/16S472J
Mark No. Description Part No.
R1556(B,81,210) RS1/16S472J
R1557(B,87,228) RS1/16S102J
CAPACITORS
C1551(B,94,226) CKSRYB223K50
C1552(B,83,210) CKSRYB223K50
C1553(B,110,224) CKSRYB103K50
C1554(B,110,226) CCSRCH471J50
C1555(B,110,229) CKSRYB104K16
C1556(B,112,239) CKSRYB103K50
C1557(B,109,239) CCSRCH471J50
C1558(B,107,239) CKSRYB104K16
C1561(A,69,205) ELECT. CAPACITOR CEANP470M50
C1562(A,71,223) ELECT. CAPACITOR CEANP470M50
HPRE-OUT ASSY
MISCELLANEOUS
CN1575(A,282,211) CONNECTOR CKS3373
CN1576(A,318,176) PIN JACK 1-P AKB7042
1575(A,290,176) PIN JACK(6P) XKB3033
RESISTORS
R1575(B,301,198) RS1/16S223J
R1576(B,302,194) RS1/16S202J
R1577(B,293,194) RS1/16S202J
R1578(B,286,194) RS1/16S202J
R1579(B,294,198) RS1/16S223J
R1580(B,287,197) RS1/16S223J
R1581(B,308,198) RS1/16S223J
R1582(B,316,194) RS1/16S202J
R1583(B,279,194) RS1/16S202J
R1584(B,275,194) RS1/16S202J
R1585(B,281,198) RS1/16S223J
R1586(B,274,198) RS1/16S223J
R1587(B,307,194) RS1/16S202J
R1588(B,317,197) RS1/16S223J
CAPACITORS
C1581(B,283,184) CKSRYB103K50
I5.1CH INPUT ASSY
MISCELLANEOUS
CN307 (A,125,219) 7P CONNECTOR 52044-0745
CN309 (A,167,225) PIN JACK(4P) XKB3035
RESISTORS
R1001(B,147,233) RS1/16S473J
R1002(B,150,226) RS1/16S473J
R1003(B,149,236) RS1/16S331J
R1004(B,150,228) RS1/16S331J
R1009(B,150,224) RS1/16S473J
R1010(B,151,212) RS1/16S473J
R1011(B,150,222) RS1/16S331J
R1012(B,150,214) RS1/16S331J
CAPACITORS
C1001(B,151,233) CCSRCH101J50
C1002(B,151,230) CCSRCH101J50
C1003(B,143,233) CKSRYB221K50
C1004(B,147,230) CKSRYB221K50
C1009(A,146,236) CEAT4R7M50
Mark No. Description Part No.
VSX-816-K
102
1234
1234
C
D
F
A
B
E
C1010(A,146,228) CEAT4R7M50
C1012(B,159,226) CKSRYB103K50
C1013(B,151,219) CCSRCH101J50
C1014(B,151,216) CCSRCH101J50
C1015(B,147,224) CKSRYB221K50
C1016(B,147,216) CKSRYB221K50
C1021(A,146,214) CEAT4R7M50
C1022(A,146,221) CEAT4R7M50
KFRONT DISPLAY
MISCELLANEOUS
IC 401 (B,121,181) DISPLAY U-COM PE5550A
IC 402 (A,223,169)
REMOTE RECEIVER UNIT
GP1UM27XK0VF
Q441 (B,230,161) TRANSISTOR RT1N241M
Q442 (B,238,190) TRANSISTOR RT1N241M
Q484 (B,217,189) TRANSISTOR 2SA1576A
D401 (B,239,163) DIODE DAN202K
D403 (B,226,189) DIODE 1SS355
D404 (B,230,176) DIODE 1SS355
D405 (B,230,156) DIODE 1SS355
D500 (A,210,182) LED(ORANGE) SLI-343DCW
D502 (A,130,160) LED(BLUE) SLR-343BBT
L401 (A,242,159) RADIAL INDUCTOR LFCA2R2J
V401 (A,189,200) FL TUBE XAV3025
S451 (A,234,139) SWITCH VSG1024
S452 (A,213,136) SWITCH VSG1024
S453 (A,187,134) SWITCH VSG1024
S454 (A,70,134) SWITCH VSG1024
S455 (A,46,134) SWITCH VSG1024
S456 (A,23,134) SWITCH VSG1024
S458 (A,13,112) SWITCH VSG1024
S459 (A,114,136) SWITCH VSG1024
S460 (A,91,136) SWITCH VSG1024
S461 (A,57,112) SWITCH VSG1024
S462 (A,42,112) SWITCH VSG1024
S463 (A,27,112) SWITCH VSG1024
S464 (A,164,134) SWITCH VSG1024
S465 (A,140,134) SWITCH VSG1024
S466 (A,86,90) SWITCH VSG1024
S467 (A,72,90) SWITCH VSG1024
S468 (A,57,90) SWITCH VSG1024
S469 (A,42,90) SWITCH VSG1024
S470 (A,27,90) SWITCH VSG1024
S471 (A,13,90) SWITCH VSG1024
X401 (A,149,165) CERAMIC RESONATOR VSS1142
(5.00 MHz)
CN401 (A,246,165) 17P CONNECTOR 52044-1745
471 (A,35,176) CABLE HOLDER(3P) 51063-0305
404 (A,197,127) CABLE HOLDER(7P) 51063-0705
402 FL HOLDER(FE) VNF1096
RESISTORS
R401 (B,144,169) RS1/16S105J
R402 (B,223,189) RS1/16S104J
R403 (B,220,189) RS1/16S104J
R404 (B,221,178) RS1/16S472J
R405 (B,228,155) RS1/16S102J
R406 (B,226,155) RS1/16S103J
R407 (B,78,176) RS1/16S473J
R408 (B,80,176) RS1/16S473J
Mark No. Description Part No.
R409 (B,75,176) RS1/16S473J
R410 (B,73,176) RS1/16S473J
R411 (B,229,189) RS1/16S473J
R412 (B,234,187) RS1/16S221J
R413 (B,234,184) RS1/16S221J
R414 (B,234,182) RS1/16S221J
R415 (B,234,180) RS1/16S221J
R416 (B,234,178) RS1/16S221J
R417 (B,219,182) RS1/16S101J
R422 (B,157,169) RS1/16S104J
R423 (B,131,167) RS1/16S104J
R424 (B,83,176) RS1/16S104J
R425 (B,213,182) RS1/16S104J
R451 (B,236,144) RS1/16S472J
R452 (B,234,144) RS1/16S681J
R453 (B,187,147) RS1/16S821J
R454 (B,166,153) RS1/16S122J
R455 (A,45,146) RD1/4PU681J
R456 (A,35,144) RD1/4PU821J
R457 (A,16,139) RD1/4PU122J
R459 (A,109,134) RD1/4PU472J
R460 (A,101,135) RD1/4PU681J
R461 (B,52,117) RS1/16S821J
R462 (B,49,117) RS1/16S122J
R463 (B,34,117) RS1/16S162J
R464 (B,20,117) RS1/16S272J
R465 (A,161,128) RD1/4PU472J
R466 (A,151,128) RD1/4PU681J
R467 (A,131,128) RD1/4PU821J
R468 (B,79,91) RS1/16S122J
R469 (B,64,91) RS1/16S162J
R470 (B,50,92) RS1/16S272J
R471 (B,34,91) RS1/16S512J
R472 (B,86,176) RS1/16S472J
R473 (B,19,91) RS1/16S133J
R481 (B,169,204) RS1/16S473J
R482 (B,167,204) RS1/16S473J
R483 (B,165,204) RS1/16S473J
R484 (B,163,204) RS1/16S473J
R485 (B,161,204) RS1/16S473J
R486 (B,159,204) RS1/16S473J
R487 (B,157,204) RS1/16S473J
R488 (B,155,204) RS1/16S473J
R489 (B,153,204) RS1/16S473J
R490 (B,151,204) RS1/16S473J
R492 (B,121,204) RS1/16S104J
R493 (B,119,204) RS1/16S104J
R494 (B,117,204) RS1/16S104J
R495 (B,115,204) RS1/16S104J
R496 (B,113,204) RS1/16S104J
R497 (B,111,204) RS1/16S104J
R498 (B,109,204) RS1/16S104J
R499 (B,107,204) RS1/16S104J
R500 (B,105,204) RS1/16S104J
R517 (B,149,204) RS1/16S473J
R518 (B,147,204) RS1/16S473J
R519 (B,145,204) RS1/16S473J
R520 (B,103,204) RS1/16S104J
R521 (B,101,204) RS1/16S104J
R522 (B,99,204) RS1/16S104J
Mark No. Description Part No.
VSX-816-K 103
5678
5678
C
D
F
A
B
E
R523 (B,97,204) RS1/16S104J
R524 (B,95,204) RS1/16S104J
R525 (B,93,204) RS1/16S104J
R526 (B,91,204) RS1/16S104J
R527 (B,89,204) RS1/16S104J
R528 (B,87,204) RS1/16S104J
R529 (B,85,204) RS1/16S104J
R530 (B,83,204) RS1/16S104J
R531 (B,81,204) RS1/16S104J
R532 (B,79,204) RS1/16S104J
R533 (B,77,204) RS1/16S104J
R534 (B,75,204) RS1/16S104J
R550 (B,204,185) RS1/16S181J
R551 (B,125,156) RS1/16S391J
CAPACITORS
C401 (B,247,155) CKSRYB103K50
C402 (B,247,153) CKSRYB103K50
C403 (A,234,168) CEAT221M6R3
C410 (B,49,186) CKSRYB103K50
C411 (B,51,186) CKSRYB103K50
C412 (A,42,178) CEAT470M50
C418 (B,141,179) CKSRYB104K16
C419 (B,103,182) CKSRYB103K50
C420 (A,39,185) ELECT. CAPACITOR CEAT101M35
C421 (B,160,169) CKSRYB104K16
C441 (B,223,176) CKSRYB103K50
C442 (A,239,146) CEAL470M10
C451 (B,125,166) CKSRYB102K50
C452 (B,103,164) CKSRYB102K50
C453 (B,122,166) CKSRYB102K50
C454 (B,100,164) CKSRYB102K50
C481 (B,140,191) CCSRCH471J50
C482 (B,126,201) CCSRCH221J50
C483 (B,126,199) CCSRCH221J50
C487 (B,83,163) CKSRYB102K50
C488 (B,79,163) CKSRYB102K50
C489 (B,75,163) CKSRYB102K50
C490 (A,241,34) CKSRYB102K50
LR.ENCODER ASSY
MISCELLANEOUS
S457 (A,300,183) SWITCH VSG1024
S512 (A,288,223)
ROTARY ENCODER (JOG)
XSX3008
S513 (A,288,152) ROTARY ENCODER XSX3005
S514 (A,257,216) SWITCH VSG1024
S515 (A,270,183) SWITCH VSG1024
S516 (A,285,183) SWITCH VSG1024
511 (A,257,172) CABLE HOLDER(7P) 51063-0705
RESISTORS
R513 (B,270,190) RS1/16S162J
R514 (B,280,185) RS1/16S272J
R515 (B,295,185) RS1/16S512J
MPOWER KEY ASSY
MISCELLANEOUS
D501 (A,13,182) LED(BLUE) SLR-343BBT
S501 (A,12,174) SWITCH VSG1024
Mark No. Description Part No.
S502 (A,20,221) SWITCH VSG1024
S503 (A,32,218) SWITCH VSG1024
S504 (A,47,218) SWITCH VSG1024
501 (A,47,210) CABLE HOLDER(3P) 51063-0305
RESISTORS
R501 (B,12,189) RS1/16S391J
R502 (B,7,171) RS1/16S162J
R503 (A,15,228) RD1/4PU272J
R504 (A,30,228) RD1/4PU512J
NS. VIDEO ASSY
MISCELLANEOUS
IC 351 (B,149,59) VIDEO SW IC NJM2595M
IC 352 (B,149,21) VIDEO SW IC NJM2595M
IC 1101(B,194,37) VIDEO AMP IC TK15420M
IC 1102(B,186,72) VIDEO SW IC NJM2243M
IC 1103(B,211,72) VIDEO SW IC NJM2243M
D351 (B,170,34) DIODE 1SS355
D352 (B,167,34) DIODE 1SS355
D353 (B,164,65) DIODE 1SS355
D354 (B,166,65) DIODE 1SS355
D357 (B,154,39) DIODE 1SS355
D358 (B,142,67) DIODE 1SS355
D361 (B,184,78) DIODE 1SS355
D362 (B,207,76) DIODE 1SS355
CN351 (A,220,42)
11PJUMPER CONNECTOR
52147-1110
CN352 (A,111,57) SOCKET XKB3051
CN353 (A,111,29) SOCKET XKB3051
CN354 (A,177,33) CONNECTOR POST B5B-PH
CN355 (A,111,78) SOCKET AKP7179
RESISTORS
R351 (B,125,12) RS1/16S750J
R352 (B,129,13) RS1/16S750J
R353 (B,125,31) RS1/16S750J
R354 (B,129,27) RS1/16S750J
R355 (B,125,42) RS1/16S750J
R356 (B,128,45) RS1/16S750J
R357 (B,161,54) RS1/16S102J
R358 (B,167,61) RS1/16S102J
R359 (B,165,61) RS1/16S151J
R360 (B,172,61) RS1/16S102J
R361 (B,164,69) RS1/16S102J
R362 (B,170,61) RS1/16S102J
R363 (B,169,29) RS1/16S102J
R364 (B,166,29) RS1/16S102J
R365 (B,162,29) RS1/16S102J
R366 (B,164,29) RS1/16S151J
R367 (B,171,29) RS1/16S102J
R368 (B,162,36) RS1/16S102J
R369 (B,160,36) RS1/16S750J
R370 (B,150,71) RS1/16S750J
R371 (B,145,29) RS1/16S750J
R372 (B,145,69) RS1/16S750J
R375 (B,133,12) RS1/16S101J
R376 (B,129,17) RS1/16S101J
R377 (B,132,23) RS1/16S101J
R378 (B,130,30) RS1/16S101J
R379 (B,135,39) RS1/16S101J
Mark No. Description Part No.
VSX-816-K
104
1234
1234
C
D
F
A
B
E
R380 (B,128,49) RS1/16S101J
R381 (B,129,56) RS1/16S0R0J
R382 (B,131,62) RS1/16S0R0J
R385 (B,165,35) RS1/16S0R0J
R386 (B,162,61) RS1/16S0R0J
R1103(B,182,44) RS1/16S103J
R1104(B,194,30) RS1/16S103J
R1105(B,188,33) RS1/16S0R0J
R1106(B,188,39) RS1/16S0R0J
R1109(B,188,45) RS1/16S0R0J
R1111(B,178,77) RS1/16S750J
R1112(B,140,78) RS1/16S750J
R1113(B,132,82) RS1/16S103J
R1114(B,134,78) RS1/16S103J
R1122(B,200,69) RS1/16S102J
R1123(B,203,69) RS1/16S102J
R1124(B,180,67) RS1/16S0R0J
R1125(B,180,69) RS1/16S0R0J
CAPACITORS
C351 (B,160,22) CKSRYB104K25
C352 (A,123,7) CEAT470M25
C353 (B,127,20) CKSRYB104K25
C354 (B,144,11) CKSRYB104K25
C355 (A,132,20) CEAT470M25
C356 (B,126,38) CKSRYB104K25
C357 (B,157,65) CKSRYB104K25
C358 (A,131,35) CEAT470M25
C359 (B,126,54) CKSRYB104K25
C361 (A,141,10) ELECT. CAPACITOR CEAT470M25
C362 (A,157,26) CEAT470M25
C363 (A,157,68) CEAT470M25
C366 (A,145,46) CEAT470M25
C367 (B,142,52) CKSRYB104K25
C368 (B,126,58) CKSRYB221K50
C369 (B,129,62) CKSRYB221K50
C370 (B,157,36) CKSRYB221K50
C371 (B,158,72) CKSRYB221K50
C372 (B,121,57) CKSRYB103K50
C373 (B,120,29) CKSRYB103K50
C375 (B,167,17) CCSRCH470J50
C376 (B,163,54) CCSRCH470J50
C381 (B,137,11) CCSRCH470J50
C382 (B,132,16) CCSRCH470J50
C383 (B,134,19) CCSRCH470J50
C384 (B,135,28) CCSRCH470J50
C385 (B,135,37) CCSRCH470J50
C386 (B,132,44) CCSRCH470J50
C1101(B,197,37) CKSRYB473K25
C1102(B,199,41) CKSRYB473K25
C1103(A,202,30) CEAT101M16
C1104(A,203,42) CEAT101M16
C1107(A,193,47) CEAT101M16
C1109(B,195,76) CKSRYB473K25
C1110(B,220,76) CKSRYB473K25
C1111(A,192,73) CEAT101M16
C1112(A,217,79) CEAT101M16
C1113(B,181,78) CKSRYB104K25
C1114(B,210,79) CKSRYB104K25
C1115(A,179,74) ELECTR.CAPACITOR CEAT102M10
Mark No. Description Part No.
C1116(B,137,78) CKSRYB104K25
C1117(B,134,82) CCSRCH181J50
C1118(B,137,82) CCSRCH181J50
C1130(B,212,51) CKSRYB104K25
C1131(A,176,18) CEAT101M16
C1132(B,217,68) CKSRYB104K25
OTRANS4 ASSY
MISCELLANEOUS
>IC 891 (A,104,223) PROTECTOR(800MA) AEK7008
>IC 892 (A,77,232) PROTECTOR(800MA) AEK7008
>D891 (B,91,226) BRIDGE DIODE S1WB(A)60SD
J22 JUMPER WIRE D20PYY0330E
891 (A,70,221) 3P CABLE HOLDER 51048-0300
CAPACITORS
C891 (A,97,218) ELECT. CAPACITOR CEAT471M35
C892 (A,86,218) ELECT. CAPACITOR CEAT471M35
PREGULATOR ASSY
MISCELLANEOUS
>IC 801 (A,161,89) REGULATOR IC TA7812S
>IC 802 (A,178,89) REGULATOR IC TA79012S
>IC 807 (A,212,89) IC TA7805S
D813 (A,201,94) ZENER DIODE MTZJ6.2B
CN800 (A,194,113)
11PJUMPER CONNECTOR
52147-1110
RESISTORS
>R801 (A,152,97) METAL OXIDE RESISTOR RS3LMF331J
>R802 (A,212,98) METAL OXIDE RESISTOR RS2LMF221J
R819 (B,209,97) RS1/16S0R0J
CAPACITORS
C803 (B,164,98) CKSRYB103K25
C804 (B,180,98) CKSRYB103K25
C805 (A,152,103) CEJQ101M16
C806 (A,173,100) CEAT101M16
C816 (A,206,96) CEAT101M10
C817 (B,216,98) CKSRYB103K25
QVIDEO
MISCELLANEOUS
IC 301 (B,46,32) VIDEO SW IC NJM2595M
IC 303 (B,37,73) VIDEO SW IC NJM2243M
IC 851 (B,100,70)
CHARACTER GENERATOR
PDC131A
>Q301 (A,86,47) TRANSISTOR 2SC3377
>Q302 (A,66,52) TRANSISTOR 2SA1515
Q303 (B,25,83) TRANSISTOR 2SC5938A
Q852 (B,73,79) TRANSISTOR 2SC4081
D301 (B,45,41) DIODE 1SS355
D302 (B,41,46) DIODE 1SS355
D303 (B,81,61) DIODE UDZS6R2(B)
D304 (B,73,59) DIODE UDZS6R2(B)
D305 (B,69,20) DIODE 1SS355
D306 (B,61,23) DIODE 1SS355
D307 (B,96,7) DIODE UDZS5R1(B)
D359 (B,93,53) DIODE 1SS355
D360 (B,96,48) DIODE 1SS355
D651 (B,84,75) DIODE DAP202K
Mark No. Description Part No.
VSX-816-K 105
5678
5678
C
D
F
A
B
E
L301 (B,33,11) CHIP SOLID INDUCTOR QTL1013
L302 (B,34,6) CHIP SOLID INDUCTOR QTL1013
L303 (B,26,13) CHIP SOLID INDUCTOR QTL1013
L304 (B,26,15) CHIP SOLID INDUCTOR QTL1013
L305 (B,21,23) CHIP SOLID INDUCTOR QTL1013
L306 (B,58,12) CHIP SOLID INDUCTOR QTL1013
L851 (B,81,74) INDUCTOR LCYA100J2520
L852 (B,89,75) INDUCTOR LCYA100J2520
L853 (B,100,62) CHIP COIL LCYA330J2520
J44 JUMPER WIRE 11P D20PYY1110E
JA 305 (A,14,44) PIN JACK(4P)YELLOW AKB7100
JA 351 (A,15,20) MINI JACK(4P) /W SW XKN3015
JA 352 (A,18,9) CONNECTOR CKS4124
X851 (A,102,58) CRYSTAL RESONATOR ASS1056
(14.31818 MHz)
CN302 (A,64,84) 6P SOCKET KP200TA6L
CN303 (A,62,7) CONNECTOR CKS3384
CN306 (A,14,65) 2P PIN JACK XKB3041
CN310 (A,46,7) CONNECTOR CKS3372
390 (A,100,7) PCB BINDER VEF1040
301 (A,106,12) 11P CABLE HOLDER 51048-1100
RESISTORS
R301 (B,34,25) RS1/16S750J
R302 (B,31,60) RS1/16S750J
R303 (B,23,36) RS1/16S750J
R304 (B,49,22) RS1/16S750J
R305 (B,23,50) RS1/16S750J
R306 (B,32,54) RS1/16S750J
R307 (B,56,25) RS1/16S102J
R308 (B,57,29) RS1/16S102J
R309 (B,57,27) RS1/16S151J
R310 (B,57,31) RS1/16S102J
R311 (B,42,23) RS1/16S102J
R312 (B,60,25) RS1/16S102J
>R313 (A,85,57) METAL OXIDE RESISTOR RS3LMF390J
R314 (B,84,61) RS1/16S152J
R315 (B,64,59) RS1/16S152J
>R316 (A,67,39) METAL OXIDE RESISTOR RS3LMF390J
R317 (B,21,75) RS1/16S102J
R318 (B,27,79) RS1/16S122J
R319 (B,27,77) RS1/16S472J
R320 (B,100,16) RS1/16S0R0J
R390 (B,24,77) RS1/16S102J
R391 (B,20,38) RS1/16S0R0J
R392 (B,30,55) RS1/16S0R0J
R393 (B,62,14) RS1/16S472J
R852 (B,101,50) RS1/16S471J
R853 (B,94,47) RS1/16S103J
R854 (B,93,61) RS1/16S103J
R855 (B,107,82) RS1/16S102J
R856 (B,80,79) RS1/16S221J
R857 (B,75,79) RS1/16S103J
R858 (B,70,79) RS1/16S222J
R892 (B,103,50) RS1/16S0R0J
CAPACITORS
C302 (B,22,44) CKSRYB103K50
C304 (B,33,19) CKSRYB221K50
C305 (B,41,19) CKSRYB221K50
C306 (B,22,54) CKSRYB221K50
Mark No. Description Part No.
C307 (A,31,35) CEAT470M25
C308 (A,52,53) CEAT470M25
C309 (A,32,44) CEAT470M25
C310 (A,54,42) ELECT. CAPACITOR CEAT470M25
C311 (B,82,48) CKSRYB473K25
C312 (A,86,42) CEAT470M25
C313 (B,76,34) CKSRYB473K25
C314 (A,77,38) CEAT470M25
C333 (B,21,81) CKSRYB331K50
C338 (A,61,37) ELECT. CAPACITOR CEAT470M25
C339 (B,46,48) CKSRYB104K25
C340 (B,57,36) CKSRYB104K25
C347 (B,45,43) CCSRCH470J50
C350 (A,38,80) CEAT101M16
C379 (B,22,41) CKSRYB103K50
C380 (A,43,74) CEAT101M16
C390 (A,30,75) ELECTR.CAPACITOR CEAT102M10
C391 (A,49,61) CEAT101M16
C444 (B,38,65) CKSRYB104K25
C851 (A,83,83) CEAT101M16
C852 (A,93,82) CEAT101M16
C853 (B,102,82) CKSRYB473K25
C854 (B,91,75) CKSRYB473K25
C855 (B,106,54) CCSRCH150J50
C856 (B,103,54) CCSRCH180J50
C857 (B,101,54) CCSRCH240J50
C858 (B,99,54) CCSRCH240J50
C859 (B,99,47) CCSRCH470J50
C860 (B,98,82) CKSRYB473K25
C861 (B,100,82) CKSRYB473K25
C862 (B,105,82) CCSRCH101J50
C864 (A,73,83) CEAT101M16
C1360(B,18,65) CKSRYB103K50
RDIGITAL IN ASSY
MISCELLANEOUS
F1901(B,214,228) INDUCTOR CTF1295
JA 1900(A,206,201) OPT. LINK IN GP1FAV51RKBF
JA 1901(A,220,201) OPT. LINK IN GP1FAV51RKBF
KN1902(A,249,206) SCREW PLATE VNE1948
CN1902(A,211,238) CONNECTOR POST B5B-PH
CN1903(A,229,230) CONNECTOR VKN1186
RESISTORS
R1900(B,211,215) RS1/16S101J
R1901(B,214,223) RS1/16S101J
CAPACITORS
C1900(B,205,215) CKSRYB104K25
C1901(B,217,215) CKSRYB104K25
C1903(B,211,230) CKSRYB103K50
C1904(A,208,228) CEAL101M10
C1905(B,233,232) CKSRYB104K25
C1906(B,235,232) CKSRYB103K50
C1907(B,237,232) CCSRCH101J50
C1908(B,239,232) CKSRYB102K50
C1909(B,215,234) CCSRCH101J50
Mark No. Description Part No.
VSX-816-K
106
1234
1234
C
D
F
A
B
E
SFRONT VIDEO ASSY
MISCELLANEOUS
JA 902 (A,152,231) PIN JACK(4P) AKX7014
CN901 (A,117,238) CONNECTOR B8B-PH
RESISTORS
R901 (B,166,230) RS1/16S331J
R902 (B,182,228) RS1/16S331J
R903 (B,170,230) RS1/16S474J
R904 (B,178,228) RS1/16S474J
R905 (B,151,225) RS1/16S750J
R906 (B,123,227) RS1/16S750J
R907 (B,128,232) RS1/16S750J
CAPACITORS
C901 (B,166,224) CCSRCH101J50
C902 (B,181,220) CCSRCH101J50
C903 (A,143,234) ELECTR. CAPACITOR CEAL470M25
C904 (B,126,227) CKSRYB104K25
C905 (A,122,233) ELECTR. CAPACITOR CEAL470M25
C906 (B,165,218) CKSRYB104K25
C907 (B,167,218) CKSRYB471K50
C908 (B,170,218) CKSRYB103K25
C909 (B,150,218) CKSRYB104K25
C910 (B,152,218) CKSRYB471K50
C911 (B,154,218) CKSRYB103K25
C912 (B,130,218) CKSRYB104K25
C913 (B,132,218) CKSRYB471K50
C914 (B,141,218) CKSRYB103K25
C915 (B,168,230) CCSRCH101J50
C916 (B,180,228) CCSRCH101J50
UPRIMARY ASSY
MISCELLANEOUS
>IC 51 (A,234,14) REGULATOR IC TA78057S
Q51 (B,267,14) DIGITAL TR(SC-70) RT1N431M
>D51 (B,298,20) BRIDGE DIODE DF06SA
D55 (A,304,21) DIODE 1SR139-400
D56 (A,271,21) DIODE 1SS133
D58 (A,314,13) ZENER DIODE MTZJ5.1B
H51 (A,231,34) FUSE CLIP AKR7001
H52 (A,250,34) FUSE CLIP AKR7001
J52 JUMPER WIRE D20PYY0410E
KN51 (A,318,25) WRAPPING TERMINAL VNF1084
KN3001(A,223,117) SCREW PLATE VNE1948
>RY51 (A,271,57) RELAY XSR3013
>T51 (A,288,56)
STANDBY TRANSFORMER
ATT7043
>CN51 (A,236,47) AC CODE SOCKET RKP1751
>51 (A,252,122) AC SOCKET 1-P AKP1060
55 (A,317,9) 4P CABLE HOLDER 51048-0400
RESISTORS
>R51 (A,318,37) RESISTOR(2.2M, 1/2W) RCN1080
R52 (A,275,11) RD1/2PM270J
R53 (A,307,12) RD1/4PU332J
R54 (A,319,16) RD1/4PU103J
CAPACITORS
>C51 (A,261,64) FILM CAPACITOR ACE7013
>C52 (A,265,57) SAFETY CAPACITOR XCG3009
Mark No. Description Part No.
C53 (A,291,21) ELECT. CAPACITOR CEAT102M16
C54 (A,300,11) CEAT470M25
C55 (A,307,21) CKPUYF103Z25
C56 (A,311,21) CKPUYF103Z25
C57 (A,314,21) CKPUYF103Z25
VTRANS1 ASSY
TRANS1 ASSY has no service part.
WUSB ASY (VSX-916/MYXJ5)
MISCELLANEOUS
IC 701 (A,37,40) USB MEDIA CONTROL IC TCC760HC01-AG
>IC 702 (A,63,35) REGULATOR IC MM1561JF
>IC 703 (A,87,25) REGULATOR IC BD7802FP
IC 761 (A,63,46) SD-RAM(64M)
HY57V641620ETP-6
IC 762 (A,87,46) FLASH ROM AYW7088
IC9762 FLASH MEMORY IC
S29AL016D70TFI010
IC 771 (A,58,59) LOAD SWITCHING AAT4618IGV-0.5-1
IC 781 (A,37,16) AUDIO DAC AK4387ET
IC 951 (A,67,28) IC
TC74VHCT08AFTS1
IC 953 (A,52,25) IC TC74VHC08FTS1
Q782 (B,94,44) CHIP TRANSISTOR DTC114YUA
Q783 (B,92,38) TRANSISTOR 2SA1576A
Q784 (B,87,32) TRANSISTOR IMX9
L701 (B,27,42) INDUCTOR LCTC100K1608
L702 (B,34,33) CHIP SOLID INDUCTOR QTL1013
L703 (A,24,30) CHIP SOLID INDUCTOR QTL1013
L704 (B,53,56) CHIP SOLID INDUCTOR QTL1013
L705 (B,28,38) CHIP FERRITE BEADS VTL1169
L731 (A,28,60) CHIP FERRITE BEADS VTL1169
L733 (A,36,56) COIL VTH1043
L761 (B,78,47) CHIP SOLID INDUCTOR QTL1013
L762 (B,85,44) CHIP SOLID INDUCTOR QTL1013
L781 (B,46,19) CHIP SOLID INDUCTOR QTL1013
L951 (A,59,30) CHIP SOLID INDUCTOR QTL1013
L953 (A,72,37) CHIP SOLID INDUCTOR QTL1013
X701 (A,23,42) CRYSTAL OSCILLATOR CSS1614
CN701 (A,33,60) CONNECTOR B4B-PH
CN702 (A,87,16) 15P SOCKET XKP3078
RESISTORS
R702 (A,43,55) RS1/16S473J
R703 (A,38,53) RS1/16S0R0J
R704 (A,35,53) RS1/16S0R0J
R705 (A,30,54) RS1/16S470J
R706 (A,30,52) RS1/16S470J
R707 (B,32,48) RS1/16S470J
R708 (B,22,51) RS1/16S470J
R709 (B,23,41) RS1/16S0R0J
R710 (B,35,42) RS1/16S0R0J
R711 (B,37,42) RS1/16S472J
R712 (A,27,43) RS1/16S475J
R717 (A,31,29) RS1/16S473J
R718 (A,36,25) RS1/16S101J
R719 (A,35,25) RS1/16S101J
R720 (A,35,21) RS1/16S101J
R724 (A,39,21) RS1/16S472J
R725 (A,44,25) RS1/16S472J
Mark No. Description Part No.
VSX-816-K 107
5678
5678
C
D
F
A
B
E
R726 (A,42,21) RS1/16S472J
R727 (A,33,21) RS1/16S101J
R729 (B,30,38) RS1/16S103J
R730 (B,39,33) RS1/16S102J
R734 (A,43,58) RS1/16S0R0J
R735 (A,32,55) RS1/16S153J
R736 (A,40,55) RS1/16S153J
R737 (A,34,55) RS1/16S100J
R738 (A,39,55) RS1/16S100J
R741 (B,79,23) RS1/16S101J
R744 (A,77,20) RS1/16S101J
R745 (A,76,21) RS1/16S101J
R746 (A,74,20) RS1/16S101J
R747 (A,72,20) RS1/16S101J
R748 (A,71,20) RS1/16S101J
R755 (A,26,45) RS1/16S0R0J
R756 (A,26,41) RS1/16S472J
R757 (A,43,60) RS1/16S0R0J
R771 (A,61,56) RS1/16S221J
R772 (A,58,56) RS1/16S104J
R773 (A,71,59) RS1/16S0R0J
R784 (A,30,21) RS1/16S470J
R786 (A,41,21) RS1/16S470J
R788 (A,44,21) RS1/16S4R7J
R789 (A,74,25) RS1/16S471J
R790 (A,79,23) RS1/16S471J
R791 (B,83,34) RS1/16S104J
R792 (B,90,30) RS1/16S104J
R793 (B,83,30) RS1/16S101J
R794 (B,90,34) RS1/16S101J
R795 (A,87,33) RS1/16S222J
R796 (A,87,30) RS1/16S222J
R797 (B,92,44) RS1/16S102J
R798 (B,95,38) RS1/16S102J
R799 (B,90,38) RS1/16S103J
R951 (B,43,26) RS1/16S472J
R952 (A,62,31) RS1/16S472J
R966 (A,72,32) RS1/16S101J
R972 (A,62,28) RS1/16S101J
R973 (A,73,29) RS1/16S101J
R977 (A,47,25) RS1/16S101J
R978 (A,47,28) RS1/16S101J
R979 (B,58,27) RS1/16S101J
R980 (B,60,27) RS1/16S101J
CAPACITORS
C701 (A,49,36) CKSRYB104K16
C702 (A,47,36) CCSRCH471J50
C703 (A,49,40) CKSRYB104K16
C704 (A,47,40) CCSRCH471J50
C705 (A,49,44) CKSRYB104K16
C706 (A,47,44) CCSRCH471J50
C707 (A,45,51) CKSRYB104K16
C708 (A,45,50) CCSRCH471J50
C709 (A,30,51) CKSRYB104K16
C710 (A,30,50) CCSRCH471J50
C711 (B,30,45) CKSRYB104K16
C712 (B,27,45) CCSRCH471J50
C713 (A,26,46) CCSRCH120J50
C714 (A,26,39) CCSRCH120J50
Mark No. Description Part No.
C715 (B,26,38) CKSRYB331K50
C716 (B,32,33) CKSRYB104K16
C717 (B,30,33) CCSRCH471J50
C719 (A,25,36) CCSRCH471J50
C720 (B,23,30) CKSRYB104K16
C721 (A,24,24) CEJQ101M6R3
C723 (A,37,27) CCSRCH471J50
C724 (A,37,29) CKSRYB104K16
C726 (A,34,27) CKSRYB104K16
C727 (A,34,29) CCSRCH471J50
C728 (A,41,28) CKSRYB104K16
C729 (A,41,29) CCSRCH471J50
C730 (B,60,34) CCSRCH471J50
C731 (A,25,55) CEJQ101M16
C732 (B,29,55) CKSRYB104K16
C733 (B,29,60) CKSRYB104K16
C734 (B,41,32) CKSRYB103K50
C735 (B,37,33) CKSRYB103K50
C741 (A,92,19) CEJQ101M16
C742 (B,96,20) CKSRYB104K16
C743 (A,96,32) CKSRYB105K6R3
C745 (B,64,35) CKSRYB105K6R3
C746 (A,53,32) CKSQYB225K10
C761 (B,71,46) CKSRYB104K16
C762 (B,73,46) CCSRCH471J50
C763 (B,67,46) CCSRCH471J50
C764 (B,65,46) CCSRCH471J50
C766 (B,52,50) CCSRCH471J50
C767 (B,80,44) CKSRYB104K16
C768 (B,82,44) CCSRCH471J50
C771 (A,62,60) CKSQYB105K16
C773 (A,55,60) CKSRYB104K16
C781 (A,44,17) CCSRCH471J50
C782 (A,45,19) CKSRYB104K16
C783 (A,49,19) CEJQ470M16
C784 (A,45,16) CKSRYB104K16
C786 (A,55,16) CEJQ100M16
C788 (A,42,18) CKSRYB104K16
C789 (A,77,26) CKSRYB102K50
C790 (A,79,25) CKSRYB102K50
C791 (A,75,31) CEJQ100M16
C792 (A,81,31) CEJQ100M16
C951 (A,58,27) CCSRCH471J50
C952 (A,59,27) CKSRYB105K10
C956 (A,70,34) CKSQYB105K10
C957 (A,70,33) CCSRCH471J50
XUSB IN ASSY
MISCELLANEOUS
IC 951 (B,55,57) OP-AMP IC HA17558AF
D951 (B,73,69) DIODE UDZS5R1(B)
D952 (A,38,107) DIODE UDZS5R1(B)
D953 (A,36,107) DIODE UDZS5R1(B)
D957 (B,57,67) DIODE DAN217U
F951 (B,60,12) INDUCTOR CTF1295
JA 951 (A,80,16) OPTICAL IN MOD. GP1FMV51RK0F
JA 952 (A,78,58) JACK RKN1004
KN951 (A,46,34) WRAPPING TERMINAL VNF1084
CN951 (A,49,19) CONNECTOR POST B5B-PH
Mark No. Description Part No.
VSX-816-K
108
1234
1234
C
D
F
A
B
E
6. ADJUSTMENT
CN952 (A,46,104) CONNECTOR CKS3370
RESISTORS
R951 (B,66,18) RS1/16S101J
R953 (A,38,72) RS1/16S682J
R954 (A,54,61) RS1/16S101J
R955 (A,50,67) RS1/16S104J
R956 (B,65,53) RS1/16S102J
R957 (B,57,69) RS1/16S104J
R958 (B,63,53) RS1/16S104J
R959 (B,63,59) RS1/16S333J
R960 (B,56,64) RS1/16S472J
R961 (B,59,57) RS1/16S101J
R962 (B,41,63) RS1/16S101J
R963 (A,37,81) RS1/16S104J
R966 (B,51,63) RS1/16S472J
R967 (B,45,63) RS1/16S333J
R972 (A,48,70) RS1/16S102J
R973 (A,46,73) RS1/16S0R0J
R974 (A,35,106) RS1/16S0R0J
R975 (A,33,106) RS1/16S0R0J
CAPACITORS
C951 (B,64,12) CKSRYB104K50
C952 (B,35,59) CKSRYB103K50
C953 (B,33,59) CKSRYB104K50
C956 (A,43,68) CHIP ELECT.CAPACITOR CEVW100M50
C957 (A,51,67) CKSRYB103K50
C958 (A,43,79) CHIP ELECT.CAPACITOR CEVW100M50
C959 (A,48,67) CKSRYB471K50
C960 (A,56,68) CCSRCH101J50
C962 (A,39,81) CKSRYB103K50
C963 (A,34,99) CHIP ELECT.CAPACITOR CEVW100M50
C964 (B,43,63) CCSRCH330J50
C965 (B,63,61) CCSRCH330J50
C967 (A,35,67) CHIP ELECT.CAPACITOR CEVW100M50
C968 (A,32,79) CHIP ELECT.CAPACITOR CEVW100M50
YFM/AM TUNER UNIT
FM/AM TUNER UNIT has no service part.
Mark No. Description Part No.
There is no information to be shown in this chapter.
VSX-816-K 109
5678
5678
C
D
F
A
B
E
7. GENERAL INFORMATION
7.1 DIAGNOSIS
7.1.1 DISASSEMBLY
2
Remove the top cover (five screws).
1
Cut 3 cable ties.
4
Remove PCB holder(one screw).
5
×1
×2
4×3
2×12×1
2×3
Rear Panel
Pull up
7
3Push Rivet
Note : The unit does not operate when the screws of Speaker Terminal are taken off from Rear Panel.
Heat-sink caution when disassembling : The Heat-sink becomes hot; please take care.
5×1
6
Heat Sink
Note: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures
described here are common.
VSX-816-K
110
1234
1234
C
D
F
A
B
E
Note: Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures
described here are common.
Diagnosis
POWER PACK ASSY
MAIN ASSY
Heat Sink
CAUTION:
These 3 screws in the rear panel should be tightened
at all times.
They have to be connected to the chassis, otherwise
the unit may not work properly.
8
DSP ASSY
USB ASSY
Note : The unit does not operate when the screws of Speaker Terminal are taken off from Rear Panel.
Heat-sink caution when disassembling : The Heat-sink becomes hot; please take care.
When lifting up the Amplifier Assy,
be careful not to damage this
TRANS Assy.
Be careful that no parts
on the Primary Assy are
touching the chassis.
VSX-816-K 111
5678
5678
C
D
F
A
B
E
FM/AM TUNER
UNIT
COMPONENT VIDEO
ASSY
F
PRE-OUT
ASSY
H
Y
TRANS 3
ASSY
E
TRANS 4
ASSY
O
HP ASSY
G
POWER KEY ASSY
M
PRIMARY
ASSY
U
MAIN ASSY
A
USB ASSY
W
TRANS 2
ASSY
D
POWER PACK
ASSY
CFRONT DISPLAY
ASSY
K
FRONT VIDEO
ASSY
S
R. ENCODER
ASSY
L
REGULATOR ASSY
P
USB IN ASSY
X
DSP ASSY
B
DIGITAL IN
ASSY
R
S VIDEO ASSY
N
5.1 CH IN ASSY
I
VIDEO ASSY
Q
NOTE : This photograph is VSX-916-S.
1×3
1×2
VSX-816-K
112
1234
1234
C
D
F
A
B
E
7.2 PARTS
7.2.1 IC
7 Pin Arrangement (Top View)
7 PEG216A (MAIN ASSY : IC9001)
• System Control MCU
• The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams.
• List of IC
PEG216A, PE5550A, NJM2243M, NJM2595M, R2S15205FP, STK413-230C, TCC760HC01-AG, AAT4618IGV-0.5-1
XM Common Select
XM Signal Sw
WakeUPB(XM)
RDS FM+/XM RST
RDS DT/XM LINK ACTIVE
RDS CLK/XM LOWSPEED
DSP OVERLOAD
OL DET
DC PROT
VIDEO1
VIDEO2
VIDEO3
SW DET
Comp VideoA
Comp VideoB
Comp Video INH
GND
EVR DT
5V
EVR CLK
LOW CONSUMPTION
VIDEO4
RY-AC
XM ERR
RY_A
RY_C/R
RY_B
AMUTE
XMDACRST
NECK SELECT
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
P10/D8
P11/D9
P12/D10
P13/D11
P14/D12
P15/D13/INT3
P16/D14/INT4
P17/D15/INT5
P20/A0(/D0/_)
P21/A1(/D1/D0)
P22/A2(/D2/D1)
P23/A3(/D3/D2)
P24/A4(/D4/D3)
P25/A5(/D5/D4)
P26/A6(/D6/D5)
P27/A7(/D7/D6)
Vss
P30/A8(/_/D7)
Vcc
P31/A9
P32/A10
P33/A11
P34/A12
P35/A13
P36/A14
P37/A15
P40/A16
P41/A17
P42/A18
P43/A19
TUNER DO 81 P07/D7 P44/CS0 50 XTL0
TUNER CLK 82 P06/D6 P45/CS1 49 DIR ERR
TUNER DI 83 P05/D5 P46/CS2 48 DIR CDC RST
TUNER CE 84 P04/D4 P47/CS3 47 LSSN
6 OHM 85 P03/D3 P50/WRL/WR 46 DIR CS
OSD RST 86 P02/D2 P51/WRH/BHE 45 DIR DO
OSD CS 87 P01/D1 P52/RD 44 ADMODE
DECO MUTE 88 P00/D0 P53/BCLK 43 DSP MUTE
XPROTECT 89 P107/AN7/KI3 P54/HLDA 42 DSP MODE
MVRATT 90 P106/AN6/KI2 P55/HOLD 41 DSP HREQ
XM Power 91 P105/AN5/KI1 P56/ALE 40 BUSY
iPod power 92 P104/AN4/KI0 P57/RDY/CLKOUT 39 DSP SS
XM Fs 93 P103/AN3 P60/CTS0/RTS0 38 DSP RST
SIMUKE1 94 P102/AN2 P61/CLK0 37 DSP CLK
SIMUKE2 95 P101/AN1 P62/RxD0 36 DSP DO
AVSS 96 AVSS P63/TXD0 35 DSP DI
HP DET 97 P100/AN0 P64/CTS1/RTS1/CLKS1 34 232C CTS
VREF 98 VREF P65/CLK1 33 CLK
AVCC 99 AVcc P66/RxD1 32 RX(SR+/iPod)
USDAO 100 P97/ADTRG/SIN4 P67/TXD1 31 TX(SR+/iPod)
P96/ANEX1/SOUT4
P95/ANEX0/CLK4
P94/DA1/TB4IN
P93/DA0/TB3IN
P92/TB2IN/SOUT3
P91/TB1IN/SIN3
P90/TB0IN/CLK3
BYTE
CNVss
P87/XCIN
P86/XCOUT
RESET
XOUT
VSS
XIN
VCC
P85/NMI
P84/INT2
P83/INT1 P85/NMI
P82/INT0
P81/TA4IN/U
P80/TA4OUT/U
P77/TA3IN
P76/TA3OUT
P75/TA2IN/W
P74/TA2OUT/W
P73/CTS2/RTS2/TA1IN/V
P72/CLK2/TA1OUT/V
P71/RxD2/SCL
/TA0IN/TB5IN
P70/TXD2/SDA
/TA0OUT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
USDAI
USCLK
DISP EN
DISP RDY
DISP DI/OSD DT
DISP DO
DISP CLK/OSD CLK
GND
CNVSS
I2C CLK EEPROM
I2C DT EEPROM
XRESET
XOUT
GND
XIN
5V
NMI
ACIN(WAKEUP)
USB TREQ
1W WUP
UART SW2
USB HREQ
USB CTL
USB XFLAG
iPod Sense
USB XRST
USCS
DISP RST
XM RX
XM TX
VSX-816-K 113
5678
5678
C
D
F
A
B
E
No. Port Pin Name I/O Pin Function
• Pin Function
P96/ANEX1/SOUT4
P95/ANEX0/CLK4
P94/DA1/TB4IN
P93/DA0/TB3IN
P92/TB2IN/SOUT3
P91/TB1IN/SIN3
P90/TB0IN/CLK3
BYTE
CNVss
P87/XCIN
P86/XCOUT
RESET
XOUT
VSS
XIN
VCC
P85/NMI
P84/INT2
P83/INT1 P85/NMI
P82/INT0
P81/TA4IN/U
P80/TA4OUT/U
P77/TA3IN
P76/TA3OUT
P75/TA2IN/W
P74/TA2OUT/W
P73/CTS2/RTS2/TA1IN/V
P72/CLK2/TA1OUT/V
P71/RxD2/SCL/TA0IN/TB5IN
P70/TXD2/SDA/TA0OUT
P67/TXD1
P66/RxD1
P65/CLK1
P64/CTS1/RTS1/CLKS1
P63/TXD0
P62/RxD0
P61/CLK0
P60/CTS0/RTS0
P57/RDY/CLKOUT
P56/ALE
P55/HOLD
P54/HLDA
P53/BCLK
P52/RD
P51/WRH/BHE
P50/WRL/WR
P47/CS3
P46/CS2
P45/CS1
P44/CS0
USB DAI
USCLK
DISP EN
DISP RDY
DISP DI/OSD DT
DISP DO
DISP CLK/OSD CLK
GND
CNVSS
I2C CK
I2C DT
XRESET
XOUT
GND
XIN
5V
NMI
ACIN(WAKEUP)
USB TREQ
1W WUP
UART SW2
USB HREQ
USB CTL
USB XFLAG
iPod Sense
USB XRST
USCS
DISP RST
XM RX
XM TX
TXD(SR+/iPod)
RXD(SR+/iPod)
CLK
232C CTS
DSP DI
DSP DO
DSP CLK
DSP RST
DSP SS
BUSY
DSP HREQ
DSP MODE
DSP MUTE
ADMODE
DIR DO
DIR CS
LSSN
DIR CDC RST
DIR ERR
XTL0
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
data out to USB
clock signal from USB
enable signal to display u-com
ready signal from display u-com
data out to display u-com/OSD IC
data in from display u-com
clock signal to display u-com/OSD IC
clock for I2C communication with EEPROM IC
data for I2C communication with EEPROM IC
no use
AC pulse in
Request from TCC760 to main u-com
wake up signal from display u-com
L:SR + route and H:iPod or XM route are selected.
Request from main u-com to TCC760
From main u-com to USB power switch IC
From USB power switch IC to main u-com
iPod Sense
reset signal to USB
From main u-com to TCC760
reset signal to display u-com
XM communication
XM communication
SR+/iPod communication
SR+/iPod communication
It is necessary when writing for JIG
For rewriting 232C (Admit communication)
Data output signal for communication with DSP and DIR
Data input signal for communication with DSP
Clock signal for communication with DSP and DIR
Reset signal for DSP
Strobe select signal to DSP
Use it in MCACC
DSP error detect signal
Mode select of DSP (ROM/RAM)
DSP ASSY mute
DSP ASSY
Data input signal for communication with DIR/DAC
Chip select signal for communication with DIR/DAC
DSP ASSY
Reset signal for DIR CODEC
lock/unlock signal
DIR X'tal change
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
VSX-816-K
114
1234
1234
C
D
F
A
B
E
No. Port Pin Name I/O Pin Function
• Pin Function
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
P43/A19
P42/A18
P41/A17
P40/A16
P37/A15
P36/A14
P35/A13
P34/A12
P33/A11
P32/A10
P31/A9
Vcc
P30/A8(/_/D7)
Vss
P27/A7(/D7/D6)
P26/A6(/D6/D5)
P25/A5(/D5/D4)
P24/A4(/D4/D3)
P23/A3(/D3/D2)
P22/A2(/D2/D1)
P21/A1(/D1/D0)
P20/A0(/D0/_)
P17/D15/INT5
P16/D14/INT4
P15/D13/INT3
P14/D12
P13/D11
P12/D10
P11/D9
P10/D8
P07/D7
P06/D6
P05/D5
P04/D4
P03/D3
P02/D2
P01/D1
P00/D0
P107/AN7/KI3
P106/AN6/KI2
P105/AN5/KI1
P104/AN4/KI0
P103/AN3
P102/AN2
P101/AN1
AVSS
P100/AN0
VREF
AVcc
P97/ADTRG/SIN4
NECK_SEL
XMDACRST
AMUTE
RY_B
RY_C/R
RY_A
XM ERR
RY-AC
VIDEO4
LOW_CONSUMPTION
EVR CLK
5V
EVR DT
GND
COMP VIDEO INH
COMP VIDEOB
COMP VIDEOA
SWDET
VIDEO3
VIDEO2
VIDEO1
DC PROTECT
OL DET
DSP OVERLOAD
RDS CLK/XM LOWSPEED
RDS DT/Link ACTIVE(XM)
RDS FM+/XM RST
WAKE UPB(XM)
XM Signal Sw
XM Common Select
TUNER DO
TUNER CLK
TUNER DI
TUNER CE
6 OHM
OSD RST
OSD CS
DECO MUTE
XPROTECT
MVRATT
XM POW
iPod POW
XM Fs
SIMUKE1
SIMUKE2
AVSS
HP DET
VREF
AVCC
USDAO
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
For 8ohm spk impedance: "H at Adv Surr,Standard,5.1Multich,speaker A+B(7ch model). For 6 ohm spk impedance: L
RESET of 2chDAC for XM
System mute
Speaker B relay-on / OFF at 916, 816 and 516. This RY_B is used for SW relay at 316.
Rear one / center relay-on / OFF
Speaker A relay-on / OFF
AC relay on/off
NJM2296 control (VIDEO input select) (SX316 no connect)
When 1 minutes passed after power off and then go into stop mode and port L, else H.
Clock signal for Function and E-volume
Data signal for Function and E-volume
Component terminal control
Component terminal control
Component terminal control
"H": SW YES, "L": SW NO (SX316 no connect)
NJM2296 control (VIDEO input select) (SX316 no connect)
NJM2296 control (VIDEO input select) (SX316 no connect)
NJM2296 control (VIDEO input select) (SX316 no connect)
Amplifier DC detection. H:Normal, L:Abnormal
Amplifier overload detection. H:Normal, L:Abnormal
ANALOG OVER LOAD detect (H : detect)
RDS clock in signal/XM Lowspeed
RDSdata in signal/XM Link Active
RDS power supply/XM reset. FM : Low, AM:High
XMDT for communication
CLK,DT, etc. XM/DIR selector (XM : High)
XM
Data input signal for tuner contorol
Clock signal for tuner contorol
Data output signal for tuner contorol
Chip select signal for tuner contorol
if stop mode, port L, else according to setting(J model No connect)
1st DSP detect port
Power supply abnormal condition detection. H: Normal, L: Abnormal.
Master volume ATT control (-15dB or less : L)
XM antenna power supply. H always. When abnormally detecting it, it makes it to L.
IPod power supply. H always. When abnormally detecting it, it makes it to L.
XM
lnput 1 to switch region
lnput 2 to switch region
connects with VCC.
HP detection H:detected.
connects with VCC.
connects with VCC.
data input from USB
VSX-816-K 115
5678
5678
C
D
F
A
B
E
7 Pin Arrangement (Top View)
7 PE5550A (FRONT DISPLAY ASSY : IC401)
• System Control MCU
VF
+5V
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
POWER ON LED
IO
IO
IO
IO
IO
IO
IO
IO
IO
IO
IO
IO
IO
O
O
O
O
O
O
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
VLOAD
VDD2
FIP20
FIP21
FIP22
FIP23
FIP24/P30
FIP25/P31
FIP26/P32
FIP27/P33
FIP28/P34
FIP29/P35
FIP30/P36
FIP31/P37
FIP32/P40
FIP33/P41
FIP34/P42
FIP35/P43
FIP36/P44
FIP37/P45
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
P-CH
S7 O61FIP19 P-CH P-CH P46/FIP38 40 O NC
S6 O62 FIP18 P-CH P-CH P47/FIP39 39 O NC
S5 O63 FIP17 P-CH P-CH open drain P50/FIP40 38 IO NC
S4 O64 FIP16 P-CH P-CH open drain P51/FIP41 37 IO NC
S3 O65 FIP15 P-CH P-CH open drain P52/FIP42 36 IO NC
S2 O66 FIP14 P-CH P-CH open drain P53/FIP43 35 IO NC
S1 O67 FIP13 P-CH P-CH open drain P54/FIP44 34 IO Center LED
G13 O68 FIP12 P-CH P-CH open drain P55/FIP45 33 IO MIC DET
G12 O69 FIP11 P-CH P-CH open drain P56/FIP46 32 IO MCACC LED
G11 O70 FIP10 P-CH P-CH open drain P57/FIP47 31 IO NC
G10 O71 FIP9 P-CH P-CH open drain P60/FIP48 30 IO EN A
G9 O72 FIP8 P-CH P-CH open drain P61/FIP49 29 IO EN B
G8 O73 FIP7 P-CH P-CH open drain P62/FIP50 28 IO FEN B
G7 O74 FIP6 P-CH P-CH open drain P63/FIP51 27 IO FEN A
G6 O75 FIP5 P-CH P-CH open drain P64/FIP52 26 IO NC(PU)(HP IN)
G5 O76 FIP4 P-CH VDD0 25 +5V
G4 O77 FIP3 P-CH AVDD 24 +5V
G3 O78 FIP2 P-CH VSS0 23 GND
G2 O79 FIP1 P-CH COMP ANI0 22 I KEY IN1
G1 O80FIP0 P-CH COMP ANI1 21 I KEY IN2
CMOS
CMOS
CMOS
STI
C-MOS
C-MOS
C-MOS
C-MOS
C-MOS
C-MOS
C-MOS
C-MOS
C-MOS
C-MOS
C-MOS
COPM
COMP
VDD1
VSS1
X1
X2
IC(VPP)
RESET
P27/SCK1
P26/SI1
P25/SO1
P24/BUSY
P23
P22
P21/SO3
P20/SCK3
P00/INTP0
P01/INTP1
P02/T1
AVSS
ANI3
ANI2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
I
I
I
IO
IO
IO
IO
IO
IO
IO
IO
IO
IO
IO
I
I
+5V
GND
Resonator
Resonator
GND
DISP RESET
DISP CK
DISP DTI
DISP DTO
DISP RDY
Test
1w_wup
NC
NC
DISP EN
NC(PD)(MULTIROOM SRIN)
SR IN
GND
KEY IN4
KEY IN3
VSX-816-K
116
1234
1234
C
D
F
A
B
E
No. Port Pin Name I/O Pin Function
• Pin Function
+5V
GND
Resonator
Resonator
GND
DISP RESET
DISP CK
DISP DTI
DISP DTO
DISP RDY
Test
1w_wup
NC
NC
DISP EN
NC
SR IN
GND
KEY IN4
KEY IN3
KEY IN2
KEY IN1
GND
+5V
+5V
NC
FEN A
FEN B
EN B
EN A
NC
MCACC LED
MIC DET
Center LED
NC
NC
NC
NC
NC
NC
POWER ON LED
S24
S23
S22
S21
S20
S19
S18
S17
S16
VDD1
VSS1
X1
X2
IC(VPP)
RESET
P27/SCK1
P26/SI1
P25/SO1
P24/BUSY
P23
P22
P21/SO3
P20/SCK3
P00/INTP0
P01/INTP1
P02/T1
AVSS
ANI3
ANI2
ANI1
ANI0
VSS0
AVDD
VDD0
P64/FIP52
P63/FIP51
P62/FIP50
P61/FIP49
P60/FIP48
P57/FIP47
P56/FIP46
P55/FIP45
P54/FIP44
P53/FIP43
P52/FIP42
P51/FIP41
P50/FIP40
P47/FIP39
P46/FIP38
FIP37/P45
FIP36/P44
FIP35/P43
FIP34/P42
FIP33/P41
FIP32/P40
FIP31/P37
FIP30/P36
FIP29/P35
FIP28/P34
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
-
-
I
-
-
I
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
-
I
I
I
I
-
-
-
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
O
O
I/O
O
O
O
O
O
O
O
O
O
positive power supply
ground potential
crystal connection for system clock oscillation
crystal connection for system clock oscillation
receive reset signal from main u-com
clock signal from main u-com
datain from main u-com
data out to main u-com
ready signal from main u-com
test mode input for checker
output wakeup signal to main u-com
enable signal from main u-com
remote control signal input from main room
ground potential for A/D converter
ground potential for ports
analog power voltage input to A/D converter
positive power supply to ports
MULTI JOG(Right)
MULTI JOG(Left)
VOLUME JOG1(-)
VOLUME JOG1(+)
NC
MCACC LED output
MIC detection. L:detected, H:No detect
Digital Precision Processing LED. H:ON, L:OFF. Only for 816KU, 816SF, 916MY, 516J
NC
NC
NC
NC
NC
NC
POWER LED output
Display
Display
Display
Display
Display
Display
Display
Display
Display
VSX-816-K 117
5678
5678
C
D
F
A
B
E
No. Port Pin Name I/O Pin Function
• Pin Function
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
FIP27/P33
FIP26/P32
FIP25/P31
FIP24/P30
FIP23
FIP22
FIP21
FIP20
VDD2
VLOAD
FIP19
FIP18
FIP17
FIP16
FIP15
FIP14
FIP13
FIP12
FIP11
FIP10
FIP9
FIP8
FIP7
FIP6
FIP5
FIP4
FIP3
FIP2
FIP1
FIP0
S15
S14
S13
S12
S11
S10
S9
S8
+5V
VF
S7
S6
S5
S4
S3
S2
S1
G13
G12
G11
G10
G9
G8
G7
G6
G5
G4
G3
G2
G1
O
O
O
O
O
O
O
O
-
-
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
Display
Display
Display
Display
Display
Display
Display
Display
positive power supply to FIP controller.
pull down resistor connection of FIP controller
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
Display
VSX-816-K
118
1234
1234
C
D
F
A
B
E
Vin3VoutGND V+
SW2
BIAS
BIAS BIAS
3.1V
15k
BIAS C.O.T.
15k
15k
75Ω
DRIVER
SW1Vin1 Vin2
5786
4213
1Vin1
Vin2
SW1
SW2
GND
V+
Vout
Vin3
2
3
4
8
7
6
5
NJM2243M (VIDEO ASSY : IC303) (S. VIDEO ASSY : IC1102, IC1103)
• 3-INPUT VIDEO SWITCH WITH 75Ω DRIVER
Pin Configuration (Top view) Block Diagram
VSX-816-K 119
5678
5678
C
D
F
A
B
E
SW3
4
SW3
6
GND
12
Vout1
SW5
Vin5
Vin4
SW3
SW4
Vin3
V-
V+
Vout2
SW1
GND
Vin1
Vout3
SW5
Vin2
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V+
V+SW2 SW1 SW5
8
16 10 14 2
Vout3
11
Vout2
11
Vout1
1
Vin5 3
Vin3 7
Vin4 5
Vin1
20k
S2
S4
S1 S5
6dB
Amp 75Ω
Driver
6dB
Amp 75Ω
Driver
6dB
Amp 75Ω
Driver
20k
S6
20k
S7
20k
S3
20k
20k
20k
13
Vin2 9
NJM2595M (VIDEO ASSY : IC301) (S. VIDEO ASSY : IC351, IC352)
• 5-INPUT 3-OUTPUT VIDEO SWITCH
Pin Configuration (Top view)
Block Diagram
VSX-816-K
120
1234
1234
C
D
F
A
B
E
+
–
+
–
–
+
–
+
+
–
+
–
+
–
+
–
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1-C
1-OUT(SBL OUT)
AGND
2-OUT(SBR OUT)
2-C
3-C
3-OUT(C OUT)
AGND
4-OUT(SW OUT)
4-C
5-C
5-OUT(SL OUT)
AGND
6-OUT(SR OUT)
6-C
FLC
FLOUT
AGND
FROUT
FRC
BASSL1
BASSL2
TREL
AVCC
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
INL9
INR9
INLA/RECL1
REC
+16~-95dB,
-∞(1dBstp)
+16~-95dB,
-∞(1dBstp)
+16~-95dB,
-∞(1dBstp)
+16~-95dB,
-∞(1dBstp)
+16~-95dB,
-∞(1dBstp)
+16~-95dB,
-∞(1dBstp)
Bass/Treble
-14~+14dB
(2dB step)
Bass/Treble
-14~+14dB
(2dB step)
Tone
Tone
+16~0dB
(1dB step)
+16~0dB
(1dB step)
AVCC
0~95dB,
-∞
(1dBstep)
0~95dB,
-∞
(1dBstep)
MCU
I/F
0/-6/-12/-18dB
ATT
MAIN
SUB
INRA/RECR1
INL8
INR8
INL7
INR7
INL6
INR6
INL5
INR5
INL4
INR4
INL3
INR3
INL2
INR2
INL1
INR1
AVEE
CLOCK
DATA
DGND
40 252627282930313233343536373839
INRB/RECR2
SBRIN1
SBLIN1
SRIN1
SLIN1
SWIN1
CIN1
FRIN1
FLIN1
RECL3
RECR3
INL11/RECL5
INR11/RECR5
INL10/RECL4
INR10/RECR4
INLB/RECL2
65 807978777675747372717069686766
MONO
BASSR1
BASSR2
TRER
SBLIN2
SBRIN2
CIN2
SWIN2
SLIN2
SRIN2
FLIN2
FRIN2
ADCL
ADCR
SUBR
SUBL
R2S15205FP (MAIN ASSY : IC108)
• 8ch electronic volume with 11 input selectors and tone control
Block Diagram
VSX-816-K 121
5678
5678
C
D
F
A
B
E
19,17,
14,12,
9,7,
4,2
FROUT,FLOUT,
6-OUT,5-OUT,
4-OUT,3-OUT,
2-OUT,1-OUT
20,16,
15,11,
10,6,
5,1
FRC,FLC,
6-C,5-C,
4-C,3-C,
2-C,1-C
3,8,
13,18
AGND Analog ground of internal circuit
23,27 TREL,TRER Frequency characteristic setting pin of L/R channel tone control(Treble)
24 AVCC Positive power supply to internal circuit
35,34,
33,32,
31,30,
29,28
FRIN2,FLIN2,
SRN2,SLIN2,
SWN2,CIN2,
SBRIN2,SBLIN2,
73,74,
75,76,
77,78,
79,80
41 DGND Digital ground of internal circuit
42 DATA Input pin of control data
43 CLOCK Input pin of control clock
44 AVEE Negative power supply to internal circuit
40 MONO Input pin of monaural(Input Selector)
38,39 SUBL,SUBR Output pin for L/R channel SUB Output
36,37 ADCL,ADCR Output pin for L/R channel ADC
72 RECL3
71 RECR3 Output pin for L/R channel REC Output
46,48,50,
52,54,56,
58,60,64
INL1,INL2,INL3,
INL4,INL5,INL6,
INL7,INL8,INL9
45,47,49,
51,53,55,
57,59,63
INR1,INR2,INR3,
INR4,INR5,INR6,
INR7,INR8,INR9
Input pin of L/R channel(Input Selector)
61,62,
65,66,
67,68,
69,70
INRA/RECR1,INLA/RECL1,
INRB/RECR2,INLB/RECL2,
INR10/RECR4,INL10/RECL4,
INR11/RECR5,INL11/RECL5,
Input pin of L/R channel(Input Selector)/
Output pin for L/R channel REC Output
FLIN1,FRIN1,
CIN1,SWIN1,
SLIN1SRIN1,
SBLIN1,SBRIN1
Input pin of L/R/C/SW/SL/SR/SBL/SBR channel(Multi IN 1/2)
21,22,
25,26
BASSL1,BASSL2,
BASSR1,BASSR2,
Frequency characteristic setting pin of L/R channel tone control(Bass)
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
PIN No. Name Function
Connects capacitor for reducing click noise of
L/R/C/SW/SL/SR/SBL/SBR channel volume
Pin Function
VSX-816-K
122
1234
1234
C
D
F
A
B
E
STK413-230C (POWER PACK ASSY : IC603)
• 3-channel high efficiency AF power amplifier
Pin Configuration Block Diagram
14
15
16
12
19 20 20
6
4
5
7
2
3
1
1110
17
13
TR1
TR3
TR7
TR5
TR8 TR9
TR10
TR4
R1
R4
C2
D1
R5
R6
R2 R7
TR21
TR22 TR24
TR25 R22
TR26
TR28
TR27
TR30
TR29
TR19
TR18
TR13
TR11
TR12 TR14
TR15
TR41
R41
D42
D43
D41
D51
D54
D53
D52
R51
TR51
D44
Comparator
Comparator
R12
TR17
TR16
R13
D3
R16
R15R14
C12
R11
C12
R17
TR20
R27
R26
R23
TR23
R21
R24 R25
C21
C22
D4
C1
TR2
TR6
R3
D2
18
21
9 8
122
VSX-816-K 123
5678
5678
C
D
F
A
B
E
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
VSSIO
MODE1
TDI
TMS
TCK
TDO
nTRST
SDO0/GPIO_A0
SCK0/GPIO_A1
SFRM0/GPIO_A2
SDI0/GPIO_A3
SDO1/GPIO_A4
VDDI
VSSI
SCK1/GPIO_A5
VDDIO
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
VDD_USB
LRCK/GPIO_B22
BCLK/GPIO_B21
UT_RX/IDE_nCS1/GPIO_B9
UT_TX/GPIO_B8
nOE
nWE
ND_nWE/GPIO_B7
SD_CKE/GPIO_B0
VSSI
USBH_DN/GPIO_B29
USBH_DP/GPIO_B28
USB_DN/GPIO_B27
USB_DP/GPIO_B26
nCS3/nOE3/GPIO_B5
nCS2/nOE2/GPIO_B4
GPIO_D21
GPIO_D20
GPIO_D19
GPIO_D18
GPIO_D17
GPIO_D16
GPIO_D15
PKG1
VSSI_ADC
VDDI_ADC
VBBA_ADC
VSSA_ADC
ADIN4
ADIN2
ADIN0
VDDA_ADC
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
VSSIO
XD4
XD5
XD6
XD7
XD8
VDDI
VSSI
XD9
XD10
XD11
XD12
XD13
XD14
XD15
VDDIO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
VBBA_PLL
VSSA_PLL
XFILT
VDDA_PLL
VDDIO
XOUT
XIN
READY
nRESET
VDD_OSC
XTOUT
XTIN
DAI/GPIO_B25
DAO/GPIO_B24
MCLK/GPIO_B23
VSSIO
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
XA0
XA1
XA2
XA3
XA4
XA5
XA6
VDDI
VSSI
XA7
XA8
XA9
XA10
XA11
XA12
VSSIO
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Boot ROM
(4 kB)
DQM[0:1]/XA[21:20]
DQS[1:0]/XA[19:18]
ND_CLE/XA[17]
ND_ALE/SD_nRAS/XA[16]
SD_nCAS/XA[15]
SD_BA[1:0]/XA[14:13]
XA[12:0]
XD[15:0]
nOE,nWE,nCS[3:0]
SD_nCS,SD_CKE
SD_CLK
ND_nWE
IDE_nCS1
READY
TDI,TMS,TCK
nTRST,TDO
GPIO_D[21:15]
GPIO_A[3:0]
USB 1.1
Host/Device
USB_DP/GPIO_B[26], USB_DN/GPIO_B[27]
USBH_DP/GPIO_B[28], USBH_DN/GPIO_B[29]
DAO/GPIO_B[24], GPIO_A[3]/CDAI
MCLK/GPIO_B[23], GPIO_A[2]/CLRCK
BCLK/GPIO_B[21], GPIO_A[1]/CBCLK
LRCKO/GPIO_B[22], DAI/GPIO_B[25]
XIN, XOUT, XTIN,
XTOUT, XFILT
UT_TX/GPIO_B[8]
UT_RX/GPIO_B[9]
EXINT[3:0]/GPIO_A[15:12]
GPIO_A[11:0]
ADIN0, ADIN2, ADIN4
TCO2/GPIO_A[11], TCO5/GPIO_A[8]
TCO1/GPIO_A[7], TCO4/GPIO_A[4]
TCO0/GPIO_A[3], TCO3/GPIO_A[0]
GPIO_A[15:0], GPIO_B[29:21], GPIO_B[9:7],
GPIO_B[5:0], GPIO_D[17:15]
GPIO_A[11:10], GPIO_A[9:8],
GPIO_D[17:15]
SRAM
(64 kB)
Ext. Memory
Interface
Video Input
Interface
AHB Wrapper
ARM940T
JTAG
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
SFRM1/GPIO_A6
SDI1/GPIO_A7
SDO2/GPIO_A8
SCK2/GPIO_A9
SFRM2/GPIO_A10
SDI2/GPIO_A11
VDDI
VSSI
EXINT0/GPIO_A12
EXINT1/GPIO_A13
EXINT2/GPIO_A14
EXINT3/GPIO_A15
XD0
XD1
XD2
XD3
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
nCS1/nOE1/GPIO_B3
nCS0/nOE0/GPIO_B2
SD_nCS/GPIO_B1
VSSIO
SD_CLK/GPO
XA21/DQM0
XA20/DQM1
VDDI
XA19
XA18
XA17/CLE
XA16/nRAS/ALE
XA15/nCAS
XA14/BA1
XA13/BA0
VDDIO
ECC
Generation
APB
Bridge
PLL & CLK
Generator
Timers/
Counters
Interrupt
Controller
GSIO
GPIO
UART/IrDA
I2C
ADC
AHB
Arbiter
DMA
(2-channel)
DAI (I2S)
for
CODEC
&
CD-DSP
AHB
APB
TCC760HC01-AG (USB ASSY : IC701)
• USB Media Control IC
Pin Arrangement (Top view)
Block Diagram
VSX-816-K
124
1234
1234
C
D
F
A
B
E
No. Pin Name I/O Pin Function
1 VSSIO −Digital ground for I/O
2 XD4 I/O External bus data bit [4]
3 XD5 I/O External bus data bit [5]
4 XD6 I/O External bus data bit [6]
5 XD7 I/O External bus data bit [7]
6 XD8 I/O External bus data bit [8]
7 VDDI −Digital power supply for internal core (1.8 V)
8 VSSI −Digital ground for internal
9 XD9 I/O External bus data bit [9]
10 XD10 I/O External bus data bit [10]
11 XD11 I/O External bus data bit [11]
12 XD12 I/O External bus data bit [12]
13 XD13 I/O External bus data bit [13]
14 XD14 I/O External bus data bit [14]
15 XD15 I/O External bus data bit [15]
16 VDDIO −Digital power supply for I/O (1.8 V to 3.3 V)
17 XA0 I/O External bus address bit [0]
18 XA1 I/O External bus address bit [1]
19 XA2 I/O External bus address bit [2]
20 XA3 I/O External bus address bit [3]
21 XA4 I/O External bus address bit [4]
22 XA5 I/O External bus address bit [5]
23 XA6 I/O External bus address bit [6]
24 VDDI −Digital power supply for internal core (1.8 V)
25 VSSI −Digital ground for internal
26 XA7 I/O External bus address bit [7]
27 XA8 I/O External bus address bit [8]
28 XA9 I/O External bus address bit [9]
29 XA10 I/O External bus address bit [10]
30 XA11 I/O External bus address bit [11]
31 XA12 I/O External bus address bit [12]
32 VSSIO −Digital ground for I/O
33 VDDIO −Digital power supply for I/O (1.8 V to 3.3 V)
34 XA13/BA0 I/O External bus address bit [13] / SDRAM bank address 0
35 XA14/BA1 I/O External bus address bit [14] / SDRAM bank address 1
36 XA15/nCAS I/O External bus address bit [15] / SDRAM CAS signal
37 XA16/nRAS/ALE I/O External bus address bit [16] / SDRAM RAS signal / ALE for NAND flash
38 XA17/CLE I/O External bus address bit [17] / CLE for NAND flash
39 XA18 I/O External bus address bit [18]
40 XA19 I/O External bus address bit [19]
41 VDDI −Digital power supply for internal core (1.8 V)
42 XA20/DQM1 I/O External bus address bit [20] / Data I/O mask 1
43 XA21/DQM0 I/O External bus address bit [21] / Data I/O mask 0
44 SD_CLK/GPO I/O SDRAM clock / GPO, SD_CLK can be used as a general purpose output.
45 VSSIO −Digital ground for I/O
46 SD_nCS/GPIO_B1 I/O Chip select signal for SDRAM, active low / GPIO_B[1]
47 nCS0/nOE0/GPIO_B2 I/O External bus chip select [0] / NAND flash output enable [0] / GPIO_B[2]
48 nCS1/nOE1/GPIO_B3 I/O External bus chip select [1] / NAND flash output enable [1] / GPIO_B[3]
49 nCS2/nOE2/GPIO_B4 I/O External bus chip select [2] / NAND flash output enable [2] / GPIO_B[4]
50 nCS3/nOE3/GPIO_B5 I/O External bus chip select [3] / NAND flash output enable [3] / GPIO_B[5]
Pin Functions
VSX-816-K 125
5678
5678
C
D
F
A
B
E
No. Pin Name I/O Pin Function
51 USB_DP/GPIO_B26 I/O USB function D+ signal / GPIO_B[26]
52 USB_DN/GPIO_B27 I/O USB function D- signal / GPIO_B[27]
53 USBH_DP/GPIO_B28 I/O USB host D+ signal / GPIO_B[28]
54 USBH_DN/GPIO_B29 I/O USB host D- signal / GPIO_B[29]
55 VSSI −Digital ground for internal
56 SD_CKE/GPIO_B0 I/O SDRAM clock enable signal, active high / GPIO_B[0]
57 ND_nWE/GPIO_B7 I/O NAND flash WE, active low / GPIO_B[7]
58 nWE I/O Static memory write enable signal, active low
59 nOE I/O Static memory output enable signal, active low
60 UT_TX/GPIO_B8 I/O UART or IrDA TX data / GPIO_B[8]
61
UT_RX/IDE_nCS1/GPIO_B9
I/O UART or IrDA RX data / IDE chip select 1 / GPIO_B[9]
62 BCLK/GPIO_B21 I/O I2S bit clock / GPIO_B[21]
63 LRCK/GPIO_B22 I/O I2S word clock / GPIO_B[22]
64 VDD_USB −Power supply for USB I/O (3.3 V)
65 VSSIO −Digital ground for I/O
66 MCLK/GPIO_B23 I/O I2S system clock / GPIO_B[23]
67 DAO/GPIO_B24 I/O I2S digital audio data output / GPIO_B[24]
68 DAI/GPIO_B25 I/O I2S digital audio data input / GPIO_B[25]
69 XTIN I Sub crystal oscillator input (32.768 kHz)
70 XTOUT O Sub crystal oscillator output (32.768 kHz)
71 VDD_OSC −Digital power supply for oscillators (1.8 V)
72 nRESET I System reset, active low
73 READY I Ready information from external device
74 XIN I Main crystal oscillator input for PLL (12 MHz)
75 XOUT O Main crystal oscillator output for PLL (12 MHz)
76 VDDIO −Digital power supply for I/O (1.8 V to 3.3 V)
77 VDDA_PLL −Analog and digital power supply for PLL (1.8 V)
78 XFILT AO PLL filter output
79 VSSA_PLL −Analog ground for PLL
80 VBBA_PLL −Analog ground for PLL
81 VDDA_ADC −Analog power supply for ADC (3.3 V)
82 ADIN0 AI General purpose multi-channel ADC input 0
83 ADIN2 AI General purpose multi-channel ADC input 2
84 ADIN4 AI General purpose multi-channel ADC input 4
85 VSSA_ADC −Analog ground for ADC
86 VBBA_ADC −Analog ground for ADC
87 VDDI_ADC −Digital power supply for ADC (1.8 V)
88 VSSI_ADC −Digital ground for ADC
89 PKG1 I Package ID 1, pull-up for normal operation
90 GPIO_D15 I/O GPIO_D[15]
91 GPIO_D16 I/O GPIO_D[16]
92 GPIO_D17 I/O GPIO_D[17]
93 GPIO_D18 I/O GPIO_D[18]
94 GPIO_D19 I/O GPIO_D[19]
95 GPIO_D20 I/O GPIO_D[20]
96 GPIO_D21 I/O GPIO_D[21]
97 VSSIO −Digital ground for I/O
98 MODE1 I Mode select input 1, Pull-down for normal operation.
99 TDI I JTAG serial data input for ARM940T
100 TMS I JTAG test mode select for ARM940T
VSX-816-K
126
1234
1234
C
D
F
A
B
E
No. Pin Name I/O Pin Function
101 TCK I JTAG test clock for ARM940T
102 TDO I/O JTAG serial data output for ARM940T
103 nTRST I JTAG reset signal for ARM940T, active low
104 SDO0/GPIO_A0 I/O Serial data output 0 / GPIO_A[0]
105 SCK0/GPIO_A1 I/O Serial clock input 0 / GPIO_A[1]
106 SFRM0/GPIO_A2 I/O Serial frame 0 / GPIO_A[2]
107 SDI0/GPIO_A3 I/O Serial data input 0 / GPIO_A[3]
108 SDO1/GPIO_A4 I/O Serial data output 1 / GPIO_A[4]
109 VDDI −Digital power supply for internal core (1.8 V)
110 VSSI −Digital ground for internal
111 SCK1/GPIO_A5 I/O Serial clock input 1 / GPIO_A[5]
112 VDDIO −Digital power supply for I/O (1.8 V to 3.3 V)
113 SFRM1/GPIO_A6 I/O Serial frame 1 / GPIO_A[6]
114 SDI1/GPIO_A7 I/O Serial data input 1 / GPIO_A[7]
115 SDO2/GPIO_A8 I/O Serial data output 2 / GPIO_A[8]
116 SCK2/GPIO_A9 I/O Serial clock input 2 / GPIO_A[9]
117 SFRM2/GPIO_A10 I/O Serial frame 2 / GPIO_A[10]
118 SDI2/GPIO_A11 I/O Serial data input 2 / GPIO_A[11]
119 VDDI −Digital power supply for internal core (1.8 V)
120 VSSI −Digital ground for internal
121 EXINT0/GPIO_A12 I/O External interrupt request [0] / GPIO_A[12]
122 EXINT1/GPIO_A13 I/O External interrupt request [1] / GPIO_A[13]
123 EXINT2/GPIO_A14 I/O External interrupt request [2] / GPIO_A[14]
124 EXINT3/GPIO_A15 I/O External interrupt request [3] / GPIO_A[15]
125 XD0 I/O External bus data bit [0]
126 XD1 I/O External bus data bit [1]
127 XD2 I/O External bus data bit [2]
128 XD3 I/O External bus data bit [3]
AAT4618IGV-0.5-1 (USB ASSY : IC771)
• Load Switching IC
OUT 1IN
5
GND 2
FAULT 3ON (ON)
4
Pin Arrangement (Top view) Pin Function
No. Pin Name I/O Pin Function
1 OUT O P-channel MOS FET drain
2 GND −Ground
3 FAULT O Open-drain FAULT output
4 ON (ON) I Enable input: 4618 active low, 4618- active high
5INIP-channel MOS FET source
VSX-816-K 127
5678
5678
C
D
F
A
B
E
7.3 EXPLANATION
7.3.1 DETECTION CIRCUIT
MAIN ASSY
IC9001
(U-P)
Pin72
DC PROT
Normal : +5 V
DC Detect : 0 V
FL
POWER AMP
POWER AMP
DC DET
(refer 1)
1. DC Derection Circuit Diagram : Example of VSX-816/KUXJ/CA
2. Overload Detection Circuit Diagram: Example of VSX-816/KUXJ/CA FRONT Channel
3. Fan Stop Prottection Circuit Diagram
POWER PACK ASSY
POWER PACK ASSY
MAIN ASSY
IC602(1/2)
R673
R696
C696
C697
R726
D+5V
IC9001
(U-P)
Pin72
DC PROT
DC DT
OL DT
Q696
Q697
IC601(1/2)
R626
IC602(2/2)
R642
IC601(2/2)
R674
IC603(1/3)
R623
IC603(2/3)
R694
IC603(2/3)
IC802(1/2)
8pin
R788
FR
SL
SR
C
SBL
SBR
R667
R669
D651
R665
R445
Fan Stop DET.
D+5V
+12V-12V
R726
R446
FL
Q665
MAIN ASSY
IC9001
(U-P)
Pin73
OL DET
Normal : +5 V
OVER LOAD
Detect : 0 V
POWER PACK ASSY
OL DT
MAIN ASSY
IC9001
(U-P)
Pin72
DC PROT
Normal : +5 V
FAN abnormal
STOP : 0 V
SPEAKER Impedance
Fan Stop
Fan Fan -
Fan +
C255
Q253
VSX-816-K
128
1234
1234
C
D
F
A
B
E
R715
10k
D702
D5SBA20(B)
R727
10k
D703
D713
1SS133
Q702
2SA2005(E)
Q701
2SC5511(E)
Q705(1/2)
Q707(1/2)
Q707(2/2)
D+5V
D+5V
D+5V
Q705(2/2)
Voltage supply
to POWER AMP IC
(VH+)
Voltage supply
to POWER AMP IC
(V neck-)
Voltage supply
to POWER AMP IC
(V neck+)
Voltage supply
to POWER AMP IC
(VH-)
C709
1/50
C703
3300
/42
C704
3300
/42
R716
10k
R697
10k
R698
33k
R714
1k
R713
1k
R807
10k
D801
S1WB(A)60SD
D807
D806
MTZJ6.2B
Q807(2/2)
Q807(1/2)
Q808(1/2)
D+5.6V
Q808(2/2)
Q698
Voltage supply
to +12 V
REGULATOR IC
Voltage supply
to -12 V
REGULATOR IC
C806
1/50
C801
2200
/25
C802
2200
/25
R806
10k
R808
1k
IC9001
(U-P)
XPROTECT
4. XPROTECT Detection Circuit Diagram
When below 6 kind of voltage supply become to
be short circuit to GND, XPROTECT circuit work
and U-P input port voltage change from +5 V to 0 V.
The U-P detect this condition as ERROR.
• Voltage supply to POWER AMP IC (V neck+)
• Voltage supply to POWER AMP IC (V neck-)
• Voltage supply to POWER AMP IC (VH+)
• Voltage supply to POWER AMP IC (VH-)
• Voltage supply to +12 V REGULATOR IC
• Voltage supply to -12 V REGULATOR IC POWER PACK ASSY
MAIN ASSY
89
VSX-816-K 129
5678
5678
C
D
F
A
B
E
7.3.2 AMPLIFIER SYSTEM PROTECTION OPERATION SPECIFICATION
1. DC-abnormality detection
DC detection is only enabled 2 seconds after power-on.
If there is a fault in the power amplifier or a high-level signal lower than 5 Hz is input,
the DC_DET port becomes “L”.
If the “L” is detected, the microprocessor will perform as following flow chart.
In the case of simultaneous detection with the overload protection circuit,
DC-abnormality detection is performed preferentially to overload detection.
If the speaker terminals are short-circuited or low-load driving is detected, the OL_DET port becomes “L”.
If the “L” is detected, the microprocessor will perform as following flow chart.
*A.MUTE : Audio mute command
↓
The abnormality continues for 3 seconds.
↓ Continues. ↓ Recovery
The power is shut off. The program restarts.
↓
Power key not effective and POWER LED blinks.
However, when the following keys are pushed so that the key input of a line and the service can
be carried out, power can be on.
1 TESTMODE ON (A55F+A55F)
2 When power off, push FRONT ENTER key + ADVANCED SURROUND key continuously 2sec.
(2: When a DC abnormality is detected and the power is shut off.)
Any other key input from front panel or remote control will not be detected.
2. Overload detection
↓
The abnormality continues for 3 seconds.
↓ Continues. ↓ Recovery
The power is shut off. The power is shut off even if the
unit recovers.
When a DC abnormality is detected, A.MUTE* is turned
on, speaker relay is turned off, then
"AMP_ERR" flashes on the display.
When an overload is detected, A.MUTE* is turned on,
speaker relay is turned off, then
"OVERLOAD" flashes on the display.
VSX-816-K
130
1234
1234
C
D
F
A
B
E
4. Fan stop detection operation flow in the DC abnormality detection
If the fan is forcibly stopped, the 'DC PROT' port becomes "L". Then an abnormality of fan is detected.
*A.MUTE : Audio mute command
↓
The abnormality continues for 3 seconds.
↓ Continues. ↓ Recovery
The power is shut off. The program restarts.
↓
However, when the following keys are pushed so that the key input of a line and the service can be carried out,
power can be on.
1TESTMODE ON (A55F+A55F)
2When power off, push FRONT ENTER key + ADVANCED SURROUND key continuously 2sec.
(Effective, only when power-off is carried out by DC detection)
However, when the following keys are pushed so that the key input of a line and the service can be carried out,
power can be on.
1TESTMODE ON (A55F+A55F)
2When power off, push FRONT ENTER key + ADVANCED SURROUND key continuously 2sec.
(Effective, only when power-off is carried out by DC detection / XPROTECT detection)
Any other key input from front panel or remote control will not be detected.
When an abnormality of fan is detected,
A.MUTE* is turned on, speaker relay is turned off,
the "AMP_ERR" flashes on the display.
XPROTECT is started to be monitored 200msec after power on.
XPROTECT port is checked every 20msec.
If Low level (ERROR) is recognized during consecutive 9 times, micon judge it as XPROTECT ERROR.
It processes more preferentially than DC abnormal detection and overload detection.
3. XPROTECT detection
↓
↓
↓
↓
↓
←
Power key not effective and POWER LED blinks (*1)
↓ after 60sec
↓ after X sec
Power key become effective.
POWER LED continue to blink.
AC OFF
If micon detect XPROTECT = Low
for 200 msec, it judge as error,
and then AMUTE on, speaker relay off
and shut down power supply immediately.
↓
When 200 msec passed after power on,
the XPROTECT detection starts.
Don't detect it during power off.
↓
POWER ON
↓
POWER ON
Then no more POWER LED blinks.
↓
AC ON
↓ after Y sec
When X+Y reach 60sec.
Power key not effective and POWER LED blinks.
(*1)
VSX-816-K 131
5678
5678
C
D
F
A
B
E
7.3.3 AMPLIFIER FAILURE DIAGNOSIS FLOW CHART
Amplifier failure diagnosis flow chart
When DC detection is activated ("AMP_ERR" flashes on the display), failure (damage) of the power amplifier
section is considered.
As DC detection and fan stop protection circuits commonly use same abnormality detection port in
microprocessor, please make sure that the operation of fan motor is in normal condition before proceeding to
the troubleshooting of amplifier.
Caution:
When releasing the lock state of power key before repair, please be careful because there is the
possibility that more damages will occur when turning on the power once again!
• According to a symptom, perform the following confirmation beforehand.
1) Is the operation of fan motor in normal condition?
↓
2) Are there any Fuses and IC protectors open?
↓
3) After turn on the power, confirm that the supply voltage of the point that can be measured is appropriate.
(Particularly the supply voltage of the power Tr and drive step)
↓
4) Whether the voltage of pin3 of IC600, IC601, IC602 or IC603 is equal to (VL-0.7V). If not (eg, equal to VH),
then change the corresponding power pack IC600, IC601, IC602 or IC603.
↓
5) Furthermore, check the output DC voltage of each channel of power pack IC600, IC601, IC602 and IC603
to limit the failure channel and identify the defect power pack.
↓
• After identify the failure channel, check that each part is not damaged (resistor, diode... etc. value / open /
short)
VSX-816-K
132
1234
1234
C
D
F
A
B
E
7.3.4 USB Module
7.3.4.1 Block Diagram
LOAD
SW IC
IC701
USB Host
TCC760HC01-AG
1.8V
REG.
IC781
2ch
DAC
3.3V
REG.
Q784
MUTE
Tr
System
Control
CPU
IC953
5 → 3
74AHC08
IC951
3 → 5
74AHCT08
IC762
16M
FLASH ROM
IC703IC702
IC771
CN701
1
CN702 CN812
15
5
9
10
12
7
11
13
3
1
4
2
14
15
5
9
10
12
7
11
13
3
1
4
2
14
2
3
4
D-
V5USB
D-
D+
GND
I2S R ch
L ch
DAC_SD
DAC_SCK
TREQ
USDAO
USCLK
HREQ
USDAI
USCS
XRST
TREQ
USDAO
ROUT
To
Analog input
selector
To
USB
connector
LOUT
USCLK
HREQ
USDAI
USCS
XRST
XFLAG
CTL
V+5USB
GNDA
Protection flag
BUS Power cnt.
V+3R3
V+3R3
V+5D
V+5D
V+3R3
IC761
64M
SDRAM
V+3R3
V+1R8
V+1R8
I/O Internal
Core
DA_CS
XMUTE
D+
USB ASSY
WPOWER PACK
ASSY
C
Main parts Purpose
TCC760HC01-AG : USB Host control decoder (MP3/WMA/MPEG-4AAC)
16M FLASH ROM : Firmware is stored
64M SDRAM : Temporary storage area of decoding music file
LOAD SWITCH : Current limitation to USB device power
2ch DAC : D/A converter for analog output
VSX-816-K 133
5678
5678
C
D
F
A
B
E
7.3.4.2 Error Display
(1) Overcurrent to a USB device is detected at the port for
the microcomputer.
(2) The power supply to the USB device is stopped.
(3) Control of 5 V power is disabled at the port for the
microcomputer.
(4) Change of indications on the FL display
(5) To supply power to the USB module again:
• Turn the power to the unit off then back on.
• Set the function setting to anything other than USB
then back to USB.
• Press the USB play key on the remote control unit.
(6) After overcurrent is detected, if the USB play key is
pressed while the error indication is displayed, power
supply to the USB module is restored. If overcurrent
is no longer detected, the indications shown below are
displayed (normal indication):
In this state, flashing of "USB ERROR1" stops, but
playback will not start. To start playback, press the USB
play key again.
In the above case, if overcurrent is detected again, the
above procedures 1 through 4 are repeated.
U S B E R R 1
Flashes for 2 sec.
Lights up after flashing for 2 sec.
Lights up after flashing for 2 sec.
In a case of an 8-digit
FL display
In a case of an 8-digit
FL display
In a case of an 8-digit
FL display
In a case of an 8-digit
FL display
In a case of an 8-digit
FL display
US B E R R 1
U S B
Description of Error Indications
Operations when overcurrent to a USB
device is detected
(1) Change of indications on the FL displays
If overcurrent is detected before detection of a non-
supported medium, the error indication "USB ERROR1"
remains, as the power supply to the USB module is
stopped.
On supported media
The formats of supported media that can be played back on
this unit are MP3, WMA, and AAC.
Some media in MPEG4 can also be played back. As AAC
derives from MPEG4 codec, playback of media in AAC
codec of MPEG4 is possible.
U S B E R R 2
Flashes for 2 sec.
U S B E R R 2
In a case where a medium not supported
is connected
FL Display Error Content Possible causes and actions to be taken
USB ERROR1
USB ERR1 Detection of overcurrent to a USB device
Overcurrent (500 mA or more) is consumed at the connected USB device.
• Some USB devices, such as a portable HDD, need more current than that
this unit supplies. (Use the AC adaptor for the connected USB device.)
• The USB power is short-circuited.
USB ERROR2
USB ERR2 Detection of a medium not supported
A USB device that this unit does not support (other than the MSC Class) is
connected (such as a mouse, printer, or digital camera).
• Connect a mass storage class USB device.
USB ERROR3
USB ERR3
Communication error with the system
microcomputer
Communication between TCC760HC01-AG (IC701) and PDC**** (IC****)
failed.
• Defective connection (connectors) inside this unit
• See STEP 3 of Troubleshooting.
V3 Low usage
VSX-816-K
134
1234
1234
C
D
F
A
B
E
7.3.4.3 Troubleshooting
Step 1: Connectors
Step 2: Power supply
CN701, CN702
To STEP 2
Are
the connectors
securely inserted
?
Insert the connectors
securely.
Check the patterns in
the path.
No
Yes
To STEP 1
YesYes
Is there
any loose
connection
of CN702?
Check the
MOTHER Assy.
No
CN702 (pin 4)
IC703 (pin 3)
Is
the voltage
5 V ?
No
5 V input
3.3 V Regulator IC input
3-5 Converter
USB Power SW
DAC
1
2
Yes
Yes
Yes
Is IC703
abnormally
hot?
Replace IC703.
The output and GND may be
short-circuited. Check the path
between them.
No
Is
the voltage
3.3 V ?
No
Yes
Yes
Is IC702
abnormally
hot?
Replace IC702.
The output and GND may be
short-circuited. Check the path
between them.
No
Is
the voltage
1.8 V ?
No
Yes
Is
the voltage
5 V ?
No
Check the parts and
patterns in the path.
IC762 (pins 37, 47) FLASH ROM
7
Is
the voltage
3.3 V ?
No
Yes
Check the parts and
patterns in the path.
IC761 (pins 1,3,9,14,27,43,49) SDRAM
8
IC703 (pin 1), IC702 (pin 7) 3.3 V Reg. output /
1.8 V Reg. input
6
Is
the voltage
3.3 V ?
No
Yes
Check the parts and
patterns in the path.
IC953 (pin 14) 5-3 Converter
9
IC702 (pin 1) 1.8 V Regulator output
11
Is
the voltage
3.3 V ?
No
Yes
Check the parts and
patterns in the path.
IC701 (pins 16,33,64,76,112) USB Media control IC
10
Is
the voltage
3.3 V ?
No
Check the parts and
patterns in the path.
IC951 (pin 14)
3
Yes
Is
the voltage
5 V ?
No
Check the parts and
patterns in the path.
IC771 (pin 5)
4
Yes
Is
the voltage
5 V ?
No
Check the parts and
patterns in the path.
IC7814 (pins 14, 15)
5
Yes
Is
the voltage
5 V ?
No
A
VSX-816-K 135
5678
5678
C
D
F
A
B
E
Step 3: Operation of USB Media control IC
Does the
crystal oscillator
at 12 MHz
?
Check the
MOTHER Assy.
Note: Please confirm it with the USB memory connected for the content.
IC701 (pins 7,24,41,71,77,87,109,119) USB Media control IC
12
Replace IC771.
Yes
Yes
Yes
Is pin 4
(CTL) of IC771
high?
Is
the voltage
5 V ?
No
Yes
Is
the voltage
1.8 V ?
Yes
Is pin 14
(CTL) of CN702
high?
No No
Check the parts and
patterns in the path.
Check the parts and
patterns in the path.
No
CN701 (pin 1) USB Bus power
14
Is
the voltage
5 V ?
Check the parts and
patterns in the path.
Power supply is OK.
To STEP 3
No
XRST must be high during operation.
Check the MOTHER Assy.
USCS and USCLK should be
high during operation.
Check the pattern in the path.
Check the MOTHER Assy.
Replace IC762, etc.
Check the parts and patterns in the path.
Replace X701, etc.
No
Fig. 1
IC771 (pin 1) USB Power SW output
13
Yes
Yes
Is XRST
high?
No
Are
USCS and USCLK
high?
Yes
No
IC701 (pins 74,75)
USCS/USCLK (Refer to Fig. 1 and 2)
XIN/XOUT
A
B
IC701 IC953 (5 V → 3 V) CN702
XRST pin 72 pin 3 pins 1,2 pin 5
USCS pin 121 pin 11 pins 12,13 pin 9
HREQ pin 122 pin 6 pins 4,5 pin 12
USDAI pin 118 pin 8 pins 9,10 pin 10
Fig. 2
IC701 IC951 (3 V → 5 V) CN702
USCLK pin 116 pins 4,5 pin 6 pin 7
USDAO pin 115 pins 9,10 pin 8 pin 11
TREQ pin 123 pins 12,13 pin 11 pin 13
VSX-816-K
136
1234
1234
C
D
F
A
B
E
Step 4: Audio Out check
Is there
a master clock
signal
?
Check the parts and
pattern between IC781
and CN702.
Operation of IC701 is OK.
To STEP 4
HREQ and TREQ should be
high during operation.
Check the pattern in the path.
Check the MOTHER Assy.
Replace IC762, etc.
Check the output from
IC701 (pin 66).
Yes
No
Are
HREQ and TREQ
high?
Yes
No
D+ and D- should have
waveform during normal
condition.
Check the pattern in the path.
Check the MOTHER Assy.
Replace IC762, etc.
Are
there the waveforms
like figure?
Yes
No
IC781 (pin 1)
HREQ/TREQ (Refer to Fig. 1 and 2)
MCK
CN701 (pins 2,3) D+/D- Fig. D+
X: 1 µsec/div, Y: 2 V/div X: 1 µsec/div, Y: 2 V/div
Fig. D-
Is there
a bit clock
signal
?
Check the output from
IC701 (pin 62).
Yes
No
IC781 (pin 2) BCLK
Is there
a L/R clock
signal
?
Check the output from
IC701 (pin 63).
Yes
No
IC781 (pin 4) LRCK
Is there
DATA signal
?
Check the output from
IC701 (pin 67).
Yes
No
IC781 (pin 3) DATA
Are there
audio signal
?
Replace IC781.
Yes
No
IC781 (pins 10,11) LOUT/ROUT
B
VSX-816-K 137
5678
5678
C
D
F
A
B
E
7.3.4.4 How to Update the Firmware
Explanation
With this unit, updating of the firmware of the USB module can be performed, using a USB memory stick. However, if the
hardware of the flash memory that stores the firmware or the firmware itself has a problem, updating cannot be performed in a
manner described below. In such a case, replacement of the flash memory is required.
Procedures
1. Turn the unit on then set the function setting to USB function.
2. Insert the USB memory stick that contains the "player.rom" file.*
3. "LOADING" is indicated on the FL display.
4. "UPDATE" is indicated on the FL display.
5. Wait until "FINISH" is indicated on the FL display.
6. Remove the USB memory stick then set the function setting to anything other than USB.
7. Return the function setting to USB function and wait for about 5 seconds in order to obtain the version data of the USB
firmware.
8. Turn the unit off (Standby mode).
9. Check the version ("U_xxxxxx" is suffixed to the version indication).
If the version is not updated, the data for the new version may not have been obtained in Step 7. Repeat Step 7 and the
subsequent steps.
Notes * :
• Never reinsert the USB memory stick that contains the "player.rom" file.
• In a rare case, depending on the type of USB memory stick, the above-mentioned updating procedures are not possible.
In such a case, try with other type of USB memory stick.
Importance:
• Never change the function setting or turn the power off during the process of Steps 3 through 5. If you do, loading of the
firmware will fail, and updating procedures cannot be continued. In such a case, replacement of the flash memory is
required.
VSX-816-K
138
1234
1234
C
D
F
A
B
E
8. PANEL FACILITIES
6 MULTI JOG dial
1 Input select buttons
Press to select an input source.
2 Digital Precision Processing indicator
Lights to indicate digital processing.
3 Character display
See Display.
4 MCACC indicator
Lights when Acoustic Calibration EQ
is on (Acoustic Calibration EQ is automatically
set to ALL CH ADJUST after the Auto MCACC
Setup or EQ Auto Setup.
5 ENTER
Use the MULTI JOG dial to select various settings
and menu options.
7 LISTENING MODE buttons
STANDARD - Press for Standard decoding
and to switch between the various Pro Logic
IIx and Neo:6 options.
ADVANCED SURR - Use to switch
between the surround modes.
ST/DIRECT/AUTO SURR
Selects stereo/direct playback.
Also selects Auto Surround (Auto playback)
and XM Surround.
UPDOWN
MULTI JOG
MASTER
VOLUME
ENTER
AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-816
STANDBY/ON
PHONES
DVD/LD TV/SAT DVR/VCR VIDEO CD CD-R/TAPE/MD FM AM
STANDARD
MIDNIGHT/
LOUDNESS
ADVANCED
SURR
ST/DIRECT/
AUTO SURR
LISTENING MODE
QUICK
SETUP SETUP RETURN
TUNING/
STATION TONE
ANALOG
ATT SPEAKERS
TUNER
EDIT
DIMMER
MULTI JOG
XM
MCACC
SETUP MIC
DIGITAL INAUDIO RLVIDEO
VIDEO INPUT
S-VIDEO
AUX SIGNAL
SELECT
SB ch
PROCESSING
ACOUSTIC
EQ
DIGITAL PRECISION
PROCESSING
DIGITAL PRECISION
PROCESSING
STANDARD
ADVANCED
SURR
ST/DIRECT/
AUTO SURR
LISTENING MODE
SIGNAL
SELECT
SB ch
PROCESSING
ACOUSTIC
EQ
MIDNIGHT/
LOUDNESS
QUICK
SETUP SETUP RETURN
TUNING/
STATION TONE
ANALOG
ATT SPEAKERS
TUNER
EDIT
DIMMER
MULTI JOG
1
89
5 6
32 4
121110
15 16 22 23 2413 14
2017 18 19 21
7
8 PHONES jack
Use to connect headphones (when connected,
there is no sound output from the speakers).
9 STANDBY/ON
Switches the receiver between on and standby.
10 VIDEO INPUT
See Connecting to the front panel video terminal.
11 MCACC SETUP MIC jack
Use to connect the supplied microphone.
12 MASTER VOLUME dial
13 DIMMER
Dims or brightens the display.
14 ANALOG ATT
Attenuates (lowers) the level of an analog input
signal to prevent distortion.
15 MIDNIGHT/LOUDNESS
Switches between Midnight and Loudness
listening.
16 SPEAKERS
Use to change the speaker system and the
impedance setting.
17 TUNING / STATION
Selects the frequency and station presets when
using the tuner.
18 TUNER EDIT
Press to memorize and name a station for recall.
19 TONE
Press this button to access the bass and treble
controls, which you can then adjust with the
MULTI JOG dial.
20 QUICK SETUP
See Using the Quick Setup.
21 System Setup menu controls
SETUP - Use with the MULTI JOG dial to
access the System Setup menu.
RETURN - Press to confirm and exit the
current menu.
22 SIGNAL SELECT
Use to select an input signal.
23 SBch PROCESSING
Selects surround back channel processing or
the virtual surround back mode.
24 ACOUSTIC EQ
Press to select an Acoustic Calibration EQ setting.
Front panel VSX-816/KUXJ/CA
VSX-816-K 139
5678
5678
C
D
F
A
B
E
Display
1 SIGNAL indicators
Lights to indicate the type of input signal:
AUTO - Lights when AUTO signal select is on.
SB - Depending on the source, this lights
when a signal with surround back channel
encoding is detected.
R
40 125 250 4K13K
L
[ ]
SP AB
1234567118910
12 1615 17 1813 14 19 20 21
DIGITAL – Lights when a digital audio signal
is detected.
2 DIGITAL – Lights when a Dolby Digital
encoded signal is detected.
ANALOG – Lights when an analog signal is
detected.
DTS – Lights when a source with DTS encoded
audio signals is detected.
2
When the STANDARD mode is on, this lights to
indicate decoding of a DTS multichannel signal.
32 DIGITAL
When the STANDARD mode of the receiver is
on, this lights to indicate decoding of a Dolby
Digital multichannel signal.
42 PRO LOGIC IIx
When the (STANDARD) Pro Logic II mode of
the receiver is on, 2 PRO LOGIC II lights to
indicate Pro Logic II decoding. 2 PRO LOGIC
IIx lights to indicate Pro Logic IIx decoding (see
Listening in surround sound ).
5 VIR.SB
Lights during Virtual surround back processing.
6 DIRECT
Lights when source direct playback is in use.
Direct playback bypasses the tone controls for
the most accurate reproduction of a source.
7 AUTO SURR.
Lights when Auto Surround (see Auto playback)
or XM Surround is on.
8 ATT
Lights when ANALOG ATT is used to
attenuate (reduce) the level of the analog input
signal.
9 SLEEP
Lights when the sleep mode is active (see
Remote control below).
10 Tuner indicators
– Lights when the mono mode is set
using the MPX button.
– Lights when a stereo FM broadcast is
being received in auto stereo mode.
– Lights when a broadcast is being received.
11 Speaker indicators
Lights to indicate the current speaker system,
A and/or B .
12 Character display
13 Neo:6
When the (STANDARD) Neo:6 mode of the
receiver is on, this lights to indicate Neo:6
processing.
14 ADV.SURR. (Advanced Surround)
Lights when one of the Advanced Surround
modes has been selected.
15 WMA9 Pro
Lights to indicate decoding of a WMA9 Pro signal.
16 MIDNIGHT
Lights during Midnight listening.
17 D.E.
Lights when Dialog Enhancement (DIALOG E)
is switched on.
18 LOUDNESS
Lights during Loudness listening .
19 EX
Lights when a Dolby Digital Surround EX encoded
signal is detected.
20 Master volume level
Shows the overall volume level.
21 MCACC channel EQ / Sound Retriever
indicators
These indicators show the EQ balance for each
channel in Checking your Acoustic Calibration
EQ settings. Also, L and R light when the Sound
Retriever is active.
VSX-816/KUXJ/CA
VSX-816-K
140
1234
1234
C
D
F
A
B
E
Remote control
1 RECEIVER
This switches between standby and on for this
receiver.
2 MULTI CONTROL buttons
Press to select control of other components
(see Controlling the rest of your system).
3 Number buttons and other receiver/
component controls
Use the number buttons to directly select a radio
frequency or the tracks on a CD, DVD, etc.
DISC (ENTER) can be used to enter commands
for TV or DTV, and can also be used to select a
disc in a multi-CD player.
The following are accessed by pressing the
RECEIVER button first:
SLEEP - Press to change the amount of time
before the receiver switches into standby
(90 min – 60 min – 30 min – Off).
You can check the remaining sleep time at
any time by pressing SLEEP once.
SB ch - Selects the surround back channel
mode or virtual surround back mode.
ANALOG ATT - Attenuates (lowers) the level
of an analog input signal to prevent distortion.
SR + - Switches the SR+ mode on/off.
DIMMER - Dims or brightens the display.
MIDNIGHT/LOUDNESS - Use Midnight
when listening to movie soundtracks at low
volume. Use Loudness to boost the bass
and treble at low volume.
D.ACCESS - After pressing, you can access
a radio station directly using the number
buttons.
CLASS - Switches between the three banks
(classes) of radio station presets.
4 Tuner/component control buttons/SETUP
The following button controls (except SETUP)
can be accessed after you have selected the
corresponding MULTI CONTROL button (DVD,
TOP MENU - Displays the disc 'top' menu of a
FM, AM, TV, etc.)
DVD.
DTV MENU - Displays menus on a digital TV.
ANALOG
ATT
MIDNIGHT/
LOUDNESS
SB ch
DIMMER
SLEEP
SR+
+10
D.ACCESS CLASS
DISC
RECEIVER SOURCE
INPUT
SELECT
ENTER
TV CONTROL
SHIFT
VOL
TV DVR
TV CTRL
CD
TUNE
TUNE
ST ST
AUTO SURR
STANDARD
ADV.SURR
S.RETRIEVER SIGNAL SEL
STEREO
INPUT
SELECT TVCH
MPX
AUDIO
DISP
SUBTITLE
DIALOG E
EFFECT/CH SEL
ACOUSTIC EQ
REC
MUTE
TV VOL
ENTER
REC STOP
JUKEBOX
HDD
CH CH
DVD
TOP MENU
DTV MENU
DTV ON/OFF DTV INFO
T.EDIT
MENU
RETURN
GUIDE
SETUP
CATEGORY
RECEIVER
DVD
FM AM
RECEIVER
CD-R/TAPE XM RADIO
AUDIO/VIDEO PRE-PROGRAMMED
REMOTE CONTROL UNIT
3
2
4
6
7
9
8
5
11
10
12
13
14
15
16
1
MENU - Displays the disc menu of DVD-
Video discs. It also displays TV and DTV
menus.
T.EDIT - Press to memorize and name a
station for recall.
SETUP (Press RECEIVER first to access)
Use to access the System Setup menu.
GUIDE - Displays the guides on a digital TV.
RETURN - Press to confirm and exit the
current menu (also use to return to the
previous menu with DVDs or to select closed
captioning with DTV).
5 (TUNE/ST +/–) /ENTER
Use the arrow buttons when setting up your
surround sound system. Also used to control
DVD menus/options and for deck 1 of a double
cassette deck player. Use the TUNE /
buttons to find radio frequencies and use ST
/ to find preset stations.
VSX-816/KUXJ/CA
VSX-816-K 141
5678
5678
C
D
F
A
B
E
TV
6 TV CONTROL buttons
These buttons are dedicated to control the TV
assigned to the TV CTRL button. Thus if you
only have one TV to hook up to this system
assign it to the TV CTRL MULTI CONTROL
button. If you have two TVs, assign the main TV
to the TV CTRL button .
- Use to turn on/off the TV power.
TV VOL +/– - Use to adjust the TV volume.
INPUT SELECT - Use to select the TV input signal.
TV CH +/– - Use to select channels.
7 Component control buttons
The main buttons (
, , etc.) are used to
control a component after you have selected it
using the MULTI CONTROL buttons.
The controls above these buttons can be accessed
after you have selected the corresponding
MULTI CONTROL button (for example DVD, DVR
or TV (when connected to a DTV)).
DTV ON/OFF - Switches a digital TV on/off.
DTV INFO - Use to bring up information
screens on a digital TV.
MPX - Switches between stereo and mono
reception of FM broadcasts. If the signal is
weak then switching to mono will improve
the sound quality.
AUDIO - Changes the audio language or
channel on DVD discs.
DISP - Switches between named station
presets and radio frequencies.
SUBTITLE - Displays/changes the subtitles
included in multilingual DVD-Video discs.
CH +/– - Use to select channels when using
a TV, VCR, DVR, etc.
The following DVR controls can be accessed by
pressing SHIFT:
REC - Starts recording.
REC STOP - Stops recording.
JUKEBOX - Switches to the Jukebox feature.
HDD/DVD - These buttons switch between
the hard disk and DVD controls for DVD/
HDD recorders.
8 RECEIVER CONTROL buttons
STANDARD - Press for Standard decoding
and to switch between the various Pro Logic
IIx and Neo:6 options.
ADV.SURR. - Use to switch between the
various surround modes.
STEREO - Switches between direct and
stereo playback. Direct playback bypasses
the tone controls and any other signal
processing for the most accurate reproduction
of a source.
AUTO SURR - Selects Auto Surround
(Auto playback ) and XM Surround.
DIALOG E - Use to make dialog stand out
when watching TV or a movie.
S. RETRIEVER - Press to restore CD quality
sound to compressed audio sources.
ACOUSTIC EQ - Press to select an Acoustic
Calibration EQ setting.
SIGNAL SEL - Use to select an input signal.
9 SHIFT
Press to access the DVR controls (above the
component control buttons) as well as some
receiver controls.
10 INPUT SELECT
Use to select the input source (use SHIFT for
INPUT SELECT ).
11 SOURCE
Press to turn on/off other components connected
to the receiver.
12 Character display (LCD)
This display shows information when transmitting
control signals.
The following commands are shown when
youíre setting the remote to control other
components (see Controlling the rest of your
system):
SETUP - Indicates the setup mode, from
which you choose the options below.
PRESET - See Selecting preset codes directly.
DIRECT F - See Direct function.
ERASE - See Erasing one of the remote
control button settings.
RESET - See Erasing all of the remote
control presets.
READ ID - See Confirming preset codes.
13 RECEIVER
Switches the remote to control the receiver
(used to select the green commands above the
number buttons (DIMMER, etc). Also use this
button to set up surround sound.
14 VOL +/–
Use to set the listening volume.
15 MUTE
Mutes the sound or restores the sound if it has
been muted (adjusting the volume also restores
he sound).
16 EFFECT/CH SEL
Press repeatedly to select a channel, then
use +/– to adjust the level.
Also adjusts the level of the Advanced
Surround effects, Dolby Pro Logic IIx Music,
and Neo:6 Music parameters. You can then
use the +/– buttons to make these adjustments.
Operating range of remote control
The remote control may not work properly if:
•There are obstacles between the remote
control and the receiver's remote sensor.
•Direct sunlight or fluorescent light is
shining onto the remote sensor.
•The receiver is located near a device that is
emitting infrared rays.
• The receiver is operated simultaneously
with another infrared remote control unit.
D
O
W
N
30
30
23 ft (7m)
D
O
W
N
VSX-816-K
142
1234
1234
C
D
F
A
B
E
Using this receiver with a
Pioneer plasma display
If you have a Pioneer plasma display2, you can
use an SR+ cable to connect it to this unit and
take advantage of various convenient features,
such as automatic video input switching of the
plasma display when the input is changed.
COAX
OPT
OPT
(CD)
XM
IN
ASSIGNABLE
DIGITAL IN
1
2
(DVR/VCR)
COAX
(DVD/LD)
1
2
ASSIGNABLE
DIGITAL IN
(TV/ SAT)
AM
LOOP
FM UNBAL
75 Ω
IN
IN
IN
IN
IN
IN
MONITOR
OUT
MONITOR OUT
OUT
VIDEO
S-VIDEO
SUB
WOOFER
IN
IN
IN
IN
OUT
OUT
OUT
IN
CD
DVR/
VCR
DVR/
VCR
TV/
SAT
TV/
SAT
DVD
/LD
DVD
/LD
PLAY
CD-R
/TAPE
/MD
FRONT
PREOUT
REC
ANTENNA
CONTROL
D V D
5.1CH
INPUT
AUDIO
R
L
IN AUX
OUT
IN
OUT
CONTROL
Pioneer plasma
display
This receiver
• Use a 3-ringed miniplug SR+ cable to
1
connect the CONTROL IN jack of this receiver
with the CONTROL OUT of your plasma
display.
Before you can use the extra SR+ features, you
need to make a few settings in the receiver. See
SR+ Setup for Pioneer plasma displays
for detailed instructions.
To make the most of the SR+ features, you
should connect your source components (DVD
player, etc.) in a slightly different way to that
described in this chapter. For each
component, connect the video output directly
to the plasma display, and just connect the
audio (analog and/or digital) to this receiver.
Using the SR+ mode with a Pioneer
plasma display
When connected using an SR+ cable, a
number of features become available to make
using this receiver with your Pioneer plasma
display even easier. These features include:
• On-screen volume display.
• On-screen display of listening mode.
• Automatic video input switching on the
plasma display.
• Automatic volume muting on the plasma
display.2
See also SR+ Setup for Pioneer plasma displays
for more on setting up the receiver.
1 Make sure that the plasma display and
this receiver are switched on and that they
are connected with the SR+ cable.
See Using this receiver with a Pioneer plasma
display above for more on this.
2 To switch SR+ mode on/off, press
RECEIVER, then the SR+ button.
The front panel display shows SR+ ON or OFF.
Note
1 The 3-ringed SR+ cable from Pioneer is commercially available under the part number ADE7095. Contact the Pioneer Cus-
tomer Support division for more information on obtaining an SR+ cable (you can also use a commercially available 3-ringed
mini phone plug for the connection).
If you connect to a Pioneer plasma display using an SR+ cable, you will need to point the remote control at the plasma dis-
play remote sensor to control the receiver. In this case, you wonít be able to control the receiver using the remote control if you
switch the plasma display off.
DVD player
This receiver
Pioneer plasma
display
Satellite receiver, etc
VIDEO
INPUT 1
VIDEO
INPUT 2
TV/SAT
AUDIO IN
DVD
AUDIO IN
UPDOWN
MULTI JOG
MASTER
VOLUME
ENTER
AUDIO/VIDEO MULTI- CHANNEL RECEIVER VSX-816
STANDBY/ON
PHONES
DVD/LD TV/SAT DVR/ VCR VIDEO CD CD-R/T APE/MD FM AM
STANDARD
MIDNIGHT/
LOUDNESS
ADVANCED
SURR
ST/DIRECT /
AUTO SURR
LISTENING MODE
QUICK
SETUP SETUP RETURN
TUNING/
STATION TONE
ANALOG
ATT SPEAKERS
TUNER
EDIT
DIMMER
MULTI JOG
XM
MCACC
SETUP MICDIGITAL INAUDIO RLVIDEO
VIDEO INPUT
S-VIDEO
AUX SIGNAL
SELECT
SB ch
PROCESSING
ACOUSTIC
EQ
DIGITAL PRECISION
PROCESSING
DIGITAL PRECISION
PROCESSING
2The automatic volume muting feature is enabled separately; see SR+ Setup for Pioneer plasma displays.
AUDIO/VIDEO PRE-PROGRAMMED
REMOTE CONTROL UNIT
RECEIVER
SOURCE
INPUT
SELECT
TV DVR
TV CTRL
CD
DVD
FM AM
RECEIVER
CD-R/TAPE
XM RADIO
ANALOG
ATT
MIDNIGHT/
LOUDNESS
SB ch
DIMMER
SLEEP
SR+
+10
DACCESS CLASS DISC
ENTER
TUNE
ST ST
ENTER
TOP MENU
DTV MENU
T.EDIT
MENU
•SR+ mini-plug cable
(ADE7095)
SERVICE PARTS
VSX-816-K 143
5678
5678
C
D
F
A
B
E
ASSIGNABLE
MONITOR OUT
YPB
COMPONENT VIDEO
COAX
OPT
OPT
(CD)
XM
IN
ASSIGNABLE
DIGITAL IN
1
2
(DVD/LD)
IN
(DVR/VCR)IN
FRONT
RL
CENTERSURROUND
S
P
E
A
K
E
R
S
(DVR/VCR)
COAX
(DVD/LD)
1
2
ASSIGNABLE
DIGITAL IN
PRYPBPR
(TV/SAT)
IN
FRONT SURROUND SURROUND
BACK
1
2
R
L
SURROUND BACK
A B
L
L
RRR
L
CENTER
L
R
(TV/ SAT)
3
AM
LOOP
FM UNBAL
75 Ω
IN
IN
IN
IN
IN
IN
MONITOR
OUT
MONITOR OUT
SUB
WOOFER
SURROUND
CEN-
TER
OUT
VIDEO
S-VIDEO
SUB
WOOFER
IN
IN
IN
IN
OUT
OUT
OUT
IN
CD
L
R
DVR/
VCR
DVR/
VCR
TV/
SAT
TV/
SAT
DVD
/LD
DVD
/LD
PLAY
CD-R
/TAPE
/MD
FRONT
PREOUT
REC
ANTENNA
CONTROL
PREOUT
DVD 5.1CH INPUT
AC OUTLET
D V D
5.1CH
INPUT
AUDIO
R
L
IN AUX
OUT
IN
VSX-816/KUXJ/CA
VSX-816-K
144
1234
1234
C
D
F
A
B
E
Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools:
Position to be cleaned Cleaning tools
Fans Cleaning paper : GED-008
7 CLEANING
