Pixie4e User Manual

Pixie4e_UserManual

User Manual:

Open the PDF directly: View PDF .
Page Count: 77

Safety
- Specific Precautions
Warranty Statement
- Contact Information:
Manual Conventions
1 Introduction
2 Installation
3 Navigating the Pixie Viewer
4 Data Acquisition and Data Structures
- 4.1 Run Types
- 4.2 Output Data Structures
5 Hardware Description
6 Theory of Operation
7 Synchronized Data Acquisition
8 Using Pixie-4 Express Modules with Clover detectors
Appendices
- Appendix A: Hardware information

Pixie-4 Express

User Manual

Version 4.47

February 15, 2018

Hardware Revision: B

Software Revision: 4.47

XIA LLC

31057 Genstar Rd

Hayward, CA 94544 USA

Email: support@xia.com

Tel: (510) 401-5760; Fax: (510) 401-5761

http://www.xia.com/

Information furnished by XIA LLC is believed to be accurate and reliable. However, no responsibility is assumed by

XIA for its use, or for any infringements of patents or other rights of third parties which may result from its use. No

license is granted by implication or otherwise under any patent or patent rights of XIA. XIA reserves the right to

change hardware or software specifications at any time without notice.

Pixie-4 Express User Manual Version 4.31

Table of Contents

Safety ............................................................................................................................................................ 5

Specific Precautions .................................................................................................................................. 5

Power Source ........................................................................................................................................ 5

User Adjustments/Disassembly ............................................................................................................ 5

Detector and Preamplifier Damage ....................................................................................................... 5

Voltage Ratings ..................................................................................................................................... 5

Servicing and Cleaning ......................................................................................................................... 5

Warranty Statement ...................................................................................................................................... 6

Contact Information: ................................................................................................................................. 6

Manual Conventions ..................................................................................................................................... 7

1 Introduction ........................................................................................................................................... 8

1.1 Pixie-4 Express Features ............................................................................................................... 9

1.2 Specifications .............................................................................................................................. 10

1.3 System Requirements .................................................................................................................. 11

1.3.1 PXIe Chassis ....................................................................................................................... 11

1.3.2 Host Computer .................................................................................................................... 11

1.3.3 Drivers and Software .......................................................................................................... 11

1.3.4 Detector Signals .................................................................................................................. 12

1.3.5 Power Requirements ........................................................................................................... 12

1.3.6 Connectors and Cabling ...................................................................................................... 12

1.4 Software and Firmware Overview .............................................................................................. 12

1.5 Support ........................................................................................................................................ 12

2 Installation .......................................................................................................................................... 13

2.1 Hardware Setup ........................................................................................................................... 13

2.2 Software Installation ................................................................................................................... 13

2.3 Getting Started ............................................................................................................................ 15

3 Navigating the Pixie Viewer ............................................................................................................... 19

3.1 Overview ..................................................................................................................................... 19

3.2 Setup Group ................................................................................................................................ 20

3.2.1 PARAMETER SETUP Panel ................................................................................................... 20

3.2.2 OSCILLOSCOPE .................................................................................................................... 23

3.2.3 FILES/PATHS ........................................................................................................................ 23

3.2.4 CHASSIS SETUP ................................................................................................................... 24

3.3 Run Control Group ..................................................................................................................... 24

3.4 Results Group .............................................................................................................................. 24

3.4.1 MCA SPECTRUM ................................................................................................................. 25

3.4.2 LIST MODE TRACES and LIST MODE SPECTRUM ................................................................ 25

3.4.3 RUN STATISTICS .................................................................................................................. 26

3.4.4 File Series ............................................................................................................................ 27

3.5 Optimizing Parameters ................................................................................................................ 27

3.5.1 Noise ................................................................................................................................... 27

3.5.2 Energy Filter Parameters ..................................................................................................... 27

3.5.3 Threshold and Trigger Filter Parameters ............................................................................ 28

3.5.4 Decay Time ......................................................................................................................... 28

3.5.5 Baselines and ADC calibration ........................................................................................... 28

3.6 File Series.................................................................................................................................... 29

Pixie-4 Express User Manual Version 4.31

3.6.1 File Series to break up long data acquisition runs ............................................................... 29

3.6.2 File Series to scan filter parameters .................................................................................... 30

3.6.3 File Series Analysis ............................................................................................................. 31

4 Data Acquisition and Data Structures ................................................................................................. 32

4.1 Run Types ................................................................................................................................... 32

4.1.1 MCA Runs .......................................................................................................................... 32

4.1.2 List Mode Runs ................................................................................................................... 32

4.1.3 Summary of Run Types ...................................................................................................... 34

4.2 Output Data Structures ................................................................................................................ 35

4.2.1 MCA Histogram Data Structure ......................................................................................... 35

4.2.2 List Mode Data Structures .................................................................................................. 35

4.2.3 List Mode Data Values ....................................................................................................... 42

5 Hardware Description ......................................................................................................................... 44

5.1 Analog Signal Conditioning........................................................................................................ 44

5.2 Pulse Processing .......................................................................................................................... 45

5.3 Digital Signal Processor (DSP) and Event Building ................................................................... 45

5.4 PCI Express Interface.................................................................................................................. 46

6 Theory of Operation ............................................................................................................................ 47

6.1 Digital Filters for -ray Detectors ............................................................................................... 47

6.2 Trapezoidal Filtering in a Pixie Module ..................................................................................... 49

6.3 Baselines and Preamplifier Decay Times ................................................................................... 50

6.4 Thresholds and Pile-up Inspection .............................................................................................. 51

6.5 Filter Range ................................................................................................................................. 53

6.6 Data Capture Process .................................................................................................................. 54

6.7 Dead Time and Run Statistics ..................................................................................................... 54

6.7.1 Definitions ........................................................................................................................... 54

6.7.2 Count time and dead time counters ..................................................................................... 59

6.7.3 Count Rates ......................................................................................................................... 61

6.7.4 Dead time correction in the Pixie-4 Express ....................................................................... 62

7 Synchronized Data Acquisition .......................................................................................................... 63

7.1 Clock Distribution ....................................................................................................................... 63

7.2 Trigger Distribution .................................................................................................................... 63

7.2.1 Trigger Distribution Within a Module ................................................................................ 63

7.2.2 Trigger Distribution Between Modules .............................................................................. 64

7.2.3 Trigger Distribution between PXI chassis .......................................................................... 64

7.2.4 External Triggers................................................................................................................. 64

7.3 Run Synchronization ................................................................................................................... 65

7.4 External Gate and Veto ............................................................................................................... 66

7.4.1 External Gating Scenarios ................................................................................................... 66

7.4.2 Shaping of External Signals ................................................................................................ 67

7.4.3 Marking Events ................................................................................................................... 68

7.4.4 Rejecting Events ................................................................................................................. 68

7.4.5 Counting Veto/Gate Pulses and Times ................................................................................ 69

7.4.6 Timing Diagrams for Application Examples ...................................................................... 69

7.5 External Status ............................................................................................................................ 70

7.6 Coincident Events ....................................................................................................................... 70

7.6.1 Coincidences Within a Module ........................................................................................... 70

Pixie-4 Express User Manual Version 4.31

7.6.2 Coincidences Between Modules ......................................................................................... 72

8 Using Pixie-4 Express Modules with Clover detectors ...................................................................... 73

Appendices .................................................................................................................................................. 74

Appendix A: Hardware information ....................................................................................................... 74

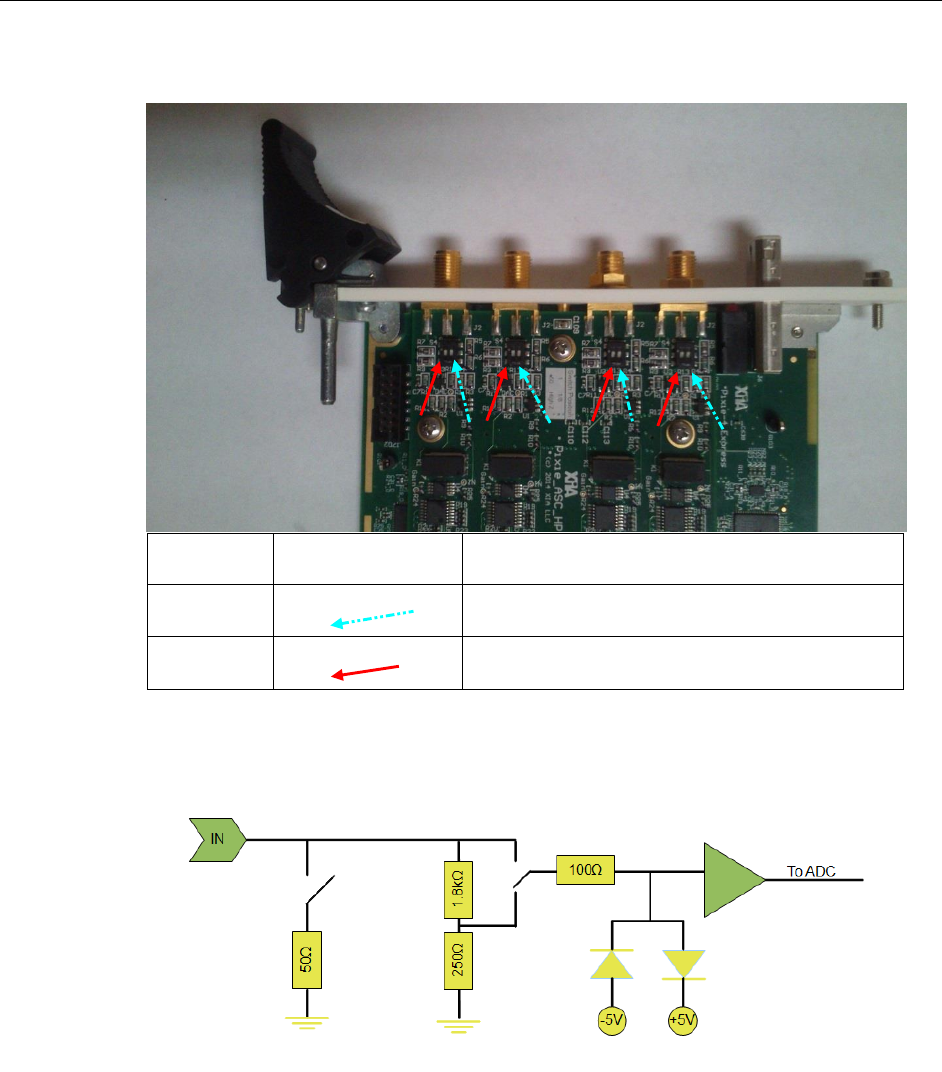

Front end switches for termination and attenuation ............................................................................ 74

Front Panel LEDs ................................................................................................................................ 75

PXI backplane pin functions ............................................................................................................... 76

High Density Front Panel Digital Connector ...................................................................................... 77

MMCX Coaxial Front Panel Digital Connector ................................................................................. 77

Pixie-4 Express User Manual Version 4.31

Safety

Please take a moment to review these safety precautions. They are provided both for your

protection and to prevent damage to the Pixie module and connected equipment. This

safety information applies to all operators and service personnel.

Specific Precautions

Observe all of these precautions to ensure your personal safety and to prevent damage to

either the Pixie module or equipment connected to it.

Power Source

The Pixie module is powered through a PXI Express (PXIe) chassis. Please refer to the

chassis manual for the correct AC voltage connections. The chassis must be powered down

to insert and remove the module.

User Adjustments/Disassembly

To avoid personal injury, and/or damage, always turn off power before accessing the Pixie

module’s on-board switches and jumpers.

Detector and Preamplifier Damage

Because the Pixie module does not provide power for the detector or preamplifier there is

little risk of damage to either resulting from the Pixie module itself. Nonetheless, please

review all instructions and safety precautions provided with these components before

powering a connected system.

Voltage Ratings

Signals on the analog inputs (gold SMA connectors) must not exceed ± 3.5V. Exceptions

apply for certain attenuation and termination settings, see Appendix.

Signals on the digital inputs (gold MMCX connector and 10-pin 2mm har-link connector)

must not exceed 3.3V.

Servicing and Cleaning

To avoid personal injury, and/or damage to the Pixie module or connected equipment, do

not attempt to repair or clean these units. These modules are warranted against all defects

for one (1) year. Please contact the factory or your distributor before returning items for

service.

Pixie-4 Express User Manual Version 4.31

Warranty Statement

XIA LLC warrants that this product will be free from defects in materials and workmanship

for a period of one (1) year from the date of shipment. If any such product proves defective

during this warranty period, XIA LLC, at its option, will either repair the defective products

without charge for parts and labor, or will provide a replacement in exchange for the

defective product.

In order to obtain service under this warranty, Customer must notify XIA LLC of the defect

before the expiration of the warranty period and make suitable arrangements for the

performance of the service.

This warranty shall not apply to any defect, failure or damage caused by improper uses or

inadequate care. XIA LLC shall not be obligated to furnish service under this warranty a)

to repair damage resulting from attempts by personnel other than XIA LLC representatives

to repair or service the product; or b) to repair damage resulting from improper use or

connection to incompatible equipment.

THIS WARRANTY IS GIVEN BY XIA LLC WITH RESPECT TO THIS PRODUCT IN

LIEU OF ANY OTHER WARRANTIES, EXPRESSED OR IMPLIED. XIA LLC AND

ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF

MERCHANTABILITYOR FITNESS FOR A PARTICULAR PURPOSE. XIA’S

RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE

SOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR BREACH

OF THIS WARRANTY. XIA LLC AND ITS VENDORS WILL NOT BE LIABLE FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

IRRESPECTIVE OF WHETHER XIA LLC OR THE VENDOR HAS ADVANCE

NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.

Contact Information:

XIA LLC

31057 Genstar Rd.

Hayward, CA 94544 USA

Telephone: (510) 401-5760

Downloads: http://support.xia.com

Hardware Support: support@xia.com

Software Support: support@xia.com

Pixie-4 Express User Manual Version 4.31

Manual Conventions

The following conventions are used throughout this manual

Convention

Description

Example

The » symbol leads you

through nested menu items

and dialog box options.

The sequence

File»Page Setup»Options directs you to pull

down the File menu, select the Page Setup

item, and choose Options from the sub menu.

Bold

Bold text denotes items that

you must select or click on in

the software, such as menu

items, and dialog box options.

...click on the MCA tab.

[Bold]

Bold text within [ ] denotes a

command button.

[Start Run] indicates the command button

labeled Start Run.

monospace

Items in this font denote text

or characters that you enter

from the keyboard, sections

of code, file contents, and

syntax examples.

Setup.exe refers to a file called “setup.exe”

on the host computer.

“window”

Text in quotation refers to

window titles, and quotations

from other sources

“Options” indicates the window accessed via

Tools»Options.

Italics

Italic text denotes a new term

being introduced , or simply

emphasis

peaking time refers to the length of the slow

filter.

...it is important first to set the energy filter Gap

so that SLOWGAP to at least one unit greater

than the preamplifier risetime...

<Key>

<Shift-Alt-

Delete> or

<Ctrl+D>

Angle brackets denote a key

on the keybord (not case

sensitive).

A hyphen or plus between

two or more key names

denotes that the keys should

be pressed simultaneously

(not case sensitive).

<W> indicates the W key

<Ctrl+W> represents holding the control key

while pressing the W key on the keyboard

Bold italic

Warnings and cautionary text.

CAUTION: Improper connections or settings

can result in damage to system components.

CAPITALS

CAPITALS denote DSP

parameter names

SLOWLEN is the length of the slow energy

filter

SMALL CAPS

SMALL CAPS are used for

panels/windows/graphs in the

GUI.

…go to the MCADISPLAY panel and you see…

Pixie-4 Express User Manual Version 4.31

1 Introduction

The Digital Gamma Finder (DGF) family of digital pulse processors features unique

capabilities for measuring both the amplitude and shape of pulses in nuclear spectroscopy

applications. The DGF architecture was originally developed for use with arrays of multi-

segmented HPGe gamma-ray detectors, but has since been applied to an ever broadening

range of applications.

The DGF Pixie-4 Express is a 4-channel all-digital waveform acquisition and spectrometer

card based on the CompactPCI/PXI Express (PXIe) standard for fast data readout to the

host. It combines spectroscopy with waveform capture and on-line pulse shape analysis.

The Pixie-4 Express accepts signals from virtually any radiation detector with

exponentially decaying pulses, and accommodations can be made for other shapes as well.

Incoming signals are digitized by 12-16 bit, 125-500 MSPS ADCs. Waveforms of

8.0-32.0 μs in length for each event can be captured in a first level FIFO, and stored in 256

MB of on-board SDRAM memory organized as a fast FIFO with interrupt driven DMA

readout to the host PC. The waveforms are available for onboard pulse shape analysis,

which can be customized by adding user functions to the core processing code. Waveforms,

timestamps, and the results of the pulse shape analysis can be read out by the host system

for further off-line processing. Pulse heights are calculated to 16-bit precision and can be

binned into spectra with up to 32Ki channels. The Pixie-4 Express supports coincidence

spectroscopy and can recognize complex hit patterns.

Data readout rates through the CompactPCI/PXI Express backplane to the host computer

can reach several hundred MB/s (theoretical max for x4 connection is 800 MB/s). Multiple

modules can be read out in parallel with a suitable chassis and host PC. The PXI backplane

is also used to distribute clocks and trigger signals between several Pixie-4 Express

modules for group operation. With a large variety of CompactPCI/PXI Express processor,

controller or I/O modules being commercially available, complete data acquisition and

processing systems can be built in a small form factor.

Pixie-4 Express User Manual Version 4.31

1.1 Pixie-4 Express Features

 Designed for

o high precision γ-ray spectroscopy with HPGe detectors,

o timing with fast scintillators (NaI, LaBr3, etc),

o pulse shape analysis to extract time, position, and/or particle type in

segmented or strip detectors, phoswich detectors, or neutron detectors

o coincidence acquisition

 12-16 bit, 125-500 MSPS ADC

Standard versions: 16 bit, 125 MSPS - 14 bit 500 MSPS

 Programmable gain and input offset.

 Programmable pileup inspection criteria include trigger filter parameters, threshold,

and rejection criteria.

 Triggered synchronous waveform acquisition across channels and modules.

 Simultaneous amplitude measurement and pulse shape analysis for each channel.

 On-board MCA memory

 Supports x4 PCIe data transfers (several hundred MBytes/second).

 Dead time free acquisition up to the PCIe transfer rate using 256 MB SDRAM

memory buffer

 Configurable digital inputs and outputs

 User can customize software, DSP and FPGA firmware, and front end hardware

Pixie-4 Express User Manual Version 4.31

1.2 Specifications

Front Panel I/O

Signal Input (4x)

4 analog inputs.

Switch selectable input impedance: 50Ω and 2kΩ.

Switch selectable input attenuation 1:8 and 1:1 for either impedance.

Input range:

After termination and attenuation, up to ±2.5V DC can be added to

compensate signal DC offsets.

After DC offset compensation, signals in the range from 0V to (2V/analog

gain) are accepted by the ADC. (See below for analog gain values)

Logic Input/Output

General Purpose I/O connected to programmable logic:

1 MMCX coaxial connector and

1 high density 10-pin connector (single ended or differential)

Backplane I/O

Clock Input/Output

Distributed 10 and 100 MHz clocks on PXIe backplane.

Triggers

Wired-or bussed trigger on PXIe backplane for synchronous event

acquisition.

Synchronization

Wired-or SYNC signal distributed through PXIe backplane to

synchronize timers and run start/stop to 50ns.

Veto

Global logic level to suppress event triggering.

Data Interface

PCI Express

x4 connection to host PC.

Theoretical bandwidth 800 MB/s per slot

Actual bandwidth: ~495 MB/s

PXIe backplane and PC hard drive bandwidth may limit usable data rate.

Digital Controls

Gain

Coarse gain:

125 MSPS variant: 8 gain settings from 1.6 to 22.6

500 MSPS variant: 2 gain settings: 2 and 5

Other variants: please contact XIA

Digital gain:

+/-20% gain adjustment for channel matching

Offset

DC offset adjustment from –2.5V to +2.5V, in 65535 steps.

Shaping

Trapezoidal filter with peaking times 0.048 to 63.4 us

Adjustable flat top to eliminate ballistic deficit effects

Trigger

Digital trapezoidal trigger filter with adjustable threshold. Rise time and

flat top set independently.

Coincidence

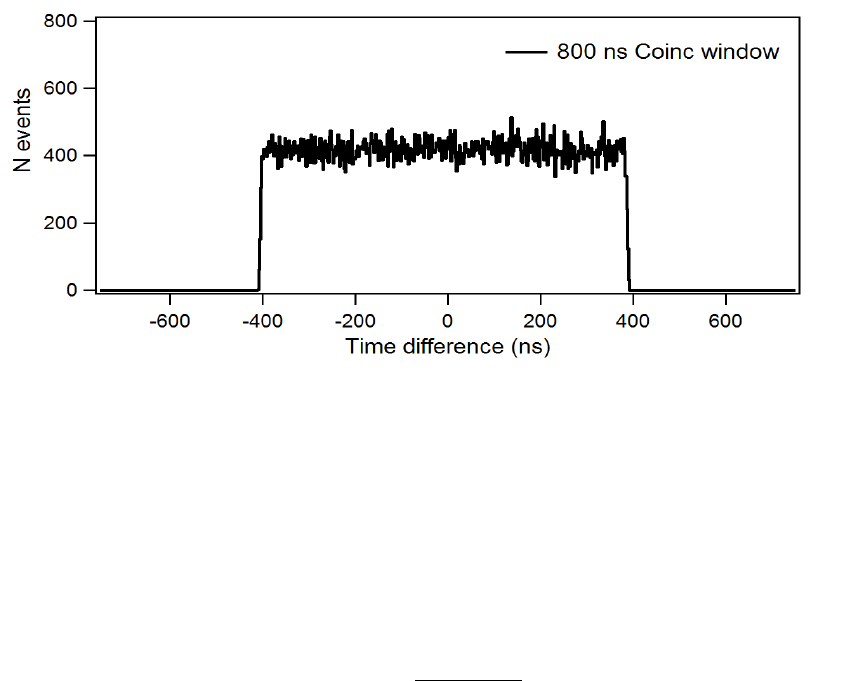

Programmable coincidence window: 40 to 1016 ns

Reject unwanted hit patterns of the 4 channels

Data collection

MCA limits and number of bins

Waveform lengths and pre-trigger delay

Pixie-4 Express User Manual Version 4.31

Data Outputs

Spectrum

1024-32768 bins per channel, 32 bit deep (4.2 billion counts/bin).

Additional memory for sum spectrum for clover detectors.

Statistics

Real time, counting time, filter dead time, input and throughput counts.

List mode event

data

Pulse height (energy), time stamps, pulse shape analysis results,

waveform data (up to 4Ki samples) and ancillary data like hit patterns.

Buffered in 256MB FIFO.

Table 1-1. Specifications for the Pixie-4 Express

1.3 System Requirements

The digital spectroscopy system considered here consists of a host computer, one or more

Pixie-4 modules in a PXIe chassis, and a gamma ray detector with appropriate power

supplies.

1.3.1 PXIe Chassis

The Pixie-4 Express can be operated in a peripheral PXIe or PXIe/PXI hybrid slot of any

standard 3U PXIe chassis.

1.3.2 Host Computer

The Pixie module communicates with a host computer through a PCI Express (PCIe)

interface. The host computer is usually either an embedded PC installed in the PXIe chassis

or a remote desktop or laptop that is linked to the chassis via a PCIe bridge.

The host computer must have the following minimum capabilities

 ~100 MB of disk space for operation software

 Sufficient disk space for acquired data

 Windows 7 (32 bit or 64 bit)

Operation under Linux is possible, please contact XIA for details.

 There are no minimum processor requirements, but a clock rate of 1 GHz or more

and memory of 512 MB or more are recommended.

1.3.3 Drivers and Software

Communication between the Pixie module and the host PC is facilitated by Jungo

WinDriver (version 11.2). Drivers are provided by the XIA software distribution.

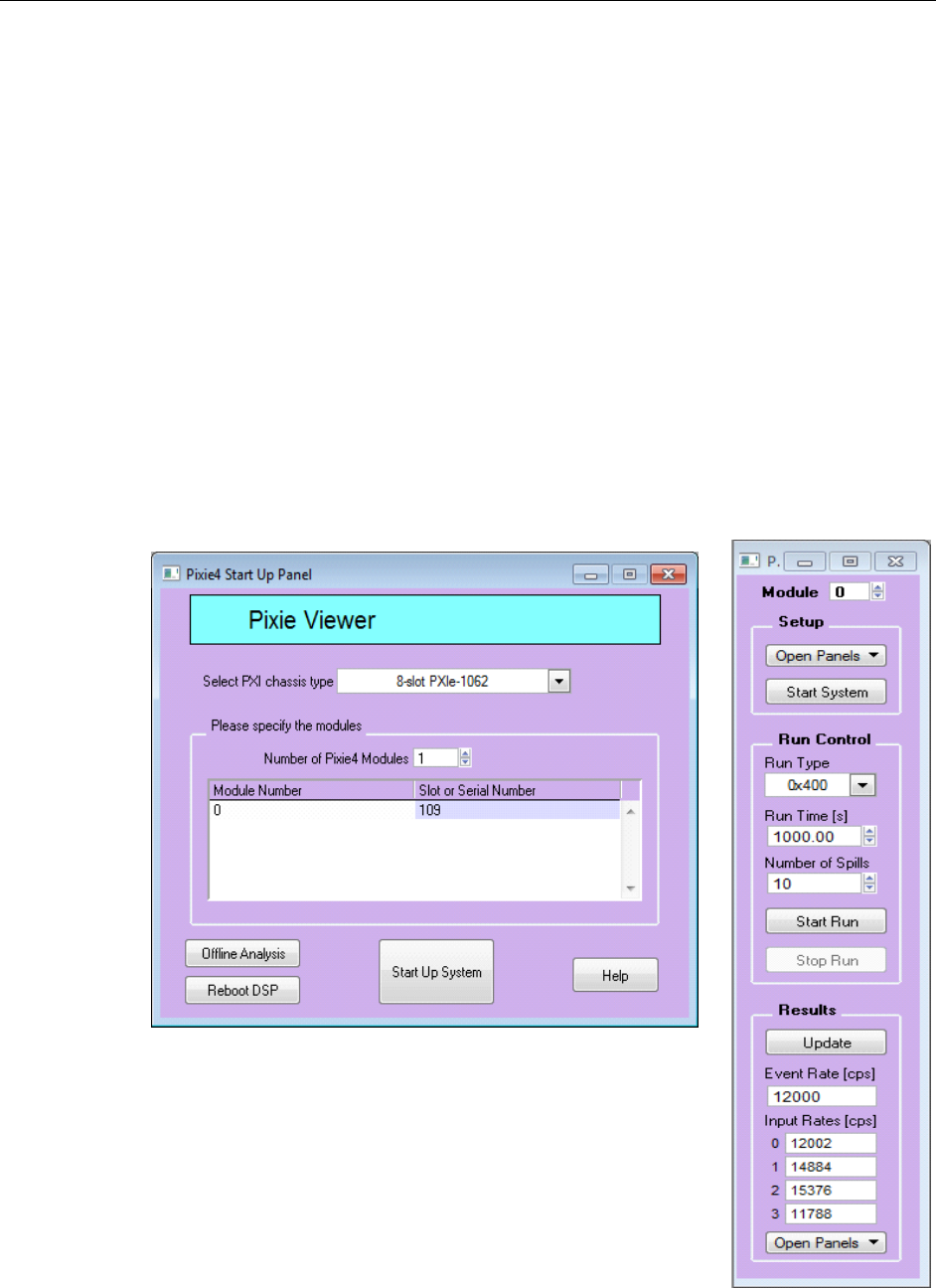

The Pixie Viewer, the default user interface for the Pixie modules, is based on

Wavemetrics’ Igor Pro. Version 6.22 or higher is required for the Pixie Viewer. Alternative

interfaces are LabView, ROOT (under Linux), or command line C programs; demo code

is provided on request.

Currently software is still compatible with Windows XP

Pixie-4 Express User Manual Version 4.31

1.3.4 Detector Signals

The Pixie-4 Express is designed for fast rising, exponentially decaying signals. Step pulses

and short non-exponential pulses can be accommodated with specific parameter settings.

Staircase type signals from reset preamplifiers generally need to be AC coupled.

Detector signals must not exceed ± 3.5V. Exceptions apply for certain attenuation and

termination settings (see Appendix).

1.3.5 Power Requirements

The Pixie-4 Express consumes roughly 25W, requiring the following currents from the

PXIe chassis:

3.3V 2.4 A (3 A)

12V 1.5 A (2 A)

5V 0.1A (1 A)

Numbers in brackets show the minimum currents supplied by the chassis per PXIe standard

1.3.6 Connectors and Cabling

The Pixie-4 Express uses SMA connectors for the analog inputs from the detectors. SMA

to BNC adapter cables are provided with the module.

A MMCX connector is used for a multi-function digital input/output. A MMCX to BNC

adapter cable is provided with the module.

A 10pin har-link connector is used for 10 additional digital inputs and outputs. The pin

pitch is 2mm. Matching cables are e.g. Harting 33 27 243 1000 002.

1.4 Software and Firmware Overview

Two levels of software are employed to operate the Pixie modules: a user interface for

setup and data acquisition, and a driver layer that handles communication between the user

interface and the module. In addition, firmware code is downloaded to the module for the

on-board pulse processing functions.

For installation of the software and an introduction to the user interface, please refer to the

following chapter of this manual. For details on the driver layer, please refer to the

programmer’s manual.

1.5 Support

A unique benefit of dealing with a small company like XIA is that the technical support for

our sophisticated instruments is often provided by the same people who designed them.

Our customers are thus able to get in-depth technical advice on how to fully utilize our

products within the context of their particular applications.

Please read through the following sections before contacting us. Contact information is

listed in the first few pages of this manual.

Pixie-4 Express User Manual Version 4.31

2 Installation

2.1 Hardware Setup

Place the Pixie-4 Express modules into any peripheral PXIe or PXIe/PXI hybrid slot with

the chassis still powered down, then power up the chassis (Pixie-4 Express modules are not

hot swappable). If using a remote controller, be sure to boot the host computer after

powering up the chassis.

2.2 Software Installation

When the host computer is powered up the first time after installing the controller and

Pixie-4 Express modules in the chassis, it will detect new hardware and try to find drivers

for it. (A Pixie-4 Express module will be detected as a new device every time it is installed

in a new slot.) While there is no required order of installation of the driver software, the

following sequence is recommended (users with embedded host computer skip to step 4):

1. If you have a remote controller, first install the driver software for the controller

itself. Otherwise, skip to step 4.

Unless directed otherwise by the manufacturer of the controller, this can be done

with or without the controller and Pixie-4 Express modules installed in the host

computer and/or chassis. If the modules are installed, ignore attempts by Windows

to install drivers until step 7.

NI controllers come with a multi-CD package called “Device Driver Reference CD”.

For simplicity it is recommended to install the software on these CDs in the default

configuration.

2. Unless already installed, power down the host computer, install the controller in

both the host computer and chassis, and power up the system again (chassis first).

3. Windows will detect new hardware (the controller) and should find the drivers

automatically. Verify in Window’s device manager that the controller is properly

installed and has no “resource conflicts”.

4. Unless already installed, power down the host computer and install the Pixie-4

Express modules in the chassis. Check the input switch settings for the appropriate

signal termination: 50 Ω or 2 kΩ (see section 10.1 for details). Then power up the

system again (chassis first). Ignore attempts by Windows to install drivers until

step 7.

5. Install Igor Pro, version 6.22 or higher.

(If installing Igor Pro version 7, be sure to use the 32bit version)

6. Install the Pixie-4 Express software provided by XIA.

The CD-ROM with the Pixie-4 Express software distribution contains the

installation program (for version XXX)

Pixie-4e_XXX_setup.exe

Run the setup program and follow the instructions shown on the screen to install the

software to the default folder selected by the installation program, or to a custom

folder. Driver installation is rather lengthy (the PC may pause for extended periods

Pixie-4 Express User Manual Version 4.31

of time) and may require acknowledgment of unsigned drivers. The installation

folder will contain the IGOR control program (Pixie.pxp), its source code

(XIA_Functions.ipf and XIA_Panels.ipf), online help files and 9 subfolders

(Configuration, Data, Doc, Drivers, DSP, Firmware, MCA, PixieClib, and

PulseShape). Make sure you keep this folder organization intact, as the Pixie Viewer

relies on this. Feel free, however, to add folders and subfolders at your convenience.

7. Windows will detect new hardware (the Pixie-4 Express modules) and should find

the drivers automatically. If not, direct it to the “drivers” directory in the Pixie-4

Express software distribution installed in step 6. Verify in Window’s device

manager that the modules are properly installed as “Pixie4e RevB (…)” under Jungo

devices and have no “resource conflicts”.

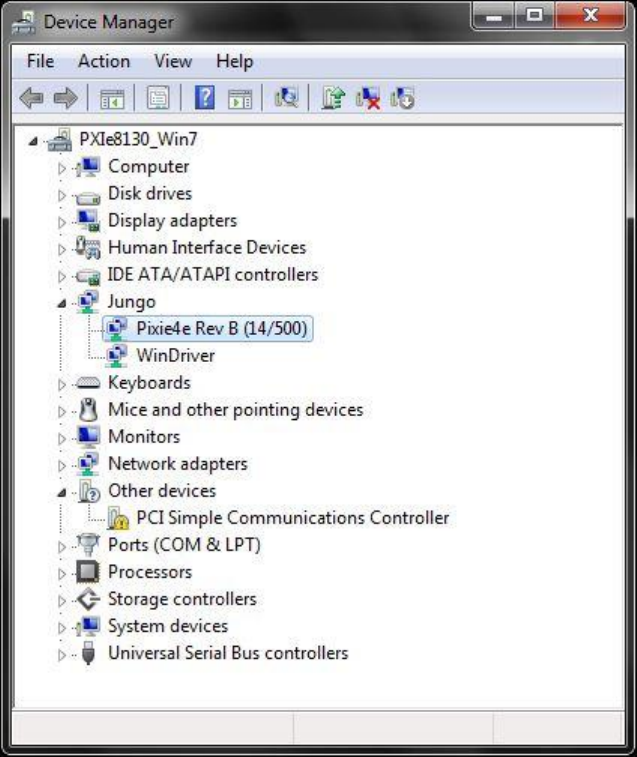

Figure 2-1: Screenshot of Windows device manager with Pixie-4 Express.

On 64 bit Windows, the name changes to “Pixie-4e”

Pixie-4 Express User Manual Version 4.31

2.3 Getting Started

To start the Pixie Viewer, double-click on the file “Pixie.pxp” in the installation folder.

The Pixie Viewer offers the following online help options and short cuts:

 All panels have a [Help] button that opens a help window with description of the

panel's controls.

 When hoovering over most controls, a brief explanation is displayed in the lower left

of the Igor window.

 Frequently used panels can be opened using the functions keys F2-F12. See top

menu XIA for a list of panels.

 In graphs, use <ctrl>-i to toggle a cursor bar (place cursor on plot to see data point

details)

 In graphs, left click and drag to define an area, then right click into the area for a

zoom/expand menu.

After IGOR loaded the Pixie Viewer, the START UP panel should be prominently displayed

in the middle of the desktop. In the panel, first specify the number N of Pixie modules in

the system. The chassis type should be PXIe-1062 for any PXIe chassis. Then specify the

serial numbers of the modules – this allows addressing the modules from 0 to N-1

independent of the physical slot location in the chassis.

Figure 2-2: The Pixie Viewer START UP panel (above) and MAIN Panel

(right)

Click on the [Start Up System] button to initialize the modules.

This will download DSP code and FPGA configuration to the

modules, as well as the module parameters. If you see messages

similar to “Module 0 in slot 5 started up successfully!” in the

IGOR history window, the Pixie modules have been initialized

successfully. Otherwise, refer to the troubleshooting section for

Pixie-4 Express User Manual Version 4.31

possible solutions. If you want to try the software without a chassis or modules attached,

click on [Offline Analysis].

After the system is initialized successfully, you will see the Main control panel that serves

as a shortcut to the most common actions and from which all other panels are called. Its

controls are organized in three groups: Setup, Run Control, and Results.

In the Setup group, the [Start System] button opens the START UP panel in case you need

to reboot the modules. The Open Panels popup menu leads to four panels where

parameters and acquisition options are entered. They are described in more detail in section

3 and in the online help. To get started, select Parameter Setup, which will open (or bring

to front) the PARAMETER SETUP panel shown in Figure 2-3. For most of the actions the

Pixie Viewer interacts with one Pixie module at a time. The number of that module is

displayed at the top of the Main panel and the top right of the PARAMETER SETUP panel.

Proceed with the steps below to configure your system.

Note: The [More] or [Less] button next to the [Help] button on the bottom of the

PARAMETER SETUP panel can be used to hide some controls. This may be helpful to first-

time Pixie users who want to focus on the most essential settings.

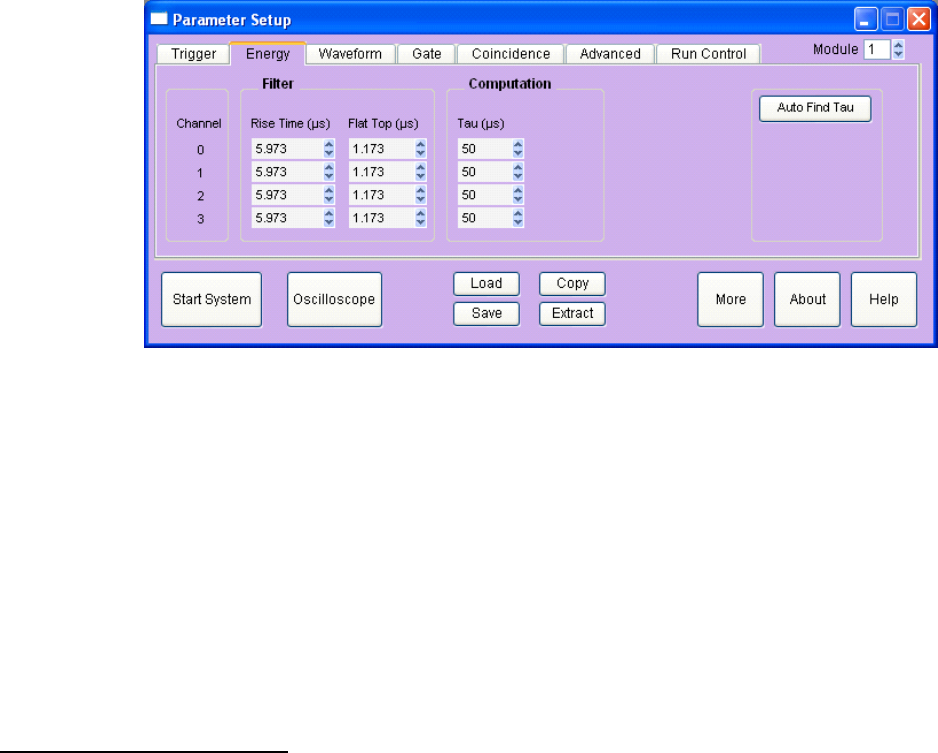

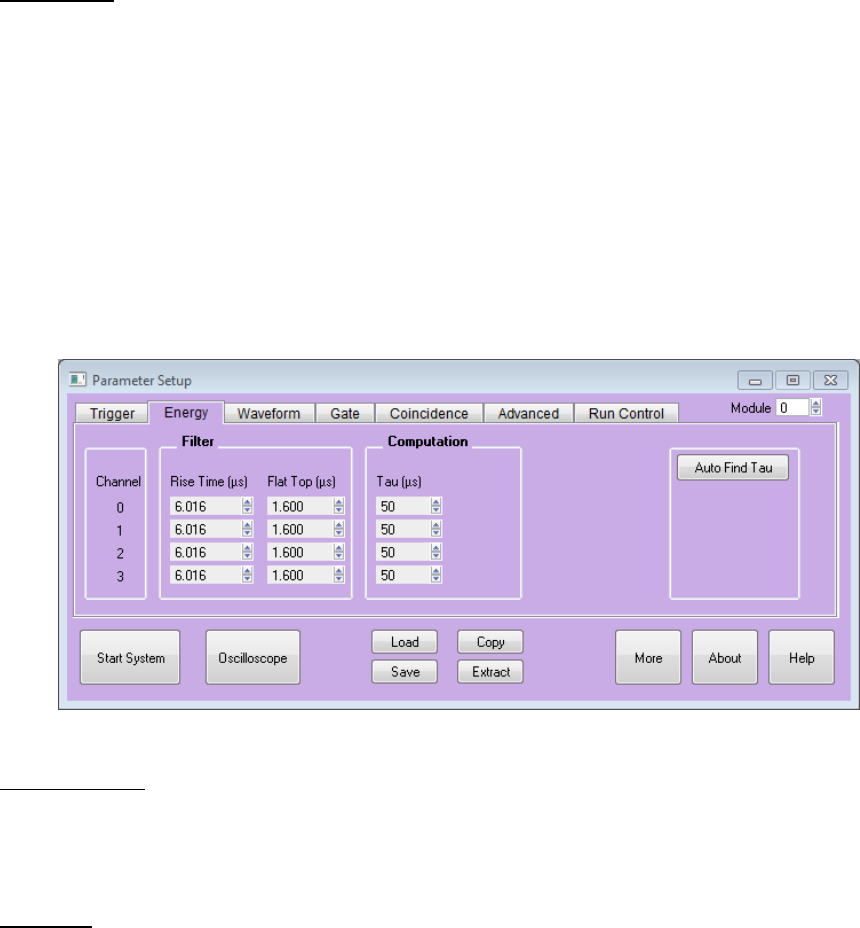

Figure 2-3: The PARAMETER SETUP Panel, Energy tab shown

For an initial setup, go through the following steps:

1. If not already visible, open the PARAMETER SETUP panel by selecting Parameter

Setup from the Open Panel popup menu in the MAIN panel.

2. At the bottom of the PARAMETER SETUP panel, click on the [Oscilloscope] button.

This opens a graph that shows the untriggered signal input. (Figure 2-4)

In the OSCILLOSCOPE panel, click [Refresh] to update the display. The pulses

should fall in the range 0-16Ki

for modules with 14 bit ADCs, 0-64Ki for modules

with 16 bit ADCs. If no pulses are visible or if they are cut off at the upper or lower

range of the display, click [Adjust Offsets] to automatically set the DC offset. If the

pulse amplitude is too large to fall in the display range, decrease the Gain. If the

pulses have falling leading edges, toggle the Invert checkbox. For the 500 MHz

In this manual, we use the IEC notation “Ki” for 1024, and the SI notation “k” for 1000.

Pixie-4 Express User Manual Version 4.31

version, if the signal looks unusually noisy, click on the [Calibrate] button to

automatically match gain and offset of the 2 ADC cores.

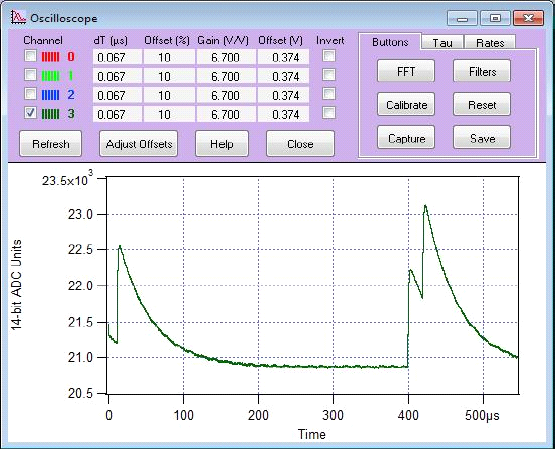

Figure 2-4: OSCILLOSCOPE panel

3. In the Energy tab of the PARAMETER SETUP panel, input an estimated preamplifier

exponential RC decay time for Tau, and then click on [Auto Find Tau] to

determine the actual Tau value for all channels of the current module. You can also

enter a known good Tau value directly in the Tau control field, or use the controls in

the OSCILLOSCOPE to manually fit Tau for a pulse.

4. Save the Igor experiment using File -> Save Experiment As from the top menu.

This saves the current state of the interface with all open panels and the settings for

file paths and slot numbers (the settings independent of module parameters). Igor

will also prompt you to ...

5. … save the modified parameter settings to file. (To do so at any other time, click on

the [Save] button at the bottom of the PARAMETER SETUP panel to open a save file

dialog.) Create a new file name to avoid overwriting the default settings file.

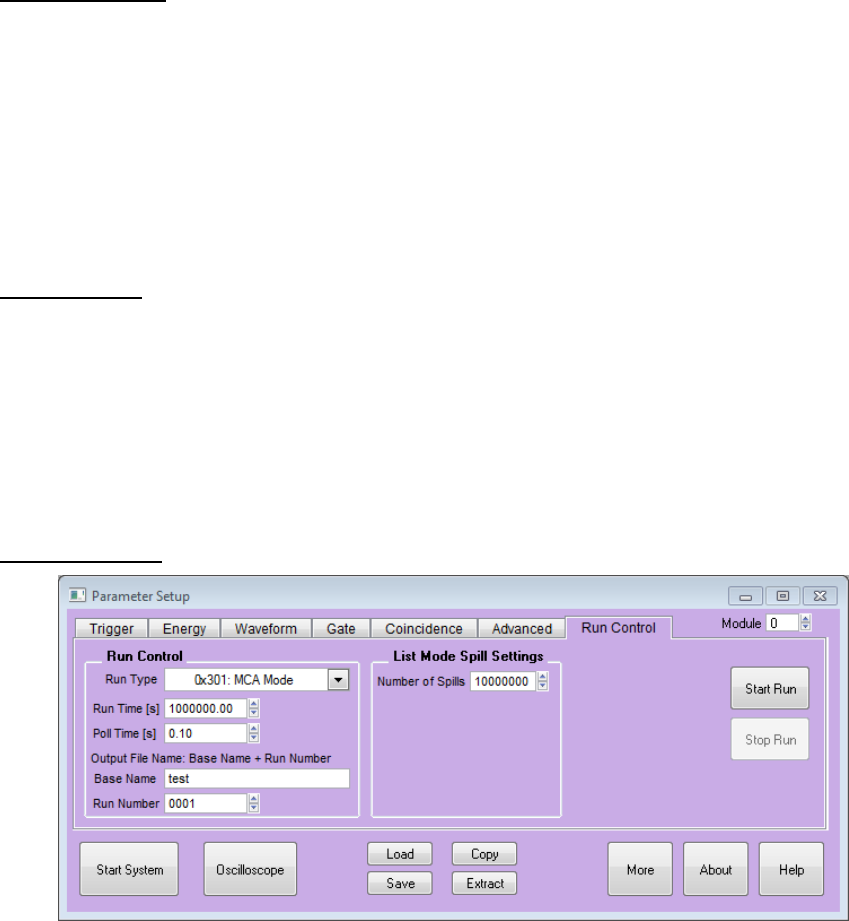

6. Click on the Run Control tab, set Run Type to “0x301 MCA Mode”, Poll time to 1

second, and Run time to 30 seconds or so, then click on the [Start Run] button. A

spinning wheel will appear occasionally in the lower left corner of the screen as long

as the system is waiting for the run to finish. If you click the [Update] button in the

MAIN panel, the count rates displayed in the Results group are updated.

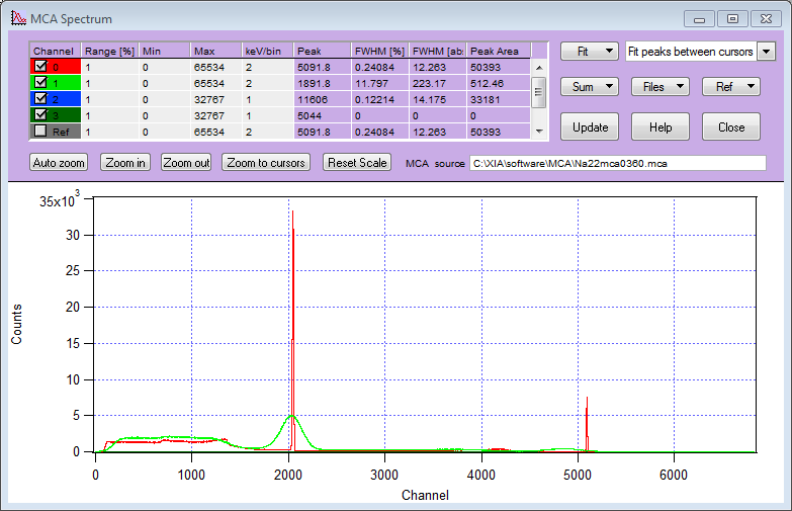

7. After the run is complete, select MCA Spectrum from the Open Panels popup

menu in the Results group of the MAIN panel. The MCA SPECTRUM graph shows the

MCA histograms for all four channels. You can deselect other channels while

working on only one channel. After defining a range in the spectrum with the

cursors and setting the fit option to fit peaks between cursors, you can apply a

Gauss fit to the spectrum by selecting the channels to be fit in the Fit popup menu.

You can alternatively enter the fit limits using the Min and Max fields in the table

or by specifying a Range around the tallest peak or the peak with the highest energy.

To scale the spectrum in keV, enter the appropriate ratio in the field keV/bin.

Pixie-4 Express User Manual Version 4.31

At this stage, you may not be able to get a spectrum with good energy resolutions. You

may need to adjust some settings such as energy filter rise time and flat top as described in

section 3.5.

Pixie-4 Express User Manual Version 4.31

3 Navigating the Pixie Viewer

3.1 Overview

The Pixie Viewer consists of a number of graphs and control panels, linked together by the

MAIN control panel. The Pixie Viewer comes up in exactly the same state as it was when

last saved to file using File->Save Experiment. This preserves settings such as the file

paths and the slot numbers entered in the START UP panel. However, the Pixie module

itself loses all programming when it is switched off (powered down). When the Pixie

module is switched on again, all programmable components need code and configuration

files to be downloaded to the module. Clicking on the [Start Up System] button in the

START UP panel performs this download. Below we describe the concepts and principles

of using the Pixie Viewer. Detailed information on the individual controls can be found in

the Online Help for each panel. The operating concepts are described in sections 4-7.

The controls in the MAIN control panel are organized in three groups: Setup, Run Control,

and Results. In the Setup and Results groups, popup menus lead to the panels and graphs

indicated in Figure 3.1

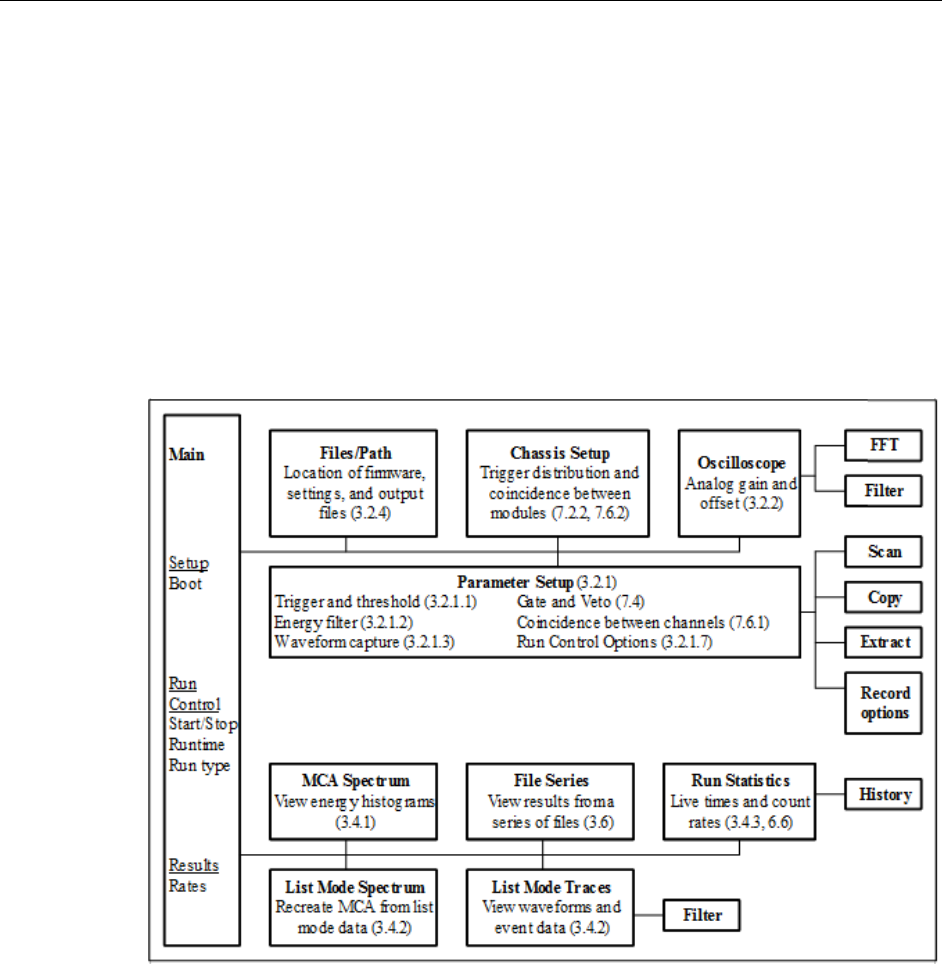

Figure 3-1: Block diagram of the major panels in the Pixie Viewer. Numbers in brackets point to

the corresponding section in the user manual. All panels are described in detail in the online help.

Pixie-4 Express User Manual Version 4.31

3.2 Setup Group

In the setup group, there is a button to open the START UP panel, which is used to boot the

modules. The Open Panels popup menu leads to one of the following panels: PARAMETER

SETUP, OSCILLOSCOPE, CHASSIS SETUP, FILES/PATHS

3.2.1 PARAMETER SETUP Panel

The PARAMETER SETUP panel is divided into 7 tabs, summarized below. Settings for all

four channels of a module are shown in the same tab. At the upper right is a control to

select the module to address. At the bottom of the panel is a [More] button, which will

make all advanced panel controls visible as well.

The Pixie modules being digital systems, all parameter settings are stored in a settings file.

This file is separate from the Igor experiment file, to allow saving and restoring different

settings for different detectors and applications. Parameter files are saved and loaded with

the corresponding buttons at the bottom of the PARAMETER SETUP panel. After loading a

settings file, the settings are automatically downloaded to the module. At module

initialization, the settings are automatically read and applied to the Pixie module from the

last saved settings file.

In addition there are buttons to copy settings between channels and modules, and to extract

settings from a settings file. Two large buttons at the lower left duplicate the buttons to call

the START UP panel and the OSCILLOSCOPE.

3.2.1.1 Trigger Tab

The Trigger tab contains controls to set the trigger filter parameters and the trigger

threshold, together with checkboxes to enable or disable trigger and to control trigger

distribution (see section 7.2.1). Except for the threshold, the trigger settings have rarely to

be changed from their default values.

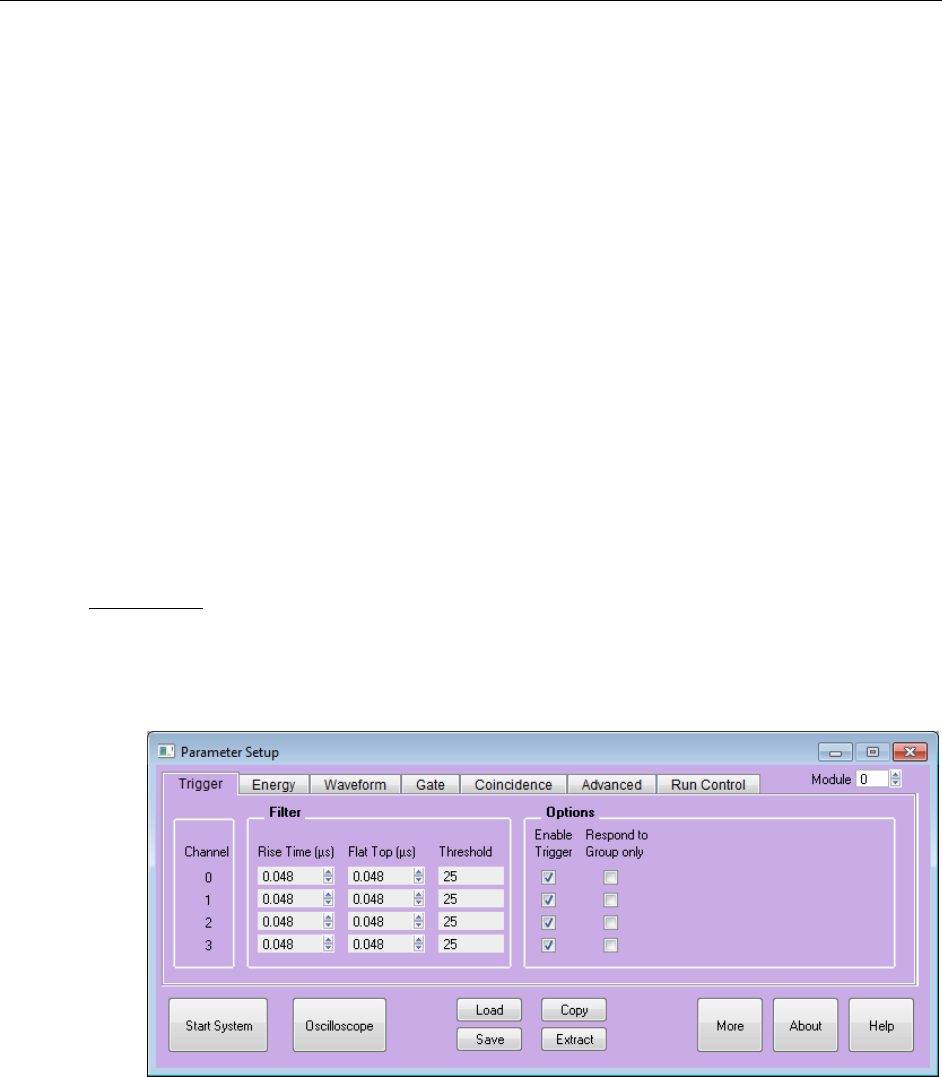

Figure 3-2: The Trigger tab of the PARAMETER SETUP panel.

The threshold value corresponds to ¼ of the pulse height in ADC steps, e.g. with a threshold

of 20, triggers are issued for pulses above 80 ADC steps. This relation is true if the trigger

filter rise time is large compared to the pulse rise time and small compared to the pulse

decay time. A pulse shape not meeting these conditions has the effect of raising the

effective threshold. For a modeled behavior of the trigger, you can open displays from the

OSCILLOSCOPE and the LIST MODE TRACES panels that show trigger filter and threshold

Pixie-4 Express User Manual Version 4.31

computed from acquired waveforms using the current settings. The threshold value is

scaled with the trigger filter rise time, therefore it is not limited to integer numbers.

3.2.1.2 Energy Tab

The Energy tab contains the settings for the energy filter and the subsequent computation.

These settings are most important for obtaining the best possible energy resolution with a

Pixie system. The energy filter rise time (or peaking time) essentially sets the tradeoff

between throughput and resolution: longer filter rise times generally improve the

resolution by averaging out noise (up to a certain optimum) but reduce the throughput

because more time is required to measure each pulse. The pulse decay time Tau is used to

compensate for the decay of a previous pulse in the computation of the pulse height. You

can enter a known good value, or click on [Auto Find Tau] to let the Pixie Viewer

determine the best value.

The advanced controls in this tab contain functions to modify the energy computation and

to acquire a series of measurements with varying filter settings and decay times to find the

best settings. For a detailed description of the filter operation, see section 6.

Figure 3-3: The Energy tab of the PARAMETER SETUP Panel.

3.2.1.3 Waveform Tab

The Waveform tab contains the controls to set the length and pre-trigger delay of the

waveforms to be acquired. Advanced options include parameters for online pulse shape

analysis

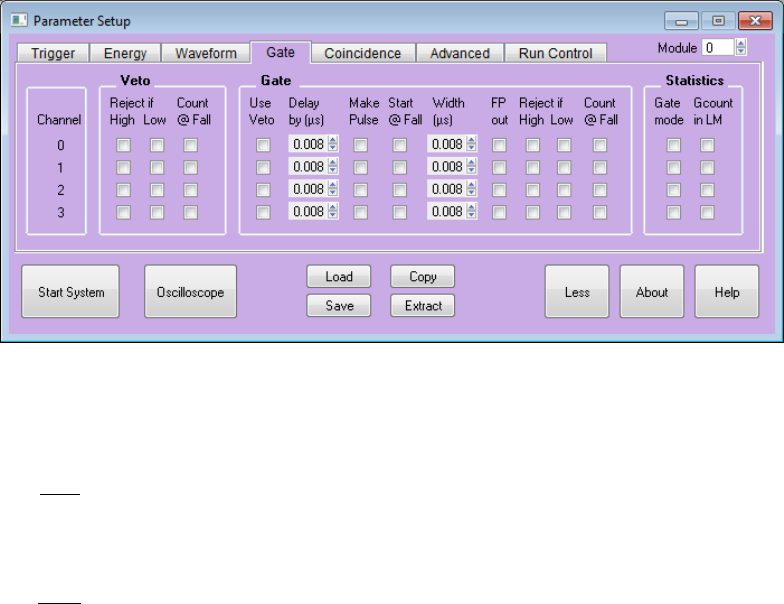

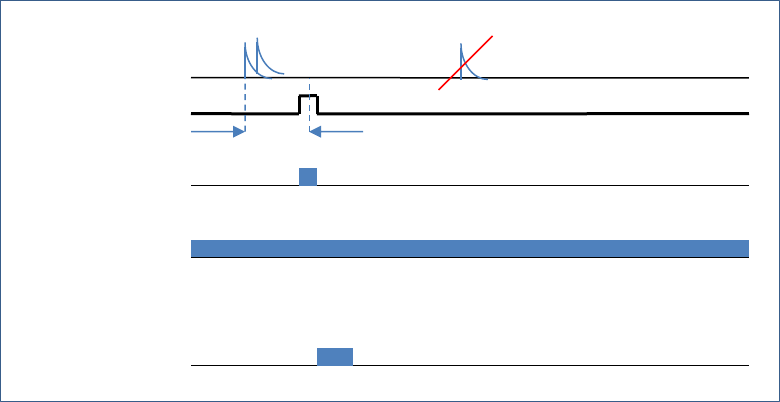

3.2.1.4 Gate Tab

The Gate tab contains the controls to set the window for gating acquisition with external

signals. We define Veto as a signal distributed to all modules and channels, but each

channel is individually enabled to require or ignore this signal. Veto is active during the

validation of a pulse (after pileup inspection), an energy filter rise time plus flat top after

the rising edge. With suitable external logic, the decision to veto a pulse can be made from

information obtained at the rising edge of the pulse (e.g. multiplicity from several channels)

and therefore this function is also sometimes called Global First Level Trigger (GFLT). In

contrast, Gate signals are understood as individual signals for each channel, and they are

active at the rising edge of the detector pulse.

Pixie-4 Express User Manual Version 4.31

For a detailed description of the Veto and Gate operation, see section 7.4.

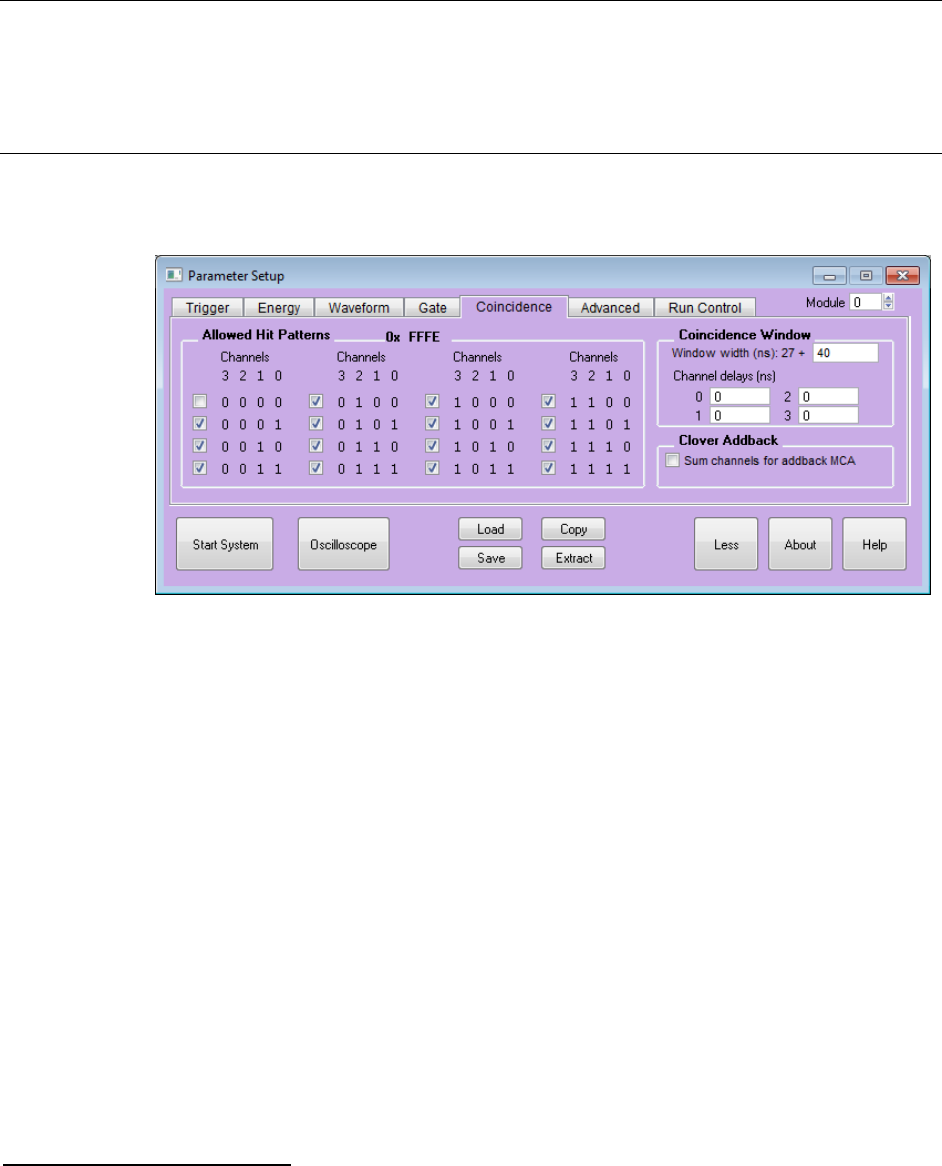

3.2.1.5 Coincidence Tab

The Coincidence tab contains the controls to set the acceptable hit pattern, and the

coincidence window around the rising edge during which channels can contribute to the

hit pattern. There is a checkbox for each possible hit pattern. For example, if the checkbox

with pattern 0100 is checked, events with a hit in channel 2 and no others are accepted.

Selecting multiple checkboxes accepts combinations of hit patterns, e.g. any event with

exactly one channel hit.

For a detailed description of the coincidence operation, see section 7.2.1. Controls for

coincidences between modules are located in the CHASSIS SETUP Panel and described in

section 7.2.2.

3.2.1.6 Advanced Tab

The Advanced tab contains the controls for modifying the pileup inspection, histogram

accumulation, baseline measurements, and ADC calibration. The ADC used on 500 MHz

versions of the Pixie-4 Express actually consists of two ADC cores on a single IC, which

need to be calibrated for matched gain, offset and phase. Normally, these calibration

settings are read from the module's non-volatile memory at boot time, but sometimes, for

example at temperature changes, it may be required to recalibrate the cores. An indication

of mismatch are systematic offsets between odd and even samples. These controls are

repeated in the OSCILLOSCOPE panel.

3.2.1.7 Run Control Tab

Figure 3-4: The Run Control tab of the PARAMETER SETUP Panel.

The Run Control tab defines the settings for data acquisition. The “Run Type” popup

menu selects MCA or list mode runs, see section 4 for a detailed description. In addition,

there are controls

 to set the run time (length of data acquisition as measured by Igor),

 to set the polling time (period for checking how many buffers of list mode data have

been written to disk and/or if run time is reached),

 to specify the data file name (a base name plus 4-digit run number that can be made

to increment automatically), and

Pixie-4 Express User Manual Version 4.31

 to specify the number of spills in list mode runs. (In list mode runs, data is

transferred in 2MB buffers to the host PC. We call each such buffer transfer a spill.

The number of spills thus sets the amount of data to collect.)

The [Start Run] and [Stop Run] buttons from the MAIN control panel are duplicated here

as well.

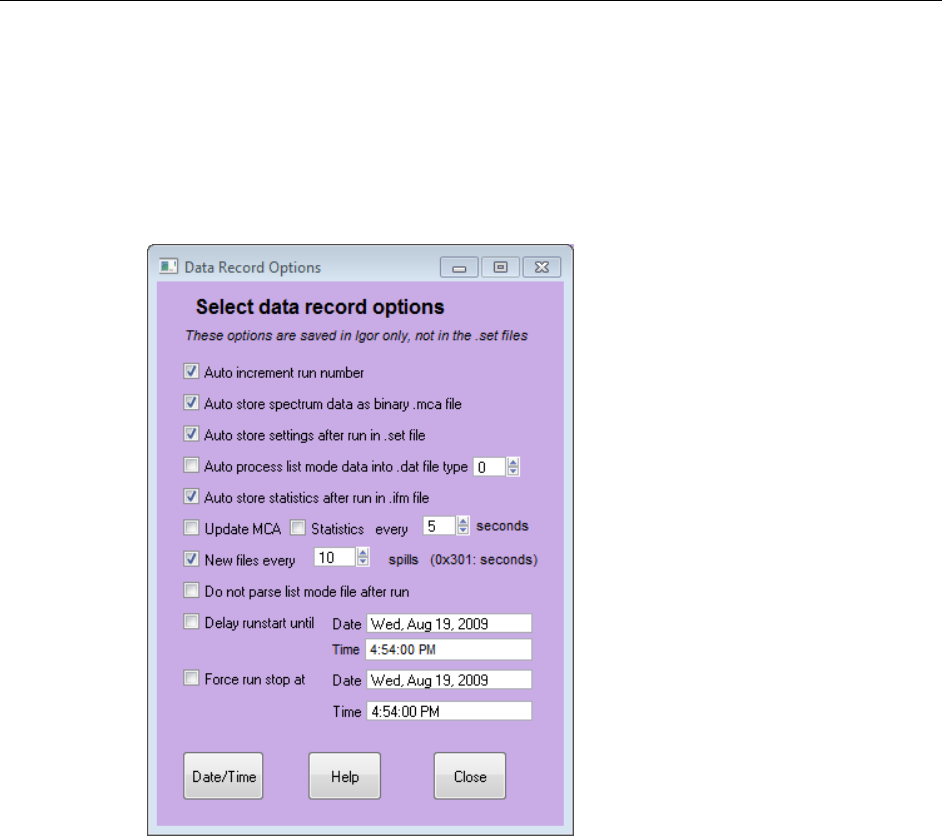

Advanced options include settings for synchronizing acquisition between modules,

controls to set a timeout for each spill, and the spill readout mode, and a button to open a

panel with advance record options.

3.2.2 OSCILLOSCOPE

As mentioned in section 2.3, the OSCILLOSCOPE (Figure 2.3) is used to view untriggered

traces as they appear at the ADC input and to set all parameters relating to the analog gain

and offset. There are controls titled

 dT [us], which sets the time between samples in the oscilloscope (there are always

8192 samples in the oscilloscope window),

 Offset [%], which sets the target DC-offset level for automatic adjustment,

 Gain (V/V), which sets the analog gain before digitization, and

 Offset (V), which directly sets the offset voltage.

The traces from different channels are not acquired synchronously but one after the other.

Therefore even if coincident signals are connected to the Pixie-4 Express inputs, the

Oscilloscope will show unrelated pulses for each channel.

There are also buttons and controls to

 open a display of the [FFT] of the input signal, which is useful to diagnose noise

sources

 open a display of the waveforms of the trigger [filter] and energy filter computed

from the traces in the oscilloscope

 repeat the action of the [Refresh] button until a pulse is [captured]. This is useful

for low count rates.

 Fit the pulses in the OSCILLOSCOPE with an exponential decay function to determine

the decay time Tau, and to accept the fit value for the module settings.

 View the current input count rate and the current fraction of time the signal is out of

range. These values are updated in the DSP every ~2-3ms independent of whether a

run is in progress or not. Their precision is in the order of 5-10%, or 50 cps.

 [Calibrate] the ADC gain and offset matching of its two cores. Calibrations are

reset at every power cycle or reboot of the module, or by clicking the [Reset] button.

The process started with this button will measure the mismatch, then modify the

gain and offset match in an iterative process.

 [Save] ADC waveforms to file in Igor text format (ASCII with header and footer

scaling info)

3.2.3 FILES/PATHS

The firmware files, DSP files and settings files are defined in the FILES/PATHS panel.

Changes will take effect at the next reboot, e.g. when clicking the [Start Up System] or

Pixie-4 Express User Manual Version 4.31

[Reboot DSP] buttons in this panel or in the START UP panel. There is also a button to set

the files and paths to the default, relative to the home path of the file Pixie.pxp.

Figure 3-5: The FILES/PATHS Panel.

3.2.4 CHASSIS SETUP

The CHASSIS SETUP panel is used to set parameters that affect the system as a whole.

Examples are trigger distribution between modules, coincidence settings between modules,

and the operation of the Pixie-4 Express’s front panel input. See sections 7.2.2 and 7.6.2

for details.

3.3 Run Control Group

The Run Control group in the MAIN control panel has the most essential controls to start

and stop runs, and to define or monitor the run time and the number of spills. For more

options, use the Run Control tab of the PARAMETER SETUP panel.

3.4 Results Group

The Results group of the MAIN control panel displays the count rates of the current or most

recent run. Click Update to refresh these numbers. Note that the event rate is the sum of

Pixie-4 Express User Manual Version 4.31

the output count rates of the four channels in run types 0x400 and 401, but the rate of 4-

channel events in Run Type 0x402. .

The popup menu Open Panels leads to panels to view the output data from the data

acquisition in detail. These panels are the MCA SPECTRUM display, THE LIST MODE

TRACES display, the LIST MODE SPECTRUM display, the RUN STATISTICS, and a panel to

display results from a series of files.

3.4.1 MCA SPECTRUM

Figure 3-6: The MCA SPECTRUM display

The MCA SPECTRUM display shows the spectra accumulated in on-board memory or from

a .mca file saved at the end of a run. Spectrum analysis is limited to fitting peaks with a

Gaussian and computing the peak resolution. There are several options to define the fit

range, as described in the online help. Spectra can be saved as text files or .CHN files for

import into other applications.

3.4.2 LIST MODE TRACES and LIST MODE SPECTRUM

The LIST MODE TRACES display shows the data from the binary list mode files (.bin or

.b##). If waveforms were collected, they are shown in the graph section of the panel. Event

and channel header information – energy, time stamps, and hit patterns as described in

section 4.1.2 – are shown in the fields above the graph section. Key information bits of the

hit pattern are decoded in checkboxes below the hexadecimal value. Resizing of the panel

may be required to see all features.

Pixie-4 Express User Manual Version 4.31

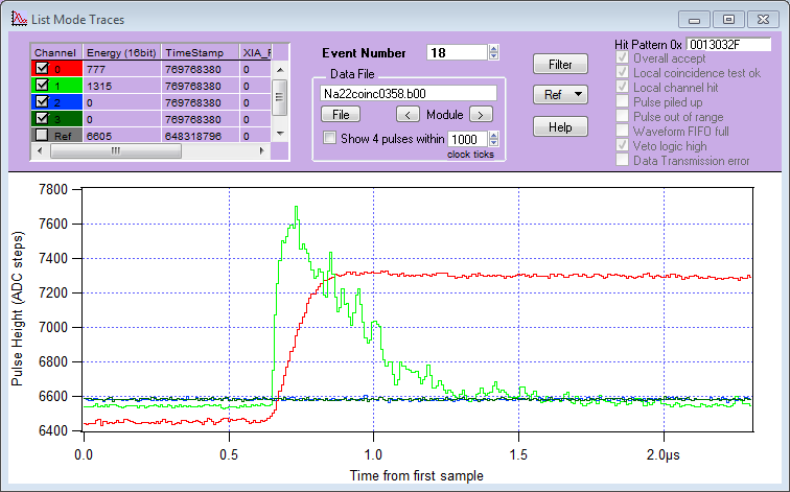

Figure 3-7: The LIST MODE TRACES display

To view event data, first specify a data file with the [Find] button. The file for module 0

of the most recent run is selected by default. Arrow buttons allow changing of both module

number of the Pixie Viewer and the file name at the same time. You can then select an

event to view by entering its number in the Event Number field. Events are stored as

single-channel records in run type 0x400 or 4-channel records in run type 0x402. To

display data from coincident pulses in run type 0x400, check the box Show 4 pulses and

enter a coincidence window in clock ticks. You will have to increment the Event Number

up to 4 times to get new data. The waveform from the current event is displayed in bold.

The Ref popup menu allows one of the current 4 channels to be saved for comparison;

check the corresponding dark gray box in the table to add its waveform to the plot.

The button [Digital Filters] opens a new plot that shows the response of the trigger filter

and energy filter computed from the list mode waveforms. This plot is more precise than

the related graph opened from the OSCILLOSCOPE since it uses the same full rate data as

the filters implemented in the module, not the reduced rate sampled at the OSCILLOSCOPE‘s

dT. However, unless long list mode traces are acquired or energy filters are short, there

may not be sufficient data to compute the energy filter properly.

The LIST MODE SPECTRUM display is a plot similar to the MCA SPECTRUM, but it is

computed from the energies saved in the list mode data file. Since energies are stored there

in full 16 bit precision, binning can be made finer than in the MCA SPECTRUM, which is

limited to 32Ki bins. See the online help for a detailed description of the controls. Note that

invalid events will have energy=0, which causes a large spike in the first bin of the

spectrum. Set Emin to a nonzero value to hide this spike. If desired, a range of events can

be specified to histogram, rather than all events in the file.

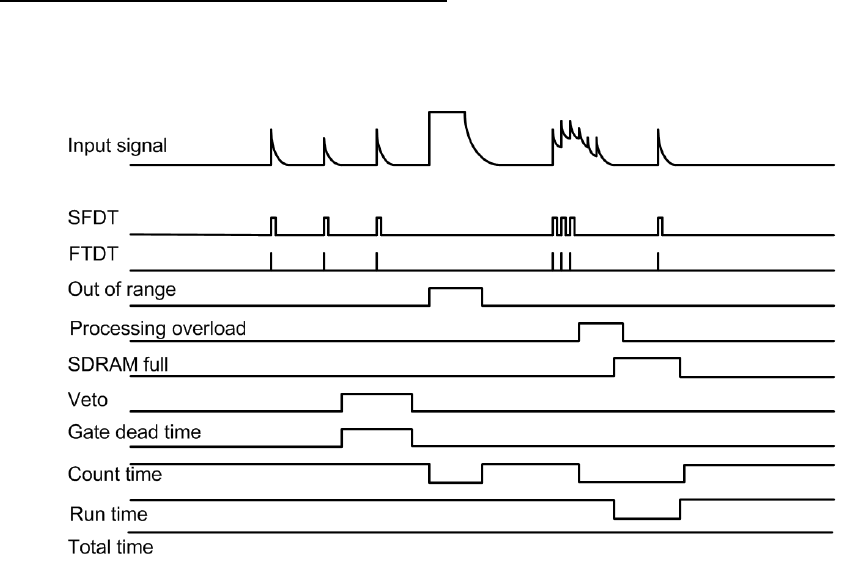

3.4.3 RUN STATISTICS

The RUN STATISTICS panel shows the counting times and count rates measured by the

Pixie-4 Express. The numbers can be updated by clicking the [Update] button and read

Pixie-4 Express User Manual Version 4.31

from or saved to Files. For a detailed description of the definition of these values, see

section 6.7.

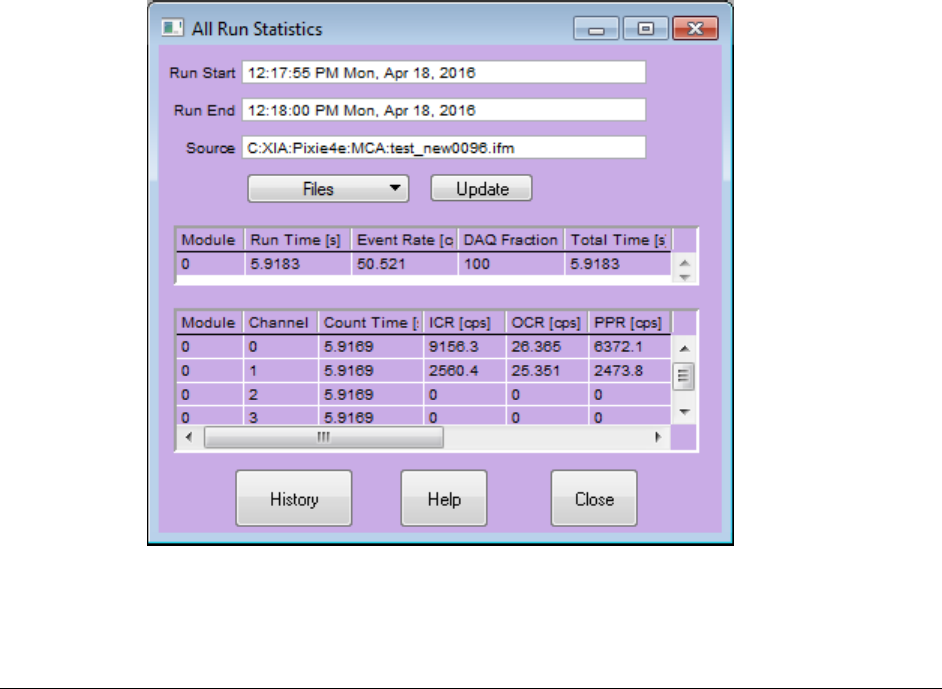

Figure 3-8: The RUN STATISTICS panel.

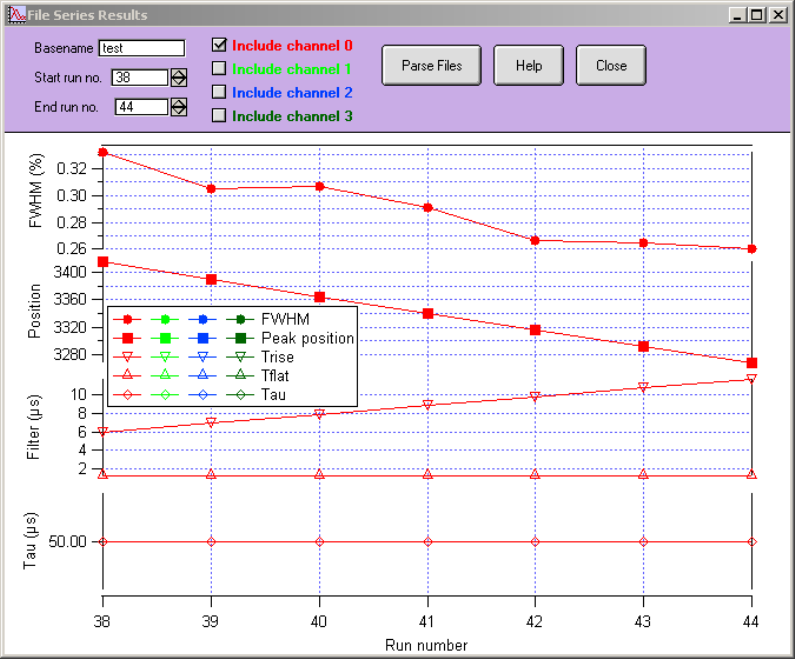

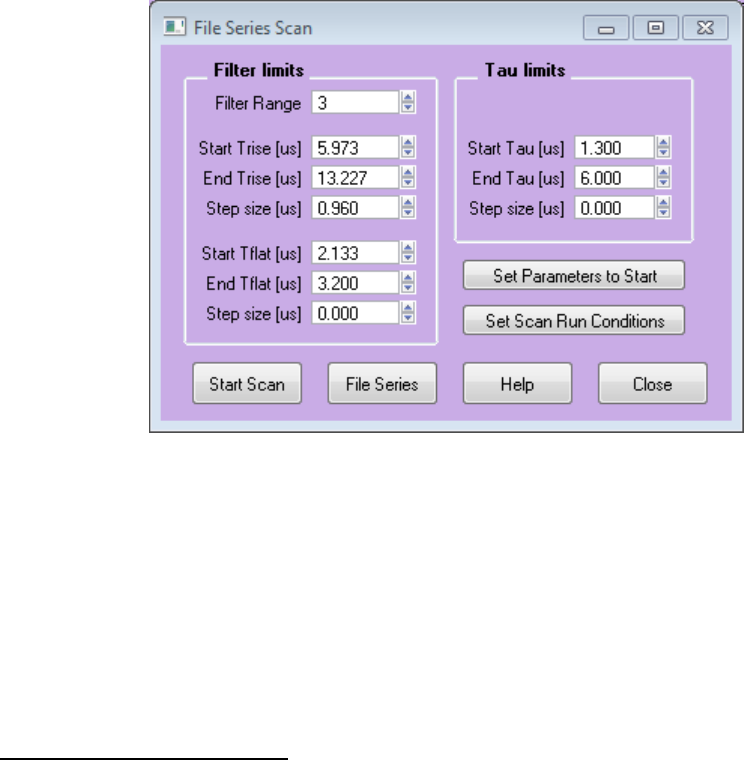

3.4.4 File Series

See section 3.6 for a more detailed description

3.5 Optimizing Parameters

Optimization of the Pixie-4 Express’s run parameters for best resolution depends on the

individual systems and usually requires some degree of experimentation. The Pixie Viewer

includes several diagnostic tools and settings options to assist the user, as described below.

3.5.1 Noise

For a quick analysis of the electronic noise in the system, you can view a Fourier transform

of the incoming signal by selecting OSCILLOSCOPE » [FFT]. The graph shows the FFT of

the untriggered input sigal of the Oscilloscope. By adjusting the dT control in the

OSCILLOSCOPE and clicking the [Refresh] button, you can investigate different frequency

ranges. For best results, remove any source from the detector and only regard traces without

actual events. If you find sharp lines in the 10 kHz to 1 MHz region you may need to find

the cause for this and remove it. If you click on the [Apply Filter] button, you can see the

effect of the energy filter simulated on the noise spectrum.

3.5.2 Energy Filter Parameters

The main parameter to optimize energy resolution is the energy filter rise time. Generally,

longer rise times result in better resolution, but reduce the throughput. Optimization should

begin with scanning the rise time through the available range. Try 2µs, 4µs, 8µs, 11.2µs,

Pixie-4 Express User Manual Version 4.31

take a run of 60s or so for each and note changes in energy resolution. Then fine tune the

rise time.

The flat top usually needs only small adjustments. For a typical coaxial Ge-detector we

suggest to use a flat top of 1.2µs. For a small detector (20% efficiency) a flat top of 0.8µs

is a good choice. For larger detectors flat tops of 1.2µs and 1.6µs will be more appropriate.

In general the flat top needs to be wide enough to accommodate the longest typical signal

rise time from the detector. It then needs to be wider by one filter clock cycle than that

minimum, but at least 3 filter clock cycles. Note that a filter clock cycle ranges from 0.026

to 0.853µs, depending on the filter range, so that it is not possible to have a very short flat

top together with a very long filter rise time.

The Pixie Viewer provides a tool to create a file series where the energy filter parameters

are modified for each file in the series. See section 3.6 for more details.

3.5.3 Threshold and Trigger Filter Parameters

In general, the trigger threshold should be set as low as possible for best resolution. If too

low, the input count rate will go up dramatically and “noise peaks” will appear at the low

energy end of the spectrum. If the threshold is too high, especially at high count rates, low

energy events below the threshold can pass the pile-up inspector and pile up with larger

events. This increases the measured energy and thus leads to exponential tails on the

(ideally Gaussian) peaks in the spectrum. Ideally, the threshold should be set such that the

noise peaks just disappear.

The settings of the trigger filter have only minor effect on the resolution. However,

changing the trigger conditions might have some effect on certain undesirable peak shapes.

A longer trigger rise time allows the threshold to be lowered more, since the noise is

averaged over longer periods. This can help to remove tails on the peaks. A long trigger

flat top will help to trigger better on slow rising pulses and thus result in a sharper cut off

at the threshold in the spectrum.

3.5.4 Decay Time

The preamplifier decay time τ is used to correct the energy of a pulse sitting on the falling

slope of a previous pulse. The calculations assume a simple exponential decay with one

decay constant. A precise value of τ is especially important at high count rates where pulses

overlap more frequently. If τ is off the optimum, peaks in the spectrum will broaden, and

if τ is very wrong, the spectrum will be significantly blurred.

The first and usually sufficiently precise estimate of τ can be obtained from the Auto Find

routine in the Energy tab of the PARAMETER SETUP panel. Measure the decay time several

times and settle on the average value.

Fine tuning of τ can be achieved by exploring small variations around the fit value

(± 2-3%). This is best done at high count rates, as the effect on the resolution is more

pronounced. The value of τ found through this way is also valid for low count rates.

Manually enter τ, take a short run, and note the value of τ that gives the best resolution.

Pixie users can also use the fit routines in the OSCILLOSCOPE to manually find the decay

time through exponentially fitting the untriggered input signals. Another tool is to create a

file series where τ is modified for each file in the series. See section 3.6 for more details.

3.5.5 Baselines and ADC calibration

Between detector pulses, the Pixie module continuously measures baselines, which is

ultimately used to correct for the DC offset. Multiple baseline measurements can be

Pixie-4 Express User Manual Version 4.31

averaged to reduce noise, and a threshold can be set to exclude the occasional bad

measurement from the average. The controls to set these parameters are located in the

Advanced tab of the PARAMETER SETUP panel. The optimum values depend on the

detector used; but usually the defaults are good estimates and resolutions only improve

slightly with manual fine tuning.

The 500 MHz ADC used on some variants of the Pixie-4 Express is actually a combination

of two 250 MHz ADC cores on a single IC. For best performance, the two cores have to

be calibrated to match in gain, offset and phase. Default ADC calibration values are stored

on an on-board EEPROM and are applied to the ADCs at boot time. It may happen that the

default values are not suitable, e.g. due to significant temperature drifts. This would

manifest itself as a distinct offset between even and odd samples in the waveforms. In such

a case, the ADCs can be recalibrated with a routine called from a button in the

OSCILLOSCOPE or in the Advanced tab of the PARAMETER SETUP panel.

3.6 File Series

3.6.1 File Series to break up long data acquisition runs

When taking long data acquisitions, it may be beneficial to break up the run into smaller

sub runs. This helps to save data in case of power failure or system crashes, since only the

most recent sub run is lost. Also list mode files tend to get large and unwieldy for analysis

in longer runs, and 32bit operating systems may impose a 4 GB limit.

Figure 3-9: The DATA RECORD OPTIONS panel with checkboxes set to acquire a series of files.

The Pixie Viewer thus has a method to create a series of files at specified intervals. In the

DATA RECORD OPTIONS panel, opened with the [Record] button in the Run Control tab

Pixie-4 Express User Manual Version 4.31

of the PARAMETER SETUP panel, there is a checkbox named New files every, followed by

a control field to enter an interval N. If checked, every N spills during the run the data file

is closed, spectra, settings and statistics are saved, and future data is saved to a new file

with incremented run number. It is recommended to enable the automatic increment and

auto-store options as shown in Figure 3.9 as well.

Spectra and run statistics are cumulative in these subsequent files for run type 0x400-

0x403. In MCA mode, the new file interval is every N seconds.

3.6.2 File Series to scan filter parameters

With some modifications, the mechanism to create file series described in section 3.6.1 can

also be used to scan through a range of energy filter or decay time settings. This is

equivalent to starting an MCA run with initial settings, stopping the run, incrementing the

energy filter rise time, restarting the run, and so on. The file series will thus contain spectra

for a whole range of settings, which can be analyzed manually or with the routine described

in section 3.6.3.

Figure 3-10: The FILE SERIES SCAN panel to acquire a series of files in which energy filter

parameters and Tau are varied within user defined limits.

To set up such a parameter scan, open the FILE SERIES SCAN panel (PARAMETER SETUP »

Energy tab » [Scan Settings]) shown in Figure 3.10. A control field named Filter Range

is repeated from the Energy tab. In three groups of controls, you can set the start, end, and

step size for varying the energy filter rise time, the energy filter flat top, and Tau. If the

step size is zero, that parameter will not be varied.

Two buttons assist in setting up the initial conditions: [Set Parameters to Start] sets the

current values of the energy filter and Tau to the start value defined in the FILE SERIES

SCAN panel. If you omit to click this button, the file series will begin with the current value;

this is useful to resume a file series. [Set Scan Run Conditions] will set the checkboxes

In legacy run types 0x100-0x301, a new run is started with the new file (statistics and spectra start from 0,

equivalent to manually clicking first the Stop Run button and then the Start Run button.

Pixie-4 Express User Manual Version 4.31

in the DATA RECORD OPTIONS panel to the values required for the scan, and set the run

time to the total time required (interval N in the DATA RECORD OPTIONS panel times the

number of settings).

At the bottom of the panel, the button [Start Scan] starts the file series. This is a different

button from the standard [Start Run] button, because it is starting a run which is modifying

parameters. All the updates during a run work the same as in a standard run, though; and

the run can be stopped with the standard [Stop Run] button. When the run is complete,

click on the [File Series] button to open the panel described in section 3.6.3

3.6.3 File Series Analysis

Figure 3-11: The FILE SERIES RESULTS plot to analyze a series of files from a parameter scan.

To analyze a series of .mca files, you can use the FILE SERIES RESULTS panel. Enter the

base name and the start and end run numbers of the series, then click [Parse Files]. Start

and end are inclusive, i.e. for start = 1 and end =13, the parsing covers files base0001-

base0013. An .ifm file is required to read the values for Tau and the filter settings. The

parsing routine reads the spectra and fits peaks with the options set in the MCA SPECTRUM.

Thus make sure the fit range is set appropriately. In the plot, the peak position and

resolution is plotted as a function of run number, together with the filter settings and tau

for each channel selected.

Pixie-4 Express User Manual Version 4.31

4 Data Acquisition and Data Structures

4.1 Run Types

There are two major types of data acquisition runs: MCA runs and List mode runs. MCA

runs only collect spectra and run statistics, List mode runs acquire data on an event-by

event basis, but also collect spectra and run statistics. List mode runs come in several

variants (see below), storing different amounts of data per event.

The output data are stored in three different memory blocks. The MCA block resides in a

dedicated spectrum memory. List mode data is buffered in 256 MB of SDRAM organized

as a FIFO and streamed continuously to the host PC memory. Run statistics are kept in

local memory by the on-board FPGA.

4.1.1 MCA Runs

If only energy spectra are of interest, an MCA run should be used. For each event, this type

of run only calculates pulse heights (energies). The energy values are then used to

increment the MCA spectrum. The run continues until the host computer stops data

acquisition, either by reaching the run time set in the Pixie Viewer, or by a manual stop

from the user (the module does not stop by itself).

There is no data transferred between the Pixie module and the host PC, except for the

occasional manual update of MCA spectra and run statistics. By design, the MCA memory

does not “fill up” – each event simply increments a bin in the spectrum.

4.1.2 List Mode Runs

If, on the other hand, data should be collected on an event-by-event basis, including

energies, time stamps, pulse shape analysis values, and wave forms, a list mode run should

be used. In list mode, pulse heights are still histogrammed into MCA spectra, e.g. for

monitoring purposes. The list mode data is continuously transferred from the Pixie module

to the host PC.

There are currently three types of list mode runs implemented in the Pixie-4 Express:

General purpose (0x400), text only (0x401), and group mode (0x402):

 General purpose (0x400) list mode runs collect energies, time stamps, optional

PSA results, and wave forms in single channel event records. 32Ki MCA histograms

are accumulated in on-board memory. This mode is suitable for systems where

interactions between channels are either not relevant or are to be extracted offline

from saved data. Even if multiple channels see a pulse at the same time, each channel

is recorded independently and individually. Nevertheless, there is the option to share

triggers between channels and modules and to apply coincidence tests, and the hit

status of all 4 channels is recorded in each channel's record. Offline processing can be

used to match time stamps and group events if desired.

 Text only (0x401) list mode runs collect energies, time stamps, and optional PSA

results. 32Ki MCA histograms are accumulated in on-board memory. Data is

transferred internally in the same way as in run type 0x400, but the C library writes

results to a text file in ASCII format. Since no waveforms are recorded in the output

file, waveforms are not acquired internally even if the tracelengths are set to a

Pixie-4 Express User Manual Version 4.31

nonzero value. Pulse shape analysis implemented in the FPGA operates on the

incoming data stream and creates valid values even with zero tracelengths specified

in the settings.

 Group mode (0x402) list mode runs collect energies for each channel and an energy

sum, time stamps, optional PSA results, and wave forms in 4-channel event records.

16Ki MCA histograms are accumulated in on-board memory for each channel and

the sum energy. The assumption is that channels are related and whenever one

channel sees a pulse, all channels should be recorded. Consequently, the following

options must be enabled in the settings:

o same trace length and energy filter length for all channels

o MCA binning factor should be 2 or more to ensure the energies are

binned into the 16Ki MCA without being cut off

The options of gating, vetoing, accepting out-of-range or piled up pulses apply to the

whole set of 4 channels. So for example, if one out of 4 channels is piled up, nothing

is recorded for any channel unless pileup rejection is turned off for that channel.

Count rates should be limited to 100kcps or so (with 500ns waveforms). The

channels’ count time are linked together; whenever one channel is out of range of has

full event buffers, all channels stop counting. Group trigger and sum MCA are

enabled no matter what the channel settings are (0x402 overrides these settings).

List mode runs halt data acquisition either when a preset time is reached, or when a preset

number of “spills” have been collected, as determined by the Pixie Viewer. A spill here

means 2 MB of data read from the SDRAM FIFO. Unlike the Pixie-4, the Pixie-4 Express

never stops the acquisition for data readout. List mode data is buffered in the SDRAM

FIFO, and moved to the host PC on one end while being written by the firmware on the

other end. When a 2 MB spill has been moved to PC memory, an interrupt is issued to

save the data to file and free up the memory block. At that time, also a data error check can

be performed. Given the data bandwidth of the PXIe interface, it is rather unlikely for the

SDRAM to fill up, except for situations with very high rates and very long waveforms. (If

the SDRAM actually does fill up, data acquisition is paused but as soon as the host frees

up SDRAM memory by moving data and storing it to disk, the acquisition continues. The

red LED on the module's front panel indicates such a condition. Another indication is a

large difference in total time and count time)

When the Pixie Viewer ends the data acquisition, there may be data in the SDRAM that

has not yet been saved to file. The readout thus continues for a short while after the DSP

stops collecting new data, adding one or more spills to the file. The preset number of spills

is therefore to be understood as a minimum request.

4.1.2.1 Pulse Shape Analysis

Pulse shape analysis comes in several varieties, executing algorithms by XIA (enabled by

selecting options in the standard firmware/software) or algorithms programmed by users

as plug-in code for the DSP. In the current firmware/software, the following algorithms are

available from XIA:

 Accumulation of 2 sums (baseline subtracted) near the rising edge of the pulse.

 Capture of amplitude (maximum minus baseline) near the rising edge of the pulse.

 Computation of the ratio of the 2 sums

Please contact XIA for details.

Pixie-4 Express User Manual Version 4.31

4.1.2.2 Compressed Data Formats

The output data of list mode runs can be reduced by using one of the compressed formats

described below. The key differences are that as less data is recorded for each event, there

is room for more events in the SDRAM FIFO, less time is spent per event to read out data

to the host computer, and data files are smaller. These compressed data formats will be

developed as necessary.

4.1.3 Summary of Run Types

Table 4-1summarizes the Run Types described above. The Pixie Viewer also shows Run

Types 0x100-103, these are for the Pixie-4 only. Please refer to the Pixie-4 user manual for

details.

Run Type

Output data

RUNTASK

Files created

MCA

Mode

Spectra in MCA memory

0x301

. mca binary spectra

.set binary settings (optional)

.ifm ASCII run statistics etc

(optional)

List Mode

(standard)

Energies, time stamps,

PSA values, and wave

forms in List mode

memory.

Spectra in MCA memory

0x400

.b## binary list mode data

. mca binary spectra (optional)

.set binary settings (optional)

.ifm ASCII run statistics etc

(optional)

List Mode

(text, no

traces)

Energies, time stamps,

PSA values in List mode

memory.

Spectra in MCA memory

0x401

_m#.dt3 ASCII list mode data

. mca binary spectra (optional)

.set binary settings (optional)

.ifm ASCII run statistics etc

(optional)

List Mode

(group)

Energies, time stamps,

PSA values in List mode

memory.

Spectra in MCA memory

0x402

.b## binary list mode data

. mca binary spectra (optional)

.set binary settings (optional)

.ifm ASCII run statistics etc

(optional)

Table 4-1: Summary of run types and data files.

Pixie-4 Express User Manual Version 4.31

4.2 Output Data Structures

4.2.1 MCA Histogram Data Structure

In most run types, the MCA memory uses 32Ki words (32-bit deep) per channel, i.e. total

128Ki words. If spectra of less than 32Ki length are requested, only part of the 32Ki will

be filled with data. In run type 0x402, each channel's MCA is 16Ki words, followed by a

16Ki sum energy MCA. The memory can be read out via the PCIe data bus at any time,

though not at the full burst rate.

The total MCA memory size on the Pixie-4 Express is 512Ki words. It can be reorganized

for special applications (e.g., 2D spectra or channel sum spectra).

If enabled, the histogram data is automatically read and saved to file at the end of the run.

The file has the extension .mca and contains 128Ki binary numbers (32 bit unsigned, low

byte first).

4.2.2 List Mode Data Structures

The list mode data in the SDRAM FIFO consists of a series of data records for each event.

For each module, the host readout process creates an individual file for these records. The

extension of these files is .b## (## = 2 digit module number) in run types 0x400 and 0x402

and _m#.dt3 (# = 1-2 digit module number) in Run Type 0x401. The records can be written

by the DSP in a number of formats. User code should access the data in the file header to

navigate through the data. The file should only be read when the run has ended.

4.2.2.1 File Headers in Run Type 0x400 and 0x402

In Run Types 0x400 and 0x402, the.b## file always starts with a file header of length

BUFHEADLEN. Currently, BUFHEADLEN is 32, and the 32 words (16 bit unsigned

integer, low byte first) are:

Word #

Variable

Description

BlkSize

Block size (16-bit words)

ModNum

Module number

RunFormat

Format descriptor = Run Type

ChanHeadLen

Channel Header Length

CoincPat

Coincidence pattern

CoincWin

Coincidence window in 8ns clock ticks

MaxCombEventLen

Maximum length of traces plus headers from all 4

channels (in blocks)

BoardVersion

Module type and revision

EventLength0

Length of traces from channel 0 plus header (in blocks)

EventLength1

Length of traces from channel 1 (in blocks)

EventLength2

Length of traces from channel 2 (in blocks)

EventLength3

Length of traces from channel 3 (in blocks)

SerialNumber

Serial number of that module

13--31

unused

reserved

Table 4-2: File header data format, total 32 words (16bit).

Pixie-4 Express User Manual Version 4.31

4.2.2.2 Event Data in Run Type 0x400

Following the file header, in Run Type 0x400 the single channel event records are stored

in sequential order. Each event starts out with a channel header of length ChanHeadLen.

Currently, ChanHeadLen=32, and the 32 words (16 bit) are:

Word #

Variable

Description

EvtPattern

Hit pattern.

EvtInfo

Event status flags.

NumTraceBlks

Number of blocks of Trace data to follow the header

NumTraceBlksPrev

Number of blocks of Trace data in previous record (for

parsing back)

TrigTimeLO

Trigger time, low word

TrigTimeMI

Trigger time, middle word

TrigTimeHI

Trigger time, high word

TrigTimeX

Trigger time, extra 8 bits

Energy

Pulse Height

ChanNo

Channel number

User PSA Value

Result of User specific pulse shape analysis

XIA PSA Value

Result of standard XIA pulse shape analysis

12--15

Extended PSA

Values

16--31

reserved

Table 4-3: Channel header for Run Type 0x400, total 32 words (16bit).

The hit pattern is a bit mask, which tells which channels were recorded detected within the

specified coincidence window plus some additional status information, as listed in table

4.4. The channel header may be followed by waveform data. An offline analysis program

can recognize this by reading the number of waveform blocks from the NumTraceBlks

word. The block size is defined in the file header.

Bit #

Description

EvtPattern

0..3

If set, indicates that data for channel 0..3 have been recorded10

4..7

4: Logic level of FRONT panel input

5: Result of LOCAL acceptance test

6: Logic level of backplane STATUS line,

7: Logic level of backplane TOKEN line (= result of global coincidence test), see

section 7

8..11

If set, indicates that channel 0..3 has been hit in this event4

(i.e. if zero, energy reported is invalid or only an estimate)

12..15

If set, indicates that the GATE input of channel 0..3 has been high at time of fast

trigger

As event records are for a single channel at a time, only one bit in [0..3] is set. If there was a coincident

pulse in any other channel, the corresponding hits in [8..11] are set. However, recording of those other channels

follows those channels' rules. For example, if a channel is piled up it will only be recorded if pileup rejection is

turned off. Event records thus may show coincidence patterns with more channels than actually being recorded.

Pixie-4 Express User Manual Version 4.31

EvtInfo

Coincidence test result

Logic level of backplane VETO line

If set, indicates event is piled up

If set, indicates waveform FIFO full

If set, indicates this channel was hit (else the event was recorded based on

distributed trigger)

If set, indicates that the GATE input of this channel has been high at time of fast

trigger

If set, indicates this channel was out of ADC range at time of fast trigger

7..14_4

reserved

If set, indicates a data transmission error has been detected for this event.

Parts of header and waveform may be corrupted

Table 4-4: Event pattern and Event info in Run Type 0x400, total 32 bits.

4.2.2.3 Event Data in Run Type 0x401

The .dt3 files created in Run Type 0x401 list energies, channel numbers, 48 bit time stamps,

and 6 PSA values as tab delimited values, one event per line. This is the same format as

created with the AutoProcessListModeData option set to 3. See below for an example.

Data is transferred from the Pixie module to the PC in the binary format described under

Run Type 0x400. The PC parses through the data on the fly and saves the extracted event

values to file. The data error routine must be enabled for this Run Type.

Module: 0

Run Type: 1025

Run Start Time (s): 33.912160

Event Channel TimeStamp Energy RT Apeak Bsum Q0 Q1 PSAval

0 0 16956079848 286 4369 8738 808 1361 2434 0

1 0 16956109724 899 4369 8738 739 628 65466 65535

…

Example of .dt3 file content

The headers have the following meanings:

TimeStamp 32 bit time stamp (2ns units)

Energy Pulse Height

RT* unused, reserved for rise time

Apeak* peak amplitude

Bsum* pre-trigger baseline sum

Q0* first sum on rising edge of pulse

Q1* second sum on rising edge of pulse

PSAval* DSP computed ratio of Q sums

* = only meaningful when PSA firmware variant is active

Pixie-4 Express User Manual Version 4.31

4.2.2.4 Event Data in Run Type 0x402

In Run Type 0x402, following the file header, the 4-channel event records are stored in

sequential order. Each event starts out with an event header of length ChanHeadLen.

Currently, ChanHeadLen=32, and the 32 words (16 bit) are:

Word #

Variable

Description

EvtPattern

Hit pattern.

EvtInfo

Event status flags.

NumTraceBlks

Number of blocks of Trace data to follow the header (all

channels)

NumTraceBlksPrev

Number of blocks of Trace data in previous record (for parsing

back)

TrigTimeHI

Event trigger time, high word

TrigTimeX

Event trigger time, extra 8 bits

Energy_sum

Sum of channel energies

NumUserDataBlks

Number of blocks of user header data to follow

LocalTimeLO_0

Local trigger time, low word (ch. 0)

LocalTimeMI_0

Local trigger time, middle word (ch. 0)

Energy_0

Pulse Height (ch. 0)

NumTraceBlks_0

Number of blocks of Trace data to follow the header (ch. 0)

LocalTimeLO _1

Local trigger time, low word (ch. 1)

LocalTimeMI _1

Local trigger time, middle word (ch. 1)

Energy_1

Pulse Height (ch. 1)

NumTraceBlks_1

Number of blocks of Trace data to follow the header (ch. 1)

LocalTimeLO _2

Local trigger time, low word (ch. 2)

LocalTimeMI _2

Local trigger time, middle word (ch. 2)

Energy_2

Pulse Height (ch. 2)

NumTraceBlks_2

Number of blocks of Trace data to follow the header (ch. 2)

LocalTimeLO _3

Local trigger time, low word (ch. 3)

LocalTimeMI _3

Local trigger time, middle word (ch. 3)

Energy_3

Pulse Height (ch. 3)

NumTraceBlks_3

Number of blocks of Trace data to follow the header (ch. 3)

EvtInfo_01

Event status flags channel 0,1

EvtInfo_23

Event status flags channel 2,3

TrigTimeLO

Event trigger time, low word

TrigTimeMI

Event trigger time, middle word

28--31

reserved

Table 4-5: Channel header for Run Type 0x402, total 32 words (16bit)..

Pixie-4 Express User Manual Version 4.31

The hit pattern and event status flags are the same as in Table 4-4 above, except that the

flags refer to “at least one channel”, essentially an OR of the 4-channel flags (table 4.7).

The additional event info words EvtInfo_01, EvtInfo_23 record the individual status flags.

Bit #

Description

EvtPattern

0..3

If set, indicates that data for channel 0..3 have been recorded

4..7

4: Logic level of FRONT panel input

5: Result of LOCAL acceptance test

6: Logic level of backplane STATUS line,

7: Logic level of backplane TOKEN line (= result of global coincidence test),

see section 7

8..11

If set, indicates that channel 0..3 has been hit in this event

(i.e. if zero, energy reported is invalid or only an estimate)

12..15

If set, indicates that the GATE input of channel 0..3 has been high at time of

fast trigger

EvtInfo

Coincidence test result

Logic level of backplane VETO line

If set, indicates event is piled up for at least one channel

If set, indicates waveform FIFO full for at least one channel

If set, indicates at least one channel was hit

If set, indicates that the GATE input of at least one channel has been high at

time of fast trigger

If set, indicates at least one channel was out of ADC range at time of fast

trigger

7..14_4

reserved

If set, indicates a data transmission error has been detected for this event.

Parts of header and waveform may be corrupted

EvtInfo_01, EvtInfo_23

reserved

If set, indicates event is piled up (ch.0 or 2)

If set, indicates waveform FIFO full (ch.0 or 2)

If set, indicates this channel was hit (ch.0 or 2)

If set, indicates that the GATE input of this channel has been high at time of

trigger (ch.0 or 2)

reserved

If set, indicates event is piled up (ch.1 or 3)

If set, indicates waveform FIFO full (ch.1 or 3)

If set, indicates this channel was hit (ch.1 or 3)

If set, indicates that the GATE input of this channel has been high at time of

trigger (ch.1 or 3)

reserved

Table 4-6: Event pattern and Event info in Run Type 0x402, total 32 bits, and channel specific

Event info bits in EvtInfo_01 and EvtInfo_23, 32 bits each.

Pixie-4 Express User Manual Version 4.31

4.2.2.5 File Footer in Run Type 0x400 and 0x402

At the end of the file, an “end of run” (EOR) record is appended. This is created by the

DSP so that the software can recognize the end of the data stream to be saved. Its content

is shown in Table 4.5. Parsing code should check the EvtInfo word to detect this record,

otherwise it will be interpreted as a zero-energy event for channel 1 (usually harmless).

Word #

Variable

Description

EvtPattern

EOR pattern (low): 0x0002

EvtInfo

EOR pattern (high): 0x0100

NumTraceBlks

Number of blocks of Trace data to follow the header: 0

NumTraceBlksPrev

Number of blocks of Trace data in previous record (for

parsing back)

4--31

reserved

Table 4-7: EOR record at end of file, total 32 words (16bit).

Pixie-4 Express User Manual Version 4.31

4.2.2.6 Special List Mode Records

In some variants of the firmware, there can also be special records with additional

information. These are listed in the tables below:

Word #

Variable

Description

EvtPattern

RSR pattern (low): 0x0004

EvtInfo

RSR pattern (high): 0x0100

NumTraceBlks

Number of blocks of statistics data to follow the header: 4

NumTraceBlks

Number of blocks of Trace data in previous record (for parsing

back)

4--31

reserved

Word #

Variables (Ch.0)

Variables (Ch.1)

Variables (Ch.2)

Variables (Ch.3)

0..3

COUNTTIMEX0

COUNTTIMEX1

COUNTTIMEX2

COUNTTIMEX3

4_7

...A0

...A1

...A2

...A3

8_11

...B0

...B1

...B2

...B3

12_15

...C0

...C1

...C2

...C3

16_19

FASTPEAKSX0

FASTPEAKSX1

FASTPEAKSX2

FASTPEAKSX3

20_23

...A0

...A1

...A2

...A3

24_27

...B0

...B1

...B2

...B3

28_31

FTDTX0

FTDTX1

FTDTX2

FTDTX3

32_35

...A0

...A1

...A2

...A3

36_39

...B0

...B1

...B2

...B3

40_43

SFDTX0

SFDTX1

SFDTX2

SFDTX3

44_47

...A0

...A1

...A2

...A3

48_51

...B0

...B1

...B2

...B3

52_55

...C0

...C1

...C2

...C3

56_59

GCOUNTX0

GCOUNTX1

GCOUNTX2

GCOUNTX3

60_63

...A0

...A1

...A2

...A3

64_67

...B0

...B1

...B2

...B3

68_71

NOUTX0

NOUTX1

NOUTX2

NOUTX3

72_75

...A0

...A1

...A2

...A3

76_79

...B0

...B1

...B2

...B3

80_83

GDTX0

GDTX1

GDTX2

GDTX3

84_87

...A0

...A1

...A2

...A3

88_91

...B0

...B1

...B2

...B3

92_95

...C0

...C1

...C2

...C3

96_99

reserved

100_103

reserved

104_107

reserved

108_111

reserved

112_115

RecordTimeMI_0

RecordTimeMI_1

RecordTimeMI_2

RecordTimeMI_3

116_119

RecordTimeLO_0

RecordTimeLO_1

RecordTimeLO_2

RecordTimeLO_3

124_127

reserved

Table 4-8: Run Statistics record containing the DSP parameter names for Count Time,

Number of output counts etc. Records can be triggered by a pulse on the Veto input. Four blocks

of parameter values immediately follow the header block. The individual 16 bit values can be

combined to full 48 or 64 bit numbers as described in the Programmer's Manual. The RecordTime

is equivalent to the lower 32 bit of an event time stamp.

Pixie-4 Express User Manual Version 4.31

4.2.3 List Mode Data Values

4.2.3.1 List Mode Time Stamps

In the Pixie-4 Express, there is a 56-bit time counter. It is incremented at a rate of 125 MHz

by 4 ticks, so that the unit of the LSB is 2ns. Hence, the 56-bit word can span a time interval

of over 800 days before rolling over. The time counter is reset to zero at boot time or at a

run start with the “synchronize clocks” option selected.

The counter is latched in the firmware at an event trigger or other notable events. It is

reported in the list mode data stream as up to four 16bit words. There are currently three

types of time stamps:

 TrigTime in Run Types 0x400 and 0x402 is reported as (TrigTimeLO, TrigTimeMI,

TrigTimeHI, TrigTimeX). This is the time at which the event was latched into the

front end buffers. It has a fixed delay of a couple of clock cycles from the detected

rising edge of the triggering channel.

 LocalTime_# in Run Type 0x402 is reported as (LocalTimeLO_#, LocalTimeMI_#).

This is the time of the last detected rising edge in that channel. These local times can

be used to compute time-of-arrival differences between channels. If a channel has

seen no trigger in this event, the local time stamp (and energy) is unchanged from the

previous event.

Note that waveform capture occurs at TrigTime. Therefore LocalTime should not be

used to adjust time of arrival extracted from waveforms.

In most cases, the reported lower 32 bits can be directly combined with the upper 24

bits from the TrigTime. However, there is a small chance that the higher bits rolled

over between latching of LocalTime and TrigTime. This will result in an unusually

large difference between LocalTime and TrigTime and can be corrected by

subtracting 232.

 RecordTime_# in the special run statistcs record is reported as (RecordTimeLO_#,

RecordTimeMI_#). This is the time at which run statistics were latched by the Veto

signal.

In most cases, the reported lower 32 bits can be directly combined with the upper 24

bits from the TrigTime. However, there is a small chance that the higher bits rolled

over between latching of LocalTime and TrigTime. This will result in an unusually

large difference between LocalTime and TrigTime and can be corrected by

subtracting 232.

4.2.3.2 List Mode Energy

 The energy reported in list mode data is the result of the pulse height measurement.

This 16 bit number is not simply the difference between baseline and maximum

sample of the pulse, but the result of the energy filter corrected for the exponential

decay of the signal.

 The energy is also histogrammed in MCA memory. However, since the MCA has

only 32Ki bins, the 16bit energy value is divided by 2 (or other user defined power of

2) before incrementing the MCA: bin (E/2) is incremented for measured energy E.

 If a channel is triggered by a group trigger without a local trigger from a rising edge

in this channel, the energy captured is still the one from the last local trigger. The

DSP then sets such energies to zero unless the “estimate Energy” option is set.

Pixie-4 Express User Manual Version 4.31

4.2.3.3 List Mode PSA Values

PSA values are described in a separate manual specific to the PSA functions implemented

for a specific variant.

Pixie-4 Express User Manual Version 4.31

5 Hardware Description

The Pixie-4 Express is a 4-channel unit designed for gamma-ray spectroscopy and

waveform capturing. It incorporates four functional building blocks, which we describe

below. This section concentrates on the functionality aspect. Technical specification can

be found in section 1.2. Figure 5.1 shows the functional block diagram of the Pixie-4

Express.

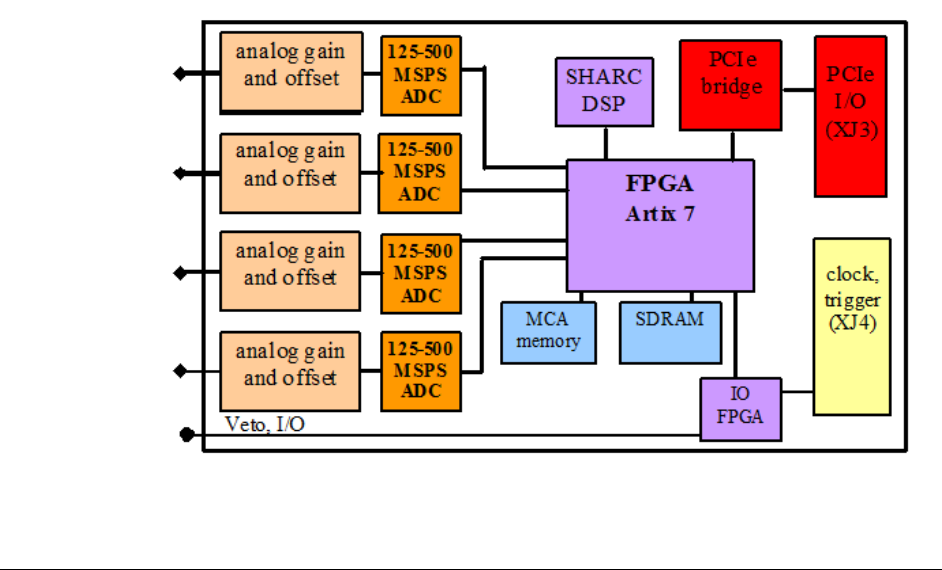

Figure 5-1: Functional block diagram of the Pixie-4 Express front-end data acquisition and signal

processing card.

5.1 Analog Signal Conditioning

Each analog input has its own signal conditioning unit. The task of this circuitry is to adapt

the incoming signals, which are DC coupled, to the input voltage range of the ADC, which

spans 2 V. Input signals are adjusted for offsets, and there is a computer-controlled gain

stage with switches and/or relays. Fine tuning of the gain is achieved by multiplying the

calculated energy values with digital gain factors in the digital signal processor (DSP).

Four options of termination and attenuation are selected by manual switches at the front

end of the module. This circuitry is implemented on a small daughtercard; it can be replaced

with a variant with different termination, gain, bandwidth etc for specific applications.

The ADC is not a peak sensing ADC, but acts as a waveform digitizer. In order to avoid

aliasing, we remove the high frequency components from the incoming signal prior to

feeding it into the ADC. The anti-aliasing filter, cuts off sharply at the Nyquist frequency,

namely half the ADC sampling frequency.

Though the Pixie-4 Express can work with many different signal forms, best performance

is to be expected when sending the output from a charge integrating preamplifier directly

to the Pixie-4 Express without any further shaping.

Pixie-4 Express User Manual Version 4.31

5.2 Pulse Processing

Real time pulse processing is implemented in a field programmable gate array (FPGA)

which also incorporates a first level FIFO memory for each channel. The data stream from

the ADCs is sent to these units at the full ADC sampling rate. While modern FPGAs can

capture high speed data streams, internal processing is limited by the complexity of the

logic. Therefore, the FPGA on the Pixie-4 Express processes the data stream at 125 MHz.

For 250 MSPS (or 500) MSPS variants each channel's 16 (or 14) bit data stream is “de-

serialized” into a 32 (or 56) bit data stream at 125 MHz. Using a pipelined architecture, the

signals are processed at this high rate, without the help of the on-board DSP.

The processing applies digital filtering to perform essentially the same action as a shaping

amplifier. The important difference is in the type of filter used. In a digital application it is

easy to implement finite impulse response filters, and we use a trapezoidal filter. The flat

top will typically cover the rise time of the incoming signal and makes the pulse height

measurement less sensitive to variations of the signal shape.

The first two processing elements in the FPGA are thus a fast filter for triggering and a

slow filter for pulse height (energy) measurements. For a detailed description, see section

6. These filters run continuously. Triggers are issued at each detected rising edge, latch

time stamps, and are used for the other processes. The energy filter sums are latched the

appropriate time after each trigger.

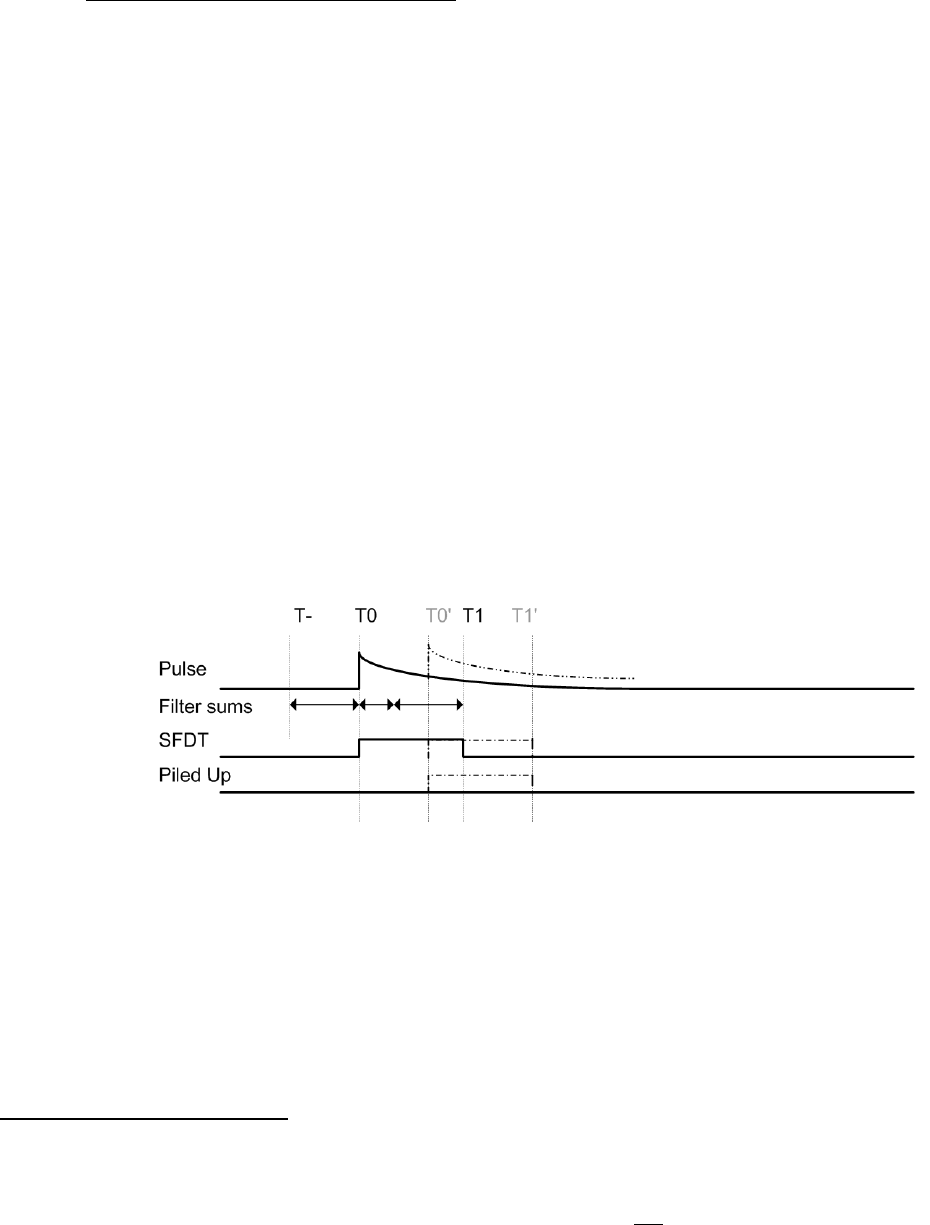

A third processing element is a pileup inspector. This logic ensures that if a second pulse

is detected too soon after the first, so that it would corrupt the first pulse height

measurement, both pulses are flagged as piled up. The pileup inspector is, however, not

very effective in detecting pulse pileup on the rising edge of the first pulse, i.e. in general

pulses must be separated by their rise time to be effectively recognized as different pulses.

Therefore, for high count rate applications, the pulse rise times should be as short as

possible, to minimize the occurrence of pileup peaks in the resulting spectra.

The fourth processing component is the FIFO memory, which is organized in two blocks.

A smaller delay FIFO (2Ki samples) buffers ADC data to position captured waveforms

appropriately for the user defined pre-trigger delay. A larger storage FIFO (8Ki samples)

captures waveforms of the user defined trace length.

Up to 500 events and 8Ki samples of waveforms are buffered in the FPGA. For each event,

a complete set of time stamps, energy filter sums, pileup inspection flags, coincidence

information and waveforms are stored. Waveforms from closely following events may

overlap, i.e. portions of the same ADC data is stored once but read twice for subsequent

events. User defined acceptance settings specify if an event is considered valid (e.g. only

accept events without pileup).

The last processing element are a number of counters that maintain the run statistics such

as counting time, filter dead time, number of triggers, etc.

5.3 Digital Signal Processor (DSP) and Event Building

The pulse processing described above runs independently in every channel of the Pixie

module. On a module-wide level, additional logic is implemented to distribute triggers and

apply a coincidence test. See section 7 for details. The result of the coincidence test is fed

back to every processing channel.

The DSP manages the flow of channel data into the SDRAM buffer where it is waiting for

PCIe readout by the host PC. Whenever a channel has an event in its buffer, the DSP will

Pixie-4 Express User Manual Version 4.31

read the raw data from the FPGA and based on the event status flags determine if the event

is to be recorded. (At this point, there is also the option of executing customized user DSP

code to modify results and the acceptance decision.) If the event is acceptable, the DSP

computes the pulse height in a few floating point operations, and includes it in the event

header data sent to the SDRAM. The captured waveform data is normally not touched by

the DSP; the DSP only enables a direct FPGA-internal transfer from the channel processing

block to the SDRAM interface block, at a rate of 1GByte/s.

The DSP also controls the overall operation of the Pixie-4 Express. The host computer

communicates with the DSP via the PCIe interface. Reading and writing data to DSP

memory does only temporarily pause its operation, and can occur even while a

measurement is underway. The host sets variables in the DSP memory and if necessary

calls DSP functions to apply them to the FPGA. Through this mechanism all gain and offset

DACs are set and the filter settings are applied to the FPGA. The FPGA then processes the

data without support from the DSP, once it has received the filter settings.

In this scheme, the greatest processing power is located in the FPGA, processing the

incoming waveforms from the ADCs in real time and producing, for each valid event, a

small set of distilled data from which pulse heights and arrival times can be reconstructed.

The computational load for the DSP is much reduced, as it has to react only on an event-

by-event basis and has to work with only a small set of numbers for each event.

5.4 PCI Express Interface

The PCI Express (PCIe) interface through which the host communicates with the Pixie-4

Express is implemented in a PCIe endpoint IC which is linked to the FPGA by a local bus.

The host computer can read and write a number of registers in the IC, and through it, in the

FPGA. The IC can also perform DMA transfers to the host computer's memory, and issue

interrupt requests to the host computer.

The FPGA links the PCIe IC with the DSP and the on-board memory. The host can read

out the memory without interrupting the operation of the DSP. This allows updates of the

MCA spectrum or list mode data while a run is in progress.

A dedicated I/O FPGA distributes triggers and coincidence signals to other modules using

the PXIe backplane connections and the front panel connectors.

Pixie-4 Express User Manual Version 4.31

6 Theory of Operation

6.1 Digital Filters for -ray Detectors

Energy dispersive detectors, which include such solid state detectors as Si(Li), HPGe,

HgI2, CdTe and CZT detectors, are generally operated with charge sensitive preamplifiers

as shown in Figure 6.1 (a). Here the detector D is biased by voltage source V and connected

to the input of preamplifier A which has feedback capacitor Cf and feedback resistor Rf.

The output of the preamplifier following the absorption of an -ray of energy Ex in detector

D is shown in Figure 6.1 (b) as a step of amplitude Vx (on a longer time scale, the step will

decay exponentially back to the baseline, see section 6.3). When the -ray is absorbed in

the detector material it releases an electric charge Qx = Ex/, where  is a material constant.

Qx is integrated onto Cf, to produce the voltage Vx = Qx/Cf = Ex/(Cf). Measuring the energy

Ex of the -ray therefore requires a measurement of the voltage step Vx in the presence of

the amplifier noise , as indicated in Figure 6-1 (b). Scintillator detectors read out with a

photomultiplier tube generate pulses in a different mechanism, but for the most part they

can still be described as fast rise followed by exponential decay, so the processing

described below equally applies.

D C

-4

-2

0.00 0.02 0.04 0.06

Preamp Output (mV)

Time (ms)



V x

a) b)

R f

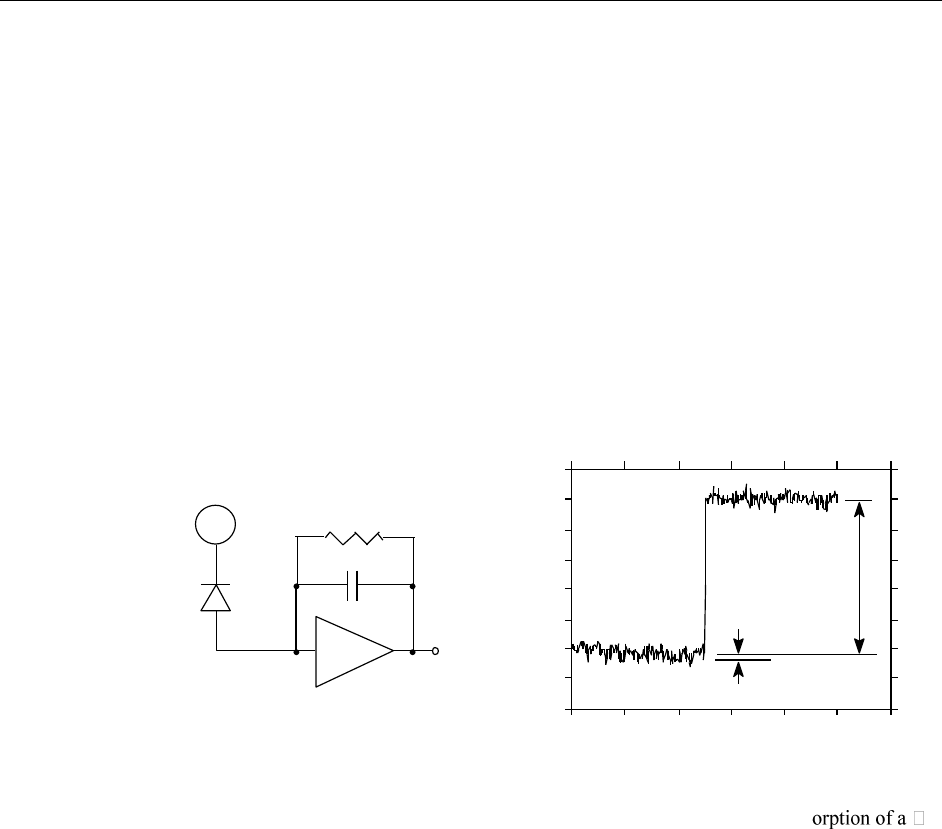

Figure 6-1: (a) Charge sensitive preamplifier with RC feedback; (b) Output on abs -

ray.

Reducing noise in an electrical measurement is accomplished by filtering. Traditional

analog filters use combinations of a differentiation stage and multiple integration stages to

convert the preamp output steps, such as shown in Figure 6-1 (b), into either triangular or

semi-Gaussian pulses whose amplitudes (with respect to their baselines) are then

proportional to Vx and thus to the -ray’s energy.

Digital filtering proceeds from a slightly different perspective. Here the signal has been

digitized and is no longer continuous. Instead it is a string of discrete values as shown in

Figure 6-2. Figure 6-2 is actually just a subset of Figure 6-1 (b), in which the signal was

digitized by a Tektronix 544 TDS digital oscilloscope at 10 MSPS (mega samples per

second). Given this data set, and some kind of arithmetic processor, the obvious approach

to determining Vx is to take some sort of average over the points before the step and subtract

Pixie-4 Express User Manual Version 4.31

it from the value of the average over the points after the step. That is, as shown in Figure

6-2, averages are computed over the two regions marked “Length” (the “Gap” region is

omitted because the signal is changing rapidly here), and their difference taken as a

measure of Vx. Thus the value Vx may be found from the equation:

 



)( )(

beforei afteri

iiiikx VWVWV

(1)

where the values of the weighting constants Wi determine the type of average being

computed. The sums of the values of the two sets of weights must be individually

normalized.

-4

-2

20 22 24 26 28 30

Preamp Output (mV)

Time ( 

Length

Gap

Figure 6-2: Digitized version of the data of Figure 6.1 (b) in the step region.

The primary differences between different digital signal processors lie in two areas: what

set of weights Wi is used and how the regions are selected for the computation of Eqn. 1.

Thus, for example, when larger weighting values are used for the region close to the step

while smaller values are used for the data away from the step, Eqn. 1 produces “cusp-like”

filters. When the weighting values are constant, one obtains triangular (if the gap is zero)

or trapezoidal filters. The concept behind cusp-like filters is that, since the points nearest

the step carry the most information about its height, they should be most strongly weighted

in the averaging process. How one chooses the filter lengths results in time variant (the

lengths vary from pulse to pulse) or time invariant (the lengths are the same for all pulses)

filters. Traditional analog filters are time invariant. The concept behind time variant filters

is that, since the -rays arrive randomly and the lengths between them vary accordingly,

one can make maximum use of the available information by setting the length to the

interpulse spacing.

In principle, the very best filtering is accomplished by using cusp-like weights and time

variant filter length selection. There are serious costs associated with this approach

however, both in terms of computational power required to evaluate the sums in real time

and in the complexity of the electronics required to generate (usually from stored

coefficients) normalized Wi sets on a pulse by pulse basis.

Pixie-4 Express User Manual Version 4.31

The Pixie-4 Express takes a different approach because it was optimized for high speed

operation. It implements a fixed length filter with all Wi values equal to unity and in fact

computes this sum afresh for each new signal value k. Thus the equation implemented is:

 







Lki

GLk

GLki

ikx VVLV

112

(2)

where the filter length is L and the gap is G. The factor L multiplying Vx,k arises because

the sum of the weights here is not normalized. Accommodating this factor is trivial.

While this relationship is very simple, it is still very effective. In the first place, this is the

digital equivalent of triangular (or trapezoidal if G ≠ 0) filtering which is the analog

industry’s standard for high rate processing. In the second place, one can show theoretically

that if the noise in the signal is white (i.e. Gaussian distributed) above and below the step,

which is typically the case for the short shaping times used for high signal rate processing,

then the average in Eqn. 2 actually gives the best estimate of Vx in the least squares sense.

This, of course, is why triangular filtering has been preferred at high rates. Triangular

filtering with time variant filter lengths can, in principle, achieve both somewhat superior

resolution and higher throughputs but comes at the cost of a significantly more complex

circuit and a rate dependent resolution, which is unacceptable for many types of precise

analysis. In practice, XIA’s design has been found to duplicate the energy resolution of the

best analog shapers while approximately doubling their throughput, providing

experimental confirmation of the validity of the approach.

6.2 Trapezoidal Filtering in a Pixie Module

From this point onward, we will only consider trapezoidal filtering as it is implemented in

a Pixie module according to Eqn. 6.2. The result of applying such a filter with Length

L=1s and Gap G=0.4s to a -ray event is shown in Figure 6.3. The filter output is clearly

trapezoidal in shape and has a rise time equal to L, a flattop equal to G, and a symmetrical

fall time equal to L. The basewidth, which is a first-order measure of the filter’s noise

reduction properties, is thus 2L+G.

This raises several important points in comparing the noise performance of the Pixie

module to analog filtering amplifiers. First, semi-Gaussian filters are usually specified by

a shaping time. Their rise time is typically twice this and their pulses are not symmetric so

that the basewidth is about 5.6 times the shaping time or 2.8 times their rise time. Thus a

semi-Gaussian filter typically has a slightly better energy resolution than a triangular filter

of the same rise time because it has a longer filtering time. This is typically accommodated

in amplifiers offering both triangular and semi-Gaussian filtering by stretching the

triangular rise time a bit, so that the true triangular rise time is typically 1.2 times the

selected semi-Gaussian rise time. This also leads to an apparent advantage for the analog

system when its energy resolution is compared to a digital system with the same nominal

rise time.

One important characteristic of a digitally shaped trapezoidal pulse is its extremely sharp

termination on completion of the basewidth 2L+G. This may be compared to analog

filtered pulses whose tails may persist up to 40% of the rise time, a phenomenon due to the

finite bandwidth of the analog filter. As we shall see below, this sharp termination gives

the digital filter a definite rate advantage in pileup free throughput.

Pixie-4 Express User Manual Version 4.31

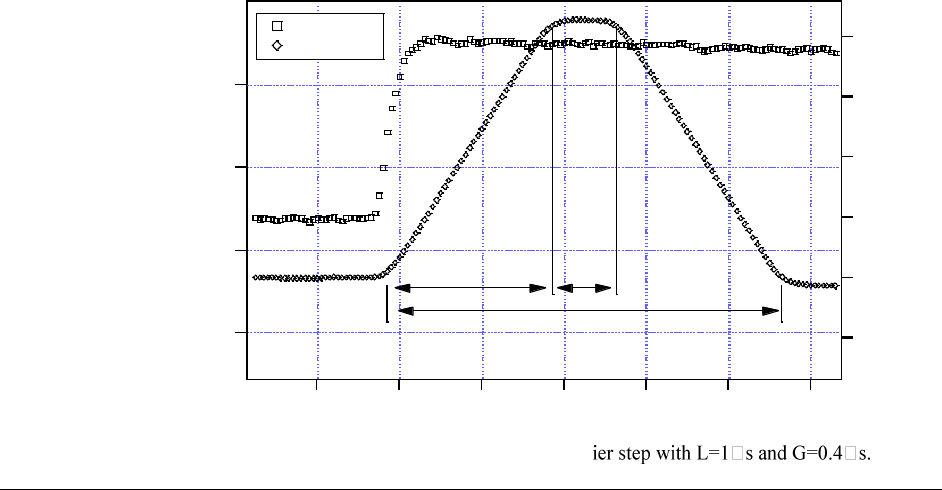

Figure 6-3: Trapezoidal filtering of a preamplif

6.3 Baselines and Preamplifier Decay Times

Figure 6.4 shows an event over a longer time interval and how the filter treats the

preamplifier noise in regions when no -ray pulses are present. As may be seen the effect

of the filter is both to reduce the amplitude of the fluctuations and reduce their high

frequency content. This region is called the baseline because it establishes the reference

level from which the -ray peak amplitude Vx is to be measured. The fluctuations in the

baseline have a standard deviation e which is referred to as the electronic noise of the

system, a number which depends on the rise time of the filter used. Riding on top of this

noise, the -ray peaks contribute an additional noise term, the Fano noise, which arises

from statistical fluctuations in the amount of charge Qx produced when the -ray is

absorbed in the detector. This Fano noise f adds in quadrature with the electronic noise,

so that the total noise t in measuring Vx is found from

t = sqrt( f2 + e2) (3)

The Fano noise is only a property of the detector material. The electronic noise, on the

other hand, may have contributions from both the preamplifier and the amplifier. When the

preamplifier and amplifier are both well designed and well matched, however, the

amplifier’s noise contribution should be essentially negligible. Achieving this in the mixed

analog-digital environment of a digital pulse processor is a non-trivial task, however.

With a RC-type preamplifier, the slope of the preamplifier is rarely zero. Every step decays

exponentially back to the DC level of the preamplifier. During such a decay, the baselines

are obviously not zero. This can be seen in Figure 6-4, where the filter output during the

exponential decay after the pulse is below the initial level. Note also that the flat top region

is sloped downwards.

Using the decay constant , the baselines can be mapped back to the DC level. This allows

precise determination of -ray energies, even if the pulse sits on the falling slope of a

previous pulse. The value of , being a characteristic of the preamplifier, has to be

determined by the user and host software and downloaded to the module.

33x103

ADC units

12.5µs12.011.511.010.510.09.5

Time

2L+G

ADC output

Filter Output

Pixie-4 Express User Manual Version 4.31

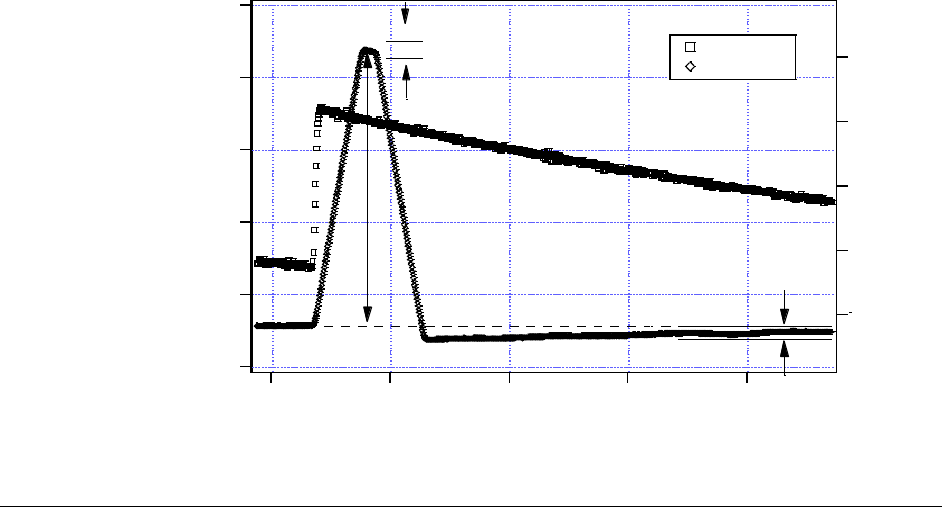

Figure 6-4: A -ray event displayed over a longer time period to show baseline noise and the effect

of preamplifier decay time.

6.4 Thresholds and Pile-up Inspection

As noted above, we wish to capture a value of Vx for each -ray detected and use these

values to construct a spectrum. This process is also significantly different between digital

and analog systems. In the analog system the peak value must be “captured” into an analog

storage device, usually a capacitor, and “held” until it is digitized. Then the digital value is

used to update a memory location to build the desired spectrum. During this analog to

digital conversion process the system is dead to other events, which can severely reduce

system throughput. Even single channel analyzer systems introduce significant deadtime

at this stage since they must wait some period (typically a few microseconds) to determine

whether or not the window condition is satisfied.

Digital systems are much more efficient in this regard, since the values output by the filter

are already digital values. All that is required is to take the filter sums, reconstruct the

energy Vx, and add it to the spectrum. In the Pixie-4 Express, the filter sums are

continuously updated in the FPGA (see section 5.2), and are captured into event buffers.

Reconstructing the energy and incrementing the spectrum is done by the DSP, so that the

FPGA is ready to take new data immediately (unless the buffers are full). This is a

significant source of the enhanced throughput found in digital systems.

The peak detection and sampling in a Pixie module is handled as indicated in Figure 6.5.

Two trapezoidal filters are implemented, a fast filter and a slow filter. The fast filter is used

to detect the arrival of -rays, the slow filter is used for the measurement of Vx, with

reduced noise at longer filter rise times. The fast filter has a filter length Lf = 0.1s and a

gap Gf =0.1s. The slow filter has Ls = 1.2s and Gs = 0.35s.

The arrival of the -ray step (in the preamplifier output) is detected by digitally comparing

the fast filter output to THRESHOLD, a digital constant set by the user. Crossing the

threshold starts a delay line to wait PEAKSAMP clock cycles to arrive at the appropriate

time to sample the value of the slow filter. Because the digital filtering processes are

deterministic, PEAKSAMP depends only on the values of the fast and slow filter constants.

33x103

ADC units

95µs90858075

Time

e

t

ADC Output

Filter Output

Pixie-4 Express User Manual Version 4.31

The slow filter value captured following PEAKSAMP is then the slow digital filter’s

estimate of Vx. Using a delay line allows to stage sampling of multiple pulses even within

a PEAKSAMP interval (though the filter values themselves are then not correct

representations of a single pulse’s height).

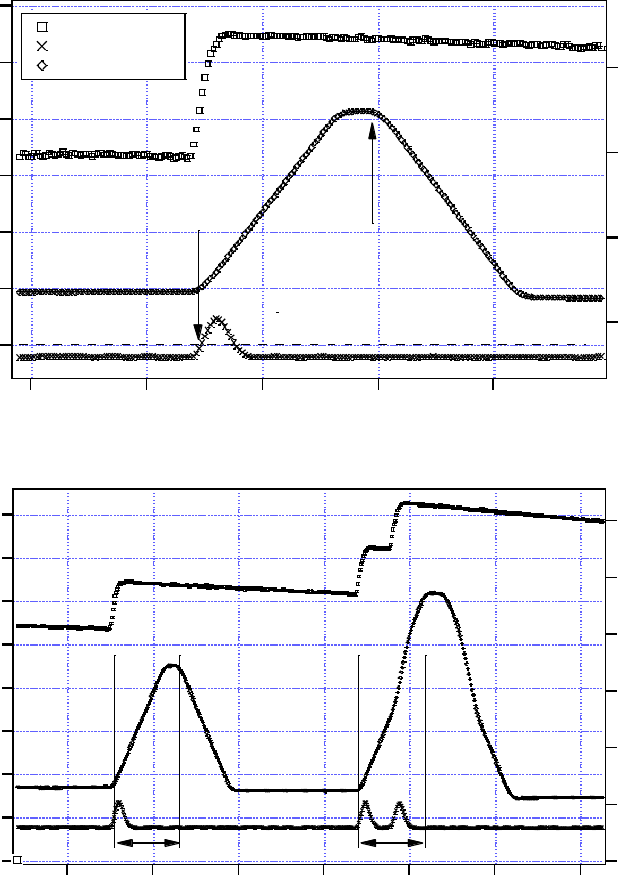

Figure 6-5: Peak detection and sampling in a Pixie module.

Figure 6-6: A sequence of 3 -ray pulses separated by various intervals to show the origin of

pileup and demonstrate how it is detected by the Pixie module.

The value Vx captured will only be a valid measure of the associated -ray’s energy

provided that the filtered pulse is sufficiently well separated in time from its preceding and

succeeding neighbor pulses so that their peak amplitudes are not distorted by the action of

the trapezoidal filter. That is, if the pulse is not piled up. The relevant issues may be

understood by reference to Figure 6-6, which shows 3 -rays arriving separated by various

32x103

ADC units

48µs47464544

Time

Threshold

Arrival Time Sampling Time

ADC Output

Fast Filter Output

Slow Filter Output

36x103

ADC units

68µs666462605856

Time

PeakSep

Fast Filter Output

Slow Filter Output

ADC Output

Pixie-4 Express User Manual Version 4.31

intervals. The fast filter has a filter length Lf = 0.1s and a gap Gf =0.1s. The slow filter

has Ls = 1.2s and Gs = 0.35s.

Because the trapezoidal filter is a linear filter, its output for a series of pulses is the linear

sum of its outputs for the individual members in the series. Pileup occurs when the rising

edge of one pulse lies under the peak (specifically the sampling point) of its neighbor. Thus,

in Figure 6.6, peaks 1 and 2 are sufficiently well separated so that the leading edge of peak

2 falls after the peak of pulse 1. Because the trapezoidal filter function is symmetrical, this

also means that pulse 1’s trailing edge also does not fall under the peak of pulse 2. For this

to be true, the two pulses must be separated by at least an interval of L + G. Peaks 2 and 3,

which are separated by less than 1.0 s, are thus seen to pileup in the present example with

a 1.2 s rise time.

This leads to an important point: whether pulses suffer slow pileup depends critically on

the rise time of the filter being used. The amount of pileup which occurs at a given average

signal rate will increase with longer rise times.

Because the fast filter rise time is only 0.1 s, these -ray pulses do not pileup in the fast

filter channel. The Pixie module can therefore test for slow channel pileup by measuring

the fast filter for the interval PEAKSEP after a pulse arrival time. If no second pulse occurs

in this interval, then there is no trailing edge pileup and the pulse is validated for

acquisition. PEAKSEP is usually set to a value close to L + G + 1. Pulse 1 passes this test,

as shown in Figure 6.6. Pulse 2, however, fails the PEAKSEP test because pulse 3 follows

less than 1.0 s. Notice, by the symmetry of the trapezoidal filter, if pulse 2 is rejected

because of pulse 3, then pulse 3 is similarly rejected because of pulse 2.

6.5 Filter Range

To accommodate a wide range of energy filter rise times from tens of nanoseconds to tens

of microseconds, the filters are implemented in the FPGA with different clock decimations

(filter ranges). The ADC sampling rate is always 8ns (2ns or 4ns in 500 MSPS or 250

MSPS variants), but in higher clock decimations, several ADC samples are averaged before

entering the energy filtering logic. In filter range 1, 21 samples are averaged, 22 samples in

filter range 2, and so on. Since the sum of rise time and flat top is limited to 127 decimated

clock cycles, filter time granularity and filter time are limited to the values listed in

Table 6.1.

Filter

range

Filter granularity

max. Trise+Tflat

min. Trise

min. Tflat

0.016s

2.032s

0.032s

0.048s

0.032s

4.064s

0.064s

0.096s

0.064s

8.128s

0.128s

0.192s

0.128s

16.256s

0.256s

0.384s

0.256s

32.512s

0.512s

0.768s

0.512s

65.024s

1.024s

1.536s

Table 6-1: Filter clock decimations and filter time granularity

Pixie-4 Express User Manual Version 4.31

6.6 Data Capture Process

The data capture in the Pixie-4 Express is based on the principle that for every detected

rising edge, one record is assembled from the continuously running processes for waveform

capture and energy filters. As some of the processes are not finished by the time of the

rising edge, input data or capture signals are delayed appropriately. For example, incoming

ADC data is delayed for the waveform capture by the user specified pre-trigger delay. The

signal to capture energy filter sums is sent through a delay line of length (energy filter rise

time plus energy filter flat top) to capture the output after filtering.

Consequently, for every rising edge, the following information is latched into front end

buffers:

 56 bit time stamp of latch signal

 32 bit time stamp of last rising edge in this channel

 Energy filter sums for last rising edge in this channel

 Pileup inspection flags

 Coincidence flags

 Starting address of waveform memory

and the (delayed) waveform data begins to flow into the waveform memory, for the user

specified length of trace. The front end buffers hold 500 such records and the waveform

memory holds 8Ki samples.

When the front end buffers are not empty, a flag is raised for the DSP. On this flag, the

DSP reads one record and checks if it is to be recorded per the user defined pileup and

coincidence conditions. If so, the DSP computes final energies, increments the MCA

histogram, and writes the channel header to the FPGA to send to the SDRAM list mode

data stream. Following the header, the waveform data is moved from waveform memory

to the SDRAM, starting at the recorded starting address. If the event is piled up or otherwise

rejected, it is cleared from the front end buffer without recording.

Closely following rising edges still capture one record per edge, with the limitation of one

record per 1/8 of a decimated clock cycle in filter range 3 and higher. If such events are

piled up, the energy will be not a valid measure of the pulse height and waveforms may

overlap from pulse to pulse, but some of the information in the record may still be useful

for offline re-analysis.

6.7 Dead Time and Run Statistics

6.7.1 Definitions

Dead time in the Pixie-4 Express data acquisition can occur at several processing stages.

For the purpose of this document, we distinguish three types of dead time (described

below), each with a number of contributions from different processes.

Please note: There is a conceptual difference between momentary dead time (associated

with a pulse) and cumulative dead time (sum of dead time contributions during an

acquisition). Their relation is not trivial.

Live time is often used to describe the portion of the overall time during which the system

was not dead. However, since dead time can occur on several levels, this term is prone to

misunderstandings and not used here.

Pixie-4 Express User Manual Version 4.31

6.7.1.1 Dead time associated with each pulse

1. Filter dead time

At the most fundamental level, the energy filter implemented in the FPGA requires a

certain amount of pulse waveform (the “filter time”) to measure the energy. Once a rising

edge of a pulse is detected at time T0, the FPGA computes three filter sums using the

waveform data from T- (a energy filter rise time before T0) to T1 (a flat top time plus filter

rise time after T0), see section 6.4 and figure 6.7. If a second pulse occurs during this time,

the energy measurement will be incorrect. Therefore, processing in the FPGA includes

pileup rejection which enforces a minimum distance between pulses and validates a pulse

for recording only if no more than one pulse occurred from T0 to T1. Consequently, each

pulse creates a dead time Td = (T1 – T0) equal to the filter time. This dead time, simply

given by the time to measure the pulse height, is unavoidable unless pulse height

measurements are allowed to overlap (which would produce false results).

Assuming randomly occurring pulses, the effect of dead time on the output count rate is

governed by Poisson statistics for paralyzable systems with pileup rejection

. This means

the output count rate OCR (valid pulses) is a function of filter dead time Td and input count

rate ICR given by

OCR = ICR * exp(-ICR* 2 * Td), (4)

which reaches a maximum OCRmax = ICRmax/e at ICRmax = 1/(2*Td). Simply speaking, the

factor 2 for Td comes from the fact that not only is an event E2 invalid when it falls into

the dead time of a previous event E1, but E1 is rejected as piled up as well. This filter dead

time is accumulated in the SFDT counter in each processing channel.

Figure 6-7: Filter dead time. A pulse arriving at T0 will incur slow filter dead time (for energy

measurement) until T1. At T1, the pileup status is latched – for a single pulse, it is logic low and

the event is accepted. A second pulse arriving at T0' will extend the dead time and cause the pileup

status to be logic high. Unless pileup rejection is disabled, both events are rejected.

2. Fast trigger dead time (FTDT)

A second type of dead time only affects the trigger filter. Triggers are issued when the

trigger filter output goes above the trigger threshold set by the user. However, the trigger

filter output will remain above threshold for a finite amount of time, depending on the

length of the trigger filter and the rise time of the input signal. During this time, no second

trigger can be issued

. Therefore triggers are not counted during this time, and when

G. Knoll, Radiation and Measurement, J Wiley & Sons, Inc, 2000, chapters 4 and 17.

The MAXWIDTH parameter can be used to define a maximum acceptable time over threshold and thus to reject

events piled up “on the rising edge”.

Pixie-4 Express User Manual Version 4.31

computing the input count rate, the time lost has to be taken into account. FTDT is thus

purely a correction for the computation of the input count rate.

Figure 6-8: Fast Trigger Dead Time (FTDT). A second pulse is not detected if the trigger filter

output is still above threshold.

3. Other

In the Pixie-4 and Pixie-500, there was additional dead times associated with reading out

the data, since only one event at a time was stored in the FPGA. In the Pixie-4 Express, up

to 500 events (and/or total 8Ki waveform samples) are buffered in the FPGA. Thus new

events are accepted while captured ones are read out and processed further, and these types

of dead time are eliminated. If the buffers fill up, the channel pauses acquisition and stops

the count time counter.

Pixie-4 Express User Manual Version 4.31

6.7.1.2 Dead time associated with external conditions

There are three dead time effects that originate from outside the trigger/filter FPGA. The

first two have the effect of stopping the Pixie-4 Express count time counter, the last is

counted separately.

Figure 6-9: The count time counter is stopped when the signal is out of range and when events are

rejected because of a processing backlog (e.g. local buffer memory full or SDRAM not read out by

host). SFDT and FTDT are only counted when the count time is on. The gate dead time is counted

in a separate counter, but also only when the count time is on. Run time and total time are always

on unless the run is stopped (see below).

1. Signal out of range

When detector gains or offsets drift, or an unusual large pulse is generated in the detector,

the analog input of the ADC may go out of range. In this condition, the FPGA can not

accumulate meaningful filter sums and thus is considered dead. This condition persists

during the actual out-of-range time and several filter times afterwards until the bad ADC

samples are purged from filter memory. The count time counter is stopped during the out-

of-range condition because no triggers can be issued and no pulses are counted.

2. On-board pulse processing limit

The on-board pulse processing by the DSP computes the pulse height (energy) from raw

energy filter sums, which is then stored in list mode memory and/or binned into spectrum

memory. In the Pixie-4 Express, the computation itself takes only a few DSP cycles, but

the readout and other overhead amounts to approximately 1 microsecond per pulse to read

raw sums, compute the energy, and send it to the memory SDRAM. Waveforms are

transferred within the FPGA at ~1 GB/s. Every microsecond of captured waveform thus

takes ¼ of a microsecond for SDRAM data transfer (½ of a microsecond for 250 MSPS

ADCs, 1 microsecond for 500 MSPS ADCs). The measured processing limit is roughly

800,000 pulses/s if a single channel is processed per event in MCA mode. This rate is much

higher than the maximum throughput set by Poisson statistics for most typical filter times.

In List mode with nonzero waveforms, the limit is strongly dependent on the length of the

Pixie-4 Express User Manual Version 4.31

captured waveform. However, bursts of pulses may still exceed the processing rate

momentarily, fill the buffers, and so prevent the channel from acquiring more data. Thus

the count time counter is also stopped during such buffer full (processing overload)

conditions.

3. Gate or Veto

If an external signal prohibits acquisition using the Gate or Veto signals, the channel is also

dead (disabled on purpose). As further described in section 7.4, the use of these signals

may depend on the application:

 On one hand they may be used to reject an individual pulse (e.g. externally summing

multiplicities from several channels and issuing a short validation pulse at the right

time in the validation process). In this case the actual length of the pulse does not

correspond to a dead time. The Veto input is set up for this purpose and we call this

mode of operation GFLT (global first level trigger for validation). The GCOUNT

parameter counts the number of Veto pulses and is likely more useful to describe the

experiment.

 On the other hand Gate or Veto may block validation of events for certain amounts of

time (e.g. changing sources or activating beams). In this case they should be counted

clock cycle by clock cycle as dead time. Both the Veto and the Gate inputs are

available for this purpose, Veto as a global signal for the whole system, Gate as a

dedicated signal for each channel. Veto acts at the time of pulse validation, Gate acts

at the time of the rising edge of the pulse. However, the Veto input can be routed to

replace the Gate input as a user option.

 In a third class of application, the acquisition may only be of interest when Gate or

Veto are on (or off). The pulse rejection logic would be similar to the second case,

but count times and count rates should only be counted when Gate/Veto are on (or

off) as count rates would be different in on and off times. (In the second case one

would be more interested in an overall count time and average count rate and

additionally the time inhibited by Gate or Veto to make corrections.)

The appropriate way to count Gate or Veto dead time may thus depend on the experiment.

See below (GDT) for the current methods implemented in the firmware.

6.7.1.3 Dead time associated with host readout

The final type of dead time comes from the readout of data from Pixie-4 Express memory

to the host PC. In MCA mode, this is limited to the access arbitration for the spectrum

memory. The memory has only a single port for both the increments according to the pulse

height computed by the DSP and for readout to the host PC, arbitrated by the FPGA. While

the host is reading the memory, spectrum increments are queued in a buffer (2iK long). At

the maximum count rate, it will take the DSP at least (2Ki * processing time) to fill the

buffer and correspondingly longer at lower count rates while the host readout typically

takes ~30 ms. Thus host readout dead time is usually not an issue in MCA runs unless rates

are high and spectra are read very frequently.

In list mode runs, the data is buffered in a large SDRAM memory organized as a FIFO. In

a major improvement compared to the Pixie-4, the Pixie-4 Express therefore never stops

the acquisition for data readout. The host PC can read the memory from one end at the rate

set by the PCIe interface (max. 800 MB/s) while new data is added on the other end. Given

the data bandwidth of the PXIe interface, it is rather unlikely for the SDRAM to fill up,

except for very high rates at very long waveforms. (If the SDRAM actually does fill up,

data acquisition is paused but as soon as the host frees up SDRAM memory by reading and

Pixie-4 Express User Manual Version 4.31

storing data to disk, the acquisition continues. Any such pause is counted as dead time by

turning off the count time counter, see Figure 6-9.)

At the current firmware and SDRAM operation rate, the SDRAM reads and writes data at

about 0.5 GB/s, for a combined average throughput of ~0.25 GB/s, and the PXI Express to

the host PC readout matches that rate.

With the buffering of up to 500 events in each

channel's first processing stage, and of up to 256 MB in the SDRAM, temporary bursts of

pulses creating higher data rates can still be captured without loss of data. There is also an

option to bypass the SDRAM with a smaller, in-FPGA FIFO which allows data transfers

to the host PC at roughly 0.5 GB/s (in current firmware). We note that streaming high rate

ADC data in real time, for example to 4 x 2 bytes x 500 MSPS = 4 GB/s, is still beyond

the capacity of the PCIe x4 interface used by the Pixie-4 Express. Few, if any, PXIe crates,

controllers, and/or hard drives can accommodate such rates. Streaming ADC data is

therefore only possible if some kind of data compression is applied, please contact XIA for

details.

6.7.2 Count time and dead time counters

The Pixie-4 Express firmware has been optimized to reduce the dead time as much as

possible, and a number of counters measure the remaining dead times as well as the number

of counts to provide information for dead time correction. The result of these counters is

stored in the following DSP output variables:

TOTAL TIME

The TOTAL TIME is an attempt to measure the real laboratory time during which the Pixie

module was requested to take data. It essentially counts the time from the command to start

a data acquisition to the command to end it. The TOTAL TIME includes the time spent for

run start initialization and host readout. However, since it is based on the PXIe chassis'

internal clock (a part with typically 50 ppm accuracy) and only updated periodically (~1

ms), it may not be as precise as a “laboratory wall clock” over long time spans (e.g. the

host PC’s internal clock). Also, it does not take into account the time required to send

commands from the PC to the module.

RUN TIME

The RUN TIME variable tracks the time during which the DSP on the Pixie module was

“switched on” for data acquisition. The usefulness of this variable is limited. It may be less

than the TOTAL TIME because it omits the time the SDRAM is full and waiting for

readout (during which the data acquisition is paused in all channels). It is larger than the

time an individual channel is ready to take data because it does not account for the dead

time from the pileup inspection, out-of-range condition and energy filter in each individual

channel. Thus its main uses are to compute an average event rate (total output counts of all

channels / RUN TIME), and to compute the fraction of time the SDRAM was not full and

acquisition not paused, which is the “DAQ Fraction” displayed in the Pixie Viewer: RUN

TIME / TOTAL TIME.

COUNT TIME

The COUNT TIME is counted in the FPGA independently for each channel and measures

the time the channel is ready for acquisition. The COUNT TIME counter starts when the

However, writing data to hard disk is usually much slower, in the order of 0.1 GB/s depending on the particular

system. Advances system architectures may improve this data rate, for example multiple hard drive arrays.

Pixie-4 Express User Manual Version 4.31

DSP finished all setup routines at the beginning of a run, omits the times the ADC signal

is out of range, each channel's local 500-event buffer is full, or the SDRAM memory is full

and ends when the DSP encounters an end run condition (e.g. host stop). Internally, the

“counter on” signal is called LCE. It is thus the time during which triggers are counted and

can cause recording (or pile up) of data, the best available measurement of the time the

channel was active. The difference between COUNT TIME and RUN TIME can be used

to determine how long the local 500-event buffers were full and waiting for readout or

other events prevented the channel from data taking (e.g. out of range).

FTDT (fast trigger dead time)

The fast trigger dead time counts the time the trigger filter is unable to issue triggers

because the trigger filter output is already above threshold (and can not recognize a second

pulse). It does not include the time triggers have been “paused” for a short time after a first

trigger (an advanced user option to suppress double triggering), because the concept is that

all triggers occurring during the pause are counted as only one trigger. When computing

the input count rate, one should divide the number of triggers counted (FASTPEAKS) by

the difference (COUNT TIME – FTDT) since triggers are not counted during FTDT.

SFDT (slow filter dead time)

The slow filter dead time counts the time new triggers will not lead to the recording of new

data. This is the time the pileup inspection is taking place and the summation of energy

filter sums is in progress (section 6.7.1.1). In case pileup inspection is inverted or disabled,

there is no contribution to SFDT.

GDT (GATE dead time)

The dead time from Veto /GFLT is counted separately from SFDT for each channel. As

mentioned above and further described in section 7.4, the use of these signals may depend

on the application.

In the current firmware, the time during which GDT is counted depends on several user

options on signal source and polarity. The source options result in a signal GCE to be

counted, the polarity selects whether to count while GCE is high or low, as listed in the

following table.

Use

Veto

Gate

Mode

GCE

Count @ Fall

GDT

incremented

(Veto OR Gate*) AND LCE

GCE high

Gate* AND LCE

GCE high

(Veto OR Gate*)

GCE high

Gate*

GCE high

(Veto OR Gate*) AND LCE

GCE low

Gate* AND LCE

GCE low

(Veto OR Gate*)

GCE low

Gate*

GCE low

* shaped and delayed as described in section 7.4

With the assumption that normally only either Gate or Veto are used, GCE is either the OR

of Veto and Gate (the latter shaped and delayed as described in section 7.4), or only Gate

if the Veto input is used as the source for Gate (to avoid double counting). Unless in Gate

Mode, GCE is only on while the count time is incremented (LCE=1), which means it is

only counted while data is being acquired. In Gate Mode, GCE is independent of LCE and

in turn LCE is only on while GCE=1, so prohibit all acquisition and counters while the

acquisition is gated. GCE is counted as GDT either while it is high or while it is low. Any

rejection due to Veto or Gate has to be configured independently.

Pixie-4 Express User Manual Version 4.31

For the case that the Veto input is used for a GFLT-type validation pulse, it may be more

useful to work with the number of pulses issued. They can be counted by using the Veto

input as the source for GATE PULSEs, which are counted in the variable GCOUNT.

6.7.3 Count Rates

Besides the count time and dead times, the Pixie-4 Express counts the numbers of triggers

in each channel, FASTPEAKS, the number of valid single channel events, NUMEVENTS,

and the number of valid pulses stored for each channel, NOUT. To accommodate dead time

correction for pileup even in cases where events are not recorded for other reasons (e.g. not

matching coincidence or veto requirements), a counter NPPI counts the number of locally

triggered events passing pileup inspection. In addition, it counts the number of gate pulses

for each channel, GCOUNT. FASTPEAKS and GCOUNT are inhibited when the COUNT

TIME counter is not incrementing. NUMEVENTS and NOUT by nature only count events

captured when the COUNT TIME counter is incrementing.

Count rates are then computed in the C library as follows:

Input count rate ICR = FASTPEAKS / (COUNT TIME – FTDT)

Event rate ER = NUMEVENTS / RUN TIME

Channel output count rate OCR = NOUT / COUNT TIME

Channel Pass Pileup Rate PPR = NPPI / COUNT TIME

Gate count rate GCR = GCOUNT / COUNT TIME

Users are free to use the reported values to compute rates and time better matching their

preferred definitions.

Notes:

 Output pulse counters are updated whenever an event has been processed; input, gate

and all time counters are updated every ~7ms. Therefore reading rates at random

times, e.g. clicking Update in the Pixie Viewer, might return slight inconsistencies

between input rates and output rates. At the end of the run, all rates are updated and

these effects should disappear.

 NOUT is counted for each event a channel is processed no matter if the channel had a

valid hit or not. Thus a channel that is processed in “group trigger” mode may have

an output count rate even though its input count rate is zero.

 Since COUNT TIME counters are paused when SDRAM or local 500-event buffers

are full, the input and output count rates should be considered as “rates while active”

as opposed to actual rates per elapsed lab time. For input count rates, this is the more

intuitive case, since the detector will not stop generating pulses when the channel

becomes inactive due to a full SDRAM and the input count rate should closely

correspond to the detector's rate. For output count rates, it is a matter of perspective –

should it mean the total number of counts per acquisition lab time or the number of

counts processed while the Pixie module is taking date? The former would produce

unreasonably low count rates when e.g. the signal goes out of range periodically,

since it will not account for the duty cycle of the signal source. The latter would

produce unreasonably high rates if the system is near its processing limit and often

paused for SDRAM readout, though it will better reflect the pileup rejection

statistics. The choices made in the current firmware select the latter case, but by

Pixie-4 Express User Manual Version 4.31

qualifying the output count rate with the COUNT TIME / TOTAL TIME, the former

can be recovered.

6.7.4 Dead time correction in the Pixie-4 Express

Historically, dead time correction in analog systems relied on the system dead time

measurements taken directly from the acquisition system and the recorded output count

rate. For example, a peak sensing ADC module might output a “dead time” signal during

the several microseconds it would require to capture the peak value. Thus reconstruction

of true count rate required the knowledge of dead times associated with various stages of

acquisition and the subsequent mathematical modeling to tie this quantity to the input rate.

The classic paralyzable and non-paralyzable models of pulse acquisition do exactly that.

For example, the dead time from a non-paralyzable ADC conversion process simply “takes

away” active counting time (Td for each output count) and so one can use the classical

model of OCR = ICR/(1+Td*ICR), derive

OCR/ICR = (real time – dead time)/(real time),

and solve for ICR as a function of measured OCR, real time and dead time.

In the Pixie-4 Express, the input count rate is measured directly with the trigger filter, and

so the system dead time bears only theoretical or diagnostic value. For any measurements

where accurate determination of true (source) counts are required (activity measurements),

the empirical ratio ICR/OCR is the only really unbiased quantity for dead time correction.

No matter what the actual dead time the acquisition process incurs on the system, the

ICR/OCR ratio applied to any region of interest in the energy spectrum correctly

reconstructs the true counts in this region, assuming a random source so that pulses are lost

with equal probability in each region or in time. For cases where events are added by

group trigger or removed by coincidence or veto requirements, PPR should be used

instead of OCR.

In the Pixie-4 Express firmware design, the counter SFDT attempts to independently

account for the system dead time. SFDT counts the time during which the pileup rejection

will reject this and any subsequent pulse that are too close in time. Essentially it measures

– cumulative for all pulses – the time from the first trigger until a new trigger is again

allowed, extended by any trigger during the interval. This is a paralyzable dead time with

pileup rejection, closely matching the classical model

. SFDT correctly measures the time

during which pulses are not recorded, but unless simplified to the assumptions in the

classical model, it is not trivial to compute from that the number of pulses lost. The detailed

mathematical treatment is beyond the scope of this writing.

Please also see a related application note: XIA Pixie-4 Dead Time Correction

OCR(1+Td*ICR) = ICR can be written as OCR = ICR(1-OCR*Td). The measured cumulative dead time DT is

DT = OCR*Td*RT. Therefore OCR/ICR = RT-DT/RT.

In the Pixie-4, there was an additional contribution due to DSP readout, which also prohibited the recording of new

events, non-paralyzable in nature. The combined effect of these two contributions on SFDT as a mixture of

paralyzable and non-paralyzable dead time does not follow the simple text book models. This limited the use of

SFDT to theoretical and diagnostic purposes.

Pixie-4 Express User Manual Version 4.31

7 Synchronized Data Acquisition

The Pixie modules are designed for coincidence acquisition, and as such there are several

aspects to synchronize:

 Synchronize the channels within a module,

 Synchronize multiple modules within a chassis, and

 Synchronize Pixie modules with external signals.

For example, it is usually required to synchronize clocks and timers between modules and

to distribute triggers between channels and modules. It will also be necessary to ensure that

runs are started and stopped synchronously in all modules. All these signals are distributed

through the PXIe backplane.

7.1 Clock Distribution

Unlike the Pixie-4, the Pixie-4 Express uses the 10 MHz and 100 MHz clocks provided by

the PXI Express chassis. These clocks are routed on the backplane to tight tolerances and

ensure that all modules receive the same clock with very little phase skew. Every module

in the chassis is therefore a clock slave to the backplane, and no jumpers or switches are

required to change the clock mode.

7.2 Trigger Distribution

7.2.1 Trigger Distribution Within a Module

Within a module, each channel can be enabled to issue triggers. Such a Fast Trigger

indicates that the trigger filter just crossed the threshold at the rising edge of a pulse, and

is used to start pileup inspection and to latch time stamps, among other things.

Each trigger-enabled channel issues triggers to the central “system logic”, which builds an

OR of all triggers and sends it back to all channels. If a channels is set to “group trigger”

mode, it uses the distributed fast trigger instead of its own local triggers to capture data. In

this way, one channel can cause data to be acquired at the same time in all channels of the

trigger group. There are then two ways in which the DSP assembles such data: In Run

Types 0x400 and 0x401, the DSP reads data from all participating channels individually

and stores it as one event record per channel. In Run Type 0x402, the DSP reads data from

all 4 channels and stores it as a 4-channel event record. The latter requires a number of

specific settings, as listed in section 4.1.2.

Notes:

1. Each channel, trigger enabled or not, always also generates a “hit” flag for a

coincidence test when it detects a rising edge. To disable this, mark the channel as

not “good” or set the trigger threshold to zero.

2. In group trigger mode, all data is captured based on the distributed trigger. This may

cause slight shifts in waveforms and timestamps due to the extra delay of routing

signals through the central logic. Run Type 0x402 records local time stamps latched

at the locally detected rising edge in addition to the event time stamp at which the

distributed trigger latched the event data.

Pixie-4 Express User Manual Version 4.31

3. If pulses in different channels have slight delays, and all such channels are in group

trigger mode, each channel will acquire multiple records, one for each distinct

trigger.

4. In systems where a common live time is important (for example, a detector array

that should never be partially disabled because that would change its efficiency from

event to event), it is recommended to set all channels to group trigger mode and run

in Run Type 0xc402. The 500-event buffers will then fill up equally in all channels.

Any SDRAM full condition also affects all channels equally, which means the live

time will be the same. (Only out-of-range conditions may be different, which can be

avoided by reducing the gain to a safe value.) Duplicate records from delayed

triggers (if more than one channel is trigger enabled) can then be sorted out offline.

Check time stamps for very closely following events in the same channel. Duplicate

record should only affect throughput at very high rates. (See also coincidence,

below)

7.2.2 Trigger Distribution Between Modules

Fast triggers can also be distributed over the PXIe backplane. The fast trigger signal uses

a common backplane line for all modules, which is set up to work as a wired-OR. Normally

pulled high, the signal is driven low by the module that issues a trigger. All other modules

detect the lines being low and send the triggers to all of their channels. In other words, the

backplane line carries a system-wide trigger that essentially acts as a 5th input to the trigger

OR in the central “system logic” of each module.

Each module can be enabled to share triggers over the backplane lines or not. In this way,

a trigger group can be extended over several modules or each module can form its local

sub-group.

7.2.3 Trigger Distribution between PXI chassis

In principle it is possible to distribute triggers between several chassis with Pixie-4 Express

modules with a suitable PXIe module to bring out signals from the backplane. Please

contact XIA for details.

7.2.4 External Triggers

External trigger signals (3.3V TTL standard) can be connected to a Pixie-4 Express through

the PXI backplane. A falling edge on backplane line TRIG0 is recognized as a trigger and

can be used to capture waveforms and timestamps in any channel using the group trigger

logic. (Sharing triggers over the backplane must be enabled.) Since the Pixie module uses

this line to distribute its own triggers, external signals should only drive the line low briefly;

a backplane pullup resistor brings it back high (wired-OR).

Starting in release 4.2A, the Pixie-4 Express front panel input can be routed to this

backplane line or used as an external trigger within a single module only. The setup is as

follows:

Physical Setup

 Connect the external trigger signal to the “In/Out” MMCX connector on the front

panel

 The trigger signal must be a 3.3V TTL signal.

 The trigger is recognized at the rising edge of the external signal (0 -> 3.3V

transition); the signal must stay high for at least 200ns.

Pixie-4 Express User Manual Version 4.31

Parameter Setup

 In the Chassis Setup panel, enter a nonzero number for Validation delay for

external fast trigger.

(There is no actual validation, but to stay consistent with the Pixie-4, any non-zero

number turns on external triggering.)

 Optionally, in the Chassis Setup panel, enter “1” for Trigger Share mode. This will

distribute the external trigger over the chassis backplane to other modules (ORed

with any other triggers).

 In the Trigger tab, check the respond to group trigger only checkbox to enable a

channel for distributed (=external) triggering.

 In the Coincidence tab, ensure the option to accept events with hitpattern 0 0 0 0 is

enabled.

 Optionally, in the Coincidence tab, specify the appropriate channel delays (ns) to

match timing of detector signals with the external trigger.

 If the intention of the external trigger is to capture unconventional detector pulses

(with multiple rising edges, going out of range, etc), we recommend

o In the Trigger tab, uncheck the enable trigger checkbox.

o In the Energy tab, check the box for Estimate E if not hit.

o In the Advanced tab, check the boxes Allow out of range and Disable

pileup.

7.3 Run Synchronization

It is possible to make all Pixie-4 Express modules in a system start and stop runs at the

same time by using a wired-OR SYNC line on the PXIe backplane. The feature is enabled

by checking the corresponding checkbox in the Run Control tab of the Pixie Viewer.

The run synchronization works as follows: When the host computer requests a run start,

the Pixie-4 Express’s DSP will first execute a run initialization sequence (clearing memory

etc). At the beginning of the run initialization the DSP causes the SYNC line to be driven

low. At the end of the initialization, the DSP enters a waiting loop, and allows the SYNC

line to be pulled high by pullup resistors. As long as at least one of all modules is still in

the initialization, the SYNC line will be low. When all modules are done with the

initialization and waiting loop, the SYNC line will go high. The low->high transition will

signal the DSP to break out of the loop and begin taking data.

If the timers in all modules are to be synchronized at this point, check the corresponding

checkbox in the Run Control tab of the Pixie Viewer. This instructs the DSP to reset all

timers to zero when coming out of the waiting loop. This is implemented as a pulse on an

additional backplane line distributed to all modules. From then on they will remain in synch

until the next power cycle or reboot. Timers are also synchronized at boot time.

Whenever a module encounters an end-of-run condition and stops the run it will also drive

the SYNC line low. This will be detected in all other modules, and in turn stop the data

acquisition.

Pixie-4 Express User Manual Version 4.31

7.4 External Gate and Veto

7.4.1 External Gating Scenarios

In the current firmware, we accommodate 3 scenarios of external gating:

 It is common in larger applications to have dedicated external electronics to create

event triggers to accept events or vetoes to reject events. For example, external logic

may sum the “multiplicity” from all channels that fired at the same time and issue a

short validation pulse to accept an event if the multiplicity is high enough). For this

purpose, the Pixie-4 Express accepts a global Veto signal

, essentially a pulse for

each event which has to be timed correctly for the event acceptance decision in the

Pixie-4 Express logic.

 In a second scenario, it may be desirable to reject pulses that occur while a channel

specific Gate signal is on (or off), for example if a pulse derived from a BGO shield

around the detector indicates Compton scattering. When the BGO shield sees a

pulse, not all of the energy was deposited in the detector, and therefore this event

should be rejected. A digital Gate signal derived from the BGO detector is thus

coincident with the rising edge of the detector pulse (give or take a cable delay).

Usually it would have a final duration, corresponding to the coincidence window

with the BGO signal for Compton scattering.

 In a third scenario, the acquisition may have to be inhibited for certain intervals. An

example is the on/off cycle of a neutron generator, and events may only be of

interest if the generator is off. Both the Veto and the Gate inputs are available for

this purpose, Veto as a global signal for the whole system, Gate as a dedicated signal

for each channel. Veto acts at the time of pulse validation and therefore is not

appropriate when nanosecond precision is required; Gate acts at the time of the

rising edge of the pulse.

As a connection convenience, the Veto input path can be used for the Gate signal, and the

Gate signal can be reshaped by delays and re-pulsing to apply timing windows and

compensate cable delays. Veto/Gate pulses and times can be counted in a variety of ways,

as described in section 6.7.1.2. The following sections describe the options for signal

shaping, marking of events and rejection of events

. They are specified in the Gate tap of

the PARAMETER SETUP panel (Figure 7-1

In the Pixie-4 this was also called Global First Level Trigger (GFLT)

In the Pixie-4 gate logic, the approach was to reject and count while Gate/Veto is high and invert the incoming

signal to be high at the right time. In the Pixie-4 Express, the approach is reversed: there are now options to reject

and count while high or low, and the Veto signal is used directly (the Gate signal can still be delayed and re-pulsed).

Pixie-4 Express User Manual Version 4.31

Figure 7-1: Gate tab of the PARAMETER SETUP Panel.

7.4.2 Shaping of External Signals

The Veto signal is used without any modification as fed into the front panel MMCX

connector of the Pixie-4 Express. The Veto signal is distributed on the PXI backplane as

an inverted wired OR – 3.3V (logic high) on the MMCX connector drives the backplane

low, 0V (logic low) releases the backplane to be pulled up by a resistor.

The Gate signal is normally taken from the 10-pin front panel connector of the Pixie-4

Express, one pin for each channel. The pinout is described in the appendix. As a firmware

option, the Veto signal can be used as an alternative input. This is intended to be a simpler

connection option for those cases where the same Gate signal is used for all channels and

the Veto logic is not used.

The Gate signal can then be delayed by a user defined time. Further there is an option to

create a pulse of user defined length, starting at either the rising or the falling edge of the

delayed signal. This serves to define a coincidence window for Gate. To facilitate setup of

the delays and windows, the final delayed and re-pulsed Gate signal and the (global) fast

trigger of a channel can be made visible on the output pins of the 10-pin front panel

connector. (Note that the detector signal can also be delayed using the parameter Coinc

Delay.)

Pixie-4 Express User Manual Version 4.31

Figure 7-2: Shaping of the Gate signal. The input can be either the front panel 10-pin connector

(individually for each channel) or the global Veto line from the MMCX front panel connector or

the PXI packplane. The signal can then be delayed and a pulse can be created from the rising or

falling edge. Further options allow counting the rising edges and the time high or the falling edges

and the time low. The highlighted text corresponds to control variables in the Pixie software.

7.4.3 Marking Events

The status of the Veto signal is latched for each event at the time the pileup inspection is

finished (energy filter rise time plus flat top after rising edge). This information is recorded

in the event status flags of the list mode data

The status of the Gate signal (after delay and re-pulsing) is latched for each event at the

trigger time (rising edge). This information is recorded in the event status flags of the list

mode data

7.4.4 Rejecting Events

While event data is captured for every detected rising edge, not all event data is recorded.

User specified options determine which events are acceptable, not only due to pileup and

out-of-range conditions, but also due to Veto and Gate. The rejection is based on the latched

Veto/Gate status described in the previous paragraph. There are four options to reject

events based on Veto/Gate status:

 Reject if Veto status is low

 Reject if Veto status is high

 Reject if Gate status is low

 Reject if Gate status is high

Obviously, if both low and high rejection are enabled for one signal, nothing is ever

recorded.

Input:

- Front Panel 10pin

- Use Veto from

MMCX or backplane

Delay

Window

Shaping:

- Add Delay

- Add Delay and Make Pulse on Rising Edge

- Add Delay and Make Pulse on Falling Edge

Counting:

- At Rising Edge

and while High

- At Falling Edge

and while Low

Window

Pixie-4 Express User Manual Version 4.31

7.4.5 Counting Veto/Gate Pulses and Times

There are two counters in the firmware for Veto/Gate related run statistics: GCOUNT and

GDT. The basic assumption is that either Veto or Gate is used, not both at the same time.

GCOUNT counts rising (optionally falling) edges of Veto OR Gate*. GDT counts the time

during which Veto OR Gate* are high (optionally low). Gate* here means the signal after

delay and re-pulsing. If the option to use the Veto input for Gate is enabled, only Gate* is

counted, not Veto OR Gate*. For more details, see section 6.7.1.2.

7.4.6 Timing Diagrams for Application Examples

For the first scenario in section 7.4.1, assume external logic sums the multiplicity of the 4

detector channels and issues an “accept” pulse with appropriate delay for the pileup

inspection if more than 2 channels fire at the same time; logic high for accept. That “accept”

pulse is connected to the Veto input. Pixie-4 Express settings are set to count at the rising

edge and reject when low.

For the first event in Figure 7-3, there are 2 pulses in 2 channels so the external logic issues

an “accept” pulse to the Veto logic. The status of Veto at the end of the pileup inspection is

thus latched as logic high and the event is marked accordingly. GCOUNT is incremented

by one and GDT is increased by the time Veto was high. In the event acceptance stage, the

event is accepted since Veto is high. There is an entry in the list mode data and NOUT is

incremented by one.

For the second event, there is only 1 pulse in 1 channel so the external logic issues no

“accept” pulse. The status of Veto at the end of the pileup inspection is thus latched as logic

low and the event is marked accordingly. GCOUNT and GDT are not incremented. In the

event acceptance stage, the event is not accepted since Veto was low. There is no entry in

the list mode data and NOUT is not incremented.

The COUNT TIME is on throughout and all rising edges are counted in FASTPEAKS.

Figure 7-3: Timing for scenario 1 described in the text

Detectors

Veto

GDT

GCOUNT

COUNT TIME

NOUT

FASTPEAKS

LM Data

2 pulses

1 pulses

Pileup inspection delay

Pixie-4 Express User Manual Version 4.31

7.5 External Status

An external “Status” signal can be distributed to all modules on the PXI backplane. The

status of that line is also latched at the time of trigger and included in the event status flags

of the list mode data.

7.6 Coincident Events

7.6.1 Coincidences Within a Module

Figure 7-4: Coincidence Pattern and Coincidence Window Settings in the Pixie Viewer

In any given event, a single Pixie module will have up to four channels with a “hit”, i.e. a

rising edge of a pulse detected in the signal of a channel's ADC. The four channels thus

form one of 16 possible Hit Patterns, described in a 4-bit word. In this representation, the

Hit Pattern ranges from “no channel hit” [0000] over “only channel 1 hit” [0010] to “all

four channels hit” [1111].

The user can define a combination of allowed Hit Patterns, the Coincidence Pattern, to

accept one or more Hit Patterns. Usually this is done to reduce the recorded event rate,

omitting non-coincident events that are of no interest. In the Coincidence Tab of the

PARAMETER SETUP Panel, there are 16 checkboxes for the 16 possible hit patterns, and

selecting one sets the corresponding bit in the Coincidence Pattern. For example, allowing

all except for Hit Pattern [0000] makes the Coincidence Pattern 0xFFFE. Allowing only

[0011] makes the Coincidence Pattern 0x0008. Several of the check boxes can be set at the

same time, for instance to accept any pattern with two or more channels. If all checkboxes

are set, any possible Hit Pattern is acceptable and the Coincidence Pattern is 0xFFFF

Each channel with a pulse above threshold, whether trigger enabled of not, contributes to

the hit pattern. A channel hit flag is set to logic high for a user specified time, the

Coincidence Window, after the fast trigger. The hit flags from all four channels of a module

are continuously tested against the coincidence pattern (local coincidence test). Each

channel latches the 4 Hit flags from all 4 channels and the result of the coincidence test in

The case of accepting events with Hit Pattern [0000] is for distributed triggers from another module, to allow

recording of data in this module even though none of the local channels saw a pulse.

Pixie-4 Express User Manual Version 4.31

the middle of its coincidence window. This data become part of the event status flags, and

the DSP can decide to accept or reject events based on this information.

The plot below shows the time of arrival difference histogram for an acquisition using one

periodic and one quasi-random pulser with a Coincidence Window of 800 ns. The resulting

distribution is basically flat with a sharp cutoff at +/- 400 ns. The recorded event rate

dropped by a factor ~60 compared to the acquisition without coincidence requirement.

Figure 7-5: Timing distribution for a 800 ns coincidence window

Notes:

 To prevent a channel from contributing to the hit pattern, set the threshold to zero

(disables triggers) or uncheck the “good channel” check box.

 The coincidence is based on triggers at the rising edge, but a pulse can subsequently

be rejected as piled up. That may lead to coincidence records with missing channels.

For example, if channels 0-2 were in coincidence and channel 0 saw a second pulse

to be rejected as piled up, then only channels 1 and 2 will be recorded but will show

the actual 3-channel hit pattern (bits 8-10 set for channels 0-2). To avoid such

missing records, disable pileup rejection.

 The LIST MODE TRACE display applies an independent coincidence window for

viewing events. Under the option “show 4 pulses within”, events within that range

are extracted from the specified file, whereas the Coincidence Window described

above limits the acquisition of events into the file. To view coincidence events

properly, the range in the LIST MODE TRACE display should be set at least as large as

the acquisition coincidence window.

 Coincidence acquisitions can be conducted with independent triggers (EACH

channel is recorded when IT is hit AND all channels match the coincidence pattern)

or with distributed triggers (ALL channels with the “group trigger” option set are

recorded when ANY trigger enabled channel is hit AND all channels match the

coincidence pattern).

o In the former case, waveforms will not appear significantly shifted relative

to each other even though they may be a few hundred ns delayed –

waveforms are shown vs time from first sample. The time stamps carry the

delay information.

o The latter case will lead to multiple records per coincidence if the delays

between channels are greater than a few dozen nanoseconds so triggers are

Pixie-4 Express User Manual Version 4.31

recognized separately. Event info bit 4 identifies such “group trigger without

local hit” records, also their energy is set to zero unless the “estimate

energy” option is set. In Run Type 0x402, both the local time and the event

time are recorded

 If waveforms are of interest, it is advised to make Trace Lengths long enough to

cover at least half of the coincidence window. That way, waveforms in event N

(triggered by the first channel and recorded for the first channel) and in event N+1

(triggered by the first channel and recorded for the second channel) will start at the

same time and will contain the rising edge of trigger and delayed pulse, respectively.

Otherwise, matching events becomes somewhat more difficult.

7.6.2 Coincidences Between Modules

Not yet implemented

Pixie-4 Express User Manual Version 4.31

8 Using Pixie-4 Express Modules with Clover

detectors

When working with clover detectors, the Pixie-4 Express can be operated in a specific

“clover mode”. In this mode, the DSP will calculate the pulse height for each channel as in

normal operation, and in addition – for events with hits in more than one channel – calculate

the sum of individual channel energies. The result, the full energy of gamma rays scattered

within the clover detector, is binned in an additional “addback” spectrum.

In the current implementation of the clover mode, the spectrum length is fixed to 16Ki. The

clover binning mode is designed for run type 0x402. The clover mode is enabled by setting

the corresponding checkbox in the Coincidence Tab of the PARAMETER SETUP Panel. To

automatically gain match the 4 channels (after an initial MCA spectrum has been acquired

and a common peak has been fitted), use the button in the CHASSIS SETUP Panel.

Additional clover functions can be developed upon request. XIA maintains a set of Igor

functions to plot energies and time differences between channels that can be added to the

Pixie Viewer.

Pixie-4 Express User Manual Version 4.31

Appendices

Appendix A: Hardware information

Front end switches for termination and attenuation

Switch

reference

PCB Label

Function

S4 (a)

“1” “1/8”

Attenuation will be 1:1 or 1:8

S4 (b)

“50” … “high Z

Input impedance will be 50. or 2k.

Table 8-1: Analog conditioning selection switches on Pixie-4 Express modules. Switches are

marked with solid red (termination) and dashed blue (attenuation) arrows. On the PCB, inverse

labels describe the switch positions.

Figure 8-1: Simplified input stage of Pixie-4 Express showing switches, input termination and

attenuation, and the overvoltage protection circuit.

Pixie-4 Express User Manual Version 4.31

Front Panel LEDs

The Pixie-4 Express has 3 LEDs on the front panel.

 A green LED indicates the firmware has been booted correctly and clocks have been

programmed.

 A yellow LED indicates that a run is in progress. This can be a very short flash, e.g.

for parameter I/O, or continuous, for data acquisition runs.

 A red LED indicates an error occurred. Currently that will be one of two cases:

a) the module has been powered up, but not booted yet

b) in a list mode run, the SDRAM has been filled with data so that the acquisition

has been paused. Acquisition will resume (and the LED goes off) if the host catches

up with data readout.

Pixie-4 Express User Manual Version 4.31

PXI backplane pin functions

PXI

PXIe

XJ4

pin name

Connection

Type

Pixie pin function

LBL9*

Left neighbor

Event Trigger output (chained OR)

LBR7*

Right neighbor

reserved

16A

TRIG1

Bussed

Clock synchronization

17A

TRIG2

Bussed

Veto

18A

TRIG3

Bussed

Sync

19A

LBL2*

Left neighbor

Sync output (chained OR)

20A

LBR4*

Right neighbor

reserved

21A

LBR0*

Right neighbor

Clock output

16B

TRIG0

Bussed

Fast Trigger

18B

TRIG4

Bussed

Status

20B

LBR5*

Right neighbor

reserved

LBL10*

Left neighbor

Fast Trigger output (chained OR)

LBR8*

Right neighbor

reserved

18C

TRIG5

Bussed

Token

19C

LBL3*

Left neighbor

Control data to PDM (left)

20C

LBL0*

Left neighbor

Clock input

LBL7*

Left neighbor

GATE input channel 3

LBR9*

Right neighbor

Event Trigger input (chained OR)

15D

LBL6

Left neighbor

GATE input channel 2

17D

STAR

Star trigger to

slot 2

Hit pattern to slot 2

19D

LBL4*

Left neighbor

GATE input channel 0

21D

LBR2*

Right neighbor

Sync input (chained OR)

LBL8*

Left neighbor

reserved

LBR10*

Right neighbor

Fast Trigger input (chained OR)

15E

LBR6

Right neighbor

reserved

16E

TRIG7

Bussed

Bussed Clock

17E

CLK10

Clock

PXI Clock

19E

LBL5*

Left neighbor

GATE input channel 1

21E

LBR3*

Right neighbor

reserved

Table 8-2: Pins of the J2 or XJ4 backplane connector defined in the PXI(e) standard used by the

Pixie-4 Express. A * indicates the pin is not available in PXIe standard

Pixie-4 Express User Manual Version 4.31

High Density Front Panel Digital Connector

L E

E D

F G

T E

Hit 3 (out)

Hit 2 (out)

Hit 1 (out)

Hit 0 (out)

Timer Clear (out)

Gate 3 (in)

Gate 2 (in)

Gate 1 (in)

Gate 0 (in)

Gobal trigger (out)

Table 8-3: Pinout of the h10-pin high density front panel connector as seen from the front of the

module. The Hit output can be changed to the delayed and re-pulsed Gate signal.

Default IO standard: LVTTL (0..3.3V). Some lines can be configured as LVDS.

By setting the “FP out” bit (ChanCSRC bit 13), the Hit output changes to the final Gate

signal applied to the processing logic, after delay, inversion, and windowing.

Matching cable:

 Harting p/n 33 27 243 0500 001 (Harlink 10P MA DB CABLE ASSY, L=0.5m )

 Custom cable assemblies with 2mm pin pitch are possible.

MMCX Coaxial Front Panel Digital Connector

IO standard: LVTTL (0..3.3V).

Default use: input to backplane VETO signal

Matching cables:

 MMCX to SMA: Cinch connectivity 415-0071-006

 MMCX to BNC: Provided by XIA
