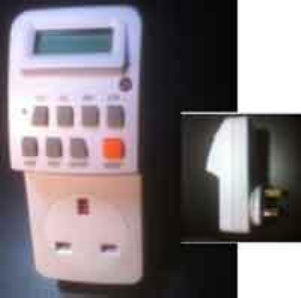

Possible manual for Powerfix timer

European 230volt probably uses clock hours 1 thru 24

Install 2 AAA batteries, or if timer does not have batteries, then

plug timer in for about 1 hour.

Set the time clock:

Enter clock setting mode

Press Mode button until ‘clock setting’ appears.

Day select with Day button

Hour select with Hour button

Minute select with Min button

Press PGM button To confirm current clock time

Press S/W button while in clock mode to toggle between Daylight savings time DST and sun icon

appears on display.

Program settings:

Press Mode button until ‘program 1-20’ displays, or press Prg button to enter programming.

Repeatedly press Prg button to cycle through programming.

Each program must have ON time, and then OFF time

Press Pgm button until display shows: Prg Set ON 1. This is program1 ON.

Day select with Day button

Hour select with Hour button

Minute select with Min button

Press PGM button To confirm program1 ON

Press Pgm button until display shows: Prg Set OFF 1. This is program1 OFF.

Day select with Day button

Hour select with Hour button

Minute select with Min button

Press PGM button To confirm program1 OFF

Press Pgm button until display shows: Prg Set ON 2. This is program2 ON.

Day select with Day button

Hour select with Hour button

Minute select with Min button

Press PGM button To confirm program2 ON

Repeat steps for up to 20 programs.

Exit programming mode, press Mode button until ‘clock’ shows.

Timer is ready for operation.
