1

PRIMOFIT

Compression

Fittings

®

Time saving pipe

jointing system

for steel pipework.

Price Guide

1st March 2006

PLEASE NOTE FROM 1 JANUARY 2012 LIST

PRICES ARE SUBJECT TO A 22.79% INCREASE

2

3

Installation

• Cut pipe square and burr free

• Mark pipe with correct insertion depth

• Insert pipe and hand tighten

• Tighten with a wrench to the correct number of turns

Do not

• Dismantle fitting during installation

• Over insert pipe - seriously reduced joint performance

• Under insert pipe - full joint compression cannot be

guaranteed

• Overtighten

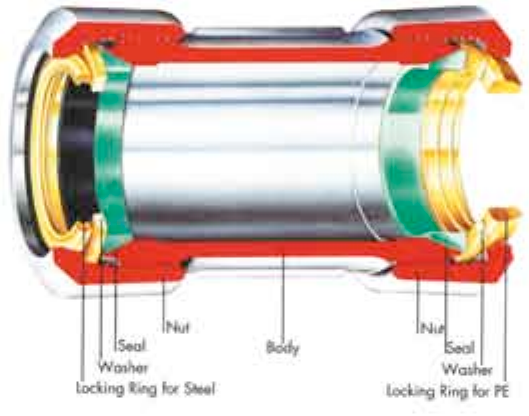

* Please note locking rings

for PE pipe shown here are

available in the PE spares kit

*

The technical data given in

this publication are for general

information purposes only and

are subject to change. They

imply no warranty of whatever

kind. Please consult our

General Conditions of Supply.

PRIMOFIT Compression Fittings

Application

PRIMOFIT is a compression system for connecting steel pipes

which offers the installer full end load capability. Ease of

installation without the need for specialist tools is an important

feature. Available in sizes from 1/2 to 3”.

Approvals

PRIMOFIT is approved for use in the applications shown within

this documentation. A complete list of current world wide

approvals is available on request.

Range ( 1/2 to 3”)

Couplings

Male adaptors

Female adaptors

Equal tees

Reducing tees

Threaded outlet tees

Elbows

Caps

4

5

Fluid PrimaryApplication Max. Max. Size Surface Seal Page

  Operating Operating Range Finish Material

  Temp Pressure

Water Heating systems 105°C 6 bar 1/2 - 3” Black FPM 6 - 9

Petrol Leaded & unleaded fuel lines 40°C 10 bar 1/2 - 2” Black FPM 6 - 9

Diesel Fuel lines 40°C 10 bar 1/2 - 2” Black FPM 6 - 9

Compressed Air

Supply lines 105°C 10 bar 1/2 - 3” Galvanised FPM 10-13

Natural Gas Below ground 70°C 10 bar 1/2 - 2” Black NBR 14-17

LP Gas Below ground -

butane & propane

70°C 10 bar 1/2 - 2” Black NBR 14-17

Oil Fuel oil supply lines 40°C 16 bar 1/2 - 2” Black NBR 14-17

LP Gas Above ground

- butane & propane

70°C 10 bar 1/2 - 3” Galvanised NBR 18-21

Water Non-potable 80°C 16 bar 1/2 - 3” Galvanised NBR 18-21

Natural Gas Inside Buildings 70°C 75 mbar 1/2 - 2” Galvanised Firejoint 22-25

Natural Gas Outside Buildings above ground 70°C 75 mbar 1/2 - 2” Galvanised Firejoint 22-25

Potable Water

Service pipe connections & repair

40°C 16 bar 1/2 - 2” Galvanised EPDM 26-29

Application chart for PRIMOFIT

Minimumoperatingtemperature-20°C

6

7

Seals - FPM

Finish - Black

This range uses the FPM

seals which have been

specially selected for their

ability to operate at high

temperatures. This range

is suitable for all heating

systems designed to

operate up to 105°C.

The wide range of fittings

available make PRIMOFIT

the first choice for new

installations, repair and

extension of existing

systems.

Joints are quickly made

without threads or sealing

compounds. Use the

threaded outlet tee as a

slip tee for branching off

existing pipes.

Fittings may be re-used if

the internal components

are replaced. See our

spares pack section to

renew components or

convert the fitting to a

different application.

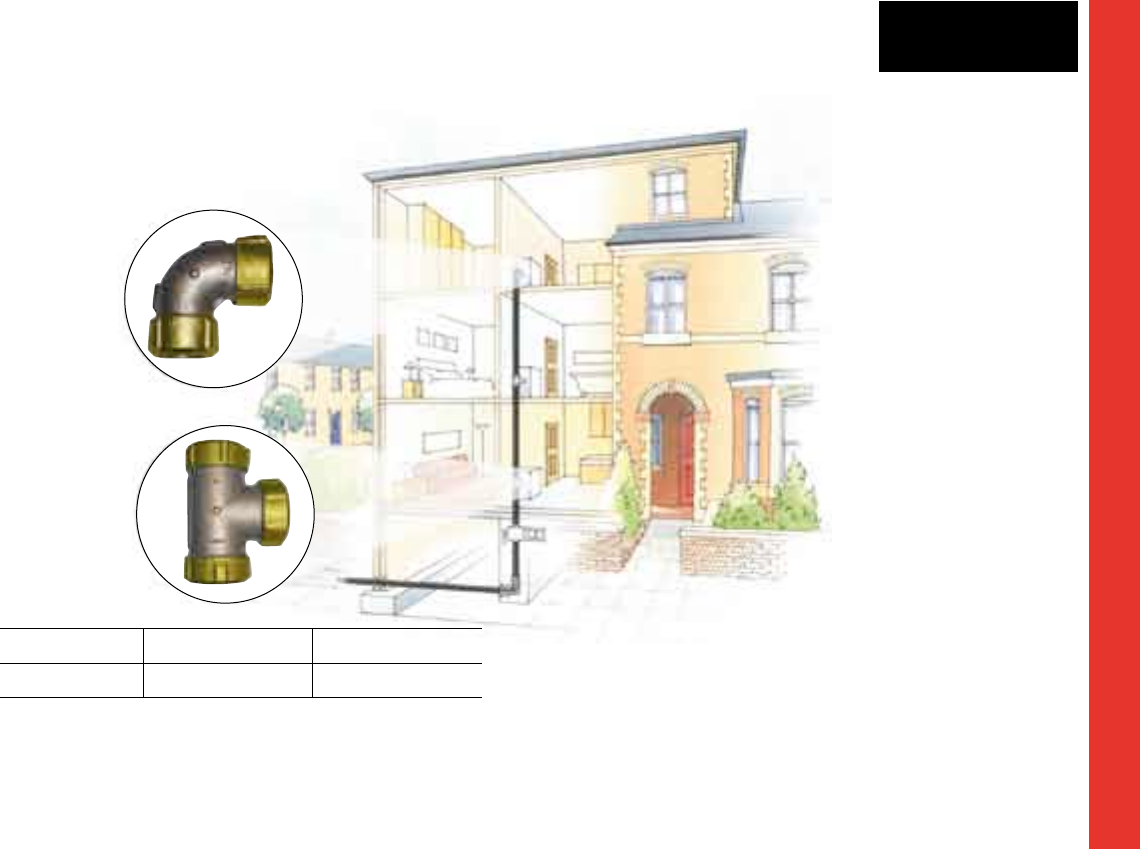

PRIMOFIT for Heating systems

Application*

Range ( 1/2 to 3”)

Couplings

Male adaptors

Female adaptors

Threaded outlet

tees

Reducing tees

Equal tees

Elbows

Caps

* Please consult us if your application is outside these parameters.

** GF Piping Systems Testing Laboratory.

Application Temperature Pressure

For water 105°C ** 6 bar **

8

9

Cap

Size Code Price

1/2 775457051 7.88

3/4 775457052 8.54

1 775457053 9.61

11/4 775457054 12.14

11/2 775457055 14.45

2 775457056 19.27

Tee

Equal

Size Code Price

1/2 775307051 18.15

3/4 775307052 21.08

1 775307053 26.60

11/4 775307054 41.05

11/2 775307055 44.53

2 775307056 59.33

Tee

Reducing

Size Code Price

3/4 - 1/2 775307061 23.18

1 - 1/2 775307062 29.21

1 - 3/4 775307063 29.21

11/4 - 1/2 775307064 45.12

11/2 - 1/2 775307067 49.01

2 - 3/4 775307072 68.22

Tee

Threaded

Outlet

Size Code Price

1/2 775317051 14.47

3/4 775317052 15.80

1 775317053 17.73

11/4 775317054 24.26

11/2 775317055 28.96

2 775317056 38.56

Seals - FPM

Finish - Black

PRIMOFIT for Heating systems

Couplings

1/2 775107051 12.09

3/4 775107052 13.19

1 775107053 14.80

11/4 775107054 18.67

11/2 775107055 22.28

2 775107056 29.69

21/2 775107057 118.12

3 775107058 130.58

3/8 - 1/2 775107060 17.29

3/4 - 1/2 775107061 12.09

1 - 1/2 775107062 13.13

1 - 3/4 775107063 14.80

11/4 - 1 775107066 18.67

11/2 - 11/4 775107070 22.28

2 - 11/2 775107075 29.66

Adaptors

Male

Size Code Price

1/2 775207051 8.77

3/4 775207052 9.53

1 775207053 10.72

11/4 775207054 13.52

11/2 775207055 16.14

2 775207056 21.52

21/2 775207057 85.64

3 775207058 95.86

Adaptors

Female

1/2 775217051 8.46

3/4 775217052 9.28

1 775217053 10.34

11/4 775217054 13.07

11/2 775217055 15.59

2 775217056 20.71

21/2 775217057 82.67

3 775217058 91.40

Elbow

Size Code Price

1/2 775407051 15.09

3/4 775407052 15.82

1 775407053 18.45

11/4 775407054 23.32

11/2 775407055 27.81

2 775407056 37.06

Size Code Price Size Code Price

10

11

Seals - FPM

Finish - Galvanised

A full range of

compression fittings

designed for use with

compressed air systems.

Installation is quick and

easy. Later modifications

to the pipework layout

are straightforward

and problem free since

the fittings may be

dismantled and reused

(remember to replace the

internal components -

see Spares section).

PRIMOFIT Compression Fittings

Range ( 1/2 to 3”)

Couplings

Male adaptors

Female adaptors

Equal tees

Reducing tees

Threaded outlet tees

Elbows

Caps

Application*

* Please consult us if your application is outside these parameters.

** GF Piping Systems Testing Laboratory.

Application Temperature Pressure

For compressed 105°C ** 10 bar **

air

12

13

Cap

Size Code Price

1/2 775458051 9.02

3/4 775458052 9.86

1 775458053 11.06

11/4 775458054 13.93

11/2 775458055 16.63

2 775458056 22.03

Tee

Equal

Size Code Price

1/2 775308051 20.84

3/4 775308052 24.26

1 775308053 30.55

11/4 775308054 47.17

11/2 775308055 51.23

2 775308056 68.22

Tee

Reducing

Size Code Price

3/4 - 1/2 775308061 26.66

1 - 1/2 775308062 33.60

1 - 3/4 775308063 33.60

11/4 - 1/2 775308064 51.92

11/2 - 1/2 775308067 56.35

2 - 3/4 775308072 75.04

Tee

Threaded

Outlet

Size Code Price

1/2 775318051 16.63

3/4 775318052 18.19

1 775318053 20.41

11/4 775318054 27.86

11/2 775318055 33.31

2 775318056 44.33

Seals - FPM

Finish - Galvanised

PRIMOFIT for Compressed Air Systems

Couplings

Size Code Price

1/2 775108051 13.90

3/4 775108052 15.13

1 775108053 17.00

11/4 775108054 21.43

11/2 775108055 25.61

2 775108056 34.10

21/2 775108057 135.83

3 775108058 160.81

3/4 - 1/2 775108061 16.63

1 - 1/2 775108062 18.68

1 - 3/4 775108063 18.68

11/4 - 1 775108066 23.61

11/2 - 11/4 775108070 28.14

2 - 11/2 775108075 37.50

Adaptors

Male

Size Code Price

1/2 775208051 10.09

3/4 775208052 10.99

1 775208053 12.32

11/4 775208054 15.57

11/2 775208055 18.59

2 775208056 24.72

21/2 775208057 98.50

3 775208058 108.85

Adaptors

Female

Size Code Price

1/2 775218051 9.73

3/4 775218052 10.61

1 775218053 11.90

11/4 775218054 15.01

11/2 775218055 17.91

2 775218056 23.86

21/2 775218057 95.10

3 775218058 105.12

Elbow

Size Code Price

1/2 775408051 17.34

3/4 775408052 18.93

1 775408053 21.23

11/4 775408054 26.81

11/2 775408055 32.03

2 775408056 42.62

14

15

Seals - NBR

Finish - Black

A simple range of couplings

and male adaptors for

connecting below ground

steel gas service pipes.

Other fitting shapes may

be obtained using the other

ranges in this catalogue

and changing the internal

components (see Spares

Section).

Remember: All metal

fittings used below ground

must be protected from

corrosion by wrapping.

PRIMOFIT for Natural & LP gas below

ground and fuel oil supply lines

Range ( 1/2 to 2”)

Couplings

Male adaptors

Application*

* Please consult us if your application is outside these parameters.

** DIN-DVGW Cert NG-4502AN0119

Application Temperature Pressure

For Gas 70°C ** 16 bar **

For Fuel oils 40°C 16 bar

16

17

Seals - NBR

Finish - Black

Couplings

Size Code Price

1/2 775101051 8.06

3/4 775101052 8.80

1 775101053 9.86

11/4 775101054 12.43

11/2 775101055 14.84

2 775101056 19.79

Adaptors

Male

Size Code Price

1/2 775201051 5.84

3/4 775201052 6.35

1 775201053 7.12

11/4 775201054 9.01

11/2 775201055 10.76

2 775201056 14.34

If other fitting shapes are

required then the galvanised

range with NBR seals may

be used below ground. These

fittings will still need to be

wrapped to protect from

corrosion.

18

19

Seals - NBR

Finish - Galvanised

Note

Not approved for use on gas

pipes within buildings.

A full range of general

purpose galvanised

fittings.

Galvanised fittings

are generally used in

above ground external

applications. These may

also be used below ground

if wrapped.

PRIMOFIT for LP gas and above

ground and non-potable water

Range (1/2 to 3”)

Couplings

Male adaptors

Female adaptors

Equal tees

Reducing tees

Threaded outlet tees

Elbows

Caps

Application*

* Please consult us if your application is outside these parameters.

** BSRIA witnessed tests, Report No. 58690/2

*** DIN-DVGW Cert NG-4502AN0119

Application Temperature Pressure

Water 80°C ** 16 bar **

Gas 70°C *** 10 bar ***

20

21

Cap

Size Code Price

1/2 775452051 6.01

3/4 775452052 6.56

1 775452053 7.37

11/4 775452054 9.30

11/2 775452055 11.08

2 775452056 14.67

Tee

Equal

Size Code Price

1/2 775302051 13.90

3/4 775302052 16.15

1 775302053 20.37

11/4 775302054 31.45

11/2 775302055 34.13

2 775302056 45.47

Tee

Threaded

Outlet

Size Code Price

1/2 775312051 11.08

3/4 775312052 12.15

1 775312053 13.60

11/4 775312054 18.58

11/2 775312055 22.21

2 775312056 29.54

Seals - NBR

Finish - Galvanised

PRIMOFIT for LP gas above ground &

non-potable water

Couplings

Size Code Price

1/2 775102051 9.28

3/4 775102052 10.09

1 775102053 11.34

11/4 775102054 14.29

11/2 775102055 17.06

2 775102056 22.73

21/2 775102057 97.02

3 775102058 107.22

Adaptors

Male

Size Code Price

1/2 775202051 6.73

3/4 775202052 7.31

1 775202053 8.22

11/4 775202054 10.40

11/2 775202055 12.39

2 775202056 16.46

21/2 775202057 70.36

3 775202058 77.75

Adaptors

Female

Size Code Price

1/2 775212051 6.50

3/4 775212052 7.08

1 775212053 7.92

11/4 775212054 10.00

11/2 775212055 11.95

2 775212056 15.90

21/2 775212057 67.94

3 775212058 75.09

Elbow

Size Code Price

1/2 775402051 11.56

3/4 775402052 12.61

1 775402053 14.15

11/4 775402054 17.86

11/2 775402055 21.35

2 775402056 28.41

22

23

Seals - Firejoint

Finish - Galvanised

Approved by

British Gas.

The only approved

compression joint for steel

gas risers and laterals

inside buildings. PRIMOFIT

Firejoint is fire resistant

and will not leak gas in the

event of a fire.

PRIMOFIT Firejoint is

suitable for risers up to 40m

high.

PRIMOFIT Firejoint is also

recommended for above

ground natural gas service

pipes, particularly when

installed on buildings as

external risers and laterals.

PRIMOFIT for Natural gas laterals

and risers inside and outside

Range ( 1/2 to 2”)

Couplings

Equal tees

Reducing tees

Elbows

Caps

Application*

* Please consult us if your application is outside these parameters.

** 5 bar 70° working/650° fireproof DIN-DVGW Cert DG-4502BL0504

75 mbar 40°C working/850° fireproof. Approved by Materials &

Construction Group, British Gas.

Application Temperature Pressure

Gas 70°C ** 75 mbar **

24

25

Seals - Firejoint

Finish - Galvanised

PRIMOFIT for Natural gas laterals and risers

inside and outside buildings

Couplings

Size Code Price

1/2 775104051 12.96

3/4 775104052 14.12

1 775104053 15.85

11/4 775104054 20.02

11/2 775104055 23.92

2 775104056 31.82

Elbow

Size Code Price

3/4 775404052 17.66

1 775404053 19.83

2 775404056 39.76

Tee

Equal

Size Code Price

3/4 775304052 22.61

1 775304053 28.54

2 775304056 63.37

Tee

Reducing

Size Code Price

2 - 3/4 775308072 70.02

PRIMOFIT Firejoint spares

maybe used to convert other

fitting types to PRIMOFIT

Firejoint (see Spares Section).

26

27

Seals - EPDM

Finish - Galvanised

A range of couplings for

connecting and repair of

water service pipes. The

EPDM seals are suitable

for use with potable water.

The end-load couplings are

for use on galvanised steel

pipes.

The non end-load

couplings may be used for

connecting and repair of all

rigid pipe materials.

We recommend that all

fittings installed below

ground should be protected

from corrosion by wrapping

with bitumastic tape.

Remember that all non

end-load joints must have

anchors of fixed points to

prevent pipe separation.

PRIMOFIT for potable water

Range ( 1/2 to 2”)

Couplings

End load resisting

Couplings

Non end-load

Application*

* Please consult us if your application is outside these parameters.

Application Temperature Pressure

Water 40°C 16 bar†

† For End-load and non-end-load (0.25 if pipework not anchored).

WBS Cert 9609044 (End Load) Unanchored Non End Load, 0.25 bar

(in house testing).

28

29

1/2 NBR Steel 775958951 3.73

3/4 NBR Steel 775958952 3.81

1 NBR Steel 775958953 4.16

11/4 NBR Steel 775958954 5.25

11/2 NBR Steel 775958955 5.97

2 NBR Steel 775958956 7.75

21/2 NBR Steel 775958917 23.70

3 NBR Steel 775958918 25.30

1/2x3/8** NBR Steel 775961950 8.59

*Spares for Natural & LP gas and Fuel oil Applications

Size Seal Pipe Code Price

 Type Material

1/2 FPM Steel 775967961 5.59

3/4 FPM Steel 775967962 5.73

1 FPM Steel 775967963 6.24

11/4 FPM Steel 775967964 7.30

11/2 FPM Steel 775967965 8.97

2 FPM Steel 775967966 11.64

21/2 FPM Steel 775967967 33.18

3 FPM Steel 775967968 35.44

1/2x3/8** FPM Steel 775962950 12.89

*Spares for Heating, Water and Compressed air Applications

Size Seal Pipe Code Price

 Type Material

PRIMOFIT Spares Packs

* Spares pack contains - rubber seal, locking ring and washer

(Firejoint pack includes special seal & nut in addition)

** Supplied with galvanised nut to fit 1/2 fittings.

When connecting steel to PE for below ground use on natural gas

an anti-shear assembly must be used. Details on request

PRIMOFIT for Potable water

Couplings

End-load

Size Code Price

1/2 775106051 9.28

3/4 775106052 10.09

1 775106053 11.34

11/4 775106054 14.29

11/2 775106055 17.06

2 775106056 22.73

Couplings*

Non end-load

Size Code Price

1/2 775106001 8.81

3/4 775106002 9.59

1 775106003 10.76

11/4 775106004 13.60

11/2 775106005 16.24

2 775106006 21.59

See the range of spares packs

for connecting PE and lead

pipes

*Anchor points must be used to

prevent pipe separation.

Pipe o.d. range (mm)

14.5 — 21.9

19.5 — 27.4

26.5 — 34.4

36.2 — 43.1

43.1 — 49.0

57.9 — 60.8

Seals - EPDM

Finish - Galvanised

30

31

*Firejoint Spares for Natural Gas Applications(Internal &

External)

Size Seal Pipe Code Price

Type Material

1/2 Firejoint Steel 775958971 6.13

3/4 Firejoint Steel 775958972 6.31

1 Firejoint Steel 775958973 7.22

11/4 Firejoint Steel 775958974 9.52

11/2 Firejoint Steel 775958975 10.94

2 Firejoint Steel 775958976 11.88

*Spares for Imperial PE

(Yellow Gas pipe to GC/PSP1 & PL2 (Pre 1975))

Size Seal Pipe Code Price

Type Material

1/2 NBR PE 775963961 12.16

3/4 NBR PE 775963962 12.84

1 NBR PE 775963963 13.50

11/4 NBR PE 775963964 15.05

11/2 NBR PE 775963965 16.89

2 NBR PE 775963966 20.25

*Spares for lead water pipe(to BS 602)

Pipe o.d. Seal Lead Pipe Code Price

mm Type size Material

18.74 - 20.96 EPDM 3/8-5,5/8-3 775956841 6.23

23.78 - 26.88 EPDM 1/2-9,3/4-4&5 775956842 6.70

28.8 - 31.4 EPDM 3/8-9 775956813 14.94

30.84 - 33.76 EPDM 3/4-11 775956843 7.76

39.6 - 43.1 EPDM - 775956844 17.82

47.5 - 50.7 NBR - 775958845 16.85

* Spares pack contains - rubber seal, locking ring and washer

(Firejoint pack includes special seal & nut in addition)

1/2 EPDM Steel 775959951 3.73

3/4 EPDM Steel 775959952 3.81

1 EPDM Steel 775959953 4.16

11/4 EPDM Steel 775959954 5.25

11/2 EPDM Steel 775959955 5.97

2 EPDM Steel 775959956 7.75

20 EPDM PE 775959961 4.66

25 EPDM PE 775959962 4.76

32 EPDM PE 775959963 5.19

40 EPDM PE 775959964 6.55

50 EPDM PE 775959965 7.46

63 EPDM PE 775959966 9.71

*Spares for Potable Water Applications

Size Seal Pipe Code Price

Type Material

20 NBR PE 775958961 4.66

25 NBR PE 775958962 4.76

32 NBR PE 775958963 5.19

40 NBR PE 775958964 6.55

50 NBR PE 775958965 7.46

63 NBR PE 775958966 9.71

20 Insert PE (SDR9) 775950201 2.82

25 Insert PE (SDR11) 775950202 2.89

32 Insert PE (SDR11) 775950203 3.40

40 Insert PE (SDR11) 775950204 4.32

50 Insert PE (SDR11) 775950205 5.55

63 Insert PE (SDR11) 775950206 7.60

*Spares for Natural & LP gas and Fuel oil Applications

Size Seal Pipe Code Price

Type Material

2

George Fischer Sales Limited

Paradise Way, Coventry CV2 2ST

Tel: 024 7653 5535, Fax: 024 7653 0450

email uk.ps@georgfischer.com

website www.georgefischer.co.uk

Stockist

LITGF0622 (Oct 09)
