www.progeny.co.uk

Products & Solutions

2 www.progeny.co.uk

Tel: +44 (0) 1254 883348

Fax: +44 (0) 1254 889113

Email: sales@progeny.co.uk

Web: www.progeny.co.uk

BSB Electronics Ltd

Progeny House

Union Court

Heys Lane Industrial Estate

Great Harwood

Lancashire

BB6 7FD

England

www.progeny.co.uk

Contents

CONTENTS

Welcome ____________________ 3

What’s New__________________ 4

Website _____________________ 5

Designing a System __________ 6

Compact ____________________ 8

C2 Compact Prox _____________ 10

P1 Stand Alone ______________ 10

P2 Online ___________________ 11

P3 Online ___________________ 14

Crystal Controllers ___________ 19

Interlock ____________________ 24

Readers ____________________ 27

Keyboards __________________ 36

Egress Devices ______________ 37

Training _____________________ 38

Compliance _________________ 38

How to Find Us_______________ 39

V4 November 2014 3

4 www.progeny.co.uk

WHAT’S NEW?

Find out about our NEW additions to our Crystal Range on Page 19

www.progeny.co.uk

Website

WWW.PROGENY.CO.UK

WEBSITE

Have you visited our website? At www.progeny.co.uk you will find our software download links, case studies and latest

news. We also have a new Helpesk and eSupport page where you can go if you are experiencing any technical is-

sues. Alternatively, please scan the QR code below with your smart phone to go straight to our site.

6 www.progeny.co.uk

Introduction

Electronic Physical Access Control provides 24/7

security. This can be to protect people, valuables or

information. Designing the ideal access control

system involves lots of important choices.

Here are some the main considerations:

Identification method

Reader Technology & Credentials (Crystal, iCLASS,

MIFARE etc.)

Online or Stand Alone / Compact

Communication Method

Which doors will be controlled?

Selecting a computer system

Integration with other systems (Fire, Membership

Software etc.)

Identification

There are three principle methods of electronic

identification:

Secret Knowledge (Access Code or PIN)

Token (Card, Key fob)

Biometric (Fingerprint, Iris Pattern and others)

Each method has its pros and cons. These can be

used individually (“Single Factor Identification”) or in

pairs to get “Two Factor Identification”. Using a Card

and Code, for instance, would be two factor

identification and improves security by cancelling

some of the cons of each factor.

Photo ID

With online access control software it is possible to

manage the printing of PVC cards, personalised with

company name, employee details/photo etc.

Stand Alone / Compact

All programming is done locally for each door via a

keypad provided with the controller. There is no need

for computers of any kind. Ideally suited for small

numbers of doors and users. Compact access

controllers have the reader (usually a keyboard) and

controller built into the same unit. These systems offer

the lowest cost.

See the Compact, P1 & C2 pages for more detail.

Online

With an online networked solution, you can control an

unlimited number of doors and sites from a single

server.

The software allows simple programming and

monitoring of the system. If the connection is lost or

the PC switched off the controllers carry on as

normal. See the P2 & P3 pages for more detail.

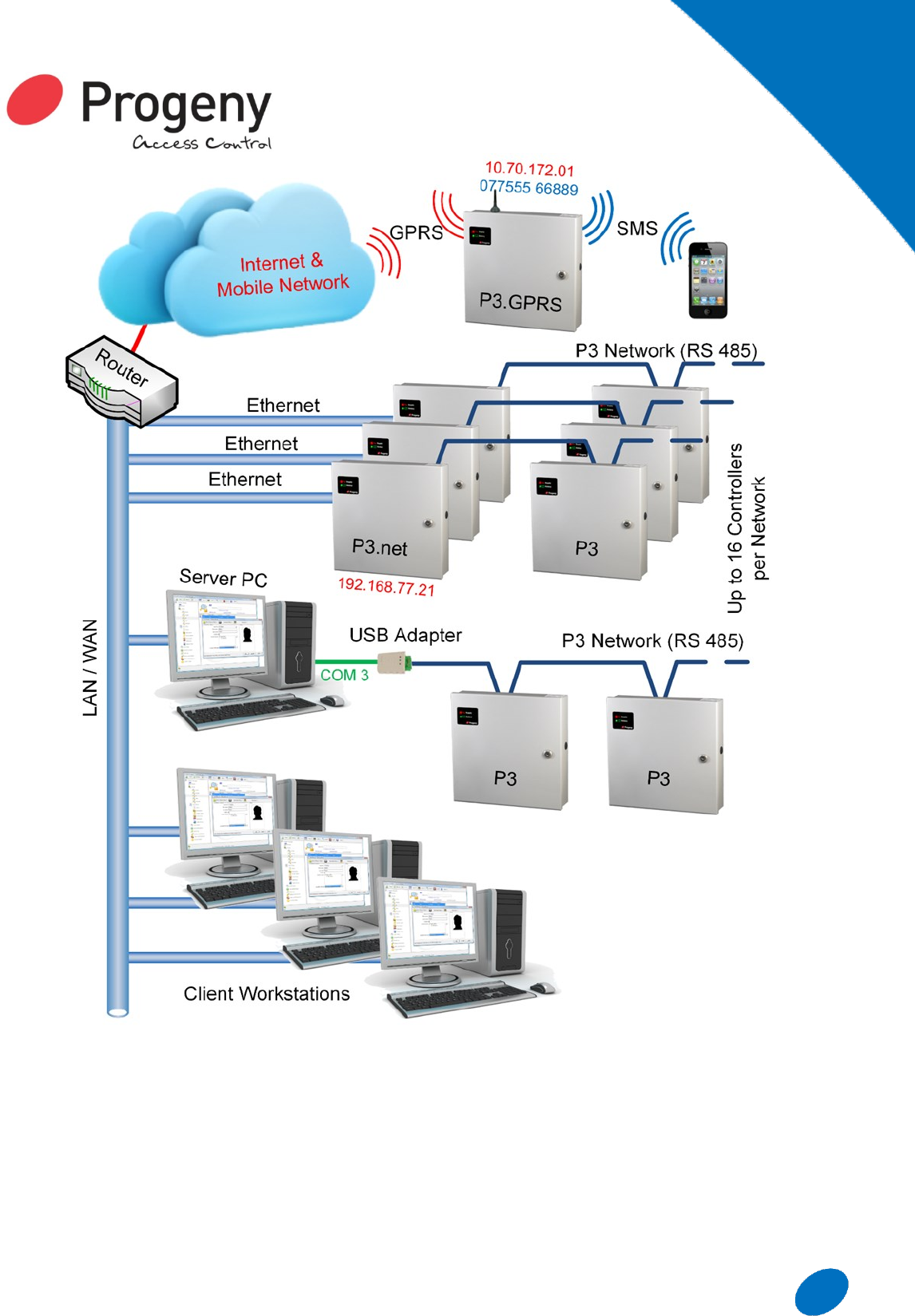

Choosing Communication Method

IP addressable Ethernet can make use of an existing

LAN or one can be created for very little cost. The

main advantages are hardwired infrastructure,

freedom of choice for locating server and workstation

PC’s. Also the best choice if you are using any server

based features such as Roll Call or Anti-Pass back.

USB and Serial methods are more suited to small

systems with single PC.

GPRS ideal for those locations were you have power

but it is difficult to get data cable to the controllers.

DESIGNING AN

ACCESS CONTROL

SYSTEM

www.progeny.co.uk

Introduction

Emergency Egress

Care needs to be taken, when an access control door

forms part of an emergency egress route. Commonly

used methods with fail open locking devices include:

 Fire Relay (Part of the fire alarm system)

 Green Call Point

 Fire Space Zone (Server based feature only to

be used in conjunction with one of the first two)

Cables

It is important to use the correct cables:

 RS 485 Network : Screened twisted pair

(Belden 8132)

 Reader : Screened 8 Core

 Keyboards : Screened 8 Core

 Lock : Rated > Lock Current

 RQE : Screened 8 Core

Reporting

Event reporting is one of the main benefits of having

an “Online System”. All events: (Card Transactions,

Releasing, Opening, Closing, failed access, etc) are

time stamped and recorded. This information can then

be filtered and presented in many ways to get at the

management / monitoring information you need. Re-

ports can be exported to TSV, XLS or CSV format.

Reports include History, Attendance, “Roll Call” &

“Time Sheet”.

Read In / Read Out

This is a choice of whether to have a card reader on

one or both sides of the door. If mounted on the out-

side only then a request to exit button / mechanical

egress will be required on the inside. This usually

comes down to whether you need to track the move-

ments of users in and out of that area, e.g. for roll call.

Integration

Integration can happen at three levels:

 Credential (Shared use with other systems e.g.

Cashless Vending, T&A, “Follow Me” Printing)

 Controller Hardware (Wired connections be-

tween systems e.g. Fire Alarm, CCTV)

 Software (Data sharing / exchange between

systems e.g. T&A, Biometric, Membership

Management, E-Booking systems)

Selecting a PC

Selecting the correct PC for an access control system

is very important and can be a challenge. The follow-

ing guidance notes are designed to help you through

the selection process.

Some of the considerations are as follows:

Single PC or Client / Server PC configuration

Dedicated or shared use of the Server PC and / or

Workstation PC

Availability of the server & client PC i.e. 24/7 or only

during working hours etc.

System features being used

Dedicated: refers to a PC that is used entirely for the

access control system. The only other applications

loaded are those needed to maintain the PC.

(Antivirus, backup software etc.). You will need a ded-

icated server if using any of the server based features

such as “Roll Call” or “Zoned APB”.

Shared: refers to a PC that is used for access control,

but also for one or more applications such as Ac-

counts, Contact management Building Management,

DVR, etc. This is generally ok for workstations that

are not required for mission critical tasks such as

“Alarm Handling” and “Roll Call Printing”.

Operating System for the PC / Server

Workstation:

Both “Doors Express” and “Doors Enterprise” are

compatible with Windows 7 and Windows 8. Microsoft

are dropping support for XP in 1st quarter 2014 so not

recommended for new installations.

Server:

Recommended, Server 2008, Server 2012.

Introduction

8 www.progeny.co.uk

Compact &

Standalone

APPLICATIONS -

 Small Business

 Storage Units

 Car Parks

 Social Clubs

 Recreational Clubs

 Remote Sites

COMPACT

These systems comprise of a range

of combined keyboard controllers

(Compact) that can also include a

proximity reader combination (C2).

STAND-ALONE

No PC is required to program these

systems. All programing is done via

the keyboard and is password pro-

tected.

GREAT VALUE

These systems are ideal for small

security applications with a low

number of users, making it cost

effective and easy to manage.

www.progeny.co.uk

COMPACT

KEYBOARD

CONTROLLERS

Simple and cost effective systems which can be used

in various environments and are ideal for low security

applications. The keyboards have the access control

mechanism built in. To complete the system a low

voltage power supply unit (12V DC), a locking device

(Mag-lock or Electric Strike) and an egress device are

all that is required.

Installation

Any competent installation engineer will be able to

install this equipment without any special training.

Simply connect the power supply unit, locking device

and egress device and you are then ready to program

the control unit.

Simple to Use

Each channel can be operated with up to 50 codes.

The two channels can be combined to give a total of

100 access codes for a single door. The codes can be

4, 5 or 6 digits in length, to operate one of the

channels simply enter the access code for that

channel. A correct code entry will change the LED to

green and the output relay will activate.

Alternatively the second channel may be used as a

secure switch, not just keypad access control. Both

channels have door monitoring to for PDO (prolonged

door open) alarm.

The DF (door forced) alarm is generated when the

door has been opened without a valid code or egress

activation. In order to do this door sensors must be

connected.

2059 Classic

This unit offers the lowest cost of the

compact range. The keyboard is fully

potted and weather proof with a

membrane keyboard and key press

‘beep’.

This particular design features a call

button for visitors and includes a

tamper switch.

2064 VR

Designed for outdoor

environments, this controller is

vandal resistant and weatherproof.

The satin chromed solid zinc keys

and housing are also backlit.

2067 Spy Proof

Traditional ‘Spy Proof’ keyboard allows covert entry of

an access code. The design provides a top quality

product along with architecturally pleasing aesthetics.

High gloss chrome finish. Internal use only.

Keyboard Controllers

2059

Classic

2064

Vandal Resistant

2067

Spy Proof

2131

Flush mount Back Box

2132

Surface mount Back Box

COMPACT FEATURES

 Available in three designs

 Low Power

 2 Channels

 50 Codes Per Channel

 1 to 99 Seconds and Toggle Mode

 Voltage Free Contacts

 Tamper Switch

 Individual Request to Exit Inputs

 Hacker Alarm

 “Door Failed to Close” Alarm

Compact

10 www.progeny.co.uk

C2 Compact Prox

The new C2 system consists of proximity reader and a

two-channel controller-keyboard. Each channel has its

own relay output. One channel is dedicated to the

proximity reader and cards. The second channel is

used in conjunction with a keyboard to provide code

based secure switch or access control.

The C2 has a 100 card user capacity and 50 access

codes and allows control of 1 or 2 doors.

Installation

Any competent installation engineer will be able to

install this equipment without any special training.

Simply connect the power supply unit, locking device,

proximity reader and egress device and you are then

ready to program the control unit.

Configuration

The proximity reader is normally used for entry. The

keyboard/Control unit can be situated in a number of

locations to serve as an additional role: Second Door,

Secure Switch Etc.

The C2 Range

The C2 system is available in various designs to suit

aesthetic and environment needs and are all suitable

for external use.

Typical applications include: small business

installations and storage rooms.

P1 STAND ALONE

The P1 controller utilises the separate controller/reader

structure, required for higher security applications. It is

designed to work with the Progeny range of readers &

keyboards

The P1 controller is available in one or two door

options and has a built in 12V 5A charger power

supply.

The controller is an ideal solution for “Lobby Entry”

applications, where the product will read any standard

bank card and determine access into semi-secure

areas such as ATM lobbies, high security cash rooms

etc.

The P1 controller has a high security Interlock interface

as standard which allows control of entry to and from

areas that need to be secured against two doors being

opened simultaneously.

C2 Product Codes

3859 C2 Compact Crystal & Keyboard

3859-SP C2 Compact with Switch Plate

Reader

3859-MULL C2 Compact with Mullion Reader

3859-P C2 Compact with Panel Mount

Reader

P1 Product Codes

2163

P1 Controller with 5A PSU (1 Door)

2163D

P1 Controller with 5A PSU (2 Door)

Compact

P1 FEATURES

 Available in One or Two Door

Versions

 10,000 Card Holders

 Built-in 12V 5A Charger PSU

 Non-Volatile Memory (40 years)

 “Fail Secure” or “Fail Safe” Lock

Drive

 Monitored Fire & Intruder Inputs

 Second General Purpose Relay

 2 x Standard Reader Interface

 1 x Dedicated Keyboard Interface

 Progeny Touch Switch Compatible

 Standard Interlock

www.progeny.co.uk

SIMPLY P2

SIMPLE TO SPECIFY

Connectivity is simplified to just two options:

USB and IP Addressable (Ethernet). The P2

network then uses a single twisted pair to daisy

chain controllers up to 1000 metres away. One

controller per door with the option of card in/

card out makes listing the equipment needed

child’s play. Same cost credentials mean card

or fob decisions can be made later.

SIMPLE TO INSTALL

Any competent installation engineer will be able

to install this equipment without any special

training. The wiring has been greatly simplified

reducing the number of both cores and cables.

The 3800 Progeny Crystal reader also mounts

on a standard UK single gang back box, making

first fix possible. Cabling costs can be reduced

by wiring the egress button or switch along with

the door contacts in to the back of the reader

saving running multiple cables to the door con-

troller.

SIMPLE TO USE

The software has been carefully designed to be

easy to use. A setup wizard will help you scan

for any connected door controllers and then

take you through registering the credentials.

The credentials can be entered manually or

simply presented to a reader. The wizard will

then do all the rest of the work to get the cre-

dentials working. Standard Windows interface

techniques have been used so that users will be

able to start using the software with very little

guidance.

APPLICATIONS:

 Systems of up to 16 doors

 2000 users in size

 Small Schools

 Nursery Care

 Small Offices

 Retails shops

 Cash & Carry

P2 System

12 www.progeny.co.uk

P2 Hardware

USB Interface

Using a desktop reader can help with card manage-

ment. For convenience, the 3803 USB interface has

been designed to accommodate a reader.

IP Connectivity

Any system that can make use of the existing IP infra-

structure offers cost savings, and reduced disruption

during installation.

Simple Programming

The programming of the ‘IP Address’ into the control-

ler is simply done using the keyboard provided with

the P2.net.

P2 Product Codes

3801

P2 Controller

3802

P2.net Controller

3821

P2 Controller with 5A PSU (1 Door)

3821D

P2 Controller with 5A PSU (2 Door)

3822

P2.net Controller with 5A PSU (1 Door)

3822D

P2.net Controller with 5A PSU (2 Door)

3803

P2 USB Interface

3808

P2 Software: Doors Express

3811

P2 Demo Case (USB)

3812

P2.net Demo Case (IP, Ethernet)

Credentials

3800

Crystal Reader (Switch Plate)

3820

Crystal Reader (Mullion)

3830

Crystal Reader (Panel Mount)

3804

Crystal Card (ISO)

3805

Crystal Fob

3806

Crystal Sticky Dot

P2 Hardware

www.progeny.co.uk

P2 SOFTWARE:

DOORS EXPRESS

P2 access controllers require a PC to program the

system. The software used for programming the

system is called Doors Express. The software uses

Microsoft SQL database technology which provides

security and reliability. The software is split into two

main components:

P2 Server

Progeny P2 Server provides the link between the

controllers, database and client.

Doors Express Client

Doors Express Client provides a simple interface for

unlimited end users.

Automatic Setup Wizard

P2 includes a handy setup wizard which will search

for doors wired into the network and add them on to

the system automatically. Cards can also be added

during initial set up meaning that in just a few clicks

the system can be setup and running after loading the

software for the first time.

Hardware Volume Control

The software

allows the end

user to turn

down or mute

the volume of

the general

feedback of

card

transactions

from the reader

and controller.

Hardware Feedback & Fault Monitoring

The P2 system sends the voltage readings from the

controller and readers back to the PC.

Simple Card Management

An easy to use interface allows the user to quickly

add cards on to the system.

Simple Attendance & Absence Reporting

Doors Express allows the user to setup reports that

can show a card holders attendance.

If a more detailed attendance analysis of a card

holder is required then a “Time Sheet” report can be

created.

Floor Plan Alarms

In Doors Express Professional, a CAD or other

suitable drawing of the building can easily be added

into the system.

SOFTWARE FEATURES

 Database (SQL Server)

 Live Event Reports

 History Reports

 Attendance/Absence Reports

 Roll Call Report

 Client Workstations

 Photo ID Badge Printing (Fixed

Design)

 Text Alarms with Audit Trail

 Zoned Door Release on Fire Alarm

 Automatic Scheduled Backup

 Automatic Scheduled Archive

 Setup Wizard

 ID Badge Design

 Zoned Anti-Pass-Back

 Floor Plan Alarms

 Card Data Import

P2 Online

Software

14 www.progeny.co.uk

P3 SYSTEM

MULTI-SITE

P3 is an online access control system for single

or multiple sites. IP connectivity gives easy

reach to sites that can be anywhere in the

world.

CONTROL

The PC based software allows live changes to

be made to access profiles; you can enable/

disable users with just a few clicks.

ACCOUNTABILITY

All activity on the system is monitored and rec-

orded. A wide selection of point and click re-

ports are then available to drill down onto that

valuable information.

SCALABLE

P3 systems are scalable from small to large

systems; with capacity for up to 10,000 card-

holders and 65,000 doors.

FLEXIBLE

With a wide range of readers and credentials to

choose from these systems are ideal almost any

application: Health, Leisure, Commercial, Bank-

ing, Building Site and Cash Handling.

INTEGRATION

Credential, Hardware and Software level inte-

gration with other systems including member-

ship management, T & A software, Lift Controls,

Cashless vending etc…

Hardware

www.progeny.co.uk

Hardware

P3 SYSTEM

Connectivity Options

To extend the reach of the P3 system three methods

of connectivity are provided:

 USB: Using the 3107 P3 USB to 485 adapter, the

server PC can be connected to the P3 network

with 1Km reach.

 LAN/WAN (IP addressable): This makes use of

the customer’s existing data network. The P3.net

connects into a standard RJ45, 10/100 Base T

network point and uses UDP/IP to communicate

with the server PC.

 GPRS (IP addressable): for mobile and difficult to

reach applications.

Distributed Intelligence

The P3 access controller is designed with the

flexibility to be programmed both stand alone

16 www.progeny.co.uk

and from a PC. This means the controller can be

installed and operational even before the network and

PC are available.

Scalable

The system architecture allows for expansion without

any major overhead in equipment.

Distributed Intelligence

The on-board memory of each controller stores all the

access control information for a given door.

Choice of reader Technology

Card reader type can be selected from, “Mag Stripe”,

“Proximity”, and “Biometric”. P3 will interface to 35

standard reader technologies plus the ability to define

custom formats through the advanced engineers

menu.

2000 Event Memory

Each controller has its own real time clock and event

log memory to allow for the system to continue

operation even when isolated from the PC or the

remainder of the network.

Charger Power Supply

The 12V 5A Charger power supply has space for a

standard 12V 6AHr Sealed Lead acid battery (not

supplied).

P3.net IP Addressable (Ethernet) Access

Control

P3.net make use of standard Ethernet local area

network connections to communicate with the central

access control server PC. Each P3.net has an RJ45

socket and uses the UDP/IP protocol with very little

data bandwidth. This can make use of an existing

network, or a separately installed dedicated network.

P3 Lift Controller

The P3 Lift Controllers are available as either 2 floor,

2 shaft controllers (3007-2F) or 4 floor, 2 shaft

controllers (3007-4F). The lift controllers can be

added to an existing P3 system allowing for lift access

to be controlled with a single reader in the lift cab.

P3.SIM (System Integration Module)

SIM stands for Systems Integration Module and is not

to be confused with your mobile phone SIM. The P3

SIM is available in two forms. The P3 SIM has a built

in power supply, 16 inputs and 16 relay outputs.

These are primarily designed to be general purpose

input and output.

Server based features in the Doors Enterprise

Software can then make use of these inputs and

outputs for:

 Fire Door Monitoring

 CCTV DVR Integration

 Alarm Condition Notification

 Car Park Full Indications

 Many more…

FEATURES

 Fully Distributed Intelligence

 65,000 Doors

 10,000 Card Holders

 2000 Event Log Memory

 125 Access Levels per site

 32 Time Zones per site

CONTROLLER FEATURES:

 Stand Alone & Online Operation

 12V 5A Charger PSU

 Non-Volatile Memory (40 years)

 On-board Real-Time Clock

 “Fail Secure” or “Fail Safe “Lock

Drive

 Second General Purpose Relay

 Fire & Intruder Inputs

 Connectivity: RS 232, USB,

Ethernet (IP) & GPRS

 2 x Standard Reader Interfaces

 1 Dedicated Keyboard Interface

 Progeny Touch Switch Compatible

Hardware

www.progeny.co.uk

P3.SIM (Input Only)

The P3 SIM Inputs have 16 inputs and 1 relay output.

These are primarily designed to be general purpose

input. Most of the functionality comes from server

based features such as triggers and alarms. The P3

SIM provides a good means of monitoring fire doors

that do not have access control connected. The in-

puts can be programmed to be inverted or not, allow-

ing “normally closed” or “normally open” contacts to

be connected

P3 Product Codes

3001

P3 Controller with 5A PSU (1 Door)

3001D

P3 Controller with 5A PSU (2 Door)

3002

P3.net Controller with 5A PSU (1 Door)

3002D

P3.net Controller with 5A PSU (2 Door)

3004

P3.SIM (16 inputs and 16 Outputs)

3004-IN

P3.SIM (16 Inputs and 1 Output)

3006

P3.GPRS Controller (1 Door)

3007-2F

P3 Lift Controller (2 Floor, 2 Shaft)

3007-4F

P3 Lift Controller (4 Floor, 2 Shaft)

3107

P3 USB Interface

3109

P3 Software: Doors Enterprise

Readers & Credentials

Choose from any of the Progeny range of

Keyboards, Readers and Credentials

Hardware

18 www.progeny.co.uk

DOORS

ENTERPRISE

MS SQL Server Database

Microsoft SQL Server Database delivers increased

security, scalability and availability to the access

control data.

Doors Enterprise Server

Doors Enterprise Server provides a single point of

communication between clients, the database and the

P3 access controllers.

Doors Enterprise Client

Doors Enterprise allows for an unlimited number of

work stations and software users.

Custom Database Fields

Up to 25 Custom Fields can be created to contain

additional information about cardholders.

Each custom field can be one of 5 types for

example: you might need a drop down box for

department or a calendar date pick for an employee

start date.

Multi-Lingual

Each client workstation can easily select its own

language setting. The client-side translation dictionary

includes English and French with other languages

available on request.

Dormant Card Policy

Doors Enterprise allows you to decide on a maximum

time that a card should legitimately not be used. Once

this time has lapsed the card will be marked as

dormant and disabled from all doors.

Wizards

Wizards make setup and importing of data a very

simple and intuitive process.

Importing data with card data import wizard provides

feedback at every stage.

Space zones keep track of who is currently in that

zone, based on log in and log out use of a card or

token. A roll call report can be run off manually or

automatically.

FEATURES

 MS SQL Server database

 Each client workstation can easily

select a language setting. The client-

side translation dictionary includes

English and French with other

languages to follow.

 Up to 25 Custom Fields can be

created to contain additional

information about cardholders.

 Live Event Reports

 History Reports

 Attendance/Absence Reports

 Simple Timesheet Report

 Roll Call Report

 Client Workstations

 Photo ID Badge Design & Printing

 Text Alarms with Audit Trail

 Zoned Door Release on Fire Alarm

 Automatic Scheduled Backup/Archive

 Setup Wizard

 Zoned Ant-Pass-Back

 Floor Plan Alarms

 Card Data Import Facility

Software

www.progeny.co.uk

CONTROLLERS

New Controller Range

Backward compatible with the P1, P2 and

P3 systems. Works with the latest version

of Doors Enterprise.

Models

There are 4 different controllers in the range;

the Module, the 2A Single Door and the 5A

One and Two Door.

Memory

New high speed non volatile memory with

long data retention has been increased as

standard to 32,000 with option for 128,000.

Solid State Lock Drive

The new controllers have an additional switch

that allows for some new lock driving modes

that reduce relay contact wear.

Connectivity

A new expansion interface allows immediate

connection of the new GPRS module as a

‘piggyback’ to the PCB.

New Features

Crystal Controller launches with all the fea-

tures of P3 and more.

20 www.progeny.co.uk

TYPICAL WIRING DIAGRAM

www.progeny.co.uk

Access Levels

 Up to 4 access levels per site can be

assigned to card holders

 250 access levels to choose from per site

LOCK RELAY

The Crystal Controllers have the traditional relay

to switch the +ve leg of the lock supply.

However, it also has a new Electronic Switch in

the negative wire. This allows for some new lock

driving modes that will reduce if not eliminate

relay contact ware. The modes are:

 Standard (relay only)

 Protected (Relay and Electronic Switch)

 Electronic (Electronic Switch only) VA

 Electronic (Electronic Switch only)

IP Addressable

The new Ethernet electronics no longer need any

option links. Also, the configuration parameters

has been simplified, faster and more secure.

EXPANSION INTERFACE

A new expansion interface allows immediate

connection of the new P3 GRPS module as a

piggyback to the PCB. Other expansion modules

are in the design pipeline including:

 Simplified lift controller

 New Input / Output

COMPATIBILITY

The overall terminal block foot print remains

unchanged from the P3 controller. However, an

individual reader buzzer signal is now provided to

simplify wiring

The reader interface now include native support for

the Crystal Readers. Taking advantage of the

simplified 4 wire two way interface.

MEMORY

Card Memory

 32,000 as standard

 128,000 as an option

 200 year data retention

 No card packs

 No more site code restrictions

Card memory has been upgraded both in capacity

and size. The Crystal Controller will not use card

packs internally and will treat all cards as flexi

cards, increasing flexi card capacity to 128,000.

Event Logging

This is increased to 8,000 events per controller.

Random Search

A new feature that allows for randomised impartial

searches to be carried out. Adjustable search rate

from ‘1 in 1 to 1 in 99. Randomly flags users to be

security searched as they pass through the door or

turnstile.

P1 P2 P3 Crystal Standard Crystal Large Memory

Card Memory 10,000 2000 10,000 32,000 128,000

Event Memory - 2000 2000 8000 8000

Network - 115KBs 19.2KBs 19.2KBs 115KBs

Access Levels 1 of 1 2 of 127 2 of 125 2 of 125 4 of 250

Interlock Yes No Yes Yes Yes

Lock Drive Relay Relay Relay Electronic or Relay Electronic or Relay

22 www.progeny.co.uk

Product

Code Product Description

Controllers

4001M Crystal 1 Door Controller Module

4002M Crystal.net 1 Door Controller Module with Ethernet

4001-2A Crystal 1 Door Controller with 2A Charger PSU

4002-2A Crystal.net 1 Door Controller with 2A Charger PSU

4001-5A Crystal 1 Door Controller with 5A charger PSU

4002-5A Crystal.net 1 Door Controller with 5A charger PSU with Ethernet

4001D-5A Crystal 2 Door Controller with 5A charger PSU

4002D-5A Crystal.net 2 Door Controller with 5A charger PSU with Ethernet

4003 Crystal.POE 1 Door Controller with Power Over Ethernet

4006 1 Door Crystal Controller with 5A Charger PSU & GRPS Interface

4006D 2 Door Crystal Controller with 5A Charger PSU & GRPS Interface

Readers and Touch Switches

3800 Crystal Reader (Switch Plate)

3810 Crystal Reader Touch Switch

38410-MULL Crystal Reader Touch Switch (Mullion)

3820 Crystal Reader (Mullion)

3824 Crystal Reader Surface Spacer (SP)

3824-MULL Crystal Reader Surface Spacer (Mull)

3830 Crystal Reader (Panel Mount)

4803 Crystal USB Desktop Reader

4124 Low cost keyboard with Wiegand or BCD interface

4121 VR Keyboard with Crystal Interface

4124-RF Crystal combined Keyboard & Reader

Credentials

3804-10 Crystal ISO Card Pack

3805-10 Crystal Fob Pack

Miscellaneous

3107 USB Adaptor (RS485)

www.progeny.co.uk

Car Park Monitoring

Zoned roll call can also be used to monitor shared car

park usage. A simple roll call report can be set up for

each group of users and the display will show total

quantity and who is using the car park.

Photo ID

The software also includes an ID badge designer.

Photos can be easily captured and saved for each

card holder and printed using a suitable card printer

from within Doors Enterprise.

Time Sheet

The time sheet report will collect all the in and out

transactions for each user. These are tabulated with

totals for each in and out and totals for each user at

the bottom.

Time Zones

Having granted access to a card holder with an

access level, time zones allow you to control when

they have access. This control is further extended by

linking to calendars.

Calendars

Calendars allow exception dates to be planned in,

bank holidays etc.

INTEGRATION

An equally important feature of any contemporary

access control system is its ability to integrate with

other systems. The Progeny range of access control

systems integrate at 3 defined levels:

Credential Level

Credential level of integration a card or

fob is used for access control plus one

or more other systems.

Hardware Level

Integrate with Fire, Intruder, Lifts,

CCTV, Turnstiles, telephone/video

entry; the list goes on.

Software Level

Automated Data Import allows very useful yet simple

integration with third party applications such as

“Membership Management” or “Booking Systems”.

Time and Attendance software is a prime example of

software level integration with an Access Control

System where the SQL server database is shared.

Software

24 www.progeny.co.uk

INTERLOCK

SYSTEMS

HIGH SECURITY

Also known as Air Lock & Tiger Traps, Interlock

systems control the locking of two or more

doors, such that if one door is open or unlocked,

the remaining doors refuse access.

ADAPTABLE

Doors can be normally locked (normal action) or

unlocked (reverse action) to suit the application.

Doors may have full access control using card

readers, keyboards etc. They may also be

simply released using push buttons or touch

switches.

SCOPE

Two, three and four way interlocks can be

created as standard. Contact our support team

for systems with more doors involved.

APPLICATIONS:

 Clean Rooms

 Bank Lobbies

 Cash Handling

 Laboratories

 Jewellery Stores

Interlock

System

www.progeny.co.uk

Simple 2 Door Interlock

Each door is electrically locked and monitored. The

control electronics then generates a control signal to

indicate when the door is closed and secure. Each

controller also has a control input that will prevent the

releasing of the locking device. By cross connecting

these control signals, the door controllers

communicate the door status, and only open one door

at any given time. The simplest interlock would have

two doors and standard systems can be made up to

four doors.

Normal Action

With normal action interlocks all the doors are normally

locked and a “Trigger” device of some kind is used to

unlock a door. While a door is unlocked or open, other

doors are prevented from unlocking. This type of

interlock is most commonly used for security, with

typical applications including: Bank Lobbies, Cash

Handling, Photo, Laboratories, Clean Rooms, and

Jewellery Stores.

Reverse Action

With reverse action interlocks all the doors are

normally unlocked but monitored. When any one of the

doors is detected as “open”, all the other doors are

then locked. These are most commonly used for

functional control rather than security. Reverse and

normal action interlocks can also be mixed on the

same system.

Interlock

System

Interlock

System

26 www.progeny.co.uk

3 Door Mixed with Access Control

Doors may be controlled by P1, P3 controller and/or

an interlock controller.

The trigger device can be a simple push button or an

access control keyboard or card reader. All the

Progeny P1 and P3 controllers have interlocking

interfaces as standard. This means you can mix

interlock controllers with access controllers on the

same system.

3 Door Mixed with Access Control

An “Interlock Programmer” is used to greatly simplify

connecting the interlock signals. It also allows for

easy and flexible programming of the interlock

system. A 12 way DIP switch allows the interlocking

to be programmed in any combination. On board

indicators show current interlock signal status.

Interlock Product Codes

2089

Interlock Controller with 5A PSU (1 Door)

2089D

Interlock Controller with 5A PSU (2 Door)

2069

Interlock Programmer

Access Controllers with Interlock

2163

P1 Controller with 5A PSU

3001

P3 Controller with 5A PSU

3002

P3.net Controller with 5A PSU

3006

P3.GPRS Controller with 5A PSU

Interlock

System

www.progeny.co.uk

READERS &

KEYBOARDS

INTRODUCTION

Identifying a prospective user of a door is one of

the most important tasks of an access control

system.

 Keyboards will allow the entry of secret

knowledge in the form of a “PIN” or an

“Access Code”.

 Readers will extract a credentials

Identification Number.

 Biometric Readers read a physical pattern of

some sort that is unique to person.

For higher security these can be used in

combination to provide two or even three factor

identification.

RFID

“Radio Frequency Identification” (RFID) comes

in many shapes and sizes. All of these can be

interfaced with the Progeny P1 and P3

controller products.

MAGSTRIPE

Still a popular low cost token based means of

identification. These readers extract the

magnetically encoded numbers from the

magnetic strip on the back of a card.

BIOMETRIC

One of the integration success stories has been

that of P3 system with biometric readers. In

particular iRIS ENTRA and the iEVO Fingerprint

readers.

Readers &

Keyboards

28 www.progeny.co.uk

Readers

CRYSTAL RFID

READERS

The Crystal Proximity reader is a universal RFID

reader which can easily be configured by the user to

work with the C2, P1, P2 and P3 systems. The

readers are IP rated and are available in four styles;

Switch Plate, Mullion, Panel Mount and Classic. The

readers are also available with a pigtail flying lead,

further enhancing the IP rating should there be a need

to mount the reader externally. Crystal readers work

with Crystal credentials which ensure compatibility,

reliability and cost savings.

Crystal Switch Plate

This reader mounts directly on to a standard UK

single gang back box making it an ideal solution for

first fix.

Crystal Mullion

This style reader is suitable

for mounting on to door

frames or posts or other

locations that cannot make

use of a single gang back

box. The reader is also

available with a pigtail flying

lead to provide extra flexibility

when mounting on to surfaces

that cannot be easily chased

out or to provide an extra

level of protection for outdoor

environments. The reader is

also supplied with a stainless

steel cover for a more modern

aesthetic.

Crystal Panel Mount

This reader is also supplied with a stainless steel

cover. This IP

rated reader has

standard

mounting holes

and is designed

to fit in to an

intercom or entry

panel.

Spacers

These are

available for

both the switch plate and mullion versions of the

Crystal Proximity readers and are made from the

same durable material as the readers themselves.

www.progeny.co.uk

Vandal Resistant

Crystal Switch plate reader with protective Stainless

Steel Front Plate

Credentials

Crystal Readers

3800 Crystal Proximity Switch Plate

3820 Crystal Proximity Mullion Reader/

3820P Crystal Proximity Mullion (Pig Tail)

3830 Crystal Proximity Panel Mount

Reader Spacers

3824 Switch Plate Spacer

3824-Mull Mullion Spacer

UID Credentials

3804-10 Crystal ISO Cards pack of 10

3804-100 Crystal ISO Cards pack of 100

3805-10 Crystal Key Fobs pack of 10

3805-100 Crystal Key Fobs pack of 100

Site Coded Credentials

3840 Crystal Site Coded ISO Card

3841 Crystal Site Coded Key Fob

Crystal

Readers

30 www.progeny.co.uk

FEATURES

 HI CO Cards

 Track 2 or Track 1

 Low Cost Credentials

 Surface Mount

 Weather Proof

Magstripe

MAGSTRIPE

The magnetic stripe, often called a “Magstripe”, is

read by swiping past a reading head. Magnetic stripe

cards are commonly used in credit cards, identity

cards, and transport tickets.

READERS

Progeny Magstripe readers are Track 2 as standard.

Readers for Track 1 are available, please contact our

sales team for more information. Both readers are

compatible with P1 or P3 Controllers.

2075 is a Magstripe reader for indoor or outdoor use.

The reader head provides an extremely reliable

reading capability with over 1 million head passes.

Made from an ultra-tough UV resistant polycarbonate,

this reader is very durable, even in the harshest

conditions.

Magstripe Readers

2075 Magstripe reader (TRK2)

2075-TRK1 Magstripe reader (TRK1)

Cleaning

Reader Spacers

2150 Cleaning Cards (Pack of 10)

Site Coded Credentials

2014 Mono Magstripe Card

2015 Colour Magstripe Card

www.progeny.co.uk

Progeny HID Proximity

HID proximity cards and readers are recognized as

the industry standard for physical access control.

Featuring 125 kHz RFID technology, HID proximity

products are robust, affordable and seamlessly

integrate with access control systems.

Progeny iCLASS

Progeny iCLASS offers widely supported card level

integration to third part systems such as:

 Cashless Vending

 Follow Me Printing

iCLASS SIO-Enabled (SE™) smart card readers

support Secure Identity Object™ (SIO), a new

portable credential methodology from HID, and HID's

Trusted Identity.

Technology-independent - Supports multiple

technologies (iCLASS Seos and iCLASS SE

credential platforms, standard iCLASS, MIFARE, and

MIFARE DESFire EV1).

Progeny HID Prox Readers

2052-HID Prox Point Reader (Mullion Pig Tail)

2050-HID-

Prox Pro Reader with Keyboard

2058-HID Progeny Prox Reader (Mullion Ter-

minal)

2053-HID Vandal Resistant Prox Reader

2060-HID Panel Mount Prox Reader

Site Coded Credentials

2042-HID ISO Prox Card

2043-HID Prox Key Fob

2044-HID Prox Clam Shell Card

2045-HID Prox Sticky Dot

Progeny iCLASS Readers

3231 Progeny iCLASS Reader (Mullion)

3231-M Progeny iCLASS Reader to read

MIFARE CSN

3237 Progeny iCLASS Reader with Key-

board

Site Coded Credentials

3232 ISO iCLASS Card

3233 iCLASS Key Fob

3235 iCLASS Sticky Dot

3238 iCLASS Clam Shell Card

“So you can use the same card for

access to the office and use it to

pay for coffee while you wait for

your print queue to print”

Progeny

HID

32 www.progeny.co.uk

Hands Free & Safety Registration

Basic features:-

 “Hands Free” Tags and Readers

 Long life active tags

 Secure digital data exchanges

 Hands free reading range (>3.0m)

 Fast (20 tags/sec.) multiple reading

 High level noise immunity (digital

transmissions)

 Direction sensing firmware

 Inert tags until in reader detection zones

Applications

The product is suitable for numerous applications,

they include but are not limited to:

 Direction Sensing

 Two Door Controller

 Personnel & Product Tracking

 Time and Attendance

 Hands Free Access Control

 Car Parking Control

 Personnel Identification

 Personnel & Article Tracking

Details

The direction sensing reader utilises two external loop

aerials to enable sensing at ranges of up to 3 metres.

Alternatively the same device can monitor two

independent doors which are close together without

providing direction information. The radiofrequency

communications are scrambled to provide high

integrity, and to prevent simulated tokens being used.

Used in the direction sensing mode a tag moving from

one loop to another will have its direction of travel

identified by the reader. The speed of reading tags is

effectively halved compared to a single zone reader.

Hands Free

www.progeny.co.uk

LONG RANGE

RFID

The Progeny Telekey has a read

range up to 25 metres and is an

ideal way to control access through

automated gates, rising barriers etc.

Fobs can be enabled or disabled

from the access control system and

all users will be identified and

logged.

The long read range removes the

need to have the reader on a post by the road

side. Vehicle users do not need to get out of the

cab in order to open a barrier.

The Telekey fob is also available with embedded

Progeny prox, HID prox or iCLASS credentials.

How it works

Each key fob has a unique ID number (site code &

card number), pressing one of the buttons on the

fob transmits this number. When in range, this

number is read by the reader and passed onto a

standard P1 or P3 access controller for decision

making.

Each fob can be treated as any

other credential and allocated:

 Access Levels

 Time zones

 Calendar limits

 “Valid from” and “Valid to” dates

The IP 56 enclosure of the reader makes it suitable

for indoor or outdoor mounting. This removes the

possible need to dig up road or car park to run cables

to readers near the gate or barrier. The reader also

has two reader outputs that correspond to the two

buttons on the fob. This can be used to control two

barriers from one reader possibly for in / out

applications.

Telekey can be added to any P1 or P3 access control

system. The reader also works in tandem with

whatever existing reader technology is in

Long Range

Overview

 2 channels (2 buttons)

 Up to 25 Metre range possible

 Available with Crystal, HID or MIFARE

 Standard Progeny reader interface

 Surface mount

Long Range Readers

3300 Telekey Reader

Site Coded Credentials

3301 Telekey Fob

3806-10 Crystal Sticky Dots pack of 10

2045-HID Prox Sticky Dot

3235 iCLASS Sticky Dot

34 www.progeny.co.uk

Biometric Integration

What are Biometrics?

Biometrics can be taken literally as 'life measurement'

but the term is usually associated with the

measurement and use of unique physiological

characteristics to identify an individual such as

Fingerprints, Face or the Iris.

Advantages of Biometrics

Identification based on biometric techniques removes

the need to remember a password or carry a token

which also eliminates theft of cards or fobs and

therefore constant replacements. Biometric options

are also more cost effective as individuals can be

easily added or removed from the system at no extra

cost.

iEVO Fingerprint Biometric Reader

Fingerprint Recognition

Everyone has a unique, unchanging fingerprint. A

fingerprint is made of a series of ridges and furrows

on the surface of the finger and these are used to

determine the uniqueness of the fingerprint. Once

scanned on the fingerprint sensor, the image of these

patterns is converted into a code through a

mathematical sequence called an algorithm, which

effectively becomes a digital form of you. This is

stored on a database for comparison which identifies

a virtual card number to be sent to the Progeny range

of controllers.

Biometric

Integration

www.progeny.co.uk

CRYSTAL BARCODE

READER

The 2030-SC is a scanning optical barcode reader.

The reader is weather protected and suitable for both

indoor and outdoor use.

Reader

The switch plate style has 60mm spaced mounting

points to fit a standard single gang back box.

The switch plate reader comes with an attractive

stainless steel cover to give protection and a modern

aesthetic.

The switch plate reader can be surface mounted.

Cards are presented below the reader.

Optional Position Target

This optional accessory assists the novice user to

position the card at the correct

distance and location. This is

particularly useful in full sunlight when

the scanning light bar is difficult to

see.

Credentials

The scanning barcode reader will

work with most common coding types:

Code 39

All UPC/EAN/JAN

Code 128

CODABAR/NW7

Interleave 25

And more…

Only numeric data is processed by

the reader.

Specification

Operating Voltage Range 8-14 VDC

Supply Current (Ta > 6 °C) 95mA

Supply Current (Ta < 6 °C) 350mA

Operating Temperature -20 to 65°C

Operating Humidity 0 to 95%

Transmit Frequency 125Khz

Cable Distance 100m

Crystal

Barcode

Reader

P2 Product Codes

2030-SC Crystal Barcode Reader (Scanning)

2030-ST Optional Position Target

36 www.progeny.co.uk

KEYBOARDS

Keyboards cater for the “Secret Knowledge” method

of identification. They can be used by themselves or

in conjunction with token based credentials for

additional security. Keyboards can be used to enter a

common code used by more than one user or a true

Personal Identification Number (PIN). P3 systems

also allow for the entry of a “virtual card” via the

keyboard.

The principle advantage of using code or PIN alone is

that the user does not need to carry anything around.

There is no credential to get lost or stolen. Keeping

the “secret knowledge” secret is very important

however. The spy proof and scramble keyboards

have some interesting features to help with this and

are explained below.

“Spy-Proof” Keyboard

Allows covert entry of an access code. The design

provides a top quality product along with

architecturally pleasing aesthetics. The heavy gauge

chrome plated front is 7mm thick and is bright

polished to mirror finish. This provides a top quality

feel and a comfortable edge to rest the hand whilst

entering the code.

Vandal Resistant Keyboard

This keyboard is robust enough for any public facing,

outdoor applications. The back lit keys make access

code entry in the dark easy. Integral sounder gives

key beep and “Prolonged Door Open” alarm function.

FEATURES

 Stylish Design

 Spy Proof Front

 Indoor Use Only

Keyboards

FEATURES

 Vandal Resistant

 Back Lit Keys

 Surface Mount

 Weather Proof

www.progeny.co.uk

FEATURES

 No Moving Parts

 Auto Adjust to Environment

 Status Indication

 Audible Feedback

Keyboards

2040

Spy Proof Keyboard

2121

Vandal Resistant Keyboard

2011S

Scramble Keyboard (Surface Mount)

2011P

Scramble Keyboard (Panel Mount)

Egress Devices

3810 Touch Switch (Switch Plate)

3810-MUL Touch Switch (Mullion)

Scramble Keyboard

Interfaces with the P1 & P3 controllers in much the

same way as any other Progeny KB, but provides much

greater security by ensuring that only the person using

the keypad can see which numbers are being entered.

In addition, the numbers behind each key are moved

randomly each time the keyboard is used.

As the digits are scrambled observing which keys are

pressed will not reveal the code or PIN to a potential

intruder.

Each time the Progeny Scramble keyboard is used, the

digits 0 to 9 are allocated at random to the keyboard’s

10 keys. There are over 3.6 million permutations! This

also ensures that the keys wear equally, even if the

same code is always used.

EGRESS DEVICES

The Progeny Touch Switch is a general purpose

switch capable of detecting near-proximity or

touch. It detects tiny changes in the capacitance

at the front surface. The switch uses a patented

spread-spectrum charge-transfer technology.

Every 80 seconds the switches self-calibrate, this

means that the switch can accommodate large

changes in surface capacitance due to; humidity,

nearby objects etc. Designed specifically for

"Request to Exit" or "Request to Enter Call"

applications. The fully sealed IP66 enclosure

makes it suitable for both, internal or external use.

The "Switch Plate" version will mount on any

standard single gang light switch back box.

The "Mullion" version is ideal for those space

restricted locations.

FEATURES

 High Security

 Covert Code / PIN Entry

 3.6 million permutations

 Even Key top Wear

 Surface Mount or Panel Mount

38 www.progeny.co.uk

TRAINING

BSB Electronics provide training courses at Progeny

House. Our training courses run for a full day.

If you would like to attend then please contact our

customer support team.

On Site Training

BSB Electronics can also provide onsite training. The

course length will be approximately five hours long

and will provide an overview of the product along with

a solid grounding on use and the setup of the system

on Doors Enterprise.

On Site Commissioning and End User

Training

To check that Progeny equipment has been installed

to the correct standard, BSB Electronics can provide

a commissioning day if required or time permitting,

on site end user training. The hardware installation

will be inspected and tested, and the software

installation (if an online system) will also be inspected

and tested for correct setup. A commissioning day

commences at 10:00 and lasts until approximately

16:00

COMPLIANCE

We are committed to working closely with our

suppliers, distributors, installers and customers to

ensure that we are properly prepared and taking the

necessary steps so as to comply with any European

Directive. More detailed information on compliance

can be found on the website.

CE marking is a declaration by the manufacturer that

the product meets all the appropriate provisions of the

relevant legislation implementing certain European

Directives.

WEEE

(Waste Electrical and Electronics Equipment

Directive)

This directive is aimed at the reduction of waste from

Electrical and Electronic Equipment and to improve

the environment. Producers are encouraged to

improve the life cycles of the equipment they

manufacture.

DDA 2005

(Disability Discrimination Act 2005)

This directive builds on and extends earlier disability

discrimination legislation, principally the Disability

Discrimination Act 1995. Under the Act, small to

medium sized businesses have to make reasonable

adjustments so they do not discriminate against

disabled customers or employees.

 Touch Switches - Clear labelling & no

moving parts

 P2 & P3 - Two stage lock release for

automatic door openers

 P3 delay to lock release

 P2 & P3 auto relock feature

 Doors Express/P2 - Adjust the sound level

of readers

RoHS

(Restricted Use of Certain Hazardous Substances

Directive)

Directive 2002/95/EC on the Restriction of the use of

certain

Hazardous Substances in Electrical and Electronic

Equipment (RoHS)

IP Ratings

(Ingress Protection)

IP Ratings are defined in international standard EN

60529 (British BS EN 60529:1992, European IEC

60509:1989).

Compliance

& Training

www.progeny.co.uk

ADDRESS

BSB Electronics

Progeny House

Union Court

Heys Lane Industrial Estate

Great Harwood

Lancashire

BB6 7FD

England

Tel +44 (0)1254 883348

Fax +44 (0)1254 889113

DIRECTIONS FROM THE M6

 Exit M6 at Junction 29 - follow the signs for the M65

Burnley. Exit M65 at Junction 7 (A6175) and bear left to

the traffic lights.

 At the traffic lights turn right and proceed to the next set

of traffic lights.

 Turn left onto the A680 and follow the road until you see

the Hyndburn Bridge pub, on the left.

 Take the next left turn at the traffic lights into Hyndburn

Road (sign-posted ‘Great Harwood’) then turn first left

into Heys Lane Industrial Estate onto Alan Ramsbottom

Way.

 Continue along Alan Ramsbottom Way for approximately

600m and Progeny House on the right.

DIRECTIONS FROM MANCHESTER AIRPORT

 Join the M56 slip road and follow the signs to Manchester.

 Join the M60 (Manchester Orbital Motorway).

 At Junction 18 leave the M60 and turn onto the M66 (Bury).

Continue to the end of the M66. The road becomes the A56.

 At the end of the A56 turn left and join the M65 at Junction 8.

 Leave M65 at Junction 7.

 Take the third exit off the roundabout up to the traffic lights.

At the traffic lights turn right and proceed to the next set of

traffic lights.

 Turn left onto the A680 and follow the road until you see the

Hyndburn Bridge pub on the left.

 Take the next left turn at the traffic lights into Hyndburn

Road (signposted ‘Great Harwood’) then turn first left into

Heys Lane Industrial Estate. Progeny House is on the right.

Finding

HOW TO FIND US

40 www.progeny.co.uk

BSB Electronics Ltd

Progeny House

Union Court

Heys Lane Industrial Estate

Great Harwood

Lancashire

England

BB6 7FD

www. progeny.co. uk

Designed and Manufactured in England

T : 0 1 2 5 4 883348 F: 0 1 2 5 4 889113

Progeny 2014

Navigation menu

Versions of this User Manual:

Views

Navigation
