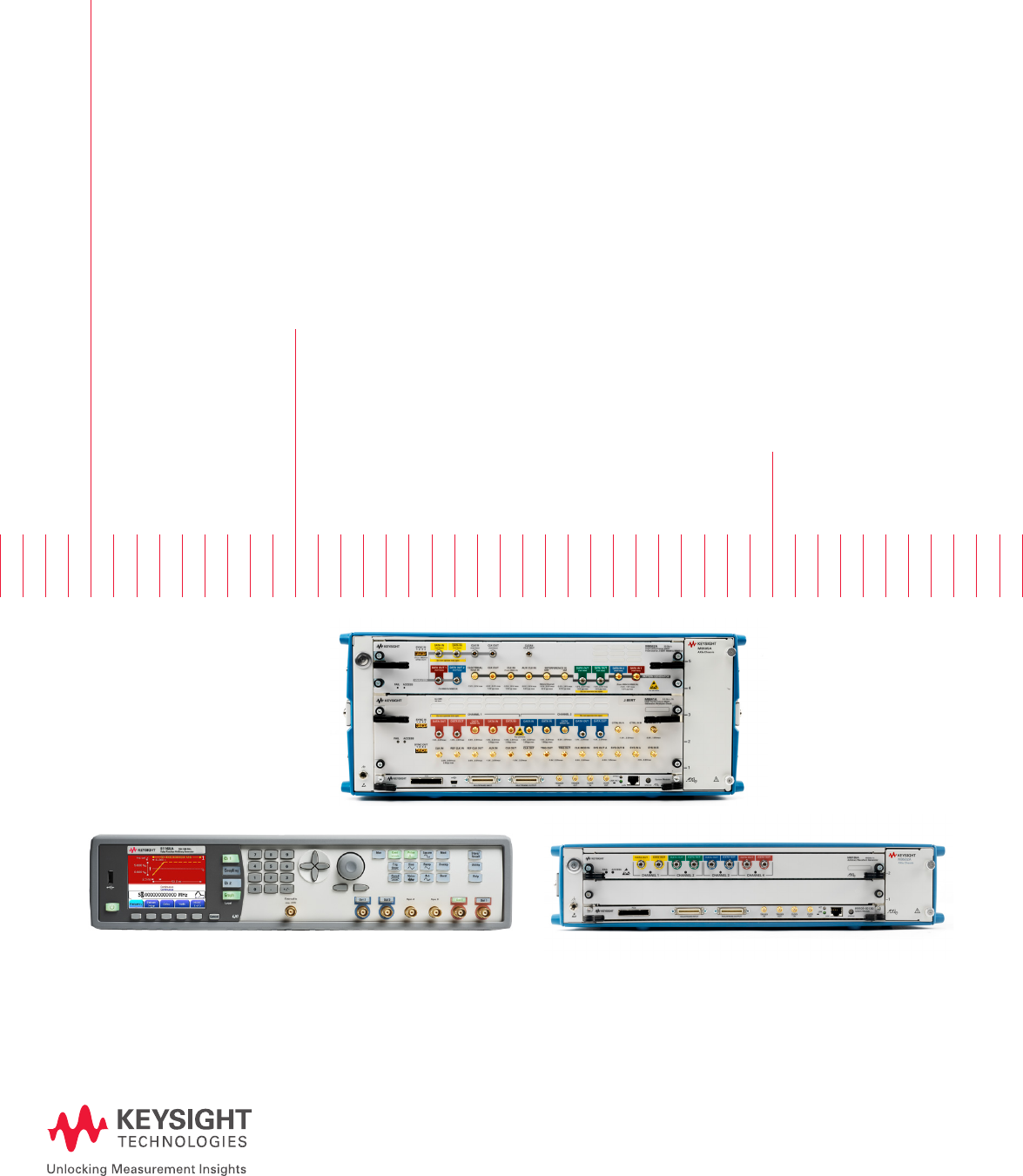

Keysight Technologies

Pulse Pattern and Function

Arbitrary Generators and

Arbitrary Waveform Generators

For Digital and Analog Testing

Leading versatile and precise stimulus

through ideal and real-world signals

Signal Sources for Design and Manufacturing

Revision 1.2

Sources for Analog and Digital Signals

Keysight offers a comprehensive portfolio

of pulse, pattern and function arbitrary waveform.

Whether your application calls for:

– Demanding digital pulses

– High-speed clock signals

– Square waves

– Flexible serial or parallel bit patterns and data streams

– Sine waves or arbitrary waveforms

– Modulation to shape the signal your DUT needs

– Jitter and noise generation to test your device to its limits

– High-resolution waveforms for radar and satellite

Keysight Technologies, Inc. provides the stimulus solution you are looking for.

Choose the performance you need from the portfolio of reliable

pulse generators, the data generator platform with up to 132 par-

allel channels or the multi-purpose pulse function arbitrary noise

generator instruments.

Keysight’s family of stimulus instruments comprises:

– Pulse generators

– Pattern generators

– Data generators

– PRBS generators

– Jitter generators

– Noise generators

– Controllable jitter injection

– Timing generators

– Function arbitrary generators

– Arbitrary waveform generators

Keysight provides the perfect signal generation instrument for

your application.

Whether you:

– Require powerful pulses for the latest generation of laser diodes,

– Need to characterize a high-speed serial bus device at the physical layer, or

– Need to get a detailed insight into your system’s signal integrity,

Keysight’s pulse pattern generators and pulse function arbitrary noise generators deliver

the reliable and accurate results you require.

HARDWARE + SOFTWARE + PEOPLE = INSIGHT

02 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

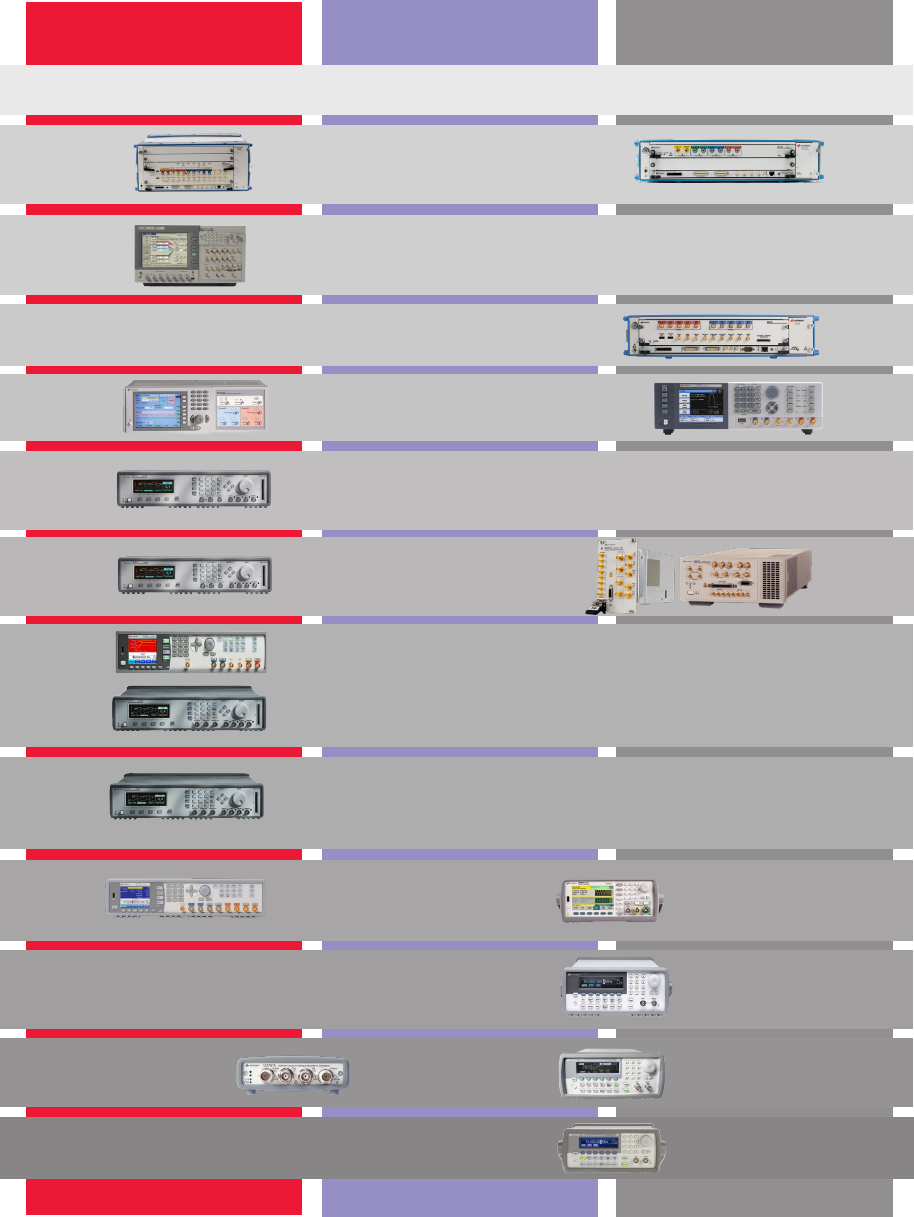

Function arbitrary

generator

Arbitrary waveform

generator

Pulse pattern

generator

Signal Sources

Modulation Bandwidth

Sine Wave PerformancePulse Perfomance

16.2 Gb/s

13.5 Gb/s

12.5 Gb/s

M8020A/41A-C16/G16

81250A

N4903B G13

M8195A

to 20 GHz

M8020A/41A-C08/G08

81250A

N4903B G07

7 Gb/s

5 GHz M8190A

to 5 GHz

3.35 GHz 81134A

81133A to 1.5 GHz 81180B

660 MHz 81130A

81132A

400 MHz 81130A

81131A

M933xA

N824xA

to 500 MHz

330 MHz

81110A/81112A

81160A

165 MHz 81110A /81111A

120 MHz 81150A to 240 MHz to 120 MHz

33621A

33622A

80 MHz

33250A

33611A

33612A

33220A

20 MHz U2761A

10 MHz 33210A

03 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

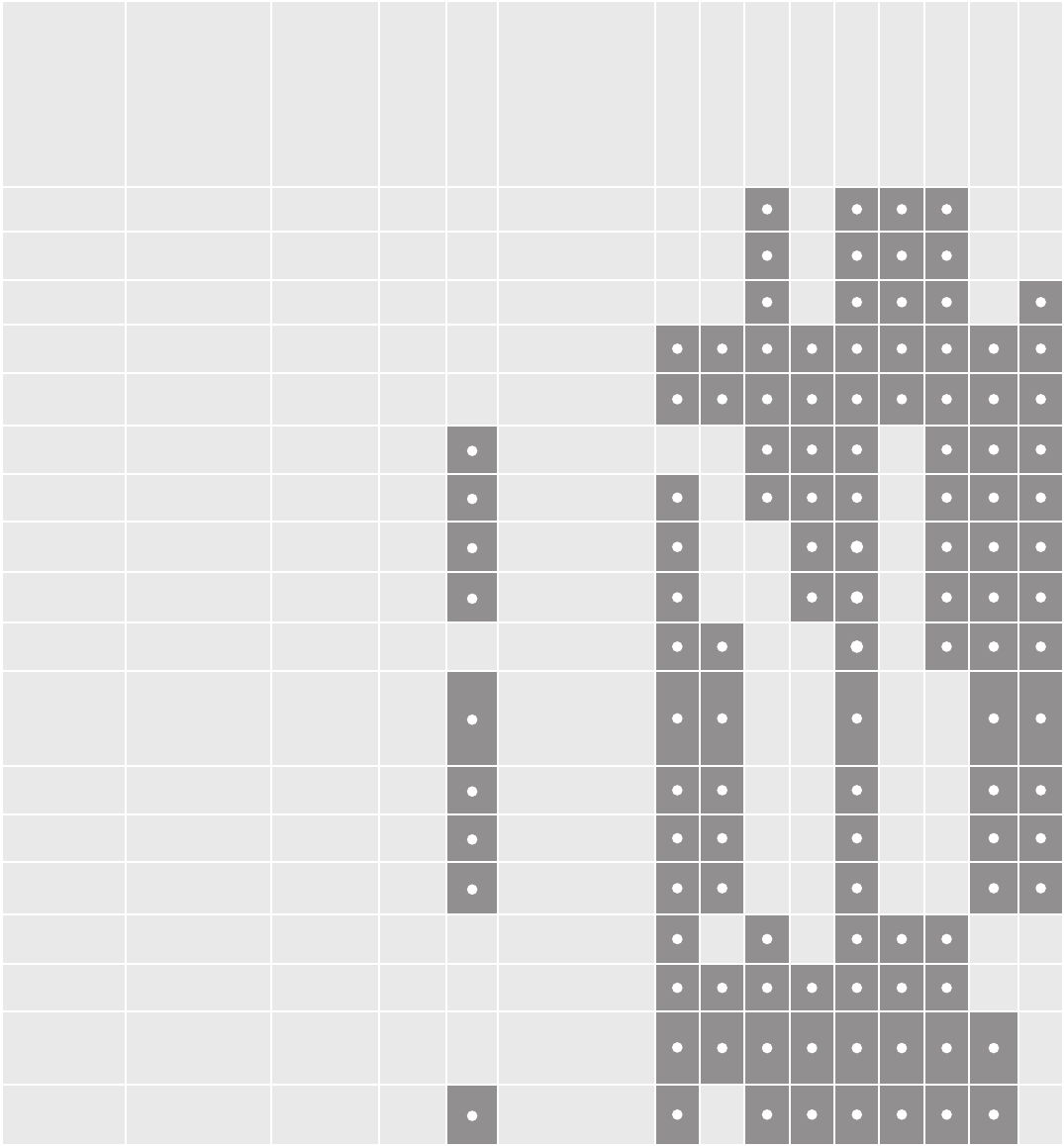

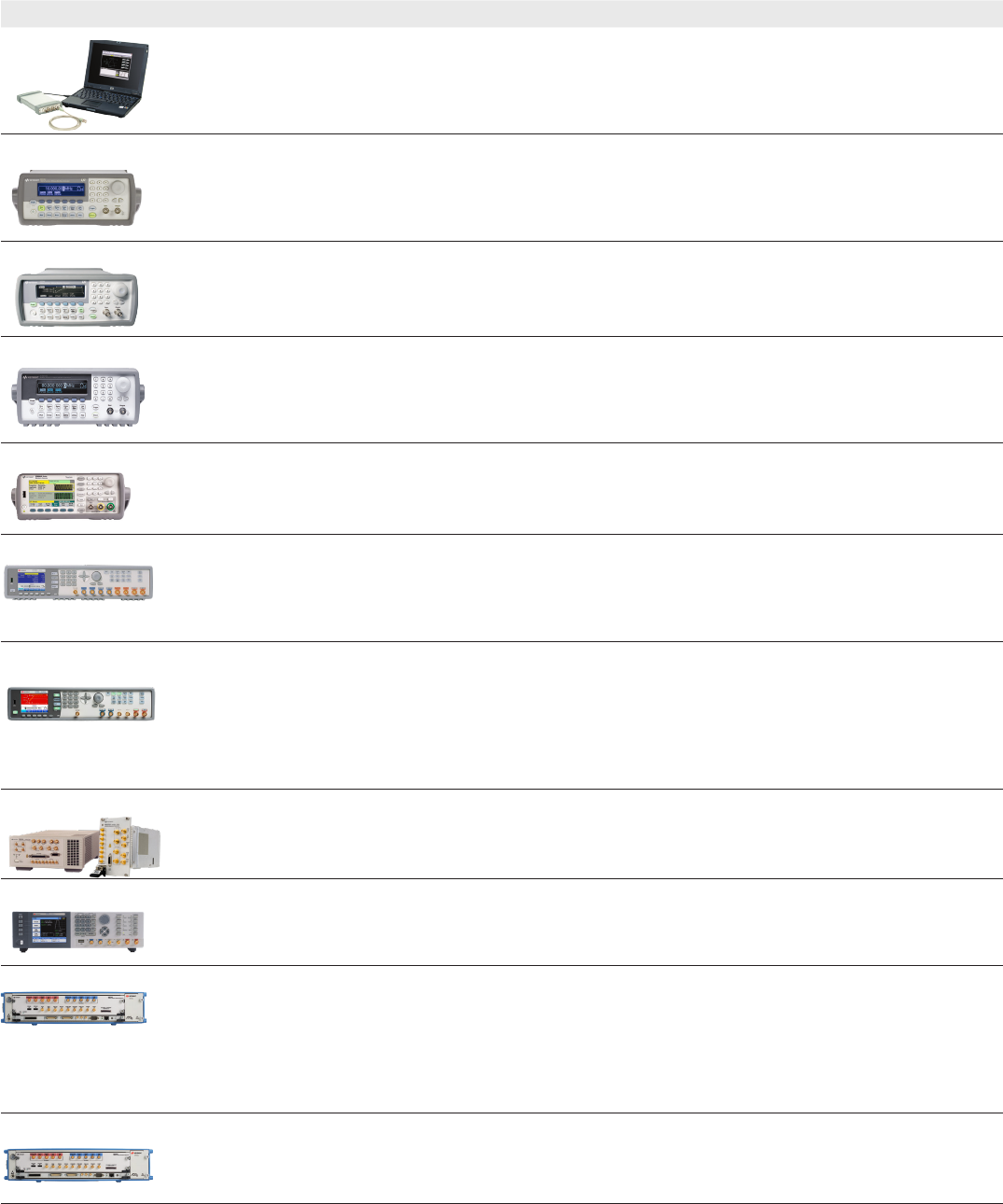

Product Number

Frequency range

Maximum sample rate

Number of channels

Optional 2nd channel

retrotable

Ampitude range

Differnetial outputs

LVDS levels

Triggerable

Gate mode

Remotely programmable

Sine waves

Pulse generation

Pattern & data generation

PRBS generation

U2761A 1 μHz - 20 MHz 50 MSa/s 1 40 mVpp - 5.0 Vpp1

332x0A/

33522A 1 μHz - 80 MHz 50/200/ 250

MSa/s 110 mVpp - 10 Vpp 1

3361xA/3362xA 1 μHz -120 MHz 660 MSa/s 1/ 2 1 mVpp - 10 Vpp 1

81150A 1 μHz - 240 MHz 2 GSa/s 1 or 2 100 mVpp - 10 Vp1

81160A 1 μHz - 500 MHz 2.5 GSa/s 1 or 2 50 mVpp - 5.0 Vpp1

81110A +

81111A 1 mHz - 165 MHz N/A 1 or 2 100 mVpp - 20.0 Vpp2

81110A +

81112A 1 mHz - 330 MHz N/A 1 or 2 100 mVpp - 3.8 Vpp2

81130A +

81131A 1 kHz - 400 MHz N/A 1 or 2 100 mVpp - 3.8 Vpp1

81130A +

81132A 1 kHz - 660 MHz N/A 1 or 2 100 mVpp - 2.5 Vpp1

81133A/

81134A 15 MHz - 3.35 GHz N/A 150 mVpp - 2.0 Vpp3

N4903B-G07/-

G13

150 Mb/s -12.5

Gb/s 4

- 14. 2Gb/s with

option D14

N/A 1 or 2 50 mVpp - 1.8 Vpp 3

M8020A +

M8041A/51A

256 Mb/s - 16.2

Gb/s 4 N/A 1 - 4 50 mVpp - 1.2 Vpp 3

M8020A +

M8061A

1 Gb/s - 32.0

Gb/s 4 N/A 1 or 2 50 mVpp - 1.2 Vpp3

81250A 20.8 Mb/s - 13.5

Gb/s 4 N/A 2 - 132 100 mVpp - 1.8 Vpp3

N824xA/

M933xA 1 Hz - 500 MHz 1.25 GSa/s or

625 Sa/s 2 0.5 Vpp - 1.0 Vpp1

81180B 10 kHz - 1.5 GHz 4.6 GSa/s 1 or 2 100 mVpp - 3.0 Vpp3

M8190A 1Hz - 5 GHz 12 GSa/s 1 or 2 350 mVpp -2.0 Vpp3

M8195A 4 Hz - 20 GHz 65 GSa/s 1, 2 or 4 250 mVpp - 1.0 Vpp3

1. 50Ωinto50Ω

2. 1kΩinto50Ω

3. single ended

4. ForBERTpatterngeneratorsonlybitratescanbespecied

ProductSpecicationsataGlance

04 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Product Number

Bursts

Data Bursts

Memory per channel

PRBS variations (2n - 1)

Segment looping

Controlled jitter injection

Variable width

Variable delay

Glitch-free timing changes (patented)

Analog channel add

Digital channel add

Multi-level signals

Modulation

Noise with adjustable crest factor

Uncopuple

Couple

U2761A

332x0A/ 33522A 64 kSa

3361xA/3362xA

4 MSa

(64 MSa with option

MEM)

n = 3, 4... 32

81150A

512kSa

(16 Mbit pattern

memory)

n = 7, 9, 11, 15,

23, 31

with pattern

option PAT

81160A 256 kSa

(4 Mbit pattern memory)

n = 7, 9, 11, 15,

23, 31

with pattern

option

330 or 660

81110A + 81111A 16 kbit n = 7,8,... 14

81110A + 81112A 16 kbit n = 7,8,... 14

81130A + 81131A 64 kbit n = 7,8,... 15 4 segments,

1 looping level

81130A + 81132A 64 kbit n = 7,8,... 15 4 segments,

1 looping level

81133A/ 81134A 12 kbit n = 5,6... 32 1

N4903B-G07/-

G13 32 Mbit n = 7, 10, 11, 15,

23, 31

120 segments,

1 looping level

M8020A +

M8041A/ 51A 2 Gbit n = 7, 10, 11, 15,

23, 31

500 segments,

3 looping levels

M8020A +

M8061A 2 Gbit n = 7, 10, 11, 15,

23, 31

500 segments,

3 looping levels

81250A 8 kbit

n = 7, 10, 11,

15, 23, 31 (also

PRWS)

30-60 seg-

ments,

4 looping levels

N824xA/

M933xA

8MSa

(16 MSa with option

016)

with option 300

32,000 seg-

ments

81180B 16 or 64 MSa 16,000 seg-

ments

M8190A 2 GSa

with option SEQ

219 = 524,288

segments

M8195A 16 GSa

per AXIe module with option SEQ

1. Glitch-free frequency changes only in 'direct' clock mode with external clock source

ProductSpecicationsataGlance(2)

05 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

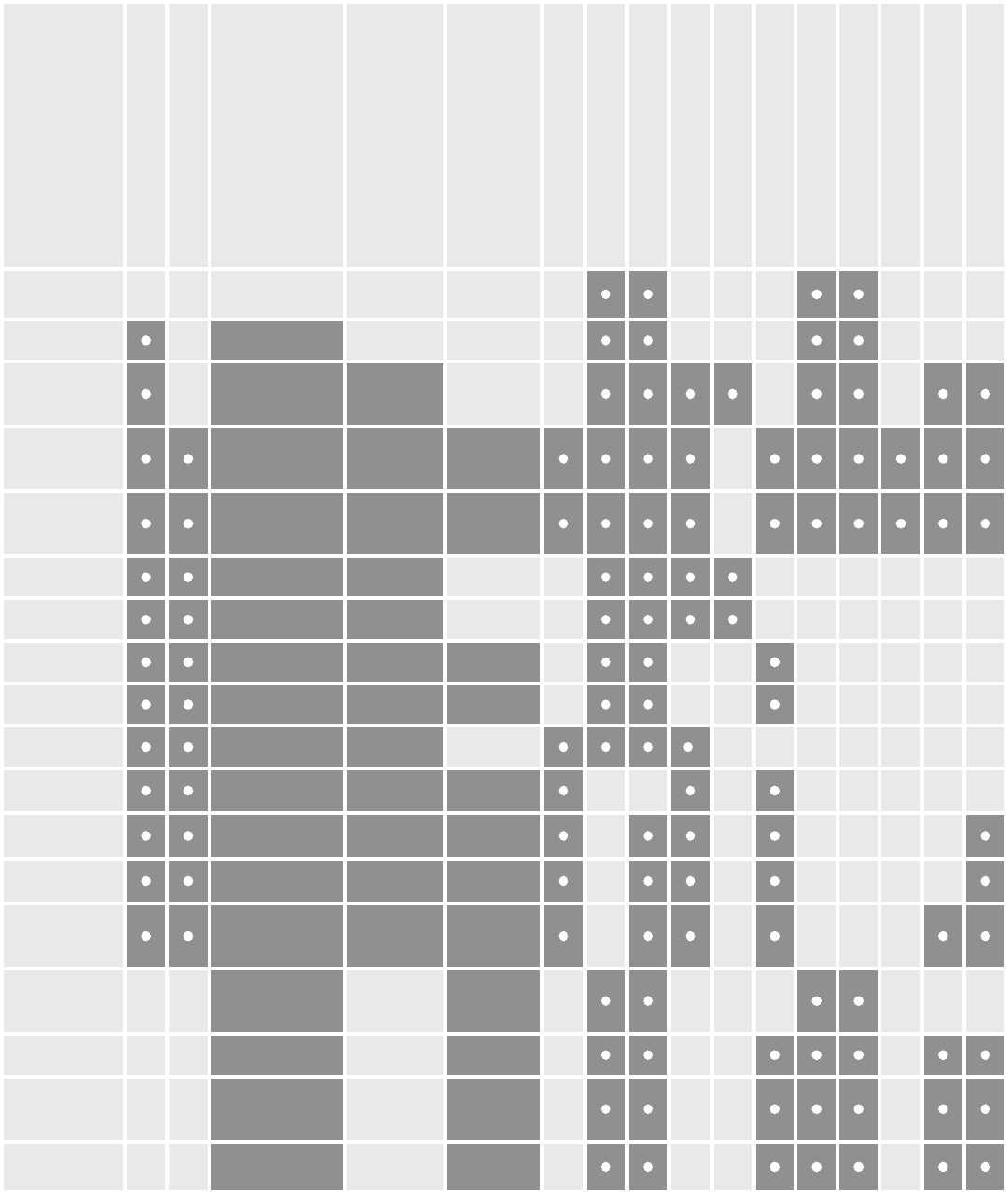

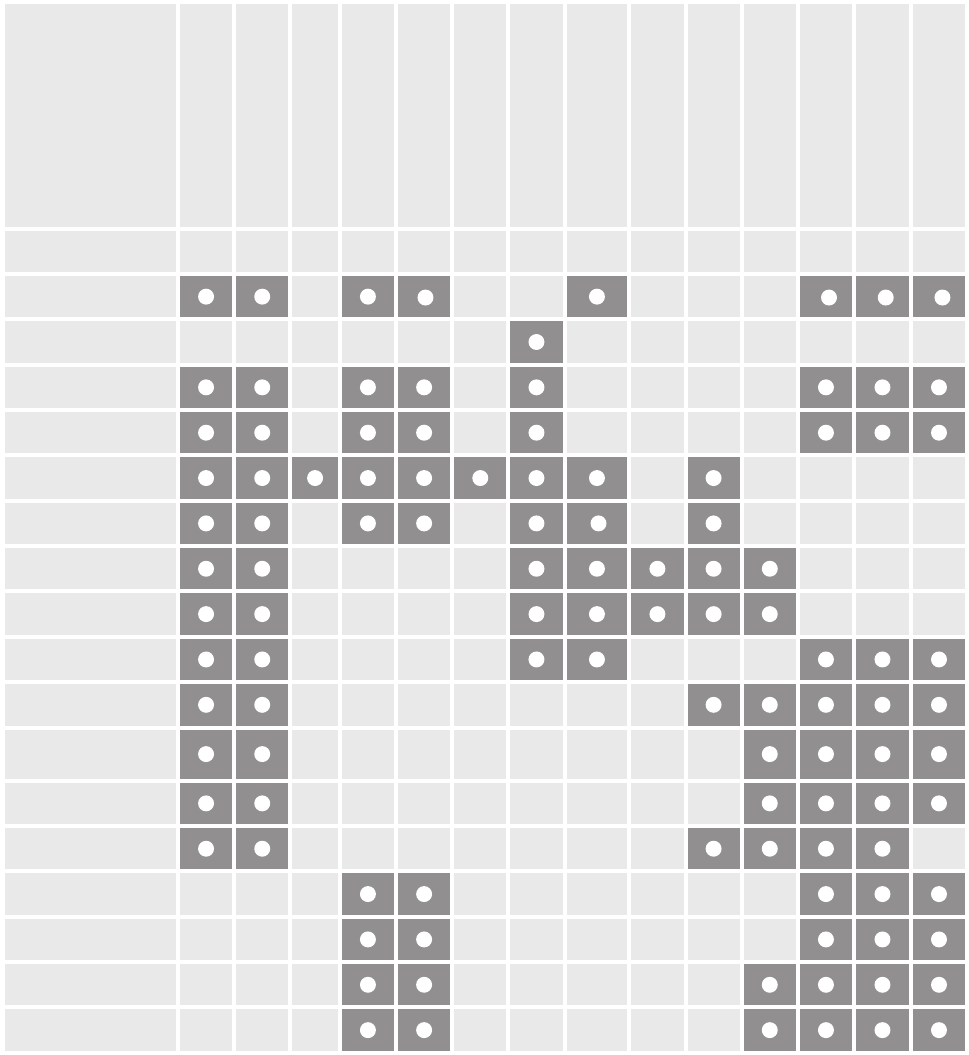

Clock generation

System trigger source

Diodes -LEDs

Radar test

Mixed signal devices

Flash chip test

PRBS generation

Data generation

Data looping

Serial bus test

< 1 Gbit/ s

Hig speed serial bus test

> 1 Gbit/ s

Signal integrity test

Jitter (stress) test

Noise immunity test

U2761A

332x0A/33522A

3361xA/ 3362xA

81150A

81160A

81110A + 81111A

81110A + 81112A

81130A + 81131A

81130A + 81132A

81133A/ 81134A

N4903B-G07/ G13

M8020A + M8041A/

51A

M8020A + M8061A

81250A

N824xA/ M933xA

81180B

M8190A

M8195A

Key Applications at a Glance

06 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Pulse generation and signal parameters

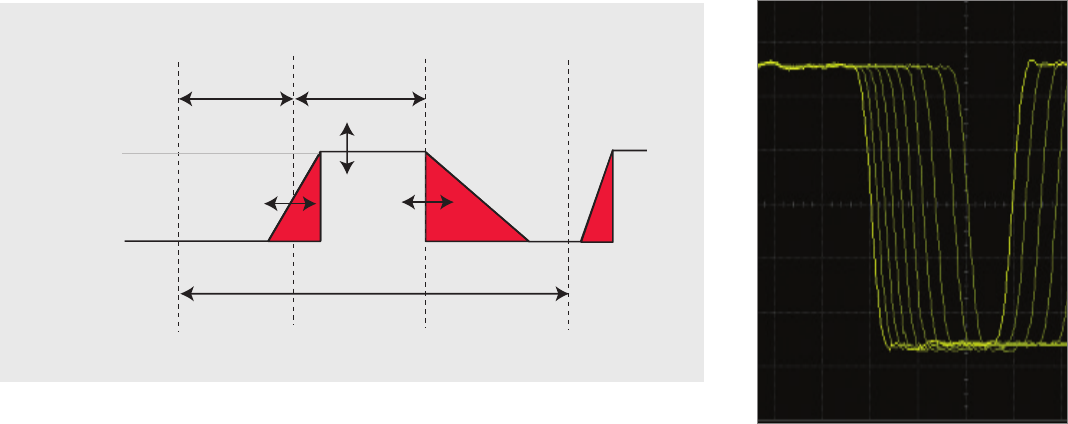

A pulse generator provides full control over all pulse parameters like

timing, levels and edges as shown in the diagram below.

Itisusedtosetupcontinuousortriggeredpulsestreamsandoffersexibilitytoaddress

the most challenging applications.

Allparameterscanbeadjustedtomeettheneedsofthespecicapplication.Pulsegen-

eration capability is provided by all models. The pulse function arbitrary noise generator

providesallexibilitytogenerateidealandworst-casesignals.TheKeysightinstruments

cover a frequency range from 1 µHz to 5 GHz and an output amplitude range from 50 mV

up to 100 V.

Glitch-free timing changes

The Keysight 81150A, 81160A, 81133A, 81134A, 81110A and N4903B uniquely allow tim-

ing parameter changes, such as changing the frequency, without dropouts or glitches.

This industry-leading feature enables continuous operation without rebooting or reset-

ting the device under test, when measuring a PLL pull-in and hold range for instance, or

to characterize a device over a sweeping clock frequency.

Width duty cycle

Delay - phase

High amp

Low offset

TTL or ECL

Leading

edge

Trailing

edge

Delay - time

Frequency period

Pulse Generation

Pulse parameters

07 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

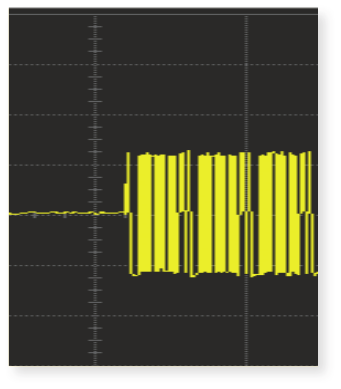

From Pulse to Pattern, Data and PRBS

Pulse pattern generators not only generate single impulses, bursts

or continuous pulse streams as mentioned before.

Their pattern capability also allows the generation of data signals. This versatility is key

to digital device test applications, for example for compliance tests.

In pattern mode, the same full control over the signal output is available as in the

traditional pulse generation mode. This allows the generation of uncounted forms of

datasignals,includingstandardnon-return-to-zero(NRZ)signals,ordataburstswith

programmable pulse width with additional delay to the clock signal.

Apartfromuserdeneddatasignals,standardizedpseudorandombinarysequences

(PRBS)canalsobegenerated.

The ability to create user-defined bit patterns, standard compliant data and

PRBS make the Keysight pulse pattern generators the ideal source for:

– Stimulated eye diagram measurements

– Cross-talk measurements

– Compliance tests

– Jitter tests

– Signal integrity measurements

– Stress tests for receivers

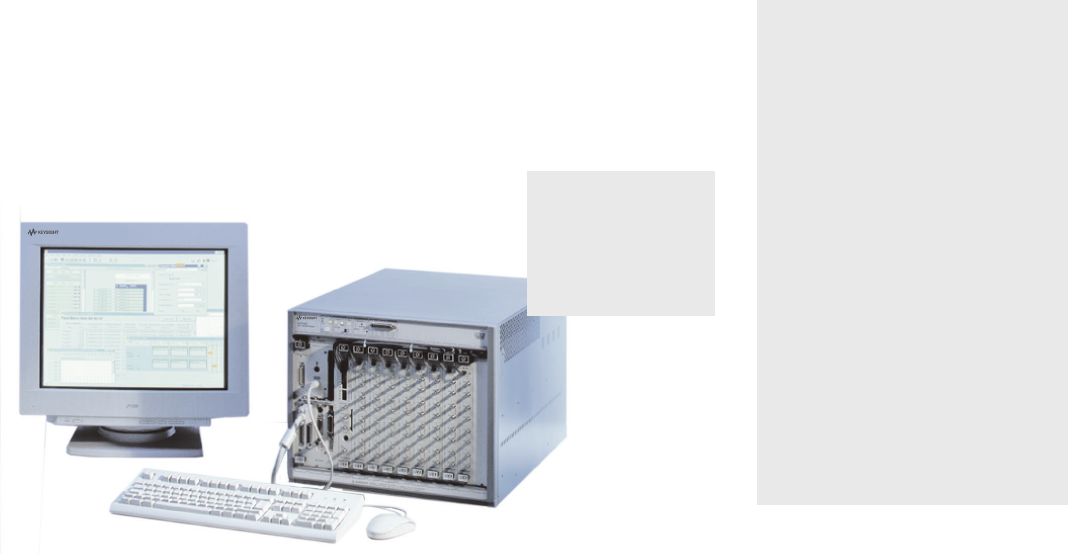

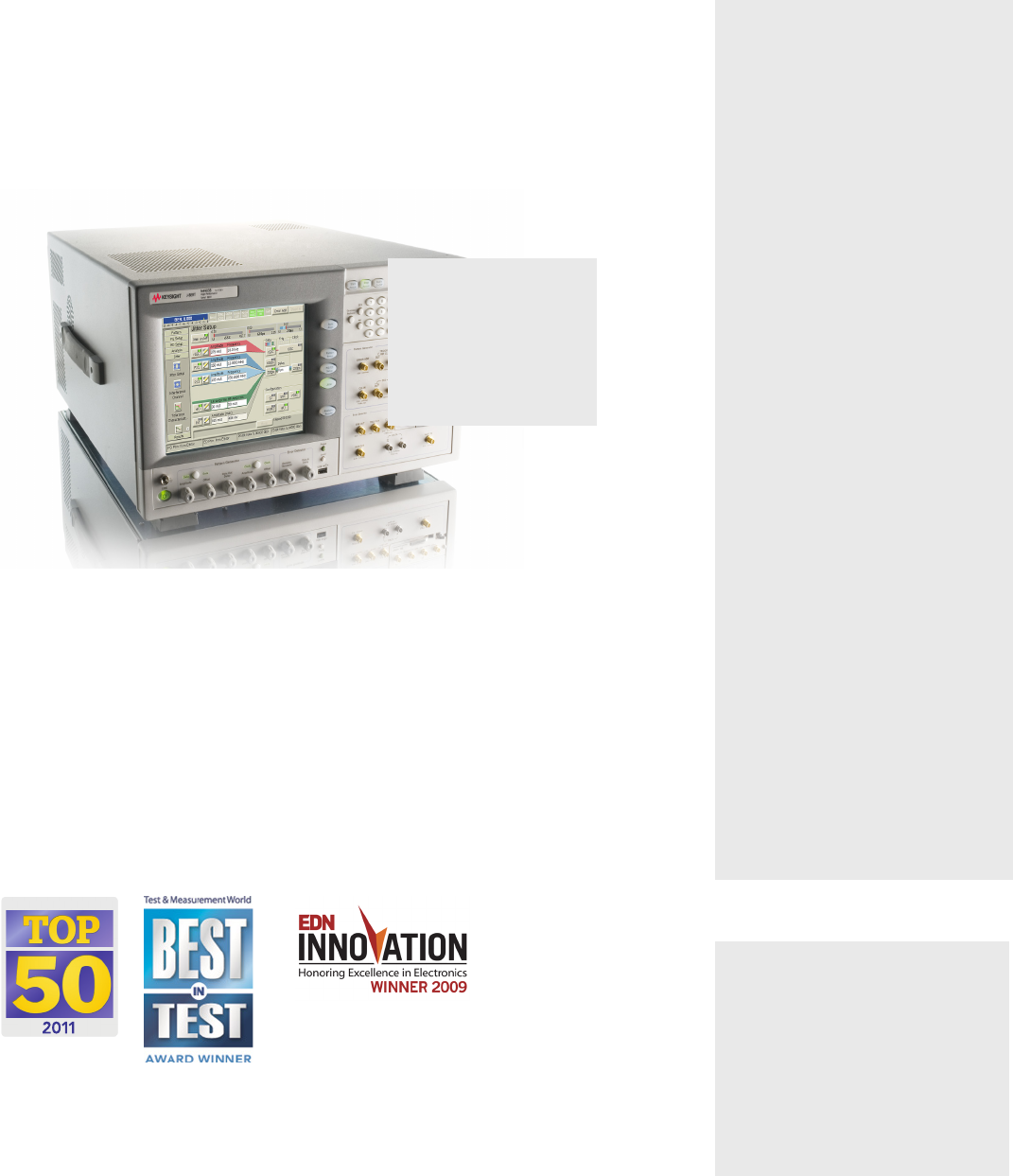

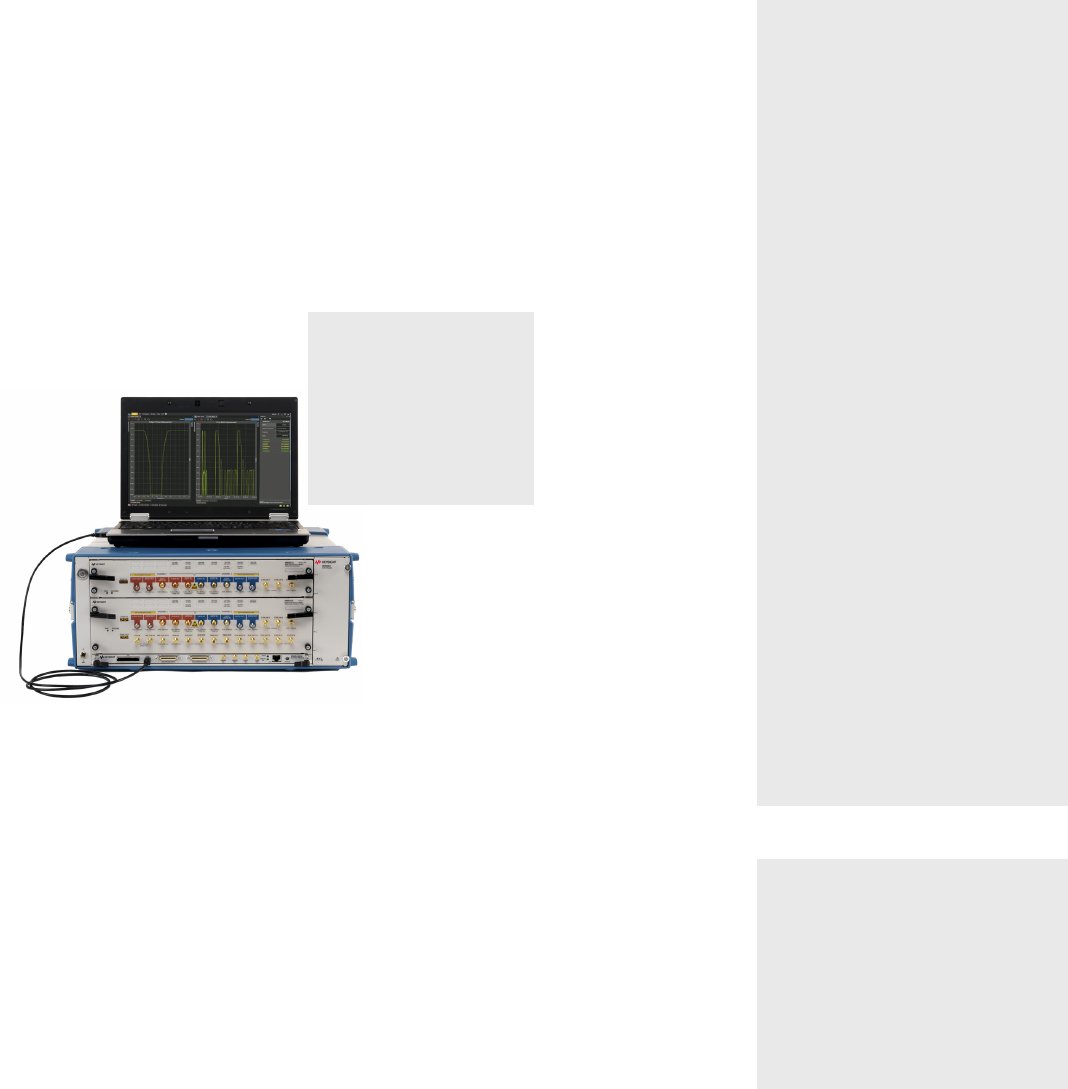

With the 81250A data generator and analyzer platform, modular and parallel pulse and

data applications can be addressed with up to 132 parallel channels. The 81130A’s data

looping capabilities or the 12 MBit deep memory and the PC based pattern manage-

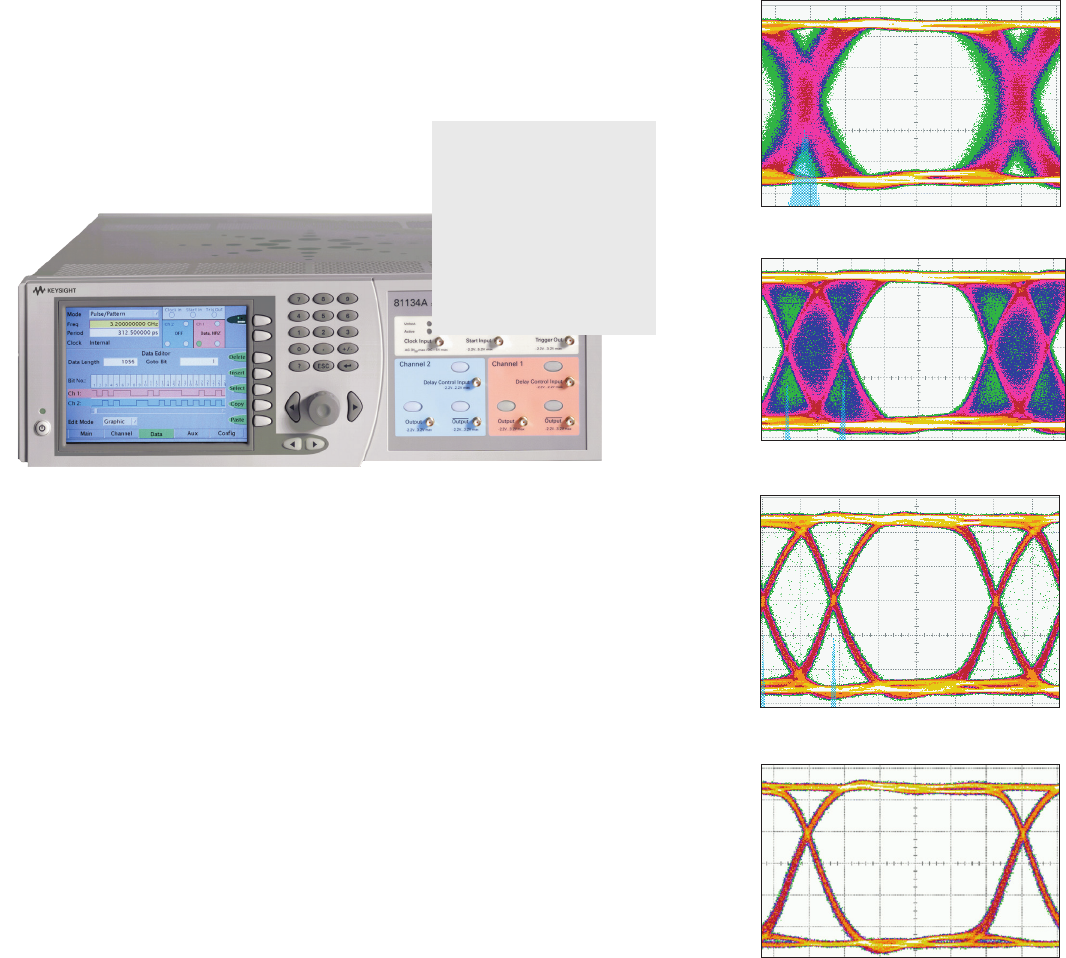

ment tool of the 81133A and 81134A enable you to generate ‘real-life’ data sequences for

today’s latest technology, like serial high-speed busses.

Pulse pattern generators provide all the tools to generate the data packets needed for

digital bus device tests: integrated pattern editors, PC-based graphically enhanced data

and pattern management software, segment looping features as well as hardware-gen-

erated PRBS. This enables engineers to quickly gain detailed insight into their digital bus

device - including devices for:

– USB 2.0

– Serial ATA

– PCI Express®

– Firewire and more

These tools allow the easy carrying out of all measurements from physical layer charac-

terization, signal integrity, and jitter measurements, to complete standard compliance

test.

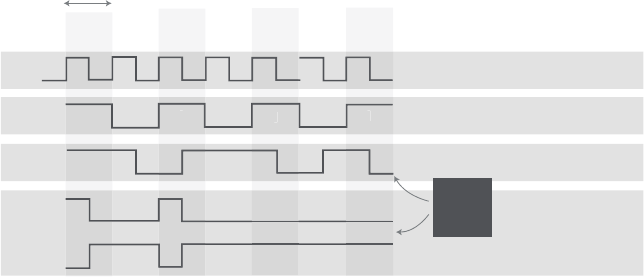

Clock

NRZ

RZ

R1

DNRZ

1 bit

period

1000

Width is multiple of clock period.

Signal can be delayed as required.

Width and delay can be set as required.

Width and delay can be set as required.

111

1

1

1

Typical

pulser

modes

08 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

The Keysight family of function arbitrary and arbitrary waveform generators with a wide

range of possibilities to generate the signals you need. Whether you require a clean, low

distortion sine wave, a variable-edge-time pulse or a complex custom waveform Keysight

provides the right choice.

Thecommonlyuseddirectdigitalsynthesis(DDS)technologythatprovidestheprecision

of digitally controlled logic to increase the stability of the output signal and reduce the

complexity of the generator.

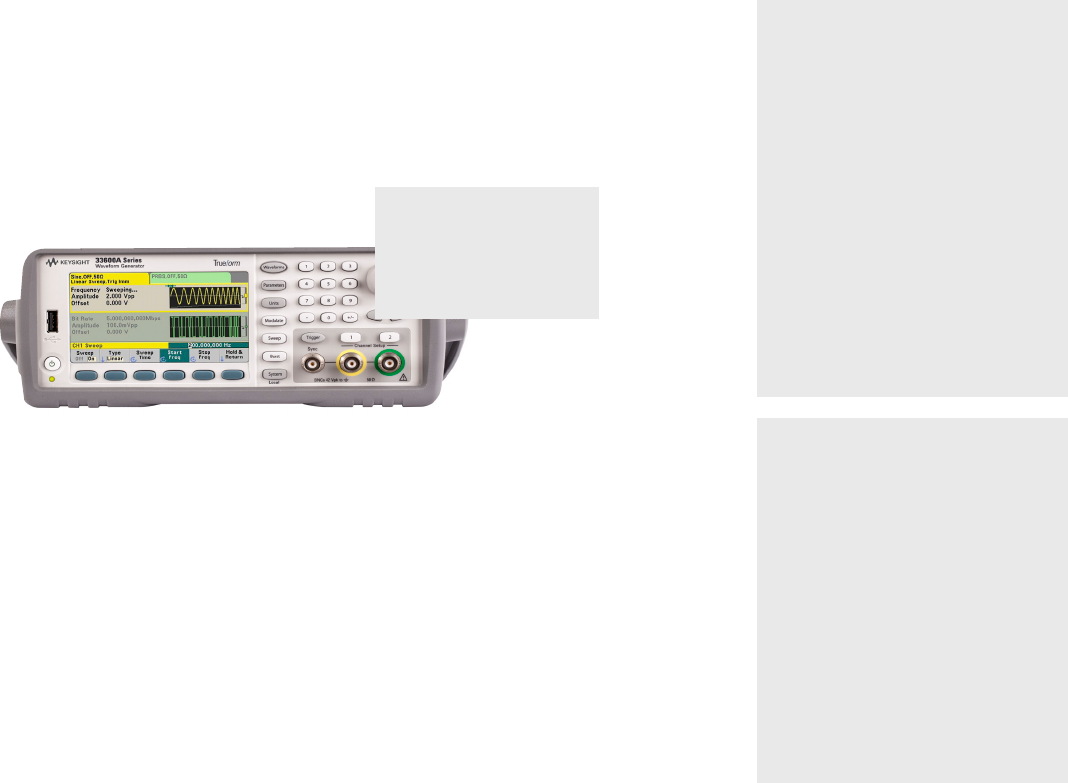

Using a Keysight proprietary point-by-point technology, the Keysight 33520 Series

combines the low cost of DDS with the precision found in higher cost arbitrary waveform

generators. With true point-by-point, the 33520 Series reproduces each point in memory

withμHzfrequencyresolution,fullbandwidth,and<40psjitter.

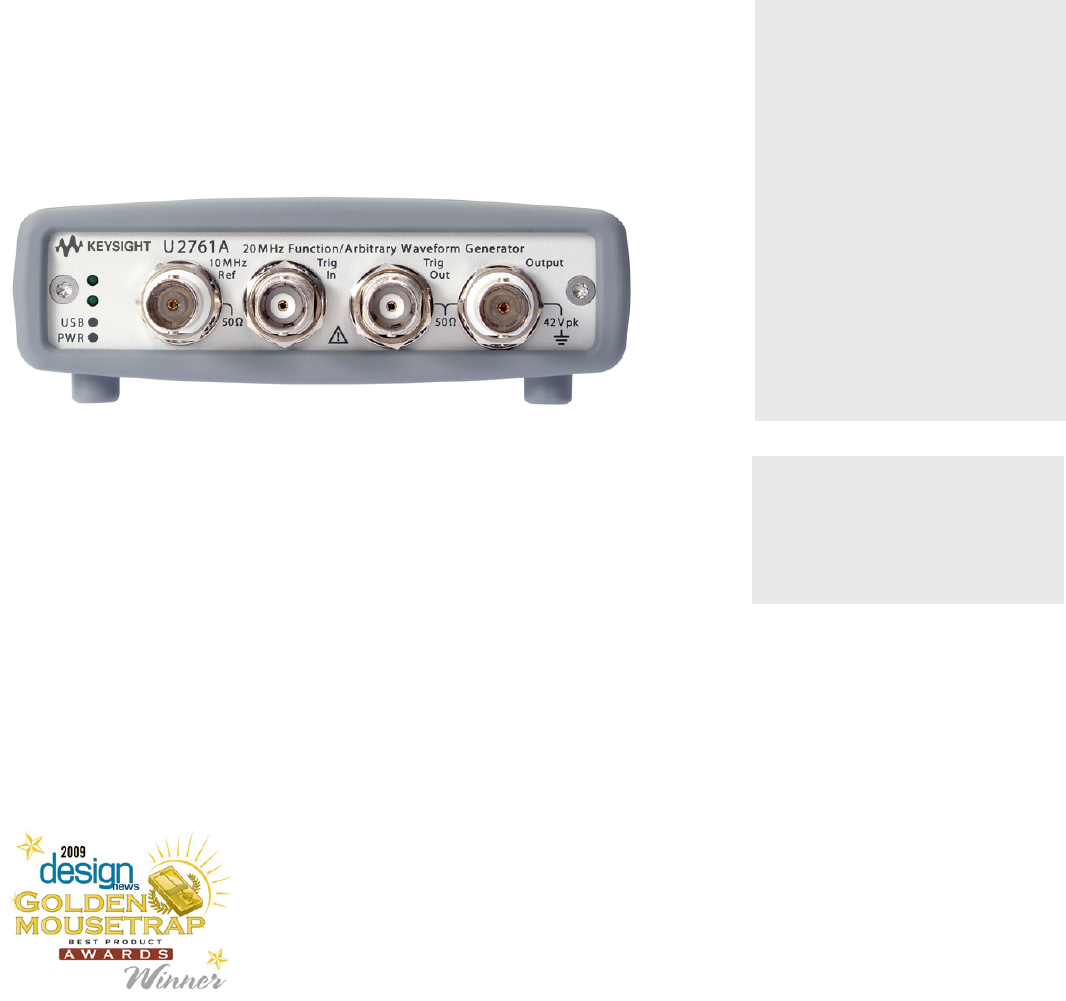

The U2761A is a 20 MHz USB modular function generator with arbitrary waveform

capabilities. The 332x0 Series contains three instruments for 10 MHz, 20 MHz, and 80

MHz sine waves. The 30 MHz, 16-bit 33520 Series 1 and 2 channel function/ arbitrary

waveform generators use true point-by-point technology.

The81150Aandthe81160Acombinedifferentinstrumentstoincreasetestefciency

while reducing test time.

Mixed signal devices require analog and digital signals in addition to

modulation capabilities.

Combining different instruments like a pulse generator, function arbitrary generator, and

noise generator allows you to generate the signal you need, whether it is an ideal pulse

or a real-world signal.

The 81150A and the 81160A provide:

– A pulse generator with precise signals

forperformancevericationandchar-

acterization

– A function arbitrary generator for

versatile signal generation to optimize

testing and for modulation to shape the

signal to the DUT needs

– A noise generator to distort signals and

build worst-case scenarios

– An optional pattern generator to emulate digital devices with real-world conditions.

Signal imperfections such as rise time, ringing, glitches, noise and random timing varia-

tions can be easily simulated in a controlled manner. Physics, chemistry, biomedicine,

electronics,mechanics,andothereldscanbenetfromtheversatilityofanarbitrary

waveform generator. Wherever things vibrate, pump, pulse, bubble, burst, or change with

time, there are applications available – limited only by your ability to specify the wave-

form data.

The noise generators are needed to distort the signal in a controlled and repeatable

manner. Your device under test might require an arbitrary or a Gaussian distribution. A

longrepetitionrateof20days(oreven26daysforthe81150A)guaranteesanalmost

random signal with exact signal repetition. The selectable crest factor guarantees to test

even serial bus standards.

From Digital to Analog

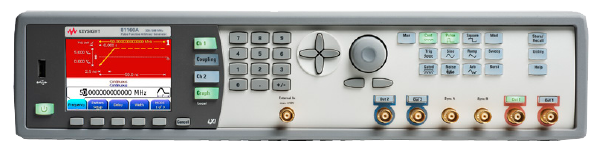

81160A pulse function arbitrary

noise generator

09 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Specications Basic waveforms Advanced waveforms Amplitude Connectivity

U2761A

20 MHz,

modular

Sine and square

(1 µHz to 20 MHz),

pulse with variable edge

time (1 µHz to 5 MHz),

ramp, triangle

Arbitrary:

1 µHz to 200 kHz, 64 kSa, 14 bit, 50 MSa/s

AM, FM, PM, FSK, PSK, ASK, sweep, exponential rise/fall

40 mVpp to 5 Vpp (into 50 Ω)

80 mVpp to 10 Vpp

(into open-circuit)

USB

33210A 10 MHz Sine, square, pulse,

triangle, ramp, noise

Optional arbitrary:

1 mHz to 3 MHz, 2 to 8 kSamples, 14 bits, 50 MSa/s

AM, FM, PWM, burst, sweep, exponential rise/fall,

negative ramp, sin(x)/x, cardiac

10 mVpp to 10 Vpp (into 50 Ω)

20 mVpp to 20 Vpp (into open-

circuit)

GPIB, LAN, LXI Class C

and USB

33220A 20 MHz Sine and square (1 μHz

to 20 MHz), pulse, ramp,

triangle, noise, and DC

Arbitrary: 1 μHz to 6 MHz, 2 to 64 kSamples, 14-bit, 50 MSa/ s

AM, FM, PM, FSK, PWM, burst, sweep, exponential rise/fall, nega-

tive ramp, sin(x)/x, cardiac

10 mVpp to 10 Vpp (into 50 Ω)

20 mVpp to 20 Vpp (into open

circuit)

GPIB, LAN, LXI Class C

and USB

33250A 80 MHz Sine and square

(1 µHz to 80 MHz),

pulse with variable edge

times (1 µHz to 5 MHz),

ramp, DC

Arbitrary: 64 kSamples, 12 bits, 200 MSa/s

AM, FM, FSK, burst, sweep, noise, exponential rise/fall

10 mVpp to 10 Vpp

(into 50 Ω)

20 mVpp to 20 Vpp (into open-

circuit)

RS-232

336xxA 120 MHz Sine (1 μHz to 120 MHz),

square and pulse (1 μHz

to 100 MHz)

Arbitrary: 64 MSamples, 12 bits, 200 MSa/s, PRBS, with slect-

able PN type, bit rate and edge time

1Vpp to 10 Vpp

(into 50 Ω)

2 mVpp to 20 Vpp (into open-circuit)

GPIB, LAN, LXI Class C

and USB (optional)

81150A 240 MHz 120 MHz pulse, 240 MHz

sine, square, triangle,

sin(x)/x, ramp

Arbitrary: 512 kSamples , 14 bit, 2 GSa/s

FM, AM, PM, PWM, FSK, noise with selectable crest factor

Pattern: user-dened and PRBS, 16 Mbit memory

100 mVpp to 10 Vpp

(into 50 Ω)

200 mVpp to 20 Vpp

(into open-circuit)

GPIB, LAN, LXI Class C

and USB

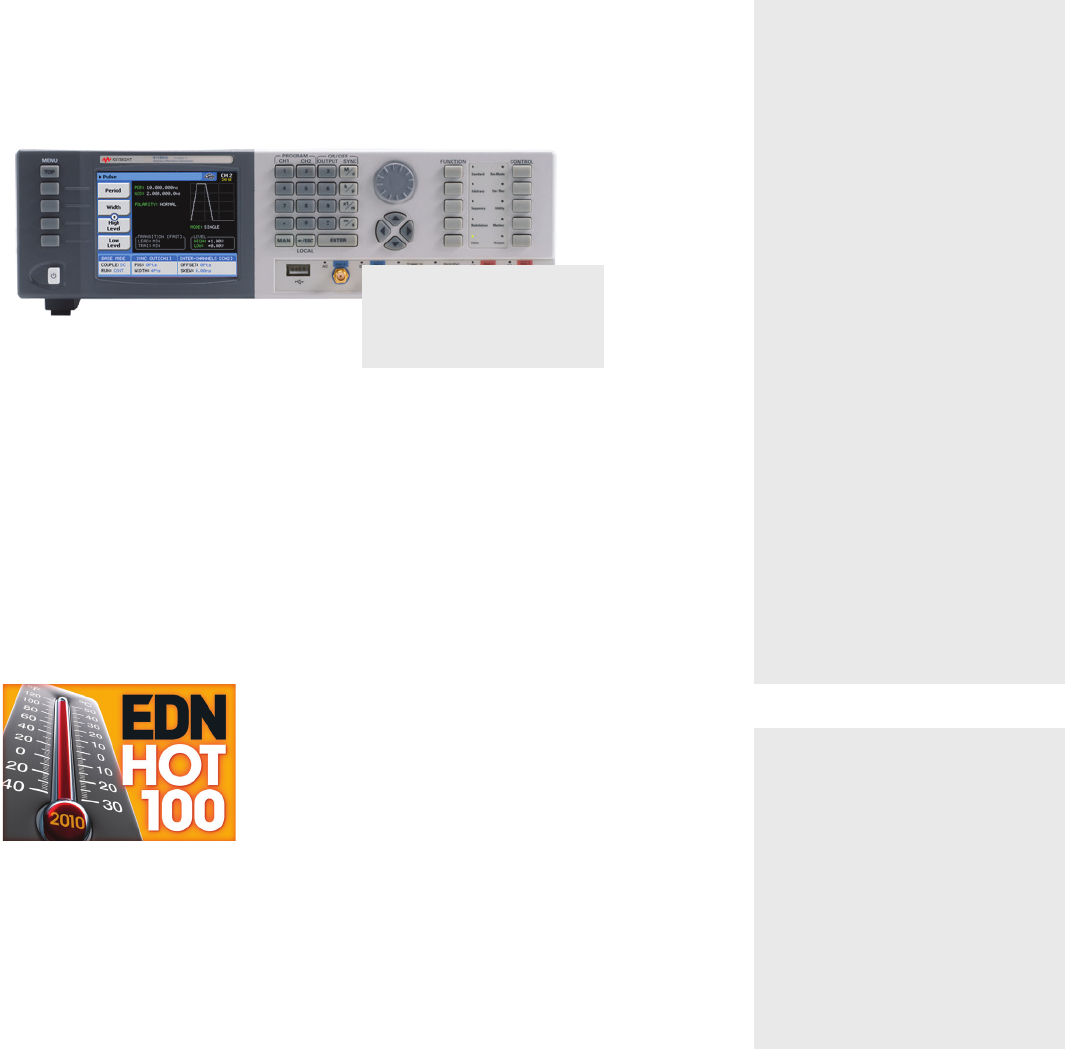

81160A 500 MHz 330 MHz pulse, 500

MHz sine, square,

triangle, sin(x)/x, ramp

Arbitrary (user dened): option 001 up to 256 kSamples, option

002 up to 128 kSamples per channel,14 bit, 2.5 GSa/ s FM, AM,

PM, PWM, FSK, noise with selectable crest factor

Pattern: user-dened and PRBS, option 001 memory 4 Mbit,

option 002 2 Mbit per channel, arbitrary bit shaping, three level

signals, sequencing

50 mVpp to 5 Vpp

(into 50 Ω)

100 mVpp to 10 Vpp

(into open-circuit)

GPIB, LAN LXI Class C

and USB

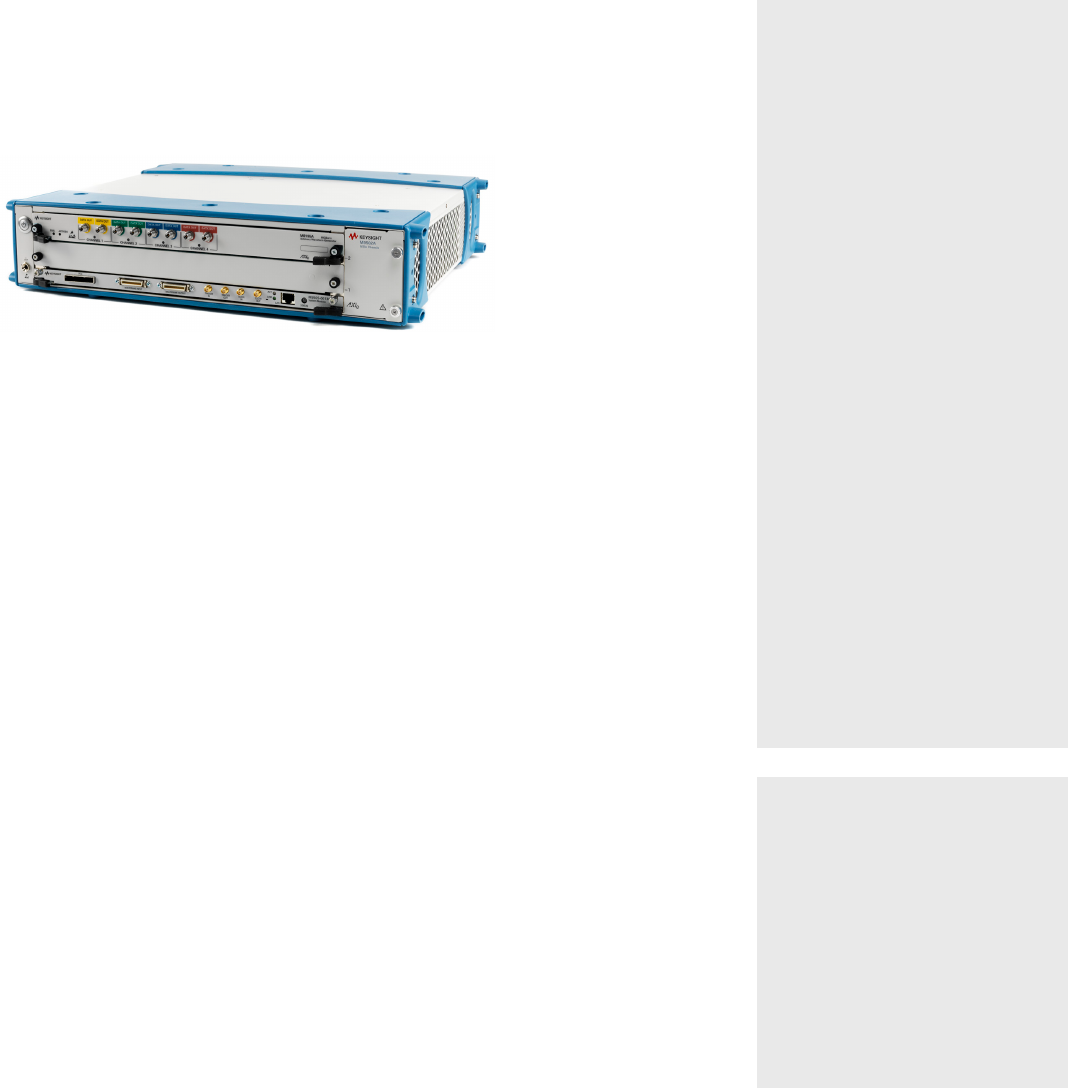

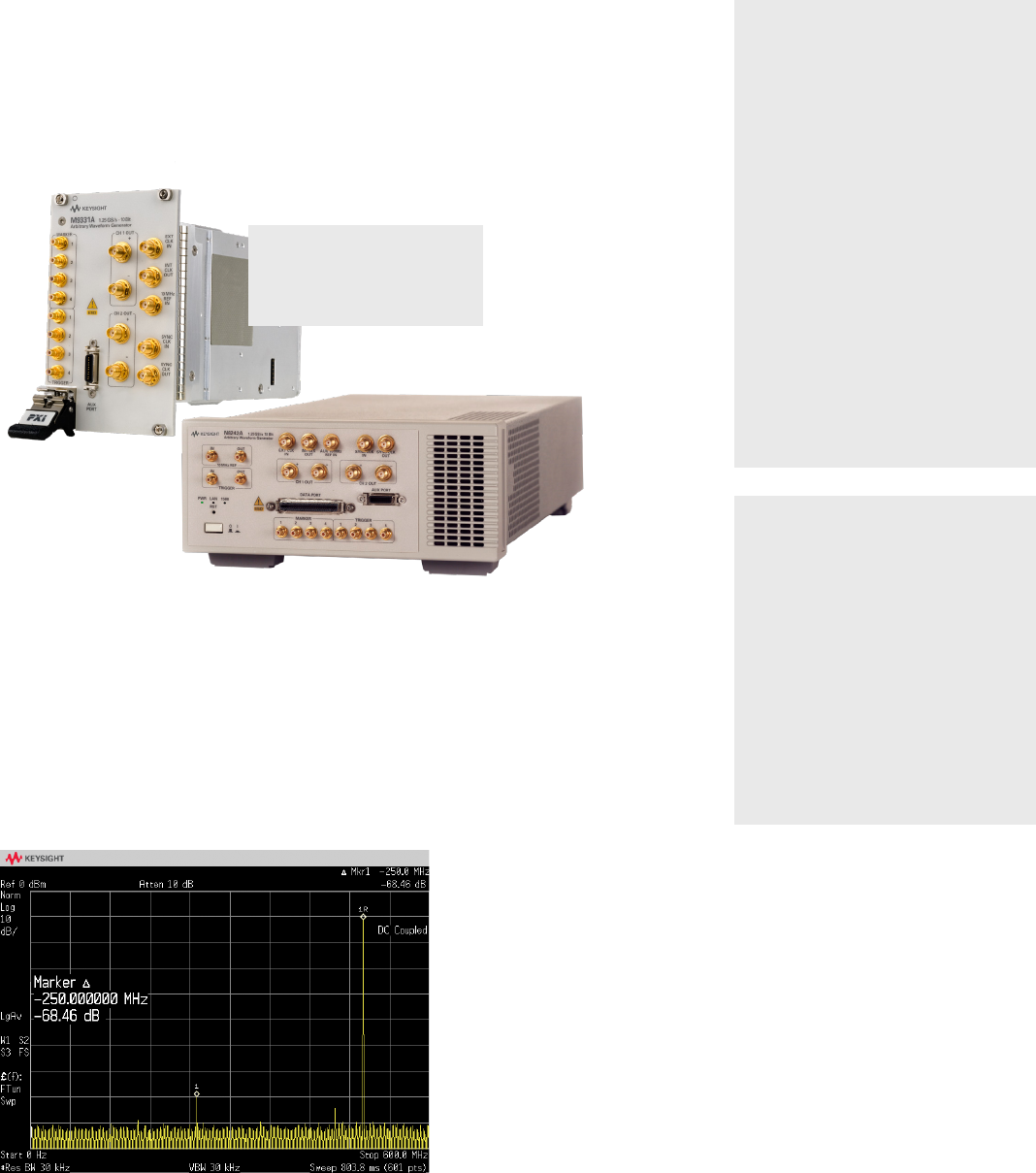

M933xA/N824xA

1.25 GSa/s

Sine, square, pulse,

doublet and ramp

(1 Hz resolution)

Arbitrary: 16 Msamples, 15- or 10-bit, 1.25 GS/s with advanced

sequencing, DC-500 MHz (1 GHz IQ modulation) bandwidth.

AM, FM, FSK, burst, sweep

1 to 800 mVpp (function generator),

up to 1 Vpp (arbitrary waveform

generator)

CompactPCI®, PXI, PXIe

(hybrid slot) and LXI

81180B 4.6 GSa/s Standard sine and

square waveforms at

frequencies up to

250 MHz

Arbitrary waveform generator, 12-bit, 10 MSa/s - 4.6 Gs/s, any

arbitrary waveform, 2 GHz IQ modulation bandwidth

100 mVpp to 3 Vpp single ended,

200 mVpp to 6 Vpp differential

GPIB, LAN, USB

M8190A 12 GSa/s Standard sine and

square waveforms at

frequencies up to 5 GHz

Arbitrary waveforms with 2 DAC settings: 12 bit with 12 GSa/s and

14 bit with 8 GSa/s, Variable sample rate from 125 MSa/s to 8 /

12 GSa/s, 7 GHz IQ modulation bandwidth, up to 2 GSa memory

per channel

3 selectable output amplifers:

Direct DAC:

–350 mVpp ... 700 mVpp

DC amplier:

500 mVpp ... 1.0Vpp

AC amplifer:

200 mVpp ... 2.0 Vpp

GPIB, LAN and USB

M8195A 12 GSa/s Standard sine and

square waveforms at

frequencies up to

20 GHz

Arbitrary waveforms 8 bit with up to 65 GSa/s, 2 independent

I/Q baseband signals (dual polarization = 4 channels) at up to 32

GBaud and beyond, multi-level signals: NRZ, PAM4, PAM 8, DMT

etc.

250 mVpp to 1 Vpp single ended,

500 mVpp to 2 Vpp differential

GPIB, LAN and USB

Function arbitrary and arbitrary waveform generators

10 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Key features U2761A

– 20 MHz sine and square wave-

forms

– 40 mVPP to 5 VPP amplitude

range

– Pulse generation with variable

period, pulse width and ampli-

tude

– Sine, square, ramp, triangle,

pulse, noise and DC wave-

forms

– AM, FM, PM, ASK, FSK, PSK

signals

– 14-bit, 64 k points, 50 MSa/s

arbitrary

U2761A USB modular one-channel function generator

The Keysight U2761A 20 MHz USB modular function generator with

onechannelofferstheexibilityofstandaloneandmodular

operation.

It offers eleven standard signals as well as arbitrary waveforms. It relies on direct digital

synthesis(DDS)tocreatestable,accurateoutputoflow-distortionsinewaves.The

U2761A also provides square waves with fast rise and fall times up to 20 MHz and linear

ramps up to 200 kHz. For simulation of real-world signals, use the waveform editor to

create arbitrary waveforms with 14-bit resolution up to 200 kHz.

Internal modulation eliminates the need for a separate modulation source. Linear and

logarithmic sweeps are also built in, with sweep rates from 1 ms to 500s. With the

included IVI-COM drivers, this instrument is compatible with popular development envi-

ronments. Hi-Speed USB 2.0 compatibility makes connection to a PC quick an easy.

www.keysight.com/nd/u2761a

Complementary products

– U2781A USB modular

– Product chassis

Put a Bench in Your Bag: U2761A

11 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

www.keysight.com/nd/33210a

www.keysight.com/nd/33220a

www.keysight.com/nd/33250a

www.keysight.com/nd/33522a

Complementary products

– Inniivision7000oscilloscopes

– Inniivision2000Xand3000X

oscilloscopes

– 34410A and 34411A digital

multimeters

– 53200 Series universal/RF

counters

Key features 33200 Series

– Low distortion functions and

arbitrary waveforms

– Choice of bandwidths –

10 MHz, 20 MHz, and 80 MHz

– Textual and graphical display in

a 2U x ½ rack package

– Standard connectivity – GPIB,

USBandLAN(33210A/20A),

andRS-232(33250A)

– Free waveform editing software

Key features 33500 Series

– True point-by-point technology

forthehighestsignaldelityin

its class

– 30 MHz, 16-bit, 250 MSa/s

waveform generation

– Large display with built-in

waveform editor in a 2U x ½

rack package

– Standard connectivity – USB,

LAN, and optional GPIB

– Free waveform editing software

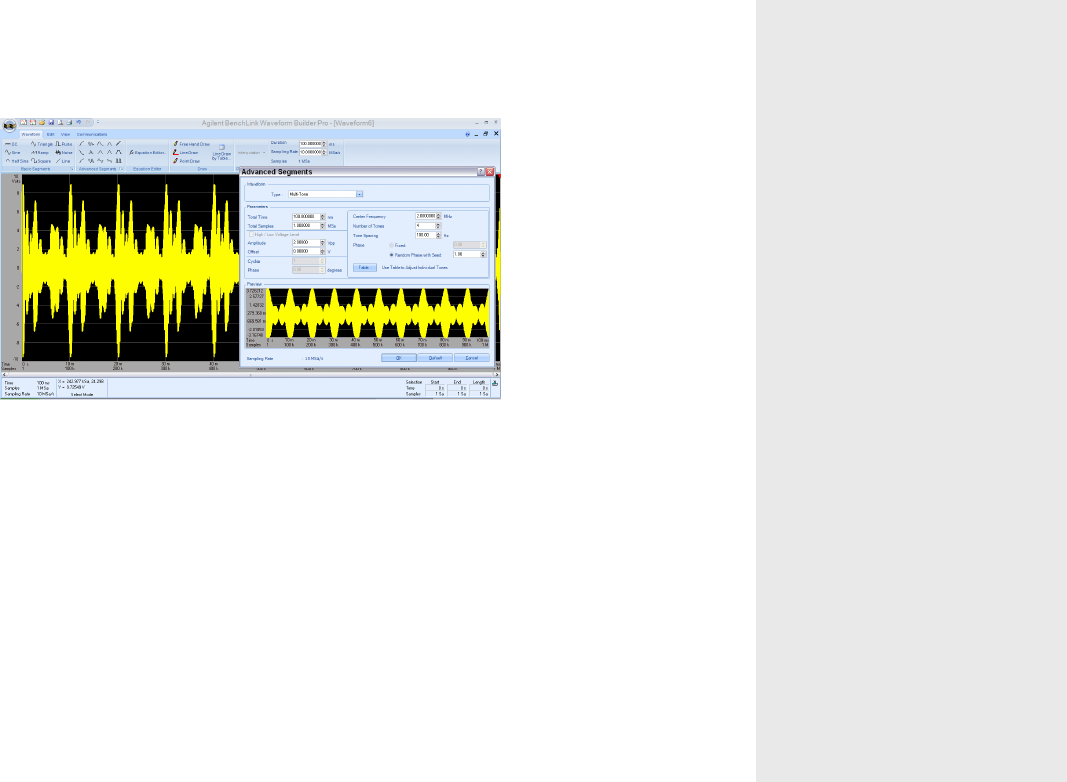

plus optional Waveform Builder

Pro software

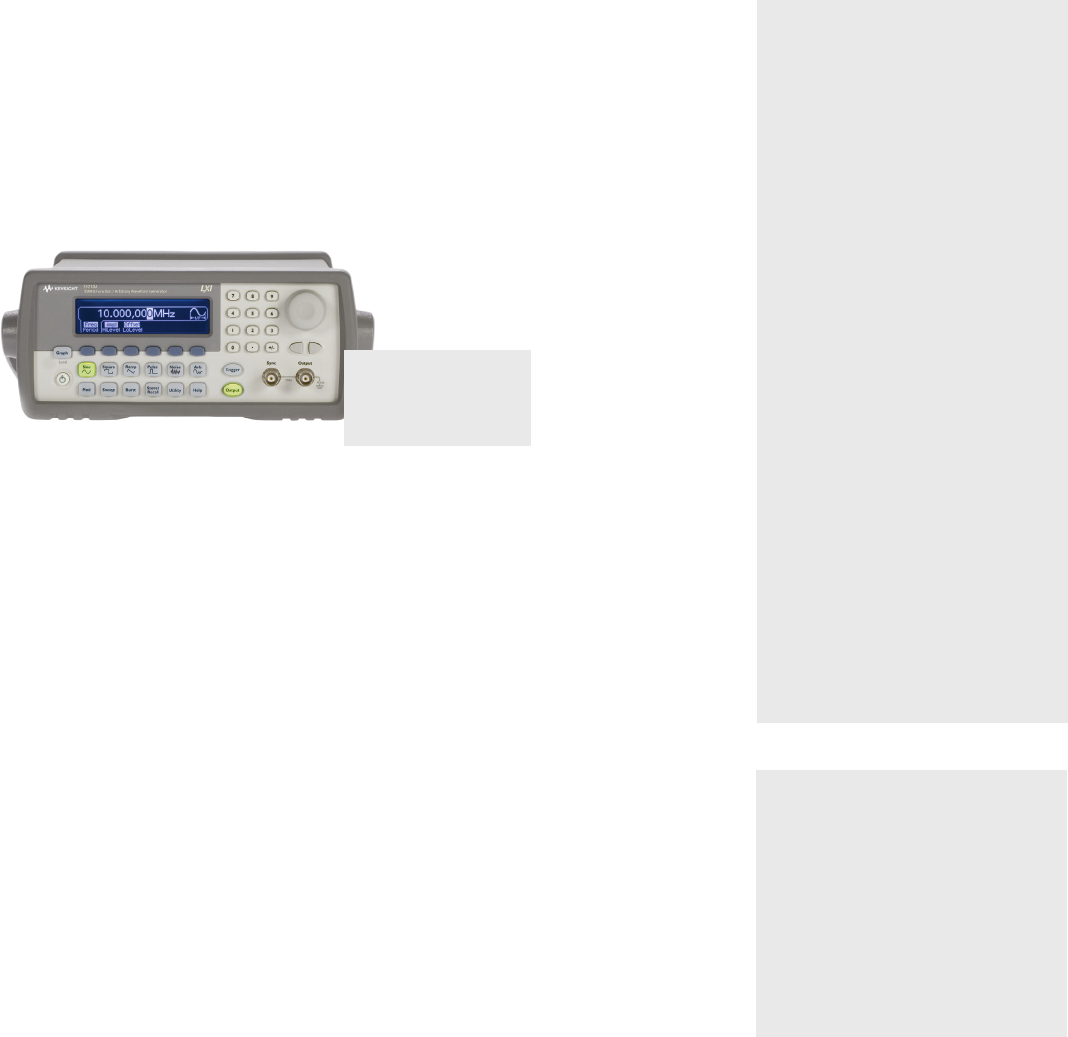

The Keysight 33200 and 33500 function/ arbitrary waveform gen-

erators are economical instruments used to create signals up to 80

MHz.Withtheirabilitytoproducefunctions(sine,square,pulse,

etc.)aswellasuser-denedarbitrarywaveforms,theseinstruments

are versatile additions to any electronics bench or test system.

The 33200 Series offers three bandwidths: 10 MHz, 20 MHz, and 80 MHz for the 33210A,

33220A,and33250A,respectively.Theyallusethedirectdigitalsynthesis(DDS)tech-

nology explained earlier to produce both the functions as well as the arbitrary wave-

forms. By using DDS, these instruments can produce signals with very high frequency

resolution while having low distortion. All instruments in the 33200 Series provide stan-

dard functions, arbitrary waveforms, modulation, sweep, burst, and triggered outputs.

Also, they can be synchronized to another Function/Arbitrary Waveform generator or to

a user-supplied 10 MHz clock.

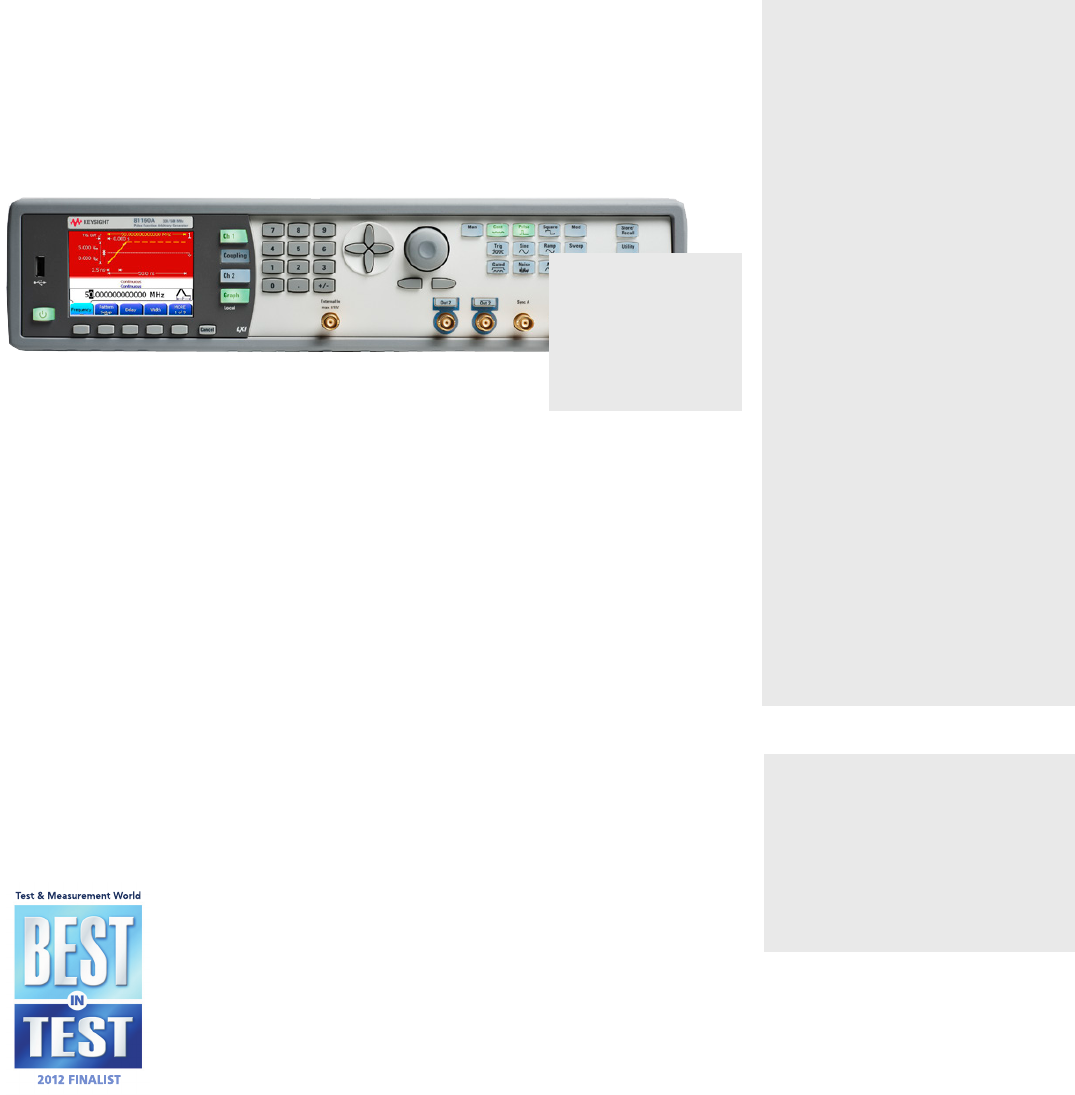

The one and two channel 33500 Series sets a new standard in the 30 MHz function/arbi-

trary waveform generator class of products. Based on a proprietary Keysight technology,

these instruments offer true point-by-point waveform generation. The 33500 Series

provides standard functions, arbitrary waveforms, modulation, sweep, burst, triggered

outputs,synchronizationtoanexternalreference,and2-channeloperation(33522A).

The Basics: 33200 and 33500 Series

Function

Arbitrary

12 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Complementary products

– 33503A BenchLink Waveform

Builder Pro software

– 34840B BenchVue software

– Inniivision7000oscillo-

scopes

– Inniivision2000Xand3000X

oscilloscopes

– 34410A and 34411A digital

multimeters

– 53200 Series universal/RF

counters

Key features 33600 Series

– 1 GSa/s sampling rate

– up to 80 MHz and 120 MHz

– 14-bit resolution with 1 mVpp

to 10 Vpp amplitude for

greater amplitude accuracy

– arbitrary waveform generation

with sequencing and up to 64

MSa memory

– 1 ps jitter, 200 x better than

DDS generators

– 5 x lower harmonic distortion

than DDS

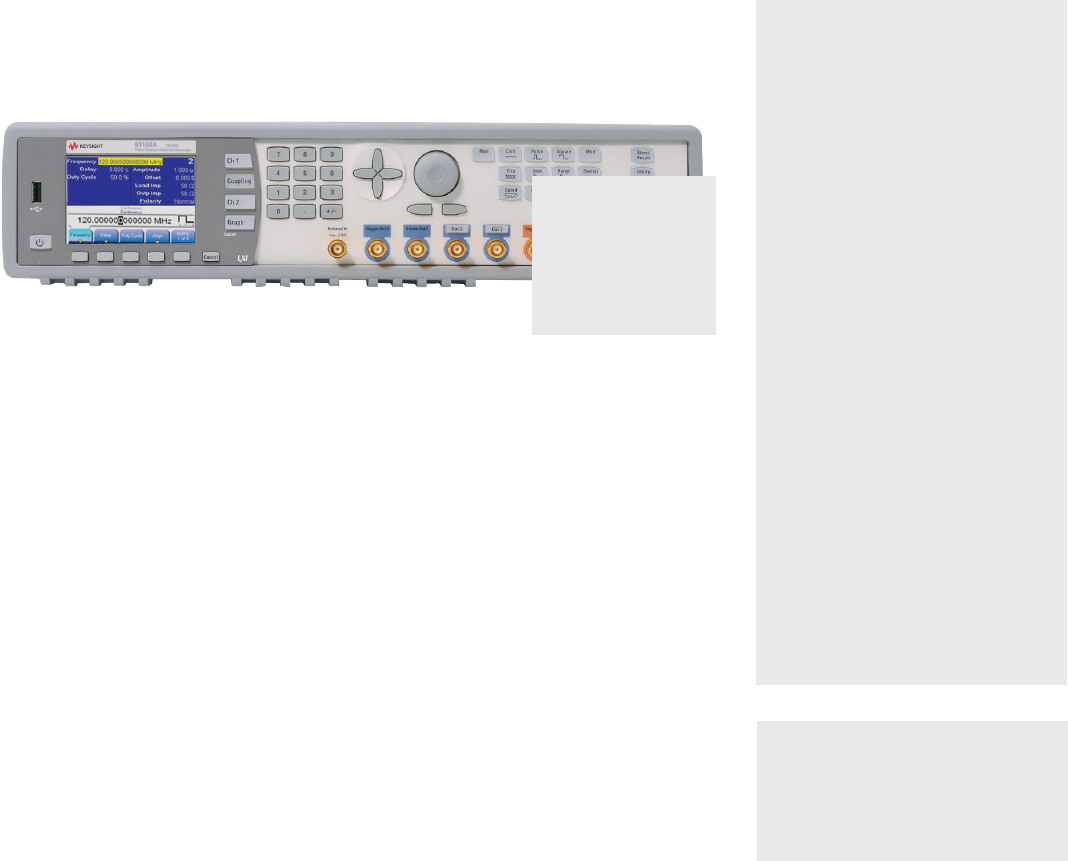

33600 Series waveform generators with exclusive Trueform signal

generationtechnologyoffermorecapability,delityandexibility

thanpreviousgenerationDirectDigitalSynthesis(DDS)generators.

Usethemtoaccelerateyourdevelopmentprocessfromstarttonish.

The one and two channel 33600 Series offers two bandwidths: 80 MHz for the 33611A

and 33612A and 120 MHz for the 33621A and 33622A Trueform wavefrom generators.

Keysight Technologies, Inc. Trueform technolgy offers an alternative that blends the best

ofDDSandpoint-per-clockarchitecturesgivingyouthebenetsofbothwithoutthe

limitations of eitehr. All instruments in the 33600 Series provide the full range of signals

such as arbitrary waveforms, modulation, sweep, burst, and triggered outputs.

They can generate high-bandwidth pulses up to 100 MHz, PRBS patterns, Trueform

arbitary waveforms.

Built-in LAN, USB and optional GPIB interfaces allow yout to easily control your instru-

mentsortransferwavefromstoyouinstrument.Testyourdevicewithcondencethatthe

waveform generator is outputting the signals you expect.

The Basics: 33600 Series

Function

Arbitrary

www.keysight.com/nd/33600a

13 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

www.keysight.com/nd/81150

81150A Pulse Function Arbitrary Noise Generator

The Keysight 81150A pulse function arbitrary noise generator

enables reliable and repeatable measurements. It is the instrument

of choice for pulse and clock generation.

Itoffersexiblepulse,clockandtriggergenerationwithhighestsignalqualityandwitha

frequencyrangeupto120MHz.Itisthereforeaperfecttforallsystemclockortrigger

applications.

Itcombinesthebenetsofapulsegenerator,anoisegeneratorandafunctionarbitrary

generator. The pattern generator is optional and allows sending ideal and real-world

pattern. The arbitrary bit shaping lets you emulate overshoot, asymmetric delay and duty

cycle distortion up to 120 Mbit/s.

Test your DUT with high quality pulses but without any effects generated by the source.

Achievecompletecontrolovertimingparametersincludingtriggerabilitywithxed

latency and glitch-free change of timing. The different modulation capabilities up to

10 MHz, combined with the precision digital noise functionality, allow you to build real-

world signals, simply and quickly. Use real-life signals for worst case scenarios e.g.,

reproducible noise.

Theselectablecrestfactor(voltagepeak/RMS1)combinedwiththelongrepetition

period of 26 days helps you to stress your device to its limits but keeping the test results

repeatable. The enhanced trigger capabilities are there to measure exactly when needed.

Pulse

Function

Arbitrary

Noise

Key features 81150A

– 1 or 2 channels

– 1 µHz – 120 MHz pulse with

variable rise/fall time

– 1 µHz – 240 MHz sine wave-

form outputs

– Precise digital noise: crest fac-

tor(peak/RMS)selectable:3.1,

4.8, 6.0, 7.0

– Noise repetition: 26 days

– Pulse, sine, square, ramp, noise,

and arbitrary waveforms

– Triggerable

– FM, AM, PM, FSK, PWM

modulation capability

– Full control of all pulse param-

eters(rise/fall/width,etc.)

– Differential outputs

– Ideal and arbitrary bit shaped

pattern up to 120 Mbit/s

– Three level signals

– PRBS 231

– 16 Mbit pattern

– Integration in Matlab, Keysight

33503A BenchLink Waveform

Builder Pro

Complementary products

– InniiVision7000Series

oscilloscope

1. RMS = root mean square

14 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

www.keysight.com/nd/81160

81160A Pulse Function Arbitrary Noise Generator

The Keysight 81160A pulse function arbitrary noise generator tack-

les a new speed class up to 500 MHz, offering at the same time the

well-provenexibilityandqualityinsignalgenerationofthe81150A

pulse function arbitrary noise generator.

Like the 81150A, the 81160A allows high-precision pulse, clock and trigger generation

and addresses the same vast spectrum of applications: digital and mixed signal device

test, capture and reproduce live signals, radar distance test, sensor simulation and disc

drive tests – to name only a few.

Functionality like glitch-free change of timing parameters allows frequency changes

without drop-outs or glitches so that tests can be performed without interruptions or

time-consuming repetitions.

Plug and play solutions with minimal cabling, low space overhead also maximize test

efciency.

The optional pattern generator is available with a data rate up to 330 Mbit/ s

(Option330)andupto660Mbit/s(Option660).

Pulse

Function

Arbitrary

Noise

Key features 81160A

– 1 or 2 channels

– 1μHz–330MHzpulsewith

variable rise/fall time

– 1μHz–500MHzsinewave-

form outputs

– Precise digital noise: crest fac-

tor(peak/RMS)selectable:3.1,

4.8, 6.0, 7.0

– Noise repetition: 20 days

– Pulse, sine, square, ramp,

noise, and arbitrary waveforms

– Triggerable

– FM, AM, PM, FSK, PWM modu-

lation capability

– Full control of all rise param-

eters(rise/fall/width,etc.)

– Differential outputs

– Ideal and arbitrary bit shaped

patternupto330Mbit/s(Opt

001)and660Mbit/s(Opt002)

– Three level signals

– PRBS 231

– 4 Mbit pattern for Opt 001,

2 Mbit pattern per channel for

Opt 002

Complementary products

– DSO/ MSO 9104A

– InniiVision7000Seriesoscil-

loscope

– DSO/ MSO 9064A

15 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

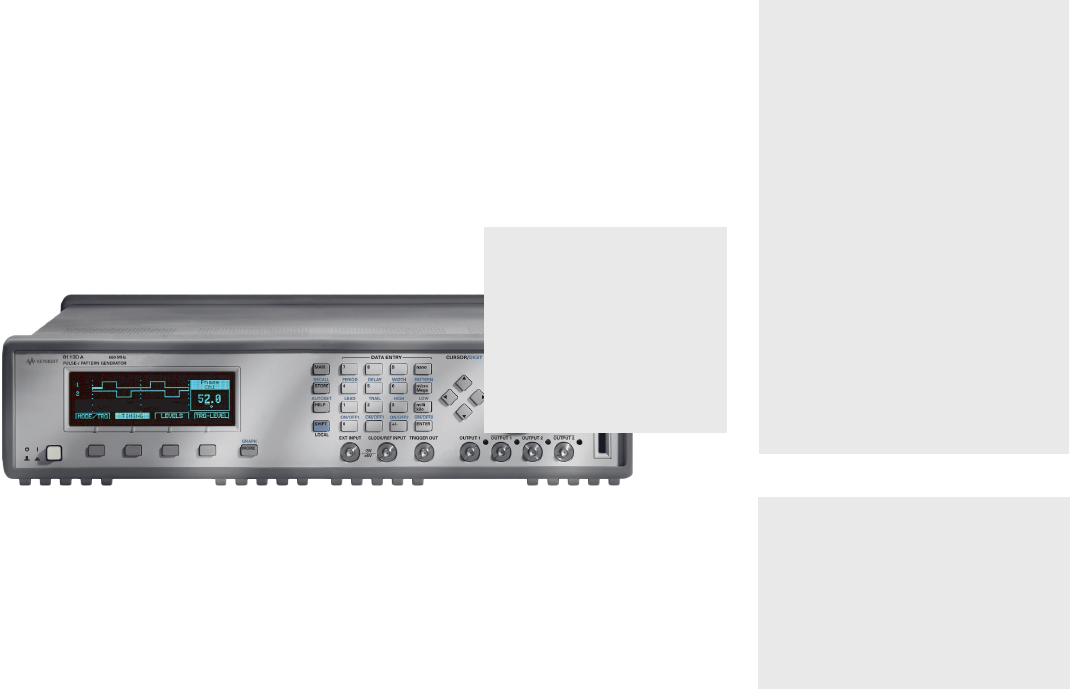

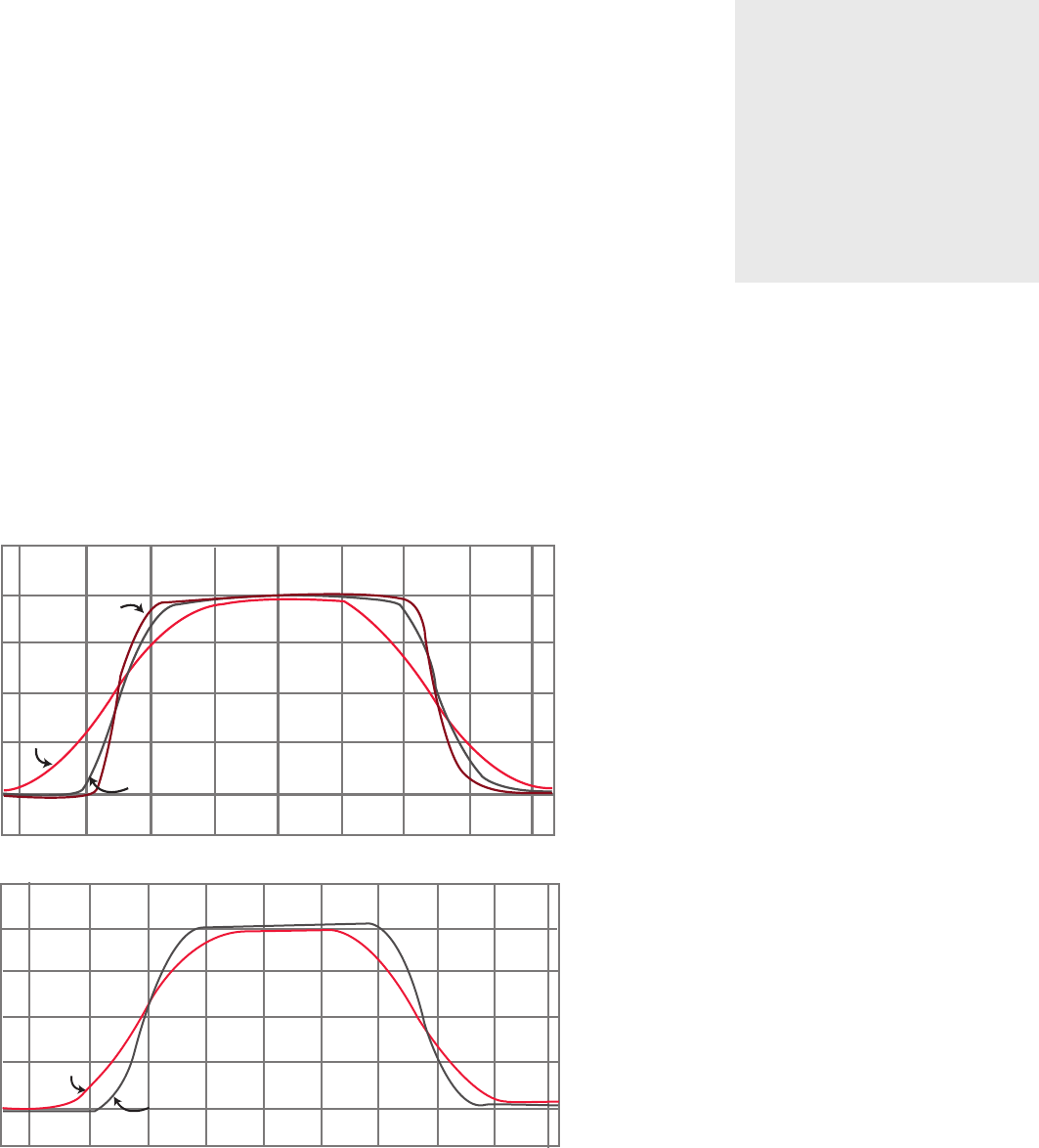

The Keysight 81110A pulse pattern generator is the industry-

standard for pulse, pattern, data and PRBS generation up to

165/330 MHz.

Itprovideshighqualitysignalsandleadingexibilitythatmeetsvirtuallyallapplication

needs. This instrument is a must for all labs.

The 81110A with one or two 81111A 165 MHz output channels provides pulse, pattern,

data and PRBS generation up to 165 MHz with an amplitude of up to 20 Vpp and an

outputimpedanceof1kΩinto50Ω.Withthesameuserinterfaceandprogramming

commands, it is the natural upgrade from the 81101A and 81104A.

The81110Awith81111Aoutputchannelsisusedincountlessapplications,ashchip

test, communication equipment, aerospace defence and automotive test as well as many

other high-end applications.

Alternatively, the Keysight 81110A pulse pattern generator with one or two Keysight

81112A 330 MHz output modules is also the right choice for a broad range of test ap-

plications. Instead of variable transitions, 800 ps or 1.6 ns edges are selectable.

Theoutputimpedanceis50Ωandprovidesupto3.8Vppinto50Ω.Internalchannel

addition is not available.

81111A and 81112A output channels can not be combined in one and the same 81110A.

81110A 165/330 MHz pulse generator

Pulse

Pattern

Data

PRBS

The Lab Standard: 81110A

16 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

TheLabStandard:81110A(2)

www.keysight.com/nd/81110

Key features 81110A

with 81111A

– 1 or 2 channels

– Upto20Vpp(1kΩinto50Ω)

– Variable transition times between

3 ns and 200 ms

– Internal and external clocking

– 1 mHz to 165 MHz repetition rate

– Glitch-free timing changes

– Triggerable or internal PLL

– Single ended outputs

– Analog channel addition

– Data patterns

– Pseudo random binary sequence

(PRBS)generation

81110A pulse pattern generator with 81112A 330 MHz

outputchannel(s)

81110A pulse pattern generator with 81111A 165 MHz or with

81112A330MHzoutputchannel(s)

Key features 81110A

with 81112 A

– 1 or 2 channels

– Upto3.8Vpp(50Ωinto50Ω)

– Selectable transition times

800 ps or 1.6 ns

– Internal and external clocking

– 1 mHz to 330 MHz repetition rate

– Glitch-free timing changes

– Triggerable or internal PLL

– Differential outputs

– Data patterns

– Pseudo random binary sequence

(PRBS)generation

Complementary products

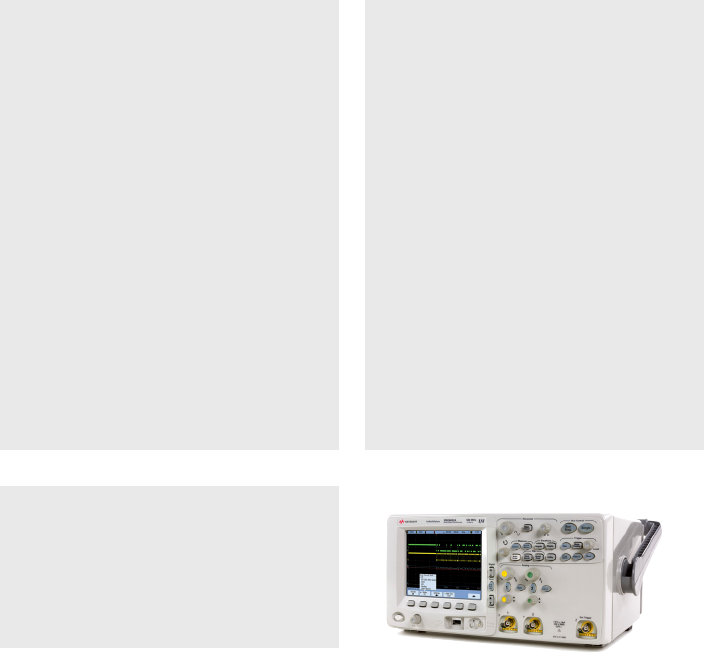

– InniiVision6000SeriesD/MSO

– InniiVision7000SeriesD/MSO

– Inniium9000SeriesD/MSO

17 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Complementary products

– InniiVision6000SeriesD/

MSO

– InniiVision7000SeriesD/

MSO

– Inniium9000SeriesD/MSO

Clean and Precise: 81130A

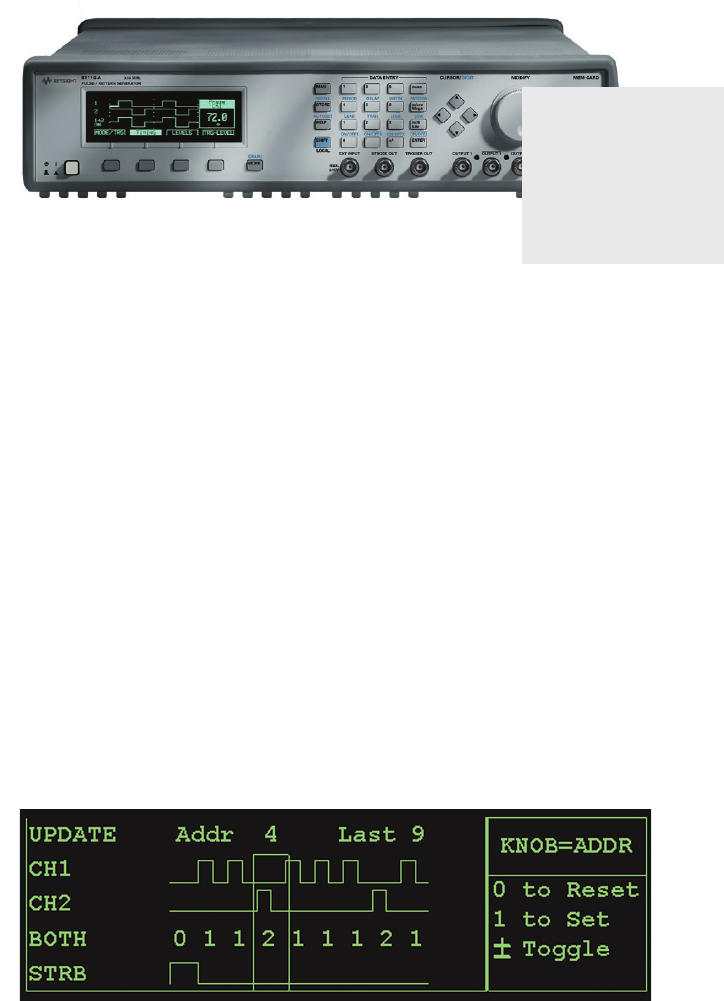

The Keysight 81130A 400 MHz pulse pattern generator with one

or two 81131A output channels is the instrument of choice for

advanced applications that require even higher precision signals

and timing accuracy.

It offers a wide channel delay range and of course, full control of the pulse width. On top

of which, enhanced data generation and pattern segment looping features allow you to

generate complex data patterns.

81130A pulse pattern generator with 81131A 400 MHz output

channel(s)

Key features 81130A

with 81131A

– 1 or 2 channels

– Upto3.8Vpp(50Ωinto50Ω)

– Selectable transition times

800 ps or 1.6 ns

– Internal and external clocking

– 1 kHz to 400 MHz

repetition rate

– Precision timing

– Differential outputs

– EXORchanneladdition

– Complex data patterns and

pattern segment looping

– Pseudo random binary se-

quence(PRBS)generation

Precision

Timing

PRBS

Data

Pattern

Pulse

18 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

CleanandPrecise:81130A(2)

www.keysight.com/nd/81130

Key features 81130A with

81132 A

– 1 or 2 channels

– Upto2.5Vpp(50Ωinto50Ω)

– Fixed transition times:

500 ps typical

– Internal and external clocking

– 1 kHz to 660 MHz

repetition rate

– Precision timing

– Differential outputs

– EXORchanneladdition

– Up to 1.32 Gbit/s data

generation

– Complex data patterns and

pattern segment looping e.g.

for USB pre-compliance

testing

– Pseudo random binary se-

quence(PRBS)generation

Complementary products

– Infinii Vision 6000 Series D/

MSO

– Infinii Vision 7000 Series D/

MSO

– Infiniium 9000 Series D/

MSO

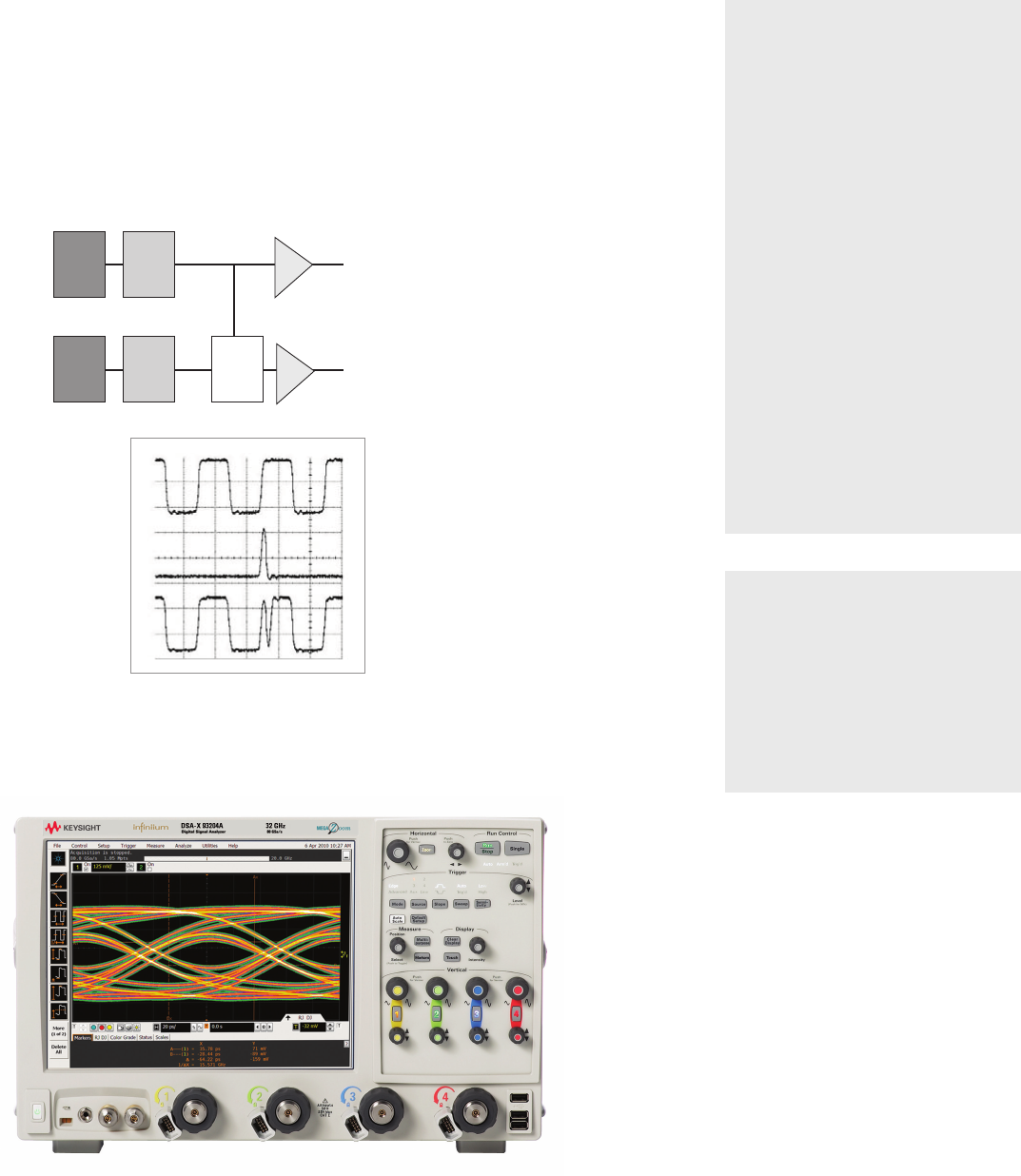

The Keysight 81130A pulse pattern generator with one or two

81132A 660 MHz output channels offers enhanced performance

compared to the 81130A with 81131A output channels.

It is Keysight’s recommended data generator for USB compliance tests. Data rates up to

1.32 Gbit/s can be achieved by the digital channel add feature, offering stimulus signals

for Gigabit Ethernet test, for example.

81130A pulse pattern generator with 81132A 660 MHz

outputchannel(s)

90000 Series oscilloscope

Channel 1

Channel 1

XOR

Delay,

width

Delay,

width

Data

Data

Channel 2

Channel 2

Channel 1 +

Channel 1 +

Channel 1

Channel 2

Channel 2

19 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

High Speed, High Fidelity: 81133A/81134A

With their unrivaled performance, they are the perfect clock, pulse, data, pattern and

PRBS sources for all applications up to 3.35 GHz. In addition, the instruments allow you

to control the signal quality at speeds from 15 MHz up to 3.35 GHz. Sample applications

comprise crossover point adjustments and jitter insertion using the delay control input.

Their high quality signals and low intrinsic jitter enable you to perform quick and reliable

measurements with accurate and repeatable results. With the 12 Mbit pattern memory

per channel, the 81133A and 81134A enable you to generate the long data patterns

required to test today’s high speed interfaces, like PCI Express or Serial ATA and many

more. The PC-based pattern management software is a very convenient tool to edit and

save data patterns on any computer. It also allows you to load patterns easily into the

generator. The jitter-insertion capabilities enable jitter tolerance tests. Target applica-

tions of the 81133A and 81134A include physical layer characterization, signal integrity

and jitter tests. In addition the 81134A is Keysight’s recommended solution for PCI

Express and Serial ATA compliance tests.

The Keysight 81133A and 81134A 3.35 GHz pulse pattern genera-

tors provide the ultimate timing accuracy and signal performance.

Jitter modulated with noise

Jitter modulated with sine-wave

Jitter modulated with rectangle-wave

Variable cross over point at 70%

Precision timing

PRBS

Data

Pattern

Pulse

Jitter

81134A pulse pattern generator

20 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

HighSpeed,HighFidelity:81133A/81134A(2)

www.keysight.com/nd/81133a

www.keysight.com/nd/81134a

Key features 81133A with

81134A

– 1channel(81133A)or

2channels(81134A)

– 50 mVpp up to 2 Vpp ampli-

tude(50Ωinto50Ω)

– Programmable termination

voltage

– Adjustable transition times

between 60 ps and 120 ps

– 15 MHz to 3.35 GHz

repetition rate

– Total jitter typically less than

2 ps

– 12 Mbit pattern memory

per channel

– PC-based pattern manage-

ment software

– 1.5 ps typical RMS jitter

– Differential outputs

– Complex data patterns e.g. for

PCI Express, SATA

– Pseudo random binary

sequence(PRBS)generation

– Delay modulation: –250 ps to

250 ps, –25 ps to 25 ps select-

able(upto500,50pspstotal

jitter)

– Modulation frequency:

0 - 200 MHz

– Additional variable crossover

between 30% – 70% typical

– NRZ/RZ/R1signalformats

over the full frequency range

Complementary products

– DSO, DSA 90000 Series

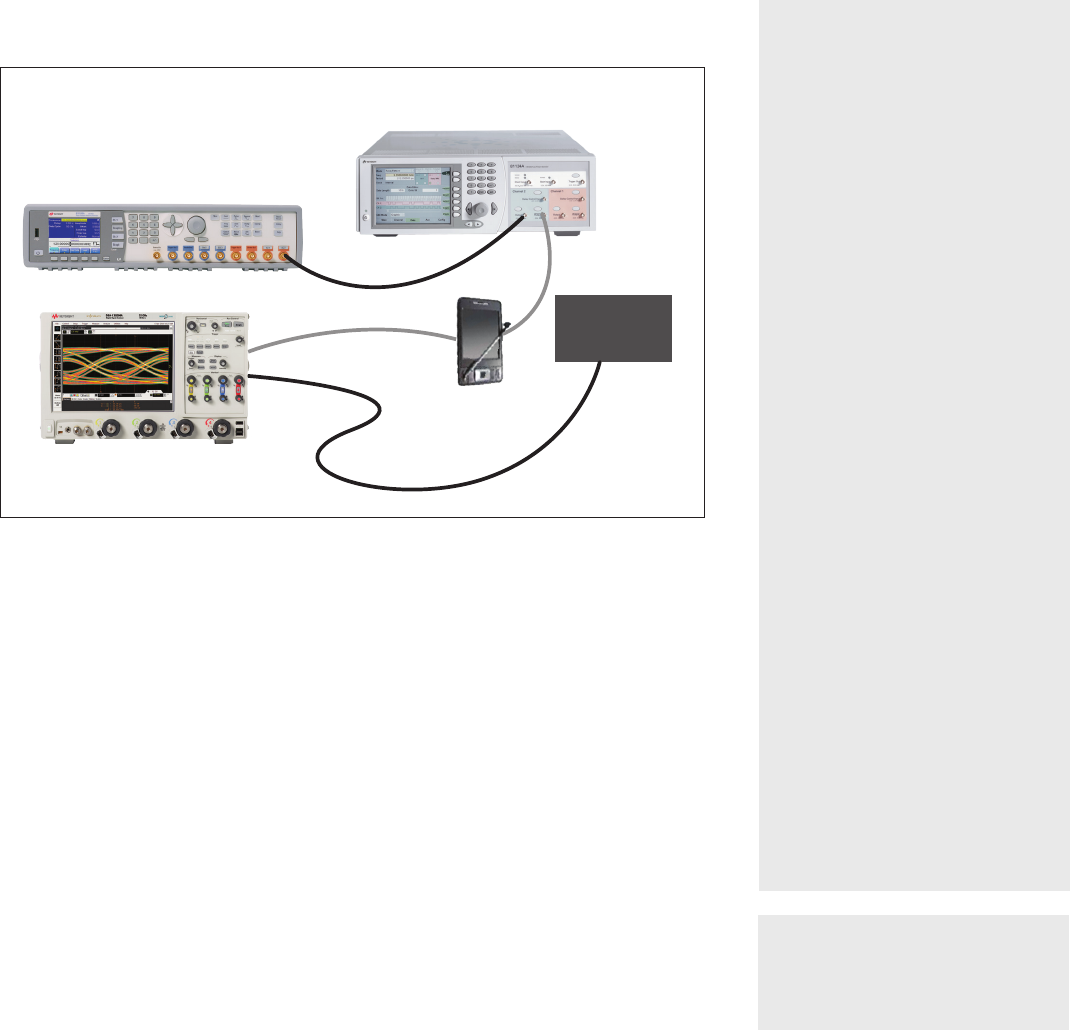

Perform stress tests by modifying the amount and shape of jitter by using the delay control input and an external

modulation source.

81133A/34A pulse

pattern generator

Infiniium oscilloscope

81150A modulation

source - jitter input

Reference

clock

Device

under

test

21 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Key features M8020A

– Data rates up to 8.5/ 16 Gb/s

for pattern generator. Exten-

sion to 32 Gb/s possible with

M8061A multiplexer 2:1

– 1-4 16 Gb/s channels in a

5-slotAXIechassis.One

32 Gb/s channel in a 5-slot

AXIchassis.

– Fast transition times of 12 ps

typical

– Differential outputs on data

and clock with variable ampli-

tude between 50 mV and

1.2 Vpp single ended.

– PatternsinNRZformat,

2Gbit/chuserdenable,

PRBS, coding, pattern blocks

and loops

– Integrated and calibrated jitter

injections: RJ, high-frequency

PJ1, PJ2,low-frequency PJ,

BUJ, Clk/2, SSC, sinusoidal

interference, and ISI

– Low intrinsic jitter 8 ps pp

typical for accurate measure-

ments

– 8-tapde-emphasis(positive

andnegative)upto20dB

– Modules and options are

upgradeable

J-BERT M8020A High-performance BERT Pattern

Generators up to 8.5, 16 and 32 Gb/s

The high-performance Keysight J-BERT M8020A enables fast, accurate receiver charac-

terization of single- and multi-lane devices running up to 16 or 32 Gb/s.

With today’s highest level of integration, the M8020A streamlines your test setup. In ad-

dition, automated in situ calibration of signal conditions ensures accurate and repeatable

measurements.

Target applications

R&D and test engineers who characterize, verify compliance of chips, devices, boards

and systems with serial I/O ports up to 16 Gb/s and 32 Gb/s. The M8020A can be used

to test popular serial bus standards, such as: PCI Express, USB, MIPI™ M-PHY®, SATA/

SAS, DisplayPort, SD UHS-II, Fibre Channel, front-side and memory buses, backplanes,

repeaters,activeopticalcables,Thunderbolt,10GbE,100GbE(opticalandelectrical),

SFP+, CFP2/4 transceivers, CEI.

The J-BERT M8020A offers pattern generator options for data rates

up to 8.5 Gb/s, 16 Gb/s and 32 Gb/s. It’s a high-performance pat-

tern generator with integrated jitter, de-emphasis, and level inter-

ference for characterizing single and multiple lanes of high-speed

digital devices, sub-systems and boards in the computer, consumer

and communication industry.

Complementary products

– M8061A 32Gb/s multiplexer

– M8048A ISI channels

– DCA-X86100DInniiumwide-

bandwidth oscilloscope

– DSAZ-SeriesInniium

oscilloscopes

Jitter

De-emphasis

4 Channels

Pattern

Coding

www.keysight.com/nd/m8020a

22 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Test & Measurement World's

2011

Test & Measurement Wor

l

d

's

Key features N4903B

G07, G13

– Data rates between 150

Mb/s and 7 Gb/s or 12.5

Gb/s provide sufficient

margin

– Fastest transition times

<20ps

– Lowjitter<9psppforaccu-

rate measurements

– Differential outputs on data

and clock with variable

amplitude between 50 mV

and 1.8 V

– PatternwithNRZformat,

32 Mbit user pattern, PRBS,

block and loop sequencer

– Built-in and calibrated jitter

injection: SJ, PJ, RJ, BUJ

(OptionJ10)togenerateeye

closures of > 0.5 UI

– External jitter injection via de-

lay control input up to 1 GHz

– Interference channel with

switchable ISI traces and sinu-

soidal interference

(OptionJ11)toemulate

channel degradations

– SSCclocking(OptionJ11)for

computer bus clocks

– Sub-rate clock output to gen-

erate reference clocks

– Upgrade path to add second

channel, jitter, SSC, and analy-

sis functionality

J-BERT N4903B Pattern Generator 7 Gb/s

and 12.5 Gb/s

www.keysight.com/nd/n4903

TheN4903Bgeneratesuser-denableNRZ-patternsorPRBSwithvariabledatarate

and output amplitude. It offers built-in and calibrated jitter injection to stress receiver

ports of high-speed digital devices and boards. Design and test engineers can quickly

and accurately stimulate serial high-speed ports, as used in DisplayPort, PCI Express,

SATA,fully-bufferedDIMM,FibreChannel,CEI,10GigabitEthernet,XFP/XFI,SFP/

SFP+ designs. The J-BERT pattern generator can be used in combination with the de-

emphasis signal converter to compensate for channel degradations. For signal analysis,

it is complemented by oscilloscopes, built-in error detectors and other analyzers. The

N4903B pattern generator can be upgraded to a full bit error ratio tester when test

needs change.

The Keysight N4903B J-BERT pattern generator options for data

ratesupto7Gb/sand12.5Gb/sprovideanaccurateandexible

stimulus for stimulating high-speed digital devices.

Jitter

PRBS

Pattern

Clock

Sequences

Complementary products

– 86100CDCA-JInniiumwide-

bandwidth oscilloscope

– N4916B de-emphasis signal

converter with option clock

doubler

– DSO, DSA 90000 Series

– DSO90000XSeries

23 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

www.keysight.com/nd/81250

For a Parallel World: 81250

The Keysight 81250 data generator/analyzer platform is the right

choice for functional and parametric test applications on digital

subsystems, ICs and boards, during development or manufacturing.

The81250isaexibleandscalableplatformwhich,dependingontheconguration,of-

fers up to 66 synchronous input and output channels. The frequency covers 333 kHz to

13.5GHz.The81250datageneratorandanalyzerisfreelycongurabletotapplication

needs either as a stand alone data generator or a platform with any number of genera-

tor and analyzer channels. In addition, the Keysight 81250 can be combined with other

standardVXImodulesorsystems.Withupto64Mbitmemorydepthperchanneland

full control of the pulse parameters for each individual channel, maximum stress can be

applied to a DUT. The 81250 data generator/analyzer platform is the ideal tool through-

outthedesignvericationprocess–fromrstturn-onthroughoperationalcheckand

characterization of design margins, to detailed analysis of critical design parts.

Data

PRBS

Pattern

Pulse

Key features 81250

– Upto132channels(RZ,NRZ)

within one clock group, de-

pendingontheconguration

– PRBSandPRWS(pseudo

randomwordsequence)upto

231–1

– 20.8 Mbit/s to 13.5 Gbit/s data

rate

– Sequencing with 4 looping

levels

– Branching on internal and

external events

– Variable delays and levels can

be independently set for each

channel

– EXORchanneledition

24 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Key features

M933xA and N824xA

– 1 or 2 channels

– Amplitude range of 1 or 2

mVpp to 800 mVpp, 1 Vpp

– Triggerable

– Gate mode

– Remotely programmable

– Pulse generation

– Memory of 8 or 9 and

16 MSa/channel

– Modulation

– Radar test

– Mixed signal devices

– Signal integrity test

– Jitter(stress)test

– Noise immunity test

Complementary products

– E8267D PSG vector signal

generator

– M9392APXIvectorsignal

analyzer

– M9202APXIeIFdigitizer:

12-bit, 2 GSa/s, 1 GHz

– M9018A18-slotPXIechassis

– M9021APXIesysteminterface

– N7509A waveform generation

toolbox for wideband signal

simulation

N824xA and M933xA Arbitrary Waveform Generators

The Keysight M9330A and M9331A with their high resolution and

high sampling rate deliver unprecedented performance in arbitrary

waveformcreation.TheequivalenttothesePXI-modulesarethe

benchtop instruments N8241A and N8242A.

The M9330A and the N8241A provide the most realistic waveforms for radar, satellite

and frequency agile communication systems, thanks to their15-bit vertical resolution and

1.25 GSa/ s sampling rate. At the same speed, with 10 bit vertical resolution, the

M9331A is ideal for compliance testing of digital radios targeted for use with commu-

nication standards such as MB-OFDM ultra wide-band, 802.11n, MIMO and proprietary

wideband formats.

www.keysight.com/nd/modular

www.keysight.com/nd/m9330a

www.keysight.com/nd/m9331a

Arbitrary

25 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Testwithcondence.4.6GSa/sarbitrarywaveformgenerationand

12 bit vertical resolution

The Keysight 81180B arbitrary waveform generator provides 4.6 GSa/s, 2 GHz I/Q modu-

lation bandwidth and 12 bit vertical resolution for applications where waveform resolu-

tion is an issue. With 2 GHz I/Q modulation bandwidth it’s a perfect complement to the

E8267D PSG vector signal generator. The upconversion to higher carrier frequencies

requires a reliable and precise modulation source. Any signal distortion gets multiplied

byeachofthetestinstrumentsmakingitdifculttopinpointaDUTfailure.Themore

precise the foundation is the more you test your device and not your source.

www.keysight.com/nd/81180

Complex Real-World Signals: 81180B Key features 81180B

– 1 or 2 channels, coupled or

uncoupled

– Two 2-channel systems can be

synchronized to form a

4 channel system

– Three software-selectable

ampliersoptimizedfor

– I/Q applications with 1 GHz

per channel, differential,

DC coupled output

– Maximum bandwidth and

atnessfordirectRFap-

plications with AC output

bandwidth to 1.5 GHz

– Time domain applications

with low overshoot and

jitter

– 16 M points or 64 M points

per channel combined with

advanced sequencing to make

best usage of memory

– Integration in Matlab, NI La

VIEW, Keysight Signal Studio1

and Keysight 33503A Bench-

Link Waveform Builder Pro

Complementary products

– In conjunction with PSG or

other upconverter:

Keysight90000XSeries,DSO

and DSA 9000 Series

– For direct RF carrier frequen-

cy: Keysight DSO and DSA

90000 Series

– Keysight M9099 Waveform

Creator Application Software

1. Integration in Signal Studio pulse builder and

multi tone is planned

Arbitrary

26 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Push your design to the limit and bring new insight to your analysis.

8 GSa/s arbitrary waveform generation with 14 bit vertical

resolution

Key features M8190A

– Precision AWG with two DAC

settings

– 14 bit 8 Gsa/s

– 12 bit with 12 Gsa/s

– Variable sample rate from

125 MSA/s to 8/12 Gsa/s

– Up to 2 GSa memory per chan-

nel with advanced sequencing

– Threeampliersfordifferent

applications

– IQ signals:

– Differential output

– Spurious free dynamic range

up to 80 dBc typical

– Harmonic distortion up to

72 dBc typical

– Time domain applications

– Transitiontime(20/80)

50 ps

– Differential output

– Amplitude 600 mV … 1.0

Vpp in an output window

-1.0 V … +3.3 V

– IF /RF

– 50 MHz to 5 GHz band-

width

– Single ended, AC coupled

output

– Output power

– 10 dBm …+10 dBm

– 2UAXIemodule

Complementary products

– In conjunction with PSG or

other up converter Keysight

90000XSeries,DSOandDSA

9000 Series

– For direct RF carrier frequency

DSO and DSA 90000 or 9000

Series

– M9099 Waveform Creator

Application Software

From low-observables radar to high-density communications, testing is more realistic

with precision arbitrary waveform generation. Take reality to the extreme: A Keysight

AWGisthesourceofgreaterdelityanddelivershighresolutionandwidebandwidth–

simultaneously. This unique combination lets you create signal scenarios that push your

designs to the limit and bring new insights to your analysis. Get bits and bandwidth –

and enhance your reality.

High-quality signal generation is the foundation of reliable and repeatable measure-

ments. The Keysight M8190A ensures accuracy and repeatability with 14-bit resolution

upto8GSa/ssamplingrageandexcellentverticalresolutiongivesyoucondencethat

you are testing your device not the signal source.

Capability such as easy switching between 14-bit output at 8 GSa/s and 12-bit output

at 12 GSa/s help you handle multiple applications and measurement requirements.

Because every application calls for different signal characteristics, The Keysight M8190A

containsthreeampliersthatareoptimizedforI/Qsignals,IF/RFortimedomainsignals.

Highly realistic testing often requires long play times and long single scenarios. 2 GSa of

memory per channel combined with advanced sequencer capabilities allow you to use

thememoryefcientlyandeffectively.

www.keysight.com/nd/m8190a

Enhance your Reality: M8190A

Arbitrary

27 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Go where you never have been able to test before: in speed, in

bandwidth and in channel density.

Key features M8195A

– Sample rate up to 65 GSa/s

– Analog bandwidth up to 20

GHz

– 8 bit vertical resolution

– Up to 16 GSa of waveform

memoryperAXImodule1

– 1, 2 or 4 channels in one slot

AXIemodule(numberofchan-

nelsisSWupgradeable)

– Multi-module synchronization

up to 16 channels per 5-slot

AXIechassis1

– Advanced 3-level sequencing

with external dynamic control1

– Amplitude up to 1 VPP(se)

(2VPP(diff)),

voltage window -1.0...+3.3. V

– trise/fall 20%/80%<18ps(typ)

– Ultra low intrinsic jitter

(RJrms<200fs

@ 32 Gb/s PRBS 211-1)

– Distortions generated by

cables,ampliersetc.canbe

compensated by embedding/

de-embedding the S-param-

eters of the respective circuits

or by performing an in-situ

calibration.

Complementary products

– In conjunction with PSG or

other upconverter Keysight

90000XSeries,DSOandDSA

9000 Series

– For direct RF carrier frequency

DSO and DSA 90000 or 9000

Series

– M9099 Waveform Creator

Application Software

Explore your Possibilities: M8195A

As devices and interfaces become faster and more complex, the M8195A AWG gives you

the versatility to create the signals you need for digital applications, optical and electri-

cal communication, advanced research, wideband radar and satcom.

In optical applications, for driving dual-polarization systems, the M8195A scores with

fourindependent,preciselysynchronizedoutputchannelsinasingleAXIemodule.Since

all four channels are generated by the same instrument without any external circuitry,

precise synchronization down to the femto-second-range is guaranteed.

The M8195A supports multi-level signaling techniques like pulse-amplitude modulation 4

(PAM4)andPAM8ortechnologiesinthemobileapplicationspacesuchasMIPIC-PHY.

Physics, chemistry and electronics research working at the edge of technology, call for

preciseandcongurablepulsesdownto100psorlessforextremelyshort,yetwideband

RF pulses and chirps.

Any arbitrary waveform which can be described mathematically can be generated e.g., in

Matlab and downloaded to the M8195A.

The M8195A is designed to address communications/satcom requirements, such as

extremely wide instantaneous bandwidth from DC to the Ku-Band. It also allows fast

frequency hopping across bands within hundreds of picoseconds.

www.keysight.com/nd/m8195a

1. Available with M8195A Rev. 2

28 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Key features

– Output transition time 47 ps,

150 ps, 250 ps, 500 ps,

1000 ps, 2000 ps

– 3 dB point 2.1 GHz, 1.3 GHz,

640 MHz, 370 MHz, 190 MHz

– Inputvoltage<10Vpp

– Insertionloss<0.2dB

– Overshootandringing<3%

www.keysight.com/nd/time_converter

Transition/Time Converters

Models 15432B, 15433B, 1534B, 15435A, 15438A, and

N4915A Option 001

These converters have been designed to convert the transition

timesofinstrumentswithfast,xedtransitiontimes,toslower,xed

transition/times

All transition times are measured between 10% and 90% of amplitude.

Thedesignoftheseconvertersensuresverylowsignalreection(farbeyondthe3dB

point).

Reducing the signal transition times also increases the overall pulse-performance for

overshoot/reectionsensitiveapplications.

TheconvertersarettedwithtwoSMAconnectors,onemale,onefemale.

15435A

(150 ps)

15433B

(500 ps)

15432B

(250 ps)

15438B

(2000 ps)

15434B

(1000 ps)

29 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Waveform Builder Pro Makes Custom Waveforms Quick and Easy

Key features 33503A

– Waveform libraries provide

quick and easy access to both

commonsignals(sine,square,

triangle, ramp, pulse, expo-

nential)andcomplexsignals

– Free-hand, point, and line-

draw modes to create custom

shapes

– Equation editor allows you to

create waveforms with exact

polynomials

– Sequencing editor allows you

to build and arrange compos-

ite waveforms to optimize your

design waveforms to optimize

your design

– Filtering and windowing func-

tions allow you to smooth

transitions between wave-

forms

– FastFourierTransform(FFT)

allows you to view the fre-

quency characteristics of your

signals

– Complimentary Cumulative

DistributionFunction(CCDF)

curves allows you to view the

power characteristics of your

signals

33503A BenchLink Waveform Builder Pro Software

Keysight33503ABenchLinkWaveformBuilderProSoftwareistherstfull-featured

waveform creation software for pulse/function/arbitrary waveform generators. The

software enables you to take full advantage of the signal generation capabilities of the

Keysight 33200, 33500, 33600, 81100 Series waveform generators and makes custom

waveform creation fast and simple.

This Microsoft Windows-based program provides easy-to-use creation tools such an

equation editor, waveform math and drawing tools to create custom signals with a library

of built-in waveforms to choose from. The software also provides a waveform sequencer,

ltersandwindowingfunctionsallowingyoutoeasilymodifyandfurtherdeneyour

waveform.

With the BenchLink Waveform Builder Pro you get advanced signal creation and editing

capabilities without spending hours programming.

The software supports the following generators:

– 33600A Series Trueform waveform generators, 80 & 120 MHz

– 33210A, 33220A, 33250A function/arbitrary waveform generators

– 33522A function/arbitrary waveform generator

– 81150A and 81160A pulse/function/arbitrary noise generators

– 81180B, M8190A and M8195A arbitrary waveform generators

www.keysight.com/nd/33503a

30 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

Publication title Pub number

U2761A USB Modular Function/ Arbitrary Waveform Generator Data Sheet 5991-0413EN

Keysight USB Modular Products Data Sheet 5989-9923EN

33210A 10 MHz Function/Arbitrary Waveform Generator Data Sheet 5989-8926EN

Transferring Arbitrary Waveform Data to the 33200A Family of Function/Arbitrary Waveform Generators 5989-9760EN

33500B Series Waveform Generators Data Sheet 5991-0692EN

33600A Series Trueform Waveform Generators Data Sheet 5991-3272EN

81150A and 81160A Pulse Function Arbitrary Noise Generator Data Sheet 5989-6433EN

Keysight 81150A and 81160A Pulse Function Arbitrary Noise Generators Applications 5989-7860EN

Keysight 81150A and 81160A Pulse Function Arbitrary Noise Generators Demo Guide 5989-7718EN

10 Hints for Getting More From Your Function Generator 5989-1456EN

Keysight Technologies 81100 Family Pulse Pattern Generators Data Sheet 5980-1215E

Keysight Technologies 81133A and 81134A

3.35 GHz Pulse Pattern Generators Data Sheet

5988-5549EN

J-BERT N4903B Data Sheet 5990-3217EN

J-BERT M8020A High-performance BERT Data Sheet 5991-3647EN

M8061A 32 Gb/s Multiplexer with De-Emphasis Data Sheet 5991-2506EN

M8048A ISI Channels Data Sheet 5991-3648EN

ParBERT 81250 Parallel Bit Error Ratio Tester Product Overview Data Sheet 5968-9188E

M9330A Arbitrary Waveform Generator 15-bit, 1.25 GS/s Data Sheet 5990-6426EN

M9331A Arbitrary Waveform Generator 10-bit, 1.25 GS/s Data Sheet 5990-6421EN

N8241A Arbitrary Waveform Generator Synthetic Instrument Module

1.25 GS/s or 625 MS/s Technical Overview Data Sheet

5989-2595EN

N8242A Arbitrary Waveform Generator Synthetic Instrument Module

10 Bit, 1.25 GS/s or 625 MS/s Technical Overview Data Sheet

5989-5010EN

81180B Arbitrary Waveform Generator Data Sheet 5991-0346EN

M8190A 12GSa/s Arbitrary Waveform Generator Data Sheet 5990-7516EN

M8195A 65GSa/s Arbitrary Waveform Generator Data Sheet 5992-0014EN

Related Literature

31 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

32 | Keysight | Pulse Pattern and Function Arbitrary Generators and Arbitrary Waveform Generator – Brochure

This information is subject to change without notice.

© Keysight Technologies, 2012 - 2017

Published in USA, December 2, 2017

5980-0489E

www.keysight.com

www.keysight.com/find/pulse

www.keysight.com/find/awg

www.keysight.com/find/data_generators

myKeysight

www.keysight.com/find/mykeysight

A personalized view into the information most relevant to you.

www.keysight.com/find/emt_product_registration

Register your products to get up-to-date product information and

find warranty information.

Keysight Services

www.keysight.com/find/service

Keysight Services can help from acquisition to renewal across your

instrument’s lifecycle. Our comprehensive service offerings—one-

stop calibration, repair, asset management, technology refresh,

consulting, training and more—helps you improve product quality

and lower costs.

Keysight Assurance Plans

www.keysight.com/find/AssurancePlans

Up to ten years of protection and no budgetary surprises to ensure

your instruments are operating to specification, so you can rely on

accurate measurements.

Keysight Channel Partners

www.keysight.com/find/channelpartners

Get the best of both worlds: Keysight’s measurement expertise and

product breadth, combined with channel partner convenience.

Evolving Since 1939

Our unique combination of hardware, software, services, and people can help you

reach your next breakthrough. We are unlocking the future of technology.

From Hewlett-Packard to Agilent to Keysight.

For more information on Keysight

Technologies’ products, applications or

services, please contact your local Keysight

office. The complete list is available at:

www.keysight.com/find/contactus

Americas

Canada (877)8944414

Brazil 55 11 3351 7010

Mexico 001 800 254 2440

United States (800)8294444

AsiaPacic

Australia 1 800 629 485

China 800 810 0189

Hong Kong 800 938 693

India 1 800 11 2626

Japan 0120(421)345

Korea 080 769 0800

Malaysia 1 800 888 848

Singapore 1 800 375 8100

Taiwan 0800 047 866

Other AP Countries (65)63758100

Europe & Middle East

Austria 0800 001122

Belgium 0800 58580

Finland 0800 523252

France 0805 980333

Germany 0800 6270999

Ireland 1800 832700

Israel 1 809 343051

Italy 800 599100

Luxembourg +32 800 58580

Netherlands 0800 0233200

Russia 8800 5009286

Spain 800 000154

Sweden 0200 882255

Switzerland 0800 805353

Opt.1(DE)

Opt.2(FR)

Opt.3(IT)

United Kingdom 0800 0260637

For other unlisted countries:

www.keysight.com/find/contactus

(BP-9-7-17)

DEKRA Certified

ISO9001 Quality Management System

www.keysight.com/go/quality

Keysight Technologies, Inc.

DEKRA Certified ISO 9001:2015

Quality Management System
