PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
Agenda
TENSORS
Tensors
Python objects
Zero-copy
Tensor storage
Memory allocators (CPU/GPU)
The big picture
JIT
Just-in-time compiler
Tracing
Scripting
Why TorchScript ?
Building IR and JIT Phases
Optimizations
Serialization

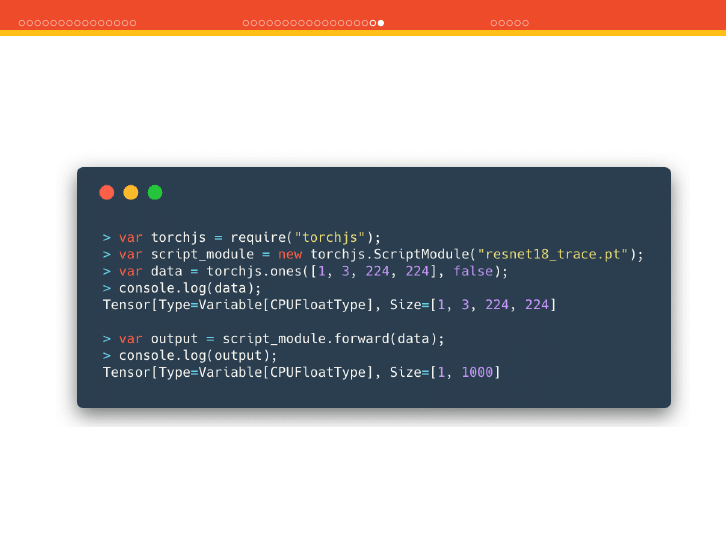

Using models in other languages
PRODUCTION
Some tips
Q&A
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
DISCLAIMER
ÉPyTorch is a moving target, Deep Learning ecosystem moves
fast and big changes happens every week;
ÉThis is not a talk to teach you the basics of PyTorch or how to
train your network, but to teach you how PyTorch
components works under the hood in a intuitive way;
ÉThis talk is updated to the PyTorch v.1.0.1 version;
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
DISCLAIMER
ÉPyTorch is a moving target, Deep Learning ecosystem moves
fast and big changes happens every week;
ÉThis is not a talk to teach you the basics of PyTorch or how to
train your network, but to teach you how PyTorch
components works under the hood in a intuitive way;
ÉThis talk is updated to the PyTorch v.1.0.1 version;
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
DISCLAIMER
ÉPyTorch is a moving target, Deep Learning ecosystem moves
fast and big changes happens every week;
ÉThis is not a talk to teach you the basics of PyTorch or how to
train your network, but to teach you how PyTorch
components works under the hood in a intuitive way;
ÉThis talk is updated to the PyTorch v.1.0.1 version;
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSORS

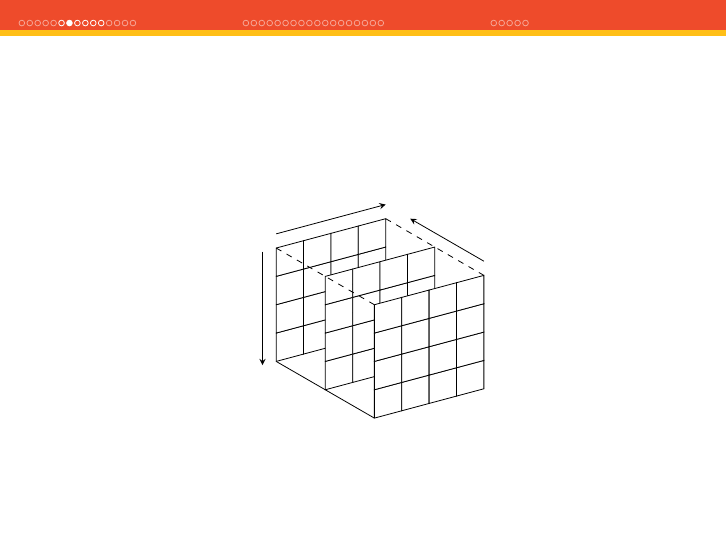

Simply put, TENSORS are a generalization of vectors and matrices.
In PyTorch, they are a multi-dimensional matrix containing elements
of a single data type.
>>> import torch
>>> t=torch.tensor([[1.,-1.], [1.,-1.]])
>>> t
tensor([[ 1., -1.]
[ 1., -1.]])
>>> t.dtype # They have a type
torch.float32
>>> t.shape # a shape
torch.Size([2, 2])
>>> t.device # and live in some device
device(type='cpu')
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSORS
Simply put, TENSORS are a generalization of vectors and matrices.
In PyTorch, they are a multi-dimensional matrix containing elements
of a single data type.
>>> import torch
>>> t=torch.tensor([[1.,-1.], [1.,-1.]])
>>> t
tensor([[ 1., -1.]
[ 1., -1.]])
>>> t.dtype # They have a type
torch.float32
>>> t.shape # a shape
torch.Size([2, 2])
>>> t.device # and live in some device
device(type='cpu')
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSORS
Simply put, TENSORS are a generalization of vectors and matrices.
In PyTorch, they are a multi-dimensional matrix containing elements
of a single data type.
>>> import torch
>>> t=torch.tensor([[1.,-1.], [1.,-1.]])
>>> t
tensor([[ 1., -1.]
[ 1., -1.]])
>>> t.dtype # They have a type
torch.float32
>>> t.shape # a shape
torch.Size([2, 2])
>>> t.device # and live in some device
device(type='cpu')
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSORS
Simply put, TENSORS are a generalization of vectors and matrices.
In PyTorch, they are a multi-dimensional matrix containing elements
of a single data type.
>>> import torch
>>> t=torch.tensor([[1.,-1.], [1.,-1.]])
>>> t
tensor([[ 1., -1.]
[ 1., -1.]])
>>> t.dtype # They have a type
torch.float32
>>> t.shape # a shape
torch.Size([2, 2])
>>> t.device # and live in some device
device(type='cpu')
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSORS
Simply put, TENSORS are a generalization of vectors and matrices.
In PyTorch, they are a multi-dimensional matrix containing elements
of a single data type.
>>> import torch
>>> t=torch.tensor([[1.,-1.], [1.,-1.]])
>>> t
tensor([[ 1., -1.]
[ 1., -1.]])
>>> t.dtype # They have a type
torch.float32
>>> t.shape # a shape
torch.Size([2, 2])
>>> t.device # and live in some device
device(type='cpu')
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSORS
É
Although PyTorch has an elegant python first design, all PyTorch
heavy work is actually implemented in C++.
ÉIn Python, the integration of C++ code is (usually) done using
what is called an extension;
ÉPyTorch uses ATen, which is the foundational tensor operation
library on which all else is built;
É
To do automatic differentiation, PyTorch uses
Autograd
, which
is an augmentation on top of the ATen framework;
ÉIn the Python API, PyTorch previously had separate
Variable and a Tensor types, after v.0.4.0 they were
merged into Tensor .
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSORS
É
Although PyTorch has an elegant python first design, all PyTorch
heavy work is actually implemented in C++.
ÉIn Python, the integration of C++ code is (usually) done using
what is called an extension;
ÉPyTorch uses ATen, which is the foundational tensor operation
library on which all else is built;
É
To do automatic differentiation, PyTorch uses
Autograd
, which
is an augmentation on top of the ATen framework;
ÉIn the Python API, PyTorch previously had separate
Variable and a Tensor types, after v.0.4.0 they were
merged into Tensor .
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSORS
É
Although PyTorch has an elegant python first design, all PyTorch
heavy work is actually implemented in C++.
ÉIn Python, the integration of C++ code is (usually) done using
what is called an extension;
ÉPyTorch uses ATen, which is the foundational tensor operation
library on which all else is built;
É
To do automatic differentiation, PyTorch uses
Autograd
, which
is an augmentation on top of the ATen framework;
ÉIn the Python API, PyTorch previously had separate
Variable and a Tensor types, after v.0.4.0 they were
merged into Tensor .
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSORS
É
Although PyTorch has an elegant python first design, all PyTorch
heavy work is actually implemented in C++.
ÉIn Python, the integration of C++ code is (usually) done using
what is called an extension;
ÉPyTorch uses ATen, which is the foundational tensor operation
library on which all else is built;
É
To do automatic differentiation, PyTorch uses
Autograd
, which
is an augmentation on top of the ATen framework;
ÉIn the Python API, PyTorch previously had separate
Variable and a Tensor types, after v.0.4.0 they were
merged into Tensor .
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
QUICK RECAP PYTHON OBJECTS
typedef struct {
PyObject_HEAD
double ob_fval;
} PyFloatObject;
typedef struct _object {
Py_ssize_t ob_refcnt;
struct _typeobject *ob_type;
} PyObject;
struct _typeobject *ob_type
Py_ssize_t ob_refcnt
object
PyObject
double ob_fval
PyObject_HEAD
object
PyFloatObject
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
QUICK RECAP PYTHON OBJECTS
typedef struct {
PyObject_HEAD
double ob_fval;
} PyFloatObject;
typedef struct _object {
Py_ssize_t ob_refcnt;
struct _typeobject *ob_type;
} PyObject;
struct _typeobject *ob_type
Py_ssize_t ob_refcnt
object
PyObject
double ob_fval
PyObject_HEAD
object
PyFloatObject
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
QUICK RECAP PYTHON OBJECTS
typedef struct {
PyObject_HEAD
double ob_fval;
} PyFloatObject;
typedef struct _object {
Py_ssize_t ob_refcnt;
struct _typeobject *ob_type;
} PyObject;
struct _typeobject *ob_type
Py_ssize_t ob_refcnt
object
PyObject
double ob_fval
PyObject_HEAD
object
PyFloatObject
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
QUICK RECAP PYTHON OBJECTS
struct THPVariable {
PyObject_HEAD
torch::autograd::Variable cdata;
PyObject*backward_hooks;
};
(object fields)
PyObject_HEAD (w/ ref counter)
object
THPVariable
variable_a
variable_b
Ref Count = 1
Ref Count = 2
The TH prefix is from TorcH, and Pmeans Python.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
QUICK RECAP PYTHON OBJECTS
struct THPVariable {
PyObject_HEAD
torch::autograd::Variable cdata;
PyObject*backward_hooks;
};
(object fields)
PyObject_HEAD (w/ ref counter)
object
THPVariable
variable_a
variable_b
Ref Count = 1
Ref Count = 2
The TH prefix is from TorcH, and Pmeans Python.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
INPYTHON,EVERYTHING IS AN OBJECT
>>> a= 300
>>> b= 300
>>> ais b
False
>>> a= 200
>>> b= 200
>>> ais b
True
(object fields)
PyObject_HEAD
object
PyIntObject
a
b
Ref Count = 1
Ref Count = 2
(object fields)
PyObject_HEAD
object
PyIntObject
(object fields)
PyObject_HEAD
object
PyIntObject
a
b
Ref Count = 1
Ref Count = 1
A typical Python program spend much of its time
allocating/deallocating integers. CPython then caches the small
integers.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
INPYTHON,EVERYTHING IS AN OBJECT
>>> a= 300
>>> b= 300
>>> ais b
False
>>> a= 200
>>> b= 200
>>> ais b
True
(object fields)
PyObject_HEAD
object
PyIntObject
a
b
Ref Count = 1
Ref Count = 2
(object fields)
PyObject_HEAD
object
PyIntObject
(object fields)
PyObject_HEAD
object
PyIntObject
a
b
Ref Count = 1
Ref Count = 1
A typical Python program spend much of its time
allocating/deallocating integers. CPython then caches the small
integers.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
INPYTHON,EVERYTHING IS AN OBJECT
>>> a= 300
>>> b= 300
>>> ais b
False
>>> a= 200
>>> b= 200
>>> ais b
True
(object fields)
PyObject_HEAD
object
PyIntObject
a
b
Ref Count = 1
Ref Count = 2
(object fields)
PyObject_HEAD
object
PyIntObject
(object fields)
PyObject_HEAD
object
PyIntObject
a
b
Ref Count = 1
Ref Count = 1
A typical Python program spend much of its time
allocating/deallocating integers. CPython then caches the small
integers.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
It is very common to load tensors in numpy and convert them to
PyTorch, or vice-versa;
>>> np_array =np.ones((2,2))
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.tensor(np_array)
>>> torch_array
tensor([[1., 1.],
[1., 1.]], dtype=torch.float64)
>>> torch_array.add_(1.0)
>>> np_array
array([[1., 1.], # array is intact, a copy was made
[1., 1.]])
Underline after an operation means an in-place operation.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
It is very common to load tensors in numpy and convert them to
PyTorch, or vice-versa;
>>> np_array =np.ones((2,2))
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.tensor(np_array)
>>> torch_array
tensor([[1., 1.],
[1., 1.]], dtype=torch.float64)
>>> torch_array.add_(1.0)
>>> np_array
array([[1., 1.], # array is intact, a copy was made
[1., 1.]])
Underline after an operation means an in-place operation.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
It is very common to load tensors in numpy and convert them to
PyTorch, or vice-versa;
>>> np_array =np.ones((2,2))
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.tensor(np_array)
>>> torch_array
tensor([[1., 1.],
[1., 1.]], dtype=torch.float64)
>>> torch_array.add_(1.0)
>>> np_array
array([[1., 1.], # array is intact, a copy was made
[1., 1.]])
Underline after an operation means an in-place operation.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
It is very common to load tensors in numpy and convert them to
PyTorch, or vice-versa;
>>> np_array =np.ones((2,2))
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.tensor(np_array)
>>> torch_array
tensor([[1., 1.],
[1., 1.]], dtype=torch.float64)
>>> torch_array.add_(1.0)
>>> np_array
array([[1., 1.], # array is intact, a copy was made
[1., 1.]])
Underline after an operation means an in-place operation.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
ÉNow imagine that you have a batch of 128 images, 3 channels
each (RGB) and with size of 224x224;
0
1
1
1
0
0
1
1
1
0
0
1
1
1
1
1
1
0
1
0
1
1
1
1
0
1
0
0
0
1
1
1
0
1
0
0
1
0
0
1
1
0
0
1
1
0
0
0
Column
Row
Channel
ÉThis will yield a size in memory of ∼74MB. We don’t want to
duplicate memory (except when copying them to discrete GPUs
of course);
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
Let’s see now a slightly different code using the function
torch.from_numpy() this time:
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.from_numpy(np_array)
>>> torch_array.add_(1.0)
>>> np_array
array([[2., 2.],
[2., 2.]])
The original numpy array was changed, because it used a zero-copy
operation.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
Let’s see now a slightly different code using the function
torch.from_numpy() this time:
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.from_numpy(np_array)
>>> torch_array.add_(1.0)
>>> np_array
array([[2., 2.],
[2., 2.]])
The original numpy array was changed, because it used a zero-copy
operation.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
Let’s see now a slightly different code using the function
torch.from_numpy() this time:
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.from_numpy(np_array)
>>> torch_array.add_(1.0)
>>> np_array
array([[2., 2.],
[2., 2.]])
The original numpy array was changed, because it used a zero-copy
operation.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
Let’s see now a slightly different code using the function
torch.from_numpy() this time:
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.from_numpy(np_array)
>>> torch_array.add_(1.0)
>>> np_array
array([[2., 2.],
[2., 2.]])
The original numpy array was changed, because it used a zero-copy
operation.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
Difference between in-place and standard operations might not be
so clear in some cases:
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.from_numpy(np_array)
>>> np_array =np_array + 1.0
>>> torch_array
tensor([[1., 1.],
[1., 1.]], dtype=torch.float64)
However, if you use np_array += 1.0 , that is an in-place
operation that will change torch_array memory.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
Difference between in-place and standard operations might not be
so clear in some cases:
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.from_numpy(np_array)
>>> np_array =np_array + 1.0
>>> torch_array
tensor([[1., 1.],
[1., 1.]], dtype=torch.float64)
However, if you use np_array += 1.0 , that is an in-place
operation that will change torch_array memory.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
Difference between in-place and standard operations might not be
so clear in some cases:
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.from_numpy(np_array)
>>> np_array =np_array + 1.0
>>> torch_array
tensor([[1., 1.],
[1., 1.]], dtype=torch.float64)
However, if you use np_array += 1.0 , that is an in-place
operation that will change torch_array memory.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
Difference between in-place and standard operations might not be
so clear in some cases:
>>> np_array
array([[1., 1.],
[1., 1.]])
>>> torch_array =torch.from_numpy(np_array)
>>> np_array =np_array + 1.0
>>> torch_array
tensor([[1., 1.],
[1., 1.]], dtype=torch.float64)
However, if you use np_array += 1.0 , that is an in-place
operation that will change torch_array memory.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ZERO-COPYING TENSORS
at::Tensor tensor_from_numpy(PyObject*obj) {
// (...) - omitted for brevity
auto array =(PyArrayObject*)obj;
int ndim =PyArray_NDIM(array);
auto sizes =to_aten_shape(ndim, PyArray_DIMS(array));
auto strides =to_aten_shape(ndim, PyArray_STRIDES(array));
// (...) - omitted for brevity
void*data_ptr =PyArray_DATA(array);
auto&type =CPU(dtype_to_aten(PyArray_TYPE(array)));
Py_INCREF(obj);
return type.tensorFromBlob(data_ptr, sizes, strides,
[obj](void*data) {
AutoGIL gil;
Py_DECREF(obj);
});
}
Pay attention to the reference counting using
Py_INCREF()
and the
call to tensorFromBlob() function.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
DATA POINTERS
(object fields)
data_pointer*
object
PyArrayObject
(object fields)
data_pointer*
object
FloatTensor
The tensor FloatTensor did a copy of the numpy array data
pointer and not of the contents. The reference is kept safe by the
Python reference counting mechanism.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSOR STORAGE
The abstraction responsible for holding the data isn’t actually the
Tensor , but the Storage .
struct C10_API StorageImpl final :(...) {
// (...)
private:
// (...)
caffe2::TypeMeta data_type_;
DataPtr data_ptr_;
int64_t numel_;
Allocator*allocator_;
}
É
Holds a pointer to the raw data and contains information such as
the size and allocator;
ÉStorage is a dumb abstraction, there is no metadata telling us
how to interpret the data it holds;
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSOR STORAGE
The abstraction responsible for holding the data isn’t actually the
Tensor , but the Storage .
struct C10_API StorageImpl final :(...) {
// (...)
private:
// (...)
caffe2::TypeMeta data_type_;
DataPtr data_ptr_;
int64_t numel_;
Allocator*allocator_;
}
É
Holds a pointer to the raw data and contains information such as
the size and allocator;
ÉStorage is a dumb abstraction, there is no metadata telling us
how to interpret the data it holds;
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSOR STORAGE
The abstraction responsible for holding the data isn’t actually the
Tensor , but the Storage .
struct C10_API StorageImpl final :(...) {
// (...)
private:
// (...)
caffe2::TypeMeta data_type_;
DataPtr data_ptr_;
int64_t numel_;
Allocator*allocator_;
}
É
Holds a pointer to the raw data and contains information such as
the size and allocator;
ÉStorage is a dumb abstraction, there is no metadata telling us
how to interpret the data it holds;
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSOR STORAGE
É
The
Storage
abstraction is very powerful because it decouples
the raw data and how we can interpret it;
ÉWe can have multiple tensors sharing the same storage, but
with different interpretations, also called views, but without
duplicating memory:
>>> tensor_a =torch.ones((2,2))
>>> tensor_b =tensor_a.view(4)
>>> tensor_a_data =tensor_a.storage().data_ptr()
>>> tensor_b_data =tensor_b.storage().data_ptr()
>>> tensor_a_data == tensor_b_data
True
Étensor_b is a different view (interpretation) of the same data
present in the underlying storage that is shared between both
tensors.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSOR STORAGE
É
The
Storage
abstraction is very powerful because it decouples
the raw data and how we can interpret it;
ÉWe can have multiple tensors sharing the same storage, but
with different interpretations, also called views, but without
duplicating memory:
>>> tensor_a =torch.ones((2,2))
>>> tensor_b =tensor_a.view(4)
>>> tensor_a_data =tensor_a.storage().data_ptr()
>>> tensor_b_data =tensor_b.storage().data_ptr()
>>> tensor_a_data == tensor_b_data
True
Étensor_b is a different view (interpretation) of the same data
present in the underlying storage that is shared between both
tensors.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSOR STORAGE
É
The
Storage
abstraction is very powerful because it decouples
the raw data and how we can interpret it;
ÉWe can have multiple tensors sharing the same storage, but
with different interpretations, also called views, but without
duplicating memory:
>>> tensor_a =torch.ones((2,2))
>>> tensor_b =tensor_a.view(4)
>>> tensor_a_data =tensor_a.storage().data_ptr()
>>> tensor_b_data =tensor_b.storage().data_ptr()
>>> tensor_a_data == tensor_b_data
True
Étensor_b is a different view (interpretation) of the same data
present in the underlying storage that is shared between both
tensors.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TENSOR STORAGE
É
The
Storage
abstraction is very powerful because it decouples
the raw data and how we can interpret it;
ÉWe can have multiple tensors sharing the same storage, but
with different interpretations, also called views, but without
duplicating memory:
>>> tensor_a =torch.ones((2,2))
>>> tensor_b =tensor_a.view(4)
>>> tensor_a_data =tensor_a.storage().data_ptr()
>>> tensor_b_data =tensor_b.storage().data_ptr()
>>> tensor_a_data == tensor_b_data
True
Étensor_b is a different view (interpretation) of the same data
present in the underlying storage that is shared between both
tensors.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
MEMORY ALLOCATORS (CPU/GPU)
ÉThe tensor storage can be allocated either in the CPU memory
or GPU, therefore a mechanism is required to switch between
these different allocations:
struct Allocator {
virtual ~Allocator() {}
virtual DataPtr allocate(size_t n) const = 0;
virtual DeleterFnPtr raw_deleter() const {...}
void*raw_allocate(size_t n) {...}
void raw_deallocate(void*ptr) {...}
};
É
There are
Allocator
s that will use the GPU allocators such as
cudaMallocHost() when the storage should be used for the
GPU or posix_memalign() POSIX functions for data in the
CPU memory.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
MEMORY ALLOCATORS (CPU/GPU)
ÉThe tensor storage can be allocated either in the CPU memory
or GPU, therefore a mechanism is required to switch between
these different allocations:
struct Allocator {
virtual ~Allocator() {}
virtual DataPtr allocate(size_t n) const = 0;
virtual DeleterFnPtr raw_deleter() const {...}
void*raw_allocate(size_t n) {...}
void raw_deallocate(void*ptr) {...}
};
É
There are
Allocator
s that will use the GPU allocators such as
cudaMallocHost() when the storage should be used for the
GPU or posix_memalign() POSIX functions for data in the
CPU memory.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
THE BIG PICTURE
(object fields)
Storage *storage
object
Tensor
Allocator *allocator
(object fields)
DataPtr data_ptr
object
Storage
raw_deallocate()
(object fields)
raw_allocate()
object
Allocator
Raw Data
ÉThe Tensor has a Storage which in turn has a pointer to
the raw data and to the Allocator to allocate memory
according to the destination device.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
JIT - JUST-IN-TIME COMPILER
ÉPyTorch is eager by design, which means that it is easily
hackable to debug, inspect, etc;
ÉHowever, this poses problems for optimization and for
decoupling it from Python (the model itself is Python code);
ÉPyTorch 1.0 introduced torch.jit , which has two main
methods to convert a PyTorch model to a serializable and
optimizable format;
ÉTorchScript was also introduced as a statically-typed subset of
Python;
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
JIT - JUST-IN-TIME COMPILER
ÉPyTorch is eager by design, which means that it is easily
hackable to debug, inspect, etc;
ÉHowever, this poses problems for optimization and for
decoupling it from Python (the model itself is Python code);
ÉPyTorch 1.0 introduced torch.jit , which has two main
methods to convert a PyTorch model to a serializable and
optimizable format;
ÉTorchScript was also introduced as a statically-typed subset of
Python;
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
JIT - JUST-IN-TIME COMPILER
ÉPyTorch is eager by design, which means that it is easily
hackable to debug, inspect, etc;
ÉHowever, this poses problems for optimization and for
decoupling it from Python (the model itself is Python code);
ÉPyTorch 1.0 introduced torch.jit , which has two main
methods to convert a PyTorch model to a serializable and
optimizable format;
ÉTorchScript was also introduced as a statically-typed subset of
Python;
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TRACING
def my_function(x):
if x.mean() > 1.0:
r=torch.tensor(1.0)
else:
r=torch.tensor(2.0)
return r
>>> ftrace =torch.jit.trace(my_function, (torch.ones(2,2)))
>>> ftrace.graph
graph(%x : Float(2, 2)) {
%4 : Float() = prim::Constant[value={2}]()
%5 : Device = prim::Constant[value="cpu"]()
%6 : int = prim::Constant[value=6]()
%7 : bool = prim::Constant[value=0]()
%8 : bool = prim::Constant[value=0]()
%9 : Float() = aten::to(%4, %5, %6, %7, %8)
%10 : Float() = aten::detach(%9)
return (%10); }
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TRACING
def my_function(x):
if x.mean() > 1.0:
r=torch.tensor(1.0)
else:
r=torch.tensor(2.0)
return r
>>> ftrace =torch.jit.trace(my_function, (torch.ones(2,2)))
>>> ftrace.graph
graph(%x : Float(2, 2)) {
%4 : Float() = prim::Constant[value={2}]()
%5 : Device = prim::Constant[value="cpu"]()
%6 : int = prim::Constant[value=6]()
%7 : bool = prim::Constant[value=0]()
%8 : bool = prim::Constant[value=0]()
%9 : Float() = aten::to(%4, %5, %6, %7, %8)
%10 : Float() = aten::detach(%9)
return (%10); }
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TRACING
def my_function(x):
if x.mean() > 1.0:
r=torch.tensor(1.0)
else:
r=torch.tensor(2.0)
return r
>>> ftrace =torch.jit.trace(my_function, (torch.ones(2,2)))
>>> ftrace.graph
graph(%x : Float(2, 2)) {
%4 : Float() = prim::Constant[value={2}]()
%5 : Device = prim::Constant[value="cpu"]()
%6 : int = prim::Constant[value=6]()
%7 : bool = prim::Constant[value=0]()
%8 : bool = prim::Constant[value=0]()
%9 : Float() = aten::to(%4, %5, %6, %7, %8)
%10 : Float() = aten::detach(%9)
return (%10); }
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TRACING
To call the JIT’ed function, just call the forward() method:
>>> x=torch.ones(2,2)
>>> ftrace.forward(x)
tensor(2.)
However, tracing will not record any control-flow like if statements
or loops, it executes the code with the given context and creates the
graph. You can see this limitation below:
>>> x=torch.ones(2,2).add_(1.0)
>>> ftrace.forward(x)
tensor(2.)
According to
my_function()
, result should have been 1.0. Tracing
also checks for differences between traced and Python function, but
what about Dropout ?
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
TRACING
To call the JIT’ed function, just call the forward() method:
>>> x=torch.ones(2,2)
>>> ftrace.forward(x)
tensor(2.)
However, tracing will not record any control-flow like if statements
or loops, it executes the code with the given context and creates the
graph. You can see this limitation below:
>>> x=torch.ones(2,2).add_(1.0)
>>> ftrace.forward(x)
tensor(2.)
According to
my_function()
, result should have been 1.0. Tracing
also checks for differences between traced and Python function, but
what about Dropout ?
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SCRIPTING
>>> my_function.graph
graph(%x : Tensor) {
%2 : float = prim::Constant[value=1]()
%5 : int = prim::Constant[value=1]()
%6 : int = prim::Constant[value=2]()
%1 : Tensor = aten::mean(%x)
%3 : Tensor = aten::gt(%1, %2)
%4 : bool = prim::Bool(%3)
%r : int = prim::If(%4)
block0() {
-> (%5)
}
block1() {
-> (%6)
}
return (%r);
}
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SCRIPTING
The my_function() is now a ScriptModule :
>>> type(my_function)
torch.jit.ScriptModule
When we check the results again:
>>> x=torch.ones(2,2)
>>> my_function(x)
2
>>> x=torch.ones(2,2).add_(1.0)
>>> my_function(x)
1
Control-flow logic was preserved !
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SCRIPTING
The my_function() is now a ScriptModule :
>>> type(my_function)
torch.jit.ScriptModule
When we check the results again:
>>> x=torch.ones(2,2)
>>> my_function(x)
2
>>> x=torch.ones(2,2).add_(1.0)
>>> my_function(x)
1
Control-flow logic was preserved !
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SCRIPTING
The my_function() is now a ScriptModule :
>>> type(my_function)
torch.jit.ScriptModule
When we check the results again:
>>> x=torch.ones(2,2)
>>> my_function(x)
2
>>> x=torch.ones(2,2).add_(1.0)
>>> my_function(x)
1
Control-flow logic was preserved !
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
WHY TORCHSCRIPT ?
ÉThe concept of having a well-defined Intermediate
Representation (IR) is very powerful, it’s the main concept
behind LLVM platform as well;
ÉThis opens the door to:
É
Decouple the model (computationl graph) from Python runtime;
ÉUse it in production with C++ (no GIL) or other languages;
ÉCapitalize on optimizations (whole program);
É
Split the development world of hackable and easy to debug from
the world of putting these models in production and optimize
them.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
WHY TORCHSCRIPT ?
ÉThe concept of having a well-defined Intermediate
Representation (IR) is very powerful, it’s the main concept
behind LLVM platform as well;
ÉThis opens the door to:
É
Decouple the model (computationl graph) from Python runtime;
ÉUse it in production with C++ (no GIL) or other languages;
ÉCapitalize on optimizations (whole program);
É
Split the development world of hackable and easy to debug from
the world of putting these models in production and optimize
them.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
WHY TORCHSCRIPT ?
ÉThe concept of having a well-defined Intermediate
Representation (IR) is very powerful, it’s the main concept
behind LLVM platform as well;
ÉThis opens the door to:
É
Decouple the model (computationl graph) from Python runtime;
ÉUse it in production with C++ (no GIL) or other languages;
ÉCapitalize on optimizations (whole program);
É
Split the development world of hackable and easy to debug from
the world of putting these models in production and optimize
them.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
WHY TORCHSCRIPT ?
ÉThe concept of having a well-defined Intermediate
Representation (IR) is very powerful, it’s the main concept
behind LLVM platform as well;
ÉThis opens the door to:
É
Decouple the model (computationl graph) from Python runtime;
ÉUse it in production with C++ (no GIL) or other languages;
ÉCapitalize on optimizations (whole program);
É
Split the development world of hackable and easy to debug from
the world of putting these models in production and optimize
them.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
WHY TORCHSCRIPT ?
ÉThe concept of having a well-defined Intermediate
Representation (IR) is very powerful, it’s the main concept
behind LLVM platform as well;
ÉThis opens the door to:
É
Decouple the model (computationl graph) from Python runtime;
ÉUse it in production with C++ (no GIL) or other languages;
ÉCapitalize on optimizations (whole program);
É
Split the development world of hackable and easy to debug from
the world of putting these models in production and optimize
them.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A

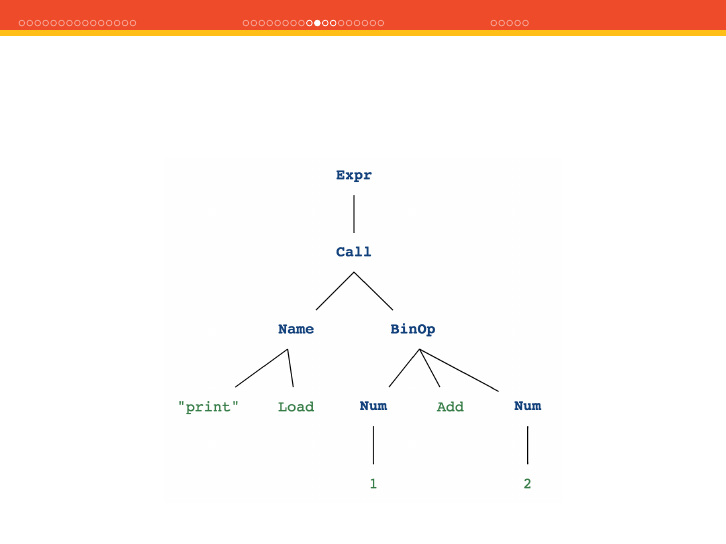

BUILDING THE IR
To build the IR, PyTorch takes leverage of the Python Abstract
Syntax Tree (AST) which is a tree representation of the syntactic
structure of the source code.
>>> ast_mod =ast.parse("print(1 + 2)")
>>> astpretty.pprint(ast_mod.body[0], show_offsets=False)
Expr(
value=Call(
func=Name(id='print', ctx=Load()),
args=[
BinOp(
left=Num(n=1),
op=Add(),
right=Num(n=2),
),
],
keywords=[],
),
)
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
EXECUTING
Just like Python interpreter executes your code, PyTorch has a
interpreter that executes the IR instructions:
bool runImpl(Stack&stack) {
auto&instructions =function->instructions;
size_t last =instructions.size();
while (pc <last) {
auto&inst =instructions[pc];
try {
loadTensorsFromRegisters(inst.inputs, stack);
size_t new_pc =pc +1+inst.callback(stack);
for (int i=inst.outputs.size - 1;i>= 0;--i) {
int reg =get(inst.outputs, i);
registers[reg] =pop(stack);
}
pc =new_pc;
// (...) omitted
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
OPTIMIZATIONS
Also Peephole optimizations such as:
x.t().t() =x
Example:
def dumb_function(x):
return x.t().t()
>>> traced_fn =torch.jit.trace(dumb_function,
... torch.ones(2,2))
>>> traced_fn.graph_for(torch.ones(2,2))
graph(%x : Float(*, *)) {
return (%x);
}
Other optimizations include Constant Propagation,Dead Code
Elimination (DCE), fusion,inlining, etc.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
OPTIMIZATIONS
Also Peephole optimizations such as:
x.t().t() =x
Example:
def dumb_function(x):
return x.t().t()
>>> traced_fn =torch.jit.trace(dumb_function,
... torch.ones(2,2))
>>> traced_fn.graph_for(torch.ones(2,2))
graph(%x : Float(*, *)) {
return (%x);
}
Other optimizations include Constant Propagation,Dead Code
Elimination (DCE), fusion,inlining, etc.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
OPTIMIZATIONS
Also Peephole optimizations such as:
x.t().t() =x
Example:
def dumb_function(x):
return x.t().t()
>>> traced_fn =torch.jit.trace(dumb_function,
... torch.ones(2,2))
>>> traced_fn.graph_for(torch.ones(2,2))
graph(%x : Float(*, *)) {
return (%x);
}
Other optimizations include Constant Propagation,Dead Code
Elimination (DCE), fusion,inlining, etc.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SERIALIZATION
>>> resnet =torch.jit.trace(models.resnet18(),
... torch.rand(1,3,224,224))
>>> resnet.save("resnet.pt")
$file resnet.pt
resnet.pt: Zip archive data
$unzip resnet.pt
Archive: resnet.pt
extracting: resnet/version
extracting: resnet/code/resnet.py
extracting: resnet/model.json
extracting: resnet/tensors/0
(...)
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SERIALIZATION
>>> resnet =torch.jit.trace(models.resnet18(),
... torch.rand(1,3,224,224))
>>> resnet.save("resnet.pt")
$file resnet.pt
resnet.pt: Zip archive data
$unzip resnet.pt
Archive: resnet.pt
extracting: resnet/version
extracting: resnet/code/resnet.py
extracting: resnet/model.json
extracting: resnet/tensors/0
(...)
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SERIALIZATION
>>> resnet =torch.jit.trace(models.resnet18(),
... torch.rand(1,3,224,224))
>>> resnet.save("resnet.pt")
$file resnet.pt
resnet.pt: Zip archive data
$unzip resnet.pt
Archive: resnet.pt
extracting: resnet/version
extracting: resnet/code/resnet.py
extracting: resnet/model.json
extracting: resnet/tensors/0
(...)
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SERIALIZATION
code/resnet.py
op_version_set = 0
def forward(self, input_1: Tensor) -> Tensor:
input_2 =torch._convolution(input_1, self.conv1.weight, ...)
# (...)
input_3 =torch.batch_norm(input_2, self.bn1.weight, self.bn1.bias,
self.bn1.running_mean, self.bn1.running_var, ...)
# (...)
model.json
{"parameters":
[{ "isBuffer": false,
"tensorId":"1",
"name":"weight" }],
"name":"conv1",
"optimize": true}
model.json
[{"isBuffer": true,
"tensorId":"4",
"name":"running_mean"},
{"isBuffer": true,
"tensorId":"5",
"name":"running_var"}],
"name":"bn1",
"optimize": true}
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SERIALIZATION
code/resnet.py
op_version_set = 0
def forward(self, input_1: Tensor) -> Tensor:
input_2 =torch._convolution(input_1, self.conv1.weight, ...)
# (...)
input_3 =torch.batch_norm(input_2, self.bn1.weight, self.bn1.bias,
self.bn1.running_mean, self.bn1.running_var, ...)
# (...)
model.json
{"parameters":
[{ "isBuffer": false,
"tensorId":"1",
"name":"weight" }],
"name":"conv1",
"optimize": true}
model.json
[{"isBuffer": true,
"tensorId":"4",
"name":"running_mean"},
{"isBuffer": true,
"tensorId":"5",
"name":"running_var"}],
"name":"bn1",
"optimize": true}
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
SERIALIZATION
code/resnet.py
op_version_set = 0
def forward(self, input_1: Tensor) -> Tensor:
input_2 =torch._convolution(input_1, self.conv1.weight, ...)
# (...)
input_3 =torch.batch_norm(input_2, self.bn1.weight, self.bn1.bias,
self.bn1.running_mean, self.bn1.running_var, ...)
# (...)
model.json
{"parameters":
[{ "isBuffer": false,
"tensorId":"1",
"name":"weight" }],
"name":"conv1",
"optimize": true}
model.json
[{"isBuffer": true,
"tensorId":"4",
"name":"running_mean"},
{"isBuffer": true,
"tensorId":"5",
"name":"running_var"}],
"name":"bn1",
"optimize": true}
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
USING THE MODEL IN C++
PyTorch also has a C++ API that you can use to load/train models in
C++. This is good for production, mobile, embedded devices, etc.
Example of loading a traced model in PyTorch C++ API:
#include <torch/script.h>
int main(int argc, const char*argv[])
{
auto module =torch::jit::load("resnet.pt");
std::vector<torch::jit::IValue>inputs;
inputs.push_back(torch::ones({1,3,224,224}));
at::Tensor output =module->forward(inputs).toTensor();
}
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ISSUES WITH TUTORIALS
É
Be careful with online tutorials using Flask, etc. They are simple,
but they often fail on good practices:
É
They often use JSON and base64 to serialize images. This adds
∼
33% overhead per call (uncompressed);
ÉThey don’t pay attention to zero-copy practices, so they often
transform, reshape, convert to numpy, convert to PyTorch, etc;

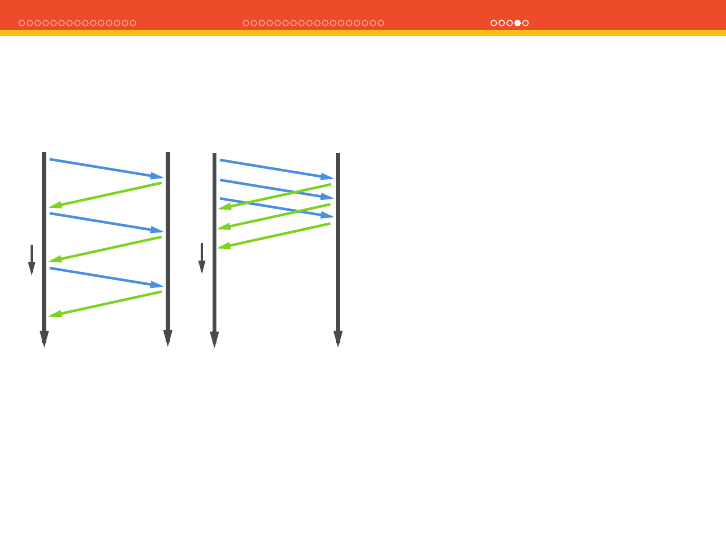

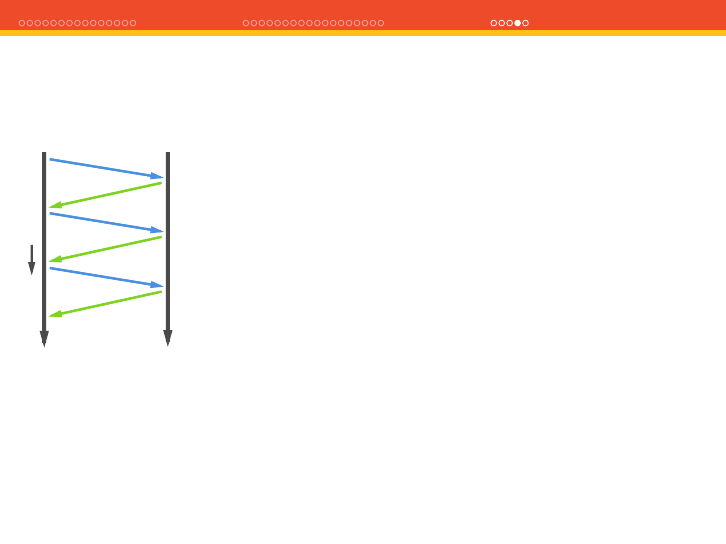

ÉThey often use HTTP/1;

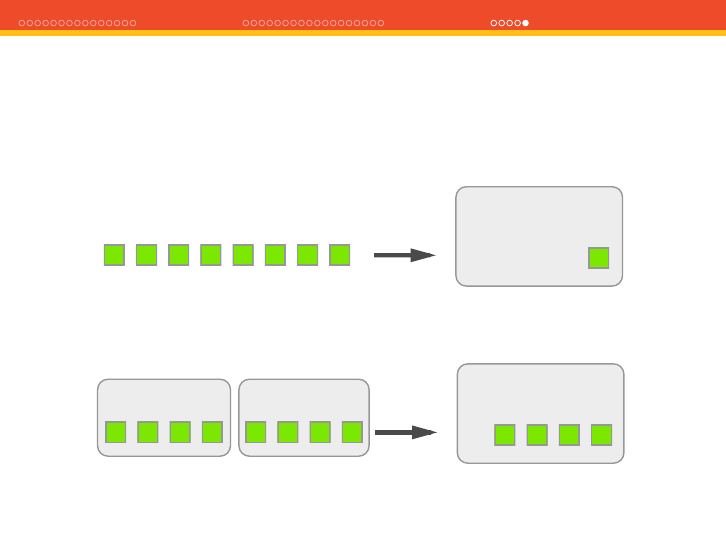

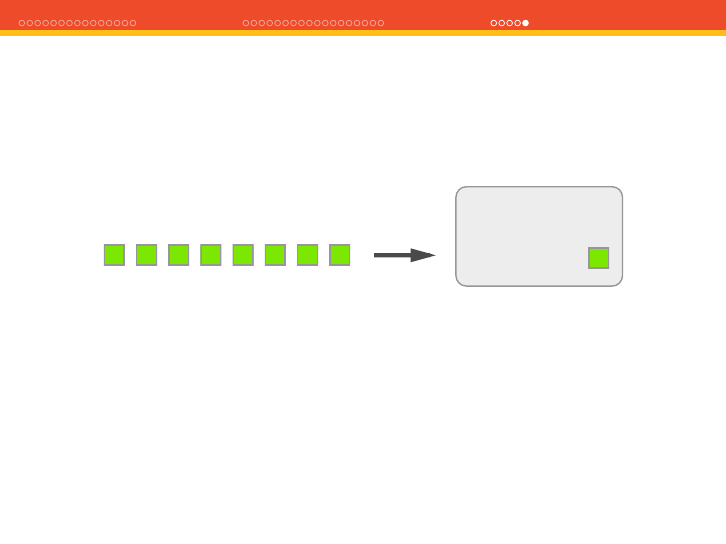

ÉThey seldom do batching (important for GPUs);
ÉThey never put that "production" code in production.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ISSUES WITH TUTORIALS
É
Be careful with online tutorials using Flask, etc. They are simple,
but they often fail on good practices:
É
They often use JSON and base64 to serialize images. This adds
∼
33% overhead per call (uncompressed);
ÉThey don’t pay attention to zero-copy practices, so they often
transform, reshape, convert to numpy, convert to PyTorch, etc;

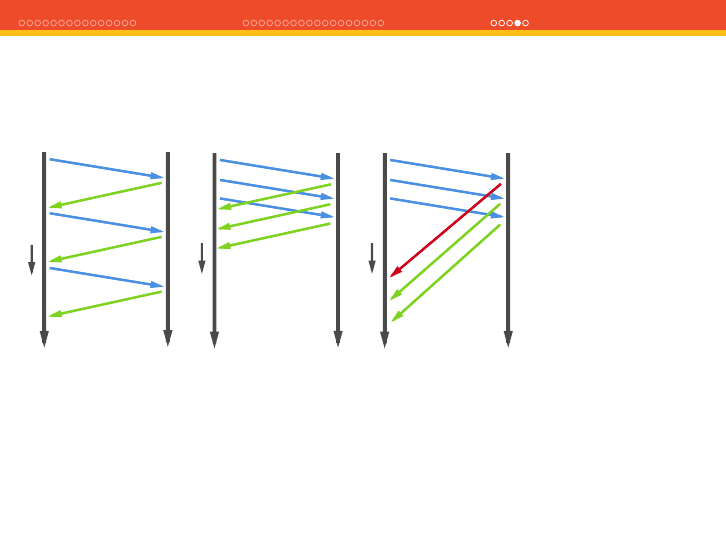

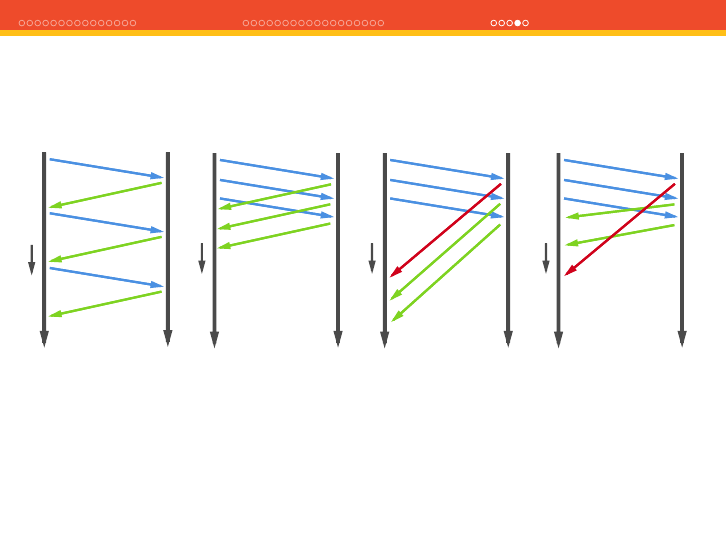

ÉThey often use HTTP/1;
ÉThey seldom do batching (important for GPUs);
ÉThey never put that "production" code in production.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ISSUES WITH TUTORIALS
É
Be careful with online tutorials using Flask, etc. They are simple,
but they often fail on good practices:
É
They often use JSON and base64 to serialize images. This adds
∼
33% overhead per call (uncompressed);
ÉThey don’t pay attention to zero-copy practices, so they often
transform, reshape, convert to numpy, convert to PyTorch, etc;
ÉThey often use HTTP/1;
ÉThey seldom do batching (important for GPUs);
ÉThey never put that "production" code in production.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ISSUES WITH TUTORIALS
É
Be careful with online tutorials using Flask, etc. They are simple,
but they often fail on good practices:
É
They often use JSON and base64 to serialize images. This adds
∼
33% overhead per call (uncompressed);
ÉThey don’t pay attention to zero-copy practices, so they often
transform, reshape, convert to numpy, convert to PyTorch, etc;
ÉThey often use HTTP/1;
ÉThey seldom do batching (important for GPUs);
ÉThey never put that "production" code in production.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ISSUES WITH TUTORIALS
É
Be careful with online tutorials using Flask, etc. They are simple,
but they often fail on good practices:
É
They often use JSON and base64 to serialize images. This adds
∼
33% overhead per call (uncompressed);
ÉThey don’t pay attention to zero-copy practices, so they often
transform, reshape, convert to numpy, convert to PyTorch, etc;
ÉThey often use HTTP/1;
ÉThey seldom do batching (important for GPUs);
ÉThey never put that "production" code in production.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
PREFER BINARY SERIALIZATION FORMATS
Prefer using good binary serialization methods such as Protobuf
that offers a schema and a schema evolution mechanism.
Example from EuclidesDB RPC message:
message AddImageRequest {
int32 image_id = 1;
bytes image_data = 2;
// This field can encode JSON data
bytes image_metadata = 3;
repeated string models = 4;
}
* http://euclidesdb.readthedocs.io
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
AVOID EXTRA COPIES
É
Be careful to avoid extra copies of your tensors, especially during
pre-processing;
ÉYou can use in-place operations. It is a functional anti-pattern
because it introduces side-effects, but it’s a fair price to pay for
performance;
ÉCaveat
: in-place operations doesn’t make much sense when you
need gradients. PyTorch uses tensor versioning to catch that:
>>> a=torch.tensor(1.0, requires_grad=True)
>>> y=a.tanh()
>>> y.add_(2.0)
>>> y.backward() # error !
>>> a._version
0
>>> y._version
1
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
AVOID EXTRA COPIES
É
Be careful to avoid extra copies of your tensors, especially during
pre-processing;
ÉYou can use in-place operations. It is a functional anti-pattern
because it introduces side-effects, but it’s a fair price to pay for
performance;
ÉCaveat
: in-place operations doesn’t make much sense when you
need gradients. PyTorch uses tensor versioning to catch that:
>>> a=torch.tensor(1.0, requires_grad=True)
>>> y=a.tanh()
>>> y.add_(2.0)
>>> y.backward() # error !
>>> a._version
0
>>> y._version
1
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
AVOID EXTRA COPIES
É
Be careful to avoid extra copies of your tensors, especially during
pre-processing;
ÉYou can use in-place operations. It is a functional anti-pattern
because it introduces side-effects, but it’s a fair price to pay for
performance;
ÉCaveat
: in-place operations doesn’t make much sense when you
need gradients. PyTorch uses tensor versioning to catch that:
>>> a=torch.tensor(1.0, requires_grad=True)
>>> y=a.tanh()
>>> y.add_(2.0)
>>> y.backward() # error !
>>> a._version
0
>>> y._version
1
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ATALE OF TWO HTTPS
Client Server
Time
HTTP 1.0
Client Server
Time
HTTP 1.1 - Pipelining
Client Server
Time
HTTP 1.1 - HoL
Client Server
Time
HTTP 2.0 - Multiplexing
ÉUse HTTP 2.0 if possible, and avoid the head-of-line blocking;
ÉEven better, you can use frameworks such as gRPC that uses
HTTP/2.0 and Protobuf.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ATALE OF TWO HTTPS
Client Server
Time
HTTP 1.0
Client Server
Time
HTTP 1.1 - Pipelining
Client Server
Time
HTTP 1.1 - HoL
Client Server
Time
HTTP 2.0 - Multiplexing
ÉUse HTTP 2.0 if possible, and avoid the head-of-line blocking;
ÉEven better, you can use frameworks such as gRPC that uses
HTTP/2.0 and Protobuf.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ATALE OF TWO HTTPS
Client Server
Time
HTTP 1.0
Client Server
Time
HTTP 1.1 - Pipelining
Client Server
Time
HTTP 1.1 - HoL
Client Server
Time
HTTP 2.0 - Multiplexing
ÉUse HTTP 2.0 if possible, and avoid the head-of-line blocking;
ÉEven better, you can use frameworks such as gRPC that uses
HTTP/2.0 and Protobuf.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ATALE OF TWO HTTPS
Client Server
Time
HTTP 1.0
Client Server
Time
HTTP 1.1 - Pipelining
Client Server
Time
HTTP 1.1 - HoL
Client Server
Time
HTTP 2.0 - Multiplexing
ÉUse HTTP 2.0 if possible, and avoid the head-of-line blocking;
ÉEven better, you can use frameworks such as gRPC that uses
HTTP/2.0 and Protobuf.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ATALE OF TWO HTTPS
Client Server
Time
HTTP 1.0
Client Server
Time
HTTP 1.1 - Pipelining
Client Server
Time
HTTP 1.1 - HoL
Client Server
Time
HTTP 2.0 - Multiplexing
ÉUse HTTP 2.0 if possible, and avoid the head-of-line blocking;
ÉEven better, you can use frameworks such as gRPC that uses
HTTP/2.0 and Protobuf.
PyTorch under the hood - Christian S. Perone (2019)
TENSORS JIT PRODUCTION Q&A
ATALE OF TWO HTTPS
Client Server
Time
HTTP 1.0
Client Server
Time
HTTP 1.1 - Pipelining
Client Server
Time
HTTP 1.1 - HoL
Client Server
Time
HTTP 2.0 - Multiplexing
ÉUse HTTP 2.0 if possible, and avoid the head-of-line blocking;
ÉEven better, you can use frameworks such as gRPC that uses
HTTP/2.0 and Protobuf.
