Semi-Automatic
Stretch Wrapping System
Q-300
Q-300
Part #31024954
More Lantech eld-tested packaging solutions @ www.lantech.com
Our most popular stretch wrapper
•Maximum versatility. Wraps large, tall, heavy or fragile loads including doors,
windows and more!
•Choose from hundreds of options to customize your machine to meet your
specific requirements.
•The utmost in safety. No pinch points or trip hazards. All motors and wires
are completely enclosed.
•Intuitive controls require little or no training.
•Lean manufacturing process builds in quality and reliability.
•Years of trouble-free and worry-free operation.
•No scheduled preventative maintenance.
It's a Lantech!

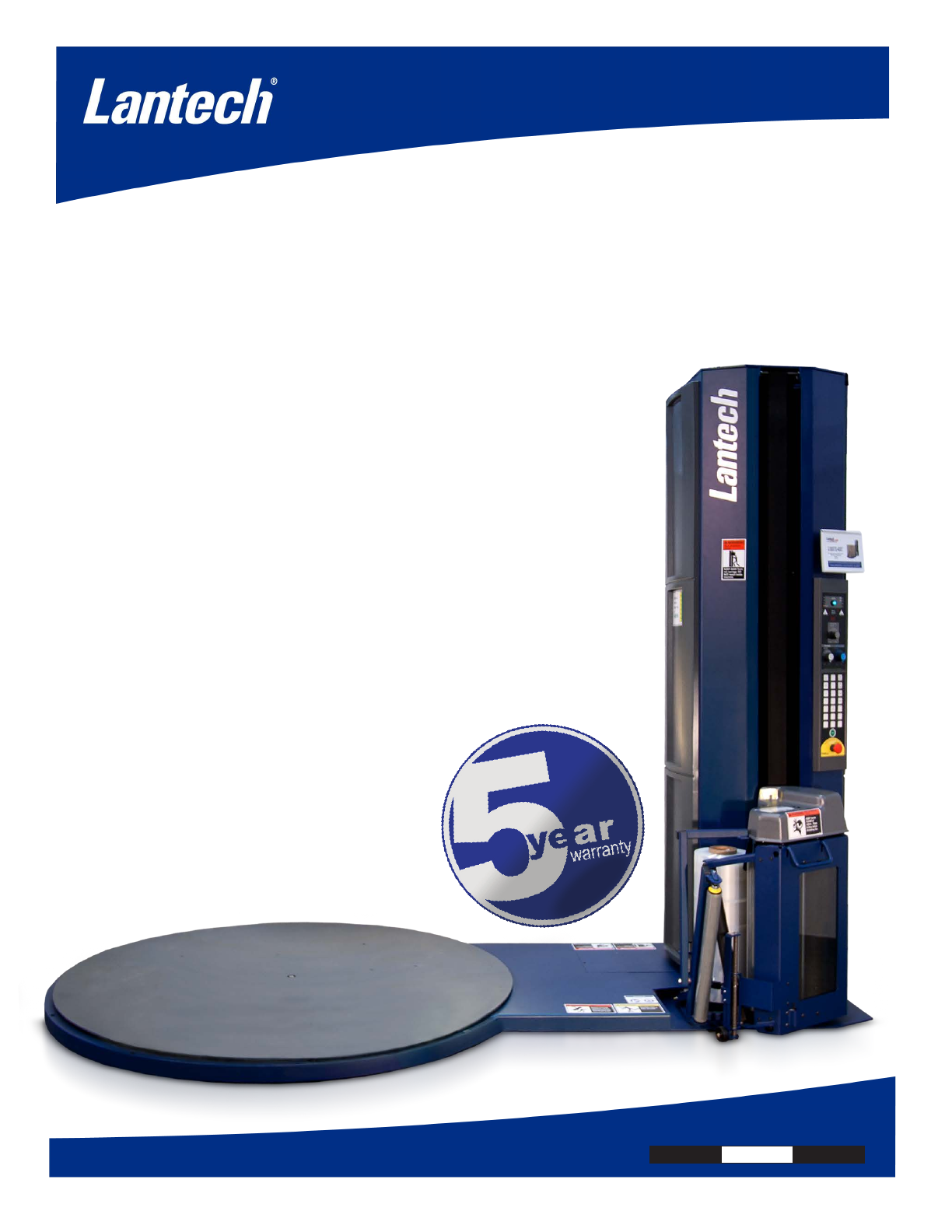

Q-300
*Shown with Pallet Grip option.
03/31/15 Page 1 of 1
Millions of loads slide off
their pallets during
shipment each year,
causing billions of dollars
of rework and waste.
Q-300
Lantech.com • 11000 Bluegrass Pkwy. • Louisville, KY 40299-2399 USA • 800-866-0322 • www.lantech.com
Part #31024954
Pallet Grip rolls up a film
cable and drives it down
onto the pallet, locking the
load. This makes sure your load does not slide off
during transit.
EZ Weigh
Integrated
Scale
Check Every Load for Quality and Freight Cost!
Weigh and wrap in one
easy step.
Built-in weigh system
fully integrated into
turntable.
Same footprint as
standard Q semi-automatic.
Increase productivity even more.
Upgrade to a Q-300XT stretch wrapper.
Work Smarter . . . Keep your driver on the fork truck!
Boost your machine's
performance with these
patented features:
Pallet Grip
®
Don't Take More Risk Than You Have To!
Q-300XT shown with
Click-n-Go Remote Control
Patented XT Cut and Clamp® automatically
captures the stretch film and cuts it at the
end of the wrap cycle.
Save two minutes of fork truck driver labor
per load.
Q-300
Specifications subject to change without notice. Lantech systems and sub-systems are protected by
U.S. and foreign patents. Additional U.S. and foreign patents pending. © Lantech
Production Speed 25-35 loads per hour
Maximum Load Diagonal 72” Recommended
Maximum Load Height 80”
Maximum Load Weight 4000 lbs.
LOAD HANDLING SYSTEM
Turntable, Smooth Top 65" Diameter
Turntable Drive 3/4 HP TEFC Motor
Turntable Speed 1-12 RPM
FILM DELIVERY SYSTEM
Power-Roller Stretch System
Wrap Force
Film Capacity
200% Standard
(100%-300% available)
Variable Control
10” Roll Diameter, 20” Film Web Width
MACHINE SHIPPING WEIGHT
Machine Size
Shipping Weight
119"L x 67"W x 92"H
1450 lbs.
(including skid - approximate) (excludes ramp)
ELECTRICAL REQUIREMENTS
Machine Voltage 120V, 20 Amp
Microcontroller Standard
Wrap Cycle Pause Standard
One Way Wrap Standard
SERVICE SUPPORT
PHONE NUMBER
24 hrs/7 days a week
800-866-0322
Q-300 S pecifications
PERFORMANCE CRITERIA
03/31/15 Page 2 of 2
