New Brand Identity
W-Series
S-Series
Professional
Content Creation
& Visualization
HPC Accelerator &
Machine Intelligence
Traditional
Workstation
Traditional
Server
2016 2017
3
SEPTEMBER 2017 | AMD CONFIDENTIAL

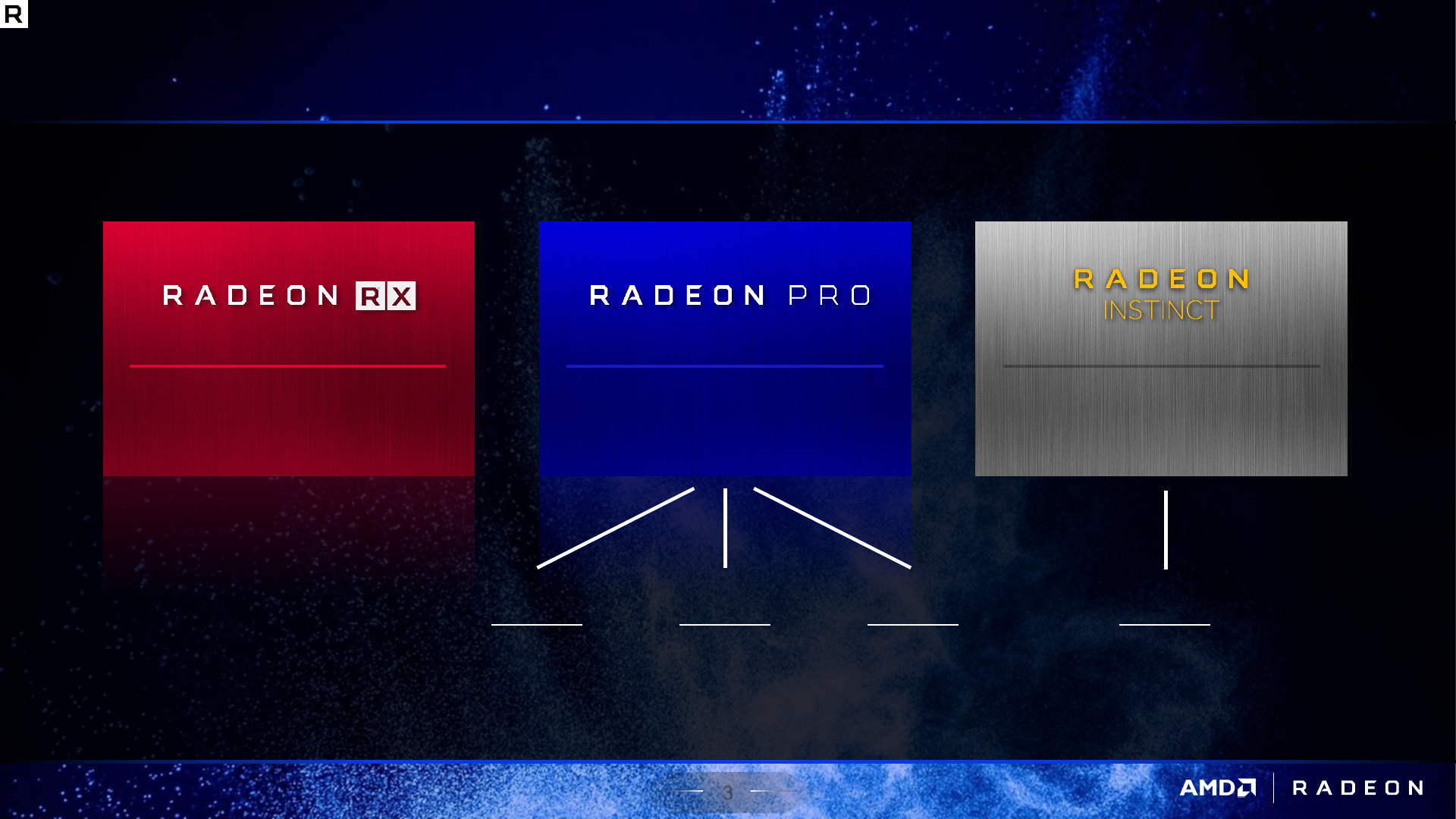

Radeon Reach
Best in Class
Gaming Experience Professional Content
Creation & Visualization HPC Acceleration &
Machine Intelligence
Consumer Brand Professional Brand Compute Brand
Pro WX
Desktop & Mobile
Workstations
Pro V
Virtualized
Graphics
Pro
Strategic
Use Cases
MI
Compute Server
Accelerators
4
SEPTEMBER 2017 | AMD CONFIDENTIAL
Industry Trends
5
SEPTEMBER 2017 | AMD CONFIDENTIAL
Intersecting the Inflection Points
Immersive and Interactive Displays
Photorealistic Rendering
Real-time Graphics Engines for Design
Ultra-high Resolutions
6
SEPTEMBER 2017 | AMD CONFIDENTIAL
Virtual Reality in Professional Space
Many use cases for VR beyond gaming
Professional applications
▪Digital mock-up
▪Manufacturing simulation
▪Serviceability
▪Maintenance
▪Design review
▪Collaboration
▪Training
CAD-to-VR workflows are being
optimized and automated to promote
iterative design
7
SEPTEMBER 2017 | AMD CONFIDENTIAL
Industry Backing for Professional VR
AUTODESK LIVE
Design & Engineering Animation & Filmmaking Real-Time Engines
8
SEPTEMBER 2017 | AMD CONFIDENTIAL

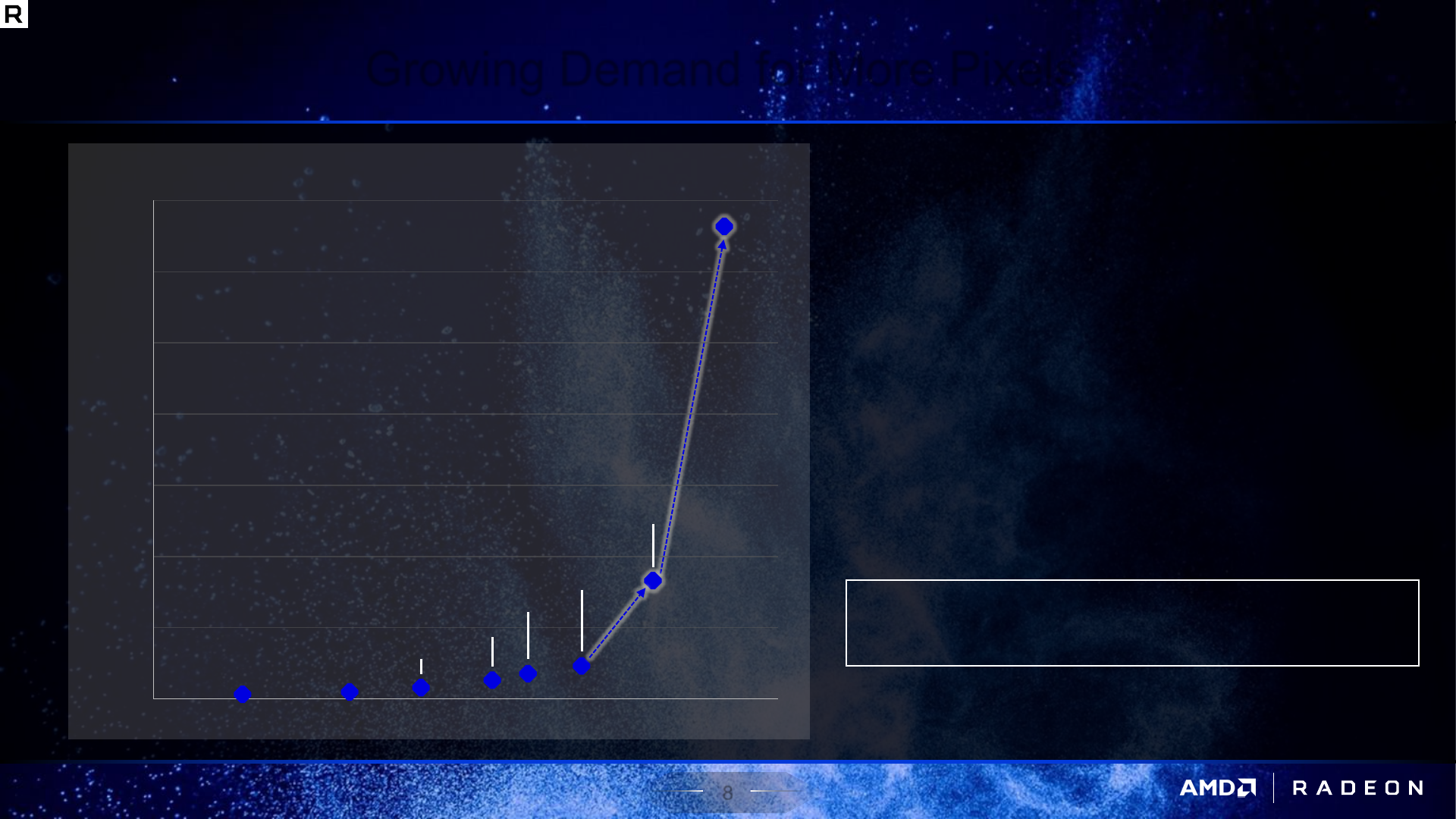

Growing Demand for More Pixels
0
5
10
15
20
25
30
35
1985 1990 1995 2000 2005 2010 2015 2020
Megapixels
High-End Monitor Resolution
8K
(7680x4320)
640x480 800x600
1024x768
1280x1024
1680x1050
1920x1200
4K
(3840x2160)
CPU Core Count
4 Cores (2007) 32 Cores (2017)
GPU Performance
0.5 TFLOPS (2007) 12 TFLOPS (2017)
System Memory
2GB DDR2 (2007) 32GB DDR4 (2017)
Solid State Drive Capacity
Did not exist (2007) 2TB (2017)
Display Resolution
2 Megapixels (2007) 33 Megapixels (2017)
9
SEPTEMBER 2017 | AMD CONFIDENTIAL

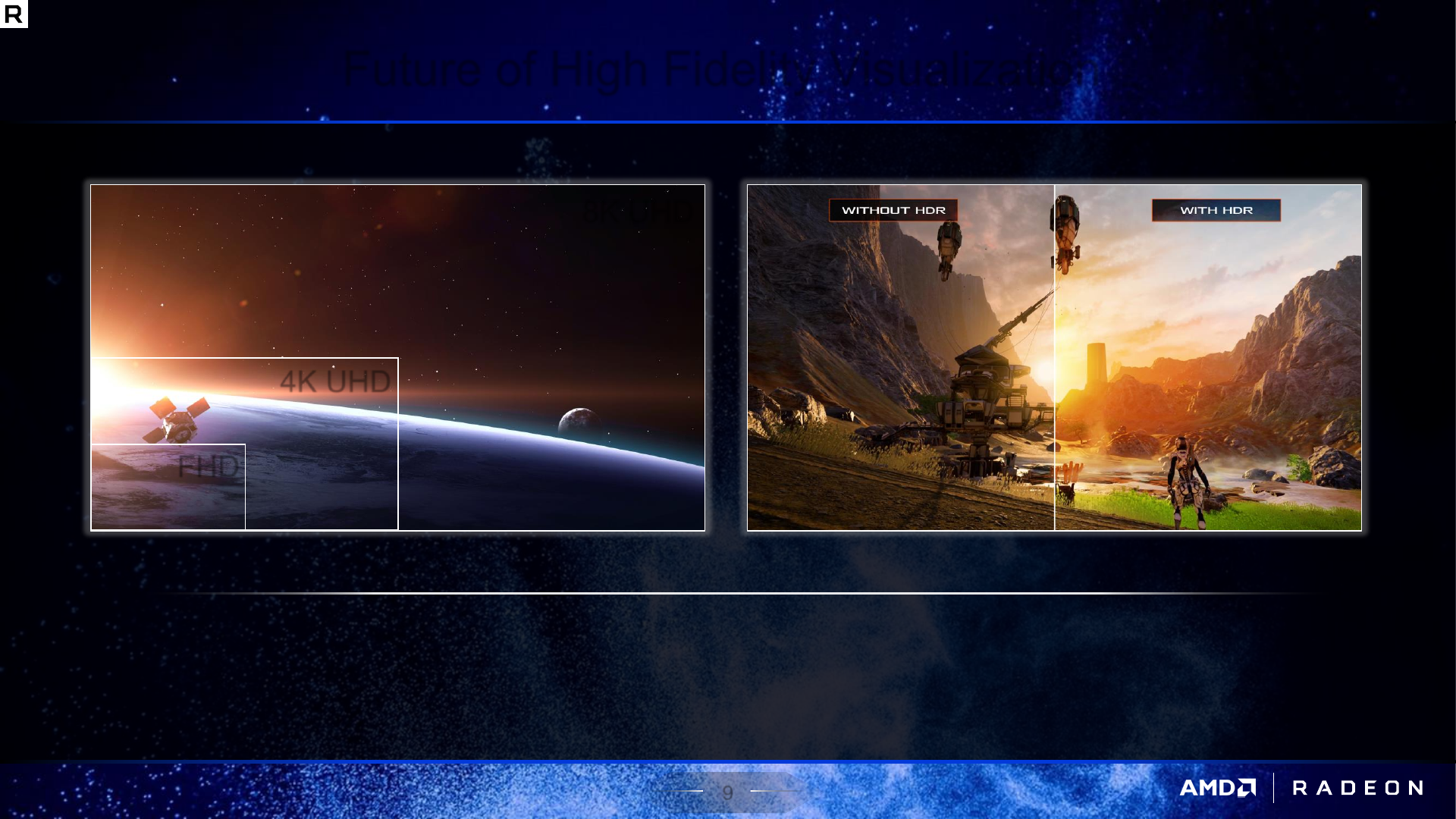

Future of High Fidelity Visualization
All Radeon Pro products support up to 8K with HDR
8K UHD
4K UHD
FHD
10
SEPTEMBER 2017 | AMD CONFIDENTIAL

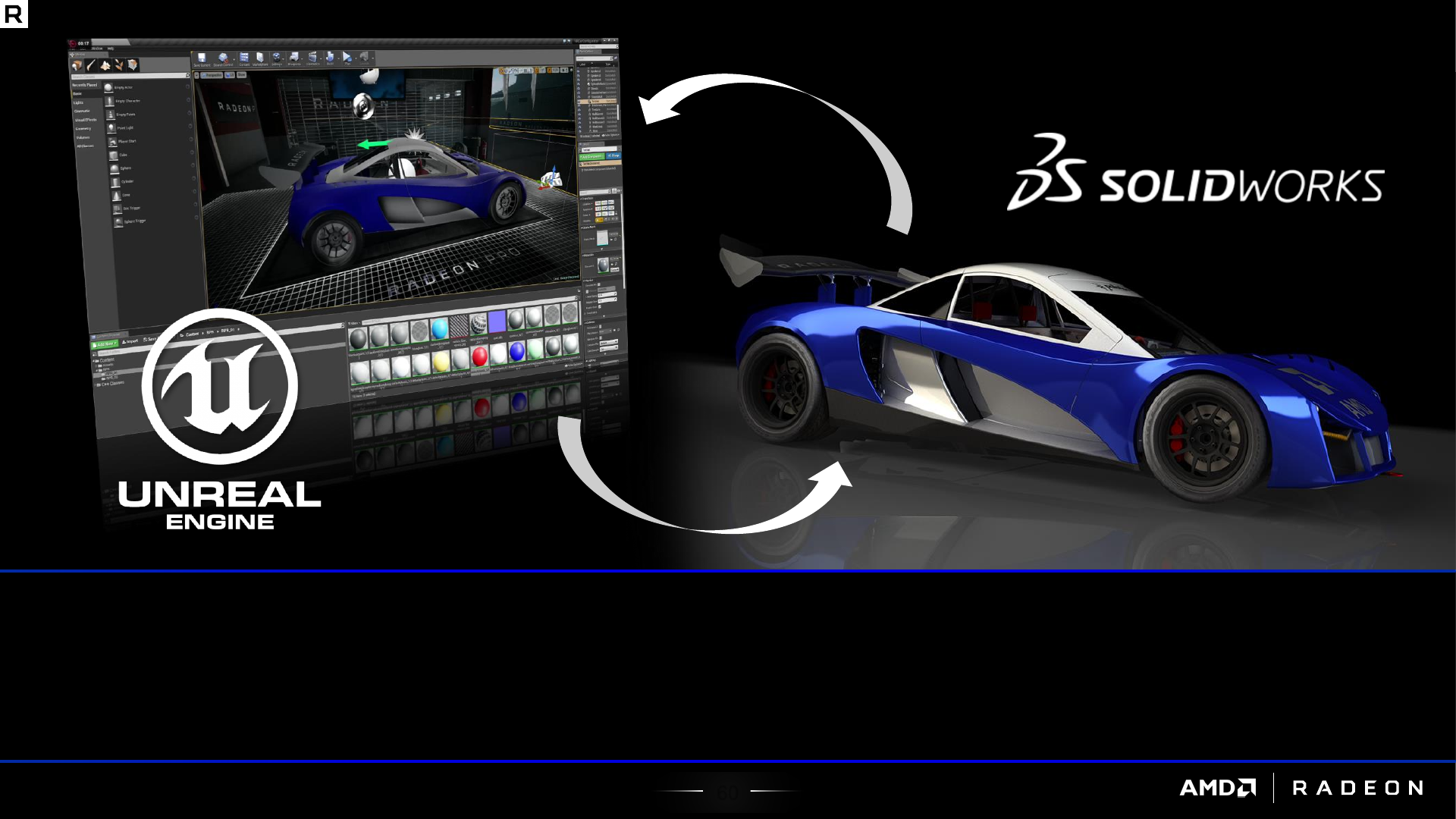

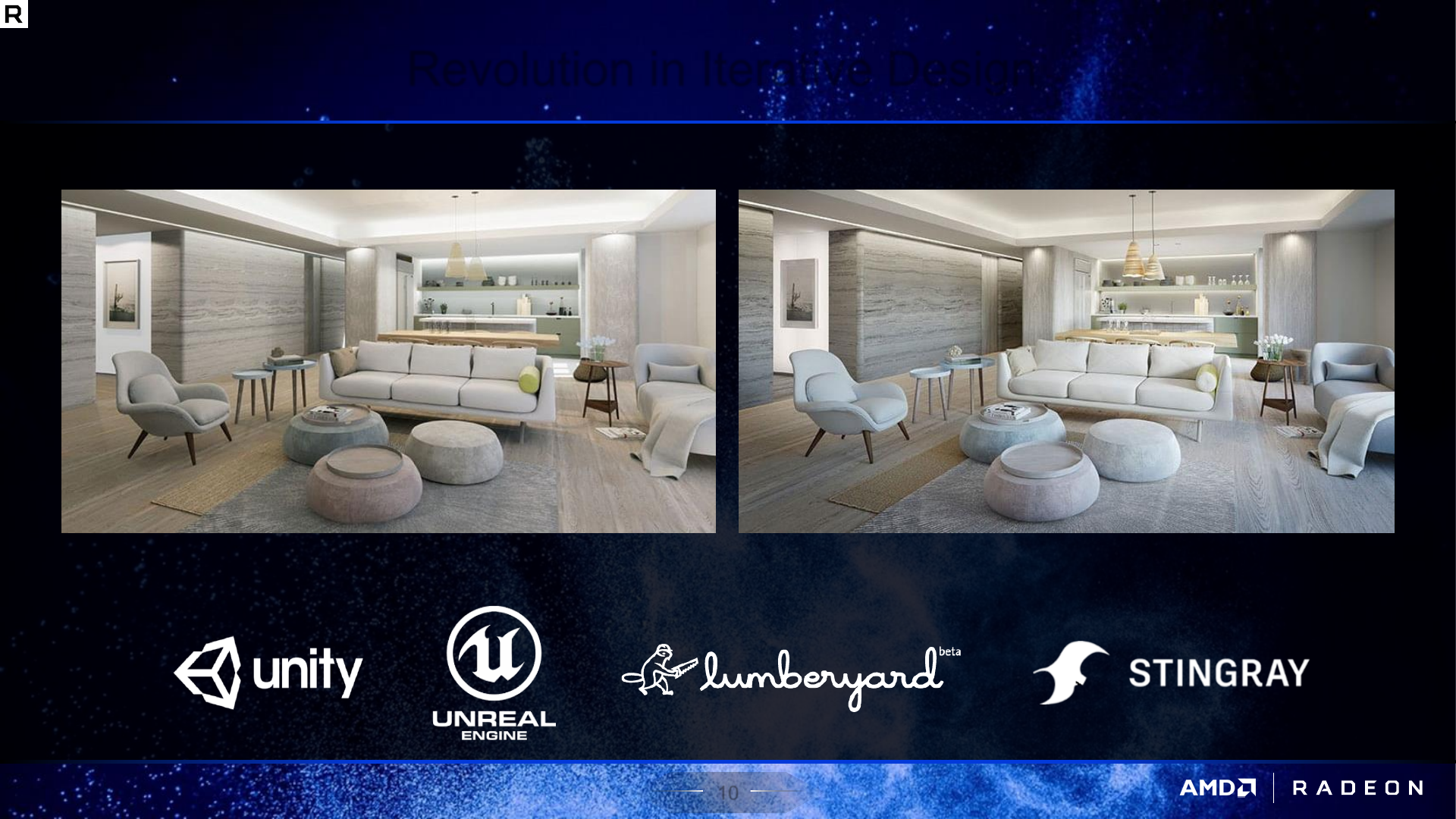

Revolution in Iterative Design
Corona Render
Unreal Engine
Real-time graphics engines enable rapid iterations for design and simulation
11
SEPTEMBER 2017 | AMD CONFIDENTIAL
High Performance Rendering
Free and Open-source
Built on OpenCL 1.2
Hardware Agnostic
12
SEPTEMBER 2017 | AMD CONFIDENTIAL
Intro to Professional Graphics
13
SEPTEMBER 2017 | AMD CONFIDENTIAL
Why Are Professional Graphics Needed?
Design Engineering Architecture Science
Media and Entertainment Finance Medical Oil and Gas
14
SEPTEMBER 2017 | AMD CONFIDENTIAL
Reliability Performance Innovation
15
SEPTEMBER 2017 | AMD CONFIDENTIAL
Reliability Performance Innovation
Comprehensive
Software
Certification
16
SEPTEMBER 2017 | AMD CONFIDENTIAL
Reliability Performance Innovation
10.9 Years
Hardware MTBF
Extreme operating temperatures
(0°C -55°C)
Storage temperature cycling
(-40°C -70°C)
Accelerated lifecycle stress
(85°C, 85% humidity)
17
SEPTEMBER 2017 | AMD CONFIDENTIAL

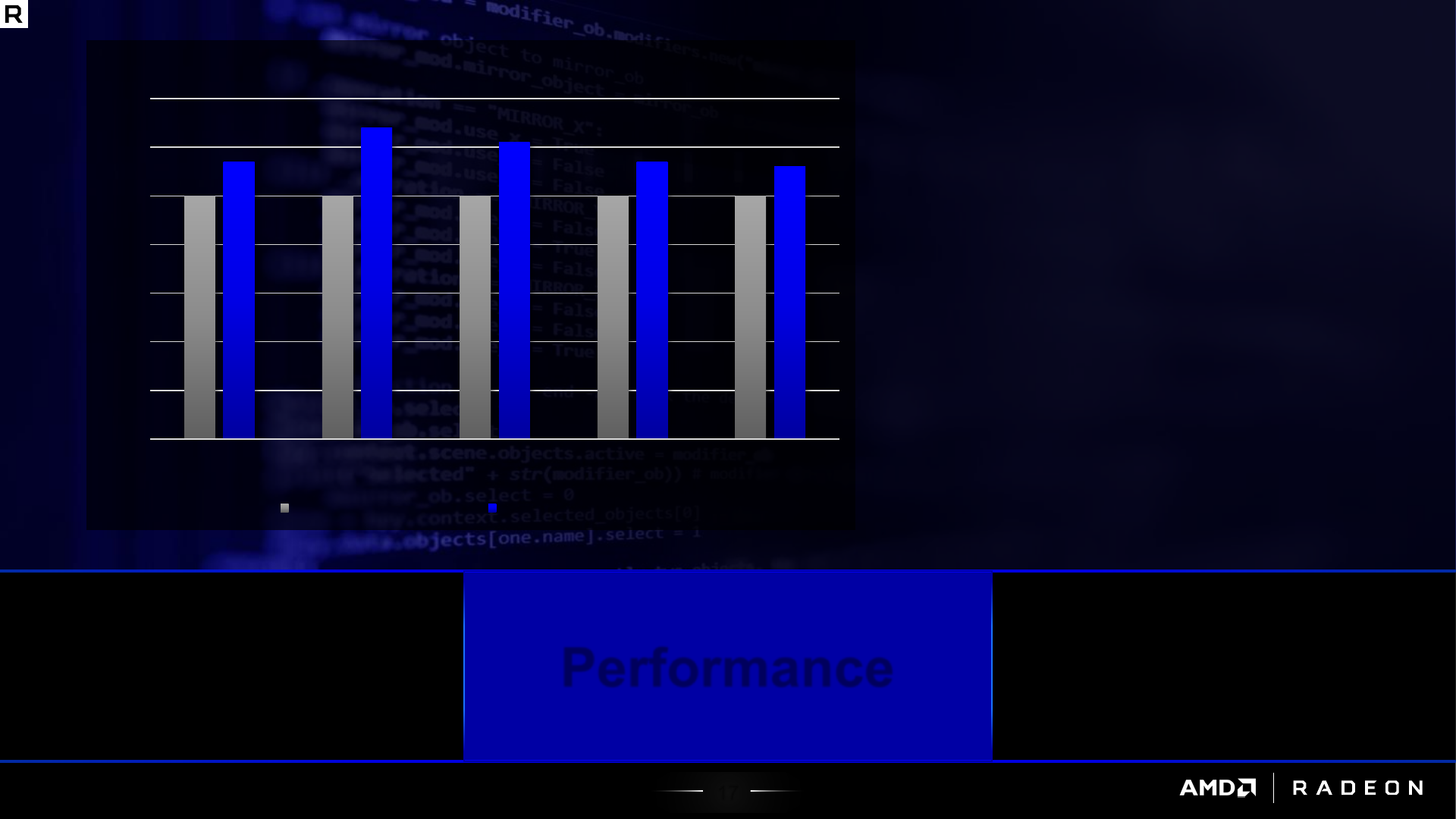

Reliability Performance Innovation
50%
60%
70%
80%
90%
100%
110%
120%

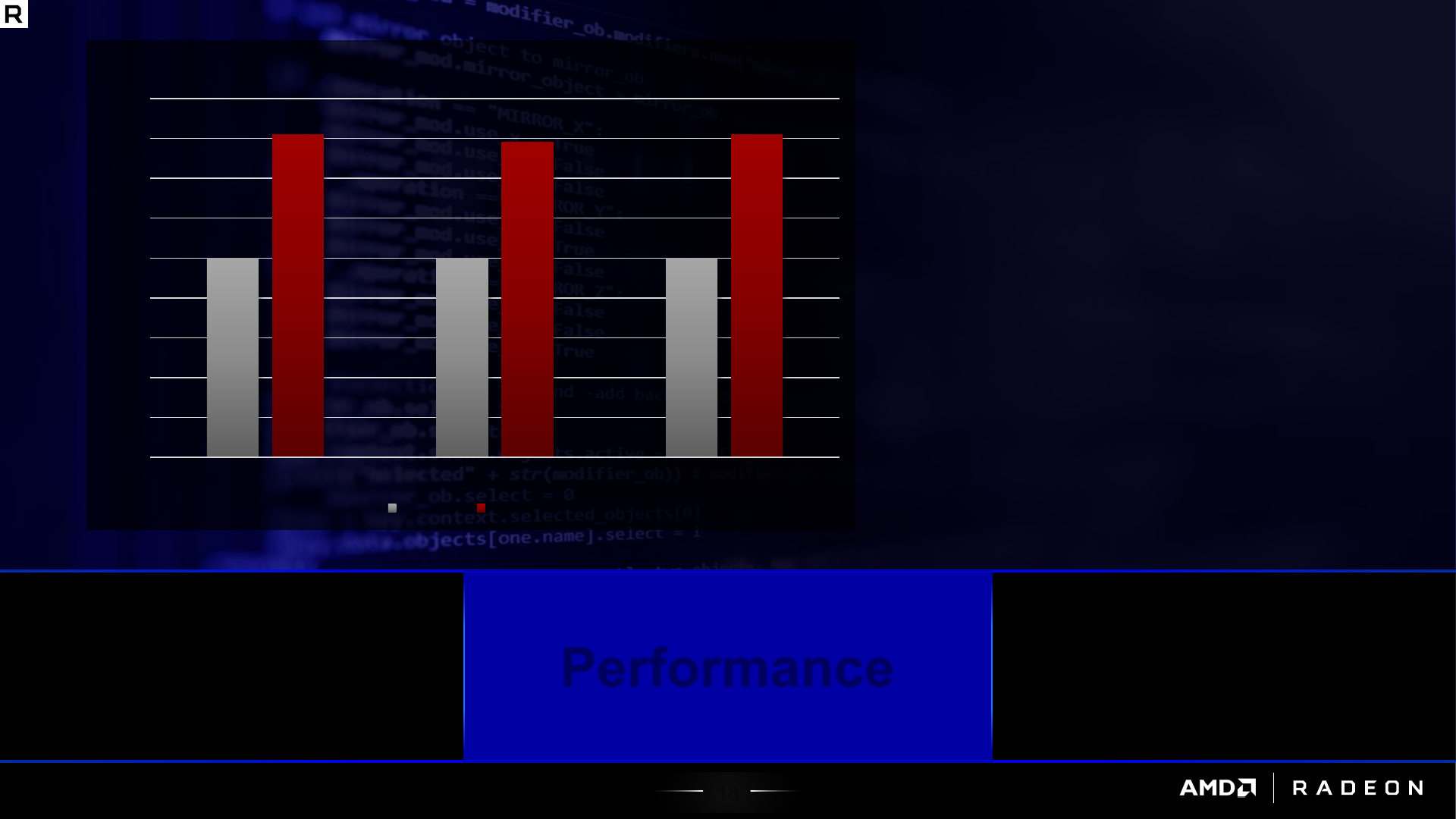

Siemens NX 10 Premiere Pro CC
2017 DaVinci Resolve
12 Maya + Radeon
ProRender 3ds Max + Radeon
ProRender
Radeon Pro WX 7100
17.Q1 Enterprise Driver 17.Q2 Enterprise Driver
Continuous performance
optimizations for
professional applications
18
SEPTEMBER 2017 | AMD CONFIDENTIAL
Reliability Performance Innovation
50%
60%
70%
80%
90%
100%
110%
120%
130%
140%
CATIA Creo 3.0 Siemens NX 8.5
FirePro W7100
4/8/2015 7/26/2016
Long-term commitment to
performance optimization
for professional applications
19
SEPTEMBER 2017 | AMD CONFIDENTIAL
Reliability Performance Innovation
Radeon ProRender Order-Independent Transparency High Bandwidth Cache Controller
HBCC
INDUSTRY FORGED
20
SEPTEMBER 2017 | AMD CONFIDENTIAL
Focus Markets for Radeon Pro
CAD & Engineering and Media & Entertainment
applications account for
of total user seats in the professional PC market.
60%
21
SEPTEMBER 2017 | AMD CONFIDENTIAL

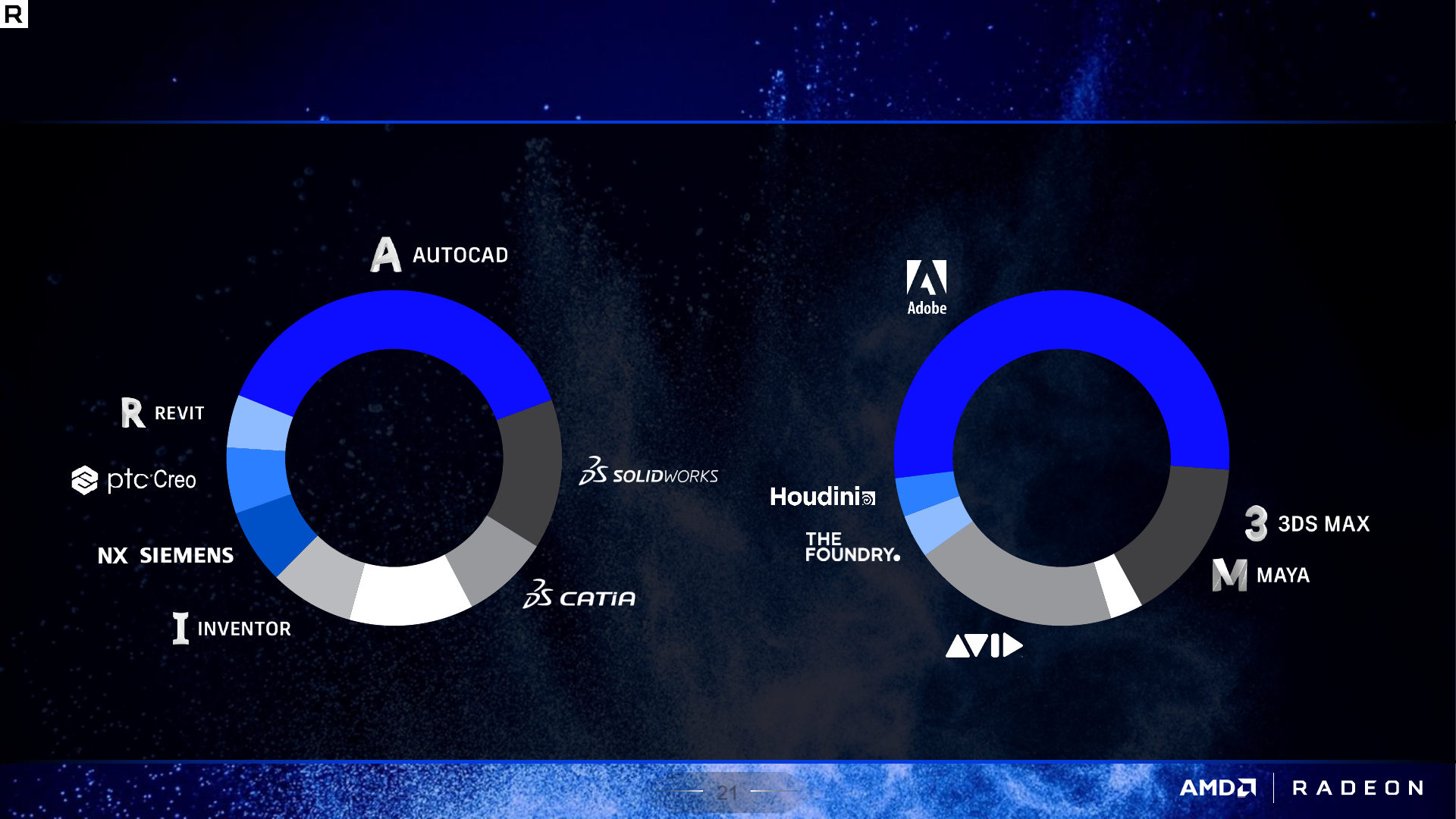

Leading ISVs by Segment
Others
Media &
Entertainment
Design &
Manufacturing
Others
Use of third party marks/products is for informational purposes only and no endorsement of or by AMD is intended or implied.
AMD is Tested on the Leading ISV Applications Professionals Use
22
SEPTEMBER 2017 | AMD CONFIDENTIAL
Product Overview
23
SEPTEMBER 2017 | AMD CONFIDENTIAL
Radeon Pro WX Family
Performance
Essential
Cutting Edge
24
SEPTEMBER 2017 | AMD CONFIDENTIAL

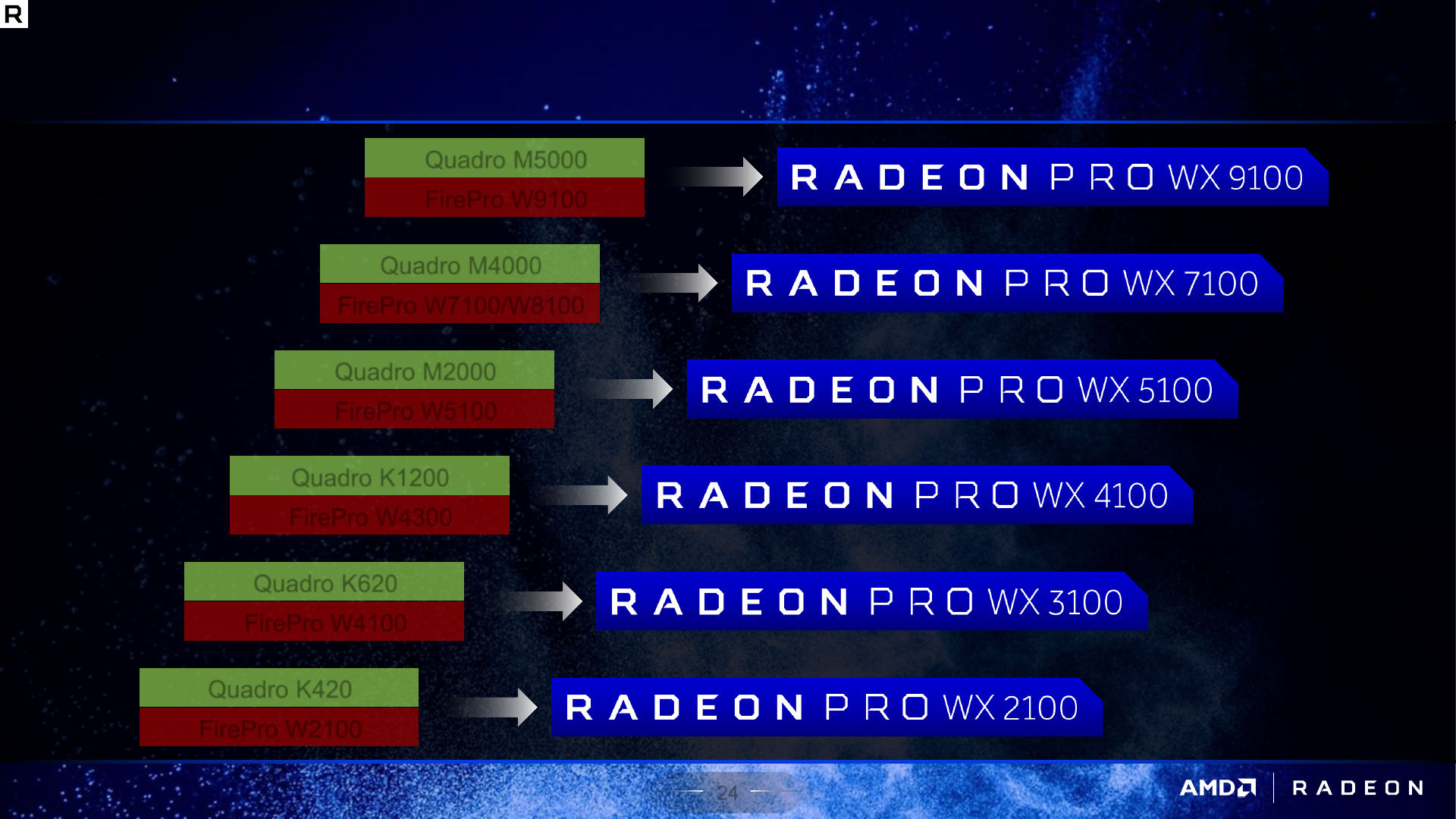

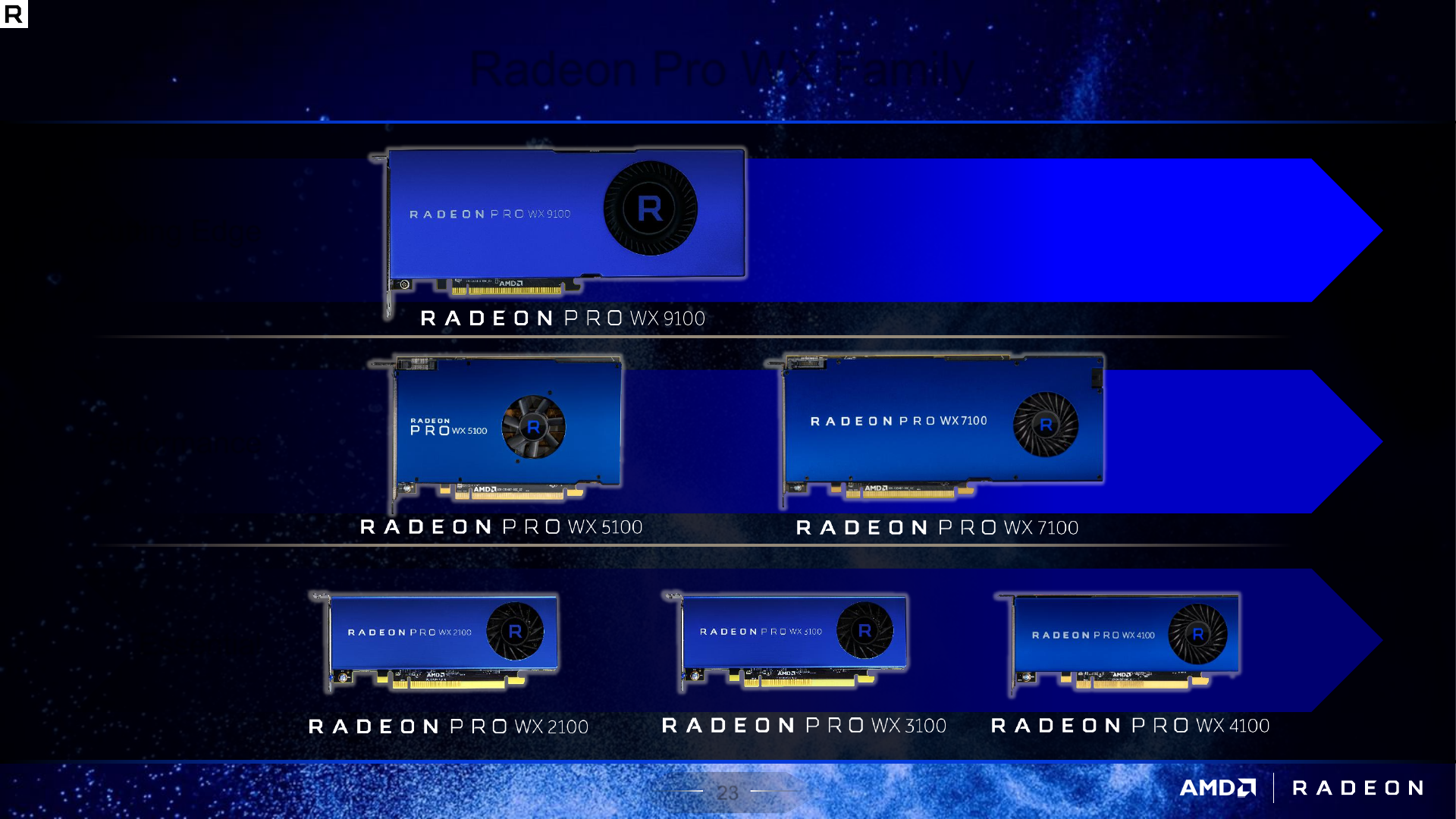

Radeon Pro WX Upgrade Path
FirePro W9100
Quadro M5000
FirePro W7100/W8100
Quadro M4000
FirePro W5100
Quadro M2000
FirePro W4300
Quadro K1200
FirePro W4100
Quadro K620
FirePro W2100
Quadro K420
25
SEPTEMBER 2017 | AMD CONFIDENTIAL

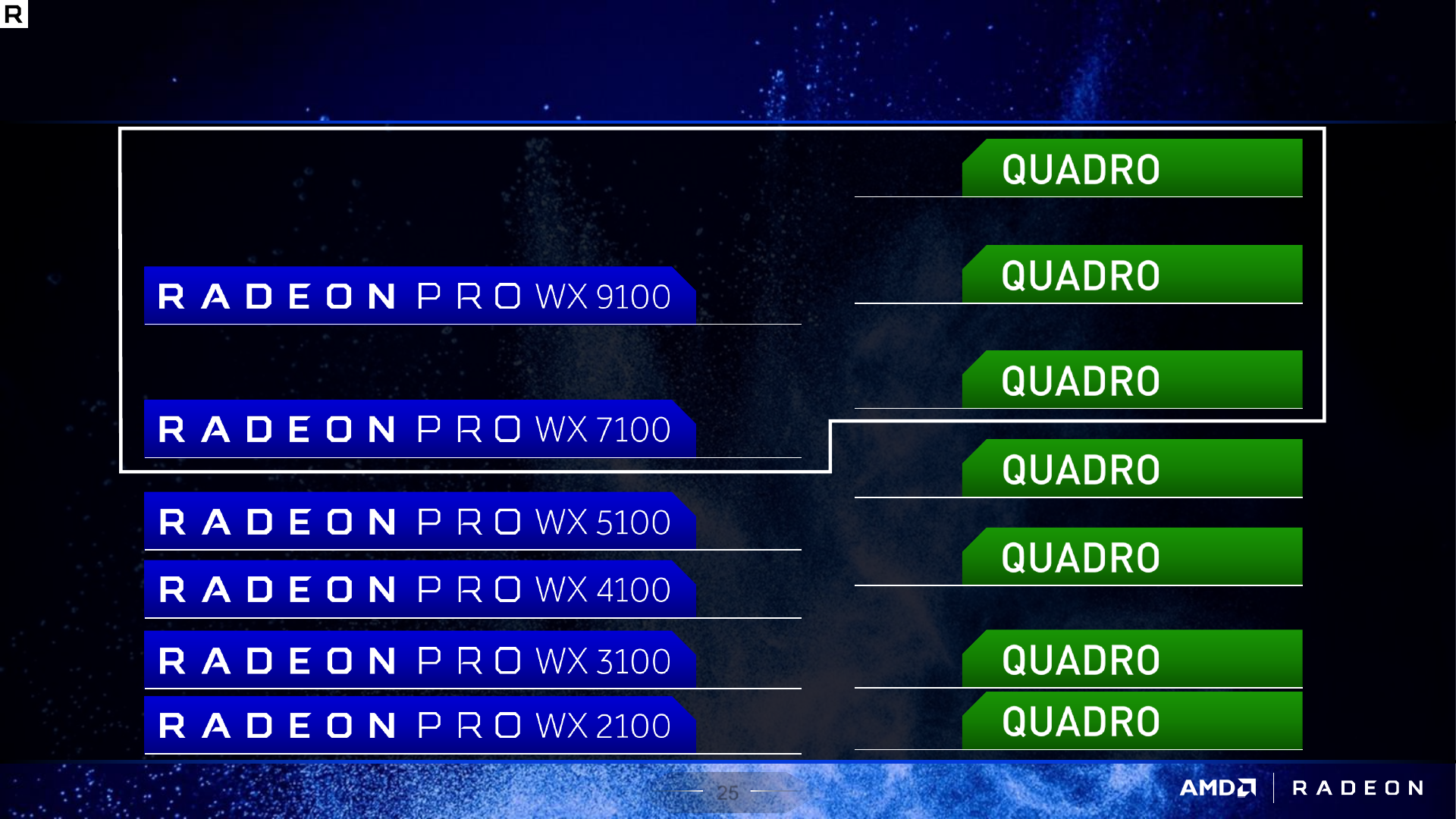

Radeon Pro WX Competitive Positioning
P2000
$599
P1000
$449
P600
$199
P400
$169
P4000
$1249
P5000
$2499
P6000
$5999
$799
$2199
$499
$399
$199
$149
VR Ready
26
SEPTEMBER 2017 | AMD CONFIDENTIAL

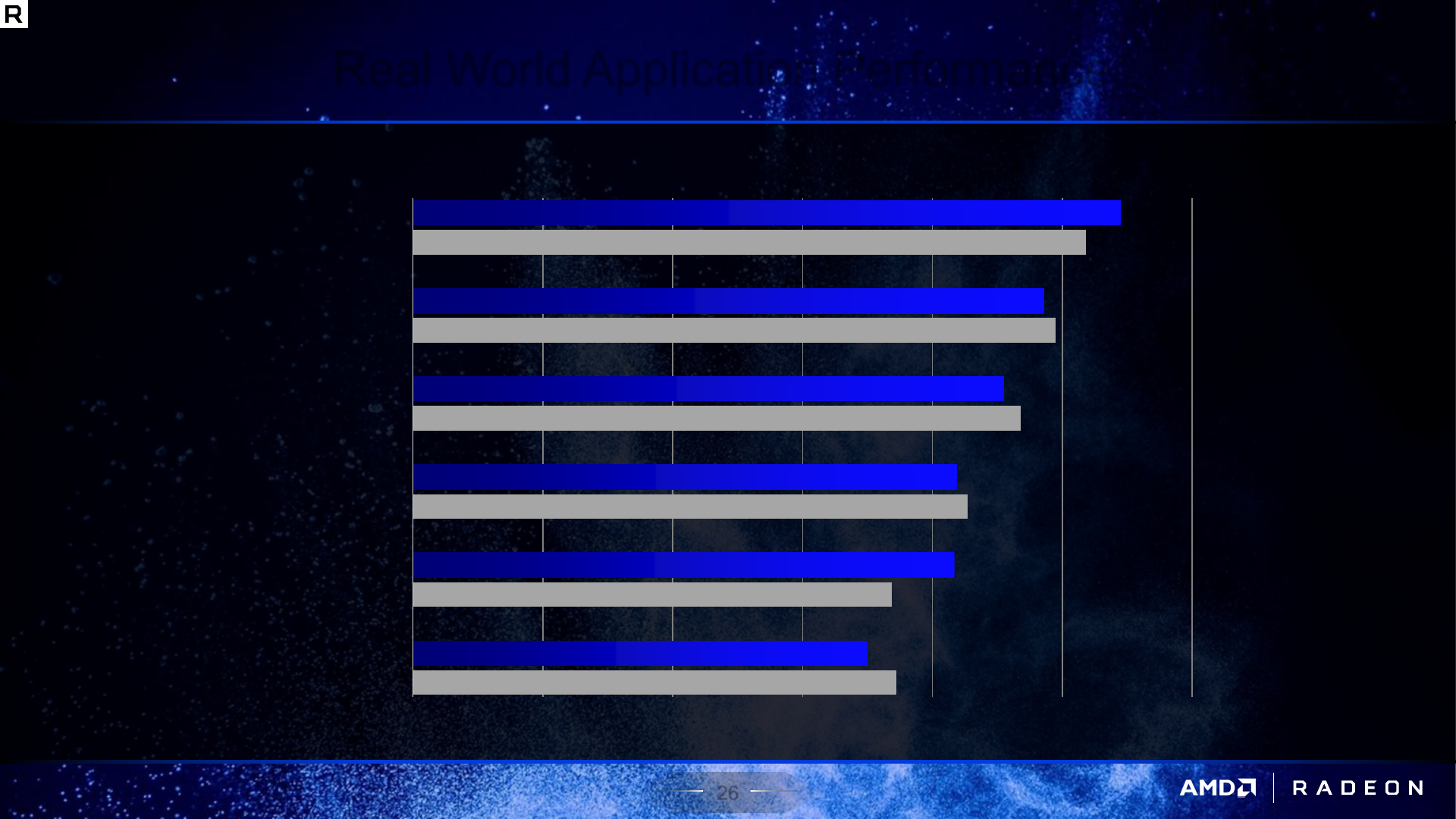

Real World Application Performance
3,7
3,5
3,7
4,2
4,3
4,2
4,7
4,6
5,0
4,9
5,2
5,5
0 1 2 3 4 5 6
Quadro P400
Radeon Pro WX 2100
Quadro P600
Radeon Pro WX 3100
Quadro P1000
Radeon Pro WX 4100
Quadro P2000
Radeon Pro WX 5100
Quadro P4000
Radeon Pro WX 7100
Quadro P5000
Radeon Pro WX 9100
SPECapc –Maya 2017
$1799
$1999
$619
$859
$359
$439
$279
$339
$189
$179
$139
$119
27
SEPTEMBER 2017 | AMD CONFIDENTIAL
64
NEXT-GEN COMPUTE UNITS 16 GB
HBM2 ECC MEMORY 484 GB/s
MEMORY BANDWIDTH 230 W
MAX BOARD POWER
PEAK FP32 PERFORMANCE
12.2 TFLOPS
28
SEPTEMBER 2017 | AMD CONFIDENTIAL

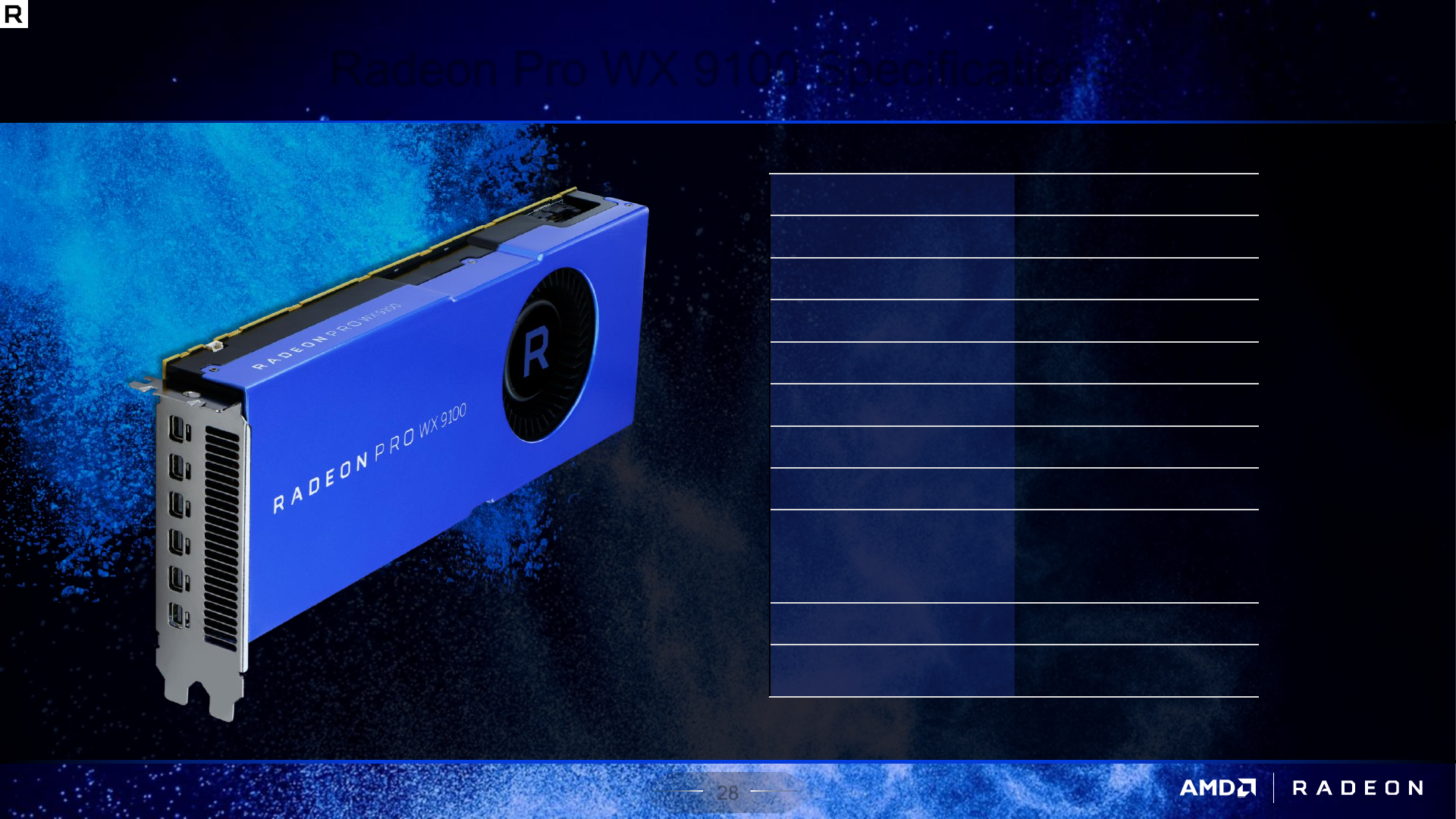

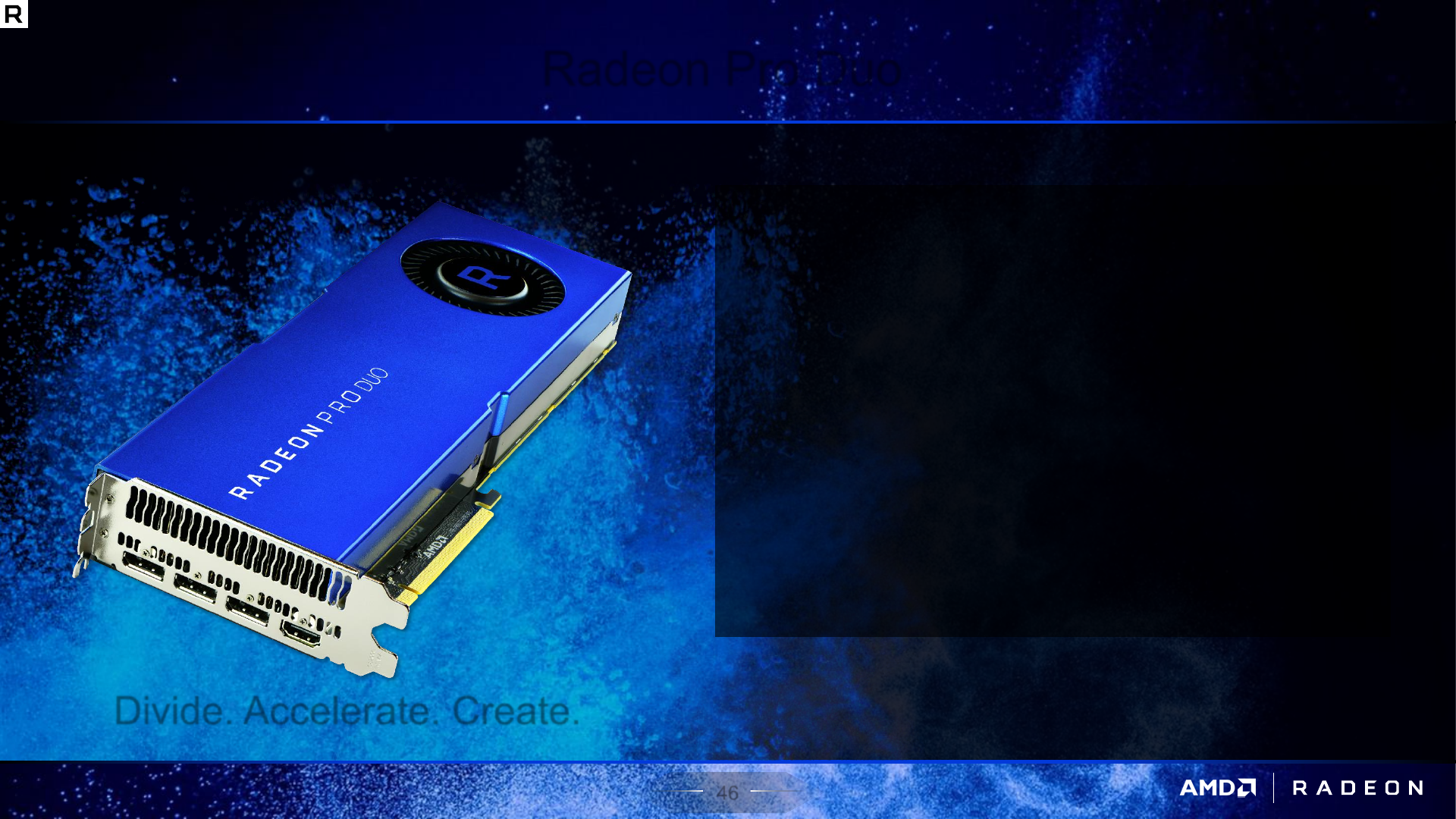

Radeon Pro WX 9100 Specifications
GPU Architecture Vega
Stream Processors 4096
Peak FP16 Throughput 24.6 TFLOPS
Peak FP32 Throughput 12.3 TFLOPS
Peak FP64 Throughput 768 GFLOPS
Memory Size/Type 16GB HBM2 w/ ECC
Memory Bandwidth 484 GB/s
Display Connectors 6x Mini-DisplayPort 1.4
API Support
DirectX® Feature Level 12_1
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Typical Board Power 230 W
Form Factor Full Height, Dual Slot
10.5” Length
29
SEPTEMBER 2017 | AMD CONFIDENTIAL

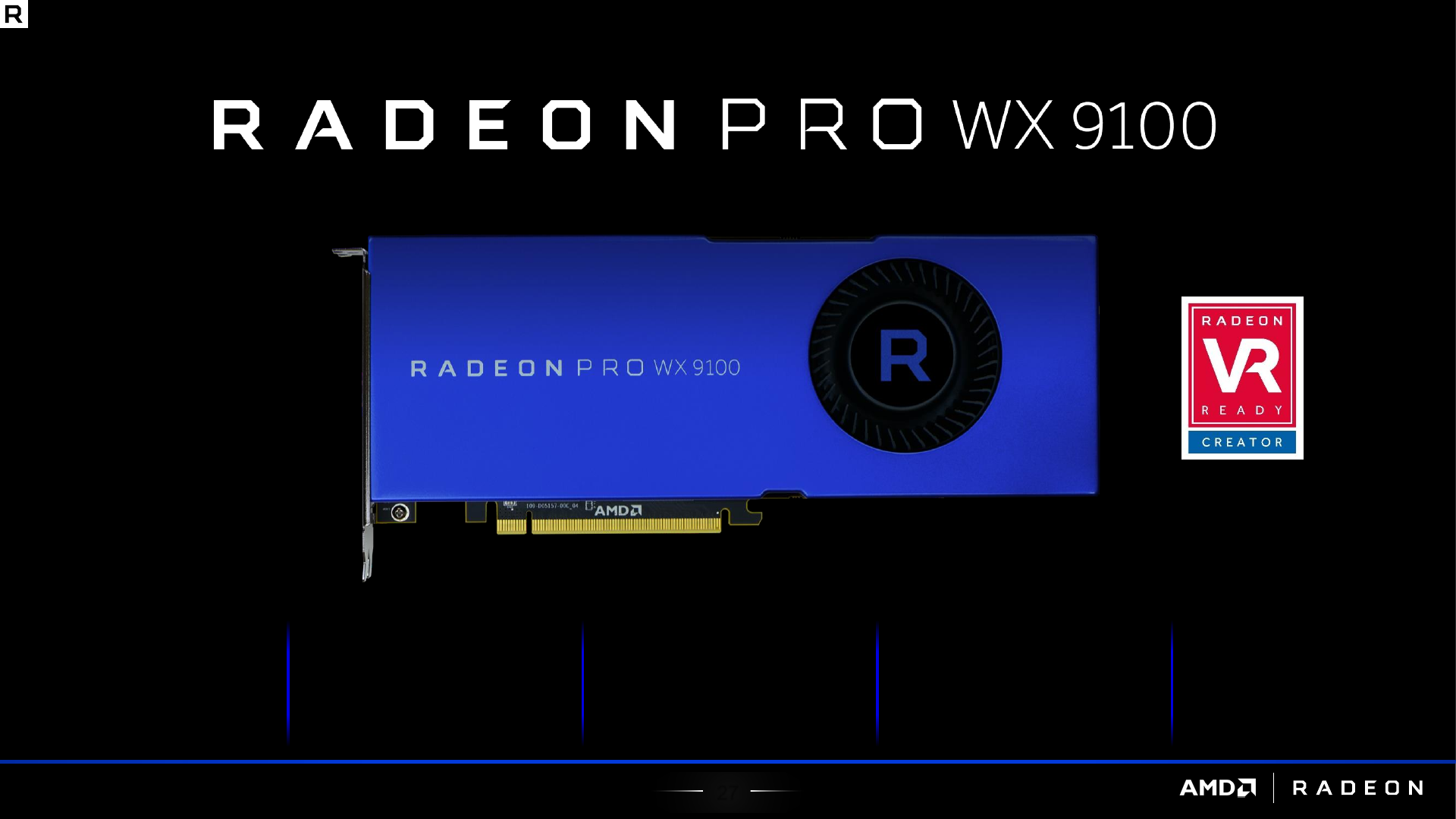

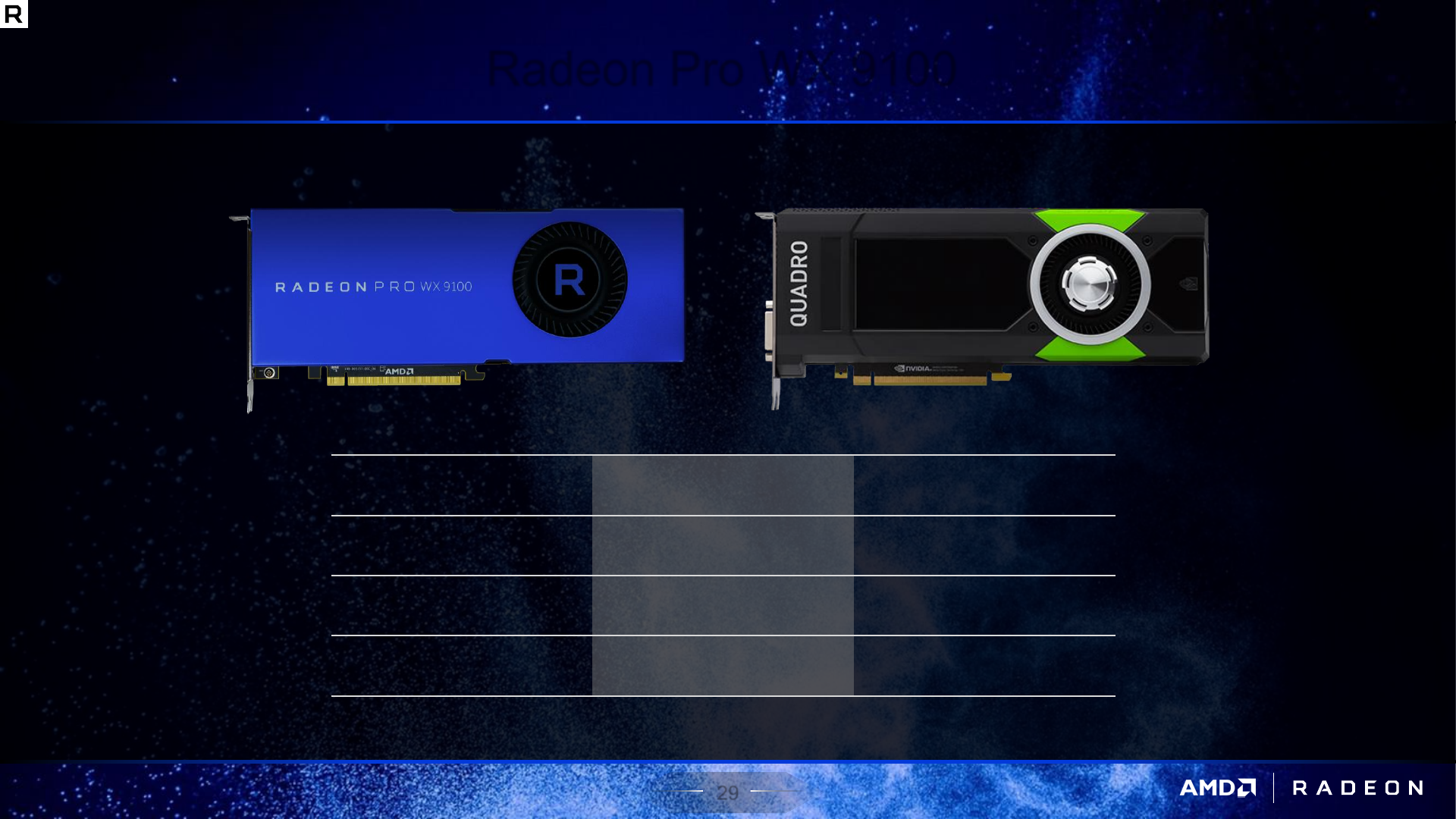

Radeon Pro WX 9100
12.3 TFLOPS Peak FP32 Performance 8.9 TFLOPS
484 GB/s Memory Bandwidth 288 GB/s
16 GB Memory Size 16 GB
6x Mini-DP Display Outputs 4x DP, 1x DVI
Radeon Pro WX 9100 Quadro P5000
Handle the most demanding workflows with ease
$2199 MSRP
$1799 SEP $2499 MSRP
$1999 SEP
30
SEPTEMBER 2017 | AMD CONFIDENTIAL
36
GCN COMPUTE UNITS 8 GB
GDDR5 MEMORY 224 GB/s
MEMORY BANDWIDTH 130 W
MAX BOARD POWER
PEAK FP32 PERFORMANCE
5.7 TFLOPS
31
SEPTEMBER 2017 | AMD CONFIDENTIAL

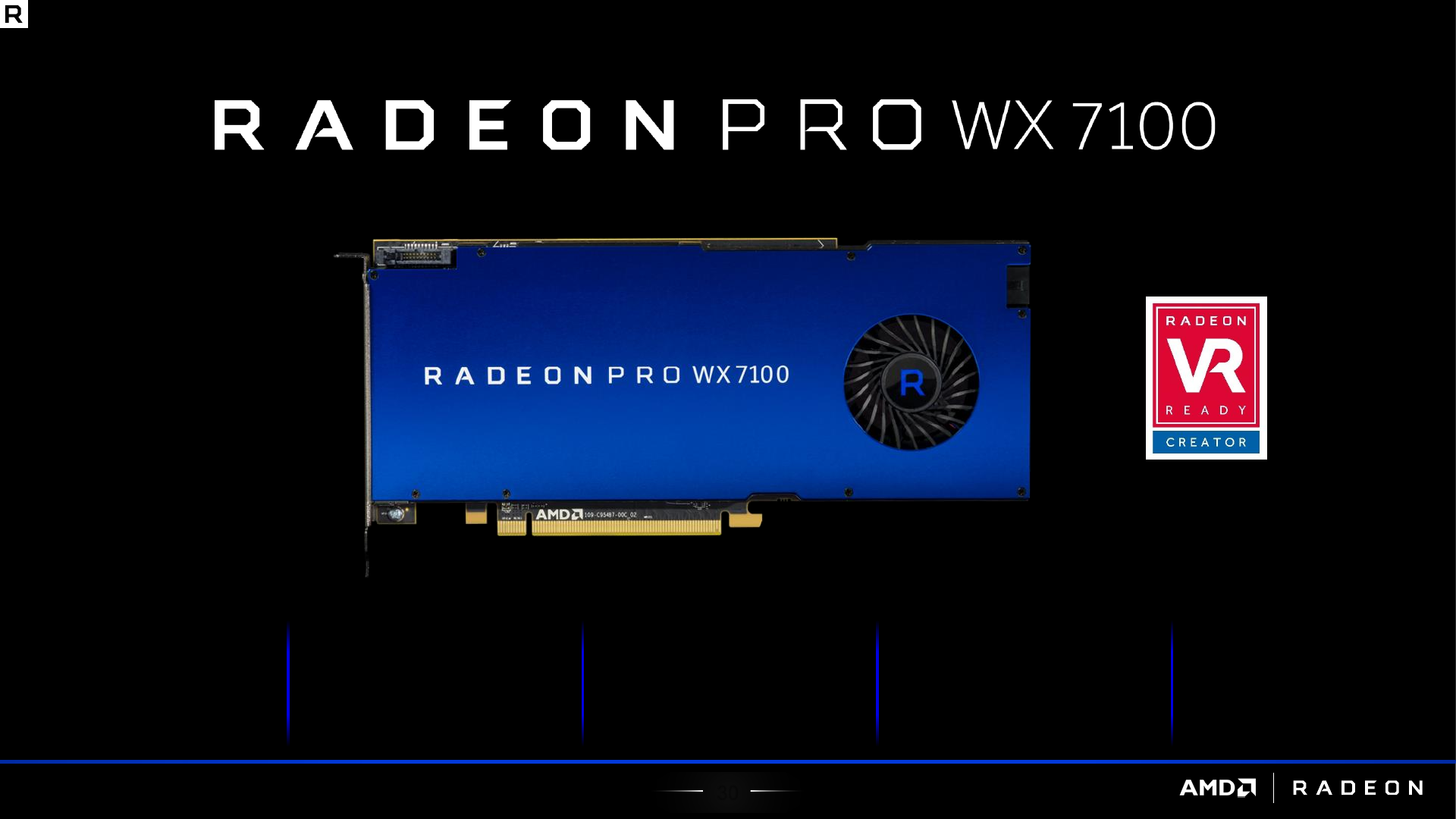

Radeon Pro WX 7100 Specifications
GPU Architecture Polaris
Stream Processors 2304
Peak FP16 Throughput 5.7 TFLOPS
Peak FP32 Throughput 5.7 TFLOPS
Peak FP64 Throughput 358 GFLOPS
Memory Size/Type 8GB GDDR5
Memory Bandwidth 224 GB/s
Display Connectors 4x DisplayPort 1.4
API Support
DirectX® Feature Level 12_0
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Typical Board Power 130 W
Form Factor Full Height, Single Slot
9.5” Length
32
SEPTEMBER 2017 | AMD CONFIDENTIAL

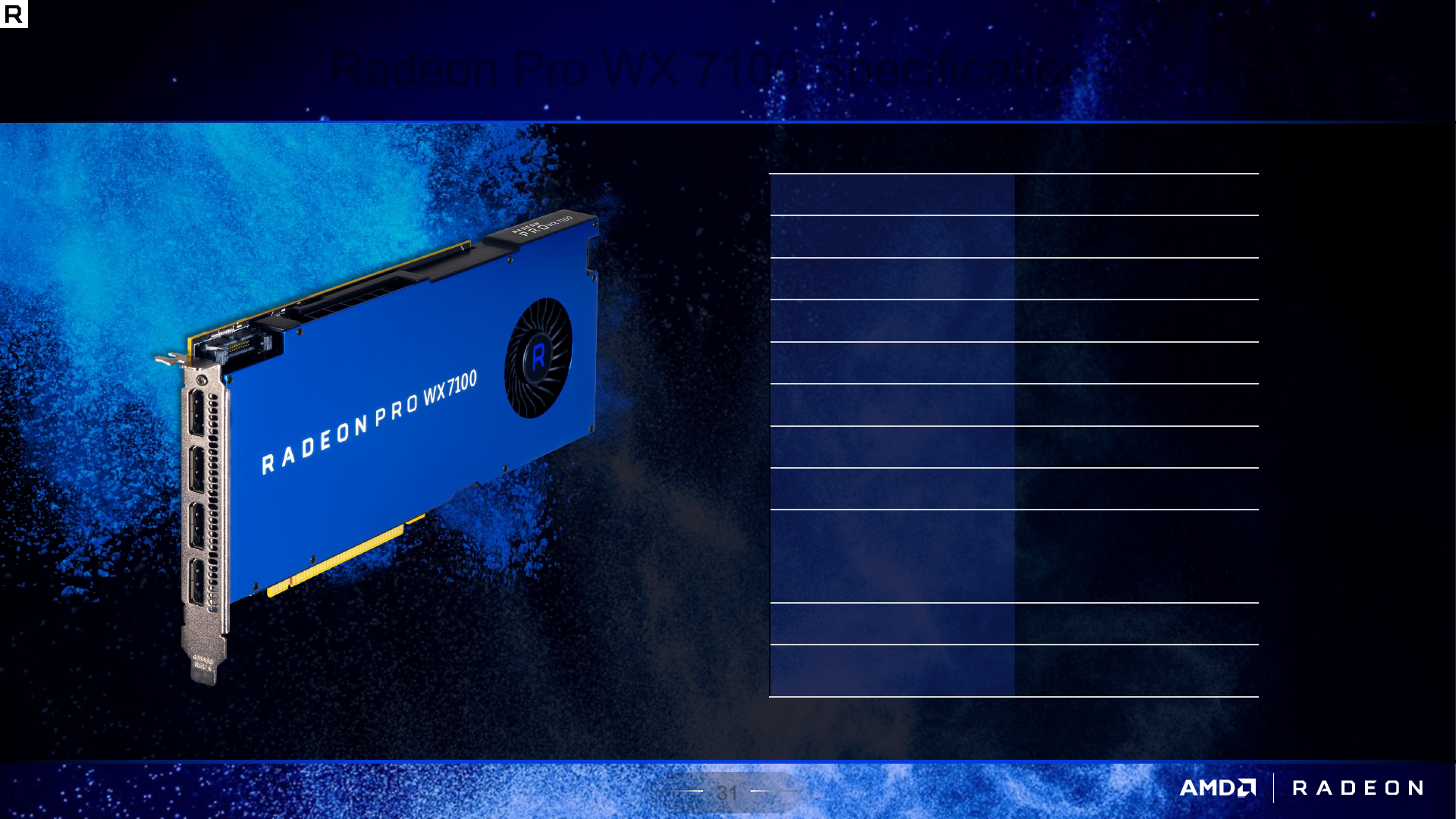

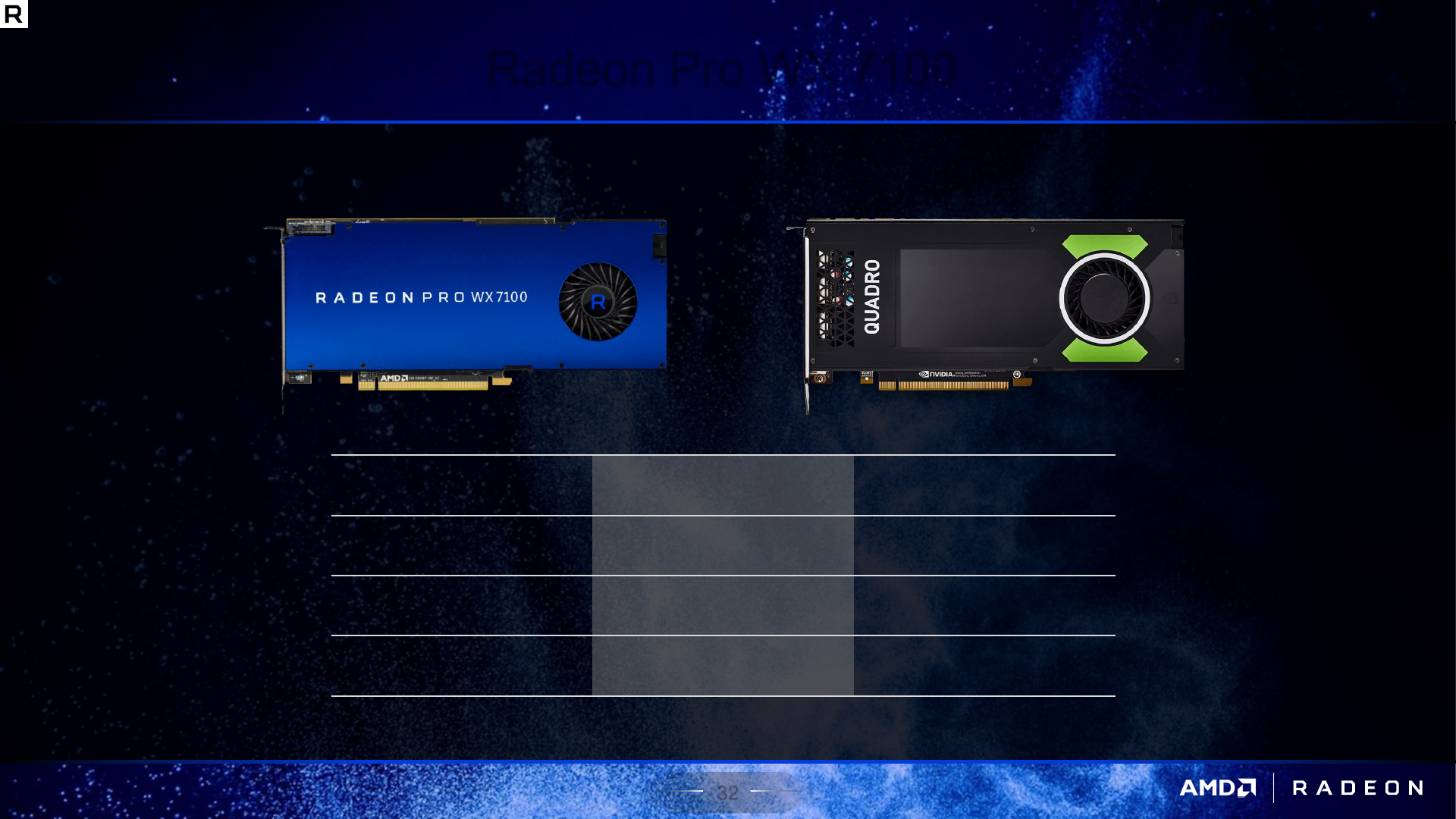

Radeon Pro WX 7100
Radeon Pro WX 7100 Quadro P4000
Ready for tomorrow’s VR workflows
$799 MSRP
$619 SEP $1249 MSRP
$859 SEP
5.73 TFLOPS Peak FP32 Performance 5.30 TFLOPS
224 GB/s Memory Bandwidth 243 GB/s
8 GB Memory Size 8 GB
4x DP Display Outputs 4x DP
33
SEPTEMBER 2017 | AMD CONFIDENTIAL
28
GCN COMPUTE UNITS 8 GB
GDDR5 MEMORY 160 GB/s
MEMORY BANDWIDTH 75 W
MAX BOARD POWER
PEAK FP32 PERFORMANCE
3.9 TFLOPS
34
SEPTEMBER 2017 | AMD CONFIDENTIAL

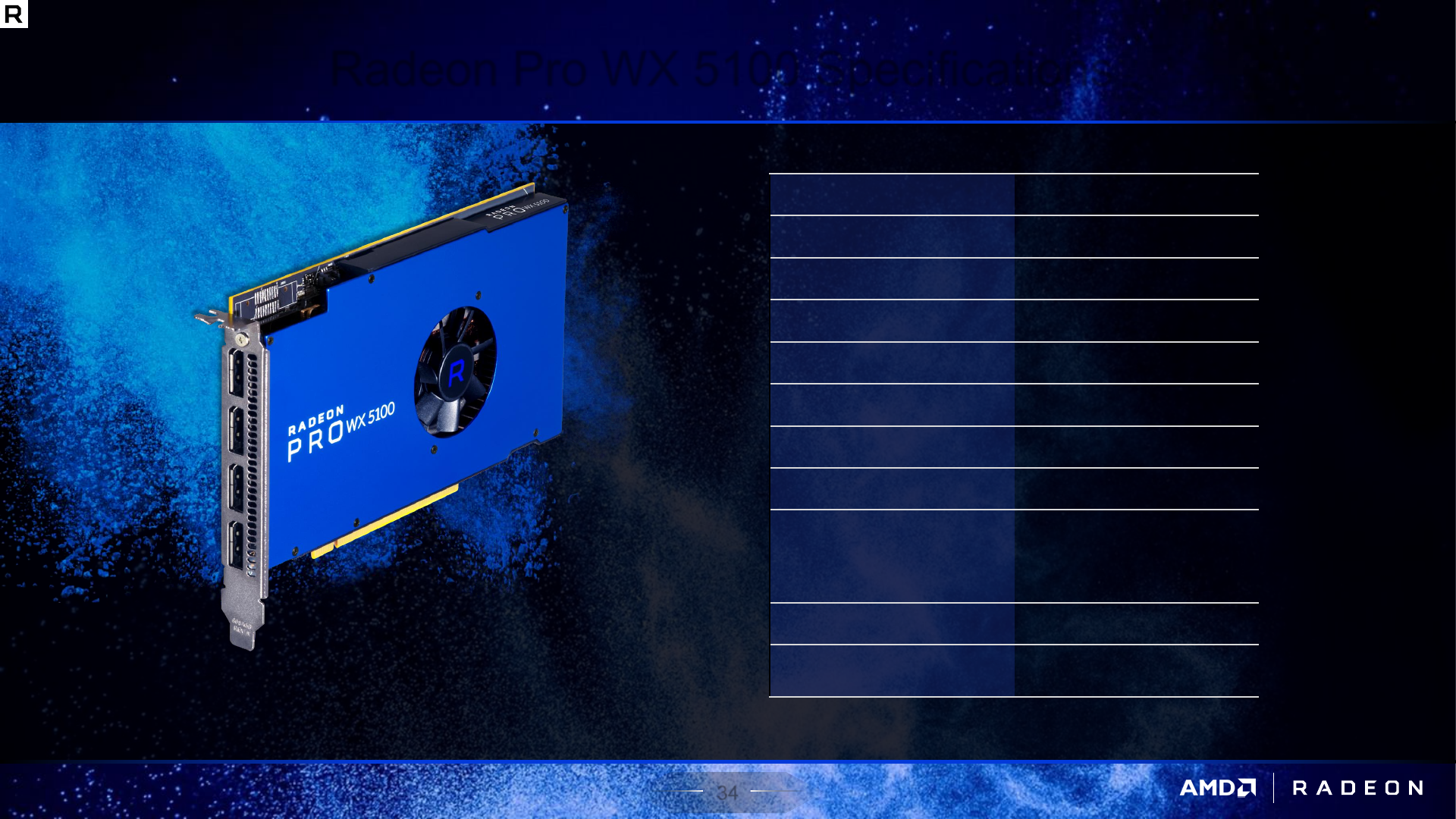

Radeon Pro WX 5100 Specifications
GPU Architecture Polaris
Stream Processors 1792
Peak FP16 Throughput 3.9 TFLOPS
Peak FP32 Throughput 3.9 TFLOPS
Peak FP64 Throughput 243 GFLOPS
Memory Size/Type 8GB GDDR5
Memory Bandwidth 160 GB/s
Display Connectors 4x DisplayPort 1.4
API Support
DirectX® Feature Level 12_0
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Typical Board Power 75 W
Form Factor Full Height, Single Slot
6.8” Length
35
SEPTEMBER 2017 | AMD CONFIDENTIAL

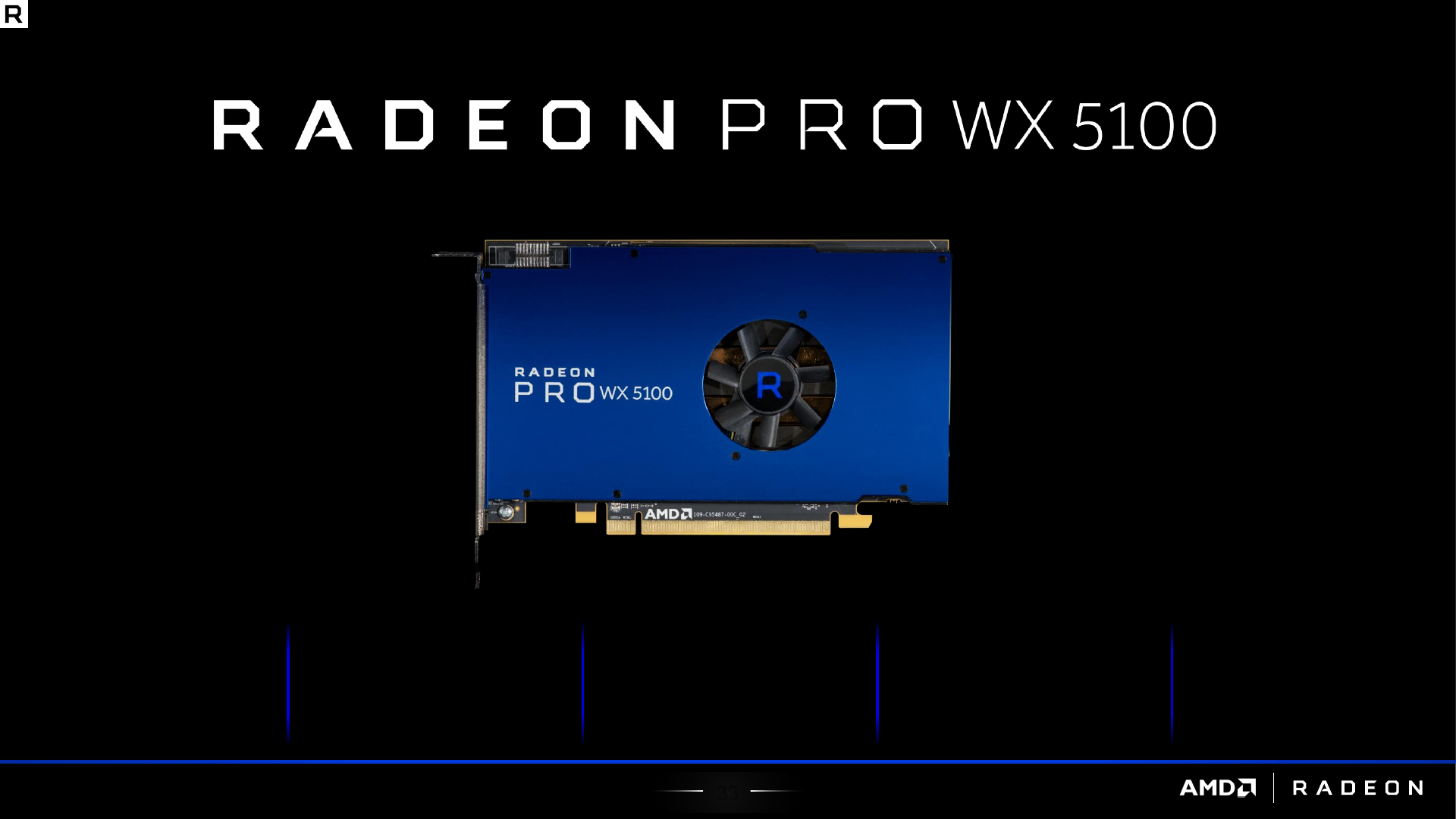

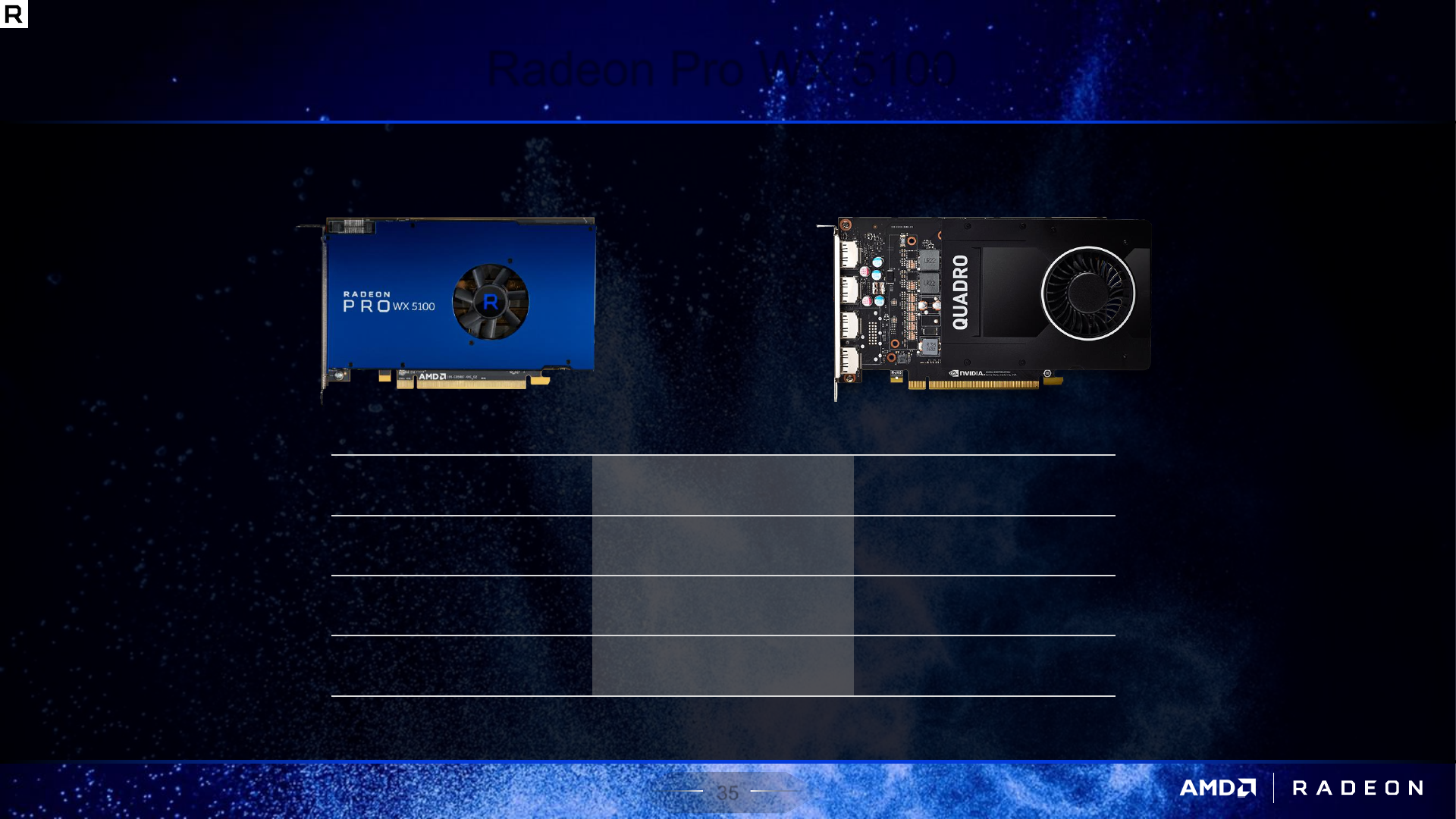

Radeon Pro WX 5100
Radeon Pro WX 5100 Quadro P2000
Ready for the game engine revolution in CAD
$499 MSRP
$359 SEP $599 MSRP
$439 SEP
3.89 TFLOPS Peak FP32 Performance 3.00 TFLOPS
160 GB/s Memory Bandwidth 140 GB/s
8 GB Memory Size 5 GB
4x DP Display Outputs 4x DP
36
SEPTEMBER 2017 | AMD CONFIDENTIAL
16
GCN COMPUTE UNITS 4 GB
GDDR5 MEMORY 96 GB/s
MEMORY BANDWIDTH 50 W
MAX BOARD POWER
PEAK FP32 PERFORMANCE
2.5 TFLOPS
37
SEPTEMBER 2017 | AMD CONFIDENTIAL
Radeon Pro WX 4100 Specifications
GPU Architecture Polaris
Stream Processors 1024
Peak FP16 Throughput 2.4 TFLOPS
Peak FP32 Throughput 2.4 TFLOPS
Peak FP64 Throughput 154 GFLOPS
Memory Size/Type 4GB GDDR5
Memory Bandwidth 96 GB/s
Display Connectors 4x Mini-DisplayPort 1.4
API Support
DirectX® Feature Level 12_0
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Typical Board Power 50 W
Form Factor Low Profile, Single Slot
6.6” Length
38
SEPTEMBER 2017 | AMD CONFIDENTIAL

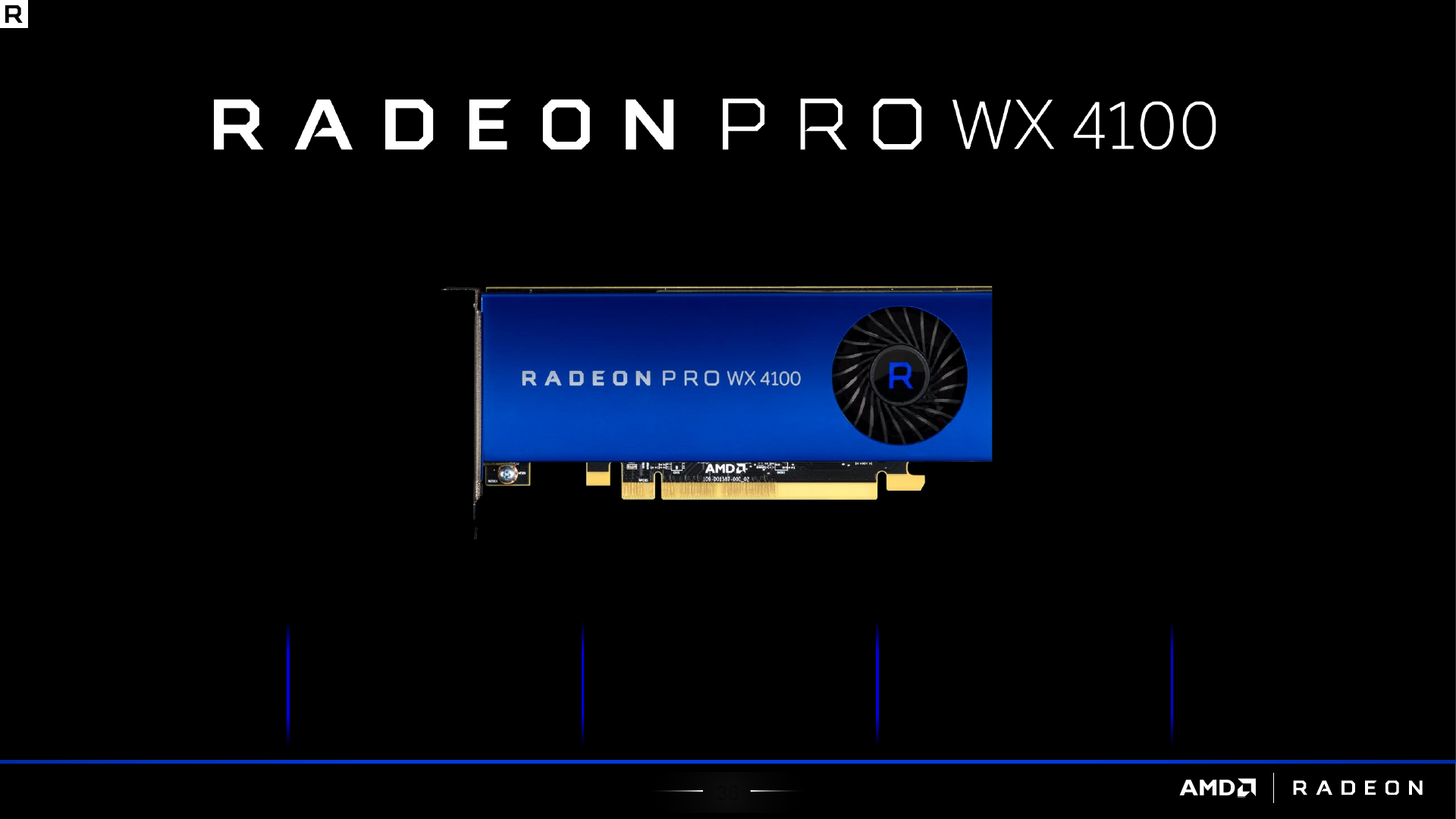

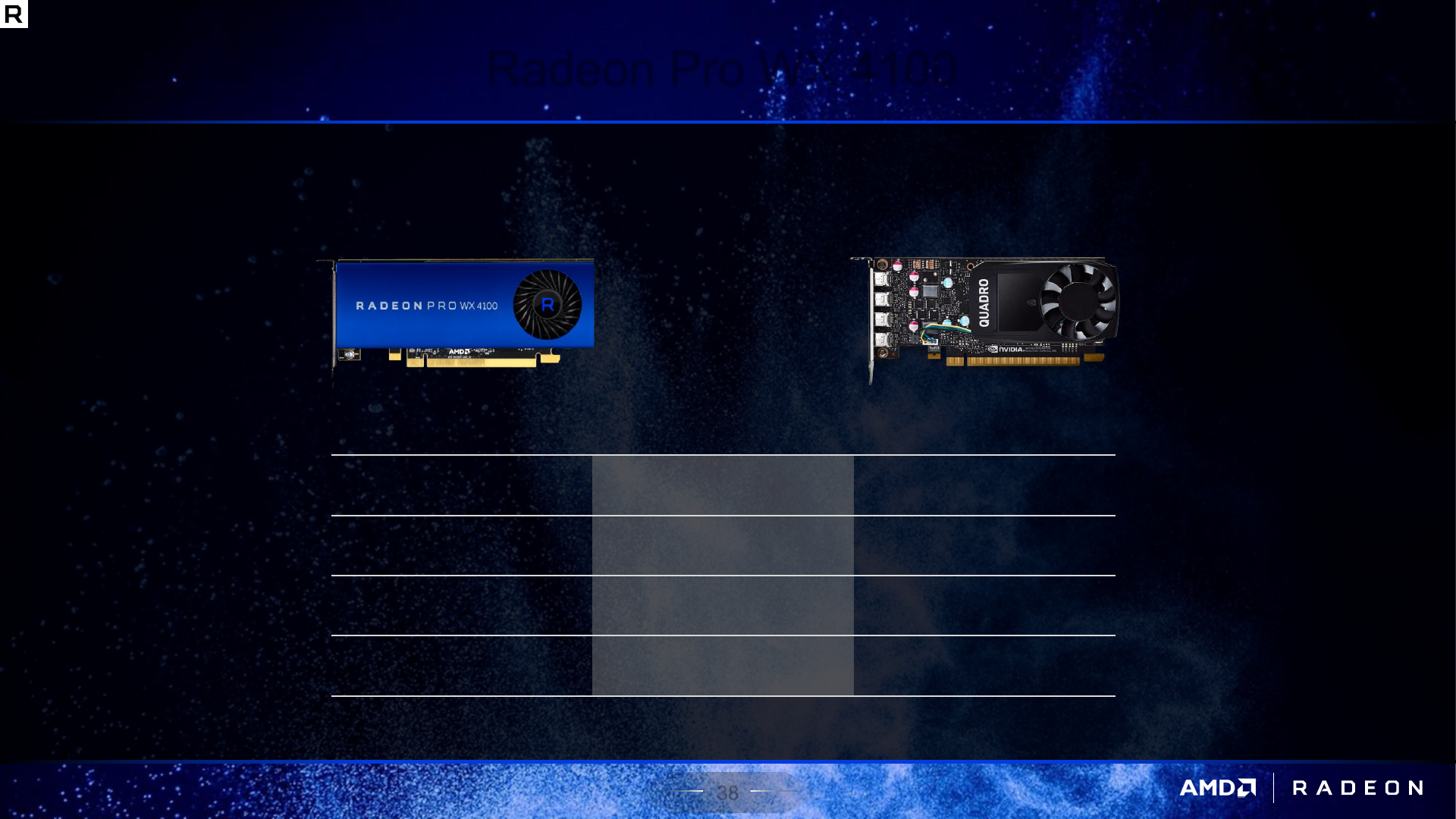

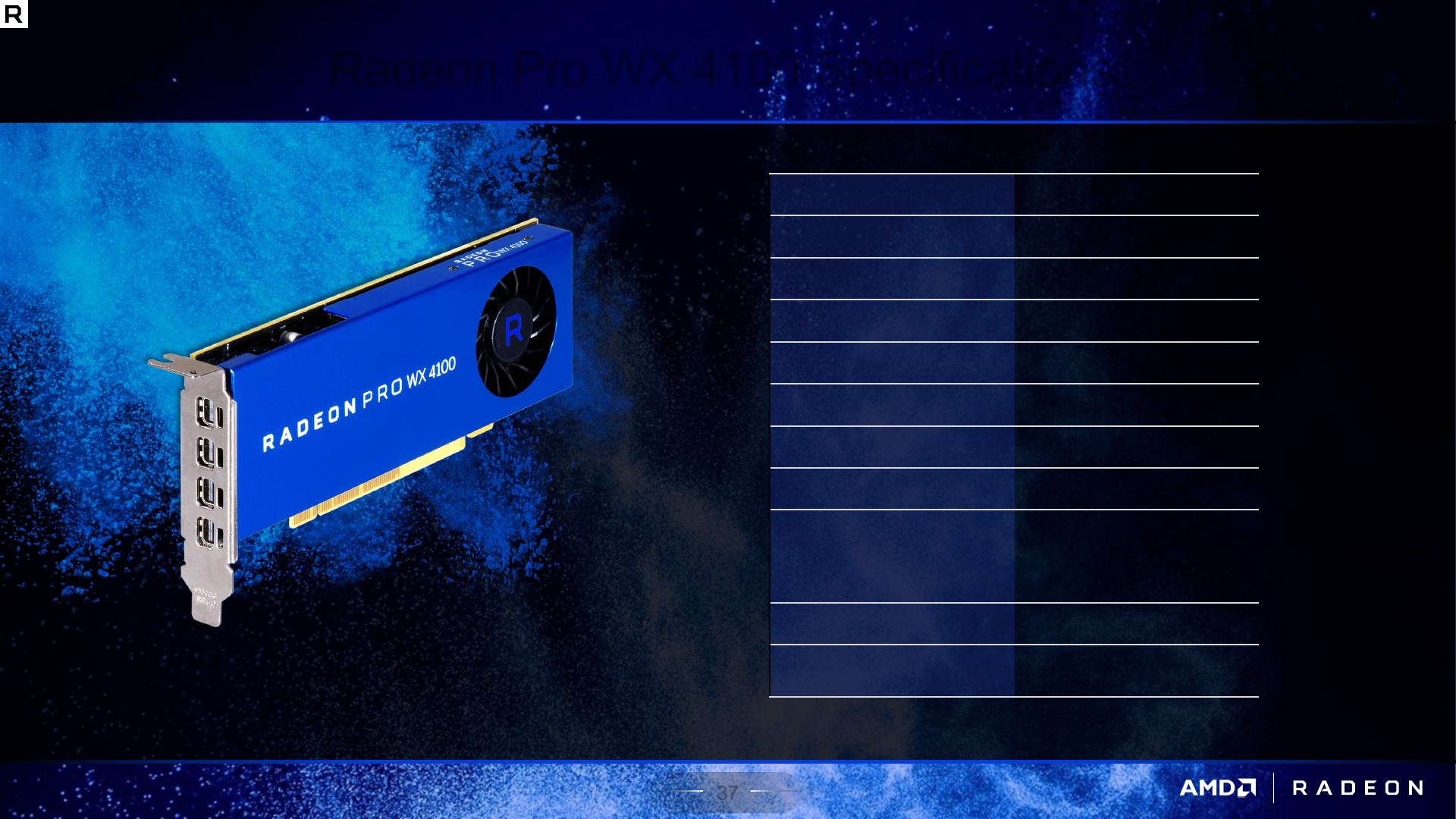

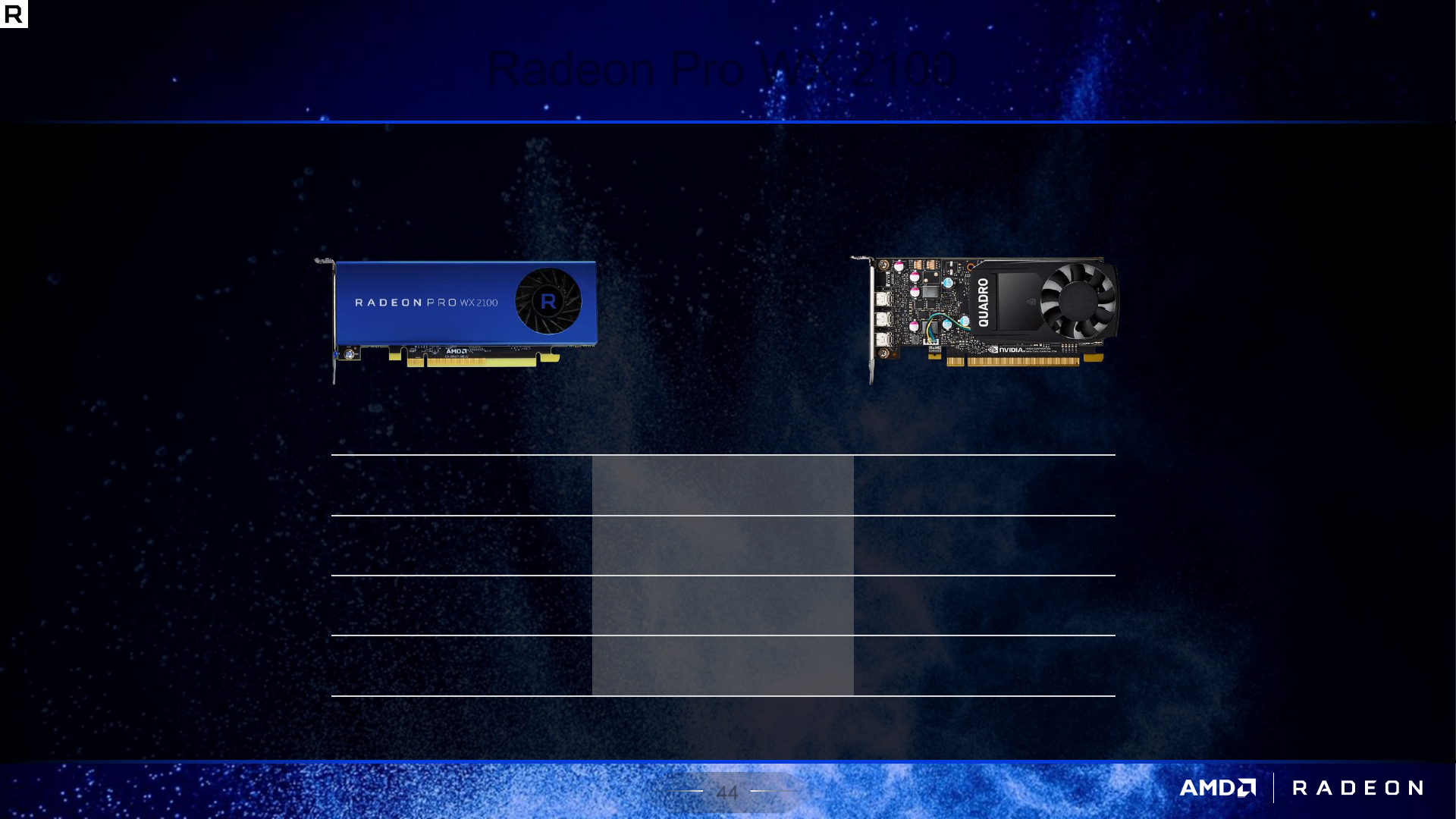

Radeon Pro WX 4100
Radeon Pro WX 4100 Quadro P1000
Superior graphics performance for small form factor workstations
$399 MSRP
$279 SEP $449 MSRP
$339 SEP
2.46 TFLOPS Peak FP32 Performance 1.89 TFLOPS
96 GB/s Memory Bandwidth 80 GB/s
4 GB Memory Size 4 GB
4x Mini-DP Display Outputs 4x Mini-DP
39
SEPTEMBER 2017 | AMD CONFIDENTIAL
8
GCN COMPUTE UNITS 4 GB
GDDR5 MEMORY 96 GB/s
MEMORY BANDWIDTH 50 W
MAX BOARD POWER
PEAK FP32 PERFORMANCE
1.2 TFLOPS
40
SEPTEMBER 2017 | AMD CONFIDENTIAL
Radeon Pro WX 3100 Specifications
GPU Architecture Polaris
Stream Processors 512
Peak FP16 Throughput 1.2 TFLOPS
Peak FP32 Throughput 1.2 TFLOPS
Peak FP64 Throughput 78 GFLOPS
Memory Size/Type 4GB GDDR5
Memory Bandwidth 96 GB/s
Display Connectors 2x Mini-DisplayPort 1.4
1x DisplayPort 1.4
API Support
DirectX® Feature Level 12_0
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Typical Board Power 50 W
Form Factor Low Profile, Single Slot
6.6” Length
41
SEPTEMBER 2017 | AMD CONFIDENTIAL
Radeon Pro WX 3100
Radeon Pro WX 3100 Quadro P600
Redefining entry level workstation graphics
$199 MSRP
$189 SEP $199 MSRP
$179 SEP
1.25 TFLOPS Peak FP32 Performance 1.20 TFLOPS
96 GB/s Memory Bandwidth 64 GB/s
4 GB Memory Size 2 GB
2x Mini-DP, 1x DP Display Outputs 4x Mini-DP
42
SEPTEMBER 2017 | AMD CONFIDENTIAL
8
GCN COMPUTE UNITS 2 GB
GDDR5 MEMORY 48 GB/s
MEMORY BANDWIDTH 35 W
MAX BOARD POWER
PEAK FP32 PERFORMANCE
1.2 TFLOPS
43
SEPTEMBER 2017 | AMD CONFIDENTIAL

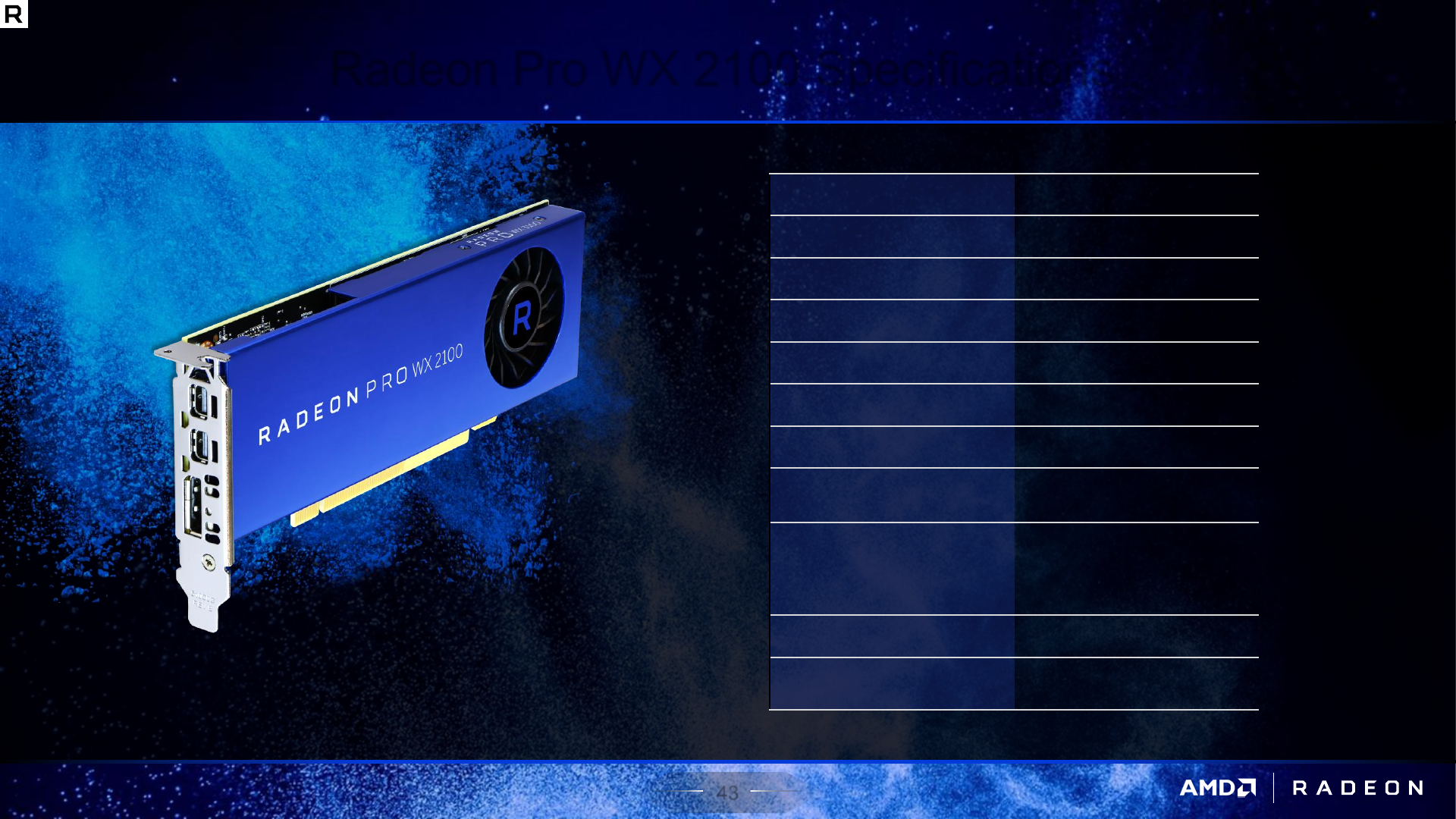

Radeon Pro WX 2100 Specifications
GPU Architecture Polaris
Stream Processors 512
Peak FP16 Throughput 1.2 TFLOPS
Peak FP32 Throughput 1.2 TFLOPS
Peak FP64 Throughput 78 GFLOPS
Memory Size/Type 2GB GDDR5
Memory Bandwidth 48 GB/s
Display Connectors 2x Mini-DisplayPort 1.4
1x DisplayPort 1.4
API Support
DirectX® Feature Level 12_0
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Typical Board Power 35 W
Form Factor Low Profile, Single Slot
6.6” Length
44
SEPTEMBER 2017 | AMD CONFIDENTIAL

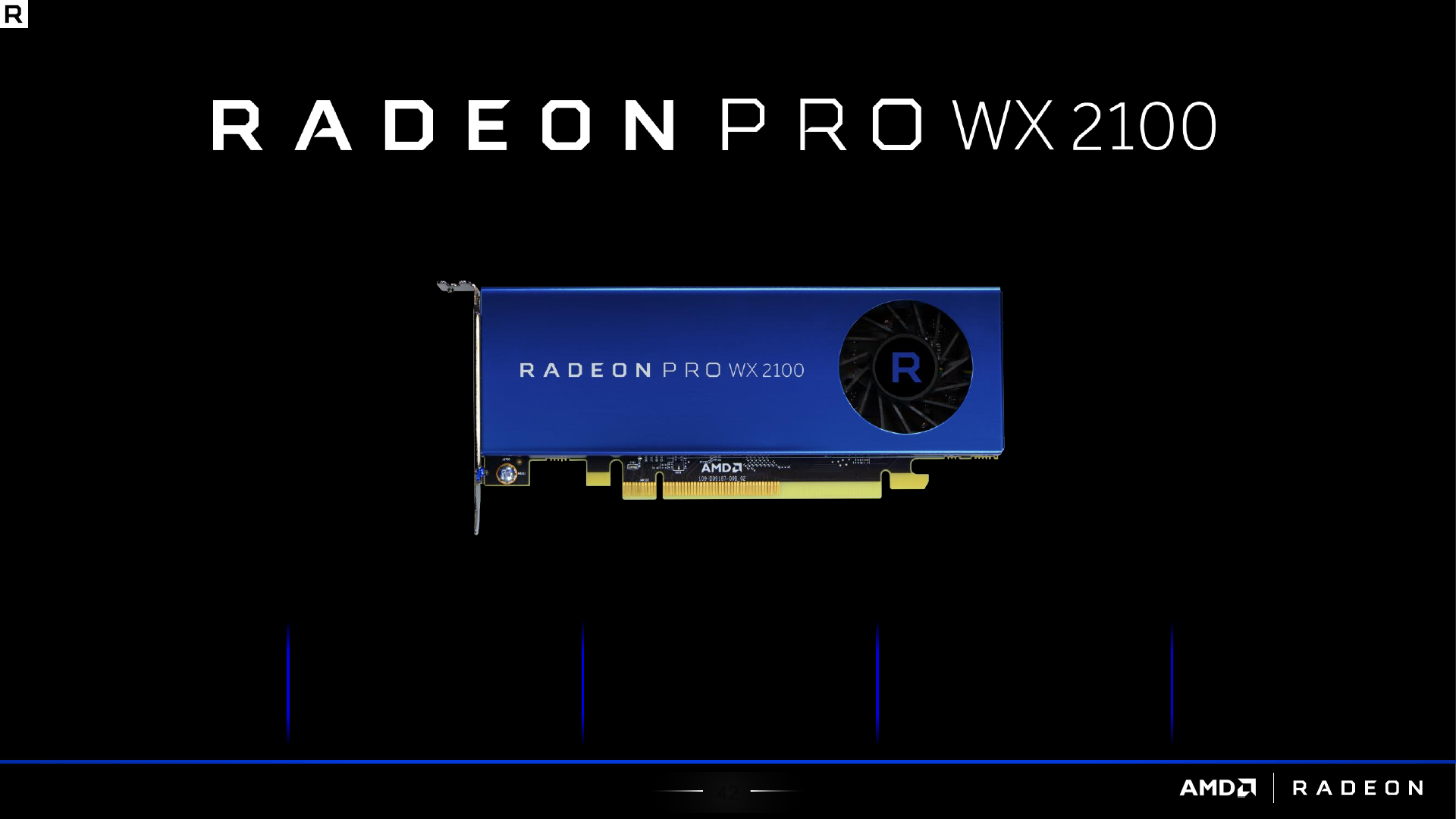

Radeon Pro WX 2100

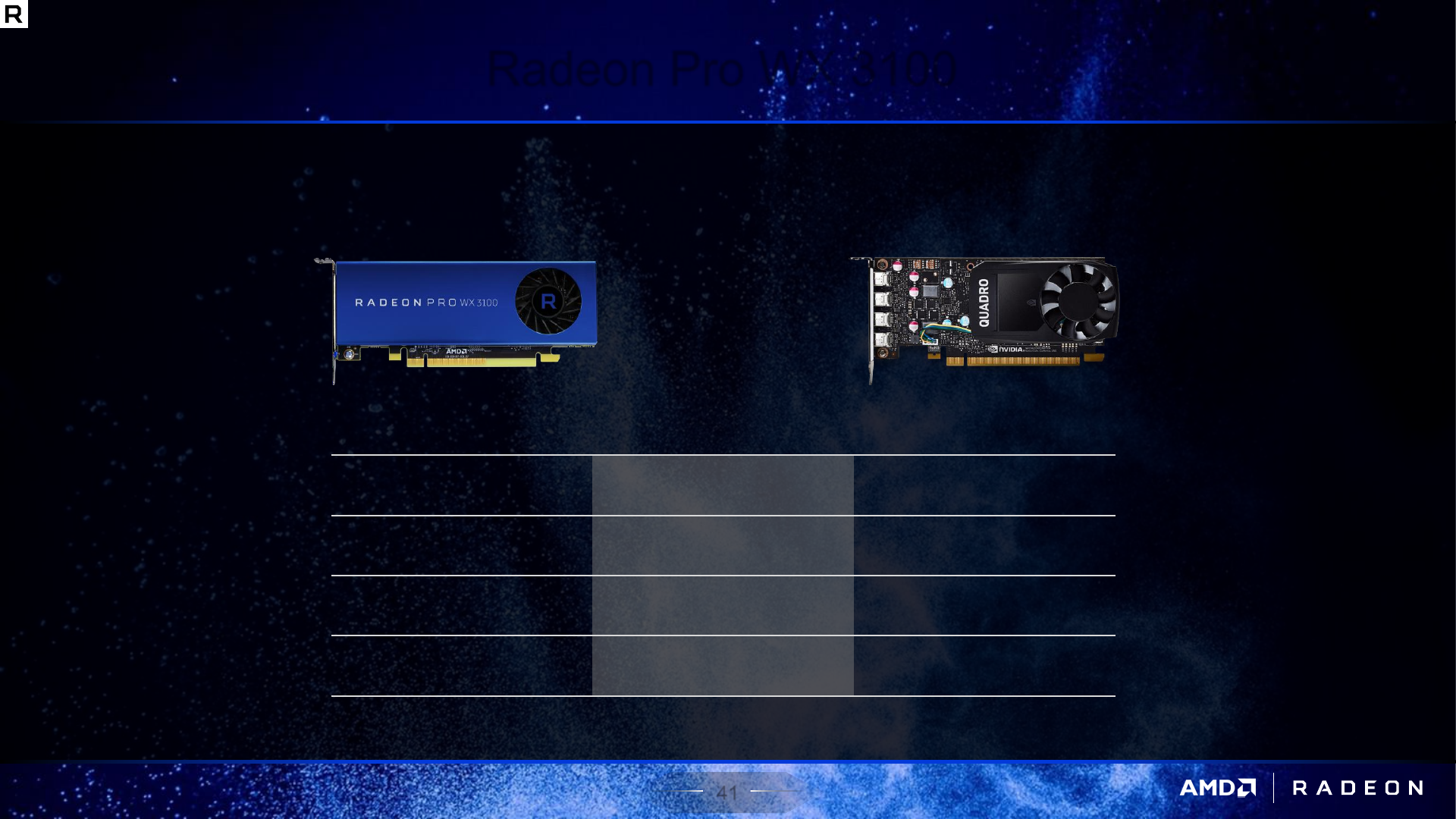

Radeon Pro WX 2100 Quadro P400
Affordable professional-grade workstation graphics solution
$149 MSRP
$139 SEP $169 MSRP
$119 SEP
1.25 TFLOPS Peak FP32 Performance 0.64 TFLOPS
48 GB/s Memory Bandwidth 32 GB/s
2 GB Memory Size 2 GB
2x Mini-DP, 1x DP Display Outputs 3x Mini-DP
45
SEPTEMBER 2017 | AMD CONFIDENTIAL

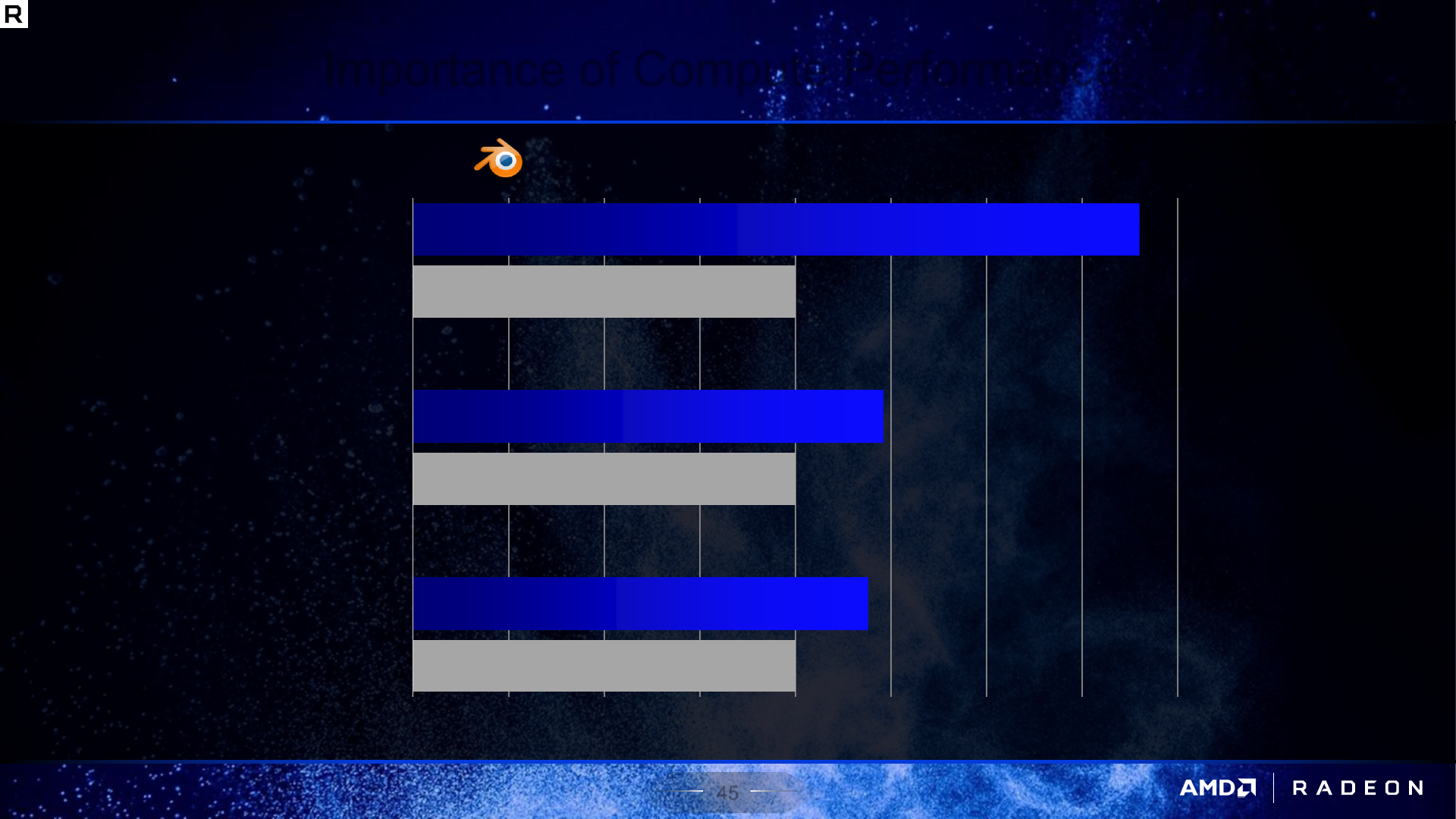

Importance of Compute Performance
0,00x 0,25x 0,50x 0,75x 1,00x 1,25x 1,50x 1,75x 2,00x
Quadro P2000
Radeon Pro WX 5100
Quadro P4000
Radeon Pro WX 7100
Quadro P5000
Radeon Pro WX 9100
Blender Cycles Avg Performance
1.9x
1.23x
1.19x
46
SEPTEMBER 2017 | AMD CONFIDENTIAL
Radeon Pro Duo
Divide. Accelerate. Create.
“With the Radeon Pro Duo, visual effects artists have the
ability to composite extremely complex scenes in Nuke,
and then jump into a 3D application like Maya or 3ds Max
to create or tweak the asset, export back to Nuke or
simultaneously open Mari for texture painting –the iteration
process becomes that much more intuitive. The Pro Duo
can handle these varied tasks without missing a beat!”
Kynan Stephenson
Freelance Artist
47
SEPTEMBER 2017 | AMD CONFIDENTIAL

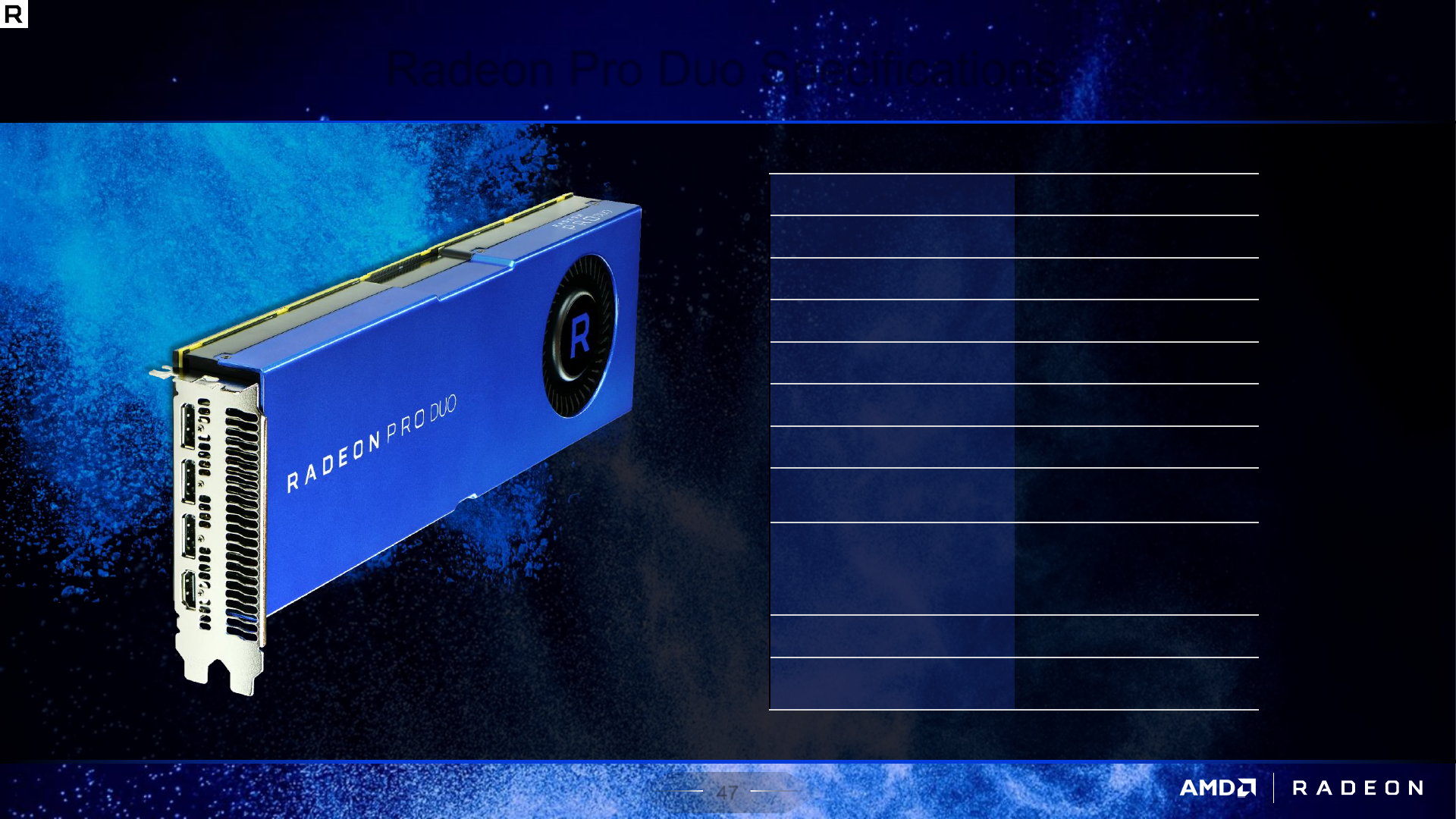

Radeon Pro Duo Specifications
GPU Architecture Polaris
Stream Processors 4608 (2x2304)
Peak FP16 Throughput 11.5 TFLOPS
Peak FP32 Throughput 11.5 TFLOPS
Peak FP64 Throughput 716 GFLOPS
Memory Size/Type 32GB GDDR5
Memory Bandwidth 448GB/s
Display Connectors 3x DisplayPort 1.4
1x HDMI 2.0
API Support
DirectX® Feature Level 12_0
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Typical Board Power 250 W
Form Factor Full Height, Dual Slot
12.0” Length
48
SEPTEMBER 2017 | AMD CONFIDENTIAL

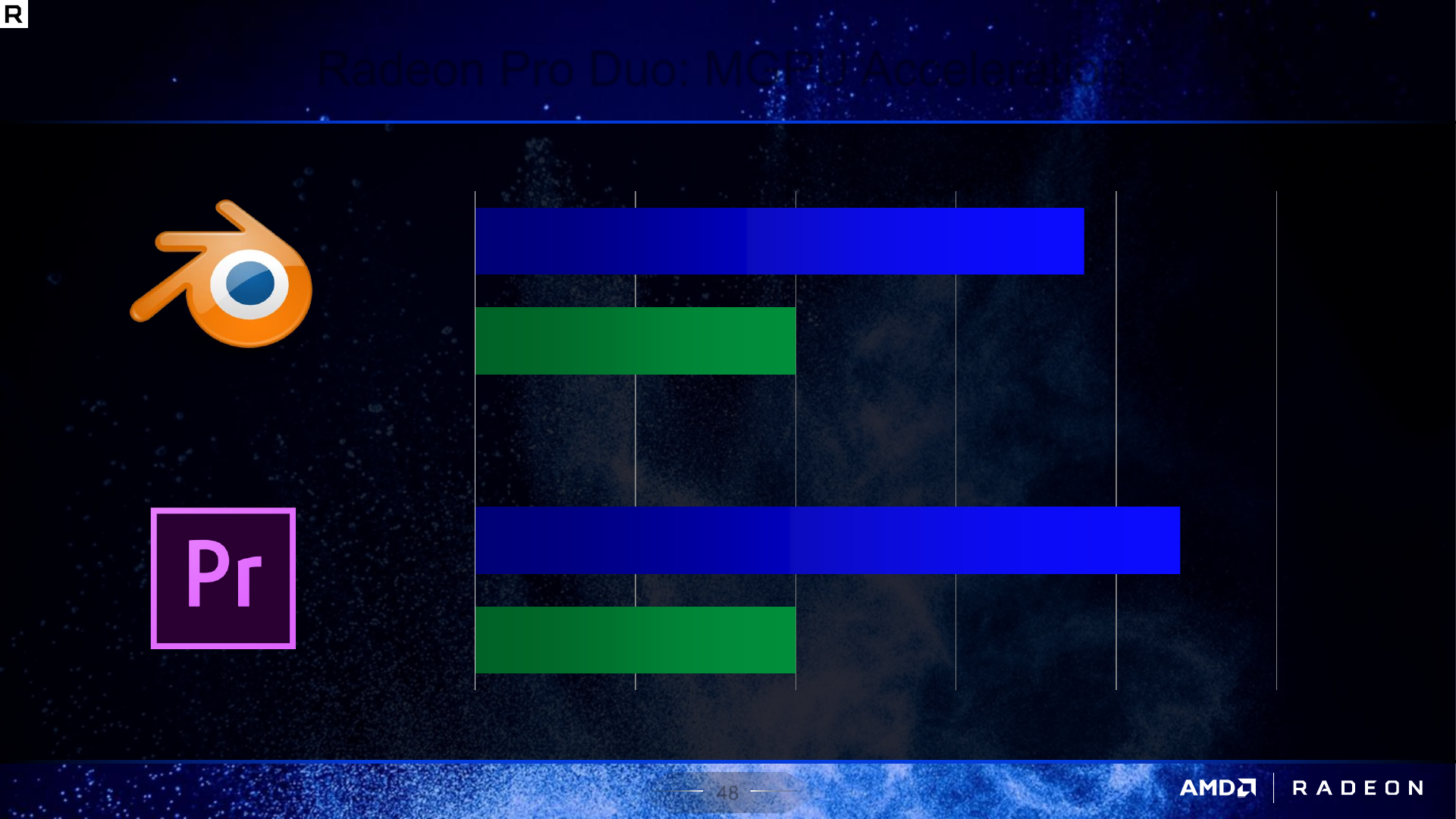

Radeon Pro Duo: MGPU Acceleration
0,0 x 0,5 x 1,0 x 1,5 x 2,0 x 2,5 x
NVIDIA TITAN X
Radeon Pro Duo
NVIDIA TITAN X
Radeon Pro Duo
Rendering Performance
Premiere Pro
CC 2017
Blender
(Cycles Renderer)
2.2x faster
1.9x faster
49
SEPTEMBER 2017 | AMD CONFIDENTIAL

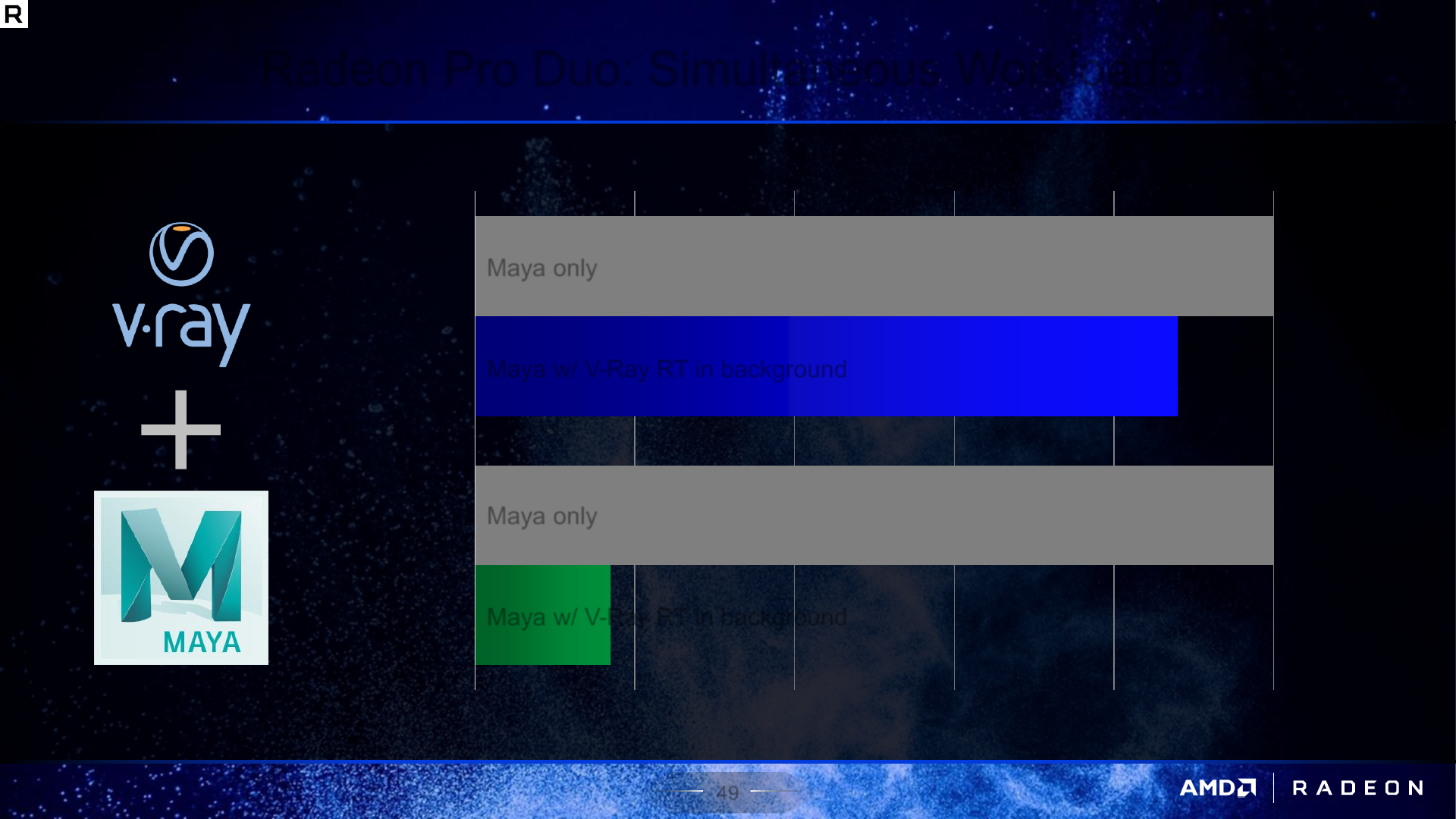

Radeon Pro Duo: Simultaneous Workloads
0% 20% 40% 60% 80% 100%
NVIDIA TITAN X
Radeon Pro Duo
Maya Frame Rate Impact
Maya only
Maya w/ V-Ray RT in background
Maya only
Maya w/ V-Ray RT in background
50
SEPTEMBER 2017 | AMD CONFIDENTIAL

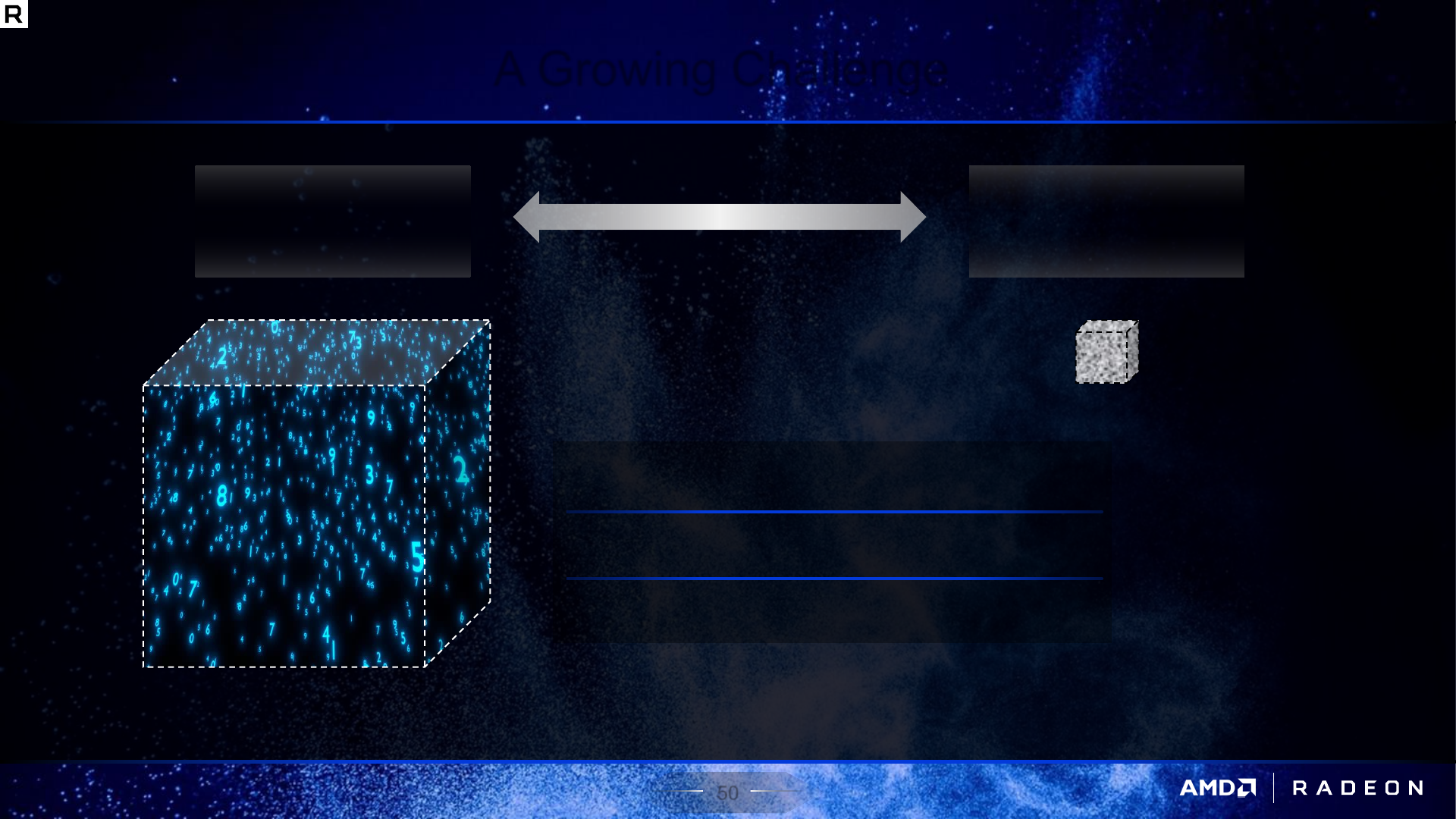

A Growing Challenge
Working Assets
(Terabytes) GPU Cache
(Gigabytes)
Virtually unlimited asset storage capacity
Asset size vastly outpaces cache capacity
Ever-growing demand for larger assets
51
SEPTEMBER 2017 | AMD CONFIDENTIAL
Radeon Pro SSG Technology
SSG –a fundamental change
Project
Assets
52
SEPTEMBER 2017 | AMD CONFIDENTIAL
SSG
Expanding the Possibilities
Large Dataset Rendering Scientific Visualization
Medical Imaging Oil and Gas Deep Learning
53
SEPTEMBER 2017 | AMD CONFIDENTIAL
Radeon Pro SSG Specifications
GPU Architecture Vega
Stream Processors 4096
Peak FP16 Throughput 24.6 TFLOPS
Peak FP32 Throughput 12.3 TFLOPS
Peak FP64 Throughput 768 GFLOPS
Memory Size/Type 16GB HBM2 w/ ECC
2TB NVMe
Memory Bandwidth 484 GB/s
Display Connectors 6x Mini-DisplayPort 1.4
API Support
DirectX® Feature Level 12_1
OpenGL® 4.5
OpenCL™ 2.0
Vulkan™ 1.0
Typical Board Power 260 W
Form Factor Full Height, Dual Slot
10.5” Length
54
SEPTEMBER 2017 | AMD CONFIDENTIAL

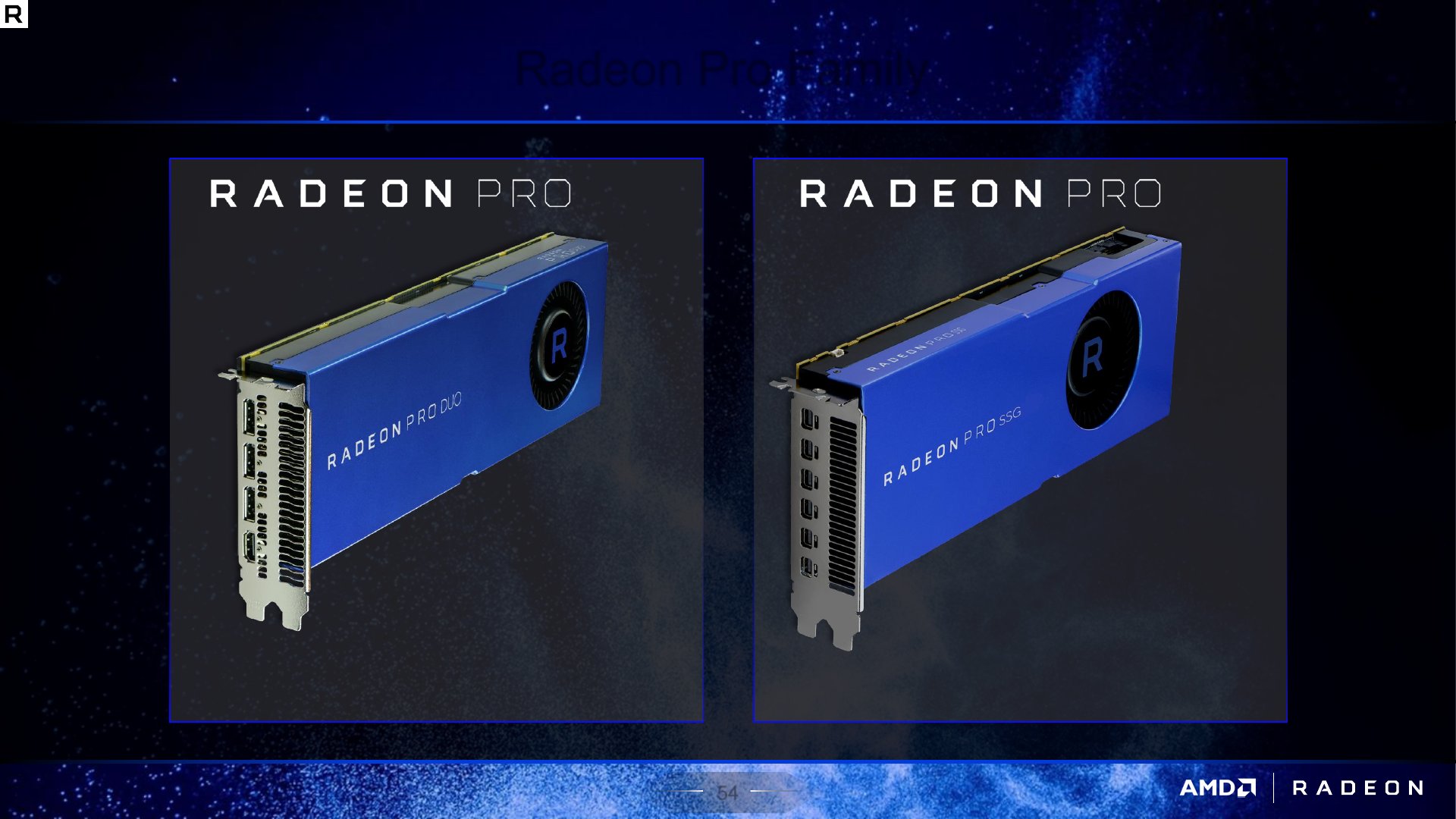

Radeon Pro Family
SSG
“Vega” GPU Architecture
16GB HBM2 + 2TB SSG
Revolutionize large dataset workflows
DUO
2x “Polaris10” GPUs
11.4 TFLOPS, 32GB GDDR5
Simultaneous design & visualization
55
SEPTEMBER 2017 | AMD CONFIDENTIAL
Partnered for Success
BOXX Technologies
Exxact Puget Systems
Next Computing
Velocity Micro Orbital Computers
Schneider Digital
Wortmann
TAROX XI-MachinesInoNet
Bluechip
NTSI
56
SEPTEMBER 2017 | AMD CONFIDENTIAL
Radeon Pro Software
57
SEPTEMBER 2017 | AMD CONFIDENTIAL
Unprecedented Driver Quality
Software Stability
More OEM Platform Testing* More ISV Certification Testing* More Stress Testing*
2X 3X 1.5X
*AMD internal data, testing of Radeon Pro 16.Q4 Enterprise Driver compared to FirePro™ 14.502.1019 driver.
58
SEPTEMBER 2017 | AMD CONFIDENTIAL
Meeting Professional and
Enterprise Needs
Commitment to Stability, Performance, and Feature Improvements
Quarterly Releases Longevity, Stability and Performance Prioritized Support
59
SEPTEMBER 2017 | AMD CONFIDENTIAL
Free. Fast. Accurate.
Plug-in Plug-in Add-in Plug-inIntegrated
60
SEPTEMBER 2017 | AMD CONFIDENTIAL
Radeon ProRender Game Engine Importer
(Beta)
61
SEPTEMBER 2017 | AMD CONFIDENTIAL
Collaboration & Presentation Integration in
Radeon Pro Settings Free, with No
Registration Required Optimized for
Performance & Quality
Capture and Record
Processional Workflows
62
SEPTEMBER 2017 | AMD CONFIDENTIAL

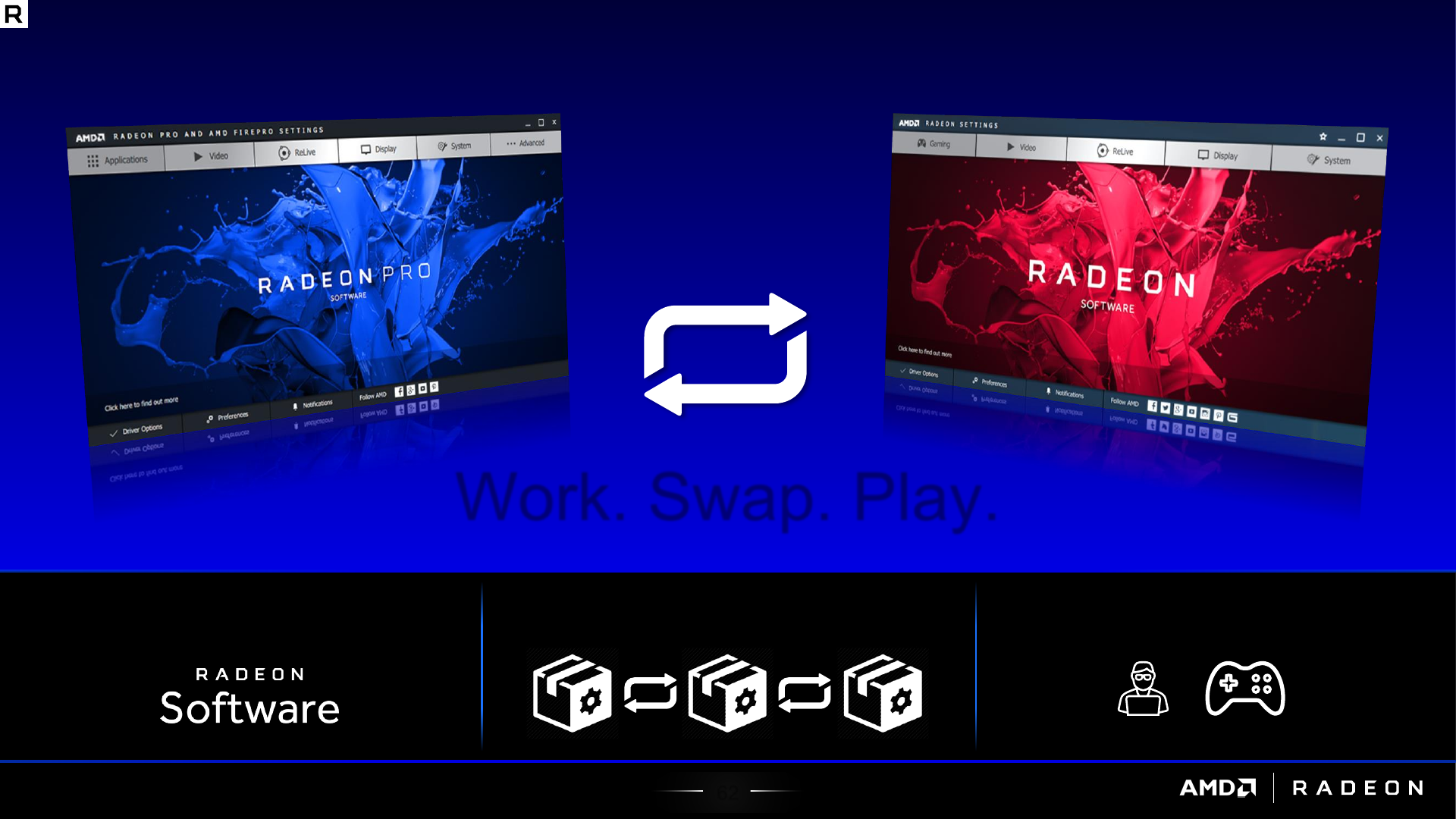

Switch Between Up to Three Drivers
Enjoy Full Gaming Features
on Professional GPUs
Work. Swap. Play.
Work and Play on the Same System
63
SEPTEMBER 2017 | AMD CONFIDENTIAL
One Driver
Unified enterprise driver for all Radeon™ GPUs
64
SEPTEMBER 2017 | AMD CONFIDENTIAL
65
SEPTEMBER 2017 | AMD CONFIDENTIAL
The information contained herein is for informational purposes only, and is subject to change without notice. While every precaution has been taken in the preparation of this
document, it may contain technical inaccuracies, omissions and typographical errors, and AMD is under no obligation to update or otherwise correct this information. Advanced
Micro Devices, Inc. makes no representations or warranties with respect to the accuracy or completeness of the contents of this document, and assumes no liability of any kind,
including the implied warranties of noninfringement, merchantability or fitness for particular purposes, with respect to the operation or use of AMD hardware, software or other
products described herein. No license, including implied or arising by estoppel, to any intellectual property rights is granted by this document. Terms and limitations applicable to
the purchase or use of AMD’s products are as set forth in a signed agreement between the parties or in AMD's Standard Terms and Conditions of Sale. GD-18
©2017 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, FirePro, Radeon, and combinations thereof are trademarks of Advanced Micro Devices, Inc.
Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies.
DISCLAIMER AND ATTRIBUTION
66
SEPTEMBER 2017 | AMD CONFIDENTIAL
BACKUP
67
SEPTEMBER 2017 | AMD CONFIDENTIAL
Channel Product Lifecycle
Product Part Number First Ship Last Buy Last Ship
Radeon Pro WX 9100 100-505957
Radeon Pro WX 7100 100-505826 11/1/2016 9/30/2019 12/31/2019
Radeon Pro WX 5100 100-505940 11/1/2016 9/30/2019 12/31/2019
Radeon Pro WX 4100 100-506008 11/1/2016 9/30/2019 12/31/2019
Radeon Pro WX 3100 100-505999 5/24/2017 4/1/2020 7/1/2020
Radeon Pro WX 2100 100-506001 5/24/2017 4/1/2020 7/1/2020
Radeon Pro Duo 100-506048 8/30/2017 5/30/2019 8/30/2019
Radeon Pro SSG 100-506014
FirePro W9100 32GB 100-505989 1/1/2016 4/30/2019 8/30/2019
FirePro W8100 100-505976 6/1/2014 4/30/2018 8/30/2018
FirePro W7100 100-505975 12/1/2014 9/1/2017 12/1/2017
FirePro W5100 100-505974 9/2/2014 9/1/2017 12/1/2017
FirePro W4300 100-505973 3/1/2016 9/1/2017 12/1/2017
FirePro W4100 100-505979 9/2/2014 9/1/2017 12/1/2017
FirePro W2100 100-505980 8/1/2014 12/31/2017 3/31/2018
