RDC-7.1
SERVICE MANUAL
SERVICE MANUAL
AV CONTROLLER
MODEL RDC-7.1
Ref. No. 3869
Dec, 2004
120V AC, 60Hz
230-240V AC, 50Hz
220-230V AC, 50/60Hz
UDD, UDT
UPP-RC/RF, UPA
UGK, UGT
Titanium model
RC-554M
RC-555M
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK ON THE

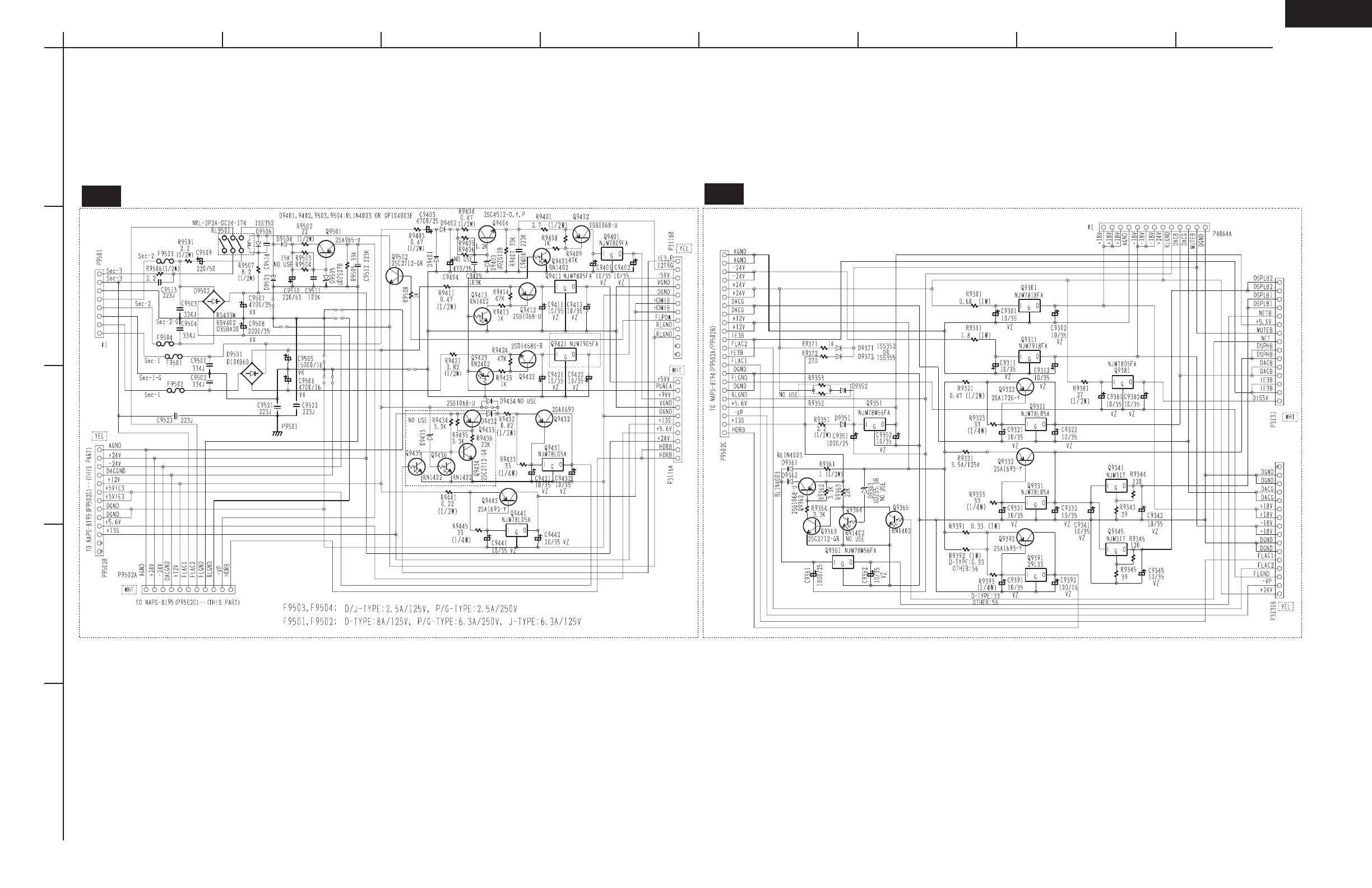

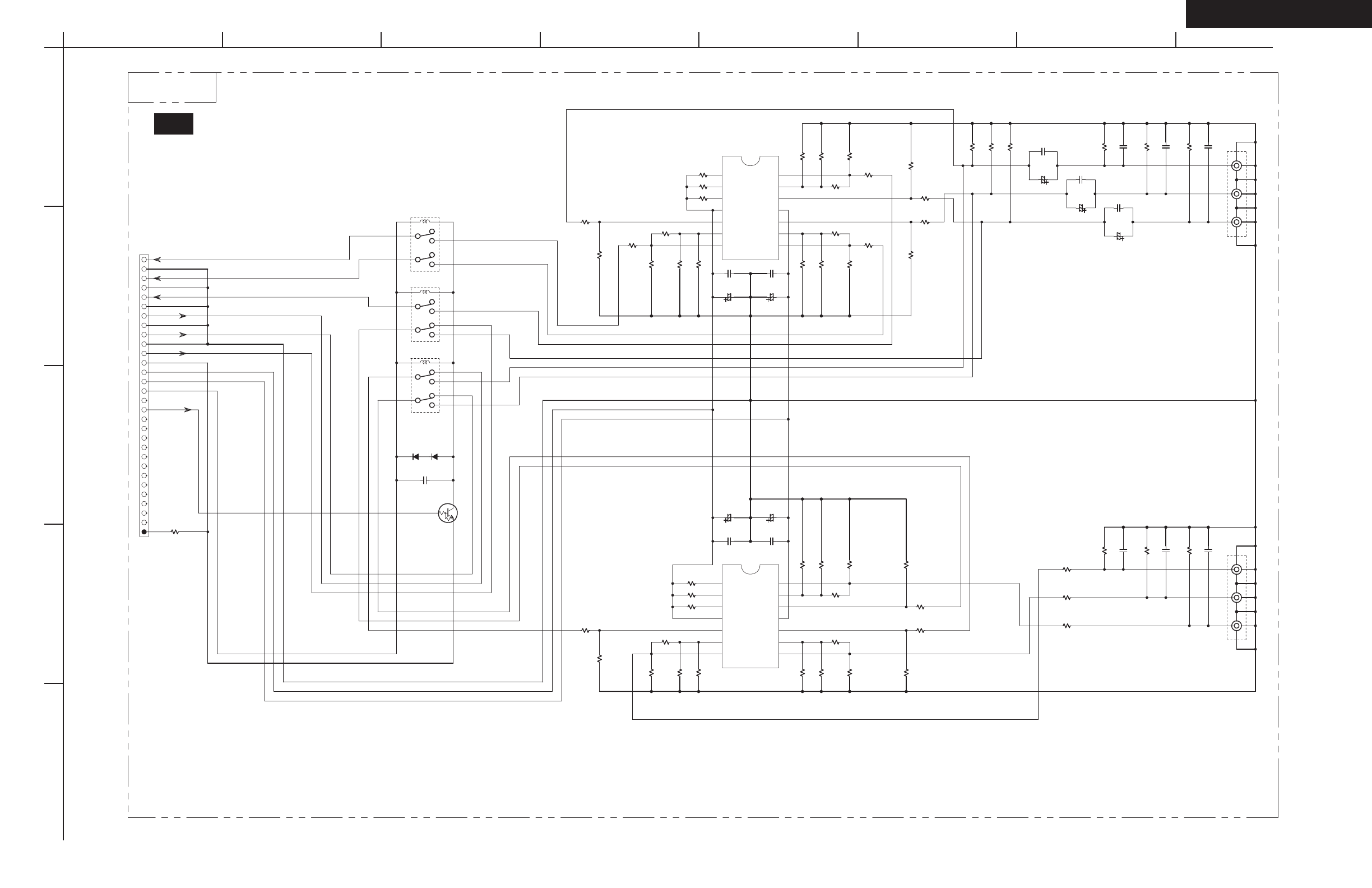

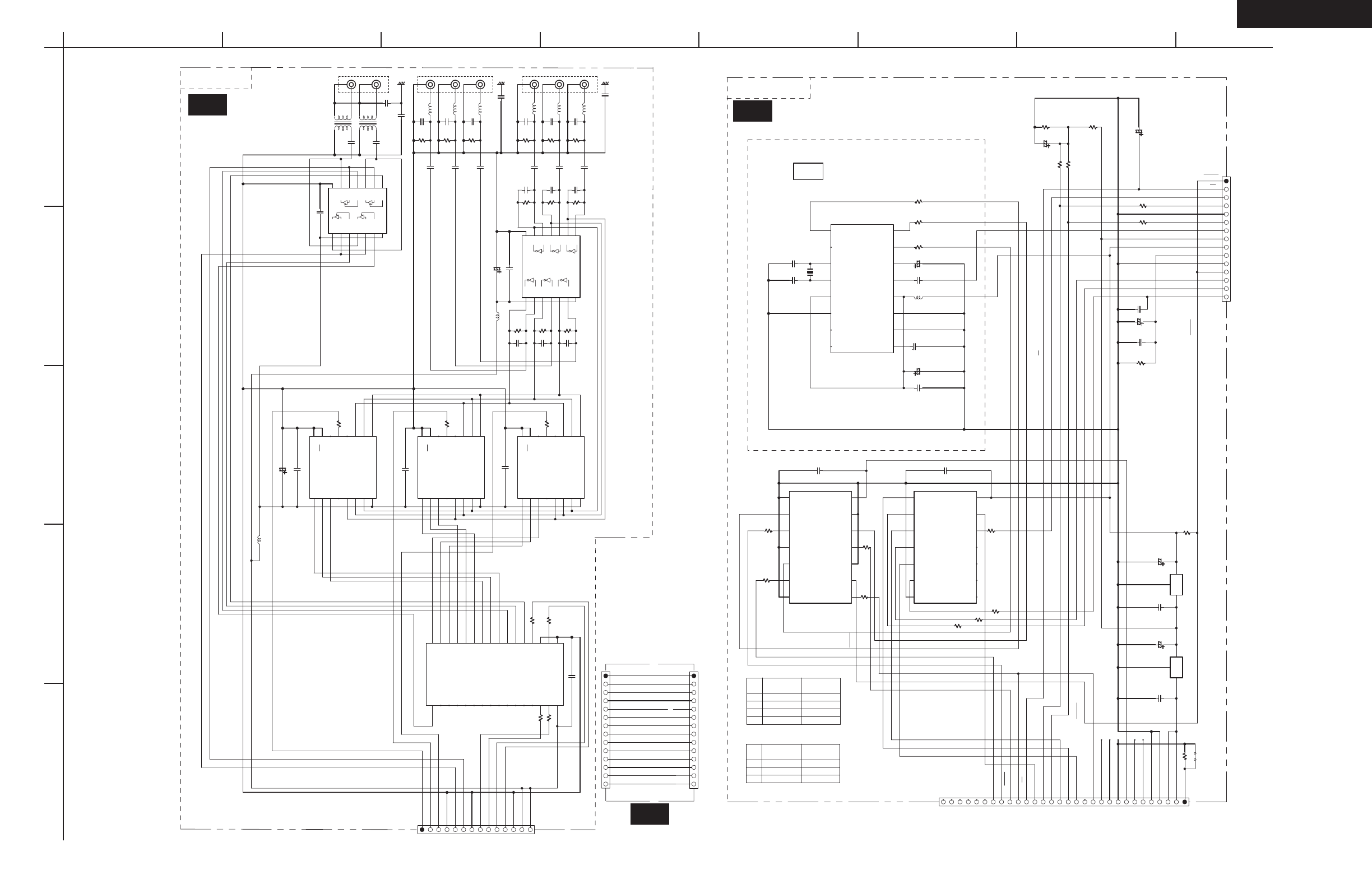

SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
RDC-7.1
SPECIFICATIONS
USA and Canadian models
General
Power Supply Rating: AC 120 V, 60 Hz
Consumption Power: 1.0 A
Standby Power Consumption: 3.9 W
Dimensions (W
H D): 17-11/16" 7-3/4" 18-13/16"
(450
197.3 477.1 mm)
Weight: 45.6 lbs (20.7 kg)
Inputs:
Audio
Multichannel (7.1ch) Inputs: 1 or 2 (option)
Phono (MM): 1
Line inputs: 9 (assignable)
Digital inputs Coaxial: 6
Digital inputs Optical: 6 (assignable)
Digital inputs AES/EBU 1 (option)
Video (Option)
Composite Video inputs: 6 (assignable)
S Video inputs: 6 (assignable)
Component Video RCA
inputs: 3 or 4
Component Video BNC
input: 1
Audio and Video
HDMI inputs (19-pin): 2 (option)
Miscellaneous
IR in (phoenix connector): 3 (for Main, Zone 2 and Zone 3)
Outputs:
Audio
Balanced Pre out A: Front L/R, Center, Surround L/R,
Surround Back L/R, Subwoofer
Unbalanced Pre out A: Front L/R, Center, Surround L/R,
Surround Back L/R, Subwoofer
Unbalanced Pre out B: Subwoofer
Headphones: 1
Line outputs: 5 (assignable to Recout, Zone 2 out
and Zone 3 out)
Digital outputs Coaxial: 2 (assignable to Recout, Zone 2 out
and Zone 3 out)
Digital outputs Optical: 2 (assignable to Recout, Zone 2 out
and Zone 3 out)
Video (Option)
Composite Video outputs: 3 (assignable to Monitor out A/B,
Recout, Zone 2 out and Zone 3 out)
1 (fixed, Monitor out A)
S Video outputs: 3 (assignable to Monitor out A/B
and Recout)
1 (fixed, Monitor out A)
Component Video RCA
outputs: 1 or 2
Component Video BNC
output: 1
Audio and Video
HDMI output (19-pin): 1
Miscellaneous
12V Trigger out (phoenix
connector): 5 (for A, B, C, D, E)
Inputs/Outputs:
Miscellaneous
i. LINK(A UDIO) (4 pin): 2
Ethernet (Net-Tune): 1 (option)
(1/8-inch mini-jack): 1
RS232 (9 pin D-SUB
Female connector): 1
Antennas:
FM: 75 ohms unbalanced
AM: Included loop antenna and external
terminal
AC Inlet: 1 (IEC type)
Amplifier Section
Maximum Output Level: 8.5 Vrms
THD (Total Harmonic Distor-
tion): 0.05% (1 Vrms output)
Input Sensitivity and Impedance:
Audio 200 mV, 50 k (AUDIO IN 1-9)
2.5 mV, 50 k (PHONO MM)
200 mV, 50 k (MULTI IN FR/FL/
C/SR/SL/SBR/SBL) (Option)
36 mV, 50 k (MULTI IN SUB)
(Option)
0.5 Vp-p, 75 (DIGITAL IN
COAXIAL 1-6)
1.3 Vp-p, 110 (DIGITAL IN
(balanced) AES/EBU) (Option)
Video (DVD, VIDEO 1-5)
(Option)
1 Vp-p, 75 (Composite Video)
1 Vp-p, 75 (S Video, Y signal)
0.28 Vp-p, 75 (S Video, C signal)
Component (Option) 1 Vp-p, 75 (Y)
0.7 Vp-p, 75 (PB/CB, PR/CR)
Output Level and Impedance:
Audio
AUDIO 1-5: 200 mV, 470 (Tape 1/2/ Video
1/2/3 Rec Out)
100 mV, 470 (Zone 2/3 Out
(fixed))
1 V, 470 (Zone 2/3 Out (variable))
PRE OUT A: 1 V, 470 (Front L/R, CENTER,
SURR L/R, SURR BACK or
Zone 2 L/R, SUB WOOFER)
PRE OUT B: 1 V, 470 (SUB WOOFER)
Video (Option)
VIDEO 1-4
(Composite Video): 1 Vp-p 75 (Monitor Out A/B,
Video 1/2/3 Rec Out, Zone 2/3
Out)
VIDEO 1-4
(S Video, Y signal): 1 Vp-p, 75 (Monitor Out A/B,
Video 1/2/3 Rec Out)
VIDEO 1-4
(S Video, C signal): 0.28 Vp-p, 75 ohms (Monitor Out
A/B, Video 1/2/3 Rec Out)
COMPONENT VIDEO: 1 Vp-p, 75 ohms (Y)
0.7 Vp-p, 75 ohms (PB/CB, PR/CR)
Phono Overload: 120 mV RMS at 1,000 Hz, 0.5%
THD
Frequency Response:
Audio (CD in Direct mode) 5 Hz-100 kHz: +1/- 3 dB
Video Component 10 Hz-50 MHz: +1/ - 3 dB
RIAA Deviation: 20-20 kHz: ±0.8 dB
Tone Control: ±12 dB at 50 Hz (Bass)
±12 dB at 1,000 Hz (Mid)
±12 dB at 20,000 Hz (Treble)
S/N (Direct mode): 80 dB (PHONO, IHF A, 5 mV
input)
95 dB (LINE, IHF A, 0.5V input)
Muting: Due to setup menu
RDC-7.1
SPECIFICATIONS
USA and Canadian models
Tuner Section
FM
AM
Specifications and features are subject to change without
notice.
Tuning frequency Range: 87.50 to 107.90 MHz, 200 kHz
steps
Usable Sensitivity:
Stereo 17.2 dBf, 2.0 µV (75 IHF)
23 µV (75 DIN)
Mono 11.2 dBf, 1.0 µV (75 IHF)
0.9 µV (75 DIN)
50 dB Quieting Sensitivity:
Mono 17.2 dBf, 2.0 µV (75 ohms)
Stereo 37.2 dBf, 20.0 µV (75 ohms)
Capture Ratio: 2.0 dB
Image Rejection Ratio: 40 dB
IF Rejection Ratio: 90 dB
S/N:
Mono 76 dB, IHF
Stereo 70 dB, IHF
Alternate Channel Attenuation:
Mono 55 dB IHF
Selectivity: 50 dB DIN
AM Suppression Ratio: 50 dB
Harmonic Distortion:
Mono 0.2%
Stereo 0.3%
Frequency Response: 30 to 15,000 Hz, +/- 1.0 dB
Stereo Separation: 45 dB at 1,000 Hz
30 dB at 100 to 10,000 Hz
Stereo Threshold: 17.2 dBf, 2.0 µV (75 )
Tuning frequency Range: 530 to 1710 kHz, 10 kHz steps
Usable Sensitivity: 30 µV
Image Rejection Ratio: 40 dB
IF Rejection Ratio: 40 dB
S/N: 40 dB
THD: 0.7%
RDC-7.1
SPECIFICATIONS
Other than USA and Canadian models
General
Power Supply Rating: AC 120 V, 60 Hz
Consumption Power: 1.0 A
Standby Power Consumption: 3.9 W
Dimensions (W
H D): 17-11/16" 7-3/4" 18-13/16"
(450
197.3 477.1 mm)
Weight: 45.6 lbs (20.7 kg)
Inputs:
Audio
Multichannel (7.1ch) Inputs: 1 or 2 (option)
Phono (MM): 1
Line inputs: 9 (assignable)
Digital inputs Coaxial: 6
Digital inputs Optical: 6 (assignable)
Digital inputs AES/EBU 1 (option)
Video (Option)
Composite Video inputs: 6 (assignable)
S Video inputs: 6 (assignable)
Component Video RCA
inputs: 3 or 4
Component Video BNC
input: 1
Audio and Video
HDMI inputs (19-pin): 2 (option)
Miscellaneous
IR in (phoenix connector): 3 (for Main, Zone 2 and Zone 3)
Outputs:
Audio
Balanced Pre out A: Front L/R, Center, Surround L/R,
Surround Back L/R, Subwoofer
Unbalanced Pre out A: Front L/R, Center, Surround L/R,
Surround Back L/R, Subwoofer
Unbalanced Pre out B: Subwoofer
Headphones: 1
Line outputs: 5 (assignable to Recout, Zone 2 out
and Zone 3 out)
Digital outputs Coaxial: 2 (assignable to Recout, Zone 2 out
and Zone 3 out)
Digital outputs Optical: 2 (assignable to Recout, Zone 2 out
and Zone 3 out)
Video (Option)
Composite Video outputs: 3 (assignable to Monitor out A/B,
Recout, Zone 2 out and Zone 3 out)
1 (fixed, Monitor out A)
S Video outputs: 3 (assignable to Monitor out A/B
and Recout)
1 (fixed, Monitor out A)
Component Video RCA
outputs: 1 or 2
Component Video BNC
output: 1
Audio and Video
HDMI output (19-pin): 1
Miscellaneous
12V Trigger out (phoenix
connector): 5 (for A, B, C, D, E)
Inputs/Outputs:
Miscellaneous
i. LINK(A UDIO) (4 pin): 2
Ethernet (Net-Tune): 1 (option)
(1/8-inch mini-jack): 1
RS232 (9 pin D-SUB
Female connector): 1
Antennas:
FM: 75 ohms unbalanced
AM: Included loop antenna and external
terminal
AC Inlet: 1 (IEC type)
Amplifier Section
Maximum Output Level: 8.5 Vrms
THD (Total Harmonic Distor-
tion): 0.05% (1 Vrms output)
Input Sensitivity and Impedance:
Audio 200 mV, 50 k (AUDIO IN 1-9)
2.5 mV, 50 k (PHONO MM)
200 mV, 50 k (MULTI IN FR/FL/
C/SR/SL/SBR/SBL) (Option)
36 mV, 50 k (MULTI IN SUB)
(Option)
0.5 Vp-p, 75 (DIGITAL IN
COAXIAL 1-6)
1.3 Vp-p, 110 (DIGITAL IN
(balanced) AES/EBU) (Option)
Video (DVD, VIDEO 1-5)
(Option)
1 Vp-p, 75 (Composite Video)
1 Vp-p, 75 (S Video, Y signal)
0.28 Vp-p, 75 (S Video, C signal)
Component (Option) 1 Vp-p, 75 (Y)
0.7 Vp-p, 75 (PB/CB, PR/CR)
Output Level and Impedance:
Audio
AUDIO 1-5: 200 mV, 470 (Tape 1/2/ Video
1/2/3 Rec Out)
100 mV, 470 (Zone 2/3 Out
(fixed))
1 V, 470 (Zone 2/3 Out (variable))
PRE OUT A: 1 V, 470 (Front L/R, CENTER,
SURR L/R, SURR BACK or
Zone 2 L/R, SUB WOOFER)
PRE OUT B: 1 V, 470 (SUB WOOFER)
Video (Option)
VIDEO 1-4
(Composite Video): 1 Vp-p 75 (Monitor Out A/B,
Video 1/2/3 Rec Out, Zone 2/3
Out)
VIDEO 1-4
(S Video, Y signal): 1 Vp-p, 75 (Monitor Out A/B,
Video 1/2/3 Rec Out)
VIDEO 1-4
(S Video, C signal): 0.28 Vp-p, 75 ohms (Monitor Out
A/B, Video 1/2/3 Rec Out)
COMPONENT VIDEO: 1 Vp-p, 75 ohms (Y)
0.7 Vp-p, 75 ohms (PB/CB, PR/CR)
Phono Overload: 120 mV RMS at 1,000 Hz, 0.5%
THD
Frequency Response:
Audio (CD in Direct mode) 5 Hz-100 kHz: +1/- 3 dB
Video Component 10 Hz-50 MHz: +1/ - 3 dB
RIAA Deviation: 20-20 kHz: ±0.8 dB
Tone Control: ±12 dB at 50 Hz (Bass)
±12 dB at 1,000 Hz (Mid)
±12 dB at 20,000 Hz (Treble)
S/N (Direct mode): 80 dB (PHONO, IHF A, 5 mV
input)
95 dB (LINE, IHF A, 0.5V input)
Muting: Due to setup menu
RDC-7.1
SPECIFICATIONS
Other than USA and Canadian models
Tuner Section
FM
AM
Specifications and features are subject to change without
notice.
Tuning frequency Range: 87.50 to 108.00 MHz, 50 kHz
steps
Usable Sensitivity:
Stereo 17.2 dBf, 2.0 µV (75 IHF)
23 µV (75 DIN)
Mono 11.2 dBf, 1.0 µV (75 IHF)
0.9 µV (75 DIN)
50 dB Quieting Sensitivity:
Mono 17.2 dBf, 2.0 µV (75 ohms)
Stereo 37.2 dBf, 20.0 µV (75 ohms)
Capture Ratio: 2.0 dB
Image Rejection Ratio: 85 dB
IF Rejection Ratio: 90 dB
S/N:
Mono 76 dB, IHF
Stereo 70 dB, IHF
Alternate Channel Attenuation:
Mono 55 dB IHF
Selectivity: 50 dB DIN
AM Suppression Ratio: 50 dB
Harmonic Distortion:
Mono 0.2%
Stereo 0.3%
Frequency Response: 30 to 15,000 Hz, +/- 1.0 dB
Stereo Separation: 45 dB at 1,000 Hz
30 dB at 100 to 10,000 Hz
Stereo Threshold: 17.2 dBf, 2.0 µV (75 )
Tuning frequency Range: 522 to 1611 kHz, 9 kHz steps
Usable Sensitivity: 30 µV
Image Rejection Ratio: 40 dB
IF Rejection Ratio: 40 dB
S/N: 40 dB
THD: 0.7%
522 to 1611 kHz, 9 kHz steps or
530 to 1710 kHz, 10 kHz steps
*selectable
European and Australian models:
Asian models:
TX-SR803/E
SERVICE PROCEDURES
F9001 252164 or 5A-UL/T-237 or
252258 5A-T/UL-ST2,Fuse <D/DT>
252241 or 2.5A-SE-TL250V or
252075 2.5A-SE-EAK,Fuse <P/GT/A/K>
F9501,F9502 252198 or 8A-UL or
252261 8A-T/UL-ST2,Fuse <D>
252166 or 6.3A-UL/T-237 or
252260 6.3A-T/UL-ST2,Fuse <DT>
252245 or 6.3A-SE-TL250V or
252079 6.3A-SE-EAK,Fuse <P/GT/A/K>
F9503,F9504 252160 or 2.5A-UL/T-237 or
252254 2.5A-T/UL-ST2 <D/DT>
252241 or 2.5A-SE-TL250V or
252075 2.5A-SE-EAK,Fuse <P/GT/A/K>
1. Replacing the fuses
This symbol located near the fuses indicates that the
fuse used is fast operating type. For continued protection against
fire hazard, replace with same type fuse. For fuse rating refer to
the marking adjacent to the symbol.
Ce symbole indique que le fusible utlise est a rapide.
Pour une protection permanente, n'untiliser que fusibles de
meme type. Ce darnier est la qu le present symbol est
appse.
CIRCUIT NO. PART NO. DESCRIPTION
2. To initialize the unit
This device employs a microprocessor to perform various
functions and operations. If interference generated by an external
power supply, radio wave, or other electrical source results in
accident which causes the specified operations and functions to
operate abnormally.
To perform a result, please follow the procedure below.
1.Press and hold down the VIDEO-1 button, then press the
STANDBY button.
2.After "CLEAR" is displayed, the preset memory and each
mode stored in the memory, such as surround, are
initialized and will return to the factory setting.
Note: <D>:120V model only
<P>: European model only
<GT>: Asian model only for 230V
<DT>:Asian model only for 120V
<A>: Australian model only
<K>: Korean model only
3. Safety-check out
(U.S.A. model only)
After correcting the original service problem, perform the
following safety check before releasing the set to the customer.
Leakage Current Check
Measure leakage current to a known earth ground(water pipe,
conduit, etc.) by connecting a leakage current tester between
the earth ground and exposed metal parts of the appliance
(input/output terminals, screwheads,metal overlays, etc.).
Plug the power supply cord directly into a 120V AC 60 Hz outlet
and turn Standby switch on. Any current meausred must not
exceed 0.5mA.
RDC-7.1
"Not available with Headphones use"
Operation not allowed while a pair of headphones is con-
nected.
"Not available in this Sp Config"
Doesn'
t w
ork with the current speaker configuration.
"Only available with Dolby D"
Can be used with only Dolby Digital.
"Not available with this signal"
Doesn't work with the current listening mode.
"Not available with Muting"
Operation not allowed because the RDC-7.1 is currently
muted.
"Not available in this Listening Mode"
Doesn't work with the current listening mode.
"Not available with NET AUDIO use"
Operation not possible with Net Audio selected for the
input source.
"Not available with Dolby Headphone Off
Doesn't work with the Dolby Headphone function off.
"Not available with Dolby Headphone On"
Doesn't work with the Dolby Headphone function on.
Not available with zone2 out in Line out"
"
Operation not possible with " 1-8. f. Zone 2 Out" set to
"Line Out."
Not available with zone3 out in Line out"
Operation not possible with "1-8. g. Zone 3 Out" set to
"Line Out."
4.Error Messages
"
"
5.Memory backup
The RDC-7.1 uses a battery-less memory backup sys-
tem in order to retain radio presets and other settings
when it is unplugged or in the case of a power failure.
Although no batteries are required, the RDC-7.1 must
be plugged into an AC outlet in order to charge the
backup system.
(On other than USA, Canadian, and Australian models,
the RDC-7.1's Power switch must be set to On in order
to charge the backup system). Once it has been
charged, the RDC-7.1 will retain the settings for several
weeks, although this depends on the environment and
time will be shorter in humid climates.
DTR-10.5/RDC-7.1

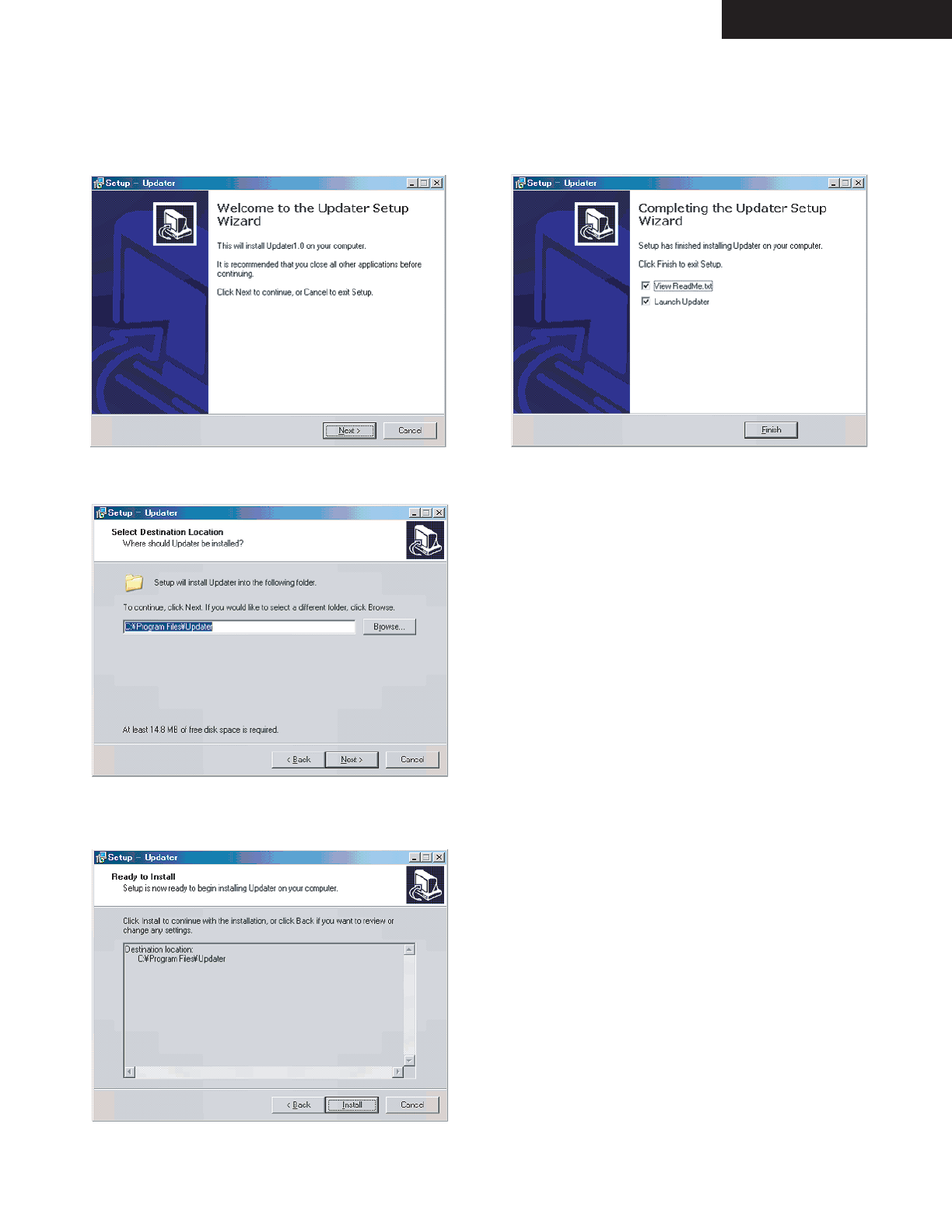

How to Install Updater (Operating environment: Windows XP or 2000)
0. Download the firmware "setup_xxxxxx.zip" to the disk top.
Double-click the icon.
1. Start Install program by double-clinking "Setup.exe".
Click "Next".
2. Select a target folder Updater should be installed to.
Click "Next".
3. Make sure the location is OK and click "Install".
4. When Install is completed, this window appears.
Please read "ReadMe.txt" at least once.
DTR-10.5/RDC-7.1

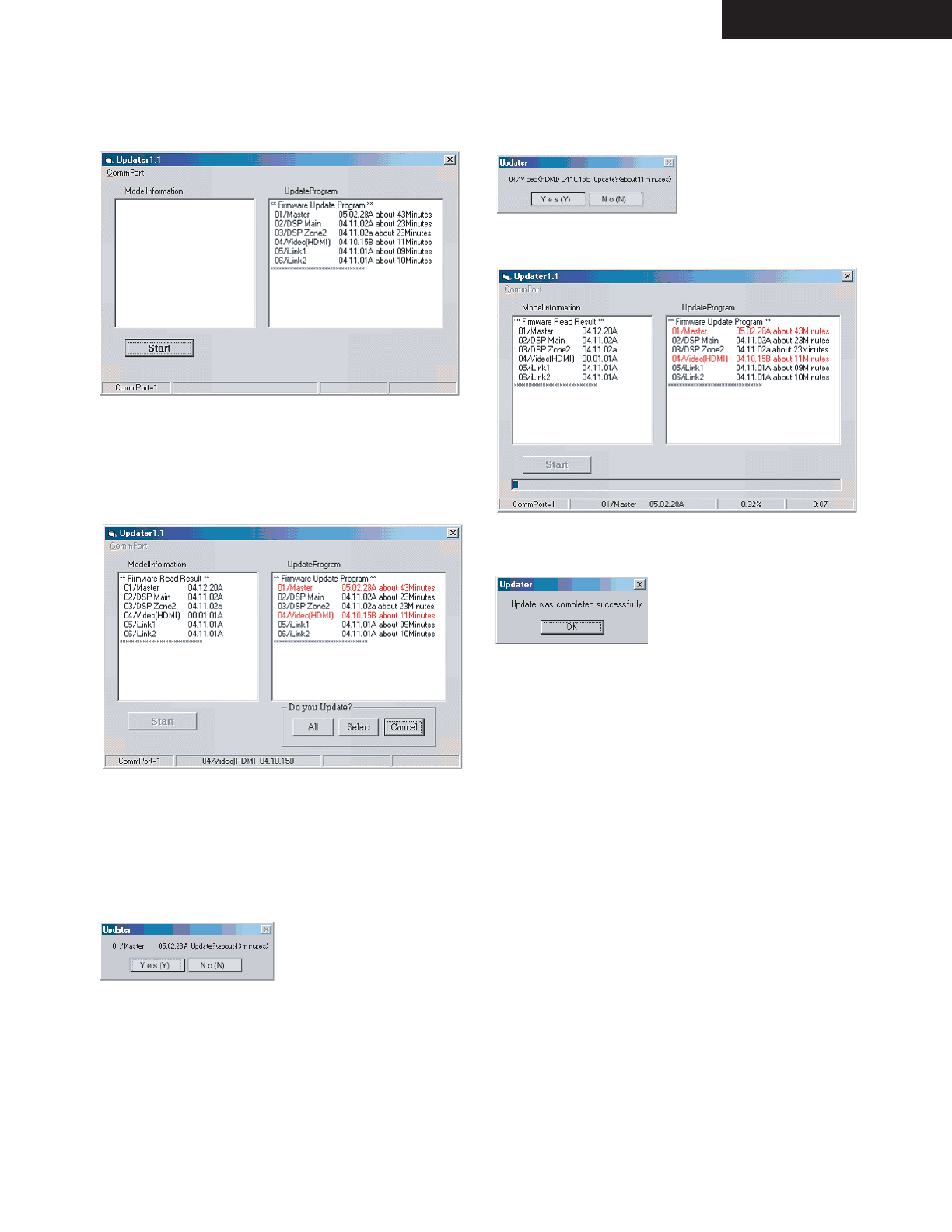

How to Use Updater
1. Connect your unit and PC with RS-232C cable, turn on
the unit, and start "Updater".
The right box shows each latest version of firmware that can
be loaded with this Updater.
From the left, Number/ IC's Purpose, Firmware Version,
Estimated amount of time to update.
2. Click "Start" and see which versions of firmware your unit
currently has in the left box.
Red-letter programs are newer than the existing ones.
Click "All" to update all the updatable programs.
Click "Select" to select any programs to be updated.
Click "Cancel" to stop update.
3. When "Select" is clicked,
For each of the updatable programs, you can decide
whether update is performed or not.
Click "Yes(Y)" to update it now, and the update will be started.
4. After completing update or skipping update by clicking "No(N)",
decide whether another one should be updated now or not.
--Updating--
5. After all the necessary works have completed properly,
Click "OK" to return your set to Standby.
RDC-7.1

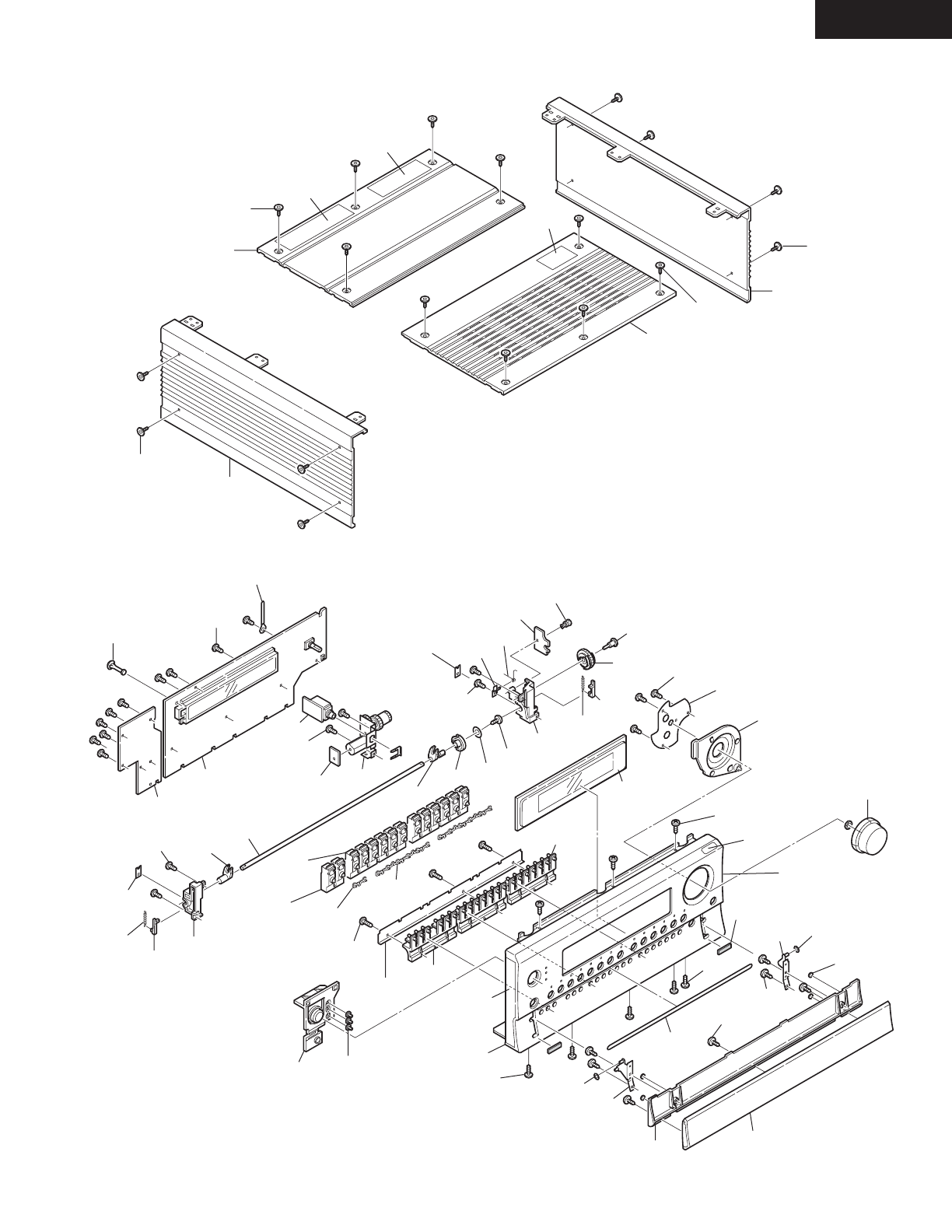

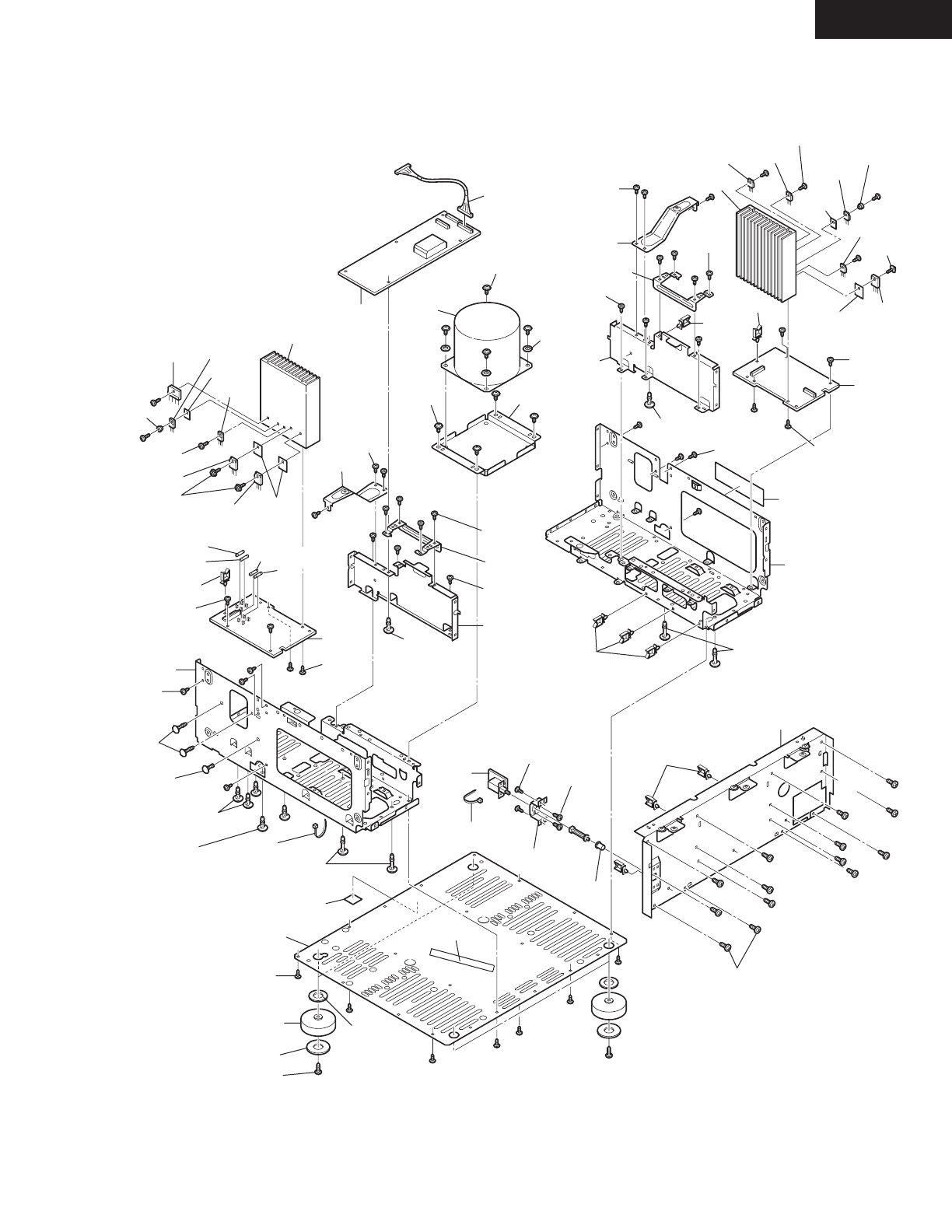

EXPLODED VIEW-1
A225
x 3 pcs.
A153
x 2 pcs.
A173
x 2 pcs.
A324
x 4 pcs.
A324
x 4 pcs.
A324
x 5 pcs.
A324
x 5 pcs.
A233
x 10 pcs.
A193
x 4 pcs. A109
x 2 pcs.
A112
A227
x 2 pcs.
A421
x 3 pcs.
A111
x 3 pcs. A423
x 4 pcs.
A177
x 2 pcs.
A235
x 4 pcs.
A123
x 7 pcs.
A231
x 3 pcs.
A133
x 2 pcs.
A239
A215
A145
A135
A167
A165a
A163
A159
A201
A171
A155
A232
A237
A183
A227
A419
A121
A423
A161
A161
A119
A417
A113
A401
A229
A157
A125
A129
A131
A169
A223
A143
A147
A151
A139b
A137a
A169
U224
U225
U223
U22
U222
A149
A318
A320
A322
A316
A453
A451
A714
A314
A115
A117
A181
A123
RDC-7.1

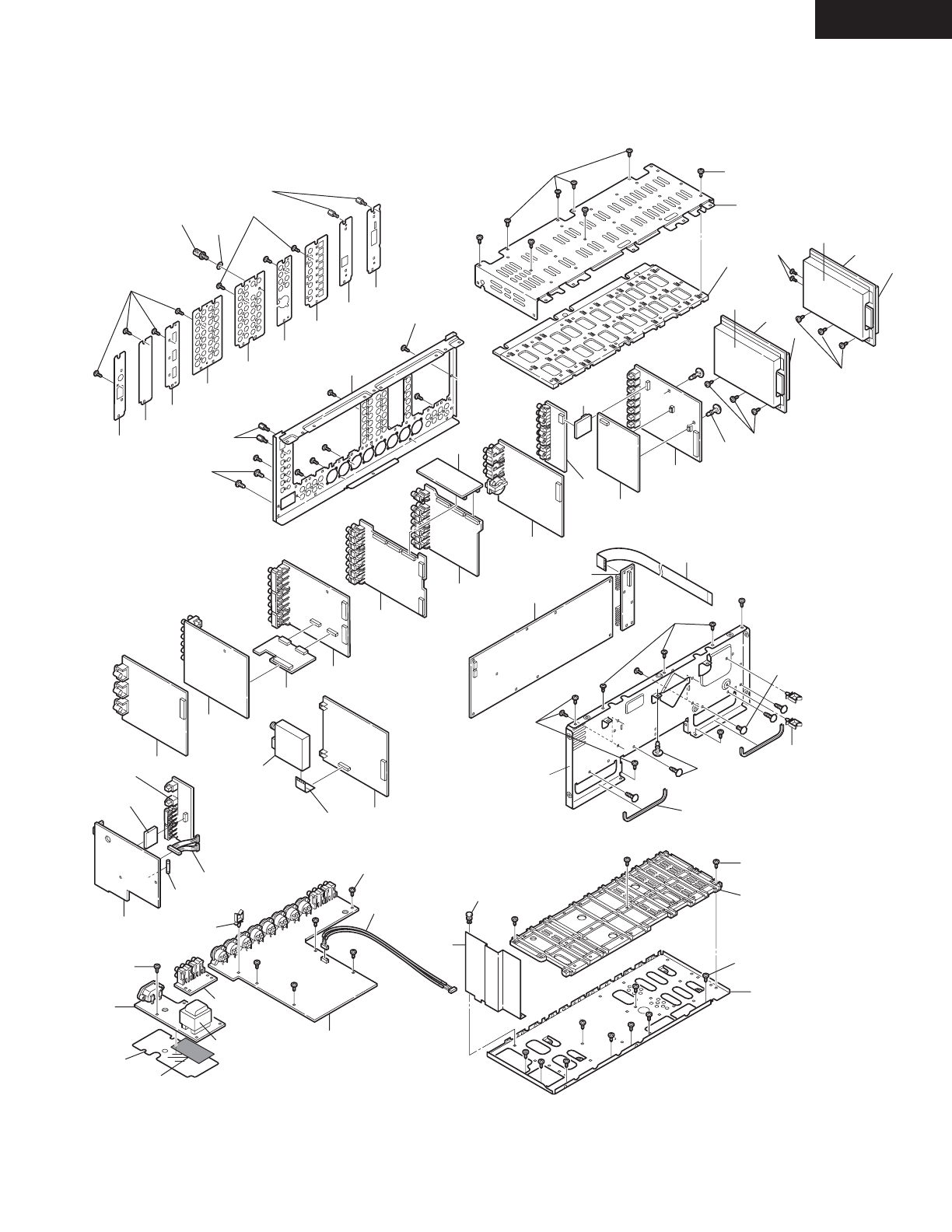

EXPLODED VIEW-2
A449
x 34 pcs.
A429
x 40 pcs.
A095
x 4 pcs.
A105
x 3 pcs.
A248
x 2 pcs.
A093
x 23 pcs.
Accessary
for RS232
x 2 pcs.
A427
x 2 pcs.
A099
x 4 pcs.
A087
x 23 pcs.
A087
x 9 pcs.
A019
x 5 pcs.
A461
x 16 pcs.
A447
A097
A015
A019
A069
A083
A085
A445
A443
A441
A439 A425
A310A312
A437
A435
A433
A431
A091
A089
U24
U09
U26
U05
U03
U032
U183
U18
U08
U082
U174
U26
F9001
P100
P3120
P7506
U17
U31
U182
U084
U033
U085
A456
A457
A035
x 3 pcs.
A035
x 8 pcs.
A031
x 2 pcs.
A029
x 7 pcs.
A027
x 13 pcs.
A025
x 2 pcs.
U11
P7501
U083
A023
U178
U177
T9002
U10
A103
A107
x 2 pcs. A101
U01
P101
A105
x 3 pcs.
A448
x 29 pcs.
A253
RDC-7.1
EXPLODED VIEW-3
A079
x 3 pcs.
A039
x 4 pcs.
A053
x 3 pcs.
A075
x 4 pcs.
A039
x 4 pcs.
A075
x 4 pcs.
A047
x 3 pcs.
A021
x 2 pcs.
A019
x 2 pcs.
A019
x 4 pcs.
A011
x 2 pcs.
A007
x 3 pcs.
A302
x 20 pcs.
A304
x 4 pcs.
A308
x 4 pcs.
A067
x 14 pcs.
A059
x 3 pcs.
A005
x 2 pcs.
A019
x 4 pcs. A019
x 2 pcs.
A019
x 2 pcs.
A021
x 4 pcs.
A013
x 3 pcs.
A065
x 2 pcs. A063
x 2 pcs.
A307
x 4 pcs.
A006
x 2 pcs.
A079
x 3 pcs.
Q9432A
x 2 pcs.
A021
x 2 pcs.
A021
x 3 pcs.
A012
A001
A713
A247
A300
A209
A061
A247
A003
A245
A051
A014
Q9332A
Q9311 Q9301
Q9322
Q9332
Q9351
Q9322A
Q9322B
A021
A455
A045
A073
A077
A057
U07
U173
U172
U176
P3106
T9001
A455
Q9404A
Q9404B
F9502
Q9432
Q9442
Q9411
Q9404
D9501
F9501 F9503
F9504
A037
A049
A041
A043
A014
A073
A077
A009
x 2 pcs.
A243
x 4 pcs.
A306
x 4 pcs.
A024
RDC-7.1

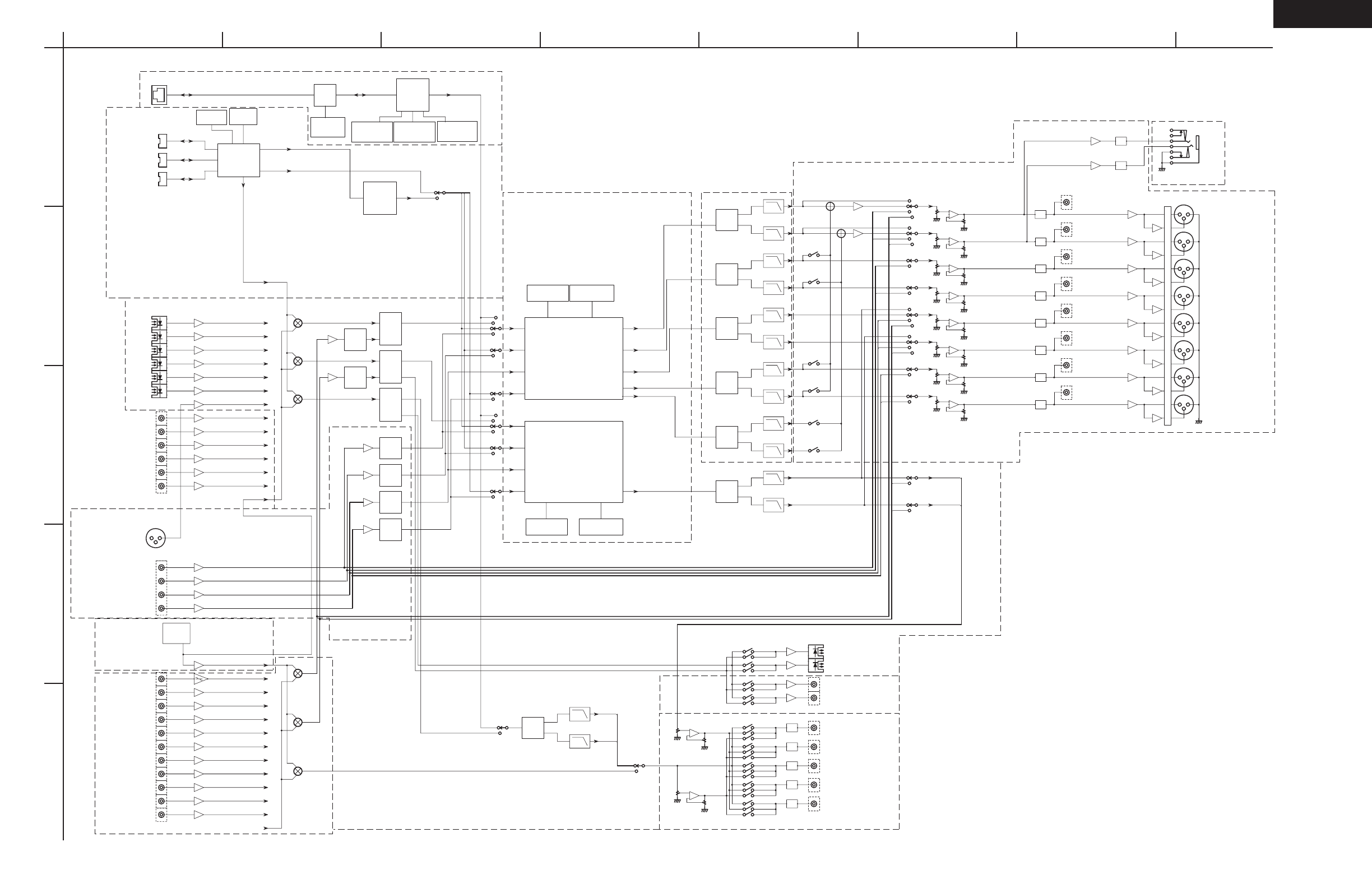

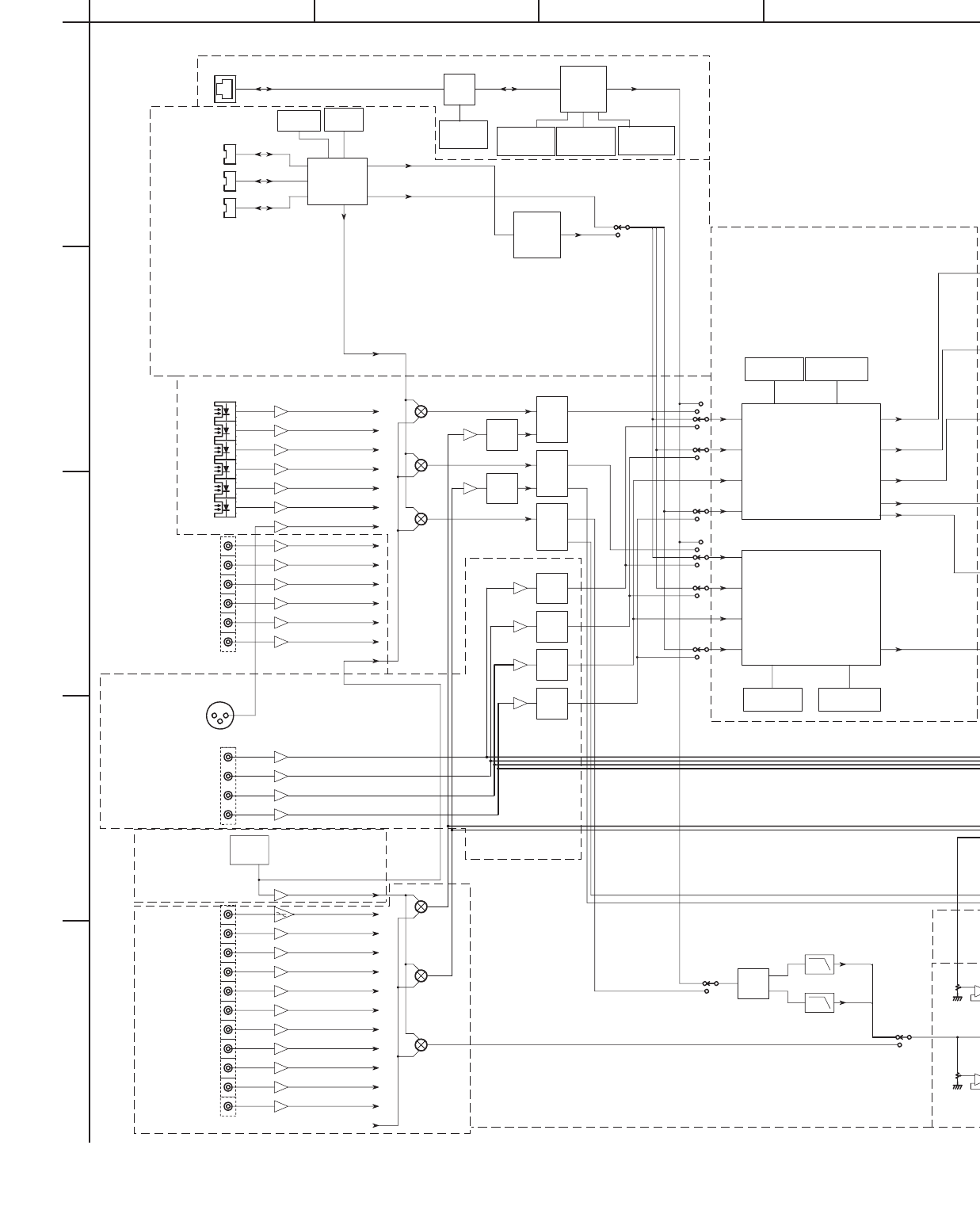

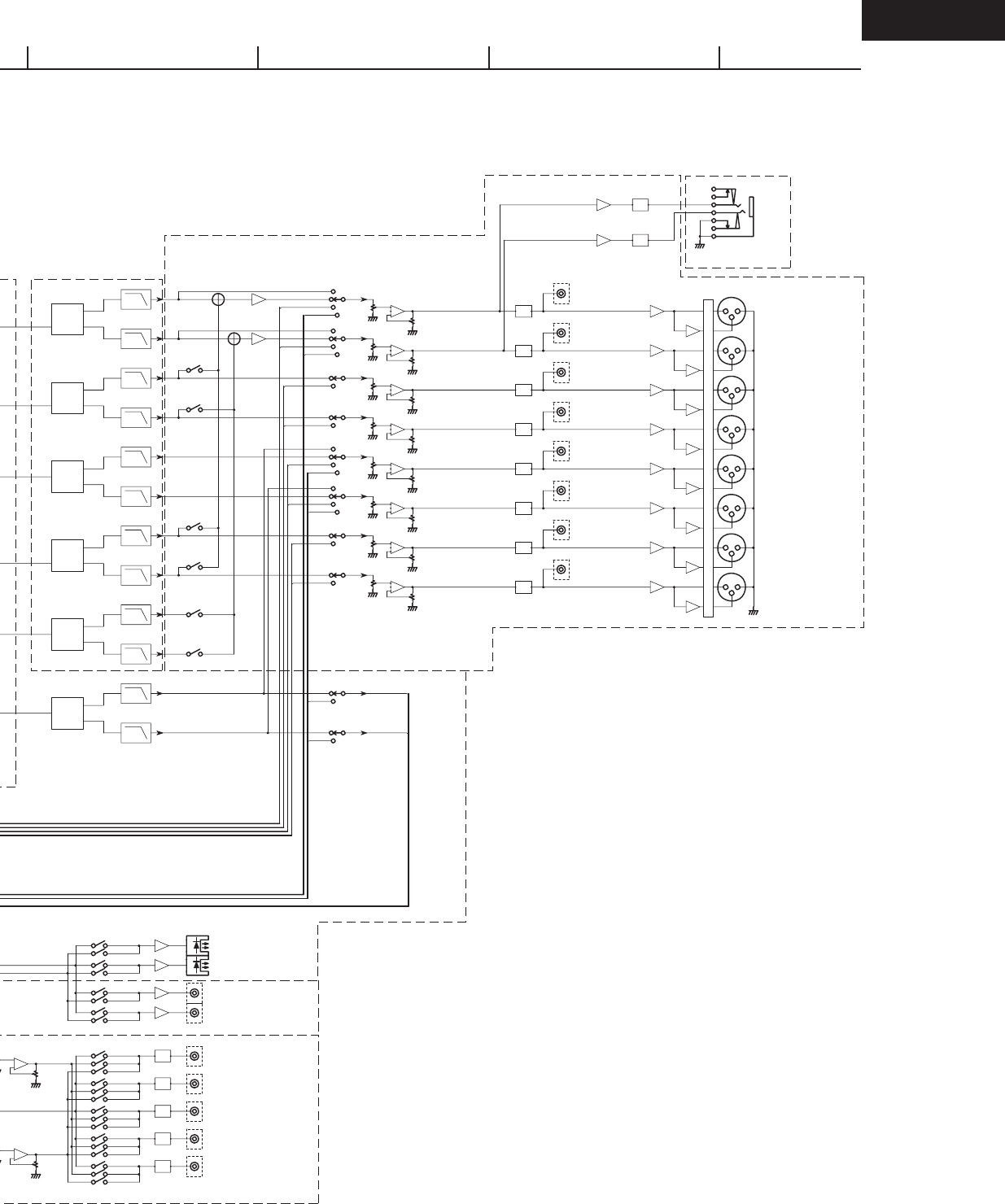

BLOCK DIAGRAM AUDIO SECTION
Q616
Q606 Q604 Q603,Q608
SCH.16 NADG-8228
ETHER
FRONT
MUTE
MUTE
MUTE
MUTE
Q1860
Q420
SCH. 10/11
NADG-8163
Q701
Q706
Q707
Q708
MUTE
SCH.3 NAAF-8150
SCH. 5/6 NAAF-8156
SCH.14
NADG-8141
SCH.14
NARF-8152
Q3009 Q3501
Q3004
Q3509
SCH.17
NADG-8164
A
1
2
3
4
5
BCDEFGH
AES/EBU
SUBWOOFER
SURR BACK RIGHT
SURR BACK LEFT
SURROUND RIGHT]
SURROUND LEFT
RIGHT
LEFT
CENTER
8MB SDRAM
HM5264165F
1MB
FLASH 32MB FLASH
MX29LV320
8MB SDRAM
HM5264165F
64MB SDRAM
IC42S16800
FLASH ROM
MX29LV160
EEPROM
93LC46B
PLL
TLC2932
I2S
C/SW
I2S
C/SW
DSD 6CH
LEFT JUSTIFIED
I2S X3
I2S X3
S/PDIF
NET-TUNE
ZONE2 R
I2S
L/R
ZONE2
I2S
L/R
I2S
SBL/SBR
I2S
SL/SR
I2S
C/SW
I2S
SBL/SBR
I2S
SL/SR
I2S
L/R
I2S
C/SW
I2S
SBL/SBR
I2S
SL/SR
I2S
L/R
ZONE2 L
R
L
C
SW
SBR
SBL
SR
SL
ZONE2
REC/ZONE3
ZONE3
ZONE2
REC
ETHER
CONTROL
MAVERICK
EP7312-CV
DSD LPCM
CONVERTER
SM5816AF
IEEE1394
CONTROLLER
ICELYNX-MICRO
TSB43CA43A
ETHER
IEEE1394
IEEE1394
IEEE1394
DSP
TI
AUREUS
TMS320DA610
DSP
TI
AUREUS
TMS320DA610
DIR
DIR
DIR
DAC
192/24
PHY
DAC
192/24
DAC
192/24
DAC
192/24
DAC
192/24
DAC
192/24
DAC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
1
OPTICAL OUTPUT
2
ZONE2
SEL
REC/ZONE3
SEL
MAIN
SEL
REC/ZONE3
SEL
ZONE2
SEL
MAIN
SEL
SUBWOOFER
CENTER
SURROUND BACK
/ ZONE 2 RIGHT
SURROUND BACK
/ ZONE 2 LEFT
SURROUND
RIGHT
SURROUND
LEFT
RIGHT
PREOUT
LEFT
1
COAXIAL OUTPUT
2
1ANALOG AUDIO
L/R OUTPUT
2
5
4
3
9
8
7
6
5
4
6
5
3
2
1
PHONO
ANALOG
AUDIO L/R
4
3
2
1
L/R
SL/SR
SBL/SBR
C/SW
MULTICHANNEL
INPUT 2
HEAD PHONE
2
3
1
DIGITAL AUDIO OPTICAL
6
5
4
FM/AM
TUNER
PACK
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF VLSC
ZONE3 LEVEL
ZONE2 LEVEL
MASTER VOLUME
SW->R
C->R
SW->L
C->L
SR->R
SL->L
(MAIN ROOM)
(ZONE2 ROOM)
11dB
11dB
Q1655,6
Q1485,6
90KLPF
VLSC
64MB SDRAM
IC42S16800
FLASH ROM
MX29LV160
Q7301
Q7306
Q7307
Q7308
SCH. 1/2 NAAF-8144,45 SCH. 1/2 NAAF-8144,45
Q421
Q1402
Q1405
SCH. 4
NADG-8154
Q4020
Q4023
Q4025
Q4022
Q4027
MUTE/OUTPUT RELAY
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
Q4040~Q4047
Q4869~Q4871
SCH. 8/9 NADG-8162 Q7001~3
Q7051
Q7151
Q7021
Q7121
Q7221
Q7425
Q7245

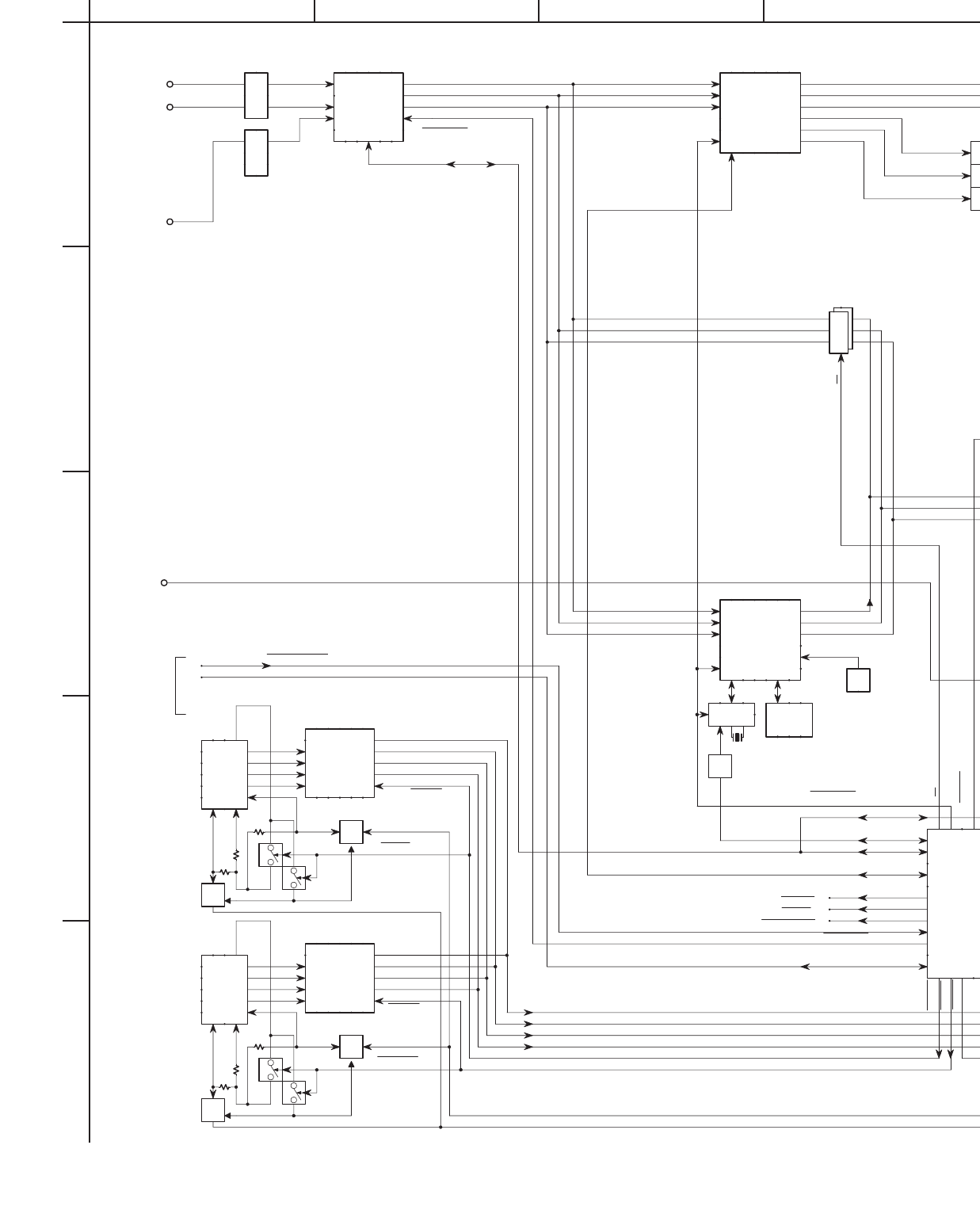

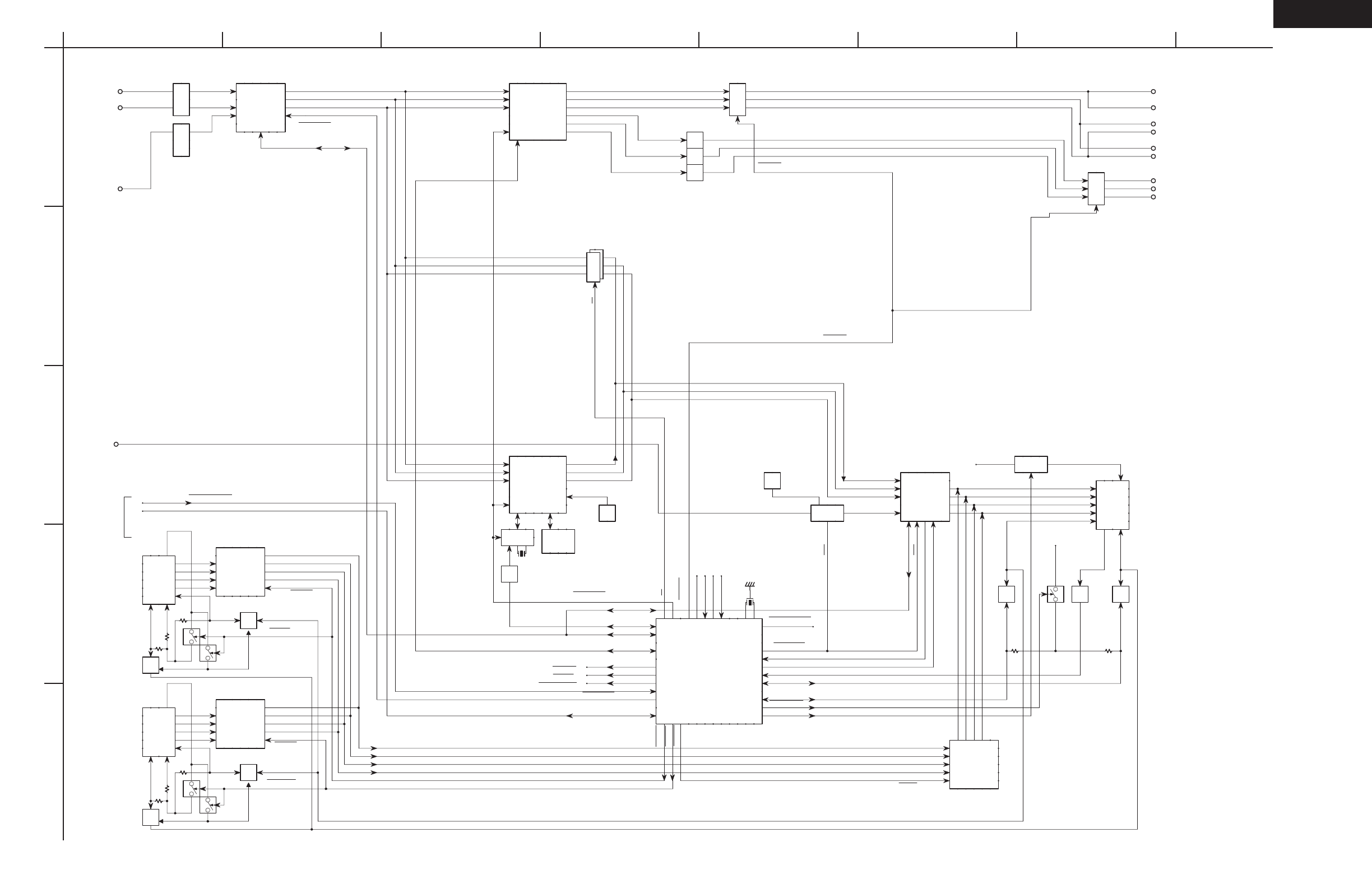

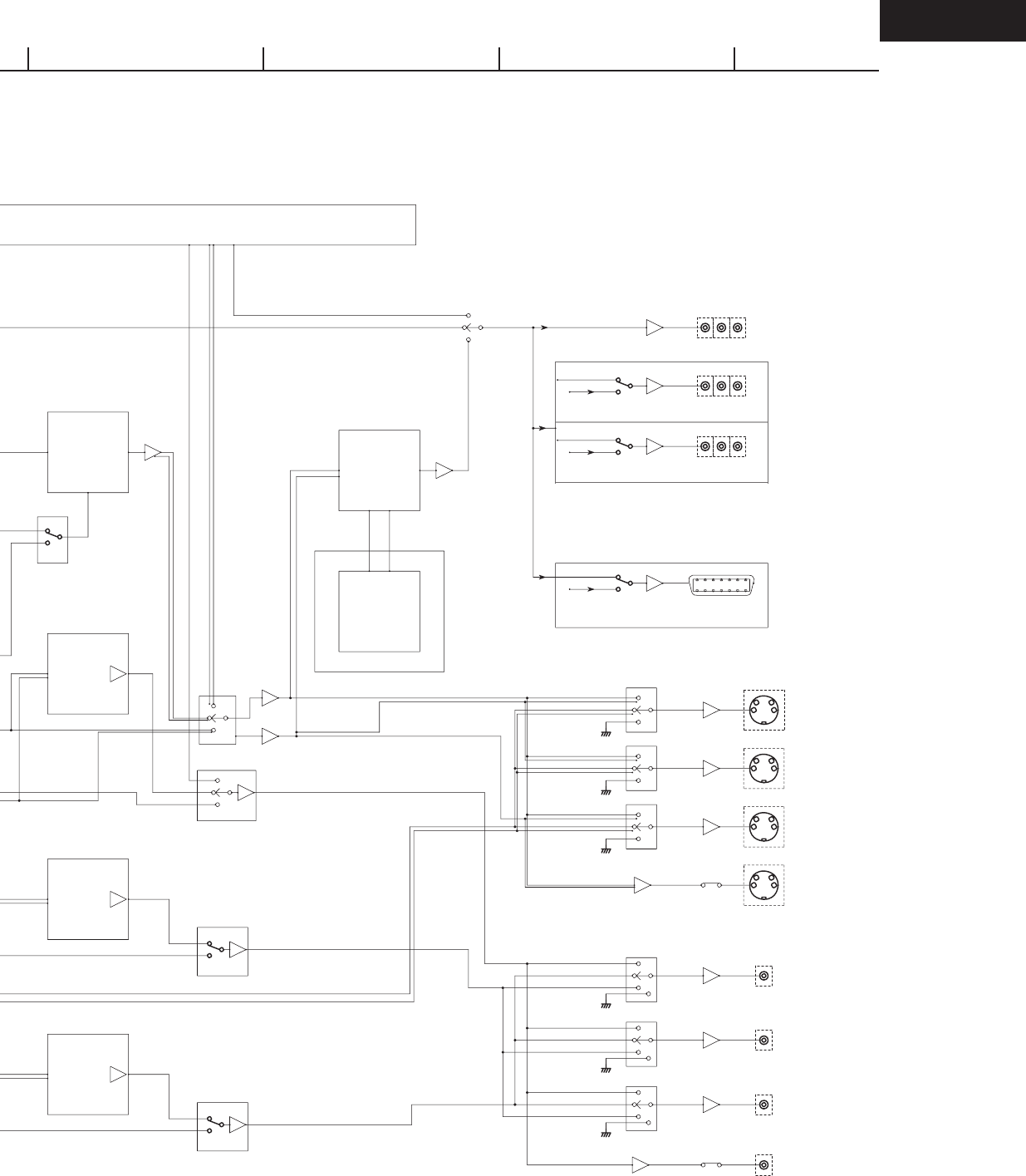

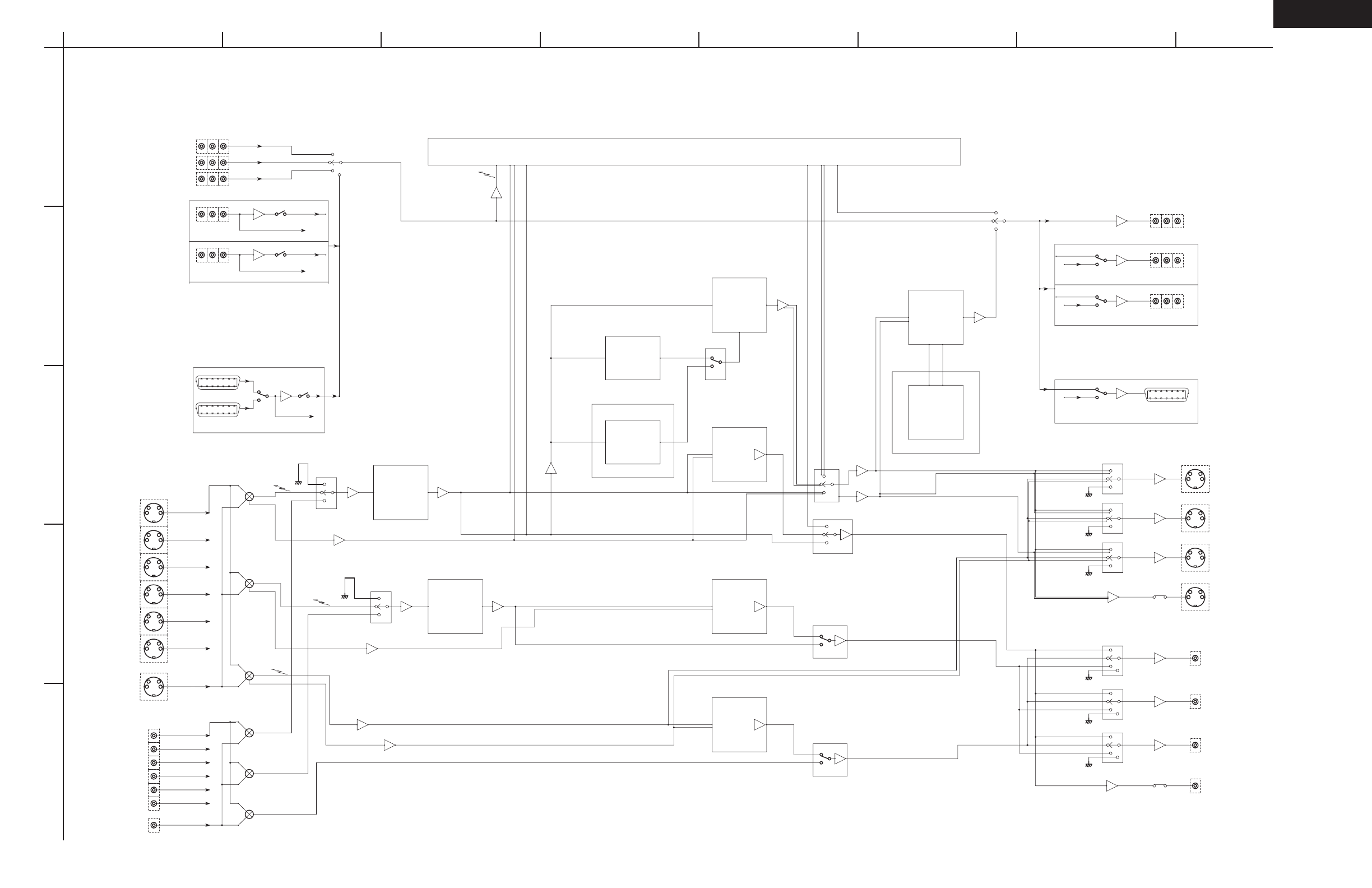

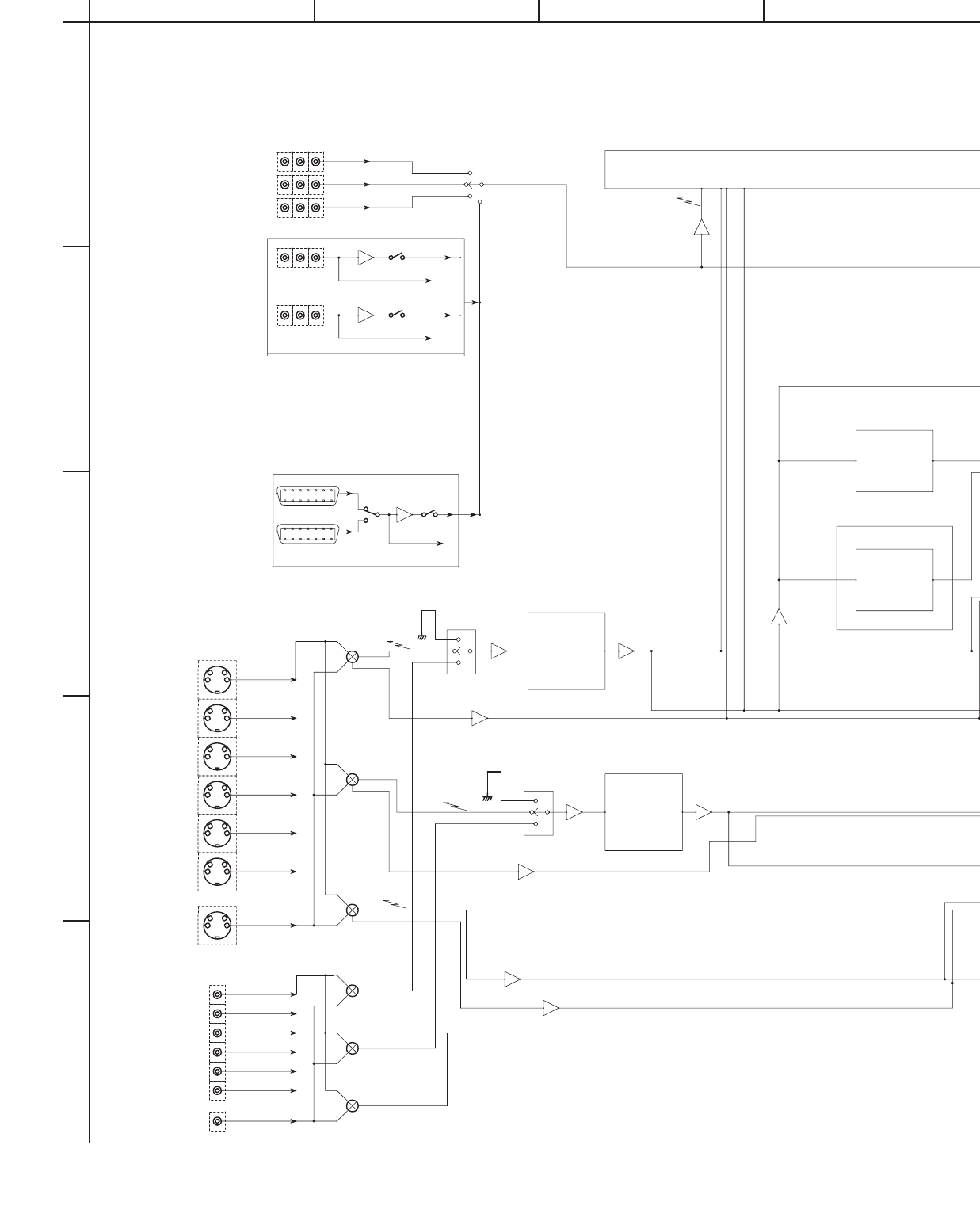

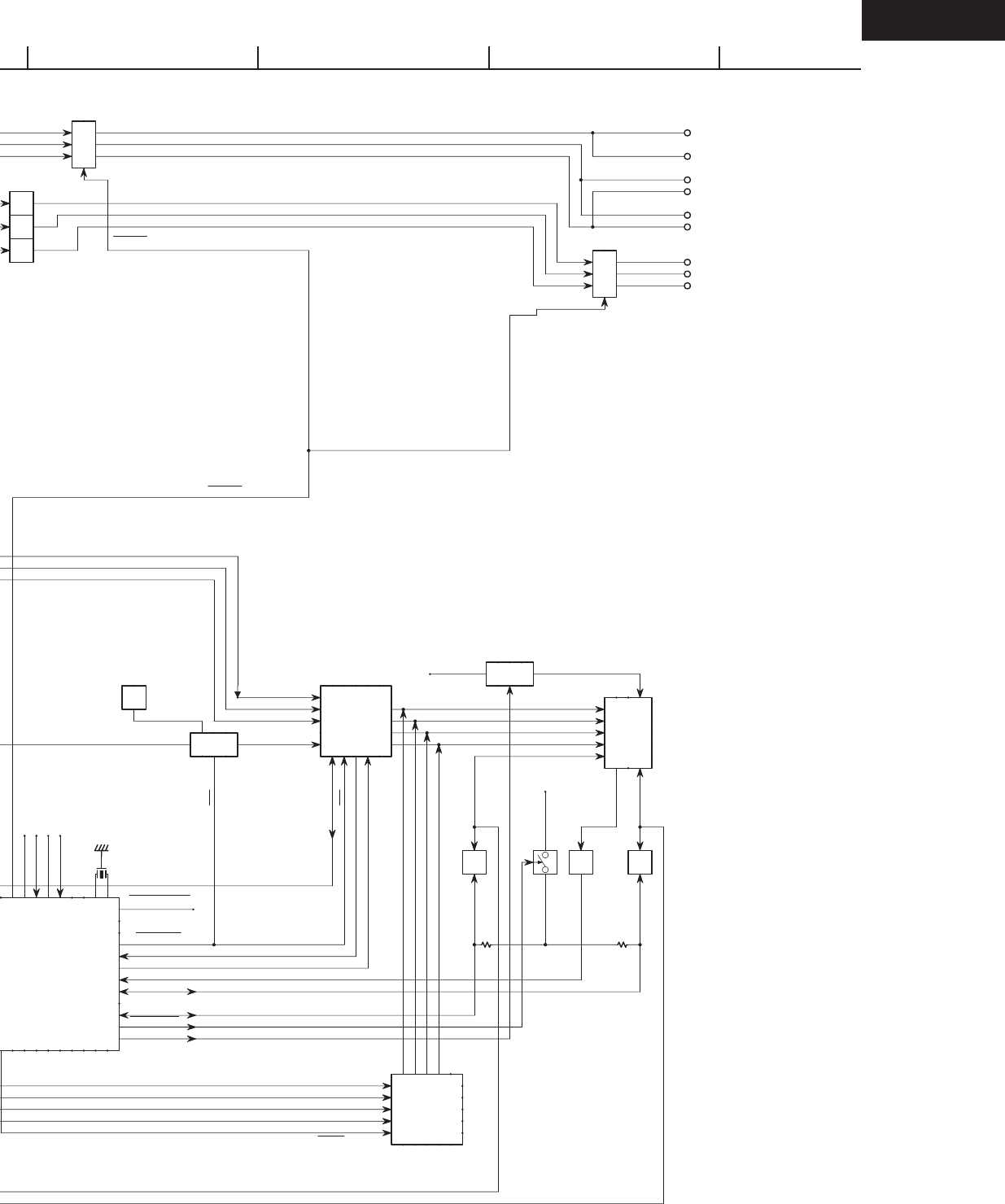

BLOCK DIAGRAM 2 Video section
RDC-7.1
A
1
2
3
4
5
BCDEFGH
S
S
S
S
S
S
S
14 8
71
PD4
14 8
71
PD4
14 8
71
PD4
14 8
71
PD4
14 8
71
P
D3
14 8
71
P
D3
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
RL
RL
RL
RL
RL
RL
RL
PPP
PPP
P P P
P P P
P P P
P
P
P
P
P
P
P
P
P
P
P
PPP
P
P
P
P
P
P
COMPONENT VIDEO
C
CV
C
Y
Q2050
Q2050
0dB
0dB
Y/C
CV
CV
Q2014
TK15420
Y/C MIX
0dB
0dB
Q2040
From IN 4 (Component)
Y/C
Q2016
CV
0dB
Y
Q2009
0dB
Y
YC
C
Q2208
0dB
Q2017
D4 VIDEO
D4 VIDEO
JAPAN MODEL ONLY
OPTION BOARD
J-slot
IN 4
IN 3
BNC
IN 4
To OUT 2 (Component)
To OUT 2 (D4)
To OUT (BNC)
Q2401
0dB
Q2501
0dB
Q2601
0dB
IN 2
K-slot
JAPAN MODEL ONLY
IN 1
To OUT 1 (D4)
Q2401
0dB
J-slot
From IN D4 (K-slot)
From IN D4 (J-slot)
From IN (BNC)
Q2603
6dB
OUT 2
Q2503
6dB
BNC
Q2407
6dB
OUT 2
Q2407
6dB
OUT 1
6dB
OUT 1
OPTION
BOARD
ONLY
MODEL
JAPAN
Q2228
Y/Cb/Cr
Q2235
0dB
Y/C
PAL ONLY
TA8772AN
1H DELAY
Q2207
Q2216
TA1270BF
CONVERTOR
VIDEO
OUT 4
OUT 3
OUT 2
OUT 1
OUT 4
OUT 3
OUT 2
OUT 1
COMPONENT VIDEO
Not use for RDC-7.1
Not use for RDC-7.1
IN 7
IN 6
IN 5
IN 4
IN 3
IN 2
IN 1
REC SEL
ZONE2 SEL
MAIN SEL
COMPOSITE VIDEO CV
S VIDEO
IN 1
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
S VIDEO
COMPOSITE VIDEO
Q2043
Q2043
Q2230
Q2230
Q2213
6dB
Q2036
Q2035
6dB
6dB
Y/C
Y/C
Y/C
Y/C
Y/C
Y/C
IN 1
IN 2
IN 3
Y/Cb/Cr
Y/Cb/Cr
Y/Cb/Cr
( UP CONVERT / DOWN CONVERT )HDMI BOARD
CV
CV
CV
CV
C
CY
Y
CV
CV
CV
CV
SVDEC2
SVDEC3
SVDEC1
MAIN SEL
ZONE2 SEL
REC SEL
C
Y
C
Y
Q2217
CYDEC
0dB
0dB
Q2042
Q2041
Q2232
Q2233
6dB
Q2215
Q2031
Q2030
Q2015
Y/C MIX
TK15420
TK15420
0dB
Y/C MIX
-6dB
Q2204
Q2201
Q2202
MM1093NF
MM1093PF
4FSC
NTSC
Q2203
PAL ONLY
Q2046
TC7W53FK
0dB
0dB
6dB
6dB
6dB
Q2203
Q2040
-6dB
-6dB
Q2206
TC7W53FK
Q2013
Q2011
ZONE2 OSD
MAIN OSD
0dB
Q2208
Q2019
6dB
Q2019
Q2004
Q2009
0dB
6dB
Q2008Q2008
(UPGRADED)
NET-TUNE VIDEO CLIENT
1Vp-p1Vp-p
PAL
4FSC
LC74761
LC74761
Y/C SEP
3-LINE
TC90A69F
RDC-7.1

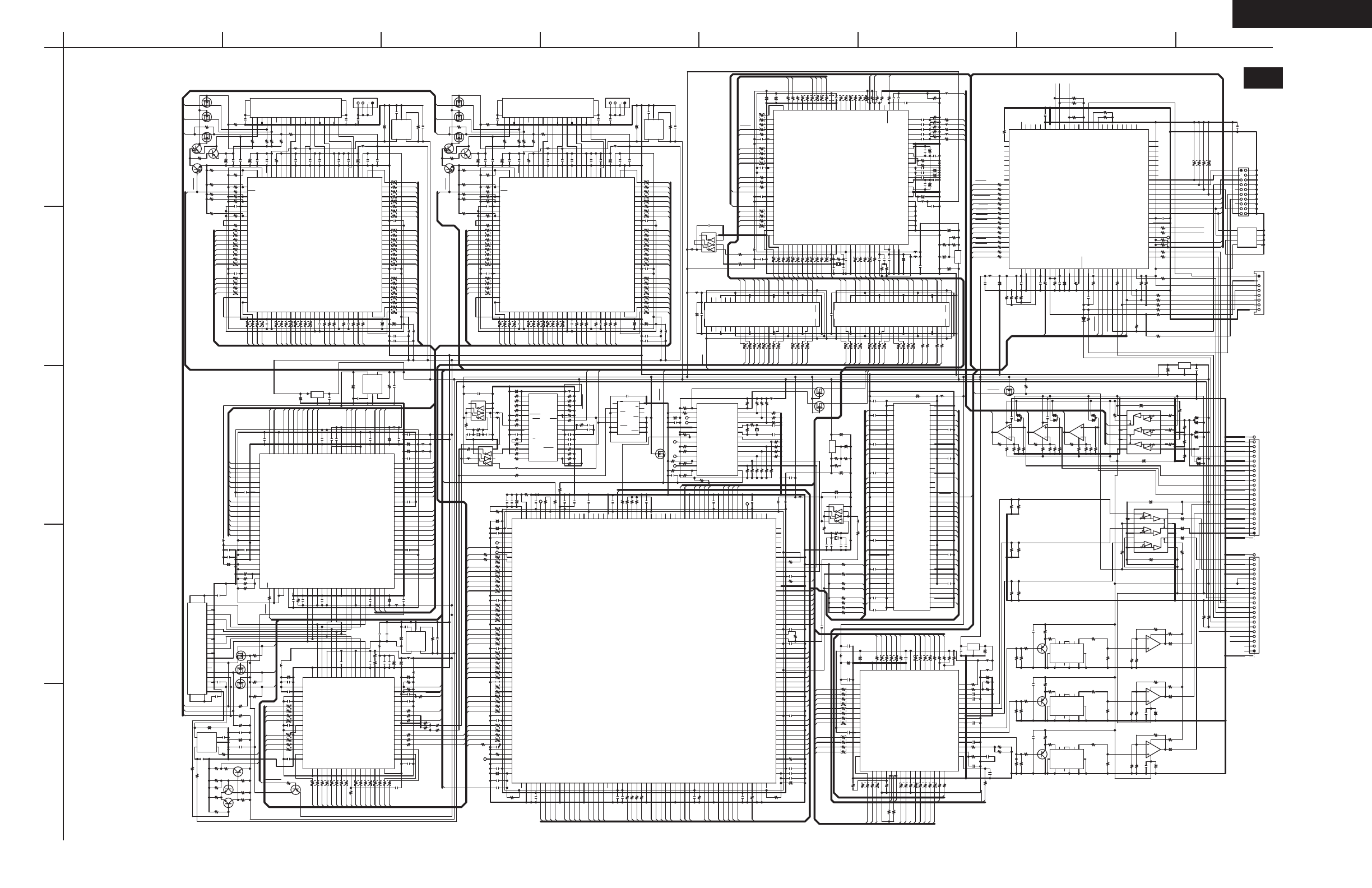

BLOCK DIAGRAM 3 HDMI section
VCX162244FT
5MHZ
20MHZ
R
R
R
R
R
R
RR
HDMI
IN 1
HDMI
IN 2
HDMI
OUT
I2C LEVEL
CONVERTER
I2C LEVEL CONVERTER
15MHZ LPF X3
CLOCK GEN.
CLOCK GEN.
I2C LEVEL CONVERTER
CEC LEVEL
CONVERTER
HOTPLUG COMPARATOR
I2C LEVEL CONVERTER
ADV7402
VIDEO
DECODER
Q8501
SII161B
HDMI
RECEIVER
SII161B
HDMI
RECEIVER
Q8401
SII160
HDMI TRANSMITTER
Q8301
SII9190
HDMI TRANSMITTER
Q8701
VIDEO
MICROPROCESSOR
SDRAM
2MX32
LA7106M
MAX4218
MAX4218

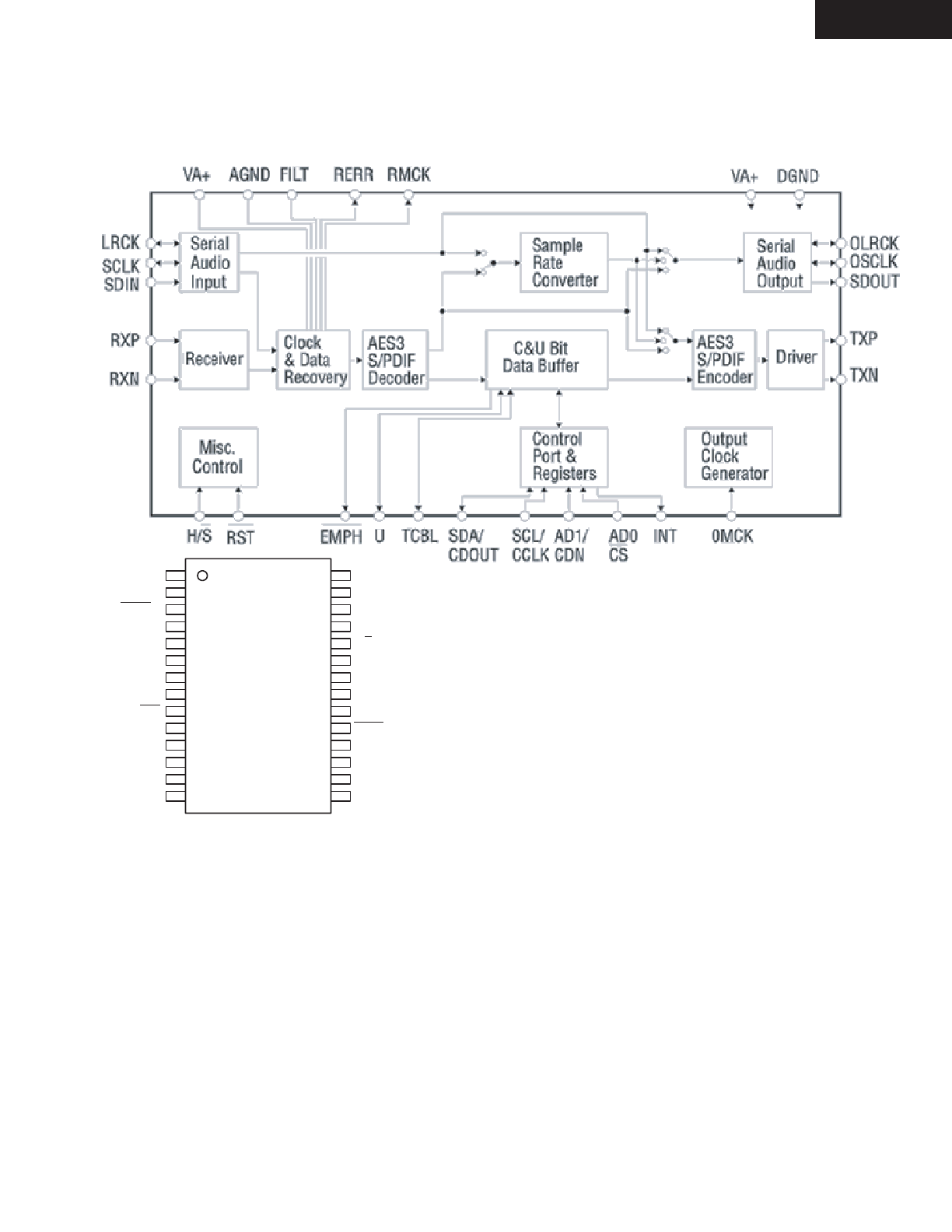

CS8420
SAMPLE RATE
CONVERTER
+5V REGULATOR
LA7106M
MC504
Q8001
SII504
I/P
CONVERTER
ADV73XX
VIDEO
ENCORDER
EXT_CV ITU-RBT656/YUV24 ITU-RBT656/YUV24 CV CV CV
H.V_SYNC H.V_SYNC SY SY
EXT_S PIXCLK.BLANK PIXCLK.BLANK SC SC CV
VFRESET SY
SC
PY PY
I2C1 PB SY
PB PR SC
PR VDOFF
EXT_HD
ITU-RBT656/YUV24
H.V_SYNC
PIXCLK.BLANK
HDOE
YUV4:2:2.16
H.V_SYNC
PIXCLK.BLANK
VDOFF
YUV4:2:2.16
H.V_SYNC
PIXCLK.BLANK
SPDIF
ITU-RBT656/YUV24 YUV4:2:2.16 EV+5.6 +5V SUPPLY
H.V_SYNC H.V_SYNC
PIXCLK.BLANK PIXCLK.BLANK YUV4:2:2.16
H.V_SYNC TX0
27MHZ 12.288MHz PIXCLK.BLANK TX1
VSYSRESET TX2
4LINE_SERIAL_INTERFACE SPDIF TXC
DDC
+5VSUPPLY
TX0
TX1
TX2
TXC
HDMI_POW
RST9190
I2C1
RST9190
INT
HOTPLUG_9190
VDD+3.3V
HOTPLUG
CEC
DO24.DE23..2PXCELS/CLOCK
RX0 H.V_SYNC
RX1
RX2 CTRL1.2.3
A8
D8
CS.RS.WS
IRQ
RXC
PDRX1
VDOFF
HDOE
DDC PVRESET
I2C1
HOTPLUG
I2C_I/P EXCEPTRDV
CEC
I2C1 I2C1
PDRX1
I2C_HD I2C_HD RST9190
INT
EXT_THRU HOTPLUG_9190
GATEENABLE DVDOE HOTPLUGDETECT
EXTOE CEC_I/O
VSYSRESET
+5V
SUPPLY
VFRESET I2C_HDMI
DO24.DE23.
2PXCELS/CLOCK DVDHDMI
RX0 H.V_SYNC 4LINE_SERIAL_INTERFACE HDMI_POW
RX1 PIXCLK.BLANK
RX2 CTRL1.2.3
PDRX1
PDRX2
PDTX
RXC PDRX2
DDC DO24.DE23..2PXCELS/CLOCK
H.V_SYNC
PIXCLK.BLANK
HOTPLUG
CTRL1.2.3
CEC
PDTX
PDRX2
GATEENABLE DDC
CEC CEC
From Main microprocessor
Y,P B,PR
Q8102
Q8103
Q8101 Q8801
Q8857
L8901~3
Q8810
Q8351
Q8601
Q8350
Q8351
Q8003
Q8002
A
1
2
3
4
5
BCDEFGH
RDC-7.1
BLOCK DIAGRAM AUDIO SECTION
Q616
Q606 Q604 Q603,Q608
SCH.16 NADG-8228
ETHER
FRONT
MUTE
MUTE
MUTE
MUTE
Q1860
Q420
SCH. 10/11
NADG-8163
Q701
Q706
Q707
Q708
MUTE
SCH.3 NAAF-8150
SCH. 5/6 NAAF-8156
SCH.14
NADG-8141
SCH.14
NARF-8152
Q3009 Q3501
Q3004
Q3509
SCH.17
NADG-8164
A
1
2
3
4
5
BCDEFGH
AES/EBU
SUBWOOFER
SURR BACK RIGHT
SURR BACK LEFT
SURROUND RIGHT]
SURROUND LEFT
RIGHT
LEFT
CENTER
8MB SDRAM
HM5264165F
1MB
FLASH 32MB FLASH
MX29LV320
8MB SDRAM
HM5264165F
64MB SDRAM
IC42S16800
FLASH ROM
MX29LV160
EEPROM
93LC46B
PLL
TLC2932
I2S
C/SW
I2S
C/SW
DSD 6CH
LEFT JUSTIFIED
I2S X3
I2S X3
S/PDIF
NET-TUNE
ZONE2 R
I2S
L/R
ZONE2
I2S
L/R
I2S
SBL/SBR
I2S
SL/SR
I2S
C/SW
I2S
SBL/SBR
I2S
SL/SR
I2S
L/R
I2S
C/SW
I2S
SBL/SBR
I2S
SL/SR
I2S
L/R
ZONE2 L
R
L
C
SW
SBR
SBL
SR
SL
ZONE2
REC/ZONE3
ZONE3
ZONE2
REC
ETHER
CONTROL
MAVERICK
EP7312-CV
DSD LPCM
CONVERTER
SM5816AF
IEEE1394
CONTROLLER
ICELYNX-MICRO
TSB43CA43A
ETHER
IEEE1394
IEEE1394
IEEE1394
DSP
TI
AUREUS
TMS320DA610
DSP
TI
AUREUS
TMS320DA610
DIR
DIR
DIR
DAC
192/24
PHY
DAC
192/24
DAC
192/24
DAC
192/24
DAC
192/24
DAC
192/24
DAC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
1
OPTICAL OUTPUT
2
ZONE2
SEL
REC/ZONE3
SEL
MAIN
SEL
REC/ZONE3
SEL
ZONE2
SEL
MAIN
SEL
SUBWOOFER
CENTER
SURROUND BACK
/ ZONE 2 RIGHT
SURROUND BACK
/ ZONE 2 LEFT
SURROUND
RIGHT
SURROUND
LEFT
RIGHT
PREOUT
LEFT
1
COAXIAL OUTPUT
2
1ANALOG AUDIO
L/R OUTPUT
2
5
4
3
9
8
7
6
5
4
6
5
3
2
1
PHONO
ANALOG
AUDIO L/R
4
3
2
1
L/R
SL/SR
SBL/SBR
C/SW
MULTICHANNEL
INPUT 2
HEAD PHONE
2
3
1
DIGITAL AUDIO OPTICAL
6
5
4
FM/AM
TUNER
PACK
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF VLSC
ZONE3 LEVEL
ZONE2 LEVEL
MASTER VOLUME
SW->R
C->R
SW->L
C->L
SR->R
SL->L
(MAIN ROOM)
(ZONE2 ROOM)
11dB
11dB
Q1655,6
Q1485,6
90KLPF
VLSC
64MB SDRAM
IC42S16800
FLASH ROM
MX29LV160
Q7301
Q7306
Q7307
Q7308
SCH. 1/2 NAAF-8144,45 SCH. 1/2 NAAF-8144,45
Q421
Q1402
Q1405
SCH. 4
NADG-8154
Q4020
Q4023
Q4025
Q4022
Q4027
MUTE/OUTPUT RELAY
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
Q4040~Q4047
Q4869~Q4871
SCH. 8/9 NADG-8162 Q7001~3
Q7051
Q7151
Q7021
Q7121
Q7221
Q7425
Q7245
RDC-7.1
BLOCK DIAGRAM AUDIO SECTION
Q616
Q606 Q604 Q603,Q608
SCH.16 NADG-8228
ETHER
FRONT
MUTE
MUTE
MUTE
MUTE
Q1860
Q420
SCH. 10/11
NADG-8163
Q701
Q706
Q707
Q708
MUTE
SCH.3 NAAF-8150
SCH. 5/6 NAAF-8156
SCH.14
NADG-8141
SCH.14
NARF-8152
Q3009 Q3501
Q3004
Q3509
SCH.17
NADG-8164
A
1
2
3
4
5
BCDEFGH
AES/EBU
SUBWOOFER
SURR BACK RIGHT
SURR BACK LEFT
SURROUND RIGHT]
SURROUND LEFT
RIGHT
LEFT
CENTER
8MB SDRAM
HM5264165F
1MB
FLASH 32MB FLASH
MX29LV320
8MB SDRAM
HM5264165F
64MB SDRAM
IC42S16800
FLASH ROM
MX29LV160
EEPROM
93LC46B
PLL
TLC2932
I2S
C/SW
I2S
C/SW
DSD 6CH
LEFT JUSTIFIED
I2S X3
I2S X3
S/PDIF
NET-TUNE
ZONE2 R
I2S
L/R
ZONE2
I2S
L/R
I2S
SBL/SBR
I2S
SL/SR
I2S
C/SW
I2S
SBL/SBR
I2S
SL/SR
I2S
L/R
I2S
C/SW
I2S
SBL/SBR
I2S
SL/SR
I2S
L/R
ZONE2 L
R
L
C
SW
SBR
SBL
SR
SL
ZONE2
REC/ZONE3
ZONE3
ZONE2
REC
ETHER
CONTROL
MAVERICK
EP7312-CV
DSD LPCM
CONVERTER
SM5816AF
IEEE1394
CONTROLLER
ICELYNX-MICRO
TSB43CA43A
ETHER
IEEE1394
IEEE1394
IEEE1394
DSP
TI
AUREUS
TMS320DA610
DSP
TI
AUREUS
TMS320DA610
DIR
DIR
DIR
DAC
192/24
PHY
DAC
192/24
DAC
192/24
DAC
192/24
DAC
192/24
DAC
192/24
DAC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
ADC
192/24
1
OPTICAL OUTPUT
2
ZONE2
SEL
REC/ZONE3
SEL
MAIN
SEL
REC/ZONE3
SEL
ZONE2
SEL
MAIN
SEL
SUBWOOFER
CENTER
SURROUND BACK
/ ZONE 2 RIGHT
SURROUND BACK
/ ZONE 2 LEFT
SURROUND
RIGHT
SURROUND
LEFT
RIGHT
PREOUT
LEFT
1
COAXIAL OUTPUT
2
1ANALOG AUDIO
L/R OUTPUT
2
5
4
3
9
8
7
6
5
4
6
5
3
2
1
PHONO
ANALOG
AUDIO L/R
4
3
2
1
L/R
SL/SR
SBL/SBR
C/SW
MULTICHANNEL
INPUT 2
HEAD PHONE
2
3
1
DIGITAL AUDIO OPTICAL
6
5
4
FM/AM
TUNER
PACK
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF
VLSC
90KLPF VLSC
ZONE3 LEVEL
ZONE2 LEVEL
MASTER VOLUME
SW->R
C->R
SW->L
C->L
SR->R
SL->L
(MAIN ROOM)
(ZONE2 ROOM)
11dB
11dB
Q1655,6
Q1485,6
90KLPF
VLSC
64MB SDRAM
IC42S16800
FLASH ROM
MX29LV160
Q7301
Q7306
Q7307
Q7308
SCH. 1/2 NAAF-8144,45 SCH. 1/2 NAAF-8144,45
Q421
Q1402
Q1405
SCH. 4
NADG-8154
Q4020
Q4023
Q4025
Q4022
Q4027
MUTE/OUTPUT RELAY
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
Q4040~Q4047
Q4869~Q4871
SCH. 8/9 NADG-8162 Q7001~3
Q7051
Q7151
Q7021
Q7121
Q7221
Q7425
Q7245
BLOCK DIAGRAM 2 Video section
RDC-7.1
A
1
2
3
4
5
BCDEFGH
S
S
S
S
S
S
S
14 8
71
PD4
14 8
71
PD4
14 8
71
PD4
14 8
71
PD4
14 8
71
P
D3
14 8
71
P
D3
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
RL
RL
RL
RL
RL
RL
RL
PPP
PPP
P P P
P P P
P P P
P
P
P
P
P
P
P
P
P
P
P
PPP
P
P
P
P
P
P
COMPONENT VIDEO
C
CV
C
Y
Q2050
Q2050
0dB
0dB
Y/C
CV
CV
Q2014
TK15420
Y/C MIX
0dB
0dB
Q2040
From IN 4 (Component)
Y/C
Q2016
CV
0dB
Y
Q2009
0dB
Y
YC
C
Q2208
0dB
Q2017
D4 VIDEO
D4 VIDEO
JAPAN MODEL ONLY
OPTION BOARD
J-slot
IN 4
IN 3
BNC
IN 4
To OUT 2 (Component)
To OUT 2 (D4)
To OUT (BNC)
Q2401
0dB
Q2501
0dB
Q2601
0dB
IN 2
K-slot
JAPAN MODEL ONLY
IN 1
To OUT 1 (D4)
Q2401
0dB
J-slot
From IN D4 (K-slot)
From IN D4 (J-slot)
From IN (BNC)
Q2603
6dB
OUT 2
Q2503
6dB
BNC
Q2407
6dB
OUT 2
Q2407
6dB
OUT 1
6dB
OUT 1
OPTION
BOARD
ONLY
MODEL
JAPAN
Q2228
Y/Cb/Cr
Q2235
0dB
Y/C
PAL ONLY
TA8772AN
1H DELAY
Q2207
Q2216
TA1270BF
CONVERTOR
VIDEO
OUT 4
OUT 3
OUT 2
OUT 1
OUT 4
OUT 3
OUT 2
OUT 1
COMPONENT VIDEO
Not use for RDC-7.1
Not use for RDC-7.1
IN 7
IN 6
IN 5
IN 4
IN 3
IN 2
IN 1
REC SEL
ZONE2 SEL
MAIN SEL
COMPOSITE VIDEO CV
S VIDEO
IN 1
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
S VIDEO
COMPOSITE VIDEO
Q2043
Q2043
Q2230
Q2230
Q2213
6dB
Q2036
Q2035
6dB
6dB
Y/C
Y/C
Y/C
Y/C
Y/C
Y/C
IN 1
IN 2
IN 3
Y/Cb/Cr
Y/Cb/Cr
Y/Cb/Cr
( UP CONVERT / DOWN CONVERT )HDMI BOARD
CV
CV
CV
CV
C
CY
Y
CV
CV
CV
CV
SVDEC2
SVDEC3
SVDEC1
MAIN SEL
ZONE2 SEL
REC SEL
C
Y
C
Y
Q2217
CYDEC
0dB
0dB
Q2042
Q2041
Q2232
Q2233
6dB
Q2215
Q2031
Q2030
Q2015
Y/C MIX
TK15420
TK15420
0dB
Y/C MIX
-6dB
Q2204
Q2201
Q2202
MM1093NF
MM1093PF
4FSC
NTSC
Q2203
PAL ONLY
Q2046
TC7W53FK
0dB
0dB
6dB
6dB
6dB
Q2203
Q2040
-6dB
-6dB
Q2206
TC7W53FK
Q2013
Q2011
ZONE2 OSD
MAIN OSD
0dB
Q2208
Q2019
6dB
Q2019
Q2004
Q2009
0dB
6dB
Q2008Q2008
(UPGRADED)
NET-TUNE VIDEO CLIENT
1Vp-p1Vp-p
PAL
4FSC
LC74761
LC74761
Y/C SEP
3-LINE
TC90A69F
BLOCK DIAGRAM 2 Video section
RDC-7.1
A
1
2
3
4
5
BCDEFGH
S
S
S
S
S
S
S
14 8
71
PD4
14 8
71
PD4
14 8
71
PD4
14 8
71
PD4
14 8
71
P
D3
14 8
71
P
D3
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
YC
P
RL
RL
RL
RL
RL
RL
RL
PPP
PPP
P P P
P P P
P P P
P
P
P
P
P
P
P
P
P
P
P
PPP
P
P
P
P
P
P
COMPONENT VIDEO
C
CV
C
Y
Q2050
Q2050
0dB
0dB
Y/C
CV
CV
Q2014
TK15420
Y/C MIX
0dB
0dB
Q2040
From IN 4 (Component)
Y/C
Q2016
CV
0dB
Y
Q2009
0dB
Y
YC
C
Q2208
0dB
Q2017
D4 VIDEO
D4 VIDEO
JAPAN MODEL ONLY
OPTION BOARD
J-slot
IN 4
IN 3
BNC
IN 4
To OUT 2 (Component)
To OUT 2 (D4)
To OUT (BNC)
Q2401
0dB
Q2501
0dB
Q2601
0dB
IN 2
K-slot
JAPAN MODEL ONLY
IN 1
To OUT 1 (D4)
Q2401
0dB
J-slot
From IN D4 (K-slot)
From IN D4 (J-slot)
From IN (BNC)
Q2603
6dB
OUT 2
Q2503
6dB
BNC
Q2407
6dB
OUT 2
Q2407
6dB
OUT 1
6dB
OUT 1
OPTION
BOARD
ONLY
MODEL
JAPAN
Q2228
Y/Cb/Cr
Q2235
0dB
Y/C
PAL ONLY
TA8772AN
1H DELAY
Q2207
Q2216
TA1270BF
CONVERTOR
VIDEO
OUT 4
OUT 3
OUT 2
OUT 1
OUT 4
OUT 3
OUT 2
OUT 1
COMPONENT VIDEO
Not use for RDC-7.1
Not use for RDC-7.1
IN 7
IN 6
IN 5
IN 4
IN 3
IN 2
IN 1
REC SEL
ZONE2 SEL
MAIN SEL
COMPOSITE VIDEO CV
S VIDEO
IN 1
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
S VIDEO
COMPOSITE VIDEO
Q2043
Q2043
Q2230
Q2230
Q2213
6dB
Q2036
Q2035
6dB
6dB
Y/C
Y/C
Y/C
Y/C
Y/C
Y/C
IN 1
IN 2
IN 3
Y/Cb/Cr
Y/Cb/Cr
Y/Cb/Cr
( UP CONVERT / DOWN CONVERT )HDMI BOARD
CV
CV
CV
CV
C
CY
Y
CV
CV
CV
CV
SVDEC2
SVDEC3
SVDEC1
MAIN SEL
ZONE2 SEL
REC SEL
C
Y
C
Y
Q2217
CYDEC
0dB
0dB
Q2042
Q2041
Q2232
Q2233
6dB
Q2215
Q2031
Q2030
Q2015
Y/C MIX
TK15420
TK15420
0dB
Y/C MIX
-6dB
Q2204
Q2201
Q2202
MM1093NF
MM1093PF
4FSC
NTSC
Q2203
PAL ONLY
Q2046
TC7W53FK
0dB
0dB
6dB
6dB
6dB
Q2203
Q2040
-6dB
-6dB
Q2206
TC7W53FK
Q2013
Q2011
ZONE2 OSD
MAIN OSD
0dB
Q2208
Q2019
6dB
Q2019
Q2004
Q2009
0dB
6dB
Q2008Q2008
(UPGRADED)
NET-TUNE VIDEO CLIENT
1Vp-p1Vp-p
PAL
4FSC
LC74761
LC74761
Y/C SEP
3-LINE
TC90A69F
RDC-7.1
BLOCK DIAGRAM 3 HDMI section
VCX162244FT
5MHZ
20MHZ
R
R
R
R
R
R
RR
HDMI
IN 1
HDMI
IN 2
HDMI
OUT
I2C LEVEL
CONVERTER
I2C LEVEL CONVERTER
15MHZ LPF X3
CLOCK GEN.
CLOCK GEN.
I2C LEVEL CONVERTER
CEC LEVEL
CONVERTER
HOTPLUG COMPARATOR
I2C LEVEL CONVERTER
ADV7402
VIDEO
DECODER
Q8501
SII161B
HDMI
RECEIVER
SII161B
HDMI
RECEIVER
Q8401
SII160
HDMI TRANSMITTER
Q8301
SII9190
HDMI TRANSMITTER
Q8701
VIDEO
MICROPROCESSOR
SDRAM
2MX32
LA7106M
MAX4218
MAX4218
CS8420
SAMPLE RATE
CONVERTER
+5V REGULATOR
LA7106M
MC504
Q8001
SII504
I/P
CONVERTER
ADV73XX
VIDEO
ENCORDER
EXT_CV ITU-RBT656/YUV24 ITU-RBT656/YUV24 CV CV CV
H.V_SYNC H.V_SYNC SY SY
EXT_S PIXCLK.BLANK PIXCLK.BLANK SC SC CV
VFRESET SY
SC
PY PY
I2C1 PB SY
PB PR SC
PR VDOFF
EXT_HD
ITU-RBT656/YUV24
H.V_SYNC
PIXCLK.BLANK
HDOE
YUV4:2:2.16
H.V_SYNC
PIXCLK.BLANK
VDOFF
YUV4:2:2.16
H.V_SYNC
PIXCLK.BLANK
SPDIF
ITU-RBT656/YUV24 YUV4:2:2.16 EV+5.6 +5V SUPPLY
H.V_SYNC H.V_SYNC
PIXCLK.BLANK PIXCLK.BLANK YUV4:2:2.16
H.V_SYNC TX0
27MHZ 12.288MHz PIXCLK.BLANK TX1
VSYSRESET TX2
4LINE_SERIAL_INTERFACE SPDIF TXC
DDC
+5VSUPPLY
TX0
TX1
TX2
TXC
HDMI_POW
RST9190
I2C1
RST9190
INT
HOTPLUG_9190
VDD+3.3V
HOTPLUG
CEC
DO24.DE23..2PXCELS/CLOCK
RX0 H.V_SYNC
RX1
RX2 CTRL1.2.3
A8
D8
CS.RS.WS
IRQ
RXC
PDRX1
VDOFF
HDOE
DDC PVRESET
I2C1
HOTPLUG
I2C_I/P EXCEPTRDV
CEC
I2C1 I2C1
PDRX1
I2C_HD I2C_HD RST9190
INT
EXT_THRU HOTPLUG_9190
GATEENABLE DVDOE HOTPLUGDETECT
EXTOE CEC_I/O
VSYSRESET
+5V
SUPPLY
VFRESET I2C_HDMI
DO24.DE23.
2PXCELS/CLOCK DVDHDMI
RX0 H.V_SYNC 4LINE_SERIAL_INTERFACE HDMI_POW
RX1 PIXCLK.BLANK
RX2 CTRL1.2.3
PDRX1
PDRX2
PDTX
RXC PDRX2
DDC DO24.DE23..2PXCELS/CLOCK
H.V_SYNC
PIXCLK.BLANK
HOTPLUG
CTRL1.2.3
CEC
PDTX
PDRX2
GATEENABLE DDC
CEC CEC
From Main microprocessor
Y,P B,PR
Q8102
Q8103
Q8101 Q8801
Q8857
L8901~3
Q8810
Q8351
Q8601
Q8350
Q8351
Q8003
Q8002
A
1
2
3
4
5
BCDEFGH
RDC-7.1
BLOCK DIAGRAM 3 HDMI section
VCX162244FT
5MHZ
20MHZ
R
R
R
R
R
R
RR
HDMI
IN 1
HDMI
IN 2
HDMI
OUT
I2C LEVEL
CONVERTER
I2C LEVEL CONVERTER
15MHZ LPF X3
CLOCK GEN.
CLOCK GEN.
I2C LEVEL CONVERTER
CEC LEVEL
CONVERTER
HOTPLUG COMPARATOR
I2C LEVEL CONVERTER
ADV7402
VIDEO
DECODER
Q8501
SII161B
HDMI
RECEIVER
SII161B
HDMI
RECEIVER
Q8401
SII160
HDMI TRANSMITTER
Q8301
SII9190
HDMI TRANSMITTER
Q8701
VIDEO
MICROPROCESSOR
SDRAM
2MX32
LA7106M
MAX4218
MAX4218
CS8420
SAMPLE RATE
CONVERTER
+5V REGULATOR
LA7106M
MC504
Q8001
SII504
I/P
CONVERTER
ADV73XX
VIDEO
ENCORDER
EXT_CV ITU-RBT656/YUV24 ITU-RBT656/YUV24 CV CV CV
H.V_SYNC H.V_SYNC SY SY
EXT_S PIXCLK.BLANK PIXCLK.BLANK SC SC CV
VFRESET SY
SC
PY PY
I2C1 PB SY
PB PR SC
PR VDOFF
EXT_HD
ITU-RBT656/YUV24
H.V_SYNC
PIXCLK.BLANK
HDOE
YUV4:2:2.16
H.V_SYNC
PIXCLK.BLANK
VDOFF
YUV4:2:2.16
H.V_SYNC
PIXCLK.BLANK
SPDIF
ITU-RBT656/YUV24 YUV4:2:2.16 EV+5.6 +5V SUPPLY
H.V_SYNC H.V_SYNC
PIXCLK.BLANK PIXCLK.BLANK YUV4:2:2.16
H.V_SYNC TX0
27MHZ 12.288MHz PIXCLK.BLANK TX1
VSYSRESET TX2
4LINE_SERIAL_INTERFACE SPDIF TXC
DDC
+5VSUPPLY
TX0
TX1
TX2
TXC
HDMI_POW
RST9190
I2C1
RST9190
INT
HOTPLUG_9190
VDD+3.3V
HOTPLUG
CEC
DO24.DE23..2PXCELS/CLOCK
RX0 H.V_SYNC
RX1
RX2 CTRL1.2.3
A8
D8
CS.RS.WS
IRQ
RXC
PDRX1
VDOFF
HDOE
DDC PVRESET
I2C1
HOTPLUG
I2C_I/P EXCEPTRDV
CEC
I2C1 I2C1
PDRX1
I2C_HD I2C_HD RST9190
INT
EXT_THRU HOTPLUG_9190
GATEENABLE DVDOE HOTPLUGDETECT
EXTOE CEC_I/O
VSYSRESET
+5V
SUPPLY
VFRESET I2C_HDMI
DO24.DE23.
2PXCELS/CLOCK DVDHDMI
RX0 H.V_SYNC 4LINE_SERIAL_INTERFACE HDMI_POW
RX1 PIXCLK.BLANK
RX2 CTRL1.2.3
PDRX1
PDRX2
PDTX
RXC PDRX2
DDC DO24.DE23..2PXCELS/CLOCK
H.V_SYNC
PIXCLK.BLANK
HOTPLUG
CTRL1.2.3
CEC
PDTX
PDRX2
GATEENABLE DDC
CEC CEC
From Main microprocessor
Y,P B,PR
Q8102
Q8103
Q8101 Q8801
Q8857
L8901~3
Q8810
Q8351
Q8601
Q8350
Q8351
Q8003
Q8002
A
1
2
3
4
5
BCDEFGH

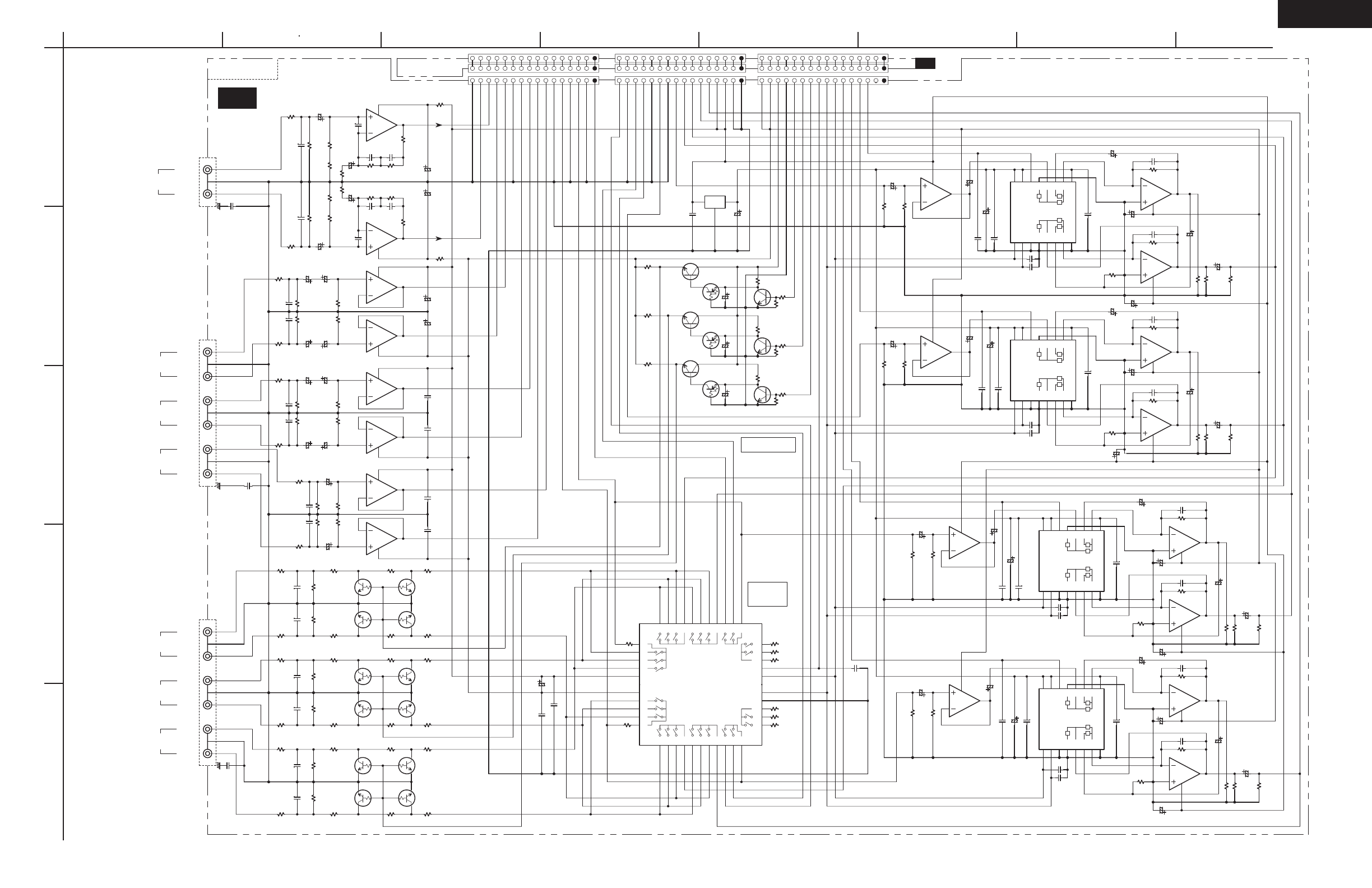

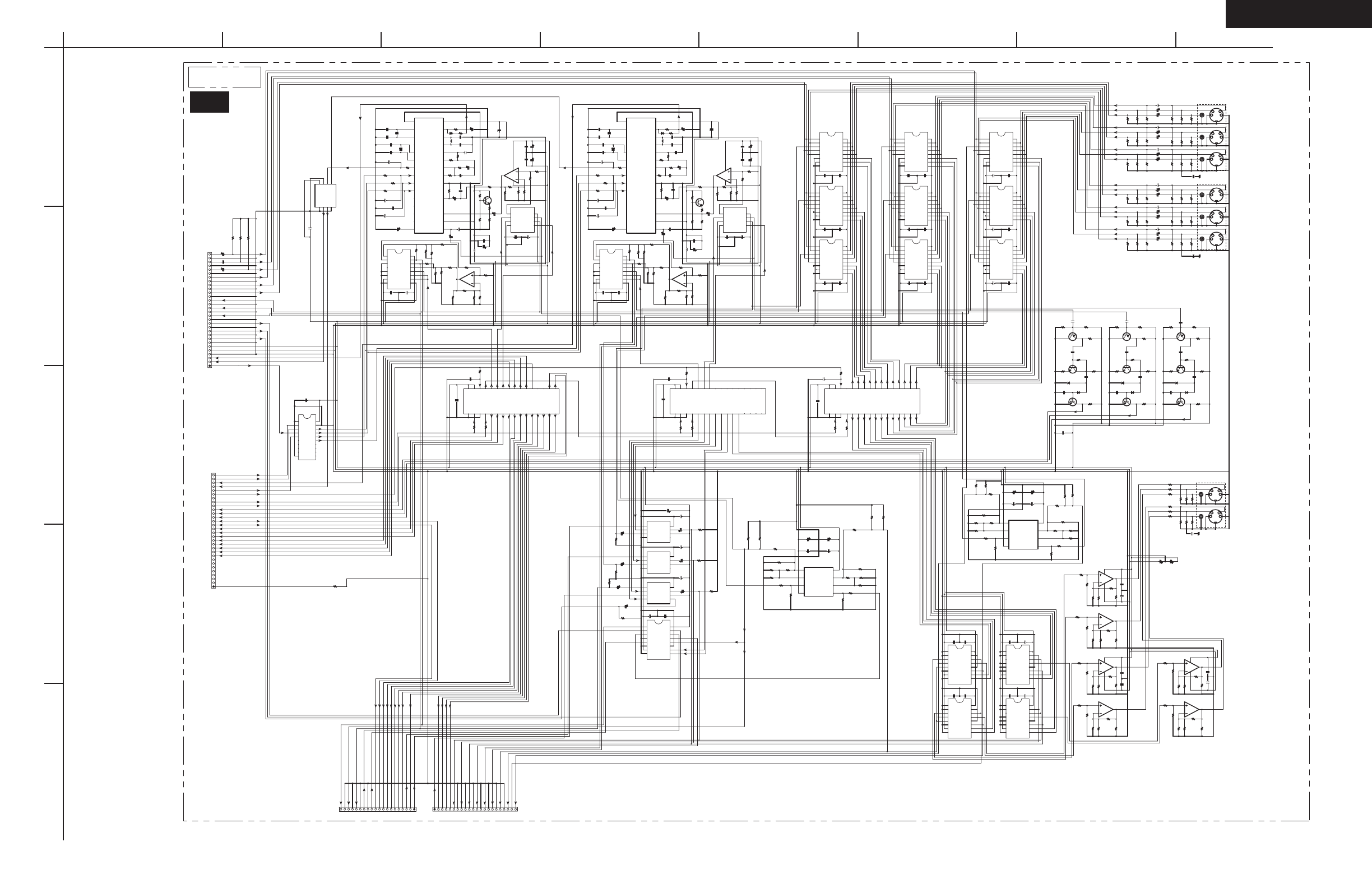

SCHEMATIC
DIAGRAM 1
Phono/AF IN/OUT
1 to 3 sections
Q1675
MPC4570G2
5
6
4
7
Q1465
MPC4570G2
5
6
4
7
Q1470
MPC4570G2
5
6
4
7
Q1480
MPC4570G2
5
6
4
7
Q1490
MPC4570G2
5
6
4
7
Q1460
MPC4570G2
5
6
4
7
Q1665
MPC4570G2
3
2
4
1
Q1666
MPC4570G2
3
2
4
1
Q1475
MPC4570G2
3
2
4
1
Q1476
MPC4570G2
3
2
4
1
Q1480
MPC4570G2
38
2
1
Q1490
MPC4570G2
38
2
1
Q1460
MPC4570G2
38
2
1
Q1476
MPC4570G2
58
6
7
Q1470
MPC4570G2
38
2
1
Q1475
MPC4570G2
58
6
7
Q1665
MPC4570G2
58
6
7
Q1675
MPC4570G2
38
2
1
Q1666
MPC4570G2
58
6
7
Q1465
MPC4570G2
38
2
1
C1907 330J
C1906 330J
C1905 330J
C1904 330J
C1903 330J
C1902 330J
C1900 330J
C1901 330J
C1575 100D
C1675 101J
C1486 101J C1485 101J
C1865
104Z
C1864
104Z
C1866
104Z
C1580
104Z
C1581
104Z
C1610
104Z
C1611
104Z
C1862
104Z
C1861
104Z
C1867
104Z
C1585 100D
C1576 100D
C1586 100D
C1725 100D
C1795 100D
C1726 100D
C1796 100D
C1676 101J
C1863
331J
C1891
47/6.3
ROB
C1571
47/6.3
ROB
C1890
47/6.3
ROB
C1570
47/6.3
ROB
C1881
22/25
ROB
C1541
22/25
ROB
C1880
22/25
ROB
C1540
22/25
ROB
C1665 10/16
RFS
C1685
10/16
C1476 10/16
RFS
C1496
10/16
C1475 10/16
RFS
C1495
10/16
C1510
220/6.3
C1511
220/6.3
C1470
47/6.3
RFS
C1471
47/6.3
RFS
C1600
47/6.3
RFS
C1601
47/6.3
RFS
C1869
10/16
C1870
10/16
C1871
10/16
C1521
47/16
C1520
47/16
C1551
47/16
C1550
47/16
C1860
47/35
C1868
47/6.3
C1525
10/16
RFS
C1595 47/16
C1625
10/16
RFS
C1615
47/6.3
RFS
C1465
47/6.3
RFS
C1605 47/16
C1596 47/16
C1526
10/16
RFS
C1626
10/16
RFS
C1616
47/6.3
RFS
C1466
47/6.3
RFS
C1735 47/16
C1755
10/16
RFS
C1805
47/6.3
RFS
C1655
47/6.3
RFS
C1815 47/16
C1736 47/16
C1716
10/16
RFS
C1756
10/16
RFS
C1686
10/16
C1806
47/6.3
RFS
C1656
47/6.3
RFS
C1666
10/16
RFS
C1816 47/16
C1715
10/16
RFS
C1606
47/16
R1560
56K
R1550
330
R1561
56K
R1551
330
R1590
56K
R1580
330
R1591
56K
R1581
330
R1873
10K
R1879
1K
R1876
4.7K
R1872
10K
R1878
1K
R1875
4.7K
R1871
10K
R1877
1K
R1874
4.7K
R1870
220K
R1491
47K
R1490
47K
R1501
560
R1521
22K
R1511
270K
R1500
560
R1470
56K
R1480
470K
R1460
330
R1471
56K R1481
470K
R1461
330
R1510
270K
R1530
1.2K
R1531
1.2K
R1520
22K
R1541
10
R1540
10
R1570
220K
R1571
220K
R1600
220K
R1601
220K
R1620
56K
R1630
220K
R1610
330
R1621
56K
R1631
220K
R1611
330
R1640
47
R1660
10
R1670
100
R1680
220
R1650
220K
R1641
47
R1661
10
R1671
100
R1681
220
R1651
220K
R1741
47
R1761
10
R1771
100
R1781
220
R1751
220K
R1740
47
R1760
10
R1770
100
R1750
220K
R1691
47
R1711
10
R1721
100
R1731
220
R1701
220K
R1690
47
R1710
10
R1720
100
R1730
220
R1700
220K
R1780
220
R1866
0
R1867
0
R1861 NC
R1862 NC
R1863 NC
R1864 NC
R1865 NC
R1860 NC
R1868
220K
R1869
220K
R1485 1M
R1495 1M
R1505
220K
R1515
470K
R1535
470K
R1525
470K
R1465
220K
R1475
220K
R1486 1M
R1496 1M
R1506
220K
R1516
470K
R1536
470K
R1526
470K
R1466
220K
R1476
220K
R1685 1M
R1695 1M
R1675
220K
R1705
470K
R1725
470K
R1715
470K
R1655
220K
R1665
220K
R1686 1M
R1696 1M
R1676
220K
R1706
470K
R1726
470K
R1716
470K
R1656
220K
R1666
220K
C1530
331J
C1531
331J
C1560
331J
C1561
331J
C1695 224J
C1506 224J C1505 224J
C1461
221J
C1460
221J
C1500
392J
C1491
123J
C1501
392J
C1481
152J
C1480
152J
C1620
102J
C1621
102J
C1641
102J
C1640
102J
C1631
102J
C1630
102J
C1590
331J
C1591
331J
C1490
123J
C1515
224J
C1516
224J
C1705
224J
C1696 224J
C1706
224J
P1860
P1862 P1861
RECR
Z3VLR
Z3R
Z2R
RECL
OUT1
OUT2
OUT3
OUT3
OUT2
OUT1
OUT1
OUT2
OUT3
OUT1
OUT2
OUT3
Z3ANA
Z3DIG
Z3VLL
Z3ANA
Z3DIG
Z3L
OUT1
OUT2
OUT3
Z2L
OUT1
OUT2
OUT3
Q1860
TC9274-023F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
41
42
43
44
CK 16
DATA 18
GND 15
NC1 17NC239
STB 19
VDD38
VSS
40
Q1510
RN1441
Q1500
RN1441
Q1511
RN1441
Q1501
RN1441
Q1551
RN1441
Q1541
RN1441
Q1550
RN1441
Q1540
RN1441
Q1531
RN1441
Q1521
RN1441
Q1530
RN1441
Q1520
RN1441
Q1862
RN2402
Q1864
RN2402
Q1866
RN2402
Q1870 2SC2712
Q1869
2SC2712
Q1868
2SC2712
Q1861
2SC2712
Q1863
2SC2712
Q1865
2SC2712
P406A
P407A
P408A
P1865B
P1863A
P1864AP1865A
P1863B
P1864B
AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q1485WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q1486WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q1655WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q1656WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
Q1867
78L05
G
IO
AGND
PHR
PHL
AI1R
AI1L
AGND
AI2R
AI2L
AI3R
AI3L
AGND
RECR
AGND
RECL
AGND
VLSCRECL
VLSCRECR
AGND
RECANAL
RECANAR
AGND
Z2INR
AGND
Z2INL
Z2OL
Z2OR
Z3OL
Z3OR
+15V
+15V
BGND
BGND
-15V
-15V
MUTEB
MUTEGND
REC1MUTE
REC2MUTE
REC3MUTE
AFSSTB1
ANACLK
ANADATA
VOLSTB12
VOLSTB11
VOLSTB10
VOLSTB9
RECR
RECL
VLSCRECL
RECANAL
VLSCRECR
RECANAR
Z2INR
-15V
AFSSTB1
ANACLK
ANADATA
R1MUTE
R2MUTE
R3MUTE
R1MUTE
R2MUTE
R3MUTE
OUT1L
OUT2L
OUT3L
OUT3L
OUT2L
OUT1L
RECR
RECL
OUT3L
OUT2L
OUT1L
Z2OL
OUT3L
OUT2L
OUT1L
Z3OL
VLSCRECL
RECANAL
RECL
RECANAR
VLSCRECR
AFSSTB1
ANACLK
ANADATA
Z2OR
R1MUTE OUT1L
OUT2L
OUT3L AFSSTB1
+15V ANADATA
-15V ANACLK
OUT3R BGND
OUT2R
OUT1R
RECR
R2MUTE
OUT1R
OUT3L
OUT2R
OUT3R
OUT3R
OUT2R
OUT1R
Z2OR
OUT3R
OUT2R
OUT1R
Z3OR
RECR
VLSCRECR
RECANAR
OUT1R
OUT2R
OUT3R
R3MUTE Z3OR
TO NAAF-8145 (SCH.-2)
NAAF-8144 NAAF-8146
MUTE DRIVER
LEFT
LEFT
LEFT
LEFT
LEFT
LEFT
LEFT
RIGHT
RIGHT
RIGHT
RIGHT
RIGHT
RIGHT
RIGHT
PHONO
AUDIO 1 IN
AUDIO 2 IN
AUDIO 3 IN
AUDIO 1 OUT
AUDIO 2 OUT
AUDIO 3 OUT
OUTPUT
SELECTOR
RDC-7.1
TO NAAF-8145 (SCH.-2) TO NAAF-8145 (SCH.-2)
A
1
2
3
4
5
BCDEFGH
U03
SLOT F
U033

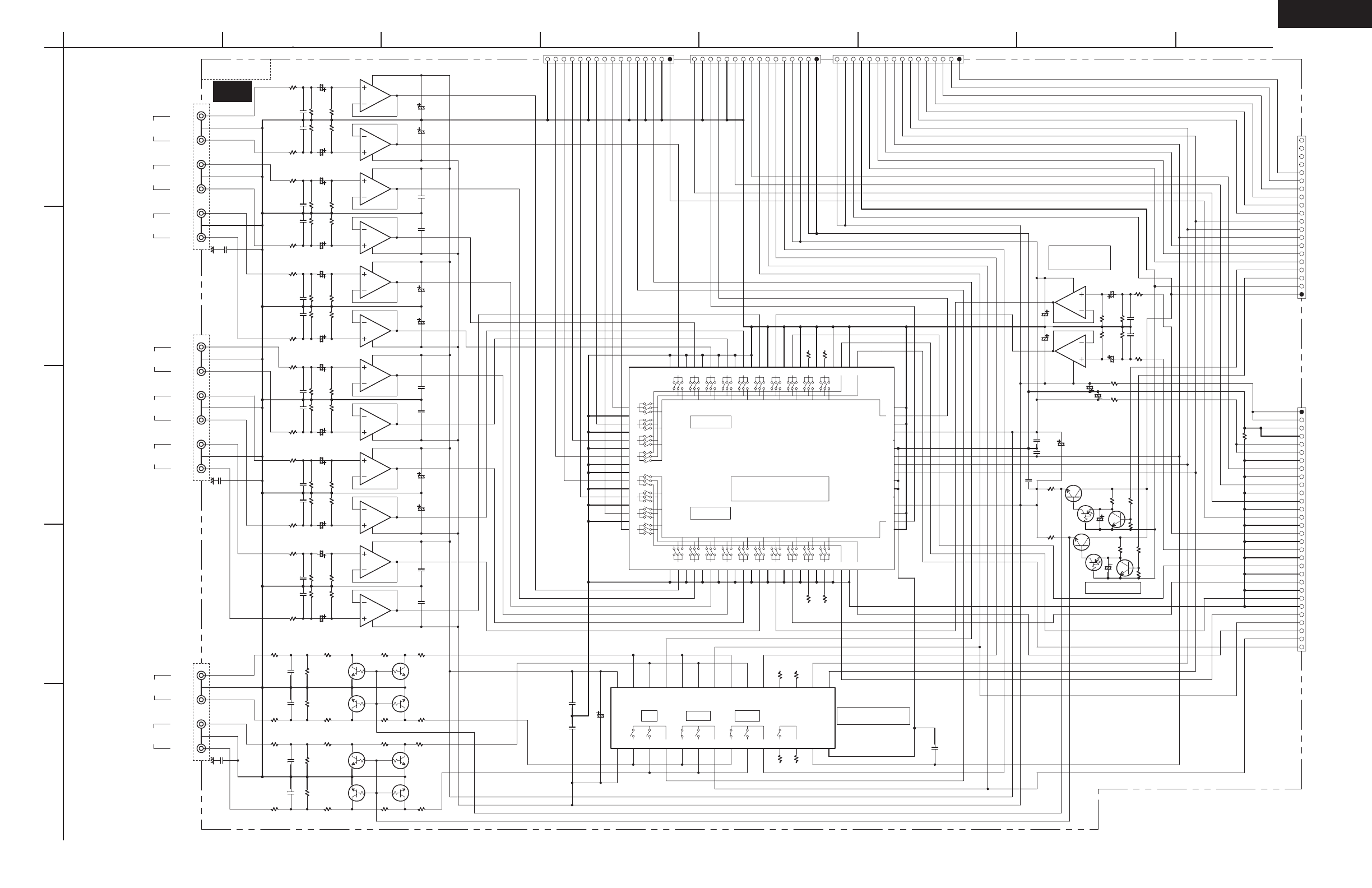

SCHEMATIC
DIAGRAM 2
AF IN 4 to 9 and
OUT 4/5
sections
Q406
5
6
4
7
Q405
5
6
4
7
Q404
5
6
4
7
Q403
5
6
4
7
Q402
5
6
4
7
Q401
5
6
4
7
Q415
5
6
4
7
Q406
MPC4570G2
38
2
1
Q405
MPC4570G2
38
2
1
Q404
MPC4570G2
38
2
1
Q403
MPC4570G2
38
2
1
Q402
MPC4570G2
38
2
1
Q401
MPC4570G2
38
2
1
Q415
MPC4570G2
3
8
2
1
C451
104Z
C436
104Z
C427
104Z
C428
104Z
C449
104Z
C450
104Z
C435
104Z
C453
104Z
C431
104Z
C432
104Z
C456
104Z
C459
104Z
C452
104Z
C455
331J
C457
331J
C461
10/16
C460 10/16
C445
47/16
C446
47/16
C423
47/6.3
RFS
C424
47/6.3
RFS
C421
47/6.3
RFS
C422
47/6.3
RFS
C419
47/6.3
RFS
C420
47/6.3
RFS
C417
47/6.3
RFS
C418
47/6.3
RFS
C415
47/6.3
RFS
C416
47/6.3
RFS
C413
22/25
RFS
C414
22/25
RFS
C426
47/16
C443
47/6.3
RFS
C444
47/6.3
RFS
C425
47/16
C429
47/16
C430
47/16
C433
47/16
C434
47/16
C454
47/35
C458
47/35
C447
220/16
C448
220/16
R481
000
R479
1K
R476
10K
R478
4.7K
R480
1K
R475
10K
R477
4.7K
R473
220K
R440
47
R448
10
R452
100
R456
220
R438
47
R446
10
R450
100
R454
220
R442
220K
R437
47
R445
10
R449
100
R453
220
R441
220K
R451
100
R455
220
R447
10
R439
47
R443
220K
R444
220K
R423
56K
R435
220K
R411
330
R424
56K
R436
220K
R412
330
R421
56K
R409
330
R422
56K
R434
220K
R410
330
R419
56K
R431
220K
R407
330
R420
56K
R432
220K
R408
330
R417
56K
R429
220K
R405
330
R418
56K
R430
220K
R406
330
R415
56K
R427
220K
R403
330
R416
56K
R428
220K
R404
330
R413
56K
R425
220K
R401
330
R414
56K
R426
220K
R402
330
R459
56K
R461
220K
R460
56K
R462
220K
R457
330
R458
330
R474
220K
R433
220K
R470 NC
R471
NC
R472
NC
R469 NC
R465 NC
R466 NC
R467 NC
R468 NC
R463
22 1W
R464
22
1W
C438
102J
C437
102J
C439
102J
C440
102J
C411
331J
C412
331J
C409
331J
C410
331J
C407
331J
C408
331J
C405
331J
C406
331J
C403
331J
C404
331J
C401
331J
C402
331J
C441
331J
C442
331J
P402 P401
Q410
RN1441
Q408
RN1441
Q409
RN1441
Q407
RN1441
Q413
RN1441
Q411
RN1441
Q414
RN1441
Q412
RN1441
LEFT ch
RIGFT ch
SELECTOR
MAIN,ZONE2,REC/ZONE3
REC/ZONE3
REC/ZONE3
ZONE2
MAIN
ZONE2
MAIN
SO14
SO13
TU
FV
AI9
AI8
AI7
AI6
AI5
AI4
AI3
AI2
AI1
NC
PH
SO14
SO13
TU
FV
AI9
AI8
AI7
AI6
AI5
AI4
AI3
AI2
AI1
PH
VDD
CS2
STB
DATA
CK
GND
CS1
VSS
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
SO1
NC
NC
Q421
TC94A46FG
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
VSS VDD
FUNC
GND CL
DATA
Q420 TC9162BF
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
P408B P407B P406B
Q419
RN2402
Q417
RN2402
Q423
2SC2712
Q422
2SC2712
Q416
2SC2712
Q418
2SC2712
P403
P3109A P3108A
Z3VOLMUT
AGND
PHR
PHL
AI1R
AI1L
AGND
AI2R
AI2L
AI3R
AI3L
AGND
RECR
AGND
RECL
AGND
VLSCRECL
VLSCRECR
AGND
RECANAL
RECANAR
AGND
Z2INR
AGND
Z2INL
Z2OL
Z2OR
Z3OL
Z3OR
+15V
+15V
BGND
BGND
-15V
-15V
MUTEB
DSPGND
REC1MUTE
REC2MUTE
REC3MUTE
ANASTB1
ANACLK
ANADATA
VZ3RSTB
VZ3LSTB
VZ2RSTB
VZ2LSTB
Z2VOLMUT
Z3VOLMUT
Z2VOLMUT
AI4L VZ2LSTB
VZ2RSTB
VZ3LSTB
VZ3RSTB
ANADATA
ANACLK
AI4R ANASTB1
REC3MUTE
REC2MUTE
Z3VOLMUT
REC1MUTE
Z2INL Z2VOLMUT
Z2INR
AI5L VZ2LSTB
VLSCRECR VZ2RSTB
VLSCRECL VZ3LSTB
DSPGND DSPGND VZ3RSTB
MUTEB MUTEB ANACLK
-15V ANADATA
BGND
AI5R ANASTB1
+15V REC3MUTE
Z3OR REC2MUTE
Z3OL REC1MUTE
Z2OR REC4MUTE
Z2OL REC5MUTE
AI6L
RECL DSPGND
RECR MUTEB
RECANAR
AI4R
RECANAL
AFVR
AI5R AGND
AI6R AI8R ATUR
AI7R MAINR
AI6R
AI8R
AI9R
AFVR
ATUR
Z2R
MAINR
Z2R
RECANAL
RECANAR
AI7L
AI9R
AI8R
AI7R
AI7L
AI6L
AI5L
AI4L
PHR
PHL
AI1R
AI1L
AGND
AI2R
AI2L
AI3R
AI3L
-15VA
-15VA
AI7R BGND
REC4MUTE
REC5MUTE
MUTEB
DSPGND
FRONTVR
FRONTVL
ANASTB1
ANADATA
ANACLK
BGND
+15VA
+15VA
ANASTB1 AGND
ANADATA
AI8L Z2INL
ANACLK AGND
Z2INR
RECANAL
Z2R
MAINR
ATUR
AFVL
RECR
RECL
Z2OL
Z2OR
Z3OL
Z3OR
+15V
-15V
AGND
-15V
VLSCRECR
AGND
AI8R VLSCRECL
AGND
FRONTVL
AGND
FRONTVR
AGND
AI9L ATUR
Z2R
MAINR
ATUR
R4MUTE
R5MUTE
AGND
ATUL
AI4L
AI5L
AI6L
AI7L
AI8L
AI9L
AFVL
ATUL
Z2L
AGND
MAINL
MAINR
AGND
AI9R Z2L MAINL
ATUL Z2OL
AFVL Z2L
RECL Z2OR
Z2OL Z2R
Z3OL
ANADATA
ANACLK
OUT4L
OUT5L
RECL
OUT4L
OUT5L
Z2OL
OUT4L
OUT5L
Z3OL
ANADATA
ANACLK
MAINL
R4MUTE
BGND
OUT4R
OUT5R
RECR
OUT4R
OUT5R
Z2OR
OUT4R
OUT5R
Z3OR
ANASTB1
ANASTB1
Z3OR
RECR
Z2OR
+15V
-15V
R4MUTE
R5MUTE
R5MUTE
TO NAAR-8166 (SCH.-7) TO NAAR-8166 (SCH.-7)
TO NAETC-8146 (SCH.-1)TO NAETC-8146 (SCH.-1)
NAAF-8145
LEFT
LEFT
RIGHT
RIGHT
RIGHT
RIGHT
RIGHT
LEFT
LEFT
LEFT
RIGHT
RIGHT
RIGHT
LEFT
LEFT
LEFT
AUDIO 4 IN
AUDIO 5 IN
AUDIO 6 IN
AUDIO 7 IN
AUDIO 8 IN
AUDIO 9 IN
AUDIO 4 OUT
AUDIO 5 OUT
REC ZONE2 ZONE3 OUTPUT SELECTOR
FRONT VIDEO
BUFFER
MUTE DRIVER
TO NAETC-8146 (SCH.-1)
RDC-7.1
A
1
2
3
4
5
BCDEFGH
U032
SLOT G

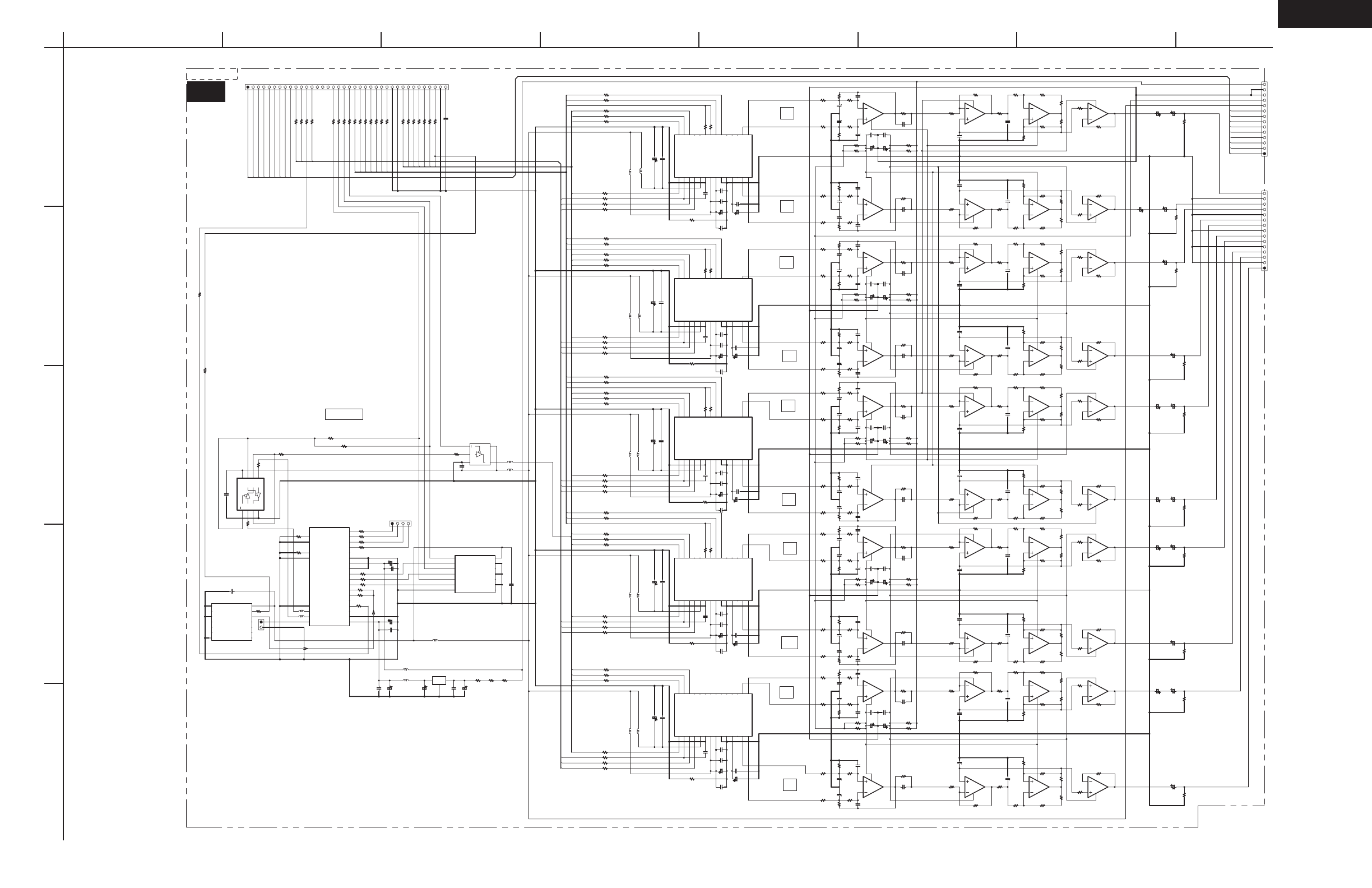

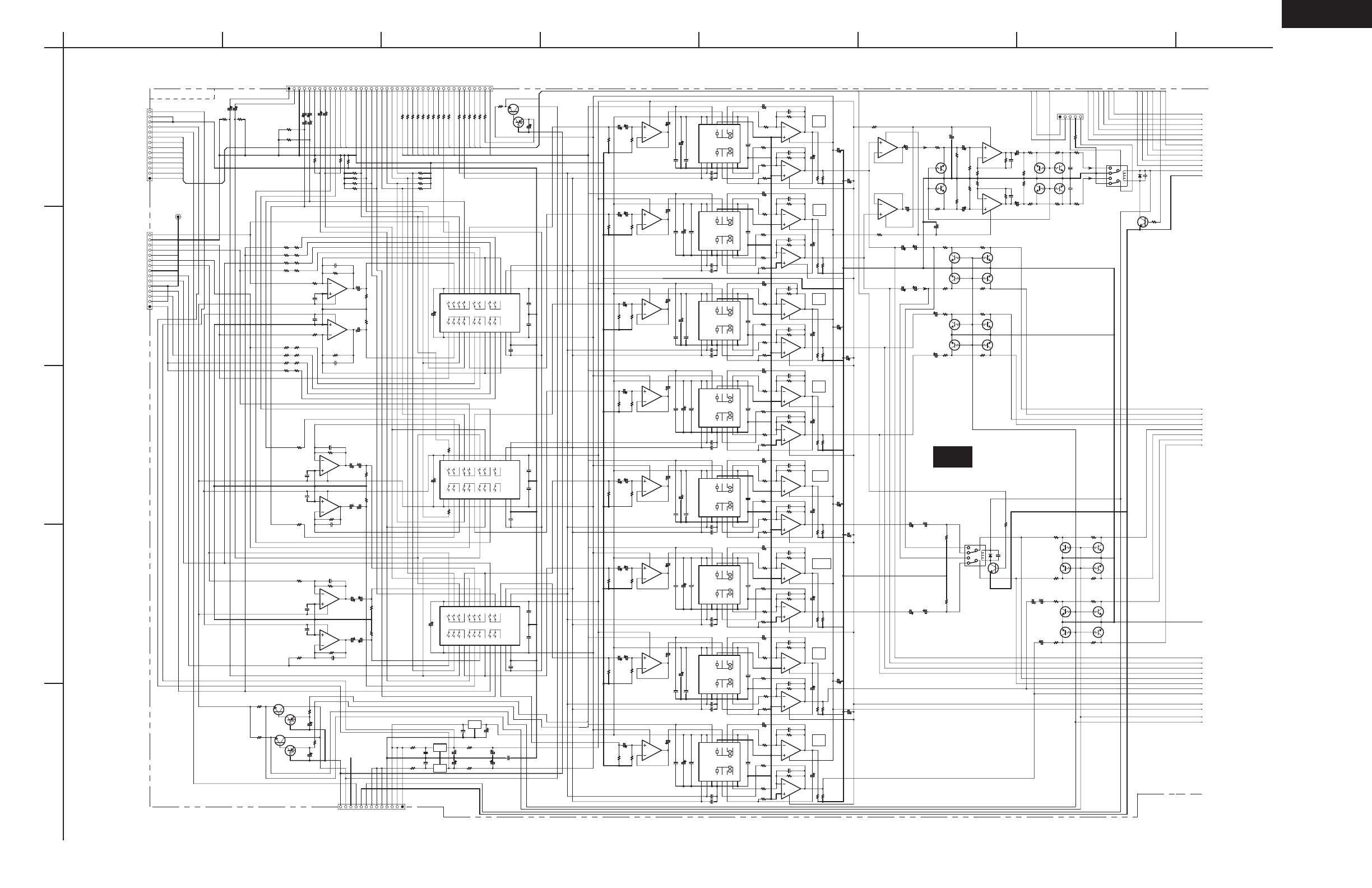

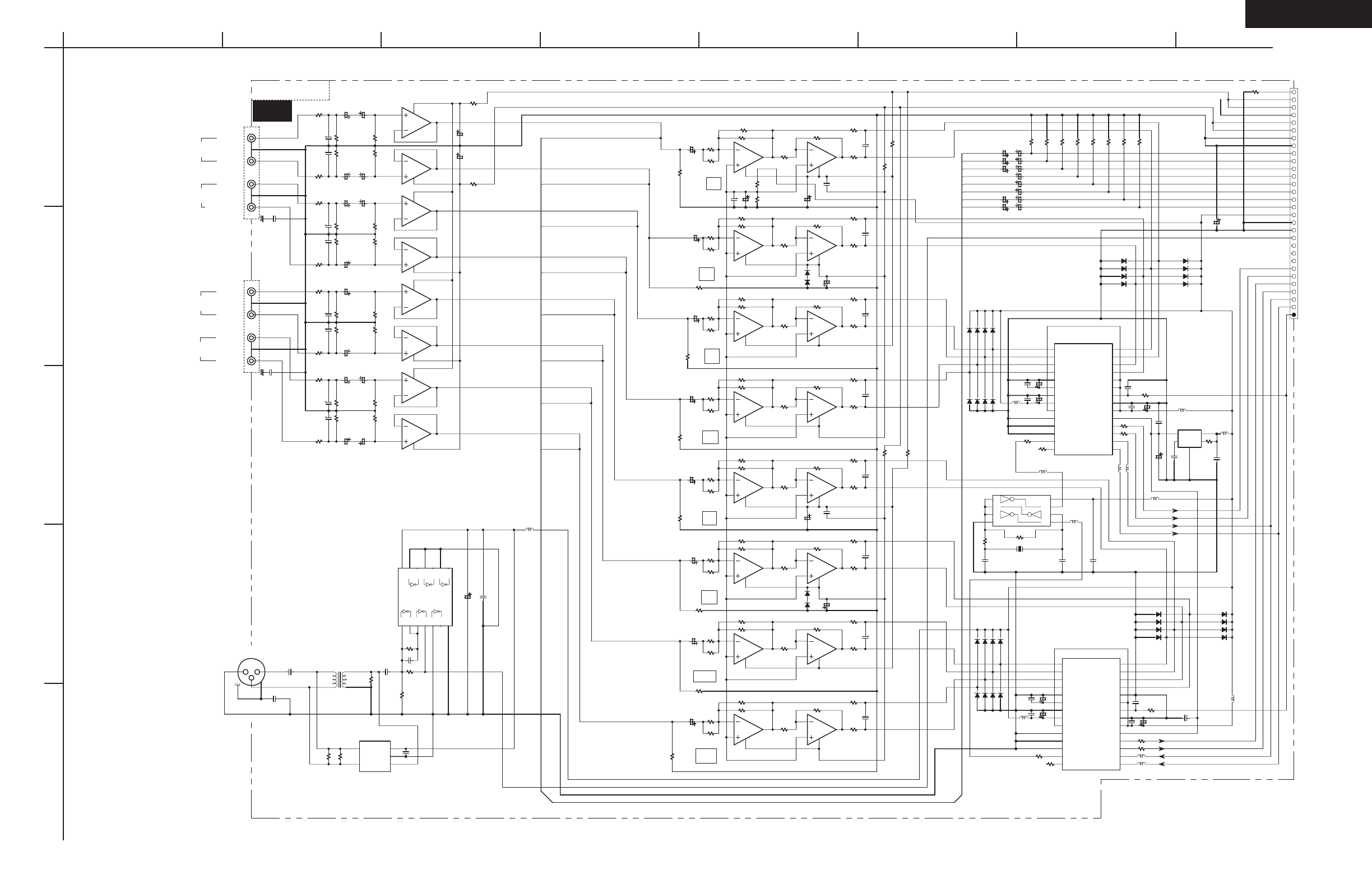

SCHEMATIC DIAGRAM 3
Multi channel section
(Except US model/
Option board:
C-MULTI)
RDC-7.1/C-AES
U05
Q1171
MAX3280EAUK-T
A
5
B
4GND 2
RO 3
VCC 1
T1001
NSRF-2046
NC
Q1170
74HCU04
1
2
3
4
5
6
78
9
10
11
12
13
14
12
3
P1405
Q1085
MPC4570G2
3
2
4
1
Q1083
MPC4570G2
3
2
4
1
Q1082
MPC4570G2
3
2
4
1
Q1080
MPC4570G2
3
2
4
1Q1081
MPC4570G2
3
2
4
1
Q1087
MPC4570G2
3
2
4
1
Q1084
MPC4570G2
3
2
4
1
Q1086
MPC4570G2
3
2
4
1
Q1120
3
2
4
1
Q1110
3
2
4
1
Q1100
3
2
4
1
Q1090
3
2
4
1
Q1086
MPC4570G2
58
6
7
Q1084
MPC4570G2
58
6
7
Q1087
MPC4570G2
58
6
7
Q1081
MPC4570G2
58
6
7
Q1082
MPC4570G2
58
6
7
Q1083
MPC4570G2
58
6
7
Q1085
MPC4570G2
58
6
7
Q1080
MPC4570G2
58
6
7
Q1120
MPC4570G2
58
6
7
Q1110
MPC4570G2
58
6
7
Q1100
MPC4570G2
58
6
7
Q1090
MPC4570G2
58
6
7
C1307
104Z
C1306 104Z
C1302
104Z
C1301
104Z
C1435
104Z
C1423
104Z
C1419 104Z
C1421
104Z
C1418
101J
C1416
104Z
C1414
104Z
C1424
104Z
C1434
104Z
C1429
104Z
C1431 104Z
C1433
101J
C1427 104Z
C1425
150J
C1426
150J
C1270
104Z
C1273 104Z
C1303
104Z
C1304
080D
C1400
104Z
C1401
104Z
C1438
100/6.3
C1422
100/6.3
C1376 47/6.3 ROB C1296 47/6.3 ROB
C1375 47/6.3 ROB C1295 47/6.3 ROB
C1372 47/6.3 ROB C1292 47/6.3 ROB
C1371 47/6.3 ROB C1291 47/6.3 ROB
C1370 47/6.3 ROB C1290 47/6.3 ROB
C1298 22/16 RFS
C1293 22/16 RFS
C1294 22/16 RFS
C1331
22/25
ROB
C1101
22/25
ROB
C1330
22/25
ROB
C1100
22/25
ROB
C1320
22/25
ROB
C1040
22/25
ROB
C1311
22/25
ROB
C1310
22/25
ROB
C1010
22/25
ROB
C1011
22/25
ROB
C1041
22/25
RFS
C1070
22/25
RFS
C1071
22/25
RFS
C1420 10/16
C1417
10/16
C1415 2.2/50
C1432
10/16
C1430
10/16
C1428 2.2/50
C1437
10/16
C1260
100/16
C1281100/16
C1247
22/16
RFS
C1243
22/16
RFS
C1263
100/16
C1284 100/16
C1246
22/16
RFS
C1245
22/16
RFS
C1241
22/16
RFS
C1242
22/16
RFS
C1240
22/16
RFS
C1244
22/16
RFS
C1305 47/16
C1021
220/16
C1020
220/16
R1420
560
R1408
1M
R1342
22
1/2W
R1343
22
1/2W
R1341
22
1/2W
R1340
22
1/2W
R1023
22
1/2W
R1022
22
1/2W
R1010
56K
R1000
330
R1011
56K
R1001
330
R1040
56K
R1030
330
R1041
56K
R1031
330
R1100
56K
R1090
330
R1101
56K
R1091
330
R1070
56K
R1060
330
R1071
56K
R1061
330
R1345
220
R1346
220
R1411 56
R1412 56
R1336
56K
R1333
56K
R1334
56K
R1335
56K
R1338
56K
R1332
56K
R1331
56K
R1330
56K
R1348
NC
R1344
10K
R1402 56
R1405
330
R1403 56
R1407
1K
R1406
NC
R1404
10K
R1415
1K
R1410
NC
R1409
330
R1450
1.2K
R1417
10K
R1251
10K
R1261
NC
R1291
4.7K
R1311
330
R1281 5.6K
R1271 56K
R1301 4.7K
R1321
330
R1252
10K
R1262
NC
R1292
4.7K
R1312
330
R1282 5.6K
R1272 56K
R1302 4.7K
R1322
330
R1257
10K
R1267
NC
R1297
4.7K
R1317
330
R1287 5.6K
R1277 56K
R1307 4.7K
R1327
330
R1253
10K
R1263
NC
R1293
4.7K
R1313
330
R1283 5.6K
R1273 56K
R1303 4.7K
R1323
330
R1254
10K
R1264
NC
R1294
4.7K
R1314
330
R1284 5.6K
R1274 56K
R1304 4.7K
R1324
330
R1255
10K
R1265
NC
R1295
4.7K
R1315
330
R1285 5.6K
R1275 56K
R1305 4.7K
R1325
330
R1256
10K
R1266
NC
R1296
4.7K
R1316
330
R1286 5.6K
R1276 56K
R1306 4.7K
R1326
330
R1250
10K
R1260
NC
R1290
4.7K
R1310
330
R1280 5.6K
R1270 56K
R1300 4.7K
R1320
330
R1416
10K
R1240
220K
R1241
220K
R1242
220K
R1247
220K
R1243
220K
R1245
220K
R1244
220K
R1246
220K
R1349
NC
R1347
220K
R1110
220K
R1111
220K
R1080
220K
R1081
220K
R1050
220K
R1051
220K
R1020
220K
R1021
220K
C1000
331J
C1001
331J
C1030
331J
C1031
331J
C1090
331J
C1091
331J
C1060
331J
C1061
331J
C1436
104J
C1251
152J
C1252
152J
C1257
152J
C1253
152J
C1254
152J
C1255
152J
C1256
152J
C1250
152J
P1401
P1400
Q1404 TC7WHU04FK
GND4
1
63
72
5
VCC
8
LRCK
BICK
SDTO2
SDTO1
TVDD
DVDD
DVSS
PDN
CKS
M/S
RIN1-
RIN1+
LIN1-
LIN1+
OVF
MCLK
TDMIN
TDM0
TDM1
DIF
AVDD
AVSS
VCOM
TEST
RIN2-
RIN2+
LIN2-
LIN2+

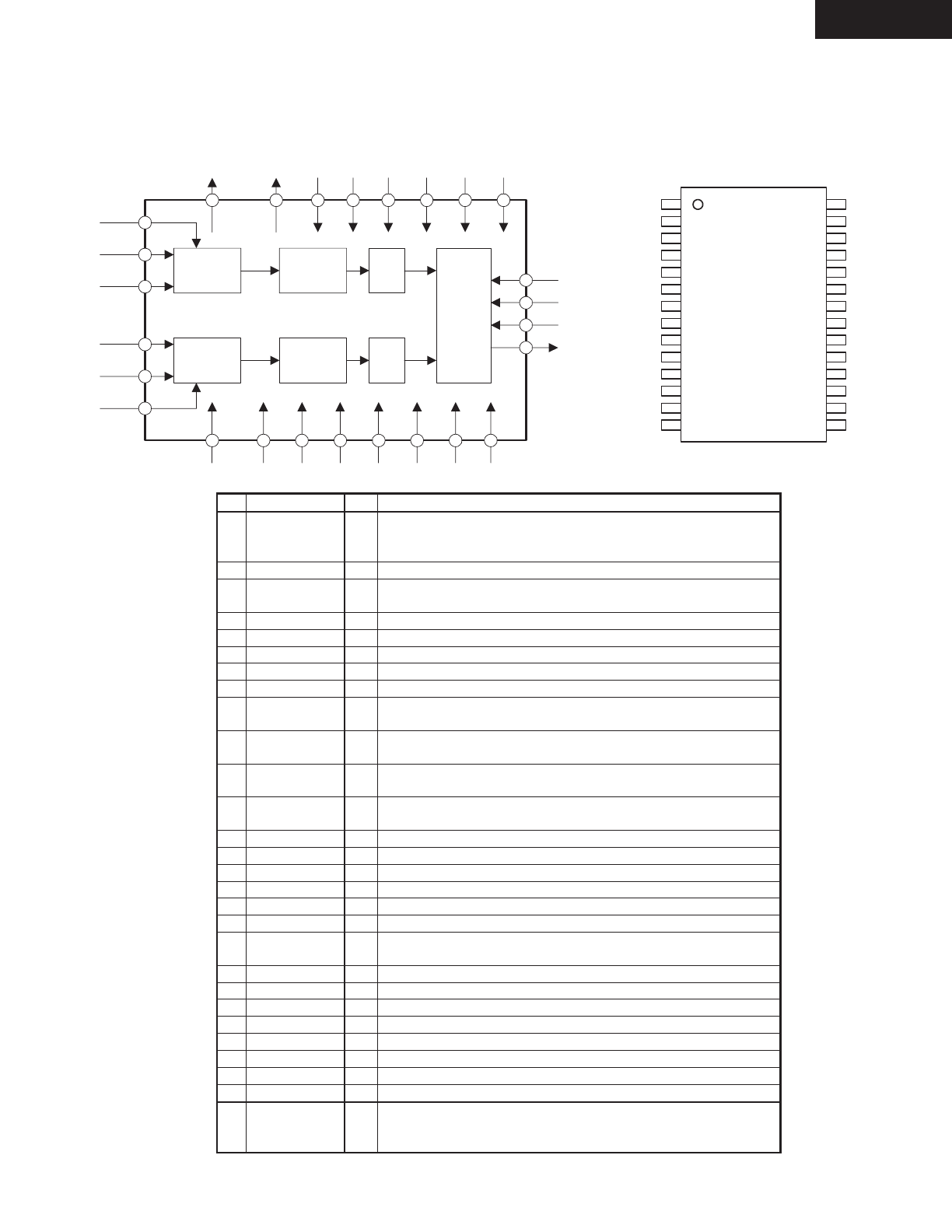

Q1402AK5384VF
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
LRCK
BICK
SDTO2
SDTO1
TVDD
DVDD
DVSS
PDN
CKS
M/S
RIN1-
RIN1+
LIN1-
LIN1+
OVF
MCLK
TDMIN
TDM0
TDM1
DIF
AVDD
AVSS
VCOM
TEST
RIN2-
RIN2+
LIN2-
LIN2+
Q1405AK5384VF
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
X1400
24.576MHZ
R1414 HS102
BK1608
R1413 HS102
BK1608
R1419 HS102
BK1608
R1418
HS102
BK1608
L1408
NCH-1471
NCH-1587
022M
L1400
NCH-1471
NCH-1587 022M
L1407
NCH-1471
022M
NCH-1587
L1403
NCH-1471
022M
NCH-1587
L1404
BK1608
LM182-T
L1406
BK1608 LM182-T
L1401
NCH-1471
022M
NCH-1587
L1402
NCH-1471
022M
NCH-1587
L1405
NCH-1471
022M
NCH-1587
Q1403
NJM2370U33
C1
GND
2
IN 5
N
3
OUT
4
D1435 NC
D1434
NC
D1433
NC
D1432
NC
D1430
D1429
D1428
D1431 D1426
D1425
D1424
D1427
D1420
D1421
D1422
D1423
D1416
D1417
D1418
D1419
D1415
D1414
D1413
D1412
D1404
D1405
D1406
D1407
D1400
D1401
D1402
D1403
D1410
D1409
D1408
D1411
P3107A TO NAAR-8166 (SCH.-7)
OP3
+15V
+15V
AGND BGND
-15V
FL- -15V
MCFL-A AGND
AGND
MCFL-A MCFL
FL+ MCFR-A MCFR
+5VDAC MCC-A MCC
MCSW-A MCSW
MCFR-A MCSL-A MCSL
MCSR-A MCSR
MCSBL-A MCSBL
MCSBR-A MCSBR
+5VDAC
FR- DACGND
MCC-A DACGND
AES
FR+
MCFDA
MCSW-A MCCSWDA
MCSDA
MCSBDA
MCBICK
MCSL-A
C+ C+ FL+
C- C- FL-
+5VDAC
MCFDA
MCCSWDA
MCSDA
MCSBDA
MCBICK
MCLRCK
ADRESET
MCSR-A SW+ SW+ FR+
SW- SW- FR-
MCSBL-A
MCSBR-A
MCLK1
SL-
SL+
MCCSWDA
MCFDA
MCBICK
MCLRCK
SR+
SR-
SBL-
SBL+
SBL+ SL+
SBL- SBL- SL-
+5VDAC
SBR+ SR+
SBR- SBR- SR-
ADRESET
SBR+
MCSDA
MCSBDA
MCLK2 MCBICK
MCLRCK
NAAF-8150
SBR
SBL
SR
SL
SW
C
FR
FL
CH
CH
CH
CH
AES/EBU IN
MULTI
MULTI
CENTER
SUBWOOFER
LEFT
FRONT
MULTI
FRONT
RIGHT
LEFT
MULTI
RIGHT
LEFT
RIGHT
SURR BACK
SURR BACK
SURROUND
SURROUND
SLOT E
A
1
2
3
4
5
BCDEFGH

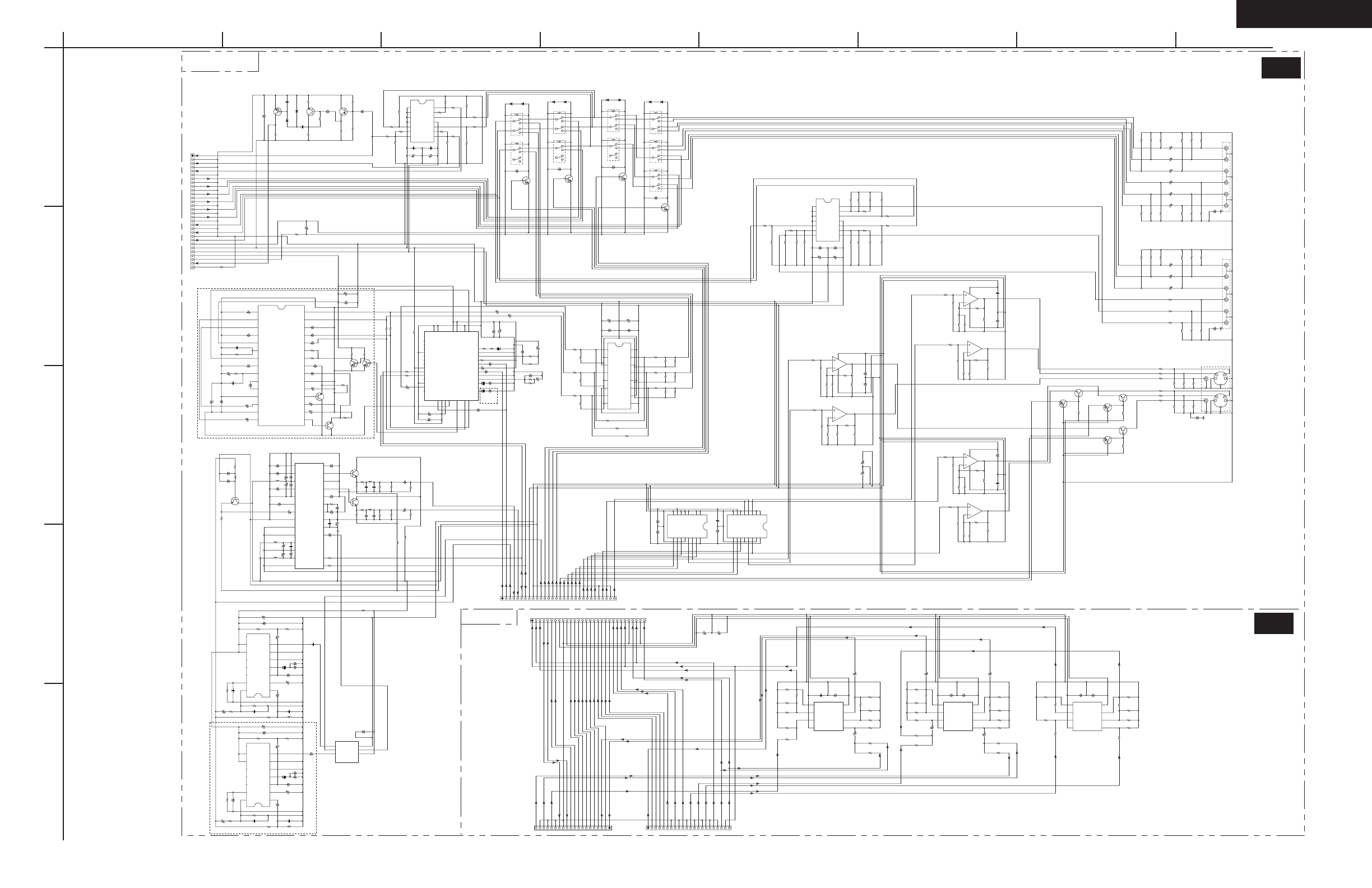

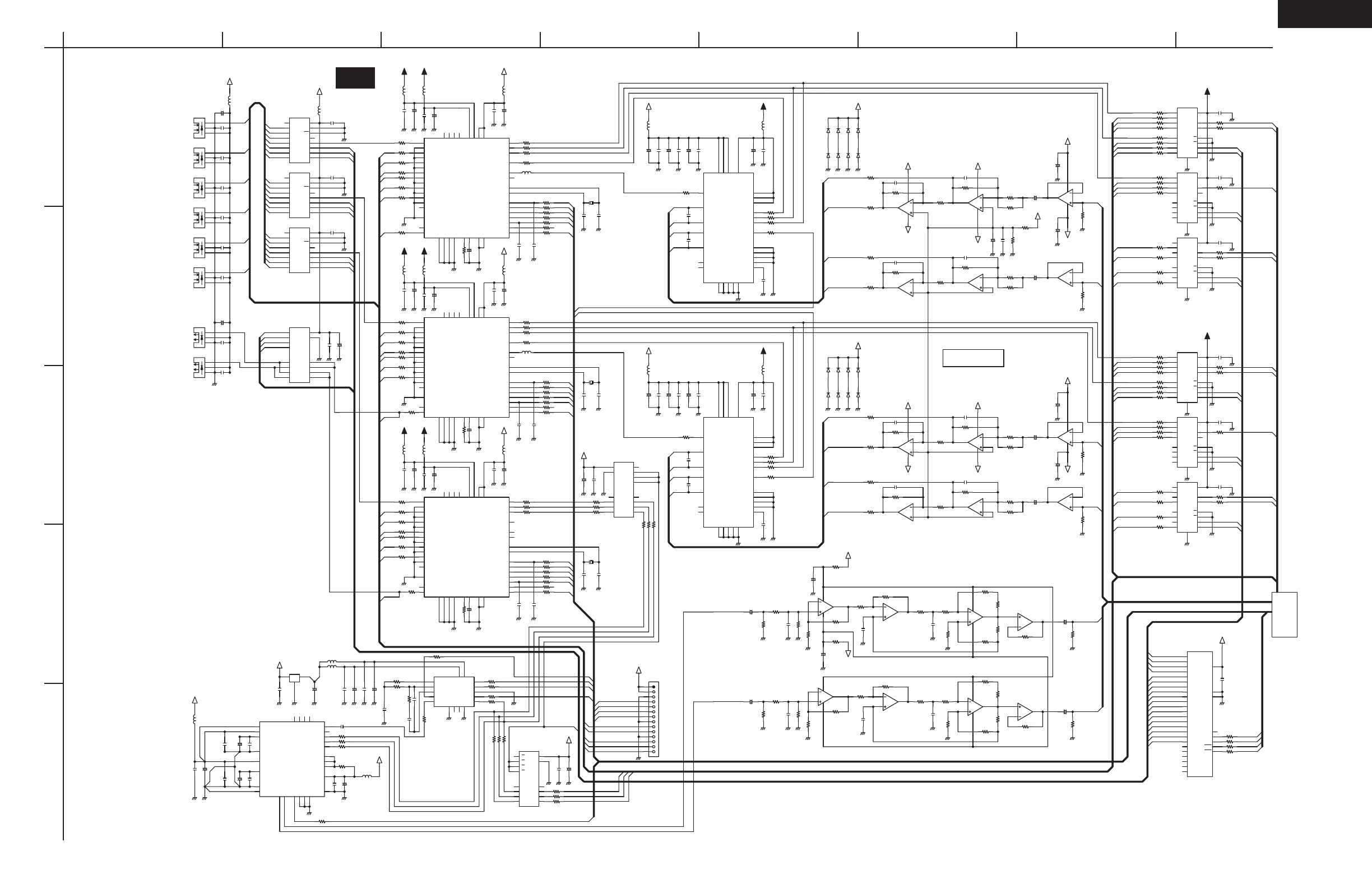

SCHEMATIC DIAGRAM 4 DAC and Second PLL sections
RDC-7.1
U07
Q4882 78M05
GI
O
P4872 P4871
P3106A
C4237
104J
C4232
104J
C4235
104J
C4233
104J
C4230
104J
C4109
471J
C4099
122J
C4107
471J
C4097
122J
C4108
471J
C4098
122J
C4102
471J
C4092
122J C4096
122J
C4106
471J
C4105
471J
C4095
122J
C4104
471J
C4094
122J
C4101
471J
C4091
122J
C4090
122J
C4100
471J
C4103
471J
C4093
122J
C4089
NC
C4029
221K
C4039
221K
C4009
681J
C4019
681J
C4087
NC
C4037
221K C4027
221K
C4017
681J
C4007
681J
C4088
NC
C4038
221K
C4028
221K
C4008
681J
C4018
681J
C4082
NC
C4032
221K C4022
221K
C4012
681J
C4002
681J
C4086
NC
C4036
221K
C4026
221K
C4006
681J
C4016
681J
C4085
NC
C4035
221K C4025
221K
C4015
681J
C4005
681J
C4084
NC
C4034
221K
C4024
221K
C4004
681J
C4014
681J
C4083
NC
C4023
221K
C4033
221K
C4013
681J
C4003
681J
C4081
NC
C4031
221KC4021
221K
C4001
681J
C4011
681J
C4080
NC
C4010
681J
C4030
221K C4020
221K
C4000
681J
L4866
BK1608
LL241
L4867
BK1608
LL241
L4003
NCH-1471 022M
L4013
NCH-1471 022M
L4005
NCH-1471 022M
L4015
NCH-1471 022M
L4002
NCH-1471 022M
L4012
NCH-1471 022M
L4007
NCH-1471 022M
L4017
NCH-1471 022M
L4870
NCH1471-022M
L4869
NCH1471-022M
L4868
NCH1471-022M
L4864
NCH1471-022M
L4863
BK1608
LM182
L4000
NCH-1471 022M
L4010
NCH-1471 022M
Q4010
MPC4570G2
3
2
-B 4
1
Q4013
MPC4570G2
3
2
-B 4
1
Q4011
MPC4570G2
3
2
-B 4
1
Q4014
MPC4570G2
3
2
-B 4
1
Q4015
MPC4570G2
3
2
-B 4
1
Q4016
MPC4570G2
3
2
-B 4
1
Q4012
MPC4570G2
3
2
-B 4
1
Q4018
MPC4570G2
3
2
-B 4
1
Q4017
MPC4570G2
3
2
-B 4
1
Q4019
MPC4570G2
3
2
-B 4
1
Q4000
MPC4570G2
3
2
-B 4
1
Q4003
MPC4570G2
3
2
-B 4
1
Q4001
MPC4570G2
3
2
-B 4
1
Q4004
MPC4570G2
3
2
-B 4
1
Q4005
MPC4570G2
3
2
-B 4
1
Q4006
MPC4570G2
3
2
-B 4
1
Q4002
MPC4570G2
3
2
-B 4
1
Q4008
MPC4570G2
3
2
-B 4
1
Q4007
MPC4570G2
3
2
-B 4
1
Q4009
MPC4570G2
3
2
-B 4
1
Q4010
MPC4570G2
5
+B
8
6
7
Q4013
MPC4570G2
5
+B
8
6
7
Q4011
MPC4570G2
5
+B
8
6
7
Q4014
MPC4570G2
5
+B
8
6
7
Q4015
MPC4570G2
5
+B
8
6
7
Q4016
MPC4570G2
5
+B
8
6
7
Q4012
MPC4570G2
5
+B
8
6
7
Q4018
MPC4570G2
5
+B
8
6
7
Q4017
MPC4570G2
5
+B
8
6
7
Q4019
MPC4570G2
5
+B
8
6
7
C4647
22/25
RFS
C4157
22/25
RFS
C4642
22/25
ROB
C4152
22/25
ROB
C4646
22/25
ROB
C4156
22/25
ROB
C4645
22/25
ROB
C4155
22/25
ROB
C4641
22/25
ROB
C4151
22/25
ROB
C4640
22/25
ROB
C4150
22/25
ROB
C4153
22/25
RFS
C4200
10/16
C4160 10/16
C4163 10/16
C4203
10/16
C4165 10/16
C4205
10/16
C4202
10/16
C4162 10/16
C4207
10/16
C4167 10/16
C4220
10/16
C4223
10/16
C4225
10/16
C4222
10/16
C4227
10/16
C4070
47/16
C4050
47/16
C4073
47/16
C4053
47/16
C4075
47/16
C4055
47/16
C4072
47/16
C4052
47/16
C4077
47/16
C4057
47/16
C4872
47/16
C4874 47/16
C4878
10/16
C4880
47/16
C4877
47/16
C4154
22/25
RFS
C4158
22/25
RFS
C4159
22/25
RFS
C4697
NC
C4692
NC
C4695
NC
C4693
NC
C4690
NC
C4860
104Z
C4180
NC
C4190
104Z
C4170 104Z
C4173 104Z
C4183
NC
C4193
104Z
C4175 104Z
C4185
NC
C4195
104Z
C4182
NC
C4192
104Z
C4172 104Z
C4187
NC
C4197
104Z
C4177 104Z
C4210
104Z
C4213
104Z
C4215
104Z
C4212
104Z
C4217
104Z
C4060
104Z
C4040
104Z
C4063
104Z
C4043
104Z
C4065
104Z
C4045
104Z
C4062
104Z
C4042
104Z
C4067
104Z
C4047
104Z
C4879
104Z
C4876
104Z
L4865
330
R4962 NC
R4282 47 R4285 47
R4965 NC
R4283 47
R4963 NC
R4280 47
R4960 NC
R4271 47
R4891
0
R4886
0
R4916
15
1W
R4915
15
1W
R4914
15
1W
R4898
0
R4885
0
R4862 47
R4230
1K
R4260
1K
R4150
22K
R4180
1.5K R4170
1.5K
R4160
22K
R4130
22K
R4120
1.5K
R4110
10K
R4140
22K
R4263
1K
R4153 22K
R4183
1.5K
R4173
1.5K
R4163
22K
R4133
22K
R4123
1.5K
R4113
10K
R4233
1K
R4143
22K
R4261
1K
R4231
1K
R4151 22K
R4181
1.5K
R4171
1.5K
R4141
22K
R4161
22K
R4131
22K
R4121
1.5K
R4111
10K
R4264
1K
R4234
1K
R4154
22K
R4184
1.5K
R4174
1.5K
R4144
22K
R4164
22K
R4134
22K
R4124
1.5K
R4114
10K
R4265
1K
R4155 22K
R4185
1.5K
R4175
1.5K
R4165
22K
R4135
22K
R4125
1.5K
R4115
10K
R4235
1K
R4145
22K
R4266
1K
R4236
1K
R4156
22K
R4186
1.5K
R4176
1.5K
R4146
22K
R4166
22K
R4136
22K
R4126
1.5K
R4116
10K
R4262
1K
R4152 22K
R4182
1.5K
R4172
1.5K
R4162
22K
R4132
22K
R4122
1.5K
R4112
10K
R4232
1K
R4142
22K
R4268
1K
R4238
1K
R4158
22K
R4188
1.5K
R4178
1.5K
R4148
22K
R4168
22K
R4138
22K
R4128
1.5K
R4118
10K
R4267
1K
R4157
22K
R4187
1.5K
R4177
1.5K
R4167
22K
R4137
22K
R4127
1.5K
R4117
10K
R4237
1K
R4147
22K
R4269
1K
R4239
1K
R4159
22K
R4189
1.5K
R4179
1.5K
R4149
22K
R4169
22K
R4139
22K
R4129
1.5K
R4119
10K
R4100
1.8K
R4103
1.8K
R4101
1.8K
R4104
1.8K
R4105
1.8K
R4106
1.8K
R4102
1.8K
R4108
1.8K
R4107
1.8K
R4109
1.8K
R4243
56K
R4241
56K
R4275 47
R4276 47
R4270 47
R4947
0
R4948
0
R4945
0
R4946
0
R4944
0
R4290 330
R4300 330
R4310 330
R4320 330
R4330 330
R4340 330
R4350 330
R4293 330
R4303 330
R4313 330
R4323 330
R4333 330
R4343 330
R4353 330
R4273 47
R4274 47
R4295 330
R4305 330
R4315 330
R4325 330
R4335 330
R4345 330
R4355 330
R4292 330
R4302 330
R4312 330
R4322 330
R4332 330
R4342 330
R4352 330
R4272 47
R4278 47
R4297 330
R4307 330
R4317 330
R4327 330
R4337 330
R4347 330
R4357 330
R4861 47
R4860 47
R4883 47
R4884 47
R4882 47
R4881 47
R4880 47
R4879 47
R4878 47
R4877 47
R4876 47
R4875 47
R4874 47
R4873 47
R4872 47
R4871 47
R4870 47
R4863 47
R4867 47
R4868 47
R4869 47
R4010
2.7K
R4090
8.2K
R4030
2.7K
R4000
2.7K
R4250
5.6K
R4040
2.7K
R4050 22
R4060 22
R4020
5.6K
R4070 22
R4080 22
R4013
2.7K
R4093
8.2K
R4033
2.7K
R4043
2.7K
R4003
2.7K
R4253
5.6K
R4053 22
R4063 22
R4023
5.6K
R4073 22
R4083 22
R4091
8.2K
R4031
2.7K
R4041
2.7K
R4251
5.6K
R4001
2.7K
R4011
2.7K
R4021
5.6K
R4094
8.2K
R4034
2.7K
R4044
2.7K
R4254
5.6K
R4004
2.7K
R4014
2.7K
R4024
5.6K
R4015
2.7K
R4095
8.2K
R4035
2.7K
R4045
2.7K
R4005
2.7K
R4255
5.6K
R4055 22
R4065 22
R4025
5.6K
R4075 22
R4085 22
R4096
8.2K
R4036
2.7K
R4046
2.7K
R4256
5.6K
R4006
2.7K
R4016
2.7K
R4026
5.6K
R4012
2.7K
R4092
8.2K
R4032
2.7K
R4042
2.7K
R4002
2.7K
R4252
5.6K
R4052 22
R4062 22
R4022
5.6K
R4072 22
R4082 22
R4098
8.2K
R4038
2.7K
R4048
2.7K
R4258
5.6K
R4008
2.7K
R4018
2.7K
R4028
5.6K
R4017
2.7K
R4097
8.2K
R4037
2.7K
R4047
2.7K
R4007
2.7K
R4257
5.6K
R4057 22
R4067 22
R4027
5.6K
R4077 22
R4087 22
R4099
8.2K
R4039
2.7K
R4049
2.7K
R4259
5.6K
R4009
2.7K
R4019
2.7K
R4029
5.6K
R4892
0
R4901
0
R4913
47
R4905 NC
R4906 NC
R4912
330
R4911
27K
R4907 NC
R4908 330
R4909 330
R4910 330
R4902
100K
R4903
4.7K
R4904 NC
R4900 47
R4899
0
R4240
56K
R4244
56K
R4245
56K
R4246
56K
R4242
56K
R4248
56K
R4247
56K
R4249
56K
Q4000
MPC4570G2
5
+B
8
6
7
Q4003
MPC4570G2
5
+B
8
6
7
Q4001
MPC4570G2
5
+B
8
6
7
Q4004
MPC4570G2
5
+B
8
6
7
Q4005
MPC4570G2
5
+B
8
6
7
Q4006
MPC4570G2
5
+B
8
6
7
Q4002
MPC4570G2
5
+B
8
6
7
Q4008
MPC4570G2
5
+B
8
6
7
Q4007
MPC4570G2
5
+B
8
6
7
Q4009
MPC4570G2
5
+B
8
6
7

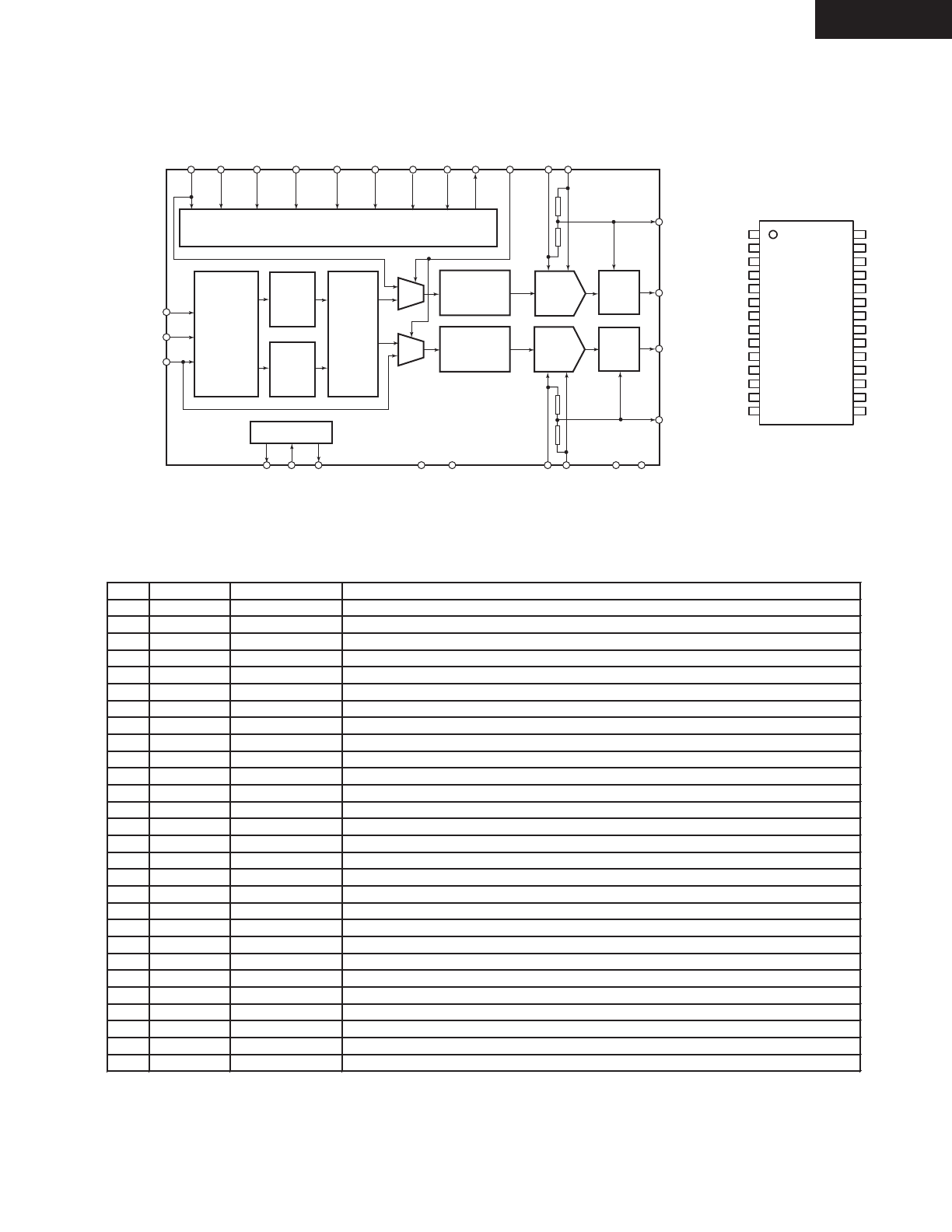

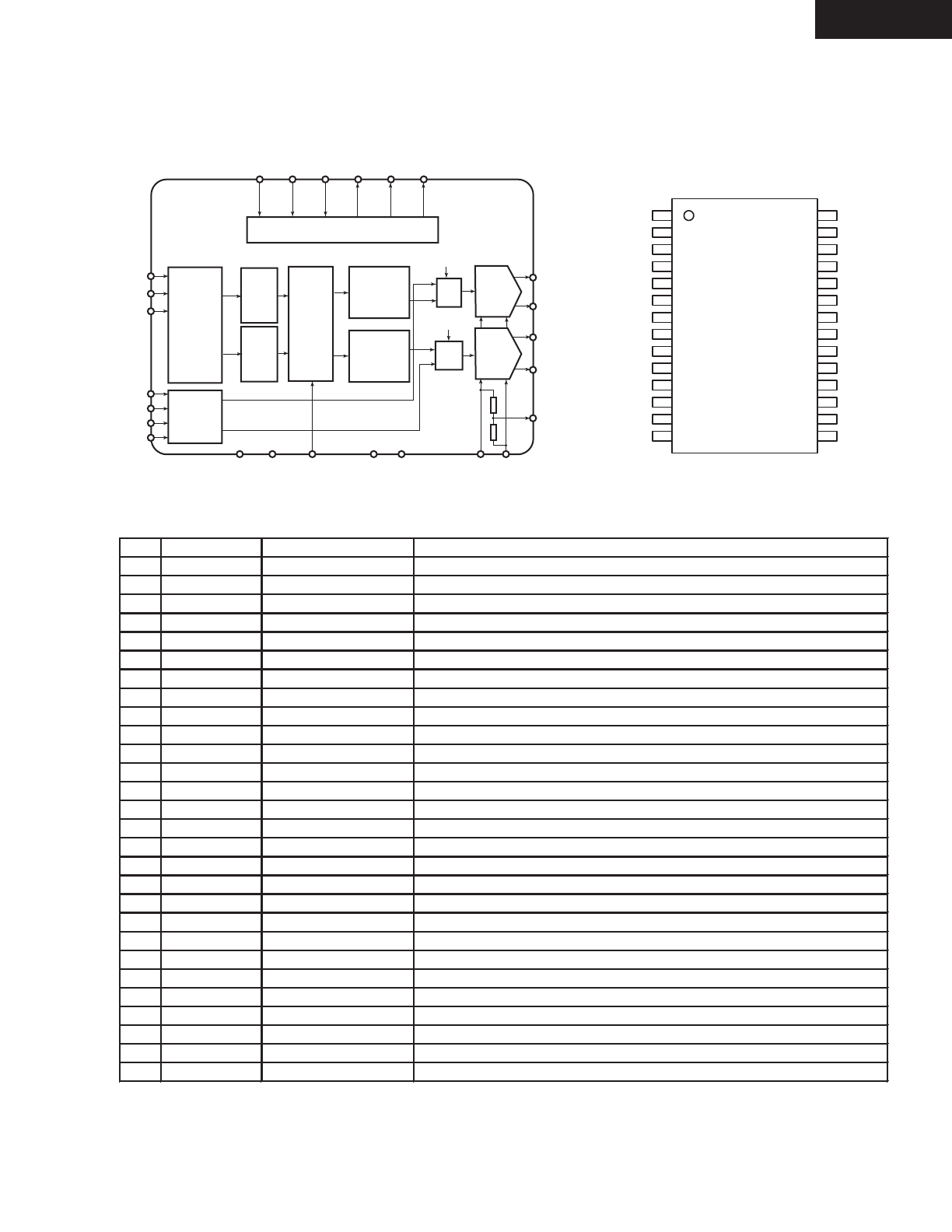

Q4020 WM8719
AVDD7
AVSS10
BCLK 27
DIN 28
DSDCLK128 23
DSDCLK64 22
DSDL 21
DSDR 20
DVDD5
DVSS6
LATCH2
LRCLK1
MCLK 26
NC1 18
NC2 19
NC3 24
SCLK3
SDIN
4 SDOUT 25
VMID11
VOUTLN 16
VOUTLP 15
VOUTRN13
VOUTRP14
VREFN9
VREFP
8
ZEROFL 17ZEROFR12
Q4023 WM8719
AVDD7
AVSS10
BCLK 27
DIN 28
DSDCLK128 23
DSDCLK64 22
DSDL 21
DSDR 20
DVDD5
DVSS6
LATCH2
LRCLK1
MCLK 26
NC1 18
NC2 19
NC3 24
SCLK3
SDIN
4 SDOUT 25
VMID11
VOUTLN 16
VOUTLP 15
VOUTRN13
VOUTRP14
VREFN9
VREFP
8
ZEROFL 17ZEROFR12
Q4025 WM8719
AVDD7
AVSS10
BCLK 27
DIN 28
DSDCLK128 23
DSDCLK64 22
DSDL 21
DSDR 20
DVDD5
DVSS6
LATCH2
LRCLK1
MCLK 26
NC1 18
NC2 19
NC3 24
SCLK3
SDIN
4 SDOUT 25
VMID11
VOUTLN 16
VOUTLP 15
VOUTRN13
VOUTRP14
VREFN9
VREFP
8
ZEROFL 17ZEROFR12
Q4022 WM8719
AVDD7
AVSS10
BCLK 27
DIN 28
DSDCLK128 23
DSDCLK64 22
DSDL 21
DSDR 20
DVDD5
DVSS6
LATCH2
LRCLK1
MCLK 26
NC1 18
NC2 19
NC3 24
SCLK3
SDIN
4 SDOUT 25
VMID11
VOUTLN 16
VOUTLP 15
VOUTRN13
VOUTRP14
VREFN9
VREFP
8
ZEROFL 17ZEROFR12
Q4027 WM8719
AVDD7
AVSS10
BCLK 27
DIN 28
DSDCLK128 23
DSDCLK64 22
DSDL 21
DSDR 20
DVDD5
DVSS6
LATCH2
LRCLK1
MCLK 26
NC1 18
NC2 19
NC3 24
SCLK3
SDIN
4 SDOUT 25
VMID11
VOUTLN 16
VOUTLP 15
VOUTRN13
VOUTRP14
VREFN9
VREFP
8
ZEROFL 17ZEROFR12

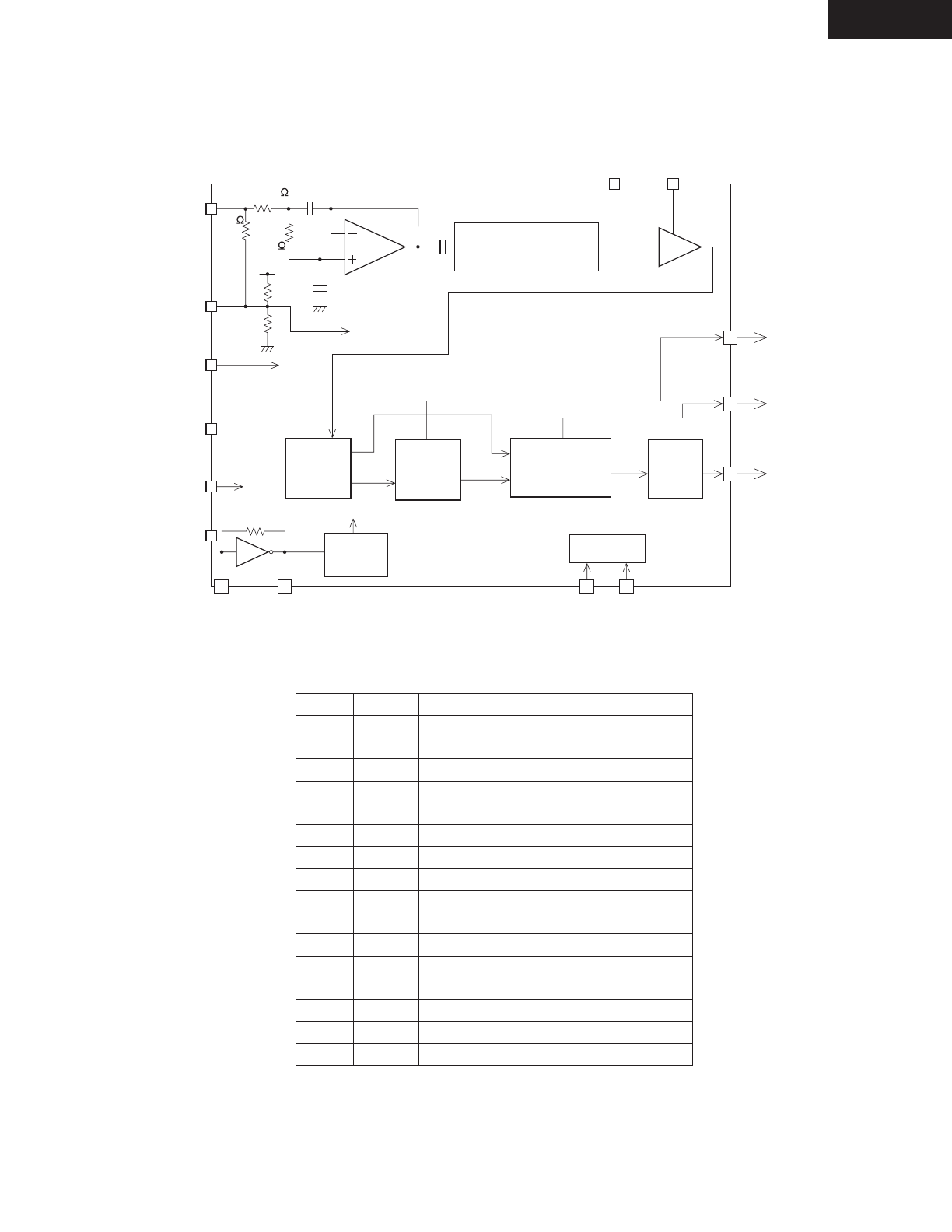

Q4864
CC1536
+12VOUT 32
+16VF 30
+5VD 19
+5VVCO
1
05FS8
128/192
16
128FSB
13
1FS
9
256/384
17
256FSB
14
2FS
10
32FS
11
512/768
18
64FS
12
CLOCKON21
FS0 26
FS1 27
FS2 28
FS47
FSXOUT 23
GNDD1
3
GNDD2
15
GNDD3 20
GNDD4 31
KEY5
LOCKOK 22
O/E 29
PHSADJ2
PROGTCK34
PROGTDI 36
PROGTDO33
PROGTMS35
VCOCTL4
WCINV6
WC_IN 24
WC_INN 25
C4871 104Z
C4869 104Z
C4873
104Z
C4875
104Z
C4881
104Z
C4870 104Z
Q4865
74HCT7007A
1A1
1Y
2
2A
3
2Y
4
3A
5
3Y
64A 9
4Y 8
5A 11
5Y10
6A 13
6Y 12
GND
7
VCC 14
Q4866
74HCT7007A
1A1
1Y
2
2A
3
2Y
4
3A
5
3Y
64A 9
4Y 8
5A 11
5Y10
6A 13
6Y 12
GND
7
VCC 14
P4861
P4862
NC
Q4862
TC7WH241FU
A1
2
A2 5
G7
GND
4
VCC 8
Y1 6
Y2
3
G
1
Q4863
TC7SZ125FU
A
2
GND
3
VCC
5
Y
4
G
1
+15V +15V
DSD_FR-A BGND
FRSPA
FRSPB
CSPA
CSPB
SRSPA
SRSPB
SBSPB
SWRLA
SWRLB
DIGCLK
DIGOUT
APGLOCK
DACCMCS
FS0
FS1
FS2
DSDPCM
DSD_BCK
DSD_FL
DSD_FR
DSD_C
DSD_SW
DSD_SL
DSD_SR
DACGND
DACGND
DSPLCWDA
DSPRCWDA
DSPSBDA
DSPSDA
DSPFDA
DSPBICK
DSPLRCK
DACGND
AGND1
DSD_FL-A -15V
DSD_BCK-A
BGND
+5VDAC
DSPMCLK FRSPA
DSPBICK-A FRSPB
DSPFDA-A CSPA
DACGND CSPB
+5VDAC SRSPA
SRSPB
SBSPB
DIGCLK-A
DIGOUT-A
APGLOCK-A
DACCMCS-A
FS0-A
FS1-A
FS2-A
DSDPCM-A
DSD_BCK-A
DSD_FL-A
DSD_FR-A
DSD_C-A
DSD_SW-A
DSD_SL-A
DSD_SR-A
DSPLCWDA-A
DSPRCWDA-A
DSPSBDA-A
DSPSDA-A
DSPFDA-A
DSPBICK-A
DSPLRCK-A
SWRLA
SWRLB
AGND
DSPLRCK-A FLDAOUT
DACCMCS-A AGND
DIGCLK-A FRDAOUT
DIGOUT-A SLDAOUT
AGND
SRDAOUT
SBLDAOUT
AGND
SBRDAOUT
DSD_SR-A
DSPLRCK-A
LCDAOUT
DSD_SL-A AGND
DSD_BCK-A LSWDAOUT
DSPMCLK RCDAOUT
DSPBICK-A AGND
DSPSDA-A RSWDAOUT
DSPLRCK-A
DACCMCS-A
DIGCLK-A
DIGOUT-A
DSD_FR-A
DSD_FL-A
DSD_BCK-A
DSPMCLK
DSPBICK-A
DSPSBDA-A
DSDPCM-A
DSPMCLK
DSPLRCK-A
DACCMCS-A
DIGCLK-A
DIGOUT-A
DSD_SW-A
DSD_C-A
DSD_BCK-A
TDI1 DSPMCLK
TMS DSPBICK-A
TDO1 DSPLCWDA-A
TCK
FS2-A
FS1-A
FS0-A
WC_IN
DSPLRCK-A
DACCMCS-A
DIGCLK-A
DIGOUT-A
+5VDAC
DACGND
+15V DSPMCLK
DSPBICK-A
DSPRCWDA-A
DSPLRCK-A
DACCMCS-A
DIGCLK-A
DIGOUT-A
RSWDAOUT
TO NAAF-8156 (SCH.-5) TO NAAF-8156 (SCH.-5)
TO NAAR-8166 (SCH.-7)
NADG-8154
2'nd PLL
RSW
RC
LSW
LC
SBR
SBL
SR
SL
FR
FL
A
1
2
3
4
5
BCDEFGH

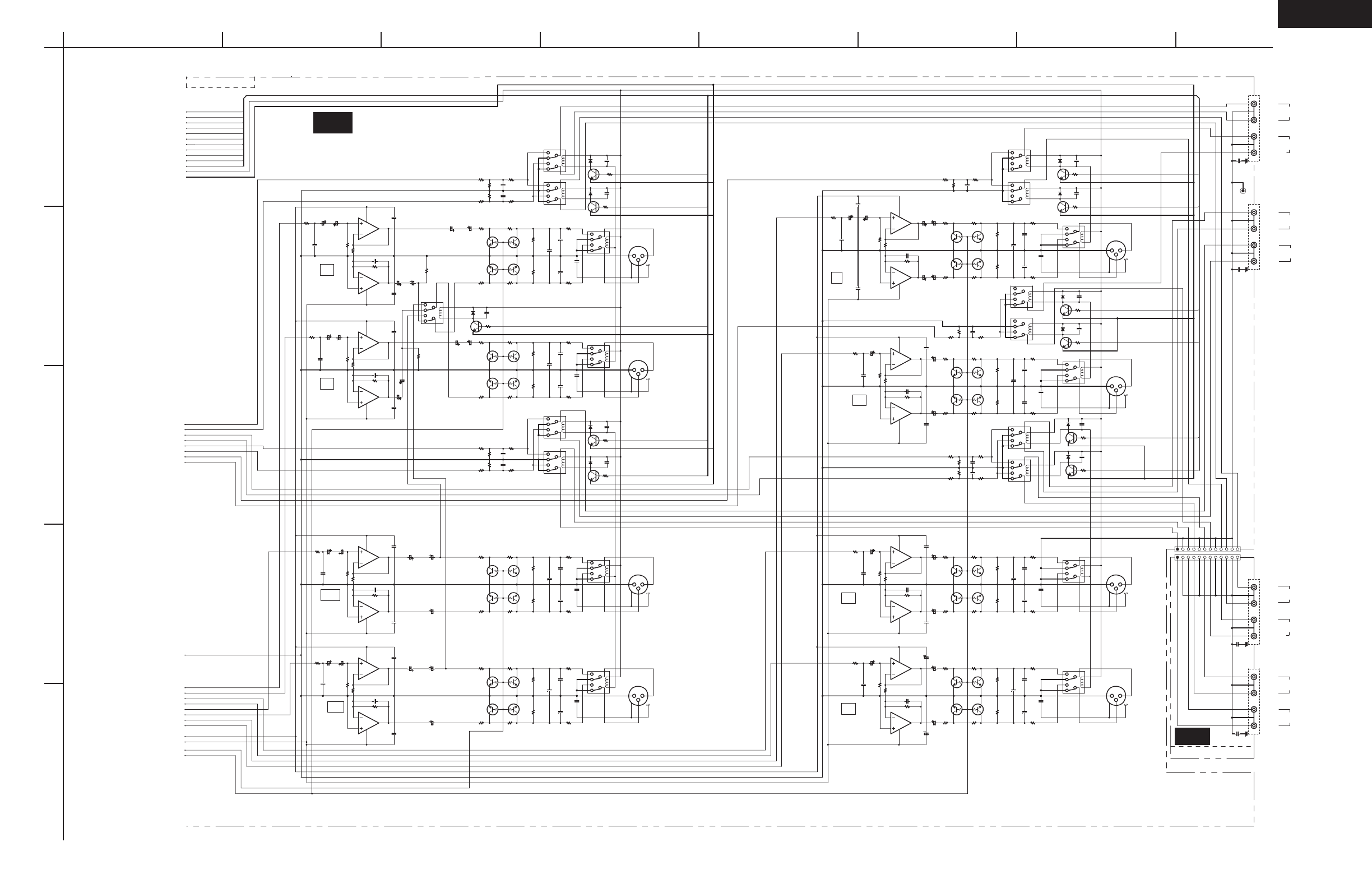

SCHEMATIC DIAGRAM 5 Preamplifier section
RDC-7.1
A
1
2
3
4
5
BCDEFGH
U08
J4801E
P7506
TO NAETC-8214
(SCH.-14)
P4872A P4871A
RL4868
RL4860
P4864
TO NAPS-8195 (SCH.-11)
Q4868
RN2402
Q4875
RN2402
Q4873
RN2402
Q4877
79M15
G
IO
P3105A
TO NAAR-8166 (SCH.-7)
Q4876
78M15
G
IO
Q4033
MPC4570G2
5
6
4
7
Q4035
MPC4570G2
3
2
4
1
Q4081
5
6
4
7
Q4080
NJM4565M-D
3
2
4
1
Q4032
MPC4570G2
5
6
4
7
Q4030
MPC4570G2
3
2
4
1
Q4150
MPC4570G2
3
2
4
1
Q4140
MPC4570G2
3
2
4
1
Q4050
MPC4570G2
3
2
4
1
Q4051
MPC4570G2
3
2
4
1
Q4053
MPC4570G2
3
2
4
1
Q4054
MPC4570G2
3
2
4
1
Q4055
MPC4570G2
3
2
4
1
Q4056
MPC4570G2
3
2
4
1
Q4052
MPC4570G2
3
2
4
1
Q4057
MPC4570G2
3
2
4
1
Q4130
MPC4570G2
3
2
4
1
Q4033
MPC4570G2
38
2
1
Q4030
MPC4570G2
58
6
7
Q4080
NJM4565M-D
58
6
7
Q4081
NJM4565M-D
38
2
1
Q4035
MPC4570G2
58
6
7
Q4150
MPC4570G2
58
6
7
Q4140
MPC4570G2
58
6
7
Q4050
MPC4570G2
58
6
7
Q4051
MPC4570G2
58
6
7
Q4053
MPC4570G2
58
6
7
Q4054
MPC4570G2
58
6
7
Q4055
MPC4570G2
58
6
7
Q4056
MPC4570G2
58
6
7
Q4032
MPC4570G2
38
2
1
Q4052
MPC4570G2
58
6
7
Q4057
MPC4570G2
58
6
7
Q4130
MPC4570G2
58
6
7
C4420
224J
C4290
224J
C4291 224J
C4421
224J
C4423
224J
C4293 224J
C4294 224J
C4424
224J
C4425
224J
C4295 224J
C4296 224J
C4426
224J
C4422
224J
C4292
224J
C4297 224J
C4427
224J
AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD

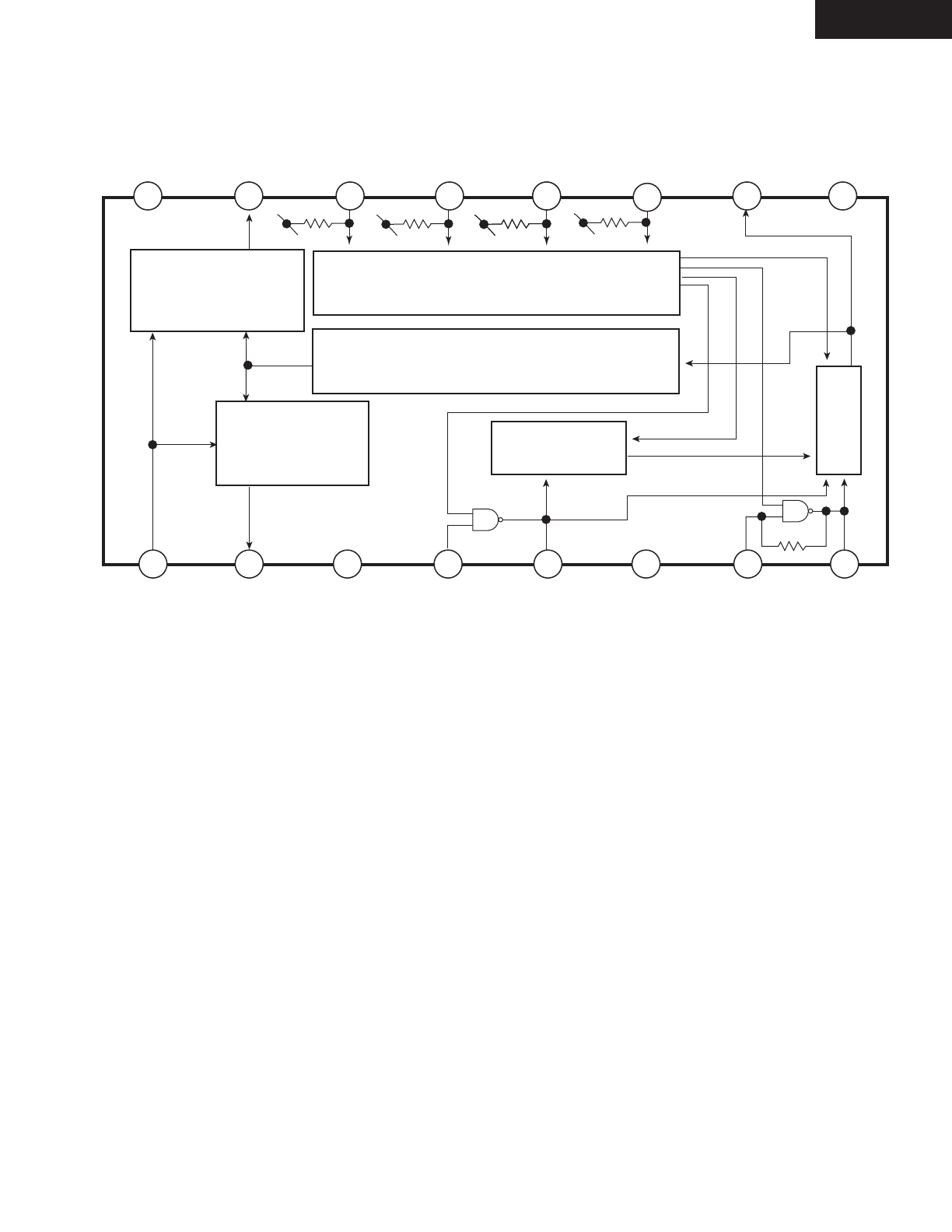

Q4040WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q4041WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q4043WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q4044WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q4045WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q4046WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q4042WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16AGND
DGND
DATA
CCLK
MUTEB
DVDD
CSB
AVDD
Q4047WM8816
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
Q4878 78L05
G
IO
CL
DATA
GND
FUNC
VSS VDD

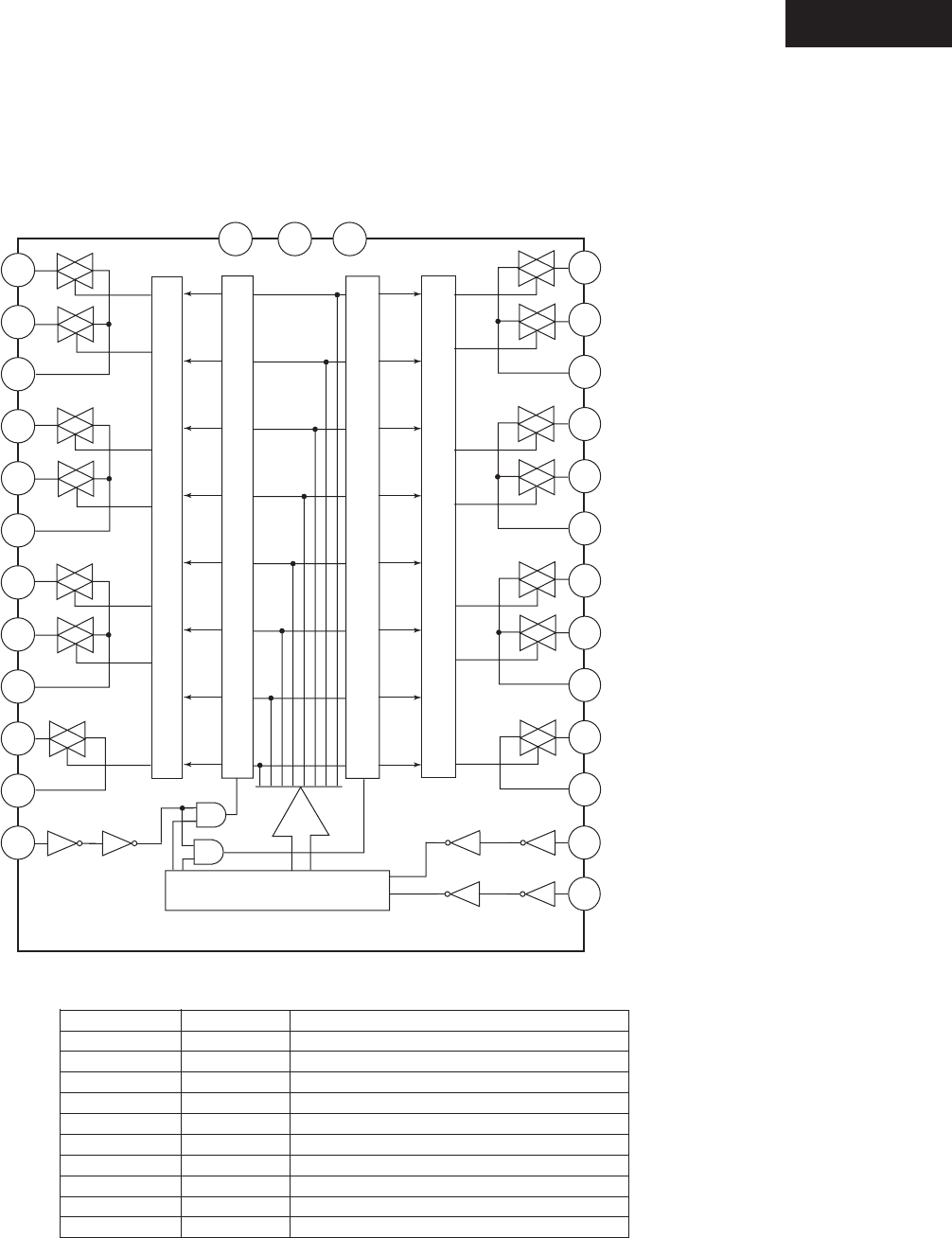

Q4870 TC9162BF
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
CL
DATA
GND
FUNC
VSS VDD
Q4871 TC9163BF
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
CL
DATA
GND
FUNC
VSS VDD
Q4869 TC9164BF
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
Q4160
2SC2712
Q4881
2SC2712
Q4867
2SC2712
Q4872
2SC2712
Q4874
2SC2712
Q4062
RN1441
Q4067
RN1441
Q4072
RN1441
Q4077
RN1441
Q4065
RN1441
Q4066
RN1441
Q4075
RN1441
Q4076
RN1441
Q4090
RN1441
Q4091
RN1441 Q4111
RN1441
Q4110
RN1441
Q4100
RN1441
Q4101
RN1441
Q4060
RN1441
Q4061
RN1441
Q4070
RN1441
Q4071
RN1441
Q4063
RN1441
Q4064
RN1441
Q4073
RN1441
Q4074
RN1441
D4869
D4861
C4887
47/35
C4401
22/25
ROB
C4400
22/25
ROB
C4660
22/25
ROB
C4661
22/25
ROB
C4666
22/25
ROB
C4406
22/25
ROB
C4665
22/25
ROB
C4405
22/25
ROB
C4407
22/25
RFS
C4402
22/25
ROB
C4662
22/25
ROB
C4701
47/6.3
ROB
C4631
47/6.3
ROB
C4700
47/6.3
ROB
C4630
47/6.3
ROB
C4691
47/6.3
ROB
C4601
47/6.3
ROB
C4690
47/6.3
ROB
C4600
47/6.3
ROB
C4681
22/25
ROB
C4531
22/25
ROB
C4680
22/25
ROB
C4530
22/25
ROB
C4656
22/25
ROB
C4256
22/25
ROB
C4655
22/25
ROB
C4255
22/25
ROB
C4652
22/25
ROB
C4252
22/25
ROB
C4651
22/25
ROB
C4251
22/25
ROB
C4650
22/25
ROB
C4250
22/25
ROB
C4430
10/16
C4450
2.2/50
C4451
2.2/50
C4440
220/16
C4471
100/6.3
C4470
100/6.3
C4431
10/16
C4441
220/16
C4403
22/25
RFS
C4404
22/25
RFS
C4541
47/6.3 RFS
C4540
47/6.3
RFS
C4521
47/6.3
RFS
C4520
47/6.3
RFS
C4300
10/16 RFS
C4260
10/16
RFS
C4280
10/16
C4370
10/16
RFS
C4301
10/16
RFS
C4371
10/16
RFS
C4281
10/16
C4261
10/16
RFS
C4303
10/16 RFS
C4253
22/25
RFS
C4263
10/16
RFS
C4283
10/16
C4373
10/16
RFS
C4304
10/16
RFS
C4374
10/16
RFS
C4284
10/16
C4254
22/25
RFS
C4264
10/16
RFS
C4305
10/16
RFS
C4265
10/16
RFS
C4285
10/16
C4375
10/16
RFS
C4306
10/16
RFS
C4376
10/16
RFS
C4286
10/16
C4266
10/16
RFS
C4302
10/16
RFS
C4262
10/16
RFS
C4282
10/16
C4372
10/16
RFS
C4307
10/16
RFS
C4377
10/16
RFS
C4287
10/16
C4257
22/25
RFS
C4267
10/16
RFS
C4380
47/16
C4382
47/16
C4385
47/16
C4383
47/16
C4390
47/16
C4393
47/16
C4395
47/16
C4392
47/16
C4882
2.2/50
C4897
2.2/50
C4896
2.2/50
C4570
10/16
RFS
C4571
10/16
RFS
C4892
47/35 C4883
47/35
C4901
10/16
C4902
220/16
C4903
220/16
C4900
10/16
C4904
47/16
C4893
104Z
C4892
104Z
C4884
104Z
C4497 330J
C4507 330J
C4492 330J
C4502 330J
C4496 330J
C4506 330J
C4495 330J
C4505 330J
C4494 330J
C4504 330J
C4493 330J
C4503 330J
C4491 330J
C4501 330J
C4490 330J
C4500 330J
C4560 330J
C4591 330J
C4460
101J
C4461
101J
C4888
104Z
C4610
104Z
C4611
104Z
C4621 330J
C4620 330J
C4580
104Z
C4581
104Z
C4590 330J
C4350 100F
C4270
101J
C4360 100F
C4351 100F
C4271
101J
C4361 100F
C4353
100F
C4273
101J
C4363 100F
C4354 100F
C4274
101J
C4364 100F
C4355 100F
C4275
101J
C4365 100F
C4356 100F
C4366 100F
C4352 100F
C4272 101J
C4362 100F
C4357 100F
C4277
101J
C4367 100F
C4276
101J
C4561
330J
C4550
104Z
C4551
104Z
C4890
331J
C4886
331J
C4895
331J
C4893
104Z
C4894
104Z
C4889
104Z
C4885
104Z
C4899
104Z
C4898
104Z
C4906
104Z
C4905
104Z
R4973 NC
R4974 NC
R4975 NC
R4976 NC
R4972 NC
R4977 NC
R4971 NC
R4970 NC
R4955
1K
R27
0
R17
0
R22
0
R12
0
R26
0
R16
0
R25
0
R15
0
R24
0
R14
0
R23
0
R13
0
R21
0
R11
0
R20
0
R10
0
R47
0
R42 0
R46
0
R45 0
R44
0
R43 0
R41 0
R40 0
R4380 1M
R4761
10K
R4760
10K
R4750 10K
R4456
220K R4455
220K
R4435
270
R4481
22 1/2W
R4437
270
R4432
270
R4447
100
R4442 100
R4436
270 R4446
100
R4445
100
R4360
220K
R4925
1K
R4932
1K
R4953
0
R4811
56K
R4810
56K
R4780
56K
R4781
56K
R4366
220K
R4365
220K
R4362
220K
R4361
220K
R4480
22 1/2W
R4942
1K
R4491
22K
R4490
22K
R4511
220K
R4500
22K
R4501
22K
R4571
33
R4570
33
R4561
33
R4560
33
R4521
2.2K
R4520
2.2K
R4550
33
R4551
33
R4540
10K
R4541
10K
R4530
10K
R4531
10K
R4510
220K
R4430
270
R4431
270 R4441
100
R4440
100
R4433
270
R4434
270 R4444
100
R4443
100
R4943
0
R4801
10K
R4800
10K
R4791
10K
R4790
10K
R4771
10K
R4770
10K
R4751
10K
R4631
56K
R4630
56K
R4620
56K
R4621
56K
R4915 100
R4916 100
R4917 100
R4918 100
R4919 100
R4920 100
R4921 100
R4914 100
R4370
220K
R4400
220K
R4410
470K
R4420
220K
R4390 1M
R4381 1M
R4371
220K
R4391 1M
R4401
220K
R4411
470K
R4421
220K
R4383 1M
R4363
220K
R4373
220K
R4403
220K
R4413
470K
R4423
220K
R4393 1M
R4384 1M
R4364
220K
R4374
220K
R4394 1M
R4404
220K
R4414
470K
R4424
220K
R4385 1M
R4375
220K
R4405
220K
R4415
470K
R4395 1M
R4386 1M
R4376
220K
R4396 1M
R4406
220K
R4416
470K
R4426
220K
R4382 1M
R4372
220K
R4402
220K
R4412
470K
R4422
220K
R4392 1M
R4387 1M
R4367
220K
R4377
220K
R4397 1M
R4407 220K
R4417
470K
R4427
220K R4425
220K
R4933
220K
R4931 1K
R4926 100
R4720
10K
R4731
10K
R4721
10K
R4710
12K
R4690
12K
R4680
2.2K
R4700
2.2K
R4670
1.5K
R4660
180
R4650
820
R4640
120
R4711
12K
R4691
12K
R4671
1.5K
R4661
120
R4681
2.2K
R4701
2.2K
R4651
820
R4641
120
R4740
56K
R4741
56K
R4923 100
R4924 100
R4935
220K
R4927 100
R4928 1K
R4929 1K
R4930 1K
R4730
10K
R4934
220K
R4937
10
1W
R4936
10
1W
R4938
2.2
1W
R4939
2.2
1W
R4610
56K
R4611
56K
C4481
222J
C4480
222J
Z2R
Z2L
VLSCZ2R
VLSCZ2L
HPMUTE-B
AGND
MAINR
MAINL
AGND
Z2INR
Z2INL
DGND
HPDET
AGND
MCFL
MCFR
MCC
MCSW
MCSL
MCSR
MCSBL
MCSBR
VFLSTB
VFRSTB
VCSTB
VSLSTB
VSRSTB
VSBLSTB
VSBRSTB
VSWSTB
ANASTB2
BWIRERL
Z2MUTE
ANACLK
ANADATA
HPRL
Z2RL
BTLRL
HPMUTE
AMUTE
FRSPB
SRSPB
CSPB
SBSPB
SWRLB
BTLRL-A
FRSPA
SRSPA
CSPA
SWRLA
HPRL-A
Z2L
HPMUTE-B
Z2RL-A
VFLSTB-A
BWIRERL-A
+15V
-15V
+15VAPOG BTLRL-A
-15V
BGND SWRLB
BGND SBSPB
-15VAPOG
HPDET
DGND
HPL
HPGND
HPR
CSPB
+5VDAC SRSPB
FRSPA
VLSCZ2R-A
VLSCZ2L-A
HPRL-A
Z2RL-A
BTLRL-A
HPMUTE-A
VFLSTB-A
VFRSTB-A
VCSTB-A
VSLSTB-A
VSRSTB-A
VSBLSTB-A
VSBRSTB-A
VSWSTB-A
ANASTB2-A
BWIRERL-A
ANACLK-A
ANADATA-A
Z2R-A
Z2L-A
FRSPB
FRSPB Z2RL-A
CSPA SWRLA
CSPB CSPA
SRSPA SRSPA
SRSPB FRSPA
SBSPB FLVOUT +24V +24V
SWRLA ANACLK-A RLGND
SWRLB ANADATA-A
MAINR-A
MAINL-A
VFRSTB-A
RLGND
FLDAOUT
VLSCZ2L-A
VLSCZ2R-A
FLDAOUT LSWDMX2
AGND LSWDMX1
FRDAOUT LCDMX L
SLDAOUT SLDMX
AGND FLDMXIN FRVOUT
SRDAOUT
SBLDAOUT ANACLK-A
AGND ANADATA-A
FLDAOUT
FLDMXOUT
MCFL
MAINL-A
FLVOL
SLDMX
LCDMX
FLDMXIN
LSWDMX1
LSWDMX2
FLDMXIN
SBRDAOUT
ANADATA-A
ANACLK-A
LCDAOUT VSLSTB-A
AGND R
LSWDAOUT
RCDAOUT
-15V
+15V
-15V
RSWDAOUT
MCC
MCSW
VLSCZ2R-A
VLSCZ2L-A
MCSR
MCSL
MCSBL
MCSBR
MCFR
MAINR-A
+15V
ANASTB2-A
FRVOL
SLVOL
MUTEB
DSPGND
ANACLK-A
ANADATA-A
-15V
+15V
AGND
+5V
SL
FRDAOUT
FRDMXOUT
MCFR
MAINR-A
FRVOL
SRDMX
RCDMX
FRDMXIN
RSWDMX1
RSWDMX2
FRDMXIN
SLVOUT
ANASTB2-A
ANACLK-A
ANADATA-A SR
AGND
+24V
RLGND
VSRSTB-A
FRDMXIN
FRDAOUT
SRDMX
RCDMX
RSWDMX1
RSWDMX2
SLDAOUT
Z2INL L
R
FLINV1 SL
FLINV2 SR
AMUTE-B SBL
SRVOUT SBR
MCFL C
VLSCZ2L-A
Z2INL
ANACLK-A ANACLK-A
FLINV1
FLINV2
MCSL
SLDAOUT
SLVOL
Z2L-A
SW
MCC
MCSW
VLSCZ2R-A
VLSCZ2L-A
MCSR
MCSBL
MCSBR
Z2L-A
ANADATA-A ANADATA-A
LSWDAOUT
LCDAOUT
SBRDAOUT
+5VDAC
-15V
+15V
AGND
LCDAOUT
Z2R-A
Z2L-A
LSWDAOUT
SRDAOUT
Z2INR
MAINR-A
VSBLSTB-A
+15V
-15V
SBLDAOUT
-15V
AGND
+15V
FRINV1
FRINV2
MCSR
SRVOL
Z2R-A
Z2INR
MCFR
SRDAOUT
VLSCZ2R-A
ANASTB2-A
MCSR
VLSCZ2R-A ANACLK-A
FRINV2 ANADATA-A
FRINV1 SBL
Z2INR
SRDAOUT VSBRSTB-A
SBLDAOUT
Z2R-A
LCDAOUT
A-BAL-L
MCSBL
VLSCZ2L-A SBR
Z2L-A
SBLVOL
LCDAOUT
D-BAL-L ANADATA-A
SRVOUT
SLVOUT
FRVOUT
FLVOUT
MCC
CVOL
ANACLK-A
C
-15V
SBRVOUT
SBLVOUT
VCOUT
AGND ANACLK-A AGND
+15V ANADATA-A
VCSTB-A
+15V
-15V
FLVOUT
D-BAL-R
SBRVOL
LSWDAOUT
MCSW
SWVOL
FRVOUT
SBRDAOUT
ANASTB2-A
SLVOUT
MCSBR
SBRVOL
SRVOUT
Z2R-A VCOUT SBLVOUT
+15VAPOG VLSCZ2R-A SBRVOUT
-15VAPOG A-BAL-R VCOUT VCOUT
LSWDAOUT
MUTEB
DSPGND
ANACLK-A
ANADATA-A
-15V
+15V
AGND
+5V
VSWOUT VSWOUT
MCSW
Z2MUTE ANACLK-A +15V
AMUTE ANADATA-A -15V
-15V
AMUTE-B
Z2MUTE-B Z2MUTE-B
Z2MUTE AMUTE-B
VSWSTB-A
AMUTE
+5V
Z2MUTE-B
+15V
Z2MUTE-B
AMUTE-B
VSWOUT
-15V
DSPGND
MUTEB
DACGND-A
+5VDAC
RLGND
-18V
-18V
AGND-A
+18V
+18V
+18V
+24V
ANACLK-A
ANADATA-A
TO SCH.-6 TO SCH.-6 TO SCH.-6
TO NADG-8154 (SCH.-4) TO NADG-8154 (SCH.-4)
NAAF-8156(1/2)
SW
C
SBR
SBL
SR
SL
FR
FL
-3dB
-3dB
+20.5dB
+15.5dB
-3dB
-3dB
+15.5dB
+20.5dB

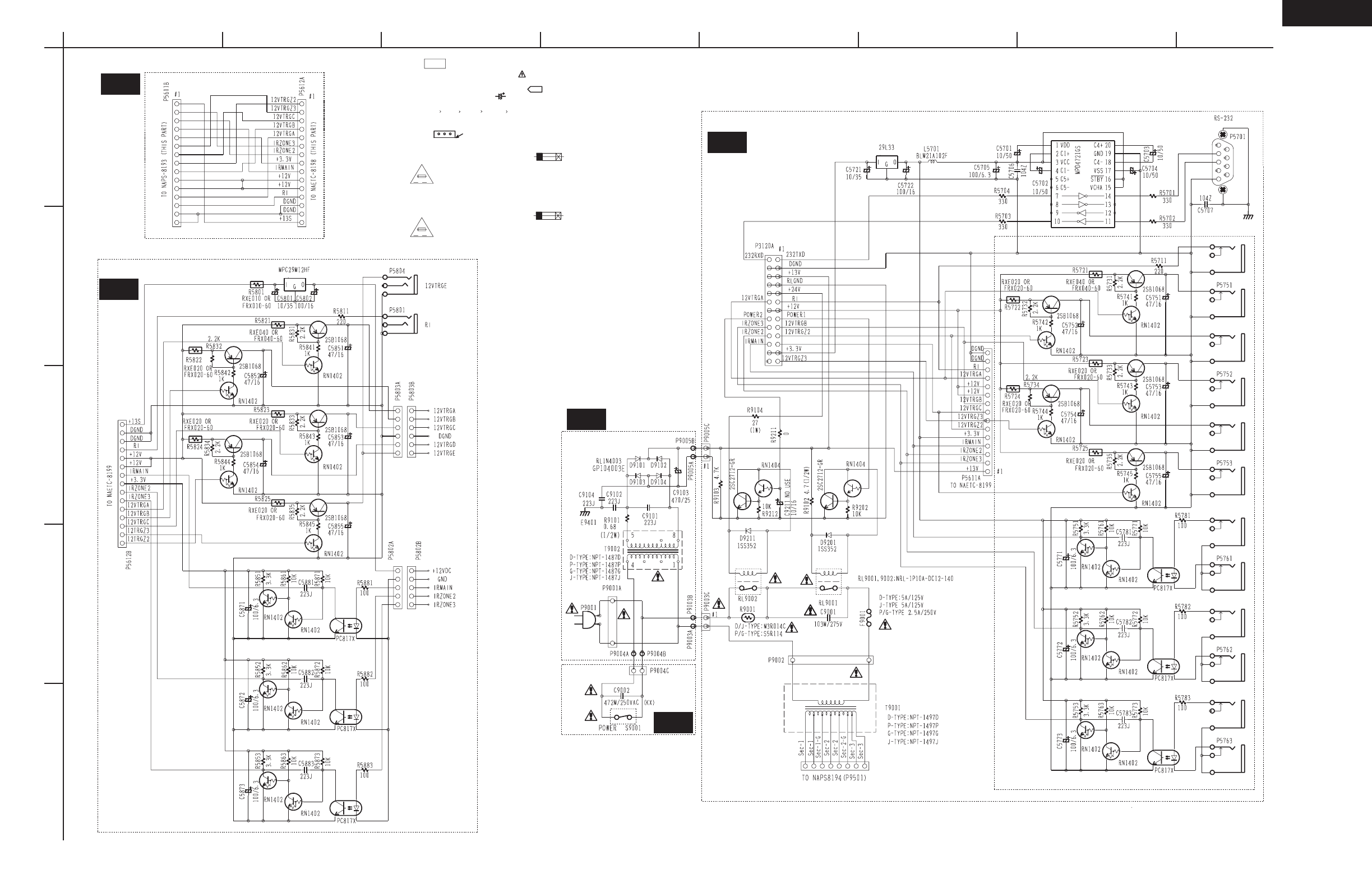

SCHEMATIC DIAGRAM 6 Output section
RDC-7.1
U08
J4801
P534A
P534
P532
P533 P531
P530
321
P502
CENTER
BALANCED
PREOUT
321
P507
SUBWOOFER
BALANCED
PREOUT
321
P500
LEFT
BALANCED
PREOUT
321
P505
SURROUND BACK LEFT
BALANCED
PREOUT
321
P503
SURROUND
LEFT
BALANCED
PREOUT
321
P504
SURROUND
RIGHT
BALANCED
PREOUT
321
P506
SURROUND BACK RIGHT
BALANCED
PREOUT
321
P501
RIGHT
BALANCED
PREOUT
RL530
RL505
RL502
RL512
RL522
RL507
RL517
RL527
RL503
RL513
RL523
RL524
RL526
RL525
RL515
RL521
RL520
RL510
RL500
Q502
MPC4570G2
5
6
47
Q507
MPC4570G2
5
6
4
7
Q500
MPC4570G2
5
6
4
7
Q505
MPC4570G2
5
6
4
7Q503
MPC4570G2
5
6
4
7
Q504
MPC4570G2
5
6
47
Q506
MPC4570G2
5
6
4
7
Q501
MPC4570G2
5
6
4
7
Q502
MPC4570G2
38
21
Q507
MPC4570G2
38
21
Q500
MPC4570G2
38
21
Q505
MPC4570G2
38
21Q503
MPC4570G2
38
21
Q504
MPC4570G2
38
21
Q506
MPC4570G2
38
21
Q501
MPC4570G2
38
21
C572
102J
C552
471J
C562
102J
C567
102J
C557
471J
C577
102J
C560
102J
C550
471J
C570
102J
C575
102J
C565
102J
C555
471J
C573
102J
C553
471J
C563
102J
C574
102J
C564
102J
C554
471J
C576
102J
C556
471J
C566
102J
C561
102J
C551
471J
C571
102J
Q570
2SC2712
Q555
2SC2712
Q567
2SC2712
Q557
2SC2712
Q553
2SC2712
Q563
2SC2712
Q552
2SC2712
Q562
2SC2712
Q550
2SC2712
Q560
2SC2712
Q565 2SC2712
Q512
RN1441
Q522
RN1441
Q532
RN1441
Q542
RN1441
Q517
RN1441
Q527
RN1441
Q537 RN1441
Q547 RN1441
Q510
RN1441
Q520
RN1441
Q530
RN1441
Q540
RN1441
Q515
RN1441
Q525
RN1441
Q535
RN1441
Q545
RN1441
Q513
RN1441
Q523
RN1441
Q533 RN1441
Q543
RN1441
Q514
RN1441
Q524
RN1441
Q534
RN1441
Q544
RN1441
Q516
RN1441
Q526
RN1441
Q536
RN1441
Q546
RN1441
Q511
RN1441
Q521
RN1441
Q531 RN1441
Q541
RN1441
D510
D505
D507D517
D503D513
D502D512
D500
D501
D515
C304
47/16
C594
47/16
C331
22/25
ROB
C540
22/25
ROB C342
22/25
ROB
C542
22/25
ROB
C341
22/25
ROB
C541
22/25
ROB
C340
22/25
ROB
C336
22/25
ROB C536
22/25
ROB
C335
22/25
ROB C535
22/25
ROB
C545
22/25
RFS
C546
22/25
RFS
C332
22/25
ROB
C532
22/25
ROB
C531
22/25
ROB
C330
22/25
ROB C530
22/25
ROB
C326
22/25
ROB
C516
22/25
ROB
C325
22/25
ROB
C515
22/25
ROB
C322
22/25
ROB
C512
22/25
ROB
C321
22/25
ROB
C511
22/25
ROB
C320
22/25
ROB
C510
22/25
ROB
C547
22/25
RFS
C543
22/25
RFS
C544
22/25
RFS
C517
22/25
RFS C537
22/25
RFS
C513
22/25
RFS C533
22/25
RFS
C514
22/25
RFS C534
22/25
RFS
C4987
104Z
C4986
104Z
C4988
104Z
C4989
104Z
C4990
104Z
C4991
104Z
C4984
104Z
C4985
104Z
C4983
104Z
C4981
104Z
C4982
104Z
C590
104Z
C4923
104Z
C4922
104Z
C352
102J
C302
104Z
C592
104Z
C506
330J
C505
330J
C502
330J
C501
330J
C500
330J
C597
104Z
C307
104Z
C593
104Z
C303
104Z
C306
104Z
C596
104Z
C305
104Z
C595
104Z
C301
104Z
C591
104Z
C300
104Z
C353
102J
C522
330J
C582
104Z
C527
330J
C507
330J
C587
104Z
C580
104Z
C520
330J
C585
104Z
C525
330J C523
330J
C583
104Z
C503
330J
C524
330J
C584
104Z
C504
330J
C586
104Z
C581
104Z
C526
330J
C521
330J
R380
1K
R391
220K R390
220K
R310
10K
R365
1K
R506
270
R505
270
R502
270
R501
270
R500
270
R360
1K
R347
220K
R337
47
R327
47 R377
1K
R367
1K
R512
100K
R312
10K
R522
10K
R552
100
R562
100
R582
100K
R572
100K
R302
100
R592
100
R532
270
R542
270
R517
100K
R317
10K
R527
10K
R507
270 R557
100
R567
100
R587
100K
R577
100K
R307
100
R597
100
R537
270
R547
270
R363
1K
R373
1K
R344
220K
R343
220K
R333
47
R323
47
R334
47
R324
47
R362
1K
R372
1K
R342
220K R332
47
R322
47
R370
1K
R341
220K
R340
220K R330
47
R320
47
R331
47
R321
47
R550
100
R560
100
R580
100K
R570
100K
R300
100
R590
100
R540
270
R530
270
R510
100K R520
10K
R375
1K
R555
100
R565
100
R585
100K
R575
100K
R305
100
R595
100
R535
270
R545
270
R515
100K
R315
10K
R525
10K
R513
100K
R313
10K
R523
10K
R553
100
R563
100
R583
100K
R573
100K
R303
100
R593
100
R533
270
R543
270
R503
270
R346
220K
R345
220K R335
47
R325
47
R336
47
R326
47
R514
100K
R314
10K
R524
10K
R554
100
R564
100
R584
100K
R574
100K
R304
100
R594
100
R534
270
R544
270
R504
270
R556
100
R566
100
R586
100K
R576
100K
R306
100
R596
100
R536
270
R546
270
R551
100
R561
100
R581
100K
R571
100K
R301
100
R591
100
R541
270
R531
270
R516
100K
R316
10K
R526
10K
R511
100K
R311
10K
R521
10K
C317
102J
C313
102J
C314
102J
C312
102J
C310
102J
C311
102J
C315
102J
C316
102J
FLPO-A FLPO-A
BTLRL-A FRPO-A FRPO-A
SWRLB FLPO-B FLPO-B
SBSPB FRPO-B FRPO-B
CSPB CPO-A
SRSPB
FRSPB CPO-B
Z2RL-A
SWRLA
CSPA
SRSPA
FRSPA
+24V FRSPA CSPA
RLGND
+15V
FRSPB CSPB
VCOUT
SWPO-A
SWPO-B
AMUTE-B
SWRLA
BTLRL-A
SWRLB
VSWOUT
SBLPO-A
-15V
L
R AMUTE-B
SL SRSPA
SR SBRPO-A Z2RL-A
SBL SBLPO-B
SBR
C
SW
SRSPB
SBSPB FRPO-B
SLPO-A
SL SRPO-A
SR SLPO-B
CSRPO-B
SW
SBLPO-A SBLPO-A
SBRPO-A SBRPO-A
SBLPO-B SBLPO-B
SBRPO-B SBRPO-B
+15V
SLVOUT
SBRPO-B
AGND
SBLPO-B
SRPO-B
AGND
SLPO-B
SWPO-B
AGND
CPO-B
FRPO-B
AGND
FLPO-B
CPO-B
SWPO-B
AGND
SRVOUT
SLPO-B
FLVOUT
FRVOUT SRPO-B
SLVOUT
SRVOUT
SBLVOUT SBLPO-B
SBRVOUT
VCOUT
VSWOUT SBRPO-B
+15V
-15V -15V
Z2MUTE-B
AMUTE-B
AMUTE-B
TO SCH.-5
TO SCH.-5
C
PREOUT B
PREOUT B
PREOUT B
PREOUT B
PREOUT A
PREOUT A
PREOUT A
PREOUT A
NAAF-8157
NAAF-8156(2/2)
SW
SR
SL
SBR
SBL
FR
FL
LEFT
RIGHT
SUBWOOFER
CENTER
RIGHT
SURR BACK
SURR BACK
RIGHT
SURROUND
SURROUND
SUBWOOFER
CENTER
LEFT
RIGHT
RIGHT
SURR BACK
SURR BACK
RIGHT
SURROUND
SURROUND
FRONT
FRONT
LEFT
LEFT
PREOUT 1
PREOUT 1
PREOUT 1
PREOUT 1
PREOUT 1
PREOUT 1 PREOUT 1
PREOUT 1
FRONT
FRONT
LEFT
LEFT
U082
TO SCH.-5
A
1
2
3
4
5
BCDEFGH

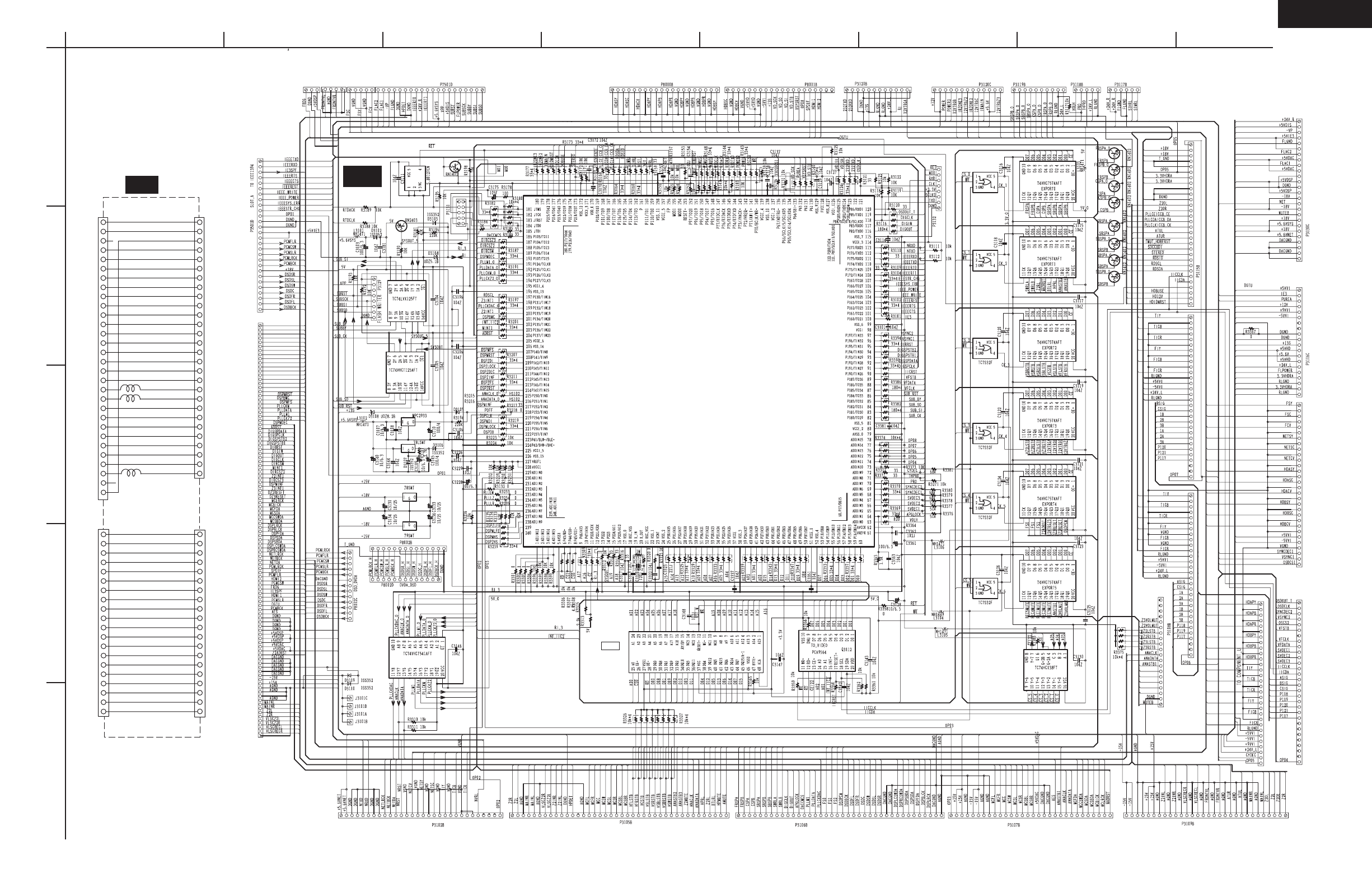

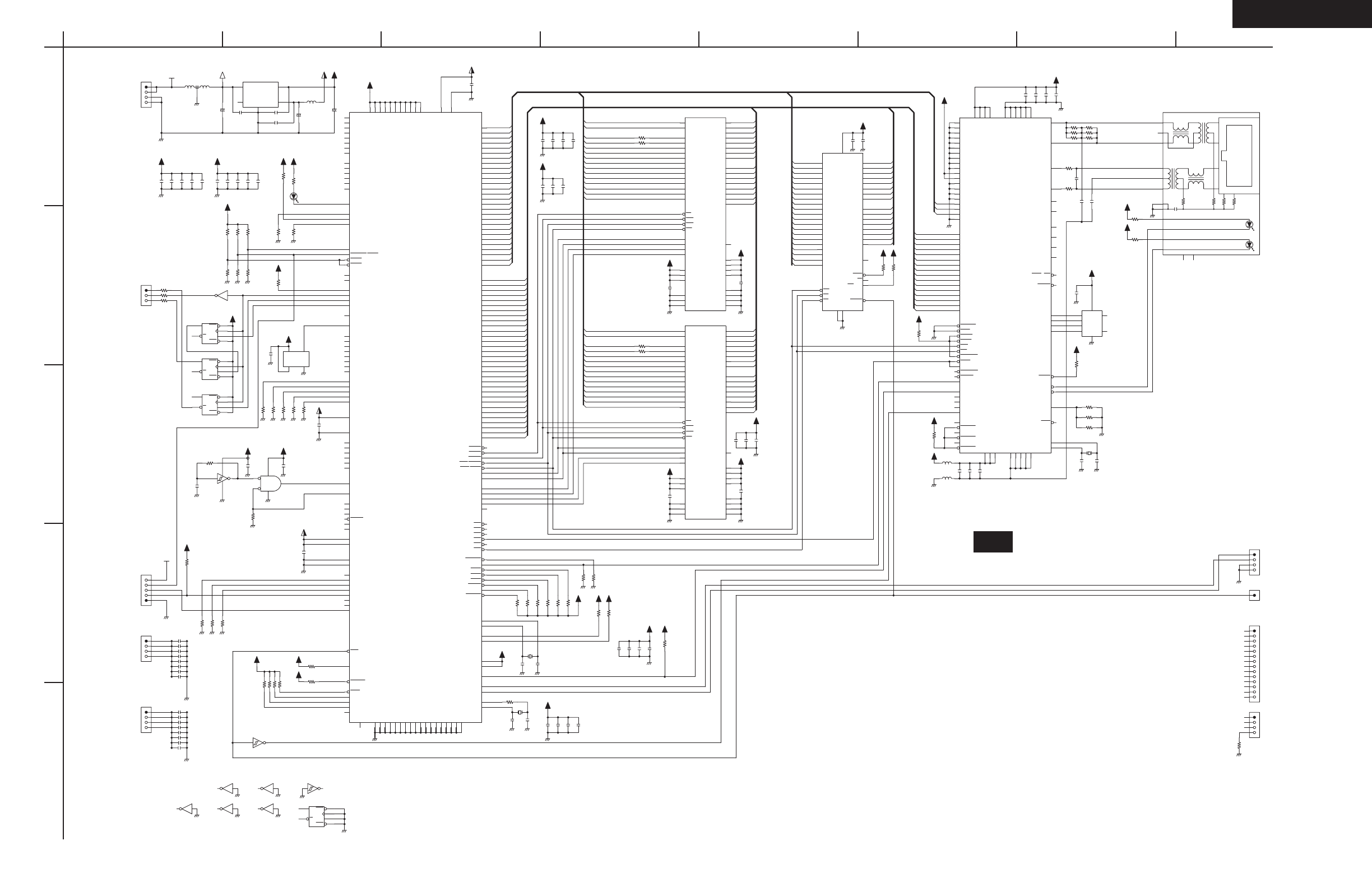

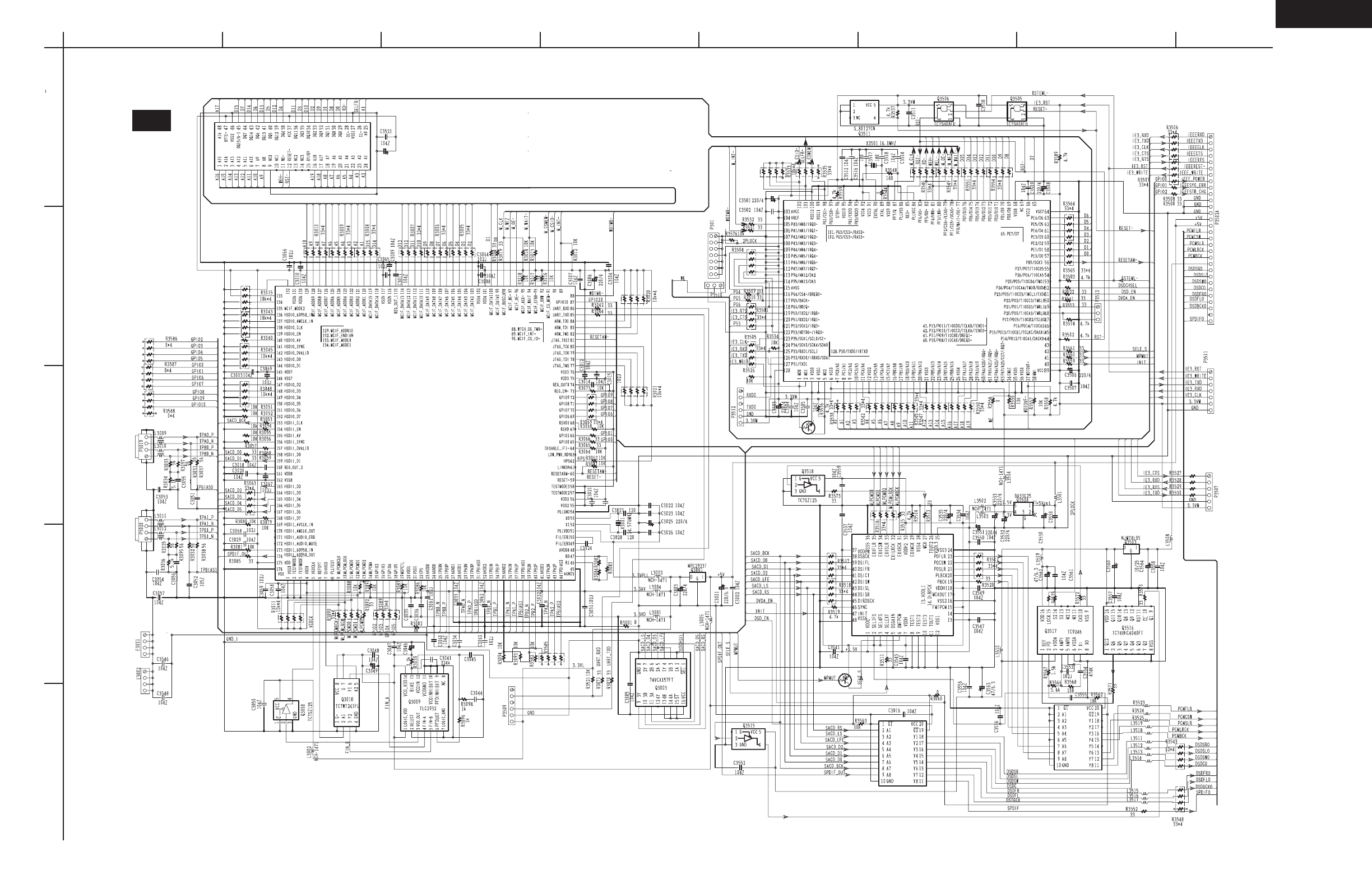

SCHEMATIC DIAGRAM 7
Mother section
RDC-7.1
A
1
2
3
4
5
BCDEFGH
P3113B
P3103B
Q3101
M3217F
Q3116
T7S32F
Q3118
T7S32F
Q3102
Q3117
Q3115
Q3121
Q3123
Q3125
Q3127
Q3120
Q3122
Q3105
Q3107
Q3128
Q3109
Q3110
MAIN MICROPROCESSOR
Q3126
Q3124
Q3106
Q3103
Q3104
Q3129
Q3130
Q3131
Q3132
Q3133
Q3135 Q3134
Q3136
P2002B P2001B
P2204B
P2501
Q3114
Q3119
Q3113 MX29LV160AT
RAM
DSPMHS
DSPZHS
DSPMLOCK
DSPZLFE
DSPMLFE
DSPZDEC
DSPZINF
DSPZLOCK
DSPMDI
DSPCLK
DSPZFS
DSPZRST
DSPZDI
Z2PLLLOCK
Z3PLLLOCK
MPLLLOCK
DSPDO
U11
NAAR-8166
U022
NAETC-8140
P7501B P7501C
P3501B
P3501C
-VP
VPP
FLGND
FLAC1
FLAC2
+5VDIS
+5.6SYS
+5.6SYS
DGND
DGND
DGND
SUBSCK
FLPOWER
SUBSO
SUBSI
SUBBY
SURST
IEEETXD
IEEERXD
SPDIFO
IEEERTS
IEEECTS
IEEEREST
IEEE_WRITE
IEEE_POWER
IEEESYS_ERR
IEEESTR_CHG
OP01
DGND
DGND
+5VIE5
+5VIE3
PCMFLR
PCMCSW
PCMSLR
PCMLRCK
PCMBCK
+18V
DSDSR
DSDSL
DSDSW
DSDC
DSDFR
DSDFL
DSDBCK
L3594
L3595
L3596
L3594~L3596:0 ohm
RDC-7.1
L3594: 0 ohm
L3595,L3596: 33 ohm
IEA
IEB
To SCH.-16 NADG-8164 P3503A
To SCH.-15 NADIS-8212 P7501
To SCH.-7 NAAR-8166 P3501DTo SCH.-7 NAAR-8166 P3501D
SCH.-15
FRONT VIDEO
P3127B P3126B P3125B
SCH.15
via U083 SCH.-18
NAVD-8137
SCH.-13
NAPS-8193
SCH.-18
NAVD-8137
SCH.-13
NAPS-8193
SCH.-12
NAETC-8184
SCH.-12
NAPS-8195
SCH.12
NAPS-8194
SCH.-19
NAVD-8201 P2001
SCH.-18
NAVD-8201 P2002
SCH.20
NAVD8202 P2204
SCH.-12 NAAF-8145
SCH.-21 NAVD-8209 SCH.-21 NAVD-8205
SCH.-13
NARF-8152
SCH.-2
NAAF-8145
SCH.-3
NAAF-8150
SCH.-5
NADG-8154
SCH.-16
NADG-8228
SCH.-8
NADG-8162 P7401
REC3MUTE
REC2MUTE
REC1MUTE
REC4MUTE
REC5MUTE
SCHEMATIC DIAGRAM 8
DIR section
RDC-7.1
A
1
2
3
4
5
BCDEFGH
L
R
TX1_Z
TX1_R
DSEL_R
Z2L
Z2R
Z2R-
L+
R+
R-
DIGCLK
DIRCSM
DIRRESET
DIGCLK
DIRCSZ2
COAX_R
IEEE
HDMI1
DGTU
HDMI2
DIRRESET
L+
L-
Z2L+
Z2L-
L-
L+
R-
R+
Z2L-
Z2L+
Z2R+
Z2L-
Z2L+
Z2R-
Z2R+
DIGSPCLK
DIGSPSTB1
DIRRESET
DIGSPDATA
L-
DZ3RESET
DACR_R
DACL_R
DSELA_Z
DSELB_Z
DSELA_M
DSELB_M
OPTA_M
OPTB_M
OPTC_M
DIRCSZ3
DIGCLK
DIGOUT
DIGOUT
DIGOUT
DIGIN
DIGIN
DIGIN
MINT1
Z2INT1
Z3INT1
DIRRESET
DSELA_M
DSELB_M
DSELA_M
DSELB_M
DSELA_M
DSELB_M
DSELA_Z
DSELB_Z
DSELA_Z
DSELB_Z
DSELA_Z
DSELB_Z
DIRLRCK_M
MCLRCK
NETLRCK
IEEELRCK
DIRBICK_M
MCBICK
NETBICK
IEEEBICK
DIRDA_M
NETDA
DIRLRCK_Z
MCLRCK
NETLRCK
IEEELRCK
DIRBICK_Z
MCBICK
NETBICK
IEEEBICK
NETDA
DSEL_R
OPTA_Z
OPTC_R
OOUT2_R
OPTC_Z
OPTB_Z
OPTB_R
OPTA_R
MCFDA
IEEEFDA
MCSDA
IEEESDA
MCCSWDA
IEEECSWDA
DIRDA_Z
MCFDA
IEEEFDA
MCSDA
IEEESDA
MCCSWDA
IEEECSWDA
HDMI1
HDMI2
DGTU
COAX_Z
HDMI1
HDMI2
IEEE
IEEE
DGTU
OPT6
OPTA_R
OPTB_R
OOUT1_Z
OOUT2_R
TX1_Z
TX1_R
OPT_Z
COAX_M
OPT1
OPT2
OPT3
OPT4
OPT5
OPT6
OPT5
OPT4
OPT2
OPT3
OPT1
OPTC_R
OPT1
OPT2
OPT3
OPT4
OPT5
OPT6
OPTC_Z
OPTA_Z
OPTB_Z
OPTC_M
OPTB_M
OPTA_M
OPT_M
SPDIF
FRDG
FRDG
FRDG
AES
AES
AES
DACR_R
DACL_R
VLSCRECR
VLSCRECL
OPT1
OPT2
OPT3
OPT4
OPT5
OPT6
Z3PLLLOCK
NETLRCK
NETBICK
NETDA
MADRESET
ZADRESET
LRCK_M
FDA_M
CSWDA_M
SDA_M
FDA_Z
SDA_Z
CSWDA_Z
LRCK_Z
OOUT1_R
OOUT2_Z
OOUT1_Z
OOUT1_R
OOUT2_Z
COAX_R
COAX_Z
COAX_M
TX1_R
DIGSPSTB2
DIGSPCLK
DIGSPDATA
DIRRESET
TX1_Z
PLLCLR
PLLDATA
PLLM1
R+
R-
Z2R-
Z2R+
BICK_M
BICK_Z
DGDATA
ADATA
MPU
SCH.-9
NADG-8162
DACDAC
DACDAC
DACDAC
DAC
DAC
DAC
DAC
DAC DAC
+15VA
A
DAC
DACDACDACDAC
DAC
DAC DAC
DAC DAC DAC
DAC DAC
DAC DAC DAC
DACDAC
DAC
DAC
DAC
DAC
DAC
DAC
DAC
DAC
DAC
DAC
DAC
DAC
+5VDAC
+5VDAC
DAC
DAC DAC
-15VA
-15VA
A
A
-15VA
+15VA +15VA
DACDAC DAC
+5VDAC
DAC
DAC
DAC
DAC
DAC
DAC
DAC
-15VA
+15VA
DACDAC DAC
DAC
-15VA-15VA
+15VA +15VA
-15VA
A
A
DACDAC DAC DAC
+5VDAC
A
DAC
+3.3VDAC
+3.3VDAC
+5VDSP
DAC DAC DAC DAC DAC
DAC
+5VDAC
DAC
+5VDAC
DAC
DAC
L7022
2.2uH
L7021
2.2uH
C7128
101J
C7129
102K
R7221
330
R7222 330
R7223 330
R7224 330
R7225 330
L7221
2.2uH
L7222
2.2uH
R7135 1K
R7136 1K
R7230 47
R7232 1K
R7236 1K
DAC
L7023
2.2uH
L7052
2.2uH
L7151
2.2uH
L7152
2.2uH
R7054 47
R7053 47
Q7051
AK5385
17 MCLK
4LIN+
5LIN-
24 RIN-
25 RIN+
9 OVF
6 CKS0
2AVSS
8DVSS
21 BVSS
22 AVSS
27 AVSS
3
VCOM
12
M/S
18
DFS0
20
DFS1
26
TEST
10
PDN
13
LRCK
14
BICK
15
SDTO
11
DIF
19
HPFE
16
CKS1
7
DVDD
1
VREFL
23
AVDD
28
VREFR
Q7151
AK5385
17 MCLK
4LIN+
5LIN-
24 RIN-
25 RIN+
9 OVF
6 CKS0
2AVSS
8DVSS
21 BVSS
22 AVSS
27 AVSS
3
VCOM
12
M/S
18
DFS0
20
DFS1
26
TEST
10
PDN
13
LRCK
14
BICK
15
SDTO
11
DIF
19
HPFE
16
CKS1
7
DVDD
1
VREFL
23
AVDD
28
VREFR
R7152
47
R7153 47
R7154 47
+5VDAC
R7052
47
R7073
10K
R7074
10K
Q7052A
NJM4580M-D
1
4
3
2
8
Q7053A
NJM4580M-D
1
4
3
2
8
Q7054A
NJM4580M-D
1
4
3
2
8
Q7052B
NJM4580M-D
7
5
6
Q7053B
NJM4580M-D
7
5
6
Q7152A
NJM4580M-D
1
4
3
2
8
Q7153A
NJM4580M-D
1
4
3
2
8
Q7152B
NJM4580M-D
7
5
6
Q7153B
NJM4580M-D
7
5
6
Q7154B
NJM4580M-D
7
5
6
+15VA
A
R7057
100K
R7058
100K
R7157
100K
R7158
100K
R7059
150K
R7061
10K
R7060
150K
R7062
10K
R7159
150K
R7161
10K
R7160
150K
R7162
10K
R7064
4.7K
C7066
101J
C7165
101J
C7065
101J
R7063
4.7K
R7163
4.7K
C7166
101J
R7164
4.7K
R7065
4.7K
R7066
4.7K
R7165
4.7K
R7166
4.7K
R7067
4.7K
C7067
101J
Q7054B
NJM4580M-D
7
5
6
R7068
4.7K
C7068
101J
C7167
101J
R7167
4.7K
C7168
101J
R7168
4.7K
R7069
22
R7070
22
R7071
22
R7072
22
R7169
22
R7171
22
R7170
22
R7172
22
D7052
1SS352
D7056
1SS352
D7055
1SS352
D7054
1SS352
D7057
1SS352
D7058
1SS352
D7053
1SS352
D7151
1SS352
D7153
1SS352
D7155
1SS352
D7157
1SS352
D7152
1SS352
D7154
1SS352
D7156
1SS352
D7158
1SS352
DACDACDAC
R7241 330
R7242 330
R7243 330
R7247 330
R7248 330
R7249 330
R7244 47
R7245 47
R7246 47
R7250 47
R7251 47
Q7242
74VHCT125A
11G
42G
10 3G
13 4G
3 1Y
6 2Y
8 3Y
11 4Y 12
4A
9
3A
5
2A
2
1A
7
GND
14
VCC
L7224
2.2uH
+15VA
DAC DAC
L7242
47uH
C7253
474K
R7256
5.6K
C7254 102J
R7252 47
Q7245
WM8716
15 AVDD
9AVDDR
11 VMIDR
10 AGNDR
20 AVDDL
18 VMIDL
19 AGNDL
14 AGND
13 VOUTR
16 VOUTL
22 RSTB
24 MODE
26 MD/DM0
27 MC/DM1
7
DGND
8
DVDD
23
CSBIWO
25
MUTEB
28
ML/I2S
1
LRCK
3
BCKIN
2
DIN
6
XTO
5
XTI
4
CLKO
12
MODE8X
17
DIFFHW
21
ZERO
DAC
L7241
47uH
L7244
47uH
L7245
47uH
R7273
560
R7271
10K
R7275
100K
R7277
10K
Q7154A
NJM4580M-D
1
4
3
2
8
Q7271A
NJM4580M-D
2
3
4
1
8
Q7271B
NJM4580M-D
6
5
7
Q7273B
NJM4580M-D
5
6
7
Q7272A
NJM4580M-D
2
3
4
1
8
Q7272B
NJM4580M-D
6
5
7
Q7274A
NJM4580M-D
2
3
4
1
8
Q7274B
NJM4580M-D
5
6
7
R7281
10K
R7283
10K
R7285
1.5K
R7287
22K
R7289
22K
R7272
10K
R7274
560
R7276
100K
R7278
10K
R7282
10K
R7284
10K
R7286
1.5K
R7288
22K
R7290
22K
R7258 330
R7259 330
R7260 330
R7291
22K
R7292
22K
R7293
22K
R7294
22K
R7295
1.5K
R7296
1.5K
R7297
1.5K
R7298
1.5K
R7300
10K
R7269
22
R7270
22
R7087 330
R7088 330
R7089 330
R7090 330
R7189 330
R7190 330
DAC
R7012 330
R7013 330
R7014 1K
R7011 330
D7051
1SS352
R7262 330
L7051
2.2uH
Q7243
78L05
3I
2G
1
O
Q7244
TC9246
2PD
4AMP1
5AMP0
15 LOCK
10 CKO
6VSSA
7XI
8XO
9VSS
1
REF
11
M1
12
M2
13
S1
14
S2
16
VDD
3
VDDA
Q7273A
NJM4580M-D
2
3
4
1
8
Q7011
BU2152
5P1
6P2
7P3
8P4
9P5
10 P6
11 P7
12 P8
13 P9
14 P10
15 P11
16 P12
17 P13
18 P14
19 P15
20 P16
21 P17
22 P18
23 P19
24 P20
25 P21
26 P22
27 P23
28 P24
31
CLB
30
STB
2
CLK
4
DATA
29
SO
3
VSS
1
VSS
32
VDD
R7235 1K
R7234 1K
R7134 1K
R7233 47
R7133 47
R7137 47
R7138 47
R7237 47
R7238 47
C7228
101J
C7229
102K
Q7061
74VHC153
61C0
51C1
41C2
31C3
10 2C0
11 2C1
12 2C2
13 2C3
8GND
2
B
14
A
15
2G
1
1G
9
2Y
7
1Y
16
VCC
Q7062
74VHC153
61C0
51C1
41C2
31C3
10 2C0
11 2C1
12 2C2
13 2C3
8GND
2
B
14
A
15
2G
1
1G
9
2Y
7
1Y
16
VCC
Q7063
74VHC153
61C0
51C1
41C2
31C3
10 2C0
11 2C1
12 2C2
13 2C3
8GND
2
B
14
A
15
2G
1
1G
9
2Y
7
1Y
16
VCC
Q7161
74VHC153
61C0
51C1
41C2
31C3
10 2C0
11 2C1
12 2C2
13 2C3
8GND
2
B
14
A
15
2G
1
1G
9
2Y
7
1Y
16
VCC
Q7162
74VHC153
61C0
51C1
41C2
31C3
10 2C0
11 2C1
12 2C2
13 2C3
8GND
2
B
14
A
15
2G
1
1G
9
2Y
7
1Y
16
VCC
Q7163
74VHC153
61C0
51C1
41C2
31C3
10 2C0
11 2C1
12 2C2
13 2C3
8GND
2
B
14
A
15
2G
1
1G
9
2Y
7
1Y
16
VCC
R7076 330
R7077 330
R7078 330
R7079 330
R7080 330
R7081 330
R7082 330
R7083 330
R7084 330
R7085 330
R7086 330
R7151
330
R7175 330
R7176 330
R7177 330
R7178 330
R7179 330
R7180 330
R7181 330
R7182 330
R7183 330
R7184 330
R7185 330
R7186 330
R7187 330
R7188 330
R7051
330
+5VDSP
+5VDSP
L7002
47uH
DAC
+3.3VDSP+3.3VDSP
+3.3VDSP+3.3VDSP
+5VDSP
+5VDSP
+3.3VDSP
+3.3VDSP
+5VDSP
R7299
10K
R7267
220K
R7268
220K
DACDAC
DACDAC
DACDAC
DAC
DAC
DACDACDACDAC
DACDACDACDAC
DACDACDAC
+5VDSP
DAC
R7030 47
R7024 330
R7021
330
R7023 330
R7131 330
Q7004
74VHCT126A
1 1G
4 2G
10 3G
13 4G
3 1Y
6 2Y
8 3Y
11 4Y 12
4A
9
3A
5
2A
2
1A
7
GND
14
VCC
R7031 330
R7035 1K
R7036 1K
L7024 BK1608LM182
C7028
101J
C7029
102K
R7121
330
R7122 330
R7123 330
R7124 330
R7125 330
L7122
2.2uH
L7123
2.2uH
R7130 47
R7132 1K
R7032 1K
L7121
2.2uH
L7124 BK1608LM182
R7022 330
R7034 1K
R7033 47
R7038 47
R7027
47
DAC
DAC
DAC
Q7001
74HC151
12 D7
13 D6
14 D5
15 D4
1 D3
2 D2
3 D1
4 D0 11
A
10
B
9
C
5
Y
6
W
7
ST
8
GND
16
VCC
Q7003
74HC151
12 D7
13 D6
14 D5
15 D4
1 D3
2 D2
3 D1
4 D0 11
A
10
B
9
C
5
Y
6
W
7
ST
8
GND
16
VCC
Q7002
74HC151
12 D7
13 D6
14 D5
15 D4
1 D3
2 D2
3 D1
4 D0 11
A
10
B
9
C
5
Y
6
W
7
ST
8
GND
16
VCC
+3.3VDSP+3.3VDSP
R7025 330
R7026
330
R7040
330
R7126
330
R7140
330
R7226
330
R7240
330
C7268
104J
C7267
104J
C7273
152J
C7275
821J
C7277
471J
C7274
152J
C7276
821J
C7278
471J
C7052
10u/16
+
C7055
10u/16
+
C7051
10u/16
+
C7001
47u/6.3
+
C7002
104Z
C7003
104Z
C7004
104Z
C7005
104Z
C7006
104Z
C7007
104Z
C7009
47u/6.3
+
C7010
104Z
C7011
104Z
C7256
104Z
C7257
10u/16
+
C7264
104Z
C7263
104Z
C7266
10u/16
+
C7265 10u/16 +
C7259
10u/16
+
C7245
104Z
C7247
10u/16
+
C7248
104Z
C7249
47u/6.3
+
C7250
104Z
C7251
47u/6.3
+
C7016
104Z
C7015
47u/6.3
+
C7014
104Z
C7013
104Z
C7012
104Z
C7021
104Z
C7022
47u/4
+
C7023
104Z
C7024
47u/4
+
C7025
104Z
C7026
10u/16
+
C7121
104Z
C7122
47u/4
+
C7123
104Z
C7124
47u/4
+
C7125
104Z
C7126
10u/16
+
C7221
104Z
C7222
47u/4
+
C7223
104Z
C7224
47u/4
+
C7225
104Z
C7226
10u/16
+
C7244
104Z
C7243
10u/16
+
C7241
10u/16
+
C7242
104Z
C7054
104Z
C7056
104Z
C7053
104Z
C7061
103K
C7062
103K
C7152
10u/16
+
C7154
104Z
C7155
10u/16
+
C7156
104Z
C7151
10u/16
+
C7153
104Z
C7161
103K
C7162
103K
C7272
4.7u/35
+
C7280
47u/16
+
C7271
4.7u/35
+
C7279
47u/16
+
C7160
224K
C7157
10u/16
+
C7158
104Z
C7059
224K
C7057
10u/16
+
C7058
104Z
C7282
22u/4
+
C7281
22u/4
+
C7164
47u/6.3
+
C7170
47u/16
+
C7163
47u/6.3
+
C7169
47u/16
+
C7064
47u/6.3
+
C7071
104Z
C7072
10u/16
+
C7070
47u/16
+
C7063
47u/6.3
+
C7069
47u/16
+
C7075
104Z
C7076
104Z
C7077
104Z
C7175
104Z
C7176
104Z
C7177
104Z
C7017
104Z
U7001
GP1FA51HRZ
3
2
1
U7002
GP1FA51HRZ
3
2
1
U7003
GP1FA51HRZ
3
2
1
U7004
GP1FA51HRZ
3
2
1
U7005
GP1FA51HRZ
3
2
1
U7006
GP1FA51HRZ
3
2
1
U7007
GP1FA51HTZ
1
2
3
U7008
GP1FA51HTZ
1
2
3
X7021
24.576MHz
X7121
24.576MHz
X7221
24.576MHz
Q7241
74VHCT126A
14 VCC
7 GND
2 1A
5 2A
9 3A
12 4A 11
4Y
8
3Y
6
2Y
3
1Y
13
4G
10
3G
4
2G
1
1G
Q7121
AK4114
42 RX0
43 NC
44 RX1
45 TEST1
46 RX2
47 NC
48 RX3
1 RX4
2 NC
3 RX5
4 TEST2
5 RX6
6 NC
7 RX7
14 NC
15 TX0
16 TX1
8 IIC
9 P/SN
10 XTL0
12 VIN
39 R
40 VCOM
41 AVSS
22 DVSS
37
INT1
36
INT0
35
CSN
34
CCLK
33
CDTI
32
CDTO
31
PDN
30
XTI
29
XTO
27
MCKO2
23
MCKO1
28
DAUX
25
SDTO
26
BICK
24
LRCK
13
TVDD
11
XTL1
21
DVDD
38
AVDD
17
BOUT
18
COUT
19
UOUT
20
VOUT
R7127
47
C7127
0.47u/50
+
R7139
18K
R7155 1K
R7055 1K
Q7021
AK4114
42 RX0
43 NC
44 RX1
45 TEST1
46 RX2
47 NC
48 RX3
1 RX4
2 NC
3 RX5
4 TEST2
5 RX6
6 NC
7 RX7
14 NC
15 TX0
16 TX1
8 IIC
9 P/SN
10 XTL0
12 VIN
39 R
40 VCOM
41 AVSS
22 DVSS
37
INT1
36
INT0
35
CSN
34
CCLK
33
CDTI
32
CDTO
31
PDN
30
XTI
29
XTO
27
MCKO2
23
MCKO1
28
DAUX
25
SDTO
26
BICK
24
LRCK
13
TVDD
11
XTL1
21
DVDD
38
AVDD
17
BOUT
18
COUT
19
UOUT
20
VOUT
C7027
0.47u/50
+
R7039
18K
Q7221
AK4114
42 RX0
43 NC
44 RX1
45 TEST1
46 RX2
47 NC
48 RX3
1 RX4
2 NC
3 RX5
4 TEST2
5 RX6
6 NC
7 RX7
14 NC
15 TX0
16 TX1
8 IIC
9 P/SN
10 XTL0
12 VIN
39 R
40 VCOM
41 AVSS
22 DVSS
37
INT1
36
INT0
35
CSN
34
CCLK
33
CDTI
32
CDTO
31
PDN
30
XTI
29
XTO
27
MCKO2
23
MCKO1
28
DAUX
25
SDTO
26
BICK
24
LRCK
13
TVDD
11
XTL1
21
DVDD
38
AVDD
17
BOUT
18
COUT
19
UOUT
20
VOUT
R7227
47
C7227
0.47u/50
+
R7239
18K
R7261
1K
R7254
100
DAC
C7252
470J
+5VDSP
R7037 47
R7255
1.5K
R7264 47
C7030
180J
C7031
180J
C7130
180J
C7131
180J
C7230
180J
C7231
180J
DAC
R7075 330
R7091 47
R7093 47
R7094 47
R7095 47
R7191 47
R7193 47
R7194 47
R7195 47
DAC
DAC
+5VDSP
P7002
9850S-14Y900
TO NADG-8141 VIA NAETC-8160
SCHEMATIC 14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
C7258
104Z
C7260
104Z
R7253 330
R7201 330
R7202 330
R7203 330
L7001
2.2uH
R7279
27K
R7280
27K
A
A
DAC
DAC DAC
DACA
DACA DACA DACA
DACA
DACA
DACA
DACA DACA
DACADACA
DACA
DACA
DACA
DACA
DACADACADACA
DACA
R7263
LM182
R7028 47
R7029 HS102
R7128 47
R7129 HS102
R7228 47
R7229 HS102
R7092 HS102
R7192 HS102
U09
SLOT C
Optical
IN1
IN2
IN3
IN4
IN5
IN6
OUT1
OUT2

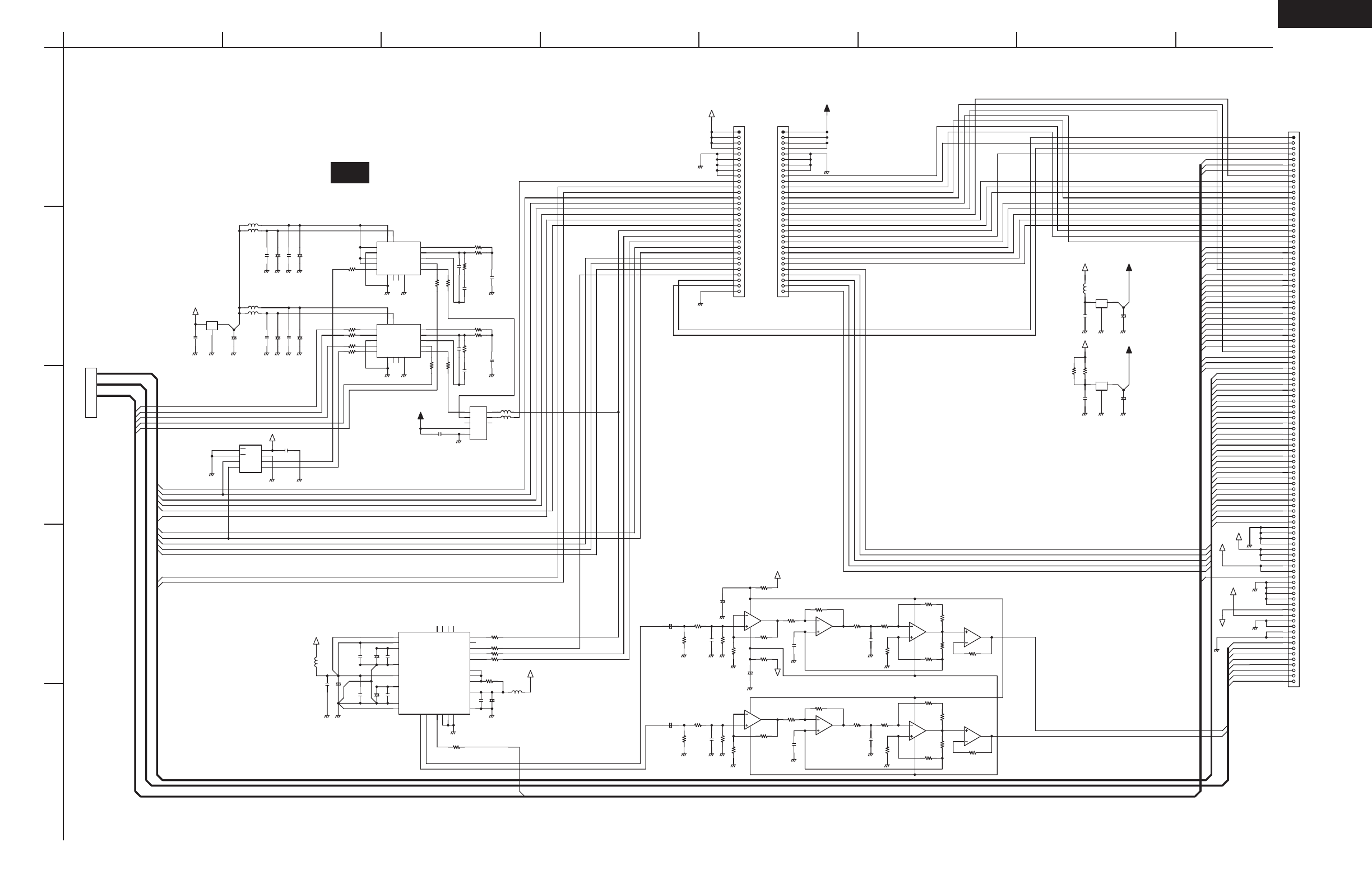

SCHEMATIC DIAGRAM 9
Second PLL section
RDC-7.1
A
1
2
3
4
5
BCDEFGH
LRCK_Z
PLLM1
PLLDATA
PLLCLZ2
DACR_Z
DACL_Z
DZ2RESET
VLSCZ2L
DACR_Z
DACL_Z
DSPMCK_Z
DSPBICK_Z
DSPLRCK_Z
BICK_Z
DSPFDA_Z
SDA_Z
DSPBICK
DSPLRCK
CSWDA_M
MCSBDA
SDA_M
FDA_M
LRCK_M
BICK_M
Z2PLLLOCK
MPLLLOCK
VLSCZ2R
FDA_Z
CSWDA_Z
VLSCRECR
VLSCRECL
Z2R
Z2L
R
VLSCZ2R
VLSCZ2L
L
IEEECSWDA
IEEELRCK
NETDA
NETBICK
NETLRCK
DSPRCSWDA
DSPLCSWDA
DSPSBDA
DSPSDA
DSPBICK
DSPFDA
DSPLRCK
MCSBDA
MCCSWDA
MCSDA
MCFDA
MCBICK
MCLRCK
DZ3RESET
DZ2RESET
Z2INT1
DIRCSZ3
Z3INT1
DIRCSZ2
MINT1
DIRCSM
DIGCLK
DIGOUT
DIGIN
DIRRESET
DIGSPCLK
DIGSPSTB2
DIGSPSTB1
DIGSPDATA
PLLDATA
PLLCLZ2
PLLM1
DSPMHS
DSPZHS
DSPMLOCK
DSPZLFE
DSPMINF
DSPMFS
DSPMLFE
DSPZDEC
DSPZINF
DSPZLOCK
DSPMDI
DSPCLK
DSPZFS
DSPZRST
DSPZDI
DSPMRST
DSPBMC
DSPMDEC
DGTU
IEEE
AES
FRDG
HDMI1
Z2PLLLOCK
Z3PLLLOCK
MPLLLOCK
DSPDO
IEEEFDA
IEEEBICK
SPDIF
IEEESDA
HDMI2
MADRESET
ZADRESET
PLLCLR
DSPFDA_Z
SDA_Z
CSWDA_Z
FDA_Z
DSPMCK_Z
DSPBICK_Z
DSPLRCK_Z
BICK_Z
LRCK_Z
DSPBICK
DSPLRCK
DSPMCK
BICK_M
LRCK_M
FDA_M
SDA_M
MCSBDA
CSWDA_M
DSPZHS
DSPMHS
DSPMRST
DSPMLFE
DSPBMC
DSPMLOCK
DSPMINF
DSPMDEC
DSPMFS
DSPCLK
DSPDO
DSPZLFE
DSPZRST
DSPMDI
DSPZFS
DSPZDI
DSPZDEC
DSPZINF
DSPZLOCK
DSPLCSWDA
DSPSBDA
DSPSDA
DSPRCSWDA
DSPFDA
DGDATA
ADATA
MPU
NADG-8162
SCH.-8
DAC
DAC DAC DAC
DAC DAC DAC DAC
DAC DAC
DAC
+5VDAC
DAC
+5VDAC
DACDAC
DAC
+15VA
DAC DAC
+15VA
DAC
-15VA
Q7309
78L05
3I
2G
1
OQ7305
TC9246
14 S2
13 S1
12 M2
11 M1
1REF
9VSS
8XO
7XI
6VSSA
10
CKO
15
LOCK
5
AMP0
4
AMP1
2
PD
3
VDDA
16
VDD
Q7421
WM8716
15 AVDD
9AVDDR
11 VMIDR
10 AGNDR
20 AVDDL
18 VMIDL
19 AGNDL
14 AGND
13 VOUTR
16 VOUTL
22 RSTB
24 MODE
26 MD/DM0
27 MC/DM1
7
DGND
8
DVDD
23
CSBIWO
25
MUTEB
28
ML/I2S
1
LRCK
3
BCKIN
2
DIN
6
XTO
5
XTI
4
CLKO
12
MODE8X
17
DIFFHW
21
ZERO
R7422 330
R7423 330
L7421
47uH
L7422
47uH
R7426 330
R7429
560
R7427
10K
R7431
100K
R7457
22
R7433
10K
R7458
22
R7437
10K
R7439
10K
Q7423A
NJM4580M-D
2
3
4
1
8
Q7423B
NJM4580M-D
6
5
7
Q7425A
NJM4580M-D
2
3
4
1
8
Q7425B
NJM4580M-D
5
6
7
R7441
1.5K
R7443
22K
R7445
22K
R7447
22K
R7449
22K
R7451
1.5K
R7453
1.5K
L7305
47uH
Q7311
TC7WT125
1G1
7G2
2A1
5A2 3
Y2
6
Y1
4
GND
8
VCC
Q7424A
NJM4580M-D
2
3
4
1
8
Q7424B
NJM4580M-D
6
5
7
Q7426A
NJM4580M-D
2
3
4
1
8
Q7426B
NJM4580M-D
5
6
7
R7455
10K
R7424 330
R7428
10K
R7430
560
R7434
10K
R7438
10K
R7440
10K
R7442
1.5K
R7446
22K
R7448
22K
R7452
1.5K
R7450
22K
R7454
1.5K
R7456
10K
R7432
100K
R7444
22K
DAC DAC
DAC
+5VDSP
L7303
47uH
L7304
47uH
L7302
47uH
C7428
104J
C7427
104J
C7435
152J
C7437
821J
C7439
471J
C7436
152J
C7438
821J
C7440
471J
C7356
104Z
C7357
10u/16
+
C7362
104Z
C7363
47u/6.3
+
C7364
104Z
C7365
47u/6.3
+
C7375
104Z
C7429
104Z
C7430
10u/16
+
C7423
104Z
C7424
104Z
C7426
10u/16
+
C7425 10u/16 +
C7358
104Z
C7359
47u/6.3
+
C7360
104Z
C7361
47u/6.3
+
C7431
104Z
C7432
10u/16
+
C7434
4.7u/35
+
C7433
4.7u/35
+
C7441
47u/16
+
C7442
47u/16
+
R7425
1K
L7307
BK1608LM182
L7306
BK1608LM182
DAC
+3.3VDSP
Q7310
TC7WH34
11A
32A
63A
8VCC
4GND
2
3Y
5
2Y
7
1Y
C7374
104Z
DAC
R7373
1.5K
R7374
5.6K
C7372
474K
C7373
470J
R7372
100
C7371 102J
DAC
R7370
5.6K
R7369
1.5K
C7367 102J
R7368
100
C7368
474K
C7369
470J
R7331 47
R7332
47
DSP
A
DSP
DSP
+5VDSP
+3.3VDSP
DSP
P7401
TO NAAR-8166
P7401B(SCH.-7)
9828B-100Y900
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
DAC
+3.3VDAC
DAC DAC
+5VDAC
C7402
100u/4
+
C7404
100u/4
+
DSPDSP
Q7401
MPC2933
1I
3G
2
O
Q7402
MPC2933
1I
3G
2
O
+3.3VDSP
+5VDAC
+5VDSP
+15VA
-15VA
DAC
Q7304
TC9246
14 S2
13 S1
12 M2
11 M1
1REF
9VSS
8XO
7XI
6VSSA
10
CKO
15
LOCK
5
AMP0
4
AMP1
2
PD
3
VDDA
16
VDD
R7371 330
R7212 330
R7213 330
R7211 330
R7367 330
P7402A
9832S-30Y930
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
P7403A
9832S-30Y930
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
L7401
2.2uH
R7421 330
+5VDSP
R7402 1.2(1W)
R7403 1.2(1W)
R7435
27K
R7436
27K
C7401
105Z
C7403
105Z
DACA
DACA DACA DACA
DACA
DACA
DACA
DACA
DACA DACA
DACA
DACA
DACA
DACA
DACA
DACA
DACA
DACA
DSP
R7395 LM182
R7396
LM182
U09
SLOT C
SCH.-10 NADG-8163
SCH.-10 NADG-8163

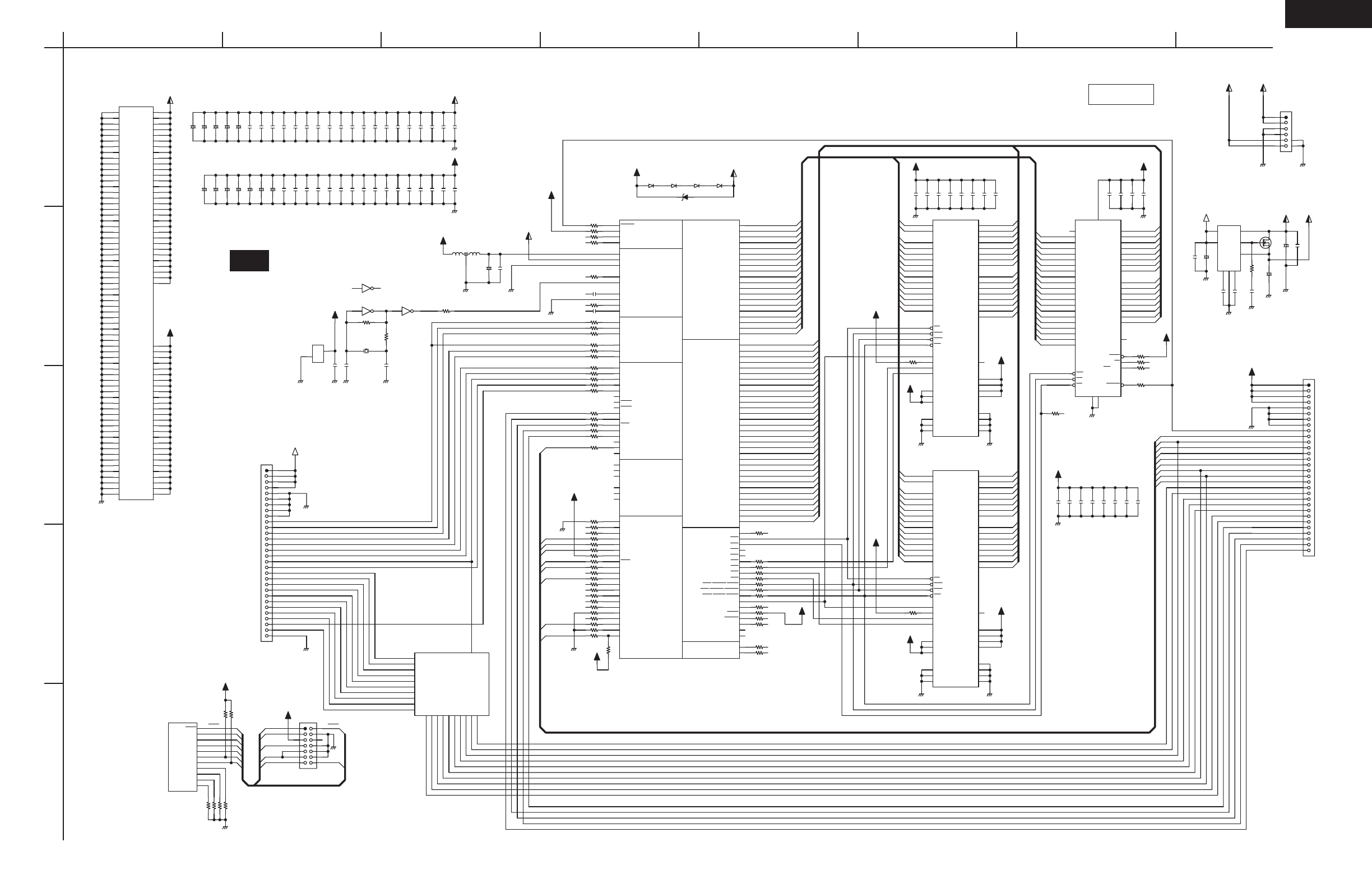

SCHEMATIC DIAGRAM 10
DSP section

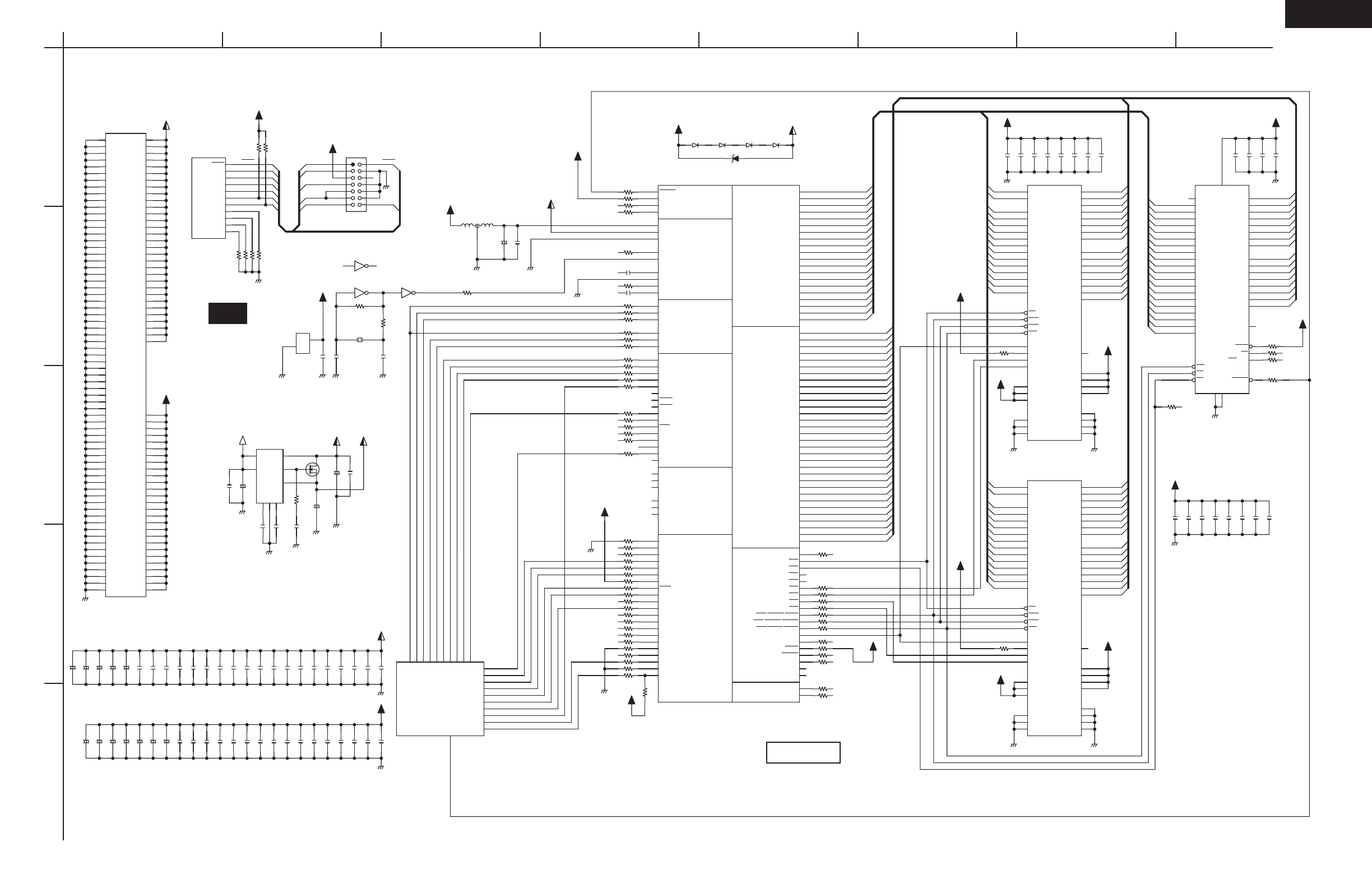

A
1
2
3
4
5
BCDEFGH
EA16
EA15
EA14
EA13
EA12
EA11
EA10
EA9
EA8
EA7
EA6
EA5
EA4
EA3
EA2
ED0
ED1
ED2
ED3
ED4
ED5
ED6
ED7
ED8
ED9
ED10
ED11
ED12
ED13
ED14
ED15
EA16
EA15
EA14
EA13
EA12
EA11
EA10
EA9
EA8
EA7
EA6
EA5
EA4
EA3
EA2
ED16
ED17
ED18
ED19
ED20
ED21
ED22
ED23
ED24
ED25
ED26
ED27
ED28
ED29
ED30
ED31
DSPMDEC
DSPMINF
EA21
ED0
ED1
ED2
ED3
ED4
ED5
ED6
ED7
ED8
ED9
ED10
ED11
ED12
ED13
ED14
ED15
ED16
ED17
ED18
ED19
ED20
ED21
ED22
ED23
ED24
ED25
ED26
ED27
ED28
ED29
ED30
ED31
EA2
EA3
EA4
EA5
EA6
EA7
EA8
EA9
EA10
EA11
EA12
EA13
EA14
EA15
EA16
EA17
EA18
EA19
EA20
DSPCLK
DSPDO
DSPMLFE
DSPMLOCK
DSPMCK_Z
DSPBICK_Z
DSPLRCK_Z
BICK_Z
LRCK_Z
FDA_Z
SDA_Z
CSWDA_Z
DSPFDA_Z
DSPMFS
DSPFDA_Z
SDA_Z
FDA_Z
LRCK_Z
BICK_Z
DSPLRCK_Z
DSPBICK_Z
DSPMCK_Z
CSWDA_Z
DSPMCK
DSPBICK
DSPLRCK
BICK_M
LRCK_M
FDA_M
SDA_M
MCSBDA
CSWDA_M
DSPSBDA
DSPMRST
DSPMLFE
DSPBMC
DSPMLOCK
DSPMINF
DSPMDEC
DSPMFS
DSPDO
DSPCLK
DSPMDI
DSPZRST
DSPZLFE
DSPZLOCK
DSPZINF
DSPZDEC
DSPZDI
DSPZFS
DSPLCSWDA
DSPSDA
DSPFDA
DSPRCSWDA
DSPMHS
DSPDI
DSPZRST
DSPZLFE
DSPBMC
DSPZLOCK
DSPZINF
DSPZDEC
DSPDO
DSPCLK
DSPZFS
DSPZHS
DSPZHS
MCSBDA
EA2
EA3
EA4
EA5
EA6
EA7
EA8
EA9
EA10
EA11
EA12
EA13
EA14
EA15
EA16
EA17
EA18
EA19
EA20
EA21
ED3
ED4
ED5
ED6
ED7
ED8
ED9
ED10
ED11
ED12
ED13
ED14
ED15
ED0
ED1
ED2
DSPMDI
DSPMCK
BICK_M
LRCK_M
FDA_M
SDA_M
MCSBDA
CSWDA_M
DSPMHS
DSPMCK
DSPBMC
DSPFDA_M
DSPSDA
DSPSBDA
DSPLCSWDA
DSPRCSWDA
DSPBICK
DSPLRCK
SCH.-11
NADG-8163
DSP
DSPDSP
+3.3VDSP
+3.3VDSP
DSP
+3.3VDSP
+3.3VDSP
DSP
DSP
+3.3VDSP
+3.3VDSP
+3.3VDSP
+3.3VDSP
DSPDSP
+3.3VDSP
DSP
DSP DSP
+3.3VDSP
DSP
+3.3VDSP
+3.3VDSP
DSP
+1.2VDSP
D7304
1SS352
D7301
1SS352
D7302
1SS352
D7303
1SS352
D7305
CRS09
DSP
C7379
102J
C7381
102J
C7383
102J
C7385
102J
C7387
102J
C7391
102J
C7393
102J
C7395
102J
C7397
102J
C7351 NC
Q7306
IC42S16800-7T
21 BS1
20 BS0
36 A12/NC
35 A11
22 A10
34 A9
33 A8
32 A7
31 A6
30 A5
29 A4
26 A3
25 A2
24 A1
23 A0
19 CS
18 RAS
17 CAS
16 WE
38 CLK
37 CKE
39 UDQM
15 LDQM
27 Vcc2
14 Vcc1
1Vcc0
54 Vss2
41 Vss1
28 Vss0 6
VssQ0
12
VssQ1
46
VssQ2
52
VssQ3
3
VccQ0
9
VccQ1
43
VccQ2
49
VccQ3
40
NC
2
DQ0
4
DQ1
5
DQ2
7
DQ3
8
DQ4
10
DQ5
11
DQ6
13
DQ7
42
DQ8
44
DQ9
45
DQ10
47
DQ11
48
DQ12
50
DQ13
51
DQ14
53
DQ15
Q7307
IC42S16800-7T
21 BS1
20 BS0
36 A12/NC
35 A11
22 A10
34 A9
33 A8
32 A7
31 A6
30 A5
29 A4
26 A3
25 A2
24 A1
23 A0
19 CS
18 RAS
17 CAS
16 WE
38 CLK
37 CKE
39 UDQM
15 LDQM
27 Vcc2
14 Vcc1
1Vcc0
54 Vss2
41 Vss1
28 Vss0 6
VssQ0
12
VssQ1
46
VssQ2
52
VssQ3
3
VccQ0
9
VccQ1
43
VccQ2
49
VccQ3
40
NC
2
DQ0
4
DQ1
5
DQ2
7
DQ3
8
DQ4
10
DQ5
11
DQ6
13
DQ7
42
DQ8
44
DQ9
45
DQ10
47
DQ11
48
DQ12
50
DQ13
51
DQ14
53
DQ15
R7302 3.9K
R7303 NC
R7305 NC
C7350 NC
R7307 NC
R7341 47
R7342 47
R7343 NC
R7344 330
R7347 NC
R7348 NC
R7351 NC
R7353 1.8K
R7375 NC
R7376 33
R7377 33
R7378 33
R7379 33
R7380 33
R7381 33
R7382 33
R7385 NC
R7391
10K
R7392
10K
L7301
ACF451832-333
R7349 NC
R7384 NC
R7383 NC
DSP
X7301
30MHz
+3.3VDSP
R7354 47
R7398 18K
R7386 NC
R7301 330
R7304 NC
C7353
104Z
C7354
120J
C7355
150J
C7349
104Z
C7348
10u/16Ta
+
C7380
104Z
C7382
104Z
C7384
104Z
C7386
104Z
C7392
104Z
C7394
104Z
C7396
104Z
C7398
104Z
C7388
104Z
C7389
102J
C7390
104Z
R7356
1M
Q7302D
TC7WHU04
4GND
8
VCC
Q7302C
TC7WHU04
3 5
Q7302B
TC7WHU04
6 2
+1.2VDSP
R7350 1.8K
R7346 NC
R7337 330
R7387 NC
R7388 NC
R7336 330
+5VDSP
DSP
DSP
DSP
DSP
C7409
NC
Q7403 BD3502
4VCC
8EN
1NRCS
2GND
3SCP
6
VFB
7
G
5
VIN
R7401
NC
C7407
222K
C7408
222K
C7406
10u/16Ta
+
C7410
220u/6.3Ta
+
C7411
10u/16Ta
+
C7412
104Z
C7405
104Z
Q7404
2SK2094
+1.2VDSP+1.65VDSP
DSP
+1.65VDSP+1.65VDSPZ
DSP
DSP DSP
P7404A
PH6
1
2
3
4
5
6 7
8
R7397 330
Q7302A
TC7WHU04
1 7
DSP
+5VDSP
P7402B
9831B-30Y930
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
P7403B
9831B-30Y930
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
+3.3VDSP
DSP
R7355
560
R7306 150
R7311 NC
R7312 330
R7313 330
R7314 330
R7315 330
R7316 330
R7327 NC
Q7301A
TMS320DA610
D610A002GDP225
A13 RESET
C13 NMI
D7 CLKOUT1
D10 CLKOUT3
C5 PLLHV
A4 PLLV
C6 PLLG
C4 CLKMODE0
A3 CLKIN
A12 OSCVDD
D12 OSCIN
C12 OSCOUT
B11 OSCVSS
F2 TINP1/AHCLKX0
G3 CLKX0/ACLKX0
H1 FSX0/AFSX0
K3 CLKS0/AHCLKR0
H3 CLKR0/ACLKR0
J3 FSR0/AFSR0
J1 DR0/AXR0[0]/AXR1[15]
H2 DX0/AXR0[1]/AXR1[14]
G1 TOUT0/AXR0[2]/AXR[13]
G2 TINP0/AXR0[3]/AXR[12]
F1 TOUT1/AXR0[4]/AXR1[11]
D20 HD1/AXR0[8]/AXR1[7]
E19 HDS1/AXR0[9]/AXR1[6]
F18 HDS2/AXR0[10]/AXR1[5]
E20 HD0/AXR0[11]/AXR1[4]
G18 HCNTL0/AXR0[12]/AXR1[3]
F20 HCS/AXR0[13]/AXR1[2]
G19 HCNTL1/AXR0[14]/AXR1[1]
G20 HRW/AXR0[15]/AXR1[0]
M1 CLKR1/AXR0[6]/AXR1[9]
L2 DX1/AXR0[5]/AXR1[10]
M3 FSR1/AXR0[7]/AXR1[8]
E18 HAS/ACLKX1
B18 HD5/AHCLKX1
D18 HD2/AFSX1
H19 HRDY/ACLKR1
C17 HD6/AHCLKR1
H20 HHWIL/AFSR1
C20 HD3/AMUTE1
C2 GP0[4]/(EXT_INT4)/ AMUTEIN1
E1 CLKS1/SCL1
L3 CLKX1/AMUTE0
M2 DR1/SDA1
L1 FSX1
C19 HD4/GP0[0]
J20 HINT/GP0[1]
Y12 CLKOUT2/GP0[2]
A18 HD7/GP0[3]
C1 GP0[5]/(EXT_INT5)/AMUTEIN0
D2 GP0[6]/(EXT_INT6)
E3 GP0[7]/(EXT_INT7)
B17 HD8/GP0[8]
C16 HD9/GP0[9]
B16 HD10/GP0[10]
A16 HD11/GP0[11]
C15 HD12/GP0[12]
A15 HD13/GP0[13]
C14 HD14/GP0[14]
B14 HD15/GP0[15]
N2
SDA0
N1
SCL0
A5
RSV2
B5
RSV0
Y11
ECLKIN
J18
HOLDA
J17
HOLD
J19
BUSREQ
Y10
ECLKOUT
V12
AWE/SDWE/SSWE
V11
ARE/SDCAS/SSADS
W10
AOE/SDRAS/SSOE
V5
BE3
Y4
BE2
U19
BE1
V20
BE0
V6
CE3
W6
CE2
W18
CE1
V17
CE0
Y5
ARDY
N3
ED31
P3
ED30
P2
ED29
P1
ED28
R2
ED27
R3
ED26
T2
ED25
T1
ED24
U3
ED23
U1
ED22
U2
ED21
V1
ED20
V2
ED19
Y3
ED18
W4
ED17
V4
ED16
T19
ED15/GP1[15]
T20
ED14/GP1[14]
T18
ED13/GP1[13]
R20
ED12/GP1[12]
R19
ED11/GP1[11]
P20
ED10/GP1[10]
P18
ED9/GP1[9]
N20
ED8/GP1[8]
N19
ED7/GP1[7]
N18
ED6/GP1[6]
M20
ED5/GP1[5]]
M19
ED4/GP1[4]
L19
ED3/GP1[3]
L18
ED2/GP1[2]
K19
ED1/GP1[1]
K18
ED0/GP1[0]
U18
EA21
Y18
EA20
W17
EA19
Y16
EA18
V16
EA17
Y15
EA16
W15
EA15
Y14
EA14
W14
EA13
V14
EA12
W13
EA11
V10
EA10
Y9
EA9
V9
EA8
Y8
EA7
W8
EA6
V8
EA5
W7
EA4
V7
EA3
Y6
EA2
EMIF ADDRESS
MCASP0 TX
MCASP0RX
MCASP1 TX
MCASP1 RX
I2C0
EMIF DATA
DATA
SERIAL
CLOCK/OSC
GLOBAL
GP0
EMIF CONTROL
R7338 47
R7317 330
R7318 47
+3.3VDSP
R7340 3.3K
R7325 1.8K
+3.3VDSP
+3.3VDSP
DSP
DSP
R7345 NC
R7394
330
Q7308
MX29LVT160
10 A20
9A19
16 A18
17 A17
48 A16
1A15
2A14
3A13
4A12
5A11
6A10
7A9
8A8
18 A7
19 A6
20 A5
21 A4
22 A3
23 A2
24 A1
25 A0
11 WE
28 OE
26 CE
27 VSS1
46 VSS2
12
RESET
14
WP/ACC
15
RY/BY
47
BYTE
13
NC
29
D0
31
D1
33
D2
35
D3
38
D4
40
D5
42
D6
44
D7
30
D8
32
D9
34
D10
36
D11
39
D12
41
D13
43
D14
45
D15
37
VCC
R7393 NC
R7390 10K
+3.3VDSP
R7399 NC
R71
NC
R7335 NC
R7308 470
R7352 NC
R7320 HS601
R7321 HS601
R7322 HS601
R7323 HS601
R7324 HS601
R7309 HS601
R7310 HS601
DSP
G17 VSS
H4 VSS
H17 VSS
J4 VSS
J9 VSS
J10 VSS
J11 VSS
J12 VSS
K2 VSS
K9 VSS
K10 VSS
K11 VSS
K12 VSS
K20 VSS
L9 VSS
L10 VSS
L11 VSS
L12 VSS
M4 VSS
M9 VSS
M10 VSS
M11 VSS
M12 VSS
M17 VSS
N4 VSS
N17 VSS
P4 VSS
P17 VSS
P19 VSS
T17 VSS
T4 VSS
U4 VSS
U8 VSS
U9 VSS
U13 VSS
U17 VSS
U20 VSS
W1 VSS
W5 VSS
W11 VSS
W16 VSS
W20 VSS
Y1 VSS
Y2 VSS
Y13 VSS
Y19 VSS
Y20 VSS Y17
DVDD
Y7
DVDD
W12
DVDD
W9
DVDD
W3
DVDD
V19
DVDD
V15
DVDD
V13
DVDD
U16
DVDD
U12
DVDD
U7
DVDD
U5
DVDD
T3
DVDD
R18
DVDD
R1
DVDD
M18
DVDD
J2
DVDD
H18
DVDD
F3
DVDD
D19
DVDD
D16
DVDD
D1
DVDD
C10
DVDD
B13
DVDD
B8
DVDD
B3
DVDD
A17
DVDD
W19
CVDD
W2
CVDD
V18
CVDD
V3
CVDD
U15
CVDD
U14
CVDD
U11
CVDD
U10
CVDD
U6
CVDD
R17
CVDD
+3.3VDSP
+1.2VDSP
Q7301C
D610A002GDP225
A1 VSS
A2 VSS
A11 VSS
A14 VSS
A19 VSS
A20 VSS
B1 VSS
B4 VSS
B15 VSS
B20 VSS
C8 VSS
C9 VSS
D4 VSS
D8 VSS
D13 VSS
D17 VSS
E17 VSS
E2 VSS
E4 VSS
F19 VSS
G4 VSS R4
CVDD
L20
CVDD
L17
CVDD
L4
CVDD
K17
CVDD
K4
CVDD
K1
CVDD
F17
CVDD
F4
CVDD
D15
CVDD
D14
CVDD
D11
CVDD
D6
CVDD
D5
CVDD
C18
CVDD
C7
CVDD
C3
CVDD
B19
CVDD
B2
CVDD
A10
CVDD
A9
CVDD
C7310
104Z
C7301
10u/16Ta
+
C7302
10u/16Ta
+
C7303
10u/16Ta
+
C7304
10u/16Ta
+
C7305
10u/16Ta
+
C7325
10u/16Ta
+
C7326
10u/16Ta
+
C7327
10u/16Ta
+
C7328
10u/16Ta
+
C7329
10u/16Ta
+
C7330
10u/16Ta
+
C7306
104Z
C7307
104Z
C7308
104Z
C7309
104Z
C7311
104Z
C7312
104Z
C7313
104Z
C7314
104Z
C7315
104Z
C7316
104Z
C7317
104Z
DSP
+3.3VDSP
C7321
104Z
C7322
104Z
C7323
104Z
C7324
104Z
C7320
104Z
C7319
104Z
C7318
104Z
C7340
104Z
C7339
104Z
C7338
104Z
C7337
104Z
C7336
104Z
C7335
104Z
C7334
104Z
C7333
104Z
C7341
104Z
DSP
C7347
104Z
C7346
104Z
C7331
10u/16Ta
+
C7332
104Z
C7343
104Z
C7342
104Z
C7345
104Z
C7344
104Z
+1.2VDSP
TRST
EMU1EMU0
TCK
TDO
TDI
TMS
+3.3VDSP
DSP
P7301
JTAG
1
3
5
7
9
11
13 14
12
10
8
6
4
2
EMU1
EMU0
TMS
TDO
TDI
TCK
TRST
DSP
R7361
NC
R7362
NC
R7357 1.8K
R7358 1.8K
R7359 1.8K
R7360 1.8K
Q7301B
D610A002GDP225
B12
EMU5
C11
EMU4
B10
EMU3
D3
EMU2
B9
EMU1
D9
EMU0
B7
TMS
A8
TDO
A7
TDI
A6
TCK
B6
TRST
+3.3VDSP
U26
SCH.-9 NADG-8162
SCH.-9 NADG-8162
RDC-7.1
SCHEMATIC DIAGRAM 11
DSP section
A
1
2
3
4
5
BCDEFGH
DSPMCK_Z
DSPBICK_Z
DSPLRCK_Z
BICK_Z
LRCK_Z
FDA_Z
SDA_Z
MCSBDA
CSWDA_Z
DSPFDA_Z
DSPCLK
DSPDO
DSPZDI
DSPCLK
DSPDO
DSPZDEC
DSPZINF
DSPZLOCK
DSPZDEC
DSPZINF
DSPZLOCK
DSPZFS
DSPBICK_Z
DSPLRCK_Z
DSPMCK_Z
BICK_Z
LRCK_Z
FDA_Z
SDA_Z
MCSBDA
CSWDA_Z
DSPFDA_Z
DSPZDI
DSPZFS
ZEA16
ZEA15
ZEA14
ZEA13
ZEA12
ZEA11
ZEA10
ZEA9
ZEA8
ZEA7
ZEA6
ZEA5
ZEA4
ZEA3
ZEA2
ZED0
ZED1
ZED2
ZED3
ZED4
ZED5
ZED6
ZED7
ZED8
ZED9
ZED10
ZED11
ZED12
ZED13
ZED14
ZED15
ZEA16
ZEA15
ZEA14
ZEA13
ZEA12
ZEA11
ZEA10
ZEA9
ZEA8
ZEA7
ZEA6
ZEA5
ZEA4
ZEA3
ZEA2
ZED16
ZED17
ZED18
ZED19
ZED20
ZED21
ZED22
ZED23
ZED24
ZED25
ZED26
ZED27
ZED28
ZED29
ZED30
ZED31
ZEA2
ZEA3
ZEA4
ZEA5
ZEA6
ZEA7
ZEA8
ZEA9
ZEA10
ZEA11
ZEA12
ZEA13
ZEA14
ZEA15
ZEA16
ZEA17
ZEA18
ZEA19
ZEA20
ZEA21
ZED0
ZED1
ZED2
ZED3
ZED4
ZED5
ZED6
ZED7
ZED8
ZED9
ZED10
ZED11
ZED12
ZED13
ZED14
ZED15
ZED16
ZED17
ZED18
ZED19
ZED20
ZED21
ZED22
ZED23
ZED24
ZED25
ZED26
ZED27
ZED28
ZED29
ZED30
ZED31
DSPZRST
DSPZLFE
DSPBMC
DSPZLFE
DSPZHS
DSPZHS
ZEA21
ZEA20
ZEA19
ZEA18
ZEA17
ZEA16
ZEA15
ZEA14
ZEA13
ZEA12
ZEA11
ZEA10
ZEA9
ZEA8
ZEA7
ZEA6
ZEA5
ZEA4
ZEA3
ZEA2
ZED15
ZED14
ZED13
ZED12
ZED11
ZED10
ZED9
ZED8
ZED7
ZED6
ZED5
ZED4
ZED3
ZED2
ZED1
ZED0DSPMCK_Z
DSPBMC
SCH.-10
NADG-8163
DSP
+3.3VDSP
DSPDSP
+3.3VDSP
+3.3VDSP
DSP
+3.3VDSP
+3.3VDSP
DSP
DSP
+3.3VDSP
+3.3VDSP
+3.3VDSP
+3.3VDSP
DSPDSP
+3.3VDSP
DSP
DSP DSP
+3.3VDSP
DSP
+3.3VDSP
+3.3VDSP
DSP
DSP
DSP
+3.3VDSP
Q702A
TC7WHU04
1 7
Q702C
TC7WHU04
3 5
Q702B
TC7WHU04
6 2
Q702D
TC7WHU04
4GND
8
VCC
R756
1M
X701
30MHz
C753
104Z
C754
120J
C755
150J
L701
ACF451832-333
C748
10u/16Ta
+
C749
104Z
D701
1SS352
D702
1SS352
D703
1SS352
D704
1SS352
D705
CRS09
R701 330
R702 3.9K
R703 NC
R704 NC
R705 NC
C750 NC
R707 NC
C751 NC
R709 47
R710 47
R711 NC
R712 330
R713 330
R714 330
R715 330
R716 330
R720 47
R721 NC
R722 NC
R723 NC
R738 47
R724 NC
R727 NC
R735 NC
R736 330
R737 330
R797 330
R741 47
R742 47
R743 NC
R744 330
R747 NC
R748 NC
R749 NC
R750 1.8K
R751 NC
R753 1.8K
R754 47
R798 18K
R788 NC
R787 NC
R786 NC
R785 NC
R784 NC
R783 NC
R782 33
R781 33
R780 33
R779 33
R778 33
R777 33
R776 33
R775 NC
C779
102J
C780
104Z
C781
102J
C782
104Z
C783
102J
C784
104Z
C785
102J
C786
104Z
Q706
IC42S16800-7T
21 BS1
20 BS0
36 A12/NC
35 A11
22 A10
34 A9
33 A8
32 A7
31 A6
30 A5
29 A4
26 A3
25 A2
24 A1
23 A0
19 CS
18 RAS
17 CAS
16 WE
38 CLK
37 CKE
39 UDQM
15 LDQM
27 Vcc2
14 Vcc1
1Vcc0
54 Vss2
41 Vss1
28 Vss0 6
VssQ0
12
VssQ1
46
VssQ2
52
VssQ3
3
VccQ0
9
VccQ1
43
VccQ2
49
VccQ3
40
NC
2
DQ0
4
DQ1
5
DQ2
7
DQ3
8
DQ4
10
DQ5
11
DQ6
13
DQ7
42
DQ8
44
DQ9
45
DQ10
47
DQ11
48
DQ12
50
DQ13
51
DQ14
53
DQ15
R791
10K
Q707
IC42S16800-7T
21 BS1
20 BS0
36 A12/NC
35 A11
22 A10
34 A9
33 A8
32 A7
31 A6
30 A5
29 A4
26 A3
25 A2
24 A1
23 A0
19 CS
18 RAS
17 CAS
16 WE
38 CLK
37 CKE
39 UDQM
15 LDQM
27 Vcc2
14 Vcc1
1Vcc0
54 Vss2
41 Vss1
28 Vss0 6
VssQ0
12
VssQ1
46
VssQ2
52
VssQ3
3
VccQ0
9
VccQ1
43
VccQ2
49
VccQ3
40
NC
2
DQ0
4
DQ1
5
DQ2
7
DQ3
8
DQ4
10
DQ5
11
DQ6
13
DQ7
42
DQ8
44
DQ9
45
DQ10
47
DQ11
48
DQ12
50
DQ13
51
DQ14
53
DQ15
R792
10K
C791
102J
C792
104Z
C793
102J
C794
104Z
C795
102J
C796
104Z
C797
102J
C798
104Z
C787
102J
C788
104Z
C789
102J
C790
104Z
Q701A
TMS320DA610
D610A002GDP225
A13 RESET
C13 NMI
D7 CLKOUT1
D10 CLKOUT3
C5 PLLHV
A4 PLLV
C6 PLLG
C4 CLKMODE0
A3 CLKIN
A12 OSCVDD
D12 OSCIN
C12 OSCOUT
B11 OSCVSS
F2 TINP1/AHCLKX0
G3 CLKX0/ACLKX0
H1 FSX0/AFSX0
K3 CLKS0/AHCLKR0
H3 CLKR0/ACLKR0
J3 FSR0/AFSR0
J1 DR0/AXR0[0]/AXR1[15]
H2 DX0/AXR0[1]/AXR1[14]
G1 TOUT0/AXR0[2]/AXR[13]
G2 TINP0/AXR0[3]/AXR[12]
F1 TOUT1/AXR0[4]/AXR1[11]
D20 HD1/AXR0[8]/AXR1[7]
E19 HDS1/AXR0[9]/AXR1[6]
F18 HDS2/AXR0[10]/AXR1[5]
E20 HD0/AXR0[11]/AXR1[4]
G18 HCNTL0/AXR0[12]/AXR1[3]
F20 HCS/AXR0[13]/AXR1[2]
G19 HCNTL1/AXR0[14]/AXR1[1]
G20 HRW/AXR0[15]/AXR1[0]
M1 CLKR1/AXR0[6]/AXR1[9]
L2 DX1/AXR0[5]/AXR1[10]
M3 FSR1/AXR0[7]/AXR1[8]
E18 HAS/ACLKX1
B18 HD5/AHCLKX1
D18 HD2/AFSX1
H19 HRDY/ACLKR1
C17 HD6/AHCLKR1
H20 HHWIL/AFSR1
C20 HD3/AMUTE1
C2 GP0[4]/(EXT_INT4)/ AMUTEIN1
E1 CLKS1/SCL1
L3 CLKX1/AMUTE0
M2 DR1/SDA1
L1 FSX1
C19 HD4/GP0[0]
J20 HINT/GP0[1]
Y12 CLKOUT2/GP0[2]
A18 HD7/GP0[3]
C1 GP0[5]/(EXT_INT5)/AMUTEIN0
D2 GP0[6]/(EXT_INT6)
E3 GP0[7]/(EXT_INT7)
B17 HD8/GP0[8]
C16 HD9/GP0[9]
B16 HD10/GP0[10]
A16 HD11/GP0[11]
C15 HD12/GP0[12]
A15 HD13/GP0[13]
C14 HD14/GP0[14]
B14 HD15/GP0[15]
N2
SDA0
N1
SCL0
A5
RSV2
B5
RSV0
Y11
ECLKIN
J18
HOLDA
J17
HOLD
J19
BUSREQ
Y10
ECLKOUT
V12
AWE/SDWE/SSWE
V11
ARE/SDCAS/SSADS
W10
AOE/SDRAS/SSOE
V5
BE3
Y4
BE2
U19
BE1
V20
BE0
V6
CE3
W6
CE2
W18
CE1
V17
CE0
Y5
ARDY
N3
ED31
P3
ED30
P2
ED29
P1
ED28
R2
ED27
R3
ED26
T2
ED25
T1
ED24
U3
ED23
U1
ED22
U2
ED21
V1
ED20
V2
ED19
Y3
ED18
W4
ED17
V4
ED16
T19
ED15/GP1[15]
T20
ED14/GP1[14]
T18
ED13/GP1[13]
R20
ED12/GP1[12]
R19
ED11/GP1[11]
P20
ED10/GP1[10]
P18
ED9/GP1[9]
N20
ED8/GP1[8]
N19
ED7/GP1[7]
N18
ED6/GP1[6]
M20
ED5/GP1[5]]
M19
ED4/GP1[4]
L19
ED3/GP1[3]
L18
ED2/GP1[2]
K19
ED1/GP1[1]
K18
ED0/GP1[0]
U18
EA21
Y18
EA20
W17
EA19
Y16
EA18
V16
EA17
Y15
EA16
W15
EA15
Y14
EA14
W14
EA13
V14
EA12
W13
EA11
V10
EA10
Y9
EA9
V9
EA8
Y8
EA7
W8
EA6
V8
EA5
W7
EA4
V7
EA3
Y6
EA2
EMIF ADRESS
MCASP0 TX
MCASP0RX
MCASP1 TX
MCASP1 RX
I2C0
EMIF DATA
DATA
SERIAL
CLOCK/OSC
GLOBAL
GP0
EMIF CONTROL
+1.2VDSPZ
+1.2VDSPZ
R755
560
R746 NC
R745 NC
R717 330
R718 47
R706 150
Q708
MX29LVT160
10 A20
9A19
16 A18
17 A17
48 A16
1A15
2A14
3A13
4A12
5A11
6A10
7A9
8A8
18 A7
19 A6
20 A5
21 A4
22 A3
23 A2
24 A1
25 A0
11 WE
28 OE
26 CE
27 VSS1
46 VSS2
12
RESET
14
WP/ACC
15
RY/BY
47
BYTE
13
NC
29
D0
31
D1
33
D2
35
D3
38
D4
40
D5
42
D6
44
D7
30
D8
32
D9
34
D10
36
D11
39
D12
41
D13
43
D14
45
D15
37
VCC
R725 1.8K
R740 3.3K
+3.3VDSP
+3.3VDSP
DSP
DSP
R799 NC
R793 NC
R790 10K
+3.3VDSP
R794
330
R72
NC
R708 470
R752 NC
+5VDSP
DSP
DSP
DSP
DSP
DSP
+1.2VDSPZ+1.65VDSPZ
C805
104Z
C806
10u/16Ta
+
Q803 BD3502
4VCC
8EN
1NRCS
2GND
3SCP
6
VFB
7
G
5
VIN
Q804
2SK2094
C811
10u/16Ta
+
C812
104Z
C810
220u/6.3Ta
+
R801
NC
C809
NC
C808
222K
C807
222K
DSP
+3.3VDSP
G17 VSS
H4 VSS
H17 VSS
J4 VSS
J9 VSS
J10 VSS
J11 VSS
J12 VSS
K2 VSS
K9 VSS
K10 VSS
K11 VSS
K12 VSS
K20 VSS
L9 VSS
L10 VSS
L11 VSS
L12 VSS
M4 VSS
M9 VSS
M10 VSS
M11 VSS
M12 VSS
M17 VSS
N4 VSS
N17 VSS
P4 VSS
P17 VSS
P19 VSS
T17 VSS
T4 VSS
U4 VSS
U8 VSS
U9 VSS
U13 VSS
U17 VSS
U20 VSS
W1 VSS
W5 VSS
W11 VSS
W16 VSS
W20 VSS
Y1 VSS
Y2 VSS
Y13 VSS
Y19 VSS
Y20 VSS Y17
DVDD
Y7
DVDD
W12
DVDD
W9
DVDD
W3
DVDD
V19
DVDD
V15
DVDD
V13
DVDD
U16
DVDD
U12
DVDD
U7
DVDD
U5
DVDD
T3
DVDD
R18
DVDD
R1
DVDD
M18
DVDD
J2
DVDD
H18
DVDD
F3
DVDD
D19
DVDD
D16
DVDD
D1
DVDD
C10
DVDD
B13
DVDD
B8
DVDD
B3
DVDD
A17
DVDD
W19
CVDD
W2
CVDD
V18
CVDD
V3
CVDD
U15
CVDD
U14
CVDD
U11
CVDD
U10
CVDD
U6
CVDD
R17
CVDD
+1.2VDSPZ
Q701C
D610A002GDP225
A1 VSS
A2 VSS
A11 VSS
A14 VSS
A19 VSS
A20 VSS
B1 VSS
B4 VSS
B15 VSS
B20 VSS
C8 VSS
C9 VSS
D4 VSS
D8 VSS
D13 VSS
D17 VSS
E17 VSS
E2 VSS
E4 VSS
F19 VSS
G4 VSS R4
CVDD
L20
CVDD
L17
CVDD
L4
CVDD
K17
CVDD
K4
CVDD
K1
CVDD
F17
CVDD
F4
CVDD
D15
CVDD
D14
CVDD
D11
CVDD
D6
CVDD
D5
CVDD
C18
CVDD
C7
CVDD
C3
CVDD
B19
CVDD
B2
CVDD
A10
CVDD
A9
CVDD
DSP
+3.3VDSP
DSP
+1.2VDSPZ
C701
10u/16Ta
+
C702
10u/16Ta
+
C703
10u/16Ta
+
C704
10u/16Ta
+
C705
10u/16Ta
+
C706
104Z
C707
104Z
C708
104Z
C709
104Z
C710
104Z
C711
104Z
C712
104Z
C713
104Z
C714
104Z
C715
104Z
C716
104Z
C717
104Z
C718
104Z
C719
104Z
C720
104Z
C721
104Z
C722
104Z
C723
104Z
C724
104Z
C725
10u/16Ta
+
C726
10u/16Ta
+
C727
10u/16Ta
+
C728
10u/16Ta
+
C729
10u/16Ta
+
C730
10u/16Ta
+
C731
10u/16Ta
+
C732
104Z
C733
104Z
C734
104Z
C735
104Z
C736
104Z
C737
104Z
C738
104Z
C739
104Z
C740
104Z
C741
104Z
C742
104Z
C743
104Z
C744
104Z
C745
104Z
C746
104Z
C747
104Z
DSP
+3.3VDSP
R757
R758
R759
R760
ZTRST
ZTCK
ZTDI
ZTDO
ZTMS
ZEMU0
ZEMU1
ZTMS
ZTDI
ZTDO
ZTCK
ZEMU0
ZTRST
ZEMU1
+3.3VDSP
DSP
Q701B
D610A002GDP225
B12
EMU5
C11
EMU4
B10
EMU3
D3
EMU2
B9
EMU1
D9
EMU0
B7
TMS
A8
TDO
A7
TDI
A6
TCK
B6
TRST
P701
JTAG
1
3
5
7
9
11
13 14
12
10
8
6
4
2
R761
NC
R762
NC
1.8K
1.8K
1.8K
1.8K
RDC-7.1
U26
SCHEMATIC DIAGRAM 12
Supply section
U172 U173
NAPS-8195
NAPS-8194
TO TRANSFORMER (SCH.-13)
TO NAAR-8166 P3116C(SCH.-7) TO NAAR-8166 P3116C(SCH.-7)
TO NAAR-8166 P3130C(SCH.-7)
TO NAAR-8166 P3130C(SCH.-7)
TO NAAF-8156 P4864A (SCH.-5)
RDC-7.1
NAETC-8180
A
1
2
3
4
5
BCDEFGH
SCHEMATIC DIAGRAM 13 Supply section
RDC-7.1
U17
VA
AGAINST FIRE HAZARD, REPLACE
FOR CONTINUED PROTECTION
AND RATING INDICATED.
ONLY WITH FUSE OF SAME TYPE
CAUTION
ATTENTION
VA
ET CALIBRATION COMME INDIQUE.
D'INCENDIE, REMPLACER UNIQUEMENT
PERMANENTE CONTRE LES RISQUES
AFIN D'ASSURER UNE PROTECTION
PAR UN FUSIBLE DE MEME TYPE
RATING REFER TO THE MARKING ADJACENT TO THE SYMBOL
FOR CONTINUED PROTECTION AGAINST FIRE
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
THAT THE FUSE USED IS SLOW OPERATING TYPE
E LENT. POUR UNE PROTECTION PERMANENTE,N'UTILISER
CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
(MEASURED WITH
BY MARK
ARE CRITICAL FOR
SAFETY
IDENTIFIED
NOTE
THE COMPONENTS
REPLACE ONLY WITH PART NUMBER SPECIFIED.
.
.VOLTAGE VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL)
.ELECTROLYTIC CAPACITORS ( )ARE IN F/WV.
.ALL CAPACITORS ARE IN pF/50WV UNLESS OTHERWISE NOTED.
EX) 030-3pF 330-33pF 331-330pF 333-0.033uF
u
ALL RESISTORS ARE IN OHMS 1/4WATTS UNLESS OTHERWISE NOTED.
.THE THICK LINES ON PC BOARD ARE THE PRINTING SIDE OF THE PARTS.
EX) PRINTING SIDE
CIRCUIT IS SUBJECT TO CHANGE FOR IMPROVEMENT.
.
.
NAPS-8196
NAPS-8197
U174
U175
U176
U177
US model only
US model only
Q5701
Q5893
Q5883
Q5873
Q5892
Q5882
Q5872
Q5871
Q5881
Q5891
Q5855
Q5865
Q5853
Q5863
Q5854
Q5864
Q5852
Q5862
Q5801
Q5851
Q5861
Q9211
Q9212
Q9201
Q9202
Q5773
Q5783
Q5793
Q5792
Q5782
Q5772
Q5791
Q5781
Q5771
Q5763
Q5753
Q5755
Q5761
Q5765
Q5752
Q5751
Q5762
Q5721
Q5764
Q5754
A
1
2
3
4
5
BCDEFGH
NAETC-8198
NAETC-8199
NAPS-8193
TO NAAR-8166(SCH.-7)
Except US model
SCHEMATIC
DIAGRAM 14
Coaxial I/O and
Tuner sections
J117
Q104
TC74HCT7007AF
1
2
3
4
5
6
7 8
9
10
11
12
13
14
Q105
TC74VHC125FT
1
2
3
4
5
6
78
9
10
11
12
13
14
C111
561J
T2
T1
VSS2
VDD2
XI
X0
T57
RCLK
CMP
VSS3
VSS1
VDD1
MUX
VREF
RDSDATA
QUAL
Q101BU1924FS
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
X100
AF6146CG
P100
TO TUNER PACK
Q103
78L05
G
IO
Q102
78M12
G
IO
P3115A
TO NAAR-8166 (SCH.-7)
L100
220K
NCH-14752
R135
10K
R130
1K
R133
1K
R134
1K
R127
1K
R128
1K
R129
1K
R132
1K
R131
1K
R106
100K
R110
1K
R111
1K
R109
1K
R105
100K
R104
100K
R112
1.2K
OR 5.6K
*
OR 15K
R101 330
R100 330
R102 100KR103 100
C103
3.3/50
C108
100/6.3
C114
100/6.3
C116
100/16
C118
100/6.3
C100
3.3/50
C101
3.3/50
C120
223Z
C119
223Z
C104
223Z
C102
101J
C113
271J
C109
330
(CH)
C110
330
(CH)
C107
223Z
C115
223Z
C117223Z
STEREO
SD
TMUTE1
TUR
AGND
TUL
DET
+12VTU
+5VTU
FMSIG
AGND
RDSDA1
STEREO
RDSID_
RDSCL1
TMUTE1
SD
ATUR
ATUL
+12VTU
+5VTU
PLLDA +5VTU
PLLCLK1
PLLDA1
PLLCE1
PLLCLK
TMUTE
+5VTU
RDSDA1
RDSCL1
RDSID_
PLLCE
STEREO
STEREO
+12VTU
STEREO
RDSCL
RDSDA
OP05
RDSDA
RDSCL
RDSID
STEREO
SD
TMUTE
ATUR
ATUL
PLLCLK
PLLDA
PLLCE
DSPGND
DSPGND
DSPGND
+3.3V
+3.3V
AGND
AGND
+18V
+18V
OP7
RDS
DISTINATION CIRCUIT
-1A UDD NO
-1B UPP YES
-1C OTHER NO
R112
DISTINATION VALUE
-1A C-AMFM SHORT
-1B UPP 1.2K
-1C OTHER 5.6K
-1D UJJ 15K
DO
NARF-8152
DO
RDS
RDC-7.1/C-AMFM
U06
SLOT K
US model:Option board:C-AMFM
A
1
2
3
4
5
BCDEFGH
P7454A
Q7456 BU2152FS
CLK 2CLR31
DATA 4
P1 5
P10 14
P11 15
P12 16P1317
P1418
P1519
P1620
P1721
P1822
P1923
P2 6
P2024
P2125
P2226
P2327
P2428
P3 7
P4 8
P5 9
P6 10
P7 11
P8 12
P9 13
S029
STB30
VDD32 VSS 1
VSS2 3
Q7452
TC74VHCT126A
1A 2
1G1
1Y 3
2A 5
2G4
2Y 63A9
3G10
3Y8
4A12
4G13
4Y11
GND7
VCC14
Q7455
74HC151
A11
B10
C9
D04
D13
D22
D31
D4
15
D514
D6
13
D712
GND8
VCC16
W6
Y 5
ST7
Q7454
74HC151
A
11
B10
C9
D04
D13
D22
D31
D4
15
D514
D6
13
D712
GND8
VCC16
W6
Y 5
ST7
Q7453
74HC151
A11
B10
C9
D04
D13
D22
D31
D4
15
D514
D6
13
D712
GND8
VCC
16
W6
Y5
ST7
P7453 P7452 P7451
T7452
T7451
Q7451
74HCU04
1
2
3
4
5
6
78
9
10
11
12
13
14
L7452
022K
L7451
022K
R7472
1K
R7473
330
R7471
47
R7470
47
R7469
47
R7451
BK1608LM182-T
R7453
R7455
R7457
R7459
R7461
R7465
10K
R7464
10K
R7463
10K
R7474 330
R7475
330
R7468
10K
R7467
10K
R7466
10K
R7460
75
R7458
75
R7462
75
R7454
75
R7452
75
R7456
75
C7477 47/16
C7470 47/16
C7482
104Z
C7481
104Z
C7478
104Z
C7476 104Z
C7475
104Z
C7474
104Z C7469 104Z
C7468 104Z
C7459
104Z
C7460
104Z
C7461
104Z
C7462
104Z
C7463
104Z
C7464
104Z
C7480
0*
C7479
0*
C7458
102J
C7454
0*
C7473
080D
C7472
080D C7471
080D
C7467
080D C7466
080D C7465
080D
C7457
101J
C7456
101J
C7455
101J
C7453
101J
C7452
101J
C7451
101J
TX1_Z
TX1_R
COAX_R
COAX_Z
COAX_M
DACGND
TX1_R
TX1_Z
DACGND
DIRRESET
DIGSPSTB2
DIGSPCLK
DIGSPDATA
DACGND
+5VDSP
+5VDSP
NADG-8159
0*:Short
COAXIAL OUT COAXIAL IN
6 5 4
COAXIAL IN
3 2 1
2 1
COAX_R
COAX_Z
COAX_M
DACGND
TX1_R
TX1_Z
DACGND
DIRRESET
DIGSPSTB2
DIGSPCLK
DIGSPDATA
DACGND
+5VDSP
+5VDSP
P7454B P7002A
NAETC-8160
TO SCH.-7 (NADG-8162)
SLOT D
U085
U084
BK1608LM182-T
BK1608LM182-T
BK1608LM182-T
BK1608LM182-T
BK1608LM182-T

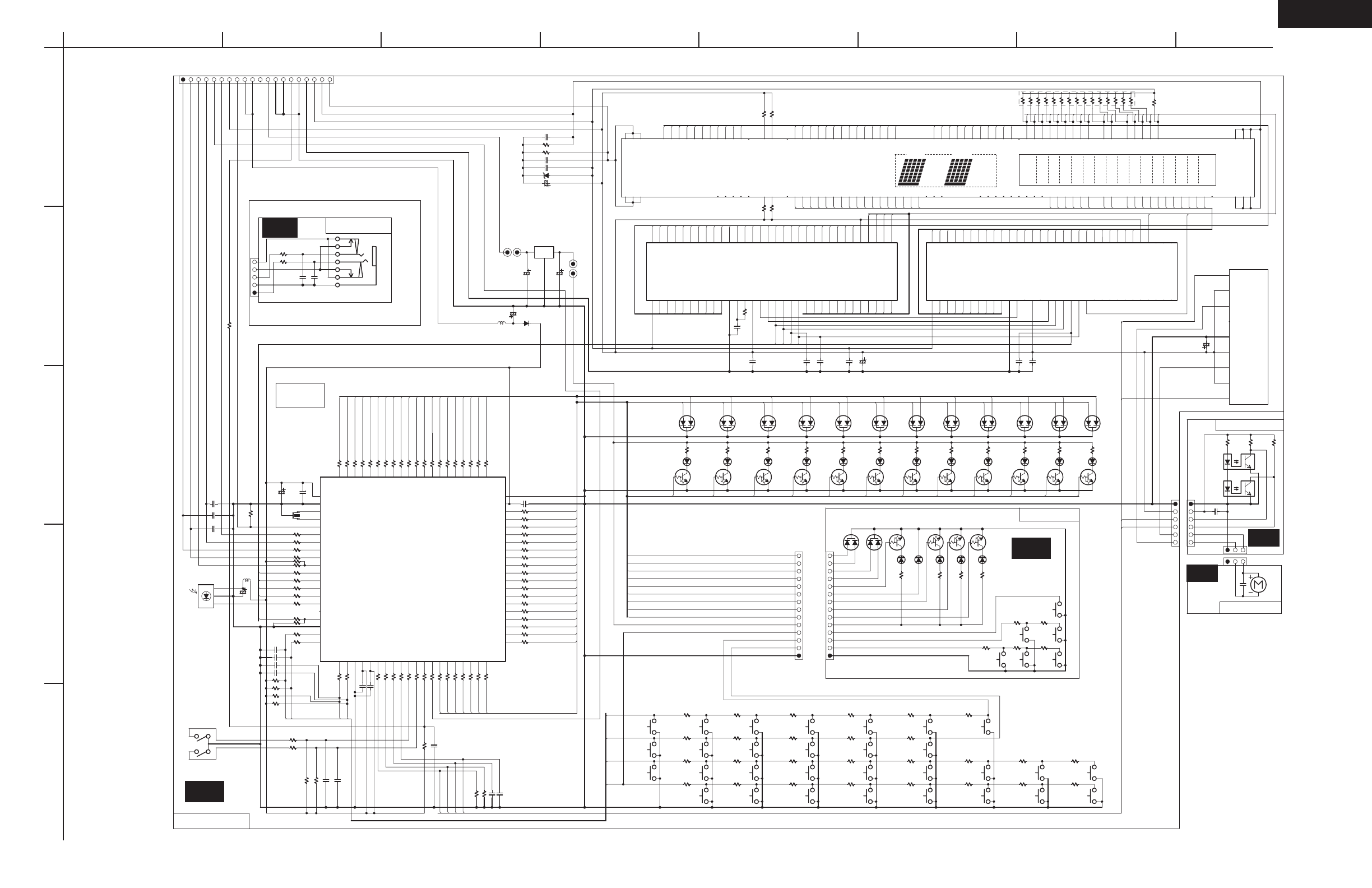

SCHEMATIC DIAGRAM 15 Display section
RDC-7.1
J2A
J1B
J2B
J1A
Q7901
NJM78M08DL1A
78MSMT
G
I O
P7503B
P7503A
P7501
15G 14G 13G 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G
LOWERUPPER
P36
P31-35
P26-30
P21-25
P16-20
P11-15
P6-10
P1-5
P72
P67-71
P62-66
P57-61
P52-56
P47-51
P42-46
P37-41
16G
Q7602 FL_164
1
2
3
13
14
15
16
17
19
20
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
63
64
66
67
68
69
70
71
72
73
74
75
76
77
80
81
82 83
84
85
95
96
97
98
99
101
102
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
145
146
148
149
150
151
152
153
154
155
156
157
158
159
162
163
164
D7522
Z2,3/V1
D7521
Z2,3/DVD
D7524
Z2,3/V3 D7525
Z2,3/V4 D7526
Z2,3/V5 D7527
Z2,3/V6 D7528
Z2,3/V7 D7529
Z2,3/TA1 D7530
Z2,3/TA2 D7531
Z2,3/TUNE D7533
Z2,3/CD
D7532
Z2,3/PH D7534
Z2,3/NE
D7523
Z2,3/V2
L7701
NCH-1471
L7702 NCH-1471
D7801 UDZ6.8B
R7807
10K*15
D7701
C7805
470J
C7601 474J
C7809 474J
Q7604
M66005-0001AFP
DIG0112
DIG0211
DIG03
10
DIG04
9
DIG05
8
DIG067
DIG07
6
DIG08
5
DIG09
4
DIG103
DIG112
DIG121DIG1364
DIG14 63
DIG15 62
DIG16 61
P018
P117
SCK15
SDATA16
SEG01 59
SEG02 58
SEG03 57
SEG04 56
SEG05 55
SEG06 54
SEG07 53
SEG08 52
SEG09 51
SEG10 50
SEG11 49
SEG12 48
SEG13 47
SEG14 46
SEG15 45
SEG16 44
SEG17 43
SEG18 42
SEG19 41
SEG20 40
SEG21 39
SEG22 38
SEG23 37
SEG24 36
SEG25 35
SEG26 34
SEG27 33
SEG2831
SEG2930
SEG3029
SEG3128
SEG3227
SEG3326
SEG3425
SEG3524
SEG3623
VCC119
VCC2 60
VP32
VSS22
XIN21
XOUT20
~CS14
~RESET13
Q7603
M66005-0001AFP
DIG0112
DIG0211
DIG0310
DIG049
DIG058
DIG067
DIG076
DIG085
DIG094
DIG103
DIG112
DIG121 DIG13 64
DIG14 63
DIG15 62
DIG16 61
P018
P117
SCK15
SDATA16
SEG01 59
SEG02 58
SEG03 57
SEG04 56
SEG05 55
SEG06 54
SEG07 53
SEG08 52
SEG09 51
SEG10 50
SEG11 49
SEG12 48
SEG13 47
SEG14 46
SEG15 45
SEG16 44
SEG17 43
SEG18 42
SEG19 41
SEG20 40
SEG21 39
SEG22 38
SEG23 37
SEG24 36
SEG25 35
SEG26 34
SEG27 33
SEG2831
SEG2930
SEG3029
SEG3128
SEG3227
SEG3326
SEG3425
SEG3524
SEG3623
VCC119
VCC2 60
VP32
VSS22
XIN21
XOUT20
~CS14
~RESET13
C7901
10/50
C7902
10/50
C7703
100/6.3
C7804 10/50
C7813
100/6.3
C7602 100/6.3
C7810
100/6.3
C7603
100/6.3
VCC
IN2
OUT2
NC
GND
VS
OUT1
VREF
IN1
Q7605TA7291S
1
2
3
4
5
6
7
8
9
Z7951
Q7961
GP1S93
Q7962
GP1S93
P7505B
P7505A
P7504B
P7504A
Q7502Q7501Q7515Q7516
Q7504 Q7505 Q7506 Q7507 Q7508 Q7509 Q7510 Q7511 Q7513Q7512 Q7514Q7503
X7501
5.00MHZ
U7501
PIC-26043TH
S7641
VOLUME
P7581
HEADPHONES
C7581
101J
C7582
101J
C7709
100P
C7708
100P
C7707
100P
C7952
104Z
C7961
104Z
C7730 102K
C7731 102K
C7659104Z
C7625 104Z
C7624 104Z
C7722 102K
C7721 102K
C7720 102K
C7719 102K
C7812 104Z
C7811 103J
C7808
102K
C7807 103J
C7806
104Z
C7803 104Z
C7802 103Z
C7801 103Z
C7728 102K
C7729 102K
C7732 102K
P7506B
R7582
100
R7583
100
R7902
330
R7901
330
R7915
330
R7916
330
R7914
330
R7913
330
R7912
330
R7911
330
R7910
330
R7909
330
R7908
330
R7907
330
R7906
330
R7905
330
R7904
330
R7903
330
R7727 10K
R7726 10K
R7701
1K
R7729 10K
R7728 10K
R7730 10K
R7809
12K
R7605
10K
R7633 10K
R7634 1K
R7632 10K
R7631 1K
R7630 1K
R7629 10K
R7626 1K
R7627 1K
R7628 10K
R7635 100
R7636 1K
R7637 1K
R7638 1K
R7639 1K
R7640 100
R7731 10K
R7680220
R7679220
R7678220
R7677220
R76611K
R7662100
R76631K
R7664100
R7665100
R7666100
R7667220
R7668220
R7669220
R7670220
R7671220
R7672220
R7673220
R7674220
R7675220
R7676220
R7803 56K
R7804 56K R7805 56K
R7806 56K
R7808
10K
R7621 4.7K
R7622 4.7K
R7722 2.7K
R7721 2.7K
R7719 2.7K
R7720 2.7K
R7732 10K
R7717 10K
R7710 10K R7610 220
R7615 1K
R7609 220
R7620 4.7K
R7617 10K
R7619 4.7K
R7641
1K
R7614 220
R7613 220
R7612 10
R7611 10
R7606 220
R7607 220
R7608 220
R7642
100
R7643
1K
R7644100
R7645
1K
R7646100
R7647
1K
R7648100
R76491K
R7650100
R76511K
R7652
100
R7653
1K
R7654
100
R7655
1K
R7656
100
R7657
1K
R7658100
Q7601
MPD780232GC
1:VDD1
1
40:LED38
40
60:VLOAD
60
CS111
CS212
DCL/JOG1A29
DOP/JOG1B28
FLPOWER33
FREE16
GND23
GND018
HEADPHONE32
IC[VPP]5
K022
K121
K220
K319
LED0 80
LED1 79
LED10 70
LED11 69
LED12 68
LED13 67
LED14 66
LED15 65
LED16 64
LED17 63
LED18 62
LED19 61
LED2 78
LED20 58
LED21 57
LED22 56
LED23 55
LED24 54
LED25 53
LED26 52
LED27 51
LED28 50
LED29 49
LED3 77
LED30 48
LED31 47
LED32 46
LED33 45
LED34 44
LED35 43
LED3642
LED3741
LED39
39
LED4 76
LED4038
LED4137
LED4236
LED4335
LED4434
LED5 75
LED6 74
LED7 73
LED8 72
LED9 71
MCL/JOG2A27
MOP/JOG2B26
REMOCON15
RESET6
RESET[FL]17
SCK[FL]14
SCK[MAIN]7
SDATA13
SI8
SO9
SUBREQ10
VDD25
VDD024
VDD2 59
VOLA31
VOLB30
VSS12
X14
X23
S7527
OFF S7528
ZONE3/REC
S7538
V1
S7529
ZONE2
S7539
DVD
S7501
STANDBY /ON
S7521
TUNER_
DOWN
S7531
TAPE1
S7511
OPEN/CLOSE S7502
EXIT
S7512
NETUNE
S7522
TUNER_UP
S7532
V7
S7503
R
S7513
CD
S7523
DIMMER
S7533
V6
S7514
PHONO
S7504
L
S7524
DSP_DOWN
S7534
V5
S7515
TUNER
S7535
V4
S7505
ENTER
S7525
DSP_UP
S7516
TAPE2
S7536
V3
S7506
DOWN
S7526
DISPLAY
S7537
V2
S7507
UP
S7517
FM_MODE
S7508
MENU
S7518
PRESET_DOWN
S7509
FM_MEMORY
S7519
PRESET_UP
R7527 2.2K R7528
3.9K
R7538 3.9K
R752912K
R7539 12K
R7961
330 R7962
47K R7963
47K
R7802 270
R7801 270
R7532 330
R7502 330
R7512 330
R7522 330
R7533 470
R7503 470
R7513 470
R7523 470
R7534 560
R7504 560
R7514 560
R7524 560
R7535 820
R7505 820
R7515 820
R7525 820
R7536 1.2K
R7506 1.2K
R7516 1.2K
R7526 1.2K
R7537 2.2K
R7507 2.2K
R7517 2.2K
R7508 3.9K
R7518 3.9K
R7509 12K
R7519 12K
D7502
VIDEO1
D7501
DVD
D7515
PURE
D7560
STANDBY
D7516
POWER
D7504
VIDEO3 D7505
VIDEO4 D7506
VIDEO5 D7507
VIDEO6 D7508
VIDEO7 D7509
TAPE1 D7510
TAPE2 D7511
TUNER D7513
CD
D7512
PHONO D7514
NET
D7503
VIDEO2
+5VDIS
VPP
+24V_R
DGND
DGND
HPDET
DGND
FLGND
-VP
FLAC1
FLAC2
SUBSO
SUBSI
SUBBY
FLPOWER
SURST
+5.6SYS
+5.6SYS
SUBSCK
P26
P27
P28
P29
P30
P31
P32
P33
P34
P35
P36
P25
P24
P23
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
P12
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
16G
15G
14G
13G
1G
2G
3G
4G
5G
6G
7G
8G
9G
10G
11G
12G
P37
P38
P39
P40
P41
P42
P43
P44
P45
P46
P47
P48
P49
P50
P51
P52
P53
P63
P62
P61
P60
P59
P58
P57
P56
P55
P54
P64
P65
P66
P67
P68
P69
P70
P71
P72
P27
P26
P25
P24
P23
P22
P21
P20
P19
P18
P17
P16
P15
P14
P13
P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
16G
15G
14G
13G
P63
P62
P61
P60
P59
P58
P57
P56
P55
P54
P53
P52
P51
P50
P49
P48
P47
P46
P45
P44
P43
P42
P41
P40
P39
P38
P37
16G
1G
P28
P29
P30
P31
P32
P33
P34
P35
P36
1G
2G
3G
4G
5G
6G
7G
8G
9G
10G
11G
12G
P64
P65
P66
P67
P68
P69
P70
P71
P72
FLSDATA
FLSCK
FLCS1
FLRES
FLCS2
MCL
MOP
Z2V2
Z3V2
Z2V3
Z3V3
Z2V4
Z3V4
Z2V5
Z3V5
Z2V6
Z3V6
Z2V7
Z3V7
Z2T1
Z3T1
Z2T2
Z3T2
Z2TU
Z3TU
Z2PH
Z3PH
Z2CD
Z3CD
Z2NE
Z3NE
Z3DV
Z3V1
Z3V2
Z3V3
Z3V4
Z3V5
Z3V6
Z3V7
Z3T1
Z3T2
Z3TU
Z3PH
Z3CD
Z3NE
Z2DV
Z2V1
Z2NE
NE
Z2CD
CD
V2
V3
V4
V5
V6
V7
T1
T2
TU
PH
CD
NE
Z2PH
PH DCL
Z2TU DOP
TU
Z2T2
T2 Z2DV Z2DV
Z2T1 Z3DV Z3DV
T1 Z2V1 Z2V1
FLCS1 Z2V7 Z3V1 Z3V1
FLCS2 V7 POW POW
FLSDATA Z2V6 STBY STBY
FLSCK V6 PURE PURE
Z2V5 DV DV
V5 V1 V1
FLRES Z2V4
V4
Z2V3
V3
DV
V1
V2
POW
STBY
PURE
Z2V2
FLPOWER
K1
K0
K3
K2
K3
K2
K1
MOP
MCL
DOP
DCL
K0
NAETC-8213
NAETC-8216
NAETC-8215
NADIS-8212
TO NAAF-8156(SCH.-5)
TO NAAR-8166(SCH.-7)
BLUE
NAETC-8214
REC/ZONE3=RED
KEY_LIGHT=BLUE
ZONE2=GREEN
DOOR MOTOR
GREEN
RED
U22
U222
U223
U224
U225
A
1
2
3
4
5
BCDEFGH
SCHEMATIC DIAGRAM 16
NET-TUNE
(Except US
model/Option
board:
C-NET-A)
RDC-7/C-NET-A
A
1
2
3
4
5
BCDEFGH
A3
A2
A1
D12
D15
D14
D13
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D13
D14
D15
D12
D2
D1
D0
D3
D4
D5
D6
D7
D9
D10
D8
D11
D12
D13
D14
D15
A27
A26
A25
A24
A23
A22
A21
A20
A19
A18
A14
A13
LANRESET
A17
A15
A16
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
D15
D14
XISAINT
XEXTFIQ
XPWRFL
BATOK
XBATCHG
XEXTIRQ2
I2C_CLK
I2C_DATA
XEXTPWR
XSDRAMCS
XSDRAS
XOE
XWE
SDCLK
SDCKE
SDQM3
SDQM2
SDQM0
SDQM1
EXPRDY
COM2_TXD
COM2_RXD
XFLASHCS
LANINT
XLANCS
32K
COM1_CTS
COM1_DCD
COM1_TXD1
COM1_DSR
COM1_RXD1
XRESET
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A1
A2
A3
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
A13
A14
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A16
A15
A27
A26
A25
A24
A23
A22
A21
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
D31
D30
D29
D28
D27
D26
A0
BCLK
SDATA
LRCK
JP2
JP1
JP3
MAC Address
E2ROM
LINKLAN
XWE
XRESET
XRESET
EXTPWR
LANINT
XOE
XLANCS
LANRESET
XRESET
XFLASHCS
XSDRAMCS
SDCKE
SDCLK
XSDRAS
SDQM3
XWE
SDQM2
XWE
XOE
SDQM3
SDCKE
SDCLK
XSDRAMCS
XWE
XOE
XSDRAS
SDQM2
LANRESET
XRESET
LANINT
EXPRDY
LANRESET
XLANCS
XOE
XOE
XFLASHCS
XRESET
XWE
EXPRDY
XLANINT
XLANCS
XPOR
Program Flash ROM
XOE
XWE
XFLASHCS
MultiMedia CPU
Main Memory
SDQM2
SDQM3
SDCKE
SDCLK
XSDRAMCS
XWE
XOE
XSDRAS
3.3V 2.5V Voltage Regurator
Address Bus
Data Bus
COM2_RXD
COM2_TXD
COM2_RXD (0-5V)
COM2_TXD (0-5V)
LANRESET
Val
256fs
LeftJustified
10BaseT EtherNet
Firm update
TO NAAR-8166(SCH.-7)
S
2
I
WakeUP
BOOT
NADG-8228
BCK(I2S)
DATA(I2S)
LRCK(I2S)
X602
20MHz
+3.3V
+3.3V
R605
8.2_1%
R607
8.2_1%
C633
0.01
C628
560P
C634
0.01
Q606
93LC46B
CS
1
DO
4
DI
3
SK
2
VSS
5
DC 7
NC 6
VCC 8
+3.3V
C646
0.1
R553 100_1%
R555 27K_1% R556 27K_1%
R554 100_1%
R642
10K_1%
R698
10K_1%
R699
2.7M_1%
+3.3V
R630
10K
R602 100_1%
R601 100_1%
+5.6V
+3.3V
R557
10K
+3.3V
C609
0.1
C610
0.1
C611
0.1
C612
0.1
+3.3V
+3.3V
R627
10K
+3.3V+3.3V
+3.3V
C626
0.1
C625
0.1
R618
10K
R617
10K
C657
10P
C656
10P
C662
0.1
C661
0.1
C686
15P
C685
15P
C687
0.1
C688
0.1
C689
0.1
C690
0.1
+3.3V
R682
100
R687
10K
+3.3V
X604
3.6864MHz
R688
10K
R689
10K
R690
10K
R691
10K
R692
10K
+3.3V
R656
1K
2
+3.3V+3.3V
R655
1K
2
+3.3V
C653
0.1
C654
0.1
C655
0.1
+3.3V
C664
0.1
+3.3V
C665
0.1
Q608
HM5264165FTT-B6
BS1
21
BS0
20
A12/NC
36
A11
35
A10
22
A9
34
A8
33
A7
32
A6
31
A5
30
A4
29
A3
26
A2
25
A1
24
A0
23
CS
19
RAS
18
CAS
17
WE
16
CLK
38
CKE
37
UDQM
39
LDQM
15
Vcc2
27
Vcc1
14
Vcc0
1
Vss2
54
Vss1
41
Vss0
28 VssQ0 6
VssQ1 12
VssQ2 46
VssQ3 52
VccQ0 3
VccQ1 9
VccQ2 43
VccQ3 49
NC 40
DQ0 2
DQ1 4
DQ2 5
DQ3 7
DQ4 8
DQ5 10
DQ6 11
DQ7 13
DQ8 42
DQ9 44
DQ10 45
DQ11 47
DQ12 48
DQ13 50
DQ14 51
DQ15 53
+3.3V
R665 10K
E603
Terminal
4
3
2
1
C666
0.1
C669
0.1
+3.3V
C667
0.1
C668
0.1
+3.3V
R662
10K
+3.3V
R649
10K
C660
0.1
L606
BLM21P221SG
+3.3V
L605
BLM21P221SG
Q616
CS8900A
CS8900A-CQ3
SA19
60
SA18
59
SA17
58
SA16
54
SA15
53
SA14
52
SA13
51
SA12
50
SA11
48
SA10
47
SA9
46
SA8
45
SA7
44
SA6
43
SA5
42
SA4
41
SA3
40
SA2
39
SA1
38
SA0
37
SD15
18
SD14
19
SD13
20
SD12
21
SD11
24
SD10
25
SD9
26
SD8
27
SD7
74
SD6
73
SD5
72
SD4
71
SD3
68
SD2
67
SD1
66
SD0
65
CHIPSEL
7
ELCS
2
MEMW
28
MEMR
29
IOW
62
IOR
61
REFRESH
49
SBHE
36
AEN
63
MEMCS16
34
IOCS16
33
INTRQ0
32
IOCHRDY
64
INTRQ3
35
INTRQ2
30
INTRQ1
31
RESET
75
DMARQ2
11
DMACK2
12
DMARQ1
13
DMACK1
14
DMARQ0
15
DMACK0
16
AVDD3
95
AVDD2
85
AVDD1
90
AVSS4
96
AVSS3
94
AVSS2
86
AVSS1
89
AVSS0
1
XTAL2 98
XTAL1 97
TEST 76
RES 93
LANLED 100
LINKLED 99
SLEEP 77
EESK 4
EEDOUT 5
EEDIN 6
EECS 3
CSOUT 17
BSTS / HCI78
DI+ 80
DI- 79
CI+ 82
CI- 81
DO- 84
DO+ 83
TXD- 88
TXD+ 87
RXD- 92
RXD+ 91
DVSS4 70
DVSS3A 57
DVSS3 55
DVSS2 23
DVSS1A 10
DVSS1 8
DVDD4 69
DVDD3 56
DVDD2 22
DVDD1 9
C614
47/16Ta
+
C692
0.1
2
L603
NFM60R10T471
+5.6V
+5.6V
C604
0.1
C605
0.1
C603
0.1
+3.3V
R628 0
R629 0
C682
5p
C683
10p
X603
32.768kHz
R659
10K
R619 150
R624 150
P601
VAL
7
6
8
1
3
2
4
5
9
10
12
11
13
14
R664 10K
R663 10K
C673
0.1
+2.5V
R666 10K
+3.3V
R667
10K
+3.3V
R550
10K
R551
10K
R552
10K
Q609B
TC7W14FK
3 5
Q604
MX29LV320BTC-90
A20
10
A19
9
A18
16
A17
17
A16
48
A15
1
A14
2
A13
3
A12
4
A11
5
A10
6
A9
7
A8
8
A7
18
A6
19
A5
20
A4
21
A3
22
A2
23
A1
24
A0
25
WE
11
OE
28
CE
26
VSS1
27
VSS2
46
RESET 12
WP/ACC14
RY/BY15
BYTE47
NC 13
D0 29
D1 31
D2 33
D3 35
D4 38
D5 40
D6 42
D7 44
D8 30
D9 32
D10 34
D11 36
D12 39
D13 41
D14 43
D15 45
VCC 37
+3.3V
+2.5V
C608
0.1
+3.3V
C642
0.1
+3.3V
C643
0.1
+3.3V
+3.3V
C623
0.1
C622
0.1
C621
0.1
C631
0.1
C630
0.1
C629
0.1
C624
0.1
C602
4.7/10Ta
+
L601
BLM21P221SG
C615
100/6.3Ta
+
+2.5V+3.3V
C613
0.1
C627
0.1
Q601 BA33C25FP
VIN
1
NC
2
GND
3
VO2 5
VO1 4
+3.3V+3.3V
R603 0
R604 0
Q607
EP7312-CV
COL7
83
COL6
84
COL5
85
COL4
86
COL3
87
COL2
88
COL1
91
COL0
92
PA7
23
PA6
24
PA5
25
PA4
26
PA3
27
PA2
28
PD0/LEDFLSH
62
PE2/CLKSEL
45
PE1/BOOTSEL1
46
PE0/BOOTSEL0
47
PD4
56
MEDCHG/BROM
155
TEST1
39
TEST0
40
DRIVE1
75
DRIVE0
76
SSIRXDA
67
SSICLK
63
SSITXFR
65
SSITXDA
66
BUZ
93
SSIRXFR
68
PB7
13
PB6
14
PB5
15
PB4
16
PB3
17
PB2
18
PB1/PRDY2
19
PB0/PRDY1
20
DD3
188
DD2
189
DD1
191
DD0
192
PHDIN
34
VddOSC
157
VssOSC
160
CL2
184
CL1
185
FRM
186
M
187
LEDDRV
31
SMPCLK
79
WAKEUP
161
PD5
55
RUN/CLKEN
7
WORD
5
HALFWORD
105
ADCCS
70
ADCCLK
77
ADCOUT
78
VddCORE1
181
VddCORE0
72
VssCORE1
180
VssCORE0
71
PD3
59
DCD
37
DSR
38
CTS
35
RXD1
36
PD1
61
PD2
60
TXD1
32
POR
154
ADCIN
69
URESET
156
TRST
125
TDI
11
TMS
58
TXCLK
90
TDO
22
NC
52
VssIO17
203
VssIO16
198
VssIO15
190
VssIO14
182
VssIO13
174
VssIO12
168
VssIO11
149
VssIO10
140
VssIO9
124
VssIO8
116
VssIO7
108
VssIO6
98
VssIO5
81
VssIO4
73
VssIO3
64
VssIO2
33
VssIO1
12
VssIO0
3
MOSCIN 158
MOSCOUT 159
RXD2 10
TXD2 9
EXPRDY 8
FB0 82
FB1 80
PA0 30
PA1 29
RTCIN 50
RTCOUT 49
BATCHG151
BATOK 153
PWRFL162
EINT044
EINT143
EINT242
EINT3 41
EXTPWR152
CS0204
CS1205
CS2206
CS3207
CS4208
CS51
EXPCLK 4
PD6/SDQM0 54
PD7/SDQM1 53
SDQM2 196
SDQM3 195
SDCKE 199
SDCLK 200
MWE/SDWE201
MOE/SDCAS202
WRITE/SDRAS6
SDCS0194
SDCS1193
D0 179
D1 177
D2 175
D3 172
D4 170
D5 166
D6 164
D7 150
D8 147
D9 145
D10 143
D11 141
D12 137
D13 135
D14 133
D15 131
D16 129
D17 127
D18 122
D19 120
D20 118
D21 115
D22 113
D23 111
D24 109
D25 104
D26 102
S27 100
D28 97
D29 96
D30 95
D31 94
A0 178
A1 176
A2 173
A3 171
A4 169
A5 165
A6 163
A7 148
A8 146
A9 144
A10 142
A11 138
A12 136
A13 134
A14 132
A15 130
A16 128
A17 126
A18 121
A19 119
A20 117
A21 114
A22 112
A23 110
A24 106
A25 103
A26 101
A27 99
VssRTC 48
VddRTC 51
VddIO0 2
VddIO1 21
VddIO2 57
VddIO3 74
VddIO4 89
VddIO5 107
VddIO6 123
VddIO7 139
VddIO8 167
VddIO9 183
VddIO10 197
Q603
HM5264165FTT-B6
BS1
21
BS0
20
A12/NC
36
A11
35
A10
22
A9
34
A8
33
A7
32
A6
31
A5
30
A4
29
A3
26
A2
25
A1
24
A0
23
CS
19
RAS
18
CAS
17
WE
16
CLK
38
CKE
37
UDQM
39
LDQM
15
Vcc2
27
Vcc1
14
Vcc0
1
Vss2
54
Vss1
41
Vss0
28 VssQ0 6
VssQ1 12
VssQ2 46
VssQ3 52
VccQ0 3
VccQ1 9
VccQ2 43
VccQ3 49
NC 40
DQ0 2
DQ1 4
DQ2 5
DQ3 7
DQ4 8
DQ5 10
DQ6 11
DQ7 13
DQ8 42
DQ9 44
DQ10 45
DQ11 47
DQ12 48
DQ13 50
DQ14 51
DQ15 53
Q609C
TC7W14FT
6 2
R660
10K
R700
0
C560 NC
C561 NC
C674 NC
C562 NC
C563 NC
C564 NC
C565 NC
C672 NC
C677 NC
C566 NC
C567 NC
C680 NC
C568 NC
C569 NC
C570 NC
C571 NC
E601
Terminal
4
3
2
1
P3102A
Val
4
3
2
1
P3102B
Val
5
6
7
8
P3102D
Val
12
P3102E
13
14
15
16
17
18
19
20
21
22
23
24
25
26
P3102F
Val
27
28
29
30
R669
10K
+3.3V
+2.5V
C652
0.1
R644 10K
R645 10K
R647 10K
R646 10K
X601
FCXO-03
11.2896MHz
1
2 3
4
+3.3V
C551
0.1
R643 10K
Q619B
TC74VHC74FT
Q
9
Q
8
CLR 13
2D 12
CLK 11
PRE10
Q617D
TC74VHCU04FT
8 9
Q617F
TC74VHCU04FT
12 13
Q617C
TC74VHCU04FT
6 5
Q617E
TC74VHCU04FT
10 11
Q617B
TC74VHCU04FT
4 3
Q618A
TC74VHC74FT
Q
5
Q
6
CLR 1
1D 2
CLK 3
PRE4
+3.3V
Q618B
TC74VHC74FT
Q
9
Q
8
CLR 13
2D 12
CLK 11
PRE10
Q619A
TC74VHC74FT
Q
5
Q
6
CLR 1
1D 2
CLK 3
PRE4
C606
0.1
C607
0.1
C620
0.1
C619
0.1
C618
0.1
C617
0.1
C616
0.1
R615
10K
R614
10K
D603
SEC1201C
R606
330
R609
10K
R611
10K
R620
NC
R613
10K
R612
10K
R622
NC
R621
NC
+3.3V
R623
10K
+3.3V
+3.3V
C659
0.1
R650
47K
C658
0.1
+3.3V
C663
0.1
R651
10K
Q610
TC7S02F
1
2
G
3
4
VCC 5
Q609A
TC7W14FK
1 7
P607B
B5B-PH-SM3-TB
1
2
3
4
5
Q617A
TC74VHCU04FT
2 1
P3102C
Val
11
10
9R639
Val
R640
Val
R641
Val
TO NAAR-8166(SCH.-6)
U24
SLOT B
SCHEMATIC DIAGRAM 17
IEEE1394
RDC-7.1
A
1
2
3
4
5
BCDEFGH
U10
SLOT A
i-LINK
i-LINK
NAAR-8166(SCH.-6)
Q3004
TSB43CA42PGF
Q3501 MBM29LV800TA-90PFTN
Q3502
HD64F2367VF33
Q3503
DTC114EE
Q3519
74LCX541FT
Q3509
SM5819AF or
SM5819HQF
Q3005
74AHC541PW
Q3512
DTA114EE
74AHCT1G04GW
105Z
C3528
220/4
C3019
102J
221J
221J
100/6.3
100/6.3
104Z
104K
105K
104K
102J
10K
33
10K
1K 10K
15K
102J
104Z
10K*4
0
0
0
0
R3569
0
100/6.3
470J
100/6.3
102J
180J
180J
10K*4
This terminal is provided for future
service enhancement and
is not used currently.
SCHEMATIC DIAGRAM 18
HDMI section
(Except US model/
Option board:
C-HDMI)
RDC-7.1/C-HDMI
A
1
2
3
4
5
BCDEFGH
SDRAMCLK
SDCASS
SDWE
SDDQM
SDRASSD
SDADR8
SDADR6
SDADR5
SDADR3
SDADR2
SDADR1
SDADR0
CTL3
CTL2
CTL1
DE3
DE4
DE5
DE6
DE7
DE8
DE9
DE10
DE11
DE16
DE17
DE18
DE19
DE20
DE21
DE22
DE23
DO0
DO1
DO2
DO3
DO4
DO5
DO6
DO7
DO8
DO9
DO10
DO11
DO12
IDCK_THR
DE12
DE13
DE14
DE15
CTL3
CTL2
CTL1
HS_THR
VS_THR
DE_THR
DE3
DE4
DE5
DE6
DE7
DE8
DE9
DE10
DE11
DE16
DE17
DE18
DE19
DE20
DE21
DE22
DE23
DO0
DO1
DO2
DO3
DO4
DO5
DO6
DO7
DO8
DO9
DO10
DO11
DO12
DO13
DO14
DO15
DO16
DO17
DO18
DO19
DO20
DO21
DO22
DO23
IDCK_THR
DE12
DE13
DE14
DE15
DB[0]
DB[1]
DB[2]
DB[3]
DDC_SDA
VDEC_RST
3_3VHD1 5VHD
3_3VHD2
GND
3_3VHD1
TX1+
TX1-
TX0+
TX0-
TXC+
TXC-
TX2-
TX2+
HPLGDET
DVDHDMI
HDMI_POW
TX_SDA
TX_SCL
TX_CEC
DDC_SDA
DDC_SCL
CEC_I/O
5VHD
VD_STB
VSYSRST
VD_SI
VD_SO
VD_SCK
-5VHD
HDMI1
HDMI2
OP8
13V
GND
SPDIF
SDADR10
HDBPR
HDBSY
HDBCV
HDBSC
HDBPB
HDBPY
AVDD
ADR[0]
ADR[1]
ADR[2]
ADR[3]
ADR[4]
ADR[5]
ADR[6]
ADR[7]
OC_FLMDO
VD_SCK
VD_SI
VD_STB
VSYSRST
13V
3_3VHD2
EXTOE
PD_THROUGH
HDM_Y0
HDM_Y1
HDM_Y2
HDM_Y3
HDM_Y4
HDM_Y5
HDM_Y6
HDM_Y7
HDM_Y8
HDM_Y9
HDM_Y4
HDM_Y5
HDM_Y6
HDM_Y2
HDM_Y3
HDM_Y7
HDM_Y8
HDM_Y9
HDM_CB6
HDM_CB7
HDM_CB8
HDM_CR2
HDM_CR3
HDM_CR4
HDM_CR5
HDM_CR6
HDM_CR7
HDM_CR8
HDM_CR9
HDM_CB2
HDM_CB5
HDM_CB6
HDM_CB7
HDM_CB8
HDM_CB9
HDM_BLNK
HDM_HSYNC
HDM_CB3
HDM_CB4
HDM_CB1
HDM_CB0
DDC_SCL
DE0
DE1
DE2 DO13
DO14
DO15
DO20
DO21
DO22
DO23
3_3VHD1
DE0
DE1
DE2
TX_CEC
TX_SDA
TX_SCL
TX_CEC
GND
HDM_HSYNC
HDM_BLNK
MCLK
TXP
RST9190
HDM_CR3
HDM_CR4
HDM_CR5
HDM_CR6
HDM_CR7
HDM_CR8
HDM_CR9
HDM_CB2
HDM_CB3
HDM_CB4
HDM_CB5
HDM_CB9
SDData7
SDData6
SDData5
SDData4
SDData3
SDData2
SDData1
SDData0
SDData9
SDData10
SDData11
SDData12
SDData13
SDData14
SDData31
SDData30
SDData20
SDData21
SDData22
SDData23
SDData17
SDData18
SDData19
SDData16
SDData27
SDData26
SDData25
SDData24
SDData15
SDData29
SDData28
SDData8
SDADR4
SDADR5
SDADR6
SDADR7
SDADR8
SDADR9
SDADR10
SDADR11
DVSCL
DVSDA
SDADR0
SDADR1
SDADR2
SDADR3
TX_SDA
TX_SCL
3_3VHD1
DB[4]
DB[5]
DB[6]
DB[7]
SDADR12
GND
SDA_HDM504
SCL_HDM504
3_3VHD2
5VHD
DVSDA
DVSCL
DO0
DO1
DO2
DO3
DO4
DO5
DO6
DO7
DO8
DO9
DO10
DO11
DO12
DO13
DO14
DO15
DO16
DO17
DO18
DO19
DO20
DE0
DE1
DE2
DE3
DE4
DE5
DE6
DE8
DE9
DE10
DE11
DE12
DE14
DE15
DE16
DE17
DE18
DE19
DE20
DE21
DE22
DE23
DE13
DE7
CTL1
CTL2
CTL3
DE_THR
VS_THR
HS_THR
IDCK_THR
DO21
DO22
DO23
DO16
DO17
DO18
DO19
VDOFF
3_3VHD2
LLC
VP12
VP13
VP14
VP15
VP16
VP17
VP18
VP19
HDM_CR2
RST9190
SPDIF
PVRST
5VHD
1_8VHD
HDASY
PY
HDACV
HDASC
PB
PR
HDAPB
HDAPR
PY
1_8VDEC
3_3VHD2
3_3VHD2
FIELD/DE
VS
VP18
VP19
VP16
VP17
VDEC_RST
LLC
VP16
VP17
VP18
VP19
VP22
VP23
VP24
VP02
VP03
VP04
VP05
VP06
VP07
VP08
VS
VP15
HC/CS
VP13
VP14
VP25
VP26
VP27
FIELD/DE
VP29
VP12
VP21
VP22
LLC
VP23
VP24
VP25
VP26
VP27
VP00
VP01
VP20
VP09
VP28
HDM_CB8
HDM_CR7
HDM_Y9
HDM_Y8
HDM_Y7
HDM_Y6
HDM_CB6
HDM_CB5
HDM_CB4
HDM_CB9
5VHD
HDM_CB7
HDM_CR4
HDM_CR3
HDM_CR5
HDM_Y4
HDM_Y3
HDM_BLNK
HDM_Y5
HDM_CR6
HDM_CR2
HDM_CB2
HDM_CB3
HDM_PIXCLK
TEST0
TEST0
HDOE
EXTREFSEL
3_3VHD2
2_5VHD
PVRST
VP02
VP03
VP04
VP05
VP06
VP07
VP08
VP09
VS
HC/CS
VS
HC/CS
5VHD
OUT_Y/G
OUT_CB/C
Y
YS
C
OUT_CR/R
SDA_HD0
SCL_HD0 VP26
VP27
VP28
VP29
VP21
VP22
VP23
VP24
VP20
VP25
LLC
LLC
HDAPY
CV
SC
SY
VP02
VP03
VP05
VP06
VP07
VP04
HC/CS
VS
VP05
VP04
VP06
VP07
VP08
VP09
VP02
VP03
SDA_0
SCL_0
SDA_0
SCL_0
INT9190
RM.IRQ
DRST
MODE1
MODE0
RM_CS
RM_RD
RM_WR
SDA_HD0
SCL_HD0
OC_DDO
OC_DDI
OC_DCK
OC_DMS
RST9190
SDA_HDM504
SCL_HDM504
PDRX2
PDRX1
SDA_0
SCL_0
TX_SDA
TX_SCL
TXC-
TX0-
TXC+
TX_CEC
TX2+
TX0+
TX1+
TX1-
TX2-
HDM_HSYNC
HDM_CR8
HDM_Y2
HDM_CR9
HC/CS
INTRQ
DVDHDMI
HPLGDET
HPLG9190
EXCEPTRDV
CEC_I/O
PVRST
VDOFF
EXTREFSEL
TEST0
HDOE
PDRX1
HDMI_POW
INTRQ
PDTX
PDRX2
RTC
RTC
RTC
VP12
VP13
VP14
VP15
VP10
VP11
SDA_0
VP08
VP09
SCL_0
SDData23
SDData18
SDData22
SDData21
SDData19
SDData17
SDData20
SDData6
SDData5
SDData4
SDData3
SDData2
SDData1
SDData0
SDData13
SDData14
SDData15
SDData11
SDData12
SDData10
SDData9
SDData27
SDData28
SDData29
SDData30
SDData25
SDData26
SDData24
SDDQM
SDWE
SDCASS
SDRASSD
SDDQM
SDData7
SDData16
SDData8
SDDQM
SDData31
SDADR0
SDADR1
SDADR2 SDADR3
SDADR4
SDADR5
SDADR6
SDADR7
SDADR8
SDADR10
SDADR11
SDADR12
SDADR9
PVRST
SDRAMCLK
SDDQM
PDTX
3_3VHD1
VD_SO
FWSCK
FWSO
FWSI
FWFLMD0
FWSCK
FWSI
FWRESET
FWRESET
FWVDD
HS
GND
HDM_PIXCLK
HDM_PIXCLK
INT9190
HPLG9190
HS_THR
VS_THR
DE_THR
HDM_VSYNC
HDM_VSYNC
HDM_VSYNC
VP00
VP01
VP10
VP11
VP12
VP13
VP14
VP16
VP17
VP18
VP15
VP19
VP28
VP29
TX_HPLG
SY
CV
PB
PR
SC
OC_SYSRST
C8010
105Z
C8013
105Z
C8014
105Z
C8002105Z
C8003
105Z
C8020 105Z
C8023 105Z
C8029
105Z
C8028 105Z
C8041
220/4
+
C8042
220/4
+
C8011
105Z
C8012
105Z
R8024
0
R8025
0
R8026
0
R8027
0
R80290
C8406
102J
C8405
105Z
C8401
105Z
C8402
105Z
C8413
105Z
C8414
105Z
C8415
105Z
C8426 105Z
C8427 105Z
C8428
105Z
C8417 105Z
C8422
105Z
C8419 105Z
R8407 47K
C8420
105Z
C8026
105Z
R8517
22
R8518
22
R8519
22
R8520
22
C8502105Z
C8503
105Z
C8504
105Z
C8506
105Z
C8518
220/4
+
C8525
220/4
+
R8617
22
R8618
22
R8619
22
R8622
22
R8623
22
R8621
22
R8620
22
C8602105Z
C8603
105Z
C8604
105Z
C8605
105Z
C8606
105Z
C8607
105Z
C8609
105Z
C8610
105Z
C8611
105Z
C8613
105Z
C8608
105Z
C8620
105Z
C8621
220/4
+
C8618
220/4
+
C8625
220/4
+
C8624
220/4
+
R8082
1M
C8021105Z
C8022105Z
C8901
104Z
C8902
104Z
C8903
104Z
R8908
0
R8909
0
R8907
0
R8910
1.8K
R8912
1.8K
R8911
1.8K
C8703
105Z
C8705
105Z
C8707
105Z
C8701
105Z
D8701 1SS355
R8718 0
R8713 22
R8714 22
R8715 22
R8716 22
R8717 0
C8702
105Z
R8705
1K
C8623
105Z
C8421
220/4
+
R8005
10X4
R8007
10X4
R8512
22x4
R8513
22x4
R8524
22x4
R8525
22x4
R8526
22x4
R8514
22x4
R8515
22x4
R8516
22x4
R8612
22x4
R8613
22x4
R8614
22x4
R8615
22x4
R8616
22x4
Q8591
MPC2933
3O
2G
1
I
C8591
104Z
C8592
100/4
+
C8191
104Z
Q8191
MPC2933
3O
2G
1
I
C8192
100/4
+
R81701K
R8171
1K
C8418
220/4
+
C8416
220/4
+
Q8602
NJM2860F3-33
4VO
5VIN 1
CONT
2
GND
3
BYP
R8918
0
R8917
0
R8916
0
C8408
105Z
C8409
105Z
C8410
105Z
C8411
105Z
C8407
105Z
C8412
220/4
+
C8311
220/4
+
C8306 105Z
C8307 102J
C8308
105Z
C8309
105Z
C8314
105Z
C8315
102J
C8316
105Z
C8317
105Z
C8318
105Z
C8321105Z
C8323
220/4
+
C8322 105Z
R8322
47K
R8327
1K
R8329
3.3K
R8331
1.8K
R8332
3.3K
C8332
105Z
C8330
105Z
C8326
105Z
C8328
22/16
+
C8320
220/4
+
R8316
0X4
R8315
0X4
C8329
105Z
Q8304
NJM2860F3-33
4VO
5VIN 1
CONT
2
GND
3
BYP
Q8305
NJM2860F3-05
4VO
5VIN 1
CONT
2
GND
3
BYP
R8314
560F
C8704 4.7/50
+
C8709
220/4
+
R8934
1K
C8905
104Z
R8932
1K
R8933
1K
C8904
104Z
C8908
330/6.3
+
C8909
330/6.3
+
C8910
330/6.3
+
C8906
100/6.3
+
C8031 105Z
C8034 101J
C8033 105Z
R8720 22
C8354
105Z C8351 105Z
R8372
1K
C8352
222K
C8355
22/16
+
L8351
2.2U
C8350 105Z
C8025
105Z
C8024
105Z
R8857
1K
Q8857 LA7106MFP
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
R8858
1K
C8853
330/6.3
+
C8854
330/6.3
+
C8855
330/6.3
+
C8852
100/6.3
+
C8851
100/6.3
+
TP7
TP8
TP12
C8398
105Z
C8399
105Z
C8519
105Z C8517
105Z
C8619
105Z C8617
105Z
L8301
4.7U
L8303
4.7U
L8304
2.2U
L8402
2.2U
L8403
4.7U
L8404
4.7U
L8405
4.7U
L8503 4.7U
L8502 4.7U
L8602 4.7U
L8603 4.7U
L8604
4.7U
L8701
4.7U
Q8103:C
MAX4018
14
2EN
13
12
Q8103:A
MAX4018
7
1EN
6
5
4
Q8910:B
MAX4018
9
10
11
8
3
EN
Q8910:C
MAX4018
13
12
14
2
EN
R8018
4.7K
R8019
4.7K
R8325
4.7K
R8326
4.7K
R8328
3.3K
R8401
4.7K
R8404
4.7K
R8701
4.7K
R8406
510F
Q8402
NJM2860F3-33
5
VIN
4
VO
3BYP
2GND
1CONT
R8709
22
R8336
2.2K
R872810KX4
C8706
105Z
C8710
105Z
C8304
105Z
C8312
105Z
L8302
2.2U
C8356 105Z
R8374
1M
C8046
105Z
C8047
105Z
C8050
105Z
C8051
105Z
C8053
105Z
C8056
105Z
C8048
105Z
C8049
105Z
C8054
105Z
C8055
105Z
C8044
220/4
+L8004
2.2U
C8045
105Z
C8052
105Z
C8697
105Z
R8743
22
R8742
22
R8721 22
TP29
R8006
10X4
R8009
10X4
R8318
0X4
R8317
0X4
R8320
0X4
R8004
10X4
C8001
105Z
R8001
22
TP9
TP10
C8006
105Z
C8425
102J
C8424
105Z
R8011
10X4
R8735 #47K
R8733 #47K
R8731 #47K
R8730 #4.7K
R8729 #4.7K
R8724 #47
R8725 #47
R8016
#4.7K
R8017
#4.7K
R8020
#4.7K
R8021
#4.7K
R8022
#4.7K
R8033
#10K
C8016
#22/16
+
C8017
#105Z
C8019 104Z
C8018
#101J
R8030
#100
R8015
#100
C8009
#101J
C8007
#22/16
+
R8040
#0
R8039
#1K
R8362
#470
R8363
#470
R8364
#470
R8365
#470
R8367
1K
R8373
#10K
R8366
#10K
R8350 #10K
R8353 #10K
R8352 1K
C8331
10/16
+
C8327
105Z
R8357 100K
R8358 100K
R8359 100K
R8360 100K
C8358
120J
C8353
473K
R8356
1K
C8357
120J
X8350
12.288M
R8375
560
L8352
BK1608LM182
L8353
#BK1608LM182
Q8702
BR24L08F-W
5SDA
6SCL
7WP
8VCC 1
A0
2
A1
3
A2
4
GND
R8014
#1K R8031
#1K
R8402
#4.7K
R8702
#4.7K
R8703
#4.7K
R8704
#4.7K
C8501
105Z
C8507
105Z
C8509
105Z
C8510
105Z
C8511
105Z
C8512
105Z
R8530
390
C8516
102J
C8515
105Z
C8513
105Z
C8508
105Z
C8520
105Z
C8521
220/4
+
C8524
220/4
+
C8523
105Z
R8533
47K
C8522
105Z
C8601
105Z
C8612
105Z
R8630
390
C8616
102J
C8615
105Z
R8637
1K
R8527
22x4
R8529
22x4
R8611
22x4
R8511
22x4
Q8502
NJM2860F3-33
4VO
5VIN 1
CONT
2
GND
3
BYP
L8501
4.7U
R8509
4.7K
R8504
4.7K
R8506
4.7K R8609
4.7K
R8604
4.7K
R8606
4.7K
R8632
4.7K
R8510
1K R8610
1K
R8537
1K
C8597
105Z
C8526
105Z
C8527
105Z
C8627
105Z
C8626
105Z
R8532
4.7K R8531
#4.7K
R8505
#4.7K
R8508
#4.7K
R8631
#4.7K
R8605
#4.7K
R8608
#4.7K
L8601
4.7U
R8303 0
R8302 0
C8303 102J
R8309 100K
R8308 100K
R8307
1K
R8301 0
R8008
10X4
C8301
105Z
R8321
0X4
L8354
BK1608LM182
L8355
BK1608LM182
Q8351
TC7WU04FU
5
6
7
8VD 1
2
3
4
GND
PCB
Q8352
TC7WZU04FU
5
6
7
8VD 1
2
3
4
GND
PCB
R8798 #10K
R8799 0
P8302
CNHDMI Val
22 Shield
20
19
HP DET
18
+5V
17
GND
16
DDC DATA
15
DDC CLK
14
NC
13
CERemote
12
CK-
11
CK Shield
10
CK+
9
D0-
8
D0 Shield
7
D0+
6
D1-
5
D1 Shield
4
D1+
3
D2-
2
D2 Shield
1
D2+
21
23
Shield
C8598
105Z
C8599
105Z
C8698
105Z
C8907
100/6.3
+
Q8910:A
MAX4018
6
5
4
7
1
EN
R8333
1K
R8633
47K
C8622
105Z
R8624
22x4
R8625
22x4
R8626
22x4
R8627
22x4
R8628
22x4
R8629
22x4
C8708
105Z
L8002
2.2U
R8036 2.2K
R8037 0
R8034 2.2K
R8035 2.2K
C8027 105Z
R8023
#4.7K
R8075
#1M
X8002
#27M
R8076
#560
R8077
#47 L8007
#BK1608LM182
C8066
#VAL C8065
#VAL
C8059
#120J
C8060
#120J
Q8508
UM6K1N
4
16
3
5 2
L8005
#2.2U
L8001
2.2U
C8064
#105Z
C8040
105Z
C8043
220/4
+
R8065
1K
TP3
TP5
TP6
R8045
4.7K
R8055
1M
R8067
1K
R8069
#4.7K
R8047
4.7K
R8049
#4.7K
R8050 4.7K
R8057 4.7K
C8036
120J
R8051
4.7K
R8046 #4.7K
R8048 #4.7K
R8052 #4.7K
C8035
102J
Q8002
MC504 PIC16C63A
15 SDA
16 RSVD0
17 TX
18 RX
19 VSS
20 VDD
21 DDONE
22 GPIO0
23 PRMODE0
24 PRMODE1
25 SQMODE
26 YPRPB
27 GPIO1
28 WAVE 1
DVRESET
2
DVSDA
3
DVSCL
4
SUBTITLE
5
FILMBIAS
6
ENABLE
7
SA
8
VSS
9
OSC1
10
OSC2
11
GMODE
12
EXTGMD
13
RSVD1
14
SCL
R8072
1K
TP02
TP4
R8070
#4.7K
R8053
1K
R8377
47
Q8310
2SK3019
R8066
4.7K
R8058
4.7K
R8068
#4.7K
L8003
2.2U
P8000
CH20BB Val
22
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
21
R8060 #4.7K
R8059 #4.7K
C8038
120J
C8032 22/16
+
P8001
Val
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
C8008
#0
R8528
22x4
Q8308
2SB1132
Q8605
2SB1132
Q8505
2SB1132
Q8507
DTA144EE
C8359
105Z
Q8353
74VHC74
1
1CLR
2
1D
3
1CK
4
1PR
5
1Q
6
1Q
7
GND
82Q
92Q
10 2PR
11 2CK
12 2D
13 2CLR
14 VCC
Q8506
DTC144EE
Q8504
2SK3019
Q8858
2SK3019
Q85092SK3019
R8311
22
R8310
22
R8750
22
C8078
22/16
+
R8079
150F
R8080
390F
R8081
2.7KF
C8079
100/4
+
C8077
10/16
+
Q8007
LM1117MPX-ADJ
2O
1
G
3
I
C8030 102J
R8038
1K
R8091
1K
R8751
22
R8744
0
R8746
0
R8745
22
R8741
22
R8153
100K
R8152
100K
R8151
100K
C8151
104Z
C8152
104Z
Q8103:B
MAX4018
8
3EN
9
10
11
D8103
1SS226
D8102
1SS226
D8101
1SS226
D8105
1SS226
D8104
1SS226
D8106
1SS226
R8752
22
C8124
104Z
C8123
104Z
C8110
10/16
+
C8108
104Z
C8101 100/4
+
C8112
104Z
C8116 104Z
C8117 10/16
+
C8115 104Z
C8118 10/16
+
L8101
2.2U
C8121
104Z
C8120 101J
C8131
104Z
C8106 104K
C8105 104K
C8104 104K
C8103 104K
C8109
104Z
C8126
104Z
C8128
823K
C8125104Z
C8135
100/4
+
R8124 22
R8132 22
R8133 22
C8127 103K
L8103
2.2U
C8130
104Z
L81042.2U
Q8106
LM1117MPX-ADJ
1G
3I2
O
C8143
100/4
+
R8144
2.7KF
R8145
390F
R8143
150F
C8114 104Z
R8131 22X4
R8134
22X4
R8125
22
C8122
104Z
R8137
22X4
C8111
10/16
+
C8113
104Z
R8130
22X4
R8139
22X4
R8140
22X4
R8141
22X4
R8142
22
C8138
100/4 +
C8142
22/16
+
R8181
22X4
C8140
104Z
C8139
104Z
Q8104 TC74VCX162244FT
11OE
21Y1
31Y2
4GND
51Y3
61Y4
7VCC
82Y1
92Y2
10 GND
11 2Y3
12 2Y4
13 3Y1
14 3Y2
15 GND
16 3Y3
17 3Y4
18 VCC
19 4Y1
20 4Y2
21 GND
22 4Y3
23 4Y4
24 4OE4 25
3OE3
26
4A4
27
4A3
28
GND
29
4A2
30
4A1
31
VCC
32
3A4
33
3A3
34
GND
35
3A2
36
3A1
37
2A4
38
2A3
39
GND
40
2A2
41
2A1
42
VCC
43
1A4
44
1A3
45
GND
46
1A2
47
1A1
48
2OE
R8183
22X4
R8184
22X4
R8185
22X4
R8186
22X4
R8190
22
R8189
22
R8188
22
C8141
10/16
+
Q8001
SII504
1
Reserved
2
VDDCore
3GNDCore
4LCDPwrEn
5/CBlank
6/CSync
7/VSync
8/HSync
9Blue_Cb0
10 Blue_Cb1
11 Blue_Cb2
12 Blue_Cb2
13 Blue_Cb4
14 Blue_Cb5
15 GNDIO
16 VDDIO
17 Blue_Cb6
18 Blue_Cb7
19 Blue_Cb8
20 Blue_Cb9
21 GNDIO
22 Green_Y0
23 Green_Y1
24 Green_Y2
25 Green_Y3
26 VDDIO
27 Green_Y4
28 Green_Y5
29 Green_Y6
30 Green_Y7
31 Green_Y8
32 Green_Y9
33 GNDIO
34 Red_Cr0
35 Red_Cr1
36 Red_Cr2
37 Red_Cr3
38 Red_Cr4
39 Red_Cr5
40 GNDCore
41 VDDCore
42 Red_Cr6
43 Red_Cr7
44 Red_Cr8
45 Red_Cr9
46 VidOutClk
47 GNDCore
48 /BypPLLClk48M
49 Clk48M
50 GNDCore
51
VDDCore
52
/ExtRefSel
53
Reserved
54
Reserved
55 GNDCore
56 VDDCore
57 MemAddr3
58 MemAddr2
59 MemAddr1
60 MemAddr0
61 GNDIO
62 MemAddr4
63 MemAddr5
64 MemAddr6
65 MemAddr7
66 GNDIO
67 MemAddr8
68 MemAddr9
69 MemAddr10
70 MemAddr11
71 Reserved
72 GNDIO
73 VDDIO
74 VDDIO
75 /RAS
76 /CAS
77 /WE
78 DQM
79 GNDIO
80 MemData7
81 MemData6
82 MemData5
83 MemData4
84 MemData3
85 GNDIO
86 MemData2
87 MemData1
88 MemData0
89 VDDIO
90 PuPdDis
91 MemData8
92 MemData9
93 GNDIO
94 MemData10
95 MemData11
96 MemData12
97 MemData13
98 MemData14
99 VDDCore
100 GNDCore
101 MemClk
102 GNDCore
103 Reserved
104
Reserved
105
Reserved 106
VDDCore 107
GNDCore
108
/BypPLLMemClk
109
MemData15
110
MemData24
111
MemData25
112
MemData26
113
MemData27
114
GNDIO
115
MemData28
116
MemData29
117
VDDIO
118
GNDIO
119
MemData30
120
MemData31
121
GNDIO
122
MemData23
123
MemData22
124
MemData21
125
MemData20
126
GNDIO
127
MemData19
128
MemData18
129
MemData17
130
MemData16
131
GNDIO
132
VDDIO
133
ExtRefXtalIn
134
ExtRefXtalOut
135
VDDIO
136
VidInData2
137
VidInData3
138
VidInData4
139
VidInData5
140
VidInData6
141
VidInData7
142
VidInData8
143
VidInData9
144
GNDIO
145
VidInClk
146
VDDCore
147
/HostWr_SCL
148
/HostRd_SDA
149
/HostCS
150
GNDCore
151
HostAddr0
152
HostAddr1
153
HostAddr2
154
HostAddr3
155
HostAddr4
156
HostAddr5
157
HostAddr6 158
HostAddr7 159
HostMode
160
VDDCore
161
HostClk
162
GNDCore
163
HostData15VidInData19
164
HostData14VidInData18
165
HostData13VidInData17
166
HostData12VidInData16
167
GNDCore
168
VDDCore
169
HostData11VidInData15
170
HostData10VidInData14
171
HostData9VidInData13
172
HostData8VidInData12
173
Reserved
174
HostData7VS
175
HostData6HS
176
HostData5
177
HostData4
178
HostData3
179
HostData2
180
HostData1
181
HostData0
182
VDDIO
183
GNDIO
184
/Det32PD
185
/Det22PD
186
/DetVideo
187
/DeintDone
188
MemAddr12
189
VDDIO
190
GNDIO
191
SDOut
192
WSOut
193
SCKOut
194
VDDIO
195
SDIn
196
WSIn
197
SCKIn
198
GNDIO
199
VDDCore
200
/Reset
201
Test0
202
Test1
203
/BypPLLClk54_72M
204
Clk54_72M
205
VDDCore
206
GNDCore
207
ARTN
208
AVDD
R8806
22
C8801
105Z
C8807 821J
C8809
105Z
C8808 104K
R8811
2.7KF
R8809
680F
C8810 104K
C8811 105Z
R8813
680F
R8814
680F
R8817
22
C8812
105Z
L8802
2.2U
L8803
2.2U
C8816
220/4
+
R8815
10KF
R8808
680F
C8805
102J
R8812
2.7KF
C8803
105Z
L8801
2.2U
C8802
220/4
+
C8804
105Z
C8818
47/16
+
R8810
680F
R8825
0X4
R8824
0X4
R8822
0X4
R8823
0X4
R8821
0X4
C8806 392J
R8802 0
C8814 220/4
+
C8817
105Z
R8816 10K
R8818 10K
R8827
0X4
R8819
22
R8828
0X4
R8829
22
R8830
22
R8168 1K
R8169 1K
C8154
100/6.3
+
R81721K
R8535
#2.2K
R8635
#2.2K
R8634
#2.2K
R8607
0
R8507
0
C8133
150J
C8134
150J
L8350
2.2u
X8101
27M
R8157
100K
R8162
#470
R8161
#100K
R8155
100K
R8163
#470
R8159
#100K
R8156
100K
R8164
#470
R8160
#100K
R8801
#0
R8820 0
R8376
#47
C8333
100D
L8504
4.7u
L8901
CY4W(15MHz)
12
4
3
2
1
11
10
9
8
7
6
5
L8902
CY4W(15MHz)
12
4
3
2
1
11
10
9
8
7
6
5
L8903
CY4W(15MHz)
12
4
3
2
1
11
10
9
8
7
6
5
Q8306
HN1C03F-A
Q8307
2SA1774
Q8802
MPC2925T
1I
2G
3
O
Q8903
2SA1162-GR
Q8902
2SA1162-GR
Q8901
2SA1162-GR
R802810KF
R8041
100
R8056
0
R8061
2.2KF
R8062
2.2KF
R8063
#2.2KF
R8064
2.2KF
R8071
4.7K
R8089
2.2KF
R8090
2.2KF
R8088
47F
R8113 2.7KF
R8115 2.7KF
C8136
100/4
+
R8129
22X4
R8334
2K
R8335
2K
R8312
2.2KF
R8313
2.2KF
R8323
10KF
R8324
10KF
R8337
4.7K
R8338
4.7K
R8340
15F
R8351 10KF
R8355
3KF
R8361 100K
R8368
470F
R8369
10KF
R8370
#10KF
R8405
470F
R8536
2.2KF
R8636
2.2KF
R8706
10KF
R8707
10KF
R8710
10KF R8712
2.2KF
R8711
2.2KF
R8723
2.2KF
R8722
2.2KF
Q8701
MPD70F3261YGC-8A
76
PDL5/FLMD1
77
PDL6/AD6
78
PDL7/AD7
79
PDL8/AD8
80 PDL9/AD9
81 PDL10/AD10
82 PDL11/AD11
83 PDL12/AD12
84 PDL13/AD13
85 PDL14/AD14
86 PDL15/AD15
87 PDH0/A16
88 PDH1/A17
89 P711/ANI11
90 P710/ANI10
91 P79/ANI9
92 P78/ANI8
93 P77/ANI7
94 P76/ANI6
95 P75/ANI5
96 P74/ANI4
97 P73/ANI3
98 P72/ANI2
99 P71/ANI1
100 P70/ANI0
1
AVREF0
2
AVSS0
3 P10/ANO0
4 P11/ANO1
5 AVREF1
6 PDH4/A20
7 PDH5/A21
8 FLMD0
9 VDD0
10 REGC
11 VSS0
12 X1
13 X2
14 RESET
15 XT1
16 XT2
17 P02/NMI
18 P04/INTP0
19 P04/INTP1
20 P05/INTP2/_
21 P06/INTP3
22 PP40/SDA01
23 P41/SCL01
24 P42
25 P30TXDA0
26
P31/RXDA0 27
P32/ASCKA0 28
P33 29
P34
30
P35
31
P36
32
P37
33
EVSS
34
EVDD
35
P38/SDA00
36
P39/SCL00
37
P50
38
P51
39
P52/DDI
40
P53/DDO
41
P54/DCK
42
P55/DMS
43
P90/SDA02
44
P91/SCL02
45
P92/A2
46
P93/A3
47
P94/A4
48
P95/A5
49
P96/A6
50
P97/SIB1
51
P98/SOB1
52
P99/SCKB1
53
P910/SIB3
54
P911/SOB3
55
P912/_SCKB3
56
P913/INTP4
57
P914/INTP5
58
P915/INTP6
59
PDH12/A18
60
PHD3/A19
61
PCM0/_WAIT
62
PCM1/CLKOUT
63
PCM2/_HLDAK
64
PCM3/_HLDRQ
65
PCT0/_WRO
66
PCT1/_WR1
67
PCT4/_RD
68
PCT6/ASTB
69
BVSS
70
BVDD
71
PDL0/AD0
72
PDL1/AD1
73
PDL2/AD2
74
PDL3/AD3
75
PDL4/AD4
R8738
47K
R8803 2.2KF
R8804 2.2KF
R8807
47
R8826
0X4
Q8801
ADV7310
1
VDDIO
2PY0
3PY1
4PY2/SCANEN
5PY3/TESTMODE
6PY4
7PY5
8PY6
9PY7
10 VDD
11 DGND1
12 PY8
13 PY9
14 PC0
15 PC1
16 PC2
17 PC3
18 PC4
19 SPI_I2C_EN
20 ALSB
21 SDA
22 SCLK
23 P_HSYNC
24 P_VSYNC
25 P_BLANK
26 PC5
27 PC6
28 PC7
29 PC8
30 PC9
31 RTC
32
CKLIN
33
RESETB
34
EXT_LF
35
RSET2
36
COM2
37
DAC_F
38
DAC_E
39
DAC_D
40
AGND
41
VAA
42
DAC_C
43
DAC_B
44
DAC_A
45
COMP1
46
VREF
47
RESET1
48
S_BLANK
49
S_VSYNC
50
S_HSYNC 51
S0
52
S1
53
S2
54
S3
55
S4
56
VDD2
57
DGND2
58
S5
59
S6
60
S7
61
S8
62
S9
63
CLKIN_2
64
GND10
R8805 22
R8371
470F
R8851
150
R8852
150
R8853
150 R8854
#330
R8855
#330
R8856
#330 R8859
2.2KF
R8901
150R8902150R8903150
R8904
#330F
R8905
#330FR8906
#330F
R8922
470FR8923470FR8924470F
R8929
470F
R8930
470F
R8931
470F
X8001
20.0MHz
X8701
CSTCR5M00G53-B0
R8112
#56
R8127
#1M
Q8501
SII161CTG100
1
HS_DJTR
2PD#
3 ST
4 PIXS
5 GND
6 VCC
7 STAG_OUT#
8 SCDT
9 PDO#
10 QE0
11 QE1
12 QE2
13 QE3
14 QE4
15 QE5
16 QE6
17 QE7
18 OVCC
19 OGND
20 QE8
21 QE9
22 QE10
23 QE11
24 QE12
25 QE13
26 QE14
27 QE15
28 OGND
29 OVCC
30 QE16
31 QE17
32 QE18
33 QE19
34 QE20
35 QE21
36 QE22
37 QE23
38 VCC
39 GND
40 CTL1
41 CTL2
42 CTL3
43 OVCC
44 ODCK
45 OGND
46 DE
47 VSYNC
48 HSYNC
49 QO0
50 QO1
51
QO2
52
QO3
53
QO4
54
QO5
55
QO6
56
QQ7
57
OVCC
58
OGND
59
QO8
60
QO9
61
QO10
62
QO11
63
QO12
64
QO13
65
QO14
66
QO15
67
VCC
68
GND
69
QO16
70
QO17
71
QO18
72
QO19
73
QO20
74
QO21
75
QO22
76
OGND
77
QO23
78
OVCC
79
AGND
80
RX2+
81
RX2-
82
AVCC
83
AGND
84
AVCC
85
RX1+
86
RX1-
87
AGND
88
AVCC
89
AGND
90
RX0+
91
RX0-
92
AGND
93
RXC+
94
RXC-
95
AVCC
96
EXT_RES
97
PVCC
98
PGND
99
RESERVED
100
OCK_INV
Q8401
SII160CT100
1
DIE13
2
DIE12
3 DIE11
4 DIE10
5 DIE9
6 DIE8
7 GND
8 VCC
9 DIE7
10 DIE6
11 DIE5
12 DIE4
13 DIE3
14 DIE2
15 DIE1
16 DIE0
17 IVCC
18 PVCC1
19 PGND1
20 RSVD
21 RSVD
22 RSVD
23 RSVD
24 EDGE
25 PIXS
26 PD
27 RSVD
28 RSVD
29 RSVD
30 VCC
31 GND
32 EXT_SWING
33 AGND
34 TXC-
35 TXC+
36 AVCC
37 AGND
38 AVCC
39 TX0-
40 TX0+
41 AGND
42 TX1-
43 TX1+
44 AVCC
45 TX2-
46 TX2+
47 AGND
48 DIO23
49 DIO22
50 DIO21
51
DIO20
52
DIO19
53
DIO18
54
DIO17
55
DIO16
56
VCC
57
GND
58
DIO15
59
DIO14
60
DIO13
61
DIO12
62
DIO11
63
DIO10
64
DIO9
65
DIO8
66
IVCC
67
GND
68
DIO7
69
DIO6
70
DIO5
71
DIO4
72
DIO3
73
DIO2
74
DIO1
75
DIO0
76
HSYNC
77
VSYNC
78
DE
79
GND
80
IDCK
81
IVCC
82
CTL3
83
CTL2
84
CTL1
85
PVCC2
86
PGND2
87
RSVD
88
VCC
89
GND
90
DIE23
91
DIE22
92
DIE21
93
DIE20
94
DIE19
95
DIE18
96
DIE17
97
DIE16
98
IVCC
99
DIE15
100
DIE14
C8305 220/4
+
C8313
220/4
+
C8404
220/4
+
C8423
220/4
+
C8514
220/4
+
C8614
220/4
+
R8538
1K
R8638
1K
R8114
1K
R8403
0
R8502
4.7K
R8503
470F
R8501
#4.7K R8602
4.7K
R8603
470F
R8601
#4.7K
C8528
10/50
+
C8628
10/50
+
C8699
105Z
Q8503
UM6K1N
3
6 1
4
52
Q8603
UM6K1N
1
4
52
3
6
Q8309
UM6K1N
1
4
52
3
6
R8116 2.2KF
R8539
4.7K
R8639
4.7K
P8601
Val
22 Shield
20
19 HP DET
18 +5V
17 GND
16 DDC DATA
15 DDC CLK
14 NC
13 CERemote
12 CK-
11 CK Shield
10 CK+
9D0-
8D0 Shield
7D0+
6D1-
5D1 Shield
4D1+
3D2-
2D2 Shield
1D2+
21
23
Shield
R8640
27k
P8501
Val
22 Shield
20
19 HP DET
18 +5V
17 GND
16 DDC DATA
15 DDC CLK
14 NC
13 CERemote
12 CK-
11 CK Shield
10 CK+
9D0-
8D0 Shield
7D0+
6D1-
5D1 Shield
4D1+
3D2-
2D2 Shield
1D2+
21
23
Shield
R8540
27k
R8541 0
Q8604
2SK3019
R8641 0
C8137
100/4
+
R8121
1.8K
R8120
33K
R8339
2.2K
Q8301
SII9190CTG
33
PVCC2
34 PGND2
35 VCC
36 GND
37 D23
38 D22
39 D21
40 D20
41 D19
42 VCC
43 GND
44 D18
45 D17
46 D16
47 D15
48 GND
49 VCC
50 D14
51 D13
52 D12
53 D11
54 D10
55 D9
56 D8
57 IDCK
58 D7
59 D6
60 D5
61 D4
62 D3
63 D2
64 GND
1
VCC
2
D1
3
D0
4
DE
5
HSYNC
6
VSYNC
7
SPDIF
8
MCLK
9
HPD
10
RSVD
11
INT
12
VCC
13
GND
14
RESET#
15
SDA
16
SCL
17
PGND1
18
PVCC1
19
EXT_SWING
20
AGND
21
TXC-
22
TXC+
23
AVCC
24
TX0-
25
TX0+
26
AGND
27
TX1-
28
TX1+
29
AVCC
30
TX2-
31
TX2+
32
AGND
L8102
47U
E8000
E_Terminal
4
3
2
1
E8001
E_Terminal
4
3
2
1
Q8606
DTC144EE
Q8607
DTA144EE
Q8601
SII161CTG100
1
HS_DJTR
2PD#
3 ST
4 PIXS
5 GND
6 VCC
7 STAG_OUT#
8 SCDT
9 PDO#
10 QE0
11 QE1
12 QE2
13 QE3
14 QE4
15 QE5
16 QE6
17 QE7
18 OVCC
19 OGND
20 QE8
21 QE9
22 QE10
23 QE11
24 QE12
25 QE13
26 QE14
27 QE15
28 OGND
29 OVCC
30 QE16
31 QE17
32 QE18
33 QE19
34 QE20
35 QE21
36 QE22
37 QE23
38 VCC
39 GND
40 CTL1
41 CTL2
42 CTL3
43 OVCC
44 ODCK
45 OGND
46 DE
47 VSYNC
48 HSYNC
49 QO0
50 QO1
51
QO2
52
QO3
53
QO4
54
QO5
55
QO6
56
QQ7
57
OVCC
58
OGND
59
QO8
60
QO9
61
QO10
62
QO11
63
QO12
64
QO13
65
QO14
66
QO15
67
VCC
68
GND
69
QO16
70
QO17
71
QO18
72
QO19
73
QO20
74
QO21
75
QO22
76
OGND
77
QO23
78
OVCC
79
AGND
80
RX2+
81
RX2-
82
AVCC
83
AGND
84
AVCC
85
RX1+
86
RX1-
87
AGND
88
AVCC
89
AGND
90
RX0+
91
RX0-
92
AGND
93
RXC+
94
RXC-
95
AVCC
96
EXT_RES
97
PVCC
98
PGND
99
RESERVED
100
OCK_INV
R8117 2.2KF
R8753
22
R8740
22
R8754
22
R8755
22
R8747
22
R8748
22
R8749
22
R8123
22X4
P8703
#PLUG2.54X20
1
2
3
4
5
6
7
8
9
10 20
19
18
17
16
15
14
13
12
11
Q8105 TC74VCX162244FT
11OE
21Y1
31Y2
4GND
51Y3
61Y4
7VCC
82Y1
92Y2
10 GND
11 2Y3
12 2Y4
13 3Y1
14 3Y2
15 GND
16 3Y3
17 3Y4
18 VCC
19 4Y1
20 4Y2
21 GND
22 4Y3
23 4Y4
24 4OE4 25
3OE3
26
4A4
27
4A3
28
GND
29
4A2
30
4A1
31
VCC
32
3A4
33
3A3
34
GND
35
3A2
36
3A1
37
2A4
38
2A3
39
GND
40
2A2
41
2A1
42
VCC
43
1A4
44
1A3
45
GND
46
1A2
47
1A1
48
2OE
C8102 104K
R8719
22
P8702
FLASH
8
7
6
5
4
3
2
1
R8319
22
R8013
LM182
R8306 47
C8302 105Z
R8304 470F
R8305 10KF
C8004
105Z
R8010
10X4
R8522
22
R8523
22
R8521
22
C8505
105Z
Q8003 SDRAM2X64
IC42S3220L-7YG
1 VDD
2 DQ0
3 VDDQ
4 DQ1
5 DQ2
6 VSSQ
7 DQ3
8 DQ4
9 VDDQ
10 DQ5
11 DQ6
12 VSSQ
13 DQ7
14 NC
15 VDD
16 DQM0
17 /W E
18 /CAS
19 /RAS
20 /CS
21 NC
22 BA0
23 BA1
24 A10/AP
25 A0
26 A1
27 A2
28 DQM2
29 VDD
30 NC
31 DQ16
32 VSSQ
33 DQ17
34 DQ18
35 VDDQ
36 DQ19
37 DQ20
38 VSSQ
39 DQ21
40 DQ22
41 VDDQ
42 DQ23
43 VDD 44
VSS
45
DQ24
46
VSSQ
47
DQ25
48
DQ26
49
VDDQ
50
DQ27
51
DQ28
52
VSSQ
53
DQ29
54
DQ30
55
VDDQ
56
DQ31
57
NC
58
VSS
59
DQM3
60
A3
61
A4
62
A5
63
A6
64
A7
65
A8
66
A9
67
/VST
68
CLK
69
NC
70
NC
71
DQM1
72
VSS
73
NC
74
DQ8
75
VDDQ
76
DQ9
77
DQ10
78
VSSQ
79
DQ11
80
DQ12
81
VDDQ
82
DQ13
83
DQ14
84
VSSQ
85
DQ15
86
VSS
L8401
4.7U
C8081
#330J
Q8350 CS8420
15 TCBL
16 OBCLK
17 OLRCK
18 SDOUT
19 AUDIO/V
20 S/AES
21 OMCK
22 DGND
23 VD+
24 H/S
25 TXN
26 TXP
27 DFC1
28 ORIG 1
COPY/C
2
DFC0
3
EMPH/U
4
RXP
5
RXN
6
VA+
7
AGND
8
FLT
9
RST
10
RMCK
11
RERR
12
TCBLD
13
PRO/C
14
MUTE
C8153
100/6.3
+
R8182
22X4
R8002
22
R8003
22
R8187
22
R8128
22
R8136
22
R8135
22
R8341
10
R8330
#3.3K
R8342
1k
C8058 #105Z
C8057
#22/16
+
Q8004
#TC7WZU04F
1
2
3
4
GND
5
6
7
8VD
PCB
L8105
2.2U
R8126
22
C8132 #105Z
L8106
2.2U
R8146
22
R8147
22
Q8101
ADV7402
1P32
2P31
3P30/INTREQ
4HS/CS
5DGND
6DVDDIO
7P15
8P14
9P13
10 P12
11 DGND
12 DVDD
13 P29
14 P28
15 SFL/SYNC_OUT
16 SCLK2
17 DGND
18 DVDDIO
19 SDA2
20 P11
21 P10
22 P9
23 P8
24 P27
25 P7
26 P6
27 P5
28 P4
29 P26
30 P25
31 P24
32 P23
33 P22
34 P21
35 DCLK_IN
36 LLC
37 XTAL1
38 XTAL
39 DVDD
40 DGND
41 P3
42 P2
43 P1
44 P0
45 P20
46 ELPF
47 PVDD
48 PVDD
49 AGND
50 AGND
51
AGND
52
SOG
53
AIN7
54
AIN1
55
AIN8
56
AIN2
57
AIN9
58
AIN3
59
NC
60
AGND
61
CAPY1
62
CAPY2
63
AVDD
64
REFOUT
65
CML
66
AGND
67
BIAS
68
CAPC1
69
CAPC2
70
AGND
71
AIN10
72
AIN4
73
AIN11
74
AIN5
75
AIN12
76
AIN6
77
SOY
78
'RESET
79
DE_IN
80
ALSB
81
SDA1
82
SCLK1
83
P40
84
P39
85
VS_IN
86
HS_IN/CS_IN
87
P38
88
P37
89
DGND
90
DVDD
91
P19
92
P18
93
P17
94
P16
95
P36
96
P35
97
P34
98
FIELD/DE
99
VS
100
P33
C8129
104Z
R8138
22X4
Q8107
#TC7WZU04F
5
6
7
8VD 1
2
3
4
GND
PCB
R8534
#2.2K
C8005
100J
R8165
22
R8166
22
R8167
22
R8118
#4.7K
R8119
4.7K
C8107 104K
C8119 102J
Q8102LA7106MFP
9VEE
10
11
12
13
14
15
16 VCC 1
2
3
4
5
6
7
8R8173
0
R8174
0
R8175
0
R8106HS601
R8101 0
R8105 0
R8104HS601
R8102HS601
R8354 104Z
R8913
470
R8914
470
R8915
470
R8919
10K
R8920
10K
R8921
10K
R8925
10KFR892710KFR892810KF
R8111
#56
R8110
#56
R8107 #56
R8108 #56
R8109
68
R8103 100
R8708 0
HDMI IN 1 HDMI IN 2
HDMI OUT
U01
NAVD-
8137
SLOT L
To NAAR-8166 (SCH.-7) To NAAR-8166 (SCH.-7)
SCHEMATIC
DIAGRAM 19
Video section
(Except US model
/Option board:
C-VIDEO)
Q2009
TK15420M
1
2
3
45
6
7
8
Q2050
TK15420M
1
2
3
45
6
7
8
Q2048
2SA1162GR
Q2049
2SA1162GR
Q2047
2SA1162GR
CH0
CH1
AGND
VEE
INH
COM VCC
Q2013
TC7W53FK
1
2
3
45
6
7
8CH0
CH1
AGND
VEE
INH
COM VCC
Q2046
TC7W53FK
1
2
3
4
5
6
7
8
P2004P2005
Q2014
MM1117
REC
GND 8IN11
IN2
3IN3 5
OUT 7SW12
SW24VCC 6
Q2015
MM1117
ZONE2
GND8IN11
IN23 IN3 5
OUT 7SW12
SW24VCC 6
Q2016
MM1117
MAIN
GND 8IN11
IN23 IN3 5
OUT 7SW12
SW24
VCC 6
4
6
5
73
0
1
2
VCC
GND
X
VEE
INH
C
B
A
Q203274HC4051AFT
REC_C
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
4
6
5
73
0
1
2
VCC
GND
X
VEE
INH
C
B
A
Q203374HC4051AFT
MAIN_C
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
4
6
5
73
0
1
2
VCC
GND
X
VEE
INH
C
B
A
Q203474HC4051AFT
ZONE2_C
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
4
6
5
73
0
1
2
VCC
GND
X
VEE
INH
C
B
A
Q203774HC4051AFT
REC_Y
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
4
6
5
73
0
1
2
VCC
GND
X
VEE
INH
C
B
A
Q203874HC4051AFT
MAIN_Y
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
4
6
5
73
0
1
2
VCC
GND
X
VEE
INH
C
B
A
Q203974TC4051AFT
ZONE2_Y
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
4
6
5
73
0
1
2
VCC
GND
X
VEE
INH
C
B
A
Q202674HC4051AFT
REC_CV
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
4
6
5
73
0
1
2
VCC
GND
X
VEE
INH
C
B
A
Q202774HC4051AFT
MAIN_CV
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
4
6
5
73
0
1
2
VCC
GND
X
VEE
INH
C
B
A
Q202874HC4051AFT
ZONE2_CV
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
G2
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
A8
A7
GND
A6
A5
A4
A3
A2
A1
G1 VCC
Q2002
74VHCT541AFT
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19
20
Q2001
TC7WBD125AFK
A12
A2 5
B1 6B23GND4
OE11 OE2 7
VCC 8
P2002
P2001
CLR
STB
P24
P23
P21
P17
VDD
SO
P22
P20
P19
P18
P16
P15
P14
P13P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
DATA
VSS
CLK
VSS
Q2012 BU2152FS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
CLR
STB
P24
P23
P21
P17
VDD
SO
P22
P20
P19
P18
P16
P15
P14
P13P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
DATA
VSS
CLK
VSS
Q2005
BU2152FS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
CLR
STB
P24
P23
P21
P17
VDD
SO
P22
P20
P19
P18
P16
P15
P14
P13P12
P11
P10
P9
P8
P7
P6
P5
P4
P3
P2
P1
DATA
VSS
CLK
VSS
Q2029
BU2152FS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Q2023
RN1404
Q2025
RN1404
Q2021
RN1404
3X
X
VCC
2X
1X
0X
A
BGND
INH
1Y
3Y
Y
2Y
0Y
VEE
Q2017
74HC4052AFT
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
3X
X
VCC
2X
1X
0X
A
BGND
INH
1Y
3Y
Y
2Y
0Y
VEE
Q2030
74HC4052AFT
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
3X
X
VCC
2X
1X
0X
A
BGND
INH
1Y
3Y
Y
2Y
0Y
VEE
Q2031
74HC4052AFT
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
3X
X
VCC
2X
1X
0X
A
BGND
INH
1Y
3Y
Y
2Y
0Y
VEE
Q2035
74HC4052AFT
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
3X
X
VCC
2X
1X
0X
A
BGND
INH
1Y
3Y
Y
2Y
0Y
VEE
Q2036
74HC4052AFT
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
1Z
ZX
Y
VCC
1X
0X
GND
0Z
0Y
1Y
VEE
INH
C
B
A
Q2003 NC
74HC4053AFT
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
1Z
ZX
Y
VCC
1X
0X
GND
0Z
0Y
1Y
VEE
INH
C
B
A
Q2010 NC
74HC4053AFT
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
Y
Y
C
C
V
V
VC
Y
YC
P2006
Y
Y
C
C
V
V
VC
Y
YC
P2007
V
VY
C
Y
CYC
P2008
C2020 682J
C2024
223J
C2033
474J
C2092
474J
C2068
682J
C2073 223J
CVOUT
RST
SW4 Vdd2
SW3 CVIN
SW2 CVCR
SW1 SYNCIN
SEPC
OSDSCK
OSDDATA Vss
PDOUT
OSDCS
AMPIN
VSYNCOUT
AMPOUT
XTALOUT2
FC
XTALIN2 VCOIN
HSYNCOUT
VCOOUT
XTALOUT1
SYNCDET
XTALIN1
Vss Vdd1
Q2004 LC74761M-9848MAIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
CVOUTRST
SW4 Vdd2
SW3 CVIN
SW2 CVCR
SW1 SYNCIN
SEPC
OSDSCK
OSDDATAVss
PDOUT
OSDCS
AMPIN
VSYNCOUT
AMPOUT
XTALOUT2
FC
XTALIN2
VCOIN
HSYNCOUT
VCOOUT
XTALOUT1
SYNCDET
XTALIN1
Vss Vdd1
Q2011 LC74761M-9848
ZONE2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
C2045
104Z
C2046
104Z
C2120
104Z
C2117
104Z
C2121
104Z
C2118
104Z
C2122
104Z
C2119
104Z
C2129
104Z C2134
104Z
C2135
104Z
C2130
104Z
C2131
104Z C2136
104Z
C2139
104Z
C2140
104Z
C2110
104Z
C2106
104Z
C2107
104Z C2111
104Z
C2108
104Z C2112
104Z
C2132
104Z
C2102
104Z
C2133
104Z
C2128
104Z
C2035
104Z
C2034
104Z
C2012
NC
C2006
NC
C2037
104Z
C2036
104Z
C2047
NC C2055
NC
C2056
104Z
C2038
82P
C2014
104Z
C2016
82P C2039
82P
C2109
104Z
C2082
104Z
C2084
104Z
C2087
104Z
C2077 104ZC2075
104Z
C2115
104Z
C2113
104Z
C2114
104Z C2116
104Z
C2123
104Z C2125
104Z
C2124
104Z C2126
104Z
C2163 104Z
C2154 104Z
C2182
104Z
L2002
022J
L2001
056J
L2003
056J
L2004
022J
X2003
XTL14.32MHZ
X2001
XTL14.32MHZ
X2002
XTL17.73MHZ X2004
XTL17.73MHZ
Q2008
TK15420M
MAIN 5
8
6
4
7Q2019
TK15420M
ZONE2 5
8
6
4
7
Q2043
TK15420M
58
64
7
Q2041
TK15420M
58
64
7
Q2042
TK15420M
58
64
7
Q2008
TK15420M
MAIN 3
2
1Q2019
TK15420M
ZONE2 3
2
1
Q2043
TK15420M
3
21
Q2041
TK15420M
3
21
Q2042
TK15420M
3
21
Q2022
2SC2712GR
Q2024
2SC2712GR
Q2020
2SC2712GR
Q2007
2SC2712GR
Q2018
2SC2712GR
D2004
1SS352D2007
1SS352
D2008
1SS352
D2005
1SS352 D2006
1SS352
D2003
1SS352
D2001 D2002
C2007
1/50
C2053
100/6.3
C2054
100/6.3
C2138
100/6.3
C2137
100/6.3
C2048
1/50
C2015
100/6.3
C2030
100/6.3
C2019
0.33/50
C2031
100/6.3
C2018
10/16
C2027
0.47/50
C2026
1/50
C2029
100/6.3
C2085
100/6.3
C2080
100/6.3
C2076
0.47/50
C2074
1/50
C2067
0.33/50
C2079
100/6.3
C2066
10/16
C2062
100/6.3
C2061
10/16
C2058
10/16
C2180
10/16
C2059
10/16
C2083 220/6.3
C2081
47/16
C2086
47/16
C2089
47/16
C2143
220/6.3
C2144
220/6.3
C2168 220/6.3
C2167 220/6.3
C2162 220/6.3
C2161 220/6.3
C2158 220/6.3
C2159 220/6.3
C2153 220/6.3
C2152 220/6.3
C2165 220/6.3
C2164 220/6.3
C2156 220/6.3
C2155 220/6.3
C2183
220/6.3
C2181
220/6.3
C2044
080D
C2043
330J
C2005
080D
C2004
330J
C2049
470J
C2008
470J
C2003
180J
C2002
100D
C2009
NC
C2010
NC
C2011
NC
C2051
NC
C2050
NC
C2052
NC
C2098
104Z
C2099
104Z
C2104
104Z
C2100
104Z
C2105
104Z
C2101
104Z
C2096
104Z
C2103
104Z
C2097
104Z
C2042
180J
C2041
100D
C2017
104Z C2032
104Z
C2025
470J
C2023
122K
C2021 270J
C2022 220J
C2028
104Z
C2069 270J
C2070 220J
C2071
122K
C2078
104Z
C2065
104Z
C2091
104Z
C2072
470J
C2171
333Z
C2001
104Z
C2013 104Z
C2176
104ZC2177
104Z
C2148
104Z
C2147
104Z
C2149 104ZC2150
104Z
C2166 104Z
C2160 104Z
C2151 104Z
C2157 104Z
C2169
333Z
C2170
333Z
R2451
10K
R2365
NC
R2431
NC
R2432
0
R2244
56
R2362
NC
R2364
NC
R2212
NC
R2215
NC
R2216
56
R2435
NC
R2434
NC
R2433
0
R2005
470
R2004
470
R2006
470
R2041
470
R2039
470 R2040
470
R2189
10K
R2227
100
R2188
220
R2196
15K
R2198
12K
R2197
15K
R2236
220
R2194
470 R2195
470 R2199
NC
R2239
100
R2190
10K
R2253
220
R2252
56K
R2250
100
R2285
470
R2251
56K
R2294
NC
R2293
NC
R2280
220
R2292
470
R2281
NC
R2284
NC R2249
100
R2388
33K
R2391
56K
R2062
33K
R2385
1K
R2059
68
R2068
2.2K
R2065
33K
R2069
2.2K
R2063
33K
R2066
33K
R2386
1K
R2392
56K
R2389
33K
R2060
68
R2067
2.2K
R2061
33K
R2064
33K
R2058
68
R2384
1K
R2390
56K
R2387
33K
R2402
0
R2401
0
R2404
220
R2181
1.8K
R2403
220
R2097
8.2K
R2095
100
R2096
120
R2098
1.5K
R2008
100
R2009
120
R2038
1K
R2037
8.2K
R2092
68K
R2035
100
R2036
10K
R2007
2.2K
R2013
47K
R2016 2.7K
R2012
820K
R2010
1.5K
R2015
6.8K
R2011
120
R2014
1K
R2019
220
R2017
6.8K
R2018
3.3K R2020
1K
R2021
47K
R2183
15K
R2182
1.8K R2094
100
R2093
10K
R2405
0
R2406
0
R2407
220
R2178
1.8K
R2408
220
R2053
3.3K
R2056
47K
R2055
1K
R2052
6.8K
R2042
2.2K
R2051 2.7K
R2048
47K
R2050
6.8K
R2045
1.5K
R2046
120
R2049
1K
R2047
820K
R2054
220
R2044
120
R2099
100
R2147
NC
R2146
120
R2043
100
R2149
1.5K
R2148
150
R2141
1K
R2142
8.2K
R2143
68K
R2140
10K
R2180
1.8K
R2179
15K
R2144
100
R2145
10K
R2022
330
R2200
1K
R2217
330
R2002
330
R2070
1K
R2001
330
R2057
330
R2226
330
R2218
1K
R2128
10K
R2127
10K
R2118
10K
R2117
10K
R2106 75
R2105 75
R2104 75
R2103 75
R2102 75
R2101 75
R2137
10K
R2136
10K
R2154
10K R2211
10K
R2192
10K
R2191
10K
R2193
10K
R2152
10K
R2138
1.8K
R2139
1.8K
R2184
220
R2159
220
R2108
56K
R2100
100
R2120
1.8K
R2110
15K
R2109
56K
R2107
100
R2129
1.8K
R2119
15K
R2088
1.8K
R2091
1.8K
R2089
1.8K
R2090
1.8K
R2156
220
R2158
220
R2157
220
R2155
220
R2084
12K
R2080
1.8K
R2076
100K
R2072
100
R2082
6.8K
R2086
2.2K
R2078
56K
R2073
100
R2075
100
R2074
100
R2077
56K
R2085
2.2K
R2081
6.8K
R2079
100K
R2087
15K
R2083
1.8K
R2166
10K
R2163
10K
R2175
10K R2172
10K R2169
10K
R2168
10K
R2165
10K
R2177
10K R2174
10K R2171
10K
R2176
10K R2173
10K R2170
10K R2167
10K
R2164
10K
10K
10K
R2160
10K
R2134
75 R2133
75
R2135
75 R2131
75
R2132
75
R2123
75
R2122
75
R2126
75 R2125
75 R2124
75
R2113
75 R2112
75
R2116
75 R2115
75 R2114
75 R2111
75
R2121
75
R2130
75
R2187 10K
R2185 10K
R2186 10K
R2003
SYNCDEC1 SYNCDEC2
VGND
NETSY
NETSC
NETCV
HDBSY
HDBSC
HDBCV
+5V
-5V
SYNCDEC1
VSYNC1
OSDCS1
SVDEC2 SVDEC1 SVDEC3
OSDOUT
OSDCLK
SYNCDEC2
VSYNC2
OSDCS2
VFSTB REC_Y
VFCLOCK
VFDATA REC_C
SVDEC1
SVDEC2
SVDEC3
IICCLK
IICDATA
ASIG
MAIN_Y
BSIG
CSIG
P118
P119
P120
P121
P117
CV
MAIN_C
OP4
REC_C
MAIN_C
ZONE2_Y
ZONE2_C
MAIN_Y
REC_Y
ZONE2_MIX
REC_MIX
SC
SY
OTHER 1.2K
J/D 0
to NAETC-8203 (P2211) SCH.-20 to NAETC-8203 (P2212) SCH.-20
to NAAR-8166 (P2002B)SCH.-7
to NAAR-8166 (P2001B) SCH.-7
VIDEO OUTPUT
VIDEO INPUT
OUT 1
OUT 2
THESE PARTS ARE NOT USED
IN UJJ AND UDD.
X2004
C2044
X2002
C2005
C2004 C2043
IN 2
IN 1
IN 3
IN 4
IN 5
IN 6
NAVD-8201
HDACV
HDASY
HDASC
R2161
R2162
RDC-7.1/C-VIDEO
A
1
2
3
4
5
BCDEFGH
U18
Slot H
SCHEMATIC
DIAGRAM 20
Video section
(Except US
model/Option
board:C-VIDEO)
Q2236
2SA1162GR
VLIN+
-VCC2
MUTE2
VOUT3
DRCTL
VOUT2
GND
VOUT1
+VCC
NFB3
VIN3+
-VCC1
NFB2
VIN2+
MUTE1
NFB1
Q2235
LA7106M
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
Q2208
TK15420M
ZONE2_C_BUFFER
MAIN C BUFFER
1
2
3
45
6
7
8
Q2040
TK15420M
REC_MIX
MAIN_CV_BUFFER
1
2
3
45
6
7
8
Q2203
TK15420M
MAIN_MIX
ZONE2_MIX
1
2
3
45
6
7
8
P2212
P2211
V
VY
C
Y
CY
P2205
P2207 P2206
Q2223
RN1444
Q2222
RN1444
Q2219
RN1444
Q2221
RN2402
Q2220
RN2402
Q2218
RN2402
3X
X
VCC
2X
1X
0X
A
BGND
INH
1Y
3Y
Y
2Y
0Y
VEE
Q2213
74HC4052AFT
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
3X
X
VCC
2X
1X
0X
A
BGND
INH
1Y
3Y
Y
2Y
0Y
VEE
Q2215
74HC4052AFT
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
Q2225
RN1404
Q2224
RN1401
Q2226
RN1401
Q2229
RN1401
Q2231
RN1401
Q2214
RN1401
Q2234
RN1401
RL2202
+-
RL2201
+-
RL2204
NPL-2P2A-
DC24-177
+-
RL2203
NPL-2P2A-
DC24-177
+-
RL2207
NPL-2P2A-
DC24-177
+-
RL2206
NPL-2P2A-DC24-177
+-
RL2210 NPL-2P2A-DC24-177
+-
RL2209
NPL-2P2A-DC24-177
+-
RL2208 NPL-2P2A-DC24-177
+-
VB1
COUT
VSS1
YOUT
VB2
PD
FIL
VSS4
VDD4
FSC
TESTOUT
MODE1
SDA
SCL
TESTI3
VDD2
VSS3
VDD3
TESTI2
KILLER
TEST
YCIN
VRB
VSS2
TESTI1
VDD1
VRT
BIAS
Q2206
TC90A69F
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
D2207 1SS352
D2206
1SS352
D2202
1SS352
D2201
1SS352 D2204
1SS352
D2203
1SS352
D2208
1SS352
D2205
1SS352 D2210
1SS352
D2212
1SS352
P2210
P2204
P2202
Q2204
MM1115
GND8IN11
IN2
3NC1
4NC25
OUT 7SW2VCC 6
VIDEO
NC
R
FSC
VCC1 GND2
VCC2 GND1
CXTAL
APC2 APC1
4FSC
ACC
BSTCROMA
Q2201
MM1093NF
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
VIDEO
NCR
FSC
VCC1
GND2
VCC2
GND1
C
XTAL
APC2
APC1
4FSC
ACC
BST
CROMA
Q2202
MM1093PF
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
L2213
470K
L2212 470K
L2203
220K
L2208
220K
L2211
220K
L2209
220K
L2210
220K
L2207
101K
L2205
101K
L2204
101K
L2206
220K
L2202
220K
L2201 330K
INC+
OUTC
INC-
VEE
INB+
INB-
OUTB
OUTA
INA-
INA+
VCC
ENB
ENC
ENA
Q2217
MAX4018
1
2
3
4
5
6
78
9
10
11
12
13
14
INC+
OUTC
INC-
VEE
INB+
INB-
OUTB
OUTA
INA-
INA+
VCC
ENB
ENC
ENA
Q2228
MAX4218
1
2
3
4
5
6
78
9
10
11
12
13
14
Q2227
2SC2712GR
Q2212
2SC2712
Q2211
2SC2712
Q2205
2SC2712
Q2209
2SC2712
Q2210 2SC2712
R-Y IN
R-Y AGC
V OUT2
V IN2 V OB2
VDD V OB1
V IN1 V OUT1
VSS VGG
CLOCK IN GND
CLOCK OUT
R-Y from CCD
PLL
B-Y AGC
B-Y from CCD
mode SW1
SCP IN mode SW2
FILT ADJ
VCC B-Y IN
B-Y CLAMP
B-Y to CCD B-Y OUT
R-Y to CCD R-Y OUT
R-Y CLAMP
Q2207
TA8772AN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Q2232
TK15420M
58
64
7
Q2230
TK15420M
58
64
7
Q2233
TK15420M
58
64
7
Q2232
TK15420M
3
21
Q2230
TK15420M
3
21
Q2233
TK15420M
3
21
C2297
223J
C2299
222J
C2290
104J
C2293 104J
C2262
104J
C2261 681J
R-Y/Cr
B-Y/Cb
SECAM CONT
1HDL CONT
fsc
UV/CbCrSW
CVcc
DACVcc
YIN
DAC1
DAC2
YOUT
GND
DACTEST
SDA
SCL
Ys
R-Y1
B-Y1
Y1
IICGND
R-Y2
B-Y2
Y2
24 SW GND
23 ADRS SW R-Y/R
B-Y/B
Y/G
SWVcc
SYNCVcc
17 CP/HPIN
16 DigGND
SCP
HDOUT
VDOUT
32fHVCO
SYNCGND
AFC
SYNCOUT
CROMAIN
SYNCIN
V-SEP
CGND
APC
3.58
M-PAL
4.43
Q2216
TA1270BF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
X2205
4.43MHZ
X2203
3.58MHZ
X2204
CSBLA503KECZF30
X2201
3.58MHZ
X2202
4.43MHZ
C2240
47/16
C2268
220/6.3
C2309
220/6.3
C2308
220/6.3
C2184
10/16
C2127
100/6.3
C2063
100/6.3
C2057
10/16
C2060
10/16
C2064
100/6.3
C2145
220/6.3
C2142
220/6.3
C2040
220/35
C2286
220/6.3
C2341
220/6.3
C2340
220/6.3
C2342
220/6.3
C2335
220/6.3
C2337
220/6.3
C2339
220/6.3
C2334
220/6.3
C2336
220/6.3
C2338
220/6.3
C2288
220/6.3
C2316
100/6.3
C2313
100/6.3
C2344
100/6.3
C2343
100/6.3
C2239 47/16
C2307 47/16
C2318 47/16
C2306
47/16 C2284
100/6.3
C2301
2.2/50
C2300
0.22/50
C2291
2.2/50
C2296
47/16
C2269
1/50
C2270
1/50
C2275
1/50
C2250
0.47/50
C2248
10/16
C2251
0.47/50
C2263
100/6.3
C2235
47/16
C2236
47/16
C2238
100/6.3 C2237
100/6.3
C2241
0.47/50
C2202
0.47/50
C2201
0.47/50 C2208 100/6.3
C2207
100/6.3
C2213
2.2/50
C2211
2.2/50
C2215
4.7/50
C2216
4.7/50
C2271
104Z
C2257
104Z
C2323
104Z
C2324
104Z
C2311
104Z
C2310 104Z
C2332
104Z
C2333
104Z
C2325
333Z
C2305
104Z
C2302
104Z
C2312
104Z
C2304
104Z
C2320
560J
C2294
560J
C2292
104Z
C2285
104Z
C2295
104Z
C2230
120J
C2229
220J
C2242
104Z
C2266
120J
C2264
220J
C2267
120J
C2265
220J
C2259
103Z
C2260
103Z
C2232
103Z
C2231
103Z
C2233
103Z
C2234
103Z
C2258
103Z
C2243
104Z
C2245
103Z
C2244
103Z
C2210 104Z
C2209 104Z
C2214
103Z C2212
103Z
C2205
561J C2219
560J
C2203
391J
C2217
103Z
C2221
080D
C2222
680J
C2206
561J C2220
560J
C2204
391J
C2218
103Z
C2223
080D
C2224
680J
R2279
1.8K
R2409 NC R2410
NC
R2363
10K R2344
NC
R2393
470
R2427 470
R2369
220
R2368
220
R2301
18K
R2299 1.8K
R2297
56K
R2295
100
R2296
100
R2302
4.7K
R2303
1.8K
R2300
2.2K
R2298
100K
R2304
1.8K
R2394 NC
R2449
100
R2397
100
R2448
10K
R2430
220
R2447
470
R2396
10K
R2360
220
R2395 NC
R2347
1.5K
R2346 1.5K
R2071
56K
R2345 1.8K
R2309
18K
R2153
220
R2308
1.8K
R2306
100
R2305
10K
R2429
NC
R2428
NC
R2255
220
R2025
1.5K
R2026
1.5K
R2028
56K
R2150
220
R2030 1.8K
R2032
18K
R2034
1.8K
R2024
1.5K
R2023
1.5K
R2027 56K
R2031
6.8K
R2151
220
R2033
1.8K
R2029
2.2K
R2450
12
R2361
NC
R2366
220
R2367
220
R2278
1.8K
R2277
15K
R2276
1.8K
R2274
15K R2275
1.8K
R2273
56K
R2271
56K
R2269
100
R2270
100
R2370
220
R2371
220
R2333
2.2K
R2329
6.8K
R2325
56K
R2318 100
R2320
100
R2339
12K
R2342
1.8K
R2332
1.8K
R2328
100K
R2343
1.8K
R2264
100K R2263
100K
R2254
100K
R2324
75
R2327 75
R2326 75
R2321 75
R2323 75
R2322 75
R2330
10K
R2331 10K
R2334
10K
R2335 10K
R2340
10K
R2341 10K
R2336
75
R2338
75
R2337
75
R2357
10K
R2359
10K
R2358
10K
R2383
10K
R2382
10K
R2381
10K
R2355
75
R2354
75
R2356
75
R2379
10K
R2375
10K
R2380
10K
R2378
10K
R2376
10K
R2377
10K
R2353
75
R2349
75
R2351
75 R2352
75
R2350
75
R2348
75
R2445
33K
R2444
56K
R2446
1K
R2287
33K
R2282
68
R2288
2.2K
R2272
33K
R2247
100
R2443
56
R2398
220
R2262
100
R2261
100
R2256
10K
R2259
10K
R2441
56
R2399
220
R2442
56
R2400
220
R2438
22
R2439
22
R2440 22
R2248
10K
R2283
100
R2286
10K
R2426
220
R2313
4.7K
R2311
750
R2310
10K
R2307
100
R2312
680
R2424
220
R2291
680
R2289
4.7K
R2290
750
R2314
100
R2315 10K
R2425 220
R2319 4.7K
R2316 750
R2317
680
R2414
NC
R2413
NC
R2412
NC
R2423
NC R2420
NC
R2422
75
R2419
75
R2417
NC
R2416
75
R2421
75
R2418
100
R2415
75
R2374
10K R2373
10K R2372
10K
R2411
100
R2240
100
R2243
100
R2222 11K
R2437
0
R2436
0
R2242
10K
R2241
10K
R2234 1K
R2235
1K
R2266
33K
R2265
3.3K
R2268
330K
R2267
33K
R2246
100
R2245
100
R2257 10K
R2260
180
R2258
180
R2238
1K
R2237
1K
R2221
1K
R2219
820
R2220
820
R2232
5.6K
R2233
1.2K
R2230
820
R2228
820
R2229
820
R2231
820
R2224
100
R2223
100
R2225
330
R2204
390
R2203
390
R2205
1M
R2209
390
R2201
15K
R2207
10K R221310K
R2206
1M
R2210
390
R2202 15K
R2208
10K R2214
10K
C2141
104Z
C2095
104Z
C2090
104Z
C2088
104Z
C2094
104Z
C2093
104Z
C2277
104Z
C2278
104Z
C2281
104Z
C2280
104Z
C2331
333Z
C2330
333Z
C2345
104Z
C2289 104Z
C2287
104Z
C2298
104Z C2319
104Z C2321
104Z
C2322
104Z
C2317
104Z
C2314
104Z
C2329
104Z
C2328
104Z
C2246
103Z
C2254 104Z
C2279
104Z
C2274
104Z
C2276 104Z
C2273
104Z
C2272
103Z
C2256104Z
C2247
103Z
C2249
104Z
C2255
104Z
C2253
104Z
C2252
103Z
C2326
104Z
C2303
103Z
C2315
103Z
HDAPY
VGND
HDAPB
VGND
HDAPR
VGND
HDBPY
VGND
HDBPB
VGND
HDBPR
VGND
TIY
VGND
TICB
VGND
TICR
VGND
FIY
VGND
FICB RLYGND
VGND VGND
FICR
RLYGND RLYGND VGND
+5V
-5V
9V
+24V
CYDEC
OP5
9V
VGND
-5V
SDA
SCL
CC
YY
REC_MIX
ZONE2_MIX
MAIN_MIX
ZONE2_Y
REC_Y
MAIN_C
REC_C
MAIN_Y
REC_MIX
ZONE2_MIX
MAIN_MIX
MAIN_Y
MAIN_C
ZONE2_Y
ZONE2_C
REC_Y
REC_C
USE FOR J/D
USE FOR J/D
to NAAR-8166 (P2204B) SCH.-6
to NAVD-8201 (P2004) SCH.-19to NAVD-8201 (P2005) SCH.-19
OUT 3
OUT 4
OUT1
COMPONENT
IN3
COMPONENT
COMPONENT
IN1
IN2
COMPONENT
NAVD-8202
NAETC-8203
to NAVD-8202 (P2202)
to NAETC-8203 (P2210)
NO USE FOR UDD , UDC AND UJJ
NO USE FOR UDD , UDC AND UJJ
C2243
C2232
C2257
NPL-2P2A-
DC24-177
NPL-2P2A-
DC24-177
RL2202
RDC-7.1/C-VIDEO
SLOT I
A
1
2
3
4
5
BCDEFGH
U182
U183
SCHEMATIC DIAGRAM 21 Video section (Except US model/Option board:C-CPNT-BNC)
P2503 P2502
P2501
Q2502
RN1401
RL2503
RELAY SW
+-
RL2502
RELAY SW
+-
RL2501
RELAY SW
+-
D2501
D2502
INC+
OUTC
INC-
VEE
INB+
INB-
OUTB
OUTA
INA-
INA+
VCC
ENB
ENC
ENA
Q2503
MAX4218
1
2
3
4
5
6
78
9
10
11
12
13
14
INC+
OUTC
INC-
VEE
INB+
INB-
OUTB
OUTA
INA-
INA+
VCC
ENB
ENC
ENA
Q2501
MAX4218
1
2
3
4
5
6
78
9
10
11
12
13
14
C2505
104Z
C2519
220/16
C2518
220/16
C2517
220/16
C2508
100/16
C2506
100/16
C2503
220/16
C2501
220/16
R2535
75
R2534
75
R2533
75
R2523
100
R2528
100
R2529
10K
R2530
680
R2532
6.8K
R2524
10K
R2525
680
R2527
6.8K
R2518
680
R2517
6.8K
R2516
10K
R2515
100
R2544 10K
R2543 10K
R2542 10K
R2512
10K
R2514
100
R2513
100
R2511
10K
R2545
NC
R2548
NC
R2551
220
R2502
10K
R2501
100
R2539
10K
R2538
10K
R2537
10K
R2503
1.2K
R2556
220
R2519
680
R2554
220
R2555
220
R2531
680
R2526
680
R2522
0
R2521
0
R2520
0
R2541
75
R2540
75
R2536
75
R2557
56
R2547
NC
R2550
NC
R2552
220
R2553
220
R2549
NC
R2546
NC
R2507
22
R2504
0
R2506
0
R2505 0
R2558
56
R2559
56
R2508
22
R2509
22
C2516
NC
C2515
NC
C2512
NC
C2513
NC
C2511
NC
C2522
104Z
C2504
104Z
C2502
104Z
C2514
NC
C2509
104Z
C2507
104Z
C2521
104Z
C2520
104Z
TIY
TICB
TICR
FIY
FICB VGND
FICR
+5V
-5V
+24V
ASIG
RLYGND
NAVD-8205
to NAAR-8166 (P3113B) (SCH.-7)
RDC-7.1/C-CPNT-BNC
COMPONENT
VIDEO IN 4
COMPONENT
VIDEO OUT 2
A
1
2
3
4
5
BCDEFGH
U19
SLOT J
RDC-7.1
WIRING VIEW 1
P7501D
P8001B
P3102B
P7401B
P3105B
P3106B
P3106B
P3107B
P3127B
P3126B
P3125B
P3108B
P3109B
P2001B
P2002B
P2204B
P2401B
P2501B
P3115B
P3117B
P3118B
P3119B
P3129
P8000B
P3501D
DACGND
DSPLRCK DSPBCK
DSPFDA DSPSDA
DSPBDA DSPLCSWDA
DSPRCSWDA NETLRCK
NETBCK
NETDA PCMLRCK
PCMBCK
PCMFLR
PCMSLR
PCMCSW
MCLRCK MCBCK
MCFDA MCSDA
MCCSWDA MCSBDA
DSPLKZ2
DSPLKM
DSPBMC
DSPLFE
DSPMINF
DSPMDEC
DSPZINF DSPZDEC
PLLDA PLLCKM
PLLCKM1
ADRST DIGSPDA
DIGSPCK
DIGSPSTB1 DIGSPSTB2
DIRRST
DIGIN DIGOUT
DIGCK DIGCSM
MINT1 DIRCSZ2
Z2INT1 DIRCSZ3
Z3INT1
DZ2RST DZ3RST
FRDG IE3SPF
HDMI1
HDMI2
DGTU
SPF
AES
DGND
DGND
DGND
DGND
VHDSP
VHDSP
VHDSP
5VDAC
DACGND
DACGND
DACGND
DACGND
+15V
-15V
AGND
AGND
MAINL
Z2R
Z2L
VLSCZ2L
VLSCZ2R
VLSCRECR
VLSCRECL
IERXD
IETXD
IECTS
IERTS
IERST
IEWRITE
IEPOWER
IESYSERR
IESYSCHG
OP01
DGND
DGND
+5VIE
+5VIE
PCMLRCK
PCMFLR
PCMCSW
PCMBCK
PCMSLR
DSDSR
DSDSL
DSDSW
DSDC
DSDFL
DSDFR
DSDBCK
IE3SPF
OP02
NC
NC
NC
NVRL
VGND
VGND
VGND
VGND
VGND
TICR
TICB
TIY
NETSC
NETSY
NETCV
VGND
VGND
NRST
NETDA
NETBCK
NETLRCK
DGND
DGND
NRXD
NTXD
DGND
DGND
VNET
VNET
SUBSO
SUBSI
SUBBY
SUBSCK
FLPOWER
SURST
+5VDIS
VSYS
VSYS
VPP
+24V
DGND
DGND
FLGND
-VP
FLAC1
FLAC2
SUBSCK
SUBSO
SUBSI
SURST
VPP
5V
DGND
WRRY
+24V
-VP
+5VDIS
+5VIE
FLGND+5VIE
5VDAC
5VDAC
FLAC2
FLAC1
VHDSP
VHDSP DGND
DGND
-18V
-18V
NET
+18V
MUTB
+18V
VSYS
VNET
+24V
+24V
FLGND
FLGND
S1HRL
S1MRL
OP03
+15V
+15V
AGND
-15V
-15V
AGND
AGND
MCFL
MCFR
MCC
MCSW
MCSL
MCSR
MCSBL
MCSBR
5VDAC
DACGND
DACGND
AES
ANASTB1
ANACLK
ANADA
MCFDA
MCSDA
MCCSWDA
MCSBDA
MCBK
MCLRCK
ADRST
NC
NC
NC
NC
MUTEB
DGND
REC5MUT
REC4MUT
REC1MUT
REC2MUT
REC3MUT
ANASTB1
ANADA
ANACLK
VZ3RSTB
VZ3LSTB
VZ2LSTB
VZ2RSTB
Z2VOLMUT
Z3VOLMUT
Z2R
Z2L
MAINR
MAINL
ATUL
ATUR
FRONTVR
FRONTVL
VLSCRECL
VLSCRECR
Z2INR
Z2INL
+15V
+15V
-15V
-15V
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
OSDOUT_T
OSDCLK
SYNCDEC2
VSYNC2
OSDCS2
VFSTB
VFRST
VFCLK
VFDATA
SVDEC1
SVDEC2
SVDEC3
IICCLK
IICCDA
ASIG
BSIG
CSIG
P118
P119
P120
P121
P117
OP04
NC
NC
NC
NC
NC
NC
NC
FSY
FSC
FCV
NETSY
NETSC
NETCV
HDASY
HDASC
HDACV
HDBSY
HDBSC
HDBCV
+5VVI
-5VVI
SYNCDEC1
VSYNC1
OSDCS1
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND HDAPY
HDAPB
HDAPR
HDBPR
HDBPB
HDBPY
TIY
TICB
TICR
FIY
FICB
FICR
RLGND
+5VVI
-5VVI
+9VVI
+24V
CYDEC
OP05
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
FICR
FICB
FIY
TICR
TICB
TIY
+5VVI
-5VVI
+24V
RLGND
ASIG
CSIG
1A
1B
2A
3A
2B
3B
P118
P119
P117
NC
NC
OP06
RLGND
TIY
TICB
TICR
FIY
FICB
FICR
VGND
VGND
VGND
VGND
VGND
RLGND
+24V
-5VVI
+5VVI
RLGND
BSIG
CSIG
1B
2B
3B
1A
2A
3A
P120
P121
P117
NC
NC
OP07
OP07
AGND AGND
3.3VHDRA
3.3VHDRA DGND
DGND DGND
PLLCEICCB_DA
PLLCEICCB_CK ATUL
ATUR RST
SDCCB STEREO
RDSID RDSCL
RDSDA IICCLK
IICDA DGTU
HDBUSE HD12V
HDMRST
RLGND
VOLH
+24V
THPRO
PRO
+24V
RLGND
SRSPAO
SRSPBO
SBSPBO
SBSPAO
CSPBO
CSPAO
FRSPAO
FRSPBO
+5VVI IE3
PURA +12V
+9V
DGND DGND
+13S +5VHD
+5VHD
+5.6V
+24V FLPOWER
3.3VHDRA
3.3VHDRA RLGND
RLGND
FCV
FSC
FSY
VGND
VGND
VGND
VGND
VGND
HDACV
HDASC
HDASY
VGND
VGND
HDBSY
HDBPR
HDBPB
HDBPY
HDAPY
HDAPR
HDAPB
VGND
VGND
VGND
VGND
VGND
NC
NC HDMI2
HDMI1 SPF
OP08 VSYSRST
VD_STB
VD_SO
VD_SI VD_SCK
+13S
-5VVI
VGND
VGND
+5VHD
+5VHD HDBCV
HDBSC
VGND
P3132
DSPMHS
DSPZHS
DSPZLFE PLLLR
PLLLZ PLLLM
DSPD0 DSPCLK
DSPMDI DSPZRST
DSPZFS DSPZDIDSPMRST
PLLCKZ2
5VDAC
ZADRST
HPDET
DACGND
DACGND
DACGND
DACGND
J3101A
J3101C
J3101B
IEEET0
IEEET1
1
39 19
59
79
99
1
1
1
1
1
1
1
DGND
TXD
SCK0
VDD
CLK
RXD
MOO
RST
P3116C
P3130C
NAAR-8166
MOTHER BOARD
SCHEMATIC 7
+18V
+5VDSP
DGND
FRDG
10
2
2040 30
2
10
10 20
30
30 38
FVL
FVR
AGND
AGND
VGND VGND
-5VVI
8
SRSPB
FRSPB
FRSPA CSPB
SWRLA
DIGCLK
APGLOCK
PLLM1
PLLCKDAC
FS1
DSDPCM
DSDFL
DSDC
DSDSL
DACGND
DSPLCWDA
DSPSBDA
DSPFDA
DSPLRCK
AGND
CSPA
SRSPA
SBSPB
SWRLB
DIGOUT
DACCMCS
PLLDA
FS0
FS2
DSDBCK
DSDFR
DSDSW
DSDSR
DACGND
DSPRCWA
DSPSDA
DSPBICK
DACGND Z2L
MAINR
AGND
VLSCZ2L
Z2INL
HPDET
AGND
MCFR
MCSBR
MCSR
VFRSTB
VSLSTB
VSBLSTB
VSWSTB
BIAMPRL
ANACLK
HPRL
BTLRL
AMUTE
MCSW
HPMUTE
Z2RL
ANADATA
Z2MUTE
ANASTB2
VSBRSTB
VSRSTB
VCSTB
VFLSTB
MCSBL
MCSL
MCC
MCFL
NC
DGND
Z2INR
VLSCZ2R
MAINL
AGND
Z2R
Z2OR
Z2OL
PLLCEICCB_CE Z2OR
Z2OL
+18V_T
+18V_T
JTCLK
DGND
JTDO
JTD1
JTRST
JTMS
VDD
RST
P3131
DSPMFS
J3101D
FOR_SUBCPU
FOR_MAINCPU
FOR_FLASH
P8002B
OP05
DSDSR
DSDSW
DSDFR
DSDBCK
DACGND
DSDSL
DSDC
DSDFL
DSDFL
DSDC
DSDSL
PCMCSW
PCMFLR
PCMLRCK
PCMBCK
PCMSLR
DSDBCK
DSDFL
DSDFR
DSDC
DSDSW
DSDSL
DSDSR
DACGND
PCMBCK
PCMSLR
PCMCSW
PCMFLR
PCMLRCK
DSDSW
DSDFR
DSDBCK
DSDSR
PCMLRCK
PCMFLR
PCMCSW
PCMSLR
PCMBCK
DGND
DGND
AGND
MAINR
AGND
2
2
SPDIF
GND
DSDBCK
DSDFL
DSDFR
DSDC
DSDSW
DSDSR
DSDSL
GND
PCMBCK
PCMLRCK
PCMSLR
PCMCSW
PCMFLR
IEEESTR_CHG
IEEESYS_ERR
IEEEPOWER
IEEEWRITE
IEEERST
IEEERTS
IEEECTS
IEEECLK
IEEETXD
IEEERXD
FOR ON BOARD EMI
P301
P3510
P3513
P3511
P3507
P3509
P3512
E3002
E3001
+5VX2
GNDX3
IE3_CTS
IE3_RTS
IE3_RXD
IE3_TXD
GND
+3.3V
NC
RXD0
NC
TXD0
GND
+3.3V
UART_RXD
NC
UART_TXD
NC
GND
+3.3V
+3.3V
GND
IE3_RXD
IE3_CLK
IE3_TXD
IE3_WRITE
IE3_RST
GND
GND
GND
GND
GND
GND
+3.3V
RST
PG6
PG5
RSTEML
WDTOVF
P53
PG4
NADG-8164
SLOT A
SCHEMATIC 17
HDMI
P3503A
P3019
P3020
P7403A
P7401
P7402A
NADG-8162
SLOT C
SCHEMATIC 8/9
P7404
P701
NADG-8163
SCHEMATIC 10/11
DSP CIRCUIT
P7002
NAVD-8201
SLOT H
SCHEMATIC 19
COMPONENT VIDEO NAVD-8202
SLOT I
SCHEMATIC 20
COMPONENT VIDEO
SCHEMATIC 20
NAETC-8158 P3501B P7501B
P7501C
P3501C
P7403B
P7402B
A
1
2
3
4
5
BCDEFGH
NAVD-8137
SLOT L
SCHEMATIC 18
C-HDMI
P8000
P8001
P8703
P8702
P8302
P8601
P8501
E8001
P2202
P2204
P2205 P2206
P2207
C-VIDEO
P2001
P2002
P2004
P2006 P2007 P2008
P2005
C-VIDEO
P402
P401
P408B P407B P406B
P403
P3108A
P3109A
NAAF-8145
SLOT G
SCHEMATIC 2
AGND
PHL
PHR
AI1L
AI1R
AGND
AI2L
AI2R
AI3L
AI3R
AGND
RECR
RECL
AGND
AGND
VLSCRECL
VLSCRECR
AGND
RECANAL
RECANAR
AGND
Z2INR
AGND
Z2INL
Z2OL
Z2OR
Z3OL
Z3OR
+15V
+15V
BGND
BGND
-15V
-15V
MUTEB
DSPGND
REC1MUTE
REC2MUTE
REC3MUTE
ANASTBI
ANACLK
ANADATA
VZ3RSTB
VZ3LSTB
VZ2RSTB
VZ2LSTB
NC
NC
NC
NC
MUTEB
DSPGND
REC5MUTE
REC4MUTE
REC1MUTE
REC2MUTE
REC3MUTE
ANASTBI
ANADATA
ANACLK
VZ3RSTB
VZ3LSTB
VZ2RSTB
VZ2LSTB
Z2VOLMUT
Z3VOLMUT
-15V
-15V
BGND BGND
+15V +15V
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
Z2OL
AGND
Z2OR Z2R
Z2L
MAINL
MAINR
ATUL
ATUR
FRTVR
FRTVL
VLSCRECL
VLSCRECR
Z2INR
Z2INL
AGND
Z2VOLMUT
Z3VOLMUT
NAAF-8150
SLOT E
SCHEMATIC 3
P406A
P407A
P408A
P1865A P1864A P1863A
NAETC-8146
SCHEMATIC 1
P1860
P1861
P1862
P1863BP1864BP1865B
NAAF-8144
SLOT F
SCHEMATIC 1
AUDIO IN/OUT
TERMINAL
SLOT D
SCHEMATIC 14
P100
1
CE
DI
CL
DO
GND
FM_VSM
Vdd+5V
Vcc+12V
FMDET_OUT
L-OUT
GND
R-OUT
MUTE
TUNED
STEREO
P3115A
OP7
+15V
+15V
AGND
AGND
+3.3V
+3.3V
+3.3V
DSPGND
DSPGND
DSPGND
NC
DO
PLLCE
PLLDA
PLLCLK
ATUL
ATUR
TMUTE
/SD
/STEREO
/RDSID
RDSCL
RDSDA
NARF-8152
15
P105
P106
C-AMFM
SLOT K
SCHEMTIC 14
U03
U033
U032 U05
U11
U83
U09 U26 U06
U084
U085
P607B
P601
E603
P3102
NADG-8228
SLOT B
NET TUNE
SCHEMATIC 16
U24
U10
U01
P2211 P2212
P2210
NAETC-8203
C-VIDEO
U18
U183
U182
P2501
NAVD-8205
ASIG
+24V
-5V +5V RLGND
FICR
FICB
FIY
TICR
TICB
TIY
P2503
P2502
C-CPNT-BNC
or
C-CPNT-RCA
U19
SLOT J
SCHEMATIC 21
COMPONENT VIDEO
OPTION BOARD
C-MULTI or
C-AES
P1400
P1401
P3107A
OP3
+15V
+15V
BGND
-15V
-15V
AGND
AGND
MCFL
MCFR
MCC
MCSW
MCSL
MCSR
MCSBL
MCSBR
+5VDAC
ADRES
MCLRCK
MCBICK
MCSBDA
MCSDA
MCCSWDA
MCFDA
ANADATA
ANACLK
ANASTB1
AES
P1405
OPTION BOARD
OPTION BOARD
OPTION BOARD
OPTION BOARD
OPTION BOARD
C-NET-A
NAETC-8160
P7002A
P7454B
AUDIO IN/OUT
TERMINAL
NADG-8159
P7451
P7452
P7453
P7454A
MULTI CHANNEL
INPUT TERMINAL
DIGITAL
IN/OUT
TERMINAL TUNER CONTROL
HDMI
A
1
2
3
4
5
BCDEFGH
SCHEMATIC 15
U224
U222 U22
U083
U11
P3106A
P4862
P4871 P4872
RSWDAOUT
AGND
RCDAOUT
LSWDAOUT
AGND
LCDAOUT
SBRDAOUT
AGND
SBLDAOUT
SRDAOUT
AGND
AGND
SLDAOUT
FRDAOUT
FLDAOUT
SWRLB
SWRLA
SBSPB
SRSPB
SRSPA
CSPB
CSPA
FRSPB
FRSPA
+5VDAC
-15V
AGND
AGND
+15V
SRSPA
DACGND
1
1
1
SCHEMATIC 15
U225
RDC-7.1
WIRING VIEW 2
FRONT PANEL & PRE-AMPLIFIER
SECTIONS
P7501D
P8001B
P3102B
P7401B
P3105B
P3106B
P3106B
P3107B
P3127B
P3126B
P3125B
P3108B
P3109B
P2001B
P2002B
P2204B
P2401B
P2501B
P3115B
P3117B
P3118B
P3119B
P3129
P8000B
P3501D
DACGND
DSPLRCK DSPBCK
DSPFDA DSPSDA
DSPBDA DSPLCSWDA
DSPRCSWDA NETLRCK
NETBCK
NETDA PCMLRCK
PCMBCK
PCMFLR
PCMSLR
PCMCSW
MCLRCK MCBCK
MCFDA MCSDA
MCCSWDA MCSBDA
DSPLKZ2
DSPLKM
DSPBMC
DSPLFE
DSPMINF
DSPMDEC
DSPZINF DSPZDEC
PLLDA PLLCKM
PLLCKM1
ADRST DIGSPDA
DIGSPCK
DIGSPSTB1 DIGSPSTB2
DIRRST
DIGIN DIGOUT
DIGCK DIGCSM
MINT1 DIRCSZ2
Z2INT1 DIRCSZ3
Z3INT1
DZ2RST DZ3RST
FRDG IE3SPF
HDMI1
HDMI2
DGTU
SPF
AES
DGND
DGND
DGND
DGND
VHDSP
VHDSP
VHDSP
5VDAC
DACGND
DACGND
DACGND
DACGND
+15V
-15V
AGND
AGND
MAINL
Z2R
Z2L
VLSCZ2L
VLSCZ2R
VLSCRECR
VLSCRECL
IERXD
IETXD
IECTS
IERTS
IERST
IEWRITE
IEPOWER
IESYSERR
IESYSCHG
OP01
DGND
DGND
+5VIE
+5VIE
PCMLRCK
PCMFLR
PCMCSW
PCMBCK
PCMSLR
DSDSR
DSDSL
DSDSW
DSDC
DSDFL
DSDFR
DSDBCK
IE3SPF
OP02
NC
NC
NC
NVRL
VGND
VGND
VGND
VGND
VGND
TICR
TICB
TIY
NETSC
NETSY
NETCV
VGND
VGND
NRST
NETDA
NETBCK
NETLRCK
DGND
DGND
NRXD
NTXD
DGND
DGND
VNET
VNET
SUBSO
SUBSI
SUBBY
SUBSCK
FLPOWER
SURST
+5VDIS
VSYS
VSYS
VPP
+24V
DGND
DGND
FLGND
-VP
FLAC1
FLAC2
SUBSCK
SUBSO
SUBSI
SURST
VPP
5V
DGND
WRRY
+24V
-VP
+5VDIS
+5VIE
FLGND+5VIE
5VDAC
5VDAC
FLAC2
FLAC1
VHDSP
VHDSP DGND
DGND
-18V
-18V
NET
+18V
MUTB
+18V
VSYS
VNET
+24V
+24V
FLGND
FLGND
S1HRL
S1MRL
OP03
+15V
+15V
AGND
-15V
-15V
AGND
AGND
MCFL
MCFR
MCC
MCSW
MCSL
MCSR
MCSBL
MCSBR
5VDAC
DACGND
DACGND
AES
ANASTB1
ANACLK
ANADA
MCFDA
MCSDA
MCCSWDA
MCSBDA
MCBK
MCLRCK
ADRST
NC
NC
NC
NC
MUTEB
DGND
REC5MUT
REC4MUT
REC1MUT
REC2MUT
REC3MUT
ANASTB1
ANADA
ANACLK
VZ3RSTB
VZ3LSTB
VZ2LSTB
VZ2RSTB
Z2VOLMUT
Z3VOLMUT
Z2R
Z2L
MAINR
MAINL
ATUL
ATUR
FRONTVR
FRONTVL
VLSCRECL
VLSCRECR
Z2INR
Z2INL
+15V
+15V
-15V
-15V
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
OSDOUT_T
OSDCLK
SYNCDEC2
VSYNC2
OSDCS2
VFSTB
VFRST
VFCLK
VFDATA
SVDEC1
SVDEC2
SVDEC3
IICCLK
IICCDA
ASIG
BSIG
CSIG
P118
P119
P120
P121
P117
OP04
NC
NC
NC
NC
NC
NC
NC
FSY
FSC
FCV
NETSY
NETSC
NETCV
HDASY
HDASC
HDACV
HDBSY
HDBSC
HDBCV
+5VVI
-5VVI
SYNCDEC1
VSYNC1
OSDCS1
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND HDAPY
HDAPB
HDAPR
HDBPR
HDBPB
HDBPY
TIY
TICB
TICR
FIY
FICB
FICR
RLGND
+5VVI
-5VVI
+9VVI
+24V
CYDEC
OP05
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
VGND
FICR
FICB
FIY
TICR
TICB
TIY
+5VVI
-5VVI
+24V
RLGND
ASIG
CSIG
1A
1B
2A
3A
2B
3B
P118
P119
P117
NC
NC
OP06
RLGND
TIY
TICB
TICR
FIY
FICB
FICR
VGND
VGND
VGND
VGND
VGND
RLGND
+24V
-5VVI
+5VVI
RLGND
BSIG
CSIG
1B
2B
3B
1A
2A
3A
P120
P121
P117
NC
NC
OP07
OP07
AGND AGND
3.3VHDRA
3.3VHDRA DGND
DGND DGND
PLLCEICCB_DA
PLLCEICCB_CK ATUL
ATUR RST
SDCCB STEREO
RDSID RDSCL
RDSDA IICCLK
IICDA DGTU
HDBUSE HD12V
HDMRST
RLGND
VOLH
+24V
THPRO
PRO
+24V
RLGND
SRSPAO
SRSPBO
SBSPBO
SBSPAO
CSPBO
CSPAO
FRSPAO
FRSPBO
+5VVI IE3
PURA +12V
+9V
DGND DGND
+13S +5VHD
+5VHD
+5.6V
+24V FLPOWER
3.3VHDRA
3.3VHDRA RLGND
RLGND
FCV
FSC
FSY
VGND
VGND
VGND
VGND
VGND
HDACV
HDASC
HDASY
VGND
VGND
HDBSY
HDBPR
HDBPB
HDBPY
HDAPY
HDAPR
HDAPB
VGND
VGND
VGND
VGND
VGND
NC
NC HDMI2
HDMI1 SPF
OP08 VSYSRST
VD_STB
VD_SO
VD_SI VD_SCK
+13S
-5VVI
VGND
VGND
+5VHD
+5VHD HDBCV
HDBSC
VGND
P3132
DSPMHS
DSPZHS
DSPZLFE PLLLR
PLLLZ PLLLM
DSPD0 DSPCLK
DSPMDI DSPZRST
DSPZFS DSPZDIDSPMRST
PLLCKZ2
5VDAC
ZADRST
HPDET
DACGND
DACGND
DACGND
DACGND
J3101A
J3101C
J3101B
IEEET0
IEEET1
1
39 19
59
79
99
1
1
1
1
1
1
1
DGND
TXD
SCK0
VDD
CLK
RXD
MOO
RST
P3116C
P3130C
NAAR-8166
+18V
+5VDSP
DGND
FRDG
10
2
2040 30
2
10
10 20
30
30 38
FVL
FVR
AGND
AGND
VGND VGND
-5VVI
8
SRSPB
FRSPB
FRSPA CSPB
SWRLA
DIGCLK
APGLOCK
PLLM1
PLLCKDAC
FS1
DSDPCM
DSDFL
DSDC
DSDSL
DACGND
DSPLCWDA
DSPSBDA
DSPFDA
DSPLRCK
AGND
CSPA
SRSPA
SBSPB
SWRLB
DIGOUT
DACCMCS
PLLDA
FS0
FS2
DSDBCK
DSDFR
DSDSW
DSDSR
DACGND
DSPRCWA
DSPSDA
DSPBICK
DACGND Z2L
MAINR
AGND
VLSCZ2L
Z2INL
HPDET
AGND
MCFR
MCSBR
MCSR
VFRSTB
VSLSTB
VSBLSTB
VSWSTB
BIAMPRL
ANACLK
HPRL
BTLRL
AMUTE
MCSW
HPMUTE
Z2RL
ANADATA
Z2MUTE
ANASTB2
VSBRSTB
VSRSTB
VCSTB
VFLSTB
MCSBL
MCSL
MCC
MCFL
NC
DGND
Z2INR
VLSCZ2R
MAINL
AGND
Z2R
Z2OR
Z2OL
PLLCEICCB_CE Z2OR
Z2OL
+18V_T
+18V_T
JTCLK
DGND
JTDO
JTD1
JTRST
JTMS
VDD
RST
P3131
DSPMFS
J3101D
FOR_SUBCPU
FOR_MAINCPU
FOR_FLASH
P8002B
OP05
DSDSR
DSDSW
DSDFR
DSDBCK
DACGND
DSDSL
DSDC
DSDFL
DSDFL
DSDC
DSDSL
PCMCSW
PCMFLR
PCMLRCK
PCMBCK
PCMSLR
DSDBCK
DSDFL
DSDFR
DSDC
DSDSW
DSDSL
DSDSR
DACGND
PCMBCK
PCMSLR
PCMCSW
PCMFLR
PCMLRCK
DSDSW
DSDFR
DSDBCK
DSDSR
PCMLRCK
PCMFLR
PCMCSW
PCMSLR
PCMBCK
DGND
DGND
AGND
MAINR
AGND
2
2
NADG-8154
SCHEMATIC 4
DAC & SECOND PLL
CIRCUIT
U07
SCHEMATIC 7
P532
P533
P534A
FLPO
FRPO
CPO
SWPO
SLPO
SRPO
SBLPO
SBRPO
AGND
AGND
AGND
AGND
NAAF-8157 SCH. 6
NAETC-8158 P3501B P7501B
P7501C
P3501C
U082
P507 P506 P504
P530 P531
P534
SBR
SW
J4801
J4801A
J4801B
P502 P500 P503 P505
P501
P3105A
P4864 P4871A
P4872A
NAAF-8156
SCHEMATIC 5/6
PRE-AMPLIFIER
40
SR FR
FL
C
SBL
SL
P7506
J4801E
J4801D
U08
P7501
SO
BY
FLPOW
+5V
5.6V
NC
DGND
HPDET
FLGND
FLAC1 FLAC2
-VP
DGND
DGND
+24V
5.6V
VPP
RST
SCK
SI
P7503A
P7504A
S7641
U7501
NADIS-8212
P7581
P7506B
J7581
NAETC-8214
HEADPHONE
TERMINAL
SCHEMATIC 15
J7582
P7505A
NAETC-8215
P7505B
NAETC-8216
Z7951
P7503B
NAETC-8213
U223
MOTHER
DOOR
SENSOR
DOOR
MOTOR
DISPLAY CIRCUIT
STANDBY
SWITCH
P7504B
PRE-OUTPUT TERMINAL
RDC-7.1
A
1
2
3
4
5
BCDEFGH
WIRING VIEW 3
POWER SUPPLY SECTION
P3120B P3120C
P8002D
P7501D
P8001B
P3102B
P7401B
P3105B
P3106B
P3107B
P3127B
P3126B
P3125B
P3109B
P2001B
P2002B
P2204B
P2401B
P2501B
P3115B
P3117B
P3118B
P3119B
P3129
P3501D
P3132
J3101A
J3101C
J3101B
1
P3116C
P3130C
NAAR-8166
SCHEMATIC 7
P3131
J3101D
P8002B
DSDSR
DSDSW
DSDFR
DSDBCK
DACGND
DSDSL
DSDC
DSDFL
PCMCSW
PCMFLR
PCMLRCK
PCMBCK
PCMSLR
DSDBCK
DSDFL
DSDFR
DSDC
DSDSW
DSDSL
DSDSR
DACGND
PCMBCK
PCMSLR
PCMCSW
PCMFLR
PCMLRCK
T9001
POWER TRANSFORMER
NPT-1497*
U174
U11
P5763 P5753P5761P5762 P5701
P5752 P5751
P9003C
232RXD 232TXD
RI12TRGA
12TRGB
12TRGD
12TRGC
12TRGE
DGND
IRMAIN
IRZONE2
IRZONE3
POWER2 POWER1
+24V
RLGND
+13S
+5.6V +5.6V
+12V +12V
+24V
RLGND
+13S
DGND
DGND
DGND
RI
12VTRGA
+12V
+12V
12VTRGB
12VTRGD
12VTRGC
12VTRGE
+3.3V
IRMAIN
IRZONE2
IRZONE3
P5611A
+13S
NAPS-8193
P9002
P9005C
P9101
P3120A
P9102
NC
P9511
+9VV
VGND
VGND
DGND
HDMIB
12TRG
RLGND
+13S
+5.6V
RLGND
PUREA
+24V
+5VV
-5VV
P9501
P3116A
P3116B
HDRB
HDRB
IE3_P
DGND
HDMIB
FLPOWER
P9502B
NC
NC
NAPS-8194
SCHEMATIC 12
CONSTANT VOLTAGE
YEL WHT
P9520
JL9421B
VGND
-12VIN
-5VV
+24V +24V
-24V-24V DACGDACG +12V+12V +5VIE3FLAC1
FLAC2
FLGND DGND
DGND
RLGND
-VP
+3.3HDR +5.6V
AGND BGND
+18V
+18V
+18V
AGND
-18V
-18V
-18V
+24V
RLGND
DACB
DACG
MUTEB
DGND
P4864A
P3130A
+24V
-VP
FLGND
FLAC2
FLAC1
DGND
DGND
-18V
-18V
+18V
+18V
DACG
DACG
DGND
+5.6V
MUTEB
DSPLB1
DSPLB1
DSPHB
DSPHB
NETB
IE3B
DACB
DACB
NET
DIS5V
IE3B
P3130B
DGND
DSPLB2
DSPLB2
+13S
+5VIE3
P9502C
NAPS-8195
SCHEMATIC 12
CONSTANT
VOLTAGE 2
YEL
WHT
+13S
DGND
DGND
12VTE
12VTC
12VTD
12VTB
12VTA
IRZ3
IRZ2
+3.3V
+12V
+12V
RI
IRMAIN
P5611B
P5612A NAETC-8199
P5812
P5813 P5811
P5801
RI
+12V
+12V
IRMAIN
IRZ2
IRZ3
P5612B
+13S
IRMAIN
P5802
IRZ3
IRZ2
12TA
12TB
12TC
12TD
12TE
+12V
GND
P5803
P5803
NAETC-8198
SCHEMATIC 13
P5804
RI
12VTRGE
S9001
S9001
P9004C
NCPS-8197
25138197
P9521
AC-GAC-H
P9003AP9003B
P9004A
P9006B
P9512
T9002
P9005B
P9005A
P9001A
P9001A
P9111
P9112
ORG
ORG
WHTYEL
BLACK
GREY
P9004B
ORG
/P9006A
N
L
1234
578
56 7 89
NCETC-
8180
JL9421A
P507 P506 P504
P530 P531
P534
SBR
SW
J4801
J4801A
J4801B
P502 P500 P503 P505
P501
P3105A
P4864 P4871A
P4872A
NAAF-8156
PRE-AMPLIFIER
SCHEMATIC 5/6
40
SR FR
FL
C
SBL
SL
P7506
J4801E
J4801D
U08
P9502A
U173 U172
U176
SCHEMATIC 13
SCHEMATIC 13
NAPS-8196
SCHEMATIC 13
U175
NAPS-8197
SCHEMATIC 13
U177
U17
PRIMARY
CIRCUIT
POWER
SWITCH
POWER SUPPLY
CIRCUIT
12V TRIGGER TERMINAL
US MODEL ONLY
MOTHER
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
IPS0/RX4
RX3
1
AVSS
48
2
DIF0/RX5 3
TEST2 4
DIF1/RX6 5
AVSS 6
DIF2/RX7 7
IPS1/IIC 8
P/SN 9
XTL0 10
XTL1
AVSS
4
7
RX2
46
45
44
A
VSS
43
RX0
42
A
VSS
41
VCOM
40
R
39
AVDD
38
TVD
D
13
DVS
S
14
TX
0
15
TX1 16
BOU
T
17
18
UOU
T
19
VOU
T
20
DVD
D
21
DVS
S
22
MCKO1 23
36
35
34
33
32
31
30
29
28
27
26
INT0
OCKS0/CSN/CAD0
OCKS1/CCLK/SCL
CM1/CDTI/SDA
CM0/CDTO/CAD1
PDN
XTI
XTO
DAUX
MCKO2
BICK
AK4114VQ
Top View
COU
T
TEST1
RX1
INT1
3
7
LRC
K
24
11
VIN 12 25 SDTO
Block Diagram
In
p
ut
Selector
Clock
Recovery Clock
Generator
DAIF
Decoder
AC-3/MPEG
Detect
DEM
µP I/F
Audio
I/F
X'tal
Oscillator
PDN
INT0 P/S=”L”
LRCK
BICK
SDTO
DAUX
MCKO2
XTOXTI
RAVDD
AVSS
CDTI
CDTO
CCLK
CSN
DVDD
DVSS
TVDD
MCKO1
IIC
RX0
RX1
RX2
RX3
RX4
RX5
RX6
RX7
DIT
TX0
Error &
Detect
STATUS
INT1
Q-subcode
buffer
TX1
B,C,U,VOUT
8 to 3
VIN
Serial control mode
AK4114VQ(192kHz 24bit Digital Audio Interface Transceiver)
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
AK4114VQ(192kHz 24bit Digital Audio Interface Transceiver)
No. Symbol I/O Function
1 RX4 I Receiver channel input 4 pin
2 NC(AVSS) I No connection pin
3 RX5 I Receiver channel input 5 pin
4 TEST2 I Test 2 pin
5 RX6 I Receiver channel input 6 pin
6 NC(AVSS) I No connection pin
7 RX7 I Receiver channel input 7 pin
8 IIC I IIC select pin. L:4 lines serial
9 P/SN I Parallel/serial select pin. L: Serial mode
10 XTL0 I Crystal frequency select 0 pin
11 XTL1 I Crystal frequency select 1 pin
12 VIN I V bit input pin for transmitter output.
13 TVDD I Power supply pin for input buffer
14 NC I No connection pin
15 TX0 O Transmitter channel output 0 pin
16 TX1 O Transmitter channel output 1 pin
17 BOUT O Block start output pin for receiver input
18 COUT O C bit output pin for receiver input
19 UOUT O U bit output pin for receiver input
20 VOUT O V bit output pin for receiver input
21 DVDD I Digital power supply pin
22 DVSS I Digital ground pin
23 MCKO1 O Master clock output 1 pin
24 LRCK I/O Channel clock pin
25 SDTO O Audio serial data output pin
26 BICK I/O Audio serial data clock pin
27 MCKO2 O Master clock output 2 pin
28 DAUX I Axially audio serial data input pin
29 XTO O Crystal output pin
30 XTI I Crystal input pin
31 PDN I Power down and reset pin
32 CDTO O Control data output pin
33 CDTI I Control data input pin
34 CCLK I Control data clock pin
35 CSN I Chip select pin
36 INT0 O Interrupter 0 pin
37 INT1 O Interrupter 1 pin
38 AVDD I Analog power supply
39 R - External connection resistor pin
40 VCOM - Common voltage output pin
41 AVSS I Analog ground pin
42 RX0 I Receiver channel input 0 pin
43 NC(AVSS) I No connection pin
44 RXI I Receiver channel input 1 pin
45 TEST1 I Test 1 pin
46 RX2 I Receiver channel input 2 pin
47 NC(AVSS) I No connection pin
48 RX3 I Receiver channel input 3 pin
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
AK4584VF(107dB 24-Bit 96kHz 4-Channel SDC)
∆Σ
Modulator
LIN1-
LRCK
BICK
SDTO1
VCOM Clock Divider
A
VSSAVDD
Decimation
Filter
Audio
Interface
Voltage Reference
DVSSDVDD
PDN
LIN1+
∆Σ
Modulator
RIN1-
Decimation
Filter
RIN1+
∆Σ
Modulator
LIN2-
Decimation
Filter
LIN2+
∆Σ
Modulator
RIN2-
Decimation
Filter
RIN2+
SDTO2
DIF
TDM0
M/S
MCLK
CKS
TDMIN
TDM1
TVDD
OVF
RIN2+
RIN2-
AVSS
AVDD
LIN2+
LIN2-
TEST
VCOM
TDM1
TDM0
TDMIN
MCLK
OVF
DIF
Top View
8
7
6
5
4
3
2
1
21
22
23
24
25
26
27
28
RIN1+
RIN1-
PDN
CKS
M/S
LIN1-
LIN1+
9
10
11
12
13
14
18
19
20
TVDD
15
16
17
LRCK
BICK
SDTO2
DVDD
DVSS
SDTO1
No. Pin Name I/O Function
1 LIN2+ I ADC2 Lch Positive Analog Input Pin
2 LIN2− I ADC2 Lch Negative Analog Input Pin
3 RIN2+ I ADC2 Rch Positive Analog Input Pin
4 RIN2− I ADC2 Rch Negative Analog Input Pin
5 TEST I Test Pin (Connected to AVSS)
6 VCOM O
Common Voltage Output Pin, AVDD/2
Normally connected to AVSS with a 0.1µF ceramic capacitor in parallel with an
electrolytic capacitor less than 2.2µF.
7 AVSS - Analog Ground Pin
8 AVDD - Analog Power Supply Pin, 4.75 ∼ 5.25V
9 DIF I Audio Interface Format Pin
“L” : 24bit MSB justified, “H” : 24bit I2S Compatible
10 TDM1 I TDM I/F BICK Frequency Select Pin
“L” : 256fs, “H” : 128fs
11 TDM0 I TDM I/F Format Enable Pin
“L” : Normal Mode, “H” : TDM Mode
12 TDMIN I TDM Data Input Pin
13 MCLK I Master Clock Input Pin
14 OVF O Analog Input Overflow Detect Pin
This pin goes to “H” if one of four analog inputs overflows.
15 LRCK I/O Output Channel Clock Pin
“L” Output in Master Mode at Power-down mode.
16 BICK I/O Audio Serial Data Clock Pin
“L” Output in Master Mode at Power-down mode.
17 SDTO2 O ADC2 Audio Serial Data Output Pin
“L” Output at Power-down mode.
18 SDTO1 O ADC1 Audio Serial Data Output Pin
“L” Output at Power-down mode.
19 TVDD - Output Buffer Power Supply Pin, 3.0 ∼ 5.25V
20 DVDD - Digital Power Supply Pin, 4.75 ∼ 5.25V
21 DVSS - Digital Ground Pin
22 PDN I
Power-Down Mode Pin
When “L”, the circuit is in power-down mode.
The AK5384 should always be reset upon power-up.
23 CKS I
Master Clock Select Pin
“L” : 256fs, “H” : 512fs
This pin is enabled in Master Mode.
24 M/S I Master / Slave Mode Pin
“L” : Slave Mode, “H” : Master Mode
25 RIN1− I ADC1 Rch Negative Analog Input Pin
26 RIN1+ I ADC1 Rch Positive Analog Input Pin
27 LIN1− I ADC1 Lch Negative Analog Input Pin
28 LIN1+ I ADC1 Lch Positive Analog Input Pin
Note: All digital input pins should not be left floating.
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
AK4585AVF(24-Bit 192kHz ∆Σ ADC)
TEST
Decimation
Filter
Delta-Sigma
Modulator Decimation
Filter HPF
HPF
Audio I/F
Controller
DVDDAVDD DVSSAVSS
VREFR
VREFL
LIN+
LIN- Delta-Sigma
Modulator
RIN+
RIN-
DIF
PDN
LRCK
BICK
MCLK
SDTO
HPFE
M/S DFS1 DFS0 CKS1 CKS0VCOM
BVSS
OVF
VCOM
LIN+
DVDD
DVSS
VREFL
AVSS
LIN-
CKS0
PDN
DIF
M/S
LRCK
BICK
OVF
Top View
8
7
6
5
4
3
2
1
21
22
23
24
25
26
27
28
TEST
RIN+
AVSS
AVDD
RIN-
AVSS
VREFR
9
10
11
12
13
14
18
19
20
HPFE
15
16
17
SDTO
CKS1
MCLK
DFS1
BVSS
DFS0
No. Pin Name I/O Function
1 VREFL I
Lch Voltage Reference Input Pin, AVDD
Normally, connected to AVSS with a 10µF electrolytic capacitor and a 0.1µF
ceramic capacitor.
2 AVSS - Analog Ground Pin
3 VCOM O Common Voltage Output Pin, AVDD/2
Bias voltage of ADC input.
4 LIN+ I Lch Analog Positive Input Pin
5 LIN− I Lch Analog Negative Input Pin
6 CKS0 I Master Clock Select 0 Pin (Internal Pull-down Pin, typ. 100kΩ)
7 DVDD - Digital Power Supply Pin, 3.0 ∼ 5.25V
8 DVSS - Digital Ground Pin
9 OVF O Analog Input Overflow Detect Pin
This pin goes to “H” if analog input overflows.
10 PDN I Power Down Mode Pin
“H”: Power up, “L”: Power down
11 DIF I Audio Interface Format Pin
“H” : 24bit I2S Compatible, “L” : 24bit MSB justified
12 M/S I Master / Slave Mode Pin (Fixed to “L”)
“L” : Slave Mode only
13 LRCK I Output Channel Clock Pin
14 BICK I Audio Serial Data Clock Pin
15 SDTO O Audio Serial Data Output Pin
16 CKS1 I Master Clock Select 1 Pin (Internal Pull-down Pin, typ. 100kΩ)
17 MCLK I Master Clock Input Pin
18 DFS0 I Sampling Speed Select 0 Pin
19 HPFE I High Pass Filter Enable Pin
“H” : Enable, “L” : Disable
20 DFS1 I Sampling Speed Select 1 Pin
21 BVSS - Substrate Ground Pin
22 AVSS - Analog Ground Pin
23 AVDD - Analog Power Supply Pin, 4.75 ∼ 5.25V
24 RIN− I Rch Analog Negative Input Pin
25 RIN+ I Rch Analog Positive Input Pin
26 TEST I Test Pin (Internal Pull-down Pin, typ. 100kΩ)
27 AVSS - Analog Ground Pin
28 VREFR I
Rch Voltage Reference Input Pin, AVDD
Normally, connected to AVSS with a 10µF electrolytic capacitor and a 0.1µF
ceramic capacitor.
TX-NR1000
IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS
BU1924FS (RDS Decoder) <European model only>
BLOCK DIAGRAM
TERMINAL DESCRIPTION
CMP
VSS3
comparator
8th Switched
capacitor filter
anti-aliasing
filter
100k
120k
100k
MUX
Vref
VDD1
Analog
Power supply
VSS1
VDD2
Digital
Power supply
VSS2
XI XO
PLL
57kHz
RDS/ARI
PLL
1187.5Hz
Bi-phase
decoder
Measurement
circuit
Differential
decoder
T1 T2
RDATA
QUAL
RCLK
Reference
clock
(4) (7) (8)
(3)
(16)
(1)
(2)
(5)
(6)
(12)
(11)
(13) (14) (10) (9)
Pin No.
1
6
7
8
2
9
10
3
4
11
12
13
14
15
16
5
Pin name
QUAL
VSS1
RDATA
T2
T1
Vref
MUX
CMP
VSS2
VDD2
XI
XO
(N.C.)
RCLK
VDD1
VSS3
Description
Output terminal of demodulator quality signal.
Output terminal of demodulator data.
Input terminal of reference voltage.
Input terminal of composite signal.
Analog power supply.
Analog power supply.
Ground.
Input terminal of comparator.
Input terminal for test mode.
Input terminal for test mode.
Digital power supply.
Digital power supply.
Connect to oscillator.
Connect to oscillator.
---
Output terminal of demodulator clock.
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
CS8420(Digital audio sample rate converter)
EMPH/U
RXP
AGND
FILT
COPY
DFC0
RXN
VA+
RMCK
RERR
ILRCK
ISCLK
SDIN
RST
Top View
8
7
6
5
4
3
2
1
21
22
23
24
25
26
27
28
TXP
TXN
DGND
VD+
H/S
DFC1
ORIG
9
10
11
12
13
14
18
19
20
AUDIO/V
15
16
17
TCBL
OSCLK
OLRCK
PRO/C
OMCK
SDOUT
DFC0,DFC1...Data flow control inputs
OMCK....Output section master clock input
SDIN....Serial audio input port data input
SCLK...Serial audio input port bit clock input
ILRCK...Serial audio input port left/right clock input
SDOUT....Serial audio output port data output
OSCLK....Serial audio output port bit clock input or output
OLRCK....Serial audio output port left/right clock input or output
TXN,TXP... Differential line driver outputs
TCBL...Transmit channel status block start
RXP,RXN...Differential line receiver inputs
RMCK...Input section recovered master clock output
RERR...Receiver error indicator output
EMPH/U...Pre-emphasis indicator output or U-bit data input
COPY....Copy channel status bit output
ORIG...Original channel status output
PRO/C......Professional channel status bit output or C-bit data input
AUDIO/V.....Audio channel status bit output or V-bit data input
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
IC42S16800-7T(2Mx8 bitsx4 banks Synchronus Dynamic RAM)
PIN CONFIGURATIONS
Pin Name Function
DQM DQ Mask Enable
A0-11 Address Input
BA0,1 Bank Address
VDD Power Supply
VDDQ Power Supply for DQ
VSS Ground
VSSQ Ground for DQ
PIN DESCRIPTIONS
Pin Name Function
CLK Master Clock
CKE Clock Enable
CS Chip Select
RAS Row Address Strobe
CAS Column Address Strobe
WE Write Enable
DQ0 ~ DQ15 Data I/O
54-Pin TSOP-2 (IC42S16800)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
VDD
DQ0
VDDQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VDDQ
DQ5
DQ6
VSSQ
DQ7
VDD
LDQM
WE
CAS
RAS
CS
BA0
BA1
A10
A0
A1
A2
A3
VDD
VSS
DQ15
VSSQ
DQ14
DQ13
VDDQ
DQ12
DQ11
VSSQ
DQ10
DQ9
VDDQ
DQ8
VSS
NC
UDQM
CLK
CKE
NC
A11
A9
A8
A7
A6
A5
A4
VSS
FUNCTIONAL BLOCK DIAGRAM
CLK
CKE
Clock
Generator
CS
RAS
Mode
Register
Column
Address
Buffer
&
Burst
Counter
CAS
WE
Command Decoder
Control Logic
Address Row
Address
Buffer
&
Refresh
Counter
Bank B
Bank A
Sense Amplifier
Column Decoder &
Latch Circuit
Row Decoder
Data Control Circuit DQ
DQM
Latch Circuit
Input & Output
Buffer
Bank C
Bank D
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
IC42S16800-7T(2Mx8 bitsx4 banks Synchronous Dynamic RAM)
PIN FUNCTIONS
Symbol Type Function (In Detail)
CLK Input Pin
Master Clock: Other inputs signals are referenced to the CLK rising edge
CKE Input Pin
Clock Enable: CKE HIGH activates, and CKE LOW deactivates internal
clock signals,device input buffers and output drivers. Deactivating the clock
provides PRECHARGE POWER-DOWN and SELF REFRESH operation
(all banks idle), or ACTIVE POWER-DOWN (row ACTIVE in any bank).
CS Input Pin
Chip Select: CS enables (registered LOW) and disables (registered HIGH)
the command decoder. All commands are masked when CS is registered
HIGH. CS provides for external bank selection on systems with multiple
banks. CS is considered part of the command code.
RAS, CAS, WE Input Pin
Command Inputs: RAS, CAS and WE (along with CS) define the command
being entered.
A0-A11
Input Pin
Address Inputs: Provide the row address for ACTIVE commands, and the
column address and AUTO PRECHARGE bit for READ/WRITE
commands, to select one location out of the memory array in the respective
bank. The row address is specified by A0-A11. The column address is
specified by A0-A8 (IC42S16800)
BA0,BA1
Input Pin
Bank Address Inputs: BA0 and BA1 define to which bank an ACTIVE,
READ, WRITE or PRECHARGE command is being applied.
DQM, UDQM ,LDQM
Input Pin
Din Mask / Output Disable: When DQM is high in burst write, Din for the
current cycle is masked. When DQM is is high in burst read, Dout is
disable at the next but one cycle.
DQ0 to DQ15 I/O Pin
Data Input / Output: Data bus.
VDD, VSS
Power Supply Pin
Power Supply for the memory array and peripheral circuitry.
VDDQ, VSSQ
Power Supply Pin
Power Supply are supplied to the output buffers only.
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
MM1117XFBE(3 inputs/1 output video switch)
CLAMP CLAMP
BIAS
CLAMP
SW
1234
5
6
7
8
GND OUT Vcc IN3
IN1 SW1 IN2 SW2
SW
BUFFER Control Input Truth Table
SW1
L
H
-
SW2
L
L
H
OUT
IN1
IN2
IN3
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
MX29LV160BBTC-70(16Mbit CMOS single voltage 3V only flash memory)
PIN CONFIGURATIONS PIN DESCRIPTION
SYMBOL PIN NAME
A0~A19 Address Input
Q0~Q14 Data Input/Output
Q15/A-1 Q15(Word mode)/LSB addr(Byte mode)
CE Chip Enable Input
WE Write Enable Input
BYTE Word/Byte Selection input
RESET Hardware Reset Pin/Sector Protect Unlock
OE Output Enable Input
RY/BY Ready/Busy Output
VCC Power Supply Pin (2.7V~3.6V)
GND Ground Pin
48 TSOP (Standard Type) (12mm x 20mm)
A15
A14
A13
A12
A11
A10
A9
A8
A19
NC
WE
RESET
NC
NC
RY/BY
A18
A17
A7
A6
A5
A4
A3
A2
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
A16
BYTE
GND
Q15/A-1
Q7
Q14
Q6
Q13
Q5
Q12
Q4
VCC
Q11
Q3
Q10
Q2
Q9
Q1
Q8
Q0
OE
GND
CE
A0
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
MX29LV160T/B, MX29LV160AT/AB
BLOCK DIAGRAM
CONTROL
INPUT
LOGIC
PROGRAM/ERASE
HIGH VOLTAGE
WRITE
STATE
MACHINE
(WSM)
STATE
REGISTER
FLASH
ARRAY
X-DECODER
ADDRESS
LATCH
AND
BUFFER
Y-PASS GATE
Y-DECODER
ARRAY
SOURCE
HV
COMMAND
DATA
DECODER
COMMAND
DATA LATCH
I/O BUFFER
PGM
DATA
HV
PROGRAM
DATA LATCH
SENSE
AMPLIFIER
Q0-Q15/A-1
A0-A19
CE
OE
WE
RESET
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
PCA9564PW(Parallel bus to I C-bus controller)
PIN CONFIGURATION Ð SO, TSSOP
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
D0
D1
D2
D3
D4
D5
D6
D7
NC
VSS
VDD
SDA
SCL
RESET
INT
A1
A0
RD
CE
WR
10
PIN CONFIGURATION
PIN NUMBER
PIN
SO, TSSOP HVQFN SYMBOL
PIN
TYPE NAME AND FUNCTION
1, 2, 3, 4, 5,
6, 7, 8 1, 2, 3, 4,
5, 18, 19,
20
D0±D7 I/O Data Bus: Bi-directional 3-State data bus used to transfer commands, data and status
between the controller and the CPU. D0 is the least significant bit.
9 6 NC No connect: must be left floating
10 7V
SS Pwr Ground
11 8WR IWrite Strobe: When LOW and CE is also LOW, the contents of the data bus is loaded into
the addressed register. The transfer occurs on the rising edge of the signal.
12 9 RD I Read Strobe: When LOW and CE is also LOW, causes the contents of the addressed
register to be presented on the data bus. The read cycle begins on the falling edge of RD.
13 10 CE I Chip Enable: Active-LOW input signal. When LOW, data transfers between the CPU and
the controller are enabled on D0±D7 as controlled by the WR, RD and A0±A1 inputs.
When HIGH, places the D0±D7 lines in the 3-State condition.
14, 15 11, 12 A0, A1 IAddress Inputs: Selects the controller internal registers and ports for read/write
operations.
16 13 INT O Interrupt Request: Active-LOW, open-drain, output. This pin requires a pull-up device.
17 14 RESET I Reset: A LOW level clears internal registers resets the I2C state machine.
18 15 SCL I/O I2C-bus serial clock input/output (open-drain).
19 16 SDA I/O I2C-bus serial data input/output (open-drain).
20 17 VDD Pwr Power Supply: +2.3 to +3.6 V
2
8
D0±D7
RD
WR
CE
A0
RESET
INT
BUS BUFFER
OPERATION CONTROL
ADDRESS
DECODE
R/W CONTROL
INTERRUPT CONTROL
TIMING
CLOCK
SELECTORS
SCL
SDA
VDD
VSS
CONTROL
TIMING
INTERNAL DATABUS
SD00707
INTERNAL
OSCILLATOR
A1
PCA9564
MASTER/SLAVE
STATE MACHINES
INPUT
FILTER
POWER-ON RESET
Figure 1. Block diagram
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
SM5819AF(6-channel DSD-PCM converter)
No. Name I/O Description No. Name I/O Description
1 VDDL - Core power supply 25 VDDL - Core power supply
2 SEL1FS I PCM output rate select 1 26 TOUT2 - Test output 2
3 SEL4FS I PCM output rate select 2 27 MCKOUT O Master clock input:512fs(22.5792MHz, fs=44.1kHz)
4 SELEXT I fs/2fs/4fs output and external data output select 28 VSS I Ground
5 DSGAIN I OSD signal gain setting 29 EXIMCK - External system clock input
6 XMTPCM I PCM output mute control input 30 VDDH - I/O power supply
7 VDDH - I/O power supply 31 EXIBCK I External PCM data BCK bit clock input
8 TEST1 I Test input 1 32 EXILRCK I External PCM data LRCK word clock input
9 TEST2 I Test input 2 33 EXISLR I External PCM data input:surround left/right channel
10 TEST3 I Test input 3 34 EXICSW I External PCM data input:center/subwoofer channel
11 TOUT1 O Test output 1 35 EXIFLR I External PCM data input:front left/right channel
12 VSS - Ground 36 VSS - Ground
13 VDDL - Core power supply 37 VDDL - Core power supply
14 DIRPCK I PCM output PBCK/PLRCK I/O select 38 DSBCK I/O DSD data input bit clock. Controlled by DIRDSCK.
15 FMTPCM I PCM output format select 39 DSIFL I DSD data input:front left-channel
16 VSS - Ground 40 DSIFR I DSD data input:front right-channel
17 MCKOUT O System clock output 41 DSICT I DSD data input:center-channel
18 VDDH - I/O power supply 42 DSISW I DSD data input:front subwoofer-channel
19 PBCK I/O PCM output BCK bit clock 43 DSISL I DSD data input:surround left-channel
20 PLRCK I/O PCM output LRCK word clock input 44 DSISR I DSD data input:surround right-channel
21 POSLR O PCM data output:surround right/left channel 45 DIRDSCK I DSBCK I/O select
22 POCSW O PCM data output:center/subwoofer channel 46 SYNC I Forced synchronization input.
23 POFLR O PCM data output:front right/left channel 47 INIT I Initialization input. Active-LOW. Resync on "L" "H"
24 VSS O Ground 48 VSS - Ground
DSIFL
DSIFR
DSICT
DSISL
DSISR
DSISW
DSGAIN
SEL1FS
SEL4FS
XMTPCM
EXIFLT
EXISLR
EXIMCK
EXILRCK
EXIBCK
EXIMCK
SYNC
INIT
DIRDSCK
DSBCK
MCK
TEST1
TEST2
TEST3
FMTPCM
POFLR
POSLR
POCSW
SELEXT
PLRCK
PBCK
MCKOUT
DIRPCK
TOUT1
TOUT2
FIR FILTER
and
DOWN
SAMPLING
UNIT
PCM
MUTE
PCM
I/F
ROM
24bit 720 word
(fs 240w)
(2fs 240w)
(3fs 240w) INT/EXT.
DATA
SELECT
CLOCK
GENERATOR
and
TIMING
CONTROL (Internal Clocks)
TEST
CONTROL
INT/EXT.
DATA
SELECT
37
38
39
40
41
42
43
44
45
46
47
48
24
23
22
21
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
36
35
34
33
32
31
30
29
28
27
26
25
VSS
POFUR
POCSW
POSLR
PLRCK
PBCK
VDDH
MCKOUT
VSS
FMTPCM
DIRPCK
VDDL
VDDL
DSBCK
DSIFL
DSIFR
DSICT
DSISW
DSISL
DSISR
DIRDSCK
SYNC
INIT
VSS
VDDL
SEL1FS
SEL4FS
SELEXT
DSGAIN
XMTPCM
VDDH
TEST1
TEST2
TEST3
TOUT1
VSS
VSS
EXIFLR
EXICSW
EXISLR
EXILRCK
EXIBCK
VDDH
EXIMCK
VSS
MCK
TOUT2
VDDL
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
TC90A69F(3-lines digital COM filter)
1234567891011121314
28 27 26 25 24 23 22 21 20 19 18 17 16 15
DAC DAC PLL DET VCO 1/2
1/8 8fsc 4fsc I CBUS
2
8fsc
INTERPOLATION
CORING
PEAKING LPF Ped.
CLIP ++
CORING V-ENHANCER
KILLER LINE
MEMORY LINE
MEMORY
CNR
C-N.C DYNAMIC COMB
FILTER
ADC
Sync Clamp
DELAY
VB1
COUT
Vss1
YOUT
VB2
PD
FIL
Vss4
VDD4
FSC
TESTOUT
MODE1
SDA
SCL
BIAS
VRT
VDD1
TEST11
Vss2
VRB
YCIN
TEST
KILLER
TEST12
VDD3
Vss3
VDD2
TEST13
Pin Symbol Function Pin Symbol Function
1 BIAS Bias for ADC 15 SCL Clock input of I2C Bus
2 VRT Maximum bias of D range for ADC 16 SDA Data input/output of I2C Bus
3 VDD1 Analog supply for ADC/DAC 17 MODE1 Mode 1 output
4 TEST1 Test input 18 TESTOUT Test output
5 VSS2 Analog ground supply for ADC 19 FSC Clock input of I2C Bus
6 VRB Minimum bias of D range for ADC 20 VDD4 Analog supply for PLL
7 YCIN Video signal input 21 VSS4 Analog ground supply for PLL
8 TEST1 Reset control and test control of initializing 22 FIL VCO control
9 KILLER Y/C separation and vertical enhancer off control 23 PD PLL detection output
10 TEST2 Test input 24 VB2 Bias 2 for DAC
11 VDD3 Digital soppy for logic 25 YOUT Brightness signal output
12 VSS3 Digital ground supply for Logic/DRAM 26 VSS1 Analog ground for DAC
13 VDD2 Digital supply for DRAM 27 COUT Color signal output
14 TEST3 Test input 28 VB1 Bias 1 for DAC
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
TC9162BFG(Function Switch)
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
13
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
14
14
1
VSS GND VDD
S1
S2
S3
COM1
S4
S5
S6
COM2
S7
COM4
ST
DATA
CK
LATCH CIRCUIT
SHIFT REGISTER
LATCH CIRCUIT
LEVEL SHIFT
COM3
S1
S2
S3
COM1
S4
S5
S6
COM2
S7
COM4
COM3
1
14
28
2,3,5,6,8,9,11
27,26,24,23,21,20,18
4,7,10,12
25,22,19,17
13
15
16
Symbol
GND
VDD
S1~S7
S1~S7
COM1 ~ COM4
COM1 ~ COM4
ST
CK
DAT A
Pin No. Function
Negative power supply
Ground
Positive power supply
Input/output terminals
Input/output terminals
Common terminals
Common terminals
Strobe input terminal for data reading
Clock input terminal for data transfer
Data input terminal for switch
Vss
LEVEL SHIFT
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
TC9163BFG(Function Switch)
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
13
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
14
14
1
VSS GND VDD
ST
DATA
CK
LATCH CIRCUIT
SHIFT REGISTER
LATCH CIRCUIT
LEVEL SHIFT
S1
S2
S3
COM1
S4
S5
S6
COM2
S7
COM4
1
14
28
2,3,4,6,7,8,10,11
27,26,25,23,22,21,18,17
5,9,12
24,20,17
13
15
16
Symbol
GND
VDD
S1~S8
S1~S8
COM1 ~ COM3
COM1 ~ COM3
ST
CK
DAT A
Pin No. Function
Negative power supply
Ground
Positive power supply
Input/output terminals
Input/output terminals
Common terminals
Common terminals
Strobe input terminal for data reading
Clock input terminal for data transfer
Data input terminal for switch
Vss
LEVEL SHIFT
S8
S1
S2
S3
COM1
S4
S5
S6
COM2
S7
COM4
S8
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
TC9164BFG(Function Switch)
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
13
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
14
14
1
VSS GND VDD
ST
DATA
CK
LATCH CIRCUIT
SHIFT REGISTER
LATCH CIRCUIT
LEVEL SHIFT
S1
S2
S3
COM1
S4
S5
S6
COM2
S7
COM4
1
14
28
2,3,4,5,7,8,10,11
27,26,25,24,22,21,18,17
6,9,12
23,20,17
13
15
16
Symbol
GND
VDD
S1~S8
S1~S8
COM1 ~ COM3
COM1 ~ COM3
ST
CK
DAT A
Pin No. Function
Negative power supply
Ground
Positive power supply
Input/output terminals
Input/output terminals
Common terminals
Common terminals
Strobe input terminal for data reading
Clock input terminal for data transfer
Data input terminal for switch
Vss
LEVEL SHIFT
S8
S1
S2
S3
COM1
S4
S5
S6
COM2
S7
COM4
S8
TX-NR1000
IC BLOCK DIAGRAMS AND DESCRIPTIONS
TC9246F(PLL IC for Digital Audio)
VDD LOCK S2 S1 M2 M1 CKO Vss
REF PD VDDA AMPI AMPO ASSA XI XO
14 13 12 11 10 916 15
1 2 3 45 6 7 8
LOCK DETECTION
CIRCUIT
REF
VAR
PHASE
COMPARATOR
VCO
PROGRAMMABLE COUNTER
MICROPROCESSOR INTERFACE
SELECTOR
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Symbol
REF
PD
VDDA
AMPI
AMPO
VSSA
XI
XO
VSS
CKO
M1
M2
S1
S2
LOCK
VDD
I/O
I
O
-
I
O
-
I
O
-
O
I
I
I
I
O
-
Function Description
Reference signal input pin
Phase error signal output pin
Analog power supply
Amplifier input pin for LPF or Oscillator 1
Amplifier output pin for LPF or oscillator 1
Analog ground pin
Amplifier input pin for oscillator 3
Output pin for oscillator 3
Digital ground pin
Oscillator clock output
Mode select pin
Mode select pin
Parallel mode: Divided ratio select pin
Serial mode: Data input pin from microprocessor
Parallel mode: Divided ratio select pin
Serial mode: Shift clock input pin
Lock detect signal output pin
Digital power supply
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
TC9274FG-023 (Analog switch)
1 2 3 4 5 6 7 8 9 10 11
S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15
33 32 31 30 29 28 27 26 25 24 23
S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15
S4
S3
S2
S1
VDD
NC
VSS
S1
S2
S3
S4
34
35
36
37
38
39
40
41
42
43
44
22
21
20
19
18
17
16
15
14
13
12
S16
S17
S18
STB
DATA
NC
CK
GND
S18
S17
S16
L-ch
R-ch
1 2 3 4 5 6 7 8 9 10 11
22
21
20
19
18
17
16
15
14
13
12
33 32 31 30 29 28 27 26 25 24 23
34
35
36
37
38
39
40
41
42
43
44
S4
S3
S2
S1
VDD
NC
VSS
S1
S2
S3
S4
S16
S17
S18
STB
DATA
NC
CK
GND
S18
S17
S16
S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15
(L-ch)
Same as R-ch
LEVEL
SHIFT &
SHIFT
REGISTER
CIRCUIT
(R-ch)
18 bits LATCH CIRCUIT
S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
TC94A46FG(Function Switch)
Latch LatchLatchLatch Latch LatchLatchLatch
Latch LatchLatchLatch Latch LatchLatchLatch Latch
Latch LatchLatchLatch Latch LatchLatchLatch Latch Latch
TIMING
GENERATION
LEVEL SHIFT CIRCUIT
64-bits SHIFT REGISTER
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
1
2
3
4
5
6
7
8
96
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
NC
S05
NC
S06
NC
S07
NC
S08
NC
S09
NC
S10
NC
S11
NC
S12
NC
S13
NC
S14
NC
COM1
MC
COM2
NC
S05
NC
S06
NC
S07
NC
S08
NC
S09
NC
S10
NC
S11
NC
S12
NC
S13
NC
S14
NC
COM1
NC
COM2
NC
COM3
NC
VSS
NC
OSC1
GND
CK
DATA
STB
CS2
NC
VDD
NC
COM3
NC
S04
NC
S03
NC
S02
NC
S01
NC
NC
S01
NC
S02
NC
S03
NC
S04
80 6579 78 77 76 75 74 73 72 71 70 69 68 67 66
25 4026 27 28 29 30 31 32 33 34 35 36 37 38 39
Latch
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
TC94A46FG(Function Switch)
No connection
Clock input
Data input
Strobe input
Clock input to transfer a data.
Analog switch control data input.
Strobe input to write a data.
Input to change a chip select code.
Terminal Chip select code
CS1
L
H
L
H
CS2
L
L
H
H
CS1
0
1
0
1
CS2
0
0
1
1
C1
1
1
1
1
C2
0
0
0
0
C3
1
1
1
1
C4
0
0
0
0
Power supply terminal.
Negative power
Positive power
Digital ground
Chip select
cord
change-over
terminal
32
33
34
1,3,
5,7,
9,11,
13,15,
17,19,
21,23,
25,27,
29,36,
38,40,
42,44,
46,48,
50,52,
54,56,
58,60,
62,64
66,68,
70,72,
73
NC
Vss
VDD
GND
CS1
CS2
CK
DATA
STB
74
71
75
69
78
67
80
65
2
63
4
61
6
59
8
57
10
55
12
53
14
51
16
49
18
47
20
45
22
43
24
41
26
39
28
31
37
30
35
S01
S02
S03
S04
S05
S06
S07
S08
S09
S10
S11
S12
S13
S14
COM1
COM2
COM3
Input/
Output
Terminals
Output/
Input
Terminals
PIN NO. SYMBOL TERMINAL FUNCTION/OPERATION
Analog Switch Circuit
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
TLC2932IPWLE(High-Performance Phase-Locked Loop)
1
2
3
4
5
6
7
14
13
12
11
10
9
8
LOGIC VDD
SELECT
VCO OUT
FIN±A
FIN±B
PFD OUT
LOGIC GND
VCO VDD
BIAS
VCO IN
VCO GND
VCO INHIBIT
PFD INHIBIT
NC
PW PACKAGE
(TOP VIEW)
Terminal Functions
TERMINAL
I/O
DESCRIPTION
NAME NO.
I/O
DESCRIPTION
FIN±A 4 I Input reference frequency f(REF IN) is applied to FIN±A.
FIN±B 5 I Input for VCO external counter output frequency f(FIN±B). FIN±B is nominally provided from the external
counter.
LOGIC GND 7GND for the internal logic.
LOGIC VDD 1 Power supply for the internal logic. This power supply should be separate from VCO VDD to reduce
cross-coupling between supplies.
NC 8 No internal connection.
PFD INHIBIT 9I PFD inhibit control. When PFD INHIBIT is high, PFD output is in the high-impedance state, see Table 3.
PFD OUT 6 O PFD output. When the PFD INHIBIT is high, PFD output is in the high-impedance state.
BIAS 13 I Bias supply. An external resistor (RBIAS) between VCO VDD and BIAS supplies bias for adjusting the
oscillation frequency range.
SELECT 2 I VCO output frequency select. When SELECT is high, the VCO output frequency is y 1/2 and when low, the
output frequency is y 1, see Table 1.
VCO IN 12 I VCO control voltage input. Nominally the external loop filter output connects to VCO IN to control VCO
oscillation frequency.
VCO INHIBIT 10 I VCO inhibit control. When VCO INHIBIT is high, VCO OUT is low (see Table 2).
VCO GND 11 GND for VCO.
VCO OUT 3 O VCO output. When the VCO INHIBIT is high, VCO output is low.
VCO VDD 14 Power supply for VCO. This power supply should be separated from LOGIC VDD to reduce cross-coupling
between supplies.
1/2 fosc
Phase
Comparator
LOGIC VDD (Digital)
LOGIC GND (Digital)
SELECT
FIN±A
VCO INHIBIT
PFD INHIBIT
NC
VCO GND
VCO IN
BIAS
VCO VDD
VCO
1
2
3
4
5
6
7
14
13
12
11
10
9
8
FIN±B
VCO OUT
PFD OUT
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
WM8716(24 bit 192kHz Stereo DAC)
BCKIN
CLKO
DGND
DVDD
LRCLK
DIN
XTI
XTO
AGNDR
NMIDR
MODE8X
VOUTR
AGND
AVDDR
8
7
6
5
4
3
2
1
9
10
11
12
13
14
Top View
21
22
23
24
25
26
27
28
MD/DM0
MUTEB
RSTB
CSBIWO
MODE
MC/DM1
ML/12S
18
19
20
AGNDL
15
16
17
AVDD
VOUTL
DIFFHW
AVDDL
ZERO
VMIDL
LEFT
DAC
CONTROL INTERFACE
SERIAL
INTER-
FACE
MUTE/
ATTEN
MUTE/
ATTEN
DIGITAL
FILTERS
MUX
MUX
SIGMA
DELTA
MODULATOR
RIGHT
DAC
CRYSTAL/OSC
BCKIN(3)
LRCIN(1)
DIN(2)
MODE ML/12S MC/DM1 MD/DM0 DIFFHW MUTEB CSB/WO RSTB ZERO MODEBX AGNDR AVDDR
(24) (28) (27) (26) (17) (25) (23) (22) (21) (12) (10) (9)
(11) VMIDR
(13) VOUTR
(16) VOUTL
(18) VMIDL
(4) (5) (6) (15) (8) (20) (19) (14) (7)
CLKO XTI XTO AVDD DVDD AVDDL AGNDL AGND DGND
SIGMA
DELTA
MODULATOR
LOW
PASS
FILTER
LOW
PASS
FILTER
PIN NAME TYPE DESCRIPTION
1 LRCIN Digital input Sampling rate clock input
2 DIN Digital input Audio data serial input
3 BCKIN Digital input Audio data bit clock input
4 CLKO Digital output Oscillator buffered output
5 XTI Analog input Oscillator input
6 XTO Analog ioutput Oscillator output
7 DGND Supply Digital ground supply
8 DVDD Supply Digital positive supply
9 AVDDR Supply Analog positive supply
10 AGNDR Supply Analog ground supply
11 VMIDR Analog ioutput Mid rail right channel
12 MODE8X Digital input Internal pull-down, active high, 8xfs mode
13 VOUTR Analog ioutput Right channel DAC output
14 AGNDR Supply Analog ground supply
15 AVDDR Supply Analog positive supply
16 VOUTL Analog ioutput Left channel DAC output
17 DIFFHW Digital input Internal pull-down, active high, differential mono mode
18 VMIDL Analog ioutput Mid rail left channel
19 AGNDL Supply Analog ground supply
20 AVDDL Supply Analog positive supply
21 ZERO Digital output Infinite zero detect-active low. Open drain type output with active pull-down.
22 RSTB Digital input Rest input-active low. Internal pull-up.
23 CSBIWO Digital input Low for serial interface operation.
24 MODE8X Digital input High for software mode
25 MUTEB Digital input Low to soft mute. High for normal operation. Z for automute.
26 MD/DM0 Digital input Control serial interface data signal.
27 MC/DM1 Digital input Control serial interface clock signal.
28 ML/12S Digital input Control signal interface load signal.
TX-NR1000
IC BLOCK DIAGRAM AND DESCRIPTION
WM8719(24 bit differential stereo DAC with volume control)
PCM/DSD
LATCH SDIN SCLK SDOUT ZEROFR ZEROFL
CONTROL INTERFACE
BCKIN
LRCIN
DIN
DSDCLK64
DSDCLK128
DSDR
DSDL
AGND DGND MCLK AVDD DVDD VREFP VREFP
VOUTRP
VOUTRN
VOUTLP
VOUTLN
VMID
SERIAL
INTER-
FACE
OSD DATA
INTER-
FACE
MUTE
MUTE
DIGITAL
FILTERS
SIGMA
DELTA
MODULATOR
SIGMA
DELTA
MODULATOR
MUX
MUX
PCM/DSD
RIGHT
DAC
LEFT
DAC
SCLK
SDIN
AVDD
VREFP
LRCLK
LATCH
DVDD
DVSS
AVSS
VMID
ZEROFR
VOUTRN
VOUTRP
VREFN
Top View
8
7
6
5
4
3
2
1
21
22
23
24
25
26
27
28
MCLK
SDOUT
DSDCLK64
DSDCLK128
NC
BCLK
DIN
9
10
11
12
13
14
18
19
20
NC
15
16
17
VOUTLP
VOUTLN
ZEROFL
DSDR
DSDL
NC
PIN NAME TYPE DESCRIPTION
1 LRCIN Digital input PCM DAC sample clock input
2 LATCH Digital input Serial control load input
3 SCLK Digital input Serial control data input clock
4 SDIN Digital Serial control data input clock
5 DVDD Supply Digital positive supply
6 DGND Supply Digital ground supply
7 AVDD Supply Analog ground supply
8 VREFP Supply DAC positive reference
9 VREFN Supply DAC negative reference
10 AGND Supply Analog ground supply DAC positive reference
11 VMID Analog output Mid rail decoupling point
12 ZEROFR Digital output Infinite ZERO detect flag for right channel
13 VOUTRN Analog output Right channel DAC output positive
14 VOUTRP Analog output Right channel DAC output negative
15 VOUTLP Analog output Left channel DAC output positive
16 VOUTLN Analog output Left channel DAC output negative
17 ZEROFL Digital output Infinite ZERO detect flag for left channel
18 NC
19 NC
20 DSDR Digital input Right channel DSD bitstream input
21 DSDL Digital input Left channel DSD bitstream input
22 DSDCLK64 Digital bi-directional DSD format clock at 64fs
23 DSDCLK128 Digital bi-directional DSD format clock at 128fs.(Optional for OSD bi-phase mode)
24 NC
25 SDOUT Digital output Serial control data output
26 MCLK Digital input Master clock input
27 BCLKIN Digital input PCM audio data bit clock input
28 DIN Digital input PCM serial audio data input
TX-NR1000
WM8816(Stereo Digital Volume Control)
Control
Zero
Crossing
Detector
Zero
Crossing
Detector
External Opamp
LEFT OUT
RIGHT OUT
LFO
LMO
RMO
RFO
AVDD AGND DVDD DGND
BLOCK DIAGRAM
LIN
LGND
CSB
MUTEB
DATA
CCLK
RGND
RIN
WM8816 DAC
Peak
Level
Control
Peak
Level
Control
-
+
+
-
AVDD
LMO
LFO
LIN
LGND
CSB
DVDD
MUTEB
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
AGND
RMO
RFO
RIN
RGND
DGND
CCLK
DATA
PIN CONFIGURATION
PIN NAME TYPE DESCRIPTION
1 AVDD Supply Supply voltage for Analogue Circuitry
2 LMO Analogue output External Op-amp Inverting Input (Left channel)
3 LFO Analogue input External Op-amp Feedback Signal (Left channel)
4 LIN Analogue input Input Signal (Left Channel)
5 LGND Analogue input Input Signal Ground (Left Channel)
6 CSB Digital input Chip Select (active low)
7 DVDD Supply Supply Voltage for Digital Circuitry
8 MUTEB Digital input Mute (active low)
9 DATA Digital In/Out Serial Interface Data Input/Output (tri-state)
10 CCLK Digital input Serial Interface Clock
11 DGND Supply Digital Ground
12 RGND Analogue input Input Signal Ground (Left Channel)
13 RIN Analogue input Input Signal (Left Channel)
14 RFO Analogue input External Op-amp Feedback Signal (Left channel)
15 RMO Analogue output External Op-amp Inverting Input (Left channel)
16 AGND Supply Analogue Ground
PIN DESCRIPTION
RDC-7.1
DISASSEMBLING PROCEDURES 1
1.Top covers/Side panels
Remove 10 decorative screws A to release Top covers
with Trox driver (T-20).
Remove 8 decorative screws B to release Side panels.
Remove Top covers and Side panels.
2.Front panel block
Remove Top covers and Side panels.
Remove 7 screws (3 on the top face, 4 on the bottom
face) to release Front panel.
Pull out Front panel block and disconnect FFC from
Display PC board.
Disconnect Socket J7581 on Door sensor PC board.
3.Removement of Slot PC boards
Remove 2 special screws E using Allen (Hexagon)
wrench to release Slot A.
Attach 2 Special screws (Part No. 25060044) to the
hole F and pull out Slot A PC board assembly.
Remove Slots B, E,J, K, and L in the same way.
Remove 4 special screws E using Allen (Hexagon)
wrench to release Slot HI.
Attach 2 Special screws to the hole F and pull out Slot
HI PC board assembly.
Slot A
E
F
FE
Slot CD
Slot FG
A*10 B*8
L
R
L
R
FRONT
CENTER
SURR
SURR
BACK
SUB
WOOFER
SURR BACK R
SURR R FRONT R CENTER FRONT L
SURR BACK L
SURR L
SUBWOOFER
PRE
OUT A
(
ASSIGNABLE
)
(
SINGLE
)
(
SINGLE
)
(
ASSIGNABLE
)
(
ASSIGNABLE
)
REMOTE
CONTROL
ÒNet -TuneÓ
is
a
trademark
of
Onkyo
Corporation.
ETHERNET
(
Net-Tune
)
22
11
66
55
44
33
22
11
CD
DIGITAL IN DIGITAL IN
OPTICAL COAXIAL
OUT
SBR SBL
SR SL
SUB C
FR FL
E
MULTI
-CH
IN
1
DIGITAL IN
(BALANCED)
AES/ EBU
DIGITAL IN
(BALANCED)
AES/EBU
AUDIO IN
1
3
2
1
PH
2
3
9
8
7
6
5
4
4
5
LRRL
GND
OUT
LR
LR
RL
FGL
IN
1
IN
2
OUT
HDMI
S
VIDEO VIDEO
IN IN IN
1
IN
2
3
2
1
Y
P
B
P
R
COMPONENT
VIDEO
IN
3
IH
6
5
4
Y
P
B
P
R
2
1
4
3
S VIDEOS VIDEO VIDEOVIDEO
OUT OUT
OUT
1
J
OUT
(
HD/BNC
)
Y
P
B
P
R
Y
P
B
P
R
COMPONENT VIDEO
IN
(
HD/BNC
)
K
ANTENNA
FM
75
AM
A
C
B
MAIN
12V
TRIGGER
OUT
IR
UPP
D
E
200mA MAX.
100mA MAX.
100mA MAX.
100mA MAX.
100mA MAX.
ZONE
2
ZONE
3
L
R
L
R
CENTER
SURRFRONT
SURR
BACK
SUB
WOOFER
PR
E
OUT
B
AC
INLET
MODEL NO.
RDC-
7.1
(
ASSIGNABLE
)
(
SINGLE
)
AB
RS
232
OUT
IN
G
G
Slot HI E
F
F
B
22
11
66
55
44
33
22
11
CD
DIGITAL INDIGITAL IN
OPTICALCOAXIAL
OUT
55
44
33
OUT
A
F
F
4
Remove a washer and
stopper before using.
25060044
Stopper
Washer
RDC-7.1
DISASSEMBLING PROCEDURES 2
4.Rail A
Remove Slot PC boards except Slot CD and FG PC board.
Remove 34 copper screws H (30 on the top face, 4 on the
side face to release Bracket, rail A and Rail A.
Lift up Bracket, rail A to the top side and pull out Rail A
toward the front side.
H*2
H*2
H*20
H*5 H*5
Rail A
Bracket, rail A
Back panel
Slot CD
Slot FG
L
R
L
R
FRONT
CENTER
SURR
SURR
BACK
SUB
WOOFER
SURR BACK R
SURR R FRONT R CENTER FRONT L
SURR BACK L
SURR L
SUBWOOFER
PRE
OUT A
(
ASSIGNABLE
)
(
SINGLE
)
(
SINGLE
)
(
ASSIGNABLE
)
(
ASSIGNABLE
)
REMOTE
CONTROL
ÒNet -TuneÓ
is
a
trademark
of
Onkyo
Corporation.
ETHERNET
(
Net-Tune
)
22
11
66
55
44
33
22
11
CD
DIGITAL IN DIGITAL IN
OPTICAL COAXIAL
OUT
SBR SBL
SR SL
SUB C
FR FL
E
MULTI
-CH
IN
1
DIGITAL IN
(BALANCED)
AES/ EBU
DIGITAL IN
(BALANCED)
AES/ EBU
AUDIO IN
1
3
2
1
PH
2
3
9
8
7
6
5
4
4
5
LRRL
GND
OUT
LR
LR
RL
FGL
IN
1
IN
2
OUT
HDMI
S
VIDEO VIDEO
IN IN IN
1
IN
2
3
2
1
Y
P
B
P
R
COMPONENT
VIDEO
IN
3
IH
6
5
4
Y
P
B
P
R
2
1
4
3
S VIDEOS VIDEO VIDEOVIDEO
OUT OUT
OUT
1
J
OUT
(
HD/BNC
)
Y
P
B
P
R
Y
P
B
P
R
COMPONENT VIDEO
IN
(
HD/BNC
)
K
ANTENNA
FM
75
AM
A
C
B
MAIN
12V
TRIGGER
OUT
IR
UPP
D
E
200mA MAX.
100mA MAX.
100mA MAX.
100mA MAX.
100mA MAX.
ZONE
2
ZONE
3
L
R
L
R
CENTER
SURRFRONT
SURR
BACK
SUB
WOOFER
PR
E
OUT
B
AC
INLET
MODEL NO.
RDC-
7.1
(
ASSIGNABLE
)
(
SINGLE
)
AB
RS
232
OUT
IN
G*14
G*15
5.Main microprocessor PC board
Remove Rail A.
Remove 2 Special screws J fixed RS232 terminal.
Remove 15 screws G on Slot CD and remove Plate CD.
Remove 14 screws G on Slot FG and remove Plate FG.
Remove 6 screws G fixed RS232 terminal PC board.
Remove 2 screws K fixed AC inlet terminal.
Remove 20 screws G fixed Pre output terminal PC
board.
Remove 14 screws L fixed Back panel and Chassis.
Remove a screw M fixed Back panel and Bottom panel.
Remove Back panel.
Disconnect Socket P7404A on DSP PC board.
Remove PC boards on slots C, D, F and G.
Discoonect FFC and 6 sockets (4 on the top side,
2 on the bottom side) from Main microprocessor PC
board.
Remove Main microprocessor PC board from 9 holders.
When PC board is not removed from holder, remove
PC board during turn the holder by longnose pliers.
6.Preamplifier PC board
Remove Main microprocessor PC board.
Remove 27 copper screws H to release Bracket, rail B
and Rail B.
Lift up Rail B and Bracket, rail B.
Remove copper screws fixed Preamplifier PC board and
Chassis.
J*2
G*6
K*2
G*2*8 G*2
G*2
L*14
M
RDC-7.1
PACKING VIEW 1
A700
A700
A706
A704
A710*8
A708
A754
A750
A709
A709
A711 A501
Accessory
assembly
Instruction
manuals
(European model only)
Instruction
manuals
(European model only)
A711
A
1
2
3
4
5
BCD
RDC-7.1
PACKING VIEW 2
Front
Left
Front
Left
SP-B
/
Zone 2
Left
SP-B
/
Zone 2
Left
Surround
Right
Surround
Right
Surround Back
Right
Surround Back
Right
Zone 2
Right
Zone 2
Right
Front
Left
Front
Left
SP-B
/
Zone 2
Left
SP-B
/
Zone 2
Left
Front
Right
Front
Right
SP-B
/
Zone 2
Right
SP-B
/
Zone 2
Right
Front
Right
Front
Right
SP-B
/
Zone 2
Right
SP-B
/
Zone 2
Right
Surround
Right
Surround
Right
Center
Center
Center
Center
Surround
Left
Surround
Left
Surround
Left
Surround
Left
Surround Back
Right
Surround Back
Right
Zone 2
Right
Zone 2
Right
Surround Back
Left
Surround Back
Left
Zone 2
Left
Zone 2
Left
Surround Back
Left
Surround Back
Left
Zone 2
Left
Zone 2
Left
12
3
Speaker Cable
A853
A731
A854
A860
A861 P9002
A866
A
1
2
3
4
5
BCD
A807
Insert A807 between page 1 & 2
of A853.
A871
A872
A800
A802
A806
A804
A804
A851
A707
RDC-7.1
PACKING VIEW 2 (European model only)
Front
Left
Front
Left
SP-B
/
Zone 2
Left
SP-B
/
Zone 2
Left
Surround
Right
Surround
Right
Surround Back
Right
Surround Back
Right
Zone 2
Right
Zone 2
Right
Front
Left
Front
Left
SP-B
/
Zone 2
Left
SP-B
/
Zone 2
Left
Front
Right
Front
Right
SP-B
/
Zone 2
Right
SP-B
/
Zone 2
Right
Front
Right
Front
Right
SP-B
/
Zone 2
Right
SP-B
/
Zone 2
Right
Surround
Right
Surround
Right
Center
Center
Center
Center
Surround
Left
Surround
Left
Surround
Left
Surround
Left
Surround Back
Right
Surround Back
Right
Zone 2
Right
Zone 2
Right
Surround Back
Left
Surround Back
Left
Zone 2
Left
Zone 2
Left
Surround Back
Left
Surround Back
Left
Zone 2
Left
Zone 2
Left
12
3
Speaker Cable
A853
A854
A855
A856
A857
A858
P9002
A
1
2
3
4
5
BCD
A807
A871
A872
A800
A802
A806
A804
A804
A851
A707
A850
A804
A850
A804
A859
A860
A861
A862
A731
RDC-7.1
EXPLODED VIEW-PARTS LIST
NOTE: THE COMPONENTS IDENTIFIED BY MARK !
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
NOTE: <D>: USA model only <P>: European model only <A>:Australian model only
<DT>: 120V model only <GT>: 220V model only <K>:Korean model only
REF. NO. PART NO. DESCRIPTION
A001 27130949A Bracket L
A003 27130950A Bracket R
A005 27190657 KGLS-18RT,Holder
A006 27190926 KGPS-18RF,Holder
A007 27190693A KGLS-6RT,Holder
A009 27191156 KGLS-5RT,Holder
A011 27190266 KGLS-12RT,Holder
A012 27190965 Holder
A013 27300833 WS-2NS,Clamp
A014 27300243 WS-2W,Clamp
A015 28175299 Isolated plate
A016 28175306 Isolated plate ST
A019 801612 3TTB+8B(CU),Self-tapping screw
A021 801606 3SMH10W.SW+15B(CU),Special screw
A023 27130943A Bracket CR
A024 29110082 Tape Cloth
A025 28170083 Bushing
A027 27191156 KGLS-5RT,Holder
A029 27191224 KGPS-5RF,Holder
A031 27300833 WS-2NS,Clamp
A032 27301394 HL-18-0,Clamp
A035 801612 3TTB+8B(CU),Self-tapping screw
A037 27130944 Bracket PT
A039 830440109 4TTC+10C(BC),Self-tapping screw
A041 27130941 Bracket L
A043 27190503A KGLS-8RT,Holder
A045 27300833 WS-2NS,Clamp
A047 801612 3TTB+8B(CU),Self-tapping screw
A049 27130942 Bracket R
A051 27190503A KGLS-8RT,Holder
A053 801612 3TTB+8B(CU),Self-tapping screw
A057 27130946 Bracket FR
A059 27300833 WS-2NS,Clamp
A061 27141928 Retainer power
A063 82143006 3P+6FN(BC),Pan head screw
A065 801612 3TTB+8B(CU),Self-tapping screw
A067 838440089 4TTB+8C(BC),Self-tapping screw
A069 27300833 WS-2NS,Clamp
RDC-7.1
A073 27141905 Retainer HS
A075 801612 3TTB+8B(CU),Self-tapping screw
A077 27141904 Retainer AC
A079 801612 3TTB+8B(CU),Self-tapping screw
A083 27130933 Bracket rail A
A085 27130935 Bracket bottom
A087 801612 3TTB+8B(CU),Self-tapping screw
A089 27130934 Bracket rail B
A091 27130936 Bracket U
A093 801612 3TTB+8B(CU),Self-tapping screw
A095 801613 3*8,Special screw
A097 28175305 Isolated plate, slot 2
A099 880009 NRP-345,Plastic rivet
A101 27225156 Shield case A
A103 27225157 Shield case B
A105 801612 3TTB+8B(CU),Self-tapping screw
A107 82141606 M1.6*6(BC),Machine screw
A109 28198903 Facet
REF. NO. PART NO. DESCRIPTION
A111 28198908 Facet 1
A112 28198986 Facet 2
A113 28148435A Door base
A115 28125375 End cap SL
A117 28125376 End cap SR
A119 28183002A Stay L
A121 28183003A Stay R
A123 834426068 2.6TTS+6B(BC),Self-tapping screw
A125 27191094A Holder L
A127a 28141432 t1.5*12*4,Cushion
A129 28335065A Lever L
A131 27180577 Spring
A133 82143006 3P+6FN(BC),Pan head screw
A135 27191095A Holder R
A137a 27141758A Retainer SP
A139 27180579 Spring, door
A141c 28141432 t1.5*12*4,Cushion
A143 28335066A Lever R
A145 27180577 Spring
A147 27301943 Gear A
A149 27260364 Shaft A
A151 880011 NRP-355,Plastic rivet
A153 82143006 3P+6FN(BC),Pan head screw
A155 27260363 Shaft
A157 27260365A Shaft L
A159 27260366A Shaft R
A161 27270218 Spacer
A163 27301942 Gear S
RDC-7.1
A165 27141759 Retainer W
A167 834426068 2.6TTS+6B(BC),Self-tapping screw
A169 27141752 Retainer S
A171 24804045B Motor with gear
A173 82143006 3P+6FN(BC),Pan head screw
A177 28141426 t1.5*25*5,Cushion
A179 28141430 Cushion
A181 28192018A Clear plate
A183 28325871A Knob ST
A193 28325746 Selector knob ass'y
A201 28326158 Selector knob 2 ass'y
A209 28325751 Power knob ass'y
A215 27268016B Guide, volume
A223 27130945 Bracket, volume
A225 82143006 3P+6FN(BC),Pan head screw
A227 28325723A Knob, door
A229 27141755 Bracket, knob
A231 82143010 3P+10FN(BC),Pan head screw
A232 27190926 KGPS-18RF,Holder
A233 82143006 3P+6FN(BC),Pan head screw
A235 28140860 CUSHION
A237 27255004 CS-1U,Clip
A239 28325754 Volume knob ass'y
A243 87760408 W4X8B,Flat washer
A245 29110083 Tape Cloth
A247 260208 BSK-1,Wire tie
A248 27190503A KGLS-8RT,Holder
A249 27270443 Spacer
A251 28141618 Cushion
A253 28141616 Cushion PT1
A255 28141617 Cushion PT2
A265 28141592 Cushion MB
A267 28141621 Cushion
A269 28141566 T4*L20*D10,Cushion
A270 28141623 Cushion, cover
A271 27270438 t0.5xφ8xφ3.2,Spacer
REF. NO. PART NO. DESCRIPTION
A273 27270439 Spacer
A277 24847051 15*5*3,Cushion
A279 28141626 T4*30*12.5,Cushion
A281 801612 3TTB+8B(CU),Self-tapping screw
A300 27170336 Bottom panel
A302 801525 3TTB+8B(BC),Screw with stopper
A304 27175404 Leg
A306 28141559 Cushion
A307 28141590 Cushion for leg
A308 838140127 4TTB+12S,Binding screw
RDC-7.1
A310 25060151 Terminal GND
A312 87643010 W3*10F(BC),Flat washer
A314 28135293 Badge
A316 28185445B Side panel L
A317 28141566 T4*L20*D10,Cushion
A318 28185446B Side panel R
A319 28141566 T4*L20*D10,Cushion
A320 28145180 Cover L
A322 28145181A Cover R
A324 801617A 4*10(NI),Special screw
A401 27212625A Front panel ass'y <D/DT/GT/A/K>
A401 27212626A Front panel ass'y <P>
A417 27262728A Plate ID <D/DT/GT/A/K>
A417 27262729A Plate ID <P>
A419 28148572 Door <D>
A419 28148573 Door <P/DT/GT/A/K>
A421 801612 3TTB+8B(CU),Self-tapping screw
A423 838430088 3TTB+8B(BC),Self-tapping screw
A425 27123230A Rear panel <D>
A425 27123231A Rear panel <P/DT/GT/A/K>
A427 838440089 4TTB+8C(BC),Self-tapping screw
A429 838430088 3TTB+8B(BC),Self-tapping screw
A431 27262713A Plate, slot A
A433 27262731 Plate, slot B2 <D>
A433 27262714 Plate, slot B2 <P/DT/GT/A/K>
A435 27262715A Plate, slot C/D
A437 27262732 Plate, slot E3 <D>
A437 27262717A Plate, slot E2 <P/DT/GT/A/K>
A439 27262718 Plate, slot F/G
A441 27262733 Plate, slot HI2 <D>
A441 27262719 Plate, slot H/I <P/DT/GT/A/K>
A443 27262734 Plate, slot J4 <D>
A443 27262720 Plate, slot J <P/DT/GT/A/K>
A445 27262735 Plate, slot K3 <D>
A445 27262723 Plate, slot K <P/DT/GT/A/K>
A447 27262736 Plate, slot L2 <D>
A447 27262725A Plate, slot L <P/DT/GT/A/K>
A448 801624 3TTB+10B(BC),Screw with stopper
A449 838430088 3TTB+8B(BC),Self-tapping screw
A450 801620A Special screw, plate <D>
A450 82143005 3P+5FN(BC),Pan head screw <P/DT/GT/A/K>
A451 29363762 Label, specifications <D>
29363786 Label, specifications <DT>
29363785 Label, specifications <GT/K>
29363787 Label, specifications <A>
29363784 Label, specifications <P>
A453 29363777 Label, cover <D>
RDC-7.1
29363793 Label, cover <P/DT/GT/A/K>
A454 27160542 Heat sink S
A455 27225156 Shield case A <P/DT/GT/A/K>
A457 27225157 Shield case B <P/DT/GT/A/K>
A459 801612 3TTB+8B(CU),Self-tapping screw
A461 801620A Special screw, plate <P/DT/GT/A/K>
A465 28175307 Isolated plate, slot 3 <P/DT/GT/A/K>
REF. NO. PART NO. DESCRIPTION
A467 880009 NRP-345,Plastic rivet <P/DT/GT/A/K>
A501 29364040 Label, door
A502 29363803 Label, flash
A503 29363799 Label, caution
A504 29363264 Label MAC <P/DT/GT/A/K>
D9501 22380337 D10XB60H,Diode
F9001 252164 or ! 5A-UL/T-237 or
252258 ! 5A-T/UL-ST2,Fuse <D/DT>
252241 or ! 2.5A-SE-TL250V or
252075 ! 2.5A-SE-EAK,Fuse <P/GT/A/K>
F9501,F9502 252198 or ! 8A-UL or
252261 ! 8A-T/UL-ST2,Fuse <D>
252166 or ! 6.3A-UL/T-237 or
252260 ! 6.3A-T/UL-ST2,Fuse <DT>
252245 or ! 6.3A-SE-TL250V or
252079 ! 6.3A-SE-EAK,Fuse <P/GT/A/K>
F9503,F9504 252160 or ! 2.5A-UL/T-237 or
252254 ! 2.5A-T/UL-ST2 <D/DT>
252241 or ! 2.5A-SE-TL250V or
252075 ! 2.5A-SE-EAK,Fuse <P/GT/A/K>
P101 2047150312 NCFC7-150312,Flexible flat cable <P/DT/GT/A/K>
P3105 2009990867UL NSAS-80P1310,Socket
P3106 2009990844UL NSAS-76P1260,Socket
P3120 2009990871AUL NSAS-50P1318,Socket
P5802A 25052980 5P(796641-5),Socket <D>
P5803A 25052981 6P(796641-6),Socket <D>
P7501 2045206022 NCFC5-206022,Flexible flat cable
P7506 20033281040UL NSAS-10P1396,Socket
Q9301 222780184JRC 7818FA(NJM7818FA),IC
Q9311 222790184JRC 7918FA(NJM7918FA),IC
Q9322 2202314 or 2SA1726-Y or
2202315 or 2SA1726-P or
2202313 2SA1726-O,Transistor
Q9322A 223026 Isolated sheet
Q9322B 223034 MT-25,Transistor accessory
Q9332,Q9392 2202364 or 2SA1693-Y or
2202363 or 2SA1693-O or
2202365 2SA1693-P,Transistor
Q9332A,Q9392A 223024 AC238,Isolated sheet
RDC-7.1
Q9351 222780565JRC 78M56(NJM78M56FA),IC
Q9404 2202304 or 2SC4512-Y or
2202305 2SC4512-P,Transistor
Q9404A 223026 Isolated sheet
Q9404B 223034 MT-25,Transistor accessory
Q9411 222780054JRC 7805FA(NJM7805FA),IC
Q9432,Q9442 2202364 or 2SA1693-Y or
2202363 or 2SA1693-O or
2202365 2SA1693-P,Transistor
Q9432A,Q9442A 223024 AC238,Isolated sheet
T9001 2301751A ! NPT-1497D,Power transformer <D/DT>
2301753A ! NPT-1497G,Power transformer <GT/K>
2301752A ! NPT-1497P,Power transformer <P/A>
T9002 2301723 ! NPT-1487D,Power transformer <D/DT>
2301725 ! NPT-1487G,Power transformer <GT/K>
2301724 ! NPT-1487P,Power transformer <P/A>
U01 1A989537-1A NAVD-8137-1A,HDMI circuit PC board ass'y <P/DT/GT/A/K>
U03 1A989544-1A NAAF-8144-1A, Audio IN/OUT terminal 1 PC board ass'y <D/DT/GT/A/K>
1A989544-1B NAAF-8144-1B, Audio IN/OUT terminal 1 PC board ass'y <P>
U032 1A989545-1A NAAF-8145-1A,Audio IN/OUT terminal 2 PC board ass'y <D/DT/GT/A/K>
1A989545-1B NAAF-8145-1B,Audio IN/OUT terminal 2 PC board ass'y <P>
U033 1A989546-1A NAETC-8146-1A,Connector PC board ass'y <D/DT/GT/A/K>
1A989546-1B NAETC-8146-1B,Connector PC board ass'y <P>
U05 1A989550-1A NAAF-8150-1A,Multi channel PC board ass'y <P/DT/GT/A/K>
REF. NO. PART NO. DESCRIPTION
U06 1A989552-1C NARF-8152-1C,Tuner PC board ass'y <DT/GT/A/K>
1A989552-1B NARF-8152-1B,Tuner PC board ass'y <P>
U07 1A989554-1A NADG-8154-1A,Dac and second PLL circuit PC board ass'y <D/DT/GT/A/K>
1A989554-1B NADG-8154-1B,Dac and second PLL circuit PC board ass'y <P>
U08 1A989556-1A NAAF-8156-1A,Pre-amplifier PC board ass'y <D/DT/GT/A/K>
1A989556-1B NAAF-8156-1B,Pre-amplifier PC board ass'y <P>
U082 1A989557-1A NAAF-8157-1A,Pre-output terminal PC board ass'y <D/DT/GT/A/K>
1A989557-1B NAAF-8157-1B,Pre-output terminal PC board ass'y <P>
U083 1A989558-1A NAETC-8158-1A,Connector mother PC board ass'y <D/DT/GT/A/K>
1A989558-1B NAETC-8158-1B,Connector mother PC board ass'y <P>
U084 1A989559-1A NADG-8159-1A,Coaxial I/O terminal PC board ass'y <D/DT/GT/A/K>
1A989559-1B NADG-8159-1B,Coaxial I/O terminal PC board ass'y <P>
U085 1A989560-1A NAETC-8160-1A,Video connector PC board ass'y <D/DT/GT/A/K>
1A989560-1B NAETC-8160-1B,Video connector PC board ass'y <P>
U09 1A989562-1 NADG-8162-1,Optical I/O terminal PC board ass'y
U10 1A989564-1A NADG-8164-1A,IEEE1394 terminal PC board ass'y
U11 1A989566-1C NAAR-8166-1C,Mother PC board ass'y <D/DT/GT/A/K>
1A989566-1D NAAR-8166-1D,Mother PC board ass'y <P>
U17 1A989593-1A NAPS-8193-1A,Power supply circuit PC board ass'y <D>
1A989593-1B NAPS-8193-1B,Power supply circuit PC board ass'y <P>
1A989593-1C NAPS-8193-1C,Power supply circuit PC board ass'y <GT/K>
RDC-7.1
1A989593-1D NAPS-8193-1D,Power supply circuit PC board ass'y <DT>
1A989593-1E NAPS-8193-1E,Power supply circuit PC board ass'y <A>
U172 1A989594-1A NAPS-8194-1A,Constant voltage PC board ass'y <D>
1A989594-1B NAPS-8194-1B,Constant voltage PC board ass'y <P>
1A989594-1C NAPS-8194-1C,Constant voltage PC board ass'y <GT/K>
1A989594-1D NAPS-8194-1D,Constant voltage PC board ass'y <DT>
1A989594-1E NAPS-8194-1E,Constant voltage PC board ass'y <A>
U173 1A989595-1A NAPS-8195-1A,Constant voltage 2 PC board ass'y <D>
1A989595-1B NAPS-8195-1B,Constant voltage 2 PC board ass'y <P>
1A989595-1C NAPS-8195-1C,Constant voltage 2 PC board ass'y <GT/K>
1A989595-1D NAPS-8195-1D,Constant voltage 2 PC board ass'y <DT>
1A989595-1E NAPS-8195-1E,Constant voltage 2 PC board ass'y <A>
U174 1A989596-1A NAPS-8196-1A,Primary circuit PC board ass'y <D>
1A989596-1B NAPS-8196-1B,Primary circuit PC board ass'y <P>
1A989596-1C NAPS-8196-1C,Primary circuit PC board ass'y <GT/K>
1A989596-1D NAPS-8196-1D,Primary circuit PC board ass'y <DT>
1A989596-1E NAPS-8196-1E,Primary circuit PC board ass'y <A>
U175 1A989597-1A NAPS-8197-1A,Power switch PC board ass'y <D>
1A989597-1B NAPS-8197-1B,Power switch PC board ass'y <P>
1A989597-1C NAPS-8197-1C,Power switch PC board ass'y <GT/K>
1A989597-1D NAPS-8197-1D,Power switch PC board ass'y <DT>
1A989597-1E NAPS-8197-1E,Power switch PC board ass'y <A>
U176 1A989598-1A NAETC-8198-1A,12V trigger terminal PC board ass'y <D>
U177 1A989599-1A NAETC-8199-1A,Connector power PC board ass'y <D>
U178 1A989500-1A NAETC-8200-1A,Regulator PC board ass'y <D>
1A989500-1B NAETC-8200-1B,Regulator PC board ass'y <P>
1A989500-1C NAETC-8200-1C,Regulator PC board ass'y <GT/K>
1A989500-1D NAETC-8200-1D,Regulator PC board ass'y <DT>
1A989500-1E NAETC-8200-1E,Regulator PC board ass'y <A>
U18 1A989501-1B NAVD-8201-1B,S video terminal PC board ass'y <P/DT/GT/A/K>
U182 1A989502-1B NAVD-8202-1B,Component video PC board ass'y <P/DT/GT/A/K>
U183 1A989503-1B NAETC-8203-1B,Connector video 2 PC board ass'y <P/DT/GT/A/K>
U22 1A989512-1 NADIS-8212-1,Display circuit PC board ass'y
U222 1A989513-1 NAETC-8213-1,Standby switch PC board ass'y
U223 1A989514-1 NAETC-8214-1,Headphone terminal PC board ass'y
U224 1A989515-1 NAETC-8215-1,Door sensor PC board ass'y
U225 1A989516-1 NAETC-8216-1,Door motor PC board ass'y
U24 1A989528-1A NADG-8228-1A,Net-tune circuit PC board ass'y <P/DT/GT/A/K>
U26 1A989563-1 NADG-8163-1,DSP circuit PC board ass'y
U27 1A989505-1A NAVD-8205-1A,Component video 4 PC board ass'y <P/DT/GT/A/K>
U31 240135 TFCE1E512A,Tuner unit <P/DT/GT/A/K>
PACKING VIEW-PARTS LIS
T
R1 R1
RDC-7.1
REF. NO. PART NO. DESCRIPTION
A700 29092161 Pad ass'y
A704 29095964 0.515*1350*1500,Sheet
A706 29100035-1 720*1020,Poly-bag
A707 29054166 Carton, accessory
A708 29110149 Tape , cellophane
A709 29110148 PP tape
A710 282321 Staple
A711 29110151 Fixlon tape
A731 29343822 Instruction manual U9(Setup Memo)
A750 29054174 Carton box
A751 29363757 Label, carton <DT>
29363755 Label, carton <K>
29363756 Label, carton <GT>
29363235-1 Label, carton <A>
29363753 Label, carton <P> <RC>
29363754 Label, carton <P> <RF>
A754 29363680 Label UPC <D>
29363679 Label EAN <P/DT/GT/A/K>
A800 29100097-1A 350*250,Polybag
A802 29100217 t0.1*70*100,Polybag
A804 29110149 Tape, cellophane
A806 3010054 R6/AA(UM-3),Battery
A807 29363059A Label, speaker cable
A850 29100097-1A 350*250,Polybag <P>
A851 24140555 RC-555M,Remote controller <D>
24140554 RC-554M,Remote controller <DT/GT/A/K>
24140554 RC-554M,Remote controller <P> <RC>
24140555 RC-555M,Remote controller <P> <RF>
A853 29343686 Instruction manual En
A854 29343696 Instruction manual , digest <D>
29343687 Instruction manual Fr <P>
29343693 Instruction manual Ct <DT/GT>
A855 29343688 Instruction manual Es <P>
A856 29343689 Instruction manual De <P>
A857 29343690 Instruction manual Ni <P>
A858 29343691 Instruction manual Sv <P>
A859 29343692 Instruction manual It <P>
A860 29343697 Instruction manual En(Net-Tune QS) ,P/DT/GT/A/K>
A861 29343698 Instruction manual U2FrEs(Net-Tune QS) <P>
29343700 Instruction manual U2CtCs(Net-Tune QS) <DT/GT>
A862 29343699 Instruction manual U4DeNlSvIt(Net-Tune QS) <P>
A866 29365091A Warranty card <D>
A871 232140 NMA-3057,AM loop antenna <P/DT/GT/A/K>
A872 292199 NHB1-00-008(PAL),FM antenna <P/DT/GT/A/K>
P9002 253301HIT ! AS-UC-2,Power supply cord <D/DT>
RDC-7.1
253298KAW ! AS-CEE-3,Power supply cord <P/GT/K>
253391VOL ! AS-SAA, Power supply cord <A>
PRINTED CIRCUIT BOARD-PARTS LIS
T
NOTE: THE COMPONENTS IDENTIFIED BY MARK !
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
Note: <D>:120V model only <GT>:Asian model for 220V
<P>:European model only <DT>: Asian model for 120V
<A>:Australian model only <K>:Korean model only
<O>:Except 120V model
HDMI circuit PC board (NAVD-8137-1A) <P/DT/GT/A/K>
Option board (C-HDMI)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q8001 22242049R3 Sil504
Q8002 22242050R9 MC504(Write)
Q8003 22242056R2 or IC42S32200L-7TG or
22242031R3 IS42S32200B-7T
Q8007,Q8106 22241648R2 LM1117MPX-ADJ
Q8101 22242153R3 ADV7402KST-110
Q8102,Q8857 22241465R2 LA7106MFP
Q8103,Q8910 22241440R2 MAX4018ESD
Q8104,Q8105 2227C244DR2TO TC74VCX162244FT
Q8191,Q8591 22278033DR2NE or MPC2933T or
22278033DR2JR NJM2391DL1-33
Q8301 22242052R3 SiI9190CTG64
Q8304,Q8402 22242087R2 NJM2860F3-33
Q8305 22242105R2 NJM2860F3-05
Q8350 22242098R2 CS8420-CS
Q8351 22240935R2 TC7WU04FU
Q8352 22242078R2TO TC7WZU04FU
Q8353 22274074ER2TO TC74VHC74FT
Q8401 22242053R3 SiI160CTG100
Q8501,Q8601 22242162R3 SII1161CTU
Q8502,Q8602 22242087R2 NJM2860F3-33
Q8701 NSP WMPD70F3261YGC-8EA (0089)
Q8702 22242070R2 BR24L08FV-W
Q8801 22242058R3 ADV7310
Q8802 22278025DR2JR or NJM2391DL1-25 or
22278025DR2NE MPC2925T
Transistors
Q8306 2216131R2 or HN1C03F-A or
2216141R2 HN1C03F-B
Q8307 2216410R2 2SA1774
Q8308,Q8505,Q8605 2216400R2 2SB1132
Q8309,Q8503 226066R2 UM6K1N,Array
Q8506,Q8606 2216390R2 DTC144EE
Q8507,Q8607 2216380R2 DTA144EE
Q8508,Q8603 226066R2 UM6K1N,Array
Q8509,Q8858 2216520R2 2SK3019
Q8901,Q8902,Q8903 2214375R2 2SA1162-GR
Diodes
D8101,D8102,D8103 223266R2 1SS226
D8104,D8105,D8106 223266R2 1SS226
D8701 223269R2 1SS355
Coils
L8001,L8002,L8003 231237M022R2 NCH-1471
L8004,L8101,L8103 231237M022R2 NCH-1471
L8102 231237K470R2 NCH-1479
L8104,L8105 231237M022R2 NCH-1471
L8301,L8303,L8401 231237M047R2 NCH-1473
L8302,L8304 231237M022R2 NCH-1471
L8350,L8351,L8402 231237M022R2 NCH-1471
L8352,L8354,L8355 230958R1 BK1608LM182-T,EMI
R8102,R8104,R8106 230984R1 BK1608HS601-T,EMI
L8403,L8404,L8405 231237M047R2 NCH-1473
L8501,L8502,L8503 231237M047R2 NCH-1473
L8504,L8601,L8602 231237M047R2 NCH-1473
CIRCUIT NO. PART NO. DESCRIPTION
Coils
L8603,L8604,L8701 231237M047R2 NCH-1473
L8801,L8802,L8803 231237M022R2 NCH-1471
L8901,L8902,L8903 3030049R2 CY4W(15MHz),LC
Oscillators
X8001 3010389R2 FCX03-20.000MHz
X8101 3010353R2 FCX-03-27MHz
X8350 3010323R2 HC-49/U03C 12.288MHz
X8701 3010356R2 CSTCR5M00G53-B0,Ceramic
Capacitors
C8127 332101035R1 CK725B1H-103K1,Chip ceramic
C8352 332102225R1 CK725B1H-222K1,Chip ceramic
C8353 332104735R1 CK725B1H-473K1,Chip ceramic
C8001,C8002,C8003 332181050R1 CK725F1A-105Z1,Chip ceramic
C8004,C8006,C8010 332181050R1 CK725F1A-105Z1,Chip ceramic
C8005,C8333 342101002R1 CC725CH1H-100D1,Chip ceramic
C8011,C8012,C8013 332181050R1 CK725F1A-105Z1,Chip ceramic
C8014,C8020,C8021 332181050R1 CK725F1A-105Z1,Chip ceramic
C8019,C8108,C8109 332161040R1 CK725F1E-104Z1,Chip ceramic
C8022,C8023,C8024 332181050R1 CK725F1A-105Z1,Chip ceramic
C8025,C8026,C8027 332181050R1 CK725F1A-105Z1,Chip ceramic
C8028,C8029,C8031 332181050R1 CK725F1A-105Z1,Chip ceramic
C8030,C8035,C8119 342101024R1 CC725CH1H-102J1,Chip ceramic
C8032,C8078,C8142 356742209R2 CEWX16V-22M,Chip elect.
C8033,C8040,C8045 332181050R1 CK725F1A-105Z1,Chip ceramic
C8034,C8120 342101014R1 CC725CH1H-101J1,Chip ceramic
C8036,C8038 342101204R1 CC725CH1H-120J1,Chip ceramic
C8041,C8042,C8043 3567A2219R2 CEWX4V-220M,Chip elect.
C8044,C8305,C8311 3567A2219R2 CEWX4V-220M,Chip elect.
C8046,C8047,C8048 332181050R1 CK725F1A-105Z1,Chip ceramic
C8049,C8050,C8051 332181050R1 CK725F1A-105Z1,Chip ceramic
C8052,C8053,C8054 332181050R1 CK725F1A-105Z1,Chip ceramic
C8055,C8056,C8301 332181050R1 CK725F1A-105Z1,Chip ceramic
C8077,C8110,C8111 356741009R2 CEWX16V-10M,Chip elect.
C8079,C8101,C8135 3567A1019R2 CEWX4V-100M,,Chip elect.
C8102,C8103,C8104 332121045R1 CK725B1C-104K1,Chip ceramic
C8105,C8106,C8107 332121045R1 CK725B1C-104K1,Chip ceramic
C8112,C8113,C8114 332161040R1 CK725F1E-104Z1,Chip ceramic
C8115,C8116,C8121 332161040R1 CK725F1E-104Z1,Chip ceramic
C8117,C8118,C8141 356741009R2 CEWX16V-10M,Chip elect.
C8122,C8123,C8124 332161040R1 CK725F1E-104Z1,Chip ceramic
C8125,C8126,C8129 332161040R1 CK725F1E-104Z1,Chip ceramic
C8128,C8808,C8810 332121045R1 CK725B1C-104K1,Chip ceramic
C8130,C8131,C8139 332161040R1 CK725F1E-104Z1,Chip ceramic
C8133,C8134 342101504R1 CC725CH1H-150J1,Chip ceramic
C8136,C8137,C8138 3567A1019R2 CEWX4V-100M,,Chip elect.
C8140,C8151,C8152 332161040R1 CK725F1E-104Z1,Chip ceramic
C8143,C8192,C8592 3567A1019R2 CEWX4V-100M,,Chip elect.
C8153,C8154,C8851 356721019R2 CEWX6.3V-100M,Chip elect.
C8191,C8591,C8901 332161040R1 CK725F1E-104Z1,Chip ceramic
C8302,C8304,C8306 332181050R1 CK725F1A-105Z1,Chip ceramic
C8303,C8307,C8315 342101024R1 CC725CH1H-102J1,Chip ceramic
C8308,C8309,C8312 332181050R1 CK725F1A-105Z1,Chip ceramic
C8313,C8320,C8323 3567A2219R2 CEWX4V-220M,Chip elect.
C8314,C8316,C8317 332181050R1 CK725F1A-105Z1,Chip ceramic
C8318,C8321,C8322 332181050R1 CK725F1A-105Z1,Chip ceramic
C8326,C8327,C8329 332181050R1 CK725F1A-105Z1,Chip ceramic
C8328,C8355 356742209R2 CEWX16V-22M,Chip elect.
C8330,C8332,C8350 332181050R1 CK725F1A-105Z1,Chip ceramic
C8331 356741009R2 CEWX16V-10M,Chip elect.
C8351,C8354,C8356 332181050R1 CK725F1A-105Z1,Chip ceramic
C8357,C8358 342101204R1 CC725CH1H-120J1,Chip ceramic
C8359,C8398,C8399 332181050R1 CK725F1A-105Z1,Chip ceramic
C8401,C8402,C8405 332181050R1 CK725F1A-105Z1,Chip ceramic
C8404,C8412,C8416 3567A2219R2 CEWX4V-220M,Chip elect.
C8406,C8425,C8516 342101024R1 CC725CH1H-102J1,Chip ceramic
C8407,C8408,C8409 332181050R1 CK725F1A-105Z1,Chip ceramic
C8410,C8411,C8413 332181050R1 CK725F1A-105Z1,Chip ceramic
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C8414,C8415,C8417 332181050R1 CK725F1A-105Z1,Chip ceramic
C8418,C8421,C8423 3567A2219R2 CEWX4V-220M,Chip elect.
C8419,C8420,C8422 332181050R1 CK725F1A-105Z1,Chip ceramic
C8424,C8426,C8427 332181050R1 CK725F1A-105Z1,Chip ceramic
C8428,C8501,C8502 332181050R1 CK725F1A-105Z1,Chip ceramic
C8503,C8504,C8505 332181050R1 CK725F1A-105Z1,Chip ceramic
C8506,C8507,C8508 332181050R1 CK725F1A-105Z1,Chip ceramic
C8509,C8510,C8511 332181050R1 CK725F1A-105Z1,Chip ceramic
C8512,C8513,C8515 332181050R1 CK725F1A-105Z1,Chip ceramic
C8514,C8518,C8521 3567A2219R2 CEWX4V-220M,Chip elect.
C8517,C8519,C8520 332181050R1 CK725F1A-105Z1,Chip ceramic
C8522,C8523,C8526 332181050R1 CK725F1A-105Z1,Chip ceramic
C8524,C8525,C8614 3567A2219R2 CEWX4V-220M,Chip elect.
C8527,C8597,C8598 332181050R1 CK725F1A-105Z1,Chip ceramic
C8528,C8628 356781009R2 CEWX50V-10M,Chip elect.
C8599,C8601,C8602 332181050R1 CK725F1A-105Z1,Chip ceramic
C8603,C8604,C8605 332181050R1 CK725F1A-105Z1,Chip ceramic
C8606,C8607,C8608 332181050R1 CK725F1A-105Z1,Chip ceramic
C8609,C8610,C8611 332181050R1 CK725F1A-105Z1,Chip ceramic
C8612,C8613,C8615 332181050R1 CK725F1A-105Z1,Chip ceramic
C8616,C8805 342101024R1 CC725CH1H-102J1,Chip ceramic
C8617,C8619,C8620 332181050R1 CK725F1A-105Z1,Chip ceramic
C8618,C8621,C8624 3567A2219R2 CEWX4V-220M,Chip elect.
C8622,C8623,C8626 332181050R1 CK725F1A-105Z1,Chip ceramic
C8625,C8709,C8802 3567A2219R2 CEWX4V-220M,Chip elect.
C8627,C8697,C8698 332181050R1 CK725F1A-105Z1,Chip ceramic
C8699,C8701,C8702 332181050R1 CK725F1A-105Z1,Chip ceramic
C8703,C8705,C8706 332181050R1 CK725F1A-105Z1,Chip ceramic
C8704 356780479R2 CEWX50V-4.7M,Chip elect.
C8707,C8708,C8710 332181050R1 CK725F1A-105Z1,Chip ceramic
C8801,C8803,C8804 332181050R1 CK725F1A-105Z1,Chip ceramic
C8806 373023924R2 ECHU50V-392J,Chip film
C8807 342108214R1 CC725CH1H-821J1,Chip ceramic
C8809,C8811 332181050R1 CK725F1A-105Z1,Chip ceramic
C8812,C8817 332181050R1 CK725F1A-105Z1,Chip ceramic
C8814,C8816 3567A2219R2 CEWX4V-220M,Chip elect.
C8818 356744709R2 CEWX16V-47M,Chip elect.
C8852,C8906,C8907 356721019R2 CEWX6.3V-100M,Chip elect.
C8853,C8854,C8855 356723319R2 CEWX6.3V-330M,Chip elect.
C8902,C8903,C8904 332161040R1 CK725F1E-104Z1,Chip ceramic
C8905 332161040R1 CK725F1E-104Z1,Chip ceramic
C8908,C8909,C8910 356723319R2 CEWX6.3V-330M,Chip elect.
R8354 332161040R1 CK725F1E-104Z1,Chip ceramic
Resistors
R8341 433421004R1 RN72K2E-100JD,Chip carbon
R8001,R8002,R8003 435032204R1 RN72K1J-220JE,Chip carbon
R8004,R8005,R8006 43484710004R2 RM7LJ100X04,CR array
R8007,R8008,R8009 43484710004R2 RM7LJ100X04,CR array
R8010,R8011 43484710004R2 RM7LJ100X04,CR array
R8013 435031004R1 RN72K1J-100JE,Chip carbon
R8018,R8019,R8045 435034724R1 RN72K1J-472JE,Chip carbon
R8024,R8025,R8026 435030004R1 RN72K1J-000JE,Chip carbon
R8027,R8029,R8037 435030004R1 RN72K1J-000JE,Chip carbon
R8028,R8305,R8323 435031032R1 RN72K1J-103FE,Chip carbon
R8034,R8035,R8036 435032224R1 RN72K1J-222JE,Chip carbon
R8038,R8053,R8065 435031024R1 RN72K1J-102JE,Chip carbon
R8041,R8103 435031014R1 RN72K1J-101JE,Chip carbon
R8047,R8050,R8051 435034724R1 RN72K1J-472JE,Chip carbon
R8055,R8082,R8374 435031054R1 RN72K1J-105JE,Chip carbon
R8056 435030004R1 RN72K1J-000JE,Chip carbon
R8057,R8058,R8066 435034724R1 RN72K1J-472JE,Chip carbon
R8061,R8062,R8064 435032222R1 RN72K1J-222FE,Chip carbon
R8067,R8072,R8114 435031024R1 RN72K1J-102JE,Chip carbon
R8071,R8119,R8325 435034724R1 RN72K1J-472JE,Chip carbon
R8079,R8143 435031512R1 RN72K1J-151FE,Chip carbon
R8080,R8145 435033912R1 RN72K1J-391FE,Chip carbon
R8081,R8113,R8115 435032722R1 RN72K1J-272FE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R8088 435034702R1 RN72K1J-470FE,Chip carbon
R8089,R8090,R8091 435032222R1 RN72K1J-222FE,Chip carbon
R8101,R8105,R8107 435036804R1 RN72K1J-680JE,Chip carbon
R8109,R8111 435036804R1 RN72K1J-680JE,Chip carbon
R8116,R8117,R8312 435032222R1 RN72K1J-222FE,Chip carbon
R8120 435033334R1 RN72K1J-333JE,Chip carbon
R8121,R8331 435031824R1 RN72K1J-182JE,Chip carbon
R8123,R8129,R8130 43484722004R2 RM7LJ220X04,CR array
R8124,R8125,R8126 435032204R1 RN72K1J-220JE,Chip carbon
R8128,R8132,R8133 435032204R1 RN72K1J-220JE,Chip carbon
R8131,R8134,R8137 43484722004R2 RM7LJ220X04,CR array
R8135,R8136,R8142 435032204R1 RN72K1J-220JE,Chip carbon
R8138,R8139,R8140 43484722004R2 RM7LJ220X04,CR array
R8141,R8181,R8182 43484722004R2 RM7LJ220X04,CR array
R8144,R8811,R8812 435032722R1 RN72K1J-272FE,Chip carbon
R8151,R8152,R8153 435031044R1 RN72K1J-104JE,Chip carbon
R8155,R8156,R8157 435031044R1 RN72K1J-104JE,Chip carbon
R8165,R8166,R8167 435032204R1 RN72K1J-220JE,Chip carbon
R8168,R8169,R8170 435031024R1 RN72K1J-102JE,Chip carbon
R8171,R8172,R8307 435031024R1 RN72K1J-102JE,Chip carbon
R8173,R8174,R8175 435030004R1 RN72K1J-000JE,Chip carbon
R8183,R8184,R8185 43484722004R2 RM7LJ220X04,CR array
R8186 43484722004R2 RM7LJ220X04,CR array
R8187,R8188,R8189 435032204R1 RN72K1J-220JE,Chip carbon
R8190 435032204R1 RN72K1J-220JE,Chip carbon
R8301,R8302,R8303 435030004R1 RN72K1J-000JE,Chip carbon
R8304,R8371,R8405 435034712R1 RN72K1J-471FE,Chip carbon
R8306,R8376,R8807 435034704R1 RN72K1J-470JE,Chip carbon
R8308,R8309 435031044R1 RN72K1J-104JE,Chip carbon
R8310,R8311,R8319 435032204R1 RN72K1J-220JE,Chip carbon
R8313,R8339,R8711 435032222R1 RN72K1J-222FE,Chip carbon
R8314 435035612R1 RN72K1J-561FE,Chip carbon
R8315,R8316,R8317 43484700004R2 RM7LJ000X04,CR array
R8318,R8320,R8321 43484700004R2 RM7LJ000X04,CR array
R8322,R8407 435034734R1 RN72K1J-473JE,Chip carbon
R8324,R8351,R8369 435031032R1 RN72K1J-103FE,Chip carbon
R8326,R8401,R8404 435034724R1 RN72K1J-472JE,Chip carbon
R8327,R8333,R8342 435031024R1 RN72K1J-102JE,Chip carbon
R8328,R8329,R8332 435033324R1 RN72K1J-332JE,Chip carbon
R8334,R8335 435032022R1 RN72K1J-202FE,Chip carbon
R8337,R8938 435034722R1 RN72K1J-472FE,Chip carbon
R8340 435031502R1 RN72K1J-150FE,Chip carbon
R8352,R8356,R8367 435031024R1 RN72K1J-102JE,Chip carbon
R8355 435033022R1 RN72K1J-302FE,Chip carbon
R8357,R8358,R8359 435031044R1 RN72K1J-104JE,Chip carbon
R8360,R8361 435031044R1 RN72K1J-104JE,Chip carbon
R8363,R8364,R8365 435034702R1 RN72K1J-470FE,Chip carbon
R8373,R8706,R8707 435031032R1 RN72K1J-103FE,Chip carbon
R8375,R8856 435035614R1 RN72K1J-561JE,Chip carbon
R8378,R8379,R8816 435031034R1 RN72K1J-103JE,Chip carbon
R8403,R8507,R8541 435030004R1 RN72K1J-000JE,Chip carbon
R8406 435035112R1 RN72K1J-511FE,Chip carbon
R8502,R8504,R8506 435034724R1 RN72K1J-472JE,Chip carbon
R8503,R8603 435034712R1 RN72K1J-471FE,Chip carbon
R8509,R8532,R8539 435034724R1 RN72K1J-472JE,Chip carbon
R8510,R8537,R8538 435031024R1 RN72K1J-102JE,Chip carbon
R8511,R8512,R8513 43484722004R2 RM7LJ220X04,CR array
R8514,R8515,R8516 43484722004R2 RM7LJ220X04,CR array
R8517,R8518,R8519 435032204R1 RN72K1J-220JE,Chip carbon
R8520,R8521,R8522 435032204R1 RN72K1J-220JE,Chip carbon
R8523,R8617,R8618 435032204R1 RN72K1J-220JE,Chip carbon
R8524,R8525,R8526 43484722004R2 RM7LJ220X04,CR array
R8527,R8528,R8529 43484722004R2 RM7LJ220X04,CR array
R8530,R8630 435033914R1 RN72K1J-391JE,Chip carbon
R8533,R8633,R8738 435034734R1 RN72K1J-473JE,Chip carbon
R8602,R8604,R8606 435034724R1 RN72K1J-472JE,Chip carbon
R8607,R8641,R8708 435030004R1 RN72K1J-000JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R8609,R8632,R8639 435034724R1 RN72K1J-472JE,Chip carbon
R8610,R8637,R8638 435031024R1 RN72K1J-102JE,Chip carbon
R8611,R8612,R8613 43484722004R2 RM7LJ220X04,CR array
R8614,R8615,R8616 43484722004R2 RM7LJ220X04,CR array
R8619,R8620,R8621 435032204R1 RN72K1J-220JE,Chip carbon
R8622,R8623,R8709 435032204R1 RN72K1J-220JE,Chip carbon
R8624,R8625,R8626 43484722004R2 RM7LJ220X04,CR array
R8627,R8628,R8629 43484722004R2 RM7LJ220X04,CR array
R8701 435034724R1 RN72K1J-472JE,Chip carbon
R8705,R8857,R8858 435031024R1 RN72K1J-102JE,Chip carbon
R8710,R8815 435031032R1 RN72K1J-103FE,Chip carbon
R8712,R8803,R8804 435032222R1 RN72K1J-222FE,Chip carbon
R8713,R8714,R8715 435032204R1 RN72K1J-220JE,Chip carbon
R8716,R8719,R8720 435032204R1 RN72K1J-220JE,Chip carbon
R8717,R8718,R8744 435030004R1 RN72K1J-000JE,Chip carbon
R8721,R8740,R8741 435032204R1 RN72K1J-220JE,Chip carbon
R8722,R8723,R8859 435032224R1 RN72K1J-222JE,Chip carbon
R8728 43484710304R2 RM7LJ103X04,CR array
R8742,R8743,R8745 435032204R1 RN72K1J-220JE,Chip carbon
R8746,R8799,R8802 435030004R1 RN72K1J-000JE,Chip carbon
R8747,R8748,R8749 435032204R1 RN72K1J-220JE,Chip carbon
R8750,R8751,R8752 435032204R1 RN72K1J-220JE,Chip carbon
R8753,R8754,R8755 435032204R1 RN72K1J-220JE,Chip carbon
R8805,R8806,R8817 435032204R1 RN72K1J-220JE,Chip carbon
R8808,R8809,R8810 435036812R1 RN72K1J-681FE,Chip carbon
R8813,R8814 435036812R1 RN72K1J-681FE,Chip carbon
R8818,R8919 435031034R1 RN72K1J-103JE,Chip carbon
R8819,R8829,R8830 435032204R1 RN72K1J-220JE,Chip carbon
R8820,R8907,R8908 435030004R1 RN72K1J-000JE,Chip carbon
R8821,R8822,R8823 43484700004R2 RM7LJ000X04,CR array
R8824,R8825,R8826 43484700004R2 RM7LJ000X04,CR array
R8827,R8828 43484700004R2 RM7LJ000X04,CR array
R8851,R8852,R8853 435031514R1 RN72K1J-151JE,Chip carbon
R8854,R8855 435031524R1 RN72K1J-152JE,Chip carbon
R8901,R8902,R8903 435031512R1 RN72K1J-151FE,Chip carbon
R8909,R8916,R8917 435030004R1 RN72K1J-000JE,Chip carbon
R8910,R8911,R8912 435031824R1 RN72K1J-182JE,Chip carbon
R8913,R8914,R8915 435034712R1 RN72K1J-471FE,Chip carbon
R8918 435030004R1 RN72K1J-000JE,Chip carbon
R8920,R8921 435031034R1 RN72K1J-103JE,Chip carbon
R8922,R8923,R8924 435034712R1 RN72K1J-471FE,Chip carbon
R8925,R8927,R8928 435035624R1 RN72K1J-562JE,Chip carbon
R8929,R8930,R8931 435034712R1 RN72K1J-471FE,Chip carbon
R8932,R8933,R8934 435031024R1 RN72K1J-102JE,Chip carbon
Terminals
P8302,P8501,P8601 25052956R3 DC1R019JDA,HDMI
Plugs
P8000,P8001 25056324R2 IMSA-9850B-20Y902
P8702 25055704 NPLG-8P660
Audio IN/OUT terminal 1 PC board(NAAF-8144-1A/1B)
Audio IN/OUT terminal 2 PC board(NAAF-8145-1A/1B)
Connector PC board(NAETC-8146-1A/1B)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q1460,Q1465,Q1470 22240489R1NE MPC4570G2-T1(MST)
Q1475,Q1476,Q1480 22240489R1NE MPC4570G2-T1(MST)
Q1485,Q1486 22242107R2 WM8816
Q1490 22240489R1NE MPC4570G2-T1(MST)
Q1655,Q1656 22242107R2 WM8816
Q1665,Q1666,Q1675 22240489R1NE MPC4570G2-T1(MST)
Q1860 22242102R3 TC9274FG-023
Q1867 222780053R2JR 78L05(NJM78L05UA)
Q401,Q402,Q403,Q404 22240489R1NE MPC4570G2-T1(MST)
Q405,Q406,Q415 22240489R1NE MPC4570G2-T1(MST)
Q420 22242099R2 TC9162BFG
Q421 22242103R3 TC94A46FG
CIRCUIT NO. PART NO. DESCRIPTION
Transistors
Q1500,Q1501,Q1510 2215410R2 RN1441
Q1511,Q1520,Q1521 2215410R2 RN1441
Q1530,Q1531,Q1540 2215410R2 RN1441
Q1541,Q1550,Q1551 2215410R2 RN1441
Q1861,Q1863,Q1865 2213145R2 or 2SC2712-GR or
Q1868,Q1869,Q1870 2216175R2 KTC3875-GR
Q1862,Q1864,Q1866 or 2214530R2 or RN2402 or
2216220R2 KRA102S
Q407,Q408,Q409,Q410 2215410R2 RN1441
Q411,Q412,Q413,Q414 2215410R2 RN1441
Q416,Q418,Q422,Q423 2213145R2 or 2SC2712-GR or
2216175R2 KTC3875-GR
Q417,Q419 2214530R2 or RN2402 or
2216220R2 KRA102S
Capacitors
C1460,C1461 373022214R2 ECHU50V-221J,Chip film
C1465,C1466,C1470 395924707 CE04W6.3V-47M(RFS),Elect.
C1471,C1600,C1601 395924707 CE04W6.3V-47M(RFS),Elect.
C1475,C1476,C1525 395941007 CE04W16V-10M(RFS),Elect.
C1480,C1481 373021524R2 ECHU50V-152J,Chip film
C1485,C1486 342101014R1 CC725CH1H-101J1,Chip ceramic
C1490,C1491 373021234R2 ECHU50V-123J,Chip film
C1495,C1496,C1685 393341007 or CE04W16V-10M(VX) or
394641007 CE04W16V-10M(VR),Elect.
C1500,C1501 373023924R2 ECHU50V-392J,Chip film
C1505,C1506,C1515 374722244 ECQ-V50V-224J,Plastic film
C1510,C1511 393322217 CE04W6.3V-220M(VX),Elect.
C1516,C1695,C1696 374722244 ECQ-V50V-224J,Plastic film
C1520,C1521,C1550 393344707 or CE04W16V-47M(VX) or
394644707 CE04W16V-47M(VR),Elect.
C1526,C1625,C1626 395941007 CE04W16V-10M(RFS),Elect.
C1530,C1531,C1560 373023314R2 ECHU50V-331J,Chip film
C1540,C1541 395852207 CE04W25V-22M(ROB),Elect.
C1545,C1456 25060406 TP00509-3C
C1551,C1595,C1596 393344707 or CE04W16V-47M(VX) or
394644707 CE04W16V-47M(VR),Elect.
C1561,C1590,C1591 373023314R2 ECHU50V-331J,Chip film
C1570,C1571 395824707 CE04W6.3V-47M(ROB),Elect.
C1575,C1576,C1585 342101002R1 CC725CH1H-100D1,Chip ceramic
C1580,C1581,C1610 332161040R1 CK725F1E-104Z1,Chip ceramic
C1586,C1725,C1726 342101002R1 CC725CH1H-100D1,Chip ceramic
C1605,C1606,C1735 393344707 or CE04W16V-47M(VX) or
394644707 CE04W16V-47M(VR),Elect.
C1611,C1861,C1862 332161040R1 CK725F1E-104Z1,Chip ceramic
C1615,C1616,C1655 395924707 CE04W6.3V-47M(RFS),Elect.
C1620,C1621,C1630 373021024R2 ECHU50V-102J,Chip film
C1631,C1640,C1641 373021024R2 ECHU50V-102J,Chip film
C1656,C1805,C1806 395924707 CE04W6.3V-47M(RFS),Elect.
C1665,C1666,C1715 395941007 CE04W16V-10M(RFS),Elect.
C1675,C1676 342101014R1 CC725CH1H-101J1,Chip ceramic
C1686 393341007 or CE04W16V-10M(VX) or
C1869,C1870,C1871 394641007 CE04W16V-10M(VR),Elect.
C1705,C1706 374722244 ECQ-V50V-224J,Plastic film
C1716,C1755,C1756 395941007 CE04W16V-10M(RFS),Elect.
C1736,C1815,C1816 393344707 or CE04W16V-47M(VX) or
394644707 CE04W16V-47M(VR),Elect.
C1795,C1796 342101002R1 CC725CH1H-100D1,Chip ceramic
C1860,C454,C458 393364707 or CE04W35V-47M(VX) or
394664707 CE04W35V-47M(VR),Elect.
C1863 342103314R1 CC725CH1H-331J1,Chip ceramic
C1864,C1865 332161040R1 CK725F1E-104Z1,Chip ceramic
C1866,C1867 332161040R1 CK725F1E-104Z1,Chip ceramic
C1868 393324707 or CE04W6.3V-47M(VX) or
394624707 CE04W6.3V-47M(VR),Elect.
C1880,C1881 395852207 CE04W25V-22M(ROB),Elect.
C1890,C1891 395824707 CE04W6.3V-47M(ROB),Elect.
C1900,C1901,C1902 342103304R1 CC725CH1H-330J1,Chip ceramic
C1903,C1904,C1905 342103304R1 CC725CH1H-330J1,Chip ceramic
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C1906,C1907 342103304R1 CC725CH1H-330J1,Chip ceramic
C401,C402,C403,C404 373023314R2 ECHU50V-331J,Chip film
C405,C406,C407,C408 373023314R2 ECHU50V-331J,Chip film
C409,C410,C411,C412 373023314R2 ECHU50V-331J,Chip film
C413,C414 395952207 CE04W25V-22M(RFS),Elect.
C415,C416,C417,C418 395924707 CE04W6.3V-47M(RFS),Elect.
C419,C420,C421,C422 395924707 CE04W6.3V-47M(RFS),Elect.
C423,C424,C443,C444 395924707 CE04W6.3V-47M(RFS),Elect.
C425,C426,C429,C430 393344707 or CE04W16V-47M(VX) or
C433,C434,C445,C446 394644707 CE04W16V-47M(VR),Elect.
C427,C428,C431,C432 332161040R1 CK725F1E-104Z1,Chip ceramic
C435,C436,C449,C450 332161040R1 CK725F1E-104Z1,Chip ceramic
C437,C438,C439,C440 373021024R2 ECHU50V-102J,Chip film
C441,C442 373023314R2 ECHU50V-331J,Chip film
C447,C448 393342217 or CE04W16V-220M(VX) or
394642217 CE04W16V-220M(VR),Elect.
C451,C452,C453 332161040R1 CK725F1E-104Z1,Chip ceramic
C455,C457 342103314R1 CC725CH1H-331J1,Chip ceramic
C456,C459 332161040R1 CK725F1E-104Z1,Chip ceramic
C460,C461 393341007 or CE04W16V-10M(VX) or
394641007 CE04W16V-10M(VR),Elect.
Resistors
R1460,R1461,R1550 435023314R1 RN72W1J-331JE,Chip carbon
R1465,R1466,R1475 435022244R1 RN72W1J-224JE,Chip carbon
R1470,R1471,R1560 435025634R1 RN72W1J-563JE,Chip carbon
R1476,R1505,R1506 435022244R1 RN72W1J-224JE,Chip carbon
R1480,R1481,R1515 435024744R1 RN72W1J-474JE,Chip carbon
R1485,R1486,R1495 435021054R1 RN72W1J-105JE,Chip carbon
R1490,R1491 435024734R1 RN72W1J-473JE,Chip carbon
R1496,R1685,R1686 435021054R1 RN72W1J-105JE,Chip carbon
R1500,R1501 435025614R1 RN72W1J-561JE,Chip carbon
R1510,R1511 435022744R1 RN72W1J-274JE,Chip carbon
R1516,R1525,R1526 435024744R1 RN72W1J-474JE,Chip carbon
R1520,R1521 435022234R1 RN72W1J-223JE,Chip carbon
R1530,R1531 435021224R1 RN72W1J-122JE,Chip carbon
R1535,R1536,R1705 435024744R1 RN72W1J-474JE,Chip carbon
R1540,R1541,R1660 435021004R1 RN72W1J-100JE,Chip carbon
R1551,R1580,R1581 435023314R1 RN72W1J-331JE,Chip carbon
R1561,R1590,R1591 435025634R1 RN72W1J-563JE,Chip carbon
R1570,R1571,R1600 435022244R1 RN72W1J-224JE,Chip carbon
R1601,R1630,R1631 435022244R1 RN72W1J-224JE,Chip carbon
R1610,R1611 435023314R1 RN72W1J-331JE,Chip carbon
R1620,R1621 435025634R1 RN72W1J-563JE,Chip carbon
R1640,R1641,R1690 435024704R1 RN72W1J-470JE,Chip carbon
R1650,R1651,R1655 435022244R1 RN72W1J-224JE,Chip carbon
R1656,R1665,R1666 435022244R1 RN72W1J-224JE,Chip carbon
R1661,R1710,R1711 435021004R1 RN72W1J-100JE,Chip carbon
R1670,R1671,R1720 435021014R1 RN72W1J-101JE,Chip carbon
R1675,R1676,R1700 435022244R1 RN72W1J-224JE,Chip carbon
R1680,R1681,R1730 435022214R1 RN72W1J-221JE,Chip carbon
R1691,R1740,R1741 435024704R1 RN72W1J-470JE,Chip carbon
R1695,R1696 435021054R1 RN72W1J-105JE,Chip carbon
R1701,R1750,R1751 435022244R1 RN72W1J-224JE,Chip carbon
R1706,R1715,R1716 435024744R1 RN72W1J-474JE,Chip carbon
R1721,R1770,R1771 435021014R1 RN72W1J-101JE,Chip carbon
R1725,R1726 435024744R1 RN72W1J-474JE,Chip carbon
R1731,R1780,R1781 435022214R1 RN72W1J-221JE,Chip carbon
R1760,R1761 435021004R1 RN72W1J-100JE,Chip carbon
R1866,R1867 435030004R1 RN72K1J-000JE,Chip carbon
R1868,R1869,R1870 435022244R1 RN72W1J-224JE,Chip carbon
R1871,R1872,R1873 435021034R1 RN72W1J-103JE,Chip carbon
R1874,R1875,R1876 435024724R1 RN72W1J-472JE,Chip carbon
R1877,R1878,R1879 435021024R1 RN72W1J-102JE,Chip carbon
R401,R402,R403,R404 435023314R1 RN72W1J-331JE,Chip carbon
R405,R406,R407,R408 435023314R1 RN72W1J-331JE,Chip carbon
R409,R410,R411,R412 435023314R1 RN72W1J-331JE,Chip carbon
R413,R414,R415,R416 435025634R1 RN72W1J-563JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R417,R418,R419,R420 435025634R1 RN72W1J-563JE,Chip carbon
R421,R422,R423,R424 435025634R1 RN72W1J-563JE,Chip carbon
R425,R426,R427,R428 435022244R1 RN72W1J-224JE,Chip carbon
R429,R430,R431,R432 435022244R1 RN72W1J-224JE,Chip carbon
R433,R434,R435,R436 435022244R1 RN72W1J-224JE,Chip carbon
R437,R438,R439,R440 435024704R1 RN72W1J-470JE,Chip carbon
R441,R442,R443,R444 435022244R1 RN72W1J-224JE,Chip carbon
R445,R446,R447,R448 435021004R1 RN72W1J-100JE,Chip carbon
R449,R450,R451,R452 435021014R1 RN72W1J-101JE,Chip carbon
R453,R454,R455,R456 435022214R1 RN72W1J-221JE,Chip carbon
R457,R458 435023314R1 RN72W1J-331JE,Chip carbon
R459,R460 435025634R1 RN72W1J-563JE,Chip carbon
R461,R462,R473,R474 435022244R1 RN72W1J-224JE,Chip carbon
R463,R464 443622204 RS1WBJ-22,Metal oxide
R475,R476 435021034R1 RN72W1J-103JE,Chip carbon
R477,R478 435024724R1 RN72W1J-472JE,Chip carbon
R479,R480 435021024R1 RN72W1J-102JE,Chip carbon
R481 435030004R1 RN72K1J-000JE,Chip carbon
Terminals
P1860 25045424 NPJ-2PDBL249
P1861,P1862 25045565 NPJ-6PDBL380
P401,P402 25045565 NPJ-6PDBL380
P403 25045491 NPJ-4PDBL308
Sockets
P1863B,P1864B 25051527 NSCT-16P1314
P1865B 25051527 NSCT-16P1314
P406B,P407B,P408B 25051527 NSCT-16P1314
Plugs
P1863A,P1864A 25055805 NPLG-16P761
P1865A 25055805 NPLG-16P761
P3108A 25056324R2 IMSA-9850B-20Y902
P3109A 25056329R2 IMSA-9850B-30Y902
P406A,P407A,P408A 25055805 NPLG-16P761
Multi channel PC board(NAAF-8150-1A) <P/DT/GT/A/K
>
Option board (C-AES)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q1080,Q1081,Q1082 22240489R1NE MPC4570G2-T1(MST)
Q1083,Q1084,Q1085 22240489R1NE MPC4570G2-T1(MST)
Q1086,Q1087,Q1090 22240489R1NE MPC4570G2-T1(MST)
Q1100,Q1110,Q1120 22240489R1NE MPC4570G2-T1(MST)
Q1170 222740046R2 74HCU04F
Q1171 22242127R2 MAX3280EAUK-T
Q1402,Q1405 22242092R2 AK5384VF
Q1403 22241547R2 NJM2370U33
Q1404 22241649R2 TC7WHU04FK
Diodes
D1400,D1401,D1402 223234R2 or 1SS352 or
D1403,D1404,D1405 223269R2 1SS355
D1406,D1407,D1408 223234R2 or 1SS352 or
D1409,D1410,D1411 223269R2 1SS355
D1412,D1413,D1414 223234R2 or 1SS352 or
D1415,D1416,D1417 223269R2 1SS355
D1418,D1419,D1420 223234R2 or 1SS352 or
D1421,D1422,D1423 223269R2 1SS355
D1424,D1425,D1426 223234R2 or 1SS352 or
D1427,D1428,D1429 223269R2 1SS355
D1430,D1431 223234R2 or 1SS352 or
223269R2 1SS355
Coils
L1400,L1401,L1402 231237M022R2 or NCH-1471 or
L1403,L1405 233533M022R2 NCH-1587-022M
L1404,L1406 230958R1 BK1608LM182-T,EMI
L1407,L1408 231237M022R2 or NCH-1471 or
233533M022R2 NCH-1587-022M
R1413,R1414 230955R2 BK1608HS102-T,EMI
R1418,R1419 230955R2 BK1608HS102-T,EMI
CIRCUIT NO. PART NO. DESCRIPTION
Oscillator
X1400 3010385R2 FCX-03-24.576MHz
Capacitors
C1000,C1001,C1030 373023314R2 ECHU50V-331J,Chip film
C1010,C1011,C1040 395852207 CE04W25V-22M(ROB),Elect.
C1020,C1021 393342217 or CE04W16V-220M(VX) or
394642217 CE04W16V-220M(VR),Elect.
C1031,C1060,C1061 373023314R2 ECHU50V-331J,Chip film
C1041,C1070,C1071 395952207 CE04W25V-22M(RFS),Elect.
C1090,C1091 373023314R2 ECHU50V-331J,Chip film
C1100,C1101,C1310 395852207 CE04W25V-22M(ROB),Elect.
C1240,C1241,C1242 395942207 CE04W16V-22M(RFS),Elect.
C1243,C1244,C1245 395942207 CE04W16V-22M(RFS),Elect.
C1246,C1247,C1293 395942207 CE04W16V-22M(RFS),Elect.
C1250,C1251,C1252 373021524R2 ECHU50V-152J,Chip film
C1253,C1254,C1255 373021524R2 ECHU50V-152J,Chip film
C1256,C1257 373021524R2 ECHU50V-152J,Chip film
C1260,C1263 393341017 or CE04W16V-100M(VX) or
C1281,C1284 394641017 CE04W16V-100M(VR),Elect.
C1270,C1273,C1301 332161040R1 CK725F1E-104Z1,Chip ceramic
C1290,C1291,C1292 395824707 CE04W6.3V-47M(ROB),Elect.
C1294,C1298 395942207 CE04W16V-22M(RFS),Elect.
C1295,C1296,C1370 395824707 CE04W6.3V-47M(ROB),Elect.
C1302,C1303,C1306 332161040R1 CK725F1E-104Z1,Chip ceramic
C1304 342100802R1 CC725CH1H-080D1,Chip ceramic
C1305 393344707 or CE04W16V-47M(VX) or
394644707 CE04W16V-47M(VR),Elect.
C1307,C1400,C1401 332161040R1 CK725F1E-104Z1,Chip ceramic
C1311,C1320,C1330 395852207 CE04W25V-22M(ROB),Elect.
C1331 395852207 CE04W25V-22M(ROB),Elect.
C1371,C1372 395824707 CE04W6.3V-47M(ROB),Elect.
C1375,C1376 395824707 CE04W6.3V-47M(ROB),Elect.
C1414,C1416,C1419 332161040R1 CK725F1E-104Z1,Chip ceramic
C1415,C1428 393380227 CE04W50V-2.2M(VX),Elect.
C1417,C1420,C1430 393341007 or CE04W16V-10M(VX) or
394641007 CE04W16V-10M(VR),Elect.
C1418,C1433 342101014R1 CC725CH1H-101J1,Chip ceramic
C1421,C1423,C1424 332161040R1 CK725F1E-104Z1,Chip ceramic
C1422,C1438 393321017 or CE04W6.3V-100M(VX) or
394621017 CE04W6.3V-100M(VR),Elect.
C1425,C1426 342101504R1 CC725CH1H-150J1,Chip ceramic
C1427,C1429,C1431 332161040R1 CK725F1E-104Z1,Chip ceramic
C1432,C1437 393341007 or CE04W16V-10M(VX) or
394641007 CE04W16V-10M(VR),Elect.
C1434,C1435 332161040R1 CK725F1E-104Z1,Chip ceramic
C1436 374721044 ECQ-V50V-104J,Plastic film
Resistors
R1000,R1001,R1030 435023314R1 RN72W1J-331JE,Chip carbon
R1010,R1011,R1040 435025634R1 RN72W1J-563JE,Chip carbon
R1020,R1021,R1050 435022244R1 RN72W1J-224JE,Chip carbon
R1022,R1023,R1340 443522204 RS1/2WBJ-22,Metal oxide
R1031,R1060,R1061 435023314R1 RN72W1J-331JE,Chip carbon
R1041,R1070,R1071 435025634R1 RN72W1J-563JE,Chip carbon
R1051,R1080,R1081 435022244R1 RN72W1J-224JE,Chip carbon
R1090,R1091,R1310 435023314R1 RN72W1J-331JE,Chip carbon
R1100,R1101,R1270 435025634R1 RN72W1J-563JE,Chip carbon
R1110,R1111,R1240 435022244R1 RN72W1J-224JE,Chip carbon
R1241,R1242,R1243 435022244R1 RN72W1J-224JE,Chip carbon
R1244,R1245,R1246 435022244R1 RN72W1J-224JE,Chip carbon
R1247,R1347 435022244R1 RN72W1J-224JE,Chip carbon
R1250,R1251,R1252 435021034R1 RN72W1J-103JE,Chip carbon
R1253,R1254,R1255 435021034R1 RN72W1J-103JE,Chip carbon
R1256,R1257,R1344 435021034R1 RN72W1J-103JE,Chip carbon
R1271,R1272,R1273 435025634R1 RN72W1J-563JE,Chip carbon
R1274,R1275,R1276 435025634R1 RN72W1J-563JE,Chip carbon
R1277,R1330,R1331 435025634R1 RN72W1J-563JE,Chip carbon
R1280,R1281,R1282 435025624R1 RN72W1J-562JE,Chip carbon
R1283,R1284,R1285 435025624R1 RN72W1J-562JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R1286,R1287 435025624R1 RN72W1J-562JE,Chip carbon
R1290,R1291,R1292 435024724R1 RN72W1J-472JE,Chip carbon
R1293,R1294,R1295 435024724R1 RN72W1J-472JE,Chip carbon
R1296,R1297,R1300 435024724R1 RN72W1J-472JE,Chip carbon
R1301,R1302,R1303 435024724R1 RN72W1J-472JE,Chip carbon
R1304,R1305 435024724R1 RN72W1J-472JE,Chip carbon
R1306,R1307 435024724R1 RN72W1J-472JE,Chip carbon
R1311,R1312,R1313 435023314R1 RN72W1J-331JE,Chip carbon
R1314,R1315,R1316 435023314R1 RN72W1J-331JE,Chip carbon
R1317,R1320,R1321 435023314R1 RN72W1J-331JE,Chip carbon
R1322,R1323,R1324 435023314R1 RN72W1J-331JE,Chip carbon
R1325,R1326,R1327 435023314R1 RN72W1J-331JE,Chip carbon
R1332,R1333,R1334 435025634R1 RN72W1J-563JE,Chip carbon
R1335,R1336,R1338 435025634R1 RN72W1J-563JE,Chip carbon
R1341,R1342,R1343 443522204 RS1/2WBJ-22,Metal oxide
R1345,R1346 435022214R1 RN72W1J-221JE,Chip carbon
R1402,R1403 435025604R1 RN72W1J-560JE,Chip carbon
R1404,R1416,R1417 435021034R1 RN72W1J-103JE,Chip carbon
R1405,R1409 435023314R1 RN72W1J-331JE,Chip carbon
R1407,R1415 435021024R1 RN72W1J-102JE,Chip carbon
R1408 435021054R1 RN72W1J-105JE,Chip carbon
R1411,R1412 435025604R1 RN72W1J-560JE,Chip carbon
R1420 435025614R1 RN72W1J-561JE,Chip carbon
R1450 435021224R1 RN72W1J-122JE,Chip carbon
Terminals
P1400 25045795 NPT-4PDGPRW575
P1401 25045796 NPT-4PDELNT576
Socket
P1405 25052753 NSCT-3P2649
Plug
P3107A 25056329R2 IMSA-9850B-30Y902
Tuner PC board(NARF-8152-1B/1C) <P/DT/GT/A/K>
Option board (C-AMFM) (NARF-8152-1A)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q101 22242120R3 BU1924FS <P>
Q102 222780125JRC or 78M12HF(NJM78M12FA) or
222780125NEC 78M12HF(MPC78M12HF)
Q103 222780053JRCT 78L05(NJM78L05A)
Q104 222740077R2TO TC74HCT7007AF
Q105 22274125ER2TO TC74VHC125FT
Coil
L100 233454K220 NCH-1452 220K
Oscillator
X100 3010321 HC-49/U034.332MHz <P>
Capacitors
C100 355780339 CE04W50V-3.3M,Elect.
C101,C103 393380337 or CE04W50V-3.3M(VX) or
394680337 CE04W50V-3.3M(VR),Elect.
C102 345021014 CC45SL50V-101J,Ceramic
C104 335622230 CK45F50V-223Z,Ceramic
C107 335622230 CK45F50V-223Z,Ceramic <P>
C108,C114 393321017 or CE04W6.3V-100M(VX) or
394621017 CE04W6.3V-100M(VR),Elect. <P>
C109,C110 345343304 CC45CH50V-330J,Ceramic <P>
C111 374725614 ECQ-B50V-561J,Plastic film <P>
C113 345022714 CC45SL50V-271J,Ceramic <P>
C115 335622230 CK45F50V-223Z,Ceramic
C116 393341017 or CE04W16V-100M(VX) or
394641017 CE04W16V-100M(VR),Elect.
C117,C119,C120 335622230 CK45F50V-223Z,Ceramic
C118 393321017 or CE04W6.3V-100M(VX) or
394621017 CE04W6.3V-100M(VR),Elect.
Resistors
R100,R101 417343314 R16J-330,Carbon
R102 417341044 R16J-100K,Carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R103 417341014 R16J-100,Carbon
R104,R105,R106 417341044 R16J-100K,Carbon
R109,R110,R111 417341024 R16J-1K,Carbon <P>
R112 417341224 R16J-1.2K,Carbon <P>
R112 417345624 R16J-5.6K,Carbon <DT/GT/A/K>
R127,R128,R129,R130 417341024 R16J-1K,Carbon
R131,R132,R133 417341024 R16J-1K,Carbon <P>
R134 417341024 R16J-1K,Carbon
Socket
P100 25052211 NSCT-15P2108
Plug
P3115A 25056314 IMSA-9850B-30A-GF
Dac and second PLL circuit PC board(NADG-8154-1A/1B)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q4000,Q4001,Q4002 22240489R1NE MPC4570G2-T1(MST)
Q4003,Q4004,Q4005 22240489R1NE MPC4570G2-T1(MST)
Q4006,Q4007,Q4008 22240489R1NE MPC4570G2-T1(MST)
Q4009,Q4010,Q4011 22240489R1NE MPC4570G2-T1(MST)
Q4012,Q4013,Q4014 22240489R1NE MPC4570G2-T1(MST)
Q4015,Q4016,Q4017 22240489R1NE MPC4570G2-T1(MST)
Q4018,Q4019 22240489R1NE MPC4570G2-T1(MST)
Q4020,Q4022,Q4023 22242068R2 WM8719EDS
Q4025,Q4027 22242068R2 WM8719EDS
Q4862 22242076R2TO TC7WH241FU
Q4863 22241895R2 TC7SZ125FU
Q4864 222118A CC1536
Q4865,Q4866 222740077R2TO TC74HCT7007AF
Q4882 222780055JRC or 78M05(NJM78M05FA) or
222780055MAT or 78M05(AN78M05F) or
222780055NEC 78M05HF(MPC78M05HF)
Coils
L4000,L4002,L4003 231237M022R2 or NCH-1471 or
L4005,L4007,L4010 233533M022R2 NCH-1587-022M
L4012,L4013,L4015 231237M022R2 or NCH-1471 or
L4017,L4864 233533M022R2 NCH-1587-022M
L4863 230958R1 BK1608LM182-T,EMI
L4866,L4867 230959R1 BK1608LL241-T,EMI
L4868,L4869,L4870 231237M022R2 or NCH-1471 or
233533M022R2 NCH-1587-022M
Capacitors
C4000,C4001,C4002 374726814 ECQ-B50V-681J,Plastic film
C4003,C4004,C4005 374726814 ECQ-B50V-681J,Plastic film
C4006,C4007,C4008 374726814 ECQ-B50V-681J,Plastic film
C4009,C4010,C4011 374726814 ECQ-B50V-681J,Plastic film
C4012,C4013,C4014 374726814 ECQ-B50V-681J,Plastic film
C4015,C4016,C4017 374726814 ECQ-B50V-681J,Plastic film
C4018,C4019 374726814 ECQ-B50V-681J,Plastic film
C4020,C4021,C4022 374722215 ECQ-B50V-221K,Plastic film
C4023,C4024,C4025 374722215 ECQ-B50V-221K,Plastic film
C4026,C4027,C4028 374722215 ECQ-B50V-221K,Plastic film
C4029,C4030,C4031 374722215 ECQ-B50V-221K,Plastic film
C4032,C4033,C4034 374722215 ECQ-B50V-221K,Plastic film
C4035,C4036,C4037 374722215 ECQ-B50V-221K,Plastic film
C4038,C4039 374722215 ECQ-B50V-221K,Plastic film
C4040,C4042,C4043 332161040R1 CK725F1E-104Z1,Chip ceramic
C4045,C4047 332161040R1 CK725F1E-104Z1,Chip ceramic
C4050,C4052,C4053 393344707 or CE04W16V-47M(VX) or
C4055,C4057 394644707 CE04W16V-47M(VR),Elect.
C4060,C4062,C4063 332161040R1 CK725F1E-104Z1,Chip ceramic
C4065,C4067 332161040R1 CK725F1E-104Z1,Chip ceramic
C4070,C4072,C4073 393344707 or CE04W16V-47M(VX) or
C4075,C4077 394644707 CE04W16V-47M(VR),Elect.
C4090,C4091,C4092 374721224 ECQ-B50V-122J,Plastic film
C4093,C4094,C4095 374721224 ECQ-B50V-122J,Plastic film
C4096,C4097,C4098 374721224 ECQ-B50V-122J,Plastic film
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C4099 374721224 ECQ-B50V-122J,Plastic film
C4100,C4101,C4102 374724714 ECQ-B50V-471J,Plastic film
C4103,C4104,C4105 374724714 ECQ-B50V-471J,Plastic film
C4106,C4107 374724714 ECQ-B50V-471J,Plastic film
C4108,C4109 374724714 ECQ-B50V-471J,Plastic film
C4150,C4151,C4152 395852207 CE04W25V-22M(ROB),Elect.
C4153,C4154,C4155 395952207 CE04W25V-22M(RFS),Elect.
C4156,C4157 395852207 CE04W25V-22M(ROB),Elect.
C4158,C4159 395952207 CE04W25V-22M(RFS),Elect.
C4160,C4162,C4163 393341007 or CE04W16V-10M(VX) or
C4165,C4167 394641007 CE04W16V-10M(VR),Elect.
C4170,C4172,C4173 332161040R1 CK725F1E-104Z1,Chip ceramic
C4175,C4177,C4190 332161040R1 CK725F1E-104Z1,Chip ceramic
C4192,C4193 332161040R1 CK725F1E-104Z1,Chip ceramic
C4195,C4197 332161040R1 CK725F1E-104Z1,Chip ceramic
C4200,C4202,C4203 393341007 or CE04W16V-10M(VX) or
C4205,C4207 394641007 CE04W16V-10M(VR),Elect.
C4210,C4212,C4213 332161040R1 CK725F1E-104Z1,Chip ceramic
C4215,C4217 332161040R1 CK725F1E-104Z1,Chip ceramic
C4220,C4222,C4223 393341007 or CE04W16V-10M(VX) or
C4225,C4227 394641007 CE04W16V-10M(VR),Elect.
C4230,C4232,C4233 374721044 ECQ-V50V-104J,Plastic film
C4235,C4237 374721044 ECQ-V50V-104J,Plastic film
C4640,C4641,C4642 395852207 CE04W25V-22M(ROB),Elect.
C4645,C4646,C4647 395852207 CE04W25V-22M(ROB),Elect.
C4860,C4869,C4870 332161040R1 CK725F1E-104Z1,Chip ceramic
C4871,C4873,C4875 332161040R1 CK725F1E-104Z1,Chip ceramic
C4872,C4874,C4877 393344707 or CE04W16V-47M(VX) or
C4878,C4880 394644707 CE04W16V-47M(VR),Elect.
C4876,C4879,C4881 332161040R1 CK725F1E-104Z1,Chip ceramic
Resistors
L4865 435023314R1 RN72W1J-331JE,Chip carbon
R4000,R4001,R4002 435022724R1 RN72W1J-272JE,Chip carbon
R4003,R4004,R4005 435022724R1 RN72W1J-272JE,Chip carbon
R4006,R4007,R4008 435022724R1 RN72W1J-272JE,Chip carbon
R4009,R4010,R4011 435022724R1 RN72W1J-272JE,Chip carbon
R4012,R4013,R4014 435022724R1 RN72W1J-272JE,Chip carbon
R4015,R4016,R4017 435022724R1 RN72W1J-272JE,Chip carbon
R4018,R4019,R4030 435022724R1 RN72W1J-272JE,Chip carbon
R4020,R4021,R4022 435025624R1 RN72W1J-562JE,Chip carbon
R4023,R4024,R4025 435025624R1 RN72W1J-562JE,Chip carbon
R4026,R4027,R4028 435025624R1 RN72W1J-562JE,Chip carbon
R4029,R4250,R4251 435025624R1 RN72W1J-562JE,Chip carbon
R4031,R4032,R4033 435022724R1 RN72W1J-272JE,Chip carbon
R4034,R4035,R4036 435022724R1 RN72W1J-272JE,Chip carbon
R4037,R4038,R4039 435022724R1 RN72W1J-272JE,Chip carbon
R4040,R4041,R4042 435022724R1 RN72W1J-272JE,Chip carbon
R4043,R4044,R4045 435022724R1 RN72W1J-272JE,Chip carbon
R4046,R4047 435022724R1 RN72W1J-272JE,Chip carbon
R4048,R4049 435022724R1 RN72W1J-272JE,Chip carbon
R4050,R4052,R4053 435022204R1 RN72W1J-220JE,Chip carbon
R4055,R4057,R4060 435022204R1 RN72W1J-220JE,Chip carbon
R4062,R4063,R4065 435022204R1 RN72W1J-220JE,Chip carbon
R4067,R4070,R4072 435022204R1 RN72W1J-220JE,Chip carbon
R4073,R4075,R4077 435022204R1 RN72W1J-220JE,Chip carbon
R4080,R4082,R4083 435022204R1 RN72W1J-220JE,Chip carbon
R4085,R4087 435022204R1 RN72W1J-220JE,Chip carbon
R4090,R4091,R4092 435028224R1 RN72W1J-822JE,Chip carbon
R4093,R4094,R4095 435028224R1 RN72W1J-822JE,Chip carbon
R4096,R4097 435028224R1 RN72W1J-822JE,Chip carbon
R4098,R4099 435028224R1 RN72W1J-822JE,Chip carbon
R4100,R4101,R4102 435021824R1 RN72W1J-182JE,Chip carbon
R4103,R4104,R4105 435021824R1 RN72W1J-182JE,Chip carbon
R4106,R4107,R4108 435021824R1 RN72W1J-182JE,Chip carbon
R4109 435021824R1 RN72W1J-182JE,Chip carbon
R4110,R4111,R4112 435021034R1 RN72W1J-103JE,Chip carbon
R4113,R4114,R4115 435021034R1 RN72W1J-103JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R4116,R4117 435021034R1 RN72W1J-103JE,Chip carbon
R4118,R4119 435021034R1 RN72W1J-103JE,Chip carbon
R4120,R4121,R4122 435021524R1 RN72W1J-152JE,Chip carbon
R4123,R4124,R4125 435021524R1 RN72W1J-152JE,Chip carbon
R4126,R4127,R4128 435021524R1 RN72W1J-152JE,Chip carbon
R4129,R4170,R4171 435021524R1 RN72W1J-152JE,Chip carbon
R4130,R4131,R4132 435022234R1 RN72W1J-223JE,Chip carbon
R4133,R4134,R4135 435022234R1 RN72W1J-223JE,Chip carbon
R4136,R4137,R4138 435022234R1 RN72W1J-223JE,Chip carbon
R4139,R4140,R4141 435022234R1 RN72W1J-223JE,Chip carbon
R4142,R4143,R4144 435022234R1 RN72W1J-223JE,Chip carbon
R4145,R4146,R4147 435022234R1 RN72W1J-223JE,Chip carbon
R4148,R4149,R4150 435022234R1 RN72W1J-223JE,Chip carbon
R4151,R4152,R4153 435022234R1 RN72W1J-223JE,Chip carbon
R4154,R4155,R4156 435022234R1 RN72W1J-223JE,Chip carbon
R4157,R4158,R4159 435022234R1 RN72W1J-223JE,Chip carbon
R4160,R4161,R4162 435022234R1 RN72W1J-223JE,Chip carbon
R4163,R4164,R4165 435022234R1 RN72W1J-223JE,Chip carbon
R4166,R4167 435022234R1 RN72W1J-223JE,Chip carbon
R4168,R4169 435022234R1 RN72W1J-223JE,Chip carbon
R4172,R4173,R4174 435021524R1 RN72W1J-152JE,Chip carbon
R4175,R4176,R4177 435021524R1 RN72W1J-152JE,Chip carbon
R4178,R4179,R4180 435021524R1 RN72W1J-152JE,Chip carbon
R4181,R4182,R4183 435021524R1 RN72W1J-152JE,Chip carbon
R4184,R4185,R4186 435021524R1 RN72W1J-152JE,Chip carbon
R4187,R4188,R4189 435021524R1 RN72W1J-152JE,Chip carbon
R4230,R4231,R4232 435021024R1 RN72W1J-102JE,Chip carbon
R4233,R4234,R4235 435021024R1 RN72W1J-102JE,Chip carbon
R4236,R4237,R4238 435021024R1 RN72W1J-102JE,Chip carbon
R4239,R4260,R4261 435021024R1 RN72W1J-102JE,Chip carbon
R4240,R4241,R4242 435025634R1 RN72W1J-563JE,Chip carbon
R4243,R4244,R4245 435025634R1 RN72W1J-563JE,Chip carbon
R4246,R4247 435025634R1 RN72W1J-563JE,Chip carbon
R4248,R4249 435025634R1 RN72W1J-563JE,Chip carbon
R4252,R4253,R4254 435025624R1 RN72W1J-562JE,Chip carbon
R4255,R4256,R4257 435025624R1 RN72W1J-562JE,Chip carbon
R4258,R4259 435025624R1 RN72W1J-562JE,Chip carbon
R4262,R4263,R4264 435021024R1 RN72W1J-102JE,Chip carbon
R4265,R4266,R4267 435021024R1 RN72W1J-102JE,Chip carbon
R4268,R4269 435021024R1 RN72W1J-102JE,Chip carbon
R4270,R4271,R4272 435024704R1 RN72W1J-470JE,Chip carbon
R4273,R4274,R4275 435024704R1 RN72W1J-470JE,Chip carbon
R4276,R4278,R4280 435024704R1 RN72W1J-470JE,Chip carbon
R4282,R4283,R4285 435024704R1 RN72W1J-470JE,Chip carbon
R4290,R4292,R4293 435023314R1 RN72W1J-331JE,Chip carbon
R4295,R4297,R4300 435023314R1 RN72W1J-331JE,Chip carbon
R4302,R4303,R4305 435023314R1 RN72W1J-331JE,Chip carbon
R4307,R4310,R4312 435023314R1 RN72W1J-331JE,Chip carbon
R4313,R4315,R4317 435023314R1 RN72W1J-331JE,Chip carbon
R4320,R4322,R4323 435023314R1 RN72W1J-331JE,Chip carbon
R4325,R4327,R4330 435023314R1 RN72W1J-331JE,Chip carbon
R4332,R4333,R4335 435023314R1 RN72W1J-331JE,Chip carbon
R4337,R4340,R4342 435023314R1 RN72W1J-331JE,Chip carbon
R4343,R4345,R4347 435023314R1 RN72W1J-331JE,Chip carbon
R4350,R4352,R4353 435023314R1 RN72W1J-331JE,Chip carbon
R4355,R4357,R4908 435023314R1 RN72W1J-331JE,Chip carbon
R4860,R4861,R4862 435024704R1 RN72W1J-470JE,Chip carbon
R4863,R4867,R4868 435024704R1 RN72W1J-470JE,Chip carbon
R4869,R4870,R4871 435024704R1 RN72W1J-470JE,Chip carbon
R4872,R4873,R4874 435024704R1 RN72W1J-470JE,Chip carbon
R4875,R4876,R4877 435024704R1 RN72W1J-470JE,Chip carbon
R4878,R4879,R4880 435024704R1 RN72W1J-470JE,Chip carbon
R4881,R4882,R4883 435024704R1 RN72W1J-470JE,Chip carbon
R4884,R4900,R4913 435024704R1 RN72W1J-470JE,Chip carbon
R4885,R4891,R4892 435030004R1 RN72K1J-000JE,Chip carbon
R4898,R4899,R4901 435030004R1 RN72K1J-000JE,Chip carbon
R4902 435021044R1 RN72W1J-104JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R4903 435024724R1 RN72W1J-472JE,Chip carbon
R4909,R4910,R4912 435023314R1 RN72W1J-331JE,Chip carbon
R4911 435022734R1 RN72W1J-273JE,Chip carbon
R4914,R4915,R4916 443621504 RS1WBJ-15,Metal oxide
R4944,R4945,R4946 435030004R1 RN72K1J-000JE,Chip carbon
R4947,R4948 435030004R1 RN72K1J-000JE,Chip carbon
Plugs
P3106A 25056359R2 MINI-CT-38P(3-353315-8)
P4861 25055038 NPLG-2P29
P4871 25055378 NPLG-14P361
P4872 25055159 NPLG-15P143
Pre-amplifier PC board(NAAF-8156-1A/1B)
Pre-output terminal PC board(NAAF-8157-1A/1B)
Connector mother PC board(NAETC-8158-1A/1B)
Coaxial I/O terminal PC board (NADG-8159-1A/1B)
Video connector PC board (NAETC-8160-1A/1B)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q4030,Q4032,Q4033 22240489R1NE MPC4570G2-T1(MST)
Q4035,Q4050,Q4051 22240489R1NE MPC4570G2-T1(MST)
Q4040,Q4041,Q4042 22242107R2 WM8816
Q4043,Q4044,Q4045 22242107R2 WM8816
Q4046,Q4047 22242107R2 WM8816
Q4052,Q4053,Q4054 22240489R1NE MPC4570G2-T1(MST)
Q4055,Q4056,Q4057 22240489R1NE MPC4570G2-T1(MST)
Q4080,Q4081 22241383R2 NJM4565M-D
Q4130,Q4140,Q4150 22240489R1NE MPC4570G2-T1(MST)
Q4869 22242101R2 TC9164BFG
Q4870 22242099R2 TC9162BFG
Q4871 22242100R2 TC9163BFG
Q4876 222780155JRC or 78M15HF(NJM78M15FA) or
222780155NEC 78M15HF(MPC78M15HF)
Q4877 222790155JRC or 79M15HF(NJM79M15FA) or
222790155NEC 79M15HF(MPC79M15HF)
Q4878 222780053R2JR 78L05(NJM78L05UA)
Q500,Q501,Q502,Q503 22240489R1NE MPC4570G2-T1(MST)
Q504,Q505,Q506,Q507 22240489R1NE MPC4570G2-T1(MST)
Q7451 222740046R2 74HCU04F
Q7452 22274126GR2 TC74VHCT126AFT
Q7453,Q7454,Q7455 222741515R2TO TC74HC151F
Q7456 22242090R2 BU2152FS
Transistors
Q4060,Q4061,Q4062 2215410R2 RN1441
Q4063,Q4064,Q4065 2215410R2 RN1441
Q4066,Q4067,Q4070 2215410R2 RN1441
Q4071,Q4072,Q4073 2215410R2 RN1441
Q4074,Q4075, Q4076 2215410R2 RN1441
Q4077,Q4090,Q4091 2215410R2 RN1441
Q4100,Q4101 2215410R2 RN1441
Q4110,Q4111 2215410R2 RN1441
Q4160,Q4867,Q4872 2213145R2 or 2SC2712-GR or
Q4874,Q4881 2216175R2 KTC3875-GR
Q4868,Q4873,Q4875 2214530R2 or RN2402 or
2216220R2 KRA102S
Q510,Q511,Q512,Q513 2215410R2 RN1441
Q514,Q515,Q516,Q517 2215410R2 RN1441
Q520,Q521,Q522,Q523 2215410R2 RN1441
Q524,Q525,Q526,Q527 2215410R2 RN1441
Q530,Q531,Q532,Q533 2215410R2 RN1441
Q534,Q535,Q536,Q537 2215410R2 RN1441
Q540,Q541,Q542,Q543 2215410R2 RN1441
Q544,Q545,Q546,Q547 2215410R2 RN1441
Q550,Q552,Q553,Q555 2213145R2 or 2SC2712-GR or
Q557,Q560,Q562,Q563 2216175R2 KTC3875-GR
Q565,Q567,Q570 2213145R2 or 2SC2712-GR or
2216175R2 KTC3875-GR
CIRCUIT NO. PART NO. DESCRIPTION
Diodes
D4861,D4869,D500 223234R2 or 1SS352 or
D501,D502,D503,D505 223269R2 1SS355
D507,D510,D512,D513 223234R2 or 1SS352 or
D515,D517 223269R2 1SS355
Coils
L7451,L7452 231237M022R2 or NCH-1471 or
233533K022R2 NCH-1587-022K
T7451,T7452 232136 NSRF-2046
R7451,R7453,R7455 230958R1 BK1608LM182-T,EMI
R7457,R7459,R7461 230958R1 BK1608LM182-T,EMI
Capacitors
C300,C301,C302,C303 332161040R1 CK725F1E-104Z1,Chip ceramic
C304 393344707 or CE04W16V-47M(VX) or
394644707 CE04W16V-47M(VR),Elect.
C305,C306,C307 332161040R1 CK725F1E-104Z1,Chip ceramic
C310,C311,C312,C313 374721024 ECQ-B50V-102J,Plastic film
C314,C315,C316,C317 374721024 ECQ-B50V-102J,Plastic film
C320,C321,C322,C325 395852207 CE04W25V-22M(ROB),Elect.
C326,C330,C331,C332 395852207 CE04W25V-22M(ROB),Elect.
C335,C336 395852207 CE04W25V-22M(ROB),Elect.
C340,C341,C342 395852207 CE04W25V-22M(ROB),Elect.
C352,C353 342111024R1 CC725CH1E-102J1,Chip ceramic
C4250,C4251,C4252 395852207 CE04W25V-22M(ROB),Elect.
C4253,C4254,C4257 395952207 CE04W25V-22M(RFS),Elect.
C4255,C4256,C4400 395852207 CE04W25V-22M(ROB),Elect.
C4260,C4261,C4262 395941007 CE04W16V-10M(RFS),Elect.
C4263,C4264,C4265 395941007 CE04W16V-10M(RFS),Elect.
C4266,C4267 395941007 CE04W16V-10M(RFS),Elect.
C4270,C4271,C4272 342101014R1 CC725CH1H-101J1,Chip ceramic
C4273,C4274,C4275 342101014R1 CC725CH1H-101J1,Chip ceramic
C4276,C4277 342101014R1 CC725CH1H-101J1,Chip ceramic
C4280,C4281,C4282 393341007 or CE04W16V-10M(VX) or
C4283,C4284,C4285 394641007 CE04W16V-10M(VR),Elect.
C4286,C4287 393341007 or CE04W16V-10M(VX) or
394641007 CE04W16V-10M(VR),Elect.
C4290,C4291,C4292 374722244 ECQ-V50V-224J,Plastic film
C4293,C4294,C4295 374722244 ECQ-V50V-224J,Plastic film
C4296,C4297,C4420 374722244 ECQ-V50V-224J,Plastic film
C4300,C4301,C4302 395941007 CE04W16V-10M(RFS),Elect.
C4303,C4304,C4305 395941007 CE04W16V-10M(RFS),Elect.
C4306,C4307 395941007 CE04W16V-10M(RFS),Elect.
C4350,C4351,C4352 3600028R2 UC122A0100F-T,Mica
C4353,C4354,C4355 3600028R2 UC122A0100F-T,Mica
C4356,C4357,C4360 3600028R2 UC122A0100F-T,Mica
C4361,C4362,C4363 3600028R2 UC122A0100F-T,Mica
C4364,C4365 3600028R2 UC122A0100F-T,Mica
C4366,C4367 3600028R2 UC122A0100F-T,Mica
C4370,C4371,C4372 395941007 CE04W16V-10M(RFS),Elect.
C4373,C4374,C4375 395941007 CE04W16V-10M(RFS),Elect.
C4376,C4377 395941007 CE04W16V-10M(RFS),Elect.
C4380,C4382,C4383 393344707 or CE04W16V-47M(VX) or
C4385,C4390,C4392 394644707 CE04W16V-47M(VR),Elect.
C4393,C4395,C4904 393344707 or CE04W16V-47M(VX) or
394644707 CE04W16V-47M(VR),Elect.
C4401,C4402,C4405 395852207 CE04W25V-22M(ROB),Elect.
C4403,C4404,C4407 395952207 CE04W25V-22M(RFS),Elect.
C4406,C4530,C4531 395852207 CE04W25V-22M(ROB),Elect.
C4421,C4422,C4423 374722244 ECQ-V50V-224J,Plastic film
C4424,C4425 374722244 ECQ-V50V-224J,Plastic film
C4426,C4427 374722244 ECQ-V50V-224J,Plastic film
C4430,C4431 393341007 CE04W16V-10M(VX) ,Elect.
C4440,C4441 393342217 or CE04W16V-220M(VX) or
394642217 CE04W16V-220M(VR),Elect.
C4450,C4451 393380227 CE04W50V-2.2M(VX),Elect.
C4460,C4461 342101014R1 CC725CH1H-101J1,Chip ceramic
C4470,C4471 394621017 CE04W6.3V-100M(VR),Elect.
C4480,C4481 374722224 ECQ-B50V-222J,Plastic film
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C4490,C4491,C4492 342103304R1 CC725CH1H-330J1,Chip ceramic
C4493,C4494,C4495 342103304R1 CC725CH1H-330J1,Chip ceramic
C4496,C4497 342103304R1 CC725CH1H-330J1,Chip ceramic
C4500,C4501,C4502 342103304R1 CC725CH1H-330J1,Chip ceramic
C4503,C4504,C4505 342103304R1 CC725CH1H-330J1,Chip ceramic
C4506,C4507 342103304R1 CC725CH1H-330J1,Chip ceramic
C4520,C4521 395924707 CE04W6.3V-47M(RFS),Elect.
C4540,C4541 395924707 CE04W6.3V-47M(RFS),Elect.
C4550,C4551,C4580 332161040R1 CK725F1E-104Z1,Chip ceramic
C4560,C4561,C4590 3600029R2 UC122A0330J-T,Mica
C4570,C4571 395941007 CE04W16V-10M(RFS),Elect.
C4581,C4610,C4611 332161040R1 CK725F1E-104Z1,Chip ceramic
C4591,C4620,C4621 3600029R2 UC122A0330J-T,Mica
C4600,4601,C4630 395824707 CE04W6.3V-47M(ROB),Elect.
C4631,C4690,C4691 395824707 CE04W6.3V-47M(ROB),Elect.
C4650,C4651,C4652 395852207 CE04W25V-22M(ROB),Elect.
C4655,C4656,C4660 395852207 CE04W25V-22M(ROB),Elect.
C4661,C4662,C4665 395852207 CE04W25V-22M(ROB),Elect.
C4666,C4680,C4681 395852207 CE04W25V-22M(ROB),Elect.
C4700,C4701 395824707 CE04W6.3V-47M(ROB),Elect.
C4882,C4896,C4897 393380227 or CE04W50V-2.2M(VX) or
394680227 CE04W50V-2.2M(VR),Elect.
C4883,C4887,C4892 393364707 or CE04W35V-47M(VX) or
394664707 CE04W35V-47M(VR),Elect.
C4884,C4885,C4888 332161040R1 CK725F1E-104Z1,Chip ceramic
C4886,C4890,C4895 342103314R1 CC725CH1H-331J1,Chip ceramic
C4889,C4893,C4894 332161040R1 CK725F1E-104Z1,Chip ceramic
C4898,C4899,C4905 332161040R1 CK725F1E-104Z1,Chip ceramic
C4900,C4901 393341007 or CE04W16V-10M(VX) or
394641007 CE04W16V-10M(VR),Elect.
C4902,C4903 393342217 or CE04W16V-220M(VX) or
394642217 CE04W16V-220M(VR),Elect.
C4906,C4922,C4923 332161040R1 CK725F1E-104Z1,Chip ceramic
C4981,C4982,C4983 332161040R1 CK725F1E-104Z1,Chip ceramic
C4984,C4985,C4986 332161040R1 CK725F1E-104Z1,Chip ceramic
C4987,C4988,C4989 332161040R1 CK725F1E-104Z1,Chip ceramic
C4990,C4991 332161040R1 CK725F1E-104Z1,Chip ceramic
C500,C501,C502,C503 3600029R2 UC122A0330J-T,Mica
C504,C505,C506,C507 3600029R2 UC122A0330J-T,Mica
C510,C511,C512,C515 395852207 CE04W25V-22M(ROB),Elect.
C513,C514,C517,C533 395952207 CE04W25V-22M(RFS),Elect.
C516,C530,C531,C532 395852207 CE04W25V-22M(ROB),Elect.
C520,C521,C522,C523 3600029R2 UC122A0330J-T,Mica
C524,C525,C526,C527 3600029R2 UC122A0330J-T,Mica
C534,C537,C543,C544 395952207 CE04W25V-22M(RFS),Elect.
C535,C536 395852207 CE04W25V-22M(ROB),Elect.
C540,C541,C542 395852207 CE04W25V-22M(ROB),Elect.
C545,C546,C547 395952207 CE04W25V-22M(RFS),Elect.
C550,C551,C552,C553 374724714 ECQ-B50V-471J,Plastic film
C554,C555,C556,C557 374724714 ECQ-B50V-471J,Plastic film
C560,C561,C562,C563 374721024 ECQ-B50V-102J,Plastic film
C564,C565,C566,C567 374721024 ECQ-B50V-102J,Plastic film
C570,C571,C572,C573 374721024 ECQ-B50V-102J,Plastic film
C574,C575,C576,C577 374721024 ECQ-B50V-102J,Plastic film
C580,C581,C582,C583 332161040R1 CK725F1E-104Z1,Chip ceramic
C584,C585,C586,C587 332161040R1 CK725F1E-104Z1,Chip ceramic
C590,C591,C592,C593 332161040R1 CK725F1E-104Z1,Chip ceramic
C594 393344707 or CE04W16V-47M(VX) or
394644707 CE04W16V-47M(VR),Elect.
C595,C596,C597 332161040R1 CK725F1E-104Z1,Chip ceramic
C7451,C7452,C7453 342101014R1 CC725CH1H-101J1,Chip ceramic
C7455,C7456 342101014R1 CC725CH1H-101J1,Chip ceramic
C7457,C7458 342101014R1 CC725CH1H-101J1,Chip ceramic
C7459,C7460,C7461 332161040R1 CK725F1E-104Z1,Chip ceramic
C7462,C7463,C7464 332161040R1 CK725F1E-104Z1,Chip ceramic
C7465,C7466,C7467 342100802R1 CC725CH1H-080D1,Chip ceramic
C7468,C7469,C7474 332161040R1 CK725F1E-104Z1,Chip ceramic
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C7470,C7477 393344707 CE04W16V-47M(VX),Elect.
C7471,C7472,C7473 342100802R1 CC725CH1H-080D1,Chip ceramic
C7475,C7476,C7478 332161040R1 CK725F1E-104Z1,Chip ceramic
C7481,C7482 332161040R1 CK725F1E-104Z1,Chip ceramic
Resistors
L3594 435030004R1 RN72K1J-000JE,Chip carbon
L3595,L3596 435033304R1 RN72K1J-330JE,Chip carbon
R10,R11,R12,R13 435030004R1 RN72K1J-000JE,Chip carbon
R14,R15,R16,R17 435030004R1 RN72K1J-000JE,Chip carbon
R20,R21,R22,R23 435030004R1 RN72K1J-000JE,Chip carbon
R24,R25,R26,R27 435030004R1 RN72K1J-000JE,Chip carbon
R300,R301,R302,R303 435021014R1 RN72W1J-101JE,Chip carbon
R304,R305,R306,R307 435021014R1 RN72W1J-101JE,Chip carbon
R310,R311,R312,R313 435021034R1 RN72W1J-103JE,Chip carbon
R314,R315,R316,R317 435021034R1 RN72W1J-103JE,Chip carbon
R320,R321,R322,R323 435024704R1 RN72W1J-470JE,Chip carbon
R324,R325,R326,R327 435024704R1 RN72W1J-470JE,Chip carbon
R330,R331,R332,R333 435024704R1 RN72W1J-470JE,Chip carbon
R334,R335,R336,R337 435024704R1 RN72W1J-470JE,Chip carbon
R340,R341,R342,R343 435022244R1 RN72W1J-224JE,Chip carbon
R344,R345,R346,R347 435022244R1 RN72W1J-224JE,Chip carbon
R360,R362,R363,R365 435021024R1 RN72W1J-102JE,Chip carbon
R367,R370,R372,R373 435021024R1 RN72W1J-102JE,Chip carbon
R375,R377,R380 435021024R1 RN72W1J-102JE,Chip carbon
R390,R391 435022244R1 RN72W1J-224JE,Chip carbon
R40,R41,R42,R43 435030004R1 RN72K1J-000JE,Chip carbon
R4360,R4361,R4362 435022244R1 RN72W1J-224JE,Chip carbon
R4363,R4364,R4365 435022244R1 RN72W1J-224JE,Chip carbon
R4366,R4367,R4370 435022244R1 RN72W1J-224JE,Chip carbon
R4371,R4372,R4373 435022244R1 RN72W1J-224JE,Chip carbon
R4374,R4375,R4376 435022244R1 RN72W1J-224JE,Chip carbon
R4377,R4400,R4401 435022244R1 RN72W1J-224JE,Chip carbon
R4380,R4381,R4382 435021054R1 RN72W1J-105JE,Chip carbon
R4383,R4384,R4385 435021054R1 RN72W1J-105JE,Chip carbon
R4386,R4387 435021054R1 RN72W1J-105JE,Chip carbon
R4390,R4391,R4392 435021054R1 RN72W1J-105JE,Chip carbon
R4393,R4394,R4395 435021054R1 RN72W1J-105JE,Chip carbon
R4396,R4397 435021054R1 RN72W1J-105JE,Chip carbon
R44,R45,R46,R47 435030004R1 RN72K1J-000JE,Chip carbon
R4402,R4403,R4404 435022244R1 RN72W1J-224JE,Chip carbon
R4405,R4406,R4407 435022244R1 RN72W1J-224JE,Chip carbon
R4410,R4411,R4412 435024744R1 RN72W1J-474JE,Chip carbon
R4413,R4414,R4415 435024744R1 RN72W1J-474JE,Chip carbon
R4416,R4417 435024744R1 RN72W1J-474JE,Chip carbon
R4420,R4421,R4422 435022244R1 RN72W1J-224JE,Chip carbon
R4423,R4424,R4425 435022244R1 RN72W1J-224JE,Chip carbon
R4426,R4427 435022244R1 RN72W1J-224JE,Chip carbon
R4430,R4431,R4432 435022714R1 RN72W1J-271JE,Chip carbon
R4433,R4434,R4435 435022714R1 RN72W1J-271JE,Chip carbon
R4436,R4437 435022714R1 RN72W1J-271JE,Chip carbon
R4440,R4441,R4442 435021014R1 RN72W1J-101JE,Chip carbon
R4443,R4444,R4445 435021014R1 RN72W1J-101JE,Chip carbon
R4446,R4447 435021014R1 RN72W1J-101JE,Chip carbon
R4455,R4456 435022244R1 RN72W1J-224JE,Chip carbon
R4480,R4481 443522204 RS1/2WBJ-22,Metal oxide
R4490,R4491 435022234R1 RN72W1J-223JE,Chip carbon
R4500,R4501 435022234R1 RN72W1J-223JE,Chip carbon
R4510,R4511 435022244R1 RN72W1J-224JE,Chip carbon
R4520,R4521,R4680 435022224R1 RN72W1J-222JE,Chip carbon
R4530,R4531,R4540 435021034R1 RN72W1J-103JE,Chip carbon
R4541,R4720,R4721 435021034R1 RN72W1J-103JE,Chip carbon
R4550,R4551,R4560 435023304R1 RN72W1J-330JE,Chip carbon
R4561,R4570,R4571 435023304R1 RN72W1J-330JE,Chip carbon
R4610,R4611,R4620 435025634R1 RN72W1J-563JE,Chip carbon
R4621,R4630,R4631 435025634R1 RN72W1J-563JE,Chip carbon
R4640,R4641,R4661 435021214R1 RN72W1J-121JE,Chip carbon
R4650,R4651 435028214R1 RN72W1J-821JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R4660 435021814R1 RN72W1J-181JE,Chip carbon
R4670,R4671 435021524R1 RN72W1J-152JE,Chip carbon
R4681,R4700,R4701 435022224R1 RN72W1J-222JE,Chip carbon
R4690,R4691 435021234R1 RN72W1J-123JE,Chip carbon
R4710,R4711 435021234R1 RN72W1J-123JE,Chip carbon
R4730,R4731,R4750 435021034R1 RN72W1J-103JE,Chip carbon
R4740,R4741,R4780 435025634R1 RN72W1J-563JE,Chip carbon
R4751,R4760,R4761 435021034R1 RN72W1J-103JE,Chip carbon
R4770,R4771,R4790 435021034R1 RN72W1J-103JE,Chip carbon
R4781,R4810,R4811 435025634R1 RN72W1J-563JE,Chip carbon
R4791,R4800,R4801 435021034R1 RN72W1J-103JE,Chip carbon
R4914,R4915,R4916 435021014R1 RN72W1J-101JE,Chip carbon
R4917,R4918,R4919 435021014R1 RN72W1J-101JE,Chip carbon
R4920,R4921,R4923 435021014R1 RN72W1J-101JE,Chip carbon
R4924,R4926,R4927 435021014R1 RN72W1J-101JE,Chip carbon
R4925,R4928,R4929 435021024R1 RN72W1J-102JE,Chip carbon
R4930,R4931,R4932 435021024R1 RN72W1J-102JE,Chip carbon
R4933.R4934,R4935 435022244R1 RN72W1J-224JE,Chip carbon
R4936,R4937 443621004 RS1WBJ-10,Metal oxide
R4938,R4939 453630224 RNU1WCJ-2.2,Metal
R4942,R4955 435021024R1 RN72W1J-102JE,Chip carbon
R4943,R4953 435030004R1 RN72K1J-000JE,Chip carbon
R500,R501,R502,R503 435022714R1 RN72W1J-271JE,Chip carbon
R504,R505,R506,R507 435022714R1 RN72W1J-271JE,Chip carbon
R510,R511,R512,R513 435021044R1 RN72W1J-104JE,Chip carbon
R514,R515,R516,R517 435021044R1 RN72W1J-104JE,Chip carbon
R520,R521,R522,R523 435021034R1 RN72W1J-103JE,Chip carbon
R524,R525,R526,R527 435021034R1 RN72W1J-103JE,Chip carbon
R530,R531,R532,R533 435022714R1 RN72W1J-271JE,Chip carbon
R534,R535,R536,R537 435022714R1 RN72W1J-271JE,Chip carbon
R540,R541,R542,R543 435022714R1 RN72W1J-271JE,Chip carbon
R544,R545,R546,R547 435022714R1 RN72W1J-271JE,Chip carbon
R550,R551,R552,R553 435021014R1 RN72W1J-101JE,Chip carbon
R554,R555,R556,R557 435021014R1 RN72W1J-101JE,Chip carbon
R560,R561,R562,R563 435021014R1 RN72W1J-101JE,Chip carbon
R564,R565,R566,R567 435021014R1 RN72W1J-101JE,Chip carbon
R570,R571,R572,R573 435021044R1 RN72W1J-104JE,Chip carbon
R574,R575,R576,R577 435021044R1 RN72W1J-104JE,Chip carbon
R580,R581,R582,R583 435021044R1 RN72W1J-104JE,Chip carbon
R584,R585,R586,R587 435021044R1 RN72W1J-104JE,Chip carbon
R590,R591,R592,R593 435021014R1 RN72W1J-101JE,Chip carbon
R594,R595,R596,R597 435021014R1 RN72W1J-101JE,Chip carbon
R7452,R7454,R7456 435037504R1 RN72K1J-750JE,Chip carbon
R7458,R7460,R7462 435037504R1 RN72K1J-750JE,Chip carbon
R7463,R7464,R7465 435021034R1 RN72W1J-103JE,Chip carbon
R7466,R7467,R7468 435021034R1 RN72W1J-103JE,Chip carbon
R7469,R7470,R7471 435024704R1 RN72W1J-470JE,Chip carbon
R7472 435021024R1 RN72W1J-102JE,Chip carbon
R7473,R7474,R7475 435023314R1 RN72W1J-331JE,Chip carbon
Relays
RL4860,RL4868 25065659 NRL-2P2A-DC24-174
RL500,RL502,RL503 25065659 NRL-2P2A-DC24-174
RL505,RL507,RL510 25065659 NRL-2P2A-DC24-174
RL512,RL513,RL515 25065659 NRL-2P2A-DC24-174
RL517,RL520,RL521 25065659 NRL-2P2A-DC24-174
RL522,RL523,RL524 25065659 NRL-2P2A-DC24-174
RL525,RL526 25065659 NRL-2P2A-DC24-174
RL527,RL530 25065659 NRL-2P2A-DC24-174
Terminals
P530,P532 25045795 NPT-4PDGPRW575
P531,P533 25045796 NPT-4PDELNT576
P7451,P7452 25045624 NPJ-3PDO431
P7453 25045758 NPJ-2PDO543
Sockets
P3501B 25052979R2 IMSA-9850S-30Y903
P7501B 25052586R2 NSCT-20P2483
P4864 200C4192628UL NSAS-26P1332
CIRCUIT NO. PART NO. DESCRIPTION
Sockets
P4871A 2004C362821UL NSAS-28P1314
P4872A 2004C383032UL NSAS-30P1315
P534 2004C382430UL NSAS-24P1312
P7454B 25052810R2 IMSA-9850S-14Y900
Plugs
P3105A 25056360R2 MINI-CT-40P(4-353315-0)
P3501C 25056209R2 IMSA-9850B-28Y900
P500,P501,P502,P503 25056026 NPLG-3P976
P504,P505,P506,P507 25056026 NPLG-3P976
P534A 25055156 NPLG-12P140
P7002A,P7454A 25056202R2 IMSA-9850B-14Y900
P7501C 25056205R2 IMSA-9850B-20Y900
P7506 25055135 NPLG-5P119
Holders
J4801A,J4801B 27190540-1 HOLDER(CLAMP)
J4801C,J4801D 27190540-1 HOLDER(CLAMP)
Optical I/O terminal PC board (NADG-8162-1)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q7001,Q7002,Q7003 222741515R2TO TC74HC151F
Q7004,Q7241 22274126GR2 TC74VHCT126AFT
Q7011 22242090R2 BU2152FS
Q7021,Q7121,Q7221 22241633R3 AK4114VQ
Q7051,Q7151 22242091R2 AK5385AVF
Q7052,Q7053,Q7054 22241448R2 NJM4580M-D
Q7061,Q7062,Q7063 22274153ER2TO TC74VHC153FT
Q7152,Q7153,Q7154 22241448R2 NJM4580M-D
Q7161,Q7162,Q7163 22274153ER2TO TC74VHC153FT
Q7242 22241894R2 TC74VHCT125AFT
Q7243,Q7309 222780053R2JR 78L05(NJM78L05UA)
Q7244,Q7304,Q7305 22240928R2 TC9246F
Q7245,7421 22241821R2 WM8716EDS
Q7271,Q7272,Q7273 22241448R2 NJM4580M-D
Q7274,Q7423,Q7424 22241448R2 NJM4580M-D
Q7310 22242095R2 TC7WH34FK
Q7311 22241917R2TO TC7WT125FU
Q7401,Q7402 22278033DR2NE MPC2933T
Q7425,Q7426 22241448R2 NJM4580M-D
U7001,U7002,U7003 24120113 GP1FA51HRZ
U7004,U7005,U7006 24120113 GP1FA51HRZ
U7007,U7008 24120114 GP1FA51HTZ
D7051,D7052,D7053 223234R2 or 1SS352 or
D7054,D7055,D7056 223269R2 1SS355
D7057,D7058,D7151 223234R2 or 1SS352 or
D7152,D7153,D7154 223269R2 1SS355
D7155,D7156 223234R2 or 1SS352 or
D7157,D7158 223269R2 1SS355
X7021,X7121,X7221 3010385R2 FCX-03-24.576MHz
L7001,L7021,L7022 231237M022R2 NCH-1471
L7002,L7241,L7242 231237K470R2 NCH-1479
L7023,L7051,L7052 231237M022R2 NCH-1471
L7024,L7124 230958R1 BK1608LM182-T,EMI
L7121,L7122,L7123 231237M022R2 NCH-1471
L7151,L7152 231237M022R2 NCH-1471
L7221,L7222,L7224 231237M022R2 NCH-1471
L7244,L7245,L7302 231237K470R2 NCH-1479
L7303,L7304,L7305 231237K470R2 NCH-1479
L7306,L7307 230958R1 BK1608LM182-T,EMI
L7401 231237M022R2 NCH-1471
L7421,L7422 231237K470R2 NCH-1479
R7027 230984R1 BK1608HS601-T,EMI
R7029,R7092,R7129 230955R2 BK1608HS102-T,EMI
R7192,R7229 230955R2 BK1608HS102-T,EMI
R7263,R7395,R7396 230958R1 BK1608LM182-T,EMI
C7001,C7009,C7015 356724709R2 CEWX6.3V-47M,Chip elect.
C7002,C7003,C7004 332161040R1 CK725F1E-104Z1,Chip ceramic
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C7005,C7006,C7007 332161040R1 CK725F1E-104Z1,Chip ceramic
C7010,C7011,C7012 332161040R1 CK725F1E-104Z1,Chip ceramic
C7013,C7014,C7016 332161040R1 CK725F1E-104Z1,Chip ceramic
C7017,C7021,C7023 332161040R1 CK725F1E-104Z1,Chip ceramic
C7022,C7024,C7122 3567A4709R2 CEWX4V-47M,Chip elect.
C7025,C7053,C7054 332161040R1 CK725F1E-104Z1,Chip ceramic
C7026,C7051,C7052 356741009R2 CEWX16V-10M,Chip elect.
C7027,C7127,C7227 356784799R2 CEWX50V-0.47M,Chip elect.
C7028,C7128,C7228 342101014R1 CC725CH1H-101J1,Chip ceramic
C7029,C7129,C7229 332101025R1 CK725B1H-102K1,Chip ceramic
C7030,C7031,C7130 342101804R1 CC725CH1H-180J1,Chip ceramic
C7055,C7057,C7072 356741009R2 CEWX16V-10M,Chip elect.
C7056,C7058,C7071 332161040R1 CK725F1E-104Z1,Chip ceramic
C7059,C7160 332132245R1 CK725B1A-224K1,Chip ceramic
C7061,C7062 332101035R1 CK725B1H-103K1,Chip ceramic
C7063,C7064,C7163 356724709R2 CEWX6.3V-47M,Chip elect.
C7069,C7070,C7169 356744709R2 CEWX16V-47M,Chip elect.
C7075,C7076,C7077 332161040R1 CK725F1E-104Z1,Chip ceramic
C7121,C7123,C7125 332161040R1 CK725F1E-104Z1,Chip ceramic
C7124,C7222,C7224 3567A4709R2 CEWX4V-47M,Chip elect.
C7126,C7151,C7152 356741009R2 CEWX16V-10M,Chip elect.
C7131,C7230,C7231 342101804R1 CC725CH1H-180J1,Chip ceramic
C7153,C7154,C7156 332161040R1 CK725F1E-104Z1,Chip ceramic
C7155,C7157,C7226 356741009R2 CEWX16V-10M,Chip elect.
C7158,C7175,C7176 332161040R1 CK725F1E-104Z1,Chip ceramic
C7161,C7162 332101035R1 CK725B1H-103K1,Chip ceramic
C7164,C7249,C7251 356724709R2 CEWX6.3V-47M,Chip elect.
C7170,C7279,C7280 356744709R2 CEWX16V-47M,Chip elect.
C7177,C7221,C7223 332161040R1 CK725F1E-104Z1,Chip ceramic
C7225,C7242,C7244 332161040R1 CK725F1E-104Z1,Chip ceramic
C7241,C7243,C7247 356741009R2 CEWX16V-10M,Chip elect.
C7245,C7248,C7250 332161040R1 CK725F1E-104Z1,Chip ceramic
C7252,C7369,C7373 342104704R1 CC725CH1H-470J1,Chip ceramic
C7253,C7368,C7372 332134745R1 CK725B1A-474K1,Chip ceramic
C7254,C7367,C7371 342101024R1 CC725CH1H-102J1,Chip ceramic
C7256,C7258,C7260 332161040R1 CK725F1E-104Z1,Chip ceramic
C7257,C7259,C7265 356741009R2 CEWX16V-10M,Chip elect.
C7263,C7264,C7356 332161040R1 CK725F1E-104Z1,Chip ceramic
C7266,C7357,C7425 356741009R2 CEWX16V-10M,Chip elect.
C7267,C7268 373041044R2 ECHU16V-104J,Chip film
C7271,C7272 356760479R2 CEWX35V-4.7M,Chip elect.
C7273,C7274 373021524R2 ECHU50V-152J,Chip film
C7275,C7276 373028214R2 ECHU50V-821J,Chip film
C7277,C7278 373024714R2 ECHU50V-471J,Chip film
C7281,C7282 3567A2209R2 CEWX4V-22M,Chip elect.
C7358,C7360,C7362 332161040R1 CK725F1E-104Z1,Chip ceramic
C7359,C7361 356724709R2 CEWX6.3V-47M,Chip elect.
C7363,C7365 356724709R2 CEWX6.3V-47M,Chip elect.
C7364,C7374,C7375 332161040R1 CK725F1E-104Z1,Chip ceramic
C7401,C7403 332181050R1 CK725F1A-105Z1,Chip ceramic
C7402,C7404 3567A1019R2 CEWX4V-100M,,Chip elect.
C7423,C7424 332161040R1 CK725F1E-104Z1,Chip ceramic
C7426,C7430,C7432 356741009R2 CEWX16V-10M,Chip elect.
C7427,C7428 373041044R2 ECHU16V-104J,Chip film
C7429,C7431 332161040R1 CK725F1E-104Z1,Chip ceramic
C7433,C7434 356760479R2 CEWX35V-4.7M,Chip elect.
C7435,C7436 373021524R2 ECHU50V-152J,Chip film
C7437,C7438 373028214R2 ECHU50V-821J,Chip film
C7439,C7440 373024714R2 ECHU50V-471J,Chip film
C7441,C7442 356744709R2 CEWX16V-47M,Chip elect.
Resistors
R7011,R7012,R7013 435033314R1 RN72K1J-331JE,Chip carbon
R7014,R7032,R7034 435031024R1 RN72K1J-102JE,Chip carbon
R7021,R7022,R7023 435033314R1 RN72K1J-331JE,Chip carbon
R7024,R7025,R7026 435033314R1 RN72K1J-331JE,Chip carbon
R7028,R7030,R7033 435034704R1 RN72K1J-470JE,Chip carbon
R7031,R7040,R7051 435033314R1 RN72K1J-331JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R7035,R7036,R7055 435031024R1 RN72K1J-102JE,Chip carbon
R7037,R7038,R7052 435034704R1 RN72K1J-470JE,Chip carbon
R7039,R7139,R7239 435031834R1 RN72K1J-183JE,Chip carbon
R7053,R7054,R7091 435034704R1 RN72K1J-470JE,Chip carbon
R7057,R7058,R7157 435031044R1 RN72K1J-104JE,Chip carbon
R7059,R7060 435033944R1 RN72K1J-394JE,Chip carbon
R7061,R7062,R7073 435031034R1 RN72K1J-103JE,Chip carbon
R7063,R7064,R7065 435034724R1 RN72K1J-472JE,Chip carbon
R7066,R7067,R7068 435034724R1 RN72K1J-472JE,Chip carbon
R7069,R7070,R7071 435032204R1 RN72K1J-220JE,Chip carbon
R7072,R7169,R7170 435032204R1 RN72K1J-220JE,Chip carbon
R7074,R7161,R7162 435031034R1 RN72K1J-103JE,Chip carbon
R7075,R7076,R7077 435033314R1 RN72K1J-331JE,Chip carbon
R7078,R7079,R7080 435033314R1 RN72K1J-331JE,Chip carbon
R7081,R7082,R7083 435033314R1 RN72K1J-331JE,Chip carbon
R7084,R7085,R7086 435033314R1 RN72K1J-331JE,Chip carbon
R7087,R7088,R7089 435033314R1 RN72K1J-331JE,Chip carbon
R7090,R7121,R7122 435033314R1 RN72K1J-331JE,Chip carbon
R7093,R7094,R7095 435034704R1 RN72K1J-470JE,Chip carbon
R7123,R7124,R7125 435033314R1 RN72K1J-331JE,Chip carbon
R7126,R7131,R7140 435033314R1 RN72K1J-331JE,Chip carbon
R7127,R7128,R7130 435034704R1 RN72K1J-470JE,Chip carbon
R7132,R7134,R7135 435031024R1 RN72K1J-102JE,Chip carbon
R7133,R7137,R7138 435034704R1 RN72K1J-470JE,Chip carbon
R7136,R7155,R7232 435031024R1 RN72K1J-102JE,Chip carbon
R7151,R7175,R7176 435033314R1 RN72K1J-331JE,Chip carbon
R7152,R7153,R7154 435034704R1 RN72K1J-470JE,Chip carbon
R7158,R7275,R7276 435031044R1 RN72K1J-104JE,Chip carbon
R7159,R7160 435033944R1 RN72K1J-394JE,Chip carbon
R7163,R7164,R7165 435034724R1 RN72K1J-472JE,Chip carbon
R7166,R7167,R7168 435034724R1 RN72K1J-472JE,Chip carbon
R7171,R7172,R7269 435032204R1 RN72K1J-220JE,Chip carbon
R7177,R7178,R7179 435033314R1 RN72K1J-331JE,Chip carbon
R7180,R7181,R7182 435033314R1 RN72K1J-331JE,Chip carbon
R7183,R7184,R7185 435033314R1 RN72K1J-331JE,Chip carbon
R7186,R7187,R7188 435033314R1 RN72K1J-331JE,Chip carbon
R7189,R7190,R7201 435033314R1 RN72K1J-331JE,Chip carbon
R7191,R7193,R7194 435034704R1 RN72K1J-470JE,Chip carbon
R7195,R7227,R7228 435034704R1 RN72K1J-470JE,Chip carbon
R7202,R7203,R7211 435033314R1 RN72K1J-331JE,Chip carbon
R7212,R7213 435033314R1 RN72K1J-331JE,Chip carbon
R7221,R7222,R7223 435033314R1 RN72K1J-331JE,Chip carbon
R7224,R7225,R7226 435033314R1 RN72K1J-331JE,Chip carbon
R7230,R7233,R7237 435034704R1 RN72K1J-470JE,Chip carbon
R7234,R7235,R7236 435031024R1 RN72K1J-102JE,Chip carbon
R7238,R7244,R7245 435034704R1 RN72K1J-470JE,Chip carbon
R7240,R7241,R7242 435033314R1 RN72K1J-331JE,Chip carbon
R7243,R7247,R7248 435033314R1 RN72K1J-331JE,Chip carbon
R7246,R7250,R7251 435034704R1 RN72K1J-470JE,Chip carbon
R7249,R7253,R7258 435033314R1 RN72K1J-331JE,Chip carbon
R7252,R7264 435034704R1 RN72K1J-470JE,Chip carbon
R7254,R7368,R7372 435031014R1 RN72K1J-101JE,Chip carbon
R7255,R7285,R7286 435031524R1 RN72K1J-152JE,Chip carbon
R7256,R7370,R7374 435035624R1 RN72K1J-562JE,Chip carbon
R7259,R7260,R7262 435033314R1 RN72K1J-331JE,Chip carbon
R7261,R7425 435031024R1 RN72K1J-102JE,Chip carbon
R7267,R7268 435032244R1 RN72K1J-224JE,Chip carbon
R7270,R7457,R7458 435032204R1 RN72K1J-220JE,Chip carbon
R7271,R7272,R7277 435031034R1 RN72K1J-103JE,Chip carbon
R7273,R7274 435035614R1 RN72K1J-561JE,Chip carbon
R7278,R7281,R7282 435031034R1 RN72K1J-103JE,Chip carbon
R7279,R7280 435032734R1 RN72K1J-273JE,Chip carbon
R7283,R7184,R7299 435031034R1 RN72K1J-103JE,Chip carbon
R7287,R7288,R7289 435032234R1 RN72K1J-223JE,Chip carbon
R7290,R7291,R7292 435032234R1 RN72K1J-223JE,Chip carbon
R7293,R7294,R7443 435032234R1 RN72K1J-223JE,Chip carbon
R7295,R7296,R7297 435031524R1 RN72K1J-152JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R7298,R7369,R7373 435031524R1 RN72K1J-152JE,Chip carbon
R7300,R7427,R7428 435031034R1 RN72K1J-103JE,Chip carbon
R7331,R7332 435034704R1 RN72K1J-470JE,Chip carbon
R7367,R7371,R7421 435033314R1 RN72K1J-331JE,Chip carbon
R7402,R7403 435320124R2 RN72K3A-012JE,Chip carbon
R7422,R7423 435033314R1 RN72K1J-331JE,Chip carbon
R7424,R7426 435033314R1 RN72K1J-331JE,Chip carbon
R7429,R7430 435035614R1 RN72K1J-561JE,Chip carbon
R7431,R7432 435031044R1 RN72K1J-104JE,Chip carbon
R7433,R7434,R7437 435031034R1 RN72K1J-103JE,Chip carbon
R7435,R7436 435032734R1 RN72K1J-273JE,Chip carbon
R7438,R7439,R7440 435031034R1 RN72K1J-103JE,Chip carbon
R7441,R7442,R7451 435031524R1 RN72K1J-152JE,Chip carbon
R7444,R7445,R7446 435032234R1 RN72K1J-223JE,Chip carbon
R7447,R7448 435032234R1 RN72K1J-223JE,Chip carbon
R7449,R7450 435032234R1 RN72K1J-223JE,Chip carbon
R7452,R7453,R7454 435031524R1 RN72K1J-152JE,Chip carbon
R7455,R7456 435031034R1 RN72K1J-103JE,Chip carbon
P7002 25052810R2 IMSA-9850S-14Y900
P7402A,P7403A 25053006R2 IMSA-9832S-30Y930
P7401 25056332R2 IMSA-9828B-100Y900
DSP circuit PC board (NADG-8163-1A/1B)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q701,Q7301 22242093R3 D610A002GDP225
Q702,Q7302 22241649R2 TC7WHU04FK
Q706,Q707 22242094R3 IC42S16800-7T
Q708 222W0018R300967 MX29LV160ABTC-70(0096)
Q7308 222W0018R300966 MX29LV160ABTC-70(0096)
Q7306,Q7307 22242094R3 IC42S16800-7T
Q7403,Q803 22242096R2 BD3502FVM
Transistors
Q7404,Q804 2216920R2 2SK2094
Diodes
D701,D702,D703 223234R2 or 1SS352 or
D704,D705 223269R2 1SS355
D7301,D7302,D7303 223234R2 or 1SS352 or
D7304,D7305 223269R2 1SS355
Coils
L701,L7301 230978R2 ACF451832-333-T
R7320,R7321,R7322 230984R1 BK1608HS601-T,EMI
R7323,R7324 230984R1 BK1608HS601-T,EMI
Oscillators
X701,X7301 3010393R2 FCX-03-30.000MHz
Capacitors
C701,C702,C703,C704 395541007R2 F93-16V-10M,Chip tantal
C705,C725,C726,C727 395541007R2 F93-16V-10M,Chip tantal
C706,C707,C708,C709 332161040R1 CK725F1E-104Z1,Chip ceramic
C710,C711,C712,C713 332161040R1 CK725F1E-104Z1,Chip ceramic
C714,C715,C716,C717 332161040R1 CK725F1E-104Z1,Chip ceramic
C718,C719,C720,C721 332161040R1 CK725F1E-104Z1,Chip ceramic
C722,C723,C724 332161040R1 CK725F1E-104Z1,Chip ceramic
C728,C729,C730,C731 395541007R2 F93-16V-10M,Chip tantal
C7301,C7302,C7303 395541007R2 F93-16V-10M,Chip tantal
C7304,C7305,C7325 395541007R2 F93-16V-10M,Chip tantal
C7306,C7307,C7308 332161040R1 CK725F1E-104Z1,Chip ceramic
C7309,C7310,C7311 332161040R1 CK725F1E-104Z1,Chip ceramic
C7312,C7313,C7314 332161040R1 CK725F1E-104Z1,Chip ceramic
C7315,C7316,C7317 332161040R1 CK725F1E-104Z1,Chip ceramic
C7318,C7319,C7320 332161040R1 CK725F1E-104Z1,Chip ceramic
C732,C733,C734,C735 332161040R1 CK725F1E-104Z1,Chip ceramic
C7321,C7322,C7323 332161040R1 CK725F1E-104Z1,Chip ceramic
C7324,C7332,C7333 332161040R1 CK725F1E-104Z1,Chip ceramic
C7326,C7327,C7328 395541007R2 F93-16V-10M,Chip tantal
C7329,C7330,C7331 395541007R2 F93-16V-10M,Chip tantal
C7334,C7335,C7336 332161040R1 CK725F1E-104Z1,Chip ceramic
C7337,C7338,C7339 332161040R1 CK725F1E-104Z1,Chip ceramic
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C7340,C7341,C7342 332161040R1 CK725F1E-104Z1,Chip ceramic
C7343,C7344,C7345 332161040R1 CK725F1E-104Z1,Chip ceramic
C7346,C7347,C7349 332161040R1 CK725F1E-104Z1,Chip ceramic
C7348,C7406,C7411 395541007R2 F93-16V-10M,Chip tantal
C735,C736,C737,C738 332161040R1 CK725F1E-104Z1,Chip ceramic
C7353,C7380,C7382 332161040R1 CK725F1E-104Z1,Chip ceramic
C7354,C7397 342101204R1 CC725CH1H-120J1,Chip ceramic
C7355 342101504R1 CC725CH1H-150J1,Chip ceramic
C7379,C7381,C7383 342101024R1 CC725CH1H-102J1,Chip ceramic
C7384,C7386,C7388 332161040R1 CK725F1E-104Z1,Chip ceramic
C7385,C7387,C7389 342101024R1 CC725CH1H-102J1,Chip ceramic
C739,C740,C741,C742 332161040R1 CK725F1E-104Z1,Chip ceramic
C7390,C7392,C7394 332161040R1 CK725F1E-104Z1,Chip ceramic
C7391,C7393,C7395 342101024R1 CC725CH1H-102J1,Chip ceramic
C7396,C7398,C7405 332161040R1 CK725F1E-104Z1,Chip ceramic
C7407,C4708 332102225R1 CK725B1H-222K1,Chip ceramic
C7410 395522217R2 F93-6.3V-220M,Chip tantal
C7412 332161040R1 CK725F1E-104Z1,Chip ceramic
C743,C744,C745,C746 332161040R1 CK725F1E-104Z1,Chip ceramic
C747,C749,C753,C780 332161040R1 CK725F1E-104Z1,Chip ceramic
C748,C806,C811 395541007R2 F93-16V-10M,Chip tantal
C754 342101204R1 CC725CH1H-120J1,Chip ceramic
C755 342101504R1 CC725CH1H-150J1,Chip ceramic
C779,C781,C783,C785 342101024R1 CC725CH1H-102J1,Chip ceramic
C782,C784,C786,C788 332161040R1 CK725F1E-104Z1,Chip ceramic
C787,C789,C791 342101024R1 CC725CH1H-102J1,Chip ceramic
C790,C792,C794,C796 332161040R1 CK725F1E-104Z1,Chip ceramic
C793,C795,C797 342101024R1 CC725CH1H-102J1,Chip ceramic
C798,C805,C812 332161040R1 CK725F1E-104Z1,Chip ceramic
C807,C808 332102225R1 CK725B1H-222K1,Chip ceramic
C810 395522217R2 F93-6.3V-220M,Chip tantal
Resistors
R701,R712,R713,R714 435033314R1 RN72K1J-331JE,Chip carbon
R702 435033924R1 RN72K1J-392JE,Chip carbon
R706 435031514R1 RN72K1J-151JE,Chip carbon
R708 435034714R1 RN72K1J-471JE,Chip carbon
R709,R710,R718,R720 435034704R1 RN72K1J-470JE,Chip carbon
R715,R716,R717 435033314R1 RN72K1J-331JE,Chip carbon
R725,R750,R753,R757 435031824R1 RN72K1J-182JE,Chip carbon
R7301,R7312,R7313 435033314R1 RN72K1J-331JE,Chip carbon
R7302 435033924R1 RN72K1J-392JE,Chip carbon
R7306 435031514R1 RN72K1J-151JE,Chip carbon
R7308 435034714R1 RN72K1J-471JE,Chip carbon
R7309,R7310,R7318 435034704R1 RN72K1J-470JE,Chip carbon
R7314,R7315,R7316 435033314R1 RN72K1J-331JE,Chip carbon
R7317,R7336,R7337 435033314R1 RN72K1J-331JE,Chip carbon
R7325,R7350,R7353 435031824R1 RN72K1J-182JE,Chip carbon
R7338,R7341,R7342 435034704R1 RN72K1J-470JE,Chip carbon
R7340 435033324R1 RN72K1J-332JE,Chip carbon
R7344,R7394,R7397 435033314R1 RN72K1J-331JE,Chip carbon
R7354 435034704R1 RN72K1J-470JE,Chip carbon
R7355 435035614R1 RN72K1J-561JE,Chip carbon
R7356 435031054R1 RN72K1J-105JE,Chip carbon
R7357,R7358 435031824R1 RN72K1J-182JE,Chip carbon
R7359,R7360 435031824R1 RN72K1J-182JE,Chip carbon
R736,R737,R744 435033314R1 RN72K1J-331JE,Chip carbon
R7376,R7377,R7378 435033304R1 RN72K1J-330JE,Chip carbon
R7379,R7380 435033304R1 RN72K1J-330JE,Chip carbon
R738,R741,R742,R754 435034704R1 RN72K1J-470JE,Chip carbon
R7381,R7382 435033304R1 RN72K1J-330JE,Chip carbon
R7390,R7391,R7392 435031034R1 RN72K1J-103JE,Chip carbon
R7398 435031834R1 RN72K1J-183JE,Chip carbon
R740 435033324R1 RN72K1J-332JE,Chip carbon
R755 435035614R1 RN72K1J-561JE,Chip carbon
R756 435031054R1 RN72K1J-105JE,Chip carbon
R758,R759,R760 435031824R1 RN72K1J-182JE,Chip carbon
R776,R777,R778,R779 435033304R1 RN72K1J-330JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R780,R781,R782 435033304R1 RN72K1J-330JE,Chip carbon
R790,R791,R792 435031034R1 RN72K1J-103JE,Chip carbon
R794,R797 435033314R1 RN72K1J-331JE,Chip carbon
R798 435031834R1 RN72K1J-183JE,Chip carbon
Plugs
P701,P7301 25056542 IMSA-9204B-2-13Z122-GF
P7402B,P7403B 25056364R2 IMSA-9831B-30Y930
P7404A 25055966R2 NPLG-6P919
IEEE1394 terminal PC board(NADG-8164-1A)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q3001 22278033DR2JR or NJM2391DL1-33 or
22278033DR2NE MPC2933T
Q3003 22274157DR2TO TC74VCX157FT
Q3004 22242061R3 TSB43CA42PGF
Q3005 22274541GR2PH 74AHCT541PW
Q3008,Q3518 22241895R2 TC7SZ125FU
Q3009 22242062R2 TLC2932IPWLE
Q3010 22241546R2 TC7WT241FU
Q3501 NSP WS29AL008D90TFI010 (0126)
Q3502 222W0008R3009
54
DISCON
WHD64F2367VF33 (0095)
Q3505,Q3506 22241830R2TO TC7SH08FU
Q3508 22241778R2 BA33C25FP
Q3509 22242252R3 SM5819HQF
Q3511 22241642R2 S-80127CNMC-JKM-T2
Q3513 222780053R2JR 78L05(NJM78L05UA)
Q3515 22242079R2PH 74AHCT1G04GW
Q3516 22274040ER2TO TC74VHC4040FT
Q3517 22240928R2 TC9246F
Q3519 22274541BR2PH or 74ALVC541PW or
22274541BR2TO TC74LCX541FT
Transistors
Q3503 2216730R2 DTC114EE
Q3512 2216710R2 DTA114EE
Coils
L3001,L3002,L3003 231237M022R2 NCH-1471
L3004,L3005,L3501 231237M022R2 NCH-1471
L3009,L3010 230977R2 DLP11SN161SL2L
L3011,L3012 230977R2 DLP11SN161SL2L
L3502,L3503,L3504 231237M022R2 NCH-1471
L3508,L3509,L3510 231237K470R2 NCH-1479
L3511,L3512,L5313 230955R2 BK1608HS102-T,EMI
L3514,L3515,L3516 230955R2 BK1608HS102-T,EMI
L3517,L3518,L3519 230955R2 BK1608HS102-T,EMI
R3523,R3524,R3525 230955R2 BK1608HS102-T,EMI
Oscillators
X3001 3010385R2 FCX-03-24.576MHz
X3501 3010384R2 FCX-03-16.000MHz
Capacitors
C3001 356722219R2 CEWX6.3V-220M,Chip elect.
C3002,C3004,C3005 332161040R1 CK725F1E-104Z1,Chip ceramic
C3003,C3006,C3025 3567A2219R2 CEWX4V-220M,Chip elect.
C3007,C3008,C3009 332161040R1 CK725F1E-104Z1,Chip ceramic
C3010,C3011,C3012 332161040R1 CK725F1E-104Z1,Chip ceramic
C3013,C3014,C3016 332161040R1 CK725F1E-104Z1,Chip ceramic
C3015,C3019,C3022 342101024R1 CC725CH1H-102J1,Chip ceramic
C3018,C3020,C3021 332161040R1 CK725F1E-104Z1,Chip ceramic
C3023,C3026,C3032 332161040R1 CK725F1E-104Z1,Chip ceramic
C3024,C3045 332121045R1 CK725B1C-104K1,Chip ceramic
C3027,C3028 342101204R1 CC725CH1H-120J1,Chip ceramic
C3031,C3035,C3059 342101024R1 CC725CH1H-102J1,Chip ceramic
C3033,C3034,C3036 332161040R1 CK725F1E-104Z1,Chip ceramic
C3041 332132245R1 CK725B1A-224K1,Chip ceramic
C3044 332121055R1 CK725B1C-105K1,Chip ceramic
C3046,C3049 356721019R2 CEWX6.3V-100M,,Chip elect.
C3047,C3048,C3050 332161040R1 CK725F1E-104Z1,Chip ceramic
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C3051,C3052 332181050R1 CK725F1A-105Z1,Chip ceramic
C3053,C3054,C3057 332161040R1 CK725F1E-104Z1,Chip ceramic
C3055,C3056 342102214R1 CC725CH1H-221J1,Chip ceramic
C3058,C3060,C3062 332161040R1 CK725F1E-104Z1,Chip ceramic
C3061,C3063,C3064 342101024R1 CC725CH1H-102J1,Chip ceramic
C3065,C3066,C3067 342101024R1 CC725CH1H-102J1,Chip ceramic
C3068,C3069 342101024R1 CC725CH1H-102J1,Chip ceramic
C3501,C3503,C3506 3567A2219R2 CEWX4V-220M,Chip elect.
C3502,C3504,C3505 332161040R1 CK725F1E-104Z1,Chip ceramic
C3507,C3509,C3512 332161040R1 CK725F1E-104Z1,Chip ceramic
C3508,C3528,C3532 3567A2219R2 CEWX4V-220M,Chip elect.
C3510,C3511 342101804R1 CC725CH1H-180J1,Chip ceramic
C3514,C3516,C3521 332161040R1 CK725F1E-104Z1,Chip ceramic
C3517,C3518 342101804R1 CC725CH1H-180J1,Chip ceramic
C3530,C3560 356721019R2 CEWX6.3V-100M,,Chip elect.
C3531,C3553 342101024R1 CC725CH1H-102J1,Chip ceramic
C3533,C3535,C3561 3567A2219R2 CEWX4V-220M,Chip elect.
C3534,C3536,C3537 332161040R1 CK725F1E-104Z1,Chip ceramic
C3541,C3543,C3546 332161040R1 CK725F1E-104Z1,Chip ceramic
C3547,C3548,C3549 332161040R1 CK725F1E-104Z1,Chip ceramic
C3550,C3552,C3556 332161040R1 CK725F1E-104Z1,Chip ceramic
C3554 337394745R1 CK732B1C-474K,Chip ceramic
C3555 342104704R1 CC725CH1H-470J1,Chip ceramic
C3557,C3558 332161040R1 CK725F1E-104Z1,Chip ceramic
C3559,C3561 332161040R1 CK725F1E-104Z1,Chip ceramic
C3562,C3563 356724709R2 CEWX6.3V-47M,Chip elect.
C3564 356751009R2 CEWX25V-10M,Chip elect.
Resistors
R3001,R3002 433220004R1 RN72K2B-000JE,Chip carbnon
R3004,R3019,R3042 435033304R1 RN72K1J-330JE,Chip carbon
R3005,R3006,R3007 43474433004R1 RM4KJ330X04,Array
R3008,R3009,R3010 43474433004R1 RM4KJ330X04,Array
R3011,R3015,R3020 43474410304R1 RM4KJ103X04,Array
R3012,R3013,R3014 435031034R1 RN72K1J-103JE,Chip carbon
R3016,R3017,R3018 435031034R1 RN72K1J-103JE,Chip carbon
R3021,R3043,R3045 43474410304R1 RM4KJ103X04,Array
R3031,R3032,R3033 435035602R1 RN72K1J-560FE,Chip carbon
R3034,R3036 435035122R1 RN72K1J-512FE,Chip carbon
R3035,R3037,R3038 435035602R1 RN72K1J-560FE,Chip carbon
R3039 435032224R1 RN72K1J-222JE,Chip carbon
R3040,R3041,R3051 435031034R1 RN72K1J-103JE,Chip carbon
R3044,R3053,R3058 435033304R1 RN72K1J-330JE,Chip carbon
R3048,R3504,R3533 43474410304R1 RM4KJ103X04,Array
R3052,R3054,R3055 435031034R1 RN72K1J-103JE,Chip carbon
R3056,R3057,R3062 435031034R1 RN72K1J-103JE,Chip carbon
R3059,R3065,R3066 435033304R1 RN72K1J-330JE,Chip carbon
R3063,R3069,R3089 43474433004R1 RM4KJ330X04,Array
R3064,R3068,R3073 435031034R1 RN72K1J-103JE,Chip carbon
R3070,R3071,R3085 435033304R1 RN72K1J-330JE,Chip carbon
R3079,R3080,R3081 435031034R1 RN72K1J-103JE,Chip carbon
R3082,R3086,R3087 435031032R1 RN72K1J-103FE,Chip carbon
R3083 435031532R1 RN72K1J-153FE,Chip carbon
R3084 435031022R1 RN72K1J-102FE,Chip carbon
R3088,R3091,R3521 435031034R1 RN72K1J-103JE,Chip carbon
R3090,R3501,R3505 43474433004R1 RM4KJ330X04,Array
R3092,R3500,R3508 435033304R1 RN72K1J-330JE,Chip carbon
R3093,R3094 435031032R1 RN72K1J-103FE,Chip carbon
R3095 435035602R1 RN72K1J-560FE,Chip carbon
R3096,R3098 435031024R1 RN72K1J-102JE,Chip carbon
R3097 435035602R1 RN72K1J-560FE,Chip carbon
R3502,R3503,R3514 435034724R1 RN72K1J-472JE,Chip carbon
R3506,R3507,R3512 43474433004R1 RM4KJ330X04,Array
R3509,R3510,R3511 435033304R1 RN72K1J-330JE,Chip carbon
R3513,R3515,R3520 435033304R1 RN72K1J-330JE,Chip carbon
R3516,R3517,R3518 43474433004R1 RM4KJ330X04,Array
R3519,R3536,R3537 435034724R1 RN72K1J-472JE,Chip carbon
R3522,R3531,R3532 435033304R1 RN72K1J-330JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R3526,R3534,R3555 435031034R1 RN72K1J-103JE,Chip carbon
R3527,R3528,R3529 435030004R1 RN72K1J-000JE,Chip carbon
R3530,R3544,R3556 435030004R1 RN72K1J-000JE,Chip carbon
R3535,R3538,R3542 43474433004R1 RM4KJ330X04,Array
R3539,R3558 435034724R1 RN72K1J-472JE,Chip carbon
R3540 435031814R1 RN72K1J-181JE,Chip carbon
R3541,R3552,R3553 435033304R1 RN72K1J-330JE,Chip carbon
R3543,R3545,R3546 43474433004R1 RM4KJ330X04,Array
R3547,R3548,R3549 43474433004R1 RM4KJ330X04,Array
R3550,R3551,R3554 43474433004R1 RM4KJ330X04,Array
R3557,R3562,R3563 435031034R1 RN72K1J-103JE,Chip carbon
R3559,R3560,R3561 435033304R1 RN72K1J-330JE,Chip carbon
R3564,R3565 43474433004R1 RM4KJ330X04,Array
R3566 435035624R1 RN72K1J-562JE,Chip carbon
R3567 435031524R1 RN72K1J-152JE,Chip carbon
R3568 435031014R1 RN72K1J-101JE,Chip carbon
R3569 435030004R1 RN72K1J-000JE,Chip carbon
R3570,R3571 435033304R1 RN72K1J-330JE,Chip carbon
R3572,R3573 435033304R1 RN72K1J-330JE,Chip carbon
R3574,R3589 435034724R1 RN72K1J-472JE,Chip carbon
R3576,R3582 435031034R1 RN72K1J-103JE,Chip carbon
R3585 43474410304R1 RM4KJ103X04,Array
R3586,R3587,R3588 43474433004R1 RM4KJ330X04,Array
Sockets
P3019,P3020 25053028R3 CSS5004-1062G
P3511 25052781R2 NSCT-7P2677
Pulgs
P3503A 25056329R2 IMSA-9850B-30Y902
P3507,P3509,P3512 25055979R2 NPLG-6P932
Mother PC board (NAAR-8166-1C/1D)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q3101 NSP
DISCON WM32174F4VFP(0088)
Q3102 22241642R2 S-80127CNMC-JKM-T2
Q3104 22274125CR2PH 74LV125PW
Q3105 22241894R2PH 74AHCT125PW
Q3107 22278033DR2JR or NJM2391DL1-33 or
22278033DR2NE MPC2933T
Q3109 222780155R2JR 78M15HF(NJM78M15DL1A)
Q3110 222790155R2JR 79M15(NJM79M15DL1A)
Q3112 22242113R2 PCA9564PW
Q3113 222W0017R3 or W MX29LV160BBTC-90 or
222W0018R3 W MX29LV160BBTC-70
Q3114 22274541GR2PH 74AHCT541PW
Q3115,Q3117,Q3119 22274574GR2PH 74AHCT574PW
Q3116,Q3118,Q3120 22242124R2PH or 74HC1G32GW or
22241292R2 TC7S32FU
Q3121,Q3123,Q3125 22274574GR2PH 74AHCT574PW
Q3122,Q3124,Q3126 22242124R2PH or 74HC1G32GW or
22241292R2 TC7S32FU
Q3127 22274138IR2PH 74AHC138PW
Q3128 22278033BR2JR NJU7200U33
Transistors
Q3103 2214540R2 or RN2403 or
2216240R2 DTA124EKA
Q3106 2214470R2 or RN1402 or
2216250R2 DTC114EKA
Diodes
D3102,D3103,D3105 223234R2 or 1SS352 or
D3106,D3107 223269R2 1SS355
D3104 224490510R2 or UDZ5.1B or
224550510R2 UDZS5.1B
D3108 224490820R2 or UDZ8.2B or
224550820R2 UDZS8.2B
D3109,D3110 223234R2 or 1SS352 or
223269R2 1SS355
CIRCUIT NO. PART NO. DESCRIPTION
Coils
L3101,L3102 231237M022R2 NCH-1471
231237M022R2 NCH-1471
L3103,L3104 231237K470R2 NCH-1479
231237K470R2 NCH-1479
L3105,L3106 231237K470R2 NCH-1479
231237K470R2 NCH-1479
R3215,R3216 230955R2 BK1608HS102-T,EMI
230955R2 BK1608HS102-T,EMI
Oscillator
X3101 3010392R2 FCX-03-10.000MHz
Capacitors
C3101,C3104,C3105 332161040R1 CK725F1E-104Z1,Chip ceramic
C3103,C3228,C3361 356721019R2 CEWX6.3V-100M,,Chip elect.
C3106,C3108,C3111 332161040R1 CK725F1E-104Z1,Chip ceramic
C3107,C3109 356741009R2 CEWX16V-10M,Chip elect.
C3110,C3145 3567A1019R2 CEWX4V-100M,,Chip elect.
C3114,C3115,C3116 332161040R1 CK725F1E-104Z1,Chip ceramic
C3117,C3118,C3119 332161040R1 CK725F1E-104Z1,Chip ceramic
C3120,C3121,C3122 332161040R1 CK725F1E-104Z1,Chip ceramic
C3123,C3124,C3125 332161040R1 CK725F1E-104Z1,Chip ceramic
C3126,C3127,C3129 332161040R1 CK725F1E-104Z1,Chip ceramic
C3128,C3140 356741009R2 CEWX16V-10M,Chip elect.
C3130,C3137,C3138 332161040R1 CK725F1E-104Z1,Chip ceramic
C3131,C3133 356751009R2 CEWX25V-10M,Chip elect.
C3134,C3136 356751009R2 CEWX25V-10M,Chip elect.
C3142,C3143,C3144 332161040R1 CK725F1E-104Z1,Chip ceramic
C3146,C3147,C3157 332161040R1 CK725F1E-104Z1,Chip ceramic
C3148,C3154 342101024R1 CC725CH1H-102J1,Chip ceramic
C3170,C3172,C3181 332161040R1 CK725F1E-104Z1,Chip ceramic
C3175 3000116 or EECS5R5V105 or
3000089 DX-5R5V105,Super
C3196,C3206,C3226 332161040R1 CK725F1E-104Z1,Chip ceramic
C3229,C3319 342101204R1 CC725CH1H-120J1,Chip ceramic
C3317,C3337 332161040R1 CK725F1E-104Z1,Chip ceramic
C3320,C3362 342101204R1 CC725CH1H-120J1,Chip ceramic
C3322 332121045R1 CK725B1C-104K1,Chip ceramic
C3323 342102214R1 CC725CH1H-221J1,Chip ceramic
C3351,C3381 332161040R1 CK725F1E-104Z1,Chip ceramic
Resistors
R3101,R3120,R3121 435033304R1 RN72K1J-330JE,Chip carbon
R3102,R3104,R3110 43474433004R1 RM4KJ330X04,Array
R3107 417342724 R16J-2.7K,Carbon
R3109,R3111,R3112 435031034R1 RN72K1J-103JE,Chip carbon
R3116,R3382,R3386 43474418104R1 RM4KJ181X04,Array
R3117,R3118,R3119 435031034R1 RN72K1J-103JE,Chip carbon
R3122,R3123,R3125 435031034R1 RN72K1J-103JE,Chip carbon
R3124,R3140,R3143 43474433004R1 RM4KJ330X04,Array
R3131,R3139,R3152 435031034R1 RN72K1J-103JE,Chip carbon
R3133,R3134,R3135 435036834R1 RN72K1J-683JE,Chip carbon
R3136,R3153,R3159 435033304R1 RN72K1J-330JE,Chip carbon
R3144,R3148,R3160 43474433004R1 RM4KJ330X04,Array
R3147,3180,R3326 43474410304R1 RM4KJ103X04,Array
R3154,R3155,R3156 435031034R1 RN72K1J-103JE,Chip carbon
R3157,R3181 435034734R1 RN72K1J-473JE,Chip carbon
R3164,R3173,R3177 43474433004R1 RM4KJ330X04,Array
R3168,R3169,R3178 435033304R1 RN72K1J-330JE,Chip carbon
R3171,R3172,R3183 435031034R1 RN72K1J-103JE,Chip carbon
R3182,R3187,R3191 43474433004R1 RM4KJ330X04,Array
R3184 435031824R1 RN72K1J-182JE,Chip carbon
R3185,R3186,R3217 435033304R1 RN72K1J-330JE,Chip carbon
R3188,R3189,R3190 435031034R1 RN72K1J-103JE,Chip carbon
R3192,R3193,R3195 435031034R1 RN72K1J-103JE,Chip carbon
R3194,R3196 435032244R1 RN72K1J-224JE,Chip carbon
R3197,R3201,R3207 43474433004R1 RM4KJ330X04,Array
R3198,R3223,R3224 435031034R1 RN72K1J-103JE,Chip carbon
R3211,R3219,R3239 43474433004R1 RM4KJ330X04,Array
R3218,R3233 435030004R1 RN72K1J-000JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R3229,R3230,R3231 435031034R1 RN72K1J-103JE,Chip carbon
R3232,R3236,R3271 435031034R1 RN72K1J-103JE,Chip carbon
R3234,R3235 435030004R1 RN72K1J-000JE,Chip carbon
R3301,R3306,R3307 435031034R1 RN72K1J-103JE,Chip carbon
R3302,R3303 435030004R1 RN72K1J-000JE,Chip carbon
R3304 435030004R1 RN72K1J-000JE,Chip carbon <D/DT/GT/A/K>
R3308,R3311,R3312 435031034R1 RN72K1J-103JE,Chip carbon
R3309,R3325,R3329 43474433004R1 RM4KJ330X04,Array
R3310,R3313 435032224R1 RN72K1J-222JE,Chip carbon
R3314,R3316,R3317 435033304R1 RN72K1J-330JE,Chip carbon
R3315 435034724R1 RN72K1J-472JE,Chip carbon
R3319 435031054R1 RN72K1J-105JE,Chip carbon
R3320,R3358,R3360 435030004R1 RN72K1J-000JE,Chip carbon
R3323 435031024R1 RN72K1J-102JE,Chip carbon
R3327,R3374,R3375 43474410304R1 RM4KJ103X04,Array
R3333,R3339,R3343 43474433004R1 RM4KJ330X04,Array
R3347,R3353,R3357 43474433004R1 RM4KJ330X04,Array
R3359,R3361,R3362 435031034R1 RN72K1J-103JE,Chip carbon
R3363 435031524R1 RN72K1J-152JE,Chip carbon
R3364 435038214R1 RN72K1J-821JE,Chip carbon
R3365,R3366 435031034R1 RN72K1J-103JE,Chip carbon
R3369,R3370 43474433004R1 RM4KJ330X04,Array
R3371,R3372 435033304R1 RN72K1J-330JE,Chip carbon
R3373,R3383 435031034R1 RN72K1J-103JE,Chip carbon
R3376,R3377,R3378 435035134R1 RN72K1J-513JE,Chip carbon
R3379,R3380,R3381 435036834R1 RN72K1J-683JE,Chip carbon
R3390,R3394 43474433004R1 RM4KJ330X04,Array
R3396 435031034R1 RN72K1J-103JE,Chip carbon <P>
Sockets
JL8002 200EE392615UL NSAS-26P1451
P2001B,P2002B 25052979R2 IMSA-9850S-30Y903
P2204B,P2401B 25052979R2 IMSA-9850S-30Y903
P2501B,P3102B 25052979R2 IMSA-9850S-30Y903
P3107B,P3109B 25052979R2 IMSA-9850S-30Y903
P3108B 25052974R2 IMSA-9850S-20Y903
P3115B 25052979R2 IMSA-9850S-30Y903
P3501D 25053026R2 IMSA-9853S-28Y921
P7401B 25052982R2 IMSA-9828S-100Y900
P7501D 25053025R2 IMSA-9853S-20Y903
P8000B,P8001B 25052974R2 IMSA-9850S-20Y903
P8002B 25052971R2 IMSA-9850S-14Y903
Plugs
P3105B 25056360R2 MINI-CT-40P(4-353315-0)
P3106B 25056359R2 MINI-CT-38P(3-353315-8)
P3116C 25056294 PHDT-20P(B20B-PHDSS-B)
P3120B 25056389R2 SM12B-SRSS-TB
P3120C 25056390R2 SM13B-SRSS-TB
P3129 25056543 ISMA-9210B-1-08Z863-PT1
P3130C 25056297 PHDT-26P(B26B-PHDSS-B)
P3131 25055704 NPLG-8P660
P3132 25056543 ISMA-9210B-1-08Z863-PT1
Power supply circuit PC board(NAPS-8193-1A/1B/1C/1D/1E)
Constant voltage PC board(NAPS-8194-1A/1B/1C/1D/1E)
Constant voltage 2 PC board(NAPS-8195-1A/1B/1C/1D/1E)
Primary circuit PC board (NAPS-8196-1A/1B/1C/1D/1E)
Power switch PC board (NAPS-8197-1A/1B/1C/1D/1E)
12V trigger terminal PC board(NAETC-8198-1A) <D>
Connector power PC board(NAETC-8199-1A) <D>
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q5701 22241537R2 MPD4721GS
Q5721,Q9391 22278033FT MPC29L33J
Q5801 22278012ENE MPC29M12HF <D>
Q9321,Q9331 222780053JRCT 78L05(NJM78L05A)
Q9341,Q9345 22242097 NJM317F
Q9361 222780565JRC 78M56(NJM78M56FA)
Q9381 222780055 78M05HF
Q9401 222780094JRC 7809FA(NJM7809FA)
Q9421 222790054JRC 7905FA(NJM7905FA)
Q9431,Q9441 222780053JRCT 78L05(NJM78L05A)
Transistors
Q5751,Q5752,Q5753 2212855 2SB1068-U <O>
Q5754,Q5755 2212855 2SB1068-U <O>
Q5761,Q5762,Q5763 2214470R2 or RN1402 or
Q5764,Q5765 2216220R2 KRA102S <O>
Q5771,Q5772,Q5773 2214470R2 or RN1402 or
Q5781,Q5782,Q5783 2216220R2 KRA102S <O>
Q5851,Q5852,Q5853 2212855 2SB1068-U
Q5854,Q5855 2212855 2SB1068-U
Q5861,Q5862,Q5863 2214470R2 or RN1402 or
Q5864,Q5865 2216220R2 KRA102S <D>
Q5871,Q5872,Q5873 2214470R2 or RN1402 or
Q5881,Q5882,Q5883 2216220R2 KRA102S <D>
Q9201,Q9211 2214490R2 or RN1404 or
2216210R2 KRC104S
Q9202,Q9212,Q9363 2213145R2 or 2SC2712-GR or
Q9502 2216175R2 KTC3875-GR
Q9362,Q9402,Q9412 2212855 2SB1068-U
Q9365,Q9403,Q9413 2214470R2 or RN1402 or
2216220R2 KRA102S
Q9422 2215024T 2SD1468S-R
Q9423 2214530R2 or RN2402 or
2216220R2 KRA102S
Q9501 2211644 2SA965-Y
Photo coupllers
Q5791,Q5792,Q5793 24120080 PC817X <O>
Q5891,Q5892,Q5893 24120080 PC817X
Diodes
D9101,D9102,D9103 22380260 or RL1N4003 or
D9104,D9351,D9361 22380032 or 1SR139-100 or
D9362,D9401,D9402 22380035 GP104003E
D9201,D9211,D9371 223234R2 or 1SS352 or
D9372 223269R2 1SS355
D9403 224551200R2 UDZS12B
D9421,D9422,D9506 223234R2 or 1SS352 or
223269R2 1SS355
D9502 22380022F or RBV402 or
22380271F or D3SBA20 or
22380285F RS403M
D9503,D9504 22380260 or RL1N4003 or
22380032 or 1SR139-100 or
22380035 GP104003E
D9505 224552700R2 UDZS27B
Coil
L5701 230948R2 BLM21A102F
Capacitors
C5701,C5702 394681007 CE04W50V-10M(VR),Elect.
C5703,C5704 394681007 CE04W50V-10M(VR),Elect.
C5705 394621017 CE04W6.3V-100M(VR),Elect.
C5706,C5707 332161040R1 CK725F1E-104Z1,Chip ceramic
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C5721 394661007 CE04W35V-10M(VR),Elect.
C5722 394641017 CE04W16V-100M(VR),Elect.
C5751,C5752,C5753 335622230 CK45F50V-223Z,Ceramic <O>
C5754,C5755 335622230 CK45F50V-223Z,Ceramic <O>
C5771,C5772,C5773 394621017 CE04W6.3V-100M(VR),Elect. <O>
C5781,C5782,C5783 374722234 ECQ-B50V-223J,Plastic film <O>
C5801 394661007 CE04W35V-10M(VR),Elect. <D>
C5802 394641017 CE04W16V-100M(VR),Elect. <D>
C5851,C5852,C5853 335622230 CK45F50V-223Z,Ceramic <D>
C5854,C5855 335622230 CK45F50V-223Z,Ceramic <D>
C5871,C5872,C5873 394621017 CE04W6.3V-100M(VR),Elect. <D>
C5881,C5882,C5883 374722234 ECQ-B50V-223J,Plastic film <D>
C9001 3500196S or ! RE275V-103M or
3500202S ! MKP R46 103M
C9002 3500222S ! DE1E3KX472MB5BA01,IS
C9101,C9102,C9104 374722234 ECQ-B50V-223J,Plastic film
C9103 393354717 CE04W25V-4700M(VR),Elect.
C9301,C9302,C9311 394561007 CE04W35V-10M(VZ),Elect.
C9312,C9321,C9322 394561007 CE04W35V-10M(VZ),Elect.
C9331,C9332,C9341 394561007 CE04W35V-10M(VZ),Elect.
C9342,C9345,C9352 394561007 CE04W35V-10M(VZ),Elect.
C9351,C9361 394651027S CE04W25V-1000M(VR),Elect.
C9362,C9381,C9382 394561007 CE04W35V-10M(VZ),Elect.
C9391,C9401,C9402 394561007 CE04W35V-10M(VZ),Elect.
C9392 394531017 CE04W10V-100M(VZ),Elect.
C9403 394654727S CE04W25V-4700M(VR),Elect.
C9404 394664717 CE04W35V-470M(VR) ,Elect.
C9405,C9511 332101035R1 CK725B1H-103K1,Chip ceramic
C9406 332112235R1 CK725B1E-223K1,Chip ceramic
C9411,C9412,C9421 394561007 CE04W35V-10M(VZ),Elect.
C9422,C9431,C9432 394561007 CE04W35V-10M(VZ),Elect.
C9441,C9442 394561007 CE04W35V-10M(VZ),Elect.
C9501,C9502 374723344 ECQ-V50V-334J,Plastic film
C9503,C9504 374723344 ECQ-V50V-334J,Plastic film
C9505 3500226S CE04W16V-15000M(VK),Elect.
C9506 393344727S CE04W16V-4700M(VX),Elect.
C9507 393364727S CE04W35V-4700M(VX),Elect.
C9508 393362227S CE04W35V-2200M(VX),Elect.
C9509 394682217 CE04W50V-220M(VR),Elect.
C9510 394672217 CE04W63V-220M(VR),Elect.
C9512 332102235R1 CK725B1H-223K1,Chip ceramic
C9513,C9521,C9522 374722234 ECQ-B50V-223J,Plastic film
C9523 374722234 ECQ-B50V-223J,Plastic film
Resistors
R5701,R5702 435033314R1 RN72K1J-331JE,Chip carbon
R5703,R5704 435033314R1 RN72K1J-331JE,Chip carbon
R5711 435032214R1 RN72K1J-221JE,Chip carbon <O>
R5721 4000223 or RXE040 or
4000227 FRX020-60,Thermistor <O>
R5722,R5723,R5724 4000228 or RXE020 or
R5725 4000226 FRX020-60,Thermistor <O>
R5731,R5732,R5733 435032224R1 RN72K1J-222JE,Chip carbon <O>
R5734,R5735 435032224R1 RN72K1J-222JE,Chip carbon <O>
R5741,R5742,R5743 435031024R1 RN72K1J-102JE,Chip carbon <O>
R5744,R5745 435031024R1 RN72K1J-102JE,Chip carbon <O>
R5751,R5752,R5753 435033324R1 RN72K1J-332JE,Chip carbon <O>
R5761,R5762,R5763 435031034R1 RN72K1J-103JE,Chip carbon <O>
R5771,R5772,R5773 435031034R1 RN72K1J-103JE,Chip carbon <O>
R5781,R5782,R5783 435031014R1 RN72K1J-101JE,Chip carbon <O>
R5801 4000225 or FRX010-60 or
4000213 RXE010,Thermistor <D>
R5811 435032214R1 RN72K1J-221JE,Chip carbon <D>
R5821 4000227 or FRX020-60 or
4000223 RXE040,Thermistor <D>
R5822,R5823 4000228 or RXE020 <D>
R5824,R7825 4000226 FRX020-60,Thermistor <D>
R5831,R5832,R5833 435032224R1 RN72K1J-222JE,Chip carbon <D>
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R5834,R5835 435032224R1 RN72K1J-222JE,Chip carbon <D>
R5841,R5842,R5843 435031024R1 RN72K1J-102JE,Chip carbon <D>
R5844,R5845 435031024R1 RN72K1J-102JE,Chip carbon <D>
R5851,R5852,R5853 435033324R1 RN72K1J-332JE,Chip carbon <D>
R5861,R5862,R5863 435031034R1 RN72K1J-103JE,Chip carbon <D>
R5871,R5872,R5873 435031034R1 RN72K1J-103JE,Chip carbon <D>
R5881,R5882,R5883 435031014R1 RN72K1J-101JE,Chip carbon <D>
R7824,R7825 4000226 FRX020-60,Thermistor <D>
R9001 4000147 S5R114,Thermistor <P/GT/K/A>
R9001 4000148 M3R014C,Thermistor <D/DT>
R9101 453536894 RNU1/2WCJ-0.68,Metal
R9102 453530474 RNU1/2WCJ-4.7,Metal
R9103 435034724R1 RN72K1J-472JE,Chip carbon
R9104 443522714 RS1/2WBJ-270,Metal oxide
R9202,R9212 435031034R1 RN72K1J-103JE,Chip carbon
R9211 435030004R1 RN72K1J-000JE,Chip carbon
R9301 453636894 RNU1WCJ-0.68,Metal
R9311 453630184 RNU1WCJ-1.8,Metal
R9321,R9403 453534794 RNU1/2WCJ-0.47,Metal
R9323,R9333,R9393 415473304 R25J-33,NF carbon
R9343,R9345 435033904R1 RN72K1J-390JE,Chip carbon
R9344,R9346 435031214R1 RN72K1J-121JE,Chip carbon
R9351,R9501,R9506 453530224 RNU1/2WCJ-2.2,Metal
R9361 453530104 RNU1/2WCJ-1,Metal
R9362,R9364 435033324R1 RN72K1J-332JE,Chip carbon
R9363 435032234R1 RN72K1J-223JE,Chip carbon
R9371,R9408,R9413 435031024R1 RN72K1J-102JE,Chip carbon
R9372 435032714R1 RN72K1J-271JE,Chip carbon
R9381 443522704 RS1/2WBJ-27,Metal oxide
R9391,R9392 441623394F RS1WBJ-0.33,Metai oxide
R9401 453530274 RNU1/2WCJ-2.7,Metal
R9404,R9411 453534794 RNU1/2WCJ-0.47,Metal
R9405 435031224R1 RN72K1J-122JE,Chip carbon
R9407,R9505 435033334R1 RN72K1J-333JE,Chip carbon
R9409,R9414,R9424 435034734R1 RN72K1J-473JE,Chip carbon
R9421 453538294 RNU1/2WCJ-0.82,Metal
R9423,R9508 435031024R1 RN72K1J-102JE,Chip carbon
R9432 452538294F RNU1/2WCJ-0.82,Metal
R9433,R9443 415473304 R25J-33,NF carbon
R9441 452532294F RNU1/2WCJ-0.22,Metal
R9502 443522204 RS1/2WBJ-22,Metal oxide
R9503 435031534R1 RN72K1J-153JE,Chip carbon
R9507 453530824 RNU1/2WCJ-8.2,Metal
Relays
RL9001,RL9002 25065584 ! NRL-1P10A-DC12-140
RL9501 25065659 NRL-2P2A-DC24-174
Switch
S9001 25035636 ! NPS-111-L590P
AC inlet
P9001A 25055960 ! NPLG-2P913
Fuse
R9331 252181 ! 3.5A-UL/T-251
Fuse holders
F9001A,F9001B 25052133 ! NSCT-1P2031
F9501A,F9501B 25052133 ! NSCT-1P2031
F9502A,F9502B 25052133 ! NSCT-1P2031
F9503A,F9503B 25052133 ! NSCT-1P2031
F9504A,F9504B 25052133 ! NSCT-1P2031
Terminals
P5751,P5752,P5753 25045647 HSJ1002-01-1020 <O>
P5761,P5762,P5763 25045647 HSJ1002-01-1020 <O>
P5801,P5804 25045696 LGY2502-0200C <D>
Sockets
JL9421B 25050267 NSCT-3P95
P5611B,P5612B 25051240 NSCT-15P1030 <D>
P5701 25052379 NSCT-9P2277
P3116 2009990858UL NSAS-40P1301
CIRCUIT NO. PART NO. DESCRIPTION
Sockets
P3130 2009990878UL NSAS-60P1337
P9003 2009990864UL NSAS-2P1307
P9004 2009990866UL NSAS-2P1309
P9005 2009990865AUL NSAS-2P1308
P9502 2009990859AUL NSAS-44P1302
JL9421A 25051107 NSCT-3P894
Plugs
P3120A 25056297 PHDT-26P(B26B-PHDSS-B)
P4864A 25055157 NPLG-13P141
P5611A,P5612A 25055711 NPLG-15P667 <D>
P5802 25056330 PLUG5P(1546179-5) <D>
P5803 25056331 PLUG6P(1546179-6) <D>
P9002,P9004C 25055676 NPLG-2P632
P9003C 25056455 S02B-VT
P9005C 25055174 NPLG-2P158
P9501 25055171 NPLG-8P155
P9502C 25056295 PHDT-22P(B22B-PHDSS-B)
Labels
F9501C 29362027 6.3A/125V,Fuse rating <DT/J>
F9001C,F9503C 29361747 T2.5AL250V <P/GT/A/K>
F9501C 29361681 T6.3AL/250V <P/GT/A/K>
Radiator
Q9341A 27160548A RAD-198
Clamps
P9101 260226 CP-2S
P9112 260224 CP-1S
Screws
Q9341B,Q9345A 801612 3TTB+8B(CU),Self-tapping
Q9361A,Q9381A 801612 3TTB+8B(CU),Self-tapping
S video terminal PC board (NAVD-8201-1B) <P/DT/GT/A/K>
Component video PC board(NAVD-8202-1B) <P/DT/GT/A/K>
Connector video 2 PC board(NAETC-8203-1B) <P/DT/GT/A/K>
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q2001 22242104R2 TC7WBD125AFK
22274541GR2TO or TC74VHCT541AFT or
22274541GR2PH 74AHCT541PW
Q2004,Q2011 22241884R2 LC74761M-9848
Q2005,Q2012,Q2029 22242090R2 BU2152FS
Q2008,Q2009,Q2019 22241443R2 TK15420M
Q2013,Q2046 22242137R2 TC7W53FK
Q2014,Q2015,Q2016 22242109R2 MM1117XFBE
Q2017,Q2030,Q2031 2227B0525R2 TC74HC4052AFT
Q2026,Q2027,Q2028 2227B0515R2 TC74HC4051AFT
Q2032,Q2033,Q2034 2227B0515R2 TC74HC4051AFT
Q2035,Q2036 2227B0525R2 TC74HC4052AFT
Q2037,Q2038,Q2039 2227B0515R2 TC74HC4051AFT
Q2040,Q2041,Q2042 22241443R2 TK15420M
Q2043,Q2050,Q2203 22241443R2 TK15420M
Q2201 22241858R2 MM1093NF
Q2202 22241998R2 MM1093PF
Q2204 22242109R2 MM1117XFBE
Q2206 22241850R2 TC90A69F
Q2207 22241999 TA8772AN
Q2208,Q2230,Q2232 22241443R2 TK15420M
Q2213,Q2215 2227B0525R2 TC74HC4052AFT
Q2216 22241851R3 TA1270BF
Q2217 22241440R2 MAX4018ESD
Q2228 22241442R2 MAX4218ESD
Q2233 22241443R2 TK15420M
Q2235 22241465R2 LA7106MFP
Transistors
Q2007,Q2018,Q2020 2213145R2 2SC2712-GR
Q2021,Q2023,Q2025 2214490R2 or RN1404 or
Q2225 2216210R2 KRC104S
Q2022,Q2024,Q2205 2213145R2 2SC2712-GR
CIRCUIT NO. PART NO. DESCRIPTION
Transistors
Q2047,Q2048 2214375R2 2SA1162-GR
Q2049,Q2236 2214375R2 2SA1162-GR
Q2209,Q2210,Q2211 2213145R2 2SC2712-GR
Q2212,Q2227 2213145R2 2SC2712-GR
Q2214 2214460R2 or RN1401 or
2216330R2 KRC101S
Q2218,Q2220,Q2221 2214530R2 or RN2402 or
2216220R2 KRA102S
Q2219,Q2222,Q2223 2216031R2 RN1444-A
Q2224,Q2226 2214460R2 or RN1401 or
Q2229,Q2231,Q2234 2216210R2 KRC104S
Diodes
D2001,D2002,D2003 223234R2 or 1SS352 or
D2004,D2005,D2006 223269R2 1SS355
D2007,D2008,D2201 223234R2 or 1SS352 or
D2202,D2203,D2204 223269R2 1SS355
D2205,D2206,D2207 223234R2 or 1SS352 or
D2208,D2210,D2212 223269R2 1SS355
Coils
L2001,L2003 231292J056R2 NCH-1572
L2002,L2004 231237M022R2 NCH-1471
L2201 231237K330R2 NCH-1478
L2202,L2203,L2206 231237K220R2 NCH-1477
L2204,L2205,L2207 231237K101R2 NCH-1481
L2208,L2209 231237K220R2 NCH-1477
L2210,L2211 231237K220R2 NCH-1477
L2212,L2213 231237K470R2 NCH-1479
Oscillators
X2001,X2003 3010363 HC-49/U0314.318M
X2002,X2004 3010364 HC-49/U0317.734M
X2201,X2203 3010369 HC-49/U033.579545M
X2202,X2205 3010381 HC-49/U034.433619M
X2204 3010370 CSBLA503KECZF30,Ceramic
Capacitors
C2001,C2013,C2014 332161040R1 CK725F1E-104Z1,Chip ceramic
C2002,C2041 342101002R1 CC725CH1H-100D1,Chip ceramic
C2003,C2042 342101804R1 CC725CH1H-180J1,Chip ceramic
C2004,C2043 342103304R1 CC725CH1H-330J1,Chip ceramic
C2005,C2044 342100802R1 CC725CH1H-080D1,Chip ceramic
C2007,C2026,C2048 394680107 or CE04W50V-1M(VR) or
394780107 CE04W50V-1M(SC),Elect.
C2008,C2025 342104704R1 CC725CH1H-470J1,Chip ceramic
C2015,C2029,C2030 394621017 or CE04W6.3V-100M(VR) or
C2031,C2053,C2054 394721017 CE04W6.3V-100M(SC),Elect.
C2016,C2038,C2039 342108204R1 CC725CH1H-820J1,Chip ceramic
C2017,C2028,C2032 332161040R1 CK725F1E-104Z1,Chip ceramic
C2018,C2057,C2058 394641007 or CE04W16V-10M(VR) or
394741007 CE04W16V-10M(SC),Elect.
C2019,C2067 394683397 CE04W50V-0.33M(VR),Elect.
C2020,C2068 374726824 ECQ-B50V-682J,Plastic film
C2021,C2069 342102704R1 CC725CH1H-270J1,Chip ceramic
C2022,C2070,C2229 342102204R1 CC725CH1H-220J1,Chip ceramic
C2023,C2071,C2212 332101225R1 CK725B1H-122K1,Chip ceramic
C2024 374722234 ECQ-B50V-223J,Plastic film
C2027,C2076 394684797 or CE04W50V-0.47M(VR) or
394784797 CE04W50V0.47M(SC),Elect.
C2033,C2092 375524744 MMT50V-474J,Plastic
C2034,C2035,C2036 332161040R1 CK725F1E-104Z1,Chip ceramic
C2037,C2045,C2046 332161040R1 CK725F1E-104Z1,Chip ceramic
C2040 394661017 CE04W35V-100M(VR),Elect.
C2049,C2072 342104704R1 CC725CH1H-470J1,Chip ceramic
C2056,C2065,C2075 332161040R1 CK725F1E-104Z1,Chip ceramic
C2059,C2060,C2061 394641007 or CE04W16V-10M(VR) or
C2066,C2180,C2184 394741007 CE04W16V-10M(SC),Elect.
C2062,C2063,C2064 394621017 or CE04W6.3V-100M(VR) or
394721017 CE04W6.3V-100M(SC),Elect.
C2073,C2297 374722234 ECQ-B50V-223J,Plastic film
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C2074,C2269,C2270 394680107 or CE04W50V-1M(VR) or
394780107 CE04W50V-1M(SC),Elect.
C2077,C2078,C2082 332161040R1 CK725F1E-104Z1,Chip ceramic
C2079,C2080,C2085 394621017 or CE04W6.3V-100M(VR) or
394721017 CE04W6.3V-100M(SC),Elect.
C2081,C2086,C2089 394644707 or CE04W16V-47M(VR) or
394744707 CE04W16V-47M(SC),Elect.
C2083,C2143,C2144 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2084,C2087,C2088 332161040R1 CK725F1E-104Z1,Chip ceramic
C2090,C2091,C2093 332161040R1 CK725F1E-104Z1,Chip ceramic
C2094,C2095,C2096 332161040R1 CK725F1E-104Z1,Chip ceramic
C2097,C2098,C2099 332161040R1 CK725F1E-104Z1,Chip ceramic
C2100,C2101,C2102 332161040R1 CK725F1E-104Z1,Chip ceramic
C2103,C2104,C2105 332161040R1 CK725F1E-104Z1,Chip ceramic
C2106,C2107,C2108 332161040R1 CK725F1E-104Z1,Chip ceramic
C2109,C2110,C2111 332161040R1 CK725F1E-104Z1,Chip ceramic
C2112,C2113,C2114 332161040R1 CK725F1E-104Z1,Chip ceramic
C2115,C2116,C2117 332161040R1 CK725F1E-104Z1,Chip ceramic
C2118,C2119,C2120 332161040R1 CK725F1E-104Z1,Chip ceramic
C2121,C2122,C2123 332161040R1 CK725F1E-104Z1,Chip ceramic
C2124,C2125,C2126 332161040R1 CK725F1E-104Z1,Chip ceramic
C2127,C2207,C2208 394621017 or CE04W6.3V-100M(VR) or
394721017 CE04W6.3V-100M(SC),Elect.
C2128,C2129,C2130 332161040R1 CK725F1E-104Z1,Chip ceramic
C2131,C2132,C2133 332161040R1 CK725F1E-104Z1,Chip ceramic
C2134,C2135,C2136 332161040R1 CK725F1E-104Z1,Chip ceramic
C2137,C2138 394621017 CE04W6.3V-100M(VR),Elect.
C2139,C2140,C2141 332161040R1 CK725F1E-104Z1,Chip ceramic
C2142,C2145 394622217 CE04W6.3V-220M(SC),Elect.
C2147,C2148,C2149 332161040R1 CK725F1E-104Z1,Chip ceramic
C2150,C2151,C2154 332161040R1 CK725F1E-104Z1,Chip ceramic
C2152,C2153,C2155 394622217 or CE04W6.3V-220M(VR) or
C2156,C2158,C2159 394722217 CE04W6.3V-220M(SC),Elect.
C2157,C2160,C2163 332161040R1 CK725F1E-104Z1,Chip ceramic
C2161,C2162,C2164 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2165,C2167,C2168 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2166,C2176,C2177 332161040R1 CK725F1E-104Z1,Chip ceramic
C2169,C2170,C2171 332153330R1 CK725F1H-333Z1,Chip ceramic
C2181,C2183,C2268 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2182,C2209,C2210 332161040R1 CK725F1E-104Z1,Chip ceramic
C2201,C2202,C2241 394684797 or CE04W50V-0.47M(VR) or
C2250,C2251 394784797 CE04W50V0.47M(SC),Elect.
C2203,C2204 342103914R1 CC725CH1H-391J1,Chip ceramic
C2205,C2206 342115614R1 CC725CH1E-561J1,Chip ceramic
C2211,C2213 394680227 or CE04W50V-2.2M(VR) or
C2211,C2213 or 394780227 CE04W50V-2.2M(SC),Elect.
C2214,C2217,C2218 332151030R1 CK725F1H-103Z1,Chip ceramic
C2215,C2216 394680477 or CE04W50V-4.7M(VR) or
394780477 CE04W50V-4.7M(SC),Elect.
C2219,C2220 342105604R1 CC725CH1H-560J1,Chip ceramic
C2221,C2223 342100802R1 CC725CH1H-080D1,Chip ceramic
C2222,C2224 342106804R1 CC725CH1H-680J1,Chip ceramic
C2230,C2266,C2267 342101204R1 CC725CH1H-120J1,Chip ceramic
C2231,C2232,C2233 332151030R1 CK725F1H-103Z1,Chip ceramic
C2234,C2244,C2245 332151030R1 CK725F1H-103Z1,Chip ceramic
C2235,C2236,C2239 394644707 or CE04W16V-47M(VR) or
C2240,C2296,C2306 394744707 CE04W16V-47M(SC),Elect.
C2237,C2238,C2263 394621017 or CE04W6.3V-100M(VR) or
394721017 CE04W6.3V-100M(SC),Elect.
C2242,C2243,C2249 332161040R1 CK725F1E-104Z1,Chip ceramic
C2246,C2247,C2252 332151030R1 CK725F1H-103Z1,Chip ceramic
C2248 394641007 or CE04W16V-10M(VR) or
394741007 CE04W16V-10M(SC),Elect.
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C2253,C2254,C2255 332161040R1 CK725F1E-104Z1,Chip ceramic
C2256,C2257,C2271 332161040R1 CK725F1E-104Z1,Chip ceramic
C2258,C2259,C2260 332151030R1 CK725F1H-103Z1,Chip ceramic
C2261 374726814 ECQ-B50V-681J,Plastic film
C2262,C2290,C2293 374721044 ECQ-V50V-104J,Plastic film
C2264,C2265 342102204R1 CC725CH1H-220J1,Chip ceramic
C2272,C2303,C2315 332151030R1 CK725F1H-103Z1,Chip ceramic
C2273,C2274,C2276 332161040R1 CK725F1E-104Z1,Chip ceramic
C2275 394680107 or CE04W50V-1M(VR) or
394780107 CE04W50V-1M(SC),Elect.
C2277,C2278,C2279 332161040R1 CK725F1E-104Z1,Chip ceramic
C2280,C2281,C2285 332161040R1 CK725F1E-104Z1,Chip ceramic
C2284,C2313,C2316 394621017 or CE04W6.3V-100M(VR) or
394721017 CE04W6.3V-100M(SC),Elect.
C2286,C2288,C2308 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2287,C2289,C2292 332161040R1 CK725F1E-104Z1,Chip ceramic
C2291,C2301 394680227 or CE04W50V-2.2M(VR) or
394780227 CE04W50V-2.2M(SC),Elect.
C2294,C2320 342105604R1 CC725CH1H-560J1,Chip ceramic
C2295,C2298,C2302 332161040R1 CK725F1E-104Z1,Chip ceramic
C2299 374722224 ECQ-B50V-222J,Plastic film
C2300 394682297 CE04W50V-0.22M(VR),Elect.
C2304,C2305,C2310 332161040R1 CK725F1E-104Z1,Chip ceramic
C2307,C2318 394644707 or CE04W16V-47M(VR) or
C2307,C2318 or 394744707 CE04W16V-47M(SC),Elect.
C2309,C2334,C2335 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2311,C2312,C2314 332161040R1 CK725F1E-104Z1,Chip ceramic
C2317,C2319,C2321 332161040R1 CK725F1E-104Z1,Chip ceramic
C2322,C2323,C2324 332161040R1 CK725F1E-104Z1,Chip ceramic
C2325,C2330,C2331 332153330R1 CK725F1H-333Z1,Chip ceramic
C2326,C2328,C2329 332161040R1 CK725F1E-104Z1,Chip ceramic
C2332,C2333,C2345 332161040R1 CK725F1E-104Z1,Chip ceramic
C2336,C2337,C2338 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2339,C2340,C2341 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2342 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2343,C2344 394621017 CE04W6.3V-100M(VR),Elect.
Resistors
R2001,R2002,R2022 435033314R1 RN72K1J-331JE,Chip carbon
R2003,R2233 435031224R1 RN72K1J-122JE,Chip carbon
R2004,R2005,R2006 435034714R1 RN72K1J-471JE,Chip carbon
R2007,R2029,R2042 435032224R1 RN72K1J-222JE,Chip carbon
R2008,R2035,R2043 435031014R1 RN72K1J-101JE,Chip carbon
R2009,R2011,R2044 435031214R1 RN72K1J-121JE,Chip carbon
R2010,R2023,R2024 435031524R1 RN72K1J-152JE,Chip carbon
R2012,R2047 435038244R1 RN72K1J-824JE,Chip carbon
R2013,R2021 435034734R1 RN72K1J-473JE,Chip carbon
R2014,R2020,R2038 435031024R1 RN72K1J-102JE,Chip carbon
R2015,R2017,R2031 435036824R1 RN72K1J-682JE,Chip carbon
R2016,R2051 435032724R1 RN72K1J-272JE,Chip carbon
R2018,R2053,R2265 435033324R1 RN72K1J-332JE,Chip carbon
R2019,R2054,R2150 435032214R1 RN72K1J-221JE,Chip carbon
R2025,R2026,R2045 435031524R1 RN72K1J-152JE,Chip carbon
R2027,R2028,R2071 435035634R1 RN72K1J-563JE,Chip carbon
R2030,R2033,R2034 435031824R1 RN72K1J-182JE,Chip carbon
R2032,R2301,R2309 435031834R1 RN72K1J-183JE,Chip carbon
R2036,R2093,R2117 435031034R1 RN72K1J-103JE,Chip carbon
R2037,R2097,R2142 435038224R1 RN72K1J-822JE,Chip carbon
R2039,R2040,R2041 435034714R1 RN72K1J-471JE,Chip carbon
R2046,R2096,R2146 435031214R1 RN72K1J-121JE,Chip carbon
R2048,R2056 435034734R1 RN72K1J-473JE,Chip carbon
R2049,R2055,R2070 435031024R1 RN72K1J-102JE,Chip carbon
R2050,R2052,R2081 435036824R1 RN72K1J-682JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R2057,R2217 435033314R1 RN72K1J-331JE,Chip carbon
R2058,R2059,R2060 435036804R1 RN72K1J-680JE,Chip carbon
R2061,R2062,R2063 435033334R1 RN72K1J-333JE,Chip carbon
R2064,R2065,R2066 435033334R1 RN72K1J-333JE,Chip carbon
R2067,R2068,R2069 435032224R1 RN72K1J-222JE,Chip carbon
R2072,R2073,R2074 435031014R1 RN72K1J-101JE,Chip carbon
R2075,R2094,R2095 435031014R1 RN72K1J-101JE,Chip carbon
R2076,R2079,R2254 435031044R1 RN72K1J-104JE,Chip carbon
R2077,R2078,R2108 435035634R1 RN72K1J-563JE,Chip carbon
R2080,R2083,R2088 435031824R1 RN72K1J-182JE,Chip carbon
R2082,R2329 435036824R1 RN72K1J-682JE,Chip carbon
R2084,R2198,R2339 435031234R1 RN72K1J-123JE,Chip carbon
R2085,R2086,R2288 435032224R1 RN72K1J-222JE,Chip carbon
R2087,R2110,R2119 435031534R1 RN72K1J-153JE,Chip carbon
R2089,R2090,R2091 435031824R1 RN72K1J-182JE,Chip carbon
R2092,R2143 435036834R1 RN72K1J-683JE,Chip carbon
R2098,R2149 435031524R1 RN72K1J-152JE,Chip carbon
R2099,R2100,R2107 435031014R1 RN72K1J-101JE,Chip carbon
R2101,R2102,R2103 435037504R1 RN72K1J-750JE,Chip carbon
R2104,R2105,R2106 435037504R1 RN72K1J-750JE,Chip carbon
R2109,R2251,R2252 435035634R1 RN72K1J-563JE,Chip carbon
R2111,R2112,R2113 435037504R1 RN72K1J-750JE,Chip carbon
R2114,R2115,R2116 435037504R1 RN72K1J-750JE,Chip carbon
R2118,R2127,R2128 435031034R1 RN72K1J-103JE,Chip carbon
R2120,R2129,R2138 435031824R1 RN72K1J-182JE,Chip carbon
R2121,R2122,R2123 435037504R1 RN72K1J-750JE,Chip carbon
R2124,R2125,R2126 435037504R1 RN72K1J-750JE,Chip carbon
R2130,R2131,R2132 435037504R1 RN72K1J-750JE,Chip carbon
R2133,R2134,R2135 435037504R1 RN72K1J-750JE,Chip carbon
R2136,R2137,R2140 435031034R1 RN72K1J-103JE,Chip carbon
R2139,R2178,R2180 435031824R1 RN72K1J-182JE,Chip carbon
R2141,R2200,R2218 435031024R1 RN72K1J-102JE,Chip carbon
R2144,R2223,R2224 435031014R1 RN72K1J-101JE,Chip carbon
R2145,R2152,R2154 435031034R1 RN72K1J-103JE,Chip carbon
R2148 435031514R1 RN72K1J-151JE,Chip carbon
R2151,R2153,R2155 435032214R1 RN72K1J-221JE,Chip carbon
R2156,R2157,R2158 435032214R1 RN72K1J-221JE,Chip carbon
R2159,R2184,R2188 435032214R1 RN72K1J-221JE,Chip carbon
R2160,R2161,R2162 435031034R1 RN72K1J-103JE,Chip carbon
R2163,R2164,R2165 435031034R1 RN72K1J-103JE,Chip carbon
R2166,R2167,R2168 435031034R1 RN72K1J-103JE,Chip carbon
R2169,R2170,R2171 435031034R1 RN72K1J-103JE,Chip carbon
R2172,R2173,R2174 435031034R1 RN72K1J-103JE,Chip carbon
R2175,R2176,R2177 435031034R1 RN72K1J-103JE,Chip carbon
R2179,R2183,R2196 435031534R1 RN72K1J-153JE,Chip carbon
R2181,R2182,R2275 435031824R1 RN72K1J-182JE,Chip carbon
R2185,R2186,R2187 435031034R1 RN72K1J-103JE,Chip carbon
R2189,R2190,R2191 435031034R1 RN72K1J-103JE,Chip carbon
R2192,R2193,R2207 435031034R1 RN72K1J-103JE,Chip carbon
R2194,R2195,R2285 435034714R1 RN72K1J-471JE,Chip carbon
R2197,R2201,R2202 435031534R1 RN72K1J-153JE,Chip carbon
R2203,R2204 435033914R1 RN72K1J-391JE,Chip carbon
R2205,R2206 435031054R1 RN72K1J-105JE,Chip carbon
R2208,R2211,R2213 435031034R1 RN72K1J-103JE,Chip carbon
R2209,R2210 435033914R1 RN72K1J-391JE,Chip carbon
R2214,R2241,R2242 435031034R1 RN72K1J-103JE,Chip carbon
R2216,R2244 435035604R1 RN72K1J-560JE,Chip carbon
R2219,R2220,R2228 435038214R1 RN72K1J-821JE,Chip carbon
R2221,R2234,R2235 435031024R1 RN72K1J-102JE,Chip carbon
R2222 435031132R1 RN72K1J-113FE,Chip carbon
R2225,R2226 435033314R1 RN72K1J-331JE,Chip carbon
R2227,R2239,R2240 435031014R1 RN72K1J-101JE,Chip carbon
R2229,R2230,R2231 435038214R1 RN72K1J-821JE,Chip carbon
R2232 435035624R1 RN72K1J-562JE,Chip carbon
R2236,R2253,R2255 435032214R1 RN72K1J-221JE,Chip carbon
R2237,R2238,R2384 435031024R1 RN72K1J-102JE,Chip carbon
R2243,R2245,R2246 435031014R1 RN72K1J-101JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R2247,R2249,R2250 435031014R1 RN72K1J-101JE,Chip carbon
R2248,R2256,R2257 435031034R1 RN72K1J-103JE,Chip carbon
R2258,R2260 435031814R1 RN72K1J-181JE,Chip carbon
R2259,R2286,R2305 435031034R1 RN72K1J-103JE,Chip carbon
R2261,R2262,R2269 435031014R1 RN72K1J-101JE,Chip carbon
R2263,R2294,R2298 435031044R1 RN72K1J-104JE,Chip carbon
R2266,R2267,R2272 435033334R1 RN72K1J-333JE,Chip carbon
R2268 435033344R1 RN72K1J-334JE,Chip carbon
R2270,R2283,R2295 435031014R1 RN72K1J-101JE,Chip carbon
R2271,R2273,R2297 435035634R1 RN72K1J-563JE,Chip carbon
R2274,R2277 435031534R1 RN72K1J-153JE,Chip carbon
R2276,R2278,R2279 435031824R1 RN72K1J-182JE,Chip carbon
R2280,R2360,R2366 435032214R1 RN72K1J-221JE,Chip carbon
R2282 435036804R1 RN72K1J-680JE,Chip carbon
R2287,R2387,R2388 435033334R1 RN72K1J-333JE,Chip carbon
R2289,R2302 435034724R1 RN72K1J-472JE,Chip carbon
R2290,R2311,R2316 435037514R1 RN72K1J-751JE,Chip carbon
R2291,R2312,R2317 435036814R1 RN72K1J-681FE,Chip carbon
R2292,R2293 435034714R1 RN72K1J-471JE,Chip carbon
R2296,R2306,R2307 435031014R1 RN72K1J-101JE,Chip carbon
R2299,R2303,R2304 435031824R1 RN72K1J-182JE,Chip carbon
R2300,R2333 435032224R1 RN72K1J-222JE,Chip carbon
R2308,R2332,R2342 435031824R1 RN72K1J-182JE,Chip carbon
R2310,R2315,R2330 435031034R1 RN72K1J-103JE,Chip carbon
R2313,R2319 435034724R1 RN72K1J-472JE,Chip carbon
R2314,R2318,R2320 435031014R1 RN72K1J-101JE,Chip carbon
R2321,R2322,R2323 435037504R1 RN72K1J-750JE,Chip carbon
R2324,R2326,R2327 435037504R1 RN72K1J-750JE,Chip carbon
R2325,R2390,R2391 435035634R1 RN72K1J-563JE,Chip carbon
R2328 435031044R1 RN72K1J-104JE,Chip carbon
R2331,R2334,R2335 435031034R1 RN72K1J-103JE,Chip carbon
R2336,R2337,R2338 435037504R1 RN72K1J-750JE,Chip carbon
R2340,R2341,R2357 435031034R1 RN72K1J-103JE,Chip carbon
R2343,R2345 435031824R1 RN72K1J-182JE,Chip carbon
R2346,R2347 435031524R1 RN72K1J-152JE,Chip carbon
R2348,R2349,R2350 435037504R1 RN72K1J-750JE,Chip carbon
R2351,R2352,R2353 435037504R1 RN72K1J-750JE,Chip carbon
R2354,R2355,R2356 435037504R1 RN72K1J-750JE,Chip carbon
R2358,R2359,R2363 435031034R1 RN72K1J-103JE,Chip carbon
R2367,R2368,R2369 435032214R1 RN72K1J-221JE,Chip carbon
R2370,R2371,R2398 435032214R1 RN72K1J-221JE,Chip carbon
R2372,R2373,R2374 435031034R1 RN72K1J-103JE,Chip carbon
R2375,R2376,R2377 435031034R1 RN72K1J-103JE,Chip carbon
R2378,R2379,R2380 435031034R1 RN72K1J-103JE,Chip carbon
R2381,R2382,R2383 435031034R1 RN72K1J-103JE,Chip carbon
R2385,R2386,R2446 435031024R1 RN72K1J-102JE,Chip carbon
R2389,R2445 435033334R1 RN72K1J-333JE,Chip carbon
R2392,R2444 435035634R1 RN72K1J-563JE,Chip carbon
R2396,R2448,R2451 435031034R1 RN72K1J-103JE,Chip carbon
R2397,R2411,R2418 435031014R1 RN72K1J-101JE,Chip carbon
R2399,R2400,R2403 435032214R1 RN72K1J-221JE,Chip carbon
R2401,R2402,R2405 435030004R1 RN72K1J-000JE,Chip carbon
R2404,R2407,R2408 435032214R1 RN72K1J-221JE,Chip carbon
R2406,R2432,R2433 435030004R1 RN72K1J-000JE,Chip carbon
R2415,R2416,R2419 435037504R1 RN72K1J-750JE,Chip carbon
R2421,R2422 435037504R1 RN72K1J-750JE,Chip carbon
R2424,R2425 435032214R1 RN72K1J-221JE,Chip carbon
R2426,R2430 435032214R1 RN72K1J-221JE,Chip carbon
R2427,R2447 435034714R1 RN72K1J-471JE,Chip carbon
R2438,R2439,R2440 435032204R1 RN72K1J-220JE,Chip carbon
R2441,R2242,R2243 435035604R1 RN72K1J-560JE,Chip carbon
R2449 435031014R1 RN72K1J-101JE,Chip carbon
R2450 435031204R1 RN72K1J-120JE,Chip carbon
Relays
RL2201,RL2202 25065662R2 NPL-2P2A-DC24-177
RL2203,RL2204 25065662R2 NPL-2P2A-DC24-177
RL2206,RL2207 25065662R2 NPL-2P2A-DC24-177
CIRCUIT NO. PART NO. DESCRIPTION
Relays
RL2208,RL2209 25065662R2 NPL-2P2A-DC24-177
RL2210 25065662R2 NPL-2P2A-DC24-177
Terminals
P2006,P2007 25045728 NPJ-15PDBY516
P2008,P2205 25045730 NPJ-10PDBY518
P2206,P2207 25045764 NPJ-6PDGLR548
Sockets
P2004 25052814R2 IMSA-9850S-22Y900
P2005 25052813R2 IMSA-9850S-20Y900
P2202 25052818R2 IMSA-9850S-30Y900
Plugs
P2001,P2002,P2204 25056329R2 IMSA-9850B-30Y902
P2210 25056210R2 IMSA-9850B-30Y900
P2211 25056205R2 IMSA-9850B-20Y900
P2212 25056206R2 IMSA-9850B-22Y900
Option board (C-VIDEO)
S video terminal PC board(NAVD-8201-1A)
Component video PC board(NAVD-8202-1A)
Connector video 2 PC board(NAETC-8203-1A)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q2001 22242104R2 TC7WBD125AFK
Q2002 22274541GR2TO or TC74VHCT541AFT or
22274541GR2PH 74AHCT541PW
Q2004,Q2011 22241884R2 LC74761M-9848
Q2005,Q2012,Q2029 22242090R2 BU2152FS
Q2008,Q2009,Q2019 22241443R2 TK15420M
Q2013,Q2046 22242137R2 TC7W53FK
Q2014,Q2015,Q2016 22242109R2 MM1117XFBE
Q2017,Q2030,Q2031 2227B0525R2 TC74HC4052AFT
Q2026,Q2027,Q2028 2227B0515R2 TC74HC4051AFT
Q2032,Q2033,Q2034 2227B0515R2 TC74HC4051AFT
Q2035,Q2036 2227B0525R2 TC74HC4052AFT
Q2037,Q2038,Q2039 2227B0515R2 TC74HC4051AFT
Q2040,Q2041,Q2042 22241443R2 TK15420M
Q2043,Q2050,Q2203 22241443R2 TK15420M
Q2201 22241858R2 MM1093NF
Q2204 22242109R2 MM1117XFBE
Q2206 22241850R2 TC90A69F
Q2208,Q2230,Q2232 22241443R2 TK15420M
Q2213,Q2215 2227B0525R2 TC74HC4052AFT
Q2216 22241851R3 TA1270BF
Q2217 22241440R2 MAX4018ESD
Q2228 22241442R2 MAX4218ESD
Q2233 22241443R2 TK15420M
Q2235 22241465R2 LA7106MFP
Transistors
Q2007,Q2018,Q2020 2213145R2 2SC2712-GR
Q2021,Q2023,Q2025 2214490R2 or RN1404 or
Q2225 2216210R2 KRC104S
Q2022,Q2024,Q2205 2213145R2 2SC2712-GR
Q2047,Q2048 2214375R2 2SA1162-GR
Q2049,Q2236 2214375R2 2SA1162-GR
Q2209,Q2210,Q2227 2213145R2 2SC2712-GR
Q2218,Q2220,Q2221 2214530R2 or RN2402 or
2216220R2 KRA102S
Q2219,Q2222,Q2223 2216031R2 RN1444-A
Q2224,Q2226 2214460R2 or RN1401 or
Q2229,Q2231 2216210R2 KRC104S
Diodes
D2001,D2002,D2003 223234R2 or 1SS352 or
D2004,D2005,D2006 223269R2 1SS355
D2007,D2008,D2201 223234R2 or 1SS352 or
D2202,D2203,D2204 223269R2 1SS355
D2205,D2206,D2207 223234R2 or 1SS352 or
D2208,D2210,D2212 223269R2 1SS355
CIRCUIT NO. PART NO. DESCRIPTION
Coils
L2001,L2003 231292J056R2 NCH-1572
L2002,L2004 231237M022R2 NCH-1471
L2201 231237K330R2 NCH-1478
L2203,L2206,L2208 231237K220R2 NCH-1477
L2205,L2207 231237K101R2 NCH-1481
L2209,L2210,L2211 231237K220R2 NCH-1477
L2212,L2213 231237K470R2 NCH-1479
Oscillators
X2001,X2003 3010363 HC-49/U0314.318M
X2201,X2203 3010369 HC-49/U033.579545M
X2204 3010370 CSBLA503KECZF30,Ceramic
Capacitors
C2001,C2013,C2014 332161040R1 CK725F1E-104Z1,Chip ceramic
C2002,C2041 342101002R1 CC725CH1H-100D1,Chip ceramic
C2003,C2042 342101804R1 CC725CH1H-180J1,Chip ceramic
C2007,C2026,C2048 394680107 or CE04W50V-1M(VR) or
C2074 394780107 CE04W50V-1M(SC),Elect.
C2008,C2025 342104704R1 CC725CH1H-470J1,Chip ceramic
C2015,C2029,C2030 394621017 or CE04W6.3V-100M(VR) or
C2031,C2053,C2054 394721017 CE04W6.3V-100M(SC),Elect.
C2016,C2038,C2039 342108204R1 CC725CH1H-820J1,Chip ceramic
C2017,C2028,C2032 332161040R1 CK725F1E-104Z1,Chip ceramic
C2018,C2057,C2058 394641007 or CE04W16V-10M(VR) or
394741007 CE04W16V-10M(SC),Elect.
C2019,C2067 394683397 CE04W50V-0.33M(VR),Elect.
C2020,C2068 374726824 ECQ-B50V-682J,Plastic film
C2021,C2069 342102704R1 CC725CH1H-270J1,Chip ceramic
C2022,C2070,C2229 342102204R1 CC725CH1H-220J1,Chip ceramic
C2023,C2071,C2212 332101225R1 CK725B1H-122K1,Chip ceramic
C2024,C2073,C2297 374722234 ECQ-B50V-223J,Plastic film
C2027,C2076 394684797 or CE04W50V-0.47M(VR) or
394784797 CE04W50V0.47M(SC),Elect.
C2033,C2092 375524744 MMT50V-474J,Plastic
C2034,C2035,C2036 332161040R1 CK725F1E-104Z1,Chip ceramic
C2037,C2045,C2046 332161040R1 CK725F1E-104Z1,Chip ceramic
C2040 394661017 CE04W35V-100M(VR),Elect.
C2049,C2072 342104704R1 CC725CH1H-470J1,Chip ceramic
C2056,C2065,C2075 332161040R1 CK725F1E-104Z1,Chip ceramic
C2059,C2060,C2061 394641007 or CE04W16V-10M(VR) or
C2066,C2180,C2184 394741007 CE04W16V-10M(SC),Elect.
C2062,C2063,C2064 394621017 or CE04W6.3V-100M(VR) or
C2079,C2080,C2085 394721017 CE04W6.3V-100M(SC),Elect.
C2077,C2078,C2082 332161040R1 CK725F1E-104Z1,Chip ceramic
C2081,C2086,C2089 394644707 or CE04W16V-47M(VR) or
394744707 CE04W16V-47M(SC),Elect.
C2083,C2143,C2144 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2084,C2087,C2088 332161040R1 CK725F1E-104Z1,Chip ceramic
C2090,C2091,C2093 332161040R1 CK725F1E-104Z1,Chip ceramic
C2094,C2095,C2096 332161040R1 CK725F1E-104Z1,Chip ceramic
C2097,C2098,C2099 332161040R1 CK725F1E-104Z1,Chip ceramic
C2100,C2101,C2102 332161040R1 CK725F1E-104Z1,Chip ceramic
C2103,C2104,C2105 332161040R1 CK725F1E-104Z1,Chip ceramic
C2106,C2107,C2108 332161040R1 CK725F1E-104Z1,Chip ceramic
C2109,C2110,C2111 332161040R1 CK725F1E-104Z1,Chip ceramic
C2112,C2113,C2114 332161040R1 CK725F1E-104Z1,Chip ceramic
C2115,C2116,C2117 332161040R1 CK725F1E-104Z1,Chip ceramic
C2118,C2119,C2120 332161040R1 CK725F1E-104Z1,Chip ceramic
C2121,C2122,C2123 332161040R1 CK725F1E-104Z1,Chip ceramic
C2124,C2125,C2126 332161040R1 CK725F1E-104Z1,Chip ceramic
C2127,C2207 394621017 or CE04W6.3V-100M(VR) or
394721017 CE04W6.3V-100M(SC),Elect.
C2128,C2129,C2130 332161040R1 CK725F1E-104Z1,Chip ceramic
C2131,C2132,C2133 332161040R1 CK725F1E-104Z1,Chip ceramic
C2134,C2135,C2136 332161040R1 CK725F1E-104Z1,Chip ceramic
C2137,C2138 394621017 CE04W6.3V-100M(VR),Elect.
C2139,C2140,C2141 332161040R1 CK725F1E-104Z1,Chip ceramic
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C2142,C2145 394622217 CE04W6.3V-220M(SC),Elect.
C2147,C2148,C2149 332161040R1 CK725F1E-104Z1,Chip ceramic
C2150,C2151,C2154 332161040R1 CK725F1E-104Z1,Chip ceramic
C2152,C2153,C2155 394622217 or CE04W6.3V-220M(VR) or
C2156,C2158,C2159 394722217 CE04W6.3V-220M(SC),Elect.
C2157,C2160,C2163 332161040R1 CK725F1E-104Z1,Chip ceramic
C2161,C2162,C2164 394622217 or CE04W6.3V-220M(VR) or
C2165,C2167,C2168 394722217 CE04W6.3V-220M(SC),Elect.
C2166,C2176,C2177 332161040R1 CK725F1E-104Z1,Chip ceramic
C2169,C2170,C2171 332153330R1 CK725F1H-333Z1,Chip ceramic
C2181,C2183,C2268 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2182,C2209,C2242 332161040R1 CK725F1E-104Z1,Chip ceramic
C2201,C2241 394684797 or CE04W50V-0.47M(VR) or
394784797 CE04W50V0.47M(SC),Elect.
C2203 342103914R1 CC725CH1H-391J1,Chip ceramic
C2205 342115614R1 CC725CH1E-561J1,Chip ceramic
C2211 394680227 or CE04W50V-2.2M(VR) or
394780227 CE04W50V-2.2M(SC),Elect.
C2217,C2218 332151030R1 CK725F1H-103Z1,Chip ceramic
C2215 394680477 or CE04W50V-4.7M(VR) or
394780477 CE04W50V-4.7M(SC),Elect.
C2219,C2220,C2294 342105604R1 CC725CH1H-560J1,Chip ceramic
C2221,C2223 342100802R1 CC725CH1H-080D1,Chip ceramic
C2222,C2224 342106804R1 CC725CH1H-680J1,Chip ceramic
C2230,C2266,C2267 342101204R1 CC725CH1H-120J1,Chip ceramic
C2231,C2232,C2233 332151030R1 CK725F1H-103Z1,Chip ceramic
C2234,C2244,C2245 332151030R1 CK725F1H-103Z1,Chip ceramic
C2235,C2236,C2239 394644707 or CE04W16V-47M(VR) or
C2240,C2296,C2306 394744707 CE04W16V-47M(SC),Elect.
C2237,C2238,C2263 394621017 or CE04W6.3V-100M(VR) or
C2284,C2313,C2316 394721017 CE04W6.3V-100M(SC),Elect.
C2246,C2258 332151030R1 CK725F1H-103Z1,Chip ceramic
C2243,C2257,C2271 332161040R1 CK725F1E-104Z1,Chip ceramic
C2259,C2260,C2305 332151030R1 CK725F1H-103Z1,Chip ceramic
C2261 374726814 ECQ-B50V-681J,Plastic film
C2262,C2290,C2293 374721044 ECQ-V50V-104J,Plastic film
C2264,C2265 342102204R1 CC725CH1H-220J1,Chip ceramic
C2277,C2278 332161040R1 CK725F1E-104Z1,Chip ceramic
C2280,C2281,C2285 332161040R1 CK725F1E-104Z1,Chip ceramic
C2286,C2288,C2308 394622217 or CE04W6.3V-220M(VR) or
394722217 CE04W6.3V-220M(SC),Elect.
C2287,C2289,C2292 332161040R1 CK725F1E-104Z1,Chip ceramic
C2291,C2301 394680227 or CE04W50V-2.2M(VR) or
394780227 CE04W50V-2.2M(SC),Elect.
C2295,C2298,C2302 332161040R1 CK725F1E-104Z1,Chip ceramic
C2299 374722224 ECQ-B50V-222J,Plastic film
C2300 394682297 CE04W50V-0.22M(VR),Elect.
C2304,C2305,C2310 332161040R1 CK725F1E-104Z1,Chip ceramic
C2307,C2318 394644707 or CE04W16V-47M(VR) or
394744707 CE04W16V-47M(SC),Elect.
C2309,C2334,C2335 394622217 or CE04W6.3V-220M(VR) or
C2336,C2337,C2338 394722217 CE04W6.3V-220M(SC),Elect.
C2311,C2312,C2314 332161040R1 CK725F1E-104Z1,Chip ceramic
C2317,C2319,C2321 332161040R1 CK725F1E-104Z1,Chip ceramic
C2322,C2323,C2324 332161040R1 CK725F1E-104Z1,Chip ceramic
C2325,C2330,C2331 332153330R1 CK725F1H-333Z1,Chip ceramic
C2326,C2328,C2329 332161040R1 CK725F1E-104Z1,Chip ceramic
C2332,C2333,C2345 332161040R1 CK725F1E-104Z1,Chip ceramic
C2339,C2340,C2341 394622217 or CE04W6.3V-220M(VR) or
C2342 394722217 CE04W6.3V-220M(SC),Elect.
C2343,C2344 394621017 CE04W6.3V-100M(VR),Elect.
Resistors
R2001,R2002,R2022 435033314R1 RN72K1J-331JE,Chip carbon
R2003,R2233 435031224R1 RN72K1J-122JE,Chip carbon
R2004,R2005,R2006 435034714R1 RN72K1J-471JE,Chip carbon
R2007,R2029,R2042 435032224R1 RN72K1J-222JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R2008,R2035,R2043 435031014R1 RN72K1J-101JE,Chip carbon
R2009,R2011,R2044 435031214R1 RN72K1J-121JE,Chip carbon
R2010,R2023,R2024 435031524R1 RN72K1J-152JE,Chip carbon
R2012,R2047 435038244R1 RN72K1J-824JE,Chip carbon
R2013,R2021 435034734R1 RN72K1J-473JE,Chip carbon
R2014,R2020,R2038 435031024R1 RN72K1J-102JE,Chip carbon
R2015,R2017,R2031 435036824R1 RN72K1J-682JE,Chip carbon
R2016,R2051 435032724R1 RN72K1J-272JE,Chip carbon
R2018,R2053,R2265 435033324R1 RN72K1J-332JE,Chip carbon
R2019,R2054,R2150 435032214R1 RN72K1J-221JE,Chip carbon
R2025,R2026,R2045 435031524R1 RN72K1J-152JE,Chip carbon
R2027,R2028,R2071 435035634R1 RN72K1J-563JE,Chip carbon
R2030,R2033,R2034 435031824R1 RN72K1J-182JE,Chip carbon
R2032,R2301,R2309 435031834R1 RN72K1J-183JE,Chip carbon
R2036,R2093,R2117 435031034R1 RN72K1J-103JE,Chip carbon
R2037,R2097,R2142 435038224R1 RN72K1J-822JE,Chip carbon
R2039,R2040,R2041 435034714R1 RN72K1J-471JE,Chip carbon
R2046,R2096,R2146 435031214R1 RN72K1J-121JE,Chip carbon
R2048,R2056 435034734R1 RN72K1J-473JE,Chip carbon
R2049,R2055,R2070 435031024R1 RN72K1J-102JE,Chip carbon
R2050,R2052,R2081 435036824R1 RN72K1J-682JE,Chip carbon
R2057,R2217 435033314R1 RN72K1J-331JE,Chip carbon
R2058,R2059,R2060 435036804R1 RN72K1J-680JE,Chip carbon
R2061,R2062,R2063 435033334R1 RN72K1J-333JE,Chip carbon
R2064,R2065,R2066 435033334R1 RN72K1J-333JE,Chip carbon
R2067,R2068,R2069 435032224R1 RN72K1J-222JE,Chip carbon
R2072,R2073,R2074 435031014R1 RN72K1J-101JE,Chip carbon
R2075,R2094,R2095 435031014R1 RN72K1J-101JE,Chip carbon
R2076,R2079,R2254 435031044R1 RN72K1J-104JE,Chip carbon
R2077,R2078,R2108 435035634R1 RN72K1J-563JE,Chip carbon
R2080,R2083,R2088 435031824R1 RN72K1J-182JE,Chip carbon
R2082,R2329 435036824R1 RN72K1J-682JE,Chip carbon
R2084,R2198,R2339 435031234R1 RN72K1J-123JE,Chip carbon
R2085,R2086,R2288 435032224R1 RN72K1J-222JE,Chip carbon
R2087,R2110,R2119 435031534R1 RN72K1J-153JE,Chip carbon
R2089,R2090,R2091 435031824R1 RN72K1J-182JE,Chip carbon
R2092,R2143 435036834R1 RN72K1J-683JE,Chip carbon
R2098,R2149 435031524R1 RN72K1J-152JE,Chip carbon
R2099,R2100,R2107 435031014R1 RN72K1J-101JE,Chip carbon
R2101,R2102,R2103 435037504R1 RN72K1J-750JE,Chip carbon
R2104,R2105,R2106 435037504R1 RN72K1J-750JE,Chip carbon
R2109,R2251,R2252 435035634R1 RN72K1J-563JE,Chip carbon
R2111,R2112,R2113 435037504R1 RN72K1J-750JE,Chip carbon
R2114,R2115,R2116 435037504R1 RN72K1J-750JE,Chip carbon
R2118,R2127,R2128 435031034R1 RN72K1J-103JE,Chip carbon
R2120,R2129,R2138 435031824R1 RN72K1J-182JE,Chip carbon
R2121,R2122,R2123 435037504R1 RN72K1J-750JE,Chip carbon
R2124,R2125,R2126 435037504R1 RN72K1J-750JE,Chip carbon
R2130,R2131,R2132 435037504R1 RN72K1J-750JE,Chip carbon
R2133,R2134,R2135 435037504R1 RN72K1J-750JE,Chip carbon
R2136,R2137,R2140 435031034R1 RN72K1J-103JE,Chip carbon
R2139,R2178,R2180 435031824R1 RN72K1J-182JE,Chip carbon
R2141,R2200,R2218 435031024R1 RN72K1J-102JE,Chip carbon
R2144,R2223,R2224 435031014R1 RN72K1J-101JE,Chip carbon
R2145,R2152,R2154 435031034R1 RN72K1J-103JE,Chip carbon
R2148 435031514R1 RN72K1J-151JE,Chip carbon
R2151,R2153,R2155 435032214R1 RN72K1J-221JE,Chip carbon
R2156,R2157,R2158 435032214R1 RN72K1J-221JE,Chip carbon
R2159,R2184,R2188 435032214R1 RN72K1J-221JE,Chip carbon
R2160,R2161,R2162 435031034R1 RN72K1J-103JE,Chip carbon
R2163,R2164,R2165 435031034R1 RN72K1J-103JE,Chip carbon
R2166,R2167,R2168 435031034R1 RN72K1J-103JE,Chip carbon
R2169,R2170,R2171 435031034R1 RN72K1J-103JE,Chip carbon
R2172,R2173,R2174 435031034R1 RN72K1J-103JE,Chip carbon
R2175,R2176,R2177 435031034R1 RN72K1J-103JE,Chip carbon
R2179,R2183,R2196 435031534R1 RN72K1J-153JE,Chip carbon
R2181,R2182,R2275 435031824R1 RN72K1J-182JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R2185,R2186,R2187 435031034R1 RN72K1J-103JE,Chip carbon
R2189,R2190,R2191 435031034R1 RN72K1J-103JE,Chip carbon
R2192,R2193,R2207 435031034R1 RN72K1J-103JE,Chip carbon
R2194,R2195,R2285 435034714R1 RN72K1J-471JE,Chip carbon
R2197,R2201 435031534R1 RN72K1J-153JE,Chip carbon
R2203,R2209 435033914R1 RN72K1J-391JE,Chip carbon
R2205 435031054R1 RN72K1J-105JE,Chip carbon
R2211,R2213 435031034R1 RN72K1J-103JE,Chip carbon
R2216,R2244 435035604R1 RN72K1J-560JE,Chip carbon
R2219,R2220,R2228 435038214R1 RN72K1J-821JE,Chip carbon
R2225,R2226 435033314R1 RN72K1J-331JE,Chip carbon
R2227,R2239,R2240 435031014R1 RN72K1J-101JE,Chip carbon
R2229,R2230,R2231 435038214R1 RN72K1J-821JE,Chip carbon
R2232 435035624R1 RN72K1J-562JE,Chip carbon
R2236,R2253,R2255 435032214R1 RN72K1J-221JE,Chip carbon
R2243,R2245,R2246 435031014R1 RN72K1J-101JE,Chip carbon
R2247,R2249,R2250 435031014R1 RN72K1J-101JE,Chip carbon
R2248,R2256,R2257 435031034R1 RN72K1J-103JE,Chip carbon
R2258,R2260 435031814R1 RN72K1J-181JE,Chip carbon
R2259,R2286,R2305 435031034R1 RN72K1J-103JE,Chip carbon
R2261,R2262,R2269 435031014R1 RN72K1J-101JE,Chip carbon
R2263,R2294,R2298 435031044R1 RN72K1J-104JE,Chip carbon
R2266,R2267,R2272 435033334R1 RN72K1J-333JE,Chip carbon
R2268 435033344R1 RN72K1J-334JE,Chip carbon
R2270,R2283,R2295 435031014R1 RN72K1J-101JE,Chip carbon
R2271,R2273,R2297 435035634R1 RN72K1J-563JE,Chip carbon
R2274,R2277 435031534R1 RN72K1J-153JE,Chip carbon
R2276,R2278,R2279 435031824R1 RN72K1J-182JE,Chip carbon
R2280,R2360,R2366 435032214R1 RN72K1J-221JE,Chip carbon
R2282 435036804R1 RN72K1J-680JE,Chip carbon
R2287,R2387,R2388 435033334R1 RN72K1J-333JE,Chip carbon
R2289,R2302 435034724R1 RN72K1J-472JE,Chip carbon
R2290,R2311,R2316 435037514R1 RN72K1J-751JE,Chip carbon
R2291,R2312,R2317 435036814R1 RN72K1J-681FE,Chip carbon
R2292,R2293 435034714R1 RN72K1J-471JE,Chip carbon
R2296,R2306,R2307 435031014R1 RN72K1J-101JE,Chip carbon
R2299,R2303,R2304 435031824R1 RN72K1J-182JE,Chip carbon
R2300,R2333 435032224R1 RN72K1J-222JE,Chip carbon
R2308,R2332,R2342 435031824R1 RN72K1J-182JE,Chip carbon
R2310,R2315,R2330 435031034R1 RN72K1J-103JE,Chip carbon
R2313,R2319 435034724R1 RN72K1J-472JE,Chip carbon
R2314,R2318,R2320 435031014R1 RN72K1J-101JE,Chip carbon
R2321,R2322,R2323 435037504R1 RN72K1J-750JE,Chip carbon
R2324,R2326,R2327 435037504R1 RN72K1J-750JE,Chip carbon
R2325,R2390,R2391 435035634R1 RN72K1J-563JE,Chip carbon
R2328 435031044R1 RN72K1J-104JE,Chip carbon
R2331,R2334,R2335 435031034R1 RN72K1J-103JE,Chip carbon
R2336,R2337,R2338 435037504R1 RN72K1J-750JE,Chip carbon
R2340,R2341,R2357 435031034R1 RN72K1J-103JE,Chip carbon
R2343,R2345 435031824R1 RN72K1J-182JE,Chip carbon
R2346,R2347 435031524R1 RN72K1J-152JE,Chip carbon
R2348,R2349,R2350 435037504R1 RN72K1J-750JE,Chip carbon
R2351,R2352,R2353 435037504R1 RN72K1J-750JE,Chip carbon
R2354,R2355,R2356 435037504R1 RN72K1J-750JE,Chip carbon
R2358,R2359,R2363 435031034R1 RN72K1J-103JE,Chip carbon
R2367,R2368,R2369 435032214R1 RN72K1J-221JE,Chip carbon
R2370,R2371,R2398 435032214R1 RN72K1J-221JE,Chip carbon
R2372,R2373,R2374 435031034R1 RN72K1J-103JE,Chip carbon
R2375,R2376,R2377 435031034R1 RN72K1J-103JE,Chip carbon
R2378,R2379,R2380 435031034R1 RN72K1J-103JE,Chip carbon
R2381,R2382,R2383 435031034R1 RN72K1J-103JE,Chip carbon
R2384 435031024R1 RN72K1J-102JE,Chip carbon
R2385,R2386,R2446 435031024R1 RN72K1J-102JE,Chip carbon
R2389,R2445 435033334R1 RN72K1J-333JE,Chip carbon
R2392,R2444 435035634R1 RN72K1J-563JE,Chip carbon
R2396,R2448,R2451 435031034R1 RN72K1J-103JE,Chip carbon
R2397,R2411,R2418 435031014R1 RN72K1J-101JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R2399,R2400,R2403 435032214R1 RN72K1J-221JE,Chip carbon
R2401,R2402,R2405 435030004R1 RN72K1J-000JE,Chip carbon
R2404,R2407,R2408 435032214R1 RN72K1J-221JE,Chip carbon
R2406,R2432,R2433 435030004R1 RN72K1J-000JE,Chip carbon
R2415,R2416,R2419 435037504R1 RN72K1J-750JE,Chip carbon
R2421,R2422 435037504R1 RN72K1J-750JE,Chip carbon
R2424,R2425 435032214R1 RN72K1J-221JE,Chip carbon
R2426,R2430 435032214R1 RN72K1J-221JE,Chip carbon
R2427,R2447 435034714R1 RN72K1J-471JE,Chip carbon
R2436,R2437 435030004R1 RN72K1J-000JE,Chip carbon
R2438,R2439,R2440 435032204R1 RN72K1J-220JE,Chip carbon
R2441,R2242,R2243 435035604R1 RN72K1J-560JE,Chip carbon
R2449 435031014R1 RN72K1J-101JE,Chip carbon
R2450 435031204R1 RN72K1J-120JE,Chip carbon
Relays
RL2201,RL2202 25065662R2 NPL-2P2A-DC24-177
RL2203,RL2204 25065662R2 NPL-2P2A-DC24-177
RL2206,RL2207 25065662R2 NPL-2P2A-DC24-177
RL2208,RL2209 25065662R2 NPL-2P2A-DC24-177
RL2210 25065662R2 NPL-2P2A-DC24-177
Terminals
P2006,P2007 25045728 NPJ-15PDBY516
P2008,P2205 25045730 NPJ-10PDBY518
P2206,P2207 25045764 NPJ-6PDGLR548
Sockets
P2004 25052814R2 IMSA-9850S-22Y900
P2005 25052813R2 IMSA-9850S-20Y900
P2202 25052818R2 IMSA-9850S-30Y900
Plugs
P2001,P2002,P2204 25056329R2 IMSA-9850B-30Y902
P2210 25056210R2 IMSA-9850B-30Y900
P2211 25056205R2 IMSA-9850B-20Y900
P2212 25056206R2 IMSA-9850B-22Y900
Component video 4 PC board(NAVD-8205-1A) <P/DT/GT/A/K>
Option board (C-CPNT-BNC)
CIRCUIT NO. PART NO. DESCRIPTION
IC
Q2501,Q2503 22241442R2 MAX4218ESD
Transistor
Q2502 2214460R2 or RN1401 or
2216330R2 KRC101S
Diodes
D2501,D2502 223234R2 or 1SS352 or
223269R2 1SS355
Capacitors
C2501,C2503 356742219R2 CEWX16V-220M,Chip elect.
C2502,C2504,C2505 332161040R1 CK725F1E-104Z1,Chip ceramic
C2506,C2508 356741019R2 CEWX16V-100M,Chip elect.
C2507,C2509 332161040R1 CK725F1E-104Z1,Chip ceramic
C2517,C2518,C2519 356742219R2 CEWX16V-220M,Chip elect.
C2520,C2521,C2522 332161040R1 CK725F1E-104Z1,Chip ceramic
Resistors
R2501,R2513,R2514 435031014R1 RN72K1J-101JE,Chip carbon
R2502,R2511,R2512 435031034R1 RN72K1J-103JE,Chip carbon
R2503 435031224R1 RN72K1J-122JE,Chip carbon
R2504,R2505,R2506 435030004R1 RN72K1J-000JE,Chip carbon
R2507,R2508,R2509 435032204R1 RN72K1J-220JE,Chip carbon
R2515,R2523,R2528 435031014R1 RN72K1J-101JE,Chip carbon
R2516,R2524,2529 435031034R1 RN72K1J-103JE,Chip carbon
R2517,R2527,R2532 435036824R1 RN72K1J-682JE,Chip carbon
R2518,R2519,R2525 435036814R1 RN72K1J-681FE,Chip carbon
R2520,R2521,R2522 435030004R1 RN72K1J-000JE,Chip carbon
R2526,R2530,R2531 435036814R1 RN72K1J-681FE,Chip carbon
R2533,R2534,R2535 435037504R1 RN72K1J-750JE,Chip carbon
R2536,R2540,R2541 435037504R1 RN72K1J-750JE,Chip carbon
R2537,R2538,R2539 435031034R1 RN72K1J-103JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Relays
RL2501,RL2502 25065662R2 NPL-2P2A-DC24-177
RL2503 25065662R2 NPL-2P2A-DC24-177
Terminals
P2502,P2503 25045760 P2298-C
Plug
P2501 25056329R2 IMSA-9850B-30Y902
Option board (C-CPNT-RCA) (NAVD-8207-1A)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q2601,Q2603 22241442R2 MAX4218ESD
Transistors
Q2602 2214460R2 or RN1401 or
2216330R2 KRC101S
Diodes
D2601,D2602 223234R2 or 1SS352 or
223269R2 1SS355,Chip
Capacitors
C2601,C2603 356742219R2 CEWX16V-220M,Chip elect.
C2602,C2604,C2605 332161040R1 CK725F1E-104Z1,Chip ceramic
C2606,C2608 356741019R2 CEWX16V-100M,Chip elect.
C2607,C2609,C2620 332161040R1 CK725F1E-104Z1,Chip ceramic
C2611,C2612,C2613 342111024R1 CC725CH1E-102J1,Chip ceramic
C2614,C2615,C2616 342111024R1 CC725CH1E-102J1,Chip ceramic
C2617,C2618,C2619 356742219R2 CEWX16V-220M,Chip elect.
C2621,C2622 332161040R1 CK725F1E-104Z1,Chip ceramic
Resistors
R2601,R2613,R2614 435031014R1 RN72K1J-101JE,Chip carbon
R2602,R2611,R2612 435031034R1 RN72K1J-103JE,Chip carbon
R2603,R2604 435030004R1 RN72K1J-000JE,Chip carbon
R2605,R2606 435030004R1 RN72K1J-000JE,Chip carbon
R2607,R2608,R2609 435032204R1 RN72K1J-220JE,Chip carbon
R2615,R2623,R2628 435031014R1 RN72K1J-101JE,Chip carbon
R2617,R2627,R2632 435036824R1 RN72K1J-682JE,Chip carbon
R2618,R2619,R2625 435036814R1 RN72K1J-681JE,Chip carbon
R2620,R2621,R2622 435030004R1 RN72K1J-000JE,Chip carbon
R2624,R2629,R2637 435031034R1 RN72K1J-103JE,Chip carbon
R2626,R2630,R2631 435036814R1 RN72K1J-681JE,Chip carbon
R2633,R2634,R2635 435037504R1 RN72K1J-750JE,Chip carbon
R2636,R2640,R2641 435037504R1 RN72K1J-750JE,Chip carbon
R2638,R2639 435031034R1 RN72K1J-103JE,Chip carbon
Relays
RL2601,RL2602,RL2603 25065662R2 NPL-2P2A-DC24-177
Terminals
P2602,P2605 25045762 NPJ-1PDG546
P2603,P2606 25045763 NPJ-1PDL547
P2604,P2607 25045761 NPJ-1PDR545
Plug
P2601 25056329R2 IMSA-9850B-30Y902
Display circuit PC board (NADIS-8212-1)
Standby switch PC board (NAETC-8213-1)
Headphone terminal PC board (NAETC-8214-1,)
Door sensor PC board(NAETC-8215-1)
Door motor PC board(NAETC-8216-1)
CIRCUIT NO. PART NO. DESCRIPTION
FL tube
Q7602 212248 16-BT-117GN
ICs
Q7601 222W0004R300912 MPD78F0233GC-8BT (0091)
Q7603,Q7604 22241680AR2 M66005-0001AFP
Q7605 22240239 TA7291S
Q7901 222780085R2JR 78M08HF(NJM78M08DL1A)
Q2002 Transistors
Q7501,Q7502,Q7503 2214470R2 RN1402
Q7504,Q7505,Q7506 2214470R2 RN1402
Q7507,Q7508,Q7509 2214470R2 RN1402
CIRCUIT NO. PART NO. DESCRIPTION
Transistors
Q7510,Q7511,Q7512 2214470R2 RN1402
Q7513,Q7514,Q7515 2214470R2 RN1402
Q7516 2214470R2 RN1402
Photo coupllers
Q7961,Q7962 24120081 GP1S93
Remote sensor
U7501 241336 PIC-37043TH2
Diodes
D7501,D7502,D7503 225374 SEL2E10C
D7504,D7505,D7506 225374 SEL2E10C
D7507,D7508,D7509 225374 SEL2E10C
D7510,D7511,D7512 225374 SEL2E10C
D7513,D7514 225374 SEL2E10C
D7515,D7516 225374 SEL2E10C
D7521,D7522,D7523 225375 SML1216C
D7524,D7525 225375 SML1216C
D7526,D7527 225375 SML1216C
D7528,D7529,D7530 225375 SML1216C
D7531,D7532 225375 SML1216C
D7533,D7534 225375 SML1216C
D7560 225290 SEL4110R
D7701 223234R2 1SS352
D7801 224550680R2 UDZS6.8B
Coils
L7701,L7702 231237M022R2 NCH-1471
Oscillator
X7501 3010242 CST5.00MGW,Ceramic
Capacitors
C7581,C7582 342101014R1 CC725CH1H-101J1,Chip ceramic
C7585,C7624,C7625 332161040R1 CK725F1E-104Z1,Chip ceramic
C7601,C7809 375524744 MMT50V-474J
C7602,C7603,C7703 355721019 CE04W6.3V-100M,Elect.
C7659,C7806,C7812 332161040R1 CK725F1E-104Z1,Chip ceramic
C7707,C7708,C7709 342101014R1 CC725CH1H-101J1,Chip ceramic
C7719,CC720,C7721 342111024R1 CC725CH1E-102J1,Chip ceramic
C7722,C7728,C7729 342111024R1 CC725CH1E-102J1,Chip ceramic
C7730,C7731,C7732 342111024R1 CC725CH1E-102J1,Chip ceramic
C7801,C7802 332151030R1 CK725F1H-103Z1,Chip ceramic
C7803 332151040R1 CK725F1H-104Z1,Chip ceramic
C7804,C7901,C7902 355781009 CE04W50V-10M,Elect.
C7805 342104704R1 CC725CH1H-470J1,Chip ceramic
C7807,C7811 332151030R1 CK725F1H-103Z1,Chip ceramic
C7808 342111024R1 CC725CH1E-102J1,Chip ceramic
C7810,C7813 355721019 CE04W6.3V-100M,Elect.
C7952,C7961 332161040R1 CK725F1E-104Z1,Chip ceramic
Resistors
R7502,R7512 435023314R1 RN72W1J-331JE,Chip carbon
R7503,R7513 435024714R1 RN72W1J-471JE,Chip carbon
R7504,R7514 435035614R1 RN72K1J-561JE,Chip carbon
R7505,R7515 435038214R1 RN72K1J-821JE,Chip carbon
R7506,R7516 435031224R1 RN72K1J-122JE,Chip carbon
R7507,R7517 435032224R1 RN72K1J-222JE,Chip carbon
R7508,R7518 435033924R1 RN72K1J-392JE,Chip carbon
R7509,R7519,R7529 435031234R1 RN72K1J-123JE,Chip carbon
R7522,R7532 435023314R1 RN72W1J-331JE,Chip carbon
R7523,R7533 435024714R1 RN72W1J-471JE,Chip carbon
R7524,R7534 435035614R1 RN72K1J-561JE,Chip carbon
R7525,R7535 435038214R1 RN72K1J-821JE,Chip carbon
R7526,R7536 435031224R1 RN72K1J-122JE,Chip carbon
R7527,R7537 435032224R1 RN72K1J-222JE,Chip carbon
R7528,R7538 435033924R1 RN72K1J-392JE,Chip carbon
R7539,R7809 435031234R1 RN72K1J-123JE,Chip carbon
R7582,R7583 233454M022 NCH-1452 022M
R7605,R7615,R7626 435031024R1 RN72K1J-102JE,Chip carbon
R7606,R7607,R7608 435032214R1 RN72K1J-221JE,Chip carbon
R7609,R7610,R7613 435032214R1 RN72K1J-221JE,Chip carbon
R7611,R7612 435031004R1 RN72K1J-100JE,Chip carbon
R7614,R7667,R7668 435032214R1 RN72K1J-221JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R7617,R7628,R7629 435031034R1 RN72K1J-103JE,Chip carbon
R7619,R7620 435034724R1 RN72K1J-472JE,Chip carbon
R7621,R7622 435034724R1 RN72K1J-472JE,Chip carbon
R7627,R7630,R7631 435031024R1 RN72K1J-102JE,Chip carbon
R7632,R7710,R7717 435031034R1 RN72K1J-103JE,Chip carbon
R7633,R7634,R7636 435031024R1 RN72K1J-102JE,Chip carbon
R7635,R7640,R7642 435031014R1 RN72K1J-101JE,Chip carbon
R7637,R7638,R7639 435031024R1 RN72K1J-102JE,Chip carbon
R7641,R7643,R7645 435031024R1 RN72K1J-102JE,Chip carbon
R7644,R7646,R7648 435031014R1 RN72K1J-101JE,Chip carbon
R7647,R7649,R7651 435031024R1 RN72K1J-102JE,Chip carbon
R7650,R7652,R7654 435031014R1 RN72K1J-101JE,Chip carbon
R7653,R7655,R7657 435031024R1 RN72K1J-102JE,Chip carbon
R7656,R7658,R7662 435031014R1 RN72K1J-101JE,Chip carbon
R7661,R7663,R7701 435031024R1 RN72K1J-102JE,Chip carbon
R7664,R7665,R7666 435031014R1 RN72K1J-101JE,Chip carbon
R7669,R7670,R7671 435032214R1 RN72K1J-221JE,Chip carbon
R7672,R7673,R7674 435032214R1 RN72K1J-221JE,Chip carbon
R7675,R7676,R7677 435032214R1 RN72K1J-221JE,Chip carbon
R7678,R7679,R7680 435032214R1 RN72K1J-221JE,Chip carbon
R7719,R7720 435032724R1 RN72K1J-272JE,Chip carbon
R7721,R7722 435032724R1 RN72K1J-272JE,Chip carbon
R7726,R7727,R7728 435031034R1 RN72K1J-103JE,Chip carbon
R7729,R7730,R7731 435031034R1 RN72K1J-103JE,Chip carbon
R7732,R7808 435031034R1 RN72K1J-103JE,Chip carbon
R7790,R7791 435030004R1 RN72K1J-000JE,Chip carbon
R7801,R7802 435032714R1 RN72K1J-271JE,Chip carbon
R7803,R7804 435035634R1 RN72K1J-563JE,Chip carbon
R7805,R7806 435035634R1 RN72K1J-563JE,Chip carbon
R7807 49163103415 RM1/10IJ-10K*15,Array
R7901,R7902,R7903 435033314R1 RN72K1J-331JE,Chip carbon
R7904,R7905,R7906 435033314R1 RN72K1J-331JE,Chip carbon
R7907,R7908,R7909 435033314R1 RN72K1J-331JE,Chip carbon
R7910,R7911,R7912 435033314R1 RN72K1J-331JE,Chip carbon
R7913,R7914,R7915 435033314R1 RN72K1J-331JE,Chip carbon
R7916,R7961 435033314R1 RN72K1J-331JE,Chip carbon
R7962,R7963 435034734R1 RN72K1J-473JE,Chip carbon
R7964,R7965 435030004R1 RN72K1J-000JE,Chip carbon
Switches
S7501,S7502,S7503 25035718 NPS-111-S681
S7504,S7505,S7506 25035718 NPS-111-S681
S7507,S7508,S7509 25035718 NPS-111-S681
S7511,S7512,S7513 25035718 NPS-111-S681
S7514,S7515,S7516 25035718 NPS-111-S681
S7517,S7518,S7519 25035718 NPS-111-S681
S7521,S7522,S7523 25035718 NPS-111-S681
S7524,S7525,S7526 25035718 NPS-111-S681
S7527,S7528,S7529 25035718 NPS-111-S681
S7531,S7532,S7533 25035718 NPS-111-S681
S7534,S7535,S7536 25035718 NPS-111-S681
S7537,S7538,S7539 25035718 NPS-111-S681
S7641 25065596 EC16B36C25
Terminal
P7581 25045385 YKB26-5153,Headphone
Sockets
P7501 25052586R2 NSCT-20P2483
P7503A 200AA392820 NSAS-28P1257
P7504A 2002E391220 NSAS-12P1320
P7505A 200EE390615 NSAS-6P0795
Plugs
P7504B 25055370 NPLG-6P353
P7506B 25055236 NPLG-5P220
Holders
Q7602A 27190987A (FL)
P7901,P7902,P7903 27190540-1 HOLDER(CLAMP)
Net-tune circuit PC board (NADG-8228-1A) <P/DT/GT/A/K>
Option board (C-NET-A)
CIRCUIT NO. PART NO. DESCRIPTION
ICs
Q601 22241778R2 BA33C25FP
Q603,Q608 22241861R3 or HM5264165FTT-B6 or
22241910R3 IC42S16400-7T
Q604 22241862R301114 MX29LV320ABTC-90(0111)
Q606 22241872R2 93LC46BT/SN
Q607 22241863R3 EP7312-CV
Q609 22241161R2 TC7W14FU
Q610 22241159R2 TC7S02FU
Q616 22241867R3 CS8900A-CQ3
Q617 22274004HR2TO TC74VHCU04FT
Q618,Q619 22274074ER2TO TC74VHC74FT
Diode
D603 225385R2 SEC1201C
Coils
L601,L605,L606 230949R2 BLM21PG221SN1
L603 3030048R2 NFE31PT471F1E9
Oscillators
X601 3010374R2 DSO-751SV
X602 3010371R2 DSX630G
X603 3010372R2 SM-26F
X604 3010373R2 SMD-49
Capacitors
C551,C560,C561,C562 332161040R1 CK725F1E-104Z1,Chip ceramic
C563,C564,C565,C566 332161040R1 CK725F1E-104Z1,Chip ceramic
C567,C568,C569,C570 332161040R1 CK725F1E-104Z1,Chip ceramic
C571,C603,C604,C605 332161040R1 CK725F1E-104Z1,Chip ceramic
C602 395530477R2 F93-10V-4.7M,Chip tantal
C606,C607,C608,C609 332161040R1 CK725F1E-104Z1,Chip ceramic
C610,C611,C612,C613 332161040R1 CK725F1E-104Z1,Chip ceramic
C614 395544707R2 F93-16V-47M,Chip tantal
C615 395521017R2 F93-6.3V-100M,Chip tantal
C616,C617,C618,C619 332161040R1 CK725F1E-104Z1,Chip ceramic
C620,C621,C622,C623 332161040R1 CK725F1E-104Z1,Chip ceramic
C624,C625,C626,C627 332161040R1 CK725F1E-104Z1,Chip ceramic
C628 342105614R1 CC725CH1H-561J1,Chip ceramic
C629,C630,C631,C642 332161040R1 CK725F1E-104Z1,Chip ceramic
C633,C634 332101035R1 CK725B1H-103K1,Chip ceramic
C643,C646,C652,C653 332161040R1 CK725F1E-104Z1,Chip ceramic
C654,C655,C658,C659 332161040R1 CK725F1E-104Z1,Chip ceramic
C656,C657,C683 342101002R1 CC725CH1H-100D1,Chip ceramic
C660,C661,C662,C663 332161040R1 CK725F1E-104Z1,Chip ceramic
C664,C665,C666,C667 332161040R1 CK725F1E-104Z1,Chip ceramic
C668,C669,C672,C673 332161040R1 CK725F1E-104Z1,Chip ceramic
C674,C677,C690 332101025R1 CK725B1H-102K1,Chip ceramic
C682 342105604R1 CC725CH1H-560J1,Chip ceramic
C685,C686 342101504R1 CC725CH1H-150J1,Chip ceramic
C687,C688,C689 332161040R1 CK725F1E-104Z1,Chip ceramic
C690,C692 332161040R1 CK725F1E-104Z1,Chip ceramic
Resistors
R550,R551,R552,R557 435031034R1 RN72K1J-103JE,Chip carbon
R553,R554 435031012R1 RN72K1J-101FE,Chip carbon
R555,R556 435032734R1 RN72K1J-273JE,Chip carbon
R601,R602,R682 435031012R1 RN72K1J-101FE,Chip carbon
R603,R604 435030004R1 RN72K1J-000JE,Chip carbon
R605,R607 435030822R1 RN72K1J-082FE,Chip carbon
R606 435033314R1 RN72K1J-331JE,Chip carbon
R609,R611,R612,R613 435031034R1 RN72K1J-103JE,Chip carbon
R614,R615,R617,R618 435031034R1 RN72K1J-103JE,Chip carbon
R619,R624 435031514R1 RN72K1J-151JE,Chip carbon
R623,R627,R630,R643 435031034R1 RN72K1J-103JE,Chip carbon
R628,R629,R700 435030004R1 RN72K1J-000JE,Chip carbon
R642,R698 435031032R1 RN72K1J-103FE,Chip carbon
R644,R645,R646,R647 435031034R1 RN72K1J-103JE,Chip carbon
R649,R651,R659,R660 435031034R1 RN72K1J-103JE,Chip carbon
R650 435034734R1 RN72K1J-473JE,Chip carbon
CIRCUIT NO. PART NO. DESCRIPTION
Resistors
R655,R656 435031024R1 RN72K1J-102JE,Chip carbon
R662,R663,R664,R665 435031034R1 RN72K1J-103JE,Chip carbon
R666,R667,R669,R687 435031034R1 RN72K1J-103JE,Chip carbon
R688,R689,R690 435031034R1 RN72K1J-103JE,Chip carbon
R691,R692 435031034R1 RN72K1J-103JE,Chip carbon
R699 435032754R1 RN72K1J-275JE,Chip carbon
Socket
P601 25052724 NSCT-8P2620
Plugs
P3102A 25056329R2 IMSA-9850B-30Y902
P607B 25055978R2 NPLG-5P931
RDC-7.1
ONKYO EUROPE UK Office
Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ
UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452
ONKYO CHINA LIMITED
Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG
Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.onkyochina.com
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8023 Fax: 072-831-8124 http://www.onkyo.com/
ONKYO CORPORATION
Integra Research Division of
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: 201-785-2600 Fax: 201-785-2650 http://www.integraresearch.com
Integra Research Division of
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.onkyo.net

Navigation menu
