US Model
SERVICE MANUAL
DVD RECORDER
SPECIFICATIONS
RMT-D254A
RDR-GX360
Ver. 1.0 2008.03
System
[DVD recorder section]
Laser
Semiconductor laser
Audio recording format
Dolby Digital
Video recording format
MPEG Video
[Timer section]
Clock
Quartz locked
Timer indication
12-hour cycle
Timer setting
12 programs (max.)
Inputs and outputs
LINE 1 IN and LINE 2 IN
VIDEO IN, phono jack (1 each)
Input signal: 1 Vp-p, 75 ohms, unbalanced,
sync negative
AUDIO IN, phono jacks (2 each)
Input level: 327 mVrms
Input impedance: more than 47 kilohms
S VIDEO, 4-pin, mini-DIN jack
Y: 1.0 Vp-p, unbalanced, sync negative
C: 0.286 Vp-p, load impedance 75 ohms
DV IN, 4-pin jack, i.LINK S100
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: 1 Vp-p, 75 ohms,
unbalanced, sync negative
AUDIO OUT, phono jacks (2)
Standard output: 327 mVrms
Load impedance: 47 kilohms
Output impedance: less than 10 kilohms
DIGITAL AUDIO OUT
COAXIAL, phono jack
Output signal: 0.5 Vp-p, 75 ohms
COMPONENT VIDEO OUT (Y, PB, PR)
Phono jack
Y: 1.0 Vp-p/P
B
, P
R
: 0.7 Vp-p, 75 ohms
SET TOP BOX CONTROL
Mini jack
HDMI OUT
HDMI 19 pin-Standard Connector
USB
USB jack Type A (For connecting
camcorders or digital still cameras)
General
Power requirements
120 V AC, 60 Hz
Power consumption
17 W
Power back-up
Back-up duration: 30 min
Operating temperature
5°C to 35°C (41°F to 95°F)
Storage temperature
–20°C to 60°C (–4°F to 140°F)
Operating humidity
25% to 80%
Dimensions including projecting parts
and controls (w/h/d)
Approx. 430 ×59 ×225 mm
(Approx. 17 ×2
3
/8 ×8
7
/8 inches)
Mass
Approx. 2.4 kg (Approx. 5.3 lbs)
Supplied accessories
Remote commander (remote) (1)
Size AA (R6) batteries (2)
Audio/video cord (1)
Set top box controller (1)
Design and specifications are subject to change
without notice.
— 2 —
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION,
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 25 cm FROM THE SURFACE OF THE
OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED
LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
CAUTION:
The use of optical instrument with this product will increase eye
hazard.

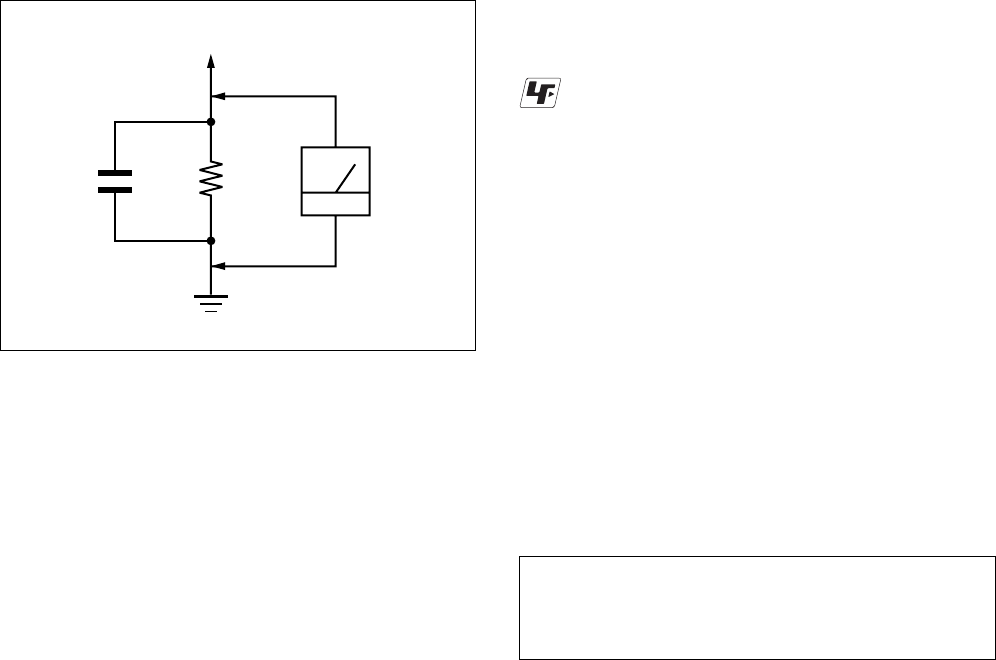

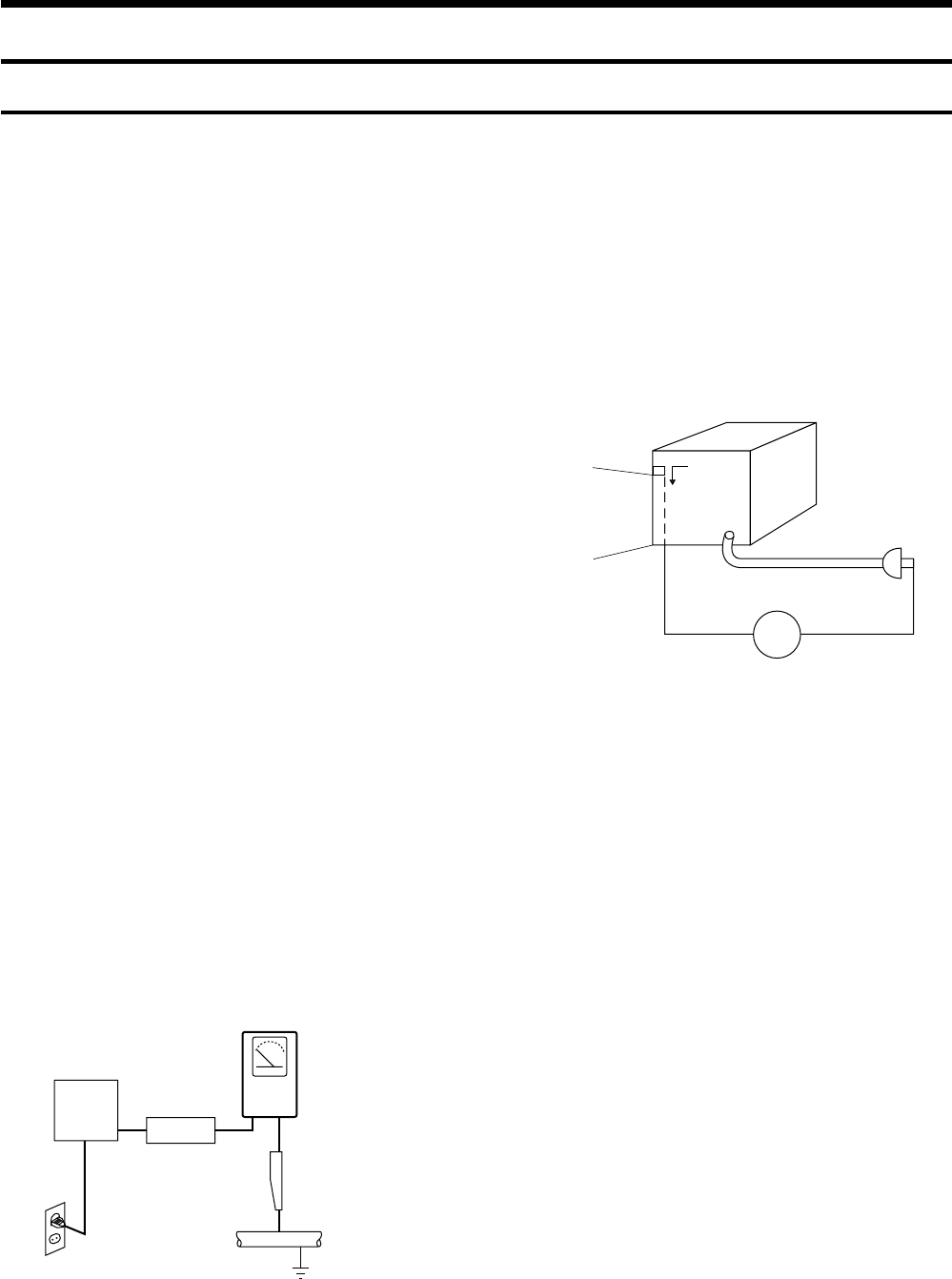

Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k
Ω
0.15 µFAC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground
and from all exposed metal parts to any exposed metal part having
a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers' instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM
or battery-operated AC voltmeter. The “limit” indication is
0.75V, so analog meters must have an accurate low-voltage scale.
The Simpson 250 and Sanwa SH-63Trd are examples of a
passive VOM that is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are suitable. (See Fig. A)
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes
and bridges.
2. Check the interboard wiring to ensure that no wires are
“pinched” or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to
the customer and recommend their replacement.
4. Look for parts which, though functioning, show obvious signs
of deterioration. Point them out to the customer and recommend
their replacement.
5. Check the line cord for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.
6. Check the B+ voltage to see it is at the values specified.
7. Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage. Check
leakage as described below.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
— 3 —
TABLE OF CONTENTS
Precautions
1Safety Precautions ······························································ 4
2Servicing Precautions ························································ 6
3ESD Precautions ································································· 7

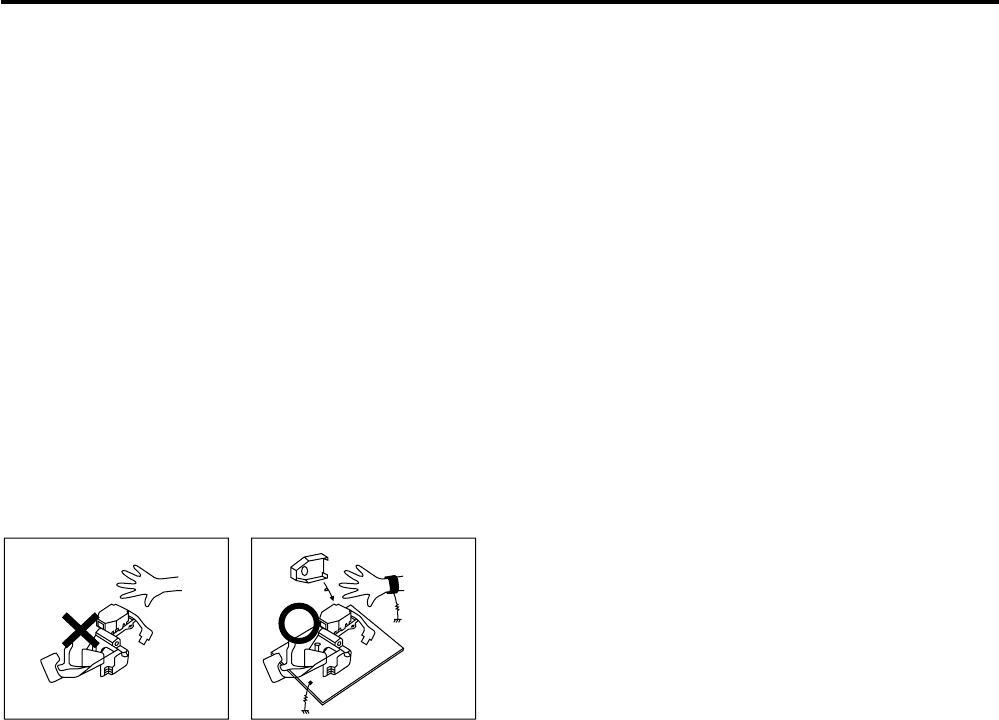

4Handling the Optical Pick-up ············································· 8
1. General

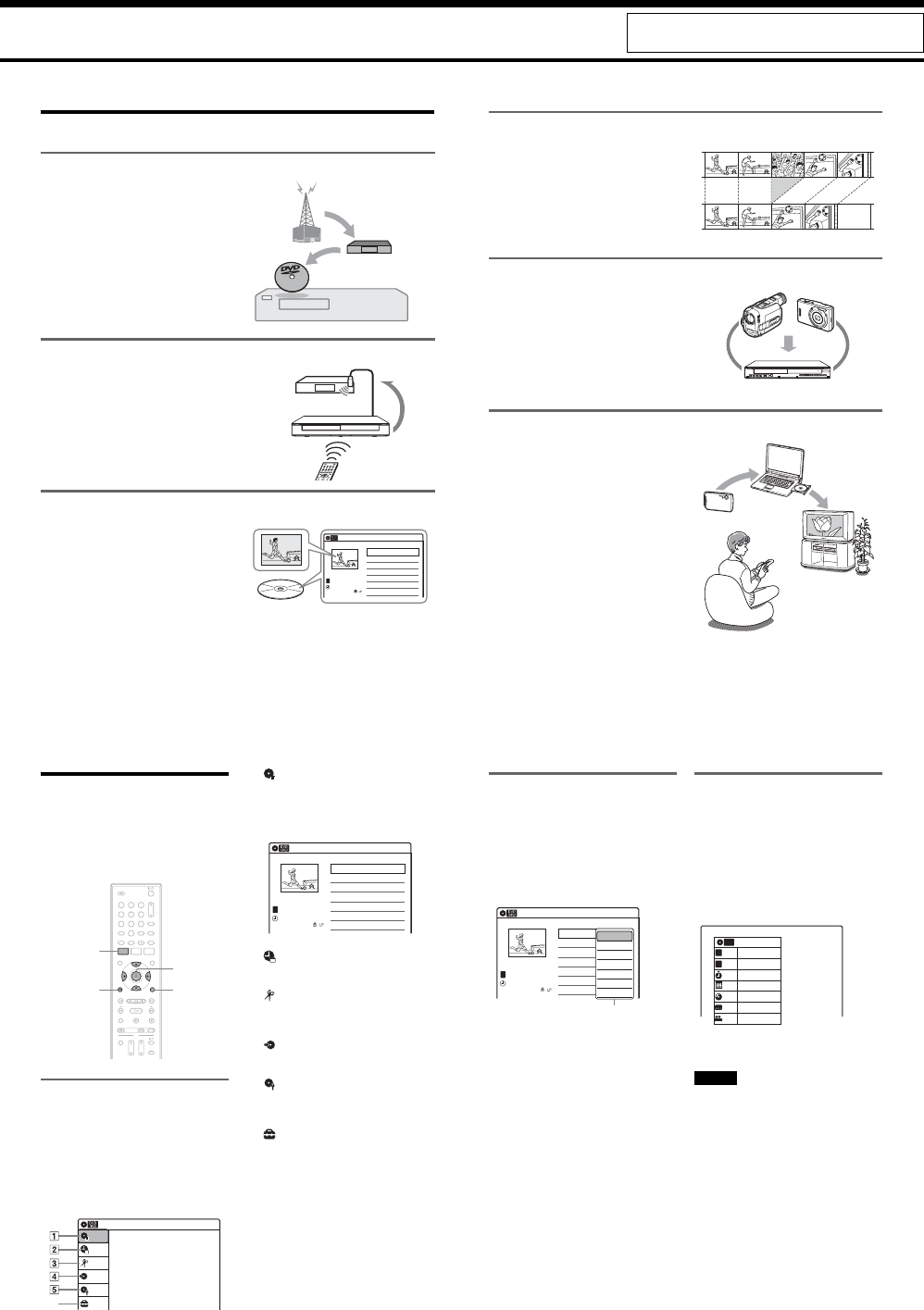

Ways to Use Your DVD Recorder ···································1-1
How to Use the On-Screen Menus ··································1-1

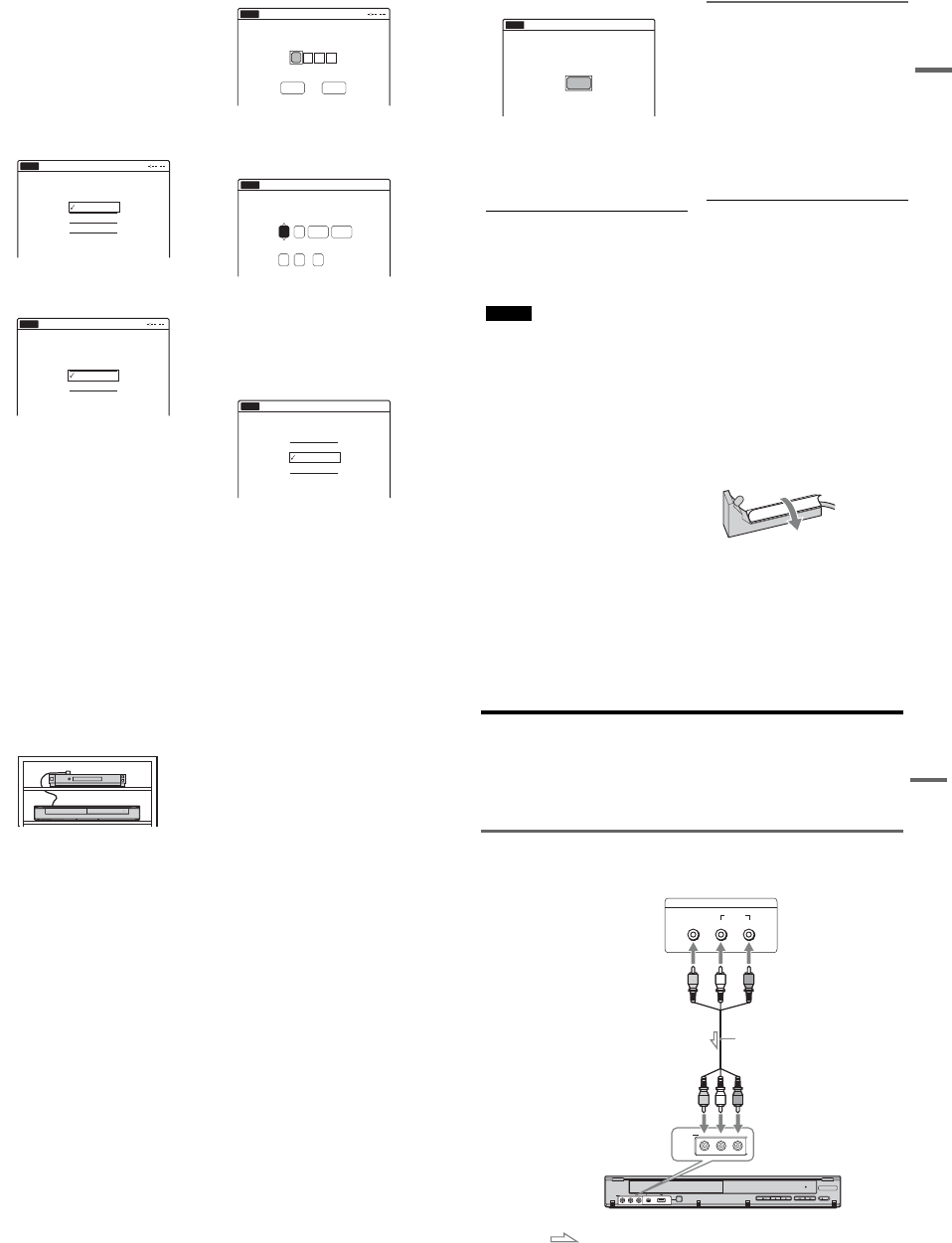

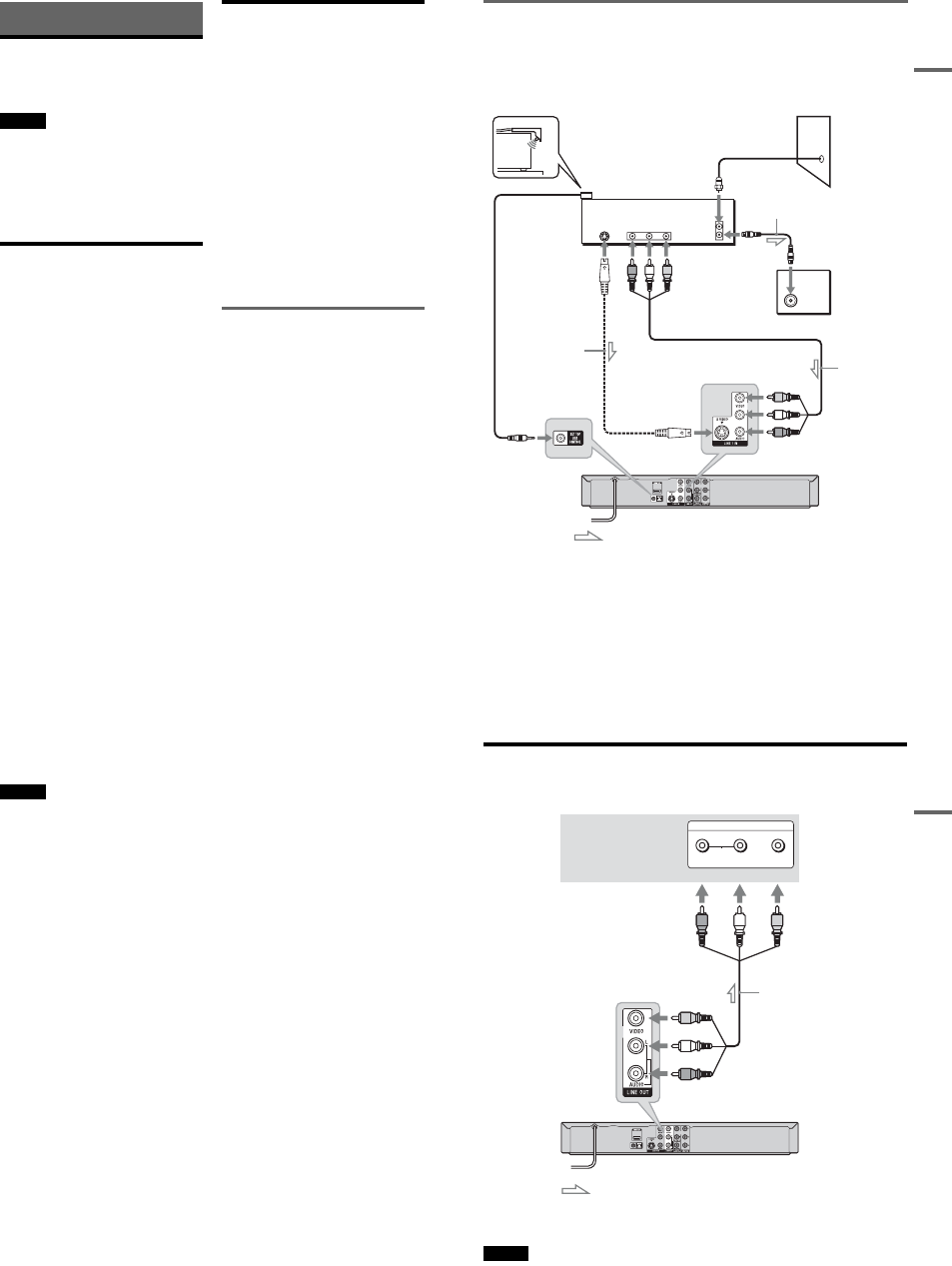

Hookups and Settings ······················································1-2

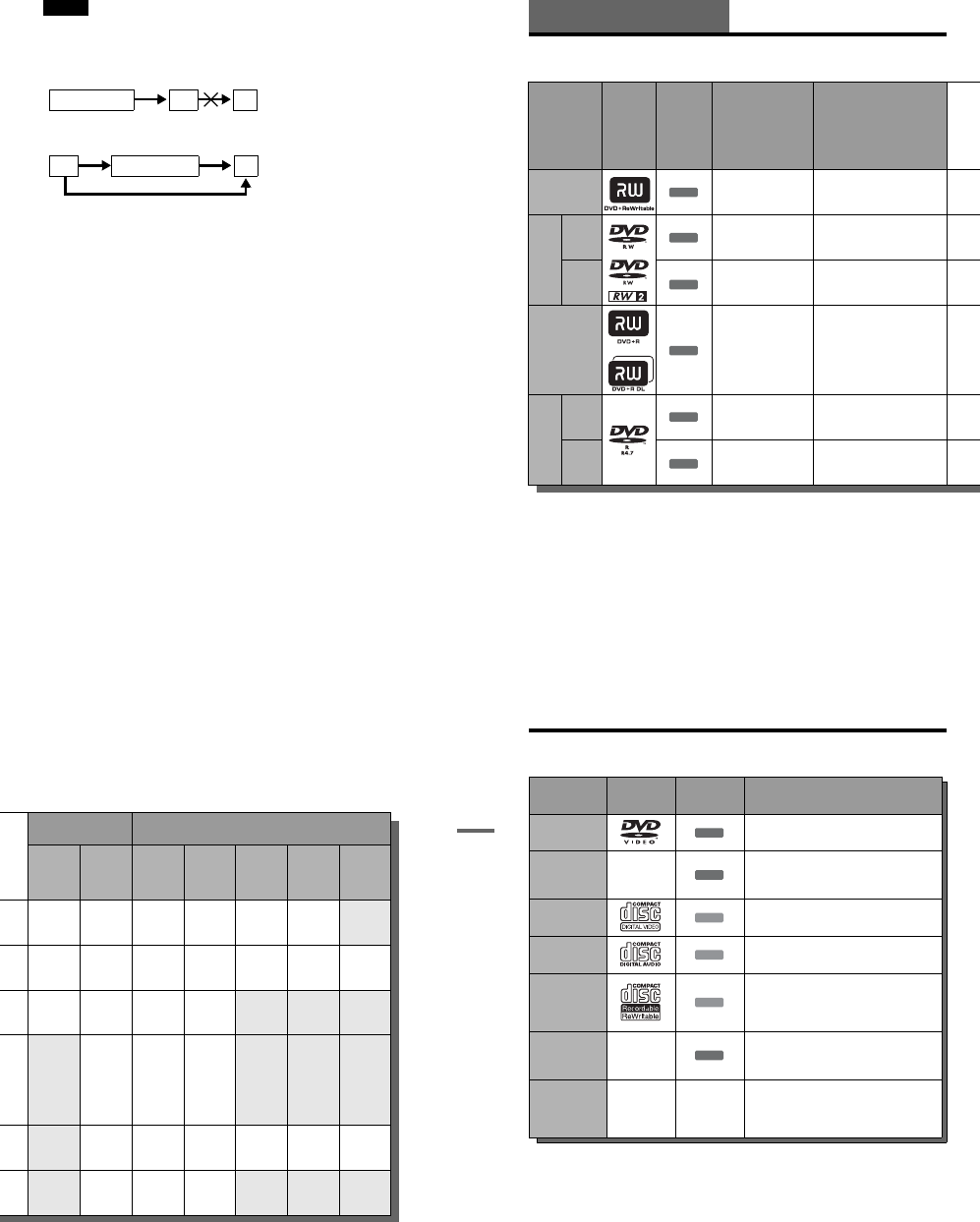

Quick Guide to Disc Types··············································1-6
Playback ··········································································1-7
Recording ······································································1-10
Editing ···········································································1-13
DV/D8 Dubbing (DV/D8 → DVD)·······························1-15

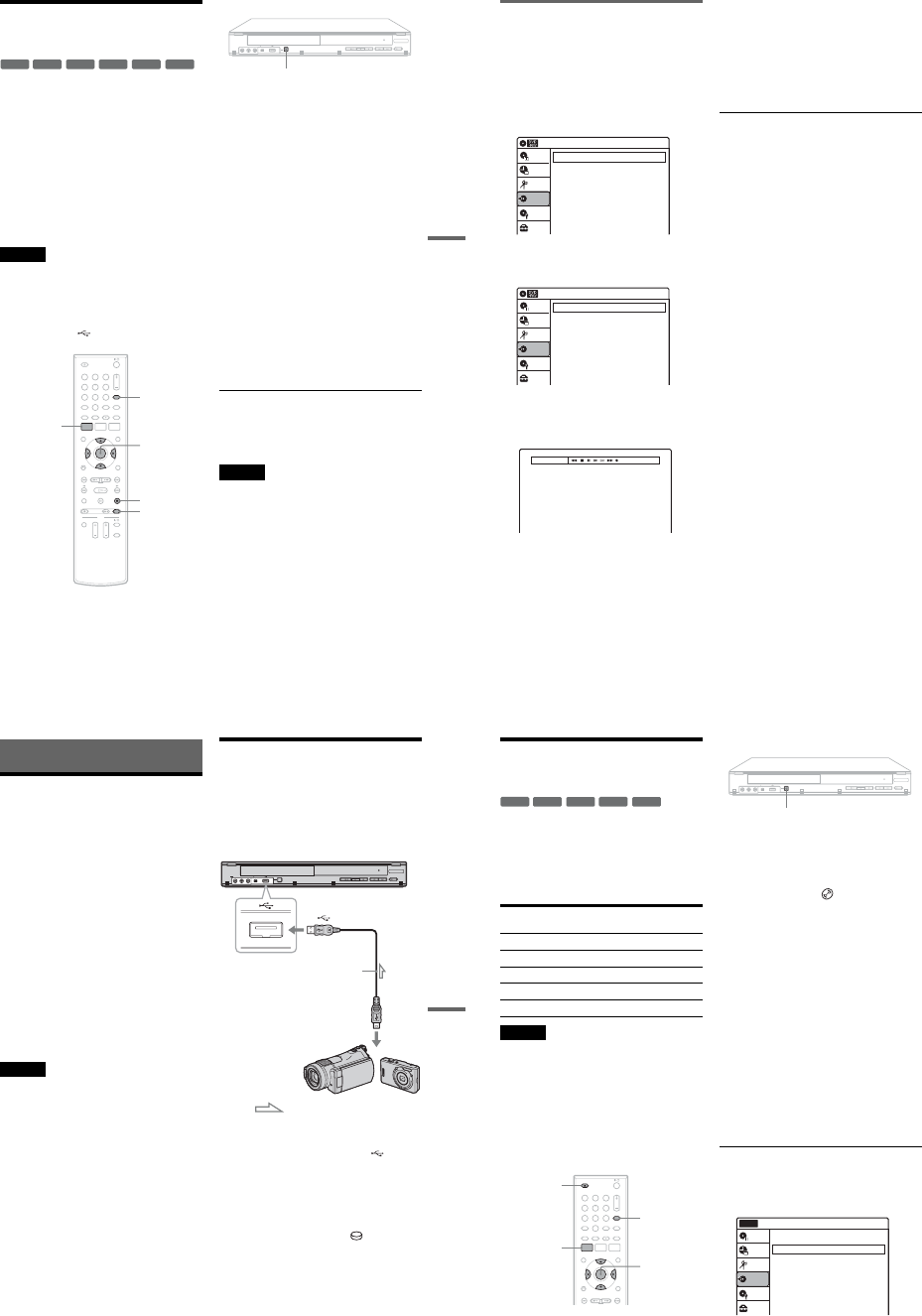

USB Dubbing (USB → DVD) ······································1-16
Settings and Adjustments ··············································1-18
Additional Information ··················································1-21
2. Disassembly and Reassembly
2-1 Cabinet and PCB ····························································2-1

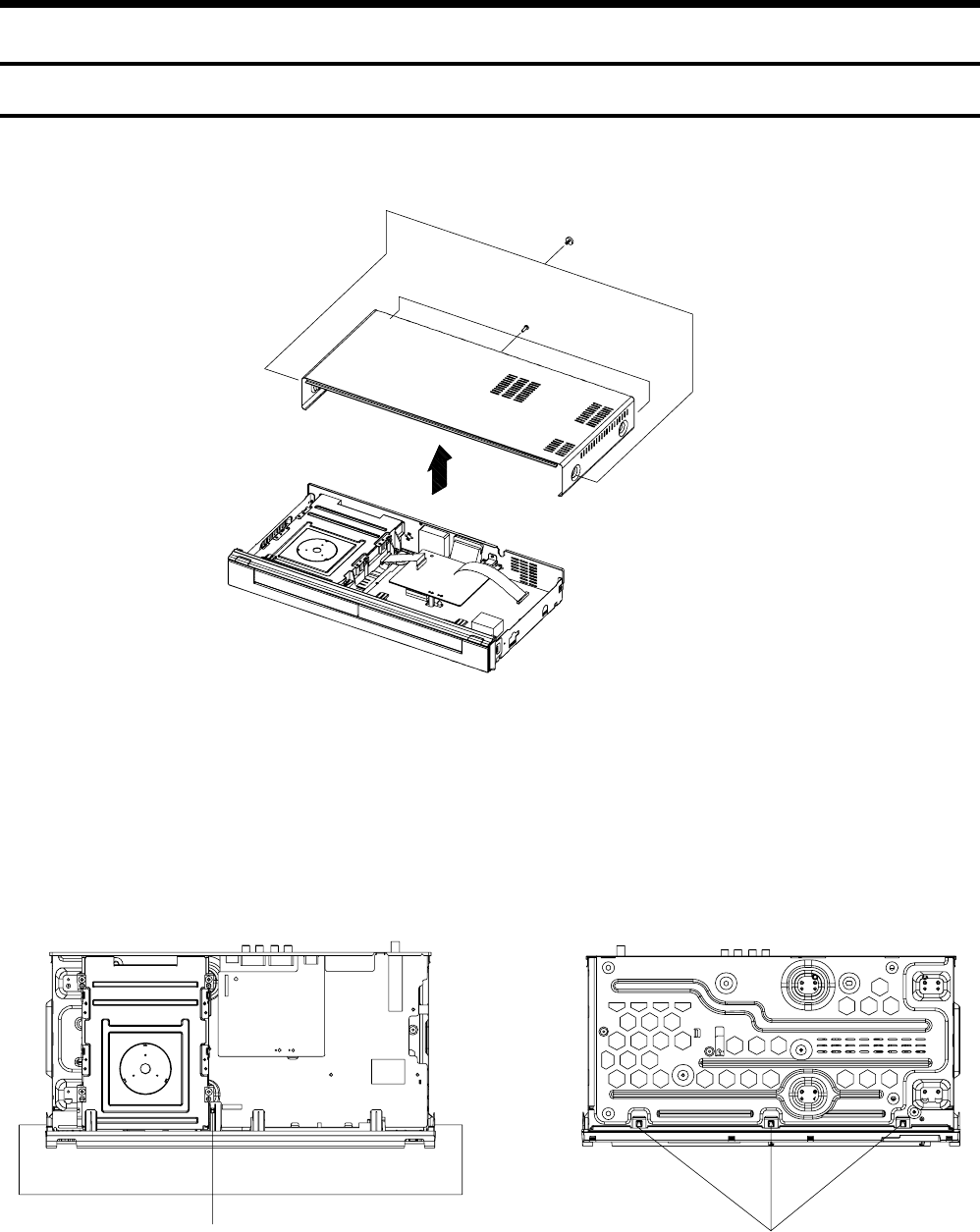

2-1-1 Cabinet Top Removal ·····················································2-1
2-1-2 Ass’y Front Panel Removal············································2-1
2-1-3 Chassis Removal ····························································2-2

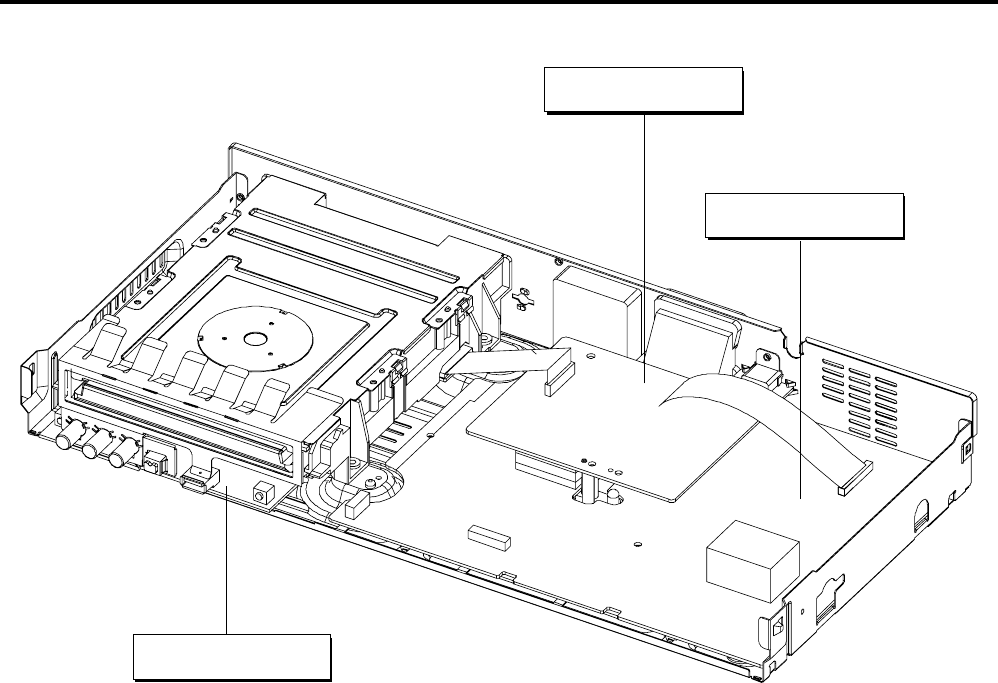

2-2 Circuit Board Locations ·················································2-3

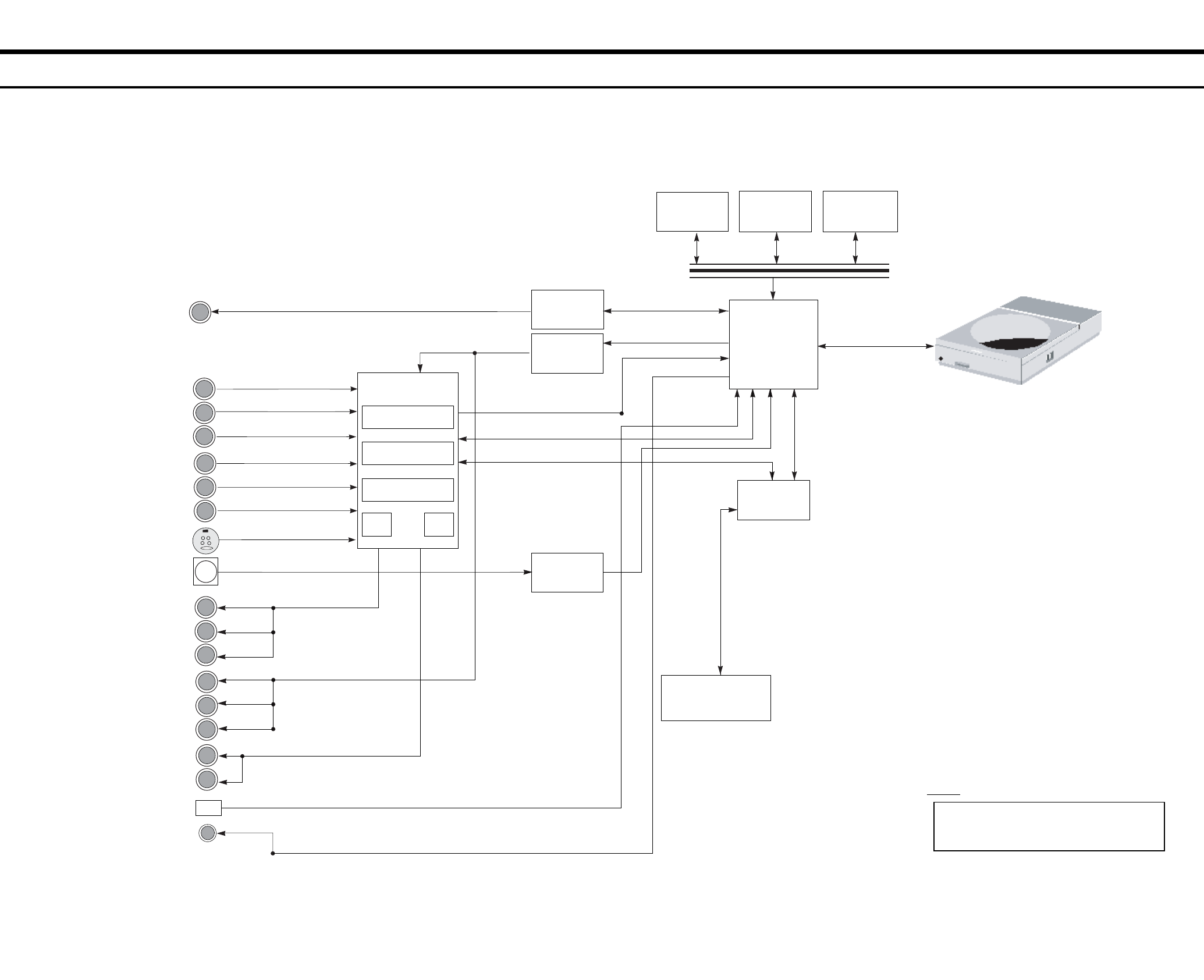

3. Block Diagram ..........................................................3-1

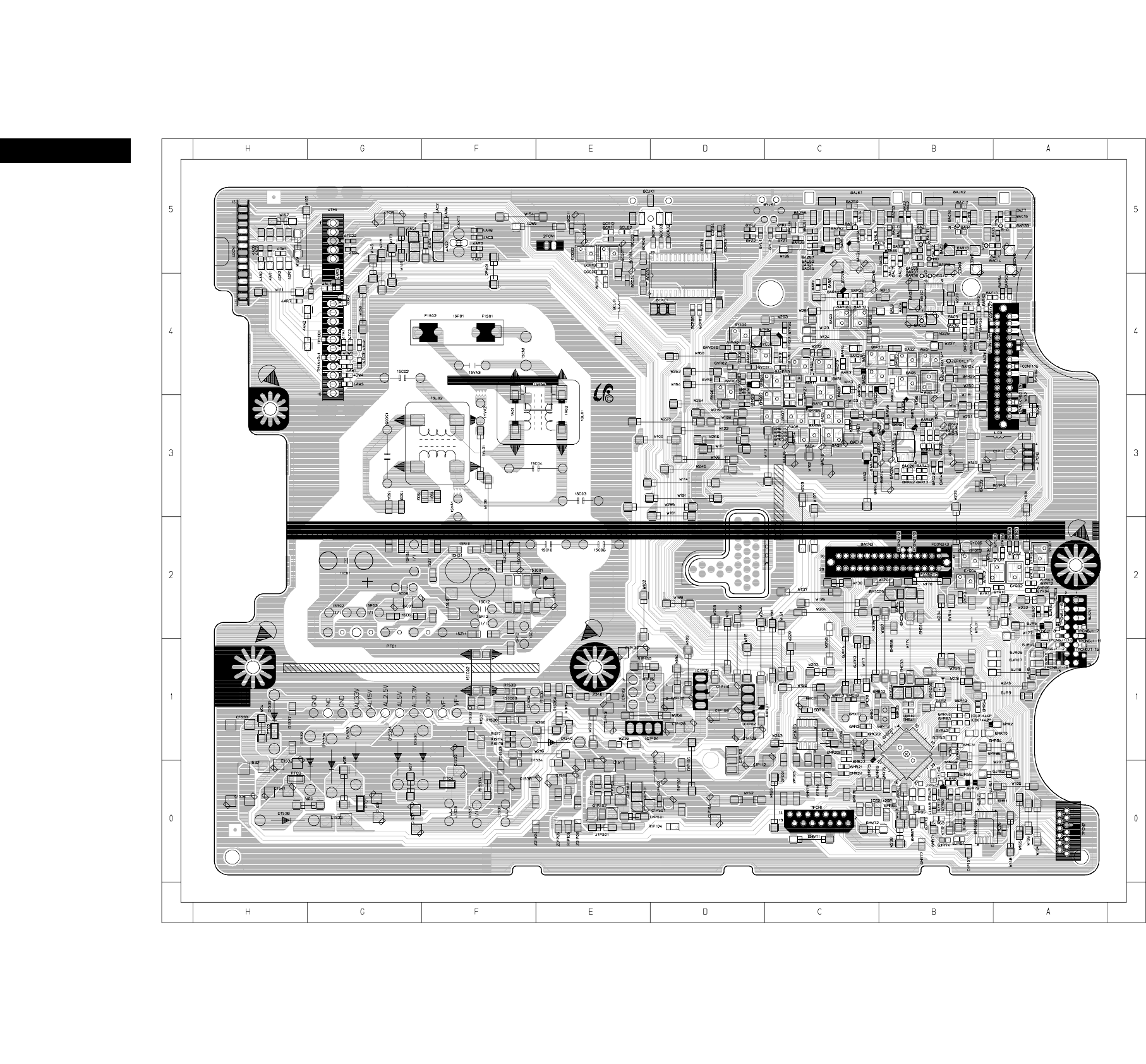

4. PCB Diagrams

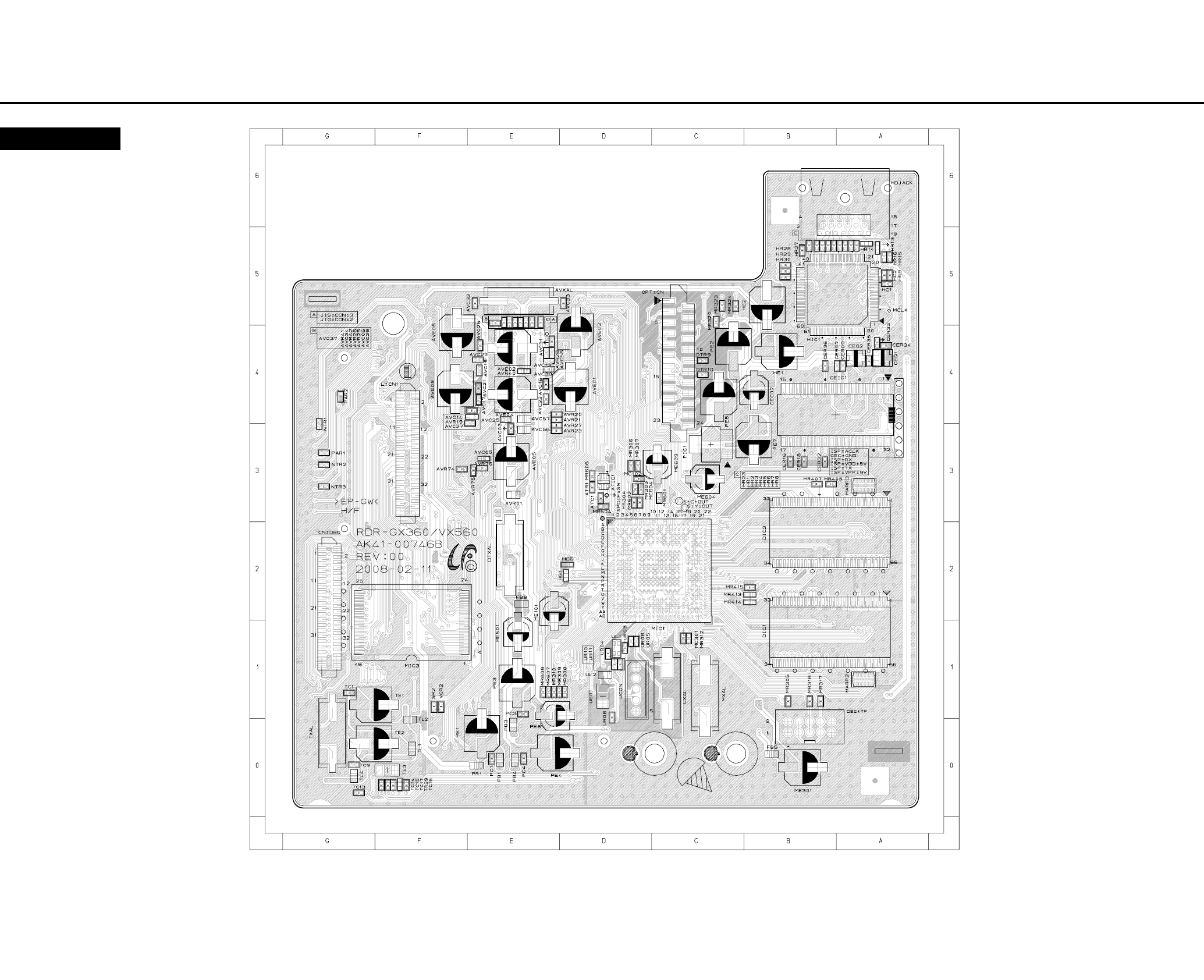

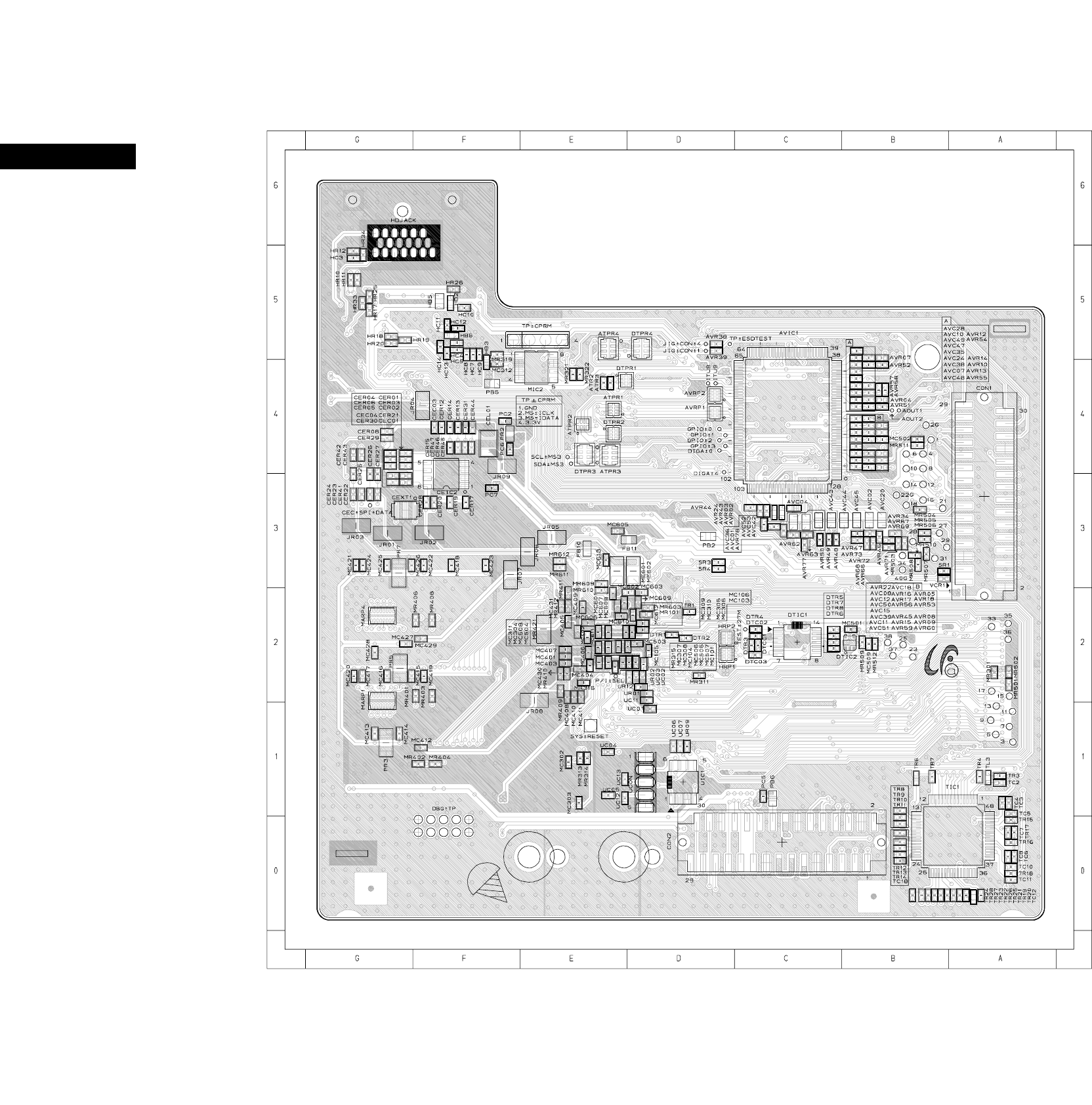

4-1 DVD Main PCB ······························································4-3

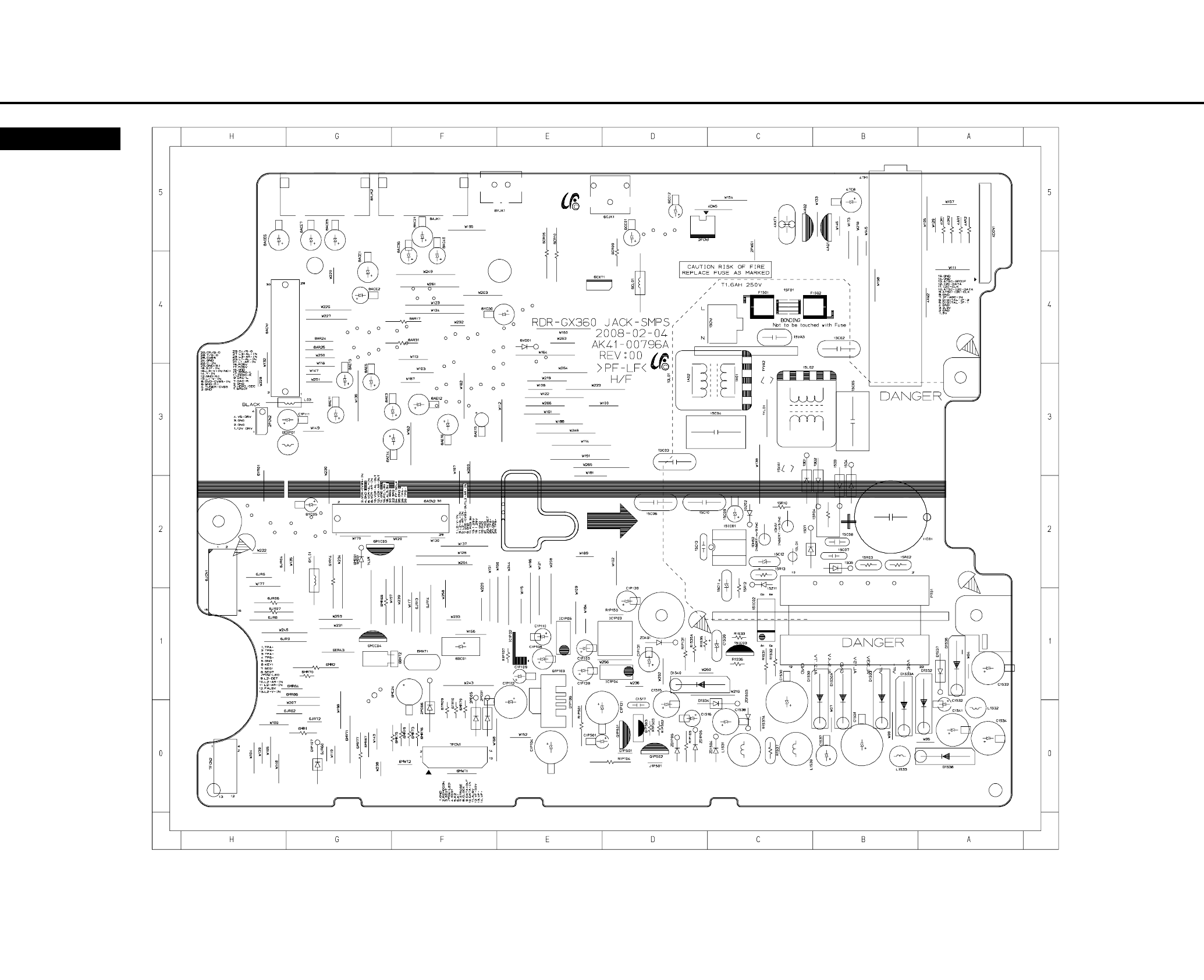

4-2 Jack PCB ·········································································4-7
4-3 Function PCB ·······························································4-11

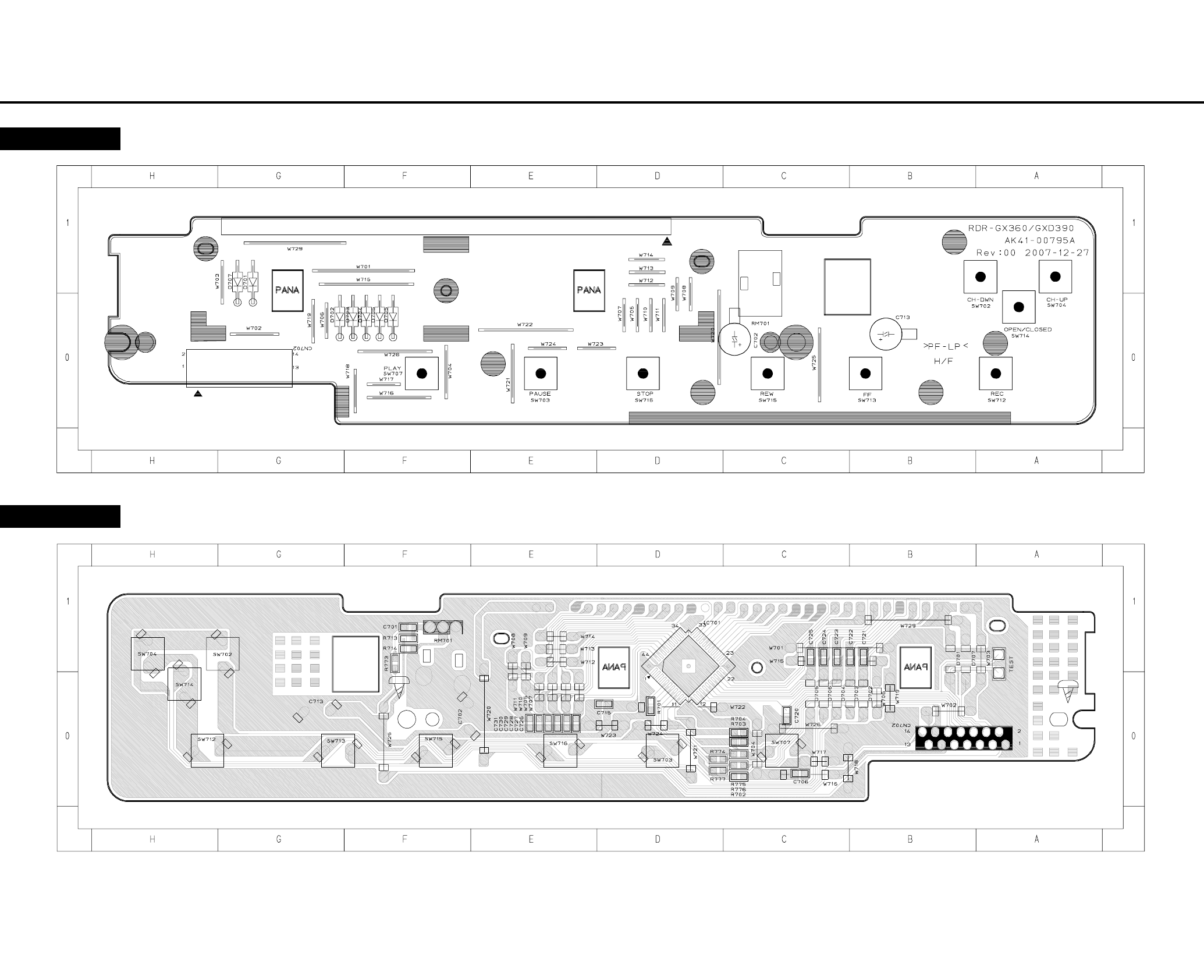

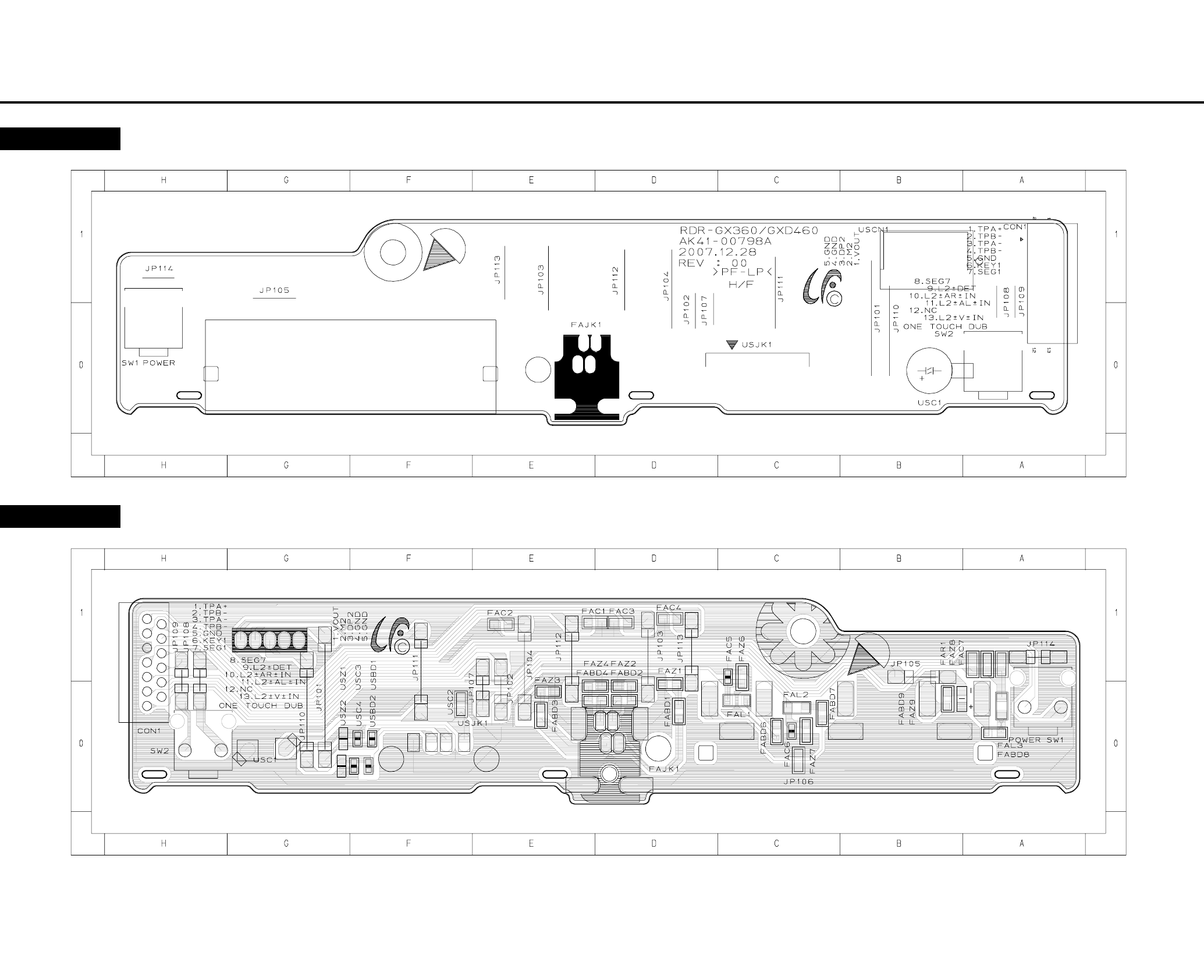

4-4 Front PCB ······································································4-13

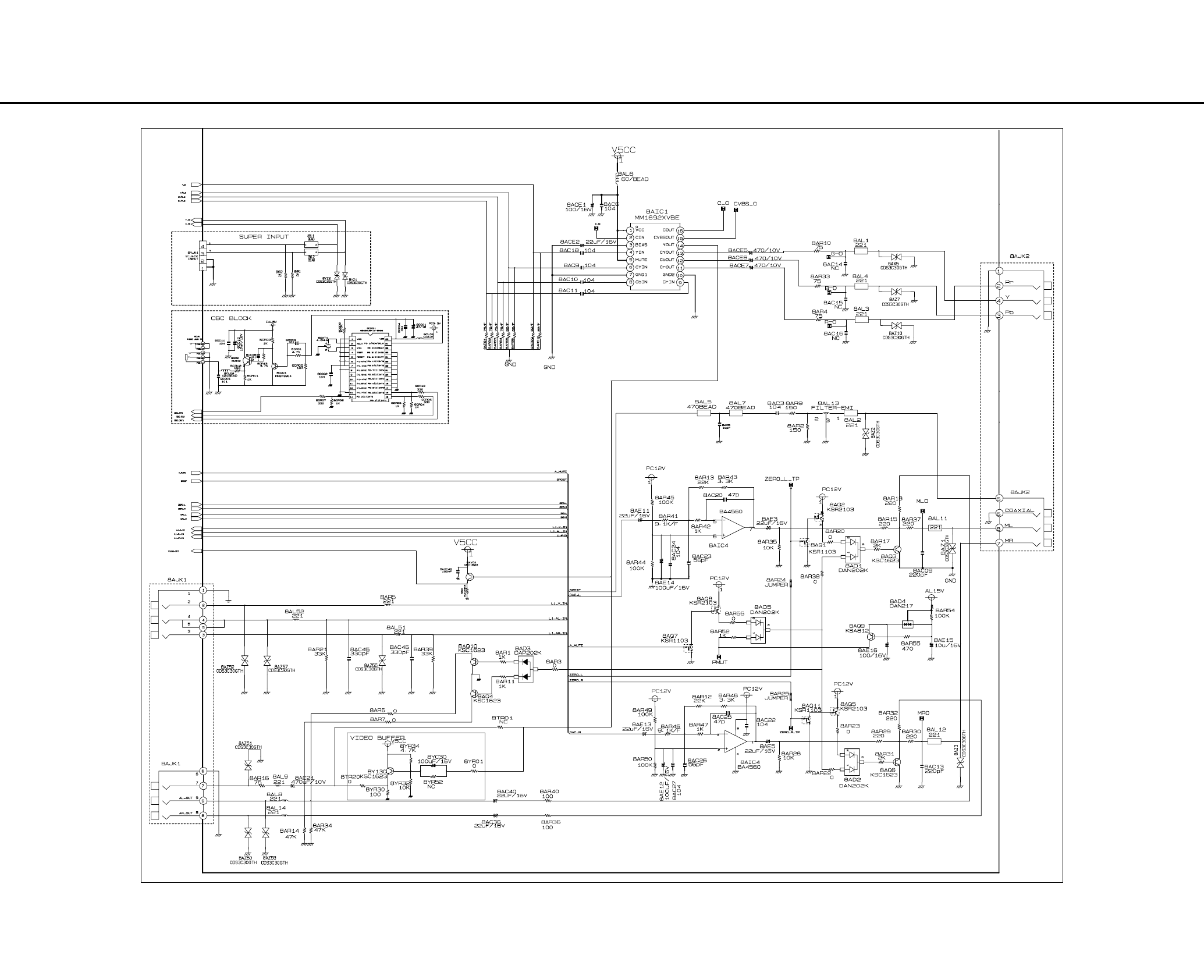

5. Schematic Diagrams

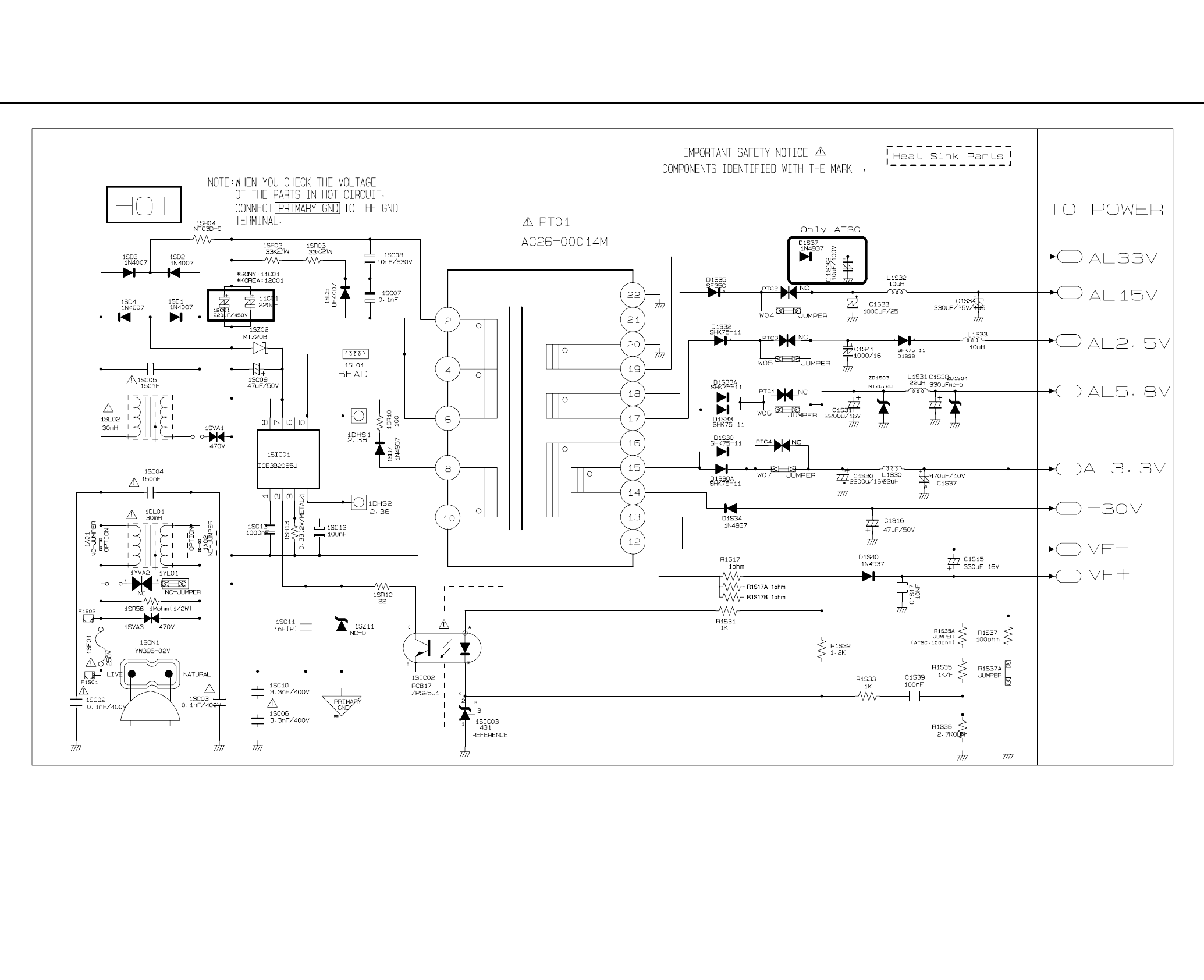

5-1 S.M.P.S. (Jack PCB) ························································5-3

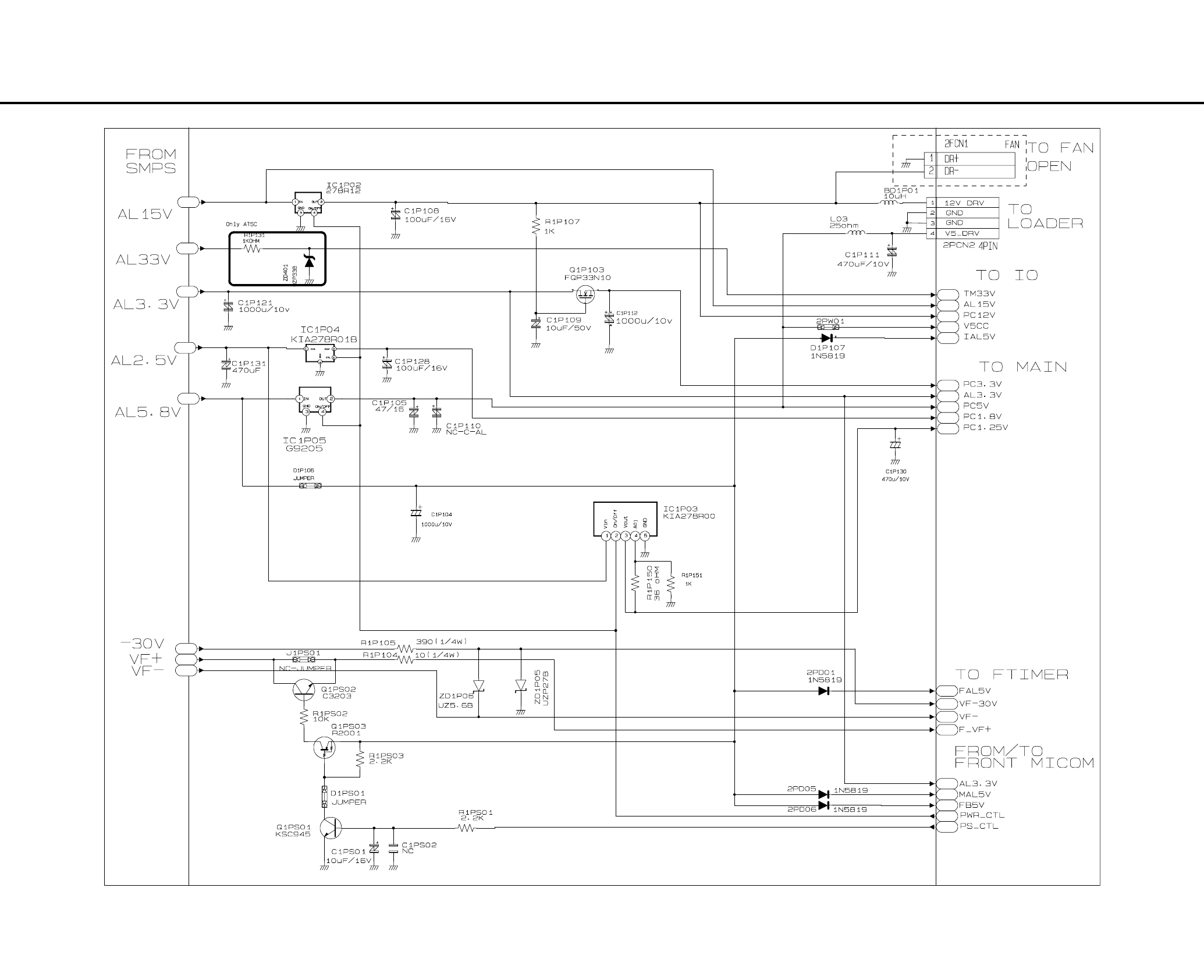

5-2 Power (Jack PCB)····························································5-5

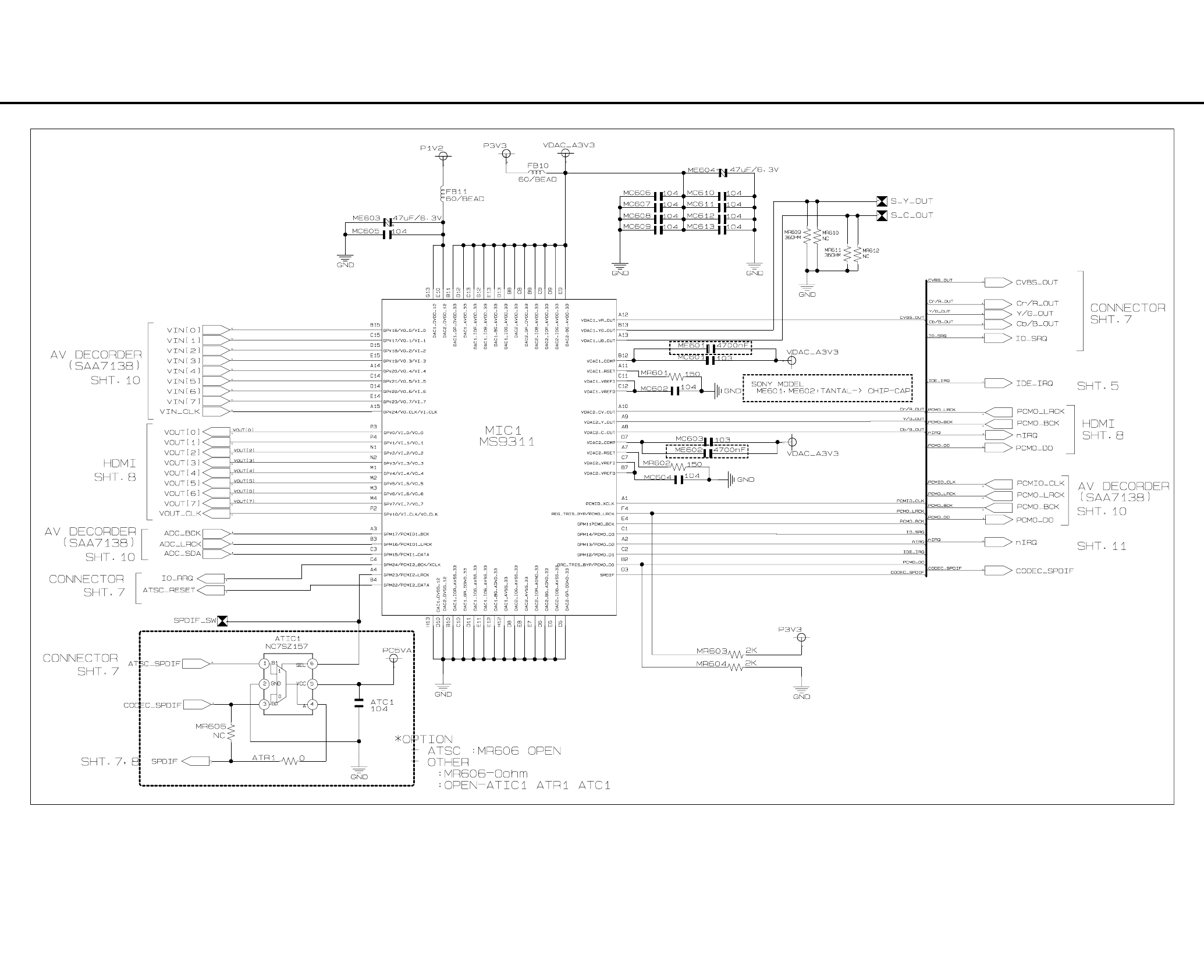

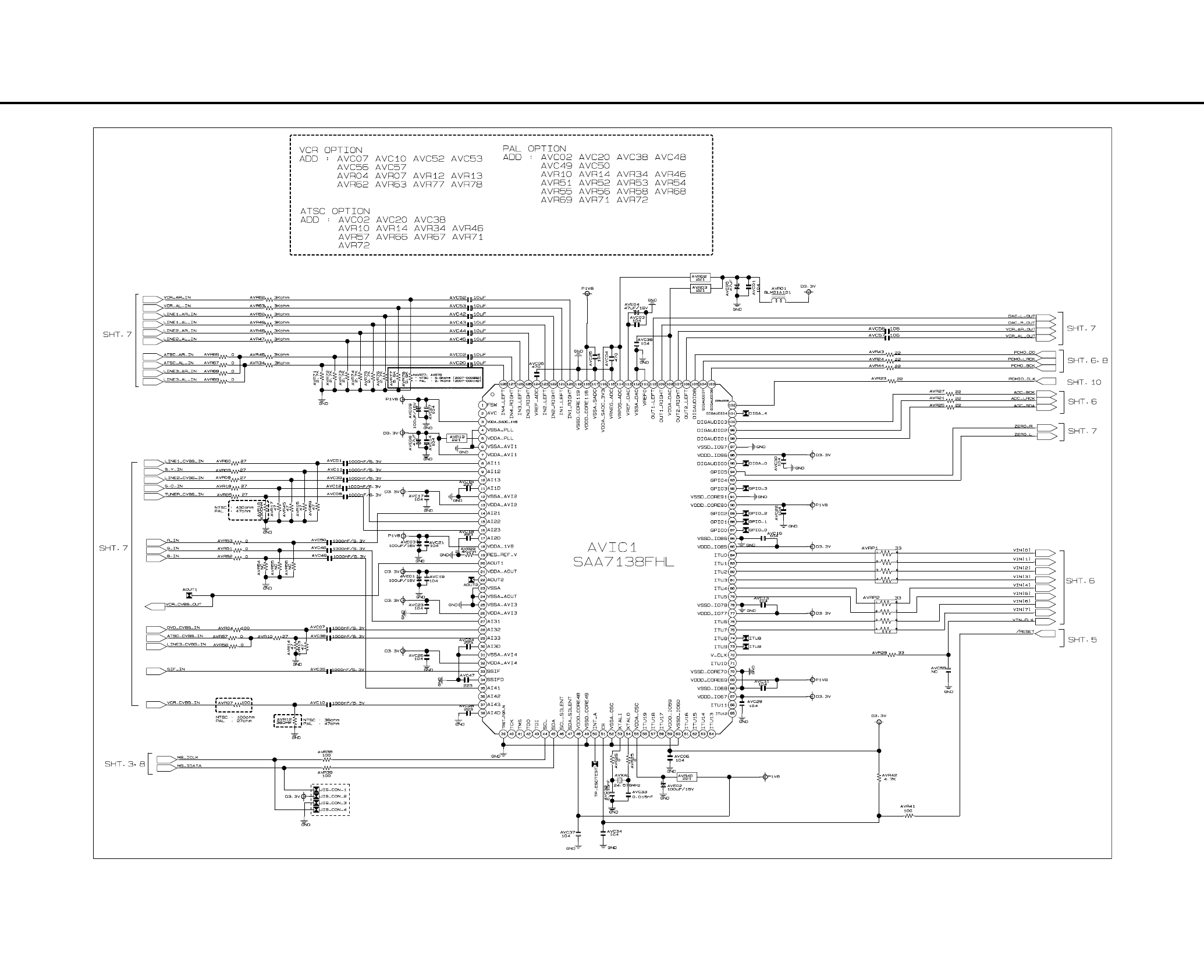

5-3 AV Decoder (DVD Main PCB) ·······································5-7

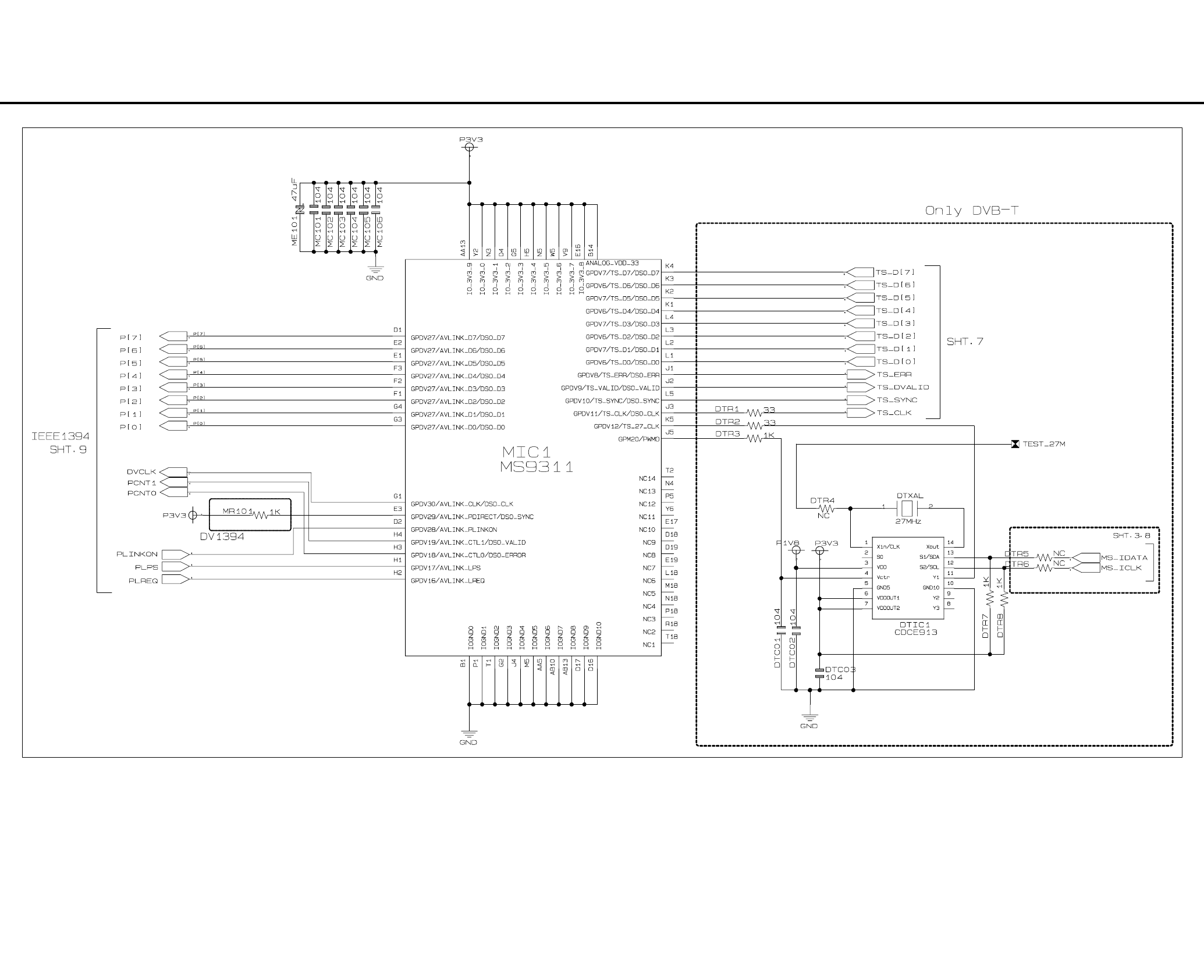

5-4 AV Link TS in_Out (DVD Main PCB) ···························5-9
5-5 Connector (DVD Main PCB) ········································5-11

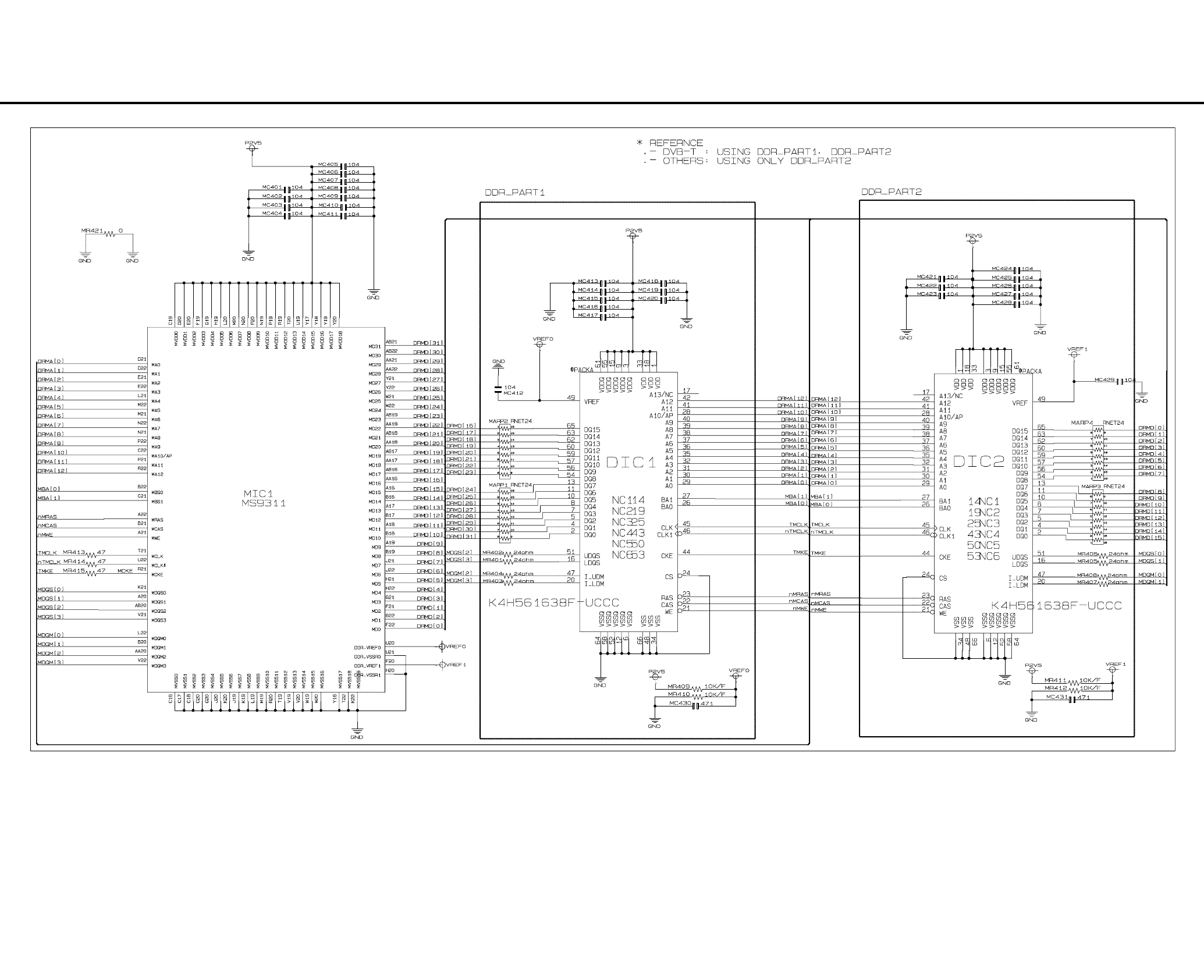

5-6 DDR (DVD Main PCB) ················································5-13

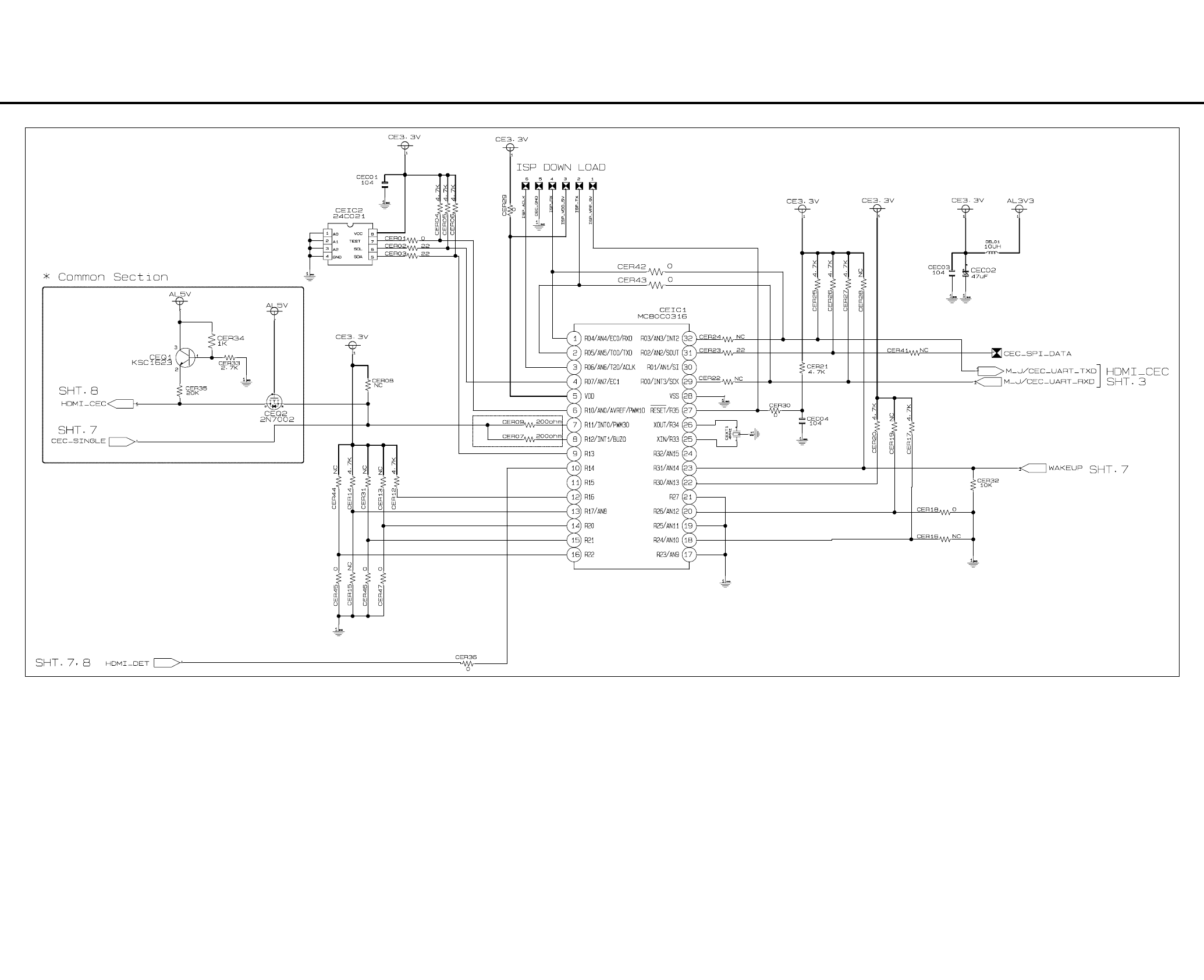

5-7 HDMI CEC (DVD Main PCB) ····································· 5-15

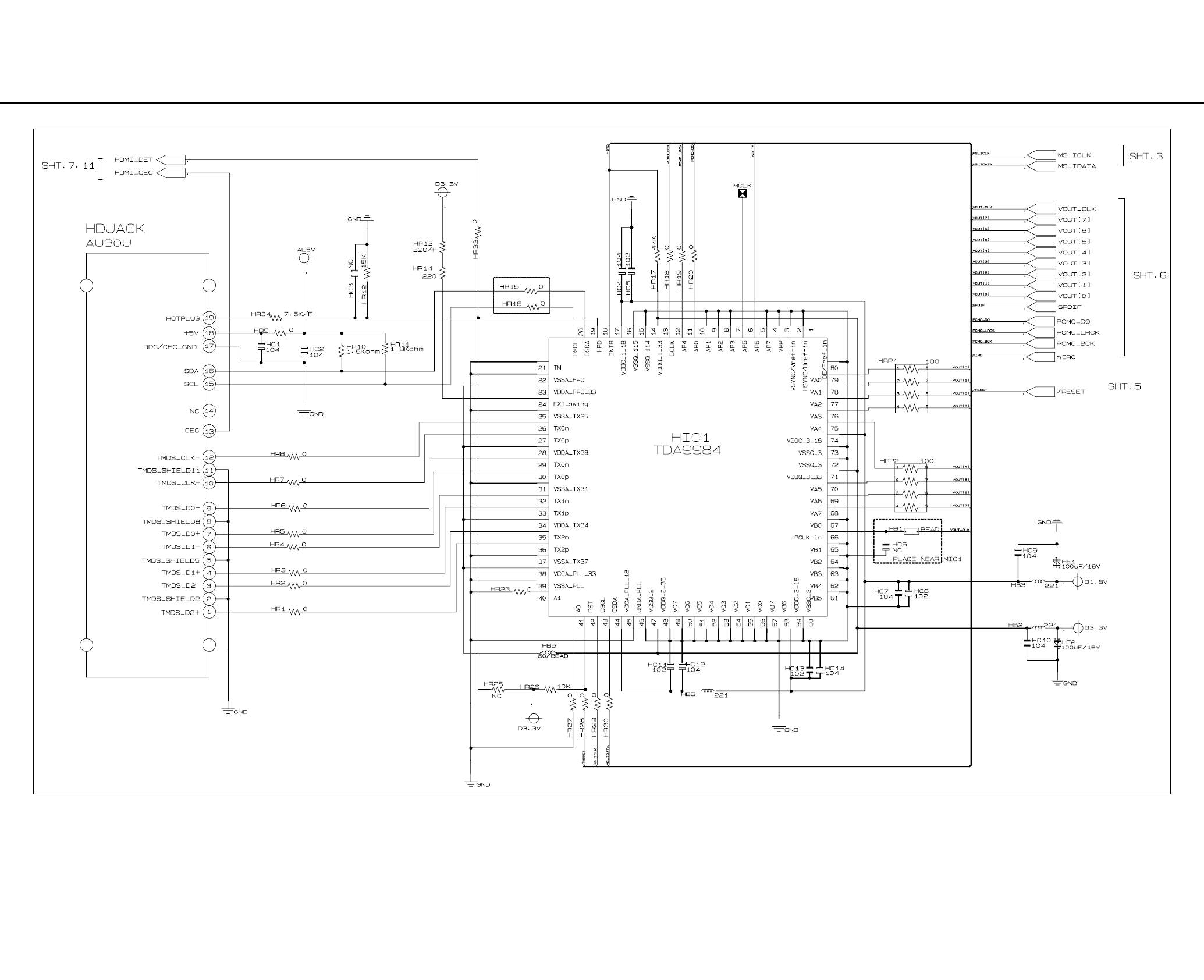

5-8 HDMI TDA9984 (DVD Main PCB) ·····························5-17
5-9 Host1 & Flash & Remulator I/F (DVD Main PCB) ······5-19

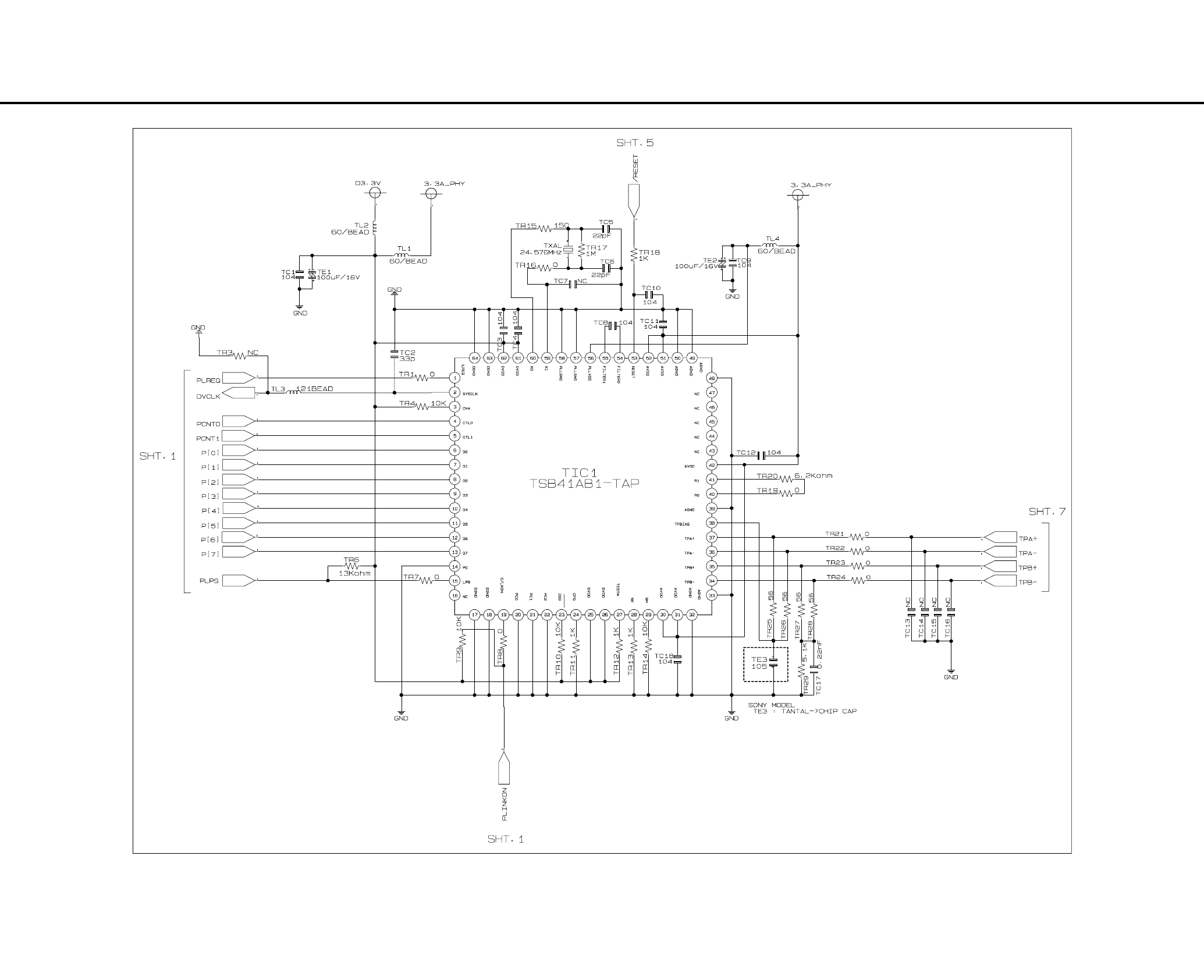

5-10 IEEE1394_DV (DVD Main PCB)·································5-21
5-11 PCMIO & VIO & VDAC (DVD Main PCB) ················5-23

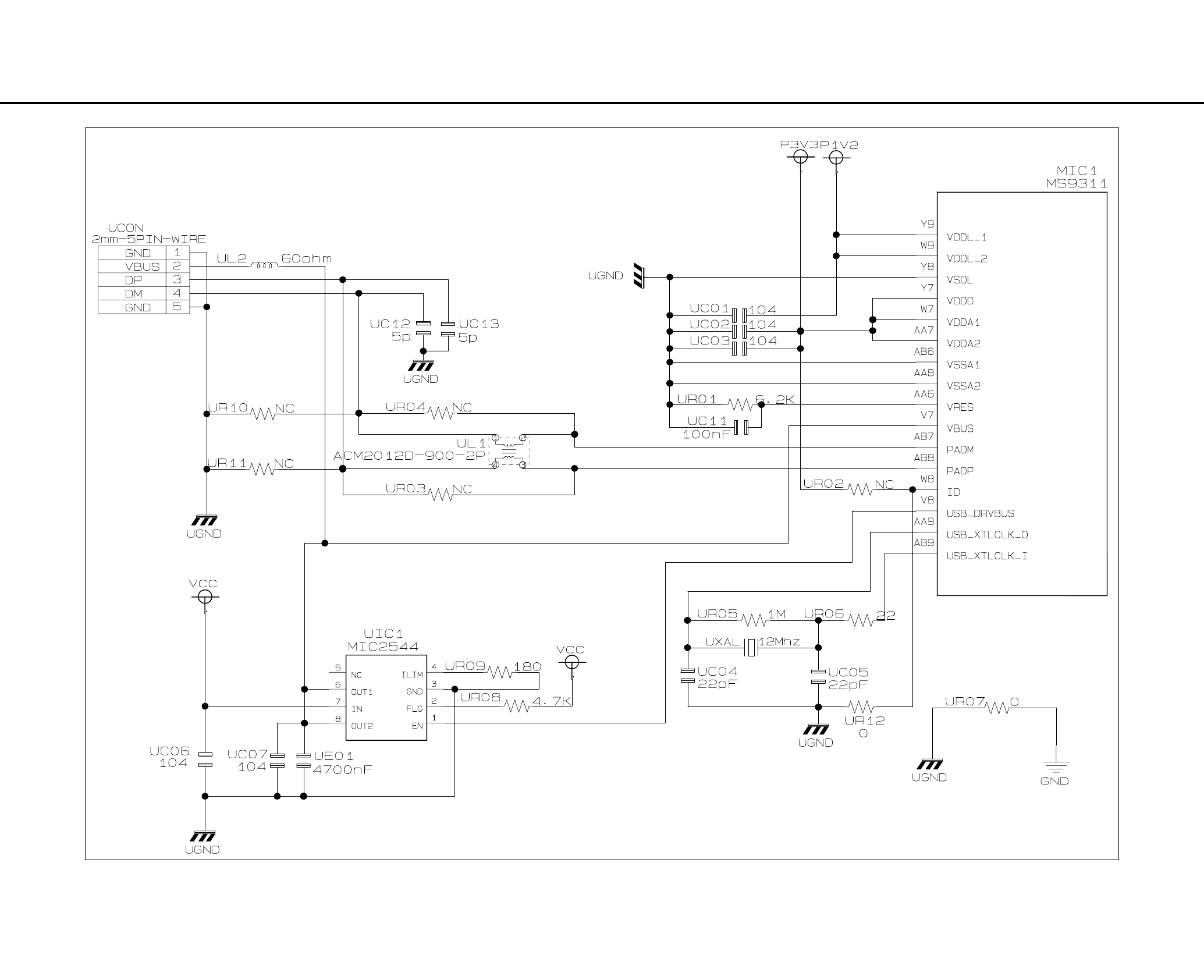

5-12 USB (DVD Main PCB) ·················································5-25
5-13 User Interface (DVD Main PCB) ··································5-27
5-14 Input_Output (Jack PCB) ··············································5-29
5-15 Connector (Jack PCB) ···················································5-31

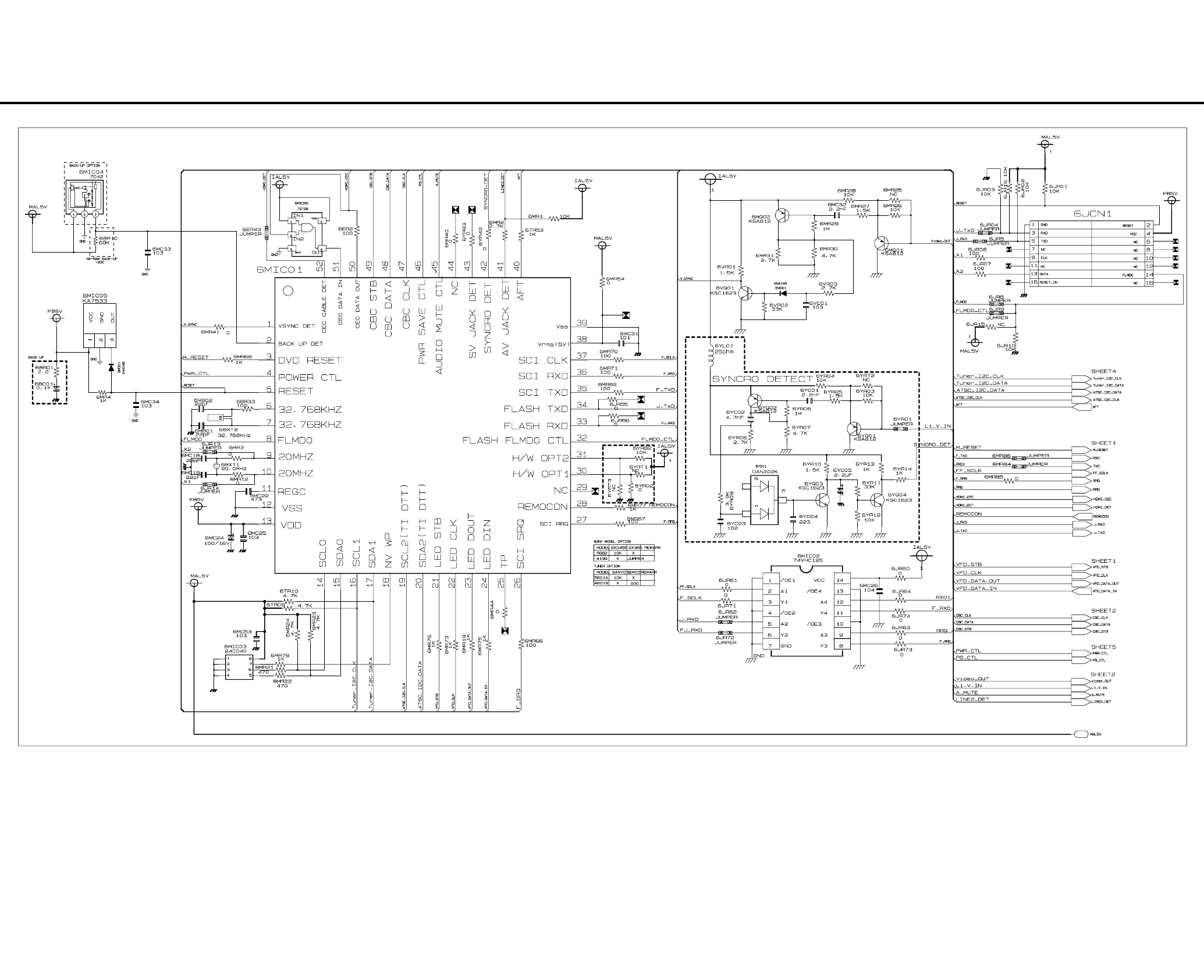

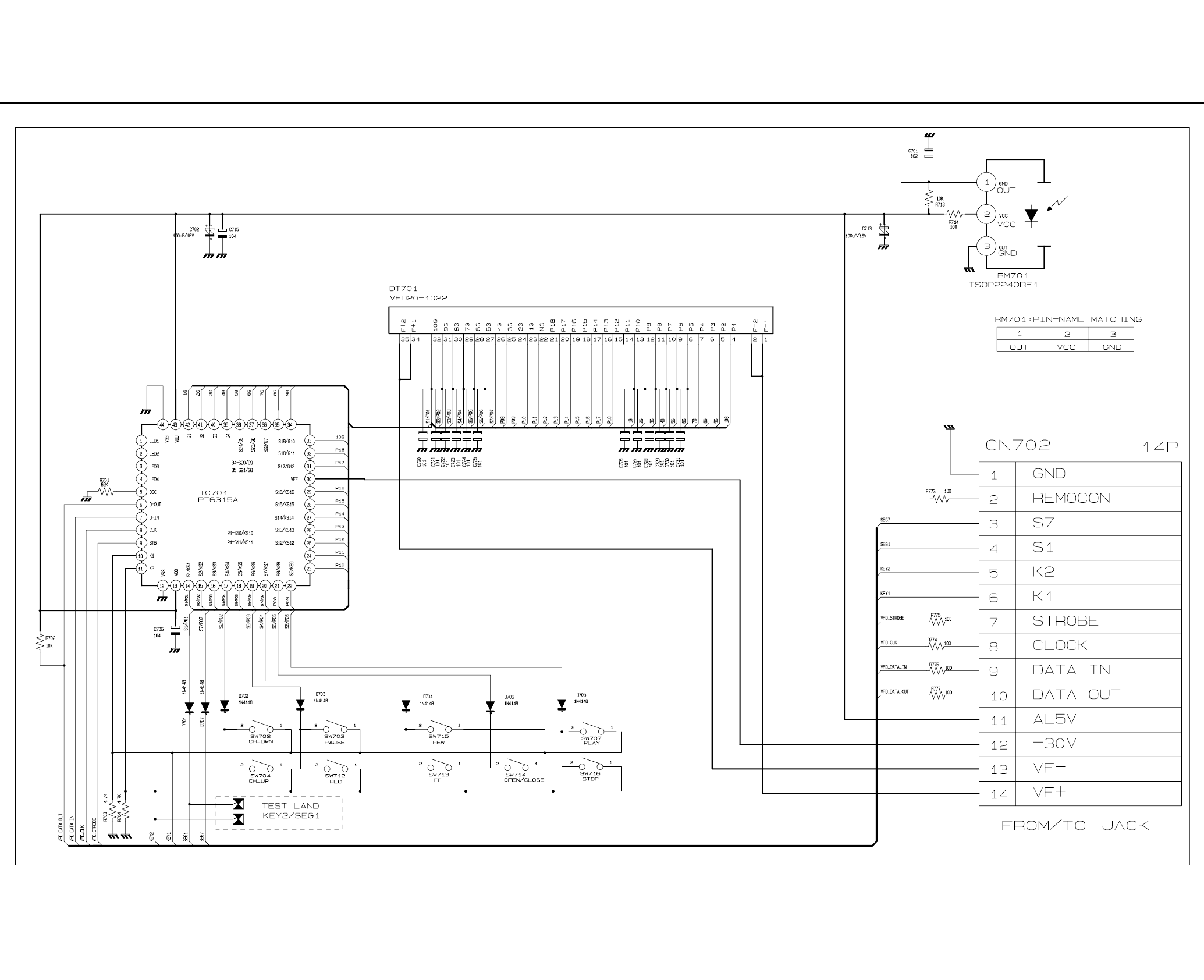

5-16 Front Micom (Jack PCB) ··············································5-33
5-17 Function Timer (Function PCB) ····································5-35

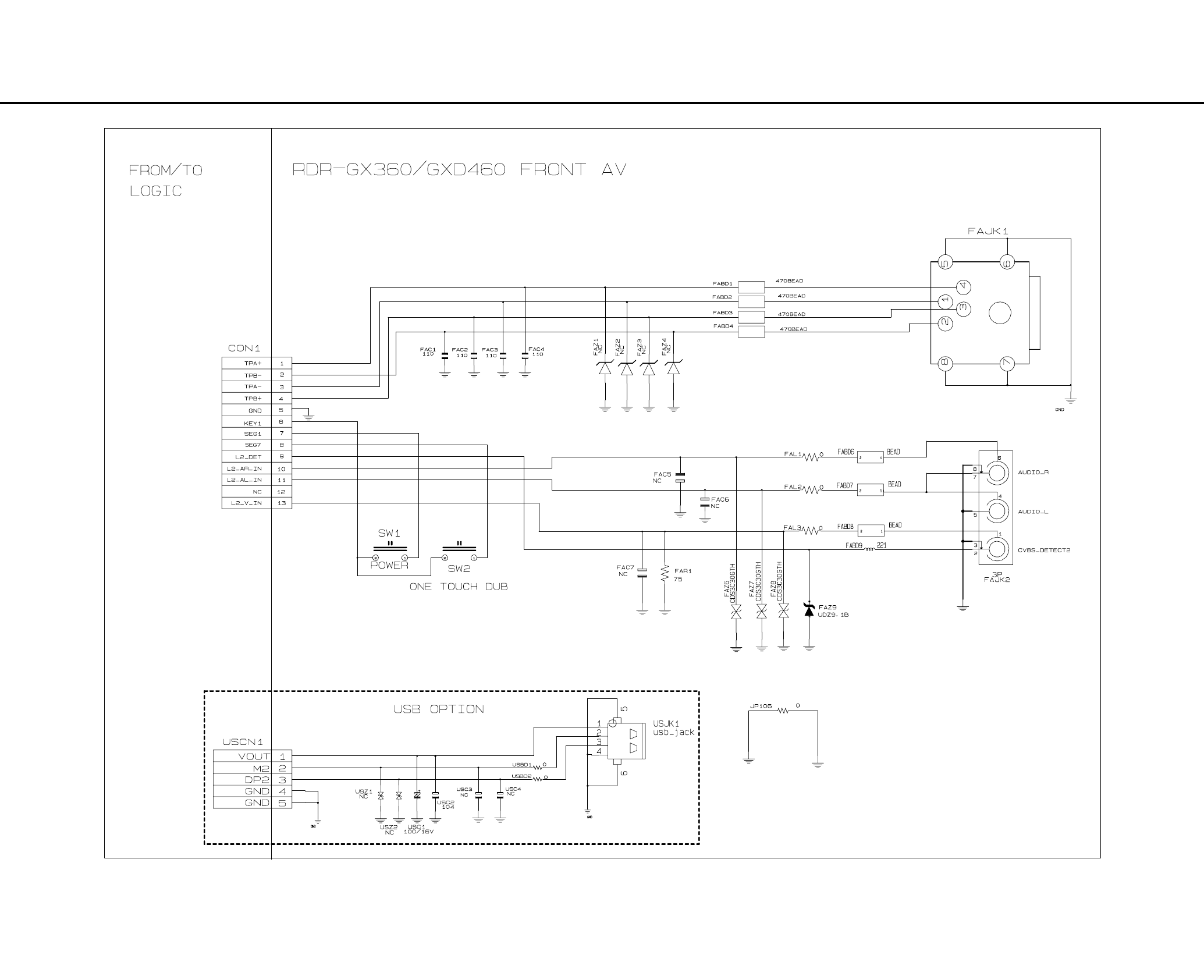

5-18 Front AV (Front PCB) ···················································5-37

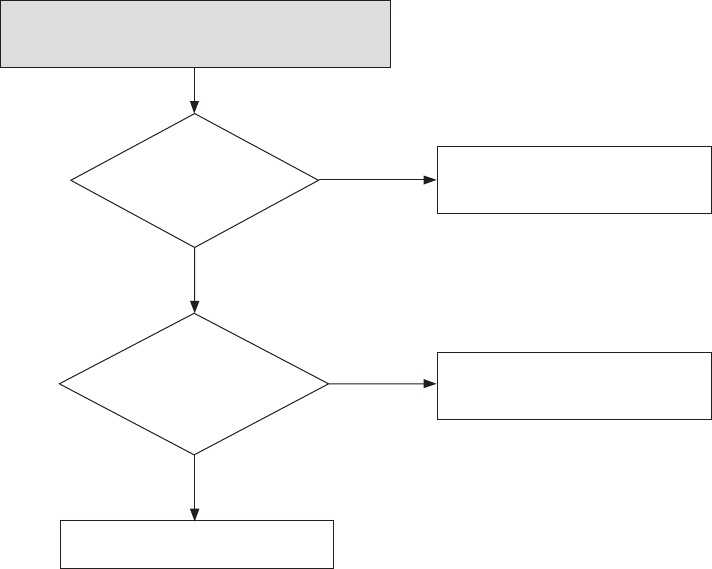

6. Troubleshooting ·················································6-1
7. Repair Parts List

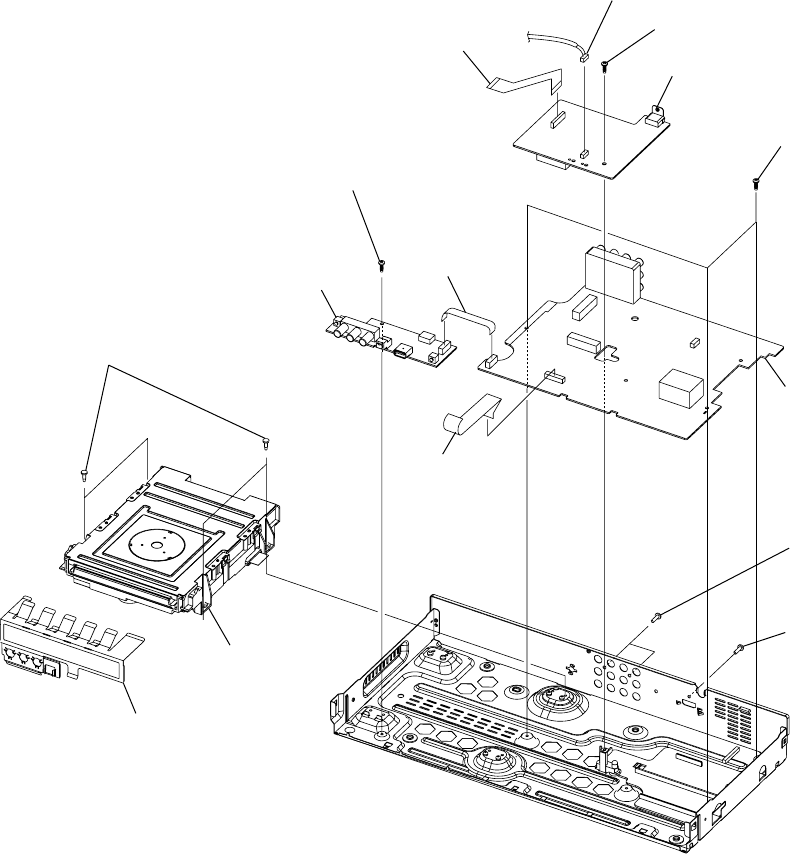

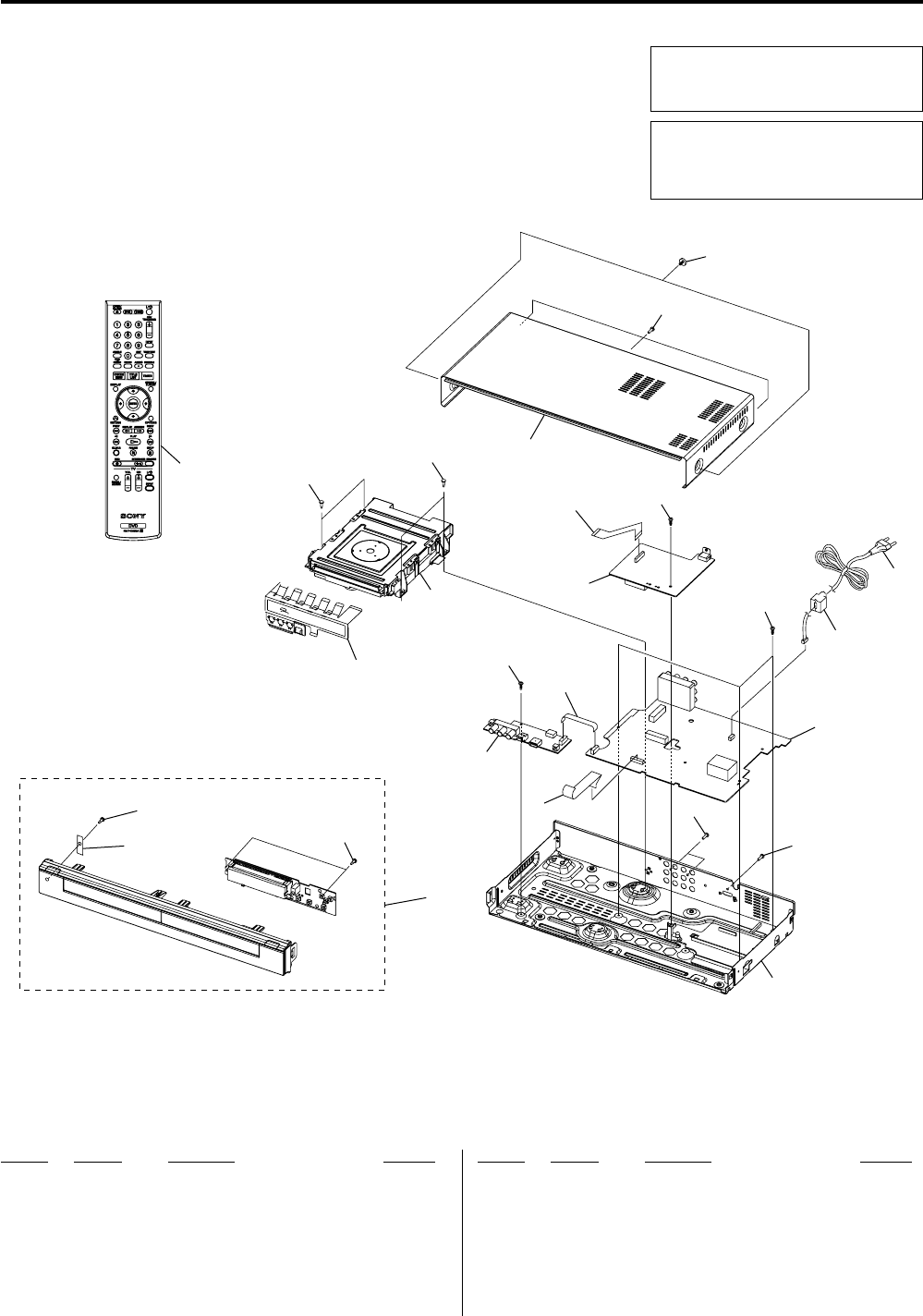

7-1 Exploded Views ·······························································7-2
7-2 Electrical Parts List ·························································7-3
— 4 —
PRECAUTIONS
1 SAFETY PRECAUTIONS
1) Before returning an instrument to the customer, always make a
safety check of the entire instrument, including, but not limited
to, the following items:
(1) Be sure that no built-in protective devices are defective or have
been defeated during servicing.
(1)Protective shields are provided to protect both the technician
and the customer. Correctly replace all missing protective
shields, including any removed for servicing convenience.
(2)When reinstalling the chassis and/or other assembly in the
cabinet, be sure to put back in place all protective devices,
including, but not limited to, nonmetallic control knobs,
insulating fish papers, adjustment and compartment covers/
shields, and isolation resistor/capacitor networks. Do not operate
this instrument or permit it to be operated without all protective
devices correctly installed and functioning.
(2) Be sure that there are no cabinet openings through which adults
or children might be able to insert their fingers and contact a
hazardous voltage. Such openings include, but are not limited
to, excessively wide cabinet ventilation slots, and an improperly
fitted and/or incorrectly secured cabinet back cover.
(3) Leakage Current Hot Check-With the instrument completely
reassembled, plug the AC line cord directly into a 120V AC
outlet. (Do not use an isolation transformer during this test.)
Use a leakage current tester or a metering system that complies
with American National Standards institute (ANSI) C101.1
Leakage Current for Appliances and Underwriters Laboratories
(UL) 1270 (40.7). With the instrument’s AC switch first in the
ON position and then in the OFF position, measure from a known
earth ground (metal water pipe, conduit, etc.) to all exposed
metal parts of the instrument (antennas, handle brackets, metal
cabinets, screwheads, metallic overlays, control shafts, etc.),
especially any exposed metal parts that offer an electrical return
path to the chassis.
Any current measured must not exceed 0.5mA. Reverse the
instrument power cord plug in the outlet and repeat the test. See
Fig. 1.
Any measurements not within the limits specified herein indicate
a potential shock hazard that must be eliminated before returning
the instrument to the customer.
(4) Insulation Resistance Test Cold Check-(1) Unplug the power
supply cord and connect a jumper wire between the two prongs
of the plug. (2) Turn on the power switch of the instrument. (3)
Measure the resistance with an ohmmeter between the jumpered
AC plug and all exposed metallic cabinet parts on the instrument,
such as screwheads, antenna, control shafts, handle brackets,
etc. When an exposed metallic part has a return path to the
chassis, the reading should be between 1 and 5.2 megohm. When
there is no return path to the chassis, the reading must be infinite.
If the reading is not within the limits specified, there is the
possibility of a shock hazard, and the instrument must be repared
and rechecked before it is returned to the customer. See Fig. 2.
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
TEST ALL
EXPOSED METER
SURFACES
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
2-WIRE CORD
Fig. 1 AC Leakage Test
Fig. 2 Insulation Resistance Test
2) Read and comply with all caution and safety related notes on or
inside the cabinet, or on the chassis.
3) Design Alteration Warning-Do not alter or add to the mechanical
or electrical design of this instrument. Design alterations and
additions, including but not limited to, circuit modifications and
the addition of items such as auxiliary audio output connections,
might alter the safety characteristics of this instrument and create
a hazard to the user. Any design alterations or additions will
make you, the servicer, responsible for personal injury or
property damage resulting therefrom.
4) Observe original lead dress. Take extra care to assure correct
lead dress in the following areas:
(1) near sharp edges, (2) near thermally hot parts (be sure that
leads and components do not touch thermally hot parts), (3) the
AC supply, (4) high voltage, and (5) antenna wiring. Always
inspect in all areas for pinched, out-of-place, or frayed wiring,
Do not change spacing between a component and the printed-
circuit board. Check the AC power cord for damage.
5) Components, parts, and/or wiring that appear to have overheated
or that are otherwise damaged should be replaced with
components, parts and/or wiring that meet original
specifications.
Additionally, determine the cause of overheating and/or damage
and, if necessary, take corrective action to remove any potential
safety hazard.
Antenna
Terminal
Exposed
Metal Part
ohm ohmmeter
— 5 —
6) Product Safety Notice-Some electrical and mechanical parts
have special safety-related characteristics which are often not
evident from visual inspection, nor can the protection they give
necessarily be obtained by replacing them with components rated
for higher voltage, wattage, etc. Parts that have special safety
characteristics are identified by shading, an ( ) or a ( ) on
schematics and parts lists. Use of a substitute replacement that
does not have the same safety characteristics as the
recommended replacement part might create shock, fire and/or
other hazards. Product safety is under review continuously and
new instructions are issued whenever appropriate.
— 6 —
2 SERVICING PRECAUTIONS
CAUTION: Before servicing units covered by this service manual
and its supplements, read and follow the Safety Precautions section
of this manual.
Note: If unforseen circumstances create conflict between the
following servicing precautions and any of the safety precautions,
always follow the safety precautions. Remember: Safety First.
2-1 General Servicing Precautions
(1) a. Always unplug the instrument’s AC power cord from the AC
power source before (1) re-moving or reinstalling any
component, circuit board, module or any other instrument
assembly, (2) disconnecting any instrument electrical plug or
other electrical connection, (3) connecting a test substitute in
parallel with an electrolytic capacitor in the instrument.
b. Do not defeat any plug/socket B+ voltage interlocks with
which instruments covered by this service manual might be
equipped.
c. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
d. Always connect a test instrument’s ground lead to the
instrument chassis ground before connecting the test
instrument positive lead. Always remove the test instrument
ground lead last.
Note: Refer to the Safety Precautions section ground lead last.
(2) The service precautions are indicated or printed on the cabinet,
chassis or components. When servicing, follow the printed or
indicated service precautions and service materials.
(3) The components used in the unit have a specified flame
resistance and dielectric strength.
When replacing components, use components which have the
same ratings. Components identified by shading, by ( ) or by
() in the circuit diagram are important for safety or for the
characteristics of the unit. Always replace them with the exact
replacement components.
(4) An insulation tube or tape is sometimes used and some
components are raised above the printed wiring board for safety.
The internal wiring is sometimes clamped to prevent contact
with heating components. Install such elements as they were.
(5) After servicing, always check that the removed screws,
components, and wiring have been installed correctly and that
the portion around the serviced part has not been damaged and
so on. Further, check the insulation between the blades of the
attachment plug and accessible conductive parts.
2-2 Insulation Checking Procedure
Disconnect the attachment plug from the AC outlet and turn the
power ON. Connect the insulation resistance meter (500V) to the
blades of the attachment plug. The insulation resistance between
each blade of the attachment plug and accessible conductive parts
(see note) should be more than 1 Megohm.
Note: Accessible conductive parts include metal panels, input
terminals, earphone jacks, etc.
— 7 —
3 ESD PRECAUTIONS
Electrostatically Sensitive Devices (ESD)
Some semiconductor (solid state) devices can be damaged easily
by static electricity.
Such components commonly are called Electrostatically Sensitive
Devices (ESD). Examples of typical ESD devices are integrated
circuits and some field-effect transistors and semiconductor chip
components. The following techniques should be used to help reduce
the incidence of component damage caused by static electricity.
(1) Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed for
potential shock reasons prior to applying power to the unit under
test.
(2) After removing an electrical assembly equipped with ESD
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
(3) Use only a grounded-tip soldering iron to solder or unsolder
ESD devices.
(4) Use only an anti-static solder removal devices. Some solder
removal devices not classified as “anti-static” can generate
electrical charges sufficient to damage ESD devices.
(5) Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ESD devices.
(6) Do not remove a replacement ESD device from its protective
package until immediately before your are ready to install it.
(Most replacement ESD devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive materials).
(7) Immediately before removing the protective materials from the
leads of a replacement ESD device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
(8) Minimize bodily motions when handling unpackaged
replacement ESD devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of
your foot from a carpeted floor can generate static electricity
sufficient to damage an ESD device).
— 8 —
4 HANDLING THE OPTICAL PICK-UP
The laser diode in the optical pick up may suffer electrostatic
breakdown because of potential static electricity from clothing and
your body.
The following method is recommended.
(1) Place a conductive sheet on the work bench (The black sheet
used for wrapping repair parts.)
(2) Place the set on the conductive sheet so that the chassis is
grounded to the sheet.
(3) Place your hands on the conductive sheet (This gives them the
same ground as the sheet.)
(4) Remove the optical pick up block
(5) Perform work on top of the conductive sheet. Be careful not to
let your clothes or any other static sources to touch the unit.
◆Be sure to put on a wrist strap grounded to the sheet.
◆Be sure to lay a conductive sheet made of copper etc. Which is
grounded to the table.
Fig.3
(6) Short the short terminal on the PCB, which is inside the Pick-
Up ASS’Y, before replacing the Pick-Up. (The short terminal is
shorted when the Pick-Up Ass’y is being lifted or moved.)
(7) After replacing the Pick-up, open the short terminal on the PCB.
THE UNIT
WRIST-STRAP
FOR GROUNDING
1M
1M CONDUCTIVE SHEET
1-1
1. GENERAL This section is extracted from instruction manual.
(3-296-710-11)
RDR-GX360
8US
Ways to Use Your DVD Recorder
Recording and timer recording
,Record TV programs on a DVD, either
manually or using the timer. You need to
connect a tuner such as a cable box to this
recorder.
Control your cable box or satellite receiver – Set top box control
,Connect the supplied set top box controller
to have the recorder change the channel of
your cable box or satellite receiver
(page 13).
Quick access to recorded titles – Title List
,Display the Title List to view all titles on a
disc and select a title for playback or
editing.
103
LINE 2 IN DV IN
ONE-TOUCH
DUBBING
REC
VIDEO L
(MONO)
AUDIO R
CH 103!
Title List
10:10 AM
>
>
>
>
LINE 1
08:00 PM
May/02/2008
T
No.1/4
01
02
03
04
Title Length Edit
LINE 1 01:29:03
LINE 1 00:31:23
LINE 1 01:59:00
LINE 1 00:58:56
Title List (Original)
9US
Creating your own program – Playlist
,Record a program on a DVD-RW (VR
mode) or DVD-R (VR mode), then erase,
move or add scenes as you like without
changing the original contents.
Dubbing(DV/USB t DVD)
,Connect your DV camcorder or USB
device to the recorder to dub video or photo
contents to a DVD.
Playing JPEG image files or MP3 audio files
,You can enjoy viewing JPEG images on
your TV screen. First, take pictures with a
digital camera and save them in JPEG
format to a DATA CD (CD-RW/CD-R) or
DATA DVD (DVD+RW/DVD-RW/
DVD+R/DVD-R) on a PC. Then play the
disc on this recorder (page 41).
You can also play MP3 audio files on this
recorder (page 41).
A list of recordable and playable discs is on page 30.
Original
Playlist
REC
i.LINK cable
Dubbing
USB cable
LINE 2 INDV IN
ONE-TOUCH
DUBBING
REC
VIDEOL
(MONO)
AUDIO R
Shoot Save
Play!
10US
How to Use the On-Screen
Menus
The following three displays are mainly used to
operate this recorder. Once you become familiar
with the basic operations, you will find the
recorder easy to use.
System Menu
The System Menu appears when you press
SYSTEM MENU, and provides entries to all of
the recorder’s main functions, such as timer
recording and setup.
Selectable options on the System Menu differ
depending on the media type, disc condition, and
operating status.
Select an option by pressing M/m and ENTER.
A “Title List”
Displays the list of the disc contents,
including the recording information and
movie thumbnail image, which allows you to
select a title to play or edit.
B “Timer”
Used to set a new timer recording as well as
change or cancel the timer recordings you set.
C “Edit”
Used to create or edit a Playlist (unfinalized
DVD-RWs (VR mode)/DVD-Rs (VR mode)
only).
D “Dubbing”
Used to dub from a DV/D8 format tape or a
USB device to a disc.
E “Disc Setting”
Used to rename, protect, format, or finalize a
disc, or erase all titles on the disc. Also,
displays the disc information.
F “Setup”
Displays the “Setup” display for setting up the
recorder to suit your preferences.
M/m/</,,
ENTER
SYSTEM
MENU
OPTIONSORETURN
112233
445566
7788
00
99
Title List (Original) 10:10 AM
Press ENTER :
Title Menu for DVD Title List.
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
6
10:10 AM
01 LINE 1 >01:29:03
02 LINE 1 >00:31:23
03 LINE 1 >01:59:00
04 LINE 1 >00:58:56
LINE
1
08:00 PM
May/02/2008
T
No. Title Length Edit
Title List (Original)
1/4
11US
Sub-menu
The sub-menu appears when you select an item
from a list menu (e.g., a title from the Title List
menu), and press ENTER. The sub-menu displays
options applicable only to the selected item. The
displayed options differ depending on the
situation and disc type.
Select an option by pressing M/m and ENTER.
Example: The Title List menu
OPTIONS
The OPTIONS menu appears when you press
OPTIONS. You can search for a title/chapter/
track, check the playing and remaining time, or
change settings for audio/angle/subtitle. The
displayed options differ depending on the media
type.
Press M/m to select an option, press </, to
select the desired item, and press ENTER.
Example: When you press OPTIONS while a
DVD VIDEO is playing.
To return to the previous display
Press ORETURN.
Notes
•The OPTIONS menu settings cannot be changed
during DVD recording.
•The System Menu does not appear when recording on
a DVD.
Title List (Original) 10:10 AM
No. Title Length Edit
01 LINE 1 >01:29:03
02 LINE 1 >00:31:23
03 LINE 1 >01:59:00
04 LINE 1 >00:58:56
LINE 1
May/02/2008
08:00 PM
T
1/4
Play
Title Erase
Chapter Erase
Protect
Title Name
A·B Erase
Divide Title
Options for the selected item
1/4
1/1
00:00:25
T
C
Title
Chapter
Time
Remain
Audio
Angle
00:01:30
Subtitle
2/2 ENG
1/1
ENG Dolby D2ch (1/1)
DVD
VIDEO
1-2
12US
Hookups and Settings
Hooking Up the Recorder
Follow steps 1 to 7 to hook up and adjust the
settings of the recorder.
Notes
•Plug cords securely to prevent unwanted noise.
•See the instructions supplied with the components to be
connected.
•You cannot connect this recorder to a TV that does not
have a video input jack.
•Be sure to disconnect the power cord of each
component before connecting. Do not connect the
power cord until you reach “Connecting the Power
Cord” on page 20.
Step 1: Unpacking
Check that you have the following items:
•Audio/video cord
(phono plug u 3 y phono plug u 3) (1)
•Remote commander (remote) (1)
•Set top box controller (1)
•Size AA (R6) batteries (2)
Step 2: Connecting the
Cable Box/Satellite
Receiver (Tuner)
This recorder does not include a TV tuner.
To record TV programs on this recorder, you need
to connect the recorder to a tuner that has audio/
video output jacks.
If you have been using your VCR connected to an
antenna, connect this recorder to your VCR using
an audio/video cord. In this way, you will be able
to record TV programs.
You cannot record on this recorder if you have:
–a cable box or satellite receiver without audio/
video outputs.
–cable with no cable box.
–antenna only (no cable TV).
In the cases above, contact your cable service or
satellite service company to see if they can
provide you with a compatible cable box or
satellite receiver.
Using the cable box/satellite
receiver control function
This function allows the recorder to control a
cable box or satellite receiver via the supplied set
top box controller. You can also use the recorder’s
remote control to change channels on the cable
box/satellite receiver whenever the cable box/
satellite receiver and the recorder are turned on.
To use the cable box/satellite receiver control
function, you need to:
–Check the brand code of your cable box/satellite
receiver. See “Cable Box/Satellite Receiver
Brand Code” (page 101).
–Connect the set top box controller (page 13).
–Set the brand code number and the recorder’s
input that is connected to the cable box/satellite
receiver (page 23).
After setting up the cable box/satellite receiver
control, check that the recorder can correctly
control the cable box or satellite receiver
(page 25).
Hookups and Settings
13US
Connecting a cable box/satellite receiver and set top box controller
Connect the LINE 1 IN jacks using an audio/video cord.
With this hookup, you can record any channel on the cable box or satellite receiver. Be sure that the cable
box or satellite receiver is turned on. You need to connect to the LINE 1 IN (VIDEO/AUDIO) jacks for
the Synchro-Rec function (page 54).
To record cable or satellite programs, you need to match the input source on the recorder (LINE1) to the
input jack connected to the cable box or satellite receiver (LINE 1 IN).
Place the set top box controller near the remote sensor on the cable box/satellite receiver.
To use an S video cord for enjoying higher quality images
Connect the LINE 1 IN S VIDEO jack using an S video cord (not supplied) instead of the yellow (video)
plug of the audio/video cord. Leave the audio plugs connected to the AUDIO L/R jacks. When using this
connection, be sure to set “Line1 Input” to “S-Video” in the “Video” setup (page 81).
You cannot use the Synchro-Rec function with this connection.
ANT IN
RL
AUDIO
OUT
S VIDEO
OUT VIDEO
OUT
TO TV
Set top box
controller
(supplied) Cable box/
satellite receiver
Antenna cable
(not supplied)
Wall
to antenna input
TV
Audio/video cord
(not supplied)
to SET TOP BOX
CONTROL
to LINE 1 IN
DVD recorder
: Signal flow
to LINE 1 IN S VIDEO
S video cord
(not supplied)
,continued
14US
zHint
You can also connect a cable box/satellite receiver to the LINE 2 IN jacks on the front panel. In this case, select “Line2”
for “Connections” of “Set Top Box Control” in the “Features” setup (page 85).
Notes
•Do not connect to the S VIDEO and yellow VIDEO jacks at the same time.
•Synchro-Recording does not work with some tuners. For details, see the tuner’s operating instructions.
Hookups and Settings
15US
Step 3: Connecting to Your TV
Connect the supplied audio/video cord to the LINE OUT (VIDEO/AUDIO L/R) jacks of the recorder.
If your TV has an HDMI jack, or component video input jacks, see page 16 or 17.
When playing “wide screen” images
Some recorded images may not fit your TV screen. To change the picture size, see page 80.
Note
Do not connect your TV’s audio output jacks to the LINE IN (AUDIO L/R) jacks at the same time. This will cause
unwanted noise to come from your TV’s speakers.
AUDIO
INPUT
RLVIDEO
: Signal flow
TV or projector
(red) (white) (yellow)
Audio/video cord
(supplied)
(red)
(white)
(yellow)
DVD recorder
to LINE OUT
(VIDEO/AUDIO L/R)
,continued
1-3
16US

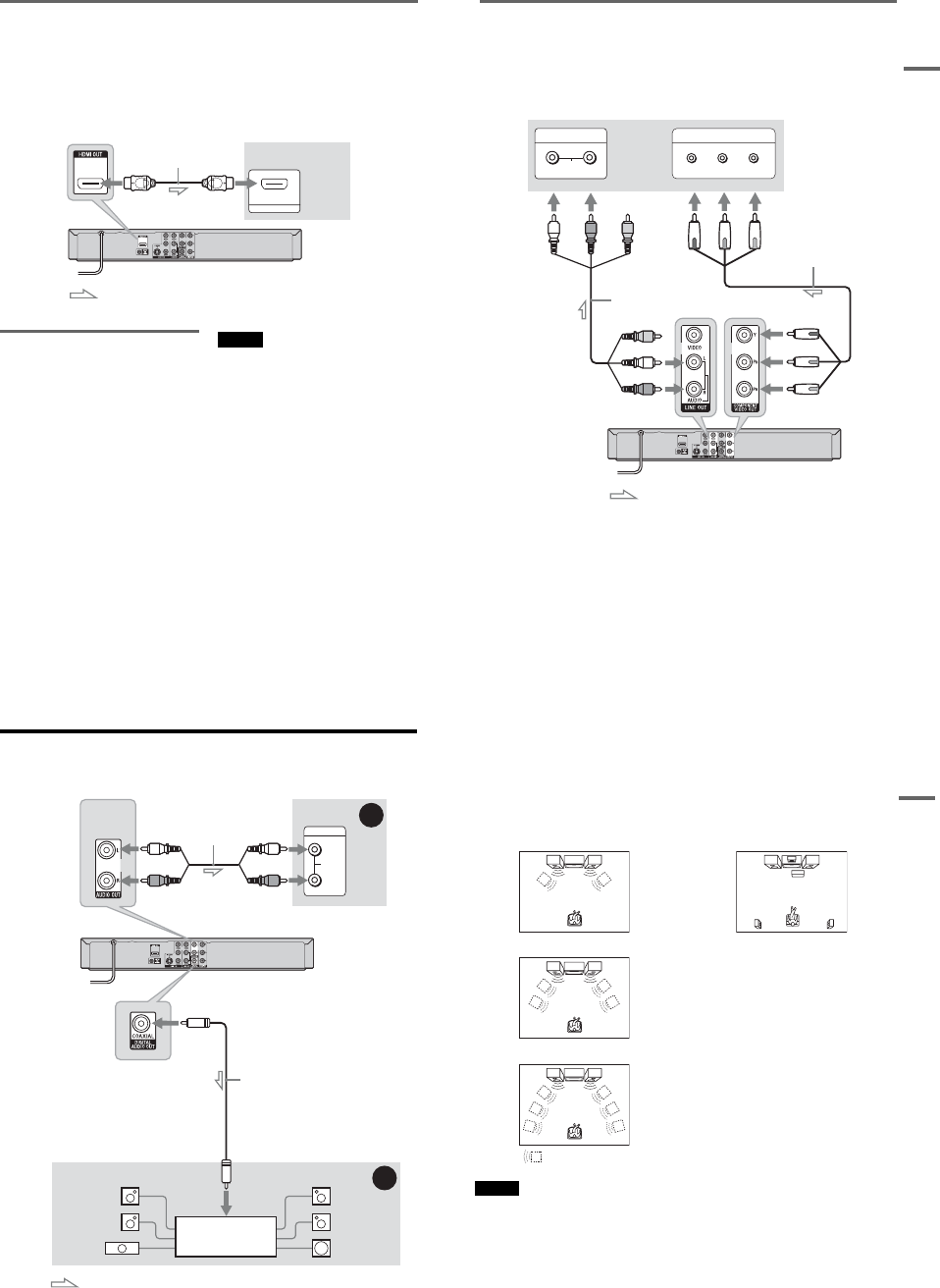

If your TV has an HDMI input jack
Connect the HDMI* OUT jack using a certified Sony HDMI cord (not supplied). You will enjoy high
quality picture and sound. If your TV accepts progressive 1080p format signals, you must use this
connection. The HDMI indicator is lit in the front panel display when the recorder outputs signals through
the HDMI OUT jack.
Be sure to turn off the recorder before connecting an HDMI cord.
*This DVD recorder incorporates High-Definition Multimedia Interface (HDMI™) technology. HDMI, the HDMI
Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Using the Control for HDMI
functions for ‘BRAVIA’ Sync (for
HDMI connections only)
By connecting Sony components that are
compatible with the Control for HDMI function
with an HDMI cord (not supplied), operation is
simplified as below:
•One-Touch Play (page 38)
•System Power-Off
When you turn the TV off by using the "/1
button on the TV’s remote, the components
compatible with the Control for HDMI function
turn off automatically.
To prepare for the ‘BRAVIA’ Sync features
Set “Control for HDMI” to “On” in the “Features”
setup (page 85). For details on TV settings, refer
to the operating instructions supplied with the TV.
Notes
•You cannot connect the HDMI OUT jack to DVI jacks
that are not HDCP compliant (e.g., DVI jacks on PC
displays).
•Depending on the connected component, the Control
for HDMI function may not work. Refer to the
operating instructions supplied with the component.
•The recorder supports only the playback option of
Control for HDMI. “Player” appears on the TV screen
when using the Control for HDMI functions.
HDMI IN
TV or
projector
HDMI cord (not supplied)
to HDMI OUT
: Signal flow
DVD recorder
to HDMI input
Hookups and Settings
17US
If your TV has component video input jacks
Connect the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three
video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and
high quality images.
If your TV accepts progressive 480p format signals, you must use this connection and then set
“Progressive” of “Video” to “On” in the “Setup” display (page 81). The PROGRESSIVE indicator lights
up when the recorder outputs progressive signals.
When using this connection, be sure to connect the audio cord to the LINE OUT (AUDIO L/R) jacks.
COMPONENT VIDEO IN
P
B
P
R
Y
AUDIO
LR
INPUT
: Signal flow
TV or projector
(red)(white) (green)
Component video cord
(not supplied)
(red) (blue)
(red)
(green)
(blue)
to COMPONENT
VIDEO OUT
Audio/video cord
(supplied)
(white)
(red)
to LINE OUT
(AUDIO L/R)
DVD recorder
18US
Step 4: Connecting to Your AV Amplifier (Receiver)
Select one of the following patterns A or B, according to the input jack on your AV amplifier (receiver).
This will enable you to listen to sound through your AV amplifier (receiver).
AUDIO
INPUT
L
R
B
A
: Signal flow
AV amplifier (receiver)
(red)
(white)
Audio cord
(not supplied) (white)
(red)
DVD recorder to AUDIO OUT (L/R)
to DIGITAL AUDIO OUT
(COAXIAL)
Coaxial digital cord
(not supplied)
[Speakers]
Rear (L)
Front (L)
Center
to coaxial digital
input
[Speakers]
Rear (R)
Front (R)
Subwoofer
AV amplifier (receiver)
with a decoder
Hookups and Settings
19US
A Connecting to audio L/R jacks
This connection uses a stereo amplifier’s
(receiver’s) two front speakers for sound.
You can enjoy the surround function that creates
virtual speakers from two stereo speakers. Select
“Surround1,” “Surround2,” or “Surround3” in
“Surround” of the “Audio” setup (page 83).
Surround 1
Surround 2
Surround 3
Note
Make sure that your listening position is between and at
an equal distance from your speakers, and that the
speakers are located in similar surroundings.
B Connecting to a digital audio input jack
Use this connection if your AV amplifier
(receiver) has a Dolby
*1
Digital or DTS
*2
decoder
and a digital input jack. You can enjoy the
surround effect of Dolby Digital (5.1ch) or DTS
(5.1ch).
After you have completed the connection, make
the appropriate settings under the “Audio” setup
(page 82). Otherwise, no sound or a loud noise
will come from your speakers.
*1
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
*2 Manufactured under license under U.S. Patent #:
5,451,942 & other U.S. and worldwide patents issued
& pending. DTS and DTS Digital Out are registered
trademarks and the DTS logos and Symbol are
trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All
Rights Reserved.
zHints
•For correct speaker location, see the operating
instructions supplied with the connected components.
•With a coaxial digital connection, you cannot:
–use the virtual surround effects of this recorder.
–switch the bilingual sounds on a DVD-RW/DVD-R
(VR mode) by pressing AUDIO when you set “Dolby
Digital” to “Dolby Digital” in the “Audio” setup
(page 82).
Virtual speaker
1-4
20US

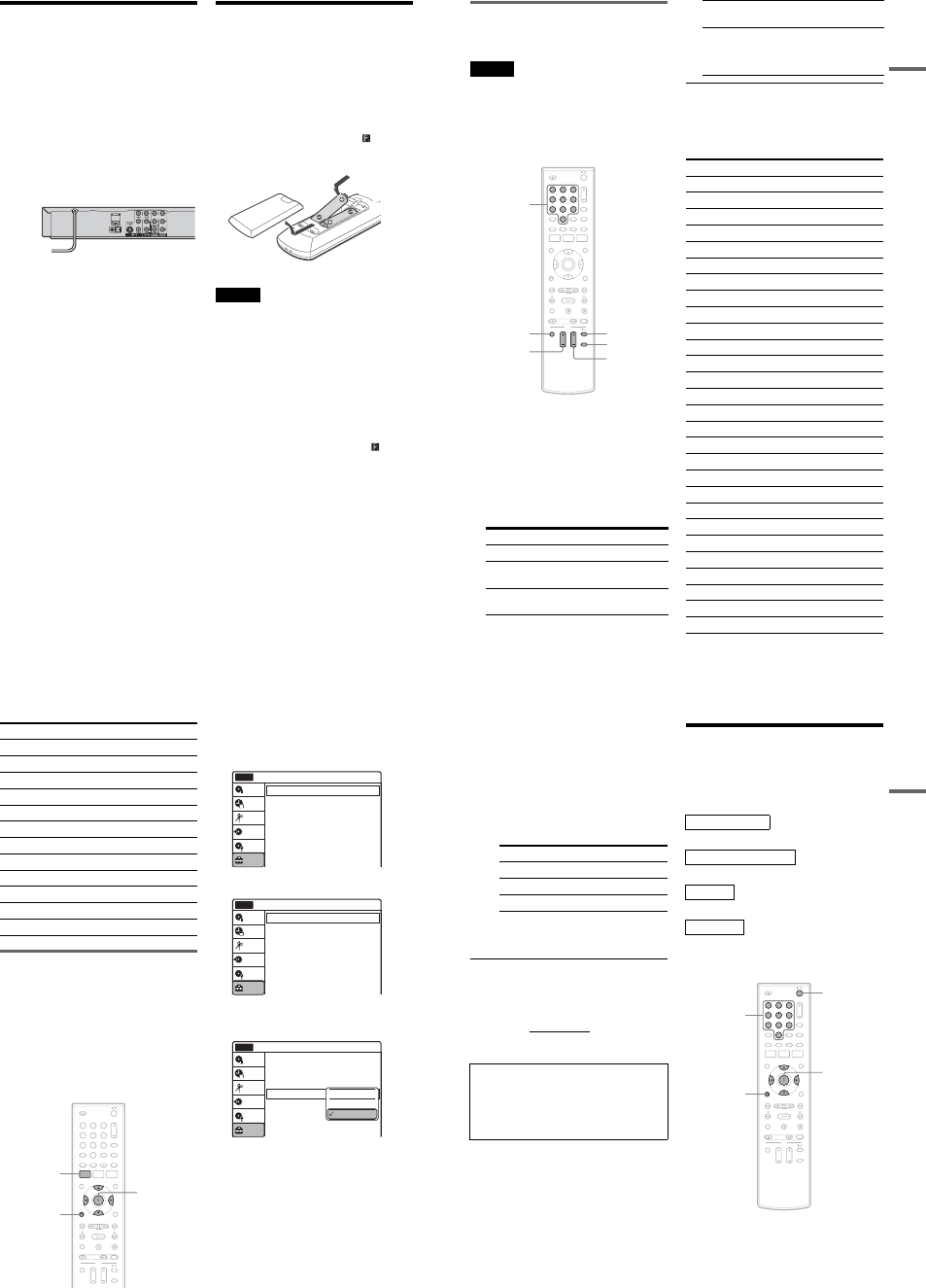

Step 5: Connecting the
Power Cord
Plug the recorder and TV power cords into an AC
outlet. After you connect the power cord, you
must wait for a short while before
operating the recorder. You can operate the
recorder only after the front panel display lights up
and the recorder enters standby mode.
If you connect additional equipment to this
recorder (page 27), be sure to connect the power
cord only after all connections are complete.
Step 6: Preparing the
Remote
You can control the recorder using the supplied
remote.
Insert two size AA (R6) batteries by matching the
3 and # ends on the batteries to the markings
inside the battery compartment. Be sure to close
the battery cover properly. When using the
remote, point it at the remote sensor on the
recorder.
Notes
•If the supplied remote interferes your other Sony DVD
recorder or player, change the command mode number
for this recorder (page 22).
•Use the batteries correctly to avoid possible leakage
and corrosion. Do not touch the liquid with bare hands
should leakage occur. Observe the following:
–Do not use a new battery with an old battery, or
batteries of different manufacturers.
–Do not attempt to recharge the batteries.
–If you do not intend to use the remote for an extended
period of time, remove the batteries.
–If battery leakage occurs, wipe out any liquid inside
the battery compartment, and insert new batteries.
•Do not expose the remote sensor (marked on the
front panel) to strong light, such as direct sunlight or
lighting apparatus. The recorder may not respond to the
remote.
•With normal use, the batteries should last about three to
six months.
•Do not leave the remote in an extremely hot or humid
place.
•Do not drop any foreign object into the remote casing,
particularly when replacing the batteries.
to AC outlet <
Hookups and Settings
21US
Controlling TVs with the remote
You can adjust the remote control’s signal to
control your TV.
Notes
•Depending on the TV, some or all of the buttons below
may not work for the TV.
•If you enter a new code number, the code number
previously entered will be erased.
•When you replace the batteries of the remote, the code
number may be reset to the default setting. Set the
appropriate code number again.
1Hold down TV "/1 located at the bottom of
the remote.
Do not press "/1 at the top of the remote.
2With TV "/1 pressed down, enter your
TV’s manufacturer code (see below) using
the number buttons.
3Release TV "/1.
The following buttons are for TV.
Code numbers of controllable TVs
If more than one code number is listed, try
entering them one at a time until you find the one
that works with your TV.
Press To
TV "/1 Turn your TV on or off
TV VOL +/– Adjust the volume of
your TV
TV CH +/– Select the channel on
your TV
112233
445566
7788
00
99
TV "/1
TV VOL +/– TV INPUT
TV CH +/–
TV DIGITAL/
ANALOG
Number
buttons
TV INPUT Switch your TV’s input
source
TV DIGITAL/
ANALOG
Select the broadcast on a
Sony TV that can switch
between digital and
analog
Manufacturer Code number
Sony 01 (default)
Akai 04
AOC 04
Centurion 12
Coronado 03
Curtis-Mathes 12, 14
Daewoo 04, 22
Daytron 03, 12
Fisher 11
General Electric 04, 06, 10
Hitachi 02, 03, 04
J.C.Penney 04, 10, 12
JVC 09
KMC 03
LG/Gold Star 03, 04, 17
Magnavox 03, 04, 08, 12, 21
Marantz 04, 13
MGA/Mitsubishi 04, 12, 13, 17
NEC 04, 12
Panasonic 06, 19
Philco 02, 03, 04, 08
Philips 08, 21
Pioneer 06, 16
Portland 03
Proscan 10
Quasar 06, 18
Radio Shack 05, 10, 14
RCA 04, 10
,continued
22US
If you have a Sony DVD player or
more than one Sony DVD recorder
If the supplied remote interferes with your other
Sony DVD recorder or player, set the command
mode number for this recorder and the supplied
remote to one that differs from the other Sony
DVD recorder or player, after you have completed
“Step 7: Easy Setup.”
The default command mode setting for this
recorder and the supplied remote is DVD 3.
1
Check that Easy Setup (page 23) has been
finished. If Easy Setup has not been
finished, first perform Easy Setup.
2Press SYSTEM MENU.
The System Menu appears.
3
Select “Setup,” and press ENTER.
4Select “Options,” and press ENTER.
5Select “Command Mode,” and press
ENTER.
6Select a command mode (“DVD 1,” “DVD
2,” or “DVD 3”), and press ENTER.
Sampo 12
Samsung 03, 04, 12, 20
Sanyo 11, 14
Scott 12
Sears 07, 10, 11
Sharp 03, 05, 18
Sylvania 08, 12
Teknika 03, 08, 14
Toshiba 07, 18
Wards 03, 04, 12
Yorx 12
Zenith 14, 15
Manufacturer Code number
112233
445566
7788
00
99
SYSTEM
MENU
M/m/</,,
ENTER
ORETURN
10:10 AM
Clock Set
Video
Audio
Features
Options
Easy Setup
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Setup
No Disc
Options
Language
Parental
Front Display
Command Mode
Factory Setting
: Auto
: DVD 3
10:10 AM
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
No Disc
Options
Language
Parental
Front Display
Command Mode
Factory Setting
: Auto
: DVD1 No
10:10 AM
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
No Disc
DVD 1
DVD 2
DVD 3
Hookups and Settings
23US
7Set the command mode for the remote so it
matches the command mode for the
recorder you set above.
Follow the steps below to set the command
mode on the remote.
AHold down ENTER.
BWhile holding down ENTER, enter the
command mode code number using the
number buttons.
CHold down both the number buttons and
ENTER at the same time for more than
three seconds.
To return to the previous display
Press ORETURN.
To check the command mode for the recorder
Press x(stop) on the recorder when the recorder
is turned off. The command mode for the recorder
appears in the front panel display.
Step 7: Easy Setup
Follow the steps below to make the minimum
number of basic adjustments for using the
recorder.
Settings are made in the following order.
m
m
m
m
1Turn on the TV.
2Press "/1.
The recorder turns on.
Command Mode Code number
DVD1 number button 1
DVD2 number button 2
DVD3 number button 3
If the command mode for the recorder has not
been changed, set the command mode for the
remote to the default setting of DVD3. If the
command mode for the remote is changed to
DVD1 or DVD2, you will be unable to operate
this recorder.
OSD Language Setup
Cable Box/Sat. Control Setup
Clock Setup
TV Type Setup
Finished!
112233
445566
7788
00
99
M/m/</,,
ENTER
ORETURN
"/1
Number
buttons
,continued
1-5
24US
3Switch the input selector on your TV so that
the signal from the recorder appears on
your TV screen.
“Initial settings necessary to operate the DVD
recorder will be made. You can change them
later using setup.” appears.
•If this message does not appear, select “Easy
Setup” in the “Setup” display to run Easy
Setup (page 88).
4Press ENTER.
The setup display for selecting the language
used in the on-screen display appears.
5Select a language, and press ENTER.
The setup display for cable box/satellite
receiver control appears.
6Select whether or not you use the cable
box/satellite receiver control, and press
ENTER.
If you want to use the cable box/satellite
receiver control (page 12), select “Yes.”
If not, select “No,” then go to step 9.
7Press the number buttons to enter the
brand code of your cable box/satellite
receiver.
See “Cable Box/Satellite Receiver Brand
Code” (page 101).
•To re-enter the code number, select
“Cancel” and return to step 6.
8Select “OK,” and press ENTER.
The setup display for clock setting appears.
9Press M/m to set the month and press ,.
Set the day, year, hour, minutes, and AM/PM
in the same way, then press ENTER. The day
of the week is set automatically.
The setup display for selecting the picture size
of the connected TV appears.
10
Select the setting that matches your TV
type.
“16:9”: For wide-screen TVs or TVs with a
wide screen mode.
“4:3 Letter Box”: For 4:3 screen TVs.
Displays “wide screen” pictures with bands
on the upper and lower sections of the screen.
“4:3 Pan Scan”: For 4:3 screen TVs.
Automatically displays “wide screen”
pictures on the entire screen and cuts off the
sections that do not fit.
For details, see “Video Settings (Video)” on
page 80.
English
Français
Español
Easy Setup
Select the screen language.
No Disc
Do you want to control
your set top box with this recorder?
(Changes to the current setting will
erase all timer settings.)
Ye s
No
Easy Setup
No Disc
Easy Setup
No Disc
OK Cancel
Enter the brand code of
your set top box.
Hour Min
AM/PM
Month
Set the time and date manually.
Day Year
00 AM12 :
01 01 2008 Tue
No Disc Easy Setup
12:00 AM
01
Easy Setup
Select your TV screen type.
10:10 AM
No Disc
16 : 9
4 : 3 Letter Box
4 : 3 Pan Scan
Hookups and Settings
25US
11
Press ENTER.
12
Press ENTER when “Finish” appears.
Easy Setup is finished. All connections and
setup operations are complete.
If you use the cable box/satellite receiver
control, check that the control works correctly
(page 25).
To return to the previous display
Press ORETURN.
zHint
If you want to run Easy Setup again, select “Easy Setup”
in the “Setup” display (page 88).
Note
To record TV programs using the timer, you must set the
clock accurately.
Checking the cable box/satellite
receiver control setting
1Turn on the recorder and the cable box/
satellite receiver.
2Point the recorder’s remote at the recorder
(not at the cable box/satellite receiver).
3Press CH +/– and check that the channel
changes on the cable box/satellite receiver
window.
4Press the number buttons and check that
the channel changes on the cable box/
satellite receiver window.
If you cannot get the recorder to control your
cable box/satellite receiver
Check the settings at “Set Top Box Control” in the
“Features” setup (page 85).
Check the connection and place the set top box
controller near the cable box/satellite receiver
(page 12).
If your cable box or satellite receiver still does not
operate with this recorder, contact your cable or
satellite company to see if they can provide you
with a compatible cable box or satellite receiver.
To fix the set top box controller to your cable
box/satellite receiver
Once you have confirmed that the set top box
controller controls your cable box or satellite
receiver, affix it in place.
1Attach the supplied double-sided tape to the
set top box controller.
Remove the backings on the double-sided
tape.
Finish
Easy Setup
Easy Setup is finished.
10:10 AM
No Disc
,continued
26US
2Affix it so that the set top box controller is
near the remote control sensor on your cable
box/satellite receiver.
LINE 2 IN DV IN
ONE-TOUCH
DUBBING
REC
VIDEO L
(MONO)
AUDIO R
Hookups and Settings
27US
Connecting a VCR or Similar Device
After disconnecting the recorder’s power cord from an AC outlet, connect a VCR or similar recording
device to the LINE IN jacks of this recorder. Also refer to the operating instructions supplied with the
connected equipment.
If you connect equipment that has a timer function, you can use the Synchro Rec function (page 54). In
this case, connect the equipment to the LINE 1 IN (VIDEO/AUDIO) jacks (page 13).
For connection to the DV IN or USB jack on the front panel, see page 68 or 71.
Connecting to the LINE 2 IN jacks on the front panel
Connect a VCR or similar device to the LINE 2 IN jacks of this recorder.
You can connect a second DVD player and record DVDs.
zHints
•When the connected equipment outputs only monaural sound, connect an audio cord to the white LINE IN AUDIO L
(mono) jack.
•To record from connected equipment, select an input source (LINE1 or LINE2) to match the jack you connected to
(page 56).
LINE 2 IN DV IN
ONE-TOUCH
DUBBING
REC
VIDEO L
(MONO)
AUDIO R
AUDIO
LR
VIDEO
OUTPUT
LINE 2 IN VIDEO L
(MONO)
AUDIO R
VCR, etc.
Audio/video cord
(not supplied)
DVD recorder
to LINE 2 IN
: Signal flow
,continued
1-6
28US
Notes
•Do not connect more than one type of video cord between the recorder and your TV at the same time.
•Pictures containing copy protection signals that prohibit any copying cannot be recorded. You cannot dub from DVD
VIDEOs to this recorder.
•Do not connect the output jack of this recorder to another equipment’s input jack with the other equipment’s output
jack connected to the input jack of this recorder. Noise (feedback) may result.
•If you pass the recorder signals via the VCR, you may not receive a clear image on your TV screen.
Be sure to connect your VCR to the DVD recorder and your TV in the order shown below. To watch video tapes,
watch the tapes through a second line input on your TV.
VCRDVD recorder TV
VCR DVD recorder TV
Line input 1
Line input 2
30US
Quick Guide to Disc Types
Recordable and Playable Discs
Usable disc versions (as of December 2007)
•8×-speed or slower DVD+RWs
•6×-speed or slower DVD-RWs (Ver.1.1, Ver.1.2
with CPRM
*1
)
•16×-speed or slower DVD+Rs
•16×-speed or slower DVD-Rs (Ver.2.0, Ver.2.1
with CPRM)
•8×-speed or slower DVD+R DL (Double Layer)
discs
*6
Discs that cannot be recorded on
•8 cm discs
•DVD-RAMs
“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD+R DL,”
and “DVD-R” logos are trademarks.
Disc Type Disc
Logo
Icon used
in this
manual
Formatting
(new discs)
Compatibility with other
DVD players (finalizing)
DVD+RW Automatically
formatted
Playable on DVD+RW
compatible players
(automatically finalized)
DVD-
RW
VR
mode
Format in VR mode
*2
(page 48)
Playable only on VR mode
compatible players (finalization
unnecessary) (page 66)
Video
mode
Format in Video
mode*2 (page 48)
Playable on most DVD players
(finalization necessary)
(page 66)*7
DVD+R
Automatically
formatted
Playable on DVD+R compatible
players (finalization necessary)
(page 66)*7
DVD+R DL
DVD-
R
VR
mode
Format in VR mode
using the “Disc Setting”
display (page 64)
Playable only on DVD-R VR
mode compatible players
(finalization necessary) (page 66)
Video
mode
Automatically
formatted in Video
mode
Playable on most DVD players
(finalization necessary)
(page 66)*7
+RW
-
RW
VR
-
RW
Video
+R
-
R
VR
-
R
Video
Quick Guide to Disc Types
31US
*1 CPRM (Content Protection for Recordable Media) is
a coding technology that protects copyrights for
images.
*2 Unused DVD-RWs are automatically formatted
according to the setting of “Format DVD-RW” in
“Features” setup (page 85).
*3 Erasing titles only frees up disc space if you erase the
last title.
*4 Erasing titles or chapters frees up disc space.
*5 Erasing titles or chapters does not free up disc space.
*6 When using DVD+R DL (Double Layer) discs, see
the instructions supplied with the discs.
*7 For DVD-RWs (Video mode), DVD-Rs (Video
mode), and DVD+Rs, the Auto Finalize function is
available (page 67).
Recording Features Editing Features
Rewrite
(page 64)
Auto
Chapter
(page 50)
Change
Title
Name
(page 61)
Erase
Title/
Chapter
(page 58)
A-B
Erase
(page 59)
Divide
Title
(page 60)
Playlist
(page 62)
Yes Yes YesYes/No
*3
Yes Yes No
Yes Yes YesYes/Yes
*4
Yes Yes Yes
Yes Yes YesYes/No
*3
No No No
No Yes Yes Yes/No
*5
No No No
No Yes Yes Yes/Yes
*5
Yes Yes Yes
No Yes Yes Yes/No
*5
No No No
32US
Playable Discs
“DVD VIDEO” and “CD” logos are trademarks.
*1 MP3 (MPEG1 Audio Layer 3) is a standard format
defined by ISO/MPEG which compresses audio data.
*2 A logical format of files and folders on DATA-CDs,
defined by ISO (International Organization for
Standardization).
Discs that cannot be played
•CD-ROMs/CD-Rs/CD-RWs that are not
recorded in music CD or Video CD format, or do
not contain MP3 audio tracks or JPEG image
files.
•Data part of CD-Extras
•DVD-ROMs that are not recorded in DVD
Video format, or do not contain MP3 audio
tracks or JPEG image files.
•DVD Audio discs
•HD layer on Super Audio CDs
•DVD VIDEOs with a different region code
(see page 33)
•A disc recorded in a color system other than
NTSC, such as PAL or SECAM
•A disc recorded in AVCHD format
Disc Type Disc Logo Icon used in
this manual Characteristics
DVD VIDEO Discs such as movies that can be purchased or
rented
DVD-RAM —
DVD-RAMs recorded by another recording
device. 12 cm discs without cartridges, or
removable from their cartridges can be played.
VIDEO CD VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD
format (with PBC function)
CD Music CDs or CD-Rs/CD-RWs in music CD
format that can be purchased
DATA CD
CD-ROMs/CD-Rs/CD-RWs created on a PC or
similar device in music format, or MP3*1 or
JPEG format that conforms to ISO9660*2 Level
1/Level 2
DATA DVD —
DVD-ROMs/DVD+RWs/DVD-RWs/DVD+Rs/
DVD-Rs in MP3*1 or JPEG format conforming
to Universal Disk Format (UDF)
8 cm DVD+RW/
DVD-RW/DVD-R
——
8 cm DVD+RWs, DVD-RWs, and DVD-Rs
recorded with a DVD video camera (Still images
recorded with a DVD video camera cannot be
played.)
DVD
RAM
VCD
CD
DATA CD
DATA DVD
1-7
Quick Guide to Disc Types
33US
Note on playback operations of DVD VIDEOs/
VIDEO CDs
Some playback operations of DVD VIDEOs/
VIDEO CDs may be intentionally set by software
producers. Since this recorder plays DVD
VIDEOs/VIDEO CDs according to the disc
contents the software producers designed, some
playback features may not be available. Also, see
the instructions supplied with the DVD VIDEOs/
VIDEO CDs.
Note on DualDiscs
A DualDisc is a two sided disc product which
mates DVD recorded material on one side with
digital audio material on the other side.
However, since the audio material side does not
conform to the Compact Disc (CD) standard,
playback on this product is not guaranteed.
Region code (DVD VIDEO only)
Your recorder has a region code printed on the rear
of the unit and will only play DVD VIDEOs
(playback only) labeled with identical region
codes. This system is used to protect copyrights.
DVD VIDEOs labeled will also play on this
recorder.
If you try to play any other DVD VIDEO, a
message will appear on the TV screen to indicate
that the disc is not playable. Depending on the
DVD VIDEO, no region code indication may be
labeled even though playing the DVD VIDEO is
prohibited by area restrictions.
Music discs encoded with copyright protection
technologies
This product is designed to playback discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with
copyright protection technologies are being
marketed by some record companies. Please be
aware that among those discs, there are some that
do not conform to the CD standard and may not be
playable by this product.
Note on DVD+RWs/DVD+Rs, DVD-RWs/DVD-
Rs, or CD-RWs/CD-Rs recorded on other
equipment
Some DVD+RWs/DVD+Rs, DVD-RWs/DVD-
Rs, or CD-RWs/CD-Rs cannot be played on this
recorder due to the recording quality or physical
condition of the disc, or the characteristics of the
recording device and authoring software. The disc
will not play if it has not been correctly finalized.
For more information, see the operating
instructions for the recording device.
Notes
•You cannot mix VR mode and Video mode on the same
DVD-RW or DVD-R. To change the DVD-RW’s
format, reformat the disc (page 64). Note that a disc’s
contents will be erased after reformatting.
•You cannot shorten the time required for recording
even with high-speed discs. Also, you cannot record on
the disc if the disc is not 1x speed compatible.
•It is recommended that you use discs with “For Video”
printed on their packaging.
•You cannot add new recordings to DVD-RWs (Video
mode), DVD+Rs, or DVD-Rs (Video mode) recorded
on other equipment.
•You may not be able to further record on a DVD+RW
recorded on other equipment. Note that recording on
such discs may cause the recorder to rewrite the DVD
menu.
•If the disc contains PC data unrecognizable by this
recorder, the data may be erased.
ALL
X
Region code
34US

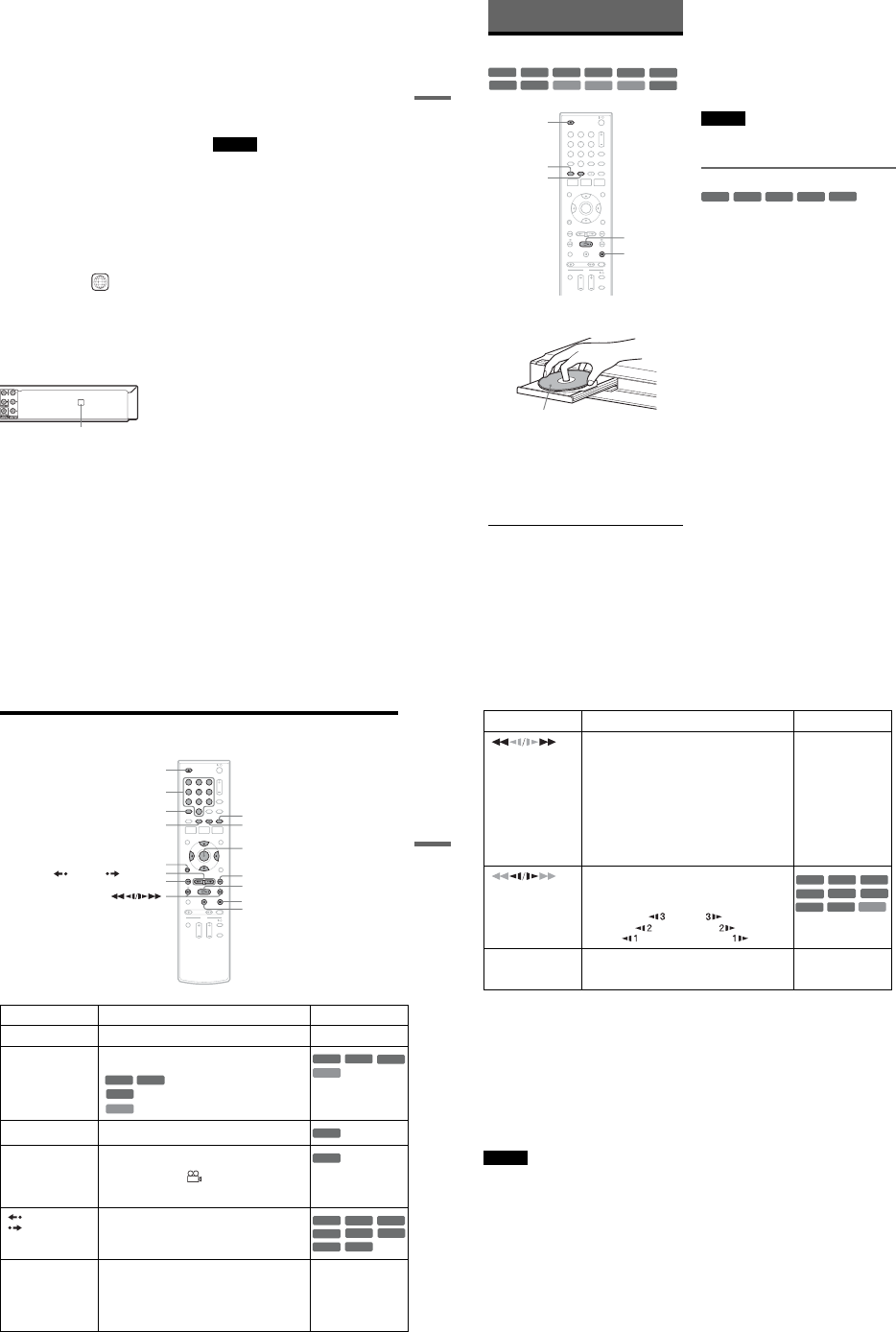

Playback
Playing Discs
1Press ZOPEN/CLOSE, and place a disc on
the disc tray.
2Press ZOPEN/CLOSE to close the disc
tray.
Wait until “LOAD” disappears from the front
panel display.
3Press H PLAY.
Playback starts.
To stop playback
Press xSTOP.
zHints
•You can play DATA CDs or DATA DVDs with MP3
audio tracks or JPEG image files (pages 41 or 42).
•If you insert a DVD VIDEO, VIDEO CD, or CD,
playback starts automatically depending on the disc.
•When playing a DVD+RW, DVD-RW, DVD+R,
DVD-R, and DVD-RAM, you can select the title from
the Title List menu (page 38).
•When using a DVD-RAM with a cartridge, remove the
disc from the cartridge.
Note
To play a disc recorded with other equipment on this
recorder, finalize the disc on the recording equipment
first.
Using the DVD’s Menu
When you play a DVD VIDEO, or a finalized
DVD+RW, DVD-RW (Video mode), DVD+R, or
DVD-R (Video mode), you can display the disc’s
menu by pressing TOP MENU or MENU.
+RW +R
DVD
VCD CD
-
RW
VR
-
RW
Video
DATA DVD
DATA CD
-
R
VR
-
R
Video
RAM
112233
445566
7788
00
99
xSTOP
ZOPEN/
CLOSE
MENU
HPLAY
TOP MENU
Playback side facing down
+RW +R
DVD
-
RW
Video
+R
-
R
Video
Playback
35US
Playback Options
Button Operation Disc
ZOPEN/CLOSE Stops playing and opens the disc tray. All discs
AUDIO Selects one of the audio tracks recorded on the disc
when pressed repeatedly.
: Selects the main or sub sound.
: Selects the audio source.
: Selects stereo or monaural audio tracks.
SUBTITLE Selects a subtitle language when pressed repeatedly. .
ANGLE Selects an angle when pressed repeatedly.
If various angles (multi-angles) for a scene are
recorded on the disc, “ ” appears on the TV screen
for a few seconds. See the instructions supplied with
the disc for details.
REPLAY/
ADVANCE
•Replays or briefly fast forwards a scene when
pressed during playback.
•Goes to the previous or next frame when pressed
during pause mode.
.PREV/
>NEXT
•Goes to the beginning of the current or next title/
chapter/scene/track and starts playback when
pressed during playback.
•Goes to the beginning of the previous title/chapter/
scene/track when .PREV is pressed within three
seconds after starting a title/chapter/scene/track.
All discs
112233
445566
7788
00
99
ZOPEN/CLOSE
XPAUSE
AUDIO
.PREV
REPLAY/ ADVANCE
xSTOP
SUBTITLE
MENU
HPLAY
M/m/</,,
ENTER
Number buttons
O RETURN
> NEXT
ANGLE
-
RWVR
-
RVR
DVD
VCD
DVD
VCD
-
RWVR
-
RVR
DVD
DVD
+RW
-
RWVR
-
RWVideo
+R
DVD
-
RVR
-
RVideo
RAM
,continued
36US
To resume normal playback after playing at various speeds, press HPLAY.
zHints
•You can change playback options, such as subtitle,
audio track, angle, etc., using the OPTIONS menu
(page 11).
•During playback or pause mode, you can also use the
./> buttons on the recorder as the remote’s m/
M buttons. Hold the buttons down during playback to
fast reverse or fast forward. In pause mode, you can
play in slow motion. Three speeds are available,
depending on the duration of the press.
•See “DVD Audio/Subtitle Language” on page 100 for
the meaning of the language abbreviation.
Notes
•If you pause playback of a CD, or DATA CD/DATA
DVD containing MP3 audio tracks, playback will not
start until you press H PLAY or X PAUSE.
•Sound will be interrupted during Scan Audio
(page 37).
Notes on playing DTS soundtracks on a CD
When playing DTS-encoded CDs, excessive noise
will be heard from the analog stereo jacks. To
avoid possible damage to the audio system, the
consumer should take proper precautions when
the analog stereo jacks of the recorder are
connected to an amplification system. To enjoy
DTS Digital Surround™ playback, an external
5.1-channel decoder system must be connected to
the digital jack of the recorder.
Notes on playing DVDs with a DTS soundtrack
DTS audio signals are output only through the
DIGITAL AUDIO OUT (COAXIAL)/HDMI
OUT jack.
When you play a DVD with DTS soundtracks, set
“Digital Out” – “DTS” to “On” of “Audio” in the
“Setup” display (page 82).
If you connect the recorder to audio equipment
without a DTS decoder, do not set “DTS” to “On”
in “Audio” setup. A loud noise (or no sound) may
come out from the speakers, which might disturb
your ears or cause damage to the speakers.
(fast reverse/fast
forward)
Fast reverses or fast forwards the disc when pressed
during playback.
Search speed changes with each press:
fast reverse fast forward
FR1 T t FF1
*1
FR2
*2
T T t t FF2
*2
FR3
*3
T T T t t t FF3
*3
All discs
*1 FF1 with sound
(Scan Audio) is
available for DVDs
with Dolby Digital
soundtracks.
*2 FR2 and FF2 are not
available for MP3.
*3 FR3 and FF3 are only
available for DVDs
and VIDEO CDs.
(slow)
Plays in slow motion when pressed in pause mode.
Playback speed changes with each press:
reverse slow motion forward slow motion
T t
T T t t
T T T t t t
*Playback direction
only
XPAUSE Pauses playback.
If you pause playback for more than five minutes,
playback starts automatically.
All discs
Button Operation Disc
VCD
+RW
+R
-
RWVR
-
RW
Video
DVD
-
RVR
-
R
Video
RAM
*
1-8
Playback
37US
Playing quickly with sound (Scan
Audio) (DVDs with Dolby Digital soundtracks
only)
You can play quickly with dialog or sound during
FF1 fast-forward of a DVD with Dolby Digital
soundtracks. Simply press M during playback.
zHint
To turn off the Scan Audio function, set “Scan Audio” of
“Audio” to “Off” in the “Setup” display (page 83).
Note
Sound will be interrupted during Scan Audio.
Playing VIDEO CDs with PBC
functions
PBC (Playback Control) allows you to play
VIDEO CDs interactively using a menu on your
TV screen.
When you start playing a VIDEO CD with PBC
functions, a menu appears.
Select an item using the number buttons and press
ENTER. Then follow the instructions in the menu
(press HPLAY when “Press SELECT”
appears).
Operations differ depending on the disc. See the
instructions supplied with the disc.
To cancel PBC Playback
Press MENU to display “Menu: Off.” To use the
PBC functions, press MENU again to display
“Menu:On.”
Resuming playback from the point
where you stopped the disc (Resume
Play)
Press HPLAY again after stopping a disc to
resume playback from the same point.
To start from the beginning, press xSTOP twice,
and press HPLAY.
The point where you stopped playing is cleared
when:
–you open the disc tray.
–you play another title.
–you switch the Title List menu to original or
Playlist (DVD-RW (VR mode)/DVD-R (VR
mode)/DVD-RAM only).
– you edit the title after stopping playback.
–you make a recording.
Playing restricted DVDs (Parental
Control)
If you play a restricted DVD, a message appears
asking whether you want to override the
restriction.
1Select “OK” and press ENTER.
The display for entering your password
appears.
2Enter your four digit password using the
number buttons.
The recorder starts playback.
To register or change the password, see “Parental
(DVD VIDEOs only)” on page 86.

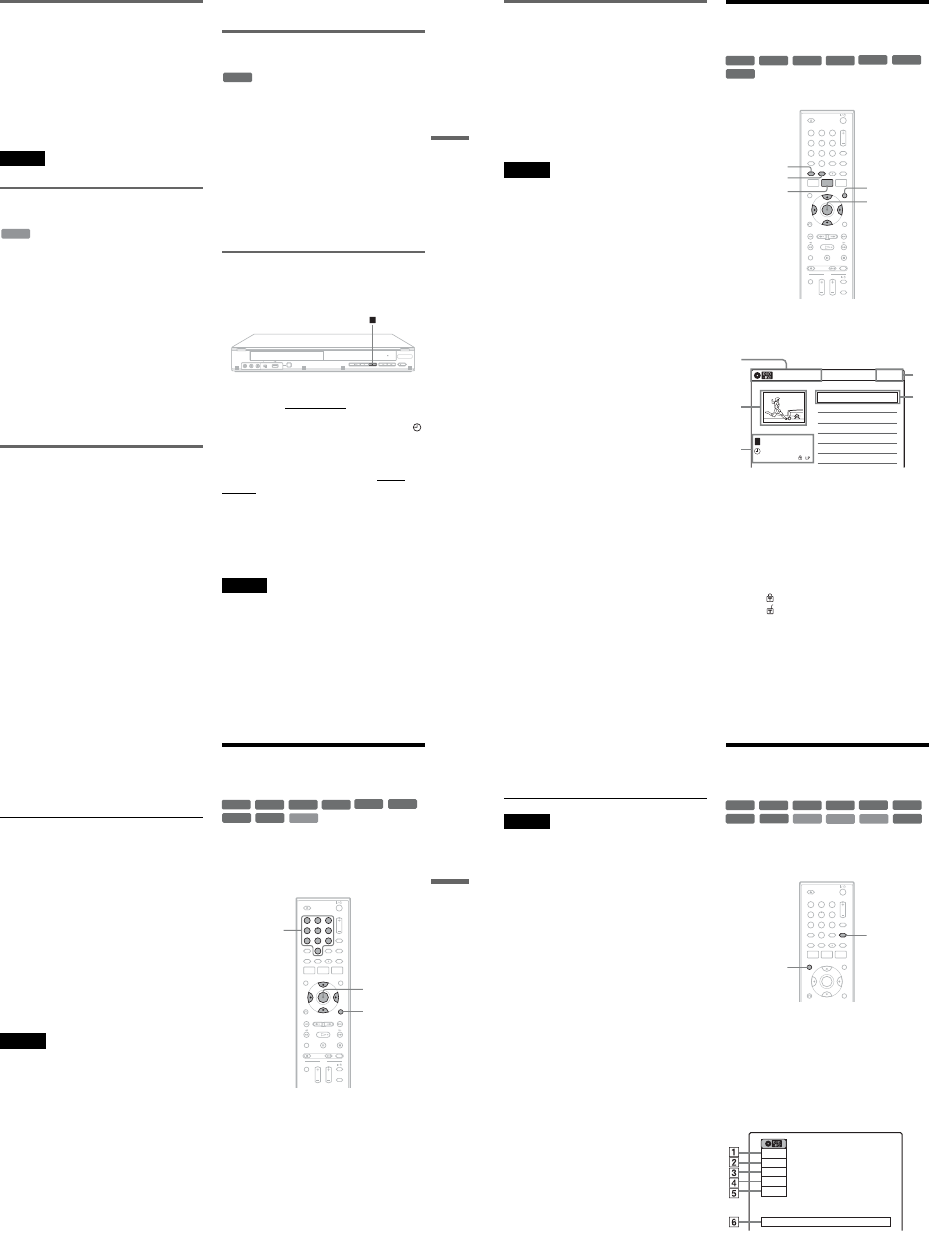

Locking the recorder (Child Lock)
You can lock all of the buttons on the recorder so
that the settings are not canceled by mistake.
With the recorder turned on and stopped, hold
down x (stop) on the recorder for more than ten
seconds. The recorder turns off and “CHILD
LOCK” appears in the front panel display. The
indicator remains lit if there is a timer setting. The
recorder will not work except for timer recordings.
To unlock the recorder, hold down x on the
recorder until “CHILD LOCK” disappears from
the front panel display. The recorder is unlocked
and turns on.
To stop timer recording while the recorder is
locked, press x twice. The recording stops and the
recorder is unlocked.
Note
The recorder will be unlocked when you stop timer
recording by pressing x.
VCD
DVD
REC
,continued
38US
One-Touch Play (for HDMI
connections only)
Press HPLAY. With one touch of the
HPLAY button, your TV automatically turns on
and the TV’s input is switched to the recorder.
Playback starts automatically.
Set “Control for HDMI” to “On” in the “Features”
setup (page 85) to use this function.
The TV’s input will also switch to the recorder
automatically if a disc with auto play function is
loaded.
Notes
•When using the HDMI connection, there may be a
delay, before the playback picture appears on the TV
screen, and the beginning portion of the playback
picture may not be displayed.
•The function does not work when playing an audio CD,
MP3 audio track.
•The function works only when the recorder is turned
on.
Playing a Title From the
Title List
The Title List menu displays the program titles on
the disc.
1Place a disc on the disc tray.
2Press TITLE LIST.
Example: DVD-RW (VR mode)
ADisc type:
Displays a disc type.
Also displays the title type (original or
Playlist) for DVD-RWs (VR mode),
DVD-Rs (VR mode), and DVD-RAMs.
BMovie thumbnail image
CTitle information:
Displays the title number, title name,
recording date, and recording mode.
“” indicates a protected title, while
“” indicates unprotected.
DClock
+RW +R
-
RW
VR
-
RW
Video
RAM
-
R
VR
-
R
Video
112233
445566
7788
00
99
TITLE LIST
MENU
TOP MENU
ORIGINAL/
PLAYLIST
M/m/</,,
ENTER
10:10 AM
01 LINE 1 >01:29:03
02 LINE 1 >00:31:23
03 LINE 1 >01:59:00
04 LINE 1 >00:58:56
LINE
1
08:00 PM
May/02/2008
T
No. Title Length Edit
Title List (Original)
1/4
2
3
4
3
Playback
39US
3Select the title, and press ENTER.
The sub-menu appears.
4Select “Play,” and press ENTER.
Playback starts from the selected title on the
disc.
About the Title List for DVD-RWs (VR mode)
and DVD-Rs (VR mode)
You can switch the Title List to show an original
or Playlist.
While the Title List menu is turned on, press
ORIGINAL/PLAYLIST repeatedly to select
either “Title List (Original)” or “Playlist.”
For details, see “Edit options for DVD-RWs (VR
mode)/DVD-Rs (VR mode)” on page 57.
To turn off the Title List
Press TITLE LIST.
zHint
You can also switch the Title List of DVD-RAMs to
show an original or Playlist.
Notes
•The Title List does not appear for DVD-RWs (Video
mode), DVD+Rs, or DVD-Rs (Video mode) that have
been finalized. To view a title, press TOP MENU or
MENU (page 34).
•The Title List may not appear for discs created on other
DVD recorders.
•Letters that cannot be displayed are replaced with “*.”
Searching for a Title/
Chapter/Track, etc.
You can search a DVD by title or chapter, and
VIDEO CD by track or scene. As titles and tracks
are assigned individual numbers on the disc, select
the title or track by entering its number. You can
also search for a scene using the time code.
1Press OPTIONS during playback.
The OPTIONS menu appears.
2Select a search method.
“Title” (for DVDs)
“Chapter” (for DVDs)
“Track” (for VIDEO CDs with PBC function
off)
“Time” (for DVDs/VIDEO CDs with PBC
function off): Searches for a starting point
using the time code.
3
Press
M
/
m
/
<
/
,
to select the number of
the title, chapter, track, etc., you want, or
press the number buttons to enter the time
code.
For example: “Time”
To find a scene at 2 hours, 5 minutes, and 20
seconds, enter “20520.”
If you make a mistake, wait a moment until
the display returns to the elapsed playing time
display, then select another number.
+
RW +R
VCD
-
RWVR
-
RW
Video
RAMDVD
-
RVR
-
R
Video
112233
445566
7788
00
99
OPTIONS
M/m/</,,
ENTER
Number
buttons
,continued
40US
4Press ENTER.
The recorder starts playback from the selected
point.
To turn off the display, press OPTIONS.
Notes
•Depending on the disc, you may not be able to use the
OPTIONS menu to search for a title/chapter/track, or
enter the time code for a playback point.
•When playing a Playlist title, you may not be able to
search for a scene using the time code.
Displaying the Playing Time
and Play Information
You can check disc information, such as playing
time, recording mode, and remaining disc space.
Press DISPLAY.
The information display appears.
Each time you press the button, the display
changes as follows:
Disc information/date and time
m
Disc information only
m
No display
APlaying status
BPlaying time
CRecording mode
DRemaining disc space (in stop mode)
Remaining time of the current title (during
playback*1)
EInput source*2
FDate and time
+R
DVD
VCD CD
-
RWVR
-
RWVideo
+RW
DATA CD
DATA DVD
RAM
-
RVR
-
RVideo
112233
445566
7788
00
99
TIME/TEXT
DISPLAY
Fri May 02. 2008 10:10 AM
Play
0:05:30
HQ
Rem 00:25
Original
1-9

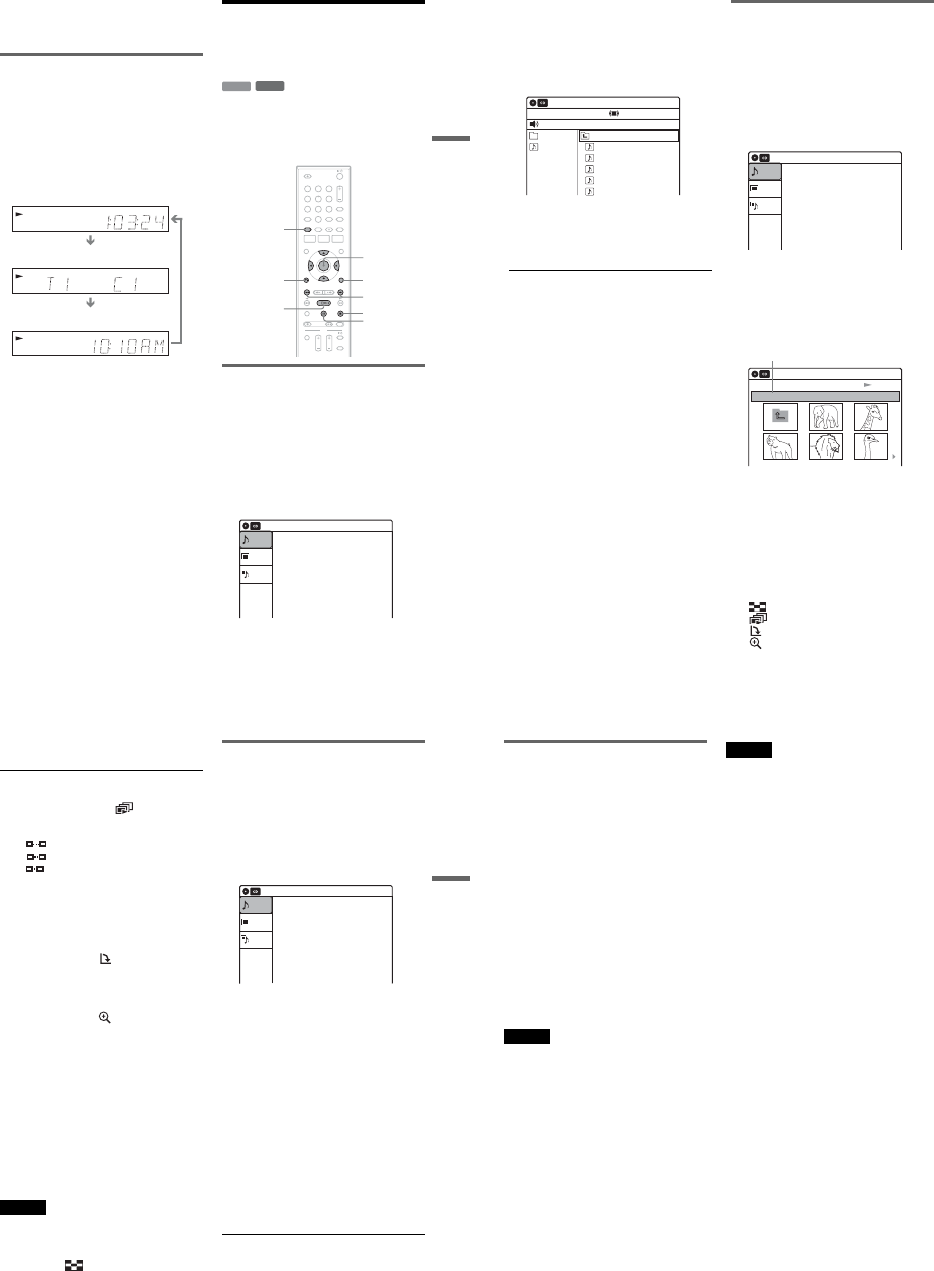

Playback
41US
*1 Also appears in stop mode with Resume Play
activated (page 37).
*2 Title type (original or Playlist) for DVD-RWs (VR
mode)/DVD-Rs (VR mode)/DVD-RAMs.
Viewing information on the front
panel display
You can view the information on the front panel
display.
Press TIME/TEXT repeatedly.
The displays differ depending on the disc type or
playing status.
Example: When playing a DVD
Example: When a DVD is stopped
Example: When playing a CD
Playing MP3 Audio Tracks
and JPEG Image Files on
the Disc
You can play DATA CDs (CD-ROMs/CD-Rs/
CD-RWs)/DATA DVDs (DVD-ROMs/
DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs) that
contain MP3 audio tracks or JPEG image files.
Playing MP3 audio tracks
You can play MP3 audio tracks on DATA CDs or
DATA DVDs.
1Place a DATA CD/DATA DVD on the disc
tray.
When you insert a DATA CD/DATA DVD
containing MP3 audio tracks and JPEG image
files, the display for selecting a media type
appears. When you select “Mix,” you can
enjoy a slide show with sound (page 43).
RW VR
VCDVD
SAP
SYNCHRO
PROGRESSIVE
REC
STEREO
D
RW VR
VCDVD
SAP
SYNCHRO
PROGRESSIVE
REC
STEREO
D
RW VR
VCDVD
SAP
SYNCHRO
PROGRESSIVE
REC
STEREO
D
Playing time of the current title
Current title number and current chapter
number
Clock
Clock
m
Current title and chapter number
m
Remaining disc space
m
Input source
Playing time of the current track
m
Current track number
m
Clock
DATA CD
DATA DVD
112233
445566
7788
00
99
HPLAY
ORETURN
M/m/</,,
ENTER
. PREV/
> NEXT
TOP MENU
xSTOP
OPTIONS
X PAUSE
10:10 AM
Music
Mix
Press ENTER :
Music menu for this disc.
,continued 42US
If you insert a DATA CD/DATA DVD
containing only MP3 audio tracks, the
“Music” display appears. Go to step 4.
2Select “Music,” and press ENTER.
The “Music” display appears.
3Select an album, and press ENTER.
4Select a track, and press ENTER.
Playback starts from the selected track.
When a track or album is being played, the
title is shown in a box.
To stop playback
Press xSTOP.
To pause playback
Press X PAUSE.
To restart playback, press H PLAY or X
PAUSE.
To return to the previous display
Press ORETURN.
To switch between MP3 audio tracks and JPEG
image files
Press xSTOP, and press TOP MENU.
zHint
When playback of all the MP3 audio tracks within the
album finishes, the recorder stops.
Playing JPEG image files
You can play JPEG image files on DATA CDs or
DATA DVDs.
1Place a DATA CD/DATA DVD on the disc
tray.
When you insert a DATA CD/DATA DVD
containing MP3 audio tracks and JPEG image
files, the display for selecting a media type
appears. When you select “Mix,” you can
enjoy a slide show with sound (page 43).
If you insert a DATA CD/DATA DVD
containing only JPEG image files, the
“Photo” display appears. Go to step 3.
2Select “Photo,” and press ENTER.
The “Photo” display appears.
3Select a folder, and press ENTER.
To display the previous or next page, press
.PREV/>NEXT.
4Select an image file, and press ENTER.
The selected image is displayed over the
entire screen.
To display the previous or next image, press
.PREV/>NEXT.
The following menu icons appear in the upper
part of the screen.
: Returns to the “Photo” display.
: Starts the slide show (page 43).
: Rotates the image (page 43).
: Zooms the image (page 43).
Stop 00:00:00
Prev Directory
01-Track1.mp3
02-Track2.mp3
03-Track3.mp3
04-Track4.mp3
05-Track5.mp3
MP3_001
0/9
10:10 AM
Music
Surround:Off
10:10 AM
Music
Press ENTER :
Mix
Music menu for this disc.
Slideshow
\abc\defg
Page 1 / 2
10:10 AM
Directory information
Playback
43US
Press OPTIONS to turn on/off the menu
icons.
To play the slide show
1Press </, to select “ ,” and press
ENTER.
The “Slideshow Speed” menu appears.
“”: Slow
“”: Normal
“”: Fast
2Press </, to select the desired play speed,
and press ENTER.
The slide show starts from the selected image.
To stop playing, press x STOP.
To rotate the selected image
Press </, to select “ ,” and press ENTER.
Each time you press ENTER, the image turns
clockwise by 90°.
To zoom in an image
Press </, to select “,” and press ENTER.
Each time you press ENTER, the magnification
changes as follows:
2u t 4u t 2u t normal
To return to the previous display
Press ORETURN.
To switch between MP3 audio tracks and JPEG
image files
Press xSTOP, and press TOP MENU.
zHint
You can also start the slide show by pressing H PLAY
in step 4 above.
Notes
•You cannot use M/m/</, to move the image within
the screen while zooming.
•Slide show can play in only one direction.
•You cannot rotate or zoom during slide show.
•If you select “ ” in the rotated image display,
the images in the “Photo” display will not be
rotated.
Enjoying a slide show with sound
When a disc contains both MP3 audio tracks and
JPEG image files, you can enjoy a slide show with
sound.
1Insert a DATA CD/DATA DVD containing
both the MP3 audio tracks and JPEG image
files.
The display for selecting a media type
appears.
2Select “Mix,” and press ENTER.
The “Music” display appears.
3Select an album, and press ENTER.
4Select a track, and press ENTER.
Playback starts from the selected track, and
the display asks for confirmation.
5Select “Yes,” and press ENTER.
The “Photo” display appears.
6Select the folder you want to view, and
press ENTER.
7Press H PLAY to start the slide show.
The “Slideshow Speed” menu appears.
8Press </, to select the slide show
speed, and press ENTER.
The slide show starts with sound.
To stop the slide show
Press x STOP.
zHint
When playing JPEG images, you can also use the on-
screen menu. For details, see “Playing JPEG image files”
(page 42).
10:10 AM
Music
Press ENTER :
Mix
Music menu for this disc.
,continued
44US
About MP3 audio tracks and JPEG
image files
MP3 is audio compression technology that
satisfies the ISO/IEC MPEG regulations.
JPEG is image compression technology.
You can play back DATA CDs (CD-ROMs/CD-
Rs/CD-RWs) or DATA DVDs (DVD-ROMs/
DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs)
recorded in MP3 (MPEG1 Audio Layer 3) and
JPEG format.
However, this recorder only plays DATA CDs
whose logical format is ISO9660 Level 1/Level 2
or Joliet, and DATA DVDs of Universal Disk
Format (UDF).
See the instructions supplied with the disc drives
and the recording software (not supplied) for
details on the recording format.
zHint
The recorder can play MP3 audio tracks or JPEG image
files stored in a USB device connected to the USB jack
(page 45).
Note
The recorder may not be able to play some DATA CDs
or DATA DVDs created in the Packet Write format.
MP3 audio tracks or JPEG image files that the
recorder can play
The recorder can play the following tracks and
files:
–MP3 (MPEG1 Audio Layer 3) audio tracks.
–MP3 audio tracks with the extension “.MP3.”
–JPEG image files with the extension “.JPEG” or
“.JPG.”
zHints
•If you add numbers (01, 02, 03, etc.) to the front of the
file names, the files will be played in that order.
•Since a disc with many trees takes longer to start
playback, it is recommended that you create albums
with no more than two trees.
Notes
•Some DATA CDs or DATA DVDs cannot be played
on this recorder depending on file format.
•Only one session of a multi-session DATA DVD can
be played back.
•Only alphabet and numbers can be used for album or
track names. Anything else is displayed as an asterisk.
•The recorder will play any data with the extension
“.MP3,” even if they are not in MP3 format. Playing
such data may generate a loud noise which could
damage your speaker system.
•The recorder does not conform to audio tracks in
MP3PRO format.
•The recorder can recognize up to 499 MP3 audio tracks
within a single album. The recorder may not recognize
some discs depending on the recording device used for
recording or the disc condition.
•The recorder can play MP3 audio tracks recorded in the
following sampling frequencies: 32 kHz, 44.1 kHz,
48 kHz.
•ID3 tags cannot be displayed.
•If you add the extension “.JPG” or “.JPEG” to data not
in JPEG format, a message appears indicating that the
format is not supported.
•Depending on the disc or the size or total number of
files, playback may take some time to start.
•The recorder can recognize up to 999 JPEG image files
within a single folder. The recorder may not recognize
some discs depending on the recording device used for
recording or the disc condition.
•Progressive and lossless compression JPEG image files
are not supported.
•The image size that the recorder can display is limited
to width 32 - 7680 pixels by height 32 - 8192 pixels.
•JPEG image files that conform to the DCF* image file
format are not supported.
*“Design rule for Camera File system”: Image standards
for digital cameras regulated by JEITA (Japan
Electronics and Information Technology Industries
Association).
1-10
Playback
45US

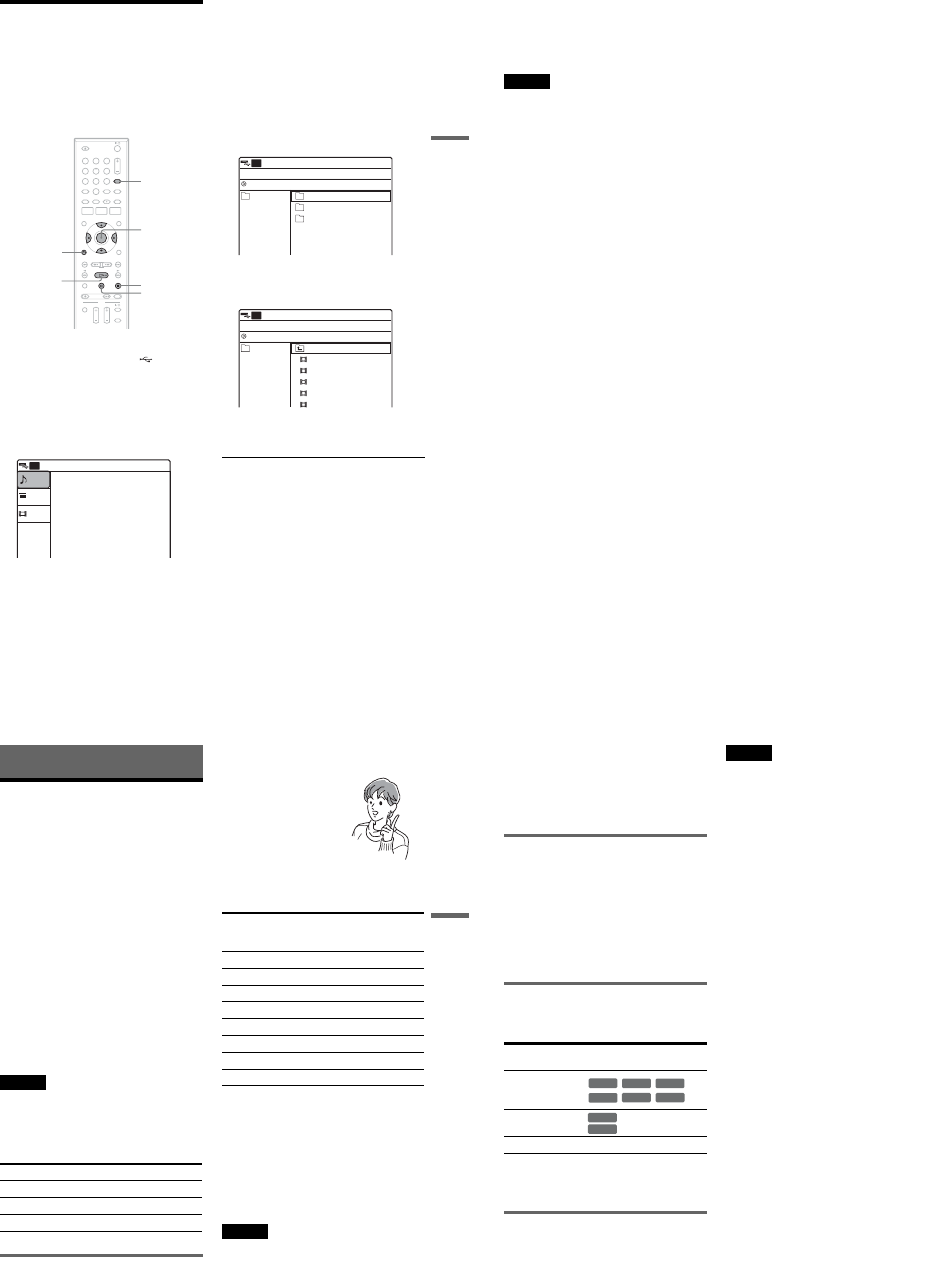

Playing From a Connected
USB Device
You can play MP3 audio tracks or JPEG image
files stored in a USB device connected to the USB
jack. Also movie files in the connected HDD
camcorder can be played. About USB connection
and available USB devices, see page 71.
1Press INPUT repeatedly to select “USB.”
2Connect a USB device to the (USB) jack
(page 71).
Check that the USB indicator lights up in the
front panel display.
3Press H PLAY.
The display for selecting a media type
appears.
4Select “Photo,” “Music,” or “Movie,” and
press ENTER.
•To play MP3 audio tracks, select “Music.”
See “Playing MP3 audio tracks” (page 41)
for details.
•To play JPEG image files, select “Photo.”
See “Playing JPEG image files” (page 42)
for details.
•To play movie files, select “Movie.” The
contents of the HDD camcorder are listed.
Example: When “Movie” is selected
5Select an album (folder) and press ENTER.
The movie file list appears.
6Select a movie file and press ENTER.
Playback starts.
To stop playback
Press x STOP.
To pause playback
Press X PAUSE.
To restart playback, press H PLAY or X
PAUSE.
To return to the previous display
Press O RETURN.
To return to the display for selecting a media
type
Press x STOP twice, and press H PLAY.
112233
445566
7788
00
99
HPLAY
ORETURN
M/m/</,,
ENTER
xSTOP
X PAUSE
INPUT
10:10 AM
Music
Movie
Press ENTER :
Music menu for this USB device.
USB
USB
00:00:00Stop
AVF_INFO
MP_ROOT
DCIM
10:10 AM
USB
FileAlbum
USB
0/0
/
00:00:00Stop
Prev Directory
M2U00026.MPG
M2U00027.MPG
M2U00028.MPG
M2U00029.MPG
M2U00030.MPG
10:10 AM
USB
FileAlbum
USB
0/5
101PNV01
,continued
46US
zHints
•The recorder can play movie files that are recorded
with an HDD camcorder and have the extension
“.MPG.”
•You cannot play movie files recorded with a digital still
camera.
Notes
•The recorder may not be able to play some JPEG image
files, MP3 audio tracks or movie files that have been
edited on a PC.
•Do not disconnect a USB device while reading or
playing files.
•Some files may take time to appear. In particular, it
may take some time to read many files or large size
files, but this is not a malfunction.
•Do not turn off the power while reading or playing
files.
•USB cables exclusive for supplying power cannot be
used.
•Connect the camcorder or digital still camera directly
to the recorder, not via a USB hub or other USB device.
Recording
47US
Recording
Before Recording
Before you start recording…
•This recorder can record on various disc types.
Select the disc type according to your needs
(page 30).
•Check that the disc has enough available space
for the recording (page 40). For DVD+RWs or
DVD-RWs, you can free up disc space by
erasing titles (page 58).
•Check that the recorder is connected to a tuner
such as a cable box or satellite receiver
(page 12). See also the tuner’s instruction
manual.
zHints
•To play a disc recorded with this recorder on other
equipment, finalize the disc (page 66). Note that you
cannot further record or edit on a finalized disc.
•If you set “Auto Finalize” to “On” in the “Features”
setup (page 85), the Auto Finalize function works for
DVD-RWs (Video mode), DVD-Rs (Video mode) and
DVD+Rs after recording. For details, see page 67.
Notes
•Timer recordings will start with or without the recorder
turned on. The recorder automatically turns off after a
recording has finished.
•This recorder records at ×1 speed.
Maximum recordable number of titles
Recording mode
Like the SP or EP recording mode of VCRs, this
recorder has eight different recording modes.
Select a recording mode according to the time and
picture quality you need. For example, if picture
quality is your top priority, select “HQ” (high
quality). If recording time is your priority, “SLP”
can be a possible choice.
Press REC MODE repeatedly to switch the
recording modes.
Recording mode and recording time
The following table is an approximate guide for
the recording time on a single DVD (4.7 GB).
zHint
The approximate recording time for DVD+R DL
(Double Layer) discs is as follows:
HQ: 1 hour 48 minutes
HSP: 2 hours 42 minutes
SP: 3 hours 37 minutes
LSP: 4 hours 31 minutes
ESP: 5 hours 25 minutes
LP: 7 hours 14 minutes
EP: 10 hours 51 minutes
SLP: 14 hours 28 minutes
Notes
•When in a recording mode other than HQ, the recorder
compresses the audio/video data before recording.
Since the compression rate needs to decrease for fast-
moving images or if picture noise is present, recorded
data size increases, and available recording time
becomes shorter. When recording such pictures, a
recording mode offering longer recording time is
recommended.
•Situations below may cause inaccuracies with the
recording time.
–Recording fast-moving or images containing picture
noise.
–Recording a program with poor reception, or a
program or video source of low picture quality
Disc Number of titles
DVD-RW/DVD-R 99
DVD+RW/DVD+R 49
DVD+R DL 49
Recording mode Approximate
recording time
(minute)
HQ (High quality) 60
HSP R90
SP (Standard mode) 120
LSP r150
ESP r180
LP r240
EP r360
SLP (Long duration) 480
I want to record with the
best possible picture
quality, so I’ll select HQ.
,continued
48US
–Recording on a disc that has already been edited
–Recording only a still picture or just sound
•Since the recording mode for recorded titles is
calculated after sampling the recorded data during
playback, it may be displayed differently from the
mode you selected when recording. However, the
actual recording itself is correctly made in the selected
mode.
Recording main and sub sounds
You can record the different soundtracks on a
DVD-RW (VR mode) or DVD-R (VR mode) from
equipment connected to the LINE 1 IN or LINE 2
IN jacks. When playing the disc, you can select
main or sub sound by pressing the AUDIO button.
Set “Line Audio Input” in “Audio” setup to
“Main/Sub” in the Setup Display (page 84).
When recording on other discs, select either sound
track with the connected equipment before
recording.
Unrecordable pictures
Pictures with copy protection cannot be recorded
on this recorder. Recording stops when a copy
guard signal is detected.
*1 Not recordable on non-CPRM compatible DVDs that
are commonly available.
*2 The recorded disc can be played only on CPRM
compatible equipment (page 30).
Formatting a new disc
New, unformatted discs are automatically
formatted when first inserted in the recorder.
For DVD-RWs/DVD-Rs, you can select a
recording format (VR mode or Video mode)
according to your needs (page 30).
•Unused DVD-RWs are automatically formatted
according to the setting of “Format DVD-RW”
in “Features” setup (page 85).
•Unused DVD-Rs are automatically formatted in
Video mode. To format in VR mode, change the
recording format using the “Disc Setting”
display (page 64).
Notes
•You cannot mix VR mode and Video mode on the same
DVD-RW or DVD-R.
•You can change the recording format on DVD-RWs by
reformatting (page 64).
•You cannot change the recording format on used DVD-
Rs.
•The recorder records on new DVD-Rs in Video mode
unless you first format the discs in VR mode.
Copy control
signals
Recordable discs
Copy-Free
Copy-Once*1 (CPRM*2)
(CPRM*2)
Copy-Never None
+RW
-
RWVR
-
RWVideo
+R
-
RVR
-
RVideo
-
RWVR
-
RVR
1-11

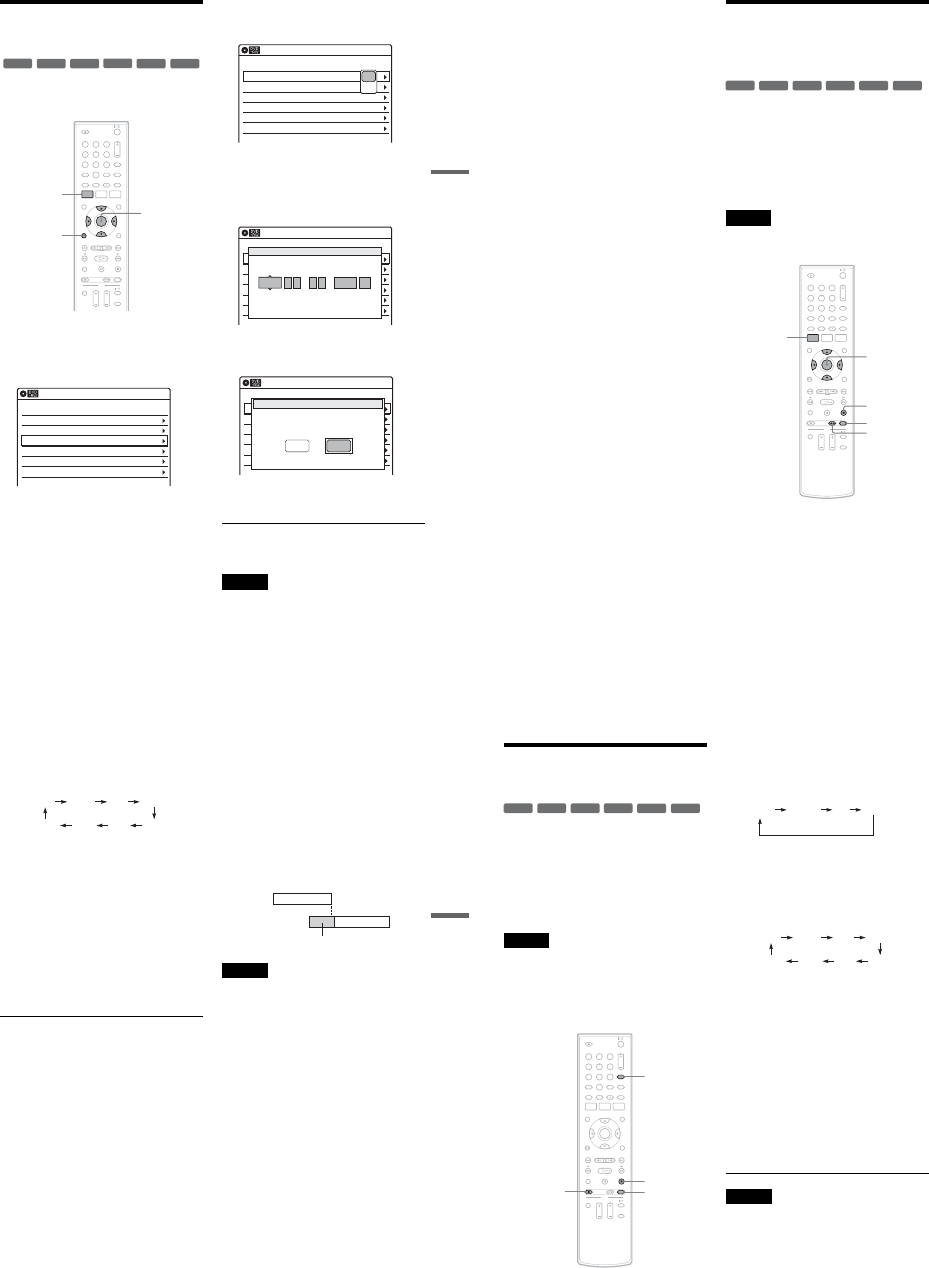

Recording
49US

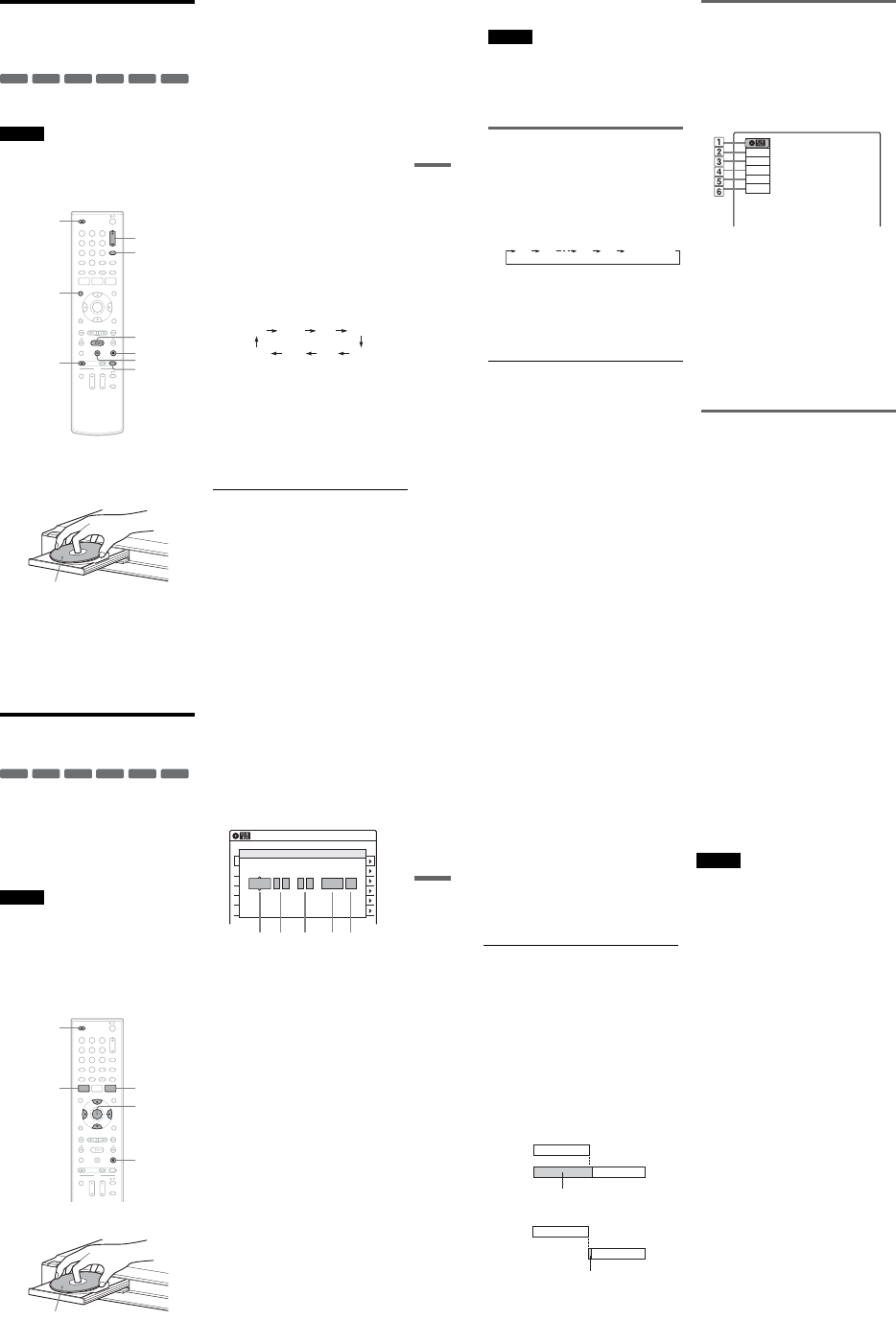

Recording From Connected
Equipment Without the
Timer
You can record TV programs on the recorder
through the connected cable box/satellite receiver.
Note
To play a disc recorded with this recorder on other
equipment, finalize the disc (page 66).
If you set “Auto Finalize” to “On” in the “Features” setup
(page 85), the Auto Finalize function works for DVD-
RWs (Video mode), DVD-Rs (Video mode) and
DVD+Rs after recording. For details, see page 67.
1Turn on the recorder and the connected
cable box/satellite receiver.
2Press ZOPEN/CLOSE, and place a
recordable disc on the disc tray.
3Press ZOPEN/CLOSE to close the disc
tray.
Wait until “LOAD” disappears from the front
panel display.
Unused discs are automatically formatted. For
the DVD-RW/DVD-R’s recording format
(VR mode or Video mode), see “Formatting a
new disc” on page 48.
4Press CH +/– or INPUT repeatedly to select
the channel or input source you want to
record.
•When using the cable box/satellite receiver
control, select the channel by pressing
CH +/– on this recorder’s remote. The
recorder’s input is switched to the connected
input (LINE1 or LINE2). You can also use
the number buttons.
•When not using the cable box/satellite
receiver control, select the connected input
(LINE1 or LINE2) by pressing INPUT, and
then select the channel on the cable box/
satellite receiver’s side.
5Press REC MODE repeatedly to select the
recording mode.
The display changes on the TV screen as
follows:
For details about the recording mode, see
page 47.
6Press zREC.
Recording starts.
Recording continues until you stop the
recording or the disc is full.
Leave the cable box/satellite receiver turned
on and do not change the channel you are
recording.
To stop recording
Press xSTOP.
Note that it may take a few seconds for the
recorder to stop recording.
To pause recording
Press XPAUSE.
To restart recording, press XPAUSE again.
+RW +R
-
RW
VR
-
RW
Video
-
R
VR
-
R
Video
112233
445566
7788
00
99
REC MODE
XPAUSE
xSTOP
CH +/–
zREC
ZOPEN/
CLOSE
HPLAY
DISPLAY
INPUT
Recording side facing down
HQ SPHSP LSP
SLP LPEP ESP
,continued 50US
zHint
You can turn off the TV during recording.
Notes
•Recording may not start immediately after zREC is
pressed.
•You cannot change the recording mode during
recording or recording pause.
•If there is a power failure, the program you are
recording may be erased.
•You cannot change the input source during recording.
Recording using the Quick Timer
(One-touch Timer Recording)
You can set the recorder to record in 30-minute
increments.
Press zREC repeatedly to set the duration.
Each press increases the time by 30 minutes,
up to eight hours*.
“c” and “OTR” light up, and the remaining
recording time appears in the front panel
display.
When the time counter reaches “0:00,” the
recorder stops recording and turns off.
*14 hours 30 minutes for DVD+R DL (Double Layer)
discs.
To cancel the Quick Timer
Press zREC repeatedly until the counter appears
in the front panel display. The recorder returns to
normal recording mode.
To stop recording
Press xSTOP twice.
Note that it may take a few seconds for the
recorder to stop recording.
Checking the disc status while
recording
You can check the recording information such as
recording time or disc type.
Press DISPLAY during recording.
The information display appears.
Press the button repeatedly to change the display
(page 40).
ADisc type
BRecording status
CRecording time
DRecording mode
ERemaining disc space
FInput source
zHint
You can view the information also in the front panel
display. Press TIME/TEXT repeatedly to change the
display. Note that TIME/TEXT does not work during
One-touch Timer Recording.
Creating chapters in a title
The recorder will automatically divide a recording
(a title) into chapters by inserting chapter marks at
5 or 15-minute intervals during recording. Select
the interval, “5 Min” (default) or “15 Min” in
“DVD Auto Chapter” of “Features” in the “Setup”
display (page 84).
If you do not want to divide titles, select “Off.”
0:30 1:00 7:30 8:00
(Normal
recording)
Record
0:00:03
HQ
Rem 00:59
Line1
Recording
51US
Timer Recording From
Connected Equipment
You can set the timer for a total of 12 programs, up
to one month in advance.
Note that the maximum continuous recording time
for a single title is 12 hours. Contents beyond this
time will not be recorded.
If you record from connected equipment that has a
timer function, you can use the Synchro Rec
function (page 54).
Notes
•Do not operate your cable box or satellite receiver just
before or during a timer recording. This may prevent
the accurate recording of a program.
•To play a disc recorded with this recorder on other
equipment, finalize the disc (page 66). If you set “Auto
Finalize” to “On” in the “Features” setup (page 85), the
Auto Finalize function works for DVD-RWs (Video
mode), DVD-Rs (Video mode) and DVD+Rs after
recording. For details, see page 67.
1Press ZOPEN/CLOSE, and place a
recordable disc on the disc tray.
2Press ZOPEN/CLOSE to close the disc
tray.
Wait until “LOAD” disappears from the front
panel display.
Unused discs are automatically formatted. For
the DVD-RW/DVD-R’s recording format
(VR mode or Video mode), see “Formatting a
new disc” on page 48.
3Press TIMER.
4Select an item using </, and adjust
using M/m.
A“Date”: Sets the date using M.
To record the same program every day or
the same day every week, press m.
The item changes as follows:
Today y Sun-Sat (Sunday to Saturday)
y Mon-Sat (Monday to Saturday) y
Mon-Fri (Monday to Friday) y Sun
(every Sunday) y Mon (every Monday)
y … y Sat (every Saturday) y
1month later y … y Today
B“Start”: Sets the start time.
C“End”: Sets the stop time.
D“Ch”: Selects the channel or input
source.
•When using the cable box/satellite
receiver control, select the channel.
•When not using the cable box/satellite
receiver control, select the input, LINE1
or LINE2. Select the channel on the
connected cable box/satellite receiver’s
side before the timer recording starts.
E“Mode”: Selects the recording mode
(page 47).
To use the Rec Mode Adjust function
(page 52), select “AUTO.”
If you make a mistake, select the item and
change the setting.
+RW +R
-
RWVR
-
RWVideo
-
RVR
-
RVideo
112233
445566
7788
00
99
M/m/</,,
ENTER
ZOPEN/
CLOSE
xSTOP
SYSTEM
MENU TIMER
Recording side facing down
01 DVD 04/15 09:00PM 10:00PM CH8
--- --/-- --:-- --:-- ---- ---04
--- --/-- --:-- --:-- ---- ---05
--- --/-- --:-- --:-- ---- ---06
03 --- --/-- --:-- --:-- ---- ---
02 DVD 04/30 09:15PM 09:45PM CH11
10:10 AM
No Rec To Date Start End Source Mode Edit
Timer – Standard
No.1
:PM PM
:
09 00 10 00 Line1 SP
12 3 45
Date Start End Ch Mode
Toda y
,continued
52US
5Press ENTER.
The Timer List menu (page 53) appears.
The c indicator lights up in the front panel
display, and the recorder is ready to start
recording.
•If the c indicator flashes in the front panel
display, check that a recordable disc is
inserted and that there is enough disc space
for the recording.
•If timer settings overlap, a message appears.
To change or cancel a timer recording, select
“Edit” from the Timer List (page 53).
6Press SYSTEM MENU to turn off the menu.
There is no need to turn off the recorder before
the timer recording starts.
Leave the cable box/satellite receiver turned
on and do not change the channel selected on
the cable box/satellite receiver until the
recorder finishes the timer recording.
To stop recording
Press xSTOP twice.
Note that it may take a few seconds for the
recorder to stop recording.
If timer settings overlap
The program that starts first has priority and the
second program starts recording only after the first
program has finished. If the programs start at the
same time, the program listed first in the menu has
priority. If the end time of one setting and the start
time of another timer setting is the same, the
beginning of the program that starts later will be
cut.
To change or cancel timer recording
See “Changing or Canceling Timer Settings
(Timer List)” on page 53.
To use the Rec Mode Adjust function
If the remaining disc space is not enough for the
current recording, the recorder automatically
adjusts the recording mode. Select “AUTO” for
“Mode” when setting the timer.
zHints
•You can play the recorded program by selecting the
program title in the Title List menu.
•You can also turn on the timer programming menu
from the System Menu. Press SYSTEM MENU to
select “Timer,” and select “Timer-Standard.”
Notes
•Even when correctly set, the program may not be
recorded if another recording is underway, or other
prioritized timer setting overlaps.
•Before the timer recording starts, “TIMER REC”
flashes in the front panel display.
•The recorder automatically turns off when a timer
recording finishes, even if the recording started with
the recorder turned on.
•The recorder does not record programs with Copy-
Never signals. Such recordings stop after a few
seconds.
7:00 8:00 9:00 10:00
7:00 8:00 9:00 10:00
Program 1
Program 2
will be cut off
Program 1
Program 2
will be cut off
1-12
Recording
53US
Changing or Canceling
Timer Settings (Timer List)
You can change or cancel timer settings using the
Timer List menu.
1Press SYSTEM MENU.
The System Menu appears.
2Select “Timer,” and press ENTER.
3Select “Timer List,” and press ENTER.
Timer information displays the recording
date, time, recording mode, etc.
If there are more than six timer settings, press
m to display the next page.
4Select the timer setting you want to change
or cancel, and press ENTER.
The sub-menu appears.
5Select one of the options, and press
ENTER.
“Edit”: Changes the timer setting.
Select an item using </, and adjust using
M/m. Press ENTER.
“Erase”: Erases the timer setting.
Select “OK” and press ENTER when asked
for confirmation.
6Press SYSTEM MENU to turn off the Timer
List.
To return to the previous display
Press ORETURN.
Notes
•Even when correctly set, the program may not be
recorded if another recording is underway, or other
prioritized timer setting overlaps. For priority, see
page 52.
+
RW
+
R
-
RW
VR
-
RW
Video
-
R
VR
-
R
Video
112233
445566
7788
00
99
SYSTEM
MENU M/m/</,,
ENTER
ORETURN
01 04/15 09:00PM 10:00PM Line1
--/-- --:-- --:-- ---- ---04
--/-- --:-- --:-- ---- ---05
--/-- --:-- --:-- ---- ---06
03 --/-- --:-- --:-- ---- ---
02 04/30 09:15PM 09:45PM Line1
10:10 AM
SP
SP
Timer List
No Date Start End Ch Mode Edit
01 04/15 09:00PM 10:00PM Line1
--/-- --:-- --:-- ---- ---04
--/-- --:-- --:-- ---- ---05
--/-- --:-- --:-- ---- ---06
03 --/-- --:-- --:-- ---- ---
02 04/30 09:15PM 09:45PM Line1
10:10 AM
Timer List
No Date Start End Ch Mode Edit
Edit
Erase
01 DVD 04/15 09:00PM 10:00PM CH8
--- --/-- --:-- --:-- ---- ---04
--- --/-- --:-- --:-- ---- ---05
--- --/-- --:-- --:-- ---- ---06
03 --- --/-- --:-- --:-- ---- ---
02 DVD 04/30 09:15PM 09:45PM CH11
10:10 AM
No Rec To Date Start End Source Mode Edit
Timer – Standard
No.1
:
PM PM
:
09 00 10 00 Line1 SP
Date Start End Ch Mode
04/15
01 04/15 09:00PM 10:00PM CH8
--/-- --:-- --:-- ---- ---04
--/-- --:-- --:-- ---- ---05
--/-- --:-- --:-- ---- ---06
03 --/-- --:-- --:-- ---- ---
02 04/30 09:15PM 09:45PM CH11
10:10 AM
No Date Start End Source Mode Edit
Timer List
Do you want to erase ‘No.01’?
OK Cancel
,continued
54US
•You cannot change the timer settings for a recording
currently underway. Recording From Connected
Equipment With a Timer
(Synchro Rec)
You can set the recorder to automatically record
programs from connected equipment that has a
timer function (such as a satellite tuner). Connect
the equipment to the LINE 1 IN (VIDEO/AUDIO)
jacks on the rear of the recorder (page 13).
When the connected equipment turns on, the
recorder starts recording a program from the LINE
1 IN jacks.
Note
To play a disc recorded with this recorder on other
equipment, finalize the disc (page 66).
1Insert a recordable disc.
2Select the line input audio.
Set “Line Audio Input” of “Audio” setup to
“Stereo” or “Main/Sub” in the “Setup”
display (page 84).
+RW +R
-
RW
VR
-
RW
Video
-
R
VR
-
R
Video
112233
445566
7788
00
99
M/m/</,,
ENTER
SYNCHRO
REC
xSTOP
REC MODE
SYSTEM
MENU
Recording
55US
3Press REC MODE repeatedly to select the
recording mode.
The display changes on the TV screen as
follows:
For details about the recording mode, see
page 47.
4Set the timer on the connected equipment
to the time you want to record, and turn it
off.
5Press SYNCHRO REC.
The SYNC-REC indicator lights up in the
front panel display and the recorder stands by
for Synchro-Rec.
The recorder starts recording when a signal is
received from the connected equipment.
When the connected equipment turns off, the
recording stops and the recorder turns off.
To stop recording
Press xSTOP twice.
To cancel a Synchro-Rec function
Press SYNCHRO REC before recording starts.
The SYNC-REC indicator turns off in the front
panel display.
If you press SYNCHRO REC during Synchro-
Rec, the recording stops, the SYNC-REC
indicator turns off, and the recorder turns off.
If the timer settings of a Synchro-Recording
and another timer recording overlap
Regardless of whether or not the program is a
Synchro-Rec program, the program that starts first
has priority. The recorder starts recording the
second program about ten seconds after the first
program has finished. If the end time of one
setting and the start time of another timer setting is
the same, the beginning of the program that starts
later will be cut.
Notes
•The recorder starts recording only after detecting the
video signal from the connected equipment. The
beginning of the program may not be recorded
regardless of whether or not the recorder’s power is on
or off.
•To use the connected equipment during Synchro-Rec
standby, cancel the standby mode by pressing
SYNCHRO REC. To return to standby mode again, be
sure to turn off the equipment and press SYNCHRO
REC, before Synchro-Rec starts.
•The Synchro-Rec function does not work with some
tuners. For details, see the tuner’s operating
instructions.
•The Synchro-Rec function does not work for a video
signal input via the LINE 1 IN S VIDEO jack.
•After a recording has finished, the recorder enters the
Synchro-Rec standby mode until the SYNC-REC
indicator turns off in the front panel display.
•If Synchro-Rec starts with the recorder turned on, the
recorder will turn off when the recording ends.
•The recorder does not record programs with Copy-
Never signals. Such recordings stop after a few
seconds.
HQ SPHSP LSP
SLP LPEP ESP
7:00 8:00 9:00 10:00
Program 1
Program 2
will be cut off
56US
Recording From a VCR or
Similar Device
You can record from a connected VCR or similar
device. For connection details, see “Connecting a
VCR or Similar Device” on page 27.
To record from the equipment that has a DV/D8
output jack (i.LINK jack), use the DV IN jack on
the front panel. For details, see page 68.
To record from a USB device connected to the
USB jack, see page 71.
Note
To play a disc recorded with this recorder on other
equipment, finalize the disc (page 66).
If you set “Auto Finalize” to “On” in the “Features” setup
(page 85), the Auto Finalize function works for DVD-
RWs (Video mode), DVD-Rs (Video mode) and
DVD+Rs after recording. For details, see page 67.
1Insert a recordable disc.
2Press INPUT repeatedly to select an input
source according to the connection you
made.
The front panel display changes as follows:
When connecting to the LINE 2 IN jacks on
the front panel, select “LINE2.”
3Press REC MODE repeatedly to select the
recording mode.
The display changes on the TV screen as
follows:
For details about the recording mode, see
page 47.
4Select the line input audio.
Set “Line Audio Input” of “Audio” setup to
“Stereo” or “Main/Sub” in the “Setup”
display (page 84).
5Insert the source tape into the connected
equipment and set to playback pause.
6Press zREC on this recorder and the
pause or play button on the connected
equipment at the same time.
Recording starts.
To stop recording, press xSTOP on this
recorder.
Notes
•A video game image may not be recorded clearly.
•The recorder does not record programs with Copy-
Never signals. Such recordings stop after a few
seconds.
•During recording or recording pause, you cannot
change the recording mode.
•You cannot change the input source during recording.
+RW +R
-
RWVR
-
RWVideo
-
RVR
-
RVideo
112233
445566
7788
00
99 INPUT
xSTOP
REC MODE
zREC
LINE2 DV USBLINE1
HQ SPHSP LSP
SLP LPEP ESP
1-13

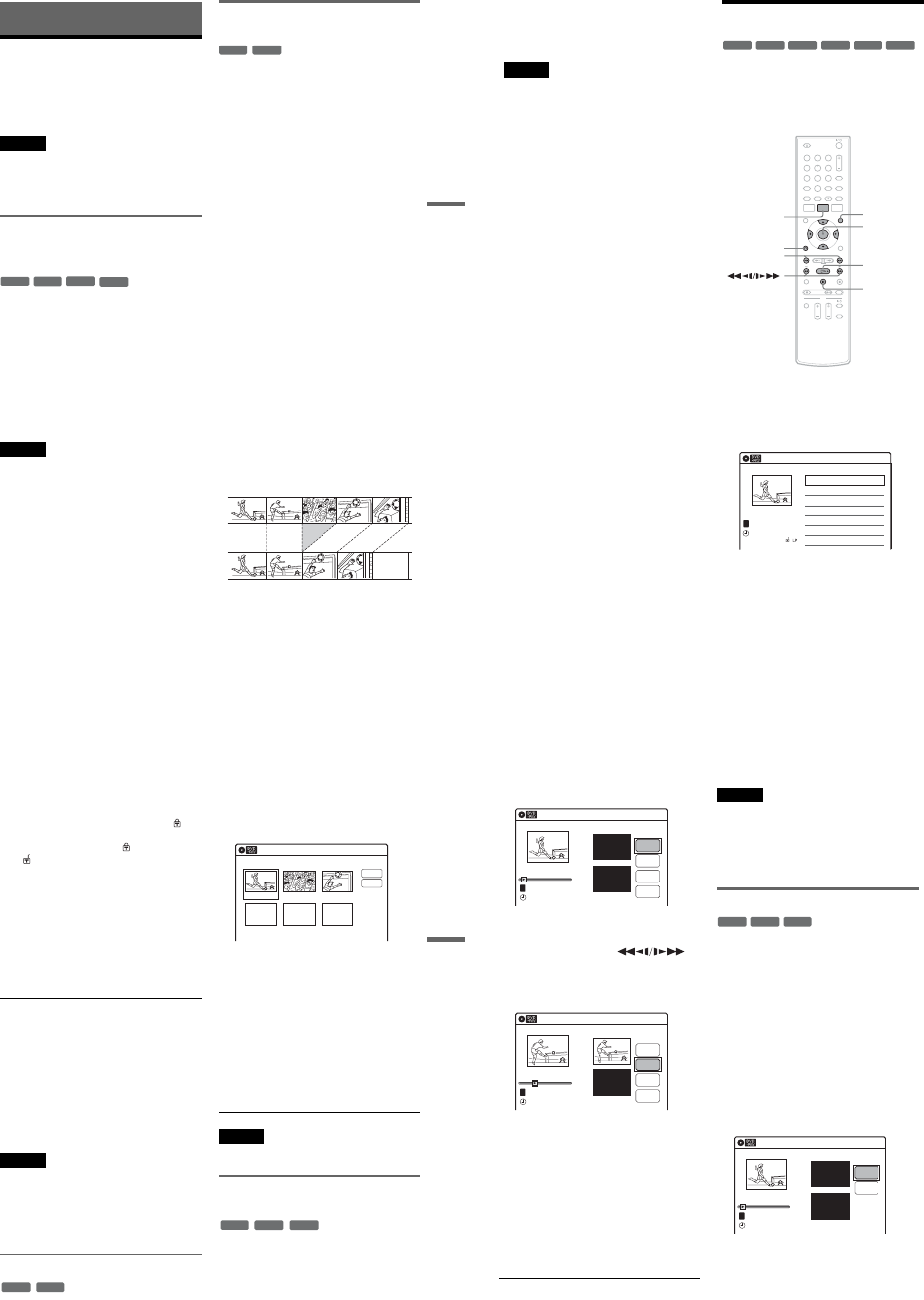

Editing
57US
Editing
Before Editing
This recorder offers various edit options for
various disc types. Before you edit, check the disc
type in the “Disc Information” display (page 64),
and select the option available for your disc.
Notes
•You may lose the edited contents if you remove the disc
or a timer recording starts while editing.
•You cannot edit recordings on DVD-RWs (Video
mode), DVD+Rs, or DVD-Rs (Video mode) recorded
on other DVD equipment.
Edit options for DVD+RWs/DVD-RWs
(Video mode)/DVD+Rs/DVD-Rs
(Video mode)
You can perform simple edits. Since Video mode
titles are actual recordings on the disc, you cannot
undo any edits you make. The edit functions
available for Video mode titles are:
–Renaming a title (page 61).
–Erasing a title (page 58).
–Setting protection against erasure (DVD+RWs
only) (page 58).
–Erasing a section of a title (A-B Erase)
(DVD+RWs only) (page 59).
–Dividing a title (DVD+RWs only) (page 60).
Notes
•Once the disc is finalized, you cannot edit or record on
the disc (except for DVD+RWs).
•If a message appears and indicates that the disc’s
control information is full, erase unnecessary titles.
Edit options for DVD-RWs (VR mode)/
DVD-Rs (VR mode)
You can enjoy advanced edit functions. First you
have two options for a DVD-RW (VR mode) and
DVD-R (VR mode): editing either the original
recording (called the “original”), or the playback
information created from the original (called a
“Playlist”). Since each is different in nature and
offers different merits, read the following and
select the one that better suits your needs.
To edit original titles
Edits made to the original titles are final. If you
plan to retain an unaltered original recording,
create a Playlist (see below). The edit functions
available for original titles are:
–Renaming a title (page 61).
–Erasing a title (page 58).
–Erasing a chapter (page 59).
–Setting protection against erasure (page 58).
–Erasing a section of a title (A-B Erase) (page 59).
–Dividing a title (page 60).
To create Playlist titles
A Playlist is a group of Playlist titles created from
the original title. When you create a Playlist, only
the control information necessary for playback,
such as the playback order, is stored on the disc.
The original titles are left unaltered.
If you erase an original title used in a Playlist, that
Playlist is also erased.
Example: You have recorded the final few
matches of a soccer tournament on a DVD-RW
(VR mode). You want to create a digest with the
goal scenes and other highlights, but you also want
to keep the original recording.
In this case, you can compile highlight scenes as a
Playlist title.
-
RW
Video
+
RW
+R
-
R
Video
-
RW
VR
-
R
VR
,continued 58US
zHints
•You can switch the Title List to show original or
Playlist. While the Title List menu is turned on, press
ORIGINAL/PLAYLIST repeatedly.
•You can rename or erase a Playlist title (page 64).
Notes
•You cannot protect Playlist titles.
•If a message appears and indicates that the disc’s
control information is full, erase unnecessary titles.
•You cannot create or edit Playlist titles on a finalized
disc. When you want to edit or record on the DVD-RW
again, unfinalize the disc (page 66).
Editing a Title
This section explains the basic edit functions. Note
that editing is irreversible. To edit a DVD-RW
(VR mode) or DVD-R (VR mode) without
changing the original recordings, create a Playlist
title (page 62).
1Press TITLE LIST.
When editing a DVD-RW (VR mode) or
DVD-R (VR mode), press ORIGINAL/
PLAYLIST to switch to the “Title List
(Original),” if necessary.
2Select a title, and press ENTER.
The sub-menu appears.
-
RW
VR
-
RW
Video
+RW +R
-
R
Video
-
R
VR
112233
445566
7788
00
99
M/m/</,,
ENTER
TITLE LIST
HPLAY
XPAUSE
ORIGINAL/
PLAYLIST
.PREV/
>NEXT
ORETURN
Title List (Original) 10:10 AM
>
>
LINE
1
08:00 PM
May/02/2008
T
No. Title Length Edit
01 LINE 1 01:29:03
02 LINE 1 00:31:23
03 LINE 1 >01:59:00
04 LINE 1 >00:58:56
1/4
Editing
59US
3Select an option, and press ENTER.
You can select from the following:
“Title Erase”: Erases the selected title. Select
“OK” when asked for confirmation.
“Chapter Erase”*1: Allows you to select a
chapter in the title and erase it (see below).
“Protect”*2: Protects the title. Select “On”
when the Protection display appears. “ ”
appears for the protected title. To cancel the
protection, select “Off.” “ ” changes to
“.”
“Title Name”: Allows you to rename the title
(page 61).
“A-B Erase”*2: Erases a section of the title
(see below).
“Divide Title”*2: Divides a title into two
(page 60).
*1 DVD-RWs (VR mode) and DVD-Rs (VR mode)
only
*2 DVD+RWs, DVD-RWs (VR mode), and DVD-R
(VR mode) only
About freeing up disc space
Erasing titles, chapters, or scenes:
–frees up disc space on a DVD-RW (VR mode).
–frees up disc space on a DVD+RW/DVD-RW
(Video mode) only when you erase the last title
or chapter.
–cannot free up disc space on a DVD+R/DVD+R
DL/DVD-R.
zHint
You can also rename a disc (page 64).
Notes
•When editing a DVD-RW (Video mode), DVD+R, or
DVD-R, finish all editing before finalizing the disc.
You cannot edit a finalized disc.
•You cannot erase protected titles or erase chapters from
a protected title.
•If you erase an original title used in a Playlist, that
Playlist is also erased.
Erasing a chapter (Chapter Erase)
You can select a chapter within a title and erase it.
Note that erasing chapters from original titles
cannot be undone.
1Press TITLE LIST.
Press ORIGINAL/PLAYLIST to switch to the
“Title List (Original),” if necessary.
2Select a title, and press ENTER.
The sub-menu appears.
3Select “Chapter Erase,” and press ENTER.
The display for erasing chapters appears.
4Select the chapter you want to erase, and
press ENTER.
“Check” is selected. To preview the chapter,
press ENTER. When playback finishes or
when you press O RETURN, the display
returns to “Chapter Erase (Original).”
5Select “Erase,” and press ENTER.
The display asks for confirmation.
6Select “OK,” and press ENTER.
The selected chapter is erased from the title.
To erase other chapters, repeat from step 4.
Note
If you erase an original title used in a Playlist, that Playlist
is also erased.
Erasing a section of a title
(A-B Erase)
You can select a section (scene) within a title and
erase it. Note that erasing scenes from original
titles cannot be undone.
1Press TITLE LIST.
When editing a DVD-RW (VR mode) or
DVD-R (VR mode), press ORIGINAL/
PLAYLIST to switch to the “Title List
(Original),” if necessary.
-
RWVR
-
RVR
Chapter Erase (Original) 10:10 AM
Chapter No. 1 / 3 Title No.01
03 00:04:2002 00:00:1001 00:00:34
Check
Erase
-
RWVR
-
RVR
+RW
,continued

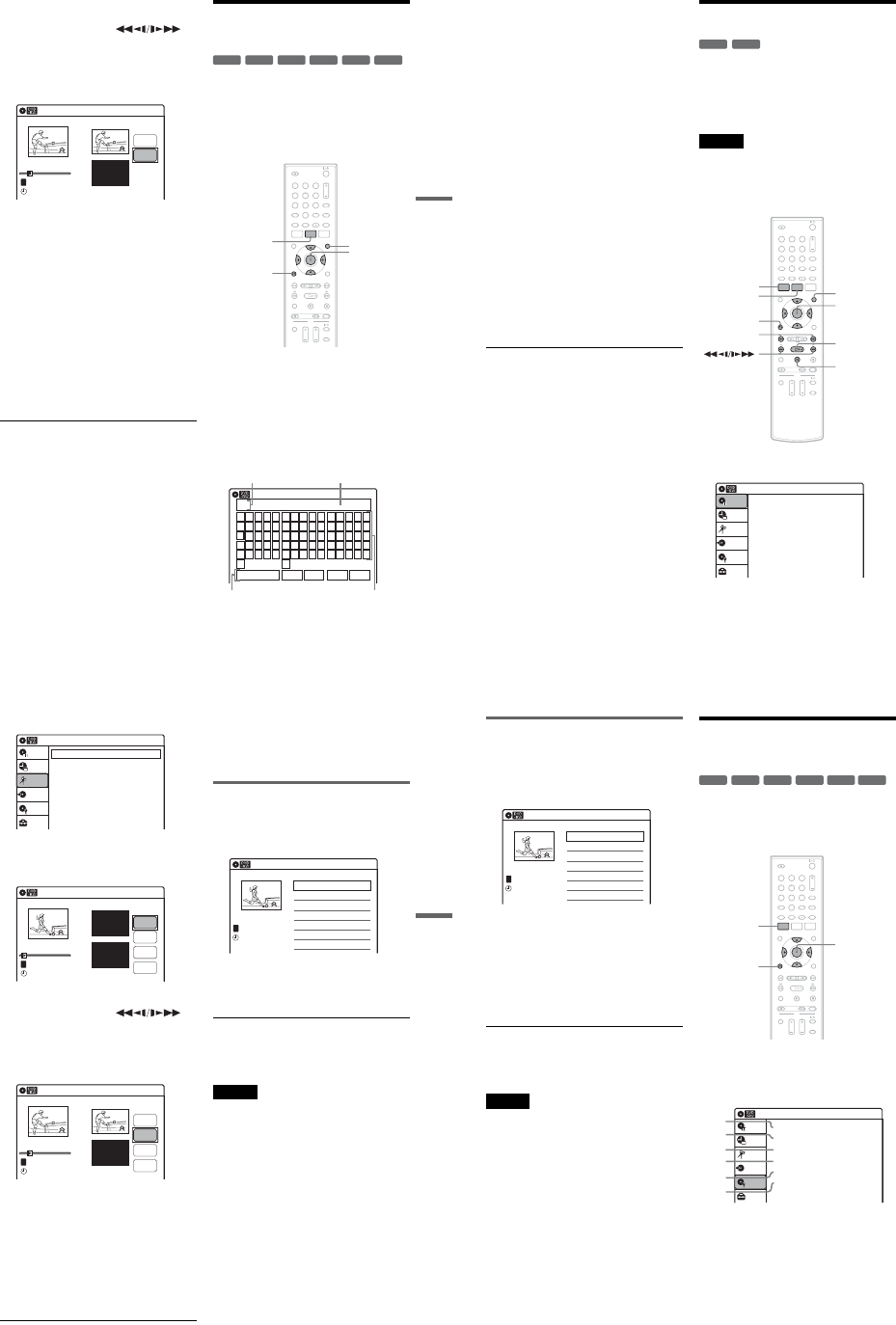

60US
2Select a title, and press ENTER.
The sub-menu appears.
3Select “A-B Erase,” and press ENTER.
The display for setting point A and B appears.
“Start” is selected.
4Press ENTER at the start point of the
section to be erased (point A).
You can use HPLAY, ,
.PREV/>NEXT, and XPAUSE to
find the point. At the point you want to select,
press HPLAY or XPAUSE, and press
ENTER. “End” is selected.
5Press ENTER at the end point of the section
(point B).
“Erase” is selected.
To reset the start or end point, select “Start” or
“End” and repeat from step 4 or 5.
6Press ENTER.
The display asks for confirmation.
7Select “OK,” and press ENTER.
The scene is erased.
To continue, repeat from step 4.
To finish, select “Finish,” and press ENTER.
zHint
A chapter mark is inserted after the scene was erased. The
chapter mark divides the title into separate chapters on
either side of the mark.
Notes
•Images or sound may be momentarily interrupted at the
point where you erase a section of a title.
•Sections shorter than five seconds may not be erased.
•The start and end points of a title may be different from
what you have set.
•If you erase an original title used in a Playlist, that
Playlist is also erased.
Dividing a title into two (Divide Title)
You can divide a title into two. Note that dividing
original titles cannot be undone.
1
Press TITLE LIST.
When editing a DVD-RW (VR mode) or
DVD-R (VR mode), press ORIGINAL/
PLAYLIST to switch to the “Title List
(Original),” if necessary.
2
Select a title, and press ENTER.
The sub-menu appears.
3
Select “Divide Title,” and press ENTER.
The display for setting the dividing point
appears.
“Point” is selected.
A-B Erase 10:10 AM
Title No.01
End 00:00:00
Start 00:00:00
Start
End
Erase
Finish
00:00:07
T
Title No.01
May/02/2008 08:00 PM
A-B Erase 10:10 AM
Title No.01
End 00:00:00
Start 00:00:10
Start
End
Erase
Finish
00:00:10
T
Title No.01
May/02/2008 08:00 PM
-
RWVR
+RW
-
RVR
Divide Title (Original) 10:10 AM
Title No.01
T
Poin t
Divide
00:00:07
Title No. 01
Start 00:00:00
End 00:00:00
May/02/2008 08:00 PM
1-14
Editing
61US
4Press ENTER at the point where you want to
divide the title.
You can use HPLAY, ,
.PREV/>NEXT, and XPAUSE to
find the point. At the point you want to select,
press HPLAY or XPAUSE, and press
ENTER.
“Divide” is selected.
5Press ENTER.
The display asks for confirmation.
To reset the dividing point, select “No” and
press ENTER, then repeat from step 4.
6Select “Yes,” and press ENTER.
The display asks whether to rename the title.
To use the same name as before, select “No”
and press ENTER to finish.
7Select “Yes,” and press ENTER.
The “Title Name” display appears.
8Follow steps 4 to 6 of “Changing the Name
of a Title” (page 61) to complete
renaming.
The divided title appears in the Title List with
the new name.
zHint
If the dividing point is set too close to the beginning of the
title, the title cannot be divided.
Changing the Name of a
Title
You can enter a title name of up to 32 characters.
Since the displayed number of characters is
limited, their appearance in menus such as Title
List may be different. When the display for
entering characters appears, follow the steps
below.
1Press TITLE LIST.
When editing a DVD-RW (VR mode) or
DVD-R (VR mode), press ORIGINAL/
PLAYLIST to switch to the “Title List
(Original),” if necessary.
2Select a title, and press ENTER.
The sub-menu appears.
3Select “Title Name,” and press ENTER.
The “Title Name” display appears.
10:10 AM
Title No.01
T
00:00:10
Divide Title (Original)
Title No. 01
End 00:00:10
Start 00:00:00
Poin t
Divide
May/02/2008 08:00 PM
+
R
-
RW
VR
-
RW
Video
+
RW
-
R
VR
-
R
Video
112233
445566
7788
00
99
M/m/</,,
ENTER
ORETURN
TITLE LIST ORIGINAL/
PLAYLIST
Title Name
K _
A B C D E
F G H I J
K L M N O
P Q R S T
U V W X Y
Z
a b c d e
f g h i j
k l m n o
p q r s t
u v w x y
z
1 2 3 4 5
6 7 8 9 0
- _ + = .
~
!
@ # $
%^& ( )
Backspace Space Delete Clear Finish
10:10 AM
Input row
Character paletteSetting buttons
Cursor
,continued
62US
4Select the character you want to enter
using M/m/</,, and press ENTER.
The selected character appears in the input
row.
You can only enter characters and symbols
that are displayed.
•To change the cursor position, select the
input row using M, and press </,.
•To erase a character, select either of the
following setting buttons and press ENTER.
“Backspace”: Erases the character to the left
of the cursor.
“Delete”: Erases the character at the cursor
position.
“Clear”: Erases all the characters in the input
row.
•To insert a space, move the cursor to the
desired position, select “Space,” and press
ENTER.
•To insert a character, move the cursor to the
desired position, select the character, and
press ENTER.
5Repeat step 5 to enter the remaining
characters.
To return to the Title List without renaming
the title, press ORETURN.
6Select “Finish,” and press ENTER.
zHint
You can also rename a disc (page 64). Follow steps 4 to
6 above when the “Disc Name” display appears.
Creating a Playlist
Playlist titles allow you to edit without changing
the original recordings (see “Edit options for
DVD-RWs (VR mode)/DVD-Rs (VR mode)” on
page 57). You can create a Playlist title by
combining up to 99 sections (scenes) from original
titles.
Notes
•If you erase an original title used in a Playlist, that
Playlist is also erased.
•You cannot create or edit Playlist titles on a finalized
disc. When you want to edit or record on the DVD-RW
again, unfinalize the disc (page 66).
1Press SYSTEM MENU while the recorder is
in stop mode.
-
RW
VR
-
R
VR
112233
445566
7788
00
99
M/m/</,,
ENTER
SYSTEM
MENU
HPLAY
TITLE LIST
XPAUSE
ORIGINAL/
PLAYLIST
.PREV/
>NEXT
ORETURN
Press ENTER :
Title Menu for DVD Title List.
10:10 AM
Title List (Original)
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Editing
63US
2Select “Edit,” and press ENTER.
3Select “Create Playlist,” and press ENTER.
The display for creating a Playlist appears.
“Start” is selected.
4Press ENTER at the start point.
You can use HPLAY, ,
.PREV/>NEXT, and XPAUSE to
find the point. At the point you want to select,
press HPLAY or XPAUSE, and press
ENTER.
“End” is selected.
5Press ENTER at the end point.
“Make” is selected.
To reset the start or end point, select “Start” or
“End” and repeat step 4 or 5.
6Press ENTER.
The selected section is captured as a scene. To
continue, repeat from step 4.
7When you finish capturing scenes, select
“Finish” and press ENTER.
To return to the previous display
Press ORETURN.
To turn off the display
Press SYSTEM MENU.
Playing a Playlist title
1Press TITLE LIST.
2Press ORIGINAL/PLAYLIST to switch to the
“Playlist” Title List.
3Select a Playlist title, and press ENTER.
The sub-menu appears.
4Select “Play,” and press ENTER.
zHint
When a Playlist title is created, the start and end points
will become chapter marks, and each scene will become
a chapter.
Notes
•The picture may pause when an edited scene is played.
•The start and end points in a title may be different from
what you have set.
10:10 AM
Create Playlist
Edit Playlist
Edit
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Create Playlist 10:10 AM
Scene No.01
End 00:00:00
Start 00:00:00
T
Start
End
Make
Finish
00:00:07
---/--/---- --:--
Playlist No. 01
10:10 AM
Scene No.01
T
Finish
00:00:10
Create Playlist
Playlist No. 01
End 00:00:00
Start 00:00:10
Start
End
Make
---/--/---- --:--
Playlist 10:10 AM
01 LINE 1 >00:05:04
02 LINE 1 >00:00:51
03:25 PM
May/02/2008
T
No. Title Length Edit
1/2
LINE
1
,continued
64US
Renaming and erasing a Playlist
title
1Press TITLE LIST.
2Press ORIGINAL/PLAYLIST to switch to the
“Playlist” Title List.
3Select a Playlist title, and press ENTER.
The sub-menu appears.
4Select an option, and press ENTER.
Select from the following options.
“Title Erase”: Erases the title. Select “OK”
when asked for confirmation.
“Title Name”: Allows you to rename the title
(page 61).
zHint
You can also edit Playlist titles from the System Menu.
Press SYSTEM MENU to select “Edit,” and select “Edit
Playlist.”
Note
You cannot create or edit Playlist titles on a finalized
disc. When you want to edit or record on the DVD-RW
again, unfinalize the disc (page 66).
Formatting/Renaming/
Protecting a Disc
The “Disc Setting” display allows you to check the
disc information or change the disc name.
Depending on the disc type, you can also format or
set protection.
1Press SYSTEM MENU while the recorder is
in stop mode.
2Select “Disc Setting,” and press ENTER.
The “Disc Setting” display appears.
3Select an option, and press ENTER.
A“Disc Name”: Allows you to rename a
disc.
For details on how to enter characters,
see page 61.
Playlist 10:10 AM
01 LINE 1 >00:05:04
02 LINE 1 >00:00:51
03:25 PM
May/02/2008
T
No. Title Length Edit1/2
LINE
1
+RW
-
RWVR
-
RWVideo
+R
-
RVR
-
RVideo
112233
445566
7788
00
99
SYSTEM
MENU
M/m/</,,
ENTER
ORETURN
Disc Setting 10:10 AM
Disc Name :
Disc Protect : Not Protected
Disc Format : VR Mode
Disc Finalize : Unfinalized
Disc Information
Erase All Titles
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
2
3
4
5
1
6
1-15
Editing
65US
B“Disc Protect” (DVD+RWs/DVD-RWs
(VR mode)/DVD-Rs (VR mode) only):
Protects all titles on the disc when
“Protected” is selected. To cancel the
protection, select “Not Protected.”
C“Disc Format” (DVD+RWs/DVD-
RWs/DVD-Rs only): Erases all
contents of the disc, including protected
titles, and makes a blank disc (except
DVD-Rs).
For DVD-RWs, select a recording
format (“VR Mode” or “Video Mode”)
according to your needs.
To format unused DVD-Rs in VR
mode, select “VR Mode” and then
“OK.”
D“Disc Finalize”: Finalizes a disc. See
page 66 for details.
E“Disc Information”: Displays the
following information.
•Disc name
•Disc type (and recording format for a
DVD-RW (VR mode)/DVD-R (VR
mode))
•Total number of titles
•Protect setting
•The oldest and most recent recording
date
•The total available recording time in
each recording mode
F“Erase All Titles” (DVD+RWs/DVD-
RWs/DVD-Rs (VR mode) only):
Erases all titles on the disc (except
protected titles). Select “OK” when
asked for confirmation.
For DVD-RWs (VR mode)/DVD-Rs
(VR mode), Playlist titles created with
protected titles are also erased.
To return to the previous display
Press ORETURN.
zHints
•You can set protection for individual titles (page 58).
•By reformatting, you can change the recording format
on DVD-RWs, or record again on DVD-RWs (Video
mode) that have been finalized.
Notes
•You can label a disc using up to 32 characters;
however, the name may not display on other DVD
equipment.
•You cannot label an unused DVD-R (Video mode)
disc. Label the disc after you first record on it.
•You cannot mix VR mode and Video mode on the same
DVD-RW or DVD-R.
•You cannot change the recording format on used DVD-
Rs.
•The recorder records on new DVD-Rs in Video mode
unless you first format the discs in VR mode (page 48).
10:10 AM
Disc Information
Disc Name
Media
Title No.
Protected
Date
Remainder
Disc 1
DVD-RW VR ModeFormat
Original 6 / Playlist 1
Not Protected
4/05/2008 ~ 4/30/2008
HQ : 0H 57M
LSP : 2H 23M
EP : 5H 46M
HSP : 1H 26M
ESP : 2H 52M
SLP : 7H 40M
SP : 1H 55M
LP : 3H 50M
4.4/4.7GB
66US

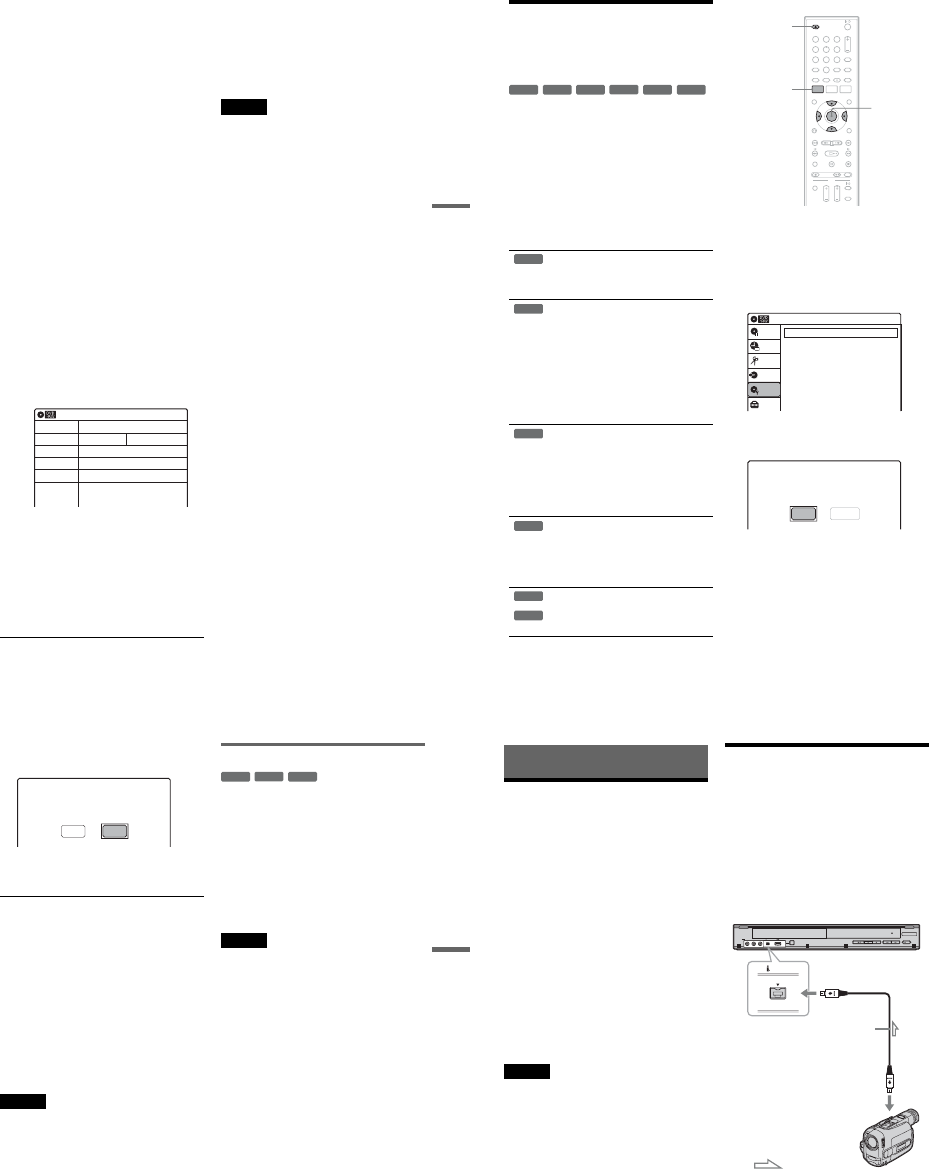

Finalizing a Disc (Preparing
a Disc for Playback on
Other Equipment)
Finalizing is necessary in order to play discs
recorded with this recorder on other DVD
equipment. Note that you cannot further record or
edit on a finalized disc.
When you finalize a DVD+RW/DVD-RW (Video
mode)/DVD+R/DVD-R (Video mode), a DVD
menu will be automatically created, which can be
displayed on other DVD equipment.
Before finalizing, check the differences between
the disc types in the table below.
Differences between the disc types
1Insert a disc.
2Press SYSTEM MENU while the recorder is
in stop mode.
The System Menu appears.
3Select “Disc Setting,” and press ENTER.
The “Disc Setting” display appears.
4Select “Disc Finalize,” and press ENTER.
The display asks for confirmation.
Discs are automatically finalized when
removed from the recorder. You can edit
or record on the disc even after
finalizing.
Finalizing is unnecessary when playing a
disc on VR format compatible equipment.
Even if your other DVD equipment is
VR format compatible, you may need to
finalize the disc, especially if the
recording time is short. After finalizing,
you cannot edit or record on the disc. If
you want to edit or record on it again,
unfinalize or reformat the disc (page 64).
Note however, that reformatting a disc
erases all its contents.
Finalizing is necessary in order to play
on equipment other than this recorder.
After finalizing, you cannot edit or
record on the disc. If you want to edit or
record on it again, unfinalize or reformat
the disc (page 64). Note however, that
reformatting a disc erases all its
contents.
Finalizing is necessary in order to play
on equipment other than this recorder.
The finalized discs can be played on
other VR mode compatible players.
After finalizing, you cannot further edit
or record on the disc.
Finalizing is necessary in order to play
on equipment other than this recorder.
After finalizing, you cannot further edit
or record on the disc.
-
RW
VR
-
RW
Video
+RW +R
-
R
VR
-
R
Video
+RW
-
RW
VR
-
RW
Video
-
R
VR
+R
-
R
Video
112233
445566
7788
00
99
SYSTEM
MENU
M/m/</,,
ENTER
Z OPEN/
CLOSE
Disc Setting 10:10 AM
Disc Name :
Disc Protect : Not Protected
Disc Format : VR Mode
Disc Finalize : Unfinalized
Disc Information
Erase All Titles
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Do you want to finalize this disc ?
UnfinalizeFinalize
Editing
67US
5Select “Finalize,” and press ENTER.
The display asks for confirmation again.
6Select “OK,” and press ENTER.
The recorder starts finalizing the disc.
To turn off the display
Press SYSTEM MENU.
To unfinalize a DVD-RW
If you cannot record or edit on a DVD-RW that has
been finalized, unfinalize the disc by selecting
“Unfinalize” in step 5 above.
zHints
•You can check whether the disc has been finalized or
not. If you cannot select “Finalize” in step 5 above, the
disc has already been finalized.
•To check the disc information, select “Disc
Information” in the “Disc Setting” display and press
ENTER. See page 64 for details.
Notes
•Depending on the condition of the disc, the recording,
or the DVD equipment, discs may not play even if the
discs are finalized.
•The recorder may not be able to finalize a disc if it was
recorded on another recorder.
Using the Auto Finalize function
If the recording exceeds 30 % of the disc capacity,
the recorder automatically finalizes DVD-RWs
(Video mode), DVD-Rs (Video mode), and
DVD+Rs:
–when you eject the disc by pressing Z OPEN/
CLOSE immediately after you stop recording by
pressing x STOP.
–when all the timer recordings are finished.
–if the disc becomes full during recording.
To turn on this function, set “Auto Finalize” to
“On” in the “Features” setup (page 85).
Notes
•It may take a few minutes for the recorder to finalize a
disc.
•A disc once finalized cannot be recorded or edited.
•DVD-Rs (Vidoe mode)/DVD+Rs cannot be
unfinalized.
•For discs where erasing titles/chapters does not free up
disc space (page 59), the Auto Finalize function
activates if the total amount of recording before erasing
exceeds 30 % of the disc capacity.
•The Auto Finalize function does not work for One-
touch Timer Recording (page 50) or Synchro-
Recording (page 54).
Disc will be finalized.
Do you want to continue ?
CancelOK
-
RWVideo
+R
-
RVideo
68US
DV/D8 Dubbing (DV/D8 t DVD)
Before DV/D8 Dubbing
This section explains dubbing with a DV
camcorder via the DV IN jack on the front panel.
If you want to dub by way of the LINE IN jacks,
see “Recording From a VCR or Similar Device”
on page 56.
About the DV IN jack
The DV IN jack on this recorder conforms to the
i.LINK standard. You can connect any other
equipment that has an i.LINK (DV) jack, and
record digital signals.
For more information about i.LINK, see “About
i.LINK” on page 96.
zHint
If you plan to do additional editing on a disc after the
initial dub, use the DV IN jack and record on a DVD-RW
(VR mode) or DVD-R (VR mode). Note that erasing
unwanted scenes does not free up disc space for DVD-Rs
(VR mode).
Notes
•The DV IN jack is for input only. It will not output
signals.
•You cannot use the DV IN jack when:
–your DV camcorder does not work with this recorder.
Connect the camcorder to the LINE IN jack and
follow the instructions of “Recording From a VCR or
Similar Device” on page 56.
–the input signal is not in DVC-SD format. Do not
connect a MICROMV format DV camcorder even if
it has an i.LINK jack.
–the input signal is in HDV (1080i) format.
–the images on the tape contain copy protection
signals, which limit recording.
Connecting a DV Camcorder
to the DV IN Jack
You can connect a DV camcorder to the DV IN
jack on the recorder to record or edit from a DV/
D8 format tape. Operation is straightforward
because the DVD recorder will fast forward and
rewind the tape for you – you do not need to
operate your DV camcorder.
Refer to the instruction manual supplied with the
DV camcorder as well before connecting.
LINE 2 IN DV IN
ONE-TOUCH
DUBBING
REC
VIDEO L
(MONO)
AUDIO R
DV I N
DVD recorder
to DV IN
: Signal flow
i.LINK cable
(not supplied)
to DV output
DV camcorder
1-16
DV/D8 Dubbing (DV/D8 t DVD)
69US
Dubbing From a DV/D8
Format Tape to a DVD
You can simply record the entire contents of a DV/
D8 format tape onto a disc. The recorder controls
the DV camcorder for the whole process. You can
also select the scenes on the tape using the on-
screen display. See “Dubbing selected scenes” on
page 70.
◆How titles and chapters are created
The dubbed contents on the disc become one title,
and the title is then divided into chapters at either
5 or 15-minute intervals, according to the “DVD
Auto Chapter” setting of “Features” in the “Setup”
display.
Notes
•To play the dubbed disc on other DVD equipment,
finalize the disc (page 66). If you set “Auto Finalize” to
“On” in the “Features” setup (page 85), the Auto
Finalize function works for DVD-RWs (Video mode),
DVD-Rs (Video mode) and DVD+Rs after dubbing.
For details, see page 67.
•Do not connect the (USB) jack at the same time.
1Place a recordable disc on the disc tray.
About inserting discs, see page 49 for details.
2Insert the source DV/D8 format tape into
your DV camcorder, and set the camcorder
to video playback mode.
3Press INPUT repeatedly to select “DV.”
4Press REC MODE repeatedly to select the
recording mode.
5Set the “DV/D8 Audio Input” setting in the
“Audio” setup (page 84).
Select the desired audio if multiple audio
channels are recorded on the tape.
6Press ONE-TOUCH DUBBING on the
recorder.
The recorder rewinds the tape in the DV
camcorder and then starts recording the tape
contents from the beginning.
When playback of the tape stops, One Touch
Dubbing ends automatically.
To stop recording
Press x STOP.
Note that it may take a few seconds for the
recorder to stop recording.
Notes
•During dubbing, timer recordings are unavailable.
•You cannot record the date, time, or contents of a DV/
D8 format tape onto the disc.
•If you record from a DV/D8 format tape with a
soundtrack that is recorded in multiple sampling
frequencies (48 kHz, 44.1 kHz, or 32 kHz), no sound,
or an unnatural sound may be output when passing the
sampling frequency switch point on the disc.
•The recorded picture may be momentarily affected if
the picture size of the source image changes, or if there
is nothing recorded on the tape.
•Noise may occur if you switch the audio sampling
mode (48 kHz/16 bits t 32 kHz/12 bits).
-
RW
VR
-
RW
Video
+
RW
+
R
-
R
VR
-
R
Video
112233
445566
7788
00
99
REC MODE
INPUT
SYSTEM
MENU M/m/</,,
ENTER
x STOP
REC
ONE-TOUCH DUBBING
,continued
70US
Dubbing selected scenes
You can fast forward, rewind, play in slow motion,
and stop the tape to select scenes using the on-
screen display.
1Follow steps 1 to 5 of “Dubbing From a DV/
D8 Format Tape to a DVD” (page 69).
2Select “Dubbing” on the System Menu,
and press ENTER.
3Select “DV/D8 Dubbing,” and press
ENTER.
4Select “DV/D8 Simple Dubbing,” and
press ENTER.
The “DV Tape Mode” display appears.
If “DV” or “DV Camera Mode” is displayed,
check that the DV camcorder is correctly
connected, turned on, and set to the video
playback mode.
5Find the dubbing start point on the tape,
and stop or pause playback.
Press </, to select m, x, X, y, H, or
M on the TV screen and press ENTER to
find the point, and stop or pause with x or X.
6Press , to select z on the TV screen, and
press ENTER.
Dubbing starts.
To stop recording
Select x on the TV screen, and press ENTER.
Note that it may take a few seconds for the
recorder to stop recording.
To turn off the display for DV/D8 dubbing
Press INPUT.
zHint
If “DV Camera Mode” appears on the screen, you can use
z on the TV screen to record the camera image directly
on the recorder.
Dubbing 10:10 AM
DV/D8 Dubbing
USB Dubbing
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
DV/D8 Dubbing 10:10 AM
DV/D8 Simple Dubbing
DV/D8 One Touch Dubbing
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
DV Tape Mode
USB Dubbing (USB t DVD)
71US

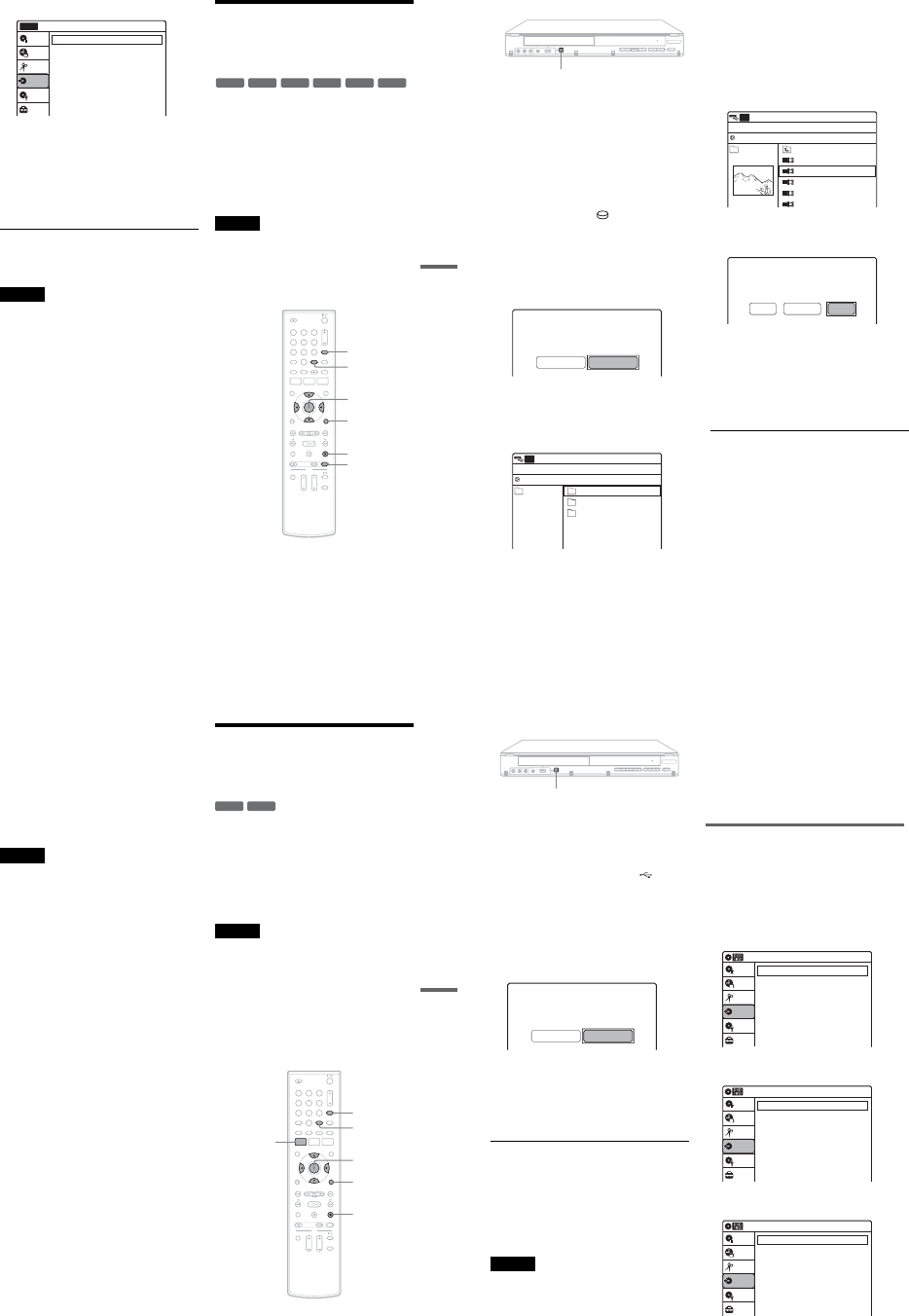

USB Dubbing (USB t DVD)
Before USB Dubbing
This section explains the following dubbing
methods via the USB jack:
•Dubbing all the video contents of the connected
DVD camcorder to make a backup DVD
(page 72).
•Dubbing the selected video contents of the
connected HDD camcorder to a DVD (page 73).
•Copying JPEG image files to a DVD (page 75).
◆Connectable USB devices (as of January 2008)
The following Sony devices can be connected to
this recorder:
DVD camcorder: DCR-DVD108
HDD camcorder: DCR-SR42
Digital still camera: DSC-W200/T100/T20/W80/
W90/H7/H9/G1
zHint
If your HDD camcorder has no USB jack, use the
Handycam Station supplied with the camcorder.
Notes
•During dubbing, do not disconnect the USB device.
•USB cables exclusive for supplying power cannot be
used.
•Connect the camcorder or digital still camera directly to
the recorder, not via a USB hub or other USB device.
•Do not connect the DV IN jack at the same time.
Connecting to the USB jack
You can connect a USB device (DVD camcorder,
HDD camcorder, digital still camera, etc.) to the
USB jack on the recorder.
Also refer to the instruction manual supplied with
the connected USB device before connecting.
1Turn on the recorder and the USB device.
2Connect the USB device to the (USB)
jack on the recorder.
3Set your USB device to the USB connecting
mode, if necessary.
As an example for the HDD camcorder:
When “USB SELECT” appears on the
camcorder’s screen, select “
COMPUTER.”
For details, refer to the operating instructions
supplied with the connected USB device.
LINE 2 IN DV IN
ONE-TOUCH
DUBBING
REC
VIDEO L
(MONO)
AUDIO R
DVD recorder
to (USB)
: Signal flow
USB cable
(not supplied)
to USB output
DVD camcorder, HDD
camcorder, digital still
camera, etc.
72US
Dubbing From a DVD
Camcorder (DVD Backup)
You can dub all the contents of a DVD in the DVD
camcorder to another DVD as a backup copy. Be
sure to finalize a source DVD before dubbing.
◆Usable discs for backup DVDs
Use a new or blank DVD of the same type as the
source DVD.
Notes
•When using a DVD+R/DVD-R, make sure that the disc
is new, unformatted, and has not been loaded into the
recorder. Since blank discs are automatically formatted
once loaded, you can use them for other purposes, such
as timer recording.
•When using a DVD+RW/DVD-RW, use unused or
blank discs only, as the operation erases any pre-
recorded data.
•Insert the disc only after step 4 when the disc tray has
opened. Otherwise the recorder may automatically
format the disc, making it unusable for DVD Backup.
1Press INPUT repeatedly to select “USB.”
2Connect your DVD camcorder and set it to
USB connecting mode.
For example, select “ COMPUTER” when
“USB SELECT” appears on the camcorder’s
screen.
Check the USB indicator lights up in the front
panel display.
3Press ONE-TOUCH DUBBING on the
recorder.
The display asks for confirmation. Note that
you cannot stop dubbing halfway.
4Select “Start” and press ENTER.
The disc tray opens.
5Place a recordable disc, and press Z
OPEN/CLOSE to close the disc tray.
The progress bar display appears, and the
recorder starts dubbing the entire contents of
the source DVD.
Do not disconnect the USB cable while
dubbing is in progress. When dubbing is
complete, the progress bar disappears.
To dub using the on-screen menu
1After step 2 above, press SYSTEM MENU.
2Select “Dubbing,” and press ENTER.
Source DVD
(8 cm)
Recordable DVD
(12 cm)
DVD+RW DVD+RW
DVD-RW (Video mode) DVD-RW
DVD-RW (VR mode) DVD-RW
DVD-R (Video mode) new DVD-R
DVD+R DL new DVD+R
-
RWVR
-
RWVideo
+RW
-
RVideo
+R
,
112233
445566
7788
00
99
SYSTEM
MENU M/m/</,,
ENTER
INPUT
ZOPEN/
CLOSE
REC
ONE-TOUCH DUBBING
Dubbing 10:10 AM
DV/D8 Dubbing
USB Dubbing
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
No Disc
1-17
USB Dubbing (USB t DVD)
73US
3Select “USB Dubbing,” and press ENTER.
4Select “DVD Backup,” and press ENTER.
The display asks for confirmation.
5Select “Start,” and press ENTER.
The disc tray opens.
6Place a recordable disc, and press Z OPEN/
CLOSE to close the disc tray.
Dubbing starts.
zHint
To play the dubbed disc, press INPUT repeatedly to
select the recorder’s input (LINE1 or LINE2).
Note
During dubbing, timer recordings are unavailable. If the
timer is set during dubbing, the timer setting is canceled.
Dubbing From a HDD
Camcorder (Program
Dubbing)
You can dub the selected movie files from a HDD
camcorder onto a recordable disc.
◆How titles and chapters are created
The dubbed contents on the disc become one title,
and the title is then divided into chapters at either
5 or 15-minute intervals, according to the “DVD
Auto Chapter” setting of “Features” in the “Setup”
display.
Note
To play the dubbed disc on other DVD equipment,
finalize the disc (page 66).
If you set “Auto Finalize” to “On” in the “Features” setup
(page 85), the Auto Finalize function works for DVD-
RWs (Video mode), DVD-Rs (Video mode) and
DVD+Rs after dubbing. For details, see page 67.
USB Dubbing 10:10 AM
DVD Backup
HDD-Cam Program Dubbing
Photo Copy
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
No Disc
-
RW
Video
+RW +R
-
R
Video
-
RW
VR
-
R
VR
112233
445566
7788
00
99
REC MODE
M/m/</,,
ENTER
OPTIONS
SET
xSTOP
INPUT
,continued 74US
1Place a recordable disc on the disc tray.
About inserting discs, see page 49 for details.
2Press REC MODE repeatedly to select the
recording mode.
3Press INPUT repeatedly to select “USB.”
4Connect your HDD camcorder and set it to
USB connecting mode.
For example, select “ COMPUTER” when
“USB SELECT” appears on the camcorder’s
screen.
Check the USB indicator lights up in the front
panel display.
5Press ONE-TOUCH DUBBING on the
recorder.
6Select “Movie (HDD-CAM),” and press
ENTER.
The contents on the HDD camcorder are
listed.
7Select an album (folder) and press ENTER.
The movie file list appears.
8Select the movie file to dub, and press
SET.
A number indicating the order in which you
selected the file appears.
Repeat the step to select all the movie files you
want to dub. You can select up to 9 files.
9Press OPTIONS.
The display asks for confirmation.
To return to the previous display, select
“Cancel.”
To cancel all selections, select “Clear All” and
return to step 8.
10
Select “Start,” and press ENTER.
Playback starts from the first selected movie
file, and dubbing starts.
To stop dubbing
Press x STOP.
Note that it may take a few seconds for the
recorder to stop dubbing.
To add dubbing to the same disc
The recorder cannot dub more than 9 movie files
at a time. To dub more files, repeat from step 4
above.
REC
ONE-TOUCH DUBBING
Select the item you want to dub.
Movie (HDD-Cam) Photo Copy
00:00:00Stop
AVF_INFO
MP_ROOT
DCIM
10:10 AM
HDD-Cam Program Dubbing
FileAlbum
USB
0/0
/
00:00:00Stop
Prev Directory
M2U00026.MPG
M2U00027.MPG
M2U00028.MPG
M2U00029.MPG
M2U00030.MPG
10:10 AM
HDD-Cam Program Dubbing
FileAlbum
USB
0/0
101PNV01
2
1
Do you want to start dubbing?
Number of items : 2
Source : USB
Target
: DVD
Start Clear All Cancel
USB Dubbing (USB t DVD)
75US
zHints
•You can also start dubbing from the System Menu.
Press SYSTEM MENU to select “Dubbing,” and select
“USB Dubbing.” Select “HDD-Cam Program
Dubbing” and follow steps from 6 above.
•The recorder can dub movie files that are recorded with
an HDD camcorder and have the extension “.MPG.”
•You cannot dub movie files recorded with a digital still
camera.
•To play the dubbed disc, press INPUT repeatedly to
select the recorder’s input (LINE1 or LINE2).
Notes
•During dubbing, timer recordings are unavailable. If
the timer is set during dubbing, the timer setting is
canceled.
•Movie files exceeding the disc capacity cannot be
dubbed.
•Movie files larger than 2 GB will be dubbed in two
divided titles.
•Movie and image files cannot be dubbed together in a
single disc.
Copying JPEG Image Files
From a Connected Digital
Still Camera
You can simply copy all albums containing JPEG
image files from a digital still camera or HDD
camcorder onto a DVD-RW (Video mode)/DVD-
R (Video mode).
You can also select the albums using the on-screen
menu. See “Copying the selected albums” on
page 76.
Notes
•Use unused or blank discs for copying. You cannot use
a disc containing titles recorded with this recorder.
You can add photos to the remaining space on the disc
you used for copying photos with this recorder.
•The disc will be recognized as a DATA DVD after
Photo Copy, and can be played on other DVD devices
capable of JPEG playback if you finalize it (page 66).
However, note that a DATA DVD may be
unrecognizable, depending on the device.
•The Auto Finalize function (page 67) does not work for
copying photos.
-
RWVideo
-
RVideo
112233
445566
7788
00
99SET
SYSTEM
MENU M/m/</,,
ENTER
OPTIONS
xSTOP
INPUT
,continued
76US
1Place a recordable disc on the disc tray.
About inserting discs, see page 49 for details.
2Press INPUT repeatedly to select “USB.”
3Connect the USB device to the (USB)
jack on the recorder.
Check that the USB indicator lights up on the
front panel display. If not, check the operating
instructions supplied with the connected
device.
4Press ONE-TOUCH DUBBING on the
recorder.
5Select “Photo Copy,” and press ENTER.
The display asks for confirmation.
6Select “Start” and press ENTER.
The recorder starts dubbing all the albums in
the connected USB device.
To stop copying
Press ENTER to cancel.
Note that it may take a few seconds for the
recorder to stop copying.
zHint
To play the copied disc, press INPUT repeatedly to select
the recorder’s input (LINE1 or LINE2).
Notes
•Do not disconnect the USB cable while accessing to the
USB device (reading or copying files).
•The recorder can copy up to 254 albums, and up to 499
files within a single album. It may take more than 30
minutes for the recorder to copy many files at one time.
However, this is not a malfunction.
•Do not turn off the connected device while copying, as
a malfunction may result.
•While copying, timer recordings are unavailable. If the
timer is set while copying, the timer setting is canceled.
•You cannot record video titles on a disc pre-recorded
with photos. If a timer recording is due to start, replace
with a recordable disc.
•Up to seven layers of folders stored in the device can be
copied. The folders are copied in two layers on the disc
and the folder names will be changed by adding _01,
_02, and so on, if they conflict with other names.
Copying the selected albums
You can select the albums using the on-screen
menu, and dub them all at once.
1
Follow the steps 1 to 3 above.
2Press SYSTEM MENU.
The System Menu appears.
3
Select “Dubbing,” and press ENTER.
4Select “USB Dubbing,” and press ENTER.
5Select “Photo Copy,” and press ENTER.
If you copy all the albums, select “Copy All
Albums” and go to step 8.
REC
ONE-TOUCH DUBBING
Select the item you want to dub.
Movie (HDD-Cam) Photo Copy
Dubbing 10:10 AM
DV/D8 Dubbing
USB Dubbing
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
USB Dubbing 10:10 AM
DVD Backup
HDD-Cam Program Dubbing
Photo Copy
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Photo Copy 10:10 AM
Copy All Albums
Copy Album
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
1-18
USB Dubbing (USB t DVD)
77US

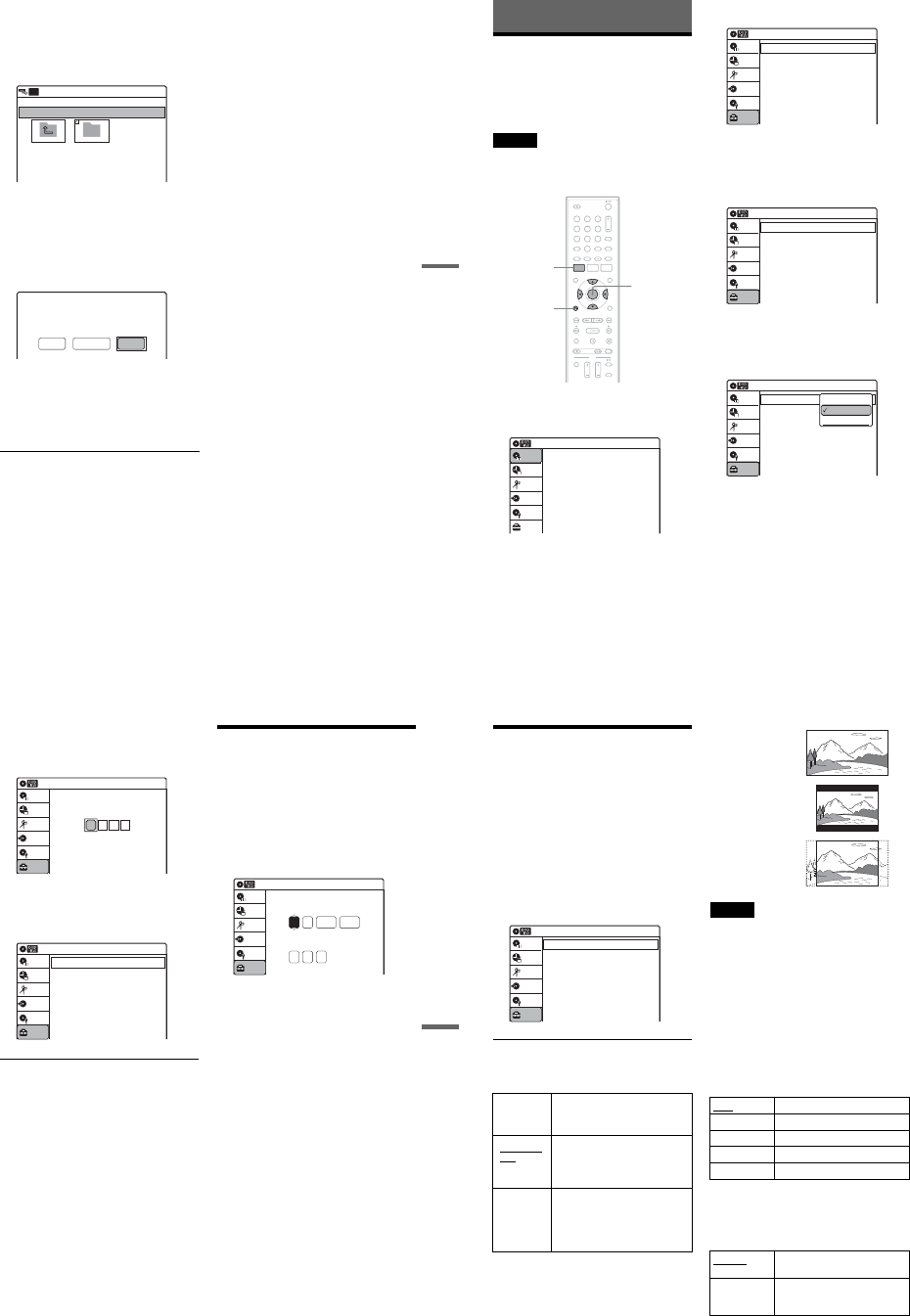

6Select “Copy Album,” and press ENTER.
The album list appears.
To view image files contained in the album,
select the album and press ENTER.
7Press M/m/</, to select the album to
copy, and press SET.
A check mark appears in the check box for the
selected album. To clear the mark, press SET
again.
Repeat the step to select all the albums you
want to copy.
8Press OPTIONS.
The display asks for confirmation.
To return to the previous display, select
“Cancel.”
To cancel all selections, select “Clear All” and
return to step 7.
9Select “Start,” and press ENTER.
Copying starts.
To stop copying
Press ENTER to cancel.
Note that it may take some time for the recorder to
stop copying.
To copy more albums on the same disc
Press SYSTEM MENU, and repeat from step 3 on
page 76.
10:10 AM
Photo Copy
Page 1/1
/
DCIM
USB
101MSDCF
/
Do you want to start copying?
Number of items : 1
Source : USB
Target
: DVD
Start Clear All Cancel
78US
Settings and Adjustments
Using the Setup Displays
By using the setup displays, you can make various
adjustments to items such as picture and sound, as
well as select a language for the subtitles.
The setup displays are used in the following way.
Note
Playback settings stored on the disc take priority over the
setup display settings, and not all of the functions
described may work.
1Press SYSTEM MENU while the recorder is
in stop mode.
The System Menu appears.
2Select “Setup,” and press ENTER.
The “Setup” display appears.
3Select “Clock Set,” “Video,” “Audio,”
“Features,” “Options,” or “Easy Setup,”
and press ENTER.
The selected setup display appears.
Example: “Video” setup
4Select the item you want to set up, and
press ENTER.
Available options for the item appear.
Example: “TV Type”
M/m/</,,
ENTER
112233
445566
7788
00
99
SYSTEM
MENU
ORETURN
10:10 AM
Title List (Original)
Press ENTER :
Title Menu for DVD Title List.
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
10:10 AM
Clock Set
Video
Audio
Features
Options
Easy Setup
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Setup
Video 10:10 AM
TV Type
Resolution (HDMI)
Video (HDMI)
Black Level
Picture Control
Progressive
Line1 Input
: 4:3 Letter Box
: Auto
: Y Cb Cr
: On
: Standard
: Off
: Composite
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Video 10:10 AM
TV Type
Resolution (HDMI)
Video (HDMI)
Black Level
Picture Control
Progressive
Line1 Input
: 4:3 Letter Box
: Auto
: Y Cb Cr
: On
: Standard
: Off
: Composite
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
16:9
4:3 Letter Box
4:3 Pan Scan
79US
Settings and Adjustments
Some items display a dialog box that requires
additional settings.
Example: When “Parental” in “Options”
setup is selected.
5
Select an option, and press ENTER.
The currently selected option is displayed
next to the setup item.
Example: When “16:9” is set.
To return to the previous display
Press O RETURN.
To turn off the display
Press SYSTEM MENU.
Clock Setting (Clock Set)
The “Clock Set” setup allows you to make clock
settings for the recorder.
1
Press SYSTEM MENU while the recorder is
in stop mode.
2Select “Setup,” and press ENTER.
3Select “Clock Set,” and press ENTER.
The clock setting display appears.
4
Press M/m to set the month, and press ,.
Set the day, year, hour, minutes, and AM/PM
in sequence. Press </, to select the item to
be set, then press M/m to set the item. The day
of the week is set automatically.
5
Press ENTER to start the clock.
10:10 AM
Create the password.
Create the password
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Video 10:10 AM
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
TV Type
Resolution (HDMI)
Video (HDMI)
Black Level
Picture Control
Progressive
Line1 Input
: 16:9
: Auto
: Y Cb Cr
: On
: Standard
: Off
: Composite
2008
Tue
01 01
10 : 10 AM
10:10 AM
Clock Set
Set the time and date manually.
Hour Min
AM/PM
Month Day Year
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
80US
Video Settings (Video)
The “Video” setup allows you to adjust items
related to the image, such as size and color.
Choose the settings according to the type of TV,
tuner, or decoder connected to the recorder.
1Press SYSTEM MENU while the recorder is
in stop mode.
2Select “Setup,” and press ENTER.
3Select “Video,” and press ENTER.
The “Video” setup appears with the following
options. The default settings are underlined.
TV Type
Selects the aspect ratio of the connected TV (4:3
standard or wide).
Note
Depending on the disc, “4:3 Letter Box” may be selected
automatically instead of “4:3 Pan Scan” or vice versa.
Resolution (HDMI)
Selects the type of video signals output from the
HDMI OUT jack. When you select “Auto”
(default), the recorder outputs video signals of the
highest resolution acceptable for your TV. If the
picture is not clear, unnatural or not to your
satisfaction, try another option that suits the disc
and your TV/projector, etc. For details, refer also
to the instruction manual supplied with the TV/
projector, etc.
The setting is effective only when you connect a
HDMI equipped TV to the HDMI OUT jack.
Video (HDMI)
Selects the type of output from the HDMI OUT
jack.
The setting is effective only when you connect a
HDMI equipped TV to the HDMI OUT jack.
16:9 Select this when connecting to a
wide-screen TV or TV with a
wide mode function.
4:3 Letter
Box
Select this when connecting to a
4:3 screen TV. Displays a wide
picture with bands on the upper
and lower portions of the screen.
4:3 Pan
Scan
Select this when connecting to a
4:3 screen TV. Automatically
displays a wide picture on the
entire screen and cuts off the
portions that do not fit.
Video 10:10 AM
TV Type
Resolution (HDMI)
Video (HDMI)
Black Level
Picture Control
Progressive
Line1 Input
: 4:3 Letter Box
: Auto
: Y Cb Cr
: On
: Standard
: Off
: Composite
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Auto Normally, select this.
1920×1080p Sends 1920×1080p video signals.
1920×1080i Sends 1920×1080i video signals.
1280×720p Sends 1280×720p video signals.
720×480p Sends 720×480p video signals.
Y Cb Cr Normally, select this when
connecting to an HDMI device.
RGB Gives brighter colors and deeper
black. Select this if colors are
weak.
16:9
4:3 Letter Box
4:3 Pan Scan
1-19
81US
Settings and Adjustments
Black Level
Selects the black level (setup level) for the video
signals output from the LINE OUT jacks
(page 15).
This setting is not effective when the
PROGRESSIVE indicator lights up on the front
panel display and the recorder outputs progressive
signals.
Picture Control
Selects the picture control for the video signals
output from the LINE OUT jacks (page 15).
You can adjust the video signal of DVD or
VIDEO CD (with PBC function off) from the
recorder to obtain the picture quality you want.
Select the setting that best suits the program you
are watching.
zHint
When you watch a movie, “Cinema 1” or “Cinema 2” is
recommended.
Progressive
If your TV accepts progressive (480p) format
signals, you will enjoy accurate color reproduction
and high quality image.
Connect your TV to the COMPONENT VIDEO
OUT jacks (page 17).
Notes
•If you select progressive signals when you connect the
recorder to a TV that cannot accept the signal in
progressive format, the image quality will deteriorate.
In this case, set “Progressive” to “Off.”
•When you connect your TV using an HDMI cable, the
“Progressive” setting is set to “On.”
Line1 Input
Selects the type of video input signal for the LINE
1 IN jacks. The picture does not appear if this
setting does not match the connected jack.
On Raises the standard black level.
Select this when the picture
appears too dark.
Off Sets the black level of the output
signal to the standard level.
Dynamic 1 Produces a bold dynamic picture
by increasing the picture contrast
and the color.
Dynamic 2 Produces a more dynamic picture
than “Dynamic 1” by further
increasing the picture contrast
and the color.
Standard Displays a standard picture
(function turned off).
Cinema 1 White colors become brighter
and black colors become richer,
and the color contrast is
increased.
Cinema 2 Enhances details in dark areas by
increasing the black level.
Personal Adjusts “Contrast,” “Brightness,”
“Color,” and “Hue” using M/m/
</, and ENTER.
On Sets the recorder to output
progressive signals.
The PROGRESSIVE indicator
lights up on the front panel
display.
Off Outputs video signals in interlace
format.
S-Video Select this when connecting to the
S VIDEO jack (page 13).
Composite
Select this when connecting to the
VIDEO jack.
82US
Audio Settings (Audio)
The “Audio” setup allows you to adjust the sound
according to the playback and connection
conditions.
1Press SYSTEM MENU while the recorder is
in stop mode.
2Select “Setup,” and press ENTER.
3Select “Audio,” and press ENTER.
The “Audio” setup appears with the following
options. The default settings are underlined.
Digital Out
The following setup items switch the method of
outputting audio signals when you connect a
component such as an amplifier (receiver) to the
DIGITAL AUDIO OUT (COAXIAL) jack.
For connection details, see “Connecting to Your
AV Amplifier (Receiver)” on page 18.
Press ENTER, and select “Dolby Digital” or
“DTS.”
If you connect a component that does not accept
the selected audio signal, a loud noise (or no
sound) will come out from the speakers, and may
affect your ears or cause speaker damage.
◆ Dolby Digital (DVDs only)
Selects the type of Dolby Digital signal.
Note
If the HDMI OUT jack is connected to a TV not
compatible with Dolby Digital signals, D-PCM signals
will be automatically output, even if “Dolby Digital” is
selected.
◆ DTS (DVD VIDEOs only)
Selects whether or not to output DTS signals.
Note
If you connect equipment not compatible with DTS
signals, no signal will be output, regardless of the “DTS”
setting.
Audio 10:10 AM
Digital Out
Downmix
Audio DRC
Audio (HDMI)
Scan Audio
Surround
DV/D8 Audio Input
Line Audio Input
: Dolby Surround
: Standard
: Auto
: On
: Off
: Stereo 1
: Stereo
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
10:10 AM
Dolby Digital
DTS
Digital Out
: 4:3 Letter Box
On
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
D-PCM
Dolby Digital
D-PCM Select this when the recorder
is connected to an audio
component lacking a built-in
Dolby Digital decoder. You
can select whether the
signals conform to Dolby
Surround or not by making
adjustments to the
“Downmix” item in “Audio”
setup (page 83).
Dolby
Digital
Select this when the recorder
is connected to an audio
component with a built-in
Dolby Digital decoder.
On Select this when the recorder
is connected to an audio
component with a built-in
DTS decoder.
Off Select this when the recorder
is connected to an audio
component without a built-in
DTS decoder.
83US
Settings and Adjustments
Downmix (DVDs only)
Switches the method for mixing down to two
channels when you play a DVD which has rear
sound elements (channels) or is recorded in Dolby
Digital format. For details on the rear signal
components, see “A Connecting to audio L/R
jacks” on page 19. This function affects the output
of the following jacks:
–LINE OUT (AUDIO L/R) jacks
–AUDIO OUT L/R jacks
–DIGITAL AUDIO OUT (COAXIAL)/HDMI
OUT jack when “Dolby Digital” is set to “D-
PCM” (page 82).
To enjoy the surround effect of Dolby Digital, turn
off the surround settings of this recorder
(page 83).
Audio DRC (Dynamic Range Control) (DVDs
only)
Makes the sound clear when the volume is turned
down when playing a DVD that conforms to
“Audio DRC.” This affects the output from the
following jacks:
–LINE OUT (AUDIO L/R) jacks
–AUDIO OUT L/R jacks
–DIGITAL AUDIO OUT (COAXIAL)/HDMI
OUT jack only when “Dolby Digital” is set to
“D-PCM” (page 82).
Audio (HDMI) (DVD VIDEOs only)
Selects the output method from the HDMI OUT
jack.
Note
If you select “Auto” when connecting the recorder to a
TV not compatible with Dolby Digital or DTS, no sound
may be heard. In this case, select “PCM.”
Scan Audio (DVDs only)
Note
Sound will be interrupted during Scan Audio.
Surround
Turns on the surround function to create virtual
rear speakers from a stereo TV or two separate
front speakers (page 19).
Notes
•When the playback signal does not contain a signal for
the surround speakers, the surround effects will be
difficult to hear.
•When you select one of the surround modes, turn off
the surround settings of the connected TV or amplifier
(receiver).
Dolby
Surround
Normally select this
position.
Multi-channel audio signals
are output to two channels
for enjoying surround
sounds.
Normal Multi-channel audio signals
are downmixed to two
channels for use with your
stereo.
Standard Normally select this
position.
TV Mode Makes low sounds clear
even if you turn the volume
down.
Wide
Range
Gives you the feeling of
being at a live performance.
Auto Normally, select this.
Outputs audio signals
according to the “Dolby
Digital” or “DTS” settings
(page 82).
PCM Converts Dolby Digital to
PCM.
On Outputs audio signals during
FF1 fast-forward of a DVD
disc with Dolby Digital
soundtracks.
Off No sound is output during
FF1 fast-forward.
Off No surround effect
Surround1 Creates one set of virtual
surround speakers
Surround2 Creates two sets of virtual
surround speakers
Surround3 Creates three sets of virtual
surround speakers
,continued
84US
DV/D8 Audio Input
Note
Select “Stereo 2” or “Mix” if you have added a second
audio channel when recording with your DV camcorder.
Line Audio Input
When recording from equipment connected to the
LINE 1 IN or LINE 2 IN jacks to a DVD disc in
this recorder, select line input audio.
zHint
When recording on a disc other than DVD-RWs (VR
mode)/DVD-Rs (VR mode), select either sound track
with the connected equipment before recording.
Recording, Set Top Box,
Control for HDMI Settings
(Features)
The “Features” setup allows you to make various
settings for recording, playback, set top box
control, and HDMI control functions.
1Press SYSTEM MENU while the recorder is
in stop mode.
2Select “Setup,” and press ENTER.
3Select “Features,” and press ENTER.
The “Features” setup appears with the
following options. The default settings are
underlined.
DVD Auto Chapter
Automatically divides a recording (a title) into
chapters by inserting chapter markings at
specified intervals. The markings are inserted
while the recording is being made.
Note
Actual intervals may differ depending on the size of the
recording. The selected setting should be regarded as an
approximate chapter interval.
Stereo 1 Records original sound only.
Normally select this when
dubbing a DV format tape.
Stereo 2 Records additional audio
only.
Mix Records both original and
additional sounds.
Stereo Records stereo sound only.
Main/Sub Records the two different
soundtracks on DVD-RWs
(VR mode)/DVD-Rs (VR
mode). You can select either
soundtrack when playing
back the disc.
Off No chapter mark is inserted.
5 Min Inserts chapter marks at
approximately 5 minute
intervals.
15 Min Inserts chapter marks at
approximately 15 minute
intervals.
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
10:10 AM
DVD Auto Chapter
Format DVD-RW
Auto Finalize
Set Top Box Control
Control for HDMI
Language Follow
Features
: 5 Min
: VR
: Off
: On
: On
1-20
85US
Settings and Adjustments
Format DVD-RW (DVD-RWs only)
Selects the recording format for an unused DVD-
RW, when first inserted.
Auto Finalize
Set Top Box Control
You can control your cable box/satellite receiver
using the supplied set top box controller. See
“Step 7: Easy Setup” for details. Press ENTER,
and select “On” or “Off.”
When “Set Top Box Control” is set to “On,” you
can make the following settings. Note that when
you change “Set Top Box Control” to “On” or
“Off,” all timer recording settings will be
canceled.
◆ Brand Code
See “Cable Box/Satellite Receiver Brand Code”
(page 101) for the brand code for your cable box
or satellite receiver, and enter the code using the
number buttons and ENTER.
◆ Connections
Selects the connection you used for your cable box
or satellite receiver. Select the connection from
“Line1” or “Line2.”
◆ Ch. Digit lock
Allows you to select whether to fix the digits for
your cable box or satellite receiver.
◆ Mode for SET button
Select “Mode 1” or “Mode 2” if your cable box or
satellite receiver requires pressing an ENTER
button or a SET button etc., after entering the
channel number. If “Mode1” does not work, try
“Mode 2.” If your cable box or satellite receiver
does not respond to either setting, contact the
manufacturer of the cable box or satellite receiver.
Control for HDMI
Language Follow
Notes
•Turn off any display before turning on this function.
•The OSD language for the recorder keeps if the TV’s
language cannot be supported.
VR Automatically formats the disc in
VR mode.
Video Automatically formats the disc in
Video mode.
On Automatically finalizes a DVD-R
(Video mode)/DVD-RW (Video
mode)/DVD+R after recording,
allowing immediate playback on
other DVD equipment (page 67).
Off Turns off the function.
On Turns on the cable box/satellite
receiver control function. See
“Using the cable box/satellite
receiver control function”
(page 12).
Off Turns off the cable box/satellite
receiver control function. Select
this if you do not want to use the
supplied set top box controller.
Off Select this when your cable box or
satellite receiver only accepts a
three or more digit channel
number. Normally select this.
Lock to
2 digits
Select this only when your cable
box or satellite receiver only
accepts a two digit channel
number.
Off No code is sent when SET is
pressed. Normally select this.
Mode 1 Sends the channel number you
entered.
Mode 2 Sends the channel number you
entered.
On Allows you to use the Control for
HDMI function (page 16).
Off Turns off the function.
On Switches the language of this
recorder to the same as the
current TV’s OSD language. You
cannot select this when “Control
for HDMI” is set to “Off.”
Off Turns off the function.
86US

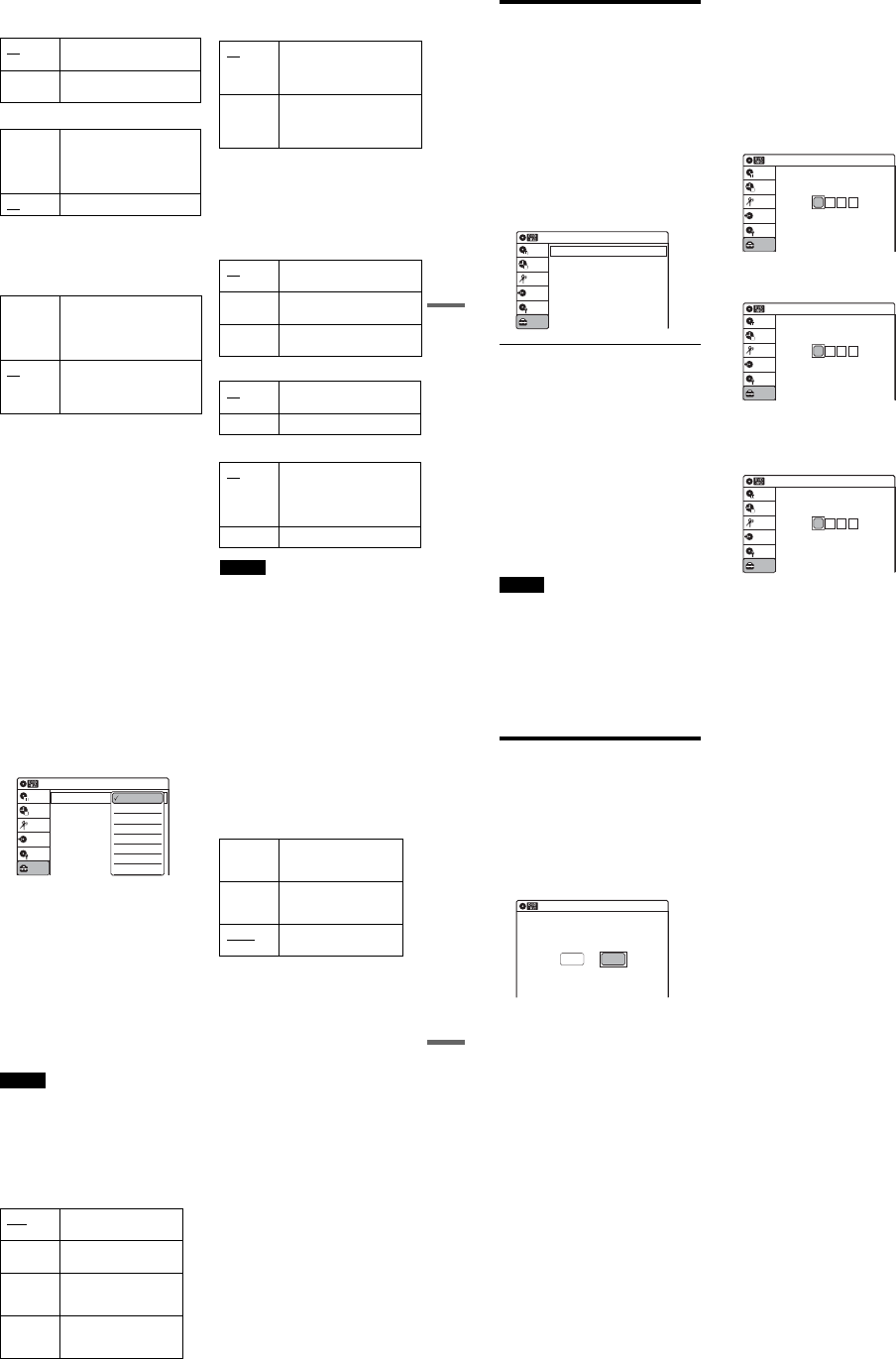

Language, Parental Control
Settings/Factory Settings
(Options)
The “Options” setup allows you to set up other
operational settings.
1Press SYSTEM MENU while the recorder is
in stop mode.
2Select “Setup,” and press ENTER.
3Select “Options,” and press ENTER.
The “Options” setup appears with the
following options. The default settings are
underlined.
Language
◆ OSD (On-Screen Display)
Switches the display language on the screen.
◆ Disc Menu (DVD VIDEOs only)
Switches the language for the DVD menu.
◆ Audio (DVD VIDEOs only)
Switches the language of the soundtrack.
When you select “Original,” the language given
priority in the disc is selected.
◆ Subtitle (DVD VIDEOs only)
Switches the language of the subtitles recorded on
the disc.
When you select “Auto,” the subtitle language
changes according to the language you selected
for the soundtrack. See page 100 for an
explanation of the language abbreviations.
Note
If you select a language in “Disc Menu,” “Subtitle,” or
“Audio” that is not recorded on the DVD VIDEO, one of
the recorded languages will be automatically selected.
Parental (DVD VIDEOs only)
Playback of some DVD VIDEOs can be limited
according to a predetermined level, such as the age
of the users. Scenes may be blocked or replaced
with different scenes.
1After step 3 above, select “Parental,” and
press ENTER.
•If you have not entered a password, the
display for registering a new password
appears.
Enter a 4-digit password using the number
buttons.
The display for confirming the password
appears.
Re-enter the password.
•When you have already registered a
password, the display for entering the
password appears.
Enter a 4-digit password using the number
buttons.
10:10 AM
Options
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Language
Parental
Front Display
Command Mode
Factory Setting
: Auto
: DVD 3
10:10 AM
Create the password.
Create the password
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
10:10 AM
Confirm the password.
Create the password
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
10:10 AM
Enter your password.
Enter your password
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
87US
Settings and Adjustments
2Select “Rating Level,” and press ENTER.
The selection items for “Rating Level” are
displayed.
The lower the value, the stricter the limitation.
3Select the level, and press ENTER.
The Parental setting is complete.
•To cancel the Parental setting for the disc, set
“Rating Level” to “Off” in step 3.
•To change the password, select “Change
Password” in step 2, and press ENTER. When
the display for registering a password appears,
enter a new four-digit password using the
number buttons.
zHint
If you enter a wrong number, press < or CLEAR and re-
enter.
Notes
•If you forget your password, select “Factory Setting” of
“Options” in the “Setup” display.
•Playback of discs without the Parental Control function
cannot be limited on this recorder.
•Depending on the disc, you may be asked to change the
Parental Control level while playing the disc. In this
case, enter your password, then change the level.
Front Display
Adjusts the lighting of the front panel display.
Command Mode
Changes the command mode of this recorder if
other DVD equipment is assigned the same
command mode. Be sure to match the command
mode of the supplied remote to the setting made
here. For details, see “If you have a Sony DVD
player or more than one Sony DVD recorder” on
page 22.
Factory Setting
Allows you to return the setup settings to their
default settings. Note that all of your previous
settings will be lost.
1After step 3 on page 86, select “Factory
Setting,” and press ENTER.
2Select “Start,” and press ENTER.
The setup settings return to their default
settings.
3Press ENTER when “Finish” appears.
The power automatically turns off and then on
again, and the recorder is reset to the factory
settings.
When the “Easy Setup” display appears,
follow the instructions for Easy Setup
(page 23) from step 4.
Auto Adjusts to low lighting when
power is off.
Bright Maintains bright lighting
when power is off.
Dimmer Maintains low lighting
regardless of whether power
is on or off.
Off Turns off the lighting when
power is off. Maintains the
lighting when power is on.
Rating Level
Change Password
: On: Level 8 (Adults)
10:10 AM
Parental
Setup
Disc Setting
Edit
Title List
Timer
Dubbing
Off
Level 8 (Adults)
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
DVD 1 Select this if the default
command mode conflicts
with other DVD equipment.
DVD 2 Select this if the default
command mode conflicts
with other DVD equipment.
DVD 3 The default command mode
of the recorder.
88US
Easy Setup
(Resetting the Recorder)
Select this to run the Easy Setup program.
1Press SYSTEM MENU while the recorder is
in stop mode.
2Select “Setup,” and press ENTER.
3Select “Easy Setup,” and press ENTER.
4Select “Start,” and press ENTER.
5Follow the instructions for Easy Setup
(page 23) from step 5.
10:10 AM
Easy Setup
Follow the guide to make initial settings.
Before you start,
Check that you have made all necessary connections.
Start Cancel
1-21
Additional Information
89US
Additional Information
Troubleshooting
If you experience any of the following difficulties
while using the recorder, use this troubleshooting
guide to help remedy the problem before
requesting repairs. Should any problem persist,
consult your nearest Sony dealer.
Power
The power does not turn on.
,Check that the AC power cord is connected
securely.
The recorder turns on automatically.
,HDMI input is selected using TV Interface.
Some TV has this function for Control for
HDMI.
To turn off the function, set “Control for HDMI”
to “Off” in the “Features” setup (page 85).
There is no picture.
,Re-connect all connecting cords securely.
,The connecting cords are damaged.
,Check the connection to your TV (page 12).
,Switch the input selector on your TV (such as to
“VIDEO”) so that the signal from the recorder
appears on the TV screen.
Picture noise appears.
,Check the connection to your TV (page 12) and
switch the input selector on your TV so that the
signal from the recorder appears on the TV
screen.
,If the picture output signal from your recorder
passes through your VCR to get to your TV, or if
you are connected to a combination TV/VIDEO
player, the copy-protection signal applied to
some DVD programs could affect picture
quality. If you still experience this problem even
when you connect your recorder directly to your
TV, try connecting your recorder to your TV’s
S VIDEO input.
,You have set the recorder to progressive format
even though your TV cannot accept the
progressive signal. In this case, set “Progressive”
to “Off” in the “Video” setup (page 81).
,Even if your TV is compatible with progressive
format (480p) signals, the image may be affected
when you set the recorder to progressive format.
In this case, set “Progressive” to “Off” in the
“Video” setup (page 81).
There is no picture or the picture noise appears
when connected to the DV IN jack.
,Try the following: 1Turn the recorder off and
on again. 2Turn the connected equipment off
and on again. 3Disconnect and then connect the
i.LINK cable again.
There is no picture or the picture noise appears
when connected to the HDMI OUT jack.
,Try the following: 1Turn the recorder off and
on again. 2Turn the connected equipment off
and on again. 3Disconnect and then connect the
HDMI cord again.
,If the HDMI OUT jack is used for video output,
changing the “Resolution (HDMI)” setting in the
“Video” setup may solve the problem (page 80).
Connect the TV and the recorder using a video
jack other than the HDMI OUT, and switch the
TV’s input to the connected video input so that
you can see the on-screen displays. Change the
“Resolution (HDMI)” setting in the “Video”
setup, and switch the TV’s input back to HDMI.
If the picture still does not appear, repeat the
steps and try other options.
,The recorder is connected to an input device that
is not HDCP compliant (page 16).
The channel on the cable box/satellite receiver
has been changed.
,The set top box controller is connected and “Set
Top Box Control” is set to “On.” Check the “Set
Top Box Control” settings in the “Features”
setup (page 85).
The picture from equipment connected to the
recorder’s input jack does not appear on the
screen.
,If the equipment is connected to the LINE 1 IN
jack, select “LINE1” in the front panel display by
pressing INPUT.
If the equipment is connected to the LINE 2 IN
jacks, select “LINE2” in the front panel display
by pressing INPUT.
,If the equipment is connected to the LINE 1 IN S
VIDEO jack, set “Line1 Input” to “S-Video” in
the “Video” setup (page 81).
,continued
90US
The playback picture or TV program from the
equipment connected through the recorder is
distorted.
,If the playback picture output from a DVD
player, VCR, or tuner goes through your recorder
before reaching your TV, the copy-protection
signal applied to some programs could affect
picture quality. Disconnect the playback
equipment in question and connect it directly to
your TV.
The picture does not fill the screen.
,Set “TV Type” in the “Video” setup to fit the
aspect ratio of your TV (page 80).
The picture does not fill the screen, even
though the aspect ratio is set in “TV Type” in
“Video” setup.
,The aspect ratio of the disc is fixed on your DVD.
Sound
There is no sound.
,Re-connect all connections securely.
,The connecting cord is damaged.
,The input source setting on the amplifier or the
connection to the amplifier is incorrect.
,The recorder is in reverse play, fast-forward,
slow motion, or pause mode.
,If the audio signal does not come through the
DIGITAL AUDIO OUT (COAXIAL) jack,
check the “Audio” setup settings (page 82).
No sound is output from the HDMI OUT jack.
,Try the following:
1
Turn the recorder off and
on again.
2
Turn the connected equipment off
and on again. 3Disconnect and then connect the
HDMI cord again.
,The HDMI OUT jack is connected to a DVI
device (DVI jacks do not accept audio signals).
,The equipment connected to the HDMI OUT
jack does not conform to the audio signal format.
Sound is noisy.
,When playing a CD with DTS soundtracks, noise
will come from the LINE OUT (AUDIO L/R) or
AUDIO OUT L/R jacks (page 36).
The sound volume is low.
,The sound volume is low on some DVDs.
The sound volume may improve if you set
“Audio DRC” in the “Audio” setup to “Wide
Range” (page 83).
An alternate audio track cannot be recorded or
played.
,If you have connected an AV amplifier to the
DIGITAL AUDIO OUT (COAXIAL) jack and
want to change the audio track for a DVD-RW
(VR mode)/DVD-R (VR mode) during playback,
set “Dolby Digital” in “Audio” setup to “D-
PCM” (page 82).
,When recording to a disc other than DVD-RWs
(VR mode)/DVD-Rs (VR mode), set “Line
Audio Input” in “Audio” setup to “Stereo.”
Playback
The disc does not play.
,The disc is upside down. Insert the disc with the
labeled side facing up.
,The disc is not correctly inserted.
,Moisture has condensed inside the recorder.
Remove the disc and leave the recorder turned on
for about half an hour until the moisture
evaporates.
,If the disc was recorded on another recorder, the
recorder cannot play the disc if it was not
finalized (page 66).
The disc does not start playback from the
beginning.
,Resume play was activated (page 37).
,You have inserted a disc whose Title menu or
DVD menu automatically appears on the TV
screen when it is first inserted. Use the menu to
start playback.
The recorder starts playing the disc
automatically.
,The DVD VIDEO features an auto playback
function.
Playback stops automatically.
,If the disc has an auto pause signal, the recorder
stops playback at the auto pause signal.
Additional Information
91US
Some functions such as Stop, Search, or Slow-
motion Play cannot be performed.
,Depending on the disc, you may not be able to do
some of the operations above. See the instruction
manual supplied with the disc.
,While the recorder is reading disc information,
playback operations will not work.
The language for the soundtrack cannot be
changed.
,Multilingual tracks are not recorded on the disc
being played.
,The DVD VIDEO prohibits the changing of the
language for the soundtrack.
,Try changing the language using the DVD
VIDEO’s menu.
The subtitle language cannot be changed or
turned off.
,Multilingual subtitles are not recorded on the
DVD VIDEO.
,The DVD VIDEO prohibits changing of the
subtitles.
,Try changing the subtitle using the DVD
VIDEO’s menu.
,The subtitles cannot be changed for the titles
recorded on this recorder.
The angles cannot be changed.
,Multi-angles are not recorded on the DVD
VIDEO being played.
,The DVD VIDEO prohibits changing angles.
,Try changing the angle using the DVD VIDEO’s
menu.
,The angles cannot be changed for the titles
recorded on this recorder.
The MP3 audio track cannot be played.
,The DATA CD is not recorded in the MP3
format that conforms to ISO9660 Level 1/
Level 2.
,The MP3 audio track does not have the extension
“.MP3.”
,The data is not formatted in MP3 even though it
has the extension “.MP3.”
,The data is not MPEG1 Audio Layer 3 data.
,The recorder cannot play audio tracks in
MP3PRO format.
,When playing a disc containing JPEG image
files, “Photo” is selected (page 41).
The JPEG image file cannot be played.
,The DATA CD is not recorded in a JPEG format
that conforms to ISO9660 Level 1/Level 2.
,The JPEG image file does not have the extension
“.JPG” or “.JPEG.”
,The data is not formatted in JPEG even though it
has the extension “.JPG” or “JPEG.”
,The length or width of the image is more than
4,720 dots.
,When playing a disc containing MP3 audio
tracks, “Music” is selected (page 42).
The title of the MP3 audio album/ track or JPEG
image folder/file is not correctly displayed.
,The recorder can only display numbers and
alphabet. Other characters are displayed as
asterisks.
Recording/Timer recording/Editing
The channel cannot be changed from the
channel you are recording.
,Set the TV’s input source to “TV.”
Recording does not start immediately after
zREC is pressed.
,Operate the recorder only after “LOAD,”
“FORMAT,” or “INF WRITE” disappears from
the front panel display.
Nothing was recorded even though the timer
setting is set correctly.
,There was a power failure during recording.
,Disconnect the AC power cord from the AC
outlet, and connect it again.
,The program contains copy protection signals
that restrict copying.
,The program that starts first has priority and the
second program starts recording only after the
first program has finished. If the programs start
at the same time, the program listed first in the
menu has priority (page 52).
,There is no DVD inserted in the recorder.
,There is not enough disc space for the recording.
,The connected cable box/satellite receiver was
turned off.
,The set top box controller was incorrectly
connected (page 12).
,The settings in “Set Top Box Control” in the
“Features” setup have been changed (page 85).
,continued
92US
Recording does not stop immediately after
xSTOP is pressed.
,It will take a few seconds for the recorder to input
disc data before recording can stop.
Timer recording is not complete or did not start
from the beginning.
,There was a power failure during recording.
,The recorder’s internal clock stopped due to a
power failure that lasted for more than 30
minutes. Reset the clock (page 79).
,The channel or input changed from the one you
are recording.
,The program that starts first has priority and the
second program starts recording only after the
first program has finished. If the programs start
at the same time, the program listed first in the
menu has priority (page 52).
,There is not enough disc space for the recording.
The
c
indicator flashes after timer recording is
set.
,Insert a recordable disc (page 30).
,The disc has 99 or more titles, which prevents
further recording.
,The disc is protected (page 64).
,The disc is finalized (page 66).
The SYNC-REC indicator flashes after Synchro-
Recording is set.
,Insert a recordable disc (page 30).
,Insert a disc with enough space for the recording.
,The disc has 99 or more titles, which prevents
further recording.
,The disc is protected (page 64).
,The disc is finalized (page 66).
Contents previously recorded were erased.
,Data that has been recorded on a DVD with a PC
will be erased from the disc when the disc is
inserted.
Display
Menus or displays do not appear on the
screen.
,While the recorder is reading disc information,
the System Menu, OPTIONS menu, or
information display will not appear.
Display language on the screen switches
automatically.
,
When “Language Follow” is set to “On” in the
“Features” setup (page 85), the display language
on the screen automatically switches, according
to the language setting of the connected TV, if
you change the language settings on your TV, etc.
“- -:- -” appears in the front panel display.
,Set the clock again (page 79).
The
c
indicator is flashing.
,The disc does not have any space for recording.
,Insert a recordable disc (page 30).
The recording mode indication is incorrect.
,Since the recording mode for recorded titles is
calculated after sampling the recorded data
during playback, it may be displayed differently
from the mode you selected when recording.
However, the actual recording itself is correctly
made in the selected mode.
Remote control
The remote does not function.
,Batteries are weak.
,The remote is too far from the recorder.
,The remote’s manufacturer code returned to the
default setting when you replaced the batteries.
Reset the code (page 21).
,Turn on the recorder.
,The remote is not pointed at the remote sensor on
the recorder.
,Different command modes are set for the
recorder and remote. Set the same command
mode (page 22).
Other Sony equipment responds to the remote.
,The same command mode is set for both the
Sony DVD equipment. Set a different command
mode for the recorder (page 22).
1-22
Additional Information
93US
Others
The recorder does not operate properly.
,Restart the recorder. Press down "/1 on the
recorder for more than ten seconds until “SONY
DVD” appears in the front panel display.
,When static electricity, etc., causes the recorder
to operate abnormally, turn off the recorder and
wait until the clock appears in the front panel
display. Then, unplug the recorder and after
leaving it off for a while, plug it in again.
The disc tray does not open after you press
ZOPEN/CLOSE.
,It may take a few seconds for the disc tray to
open after you have recorded or edited a disc.
This is because the recorder is adding disc data to
the disc.
“Cannot record because of high temperature.”
appears on the TV screen.
,Check that the vent on the rear of the recorder is
not blocked. Then, turn off the recorder, wait
until the clock appears in the front panel display,
and disconnect the AC power cord. Leave the
recorder off for a while, then re-connect the
power cord, and press "/1 on the recorder.
“CHILD LOCK” appears in the front panel
display.
,The recorder is locked. Cancel the Child Lock
(page 37).
Control by AV mouse is not possible.
,Some satellite receivers may not support AV
mouse.
The Set Top Box Control function does not
work.
,Turn on the recorder.
The Control for HDMI function does not work.
,When “HDMI” does not appear in the front panel
display, check the HDMI connection (page 16).
,Set “Control for HDMI” to “On” in the
“Features” setup (page 85).
,Make sure that the connected component is
compatible with the Control for HDMI function.
Please refer to the operating instructions of the
component for detailed explanation.
,If you change the HDMI connection, connect and
disconnect the AC power cord, or have a power
failure, set “Control for HDMI” to “Off” in the
“Features” setup, then set it to “On” (page 85).
The recorder does not detect a USB device
connected to the recorder.
,Make sure that the USB device is securely
connected to the recorder (page 71).
,Check if the USB device or a cable is damaged.
,Check if the USB device is tuned on.
94US

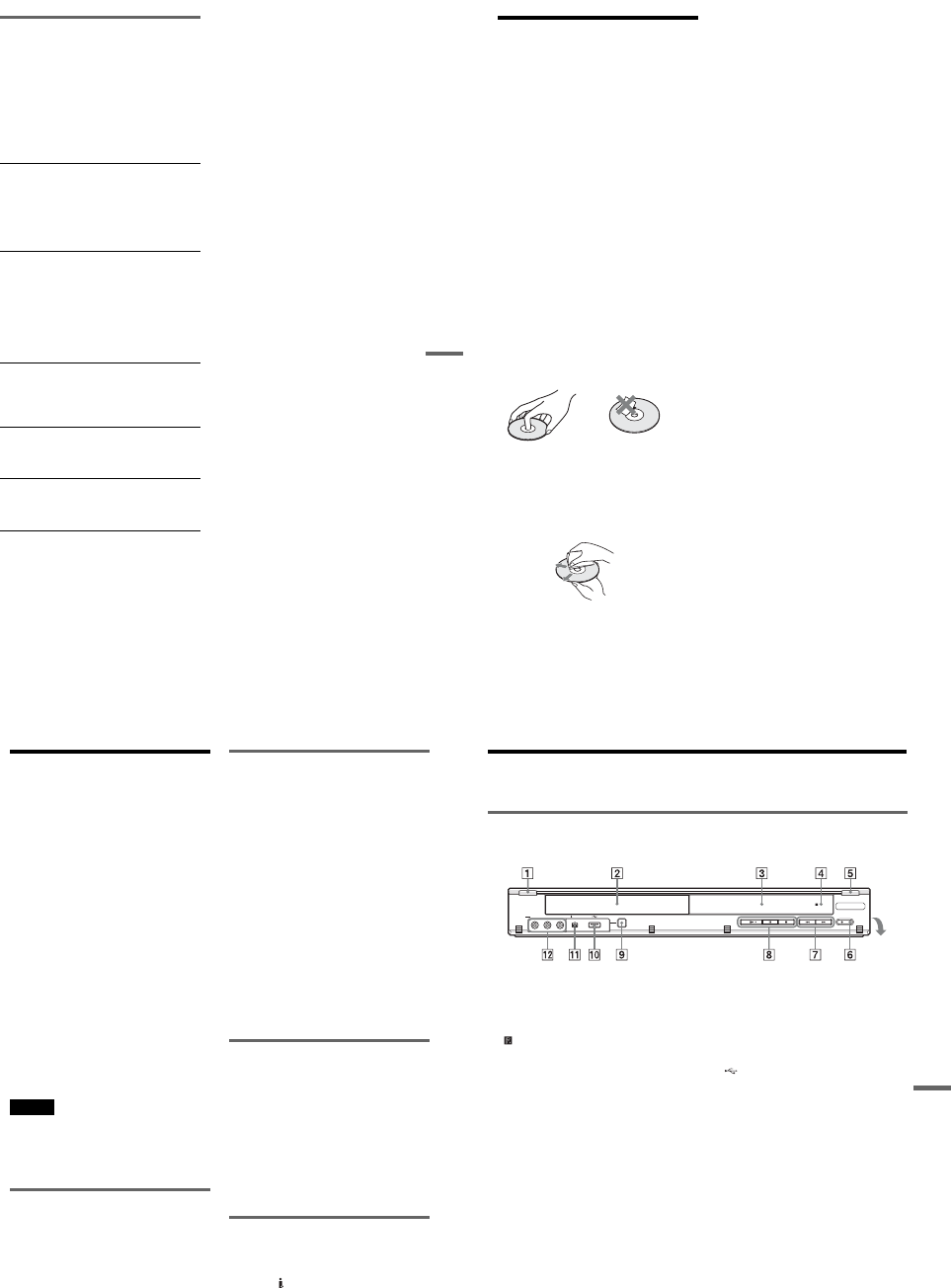

Notes About This Recorder
On adjusting volume
Do not turn up the volume while listening to a
section with very low level inputs or no audio
signals. If you do, the speakers may be damaged
when a peak level section is played.
On cleaning
Clean the cabinet, panel, and controls with a soft
cloth slightly moistened with a mild detergent
solution. Do not use any type of abrasive pad,
scouring powder or solvent such as alcohol or
benzine.
On cleaning discs, disc/lens cleaners
Do not use cleaning discs or disc/lens cleaners
(including wet or spray types). These may
cause the apparatus to malfunction.
On replacement of parts
In the event that this unit is repaired, repaired parts
may be collected for reuse or recycling purposes.
Notes about the discs
•To keep the disc clean, handle the disc by its
edge. Do not touch the surface. Dust,
fingerprints, or scratches on the disc may cause
it to malfunction.
•Do not expose the disc to direct sunlight or heat
sources such as hot air ducts, or leave it in a car
parked in direct sunlight as the temperature may
rise considerably inside the car.
•After playing, store the disc in its case.
•Clean the disc with a cleaning cloth. Wipe the
disc from the center out.
•Do not use solvents such as benzine, thinner,
commercially available disc/lens cleaners, or
anti-static spray intended for vinyl LPs.
•Do not use the following discs.
–A disc that has a non-standard shape (e.g.,
card, heart).
–A disc with a label or sticker on it.
–A disc that has cellophane tape or sticker
adhesive on it.
96US
About i.LINK
The DV IN jack on this recorder is an i.LINK-
compliant DV IN jack. This section describes the
i.LINK standard and its features.
What is i.LINK?
i.LINK is a digital serial interface for handling
digital video, digital audio and other data in two
directions between equipment having the i.LINK
jack, and for controlling other equipment.
i.LINK-compatible pieces of equipment can be
connected by a single i.LINK cable. Possible
applications are operations and data transactions
with various digital AV equipment. When two or
more i.LINK-compatible equipment are
connected to this recorder in a daisy chain,
operations and data transactions are possible with
not only the equipment that this recorder is
connected to but also with other devices via the
directly connected equipment.
Note, however, that the method of operation
sometimes varies according to the characteristics
and specifications of the equipment to be
connected, and that operations and data
transactions are sometimes not possible on some
connected equipment.
Note
Normally, only one piece of equipment can be connected
to this recorder by the i.LINK cable (DV connecting
cable). When connecting this recorder to i.LINK-
compatible equipment having two or more i.LINK jacks
(DV jacks), see the instruction manual of the equipment
to be connected.
About the name “i.LINK”
i.LINK is a more familiar term for IEEE 1394 data
transport bus proposed by SONY, and is a
trademark approved by many corporations.
IEEE 1394 is an international standard
standardized by the Institute of Electrical and
Electronics Engineers.
i.LINK baud rate
i.LINK’s maximum baud rate varies according to
the equipment. Three maximum baud rates are
defined:
S100 (approx. 100 Mbps*)
S200 (approx. 200 Mbps)
S400 (approx. 400 Mbps)
The baud rate is listed under “Specifications” in
the instruction manual of each equipment. It is
also indicated near the i.LINK jack on some
equipment.
The maximum baud rate of equipment on which it
is not indicated such as this unit is “S100.”
When units are connected to equipment having a
different maximum baud rate, the baud rate
sometimes differs from the indicated baud rate.
*What is Mbps?
Mbps stands for megabits per second, or the amount of
data that can be sent or received in one second. For
example, a baud rate of 100 Mbps means that 100
megabits of data can be sent in one second.
i.LINK functions on this recorder
For details on how to dub when this recorder is
connected to other video equipment having DV
jacks, see page 68.
The DV jack on this recorder can only input DVC-
SD signals. It cannot output signals. The DV jack
will not accept MICROMV signals from
equipment such as a MICROMV digital video
camera with an i.LINK jack.
For further precautions, see the notes on page 68.
For details on precautions when connecting this
recorder, also see the instruction manuals for the
equipment to be connected.
Required i.LINK cable
Use the Sony i.LINK 4-pin-to-4-pin cable (during
DV/D8 dubbing).
i.LINK and are trademarks.
Additional Information
97US
Guide to Parts and Controls
For more information, see the pages in parentheses.
Front panel
Buttons on the recorder have the same function as the buttons on the remote if they have the same or
similar names.
A"/1 (on/standby) switch (23)
BDisc tray (34, 49)
CFront panel display (41)
D (remote sensor) (20)
EZ (open/close) button (34, 49)
FzREC (record) button (49)
G./> (previous/next) buttons (35)
HN (play) button (34)
X (pause) button (35, 49)
x (stop) button (34, 49)
IONE-TOUCH DUBBING button (69, 72,
73, 75)
J (USB) jack (71)
KDV IN jack (68)
LLINE 2 IN (VIDEO/AUDIO L (MONO)/
R) jacks (27)
LINE 2 IN DV IN
ONE-TOUCH
DUBBING
REC
VIDEO L
(MONO)
AUDIO R
Open the
cover
,continued
1-23
98US

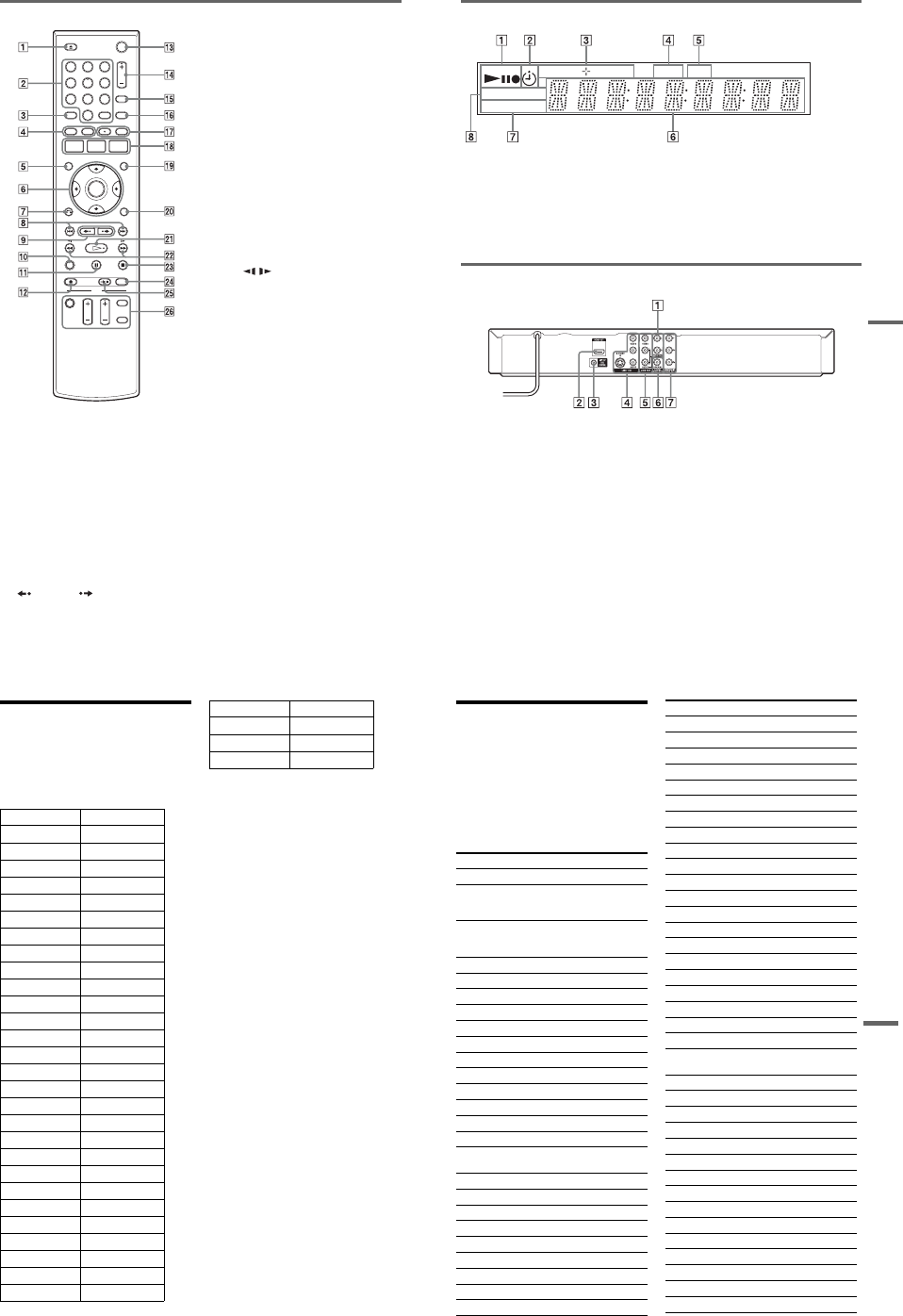

Remote
AZOPEN/CLOSE button (34, 49, 69)
BNumber buttons*
1
(21, 35)
SET button (73, 75, 85)
CANGLE button (35)
DTOP MENU button (34)
MENU button (34)
EDISPLAY button (40)
FM/m/</,/ENTER button (23)
GORETURN button (23)
H.PREV (previous)/> NEXT
buttons (35)
I REPLAY/ ADVANCE buttons
(35)
JCLEAR button (86)
KXPAUSE button (49)
LzREC (record) button (49)
M?/1 (on/standby) switch (23)
NCH (channel) +/– button*
1
*
2
(12, 49)
OINPUT button (49, 56, 69)
PTIME/TEXT button (41)
QAUDIO button*
1
(35)
SUBTITLE button (35)
RSYSTEM MENU button (10)
TITLE LIST button (38, 58)
TIMER button (51)
SORIGINAL/PLAYLIST button (38, 58)
TOPTIONS button (39)
UHPLAY button*
1
(34)
Vm/M (search) buttons (35)
WxSTOP button (34, 49)
XREC MODE button (49, 69)
YSYNCHRO REC button (54)
ZTV buttons
•?/1 (on/standby) switch (21)
•INPUT button (21)
•CH (channel) +/– button*
1
(21)
•VOL (volume) +/– button (21)
•DIGITAL/ANALOG button (21)
*1 Number 5, AUDIO, CH +, and HPLAY buttons
have a tactile dot. Use the tactile dot as a reference.
*2 The CH +/– button are used for channel selection
when the set top box control is turned on (page 12).
112233
445566
7788
00
99
Additional Information
99US
Front panel display
APlaying/recording status
BTimer indicator
CDisc type/recording format
DHDMI indicator (16)
EUSB indicator (71)
FDisplays the following (41):
•Playing time/remaining time
•Current title/chapter/track/index number
•Recording time/recording mode
•Clock
•Channel
GPROGRESSIVE indicator (17, 81)
HSYNCHRO REC indicator (54)
Rear panel
AAUDIO OUT L/R jacks (18)
BHDMI OUT jack (16)
CSET TOP BOX CONTROL jack (13)
DLINE 1 IN (S VIDEO/VIDEO/AUDIO L/
R) jacks (13)
ELINE OUT (VIDEO/AUDIO L/R) jacks
(15, 17)
FDIGITAL AUDIO OUT (COAXIAL) jack
(18)
GCOMPONENT VIDEO OUT (Y, PB, PR)
jacks (17)
RW VR
VCDVD
SYNCHRO
PROGRESSIVE
REC
HDMI USB
100US
DVD Audio/Subtitle
Language
When you play a DVD VIDEO, the language of
the selected audio track or subtitle is abbreviated
as follows. See page 86 to change the audio track
or subtitle.
Abbreviation Language
ARA Arabic
BUL Bulgarian
CHI Chinese
CRO Croatian
CZE Czech
DAN Danish
DEU German
ENG English
ESP Spanish
FIN Finnish
FRA French
GRE Greek
HUN Hungarian
IDN Indonesian
IND Hindi
ISL Icelandic
ITA Italian
IWR Hebrew
JPN Japanese
KOR Korean
MAL Malay
NLD Dutch
NOR Norwegian
POL Polish
POR Portuguese
RUS Russian
SVE Swedish
THA Thai
TUR Turkish
VIE Vietnamese
ZAF Afrikaans
Abbreviation Language
Additional Information
101US
Cable Box/Satellite
Receiver Brand Code
When you want to use the set top box control
function, find the brand code number of your cable
box/satellite receiver from the list and enter it in
step 7 of Easy Setup (page 23).
If more than one code number is listed, try
entering them one at a time until you find the one
that works with your cable box/satellite receiver.
Cable box brand Code number
3M 0033
ABC 0003, 0007, 0011, 0017,
0008, 0014, 0001, 0013,
0206, 0047, 0237, 0033
Accuphase 0003, 0007, 0013, 0047,
0001, 0011, 0017, 0014,
0206
Acorn 1102, 0237
Action 0237
Active 0237, 1102
Aim 0015
Allegro 0315, 0153
Amark 0008, 0277, 0144, 0056
American 0060
Americast 0899
Antronix 0207, 0022
Anvision 0211, 0111
Apache 0770
Arbatron 0014, 0011, 0003, 0476
Archer 0153, 0022, 0207, 0039,
0797, 0237, 0260
ASE 1080
Auna 1269
BBT 0267
BCC 0276
Belcor 0056, 0022
Bell & Howell 0014
Bell Atlantic 0641
Bell South 0899
Bestlink 0303
Betavue 0022
British Telecom 0003
BVS 0641
Cable Healthcare 0769, 0058
Cable Star 0056
Cabletenna 0022, 0039
Cableview 0022
Century 0153, 0618, 0008, 0315
Citation 0017
Citizen 0153, 0315, 0078, 0242
Clearmaster 0883
ClearMax 0883, 1247
Colour Voice 0031, 0025
Comband 0233, 0232
Comtec 0274
Comtronics 0060, 0040
Comtronics Eagle 0040, 0060
Contec 0019
Coolmax 0883
Curtis Mathes 0015, 0242
Dae Ryung Eagle 0008
Daeryung 0008, 0877, 0477, 0277,
1877
Diamond 0035
Digeo 1476
Digi 0637
Director 0476
Dumont 0637
Eagle Comtronics 0060, 0028
Eastern 0002, 0274, 0418
Electricord 0078
Emerson 0797, 0303, 0015, 0014
Everquest 0040, 0015
Focus 0400
Fosgate 0276
Fujitsu 0246
Funai 0248, 0019
FutureVision 0649
Cable box brand Code number
,continued
1-24
102US
Garrard 0153
Gateway 0764
GC Electronics0207, 0056, 0330, 0016,
0040, 0077, 0030
GE 0232, 0233, 0144, 0021
Gemini 0015, 0070, 0057, 0242,
0014, 0797, 0013, 0400
General Instrument 0476, 0011, 0014, 0098,
0810, 0024, 0003, 0015,
0276
GHZ 0078
Gibraltar 0003
Global 1327
GMI 0069, 0057, 0015, 0797
GoldStar 0144, 0040
Goodmind 0770, 0797
Gradiente1136
Hamlin 0020, 0009, 0034, 0259,
0015, 0273, 0206
Healthway Interactive 0058, 1020, 1015, 0769
Hitachi 0011, 0154, 0009, 0008,
0003, 0033, 0014, 0255
Houston Tracker 0011
Hwalin 0303
Hytek 0007
IBM 0670
IEEC 1018
Interbuy 0274
IPC Guest Services 0893
Jasco 0315, 0153, 0015
Jebsee 0014, 0400
Jerrold 0003, 0014, 0276, 0011,
0012, 0020, 0024, 0015,
0047, 0098, 0476, 0031,
0029, 0111, 0032, 0054,
0810, 0028
Kuang Yu 0024
Leon 0069, 0015
LG 0040, 0144
Linsay 0440
Macom 0033
Cable box brand Code number
Maestro 0812
Magnavox 0797, 0027, 0032, 0334,
0069
Millennium 0618, 0153
Memorex 0000
Mitsubishi 0003
Motorola 0476, 0276, 1476, 0810,
1376, 1254, 0400, 1106
Movie Time 0156, 0078, 0063, 0203
MS 0069, 0015, 1018, 0303
MultiVision 0012
Myrio 1117
NET 0274
Next Level 0764, 1316, 1315, 1314
Nexus 0770
Northcoast 0671, 0314
Nova Vision 0277, 0008
Novabeam 0277
Novaplex 0618, 0277, 0017, 0008
NSC 0156, 0070, 0203, 0063,
0400, 0012, 0618, 0022,
0637, 0010, 0044
Oak 0007, 0019, 0303, 0248,
0017
Omega 0015
Omniview 0371
Optimus 0021
Pace 0237
Pacific Bell 0843
Panasonic 0107, 0021, 0144, 0008,
0124, 0307, 0000, 0040
Panther 0637
Paragon 0000, 0525, 0008
Penney 0637, 0000
Philips 0025, 0031, 0290, 0027,
0030, 0153, 0060, 0242,
0028, 0334, 0211, 0029,
0259, 0307, 0652, 0013,
0069, 0649, 0255, 0305,
0032, 0111, 0317
Pioneer 0144, 0023, 0533, 1877,
0877, 0260
Cable box brand Code number
Additional Information
103US
Popular Mechanics 0400
Prelude 0770
Prism 0012, 0013, 0059
Protelcon 0786
Pulsar 0000, 0040
Quasar 0000
Quest 0144, 0020
R Line 0040
RadioShack 0883, 0015, 0315, 0303,
0797
Rampage 0255
Ranger 1247
RCA 0021, 0060, 0797, 0047,
1256, 0843
Realistic 0207, 0153
Recoton 0153, 0400
Regal 0259, 0020, 0273, 0279,
0276
Regency 0002, 0020, 0682
Rembrandt 0070, 0153, 0040, 0022,
0011
RK 0304, 0306, 0479
Runco 0000
Samsung 0040, 0144, 0023, 0003,
0070, 0000
Sasktel 1737
Scientific Atlanta 0008, 0277, 0017, 0006,
0237, 0025, 0477, 0207,
0877, 0003, 0012, 0000,
0021, 1877
Seam 0510
Sears 0510
Sejin 1265
Siemens 0246
Sigma 0019
Signal 0040, 0015, 0011, 0035
Signature 0011
SkyCable 0112
Skygiant 1091
SL Marx 0040
Cable box brand Code number
Sony 1006
Spectradyne 0769, 0058
Spectravision 0058
Sprucer 0021, 0307, 0010, 0144
Standard Components 0203, 0096, 0155
Starcom 0003, 0015, 0047, 0014,
0098, 0305
Stargate 0015, 0040, 0770, 0865,
0797, 0305, 0014
Starquest 0015
StarSight 0542, 0422
Stealth 0274
Stellar One 0807
Storm 1018, 0637
Suena Madritel 1230
Supercable 0276
Supermax 0883
Sylvania 0001
Tandy 0258
Tatung 0097
Teac 1018
Technics 0029
Teknika 0146
Teleavia 0040
TeleCaption 0221
Teleview 0063, 0040
Texscan 0001, 0096, 0010
TFC 0310
Thomson 1256
Timeless 0418, 0274, 0040
Tocom 0012, 0013, 0029, 0019,
0059, 0017
Torx 0003
Toshiba 0000
Trans PX 0303, 0276, 0153, 0315
Trinity 1248
Tristar 0883
TS 0255, 0024, 1018, 0003,
0303
Cable box brand Code number
,continued
104US
Tusa 0015
TV COMM 0035, 0019
TV Guide 1476
TV86 0063, 0040
Uniden 0022, 0225
Unika 0207, 0153, 0022
United Artists 0007
United Cable 0003, 0014, 0011, 0276
Universal 0191, 0078, 0207, 0056,
0022, 0039, 0153, 0077,
0322, 0315
US Electronics 0276, 0008, 0003, 0017
V2 0883
Verizon 0246
Videoway 0250, 0000
VideoWorks 0124
Vidtech 0244
Viewmaster 0883, 0770
Viewstar 0258, 0289, 0060, 0063,
0211, 0027, 0111, 0030,
0121
Vision 0883
Visionetics 1264
Vortex View 0883
WaveMaster 0565
Wiso 0078
Zenith 0000, 0525, 0054, 0017,
0039, 0153, 0060, 0315,
0191, 0899
Zentek 0400
Cable box brand Code number Satellite receiver
brand
Code number
AlphaStar 0772
Atlantic Telephone 1333
Bell ExpressVu 0775
Century 0856
Chaparral 0216
Crossdigital 1109
DirecTV 0749, 0566, 0392, 1749,
0099, 1109, 1076, 1442,
1856, 0247, 1142, 1639,
0724, 0639, 0819
Dish Network System 0775, 1005, 1170
Dishpro 0775, 1005
Echostar 0775, 1170, 1005
Expressvu 0775
Galaxis 0863
GE 0566
General Instrument 0361, 0869, 0627
GOI 0775
Gradiente 0856
Hitachi 0819, 0749
Houston Tracker 0775
HTS 0775
Hughes Network Systems 0749, 1749, 1442, 1142
Humax 1176, 1359, 1048, 0863,
0283
Innova 0099
Jerrold 0361, 0036, 0627
JVC 0775, 1170
Magnavox 0722, 0724
McIntosh 0869
Memorex 0724
Mitsubishi 0749
Motorola 0869
NEC 1270, 0496, 0499, 0507,
0508
Netsat 0099
Next Level 0869
Optimus 0724
Panasonic 0247, 0701
Additional Information
105US
Paysat 0724
Philips 1076, 0099, 1142, 0724,
0722, 0749, 1442, 1749,
0856, 0775
Primestar 0361, 0627, 0869
Proscan 0392, 0566
QNS 1367
RadioShack 0869
RCA 0566, 0392, 0143, 0855
Samsung 1109, 1276
Sky 0856, 0099, 1856
Sony 0639, 1639
Star Choice 0869
Star Trak 0869, 0772
Thomson 0566, 0392
Tivo 1142, 1442
Toshiba 0790, 0749, 1749, 1285
UEC 1333, 1358
Uniden 0724, 0722
Video Cipher II Plus 0361
Zenith 0856, 1856
Satellite receiver
brand
Code number
1-25E
106US
Index
Words in quotations appear in
the on-screen displays.
Numerics
16:9 25, 80
4:3 Letter Box 25, 80
4:3 Pan Scan 25, 80
A
“A-B Erase” 59
ADVANCE 35
ANGLE 35
AUDIO 35
“Audio” 86
“Audio (HDMI)” 83
Audio cords 18
“Audio DRC” 83
Audio settings 82
Auto Finalize 67, 85
B
Batteries 20
“Black Level” 81
“Brand Code” 85
C
Cable box 13
Cable box brand 101
Cable box brand code 101
“Ch. Digit lock” 85
Changing or canceling timer
settings (Timer List) 53
“Chapter Erase” 59
Child Lock 37
Cleaning discs 94
Clock Set settings 79
“Command Mode” 22, 87
COMPONENT VIDEO OUT
17
Connecting
the cable box/satellite
receiver 12
to your AV/amplifier
(receiver) 18
to your TV 15
“Connections” 85
Control for HDMI 16, 85
Controlling TVs with the
remote 21
Copy protection 48
Copy-Free 48
Copy-Never 48
Copy-Once 48
CPRM 30
“Create Playlist” 63
Creating chapters 50
D
“Digital Out” 82
“Disc Finalize” 65, 66
“Disc Format” 65
“Disc Information” 65
“Disc Menu” 86
“Disc Name” 64
“Disc Protect” 65
“Disc Setting” 64, 66
Disc types 30
Display
front panel display 99
Setup Display 78
“Divide Title” 60
Dolby Digital 82
“Downmix” 83
DTS 36, 82
“Dubbing” 68, 71
“DV/D8 Audio Input” 69, 84
“DV/D8 Dubbing” 70
“DV/D8 Simple Dubbing” 70
“DVD Auto Chapter” 84
“DVD Backup” 73
DVD VIDEO 32
DVD+R 30
DVD+R DL 30
DVD+RW 30
DVD-R 30
DVD-RAM 32
DVD-RW 30
E
Easy Setup 88
“Edit” 53
Editing 57
Enter characters 61
“Erase” 53, 59
“Erase All Titles” 65
F
“Factory Setting” 87
Fast forward 36
Fast reverse 36
Feature settings 84
Finalizing 66
“Format DVD-RW” 85
Formatting 48, 64
“Front Display” 87
Front panel 97
Front panel display 99
H
Handling discs 94
HDMI 16
“Resolution (HDMI)” 80
I
i.LINK 68, 96
INPUT 49, 69
J
JPEG image files 42
L
“Language” 86
Language abbreviation 100
“Language Follow” 85
LINE 1 IN 13
LINE 2 IN 27
“Line Audio Input” 54, 56,
84
“Line1 Input” 81
M
MENU 34
Menu
Top menu 34
“Mode for SET button” 85
MP3 audio tracks 41
107US
N
NEXT
35
Number buttons
21
,
39
O
ONE-TOUCH DUBBING
69
,
72
,
73
,
75
On-screen display
OPTIONS menu
11
Setup Display
78
Sub-menu
11
System Menu
10
OPTIONS
11
Options settings
86
Original
39
ORIGINAL/PLAYLIST
39
,
58
“OSD” language
24
,
86
P
“Parental”
86
Parental Control
37
Parts and controls
97
PAUSE
36
,
49
PBC
37
“Photo Copy”
76
“Picture Control”
81
PLAY
34
Playable discs
32
Playback
34
JPEG image files
42
MP3 audio tracks
41
Resume Play
37
Slow-motion play
36
Playlist
39
,
62
Power cord
20
PREV
35
“Progressive”
81
“Protect”
59
Q
Quick Timer
50
R
Rear panel
99
REC
49
REC MODE
49
Recording
47
recordable discs
30
recording format
30
recording mode
47
Recording mode
47
Recording time
47
,
50
Region code
33
Remaining time
40
Remote
20
,
98
REPLAY
35
Resetting
88
Resume Play
37
Rotate
43
S
Satellite receiver
13
Satellite receiver brand code
104
“Scan Audio”
37
,
83
Searching
for “Chapter”
39
for “Title”
39
for “Track”
39
Time Search
39
Set top box control
12
,
24
,
85
Set top box controller
12
,
25
Settings
78
Setup Display
78
Slide show
43
STOP
34
,
49
Sub-menu
11
SUBTITLE
35
“Subtitle”
86
“Surround”
83
SYNCHRO REC
55
System Menu
10
T
TIME/TEXT
41
TIMER
51
Timer List
53
Timer recording
51
change or cancel
53
“Title Erase”
59
,
64
TITLE LIST
38
,
58
Title List
38
“Title Name”
59
,
64
TOP MENU
34
Troubleshooting
89
“TV Type”
80
U
“Unfinalize”
67
Unrecordable pictures
48
“USB Dubbing”
73
V
“Video (HDMI)”
80
VIDEO CD
32
Video mode
30
Video settings
80
VR mode
30
Z
Zoom
43
2-1
2. DISASSEMBLY AND REASSEMBLY
2-1 CABINET AND PCB
2-1-1 Cabinet Top Removal
2-1-2 Ass’y Front Panel Removal
RDR-GX360
1 REMOVE 2 SCREWS
2 REMOVE 3 SCREWS
Fig. 2-1 Cabinet Top Removal
1 RELEASE 3 HOOKS
(Top View) 2 RELEASE 3 HOOKS
(Bottom View)
Fig. 2-2 Ass’y Front Panel Removal
2-2
2-1-3 Chassis Removal
8REMOVE
2 SCREWS
9REMOVE 4 SCREWS
qd REMOVE 4 SCREWS
2REMOVE
1 SCREW
3REMOVE 1 SCREW
5JACK BOARD
qs FRONT BOARD
0DVD MAIN BOARD
6CBF
CABLE-MONO
PLUG TO LED
qg LOADER ASSY
qf BRACKET
7FFC CABLE
4FFC CABLE
1CONNECTOR
qa REMOVE 1 SCREW
Fig. 2-3 Chassis Removal
2-3E
DVD MAIN BOARD
FRONT BOARD
JACK BOARD
Fig. 2-4 Circuit Board Locations
2-2 CIRCUIT BOARD LOCATIONS
RDR-GX360
3. BLOCK DIAGRAM
3-2E3-1
4MB FLASH
K8D3216UBM
(8bit)
32M DDR
(256bit)
DVD-Rewritable Drive
TS-P632D
SUPER IN
LINE1 IN(REAR)
LINE2 IN(FRONT)
DV IN
EEPROM
24LC32
(I2C)
SAA7138
MTS
(BTSC)
DVD CODEC
MS9311
6CH AMP
LA73054
IEEE1394PHY
TSB41AB1
VCR MICOM
MN 101D10F
Front Panel
VFD DRIVE, KEY CONTROL
PT6315
COAXIAL
USB
DIGITAL AUDIO OUT
DVD V IN
VIDEO DIGITAL DATA (TIU656)
AUDIO DIGITAL DATA (I2C)
VCR VIDEO
Y
Pb
Pr
VIDEO
L
R
L
R
IEC958
VIDEO
DECORDER
MUX
Audio
ADC Audio
DAC
RF IC2
S3C80F9B I2C DATA CLK
STB OUT
MIC2 MIC3
Notes:
Special key has been written in the MIC2 (CPRM
key), and therefore the MIC2 cannot be replaced.
If this IC is faulty, replace the board entirely.
4. PCB DIAGRAMS
4-24-1
4-1 DVD Main PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-3
4-2 Jack PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-7
4-3 Function PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-11
4-4 Front PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-13
RDR-GX360
4-1 DVD Main PCB
4-44-3
COMPONENT SIDE
4-64-5
CONDUCTOR SIDE
4-84-7
4-2 Jack PCB
COMPONENT SIDE
4-104-9
CONDUCTOR SIDE
4-124-11
4-3 Function PCB
COMPONENT SIDE
CONDUCTOR SIDE
4-14E4-13
4-4 Front PCB
COMPONENT SIDE
CONDUCTOR SIDE
5. SCHEMATIC DIAGRAMS
5-25-1
5-1 S.M.P.S (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-3
5-2 Power (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-5
5-3 AV Decoder (DVD Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-7
5-4 AV Link TS in_Out (DVD Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - 5-9
5-5 Connector (DVD Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-11
5-6 DDR (DVD Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-13
5-7 HDMI CEC (DVD Main PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-15
5-8 HDMI TDA9984 (DVD Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-17
5-9 Host1 & Flash & Remulator I/F (DVD Main PCB) - - - - - - - - - - - - - - - - - 5-19
5-10 IEEE1394_DV (DVD Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-21
5-11 PCMIO & VIO & VDAC (DVD Main PCB) - - - - - - - - - - - - - - - - - - - - - - - 5-23
5-12 USB (DVD Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-25
5-13 User Interface (DVD Main PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-27
5-14 Input_Output (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-29
5-15 Connector (Jack PCB)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-31
5-16 Front Micom (Jack PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-33
5-17 Function Timer (Function PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-35
5-18 Front AV (Front PCB) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-37
RDR-GX360
Note
For schematic Diagram
- Resistors are in ohms, 1/8W unless otherwise noted.
Special note :
Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques described under the
“electrostatically sensitive (ES) devices” section of this service manual.
Important safety notices :
Components identified with the mark 0 have the special characteristics for safety. When replacing any of these components.
Use only the same type.
5-45-3
5-1 S.M.P.S. (Jack PCB)
5-65-5
5-2 Power (Jack PCB)
5-85-7
5-3 AV Decoder (DVD Main PCB)
5-105-9
5-4 AV Link TS in_Out (DVD Main PCB)
5-125-11
5-5 Connector (DVD Main PCB)
5-145-13
5-6 DDR (DVD Main PCB)
5-165-15
5-7 HDMI CEC (DVD Main PCB)
5-185-17
5-8 HDMI TDA9984 (DVD Main PCB)
5-205-19
5-9 Host1 & Flash & Remulator I/F (DVD Main PCB)
5-225-21
5-10 IEEE1394_DV (DVD Main PCB)
5-245-23
5-11 PCMIO & VIO & VDAC (DVD Main PCB)
5-265-25
5-12 USB (DVD Main PCB)
5-285-27
5-13 User Interface (DVD Main PCB)
5-305-29
5-14 Input_Output (Jack PCB)
5-325-31
5-15 Connector (Jack PCB)
5-345-33
5-16 Front Micom (Jack PCB)
5-365-35
5-17 Function Timer (Function PCB)
5-38E5-37
5-18 Front AV (Front PCB)
6-1
RDR-GX360
6. TROUBLESHOOTING
No Power Detected
Check feedback IC 1S01
1SF01 Change fuse
ISD1~ISD4
SHORT and OPEN Change short or opened parts
Check the
Ucc=10.3V Check the voltage
1SR10, 1SD7, 1SICO1, 1SZ02
Secondary
D10 Des OK?
(D1S35, D1S32, D1S33A,
D1S33, D1S30,
D1S34,D1S40)
Replace Diode
No
Yes
No
Yes
No
Yes
Yes
No
6-2
Key Operation or
Remote Control Error
Voltage on the
Function Display Ass’y? Check power of front connector
(CN702(PIN11))
XT601
14.318MHz
oscillation Check the circuit around the clock
Check
the circuit
around 6MICO1 reset?
Check the circuit around
6MICO1 reset
Key
operation such as
STOP,PLAY,OPEN
Check the circuit around the swith.
check the condition of commmunication
with Main Micom
(6MICO1 21~24,VFD STB, CLOCK
DATA-IN,DATA-OUT)
No
Yes
Yes
Yes
No
No
No
Check feedback IC 1S01
Yes
STOP,PLAY,OPEN
Key operation are
normal?
Yes
Change IC70 1
Yes
6-3
Disc loading error
Are Main and
deck power OK?
(5v,12v)
Yes
Change the deck
No Check the power
Is the 40pin
FFC cable(betweenmain & deck)
inserted correctly?
Yes
No Reinsert FFC cable correctly
Is the wavefrom
of MIC3pin26 normal?
(Main PCB)
Yes
No Change the Main board
6-4
Check peripheral parts of JK801
Check AVIC 1
(Pin #109, 110)
Check 8AIC4
(Pin #1, 7)
Yes
Yes
No
No Analog Audio Output
No Check VCC and peripheral parts of 8AIC4.
Check applicatin of 8AJK2
Check VCC of AVIC 1
(P~#5 : 3.3V 1P~#3 : 1.8V)
and peripheral parts of Clock oscillation
(AVXAL 24, 576 Mhz)
Check Audio input signal
1) Line 1 Audio input :
AVIC1 Pin #122, 123
2) Line 2 Audio input :
AVIC1 Pin #125, 126
3) VHS Play Audio input :
AVIC1 Pin #120,121 &
IC812 Pin #2,12
6-5
No digital audio out
Check the digital
audio
setting
Yes
Check peripheral parts of
coaxial output terminal
No Refer to user manual
Yes
Proper
signal input on
D3 0P, MIC 1
No Check VCC and peripheral
part of MIC1
Yes
Proper signal on 8AL 13 No Replace 8AL 13
6-6
Change DVD JACK Board
Check audio
input signal
1) Line 1 Audio input: AVIC1 Pin #122, 123
2) Line 2 Audio input: AVIC1 Pin #125, 126
1. Check peripheral parts of
Clock oscillation
1)Check AVXAL
2. Check peripheral parts of AVIC 1
1) Pin #98,#99,# 100
2) Pin #102~#105
Yes
No
No audio on line input mode or
recorded disc playback
Check peripheral parts of
8AJK2, JK801
Yes
Check VCC (3.3V, 1.8V)
of AVIC1
No
6-7
CVBS output error
Check 8AC18
Yes
Check peripheral parts of
and 8YQ30
No Check peripheral
parts of Clock oscillation
(AXTAL)
Check 8AIC 1 (Pin #14) No
Yes
Check VCC and peripheral
parts of 8AIC1
6-8
Check peripheral parts of 8AJK2
Check
8AC9,8AC10,
8AC11
No
Component output error
Check VCC of MIC 1 and peripheral
parts of Clock oscillation
AXTAL
Yes
Check 8AIC 1
(Pin # 11,12,13) No Check VCC and peripheral parts of
8AIC1
Yes
6-9
Line1 CVBS Video Input Error
Check
JK801
(Video input signal)
Yes
1. Check VCC of MIC 1 and peripheral
parts of Clock oscillation
2. Refer to the “ CVBS output error”
No Check peripheral parts of JK801
Check AVIC 1
(Pin # 8) No
Yes
Check AVIC 1
(Pin #75,76,79~84) No
Yes
1. Check between AVIC 1 and
JK801
2. Check VCC of AVIC 1 and
peripheral
parts of Clock oscillation
(Pin #53, 54) of AVIC 1
6-10
Line2 CVBS Video Input Error
Check
FrontJACK
(SVideo input signal)
and 7FCN2(Pin #13)
Yes
1. Check VCC of MIC 1 and peripheral
parts of Clock oscillation
2. Refer to the “ CVBS output error”
No Check peripheral parts of Front Jack
and cable and connector of 7FCN2
Check AVIC 1
(Pin # 10) No
Yes
Check AVIC 1
(Pin #75,76,79~84) No
Yes
1. Check VCC and peripheral parts of
AVIC1
1. Check VCC of AVIC 1
and peripheral parts of Clock oscillation
(Pin #53, 54) of AVIC 1
6-11
DV (Digital Video) Input Error
Check
DV JACK
(FAJK1and 7FCN2
(Pin #1, 2, 3, 4))
Yes
1. Check Pin # 19 of TIC1
2. Check Pin #6~ 13 of TIC1
3. Check peripheral parts of Clock
oscillation TXAL
4. Check VCC of MIC 1
5. Refer to the “CVBS output errror”
No Check peripheral parts of DV JACK
and cable and connector of 7FCN2
Check TIC 1
(Pin #34~37) No
Yes
Check TIC 1
(Pin #4 ~ 13) No
Yes
Check peripheral parts of 7FCN2 and
TIC1.
Check VCC and Clcok oscillation
(Pin #59, 60) of TIC 1.
6-12
Remocon Error
RM701
(Pin 2),(Oon Front PCB)
signal is OK?
Yes
Change 6MICO1
around elements
No Check the power (Pin 2) line
or change RM701.
(6MICO1(Pin28)) signal
is OK?(Jack PCB) No
Yes
Check the signal line or around
elements
6-13
HDMI Output Error
Replace the HIC 1.
Yes
The reset
singnal is normal (5V) at HIC 1
(pin42)?
No
Yes
The VO_CLK
signal is normal at HIC1
(Pin66)?
No
Yes
The
BCLK of HIC 1
(pin12) and IEC958 of HIC 1(pin5)
is normal?
No
Yes
The I2C_CLK
of HIC1 (pin43) & I2C_DAT of
HIC1(pin44) is
Check the MIC1(pin B5, pin A5)
peripheral circuit.
No
Yes
Check the MIC1(pin F4, pin D3)
peripheral circuit.
Check the MIC1(pin P2) periph-
eral
circuit.
Check the MIC1(pin Y12)
peripheral
circuit.
Check out the
3.3Vcc and 1.8Vcc of
HIC1(pin13, Pin16)
Check the HIC 1 peripheral
circuit.
No
Yes
Check the
connector of HDMI cable
with HDMI jack?
No HDMI Video Output Error
6-14
Line1 S-Video Input Error
1. Check VCC of MIC1 and peripheral
parts of Clock oscillation
2. Refer to the “CVBS output error”
Yes
Check 8YJK1
(Video input signal)
Yes
Check AVIC1
(Pin #9,16) No
Yes
Check AVIC1
(Pin #75,76,79~84) No
Yes
2.Check VCC of AVIC1 and
peripheral parts of
Clock oscillation
(Pin #53,54)of AVIC1
1.Check between AVIC1
and 8YJK1
Check peripheral parts of 8YJK1
6-15E
USB mode Error
Check
USJK1
(USB input jack)
Yes
Check VCC of MIC1 and peripheral parts
of Clock oscillation(12MHz UXAL)
No Check between USJK1 and USCN1
Check UCON
(Pin #2,3,4) No
Yes
Check MIC1
(Pin #V7,AB7,AB8) No
Yes
Check between AVIC1 and 8YJK1
Check VCC of UIC1
7-1
RDR-GX360
7. REPAIR PARTS LIST
7-1 Exploded Views ----------------------------------------------------------------------7-2
7-2 Electrical Parts List ------------------------------------------------------------------7-3
7-2
7-1 EXPLODED VIEW
NOTE:
•-XX, -X mean standardized parts, so they may
have some differences from the original one.
•Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
•The mechanical parts with no reference number
in the exploded views are not supplied.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
19-885-101-41 SPRING ETC-DOOR TRAY
029-885-090-95 CBF-POWER CORD
39-885-120-45 CABLE-FLAT; 85mm, 14P, 1.25mm
C001 9-885-120-42 ASSY-PANEL FRONT
C015 9-885-120-41 CABINET TOP
0H001 9-885-120-47 ASSY-LOADER; TS-P632D/SDBH
P001 9-885-120-48 ASSY PWB-JACK SMPS
9P003 9-885-120-57 ASSY PWB-MAIN
P005 9-885-120-55 ASSY PWB-FRONT AV SUB
A001 9-885-120-61 REMOCON ASSY:RDR-GX360 (RMT-D254A)
W263 9-885-069-84 SCREW-TAPTITE BLK SWCH101
W275 9-885-079-18 SCREW-TAPTITE
W306 9-885-037-09 SCREW TAP M3 L8 ZPC
3
2
1
not supplied
not supplied
not supplied
not supplied
not supplied
W275
W275
W275
W275
W263
not supplied
W306
W263
W263
W306
P005
P001
P003
C015
A001
C001
H001
not
supplied
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
The components identified by mark 9
contain confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
7-3
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•-XX, and -X mean standardized parts, so they
may have some difference from the original one.
•RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•Not all of the parts are listed.
•Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
•SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
•CAPACITORS:
uF: µF
•COILS
uH: µH
7-2 ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
When indicating parts by reference number,
please include the board name.
FRONT AV SUB FTIMER VFD MAIN
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
9-885-120-55 ASSY PWB-FRONT AV SUB
**********************
< BEAD >
FABD1 9-885-083-84 BEAD-SMD 47ohm
FABD2 9-885-083-84 BEAD-SMD 47ohm
FABD3 9-885-083-84 BEAD-SMD 47ohm
FABD4 9-885-083-84 BEAD-SMD 47ohm
FABD6 9-885-083-84 BEAD-SMD 47ohm
FABD7 9-885-083-84 BEAD-SMD 47ohm
FABD8 9-885-083-84 BEAD-SMD 47ohm
FABD9 1-400-316-11 CORE-FERRITE BEAD 220ohm
< JACK >
FAJK1 9-885-111-45 JACK IEEE1394 4P/1 (DV IN)
USJK1 9-885-120-56 JACK USB 4P/1C, AU, WHITE
(USB CONNECTOR)
< DIODE >
*FAZ6 9-885-102-51 DIODE CDS3C30GTH
*FAZ7 9-885-102-51 DIODE CDS3C30GTH
*FAZ8 9-885-102-51 DIODE CDS3C30GTH
FAZ9 9-885-070-22 DIODE UDZ9
< SWITCH >
SW1 9-885-111-48 SWITCH-TACT (POWER)
SW2 9-885-111-48 SWITCH-TACT (ONE TOUCH DUB)
9-885-120-44 ASSY PWB-FTIMER VFD
*******************
< FLAT CABLE >
CN702A 9-885-120-45 CABLE-FLAT 85MM, 14P, 1.25MM
< DIODE >
D701 9-885-070-12 DIODE 1N4148
D702 9-885-070-12 DIODE 1N4148
D703 9-885-070-12 DIODE 1N4148
D704 9-885-070-12 DIODE 1N4148
D705 9-885-070-12 DIODE 1N4148
D706 9-885-070-12 DIODE 1N4148
D707 9-885-070-12 DIODE 1N4148
< VFD DISPLAY >
DT701 9-885-120-46 VFD DISPLAY VFD20-1022, 10G
< REMOCON MODULE >
RM701 9-885-069-95 MODULE REMOCON TSOP2240RF1
< SWITCH >
SW702 9-885-069-77 SWITCH-TACT (CH-DOWN)
SW703 9-885-069-77 SWITCH-TACT (PAUSE)
SW704 9-885-069-77 SWITCH-TACT (CH-UP)
SW707 9-885-069-77 SWITCH-TACT (PLAY)
SW712 9-885-069-77 SWITCH-TACT (REC)
SW713 9-885-069-77 SWITCH-TACT (FF)
SW714 9-885-069-77 SWITCH-TACT (OPEN/CLOSE)
SW715 9-885-069-77 SWITCH-TACT (REW)
SW716 9-885-069-77 SWITCH-TACT (STOP)
99-885-120-57 ASSY PWB-MAIN
**************
< IC >
AVIC1 9-885-111-37 IC SAA7138HL (VIDEO DECODER)
DIC1 9-885-111-38 IC K4H561638 (DRAM)
DIC2 9-885-111-38 IC K4H561638 (DRAM)
9HIC1 IC (VIDEO PROCESS) (Refer to Note 1)
MIC2 IC (CPRM Key) (Refer to Note 1)
MIC3 9-885-120-60 IC (FLASH) (Refer to Note 2)
TIC1 9-885-070-64 IC TSB41AB1-PAP (DATA COMM/GEN)
< FERRITE BEAD >
AVR02 1-400-316-11 CORE-FERRITE BEAD 220ohm
AVR03 1-400-316-11 CORE-FERRITE BEAD 220ohm
AVR19 1-400-316-11 CORE-FERRITE BEAD 220ohm
AVR40 1-400-316-11 CORE-FERRITE BEAD 220ohm
HB1 9-885-083-84 BEAD-SMD 47ohm
HB2 1-400-316-11 CORE-FERRITE BEAD 220ohm
Note 1: Special key has been written in the HIC1 (HDCP key)
and MIC2 (CPRM key), therefore the HIC1 and MIC2 can-
not be replaced.
If these IC are faulty, replace the board entirely.
Note 2: Perform the reset whenever the MIC3 was replaced.
The components identified by mark 9
contain confidential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
7-4
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
MAIN JACK
HB3 1-400-316-11 CORE-FERRITE BEAD 220ohm
HB6 1-400-316-11 CORE-FERRITE BEAD 220ohm
< VIBRATOR >
AVXAL 9-885-070-70 CRYSTAL-SMD (24.576MHz)
*MXAL 9-885-120-59 CRYSTAL-SMD (27MHz)
TXAL 9-885-070-70 CRYSTAL-SMD (24.576MHz)
*UXAL 9-885-120-58 CRYSTAL-SMD (12MHz)
< TRANSISTOR >
CEQ1 9-885-070-30 TRANSISTOR KSC1623-L
< CONNECTOR >
*HDJACK 9-885-108-17 CONNECTOR-HDMI (HDMI OUT)
9-885-120-48 ASSY PWB-JACK SMPS
*******************
< DIODE >
8AD1 9-885-070-27 DIODE DAN202K
8AD2 9-885-070-27 DIODE DAN202K
8AD3 9-885-070-28 DIODE DAP202K
8AD4 9-885-070-11 DIODE DAN217
8AD5 9-885-070-27 DIODE DAN202K
*8AX5 9-885-102-51 DIODE CDS3C30GTH
*8AZ1 9-885-102-51 DIODE CDS3C30GTH
*8AZ2 9-885-102-51 DIODE CDS3C30GTH
*8AZ3 9-885-102-51 DIODE CDS3C30GTH
*8AZ7 9-885-102-51 DIODE CDS3C30GTH
*8AZ10 9-885-102-51 DIODE CDS3C30GTH
*8AZ50 9-885-102-51 DIODE CDS3C30GTH
*8AZ51 9-885-102-51 DIODE CDS3C30GTH
*8AZ52 9-885-102-51 DIODE CDS3C30GTH
*8AZ53 9-885-102-51 DIODE CDS3C30GTH
*8AZ55 9-885-102-51 DIODE CDS3C30GTH
*8AZ57 9-885-102-51 DIODE CDS3C30GTH
*D1P107 9-885-103-77 DIODE 1N5819
D1S30 9-885-111-44 DIODE SHK75-11
D1S32 9-885-111-44 DIODE SHK75-11
D1S33 9-885-111-44 DIODE SHK75-11
D1S38 9-885-111-44 DIODE SHK75-11
D1S30A 9-885-111-44 DIODE SHK75-11
D1S33A 9-885-111-44 DIODE SHK75-11
6MD01 9-885-070-12 DIODE 1N4148
*2PD01 9-885-103-77 DIODE 1N5819
*2PD05 9-885-103-77 DIODE 1N5819
*2PD06 9-885-103-77 DIODE 1N5819
1SD5 9-885-070-13 DIODE UF4007
1SZ02 9-885-036-94 DIODE MTZJ20B
6VD01 9-885-070-12 DIODE 1N4148
6YD11 9-885-070-27 DIODE DAN202K
*8YZ1 9-885-102-51 DIODE CDS3C30GTH
*8YZ2 9-885-102-51 DIODE CDS3C30GTH
ZD1P05 9-885-070-18 DIODE UZP27B
ZD1P06 9-885-070-17 DIODE UZ5.6BM
ZD1S03 8-719-109-93 DIODE RD6.2ESB2
< IC/PHOTO COUPLER >
8AIC1 9-885-120-50 IC MM1692XVBE (VIDEO AMP)
8AIC4 9-885-070-53 IC 4560 (OP AMP)
6CIC01 9-885-120-54 IC S3C80J9X12-SN99 (MICOM)
IC1P02 9-885-084-28 IC (SWITCH VOL. REG)
*IC1P03 9-885-108-63 IC KIA278R000P5 (POSI.FIXED REG)
IC1P04 9-885-102-61 IC KIA278R018PI (POSI.FIXED REG)
IC1P05 9-885-070-57 IC G9205 (POSI.FIXED REG)
6MIC01 9-885-120-53 IC MICOM
6MIC02 9-885-079-21 IC 74VHC125 (CMOS LOGIC)
6MIC03 9-885-111-34 IC AT24C04N-10SU-2.7 (EEPROM)
6MIC04 1-804-705-11 IC (POWER DETECT)
6MIC05 1-804-704-11 IC (RESET)
6MIC06 1-805-019-11 IC 7ST08 (CMOS LOGIC)
1SIC01 9-885-120-51 IC ICE3B2065J (PWM CONTROLLER)
01SIC02 9-885-070-43 PHOTO-COUPLER
1SIC03 1-804-445-11 IC KA4318
< BEAD/FILTER/COIL >
8AL5 9-885-083-84 BEAD-SMD 47ohm
8AL7 9-885-083-84 BEAD-SMD 47ohm
8AL8 1-400-316-11 CORE-FERRITE BEAD 220ohm
8AL9 1-400-316-11 CORE-FERRITE BEAD 220ohm
8AL13 9-885-069-75 FILTER-EMI SMD
8AL14 1-400-316-11 CORE-FERRITE BEAD 220ohm
8AL51 1-400-316-11 CORE-FERRITE BEAD 220ohm
8AL52 1-400-316-11 CORE-FERRITE BEAD 220ohm
8AR5 1-400-316-11 CORE-FERRITE BEAD 220ohm
BD1P01 1-424-828-11 COIL CHOKE 10uH
6CL01 1-400-074-11 INDUCTOR 100uH
L03 1-400-086-11 FERRITE CORE
L1S30 9-885-070-00 COIL CHOKE DR CHOKE (8*6)
L1S31 9-885-070-00 COIL CHOKE DR CHOKE (8*6)
L1S32 1-424-828-11 COIL CHOKE 10uH
L1S33 1-424-828-11 COIL CHOKE 10uH
1SL01 1-400-085-11 INDUCTOR 70uH
8YL1 9-885-083-84 BEAD-SMD 47ohm
8YL2 9-885-083-84 BEAD-SMD 47ohm
< TRANSISTOR >
8AQ1 9-885-070-34 TRANSISTOR
8AQ2 9-885-070-37 TRANSISTOR KSR2103
8AQ3 9-885-070-30 TRANSISTOR KSC1623-L
8AQ4 9-885-070-30 TRANSISTOR KSC1623-L
8AQ5 9-885-070-37 TRANSISTOR KSR2103
8AQ6 9-885-070-30 TRANSISTOR KSC1623-L
8AQ7 9-885-070-34 TRANSISTOR
8AQ8 9-885-070-37 TRANSISTOR KSR2103
8AQ9 9-885-070-29 TRANSISTOR KSA812
8AQ10 9-885-070-30 TRANSISTOR KSC1623-L
8AQ11 9-885-070-34 TRANSISTOR
8AVQ1 9-885-070-30 TRANSISTOR KSC1623-L
6CQ01 9-885-120-49 TRANSISTOR MMBT3904
6CQ02 9-885-070-29 TRANSISTOR KSA812
6MQ01 9-885-070-29 TRANSISTOR KSA812
6MQ02 9-885-070-29 TRANSISTOR KSA812
Q1P103 9-885-070-38 TRANSISTOR FQP33N10
Q1PS01 9-885-070-32 TRANSISTOR KSC945
Q1PS02 9-885-070-33 TRANSISTOR KTC3203-Y
The components identified by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
7-5E
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
JACK
The components identified by mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number specified.
Q1PS03 9-885-070-36 TRANSISTOR KSR2001
6VQ01 9-885-070-30 TRANSISTOR KSC1623-L
8Y130 9-885-070-30 TRANSISTOR KSC1623-L
6YQ01 9-885-070-29 TRANSISTOR KSA812
6YQ02 9-885-070-29 TRANSISTOR KSA812
6YQ03 9-885-070-30 TRANSISTOR KSC1623-L
6YQ04 9-885-070-30 TRANSISTOR KSC1623-L
< CAPACITOR >
6BC01 1-165-644-11 CONDENSER 0.1F
1C1S39 1-165-999-11 CONDENSER FILM 0.1uF
01SC02 1-100-358-11 CONDENSER CERAMIC DISC 100PF
01SC03 1-100-358-11 CONDENSER CERAMIC DISC 100PF
1SC07 1-165-990-11 CONDENSER 100PF
1SC11 1-165-568-11 CONDENSER FILM 1000PF
1SC12 1-165-999-11 CONDENSER FILM 0.1uF
< VIBRATOR >
6BXT2 1-795-332-11 VIBRATOR CRYSTAL (32.768kHz)
6CXT1 1-795-604-11 RESONATOR CERAMIC (4MHz)
6MXT1 9-885-120-52 CRYSTAL-UNIT (20MHz)
< LINE FILTER >
01DL01 1-424-830-11 LINE FILTER 30mH
01SL02 1-424-830-11 LINE FILTER 30mH
< FUSE >
F1S01 1-576-527-11 FUSE CLIP
F1S02 1-576-527-11 FUSE CLIP
< TRANSFORMER >
0PT01 9-885-102-62 TRANS SWITCHING EER3534
< FUSE >
01SF01 1-576-526-11 FUSE 1.6A T.L (T1.6A/250V)
< RESISTOR >
1SR02 1-245-556-11 R-METAL OXIDE (S)
1SR03 1-245-556-11 R-METAL OXIDE (S)
1SR13 1-245-575-11 R-METAL OXIDE
< THERMISTOR >
1SR04 9-885-101-36 THERMISTOR-NTC
< VARISTOR >
1SVA1 9-885-070-65 VARISTOR
*1SVA3 9-885-108-15 VARISTOR
MISCELLANEOUS
*************
029-885-090-95 CBF-POWER CORD
39-885-102-44 CBF CABLE-MONO PLUG TO LED
H001 9-885-120-47 ASSY-LOADER; TS-P632D/SDBH
ACCESSORIES
************
3-296-710-11 MANUAL, INSTRUCTION (ENGLISH)
9-885-120-61 REMOCON ASSY:RDR-GX360 (RMT-D254A)
RDR-GX360
— 111 —
Sony Corporation
Home Electronics Network Company
9-883-984-11
2008C0500-1
© 2008. 3
Published by Quality Assurance Dept.
REVISION HISTORY
Ver. Date Description of Revision
1.0 2008.03 New
RDR-GX360

Navigation menu
