Security In Angular Setup Instructions README 1ST

Setup your Machine

Before you begin to use Angular, you must prepare your development

machine. If you are new to Angular, you are going to need the following tools

installed on your machine.

• Node.js

• NodeJS Package Manager (npm)

• Angular

• TypeScript (Automatically installed)

• Angular CLI

• ASP.NET Core

• Visual Studio Code

• Extensions for VS Code

o Debugger (Chrome, Firefox or Edge)

o C#

NOTE: If you already have all of these installed on your computer, you may

skip ahead to the section "Create the Sample Project".

Install Node & NPM

See if you have Node.js and NodeJS Package Manager (npm) on your

machine. Drop to a command prompt on your machine and type in the

following.

npm -v

node -v

You will either see an error, or you will see the version numbers for each.

If you need to install these packages you can download and install these two

packages at https://nodejs.org. Download and install the “LTS” version, not

“Current”.

Security in Angular Setup Instructions

2 Security in Angular Setup Instructions

You need at least node version 6.9.x and npm version 3.x.x.

Install ASP.NET Core

Check to see if you have ASP.NET Core on your machine. Open a command

prompt and type in the following:

dotnet

If you have it installed, you should see something that looks like the following:

If you do not have it installed, go to

https://www.microsoft.com/net/download/windows. On this page select the

Download .NET Core x.x.x SDK as shown in the following screen shot.

Install Angular CLI

Security in Angular Setup Instructions 3

Install Angular CLI

Check to see if you have the Angular CLI installed. Open a command prompt

on your machine and check the version of Angular CLI:

ng -v

After running this command, you will either have an error, or you will see a

version number. Unless you have installed this very recently, open a

Security in Angular Setup Instructions

4 Security in Angular Setup Instructions

command prompt and execute the following command to get the latest

version of the CLI.

npm install -g @angular/cli

Install Visual Studio Code

Go to http://code.visualstudio.com and download and install Visual Studio

Code.

Install Debugger Extension

Let’s now install a debugger to use from within VS Code.

Click on the Extensions icon in the Activity Bar.

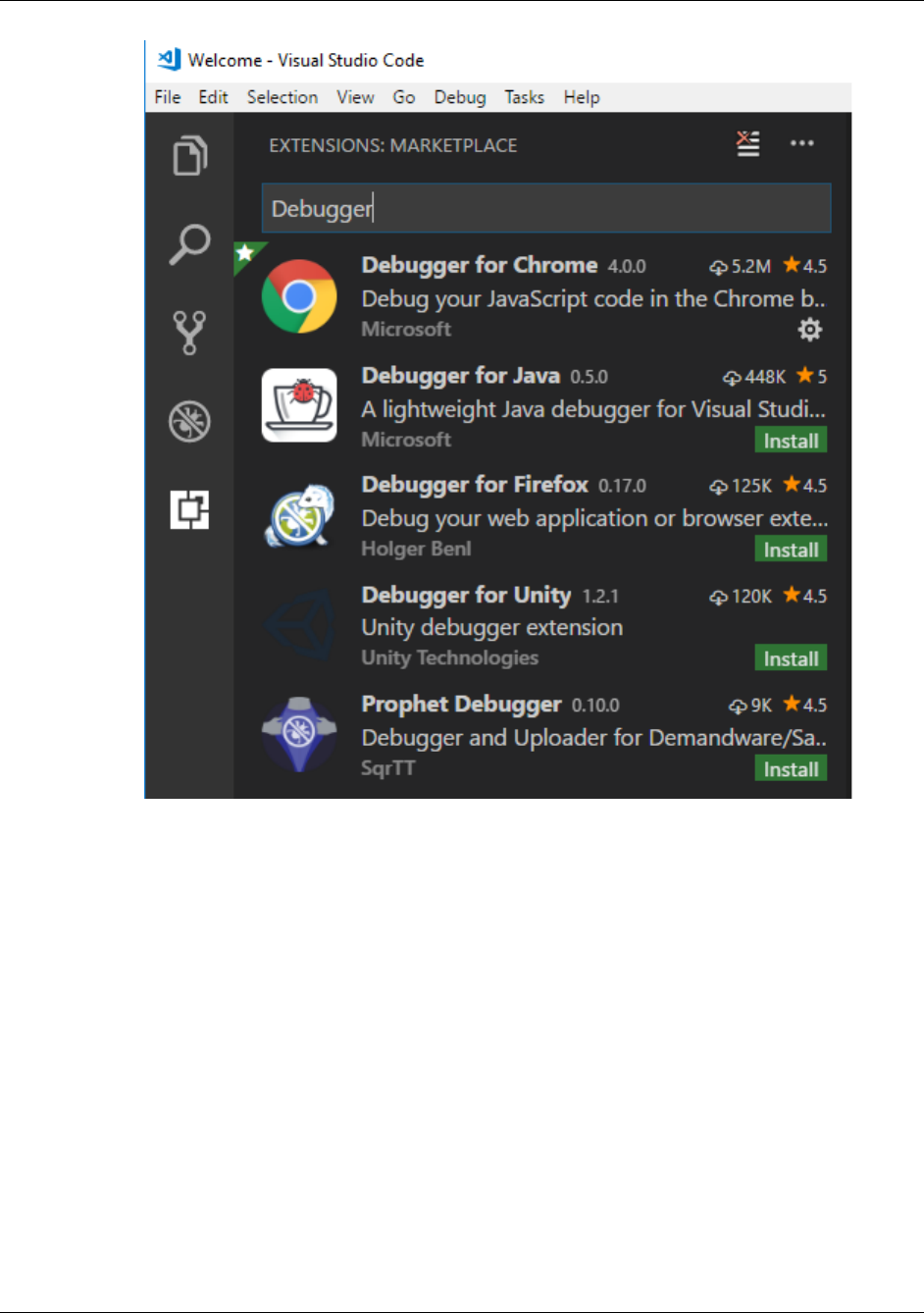

Once you click on the Extensions tab, type “Debugger” into the search box.

Install C#

Security in Angular Setup Instructions 5

You can install debuggers for Chrome, FireFox or Microsoft Edge browsers.

Select one and click the Install button.

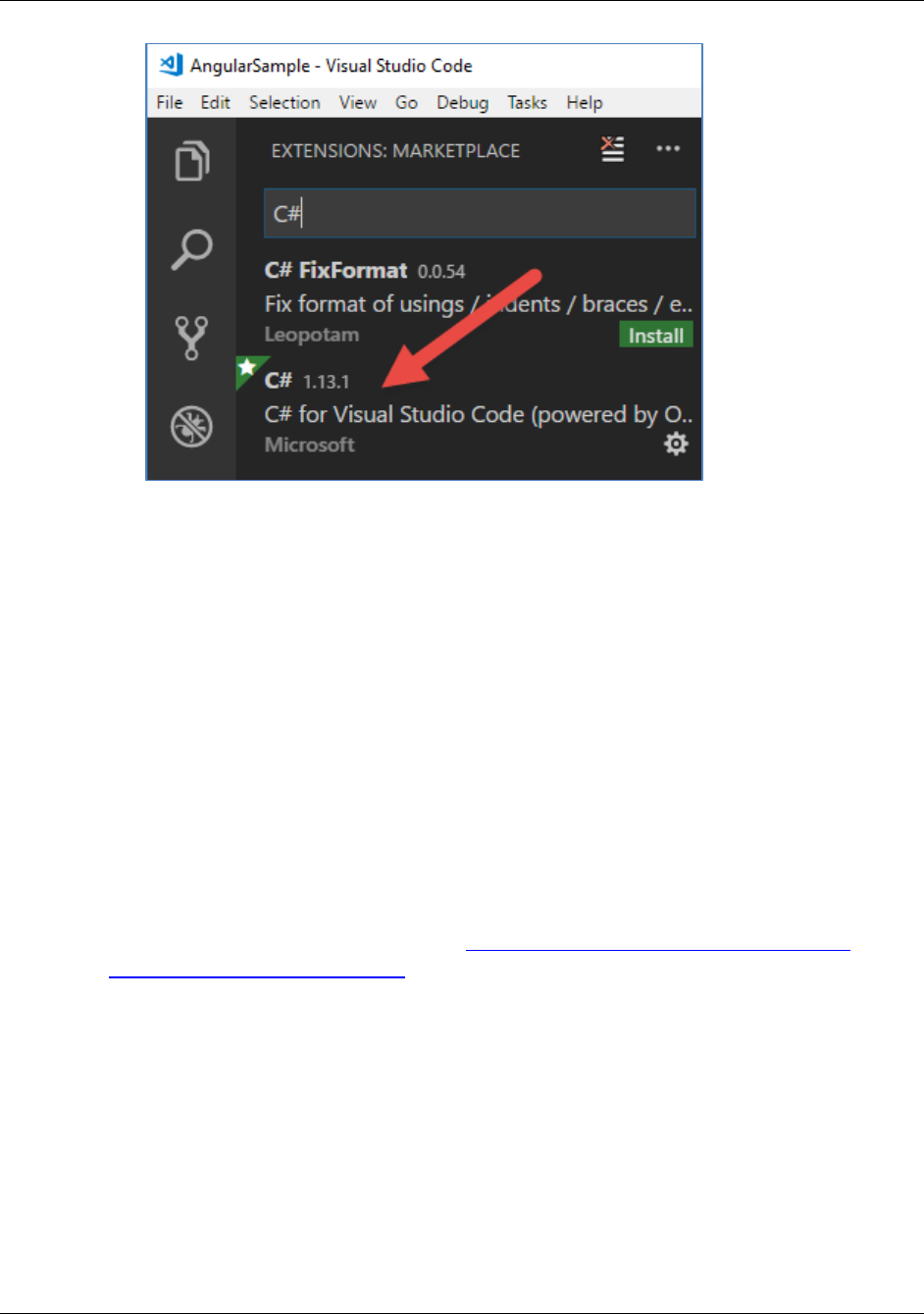

Install C#

In this course you are going to use .NET Core to create a Web API, so you

should install the C# extension for VS Code.

Security in Angular Setup Instructions

6 Security in Angular Setup Instructions

Setup SQL Server

In the sample you download there is a \SqlData folder in which you find a

SQL Server Express database named PTC-Pluralsight.mdf. You also find a

PTC-Pluralsight.SQL file. You may either create your own PTC-Pluralsight

database on your own SQL Server, or use the database supplied.

Getting SQL Server Express

If you want to use the supplied database file, you need to get SQL Server

Express. Download it at this URL: https://www.microsoft.com/en-us/sql-

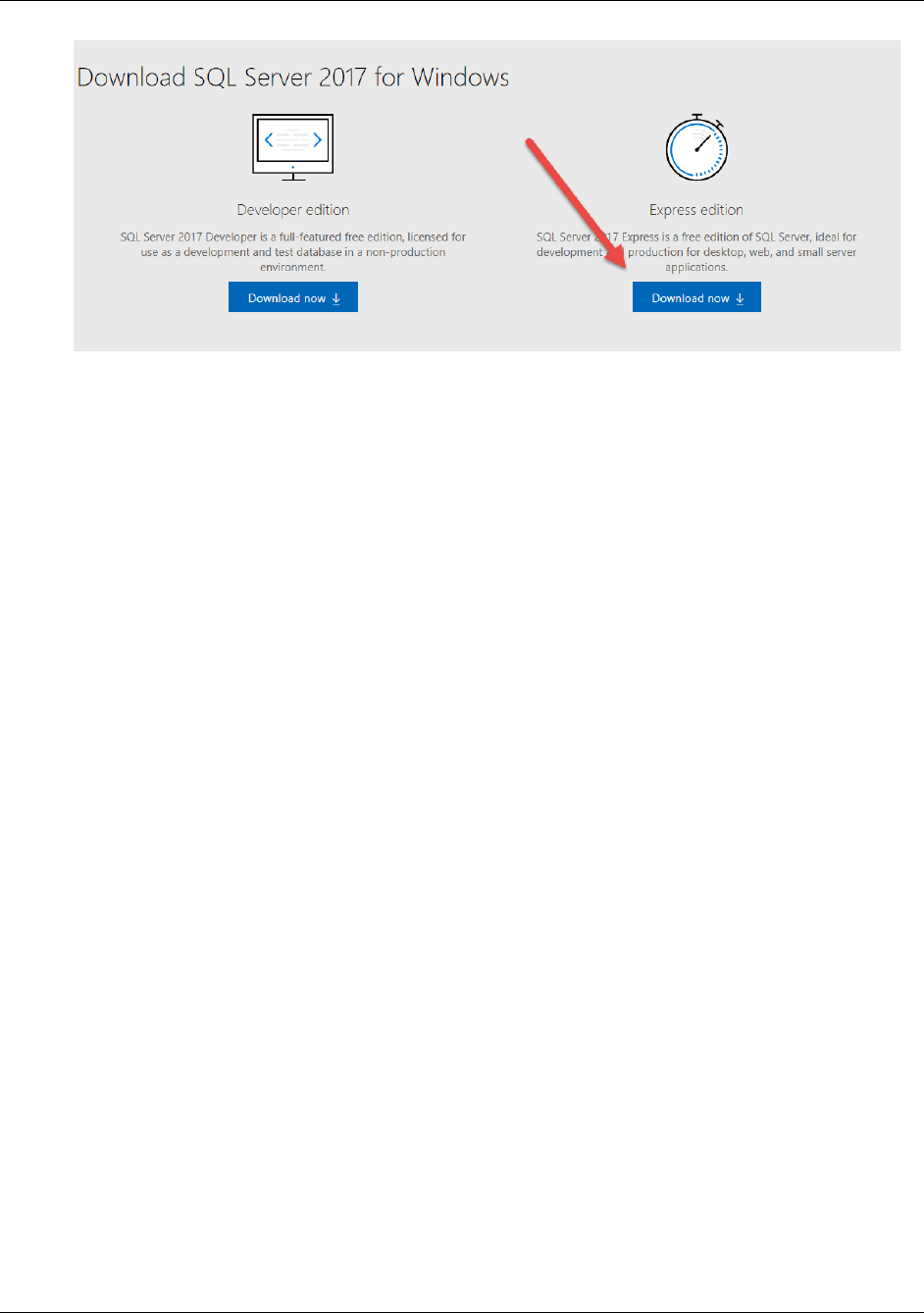

server/sql-server-downloads. Choose the Express edition as shown below.

Setup SQL Server

Security in Angular Setup Instructions 7

During the installation, be sure to select the feature "LocalDB" to be installed.

Security in Angular Setup Instructions

8 Security in Angular Setup Instructions

Create the Sample Project

The following are the instructions to create the sample project to follow along

with this course.

Create New Angular Project

Open a command prompt.

Navigate to a hard drive where you place projects. Create a new folder, or

use an existing folder.

D:

mkdir PTC

cd PTC

Make a new Angular project using the Angular CLI.

ng new PTC --prefix ptc

Create new Web API project

Create a new Web API project

Start-up Visual Studio Code

Security in Angular Setup Instructions 9

mkdir PtcApi

cd PtcApi

dotnet new webapi

Start-up Visual Studio Code

Load the current project in Code

code .

If you are prompted to restore dependencies by Code, respond Yes.

Create a Workspace

You have just loaded the Web API project. Add the Angular project to Code

by clicking on the File | Add Folder to Workspace... menus.

Locate the PTC\PTC folder and add that folder to Code.

Select File | Save Workspace As… from the menu. Give it a name such as

ptc-workspace.

Add Bootstrap & jQuery

Add Bootstrap and jQuery to the Angular project. Open a command prompt in

the PTC project and type in the following command.

Security in Angular Setup Instructions

10 Security in Angular Setup Instructions

npm install bootstrap@3 jquery --save

Copy Sample Files

You may now copy all files and folders from the downloaded samples into the

respective folders where you created these new projects.

Modify Connection String

Open the \Model\PtcDbContext.cs file located in the PtcApi project.

Modify the path in the AttachDbFilename attribute to the path where you

created these projects.

private const string CONN = @"Server=(localdb)\MSSQLLocalDB;

Database=PTC-Pluralsight;

AttachDbFilename=D:\Samples\PTC\SqlData\PTC-Pluralsight.mdf;

MultipleActiveResultSets=true";

You should now be ready to start running the application.
