HDD/DVD RECORDER

SERVICE MANUAL

MODELS : RH178H/188H/1999H/HDR688X

MODELS : RH178H/188H/1999H/HDR688XSERVICE MANUAL

P/NO : AFN30086042 APRIL,2006

CAUTION

BEFORE SERVICING THE UNIT, READ THE “SAFETY PRECAUTIONS”

IN THIS MANUAL.

CONTENTS

SECTION 1 . . . .SUMMARY

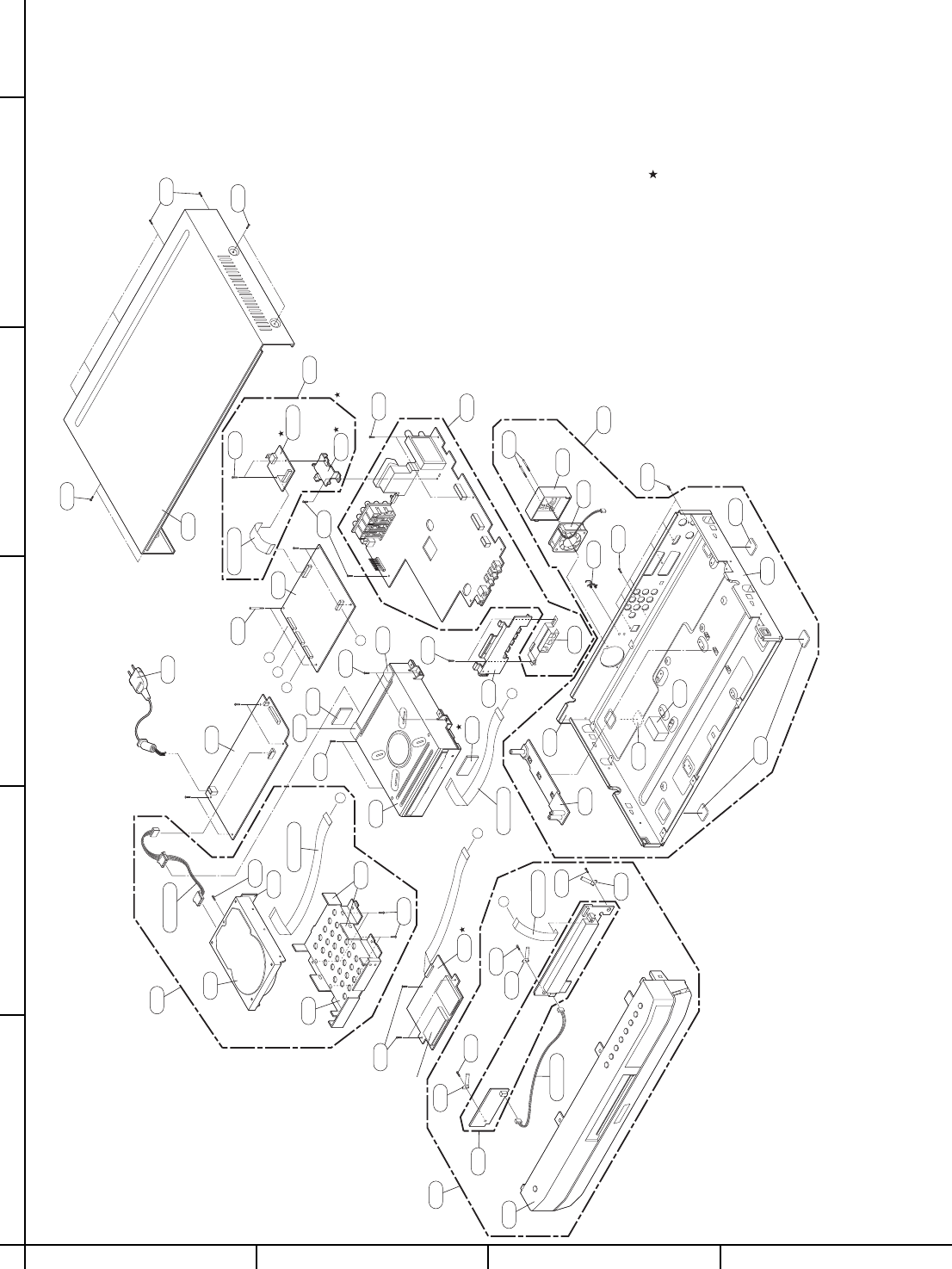

SECTION 2 . . . .CABINET & MAIN CHASSIS

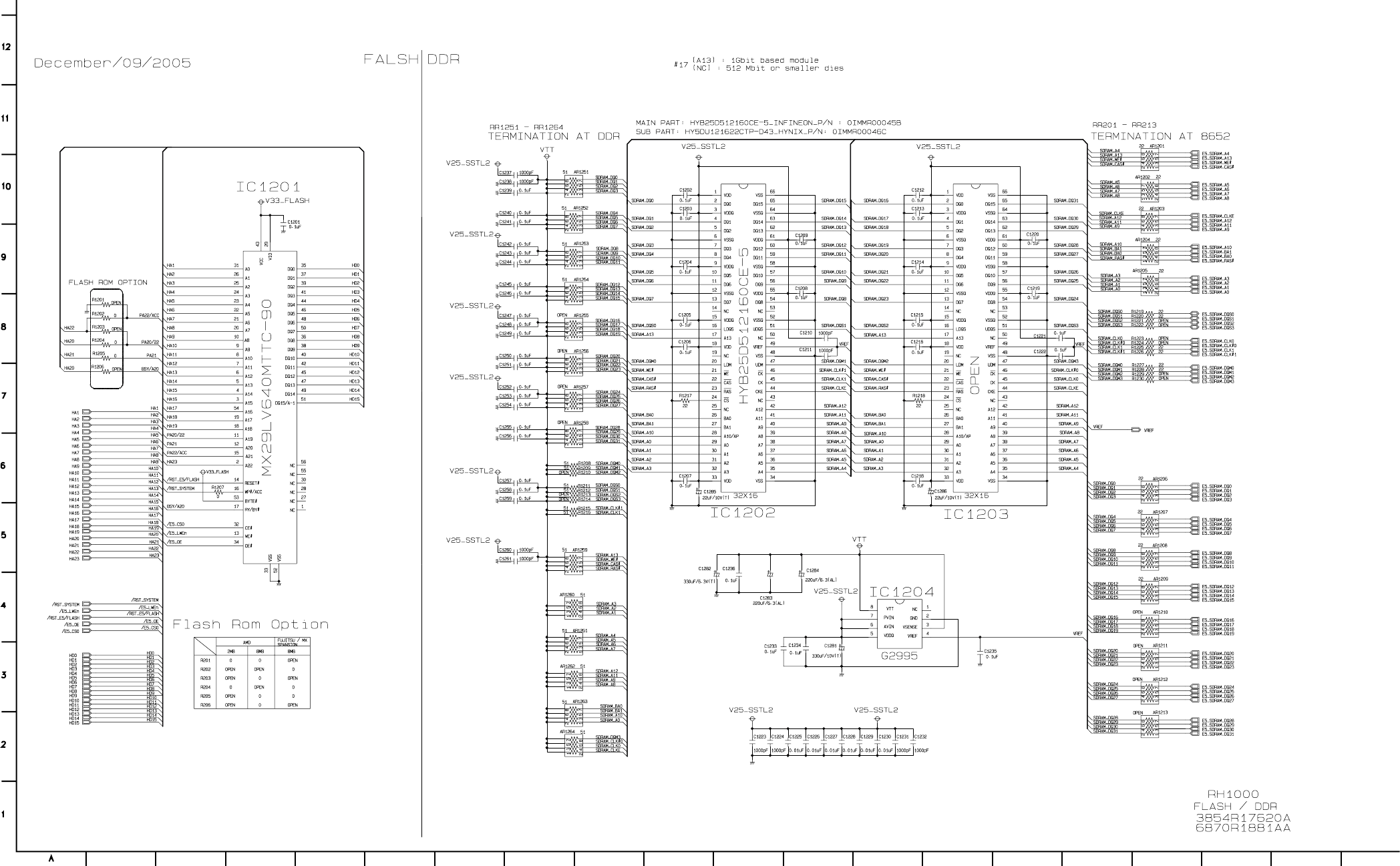

SECTION 3 . . . .ELECTRICAL

SECTION 4 . . . .RS-01A LOADER PART

SECTION 5 . . . .REPLACEMENT PARTS LIST

1-2

SECTION 1

SUMMARY

CONTENTS

NEW FUNCTIONS OF HDD/DVD-RECORDER................................................................. 1-2

PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS.............. 1-3

SERVICING PRECAUTIONS .................................................................................................. 1-4

• General Servicing Precautions

• Insulation Checking Prodedure

• Electrostatically Sensitive Devices

SERVICE INFORMATION FOR EEPROM IC SETTING ................................................. 1-5

SPECIFICATIONS ...................................................................................................................... 1-6

1-3

NEW FUNCTIONS OF HDD/DVD-RECORDER

• HDMI

HDMI IS THE SPECIFICATION FOR THE HIGH-DEFINITION MULTIMEDIA INTERFACE. HDMI IS PROVID-

ED FOR TRANSMITTING DIGITAL TELEVISION AUDIOVISUAL SIGNALS FROM HDD-DVD RECORDER TO

TELEVISION SETS, OTHER VIDEO DISPLAYS. HDMI CAN CARRY HIGH QUALITY MULTI-CHANNEL

AUDIO DATA AND CAN CARRY ALL STANDARD AND HIGH DEFINITION CONSUMER ELECTRONICS

VIDEO FORMATS. CONTENT PROTECTION TECHNOLOGY IS AVAILABLE. HDMI CAN ALSO CARRY

CONTROL AND STATUS INFORMATION IN BOTH DIRECTIONS.

<< OPERATING >>

AUDIO, VIDEO AND AUXILIARY DATA IS TRANSMITTED ACROSS THE THREE TMDS DATA CHANNELS.

THE VIDEO PIXEL CLOCK IS TRANSMITTED ON THE TMDS CLOCK CHANNEL AND IS USED BY THE

RECEIVER AS A FREQUENCY REFERENCE FOR DATA RECOVERY ON THE THREE TMDS DATA CHAN-

NELS.

VIDEO DATA IS CARRIED AS A SERIES OF 24-BIT PIXELS ON THE THREE TMDS DATA CHANNELS.

TMDS ENCODING CONVERTS THE 8BIT PER CHANNEL INTO THE 10BIT DC–BALANCED.

VIDEO PIXEL RATES CAN RANGE FROM 25MHZ TO 165MHZ. THE VIDEO PIXELS CAN BE ENCODED IN

EITHER RGB,YCBCR 4:4:4 OR YCBCR 4:2:2 FORMATS. IN ALL THREE CASES, UP TP 24 BITS PER

PIXEL CAN BE TRANSFERRED.

FAST DUBBING

DUBBING MEANS A COPYING FUNCTION BETWEEN HDD TO DVD DISCS.

COPYING BETWEEN HDD TO DVD IS A COMPLETELY DIGITAL PROCESS AND THEREFORE INVOLVES

NO LOSS OF QUALITY IN THE AUDIO OR VIDEO. SO THIS MEANS THAT COPYING CAN BE CARRIED

OUT AT THE MAXIMUM SPEED POSSIBLE.

<< DUBBING SPEED RATE >>

NORMAL DUBBING : SPEED RATE MAX X1

FAST DUBBING : SPEED RATE MAX X4

WHEN FAST DUBBING FROM HDD TO DVD , THE SPEED OF COPYING DEPENDS ON THE RECORDING

MODE AND THE KIND OF USING THE DVD DISC, AND THIS MODE IS NOT AVAILABLE FOR EDITED

VIDEO TITLE IN HDD.

WHEN FAST DUBBING FROM DVD TO HDD , ONLY AVAILABLE WHEN COPYING VR MODE DISC(DVD-

RW) TO HDD , AND ONLY NORMAL DUBBING AVAILABLE WHEN COPYING VIDEO MODE DISC

(DVD+R/RW, DVD-R) TO HDD

1-4

IMPORTANT SAFETY NOTICE

This manual was prepared for use only by properly trained audio-video service

technicians.

When servicing this product, under no circumstances should the original

design be modified or altered without permission from LG Electronics

Corporation. All components should be replaced only with types identical to

those in the original circuit and their physical location, wiring and lead dress

must conform to original layout upon completion of repairs.

Special components are also used to prevent x-radiation, shock and fire haz-

ard. These components are indicated by the letter “x” included in their compo-

nent designators and are required to maintain safe performance. No deviations

are allowed without prior approval by LG Electronics Corporation.

Circuit diagrams may occasionally differ from the actual circuit used. This way,

implementation of the latest safety and performance improvement changes

into the set is not delayed until the new service literature is printed.

CAUTION: Do not attempt to modify this product in any way. Never perform

customized installations without manufacturer’s approval. Unauthorized modi-

fications will not only void the warranty, but may lead to property damage or

user injury.

Service work should be performed only after you are thoroughly familiar with

these safety checks and servicing guidelines.

GRAPHIC SYMBOLS

The exclamation point within an equilateral triangle is intended to

alert the service personnel to important safety information in the

service literature.

The lightning flash with arrowhead symbol within an equilateral tri-

angle is intended to alert the service personnel to the presence of

noninsulated “dangerous voltage” that may be of sufficient magni-

tude to constitute a risk of electric shock.

The pictorial representation of a fuse and its rating within an equi-

lateral triangle is intended to convey to the service personnel the

following fuse replacement caution notice:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK

OF FIRE, REPLACE ALL FUSES WITH THE SAME TYPE AND

RATING AS MARKED NEAR EACH FUSE.

SERVICE INFORMATION

While servicing, use an isolation transformer for protection from AC line shock.

After the original service problem has been corrected, make a check of the fol-

lowing:

FIRE AND SHOCK HAZARD

1. Be sure that all components are positioned to avoid a possibility of adjacent

component shorts. This is especially important on items trans-ported to and

from the repair shop.

2. Verify that all protective devices such as insulators, barriers, covers, shields,

strain reliefs, power supply cords, and other hardware have been reinstalled

per the original design. Be sure that the safety purpose of the polarized line

plug has not been defeated.

3. Soldering must be inspected to discover possible cold solder joints, solder

splashes, or sharp solder points. Be certain to remove all loose foreign par-

ticles.

4. Check for physical evidence of damage or deterioration to parts and compo-

nents, for frayed leads or damaged insulation (including the AC cord), and

replace if necessary.

5. No lead or component should touch a high current device or a resistor rated

at 1 watt or more. Lead tension around protruding metal surfaces must be

avoided.

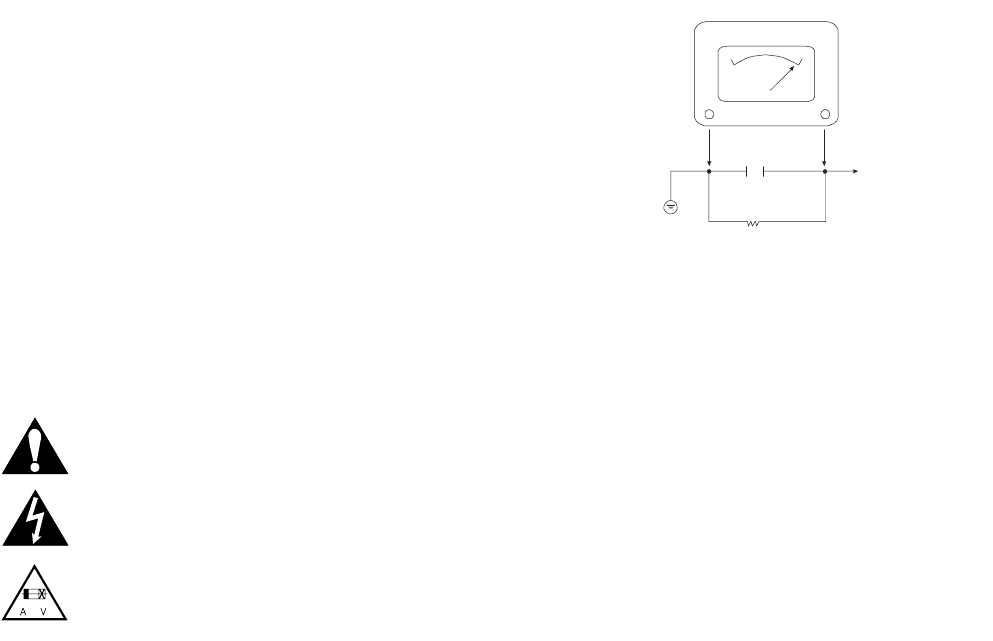

6. After reassembly of the set, always perform an AC leakage test on all

exposed metallic parts of the cabinet (the channel selector knobs, antenna

terminals, handle and screws) to be sure that set is safe to operate without

danger of electrical shock. DO NOT USE A LINE ISOLATION TRANS-

FORMER DURING THIS TEST. Use an AC voltmeter having 5000 ohms per

volt or more sensitivity in the following manner: Connect a 1500 ohm, 10

watt resistor, paralleled by a .15 mfd 150V AC type capacitor between a

known good earth ground water pipe, conduit, etc.) and the exposed metal-

lic parts, one at a time. Measure the AC voltage across the combination of

1500 ohm resistor and .15 mfd capacitor. Reverse the AC plug by using a

non-polarized adaptor and repeat AC voltage measurements for each

exposed metallic part. Voltage measured must not exceed 0.75 volts RMS.

This corresponds to 0.5 milliamp AC. Any value exceeding this limit consti-

tutes a potential shock hazard and must be corrected immediately.

TIPS ON PROPER INSTALLATION

1. Never install any receiver in a closed-in recess, cubbyhole, or closely fitting

shelf space over, or close to, a heat duct, or in the path of heated air flow.

2. Avoid conditions of high humidity such as: outdoor patio installations where

dew is a factor, near steam radiators where steam leakage is a factor, etc.

3. Avoid placement where draperies may obstruct venting. The customer

should also avoid the use of decorative scarves or other coverings that

might obstruct ventilation.

4. Wall- and shelf-mounted installations using a commercial mounting kit must

follow the factory-approved mounting instructions. A product mounted to a

shelf or platform must retain its original feet (or the equivalent thickness in

spacers) to provide adequate air flow across the bottom. Bolts or screws

used for fasteners must not touch any parts or wiring. Perform leakage tests

on customized installations.

5. Caution customers against mounting a product on a sloping shelf or in a tilt-

ed position, unless the receiver is properly secured.

6. A product on a roll-about cart should be stable in its mounting to the cart.

Caution the customer on the hazards of trying to roll a cart with small cast-

ers across thresholds or deep pile carpets.

7. Caution customers against using extension cords. Explain that a forest of

extensions, sprouting from a single outlet, can lead to disastrous conse-

quences to home and family.

A.C. Voltmeter

1500 OHM

10 WATT

Place this probe

on each exposed

metal part.

Good Earth Ground

such as the Water

Pipe, Conduit, etc.

0.15uF

PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS

1-5

SERVICING PRECAUTIONS

CAUTION : Before servicing the HDD/DVD Recorder cov-

ered by this service data and its supplements and addends,

read and follow the SAFETY PRECAUTIONS. NOTE : if

unforeseen circumstances create conflict between the fol-

lowing servicing precautions and any of the safety precau-

tions in this publications, always follow the safety precau-

tions.

Remembers Safety First:

General Servicing Precautions

1. Always unplug the HDD/DVD Recorder AC power cord

from the AC power source before:

(1) Removing or reinstalling any component, circuit board,

module, or any other assembly.

(2) Disconnection or reconnecting any internal electrical

plug or other electrical connection.

(3) Connecting a test substitute in parallel with an elec-

trolytic capacitor.

Caution : A wrong part substitution or incorrect

polarity installation of electrolytic capacitors may result

in an explosion hazard.

2. Do not spray chemicals on or near this HDD/DVD

Recorder or any of its assemblies.

3. Unless specified otherwise in this service data, clean

electrical contacts by applying an appropriate contact

cleaning solution to the contacts with a pipe cleaner,

cotton-tipped swab, or comparable soft applicator.

Unless specified otherwise in this service data, lubrication

of contacts is not required.

4. Do not defeat any plug/socket B+ voltage interlocks with

whitch instruments covered by this service manual might

be equipped.

5. Do not apply AC power to this HDD/DVD Recorder and/or

any of its electrical assemblies unless all solid-state

device heat sinks are cerrectly installed.

6. Always connect test instrument ground lead to the

appropriate ground before connection the test instrument

positive lead. Always remove the test instrument ground

lead last.

Insulation Checking Procedure

Disconnect the attachment plug from the AC outlet and turn

the power on. Connect an insulation resistance meter(500V)

to the blades of the attachment plug. The insulation resis-

tance between each blade of the attachment plug and acces-

sible conductive parts (Note 1) should be more than 1M-

ohm.

Note 1 : Accessible Conductive Parts including Metal pan-

els, Input terminals, Earphone jacks, etc.

Electrostatically Sensitive (ES) Devices

Some semiconductor (solid state) devices can be damaged

easily by static electricity. Such components commonly are

called Electrostatically Sensitive (ES) Devices. Examples of

typical ES devices are integrated circuits and some field

effect transistors and semiconductor chip components.

The following techniques should be used to help reduce the

incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor compo-

nent or semiconductor-equipped assembly, drain off any

electrostatic charge on your body by touching a known

earth ground. Alternatively, obtain and wear a commer-

cially available discharging wrist strap device, which

should be removed for potential shock reasons prior to

applying power to the unit under test.

2. After removing an electrical assembly equipped with ES

devices, place the assembly on a conductive surface such

as aluminum foil, to prevent electrostatic charge buildup or

exposure of the assembly.

3. Use only a grouned-tip soldering iron to solder or unsolder

ES devices.

4. Use only an anti-static solder removal device. Some

solder removal devices not classified a “anti-static” can

generate electrical charges sufficient to damage ES

devices.

5. Do not use freon-propelled chemicals. These can

generate electrical charge sufficient to damage ES

devices.

6. Do not remove a replacement ES device from its protec

tive package until immediately before you are ready to

install it. (Most replacement ES devices are packaged with

leads electrically shorted together by conductive foam,

aluminum foil, or comparable conductive material).

7. Immediately before removing the protective material from

the leads of a replacement ES device, touch the protective

material to the chassis or circuit assembly into which the

device will be installed.

Caution : Be sure no power is applied to the chassis or

circuit, and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged

replacement ES devices. (Normally harmless motion such

as the brushing together of your clothes fabric or the lifting

of your foot from a carpeted floor can generate static elec-

tricity sufficient to damage an ES device.)

1-6

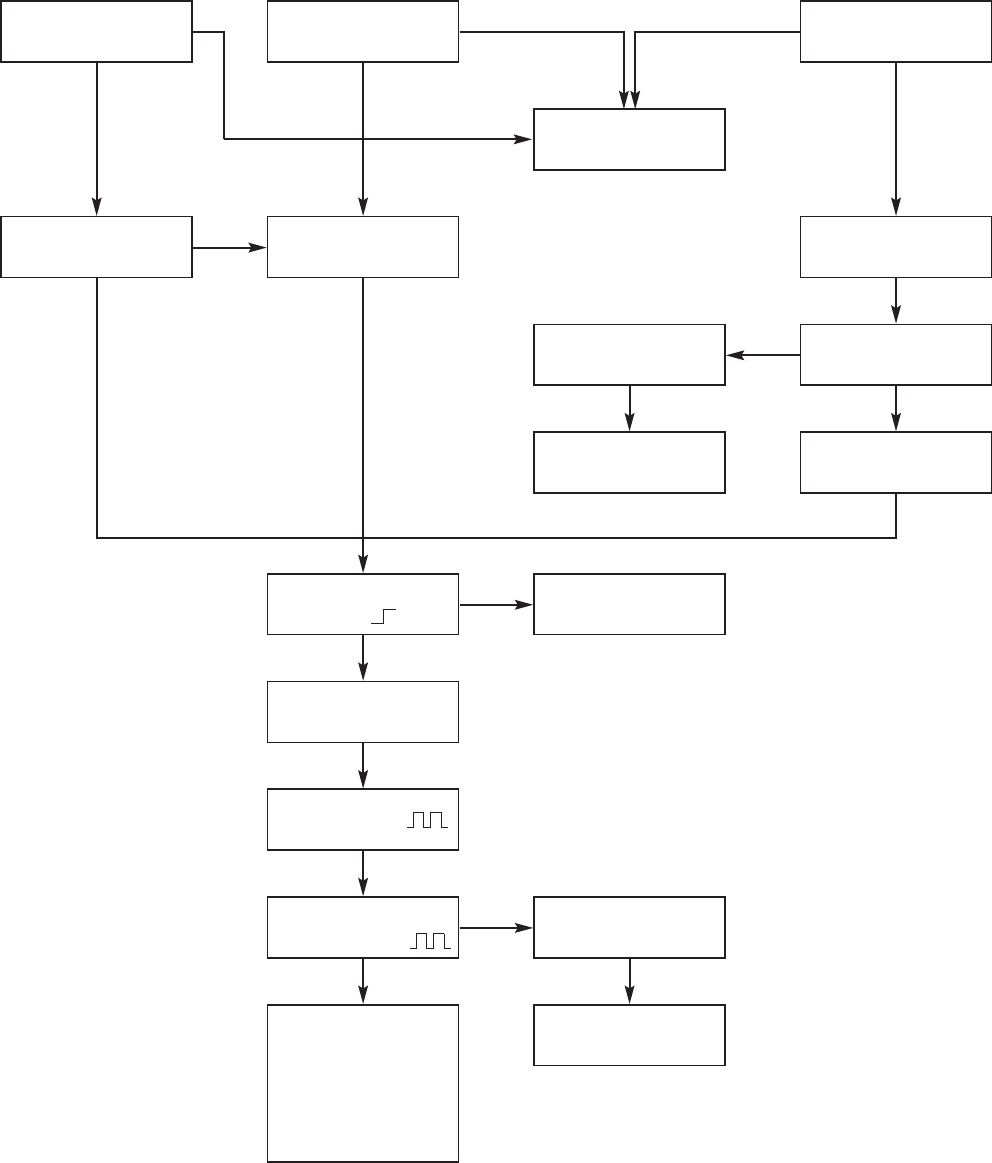

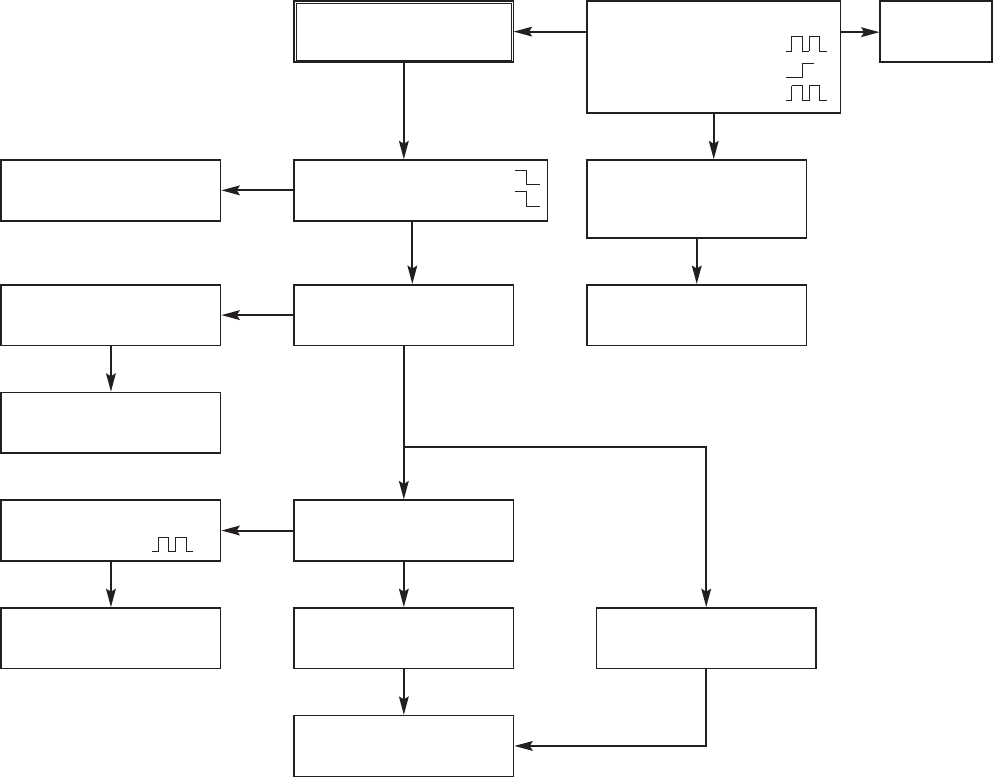

SERVICE INFORMATION FOR EEPROM IC SETTING

MICOM START

EEPROM ID CHECK

2 BYTE(B3,248,249) MODEL NAME HEX BINARY

RH.S OPT1 00 00000000

OPT2 00 00000000

OPT3 00 00000000

OPT4 00 00000000 (reserved)

OPT5 00 00000000 (reserved)

OPT6 00 00000000 (reserved)

OPT7 00 00000000 (reserved)

OPT8 00 00000000 (reserved)

WRITE:OK EXIT:MENU,MP

MOVE:< > EDIT : __

OPTION WRITE : OK (OK KEY IN)

MASK : R00 , EEP : R00 , (D10)

(Each mask ,eeprom, It shows a development

release version.)

DETECT NEW EEPROM (OPTION EDIT SCREEN)

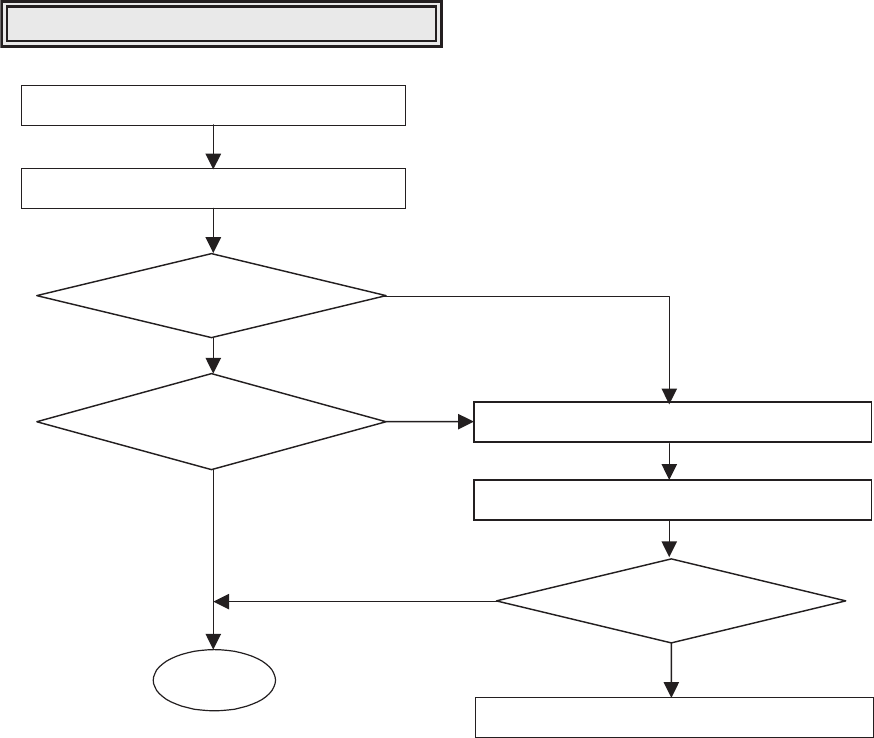

*** EEPROM INITIAL ***

- SETUP is displayed in the field if pressing the Front ch- & ch+ Key with the Remocon number "clear"

key pressed in the status of powering on.

- AUTO SEARCH is done since the initial screen of ACMS is serviced if powering on.

OPTION DATA READ

5TIME & COMPARE

MICOM NORMAL

OPERATION START

Press the "CLEAR" key on the

Remote controller and the "CH - "

key one the Front Panel the same

time, then it goes in to Tracking

initial mode.

OPTION CONFIRMATION MODE

ID OK?

Yes

1-7

SPECIFICATIONS

• GENERAL

Power requirements AC 200-240V, 50/60 Hz

Power consumption 35W

Dimensions (approx.) 430 X 54 X 275 mm (w x h x d) without foot

Mass (approx.) 4.1 kg

Operating temperature 5°C to 35°C

Operating humidity 5 % to 90 %

Television system PAL I, B/G, I/I, SECAM D/K, K1 color system

Recording format PAL

• RECORDING

Recording format DVD Video Recording, DVD-VIDEO

Recordable media HDD (80GB), DVD-ReWritable, DVD-Recordable, DVD+ReWritable,

DVD+Recordable, DVD+Recordable (Double Layer)

Recordable time DVD (4.7GB): Approx. 1 hour (XP mode), 2 hours (SP mode),

4 hours (LP mode), 6 hours (EP mode)

DVD+R DL (8.5GB): Approx. 3 hour (XP mode),

3 hours 40 minutes (SP mode),

7 hours 10 minutes (LP mode),

10 hours 30 minutes (EP mode)

HDD (80GB): Approx. 20 hours (XP mode), 40 hours (SP mode),

74 hours (LP mode), 111 hours (EP mode)

Video recording format

Sampling frequency 27MHz

Compression format MPEG 2 (VBR support)

Audio recording format

Sampling frequency 48kHz

Compression format Dolby Digital

• PLAYBACK

Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz

DVD (PCM 96 kHz): 8 Hz to 44 kHz

Signal-to-noise ratio More than 100 dB (AUDIO OUT connector)

Harmonic distortion Less than 0.008% (AUDIO OUT connector)

Dynamic range More than 95 dB (AUDIO OUT connector)

• INPUTS

AERIAL IN Aerial input, 75 ohms

VIDEO IN 1.0 Vp-p 75 ohms, sync negative, RCA jack x 2 / SCART x 2

AUDIO IN 2.0 Vrms more than 47 kohms, RCA jack (L, R) x 2 / SCART x 2

S-VIDEO IN (Y) 1.0 V (p-p), 75 Ω, sync negative, Mini DIN 4-pin x 1

DV IN 4 pin (IEEE 1394 standard)

• OUTPUTS

VIDEO OUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1 / SCART x 2

S-VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, sync negative, Mini DIN 4-pin x 1

COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2

Audio output (digital audio) 0.5 V (p-p), 75 Ω, RCA jack x 1

Audio output (optical audio) 3 V (p-p), 75 Ω, Optical connector x 1

Audio output (analog audio) 2.0 Vrms (1 KHz, 0 dB), 600 Ω, RCA jack (L, R) x 1 / SCART x 2

2-1

SECTION 2

CABINET & MAIN CHASSIS

CONTENTS

EXPLODED VIEWS ....................................................................................................................2-2

1. CABINET AND MAIN FRAME SECTION ................................................................................2-2

2. DECK MECHANISM SECTION(RS-01A) ................................................................................2-3

3. PACKING ACCESSORY SECTION .........................................................................................2-4

2-2

EXPLODED VIEWS

1. CABINET AND MAIN FRAME SECTION

A54A

A54

A46

471

300

A47

104

101

468

410

103

A53

A60

A56

A50

280 275

275

452

A26

A43

A44

A52

253

*463/462

250

*463/462

OPTIONAL PART

HDMI MODEL ONLY

OPTIONAL

PART

MEMORY

HDMI

BOARD

MAIN

BOARD

SMPS

I/O BOARD

CABLE3

CABLE11

CABLE10

CABLE5

CABLE2

CABLE1

A55

272

251

273

274

265

465

320

264

260

261

262

261

465

267

268

467

463

468

251

OPTIONAL

PART

OPTIONAL PART

BCD

2-3

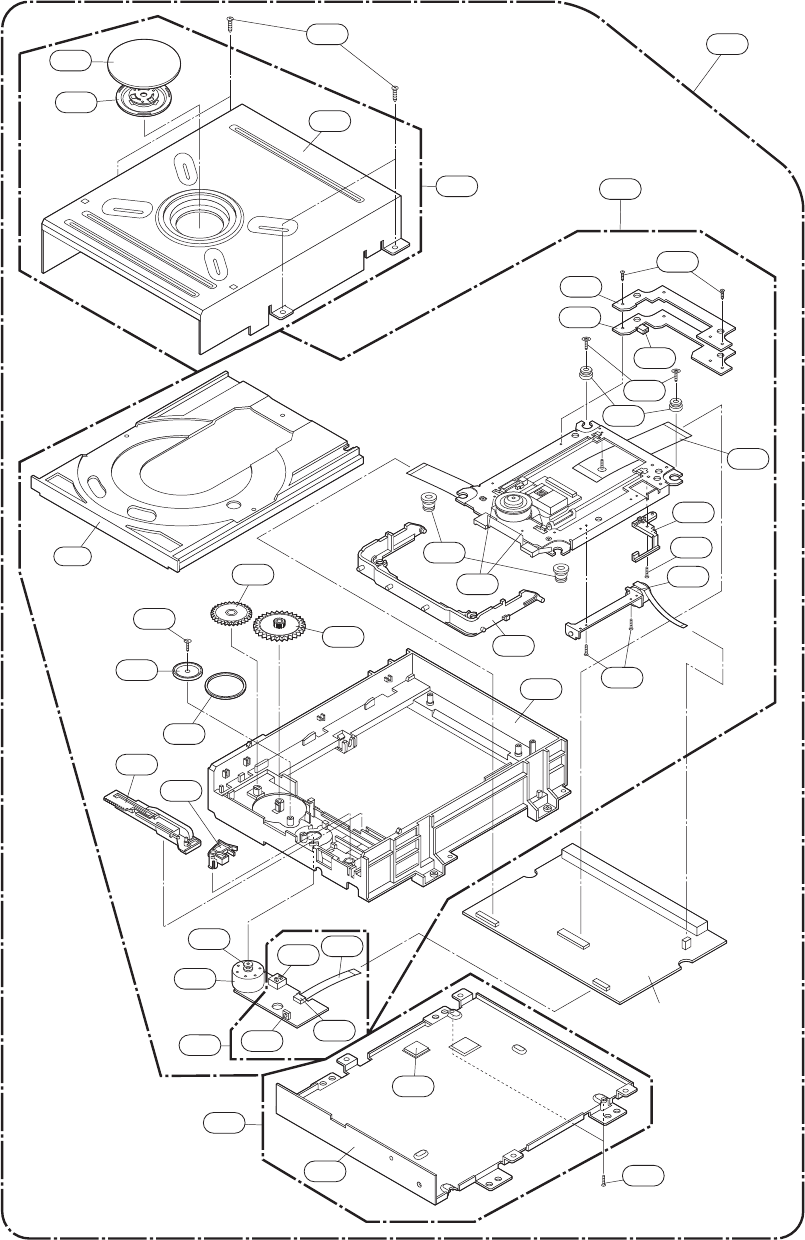

2. DECK MECHANISM SECTION(RS-01A)

1034

1030

1025

1041

1432

1437

1434

1032

1033

1038

1011

1432

1020

1036

1432

Main C.B.A

1001

1431

1003

1002

1026

A001

A60

A002

1016

1433

1017

1013

1015

1012

1439

1047

1048

1046

1014

1018

1019 1043 1045

1044

1042

A005

2-4

808 Battery

Cable, Coaxial

Plug Ass'y, 1Way

Plug Ass'y, 2Way

Bag

Packing

Remote Control

Instruction Ass'y

Packing

Box

806

804

803

811

812

FLAT CABLE

822

801

900

802

803

810 CABLE ASS'Y

821 SCART CABLE

OPTIONAL PART

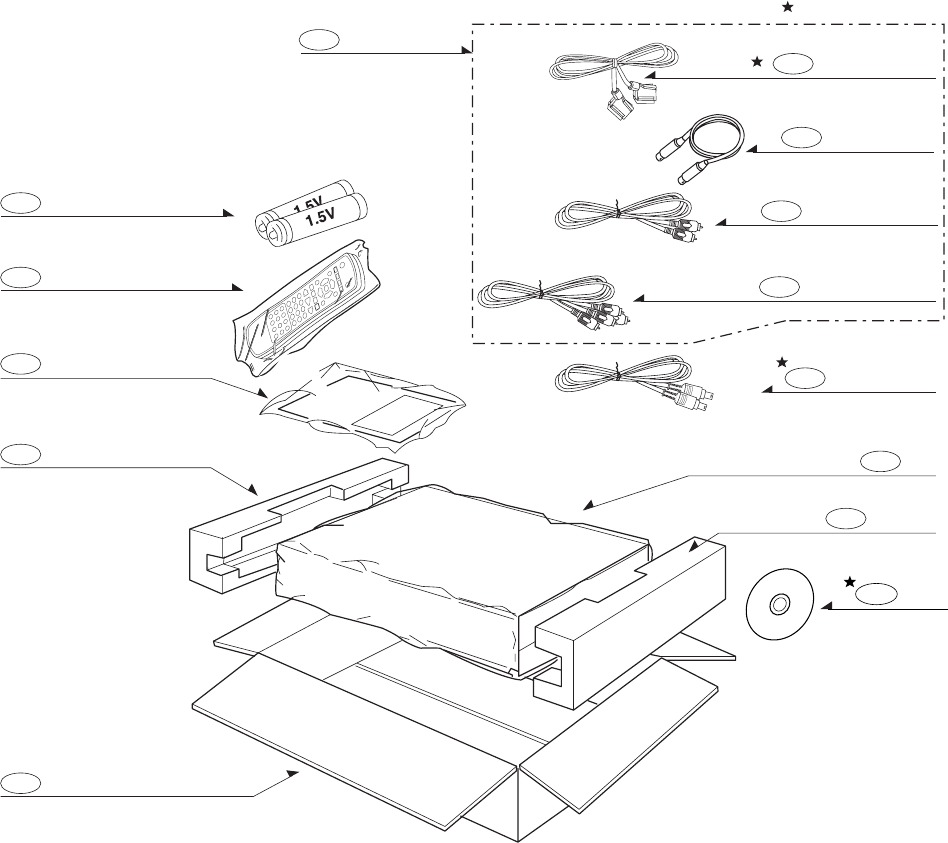

3. PACKING ACCESSORY SECTION

832 DISC

3-1

SECTION 3

ELECTRICAL

CONTENTS

HDR PART

ELECTRICAL TROUBLESHOOTING GUIDE ......................................................................................................................3-2

1. POWER SUPPLY ON SMPS BOARD...........................................................................................................................3-2

2. POWER SUPPLY ON I/O BOARD ................................................................................................................................3-4

3. SYSTEM CIRCUIT PART ..............................................................................................................................................3-7

4. DISC NOT RECOGNIZED.............................................................................................................................................3-7

5. WHEN PLAYING DISC, NO AUDIO OUTPUT ..............................................................................................................3-8

6. NO OPTICAL / DIGITAL OUTPUT.................................................................................................................................3-9

7. NO TUNER AUDIO OUTPUT ......................................................................................................................................3-10

8. NO EXTERNAL INPUT AUDIO....................................................................................................................................3-11

9. NO RGB / COMPONENT VIDEO SIGNAL WHEN PLAY DISC..................................................................................3-12

10. NO COMPOSITE / S-VIDEO SIGNAL WHEN PLAY DISC.......................................................................................3-12

11. NO TV, EXTERNAL INPUT VIDEO SIGNAL ............................................................................................................3-13

12. NO DV(IEEE 1394) INPUT (VIDEO/AUDIO) SIGNAL...............................................................................................3-14

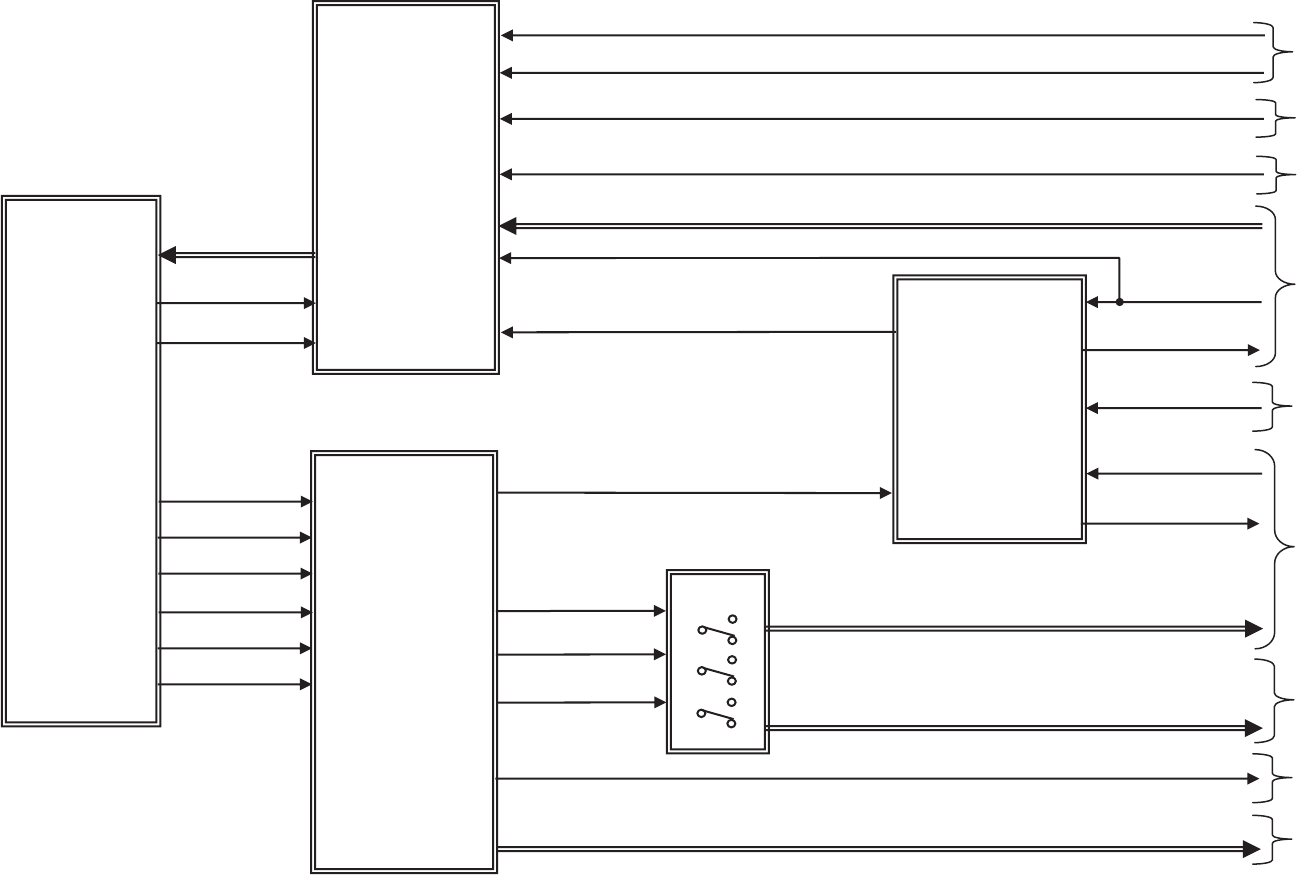

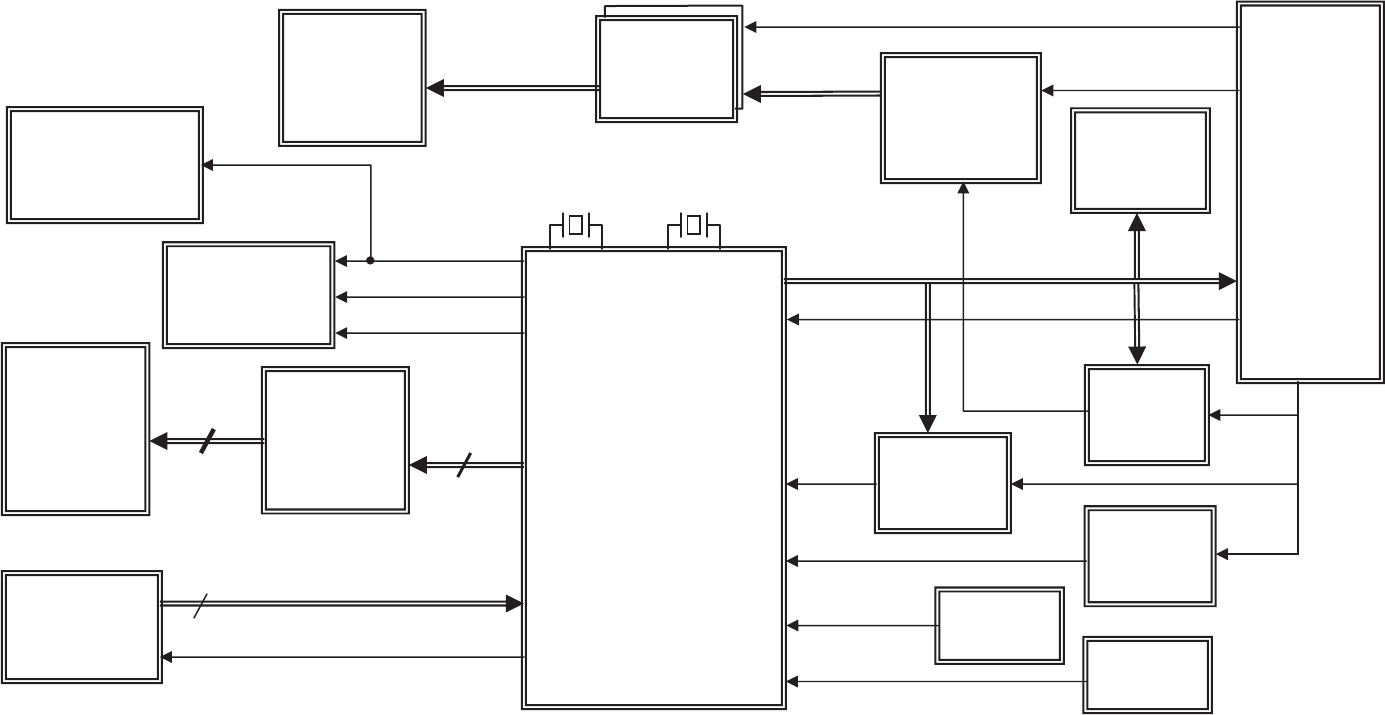

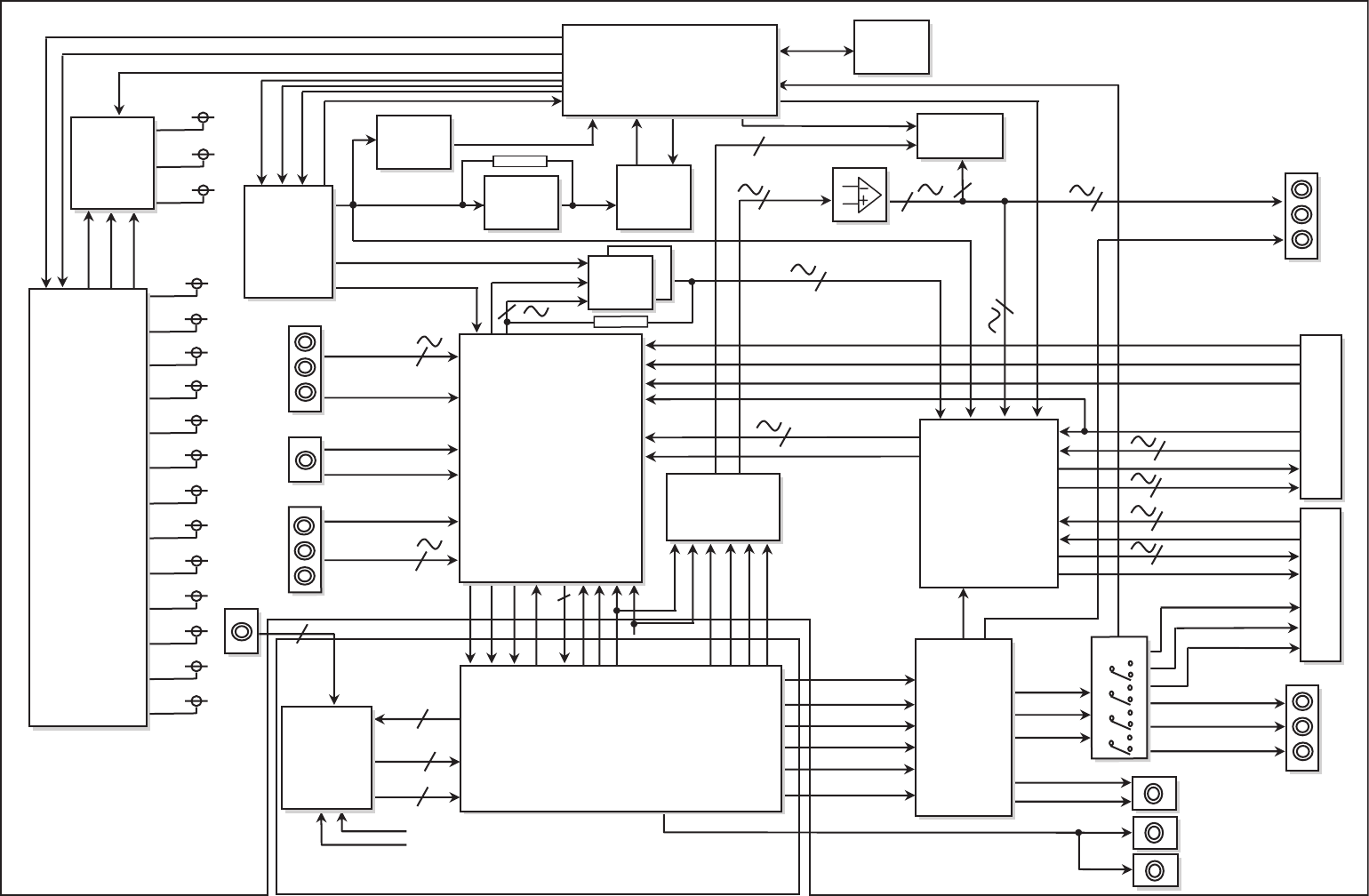

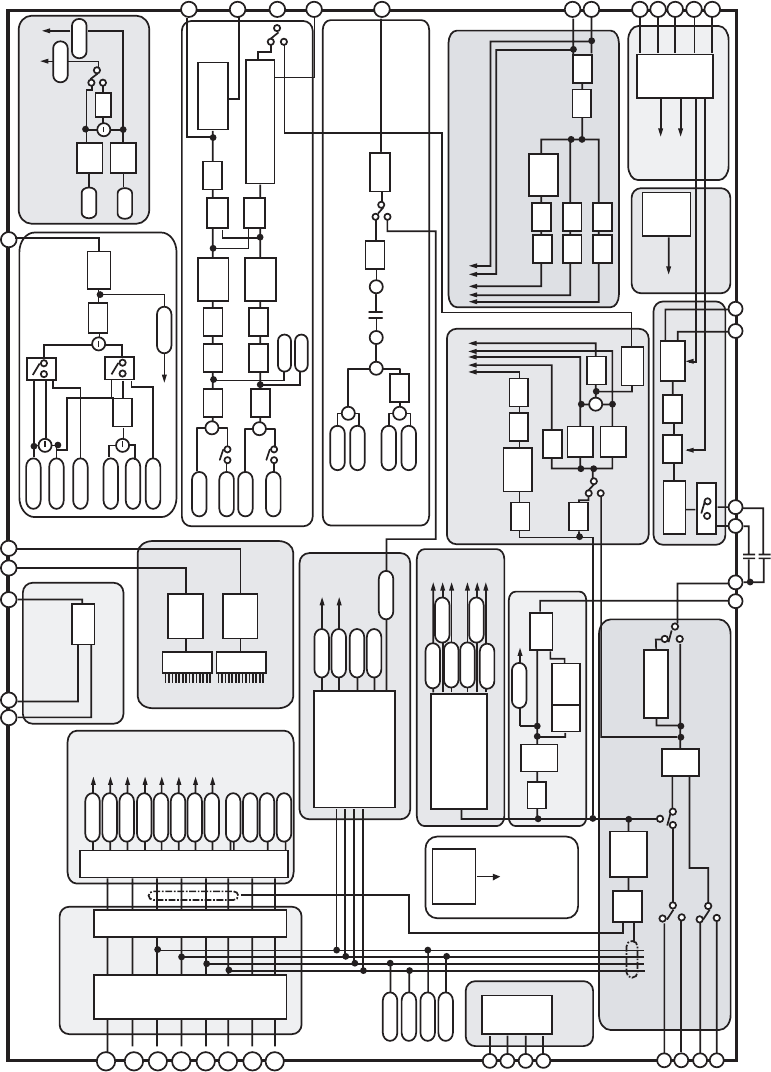

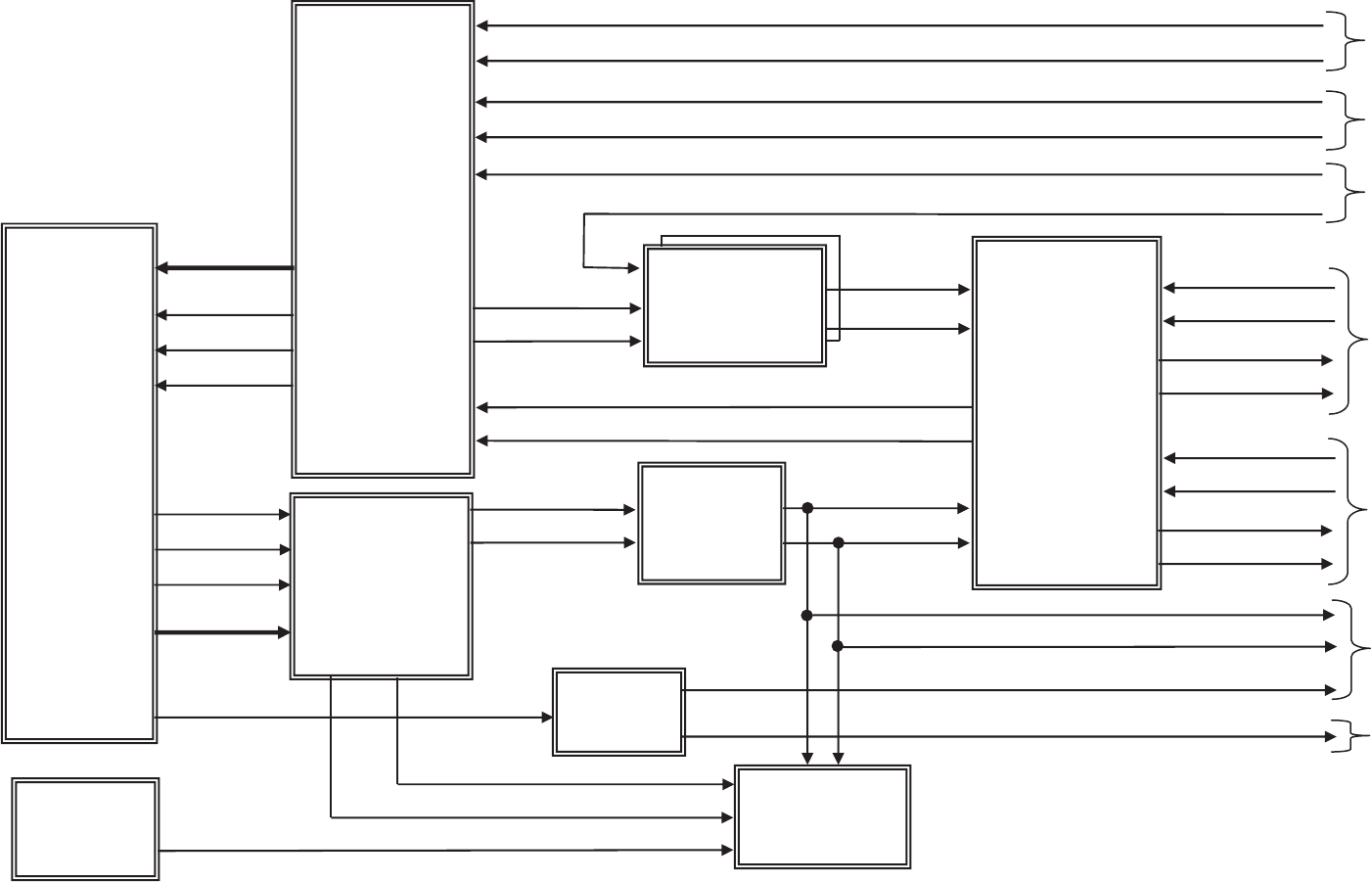

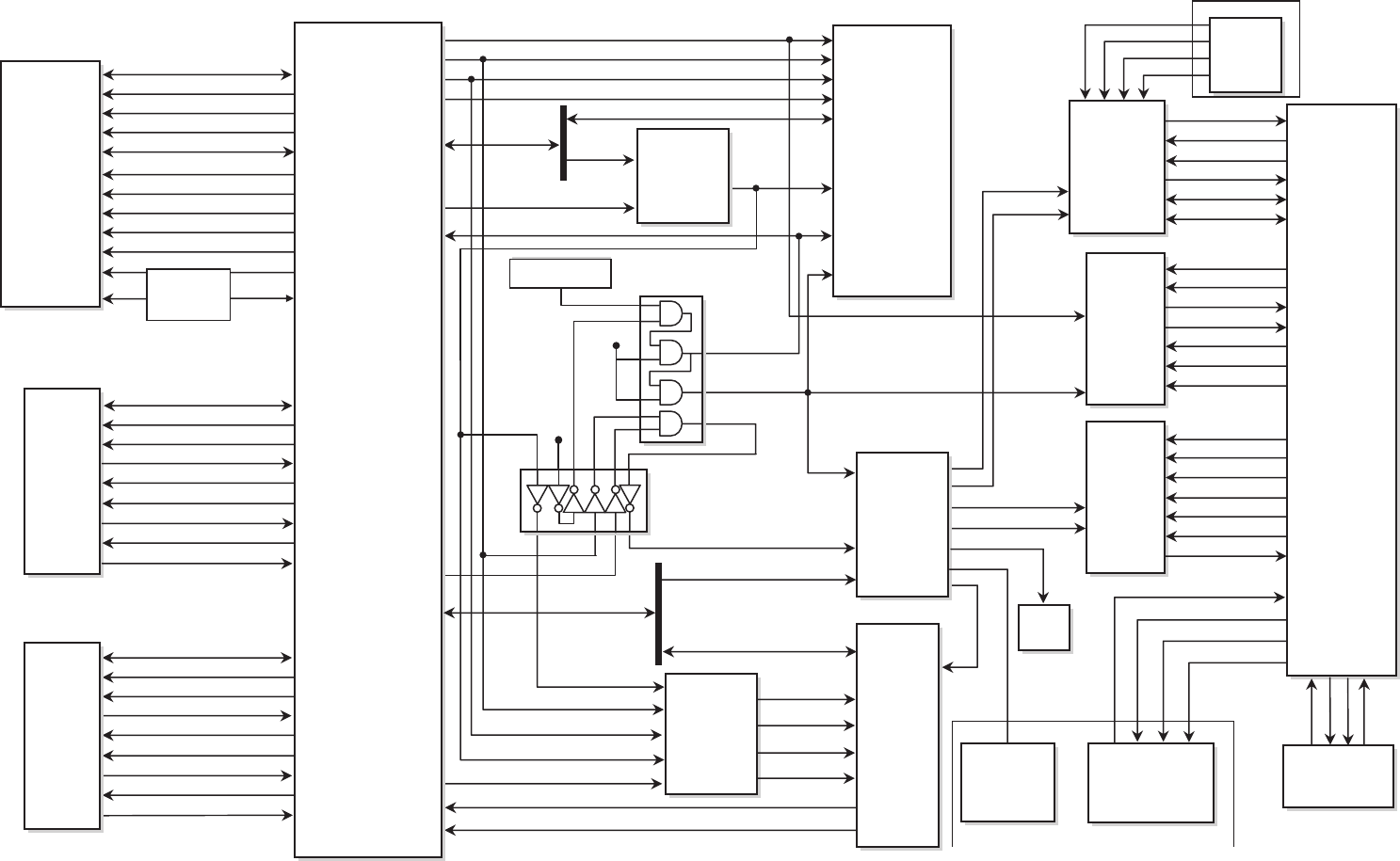

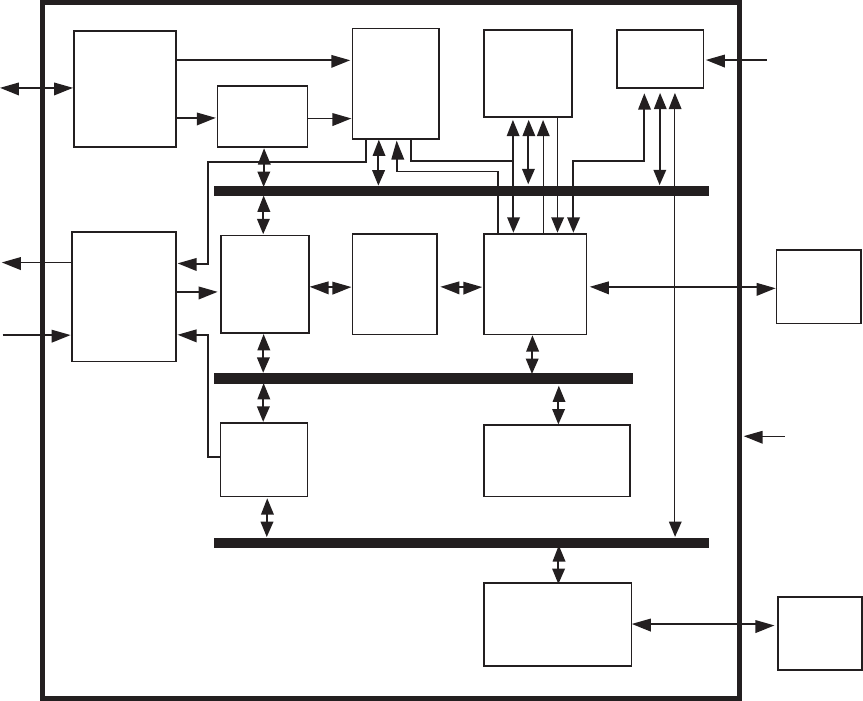

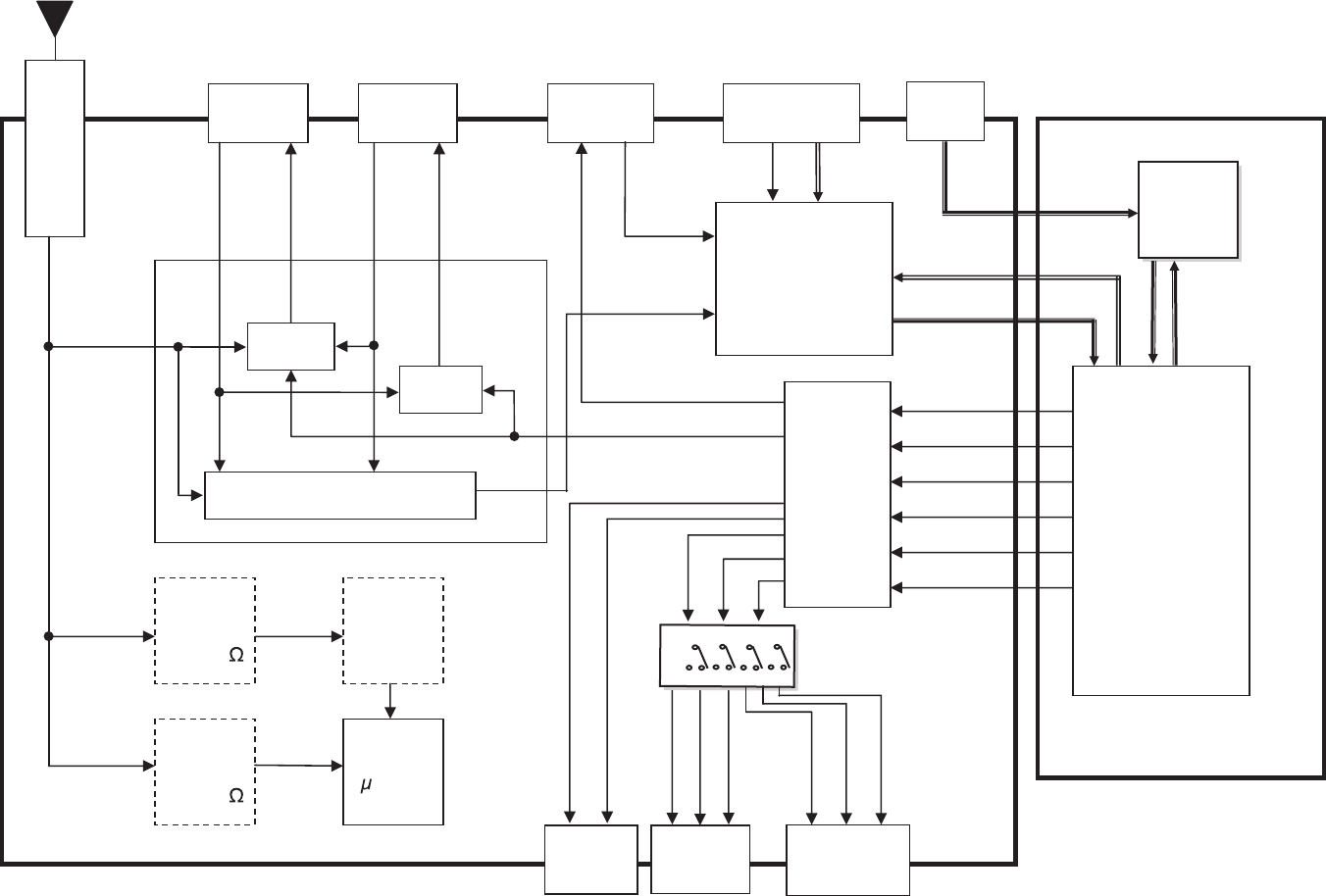

BLOCK DIAGRAMS............................................................................................................................................................3-16

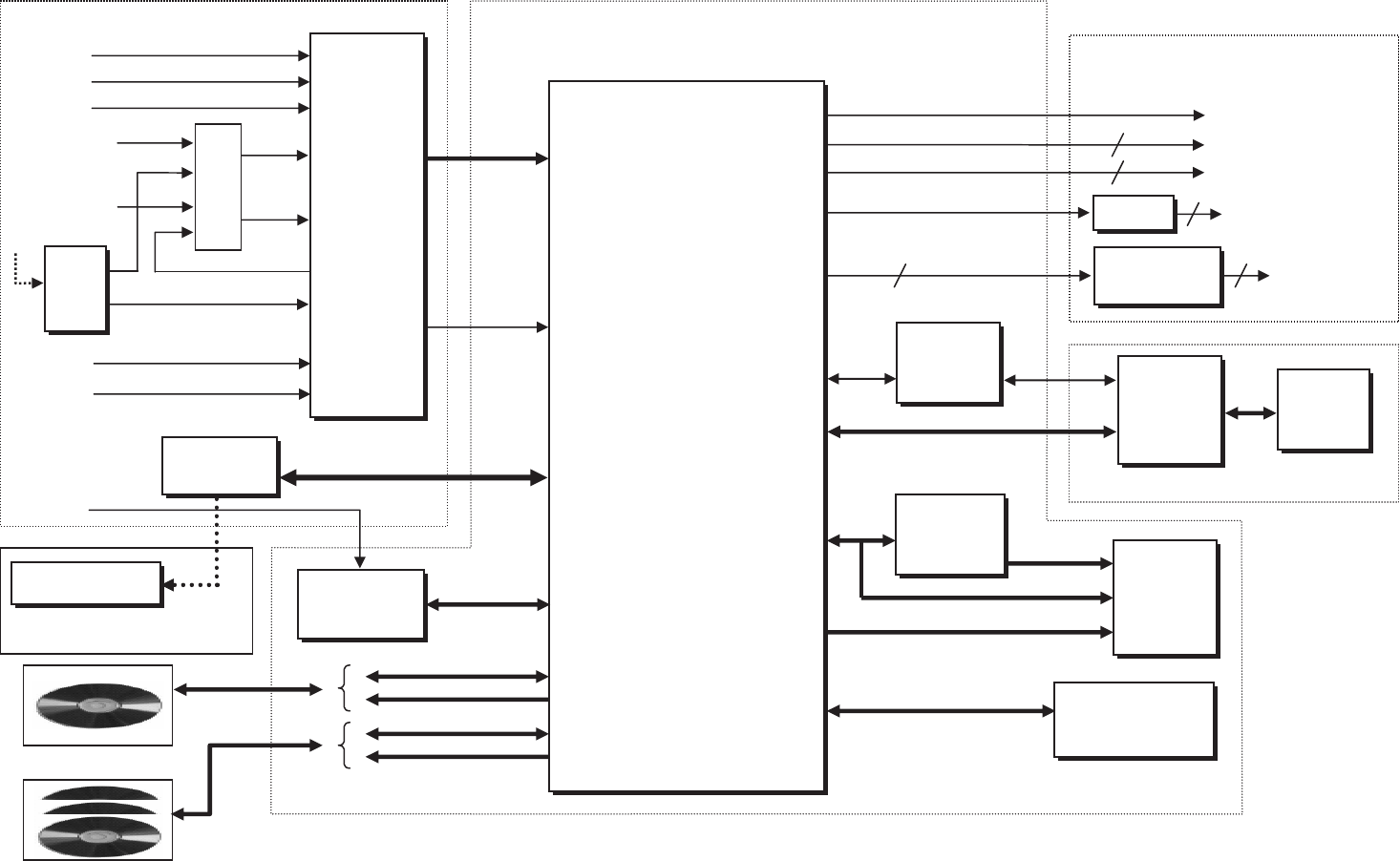

1. OVERALL BLOCK DIAGRAM .....................................................................................................................................3-15

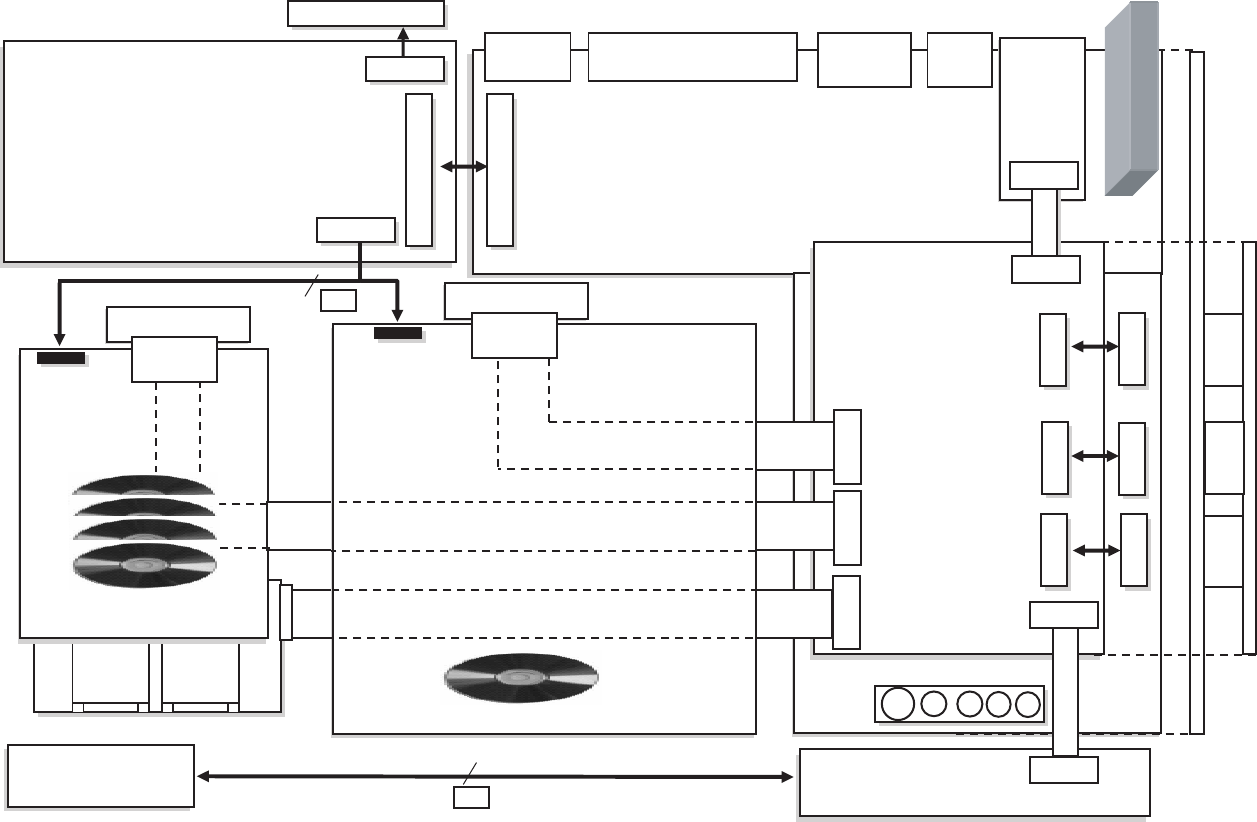

2. LAYOUT CONNECTION BLOCK DIAGRAM_1 ..........................................................................................................3-17

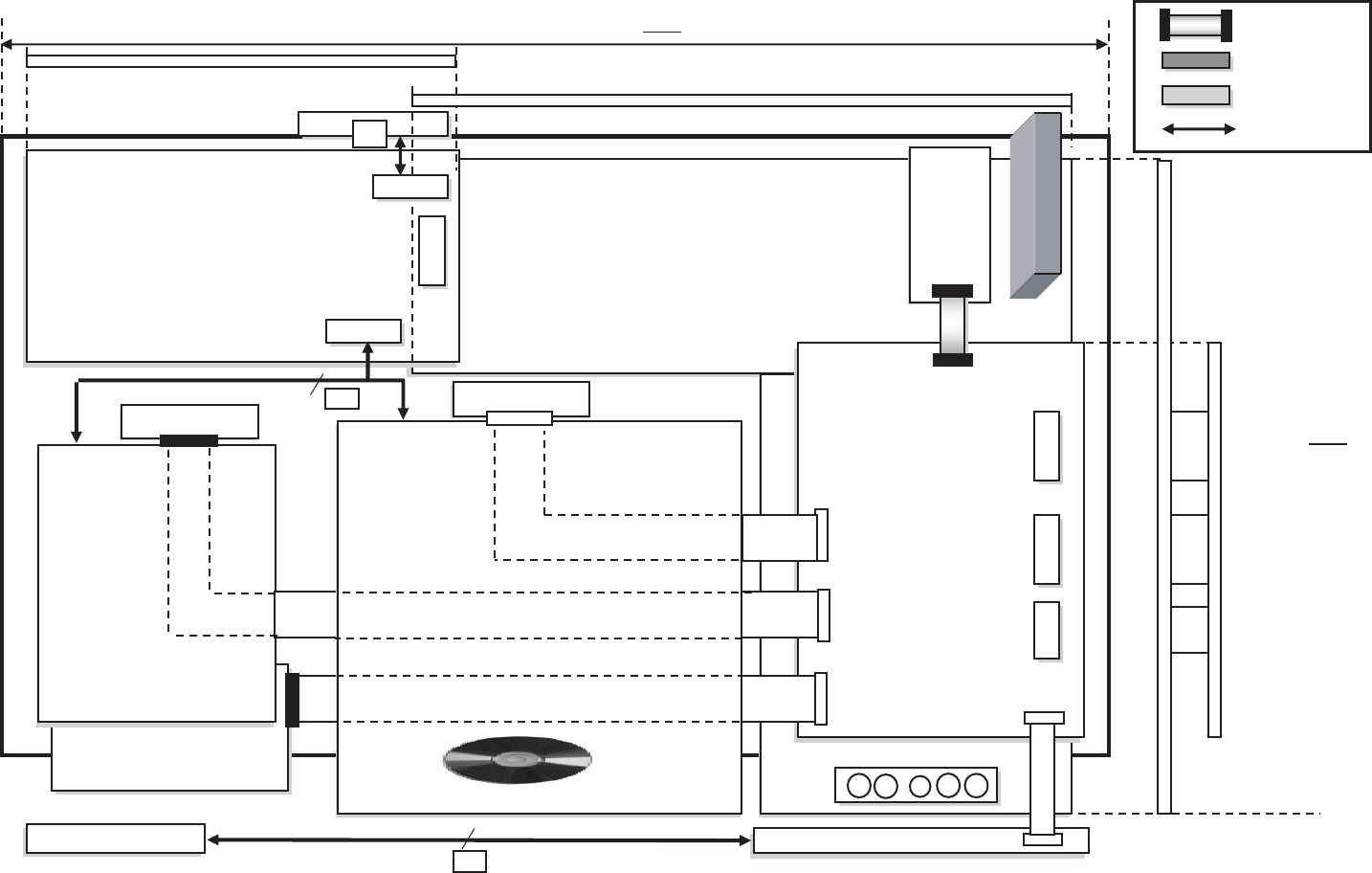

3. LAYOUT CONNECTION BLOCK DIAGRAM_2 ..........................................................................................................3-19

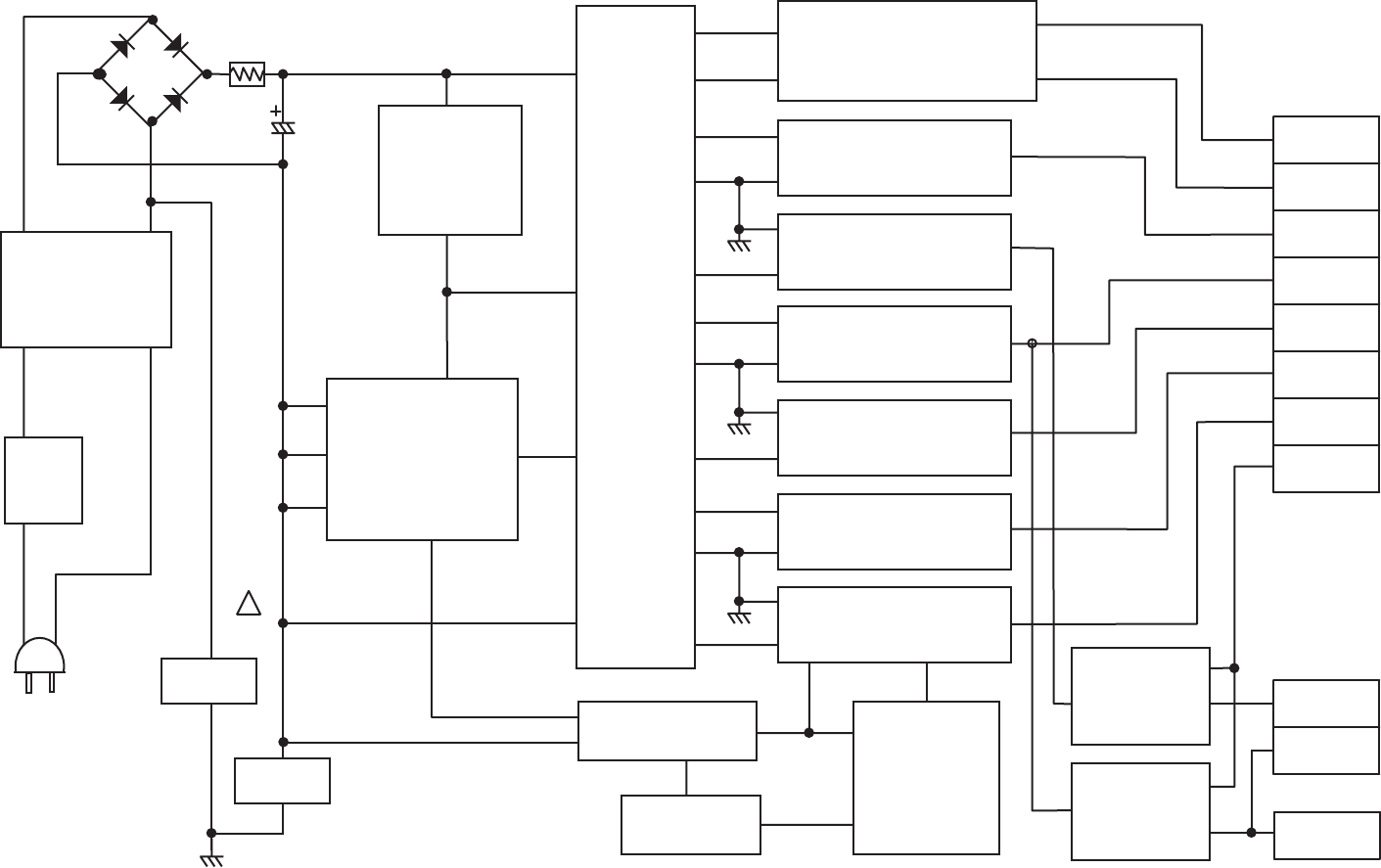

4. SMPS BLOCK DIAGRAM............................................................................................................................................3-21

5. POWER : MAIN BOARD BLOCK DIAGRAM ..............................................................................................................3-23

6. POWER : I/O BOARD BLOCK DIAGRAM ..................................................................................................................3-25

7. IN/OUT BLOCK DIAGRAM ( SCART MODEL ONLY )................................................................................................3-27

8. VIDEO BLOCK DIAGRAM...........................................................................................................................................3-29

9. VIDEO S/W PATH BLOCK DIAGRAM.........................................................................................................................3-31

10. AUDIO BLOCK DIAGRAM.........................................................................................................................................3-33

11. AUDIO S/W PATH BLOCK DIAGRAM.......................................................................................................................3-35

12. FLD / µ-COM / TUNER BLOCK DIAGRAM...............................................................................................................3-37

13. MAIN BLOCK DIAGRAM ( SCART MODEL ONLY ).................................................................................................3-39

14. TIMER BLOCK DIAGRAM.........................................................................................................................................3-41

CIRCUIT DIAGRAMS..........................................................................................................................................................3-43

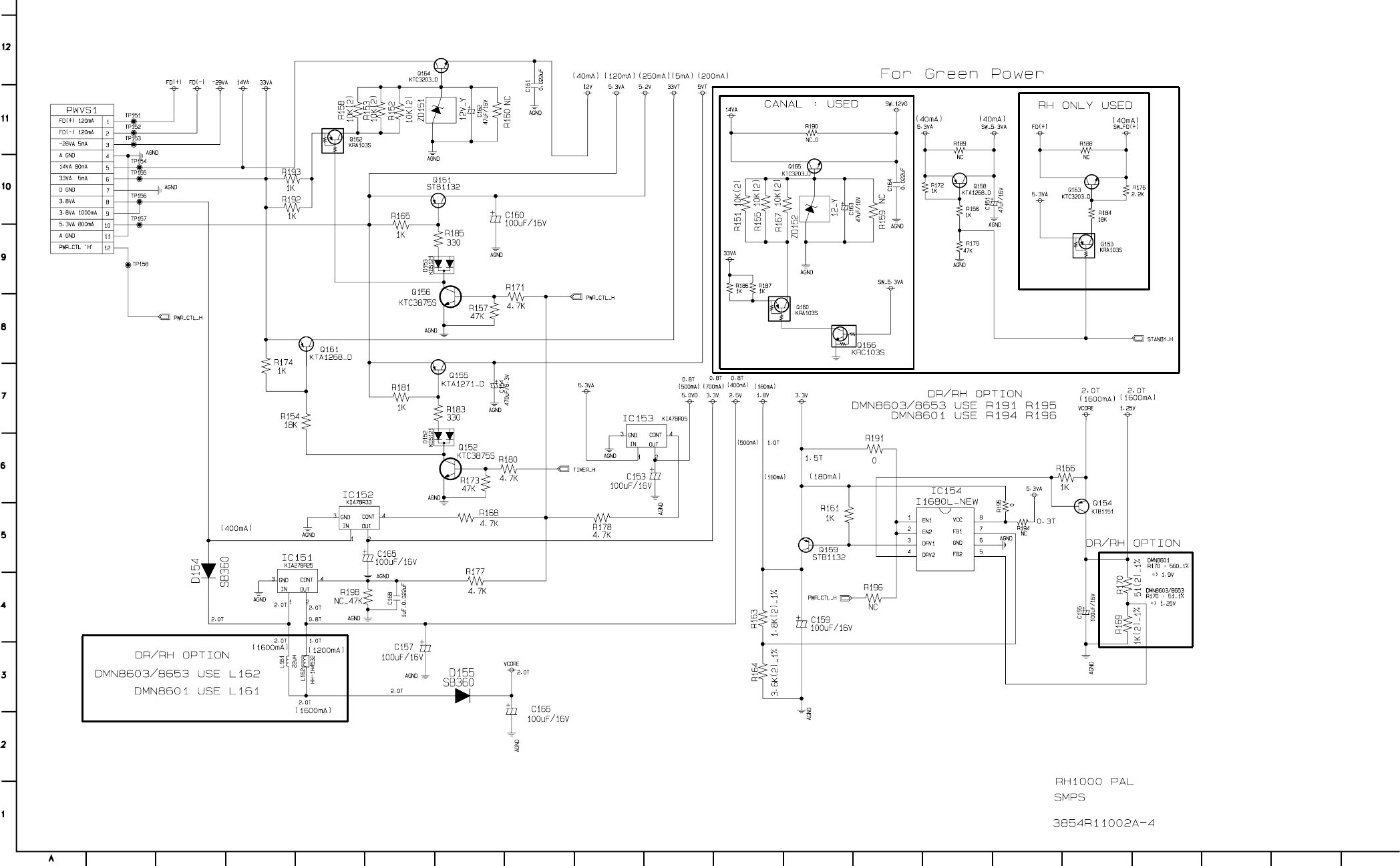

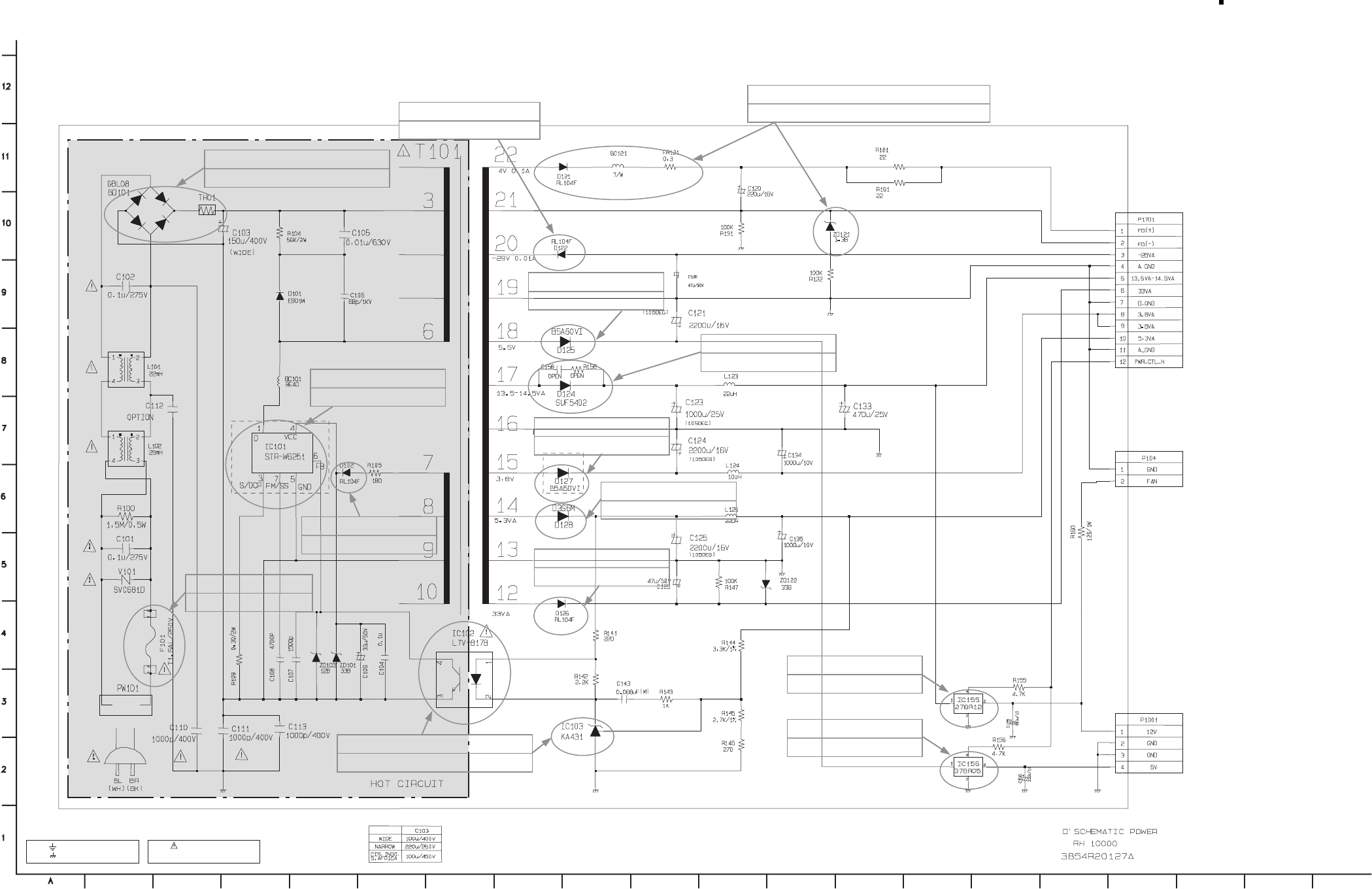

1. SMPS 1 CIRCUIT DIAGRAM ......................................................................................................................................3-43

2. SMPS 2 CIRCUIT DIAGRAM ......................................................................................................................................3-45

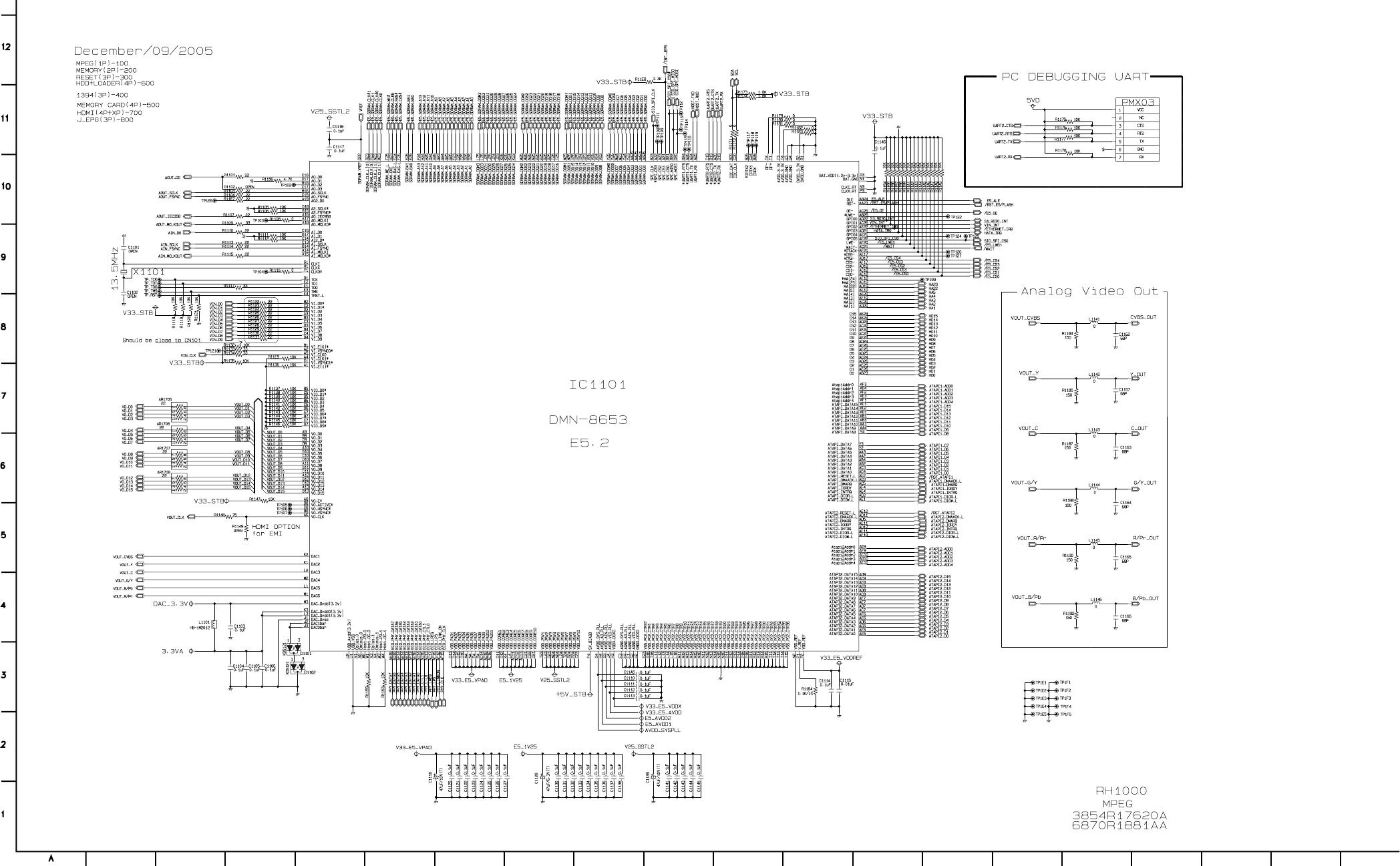

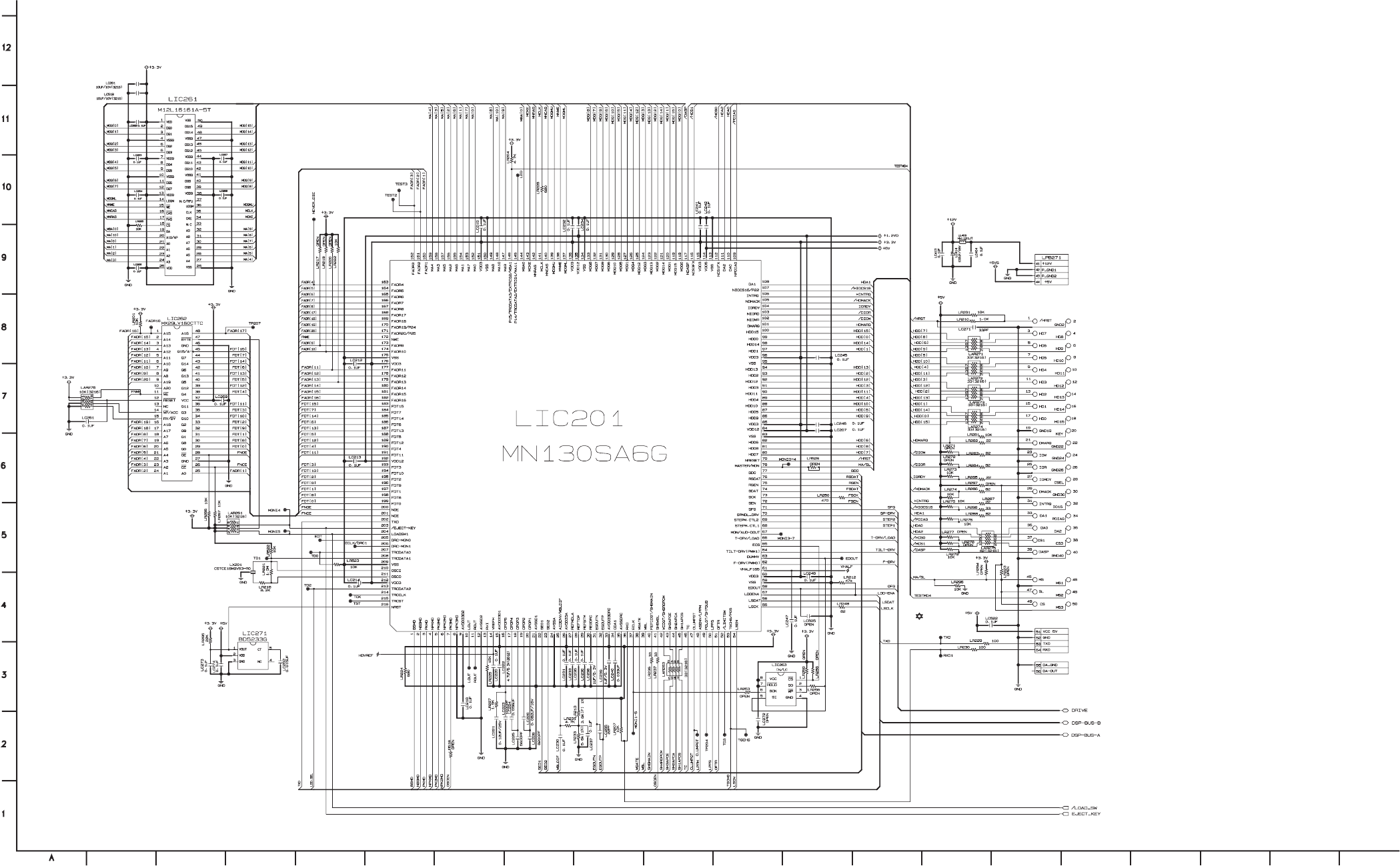

3. MPEG CIRCUIT DIAGRAM.........................................................................................................................................3-47

4. FLASH/DDR CIRCUIT DIAGRAM ...............................................................................................................................3-49

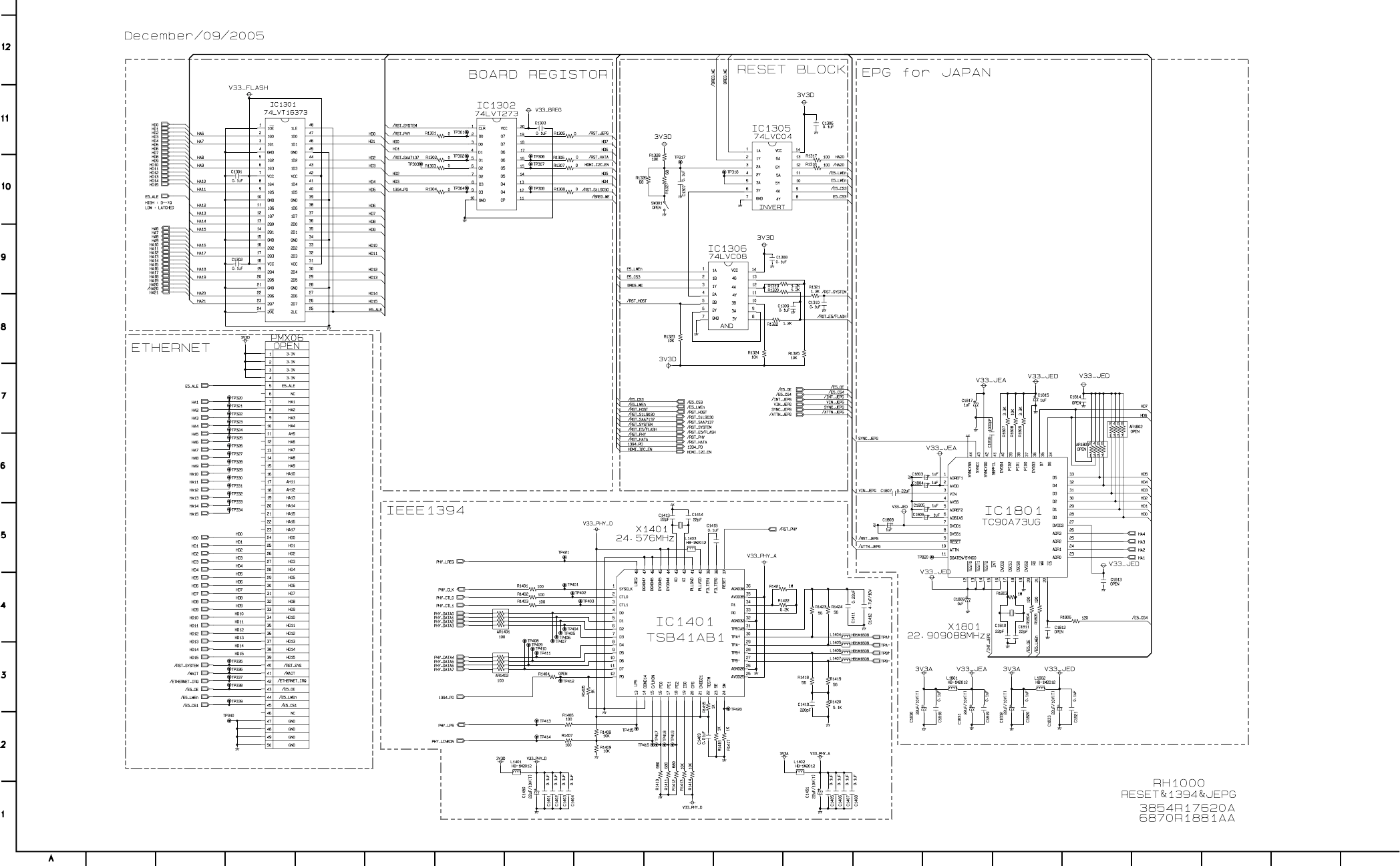

5. RESET & 1394 & JEPG CIRCUIT DIAGRAM.............................................................................................................3-51

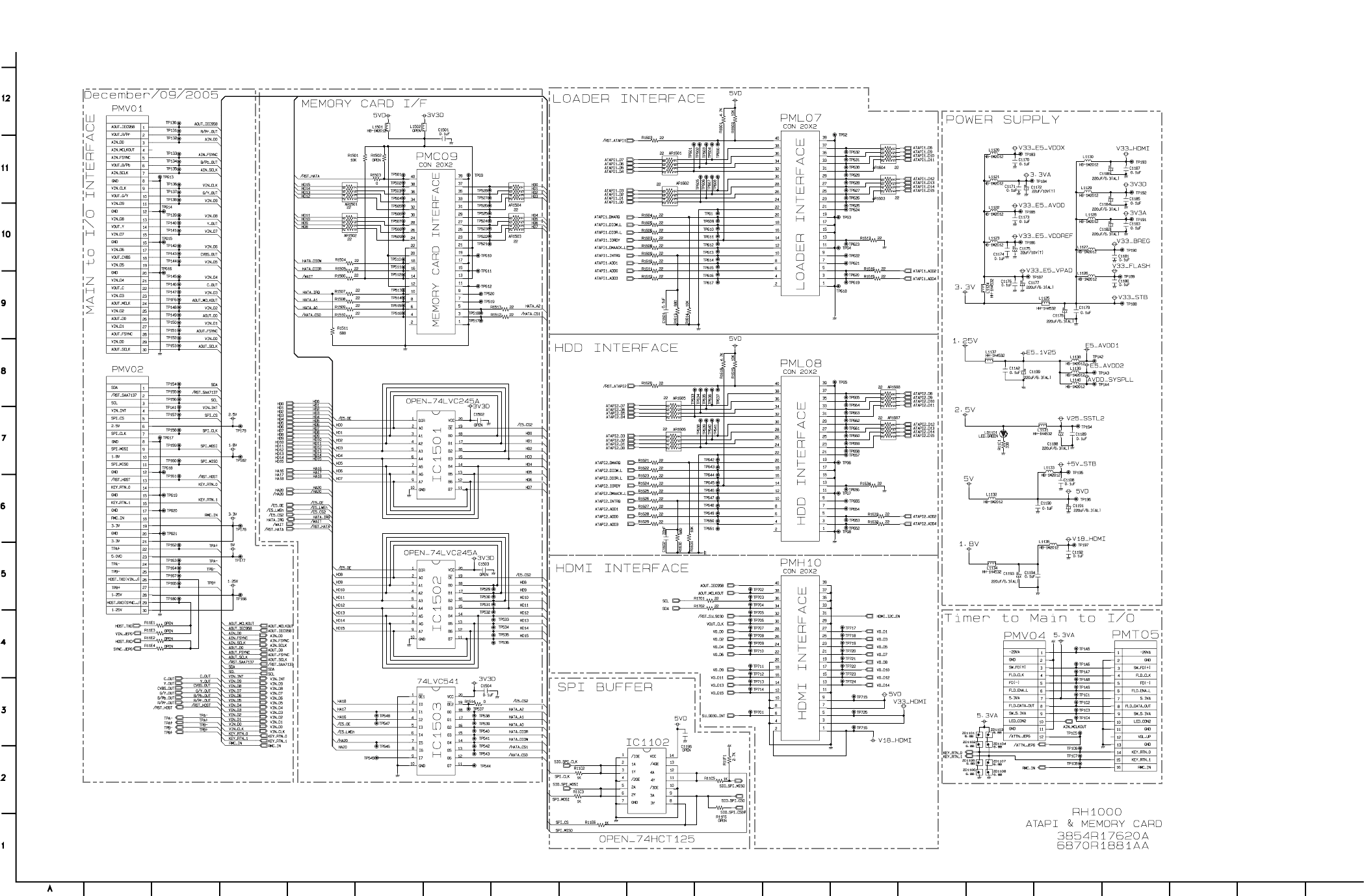

6. ATAPI & MEMORY CARD CIRCUIT DIAGRAM..........................................................................................................3-53

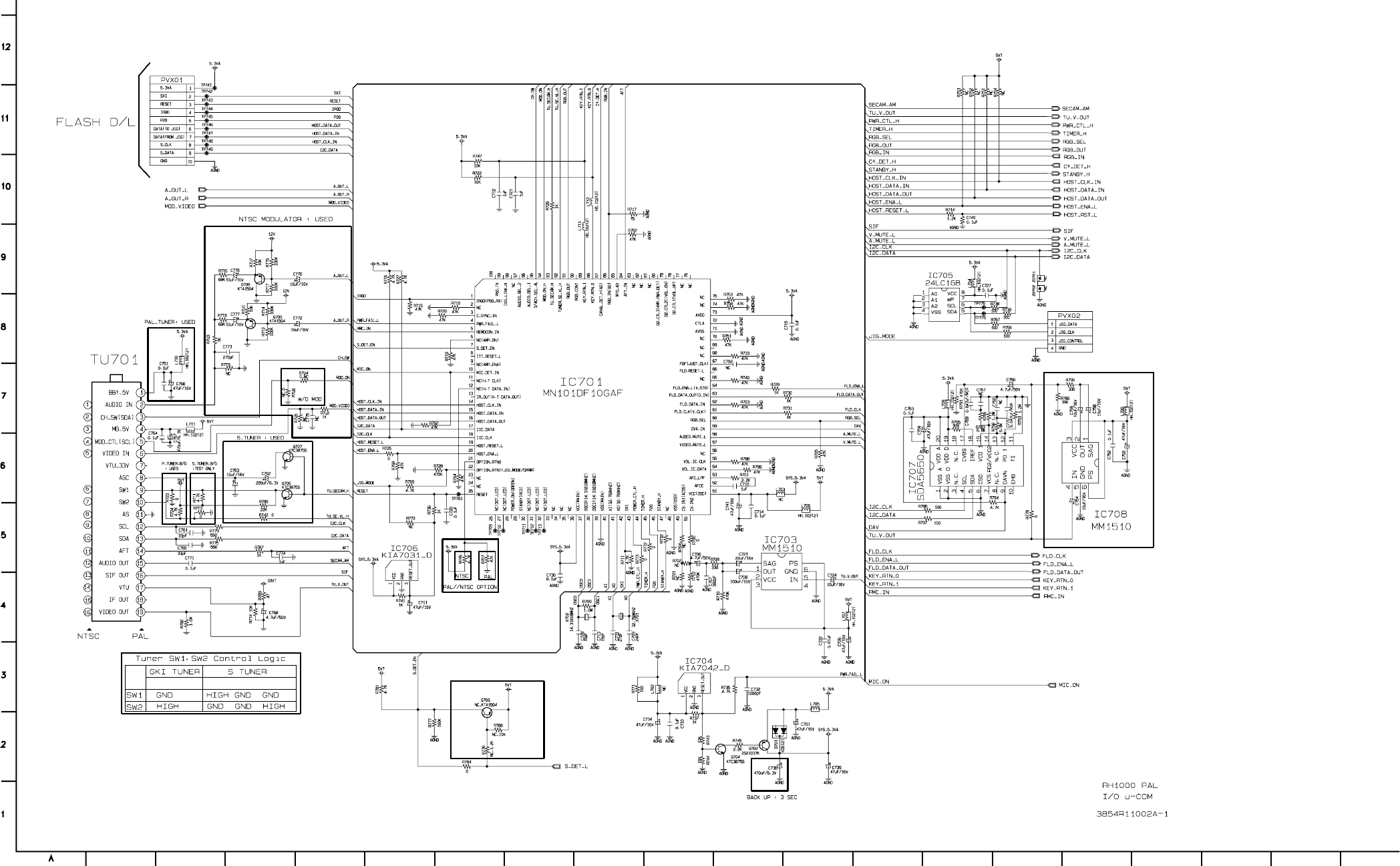

7. I/O, µ-COM CIRCUIT DIAGRAM.................................................................................................................................3-55

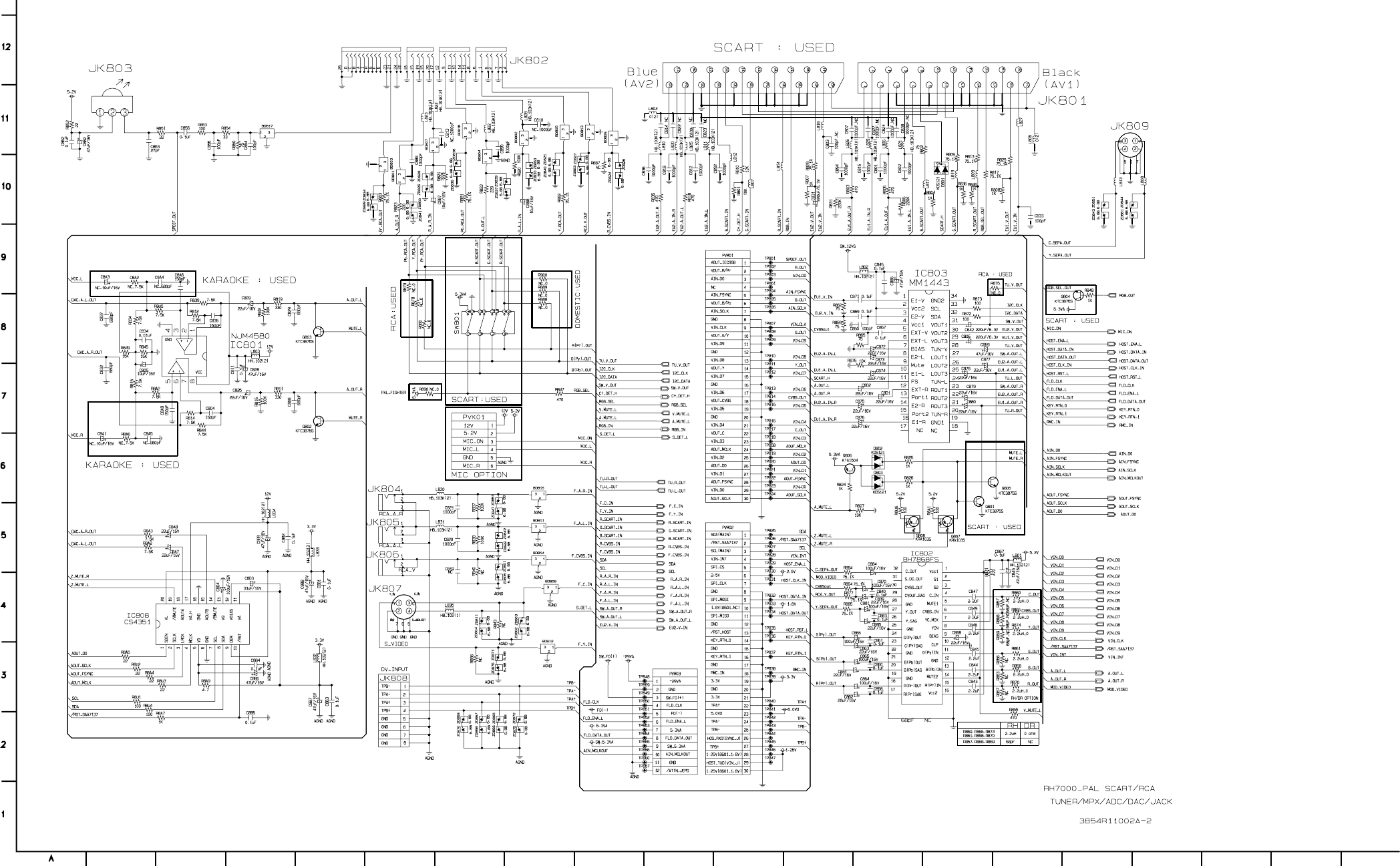

8. TUNER/MPX/ADC/DAC/JACK CIRCUIT DIAGRAM ...................................................................................................3-57

9. DECODER CIRCUIT DIAGRAM..................................................................................................................................3-59

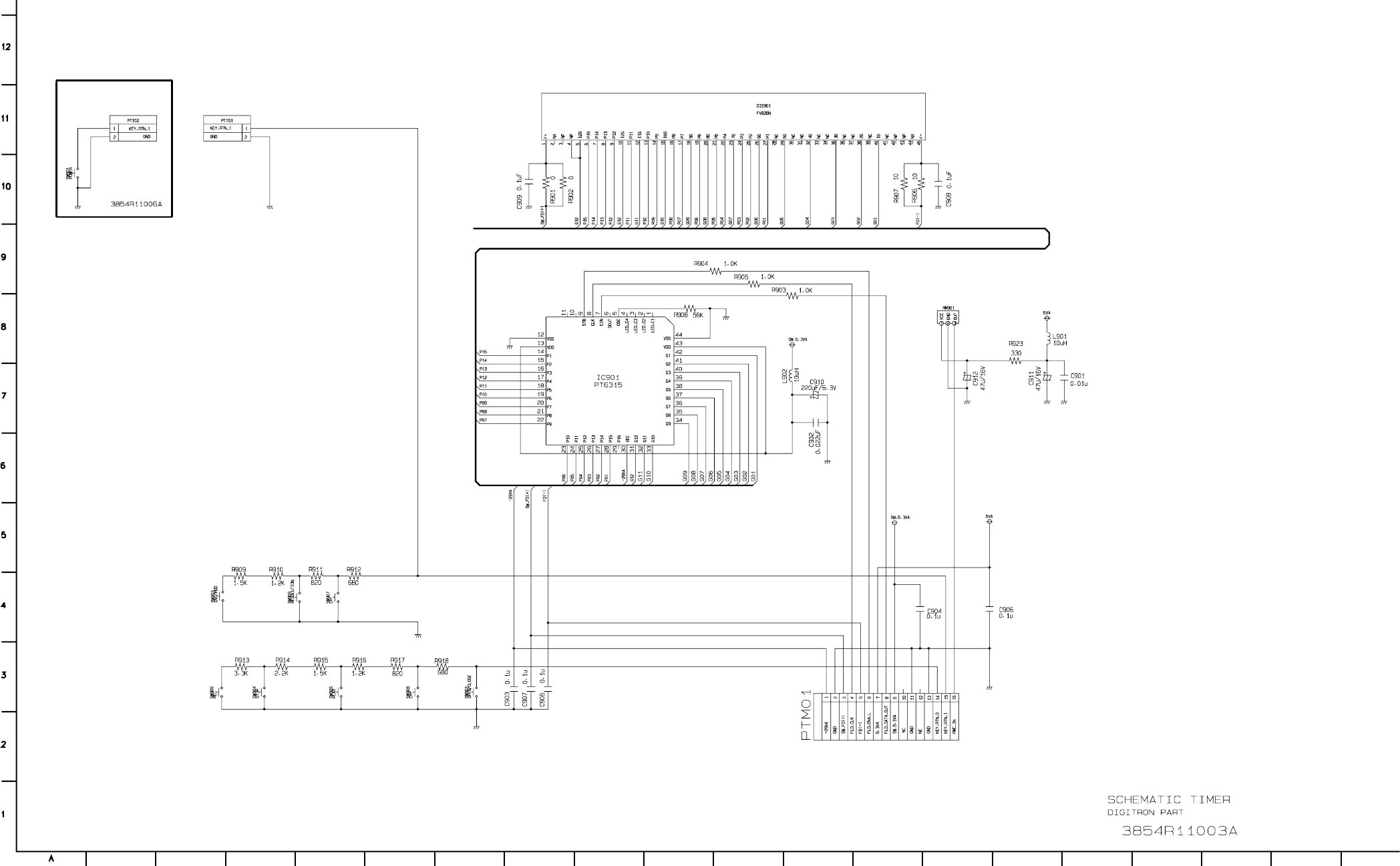

10. TIMER CIRCUIT DIAGRAM ......................................................................................................................................3-61

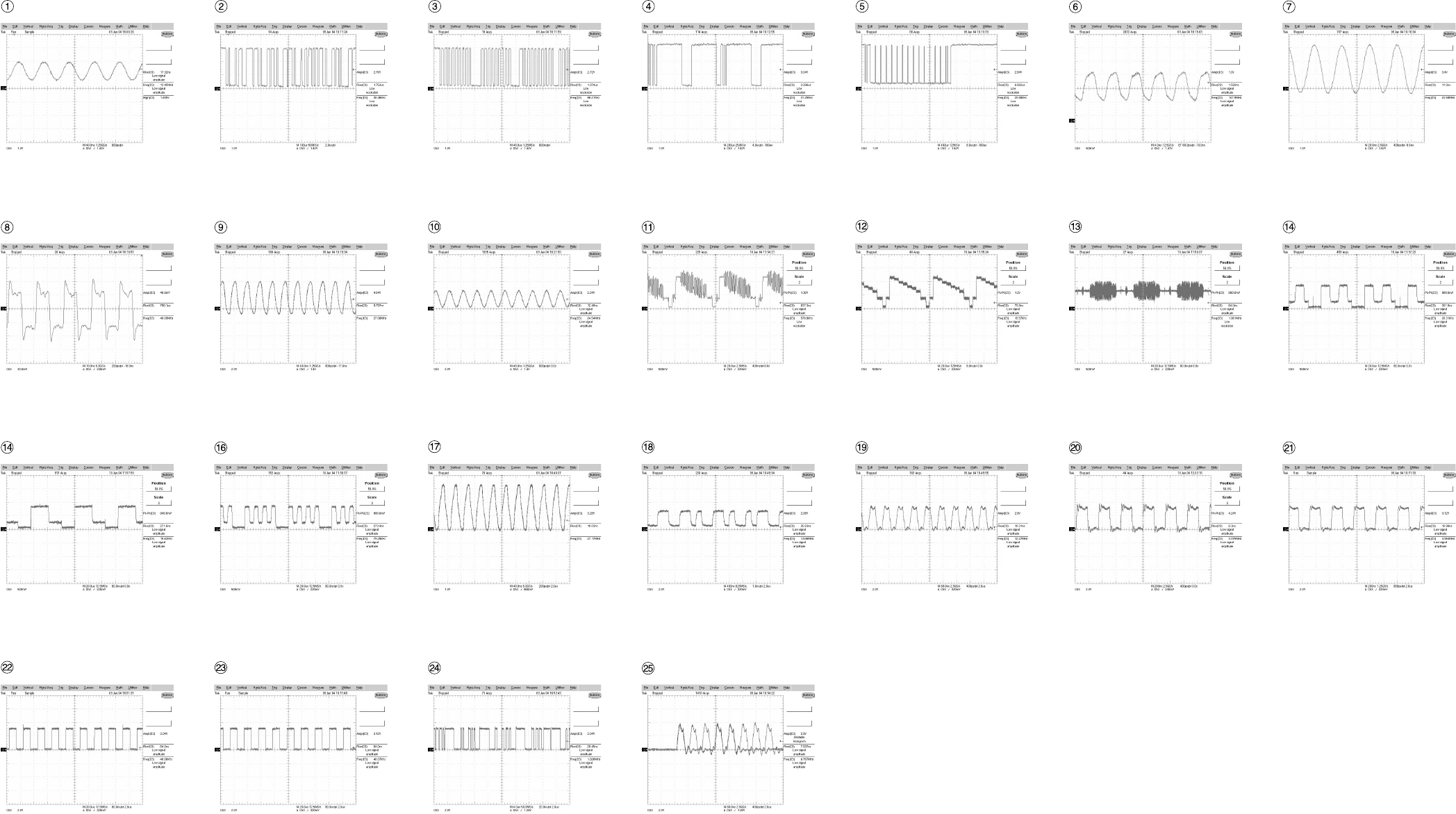

• WAVEFORMS ...................................................................................................................................................................3-63

• CIRCUIT VOLTAGE CHART ............................................................................................................................................3-65

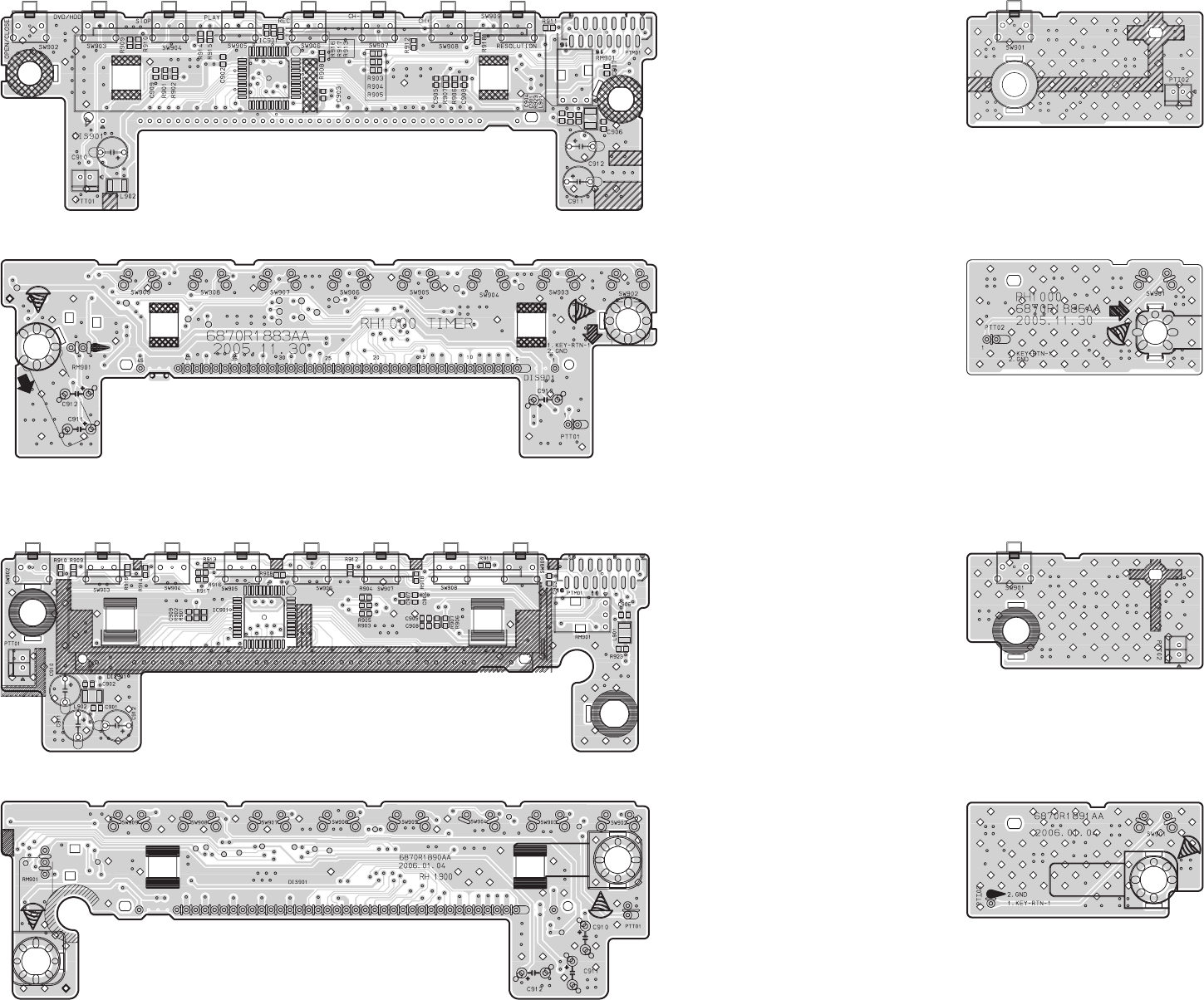

PRINTED CIRCUIT DIAGRAMS.........................................................................................................................................3-71

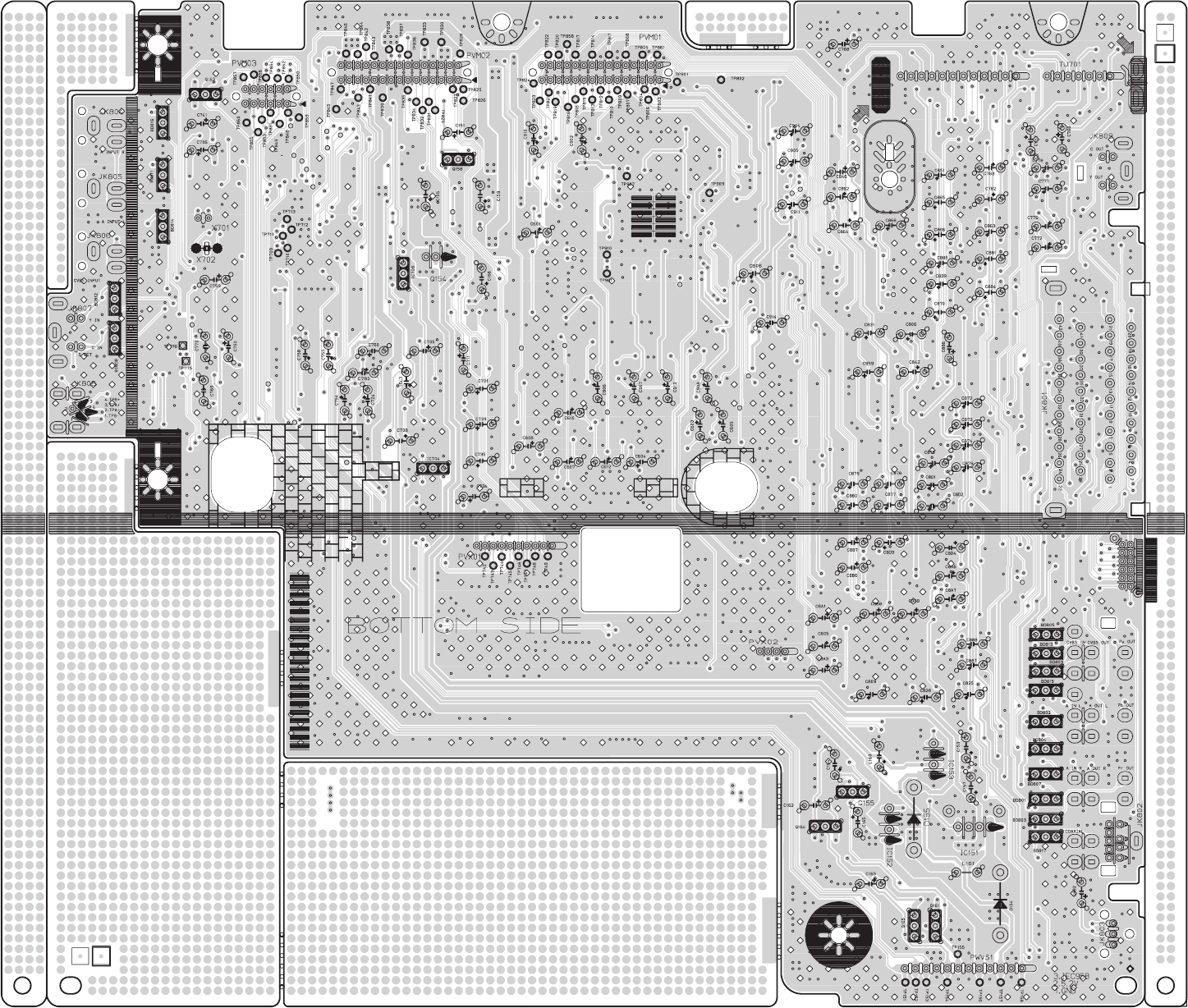

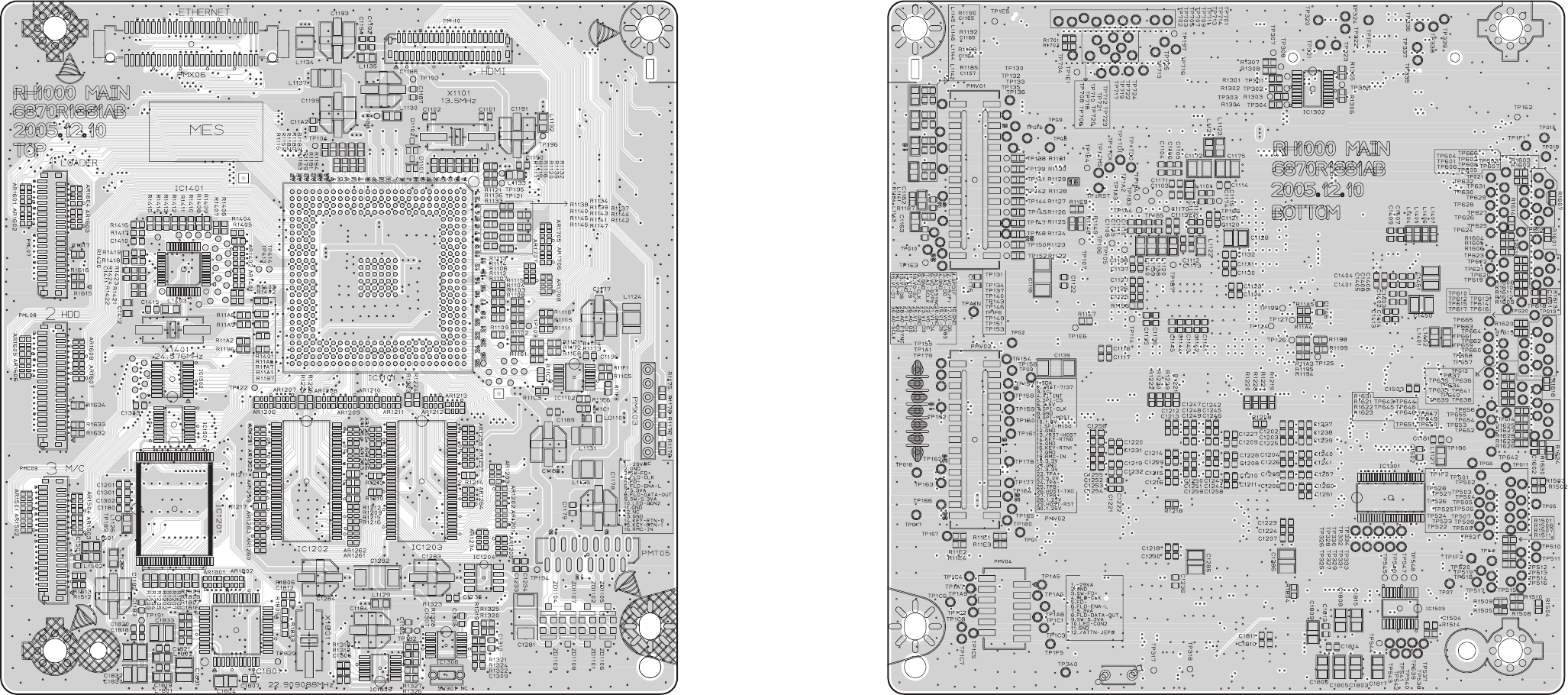

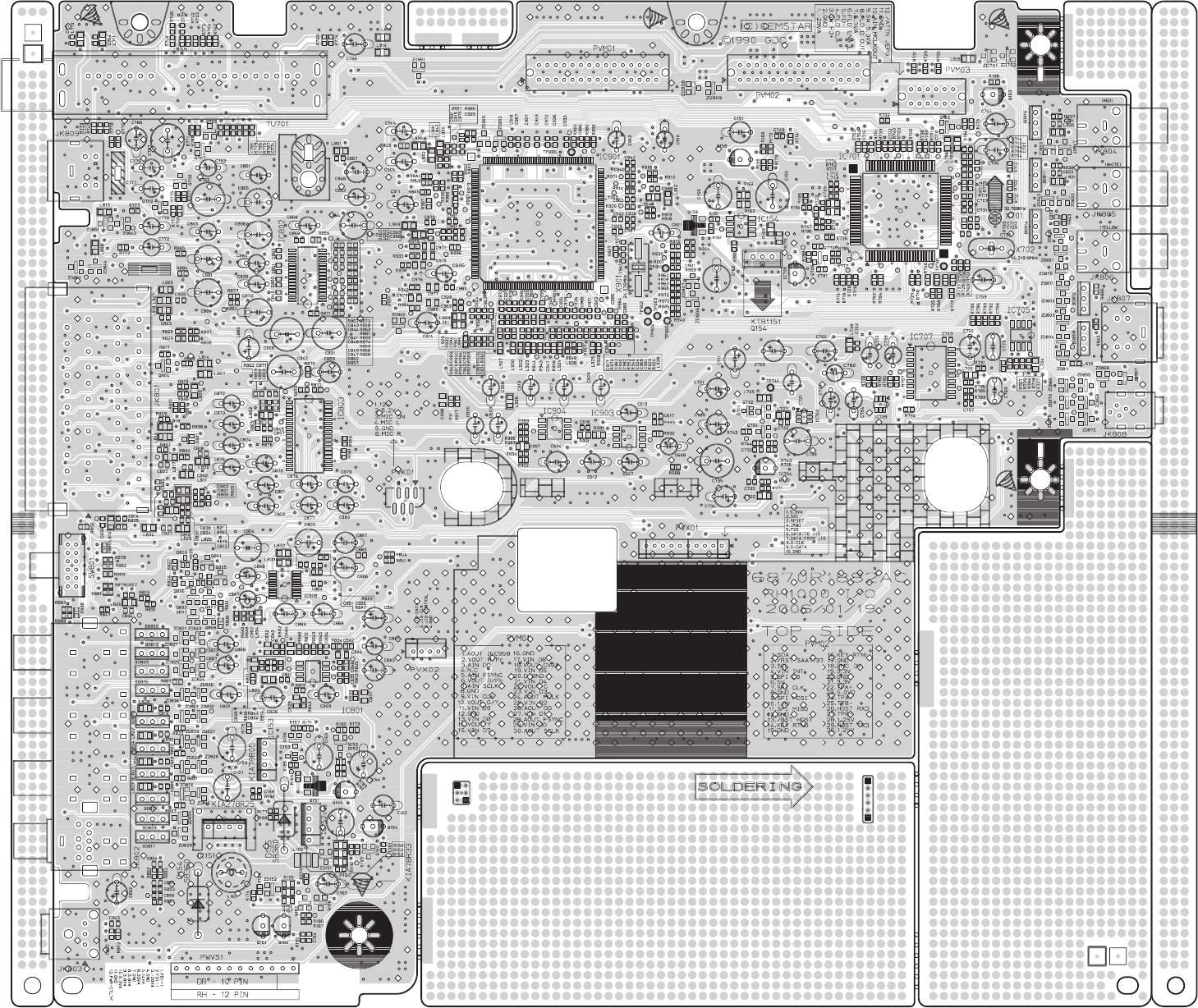

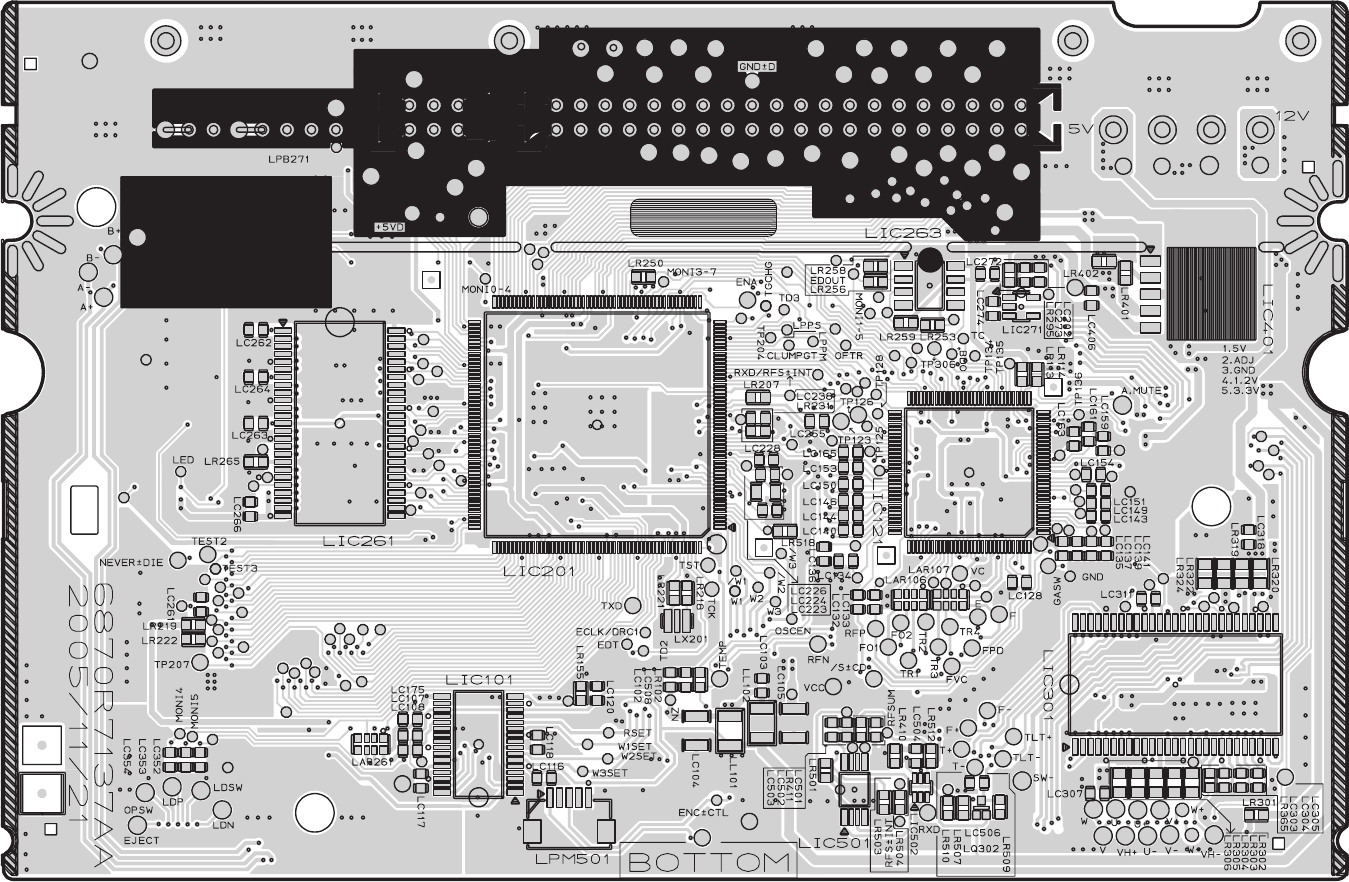

1. MAIN P.C.BOARD........................................................................................................................................................3-71

2. I/O P.C.BOARD............................................................................................................................................................3-73

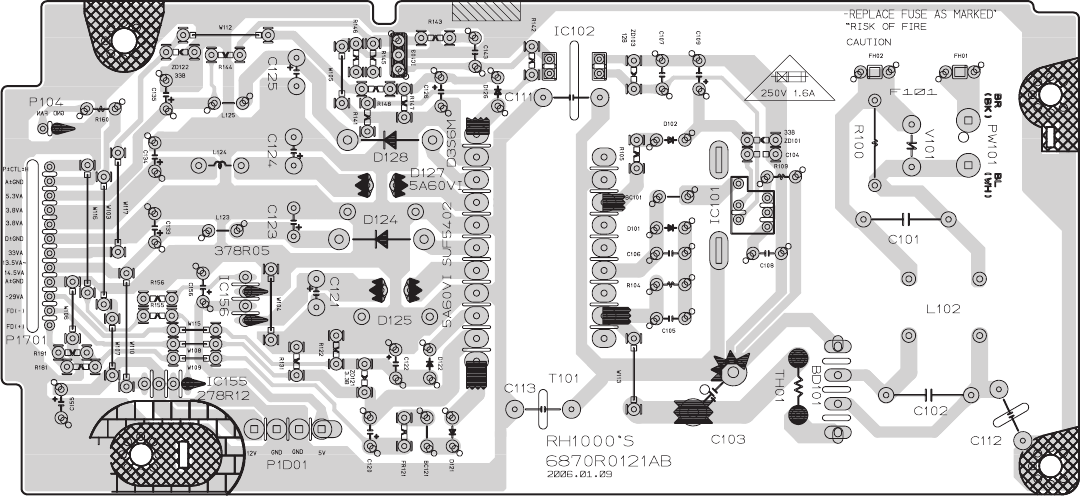

3. POWER P.C.BOARD ...................................................................................................................................................3-77

4. TIMER1 P.C.BOARD ...................................................................................................................................................3-79

5. TIMER2 P.C.BOARD ...................................................................................................................................................3-81

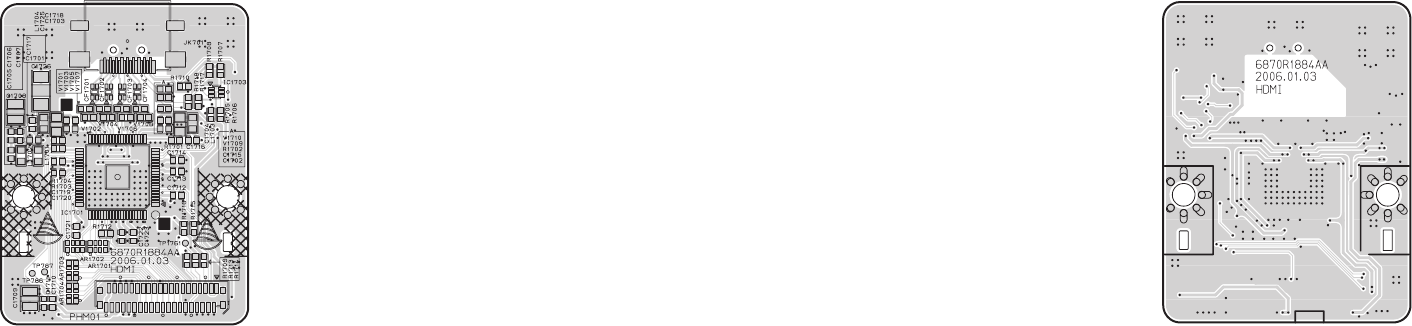

6. HDMI P.C.BOARD .......................................................................................................................................................3-83

3-2

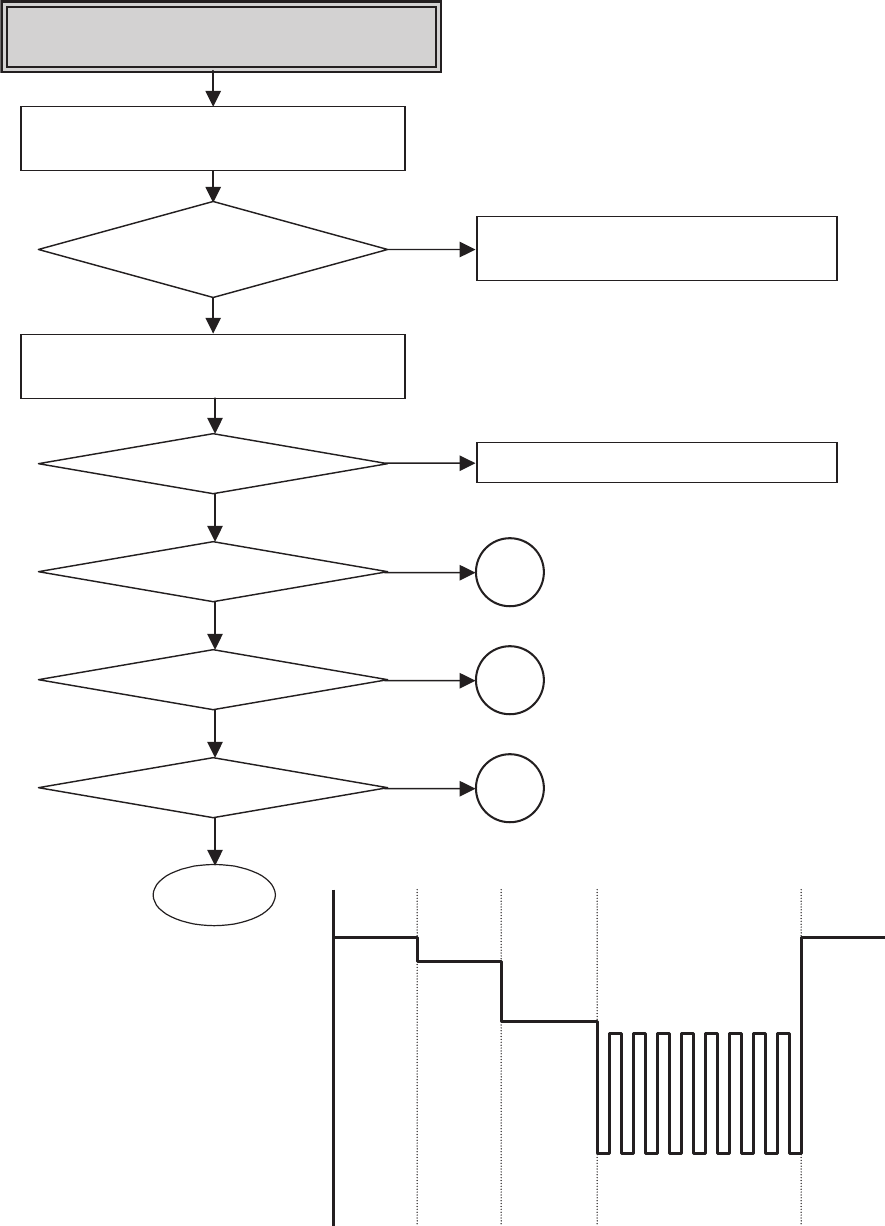

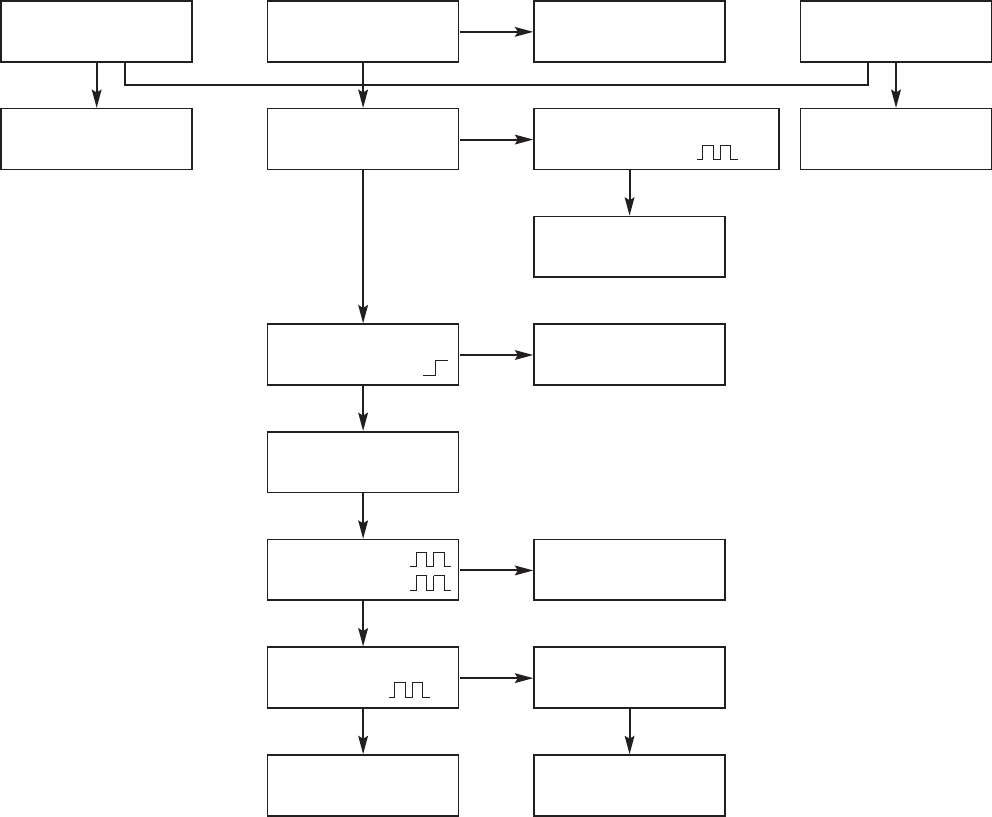

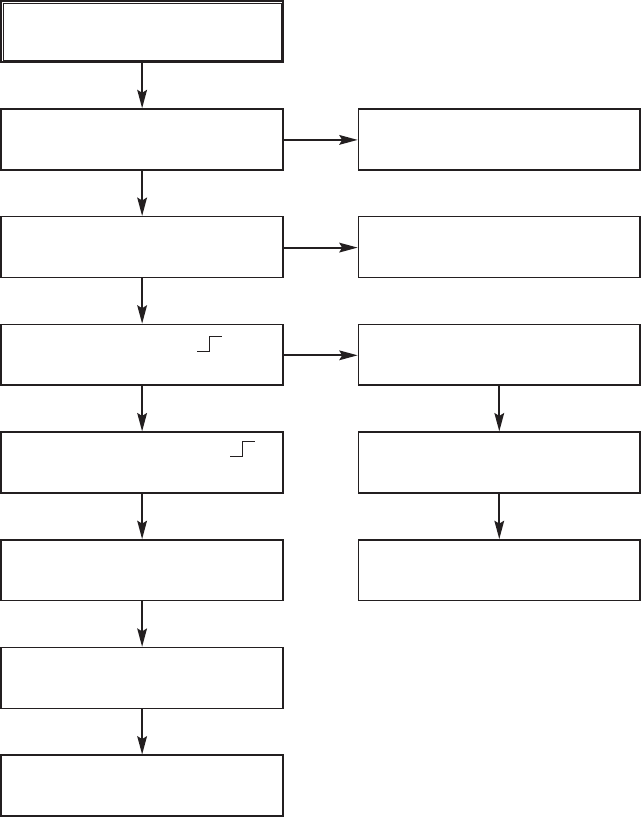

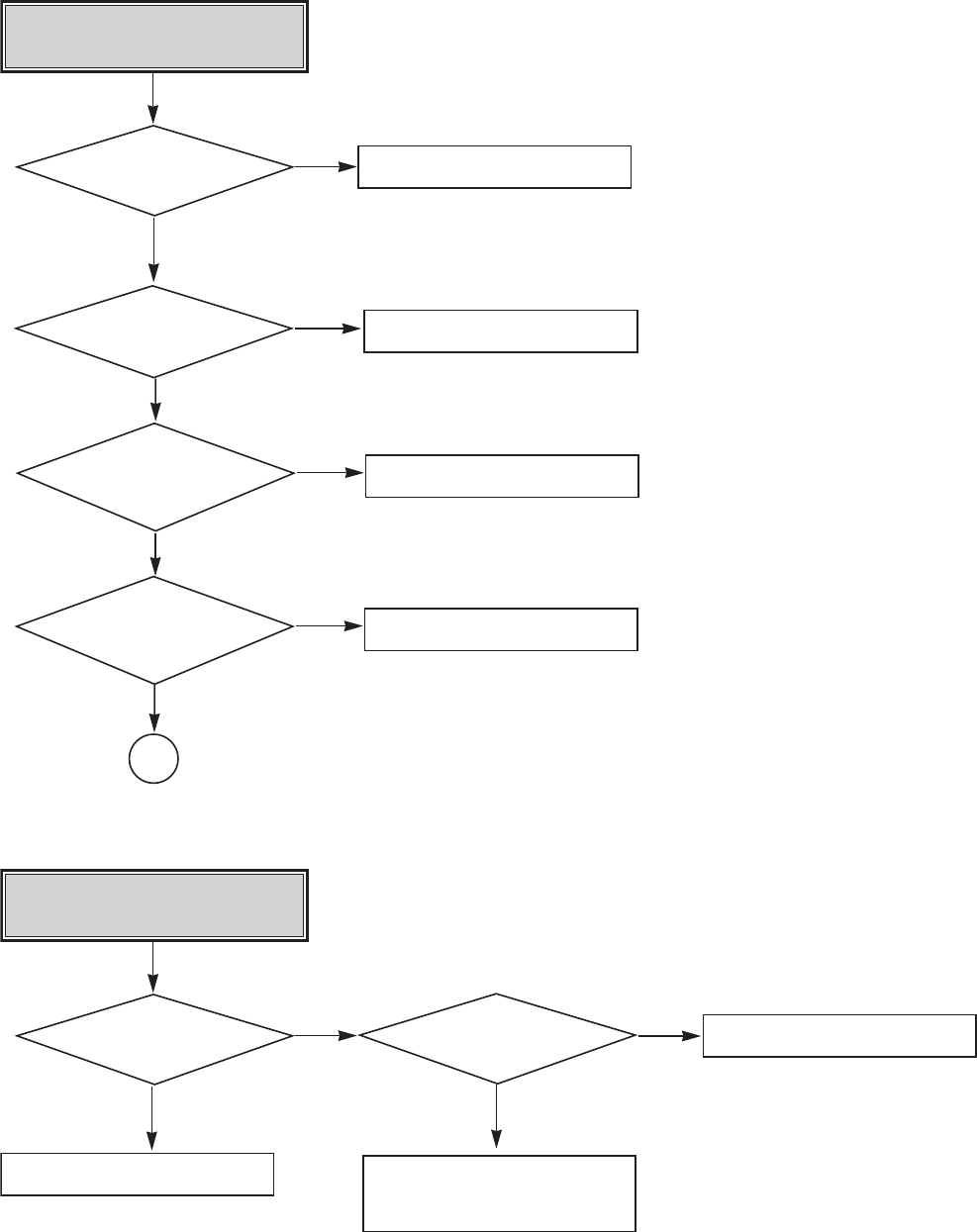

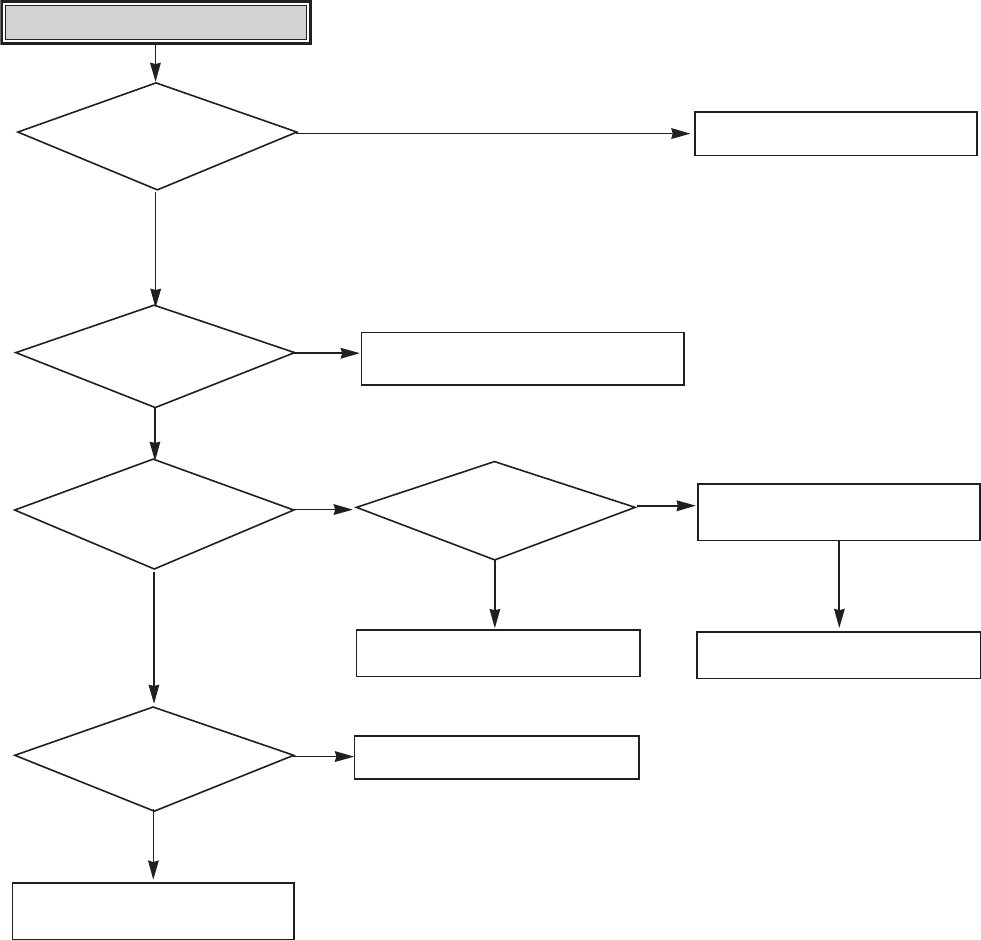

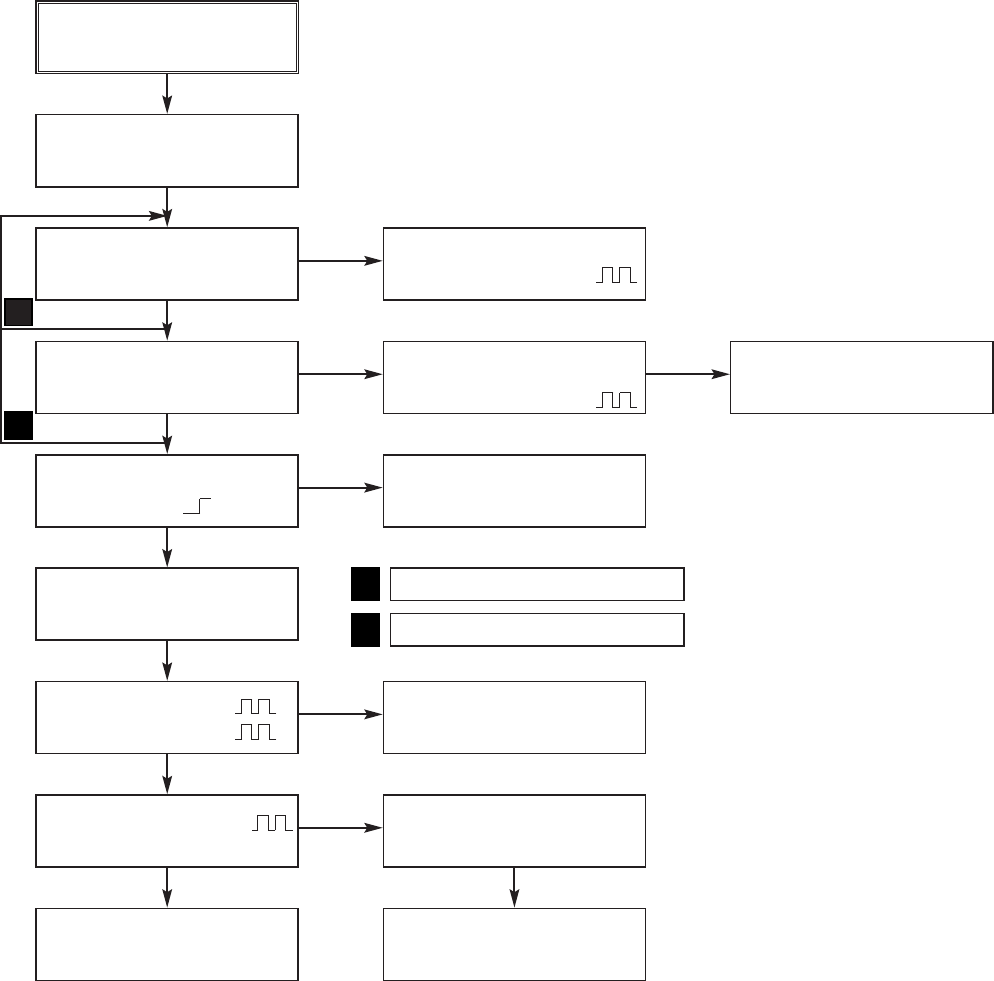

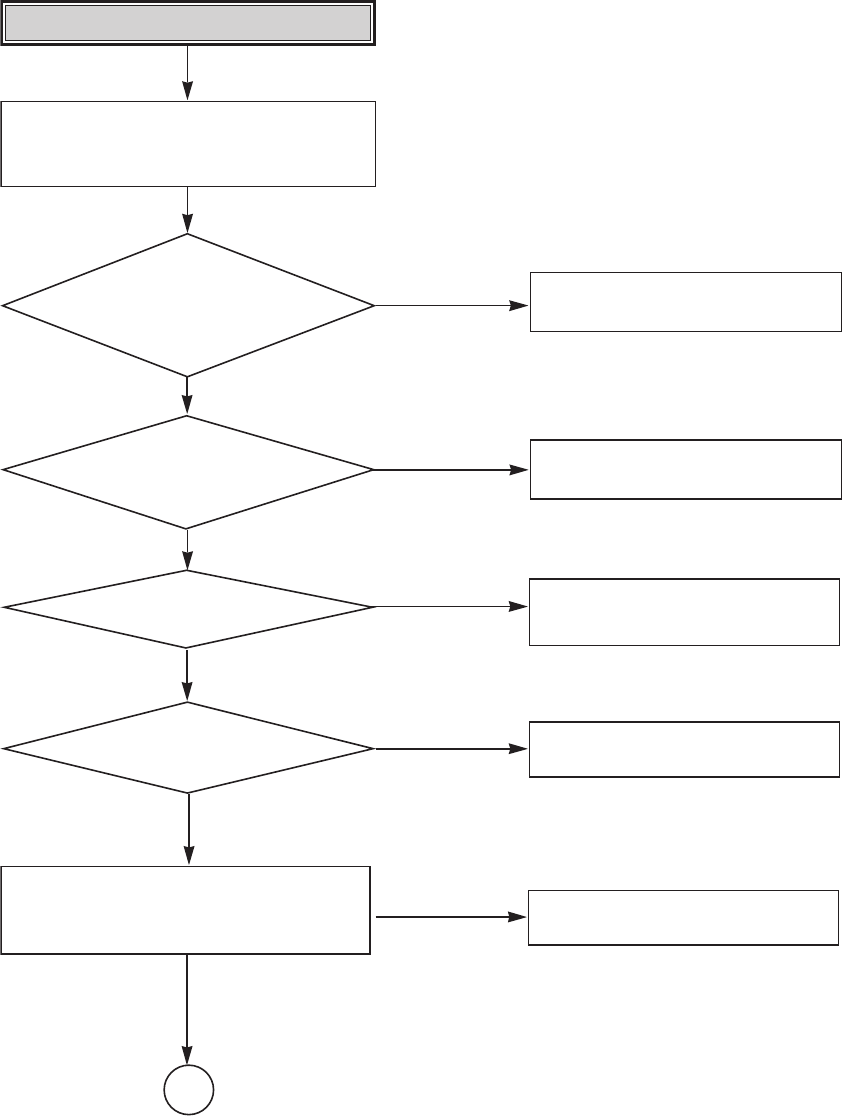

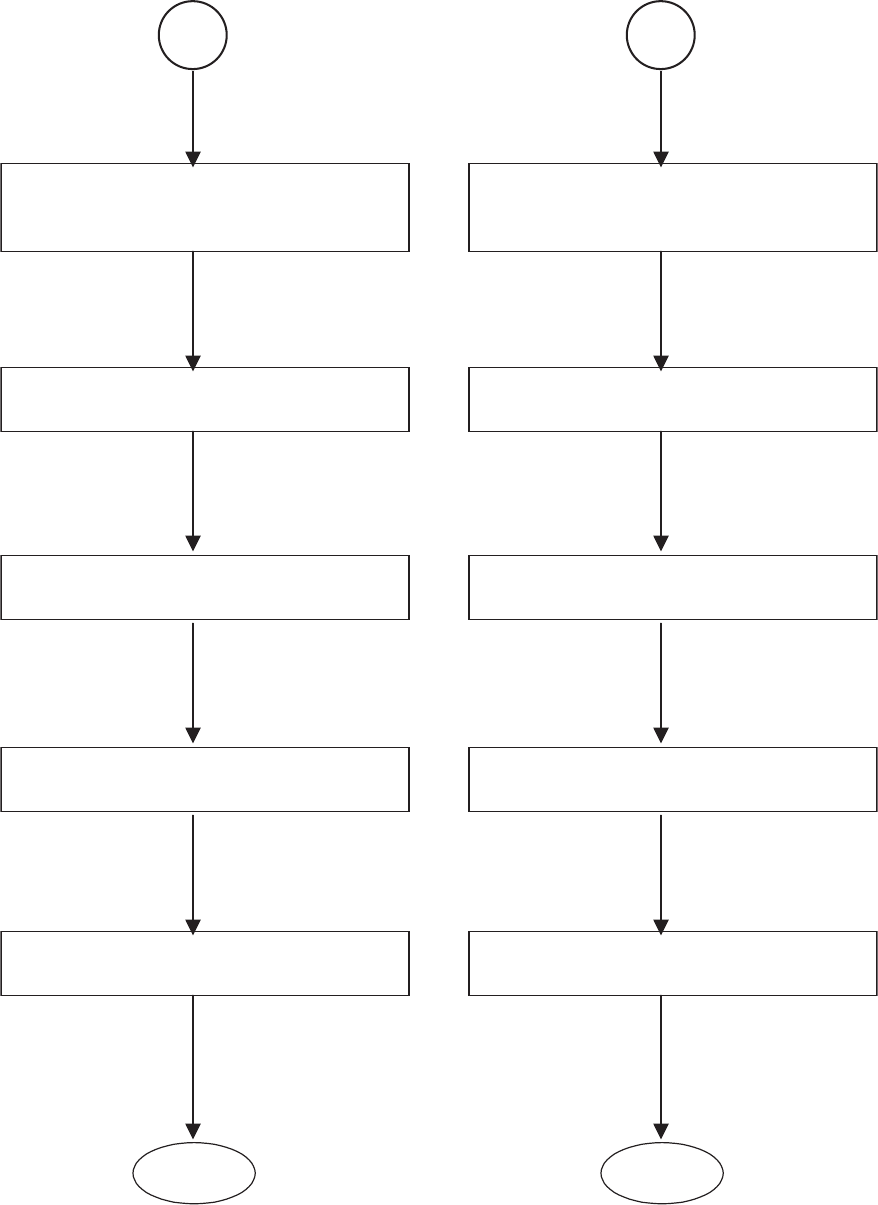

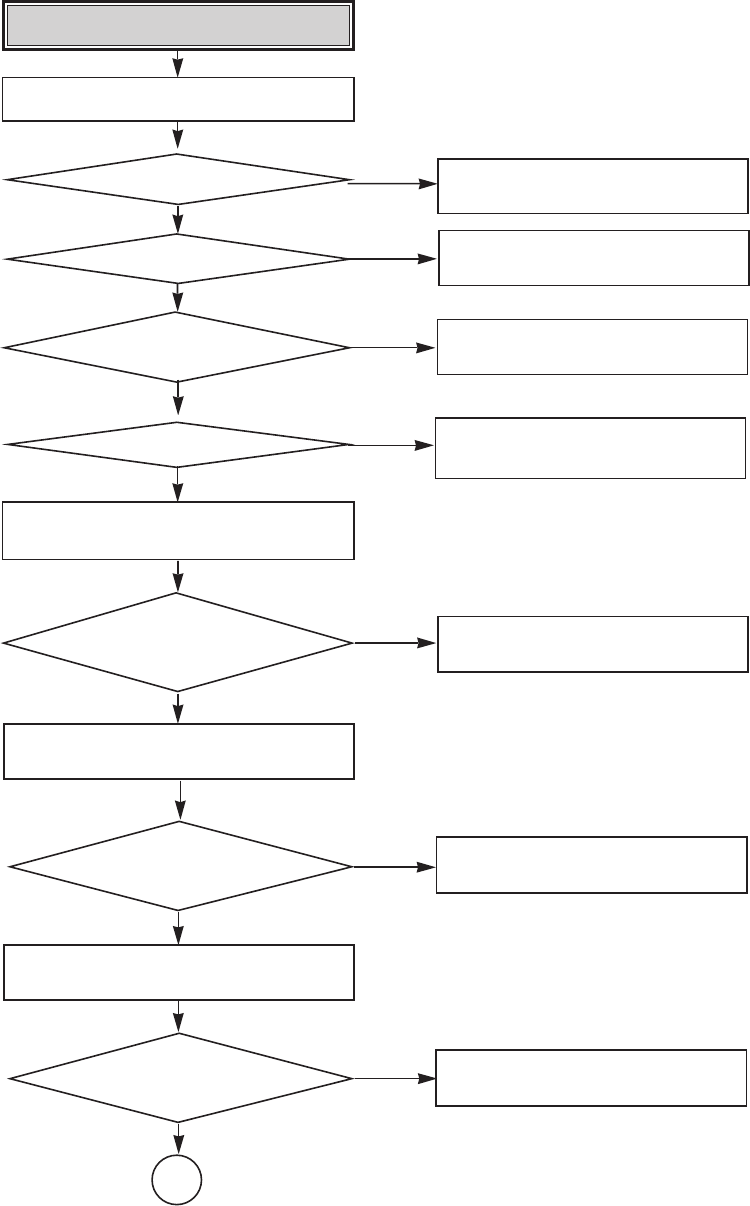

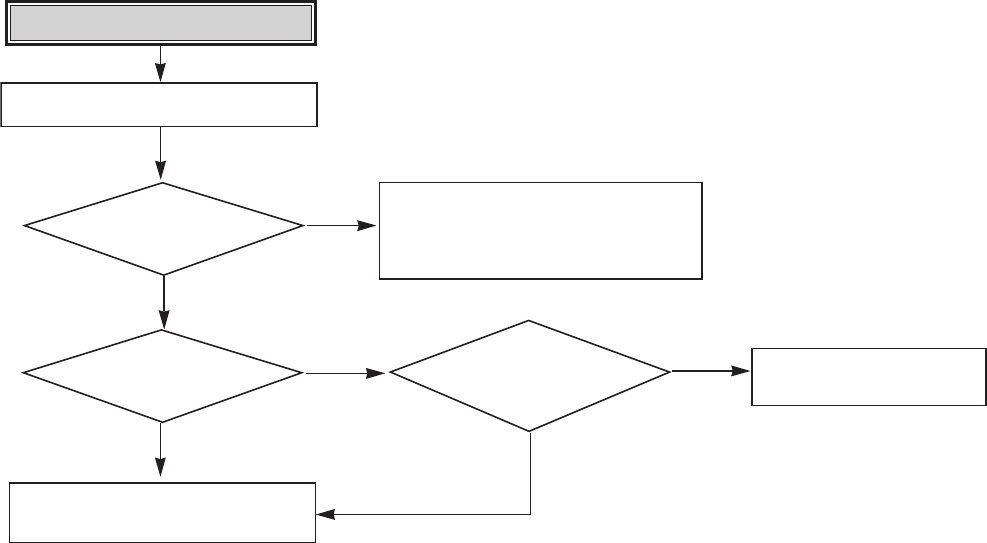

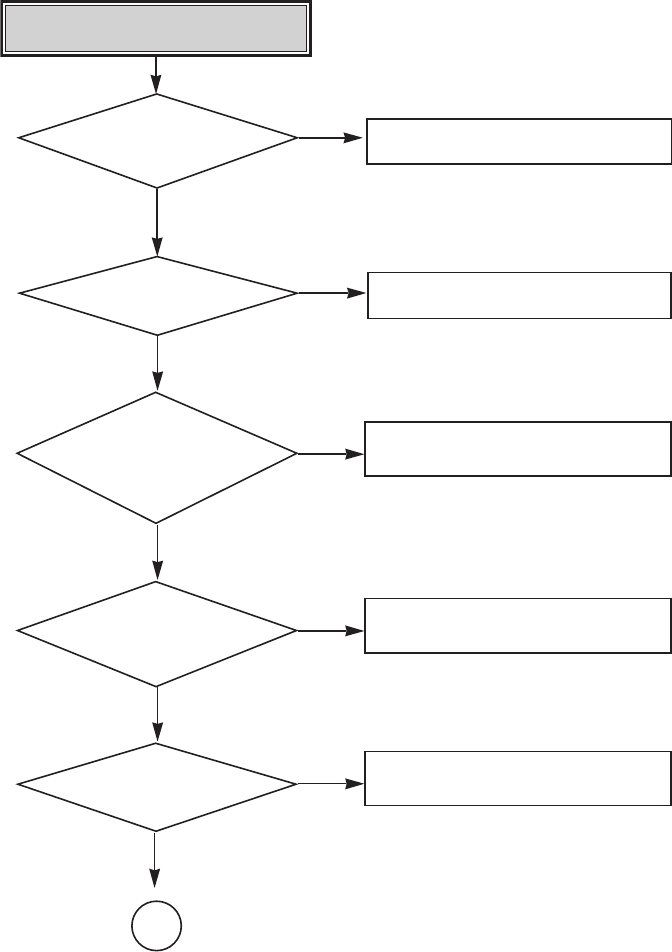

ELECTRICAL TROUBLESHOOTING GUIDE

HDR PART

Replace the BD101

Replace the F101

(Use the same Fuse)

No 5.3VA

Is the F101 Normal?

Is the TH01 Normal?

Is the Vcc (10V - 17V)

supplied to IC101 Pin6?

Is the BD101 Normal?

Is the D128 normal?

Is there about 2.5V at the

IC103 Pin1?

Is the D121 normal?

Is the D122 Normal?

Is the D125 Normal?

Is the D124 Normal?

Is the D127 Normal?

Is the D126 Normal?

YES

YESYES

YES

Replace the TH101

Is the D102 normal?

Check or Replace the

D102

Replace the D128

Replace the IC103

Replace the D121

Replace the D122

Replace the D125

Replace the D124

Replace the D127

Replace the D126

1. POWER SUPPLY ON SMPS BOARD

Power Line of I/O PCB

is short

3-3

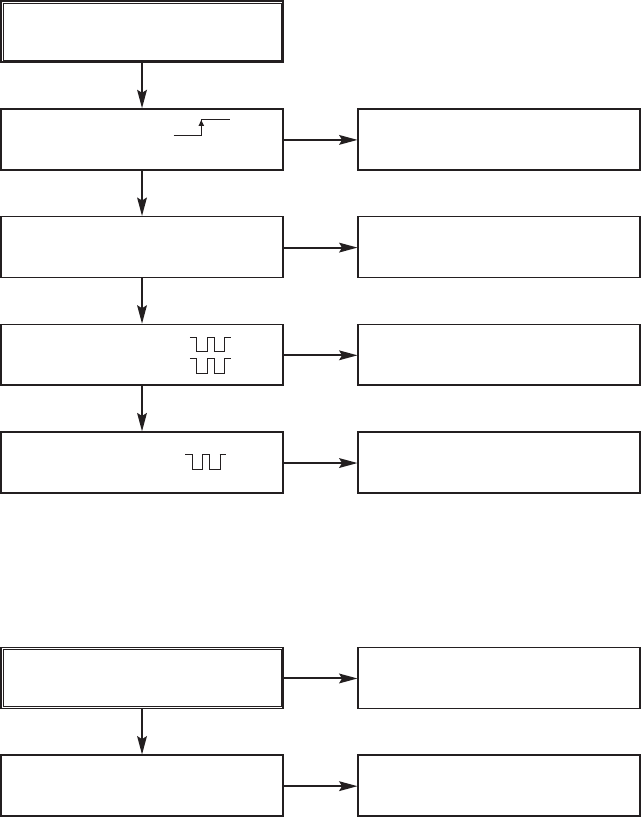

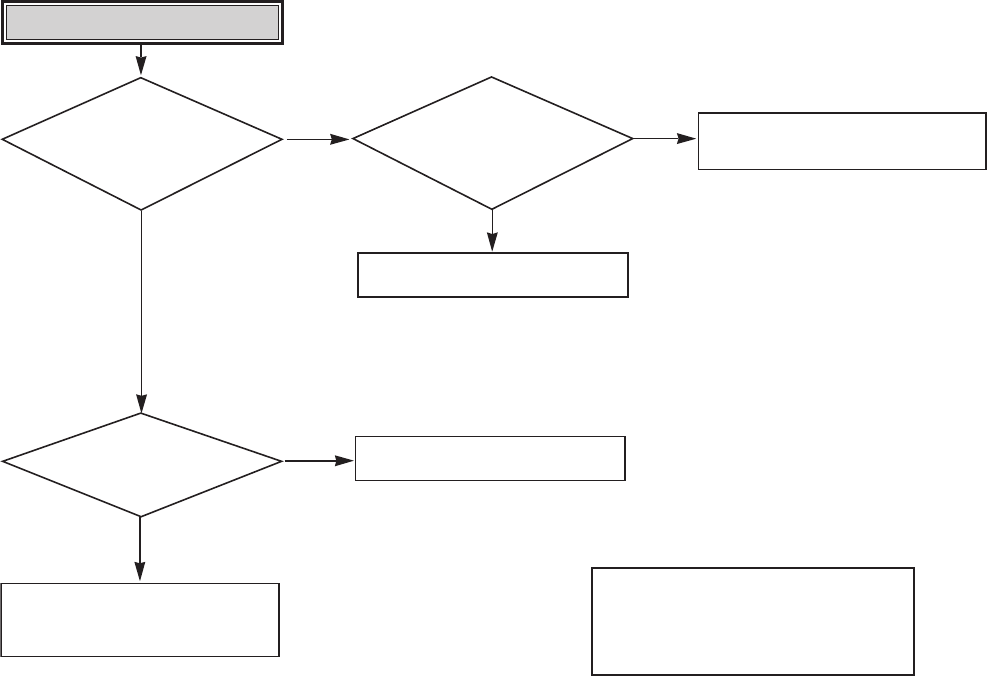

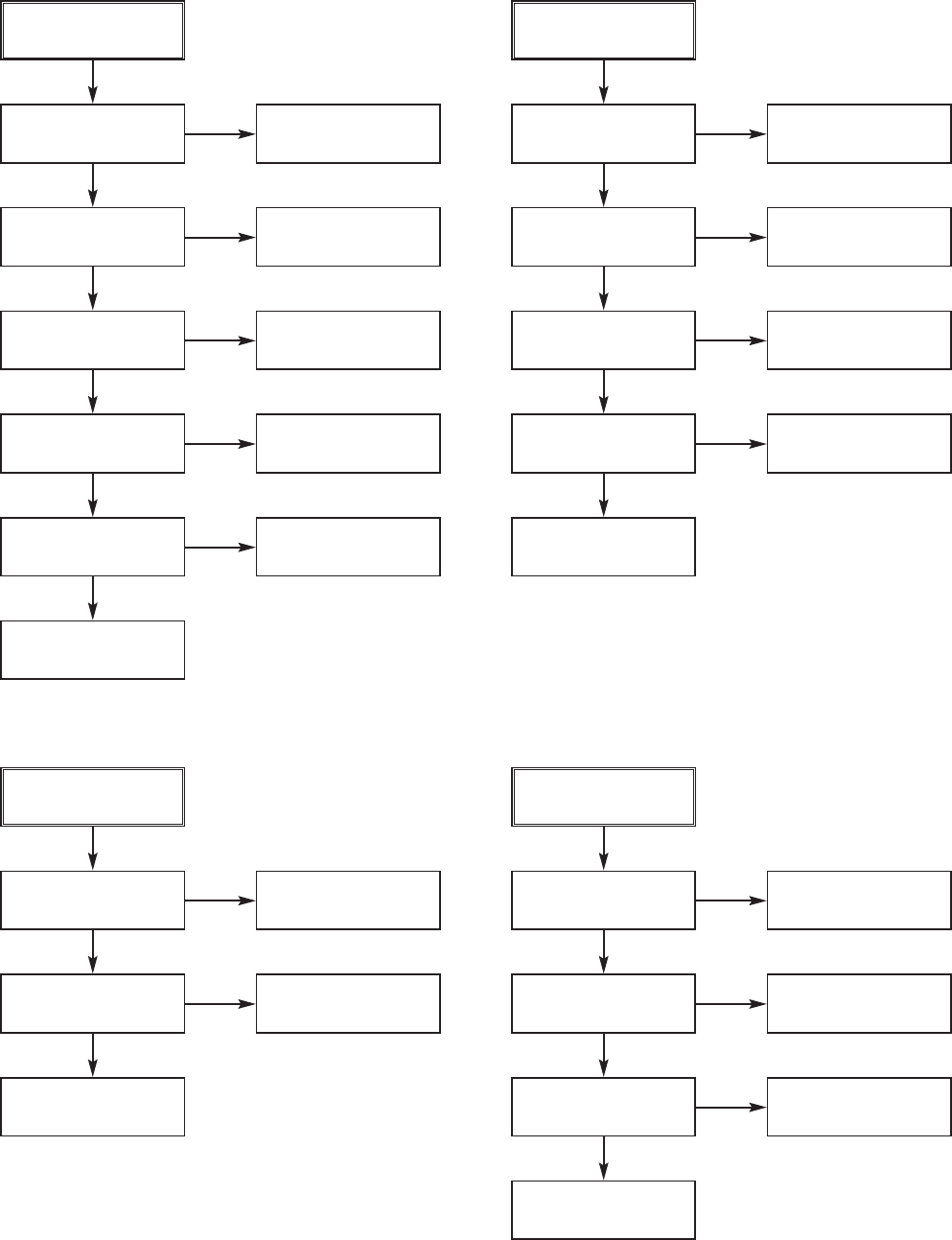

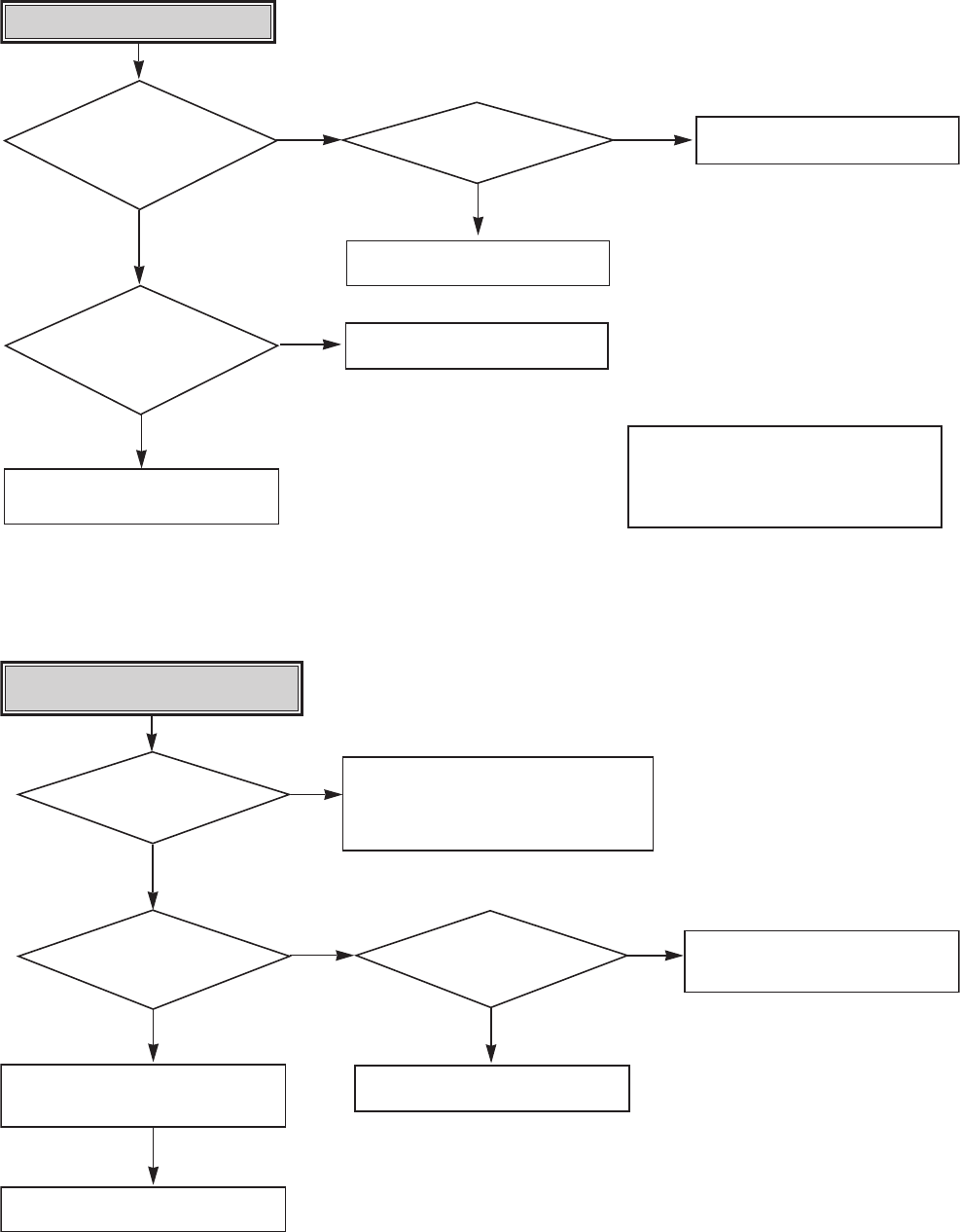

No 5V for HDD &

DVD Drive

Check D125 and

Replace

Is there about 5.5V

at the IC156 pin1?

Is there about 4V ~ 5V

at the IC156 pin 4?

Check the ‘PWR CTL

“H”’ signal from µ-COM

YES

Check the IC156

and Replace

YES

No 12V for HDD &

DVD Drive

Check D124 and

Replace

Check the ‘PWR CTL

“H”’ signal from µ-COM

Is there about 13.5V

at the IC155 pin1?

Is there about 4V ~ 5V

at the IC155 pin 4?

Check the IC155

and Replace

YES

3-4

2. POWER SUPPLY ON I/O BOARD

No 33VT

Is the VCC (33V) sup-

plied to Q161 Emitor?

Check D126 on SMPS

Board and Replace

Is there about 0V

at Q152 Collector? Check Q161 and

Replace

Check the ‘TIMER H’

signal from µ-COM

Is there about 5V at R180

and 0.7V at Q152 Base?

Check Q152 and

Replace

YES

No 5VT

Check 5.3VA on

SMPS Board

Check Q155 and

Replace

Is the VCC (5.3V) sup-

plied to Q155 Emitor?

Is there about 0V at D152

and Q152 Collector?

Is there about 5V at R180

and 0.7V at Q152 Base?

Check the ‘TIMER H’

signal from µ-COM

YES

Check Q152 and

Replace

YES

No 12V

Check D124 on SMPS

Board and Replace

Check Q164 and

Replace

Check D126 on SMPS

Board and Replace

Check Q162 and

Replace

Check the ‘PWR CTL

H’signal from µ-COM

Is the VCC (14V) sup-

plied to Q164 Collector?

Is there about 12.5V at

ZD151 & Q164 Base?

Is the VCC (33V) sup-

plied to Q162 Emitor?

YES

Is there about 0V

at Q162 Base?

YES

Is there about 5V at R171

and 0.7V at Q156 Base?

YES

Check Q156 and

Replace

YES

No 5.2V

Check 5.3VA on

SMPS Board

Is the VCC (5.3V) sup-

plied to Q151 Emitor?

Is there about 0V at D153

and Q156 Collector?

NO NO

Check Q151 and

Replace

Check the ‘PWR CTL

H’signal from µ-COM

YES

Is there about 5V at R171

and 0.7V at Q156 Base?

Check Q156 and

Replace

YES

3-5

No SW_5.3VA

Is the VCC (5.3V) sup-

plied to Q158 Emitor?

Check 5.3VA on

SMPS Board

Is there about 0V

at R179 and R156?

Check the ‘STANBY

H’signal from µ-COM

Check Q158 and

Replace

YES

No 3.3V

Check or Replace

the D127

Check the ‘PWR CTL

“H”’signal from µ-com

Is there about 3.8V at

the IC152 pin1?

Is there about 4V~ 5V

at the IC152 pin4?

Check the IC152

and Replace

YES

No 5.0VD

Check 5.3VA on

SMPS Board

Check the ‘PWR CTL

H’signal from µ-COM

Is there about 5.3V

at the IC153 pin 1?

Is there about 4V ~ 5V

at the IC153 pin 4?

Check the IC153

and Replace

YES

No 2.5V

Check D154 and

D127 on SMPS Board

Is there about 3V ~ 3.8V

at the IC151 pin 1?

Is there about 4V ~ 5V

at the IC151 pin 4?

NO NO

Check the ‘PWR CTL

H’signal from µ-COM

NO NO

YES

Check the IC151

and Replace

YES

3-6

No SW_FD(+)

Check D121 on SMPS

Board and Replace

Check Q163 and

Replace

Is the VCC (FD+) sup-

plied to Q163 Collector ?

Is there about 5.3V at R184

and Q153 Collector ?

Is the VCC (5.3V) sup-

plied to Q153 Emitor ?

Check 5.3VA on

SMPS Board

Check the ‘STANBY

H’signal from µ-COM

YES

Is there about 0V

at Q153 Base ?

YES

Check Q153 and

Replace

YES

No SW_12VG

Check D124 on SMPS

Board and Replace

Check Q165 and

Replace

Is the VCC (14V) sup-

plied to Q165 Collector?

Is there about 12.5V at

ZD152 & Q165 Base?

Is the VCC (33V) sup-

plied to Q160 Emitor?

Check D126 on SMPS

Board and Replace

Check Q160 and

Replace

Check SW_5.3VA

YES

Is there about 0V at

Q160 Base?

YES

Is there about 5.3V

at Q166 Base?

YES

Check Q166 and

Replace

YES

No 1.25V

Check D155 and

2.5V power supply

Check Q159 and

Replace

Is the VCC (2V) supplied

to Q154 Emitor ?

Is there about 2V ~ 2.5V at

Q154 Base and IC154 pin 4?

Is the VCC (3.3V) sup-

plied IC154 pin 1,2,8 ?

Check 3.3V power

supply

YES

Check IC154 and

Replace

YES

No 1.8V

Check 3.3V power

supply

Check Q159 and

Replace

Is the VCC (3.3V) supplied to Q159

Emitor And IC154 pin 1,2,8 ?

Is there about 3V ~ 3.3V at

Q159 Base and IC154 pin 3 ?

Check IC154 and

Replace

YES

3-7

“Please wait” displayed

Continue at Power On

Check PVM02 pin 13

IC 701 pin 19 (R714)

IC1306 pin 5 : ?

(/HOST-RESET)

X1101 : Clock oscillated?

(13.5MHz)

Replace X1101

Check IC1201 (Flash

Memory) & IC1101

IC1101 DEFECT

YES

R11A9 : ?

IC1201 pin 32 : ?

YES

R1173, R1174 : ?

YES

3. SYSTEM CIRCUIT PART

Check Driver Power?

5V,12V

Change MEDIA TEST

Check ATAPI Interface

PLL1604 & PML07

Check SMPS

YES

4. DISC NOT RECOGNIZED

3-8

CHECK IC803 pin 2,4 (VCC):12V

Pin 32,33 (SCL/SDA) :

IC808 pin 14,19 (Z_mute_R/L) :

IC701 pin 58 (A_mute_L) :

CHECK

IC808 pin 1,2,3,4 :

Pin 10 (Reset “H”)

Pin 7,8 (I2C) :

5. WHEN PLAYING DISC, NO AUDIO OUTPUT

CHECK

IC808 pin 17 (12V)

pin 5,11,20 (3.3V)

Replace IC808

YES

IC808 pin 15,18(Audio_out R/L):

Is there a signal?

IC801 pin 1,7

Is there a signal?

IC803 pin 21,22,25,26

: Is there a signal?

CHECK Q801, Q802, Q803,

Q805, Q806, Q807, Q808

CHECK IC801 pin 8

(12V)

Replace IC801

Replace IC803

IC101

DEFECT

L822, L823 :

Is there a signal?

YES

YES YES

Only “Without SCART model”

L806, L826, L825, L810

: Is there a signal?

CHECK Cable connec-

tions & TV Audio mute.

3-9

R1107 :

Is there a signal ?

CHECK PVM01 pin 1

(SPDIF_OUT) :

C856 :

Is there a signal ?

BD817 :

Is there a signal ?

CHECK JK802 &

RCA cable connection

YES

R851 :

Is there a signal?

CHECK

JK803 pin 2 (5.2V)

CHECK JK803 &

Optic cable connection

6. NO OPTICAL / DIGITAL OUTPUT

3-10

7. NO TUNER AUDIO OUTPUT

TU701 pin 16 (SIF) :

Is there a signal?

C928,C963 :

Is there a signal?

IC903,904 pin 7 :

Is there a signal?

Replace IC803

CHECK

IC903,904 pin 6 (12V)

YES

IC803 pin 20, 24, 23, 27

Is there a signal?

YES

IC901 pin 34 Or R999

(reset “H”) :

YES

X901 (24.576MHz) clock

oscillated ?

R902,R913,R997 :

R962,R978 (I2C) :

YES

C901 pin 173 & R903 :

Is there a signal ?

When playing DISC,

no Audio output

YES

YES YES

CHECK

IC 803 pin 2,4 (VCC) : 12V

Pin 32,33 (SCL/SDA) :

CHECK

IC1302 Reset Circuit

IC1101 DEFECT

CHECK

IC901 power 3.3V & 1.8V

IC901 DEFECT

YES

Only “P Model”

Only “Without SCART Model”

3-11

8. NO EXTERNAL INPUT AUDIO

CHECK IC 803 pin 2,4 (VCC):12V

Pin 32,33 (SCL/SDA):

CHECK Cable connec-

tions & Input signal.

Replace IC803

CHECK IC1302

Reset Circuit

YES

IC803 pin 20, 24, 23,

27 : Is there a signal?

CHECK Cable connec-

tions & Input signal.

C979, C980 :

Is there a signal? IC803 pin 10,16 :

Is there a signal? C976,C977 :

Is there a signal?

< AV3 > < AV1/AV2 > < AV4 >

IC901 pin 34 Or

R999 (reset”H”) :

X901 (24.576MHz)

clock oscillated?

IC1101 DEFECT

CHECK IC901

power 3.3V & 1.8V

IC901 DEFECT

NO YES

YES

R902,R913,R997 :

R962,R978 (I2C) :

YES

C901 pin 173

or R903 :

YES

When playing DISC,

no Audio output

YES

CHECK Cable connec-

tions & Input signal.

3-12

9. NO RGB / COMPONENT VIDEO SIGNAL WHEN PLAY DISC

R1153,R1154,R1155 :

Is there a signal ?

PVM01 pin 2,6,10 :

Is there a signal ?

IC802 pin 18,21,24 :

Is there a signal?

CHECK SW801 status &

SW801 pin 2 (RGB_SEL”H”)

NO CHECK IC802 pin

1,16 (5.2V)

Replace IC802

YES

YES YES

10. NO COMPOSITE / S-VIDEO SIGNAL WHEN PLAY DISC

R1150,1151,1152 :

Is there a signal ?

PVM01 pin 14, 18, 22

: Is there a signal?

IC802 pin 27,30,32:

Is there a signal ?

CHECK RCA & S-Video

cable connection

IC803 pin 29,30 :

Is there a signal ?

NO CHECK IC802 pin

1, 16 (5.2V)

Replace IC802

YES

CHECK IC803 pin 2,4 (VCC) : 12V

Pin 32,33 (SCL/SDA) :

YES

CHECK SCART

cable connection

YES

Replace IC803

YES

A B

S-Video & RCA

SCART

3-13

11. NO TV, EXTERNAL INPUT VIDEO SIGNAL

CHECK Cable con-

nection & Input signal

C859, C869, C871:

Is there a signal?

IC 803 pin 21, 22, 25,

26 : Is there a signal?

C926 : Is there a

signal?

CHECK IC 803 pin 2,4 (12V)

Pin 32,33 (SCL/SDA)

Replace IC803

CHECK IC1302

Reset Circuit

CHECK IC901 power

3.3V & 1.8V

IC901 DEFECT

C917,C923,C934 :

Is there a signal ?

C618 : Is there a

signal ?

No video signal of external

input AV3 (Rear RCA input)

No video signal of external

input AV4(Composite/S-Video)

When Cable connecting Tuner and Rear

SCART1,2 No TV video signal (AV1/2)

NO NO NO

YES

YESYES

YES

IC901 pin 34 Or R999

(reset”H”) :

X901 (24.576MHz)

clock oscillated ?

YES

R962,R978 (I2C) :

IC901 pin 108 or

R930 (VI_CLK) :

CHECK No RGB /

Component /

Composite /

S-Video

Signal when play

DISC

YES

YES YES

3-14

12. NO DV(IEEE 1394) INPUT (VIDEO/AUDIO) SIGNAL

Check DV_Jack connection

DV-mode switching ?

IC1401 power 3.3V

IC1401 pin 37 : “High”

& X401 (24.576MHz) oscillated ?

NO IC1401 power 3.3V

NO Change to DV-mode.

Using Remote Control

NO CHECK IC1302 Reset Circuit

YES

IC1401 pin 15 : “High”

Is there a signal?

YES

IC1401 pin 1,27,28,29,30 :

Is there a signal?

YES

IC1401 pin 2, 3 :

Is there a signal?

YES

IC101 DEFECT

YES

CHECK DV Cable

YES

Replace IC1401

YES

3-15 3-16

BLOCK DIAGRAMS

1. OVERALL BLOCK DIAGRAM

Front Driv er IC

V.S1/V.S2

S/PDIF

A_DAC:2ch

CS4351

A_DAC:2ch

CS4351

V4_In

S_In

I/O Board

Front Timer Boa rd

AIN_D0

VIN_D[9:0]

CVBS_Out

I/O Board

S_VIDEO_Out

Y/Pb/Pr or R/G/B

Analog

Audio Out

Opti cal & Digital

Audio Out

BIO_PHY_DATA[0:7]

PHY

TSB41AB1

PHY

TSB41AB1

DV_In

HD[0:15]

SPI I/O Interface

ATA_CONTROL

AOUT_DO

AOUT_IEC958

VOUT_CVBS

ATAPI1_DATA[0:15]

ATAPI1 _...

DVD DRIVE

SIO_SPI_CS0

SIO_SPI_CLK

SIO_SPI_MISO

SIO_SPI_MOSI

MAIN Board

HA[6:21]

Flash

64M-Bit

Flash

64M-Bit

V3_In

HA[1:5],[23:22]

PHY

SAIN

ASTEL

PHY

SAIN

ASTEL

Buffer

74LVC541

Buffer

74LVC541

SOCKET

HDD DRIVE

ATAPI2_DATA[0:15]

ATAPI2 _...

VOUT_Y/C

VOUT_Y/Pb/Pr_R/G/B

Memory Board

A.S1/A.S2

Tuner

A3_In

A4_In

AV_DEC

Decoder

SAA7137

AV_DEC

Decoder

SAA7137

U-COM

Latch

74LVT16373

Latch

74LVT16373

DMN8653

DDR SDRAM

512M-Bit

DDR SDRAM

512M-Bit

3-17 3-18

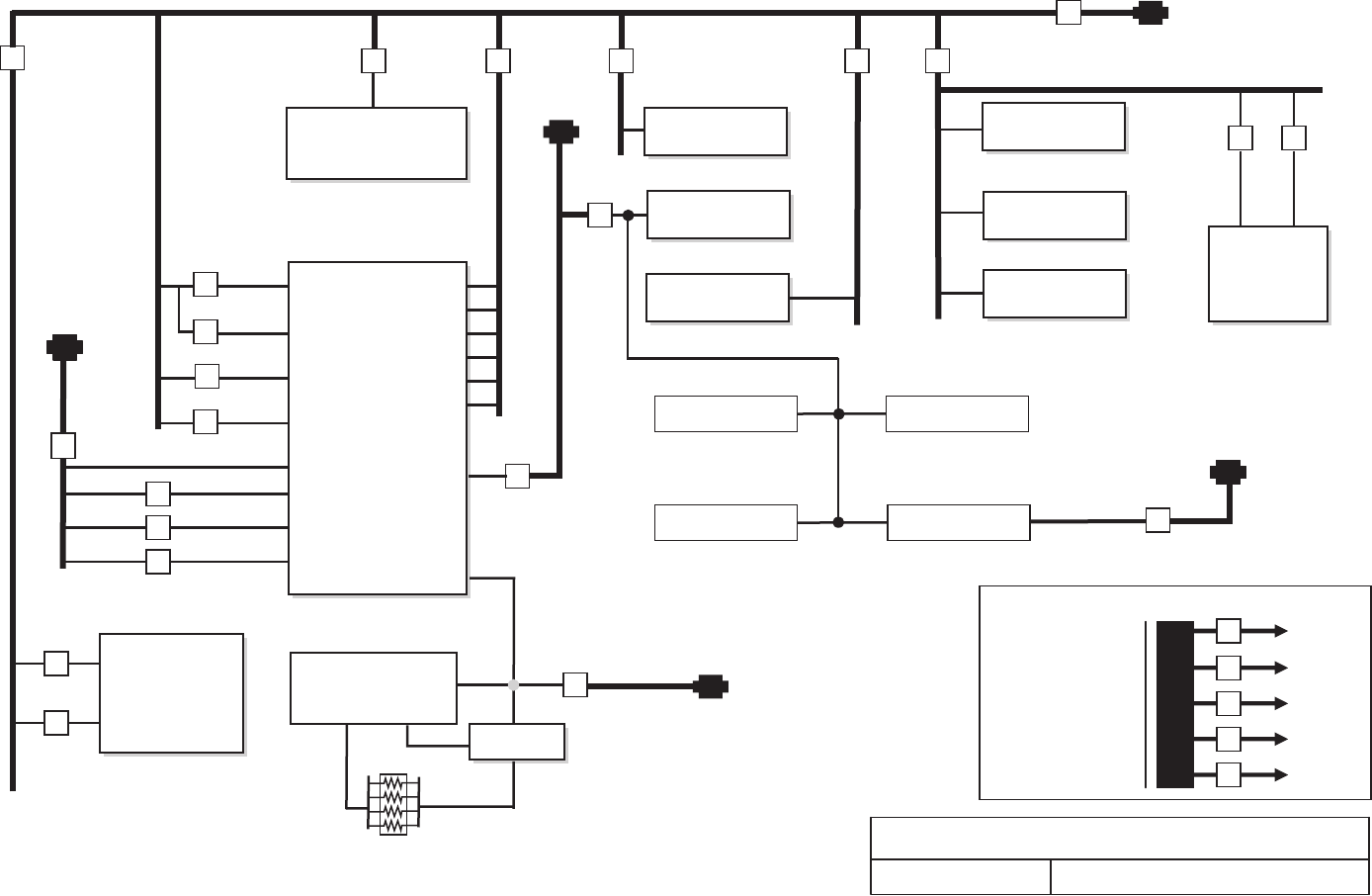

2. LAYOUT CONNECTION BLOCK DIAGRAM_1

INPUT / OUTPUT Board

HDD

40:250mm

MAIN Board

PMV02

PMV02 PMV01

PMV01

40pin

Jun ction Bíd

Jun ction B'd

FAN

SMPS Board

P1701

2pin

Main Board

I/O Board

4pin

PMV04

P1D01

16 pin

30 pin

HDMI

TIMER Board

Key Board

DVD ± RW DRIVE

40pin

P104

Jun ction Bíd

ATAPI1

12V

FD(+)

FD(-)

-28VA

14VA

33VA

3.8VA

5.3VA

PWR_CTL_H

PML07PML08

PMC09

PMH10

PMT05

PHM01

PVM01

PVM02

PWVS1

Scart1/

Scart2 S

Video

AV3/Comp /DigitalOptical

TUNER

HARD DISC DRIVE

ATAPI2

Front J ack

7-in-2 Memory

PMT01

3-19 3-20

3. LAYOUT CONNECTION BLOCK DIAGRAM_2

I/O Board

7-in-2 Memory

HDD

40:250mm

Main Board

30pin

30pin 30pin

30pin

40pin

Jun ction Bíd

Jun ction B'd

FAN

SMPS

12pin

2pin

Main B'd

I/O B'd

SMPS B'd I/O B'd

4pin

X pin

X pin : FFC

X pin

X pin : B'd to B'd

: Harness

X pin

X pin : B'd in

275

430

12pin

4pin

16 pin

30 pin

HDMI

Timer(FLD)

KeY B'd

DVD ± RW DRIVER

40pin

2pin

Jun ction Bíd

Jun ction B'd

3-21 3-22

4. SMPS Block Diagram

BD101

P1701

P1D01

P104

BR BL

(BK)(WH)

14VA

-28V

33VA

3.8VA

PWR CTL

5.3VA

FD(-)

FD(+)

Y CAP

C113

Y CAP

C112

DRIVE & S/W

BLOCK

IC101,D102,R105,

ZD101,ZD103,

R109,C104,C107,

C108,C109, BC101

SNUBER

BLOCK

D101,R104,

C105,C106

NOISE FILTER

BLOCK

V101,C101,C102,

R101,L101

FUSE

F101

12V

FAN

5V REG &

S/W BLOCK

IC156,R156,

C156

12V REG &

S/W BLOCK

IC155,R155,

C155

14V RECTIFIER &

SMOOTHING BLOCK

D124,C123,L123,C133

3.8V RECTIFIER &

SMOOTHING BLOCK

D127,C124,L124,C134

33V RECTIFIER &

SMOOTHING BLOCK

D126,C126,R147,ZD122

5.3V RECTIFIER &

SMOOTHING BLOCK

D128,C125,L125,C135

T101

RECTIFIER &

SMOOTHING BLOCK

D121,FR121,C120,R181,

R191,R131,ZD121

RECTIFIER &

SMOOTHING BLOCK

D122,C122,R122

5V RECTIFIER &

SMOOTHING BLOCK

D125,C121

FEEDBACK

BLOCK

R141,R142,

R143,R144,

R145,R146,

C143

PHOTO COUPLER

IC102

ERROR AMP

IC103

TH0

C103

3-23 3-24

5. Power : Main Board Block Diagram

3.3V

2.5V

1.8V

0.8T(700mA)

(180mA)

0.8T(400mA)

0.8T(500mA)

FLASH

FLASH 74LVT16373

74LVT16373 74LVC08

74LVC08

74HCT125

74LVT273

3.3V

V33_BREG 3V3D

V33_FLASHV33_FLASH

74LVC04

V33_STB

5VD

+5V_STB

3.3VA

DAC 3.3V

V33_E5_VPAD

V33_E5_VDDRE

E5_1V25

74LVC541A

2.5V

V25_SSTL2

LP2955

VREF

VTT

E5_AVDD1

E5_AVDD2

AVDD_SYSPLL

1.25V

V33_PHY_A V33_PHY_D

TSB41AB1

1.8V

V18_HDMI

DMN8653

SDRAM

3V3A

V33_JEA

V33_JED

IC 801

TC90A73UG

HDD IF LOADER IF

MEMORY CARD IF

5VD

HDMI IF

1.25V

2.0T(1.6A)

1.25V, 1.8V, 2.5V, 3.3V, 5VPWR_CTL_H

I/O U-COM PWR CTL

1 2

3-25 3-26

6. Power : I/O Board Block Diagram

.3VA

PWR Fail

(KIA7042)

EEPROM

(24LC16B)

VPS/PDC

(SDA5650)

Reset IC

(KIA7031P)

U-COM

(MN101DF10GAF)

Tuner

5.2V

Opti cal Driv e

Video S/W

(BH7868FS)

12V

Diff OP AMP

(NJM4580)

A.SW

(NJM2521)

5VT

U-COM

(MN101DF10GAF)

12VG(SW)

A/V.SW (C+)

(MM1443)

33VT

Tuner

SYS_5.3VA

3.3V

V 6dB Amp

(MM1510)

A/V Decoder

(SAA7137)

1.8V

Etc Logi c

DAC

(CS4351)

12VG(SW)STANBY_H

5VT, 33VTTIMER_H

5.2V, 12V, 3.3V, 1.8VPWR_CTL_H

I/O U-COM PWR CTL

3-27 3-28

7. IN/OUT BLOCK DIAGRAM ( SCART MODEL ONLY )

SIF

TU_V_OUT

IC705

24LC16B

EEPROM

IC705

24LC16B

EEPROM

FRONT.AV IN

S-VIDEO IN

REAR.AV IN

F_A_L/R_IN

F_CVBS_IN

F_Y_IN

F_C_IN

R_CVBS_IN

R_A_L/R_IN

SW_A_OUT_L/R

AIN_DO

AIN_FSYNC

AIN_SCLK

AOUT_FSYNC

AOUT_SCLK

AOUT_MCLK

VIN_D[9:0]

VIN_INT

VIN_CLK

I2C MAIN

SW_V_OUT

A_OUT_L/R

R_OUT

G_OUT

B_OUT

CVBS_OUT

Y_OUT

C_OUT

CVBSout

R(Pr)_OUT

G(Py)_OUT

B(Pb)_OUT

R_SCART_OUT

G_SCART_OUT

B_SCART_OUT

EU1_A_OUT_L/R

EU1_V_OUT

EU1_A_IN_L/R

EU1_V_IN

EU2_A_OUT_L/R

EU2_V_OUT

EU2_A_IN_L/R

EU2_V_IN

R_SCART_IN

G_SCART_IN

B_SCART_IN

Pr_RCA_OUT

Y_RCA_OUT

Pb_RCA_OUT

C_SEPA_OUT

Y_SEPA_OUT

SPDIF_OUT OPTICAL

COAXIAL

RCA_V_OUT

DAV

I2C I/O

IC707

SDA5650

VPS

IC707

SDA5650

VPS

CV.IN2

I2C I/O

COMPONENT

S-VIDEO OUT

REAR.AV

S/W

BLOCK

STANBY_H

TIMER_H

POWER_CTL_H

SMPS

BLOCK

SW_12VG

SW_5.3VA

SW_FD(+)

FD(+)

FD(-)

-29VA

12V

5.3VA

5.2V

33VT

5VT

1.8V

3.3V

2.5V

IC801

NJM4580

14VA

5.3VA

FD(+)

I/O BOARD

TU_V_OUT

DAC_A

L/R_OUT

TPA+

TPA-

TPB+

TPB-

DV IN

BIO_PHY_D[7:0]

BIO_PHY_CLK

BIO_LPS

BIO_LREQ

BIO_PHY_CTL0

BIO_PHY_CTL1

BIO_LINK_ON

/RST_PHY

1394_PD

AUDIO Mute

Blo ck

AUDIO Mute

Blo ck

A_MUTE_L

A_OUT_L/R

IC_OUT_L/R

IC904

NJM2521

IC903

NJM2521

TU_L/R_OUT

SECAM_AM

A_SEL

5.0VD

1.25V

TU_SECAM_H

TU_SE_VL_H

AFT

RGB_SEL

SCART 1

AOUT_DO

IC803

MM1443

AV SWITCH

Built in 6dB

IC1401

TSB41AB1

/RST_

SAA7137

IC901

SAA7137D

AV DECODER

SW801

I2C I/O

IC701

MN101DF10GAF

MICOM

TUNER

PAL

TUNER

PAL

IC708

MM1510

6dB Buffer

IC708

MM1510

6dB Buffer

IC703

MM1510

6dB Buffer

IC703

MM1510

6dB Buffer

IC802

BH7868FS

VIDEO

Buffer

IC802

BH7868FS

VIDEO

Buffer

IC808

CS4351

DAC

Z_MUTE_L/R

Option

IC1101

DMN8653

ENC/DEC

AIN_MCLK

MAIN BOARD

SCART 2

3-29 3-30

8. VIDEO BLOCK DIAGRAM

IC803

MM1443

AV SWITCH

C_Y_IN

F_CVBS_IN FRONT IN

JACK

R_OUT

G_OUT

B_OUT

IC1101

DMM8653

MPEG

ENC/DEC

EU2_V_OUT

IC802

BH7868FS

VIDEO

SWITCH

SCART2

SW_V_OUT

VIN_D[9:0]

RCA_V_OUT

IC901

SAA7137

DECODER

VIN_CLK

T_V_OUT

EU2_V_IN

F_Y_IN

R_CVBS_INREAR IN

JACK

TUNER

EU1_V_OUT

EU1_V_IN

SCART1

COMPONENT

OUT

CVBSout

R(Pr)_OUT

R/G/B_SCART_IN

S-VIDEO IN

JACK

SW801

R_SCART_OUT

G_SCART_OUT

B_SCART_OUT

Pr_RCA_OUT

Y_RCA_OUT

Pb_RCA_OUT

G(Py)_OUT

B(Pb)_OUT

Y_SEPA_OUT

C_SEPA_OUT

REAR OUT

JACK

S-VIDEO OUT

JACK

CVBS_OUT

Y_OUT

C_OUT

VIN_INT

3-31 3-32

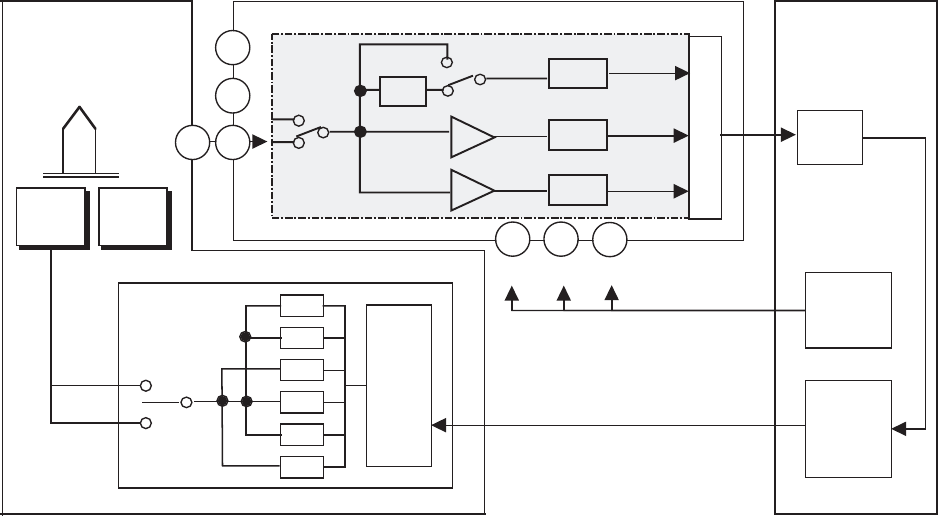

9. VIDEO S/W PATH BLOCK DIAGRAM

TU701

JK801

JK802

AV3

IC708

MM1510

(6dB,75 )

IC707

SDA5650

(VPS)

IC703

MM1510

(6dB,75 )

IC701

( -COM)

IC901

SAA7137

AV. DEC

TU_V_OUT

SW_V_OUT

(TU/E1/E2)

SW1

SW3

SW2

330 1 29

JK801

CVBSOUT

JK803

Component

OUT

Y_OUT

C_OUT

CVBS_OUT

R_OUT

G_OUT

B_OUT

R_SCART_OUT

G_SCART_OUT

B_SCART_OUT

F_Y_IN

F_C_IN

F_CVBS

RCA_V_OUT

R_CVBS

SW801

JK801

SCART1

RGB OUT

Pr_RCA_OUT

Y_RCA_OUT

Pb_RCA_OUT

IC802

BH7868FS

(SW)

JK809

S-VIDEO

OUT

IC1101

DMM8652

MPEG

ENC/DEC

Y_SEPA_OUT

C_SEPA_OUT

JK808

IC1401

TSB41AB1

TPA+

TPA-

TPB+

TPB-

BIO_PHY_D[7:0]

BIO_LPS

BIO_PHY_CLK

BIO_LREQ Ö.

JK802 / JK807

AV4 / S-V

EU2_V_IN

EU2_V_OUT

EU1_V_IN

EU1_V_OUT

I/O BOARD

MAIN BOARD

VIN_D[9:0]

VIN_INT

VIN_CLK

IC803

MM1443

3-33 3-34

10. AUDIO BLOCK DIAGRAM

IC803

MM1443

AV SWITCH

IC903,904

AUDIO S/W

NJM2521

R_A_L_IN

R_A_R_IN

FRONT

JACK

A_OUT_R

AO_SCLK

AO_FSYNC

AO_MCLK

Audi o Mute

TR Block

TU_L_OUT

TU_R_OUT

EU1_A_OUT_L

EU1_A_OUT_R

IC808

CS4351

AUDIO

CODEC

SCART2

SW_A_OUT_L

AIN_DO

AO_DO

Z_MUTE_L

Z_MUTE_R

A_MUTE_L

IC901

SAA7137

DECODER

AIN_FSYNC

AIN_MCLK

AIN_SCLK

A_OUT_L

IC701

I/O MICOM

EU1_A_IN_L

EU1_A_IN_R

SW_A_OUT_R

IC_OUT_L

IC_OUT_R

F_A_L_IN

F_A_R_IN

SIF

SECAM_AM

REAR

JACK

TUNER

EU2_A_OUT_L

EU2_A_OUT_R

EU2_A_IN_L

EU2_A_IN_R

SCART1

A_OUT_R

A_OUT_L

REAR

JACK

IC801

BUFFER

NJM4580

DAC_A_L_OUT

DAC_A_R_OUT A_OUT_R

A_OUT_L

SPDIF_OUT

COAXIAL

OPTICAL

Circuit OPTICAL

JACK

IC1101

DMM8653

MPEG

ENC/DEC

3-35 3-36

11. AUDIO S/W PATH BLOCK DIAGRAM

24(20)

27(23)

10(16) 25(21) 26(22) 8(14)

6(12)

1(7)

AO_DO

18(15)

I/O BOARD

SW4(7)

SW5(8)

SW6(3)

IC801

NJM4580

(BUFFER)

AV3

AV4

S1 S2

IC803

MM1443

AO_FSYNC

AO_SCLK

AO_MCLK

AO_DO

AO_FSYNC

AO_SCLK

AO_MCLK

IC901

SAA7137

(AV. DEC)

SIF

SECAM_AM

TU IC903,904

NJM2521

(AUDIO SW)

IC808

CS4351

(CODEC)

DMN8653

MPEG , ENC/DEC MAIN BOARD

OPTICAL

COAXIAL

RC CIRCUIT

3-37 3-38

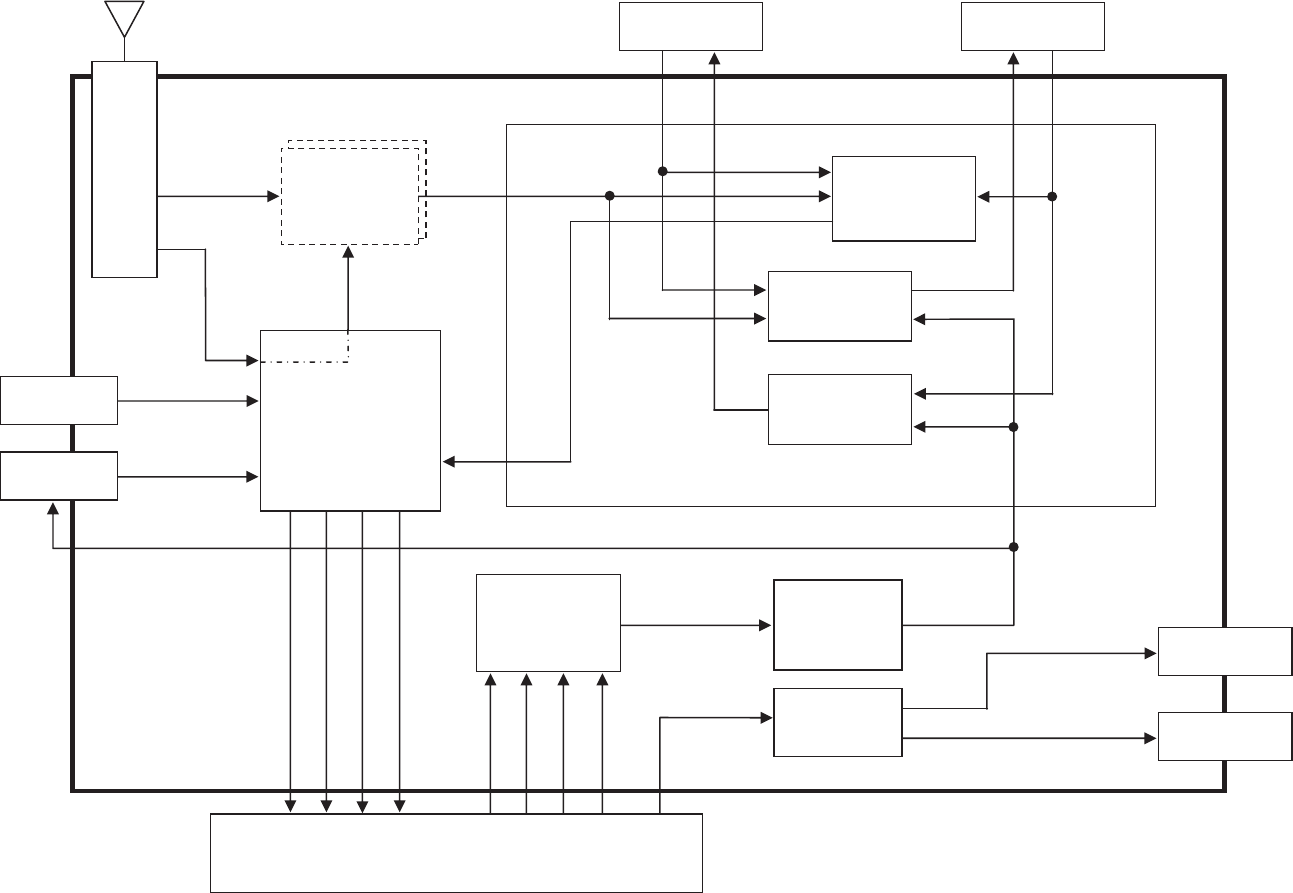

12. FLD / µ-COM / TUNER BLOCK DIAGRAM

TUNER

TU701

MICOM

IC701

MN101DF10GAF

6dB AMP

IC703

MM1510

EEPROM

IC705

24LC16B

I2C_DATA

I2C_CLK

SW_V_OUT

AV. DEC

IC901

SAA7137

TU_V_OUT

X702

14.31818MHz X701

32.768KHz

SIF

AV S/W

IC803

MM1443

TU_L_OUT

TU_R_OUT

DRIVER

IC901

PT6315

DIG901

FV834ND

FLD_CLK

ENA_L

FLD_TXD

G[ 0:16]

SIO_SPI_CLK

SIO_SPI_MOSI

SI0_SPI_CS0

SIO_SPI_MISO

DMN8653

MPEG

ENC/DEC

IC706

KIA7031

PWR_FAIL_L

PWR_CTL_H

SMPS

POWER BOARD

AV S/W

IC803

MM1443

VPS

IC801

SDA5650

DAV

TIMER_H

CV.IN2

AFT

IC704

KIA7042

RESET

SMPS Block

ON I/O BOARD STANBY_H

IC903,904

A S/W

NJM2521

IC_OUT_L

IC_OUT_R

SECAM_AM

3-39 3-40

13. MAIN BLOCK DIAGRAM ( SCART MODEL ONLY )

EPG

BLOCK

SIO_SPI_CS0

SIO_SPI_MOSI

SIO_SPI_CLK

IC1201

MX29LV640MT

TC-90

FLASH

MEMORY

IC1202

HYB25D512

160CE-5

DDR

SDRAM

E5_SDRAM_DQS[1:0]

E5_SDRAM_DQM[1:0]

E5_SDRAM_CLK1

E5_SDRAM_CLK#1

E5_SDRAM_DQ[15:0]

E5_SDRAM_A[13:0]

E5_SDRAM_WE#

E5_SDRAM_CAS#

E5_SDRAM_RAS#

E5_SDRAM_CLKE

E5_SDRAM_BA[1:0]

ATAPI1_D[15:0]

ATAPI1_ADD[4:0]

/RST_ATAPI1

ATAPI1_DMARQ

ATAPI1_DIOW_L

ATAPI1_DIOR_L

ATAPI1_IORDY

ATAPI1_DMAACK_L

ATAPI1_INTRQ

ATAPI2_D[15:0]

ATAPI2_ADD[4:0]

/RST_ATAPI2

ATAPI2_DMARQ

ATAPI2_DIOW_L

ATAPI2_DIOR_L

ATAPI2_IORDY

ATAPI2_DMAACK_L

ATAPI2_INTRQ

HD[15:0]

E5_ALE

HA[21:6]

HA[5:1][23:22]

/E5_OE

/E5_CS0

HD[15:0]

HA20 3.3V

/RST_HOST

3.3V /RST_E5/FLASH

/RST_SYSTEM

BERG_WE

HD[7:0]

HD[15:0]

IC1503

74LVC541A

HA20,HA[18:16]

/E5_OE

/HA20

/E5_LWEn

IC1306

74LVC08

HATA_A[2:0]

/HATA_CS[1:0]

HATA_DIOR

HATA_DIOW

HATA_IRQ

/WAIT

/RST_HATA

IC1401

TSB41AB

VO_D[15:0]

SCL

SDA

AOUT_IEC958

AOUT_MCLKOUT

SiL9030_INT

VOUT_CLK

E5_ALE

/WAIT

/ETHERNET_IRQ

/E5_OE

/E5_LWEn

/E5_CS1

HD[15:0]

/RST_SYSTEM

/RST_SiL9030

HDMI_I2C_EN

1394_PD

/RST_PHY

PHY_LINKON

PHY_LPS

PHY_LREQ

PHY_CLK

PHY_CTL[1:0]

PHY_DATA[7:0]

JACK

TPA+

TPA-

TPB+

TPB-

IC1302

74LVT273

SIO_SPI_MISO

SPI_CLK

SPI_CS

SPI_MOSI

SPI_MISO

IC701

MN101DF10GAF

MICOM

LOADER

INTERFACE

PML07

HDD

INTERFACE

PML08

MEMORY CARD

INTERFACE

PMC09

ETHERNET

INTERFACE

PMX06

HDMI

INTERFACE

PMH10

/E5_LWEn

IC1101

DMN8653

LSI

IC1101

DMN8653

LSI

I/O BOARD

VREF

/RST_EPG

/RST_SAA7137

PMX03

PC DEBUGGING

UART

UART2_CTS

UART2_RTS

UART2_TX

UART2_RX

HA[5:1][23:22]

/E5_OE

/E5_CS0

/E5_LWEn

HD[15:0]

E5_ALE

/RST_E5/FLASH

/E5_CS3

/E5_CS2

HATA_IRQ

/WAIT

HA[5:1]

IC1204

G2995

/E5_LWEn /BERG_WE

IC1305

74LVC04

HD[15:0]

IC901

SAA7137

AV DECODER

IC701 MICOM

IC1301

74LVT16373

Address

LATCH

14. TIMER BLOCK DIAGRAM

5.3VA(SW), FD+(SW)STANBY_H

I/O U-COM PWR CTL

D +(SW)

FLD( + )

FD( - )

FLD( - )

29VA

FLD Driv e IC

(PT6315)

FLD Driv e IC

(PT6315)

5.3VA

Remoc on Reciver

5.3VA(SW)

3-41 3-42

3-43 3-44

CIRCUIT DIAGRAMS

1. SMPS 1 CIRCUIT DIAGRAM

No Power

BD101,TH101 is Defective

Switching Error

IC101 is Defective

No Power

F101 is Defective

No Power

D102 is Defective

Switching Error

IC102,IC103 are Defective

No Digitron Displayed

D121,FR121,ZD121 are Defective

33VA No Power

D126 is Defective

5.3VA No Power

D128 is Defective

3.8VA No Power

D127 is Defective

14VA No Power

D124 is Defective

5.5VA No Power

D125 is Defective

12V No Power

IC155 is Defective

5V No Power

IC156 is Defective

A B C D E F G H I J K L M N O P Q R ST

- 28VA No Power

D122 is Defective

NOTES) Symbol denotes AC ground.

NOTES) Symbol denotes DC chassis ground.

NOTE) Warning

NOTE) Parts that are shaded are critical

NOTE) With respect to risk of fire or

NOTE) electricial shock.

IMPORTANT SAFETY NOTICE

WHEN SERVICING THIS CHASSIS, UNDER NO CIR-

CUMSTANCES SHOULD THE ORIGINAL DESIGN BE

MODIFIED OR ALTERED WITHOUT PERMISSION

FROM THE LG ELECTRONICS CORPORATION. ALL

COMPONENTS SHOULD BE REPLACED ONLY WITH

TYPES IDENTICAL TO THOSE IN THE ORIGINAL CIR-

CUIT. SPECIAL COMPONENTS ARE SHADED ON THE

SCHEMATIC FOR EASY IDENTIFICATION.

THIS CIRCUIT DIAGRAM MAY OCCASIONALLY DIF-

FER FROM THE ACTUAL CIRCUIT USED. THIS WAY,

IMPLEMENTATION OF THE LATEST SAFETY AND

PERFORMANCE IMPROVEMENT CHANGES INTO

THE SET IS NOT DELAYED UNTIL THE NEW SERVICE

LITERATURE IS PRINTED.

NOTE :

1. Shaded( ) parts are critical for safety. Replace only

with specified part number.

2. Voltages are DC-measured with a digital voltmeter

during Play mode.

3-45 3-46

2. SMPS 2 CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q R ST

3-47 3-48

3. MPEG CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q R ST

3-49 3-50

4. FLASH/DDR CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q R ST

3-51 3-52

5. RESET & 1394 & JEPG CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q R ST

3-53 3-54

A B C D E F G H I J K L M N O P Q R ST

6. ATAPI & MEMORY CARD CIRCUIT DIAGRAM

3-55 3-56

7. I/O, µ-COM CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q R ST

3-57 3-58

8. TUNER/MPX/ADC/DAC/JACK CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q R ST

3-59 3-60

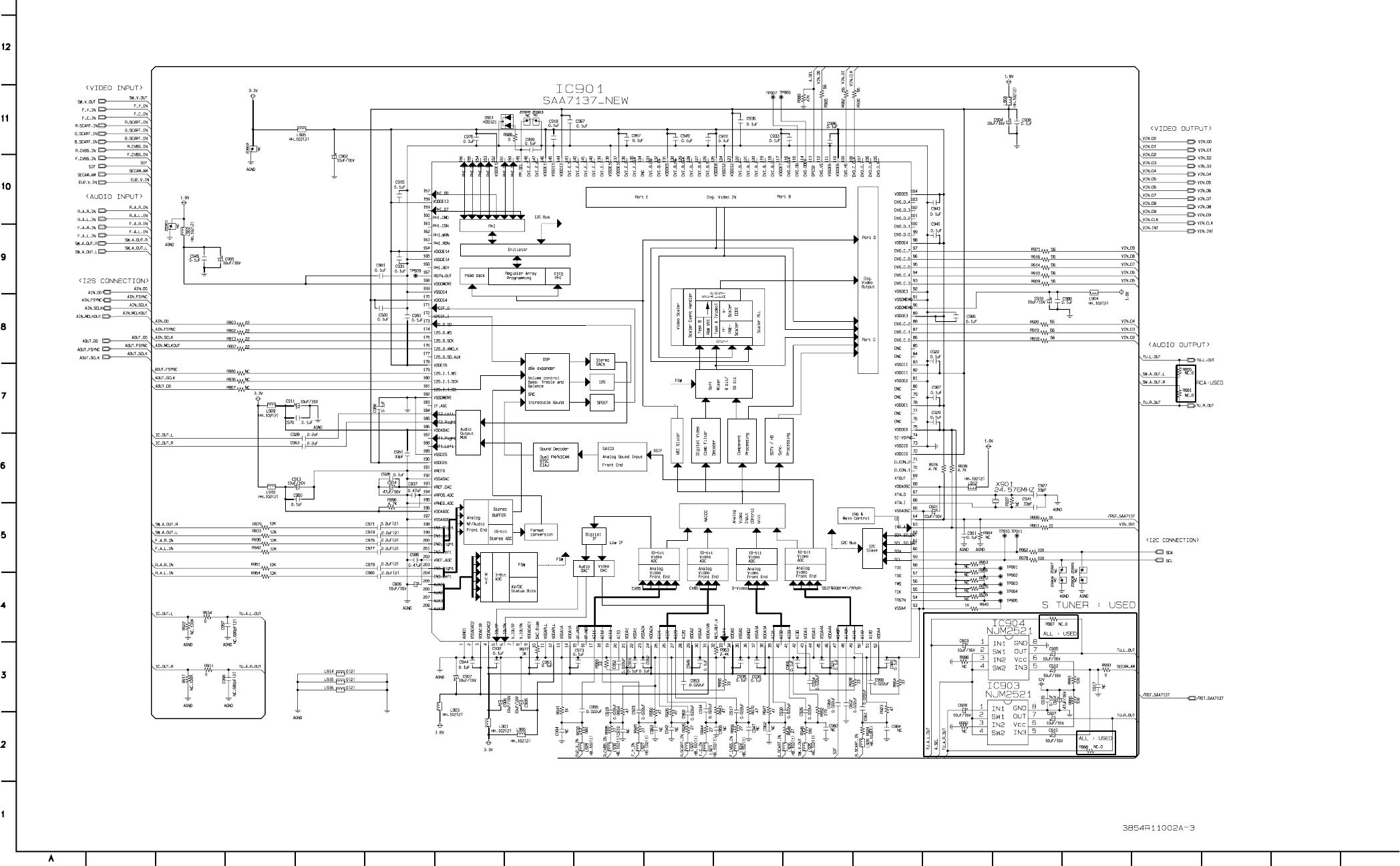

9. DECODER CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q R ST

3-61 3-62

10. TIMER CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q R ST

3-63 3-64

• WAVEFORMS

X1101

13.5 MHz PMV 02

PIN1

SDA

PMV02

PIN3

SCL

IC1401

PIN1

PHY_CLK

PMV01

PIN9

VIN_CLK

X901

14.31818MHz

PMV01

PIN10

VOUT_G/Y

PMV01

PIN06

VOUT_B/Pb

IC901

PIN108

27MHz

PMV01

PIN05

AIN_FSYNC

PMV01

PIN_FSYNC

AOUT_FSYNC

PMV01

PIN26

AOUT_D0

PMV02

PIN29

HOST_RXD

PMV02

PIN26

HOST_TXD

IC1202

PIN45

SDRAM_CLK1

PMV01

PIN18

VOUT_CVBS

PMV01

PIN10

VOUT_G/Y

PMV01

PIN22

VOUT_C

PMV01

PIN01

AOUT_IEC958

PMV04

PIN10

AIN_MCLKOUT

PMV01

PIN07

AIN_SCLK

PMV01

PIN29

VIN_D0

X1401

24.576MHz

PMV01

PIN2

VOUT_R/Pr

PMV01

PIN24

AOUT_MCLK

3-65 3-66

EE PB REC

MODE

PIN NO.

IC101 LSI DMN8653

A1 1.17 1.19 1.17

A2 0.00 0.00 0.00

A3 1.37 1.36 1.36

A4 0.00 0.00 0.00

A5 1.61 1.64 1.64

A6 1.60 1.62 1.62

A7 1.58 1.61 1.59

A8 3.20 3.23 3.21

A9 1.25 0.67 1.25

A10 1.58 1.62 1.60

A11 1.25 0.67 1.25

A12 1.08 0.94 1.06

A13 1.10 1.08 1.10

A14 NC NC NC

A15 3.22 3.23 3.20

A16 1.63 1.64 1.62

A17 1.63 1.64 1.98

A18 1.63 1.64 1.63

A19 0.00 0.00 0.00

A20 3.24 3.24 3.23

A21 0.00 0.00 0.00

A22 0.00 0.00 0.00

A23 0.00 0.00 0.00

A24 3.23 3.24 3.22

A25 2.31 2.32 2.30

A26 3.21 3.21 3.21

B1 3.21 3.22 3.21

B2 0.27 0.27 0.27

B3 1.39 1.39 1.39

B4 1.22 1.22 1.21

B5 0.00 0.00 0.00

B6 1.16 1.21 1.18

B7 1.01 1.07 1.01

B8 3.20 3.20 3.19

B9 1.18 1.22 1.18

B10 1.02 1.07 1.02

B11 1.19 1.22 1.18

B12 1.22 1.25 1.24

B13 2.17 2.14 2.17

B14 1.60 1.61 1.59

B15 1.61 1.62 1.60

B16 1.62 1.62 1.61

B17 0.00 0.00 0.00

B18 0.00 0.00 0.00

B19 4.91 4.91 4.91

B20 3.12 3.14 3.14

B21 2.75 2.80 2.84

B22 4.80 4.90 4.82

B23 3.08 3.11 3.10

B24 3.21 3.21 3.21

B25 3.20 3.23 3.21

B26 3.21 3.23 3.21

C1 2.24 2.25 2.25

C2 2.67 2.67 2.66

EE PB REC

MODE

PIN NO.

C3 1.32 1.32 1.32

C4 1.28 1.28 1.27

C5 0.00 0.00 0.00

C6 1.19 0.38 1.17

C7 1.10 1.08 1.10

C8 2.86 2.86 2.85

C9 1.18 0.38 1.18

C10 1.10 1.08 1.10

C11 1.19 0.38 1.17

C12 1.02 1.07 1.01

C13 1.62 1.63 1.61

C14 0.00 0.00 0.00

C15 1.62 1.63 1.61

C16 1.21 1.21 1.20

C17 0.00 0.00 0.00

C18 1.62 1.64 1.61

C19 0.00 0.00 0.00

C20 3.15 3.18 3.16

C21 1.08 1.05 1.05

C22 1.08 1.05 1.05

C23 2.35 2.29 2.30

C24 3.21 3.23 3.21

C25 1.14 1.10 1.10

C26 1.17 1.16 1.15

D1 2.25 2.25 2.25

D2 1.55 1.55 1.55

D3 1.50 1.50 1.49

D4 1.62 1.62 1.61

D5 1.25 0.66 1.25

D6 1.18 0.94 1.06

D7 1.80 1.77 1.80

D8 2.49 2.49 2.48

D9 1.08 0.94 1.07

D10 1.81 1.78 1.81

D11 1.08 1.05 1.05

D12 1.08 1.05 1.05

D13 3.22 3.24 3.22

D14 3.22 3.24 3.22

D15 3.22 3.24 3.22

D16 3.22 3.24 3.22

D17 0.00 0.00 0.00

D18 1.61 1.61 1.60

D19 4.91 4.91 4.91

D20 3.05 3.05 3.04

D21 1.08 1.05 1.05

D22 1.19 1.17 1.17

D23 2.35 2.29 2.30

D24 1.12 1.08 1.04

D25 1.14 1.09 1.03

D26 1.14 1.09 1.08

E1 0.89 0.40 0.85

E2 2.23 2.24 2.24

E3 2.25 2.26 2.25

E4 0.00 0.00 0.00

E23 0.00 0.00 0.00

EE PB REC

MODE

PIN NO.

E24 2.01 1.97 1.97

E25 1.21 1.18 1.18

E26 1.18 1.18 1.16

F1 0.00 0.00 0.00

F2 0.00 0.00 0.00

F3 0.00 0.00 0.00

F4 1.05 1.05 1.06

F23 1.19 1.16 1.15

F24 1.18 1.06 1.02

F25 2.03 1.98 1.98

F26 2.08 1.93 1.85

G1 1.48 1.49 1.49

G2 0.00 0.00 0.00

G3 1.05 1.05 1.06

G4 2.35 2.26 2.30

G23 1.17 1.16 1.15

G24 1.18 1.16 1.15

G25 1.17 1.16 1.15

G26 1.16 1.16 1.15

H1 1.69 1.72 1.73

H2 0.00 0.00 0.00

H3 3.23 3.24 3.22

H4 1.06 1.05 1.06

H23 2.10 2.05 2.05

H24 1.14 1.09 1.06

H25 1.12 1.08 1.05

H26 1.17 1.14 1.15

J1 0.00 0.00 0.00

J2 1.58 1.58 1.58

J3 1.58 1.58 1.58

J4 3.23 3.23 3.22

J23 1.18 1.18 1.18

J24 1.11 1.11 1.11

J25 1.11 1.11 1.11

J26 1.11 1.11 1.11

K1 0.63 0.61 0.64

K2 0.64 0.62 0.64

K3 3.21 3.22 3.20

K4 1.08 1.05 1.05

K23 1.11 1.11 1.11

K24 1.13 1.13 1.13

K25 1.12 1.12 1.12

K26 1.11 1.11 1.11

L1 0.72 0.72 0.72

L2 0.73 0.73 0.64

L3 3.21 3.22 3.20

L4 1.08 1.05 1.05

L11 0.00 0.00 0.00

L12 0.00 0.00 0.00

L13 0.00 0.00 0.00

L14 0.00 0.00 0.00

L15 0.00 0.00 0.00

L16 0.00 0.00 0.00

L23 2.35 2.29 2.30

L24 2.35 2.29 2.30

EE PB REC

MODE

PIN NO.

L25 0.35 0.32 0.30

L26 1.16 1.16 1.15

M1 0.72 0.72 0.73

M2 0.64 0.62 0.73

M3 3.21 3.22 3.20

M4 3.22 3.24 3.22

M11 0.00 0.00 0.00

M12 0.00 0.00 0.00

M13 0.00 0.00 0.00

M14 0.00 0.00 0.00

M15 0.00 0.00 0.00

M16 0.00 0.00 0.00

M23 1.22 1.20 1.20

M24 2.35 2.29 2.30

M25 0.35 0.32 0.30

M26 1.16 1.16 1.15

N1 0.00 0.00 0.00

N2 0.00 0.00 0.00

N3 0.00 0.00 0.00

N4 3.22 3.24 3.22

N11 0.00 0.00 0.00

N12 0.00 0.00 0.00

N13 0.00 0.00 0.00

N14 0.00 0.00 0.00

N15 0.00 0.00 0.00

N16 0.00 0.00 0.00

N23 1.20 1.17 1.16

N24 2.35 2.29 2.30

N25 1.13 1.13 1.13

N26 1.13 1.13 1.13

P1 1.18 1.18 1.18

P2 3.22 3.23 3.22

P3 NC NC NC

P4 3.22 3.24 3.22

P11 0.00 0.00 0.00

P12 0.00 0.00 0.00

P13 0.00 0.00 0.00

P14 0.00 0.00 0.00

P15 0.00 0.00 0.00

P16 0.00 0.00 0.00

P23 1.21 1.19 1.19

P24 2.35 2.29 2.30

P25 1.13 1.13 1.13

P26 1.14 1.14 1.14

R1 0.00 0.00 0.00

R2 0.00 0.00 0.00

R3 0.00 0.00 0.00

R4 3.22 3.24 3.22

R11 0.00 0.00 0.00

R12 0.00 0.00 0.00

R13 0.00 0.00 0.00

R14 0.00 0.00 0.00

R15 0.00 0.00 0.00

R16 0.00 0.00 0.00

R23 1.20 1.17 1.17

EE PB REC

MODE

PIN NO.

R24 2.35 2.29 2.30

R25 1.18 1.18 1.18

R26 1.18 1.18 1.18

T1 0.00 0.00 0.00

T2 0.00 0.00 0.00

T3 0.00 0.00 0.00

T4 0.00 0.00 0.00

T11 0.00 0.00 0.00

T12 0.00 0.00 0.00

T13 0.00 0.00 0.00

T14 0.00 0.00 0.00

T15 0.00 0.00 0.00

T16 0.00 0.00 0.00

T23 2.35 2.29 2.30

T24 2.35 2.29 2.30

T25 1.18 1.18 1.18

T26 1.18 1.18 1.18

U1 0.00 0.00 0.00

U2 NC NC NC

U3 0.00 0.00 0.00

U4 0.00 0.00 0.00

U23 1.18 1.18 1.18

U24 1.18 1.18 1.18

U25 1.18 1.18 1.18

U26 1.18 1.18 1.18

V1 NC NC NC

V2 NC NC NC

V3 NC NC NC

V4 NC NC NC

V23 1.18 1.18 1.18

V24 1.18 1.18 1.18

V25 1.18 1.18 1.18

V26 1.18 1.18 1.18

W1 0.00 0.00 0.00

W2 NC NC NC

W3 NC NC NC

W4 0.00 0.00 0.00

W23 1.18 1.18 1.18

W24 1.18 1.18 1.18

W25 0.35 0.32 0.30

W26 1.16 1.16 1.15

Y1 1.65 1.65 1.64

Y2 0.76 0.74 0.84

Y3 0.00 0.00 0.00

Y4 0.77 0.75 0.86

Y23 1.18 1.18 1.18

Y24 1.18 1.18 1.18

Y25 0.35 0.32 0.30

Y26 1.16 1.16 1.15

AA1 0.77 0.77 0.88

AA2 0.77 0.76 0.84

AA3 0.77 0.77 0.84

AA4 0.76 0.74 0.85

AA23 3.12 3.13 3.11

AA24 1.18 1.18 1.10

EE PB REC

MODE

PIN NO.

AA25 1.18 1.18 1.18

AA26 1.18 1.18 1.18

AB1 0.77 0.77 0.87

AB2 0.76 0.75 0.84

AB3 0.77 0.75 0.87

AB4 0.77 0.76 0.84

AB23 0.00 0.00 0.00

AB24 0.00 0.00 0.00

AB25 3.21 3.23 3.21

AB26 1.18 1.18 1.12

AC1 0.78 0.78 0.89

AC2 0.77 0.76 0.89

AC3 0.77 0.77 0.84

AC4 0.76 0.76 0.84

AC5 0.00 0.00 0.00

AC6 1.95 1.92 1.93

AC7 1.94 1.90 1.91

AC8 1.91 1.88 1.90

AC9 1.94 1.91 1.92

AC10 0.00 0.00 0.00

AC11 1.08 1.05 1.05

AC12 1.08 1.05 1.05

AC13 1.08 1.05 1.05

AC14 3.22 3.24 3.22

AC15 3.22 3.24 3.22

AC16 3.22 3.24 3.22

AC17 0.00 0.00 0.00

AC18 3.22 3.24 3.21

AC19 0.00 0.00 0.00

AC20 0.00 0.00 0.00

AC21 3.82 3.82 3.81

AC22 2.87 2.86 2.86

AC23 0.00 0.00 0.00

AC24 0.00 0.00 0.00

AC25 3.21 3.23 3.21

AC26 3.23 3.24 3.22

AD1 0.76 0.74 0.87

AD2 3.23 3.24 3.22

AD3 3.23 3.05 3.22

AD4 0.00 0.00 0.00

AD5 0.00 0.00 0.00

AD6 1.95 1.92 1.93

AD7 0.00 0.00 0.00

AD8 1.93 1.90 1.91

AD9 1.93 1.90 1.91

AD10 3.22 3.23 3.21

AD11 3.22 3.24 3.21

AD12 0.00 0.00 0.00

AD13 0.07 0.07 0.07

AD14 0.00 0.00 0.00

AD15 0.00 0.00 0.00

AD16 0.03 0.03 0.03

AD17 3.23 3.24 3.22

AD18 3.22 3.24 3.21

AD19 0.00 0.00 0.00

EE PB REC

MODE

PIN NO.

AD20 0.00 0.00 0.00

AD21 0.00 0.00 0.00

AD22 3.23 3.24 3.22

AD23 0.00 0.00 0.00

AD24 0.00 0.00 0.00

AD25 0.00 0.00 0.00

AD26 0.00 0.00 0.00

AE1 3.23 3.24 3.22

AE2 3.23 3.24 3.22

AE3 3.23 3.24 3.22

AE4 0.00 0.00 0.00

AE5 1.94 1.91 1.92

AE6 1.92 1.87 1.89

AE7 1.92 1.89 1.91

AE8 1.95 1.92 1.93

AE9 0.00 0.00 0.00

AE10 3.21 3.22 3.21

AE11 4.50 4.50 4.50

AE12 3.23 3.24 3.22

AE13 0.00 0.00 0.00

AE14 0.00 0.00 0.00

AE15 0.00 0.00 0.00

AE16 0.00 0.00 0.00

AE17 3.23 3.24 3.22

AE18 3.22 3.24 3.21

AE19 0.00 0.00 0.00

AE20 0.00 0.00 0.00

AE21 3.23 3.24 3.22

AE22 3.20 3.23 3.21

AE23 0.00 0.00 0.00

AE24 2.87 2.86 2.86

AE25 0.00 0.00 0.00

AE26 0.00 0.00 0.00

AF1 3.22 3.23 3.21

AF2 0.00 0.00 0.00

AF3 0.00 0.00 0.00

AF4 4.60 4.60 4.61

AF5 1.96 1.92 1.94

AF6 1.93 1.89 1.91

AF7 1.95 1.92 1.93

AF8 1.93 1.90 1.91

AF9 0.00 0.00 0.00

AF10 3.23 3.23 3.21

AF11 3.23 3.23 3.21

AF12 0.00 0.00 0.00

AF13 0.00 0.00 0.00

AF14 0.00 0.00 0.00

AF15 1.64 1.66 1.66

AF16 3.21 3.23 3.23

AF17 3.22 3.24 3.21

AF18 0.00 0.00 0.00

AF19 0.00 0.00 0.00

AF20 3.21 3.23 3.21

AF21 3.23 3.24 3.22

AF22 3.23 3.24 3.22

• CIRCUIT VOLTAGE CHART

3-67 3-68

EE PB REC

MODE

PIN NO.

AF23 0.00 0.00 0.00

AF24 0.00 0.00 0.00

AF25 0.00 0.00 0.00

AF26 0.00 0.00 0.00

C151 KIA78R25

1 3.25 3.24 3.23

2 2.52 2.52 2.52

3 0.00 0.00 0.00

4 4.88 4.88 4.88

IC152 KIA78R33

1 3.64 3.63 3.62

2 3.28 3.28 3.28

3 0.00 0.00 0.00

4 4.43 4.42 4.41

IC153 KIA78R05

1 5.28 5.28 5.28

2 4.97 4.97 4.97

3 0.00 0.00 0.00

4 4.88 4.88 4.88

IC154 IP1680

1 3.25 3.25 3.25

2 3.25 3.25 3.25

3 2.55 2.56 2.55

4 1.12 1.12 1.12

5 1.71 1.72 1.71

6 0.00 0.00 0.00

7 1.25 1.25 1.25

8 3.25 3.25 3.25

IC701 MN101DF10GAF

1 0.00 0.00 0.00

2 5.12 5.12 5.12

3 0.00 0.00 0.00

4 4.80 4.80 4.80

5 4.86 4.86 4.87

6 0.01 0.01 0.01

7 5.13 5.13 5.13

8 5.15 5.15 5.16

9 0.01 0.01 0.01

10 0.00 0.00 0.00

11 5.16 5.16 5.16

12 0.00 0.00 0.00

13 5.15 5.15 5.16

14 4.82 4.83 4.89

15 0.04 0.04 0.04

16 0.12 0.11 0.08

17 5.05 5.05 5.05

18 5.06 5.06 5.06

19 5.10 5.10 5.11

20 4.91 4.90 4.90

21 0.00 0.00 0.00

22 0.01 0.01 0.01

23 0.01 0.01 0.01

24 0.33 0.31 0.14

25 5.16 5.16 5.16

26 0.05 0.05 0.05

EE PB REC

MODE

PIN NO.

27 0.00 0.00 0.22

28 5.16 5.16 5.16

29 0.01 0.01 0.01

30 0.01 0.01 0.01

31 0.01 0.01 0.01

32 0.01 0.01 0.01

33 0.31 0.32 0.15

34 0.33 0.32 0.16

35 0.01 0.01 0.01

36 5.16 5.16 5.16

37 2.53 2.52 2.54

38 2.43 2.42 2.42

39 0.00 0.00 0.00

40 1.99 1.95 1.95

41 2.55 2.55 2.55

42 0.00 0.00 0.00

43 4.88 4.89 4.89

44 4.89 4.90 4.90

45 0.01 0.01 0.01

46 0.64 0.63 0.63

47 0.01 0.01 0.01

48 0.00 0.00 0.00

49 1.04 1.04 1.04

50 2.78 2.90 2.89

51 5.13 5.13 5.13

52 3.01 3.04 3.05

53 2.54 2.54 2.54

54 5.10 5.10 5.10

55 5.10 5.10 5.10

56 0.01 0.01 0.01

57 5.09 5.09 5.09

58 5.00 5.00 5.01

59 5.25 5.02 5.00

60 0.00 0.00 0.00

61 4.94 4.94 4.93

62 0.00 0.00 0.00

63 0.82 0.81 0.81

64 4.83 4.82 4.82

65 0.00 0.00 0.00

66 0.00 0.00 0.00

67 0.00 0.00 0.00

68 0.00 0.00 0.00

69 0.00 0.00 0.00

70 0.00 0.00 0.00

71 0.00 0.00 0.00

72 0.00 0.00 0.00

73 5.25 5.25 5.25

74 0.00 0.00 0.00

75 0.00 0.00 0.00

76 0.01 0.01 0.00

77 0.01 0.01 0.01

78 0.01 0.01 0.01

79 0.01 0.01 0.01

80 0.01 0.01 0.01

81 0.01 0.01 0.01

EE PB REC

MODE

PIN NO.

82 0.24 0.19 0.14

83 0.24 0.19 0.15

84 1.94 1.92 1.93

85 0.00 0.00 0.00

86 0.00 0.00 0.00

87 0.00 0.00 0.00

88 5.25 5.25 5.25

89 5.25 5.25 5.25

90 0.01 0.01 0.01

91 0.01 0.01 0.01

92 0.02 0.02 0.02

93 0.01 0.01 0.01

94 0.01 0.01 0.01

95 0.01 0.01 0.01

96 5.16 5.16 5.16

97 0.01 0.01 0.01

98 0.01 0.01 0.01

99 0.01 0.01 0.01

100 5.16 5.16 5.16

IC703 MM1510

1 2.24 2.24 2.24

2 2.37 2.37 2.38

3 5.13 5.13 5.13

4 1.87 1.87 1.87

5 0.00 0.00 0.00

6 5.13 5.13 5.13

IC704 KIA7042

1 5.21 5.21 5.21

2 0.00 0.00 0.00

3 4.80 4.80 4.80

IC706 KIA7031

1 5.17 5.17 5.17

2 0.00 0.00 0.00

3 5.17 5.16 5.16

IC705 24LC16B

1 0.00 0.00 0.00

2 0.00 0.00 0.00

3 0.00 0.00 0.00

4 0.00 0.00 0.00

5 5.05 5.05 5.06

6 5.06 5.06 5.06

7 0.00 0.00 0.00

8 5.25 5.25 5.25

IC707 SDA5650

1 0.00 0.00 0.00

2 0.00 0.00 0.00

3 0.00 0.00 0.00

4 5.06 5.06 5.06

5 5.05 5.05 5.06

6 0.00 0.00 0.00

7 0.42 0.42 0.42

8 0.00 0.00 0.00

9 5.25 5.01 5.00

10 2.80 2.79 2.81

11 0.00 0.00 0.00

EE PB REC

MODE

PIN NO.

12 2.47 2.48 2.48

13 0.00 0.00 0.00

14 2.49 2.48 2.49

15 2.47 2.48 2.49

16 1.57 1.56 1.57

17 1.48 1.54 1.54

18 0.00 0.00 0.00

19 5.25 5.25 5.25

20 5.25 5.25 5.25

IC801 NJM4580

1 6.06 6.06 6.07

2 6.06 6.06 6.07

3 6.05 6.05 6.05

4 0.00 0.00 0.00

5 6.05 6.05 6.05

6 6.06 6.06 6.06

7 6.06 6.06 6.06

8 12.12 12.12 12.12

IC802 BH7868FS

1 5.19 5.19 5.19

2 0.05 0.06 0.06

3 0.05 0.06 0.06

4 2.28 2.27 2.27

5 5.00 5.00 5.00

6 1.78 1.60 1.60

7 5.14 5.14 5.15

8 1.78 1.58 1.54

9 2.27 2.27 2.27

10 0.00 0.00 0.00

11 1.77 1.57 1.56

12 0.00 0.00 0.00

13 2.25 2.25 2.25

14 5.00 5.00 5.00

15 2.24 2.27 2.27

16 5.19 5.19 5.20

17 2.31 2.35 2.34

18 2.32 2.37 2.35

19 0.00 0.00 0.00

20 2.32 2.30 2.32

21 2.33 2.32 2.32

22 0.00 0.00 0.00

23 1.90 1.51 1.46

24 2.29 1.79 1.71

25 0.00 0.00 0.00

26 1.91 1.52 1.45

27 2.31 1.81 1.75

28 0.00 0.00 0.00

29 1.98 1.57 1.49

30 2.39 1.85 1.79

31 0.06 0.06 0.06

32 2.39 2.37 2.37

IC803 MM1443

1 2.74 2.74 2.74

2 12.15 12.15 12.15

3 2.74 2.74 2.74

EE PB REC

MODE

PIN NO.

EE PB REC

MODE

PIN NO.

3 1.88 1.87 1.87

4 2.94 2.96 2.95

5 2.94 2.96 2.94

6 2.94 2.96 2.94

7 2.94 2.96 2.94

8 2.94 2.96 2.94

9 2.94 2.95 2.94

10 1.13 1.13 1.16

11 0.00 0.00 0.00

12 2.95 2.97 2.95

13 0.00 0.00 0.00

14 2.94 2.96 2.93

15 0.17 0.89 0.37

16 0.17 0.75 0.37

17 0.57 1.90 0.59

18 0.57 0.40 0.63

19 0.58 0.78 0.71

20 0.00 0.99 2.36

21 2.94 2.96 2.94

22 0.00 0.00 0.00

23 0.00 0.00 0.00

24 2.94 2.96 2.93

25 0.58 0.60 0.57

26 0.58 0.57 0.57

27 0.57 0.47 0.47

28 1.00 1.00 1.00

29 2.94 2.96 2.93

30 0.00 0.00 0.00

31 1.88 1.87 1.87

32 0.00 0.01 0.01

33 0.00 0.01 0.01

34 2.94 2.96 2.93

35 0.00 0.00 0.00

36 0.00 0.00 0.00

37 0.00 0.00 0.00

38 2.94 2.96 2.93

39 0.57 0.58 0.58

40 0.56 0.58 0.63

41 0.97 0.98 1.00

42 0.99 1.00 1.00

43 2.94 2.96 2.93

44 0.00 0.00 0.00

45 0.00 0.00 0.00

46 2.94 2.96 2.93

47 0.05 0.08 0.10

48 0.01 0.01 0.01

49 0.58 0.59 0.59

50 0.58 0.59 0.63

51 1.00 0.99 1.00

52 3.13 2.96 2.93

53 0.00 0.00 0.00

54 0.04 0.04 0.04

55 0.19 1.49 1.83

56 2.95 2.94 2.91

57 0.19 2.16 2.97

EE PB REC

MODE

PIN NO.

58 2.95 2.96 2.91

59 2.98 2.98 2.94

60 2.98 2.98 3.14

61 0.22 0.99 1.65

62 0.22 1.28 1.70

63 2.98 3.15 3.14

64 2.98 3.15 3.14

65 0.00 0.00 0.00

66 0.93 0.93 0.93

67 0.94 0.91 0.95

68 1.89 1.89 1.89

69 1.67 1.64 1.64

70 3.12 3.13 3.12

71 3.12 3.12 3.12

72 1.88 1.88 1.89

73 0.02 0.02 0.02

74 1.35 1.29 1.56

75 3.14 3.15 3.14

76 0.31 0.46 1.38

77 0.31 0.22 0.42

78 3.14 3.15 3.13

79 0.31 0.33 0.44

80 0.32 0.52 0.41

81 0.02 0.02 0.02

82 1.88 1.88 1.89

83 0.02 0.02 0.02

84 0.31 0.58 1.30

85 0.31 0.40 1.30

86 1.44 1.32 0.03

87 1.31 1.33 0.03

88 1.43 1.35 0.03

89 2.97 2.97 3.13

90 1.89 1.89 1.89

91 0.02 0.02 0.02

92 0.02 0.02 0.02

93 0.04 1.46 0.04

94 0.04 1.48 0.04

95 0.03 1.09 0.04

96 0.03 1.13 0.04

97 0.04 0.02 0.04

98 3.14 2.96 3.13

99 0.37 1.44 0.43

100 0.35 1.32 0.41

101 0.29 1.34 1.45

102 0.28 1.47 1.43

103 0.28 1.50 1.45

104 3.18 2.96 3.13

105 0.01 1.10 1.41

106 0.01 1.13 1.41

107 0.01 1.52 1.48

108 0.04 1.51 0.04

109 0.03 2.47 0.04

110 3.18 2.96 3.13

111 0.02 0.02 0.02

112 0.04 0.26 0.26

4 12.15 12.15 12.15

5 3.06 3.22 3.18

6 5.75 5.75 5.75

7 5.76 5.76 5.76

8 5.70 5.70 5.70

9 0.01 0.01 0.01

10 5.70 5.70 5.70

11 11.55 11.55 11.55

12 5.75 5.75 5.75

13 0.01 0.01 0.01

14 5.70 5.70 5.70

15 0.01 0.01 0.01

16 5.70 5.70 5.70

17 0.00 0.00 0.00

18 0.00 0.00 0.00

19 0.00 0.00 0.00

20 5.70 5.70 5.70

21 5.81 5.81 5.81

22 5.81 5.80 5.80

23 5.74 5.74 5.73

24 5.70 5.70 5.70

25 5.80 5.80 5.80

26 5.80 5.80 5.80

27 5.73 5.73 5.73

28 3.31 3.26 3.33

29 2.47 2.62 2.35

30 2.47 2.62 2.35

31 1.88 1.88 1.80

32 5.05 5.05 5.05

33 5.07 5.07 5.07

34 0.00 0.00 0.00

IC808 CS4351

1 1.61 1.61 1.62

2 1.62 1.62 1.61

3 1.62 1.62 1.62

4 1.63 1.63 1.63

5 3.17 3.17 3.17

6 0.00 0.00 0.00

7 3.08 3.08 3.08

8 3.03 3.03 3.03

9 3.23 3.23 3.23

10 3.21 3.20 3.20

11 3.22 3.22 3.22

12 1.25 1.25 1.25

13 4.12 4.12 4.12

14 12.12 12.12 12.12

15 4.11 4.11 4.11

16 0.00 0.00 0.00

17 12.13 12.13 12.13

18 4.12 4.12 4.12

19 12.12 12.12 12.12

20 3.23 3.22 3.22

IC901 SAA7317

1 0.00 0.00 0.00

2 0.00 0.00 0.00

3-69 3-70

EE PB REC

MODE

PIN NO.

113 0.07 0.07 0.07

114 0.26 1.56 1.58

115 0.27 2.49 2.46

116 0.27 1.47 1.45

117 3.19 2.96 2.93

118 0.21 0.33 1.37

119 0.22 0.32 1.35

120 0.27 0.33 1.37

121 0.22 0.34 1.38

122 0.27 0.37 1.37

123 1.88 1.85 1.85

124 0.02 0.02 0.02

125 2.98 2.96 2.93

126 0.43 0.45 1.35

127 0.42 0.44 1.36

128 0.43 0.44 1.38

129 0.43 0.43 1.36

130 0.43 0.44 1.36

131 2.96 2.96 2.93

132 0.51 0.44 1.33

133 0.52 0.35 1.31

134 0.52 0.50 1.33

135 0.41 0.53 1.42

136 1.44 1.44 1.43

137 2.96 2.96 2.93

138 0.02 0.02 0.02

139 1.31 1.31 1.30

140 1.33 1.32 1.36

141 1.48 1.48 1.49

142 1.49 1.52 1.43

143 1.10 1.11 1.10

144 1.85 1.85 1.88

145 0.02 0.02 0.02

146 2.96 2.96 3.20

147 1.13 1.12 0.37

148 1.51 1.53 0.37

149 0.22 0.20 0.23

150 0.49 0.50 0.37

151 0.49 0.45 0.37

152 3.13 2.96 3.20

153 0.52 0.54 0.37

154 0.53 0.38 0.37

155 0.53 0.41 0.35

156 0.53 0.40 1.44

157 0.59 0.52 1.42

158 3.13 2.97 2.93

159 0.51 0.52 1.53

160 0.51 0.52 1.43

161 0.55 0.52 1.40

162 0.59 0.52 1.45

163 0.62 0.52 1.34

164 3.13 2.97 2.93

165 0.02 0.02 0.02

166 0.60 0.54 1.34

167 0.02 0.02 0.02

EE PB REC

MODE

PIN NO.

168 1.88 1.87 1.05

169 0.02 0.02 0.02

170 1.85 1.85 1.87

171 1.50 1.56 1.88

172 1.35 1.37 1.68

173 1.27 1.32 1.10

174 1.49 1.49 1.49

175 1.51 1.51 1.49

176 2.98 2.99 2.95

177 2.95 2.95 2.92

178 2.96 2.97 2.93

179 1.50 1.50 1.48

180 1.50 1.51 1.49

181 1.52 1.50 1.48

182 0.02 0.02 0.02

183 0.01 0.01 0.01

184 1.45 1.46 1.46

185 1.45 1.46 1.45

186 2.96 2.97 2.93

187 1.46 1.46 1.45

188 1.46 1.46 1.46

189 0.02 0.02 0.02

190 1.85 1.82 1.85

191 0.00 0.00 0.00

192 0.00 0.00 0.00

193 1.45 1.47 1.44

194 2.96 2.97 2.93

195 0.00 0.00 0.00

196 2.96 2.97 2.93

197 0.00 0.00 0.00

198 1.44 1.44 1.43

199 1.44 1.45 1.43

200 1.44 1.44 1.42

201 1.44 1.45 1.43

202 1.48 1.48 1.46

203 1.44 1.44 1.43

204 1.44 1.44 1.43

205 0.56 1.46 1.16

206 0.57 1.45 1.25

207 0.57 1.46 1.24

208 0.57 1.64 1.12

IC903 NJM2521

1 7.10 7.09 7.08

2 0.01 0.01 0.01

3 7.22 7.20 7.18

4 0.01 0.01 0.01

5 7.22 7.21 7.19

6 10.70 10.69 10.69

7 7.46 7.45 7.43

8 0.00 0.00 0.00

IC904 NJM2521

1 7.10 7.09 7.07

2 0.01 0.01 0.01

3 7.22 7.21 7.19

4 0.01 0.01 0.01

EE PB REC

MODE

PIN NO.

5 7.22 7.21 7.19

6 10.70 10.69 10.67

7 7.46 7.45 7.43

8 0.00 0.00 0.00

Q151 STB1132 : 5.2V

E 5.27 5.27 5.27

C 5.21 5.21 5.21

B 4.52 4.52 4.52

Q155 KTA1271 : 5VT

E 5.26 5.27 5.27

C 5.18 5.18 5.18

B 4.48 4.49 4.48

Q158 KTA1268 : SW_5.3VA

E 5.26 5.26 5.26

C 5.20 5.20 5.20

B 4.56 4.56 4.55

Q161 KTA1268 : 33VT

E 33.90 33.90 34.00

C 33.80 33.80 33.90

B 33.40 33.30 33.30

Q164 KTC3202 : 12V

E 12.12 12.12 12.12

C 12.99 12.99 12.99

B 12.74 12.74 12.74

Q163 KTC3203 : SW_FD(+)

E -19.30 -19.30 -19.30

C -19.20 -19.20 -19.20

B -18.60 -18.60 -18.60

Q165 KTC3203 : SW_12VG

E 12.16 16.16 12.15

C 12.99 12.98 12.99

B 112.79 12.79 12.80

3-71 3-72

PRINTED CIRCUIT DIAGRAMS

1. MAIN P.C.BOARD

( TOP VIEW ) ( BOTTOM VIEW )

3-73 3-74

2. I/O P.C.BOARD

( TOP VIEW )

3-75 3-76

( BOTTOM VIEW )

2. I/O P.C.BOARD

3-77 3-78

3. POWER P.C.BOARD

3-79 3-80

( TOP VIEW )

( BOTTOM VIEW )

( TOP VIEW )

( 9TOOL )

( BOTTOM VIEW )

4. TIMER1 P.C.BOARD 5. TIMER2 P.C.BOARD ( 6, 7, 8 TOOL )

( TOP VIEW )

( BOTTOM VIEW )

( TOP VIEW )

( 6, 7, 8 TOOL )

( 9TOOL )

( 6, 7, 8 TOOL )

( BOTTOM VIEW )

3-81 3-82

6. HDMI P.C.BOARD(OPTIONAL PARTS)

( TOP VIEW ) ( BOTTOM VIEW )

CONTENTS

SECTION 4

RS-01A LOADER PART

ELECTRICAL TROUBLESHOOTING GUIDE ......................................................................................................4-2

THE DIFFERENCE OF DVD-R/RW, DVD+R/RW DISCS AND DVD-ROM ..............................................4-15

1. RECORDING LAYER .................................................................................................................................................4-15

2. DISC SPECIFICATION...............................................................................................................................................4-16

3. DISC MATERIALS......................................................................................................................................................4-16

4. ORGANIZATION OF THE INNER DRIVE AREA, OUTER DRIVE AREA, LEAD-IN ZONE AND

LEAD-OUT ZONE.......................................................................................................................................................4-20

HOW TO USE TEST TOOL.......................................................................................................................................4-24

1. ALPC MEASUREMENT SYSTEM..............................................................................................................................4-24

2. ALPC PROGRAM ......................................................................................................................................................4-24

3. EXECUTE ALPC PROGRAM.....................................................................................................................................4-25

4. OPTICAL POWER SETTING .....................................................................................................................................4-27

5. CONFIRM OPTICAL POWER SETTING PARAMETER............................................................................................4-28

6. OPTICAL POWER SETTING PARAMETER RANGE................................................................................................4-29

7. ATTACHMENT. OPTICAL POWER MEASUREMENT ...............................................................................................4-30

INTERNAL STRUCTURE OF THE PICK-UP......................................................................................................4-31

1. BLOCK DIAGRAM OF THE PICK-UP(LPC-812R) ...................................................................................................4-31

2. PICK UP PIN ASSIGNMENT .....................................................................................................................................4-32

3. SIGNAL DETECTION OF THE P/U ...........................................................................................................................4-33

DESCRIPTION OF CIRCUIT.....................................................................................................................................4-34

1. ALPC (AUTOMATIC LASER POWER CONTROL) CIRCUIT ....................................................................................4-34

2. FOCUS/TRACKING/SLED SERVO CIRCUIT............................................................................................................4-35

3. SPINDLE SERVO CIRCUIT.......................................................................................................................................4-37

MAJOR IC INTERNAL BLOCK DIAGRAM.........................................................................................................4-38

LIC121 (AN22113A) : FEP(RF) ANALOG SIGNAL PROCESSOR................................................................................4-38

IC301 (BD7956FS) : CD-ROM/DVD-ROM 7CH POWER DRIVER ...............................................................................4-41

CIRCUIT DIAGRAMS ..................................................................................................................................................4-42

1. DSP CIRCUIT DIAGRAM...........................................................................................................................................4-42

2. RF CIRCUIT DIAGRAM .............................................................................................................................................4-44

3. DRIVE CIRCUIT DIAGRAM .......................................................................................................................................4-46

CIRCUIT VOLTAGE CHART.....................................................................................................................................4-48

PRINTED CIRCUIT DIAGRAMS..............................................................................................................................4-50

1. MAIN P.C.BOARD(TOP VIEW) .................................................................................................................................4-50

2. MAIN P.C.BOARD(BOTTOM VIEW) .........................................................................................................................4-52

4-2

ELECTRICAL TROUBLESHOOTING GUIDE

Are the pin 44 of

LPB271+5V, pin41 of LPB271+12V

respectively after the power cable

connecting?

Reset or Power Check.

Check the power(5V/12V) short.

Repair the SMPS Block

Check the LIC401(3.3V regulator IC).

Check the LIC201, LIC121.

Does the pin #1

(Reset) of LIC271 change 0V to 3.3V

at the power supply initial input

mode?

<Power>

Is the pin 5 of LIC401 3.3V?

1.65V(VREF) : Check pin113 of LIC121?

2.2V(HDVREF): Check pin78 of LIC121

YES

Are the LX201 oscillating?

Check the LX201(16.9MHz).

Check the LIC201.

Check the LIC401.

Check the LIC121.

Check it after connecting the power cable

only on interface cable for NO Reset or

Power ON.

YES

4-3

System Check.

Go to “Tray operating is abnormal”

Load tray without inserting disc.

Does Tray operate normally?

Does Pick-up move to inside?

Does Laser turn on?

After eject tray, Insert CD-ROM Disc

and check rotation.

Does Disc rotate

continuously and the drive recognize

the disc?

After eject the tray, Insert DVD Disc and

check rotation.

After eject the tray, Insert DVD+R/RW Disc

and check rotation.

Does Disc rotate

continuously and the drive recognize the

disc?

Does Disc rotate

continuously and the drive recognize the

disc?

Go to “Sled operating is abnormal”

Go to “Laser operating is

abnormal”

Go to “Recognition fail Case1

(CD-ROM Disc)”

Go to :Recognition fail Case2

(DVD Disc)”

Go to :Recognition fail Case3

(Blank DVD+R/RW)”

YES

Does Pickup lens move

up/down?

Go to “Focus Actuator operating is

abnormal”

YES

4-4

Tray operating is abnormal.

WhenLPF303 is open, Is

there Tray drive signal

output?

Check the connctor (LPF303).

Replace the LIC301.

Check the connction of LIC201 pin 66.

Replace the LIC201.

Check the communication line

between LIC201.

YES

Is there Tray

drive voltage output?

(LIC301 pin 1,2)

Is there Tray

control signal input?

(LIC301 pin 46)

YES

Tray open doesn’t work.

4-5

Is there Sled

control signal output?

(LIC201 pin 68,69)

Sled operating i s abnormal.

Replace the LIC301. Replace the LIC121.

Replace the LIC201.

Is DRVMUTE2 signal ‘H’?

(LIC301 pin 35)

Check the LR316, LR317.

Check the connection of LIC121

pin 32.

Is there

Sled drive voltage output ?

(LPM302 pin 1,2,3,4) Replace the Sled Motor.

YES

Check the Connection LCN302.

Is there

Sled drive voltage input?

(LIC301 pin 29,30)

YES

Is there

Sled drive voltage output?

(LIC301 pin37,38,39,40)

YES

4-6

Is there

Spindle control DSP output?

(LIC201 pin70)

Spindle operating is abnormal

Is there

Spindle drive voltage output?

(LIC301 pin 11, 13, 16)

Is there

Spindle drive voltage output?

(LIC301 pin 1, 2, 3)

Check the Connection LPM301.

Replace the Spindle Motor.

YES

Is there

FG signal input?

(LIC201 pin 71)

YES

Check the output of LIC301 pin 43.

Check the connector LPM301.

Replace the LIC301.

Replace the LIC201.

4-7

Focus Servo is unstable

Is FE signal

output normal in Focusing

Up/Down?

(LIC121 pin25*)

Check Pickup Read Power

is 1.3~1.7mW?

YES

Replace the LIC121.

Replace the Pick up.

Go to “Focus Actuator

operating is abnormal”

NO NO

Is FDRV signal

output normal in Focusing

Up/Down?

(LIC201 pin 62)

Replace the LIC201.

YES

Focus Actuator operating is

abnormal

Is there Focus

Search control signal input?

(LIC301 pin5)

Is DRVMUTE2 signal “H”?

(LIC301 pin 35)

Replace the LIC301.

Check the connection

LPM101 pin40, 41.

Check the connection of LIC121 pin 32.

Replace the LIC121.

YES

Replace the Pick-Up.

Is there Focus

Search drive voltage output?

(LIC301 pin 51,52)

• Check the connection of LIC201 pin 62.

• Check the communication line between

LIC121 and LIC201.

• Replace the LIC201.

YES

* LIC121 pin25 is MOUT2(FEP Monitor2).

After disc recognition action, Monitor port

is off. So, please check FE signal during

disc recognition.

4-8

Track Servo is unstable

Is TE signal

output normal in Focusing

ON and Tracking OFF?

(LIC121 pin 24*)

YES

Check the PICK UP FFC.

Replace the PICK UP.

Replace the LIC121.

Replace the LIC201.

Check the Drive IC(LIC301) and

P/U referring to “Focus Actuator

operating is abnormal”.

Is there TDRV

signal output in Tracking ON?

(LIC201 pin66)

Is PICK UP

(E, F, G, H) output normal?

(LPM101 pin 8, 5, 9, 4)

YES

* LIC121 pin24 is MOUT1(FEP Monitor1).

After disc recognition action, Monitor port

is off. So, please check TE signal during

disc recognition.

4-9

Recognition Fail Case 1:

CD-ROM Fail

Check Pickup Read Power

was 1.3 ~1.7mW?

Check the Pick-up FFC and LPM101.

Replace the Pick-up.

Go to “Focus Servo is unstable”.

YES

Does Focus Servo

operate normally?

Check Pickup

RF signal LIC121(Pin81)

RFOUT was 2~2.5V?

Go to “LD CHECK”.

YES

Replace LIC121.

YES

Check EQOUTP

waveform (LIC121 Pin 74) was

1.75~2.3V?

Go to “Tracking Servo is unstable”.

YES

Check after replacing LIC201.

It is OK?

4-10

Check Pick-up Read Power

was 1.1~1.3mW.

Recognition Fail Case 2 :

DVD Disc

Go to ‘LD CHECK’.

YES

Is there WBL

(LIC121 pin63) Signal?

Recognition Fail Case 3 :

Blank DVD+R/RW

Replace LIC201.

Replace LIC121.

YES

Is there WBL

(LIC201 pin39) Signal?

YES

Is there RF signal at LIC121

Pin81?

YES

Replace the Pickup.

Replace the LIC121.

Is there

RF signal at LIC121 Pin95(RFP)

and Pin96 (RFN)?

YES

Replace the LIC201.

Check again after the replace

LIC121 It is OK?

Check the connection

between LIC121 and LIC201.

4-11

In case of writing fail.

Normal Case

Check disc label.

Eject disc.

Go to “Writing Part Check”.

Remove the dust,fingerprint and

if the disc has long width scratch,

change it.

Check the media

DVD ±R/RW?

Does the disc

have any dust,scratch,

fingerprint …?

Finalized Disc?

If DVD ±R disc,use new DVD ± R disc.

If DVD ±RW disc,erase the disc.

YES

4-12

Writing Part Check

Load tray with DVD ±R/RW disc.

Press the “REC” key.

Does writing finish

without any error?

Is the written file

read normally?

Eject tray.

Go to “LD CHECK”.

Is the re-written file

read normally?

Check and replace LIC201, LIC121, LIC101.

YES

4-13

LD CHECK

(Laser operating is abnormal)

Perform 6. Optical Power Setting parameter

YES

check from‘How to use Test tool’.

Execute “C.Laser Power Setup”of

“How to use Test Tool”

Check reference voltage.

FPD

W1SET

W2SET

W3SET

Is ALPC parameters

valid?

Perform 5. Optical Power Setting

OFF level

W1SET level &FPD

W2SET level &FPD

W3SET level &FPD

N.G

4-14

CD/DVD ? DVD

Select Mode: CD, Test and perform

Test from 4. LD Test of ‘How to use

Test tool’

Select Mode: DVD, Test and perform

Test from 4. LD Test of ‘How to use

Test tool’

Check the input of CD/DVD.

(pin 10 of LPM 101)

Check the input of CD/DVD.

(pin 10 of LPM101)

Check the input of W1SET.

(pin 12 of LPM101)

Check the input of FPD.

(pin 126 of LIC121)

END

4-15

Select Mode: DVD, Test and perform

Test from 4. LD Test of ‘How to use

Test tool’

Check the input of CD/DVD.

(pin 10 of LPM101)

Check the input of W2SET.

(pin 13 of LPM101)

Check the input of recording pulse.

(pin 19, 20, 21, 22,23,24 of LPM101)

Check the input of FPD.

(pin 126 of LIC121)

END

Select Mode: DVD, Test and perform

Test from 4. LD Test of ‘How to use

Test tool’

Check the input of CD/DVD.

(pin 10 of LPM101)

Check the input of W3SET.

(pin 14 of LPM101)

Check the input of recording pulse.

(pin 19, 20, 21, 22, 23, 24 of LPM101)

Check the input of FPD.

(pin 126 of LIC121)

END

4-16

THE DIFFERENCE OF DVD-R/RW, DVD+R/RW DISCS AND DVD-ROM

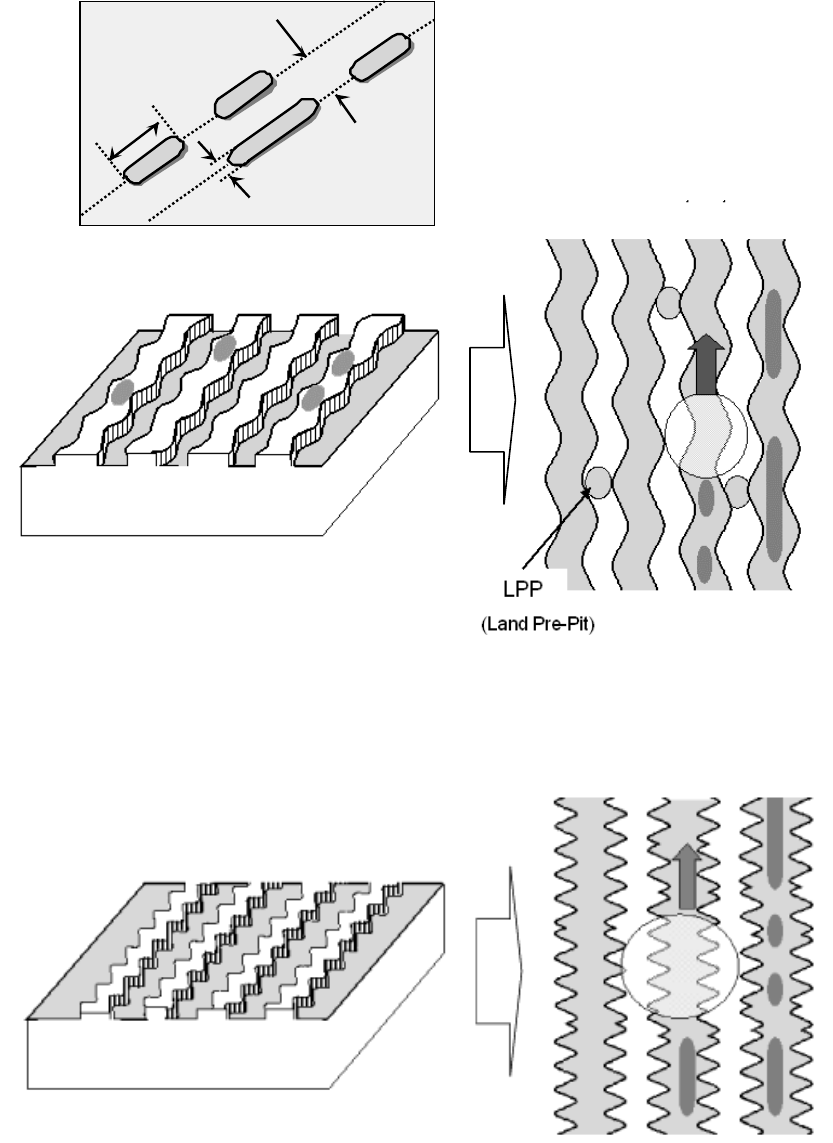

1. RECORDING LAYER

0.74 um

0.4 um

• DVD-ROM (Read Only Disc)

• DVD+R/RW Disc

4-17

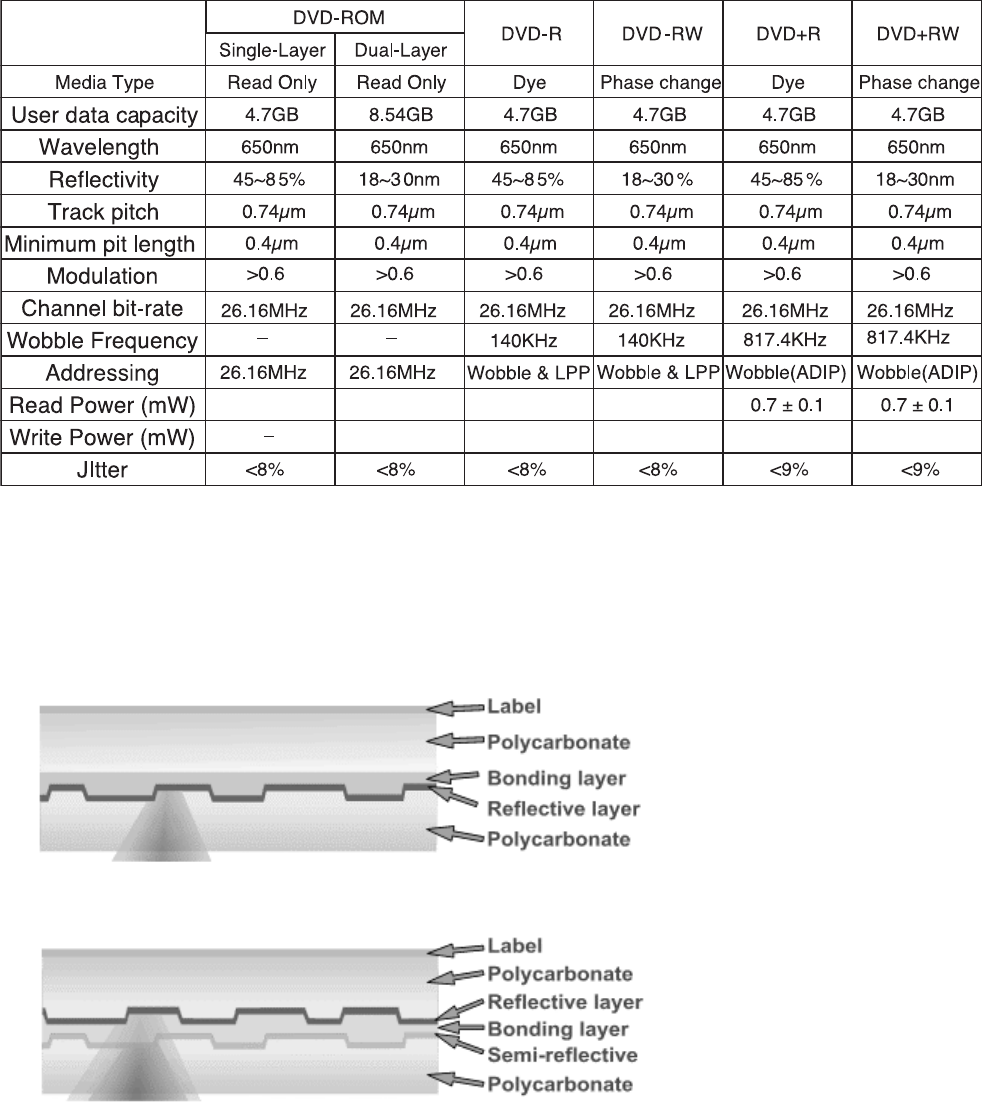

2. DISC SPECIFICATION

3. DISC MATERIALS

1) DVD-ROM

< Single Layer >

< Dual Layer >

4-18

The format that records data through the creation of recorded marks by changing the organic dye material with a

laser beam.

[ Recording ]

Recording is done by changing the organic dye layer and the substrate with a laser When a strong laser is applied

to a disc, the temperature of the organic dye material goes up, the dye is decomposed and the substrate changes

at the same time. At this time, a durable bit is created as is the case with a CD-ROM.

[ Playback ]

Signals are read with the differences of the reflection of a laser from pits.

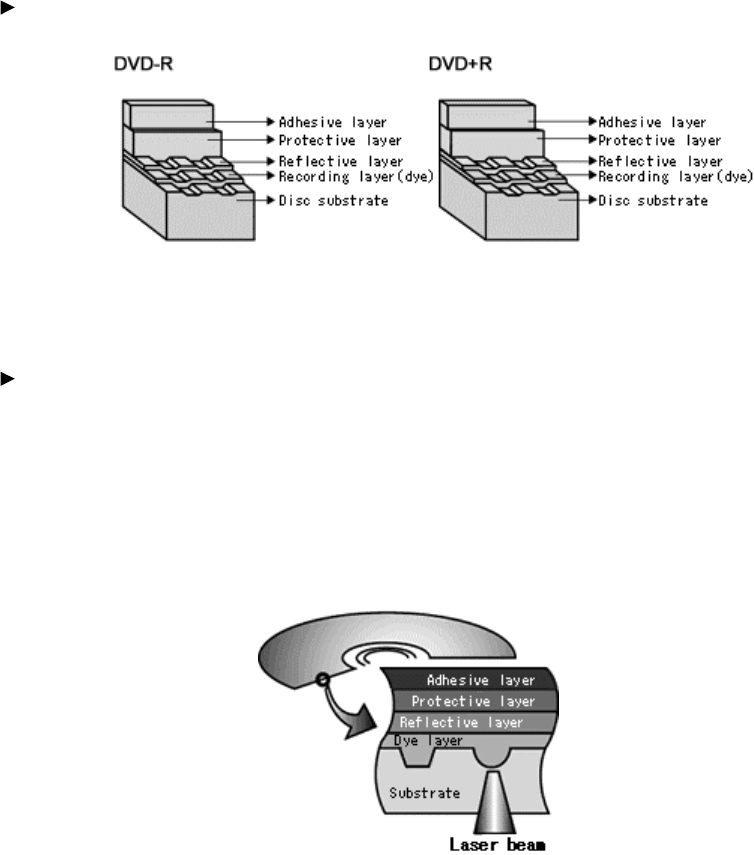

2) Recording format using organic dye material

( DVD-R / DVD+R )

Disc structure

Recording principles

4-19

• Data is recorded by changing the recording layer from the amorphous status to the crystalline status, and played

back by reading the difference of the reflection coefficient.

Amorphous: Non-crystalline.

[ Recording ]

When a high-power laser is applied to the recording material, it melts and then becomes amorphous with a low

reflection coefficient when it quickly cools off. When a mid-power laser is applied to heat gradually the recording

material and then gradually cools it off, it becomes crystal with a high reflection coefficient.

[ Playback ]

A low-power laser is used for playback. The amount of reflected light depends on the status (amorphous or crys-

talline) of the recording material. This is detected by an optical sensor.

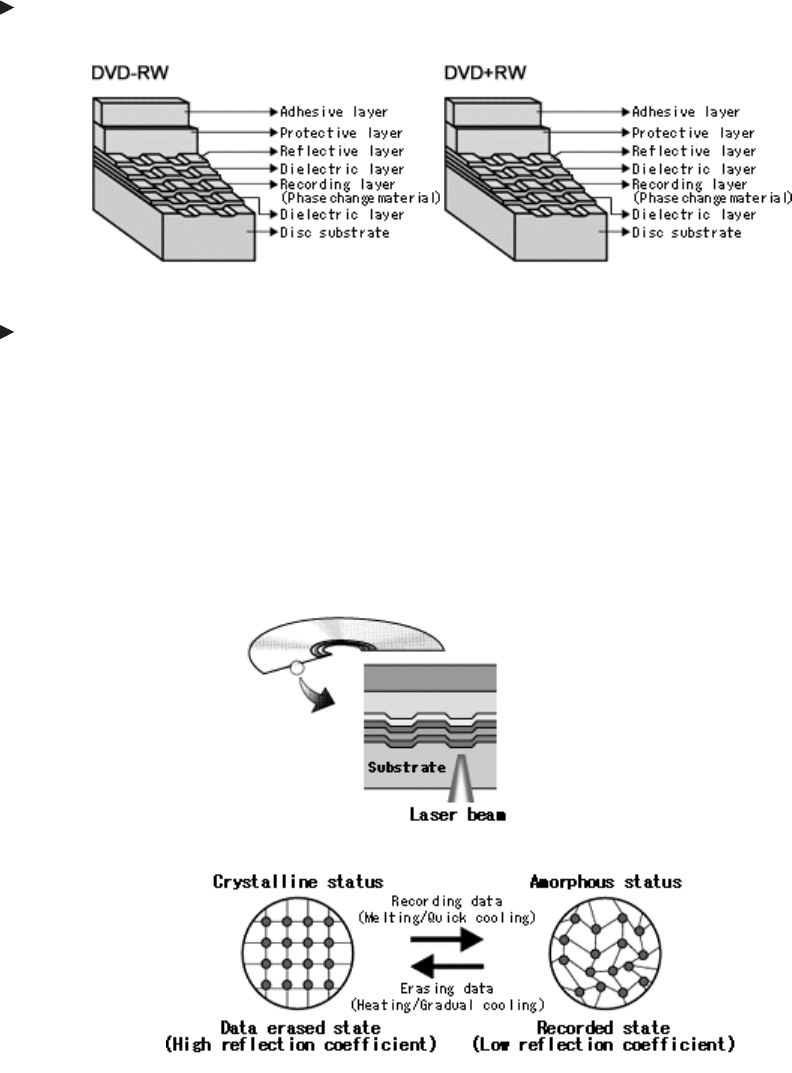

3) Recording format using phase-change recording material

( DVD-RW / DVD+RW )

Disc structure

Recording principles

4-20

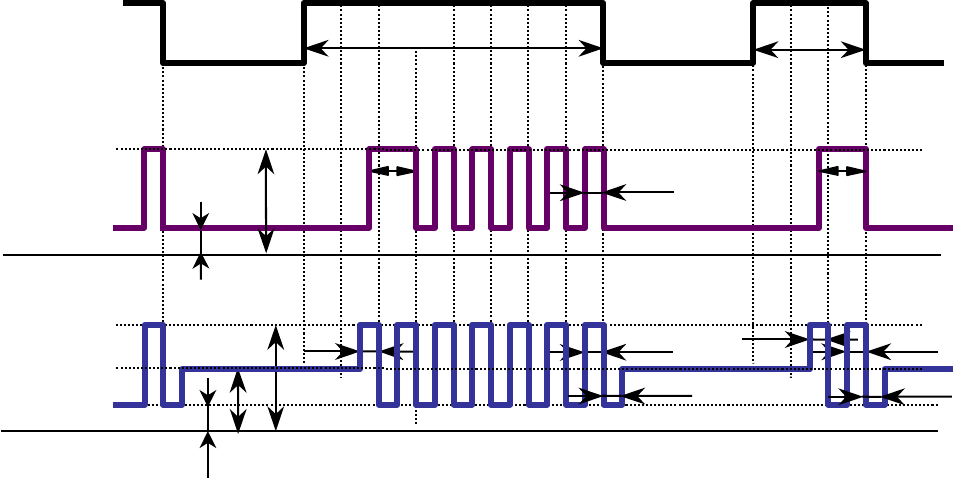

To make recordings, it is necessary to modulate the write pulse, which is called “Write Strategy”.

There can be many types in Write Strategy. Typically Write Strategy for DVD ±R has NMP(Non Multi-Pulse) type and

MP(Multi-Pulse) type. In NMP type each single mark is created by subsequent separated short pulses. In MP type each

single mark is created by one continuous pulse.

Write Strategy for DVD ±RW has Type 1 and Type2. In Type 1 the mark with nT width is created by one top pulse and (n-2)

multi-pulses. Thus mark 3T is made by one top pulse and one multi-pulse. In Type 2 the mark with nT width is created by

one top pulse and (n-3) multi-pulses. Thus mark 3T is made by one top pulse only.

RL-02A uses MP type Write Strategy for DVD ±R and Type 1 for DVD ±RW as shown below.

Po :Write Power (Peak Power)

Pe :Erase Power

Pb :Bias Power

Recording data Twd (3T )

Twd ( 8T )

Ttop

Tmp

Ttop

Zero Level Pb

Write pulse

for DVD R

Ttop Ttop

Tmp

Write pulse

for DVD RW Tmp

Zero Level

Tcl Tcl

4-21

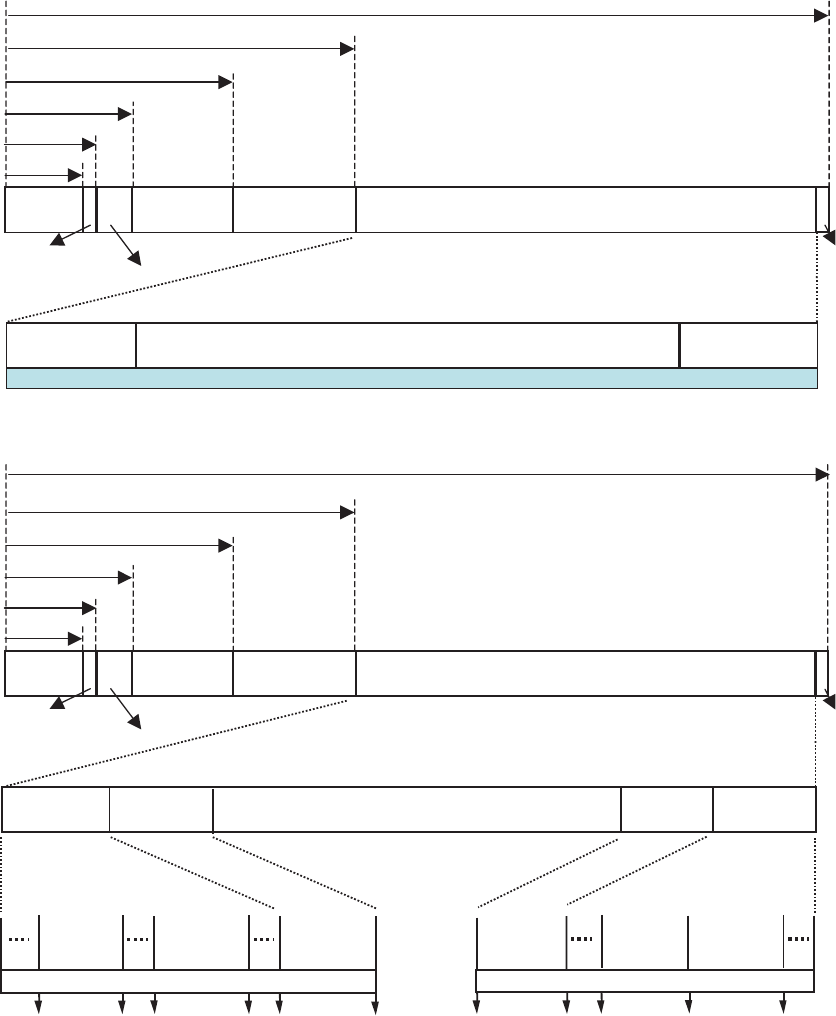

Inner Disc Test Zone : for performing OPC procedures.

Inner Disc Count Zone : For counting the number of OPC algorithm performed in IDT Zone.

Outer Disc Test Zone : for performing OPC procedures.

Outer Disc Count Zone : For counting t he number of OPC algorithm performed in IDT Zone.

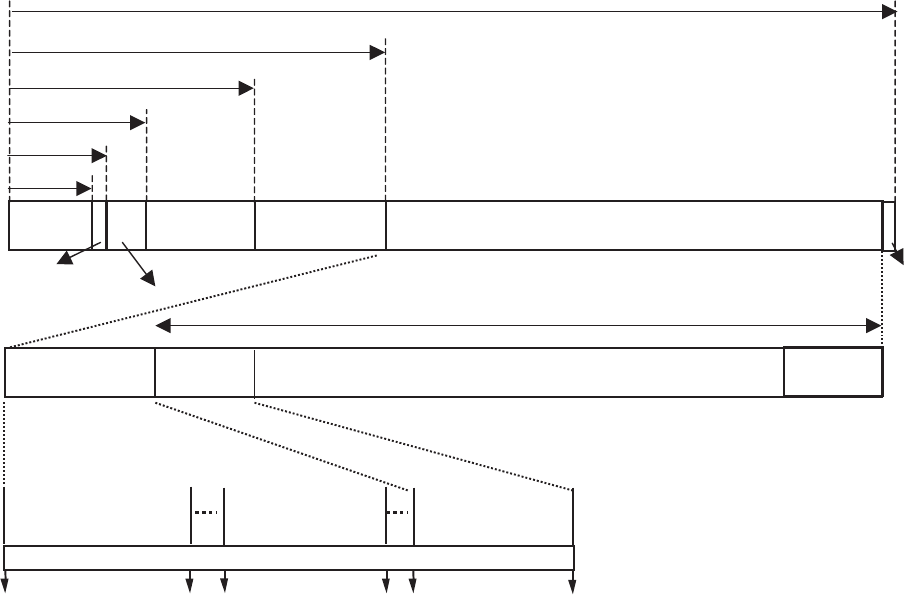

2) Layout of DVD+R disc

1) Layout of DVD-ROM disc

Information Zone

Center

holeClamping

Zone

Diameter 120 mm

Diameter 15mm

Data ZoneLead-in Zone Lead-out Zone

Read Only Disc

Disc Center

Diameter 16mm

Diameter 22mm

3th transition

area

Diameter 33mm

Diameter 44mm

1th transition area

2th transition areaRim

area

Data Zone

Lead-in

Zone

Inner Drive

Area

Unrecorded Disc

Outer Drive

Area

Inner Disc

Test Zone

27080H 28480H

Information Zone

Center

holeClamping

Zone

Diameter 120 mm

Diameter 15mm

Disc Center

Diameter 16mm

Diameter 22mm

3th transition

area

Diameter 33mm

Diameter 44mm

1th transition area

2th transition areaRim

area

Lead-out

Zone

23080H

PSN :

Inner Disc

Count Zone

27480H2A480H 30000H

out

Outer Disc

Test Zone

261940H 263940H

260540H

Outer Disc

Count Zone

262940H 267940H

4. ORGANIZATION OF THE INNER DRIVE AREA, OUTER DRIVE AREA,

LEAD-IN ZONE AND LEAD-OUT ZONE

4-22

Inner Disc Test Zone : for performing OPC procedures.

Inner Disc Count Zone : For counting the number of OPC algorithm performed in IDT Zone.

Outer Disc Test Zone : for performing OPC procedures.

Outer Disc Count Zone : For counting the number of OPC algorithm perf ormed in IDT Zone.

3) Layout of DVD+RW disc

Data Zone

Lead-in Zone

Unrecorded Disc

Lead-out Zone

Inner Disc

Test Zone

2A7C80H 2DC80H

Information Zone

Center

holeClamping

Zone

Diameter 120 mm

Diameter 15mm

Disc Center

Diameter 16mm

Diameter 22mm

3th transition

area

Diameter 33mm

Diameter 44mm

1th transition area

2th transition areaRim

area

2A480H

PSN :

Inner Disc

Count Zone

30000H

out

Outer Disc

Test Zone

265940H

260540H

Outer Disc

Count Zone

262940H 266140H

4-23

4) Layout of DVD-R/RW disc

Data Recordable Area

Lead-in

Area

R-Information

Area

Information Area

PCA

(Power Calibration

Area)

203B0H 22F90H

Unrecorded Disc

Center

holeClamping

Area

Diameter 120 mm

Diameter 15mm

Disc Center

Diameter 16mm

Diameter 22mm

3th transition

area

Diameter 33mm

Diameter 44mm

1th transition area

2th transition areaRim

area

Lead-out

Area

1E800H

PSN :

RMA

(Recording

Management Area)

203C0H22FA0H 30000H

4-24

HOW TO USE TEST TOOL

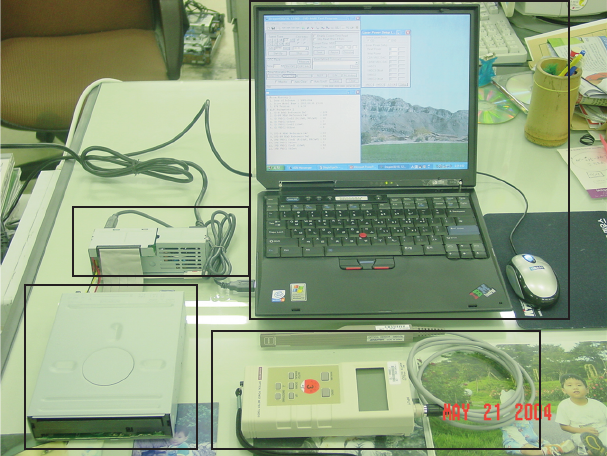

1. ALPC MEASUREMENT SYSTEM

We need basically several measurement instrument to adjust Optical Power of CD and DVD Disc

• ESSENTIAL INSTRUMENT

1) Optical Power meter & Sensor (ADVANTEST, TQ8230/Q82014A)

2) Personal Computer

3) Adjustment Program (Dragon or ALPC) --> being recommended ALPC Program in case of SVC

• OPTIONAL INSTRUMENT

1) USB-ATAPI Interface (if you don’t have Notebook which has ATAPI Interface or use PC USB Port)

2) Connector-ATAPI Interface Board

2. ALPC PROGRAM

Use the ALPC program in Dragon tool for Optical power setting. It is consist of total 4 files.

Dragon_JW3P.exe

dragon.cfg

blue.dat

WNASPI32.DLL

Four files must exist in same Directory.

Personal Computer

(Desktop or Notebook)

Loader Ass’y

USB-ATAPI

Interface

Optical

Power Meter

4-25

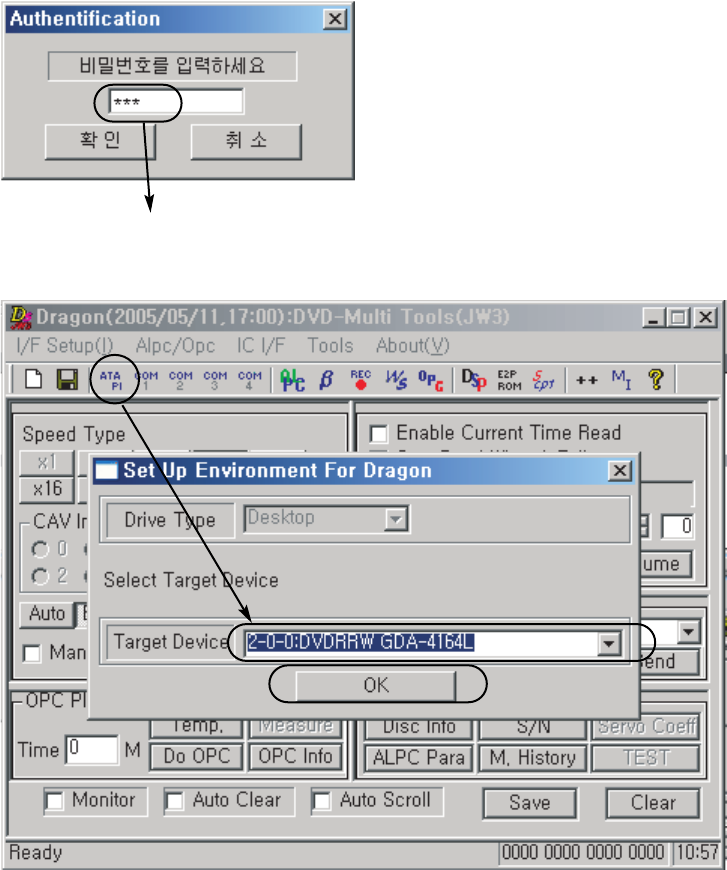

3. EXECUTE ALPC PROGRAM

1) Execute Dragon_JW3P.exe file.

2) Enter the password. It is ‘qaz’.

When you enter the password, turn off the ‘Caps lock’in your keyboard.

3) Set up the target device.

Press ‘ATAPI’button on the main dialog of Dragon tool. And find the target device which is

GDA-4164L.

4-26

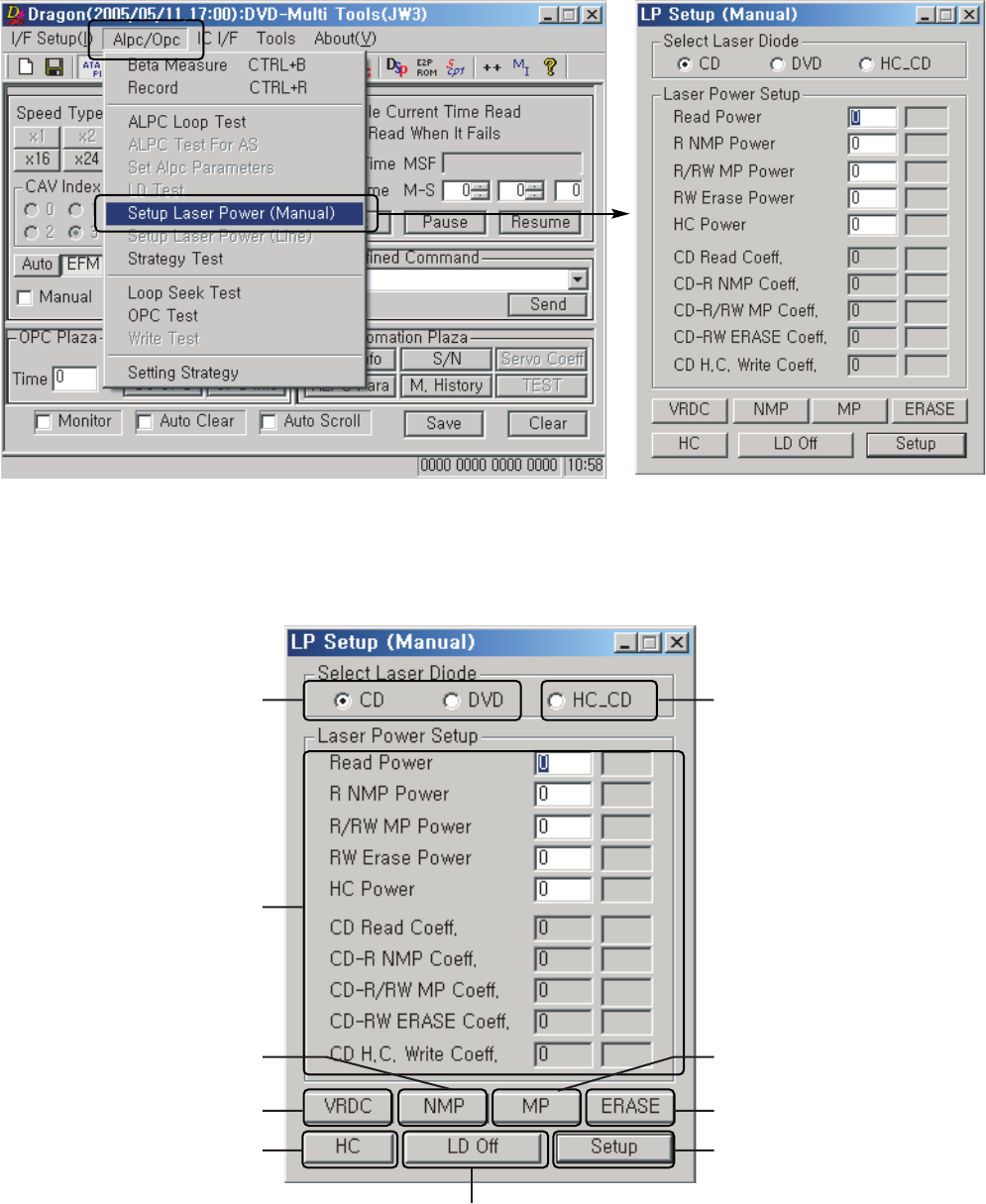

4) If the target device setting is completed, execute the ‘Setup Laser Power(Manual)’in the ‘Alpc/Opc’menu.

CD/DVD selection ‘WriteScribe’function

(don’t use it.)

Laser Read power on

Laser off

Erase power on

multi pulse power onNon multi pulse power on

‘WriteScribe’function

(don’t use it.) Set up the laset power

parameter after finishing power

measurement

Laser power setup

parameter

4-27

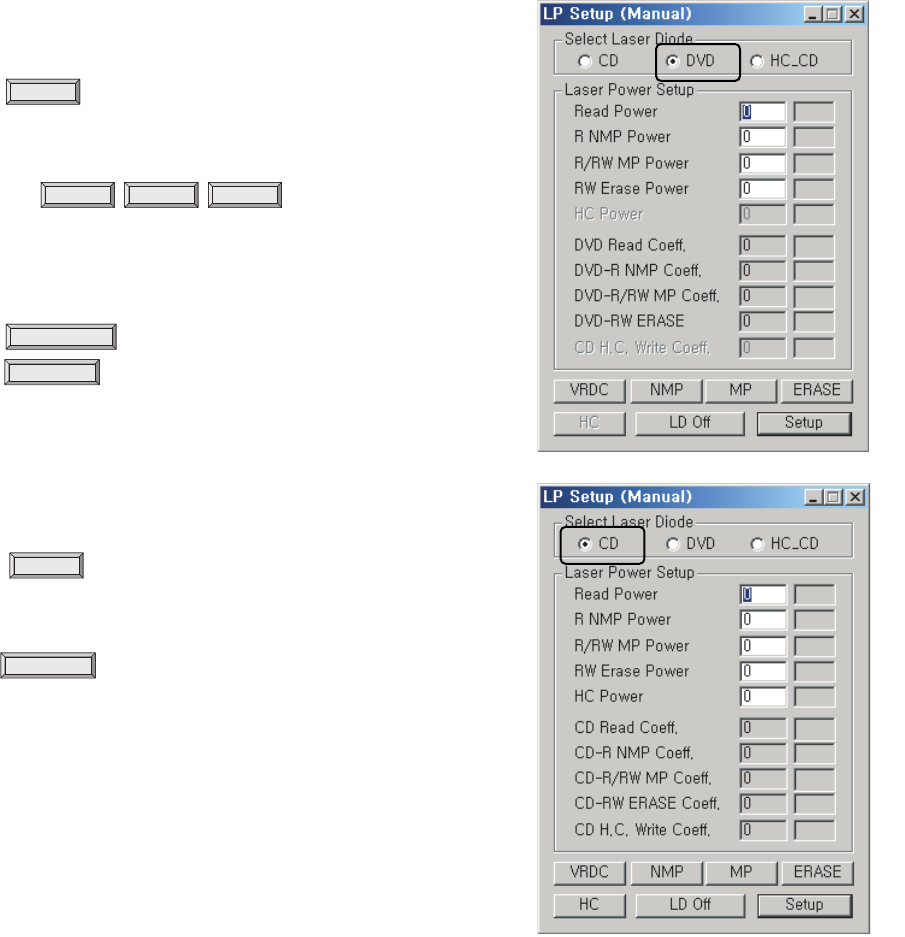

4. OPTICAL POWER SETTING

When you change the Travers ass°Øy(including pick-up) or loader PCB, you must do the laser power setting to match

pick-up and loader PCB.

1) DVD LD power setting

•Select the DVD in the ‘Select Laser Diode’

•Press (Read Power On, Strong Read light)

•Measure optical read Power.

•Write read power value.

•In case of ,

you are able to measure the power through same procedure.

(caution) Don’t watch light directly.

•When you finish optical power measurement,

press button(LD Off).

•Press button.(save to ERPROM)

2) CD LD Power Setting

•Select the CD in the ‘Select Laser Diode’

•Press .

•Measure optical read Power.

•Write Read Power value.

•Press button(save to ERPROM)

*** In case of CD power setting of RS-01A, loader don’t need to set up

write power.

Although NMP, MP,Erase and HC power is N.G when you press setup,

please ignore the N.G message.

Because of RS-01A only support reading function about CD-R/RW.

* Look at reference sheet to test Optical Power.

**Power value is ß— unit. Value is read power X 100.

VRDC

NMP MP ERASE

LD Off

Setup

4-28

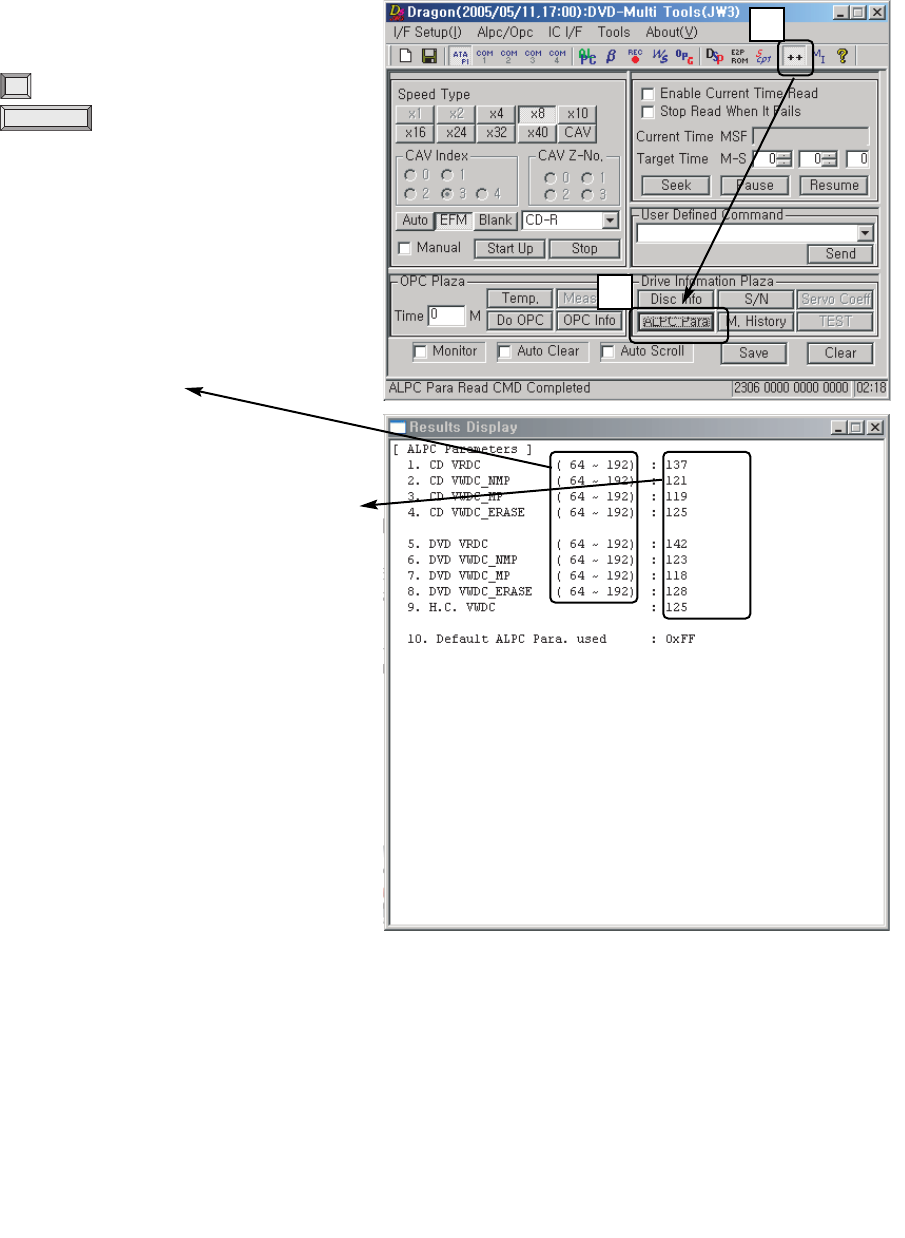

5. CONFIRM OPTICAL POWER SETTING PARAMETER

LD Test result is ok, but Loader performance is bad.

1. Check ALPC parameter value

1) Press button to open ‘Results Display’dialog.

2) Press button.

- We can see optical power setting value.

- Write optical Power Setting value to paper.

- Adjust power setting again.

- Compare original parameter to new parameter.

- if parameter value is different highly, original

value is wrong or optical power may change.

- But pick-up LD test is all ok , just adjust optical

power setting again.

Normal range of ALPC parameter

Optical power value which has been saved in the

EEPROM

ALPC Para

4-29

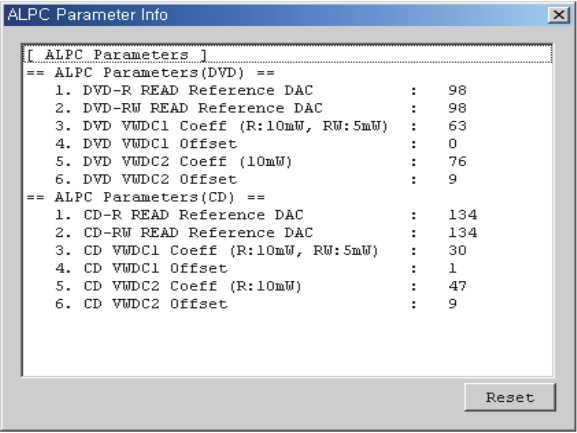

6. OPTICAL POWER SETTING PARAMETER RANGE

[VALID ALPC Parameters]

<DVD>

1) DVD-R READ Reference DAC : 40 ~145

2) DVD-RW READ Reference DAC : 40 ~145

3) VWDC1 : 30 ~ 100

4) VWDC1 Offset : 0 ~ 20

5) VWDC2 : 40 ~ 140

6) VWDC2 Offset : 0 ~ 20

< CD >

1) CD-R READ Reference DAC : 30 ~150

2) CD-RW READ Reference DAC : 80 ~ 250

3) VWDC1 : 10 ~ 39

4) VWDC1 Offset : 0 ~ 20

5) VWDC2 : 20 ~ 57

6) VWDC2 Offset : 0 ~ 20

4-30

7. ATTACHMENT. OPTICAL POWER MEASUREMENT

Optical Power measurement is to adjust LD power from Pick-up

To measure optical power, LD status is on. Other light affects to optical power.

Avoid other light to measure exact power

Generally headlight power is about 50µW, Sun power is about 100mW.

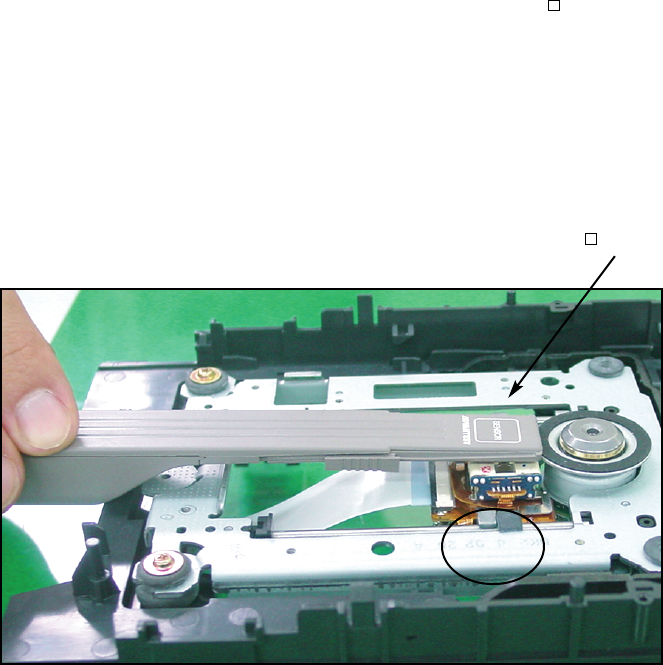

Optical Power measurement method

1. Fit optical Power Meter λ(wavelength) value to DVD.(generally 660nm)

2. DVD LD On.

3. Approach power sensor to Pick-up Lens about 3mm vertically. Fix Lens and Sensor mark position.

4. Read Monitor value. (move sensor read just a little and read max value.)

(caution) unit is mW.

5. Write monitoring value x 100. Only an integer.

6. Fit opticcal Power Meter λ(wavelength) value to CD.(generally 780nm)

7. CD LD On.

8. 3 ~ 5 recheck.

Display Part

4-31

INTERNAL STRUCTURE OF THE PICK-UP

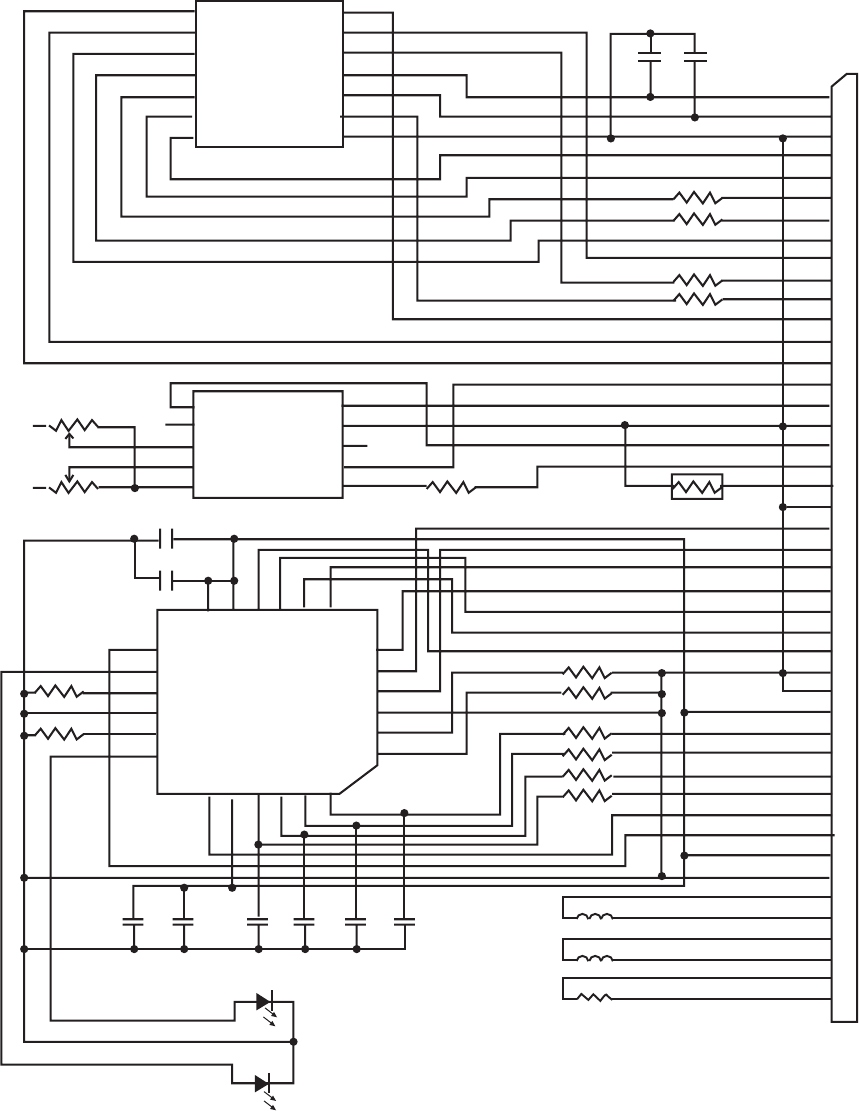

1. BLOCK DIAGRAM OF THE PICK-UP(LPC-812R)

RF- SW

EF3

VCC

GND

RF+

EF2

EF1

EF4

VREF VCC

GND

STB

OUT

CDO

DVDO

ENA E3

VCC SEL DVD_LD CD_LD

VCC

OSC

NE4

NE3

CXA2694N

PD4CI

CP0076AH

1VC(PDIC)

2VCC(PDIC)

3GND(PDIC)

4EF4

5EF1

8EF2

9EF3

10 C

11 D

12 SW(PDIC)

13 RF+

14 RF-

15 SW(FM)

16 VCC(FM)

17 GND(FM)

18 VREF(FM)

19 FM_OUT

20 TEMP

21 GND

Themester 22 W1DISN

23 W1DIS

24 W2DISN

25 W2DIS

26 W3DISN

27 W3DIS

28 OSCEN

29 GND

30 GND

31 VCC

32 W3SET

33 W2SET

34 W1SET

35 RSET

36 OUTSET

37 ENABLE

38 VCC

39 GND

40 F+

Focus

Actuator

TILT

TRACK

41 F-

42 TILT+

43 TILT-

44 T+

45 T-

10 1

13 6

NE2

RFA

RFB

OUTB

RSA

GND

RSB

OUTA

VCC

4-32

2. PICK UP PIN ASSIGNMENT

No. Pin Name Signal Description

45 T- Tracking Actuator drive signal-

44 T+ Tracking Actuator drive signal+

43 Tilt- Tilting Actuator drive signal-

42 Tilt+ Tilting Actuator drive signal+

41 F- Focusing Actuator drive signal-

40 F+ Focusing Actuator drive signal+

39 GND(LDD) Ground connection for LDD

38 VCC(LDD) Power supply for LDD

37 ENABLE Disables output current regardless of OUTEN(ENABLE Low:No lout)

36 OUTSEL High:selects DVD LD, Low:CD LD

35 RSET Input voltage for current amplifier

34 W1SET Input voltage for current amplifier

33 W2SET Input voltage for current amplifier

32 W3SET Input voltage for current amplifier

31 VCC(LDD) Power supply for LDD

30 GND(LDD) Ground connection for LDD

29 GND(LDD) Ground connection for LDD

28 OSCEN TTL control for Oscillator Enable (High Enable)

27 W3DIS LVDS control for output current (High Enable)

26 W3DISN LVDS control for output current (Low Enable)

25 W2DIS LVDS control for output current (High Enable)

24 W2DISN LVDS control for output current (Low Enable)

23 W1DIS LVDS control for output current (High Enable)

22 W1DISN LVDS control for output current (Low Enable)

21 GND(FPD) Ground connection for PDIC, FPD, TEMP

20 TEMP Output voltage for controlling temperature

19 FPD-OUT APC amplifier output

18 VREF(FPD) APC amplifier reference voltage output

17 GND(TEMP) Ground connection for PDIC, FPD, TEMP

16 VCC(FPD) Power supply for FPD

15 SW2(FPD) FPD output gain Select (High : CD, Low:DVD)

14 RF- Signal PDIC RF negative differential output

13 RF+ Signal PDIC RF positive differential output

12 SW1(PDIC) PDIC output gain Select (L/M/H)

11 D Signal PDIC output D

10 C Signal PDIC output C

9EF3

Signal PDIC output EF3

8EF2

Signal PDIC output EF2

Signal PDIC output B

Signal PDIC output A

5EF1

Signal PDIC output EF1

4EF4

Signal PDIC output EF4

3 GND(PDIC) Ground connection for PDIC, FPD, TEMP, LDD

2 VCC(PDIC) Power supply for PDIC(+5V)

1 VC(PDIC) Reference voltage input for PDIC)

4-33

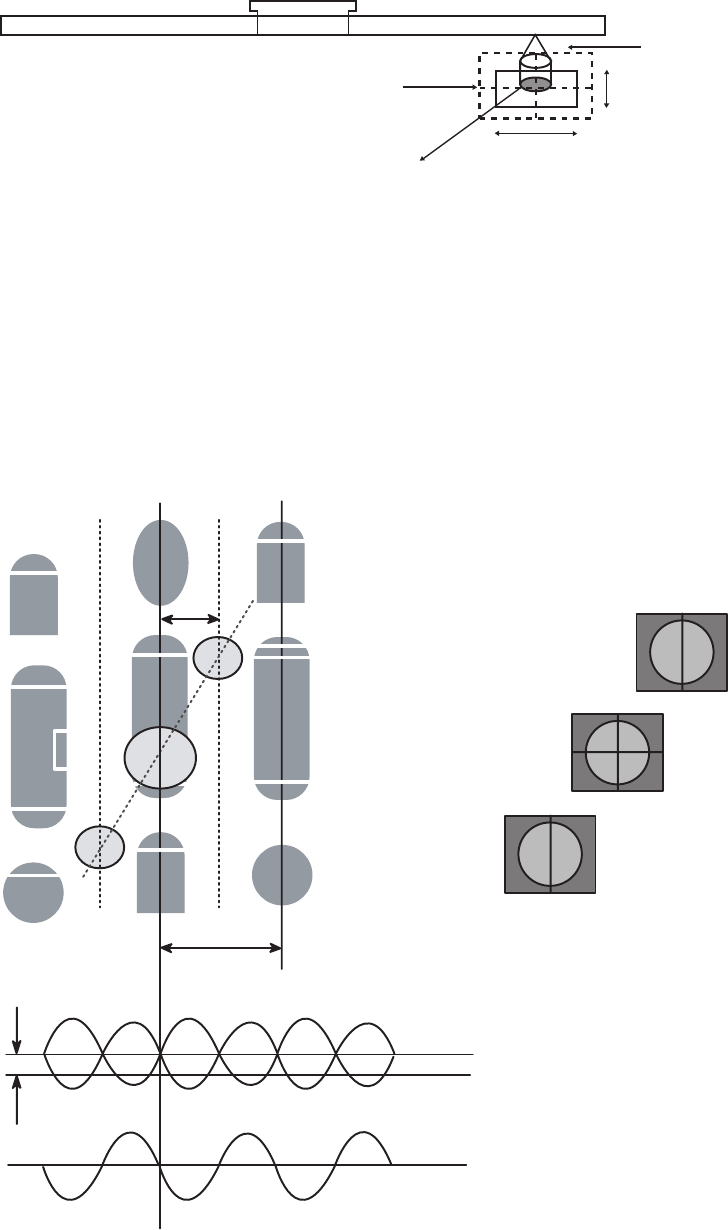

) Focus Error Signal ==> (A+C)-(B+D)

This signal is generated in RF IC (LIC121 : AN22113A) and controls the pick-up’s up and down to focus on

Disc.

) Tracking Error Signal (DPP Method) ==> {(A+D)-(B+C)}- kx {(EF1+EF4)-(EF2+EF3)}

This signal is generated in RF IC (LIC121 : AN22113A) and controls the pick-up’s left and right shift to find

to track on Disc.

) RF Signal ==> (A+B+C+D)

This signal is converted to DATA signal in DSP IC (LIC201 : MN103SA6G).

Pick-Up module

Photo Diode Tracking

Focusing

Infrared Iaser

k[(F+H) - (E+G)]

(A+D) - (B+C)

(A+D) - (B+C) - k[(F+H) - (E+G)]

Offset

Sub2

Main

Tp/2 Sub1

Track Center

F,E

D,C

A,B

H,G

3. SIGNAL DETECTION OF THE P/U

4-34

DESCRIPTION OF CIRCUIT

1. ALPC (AUTOMATIC LASER POWER CONTROL) CIRCUIT

1-1. BLOCK DIAGRAM

1-2. ALPC (AUTOMATIC LASER POWER CONTROL) CIRCUIT OPERATION

THE ALPC BLOCK DETECTS THE LASER OUTPUT POWER OF THE FRONT MONITOR. THE POWER SIG-

NAL DETECTED WITH THE PD FOR FRONT MONITOR

DETECTION IS INPUT THE VOLTAGE FROM THE VPD PIN(123PIN) OR THE FPDM PIN(127PIN), THE REF-

ERENCE SIGNAL OF THE INPUT SIGNAL IS

INPUT FROM THE VREFPD PIN(124PIN). THE ALPC BLOCK GENERATES THE SINGALS FROM THE INPUT

LASER POWER SIGNALS IN THE

FOLLOWING DETECTION SYSTEMS. THIS BLOCK HAS FOUR DETECTION PATHS:ALL AVERAGE VALUE

PATH, MULTI PULSE AVERAGE/PEAK VALUE

DETECTION PATH, ERASE/BOTTOM VALUE DETECTION PATH, SPACE/PLAYBACK POWER VALUE

DETECTION PATH.

MN103SA6G

Write

Strategy

LIC 201

LPM 101

Optical

Pick-up

LPC-812R

LD PD

LDD

Serial

I/F

D/A

LIC 121 AN22113A

APC

19 A/D

ADSC

S/H

Signal

FM 123

VPD

127 FPDM

124

VREFPD

40 41 42

SH1

SH2SH3

VGA

LPF

Ave

Erase

Space

VGA

S/H2

S/H3

S/H1

4-35

DESCRIPTION OF CIRCUIT

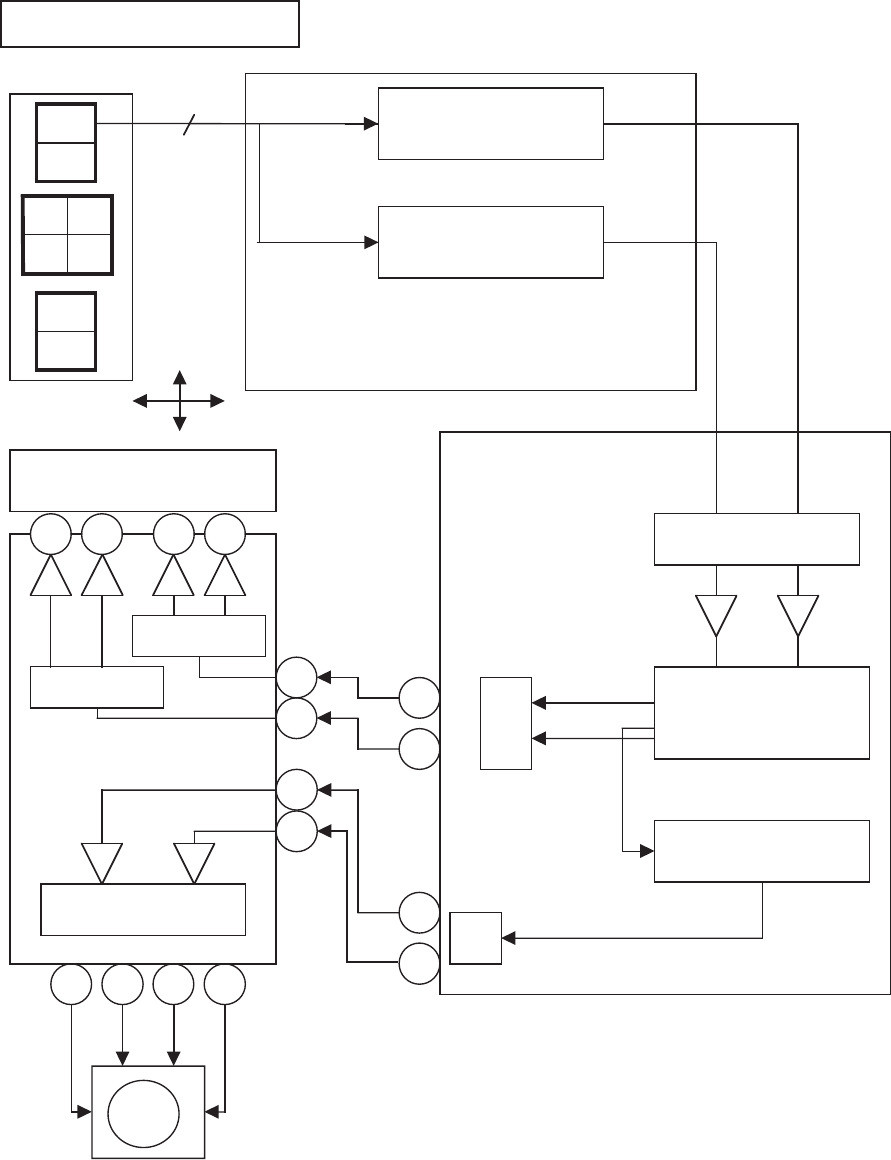

2. FOCUS/TRACKING/SLED SERVO CIRCUIT

2-1. FOCUS, TRACKING & SLED SERVO PROCESS

Pick-up

Focus Error

Detector

Focus Error

Detector

A,B,C,D

E,F,G,H

A,B,C,D

E,F,G,H

IC121 AN22113A

LIC201

Servo Control

MN103SA6G

TE FE

A/D

SLED

COMPENSATOR

A/D

PARALLEL

DIGITAL

COMPENSATOR

SDRV

STEP2

STEP1

LIC301 BD7956FS

Stepping Motor

Logic

A+

37 38 40 39

A- B- B+

Tracking Focusing

Actuator

T- T+ F- F+

LEVEL SHIFT

FDRV

TDRV

LEVEL SHIFT

53 54 51 52

Focus, Tracking, Sled Servo

4-36

DESCRIPTION OF CIRCUIT

2. FOCUS/TRACKING/SLED SERVO CIRCUIT

2-1. FOCUS, TRACKING & SLED SERVO PROCESS

OPU

PDIC

S-DPWM 10bit

100/50 MHz

S-DPWM 10bit

100/50 MHz

ADC

INT

On/Off BD7956

Drive IC

AN22113

FEP

On/Off

16 bit

Timer

RFOUT

Track

Focus

Internal u-P(F/W)

Need to change to 16bit

MN103SA6G MECHANISM

4-37

DESCRIPTION OF CIRCUIT

3. SPINDLE SERVO CIRCUIT

3-1. SPINDLE SERVO PROCESS

Pick-up

Wobble Signal

Generator

LIC121 AN22113A

WBLIN

EFM

SRF

SERVO DSP

Phase Controller

Frequency

Controller

SPDRV

LIC201 MN103SA6G

LIC301 BD7956FS

Spindle Motor

Level Shift

4-38

MAJOR IC INTERNAL BLOCK DIAGRAM

LIC121 (AN22113A) : FEP(RF) ANALOG SIGNAL PROCESSOR

• PIN ASSIGNMENT

CDRFP 97

CDRFN 98

CDHPF 99

DLY1 100

DLY2 101

GND2 102

FO1 103

FO2 104

TR1 105

TR2 106

TR3 107

TR4 108

109

110

VCC1 111

GND6 112

VREF 113

SVREF 114

VCC3 115

AIN 116

BIN 117

118

119

EIN 120

FIN 121

122

123

DACOUT 124

VREF08 125

VPD 126

VREFPD

127

GND3

128

ROPCIN 2

APCAAF1 3

APCAAF2 4

APCAAF3 5

CPCAPH 6

CPCABH 7

STMD 9

STMDN 10

CBDOF 12

CBDOS 13

CHPOFT 14

SEO1 21

SEO2 22

MOUT0 23

MOUT1 24

COFTR 15

VCC6 16

VHALF 17

CTC 18

CXDPH1 19

CXDPH2 20

MOUT2 25

GND1 26

PO0 27

PO1 28

PO2 29

PO3 30

PO4 31

PO5 32

PO6

STMOUT

39 TC

OFTR

41 BDO

VCC51

43 GND5

44 WTGT

PIO0

PIO1

PIO2

36 PIO3

FEPIDGT/SH6

46 NC

WIDGT/SH4

48 SH3

49 SH2

SH1

SH5

VCC4

53 SEN

54 SCK

SDAT

RSEN

RSDAT

58 VCC52

GND4

ASENV/LPPM

61 LPPS

WBL

63 CLUMPGT

PAD065

PAD1

66 PAD2

PAD3

PAD4

69 PAD5

PAD6

71 PAD7

CLPPPH

82 CLPPHPF

CBPFAGC

84 CWBLCMP

CRWAGC

87 CRWCMP

CWBLVGA2

89 CWBLVGA1

CWAGC2

91 CWAGC1

CWBLHPF2

93 CWBLHPF1

RFP

95 RFN

FLTAMP

RFIN2

76 RFIN1

77 HDVREF

CWBLBUF

79 VCC2

EQOUTP

RFOUT

AIDENV/WBLDIF

EQOUTN

PIO4

AN22113A

(Top View)

128Pin TQFP

TQFP-128-P-1414A

4-39

MAJOR IC INTERNAL BLOCK DIAGRAM

LIC121 (AN22113A) : FEP(RF) ANALOG SIGNAL PROCESSOR

• BLOCK DIAGRAM

Input Block

TEC Block

LPOS Block

WBL/LPP Block

OFTR Block

OPC&ASENV

Block

RFEQ Block JLINE Block LOGIC Block

APC Block

MPX Block

FIN

STMD STMDN STMOUT SE01 SE02 TC

WBLDIF

ASENV/

LPPM

LPPS

WBL

OFTR

VPD

FPDN

SDAT

SCK

SEN

RSDAT

RSEN

EIN

TR3

TR4

AIN/TR1

IN/TR2

HIN/Fo1

GIN/Fo2

VREF

CD/DVD

Switch

S/H

VGA

MPX MPX

MPX

DPD Block

TCTI Block

BDO Block

FOCUS

PPTE

Block

VREF

Block

RF Gene Block

GATE

Block

Operation Circuit

SMFEP

SDAAOUT

SDABOUT

SPLAOUT

SDACOUT

SDADOUT

SPLBOUT

SRFMA

SRFMD

SRFMB

SRFMC

SMTEP

SMTEN CHP0FT COFTR

SLP14

SLP23

SMFEPN

SSFEP

SSFEPN

SMTEP

SMTEN

SSTEP

SSTEN

SDAAOUT

SDABOUT

SDACOUT

SDADOUT

SDPDTEP

SRFMA

SRFMD

SRFMB

SRFMC

SDPDTEN

SPLAOUT

SPLBOUT SPOF

TCOP TCO

TCON

TIOP TIO

SBDOAS

TION

VGA

VGA COMP.

ENV

COMP.

VGA/

Bypass

VGA/

Bypass

DPD TE

Dtetction

TC/TI

Dtetction

HDVREF

VHALF

VREF08

RFP

CDRFP

RFN

CDRFN

BDO

RF OUT

RFIN1

RFIN2 EQOUTP EQOUTN

VREF

GATE

All

Sum

Group delay

compensation

Each Block PK

ENV

VGA COMP.

Lve1

Shift

LPF

MPX

TECENV

SLPOS2

SLP23

SLP14

LPF

SLPOS1

SSTEP

SSTEN

VGA S/H VGA VGA WBL

Detection

LPP

Detection

BAL

AGC/

Bypass

AGC/

Bypass

S/H VGA

Amp COMP.

VGA

S/H VGA

LPF

Bypass

LPF

ENV

ATT

Amp EQ 0FST

Each Block To Each Block

To MPX

JLINE LOGIC

COMP.

CLMP.

VGA

VGA S/H

S/H

S/H LPF/

Bypass

ATT SEL

4-40

MAJOR IC INTERNAL BLOCK DIAGRAM

LIC121 (AN22113A) : FEP(RF) ANALOG SIGNAL PROCESSOR

• BLOCK DIAGRAM

FEP

LDD

DRC

SERVO

ADSC

REC PERIPHERAL

32 bit CPU

ANALOG CPU BCU

FMT

HOST

16.9MHz

SDRAM

16 Mbit

64 Mbit

Falsh

ROM

2 Mbyte

ECC

HOST

I/F

4-41

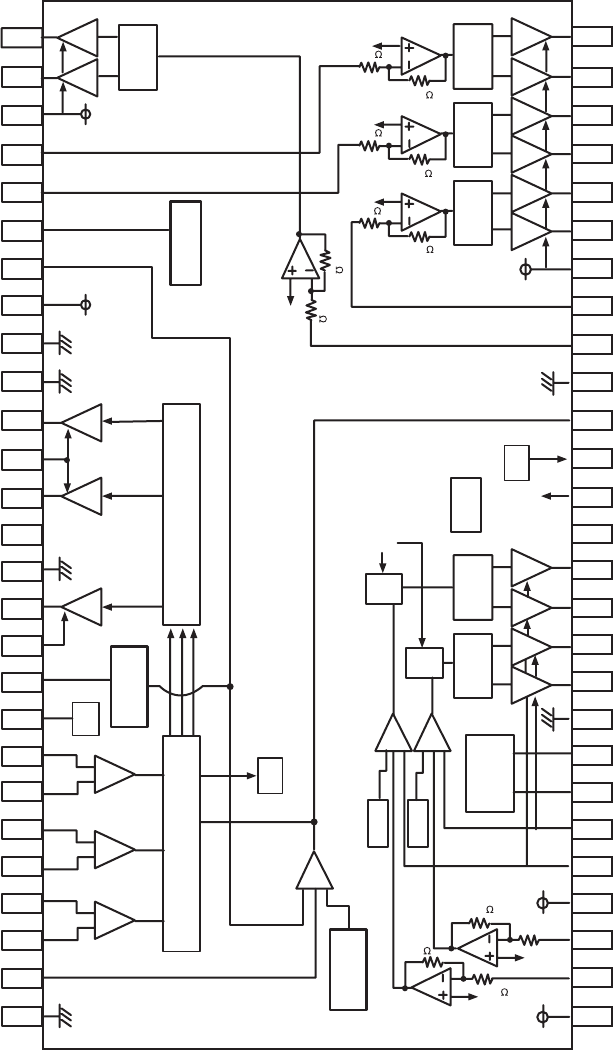

IC301 (BD7956FS) : CD-ROM/DVD-ROM 7CH POWER DRIVER

• BLOCK DIAGRAM

LEVEL

SHIFT

LEVEL

SHIFT BOTTOM

HOLD

Current

Limit

TSD

Tjmonitor

LIMIT

PWM Hall matrix

50k

100k

50k

100k

LEVEL

SHIFT LEVEL

SHIFT PRE

LOGIC PRE

LOGIC

STBY/

BRAKE

CONTROL

fin

OSC

50k

47k

33.6k

154

LDO- ACO1+

53 ACO1-

52 ACO2+

51 ACO2-

50 ACO3+

49 ACO3-

48 AV

47 ACTIN3

46 LDIN

45 AGND

44 SPCNF

43 FG

42 V

41 fin

40 SLO1+

39 SLO1-

38 SLO2+

37 SLO2-

36 SLGND

35 CTL2

34 CTL1

33 SLRNF2

32 SLRNF1

31 SLVDD

30 SLIN2

29 SLIN1

28 DVcc

LDO+

Vcc

ACTIN1

ACTIN2

TJMON

BTHC

PVM_S

PGND1

PGND2

SPV 1

fin

PGND3

SPV 2

SPRNF

HU+

HU-

HV+

HV-

HW+

HW-

SPIN

DGND

4-42 4-43

CIRCUIT DIAGRAMS

1. DSP CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q RST

4-44 4-45

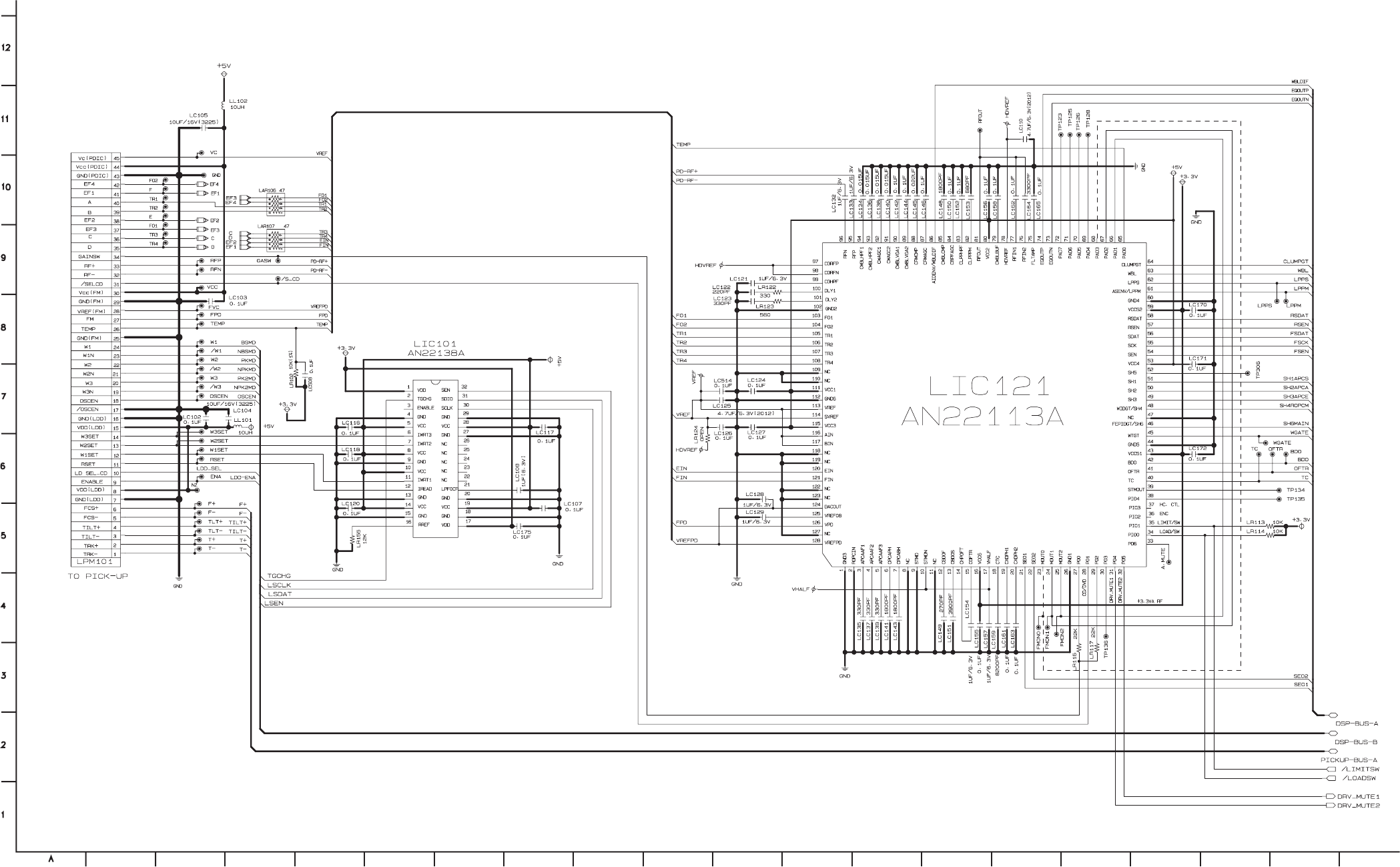

2. RF CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q RST

4-46 4-47

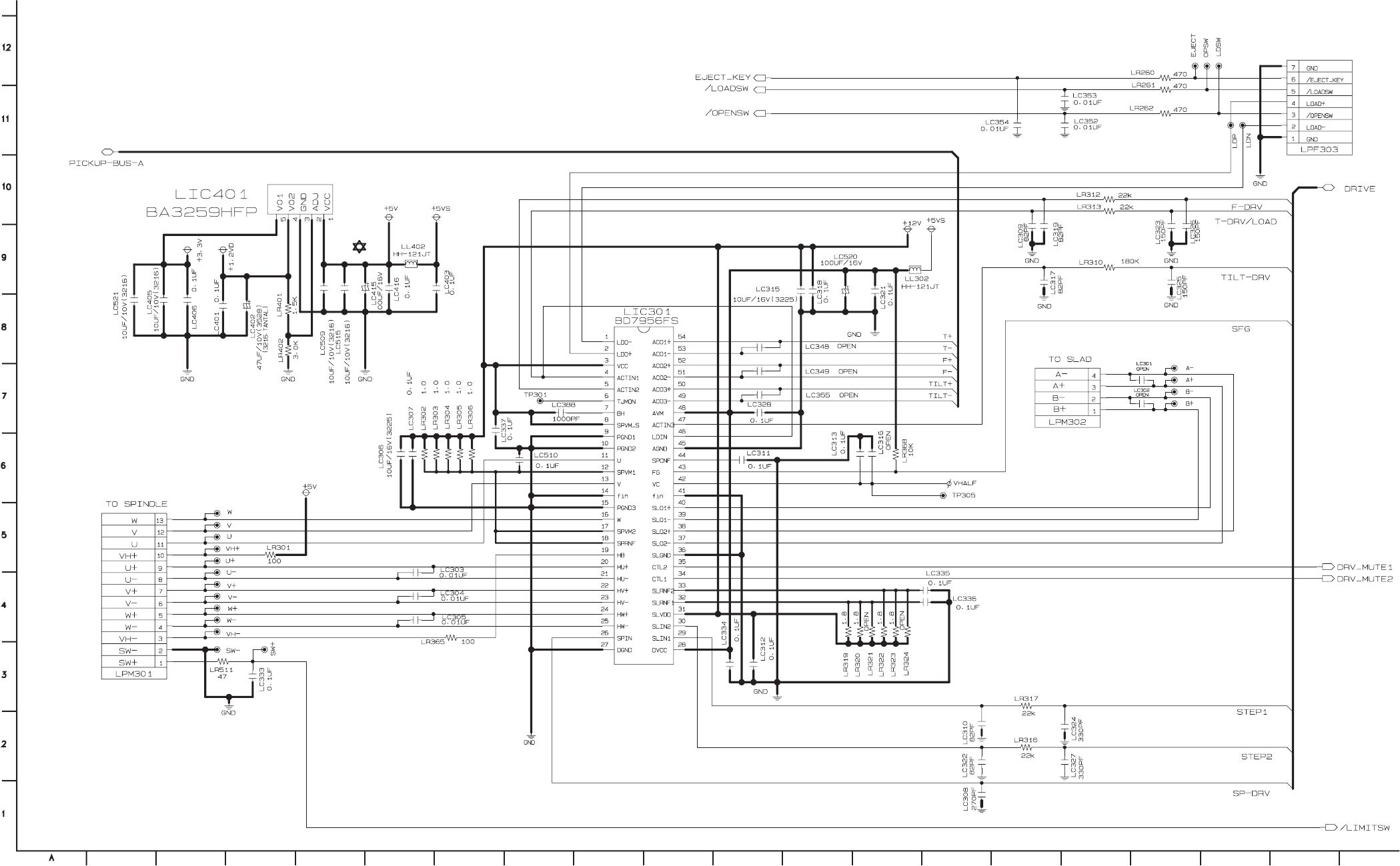

3. DRIVE CIRCUIT DIAGRAM

A B C D E F G H I J K L M N O P Q RST

10 0.00

11 -

12 12.65

13 -

14 0.00

15 0.00

16 -

17 12.65

18 12.65

19 4.99

20 4.98

21 4.99

22 4.98

23 4.98

24 4.98

25 4.98

26 1.65

27 0.00

28 5.00

29 1.69

30 1.52

31 12.64

32 12.64

33 12.64

34 0.00

35 0.00

36 0.00

37 0.37

38 1.09

39 1.10

40 1.11

41 0.00

42 1.65

43 4.99

44 0.00

45 0.00

46 1.65

47 1.62

48 4.99

49 0.32

50 0.33

51 0.32

52 0.32

53 0.32

54 0.33

1 4.99

2 0.79

4 1.17

5 3.29

16 PULSE

17 PULSE

18 PULSE

19 PULSE

20 PULSE

21 PULSE

22 PULSE

23 PULSE

24 PULSE

25 PULSE

26 PULSE

27 0.00

28 PULSE

29 PULSE

30 PULSE

31 PULSE

32 PULSE

33 PULSE

34 PULSE

35 PULSE

36 PULSE

38 PULSE

39 PULSE

40 PULSE

41 PULSE

42 PULSE

43 PULSE

44 PULSE

45 PULSE

46 0.00

48 PULSE

1 3.28

2 4.99

3 0.00

4 0.00

5 3.00

3 12.65

4 1.65

5 1.65

6 0.58

7 11.80

8 12.64

9 0.00

6 PULSE

7 3.29

8 PULSE

9 PULSE

10 0.00

11 PULSE

12 PULSE

13 3.29

14 PULSE

15 PULSE

16 PULSE

17 PULSE

18 0.00

19 PULSE

20 PULSE

21 PULSE

22 PULSE

23 PULSE

24 PULSE

25 3.28

26 0.00

27 PULSE

28 PULSE

29 PULSE

30 PULSE

31 PULSE

32 PULSE

33 PULSE

34 PULSE

35 PULSE

36 PULSE

37 PULSE

38 3.29

39 PULSE

40 PULSE

41 0.00

42 PULSE

43 PULSE

44 3.29

45 PULSE

46 PULSE

47 0.00

48 PULSE

49 PULSE

50 0.00

1 PULSE

2 PULSE

3 PULSE

4 PULSE

5 PULSE

6 PULSE

7 PULSE

8 PULSE

9 PULSE

168 PULSE

169 PULSE

170 PULSE

171 PULSE

172 PULSE

173 PULSE

174 PULSE

175 0.00

176 3.29

177 PULSE

178 PULSE

179 PULSE

180 PULSE

181 PULSE

182 PULSE

183 PULSE

184 PULSE

185 PULSE

186 PULSE

187 PULSE

188 PULSE

189 PULSE

190 PULSE

191 PULSE

192 1.17

193 PULSE

194 PULSE

195 PULSE

196 PULSE

197 PULSE

198 PULSE

199 PULSE

200 PULSE

201 PULSE

202 PULSE

203 3.28

204 0.00

205 3.26

206 3.26

207 0.00

208 0.00

209 0.00

210 OSC

211 OSC

212 3.28

213 0.00

214 0.00

215 0.00

216 3.28

1 3.29

2 PULSE

3 PULSE

4 0.00

5 PULSE

77 2.19

78 2.19

79 2.16

80 4.98

81 2.18

82 2.96

83 2.14

84 2.79

85 2.21

86 2.49

87 2.85

88 2.20

89 2.16

90 2.19

91 2.19

92 2.19

93 1.68

94 1.67

95 2.37

96 2.37

97 2.19

98 2.19

99 1.62

100 1.49

101 1.44

102 0.00

103 1.65

104 1.65

105 1.65

106 1.65

107 1.65

108 1.65

109 0.00

110 0.00

111 4.96

112 0.00

113 1.65

114 1.65

115 4.96

116 1.65

117 1.65

118 0.00

119 0.00

120 1.65

121 1.66

122 0.00

123 0.00

124 2.51

125 0.81

126 2.50

127 0.00

128 2.50

1 1.65

2 1.19

4-48 4-49

CIRCUIT VOLTAGE CHART

STATE

MODE

PIN NO.

LIC101

LIC121

1 3.29

2 0.00

3 3.28

4 0.00

5 4.99

6 0.00

7 0.00

8 4.98

9 0.00

10 4.99

11 0.00

12 0.00

13 0.00

14 4.99

15 0.00

16 1.09

17 3.28

18 0.00

19 4.99

20 0.00

21 0.00

22 0.00

23 0.00

24 0.00

25 0.00

26 0.00

27 0.00

28 4.97

29 0.00

30 3.29

31 0.36

32 0.00

1 0.00

2 0.00

3 1.69

4 1.64

5 1.66

6 2.67

7 2.60

8 0.00

9 0.00

10 1.65

11 0.00

12 0.25

13 1.58

14 1.82

15 2.20

16 3.29

17 1.65

18 1.56

19 0.00

20 2.50

21 1.42

STATE

MODE

PIN NO.

22 1.57

23 1.33

24 1.10

25 1.33

26 0.00

27 0.00

28 3.30

29 0.00

30 0.00

31 0.00

32 0.00

33 0.00

34 0.00

35 3.20

36 3.29

37 0.00

38 0.00

39 0.00

40 0.00

41 1.61

42 3.29

43 3.30

44 0.00

45 0.00

46 0.00

47 0.00

48 0.00

49 0.00

50 0.00

51 0.00

52 0.00

53 4.96

54 1.23

55 1.65

56 1.62

57 1.65

58 0.61

59 3.29

60 0.00

61 0.00

62 0.00

63 2.95

64 3.29

65 1.21

66 1.34

67 1.16

68 1.34

69 1.35

70 0.50

71 0.70

72 0.00

73 2.03

74 2.03

75 2.14

76 0.30

STATE

MODE

PIN NO.

LIC201

STATE

MODE

PIN NO.

3 1.64

4 1.18

5 1.65

6 1.19

7 0.14

8 0.00

9 3.30

10 1.65

11 1.65

12 0.00

13 1.50

14 2.19

15 3.30

16 0.27

17 0.27

18 0.23

19 0.00

20 0.25

21 0.00

22 1.43

23 1.57

24 0.00

25 2.01

26 3.29

27 3.28

28 2.24

29 1.73

30 1.29

31 2.02

32 2.03

33 3.28

34 0.85

35 0.00

36 3.28

37 0.00

38 0.00

39 2.95

40 0.00

41 0.00

42 0.00

43 0.00

44 0.00

45 0.00

46 3.29

47 3.29

48 0.00

49 0.00

50 0.00

51 0.00

52 0.70

53 0.00

54 0.00

55 3.29

56 0.56

57 0.00

STATE

MODE

PIN NO.

58 1.17

59 0.00

60 3.27

61 1.65

62 1.65

63 1.06

64 0.00

65 0.20

66 1.65

67 0.00

68 1.69

69 1.52

70 1.65

71 5.00

72 1.23

73 1.63

74 1.60

75 1.50

76 0.61

77 3.28

78 0.00

79 3.26

80 2.80

81 2.14

82 2.67

83 0.00

84 1.17

85 3.27

86 2.82

87 2.20

88 2.40

89 2.70

90 2.20

91 2.70

92 2.20

93 2.20

94 2.20

95 0.00

96 3.28

97 2.20

98 2.18

99 2.18

100 2.17

101 0.00

102 3.27

103 2.15

104 0.00

105 3.27

106 0.00

107 4.96

108 0.00

109 4.96

110 0.00

111 1.66

112 0.00

STATE

MODE

PIN NO.

113 0.00

114 4.96

115 3.28

116 3.25

117 0.00

118 PULSE

119 PULSE

120 PULSE

121 PULSE

122 PULSE

123 PULSE

124 PULSE

125 PULSE

126 PULSE

127 PULSE

128 PULSE

129 PULSE

130 PULSE

131 PULSE

132 PULSE

133 PULSE

134 0.00

135 1.17

136 3.29

137 3.29

138 3.29

139 3.29

140 3.29

141 2.68

142 3.28

143 0.00

144 0.00

145 0.00

146 PULSE

147 PULSE

148 PULSE

149 PULSE

150 0.00

151 3.29

152 PULSE

153 PULSE

154 PULSE

155 PULSE

156 PULSE

157 PULSE

158 PULSE

159 PULSE

160 PULSE

161 PULSE

162 PULSE

163 PULSE

164 PULSE

165 PULSE

166 PULSE

167 PULSE

STATE

MODE

PIN NO.

LIC261

STATE

MODE

PIN NO.

LIC262

STATE

MODE

PIN NO.

LIC271

LIC301

STATE

MODE

PIN NO.

LIC401

4-50 4-51

PRINTED CIRCUIT DIAGRAMS

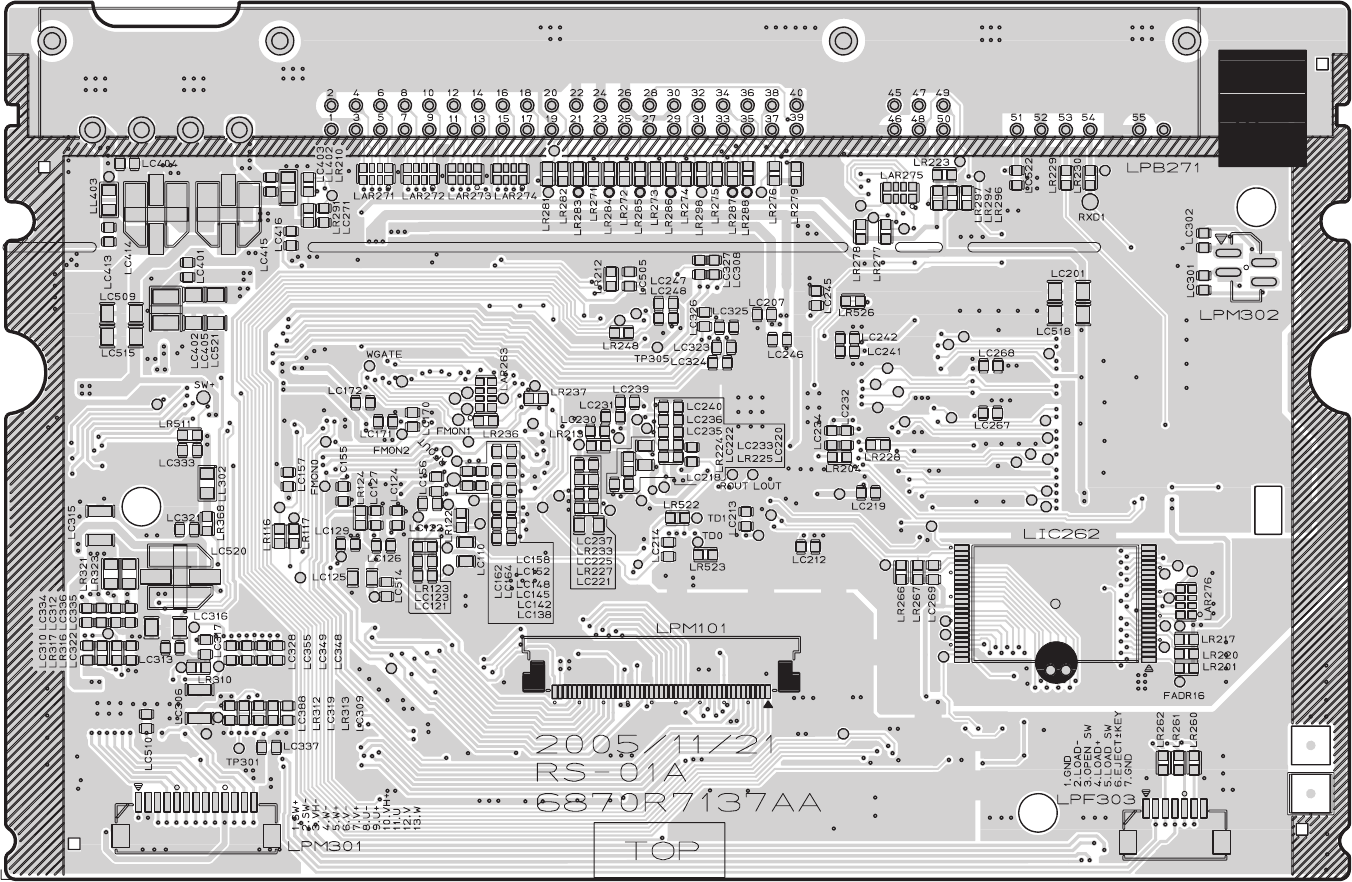

1. MAIN P.C.BOARD (TOP VIEW)

4-52 4-53

2. MAIN P.C.BOARD (BOTTOM VIEW)

NOTES) NOTES)

SECTION REPLACEMENT PARTS LIST

MODEL :

RH178

(

STUH,BASIC

)

If you want to purchase

Flash memory, you must order

" IC1301A "

Warning

Parts that are shaded are critical With

respect to risk of fire or electrical

shock.

RUN DATE : 18-APRIL-06

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

*** INDIVIDUAL PARTS ***

250 3110R-D034A CASE RH1000 PRESS TOP B6432G

251 5040R-0069Q RUBBER DVD DV9000S OTHER 05 NEW FOOT

273 4811R-8001A BRACKET ASSEMBLY DVD RH1000 JACK

300 6410RCHP02B POWER CORD HIT-102/H0VHH2-F(WITH CORE) HI

463 1SZZR-0098G SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FZMCW-1 3C

465 1SZZR-0097N SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FZB 3CR BK

467 1SZZR-0098Y SCREW,DRAWING + 2 D3.0 L24.0 MSWR3/FZB 3CR B

468 1SZZR-0098J SCREW,DRAWING + 2 D3.0 L6.5 MSWR3/FZMCY-1 3

801 3835RD0088K INSTRUCTION ASSEMBLY DVD RH1757S/RH1758S-NA9SSL

802 3890R-C332F BOX RH1758S NA9SSL SW3-A

803 3920R-E193A PACKING VCR RH18 RH19 . VIDEO

804 292-053B BAG SOFT(MIDI) NSP

808 534-008C BATTERY,MANGANESE AAAM(R03) SEOTONG 1-5 V - 1PA

900 6711R1P108F REMOTE CONTROLLER ASSEMBLY H3 RH1757P1 NA8SLL LG W/O HDMI

CABLE5 6850R-EA19Y CABLE,FLAT P=0.5 FFC UL2896 SPECIAL 190 C

*** CABLE ASSEMBLY ***

810 6851R-0099A CABLE ASSEMBLY RF PAL DOUBLE SHIELD 1.2M BLAC

806 6850R-CAA2H CABLE,COAXIAL RF PAL DOUBLE SHIELD DT_HY_HIT

821 6850R-SUA8F CABLE,COAXIAL SCART TO SCART 21 PIN DT_HY_HI

*** BOARD ASSEMBLY ***

A46 3501R-9009C BOARD ASSEMBLY DVD D/L (RH1000) DI

AR1201 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1202 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1203 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1204 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1205 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1206 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1207 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1208 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1209 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1251 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1252 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1253 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1254 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1259 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1260 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1261 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1262 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1263 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1264 0RRZVTA001G RESISTOR,DRAWING 51 OHM 1 / 16 W 3216 5% R/TP 8

AR1401 0RR1002Q62C RESISTOR,DRAWING 100 OHM 1/16W 5.00% 3216 8

AR1402 0RR1002Q62C RESISTOR,DRAWING 100 OHM 1/16W 5.00% 3216 8

AR1601 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1602 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1603 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1604 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

1-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

AR1605 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1606 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1607 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

AR1608 0RR0222Q62A RESISTOR,DRAWING 22 OHM 1/16 W 3216 5.00% R/TP

C1177 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1178 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1179 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1180 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1182 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1183 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1184 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1185 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1186 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1187 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1188 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1189 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1190 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1191 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1192 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1193 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1194 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1199 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C11A2 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1201 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1233 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1234 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1235 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1281 0CS337GD6DC CAPACITOR,FIXED TANTALUM 330UF 7343 10V 20% SMD R/TP(SM

C1282 0CS337GC6DC CAPACITOR,FIXED TANTALUM 330UF 7343 6.3V 20% SMD R/TP(S

C1283 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1284 0CH8227C621 CAPACITOR,FIXED ELECTROLYTIC 220UF 6.3V 20% - R/TP

C1301 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1302 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1303 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1306 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1307 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1308 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1309 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1310 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1410 0CH4221K412 CAPACITOR,FIXED CERAMIC(HIGH D 220PF 50V 5% NP0 1608 R/TP NSP

C1411 0CH1224K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.22UF 50V 10% B(5YP) 1608 R/T

C1412 0CH1475D946 CAPACITOR,FIXED CERAMIC(TEMP.C 4.7UF 10V 80%,-20% Y5V(F) 2012

C1415 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

D1101 0DS121009AA DIODE,SWITCHING KDS121 TP KEC UMT 85V - - 1.6N

D1102 0DS121009AA DIODE,SWITCHING KDS121 TP KEC UMT 85V - - 1.6N

IC1101 0ILNR00160A IC,LINEAR DMN-8653 LSI LOGIC 388PIN,BGA

IC1201 0IMMRFU017A IC,MEMORIES S29GL064M90TCIR20 FUJITSU 48PI

IC1201 0IMMRMR029A IC,MEMORIES MX29LV640MTTC-90G MACRONIX 48P ALTERNATE

IC1202 0IMMR00045B IC,MEMORIES HYB25D(C)512160CE-5 INFINEON 6

IC1202 0IMMR00046C IC,MEMORIES HY5DU121622CTP-D43 HYNIX 66PIN ALTERNATE

IC1204 0IPMG00017A IC,POWER MANAGEMENT G2995F1UF GMT 8PIN,SOP-8L R/TP

IC1305 0ISTLPH039A IC,STANDARD LOGIC 74LVC04APW PHILIPS 14PIN TSSOP

IC1306 0ISTLPH040A IC,STANDARD LOGIC 74LVC08APW PHILIPS 14PIN TSSOP

IC1401 0IPRPTI044A IC,PERIPHERALS TSB41AB1PHPG4 TEXAS INSTRUMENT

L1124 6140H-A001A FILTER(CIRC),EMC BEAD C,HH-1H4532-121JT.CERATEH

L1125 6140H-A001A FILTER(CIRC),EMC BEAD C,HH-1H4532-121JT.CERATEH

L1126 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

2-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

L1128 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1129 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1130 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1131 6140H-A001A FILTER(CIRC),EMC BEAD C,HH-1H4532-121JT.CERATEH

L1132 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1133 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1134 6140H-A001A FILTER(CIRC),EMC BEAD C,HH-1H4532-121JT.CERATEH

L1135 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1137 6140H-A001A FILTER(CIRC),EMC BEAD C,HH-1H4532-121JT.CERATEH

L1403 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

LD1101 0DL210008GA LED SML-210MT R/TP ROHM GREEN 16

PML07 6630X60142A CONNECTOR (CIRC),FFC/FPC 04-6263-040-000-894+ KYCERA EL

PML08 6630X60142A CONNECTOR (CIRC),FFC/FPC 04-6263-040-000-894+ KYCERA EL

PMT05 6630XE00116 CONNECTOR (CIRC),FFC/FPC 04-6232-016-010-800+ ELCO 16P

R1101 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1103 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1104 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1105 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1106 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1107 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1108 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1109 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R1110 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1111 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1112 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1113 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1114 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1115 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1116 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1117 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R1118 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1119 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1120 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1121 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1132 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1133 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R1134 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R1135 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1136 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1137 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1138 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1139 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1140 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1141 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1142 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1143 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1144 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1145 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1146 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1147 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1159 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1163 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1164 0RJ1101D477 RESISTOR,METAL GLAZED(CHIP) 1.1K OHM 1/10 W 1% 1608 R/TP

R1171 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1172 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1173 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D

R1174 0RH1801C622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 16 W 1608 5.00% D

3-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

R1175 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1176 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1177 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1178 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1179 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1180 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1181 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1182 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1183 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1196 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1197 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11A1 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11A2 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11A6 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11A7 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11A8 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11A9 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11C1 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R11C2 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R11C3 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R11C5 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R11E6 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R11E8 0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D

R11F1 0RH2701C622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 16 W 1608 5.00% D

R1202 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1204 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1205 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1207 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1209 0RH0512C622 RESISTOR,METAL GLAZED(CHIP) 51 OHM 1 / 16 W 1608 5.00% D

R1211 0RH0512C622 RESISTOR,METAL GLAZED(CHIP) 51 OHM 1 / 16 W 1608 5.00% D

R1212 0RH0512C622 RESISTOR,METAL GLAZED(CHIP) 51 OHM 1 / 16 W 1608 5.00% D

R1215 0RH0512C622 RESISTOR,METAL GLAZED(CHIP) 51 OHM 1 / 16 W 1608 5.00% D

R1216 0RH0512C622 RESISTOR,METAL GLAZED(CHIP) 51 OHM 1 / 16 W 1608 5.00% D

R1217 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1225 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1226 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1317 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R1318 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R1319 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R1320 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R1321 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R1322 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R1323 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1324 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1325 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1326 0RH0682C622 RESISTOR,METAL GLAZED(CHIP) 68 OHM 1 / 16 W 1608 5.00% D

R1327 0RH0682C622 RESISTOR,METAL GLAZED(CHIP) 68 OHM 1 / 16 W 1608 5.00% D

R1328 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1401 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R1402 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R1403 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R1405 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R1406 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R1407 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R1408 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1409 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1410 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

4-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

R1411 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

R1412 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

R1413 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1414 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1415 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R1416 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R1417 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R1418 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R1419 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R1420 0RH5101C622 RESISTOR,METAL GLAZED(CHIP) 5100 OHM 1 / 16 W 1608 5.00% D

R1421 0RH1004C622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 16 W 1608 5.00% D

R1422 0RH6201C622 RESISTOR,METAL GLAZED(CHIP) 6200 OHM 1 / 16 W 1608 5.00% D

R1423 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R1424 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R1615 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1616 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1617 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1632 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1633 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1634 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

X1101 6212AB2136C RESONATOR,CRYSTAL HC-49/SM BUBANG 13.5MHZ +/- 15

X1401 6212AB2246C RESONATOR,CRYSTAL HC-49/SM BUBANG 24.576MHZ +/-

ZD1101 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD1102 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD1103 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD1104 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD1105 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD1106 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD1107 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD1108 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

C1103 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1104 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1105 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1106 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1108 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1110 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1111 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1112 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1113 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1114 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1115 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T

C1116 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1117 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1118 0CH7476D651 CAPACITOR,FIXED TANTALUM 47UF 10V 20% 6032 TP(-)

C1120 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1121 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1122 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1123 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1124 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1125 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1126 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1127 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1128 0CH7476C621 CAPACITOR,FIXED TANTALUM 47UF 6.3V 20% 3528 TP(-)

C1130 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1131 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1132 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1133 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

5-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

C1134 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1135 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1136 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1137 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1138 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1139 0CH7476D651 CAPACITOR,FIXED TANTALUM 47UF 10V 20% 6032 TP(-)

C1141 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1142 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1143 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1144 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1145 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1146 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1157 0CH4680K412 CAPACITOR,FIXED CERAMIC(HIGH D 68PF 50V 5% NP0 1608 R/TP

C1162 0CH4680K412 CAPACITOR,FIXED CERAMIC(HIGH D 68PF 50V 5% NP0 1608 R/TP

C1163 0CH4680K412 CAPACITOR,FIXED CERAMIC(HIGH D 68PF 50V 5% NP0 1608 R/TP

C1164 0CH4680K412 CAPACITOR,FIXED CERAMIC(HIGH D 68PF 50V 5% NP0 1608 R/TP

C1165 0CH4680K412 CAPACITOR,FIXED CERAMIC(HIGH D 68PF 50V 5% NP0 1608 R/TP

C1166 0CH4680K412 CAPACITOR,FIXED CERAMIC(HIGH D 68PF 50V 5% NP0 1608 R/TP

C1170 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1171 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1172 0CH7226D621 CAPACITOR,FIXED TANTALUM 22UF 10V 20% 3528 TP(-)

C1173 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1174 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1175 0CH7226D621 CAPACITOR,FIXED TANTALUM 22UF 10V 20% 3528 TP(-)

C1176 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1181 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C11A5 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1202 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1203 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1204 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1205 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1206 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1207 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1208 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1209 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1210 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

C1211 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

C1212 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1213 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1214 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1215 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1216 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1218 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1219 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1220 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1221 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1222 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1223 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

C1224 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

C1225 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T

C1226 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T

C1227 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T

C1228 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T

C1229 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T

C1230 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T

C1231 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

C1232 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

6-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

C1236 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1237 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

C1238 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

C1239 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1240 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1241 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1242 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1243 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1244 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1245 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1246 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1247 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1248 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1249 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1250 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1251 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1252 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1253 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1254 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1255 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1256 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1257 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1258 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1259 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1260 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

C1261 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

C1285 0CH7226D621 CAPACITOR,FIXED TANTALUM 22UF 10V 20% 3528 TP(-)

C1286 0CH7226D621 CAPACITOR,FIXED TANTALUM 22UF 10V 20% 3528 TP(-)

C1401 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1402 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1403 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1404 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1405 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1406 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1407 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1408 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1409 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T

C1413 0CH4220K412 CAPACITOR,FIXED CERAMIC(HIGH D 22PF 50V 5% NP0 1608 R/TP

C1414 0CH4220K412 CAPACITOR,FIXED CERAMIC(HIGH D 22PF 50V 5% NP0 1608 R/TP

C1450 0CH7226D621 CAPACITOR,FIXED TANTALUM 22UF 10V 20% 3528 TP(-)

C1451 0CH7226D621 CAPACITOR,FIXED TANTALUM 22UF 10V 20% 3528 TP(-)

C1601 0CH1104K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 10% B(5YP) 1608 R/TP

C1602 0CH4220K412 CAPACITOR,FIXED CERAMIC(HIGH D 22PF 50V 5% NP0 1608 R/TP

IC1302 0ISTLFA125A IC,STANDARD LOGIC 74LVTH273MTCX FAIRCHILD 20PIN,

L1101 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1120 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1121 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1122 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1123 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1127 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1138 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1139 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1140 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1141 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

L1142 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

L1143 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

L1144 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

7-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

L1145 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

L1146 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

L1401 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1402 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L1404 6200RJC003A FILTER(CIRC),EMC HB-1S1608-121 CERATECH TP

L1405 6200RJC003A FILTER(CIRC),EMC HB-1S1608-121 CERATECH TP

L1406 6200RJC003A FILTER(CIRC),EMC HB-1S1608-121 CERATECH TP

L1407 6200RJC003A FILTER(CIRC),EMC HB-1S1608-121 CERATECH TP

PMV01 6630R-BE034 CONNECTOR (CIRC),BOARD TO BOAR 2254-30S-T/JE611-B2G-30R POWER

PMV02 6630R-BE034 CONNECTOR (CIRC),BOARD TO BOAR 2254-30S-T/JE611-B2G-30R POWER

PMV04 6630B00147A CONNECTOR (CIRC),BOARD TO BOAR JE611-B2T-12S JAE EUN 12P 2.0M

R1122 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1123 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1124 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1125 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1126 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1127 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1128 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1129 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1130 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1131 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1149 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1156 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R1184 0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D

R1185 0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D

R1187 0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D

R1188 0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D

R1190 0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D

R1192 0RH1500C622 RESISTOR,METAL GLAZED(CHIP) 150 OHM 1 / 16 W 1608 5.00% D

R1194 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1195 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1198 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1199 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11A3 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11A4 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11A5 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R11E7 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R11E9 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1208 0RH0512C622 RESISTOR,METAL GLAZED(CHIP) 51 OHM 1 / 16 W 1608 5.00% D

R1218 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1219 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1220 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1227 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1228 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1301 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1302 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1303 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1304 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1305 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1306 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1307 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1308 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R1601 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R1602 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1603 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1604 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1605 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

8-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

R1606 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1607 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1608 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1609 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1610 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1611 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1612 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1613 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

R1614 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1618 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R1619 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R1620 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1621 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1622 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1623 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1624 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1625 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1626 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1627 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1628 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1629 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R1630 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

R1631 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

IC1301A 6957R-1881A PROGRAM RH1000 PAL PROGRAM

*** BOARD ASSEMBLY ***

A52 3501R-669AS BOARD ASSEMBLY DVD RH1758S .NA9SSL

274 3300R-D089A PLATE RH1000 PRESS GROUND

BD801 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD802 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD803 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD804 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD805 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD807 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD808 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD809 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD811 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD812 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD813 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD814 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD815 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD816 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

BD817 6200HJC901A FILTER(CIRC),EMC CFI06B1H101MF SAMHWA TP 2-5K

C151 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C153 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C154 0CE477CD638 CAPACITOR,FIXED ELECTROLYTIC 470UF SHL,SD 10V 20% FM5 TP 5

C155 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C157 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C159 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C160 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C162 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C163 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C165 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C166 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C601 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C603 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C604 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C605 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

9-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

C606 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C607 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C608 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C610 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C612 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C701 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C705 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C706 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C708 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C711 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C721 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C724 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C734 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C735 0CE4775C618 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FL TP 5

C739 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C741 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C750 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C759 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C762 0CE2273C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRE,SE 6.3V 20% FM5 TP 5

C763 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C766 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C767 0CE4775C618 CAPACITOR,FIXED ELECTROLYTIC 470UF SR,SV 6.3V 20% FL TP 5

C768 0CE4754K638 CAPACITOR,FIXED ELECTROLYTIC 4.7UF SRA,SS 50V 20% FM5 TP 5

C769 0CQ4732K409 CAPACITOR,FIXED FILM 0.047UF S 50V 5% PE TP5

C770 0CQ4732K409 CAPACITOR,FIXED FILM 0.047UF S 50V 5% PE TP5

C805 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C806 0CE2273C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRE,SE 6.3V 20% FM5 TP 5

C809 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C825 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C828 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C831 0CE2273C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRE,SE 6.3V 20% FM5 TP 5

C839 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C842 0CE2273C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRE,SE 6.3V 20% FM5 TP 5

C846 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C851 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C859 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C862 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C863 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C864 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C865 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C866 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C868 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C870 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C872 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C873 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C874 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C875 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C876 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C877 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C878 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C879 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C880 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C881 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C882 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C884 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C885 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C886 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

10-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

C887 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C888 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C8A7 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C8A8 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C8B6 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C8B7 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C8B8 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C8B9 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

C8D1 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C8D2 0CE2264F638 CAPACITOR,FIXED ELECTROLYTIC 22UF SRA,SS 16V 20% FM5 TP 5

C8D3 0CE3364F638 CAPACITOR,FIXED ELECTROLYTIC 33UF SRA,SS 16V 20% FM5 TP 5

C8D4 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C902 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C904 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C905 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C906 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C907 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C908 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C910 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C911 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C913 0CE1064F638 CAPACITOR,FIXED ELECTROLYTIC 10UF SRA,SS 16V 20% FM5 TP 5

C914 0CE4764F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRA,SS 16V 20% FM5 TP 5

IC704 0IKE704200B IC,KEC KIA7042P 3P 4.2V RESET(TAPING)

IC706 0IKE703100A IC,LINEAR KIA7031P 3P 3.1V RESET(TAPING)

Q155 0TR127109AA TRANSISTOR,BIPOLARS KTA1271Y (KTA950) KEC TP TO92

Q158 0TR126809BA TRANSISTOR,BIPOLARS KTA1268-BL TP KEC - -

Q161 0TR126809BA TRANSISTOR,BIPOLARS KTA1268-BL TP KEC - -

Q163 0TR534409AA TRANSISTOR,BIPOLARS 2SC5344Y TP AUK - -

Q164 0TR534409AA TRANSISTOR,BIPOLARS 2SC5344Y TP AUK - -

Q165 0TR534409AA TRANSISTOR,BIPOLARS 2SC5344Y TP AUK - -

X702 6212AA2148F RESONATOR,CRYSTAL HC-49S KITELCO 14.31818MHZ +/-

C161 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C164 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C168 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)

C602 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C616 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C618 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C707 0CH4561K412 CAPACITOR,FIXED CERAMIC(HIGH D 560PF 50V 5% NP0 1608 R/TP

C709 0CH4240K412 CAPACITOR,FIXED CERAMIC(HIGH D 24PF 50V 5% NP0 1608 R/TP

C710 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)

C712 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)

C713 0CH4150K412 CAPACITOR,FIXED CERAMIC(HIGH D 15PF 50V 5% NP0 1608 R/TP

C714 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C715 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C720 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C722 0CH1103K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% B(5YP) 1608 R/T

C723 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)

C727 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C729 0CH4150K412 CAPACITOR,FIXED CERAMIC(HIGH D 15PF 50V 5% NP0 1608 R/TP

C730 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C731 0CH4270K412 CAPACITOR,FIXED CERAMIC(HIGH D 27PF 50V 5% NP0 1608 R/TP

C732 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C733 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C749 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C751 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C753 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C761 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP

11-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

C764 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C765 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP

C771 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C774 0CH1105F942 CAPACITOR,FIXED CERAMIC(TEMP.C 1000000PF 16V 80%,-20% Y5V(F)

C801 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C802 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C804 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP

C808 0CH4681K416 CAPACITOR,FIXED CERAMIC(HIGH D 680PF 50V 5% NP0 2012 R/TP

C811 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C812 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C816 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C818 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C820 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C821 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C829 0CH4681K416 CAPACITOR,FIXED CERAMIC(HIGH D 680PF 50V 5% NP0 2012 R/TP

C832 0CH4681K416 CAPACITOR,FIXED CERAMIC(HIGH D 680PF 50V 5% NP0 2012 R/TP

C833 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP

C834 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T

C835 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP

C836 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C837 0CH4681K416 CAPACITOR,FIXED CERAMIC(HIGH D 680PF 50V 5% NP0 2012 R/TP

C840 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C841 0CK225CF94A CAPACITOR,FIXED CERAMIC(HIGH D 2.2UF 1608 16V 80%,-20% F(Y5V)

C843 0CK225CF94A CAPACITOR,FIXED CERAMIC(HIGH D 2.2UF 1608 16V 80%,-20% F(Y5V)

C844 0CK225CF94A CAPACITOR,FIXED CERAMIC(HIGH D 2.2UF 1608 16V 80%,-20% F(Y5V)

C845 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C847 0CK225CF94A CAPACITOR,FIXED CERAMIC(HIGH D 2.2UF 1608 16V 80%,-20% F(Y5V)

C848 0CK225CF94A CAPACITOR,FIXED CERAMIC(HIGH D 2.2UF 1608 16V 80%,-20% F(Y5V)

C849 0CK225CF94A CAPACITOR,FIXED CERAMIC(HIGH D 2.2UF 1608 16V 80%,-20% F(Y5V)

C850 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP

C852 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C853 0CH4270K412 CAPACITOR,FIXED CERAMIC(HIGH D 27PF 50V 5% NP0 1608 R/TP

C854 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP

C855 0CH4101K412 CAPACITOR,FIXED CERAMIC(HIGH D 100PF 50V 5% NP0 1608 R/TP

C856 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C857 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C858 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C860 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C861 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C867 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C869 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C871 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C883 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C889 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C890 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C892 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C894 0CH1102K562 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% X7R(X) 1608 R/T

C8B1 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C8B2 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C8B3 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C8B4 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C8B5 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C901 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C915 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C916 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C917 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C918 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

12-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

C919 0CH1225F946 CAPACITOR,FIXED CERAMIC(TEMP.C 2.2UF 16V 80%,-20% Y5V(F) 2012

C920 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C921 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C922 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C923 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C924 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C925 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C926 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C927 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP

C928 0CK225CF94A CAPACITOR,FIXED CERAMIC(HIGH D 2.2UF 1608 16V 80%,-20% F(Y5V)

C929 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C930 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C931 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C932 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C933 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C934 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C935 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C936 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C937 0CH1474K942 CAPACITOR,FIXED CERAMIC(TEMP.C 470000PF 50V 80%,-20% Y5V(F) 1

C938 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C939 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C940 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C941 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP

C943 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C944 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C945 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C946 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C949 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C950 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C951 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP

C952 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C953 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C956 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C957 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C960 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C961 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C963 0CK225CF94A CAPACITOR,FIXED CERAMIC(HIGH D 2.2UF 1608 16V 80%,-20% F(Y5V)

C965 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C966 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C967 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C968 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C970 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C971 0CH1225F946 CAPACITOR,FIXED CERAMIC(TEMP.C 2.2UF 16V 80%,-20% Y5V(F) 2012

C972 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C973 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C975 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C976 0CH1225F946 CAPACITOR,FIXED CERAMIC(TEMP.C 2.2UF 16V 80%,-20% Y5V(F) 2012

C977 0CH1225F946 CAPACITOR,FIXED CERAMIC(TEMP.C 2.2UF 16V 80%,-20% Y5V(F) 2012

C979 0CH1225F946 CAPACITOR,FIXED CERAMIC(TEMP.C 2.2UF 16V 80%,-20% Y5V(F) 2012

C980 0CH1225F946 CAPACITOR,FIXED CERAMIC(TEMP.C 2.2UF 16V 80%,-20% Y5V(F) 2012

C981 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C985 0CH1474K942 CAPACITOR,FIXED CERAMIC(TEMP.C 470000PF 50V 80%,-20% Y5V(F) 1

C986 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C987 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C988 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C989 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C990 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

13-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

C991 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C992 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C993 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C995 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

C999 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

D152 0DS121009AA DIODE,SWITCHING KDS121 TP KEC UMT 85V - - 1.6N

D153 0DS121009AA DIODE,SWITCHING KDS121 TP KEC UMT 85V - - 1.6N

D701 0DS121009AA DIODE,SWITCHING KDS121 TP KEC UMT 85V - - 1.6N

D801 0DS121009AA DIODE,SWITCHING KDS121 TP KEC UMT 85V - - 1.6N

D802 0DS121009AA DIODE,SWITCHING KDS121 TP KEC UMT 85V - - 1.6N

D803 0DS121009AA DIODE,SWITCHING KDS121 TP KEC UMT 85V - - 1.6N

D901 0DS121009AA DIODE,SWITCHING KDS121 TP KEC UMT 85V - - 1.6N

IC154 0IPMG78350A IC,POWER MANAGEMENT I1680L-TP INTERPION 8PIN,SOP R

IC701 0IMCR02254A IC,MICRO CONTROLLER MN101D10F LS MATSUSHITA 100PIN

IC703 0IPRPMT002A IC,PERIPHERALS MM1510XNRE MITSUMI 6,SOT-26A R

IC705 0ISS241610B IC,SAMSUNG ELECTRONICS S524A60X51-SCT0 8P SOP TP EEPR

IC707 0ILNRMN001C IC,LINEAR SDA5650X-MSL04 PB-FREE MICRONA

IC801 0IJR458000B IC,JRC NJM4580M 8,DMP8 TP OP AMP 2K/R

IC802 0IPRPRH017A IC,PERIPHERALS BH7868FS ROHM 32PIN SSOP R/TP

IC803 0IPRPMT009A IC,PERIPHERALS MM1443XJBE MITSUMI 34PIN SSOP

IC808 0IPRP00015A IC,PERIPHERALS CS4351-CZZR CIRRUS LOGIC 20PIN

IC901 0ILNR00162A IC,LINEAR SAA7137DHS PHILIPS 208PIN,QFP

IC903 0IPRPJR011A IC,PERIPHERALS NJM2521M JRC 8PIN SIP R/TP DR

IC904 0IPRPJR011A IC,PERIPHERALS NJM2521M JRC 8PIN SIP R/TP DR

L162 6140H-A001A FILTER(CIRC),EMC BEAD C,HH-1H4532-121JT.CERATEH

L704 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L705 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L706 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L707 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L709 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L710 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L711 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L712 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L713 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L801 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L802 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L803 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L804 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

L805 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D

L806 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L807 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L808 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L809 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L810 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L811 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L812 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L813 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L814 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L817 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L818 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L819 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L820 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L821 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L822 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L823 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L824 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L825 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

14-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

L826 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L827 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L828 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L829 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L830 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L831 0LCCE00004E INDUCTOR,CHIP FI-C2012-103KJT (10UH) CERATEC

L832 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L833 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L834 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L835 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

L901 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L902 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L903 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L904 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L905 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L906 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L908 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L909 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L910 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L912 6200HJC102A FILTER(CIRC),EMC HB-1M2012-102JT CERATECH TP

L922 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

L923 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

L924 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

L925 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

L926 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

L927 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

L928 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

L929 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

L930 0LC11608C01 INDUCTOR,CHIP HB-1M1608-102JT CERATECH R/TP

Q151 0TRAU80040A TRANSISTOR,BIPOLARS STB1132Y AUK KOREA REEL TAPING

Q152 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q153 0TR103009AC TRANSISTOR,BIPOLARS KRA103S-T1(PC)22-22 CHIP TP KE

Q156 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q159 0TRAU80040A TRANSISTOR,BIPOLARS STB1132Y AUK KOREA REEL TAPING

Q160 0TR103009AC TRANSISTOR,BIPOLARS KRA103S-T1(PC)22-22 CHIP TP KE

Q162 0TR103009AC TRANSISTOR,BIPOLARS KRA103S-T1(PC)22-22 CHIP TP KE

Q166 0TR103009AM TRANSISTOR,BIPOLARS KRC103S TP KEC - SOT-23 22K-22

Q702 0TR103709BB TRANSISTOR,BIPOLARS 2SA1037K-Q CHIP TP ROHM - -

Q704 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q705 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q707 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q801 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q802 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q803 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q804 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q805 0TR387509AC TRANSISTOR,BIPOLARS CHIP KTC3875S-GR-T1(ALG) TP KE

Q806 0TR150409AC TRANSISTOR,BIPOLARS KTA1504 TP KEC - -GR-T1(ASG) C

Q807 0TR103009AC TRANSISTOR,BIPOLARS KRA103S-T1(PC)22-22 CHIP TP KE

Q808 0TR103009AC TRANSISTOR,BIPOLARS KRA103S-T1(PC)22-22 CHIP TP KE

R151 0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D

R152 0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D

R153 0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D

R154 0RH1802C622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 16 W 1608 5.00% D

R155 0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D

R156 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R157 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R158 0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D

15-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

R161 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R163 0RH1801D422 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 1.00% D

R164 0RJ3601E472 RESISTOR,METAL GLAZED(CHIP) 3.6K OHM 1/8 W 1% 2012 R/TP

R165 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R166 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R167 0RH1002D622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 10 W 2012 5.00% D

R168 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R169 0RH1001D422 RESISTOR,METAL GLAZED(CHIP) 1000 OHM 1/10 W 0.01 2012 R/TP

R170 0RH0512D422 RESISTOR,METAL GLAZED(CHIP) 51 OHM 1 / 10 W 2012 1.00% D

R171 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R172 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R173 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R174 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R176 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D

R177 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R178 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R179 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R180 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R181 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R183 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R184 0RH1802C622 RESISTOR,METAL GLAZED(CHIP) 18K OHM 1 / 16 W 1608 5.00% D

R185 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R186 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R187 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R191 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R192 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R193 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R195 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R701 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D

R703 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R705 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R706 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R707 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R708 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R709 0RH1004C622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 16 W 1608 5.00% D

R710 0RH4703C622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 16 W 1608 5.00% D

R711 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R712 0RH4703C622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 16 W 1608 5.00% D

R714 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R715 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R716 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R717 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R718 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R719 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R720 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R722 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R725 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R726 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R727 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R728 0RH4703C622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 16 W 1608 5.00% D

R729 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R730 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R731 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R732 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R733 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R735 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R736 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

16-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

R737 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R738 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R739 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R740 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R741 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R742 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R743 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R744 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R745 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D

R747 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R751 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R752 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R753 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R754 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R762 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R764 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R766 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R767 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R768 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R769 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R771 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R772 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R773 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R774 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R775 0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D

R777 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R778 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R779 0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D

R780 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D

R781 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R782 0RH1004C622 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1 / 16 W 1608 5.00% D

R783 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D

R784 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R785 0RH1204C622 RESISTOR,METAL GLAZED(CHIP) 1.2M OHM 1 / 16 W 1608 5.00% D

R787 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R789 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D

R791 0RH4703C622 RESISTOR,METAL GLAZED(CHIP) 470K OHM 1 / 16 W 1608 5.00% D

R792 0RH6801C622 RESISTOR,METAL GLAZED(CHIP) 6.8K OHM 1 / 16 W 1608 5.00% D

R793 0RH1204C622 RESISTOR,METAL GLAZED(CHIP) 1.2M OHM 1 / 16 W 1608 5.00% D

R794 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R795 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R796 0RH9102C622 RESISTOR,METAL GLAZED(CHIP) 91K OHM 1 / 16 W 1608 5.00% D

R797 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R798 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R799 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R801 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R802 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R803 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R804 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R805 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R806 0RH2203C622 RESISTOR,METAL GLAZED(CHIP) 220K OHM 1 / 16 W 1608 5.00% D

R807 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R808 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R809 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R810 0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D

R811 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R812 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

17-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

R813 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R814 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R815 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R816 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R817 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R818 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R819 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

R820 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R821 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R822 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D

R823 0RH2200C622 RESISTOR,METAL GLAZED(CHIP) 220 OHM 1 / 16 W 1608 5.00% D

R824 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R825 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R826 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R827 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R828 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R829 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R831 0RH2203C622 RESISTOR,METAL GLAZED(CHIP) 220K OHM 1 / 16 W 1608 5.00% D

R834 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R835 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R836 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R837 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R838 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R839 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R842 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D

R844 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R845 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D

R846 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R847 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R848 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R849 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D

R850 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R851 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R852 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R853 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R854 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R855 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R857 0CH4680K412 CAPACITOR,FIXED CERAMIC(HIGH D 68PF 50V 5% NP0 1608 R/TP

R858 0LCCE00011A INDUCTOR,CHIP F1-B1608-222KJT CERATECH R/TP

R859 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R860 0LCCE00011A INDUCTOR,CHIP F1-B1608-222KJT CERATECH R/TP

R861 0LCCE00011A INDUCTOR,CHIP F1-B1608-222KJT CERATECH R/TP

R862 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R864 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R865 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R866 0LCCE00011A INDUCTOR,CHIP F1-B1608-222KJT CERATECH R/TP

R868 0CH4680K412 CAPACITOR,FIXED CERAMIC(HIGH D 68PF 50V 5% NP0 1608 R/TP

R869 0CH4680K412 CAPACITOR,FIXED CERAMIC(HIGH D 68PF 50V 5% NP0 1608 R/TP

R870 0LCCE00011A INDUCTOR,CHIP F1-B1608-222KJT CERATECH R/TP

R871 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

R872 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R873 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R874 0LCCE00011A INDUCTOR,CHIP F1-B1608-222KJT CERATECH R/TP

R876 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

R877 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R881 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R882 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

18-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

R883 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R884 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R885 0RH0752C422 RESISTOR,METAL GLAZED(CHIP) 75 OHM 1 / 16 W 1608 1.00% D

R8A1 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R8A2 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R8A3 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R8A4 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R8A5 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R8A7 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R8A8 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R8A9 0RH0471C622 RESISTOR,METAL GLAZED(CHIP) 4.7 OHM 1 / 16 W 1608 5.00% D

R8U1 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R8U2 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R8U3 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R8U4 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R8U5 0RH7501C622 RESISTOR,METAL GLAZED(CHIP) 7.5K OHM 1 / 16 W 1608 5.00% D

R8U6 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R901 0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D

R902 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R903 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R905 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R909 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R910 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R911 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R913 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R914 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R916 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R918 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R919 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R920 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R923 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D

R924 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R925 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R926 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D

R928 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R930 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R932 0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D

R933 0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D

R934 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R938 0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D

R939 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R940 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R941 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R942 0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D

R943 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D

R944 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R945 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R946 0RH1800C622 RESISTOR,METAL GLAZED(CHIP) 180 OHM 1 / 16 W 1608 5.00% D

R947 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D

R948 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R950 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D

R951 0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D

R952 0RH2700C622 RESISTOR,METAL GLAZED(CHIP) 270 OHM 1 / 16 W 1608 5.00% D

R953 0RH2401C622 RESISTOR,METAL GLAZED(CHIP) 2.4K OHM 1 / 16 W 1608 5.00% D

R954 0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D

R956 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R962 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

19-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

R964 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R965 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R969 0RH0332C622 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1 / 16 W 1608 5.00% D

R970 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D

R971 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R976 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R977 0RH3001C622 RESISTOR,METAL GLAZED(CHIP) 3K OHM 1 / 16 W 1608 5.00% D

R978 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

R979 0RH1202C622 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 5.00% D

R982 0RH0562C622 RESISTOR,METAL GLAZED(CHIP) 56 OHM 1 / 16 W 1608 5.00% D

R985 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R989 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

R990 0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D

R991 0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D

R993 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R994 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D

R995 0RH0272C622 RESISTOR,METAL GLAZED(CHIP) 27 OHM 1 / 16 W 1608 5.00% D

R996 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

R997 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

R999 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

X901 6212AB2246C RESONATOR,CRYSTAL HC-49/SM BUBANG 24.576MHZ +/-

ZD151 0DZ021209BA DIODE,ZENERS Z02W12Y(CHIP) KEC

ZD152 0DZ021209BA DIODE,ZENERS Z02W12Y(CHIP) KEC

ZD801 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD802 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD803 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD804 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD805 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD811 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD821 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD822 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD823 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD824 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD825 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD826 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD827 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD828 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD829 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD830 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD834 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD836 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD837 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD838 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD839 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD840 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD841 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD842 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD843 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD844 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD847 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD850 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD851 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD853 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD861 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD863 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD865 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD866 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

20-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

ZD867 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD868 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD869 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD870 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD871 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD872 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD875 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

ZD876 0DZ026809CA DIODE,ZENERS Z02W6.8V TP KEC SOT23 20W 6.8V

D154 0DSGF00030A DIODE,SWITCHING SB360-24A GULF BK DO201AD 60V

D155 0DSGF00030A DIODE,SWITCHING SB360-24A GULF BK DO201AD 60V

IC151 0IPMGKE045A IC,POWER MANAGEMENT KIA278R25PI 2.5V 2A KEC TO220I

IC152 0IPMGGM002A IC,POWER MANAGEMENT G9133 GMT 4PIN,TO 220F-4L ST 1

IC152 0IPMGFA015A IC,POWER MANAGEMENT KA78R33TSTU FAIRCHILD 4P TO-22 ALTERNATE

IC152 0ISH313000C IC,POWER MANAGEMENT PQ3RD13LJ000H 4PIN TO-220 ST 3 ALTERNATE

IC152 0IPMGKE006B IC,POWER MANAGEMENT KIA78R33PI CU KEC 4P TO-220IS ALTERNATE

IC153 0IPMGFA032A IC,POWER MANAGEMENT KA78R05TSTU FAIRCHILD 4P TO-22

IC153 0IPMGKE018A IC,POWER MANAGEMENT KIA78R05API CU KEC 4P TO-220IS ALTERNATE

JK801 6612M00004B JACK,SCART HR-DM2497S-0(BL-BK) HYUSUNG BL

JK802 6612J00048G JACK,RCA ATT-6dB YUQIU RCA-1204B-04-01

JK803 6612K00003D JACK,FIBER OPTIC JST1164 SOLTEAM

JK804 6612JH002NB JACK,RCA RCA-104-03(RED) YUQIU

JK805 6612JH002NA JACK,RCA RCA-104-02(WHITE) YUQIU

JK806 6612JH002NC JACK,RCA RCA-104-05(YELLOW) YUQIU

JK807 6612B00010A JACK,DIN PSJ 007B( S-VHS-JACK) PARK ELE

JK808 6630SD01104 CONNECTOR (CIRC),USB YFK45-5002 JALCO 4P 0.8MM

JK809 6612BBBHN5A JACK,DIN SCN556S4GTTB000 S-VIDEO HYUSUN

PVM01 6630R-BE024 CONNECTOR (CIRC),BOARD TO BOAR 2254-30P-T/JE611-A2T-30T POWER

PVM02 6630R-BE024 CONNECTOR (CIRC),BOARD TO BOAR 2254-30P-T/JE611-A2T-30T POWER

PVM03 6630R-BE01L CONNECTOR (CIRC),BOARD TO BOAR JE612-12 JAE EUN 12P 2.0MM

PVX02 561-711D CONNECTOR (CIRC),HOUSING GIL-S-04P-S2T2-EF LG CABLE 4PI

PWVS1 6630R-BF07L CONNECTOR (CIRC),BOARD TO BOAR JE117-A8T-12 JAE EUN 12P 2.54M

Q154 0TR115100AA TRANSISTOR,BIPOLARS KSB1151-Y BK SAMSUNG - TO-126

SW801 6600Q000048 SWITCH,SLIDE CSS-4207 CHANG SHIN 30VDC 0.1A

TU701 6700PFPL08A TUNER TADS-S101D LGIT PAL FS SILM- P

X701 6202R-DA01B RESONATOR,CRYSTAL CFS-308 CITIZEN 32.768KHZ +/-

*** COVER ASSEMBLY ***

A26 3551R-5588B COVER ASSEMBLY DVD 160GB (RH1000,DI)

101 3550R-8001A COVER DVD RH1000 PRESS HDD

103 3300R-D113A PLATE RH1000 PRESS HDD

104 6744BSUN21A HDD,3.5" ST3160022ACE SEAGATE 160GB ULT

104 6744BSUN29A HDD,3.5" HDT722516DLAT80 HGST 160GB ATA ALTERNATE

410 1SMBC81018A SCREW MACHINE,BINDING HEAD 2 - L1.0 -

468 1SZZR-0098J SCREW,DRAWING + 2 D3.0 L6.5 MSWR3/FZMCY-1 3

A53 6871R-5588A PWB(PCB) ASSEMBLY,TOTAL HDD ASSY (DI) RH1000

PLL1602 6630VL1004Z CONNECTOR (CIRC),WAFER JE610C-A2.54-G40-ST JAE EUN 40

PLM1601 6630X60142A CONNECTOR (CIRC),FFC/FPC 04-6263-040-000-894+ KYCERA EL

CABLE10 6631R-H005C CONNECTOR ASSEMBLY NEW CH0508/NEW CH0508/SMH200 4

CABLE11 6850R-EA32Z CABLE,FLAT P=0.5 FFC UL2896 SPECIAL 320 C

*** PWB

(

PCB

)

ASSEMBLY,TOTAL ***

A55 6871R-2666A PWB(PCB) ASSEMBLY,TOTAL LOADER (DI) RH1000

PLL1604 6630VL1004Z CONNECTOR (CIRC),WAFER JE610C-A2.54-G40-ST JAE EUN 40

PLM1603 6630X60142A CONNECTOR (CIRC),FFC/FPC 04-6263-040-000-894+ KYCERA EL

*** DECK ASSEMBLY,DVD ***

A60 6721RFN021A DECK ASSEMBLY,DVD DECK/MECHA RS-01A, MD(DR-09)+M

1439 1SZZH-1007B SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNBK 4MM 1

1431 1SZZR-0098G SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FZMCW-1 3C

A001 3551R-0677B COVER ASSEMBLY DECK/MECHA RS-01A TOP, DI

21-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

1001 3550H-1116A COVER COVER-CABINET XENON COMMON USE

1002 3550R-2003A COVER DVD TOP(DR-09) PRESS 0.6T(RS-0

1003 4861R-0021B CLAMP ASSEMBLY DECK/MECHA DR-09 (RS-01A) DI

1048 3551R-0678B COVER ASSEMBLY DECK/MECHA RS-01A BOTTOM, DI

1046 5040H-1074D RUBBER JW1 GWA-4083B GR-D 12X12XT1 1.

1047 3550R-2004A COVER DVD BTM(DR-09) PRESS 0.5T(RS-0

A002 6721R-D021B DECK ASSEMBLY,DVD DECK/MECHA DR-09 MD, DI

1011 3040H-1138A BASE UP DOWN NM LUPOS GP2100

1012 4974H-1117A GUIDE UP DOWN NM KEPITAL F20-03

1013 4470H-1164A GEAR LOADING NM KEPITAL F20-03

1014 4510H-1070A LEVER EMERGENCY NM KEPITAL F20-03

1015 4400H-1014A BELT LOADING NM

1016 4560H-1018A PULLEY GEAR NM KEPITAL F20-03

1017 4470H-1163A GEAR IDLE NM KEPITAL F20-03

1019 4560H-1005A PULLEY MOTOR(GM-R512)

1020 3040R-D026A BASE MAIN(DR-09) MOLD (RS-01A)

1026 3390R-0037A TRAY DVD DISC(DR-09) MOLD (RS-01A)

1038 4930H-1127A HOLDER SHAFT NM(DVDW) POM

1041 5040H-1103C RUBBER FRONT NM(DVDW) 35 - KEEPER

1432 1SZZH-1072D SCREW,DRAWING + D2.0 4.5MM SWRCH16A/ZNW 4MM

1437 1SZZH-1003E SCREW,DRAWING + D2.0 13MM SWRCH16A/NIY 4.5M

A005 6871R-0P54B PWB(PCB) ASSEMBLY,TOTAL RS-01A FRONT, DI

1032 4810H-1105A BRACKET DVA NM(DVDW) 2T SECC DVDW

1033 4810H-1108A BRACKET BRACKET W/B JW3 SECC 1.6T -

1034 5040H-1078A RUBBER ANTI-SHOCK GCC-4120B ,

1042 558-026I SWITCH,TACT JTP-1236A JEIL - - TACT

1043 6600HXF102A SWITCH,DETECTOR MPU20160MLB0 MIC DC 5-0 V 0-

1043 6600KW3004C SWITCH,MICRO SW2AB-254-10 SHINMEI 5VDC 10MA ALTERNATE

1044 6630X60119A CONNECTOR (CIRC),FFC/FPC FCZ100E-07RSK YEON HO 7P 1.0MM

1045 6850R-GG64Z CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 7

1434 1SZZH-1072E SCREW,DRAWING + D2.0 6MM SWRCH16A/ZNW 4MM

1018 4680R-E009A MOTOR(MECH) FEEDING RF300EH-1D390 MABUCHI

1025 5040H-1104C RUBBER REAR NM(DVDW) 30 - KEEPER

1036 4680HP5025C MOTOR(MECH) SPS-15RF-172KPA MOATECH STEPPI

1030 6850R-EA78Z CABLE,FLAT P=0.5 FFC UL2896 SPECIAL 78 D-

LAR106 0RRZVTA0018 RESISTOR,DRAWING 47 OHM 1 / 16 W 1608*4 5% R/TP

LAR107 0RRZVTA0018 RESISTOR,DRAWING 47 OHM 1 / 16 W 1608*4 5% R/TP

LAR261 0RRZVTA0014 RESISTOR,DRAWING 10K OHM 1/16W 3216 5% R/TR 8T4

LC102 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC103 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC104 0CK106FF94A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3225 16V 80%,-20% R/TP F(

LC105 0CK106FF94A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3225 16V 80%,-20% R/TP F(

LC107 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC108 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC116 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC117 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC118 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC120 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC128 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC132 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC133 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC134 0CH1153K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.015UF 50V 10% X7R(X) 1608 R/

LC135 0CH4331K412 CAPACITOR,FIXED CERAMIC(HIGH D 330PF 50V 5% NP0 1608 R/TP

LC136 0CH1153K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.015UF 50V 10% X7R(X) 1608 R/

LC137 0CH4331K412 CAPACITOR,FIXED CERAMIC(HIGH D 330PF 50V 5% NP0 1608 R/TP

LC139 0CH4331K412 CAPACITOR,FIXED CERAMIC(HIGH D 330PF 50V 5% NP0 1608 R/TP

LC140 0CH1153K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.015UF 50V 10% X7R(X) 1608 R/

22-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

LC141 0CH1182K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1800PF 50V 10% B(5YP) 1608 R/T

LC143 0CH1182K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1800PF 50V 10% B(5YP) 1608 R/T

LC144 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC146 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC149 0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP

LC150 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC151 0CH4392K412 CAPACITOR,FIXED CERAMIC(HIGH D 3900PF 50V 5% NP0 1608 R/TP

LC153 0CH4681K412 CAPACITOR,FIXED CERAMIC(HIGH D 680PF 50V 5% NP0 1608 R/TP

LC154 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC159 0CH1822K562 CAPACITOR,FIXED CERAMIC(TEMP.C 8200PF 50V 10% X7R(X) 1608 R/T

LC161 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC163 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC165 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC175 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC202 0CH1153K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.015UF 50V 10% X7R(X) 1608 R/

LC223 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

LC224 0CH1563K516 CAPACITOR,FIXED CERAMIC(TEMP.C 0.056UF 50V 10% B(5YP) 2012 R/

LC226 0CH1823F562 CAPACITOR,FIXED CERAMIC(TEMP.C 82000PF 16V 10% X7R(X) 1608 R/

LC228 0CH1822K562 CAPACITOR,FIXED CERAMIC(TEMP.C 8200PF 50V 10% X7R(X) 1608 R/T

LC238 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC255 0CH4220K412 CAPACITOR,FIXED CERAMIC(HIGH D 22PF 50V 5% NP0 1608 R/TP

LC261 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC262 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC263 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC264 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC266 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC273 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC274 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC303 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T

LC304 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T

LC305 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T

LC307 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC311 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC318 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC352 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T

LC353 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T

LC354 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T

LC406 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC508 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LIC101 0ILNR00023A IC,LINEAR AN22138A-VT MATSUSHITA 32 PIN,

LIC121 0ILNR00022A IC,LINEAR AN22113A-VT MATSUSHITA 128 PIN

LIC201 0IMCR02031A IC,MICRO CONTROLLER MN103SA6GSJ MATSUSHITA 216 PIN

LIC261 0IMMRHY001G IC,MEMORIES HY57V161610ETCP-7(0.15UM) HYNI

LIC261 0IMMREB006C IC,MEMORIES M12L16161A-7T ESMT 50PIN,TSOP ALTERNATE

LIC261 0IMMREO002A IC,MEMORIES EM636165TS-7G ETRON 54PIN,TSOP ALTERNATE

LIC271 0IPMGRH014A IC,POWER MANAGEMENT BD5233G-TR ROHM SMP5C2 R/TP 3.

LIC301 0ILNR00045A IC,LINEAR BD7956FS ROHM 36PIN,HSOP R/TP

LIC401 0IPMGRH015B IC,POWER MANAGEMENT BA3259HFP ROHM 5PIN/HRP5 R/TP

LL101 6140R-G006A COIL,TRAP FM LEMC3225T100K SMD TAIYO TP

LL102 6140R-G006A COIL,TRAP FM LEMC3225T100K SMD TAIYO TP

LR102 0RH1002C422 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 1.00% D

LR113 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR114 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR155 0RH1202C422 RESISTOR,METAL GLAZED(CHIP) 12K OHM 1 / 16 W 1608 1.00% D

LR207 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR218 0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D

LR221 0RJ1004C677 RESISTOR,METAL GLAZED(CHIP) 1M OHM 1/16 W 5% 1608 R/TP

23-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

LR222 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR231 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

LR250 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

LR265 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR295 0RJ2202D477 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1/10 W 1% 1608 R/TP

LR301 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

LR302 0RH0101D622 RESISTOR,METAL GLAZED(CHIP) 1 OHM 1 / 10 W 2012 5.00% D

LR303 0RH0101D622 RESISTOR,METAL GLAZED(CHIP) 1 OHM 1 / 10 W 2012 5.00% D

LR304 0RH0101D622 RESISTOR,METAL GLAZED(CHIP) 1 OHM 1 / 10 W 2012 5.00% D

LR305 0RH0101D622 RESISTOR,METAL GLAZED(CHIP) 1 OHM 1 / 10 W 2012 5.00% D

LR306 0RH0101D622 RESISTOR,METAL GLAZED(CHIP) 1 OHM 1 / 10 W 2012 5.00% D

LR319 0RH0181D622 RESISTOR,METAL GLAZED(CHIP) 1.8 OHM 1 / 10 W 2012 5.00% D

LR320 0RH0181D622 RESISTOR,METAL GLAZED(CHIP) 1.8 OHM 1 / 10 W 2012 5.00% D

LR322 0RH0181D622 RESISTOR,METAL GLAZED(CHIP) 1.8 OHM 1 / 10 W 2012 5.00% D

LR365 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

LR401 0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D

LR402 0RH3001C622 RESISTOR,METAL GLAZED(CHIP) 3K OHM 1 / 16 W 1608 5.00% D

LX201 6212BB3241A RESONATOR,CERAMIC CSTCE16M9V53R-0 MURATA 16.934M

LAR263 0RRZVTA001F RESISTOR,DRAWING 33 OHM 1 / 16 W 3216 5% R/TP 8

LAR271 0RRZVTA001F RESISTOR,DRAWING 33 OHM 1 / 16 W 3216 5% R/TP 8

LAR272 0RRZVTA001F RESISTOR,DRAWING 33 OHM 1 / 16 W 3216 5% R/TP 8

LAR273 0RRZVTA001F RESISTOR,DRAWING 33 OHM 1 / 16 W 3216 5% R/TP 8

LAR274 0RRZVTA001F RESISTOR,DRAWING 33 OHM 1 / 16 W 3216 5% R/TP 8

LAR275 0RRZVTA001V RESISTOR,DRAWING 82 OHM 1 / 16 W 3216 5% R/TP 8

LAR276 0RRZVTA0014 RESISTOR,DRAWING 10K OHM 1/16W 3216 5% R/TR 8T4

LC110 0CK475DC6CA CAPACITOR,FIXED CERAMIC(HIGH D 4.7UF 2012 6.3V 20% R/TP JB

LC121 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC122 0CH4221K412 CAPACITOR,FIXED CERAMIC(HIGH D 220PF 50V 5% NP0 1608 R/TP

LC123 0CH4331K412 CAPACITOR,FIXED CERAMIC(HIGH D 330PF 50V 5% NP0 1608 R/TP

LC124 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC125 0CK475DC6CA CAPACITOR,FIXED CERAMIC(HIGH D 4.7UF 2012 6.3V 20% R/TP JB

LC126 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC127 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC129 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC138 0CH1153K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.015UF 50V 10% X7R(X) 1608 R/

LC142 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC145 0CH1223K562 CAPACITOR,FIXED CERAMIC(TEMP.C 22000PF 50V 10% X7R(X) 1608 R/

LC148 0CH1182K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1800PF 50V 10% B(5YP) 1608 R/T

LC152 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC155 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC156 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC157 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC158 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC162 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC164 0CH1332K562 CAPACITOR,FIXED CERAMIC(TEMP.C 3300PF 50V 10% X7R(X) 1608 R/T

LC170 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC171 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC172 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC201 0CK106EDD7A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3216 10V 15% X5R R/TP

LC207 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC212 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC213 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC214 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC218 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC219 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC220 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC221 0CK124DH56A CAPACITOR,FIXED CERAMIC(HIGH D 0.12UF 2012 25V 10% R/TP X7R

24-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

LC222 0CK475DC6CA CAPACITOR,FIXED CERAMIC(HIGH D 4.7UF 2012 6.3V 20% R/TP JB

LC225 0CH1562K562 CAPACITOR,FIXED CERAMIC(TEMP.C 5600PF 50V 10% X7R(X) 1608 R/T

LC230 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC231 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC232 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC233 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC234 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC235 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC236 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC237 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC239 0CK105CC56A CAPACITOR,FIXED CERAMIC(HIGH D 1UF 1608 6.3V 10% R/TP X7R

LC240 0CH1333K512 CAPACITOR,FIXED CERAMIC(TEMP.C 0.033UF 50V 10% B(5YP) 1608 R/

LC241 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC242 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC245 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC246 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC247 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC248 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC267 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC268 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC269 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC271 0CH4330K412 CAPACITOR,FIXED CERAMIC(HIGH D 33PF 50V 5% NP0 1608 R/TP

LC306 0CK106FF94A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3225 16V 80%,-20% R/TP F(

LC308 0CH4271K412 CAPACITOR,FIXED CERAMIC(HIGH D 270PF 50V 5% NP0 1608 R/TP

LC309 0CH4820K412 CAPACITOR,FIXED CERAMIC(HIGH D 82PF 50V 5% NP0 1608 R/TP

LC310 0CH4820K412 CAPACITOR,FIXED CERAMIC(HIGH D 82PF 50V 5% NP0 1608 R/TP

LC312 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC313 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC315 0CK106FF94A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3225 16V 80%,-20% R/TP F(

LC317 0CH4820K412 CAPACITOR,FIXED CERAMIC(HIGH D 82PF 50V 5% NP0 1608 R/TP

LC319 0CH4820K412 CAPACITOR,FIXED CERAMIC(HIGH D 82PF 50V 5% NP0 1608 R/TP

LC321 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC322 0CH4820K412 CAPACITOR,FIXED CERAMIC(HIGH D 82PF 50V 5% NP0 1608 R/TP

LC323 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP

LC324 0CH4331K412 CAPACITOR,FIXED CERAMIC(HIGH D 330PF 50V 5% NP0 1608 R/TP

LC325 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP

LC326 0CH4151K412 CAPACITOR,FIXED CERAMIC(HIGH D 150PF 50V 5% NP0 1608 R/TP

LC327 0CH4331K412 CAPACITOR,FIXED CERAMIC(HIGH D 330PF 50V 5% NP0 1608 R/TP

LC328 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC333 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC334 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC335 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC336 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC337 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC388 0CH1102K512 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF 50V 10% B(5YP) 1608 R/T

LC401 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC402 0CS476HD6DC CAPACITOR,FIXED TANTALUM 47UF 3528 10V 20% SMD R/TP(SMD

LC403 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC404 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC405 0CK106EDD7A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3216 10V 15% X5R R/TP

LC413 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC414 0CH8107F621 CAPACITOR,FIXED ELECTROLYTIC 100UF 16V 20% - R/TP

LC415 0CH8107F621 CAPACITOR,FIXED ELECTROLYTIC 100UF 16V 20% - R/TP

LC416 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC509 0CK106EDD7A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3216 10V 15% X5R R/TP

LC510 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LC514 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

25-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

LC515 0CK106EDD7A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3216 10V 15% X5R R/TP

LC518 0CK106EDD7A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3216 10V 15% X5R R/TP

LC520 0CH8107F621 CAPACITOR,FIXED ELECTROLYTIC 100UF 16V 20% - R/TP

LC521 0CK106EDD7A CAPACITOR,FIXED CERAMIC(HIGH D 10UF 3216 10V 15% X5R R/TP

LC522 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

LIC262 0IMMRMR019F IC,MEMORIES MX29LV160CBTC-70G MACRONIX 48P

LL302 6200HJC106A FILTER(CIRC),EMC HH-1M2012-121JT CERATECH TP 2

LL402 6200HJC106A FILTER(CIRC),EMC HH-1M2012-121JT CERATECH TP 2

LL403 6200HJC106A FILTER(CIRC),EMC HH-1M2012-121JT CERATECH TP 2

LPF303 6630X60074D CONNECTOR (CIRC),FFC/FPC 04 6232 107 111 801+ KYCERA EL

LPM101 6630HXE440E CONNECTOR (CIRC),FFC/FPC 04 6240 045 013 894+ ELCO 45P

LPM301 6630X60108A CONNECTOR (CIRC),FFC/FPC 04-6232-113-111-801 KYCERA ELC

LPM302 6630XE00204 CONNECTOR (CIRC),FFC/FPC 04-6232-504-015-800 ELCO 4P 1.

LR116 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D

LR117 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D

LR122 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

LR123 0RH5600C622 RESISTOR,METAL GLAZED(CHIP) 560 OHM 1 / 16 W 1608 5.00% D

LR201 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR204 0RH4701C622 RESISTOR,METAL GLAZED(CHIP) 4.7K OHM 1 / 16 W 1608 5.00% D

LR210 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

LR212 0RH4702C622 RESISTOR,METAL GLAZED(CHIP) 47K OHM 1 / 16 W 1608 5.00% D

LR213 0RJ3601C477 RESISTOR,METAL GLAZED(CHIP) 3.6KOHM 1/16 W 1% 1608 R/TP

LR224 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

LR225 0RH1502C622 RESISTOR,METAL GLAZED(CHIP) 15K OHM 1 / 16 W 1608 5.00% D

LR227 0RJ1501C477 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1/16 W 1% 1608 R/TP

LR228 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

LR229 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

LR230 0RH1000C622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 16 W 1608 5.00% D

LR233 0RJ5601C477 RESISTOR,METAL GLAZED(CHIP) 5.6K OHM 1/16 W 1% 1608 R/TP

LR236 0RJ0332C477 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1/16 W 1% 1608 R/TP

LR237 0RJ0332C477 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1/16 W 1% 1608 R/TP

LR248 0RH0822C622 RESISTOR,METAL GLAZED(CHIP) 82 OHM 1 / 16 W 1608 5.00% D

LR260 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

LR261 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

LR262 0RH4700C622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 16 W 1608 5.00% D

LR266 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR267 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR273 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR274 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR275 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR276 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR279 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR281 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR282 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

LR283 0RH0822C622 RESISTOR,METAL GLAZED(CHIP) 82 OHM 1 / 16 W 1608 5.00% D

LR284 0RH0822C622 RESISTOR,METAL GLAZED(CHIP) 82 OHM 1 / 16 W 1608 5.00% D

LR285 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

LR286 0RH0822C622 RESISTOR,METAL GLAZED(CHIP) 82 OHM 1 / 16 W 1608 5.00% D

LR287 0RH0222C622 RESISTOR,METAL GLAZED(CHIP) 22 OHM 1 / 16 W 1608 5.00% D

LR288 0RH0822C622 RESISTOR,METAL GLAZED(CHIP) 82 OHM 1 / 16 W 1608 5.00% D

LR291 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR296 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR298 0RJ0332C477 RESISTOR,METAL GLAZED(CHIP) 33 OHM 1/16 W 1% 1608 R/TP

LR310 0RH1803C622 RESISTOR,METAL GLAZED(CHIP) 180K OHM 1 / 16 W 1608 5.00% D

LR312 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D

LR313 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D

LR316 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D

26-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

LR317 0RH2202C622 RESISTOR,METAL GLAZED(CHIP) 22K OHM 1 / 16 W 1608 5.00% D

LR323 0RH0181D622 RESISTOR,METAL GLAZED(CHIP) 1.8 OHM 1 / 10 W 2012 5.00% D

LR368 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR511 0RH0472C622 RESISTOR,METAL GLAZED(CHIP) 47 OHM 1 / 16 W 1608 5.00% D

LR522 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LR523 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D

LPB271 6630B00077F CONNECTOR (CIRC),BOARD TO BOAR AA3G88-G2K2L-P P-TWO 55PIN 2.5

*** BOARD ASSEMBLY ***

A47 3501R-2332A BOARD ASSEMBLY DVD SMPS(CIS,EUROP,WIDE) 450V/

IC101 0IPMG78398A IC,POWER MANAGEMENT STR-W6251 SANKEN 6PIN,TO-220F-

BC101 636-004C FILTER(CIRC),EMC BEAD CORE BFS3550R2FD8,R T/P

BD101 0DRVH00060A DIODE,RECTIFIERS GBL08L-5701E3-22 VISHAY BK GBL

C101 624-088F CAPACITOR,DRAWING PCX2 275V 0.1UF,M (PILKO)

C102 624-088F CAPACITOR,DRAWING PCX2 275V 0.1UF,M (PILKO)

C103 0CE127JV640 CAPACITOR,FIXED ELECTROLYTIC 120UF SMH,HC 450V 20% FM10 BUL

C104 0CN1040K948 CAPACITOR,FIXED TUBULAR(HIGH D 0.1UF D 50V 80%,-20% F(Y5V) TA

C105 0CQ1031Y519 CAPACITOR,FIXED FILM 0.01UF D 630V 10% PE NI TP5

C106 624-087G CAPACITOR,FIXED CERAMIC(HIGH D HIGH-VOL 68PF/1KV SMPS SAMHWA

C107 0CQ1521N409 CAPACITOR,FIXED FILM 0.0015UF D 100V 5% PE TP5

C108 0CQ4721N409 CAPACITOR,FIXED FILM 0.0047UF D 100V 5% PE TP5

C109 0CE336BH638 CAPACITOR,FIXED ELECTROLYTIC 33UF KME TYPE 25V 20% FM5 TP 5

C112 0CG1020U630 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF D 400V 20% E(Z5U) R

C113 0CG1020U630 CAPACITOR,FIXED CERAMIC(TEMP.C 1000PF D 400V 20% E(Z5U) R

C120 0CE2276F638 CAPACITOR,FIXED ELECTROLYTIC 220UF SMS,SG 16V 20% FM5 TP 5

C121 0CE2282F611 CAPACITOR,FIXED ELECTROLYTIC 2200UF KMF 16V 20% BK7.5 FL

C122 624-085D CAPACITOR,FIXED ELECTROLYTIC CE 47UF/50V KME (SMPS)

C123 0CE108EH610 CAPACITOR,FIXED ELECTROLYTIC 1000UF KMG 25V 20% BULK FL

C124 0CE2282F611 CAPACITOR,FIXED ELECTROLYTIC 2200UF KMF 16V 20% BK7.5 FL

C125 0CE2282F611 CAPACITOR,FIXED ELECTROLYTIC 2200UF KMF 16V 20% BK7.5 FL

C126 624-085D CAPACITOR,FIXED ELECTROLYTIC CE 47UF/50V KME (SMPS)

C133 624-082G CAPACITOR,FIXED ELECTROLYTIC CE 470UF/25V SHL(10*12.5)T/P

C134 624-082H CAPACITOR,FIXED ELECTROLYTIC CE 1000UF/10V SHL(10*12.5)T/P

C135 624-082H CAPACITOR,FIXED ELECTROLYTIC CE 1000UF/10V SHL(10*12.5)T/P

C143 0CQ6831N409 CAPACITOR,FIXED FILM 0.068UF D 100V 5% PE TP5

C155 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

C156 0CE1074F638 CAPACITOR,FIXED ELECTROLYTIC 100UF SRA,SS 16V 20% FM5 TP 5

D101 0DRRE00163A DIODE,RECTIFIERS 1F7(U FORMING) RECTRON BK NON

D102 0DD010009AC DIODE,RECTIFIERS EU01W(R-FORM) TP SANKEN

D121 0DR104009BA DIODE,RECTIFIERS RL104F TP RECTRON - 400V 1A 30

D122 0DR104009BA DIODE,RECTIFIERS RL104F TP RECTRON - 400V 1A 30

D124 0DSGF00040A DIODE,SWITCHING UF5402-M11 GULF BK DO201AD 200

D125 0DSKE00141B DIODE,SWITCHING B5A60VI , 4MM CUTTING KEC ST T

D125 0DSNH00020B DIODE,SWITCHING FSQ05A06 4MM CUTTING NIHON INT ALTERNATE

D126 0DR104009BA DIODE,RECTIFIERS RL104F TP RECTRON - 400V 1A 30

D128 0DSGF00030A DIODE,SWITCHING SB360-24A GULF BK DO201AD 60V

D128 0DSDI00090A DIODE,SWITCHING SB360 DIODES BK DO201AD 60V 3A ALTERNATE

F101 0FS1601B51D FUSE,SLOW BLOW 1600MA 250 V 5.2X20 CY/GL KS/J

FH01 586-008B HOLDER FUSE CLIP TP SINSUNG

FH02 586-008B HOLDER FUSE CLIP TP SINSUNG

FR121 0RF0200F708 RESISTOR,VARIABLE[CARBON FILM] 0.2 OHM 1/6 W 10% TA26

IC102 657-063A SENSOR LTV-817B,PHOTO COUPLER(LITEON)

IC102 6500RDB010A SENSOR PC123YN2J00F SHARP PHOTOCOUPLE ALTERNATE

IC103 0IKE431000A IC,KEC KIA431 3 PIN TP - -

IC103 0ISS431000A IC,SAMSUNG ELECTRONICS KA431AZ (LM431AZ) - - - - ALTERNATE

IC155 0IPMGKE048A IC,POWER MANAGEMENT KIA278R12PI-CU KEC 4PIN,TO220I

IC155 0IPMG78356A IC,POWER MANAGEMENT G9212 GMT 4PIN,TO-220F-4L STIC ALTERNATE

IC156 0IPMGFA006C IC,POWER MANAGEMENT KA378R05-TSTU FAIRCHILD 4PIN,T

27-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

IC156 0IPMGKE053B IC,POWER MANAGEMENT KIA378R05PI-CU KEC 4PIN,TO-220 ALTERNATE

L102 6200JB8013R FILTER(CIRC),EMC SQ2626 SAMWAH TECOM BK SQ2424

L123 6140RCC003H COIL,RF CHOKE COIL 22 UH 8X8 5 PIE SAM

L124 6140RCC009A COIL,RF BAR CHOKE COIL 2 PIN 10 UHCCAR

L125 6140RCC003H COIL,RF CHOKE COIL 22 UH 8X8 5 PIE SAM

P104 561-661B CONNECTOR (CIRC),HOUSING 5267-02A MOLEX 2PIN 2-54MM STR

P1701 6630R-BF03K CONNECTOR (CIRC),BOARD TO BOAR JE121-12 JAE EUN 12P 2.54MM

P1D01 6630R1P005B CONNECTOR (CIRC),WAFER JE202-1-T-04 JAE EUN 4P 3.96MM

PW101 561-292B CONNECTOR(CIRC),DRAWING GP390 LGC 3P 3.96 STRAIGHT SN

R100 0RD1504H632 RESISTOR,FIXED CARBON FILM 1.5M OHM 1/2 W 5.00% MF10

R104 0RS5602K619 RESISTOR,FIXED METAL OXIDE FIL 56K OHM 2 W 5.00% TR

R105 0RD0182F608 RESISTOR,FIXED CARBON FILM 18 OHM 1/6 W 5.00% TA26

R109 0RS0300K618 RESISTOR,FIXED METAL OXIDE FIL 0.3 OHM 2 W 5% RT5

R122 0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26

R131 0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26

R141 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R142 0RD2201F608 RESISTOR,FIXED CARBON FILM 2.2K OHM 1/6 W 5% TA26

R143 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26

R144 0RN3301F408 RESISTOR,FIXED METAL FILM 3.3K OHM 1/6 W 1% TA26

R145 0RN2701F408 RESISTOR,FIXED METAL FILM 2.7K OHM 1/6 W 1% TA26

R146 0RD2200F608 RESISTOR,FIXED CARBON FILM 220 OHM 1/6 W 5% TA26

R147 0RD1003F608 RESISTOR,FIXED CARBON FILM 100K OHM 1/6 W 5% TA26

R155 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R156 0RD4701F608 RESISTOR,FIXED CARBON FILM 4.7K OHM 1/6 W 5% TA26

R160 0RS1200J619 RESISTOR,FIXED METAL OXIDE FIL 120 OHM 1 W 5.00% TR

R181 0RD0222F608 RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26

R191 0RD0222F608 RESISTOR,FIXED CARBON FILM 22 OHM 1/6 W 5% TA26

T101 6170RNGW23Q TRANSFORMER,SMPS[COIL] EER3534 SAMWHA,KESAN RH100 FOR

TH01 6322B62204A THERMISTOR,PTC NTPAN4R0LDRB0 MURATA 4.0OHM 15

V101 656-004C VARISTOR,DRAWING SVC681D-10A SAMHWA 4.O CUT

ZD101 0DZ332609DA DIODE,ZENERS UZ-33BSD 26MM TP PYUNG CHANG

ZD103 0DZ120009BH DIODE,ZENERS UZ-12BSC PYUNG CHANG TP26 DO34

ZD121 0DZ332609FA DIODE,ZENERS UZ-3.3B TP PYUNG CHANG DO34 0.

D127 0DSKE00141A DIODE,SWITCHING B5A60VI KEC ST TO-220IS 60V 5A

*** CHASSIS ASSEMBLY ***

A44 3141R-D082B CHASSIS ASSEMBLY RH1000 MAIN EROUPE

260 3140R-D030A CHASSIS RH1000 PRESS MAIN NSP

261 5040R-0069Q RUBBER DVD DV9000S OTHER 05 NEW FOOT

262 4986R-0030L GASKET DVD RH1000 OTHER W20*L40*H25 E

264 4930R-8001A HOLDER DVD RH1000 MOLD MAIN PCB

265 4930R-0348A HOLDER POWER CORD (DV6000)

267 5900R-D023C FAN,DC FD124015LS(1N2K) YSTECH 40X40X

268 4930R-0558A HOLDER DVD DR7000 MOLD FAN

320 3720R-D138B PANEL,VIDEO DVD RH/DR10 PRESS BACK EROUPE

465 1SZZR-0097N SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FZB 3CR BK

467 1SZZR-0098X SCREW,DRAWING + 2 D3.0 L20.0 MSWR3/FZB 3CR

*** BOARD ASSEMBLY ***

A43 3501RF7701F BOARD ASSEMBLY DVD RH1758S NA9SSL FRONT

275 3300RCH001B PLATE DKS-5000 PRESS GND 14MM

280 3721R-F971F PANEL ASSEMBLY,FRONT DVD RH1758S NA9SSL FRONT PANEL NSP

452 1SZZR-0098A SCREW,DRAWING + 2 D3.0 L10.0 MSWR3/FZMCY-1 3

A50 6871R-9664A PWB(PCB) ASSEMBLY,TOTAL 6,7,8 TOOL (FRONT) RH1000

C901 0CH1103K562 CAPACITOR,FIXED CERAMIC(TEMP.C 0.01UF 50V 10% X7R(X) 1608 R/T

C902 0CH1223K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.022UF 50V 80%,-20% Y5V(F) 16

C903 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C904 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C905 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

28-5

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

C906 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C907 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C908 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

C909 0CH1104K942 CAPACITOR,FIXED CERAMIC(TEMP.C 0.1UF 50V 80%,-20% Y5V(F) 1608

IC901 0IPRPPY002A IC,PERIPHERALS PT6315 PTC 44 LQFP TRAY VFD DR

L901 6140H-B003G INDUCTOR,CHIP NLC322522T-100K 10MH TDK

L902 6140H-B003G INDUCTOR,CHIP NLC322522T-100K 10MH TDK

PTM01 6630XE00116 CONNECTOR (CIRC),FFC/FPC 04-6232-016-010-800+ ELCO 16P

R901 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R902 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D

R903 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R904 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R905 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D

R906 0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D

R907 0RH0102C622 RESISTOR,METAL GLAZED(CHIP) 10 OHM 1 / 16 W 1608 5.00% D

R908 0RH5602C622 RESISTOR,METAL GLAZED(CHIP) 56K OHM 1 / 16 W 1608 5.00% D

R909 0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D

R910 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R911 0RH8200C622 RESISTOR,METAL GLAZED(CHIP) 820 OHM 1 / 16 W 1608 5.00% D

R912 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

R913 0RH3301C622 RESISTOR,METAL GLAZED(CHIP) 3.3K OHM 1 / 16 W 1608 5.00% D

R914 0RH2201C622 RESISTOR,METAL GLAZED(CHIP) 2.2K OHM 1 / 16 W 1608 5.00% D

R915 0RH1501C622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 16 W 1608 5.00% D

R916 0RH1201C622 RESISTOR,METAL GLAZED(CHIP) 1.2K OHM 1 / 16 W 1608 5.00% D

R917 0RH8200C622 RESISTOR,METAL GLAZED(CHIP) 820 OHM 1 / 16 W 1608 5.00% D

R918 0RH6800C622 RESISTOR,METAL GLAZED(CHIP) 680 OHM 1 / 16 W 1608 5.00% D

R923 0RH3300C622 RESISTOR,METAL GLAZED(CHIP) 330 OHM 1 / 16 W 1608 5.00% D

C910 0CE2274C638 CAPACITOR,FIXED ELECTROLYTIC 220UF SRA,SS 6.3V 20% FM5 TP 5

C911 0CE4763F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRE,SE 16V 20% FM5 TP 5

C912 0CE4763F638 CAPACITOR,FIXED ELECTROLYTIC 47UF SRE,SE 16V 20% FM5 TP 5

DIS901 6302R-V243A DIGITRON FV-834ND FUTABA SEG VFD DR7000

PTT01 561-711B CONNECTOR (CIRC),WAFER GIL-S-02P-S2T2-EF LG CABLE 2PI

PTT02 561-711B CONNECTOR (CIRC),WAFER GIL-S-02P-S2T2-EF LG CABLE 2PI

RM901 6712R1638GB REMOTE CONTROLLER RECEIVER TSOP4438RF1 VISHAY 38KHZ =TSOP

SW901 6600R000028 SWITCH,TACT TSHB-2V HUA JIE 12VDC DC 50MA

SW902 6600R000028 SWITCH,TACT TSHB-2V HUA JIE 12VDC DC 50MA

SW903 6600R000028 SWITCH,TACT TSHB-2V HUA JIE 12VDC DC 50MA

SW904 6600R000028 SWITCH,TACT TSHB-2V HUA JIE 12VDC DC 50MA

SW905 6600R000028 SWITCH,TACT TSHB-2V HUA JIE 12VDC DC 50MA

SW906 6600R000028 SWITCH,TACT TSHB-2V HUA JIE 12VDC DC 50MA

SW907 6600R000028 SWITCH,TACT TSHB-2V HUA JIE 12VDC DC 50MA

SW908 6600R000028 SWITCH,TACT TSHB-2V HUA JIE 12VDC DC 50MA

SW909 6600R000028 SWITCH,TACT TSHB-2V HUA JIE 12VDC DC 50MA

CABLE1 6631R-E116H CONNECTOR ASSEMBLY GIL-S/GIL-S 2P 260M/M 1 TAPPIN

CABLE2 6850R-GP10D CABLE,FLAT P=1.0 FFC UL2896(0.05X0.65) 16

29-5

*DIFFERENCE TABLE

MODELS: (A)RH178(STUH), (B)RH178H(LGEBN)

RUN DATE:18,APRIL.2006

NSP:Not Service Part

SAL LOCA.NO PART NO(LG) A B DESCRIPTION SPECIFICATION REMARKS

A43 3501RF7701N O Board Assembly DVD RH1758S NA9SSL FRONT BOARD

A43 3501RF7701S O Board Assembly DVD RH1768S NA7BLL FRONT BOARD

A46 3501R-9009B O Board Assembly DVD D/L ,HDMI (RH1000) DI

A46 3501R-9009C O Board Assembly DVD D/L (RH1000) DI

A52 3501R-669AS O Board Assembly DVD RH1758S .NA9SSL

A52 3501R-669HA O Board Assembly DVD RH1768S .NA7BLL

280 3721R-F971N O Panel Assembly,Front DVD RH1758S NA9SSL CHANGE DIVX

280 3721R-F971S O Panel Assembly,Front DVD RH1768S NA7BLL FRONT PANEL

320 3720R-D138A O Panel,Rear PRESS SECC T0.8 DVD RH1000 PRE

320 3720R-D138B O Panel,Rear PRESS SECC T0.8 DVD RH/DR10 PR

801 3835RD0088K O Manual Assembly DVD RH1757S/RH1758S-NA9SSL

801 3835RD0088J O Manual Assembly DVD RH1757S-NA7BLL

802 3890R-C332F O Box RH1758S NA9SSL SW3-A

802 3890R-C454V O Box,Master RH1768S NA7BLL SW3-A

900 6711R1P108C O Remote Controller Assembly H3 RH1988S LG W/HDMI,W/O SHOWV

900 6711R1P108F O Remote Controller Assembly H3 RH1757P1 NA8SLL LG W/O HDMI

AR1701 0RRZVTA001F O Resistor,Array RCA86TRJ33R0 33OHM 5% 1/16W 4

AR1702 0RRZVTA001F O Resistor,Array RCA86TRJ33R0 33OHM 5% 1/16W 4

AR1703 0RRZVTA001F O Resistor,Array RCA86TRJ33R0 33OHM 5% 1/16W 4

AR1704 0RRZVTA001F O Resistor,Array RCA86TRJ33R0 33OHM 5% 1/16W 4

AR1705 0RR0222Q62A O Resistor,Array RCA86TRJ22R0 22OHM 5% 1/16W 4

AR1706 0RR0222Q62A O Resistor,Array RCA86TRJ22R0 22OHM 5% 1/16W 4

AR1707 0RR0222Q62A O Resistor,Array RCA86TRJ22R0 22OHM 5% 1/16W 4

AR1708 0RR0222Q62A O Resistor,Array RCA86TRJ22R0 22OHM 5% 1/16W 4

C1701 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1702 0CH1102K512 O Capacitor,Ceramic,Chip 0603B102K500CT 1nF 10% 50V Y5P

C1703 0CH1102K512 O Capacitor,Ceramic,Chip 0603B102K500CT 1nF 10% 50V Y5P

C1704 0CH7106D611 O Capacitor,TA,Niobium TSM1A106ASSR 10uF 20% 10V 1UA

C1705 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1706 0CH1102K512 O Capacitor,Ceramic,Chip 0603B102K500CT 1nF 10% 50V Y5P

C1707 0CH1102K512 O Capacitor,Ceramic,Chip 0603B102K500CT 1nF 10% 50V Y5P

C1708 0CH7226D621 O Capacitor,TA,Niobium TSM1A226TSSR 22uF 20% 10V 2.2U

C1709 0CH7226D621 O Capacitor,TA,Niobium TSM1A226TSSR 22uF 20% 10V 2.2U

C1710 0CH1102K512 O Capacitor,Ceramic,Chip 0603B102K500CT 1nF 10% 50V Y5P

C1711 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1712 0CH1102K512 O Capacitor,Ceramic,Chip 0603B102K500CT 1nF 10% 50V Y5P

C1713 0CH1102K512 O Capacitor,Ceramic,Chip 0603B102K500CT 1nF 10% 50V Y5P

C1714 0CH1102K512 O Capacitor,Ceramic,Chip 0603B102K500CT 1nF 10% 50V Y5P

C1715 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1716 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1717 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1718 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1719 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1720 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1721 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1722 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1723 0CH1104K512 O Capacitor,Ceramic,Chip 0603B104K500CT 100nF 10% 50V Y

C1725 0CH7106D611 O Capacitor,TA,Niobium TSM1A106ASSR 10uF 20% 10V 1UA

C1726 0CH7476D651 O Capacitor,TA,Niobium TSM1A476CSSR 47uF 20% 10V 4.7U

CF1701 6200J000148 O Filter,Bead 90 OHM 2.0X1.2X1.2 SMD R/TP

CF1702 6200J000148 O Filter,Bead 90 OHM 2.0X1.2X1.2 SMD R/TP

30 -5

SAL LOCA.NO PART NO(LG) A B DESCRIPTION SPECIFICATION REMARKS

CF1703 6200J000148 O Filter,Bead 90 OHM 2.0X1.2X1.2 SMD R/TP

CF1704 6200J000148 O Filter,Bead 90 OHM 2.0X1.2X1.2 SMD R/TP

IC1701 0IPRP00666A O IC,Video Processors SIL9030 1.8VTO3.3V 27MHZ - - T

IC1703 0IPRP00664A O IC,I/O Support Chip UPA672T 50V 200mA - SC70 R/TP

JK701 6630R-SY08W O Conector,I/O HMR48-AK5210 19P 0.50MM ANGLE

L1701 6200HJC102A O Filter,Bead HB-1M2012-102JT 1000OHM 2X1.25

L1702 6200HJC102A O Filter,Bead HB-1M2012-102JT 1000OHM 2X1.25

L1703 6200HJC102A O Filter,Bead HB-1M2012-102JT 1000OHM 2X1.25

L1704 6200HJC102A O Filter,Bead HB-1M2012-102JT 1000OHM 2X1.25

R1148 0RH0752C622 O Resistor,Chip MCR03EZPJ750 75OHM 5% 1/10W 16

R1149 0RH1002C622 O Resistor,Chip MCR03EZPJ103 10KOHM 5% 1/10W 1

R1701 0RH0222C622 O Resistor,Chip MCR03EZPJ220 22OHM 5% 1/10W 16

R1701 0RH4701C622 O Resistor,Chip MCR03EZPJ472 4.7KOHM 5% 1/10W

R1702 0RH0222C622 O Resistor,Chip MCR03EZPJ220 22OHM 5% 1/10W 16

R1702 0RH4700C622 O Resistor,Chip MCR03EZPJ471 470OHM 5% 1/10W 1

R1704 0RH4701C622 O Resistor,Chip MCR03EZPJ472 4.7KOHM 5% 1/10W

R1705 0RH4701C622 O Resistor,Chip MCR03EZPJ472 4.7KOHM 5% 1/10W

R1706 0RH4701C622 O Resistor,Chip MCR03EZPJ472 4.7KOHM 5% 1/10W

R1707 0RH1801C622 O Resistor,Chip MCR03EZPJ182 1.8KOHM 5% 1/10W

R1708 0RH1801C622 O Resistor,Chip MCR03EZPJ182 1.8KOHM 5% 1/10W

R1709 0RH0000C622 O Resistor,Chip MCR03EZPJ000 0OHM 5% 1/10W 160

R1710 0RH4702C622 O Resistor,Chip MCR03EZPJ473 47KOHM 5% 1/10W 1

R1712 0RH0332C622 O Resistor,Chip MCR03EZPJ330 33OHM 5% 1/10W 16

R1713 0RH0222C622 O Resistor,Chip MCR03EZPJ220 22OHM 5% 1/10W 16

R1714 0RH0222C622 O Resistor,Chip MCR03EZPJ220 22OHM 5% 1/10W 16

R1715 0RH3301C622 O Resistor,Chip MCR03EZPJ332 3.3KOHM 5% 1/10W

R1716 0RH3301C622 O Resistor,Chip MCR03EZPJ332 3.3KOHM 5% 1/10W

R1717 0RH0000C622 O Resistor,Chip MCR03EZPJ000 0OHM 5% 1/10W 160

R1718 0RH0000C622 O Resistor,Chip MCR03EZPJ000 0OHM 5% 1/10W 160

V1701 6102R7E001A O Varistor AVRL161A1R1NT 10V - 1.1pF 1.6X

V1702 6102R7E001A O Varistor AVRL161A1R1NT 10V - 1.1pF 1.6X

V1703 6102R7E001A O Varistor AVRL161A1R1NT 10V - 1.1pF 1.6X

V1704 6102R7E001A O Varistor AVRL161A1R1NT 10V - 1.1pF 1.6X

V1705 6102R7E001A O Varistor AVRL161A1R1NT 10V - 1.1pF 1.6X

V1706 6102R7E001A O Varistor AVRL161A1R1NT 10V - 1.1pF 1.6X

V1707 6102R7E001A O Varistor AVRL161A1R1NT 10V - 1.1pF 1.6X

V1708 6102R7E001A O Varistor AVRL161A1R1NT 10V - 1.1pF 1.6X

EEPROM(OPTION HEX CODE) 1-6 PAGE

EEPROM 6957R-669AS O S/W,System Program D8 00 20 60 4A AC 03 08 (RH175

EEPROM 6957R-669HA O S/W,System Program D8 00 10 60 4A AE 02 05 (RH176

31-5

NOTES) NOTES)

SECTION REPLACEMENT PARTS LIST

MODEL :

RH188H

(

RH1888S NA3FLL

)

LGEFS BASI

If you want to purchase

Flash memory, you must order

" IC1301A "

Warning

Parts that are shaded are critical With

respect to risk of fire or electrical

shock.

RUN DATE : 18-APRIL-06

SALLOC

. NO. PART NO. DESCRIPTION SPECIFICATION REMARKS

*** INDIVIDUAL PARTS ***

250 3110R-D034C CASE RH/DR1000 PRESS TOP S-MULTI B6

251 5040R-0069Q RUBBER DVD DV9000S OTHER 05 NEW FOOT

273 4811R-8001B BRACKET ASSEMBLY DVD RH1000/DR100 JACK

300 6410RCHP02B POWER CORD HIT-102/H0VHH2-F(WITH CORE) HI

463 1SZZR-0098G SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FZMCW-1 3C

465 1SZZR-0097N SCREW,DRAWING + 2 D3.0 L8.0 MSWR3/FZB 3CR BK

468 1SZZR-0098J SCREW,DRAWING + 2 D3.0 L6.5 MSWR3/FZMCY-1 3

471 1SZZR-0098Y SCREW,DRAWING + 2 D3.0 L24.0 MSWR3/FZB 3CR B

801 3835RD0088N INSTRUCTION ASSEMBLY DVD RH1878S/RH1888S-NA3FLL

802 3890R-C332C BOX RH1888S NA3FLL SWM3-A

803 3920R-E221A PACKING DVD RH1000S 129G 06 RH1000

804 292-053B BAG SOFT(MIDI) NSP

808 534-008C BATTERY,MANGANESE AAAM(R03) SEOTONG 1-5 V - 1PA

900 6711R1P108C REMOTE CONTROLLER ASSEMBLY H3 RH1988S LG W/HDMI,W/O SHOWV

CABLE5 6850R-EA19Y CABLE,FLAT P=0.5 FFC UL2896 SPECIAL 190 C

*** CABLE ASSEMBLY ***

810 6851R-0092B CABLE ASSEMBLY PAL RF 1.2M(CAA2H)+1W YL(PAA2F

806 6850R-CAA2H CABLE,COAXIAL RF PAL DOUBLE SHIELD DT_HY_HIT

811 6850R-PAA2F CABLE,COAXIAL 1 WAY COAXIAL DT_HY_HIT_SEIL

812 6850R-PBA2H CABLE,COAXIAL 2 WAY COAXIAL RED_WHITE DT_HY_

821 6850R-SUA8F CABLE,COAXIAL SCART TO SCART 21 PIN DT_HY_HI

*** BOARD ASSEMBLY ***

A46 3501R-9009B BOARD ASSEMBLY DVD D/L ,HDMI (RH1000) DI
