RI-100

Owner’s Manual

RI-100 | Version 1

of this publication may be

reproduced, stored in or

introduced into a retrieval

system, or transmitted in

any form, or by any means

(electronic, mechanical,

photocopying, recording

or otherwise) without the

prior written permission of

Vitus Audio. Any person who

does any unauthorized act

in relation to this publication

may be liable to criminal

prosecution and civil claims for

damages.

Information contained in this

manual is subject to change

without notice, and whilst it

is checked for accuracy, no

liabilities can be accepted for

errors.

RI-100 | Version 1

table of contents

on a personal note

Certiﬁcate . . . . . . . . . . . . 6

from the creator

Foreword . . . . . . . . . . . . . 7

introduction

About this manual . . . . . . . . 8

Introduction to the Reference Se-

ries . . . . . . . . . . . . . . . . . 8

1. getting started

Unpacking the box . . . . . . . . 10

What’s in the box . . . . . . . . . 10

Device overview . . . . . . . . .11

The topology of the volume con-

trol. . . . . . . . . . . . . . . . .12

2. connecting

Turning the RI-100 on and off. . . 13

RI-100 rear panel . . . . . . . . . 14

Connecting the RI-100 . . . . . . 14

3. operation

Operation modes . . . . . . . .16

Functions – left front panel . . .18

Functions – right front panel . .19

The menu structure . . . . . . .20

Discription of the elements

in the menu. . . . . . . . . 22

The menu structure . . . . . . .23

4. operation & service

Safety notice . . . . . . . . . . . 24

Mains supply voltage . . . . . .24

Maintenance . . . . . . . . . . . 24

Mains fuse . . . . . . . . . . . .25

Replacing a blown fuse . . . . .26

5. warranty

Warranty . . . . . . . . . . . . .28

6. specifications

RI-100 Speciﬁcations . . . . . . . 31

Load values of the RIAA Module. 32

7. examples operation

Example 1 . . . . . . . . . . . .33

Example 2 . . . . . . . . . . . .34

Example 3 . . . . . . . . . . . .35

Example 4 . . . . . . . . . . . .36

Example 5 . . . . . . . . . . . .37

Example 6 . . . . . . . . . . . .38

Example 7 . . . . . . . . . . . .39

Example 8 . . . . . . . . . . . .40

Example 9 . . . . . . . . . . . . . 41

Example 10 . . . . . . . . . . . . 42

Example 11 . . . . . . . . . . . . 43

Example 12 . . . . . . . . . . . . 44

Example 13 . . . . . . . . . . . . 45

7. examples connecting

devices

Connecting devices . . . . . . . 46

Connecting devices 1 . . . . . .47

Connecting devices 2 . . . . . .48

Connecting devices 3 . . . . . .49

8. pictures

RI-100 Inside view . . . . . . . .50

RI-100 Front . . . . . . . . . . . . 51

RI-100 | Version 1

on a personal note

Certiﬁcate

Model: RI-100

Product ID/Serial

__________________________________

Product Build Date

__________________________________

Signed

__________________________________

All products details, specifications and

measurements are recorded for your RI-100

and kept by Vitus Audio.

RI-100 | Version 1

from the creator

Foreword

First of all, thank you for

choosing the Vitus Audio

RI-100 integrated amplifier,

we are sure you will enjoy it

for many years to come. When

purchasing a Vitus Audio

product, you are guaranteed a

musical performance,

which exceeds the current

musical standards. Vitus

Audio is dedicated to musical

performance rather than

technical details and high

performance measures.

We believe that many

manufactures are blinded by

the current available theory,

instead of looking for new

answers.

At Vitus Audio everything

works until proven not to.

This way we always try to

push the limits and explore

the unexplored. As a result

of this, many of the solutions

we use today are considered

to be “impossible to ever

get working”,however they

have convinced many people

and reviewers world wide

of the opposite. Before any

of our new topologies are

implemented in our products,

they are carefully reviewed by

our dedicated listening panel.

This way we can guarantee

the correct level of musically

performance and robustness.

Generally we’re after super

neutral, super detailed and

super dynamic reproduction

without “loosing” the nerve

in the music which often is

a drawback of many high

end amplifiers. Our real

strongholds are complete

silence, unbelievable depth

and width in the soundstage

resulting in a far more open

sound with higher resolution

-you could say, closer to the

artist. As a result of the above,

our amps do not “focus” on

any specific frequencies - i.e.

no extension of top or bas,

which of course results in high

clarity of the midrange since

it’s “naturally present”!

Hans Ole Vitus

RI-100 | Version 1

introduction

About this manual

This is your RI-100 owner’s

manual. The following pages

will describe, as clearly as

possible, how to get your RI-

100 operating fast and simple.

Although some operations are

self-explanatory, we strongly

suggest you read this manual

to avoid any damage to the

unit. The manual is designed

to be helpful. If there are

points you feel we could cover

better, or that we have missed

out – please tell us.

Important

information is

presented like

this. Ignoring this

information may cause

damage to you or the

unit. Damage coused

to the unit by ignoring

this information might

invalidate the warranty.

Introduction to the

Reference Series

The Vitus Audio Reference

Series is a true high-end series

of products, which is build on

our true dedication to neutral

music reproduction. Every

detail is carefully thought

through, and all choices made

during development, where

based purely on listening, and

not measuring. Only the best

available materials are used to

ensure an overall quality which

will last for many years, when

treated right.



RI-100 | Version 1

introduction

This amplifier is

VERY heavy –

make sure to be

at least two people to

unpack the unit. You

might damage both

your back and the

amplifier if extra care

is not applied. Vitus

Audio A/S cannot

be held responsible

for any damage that

is a consequence of

uncareful handling of

the unit.



Figure 1 Box exploded view

Foam top 1

Foam bottom

Box

Foam top 2

Foam Sides

6 pieces

RI-100

Brochure

Manual Power Cable

Mac Remote

RI-100 | Version 1

Unpacking the box

After you have opened the

top, it is possible to remove

the top protective foam which

gives you direct access to the

amplifier. In the top you will

find the remote, the power

cord and brochures. Now

remove the side protective

foam, this will make it easier

to grab hold of the RI-100.

Two people carefully lift the

amplifier out of the box, and

put it directly onto the floor.

Store the empty box and the

protective foam for later use.

What’s in the box

Foam top 1

Vitus Audio Brochure

RI-100 Manual

Mac Remote

Power Cable

Foam top 2

Foam Sides 6 pieces

RI-100

Foam bottom

Box

1. getting started

Device overview

Front panel: Anodized Aluminium

Body: Powder coated Aluminium

Total weight: 40 KG

Figure 2 Device overview

RI-100 | Version 1

1. getting started

165 mm

180 mm

165 mm

435 mm

35 mm

RI-100 | Version 1

1. getting started

The topology of the volume

control used in the RI-100 is

very different compared to the

“standard”. The RI-100 uses a

series of fixed resistor networks

to control the volume. Relays

are used to switch between the

resistor networks. Across all

volume steps, a fixed resistor

is in series with the signal

path. This gives the best per-

formance possible. When you

change volume, a different

number of shunt resistors are

used.

To prevent pop in the output,

we have chosen to first add

the new shunt resistors, and

then wait a short time, before

removing the unused shunt

resistors at the new volume

step. This will give a minor fall

in volume before settling at

the new volume step. It takes

only very little time to get

used to this type of operation

of the volume, and it will give

you superior sound quality

over the traditional digital and

analogue potentiometers.

The topology of the

volume control.

RI-100 | Version 1

2. connecting

Turning the RI-100 on and off.

Always turn on the products beginning from the source:

CD player a pre-amplifier a power amplifier.

Always turn off your products in reverse order:

Power amplifier a pre-amplifier a CD player.

Not following this procedure,

may cause damage to any of

your products/speakers.

Damage caused to any of your

products/speakers by not following

this procedure will invalidate the warranty.



RI-100 rear panel

Outputs

Speaker left

Speaker right

Ground/Earth

Preout. XLR

Optional Headamp

Inputs.

Input 1,2,3. XLR

Input 4,5. RCA

RIAA (optional ) Input 5

Power

Optional DAC interface

Figure 4 Plugs

Speaker out

Ground

XLR out

Jack

XLR out

RCA

Power

XLR in

USB b (male)

RI-100 | Version 1

2. connecting

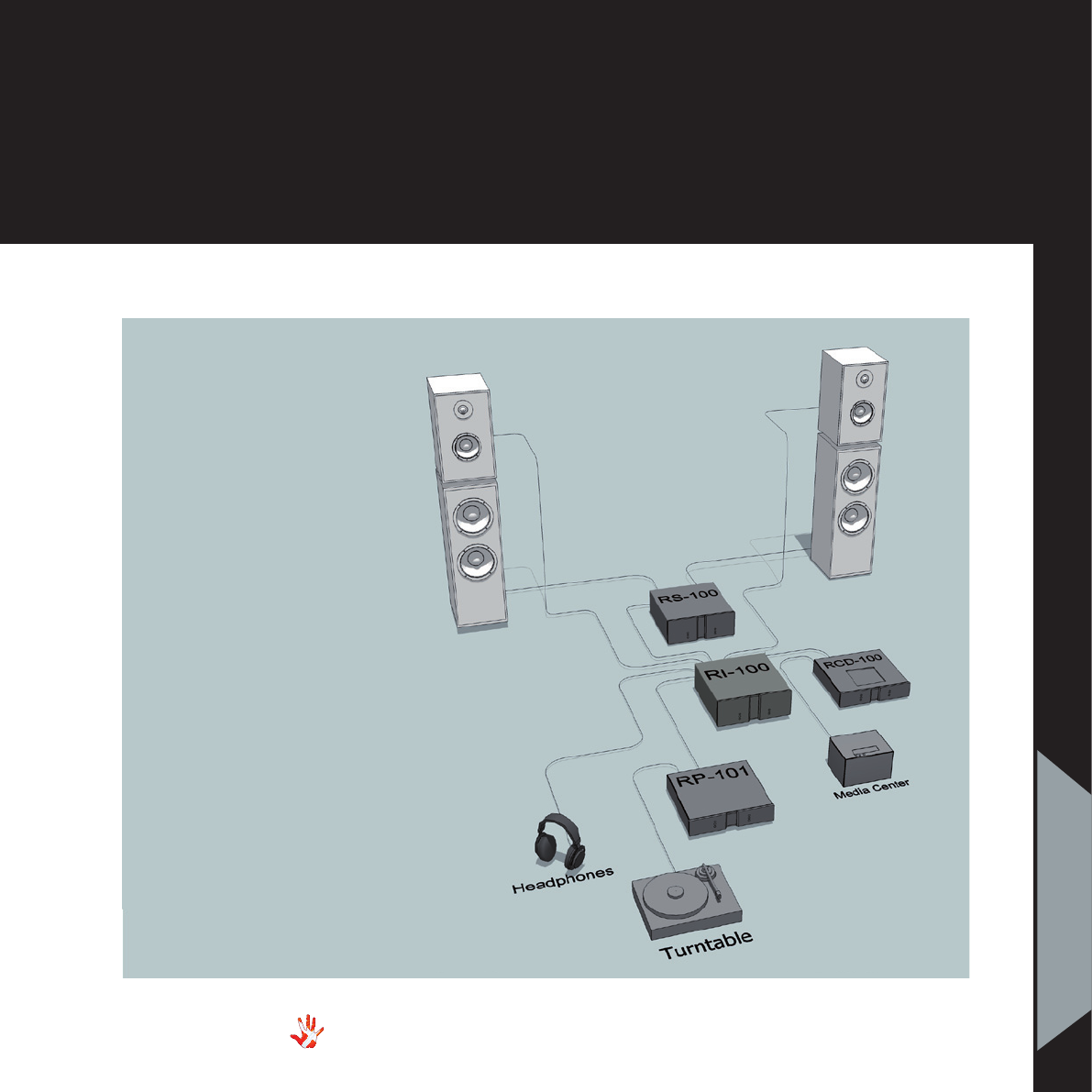

Connecting the RI-100

Place the RI-100 on its shelf.

Connect all the sources to the

inputs of the RI-100, (labelled

INPUT 1 to 5 on the rear

panel.)

Connect the Speaker output of

the RI-100. Carefully connect

the mains to the amplifier,

after you have connected both

inputs and outputs.

This is a true balanced

amplifier, DO NOT connect

the ”-“output (Figure 3) to

any ground source, including

chassis or signal ground, this

will damage the amplifier.

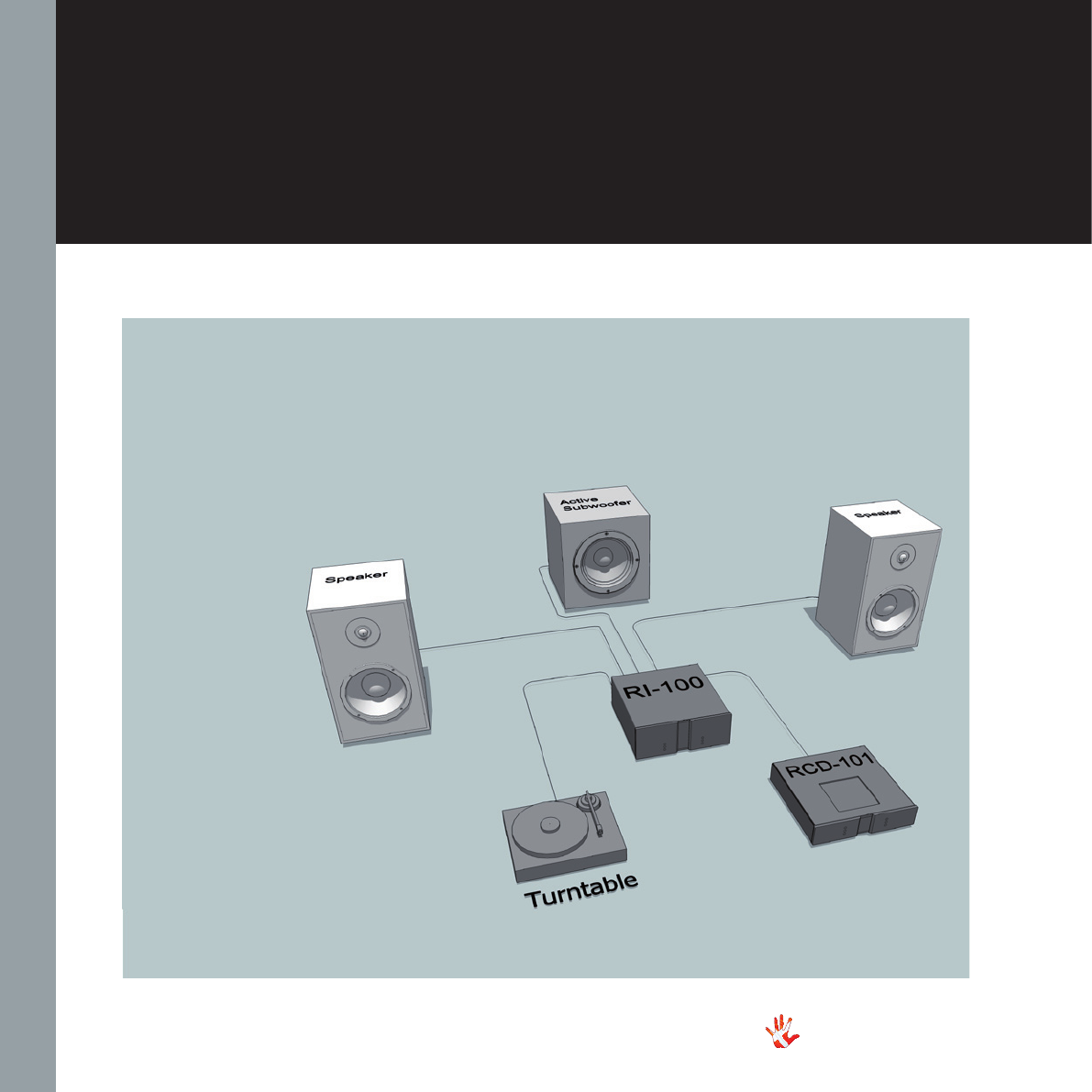

The pre-out connectors can be

connected to a power amplifier

for biamping or an active sub.

Figure 3 ”-“output

Figure 5 RI-100 Rear panel.

GND / EARTH

Input 4 Input 5 / RIAA Input 5 / RIAA Input 4

Input 2 Input 3Input 1 Input 2 Input 1Input 3

This is a true balanced

poweramplier. DO NOT

under any circumstance

connect (-) speaker output

to ground.

Caution

This is a true balanced

poweramplier. DO NOT

under any circumstance

connect (-) speaker output

to ground.

Caution

Optional DAC interface Optional Headamp interface

Use this connection with care

Connecting it to other units

with impropper GND may

damage this unit. Such

damage will not be covered

by warranty!

Caution

Preout Preout

NEUTRIK

PUSH

NEUTRIK

PUSH

NEUTRIK

PUSH

NEUTRIK

PUSH

NEUTRIK

PUSH

NEUTRIK

PUSH

MAINS

Speaker out

Ground

XLR out

Jack

RCA

Power

XLR in

USB b (male)

RI-100 | Version 1

2. connecting

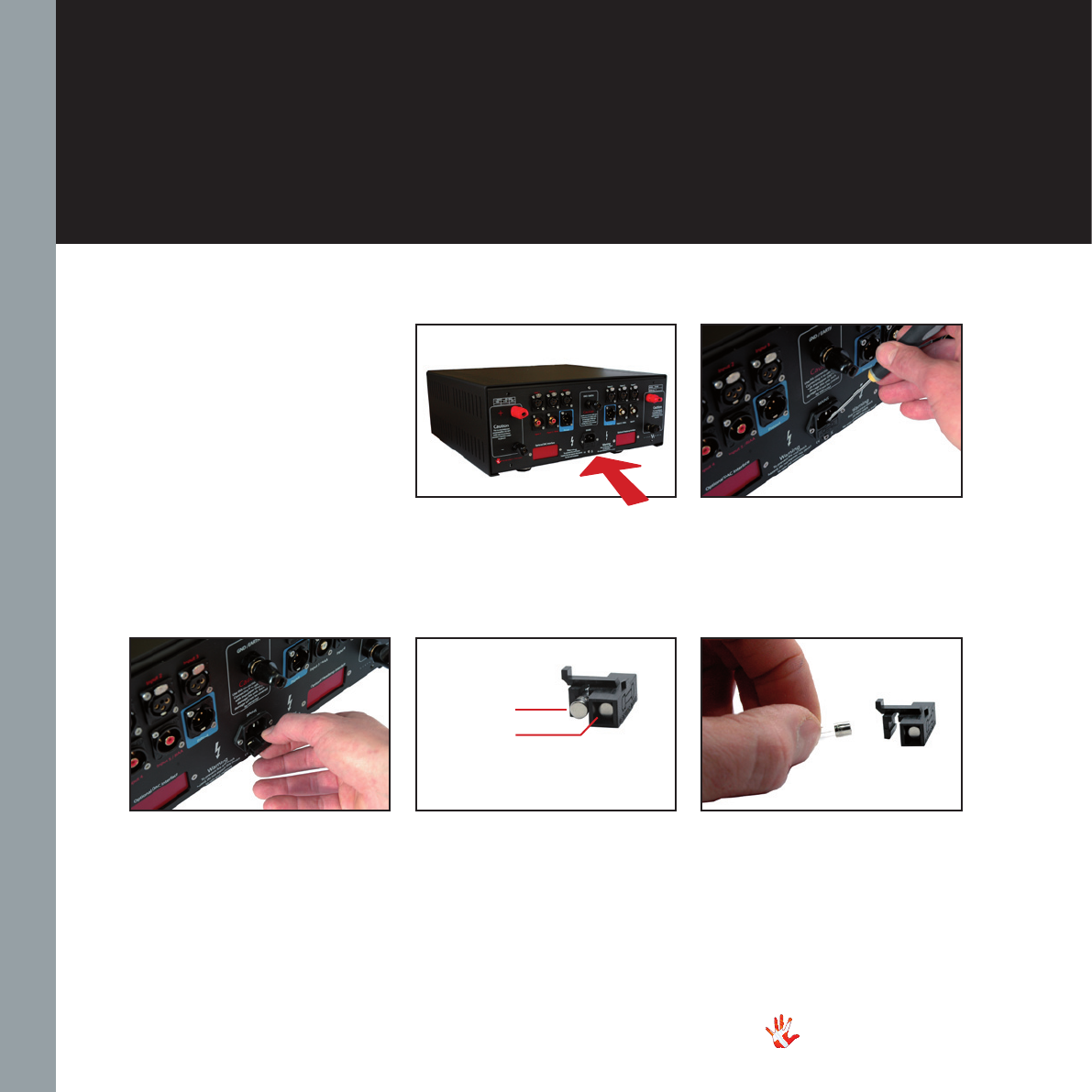

Fuse

RI-100 | Version 1

3. operation

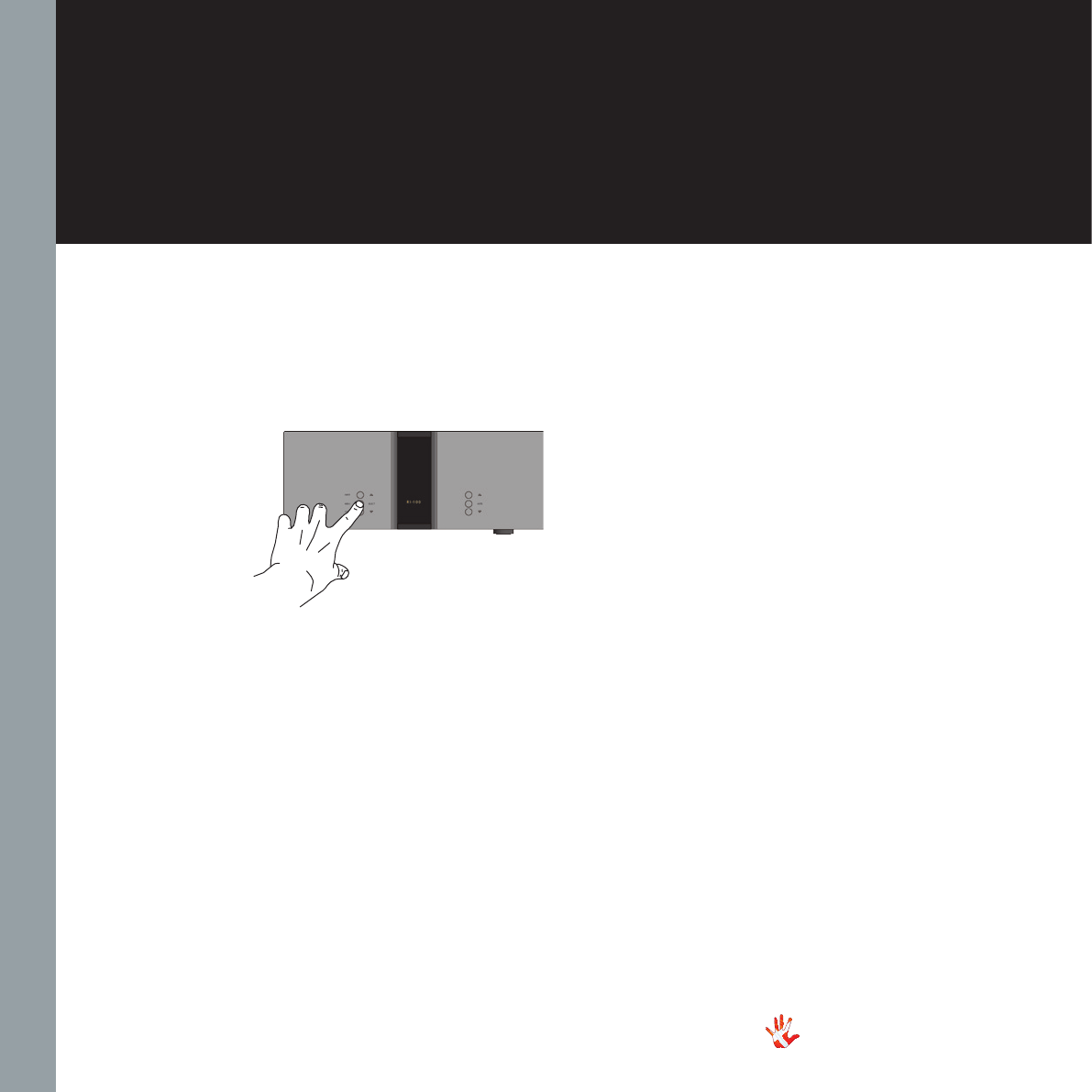

Figure 6 RI-100 Front panel.

Operation modes

RI-100 | Version 1

3. operation

The RI-100 has 3

operation modes

1.Normal mode.

This is the mode you use when

listening to music.

2. Menu mode

In this mode you can alter the

settings of the RI-100.

3. Standby mode.

In this mode the controls of

the RI-100 are deactivated.

The RI-100 does not shut down

in Standby Mode in order to

maintain an optimal working

temperature

3 Operation modes

3. operation

RI-100 | Version 1

3. operation

Normal mode

In normal mode there are

3 basic functions/buttons

available on the left front.

1. INPUT Selects between

the 5 inputs.

2. MENU Switches to

“Menu mode”.

3. STANDBY Switches in and

out of

“Standby Mode”

Menu mode

You enter menu mode, by

pushing the ”MENU” button

once in Normal mode. In the

Menu mode there are 3 basic

functions/buttons:

1.  Scroll forward in the

menu.

2. MENU/ Enter & Exit

SELECT submenus and

selectsettings.

3.  Scroll backward in the

menu.

Figure 7 RI-100 Left front panel.

Functions – left front panel

RI-100 | Version 1

3. operation

Normal mode

In normal mode there are

3 basic functions/buttons

available on the right front:

1.  Turns volume UP.

2. MUTE Mutes the output.

3.  Turns volume DOWN.

Menu mode

In the text-menu it is possible

to change the name of the

input. This is done by using

the following buttons from the

right front:

1.  Change selected

character.

2. MUTE Go to the next

character

in the display.

3.  Change selected

character.

3. operation

Functions – right front panel

Figure 8 RI-100 Right front panel.

RI-100 | Version 1

The menu structure

You can modify the settings

of the RI-100. You do this by

entering the menu. On page

23 you can find a graphical

reproduction of the menu.

The sub-menus are indicated

with a colour.OUTPUT RESET

REMOTE, V.INIT and INPUTS

In the Appendix ( chapter 7

of the manual ) you can find

various examples of how to

change the settings of the

RI-100.

Selecting output

This option is only available

when you have the optional

headamp interface module

installed in the RI-100.

Here you can switch

output from SPEAKERS to

HEADPHONES.

Reset

Restore the settings of the RI-100

to its default settings.

Input settings

The RI-100 comes with 5

inputs. The settings for

each individual input can

be adjusted in the menu.

The input selection is saved

automatically every 10 minutes.

Each time you initialize the

RI-100, the last saved setting

is restored. You can manually

save a setting by pressing the

MENU button down 2-3 sec.

When “SAVE” is shown in the

display, the setting has been

saved.

Input name settings

As a standard, the inputs are

named input 1, input 2, etc. In

the text-menu you can find a

list of predefined input names.

If the name of your device is

not in the list, you can choose

to make your own device

name.

Input gain settings

Offset gain setting / Sensitivity

setting. Different sources often

have different output voltages.

This has a direct influence

on the typical volume level

that is needed for a specific

sound level, hence changing

between sources can result in

high sound level differences.

To accommodate easy

operation, we have included

a gain (or as some prefer to

call it – sensitivity setting) in

our amplifiers – it simply sets

the volume starting point at a

specific volume – to match the

source. The offset-value can be

set from - 12 dB to +12 dB.

Disabling inputs

If you only use some of the

inputs, it is possible to disable

the inputs that are

not used. Using the “Input”

button, the system skips the

disabled inputs, and jumps to

the next input.

3. operation

RI-100 | Version 1

3. operation

Remote settings

The RI-100 is standard shipped

with a Apple Remote.

The Apple remote that

comes with the RI-100 can

be used on all Reference

devices. If you own two (or

more) reference devices than

it is recommended that you

pair the remote(s) with their

devices.

Volume settings

The RI-100 starts up in

the same volume step on

initialization. You can select

in which volume step, the RI-

100 should initialize. You can

set the initial volume step in

the menu, to a step between

-99.0dB and +6dB.

You can also set the initial

volume-step to “REMEMBER”.

When you set the RI-100

to “REMEMBER”, then it

remembers the volume step

from when it was put to

standby. Next time the RI-100

leaves standby, it will start in

this volume step.

RI-100 | Version 1

3. operation

Discription of the

elements in the

menu.

OUTPUT

Change between speaker and

headphone output.

SETUP

Change the settings of the RI-100.

DATA

Shows information about this

RI-100.

RESET

Restore the settings of the RI-100

to its default settings.

REMOTE

Change the settings of the Apple

Remote.

REMOTE ID

Show the ID of the remote.

NO PAIR

Un-pair the remote and the RI-100

by removing the REMOTE ID

V.INIT

Change the initial dB step of the

volume in the RI-100 to any step

between -99 and12.dB

VOL.STEP

The RI-100 has a standard volume

step of -42 dB. You can set the

volume step to a step, between

-99.0 dB to +6dB.This step will be

the new volume step. Even when

after the power cord has been

disconnected the RI-100 still starts

up in the new volume step.

REMEMBER

Set the RI-100 to remember the

current volume step. The RI-100

will start up in this volume step

when it leaves standby. This

volume step however is not

remembered when the power

cord is removed. Then the RI-100

will initiate in the volume step as it

is deﬁned in the V.INIT sub-menu.

BRIGHT

Change the brightness of the

display any step between 0 and 3.

INPUTS

Change settings for each input.

INPUT X

Change the settings of input X.

USED

Select whether input X has to be

USED or not NOT USED.When

you select NOT USED input X will

not be shown in the list of inputs.

TEXT

Choose a name for input X.

OFFSET

Select an offset- gain, between

-12 and 12 dB, for input X.

SET FIX

Set the volume of input X to a

ﬁxed dB step. (Input X is now

locked to a dB step and can not

be adjusted with the volume

control)

FIXED

Lock and unlock the volume by

switching between FIX ON/FIX

OFF.

ADJUST

Adjust the ﬁxed dB step to any

step between -99 and +12 dB

Figure 9 The RI-100 Menu strukture

RI-100 | Version 1

3. operation

The menu structure

SEE THE LIST WITH LOAD RESISTANCES

UNPAIR

REMOTE ID

RESET NO / RESET YES

BACK

LEAVE

HEADPHONES

SPEAKERS

LOAD

DATA

RESET

REMOTE

BACKSETUP

BACK

REMEMBER

-99 dB / +6 dB

VOL.STEPV.INIT

0 / 3BRIGHT

INPUT 2

INPUT 3

INPUT 4

INPUT 5

BACK

USED / NOT USED

USED

BACK

INPUT 1

-99 dB / +12 dB

ADJUST

FIX ON / FIX OFF

SET FIX

BACK

-12 dB / +12 dB

OFFSET

TEXT

FIXED

INPUTS

OUTPUT

RI-100 | Version 1

4. operation & service

Safety notice

The Vitus Audio RI-100

contains no user serviceable

parts except from the mains

fuse. Do not attempt to open

the case. There are potentially

dangerous voltages present

inside. Should your RI-100

show signs of malfunction,

then please contact your

dealer or Vitus Audio.

Mains supply voltage

Any unit may be set for

operation in 100V, 115V or

230V A.C. Units are shipped

set for the mains supply

voltage according to the

destination. The voltage

setting can be updated later

by your dealer, if necessary.

Maintenance

Vitus Audio products are

designed to run for many years

without the need for regular

maintenance. Our products

contain no user serviceable

parts except from the mains

fuse. Should your RI-100 show

signs of malfunction, please

contact your dealer or Vitus

Audio.

RI-100 | Version 1

4. operation & service

Mains fuse

The mains fuse is accessible

from the outside of the

amplifier. You will find the

mains fuse, just below the

power inlet. If the fuse blows,

then you can easily replace

it. The fuse only blows on the

occurrence of power surges

or if there is a fault in the

unit. Normally power surges

cause no other damage other

than blowing the fuse. When

the fuse blows repeatedly on

replacement, then the unit

most likely has a malfunction.

In case of malfunction the

unit must be returned to Vitus

Audio for repair.

Fuse type:

20x5mm 6,3A T(230V) /

10A T(115V) / 12A T(100V)

HRC fuse

Replacing the fuse with a fuse

of a type and rating different

from the original fuse, might

result in damage to the unit

and injury to you (the user).

Damage to the unit as a result

of wrongly replacing the

mains fuse, will invalidate the

guarantee.

For an explanation of how to

replace the fuse see chapter 4

“replacing a blown fuse”.

4. operation &

service

Figure 10 Replacing a blown fuse

RI-100 | Version 1

4. operation & service

4 There is a spare fuse

available in the fuse carrier.

2 Loosen the fuse carrier.

Using a flat object for example

a flat screwdriver.

3 Pull the fuse carrier out.

1 The fuse carrier is placed

on the back under the power

connector



Replacing a blown

fuse

REMOVE THE POWER CABLE

In the following steps we will

show you how to replace a

blown fuse.

5 Take the blown fuse out of

the fuse carrier and throw it

away.

spare fuse

the fuse carrier

blown fuse

RI-100 | Version 1

4. operation & service

6 Flip the spare fuse out using

a pointy object..

4. operation &

service

7 Place the spare fuse in the

fuse carrier and click the fuse

in place.

9 Push the fuse carrier back

into the machine.

RI-100 | Version 1

5. warranty

Warranty

Warranty Statement

(modified to fit Vitus Audio)

1. TERMS AND CONDITIONS

LIMITED WARRANTY

Vitus Audio warrants the

product designated herein

to be free of manufacturing

defects in material and

workmanship, subject to the

conditions hereinafter set

forth, for a period of three

(3) years from the date of

purchase by the original

purchaser or no later than

five (5) years from the date of

shipment to the authorized

Vitus Audio cooperating

partner, whichever comes first,

excepting

any cosmetic damage to

chassis parts. (See 6)

2. CONDITIONS

This Warranty is subject to

the following conditions and

limitations. The Warranty

is void and inapplicable

if the product has been

used or handled other than

in accordance with the

instructions in the owner’s

manual, abused, or misused,

damaged by accident

or neglect or in being

transported, or the defect

is due to the product being

repaired or tampered with by

anyone other than Vitus Audio

or authorized Vitus Audio

repair center. The product

must be packed in its original

box and returned to Vitus

Audio or an authorized repair

center by the customer at his

or her sole expense. Vitus

Audio will pay return freight of

its choice.

IMPORTANT!

A returned product MUST

be accompanied by a written

description of the defect

and a photocopy of the

original purchase receipt.

This receipt must clearly list

model and serial number,

date of purchase, the name

and address of the purchaser

and authorized dealer and the

price paid by the purchaser.

Vitus Audio reserves the right

to modify the design of any

product without obligation

to purchasers of previously

manufactured products

and to change the prices or

specifications of any product

without notice or obligation to

any person.

3. REMEDY

In the event the above

product fails to meet the

above Warranty and the above

conditions have been met, the

purchaser’s sole remedy under

this Limited Warranty shall be

to return the product to Vitus

Audio or an authorized Vitus

Audio repair center where the

defect will be rectified without

charge for parts and labor,

except chassis parts. (See 6)

4. LIMITED TO ORIGINAL

PURCHASER

This Warranty is for the

sole benefit of the original

purchaser of the covered

product and shall not be

transferred to a subsequent

purchaser of the product.

5. DURATION OF WARRANTY

This Warranty expires on the

third (3rd) year anniversary

of the date of purchase or

no later than the fifth (5th)

anniversary of the date of

shipment to the authorized

Vitus Audio cooperating

RI-100 | Version 1

5. warranty

partner, whichever comes first.

6. CHASSIS

Damage or cosmetic defects

are not warranted.

7. DEMONSTRATION

EQUIPMENT

Equipment used by an

authorized cooperating

partner for demonstration

purposes is warranted to be

free of manufacturing defects

in materials and workmanship

for a period of three (3) years

from the date of shipment to

the authorized cooperating

partner. After the first year,

demo equipment needing

warranty service must be

packed in its original box

and returned to Vitus Audio

by the cooperating partner

at his or hers sole expense.

Vitus Audio will pay return

freight of its choice. A returned

product must be accompanied

by a written description

of the defect on a VITUS

AUDIO RETURNED GOODS

AUTHORIZATION form.

Dealer-owned demonstration

equipment sold at retail

within three (3) years of date

from shipment to the dealer

is warranted to the first

retail customer to be free

of manufacturing defects in

materials and workmanship

for the duration of the three

(3) Year Limited Warranty

remaining (as measured

from the date of shipment of

the equipment to the Vitus

Audio partner. In the event

warranty service is needed

under these conditions, the

owner of the equipment

must provide a copy of his

purchase receipt, fulfilling the

requirements described under

”2. Conditions” above. The

product must be packed in its

original box, and returned to

Vitus Audio or an authorized

Vitus Audio repair center by

the customer at his or her sole

expense. Vitus Audio will pay

return freight of its choice.

8. MISCELLANEOUS

Any implied warranties relating

to the above product shall be

limited to the duration of this

warranty. The warranty does

not extend to any incidental

or consequential costs or

damages to the purchaser.

Some countries do not allow

limitation on how long an

implied warranty lasts or

exclusion or limitation of

incidental or consequential

damages, so the above

limitations or exclusions may

not apply to you. This warranty

gives you specific legal rights,

and you may also have other

rights which vary from country

to country.

9. WARRANTOR

Inquiries regarding the above

Limited Warranty may be sent

to the following

address:

AVA Group A/S

Sandgaardsvej 31, Birk

DK7400 Herning

Denmark

Att.: Customer Service

RI-100 | Version 1

5. warranty

10. WARRENTY OUTSIDE

DANMARK

Vitus Audio has authorized

distribution in many countries

in the world. In each country,

the authorized importing

retailer or distributor has

accepted the responsibility

for warranty of products sold

by that retailer or distributor.

Warranty service should

normally be obtained from the

importing retailer or distributor

from whom purchased your

product. In the unlikely

event of service required

beyond the capabilities of

the importer, Vitus Audio will

fulfill the conditions of the

warranty. Such products must

be returned at the owner’s

expense to the Vitus Audio

factory, together with a

photocopy of the bill of sale

for that product, a detailed

description of the problem,

and any other information

necessary return shipment. In

many cases the retailer your

purchased the product from,

will handle this for you.

11. FURTHER INFORMATION

Should you have any further

questions related to our

warranty – please contact us at

the following email:

info@vitusaudio.com

RI-100 | Version 1

RI-100 Speciﬁcations

Rated Output Power…….........................................2 x 300Wrms in 8 ohm Class AB

Frequency Respon..............................................................………....DC to +500KHz

Signal to Noise Ratio……………………..……...........................………..……> 100dB

THD+ Noise………………………...............………………………....Better than 0,01%

Input Sensitivity……................with volume set @ 0dB / RCA = 2, 6 / XLR 5,2V RMS

Input Impedance……..…....................………….………...RCA = 22KΩ / XLR = 22KΩ

Slew Rate…………………………...................…………………………...…....> 35V/ μs

Power Consumption (RMS):

Standby…………………………………………………………..….....................….< 3W

Class AB (no load)………………………………....................…………………....~ 90W

Dimensions (W x H x D)……………………...................…………....435x195x435 mm

Weight………………………………………….....................……………………...~40Kg

6. specications

6. specifications

RI-100 | Version 1

Load

values

105 Ω

110 Ω

120 Ω

125 Ω

150 Ω

160 Ω

175 Ω

190 Ω

240 Ω

272 Ω

310 Ω

370 Ω

655 Ω

980 Ω

1.92 KΩ

47.0 KΩ

Load values of the

RIAA Module.

The RIAA module in the

RI-100 is designed for pickup

cartridges with an output of

ca 800 uVrms and a load value

between 105 Ω and 47 kΩ.

We recommend you to use the

RIAA module in the RI-100 with

cartridges that have an output

value higher than 500µVrms.

RI-100 | Version 1

7. examples operation

Figure 7. RP-101 Left front panel.

INPUT

MENU SELECT

STANDBY

MUTE

RL-

101

Example 1

Setting the

load impedance.

The RI-100 is standard set

to a load impedance of 110 Ω

In the example we will change

the settings of the RP-101 to

match the Cadenza Blue from

Ortofon. This is a MM pickup

with a load impedance of 50-

200 Ω.

Press the“MENU”button to

enter Menu Mode.

Navigate to the LOAD

submenu, using the function

buttons on the left front. Set

the load to 125 Ω

1.  Scroll forward in the

menu.

2. MENU/ Enter & Exit

SELECT submenus and

selectsettings.

3.  Scroll backward in

the menu.

You can eventually adjust the

load impedance by setting the

load impedance to 105 110, or

120 150 160 175 or 190 Ω (all

withing the range of the pickup

cartridge).

LEAVE

LOAD

lOAD

SELECT

Example 2

Changing output

from speakers to

headphone.

Only applies when the optional

headamp module is installled

in your RI-100.

Press the“MENU”button to

enter Menu Mode.

Navigate to the “OUTPUT”

submenu, using the function

buttons on the left front

1.  Scroll forward in

the menu.

2. MENU/ Enter & Exit

SELECT submenus and

select settings.

3.  Scroll backward

in the menu.

Enter the “MENU” submenu

and scroll down using the 

button. The display now shows

Output. Press the “SELECT”

button. The display now

shows HEADPHONES. Press

“SELECT” the output of the

RI-100 is now changed from

SPEAKERS to HEADPHONES

RI-100 | Version 1

7. examples operation

LEAVE

OUTPUT

HEADPHONES

OUTPUT

Figure 11 Example 1 Changing output

Figure 7. RI-100 Left front panel.

SELECT

Example 3

Restoring the settings

of the RI-100

Press the“MENU”button to

enter Menu Mode.

Navigate to the “RESET”

submenu, using the function

buttons on the left front

1.  Scroll forward in

the menu.

2. MENU/ Enter & Exit

SELECT submenus and

select settings.

3.  Scroll backward

in the menu.

Enter the RESET submenu.

The display now shows RESET

NO. Press the  button. The

display now shows RESET YES.

Press the SELECT button. The

settings of the RI-100 have now

been restored.

RI-100 | Version 1

7. examples operation

Figure 7 . RI-100 Left front panel.

Figure 12 Example 2 Restoring settings

LEAVE

OUTPUT

SETUP

BACK

DATA

RESET

RESET NO

RESET YES

RESET

SELECT

SELEC T

SELECT

7. appendix

Figure 13 Example 3 Changing settings of the remote

Example 4

Changing

remote settings

The remote is (fresh from the

box) not paired to the RI-100.

When you go into the menu to

see the remote ID, the display

will show NO PAIR.

You first have to pair the

remote and the RI-100 to

get a remote ID. Pairing of

the remote and the RI-100 is

explained on page 33.

Un-pairing of the

remote.

Press the“MENU”button to

enter Menu Mode.

Navigate to the “REMOTE”

submenu, using the function

buttons on the left front

1.  Scroll forward in

the menu.

2. MENU/ Enter & Exit

SELECT submenus and

select settings.

3.  Scroll backward

in the menu.

Enter the “MENU” submenu

and scroll down using the 

button. The display now shows

“UNPAIR”. Press the “SELECT”

button. The display now shows

NO PAIR. This means that the

remote and the RI-100 are now

unpaired.

RI-100 | Version 1

7. examples operation

Figure 7. RI-100 Left front panel.

LEAVE

OUTPUT

SETUP

BACK

DATA

RESET

REMOTE

REMOTE ID

NO PAIR

UNPAIRED

REMOTE

SELECT

RI-100 | Version 1

7. examples operation

Example 5

Pairing the remote

and the RI-100

Follow these steps

1.Press and hold the

Standby button.

2.Press and hold the

Next Input button.

3.Hold these buttons

down for 5 seconds.

The display shows

the Remote I.D

( for example 155).

Changing the Re-

mote ID.

When two devices have the

same Remote ID. Then you can

change the remote id of one of

the devices

Follow these steps

1.Press and hold the

standbybutton.

2.Press and hold the

Mute button.

3.Hold these buttons down

for 5 seconds.

The display now shows the new

Remote ID ( old ID + 1, fx 156)

Unpairing the remote

and the RI-100.

Follow these steps

1.Press and hold the

standby button.

2.Press and hold the

Previous Input button.

3.Hold these buttons down

for 5 seconds. The display

shows NO PAIR

Previous Input

Volume Down

Next Input

Mute

Standby

Figure 14 Mac-remote functions.

Volume Up

Select Load

Value

(only with

RIAA)

7. appendix

RI-100 | Version 1

7. examples operation

Example 6

Setting the

initial volume step.

Press the“MENU”button to

enter Menu Mode.

Navigate to the V.INIT

submenu, using the function

buttons on the left front

1.  Scroll forward in the

menu.

2. MENU/ Enter & Exit

SELECT submenus and

selectsettings.

3.  Scroll backward in

the menu.

In the V.INIT submenu you can

adjust the initial volume step.

This is the volume step the RI-

100 start up in when he leaves

standby mode. The initial

volume step is as a standard

set to -42.

Set the volume step to -30

using the  and the 

buttons. Press SELECT and

leave the menu. Next time you

initialize the RI-100, the volume

step will be -30.

Figure 15 Example 5 Setting initial volume step

Figure 7. RI-100 Left front panel.

LEAVE

OUTPUT

SETUP

BACK

DATA

RESET

REMOTE

V.INIT

VOL.STEP

-4

- O

VOL.STEP

SELECT

RI-100 | Version 1

7. examples operation

7. appendix

Example 7

Setting the RI-100 to

remember the cur-

rent volume step.

Press the“MENU”button to

enter Menu Mode.

Navigate to the V.INIT

submenu, using the function

buttons on the left front

1.  Scroll forward in the

menu.

2. MENU/ Enter & Exit

SELECT submenus and

selectsettings.

3.  Scroll backward in

the menu.

In the V.INIT submenu you

can set the RI-100 to remember

the current volume step. The

RI-100 will start up in this volume

step when it leaves standby.

This volume step however is not

remembered when the power

cord is removed. Then the RI-100

will initiate in the volume step as it

is deﬁned in the V.INIT sub-menu

(example 5).

Figure 16 Example 6 Remember volume step

Figure 7 . RI-100 Left front panel.

LEAVE

OUTPUT

SETUP

BACK

DATA

RESET

REMOTE

V.INIT

VOL.STEP

REMEMBER

VOL.STEP

SELECT

Go to REMEMBER press

SELECT. The display now

shows VOL.STEP. The RI-100 will

now start up in the current volume

step when it leaves standby.

Example 8

Changing brightness

from 0 to 1.

You can adjust the brightness

of the display.

Press the“MENU”button to

enter Menu Mode.

Navigate to the

“BRIGHTNESS” submenu,

using the function buttons on

the left front

1.  Scroll forward in

the menu.

2. MENU/ Enter & Exit

SELECT submenus and

select settings.

3.  Scroll backward

in the menu.

Enter the “BRIGHTNESS”

submenu The display now

shows “0”. Press the “”

button. The brightness is now

set to 1. Press “SELECT” to

leave the. “BRIGHTNESS”

submenu.The new brightness

level is now saved.

RI-100 | Version 1

7. examples operation

Figure 17 Example 7 changing brightness

Figure 7. RI-100 Left front panel.

LEAVE

OUTPUT

SETUP

BACK

DATA

RESET

REMOTE

V.INIT

BRIGHT

Bright

SELECT

RI-100 | Version 1

7. examples operation

7. appendix

Example 9

Set the volume of

input 1 to a ﬁxed

volume step of -30

dB.

You can set the volume of an

input to a ﬁxed dB step. The

input is then locked to this dB

step and can not be adjusted

with the volume control.

Press the“MENU”button to

enter Menu Mode.

Navigate to the INPUT sub-

menu, using the function

buttons on the left front

1.  Scroll forward in the

menu.

2. MENU/ Enter & Exit

SELECT submenus and

selectsettings.

3.  Scroll backward in

the menu.

Navigate to the FIX sub-

menu. Select SET FIX and

then select FIX ON. The

display now shows -0.42.

Figure 7. RI-100 Left front panel.

This is the volume step in which

the RI-100 initialises as a standard.

Adjust the volume step to -30 dB

and press the SELECT button. The

display now shows SET FIX.

Input X is now locked to the

choosen dB step and can not be

adjusted with the volume control.

If you want to set FIX OFF, then

repeate the sequence of the

example and select FIX OFF.

Figure 18 Example 8 Fix volume step

Figure 12 Example 6 RP-101

LEAVE

OUTPUT

SETUP

BACK

DATA

RESET

REMOTE

V.INIT

BRIGHT

INPUTS

BACK

INPUT

BACK

USED

TEXT

OFFSET

FIXED

SET FIX

FIX ON

FIXED

SET FIX

ADJUST

- .O

- O.O

ADJUST

SELECT

RI-100 | Version 1

7. examples operation

Example 10

Changing the offset-

gain of the inputs.

You can set different offset-

values for the different inputs.

You actually adjust the gain

of one individual input. This

will reduce the differences

in volume, when you switch

from one input to another. The

offset-value can be set from

-12 dB to +12 dB.

You can not change the offset

gain when you selected FIX

ON.

The following example

illustrates how to change the

offset-values: The signal on

the source using line 2 is 3 dB

higher than the signal on the

source using line 1.

We will reduce the differences

in volume between input 1

and input 2 by lowering the

offset gain of line 2 with 3 dB.

Figure 7. RI-100 Left front panel.

Figure 19 Example 9 Changing the offset-gain of inputs

Figure 12 Example 6 RP-101

LEAVE

OUTPUT

SETUP

BACK

DATA

RESET

REMOTE

V.INIT

BRIGHT

INPUTS

BACK

INPUT

BACK

USED

TEXT

OFFSET

O.O

- .O

OFFSET

SELECT

SELECT 3

Press the“MENU”button to

enter Menu Mode.

Navigate to the INPUT sub-

menu, using the function buttons

on the left front

1.  Scroll forward in the

menu.

2. MENU/ Enter & Exit

SELECT submenus and

selectsettings.

3.  Scroll backward in

the menu.

The ampliﬁer now automatically

turns the volume up or down

when you change between

inputs.

RI-100 | Version 1

7. examples operation

7. appendix

Example 11

Disabling inputs.

If you only use some of the

inputs,then it is possible to

disable the inputs that you are

not using. The system will skip

the disabled inputs,

and jump to the next input.

The following example

illustrates how to disable

Input 4.

Press the“MENU”button to

enter Menu Mode.

Navigate to the INPUT sub-

menu, using the function

buttons on the left front

1.  Scroll forward in the

menu.

2. MENU/ Enter & Exit

SELECT submenus and

selectsettings.

3.  Scroll backward in

the menu.

The ampliﬁer now

automatically turn the volume

up or down when you change

between inputs.

Figure 7. RI-100 Left front panel.

Figure 20 Example 10 Disabling inputs

Figure 12 Example 6 RP-101

LEAVE

OUTPUT

SETUP

BACK

DATA

RESET

REMOTE

V.INIT

BRIGHT

INPUTS

INPUT

BACK

FIXED

OFFSET

TEXT

USED

NOT USED

USED

SELECT

Figure 21 Example 11 Changing the input name.

RI-100 | Version 1

7. examples operation

Example 12

Changing the name of

INPUT 1 to SCD-010.

Press the“MENU”button to

enter Menu Mode.

Navigate to the TEXT

submenu, using the function

buttons on the left front

1.  Scroll forward in the

menu.

2. MENU/ Enter & Exit

SELECT submenus and

selectsettings.

3.  Scroll backward in

the menu.

In the TEXT submenu you will

find a list of predefined names,

that you can choose from.

Scroll through the list using the

 and the  buttons.

Select the name SCD-010

using the SELECT button.

The

name of INPUT1 has now

been changed from LINE 1

to SCD-010.

Leave the TEXT submenu.

When you leave the Menu

Mode the display will show

SCD-010.

Figure 7. RI-100 Left front panel.

LEAVE

OUTPUT

SETUP

BACK

DATA

RESET

REMOTE

V.INIT

BRIGHT

INPUTS

BACK

INPUT

FIXED

OFFSET

TEXT

LINE

SCD-O O

TEXT

SELECT

Figure 22 Example 12 Changing the input name.

Example 13

Changing the name

of INPUT 1 to PICKUP

If you want to use an input-

name that is not in the

predefined list, then it is

possible to manually add a

name to the list.

In the text- menu it is possible

to change the name of the

input. This is done by using

the following buttons from the

right front:

1.  Change selected

character.

2. MUTE Go to the next

character in the display.

3.  Change selected

character..

We will now change the input-

name “Line 1” to PICKUP

(Not in the predefined list) .

We continue from the “TEXT

” sub-menu in the previous

example.

The display is showing LINE 1

Press MUTE

(The first character in the

display starts blinking)

Press  or  until the first

character has the value you

want. Press MUTE (The second

character in the display starts

blinking)

Press MUTE when the last

character in the display is

blinking. The new device name

is now saved, and then you

can leave the TEXT sub-menu.

When you are editing the

Input name, then you can

save the changes at any time.

You do this by pressing the

SELECT button

RI-100 | Version 1

7. examples operation

7. appendix

Figure 8. RI-100 Right front panel.

LINE

.INE

PINE

P.NE

PI.E

PICE

PIC.

PICK

PICK.

PICKU

PICKU.

PICKUP

TEXT

MUTE

Connecting devices

On examples1 2 and 3 we

show you how the RI-100 can

be connected to other devices.

In our examples we used the

following devices

Vitus Audio Products

Reference Series

RCD-100

RI-100 Integrated Amplifier

RL-101 Linestage

RP-101 Phonostage

RS-100 Stereo Amplifier

3rd Party Products

Headphones

Media Center

Turntable

RI-100 | Version 1

7. examples connecting devices

Figure 23 Devices used

RI-100 | Version 1

Connecting devices 1

Optional Modules.

The RI-100 has

3 upgrade

possibilities.

RIAA module

DAC interface

Headamp interface

Units

Passive Speakers

RI-100

Turntable

Media Center

Headphones

7. examples connecting devices

7. appendix

Figure 24 Optional Modules

RIAA-Module

Headphone interface

DAC interface

Pre-out

RI-100 | Version 1

7. examples connecting devices

Connecting devices 2

Active Subwoofer.

It is possible to connect an

active subwoofer

to the Pre-out.

Units

Passive Speakerss

Active Subwoofer

RI-100

Turntable

RCD-100

Pre-out

Figure 25 Active Subwoofer

RIAA-Module

RI-100 | Version 1

Connecting devices 3

RCD-100 as DAC

The Media Center is

connected to the RCD-100.

The RCD-100 is used as a DAC.

The RI-100 is powering the

hi- and mid-tones. The RS-100

is connected to the PRE-OUT

of the RI-100. The RS-100 is

powering the bass

Units

Speakers (Hi-Mid)

Speakers (Low)

RI-100

RS-100

RP-101

RCD-100

Media Center

Turntable

Headphones

7. examples connecting devices

7. appendix

Figure 26 RCD-100 as DAC

Pre-out

Headphone interface

RCD-100

as DAC

Hi-Mid

Low Low

RI-100 | Version 1

8. pictures

Picture 1 RI-100 Inside view

RI-100 Inside view

Picture 2 RI-100 Front

RI-100 | Version 1

RI-100 Front

8. pictures

Handcrafted in Denmark

vitus audio

AVA Group A/S (Vitus Audio), Sandgaardsvej 31, DK-7400 Herning, Denmark, Phone: +45 9626 8046, Fax: +45 9626 8045

e-mail: info@vitusaudio.com, web site: www.vitusaudio.com

RI 100 Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
