RL18S SPECS Rev A
User Manual:
Open the PDF directly: View PDF
.
Page Count: 6
Features
• Custom-designed transducers and porting, signature EAW Focusing™
and DynO™ dynamic optimization processing
• 1,000 watts of Class-D Power Factor Corrected amplication
• Cardioid pattern can be generated in seconds with two
button presses
• LED mute function, robust PowerCON® inlet and loop connectors
• Integral wooden handles, rugged grille and RoadCoat™ enclosure,
pole cup, hyper-black front EAW logo
Applications
Concerts, Corporate AV, Portable, Live Clubs, Concert Halls, Theaters,
Auditoriums, Houses of Worship
Description
From corporate events to festivals, every aspect of Redline has been
targeted at making life easier for the live sound professional. From
transducers and electronics to enclosure design and tments, Redline is
built to live in the working world of demanding clients, tight schedules
and even tighter budgets.
The RL18S includes a complete on-board 1,000-watt electronics package
mated to a highly-customized precision transducer engineered to meet
the specic demands of the Redline family. In addition to signature EAW
acoustical design, DynO™ algorithms optimize the power transfer from
ampliers to transducers
for improved headroom and integrity of sound
at maximum output
. Push-button cardioid functionality (using two or
more RL18S subwoofers) keeps low-frequency energy o the stage and
on the audience, and a rear-panel LED mute keeps Redline invisible in
aesthetically-sensitive situations.
The RL18S enclosure incorporates EAW’s signature SB rear angle to
minimize input panel visibility in cardioid mode, integral road glove-
ready wood handles and sleek but strong sculpted grilles on RoadCoat™
enclosures.
Six year warranty on enclosure. Two year warranty on electronics.
18 INCH SELF-POWERED SUBWOOFER
See NOTES TABULAR DATA for details
Configuration
Subsystem
Transducer Loading
VLF 1x 18 in, 4 in voice coil Vented
Operating Mode
Amplier Channels Signal Processing
Single amp VLF DSP w/DynO™
Acoustical Performance
Operating Range
28 Hz to 160 Hz
Nominal Beamwidth
Horizontal 360° Vertical 360°
Calculated Axial Output Limit (SPL)
Average Peak
(whole space) 121 dB 127 dB
(half space) 127 dB 133 dB
Electrical Performance
Input
Type Electronically balanced XLRF
Max Input Level 22dBu
Loop
Type Electronically balanced XLRM
Amplier VLF
Type Class D
Maximum Output 1000 W @ 8 ohm
Driver Protection Integral DSP limiting
AC Mains (nominal)
Connector Neutrik PowerCON®
Input 100 V to 240 V
Frequency 50 Hz to 60 Hz
Power Consumption
Idle 21 W
Peak Draw 250 W
Indicators (LED)
Amplifier Status Green (Normal), Red (Fault)
Signal Present Green
Limiter Active Yellow
Clip Red
Voicing Mode 3 x Yellow
Voicing Control
Mode Normal / Cardioid Front / Cardioid Back
Weight
83 lbs/37 kg Shipping: 89 lbs/40 kg
Ordering Data
Description Part Number
EAW RL18S Self-powered subwoofer 2045322-90
RL18S Caster Pallet 2046839-90
RL18S Specications
Eastern Acoustic Works
|
One Main Street
|
Whitinsville, MA 01588 USA
|
tel 800 992 5013 / +1 508 234 6158
|
fax 508 234 8251
|
www.eaw.com
AUG2015Part Number: RD0886 Rev A01EAW products are continually improved. All specications are therefore subject to change without notice.
NOTE: This drawing has been reduced. Do not scale.
RL18S Specications
Eastern Acoustic Works
|
One Main Street
|
Whitinsville, MA 01588 USA
|
tel 800 992 5013 / +1 508 234 6158
|
fax 508 234 8251
|
www.eaw.com
AUG2015Part Number: RD0886 Rev A01EAW products are continually improved. All specications are therefore subject to change without notice.
A
A
123 4
1234
A
B
C
A
B
C
PRO ENGINEER
2045324-CD-A_DWG_CUST_RDLN18
THE INFORMATION CONTAINED
HEREIN IS PROPRIETARY AND
CONFIDENTIAL PROPERTY OF
LOUD TECHNOLOGIES, INC.
ALL RIGHTS RESERVED
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES
DUAL [MM] DIMENSIONS
FOR REF ONLY
TOLERANCE IN INCHES
LINEAR ± 0.13 in / ± 3.3 mm
ANGLES ± 1°
(X.XX) = REF DIMS
NO TOLERANCE IMPLIED
TSC = THEORETICAL SHARP CORNER
DIMENSIONS ACROSS CENTERLINES
TO BE SYMMETRICAL
REVISION:
DRAWING NUMBER:
THIRD ANGLE PROJECTION
TITLE:
SCALE:
1 1
www.eaw.com
19.91
[505.6]
33.00
[838.2]
24.84
[631.0]
18.50
[469.9]
5.62
[142.8]
24.66
[626.3]
19.75
[501.6]
60
5X, 5.47
[139.0]
2X, 18.39
[467.0]
2X, 14.28
[362.8]
9.41
[238.9]
4X, 5.24
[133.1]
2X, 9.36
[237.7]
DATECHANGE NUMBERREV
6/23/15ECOWH10777A
2045324-CD A
ASHEET OF 0.040
DWG CUSTOMER RL18S

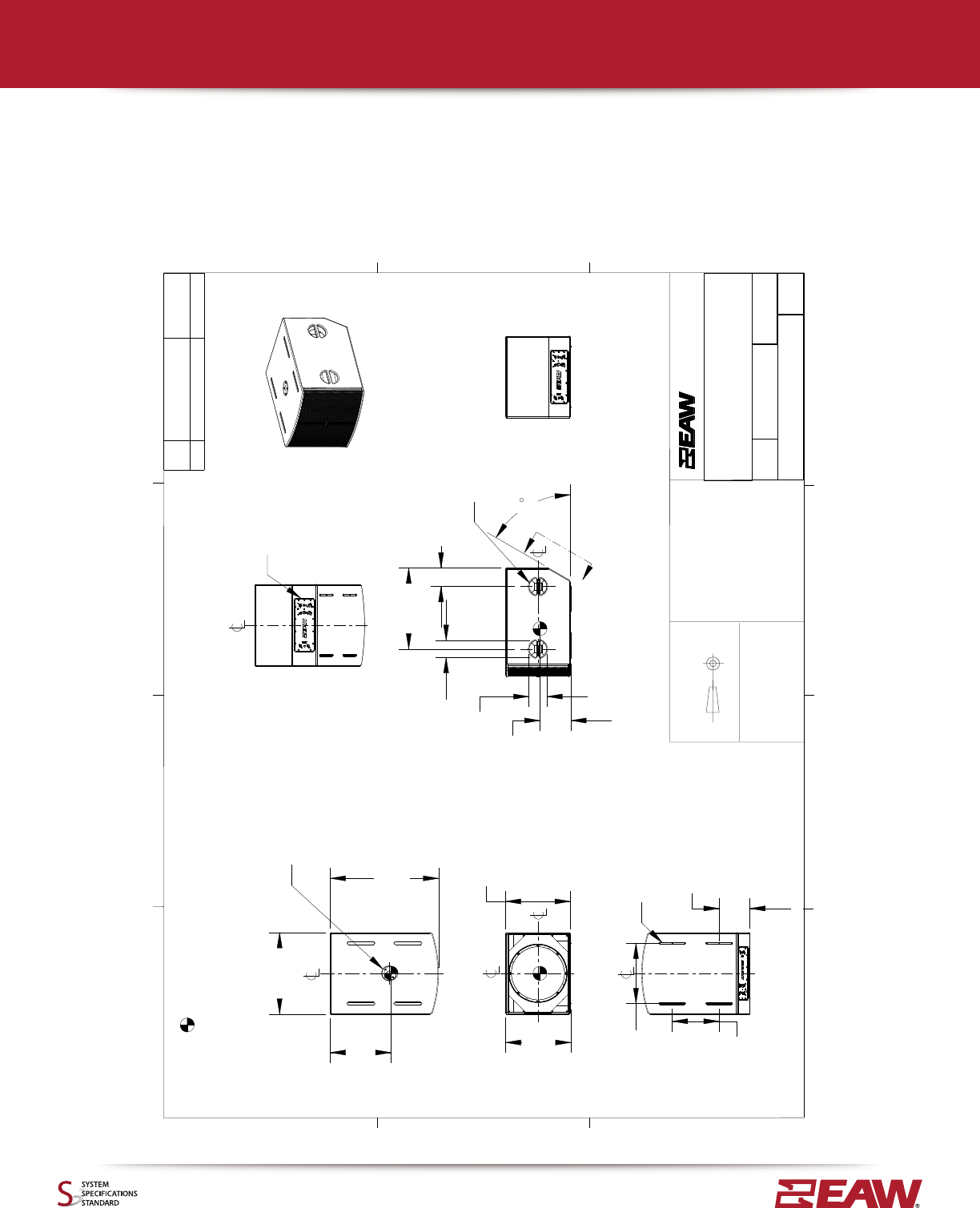

[MECHANICAL SPECIFICATION]
NOTES:
1. SYMBOL INDICATES CENTER OF BALANCE.
2. WEIGHT APPROX. 83.0 lb[37kg].
3. SHIPPING WEIGHT APPROX. 89.0lb[40kg]
TOP
FRONT
GRILLE REMOVED FOR CLARITY
SIDE
DIMENSIONS APPLY TO BOTH SIDES
BACK
BOTTOM
RL18S
TOP HAT
4X
HANDLES
VIEW A-A
POWER
AMPLIFIER
4X
RUNNERS
Exterior-grade hardwood plywood
Weather-resistant textured RoadCoat™
Pre-treated, powder-coated perforated steel
Material
Finish
Grille
Enclosure
RL18S Specications
Eastern Acoustic Works
|
One Main Street
|
Whitinsville, MA 01588 USA
|
tel 800 992 5013 / +1 508 234 6158
|
fax 508 234 8251
|
www.eaw.com
AUG2015Part Number: RD0886 Rev A01EAW products are continually improved. All specications are therefore subject to change without notice.
Performance Data
See NOTES GRAPHIC DATA for details

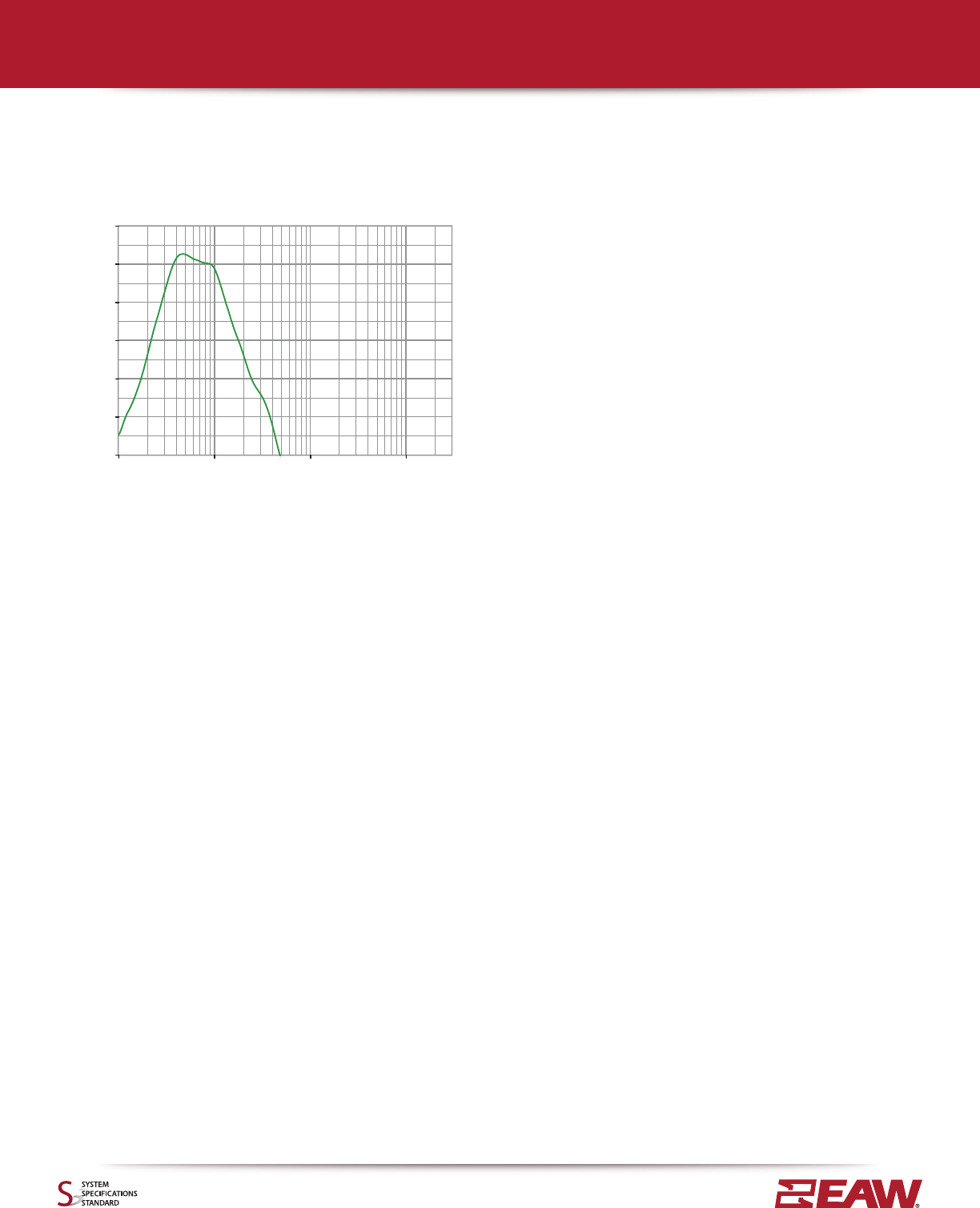

Frequency Response: Processed
LF = green
SPL (dB)
Frequency (Hz)
10 100 1000 20000
-10
-50
-40
-30
-20
10
0
RL18S Specications
Eastern Acoustic Works
|
One Main Street
|
Whitinsville, MA 01588 USA
|
tel 800 992 5013 / +1 508 234 6158
|
fax 508 234 8251
|
www.eaw.com
AUG2015Part Number: RD0886 Rev A01EAW products are continually improved. All specications are therefore subject to change without notice.

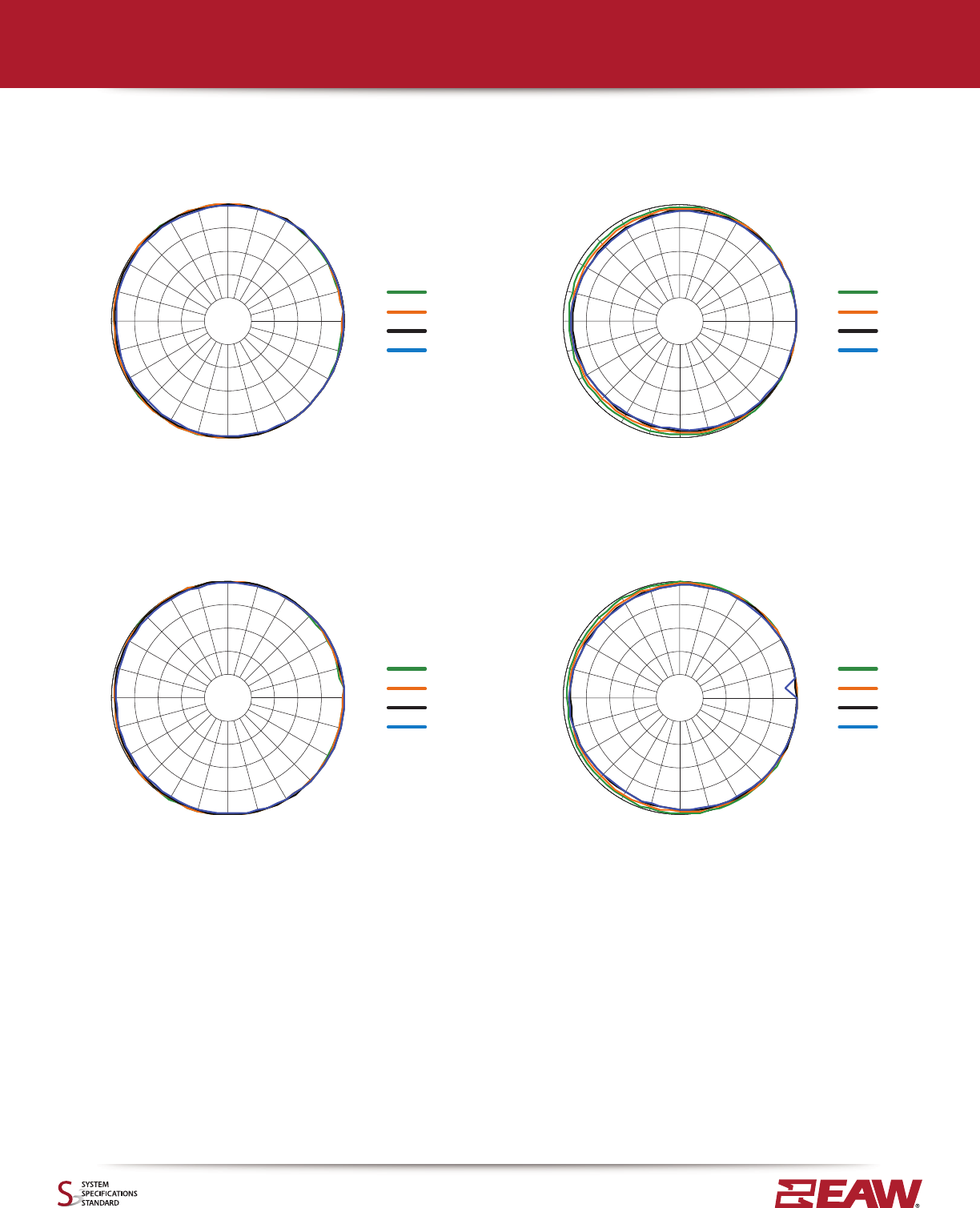

Single-module Horizontal Polar Data
See NOTES GRAPHIC DATA for details
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
25Hz
31.5Hz
40Hz
50Hz
63Hz
80Hz
100Hz
125Hz
Single-module Vertical Polar Data
See NOTES GRAPHIC DATA for details
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
25Hz
31.5Hz
40Hz
50Hz
63Hz
80Hz
100Hz
125Hz
RL18S Specications
Eastern Acoustic Works
|
One Main Street
|
Whitinsville, MA 01588 USA
|
tel 800 992 5013 / +1 508 234 6158
|
fax 508 234 8251
|
www.eaw.com
AUG2015Part Number: RD0886 Rev A01EAW products are continually improved. All specications are therefore subject to change without notice.

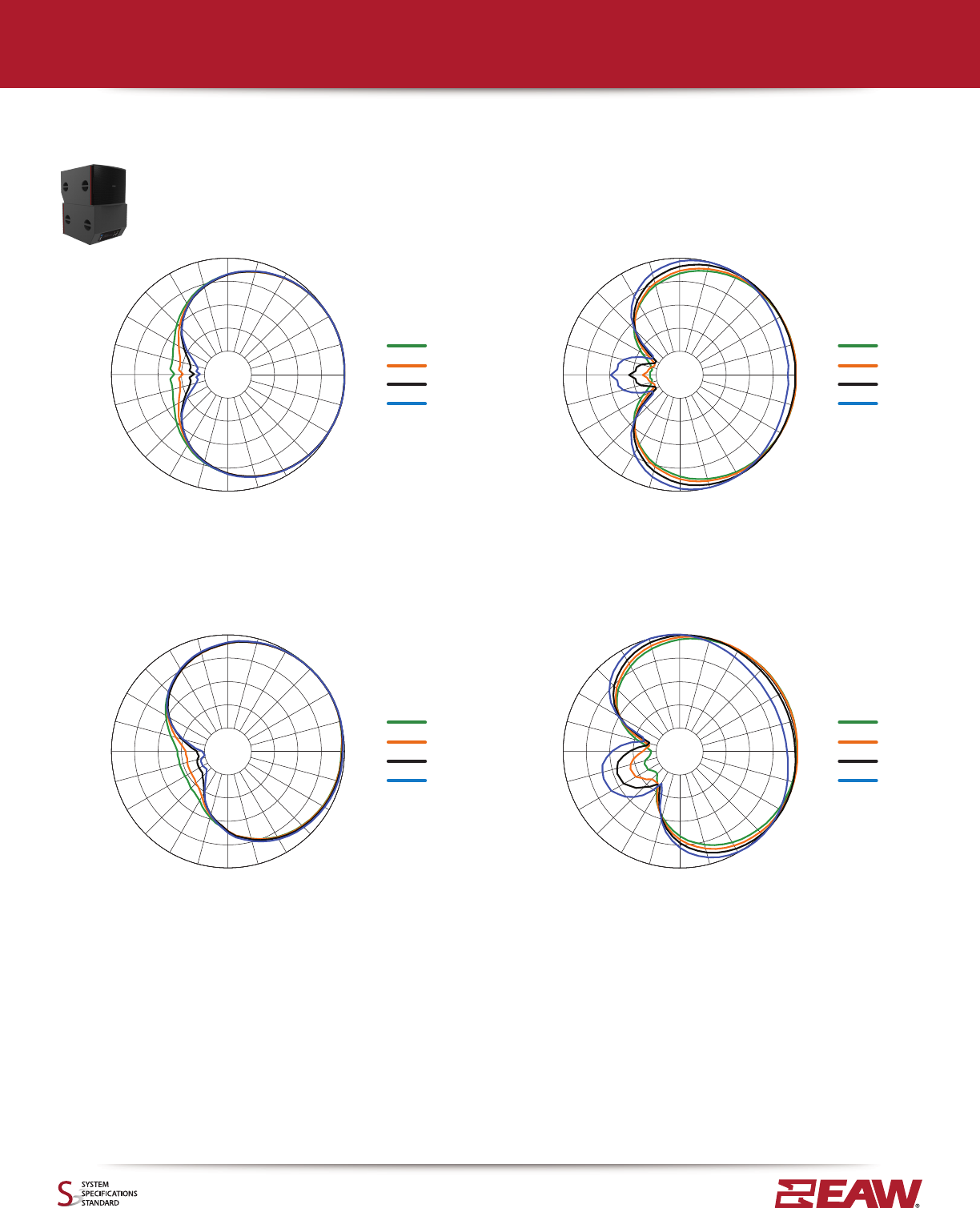

Two-module Cardioid Horizontal Polar Data
See NOTES GRAPHIC DATA for details
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
25Hz
31.5Hz
40Hz
50Hz
63Hz
80Hz
100Hz
125Hz
Two-module Cardioid Vertical Polar Data
See NOTES GRAPHIC DATA for details
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
90˚
-90˚
45˚
-45˚
0˚
135˚
-135˚
180˚
25Hz
31.5Hz
40Hz
50Hz
63Hz
80Hz
100Hz
125Hz
Notes
TABULAR DATA
1. Measurement/Data Processing Systems: Primary – FChart: proprietary EAW software; Secondary – Brüel & Kjær 2012.
2. Microphone Systems: Earthworks M30; Brüel & Kjær 4133
3. Measurements: Dual channel FFT; length: 32 768 samples; sample rate: 48 kHz; logarithmic sine wave sweep.
4. Measurement System Qualication (includes all uncertainties): SPL: accuracy +/-0.2 dB @ 1 kHz, precision +/-0.5 dB 20 Hz to 20 kHz, resolution 0.05 dB; Frequency: accuracy +/-1 %, precision +/-0.1 Hz, resolution the
larger of 1.5 Hz or 1/48 octave; Time: accuracy +/-10.4 μs, precision +/-0.5 μs, resolution 10.4 μs; Angular: accuracy +/-1°, precision +/-0.5°, resolution 0.5°.
5. Environment: Measurements time-windowed and processed to eliminate room eects, approximating an anechoic environment. Data processed as anechoic or fractional space, as noted.
6. Measurement Distance: 7.46 m. Acoustic responses represent complex summation of the subsystems at 20 m. SPL is referenced to other distances using the Inverse Square Law.
7. Enclosure Orientation: For beamwidth and polar specications, as shown in Mechanical Specication drawing.
8. Volts: Measured rms value of the test signal.
9. Watts: Per audio industry practice, “loudspeaker watts” are calculated as voltage squared divided by rated nominal impedance. Thus, these are not True Watt units of energy as dened by International Standard.
10. SPL: (Sound Pressure Level) Equivalent to the average level of a signal referenced to 0 dB SPL = 20 microPascals.
11. Subsystem: This lists the transducer(s) and their acoustic loading for each passband. Sub = Subwoofer, LF = Low Frequency, MF = Mid Frequency, HF = High Frequency.
12. Operating Mode: User selectable congurations. Between system elements, a comma (,) = separate amplier channels; a slash (/) = single amplier channel. DSP = Digital Signal Processor.
IMPORTANT: To achieve the specied performance, the listed external signal processing must be used with EAW-provided settings.
13. Operating Range: Range where the processed Frequency Response stays within -10 dB SPL of the power averaged SPL within this range; measured on the geometric axis. Narrow band dips are excepted.
14. Nominal Beamwidth: Design angle for the -6 dB SPL points, referenced to 0 dB SPL as the highest level.
15. Axial Sensitivity: Power averaged SPL over the Operating Range with an input voltage that would produce 1 W at the nominal impedance; measured with no external processing on the geometric axis, referenced to 1 m.
16. Nominal Impedance: Selected 4, 8, or 16 ohm resistance such that the minimum impedance point is no more than 20% below this resistance over the Operating Range.
17. Accelerated Life Test: Maximum test input voltage applied with an EIA-426B dened spectrum; measured with recommended signal processing and Recommended Protection Filter.
18. Calculated Axial Output Limit: Highest average and peak SPLs possible during the Accelerated Life Test. The Peak SPL represents the 2:1 (6 dB) crest factor of the Life Test signal.
19. High Pass Filter: This helps protect the loudspeaker from excessive input signal levels at frequencies below the Operating Range.
GRAPHIC DATA
1. Resolution: To remove insignicant ne details, 1/12 octave cepstral smoothing was applied to acoustic frequency responses and 1/3 octave cepstral smoothing was applied to the beamwidth and impedance data.
Other graphs are plotted using raw data.
2. Frequency Responses: Variation in acoustic output level with frequency for a constant input signal. Processed: normalized to 0 dB SPL. Unprocessed inputs: 2 V (4 ohm nominal impedance), 2.83 V (8 ohm nominal
impedance), or 4 V (16 ohm nominal impedance) referenced to a distance of 1 m.
3. Processor Response: The variation in output level with frequency for a constant input signal of 0.775 V = 0 dB reference.
4. Beamwidth: Average angle for each 1/3 octave frequency band where, starting from the rear of the loudspeaker, the output rst reaches -6 dB SPL referenced to 0 dB SPL as the highest level. This method means the
output may drop below -6 dB SPL within the beamwidth angle.
5. Impedance: Variation in impedance magnitude, in ohms, with frequency without regard to voltage/current phase. This means the impedance values may not be used to calculate True Watts (see 9 above).
6. Polar Data: Horizontal and vertical polar responses for each 1/3 octave frequency band 100 Hz to 16 kHz or Operating Range.
RL18S Specications
Eastern Acoustic Works
|
One Main Street
|
Whitinsville, MA 01588 USA
|
tel 800 992 5013 / +1 508 234 6158
|
fax 508 234 8251
|
www.eaw.com
AUG2015Part Number: RD0886 Rev A01EAW products are continually improved. All specications are therefore subject to change without notice.

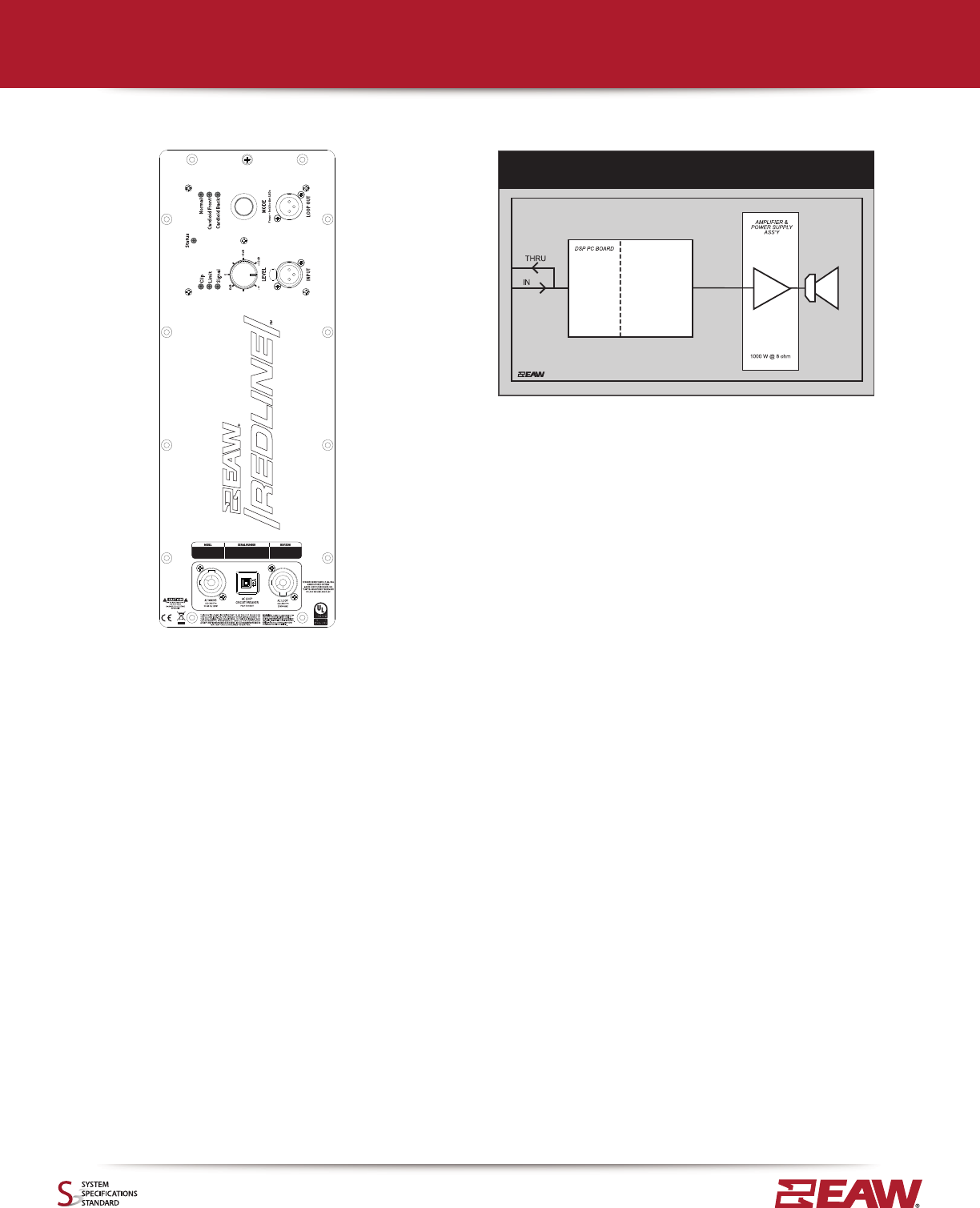

Input Panel
Legend
HPF High Pass Filter for crossover –or– Recommended High Pass Filter
LPF Low Pass Filter for crossover
LF/MF/HF Low Frequency / Mid Frequency / High Frequency
AMP User Supplied Power Amplier –or– Integral Amplier for NT products
XVR Passive LPFs, HPFs, and EQ integral to the loudspeaker
EAW Focusing Digital Signal Processor capable of implementing EAW Focusing
EAW DynO Digital Signal Processor capable of implementing EAW DynO processing
Signal Diagram
1-Way, Single-Amp (LF)
LF
AMP
LPF
EQ
DYNO
CARDIOID
INPUT A/D D/A
