EMSROOM SIGN APP
User Guide
V44.1
Last Updated: November 6, 2018
EMSSoftware | emssoftware.com/help | 800.440.3994 | © 2018 EMS Software, LLC. All Rights Reserved.
Table of Contents
CHAPTER1: EMS Room Sign App User Guide 1
CHAPTER2: Best Practices for Using EMSRoom Sign App 3
Considerations for Running EMS Room Sign on an iPad 4
Considerations for Running EMS Room Sign on an Android Tablet 5
CHAPTER3: Get Started With EMSRoom Sign App 6
Access EMSRoom Sign App Settings 6
Global Settings 8
Primary EMS Room Sign App Screens 9
CHAPTER4: Deploy EMSRoom Sign App on Tablets 12
Overview 12
Configure Kiosk Modefor iPads 14
Configure Kiosk Mode for Android Tablets 16
Provision and ConfigureKioWare Lite 16
General Settings 19
Browser Settings 20
Attract/Inactivity Settings 20
Toolbar Settings 21
Security Settings 21

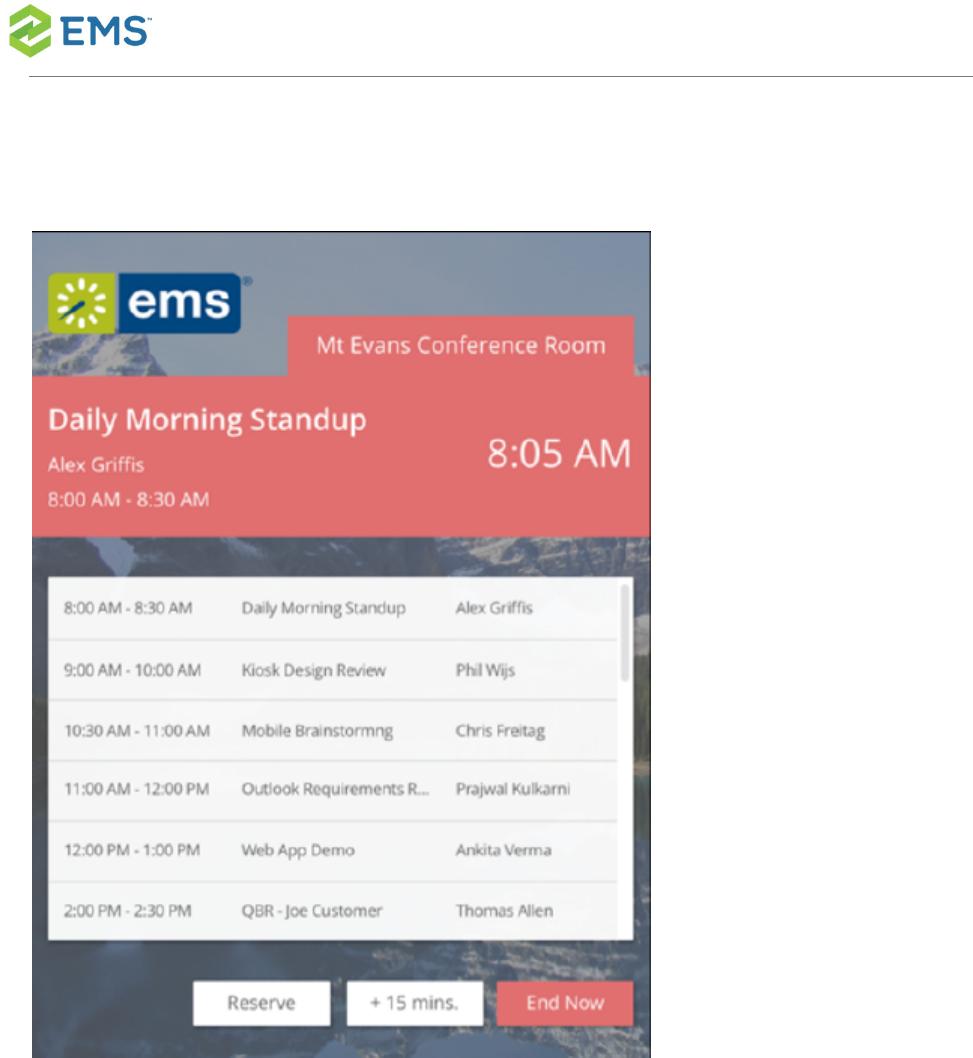

Orientation Views for the EMS Room Sign App 22
Mount the EMS Room Sign App in an Enclosure 24
CHAPTER5: Set Up the EMS Room Sign App to Demo on a Desktop Browser
(Update 12+) 26
Overview 26
CHAPTER1: EMS Room Sign
App User Guide
The EMS Room Sign App (formerly named EMS Glance) is an optional web-
based application that turns your tablet (e.g., iPad, iPad mini, etc.) into a digital
room sign. Mounted outside of a meeting room or workspace in either land-
scape or portrait orientations, the application indicates whether a space is avail-
able or in use. The application also provides functionality to support check-in,
end, extend and book new meetings.
The EMS Room Sign App gives users real-time information and at-a-glance
availability for their meeting, learning, and working spaces. The new,
redesigned EMS Room Sign App includes:
A clean, color-coded interface that’s easy to scan for information
Simplified buttons and options, with fewer steps to make or edit reservations
Landscape and portrait orientations, including an Agenda View of the day’s events
Easier customization for your organization’s branding
EMSSoftware © 2018 / V44.1 / Page 1
CHAPTER1: EMS Room Sign App User Guide
NOTE: Your EMS Room Sign App purchase only includes the software
application itself; not the device, mounting accessories (enclosures, power
supplies, etc.) or physical installation.
This
User Guide
provides the following information:
Best Practices for Using EMS Room Sign App
Get Started with EMS Room Sign App
Deploy the EMS Room Sign App on Tablets
Set Up EMS Room Sign App to Demo on Desktop Browser
EMSSoftware © 2018 / V44.1 / Page 2
CHAPTER1: EMS Room Sign App User Guide
CHAPTER2: Best Practices for
Using EMSRoom Sign App
Version 44.1, Update 12 introduced a sleek visual redesign and an upgraded
customer interface.You should consider the following when deciding whether
to buy the EMS Room Sign App:
1. You need to know when the EMS Room SignApp stops runningby receiving an
email notification (ideally),or by watching a central monitoring display. EMS does
not provide this capability, however,so you should physically check your tabletsto
see ifEMS Room Sign has stopped.
2. For the tablets running EMS Room Sign, you need to know if the battery fails, or if
connectivity has been lost, or if the operating system wants to update to a new ver-
sion. EMS does not detect these conditions remotely. In order to monitor these
issues, we recommend that you use a Mobile Device Management (MDM)system.
EMSSoftware © 2018 / V44.1 / Page 3
CHAPTER2: Best Practices for Using EMSRoom Sign App
CONSIDERATIONS FOR RUNNING EMS ROOM
SIGN ON AN IPAD
1. If the iPad's battery dies, the iPad will return to its home screen after you restore
power. At that point, you must configure Guided Accessagain for the EMS Room
Sign app. See Deploy EMSRoom Sign App on Tablets for more information.
2. If a userpresses the iPad's Homebutton, Guided Accessdisplays a passcode
screen. The screendisappears after fifteen seconds or if the user presses'Cancel.'
Note that users should not be able to press anytablet buttons if youuse a tablet
enclosure.
3. If a userpresses both the iPad's Homeand Sleep/Wake buttons simultaneously
for 10 seconds, the iPad restarts. At that point, you must configure Guided Access
again for the EMS Room Sign app.See Deploy EMSRoom Sign App on Tablets
for more information. Note that users should not be able to press any tablet buttons
if you use atablet enclosure.
4. iOS devices occasionally displaynotifications that a software update is available.
There is no way to suppress update notifications. When this notification appears,
the user can choose "Later" but the notification will appear again in 24 hours. If the
user chooses "Install Now," the iPad downloads and installs the update and then
restarts. At that point,you must configure Guided Access again for EMS Room
Sign. See Deploy EMSRoom Sign App on Tablets for more information
EMSSoftware © 2018 / V44.1 / Page 4
CHAPTER2: Best Practices for Using EMSRoom Sign App
CONSIDERATIONS FOR RUNNING EMS ROOM
SIGN ON AN ANDROID TABLET
1. Ideally, EMS Room Sign takes over the tablet so that it cannot be used for any-
thing else. However,Android provides no capability to lock down the tablet in a
way that's suitable for the EMS Room Sign App. Therefore,we recommend deploy-
ing the EMS Room Sign App with an Android app that puts the tablets in 'kiosk'
mode. Placing the tablet in kiosk mode prevents users from accessing other applic-
ations and also disable the 'Home' button. We recommend that you
purchase,install, and configure theKioware Liteapp.
2. If you run the EMS Room Sign App on a Samsung Tab A, users canpower off the
tablet by holding down the power button. If you have configured Kioware accord-
ing to our recommendations, EMS Room Sign will restart as soon as the tablet is
powered on. To prevent users from pressing the home button, you must use the
appropriate enclosure.
EMSSoftware © 2018 / V44.1 / Page 5
CHAPTER2: Best Practices for Using EMSRoom Sign App
CHAPTER3: Get Started With
EMSRoom Sign App
This topic discusses the different settings in your EMSRoom Sign App
(formerly named EMS Glance).
Access EMSRoom Sign App Settings
Global Settings
Primary EMS Room Sign App Screens
ACCESS EMSROOM SIGN APP SETTINGS
NOTE: When configuring devices (such as tablets) to use the EMSRoom
Sign App, please consider theseBest Practices for Device Configuration.
1. On the EMSDesktop Client toolbar, clickEMSRoom Sign App Settings.
2. TheEMSRoom Sign Appmain window opens. The window displays three con-
figuration options: Global Settings, Profiles andRefresh All Units.
EMSSoftware © 2018 / V44.1 / Page 6
CHAPTER3: Get Started With EMSRoom Sign App

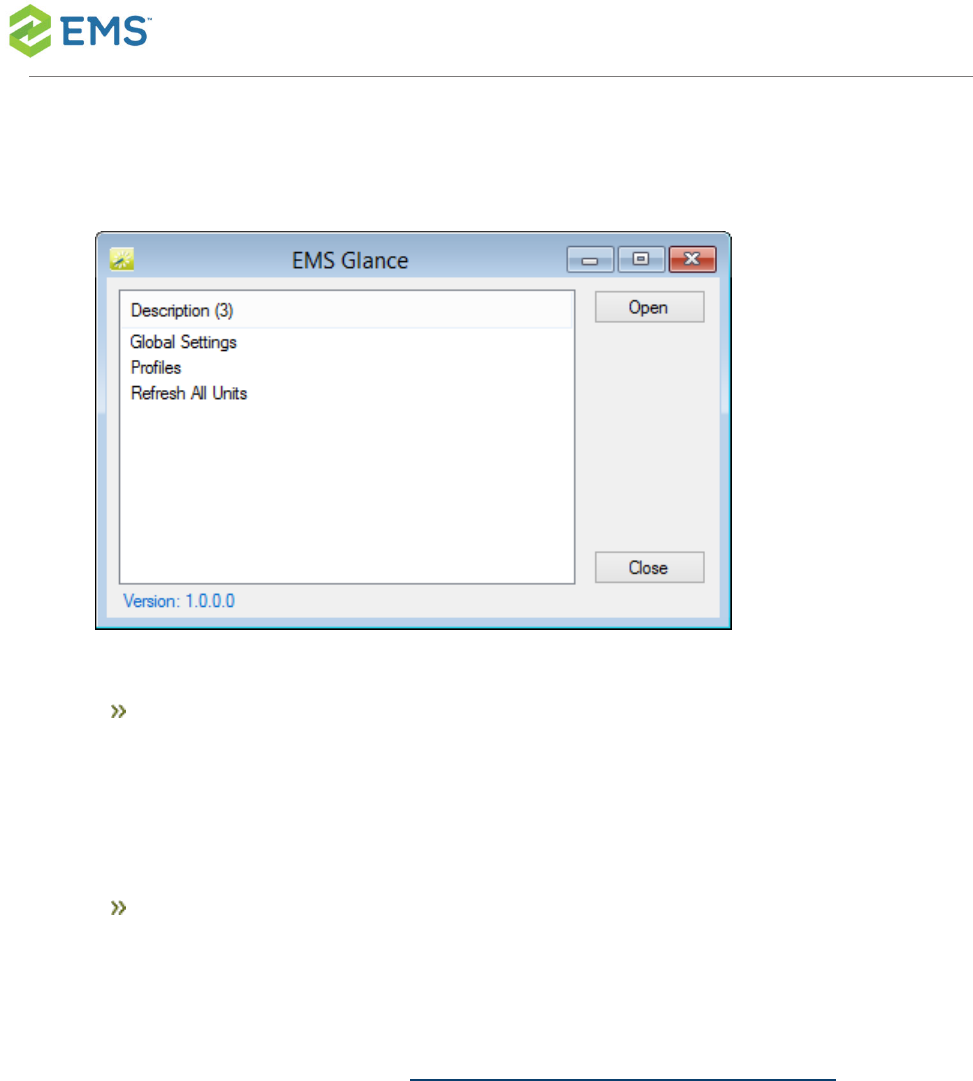

EMSRoom Sign App Main Window
Global Settings—Exposes all of the EMS Room Sign App global settings,
which determine the behavior for a particular EMS Room Sign App unit or
group of EMS Room Sign App units. Profile settings can overwriteGlobal Set-
tings.
Profiles—Controls the functionality of your EMS Room Sign App units. Depend-
ing on how you would like to manage your EMS Room Sign App devices, a
single profile can be configured to manage a single meeting room or multiple
meeting rooms.See Also:ConfigureEMS Room Sign AppProfiles.
EMSSoftware © 2018 / V44.1 / Page 7
CHAPTER3: Get Started With EMSRoom Sign App
NOTE: A particular device is tied toonespecific room in
EMS.Profiles just provide you with flexibility in how you choose to
manage the configuration of your devices.
Refresh All Units—Forces all units to refresh their settings.Use this setting after
modifying a specific Profile or Global Settings to force all of your units to pick-
up the setting change(s).
GLOBAL SETTINGS
Global settings affect the booking detail information that is displayed for all the
profiles in yourEMS Room Sign Appinstance. You can set how information dis-
plays at the Global level (the default for all Profiles) or for just one Profile.
NOTE: You can override these settings on a per profile basis on the Settings
tab of the Profile dialog box.
EMSSoftware © 2018 / V44.1 / Page 8
CHAPTER3: Get Started With EMSRoom Sign App

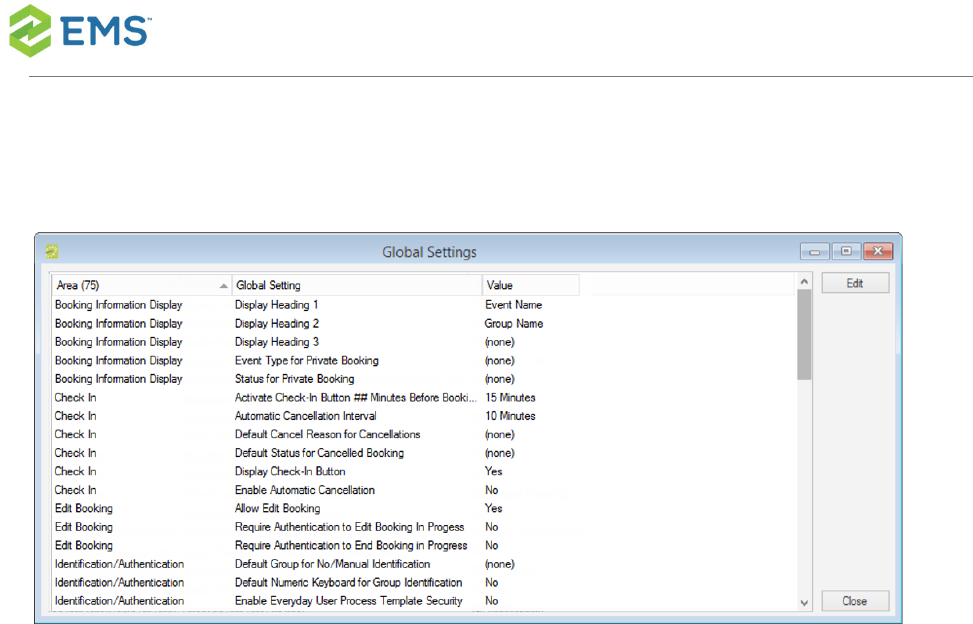

Global Settings Dialog Box
PRIMARY EMS ROOM SIGN APP SCREENS
EMS Room Sign Appconsists of two primary screens: the
Available
screen and
the
In Progress
screen. Both Global settings and Profile settings determine the
booking information that is displayed on the various screens.
EMSSoftware © 2018 / V44.1 / Page 9
CHAPTER3: Get Started With EMSRoom Sign App

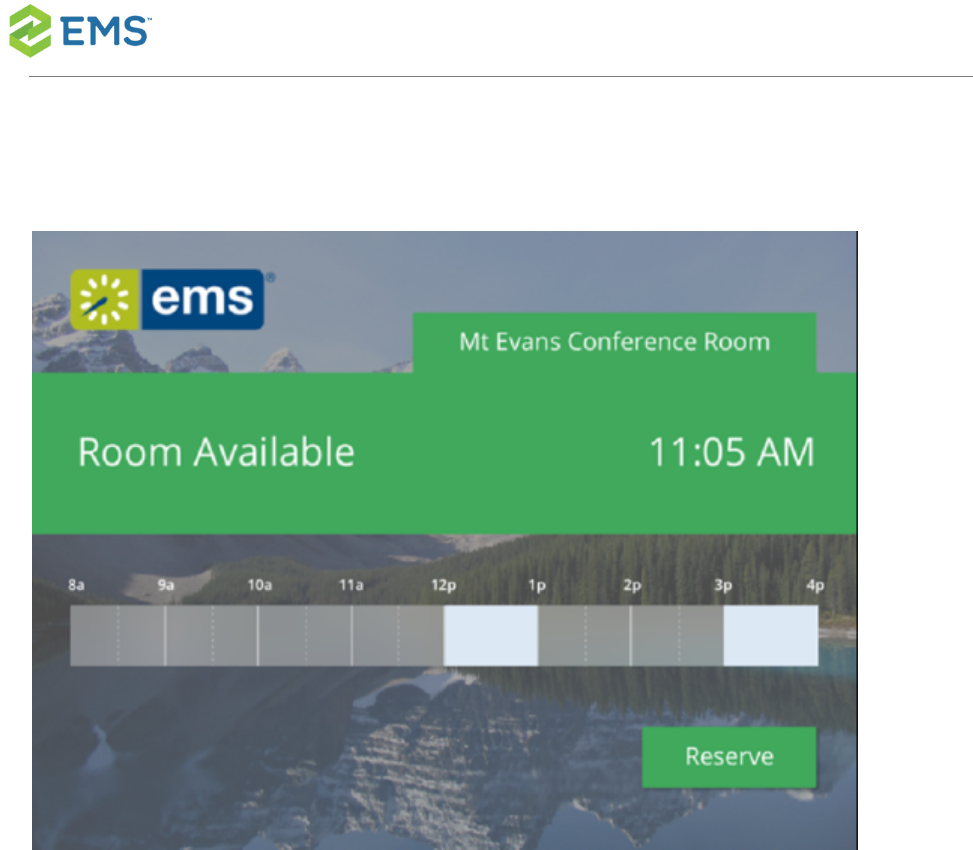

Available Screen (Example of a future meeting with setup and teardown)
EMSSoftware © 2018 / V44.1 / Page 10
CHAPTER3: Get Started With EMSRoom Sign App

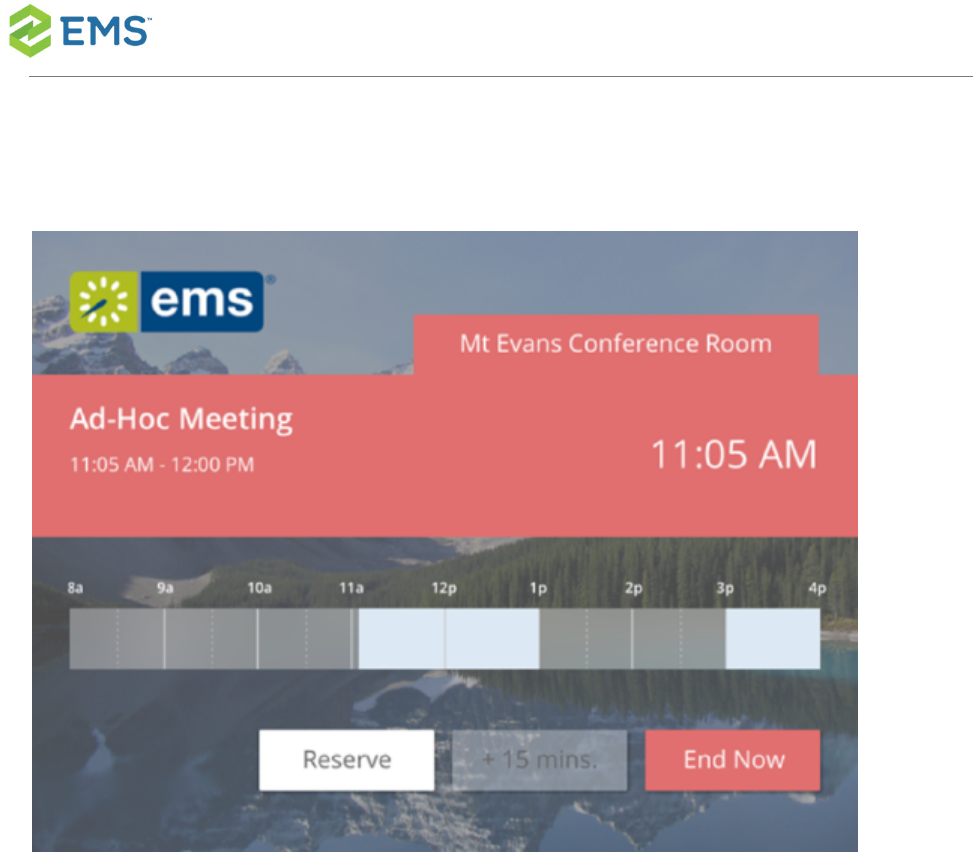

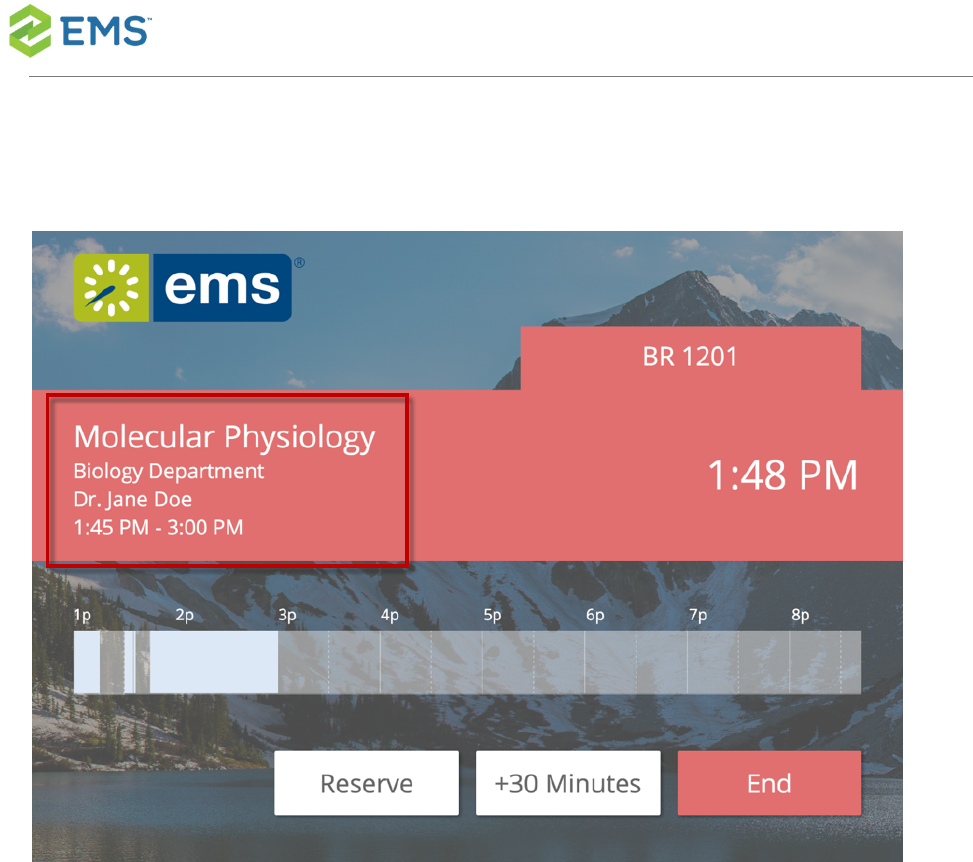

In Progress Screen
EMSSoftware © 2018 / V44.1 / Page 11
CHAPTER3: Get Started With EMSRoom Sign App
CHAPTER4: Deploy EMSRoom
Sign App on Tablets
OVERVIEW
To deploy the EMSRoom Sign App (formerly named EMS Glance), you need to
prevent users from using the tablet to browse to other websites or use other tab-
let apps. This state—where tablets are restricted to a single use—is known as
kiosk
mode. iOS offers a native kiosk mode known as
Guided Access
. Android
and Windows do not have a native kiosk mode and require a third party applic-
ation. For Android, we recommend KioWare Lite. Below we detail how to con-
figure the EMS Room Sign App in kiosk mode on iPads and the Samsung Tab A
Android tablets.
In addition to placing the tablet in kiosk mode, you should also use an enclosure
to protect the tablet. An enclosure prevents users from using the power/home
buttons, and also protects the tablet from theft. We strongly recommend
theArmorActive enclosures. As of September 2016, ArmorActive is our official
hardware partner, and they can help you source both tablets and enclosures.
EMSSoftware © 2018 / V44.1 / Page 12
CHAPTER4: Deploy EMSRoom Sign App on Tablets
NOTE:To configure LEDintegration, set the parameter for your enclosure in
the EMSDesktop Client on the global and/or profile level. This parameter can
be set during profile configuration or at a global level to apply the setting
across all profiles. See Also:Deploying the EMSRoom Sign App on Appli-
ances.
This topic will include the following information:
Configure Kiosk Modefor iPads
Configure Kiosk Mode for Android Tablets
Provision and ConfigureKioWare Lite
General Settings
Browser Settings
Attract/Inactivity Settings
Toolbar Settings
Security Settings
Orientation Views for the EMS Room Sign App
Mount the EMS Room Sign App in an Enclosure
EMSSoftware © 2018 / V44.1 / Page 13
CHAPTER4: Deploy EMSRoom Sign App on Tablets
CONFIGURE KIOSK MODEFOR IPADS
To ensure the EMSRoom Sign App operates without interruptions, we recom-
mend you hidethe browser's address bar and navigation buttons, and turn off
tablet notifications.
1. Hide Browser Address Bar and Navigation Buttons. This setup is also known as
"full-screen mode." To run the EMS Room Sign App in full-screen mode on an
iPad:
a. Open the Safari browser and enter the URL for your the EMS Room Sign
App server. (Contact yoursystem administrator for the URL.)
b. ClickShare(locatedto the right of the address bar) and selectAdd to Home
Screen.
c. Choose a name for the icon (such as "EMS Room Sign App") and
selectAdd.
d. The icon for the EMS Room Sign App appears on the iPad home screen,
showing the name youjust specified.
e. Click the EMS Room Sign App icon to open the EMS Room Sign App in full
screen mode, which makes the navigation bar and Safari menu options inac-
cessible.
2. Turn off Tablet Notifications.To minimize interruptions by iOS, change the fol-
lowing settings in the 'Settings' app:
EMSSoftware © 2018 / V44.1 / Page 14
CHAPTER4: Deploy EMSRoom Sign App on Tablets
a. Control Center: Turn offAccess on Lock ScreenandAccess Within Appsto
eliminate access to the Control Center from within apps and the lock screen.
b. Notifications: Turn off all notifications for all apps.
c. General / Auto-Lock: SelectNeverto prevent the screen from locking.
d. General / Accessibility / Guided Access:enablingGuided Access prevents
users from accessing the Notification Center andfrom using the tablet to
access any other application except the EMS Room Sign App. (However,
Guided Access ends when the tablet restarts, which happens after a soft-
ware update, a loss of power, or simultaneously pressing the Home and
Sleep/Wake buttons for 10 seconds.) To set up Guided Access:
i. General / Accessibility / Guided Access: Turn on 'Guided Access.'
ii. General / Accessibility / Guided Access / Passcode Settings / Set
Guided Access Passcode: Enter a 4-digit passcode so that you can
enable and disable Guided Access mode.
iii. Click Home and click the EMS Room Sign App icon to start the EMS
Room Sign App.
iv. With the EMS Room Sign App running, triple-click the Home button.
This can be tricky because if you click too slowly, the iPad goes back
to the Home screen, and if you click too quickly, the iPad does not
detect a triple-click. You'll know you are successful when the screen
changes to show "Guided Access" at the top center of the screen.
v. ClickStartat the top right corner of the 'Guided Access' screen.
EMSSoftware © 2018 / V44.1 / Page 15
CHAPTER4: Deploy EMSRoom Sign App on Tablets
vi. Enter the passcode you created earlier.
vii. To confirm that you set it up correctly, swipe down from the top to
open the Notifications Center and swipe up from the bottom to open
the Control Center. If neither of them opens, then you have set up
Guided Access correctly.
e. iCloud: Turn off iCloud by going toSettings/iCloud, and selectingSign
Outat the bottom of the screen.By signing out, you prevent future noti-
fications that promptyou to sign in.
CONFIGURE KIOSK MODE FOR ANDROID
TABLETS
Android tablets do not offer a Guided Mode likeiPads do. Because of this lim-
itation on Android tablets, you must deploythe EMS Room Sign App with an
app that puts the tablets in "kiosk" mode. Placing the tablet in kiosk mode will
prevent users from accessing other applications and also disable theHomebut-
ton. We recommendKioWare Lite for Android.
PROVISION AND CONFIGUREKIOWARE LITE
KioWare Lite reads settings from an XML file. We strongly recommend con-
figuring KW such that this file is placed on a central server, and tablets
EMSSoftware © 2018 / V44.1 / Page 16
CHAPTER4: Deploy EMSRoom Sign App on Tablets
download the file from that server. This approach will make any updates easier
because you will be able to update a single file rather than make changes on
each tablet. Note that the initial provisioning will still require you to configure
each tablet individually.
To configure and provision KioWare, follow these steps on a Samsung Tab A
running Android 6.0 or higher:
1. Purchase the required number of licenses from Kioware.com. Save the KioWare
transaction number and authorization code. (If you use their volume purchasing
path, you should end up with just one of each code for the entire deployment.)
2. Open the Kioware Provision.xml file and update the following section with the
transaction and authorization code:
3. Open the Kioware_Settings.xml file and make the following changes:
a. Change the URL to the location for your Room Sign App installation:
EMSSoftware © 2018 / V44.1 / Page 17
CHAPTER4: Deploy EMSRoom Sign App on Tablets

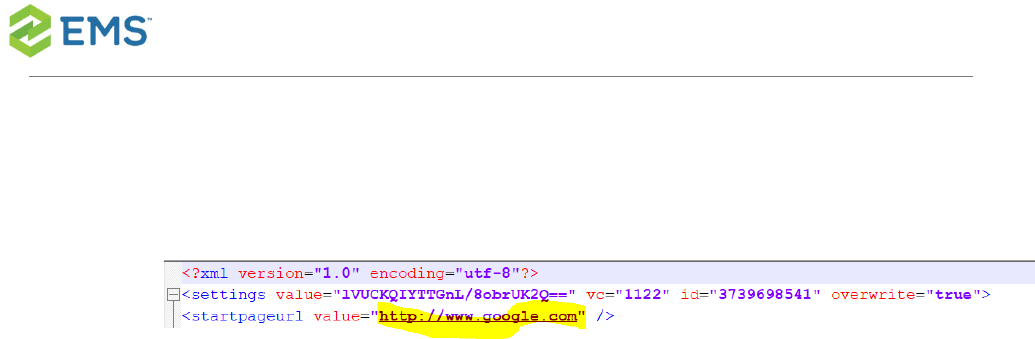

b. Also update the URL for the server where the Kioware_Settings.xml will be
placed.
i. Verify that you can access this file from a desktop browser.
ii. If you are placing this file in the Room Sign folder on your web server,
remember that when you upgrade, this file will be removed.
c. Place the Kioware_Settings.xml file in the location you just specified.
4. On the tablet, create a Kioware_Provision folder under the root directory and copy
both the Kioware_Provision.xml and Kioware_Settings.xml to that directory.
a. To create that folder, you can go to Settings / Storage / Other, ‘More’ in the
top right, and then ‘Create folder.’ This process should create the folder in
the root directory, under ‘Device storage.’ The new folder will be visible in
the pane to the left.
b. You can copy those files by connecting the tablet to your computer with a
micro-USB cable.
5. Install KioWare on the tablet.
a. If you are downloading the app file from KioWare’s website (rather than
going through the Android app store), you should Go to 'Settings'/'Lock
screen and security', and allow installation of apps from unknown sources.
EMSSoftware © 2018 / V44.1 / Page 18
CHAPTER4: Deploy EMSRoom Sign App on Tablets
6. After successfully installing, set Kioware as your ‘Home’ app. There are two ways
this might happen:
a. The first time you press the Home button, you should see an option to set
the home button as KioWare.
b. Or you can go to Settings/Applications/Default applications and set
KioWare as the Home application.
When you download and install Kioware, we recommend the following settings:
General Settings
Browser Settings
Attract/Inactivity Settings
Toolbar Settings
Security Settings
GENERAL SETTINGS
1. Start Page URL: Set this to the EMS Room Sign App URL. That is
typicallyhttp://your_web_server/EMSRoomSignApp.
2. Start on Boot: Select this option so that the tablet will return to the EMS Room Sign
App if is restarted. Users will not be able to access the home screen.
3. Screen Orientation: the EMS Room Sign App can be used in either portrait or land-
scape orientations.
EMSSoftware © 2018 / V44.1 / Page 19
CHAPTER4: Deploy EMSRoom Sign App on Tablets
4. Prevent Screen Sleep: Select 'Disable Screen Timer and Power Button' so that the
EMS Room Sign App remains active on the screen.
BROWSER SETTINGS
1. Ensure 'Enable Browser Zoom' is checked. That is, zooming is enabled.
a. Other than this setting, you can use the default settings on this page.
2. Enter the 'Browser Cache/Data' sub-menu. In this sub-menu, only the following
options are selected:
a. Enable Cookies
b. Enable Application Cache (under HTML 5 Web Storage)
c. Clear HTML 5 Storage at Session End (under HTML 5 Web Storage)
NOTE: It will be more difficult to upgrade the EMSRoom Sign App if you
select more options because KioWare will store old settings.
ATTRACT/INACTIVITY SETTINGS
1. Set the 'Default Inactivity Timer' to 600 seconds.
EMSSoftware © 2018 / V44.1 / Page 20
CHAPTER4: Deploy EMSRoom Sign App on Tablets
TOOLBAR SETTINGS
1. Disable Action Bar, Progress Bar, Android Back Arrow, Home Button, and
everything under the 'Standard Buttons' section
2. Enable 'Use Immersive Mode.' This option improves the full-screen browsing
experience.
SECURITY SETTINGS
1. Exit Passcode: set a 4-digit passcode.Thiscodeis used to exitthe EMS Room
Sign App (being run inside the KioWare kiosk app). When the EMS Room Sign
App is running, tap the four corners of the screen starting in the top-left and going
clockwise to the bottom left. You will then be able to enter the passcode.
2. Hide System Dialogs: Select thisoption.
3. Disable Status Bar: Select this option.
NOTE: The Kioware_Settings.xml file initially sets the exit passcode to 0000.
To change this value, you will need to deploy KioWare to a single tablet, open
Kioware Config, import the Kioware_Settings.xml file, change the passcode,
and export the new settings file to use in your deployment.
EMSSoftware © 2018 / V44.1 / Page 21
CHAPTER4: Deploy EMSRoom Sign App on Tablets
ORIENTATION VIEWS FOR THE EMS ROOM SIGN
APP
Starting in Update 12, the EMS Room Sign App can be mounted in either land-
scape or portrait mode.
Landscape mode displays a timeline, and allows users to quickly see when a
room is available. However, users will have to tap on a booking to view more
information.
Portrait mode displays an agenda view (see image below). Users will see what
meetings are scheduled in the room for the day. However, they will not have a
simple visual display of room availability. For this reason, admins might want to
consider deploying portrait mode for rooms that are 'view-only.'
EMSSoftware © 2018 / V44.1 / Page 22
CHAPTER4: Deploy EMSRoom Sign App on Tablets
Agenda View Portrait Orientation
EMSSoftware © 2018 / V44.1 / Page 23
CHAPTER4: Deploy EMSRoom Sign App on Tablets
Timeline View Landscape Orientation
MOUNT THE EMS ROOM SIGN APP IN AN
ENCLOSURE
Our customers typically place their EMS Room Sign App tablets in enclosures
and mount them on walls. Mounting on drywall is fairly easy, but you will have to
do some research if you want to mount on wood or glass.
EMSSoftware © 2018 / V44.1 / Page 24
CHAPTER4: Deploy EMSRoom Sign App on Tablets
You should also consider how to supply power to your tablets. Our customers
typically choose enclosures that allow them to use PoE (Power over Ethernet)
to provide power.
iPads can connect to networks only via wireless; Apple does
not
support con-
necting iPads to Ethernet cables.
Please consider the ArmorActive enclosures. In particular, ArmorActive offers
an enclosure for the iPad Mini, which offers optional LED indicators that the
EMS Room Sign App supports to indicate whether or not the room is available.
ArmorActive also makes an enclosure for the Samsung Tab A, which we sup-
port and recommend. Contact your Account Executive for more information on
these enclosures.
NOTE:To configure LEDintegration, set the parameter for your enclosure in
the EMSDesktop Client on the global and/or profile level. This parameter can
be set during profile configuration or at a global level to apply the setting
across all profiles. See Also:Deploy the EMSRoom Sign App on Appliances.
Kioware_Provision.xml
KioWare_Settings.xml
EMSSoftware © 2018 / V44.1 / Page 25
CHAPTER4: Deploy EMSRoom Sign App on Tablets
CHAPTER5: Set Up the EMS
Room Sign App to Demo on a
Desktop Browser (Update 12+)
OVERVIEW
The June 2017 release (Update 12) contains a visual redesign of the EMS
Room Sign App. The EMS Room Sign App is now optimized to display on tab-
lets—specifically the iPad, iPad Mini, and 8” Samsung Tab A. This improvement,
however, makes demoing on a laptop browser more difficult. The EMS Room
Sign App will not display properly from your laptop unless you follow the instruc-
tions below.
1. Open the EMS Room Sign App in Chrome.
2. Press Crtrl-0 (zero) to reset the zoom.
3. Press F12 to open the dev tools.
4. If you do not see this toolbar at the top, press Crtl-Shift-M to enable it:
EMSSoftware © 2018 / V44.1 / Page 26
CHAPTER5: Set Up the EMS Room Sign App to Demo on a Desktop Browser (Update 12+)
5. Choose iPad as the option. The highlighted image on the right allows you to select
either portrait or landscape mode.

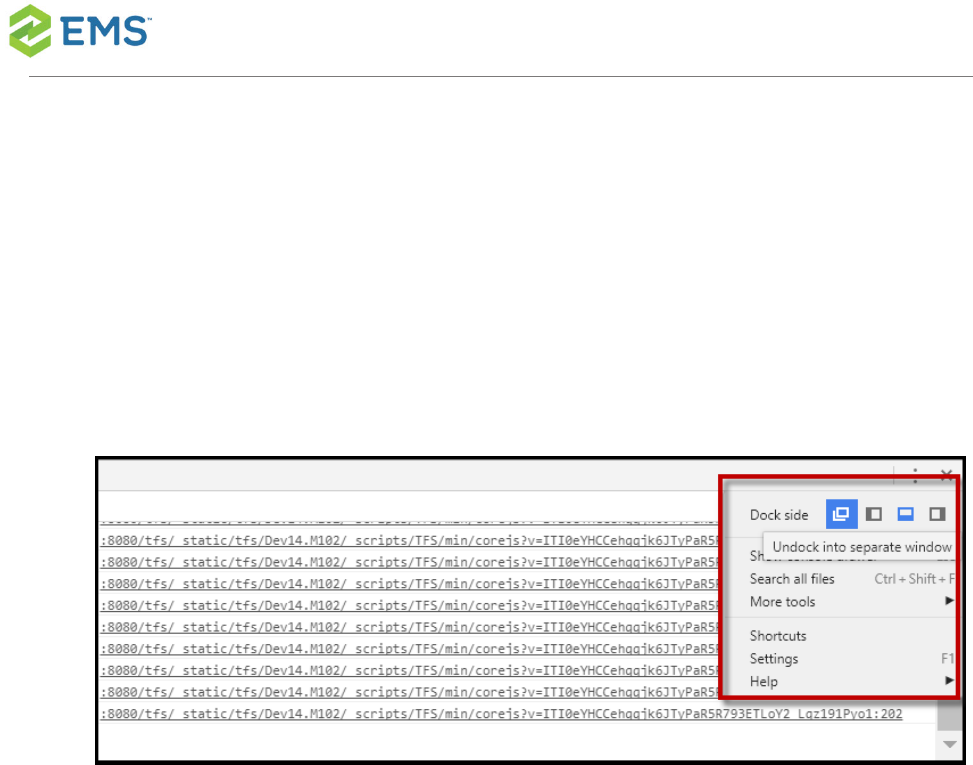

6. There will be another pane visible, on either the side or the bottom of the screen.
Press the 3 dots in the top right corner of the pane, and then choose the ‘Undock
into separate window’ option next to ‘Dock side’. That will allow you to completely
remove this pane from the screen.
7. Press F11 to display the EMS Room Sign app in full screen mode.
EMSSoftware © 2018 / V44.1 / Page 27
CHAPTER5: Set Up the EMS Room Sign App to Demo on a Desktop Browser (Update 12+)

Navigation menu
