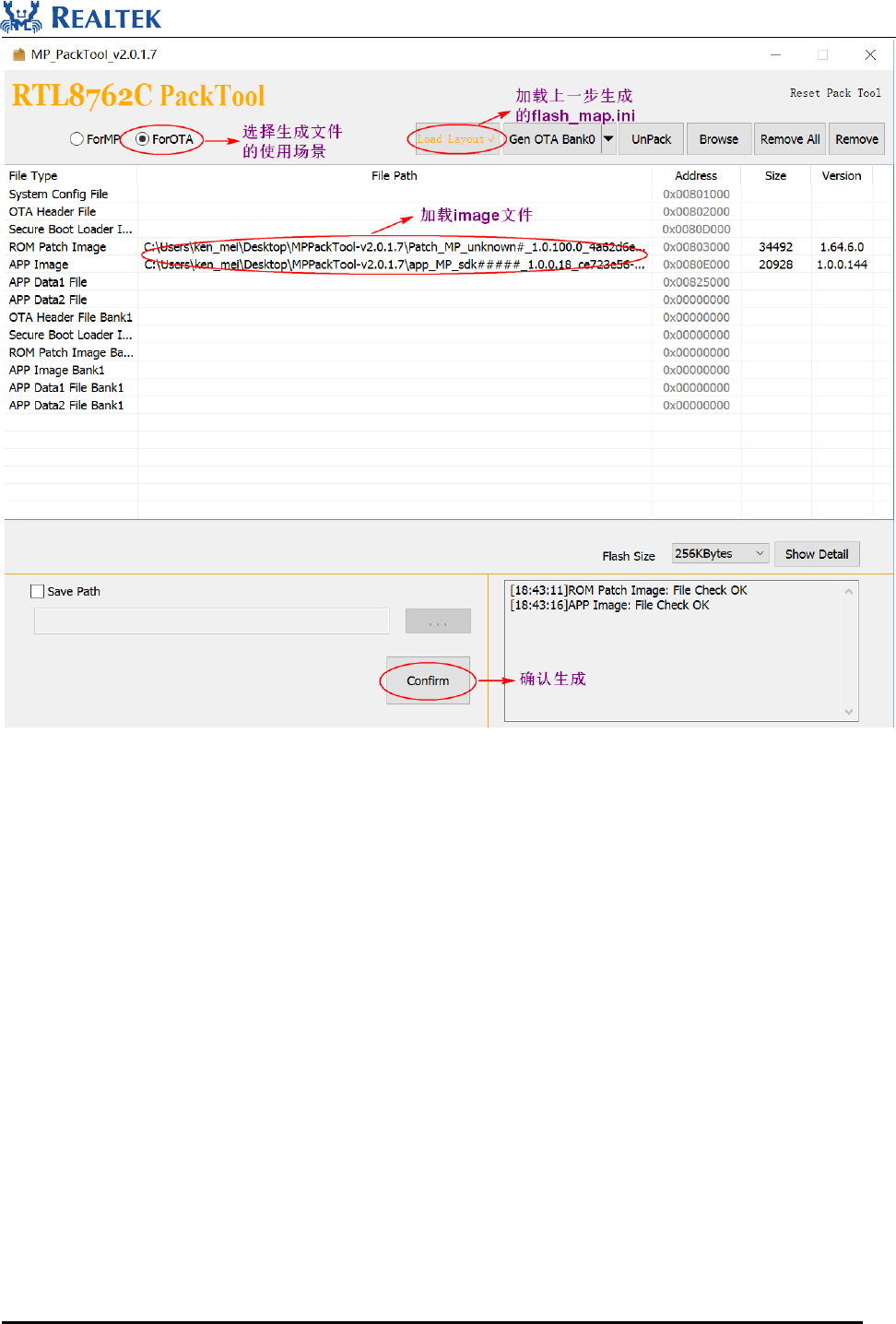

1.2 Usage of package tool without switching bank ............................................................................... 19

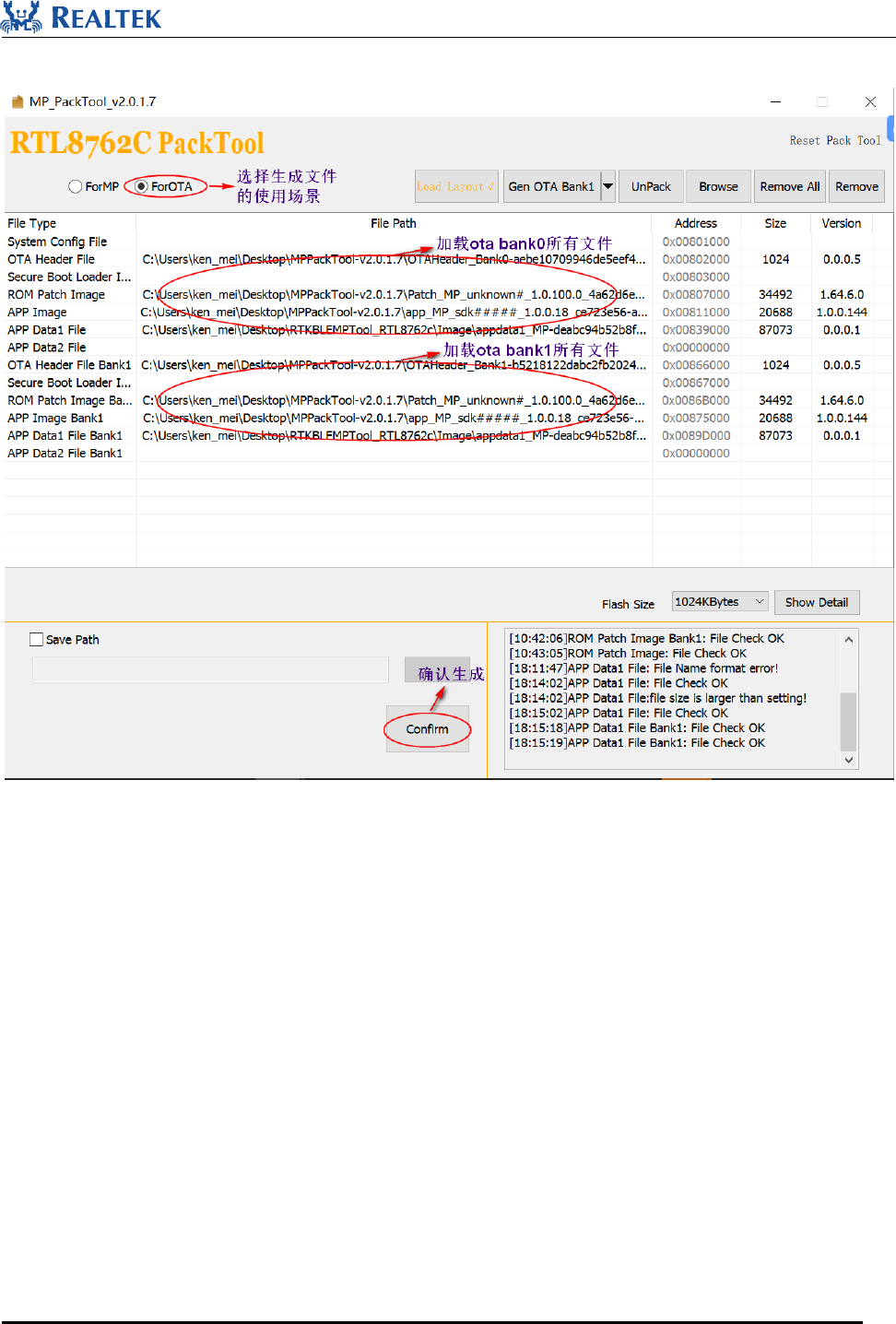

1.3 Usage of package tool with bank switching .................................................................................... 14
Attentions of RTKBLEMPTool Usage ...................................................................... 错误!未定义书签。
OTA Protocol .......................................................................................................................................... 22
1 DFU Service ............................................................................................................................................ 22
2 OTA Service ............................................................................................................................................ 24
2.1 OTA CMD ....................................................................................................................................... 24
2.2 Device Mac ...................................................................................................................................... 25
2.3 Patch Version ................................................................................................................................... 25
2.4 APP Version .................................................................................................................................... 25
2.5 Patch Extension Version .................................................................................................................. 26
2.6 Test Mode ........................................................................................................................................ 26
2.7 Device Info ...................................................................................................................................... 26
2.8 Image Counter ................................................................................................................................. 28
2.9 Image Version .................................................................................................................................. 29
Usage of Master application .................................................................................................................... 34
Reference ................................................................................................................................................. 35


Realtek Confidential

RTL8762C OTA User Manual

4

Table List

Table 2.1: Flash Layout ............................................................................................................................................. 6

Table 2.5: OTA Header Format .................................................................................................................................. 9

Table 2.6: Fields of OTA Header ............................................................................................................................. 10

Table 2.7: Image Header Layout.............................................................................................................................. 10

Table 2.8: Image Header Field ..................................................................................................................................11

Table 4.1: FLASH Layout Sample .......................................................................................................................... 14

Table 6.1: Dfu opcode .............................................................................................................................................. 23

Table 6.2: Ota Characteristic ................................................................................................................................... 24

Table 6.3: OTA CMD characteristics ....................................................................................................................... 25

Table 6.4: Device Mac characteristics ..................................................................................................................... 25

Table 6.5: Patch Version characteristic for bee2 (don’t recommend, described in image version) ......................... 25

Table 6.6: APP Version characteristic for bee2 (don’t recommend, described in image version) ........................... 26

Table 6.7: Patch Extension Version characteristic ................................................................................................... 26

Table 6.8: Test Mode characteristics ........................................................................................................................ 26

Table 6.9: Device info characteristic for Bee2. ........................................................................................................ 27

Table 6.10: Device info Format For Bee2 (OTA version = 1) ................................................................................. 28

Table 6.11: Image Counter characteristics ............................................................................................................... 28

Table 6.12: Image Counter characteristics ............................................................................................................... 29

Realtek Confidential

1 Overview

1.1 Function Description

OTA (Over The Air) represents the technology that apply Bluetooth to update image (code and data) that runs in

RTL8762C Flash.

Note: This document is also applied to RLT8752 series.

1.2 Related Emphasis

1． Flash Layout

2． IMG format

3． Package

4． Ota Protocol

Realtek Confidential

RTL8762C OTA User Manual

6

2 Flash layout

Flash layout of RTL8762C consists of OEM Config, OTA Bank0, OTA Bank1, FLASH Transport Layer(FTL),

OTA TMP and APP defined section, as shown in Figure 2.1. Start address for accessing Flash is 0x800000.

OEM Config

OTA Bank0

OTA Bank1

FTL(FLASH Transport Layer)

OTA TMP(Reserved for legacy)

APP Defined Section

Start Address: 0x801000

Start Address: Variable

Figure 2.1: Flash Layout

Memory and corresponding function of Flash is shown in Table 2.1

Memory

Segment

Starting

Address

Size

(Bytes)

Functions

OEM Config

0x801000

0x1000

Storage of Config information, including

Bluetooth address, AES Key and Customizable

Flash Layout.

OTA Bank 0

Variable

(defined in

OEM Config)

Variable length

(defined in OEM

Config)

If not in bank switching mode, this region contains

the project data and codes to be executed,

including OTA Header, Secure boot, Patch, APP,

Data1, Data2. OTA_TMP is the backup region of

this OTA.

In bank switching mode, OTA Bank 0 and OTA

Bank 1 is backup region of each other. Suppose

OTA Bank 0 is execution region, then OTA Bank

1 is backup region.

Realtek Confidential

RTL8762C OTA User Manual

7

OTA Bank 1

Variable

(defined in

OEM Config)

Variable length

(defined in OEM

Config)

This region only exists when bank switching

method is applied. It has same functions and same

size with Bank 0 in bank switching mode

FTL

Variable

(defined in

OEM Config)

Variable length

(defined in OEM

Config)

A software technology that access Flash with

logical address. Customer no longer needs to focus

on operations on Flash physical layer.

This region also balances consumption.

OTA_TMP

Variable

(defined in

OEM Config)

Variable length

(defined in OEM

Config)

Used as backup region of OTA if not in bank

switching mode. Its size should be no less than

largest image in OTA Bank 0.

APP Defined

Section

Variable

(defined in

OEM Config)

Variable length

(defined in OEM

Config)

The rest of Flash that can be customized. This

region cannot be managed by OTA scheme.

Table 2.1 FLASH Memory and Function Description

OTA bank layout is shown in Figure 2.2, and description for each part is shown in Table 2.2.

Patch

App

App Data0

Low

Address

High

Address

OTA Header

Secure Boot Loader

App Data1

Figure 2.2 Layout of Bank 0/1

Memory

Segment

Starting Address

Size

Functions

OTA Header

Determined in the

OEM Config

4KB

This region contains the OTA Header version and start

address and size of the images in the bank

Realtek Confidential

RTL8762C OTA User Manual

8

region

Secure Boot

Loader

Determined in the

OTA Header

region

Variable

This region contains secure boot loader.

Patch

Determined in the

OTA Header

region

Variable

This region contains the code that optimize and extend

the protocol stack and system in ROM.

App

Determined in the

OTA Header

region

Variable

This region contains project code.

App Data0

Determined in the

OTA Header

region

Variable

Data region used in project.

App Data1

Determined in the

OTA Header

region

Variable

Data region used in project.

Table 2.2 Flash Segmentation

3 Image Header Format

OTA Header image is made up of header (1KB) and dummy payload (3KB). OTA Header is generated by

MPPackTool. Different fields of header are shown in Figure 2.3.

Realtek Confidential

RTL8762C OTA User Manual

9

ctrl_header(12bytes)

uuid(16bytes)

RSVD0(12bytes)

magic_pattern(4bytes)

RSVD1(44bytes)

git_version(16bytes)

payload_signature(256bytes)

payload_mac(16bytes)

RSA Public Key(260bytes)

Header

(1024 bytes)

ver_val(4bytes)

exe_base(4bytes)

load_base(4bytes)

RSVD2(64bytes)

secure_boot_addr(4bytes)

secure_boot_size(4bytes)

rom_patch_addr(4bytes)

rom_patch_size(4bytes)

app_addr(4bytes)

app_size(4bytes)

app_data1_addr(4bytes)

app_data1_size(4bytes)

app_data2_addr(4bytes)

app_data2_size(4bytes)

header_signature(256bytes)

header_mac(16bytes)

Payload(3K bytes)

Figure 3.1: OTA Header Format

Header fields and corresponding functions are shown in Table 2.3

Fields

Length

(Byte)

Functions

ctrl_header

12

Control message of OTA Header

secure_boot_addr

4

Start address of secure boot image

secure_boot_size

4

Size of secure boot image

rom_patch_addr

4

Start address of ROM patch image

Realtek Confidential

RTL8762C OTA User Manual

10

rom_patch_size

4

Size of ROM patch image

app_addr

4

Start address of application image

app_size

4

Size of application image

app_data1_addr

4

Start address of application data1

app_data1_size

4

Size of application data1

app_data2_addr

4

Start address of application data2

app_data2_size

4

Size of application data2

Table 3.3: Fields of OTA Header

Image of patch, APP and App data is made up of image header (1KB) and corresponding payload. Image header

of patch and APP is generated while compiling and linking, and that of App data is added by APP DATA Tool.

Header fields are shown in Figure 2.4, and corresponding functions are shown in Table 2.4

ctrl_header(12bytes)

uuid(16bytes)

RSVD0(8bytes)

magic_pattern(4bytes)

RSVD1(28bytes)

git_version(16bytes)

payload_signature(256bytes)

payload_mac(16bytes)

RSA Public Key(260bytes)

Header

(1024 bytes)

SHA256(32bytes)

exe_base(4bytes)

load_base(4bytes)

RSVD2(76bytes)

load_len(4bytes)

dec_key(16bytes)

header_signature(256bytes)

header_mac(16bytes)

Figure 3.4: Image Header Layout

Fields

Length(Byte)

Functions

ctrl_header

12

Control information field of Image Header

git_version

16

Information field of version control

Realtek Confidential

RTL8762C OTA User Manual

11

Table 3.4: Image Header Field

ctrl_header format in Image Header is shown as follows:

typedef struct _IMG_CTRL_HEADER_FORMAT

{

uint8_t ic_type;

uint8_t secure_version;

union

{

uint16_t value;

struct

{

uint16_t xip: 1; // payload is executed on flash

uint16_t enc: 1; // all the payload is encrypted

uint16_t load_when_boot: 1; // load image when boot

uint16_t enc_load: 1; // encrypt load part or not

uint16_t enc_key_select: 3; // referenced to ENC_KEY_SELECT

uint16_t not_ready : 1; //for copy image in ota

uint16_t not_obsolete : 1; //for copy image in ota

uint16_t integrity_check_en_in_boot : 1; // enable image integrity

check in boot flow

uint16_t rsvd: 6;

};

} ctrl_flag;

uint16_t image_id;

uint16_t crc16;

uint32_t payload_len;

} T_IMG_CTRL_HEADER_FORMAT;

ic_type represents IC type, which has the value of 5 when RTL8762C/RTL8752 chip is used. secure_version

indicates version of secure boot image.

image_id identifies different types of image, among which SCCD, OCCD and FactoryCode cannot be updated

through OTA. The types are enumerated in IMG_ID.

Realtek Confidential

RTL8762C OTA User Manual

12

typedef enum _IMG_ID

{

SCCD = 0x278D,

OCCD = 0x278E,

FactoryCode = 0x278F,

OTA = 0x2790, /* OTA header */

SecureBoot = 0x2791,

RomPatch = 0x2792,

AppPatch = 0x2793,

AppData1 = 0x2794,

AppData2 = 0x2795,

IMAGE_MAX = 0x2796,

} IMG_ID;

payload_length represents the size of image in byte, excluding 1KB image header.

crc16 indicates check method, which can be crc check and SHA256 check. 0 represents crc check and 1 represents

SHA256 check.

ctrl_flag and OTA related bit field can be not_ready and not_obsolete. not_ready indicates whether OTA write is

successfully completed and its default value is 0. When image is about to be written into backup region, not_ready

will be set to 1 at first. Not until update transmission is completed and integrity check is passed will the not_ready

flag be set to 0 to indicate that image is ready.

not_obsolete indicates if the image should be abandoned and its default value is 1. This parameter is invalid in

bank switching mode. When not in bank switching mode, if not_ready is read 0 and not_obsolete is read 1, image

will be moved from OTA_TMP region to specified region (APP region, Patch region or App data region).

not_obsolete flag will be written 0 after transfer completed.

Realtek Confidential

RTL8762C OTA User Manual

13

4 Package and flash layout sample

4.1 Support bank switching

Related tool and their functions:

- FlashMapGenerateToo:

l

Generate flash map.ini and flash_map.h, flash_map.h should be put in same

directory with project and generate APP Image. flash map.ini is the input file of

MPPackTool and MPTool to ensure image has the same address with the address in

settings.

- MPPackTool:

Package OTA files.

- MPTool:

Perform address conversion operation on Patch.

4.1.1 FLASH Layout

Bank switching method needs 2 OTA Banks that are completely same to become the backup of each other. Its’s

advantage is that program can directly jump to new bank when reboot. However, OTA update in bank switching

mode takes more flash memory to speed up update, so the size of flash memory should be larger if bank switching

method is applied.

If flash size is comparatively large, user can update firmware by applying bank switching method. Take 1 MB

Flash as example, the suggested Flash layout is shown below:

sample layout for flash(total size = 1MB)

size

start address

1) SOCV Header

4K

0x800000

2) OEM Header

4K

0x801000

3) OTA Bank0

400K

0x802000

a) OTA Header

4K

b) Secure boot loader

16K

0x803000

c) Patch code

40K

0x807000

d) APP code

160K

0x811000

e) APP data1

180K

0x839000

f) APP data2

0K

4) OTA Bank1 (same as OTA Bank0)

400K

0x866000

a) OTA Header

4K

Realtek Confidential

RTL8762C OTA User Manual

14

b) Secure boot loader

16K

0x867000

c) Patch code

40K

0x86B000

d) APP code

160K

0x875000

e) APP data1

180K

0x89D000

f) APP data2

0K

5) FTL

16K

0x8A1000

6) OTA Temp

0K

7) APP Defined Section

200K

Table 4.1: FLASH Layout Sample

Note: Flash Layout should be determined based on actual size of image and data.

4.1.2 Usage of package tool with bank switching

1． Use FlashMapGenerateTool to ‘flash map.ini’ and ‘flash map.h’. Copy ‘flash map.h’ to project directory and

open project with Keil. Link and compile the project to generate “app_MP_sdk#####+version+MD5.bin” file

for packaging. To apply Bank switching method, “mem_config.h” in project directory should be modified.

/** @brief set app bank to support OTA: 1 is ota bank1, 0 is ota bank0 */

#define APP_BANK 0

Realtek Confidential

RTL8762C OTA User Manual

15

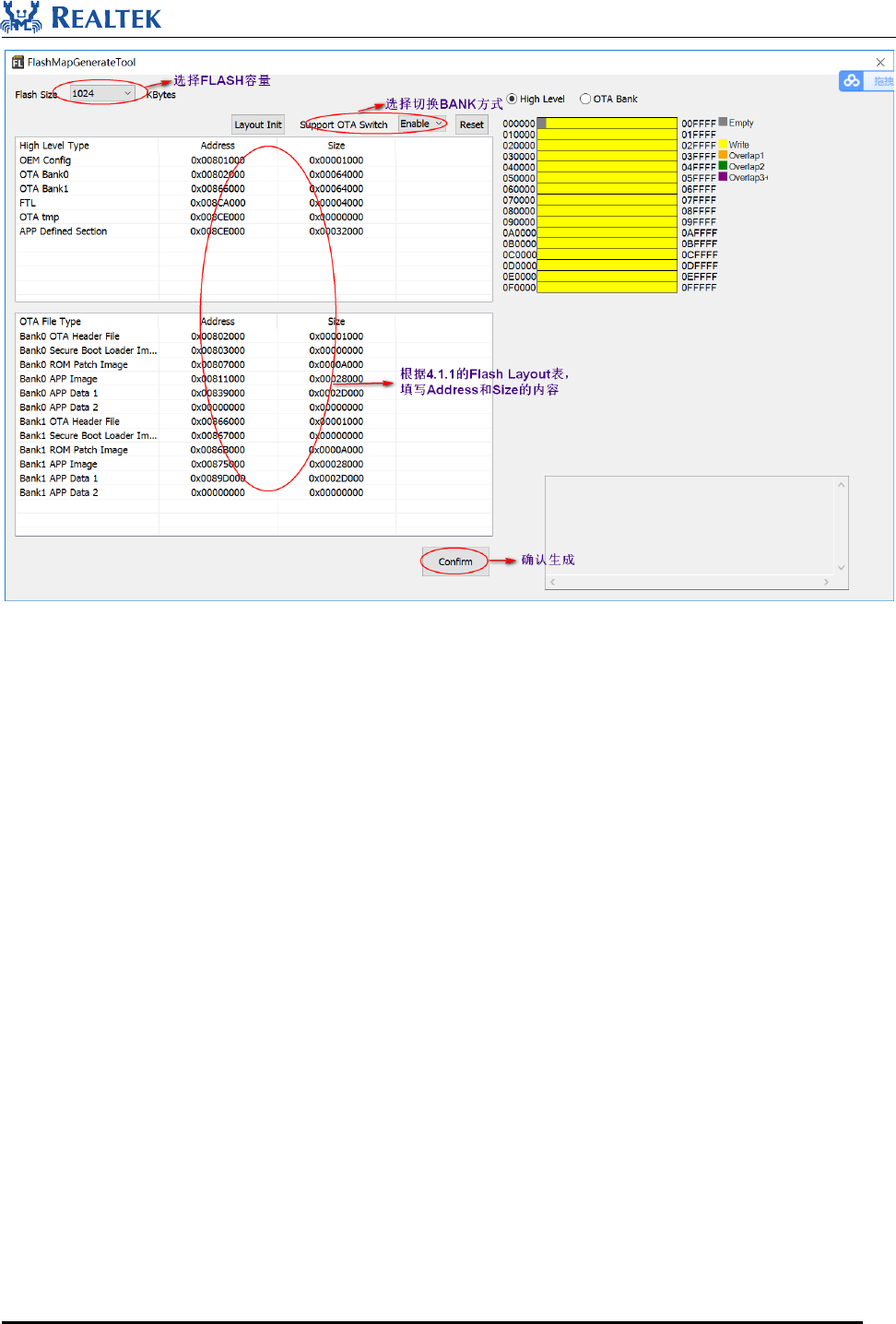

Figure 4.1 Generate Flash Layout

Note: The ‘flash map.ini’ generated should keep consistent with the one used in mass production.

2． Open MP_PackTool, load the ‘flash map.ini’ file generated in step 1 and generate OTA Header0, OTA

Header1 separately.

Realtek Confidential

RTL8762C OTA User Manual

16

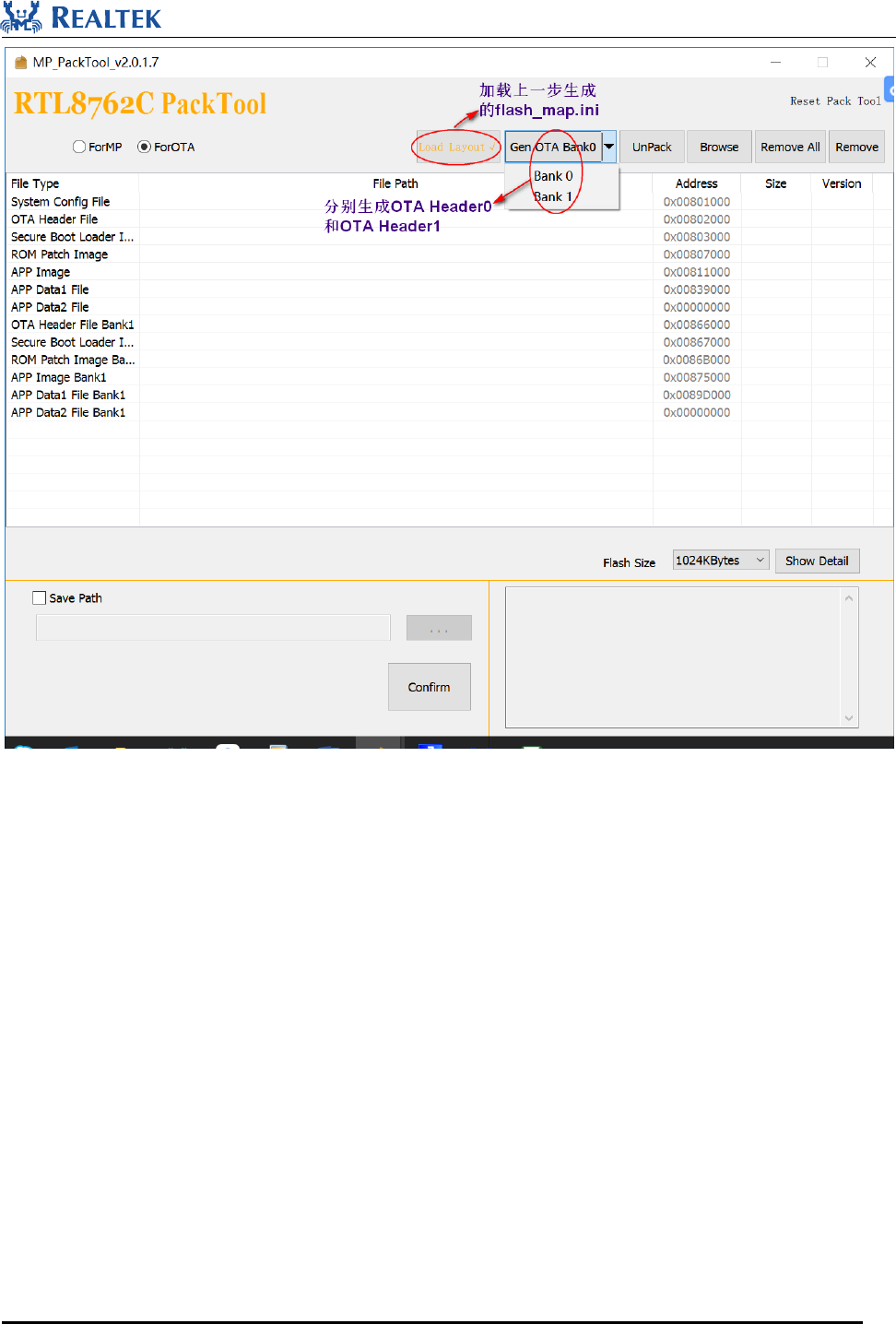

Figure 4.2 MP PACK Tool Load Flash Layout

3． Generate OTA Header0 and OTA Header1. Take OTA Header0 as an example, as shown below. Generating

OTA Header1 follows the same procedure.

Realtek Confidential

RTL8762C OTA User Manual

17

Figure 4.3 Generate OTA Header

Note: Only if the version number of OTA Header to be packaged is higher than that of current version, can new

bank be valid after OTA.

Realtek Confidential

RTL8762C OTA User Manual

18

4． Generate packet file of ImgPacketFile-xxxxxx.bin in current directory, which is used for updating.

Figure 4.4 Package to generate PACK

Note: 1. Both OTA Head0 and OTA Header1 need to be packaged to PACK, different from the mode without bank

switching.

2. All the contents defined in Flash layout need to be packaged, especially Header, Patch and APP of OTA.

3. It is recommended that package both bank0 and bank1 in PACK.

4. Patch image address needs to be converted through RTKBLEMPTool.

5. APP DATA file is generated with APP DATA generation script, for detailed information refer to Bee2

Tools User Guide.

Realtek Confidential

RTL8762C OTA User Manual

19

4.2 Do not support bank switching

4.2.1 FLASH Layout

The differences between the method without bank switching and the one with bank switching are:

1. OTA Bank1 region needn’t be allocated.

2. OTA Temp region needs to be allocated and its size should be no less than the largest image in OTA Bank0.

Thus, the method without bank switching saves more flash. After OTA transmission is completed and program is

rebooted, the data in OTA Temp region will be moved to the image region specified by OTA Bank0. The data

won’t be valid until program is rebooted, which increase the duration of update.

The suggested Flash layout is shown below:

sample layout for flash(total size = 256KB)

size

start addr

1) OEM Header

4K

0x801000

2) OTA Bank0

140K

0x802000

a) OTA Header

4K

b) Secure boot loader

4K

0x80D000

c) Patch code

40K

0x803000

d) APP code

92K

0x80E000

e) APP data1

0K

0x825000

f) APP data2

0K

3) OTA Bank1 (same as OTA Bank0)

0K

0x825000

4) FTL

16K

0x825000

5) OTA Temp

92K

0x829000

6) APP Defined Section

0K

Table 4-2：FLASH Layout Sample

Note: The space for APP data is not allocated in this sample; FLASH Layout should be distributed based on

actual size of image and data.

4.2.2 Usage of package tool without bank switching

1． Use FlashMapGenerateTool to ‘flash map.ini’ and ‘flash map.h’. Copy ‘flash map.h’ to project directory and

open project with Keil. Link and compile the project to generate “app_MP_sdk#####+version+MD5.bin” file

Realtek Confidential

RTL8762C OTA User Manual

20

for packaging. To apply Without Bank switching method, “mem_config.h” in project directory should be

modified.

/** @brief set app bank to support OTA: 1 is ota bank1, 0 is ota bank0 */

#define APP_BANK 0

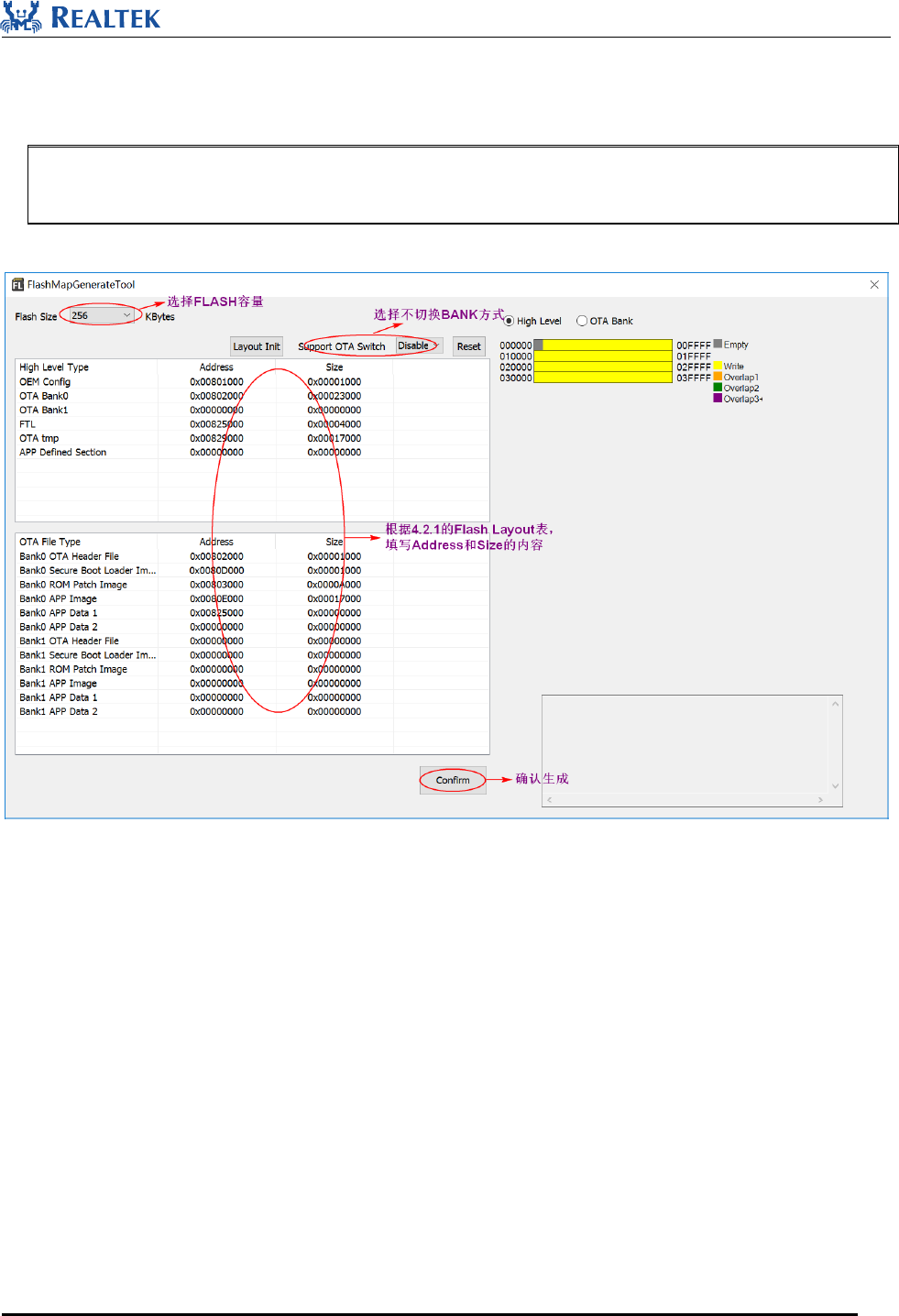

Figure 4.5 flash layout generation

2． Open MP_PackTool to load flash_map.ini generated in previous step and load corresponding image.

Realtek Confidential

RTL8762C OTA User Manual

21

Figure 4.6 MP PACK Tool Load flash layout

Note: 1. OTA Head0 doesn’t need to be packaged to PACK, different from the mode with bank switching.

2. Content of Secure boot loader Image is defined in Flash Layout, but it’s not recommended to package if

there isn’t any new version of Secure boot loader Image.

3. If only ROM Patch Image or APP Image, either of them can be packaged.

4. Patch image address needs to be converted through RTKBLEMPTool generally. Patch address here is the

same with the default address (0x803000) and it can be used without conversion.

Realtek Confidential

RTL8762C OTA User Manual

22

5 OTA Protocol

5.1 DFU Service

DFU Service uuid: { 0x12, 0xA2, 0x4D, 0x2E, 0xFE, 0x14, 0x48, 0x8e, 0x93, 0xD2, 0x17, 0x3C, 0x87, 0x62,

0x00, 0x00}.

DFU Service defines two Characteristics：

Data Characteristic accepts img data (write no response);

Control Point Characteristic accepts control commands (write/notification);

Control points supported by DFU Service:

Procedure

Requirement

Properties

Parameter Description

Applicable

Response

Value(s)

Response Parameter

Start DFU①

M

Write

ic_type(UINT8)

secure_version (UINT8)

ctrl_flag.value(UINT16)

image_id (UINT16)

crc16((UINT16)

payload_len (UINT32)

ARV

None

Receive FW image

M

Write

image_id (2byte-UINT16)

nImageLength

(4Byte-UINT32)

ARV

None

Validate FW

M

Write

image_id (2byte-UINT16)

ARV

None

Activate Image and

Reset

M

Write

None

Reset System

M

Write

None

Realtek Confidential

RTL8762C OTA User Manual

23

Report Received

Image Information

M

Write

image_id(UINT16)

ARV

origin_image_version

(UINT32)

cur_offset (UINT32)

Connection

parameter update

M

Write

connIntervalMin(UINT16)

connIntervalMax

(UINT16)

connLatency(UINT16)

supervisionTimeout

(UINT16)

ARV

None

Buffer check enable

M

Write

None

ARV

Max buffer size(UINT16)

Mtu size(UINT16)

Buffer check

size&crc

M

Write

mBufferSize(UINT16)

mCrc(UINT16)

ARV

Next send

offset(UINT32)

IC type

O

Write

None

ARV

ic_type(UINT8)

Copy Img②

M

Write

image_id(UINT16)

destination_addr(UINT32)

copysize(UINT32)

ARV

None

Table 5.1: Dfu opcode

Note:

1. Parameter of “Start DFU” is ctrlheader of image. It will be written into flash as a part of update file after

receiving ctrlheader. The 12 bytes received parameter of Start DFU will be decrypted first, then resolved to be

written into Flash.

2. To update APP data with bank switching when secure version and APPDATA version are the same, this

command can be used to copy contents of source bank to the destination bank directly without OTA data

transporting

To transmit data with buffer check enabled, the size of buffer check must be (16 ∗ 2n) bytes and no more than

max buffer size (returned by buffer check enable commands). If AES enabled, every 16-byte data will be

encrypted with AES. When data is received, it needs to be decrypted first. For the last 16 bytes don’t need

encryption. When buffer is full, data in buffer will be written into Flash.

To transmit data with buffer check disabled, data of 20*n (n=1,2,4,5,10) bytes is sent each time. Data won’t be

written into Flash until RTL8762C receives 2000 bytes of data.

Realtek Confidential

RTL8762C OTA User Manual

24

If AES enabled, the data with the size of 16× 𝑞 will be encrypted, and the data with the size of 𝑟 won’t be

encrypted. 𝑞 and 𝑟 follows the formula:

𝒔𝒊𝒛𝒆 = 𝟏𝟔 × 𝒒 + 𝒓,

where 𝑞 stands for ‘quotient’ and 𝑟 stands for ‘remainder’.

5.2 OTA Service

OTA Service uuid: { 0x12, 0xA2, 0x4D, 0x2E, 0xFE, 0x14, 0x48, 0x8e, 0x93, 0xD2, 0x17, 0x3C, 0xFF, 0xD0

，

0x00, 0x00}.

OTA Service defines the following Characteristics：

Table 5.2: OTA Characteristic

5.2.1 OTA CMD

UUID: 0xFFD1

This characteristic allows device to access control point of OTA. If DFU service runs in ROM code, it uses this

command to enter DFU mode.

Names

Field

Requirement

Format

Value

OTA CMD

Mandatory

Uint8

1

Characteristic Name

Requirement

Mandatory Properties

Description

OTA CMD

M/O

WriteWithoutResponse

Refer to OTA CMD

Device Mac

M

Read

Refer to Device Mac

Patch Version

M

Read

Refer to Patch Version

App Version

M

Read

Refer to App Version

Patch Extension Version

O

Read

Refer to Patch Extension

Version

Test Mode

O

WriteWithoutResponse

Refer to Test Mode

Device Info

M

Read

Refer to Device Info

Image Counter

O

WriteResponse

Refer to Image Counter

Image Version

M

Read

Refer to Image Version

Realtek Confidential

RTL8762C OTA User Manual

25

Table 5.3: OTA CMD characteristics

5.2.2 Device Mac

UUID: 0xFFD2

This characteristic is used to read BDA (Bluetooth Device Address) of RTL8762C to compare with the scanned

BDA in OTA mode.

Name

Field

Requirement

Format

Value

Device Mac

Mandatory

Uint8*6

XX:XX:XX:XX:XX:XX

Table 5.4: Device Mac characteristics

5.2.3 Patch Version

UUID: 0xFFD3

This characteristic is used to read patch version and compatible with Bee1. Patch version information is described

in “Image version” in Bee2.

Name

Field

Requirement

Format

Value

Patch Version

Mandatory

Uint32

0xNNNNNNNN

Table 5.5: Patch Version characteristic for Bee2 (not recommend, described in image version)

5.2.4 APP Version

UUID: 0xFFD4

This characteristic is used to read APP version and compatible with Bee1 (not recommended in Bee2). APP

version information is described in “Image version” in Bee2.

Realtek Confidential

RTL8762C OTA User Manual

26

Name

Field

Requirement

Format

Value

APP Version

Mandatory

Uint32

0xNNNNNNNN

Table 5.6: APP Version characteristic for Bee2 (not recommend, described in image version)

5.2.5 Patch Extension Version

UUID: 0xFFD5

This characteristic is used to read patch extension version. It is only used for Bee1 but not for Bee2.

Name

Field

Requirement

Format

Value

Patch extension

Version

Optional

Uint16

0xNNNN

Table 5.7: 错误!未找到引用源。Patch Extension Version characteristic

5.2.6 Test Mode

UUID: 0xFFD8

This characteristic allow device to exit control point in test mode and write ‘1’ to clear test flag to quit MP mode.

Name

Field

Requirement

Format

Value

Test mode

Optional

Uint8

1

Table 5.8: Test Mode characteristics

Note: This characteristic is not related to OTA.

5.2.7 Device Info

UUID: 0xFFF1

This characteristic is used to read device information, and its description is shown below:

Realtek Confidential

RTL8762C OTA User Manual

27

For the other BT SoC chip, the characteristic is as below.

Name

Field

Requirement

Format

Value

Device info

Mandatory

As Table

6.10

As Table 6.10

Table 5.9: Device info characteristic for Bee2.

Format

ICType

Version

Secure

Version

MODE

Max

Buffer

Size

Reserved

8bit

16bit

Value

BBpro:

4

BEE2:5

Bit3~0:

OTA

version

= 0x1

Bit7~4:

Reserve

d:0x0.

Bit

0

0:normal mode

1:Support buffer

check

0xNNNN

0x00

Bit

1

0:Aes flag not set

1:Aes flag Set

Bit

2

0: Only encrypt first

16 bytes of OTA data

in normal mode.

1:Encrypt 16*N bytes

of OTA date in normal

mode

Bit3

0: Disable Copy

Image.

1: Enable Copy Image.

Bit4

0: Update one Image at

a time.

1: Update multiple

Images at a time.

Format

(Attach to above table)

Image Version Indicator

32bit

Realtek Confidential

RTL8762C OTA User Manual

28

Value

(Attach to above table)

0xNNNNNNNN

Indications for each image version. Each indication uses 2 bits.

00: image does not exist.

01: image exists in bank0, OTA should update image for bank1.

10: image exists in bank1, OTA should update image for bank0.

11: image is standalone. OTA should update image for standalone.

bit[1:0]: Image 0

…

bit[2N+1:2N]:Image N

Image indicator for bee2 is as below:

Image 0

SOCV Config File

Image 1

System Config File

Image 2

OTA Header File

Image 3

Secure Boot Loader Image

Image 4

ROM Patch Image

Image 5

APP Image

Image 6

APP Data1 File

Image 7

APP Data2 File

Table 5.10: Device info Format For Bee2 (OTA version = 1)

5.2.8 Image Counter

UUID: 0xFFF2

This characteristic is used to write response and inform device how many image files are about to be written.

Name

Field

Requirement

Format

Value

Image Counter

Optional

Uint8

0xNN

Table 5.11: Image Counter characteristics

Realtek Confidential

RTL8762C OTA User Manual

29

5.2.9 Image Version

UUID: 0xFFE0~FFEF

This characteristic is used to read image versions of device. Each image version occupies 4 bytes. Limited to

MTU size (20 bytes), user needs to define another characteristic (UUID: 0xFFE0~FFEF) to read next image

version when number of image is greater than 5. The number of device img versions is indicated by Image Version

Indicator, which is defined in Device Info (0xfff1).

Name

Field

Requirement

Format

Value

Image Version

mandatory

Uint32*N

Table 5.12: Image Counter characteristics

Realtek Confidential

RTL8762C OTA User Manual

30

5.3 OTA Procedure

5.3.1 OTA procedure without buffer check

BeeController BeeTarget

Enable DFU Control Point Notification

Write: DFU CP(opcode 0x01-Start DFU: Image Header

(ic_type, secure_version, ctrl_flag.value, image_id, crc16,

payload_len and nPadding)

(req opcode 0x01):Notification

Write: DFU CP(opcode 0x02-Receive FW image)

WriteWithoutResponse: DFU Packet characteristic(First FW image)

WriteWithoutResponse: DFU Packet characteristic(Final FW image)

Write: DFU CP(opcode 0x04-Activate and Reset)

(req opcode 0x03):Notification

Write: DFU CP(opcode 0x03-Valid FW)

Activate new

image&reset

Disconnect

Write: DFU CP(opcode 0x06-Report Target image information)

(req opcode 0x06 Original FW version):Notification

Connect to target

Check whether it is need to update image

.

Write: DFU CP(opcode 0x07-Connection parameter update)

(req opcode 0x07):Notification

Connection parameter update

MTU size update

MTU size Change request

Realtek Confidential

RTL8762C OTA User Manual

31

5.3.2 OTA procedure with buffer check

Realtek Confidential

RTL8762C OTA User Manual

32

BeeController BeeTarget

Enable DFU Control Point Notification

Write: DFU CP(opcode 0x01-Start DFU: Image Header

(ic_type, secure_version, ctrl_flag.value, image_id, crc16,

payload_len and nPadding)

(req opcode 0x01):Notification

Write: DFU CP(opcode 0x02-Receive FW image)

WriteWithoutResponse: DFU Packet characteristic(First FW image)

Write: DFU CP(opcode 0x04-Activate and Reset)

(req opcode 0x03):Notification

Write: DFU CP(opcode 0x03-Valid FW)

Activate new

image&reset

Disconnect

Write: DFU CP(opcode 0x06-Report Target image information)

(req opcode 0x06 Original FW version):Notification

Connect to target

Check whether it is need to update image

.

Write: DFU CP(opcode 0x07-Connection parameter update)

(req opcode 0x07):Notification

Connection parameter update

MTU size update

MTU size Change request

Write: DFU CP(opcode 0x09-Buffer Check Enable)

(req opcode 0x09 Max buffersize&MTU Size):Notification

...Writes until a Crc check buffer is full

Write: DFU CP(opcode 0x0B-Report Buffer CRC )

(req opcode 0x0B):Notification

Repeat Write buffer

&Buffer Check

WriteWithoutResponse: DFU Packet characteristic(Final FW image)

...Writes until File end

Write: DFU CP(opcode 0x0B-Report Buffer CRC )

(req opcode 0x0B):Notification

Realtek Confidential

RTL8762C OTA User Manual

33

5.3.3 Multiple File Update

1． Without bank switching, a new file cannot be updated until the previous file has been verified and program

has been rebooted when packaged file includes Patch, APP or APPDATA.

2． With bank switching, program cannot be rebooted until all the files have been updated and verified when the

packaged file includes OTA Header, Patch, APP or APPDATA. Otherwise, this update will be invalid for that

all the files in bank region must come into effect to ensure the program is running properly with bank

switching.

Realtek Confidential

RTL8762C OTA User Manual

34

6 Usage of Master application

Omitted

Realtek Confidential

RTL8762C OTA User Manual

35

7 Reference

[1] 《RTL8762C Device Firmware Update Profile Rom Version》

[2] 《RTL8762C Device Firmware Update Service Rom Version》

Bee项目文档规范 RTL8762C OTA User Manual EN

Navigation menu

Versions of this User Manual:

Views

Navigation
