SERVICE MANUAL
101085
IMPORTANT NOTICE
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized
YAMAHA Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and
service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable
and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please
contact the distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
P.O.Box 1, Hamamatsu, Japan
2008 All rights reserved.
This manual is copyrighted by YAMAHA and may not be copied or
redistributed either in print or electronically without permission.
'08.03
■CONTENTS
TO SERVICE PERSONNEL .......................................... 2

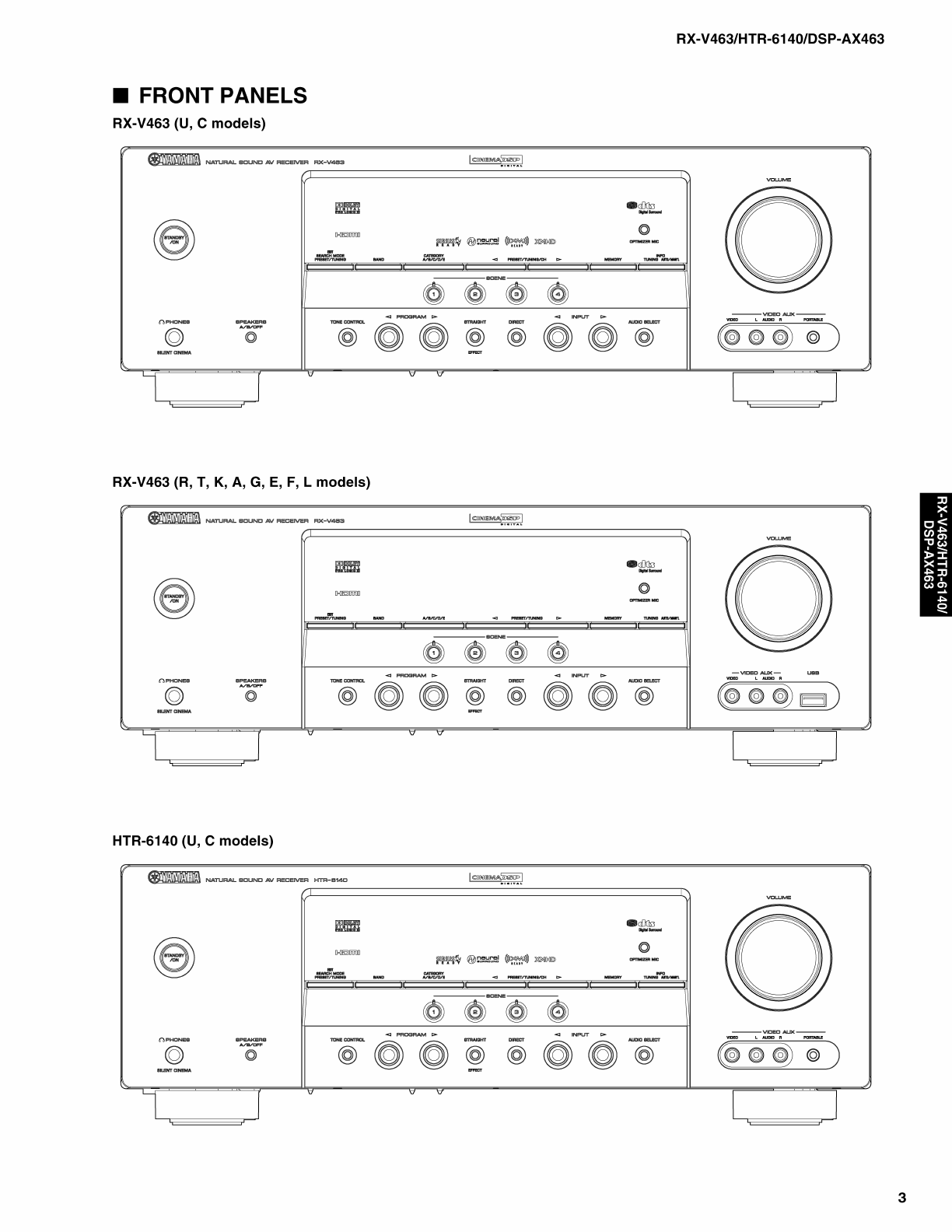

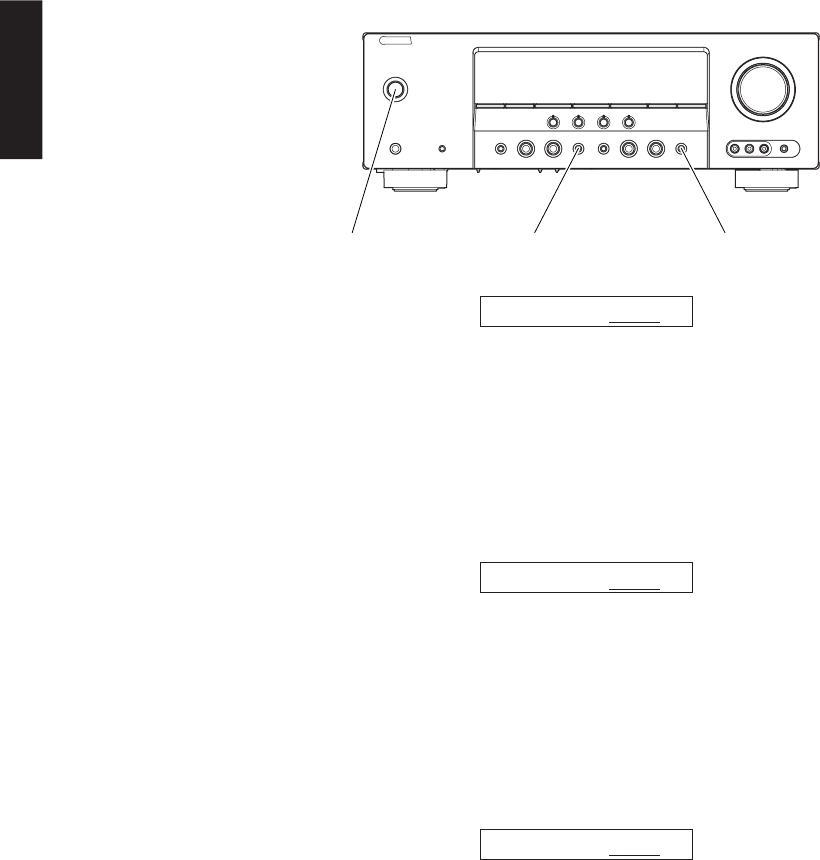

FRONT PANELS ........................................................ 3–4

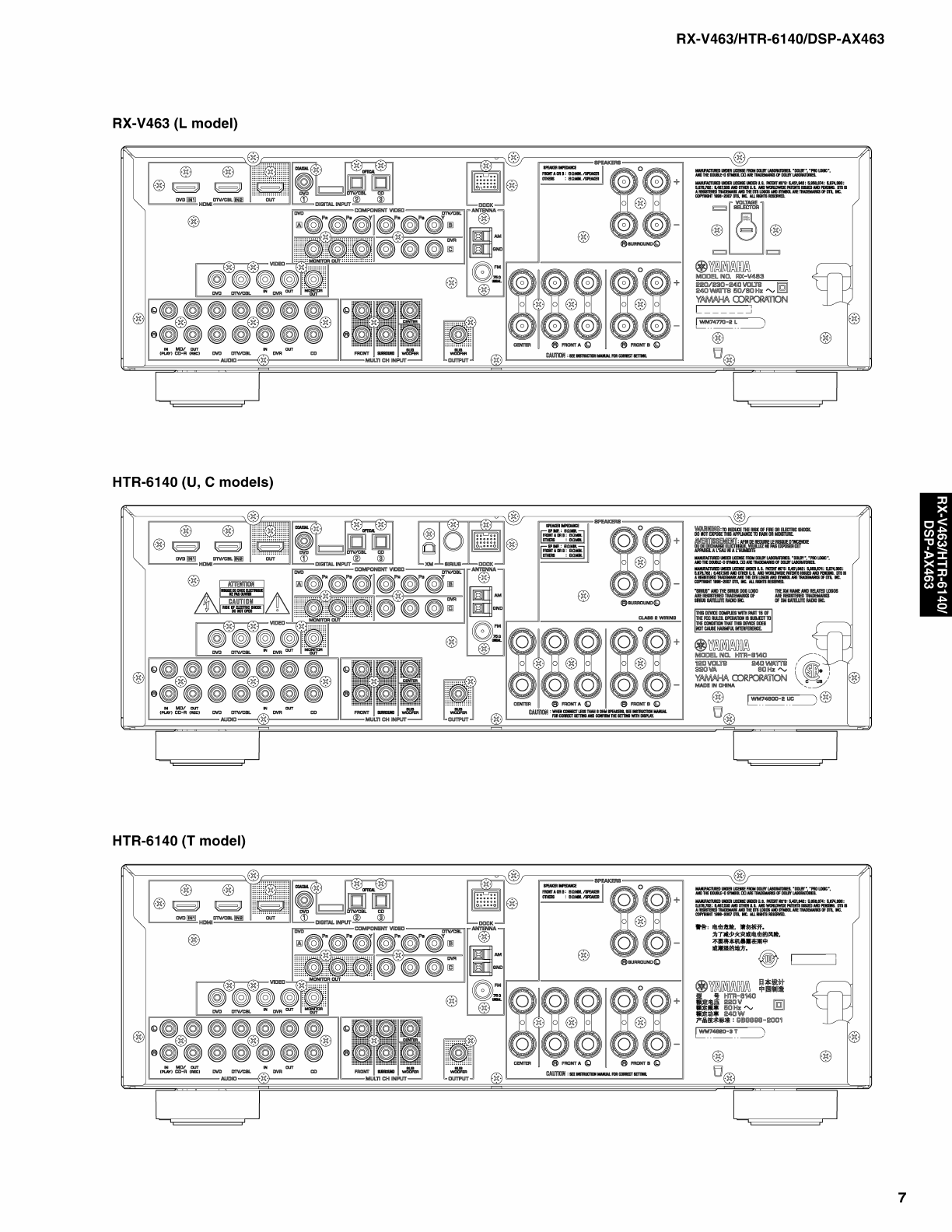

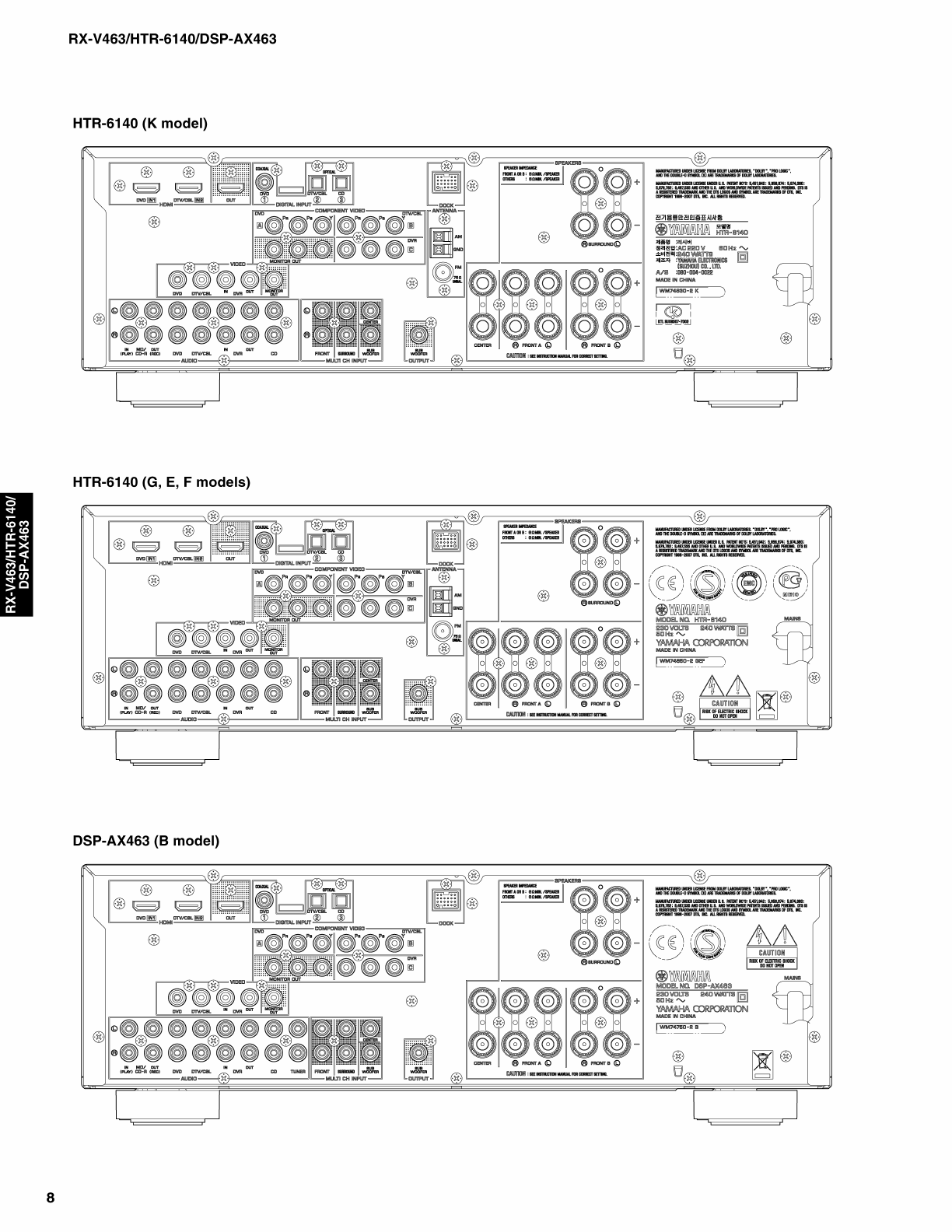

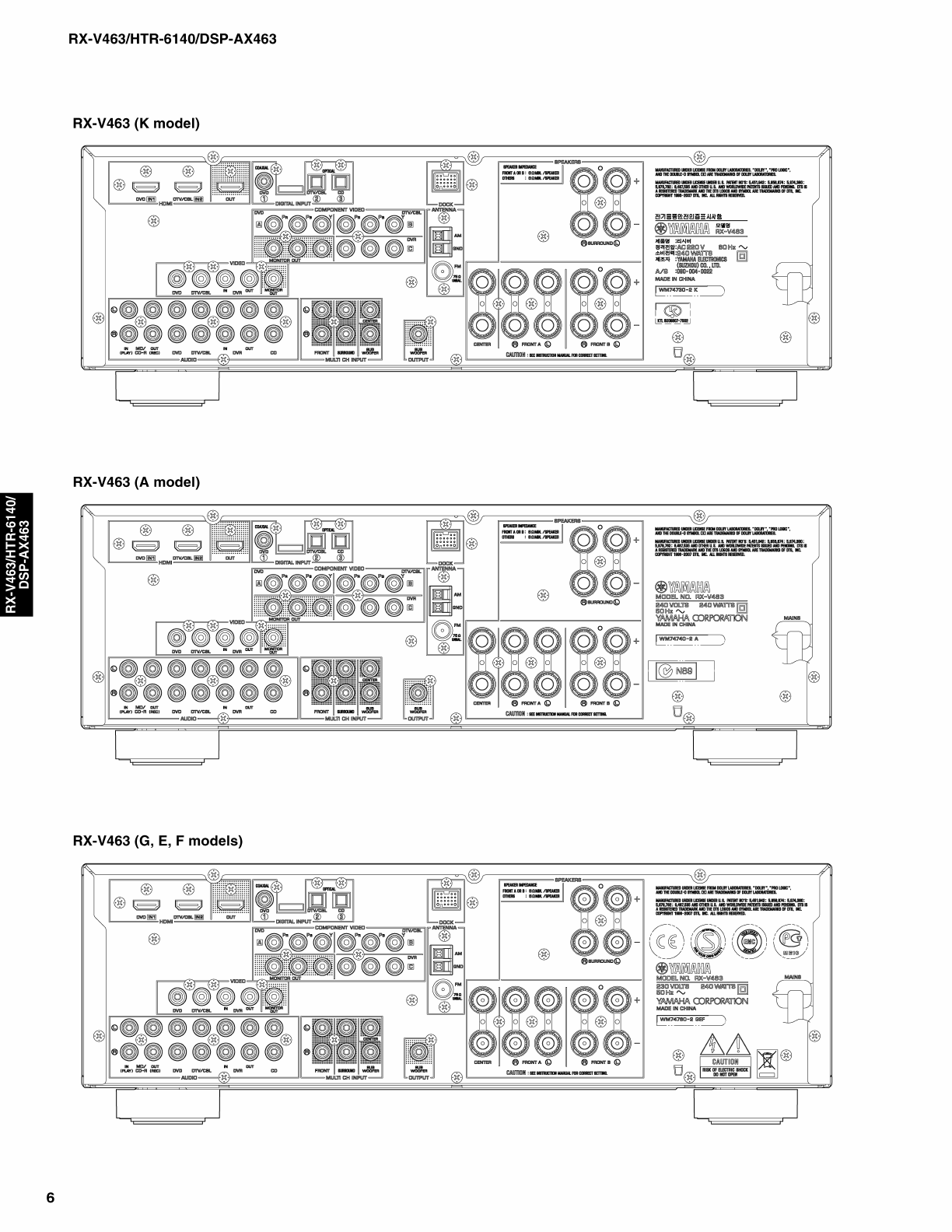

REAR PANELS .......................................................... 5–9
REMOTE CONTROL PANELS ...................................... 9
SPECIFICATIONS / 参考仕様 ................................ 10–12

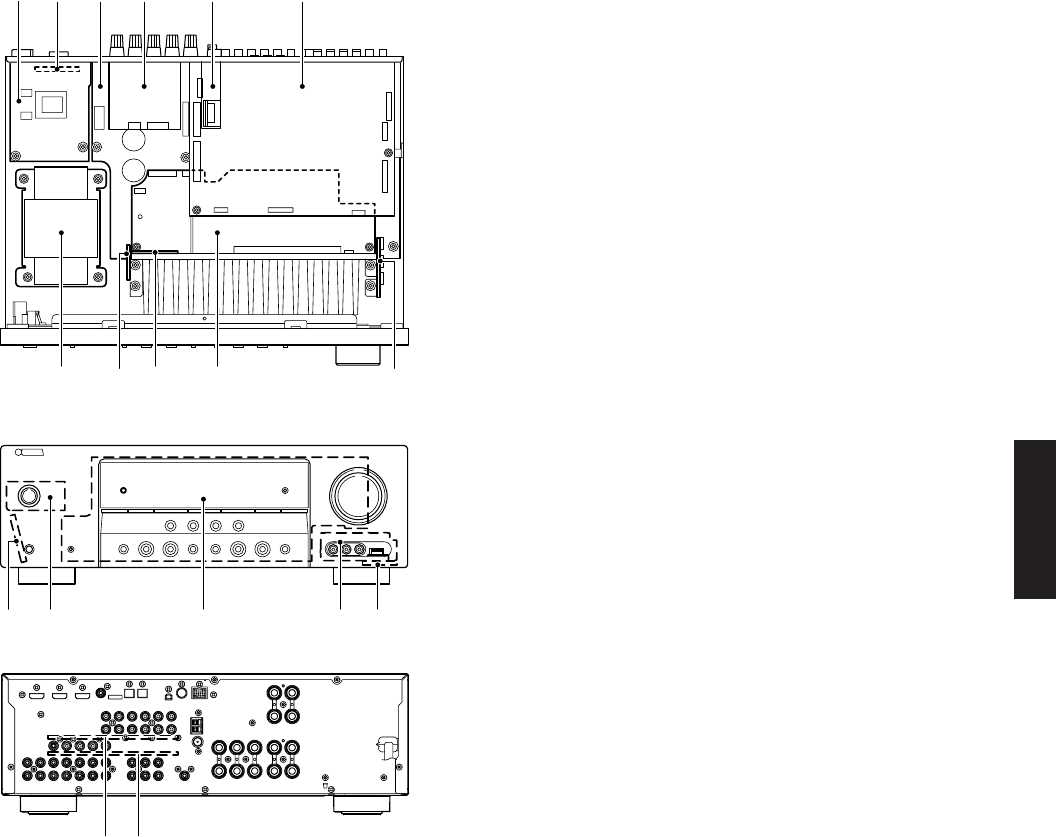

INTERNAL VIEW ......................................................... 13

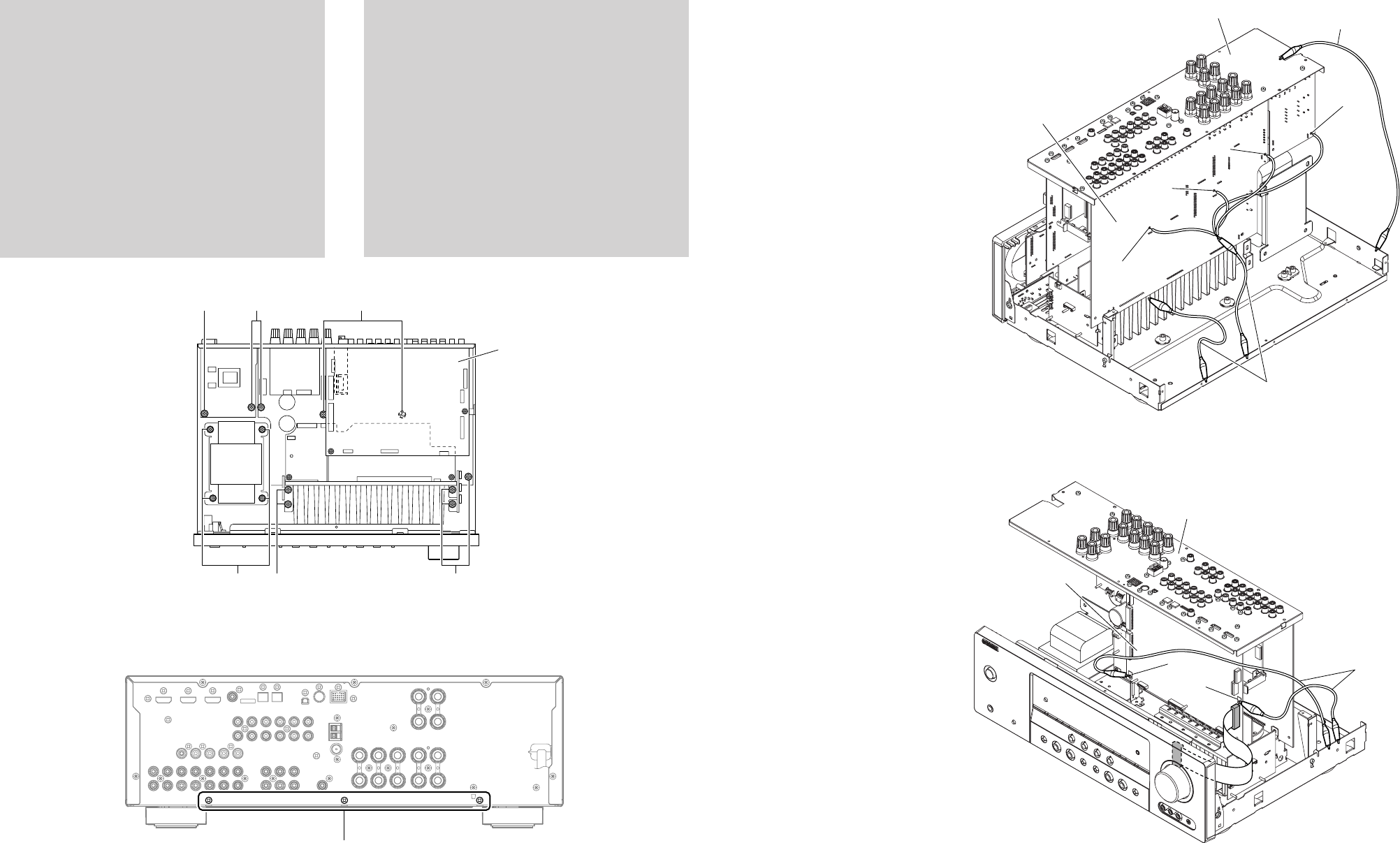

DISASSEMBLY PROCEDURES / 分解手順.......... 14–16
UPDATING FIRMWARE /
ファームウェアの書き込み..................................... 17–19

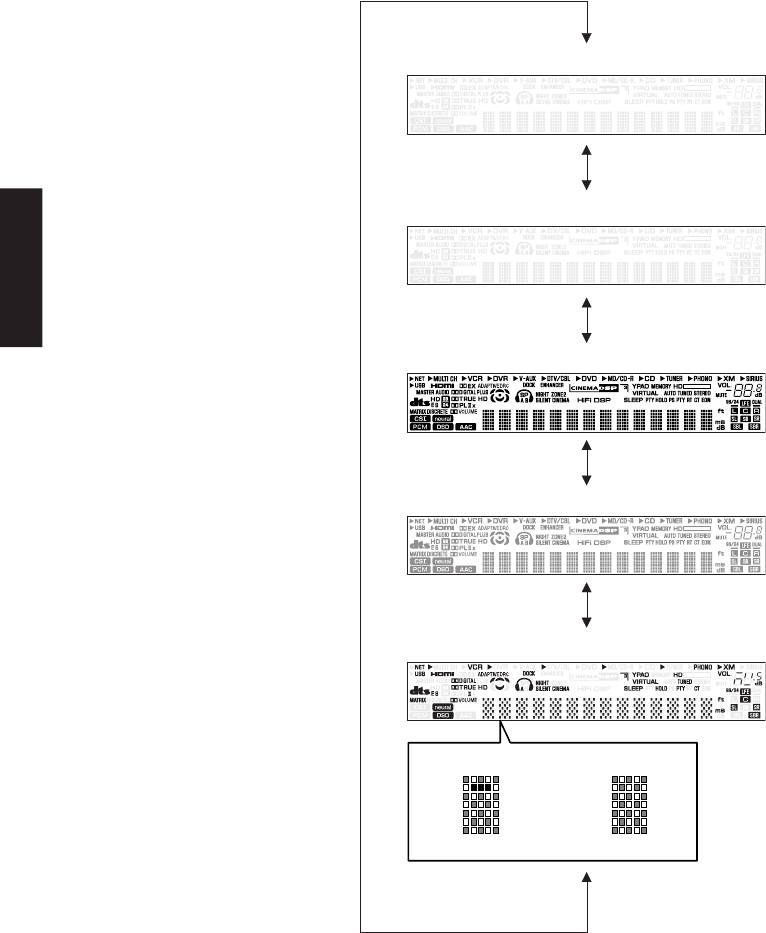

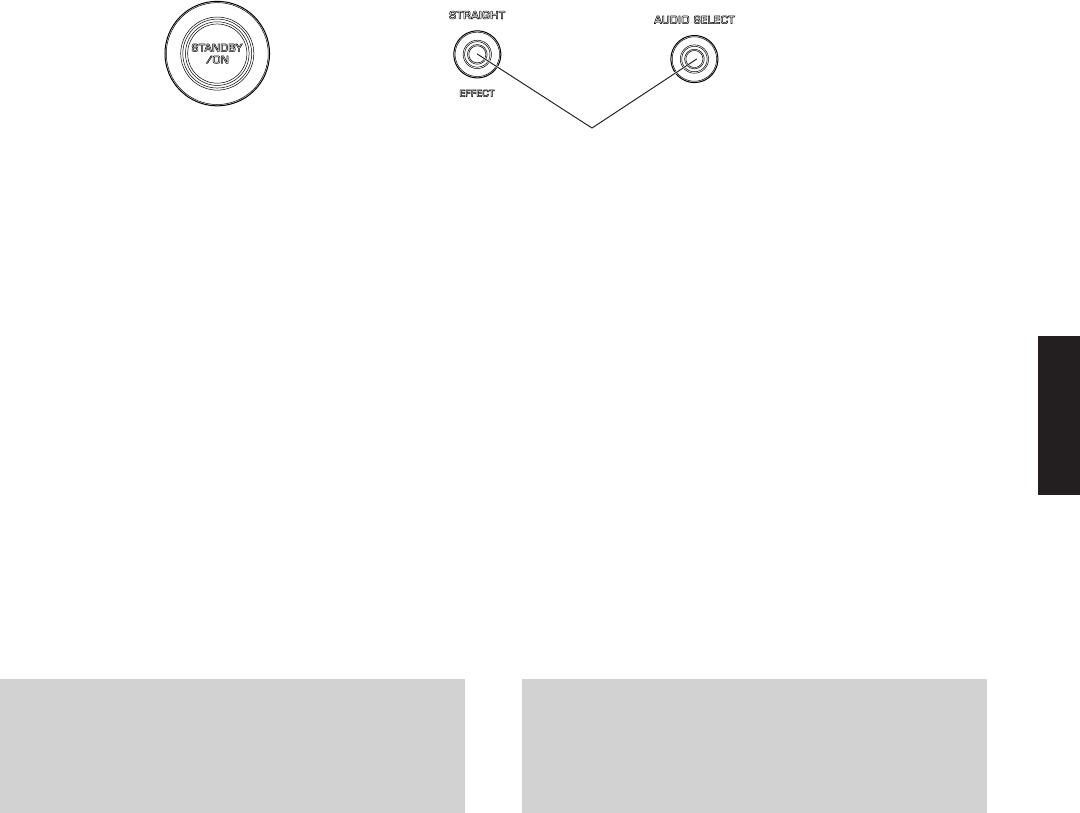

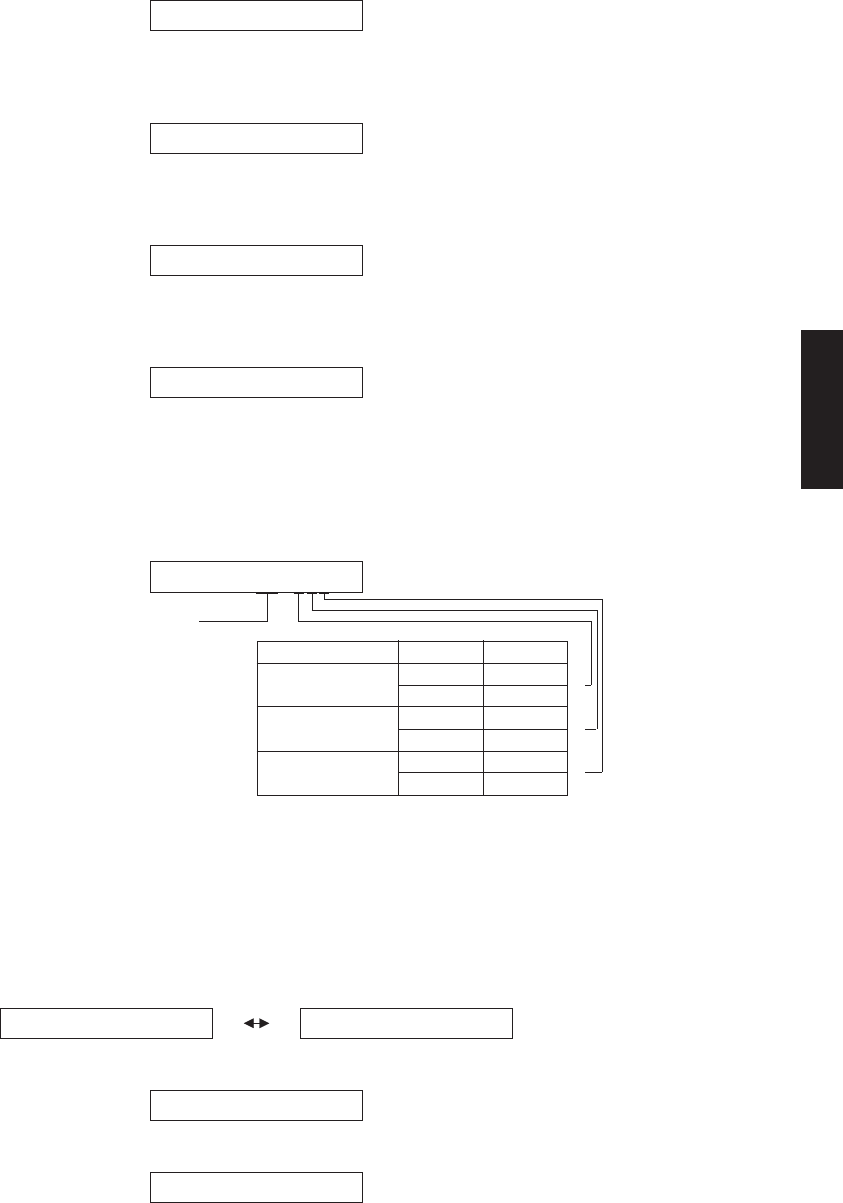

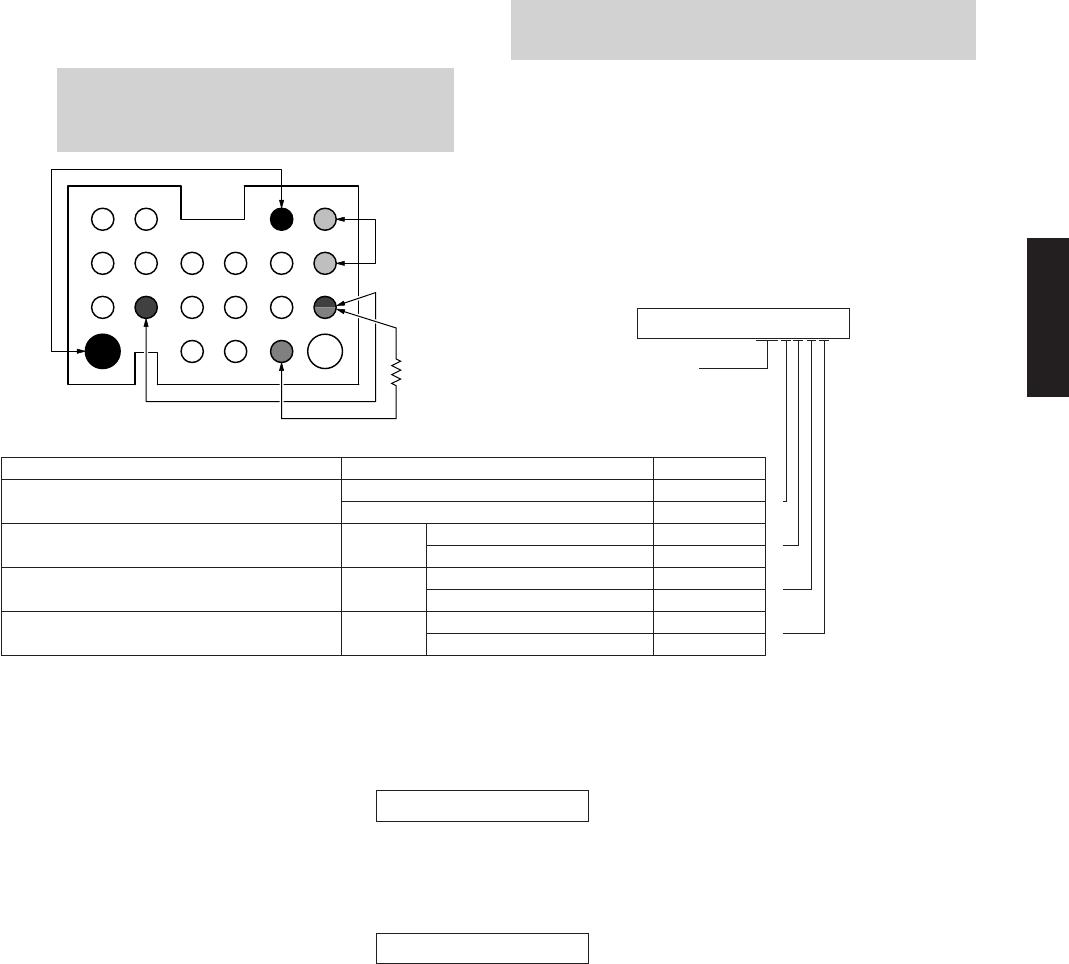

SELF-DIAGNOSTIC FUNCTION /
ダイアグ（自己診断機能）..................................... 20–45

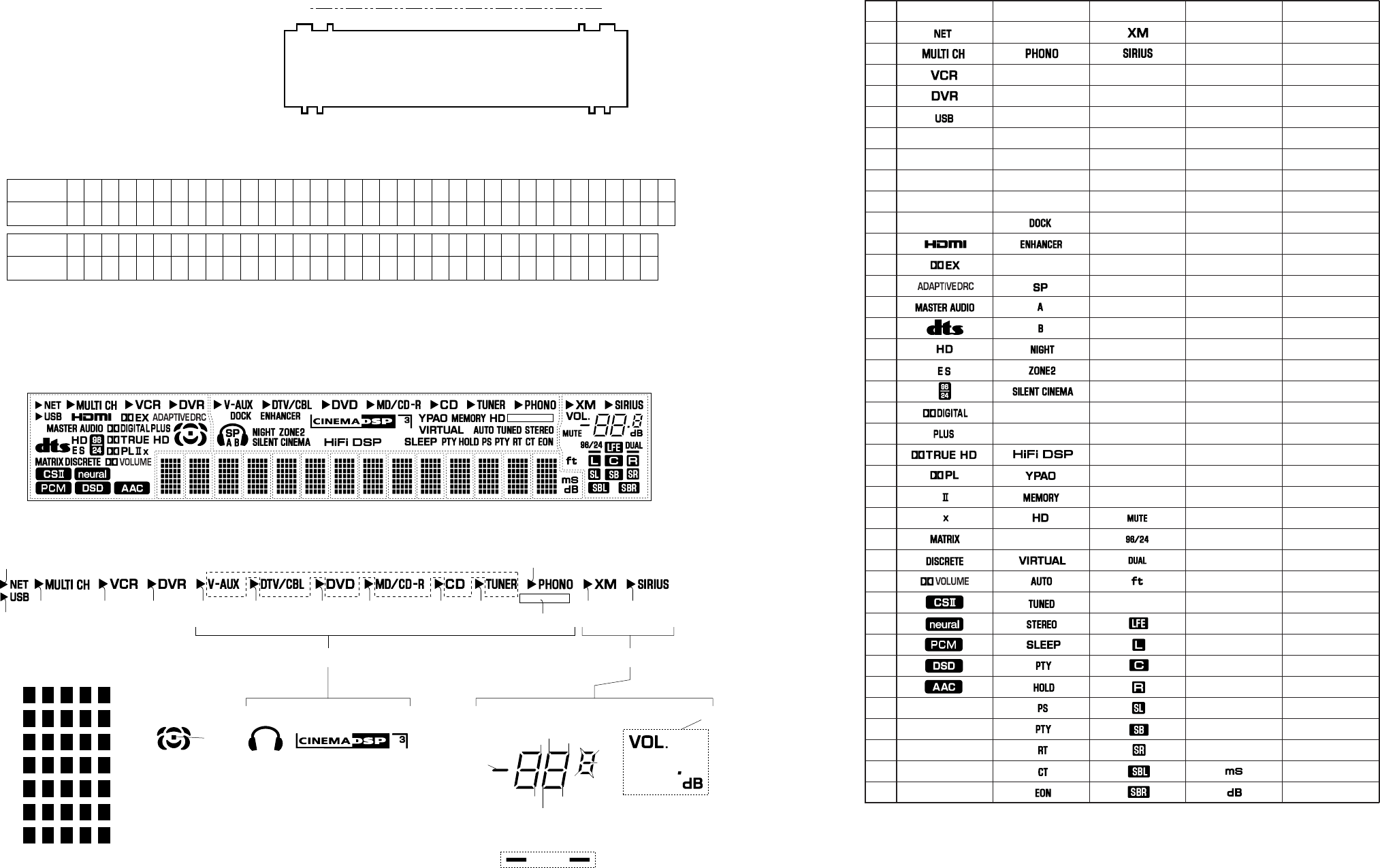

DISPLAY DATA ........................................................... 46

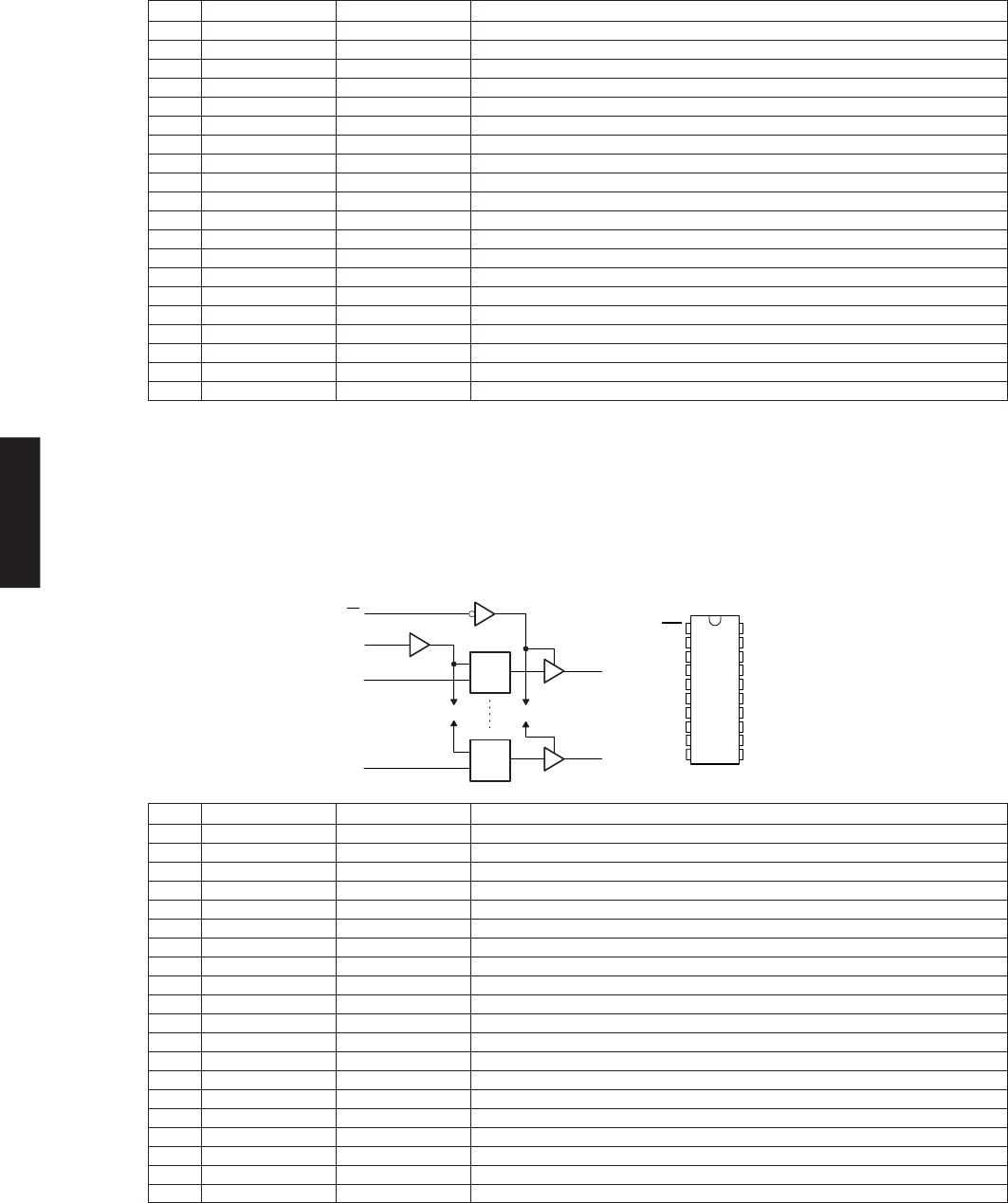

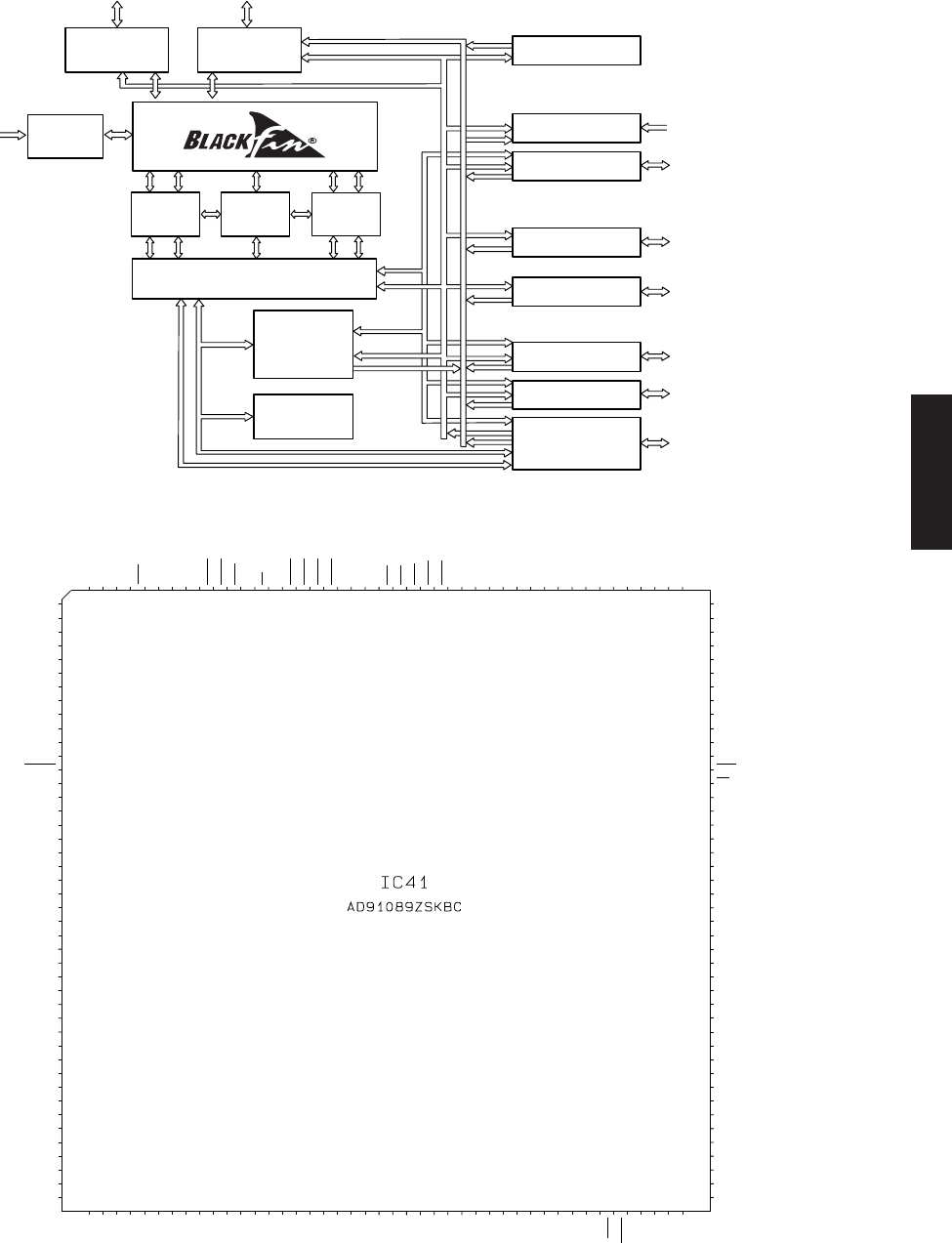

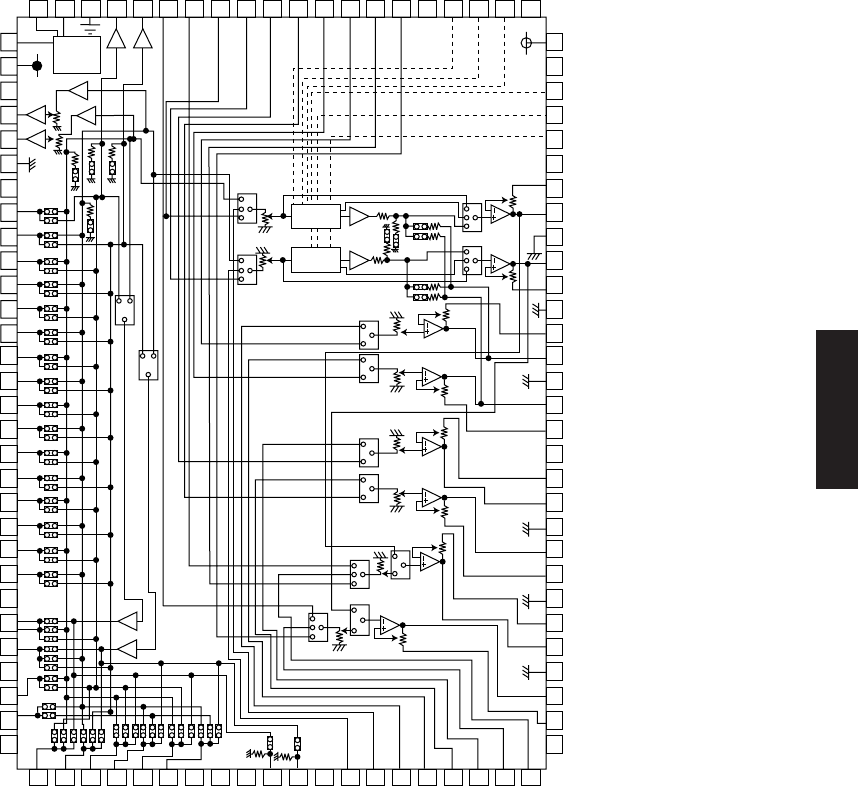

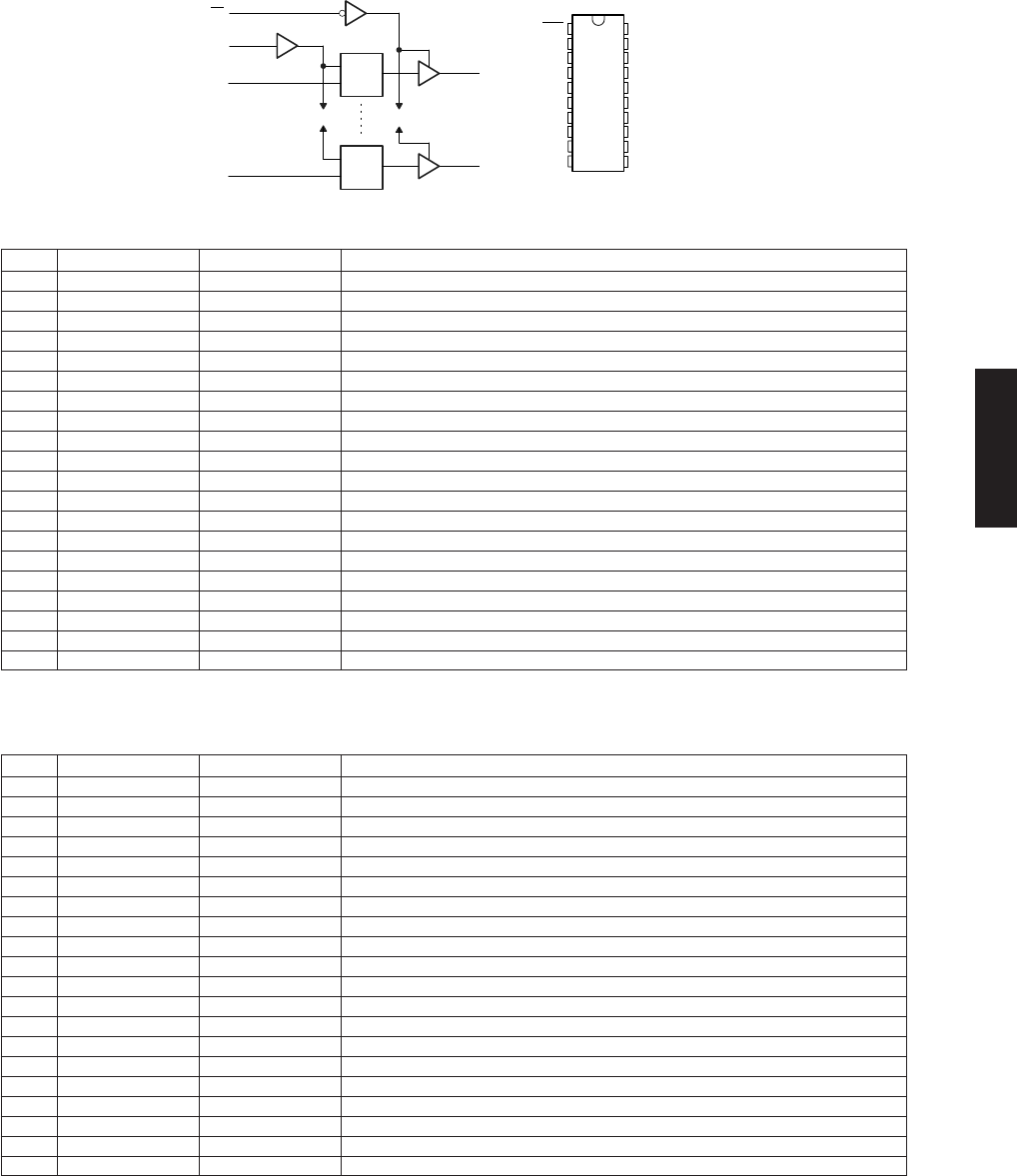

IC DATA ................................................................. 47–61

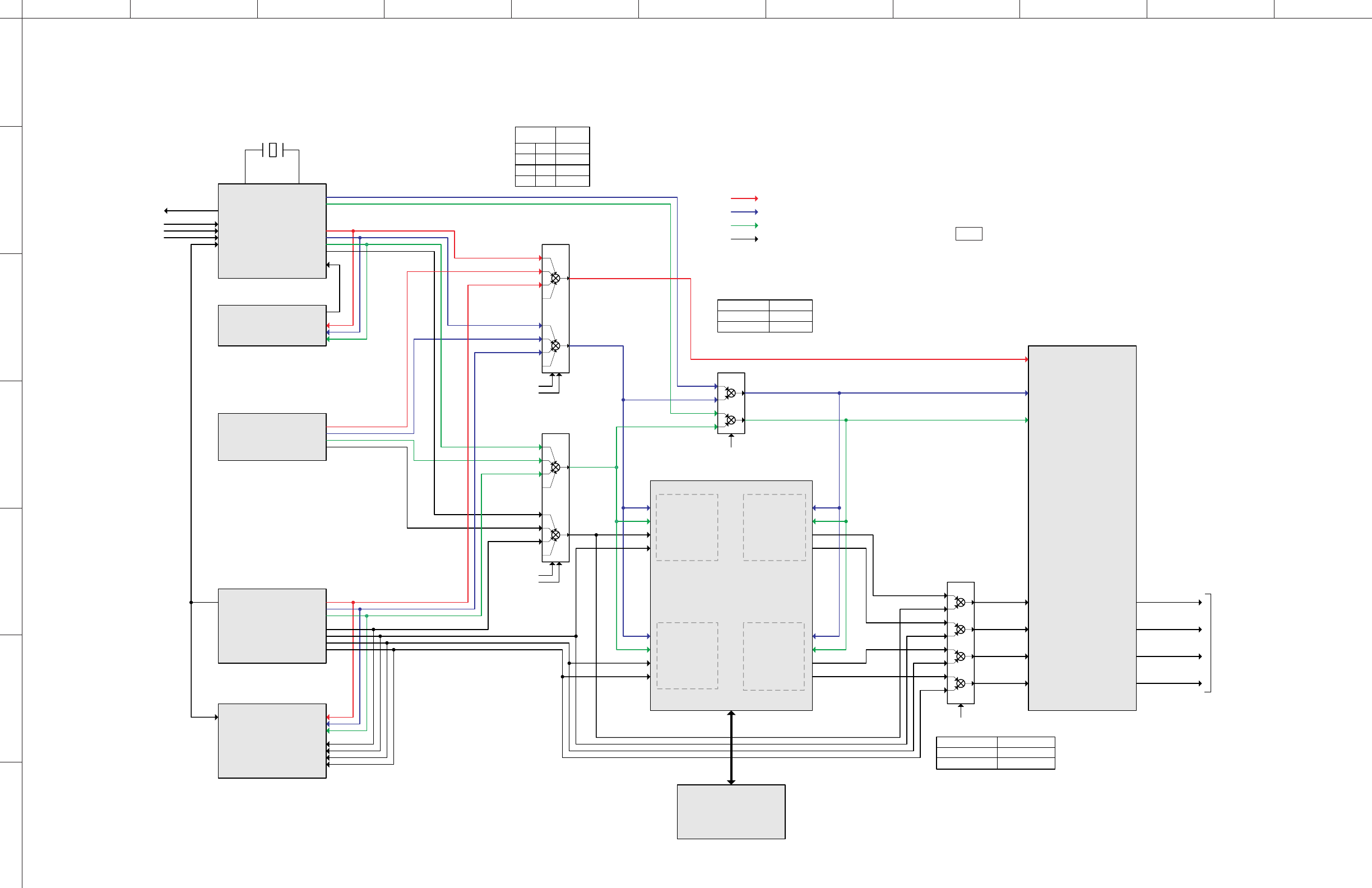

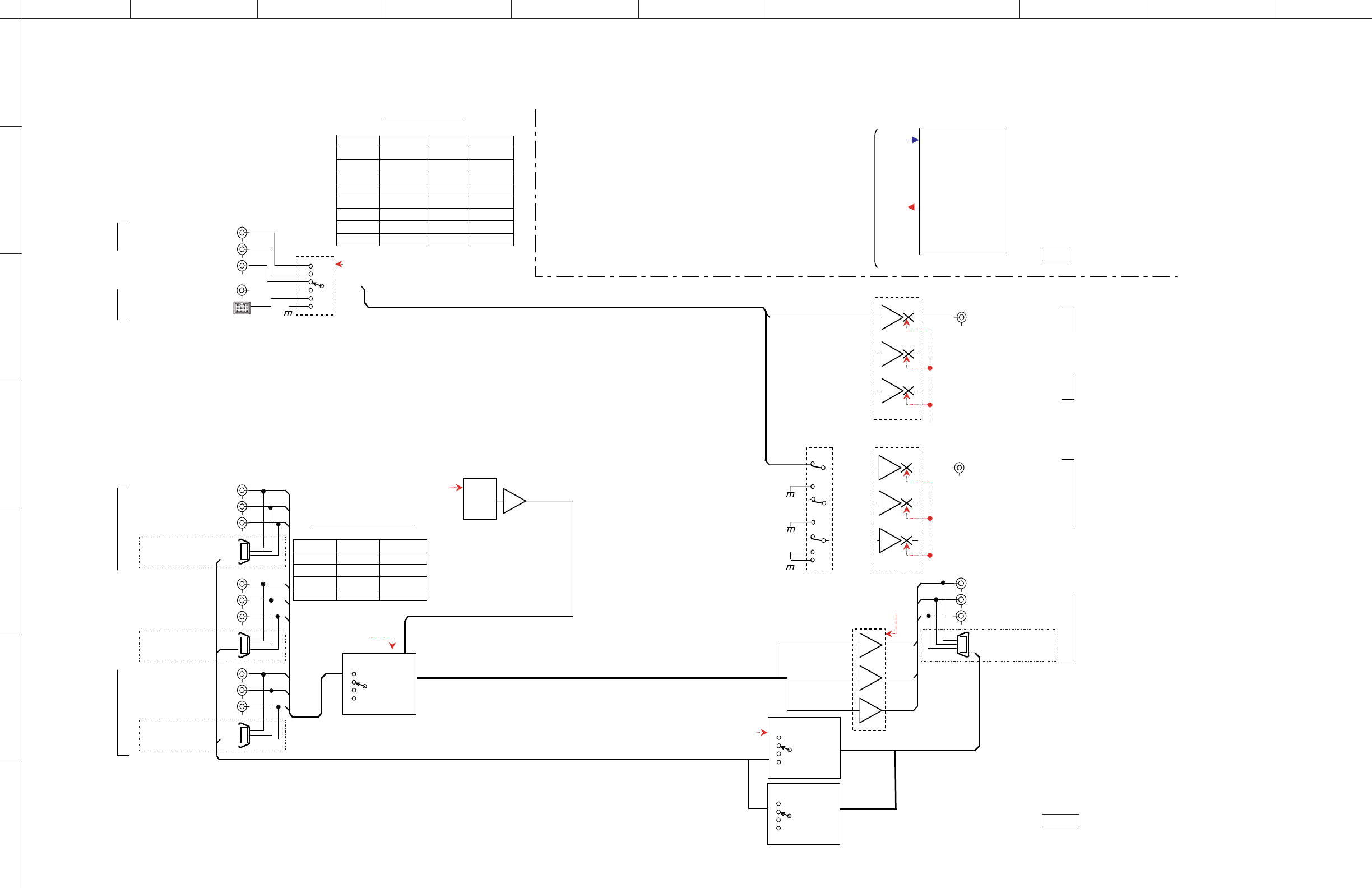

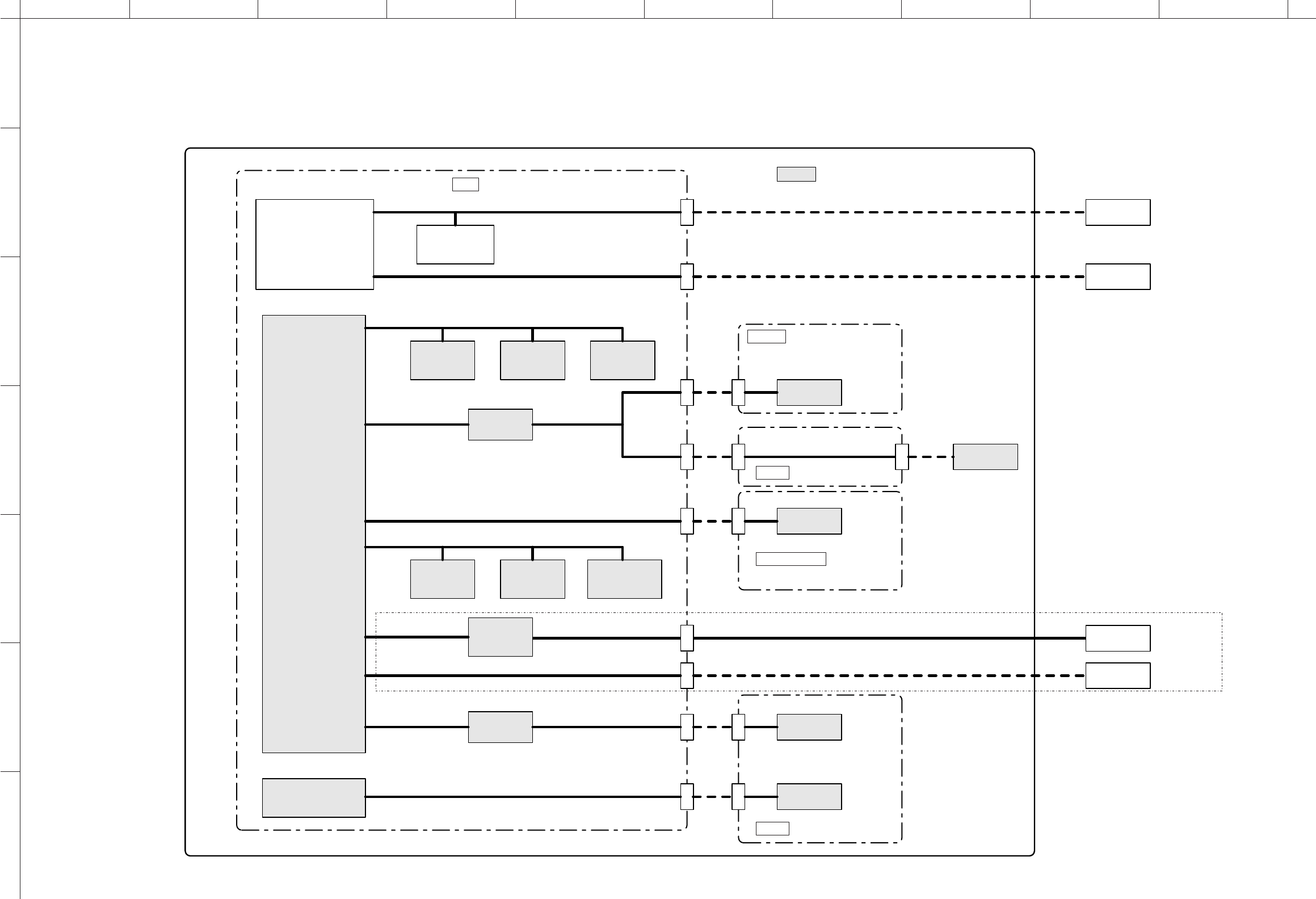

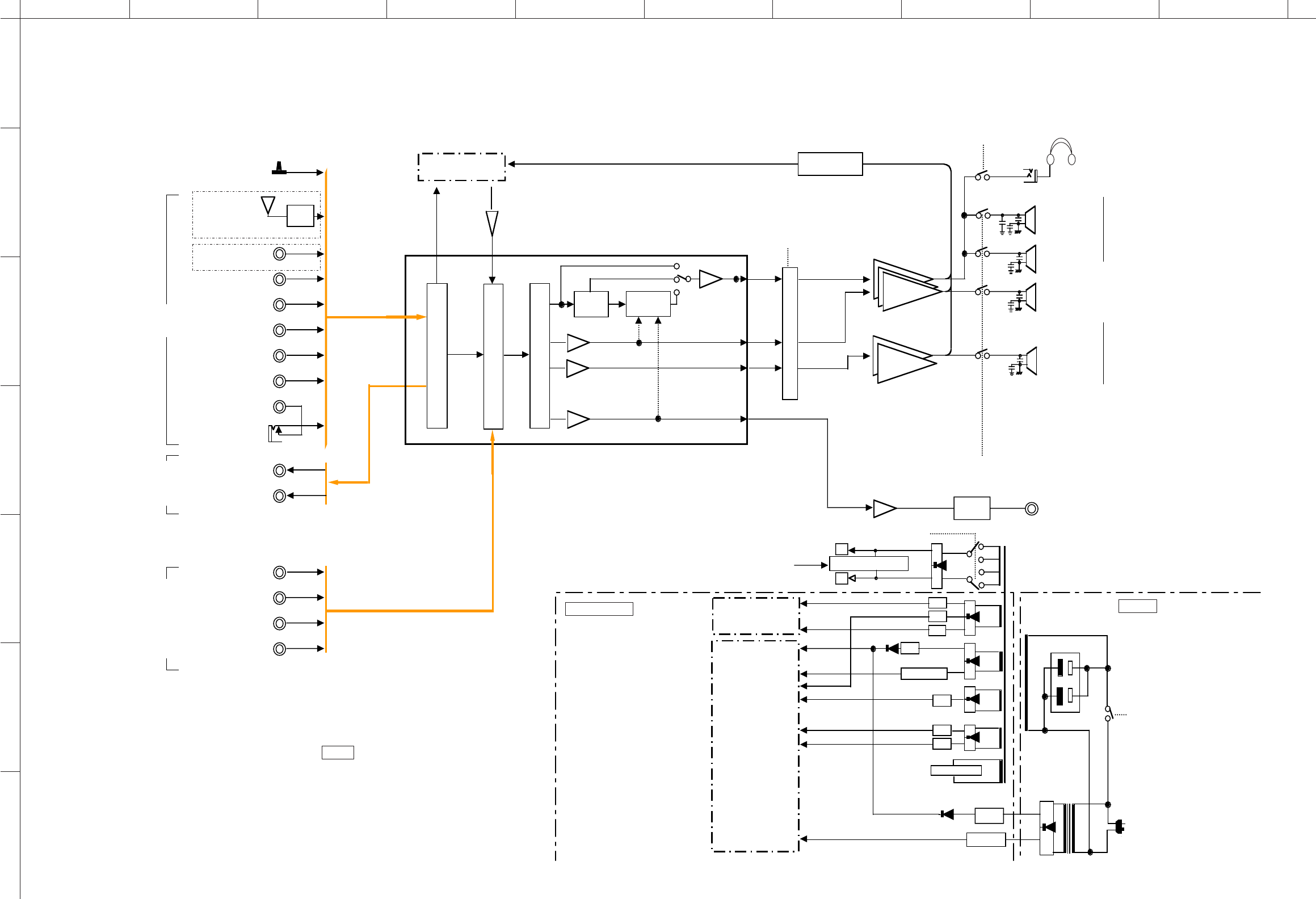

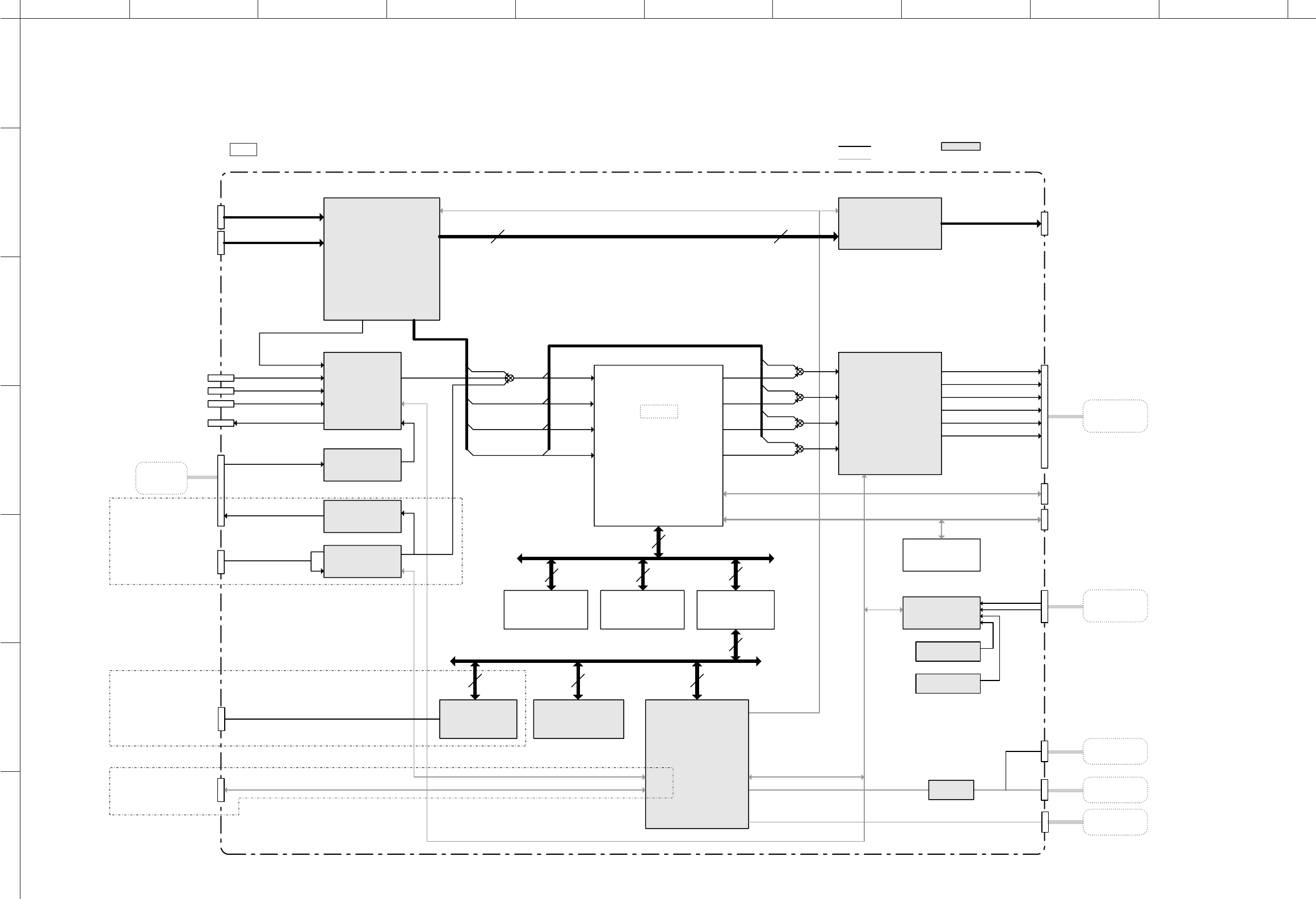

BLOCK DIAGRAMS .............................................. 63–67

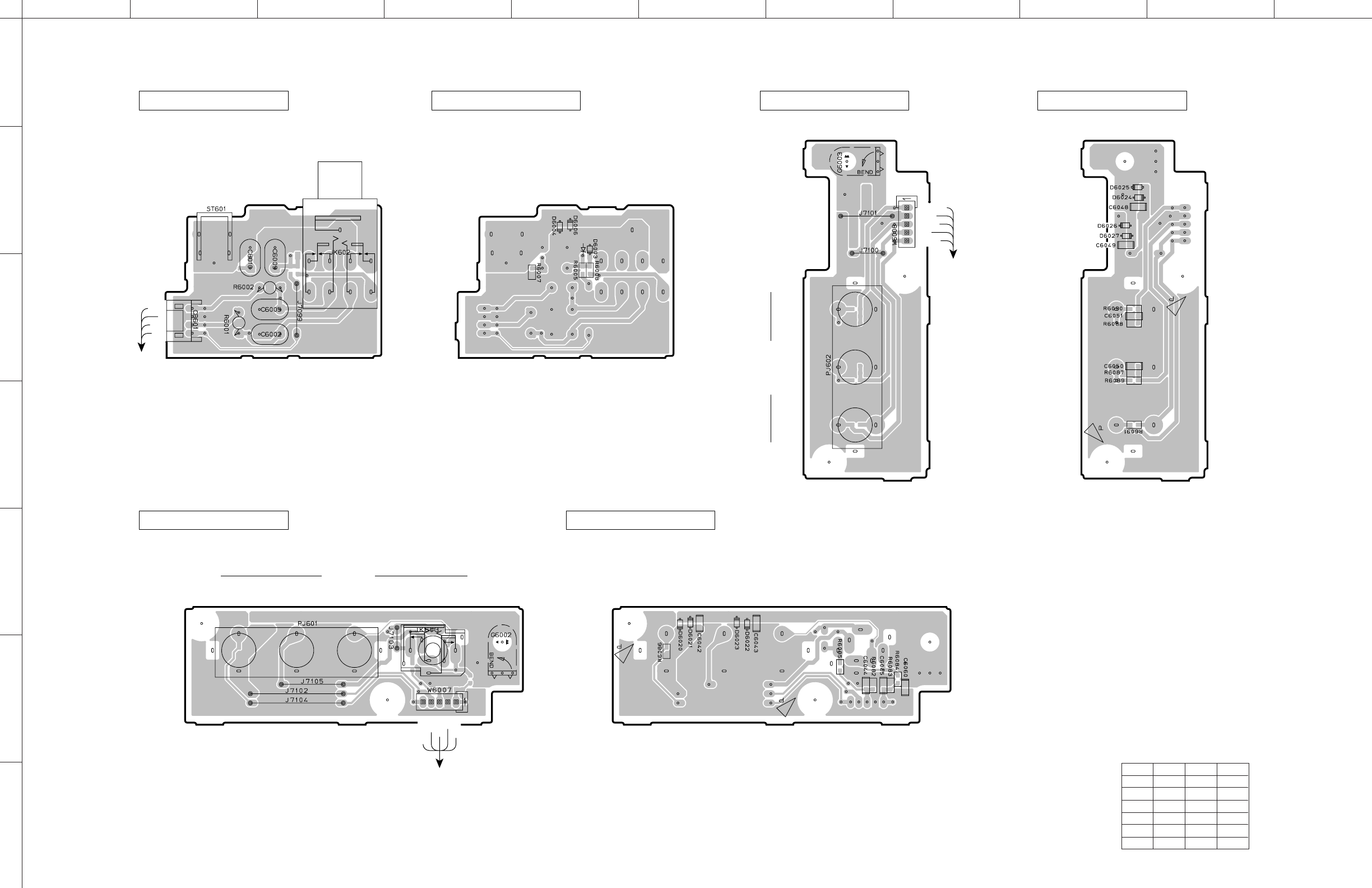

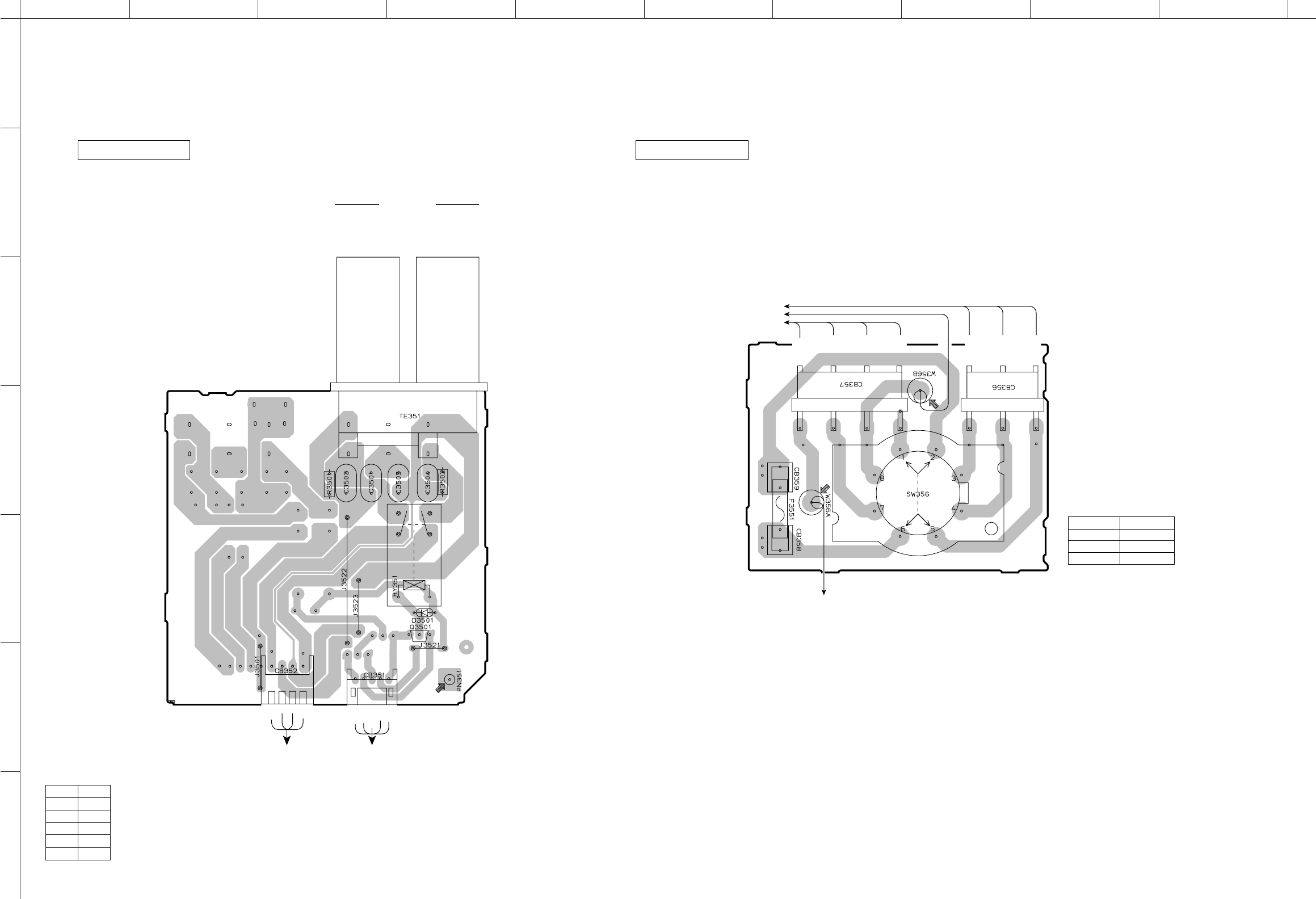

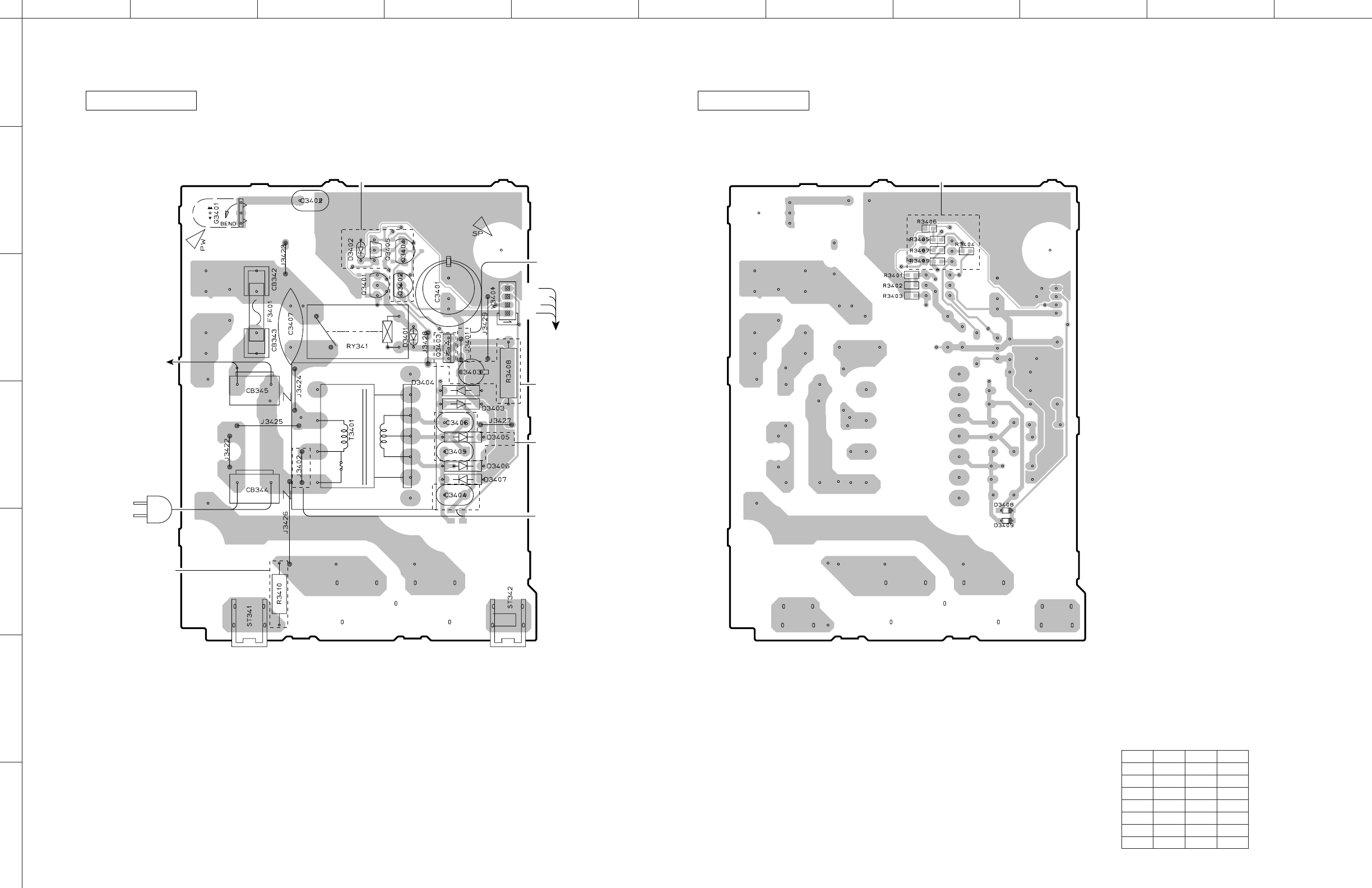

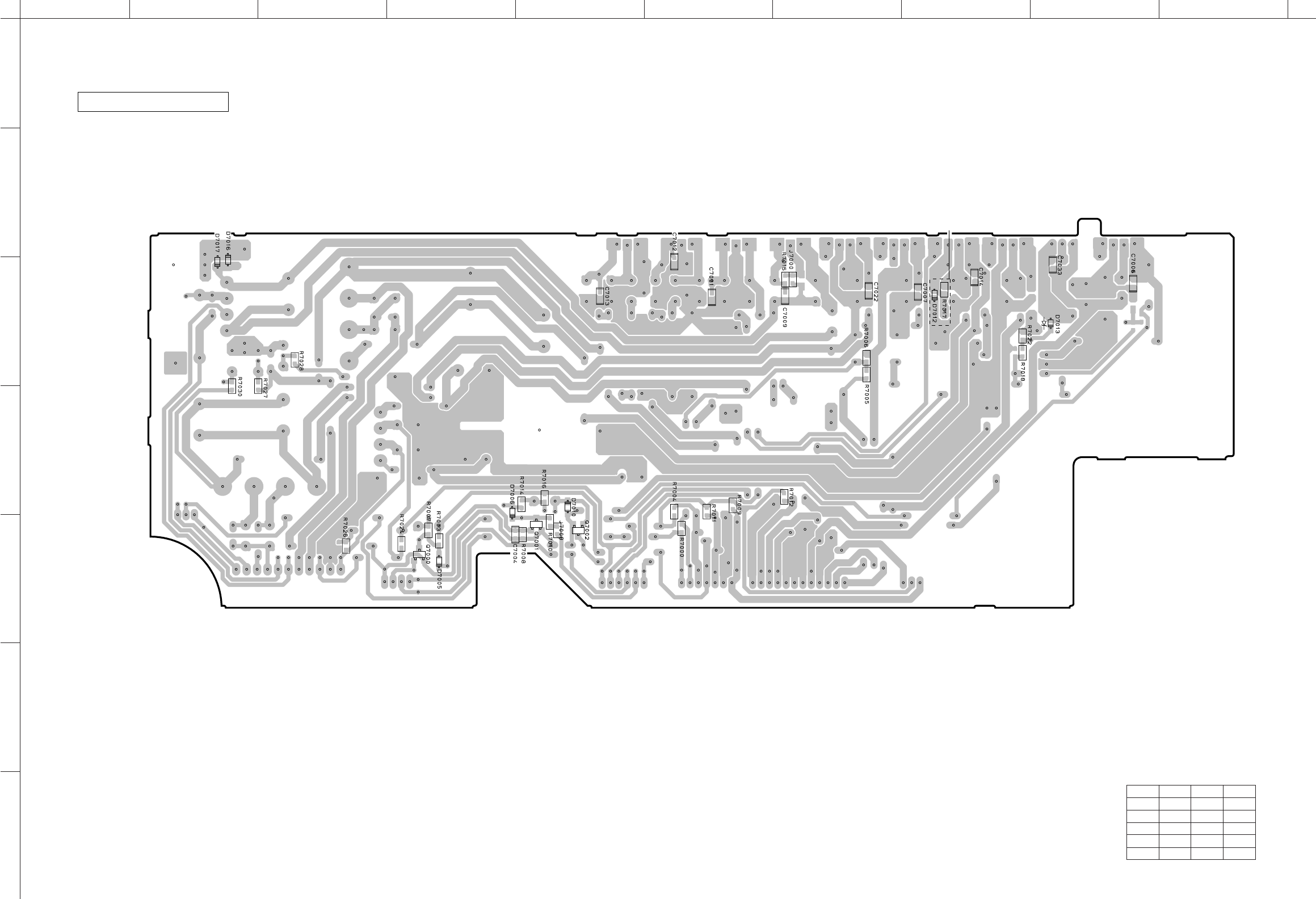

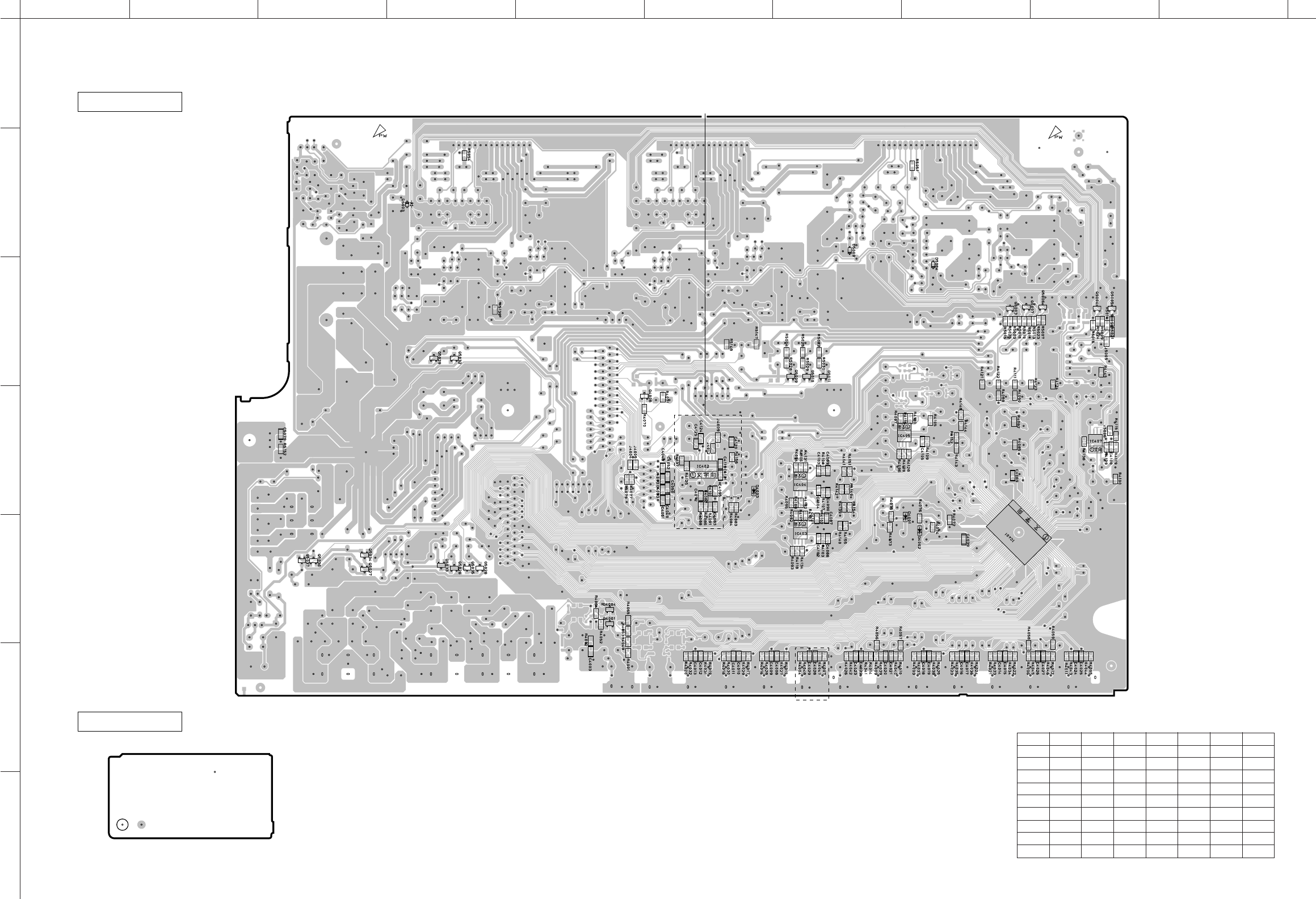

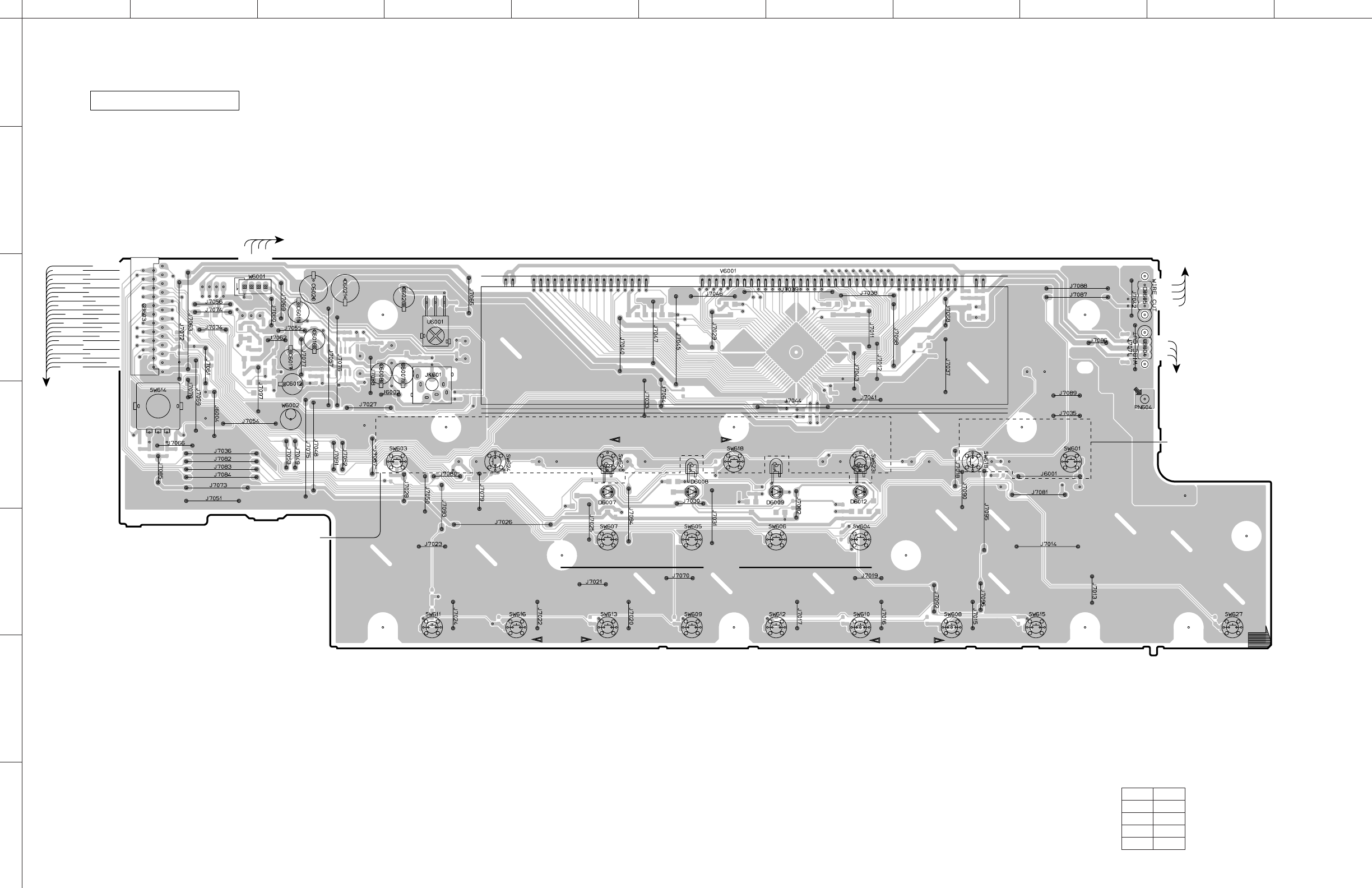

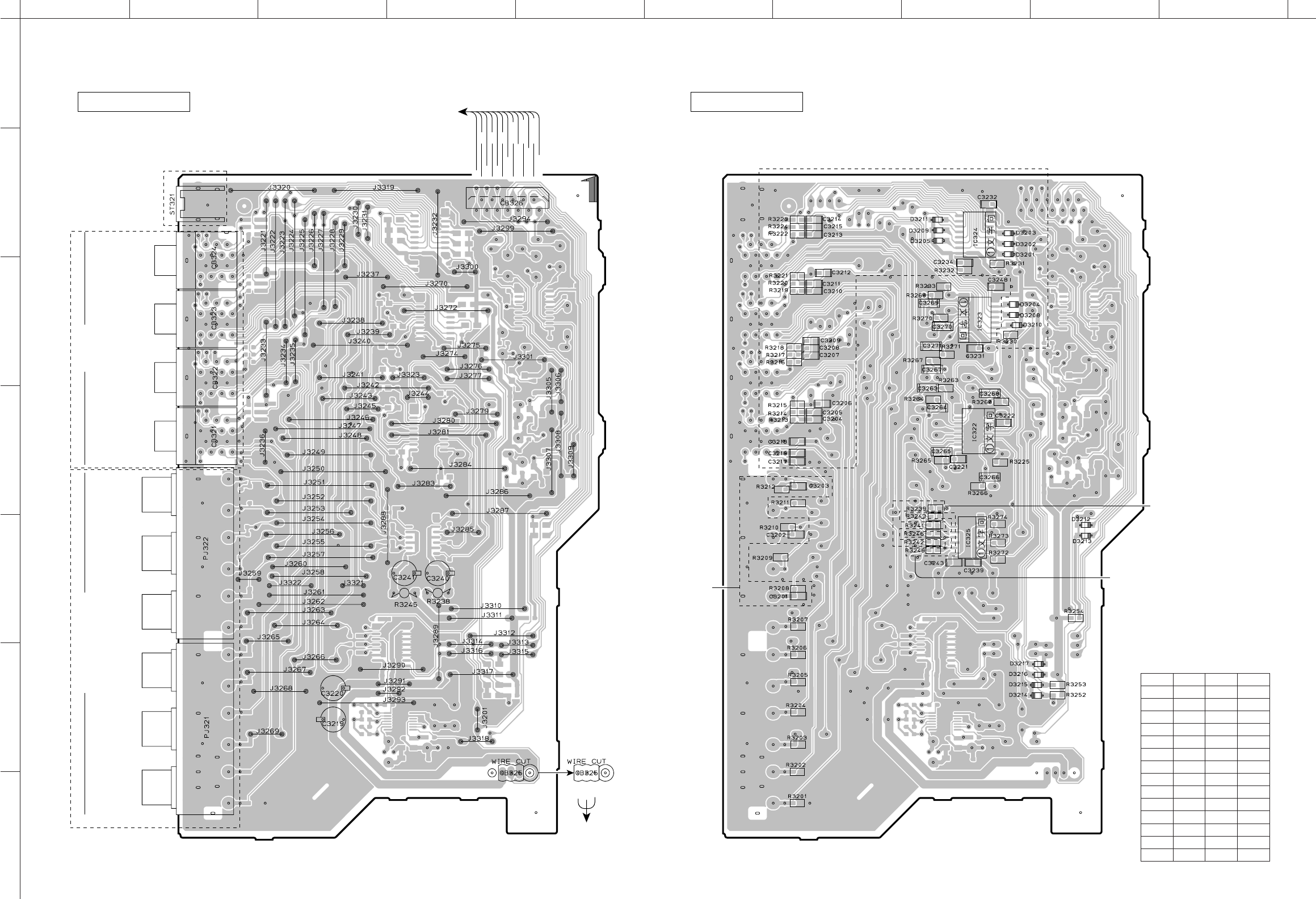

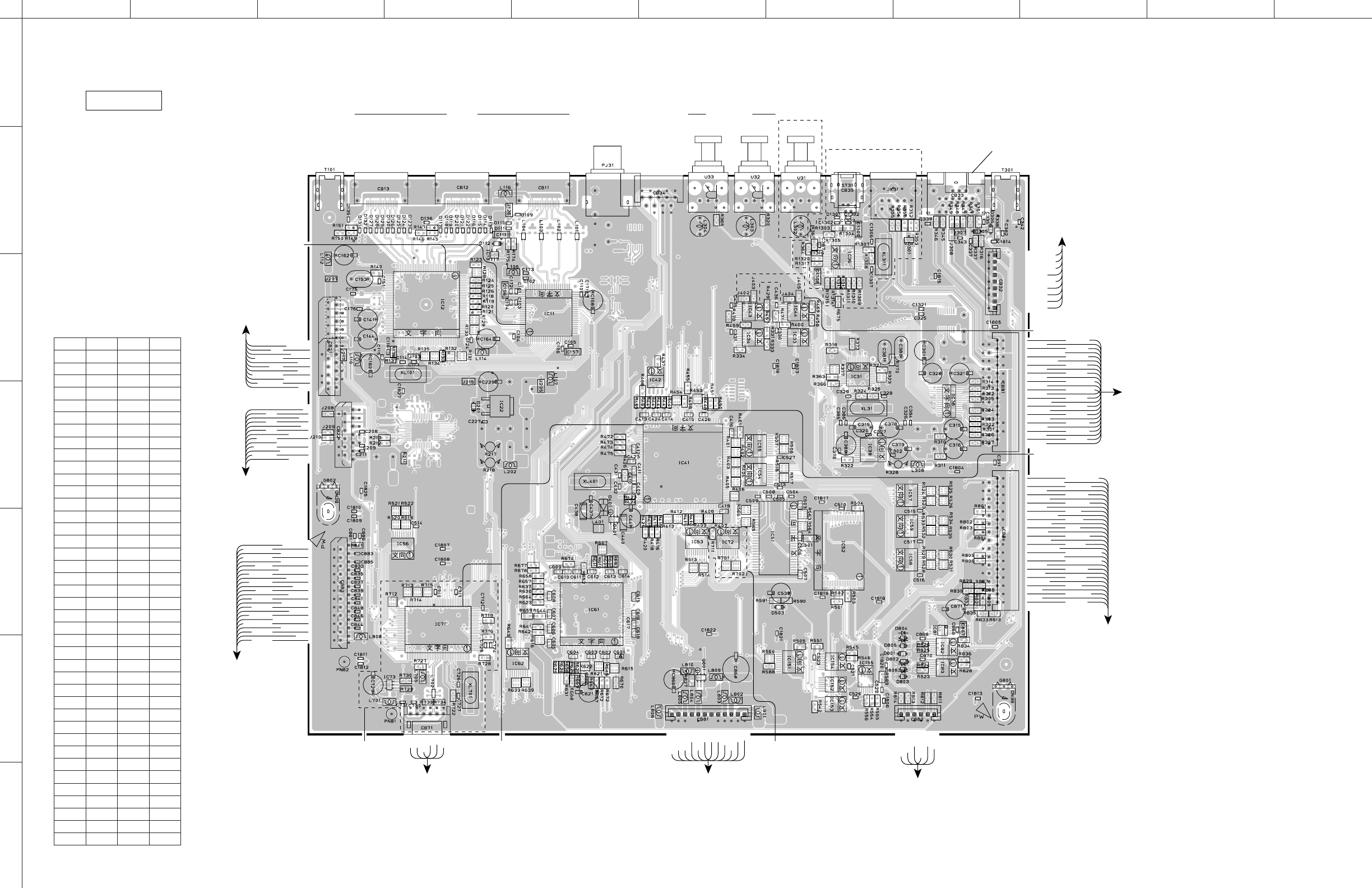

PRINTED CIRCUIT BOARDS................................ 68–81

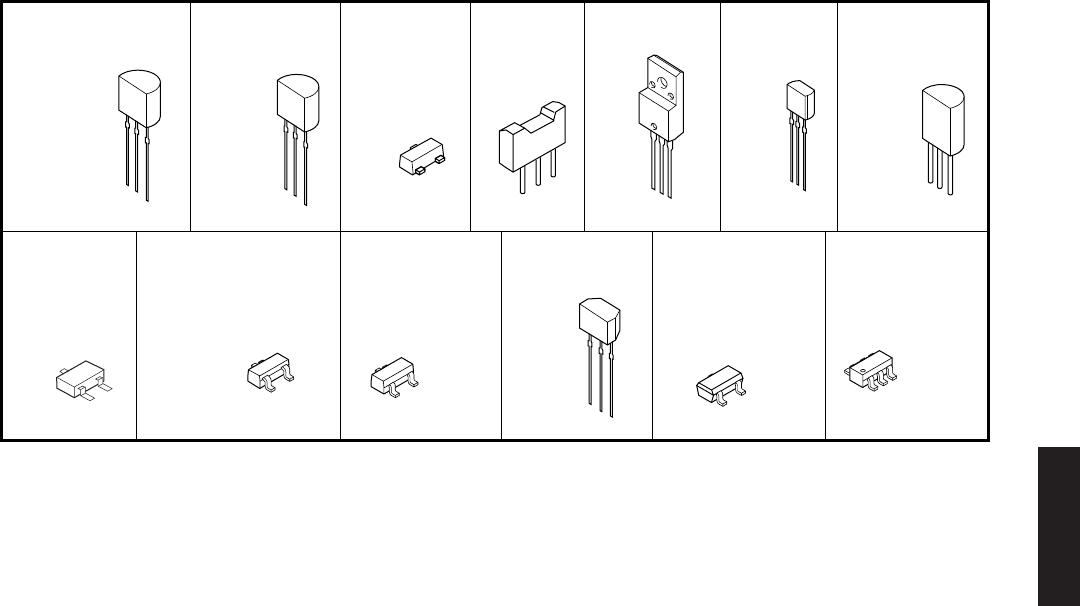

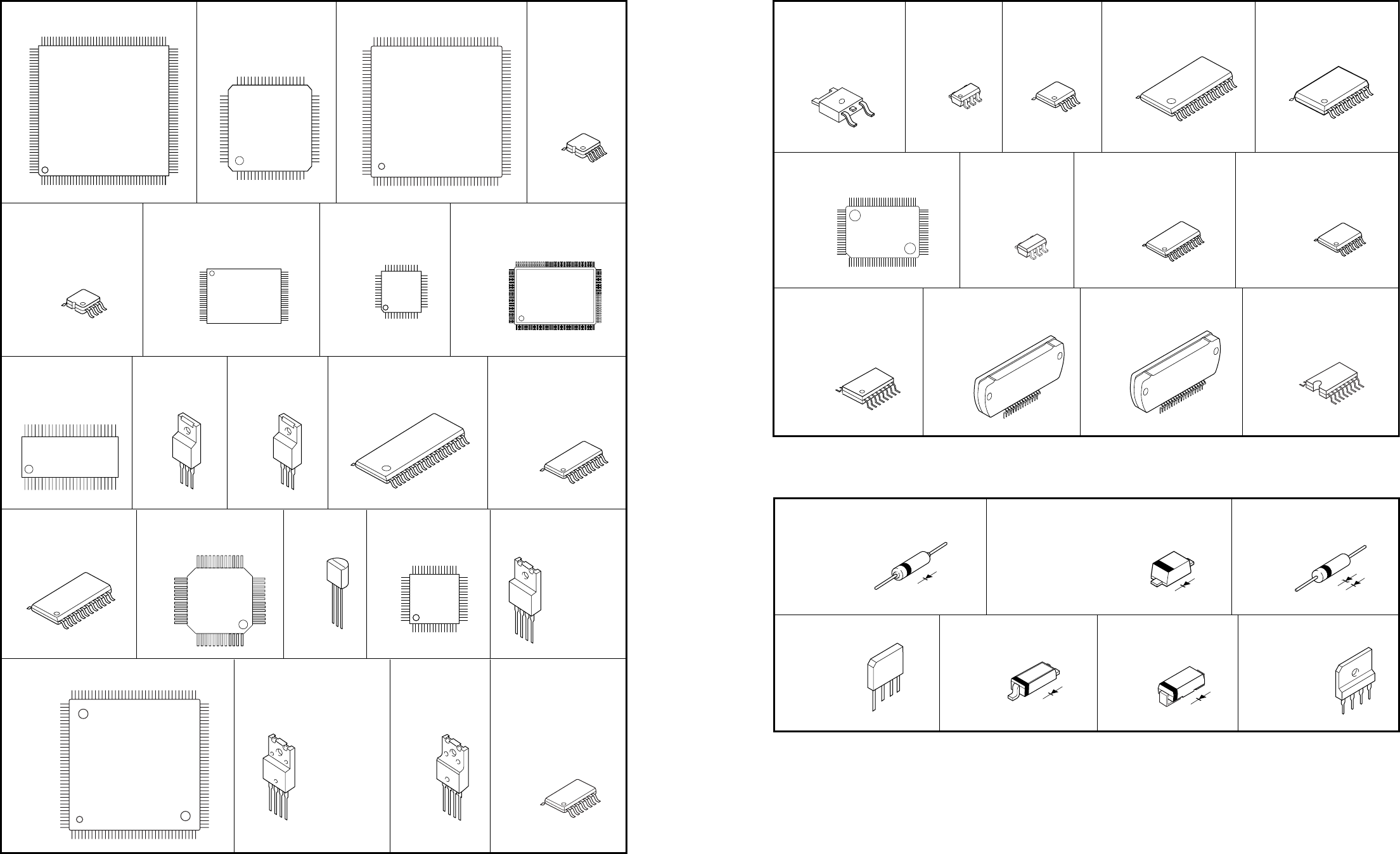

PIN CONNECTION DIAGRAMS ............................ 82–83

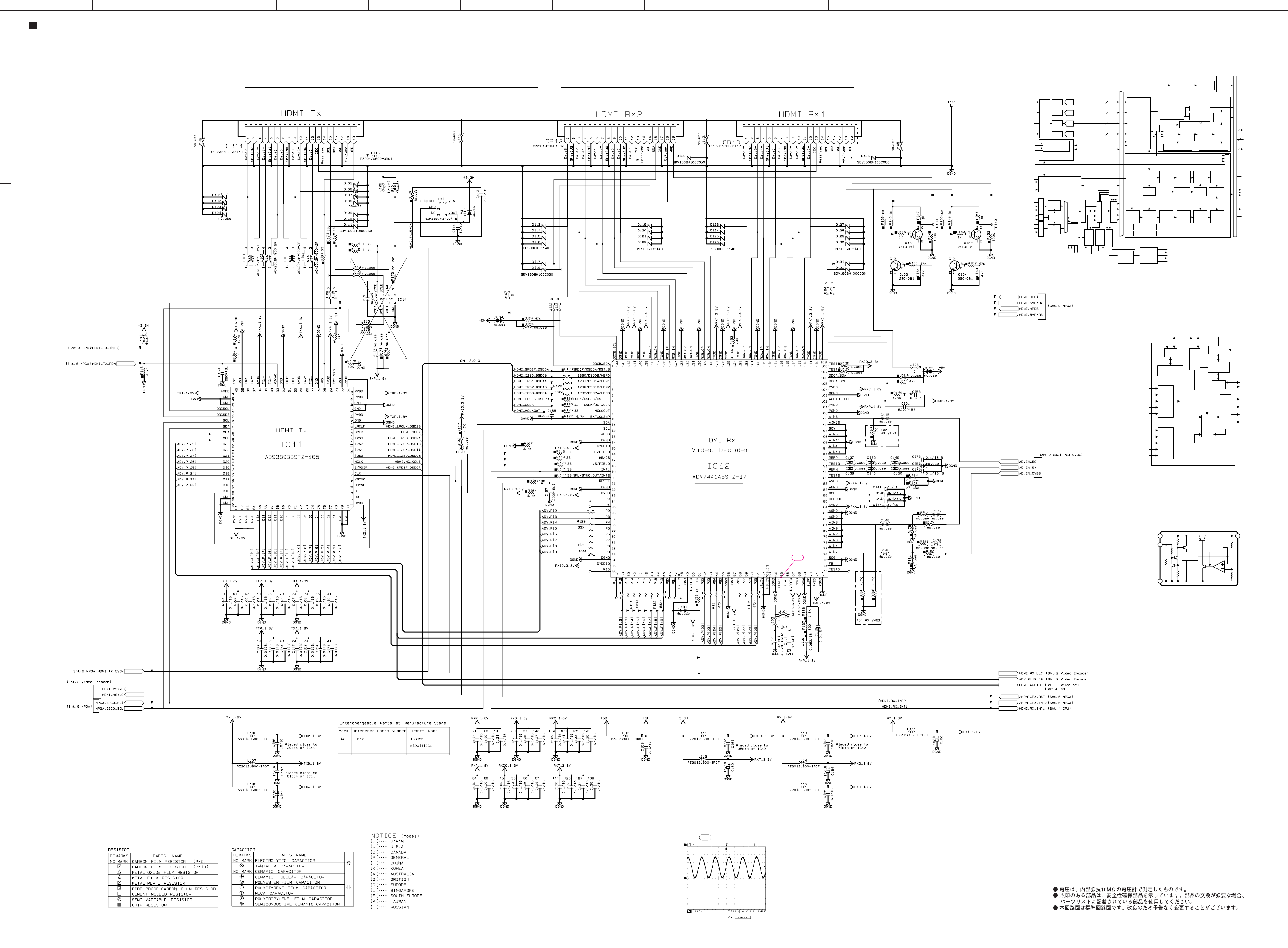

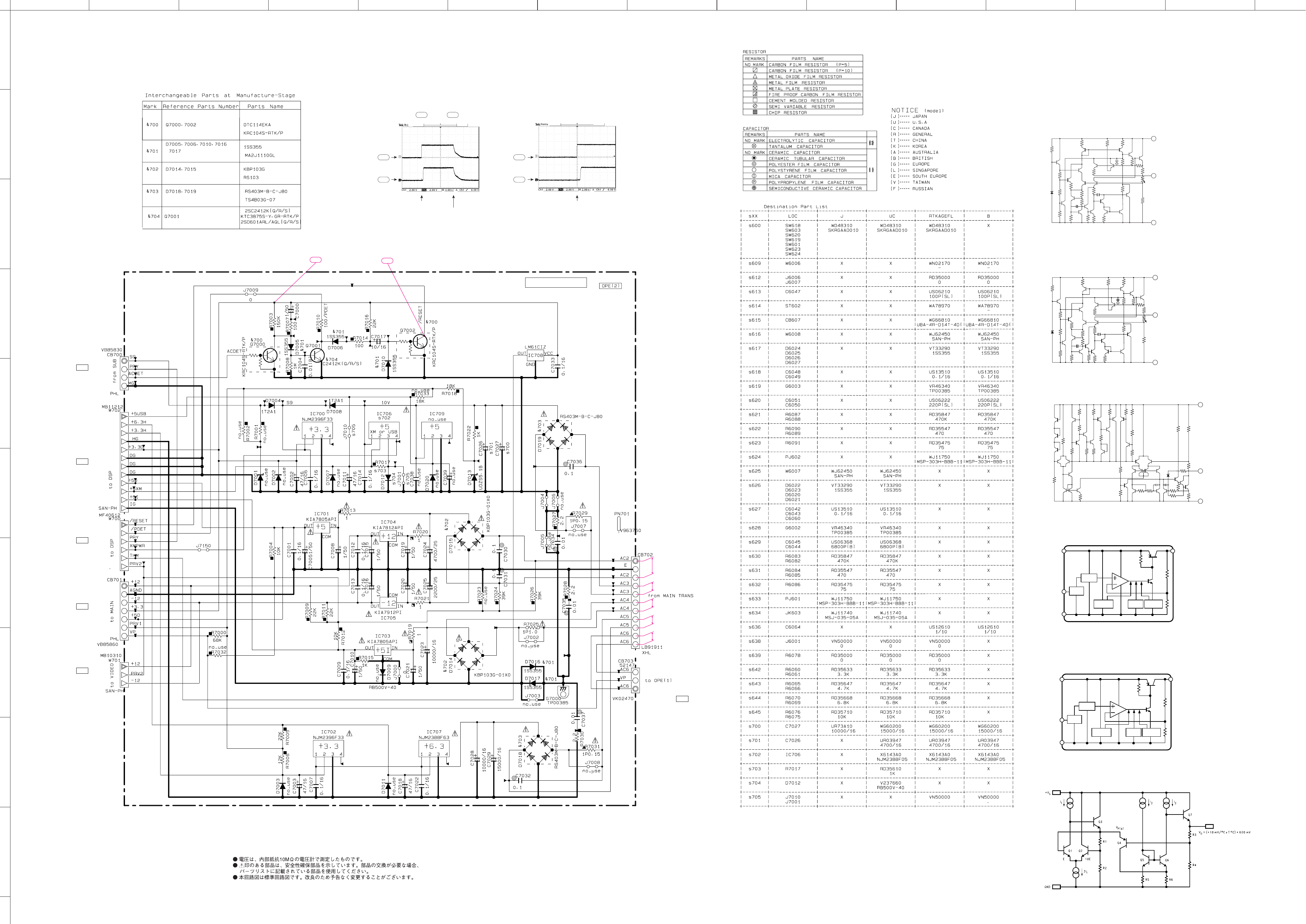

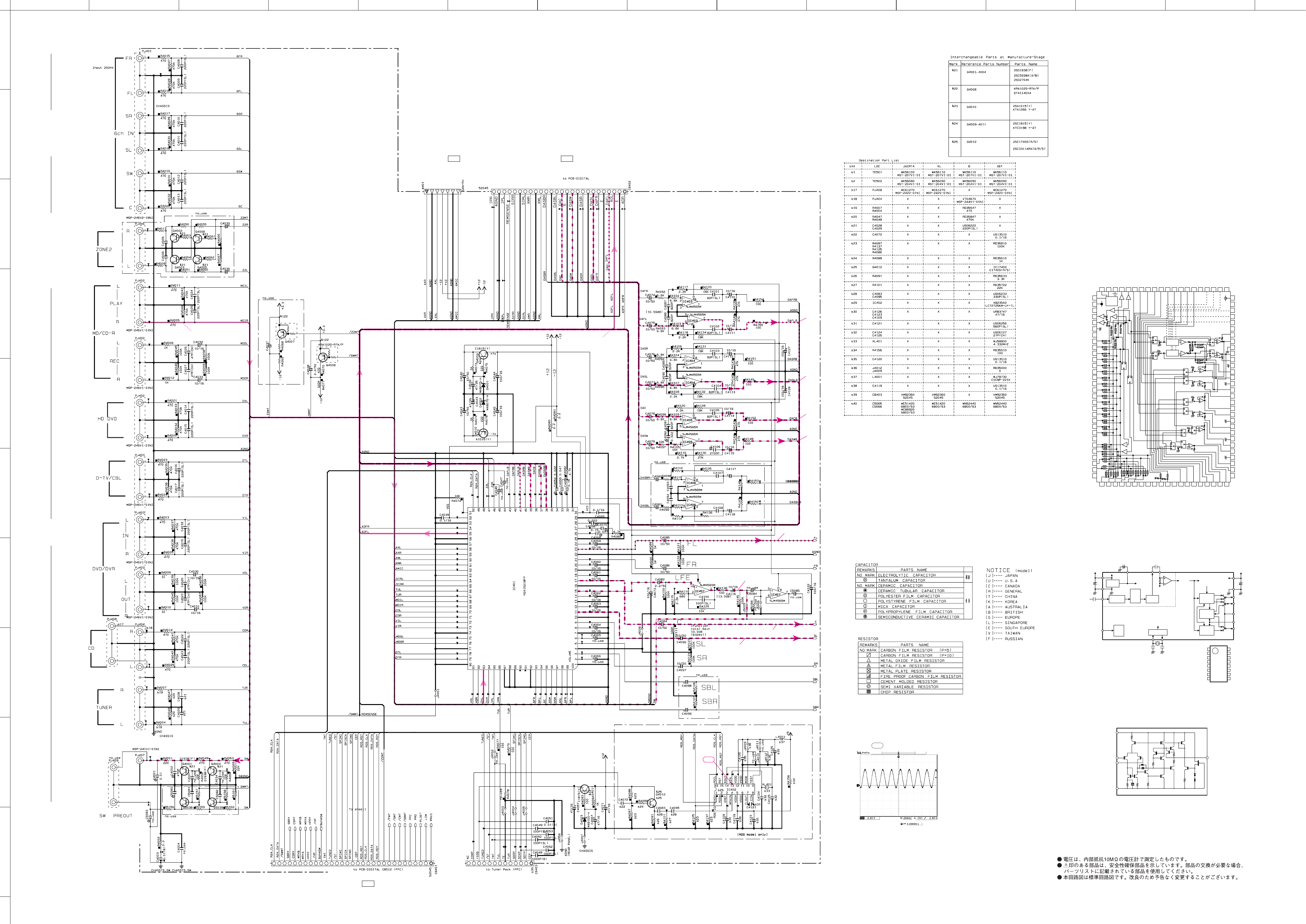

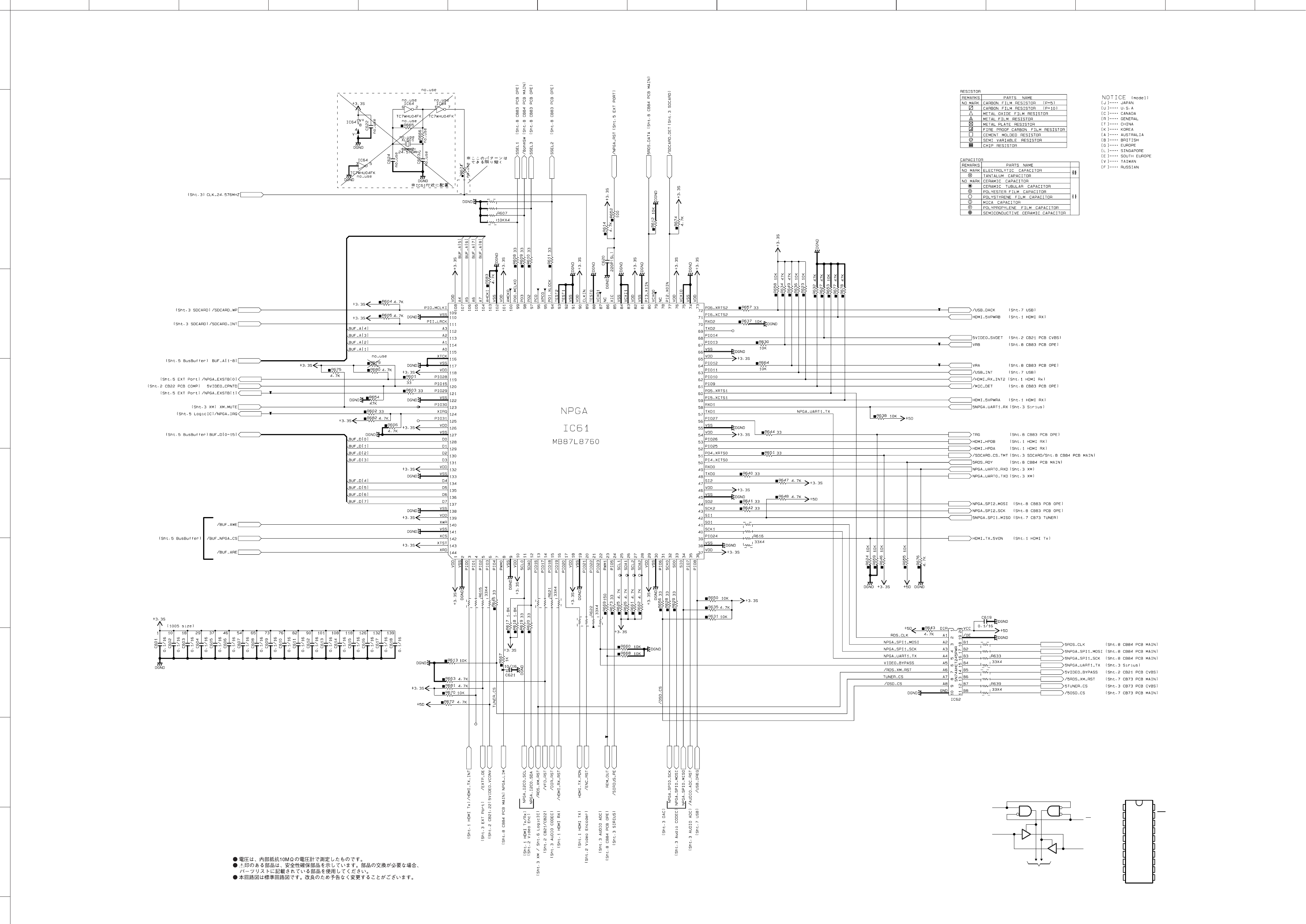

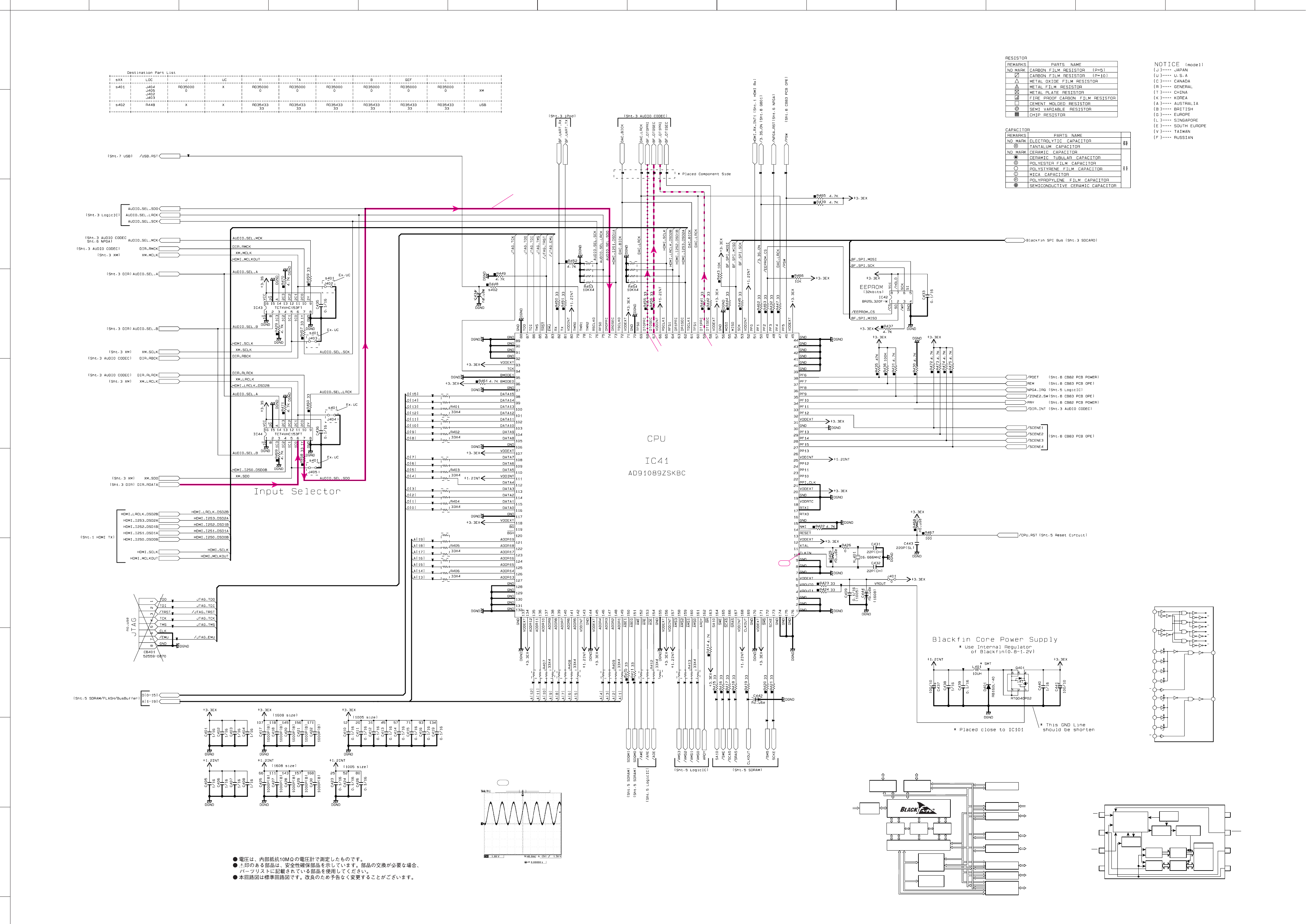

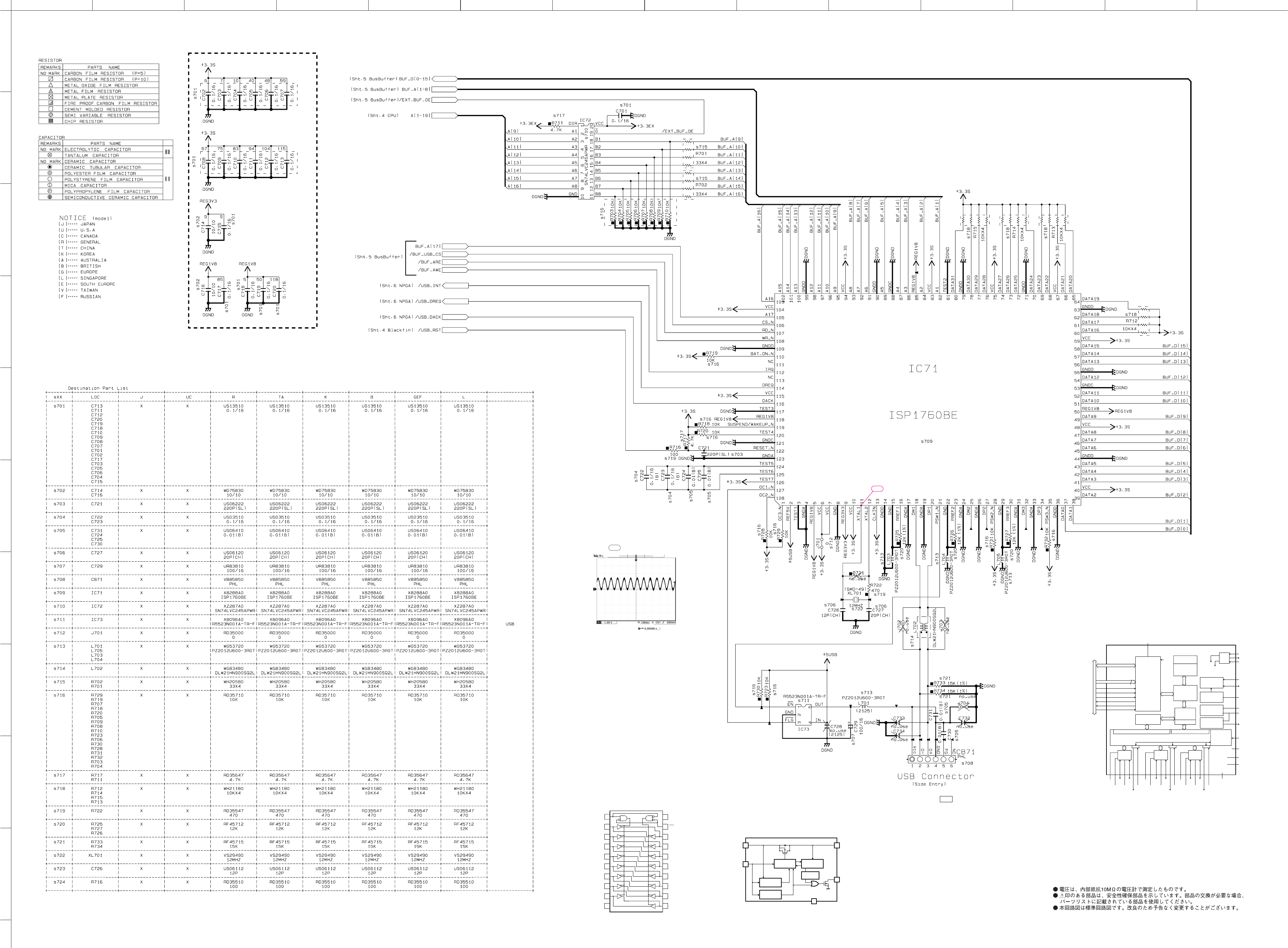

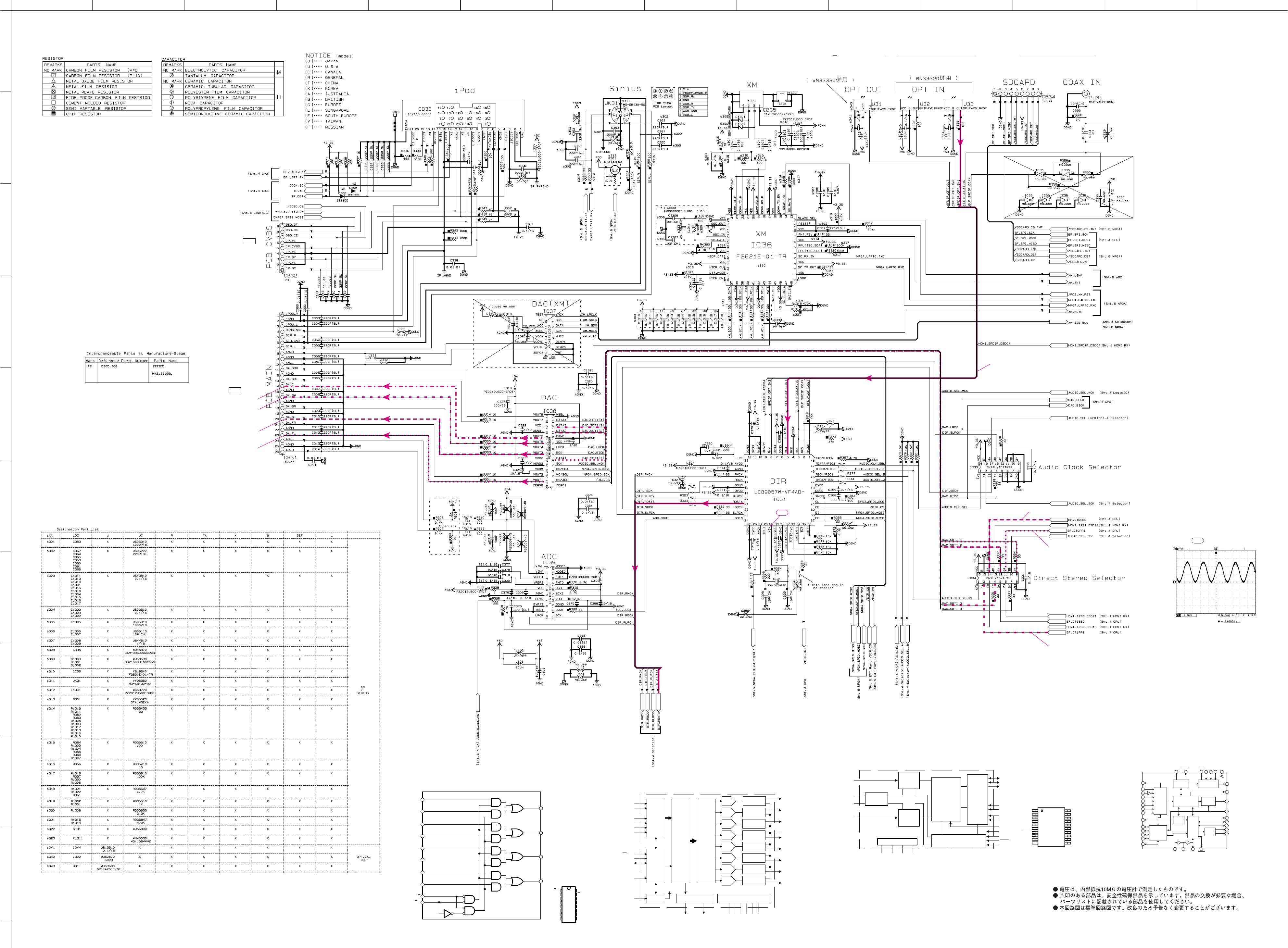

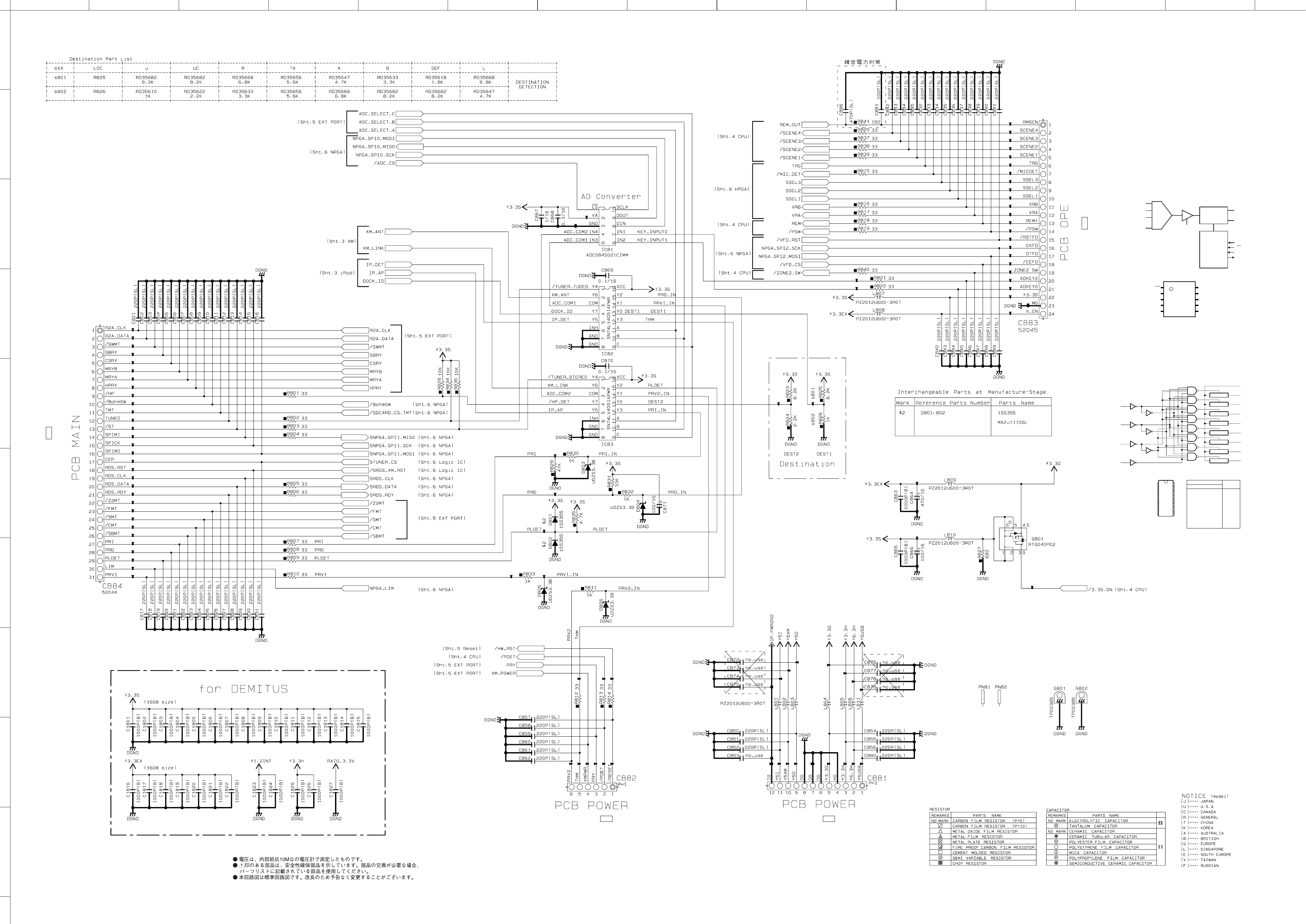

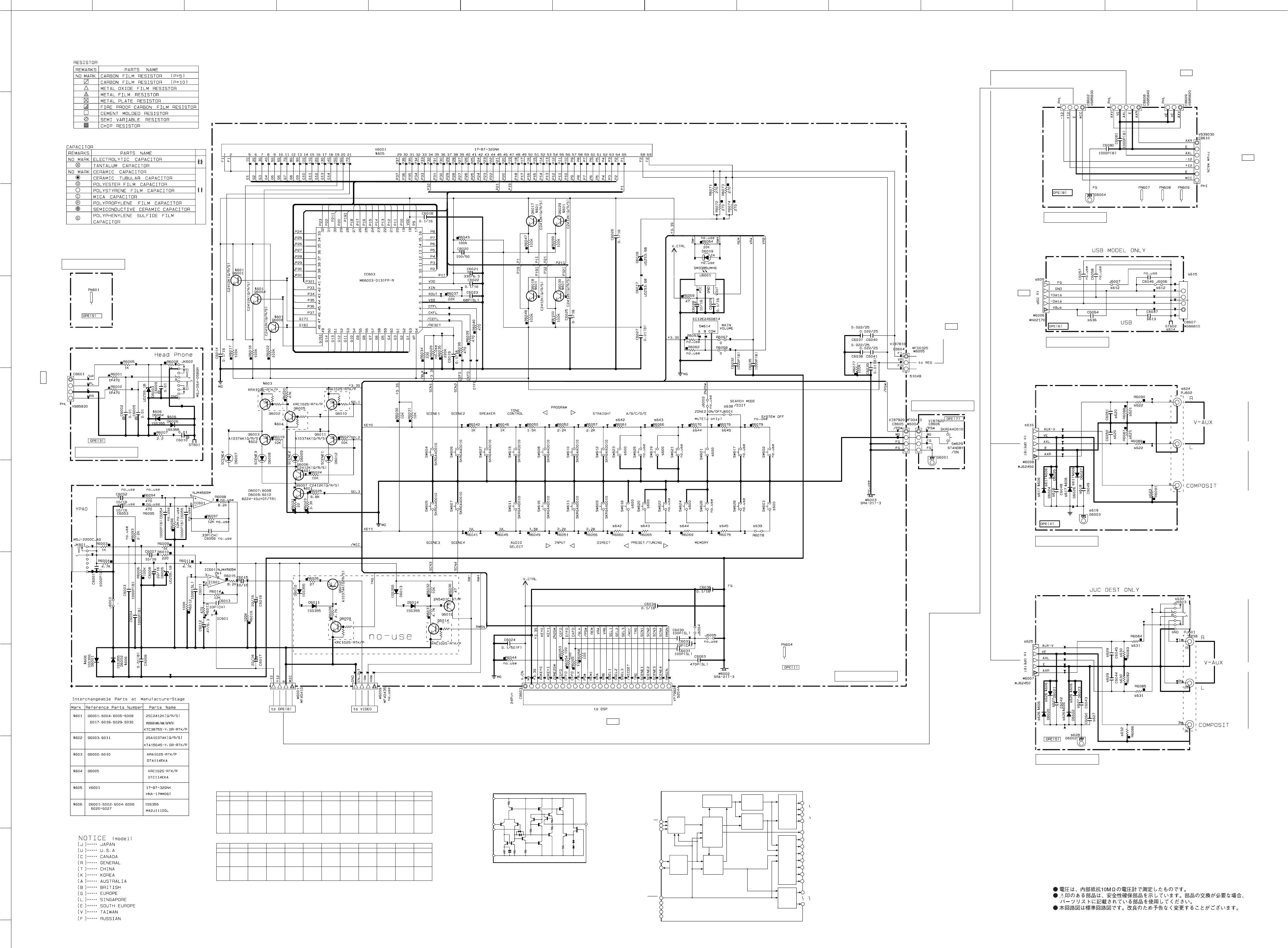

SCHEMATIC DIAGRAMS ...................................... 85–98

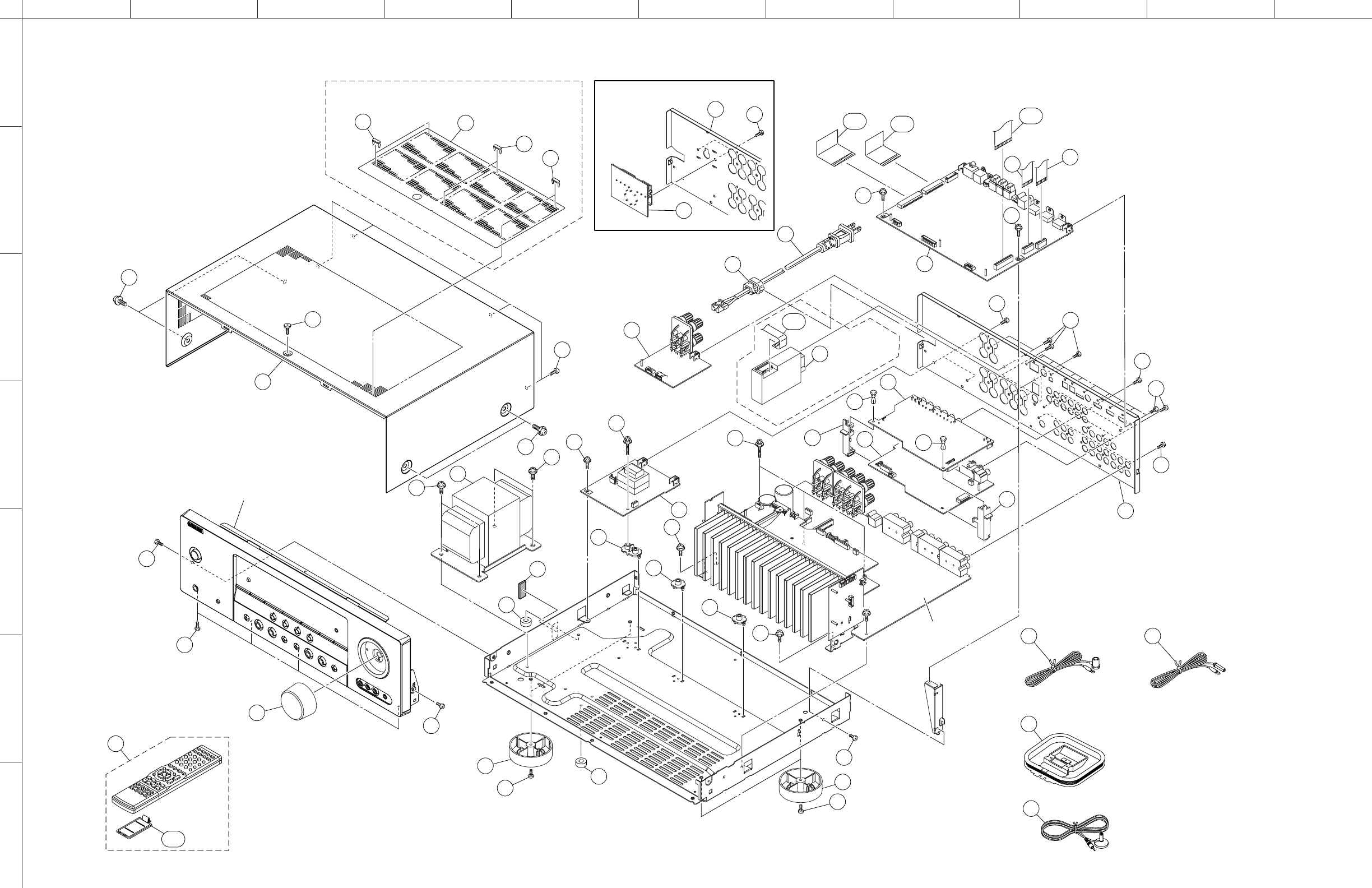

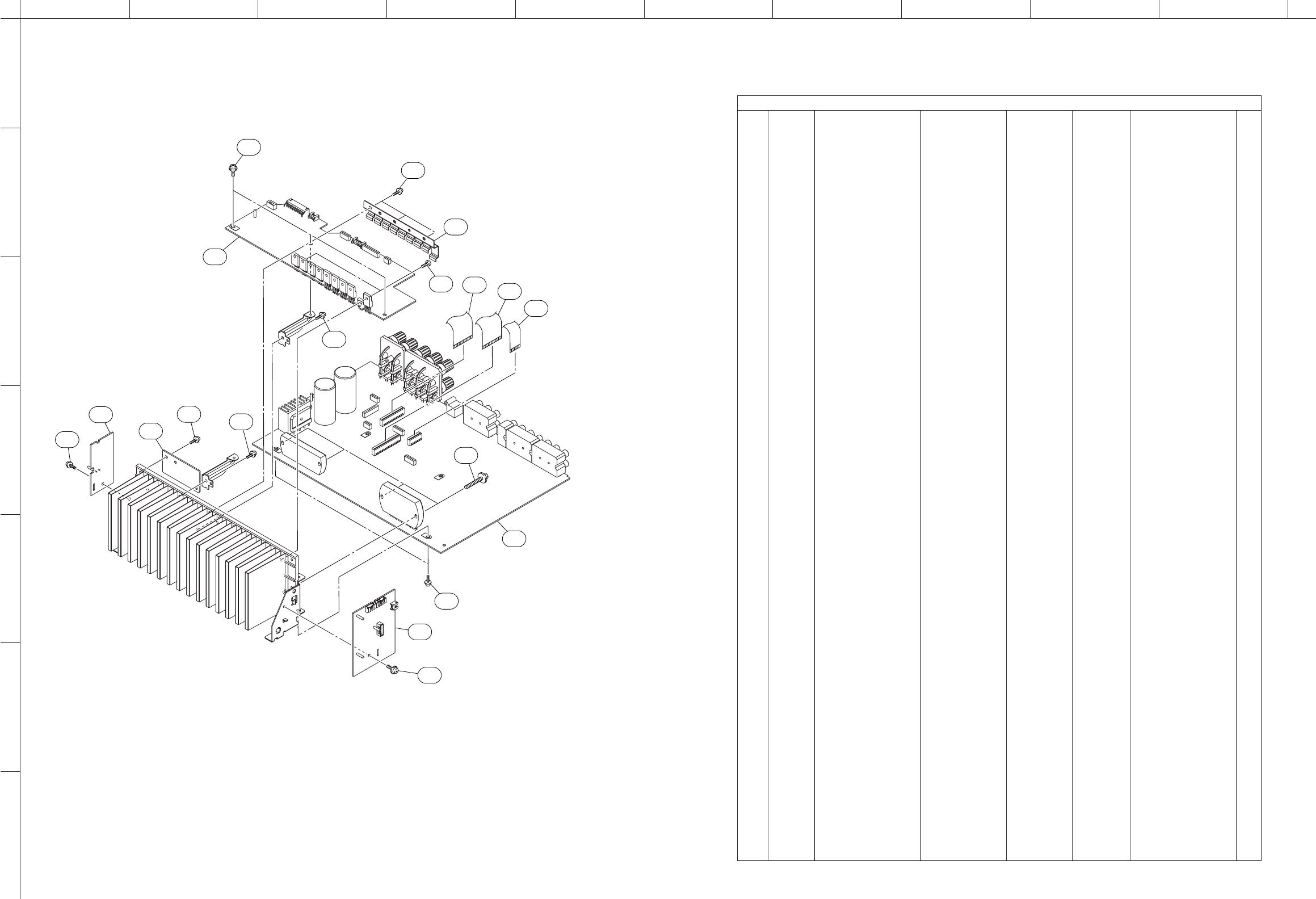

REPLACEMENT PARTS LIST ............................ 99–117

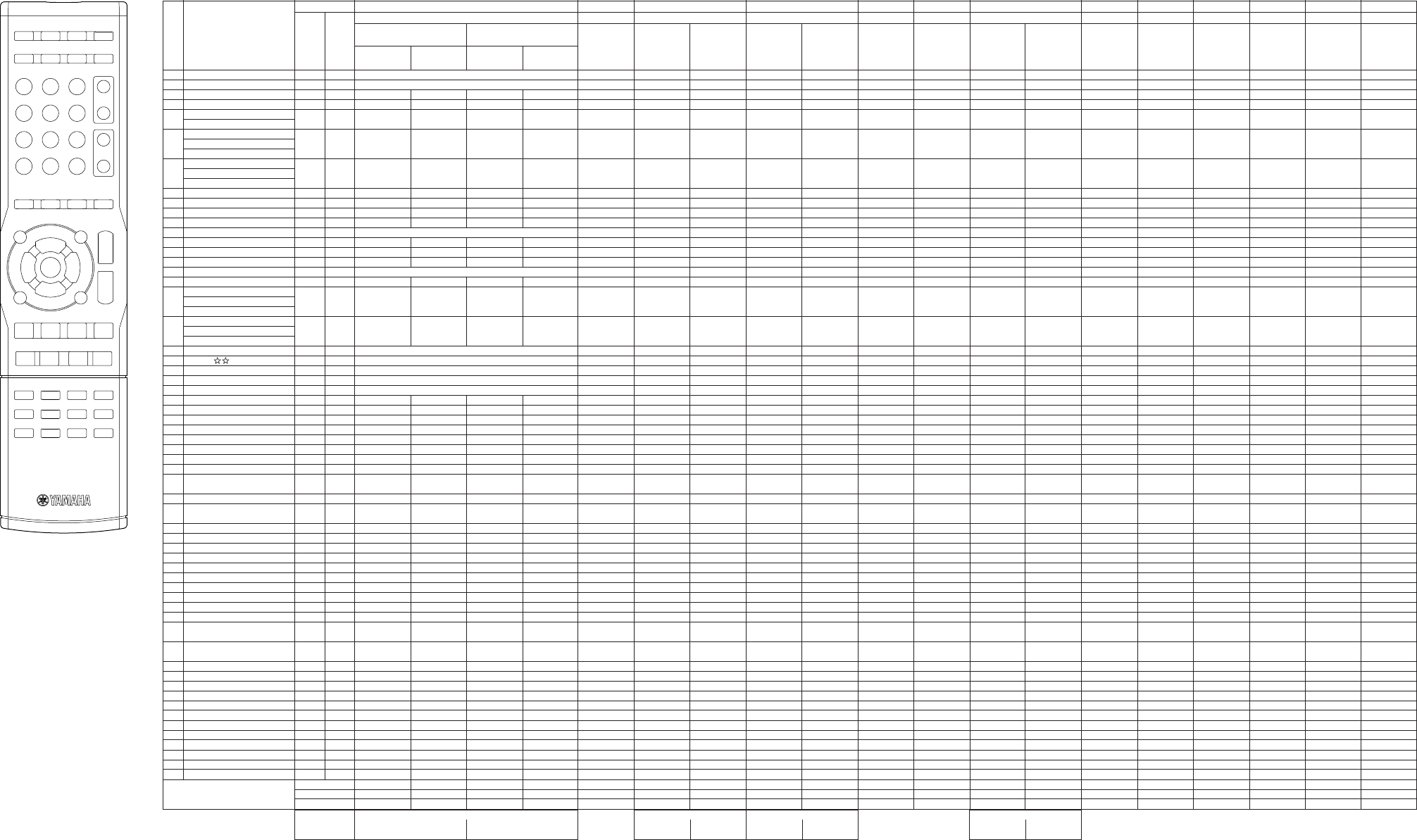

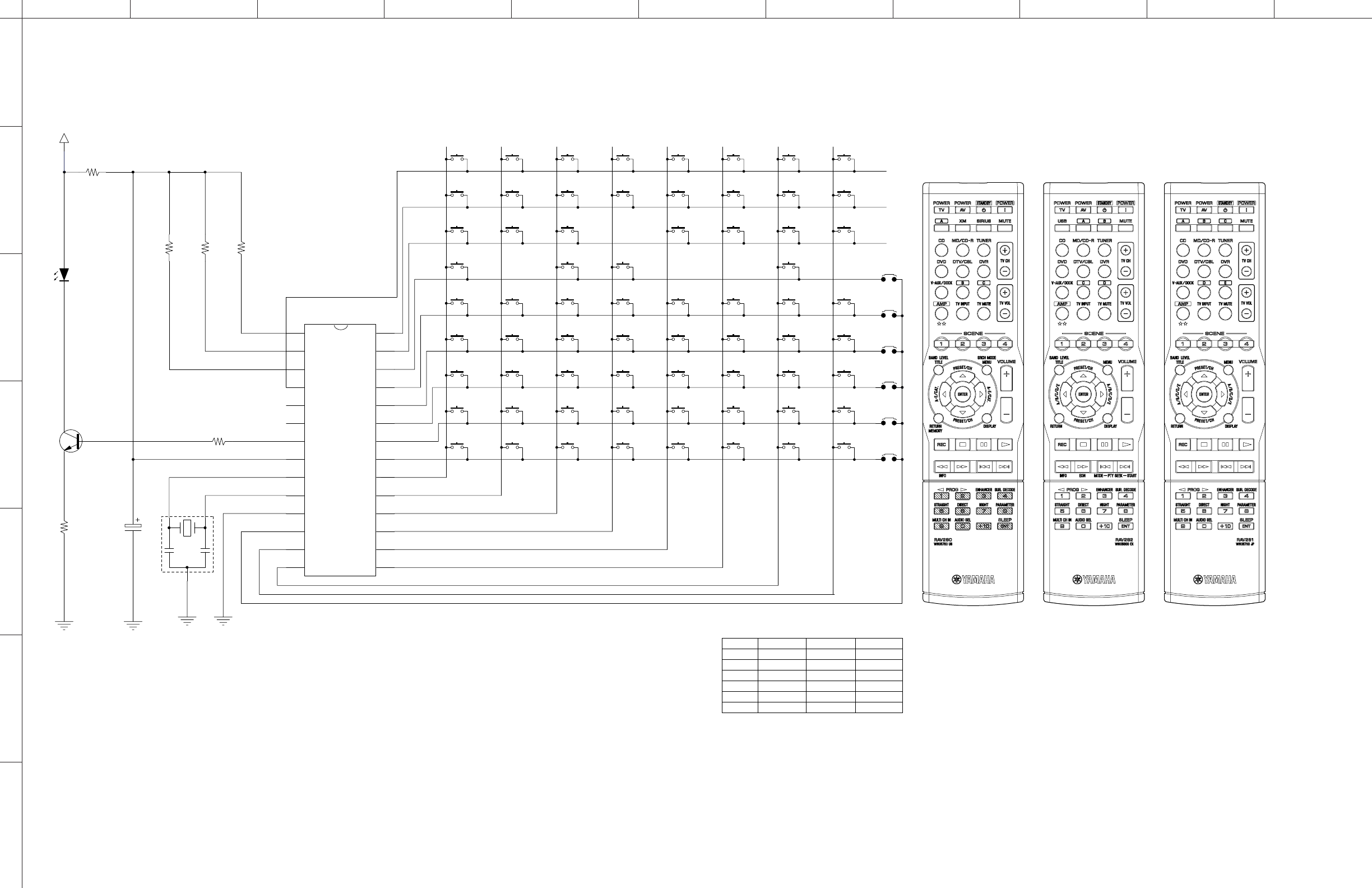

REMOTE CONTROL.......................................... 118–120
ADVANCED SETUP /
アドバンストセットアップメニューを設定する ............. 121
AV RECEIVER/AV AMPLIFIER
RX-V463/HTR-6140/
DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
2
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463

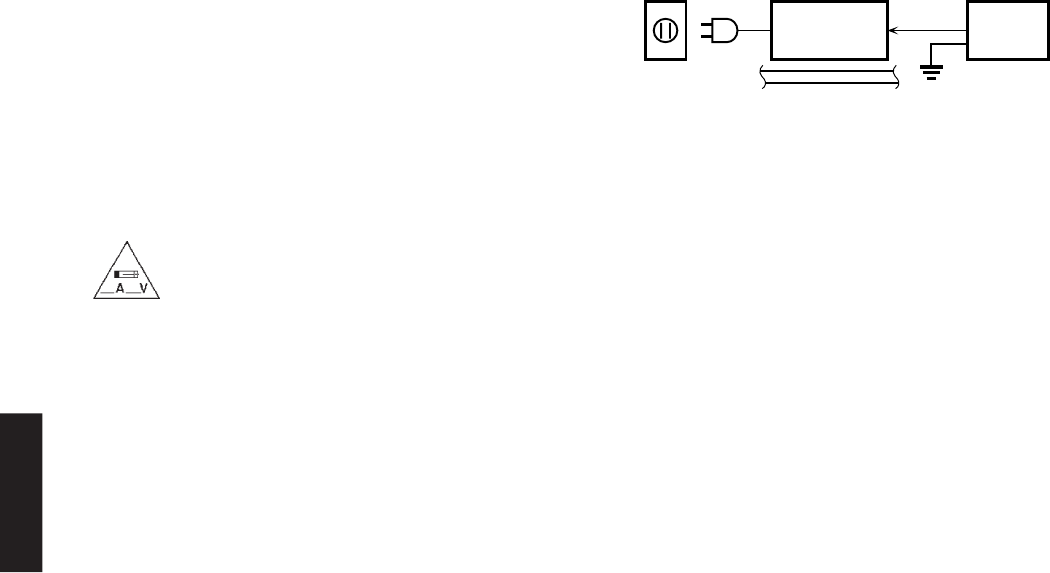

WALL
OUTLET EQUIPMENT
UNDER TEST
AC LEAKAGE
TESTER OR
EQUIVALENT
INSULATING
TABLE
■TO SERVICE PERSONNEL
1. Critical Components Information
Components having special characteristics are marked s and
must be replaced with parts having specifications equal to those
originally installed.
2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
●Meter impedance should be equivalent to 1500 ohms shunted
by 0.15µF.
●Leakage current must not exceed 0.5mA.
●Be sure to test for leakage with the AC plug in both polarities.
For U model
“CAUTION”
“F3401: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 6A,
125V FUSE.”
For C model
CAUTION
F3401: REPLACE WITH SAME TYPE 6A, 125V FUSE.
ATTENTION
F3401: UTILISER UN FUSIBLE DE RECHANGE DE MÉME TYPE DE 6A, 125V.
WARNING: CHEMICAL CONTENT NOTICE!
This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive
harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY
REASON WHAT SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose
eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands before
handling food.
本機に搭載されているすべての基板およびハンダ付けによる接合
部は無鉛ハンダでハンダ付けされています。
無鉛ハンダにはいくつかの種類がありますが、修理時には下記の
ような無鉛ハンダの使用を推奨します。
・Sn+Ag+Cu（錫+銀+銅）
・Sn+Cu（錫+銅）
・Sn+Zn+Bi（錫+亜鉛+ビスマス）
注意：
無鉛ハンダの融点温度は通常の鉛入りハンダに比べ30∼40℃
程度高くなっていますので、それぞれのハンダに合ったハンダ
ごてをご使用ください。
All of the P.C.B.s installed in this unit and solder joints are
soldered using the lead free solder.
Among some types of lead free solder currently available,
it is recommended to use one of the following types for the
repair work.
• Sn + Ag + Cu (tin + silver + copper)
• Sn + Cu (tin + copper)
• Sn + Zn + Bi (tin + zinc + bismuth)
Caution:
As the melting point temperature of the lead free solder is
about 30°C to 40°C (50°F to 70°F) higher than that of the lead
solder, be sure to use a soldering iron suitable to each solder.
About lead free solder / 無鉛ハンダについて
9
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
DSP-AX463 (J model)

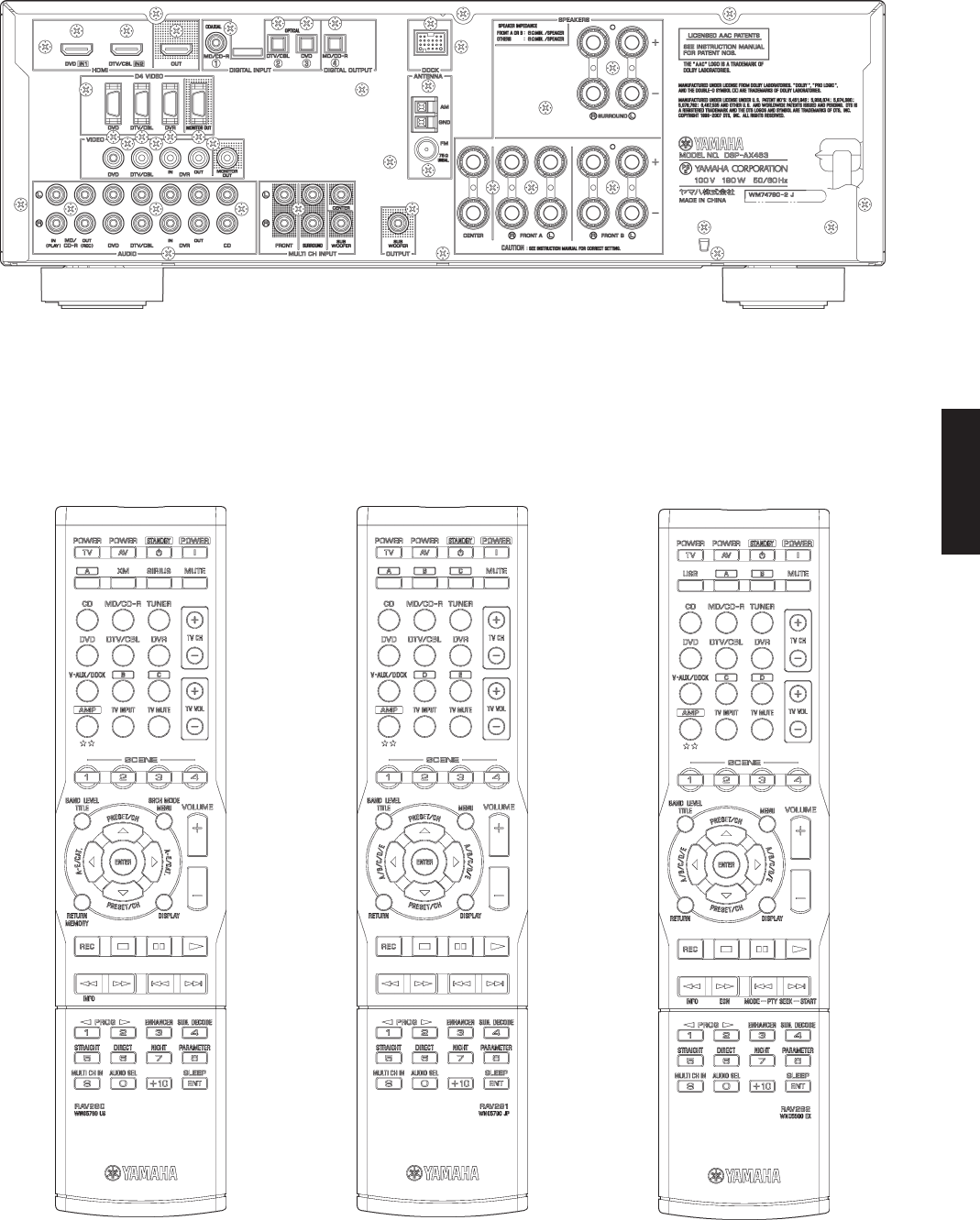

■REMOTE CONTROL PANEL
• RAV280
RX-V463 (U, C models)
HTR-6140 (U, C models)
• RAV281
DSP-AX463 (J model)
• RAV282
RX-V463 (R, T, K, A, G, E, F, L models)
HTR-6140 (F model)
DSP-AX463 (B model)
10
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
■SPECIFICATIONS / 参考仕様
■ Audio Section / オーディオ部
Minimum RMS Output Power (Power Amp. Section) /
定格出力（パワーアンプ部） (1 kHz, 0.9 % THD)
FRONT L/R, CENTER, SURROUND L/R
U, C models (8 ohms) ........................................ 105 W/ch
R, T, K, A, B, G, E, F, L, J models (6 ohms) ..... 105 W/ch
Maximum Power / 実用最大出力 (JEITA)
(1 kHz, 10 % THD, 6 ohms)
FRONT L/R, CENTER, SURROUND L/R
R, T, K, L, J models ........................................... 140 W/ch
Dynamic Power Per Channel / ダイナミックパワー (IHF)
(FRONT L/R drive)
U, C models
(8/6/4/2 ohms) ...................................... 90/110/130/150 W
R, T, K, A, B, G, E, F, L, J models
(6/4/2 ohms) .............................................. 100/110/125 W
Dynamic Headroom
U, C models (8 ohms) ............................................. 0.27 dB
Input Sensitivity/Input Impedance /
入力感度／入力インピーダンス (1 kHz, 100 W / 8 ohms)
CD, etc. ............................................... 200 mV / 47 k-ohms
MULTI CH INPUT
FRONT L/R, CENTER, SURROUND L/R, SUBWOOFER
........................................................ 200 mV / 47 k-ohms
Maximum Input Signal / 最大許容入力
(1 kHz, 0.5 % THD, Effect on)
CD, etc. ..........................................................2.0 V or more
Output Level/Output Impedance / 出力電圧／出力インピーダンス
REC OUT .......................................... 200 mV / 1.2 k-ohms
SUBWOOFER (2ch STEREO and FRONT SP: Small)
................................................................ 4 V / 1.2 k-ohms
Headphone Jack Rated Output/Impedance /
ヘッドフォン出力／出力インピーダンス
CD, etc. (1 kHz, 200 mV, 8 ohms) ....... 400 mV / 470 ohms
Frequency Response / 周波数特性 (10 Hz to 100 kHz)
CD, etc. to FRONT L/R .......................................... 0 / -3 dB
Total Harmonic Distortion / 全高調波歪率 (1 kHz)
Direct to FRONT L/R SP OUT
U, C models
(45 W, 8 ohms) ......................................... 0.06 % or less
R, T, K, A, B, G, E, F, L, J models
(50 W, 6 ohms) ......................................... 0.06 % or less
Signal to Noise Ratio / 信号対雑音比 (IHF-A Network)
Direct STEREO to Input shorted SP OUT
200 mV ........................................................ 98 dB or more
250 mV ...................................................... 100 dB or more
Residual Noise / 残留ノイズ (IHF-A Network)
FRONT L/R SP OUT .................................... 150 ∝V or less
Channel Separation / チャンネルセパレーション
CD, etc. (Input 5.1 k-ohms shorted, 1 kHz / 10 kHz)
......................................... 60 dB or more / 45 dB or more
Tone Control Characteristics / トーンコントロール特性
BASS
Boost/Cut ................................................ ±10 dB (100 Hz)
TREBLE
Boost/Cut ................................................ ±10 dB (20 kHz)
Filter Characteristics / フィルタ特性
FRONT, CENTER, SURROUND small (H.P.F.)
....... fc=40/60/80/90/100/110/120/160/200 Hz, 12 dB/oct.
SUBWOOFER (L.P.F.)
....... fc=40/60/80/90/100/110/120/160/200 Hz, 24 dB/oct.
■ Video Section / ビデオ部
Video Signal Type (Gray back) / ビデオ信号方式（グレーバック）
U, C, R, K, J models .................................................. NTSC
T, A, B, G, E, F, L models ............................................. PAL
Composite Video Signal Level / コンポジットビデオ信号
.................................................................. 1 Vp-p / 75 ohms
Component Signal Level
(U, C, R, T, K, A, B, G, E, F, L models)
Y ............................................................. 1 Vp-p / 75 ohms
Pb/Pr ................................................... 0.7 Vp-p / 75 ohms
D4-Video Signal Level / D4ビデオ信号
(J model)
Y ............................................................. 1 Vp-p / 75 ohms
Pb/Pr ................................................... 0.7 Vp-p / 75 ohms
Video Maximum Input Level / ビデオ最大許容入力
.................................................................. 1.5 Vp-p or more
Signal to Noise Ratio / 信号対雑音比
....................................................................... 50 dB or more
Monitor Out Frequency Response / モニターアウト周波数帯域
U, C, R, T, K, A, B, G, E, F, L models
Component video signal ................ 5 Hz to 60 MHz, -3 dB
J model
D4-video signal .............................. 5 Hz to 60 MHz, -3 dB
HDMI ................................................................... Ver. 1.2a
■ FM Section / FM部 (U, C, R, T, K, A, G, E, F, L, J models)
Tuning Range / 受信周波数範囲
U, C models............................................ 87.5 to 107.9 MHz
R, L models ............... 87.5 to 108.0 / 87.50 to 108.00 MHz
T, K, A, G, E, F models ...................... 87.50 to 108.00 MHz
J model ..................................................... 76.0 to 90.0 MHz
50dB Quieting Sensitivity / 50 dB SN感度 (IHF)
(1 kHz, 100 % Mod.)
Mono......................................................... 2.8 ∝V (20.2 dBf)
Signal to Noise Ratio / 信号対雑音比 (IHF)
Mono / Stereo ................................................. 73 dB / 70 dB
Harmonic Distortion / 歪率 (1 kHz)
Mono / Stereo ................................................. 0.5 % / 0.5 %
Antenna Input / アンテナ入力 ............ 75 ohms unbalanced
■ AM Section / AM部 (U, C, R, T, K, A, G, E, F, L, J models)
Tuning Range / 受信周波数範囲
U, C models .............................................. 530 to 1,710 kHz
R, L models ....................... 530 to 1,710 / 531 to 1,611 kHz
T, K, A, G, E, F, J models ........................ 531 to 1,611 kHz
Antenna Input / アンテナ入力 .........................Loop antenna
■ General / 総合
Power Supply / 電源電圧
U, C models ............................................... AC 120 V, 60 Hz
R model ................. AC 110, 120/220, 230-240 V, 50/60 Hz
T model ..................................................... AC 220 V, 50 Hz
K model .....................................................AC 220 V, 60 Hz
A model .....................................................AC 240 V, 50 Hz
B, G, E, F models ......................................AC 230 V, 50 Hz
L model ................................. AC 220, 230-240 V, 50/60 Hz
J model .................................................AC 100 V, 50/60 Hz
Power Consumption / 消費電力
U, C models ................................................ 240 W / 320 VA
R, T, K, A, B, G, E, F, L models ................................ 240 W
J model ...................................................................... 180 W
Standby Power Consumption (reference data) /
待機時消費電力（参考値）
U, C, T, K, A, B, G, E, F, J models ............................ 0.8 W
Maximum Power Consumption (5ch drive, 10 % THD)
R, L models ............................................................... 440 W
11
RX-V463/HTR-6140/DSP-AX463
DECODING
FORMAT
POST DECODING
FORMAT OOO
Program
STRAIGHT
MOVIE
MUSIC
MOVIE
DIRECT STEREO
STEREO
STEREO
DIRECT STEREO
STEREO
STEREO
MUSIC ENHANCER
MUSIC ENHANCER
MUSIC ENHANCER
MUSIC ENHANCER
MUSIC ENHANCER
STRAIGHT
ENTERTAINMENT
ENTERTAINMENT
–
Movie Dramatic
Pop/Rock
Movie Dramatic
–
2ch Stereo
5ch Stereo
–
5ch Stereo
2ch Stereo
5ch Enhancer
5ch Enhancer
5ch Enhancer
5ch Enhancer
5ch Enhancer
–
TV Sports
Game
Mode Sub-mode
Movie
Music Live
Music Disc
Music Disc
FM/AM
XM
SIRIUS
iPod
Bluetooth
USB
151 (5-15/16")
130 (5-1/8")
21
(13/16") 308.9 (12-1/8")
255 (10-1/16")
21
(13/16")
21.7
(7/8")
351.6 (13-13/16")
435 (17-1/8")
395 (15-9/16")

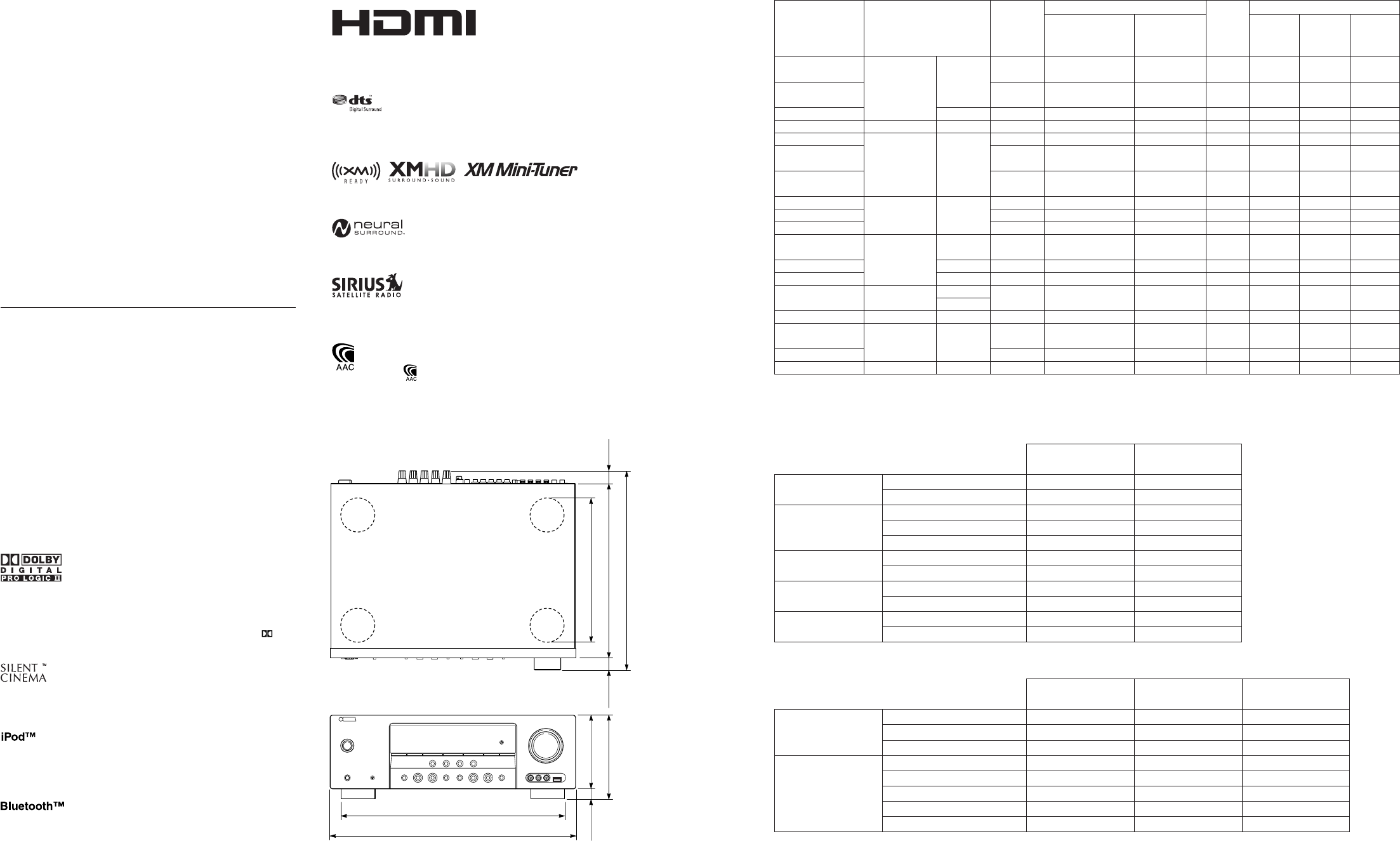

• DIMENSIONS
Unit: mm (inch)
Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of
Dolby Laboratories.
ドルビーラボラトリーズからの実施権により製造されています。「ドル
ビー」、「PRO LOGIC」、「Surround EX」およびダブルD記号 は、
ドルビーラボラトリーズの商標です。
Bluetooth is a registered trademark of the Bluetooth SIG and is used
by Yamaha in accordance with a license agreement.
Bluetoothは、Bluetooth SIGの登録商標でありヤマハはライセンスに
基づき使用しています。
“SILENT CINEMA” is a trademark of YAMAHA CORPORATION.
「サイレントシネマTM SILENT CINEMATM」はヤマハ株式会社の登録
商標です。
“iPod” is a trademark of Apple, Inc., registered in the U.S. and other
countries.
iPodは、米国およびその他の国々で登録されたApple Inc.の商標また
は登録商標です。
DVD
DVD
DVD
DVR
DVD
DVD
DVD
CD
CD
CD
FM/AM
(TUNER)
XM
SIRIUS
DOCK
(V-AUX)
USB
DTV/CBL
DTV/CBL
V-AUX
DVD Viewing
DVD Movie Viewing
DVD Live Viewing
DVR Viewing
Disc Hi-fi Listening
Music Disc Listening
Disc Listening
CD Hi-fi Listening
CD Listening
CD Music Listening
Radio Listening
XM Listening
SIRIUS Listening
Dock Listening
USB Audio Listening
TV Viewing
TV Sports Viewing
Game Playing
• SCENE TEMPLATE
• SOUND/SURROUND SELECT MENU
Sound Field Parameters
Surround Decoders
Dimensions / 寸法 (W x H x D)
..... 435 x 151 x 351.6 mm (17-1/8" x 5-15/16" x 13-13/16")
Weight / 質量
........................................................... 8.5 kg (18 lbs. 11 oz.)
Finish / 仕上げ
[RX-V463]
Gold color ....................................................... R, T models
Black color .............................. U, C, R, A, G, E, F models
Titanium color ................................... K, G, E, F, L models
Silver color ...................................................... A, L models
[HTR-6140]
Gold color .............................................................. T model
Black color ............................................ U, C, G, F models
Silver color ............................................ K, G, E, F models
[DSP-AX463]
Gold color .............................................................. J model
Black color ...................................................... B, J models
Silver color ............................................................ J model
Accessories / 付属品
Remote control x 1, Batteries (R03, AAA, UM-4) x 2, Indoor
FM antenna x 1 (U, C, R, T, K, A, G, E, F, L, J models), AM
loop antenna x 1 (U, C, R, T, K, A, G, E, F, L, J models),
Optimizer microphone x 1
* Specifications are subject to change without notice due to
product improvements.
※ 参考仕様および外観は予告なく変更されることがありま
す。
U .......... U.S.A. model
C .......... Canadian model
R .......... General model
T .......... Chinese model
K .......... Korean model
A .......... Australian model
B .......... British model
G .......... European model
E .......... South European model
F .......... Russian model
L .......... Singapore model
J ........... Japanese model
“HDMI”, the “HDMI” logo and “High-Definition Multimedia Interface”
are trademarks or registered trademarks of HDMI Licensing LLC.
HDMI、HDMIロゴおよびHigh-Definition Multimedia Interfaceは、
HDMI Licensing LLCの商標または、登録商標です。
“DTS” and “DTS Digital Surround” are registered trademarks of DTS,
Inc.
DTS、DTS Digital Surroundは、DTS社の商標です。
The XM name and related logos are registered trademarks of XM
Satellite Radio Inc.
Neural Surround™ name and related logos are trademarks owned by
Neural Audio Corporation.
©2006 SIRIUS Satellite Radio Inc. “SIRIUS”, “Sirius Connect”, the
SIRIUS dog logo, channel names and logos are trademarks of
SIRIUS Satellite Radio Inc.
DVD
DVR
DVD-Audio /
SA-CD / CD
CD
TUNER/RADIO
DAP
TV
GAME
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
SYSTEM
Select (Default)
O
(SCENE 1)
O
O
O
O
O
O
(SCENE 2)
O
O
O
O
(SCENE 4)
O
O
O
–
O
(SCENE 3)
O
O
U, C
models
NIGHTContentsSCENE name Source
O
O
(SCENE 1)
O
O
O
O
(SCENE 2)
O
O
O
O
O
(SCENE 4)
–
–
O
O
O
(SCENE 3)
O
O
R, T, K, A,
B, G, E, F,
L models
DSP LEVEL
MIN, [MID], MAX
MUSIC ENHANCER
LOW, [HIGH]
STEREO
MUSIC
ENTERTAIN
MOVIE
MUSIC ENHANCER
2ch Stereo
5ch Stereo
Pop/Rock
Hall
Jazz
Game
TV Sports
Movie Spacious
Movie Dramatic
Music Enh. 2ch
Music Enh. 5ch
O
O
O
O
O
O
O
O
O
O
O
(SCENE 1)
O
O
O
O
(SCENE 2)
O
O
O
O
O
(SCENE 4)
–
–
O
–
O
(SCENE 3)
O
O
J model
AACロゴマーク はドルビーラボラトリーズの商標です。
Dolby Digital
DTS
AAC (J model)
Dolby Pro Logic
Dolby Pro Logic II Music
Dolby Pro Logic II Movie
Dolby Pro Logic II Game
Neural Surround (U, C models)
PANORAMA
ON, [OFF]
DIMENSION
-3, [STD], +3
CENTER WIDTH
0, 1, 2, [3], 4, 5, 6, 7
RX-V463/HTR-6140/DSP-AX463
12
[FRONT] / ZONE B
SMALL / [LARGE]
NONE / [SMALL] / LARGE
SWFR / FRONT / [BOTH]
40 / 60 / [80] / 90 / 100 / 110 / 120 / 160 / 200 Hz
[NRM (normal)] / REV (reverse)
-10 to +10 dB, [0 dB], 1 dB step
feet / meters
1.0 to 80.0 ft, [10.0 ft], 0.5 ft step
1.0 to 80.0 ft, [8.5 ft], 0.5 ft step
1.0 to 80.0 ft, [10.0 ft], 0.5 ft step
1.0 to 80.0 ft, [8.0 ft], 0.5 ft step
0.30 to 24.00 m, [3.00 m], 0.10 m step
0.30 to 24.00 m, [2.60 m], 0.10 m step
0.30 to 24.00 m, [3.00 m], 0.10 m step
0.30 to 24.00 m, [2.40 m], 0.10 m step
[OFF] / ON
-6.0 dB to +6.0 dB, [0 dB], 0.5 dB step
-20 dB to 0 dB, [0 dB], 1 dB step
MIN / STD / [MAX]
[FULL] / -20 dB
0 to 160 ms, [0 ms], 1 ms step
+16 dB / +10 to -30 dB, [+16 dB], 5 dB step
OFF / MUTE / -80 to +16 dB, [OFF], 1 dB step
[RX-V463 / HTR-6140 / DSP-AX463] / OTHER
CD / MD/CD-R / [DVD] / DTV/CBL / V-AUX / DVR / TUNER (B model)
CD / MD/CD-R / DVD / [DTV/CBL] / V-AUX / DVR / TUNER (B model)
[CD] / MD/CD-R / DVD / DTV/CBL / V-AUX / DVR / TUNER (B model)
[DVD] / DTV/CBL / V-AUX / DVR
DVD / [DTV/CBL] / V-AUX / DVR
CD / MD/CD-R / DVD / DTV/CBL / V-AUX / DVR
Input is possible to 8 characters / 9文字まで入力可能
Input possible Character type / 入力可能文字
Capital / 英大文字: A to Z Small / 英小文字: a to z Figure / 数字: 0 to 9
Space / 空白 Marks / 記号: # * + , - . / : < > ?
CD / MD/CD-R / TUNER / DVD / DTV/CBL / V-AUX / DVR / DOCK / USB (R, T, K, A, B, G,
E, F, L models) / MULTI CH / XM (U, C models) / SIRIUS (U, C models)
-6.0 to +6.0 dB, [0.0 dB], 1.0 dB step
[AUTO] / LAST
[AUTO] / DTS
DVD / DTV/CBL / V-AUX / DVR / [LAST]
-4 to 0, [0], 1 step
[CONT] / ONCE
-5 (upward) to +5 (downward), [0], 1step
ON / 10s / [30s]
ON / 10s / [30s]
[OFF] / ON
[AUTO] / LAST
[NO] / YES
NONE / 0 to 100 %
[OFF] / SINGLE / ALL
[OFF] / ON
Analog / – – – / – – – / – – – / – – – / – – – / – – –
3/2/0.1 (front/surround/LFE)
DTS, Dolby Digital, or PC
(HDMI–> DVI)
(1080p–> 1080p)
DEVICE OVER / HDCP ERROR / OUT OF RES.
VALUE [INITIAL]
•SET MENU TABLE
1 SOUND MENU
2 INPUT MENU
3 OPTION MENU
AUDIO
VIDEO
AUTO SETUP
MANUAL SETUP
SIGNAL INFO
MAIN MENU SUB MENU
CATEGORY SELECT MENU
A) SPEAKER SET
B) SP LEVEL
C) SP DISTANCE
D) CENTER GEQ
E) LFE LEVEL
F) D. RANGE
G) AUDIO SET
H) HDMI SET
A) INPUT ASSIGN
B) INPUT RENAME
C) VOLUME TRIM
D) DECODER MODE
E) MULTI CH SET
A) DISPLAY SET
B) MEMORY GUARD
C) AUDIO SELECT
D) PARAM. INI
E) BLUETOOTH SET
F) XM RADIO SET
G) SIRIUS SET
F) USB PLAY STYLE
FRONT B FRONT
FRONT LARGE
CENTER SMALL
SUR. LR SMALL
BASS OUT BOTH
CROSSOVER 80 Hz
SWFR PHASE NRM
FL • • • • • || • • • • •
FR • • • • • || • • • • •
C • • • • • || • • • • •
SWFR • • • • • || • • • • •
SUR. L • • • • • || • • • • •
SUR. R • • • • • || • • • • •
UNIT feet
FRONT L 10.0 ft
FRONT R 10.0 ft
CENTER 8.5 ft
SWFR 10.0 ft
SUR. L 8.0 ft
SUR. R 8.0 ft
FRONT L 3.00 m
FRONT R 3.00 m
CENTER 2.60 m
SWFR 3.00 m
SUR. L 2.40 m
SUR. R 2.40 m
TEST TONE OFF
100 Hz - - || - - 0 dB
300 Hz - - || - - 0 dB
1 kHz - - || - - 0 dB
3 kHz - - || - - 0 dB
10 kHz - - || - - 0 dB
SP LFE 0 dB
HP LFE 0 dB
SP D. R MAX
HP D. R MAX
MUTE TYP FULL
A. DELAY 0 ms
MAX VOL. +16 dB
INI. VOL. OFF
S. AUDIO
IN (1) [COAXIAL] DVD
IN (2) [OPTICAL] DTV/CBL
IN (3) [OPTICAL] CD
HDMI1 DVD
HDMI2 DTV/CBL
CD / DTV/CBL / V-AUX
BGV LAST
DIMMER 0
FL SCROLL CONT
OSD SHIFT 0
OSD-SOURCE 30s
OSD-AMP 30s
MEMORY GUARD OFF
>AUTO LAST
XM ANT.
PARENTAL LOCK
REPEAT OFF
SHUFFLE OFF
Use this feature to automatically adjust speaker and system parameters.
(U, C models)
(R, T, K, A, B, G,
E, F, L models)
FORMAT (Signal format)
SAMPLING
CHANNEL
BITRATE
FLAG
HDMI SIGNAL
HDMI RES.
HDMI ERROR (HDMI MESSAGE)
Unit: feet
Unit: meters
13
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
■INTERNAL VIEW
1
C D E F
G H
1
2
3
4
5
6
7
8
9
0
A
B
C
D
E
F
G
H
VIDEO (3) P.C.B.
VIDEO (5) P.C.B. (R, L models)
MAIN (1) P.C.B.
VIDEO (4) P.C.B.
Tuner
DSP P.C.B.
OPERATION (8) P.C.B.
OPERATION (2) P.C.B.
MAIN (2) P.C.B.
OPERATION (9) P.C.B.
Power Transformer
OPERATION (3) P.C.B.
OPERATION (7) P.C.B.
OPERATION (1) P.C.B.
OPERATION (5) P.C.B. (U, C, J models)
OPERATION (4) P.C.B. (R, T, K, A, B, G, E, F, L models)
OPERATION (6) P.C.B. (R, T, K, A, B, G, E, F, L models)
VIDEO (2) P.C.B.
VIDEO (1) P.C.B.
4
32 5 6
70
B
A 9 8
• Top view
• Front view
• Rear view
14
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463

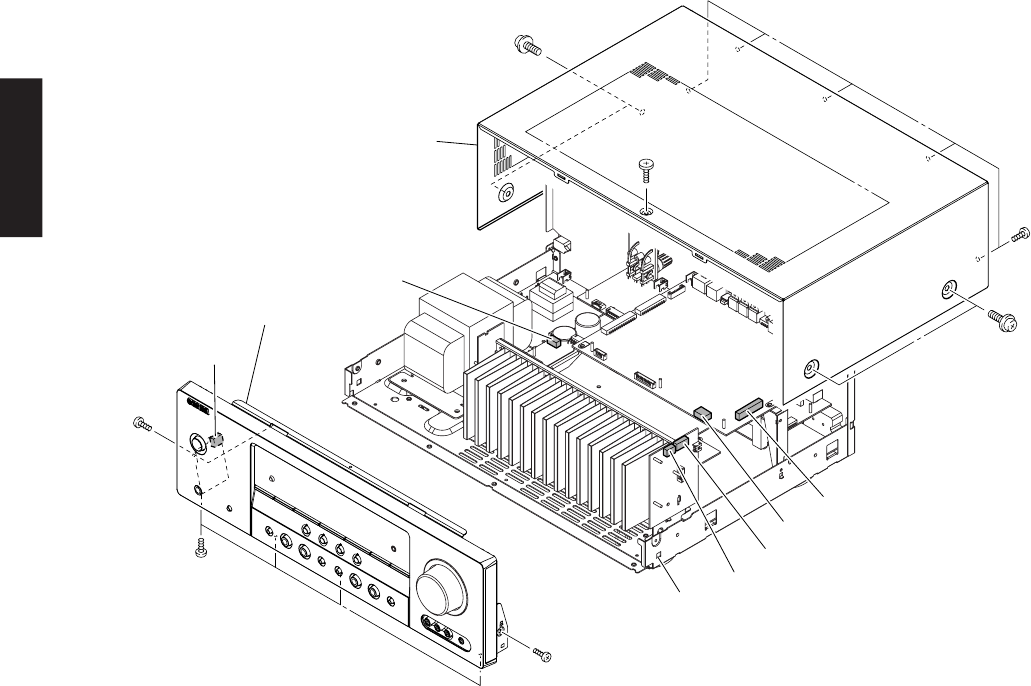

Fig. 1
(Remove parts in the order as numbered.)
Disconnect the power cable from the AC outlet.
1. Removal of Top Cover
a. Remove 5 screws (1), 4 screws (2) and 1 screw (3).
(Fig. 1)
b. Slide the top cover rearward to remove it. (Fig. 1)
2. Removal of Front Panel Unit
a. Remove 6 screws (4). (Fig. 1)
b. Remove CB71 (R, T, K, A, B, G, E, F, L models), CB83,
CB601, CB602, CB608 and CB703. (Fig. 1)
c. Release hook and then remove the front panel unit.
(Fig. 1)
1
3
2
2
4
4
4
Top cover
トップカバー
Front panel unit
フロントパネルユニット
CB601
CB703
CB83
CB71 (R, T, K, A, B, G, E, F, L models)
CB608
CB602
Hook
フック
■DISASSEMBLY PROCEDURES / 分解手順
（番号順に部品を取り外してください。）
AC電源コンセントから、電源コードを抜いてください。
1. トップカバーの外し方
a. 1のネジ5本、2のネジ4本、3のネジ1本を外しま
す。（Fig. 1）
b. トップカバーを後方へスライドさせ、取り外します。
（Fig. 1）
2. フロントパネルユニットの外し方
a. 4のネジ6本を外します。（Fig. 1）
b. CB83、CB601、CB602、CB608、CB703を外しま
す。（Fig. 1）
c. フック1ヶ所を外し、フロントパネルユニットを取り外
します。（Fig. 1）
15
RX-V463/HTR-6140/DSP-AX463
Fig. 3
3. Removal of DSP P.C.B.
Note: U, C, T, K, G, E, F models
After replacement of DSP P.C.B. or writing of the
firmware, make sure to activate the self-diagnos-
tic function and change the “M6 Model ID” setting
to the same model name as this unit (RX-V463 or
HTR-6140).
a. Remove 2 screws (5). (Fig. 2)
b. Remove 11 screws (6). (Fig. 3)
c. Remove CB21, CB22, CB31, CB32, CB81, CB82 and
CB84. (Fig. 2)
d. Remove DSP P.C.B. (Fig. 2)
4. Removal of VIDEO (1) and (2) P.C.B.s
a. Remove 7 screws (7). (Fig. 3)
b. Remove CB301 and CB609. (Fig. 2)
c. Remove VIDEO (1) and (2) P.C.B.s. (Fig. 2)
Fig. 4
6. Removal of FM/AM Tuner
a. Remove 2 screws (9). (Fig. 4)
b. Remove CB403. (Fig. 4)
c. Remove FM/AM tuner. (Fig. 4)
5. Removal of VIDEO (4) P.C.B.
a. Remove 2 screws (8). (Fig. 4)
b. Remove CB351 and CB353. (Fig. 4)
g. Remove VIDEO (4) P.C.B. (Fig. 4)
5
5
DSP P.C.B.
VIDEO (1) P.C.B.
VIDEO (2) P.C.B. CB21
CB22
CB609
CB32
CB31
CB84
CB81
CB82
CB301
7
6
U, C models
U, C, R, T, K, A, B, G, F, L models
J model
6
7
8
9
VIDEO (4) P.C.B.
FM / AM tuner
CB353
CB351
CB403
3. DSP P.C.B.の外し方
a. 5のネジ2本を外します。（Fig. 2）
b. 6のネジ10本を外します。（Fig. 3）
c. CB21、CB22、CB31、CB32、CB81、CB82、CB84
を外します。（Fig. 2）
d. DSP P.C.B.を取り外します。（Fig. 2）
4. VIDEO (1), (2) P.C.B.の外し方
a. 7のネジ5本を外します。（Fig. 3）
b. CB301、CB609を外します。（Fig. 2）
c. VIDEO (1), (2) P.C.B.を取り外します。（Fig. 2）
5. VIDEO (4) P.C.B.の外し方
a. 8のネジ2本を外します。（Fig. 4）
b. CB351、CB353を外します。（Fig. 4）
c. VIDEO (4) P.C.B.を取り外します。（Fig. 4）
6. FM/AMチューナーの外し方
a. 9のネジ2本を外します。（Fig. 4）
b. CB403を外します。（Fig. 4）
c. FM/AMチューナーを取り外します。（Fig. 4）
Fig. 2
RX-V463/HTR-6450/DSP-AX463
16
Fig. 6
Fig. 5
When checking the P.C.B.:
a. Remove the top cover. (Fig. 1)
b. Remove DSP P.C.B.. (Fig. 2)
c. Remove 6 screws (0). (Fig. 5)
d. Remove 2 screws (A). (Fig. 5)
e. Remove 3 screws (B). (Fig. 6)
f. Remove 2 screws (C). (Fig. 5)
g. Remove 4 screws (D). (Fig. 5)
h. Place the P.C.B. upright. (Fig. 7)
i. The P.C.B. removed from the chassis does not work
because its grounding is loose.
Be sure to connect the ground of rear panel and MAIN
(1) P.C.B. (G5004, G5005, G5006 and G3401) and
DSP P.C.B. (G801 and G802) to the chassis with a
ground lead or the like. (Fig. 7)
Fig. 7
0
0
A
0
C
D
DSP P.C.B.
B
MAIN (1) P
.C.B.
Ground lead
Ground lead
Rear panel
G5005
G5004
G5006
G3401
Rear panel
DSP P.C.B.
G802
G801 Ground lead
P.C.B.チェックをする場合には：
a. トップカバーを取り外します。（Fig. 1）
b. DSP P.C.B.を取り外します。（Fig. 2）
c. 0のネジ6本を外します。（Fig. 5）
d. Aのネジ2本を外します。（Fig. 5）
e. Bのネジ3本を外します。（Fig. 6）
f. Cのネジ2本を外します。（Fig. 5）
g. Dのネジ4本を外します。（Fig. 5）
h. P.C.B.を立ち上げて置きます。（Fig. 7）
i. シャーシから外したP.C.B.はアースが浮いて動作しま
せんので、リアパネルおよびMAIN（1）P.C.B.の
G5004、G5005、G5006、G3401とDSP P.C.B.の
G801、G802のアースをリード線等でシャーシに接続
してください。（Fig. 7）
17
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
下記の部品をサービス部品に交換した場合、最新のファー
ムウェアの書き込みを行ってください。
・ P.C.B. ASSY ：DSP
・ DSP P.C.B. ：IC52 FLASH ROM
● 必要なツール
・ DVDまたはCDプレーヤー（DIGITAL OUTPUT
（OPTICALまたはCOAXIAL）端子付き）
・ 光ファイバーケーブル（OPTICAL端子使用時）
・ デジタル音声ピンケーブル（COAXIAL端子使用時）
・ ファームウェアCD
※ ファームウェアCDは、PCへ最新のファーム
ウェアを指定のダウンロード先からダウンロー
ドして制作してください。
● 操作手順
1. 本機とDVD/CDプレーヤーを下記のように接続しま
す。（Fig. 1）
After replacing the following parts, be sure to write the lat-
est firmware.
• P.C.B. ass’y DSP P.C.B.
• IC52 FLASH ROM of DSP P.C.B.
●Required Tools
• DVD or CD player (with DIGITAL OUTPUT (OPTI-
CAL or COAXIAL) jack)
• Optical cable (when OPTICAL jack is used)
• Digital audio pin cable (when COAXIAL jack is used)
• Firmware CD
* To make the firmware CD, download the latest
firmware from the specified download source to
PC.
●Operation Procedures

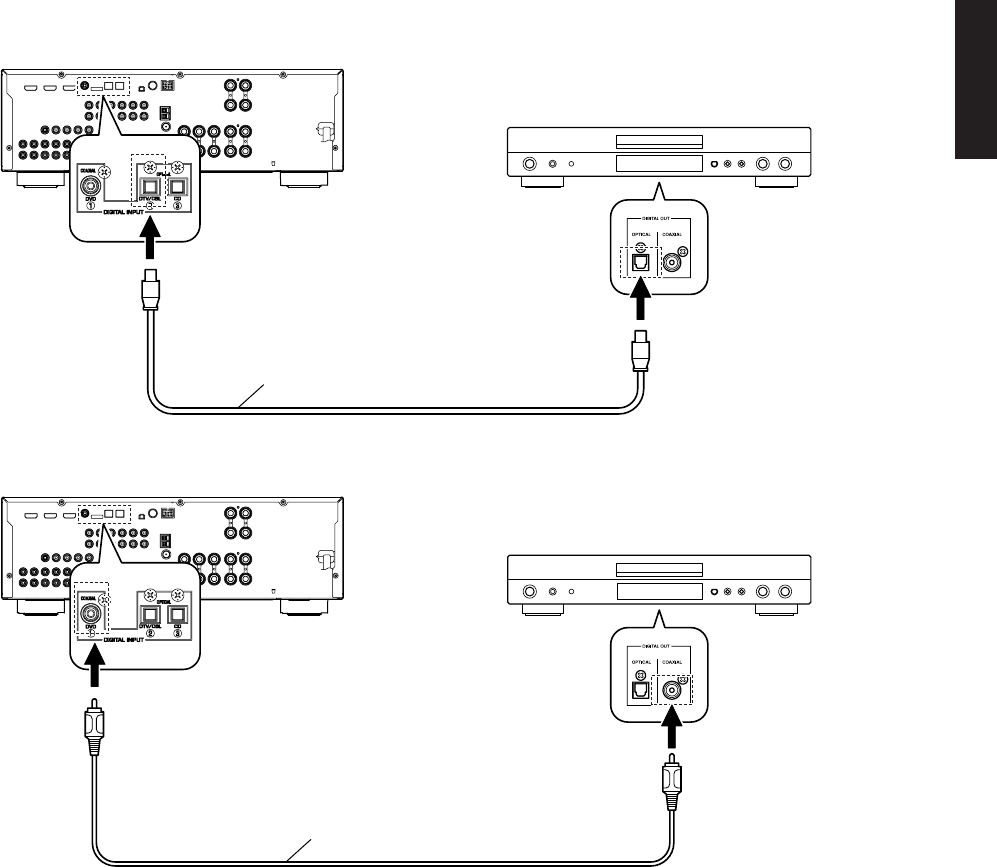

1. Connect this unit and DVD/CD player as shown be-
low. (Fig. 1)
Note: U, C, T, K, G, E, F models
After replacement of DSP P.C.B. or writing of the firmware, make sure to activate the self-diagnostic function and
change the “M6 Model ID” setting to the same model name as this unit (RX-V463 or HTR-6140).
Optical cable
DVD/CD player
This unit
DVD/CD player
Digital audio pin cable
This unit
■UPDATING FIRMWARE / ファームウェアの書き込み
Example of connection between digital OPTICAL jacks
Example of connection between digital COAXIAL jacks
Fig. 1
18
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Fig. 2
"SPEAKERS A/B/OFF" key"STANDBY/ON" key
2. 本機の“STANDBY/ON”キーと“SPEAKERS A/B/
OFF”キーを同時に押しながら、本機の電源コー
ドをACコンセントに接続します。（Fig. 2）
FIRMWARE UPDATEモードが起動し、“SPDIF
Upgrade”が表示されます。（Fig. 2）
3. DVD/CDプレーヤーの電源コードをACコンセント
に接続します。
4. DVD/CDプレーヤーの“STANDBY/ON”キーを押し
ます。
5. DVD/CDプレーヤーの“EJECT”キーを押し、ト
レーを開きます。
6. ファームウェアCDをトレーに載せ、トレーを閉じ
ます。
7. DVD/CDプレーヤーの“PLAY”キーを押します。
ファームウェアの書き込みが開始されます。（Fig. 3）
8. ファームウェアの書き込み完了後、“Upgrade
OK”、“Please...”、“Turn off!!”が繰り返し表示され
ます。（Fig. 3）
2. While simultaneously pressing the “STANDBY/ON”
and “SPEAKERS A/B/OFF” keys of this unit, con-
nect the power cable of this unit to the AC outlet.
(Fig. 2)
The FIRMWARE UPDATE mode is activated and
“SPDIF Upgrade” is displayed. (Fig. 2)
Fig. 3
Writing is completed. / 書き込み完了Writing is started. / 書き込み開始
Address:XXXXXX Upgrade OK
Please...
Turn off!!
XXXXXX: Address information of the received data /
受信データのアドレス情報
FIRMWARE UPDATE mode
SPDIF Upgrade
3. Connect the power cable of DVD/CD player to the
AC outlet.
4. Press the “STANDBY/ON” key of the DVD/CD
player.
5. Press the “EJECT” key of the DVD/CD player to
open the disc tray.
6. Place the firmware CD in the disc tray and close the
disc tray.
7. Press the “PLAY” key of the DVD/CD player.
Then writing of the firmware is started. (Fig. 3)
8. When writing of the firmware is completed, “Up-
grade OK”, “Please...” and “Turn off!!” are displayed
repeatedly. (Fig. 3)
19
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
"STRAIGHT" key"STANDBY/ON" key "AUDIO SELECT" key
※ 本機に既存のファームウェアと、書き込もうと
しているファームウェアのバージョンが同じ場
合、“Same Version”、“Please...”、“Turn off!!”の表
示が繰り返されます。（バージョンアップの必要
はありません。）
ファームウェアCDの再生開始後、10秒以上経
過してもディスプレイ表示が変わらない場合、
ファームウェアCDの再生を最初からやり直して
ください。
“Address:XXXXXX”の後に、“FILE CORRUPTED”が
表示された場合、書き込みデータが破損してい
ないかを確認し、“操作方法”の1から8までをも
う一度やり直してください。
“Upgrade Failed”が表示された場合、“操作方法”
の1から8までをもう一度やり直してください。
9. DVD/CDプレーヤーの“STOP”キーを押します。
10. DVD/CDプレーヤーの“EJECT”キーを押し、ト
レーを開きます。
11. ファームウェアCDをトレーから外し、トレーを閉
じます。
12. DVD/CDプレーヤーの電源を切り、電源コードを
ACコンセントから抜きます。
13. 本機の“STANDBY/ON”キーを押して電源を切り
ます。
● 本機の初期化
※ ファームウェアのアップデート後は、必ず本機を初
期化してください。
1. 本機の電源コードをACコンセントに接続します。
2. “STRAIGHT”キーと“AUDIO SELECT”キーを押し
ながら、“STANDBY/ON”キーを押し、ダイアグを
起動します。（Fig. 4）
R1.PRESET INHI R2.PRESET RSRV
3. ダイアグ“R. FACTORY PRESET”を選択します。
4. “R2. PRESET RSRV”を選択します。
3. Select the main menu “R. FACTORY PRESET”.
4. Select the “R2. PRESET RSRV”.
* When the version of the firmware to be written
is the same as the one existing in this unit,
“Same Version”, “Please...” and “Turn off!!” are
displayed repeatedly. (Upgrading is not neces-
sary.)
If the display remains unchanged for more than
10 seconds after starting the firmware CD play
procedure, perform the firmware CD play pro-
cedure again from the beginning.
If “FILE CORRUPTED” is displayed after
“Address:XXXXXX”, make sure that the firm-
ware CD is not corrupted and perform steps 1 to
8 of “Operation Procedures” again.
If “Upgrade Failed” is displayed, perform Steps
1 to 8 of “Operation Procedures” again.
9. Press the “STOP” key of the DVD/CD player.
10. Press the “EJECT” key of the DVD/CD player to
open the disc tray.
11. Remove the firmware CD from the disc tray and
close the disc tray.
12. Turn off the power of the DVD/CD player and dis-
connect the power cable from the AC outlet.
13. Turn off the power by pressing the “STANDBY/ON”
key of this unit.

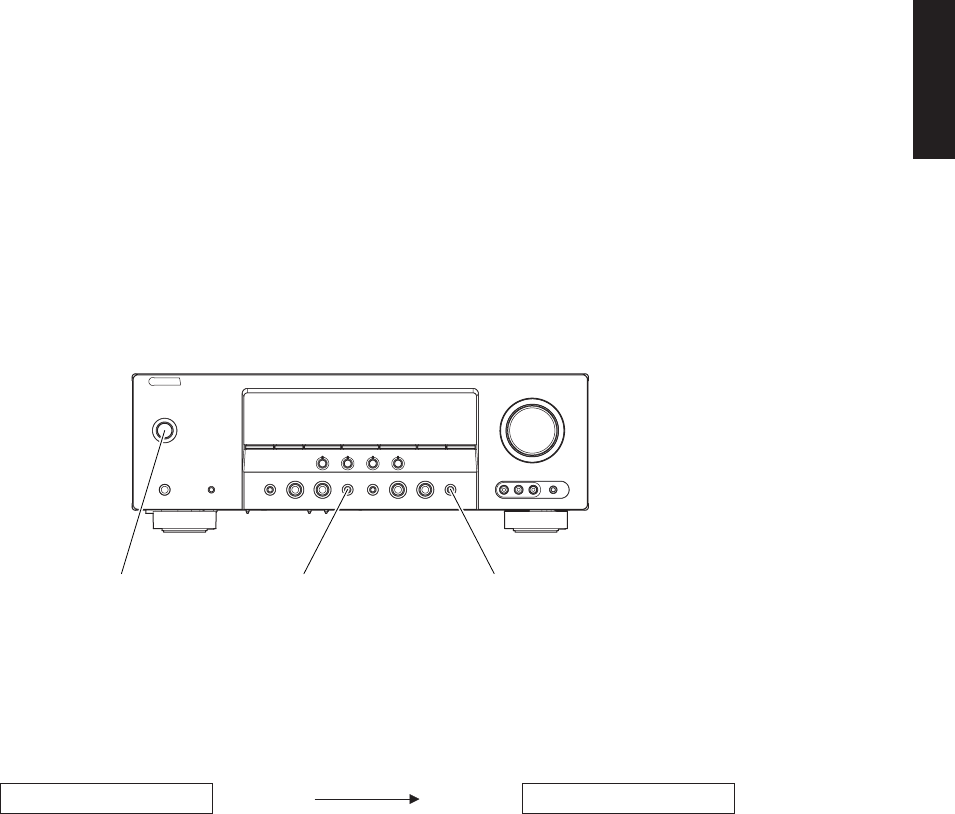

●Initializing of this unit
* After updating the firmware, be sure to initialize this
unit.
1. Connect the power cable of this unit to the AC out-
let.
2. Press the “STANDBY/ON” key while simulta-
neously pressing the “STRAIGHT” and “AUDIO
SELECT” keys. (Fig. 4)
The self-diagnostic function is activated.
PRESET RESERVED (Initialization reserved)PRESET INHIBIT (Initialization inhibited)
Fig. 4
5. Turn off the power of this unit and disconnect the
power cable from the AC outlet.
5. 本機の電源を切り、電源コードをACコンセントか
ら抜きます。
20
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
● ファームウェアバージョンおよびチェックサムの
確認
ダイアグメニューでファームウェアのバージョンおよ
びチェックサムが正しく更新されたことを確認しま
す。
ダイアグメニューの詳細は「ダイアグ（自己診断機能）」
を参照してください。
※ 表示されたファームウェアのバージョンおよび
チェックサムが、書き込んだファームウェアのバー
ジョンおよびチェックサムと異なる場合、“操作方
法”の1から13までをもう一度やり直してくださ
い。
1. 本機の電源コードをACコンセントに接続します。
2. “STRAIGHT”キーと“AUDIO SELECT”キーを押し
ながら、“STANDBY/ON”キーを押し、ダイアグを
起動します。（Fig. 5）
3. ダイアグ“S1. Version”を選択します。
表示されたファームウェアのバージョンが書き込ん
だファームウェアのバージョンと同じであることを
確認します。（Fig. 5）
Fig. 5
4. ダイアグ“S2. All checksum”を選択します。
表示されたチェックサムが書き込んだファーム
ウェアのチェックサムと同じであることを確認し
ます。（Fig. 6）
（チェックサム値は指定ダウンロード先に記載され
ています。）
4. Select the self-diagnostic function menu “S2. All
checksum”.
Confirm the displayed checksum is the same as
the written firmware checksum. (Fig. 6)
(The checksum value is found where download-
ing is specified to.)
S1. VER. E048
Fig. 6
S2.A.SUM:EDA1
"STRAIGHT" key"STANDBY/ON" key "AUDIO SELECT" key
●Confirmation of firmware version and checksum
To confirm that the firmware is updated successfully,
check the firmware version and checksum value by
using the self-diagnostic function menu “S. ROM VER/
SUM”.
For more information, refer to “SELF-DIAGNOSTIC
FUNCTION”.
* When the displayed firmware version and checksum
are different from written firmware version and
checksum, follow the steps from 1 to 13 of “Opera-
tion Procedures” again.
1. Reconnect the power cable of this unit to the AC
outlet.
2. Press the “STANDBY/ON” key while simulta-
neously pressing the “STRAIGHT” and “AUDIO
SELECT” keys. (Fig. 5)
Then the self-diagnostic function is activated.
3. Select the self-diagnostic function menu “S1. Ver-
sion”.
Confirm the displayed firmware version is the
same as the written firmware version. (Fig. 5)
Example / 例 :
Example / 例 :
5. Select the self-diagnostic function menu “S3. Pro-
gram checksum”.
Confirm the displayed checksum is the same as
the written firmware checksum. (Fig. 7)
(The checksum value is found where download-
ing is specified to.)
5. ダイアグ“S3. Program checksum”を選択します。
表示されたチェックサムが書き込んだファーム
ウェアのチェックサムと同じであることを確認し
ます。（Fig. 7）
（チェックサム値は指定ダウンロード先に記載され
ています。）
Fig. 7
S3.P.SUM:FE77
Example / 例 :
21
RX-V463/HTR-6140/DSP-AX463
6. Turn off the power of this unit and disconnect the
power cable from the AC outlet.
* When the displayed firmware version and checksum
are different from written firmware version and
checksum, follow the steps from 1 to 13 of “Operation
Procedures” again.

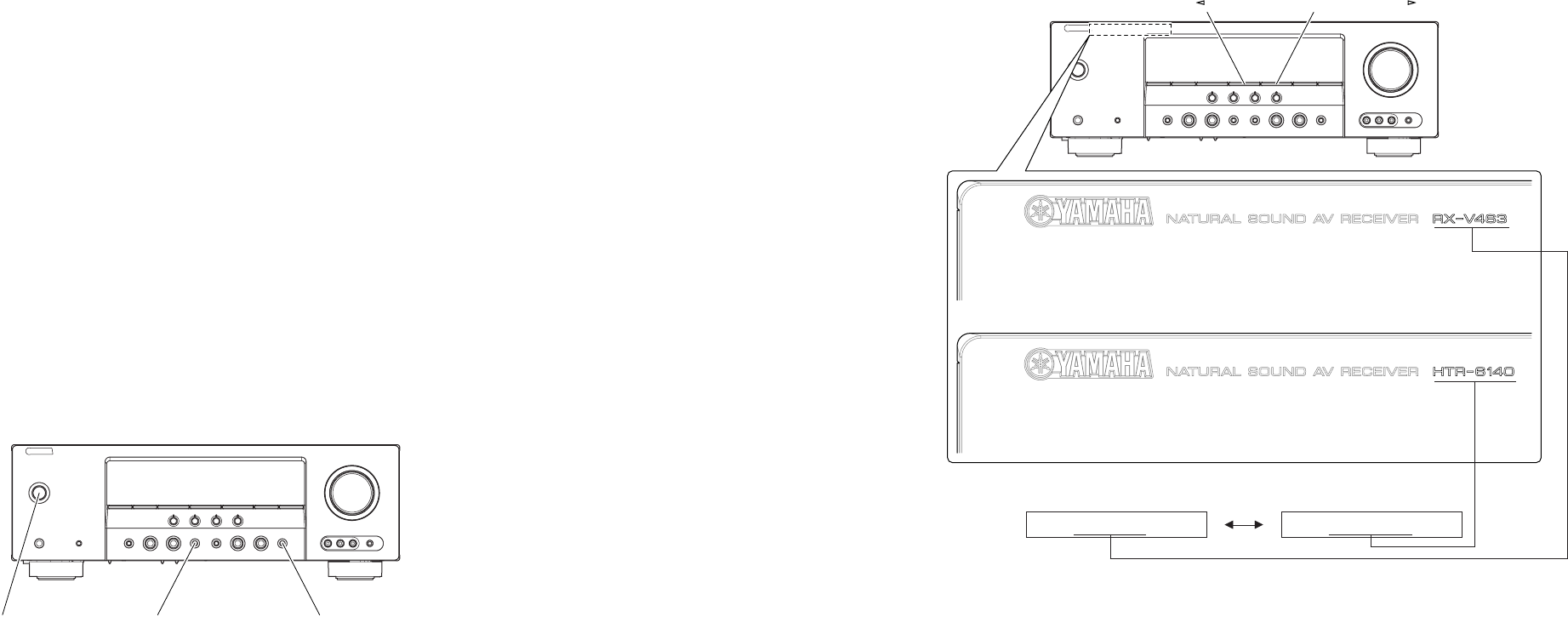

●Confirmation of model name
(U, C, T, K, G, E, F models)
After replacement of DSP P.C.B. or writing of the firm-
ware, make sure to activate the self-diagnostic function
and change the “M6 Model ID” setting to the same model
name as this unit (RX-V463 or HTR-6140).
1. Connect the power cable of this unit to the AC
outlet.
2. Press the “STANDBY/ON” key while simulta-
neously pressing the “STRAIGHT” and “AUDIO
SELECT” keys. (Fig. 8)
The self-diagnostic function is activated.
3. Select the self-diagnostic function menu “M6.
Model ID”.
6. 本機の電源を切り、電源コードをACコンセントか
ら抜きます。
※ 表示されたファームウェアのバージョンおよび
チェックサムが、書き込んだファームウェアの
バージョンおよびチェックサムと異なる場合、“操
作手順”の1から13までをもう一度やり直してくだ
さい。
● モデル名の確認
このモデルには適用されません。
"PRESET/TUNING " key "PRESET/TUNING " key
Fig. 8
4. Press “PRESET/TUNING<” or “PRESET/TUNING>”
key and select the model name.
"STRAIGHT" key"STANDBY/ON" key "AUDIO SELECT" key
M6.RX-V463 M6.HTR-6140
Fig. 9
5. Turn off the power of this unit and disconnect the
power cable from the AC outlet.
RX-V463/HTR-6450/DSP-AX463
22
1
2
3
4
5
1
2
3
4
5
6
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
1
2
3
4
1
2
1
2
3
4
5
6
7
8
9
10
L
M
N
O
P
Q
R
S
VIDEO CONVERSION
(Not applied to these models./
このモデルには適用されません。)
HDMI Check
AD DATA CHECK
PROTECTION
PROTECTION HIST.
RESERVED
FACTORY PRESET
ROM VER/SUM
Sub-menuNo. Main menu
V–IN (Video info.)
V–CONV S–V (Conversion S-video)
V–CONV CVBS (Conversion CVBS)
V–CONV OFF (Conversion OFF)
V–TestPttrn (Video test pattern)
HDMI SPDIF (SPDIF audio playback)
HDMI NONE
HDMI IN1
HDMI IN2
I2C : xx xxx (I2C access check)
Model ID for EDID setting
PD : xxx DI : xxx (ex. N1PD: 45DI: 0)
V1 : xxx V2 : xxx (ex. N2V1: 94V2:128)
TH : xxx PL : xxx (ex. N3TH: 64PL:255)
PI : xxx DE : xxx (ex. N4PI: 0DE: 0)
K0 : xxx K1 : xxx (ex. N5K0:254K1:254)
PRD : xxx/xxx (ex. O1.PRD: 23/ 70)
PV1 : xxx/xxx (ex. O2.PV1: 68/161)
PV2 : xxx/xxx (ex. O3.PV2:104/181)
THM : xxx/xxx (ex. O4.THM: 0/131)
L66 : xxx/xxx (PLDET 6ch 6ohms : xxx/xxx) (ex. O5.L66: 0/ 0)
L86 : xxx/xxx (PLDET 8ch 6ohms : xxx/xxx) (ex. O6.L86: 0/ 0)
L68 : xxx/xxx (PLDET 6ch 8ohms : xxx/xxx) (ex. O7.L68: 0/ 0)
L88 : xxx/xxx (PLDET 8ch 8ohms : xxx/xxx) (ex. O8.L88: 0/ 0)
PRI : xxx/xxx (PRI : xxx/xxx) (ex. O9.PRI: 0/100)
PDE : xxx/xxx (PDET : xxx/xxx) (ex. O10PDE: 0/255)
History 1 (ex. PRV:xxx)
History 2 (ex. THM:xxx)
History 3 (ex. PRI:xxx)
History 4
PRESET INHI
PRESET RSRV
Microprocessor version
All checksum
Program checksum
SPI checksum
SPD checksum
XM version (U, C models)
SIRIUS version (U, C models)
FlashROM read/write check test
SDRAM read/write check test
EEPROM read/write check test
■SELF-DIAGNOSTIC FUNCTION / ダイアグ（自己診断機能）
This unit has self diagnosis functions that are intended for
inspection, measurement and location of faulty point.
There are 19 main menu items, each of which has sub-
menu items.
Listed in the table below are menu items and sub-menu
items.
Note that not all menu items listed will apply to the models
covered in this service manual.
Sub-menuNo. Main menu
1
2
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
1
2
3
4
5
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
1
2
3
4
1
2
3
4
5
6
7
8
A
B
C
D
E
F
G
H
I
J
K
BYPASS
AUDIO CHECK
SPEAKERS SET
XCH-INPUT
MIC CHECK
FL CHECK
TEST TONE
XM STATUS
(U, C models)
iPod
USB
(R, T, K, A, B, G, E, F, L models)
SIRIUS
(U, C models)
ANLOG BYPAS
DSP BYPASS
AUDIO CHECK
ANALOG AUDIO PLAYBACK
MUTE ALL
MUTE SYS IC
MUTE TR
FRNT : SML0dB
CENTER : NONE
LFE/B : FRNT
TONE : MAX
TONE : MIN
6chINPUT 6Ω
8chINPUT 6Ω
6chINPUT 8Ω
8chINPUT 8Ω
LIM : PLDET : THM (ex. D5.255:255: 64)
MIC CHECK
VFD CHECK
VFD DISP OFF
VFD DISP ALL
VFD DIMMER
CHECK PATTERN
TEST ALL
TEST FRNT L
TEST CENTER
TEST FRNT R
TEST SURR R
TEST SURR L
TEST LFE
1k – 1dB/44
1k –61dB/44
MUTE /44
XM TONE/44
ISO TONE/44
1k – 1dB/32
1k –61dB/32
MUTE /32
XM TONE/32
ISOTONE/32
BUSPWR (BUS power) : OFF
DOCK : xx xxx
DOCK IGNORE
Bluetooth version
Clear Bluetooth pairing info.
USBFile1/xx
USBFile2/xx
High Speed TEST_PACKET mode
High Speed TEST_SE0_NAK mode
SIRIUS connection check
SIRIUS antenna status
SIRIUS loop back test
SSP : (SIRIUS #0 version)
MAC : (SIRIUS #1 version)
ADP : (SIRIUS #2 version)
PRDID : (Product ID)
SEQID : (Sequence ID)
本機には、検査、測定、不良個所の発見を目的にしたダイ
アグ（自己診断機能）があります。
ダイアグメニューは24個あり、そのそれぞれにサブメ
ニューがあります。
下表はダイアグメニュー一覧です。
下表の全ダイアグメニュー項目が、このサービスマニュア
ル記載のモデルに適用されるとは限りません。
23
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
• Starting Self-diagnostic Function
Press the “STANDBY/ON” key while simultaneously
pressing those two keys of this unit as indicated in the
figure below.
Turn on the power while pressing these keys. /
これらのキーを同時に押しながら、電源オンする。
Keys of this unit / 本機キー
● ダイアグの起動
本機の下図に示すキーを同時に押しながら“STANDBY/
ON”キーを押すと、ダイアグが起動します。
● プロテクション解除モードでの起動
プロテクションが動作することにより、故障箇所の診
断に支障をきたすような場合は、次の方法によりプロ
テクションを解除した状態でダイアグモードに入るこ
とができます。（過電流検出以外のプロテクション動
作を解除する）
上図のキーを同時に押しながら“STANDBY/ON”キー
を押します。このとき、上図のキーを3秒以上押し続
けてください。
このモードでは本機FLの「SLEEP」セグメントが点滅
し、プロテクションを解除した状態でのダイアグモー
ドであることを知らせます。
注意！
プロテクション解除モードでの起動は、危険な状態でも
プロテクションが作動しないため、動作させると本機を
破壊することがあります。
このモードを使用する場合は十分注意してください。
● ダイアグの解除
1. ダイアグを解除する前に、ダイアグメニューNo. 23
FACTORY PRESET（メモリーの初期化禁止／また
はメモリーの初期化）の設定をします。
※ ユーザーメモリーを保持したい場合は、必ず
PRESET INHIBITED（メモリー初期化禁止）を選
択してください。
2. 本機の“STANDBY/ON”キーを押し、電源オフしま
す。
• Starting Self-diagnostic Function in
the protection cancel mode
If the protection function works and causes hindrance
to trouble diagnosis, cancel the protection function as
described below, and it will be possible to enter the
self-diagnostic function mode. (The protection func-
tions other than the excess current detect function will
be disabled.)
Press the “STANDBY/ON” key while simultaneously
pressing those two keys indicated in the figure above.
At this time, keep pressing those two keys for 3 sec-
onds or longer.
In this mode, the [SLEEP] segment of the FL display
of this unit flashes to indicate that the mode is self-
diagnostic function mode with the protection functions
disabled.
CAUTION!
Using this product with the protection function dis-
abled may cause damage to this unit. Use special
care for this point when using this mode.
• Canceling Self-diagnostic Function
1. Before canceling self-diagnostic function, execute
setting for FACTORY PRESET of main menu No.R
(Memory initialization inhibited or Memory initial-
ized).
* In order to keep the user memory stored, be
sure to select PRESET INHIBITED (Memory ini-
tialization inhibited).
2. Turn off the power by pressing the “STANDBY/ON”
key of this unit.
24
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
● ダイアグ起動時の表示
本機のFLディスプレイには、オープニング（プロテク
ション履歴／バージョン）が表示され、数秒後にメイ
ンメニュー表示（A1. ANALOG BYPASS）となります。
プロテクション履歴が無い場合：
NO PROTECTION
After a few seconds / 数秒後
Main menu display / メインメニュー表示
A1.ANLOG BYPAS
Opening message / オープニング表示
When there is no protection history
プロテクション履歴が無い場合
プロテクション履歴がある場合：
過電流によるプロテクション履歴がある場合
When there is a history of protection function:
When there is a history of protection function due
to excess current
PRI PRT:xxx
原因： パワーアンプに過電流が流れた。
補足： パワーアンプの電流を検出していますので、
電流検出トランジスタをチェックすれば異常
チャンネルが特定できます。
異常状態のまま電源オンすると、瞬時にプロ
テクションがかかり、すぐに電源が切れま
す。
Cause: An excessive current flowed through the
power amplifier.
Supplementary information:
As current of the power amplifier is detected,
the abnormal channel can be identified by
checking the current detect transistor.
Turning on the power without correcting the
abnormality will cause the protection func-
tion to work immediately and the power sup-
ply will instantly be shut off.
注意！
・ 異常状態のまま本機の電源を入れると、危険な状態に
なり、さらに回路が損傷を受ける原因になります。そ
のため連続してプロテクションが働いた場合、3回目
から“STANDBY/ON”キーを押しても電源が入らなく
なります。再度電源を入れる場合、一度本機の電源
コードをAC電源コンセントから抜いて接続し直してく
ださい。
・ 本機の電源をいれる前に、各パワーアンプのチャンネ
ル内の出力トランジスタに損傷がないかチェックして
ください。
・ パワーアンプの電流は、各チャンネルのエミッターの
抵抗器間DC電圧を測定することによりモニターして
ください。
• Display provided when Self-diagnostic
Function started
On the FL display of this unit, an opening message
(including the protection history) appears for a few
seconds followed by the self-diagnostic function menu
display (A1. ANALOG BYPASS).
When there is no history of protection function:
AD value when the protection function is working /
プロテクション動作時のA/D値
Note)
• Applying the power to this unit without correcting
the abnormality can be dangerous and cause ad-
ditional circuit damage. To avoid this, if “PRI” and
“PRD” protection function has been activated 3
times continuously, the power will not turn on
even when the “STANDBY/ON” key is pressed. In
order to turn on the power again, disconnect the
power cable of this unit from the AC outlet once
and then reconnect it again.
• The output transistors in each power amplifier
channel should be checked for damage before ap-
plying power to this unit.
• Power amplifier current should be monitored by
measuring DC voltage across the emitter resistors
for each channel.
25
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
DC出力異常によるプロテクション履歴がある場合
原因： パワーアンプのDC出力が異常。
補足： アンプの故障でスピーカー端子に直流電圧が
掛かるなどが原因で、プロテクションが働い
たことを示します。
異常状態のままパワーオンすると、3秒後に
プロテクションが掛かり、電源が切れます。
原因： 電源部の電圧が異常。
補足： 電源電圧による原因で、プロテクションが働
いたことを示します。
異常状態のままパワーオンすると、1秒後に
プロテクションが掛かり、電源が切れます。
電源部の電圧異常によるプロテクション履歴がある場合
原因： 電源部の電圧が異常。
補足： 電源電圧による原因で、プロテクションが働
いたことを示します。
異常状態のままパワーオンすると、1秒後に
プロテクションが掛かり、電源が切れます。
電源部の電圧異常によるプロテクション履歴がある場合
When there is a history of protection function due
to abnormal voltage in the power supply section
Cause: The voltage in the power supply section is
abnormal.
Supplementary information:
The protection function worked due to a de-
fect or overload in the power supply.
If the power is turned on with the abnormality
unsolved, the protection function works in 1
second to turn off the power.
PRV1 PRT:xxx
AD value when the protection function is working /
プロテクション動作時のA/D値
When there is a history of protection function due
to abnormal voltage in the power supply section
Cause: The voltage in the power supply section is
abnormal.
Supplementary information:
The protection function worked due to a de-
fect or overload in the power supply.
If the power is turned on with the abnormality
unsolved, the protection function works in 1
second to turn off the power.
PRV2 PRT:xxx
AD value when the protection function is working /
プロテクション動作時のA/D値
AD value when the protection function is working /
プロテクション動作時のA/D値
PRD PRT:xxx
When there is a history of protection function due
to abnormal DC output
Cause: DC output of the power amplifier is abnormal.
Supplementary information:
The protection function worked due to a DC
voltage appearing at the speaker terminal.
A cause could be a defect in the amplifier.
If the power is turned on with the abnormality
unsolved, the protection function works in 3
seconds to turn off the power.
26
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
原因： ヒートシンクの温度が異常。
補足： 温度制限を越えた原因で、プロテクションが
働いたことを示します。
異常状態のままパワーオンすると、1秒後に
プロテクションが掛かり、電源が切れます。
各プロクテクションの検出に関しては、後述のメイン
メニューを参照してください。
● メニュー動作中の表示
本機のFLディスプレイには動作中の機能が表示されま
す。
機能動作中の表示内容については、後述の機能詳細で
記述します。
• Display during menu operation
The function at work is indicated on the FL indicator of
this unit.
The contents displayed during the function operation
are described later in the “Details of self-diagnostic
function menu” section.
プロテクションの履歴
プロテクションが働いた場合、履歴をバックアップして
記憶しています。
サービスのときに異常が認められなくても、バックアッ
プが残っていれば、お客様のところで起きた異常を区別
できます。
メインメニューNo. R PRESET RESERVED（メモリーの
初期化）を選んでダイアグを解除した場合、またはバック
アップが消えた場合にプロテクションの履歴はクリアさ
れます。
Cause: The temperature of the heat sink is excessive.
Supplementary information:
The protection function worked due to the
temperature limit being exceeded.
Causes could be poor ventilation or a defect
related to the thermal sensor.
If the power is turned on with the abnormality
unsolved, the protection function works in 1
second to turn off the power.
History of protection function
When the protection function has worked, its history
is stored in memory with a backup.
Even if no abnormality is noted while servicing the
unit, an abnormality which has occurred previously
can be defined as long as the backup data has been
stored.
The history of the protection function is cleared
when self-diagnostic function is cancelled by select-
ing PRESET RESERVED (Memory initialized) of main
menu No. R or when the backup data is erased.
THM PRT:xxx
AD value when the protection function is working /
プロテクション動作時のA/D値
When there is a history of protection function due
to excessive heat sink temperature
ヒートシンクの異常温度によるプロテクション履歴が
ある場合
For detection of each protection function, refer to main
menu described later.
27
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
• Operation procedure of Main menu and
Sub-menu
There are 19 main menu items, each them having
sub-menu items.
Main menu selection:
Select the main menu using “ ww
ww
w ” (forward) and “ qq
qq
q ”
(reverse) keys of PROGRAM.
Sub-menu selection:
Select the sub-menu using “SCENE 2” (forward) and
“SCENE 1” (Reverse) keys.
• Functions in Self-Diagnostic Function
mode
In addition to the self-diagnostic function menu items,
functions as listed below are available.
• Power on/off
• Master volume
• Muting
• Speakers A/B/OFF
• Input selection
• Audio select
• Tone control
* Functions related to the tuner and the set menu are
not available.
Keys of this unit / 本機キー
● ダイアグ中の機能
ダイアグメニューの他に、以下の機能が動作します。
・ パワーオン／オフ
・ マスターボリューム
・ ミューティング
・ スピーカーリレーA、B、OFF
・ インプットセレクト
・ オーディオセレクト
・ トーンコントロール
※ チューナー関連、セットメニュー関連は機能しませ
ん。
● メインメニューとサブメニューの操作
ダイアグにはNo. 1∼19のメインメニューがあり、そ
のそれぞれにサブメニューがあります。
メインメニューの選択：
“PROGRAM ww
ww
w”（順送り）、“qq
qq
q PROGRAM”（逆送り）
キーで選択します。
サブメニューの選択：
“SCENE 2”（順送り）、“SCENE 1”（逆送り）キーで選択
します。
● ダイアグ開始時の初期設定
ダイアグ開始時に以下のような設定になります。
ダイアグ解除時にはダイアグ開始前の状態に戻りま
す。
・ マスターボリューム：-20 dB
・ インプット：DVD（マルチチャンネルINPUT オフ）
・ エフェクトレベル：0 dB
・ メインメニュー：A1. ANALOG BYPASS
Forward
順送り
Reverse
逆送り
Forward
順送り
Reverse
逆送り
Sub-menu selection
サブメニューの選択
Main menu selection
メインメニューの選択
• Initial settings used to start Self-Diag-
nostic Function
The following initial settings are used when starting
self-diagnostic function.
When self-diagnostic function is canceled, these set-
tings are restored to those before starting self-diag-
nostic function.
• Master volume: -20 dB
• Input: DVD (MULTI CHANNEL INPUT OFF)
• Effect level: 0 dB
• Main menu: A1. ANALOG BYPASS
28
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Input level Volume SPEAKER OUT SUBWOOFER
OUTPUT
A1.ANLOG BYPAS
• Details of Self-Diagnostic Function menu
A. BYPASS
Using the sub-menu, it is possible to select ANA-
LOG BYPASS output or DSP BYPASS output.
ANALOG BYPASS
The analog input sound signal is output to FRONT L/R
with EFFECT OFF.
INPUT: DVD ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
A2.DSP BYPASS
Both ch, -20 dBm +6.0 dB
FRONT
+11.5 dBm
CENTER
-∞
SURROUND
-∞-∞
Input level Volume SPEAKER OUT SUBWOOFER
OUTPUT
INPUT: DVD ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
Both ch, -20 dBm +6.0 dB
FRONT
+11.5 dBm
CENTER
-∞
SURROUND
-∞-∞
DSP BYPASS
The digital input sound signal is output to FRONT L/R
with EFFECT OFF.
● ダイアグメニュー詳細
A. BYPASS
サブメニューによりANALOG BYPASS/DSP
BYPASSが選択可能です。
ANALOG BYPASS
アナログ入力の音声信号をEFFECT OFFでFRONT L/
Rへ出力します。
DSP BYPASS
デジタル入力の音声信号をEFFECT OFFでFRONT L/
Rへ出力します。
B. AUDIO CHECK
AUDIO CHECK
The input sound signal is output.
* When the inputted sound signal is 2 ch L/R, it is
distributed as follows when output.
L ch: FRONT L, CENTER, SURROUND L, LFE ( L
ch +10 dB)
R ch: SURROUND R
B1.AUDIO CHECK
Input level Volume SPEAKER OUT SUBWOOFER
OUTPUT
INPUT: DVD ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
Both ch, -20 dBm +6.0 dB
FRONT
+11.5 dBm
CENTER
+11.5 dBm
SURROUND
+11.5 dBm 0 dBm
B. AUDIO CHECK
AUDIO CHECK
入力された音声信号を出力します。
※ 入力された音声信号が2 ch L/Rの場合は、下記の
ように振り分け出力します。
L ch：FRONT L、CENTER、SURROUND L、LFE
（L ch +10 dB）
R ch：SURROUND R
B3.MUTE ALL
MUTE ALL
Sound signals of all channels are muted by System IC
(MAIN P.C.B.) and Transistor (Q5008-5011 MAIN
P.C.B.).
B2.ANALOG PLAY
ANALOG AUDIO PLAYBACK
アナログ入力された音声信号を出力します。
MUTE ALL
全チャンネルの音声信号をシステムIC（MAIN P.C.B.）
およびトランジスタ（Q5008-5011 MAIN P.C.B.）で
ミュートします。
ANALOG AUDIO PLAYBACK
The analog input sound signal is output.
29
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
C. SPEAKER SET
The analog switch settings for each sub-menu are
as shown in the table below.
LARGE: This mode is used for a speaker with high
bass reproduction performance (a large unit).
Full bandwidth signals are output.
SMALL: This mode is used for a speaker with low bass
reproduction performance (a small unit).
The signals of 90 Hz or less are mixed into
the channel specified by LFE/BASS.
NONE: This mode is used for no center speaker.
The center content is reduced by 3 dB and
distributed to FRONT L/R.
SWFR: LFE of 5.1 ch signal or LFE/BASS lower
than 90 Hz is output through SUBWOOFER
OUT.
FRONT: LFE of 5.1 ch signal or LFE/BASS lower
than 90 Hz is distributed to FRONT L/R.
C1.FRNT:SML0dB FRONT: SML 0dB
The FRONT L/R signal, when 90 Hz or lower, is mixed to the channel specified by LFE/BASS.
FRONT L/Rの信号の90 Hz以下がLFE/BASSで指定したチャンネルにミックスされます。
CENTER: NONE
The CENTER signal is distributed to FRONT L/R.
CENTERの信号をFRONT L/Rに振り分けます。
LFE / BASS: FRONT
The LFE (SUBWOOFER) signal is distributed to FRONT L/R.
LFE（SUBWOOFER）の信号をFRONT L/Rに振り分けます。
TONE: MAX
The signal is output with the tone control [BASS +10 dB, TREBLE +10 dB].
トーンコントロール［BASS +10 dB、TREBLE +10 dB］で出力します。
TONE: MIN
The signal is output with the tone control [BASS -10 dB, TREBLE -10 dB].
トーンコントロール［BASS -10 dB、TREBLE -10 dB］で出力します。
C2.CENTER:NONE
C3.LFE/B:FRNT
C4.TONE:MAX
C5.TONE:MIN
B4.MUTE SYS IC
B5.MUTE TR
MUTE SYSTEM IC
Sound signals of all channels are muted by System IC
(MAIN P.C.B.).
MUTE TRANSISTOR
Sound signals of all channels are muted by Transistor
(Q5008-5011 MAIN P.C.B.).
MUTE TRANSISTOR
全チャンネルの音声信号をトランジスタ（Q5008-5011
MAIN P.C.B.）でミュートします。
C. SPEAKER SET
各サブメニューにおけるアナログスイッチの設定
は以下の通りです。
LARGE： 低音再生能力の高い（ユニットの大きい）ス
ピーカーを使用するモードです。
全帯域が出力されます。
SMALL： 低音再生能力の低い（ユニットの小さい）ス
ピーカーを使用するモードです。
90 Hz以下がLFE/BASSで指定したチャンネ
ルにミックスされます。
NONE： センタースピーカーを使用しないモードです。
センター成分は-3dBされて、FRONT L/Rに
振り分けられます。
SWFR： 5.1 ch信号のLFEまたは90 Hz以下のLFE/BASS
がSUBWOOFER OUTに出力されます。
FRONT： 5.1 ch信号のLFEまたは90 Hz以下のLFE/
BASSをFRONT L/Rに振り分けます。
MUTE SYSTEM IC
全チャンネルの音声信号をシステムIC（MAIN P.C.B.）
でミュートします。
FRONT : SML 0dB
CENTER : NONE
LFE/B : FRNT
TONE : MAX
TONE : MIN
SMALL
LARGE
LARGE
LARGE
LARGE
LARGE
NONE
SMALL
LARGE
LARGE
LARGE
LARGE
SMALL
LARGE
LARGE
SWFR
SWFR
FRONT
SWFR
SWFR
30
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Input level Volume SPEAKER OUT SUBWOOFER
OUTPUT
INPUT: DVD ANALOG
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
Both ch, -20 dBm
Both ch, -20 dBm
Both ch, -20 dBm
Both ch, -20 dBm
Both ch, -20 dBm
+6.0 dB
+6.0 dB
+6.0 dB
+6.0 dB
+6.0 dB
FRONT
+11.5 dBm
+11.5 dBm
+11.5 dBm
+14.5 dBm
+8.5 dBm
CENTER
-∞
-∞
-∞
-∞
-∞
SURROUND
-∞
-∞
-∞
-∞
-∞
-3.5 dBm
-∞
-∞
-∞
-∞
Sub-menu
D. XCH INPUT
The input source [MULTI CHANNEL INPUT] is
selected.
It is possible to select the 6-ohm/8-ohm by using
the sub-menu.
6 ch INPUT 6-ohm
D1.6chINPUT 6 Ω
D2.8chINPUT 6 Ω
Input level Volume SPEAKER OUT SUBWOOFER
OUTPUT
INPUT: MULTI CH INPUT
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
Both ch, -20 dBm +6.0 dB
FRONT
+11.5 dBm
CENTER
+11.5 dBm
SURROUND
+11.5 dBm -3.5 dBm
Sub-menu
8 ch INPUT 6-ohm
Input level Volume SPEAKER OUT SUBWOOFER
OUTPUT
INPUT: MULTI CH INPUT
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
Both ch, -20 dBm +6.0 dB
FRONT
+11.5 dBm
CENTER
+11.5 dBm
SURROUND
+11.5 dBm -3.5 dBm
Sub-menu
D. XCH INPUT
入力ソース［MULTI CHANNEL INPUT］が選択さ
れます。
サブメニューにより、6オーム／8オームが選択可
能です。
6 ch INPUT 6-ohm
8 ch INPUT 6-ohm
D3.6chINPUT 8 Ω
6 ch INPUT 8-ohm
Input level Volume SPEAKER OUT SUBWOOFER
OUTPUT
INPUT: MULTI CH INPUT
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
Both ch, -20 dBm +6.0 dB
FRONT
+11.5 dBm
CENTER
+11.5 dBm
SURROUND
+11.5 dBm -3.5 dBm
Sub-menu
6 ch INPUT 8-ohm
FRONT : SML 0dB
CENTER : NONE
LFE/B : FRNT
TONE : MAX
TONE : MIN
6 ch INPUT 6-ohm
6 ch INPUT 8-ohm
6 ch INPUT 8-ohm
31
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
E. MIC CHECK
The signals input through the microphone are out-
put of FRONT L/R via A/D and D/A.
E1.MIC CHECK
E. MIC CHECK
マイク入力された信号をA/D−D/A経由でFRONT
L/Rに出力します。
LIM/PLDET/THM
LIM: Setting value of LIM (Limiter control)
* Do not change the setting value because
this item is only for the use of develop-
ment staff.
PLDET: Power limiter detection
The A/D conversion value during operation
is displayed.
THM: Thermo protection detection
The A/D conversion value during operation
is displayed.
(Reference voltage: 3.3 V=255)
D5.255:255: 64
THM (Thermo protection detection / 温度プロテク
ションの検出)
PLDET (Power limiter detection / パワーリミッターの
検出)
LIM (Limiter control / リミッター制御)
D4.8chINPUT 8 Ω
8 ch INPUT 8-ohm
Input level Volume SPEAKER OUT SUBWOOFER
OUTPUT
INPUT: MULTI CH INPUT
SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz
Both ch, -20 dBm +6.0 dB
FRONT
+11.5 dBm
CENTER
+11.5 dBm
SURROUND
+11.5 dBm -3.5 dBm
Sub-menu
8 ch INPUT 8-ohm
LIM/PLDET/THM
LIM： LIM（リミッター制御）の設定値
※ 開発用メニューのため、設定値の変更は行
わないでください。
PLDET： パワーリミッターの検出
動作時のA/D変換値が表示されます。
THM： 温度プロテクションの検出
動作時のA/D変換値が表示されます。
（基準電圧：3.3 V＝255）
6 ch INPUT 8-ohm
32
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
F1.VFD CHECK
Initial display
All segments OFF
All segments ON (dimmer 100 %)
All segments ON (dimmer 50 %)
Lighting of segments in lattice
Lighting in lattice
NormalShort
F. FL/OSD CHECK
FL表示部のチェックプログラムです。
オーディオ信号処理はSTRAIGHTです。
Checking FL display section /
FL表示部のチェック
F. FL/OSD CHECK
Use this program to check the FL display section.
For audio signal processing, use STRAIGHT.
33
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
G. TEST TONE
The outputs the noise through the channels
specified by the sub-menu.
The noise frequency for LFE (SUBWOOFER) is
35 to 80 Hz.
Other than that, the noise frequency is 500 to 2
kHz.
G1.TEST ALL TEST ALL
Noise is output from all channels.
全チャンネルからノイズを出力。
TEST FRONT L
Noise is output from the FRONT L channel.
FRONT Lチャンネルからノイズを出力。
TEST CENTER
Noise is output from the CENTER channel.
CENTERチャンネルからノイズを出力。
TEST FRONT R
Noise is output from the FRONT R channel.
FRONT Rチャンネルからノイズを出力。
TEST SURROUND R
Noise is output from the SURROUND R channel.
SURROUND Rチャンネルからノイズを出力。
TEST SURROUND L
Noise is output from the SURROUND L channel.
SURROUND Lチャンネルからノイズを出力。
TEST LFE (SUBWOOFER)
Noise is output from the LFE (SUBWOOFER) channel.
LFE（SUBWOOFER）チャンネルからノイズを出力。
G2.TEST FRNT L
G4.TEST FRNT R
G3.TEST CENTER
G5.TEST SURR R
G8.TEST SURR L
G9.TEST LFE
G. TEST TONE
サブメニューで指定したチャンネルへノイズを出
力します。
LFE（SUBWOOFER）用のノイズ周波数は35∼80
Hz、それ以外はノイズ周波数500∼2 kHzとなり
ます。
34
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
H1.1k - 1dB/44 1 kHz, -1 dB / 44.1 kHz
The test tone (1 kHz, -1 dB / 44.1 kHz) is output.
1 kHz, -61 dB / 44.1 kHz
The test tone (1 kHz, -61 dB / 44.1 kHz) is output.
Mute / 44.1 kHz
No signal is output.
XM tone / 44.1 kHz
The XM tone / 44.1 kHz is output.
ISO tone / 44.1 kHz
The ISO tone /44.1 kHz is output.
1 kHz, -1 dB / 32.0 kHz
The test tone (1 kHz, -1 dB / 32.0 kHz) is output.
1 kHz, -61 dB / 32.0 kHz
The test tone (1 kHz, -61 dB / 32.0 kHz) is output.
Mute / 32.0 kHz
No signal is output.
XM tone / 32.0 kHz
The XM tone / 32.0 kHz is output.
ISO tone / 32.0 kHz
The ISO tone / 32.0 kHz is output.
XM bus power: OFF
The power of XM module is turned off.
H3.MUTE /44
H4.XM TONE /44
H5.ISO TONE/44
H6.1k - 1dB/32
H7.1k -61dB/32
H8.MUTE /32
H9.XM TONE /32
H10.ISOTONE/32
H11.BUSPWR:OFF
H. XM STATUS (U, C models)
The output check of XM radio is executed.
(Connect XM radio antenna module to this unit
before executing.)
H2.1k -61dB/44
H. XM STATUS
このモデルには適用されません。
35
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
UART loop back test
UARTループバックテスト
iPAP (iPod accessory power) detection
iPAP検出
iPDET (iPod installation to DOCK) detection
iPDET検出
DKID (DOCK ID) detection
DKID検出
OK
NG
IC83
pin No.5
IC82
pin No.5
IC82
pin No.4
High
Low
Low (iPod universal dock)
High (Bluetooth adapter)
10 k-ohms, 1/4 W pull down
Other
Check item / チェック項目 Result / 結果 Display / 表示
I. iPod
This menu is used to test the DOCK connector
without the iPod itself. After turning off the power
to this unit short between pins No. 14 (TX) and
No. 18 (RX), between pins No. 1 (PWR) and No.
17 (ACCPOW), between pins No. 4 (iPDET) and
No. 8 (DGND) and between pins No. 21 (DKID)
and No. 8 (DGND) of the DOCK connector. (Make
sure that the power is turned off when shorting
pins.)
Start the self-diagnostic function and select this
menu.
The check result is displayed according to the fol-
lowing display specifications.
DOCK CONNECTOR
I1.DOCK:NG NNN
All Y / 全てY = OK
Others / その他 = NG
Y
N
Y
N
Y
N
Y
N
I2.DOCK IGNORE
DOCK ignore
When DOCK and iPod are connected, the input
source [DOCK (iPod)] is made ineffective and [V-
AUX] is selected.
12
19
3456 78
91011121314
15 16 17 18
20 21
10 k-ohms
1/4 W
I3.BTYS:x.xxx
Bluetooth version
When the Bluetooth DOCK is connected, the firmware
version of that Bluetooth module is displayed.
I. iPod
iPod本体無しで、DOCKコネクタの検査を行うメ
ニューです。
本機をパワーオフ状態にしてから、DOCKコネクタの
14ピン（TX）と18ピン（RX）、1ピン（PWR）と17ピン
（ACCPOW）、4ピン（iPDET）と8ピン（DGND）、21ピ
ン（DKID）と8ピン（DGND）をショートさせます。
（ショートさせる時は、必ず電源を切ってください。）
ダイアグを起動して本メニューを選択します。
下記の表示仕様に従って、チェック結果が表示されま
す。
注）検査後、ショートしたピンを必ず元の状態に戻してくださ
い。
DOCK ignore
DOCKおよびiPodを接続している時、入力ソース
［DOCK（iPod）］を無効にして［V-AUX］に切り替えま
す。
Bluetooth version
Bluetooth DOCKを接続している時、そのBluetoothモ
ジュールのファームウェアバージョンを表示します。
Note) Be sure to return the shorted pins to
their original condition after executing
this test.
36
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
J. USB (R, T, K, A, B, G, E, F, L models)
The music file recorded in the USB flash memory
is reproduced.
a. Copy the 2 music files from PC into the roof
folder of the USB flash memory.
b. Insert the USB flash memory to the USB ter-
minal of this unit.
USB FILE1
Reproduced at this time is the first piece of the music
file in the USB flash memory connected to the USB
terminal on the front panel.
USB FILE2
Reproduced at this time is the second piece of the
music file in the USB flash memory connected to the
USB terminal on the front panel.
J1.USBFile1/OK
OK: Connected/Playback
NG: No music file
J2.USBFile2/OK
OK: Connected/Playback
NG: No music file
Clear Bluetooth pairing information
While the Bluetooth DOCK is connected, initialization
of the Bluetooth DOCK pairing information is inhibited/
reserved.
Use “PRESET/TUNING<” and “PRESET TUNING>”
keys for operation.
Clear Bluetooth pairing information
Bluetooth DOCKを接続している時、Bluetooth DOCK
のペアリング情報の初期化を予約／禁止します。
操作は、“PRESET/TUNING ＜”、“PRESET/TUNING
＞”キーで行います。
I4.BT CLR:INHI I4.BT CLR:RSRV
Initialization inhibited /
初期化禁止
Initialization reserved /
初期化予約
Initialization inhibited / 初期化禁止
User memory initialization is not executed. Select this sub-
menu to protect the user memory.
Bluetooth DOCKのペアリング情報の初期化は行われませ
ん。Bluetooth DOCKのペアリング情報を保護するときは、
こちらを選択してください。
Initialization reserved / 初期化予約
Initialization of the use memory is reserved. (Actually, initial-
ization is executed the next time that the power is turned on.)
Select this sub-menu to reset to the original factory settings
or to reset the use memory.
Any protection history will be cleared.
Bluetooth DOCKのペアリング情報の初期化が予約されま
す。（実際に初期化されるのは、次回の電源投入時です。）
Bluetooth DOCKのペアリング情報を削除したいときは、こ
ちらを選択してください。
J. USB
このモデルには適用されません。
37
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
K. SIRIUS (U, C models)
The SIRIUS antenna module is checked.
(Connect SIRIUS antenna module to this unit be-
fore executing.)
K1.SIRIUS : xx
K3.SR-LOOP: xx
K4SSP:xx xx xx
K5MAC:xx xx xx
K6ADP:xx xx xx
K7PRD:xx xx xx
K2.SR:xx xx xx
SIRIUS:
Connection of the SIRIUS antenna module connection is checked.
SR:
The connection information of the SIRIUS antenna module is displayed.
SR-LOOP: SIRIUS loop back test
SSP:
The SIRIUS version #0 (SSP) is displayed.
MAC:
The SIRIUS version #1 (MAC) is displayed.
ADP:
The SIRIUS version #2 (ADP) is displayed.
PRDID:
The PRD ID (product id) is displayed.
SEQID:
The SEQ ID (sequence id) is displayed.
K8SEQ:xx xx xx
K. SIRIUS
このモデルには適用されません。
OK : Normal
NG : Abnormal
—: No connected
The result of antenna diagnostic mode (status)
Antenna error history (SSP Error Codes)
Antenna generation (gen_id)
OK : Normal
NG : Abnormal
38
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
CONVERSION OFF
L4.V-CONV OFF
Test pattern
L5.V-TestPttrn
CONVERSION OFF
Test pattern
CONVERSION CVBS
L3.V-CONV CVBS
CONVERSION S-Video
L2.V-CONV S-V
L. VIDEO CONVERSION
Not applied to these models.
Video INFO.
L1. V-IN:
L. VIDEO CONVERSION
このモデルには適用されません。
Video INFO.
CONVERSION S-Video
CONVERSION CVBS
39
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
M. HDMI SELECT
The selected input signal is output to HDMI OUT
by the sub-menu operation.
HDMI SPDIF (SPDIF audio playback)
SPDIF signal is output.
M1.HDMI SPDIF
HDMI NONE
No signal is output.
M2.HDMI MONE
HDMI IN1
HDMI “IN 1” is output.
M3.HDMI IN1
HDMI IN2
HDMI “IN 2” is output.
M4.HDMI IN2
I2C : xx xxx (I2C access check)
Self-diagnosis is executed to check whether data
reading/writing between the microprocessor con-
nected to the 12C line and each IC is done properly or
not.
M5.I2C:NG NYN
All Y / すべてY = “OK”
Others / その他 = “NG”
HDMI Rx
(IC12 DSP P.C.B.)
HDMI Tx
(IC11 DSP P.C.B.)
*
OK
NG
OK
NG
OK
NG
Y
N
Y
N
Y
N
Check item Result Display
Model ID for EDID setting
(U, C, T, K, G, E, F models)
After replacement of DSP P.C.B or writing of the firmware,
make sure to change the “M6 Model ID” setting to the
same model name as this unit (RX-V463 or HTR-6140).
Press “PRESET/TUNING<” or “PRESET TUNING>”
key for selection.
M. HDMI SELECT
サブメニュー操作により, 選択された入力信号を
HDMI OUTへ出力します。
HDMI SPDIF（SPDIF audio playback）
SPDIF信号が出力されます。
HDMI NONE
何も出力されません。
HDMI IN1
HDMI “IN 1”が出力されます。
HDMI IN2
HDMI “IN 2”が出力されます。
I2C：xx xxx（I2C access check）
I2Cラインに接続されているマイコンと各IC間でデー
タ読み出し／書き込みの正否を自己診断します。
Model ID for EDID setting
M6.HTR-6140M6.RX-V463
M6.RX-V463
R, A, L models
M6.DSP-AX463
B, J models
40
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
N2V1: 94V2:128
N. A/D DATA CHECK
This menu is used to display the A/D conversion
value of the microprocessor which detects panel
keys of the main unit and protection functions in
using the sub-menu.
When K0/K1 menu is selected, keys become non-
operable due to detection of the values of all keys.
However, it is possible to advance to the next
sub-menu by turning the VOLUME of the main
unit. When using this function, note that turning
the VOLUME more than 1 click would cause the
volume value to change.
During signal processing, the condition before ex-
ecution is maintained.
* The figures in the diagram are given as refer-
ence only.
N1PD: 45DI: 0
PD/DI
PD: PRD (Power amplifier DC protection detection)
The output of power amplifier DC (DC voltage)
is detected.
Normal value: 27 to 89 (Reference volt-
age: 3.3 V=255)
* If PRD is out of the normal value range,
the protection function works to turn off
the power.
DI: DOCK ID (DOCK ID detection)
The output of DOCK ID is detected.
(Reference voltage: 3.3 V=255)
V1/V2
V1: PRV1 (Voltage protection detection)
Voltage detects: ACL, 10V, VP, +6.3H and
+3.3H
Normal value: 68 to 161 (Reference volt-
age: 3.3 V=255)
V2: PRV2 (Voltage protection detection)
Voltage detects: AC2, +12, -12, +5D, +5I,
+5V and -5V
Normal value: 104 to 181 (Reference volt-
age: 3.3 V=255)
* If PRV1 and PRV2 are out of the normal value
range, the protection function works to turn off the
power.
N. A/D DATA CHECK
本機パネルキー、プロテクションなどを検出して
いるマイコンのA/D変換値を、サブメニューで表
示します。
K0/K1のメニューにすると、全キーの値を検出す
るためキー操作はできなくなりますが、本機の
VOLUMEを回すことにより、次のサブメニューに
進めることができます。このとき1クリック以上
回すと、ボリューム値が変化するので注意してく
ださい。
信号処理は実行前の状態を維持します。
※ 図中の数値は参考例です。
V1/V2
V1： PRV1（電圧プロテクションの検出1）
検出電圧： ACL、10V、VP、+6.3H、+3.3H
正常値： 68−161（基準電圧：3.3 V＝255）
V2： PRV1（電圧プロテクションの検出2）
検出電圧： AC2、+12、-12、+5D、+5I、
+5V、-5V
正常値： 104−181（基準電圧：3.3 V＝255）
※ PRV1、PRV2は正常値を外れるとプロテクション
が働き、電源オフされます。
PD/DI
PD： PRD（パワーアンプDCプロテクションの検出）
パワーアンプDC（直流電圧）出力の検出。
正常値： 27−89（基準電圧：3.3 V＝255）
※ PRDは正常値を外れるとプロテクション
が働き、電源オフされます。
DI： DOCK ID（DOCK IDの検出）
DOCK ID出力の検出。
（基準電圧：3.3 V＝255）
DOCK type
Ohm
DKID (Pin no. 21)
DOCK
(Bluetooth)
0.56k
5-25
Reserved
2.7k
50-60
Reserved
5.6k
85-100
DOCK
(iPod)
10.0k
120-140
Reserved
18.0k
150-170
(Develop-
ment)
39.0k
195-210
No connect
–
245-255
DOCK detection for AD port (IC82 AD converter pin no. 4)
Pull-up resistance 10 k-ohms
41
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
TH/PL
TH: THM (Thermo protection detection)
The temperature of the heat sink is detected.
Normal value: 0 to 136 (Reference volt-
age: 3.3 V=255)
* If THM is out of the normal value range, the protec-
tion function works to turn off the power.
PL: PLDET (Power limiter detection)
The output voltage of power amplifier is
detected.
N3TH: 64PL:255
TH/PL
TH： THM（温度プロテクションの検出）
ヒートシンク温度の検出。
正常値 : 0−136（基準電圧：3.3 V＝255）
※ THMは正常値を外れるとプロテクションが働き、
電源オフされます。
PL： PLDET（パワーリミッターの検出）
パワーアンプ出力電圧の検出。
PLDET
LIM H: 255 / L: 102
U, C models (Reference voltage: 3.3 V=255)
During normal operation
255
H
Value for starting limiter operation
77
L
Value for canceling limiter operation
108
H
PLDET
LIM H: 255 / L: 90
R, T, K, A, B, G, E, F, L models (Reference voltage: 3.3V=255)
During normal operation
255
H
Value for starting limiter operation
100
L
Value for canceling limiter operation
131
H
(LIM: Limiter control)
(LIM: Limiter control)
PLDET
LIM H: 255 / L: 90
J model（基準電圧：3.3 V＝255）
通常値
255
H
リミッター動作開始値
108
L
リミッター動作解除値
139
H
（LIM：リミッター制御）
N4PI: 0DE: 0
PI/DE
PI: PRI (Current protection detection)
The current of the power amplifier is detected.
Normal value: 0 to 100 (Reference volt-
age: 3.3 V=255)
DE: PDET (Sub-trans power detection)
Normal value: 0 to 255 (Reference volt-
age: 3.3 V=255)
* If PRI and PDET are out of the normal value range,
the protection function works to turn off the power.
PI/DE
PI： PRI（電流プロテクションの検出）
パワーアンプ電流の検出。
正常値： 0−100（基準電圧：3.3 V＝255）
DE： PDET（サブトランス電源電圧の検出）
正常値： 0−255（基準電圧：3.3 V＝255）
※ PRIおよびPDETは正常値を外れるとプロテクショ
ンが働き、電源オフされます。
42
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
N5K0:254K1:254
K0/K1
K0/K1: KEY0/KEY1 (Panel key of this unit)
A/D value of the key fails to function properly
when the standard value is deviated by ± 4.
In this case, check the constant of partial
pressure resistor, solder condition, etc.
Refer to table.
(Reference voltage: 3.3 V=255)
K0/K1
K0/K1： KEY0/KEY1（本機パネルキー）
キーのA/D値は基準値から±4を外れると、
正常な動きをしません。
下表をご覧になり、各キーの分圧抵抗の定
数、ハンダ不良等の確認をしてください。
（基準電圧：3.3 V＝255）
Displayed
0 + 4
23 ± 4
42 ± 4
66 ± 4
92 ± 4
112 ± 4
134 ± 4
156 ± 4
176 ± 4
195 ± 4
215 ± 4
K0
–
SPEAKERS
A/B/OFF
TONE
CONTROL
PROGRAM
<
PROGRAM
>
STRAIGTH
EFFECT
A/B/C/D/E
BAND
–
EDIT
PRESET/TUNING
–
–
–
AUDIO
SELECT
INPUT
>
INPUT
<
DIRECT
PRESET/TUNING
<
PRESET/TUNING
>
MEMORY
–
INFO
TUNING AUTO/MAN’L
K1
U, C, R, T, K, A, G, E, F, L, J models
Displayed
0 + 4
23 ± 4
42 ± 4
66 ± 4
92 ± 4
112 ± 4
134 ± 4
156 ± 4
176 ± 4
195 ± 4
215 ± 4
K0
–
SPEAKERS
A/B/OFF
TONE
CONTROL
PROGRAM
<
PROGRAM
>
STRAIGTH
EFFECT
–
–
–
–
–
–
–
AUDIO
SELECT
INPUT
>
INPUT
<
DIRECT
–
–
–
–
–
K1
B model
43
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
O1.PRD: 23/ 70 PRD (Amplifier DC protection) Low/High
The minimum and maximum preset value of PRD is displayed.
PRDの下限／上限設定値が表示されます。
PV1 (Voltage protection 1) Low/High
The minimum and maximum preset value of PV1 is displayed.
PV1の下限／上限設定値が表示されます。
PV2 (Voltage protection 2) Low/High
The minimum and maximum preset value of PV2 is displayed.
PV2の下限／上限設定値が表示されます。
THM (Thermo protection) Low/High
The minimum and maximum preset value of THM is displayed.
THMの下限／上限設定値が表示されます。
PLD (PLDET (Power limiter detection)) 6ch/6-ohm Low/High
The value for starting limiter operation of PLD6 is displayed.
PLD6のリミッター動作開始値が表示されます。
PLD (PLDET (Power limiter detection)) 8ch/6-ohm Low/High
The value for canceling limiter operation of PLD6 is displayed.
PLD6のリミッター動作解除値が表示されます。
PLD (PLDET (Power limiter detection)) 6ch/8-ohm Low/High
The value for starting limiter operation of PLD8 is displayed.
PLD8のリミッター動作開始値が表示されます。
PLD (PLDET (Power limiter detection)) 8ch/8-ohm Low/High
The value for canceling limiter operation of PLD8 is displayed.
PLD8のリミッター動作解除値が表示されます。
PRI (Amplifier current protection) Low/High
The minimum and maximum preset value of PRI is displayed.
PRIの下限／上限設定値が表示されます。
PDET Low/High
The minimum and maximum preset value of PDET is displayed.
PDETの下限／上限設定値が表示されます。
O2.PV1: 68/161
O3.PV2:104/181
O4.THM: 0/136
O5.L66: 0/ 0
O6.L86: 0/ 0
O7.L68: 0/ 0
O8.L88: 0/ 0
O9.PRI: 0/100
O10PDE: 0/255
O. PROTECTION
The A/D setting value of each protection is dis-
played.
(Reference voltage: 3.3 V=255)
P. PROTECTION HISTORY
Four protection histories are displayed.
O. PROTECTION
各プロテクションのA/D設定値が表示されます。
（基準電圧：3.3 V＝255）
P. PROTECTION HISTORY
過去のプロテクション履歴が4つまで表示されま
す。
P1.PRV1: 90
Example / 例
P4.PRI : 34
Example / 例
P2.HTM : 34
Example / 例
P3.PRV2: 90
Example / 例
History 1 / 履歴 1
History 4 / 履歴 4
History 2 / 履歴 2
History 3 / 履歴 3
44
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
R. FACTORY PRESET
This menu is used to reserve/inhibit initialization
of the user memory (Parameters and set menu
contents, etc. of the sound field program).
The signals are processed using EFFECT OFF
(The L/R signal is output using ANALOG BY-
PASS).
Preset Group P1 P2 P3 P4 P5 P6 P7 P8
CAUTION: Before setting to the PRESET RESERVED,
write down the existing preset memory con-
tent of the tuner in a table as shown below.
(This is because setting to the PRESET
RESERVED will cause the user memory
content of the tuner to be erased.)
A
B
C
D
E
注意： PRESET RESERVEDを選んで初期化を
する前に、チューナーのユーザーメモリー
内容を下表に書き写してください。
（初期化をすると、チューナーのユーザー
メモリーの内容は消えてしまいます。）
R. FACTORY PRESET
ユーザーメモリ（音場プログラムのパラメーターや
セットメニュー内容等）の初期化を予約／禁止しま
す。
信号処理はEFFECT OFF（ANALOG BYPASSでL/
Rを出力）です。
R1.PRESET INHI PRESET INHIBIT (Initialization inhibited) / PRESET INHIBIT（初期化禁止）
User memory initialization is not executed. Select this sub-menu to protect the user memory.
ユーザーメモリの初期化は行われません。ユーザーメモリを保護するときは、こちらを選択してくだ
さい。
PRESET RESERVED (Initialization reserved) / PRESET RESERVED（初期化予約）
Initialization of the use memory is reserved. (Actually, initialization is executed the next time that the
power is turned on.)
Select this sub-menu to reset to the original factory settings or to reset the use memory.
Any protection history will be cleared.
ユーザーメモリの初期化が予約されます。（実際に初期化されるのは、次回の電源投入時です。）
工場出荷時やユーザーメモリをリセットしたいときは、こちらを選択してください。
このとき、プロテクション履歴も初期化されます。
R2.PRESET RSRV
Q. RESERVEDQ. RESERVED
45
RX-V463/HTR-6140/DSP-AX463
S. ROM VER/SUM
The version and checksum are displayed. The
signal is processed using EFFECT OFF.
The checksum is obtained by adding the data at
every 8-bit for each program area and expressing
the result as a 4-figure hexadecimal data.
S1. VER. E048 Microprocessor version
Firmware version of microprocessor (IC41 DSP P.C.B.) is displayed.
マイコン（IC41 DSP P.C.B.）のファームウェアのバージョンを表示します。
All checksum
Checksum value of microprocessor (IC41 DSP P.C.B.) is displayed.
マイコン（IC41 DSP P.C.B.）のチェックサム値を表示します。
Program checksum
Checksum value of application and standby code program is displayed.
アプリケーションおよびスタンバイコードプログラムのチェックサム値を表示します。
SPI (Serial Peripheral Interface) checksum
Checksum value of SPI firmware update code is displayed.
SPIファームウェアアップデートコードのチェックサム値を表示します。
SPD (S/PDIF) checksum
Checksum value of SPD firmware update code is displayed.
SPDファームウェアアップデートコードのチェックサム値を表示します。
XM version (U, C models)
Firmware version of XM is displayed.
XMのファームウェアのバージョンを表示します。
SIRIUS version (U, C models)
Firmware version of SIRIUS is displayed.
FlashROM test
The read/write test of microprocessor (IC41 DSP P.C.B.) and flash ROM (IC52 DSP P.C.B.).
マイコン（IC41 DSP P.C.B.）とフラッシュROM（IC52 DSP P.C.B.）の読み出し／書き込みテスト
を行います。
SDRAM test
The read/write test of microprocessor (IC41 DSP P.C.B.) and SDRAM (IC51 DSP P.C.B.).
マイコン（IC41 DSP P.C.B.）とSDRAM（IC51 DSP P.C.B.）の読み出し／書き込みテストを行いま
す。
EEPROM test
The read/write test of microprocessor (IC41 DSP P.C.B.) and EEPROM (IC42 DSP P.C.B.).
マイコン（IC41 DSP P.C.B.）とEEPROM（IC42 DSP P.C.B.）の読み出し／書き込みテストを行い
ます。
S2.A.SUM:EDA1
S3.P.SUM:FE77
S4.SPI.S:2D61
S5.SPD.S:5BEE
S6. XM :
S7. SR :
S8.FROMTEST:OK
S9.DRAMTEST:NG
S10PROMTEST:OK
S. ROM VER. / SUM / PORT
プログラムのバージョン、チェックサムを表示し
ます。 信号はエフェクトオフです。
チェックサムは、プログラムエリア別にデータを
8ビットごとに加算していき、4桁の16進データで
現したものです。
OK: No error detected / 不良検出なし NG: An error is detected / 不良検出あり
OK: No error detected / 不良検出なし NG: An error is detected / 不良検出あり
OK: No error detected / 不良検出なし NG: An error is detected / 不良検出あり
RX-V463/HTR-6450/DSP-AX463
46
14G
1-1
2-1
3-1
4-1
5-1
1-2
2-2
3-2
4-2
5-2
1-3
2-3
3-3
4-3
5-3
1-4
2-4
3-4
4-4
5-4
1-5
2-5
3-5
4-5
5-5
1-6
2-6
3-6
4-6
5-6
1-7
2-7
3-7
4-7
5-7
15G
S15
S16
S2
S18
1a
1b
1c
1d
1e
1f
1g
2a
2b
2c
2d
2e
2f
2g
S27
S28
S29
S30
16G
S1
S8
S9
S10
S11
S12
S13
S14
S21
S20
S19
S17
13G~1G
1-1
2-1
3-1
4-1
5-1
1-2
2-2
3-2
4-2
5-2
1-3
2-3
3-3
4-3
5-3
1-4
2-4
3-4
4-4
5-4
1-5
2-5
3-5
4-5
5-5
1-6
2-6
3-6
4-6
5-6
1-7
2-7
3-7
4-7
5-7
–
–
1P
2P
3P
4P
5P
6P
7P
8P
9P
10P
11P
12P
13P
14P
15P
16P
17P
18P
19P
20P
21P
22P
23P
24P
25P
26P
27P
28P
29P
30P
31P
32P
33P
34P
35P
36P
37P
S3
S5
S6
S7
S4
S22
S23
S24
S25
S26
17G
● ANODE CONNECTION
(RT)
(HOLD)
(ES)
■DISPLAY DATA
S5
S3
S4
S6 S7 S8 S9 S10 S11 S12 S13
S17
S14
S15 S16
S1
Note : 1) F1, F2 ..... Filament pin 2) NP ..... No pin 3) NX ..... No extend pin 4) 1G~17G ..... Grid pin
Pin No.
Connection
Pin No.
69
F2NX
68 67
NP
66
NP
65
P1
64
P2
63
P3
62
P4
61
P5
60
P6
59
P7
58
P8
57
P9
56
P10
55
P11
54
P12
53
P13
52
P14
51
P15
50
P16
49
P17
48
P18
47
P19
46
P20
45
P21
44
P22
43
P23
42
P24
41
P25
40
P26
39
P27
38
P28
37
P29
34
P32
33
P33
32
P34
31
P35
30
P36
29
P37
28
NX
27
NX
26
NX
25
NX
24
NX
23
NX
22
NX
21
17G
20
16G
19
15G
18
14G
17
13G
16
12G
15
11G
14
10G
13
9G
12
8G
11
7G
10
6G
9
5G
8
4G
7
3G
6
2G
5
1G
4
NP
3
NP
36
P30
35
P31
21
F1NX
Connection
● V6001: 17-BT-32GNK (OPERATION P.C.B.)
● PIN CONNECTION
● GRID ASSIGNMENT
2G1G 3G 4G 5G 6G 7G 11G10G9G8G 12G 13G 14G
(17G)
16G 15G17G
1-1
1-2
1-3
1-4
1-5
1-6
1-7
2-1
2-2
2-3
2-4
2-5
2-6
2-7
3-1
3-2
3-3
3-4
3-5
3-6
3-7
4-1
4-2
4-3
4-4
4-5
4-6
4-7
5-1
5-2
5-3
5-4
5-5
5-6
5-7
(16G)
S30
S25 S25
S22
S24 S24
S23
S26 S21 S20 S19 S18
S2
1a
a
bb
c
2b
(96/24) (DUAL)
c
f
e
d
gg
d
f
a
S27
S29
S29 S28
S28
e
(1G~14G)
PATTERN AREA
}1
(15G)
47
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463

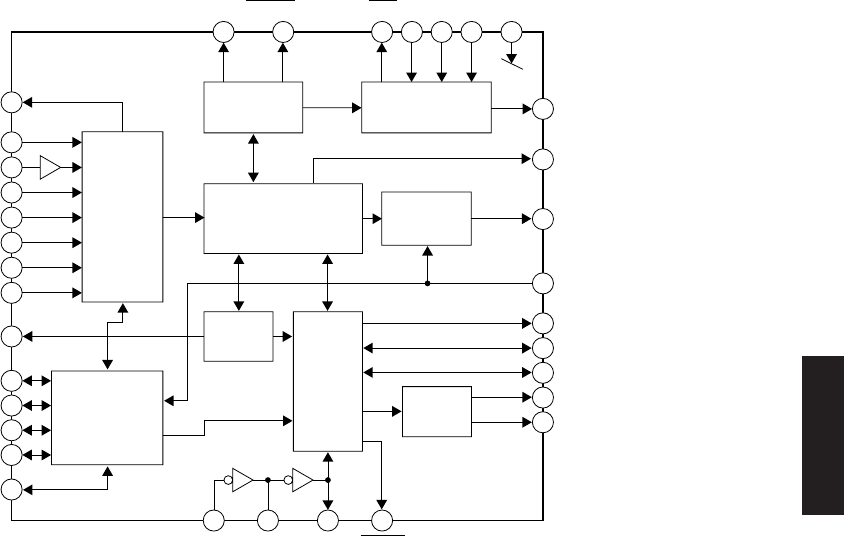

IC31: LC89057W-VF4AD-E (DSP P.C.B.)
Digital audio interface transceiver
■IC DATA
Input
Selector
RXOUT
RX0
RX1
RX2
RX3
RX4
RX5/VI
RX6/UI
LPF
TMCK/PIO0
TBCK/PIO1
TLRCK/PIO2
TDATA/PIO3
TXO/PIOEN
Cbit, Ubit Microcontroller
I/F
Data
Selector
Clock
Selector
Modulation
&
Parallel Port
PLL
XIN XOUT XMCK CKST
SLRCK
SBCK
RLRCK
RBCK
RMCK
SDIN
RDATA
RERR
DO
XMODECICECLINTAUDIO/VOEMPHA/UO
1/N
Demodulation
&
Lock detect
1
2
3
4
5
8
9
10
13
44
45
46
47
48
29 28 27 34
23
22
20
17
16
24
21
36
37
41383940353332
48
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
1) Withstand voltage input/output: I or O = -0.3 to 3.6 V, Is = -0.3 to 5.5 V
2) Pins 32 and 33 are input pins for chip address setting, when pin 41 = "L".
3) Pin 34 is a demodulation function master or an input pin for slave setting, when pin 41 = "L".
4) Pin 35 is a modulation function or an input pin for general-purpose I/O function switch setting, when pin 41 = "L".
5) ON/OFF for all power supplies must be done at the same timing as a latch-up countermeasure.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
RXOUT
RX0
RX1
RX2
RX3
DGND
DVDD
RX4
RX5
RX6
DVDD
DGND
LPF
AVDD
AGND
RMCK
RBCK
DGND
DVDD
RLRCK
RDATA
SBCK
SLRCK
SDIN
DGND
DVDD
XMCK
XOUT
XIN
DVDD
DGND
EMPHA/UO/CD
AUDIO/VO
CKST/PT
INT
RERR
DO
DI
CE
CL
XMODE
DGND
DVDD
PIO0
PIO1
PIO2
PIO3
PIOEN
O
Is
I
Is
Is
Is
Is
Is
O
O
O/I
O/I
O
O
O
Is
O
O
I
I/O
I/O
I/O
I/O
O
O
Is
Is
Is
Is
O
O
O
O
I/O
Detail of Function
Output pin of input bi-phase selection data
Input pin of TTL-compatible digital data
Digital data input pin with built-in amplifier that supports coaxial
Input pin of TTL-compatible digital data
Input pin of TTL-compatible digital data
Digital GND
Digital power supply (3.3 V)
Input pin of TTL-compatible digital data
TTL-compatible digital data / Validity flag input pin for modulation
TTL-compatible digital data / User data input pin for modulation
Digital power supply for PLL
Digital GND for PLL
PLL loop filter connection pin
Analog power supply for PLL (3.3 V)
Analog GND for PLL
R system clock output pin (256 fs, 512 fs, XIN, VCO)
R bit clock input/output pin (64 fs)
Digital GND
Digital power supply (3.3 V)
R LR clock input/output pin (fs)
Output pin of serial audio data
S bit clock output pin (32 fs, 64 fs, 128 fs) (No connected.)
S LR clock output pin (fs/2, fs, 2 fs) (No connected.)
Input pin of serial audio data
Digital GND
Digital power supply (3.3 V)
Oscillation amplifier output pin
Quartz resonator connection output pin
Quartz resonator connection, input pin of external supply clock (24.576 MHz or 12.288 MHz)
Digital power supply (3.3 V)
Digital GND
Emphasis information / U data output / C data output / Chip address setting pin
Non-PCM detection / V flag output / Chip address setting pin
Output of clock switch transitional period signal / Preamble B output / Demodulation master or slave
function switch pin
Interrupt output for microprocessor (Possible to select an interrupt factor.) / Modulation or general-
purpose I/O switch pin
PLL clock error, data error flag output
Microprocessor I/F, read data output pin (3-state)
Microprocessor I/F, write data input pin
Microprocessor I/F, chip enable input pin
Microprocessor I/F, clock input pin"
System reset input pin
Digital GND
Digital power supply (3.3 V)
Sport input select
Audio direct stereo ON
Audio clock select
Modulation data output / General-purpose I/O enable output pin
Pin No.
Function Name I/O
49
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
IC41: AD91089SKBC CPU (DSP P.C.B.)
Microprocessor
PPI/GPIO
L1 data
memory
JTAG test
and emulation
Voltage
regulator
L1 instruction
memory
Memory
management
unit
Core/System bus interface
Real time clock
UART port IrDA®
Serial port (2)
DMA controller
Boot ROM
SPI port
External port FLASH,
SDRAM control
Event controller/
Core timer Watch dock timer
Timer0, Timer1, Timer2
GND
GND
GND
VROUT1
VROUT0
VDDEXT
GND
GND
GND
CLKIN
XTAL
VDDEXT
RESET
NMI
GND
RTXO
RTXI
VDDRTC
GND
VDDEXT
PPI_CLK
PP10
PP11
PP12
VDDINT
PP13
PF15
PF14
PF13
GND
VDDEXT
PF12
PF11
PF10
PF9
PF8
PF7
PF6
GND
GND
GND
GND
GND
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
GND
GND
GND
GND
GND
ADDR13
ADDR14
ADDR15
ADDR16
ADDR17
ADDR18
ADDR19
BGH
BG
VDDEXT
GND
DATA 0
DATA 1
DATA 2
DATA 3
DATA 4
VDDINT
DATA 5
DATA 6
DATA 7
VDDEXT
GND
DATA 8
DATA 9
DATA10
DATA11
DATA12
DATA13
DATA14
DATA15
GND
BMODE0
BMODE1
TCK
VDDEXT
GND
GND
GND
GND
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
GND
GND
GND
SCKE
SMS
VDDEXT
GND
CLKOUT
VDDINT
SRAS
SCAS
SWE
SA10
BR
ARDY
AMS0
AMS1
AMS2
AMS3
VDDINT
VDDEXT
GND
AOE
ARE
AWE
ABE0
ABE1
ADDR1
ADDR2
ADDR3
ADDR4
VDDEXT
GND
VDDINT
ADDR5
ADDR6
ADDR7
ADDR8
ADDR9
ADDR10
ADDR11
ADDR12
VDDEXT
GND
VDDEXT
PF5
PF4
PF3
PF2
PF1
PF0
VDDINT
SCK
MISO
MOSI
GND
VDDEXT
DT1SEC
DT1PRI
TFS1
TSCLK1
DR1SEC
DR1PRI
RFS1
RSCLK1
VDDINT
DT0SEC
DT0PRI
TFS0
GND
VDDEXT
TSCKL0
DR0SEC
DR0PRI
RFS0
RSCLK0
TMR2
TMR1
TMR0
VDDINT
TX
RX
EMU
TRST
TMS
TDI
TDO
GND
50
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Pin
No.
Function
Name I/O Detail of Function
121
122
123
124
125
126
127
135
136
137
138
139
140
141
142
146
147
148
149
98
99
100
101
102
103
104
105
108
109
110
112
113
114
115
116
150
151
163
119
120
ADDR19
ADDR18
ADDR17
ADDR16
ADDR15
ADDR14
ADDR13
ADDR12
ADDR11
ADDR10
ADDR9
ADDR8
ADDR7
ADDR6
ADDR5
ADDR4
ADDR3
ADDR2
ADDR1
DATA15
DATA14
DATA13
DATA12
DATA11
DATA10
DATA9
DATA8
DATA7
DATA6
DATA5
DATA4
DATA3
DATA2
DATA1
DATA0
ABE1
ABE0
BR
BG
BGH
O
O
O
I/O
I/O
I/O
O
I
O
O
Address bus for async/Sync access
Address bus for async/Sync access
Address bus for async/Sync access
Daea bus for async access
Daea bus for async access
Daea bus for async access
Byte enables/Data masks for async/
Sync access
Bus request (This pin should be pulled
HIGH if not used.)
Bus grant
Bus grant hang
Memory Interface
Pin
No.
Function
Name I/O Detail of Function
158
159
160
161
162
154
153
152
AMS3
AMS2
AMS1
AMS0
ARDY
AOE
ARE
AWE
O
I
O
O
O
Banks select
hardware ready control (This pin
should be pulled HIGH if not used.)
Output enable
Read enable
Write enable
Asynchronous memory control
Pin
No.
Function
Name I/O Detail of Function
167
166
165
173
169
164
172
SRAS
SCAS
SWE
SCKE
CLKOUT
SA10
SMS
O
O
O
O
O
O
O
Row address strobe
Column address strobe
Write enable
Clock enable
Clock output
A10 pin
Bank select
Synchronous memory control
Pin
No.
Function
Name I/O Detail of Function
79
78
77
TMR0
TMR1
TMR2
I/O
I/O
I/O
Timer0
Timer1/PPI frame sync1
Timer2/PPI frame sync2
Timers
Pin
No.
Function
Name I/O Detail of Function
22
23
24
26
21
PPI0
PPI1
PPI2
PPI3
PPI_CLK
I/O
I
PPI3-0
PPI clock/External timer reference
PPI port
Pin
No.
Function
Name I/O Detail of Function
51
50
49
48
47
46
38
37
36
35
34
33
32
29
28
27
PF0
PF1
PF2
PF3
PF4
PF5
PF6
PF7
PF8
PF9
PF10
PF11
PF12
PF13
PF14
PF15
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
GPIO/SPI slave select input
GPIO/SPI slave select enable 1/
Timer alternate clock input
GPIO/SPI slave select enable 2
GPIO/SPI slave select enable 3/
PPI frame sync 3
GPIO/SPI slave select enable 4/
PPI 15
GPIO/SPI slave select enable 5/
PPI 14
GPIO/SPI slave select enable 6/
PPI 13
GPIO/SPI slave select enable 7/
PPI 12
GPIO/PPI 11
GPIO/PPI 10
GPIO/PPI 9
GPIO/PPI 8
GPIO/PPI 7
GPIO/PPI 6
GPIO/PPI 5
GPIO/PPI 4
Port F:
GPOI/Parallel peripheral interface port/SPI/Timers
51
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Pin
No.
Function
Name I/O Detail of Function
94
87
86
85
84
83
TCK
TDO
TDI
TMS
TRST
EMU
I
O
I
I
I
O
JTAG clock
JTAG serial data out
JTAG serial data in
JTAG mode select
JTAG reset (This pin is should be
pulled LOW if JTAG is not used.)
Emulation output
JTAG port
Pin
No.
Function
Name I/O Detail of Function
55
54
53
MOSI
MISO
SCK
I/O
I/O
I/O
Master out slave in
Master in slave out (This pin is should
be pulled HIGH throug a 4.7 k-ohms
resistor if booting via the SPI port.)
SPI clock
SPI port
Pin
No.
Function
Name I/O Detail of Function
76
75
74
73
72
69
68
67
65
64
63
62
61
60
59
58
RSCLK0
RFS0
DR0PRI
DR0SEC
TSCLKO
TFSO
DTOPRI
DTOSEC
RSCLK1
RFS1
DR1PRI
DR1SEC
TSCLK1
TFS1
DT1PRI
DT1SEC
I/O
I/O
I
I
I/O
I/O
O
O
I/O
I/O
I
I
I/O
I/O
O
O
SPORT0 receive serial clock
SPORT0 receive frame sync
SPORT0 receive data primary
SPORT0 receive data secondry
SPORT0 transmit serial clock
SPORT0 transmit frame sync
SPORT0 transmit data primary
SPORT0 transmit data secondary
SPORT1 receive serial clock
SPORT1 receive frame sync
SPORT1 receive data primary
SPORT1 receive data secondary
SPORT1 transmit serial clock
SPORT1 transmit frame sync
SPORT1 transmit data primary
SPORT1 transmit data secondary
Serial ports
Pin
No.
Function
Name I/O Detail of Function
82
81
RX
TX
I
O
UART receive
UART transmit
UART port
Pin
No.
Function
Name I/O Detail of Function
17
16
RTXI
RTXO
I
O
RTC crystal input (This pin should be
pulled LOW when not used.)
RTC crystal output
Real-time clock
Pin
No.
Function
Name I/O Detail of Function
10
11
CLKIN
XTAL
I
O
Clock/Crystal input (This pin needs to
be at a level or clocking.)
Crystal output
Clock
Pin
No.
Function
Name I/O Detail of Function
13
14
95
96
RESET
NMI
BMODE1
BMODE0
I
I
I
Reset (This pin is always active dur-
ing core power-on.)
Nonmaskable interrypt (This pin
should be pulled LOW when not used.)
Boot mode strap (These pins must be
pulled to the state required for the
desired boot mode.)
Mode controls
Pin
No.
Function
Name I/O Detail of Function
4
5
VROUT1
VROUT0 O Extarnal FET drive
Voltage regulator
52
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Pin
No.
Function
Name I/O Detail of Function
1
2
3
7
8
9
15
19
30
39
40
41
42
43
44
56
70
88
89
90
91
92
97
106
117
128
133
144
155
170
171
172
173
174
175
176
GND G External ground
Pin
No.
Function
Name I/O Detail of Function
6
12
20
31
45
57
71
93
107
118
134
145
156
171
25
52
66
80
111
143
157
168
18
VDDEXT
VDDINT
VDDRTC
P
P
P
I/O power supply
Core power supply
Real-time clock power supply
Supplies
53
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
• Microprocessor extended port
IC57-IC59: SN74LV574APWR (DSP P.C.B.)
Octal edge-triggered D-type flip-flops with 3-state outputs
/OE
1D
2D
3D
4D
5D
6D
7D
8D
GND
LCK
8Q
7Q
6Q
5Q
4Q
3Q
2Q
1Q
VCC
/EXPE
D00
D01
D02
D03
D04
D05
D06
D07
DGND
NPGA_EXSTB
–
R2A_CLK
R2A_DATA
VIDEO_MTVR1
/DAC_CS
/ADC_CS
/VFD_CS
/DIR_CS
VCC
Extended port enable
Data bus 00
Data bus 01
Data bus 02
Data bus 03
Data bus 04
Data bus 05
Data bus 06
Data bus 07
Ground of external
Bank select 1
–
E-Vol control clock
E-Vol control data
DVR REC output inhibit
DA converter chip select
AD converter chip select
VFD (Front display) chip select
Audio CODEC chip select
Power supply +3.3V
Pin No.
Port Name Function Name Detail of Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
/OE
1D
2D
3D
4D
5D
6D
7D
8D
GND
CLK
8Q
7Q
6Q
5Q
4Q
3Q
2Q
1Q
VCC
/EXPE
D00
D01
D02
D03
D04
D05
D06
D07
DGND
NPGA_EXSTB
PRY
XM_POWER
/Z2MT
/SBMT
/SWMT
/CMT
/SMT
/FMT
VCC
Extended port enable
Data bus 00
Data bus 01
Data bus 02
Data bus 03
Data bus 04
Data bus 05
Data bus 06
Data bus 07
Ground of external
Bank select 1
Power relay control
XM power enable
Zone2 L/R mute
Surround back L/R mute
Subwoofer mute
Center mute
Surround L/R mute
Front L/R mute
Power supply +3.3V
Pin No.
Port Name Function Name Detail of Function
IC58
IC57
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
OE
1D
2D
3D
4D
5D
6D
7D
8D
GND
VCC
1Q
2Q
3Q
4Q
5Q
6Q
7Q
8Q
CLK
OE 1
11
2
19
CLK
1D
C1
1D 1Q
9
12
8D
C8
8D 8Q
54
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
/OE
1D
2D
3D
4D
5D
6D
7D
8D
GND
CLK
8Q
7Q
6Q
5Q
4Q
3Q
2Q
1Q
VCC
/EXPE
D00
D01
D02
D03
D04
D05
D06
D07
DGND
NPGA_EXSTB
ADC_SELECT_C
ADC_SELECT_B
ADC_SELECT_A
SBRY
HPRY
CSRY
MRYB
MRYA
VCC
Extended port enable
Data bus 00
Data bus 01
Data bus 02
Data bus 03
Data bus 04
Data bus 05
Data bus 06
Data bus 07
Ground of external
Bank select 0
Selector C
Selector B
Selector A
Speaker relay SB
Headphone relay
Speaker relay C/SW
Speaker relay F/B
Speaker relay F/A
Power supply +3.3V
Pin No.
Port Name Function Name Detail of Function
IC59
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
/OE
1D
2D
3D
4D
5D
6D
7D
8D
GND
CLK
8Q
7Q
6Q
5Q
4Q
3Q
2Q
1Q
VCC
/EXPE
D00
D01
D02
D03
D04
D05
D06
D07
DGND
NPGA_EXSTB
5VIDEO_VIA
5VIDEO_VIB
5VIDEO_VIC
/5VIDEO_MTMON
/5VIDEO_CMON
5VIDEO_CBYPASS
5VIDEO_CMP1
5VIDEO_CMP0
VCC
Extended port enable
Data bus 00
Data bus 01
Data bus 02
Data bus 03
Data bus 04
Data bus 05
Data bus 06
Data bus 07
Ground of external
Bank select 0
Video input selector A
Video input selector B
Video input selector C
Monitor output inhibit
Component output inhibit
Component bypass
Component select 1
Component select 2
Power supply +5V
Pin No.
Port Name Function Name Detail of Function
IC56: SN74AHCT574AWR (DSP P.C.B.)
Octal edge-triggered D-type flip-flops with 3-state outputs
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
OE
1D
2D
3D
4D
5D
6D
7D
8D
GND
VCC
1Q
2Q
3Q
4Q
5Q
6Q
7Q
8Q
CLK
OE 1
11
2
19
CLK
1D
C1
1D 1Q
9
12
8D
C8
8D 8Q
55
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
IN1
IN2
IN3 MUX T/H
VA
8-Bit
SUCCESSIVE
APPROXIMATION
ADC
GND
IN4
GND
SCLK
CONTROL
LOGIC
CS
DIN
DOUT
CS 1
VA2
GND 3
IN4 4
IN3 5
SCLK
ADC084S021
10
DOUT
9
DIN8
IN17
IN26
IC81: ADC084S021CIMM (DSP P.C.B.)
4-channel, 200 kSPS, 8-bit A/D converter
1
2
3
4
5
6
7
8
9
10
/CS
VA
GND
IN4
IN3
IN2
IN1
DIN
DOUT
SCLK
/ADC_CS
+3.3S
DGND
ADC_COM2
ADC_COM1
KEY1
KEY0
SPIMI
SPIMO
SPISCK
CS for microprocessor
Power supply +3.3V
Ground of external
SPI bus COM (IC83)
SPI bus COM (IC82)
Key input 1
Key input 0
Master output/slave input
Master input/slave output
SPI clock
Pin No.
Port Name Function Name Detail of Function
•Microprocessor ADC select port
Ohm
V
KEY
INPUT 0
(7 pin)
KEY
INPUT 1
(6 pin)
0
0–0.2
–
–
+ 1.0 k
0.2–0.4
SPEAKERS
A/B/OFF
–
+ 1.0 k
0.4–0.7
TONE
CONTROL
AUDIO
SELECT
+ 1.5 k
0.7–1.0
PROGRAM
<
INPUT
>
+ 2.2 k
1.0–1.3
PROGRAM
>
INPUT
<
+ 2.2 k
1.3–1.6
STRAIGTH
EFFECT
DIRECT
+ 3.3 k
1.6–1.9
A/B/C/D/E
PRESET/
TUNING
<
+ 4.7 k
1.9–2.1
BAND
PRESET/
TUNING
>
+ 6.8 k
2.1–2.4
–
MEMORY
+ 10.0 k
2.4–2.7
EDIT
PRESET/
TUNING
–
Key detection for A/D port
Key input (A/D) pull-up resistance 10 k-ohms
U, C, R, T, K, A, G, E, F, L, J models
+ 22.0 k
2.7–3.0
–
INFO
TUNING
AUTO/
MAN’L
Ohm
V
KEY
INPUT 0
(7 pin)
KEY
INPUT 1
(6 pin)
0
0–0.2
–
–
+ 1.0 k
0.2–0.4
SPEAKERS
A/B/OFF
–
+ 1.0 k
0.4–0.7
TONE
CONTROL
AUDIO
SELECT
+ 1.5 k
0.7–1.0
PROGRAM
<
INPUT
>
+ 2.2 k
1.1–1.3
PROGRAM
>
INPUT
<
+ 2.2 k
1.3–1.6
STRAIGTH
EFFECT
DIRECT
+ 3.3 k
1.6–1.9
–
–
+ 4.7 k
1.9–2.1
–
–
+ 6.8 k
2.1–2.4
–
–
+ 10.0 k
2.4–2.7
–
–
B model
+ 22.0 k
2.7–2.9
–
–
56
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463

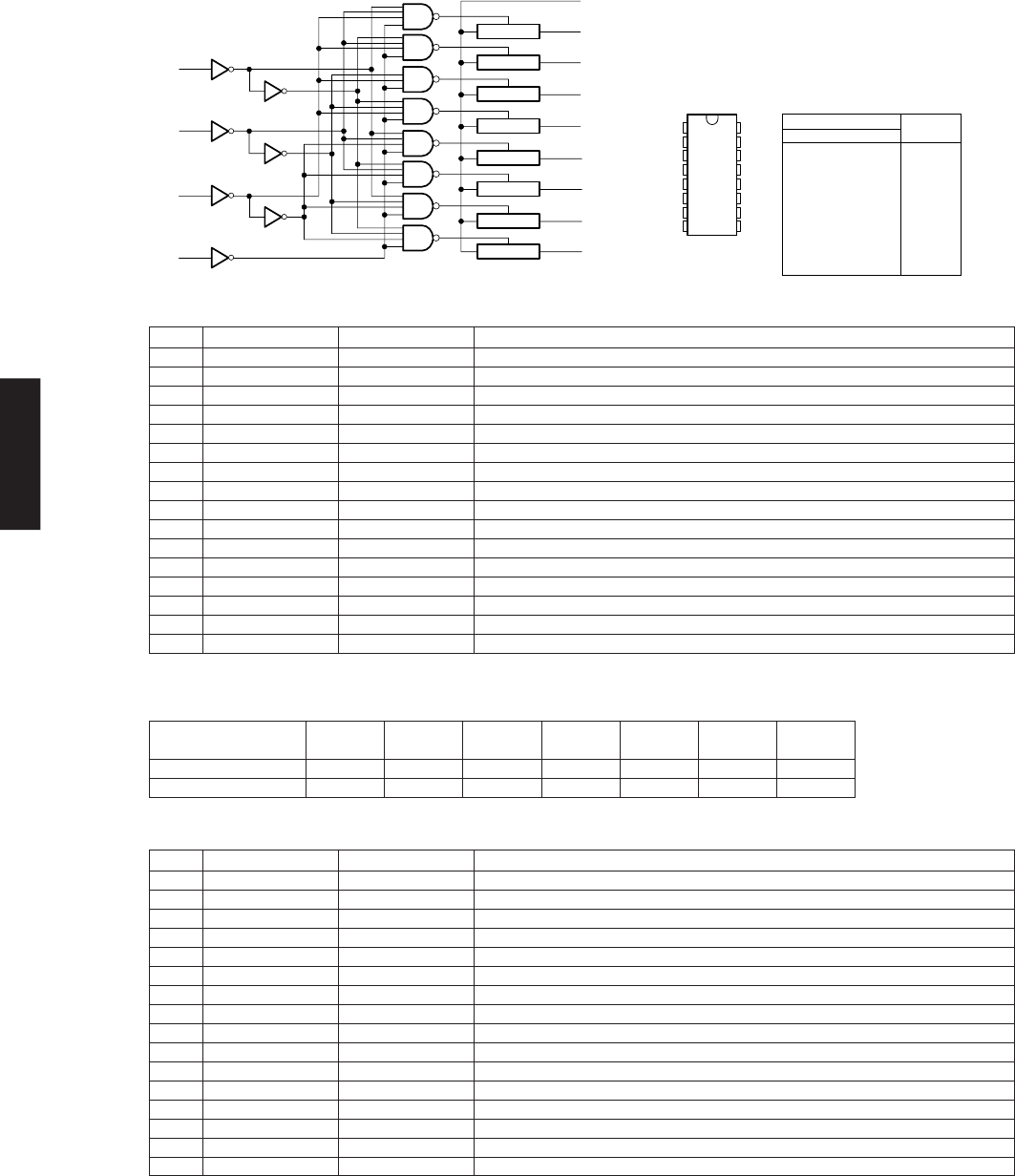

IC82
IC83
DOCK detection for AD port (IC82 AD converter pin no. 4)
Pull-up resistance 10 k-ohms
DOCK connector
Ohm
DKID (Pin no. 21)
DOCK
(Bluetooth)
0.56k
5-25
Reserved
2.7k
50-60
Reserved
5.6k
85-100
DOCK
(iPod)
10.0k
120-140
Reserved
18.0k
150-170
(Develop-
ment)
39.0k
195-210
No connect
–
245-255
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Y4
Y6
COM
Y7
Y5
INH
GND
GND
C
B
A
Y3
Y0
Y1
Y2
Vcc
/TUNER_TUNED
XM_ANT
ADC_COM1
DOCK_ID
IP_DET
DGND
DGND
DGND
SELECT C
SELECT B
SELECT A
THM
DEST1
PRV1
PRD
+3.3S
Tuner tuned detection
XM antenna
SPI bus COM (IC81)
DOCK detection (Normal DOCK or Bluetooth adapter)
iPod detection
Ground of external
Ground of external
Ground of external
ADC selecter C
ADC selecter B
ADC selecter A
Temperature detection
Destination detection
Power supply protection 1
AMP DC protecton
Power supply +3.3V
Pin No.
Port Name Function Name Detail of Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Y4
Y6
COM
Y7
Y5
INH
GND
GND
C
B
A
Y3
Y0
Y1
Y2
Vcc
/TUNER_STEREO
XM_LINK
ADC_COM2
/HP_DET
IP_AP
DGND
DGND
DGND
SELECT C
SELECT B
SELECT A
PRI
DEST2
PRV2
PLDET
+3.3S
Tuner stereo detection
XM link
SPI bus COM (IC81)
Headphone detect
iPod
Ground of external
Ground of external
Ground of external
ADC selector C
ADC selector B
ADC selector A
AMP current protection
–
Power supply protection 2
Output voltage of power amplifier detection
Power supply +3.3V
Port Name Function Name Detail of Function
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
COM
INH
C
B
A11
10
9
6
3
13
14
15
12
1
5
2
4
1
2
3
4
5
6
7
89
10
16
15
14
13
12
11
Y4
Y6
COM
Y7
Y5
INH
GND
GND
V
CC
Y2
Y1
Y0
Y3
A
B
C
INPUTS ON
CHANNEL
INH
L
L
L
L
L
L
L
L
H
L
L
L
H
H
H
H
X
C
L
L
H
H
L
L
H
H
X
L
H
L
H
L
H
L
H
X
L
Y1
Y2
Y3
Y4
Y5
Y6
Y7
None
Y0
BA
IC82, IC83: SN74LV4051APWR (DSP P.C.B.)
8-channel analog multiplexers/demultiplexers
57
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
80
81
79
MUTE
AVEE
ADCL
ADCR
AGND
INR1
INR2
INR3
INR4
INR5
INR6
INR7
INR8
INR9
INL1
INL2
INL3
INL4
INL5
INL6
INL7
INL8
INL9
N.C.
N.C.
N.C.
N.C.
INRB/RECR2
INLB/RECL2
INR10/RECR4
INR11/RECR5
INL10/RECL4
INL11/RECL5
RECR3
RECL3
FLIN1
FRIN1
CIN1
SWIN1
SLIN1
SRIN1
SBLIN1
SBRIN1
N.C.
N.C.
N.C.
INRA/RECR1
INLA/RECL1
N.C.
N.C.
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
1
2
AVCC
N.C.
N.C.
N.C.
N.C.
FRC
FROUT
FLOUT
FLC
CC
COUT
SWOUT
SROUT
SLOUT
SBR OUT
SBL OUT
SBLC
SBRC
SWC
SRC
SLC
AGND
AGND
AGND
AGND
A GND
AGND
TREL
BASSL2
BASSL1
82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
50
A VEE
0/-6/-12/-18dB
ATT
SUB
0~-95dB,
-∞
(0.5dBstep)
SUB
SUB
MAIN
MAIN
MAIN
CLOCK
DATA
DGND
SUBR
SUBL
SBLCIN
SBRCIN
FRIN2
FLIN2
SRIN2
SLIN2
SWIN2
SBRIN2
SBLIN2
N.C.
TRER
BASSR1
BASSR2
N.C.
CIN2
49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31
MCU
I/F
A VCC
REC
Tone
Tone
Bass/Treble
-14~+14dB
(2dBstep) +42~0dB
(0.5dBstep)
+42~0dB
(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
Bass/Treble
-14~+14dB
(2dBstep)
0~-95dB,
-∞
(0.5dBstep) Bypass
Tone+MIX
Tone+MIX Tone
Tone
Bypass
CMIX
SWMIX
IC401 : R2A15218FP (MAIN P.C.B.)
8 ch electronic volume with 11 input selector and tone control
58
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Pin No.
Function Name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
NC
SBLC
SBL OUT
AGND
SBR OUT
SBRC
AGND
SLC
SLOUT
AGND
SROUT
SRC
NC
SWC
SWOUT
AGND
COUT
CC
AGND
FLC
FLOUT
AGND
FROUT
FRC
NC
BASSL1
BASSL2
TREL
NC
AVCC
NC
BASSR1
BASSR2
TRER
NC
SBLIN2
SBRIN2
CIN2
SWIN2
SLIN2
SRIN2
FLIN2
FRIN2
SBRCIN
SBLCIN
SUBL
SUBR
DGND
DATA
CLOCK
Detail of Function
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
Analog ground of internal circuit
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
Analog ground of internal circuit
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
Analog ground of internal circuit
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
Analog ground of internal circuit
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
Analog ground of internal circuit
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
Analog ground of internal circuit
Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel
Connects capacitor for reducing click noise of L/R/C/SW/SL/SR/SBL/SBR channel volume
Frequency characteristic setting pin of L/R channel tone control (Bass)
Frequency characteristic setting pin of L/R channel tone control (Treble)
Positive power supply to internal circuit
Frequency characteristic setting pin of L/R channel tone control (Bass)
Frequency characteristic setting pin of L/R channel tone control (Treble)
Input pin of L/R/C/SW/SL/SR/SBL/SBR channel (Multi IN 1/2)
Input pin for SBL/SBR channel volume
Output pin for L/R channel SUB output
Digital ground of internal circuit
Input pin of control data
Input pin of control clock
59
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Pin No.
Function Name Detail of Function
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
MUTE
AVEE
NC
ADCL
ADCR
AGND
NC
INR1
INL1
INR2
INL2
INR3
INL3
INR4
INL4
INR5
INL5
INR6
INL6
INR7
INL7
INR8
INL8
NC
INRA/RECR1
INLA/RECL1
NC
INR9
INL9
NC
INRB/RECR2
INLB/RECL2
INR10/RECR4
INL10/RECL4
INR11/RECR5
INL11/RECL5
NC
NC
NC
RECR3
RECL3
NC
FLIN1
FRIN1
CIN1
SWIN1
SLIN1
SRIN1
SBLIN1
SBRIN1
Outside mute control pin
Negative power supply to internal circuit
Output pin for L/R channel ADC
Analog ground of internal circuit
Input pin of L/R channel (Input selector)
Input pin of L/R channel (Input selector) / Output pin for L/R channel REC output
Input pin of L/R channel (Input selector)
Input pin of L/R channel (Input selector) / Output pin for L/R channel REC output
Output pin for L/R channel REC output
Input pin of L/R/C/SW/SL/SR/SBL/SBR channel (Multi IN 1/2)
60
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
RESET
SCK
SDATA
XOUT
XIN
Vcc1
SEG34
SEG33
SEG32
SEG31
SEG30
SEG29
SEG28
SEG27
SEG26
SEG25
SEG24
SEG23
SEG22
SEG21
SEG20
SEG19
SEG18
SEG17
SEG16
SEG15
SEG14
SEG13
SEG12
Vcc2
Vss
CS
SEG11
SEG10
SEG09
SEG08
SEG07
SEG06
SEG05
SEG04
SEG03
SEG02
SEG01
SEG00
SEG35
DIG17/SEG36
DIG16/SEG37
DIG15/SEG38
DIG14/SEG39
DIG13/SEG40
DIG12/SEG41
DIG11/SEG42
DIG10
DIG09
DIG08
DIG07
DIG06
DIG05
DIG04
DIG03
DIG02
DIG01
DIG00
VP
52
Display
controller
Serial
receive
circuit
Digit
output
circuit
Clock
generator
DIG11/
SEG42
51
DIG12/
SEG41
50
DIG13/
SEG40
49
DIG14/
SEG39
48
DIG15/
SEG38
47
DIG16/
SEG37
46
DIG17/
SEG36
45
SEG35
XOUT
6
Vcc1
8
Vcc2
18
Vss
5
Vp
64
XIN
7
CS
SCK
3
SDATA
4
RESET
1
SEG00
44
9
SEG34
SEG26
17
19
SEG25
Segment
output
circuit
Display code
RAM
(8-bit x 60)
CGROM
(35-bit x 166)
CGROM
(35-bit x 16)
code
select
Code
write
Code/
command
control
circuit
DIG00
63
53
DIG10
2
data
timing
clock
dot data
write
scan pulse
Segment/
Digit
select/
output
circuit
IC603: M66003-0131FP-R (OPERATION P.C.B.)
18 digit 5x7 segment VFD controller/driver
61
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
/RESET
/CEFL
CKFL
DTFL
VSS
XOUT
XIN
VDD
P1I
P2
P3
P4
P5
P6
P7
P8
P9
VDD
P10
P11
P12
P13
P14
P15
P16
P17
P18I
P19
P20
P21
P22
P23
P24
P25
P26
P27
P28
P29
P30
P31
P32
P33
P34
P35
P36
P37
G17I
G16I
G15I
G14
G13
G12
G11
G10
G9
G8
G7
G6
G5
G4
G3
G2
G1
VP
Reset
CS
SCK
SDATA
Vss
XOUT
XIN
Vcc1
SEG34
SEG33
SEG32
SEG31
SEG30
SEG29
SEG28
SEG27
SEG26
Vcc2
SEG25
SEG24
SEG23
SEG22
SEG21
SEG20
SEG19
SEG18
SEG17
SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG09
SEG08
SEG07
SEG06
SEG05
SEG04
SEG03
SEG02
SEG01
SEG00
SEG35
DIG17/SEG36
DIG16/SEG37
DIG15/SEG38
DIG14/SEG39
DIG13/SEG40
DIG12/SEG41
DIG11/SEG42
DIG10
DIG09
DIG08
DIG07
DIG06
DIG05
DIG04
DIG03
DIG02
DIG01
DIG00
Vp
Pin No.
Port Name I/O Detail of FunctionFunction Name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
Reset input
Chip select input
Shift clock input
Serial data input
Clock output
Clock input
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Segment output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
Digit output
When "L", M66003 is initialized
When "L", communication with the MCU is possible
When "H", any instruction from the MCU is neglected
Serial input data is taken and shifted by the positive edge of SCK
GND (0V)
When use as a CR oscillator, connect external resistor and capacitor / When
use an external clock, input external clock to XIN, and XOUT must be opened
Positive power supply for internal logic
Positive power supply for DIG and SEG outputs
Connect to segment (anode) pins of VFD
Connect to digit (grid) pins of VFD
Negative power supply to pull down
62
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
MEMO
MEMO
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
63
HDMI Tx
IC11
ADV9389B
MICROPROCESSOR
IC41
AD91089Z
SDRAM
IC51
K4S641632-UC75000
NPGA
IC61
MB87L8760
FLASH MEMORY
IC52
EN29LV160AB-70T
ADC
IC39
PCM1803DBR
HDMI RX
VIDEO DECODER
IC12
ADV7441A
HDMI IN 1
HDMI IN 2
XM DT
IC36
F2621E
DR0 PRI
SPORT
Direct Stereo Bus
Digital Video Data Bus
I2S PCM DataSPDIF
COAX IN
OPT IN 1
OPT OUT
XM
EEPROM
IC42
BR25L320F-W
ADC
IC81
ADC084S021
SPI
3.3V->5V
IC62
SN74VHCT245
BUS BUFFER
IC54,55
SN74LVC245APW
OPT IN 2
(Up to 150MHz)
133MHz
DIR
IC31
LC89057W
DAC
IC38
PCM1680
CB12CB13
Analog In L/R
PCB MAIN
CB31
PortA
PortB
P[2:9]
P[12:19]
P[22:29] P[2:9]
P[12:19]
P[22:29]
TMDS
Port
I2C I2C
2
21
5
3
1
1,2
14,15
8
9
6
12
24
HDMI OUT
CB11
24bit24bit
PJ31
U32
U33
U31
RX5
RX1
RX3
RX4
RX OUT
HDMI SPDIF
SDIN
HDMI I2S[0]
XMSDO
DIR RDATA
HDMI I2S[1]
HDMI I2S[2]
HDMI I2S[3]
DR0 SEC
DR1 PRI
DR1 SEC
DT0 PRI
DT0 SEC
DT1 PRI
DT1 SEC
SDO[0]
HDMI I2S[1]
HDMI I2S[2]
HDMI I2S[3]
SDO[0]
DATA[1]
DATA[2]
DATA[3]
DATA[4]
CB31
DAC
IC37
PCM1781DBQR
Frout L
VOUT1
VOUT2
VOUT3
VOUT4
VOUT5
VOUT6
SPI Bus
I2C Bus
Frout R
Surround L
Surround R
Subwoofer
Center
PCB MAIN
XM Analog L/R
CB31
DOUT
DATA
VIN
VOUT
DATA
TX
RX
16bit
16bit
16bit 16bit
16bit
(Writing port)
CB34
USB HOST
IC71
ISP1760
EXTENDED PORTS
IC56,57,58,59
TC74VHC574FT
TC74VHCT574FT
16bit 16bit 8bit
CB33
DOCK (iPod)
UART
Power off during standby mode
I2C0
I2C1
I2C2
UART0
UART1
UART3
SIRIUS
JK31
UART
SPI0
SPI1
SPI2
PIO
USB
CB71
SPI
IC83
SN74LV4051APWR
IN1
IN2
IN3
IN4
SPI
SELECTOR
SELECTOR
IC82
SN74LV4051APWR
COM
COM
CB83
PCB
OPERATION
KEY0
KEY1
SPI
OSD
TUNER
PCB VIDEO
VFD
PCB OPERATION
(U, C, R, T, K, A, G, E, F, L, J models)
CB84 CB84 CB32
Data Line
Control Line
PCB DSP
PF
EBIU
533MHz
D[0:23]
27
6
11
12
13
26
22
21
20
19
5862
63
73
74
59
68
67
(U, C models)
(U, C models)
(R, T, K, A, B, G, E, F, L models)
DSP
• See page 85-92 →
SCHEMATIC DIAGRAM
■BLOCK DIAGRAMS
AUDIO (DIGITAL) SECTION BLOCK DIAGRAM
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
64
MICROPROCESSOR
IC41
AD91089Z
HDMI
Rx
IC12
ADV7441A
SPORT0
Tx
TSCLK0
TFS0
DT0PRI
DT0SEC
SPORT1
Tx
TSCLK1
TFS1
DT1PRI
DT1SEC
SPORT0
Rx
RSCLK0
RFS0
DR0PRI
DR0SEC
24.576MHz
ADC
IC39
PCM1803DBR
XM DT
IC36
F2621E
DIR
IC31
LC89057W
RX5
RX1
RX3
RX4
RX OUT
SDIN
DOUT
RMCK
HDMI
Tx
IC11
AD9389B
RBCK
RLRCK
RDATA
SCKI
BCK
LRCK
SBCK
SLRCK
256fs
64fs
fs
128fs
2fs
OCLK
SCLK
LRCLK
DATA
MCLKOUT
SCLK
LRCLK
I2S[0]
I2S[1]
I2S[2]
I2S[3]
SPDIF
MCLKOUT
SCLK
LRCLK
I2S[0]
I2S[1]
I2S[2]
I2S[3]
Optical Out
Coaxial In
Optical In1
Optical In2
DAC
IC38
PCM1680
To MAIN P.C.B.
DATA1
SCK
BCK
LRCK
SPORT1
Rx
RSCLK1
RFS1
DR1PRI
DR1SEC
Clock for DTS96/24 Master Clock
Bit Clock
Word Clock
Serial Data
IC33
TC74VHC157FT
IC44
TC74VHC153FT
IC43
TC74VHC153FT
IC34
TC74VHC157FT
AUDIO_CLK_SEL
AUDIO_SEL_A
AUDIO_SEL_B
AUDIO_SEL_A
AUDIO_SEL_B
SEL
SEL
AUDIO_DIRECT_ON
DASBL/DASBR
DASL/DASR
DAC/DASW
DAFL/DAFR
Direct Through Pass
DATA2
DATA3
DATA4
0
1
2
3
0
1
2
3
AB
AB
0
1
2
3
0
1
2
3
A
B
A
B
A
B
A
B
A
B
A
B
SPDIF
AUDIO_SEL
DIR0
AB
1
0
1
0
0
1
1
XM
HDMI (I2S)
AUDIO_CLK_SEL
A (normal)0
1
(default)
B (DTS96/24)
(default)
AUDIO_DIRECT_ON
A (Microprocessor)0
1B (direct through)
(default)
(512fs for DTS96/24)
USB Host
IC71
ISP1760
EBIU
D[0:16]
16,15
22,21
19,20
27,26
DSP
•See page 85-92 →
SCHEMATIC DIAGRAM
DSP CONTROL SECTION BLOCK DIAGRAM
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
65
FM/AM
TUNER
TUNER
MD/CD-R
FM/AM
YPAO
MIC
DVD
DTV/CBL
DVR
AUX
PORTABLE
MD/CD-R
CD
FRONT/SB
SURROUND
CENTER
SUB WOOFER
INPUT
REC OUT
MULTI CH INPUT
INPUT & ZONE2 SELECTOR
8ch SELECTOR
ADL/ADR
DAFL/DAFR
DAC/DASW
DASL/DASR
DASBL/DASBR
To DSP P.C.B.
MASTER VOLUME
Tone
Control
Center Mix
LFE Mix
DVR
Muting
Center
SR L/R
SW
FL/FR/C
SL/SR
Front A
Front B
Center
Surround
SP Relay
Control
HP Relay
Control
Mute Control
Muting SUBWOOFER OUT
(B model)
(U, C, R, T, K, A, G, E, F, L, J models)
R2A15215FP
IC401
S9
Power Relay
Control
AC Detect
To FL Display
+12
-12
+5D
+5XM/+5USB
+3.3
+5I RY341
AC6
AC5
AC2
AC3
AC4
D7014
D7018
IC707
IC703
IC705
IC701
IC704
IC706
IC700
IC702
D7019
D7015
D5021
IC407
RY506 ACH
15
17
11,9
23,21
36-43
54,55
ACL
T3401
+6.3
+3.3
To DSP P.C.B.
To VIDEO P.C.B.
Power Limit Detect
Power Supply Control
-B
+B
Power Supply Control
Power Supply Relay Control
Head Phone
AC IN
Power transformer
IC501
IC502
MAIN
•See page 95, 96 →
SCHEMATIC DIAGRAM
OPERATION
•See page 93, 94 →
SCHEMATIC DIAGRAM
VIDEO
•See page 97, 98 →
SCHEMATIC DIAGRAM
SPEAKERS
AUDIO (ANALOG) / POWER SUPPLY SECTION BLOCK DIAGRAM
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
66
CVBS
CVBS
(4051)
INPUT VIA VIB VIC
MUTE L L L
DVD H L L
DVR L H L
DTV H H L
V-AUX L L H
iPod H L H
MUTE L H H
MUTE H H H
(4052)
INPUT CMP0 CMP1
MUTE L L
DVD H L
DVR L H
DTV/CBL H H
CVBS INPUT SELECTOR
COMPONENT INPUT SELECTOR
MONITOR OUT DVR OUT
D4 VIDEO
COMPONENT VIDEO VIDEO
L1/L2/L3
DVD
DVR
V-AUX
CVBS
Y
INPUT SELECTOR
Pb/Cb
Pr/Cr
Y
Pb/Cb
Pr/Cr
DVD
DTV/
CBL
DTV/CBL
YCbCr
YCb Cr
L1/L2/L3
L1/L2/L3 6dB
6dB
6dB
L1/L2/L3
YCb Cr
Y
Pb/Cb
Pr/Cr
DVR
OUTPUT AMP
NJM2581
Y
Pb/Cb
Pr/Cr
YCb Cr
6dB
Y
Cb
Cr
OUTPUT AMP
LA73050
OUTPUT AMP
LA73050
BYPASS SWITCH
TC74HC4052
6dB
6dB
6dB
/MTMON
/CNON
INPUT SELECTOR
TC74HC4052
L2 L3 OUT
Y/Cb/Cr
IN
CMP0
CMP1
CBYPAS
S
/MTVR1/MTMON
OSD_CE
OSD_CK
OSD_DT 0dB
iPod
6dB
6dB
MICROPROCESSOR
Y/Cb/Cr
OUT
L1 SELECTOR
TC74HC4052
L2 L3 IN
L2 L3 SELECTOR
TC74HC4052
L1 OUT
CMP0
CMP1
CBYPASS
VIA
VIB
VIC
BYPASS
Vconv
CMP0
CMP1
CBYPASS
OSD_CE
OSD_CK
OSD_DT
/MTMON
/MTVR1
/CNON
SVDET
CPNTD
VIDEO
OSD
LC74782
VIA
VIB
VIC
IC301
IC304 Q3005
IC307
IC307IC311
IC325
IC323
IC324
IC389
IC322
IC41
(J model)
D4 VIDEO
(J model)
D4 VIDEO
(J model)
D4 VIDEO
(J model)
RECOUT
CVBS
DSP
•See page 85-92 →
SCHEMATIC DIAGRAM
VIDEO
•See page 97, 98 →
SCHEMATIC DIAGRAM
VIDEO SECTION BLOCK DIAGRAM
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
67
MICROPROCESSOR
IC41
NPGA
IC61
DOCK
EEPROM
IC42
BR25L320F-W
RDS
LC72725
TUNER
DIR
IC31
LC89057W
DAC
IC38
PCM1680DBQ
ADC
IC39
IC603
IC402
IC401
IC304
ADC084S021C
(Writing port)
XM
IC36
F2621E
SIRIUS
XM
OSD
LC74782
VFD
M66003
HDMI Tx
IC11
AD9389B
HDMI Rx
IC12
ADV7441A
VIDEO
IC21
ADV7172
CB34 CB33
SPI
UART
CB32 CB83CB84
IC62
SN74VHCT245
3.3V->5V
IC62
SN74VHCT245
SPI0
SPI1
SPI2
I2C0
I2C1
I2C2
UART0
UART1
UART2
JK31
EXTENDED
IC57
TC74VHC574FT
SYSTEM IC
R2A15215FP
CB84
PIO
CB84CB35
Power off during standby mode
(no use)
(no use)
(no use)
3.3V->5V
(U, C models)
VIDEO
•See page 97, 98 →
SCHEMATIC DIAGRAM
MAIN
•See page 95, 96 →
SCHEMATIC DIAGRAM
MAIN
•See page 95, 96 →
SCHEMATIC DIAGRAM
OPERATION
•See page 93, 94 →
SCHEMATIC DIAGRAM
DSP
•See page 85-92 →
SCHEMATIC DIAGRAM
CONTROL SECTION BLOCK DIAGRAM
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
68
■PRINTED CIRCUIT BOARDS
IC12 D3
IC13 D3
IC21 D4
IC22 D4
IC31 G3
IC33 G3
IC34 F3
IC36 G3
IC37 H3
IC38 H4
IC39 G4
IC41 F4
IC42 F3
IC43 F3
IC44 G3
IC51 G5
IC52 G5
IC53 F5
IC54 F4
IC55 F4
IC56 D5
IC57 H4
IC58 H5
IC59 H5
IC61 E5
IC62 E6
IC71 D5
IC72 F5
IC81 H5
IC82 H6
IC83 H6
IC151 G6
IC152 G6
IC153 G6
IC154 G6
IC155 G6
Q301 H2
Q401 E5
Q801 F6
• Semiconductor Location
Ref no.
D109 E2
D110 D2
D111 D2
D112 D2
D113 D2
D114 D2
D115 D2
D116 D2
D117 D2
D118 D2
D119 D2
D120 D2
D121 D2
D122 D2
D123 D2
D124 D2
D125 D2
D126 D2
D127 C2
D128 C2
D129 C2
D130 D2
D131 C2
D132 C2
D135 C2
D136 D2
D201 D4
D305 H2
D306 H2
D401 E4
D503 G5
D801 H6
D802 H6
D803 H6
D804 H6
D805 H6
D806 H6
D1301 G2
D1302 G2
IC11 E3
Location Location
Ref no.
CB13 CB12 CB11
CB34
IC11
IC12
IC13
IC43
IC44 IC33
IC34
IC55
IC36
CB35 JK31
CB33
CB32 CB31
IC38
IC31
IC39
IC57 IC59 IC58
IC81
IC82 IC83
CB84
IC41
IC42
IC22
CB21
CB22 CB83
IC56 IC53 IC72
IC51
IC52
IC54
CB82
IC155
IC154 IC152 IC153
IC151
CB81
IC61
IC62
IC71
IC73
CB71
(Side A)
DSP P.C.B.
VIDEO (1)
(CB302)
VIDEO (2)
(CB326)
VconvC
VE Vconv
BYPASS
Y
VE Pb
VE Pr
VE CMP1
CMP0 CBYPASS
/CNON /MTMON
CPNTD Vconv
NC
FG
GND
D+
D-
Vcc
+5USB
+6.3H
+3.3H
HG
+3.3D
DG
DG
DG
+5D
+5XM
+5I
IG
/RESET
/PDET
PRY
XMPWR
THM
PRV2
VIC
VIB VIA
/MTMON /MTVR1
SVDET NC
RMSCN
SCENE4 SCENE3
SCENE2
MG
V_CN
+3.3S
SCENE1
TRG /MICDET
SSEL3 SSEL2
SSEL1 VRB
VRA REM1
/PSW /RSTFD
CKFD DTFD
/CEFD ZONE2 SW
ADKEY2 ADKEY0
R2A_CLK
/SWMT
/FMT
CSRY
MRYA
/HP
TMT
/ST
SPICK
CEP
RDS_CLK
RDS_RDY
/CMT
PRI
PLDET
PRV1
R2A_DATA
SBRY
/SMT
MRYB
HPRY
/8ohmSW
TUNED
SPIMI
SPIMO
RDS_RST
RDS_DATA
/Z2MT
/SBMT
PRD
LIM
iPod_R
iPod_L
DA_FL
SIR_R
SIR_L
AGND
DA_SBR
DA_SBL
AGND
AGND
AGND
DA_FR
AGND
1GND
OSD_DT
OSD_CK
OSD_CE
IP_VE
IP_CVBS
IP_VE
IP_SY
IP_VE
IP_SC
REMSENSE
AD_L
SIR_GND
XM_R
XM_L
AGND
DA_C
DA_SW
DA_SR
DA_SL
AGND
AD_R
VIDEO (1)
(W3002)
MAIN (1)
(CB402)
OPERATION (1)
(CB603)
MAIN (1)
(CB401)
OPERATION (6)
(W6006)
R, T, K, A, B, G, E, F, L models
R, T, K, A, B, G, E, F, L models
OPERATION (2)
(W702)
OPERATION (2)
(W700)
DTV/CBL
IN2
HDMI
OUT
DVD DVD/CBL CD MD/CD-R
COAXIAL OPTICAL
XM
U, C models
R, T, K, A, B, G, E, F, L, J models
R, T, K, A, B, G, E, F, L models
J model
SIRIUS DOCKDVD
IN1
1
13
54
1
20
21 40
80 61
41
60
36
108
73
37
1
1
1110
20 11
38
1
34
5
10265
39
64
128
103
36
10873
37
72
144
109
10
2011
GND
VOUT
VIN
72
144109 1
1
8
16
1
1
1
1
44
1
58
4
132
89
45 88
176 133
10
1
1
10
20
11
1
8
16
9
1
7
14 71
1
8
16
1
5
6
10
9
1
8
16
9
814
8
1
7
14
8
1
27
54
1
10
20
11
1
110
20 11
110
20 11
10
20
11
28
1
10
20
11
1
10
20
11
1
10
20
11
24
4925
20
11
14
28
15
12
36
48
37 25
13
24
9
16
9
1
8
1
8
1
8
16
9
16
9
12
36
25
13 24
48 37
(Writing port)
R, T, K, A, B, G, E, F, L models
No replacement part available. /
サービス部品供給なし
No replacement part available. /
サービス部品供給なし
No replacement part available. /
サービス部品供給なし
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
69
•Semiconductor Location
Ref no.
Location
D1303 G2
Q101 D2
Q102 C2
Q103 D2
Q104 C2
(Side B)
DSP P.C.B.
U, C modelsJ model
R, T, K, A, B, G, E, F, L models
R, T, K, A, B, G, E, F, L models
R, T, K, A, B, G, E, F, L models
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
70
W6001
W6002
CB603
JK601
CB605 CB604
(Side A)
OPERATION (1) P.C.B.
RMSCN
SCENE4
SCENE2
TRG
SSEL3
SSEL1
VRA
PSW
CKFD
/CEFD
ADKEY1
+3.3S
V_CN
SCENE3
SCENE1
/MICDET
SSEL2
VRB
REM1
/BLK
DTFD
ZONE2SW
ADKEY0
MG
-12
+12
E
MIC
FG
FG
MG
/PSW
F2
VP
F1
OPERATION (8)
(CB602)
OPERATION (7)
(CB606)
OPERATION (2)
(CB703)
DSP
(CB83)
PRESET/TUNING/CH
SCENE
1234
INFO
TUNING
AUTO/MAN'L
VOLUME MEMORY BAND
CATEGORY
A/B/C/D/E
EDIT
SEARCH MODE
PRESET/TUNING
TONE CONTROL SPEAKERS
A/B/OFF
STRAIGHTDIRECT
AUDIO SELECT INPUT EFFECT PROGRAM
U, C, R, T, K, A, G, E, F, L, J models
U, C, R, T, K, A, G, E, F, L, J models
•Semiconductor Location
Ref no.
Location
D6007 E4
D6008 F4
D6009 G4
D6012 G4
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
71
IC601
IC603
(Side B)
OPERATION (1) P.C.B.
14
85
164
3233
16
17
49
48
U, C, R, T, K, A, G, E, F, L, J models
•Semiconductor Location
Ref no.
Location
Ref no.
Location
Ref no.
Location
D6001 C4
D6002 C4
D6005 D3
D6017 H3
D6018 H3
IC601 C3
IC603 G3
Q6001 F3
Q6002 E4
Q6003 F4
Q6004 E3
Q6005 E4
Q6006 G4
Q6007 F4
Q6008 E3
Q6010 G4
Q6011 G4
Q6017 H3
Q6018 G3
Q6029 G3
Q6030 F3
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
72
•Semiconductor Location
Ref no.
Location
Ref no.
Location
D7004 I3
D7008 H3
D7014 B3
D7015 C4
D7018 C4
D7019 C3
IC700 I2
IC701 F2
IC702 H2
IC703 G2
IC704 F2
IC705 E2
IC706 H2
IC707 G2
IC708 I2
IC705 IC704 IC701 IC703 IC707 IC702 IC706
IC708
IC700
W701
W702
CB701
W700
CB700
CB702
CB703
(Side A)
OPERATION (2) P.C.B.
PRV2
AC2
E
AC2
AC3
AC3
AC4
AC4
AC5
AC5
AC6
AC6
VP
PRV1
+5D
+3.3
-12
AGND
+12
IG
+5I
+5XM
+5D
DG
DG
DG
+3.3D
HG
+3.3H
+6.3H
+5USB
-12
PRV2
+12
S9
PRY
ACDET
MG
AC6
VP
AC6
THM
XMPWR
PRY
/PDET
/RESET
POWER TRANSFORMER
VIDEO (3)
(W3401)
OPERATION (1)
(CB604)
MAIN (1)
(W506)
DSP
(CB81)
VIDEO (1)
(CB301)
DSP
(CB82)
OUT
OUT
OUT
IN
IN
COM
COM
IN
COM
OUT
IN
1
4
1
4
1
GND
OUT
VCC
4
1
4
COM
U, C, R, T, K, A, B, G, E, F, L models U, C, R, T, K, A, B, G, E, F, L models
R, T, K, A, B, G, E, F, L models
R, T, K, A, B, G, E, F, L models
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
73
•Semiconductor Location
Ref no.
Location
Ref no.
Location
D7005 D5
D7006 D4
D7010 E4
D7012 H3
D7013 I3
D7016 B3
D7017 B3
Q7000 D5
Q7001 E5
Q7002 E5
(Side B)
OPERATION (2) P.C.B.
U, C models
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
74
JK602
CB601
W6008
W6007
JK603
(Side A)
OPERATION (3) P.C.B.
(Side A)
OPERATION (5) P.C.B.
(Side A)
OPERATION (4) P.C.B.
HPR
E
HPL
/HP
AUX-V
VE
AXL
E
AXR
AUX-V
VE
AXL
E
AXR
MAIN (1)
(W501)
OPERATION (8)
(CB608)
OPERATION (8)
(CB608)
PHONES
SILENT CINEMA
LVIDEO AUDIO
VIDEO AUX
R
LVIDEO AUDIO PORTABLE
VIDEO AUX
R
R, T, K, A, B, G, E, F, L models
U, C, J models
(Side B)
OPERATION (5) P.C.B.
(Side B)
OPERATION (3) P.C.B. (Side B)
OPERATION (4) P.C.B.
R, T, K, A, B, G, E, F, L models
U, C, J models
•Semiconductor Location
Ref no.
Location
Ref no.
Location
D6003 E2
D6004 E2
D6006 E2
D6020 F5
D6021 F5
D6022 F5
D6023 F5
D6024 I2
D6025 I2
D6026 I2
D6027 I2
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
75
W6006
CB607
CB606
CB602 CB608
CB610
CB609
(Side A)
OPERATION (6) P.C.B.
(Side A)
OPERATION (8) P.C.B.
(Side A)
OPERATION (9) P.C.B.
(Side A)
OPERATION (7) P.C.B.
FG
GND
+Data
-Data
VBus
FG
FG
MG
/PSW
AXR
E
AXL
-12
+12
E
MIC
AXV
VE
VE
-12
+12
E
MIC
AXV
VE
AXL
E
AXR
DSP
(CB71)
USB
OPERATION (1)
(CB605)
STANDBY/ON
MAIN (1)
(W401)
VIDEO (1)
(W3001)
OPERATION (4)
(W6008)
OPERATION (1)
(W6001)
OPERATION (5)
(W6007)
R, T, K, A, B, G, E, F, L models
(R, T, K, A, B, G, E, F, L models)
(U, C, J models)
(Side B)
OPERATION (8) P.C.B.
(Side B)
OPERATION (9) P.C.B.
(Side B)
OPERATION (7) P.C.B.
(Side B)
OPERATION (6) P.C.B.
R, T, K, A, B, G, E, F, L models
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
76
IC502 IC501
W504A
W506
W505A
CB401
CB403
W504B
W501
CB502
W503
W505B
CB402
W401
W502

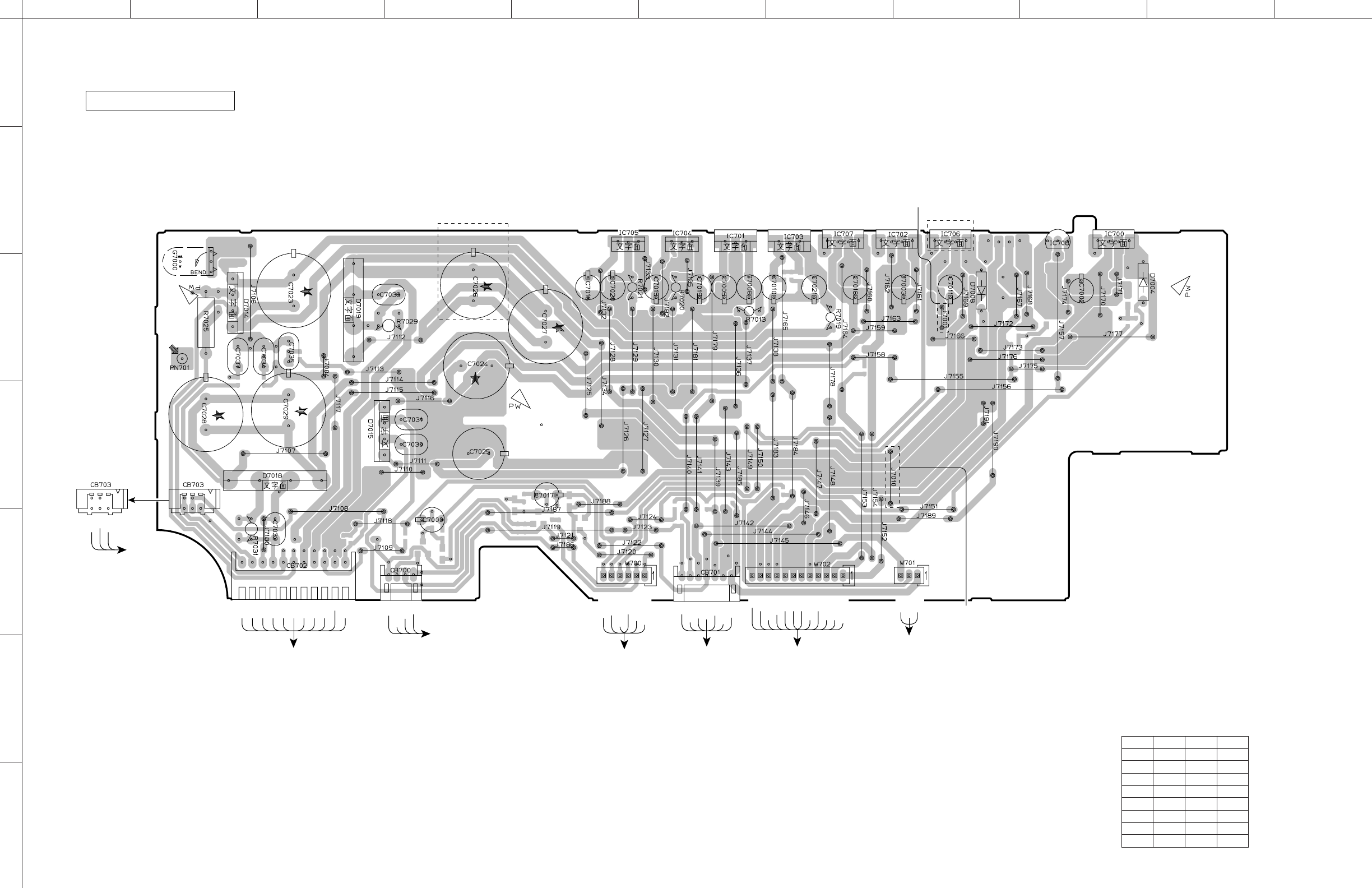

(Side A)
MAIN (1) P.C.B.
(Side A)
MAIN (2) P.C.B.
IPR
AGND
PRV1
LIM PLDET
PRD PRI
/SBMT /CMT
/SMT /FMT
/Z2MT RDS_RDY
RDS_DATA RDS_CLK
RDS_RST CEP
SPIMO SPICK
SPIMI /ST
TUNED TMT
8ohmSW /HP
HPRY MRYA
MRYB CSRY
SBRY /SWMT
R2A_DATA R2A_CLK
IPL
REMSEMSE SIRR
AGND SIRL
XMR AGND
XML DASBR
AGND DASBL
DAC E
DASW AGND
DASR AGND
DASL DAFR
EDAFL
ADL E
ADR
SL
ACL
ACL
E
E
ACH
ACH
SLG
SRG
SR
SBL
+12
-12
SBRY
SRY
GND
HPR
HPG
HPL
/HP
SBR
SBL
SR
SL
+12
AXR
AGND
AXL
-12
+12
AGND
AMIC
CHASSIS
-12
+3.3
+5
PRV1
VP
SL
SR
SBL
SBR
L
R
C
L
R
C
POWER TRANSFORMER
CEP
SDTP SCKP
SDRP TUR
TE TUL
TMT /ST
TUNED +10B
COMP NC
VIDEO (4)
(CB352)
VIDEO (4)
(CB351)
Tuner
OPERATION (2)
(CB701)
OPERATION (8)
(CB610)
DSP
(CB31)
DSP
(CB84)
OPERATION (3)
(CB601)
115 119
FRONT
(6CH)
SB
(6CH)
SUR
ROUND
MULTI CH INPUT
SPEAKERS
CENTER
+/-+/-+/-+/-+/-
FRONT AFRONT B
LR LR AUDIOOUTPUT
CENTER
L/R
TUNER
L/R
CD DVR
L/R
OUT IN
L/R L/R
DTV/CBL
L/R
DVD MD/CD-R
L/R
OUT
(REC)
L/R
IN
(PLAY)
L/RL/RL/R L/R
SUB
WOOFER
SUB
WOOFER
U, C, R, T, K, A, G, E, F, L, J models
G, E, F models
B model
•Semiconductor Location
Ref no.
Location
Ref no.
Location
Ref no.
Location
Ref no.
Location
D5001 D2
D5002 D2
D5005 E3
D5006 F3
D5010 I3
D5011 F3
D5012 E3
D5013 E5
D5014 H3
D5015 I3
D5016 I3
D5017 C5
D5018 E5
D5019 E3
D5020 D5
D5021 D3
D5022 D5
D5023 D5
D5024 D5
D5027 C5
IC501 I2
IC502 E2
Q4009 H4
Q4010 I5
Q4011 G4
Q4012 G5
Q5012 D2
Q5013 D2
Q5014 D2
Q5015 D2
Q5016 D2
Q5017 D2
Q5018 I3
Q5019 E3
Q5020 F2
Q5023 I3
Q5024 H2
Q5025 E3
Q5030 C5
Q5031 G3
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
77
IC402
IC404
IC403
IC405
IC407
IC401
14
85
58
4
1
1
3031
8180
100
50
51
1
8
4
5
1
8
4
5
18
16 9
G, E, F models
B model

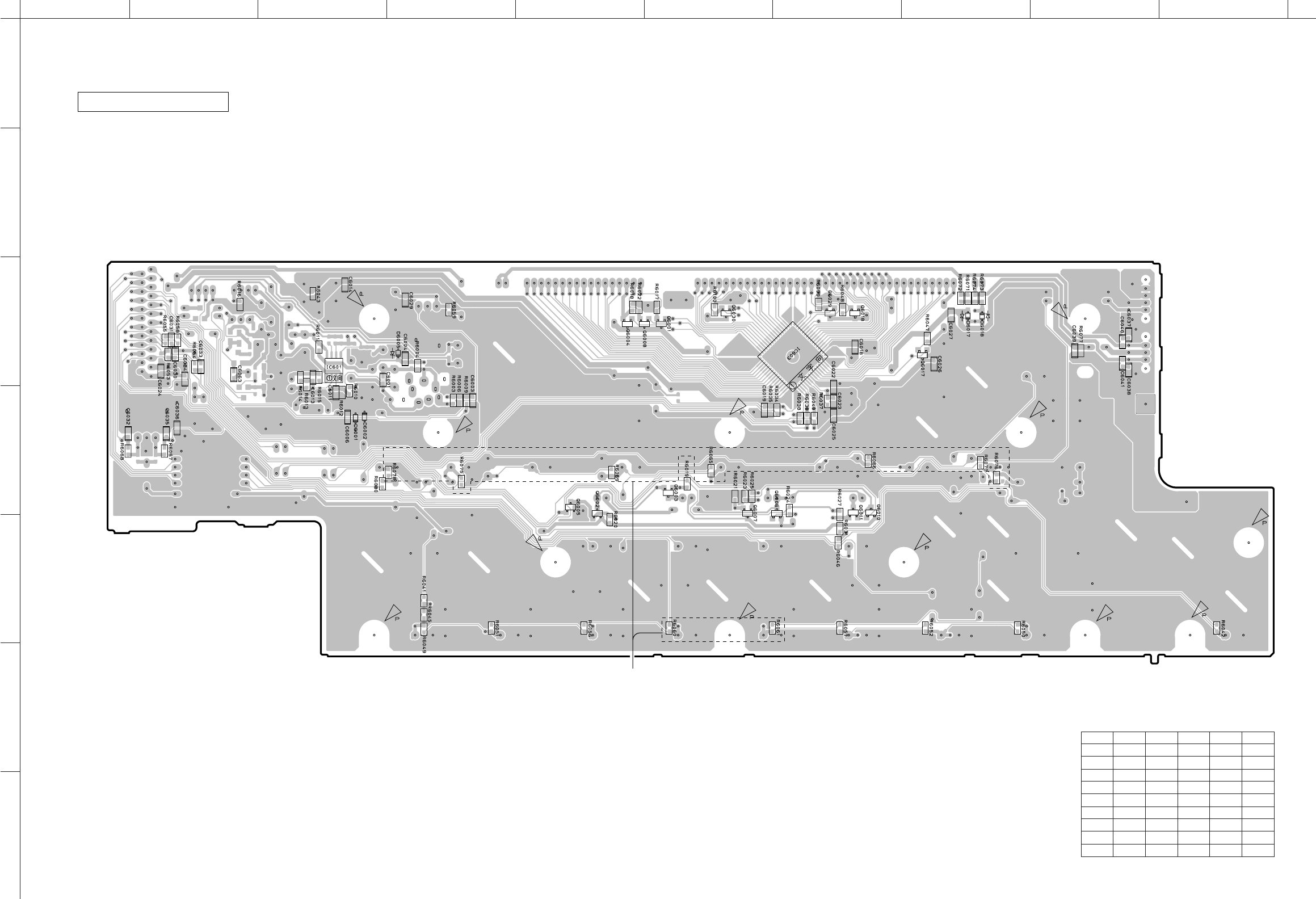

(Side B)
MAIN (2) P.C.B.
(Side B)
MAIN (1) P.C.B.
•Semiconductor Location
Ref no.
Location
Ref no.
Location
Ref no.
Location
Ref no.
Location
D4001 H5
D4002 H5
D4003 F4
D5003 D2
D5004 H3
D5009 G2
IC401 H5
IC402 F4
IC403 G5
IC404 G4
IC405 H4
IC407 I4
Q4001 E5
Q4004 E5
Q4008 E4
Q5003 H3
Q5004 I3
Q5005 I3
Q5006 I3
Q5007 H3
Q5009 G3
Q5010 G3
Q5011 G3
Q5026 D5
Q5027 C5
Q5028 D5
Q5029 D3
Q5032 D3
Q5033 D5
Q5034 C5
Q5035 D5
Q5036 C5
Q5037 C5
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
78
IC308
IC309
W3002
CB301
CB303
W3001
IC307
IC311
IC304
IC301
(Side A)VIDEO (1) P.C.B.
AXV
VE
IP_C
IP_VE
IP_Y
IP_VE
IP_V
IP_VE
OSD_CE
OSD_CK
OSD_DT
-12V
PRV2
+12V
+5V
OUT
IN
IN
COM
OUT
COM
OSD
-5V
VE
BYPASS
VIB
/MTMON
SVDET
VE
Vconv
VIC
VIA
/MTVR1
NC
OPERATION (2)
(W701)
VIDEO (2)
(CB325)
DSP
(CB32)
DSP
(CB21)
OPERATION (8)
(CB609)
MONITOR
OUT
DVD DVRDTV/CBL
OUTIN
VIDEO
(Side B)VIDEO (1) P.C.B.
1
18
26
19
1
8
16
9
1
1
12
24
13
8
16
9
•Semiconductor Location
Ref no.
Location
IC301 G5
IC304 H5
IC307 G2
IC308 D2
IC309 D2
IC311 H4
Q3004 H5
Q3005 H5
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
79
CB324
CB323
CB322
CB321
CB326
CB325
IC324
IC323
IC322
IC325
VIDEO (2) P.C.B. (Side A)
+5V
OSD
-5V
VE
VE
VE
CMP0
/CNON
CPNTD
Y
CB
CR
CMP1
CBYPASS
/MTMON
VconV
VIDEO (1)
(CB304)
DSP
(CB22)
P
R
/P
B
/Y P
R
/P
B
/Y
DTV/CBL
DVR
DVDDVD
COMPONENT VIDEO
MONITOR OUT
MONITOR OUT DVR DTV/CBL DVDP
R
/P
B
/Y P
R
/P
B
/Y P
R
/P
B
/Y P
R
/P
B
/Y
D4 VIDEO
U, C, R, T, K, A, B, G, E, F, L models
J modelU, C, R, T, K, A, B, G, E, F, L models
VIDEO (2) P.C.B. (Side B)
1
8
16
9
9
16
8
1
16
9
1
1
7
14
8
8
J model
U, C, R, T, K, A, B, G,E, F, L models
U, C, R, T, K, A, B, G,E, F, L models
J model
D3201 H2
D3202 H2
D3203 H2
D3204 H3
D3205 H2
D3208 H3
D3209 H2
D3210 H3
D3211 H2
D3212 I5
D3213 I5
D3214 I6
D3215 I6
D3216 I6
•Semiconductor Location
Ref no.
Location
Ref no.
Location
D3217 I6
IC322 H4
IC323 H3
IC324 H2
IC325 H5
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
80
•Semiconductor Location
Ref no.
Location
Ref no.
D3401 D3
D3402 C2
D3403 D4
D3404 D4
D3405 D4
D3406 D4
D3407 D4
D3408 H5
D3409 H5
Q3401 C3
Q3402 D3
Q3403 D3
Q3404 D2
Q3405 C2
Location
CB346CB347
CB342CB343
CB345
W3401
CB344
VIDEO (3) P.C.B. (Side A)
MG
ACDET
PRY
S9
OPERATION (2)
(CB700)
POWER TRANSFORMER
AC IN
R, L models
R, L models
U, C, T, K, A, B, G, E, F, J models
U, C, T, K, A, B, G, E, F, J models
U, C models
R, L models
VIDEO (3) P.C.B. (Side B)
R, L models
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
81
CB352 CB351
CB359
W356A
CB358
CB357
W356B
CB356
VIDEO (4) P.C.B. (Side A) VIDEO (5) P.C.B. (Side A)
SR
E
E
SL
GND
SRY
SBRY
-12
+12
R, L models
WH
BE
POWER TRANSFORMER
POWER TRANSFORMER
BE
GY
VI
YE
RE
OR
WH
MAIN (1)
(W503)
MAIN (1)
(W502)
VOLTAGE
SELECTOR
SPEAKERS
SURROUND
RL
230-240V 1-2/5-6
2-3/6-7
3-4/7-8
4-5/8-1
VOLTAGE SELECTOR
220V
110V
120V
+/- +/-
•Semiconductor Location
Ref no.
Location
D3502 C5
D3651 H5
D3652 I5
Q3502 C6
Q3503 C5
RX-V463/HTR-6140/DSP-AX463
82
Diodes
■PIN CONNECTION DIAGRAMS
ICs
40
60
61
1
41
20
2180
136
37
72
73108
109
144
1
12
1324
25
36
37 48
1
24
36
37
12
25
13
48
1
4
8
144
45
89
88
132
133
176
54
1
28
27
16
8
1
48
1
25
24
136
37
72
73108
109
144 4
1
1.
IN
2.
VOUT
3.
GND
4.
ON/OFF CONTROL
116
17
32
3348
49
64
4
1
1.
VIN
2.
VOUT
3.
GND
4.
ON/OFF CONTROL
4
1
OUT
COM
IN
OUT
GND
IN
+VS
GND
VOUT
36
18
1
24
12
1
14 7
1
1
5
10
65102
381
103
128
64
39
AD9389BBSTZ-165 ADV7441ABSTZ-170AD91089ZSKBC
F2621E-01-TRBR25L320F-W EEPROM EN29LV160AB-70TCP
ADC084S021 CIMM
K4S641632K-UC60000 KIA7805API
KIA7812API
KIA7912PI
KIA79M05PI-U
MB87L8760 NJM2388F63 NJM2396F33 NJM2581M
LC89057W-VF4AD-E M66003-0131FP-R NJM2388F05LM61CIZ
LC74782JM-8A16-TLMC
SN74LV123APWR
LC72725KM-UY-TLM-ELA73050-TLM-E
MM74HC4051SJX
ISP1760BE
1
3
4
5
28
14
1
1
10
20
20 10
1
14
7
1
1
3
4
5
1
8
16
84
1
80
1
51
30
81
100
50
31
1
8
16
1
15
1
19
3:V
OUT
1:V
IN
2:GND
NJM2845DL1-18 NJM2867F3-05 PCM1803DBR
PCM1680DBQR
SN74LV157APWR
TC74VHC153FT
SN74LV14APWR
SN74LVC245APWR
SN74LVC32APW
SN74LV574APWR 8D-F
SN74AHCT574PWR
SN74LVC08APWR
R5523N001A-TR-F
SN74AHCT245PWR
SN74LV4051APWR
NJM4565M
R2A15218FP
TC74HC4052AFSTK433-130-E STK433-330-E
Anode
Cathode
Anode
Cathode
Anode
Cathode
Anode
Cathode
+
ACAC
–
Anode
Cathode
+AC AC
–
KDS160-RTK
MA8075-H 7.7V
MA8100-H 10.3V
RB500V-40
1SS355
UDZ3.6BTE-17 3.6V
UDZ5.1B
UDZS3.3BTE-17 3.3V
UDZS9.1B
1T2
1SS133
1SS176
1SS270A
MTZJ4.7A
MTZJ16A
KBP103G 1.0A 200V RB160L-40 TE25 RS403M
TS6P03G 6.0A 200V
83
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Transistors
ECB
B
E
C
ECB
BCE
ECB
C
E
BECBIN
COMMON
OUT
1. Drain
2. Drain
3. Gate
4. Source
5. Drain
6. Drain
1
3
4
6
B
E
C
2
1 1: GND
2: IN
3: OUT
3
BCE
BCE
2SD1938F
2SC3326-A (TE85R, F)
2SC3326-B (TE85R, F)
2SC4081 T106
2SA1037K 2SA1708 2SB1274 2SC1815 Y
2SC2412K
2SC2705
KRA102M-AT/P KRA102S-RTK/P
KRA104S-RTK
KRC102M-AT
KRC102S-RTK
KRC104S-RTK
RTQ040P02DTA143EKA
2N5401C-AT/P
2SA1015-Y
2N5551C-AT 2SC1740S
84
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
MEMO
MEMO
CB11
IC11
IC12
CB12 CB13
IC13
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
85
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
DSP 1/8
SCHEMATIC DIAGRAMS
A-1
5.1
0
0
1.9
0
0
0
0
1.9
0
0
0
0
0
0
1.9
0
0
1.9
1.9
0
0
0
3.3
0
3.3
3.3
5.1
0
0
0
0
0
0
0
0
0
1.9
1.9
1.9
1.9
0
1.7
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1.7
0
1.9
1.9
0
0
1.9
0
1.7
1.7
0
0
0
0
1.6
0
1.7
3.1
3.1
2.7
0
1.9
0
6.4 6.4
5.1
5.1
0
0
0
5.1
5.1
3.3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
00 00
0
0
0
00
0
0
0
0
0
0
0
0
0.4
0
1.8
1.8
0
3.3
0
0
0
0
0
0
0
0
0
0
0
3.3
0
1.8
0
0
0
0
0
0
0
0
0
0
3.3
0
1.8
3.3
3.3
0
0
1.8
0
0
1.8
0
0
0
0
0
0
0
0.7
0.9
0
0.7
1.8
1.8
0
0.9
0.7
0
0
0
0
0
0
0
0
0
0
0
0
0
0
3.3
0
0
0
0
0
1.7
1.7
1.6
0
3.3
3.3
3.3
0
3.3
2.7
3.1
3.1
0
3.3
3.3
0
1.8
3.3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1.7
0
1.7
0
1.7
0
0
0
0
0
0
0
0
0
0
0
0
0
1.6
1.3
1.8
0.6
0
3.3
1.8
0
0
1.8
1.7
0
3.3
0
0
V
OUT
V
IN
Control
GND
1
45
2
IC13: NJM2867F3-05
Low dropout voltage regulator
Bandgap
Reference
Thermal
Protection
IC12: ADV7441ABSTZ-170
10-bit, integrated, multiformat SDTV/HDTV video decoder,
RGB graphic digitizer, and 2:1 multiplexed HDMI/DVI interface
OUTPUT FORMATTER
FAST BLANK OVERLAY CONTROL
MUX
MUX
EDID/REPEATER
CONTROLLER DATA RECOVERY
ALIGNMENT
HDMI DECODE
XOR
4:2:2 TO 4:4:4
CONVERSION
HDCP
ENGINE
HDCP
EEPROM
PACKET
PROCESSOR
EQUALIZER EQUALIZER
MUX
INT1
HS/CS
VS/FIELD
DE/FIELD
LLC
SFL/
SYNC_OUT/
INT2
P0 TO P9
PIXEL
DATA
P10 TO P19
P20 TO P29
10
10
G
B
R
FB
10
CLAMP
ANALOG INTERFACE
INPUT
MATRIX
ADC 0
CVBS
RGB
YPrPb
CVBS
SOG
SOY
HS_IN/CS_IN
VS_IN
FB
SCL
SDA
ALSB
RXB_2
DDCA_SCL
DDCA_SDA
DDCB_SDA
DDCB_SCL
RXB_C
RXB_1
RXB_0
RXA_2
RXA_C
RXA_1
RXA_0
YC AND
10 CHA
CHA
DATA
PROCESSOR
DECIMATION AND
DOWNSAMPLING
FILTERS
COLOR SPAC
CONVERTER
EMBEDDED
SYNC
VBI DATA PROCESSOR ANCILLARY
DATA
COMPONENT PROCESSOR
STANDARD DEFINITION PROCESSOR
SYNC SOURC
AND
POLARITY DETECT
SYNC EXTRACT
STANDARD
IDENTIFICATION
MACROVISION R AND
CGMS DETECTION
GAIN
CONTROL
OFFSET
ADDRESS
AV
CODE
INSERTION
PROGRAM
DELAY
DIGITAL
FINE
CLAMP
NOISE AND
CALOBRATION
VBI DATA
RECOVERY
CHROMA
DEMOD
SYNC
EXTRACT
FSC
RECOVERY
CHROMA
RE-
SAMPLE
RE-
SAMPLE
CONTROL
CTI
C-DNR
AV
CODE
INSERTION
CHROMA
2D COMB
(0x04 MAX)
GAIN
CONTROL
GAIN
CONTROL
LINE
LENGTH
PREDICTOR
GLOBAL
CONTROL
STANDARD
AUTODETECTION
FREE RUN
OUTPUT CONTROL
SYNTHESIZED
LLC CONTROL
MACROVISION
DETECTION
ACTIVE OEAK AND
HSYNC DEPTH
DIGITAL PROCESSING BLOCK
VBI
DECODER
ANCIKKARY
DATA
FORMATTER
CHB
CHB
CHC
CHC
CHD
CY
CLAMP
SYNC PROCESSING
AND CLOCK
GENARATION
CONTROL
INTERFACE
I2C
SAMPLER
PLL
ADC 1
10
CLAMP ADC 2
10
CLAMP ADC 3
HS/CS, VS
CONTROL
CONTROL
CONTROL
DE
VS
HS
MDA
PACKET/
INFOFRAME
MEMORY
AUDIO
PROCESSING
MCL
I2C
LRCLK
SCLK
MCLKOUT
SPDIF
FILTER
CONTROL AND DATA
10
LLC
GENERATION
SAMPLER
LUMA
RE-
SAMPLE
LUMA
2D COMB
(0x04 MAX)
LUMA
FILTER
LUMA
DIGITAL
FINE
CLAMP
CHROMA
DIGITAL
FINE
CLAMP
GAIN
CONTROL
IC11: AD9389BBSTZ-165
High performance HDMI/DVI transmitter
CLK
SCL SDA MCL MDA INT
HPD
DDCSDA
DDCSCL
TxC-/TxC+
Tx2-/Tx2+
Tx0-/Tx0+
Tx1-/Tx1+
HSYNC
VSYNC
DE
D[23:0]
VIDEO
DATA
CAPTURE
COLOR
SPACE
CONVER-
SION
4:2:2 TO
4:4:4
CONVER-
SION
REGISTERS
CONFIGURATION
LOGIC
HDCP
CORE
INTERRUPT
HANDLER
HDCP_EDID
MICRO-
CONTROLLER
I2C
MASTER
I2C
SLAVE
SCLK
LRCLK
MCLK
S/PDIF
I2S[3:0]
AUDIO
DATA
CAPTURE
XOR
MASK
HDMI
Tx
CORE
POINT A-1 XL101 (Pin 65 of IC12)
No replacement part available.
サービス部品供給なし
No replacement part available.
サービス部品供給なし
HDMI RX
VIDEO DECODER
HDMI TX
to DSP 6/8
HDMI
DTX/CBLOUT DVD
to DSP 2/8
to DSP 2/8
to DSP 2/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 4/8
to DSP 2/8
to DSP 6/8
to DSP 6/8
to DSP 4/8
to DSP 3/8 / to DSP 4/8
IC22
CB21
CB22
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
86
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
DSP 2/8
1.9
1.9
0
3.0
3.0
V OUTV IN
GND
13
2
IC22: NJM2845DL1-18
Low dropout voltage regulator
Bandgap
Reference
Thermal
Protection
to DSP 6/8
to DSP 6/8
to DSP 1/8
to DSP 1/8
to DSP 1/8
to DSP 1/8
to DSP 1/8
to DSP 6/8
to DSP 1/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to VIDEO (1)_CB302
Page 97 K2
to VIDEO (2)_CB326
Page 98 D1
CB32
CB31
IC36
CB34
IC31
IC39
IC38
CB33
JK31
CB35
IC33
IC34
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
87
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
DSP 3/8
A-2
2.4
4.9
2.4
2.4
2.4
2.4
4.9
2.5
2.4
2.4
0
0
2.5 0
0
0
1.7
0
1.7
0
1.7
3.3
0
1.7
1.7
4.9
2.5
2.5
4.9
4.9
0
3.3
0
0
1.7
2.5 0
0
0
3.0
3.0
3.3
1.7
1.3
0
3.7
0
5.0
0
3.13.3
0.30.8
5.0
0
4.0
5.0
0
4.0
0
0
0
3.3
0
3.3
0
4.0
0
2.0
0
0
0
0
0
0
0
0
3.3
0
0
0
2.9
2.9
3.3
4.0
0
1.7
1.7
0
3.3
1.7
1.3
0
1.6
1.5
3.3
0
0
0
0
3.3
3.3
3.3
1.6
1.7
1.2
1.7
3.3
03.3
0
1.7
1.7
1.7
0
0
1.7
1.7
1.7
0
0
0
03.3
0
1.7
0
1.7
1.7
1.2
1.7
1.7
0
0
0
0
0
C
SW
SL
FL
DIGITAL IN
SL/SR
FL/FR
SW/C
Input
Selector
RXOUT
RX0
RX1
RX2
RX3
RX4
RX5/VI
RX6/UI
LPF
TMCK/PIO0
TBCK/PIO1
TLRCK/PIO2
TDATA/PIO3
TXO/PIOEN
Cbit, Ubit Microcontroller
I/F
Data
Selector
Clock
Selector
Modulation
&
Parallel Port
PLL
XIN XOUT XMCK CKST
SLRCK
SBCK
RLRCK
RBCK
RMCK
SDIN
RD ATA
RERR
DO
XMODECICECLINTAUDIO/VOEMPHA/UO
1/N
Demodulation
&
Lock detect
1
2
3
4
5
8
9
10
13
44
45
46
47
48
29 28 27 34
23
22
20
17
16
24
21
36
37
41383940353332
IC31: LC89057W-VF4AD-E
Digital audio interface transceiver
IC38 : PCM1680DBQR
Audio digital-to-analog converter
Output Amp and
Low-Pass Filter
System Clock
Manager
Enhanced
Multilevel
DeltaœSigma
Modulator
DAC
Serial
Input
I/F
Function
Control
I/F
System Clock
Zero Detect Power Supply
DAC Output Amp and
DAC
DAC Output Amp and
DAC Output Amp and
DAC Output Amp and
VOUT1
VOUT2
VOUT3
VCOM
VOUT4
VOUT5
VOUT6
Low-Pass Filter
Low-Pass Filter
Low-Pass Filter
Low-Pass Filter
Low-Pass Filter
Output Amp and
AGND2
VCC2
AGND1
VCC1
DGND
VDD
ZERO1
ZERO2
BCK
LRCK
DATA1 (1, 2)
DATA2 (3, 4)
DATA3 (5, 6)
DATA4 (7, 8)
MS/ADR
MC/SCL
MD/SDA
MSEL
SCK
8
Oversampling
Digital Filter
With
Function
Controller
DAC Output Amp and
DAC Output Amp and
VOUT7
VOUT8
Low-Pass Filter
Low-Pass Filter
IC33, 34: SN74LV157APWR
Quadruple 2-line to 1-line data selectors/multiplexers
Pin numbers shown are for the D, DB, DGV, J, NS, PW, and W packages.
2
3
5
6
11
10
14
13
15
1
G
A/B
4B
4A
3B
3A
2B
2A
1B
1A
4
7
9
12
1Y
2Y
3Y
4Y
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
A/B
1A
1B
1Y
2A
2B
2Y
GND
VCC
G
4A
4B
4Y
3A
3B
3Y
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
VINL
VINR
VREF1
VREF2
VCC
AGND
PDWN
BYPAS
TEST
LRCK
MODE1
MODE0
FMT1
FMT0
OSR
SCKI
VDD
DGND
DOUT
BCK
IC39: PCM1803DBR
Stereo A/D converter
BCK
VINL
Reference
VREF1
VREF2
VINR
Delta-Sigma
Modulator
Delta-Sigma
Modulator
x 1/64, x 1/128
Decimation
Filter
With
High-Pass Filter
Power Supply
AGNDVCC VDD
DGND
Clock and Timing Control
Serial
Interface
Mode/
Format
Control
LRCK
DOUT
FMT0
FMT1
MODE0
MODE1
BYPAS
OSR
PDWN
SCKI
TEST
POINT A-2 XL301 (Pin 29 of IC31)
No replacement part available.
サービス部品供給なし
XM DT
DIR
to DSP 4/8
to DSP 8/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 1/8
to DSP 4/8
to DSP 4/8
to DSP 1/8
to DSP 4/8
to DSP 1/8
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 8/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 1/8
to DSP 6/8
to DSP 6/8
to DSP 4/8
to DSP 4/8
to DSP 6/8
to DSP 4/8
to DSP 4/8
to DSP 6/8
to DSP 6/8
to DSP 5/8
to DSP 5/8
DAC
ADC
SIRIUS XM
DIGITAL INPUTDIGITAL OUTPUT
DVDDTV/CBL
CD
MD/CD-R MD/CD-R
to MAIN_CB402
Page 96 G3
to VIDEO (1)_W3002
Page 97 F2
(Writing port)
DOCK
IC43
IC44
IC41
IC42
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
88
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
DSP 4/8
DIGITAL IN
FL/FR
SL/SR SW/C
A-3
3.3
0
0
0
1.6
0
1.7
1.7
0
0
0
1.7
0
1.7
1.7
0
3.3
0
0
0
1.7
0
1.7
1.7
0
0
0
0
0
1.2
1.2
0
3.3
3.3
0
0
3.3
0
3.3
3.3
1.4
1.4
1.4
3.3
1.4
1.4
2.0
0
0
0
0
0
0
0
0
0
0
1.3
3.3
1.7
1.7
1.2
0
1.7
1.7
1.7
1.3
1.7
1.7
0
0
1.7
1.7
1.7
0
3.3
0
0
3.3
0
1.3
0
0
3.3
1.7
3.3
3.3
0
0
0
0
0
0
3.3
3.3
0.1
3.3
3.3
3.3
3.3
3.3
0
3.3
3.3
3.3
1.4
0
0
3.3
3.3
1.4
1.6
0
0
0
3.3
2.0
2.0
0
0
0
0
3.3
0
0
3.3
1.7
0
0
0
0
3.3
0
0
0.4
0.4
0.4
0.4
0.4
0.3
0.5
0.3
0
3.3
0
1.0
0.9
1.3
1.1
1.2
0.6
1.3
1.3
0
3.3
1.1
2.2
0
0
0
0
1.9
0
0
0
0
0
3.3
0
1.3
1.3
1.2
1.4
0.4
3.3
1.8
3.1
0
1.3
3.3
3.3
3.3
3.3
0
3.3
3.3
0
3.3
3.3
3.3
0
3.3
1.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
1.3
3.3
0
1.7
3.3
3.3
3.3
0
0
0
0
3.3
IC42: BR25L320F-W EEPROM
SPI BUS 32 k-bits (4,096 x 8-bit) EEPROM
1
CS
INSTRUCTION DECODE
CONTROL CLOCK
GENERATION
INSTRUCTION
REGISTER
2
SO
3
WP
4
GND
8Vcc
7HOLD
6SCK
5SI
VOLTAGE
DETECTION
WRITE
INHIBITION
ADDRESS
REGISTER
DATA
REGISTER 8bit READ/WRITE
AMP
32,768bit
EEPROM
STATUS REGISTER
ADDRESS
DECODER
HIGH VOLTAGE
GENERATOR
8bit
12bit 12bit
IC43, 44: TC74VHC153FT
Dual 4-channel multiplexer
14
AS0
S0
6
1C0
2
B
S1
S1
S2
S2
S3
S3
S0 71Y
5
1C1
S1
4
1C2
S2
1
1G
3
1C3
S3
10
2C0
S0
92Y
11
2C1
S1
12
2C2
S2
15
2G
13
2C3
S3
IC41: AD91089ZSKBC
Microprocessor
PPI/GPIO
L1 data
memory
JTAG test
and emulation
Volt age
regulator
L1 instruction
memory
Memory
management
unit
Core/System bus interface
Real time clock
UART port IrDA®
Serial port (2)
DMA controller
Boot ROM
SPI port
External port FLASH,
SDRAM control
Event controller/
Core timer Watch dock timer
Timer0, Timer1, Timer2
POINT A-3 XL401 (Pin 10 of IC41)
No replacement part available.
サービス部品供給なし
MICROPROCESSOR
EEPROM
to DSP 7/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 3/8
to DSP 3/8
to DSP 1/8
to DSP 5/8
to DSP 3/8
to DSP 3/8
to DSP 6/8
to DSP 5/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 3/8
to DSP 5/8
to DSP 1/8
to DSP 8/8
to DSP 8/8
to DSP 6/8
to DSP 3/8to DSP 3/8
IC152
IC152
IC152
IC152
IC153
IC153
IC153
IC153 IC155IC155
IC155IC155
IC155
IC155
IC51
IC52
IC154
IC59
IC58
IC57
IC56
IC55
IC54
IC53
IC151
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
89
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.

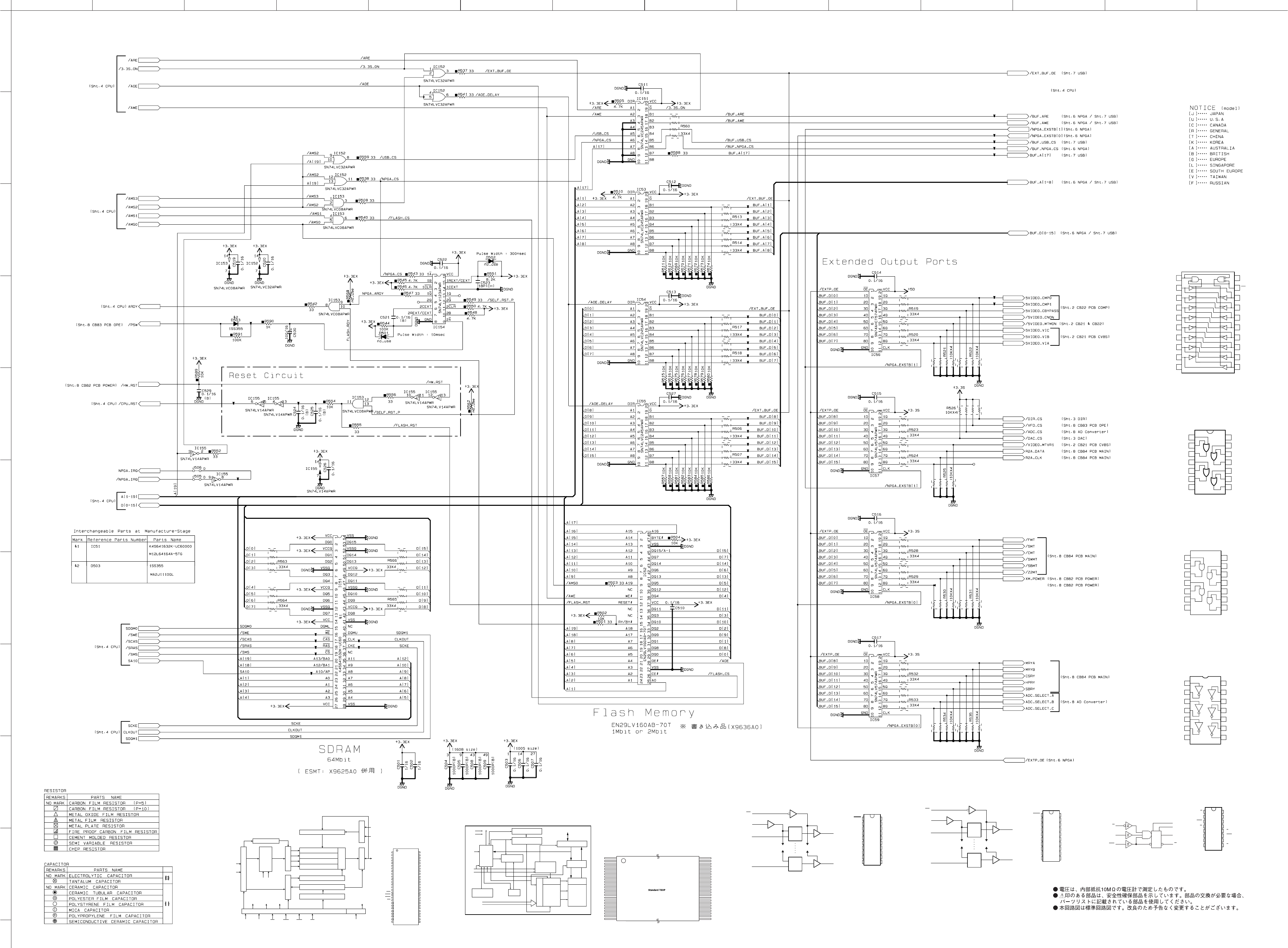

DSP 5/8
3.2
3.2
0
3.2
3.3
3.3
3.2
3.3
3.0
3.2
3.3
3.3
3.3
3.3
3.3
3.3
3.3 3.3
3.3
3.3
00
3.3
3.3
00 3.3
3.3
3.3
3.3
3.3
3.2
3.3
3.3
0
0
0
3.3
3.3
3.3
0
3.3
1.3
3.3
3.3
3.2
0
3.3
0
3.3
0
3.2
3.3
1.1
3.01.1
3.3
3.3
1.3
3.3
0.4
0
0.4
0
3.3
0.4
0.4
0.4
0
0.3
0.5
3.3
0.3
0
0
1.7
3.3
0.6
0.4
1.2
3.3
0.4
3.1
1.8
0
0.6
1.3
1.1
1.2
0
0.9
3.3
0
0
1.0
0
3.3
3.3
3.3
3.3
1.1
2.2
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0
0.13.3
3.3
3.3
3.3
3.3
0
0
3.2
3.2
0
0
0
0
3.3
3.3
3.3
3.3
0
3.2
3.3
3.3
3.3
3.3
3.3
1.8
3.1
0.4
3.3
0
0
0
0
0
0
0.2
0
0
3.2
3.3
3.2
1.3
1.3
0.6
1.2
1.1
0.9
1.0
0
0
0
0
0
0
0
0
0
0
3.2
3.3
3.2
0.3
0.5
0.3
0.4
0.4
0.4
0.4
0.4
0
0
0
3.3
0
0.4
0
0.4
0
1.0
0.4
0.9
0.4
1.1
3.3
0.4
1.2
0.3
0.6
0.5
1.3
0.3
1.3
3.3
0
3.3
3.3
1.3
1.9
1.2
1.4
1.3
3.3
3.3
3.3
3.3
3.3
0
0
3.1
1.8
3.3
0.4
3.3
3.3
0
0
0
0
0
0
0
0
0
5.0
5.0
0
0
0
0
0
0
0
0
0
0
0
0
4.9
0
3.3
0
3.3
4.9
0
3.3
0
0
0
0
0
0
0
0
0
0
3.3
3.0
3.3
0
0
0
3.3
0
3.3
3.3
0
0
0
0
0
0
0
0
0
0
3.3
3.3
3.3
3.3
3.3
0
3.3
0
3.3
3.3
0
0
0
0
0
0
0
0
0
0
0
3.3
0
3.3
1.8
3.1
3.3
0.3
IC51: K4S641632K-UC60000
64 M synchronous DRAM
Bank Select
CLK
Row Decoder
I/O Control
Output Buffer
Sense AMP
Address Register
Data Input Register
Column Decoder
Latency & Burst Length
Programming Register
2M x 8 / 1M x16
2M x 8 / 1M x16
2M x 8 / 1M x16
2M x 8 / 1M x16
Col. Buffer
Row Buffer
Refresh Counter
ADD
LCKE
LRAS
CLK
LRAS LCAS
Timing Register
LCBR LWE
DQi
LDQM
LWE
LWCBR
CKE CS
LCBR
WE L(U)DQM
LDQM
RAS CAS
1
VDD
VDD
VSS
N.C/RFU
VSS
VSS
VSSQ
VSSQ
VDDQ
VDDQ
DQ15
A4
A5
A6
A7
A8
A9
A11
CKE
CLK
N.C
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQ8
UDQM
VDDQ
VDDQ
VSSQ
VSSQ
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
30
29
28
33
32
31
36
35
34
39
38
41
40
43
42
45
44
46
48
47
50
49
51
53
54
52
37
BA0
LDQM
VDD
WE
CAS
RAS
CS
BA1
A10/AP
A3
A0
A1
A2
IC155: SN74LV14APWR
Hex schmitt trigger inverters
GND
Y3
A3
A2
A1 VCC
A6
A5
A4
Y6
Y5
Y4
Y2
Y1
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
Vcc
OE
B1
B2
B3
B4
B5
B6
B7
B8
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
IC53-55, 151: SN74LVC245APWR
Octal bus transceivers with 3-state outputs
4B13
4A12
4Y11
3B10
3A9
3Y8
1B 2
1Y 3
2A 4
2B 5
2Y 6
GND 7
IC152: SN74LVC32APW
Quadruple 2-input positive-OR gates
Vcc141A 1
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
OE
1D
2D
3D
4D
5D
6D
7D
8D
GND
VCC
1Q
2Q
3Q
4Q
5Q
6Q
7Q
8Q
CLK
IC56: SN74AHCT574PWR
Octal edge-triggered D-type flip-flops with 3-state outputs
OE 1
11
2
19
CLK
1D
C1
1D 1Q
9
12
8D
C8
8D 8Q
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
OE
1D
2D
3D
4D
5D
6D
7D
8D
GND
VCC
1Q
2Q
3Q
4Q
5Q
6Q
7Q
8Q
CLK
IC57-59: SN74LV574APWR 8D-F
Octal edge-triggered D-type flip-flops with 3-state outputs
OE 1
11
2
19
CLK
1D
C1
1D 1Q
9
12
8D
C8
8D 8Q
4B13
4A12
4Y11
3B10
3A9
3Y8
1B 2
1Y 3
2A 4
2B 5
2Y 6
GND 7
IC153: SN74LVC08APWR
Quadruple 2-input positive-AND gate
Vcc141A 1
IC154: SN74LV123APWR
Dual retriggerable monostable multivibrators with schmitt-trigger inputs
1B
1CLR
2CLR
1A
A
B
Q
Q
CLR
2B
2A
VCC
1Q
2Q
GND
1Q
2Q
2Cext
2Rext/Cext
Rext/Cext
Cext
1Rext/Cext
1Cext
2
3
4
5
6
7
8
1
15
14
13
12
11
10
9
16
R
IC52: EN29LV160AB-70TCP
16 M-bit flash memory boot sector flash memory, CMOS 3.0 V-only
Vcc Detector Timer
Program Voltage
Generator
Chip Enable
Output Enable
Logic
Y-Decoder
Input/Output buffers
Y- G a t i n g
Cell Matrix
X-Decoder
Address Latch
Erase Voltage Generator
Block Protect Switches
WE#
CE#
OE#
A0-A19
Vcc RY/BY#
Vss
DQ0-DQ15 (A-1)
STB
STB
State
Control
Command
Register Data Latch
A1
A15
A18
A14
A13
A12
A11
A10
A19
A9
A8
NC
WE#
RESET#
NC
NC
RY/BY#
A17
A7
A6
A5
A4
A3
A2
1
16
2
3
4
5
6
7
8
17
18
19
20
21
22
23
24
9
10
11
12
13
14
15
A16
DQ2
BYTE#
VSS
DQ15/A-1
DQ7
DQ14
DQ6
DQ13
DQ9
DQ1
DQ8
DQ0
OE#
VSS
CE#
A0
DQ5
DQ12
DQ4
VCC
DQ11
DQ3
DQ10
48
33
47
46
45
44
43
42
41
40
39
38
37
36
35
34
25
32
31
30
29
28
27
26
EXTENDED PORTS
SDRAM
BUS BUFFER
BUS BUFFER
FLASH MEMORY
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 8/8
to DSP 8/8
to DSP 7/8
to DSP 6/8 / to DSP 7/8
to DSP 6/8 / to DSP 7/8
to DSP 7/8
to DSP 7/8
to DSP 2/8
to DSP 2/8
to DSP 2/8
to DSP 2/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 6/8
to DSP 8/8
to DSP 8/8
to DSP 3/8
to DSP 3/8
to DSP 6/8
to DSP 6/8 / to DSP 7/8
to DSP 6/8 / to DSP 7/8
to DSP 6/8
to DSP 6/8
to DSP 4/8
IC61
IC62
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
90
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
DSP 6/8
3.3
3.3
0
0.2
0
0
3.3
3.3
0
0
0
3.3
1.6
0
3.3
0
0
3.3
3.3
0
0
3.3
0
3.3
3.3
3.3
3.3
4.3
0
0
0
5.0
0
3.3
5.0
3.3
3.3
0
0
0
0
0
3.3
0
0
3.3
3.3
3.3
3.3
3.3
0
3.3
0
0
3.3
0
3.3
0
0
0
3.3
0
0
3.3
3.3
0
0
0
0
0
0
0
0
3.3
3.3
0
3.3
0
0
3.3
3.3
3.3
0
0
0
0
0
3.3
0
0
0
0
0
0
3.3
3.3
0
3.3
3.3
3.3
0
3.3
3.3
0
3.3
0
3.1
0
3.3
3.3
3.3
3.3
3.3
0
0
3.3
3.3
0
3.3
0
3.3
3.3
0
3.3
3.3
0
0
0
2.9
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
5.0 5.0
0
0
3.3
3.3
0
0
0
3.3
0
0
0
0
5.0
5.0
0
0
0
0
IC62: SN74AHCT245PWR
Octal bus transceivers with 3-state outputs
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
VCC
OE
B1
B2
B3
B4
B5
B6
B7
B8
DIR
OE
A1
B1
To Seven Other Channels
1
2
19
18
NPGA
to DSP 7/8
to DSP 7/8
to DSP 1/8
to DSP 1/8
to DSP 1/8
to DSP 1/8
to DSP 3/8
to DSP 3/8 / to DSP 8/8
to DSP 3/8
to DSP 3/8
to DSP 1/8
to DSP 2/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 7/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 2/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 7/8
to DSP 7/8
to DSP 7/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 8/8
to DSP 5/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 2/8
to DSP 3/8
to DSP 3/8 / to DSP 6/8
to DSP 2/8
to DSP 2/8
to DSP 3/8
to DSP 1/8
to DSP 1/8
to DSP 2/8
to DSP 1/8
to DSP 1/8
to DSP 8/8
to DSP 8/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 3/8
to DSP 2/8
to DSP 1/8
IC72
IC73
CB71
IC71
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
91
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
DSP 7/8
B-1
3.3
1.2
1.4
1.3
1.3
1.9
0
0
0
0
3.3
3.2
0
0
0
0
0
0
0
0
5.1
5.1
4.3
0
0
0
0
0
0
0
0
0
0
0
0.2
0
0
3.3
0
0
0
3.3
0
1.9
0
0
3.3
0
3.3
3.3
3.3
3.3
3.3
3.3
0
3.3
3.3
3.3
3.3
3.3
3.3
3.3
0
3.3
3.3
3.3
3.3
0
0
0
0
0
0
0
0
1.9
0
3.3
0
0
0
0
0
0
0
3.3
0
3.3
0
3.3
0
3.3
3.3
3.3
0
3.3
3.3
3.3
3.3
0
0
0
0
0
1.9
3.3
4.3
3.3
3.3
5.1
0
3.3
3.3
0
3.3
1.0
0.9
3.3
0
0
0
0
0
0
0
0
0
0
0
0
1.3
0
0
0
0
0
0
0
0
3.3
0
1.9
3.3
1.9
0
3.3
1
DIR
A1
A2
A3
A4
A5
A6
A7
A8
GND
Vcc
OE
B1
B2
B3
B4
B5
B6
B7
B8
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
IC72: SN74LVC245APWR
Octal bus transceivers with 3-state outputs
IC71: ISP1760BE
Embedded hi-speed USB host controller
ISP1760BE
37 to 39, 41 to 43,
45 to 47, 49, 51,
52, 54, 56 to 58,
60 to 62, 64 to 66,
68 to 70, 72 to 74,
76 to 78, 80
82, 84, 86, 87,
89, 91, to 93,
95 to 98,
100 to 103, 105
SUSPEND/
WAKEUP_N
BAT_ON_N
REG1V8
REG3V3
REF5V
GND(OSC)
GNDA
GNDC
GNDD
GNDA
VCC(5V0)
RESET_N
CLKIN
XTAL1
XTAL2
VCC(I/O)
119
122
17
106
107
108
112
114
116
11
12
10, 40, 48, 59, 67,
75, 83, 94, 104, 115
16-bit
or
32-bit
13
30 MHz
60 MHz
110
5, 50,
85, 118
4, 17, 24
31, 123
53, 88, 121
14, 36, 44, 55, 63,
71, 79, 90, 99, 109
004aaa435
6, 7
9
2
8
16 15 20 19 18 21 127 23 22 27 26 25 28 128 30 29 34 33 32 35 1
GLOBAL CONTROL
AND POWER
MANAGEMENT
HC PAYLOAD
MEMORY (60 kB)
HC PTD MEMORY
(3 kB)
RISC PROCESSOR
INTERFAC:
A[17:1]
DATA [15:0]/DATA [31:0]
GENERIC PROCESSOR BUS
MEMORY
MANAGEMENT
UNIT
+
INTERRUPT
CONTROL
+
SLAVE DMA
CONTROLLER
+
HARDWARE
CONFIGURATION
REGISTERS
5 V-TO-1.8 V
VOLTAGE
REGULATOR
5 V-TO-3.3 V
VOLTAGE
REGULATOR
HI-SPEED
USB ATX3
DIGITAL
AND ANALOG
OVERCURRENT
DETECTION
PIE
USB HIGH-SPEED DATA PATH
EHCI AND
OPERATIONAL
REGISTERS
TRANSACTION
TRANSLATOR
AND RAM
MEMORY
ARBITER
AND FIFO
PLL
POWER-ON RESET
AND VBAT ON
OC3_N
PSW3_N
DP3
GND
(RREF3)
RREF3 DM3
USB FULL-SPEED AND LOW-SPEED DATA PATH
PORT ROUTING CONTROL LOGIC + HOST AND HUB PORT STATUS
PSW2_N
OC2_N
PSW1_N
OC1_N GNDA
HI-SPEED
USB ATX2
DP2
GND
(RREF2)
RREF2 DM2
GNDA
HI-SPEED
USB ATX1
DP1
GND
(RREF1)
RREF1 DM1
DACK
IRQ
WR_N
RD_N
CS_N
DWEQ
VIN 4
EN 1
2
5
GATE
CONTROL
UVLO
THERMAL
SHUTDOWN
CURRENT
LIMIT
FLAG
DELAY
VOUT
3 FLG
GND
IC73: R5523N001A-TR-F
High side switch IC
POINT B-1 XL701 (Pin 11 of IC71)
No replacement part available.
サービス部品供給なし
USB HOST
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 4/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 4/8
to OPERATION (6)_W6006
(R, T, K, A, B, G, E, F, L models)
Page 93 L4
IC81
IC82
IC83
CB82
CB84
CB81
CB83
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
92
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
DSP 8/8
0
3.0
3.3
0
1.6
1.3
2.9
0
3.3
3.3
3.3
3.3
0
1.3
3.3
3.3
0
0
0
0.6
1.2
2.7
1.1
1.8
3.1
0.3
3.3
3.3
0
1.6
3.3
0.8
0
0
0
3.3
1.7
0.4
0
1.8
3.1
0.3
0
0
3.3
0
3.3
0
1.2
0
1.7
0
0.6
3.3
3.3
03.3
3.3
3.3
IC81: ADC084S021 CIMM
4-channel, 200 ksps, 8-bit A/D converter
IN1
IN2
IN3 MUX T/H
VA
8-Bit
SUCCESSIVE
APPROXIMATION
ADC
GND
IN4
GND
SCLK
CONTROL
LOGIC
CS
DIN
DOUT
CS 1
VA2
GND 3
IN4 4
IN3 5
SCLK
ADC084S021
10
DOUT
9
DIN8
IN17
IN26
IC82, 83: SN74LV4051APWR
8-channel analog multiplxers/demultiplexers
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
COM
INH
C
B
A11
10
9
6
3
13
14
15
12
1
5
2
4
1
2
3
4
5
6
7
89
10
16
15
14
13
12
11
Y4
Y6
COM
Y7
Y5
INH
GND
GND
VCC
Y2
Y1
Y0
Y3
A
B
C
INPUTS ON
CHANNEL
INH
L
L
L
L
L
L
L
L
H
L
L
L
H
H
H
H
X
C
L
L
H
H
L
L
H
H
X
L
H
L
H
L
H
L
H
X
L
Y1
Y2
Y3
Y4
Y5
Y6
Y7
None
Y0
BA
SELECTOR1
ADC
SELECTOR2
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 5/8
to DSP 4/8
to DSP 5/8
to DSP 6/8
to DSP 6/8
to DSP 4/8
to DSP 4/8
to DSP 4/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 6/8
to DSP 3/8
to DSP 3/8
to DSP 4/8
to MAIN_CB401
Page 96 D10
to OPERATION (2)_W700
Page 94 B7
to OPERATION (2)_W702
Page 94 B6
to OPERATION (1)_CB603
Page 93 G8
IC603
CB601
JK602
IC601
IC601
IC601
JK601
W6001
W6009
CB603
W6005
CB604
CB605 CB606W6004
W6008
W6007
JK603
W6006
CB607
CB610
CB609
CB608
CB602
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
93
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
OPERATION 1/2
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
3.3
1.5
1.5
0
0
3.2
3.2
3.3
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-29.0
3.3
-29.0
-29.0
3.3
-29.0
-29.0
3.3
-29.0
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-29.0
-29.0
-29.0
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-30.9
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-23.1
-23.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.1
-29.0
-29.0
-29.0
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.6
-30.7
-30.6
-30.6
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-30.7
-2.3.1
-23.1
-30.7
-30.7
-30.6
3.3
-30.6 -30.7
3.3
-30.6
-30.7
3.3
-30.6 -30.7
3.3
-30.6 -30.7
3.3
0
0
0
3.3 3.3
3.3
0
2.0
2.0
2.0
2.0
0
0
3.3
0
1.3
5.1
0
0
0
-11.8
0
1.1
12.1
0
11.6
3.3
2.0
0.3
0
0
3.3
0
0
0
0
0
3.3
2.6
2.0
3.3
-30.9
3.3
0
3.3
-27.2
-27.2
-23.6
00
0
0
0
00
0
0
0
0
0
0
0
0
0
0
0
52
Display
controller
Serial
receive
circuit
Digit
output
circuit
Clock
generator
DIG11/
SEG42
51
DIG12/
SEG41
50
DIG13/
SEG40
49
DIG14/
SEG39
48
DIG15/
SEG38
47
DIG16/
SEG37
46
DIG17/
SEG36
45
SEG35
XOUT
6
Vcc1
8
Vcc2
18
Vss
5
Vp
64
XIN
7
CS
SCK
3
SDATA
4
RESET
1
SEG00
44
9
SEG34
SEG26
17
19
SEG25
Segment
output
circuit
Display code
RAM
(8-bit x 60)
CGROM
(35-bit x 166)
CGROM
(35-bit x 16)
code
select
Code
write
Code/
command
control
circuit
DIG00
63
53
DIG10
IC603: M66003-0131FP-R
18 digit 5 x 7 segment VFD controller/driver
2
data
timing
clock
dot data
write
scan pulse
Segment/
Digit
select/
output
circuit
IC601: NJM4565M
Dual operational amplifier
8
2, 6
3, 5
1, 7
4
V+
–INPUT
+INPUT
V–
OUTPUT
VFD
OPERATION (9)
OPERATION (3)
OPERATION (1)
OPERATION (7)
OPERATION (4)
OPERATION (6)
OPERATION (8)
OPERATION (5) U, C, J models
R, T, K, A, B, G, E, F, L models
R, T, K, A, B, G, E, F, L models
USB
STANDBY/ON
PHONES
OPTIMIZER
MIC
VOLUME
AUDIO
VIDEO AUX
VIDEO
AUDIO
PORTABLE
VIDEO AUX
VIDEO
BAND
INFO
TUNING AUTO/MAN'L
to DSP_CB71
Page 91 K9
to DSP_CB83
Page 92 L3
to OPERATION (2)_CB703
Page 94 H8
to MAIN_W501
Page 95 I4
to MAIN_W401
Page 96 E3
to VIDEO (1)_W3001
Page 97 E2
Ohm
V
KEY
INPUT 0
(7 pin)
KEY
INPUT 1
(6 pin)
0
0–0.2
–
–
+ 1.0 k
0.2–0.4
SPEAKERS
A/B/OFF
–
+ 1.0 k
0.4–0.7
TONE
CONTROL
AUDIO
SELECT
+ 1.5 k
0.7–1.0
PROGRAM
<
INPUT
>
+ 2.2 k
1.0–1.3
PROGRAM
>
INPUT
<
+ 2.2 k
1.3–1.6
STRAIGTH
EFFECT
DIRECT
+ 3.3 k
1.6–1.9
A/B/C/D/E
PRESET/
TUNING
<
+ 4.7 k
1.9–2.1
BAND
PRESET/
TUNING
>
+ 6.8 k
2.1–2.4
MEMORY
+ 10.0 k
2.4–2.7
EDIT
PRESET/
TUNING
INFO
TUNING
AUTO/
MAN’L
Key detection for A/D port
Key input (A/D) pull-up resistance 10 k-ohms
U, C, R, T, K, A, G, E, F, L, J models
+ 22.0 k
2.7–3.0
Ohm
V
KEY
INPUT 0
(7 pin)
KEY
INPUT 1
(6 pin)
0
0–0.2
–
–
+ 1.0 k
0.2–0.4
SPEAKERS
A/B/OFF
–
+ 1.0 k
0.4–0.7
TONE
CONTROL
AUDIO
SELECT
+ 1.5 k
0.7–1.0
PROGRAM
<
INPUT
>
+ 2.2 k
1.1–1.3
PROGRAM
>
INPUT
<
+ 2.2 k
1.3–1.6
STRAIGTH
EFFECT
DIRECT
+ 3.3 k
1.6–1.9
–
–
+ 4.7 k
1.9–2.1
–
–
+ 6.8 k
2.1–2.4
–
–
–
+ 10.0 k
2.4–2.7
–
–
–
B model
+ 22.0 k
2.7–2.9
–
–
–
CB700
CB701
W702
W700
W701
CB702
CB703
IC700 IC706
IC708
IC701
IC704
IC703
IC705
IC707IC702
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
94
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
OPERATION 2/2
B-2
B-3
AC30.6
AC10.1
AC10.2
AC8.4
AC5.0
8.5
11.4
10.8
10.8
3.3
11.5
5.1
0
0
0
0
0
0
1.0
11.6
0
5.5
0
0
0
3.3
3.3
3.3
5.4
18.7
-19.6
0
12.2
5.0
-11.9
4.5
0
0
0
0
0
18.2
18.5
-19.3
12.0
12.0
0
5.4
0
0
0
0
5.4
9.3
0
4.1 4.2
9.3
3.3
0
9.3
6.4
0
0
3.3
0
10.8 11.5
0
0
0
IC701, 703: KIA7805API
Voltage regulator
R1
R2
R3
R4 R5 R6
R7
R8
Z1
Q12
Q13
Q18
Q17
Q14
Q19
Q10
Q8
Q16
INPUT
OUTPUT
COMMON (GND)
Q15
Q11-1
Q11
Q2
Q3
Q4
Q5 Q9
Q7
Q1 Q6
R12
R19
R10
R9
R15 R14
R16
R21
R20
R22 R23R17
R13
R11 R18
C1
1
3
2
IC704: KIA7812API
Voltage regulator
R1
R2
R3
R4 R5 R6
R7
R8
Z1
Q12
Q13
Q18
Q17
Q14
Q19
Q10
Q8
Q16
INPUT
OUTPUT
COMMON (GND)
Q15
Q11-1
Q11
Q2
Q3
Q4
Q5 Q9
Q7
Q1 Q6
R12
R19
R10
R9
R15 R14
R16
R21
R20
R22 R23R17
R13
R11 R18
C1
1
3
2
COMMON (GND)
IC705: KIA7912PI
Voltage regulator
Q28 Q17
Q18
Q19
Q20
Q31
Q23
Q21
Q22 Q24
Q25
Q26 Q27
Q10
Q11
Q14
Q15
Q16
Q27-1
Q26-1
Q12 Q13
Q8
Q9
Q2
Q7
Q4
Q5
Q6
Q3
Q29
Q30
R0
R1
R2
R14 R17
R19
R20
R21
R22
R23
R24
R25
R26
R3
R4 R5 R6
R10 R11
R12R13
D4
R9
R7 R8
C2 C1
R16
R15 R18
1
OUTPUT
INPUT
3
2
IC708: LM61CIZ
Temperature sensor
POINT B-2 / +3.3D, B-3 / Q7002 (C)
B-2
B-3
B-2
B-3
Power cable ON
Power cable OFF
+3.3D
Q7002 (C)
+3.3D
Q7002 (C)
Power cable ON
IC707: NJM2388F63
Low dropout voltage regulator with ON/OFF control
ON/OFF
control
Over Voltage
Protection
Bandgap
Reference
VIN 1
4
3
Cont
GND
V
OUT
Over Current
Protection
Thermal
Protection
2
IC706: NJM2388F05
Low dropout voltage regulator with ON/OFF control
ON/OFF
control
Over Voltage
Protection
Bandgap
Reference
VIN
Cont
GND
V
OUT
Over Current
Protection
Thermal
Protection
OPERATION (2)
to DSP_CB82
Page 92 G9
to MAIN_W506
Page 95 I6
to VIDEO (1)_CB301
Page 97 B2
to OPERATION (1)_CB604
To POWER TRANSFORMER
Page 93 J4
to DSP_CB81
Page 92 J9
to VIDEO (3)_W3401
Page 98 G9
W501
W502
W503
W506
CB502
W505A W505B
W504A W504B
IC502
IC501
IC503
CB501
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
95
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
MAIN 1/2
AC48.2
AC64.9
0.3
-43.4
-43.1
3.1
2.5
43.2
42.5
2.4
-43.1
0
-42.3
-42.3
2.4
2.8
43.2
43.2
-42.9
-42.9
-43.5
-43.4
0.3
0
3.3
-12.1 0
0
-12.1
0
0
-12.1 0
0
-12.1 0
0
-12.1 0
0
-42.3
-43.6
43.8
0
0
0
0
43.2
0
0
0
0
1.6
0
0
0
0
0
0
-42.3
-43.6
43.8
0
0
0
0
43.2
0
0
0
0
0.7
0
0
3.3
-12.1
3.3
3.3
-12.1
3.3
3.3
-12.1
0
0
43.8
0
0
43.6
43.7
0
0
0
43.6
0
0
0
0
43.6
0
0
43.6
0
0
43.6
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
03.3
0
11.8
-12.2
-12.2
0
0
11.6
11.7
0
3.3
0
11.6
-12.2 -12.2
0
0
3.3
-30.8
-31.4
-10.7
0
11.6
-12.2
11.8
-12.4 11.6
0
-12.4
11.6
0
-37.0
-31.4
0
11.8
11.6
-12.2
11.6
11.6
0
-43.6
11.7
11.6
-12.1
-12.1
-12.1
11.7
0
0
0
0
43.8
0
-43.0
-43.0
0
SURROUND L
SURROUND L
CENTER
CENTER
FRONT L
FRONT L
IC502: STK433-130-E
2-channel AF power amplifier, stand-by circuit built-in
SUB 971364510
2
1
12
11 +
–
+
–14
15
8
3
Pre Driver
CH1
Pre Driver
CH2
Bias Circuit
IC501: STK433-330-E
3-channel AF power amplifier, stand-by circuit built-in
SUB
Pre
Driver
CH1
+
–
Pre
Driver
CH2
MONO IC
Bias Circuit
Pre
Driver
CH3
9 5 4 6 7 10 13 14151617 19 18
3
8
11
12
1
2
+
–
+
–
to MAIN 2/2
to MAIN 2/2
to MAIN 2/2
to MAIN 2/2
to MAIN 2/2
to MAIN 2/2
to MAIN 2/2
to MAIN 2/2
CENTER
FRONT A
FRONT B
SPEAKERS
to OPERATION (3)_CB601
Page 93 A5
to OPERATION (2)_CB701
Page 94 B7
to VIDEO (4)_CB351
Page 98 H2
to VIDEO (4)_CB352
Page 98 H4
To POWER TRANSFORMER
IC407
IC407
IC402
IC401
IC406
IC406
IC405
IC405
IC404
IC404
IC403
IC403
W401
CB402
CB401
CB403
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
96
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
MAIN 2/2
C-2
-12.0
0
0
-12.0
0
0
3.3
3.3
-12.2
7.2
7.9
7.9
-7.8
0
0
11.9
-7.1-12.1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
7.2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
-7.1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
11.9
9.8
9.9
5.5
5.0
11.9
9.3
4.7
0
0
2.0
2.1
4.7
0
4.7
0
0
2.2
-2.1
4.5
0
2.2
2.1
-12.0
0
0
-12.0
11.8
0
0
0
0
0
0
-12.0
11.8
0
0
0
0
0
0
-12.0
11.8
0
0
0
0
0
0
0
11.8
0
0
0
SURROUND L
CENTER
FRONT L
SUB
WOOFER
ANALOG IN
ANALOG L
FL
SL
C
SW
IC403-405, 407: NJM4565M
Dual operational amplifier
8
2, 6
3, 5
1, 7
4
V+
–INPUT
+INPUT
V–
OUTPUT
REFERENCE
VOLTAGE
CINFLOUTVREF
VREF
ANTIALIASING
FILTER
57kHz
BPF
(SCF)
SMOOTHING
FILTER
MPXIN
+3V
Vdda
Vssa
PLL
(57kHz)
CLOCK
RECOVERY
(1187.5Hz)
+3V
Vddd
RDS-ID/
READY
RST
Vssd
DATA
DECODER
XOUTXIN
TEST
TEST
CLK(4.332MHz)
OSC
RAM
(128bits)
RDDA
RDCL
RDS-ID
DETECT
MODE
IC402: LC72725KM-UY-TLM-E
RDS signal demodulation IC
CIN TEST
Vssd
MODE
Vddd
XIN
XOUT
RST
RDCL
FLOUT
RDS-ID/READY
RDDA
VREF
MPXIN
Vdda
Vssa
2
3
4
5
6
7
89
10
11
12
13
14
15
16
1
IC401: R2A15218FP
8-channel electronic volume with 11 input selector and tone control
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
80
81
79
MUTE
AVEE
ADCL
ADCR
AGND
INR1
INR2
INR3
INR4
INR5
INR6
INR7
INR8
INR9
INL1
INL2
INL3
INL4
INL5
INL6
INL7
INL8
INL9
N.C.
N.C.
N.C.
N.C.
INRB/RECR2
INLB/RECL2
INR10/RECR4
INR11/RECR5
INL10/RECL4
INL11/RECL5
RECR3
RECL3
FLIN1
FRIN1
CIN1
SWIN1
SLIN1
SRIN1
SBLIN1
SBRIN1
N.C.
N.C.
N.C.
INRA/RECR1
INLA/RECL1
N.C.
N.C.
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
1
2
AVCC
N.C.
N.C.
N.C.
N.C.
FRC
FROUT
FLOUT
FLC
CC
COUT
SWOUT
SROUT
SLOUT
SBR OUT
SBL OUT
SBLC
SBRC
SWC
SRC
SLC
AGND
AGND
AGND
AGND
A GND
AGND
TREL
BASSL2
BASSL1
82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
50
A VEE
0/-6/-12/-18dB
ATT
SUB
0~-95dB,
-∞
(0.5dBstep)
SUB
SUB
MAIN
MAIN
MAIN
CLOCK
DATA
DGND
SUBR
SUBL
SBLCIN
SBRCIN
FRIN2
FLIN2
SRIN2
SLIN2
SWIN2
SBRIN2
SBLIN2
N.C.
TRER
BASSR1
BASSR2
N.C.
CIN2
49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31
MCU
I/F
A VCC
REC
Tone
Tone
Bass/Treble
-14~+14dB
(2dBstep) +42~0dB
(0.5dBstep)
+42~0dB
(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
+42~-95dB
-∞(0.5dBstep)
Bass/Treble
-14~+14dB
(2dBstep)
0~-95dB,
-∞
(0.5dBstep) Bypass
Tone+MIX
Tone+MIX Tone
Tone
Bypass
CMIX
SWMIX
POINT C-2 XL401 (Pin 13 of IC402)
RDS
to MAIN 1/2 to MAIN 1/2
(G, E, F models)
MULTI CH INPUT
AUDIO
FRONT (6CH)
SB (8CH)
SURROUND
SUBWOOFER
CENTER
INPUT & ZONE2
8ch SELECTOR/
MASTER VOLUME
to DSP_CB31
Page 87 D5
to OPERATION (8)_CB610
Page 93 N2
to DSP_CB84
To TUNER
(U, C, R, T, K, A, G, E, F, L, J models)
Page 92 B5
CB301
IC308
IC309
IC301
W3001
W3002
IC304
IC307
IC307
IC307
IC307
IC307
IC307
IC311
IC307
IC307
CB304
W3003
CB302
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
97
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
VIDEO 1/2
C-1
5.0
-5.0
0
0
8.5
-8.7
00
-5.0
0
0
0
0
0
0
0
0
0
0
0
0
5.0
5.00
2.5
2.6
0
5.0
2.5
5.0
5.0
0
5.0
2.5
0
5.0
5.0
0
5.0
0
2.0
2.0
5.0
0
0
1.7
1.7
0.5
1.0
5.0
5.0
0
5.0
0
0
0
0
0
00
0
0
0
0
0
-5.0
0
0
4.9
0
0
04.9 0
0
0
4.9
0
0
04.9 0
0
0
0
4.9
0
0
4.9 0
0
0
5.0
5.0
0
-5.0
-5.0
-4.9
0
0
-5.0
5.0
-5.0
0
0
8.5
-8.7
00
-5.0
0
0
0
0
0
0
0
0
0
0
0
0
5.0
5.00
2.5
2.6
0
5.0
2.5
5.0
5.0
0
5.0
2.5
0
5.0
5.0
0
5.0
0
2.0
2.0
5.0
0
0
1.7
1.7
0.5
1.0
5.0
5.0
0
5.0
0
0
0
0
0
00
0
0
0
0
0
-5.0
0
0
4.9
0
0
04.9 0
0
0
4.9
0
0
04.9 0
0
0
0
4.9
0
0
4.9 0
0
0
5.0
5.0
0
-5.0
-5.0
-4.9
0
0
-5.0
IC308: KIA7805API
Voltage regulator
R1
R2
R3
R4 R5 R6
R7
R8
Z1
Q12
Q13
Q18
Q17
Q14
Q19
Q10
Q8
Q16
INPUT
OUTPUT
COMMON (GND)
Q15
Q11-1
Q11
Q2
Q3
Q4
Q5 Q9
Q7
Q1 Q6
R12
R19
R10
R9
R15 R14
R16
R21
R20
R22 R23R17
R13
R11 R18
C1
1
3
2
Q1
D1
6.2V
D3
6.2V
Q2
D2
6.2V
Q6
Q7
Q9
Q13
Q15 Q20 Q21
Q11
Q10
Q16
Q12
Q17
Q18
Q19
R6
7K
R1
750
VIN
VOUT
R2
1K
R3
6K
R4
20K
R8
20K
R9
20K
R13
5K R16
0.05
R21
150
R5
15K
R10
3K R11
10K
R18
4K R19
5K
R15
2K
R17
5.4K
R12
600
R14
15K
R20
20K
R7
1.4K
Q8
Q4 Q5 Q14
20pF 10pF
Q3
IC309: KIA79M05PI-U
Voltage regulator
-5V
IC307: LA73050-TLM-E
6-channel 75-ohm video driver
Serial 8-bits
latch
command
decoder
Horizontal
character
size
register
Horizontal
size
counter
+
parallel
converter
IC304: LC74782JM-8A16-TLMC
The on-screen display controller LSI
RST
CTRL3
CTRL2
SEPIN
SYNIN
CVIN
CVOUT
SEPOUT
SEPC
VDD1
VDD1
NC
1
2
3
4
24
23
22
21
XtalIN
XtalOUT
CTAL1
BLANK
OSCIN
CHARA
SCLK
SIN
VDD2
CS
OSCOUT
VSS1
5
6
7
8
9
10
11
12
20
19
18
17
16
15
14
13
Ver t ic a l
character
size
register
Ver t ic a l
size
counter
Horizontal
display
position
register
Horizontal
character
size
register
Horizontal
dot counter
31 inking
3nd inversion
control
register
31 inking
3nd inversion
control
register
31 inking
3nd inversion
control
register
Character
control
counter
Timing generator
Line
control
counter
31 inking
3nd inversion
control
register
Ver t ic a l
display
position
register
Ver t ic a l
dot counter
Horizontal
character
size
register
Horizontal
character
size
register
Horizontal
character
size
register
Display
control
register
RAM write
address
counter
Display RAM
Decoder
Decoder
Font RAM
Shift
register
Character output
control
Background control
Video output control
Synchronization
signal generator
131552421
22
20
19
18
17
3
7
6
12
24
23
10
11
9
1
8
IC301: MM74HC4051SJX
8-channel analog multiplexer
16
11
10
9
7
VEE
8
GND
C
B
A
VCC
4
Y7
1
Y4Y5Y6
12
Y3
2515
Y2
CHANNEL IN/OUT
14
Y1
13
Y0
COMMON
OUT/IN
6INH
Logic
Level
Conversion
Binary
to
1 of 8
Decoder
with
INHIBIT
TG
TG
TG
TG
TG
TG
TG
TG
3
IC311: TC74HC4052AF
Analog multiplexer/demultiplexer
16
VCC
6
INH
10
A
9
B
8
GND
7
VEE
12
0X
14
1X
15
2X
11
3X
1
0Y
5
1Y
2
2Y
4
3Y
LEVEL
CONVERTER
BINARY TO 1-OF-4
DECODER WITH INHIBIT
SW
SW
SW
SW
SW
SW
SW
SW
13 X-COM
3Y-COM
INHIBIT
0
0
0
0
1
B
0
0
1
1
X
A
0
1
0
1
X
0x, 0y
1x, 1y
2x, 2y
3x, 3y
NONE
POINT C-1 XL301 (Pin 3 of IC304)
VIDEO (1)
VIDEO
DTV/CBL
OSD
BYPASS
SWITCH
OUTPUT AMP
to DSP_CB21
Page 86 M3
to VIDEO (2)_CB325
Page 98 C1
to DSP_CB32
Page 87 D3
to OPERATION (2)_W701
Page 94 B8
to OPERATION (8)_CB609
Page 93 M2
CB325
CB326
IC322
IC325
IC323
IC324
CB321CB322CB323CB324
CB351
CB352
W356A
CB358 CB359
W356B
CB356
CB357
CB344
CB343CB342
CB346 CB347
CB345
W3401
A
1
2
3
4
5
6
7
8
9
10
BCDEFGH I JKLMN
RX-V463/HTR-6140/DSP-AX463
98
★All voltages are measured with a 10MΩ/V DC electronic voltmeter.
★Components having special characteristics are marked s and must be replaced
with parts having specifications equal to those originally installed.
★Schematic diagram is subject to change without notice.
VIDEO 2/2
SURROUND L
0
12.1
12.1
-11.8
12.1
0.9 5.0
0
0
0.9
0.9
0
0.6
0.6
0
0
0
0
-5.0
0
0.9
05.0
0
0
4.9
0
0.6 0.6
0.6
4.9
4.9
2.9
2.9
0.6
0
5.0
0
5.0
0
0
-4.9
-4.9
0
-4.9
2.9
0
0.3
5.0
0
0
0
0
0
0.6
0.6
0
0
0
0
0
-4.9
0.9
11.4
3.0
3.0
3.0
1.3
11.4
4.2
11.4
8.5
4.2
8.5
4.2
4.2
4.2 4.2
00
AC10.7
IC325: NJM2581M
Video amplifier
13 VOUT1
11 VOUT2
9VOUT3
8GND
10 V+3
14 V+1
12 V+2
2
NEE1
4
VEE2
6
VEE3
7
PowerSave
5
VIN3
1
VIN1
3
VIN2
75
Driver
6dB
AMP
BIAS
75
Driver
6dB
AMP
BIAS
75
Driver
6dB
AMP
BIAS
REF
IC322-324: TC74HC4052AF
Analog multiplexer/demultiplexer
16
VCC
6
INH
10
A
9
B
8
GND
7
VEE
12
0X
14
1X
15
2X
11
3X
1
0Y
5
1Y
2
2Y
4
3Y
LEVEL
CONVERTER
BINARY TO 1-OF-4
DECODER WITH INHIBIT
SW
SW
SW
SW
SW
SW
SW
SW
13 X-COM
3Y-COM
INHIBIT
0
0
0
0
1
B
0
0
1
1
X
A
0
1
0
1
X
0x, 0y
1x, 1y
2x, 2y
3x, 3y
NONE
VIDEO (2) VIDEO (3)
VIDEO (5)
VIDEO (4)
(J model)
(J model)
(J model)
R, L models
VOLTAGE
SELECTOR
VOLTAGE SELECTOR
230-240V
220V
110V
120V
1-2/5-6
2-3/6-7
3-4/7-8
4-5/8-1
SPEAKERS
SURROUND
COMPONENT VIDEOD4 VIDEO
OUTPUT AMP
INPUT
SELECTOR
L2 L3
SELECTOR
L1 SELECTOR
to DSP_CB22
Page 86 M5
to VIDEO (1)_CB304
Page 97 K5
to MAIN_W502
Page 95 I5
to MAIN_W503
Page 95 I5
To POWER TRANSFORMER
To POWER TRANSFORMER
AC IN
To POWER TRANSFORMER
to OPERATION (2)_CB700
Page 94 B5
99
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
■REPLACEMENT PARTS LIST
ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS:
C.A.EL.CHP : CHIP ALUMI.ELECTROLYTIC CAP
C.CE : CERAMIC CAP
C.CE.ARRAY : CERAMIC CAP ARRAY
C.CE.CHP : CHIP CERAMIC CAP
C.CE.ML : MULTILAYER CERAMIC CAP
C.CE.M.CHP : CHIP MULTILAYER CERAMIC CAP
C.CE.SAFTY : RECOGNIZED CERAMIC CAP
C.CE.TUBLR : CERAMIC TUBULAR CAP
C.CE.SMI : SEMI CONDUCTIVE CERAMIC CAP
C.EL : ELECTROLYTIC CAP
C.MICA : MICA CAP
C.ML.FLM : MULTILAYER FILM CAP
C.MP : METALLIZED PAPER CAP
C.MYLAR : MYLAR FILM CAP
C.MYLAR.ML : MULTILAYER MYLAR FILM CAP
C.PAPER : PAPER CAPACITOR
C.PLS : POLYSTYRENE FILM CAP
C.POL : POLYESTER FILM CAP
C.POLY : POLYETHYLENE FILM CAP
C.PP : POLYPROPYLENE FILM CAP
C.TNTL : TANTALUM CAP
C.TNTL.CHP : CHIP TANTALUM CAP
C.TRIM : TRIMMER CAP
CN : CONNECTOR
CN.BS.PIN : CONNECTOR,BASE PIN
CN.CANNON : CONNECTOR,CANNON
CN.DIN : CONNECTOR,DIN
CN.FLAT : CONNECTOR,FLAT CABLE
CN.POST : CONNECTOR,BASE POST
COIL.MX.AM : COIL,AM MIX
COIL.AT.FM : COIL,FM ANTENNA
COIL.DT.FM : COIL,FM DETECT
COIL.MX.FM : COIL,FM MIX
COIL,OUTPT : OUTPUT COIL
DIOD.ARRAY : DIODE ARRAY
DIODE.BRG : DIODE BRIDGE
DIODE.CHP : CHIP DIODE
DIODE.VAR : VARACTOR DIODE
DIOD.Z.CHP : CHIP ZENER DIODE
DIODE.ZENR : ZENER DIODE
DSCR.CE : CERAMIC DISCRIMINATOR
FER.BEAD : FERRITE BEADS
FER.CORE : FERRITE CORE
FET.CHP : CHIP FET
FL.DSPLY : FLUORESCENT DISPLAY
FLTR.CE : CERAMIC FILTER
FLTR.COMB : COMB FILTER MODULE
FLTR.LC.RF : LC FILTER,EMI
GND.MTL : GROUND PLATE
GND.TERM : GROUND TERMINAL
HOLDER.FUS : FUSE HOLDER
IC.PRTCT : IC PROTECTOR
JUMPER.CN : JUMPER CONNECTOR
JUMPER.TST : JUMPER,TEST POINT
L.DTCT : LIGHT DETECTING MODULE
L.EMIT : LIGHT EMITTING MODULE
LED.DSPLY : LED DISPLAY
LED.INFRD : LED,INFRARED
MODUL.RF : MODULATOR,RF
PHOT.CPL : PHOTO COUPLER
PHOT.INTR : PHOTO INTERRUPTER
PHOT.RFLCT : PHOTO REFLECTOR
PIN.TEST : PIN,TEST POINT
PLST.RIVET : PLASTIC RIVET
R.ARRAY : RESISTOR ARRAY
R.CAR. : CARBON RESISTOR
R.CAR.CHP : CHIP RESISTOR
R.CAR.FP : FLAME PROOF CARBON RESISTOR
R.FUS : FUSABLE RESISTOR
R.MTL.CHP : CHIP METAL FILM RESISTOR
R.MTL.FLM : METAL FILM RESISTOR
R.MTL.OXD : METAL OXIDE FILM RESISTOR
R.MTL.PLAT : METAL PLATE RESISTOR
RSNR.CE : CERAMIC RESONATOR
RSNR.CRYS : CRYSTAL RESONATOR
R.TW.CEM : TWIN CEMENT FIXED RESISTOR
R.CEMENT : CEMENT RESISTOR
SCR.BND.HD : BIND HEAD B-TIGHT SCREW
SCR.BW.HD : BW HEAD TAPPING SCREW
SCR.CUP : CUP TIGHT SCREW
SCR.TERM : SCREW TERMINAL
SCR.TR : SCREW,TRANSISTOR
SUPRT.PCB : SUPPORT,P.C.B.
SURG.PRTCT : SURGE PROTECTOR
SW.TACT : TACT SWITCH
SW.LEAF : LEAF SWITCH
SW.LEVER : LEVER SWITCH
SW.MICRO : MICRO SWITCH
SW.PUSH : PUSH SWITCH
SW.RT.ENC : ROTARY ENCODER
SW.RT.MTR : ROTARY SWITCH WITH MOTOR
SW.RT : ROTARY SWITCH
SW.SLIDE : SLIDE SWITCH
TERM.SP : SPEAKER TERMINAL
TERM.WRAP : WRAPPING TERMINAL
THRMST.CHP : CHIP THERMISTOR
TR.CHP : CHIP TRANSISTOR
TR.DGT : DIGITAL TRANSISTOR
TR.DGT.CHP : CHIP DIGITAL TRANSISTOR
TRANS : TRANSFORMER
TRANS.PULS : PULSE TRANSFORMER
TRANS.PWR : POWER TRANSFORMER ASS’Y
TUNER.AM : TUNER PACK,AM
TUNER.FM : TUNER PACK,FM
TUNER.PK : FRONT-ENDTUNER PACK
VR : ROTARY POTENTIOMETER
VR.MTR : POTENTIOMETER WITH MOTOR
VR.SW : POTENTIOMETER WITH ROTARY SW
VR.SLIDE : SLIDE POTENTIOMETER
VR.TRIM : TRIMMER POTENTIOMETER
• ELECTRICAL COMPONENT PARTS
WARNING
●Components having special characteristics are marked s and must be replaced with parts having specifications
equal to those originally installed.
●The chip resistor is not supplied as a replacement part.
* When a chip resistor is necessary, use the following part.
AAX60720: CHIP RESISTOR SAMPLE BOOK
●s印のある部分は、安全確保部品を示しています。部品の交換が必要な場合、パーツリストに記載されている部品を使用してください。
● 部品価格ランクは、予告なく変更することがあります。
● チップ抵抗はサービス部品として供給できません。
※ チップ抵抗が必要な場合は、下記の部品をご利用ください。
AAX60720: CHIP RESISTOR SAMPLE BOOK
100
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. DSP
✻ New Parts ＊ 新規部品
* WN276900 P.C.B. DSP J ＰＣＢ ＤＳＰ
* WN277000 P.C.B. DSP UC ＰＣＢ ＤＳＰ
* WN277100 P.C.B. DSP R ＰＣＢ ＤＳＰ
* WN277200 P.C.B. DSP TA ＰＣＢ ＤＳＰ
* WN277300 P.C.B. DSP K ＰＣＢ ＤＳＰ
* WN277400 P.C.B. DSP B ＰＣＢ ＤＳＰ
* WN277500 P.C.B. DSP GEF ＰＣＢ ＤＳＰ
* WN277600 P.C.B. DSP L ＰＣＢ ＤＳＰ
* CB11-13 WM462600 CN.HDMI 19P SE コネクタ ＨＤＭＩ
CB21 VM859500 CN.BS.PIN 11P ＦＦＣコネクター 01
CB22 VM923600 CN.BS.PIN 13P ＦＦＣコネクター 01
CB31 VQ045500 CN.BS.PIN 26P ＦＦＣコネクター 02
CB32 VB390500 CN.BS.PIN 9P コネクタベースポスト 03
CB34 VQ044400 CN.BS.PIN 9P ＦＦＣコネクター 01
* CB35 WJ458700 CN.XM 4P, CAM-D96 UC ＸＭコネクタ
CB71 VB858500 CN.BS.PIN 6P RTKABGEFL ベースピン 01
CB71 VB858500 CN.BS.PIN 6P ベースピン 01
CB81 VB390800 CN.BS.PIN 12P コネクタベースポスト 01
CB82 VB390200 CN.BS.PIN 6P コネクタベースポスト 01
CB83 VP127700 CN 24P コネクター 01
CB84 VQ046000 CN.BS.PIN 31P ＦＦＣコネクター 03
C101-110 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C111 WD758300 C.CE.CHP 10uF 10V チップセラコン 01
C112 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C113 US060900 C.CE.CHP 9pF 50V D チップセラコン 01
C114 US060800 C.CE.CHP 8pF 50V B チップセラコン 01
C115 US034820 C.CE.CHP 0.082uF 16V K チップセラコン 01
C116 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C117-136 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C141 UR837100 C.EL 10uF 16V ケミコン 01
C142-143 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C144 UR837100 C.EL 10uF 16V ケミコン 01
C147 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C151 US063820 C.CE.CHP 8200pF 50V B チップセラコン 01
C152 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
* C153 WJ606100 C.MYLAR 0.082uF 50V マイラーコン
C154 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C156-157 WD758300 C.CE.CHP 10uF 10V チップセラコン 01
C158 UR037100 C.EL 10uF 16V ケミコン 01
C159 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C160 UR037100 C.EL 10uF 16V ケミコン 01
C161 WD758300 C.CE.CHP 10uF 10V チップセラコン 01
C162 UR037100 C.EL 10uF 16V ケミコン 01
C163 WD758300 C.CE.CHP 10uF 10V チップセラコン 01
C164 UR037100 C.EL 10uF 16V ケミコン 01
C165 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C167 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C169 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C171-174 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C175-176 US035100 C.CE.CHP 0.1uF 16V B チップセラコン 01
C201-212 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C227-228 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C229 UR237220 C.EL 22uF 16V ケミコン
C301 UR038100 C.EL 100uF 16V ケミコン 01
C302 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
101
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. DSP
✻ New Parts ＊ 新規部品
C303-314 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C315-316 UR037100 C.EL 10uF 16V ケミコン 01
C319 UR037100 C.EL 10uF 16V ケミコン 01
C320 US035100 C.CE.CHP 0.1uF 16V B チップセラコン 01
C321 UR067100 C.EL 10uF 50V ケミコン 01
C322-323 US126100 C.CE.CHP 1uF 10V チップセラコン 01
C324 UU238100 C.EL 100uF 16V ケミコン 01
C325 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C326 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C328-329 US061200 C.CE.CHP 20pF 50V B チップセラコン 01
C330-331 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C332 US061220 C.CE.CHP 22pF 50V B チップセラコン 01
C334 US035100 C.CE.CHP 0.1uF 16V B チップセラコン 01
C335-338 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C339 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C340-341 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C342 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C343 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C344 US135100 C.CE.CHP 0.1uF 16V J チップセラコン 01
C345-346 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C350-352 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C353 US063100 C.CE.CHP 1000pF 50V B UC チップセラコン 01
C354-357 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C359 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C360-365 US062220 C.CE.CHP 220pF 50V B UC チップセラコン 01
C367 US062220 C.CE.CHP 220pF 50V B UC チップセラコン 01
C368 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C369-375 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C376 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C377 US035100 C.CE.CHP 0.1uF 16V B チップセラコン 01
C378 UR037100 C.EL 10uF 16V ケミコン 01
C379 UR237470 C.EL 47uF 16V ケミコン 01
* C380 WJ606200 C.MYLAR 0.1uF 50V マイラーコン
C381 WJ605400 C.MYLAR 0.022uF 50V J マイラーコン 01
C382 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C384 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C385 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C386 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C387 US126100 C.CE.CHP 1uF 10V チップセラコン 01
C388 UR037100 C.EL 10uF 16V ケミコン
C389-391 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C401-408 UB446100 C.CE.CHP 1uF 16V チップセラコン 01
C409-416 US635100 C.CE.CHP 0.1uF 16V チップセラコン 01
C417-418 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C419 US635100 C.CE.CHP 0.1uF 16V チップセラコン 01
C420-422 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C423-424 US635100 C.CE.CHP 0.1uF 16V チップセラコン 01
C425 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C426 US635100 C.CE.CHP 0.1uF 16V チップセラコン 01
C427-430 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C431-432 US061220 C.CE.CHP 22pF 50V B チップセラコン 01
C433 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C435-436 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C437 WH771300 C.EL 100uF 10V ケミコン 01
C438 UB446100 C.CE.CHP 1uF 16V チップセラコン 01
102
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. DSP
✻ New Parts ＊ 新規部品
C439 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C440 UB446100 C.CE.CHP 1uF 16V チップセラコン 01
C441 WH771300 C.EL 100uF 10V ケミコン 01
C443 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C501-502 UB446100 C.CE.CHP 1uF 16V チップセラコン 01
C503 US635100 C.CE.CHP 0.1uF 16V チップセラコン 01
C504-505 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C506-507 US635100 C.CE.CHP 0.1uF 16V チップセラコン 01
C508-509 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C510-517 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C519-520 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C521 US035100 C.CE.CHP 0.1uF 16V B チップセラコン 01
C522 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C523 US061180 C.CE.CHP 18pF 50V B チップセラコン 01
C524-525 US035100 C.CE.CHP 0.1uF 16V B チップセラコン 01
C526-527 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C529 US035100 C.CE.CHP 0.1uF 16V B チップセラコン 01
C530 UR038100 C.EL 100uF 16V ケミコン 01
C601-618 US635100 C.CE.CHP 0.1uF 16V チップセラコン 01
C619 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C620 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C621 UR837100 C.EL 10uF 16V ケミコン 01
C701-713 US135100 C.CE.CHP 0.1uF 16V RTKABGEFL チップセラコン 01
C714 WD758300 C.CE.CHP 10uF 10V RTKABGEFL チップセラコン 01
C715 US135100 C.CE.CHP 0.1uF 16V RTKABGEFL チップセラコン 01
C716 WD758300 C.CE.CHP 10uF 10V RTKABGEFL チップセラコン 01
C717-720 US135100 C.CE.CHP 0.1uF 16V RTKABGEFL チップセラコン 01
C721 US062220 C.CE.CHP 220pF 50V B RTKABGEFL チップセラコン 01
C722-723 US035100 C.CE.CHP 0.1uF 16V B RTKABGEFL チップセラコン 01
C724-725 US064100 C.CE.CHP 0.01uF 50V B RTKABGEFL チップセラコン 01
C726 US061120 C.CE.CHP 12pF 50V B RTKABGEFL チップセラコン 01
C727 US061200 C.CE.CHP 20pF 50V B RTKABGEFL チップセラコン 01
C729 UR838100 C.EL 100uF 16V RTKABGEFL ケミコン 01
C730-731 US064100 C.CE.CHP 0.01uF 50V B RTKABGEFL チップセラコン 01
C801-852 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C854-862 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C863 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C864 UR038470 C.EL 470uF 16V ケミコン
C865 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C866 UR238100 C.EL 100uF 16V ケミコン
C867 UB446100 C.CE.CHP 1uF 16V チップセラコン 01
C868-870 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C871 UR038100 C.EL 100uF 16V ケミコン 01
C880 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C881 US062100 C.CE.CHP 100pF 50V B チップセラコン 01
C882-885 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C886 US062470 C.CE.CHP 470pF 50V B チップセラコン 01
C1301 US135100 C.CE.CHP 0.1uF 16V UC チップセラコン 01
C1302-1303 US035100 C.CE.CHP 0.1uF 16V B UC チップセラコン 01
C1304 US135100 C.CE.CHP 0.1uF 16V UC チップセラコン 01
C1305 US063100 C.CE.CHP 1000pF 50V B UC チップセラコン 01
C1306-1307 US061100 C.CE.CHP 10pF 50V B UC チップセラコン 01
C1308-1309 UB446100 C.CE.CHP 1uF 16V UC チップセラコン 01
C1310-1317 US135100 C.CE.CHP 0.1uF 16V UC チップセラコン 01
C1321 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
103
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. DSP
✻ New Parts ＊ 新規部品
C1322 US035100 C.CE.CHP 0.1uF 16V B UC チップセラコン 01
C1801-1827 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
* D109-111 WJ586300 VARISTOR SDV1608H100C050YPT チップバリスタ
D112 VT332900 DIODE 1SS355 ダイオード 01
D113-116 WH641900 ESD PESD0603-140 ポリマーＥＳＤ 01
* D117-118 WJ586300 VARISTOR SDV1608H100C050YPT チップバリスタ
D119-130 WH641900 ESD PESD0603-140 ポリマーＥＳＤ 01
* D131-132 WJ586300 VARISTOR SDV1608H100C050YPT チップバリスタ
* D135-136 WJ586300 VARISTOR SDV1608H100C050YPT チップバリスタ
D201 VT332900 DIODE 1SS355 ダイオード 01
D305-306 VT332900 DIODE 1SS355 ダイオード 01
D401 VS597600 DIODE.CHP RB160L-40 TE25 チップダイオード 01
D503 VT332900 DIODE 1SS355 ダイオード 01
D801-802 VT332900 DIODE 1SS355 ダイオード 01
D803-806 VU171400 DIODE.ZENR UDZS3.3BTE-17 3.3V ツェナーダイオード
* D1301-1303 WJ586300 VARISTOR SDV1608H100C050YPT UC チップバリスタ
IC13 X7741A00 IC NJM2867F3-05(TE1) 電源ＩＣ 02
IC22 X7907A00 IC NJM2845DL1-18 電源ＩＣ 04
IC31 X7746A00 IC LC89057W-VF4AD-E ＩＣ 07
IC33-34 X6123A00 IC SN74LV157APWR ロジックＩＣ 02
* IC36 X8192A00 IC F2621E-01-TR UC ＩＣ
IC38 X7355A00 IC PCM1680DBQR ＩＣ 07
IC39 X7357A00 IC PCM1803DBR ＩＣ 04
IC42 X8653A00 IC BR25L320F-W EEPROM メモリＩＣ 04
IC43-44 XV894A00 IC TC74VHC153FT MULTI ロジックＩＣ 03
* IC51 X9626A00 IC.MEMORY K4S641632K-UC60000 メモリＩＣ ６４Ｍ
* IC52 X9636A00 IC.MEMORY EN29LV160AB-70TCP written メモリＩＣ
IC53-55 XZ287A00 IC SN74LVC245APWR ロジックＩＣ 02
* IC56 X9439A00 IC SN74AHCT574PWR ロジックＩＣ
IC57-59 X5135A00 IC SN74LV574APWR 8D-F ロジックＩＣ 02
IC61 X8813A00 IC MB87L8760 ＩＣ デジタル 08
IC62 X2709A00 IC SN74AHCT245PWR ロジックＩＣ 02
IC72 XZ287A00 IC SN74LVC245APWR RTKABGEFL ロジックＩＣ 02
* IC73 X8096A00 IC R5523N001A-TR-F RTKABGEFL 電源ＩＣ
IC81 X6905A00 IC ADC084S021CIMM ＡＤコンバーター 04
IC82-83 X5875A00 IC SN74LV4051APWR ロジックＩＣ 01
IC151 XZ287A00 IC SN74LVC245APWR ロジックＩＣ 02
IC152 X5405A00 IC SN74LVC32APWR OR ロジックＩＣ 01
* IC153 X5404A00 IC SN74LVC08APWR AND ロジックＩＣ
IC154 X6611A00 IC SN74LV123APWR ロジックＩＣ 01
IC155 X6688A00 IC SN74LV14APWR INV ロジックＩＣ 01
JK31 VV269500 CN 8P DIN UC 複合コネクタ 03
PJ31 V8795700 JACK.PIN 1P ピンジャック 01
PN81-82 V9637500 PIN L=70 #18 スタイルピン
Q101-104 VQ986700 TR 2SC4081 T106 トランジスタ 01
Q301 VV655200 TR.DGT DTA143EKA UC デジタルトランジスタ 01
Q401 WE736300 FET RTQ040P02 ＦＥＴ 01
Q801 WE736300 FET RTQ040P02 ＦＥＴ 01
* R217-218 WJ682800 R.MTL.FLM 2.2Ω 1W 金属被膜抵抗
R328 HV753100 R.CAR.FP 1Ω 1/4W 不燃化カーボン抵抗 01
T101 WA789600 SCR.TERM M3 スクリューターミナル
T301 WA789600 SCR.TERM M3 スクリューターミナル
U31 WH536900 CN.PHOTO.T 1P GP1FAV51TK0F J 光ファイバー送信器 04
U32-33 WH169900 CN.PHOTO.R 1P GP1FAV51RK0F 光ファイバー受信器 04
XL31 WJ625200 RSNR.CRYS 24.576MHz 水晶振動子 02
104
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. DSP and P.C.B. OPERATION
✻ New Parts ＊ 新規部品
XL101 VZ772700 RSNR.CRYS 28.63636MHz 水晶振動子 03
XL311 WH455300 RSNR.CRYS 45.1584MHz UC 水晶振動子
XL401 WB551700 RSNR.CRYS 16.666MHz SMD-49 水晶振動子 03
XL701 VS294900 RSNR.CRYS 12MHz SMD-49 RTKABGEFL 水晶振動子 04
* WN278400 P.C.B. OPERATION J
ＰＣＢ ＯＰＥＲＡＴＩＯＮ
* WN278500 P.C.B. OPERATION UC
ＰＣＢ ＯＰＥＲＡＴＩＯＮ
* WN278600 P.C.B. OPERATION RTKAGEFL
ＰＣＢ ＯＰＥＲＡＴＩＯＮ
* WN278700 P.C.B. OPERATION B
ＰＣＢ ＯＰＥＲＡＴＩＯＮ
CB601-602 VB858300 CN.BS.PIN 4P コネクタベースポスト 01
CB603 VP798200 CN.BS.PIN 24P ＦＦＣコネクター 01
CB607 WG668100 CN.USB USB 4P SE RTKABGEFL ＵＳＢコネクター 04
CB608 VB858400 CN.BS.PIN 5P ベースピン 01
CB609 VB858200 CN.BS.PIN 3P ベースピン 01
CB610 VB390300 CN.BS.PIN 7P ベースピン 01
CB700 VB858300 CN.BS.PIN 4P コネクタベースポスト 01
CB701 VB858600 CN.BS.PIN 7P ベースピン 01
CB702 LB919110 CN.BS.PIN 11P SE ベースツキポスト 01
CB703 VK024700 CN.BS.PIN 3P ワイヤートラップ 01
C6001 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C6002 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
C6003-6004 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C6005 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
C6006 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C6007 UM397100 C.EL 10uF 16V ケミコン 01
C6008 UM397220 C.EL 22uF 25V ケミコン 01
C6009-6010 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
C6011 US062100 C.CE.CHP 100pF 50V B チップセラコン 01
C6012 UM387470 C.EL 47uF 16V ケミコン 01
C6013 US061330 C.CE.CHP 33pF 50V B チップセラコン 01
C6014 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C6015 UM397100 C.EL 10uF 16V ケミコン 01
C6016-6017 UM397220 C.EL 22uF 25V ケミコン 01
C6018-6019 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C6020 UR068100 C.EL 100uF 50V ケミコン 01
C6021 UM388330 C.EL 330uF 6.3V ケミコン 01
C6022 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C6023 US061680 C.CE.CHP 68pF 50V B チップセラコン 01
C6024 US065100 C.CE.CHP 0.1uF 50V B チップセラコン 01
C6025-6026 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C6027 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C6028 UM397100 C.EL 10uF 16V ケミコン 01
C6029 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C6030-6031 US062100 C.CE.CHP 100pF 50V B チップセラコン 01
C6032 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C6033 US061100 C.CE.CHP 10pF 50V B チップセラコン 01
C6034 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C6035 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C6036 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C6037-6038 US044220 C.CE.CHP 0.022uF 25V B チップセラコン 01
C6039 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C6040-6041 US044220 C.CE.CHP 0.022uF 25V B チップセラコン 01
C6042-6043 US135100 C.CE.CHP 0.1uF 16V JUC チップセラコン 01
105
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. OPERATION
✻ New Parts ＊ 新規部品
C6044-6045 US063680 C.CE.CHP 6800pF 50V B JUC チップセラコン 01
C6047 US062100 C.CE.CHP 100pF 50V B RTKABGEFL チップセラコン 01
C6048-6049 US135100 C.CE.CHP 0.1uF 16V RTKABGEFL チップセラコン 01
C6050-6051 US062220 C.CE.CHP 220pF 50V B RTKABGEFL チップセラコン 01
C6060 US135100 C.CE.CHP 0.1uF 16V JUC チップセラコン 01
C6063 US062470 C.CE.CHP 470pF 50V B チップセラコン 01
C6064 US126100 C.CE.CHP 1uF 10V RTKABGEFL チップセラコン 01
C6080-6081 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C6082 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C7000 UR866100 C.EL 1uF 50V ケミコン 01
C7001 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C7002-7003 UR837470 C.EL 47uF 16V ケミコン 01
C7004 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C7005 UR866100 C.EL 1uF 50V ケミコン 01
C7006-7007 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C7008 UR866100 C.EL 1uF 50V ケミコン 01
C7009 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C7010 UR866100 C.EL 1uF 50V ケミコン 01
C7011 UR837470 C.EL 47uF 16V ケミコン 01
C7012-7014 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C7015-7016 UR866100 C.EL 1uF 50V ケミコン 01
C7017 UR837100 C.EL 10uF 16V ケミコン 01
C7018 UR837470 C.EL 47uF 16V ケミコン 01
C7019-7021 UR866100 C.EL 1uF 50V ケミコン 01
C7022 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C7023 UR73A100 C.EL 10000uF 16V ケミコン 03
C7024 UR749470 C.EL 4700uF 25V ケミコン 05
C7025 UR749220 C.EL 2200uF 25V ケミコン 03
C7026 UR039470 C.EL 4700uF 16V
UCRTKABGEFL
ケミコン 03
C7027 UR73A100 C.EL 10000uF 16V J ケミコン 03
C7027 WG602000 C.EL 15000uF 16V
UCRTKABGEFL
ケミコン 04
C7028 UR73A100 C.EL 10000uF 16V ケミコン 03
C7029 WG602000 C.EL 15000uF 16V ケミコン 04
C7030-7032 VE326000 C.MYLAR 0.1uF 50V マイラーコン 01
C7033 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C7034-7035 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
C7036 VE326000 C.MYLAR 0.1uF 50V マイラーコン 01
C7037 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
D6001-6002 VT332900 DIODE 1SS355 ダイオード 01
D6003 VU172500 DIODE.ZENR UDZS9.1B ツェナーダイオード 01
D6004 VT332900 DIODE 1SS355 ダイオード 01
D6005 VU171900 DIODE.ZENR UDZ5.1B 5.1V ツェナーダイオード 01
D6006 VT332900 DIODE 1SS355 ダイオード 01
D6007-6009 WJ249600 LED ORANGE ＬＥＤ 01
D6012 WJ249600 LED ORANGE ＬＥＤ 01
D6017-6018 VU171500 DIODE.ZENR UDZ 3.6BTE-17 3.6V ツェナーダイオード 01
D6020-6023 VT332900 DIODE 1SS355 JUC ダイオード 01
D6024-6027 VT332900 DIODE 1SS355 RTKABGEFL ダイオード 01
D7004 VS997800 DIODE 1T2 ダイオード 01
D7005-7006 VT332900 DIODE 1SS355 ダイオード 01
D7008 VS997800 DIODE 1T2 ダイオード 01
D7010 VT332900 DIODE 1SS355 ダイオード 01
D7012 V2376600 DIODE.SHOT RB500V-40 UC ショットキーダイオード 01
D7013 VU171900 DIODE.ZENR UDZ5.1B 5.1V ツェナーダイオード 01
sD7014-7015 WA653100 DIODE.BRG KBP103G 1A 200V ダイオ−ドブリツジ 02
106
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. OPERATION
✻ New Parts ＊ 新規部品
D7016-7017 VT332900 DIODE 1SS355 ダイオード 01
sD7018-7019 WJ286700 DIODE.BRG RS403M 4A 140V ダイオートブリッジ 03
IC601 X7378A00 IC NJM4565M(TE1) アンプＩＣ 01
IC603 X6386A00 IC M66003-0131FP ＩＣ 07
sIC700 X4419A00 IC NJM2396F33 3.3V 電源ＩＣ 03
sIC701 X4928A00 IC KIA7805API 5V 電源ＩＣ 02
sIC702 X4419A00 IC NJM2396F33 3.3V 電源ＩＣ 03
sIC703 X4928A00 IC KIA7805API 5V 電源ＩＣ 02
sIC704 X4153A00 IC KIA7812API 電源ＩＣ 02
sIC705 X4154A00 IC KIA7912PI 電源ＩＣ
sIC706 X6143A00 IC NJM2388F05 5.0V
UCRTKABGEFL
電源ＩＣ 04
*sIC707 X7976A00 IC NJM2388F63 電源ＩＣ
IC708 X0515A00 IC LM61CIZ THERMAL 電源ＩＣ 03
JK601 WJ117300 JACK.PHONE PHONES ヘッドホンジャック 02
JK602 V9408200 JACK.PHONE MSJ-064-05B GR ホーンジャック 03
JK603 WJ117400 JACK.MNI OPTIMIZER MIC JUC ミニジャック 02
PJ601 WJ117500 JACK.PIN 3P JUC ピンジャック 03
PJ602 WJ117500 JACK.PIN 3P RTKABGEFL ピンジャック 03
PN601 V9637500 PIN L=70 #18 スタイルピン
PN604 V9637500 PIN L=70 #18 スタイルピン
PN607-609 V9637500 PIN L=70 #18 スタイルピン
PN701 V9637500 PIN L=70 #18 スタイルピン
Q6001 VV556400 TR 2SC2412K Q,R,S トランジスタ 01
Q6002 WC434800 TR.DGT KRA102S-RTK/P デジタルトランジスタ 01
Q6003 VV556500 TR 2SA1037K Q,R,S トランジスタ 01
Q6004 VV556400 TR 2SC2412K Q,R,S トランジスタ 01
Q6005 WC435000 TR.DGT KRC102S-RTK デジタルトランジスタ 01
Q6006-6008 VV556400 TR 2SC2412K Q,R,S トランジスタ 01
Q6010 WC434800 TR.DGT KRA102S-RTK/P デジタルトランジスタ 01
Q6011 VV556500 TR 2SA1037K Q,R,S トランジスタ 01
Q6017-6018 VV556400 TR 2SC2412K Q,R,S トランジスタ 01
Q6029-6030 VV556400 TR 2SC2412K Q,R,S トランジスタ 01
Q7000 WC435100 TR.DGT KRC104S-RTK デジタルトランジスタ 01
Q7001 VV556400 TR 2SC2412K Q,R,S トランジスタ 01
Q7002 WC435100 TR.DGT KRC104S-RTK デジタルトランジスタ 01
R6001-6002 WJ685600 R.MTL.FLM 470Ω 1W J 金属被膜抵抗 01
sR7013 HV753100 R.CAR.FP 1Ω 1/4W 不燃化カーボン抵抗 01
sR7019-7021 HV753100 R.CAR.FP 1Ω 1/4W 不燃化カーボン抵抗 01
sR7025 WH820300 R.FUSE 1Ω 1W J ヒューズ抵抗 01
*sR7029 WJ681400 R.MTL.FLM 0.15Ω 1W 金属被膜抵抗
*sR7031 WJ681400 R.MTL.FLM 0.15Ω 1W 金属被膜抵抗
ST601 WA789700 SCR.TERM D3.5 スクリューターミナル 01
ST602 WA789700 SCR.TERM D3.5 RTKABGEFL スクリューターミナル 01
SW601 WD483100 SW.TACT SKRGAAD010
JUCRTKAGEFL
タクト ＳＷ 01
SW603 WD483100 SW.TACT SKRGAAD010
JUCRTKAGEFL
タクト ＳＷ 01
SW604-613 WD483100 SW.TACT SKRGAAD010 タクト ＳＷ 01
SW614 V9597100 SW.RT.ENC EC12E2460802 ロータリーエンコーダ 04
SW615-616 WD483100 SW.TACT SKRGAAD010 タクト ＳＷ 01
SW618-620 WD483100 SW.TACT SKRGAAD010
JUCRTKAGEFL
タクト ＳＷ 01
SW623-624 WD483100 SW.TACT SKRGAAD010
JUCRTKAGEFL
タクト ＳＷ 01
SW627 WD483100 SW.TACT SKRGAAD010 タクト ＳＷ 01
SW629 WD483100 SW.TACT SKRGAAD010 タクト ＳＷ 01
U6001 WJ645300 L.DTCT SM3385UMH6 リモコン受光ユニット 03
* V6001 WN049000 FL.DSPLY 17-BT-32GNK 螢光表示管
WA790900 SPACER 4.6/10/32 スペーサ ＦＬ
107
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. MAIN
✻ New Parts ＊ 新規部品
* WN272700 P.C.B. MAIN JUCRTA ＰＣＢ ＭＡＩＮ
* WN272900 P.C.B. MAIN KL ＰＣＢ ＭＡＩＮ
* WN273000 P.C.B. MAIN B ＰＣＢ ＭＡＩＮ
* WN273100 P.C.B. MAIN GEF ＰＣＢ ＭＡＩＮ
CB401 VQ048000 CN.BS.PIN 31P ＦＦＣコネクター 02
CB402 VN520900 CN.BS.PIN 52045 26P TE ＦＦＣコネクター 02
CB403 VM923600 CN.BS.PIN 13P
JUCRTKAGEFL
ＦＦＣコネクター 01
CB502 LB932060 CN.BS.PIN 6P ベースポスト 01
C4001 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
C4002 WJ603300 C.MYLAR 470pF 50V J マイラーコン 01
C4003 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C4008-4019 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C4020-4021 US061470 C.CE.CHP 47pF 50V B チップセラコン 01
C4022-4025 US062220 C.CE.CHP 220pF 50V B チップセラコン 01
C4026-4027 US061470 C.CE.CHP 47pF 50V B チップセラコン 01
C4028-4029 US062220 C.CE.CHP 220pF 50V B B チップセラコン 01
C4030-4033 UR837100 C.EL 10uF 16V ケミコン 01
C4038 UR866220 C.EL 2.2uF 50V ケミコン 01
C4039 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C4040-4041 UR067100 C.EL 10uF 50V ケミコン 01
C4042-4043 UR847470 C.EL 47uF 25V ケミコン 01
C4044-4045 UR038100 C.EL 100uF 16V ケミコン
C4048 US063100 C.CE.CHP 1000pF 50V B チップセラコン 01
C4049-4050 US062100 C.CE.CHP 100pF 50V B チップセラコン 01
C4051 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C4052-4053 US062100 C.CE.CHP 100pF 50V B チップセラコン 01
C4054 WJ605400 C.MYLAR 0.022uF 50V J マイラーコン 01
C4055 WJ605800 C.MYLAR 0.047uF 50V J マイラーコン 01
C4056 VE326200 C.MYLAR 0.15uF 50V マイラーコン
C4057 UR837470 C.EL 47uF 16V ケミコン 01
C4058 WJ605400 C.MYLAR 0.022uF 50V J マイラーコン 01
C4059-4064 UR837100 C.EL 10uF 16V ケミコン 01
C4067 UR837470 C.EL 47uF 16V ケミコン 01
C4068 VE326200 C.MYLAR 0.15uF 50V マイラーコン
C4069 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C4070 WJ605800 C.MYLAR 0.047uF 50V J マイラーコン 01
C4071 UR837470 C.EL 47uF 16V ケミコン 01
C4072 US135100 C.CE.CHP 0.1uF 16V GEF チップセラコン 01
C4073 UR038100 C.EL 100uF 16V ケミコン
C4074-4079 UR067100 C.EL 10uF 50V ケミコン 01
C4082 UR866220 C.EL 2.2uF 50V ケミコン 01
C4083 US062330 C.CE.CHP 330pF 50V B GEF チップセラコン 01
C4084-4086 UR067100 C.EL 10uF 50V ケミコン 01
C4087-4090 US162820 C.CE.CHP 820pF 50V J チップセラコン
C4091 WJ603600 C.MYLAR 820pF 50V J マイラーコン 01
C4092 WJ605400 C.MYLAR 0.022uF 50V J マイラーコン 01
C4095 US062330 C.CE.CHP 330pF 50V B GEF チップセラコン 01
C4096-4097 UR067100 C.EL 10uF 50V ケミコン 01
C4100 US062100 C.CE.CHP 100pF 50V B チップセラコン 01
C4101-4105 US061820 C.CE.CHP 82pF 50V B チップセラコン 01
* C4106 WJ604200 C.MYLAR 2700pF 50V マイラーコン
C4109 UR837470 C.EL 47uF 16V GEF ケミコン 01
C4110-4116 UR837100 C.EL 10uF 16V ケミコン 01
C4119-4120 US135100 C.CE.CHP 0.1uF 16V GEF チップセラコン 01
C4121 US062560 C.CE.CHP 560pF 50V B GEF チップセラコン 01
108
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. MAIN
✻ New Parts ＊ 新規部品
C4122 UR038100 C.EL 100uF 16V ケミコン
C4123 UR837470 C.EL 47uF 16V GEF ケミコン 01
C4124-4125 US061270 C.CE.CHP 27pF 50V B GEF チップセラコン 01
C4126 UR837470 C.EL 47uF 16V GEF ケミコン 01
C4127-4128 UR038100 C.EL 100uF 16V ケミコン
C5001 UR837330 C.EL 33uF 16V ケミコン 01
C5002 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
C5005-5007 UR037100 C.EL 10uF 16V ケミコン 01
C5009-5011 UR866220 C.EL 2.2uF 50V ケミコン 01
C5012-5013 UR037100 C.EL 10uF 16V ケミコン 01
C5014 WJ603300 C.MYLAR 470pF 50V J マイラーコン 01
* C5015 UR277220 C.EL 22uF 63V ケミコン
C5017 UR297100 C.EL 10uF 100V ケミコン
sC5018 WJ603300 C.MYLAR 470pF 50V J マイラーコン 01
C5020 UR297100 C.EL 10uF 100V ケミコン
* C5022 UR277220 C.EL 22uF 63V ケミコン
C5023-5024 UR297100 C.EL 10uF 100V ケミコン
C5026-5028 WJ603300 C.MYLAR 470pF 50V J マイラーコン 01
C5029 WJ602900 C.MYLAR 100pF 50V K マイラーコン 01
* C5030 UR067330 C.EL 33uF 50V ケミコン
C5031 WJ602900 C.MYLAR 100pF 50V K マイラーコン 01
* C5032 UR067330 C.EL 33uF 50V ケミコン
* C5034 UR067330 C.EL 33uF 50V ケミコン
C5036 WJ602900 C.MYLAR 100pF 50V K マイラーコン 01
* C5037 UR067330 C.EL 33uF 50V ケミコン
C5038 WJ602900 C.MYLAR 100pF 50V K マイラーコン 01
C5041 UR897100 C.EL 10uF 100V ケミコン 01
C5042 FG651100 C.CE 10pF 50V セラコン 01
C5043 WJ602900 C.MYLAR 100pF 50V K マイラーコン 01
* C5044 UR067330 C.EL 33uF 50V ケミコン
C5045 UR866100 C.EL 1uF 50V ケミコン 01
C5046 FG650500 C.CE 5pF 50V セラコン 01
C5048 FG650500 C.CE 5pF 50V セラコン 01
C5050-5051 FG650500 C.CE 5pF 50V セラコン 01
C5052-5054 WJ605800 C.MYLAR 0.047uF 50V J マイラーコン 01
C5057-5058 WJ605800 C.MYLAR 0.047uF 50V J マイラーコン 01
C5059 UR866470 C.EL 4.7uF 50V ケミコン 01
C5060 UR828220 C.EL 220uF 10V ケミコン 01
C5061 UR858100 C.EL 100uF 35V ケミコン 01
* C5062 UR278100 C.EL 100uF 63V ケミコン
C5063 UR866470 C.EL 4.7uF 50V ケミコン 01
C5064 UR058100 C.EL 100uF 35V ケミコン 01
sC5065 WE514200 C.EL 6800uF 63V JUCRTKAL ケミコン
* C5065 WN524400 C.EL 6800uF 63V BGEF ケミコン
C5066 WE514200 C.EL 6800uF 63V JUCRTKAL ケミコン
* C5066 WN524400 C.EL 6800uF 63V BGEF ケミコン
C5067-5076 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
C5077-5078 WJ611400 C.MYLAR 0.1uF 100V J マイラーコン 01
C5079 US064100 C.CE.CHP 0.01uF 50V B チップセラコン 01
C5086-5087 WJ605400 C.MYLAR 0.022uF 50V J マイラーコン 01
D4001-4002 VU994300 DIODE.ZENR MA8075-H 7.7V ツェナーダイオード 01
D4003 VU995500 DIODE.ZENR MA8100-H 10.3V ツェナーダイオード 02
D5001-5002 VD631600 DIODE 1SS133,176 ダイオード 01
D5003 VU171900 DIODE.ZENR UDZ5.1B 5.1V ツェナーダイオード 01
D5004 WC398800 DIODE KDS160-RTK ダイオード 01
109
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. MAIN
✻ New Parts ＊ 新規部品
D5005-5006 VN008700 DIODE 1SS270A ダイオード 01
D5009 WC398800 DIODE KDS160-RTK ダイオード 01
D5010-5012 VN008700 DIODE 1SS270A ダイオード 01
D5013 VD631600 DIODE 1SS133,176 ダイオード 01
D5014-5016 VN008700 DIODE 1SS270A ダイオード 01
sD5017 VG441000 DIODE.ZENR MTZJ16A 16V ツェナーダイオード 01
D5018-5020 VD631600 DIODE 1SS133,176 ダイオード 01
sD5021 WA653200 DIODE.BRG TS6P03G 6A 200V ダイオ−ドブリツジ 04
D5022-5023 VS997800 DIODE 1T2 ダイオード 01
D5024 VD631600 DIODE 1SS133,176 ダイオード 01
sD5027 VG441000 DIODE.ZENR MTZJ16A 16V ツェナーダイオード 01
* IC401 X8155B00 IC R2A15218FP ＩＣ
* IC402 X8235A00 IC LC72725KM GEF ＩＣ
IC403-405 X7378A00 IC NJM4565M(TE1) アンプＩＣ 01
IC407 X7378A00 IC NJM4565M(TE1) アンプＩＣ 01
sIC501 X8190A00 IC STK433-330-E パワーＩＣ 12
sIC502 X7427A00 IC STK433-130-E アンプＩＣ 04
PJ401 V7190400 JACK.PIN 6P ピンジャック 03
PJ402-403 V7046800 JACK.PIN 6P MSP-246V1-01NI ピンジャック 04
PJ404 V7046700 JACK.PIN 4P MSP-244V1-01NI B ピンジャック 03
PJ407 V7189700 JACK.PIN 1P ピンジャック 01
* PJ408 WC612700 JACK.PIN 2P
JUCRTKAGEFL
ピンジャック
PN501 V9637500 PIN L=70 #18 スタイルピン
Q4001 VZ725900 TR 2SD1938F S,T トランジスタ 01
Q4004 VZ725900 TR 2SD1938F S,T トランジスタ 01
Q4008 WC434800 TR.DGT KRA102S-RTK/P デジタルトランジスタ 01
Q4009 iC1815I0 TR 2SC1815 Y トランジスタ 01
Q4010 iA1015I0 TR 2SA1015 Y トランジスタ 01
Q4011 iC1815I0 TR 2SC1815 Y トランジスタ 01
Q4012 iC174020 TR 2SC1740S QRS GEF トランジスタ 01
Q5003-5007 VD303700 TR 2SC3326 A,B トランジスタ 01
Q5009-5011 WC434800 TR.DGT KRA102S-RTK/P デジタルトランジスタ 01
sQ5012 WC398400 TR 2N5551C-AT トランジスタ 01
sQ5013-5014 VC614000 TR 2SB1274 Q,R,S トランジスタ 02
sQ5015 WC398400 TR 2N5551C-AT トランジスタ 01
sQ5016-5017 WC397700 TR 2N5401C-AT トランジスタ
sQ5018-5020 WC398400 TR 2N5551C-AT トランジスタ 01
Q5023-5024 WC398400 TR 2N5551C-AT トランジスタ 01
sQ5025 WC397700 TR 2N5401C-AT トランジスタ
sQ5026-5029 WC434900 TR.DGT KRA104S-RTK デジタルトランジスタ 01
sQ5030 VP872600 TR 2SA1708 S,T トランジスタ 01
Q5031 iC1815I0 TR 2SC1815 Y トランジスタ 01
Q5032-5036 WC435000 TR.DGT KRC102S-RTK デジタルトランジスタ 01
Q5037 WC434900 TR.DGT KRA104S-RTK デジタルトランジスタ 01
R4080-4081 HV753220 R.CAR.FP 2.2Ω 1/4W 不燃化カーボン抵抗 01
sR5035-5036 HV753220 R.CAR.FP 2.2Ω 1/4W 不燃化カーボン抵抗 01
sR5040 HV755560 R.CAR.FP 560Ω 1/4W 不燃化カーボン抵抗 01
sR5052 HV754100 R.CAR.FP 10Ω 1/4W 不燃化カーボン抵抗 01
sR5055 HV754100 R.CAR.FP 10Ω 1/4W 不燃化カーボン抵抗 01
*sR5069 WM280300 R.MTL.PLAT 0.22+0.22Ω RGC33 金属板抵抗
*sR5071 WM280300 R.MTL.PLAT 0.22+0.22Ω RGC33 金属板抵抗
*sR5079 WM280300 R.MTL.PLAT 0.22+0.22Ω RGC33 金属板抵抗
*sR5090-5091 WM280300 R.MTL.PLAT 0.22+0.22Ω RGC33 金属板抵抗
R5109 HV754100 R.CAR.FP 10Ω 1/4W 不燃化カーボン抵抗 01
R5112-5113 HV754100 R.CAR.FP 10Ω 1/4W 不燃化カーボン抵抗 01
110
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. MAIN and P.C.B. VIDEO
✻ New Parts ＊ 新規部品
R5121 HV754100 R.CAR.FP 10Ω 1/4W 不燃化カーボン抵抗 01
R5124 HV754100 R.CAR.FP 10Ω 1/4W 不燃化カーボン抵抗 01
sR5126 WB625100 R.MTL.FLM 4.7Ω 1W J 金属被膜抵抗 01
sR5130-5131 WB625100 R.MTL.FLM 4.7Ω 1W J 金属被膜抵抗 01
R5136-5137 WB625100 R.MTL.FLM 4.7Ω 1W J 金属被膜抵抗 01
sR5142 HV756270 R.CAR.FP 2.7KΩ 1/4W 不燃化カーボン抵抗 01
sR5145 WB627300 R.MTL.OXD 470Ω 1W 酸化金属被膜抵抗
R5167-5168 HV753470 R.CAR.FP 4.7Ω 1/4W 不燃化カーボン抵抗 01
sRY501-502 WJ122400 RELAY 981-2A-24DS-SP7 リレー ２４Ｖ 04
sRY504-505 WJ122400 RELAY 981-2A-24DS-SP7 リレー ２４Ｖ 04
* RY506 WJ117200 RELAY DC24V 942H-2C-24DS リレー
* TE501 WK561000 TERM.SP 6P MST-207V1-01 NC JUCRTA スピーカーターミナル
* TE501 WK561100 TERM.SP 6P MST-207V1-01 WC KBGEFL スピーカーターミナル
* TE502 WK560800 TERM.SP 4P MST-204V1-01 NC JUCRTA スピーカーターミナル
* TE502 WK560900 TERM.SP 4P MST-204V1-01 WC KBGEFL スピーカーターミナル
* XL401 WJ588000 RSNR.CRYS 4.332MHz GEF 水晶振動子
WE774200 SCR.BND.HD 3x10 MFZN2W3 バインドＢタイトネジ 01
* WN274300 P.C.B. VIDEO J ＰＣＢ ＶＩＤＥＯ
* WN274400 P.C.B. VIDEO UC ＰＣＢ ＶＩＤＥＯ
* WN274500 P.C.B. VIDEO R ＰＣＢ ＶＩＤＥＯ
* WN274600 P.C.B. VIDEO TA ＰＣＢ ＶＩＤＥＯ
* WN274700 P.C.B. VIDEO K ＰＣＢ ＶＩＤＥＯ
* WN274800 P.C.B. VIDEO BGEF ＰＣＢ ＶＩＤＥＯ
* WN274900 P.C.B. VIDEO L ＰＣＢ ＶＩＤＥＯ
CB301 VB858200 CN.BS.PIN 3P ベースピン 01
CB302 VQ044500 CN.BS.PIN 11P ＦＦＣコネクター 01
CB321-324 WD398400 CN.DIN 14P YKF45-3011 J ＤＩＮコネクタ 05
CB326 VM923600 CN.BS.PIN 13P ＦＦＣコネクター 01
* CB342-343 WN077700 CLIP.FUSE CLIP PFC5000-0202F ヒューズクリップ
CB344-345 VG879900 CN.BS.PIN 2P ベースピン 01
CB351 VB858400 CN.BS.PIN 5P ベースピン 01
CB352 LB919040 CN.BS.PIN 4P ベース付ポスト 01
* CB356 V9377800 CN.BS.PIN 3P RL ベース付ポスト
* CB357 V9377900 CN.BS.PIN 4P RL ベース付ポスト
* CB358-359 WN077700 CLIP.FUSE CLIP PFC5000-0202F RL ヒューズクリップ
C3001-3002 US062100 C.CE.CHP 100pF 50V B チップセラコン 01
sC3007-3008 WG218100 C.EL 100uF 16V ケミコン
C3009-3010 V7887800 C.EL 1uF 50V ケミコン
C3011-3012 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3015 UR837100 C.EL 10uF 16V ケミコン 01
C3016 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3017 UR837470 C.EL 47uF 16V ケミコン 01
C3020 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3021 UR837470 C.EL 47uF 16V ケミコン 01
C3022 UR837100 C.EL 10uF 16V ケミコン 01
C3030-3031 UR838100 C.EL 100uF 16V ケミコン 01
C3037 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3038 US061220 C.CE.CHP 22pF 50V B JUCRK チップセラコン 01
C3038 US060500 C.CE.CHP 5pF 50V B TABGEFL チップセラコン 01
C3039 US061330 C.CE.CHP 33pF 50V B JUCRK チップセラコン 01
C3039 US060500 C.CE.CHP 5pF 50V B TABGEFL チップセラコン 01
C3048 UR866100 C.EL 1uF 50V ケミコン 01
111
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. VIDEO
✻ New Parts ＊ 新規部品
C3049-3050 UR837470 C.EL 47uF 16V ケミコン 01
C3051 US060300 C.CE.CHP 3pF 50V B JUCRK チップセラコン 01
C3051 US060400 C.CE.CHP 4pF 50V B TABGEFL チップセラコン
C3054 US061240 C.CE.CHP 24pF 50V B チップセラコン 01
C3056 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3057 US061240 C.CE.CHP 24pF 50V B チップセラコン 01
C3061-3065 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3066 US061100 C.CE.CHP 10pF 50V B チップセラコン 01
C3069 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3071 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3072 UR837100 C.EL 10uF 16V ケミコン 01
C3073 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3074 UR837470 C.EL 47uF 16V ケミコン 01
C3075-3076 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3077-3078 UR837470 C.EL 47uF 16V ケミコン 01
C3201-3203 US060800 C.CE.CHP 8pF 50V B
UCRTKABGEFL
チップセラコン 01
C3204-3215 US064100 C.CE.CHP 0.01uF 50V B J チップセラコン 01
C3216-3218 US060800 C.CE.CHP 8pF 50V B J チップセラコン 01
C3219-3220 UR837100 C.EL 10uF 16V ケミコン 01
C3221-3222 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3231 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3232 US135100 C.CE.CHP 0.1uF 16V J チップセラコン 01
C3234 US135100 C.CE.CHP 0.1uF 16V J チップセラコン 01
C3239 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3240-3241 UR837470 C.EL 47uF 16V ケミコン 01
C3243 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3248 US135100 C.CE.CHP 0.1uF 16V チップセラコン 01
C3263-3271 WD758300 C.CE.CHP 10uF 10V チップセラコン 01
C3401 UR749220 C.EL 2200uF 25V JUCTKABGEF ケミコン 03
C3401 UR759220 C.EL 2200uF 35V RL ケミコン 02
C3402 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
C3403 UR897100 C.EL 10uF 100V RL ケミコン 01
C3404 WJ605000 C.MYLAR 0.01uF 50V J JUCTKABGEF マイラーコン 01
C3405-3406 WJ605000 C.MYLAR 0.01uF 50V J RL マイラーコン 01
sC3407 WB121400 C.CE.SAFTY 0.01uF 295V 規格認定コンデンサ
C3501 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
C3503-3505 WJ605000 C.MYLAR 0.01uF 50V J マイラーコン 01
D3201-3205 VT332900 DIODE 1SS355 J ダイオード 01
D3208-3211 VT332900 DIODE 1SS355 J ダイオード 01
D3212-3217 VT332900 DIODE 1SS355 ダイオード 01
D3401 VD631600 DIODE 1SS133,176 ダイオード 01
sD3402 VG437000 DIODE.ZENR MTZJ4.7A 4.7V RL ツェナーダイオード 01
sD3403-3404 VS997800 DIODE 1T2 ダイオード 01
sD3405 VS997800 DIODE 1T2 RL ダイオード 01
sD3406-3407 VS997800 DIODE 1T2 ダイオード 01
D3408-3409 WC398800 DIODE KDS160-RTK ダイオード 01
D3501 VD631600 DIODE 1SS133,176 ダイオード 01
sF3401 WB221200 FUSE T6A 125V JUCRL ヒューズ 01
sF3401 VV071700 FUSE 3.15A 250V TKABGEF ヒューズ 01
sF3551 VV071700 FUSE 3.15A 250V RL ヒューズ 01
IC301 XY550A00 IC MM74HC4051SJX ロジックＩＣ 01
IC304 X7818A00 IC LC74782JM-8A16-TLM ＩＣ 07
IC307 X6742A00 IC LA73050-TLM-E アンプＩＣ 04
sIC308 X4928A00 IC KIA7805API 5V 電源ＩＣ 02
sIC309 X7973A00 IC KIA79M05PI-U 電源ＩＣ 02
112
RX-V463/HTR-6140/DSP-AX463
RX-V463/HTR-6140/
DSP-AX463
Ref No. Part No. Description Remarks Markets 部 品 名
ランク
P.C.B. VIDEO
✻ New Parts ＊ 新規部品
IC311 XS790A00 IC TC74HC4052AF MPX ロジックＩＣ 02
IC322-323 XS790A00 IC TC74HC4052AF MPX ロジックＩＣ 02
IC324 XS790A00 IC TC74HC4052AF MPX J ロジックＩＣ 02
IC325 X2904A00 IC NJM2581M VIDEO AMP アンプＩＣ 06
PJ301 V7189800 JACK.PIN 1P ピンジャック 01
PJ302-303 V7190000 JACK.PIN 2P ピンジャック
PJ321-322 WG471900 JACK.PIN 6P
UCRTKABGEFL
ピンジャック ６Ｐ 03
PN301 V9637500 PIN L=70 #18 スタイルピン
PN351 V9637500 PIN L=70 #18 スタイルピン
Q3004-3005 VV556400 TR 2SC2412K Q,R,S トランジスタ 01
sQ3401 VE198800 TR 2SC2705 O,Y トランジスタ 01
sQ3402 iA1015I0 TR 2SA1015 Y RL トランジスタ 01
sQ3403 VP872600 TR 2SA1708 S,T RL トランジスタ 01
sQ3404 iA1015I0 TR 2SA1015 Y RL トランジスタ 01
sQ3405 WC529200 TR.DGT KRC102M-AT RL デジタルトランジスタ 01
Q3501 WC398500 TR.DGT KRA102M-AT デジタルトランジスタ 01
* R3016 WB625900 R.MTL.OXD 33Ω 1W 酸化金属被膜抵抗
*sR3017 WB625800 R.MTL.OXD 27Ω 1W 酸化金属被膜抵抗
R3028-3029 HV753100 R.CAR.FP 1Ω 1/4W 不燃化カーボン抵抗 01
R3055 HV755470 R.CAR.FP 470Ω 1/4W 不燃化カーボン抵抗 01
R3058 HV753100 R.CAR.FP 1Ω 1/4W 不燃化カーボン抵抗 01
* R3060 WB625900 R.MTL.OXD 33Ω 1W 酸化金属被膜抵抗
R3238 HV753100 R.CAR.FP 1Ω 1/4W 不燃化カーボン抵抗 01
R3245 HV753100 R.CAR.FP 1Ω 1/4W 不燃化カーボン抵抗 01
R3408 VC757900 R.MTL.OXD 47Ω 2W RL 酸化金属被膜抵抗 01
sR3410 V6730000 R.CAR. 2.2MΩ 1/2W UC 放電抵抗 01
sRY341 V9366900 RELAY DLS9D1-O(M)0.25W リレー ９Ｖ ＴＶ−８ 05
RY351 WJ122400 RELAY 981-2A-24DS-SP7 リレー ２４Ｖ 04
ST301 WA789600 SCR.TERM M3 スクリューターミナル
ST321 WA789600 SCR.TERM M3
UCRTKABGEFL
スクリューターミナル
ST322 WA789600 SCR.TERM M3 J スクリューターミナル
ST341-342 WA789600 SCR.TERM M3 スクリューターミナル
ST351 WA789600 SCR.TERM M3 スクリューターミナル
*sSW356 WB493700 VOLT.SELCT R8140246 R 電圧切替器
*sSW356 WD073700 VOLT.SELCT R8140254 L 電圧切替器
sT3401 X8520A00 TRANS.PWR J 電源トランス 07
*sT3401 X8521A00 TRANS.PWR UC 電源トランス
*sT3401 X8522A00 TRANS.PWR RL 電源トランス
*sT3401 X8523A00 TRANS.PWR TKABGEF 電源トランス
*sTE351 WK560800 TERM.SP 4P MST-204V1-01 NC JUCRTA スピーカーターミナル
*sTE351 WK560900 TERM.SP 4P MST-204V1-01 WC KBGEFL スピーカーターミナル
* XL301 WN380400 RSNR.CRYS 14.3181MHz AT-49 JUCRK 水晶振動子
* XL301 WN380500 RSNR.CRYS 17.7344MHz AT-49 TABGEFL 水晶振動子
RX-V463/HTR-6140/DSP-AX463
113
10mm
HJ35
1/4W Type
5mm
HF85
1/6W Type
HF45
1/4W Type
Value 1/4W Type Part No. 1/6W Type Part No.
10 kΩHF45 7100 HF45 7100
11 kΩHF45 7110 HF45 7110
12 kΩHJ35 7120 HF85 7120
13 kΩHF45 7130 HF45 7130
15 kΩHF45 7150 HF45 7150
18 kΩHF45 7180 HF45 7180
22 kΩHF45 7220 HF45 7220
24 kΩHF45 7240 HF45 7240
27 kΩHJ35 7270 HF85 7270
30 kΩHF45 7300 HF45 7300
33 kΩHF45 7330 HF45 7330
36 kΩHF45 7360 HF45 7360
39 kΩHF45 7390 HF45 7390
47 kΩHF45 7470 HF45 7470
51 kΩHF45 7510 HF45 7510
56 kΩHF45 7560 HF45 7560
62 kΩHF45 7620 HF45 7620
68 kΩHF45 7680 HF45 7680
82 kΩHF45 7820 HF45 7820
91 kΩHF45 7910 HF45 7910
100 kΩHF45 8100 HF45 8100
110 kΩHF45 8110 HF45 8110
120 kΩHF45 8120 HF45 8120
150 kΩHF45 8150 HF45 8150
180 kΩHF45 8180 HF45 8180
220 kΩHJ35 8220 HF85 8220
270 kΩHF45 8270 HF45 8270
300 kΩHF45 8300 HF45 8300
330 kΩHF45 8330 HF45 8330
390 kΩHJ35 8390 HF85 8390
470 kΩHF45 8470 HF45 8470
560 kΩHJ35 8560 HF85 8560
680 kΩHJ35 8680 HF85 8680
820 kΩHJ35 8820 HF85 8820
1.0 MΩHF45 9100 HF45 9100
1.2 MΩHJ35 9120 ❊
1.5 MΩHJ35 9150 HF85 9150
1.8 MΩHJ35 9180 HF85 9180
2.2 MΩHJ35 9220 HF85 9220
3.3 MΩHJ35 9330 HF85 9330
3.9 MΩHJ35 9390 ❊
4.7 MΩHJ35 9470 HF85 9470
Value 1/4W Type Part No. 1/6W Type Part No.
1.0 ΩHJ35 3100 HF85 3100
1.8 ΩHJ35 3180 ❊
2.2 ΩHJ35 3220 HF85 3220
3.3 ΩHJ35 3330 HF85 3330
4.7 ΩHJ35 3470 HF85 3470
5.6 ΩHJ35 3560 HF85 3560
10 ΩHF45 4100 HF45 4100
15 ΩHJ35 4150 HF85 4150
22 ΩHF45 4220 HF45 4220
27 ΩHJ35 4270 HF85 4270
33 ΩHF45 4330 HF45 4330
39 ΩHJ35 4470 HF85 4390
47 ΩHF45 4470 HF45 4470
56 ΩHF45 4560 HF45 4560
68 ΩHF45 4680 HF45 4680
75 ΩHF45 4750 HF45 4750
82 ΩHF45 4820 HF45 4820
91 ΩHF45 4910 HF45 4910
100 ΩHF45 5100 HF45 5100
110 ΩHJ35 5110 HF85 5110
120 ΩHF45 5120 HF45 5120
150 ΩHF45 5150 HF45 5150
160 ΩHJ35 5160 ❊
180 ΩHF45 5180 HF45 5180
200 ΩHF45 5200 HF45 5200
220 ΩHF45 5220 HF45 5220
270 ΩHF45 5270 HF45 5270
330 ΩHF45 5330 HF45 5330
390 ΩHF45 5390 HF45 5390
430 ΩHF45 5430 HF45 5430
470 ΩHF45 5470 HF45 5470
510 ΩHF45 5510 HF45 5510
560 ΩHF45 5560 HF45 5560
680 ΩHF45 5680 HF45 5680
820 ΩHF45 5820 HF45 5820
910 ΩHF45 5910 HF45 5910
1.0 kΩHF45 6100 HF45 6100
1.2 kΩHF45 6120 HF45 6120
1.5 kΩHF45 6150 HF45 6150
1.8 kΩHF45 6180 HF45 6180
2.0 kΩHJ35 6200 HF85 6200
2.2 kΩHF45 6220 HF45 6220
2.4 kΩHJ35 6240 HF85 6240
2.7 kΩHF45 6270 HF45 6270
3.0 kΩHF45 6300 HF45 6300
3.3 kΩHF45 6330 HF45 6330
3.6 kΩHJ35 6360 HF85 6360
3.9 kΩHF45 6390 HF45 6390
4.7 kΩHF45 6470 HF45 6470
5.1 kΩHF45 6510 HF45 6510
5.6 kΩHF45 6560 HF45 6560
6.8 kΩHF45 6680 HF45 6680
8.2 kΩHF45 6820 HF45 6820
9.1 kΩHF45 6910 HF45 6910
❊ : Not available
Chip Resistors
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
114
• OVERALL ASS’Y
202
200
200-1
U, C, R, T, L models
U, C, R, T, K, A, G, E, F, L, J models
202
203
K, A, B, G, E, F models
U, C, R, T, K, A,
G, E, F,
L, J models
163
163
120
163
120
121
163
152
152
163
163
16
25 26
17
12
160
101
167
167
109
109
109
171
171
172
109
109
2-24
2-23
2-22 1-2
204
151
Front Panel Unit
AMP Unit
R, T, K, A, B, G, E, F models
156
157
157
157 160
103
158
158
170
170
167
167
167
168
168
160
160
160
103
160
160
R, L models
15
(3)
6
(4)
6
(1)
6
(2)
6
7
(5)
6
(B1)
(B2)
(C1)
(C2)
(A)
RX-V463/HTR-6140/DSP-AX463
115
    
    
    
    
    
    
    
     
 




     
     
     
     
      
     
      
     
 
    
     
     
     
      
     
      
     
  
     
     
     
      
   
    
   
    
   
    
   
   
    
   
    
   
   
    
   
     
     
     
s   
s    
s    
s    
s   
s    
s    
s     
s    
s    
s    
s    
s    
s     
     
     
    
    
    
    
    
    
     
    
    
    
    
    
     
    
     
    
    
     
   
     
     
    
✻ New Parts
Ref No.
Part No. Description Remarks Markets 部 品 名
ランク
Ref No.
Part No. Description Remarks Markets 部 品 名
ランク
✻ New Parts
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
116
Ref No.
Part No. Description Remarks Markets 部 品 名
ランク
✻ New Parts
     
    
     
    
     
     
    
    
    
     
    
     
     
    
     
     
    
    
     
     
     
     
     
    
    
    
    
    
     
   
    
      
   

    

    

   

• FRONT PANEL UNIT
1-13
1-12
1-2
1-4
1-5 (1)
1-5 (5)
1-5 (2)
1-5 (3)
1-5 (4)
1-5 (6)
1-6
1-7
1-8
1-25
1-25 1-26
1-25
1-25
1-25
1-25
1-25
1-25
(1)
(4)
(6)
1-25
(7)
(3)
1-25
U, C, J models
U, C, R, T, K, A, G, E, F, L models
2-2
2-2
2-2
2-2
2-2
2-2
1-13
B model
R, T, K, A, B,
G, E, F, L models
ABCDE FGH I J
1
2
3
4
5
6
7
RX-V463/HTR-6140/DSP-AX463
117
✻ New Parts
Ref No.
Part No. Description Remarks Markets 部 品 名
ランク
• AMP UNIT
     
     
    
     
   

    

    

   

   
     
     
      
     
    
     
2-1 (1)
2-23 2-22
2-20
2-24
2-104
2-104
2-104
2-104
2-104
2-104
2-104
2-104
2-103
2-105
(2)
(9)
2-1
2-2
2-2
2-2
(2)
(8)
U, C, R, T,
K, A, G, E,
F, L, J models
2
ABCDEFGH I J
1
3
4
5
7
RX-V463/HTR-6140/DSP-AX463
6
118
■REMOTE CONTROL
●RAV280 (U, C models), RAV282 (R, T, K, A, B, G, E, F, L models), RAV281 (J model)
• SCHEMATIC DIAGRAM • PANELS
RAV280
(U, C models)
RAV282
(R, T, K, A, B, G, E, F, L
models)
RAV281
(J model)
R2
47 ohms
R3
100 ohms
R4
100 k-ohms
R5
100 k-ohms
D1
IR diode
R1
1 ohm C1
47uF
Q1
SMT
P25
1
P26
2
P27
3
P04
4
VDD
8
XTAL2
9
XTAL1
10
P31
11
P32
12
P35
15
P05
5
P06
6
P07
7
P37
16
P36
17
P30/Pref
18
P00
19
P01
20
P02
21
VSS
22
P03
23
P20
24
P21
25
13
2
P22
26
P23
RAV280
O
X
X
X
X
X
J1
J2
J3
J4
J5
J6
RAV281
X
O
X
X
X
X
RAV282
X
X
O
X
X
X
27
P24
28
P34
14
P33
13
U1
ZLR32300H2832G
+3V
J1
J2
R6
100 k-ohms
J3
J4
J5
J6
X1
8MHz
TV POWER A/USB AV POWER MUTE POWER SIRIUS/B/C STANDBY XM/A/B
DVD CD DTV/CBL TV CH + TV CH - TUNER DVR
C/D/E
MD/CD-R
V-AUX/DOCK AMP TV VOL -B/C/D TV VOL + TV MUTE TV INPUT
TITLE SCENE1 UP SCENE4 VOL up SCENE3 MENU SCENE2
5 9 6 8 ENTER +10 7 0
124 3
LEFT RETURN ENTER VOL down DISPLAY RIGHT DOWN
REW
(SEARCH -)
FF
(SEARCH +)
REC SKIP+ PLAY PAUSE SKIP- STOP
15284736
13 9 141216111510
17 21 18 24 20 23 19 22
29 25 30 28 32 27 31 26
52 56 53 55 59 58 54 57
44 40 45 47 43 42 46 41
64 60 65 67 63 62 66 61
33 36 34 39 38 35 37
48 49 51 50
RX-V463/HTR-6140/DSP-AX463
119
• KEY LAYOUT
1234
5
9101112
16
20
24
13 14 15
17 18 19
21
25
29 31
30
37
33 35
32
39
34
36
40 41 42 43
47464544
48 49 50 51
52 53 54 55
56 57 58 59
38
26 27 28
22 23
678
K11
[TUNER]
(TV POWER)
7F01-D0
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
7F01-DD
7F01-E1
7F01-DE
$$
$$
$
7F01-E2
7F01-E3
7F01-E4
7F01-DF
7F01-E5
7F01-E0
$$
$$
$
7F01-E6
7F01-E9
7F01-E7
7F01-E8
7F01-EA
7F01-EB
7F01-EC
7F01-ED
7F01-D1
7F01-D2
7F01-D3
7F01-D4
7F01-D5
7F01-D6
7F01-D7
7F01-D8
7F01-D9
7F01-DA
7F01-DB
7F01-DC
TUNER
Yamaha-9
5017
•IR CODE
Label
Key
default
Common
ZONE2 code
K21
7E-7F
7E-7E
7F01-3F
7A-B4
7A-39
7A-1C
7A-15
7A-C9
7A-16
7A-C1
7A-54
7A-13
7A-55
7A-0F
7A-14
7A-007F
7A-037C
7A-0679
7A-0976
7A-86
7A-9D
7A-84
7A-1A
7A-9F
7A-DE
7A-9E
7A-AA
7A-9C
7A-C2
7A-1B
(device)
(device)
(device)
(device)
(device)
(device)
(device)
(device)
7A-59
7A-58
7A-94
7A-8D
7A-56
7A-DD
7A-95
7A-C4
7A-87
7A-C3
–
7A-57
AMP
Yamaha-1
5019
[AMP]
MAIN ZONE2
7E-BB
7E-BA
7F01-40
7A-B8
7A-3A
7A-DC
7A-D1
7A-CF
7A-D2
7A-CD
7A-D9
7A-D7
7A-D8
7A-D6
7A-D0
7A-017E
7A-047B
7A-0778
7A-0A75
7A-DA
7A-DB
–
–
–
Library
Brand
Preset number
setting
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
POWER_TV
POWER_AV
STANDBY
POWER
A (RAV280, RAV281)
USB (RAV282)
XM (RAV280)
B (RAV281)
A (RAV282)
SIRIUS (RAV280)
C (RAV281)
B (RAV282)
MUTE
CD
MD/CD-R
TUNER
TV CH +
DVD
DTV/CBL
DVR
TV CH –
V-AUX/DOCK
B (RAV280)
D (RAV281)
C (RAV282)
C (RAV281)
E (RAV282)
D (RAV283)
TV VOL +
AMP /
TV INPUT
TV MUTE
TV VOL –
SCENE_1
SCENE_2
SCENE_3
SCENE_4
BAND LEVEL / TITLE
PRESET/CH_ HH
HH
H (UP)
SRCH MODE / MENU
VOLUME +
A-E/CAT. / A/B/C/D/E
_ QQ
QQ
Q (LEFT)
ENTER
A-E/CAT. / A/B/C/D/E
_ WW
WW
W (RIGHT)
RETURN / MEMORY
PRESET/CH_ GG
GG
G (DOWN)
DISPLAY
VOLUME –
REC
AA
AA
A (STOP)
DD
DD
D (PAUSE)
WW
WW
W (PLAY)
EE
EE
E (REW)_INFO
RR
RR
R (FF)
TT
TT
T (SKIP –)
_PTY SEEK–MODE
YY
YY
Y (SKIP +)
_PTY SEEK–START
1_ QQ
QQ
Q PRG
2_PRG WW
WW
W
3_ENHANCER
4_SUR. DECODE
5_STRAIGHT
6_DIRECT
7_NIGHT
8_PARAMETER
9_MULTI CH IN
0_AUDIO SEL
+10
ENT_SLEEP
MAIN ZONE2
ID1 (default) ID2
7E-7F81
7E-7E80
7F01-3FC1
7A-B44A
7A-39C7
7A-1CE2
7A-15EB
7A-C937
7A-16E8
7A-C13F
7A-54AA
7A-13ED
7A-55AB
7A-0FF1
7A-14EA
7A-007E
7A-037D
7A-0678
7A-0977
7A-8678
7A-9D63
7A-847A
7A-1AE4
7A-9F61
7A-DE20
7A-9E60
7A-AA54
7A-9C62
7A-C23C
7A-1BE5
(device)
(device)
(device)
(device)
(device)
(device)
(device)
(device)
7A-59A7
7A-58A6
7A-946A
7A-8D73
7A-56A8
7A-DD23
7A-956B
7A-C43A
7A-8779
7A-C33D
–
7A-57A9
AMP
Yamaha-2
5020
7E-BB45
7E-BA44
7F01-40BE
7A-B846
7A-3AC4
7A-DC22
7A-D12F
7A-CF31
7A-D22C
7A-CD33
7A-D927
7A-D729
7A-D826
7A-D628
7A-D02E
7A-017F
7A-047A
7A-0779
7A-0A74
7A-DA24
7A-DB25
–
–
–
@@
@@
@
[5019]
@@
@@
@
[5020]
–
–
O
O
O
O
O
O
O
O
O
–
O
O
O
–
O
O
O
–
O
–
–
–
O
O
O
O
O
O
–
–
O
O
O
O
O
O
O
O
O
–
O
O
O
–
O
O
O
–
–
–
–
–
O
O
O
O
O
O
K5
[USB] RAV282
(TV POWER)
7F01-20
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
7F01-2D
7F01-2E
7F01-2F
$$
$$
$
7F01-30
7F01-31
7F01-32
7F01-33
7F01-34
7F01-35
$$
$$
$
7F01-36
7F01-3D
7F01-3A
7F01-3E
7F01-37
7F01-38
7F01-3B
7F01-3C
7F01-21
7F01-22
7F01-23
7F01-24
7F01-25
7F01-26
7F01-27
7F01-28
7F01-29
7F01-2A
7F01-2B
7F01-2C
TUNER
Yamaha-8
5012
K6
[XM] RAV280
(TV POWER)
–
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
7A-70
7A-6A
7A-6D
$$
$$
$
7A-6E
7A-6F
7A-6C
7A-71
7A-6B
7A-72
$$
$$
$
–
–
–
–
7A-3D
7A-3E
7A-3F
7A-EF
7A-61
7A-62
7A-63
7A-64
7A-65
7A-66
7A-67
7A-68
7A-69
7A-60
–
7A-BF
TUNER
Yamaha-5
5009
(TV POWER)
–
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
7A-708E
7A-6A94
7A-6D93
$$
$$
$
7A-6E90
7A-6F91
7A-6C92
7A-718F
7A-6B95
7A-728C
$$
$$
$
–
–
–
–
7A-3DC3
7A-3EC0
7A-3FC1
7A-EF11
7A-619F
7A-629C
7A-639D
7A-649A
7A-659B
7A-6698
7A-6799
7A-6896
7A-6997
7A-609E
–
7A-BF41
TUNER
Yamaha-11
5015
ID1
(default)
ID2
K7
[SIRIUS] RAV280
ID1
(default)
ID2
(TV POWER)
7F01-D02E
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
7F01-DD23
7F01-E11F
7F01-DE20
$$
$$
$
7F01-E21C
7F01-E31D
7F01-E41A
7F01-DF21
7F01-E51B
7F01-E01E
$$
$$
$
7F01-E618
7F01-E917
7F01-E719
7F01-E816
7F01-EA14
7F01-EB15
7F01-EC12
7F01-ED13
7F01-D12F
7F01-D22C
7F01-D32D
7F01-D42A
7F01-D52B
7F01-D628
7F01-D729
7F01-D826
7F01-D927
7F01-DA24
7F01-DB25
7F01-DC22
TUNER
Yamaha-10
5018
@@
@@
@
[5009]
@@
@@
@
[5015]
@@
@@
@
[5017]
@@
@@
@
[5018]
K9
[CD]
(TV POWER)
79-60
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
–
–
–
$$
$$
$
–
–
–
–
–
79-0A
$$
$$
$
7A-4F
7A-09
7A-09
7A-08
7A-0D
7A-0C
7A-0B
7A-0A
79-11
79-12
79-13
79-14
79-15
79-16
79-17
79-18
79-19
79-10
79-1A
79-0B
CD
Yamaha-1
5013
K10
[MD/CD-R]
(TV POWER)
7F-80
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
–
–
–
$$
$$
$
–
–
–
–
–
7F-9E
$$
$$
$
–
7F-84
7F-83
7F-82
7F-88
7F-89
7F-86
7F-87
7F-91
7F-92
7F-93
7F-94
7F-95
7F-96
7F-97
7F-98
7F-99
7F-90
7F-9A
7F-8A
CD-R
Yamaha
5001
(TV POWER)
D1-1B
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
7A-AE
7A-10
7A-AB
$$
$$
$
7A-AC
7A-AD
7A-12
7A-AF
7A-11
7A-B0
$$
$$
$
–
–
–
–
7A-A4
7A-A5
7A-A6
7A-A7
7A-E5
7A-E6
7A-E7
7A-E8
7A-E9
7A-EA
7A-EB
7A-EC
7A-B1
7A-B2
–
7A-B3
TUNER
Yamaha-3
5007
(TV POWER)
–
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
7A-AE50
7A-10EE
7A-AB55
$$
$$
$
7A-AC52
7A-AD53
7A-12EC
7A-AF51
7A-11EF
7A-B04E
$$
$$
$
–
–
–
–
7A-A45A
7A-A55B
7A-A658
7A-A759
7A-E51B
7A-E618
7A-E719
7A-E816
7A-E917
7A-EA14
7A-EB15
7A-EC12
7A-B14F
7A-B24C
–
7A-B34D
TUNER
Yamaha-12
5016
ID 1
(default)
ID2
@@
@@
@
[5007]
@@
@@
@
[5016]
K13
[DVD]
(TV POWER)
7C-80
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
7C-B1
7C-B4
7C-B2
$$
$$
$
7C-B5
7C-B8
7C-B6
7C-B7
7C-B3
7C-A6
$$
$$
$
7C-8B
7C-85
7C-83
7C-82
7C-86
7C-87
7C-B9
7C-BA
7C-94
7C-95
7C-96
7C-97
7C-98
7C-99
7C-9A
7C-9B
7C-9C
7C-93
7C-9D
7C-9E
DVD
Yamaha-1
2000
K14
[DVD/CBL]
TV POWER
(DVR POWER)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
TV VOL +
TV INPUT
TV MUTE
TV VOL-
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
–
–
–
$$
$$
$
–
–
–
–
–
–
$$
$$
$
(DVR REC)
(DVR STOP)
(DVR PAUSE)
(DVR PLAY)
(DVR REW)
(DVR FF)
(DVR SKIP -)
(DVR SKIP +)
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
K15
[DVR]
(TV POWER)
048.012
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
TV CH +
$$
$$
$
$$
$$
$
$$
$$
$
TV CH -
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
048.200
048.088
048.084
$$
$$
$
048.090
048.092
048.091
048.131
048.089
048.015
$$
$$
$
048.055
048.049
048.048
048.044
048.041
048.040
048.033
048.032
048.001
048.002
048.003
048.004
048.005
048.006
048.007
048.008
048.009
048.000
–
–
DVR
Yamaha
2011
K17
[V-AUX]
(TV POWER)
7F01-00
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
7F01-0D
7F01-0E
7F01-0F
$$
$$
$
7F01-10
7F01-11
7F01-12
7F01-13
7F01-14
7F01-15
$$
$$
$
7F01-16
7F01-1D
7F01-1A
7F01-1E
7F01-17
7F01-18
7F01-1B
7F01-1C
7F01-01
7F01-02
7F01-03
7F01-04
7F01-05
7F01-06
7F01-07
7F01-08
7F01-09
7F01-0A
7F01-0B
7F01-0C
TUNER
Yamaha-7
5011
K18
[VCR]
(TV POWER)
–
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH +)
$$
$$
$
$$
$$
$
$$
$$
$
(TV CH -)
$$
$$
$
$$
$$
$
$$
$$
$
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL-)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
–
–
–
$$
$$
$
–
–
–
–
–
–
$$
$$
$
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
TV POWER
(DVR POWER)
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
TV CH +
$$
$$
$
$$
$$
$
$$
$$
$
TV CH -
$$
$$
$
$$
$$
$
$$
$$
$
TV VOL +
TV INPUT
TV MUTE
TV VOL-
$$
$$
$
$$
$$
$
$$
$$
$
$$
$$
$
–
–
–
$$
$$
$
–
–
–
–
–
–
$$
$$
$
(DVR REC)
(DVR STOP)
(DVR PAUSE)
(DVR PLAY)
(DVR REW)
(DVR FF)
(DVR SKIP -)
(DVR SKIP +)
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Key
no.
K19
[PHONO]
RX-V463/HTR-6140/DSP-AX463
120
•FUNCTION CHART
1
2
12
16
20
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
POWER_TV
POWER_AV
TV CH +
TV CH –
TV VOL +
TV INPUT
TV MUTE
TV VOL –
SCENE_1
SCENE_2
SCENE_3
SCENE_4
BAND LEVEL / TITLE
PRESET/CH_ HH
HH
H (UP)
SRCH MODE / MENU
VOLUME +
A-E/CAT. / A/B/C/D/E
_ QQ
QQ
Q (LEFT)
ENTER
A-E/CAT. / A/B/C/D/E
_ WW
WW
W (RIGHT)
RETURN / MEMORY
PRESET/CH_ GG
GG
G (DOWN)
DISPLAY
VOLUME –
REC
AA
AA
A (STOP)
DD
DD
D (PAUSE)
WW
WW
W (PLAY)
EE
EE
E (REW)_INFO
RR
RR
R (FF)
TT
TT
T (SKIP –)
_PTY SEEK–MODE
YY
YY
Y (SKIP +)
_PTY SEEK–START
1_ QQ
QQ
Q PRG
2_PRG WW
WW
W
3_ENHANCER
4_SUR. DECODE
5_STRAIGHT
6_DIRECT
7_NIGHT
8_PARAMETER
9_MULTI CH IN
0_AUDIO SEL
+10
ENT_SLEEP
(TV POWER)
(device)
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
LEVEL
MENU UP
MENU
MENU LEFT
MENU SELECT
MENU RIGHT
RETURN
MENU DOWN
SUB MENU
(device)
(device)
(device)
(device)
(device)
(device)
(device)
(device)
PROG (-)
PROG (+)
ENHANCER
SUR.DECODE
STRAIGHT
(PURE) DIRECT
NIGHT
PARAMENTER
MULTI CH IN
AUDIO SEL
–
SLEEP
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
TITLE
UP
MENU
LEFT
ENTER
RIGHT
RETURN
DOWN
DISPLAY
–
STOP
PAUSE
PLAY
–
–
SKIP (-)
SKIP (+)
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
–
P.ENTER
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
BAND
PRESET (+)
SRCH MODE
A-E/CAT. (-)
ENTER
A-E/CAT. (+)
MEMORY
PRESET (-)
DISPLAY
–
–
–
–
INFO
EON
PTY MODE
PTY START
P1
P2
P3
P4
P5
P6
P7
P8
P9
P0
–
P.ENTER
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
TITLE
UP
SRCH MODE
LEFT
ENTER
RIGHT
MEMORY
DOWN
DISPLAY
REC
STOP
PAUSE
PLAY
REW
FF
SKIP (-)
SKIP (+)
1
2
3
4
5
6
7
8
9
10
11
12
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
–
–
–
–
–
–
–
–
DISPLAY
DISC SKIP
STOP
PAUSE
PLAY
REW
FF
SKIP (-)
SKIP (+)
1
2
3
4
5
6
7
8
9
0/10
+10
INDEX
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
–
–
–
–
-
–
–
–
DISPLAY
REC
STOP
PAUSE
PLAY
REW
FF
SKIP (-)
SKIP (+)
1
2
3
4
5
6
7
8
9
0/10
+10
INDEX
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
BAND
PRESET (+)
SRCH MODE
A-E/CAT. (-)
ENTER
A-E/CAT. (+)
MEMORY
PRESET (-)
DISPLAY
–
–
–
–
INFO
EON
PTY MODE
PTY START
P1
P2
P3
P4
P5
P6
P7
P8
P9
P0
–
P.ENTER
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
TITLE
MENU UP
MENU
MENU LEFT
MENU ENTER
MENU RIGHT
RETURN
MENU DOWN
DISPLAY
DISC SKIP
STOP
PAUSE
PLAY
REW
FF
SKIP (-)
SKIP (+)
1
2
3
4
5
6
7
8
9
0
+10
TITLE/INDEX
TV POWER
(DVR POWER)
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
TITLE
MENU UP
MENU
MENU LEFT
MENU ENTER
MENU RIGHT
RETURN
MENU DOWN
DISPLAY
(DVR REC)
(DVR STOP)
(DVR PAUSE)
(DVR PLAY)
(DVR REW)
(DVR FF)
(DVR SKIP -)
(DVR SKIP +)
1
2
3
4
5
6
7
8
9
0/10
_/_ _,11
ENTER/12
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
TITLE
MENU UP
MENU
MUTE LEFT
MENU ENTER
MENU RIGHT
RETURN
MENU DOWN
DISPLAY
REC
STOP
PAUSE
PLAY
REW
FF
SKIP (-)
SKIP (+)
1
2
3
4
5
6
7
8
9
0
+10
TITLE/INDEX
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
BAND
PRESET (+)
SRCH MODE
A-E/CAT. (-)
ENTER
A-E/CAT. (+)
MEMORY
PRESET (-)
DISPLAY
–
–
–
–
INFO
EON
PTY MODE
PTY START
P1
P2
P3
P4
P5
P6
P7
P8
P9
P0
–
P.ENTER
(TV POWER)
POWER
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
TITLE
–
–
–
–
–
RETURN
–
–
REC
STOP
PAUSE
PLAY
REW
FF
–
–
1
2
3
4
5
6
7
8
9
0/10
>10
ENTER
TV POWER
(DVR POWER)
(TV CH +)
(TV CH -)
(TV VOL +)
(TV INPUT)
(TV MUTE)
(TV VOL -)
TITLE
MENU UP
MENU
MENU LEFT
MENU ENTER
MENU RIGHT
RETURN
MENU DOWN
DISPLAY
(DVR REC)
(DVR STOP)
(DVR PAUSE)
(DVR PLAY)
(DVR REW)
(DVR FF)
(DVR SKIP -)
(DVR SKIP +)
1
2
3
4
5
6
7
8
9
0/10
_/_ _,11
ENTER/12
K21
[AMP]
K5
[USB] RAV282
K6
[XM] RAV280
K7
[SIRIUS] RAV280
K9
[CD]
K10
[MD/CD-R]
K11
[TUNER]
K13
[DVD]
K14
[DTV/CBL]
K15
[DVR]
K17
[V-AUX]
K18
[VCR]
K19
[PHONO]
Label
Key
no.
1234
5
9101112
16
20
24
13 14 15
17 18 19
21
25
29 31
30
37
33 35
32
39
34
36
40 41 42 43
47464544
48 49 50 51
52 53 54 55
56 57 58 59
38
26 27 28
22 23
678
RX-V463/HTR-6140/DSP-AX463
121
RX-V463/HTR-6140/
DSP-AX463

Navigation menu
