BATTERY INSTALLATION

Remove battery door from the back of the unit by

unscrewing the door from the timer. Install two 1.5 v

(size AA) new alkaline batteries. Test the unit turning

the Run Time knobs to the ON position. There will be

a1to 5 second delay before the valve opens. The

battery indicator light will flash when the batteries are

in good condition. When the battery is low the light

will remain on and the valves will automatically shut

off. When the battery is drained, the light will go out.

TIMER INSTALLATION

Your Raindrip Two Zone Timer is equipped with two

valves enabling watering in two different areas with

independent watering programs. Follow the

instructions below to program each area. To attach the

faucet, loosen the collar to allow the coupling to spin

freely. Connect to faucet by tightening the coupling.

The collar can now be tightened. Do not use

wrenches or pliers to tighten the collars.

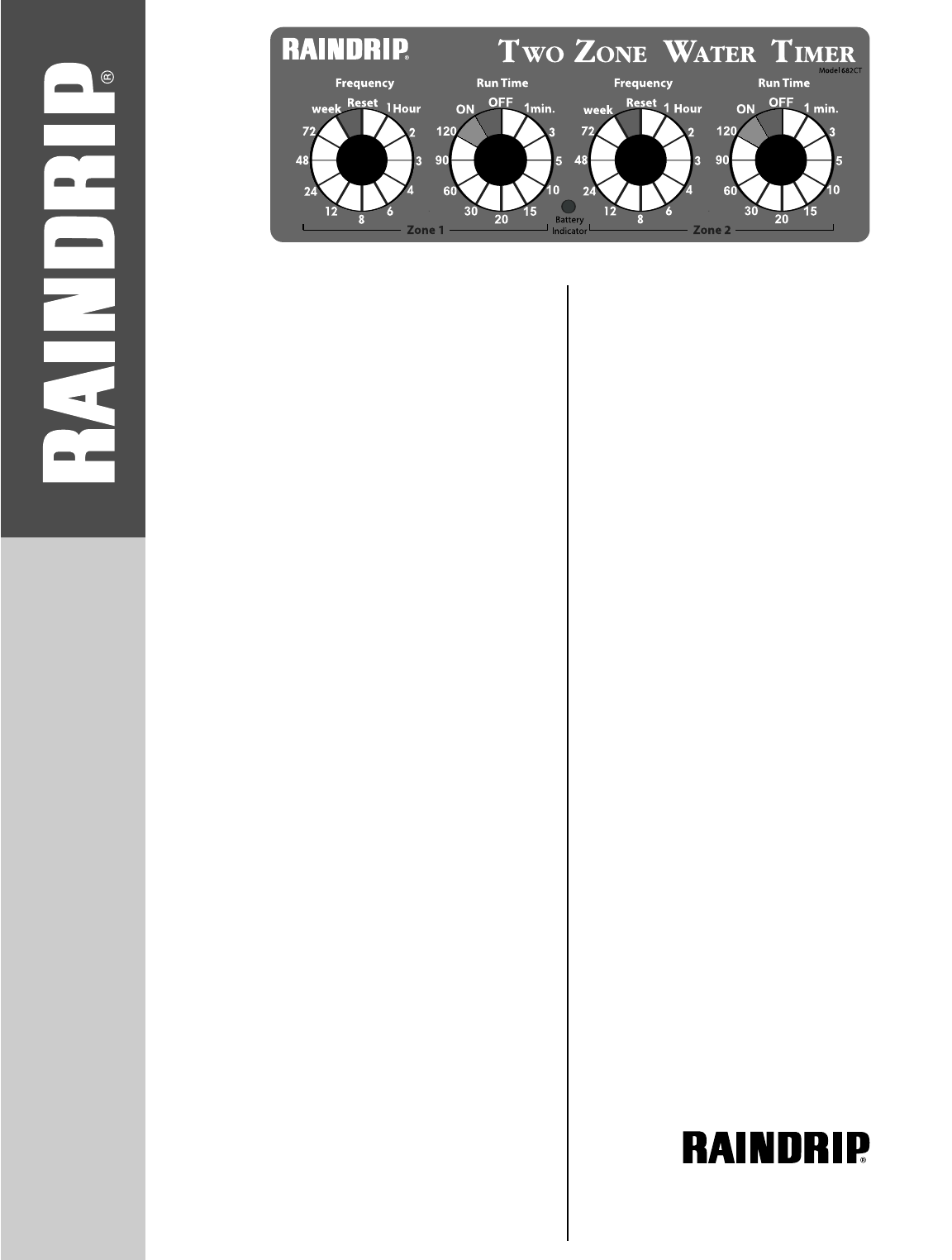

PROGRAMMING

1Turnthe Frequency knob to the required

frequency, from one to 72 hours. Turn the knob

to Week to water once per week.

2Turn the Run Time knob to your desired duration

from one to 120 minutes. The timer will not

begin its program until the next period.Repeat steps

1and 2for the second watering zone.

3Make a record of the date you programmed the

timer unit, the frequency and run time setting for

your reference.

4Replace the water resistant cover after program-

ming, ensuring that is tightly screwed onto the timer.

NOTES

•The timer starts keeping time when you set it. For

example, if you want the timer to come on at 7AM,

you must physically set it at 7 AM.

• You may change frequencies and run time at any

time by just turning the Frequency knob or the Run

Time knob to a new setting.

MANUAL OPERATION

Your Raindrip Timer can be turned on and off manu-

ally. Rotate the Run Time knobs to the OFF position to

suspend the current program without interrupting the

frequency setting. Rotate the Run Time knob to the ON

position to begin watering and back to OFF to stop it.

Rotate the knob back to the desired Run Time to

continue the current program.

OPERATING TIPS

•Turn off faucet and remove the batteries if the unit

will not be used for an extended period of time.

•Use only fresh alkaline batteries. Do not use any

rechargeable batteries. Replace the batteries at the

beginning of each season.

•Do not pull on hose while attached to the unit.

TROUBLE SHOOTING GUIDE

If the water does not come on, check the following:

•Be sure the faucet/tap is turned on.

•Check that batteries arein good condition and are

installed correctly.

•Check that the frequency and run times are the same

as your record.

•Be sure that the frequency setting is longer than the

run time. For example, you cannot set the frequency

at the 1Hour setting and have the run time set for

anything over 60 minutes.

CAUTION

Protect the timer and its parts from freezing.

Prior to the first frost or freeze, remove the timer from

the faucet and storeit indoors until Spring. Remember

to remove the batteries from the battery compartment.

Timer is for outdoor use only.

Timer is water resistant and not water proof.

Do not install timer in a location whereit can be

submerged in water.

This timer has drain holes to remove moisturefrom

inside the case. Always install timer above ground

and away from moisture.

337 West Bedford, Fresno CA 93711

Technical Service: 888-825-4716

www.raindrip.com

Water Timer Instructions Model R682

Two Zone Timer
