Ranger 550 Centrifugal Ranger_550_Centrifugal

User Manual: Ranger_550_Centrifugal

Open the PDF directly: View PDF PDF.
Page Count: 196 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Agroparts: www.HARDI-INTERNATIONAL.com
Ranger 550/2000/2200 550
Gallon Cent/Eagle 45', 60'
Country-Code 11
Date 19.03.2013 8:42
Agroparts: www.HARDI-INTERNATIONAL.com
Ranger 550/2000/2200 550
Gallon Cent/Eagle 45', 60'
Page 0.1
Date 19.03.2013 8:42
main group page-n° date description
Pumps, Pto's, Gear Boxes AA123-HIN 21:12:11 RANGER 550 SYSTEM OVERVIEW
A430-HIN 14:06:12 PUMP-204,206-150,210,310 ACE
A431-HIN 13:11:12 PUMP - ACE 150 BELT DRIVE
A485-HIN 13:11:12 PTO SHAFTS - BONDIOLI CENT.
Controls, Suction & S.C. Filters B254-HIN 08:12:11 PRESSURE REGULATOR - S93 06
B255-HIN 15:06:10 EVC, ECP, ECPC CONTROLS 39-PIN

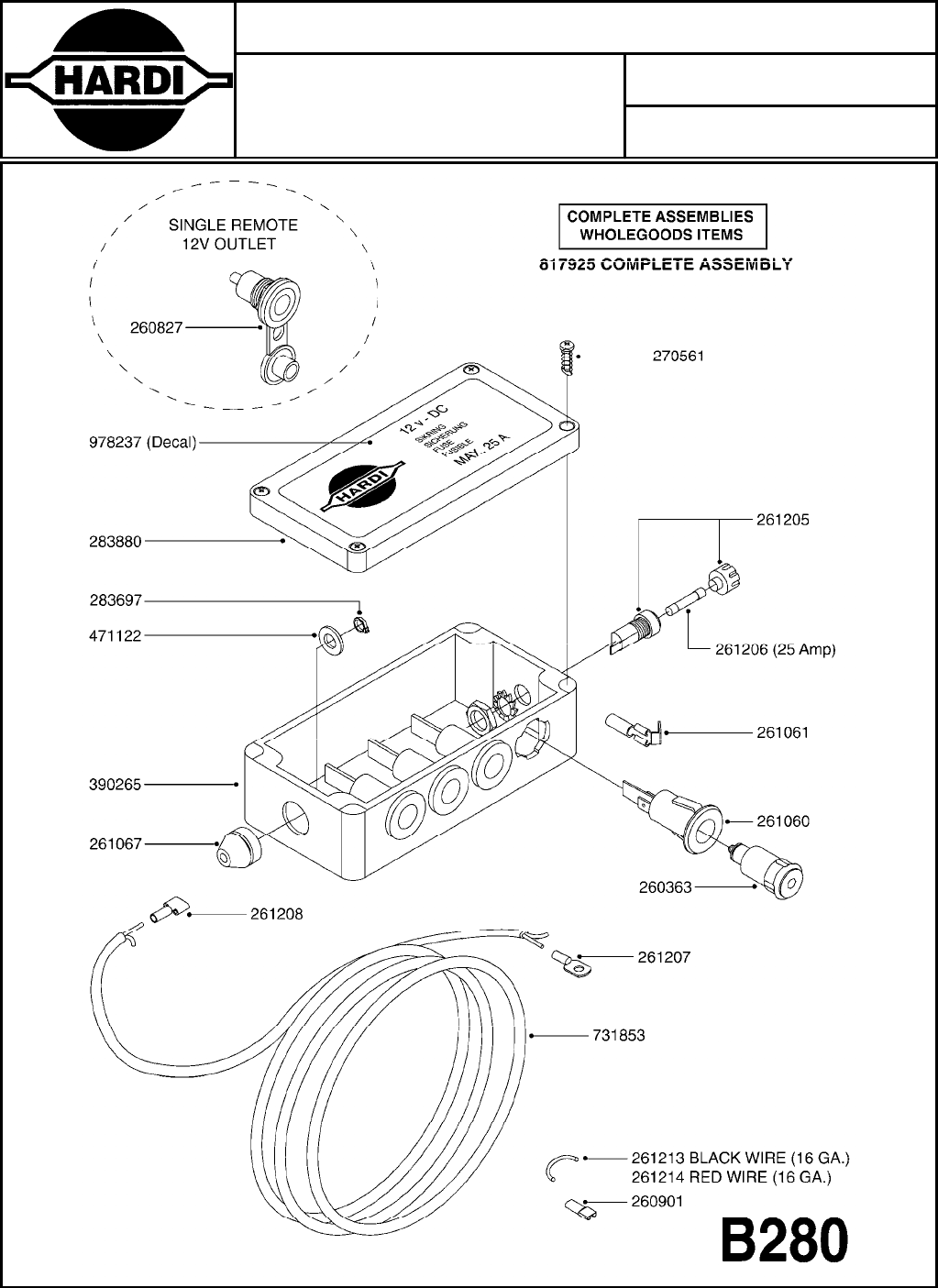

B280-HIN 16:05:12 12 VOLT OUTLET BOX

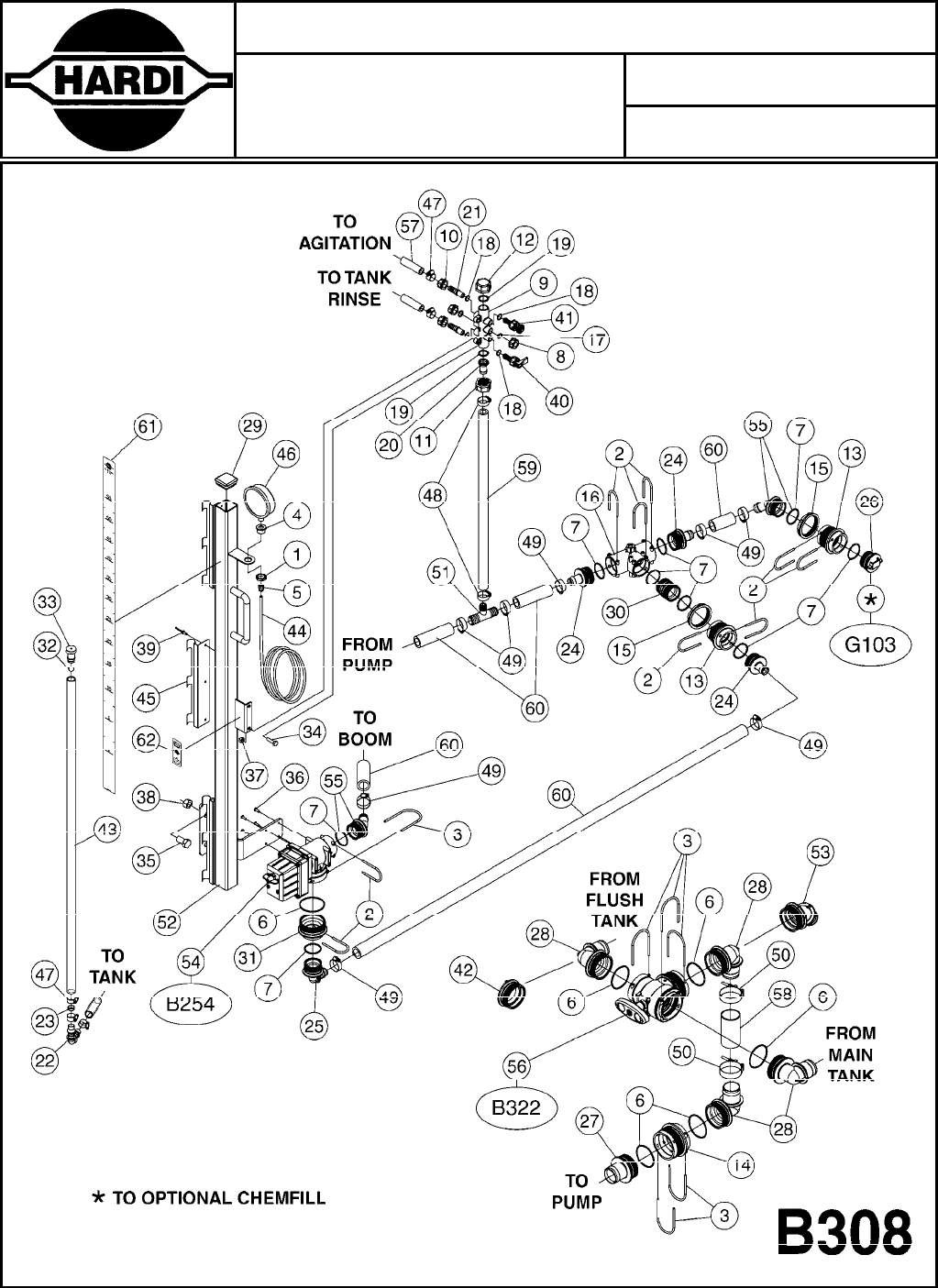

B308-HIN 12:05:11 RANGER 550 MANIFOLD

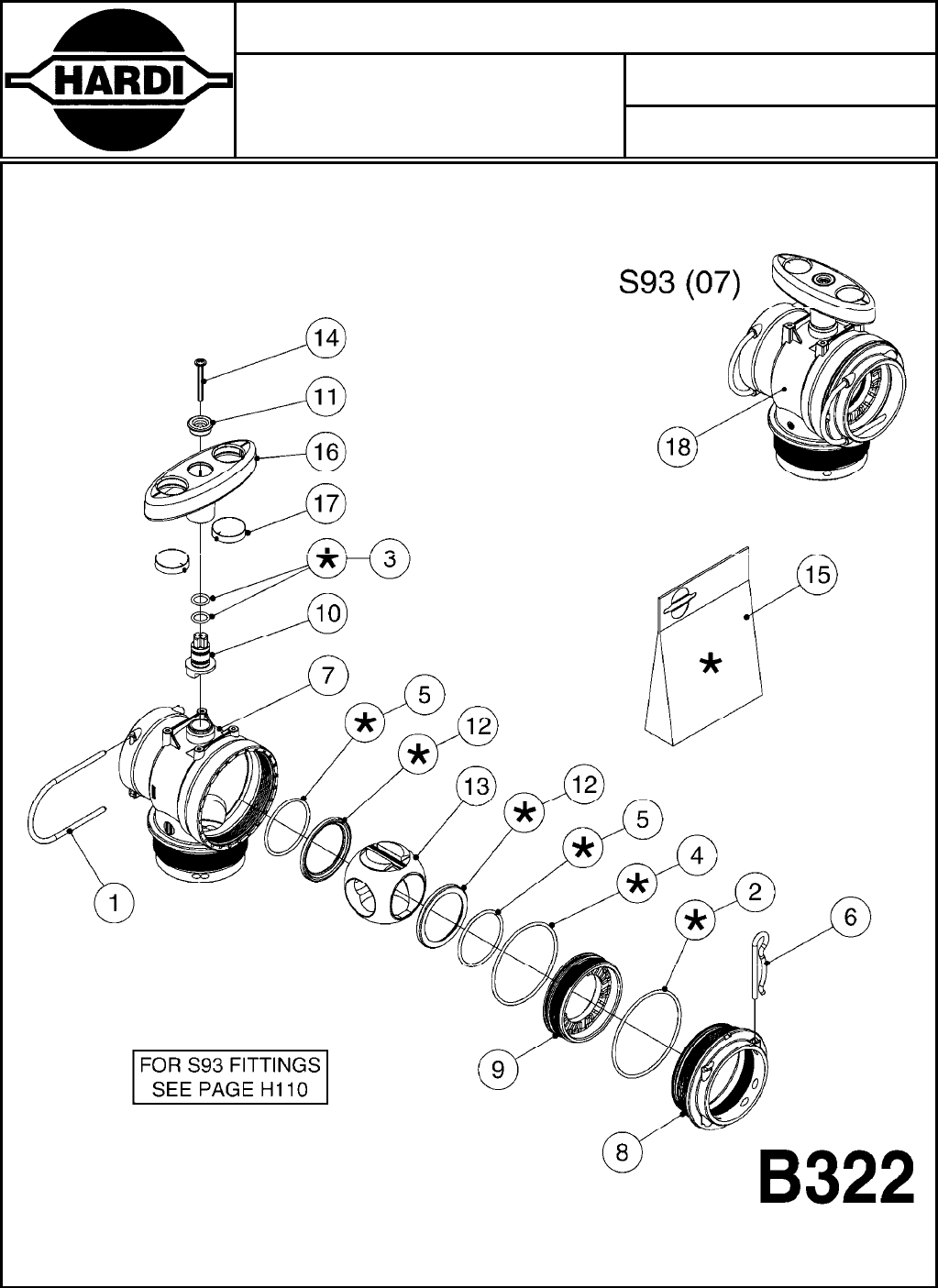

B322-HIN 29:10:12 MANIFOLD - S93 VALVE (07)

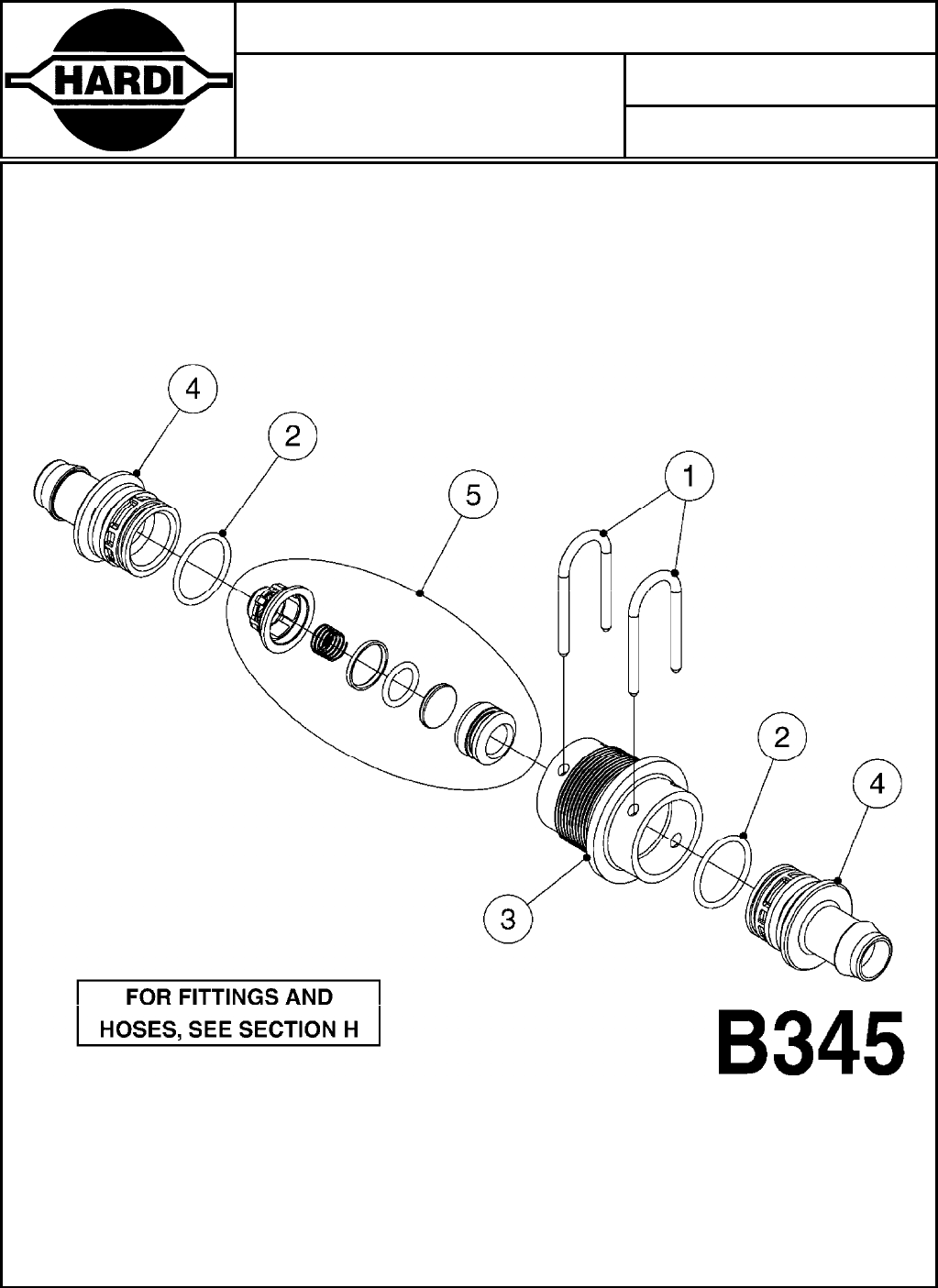

B345-HIN 21:06:10 CHECK VALVES - S53

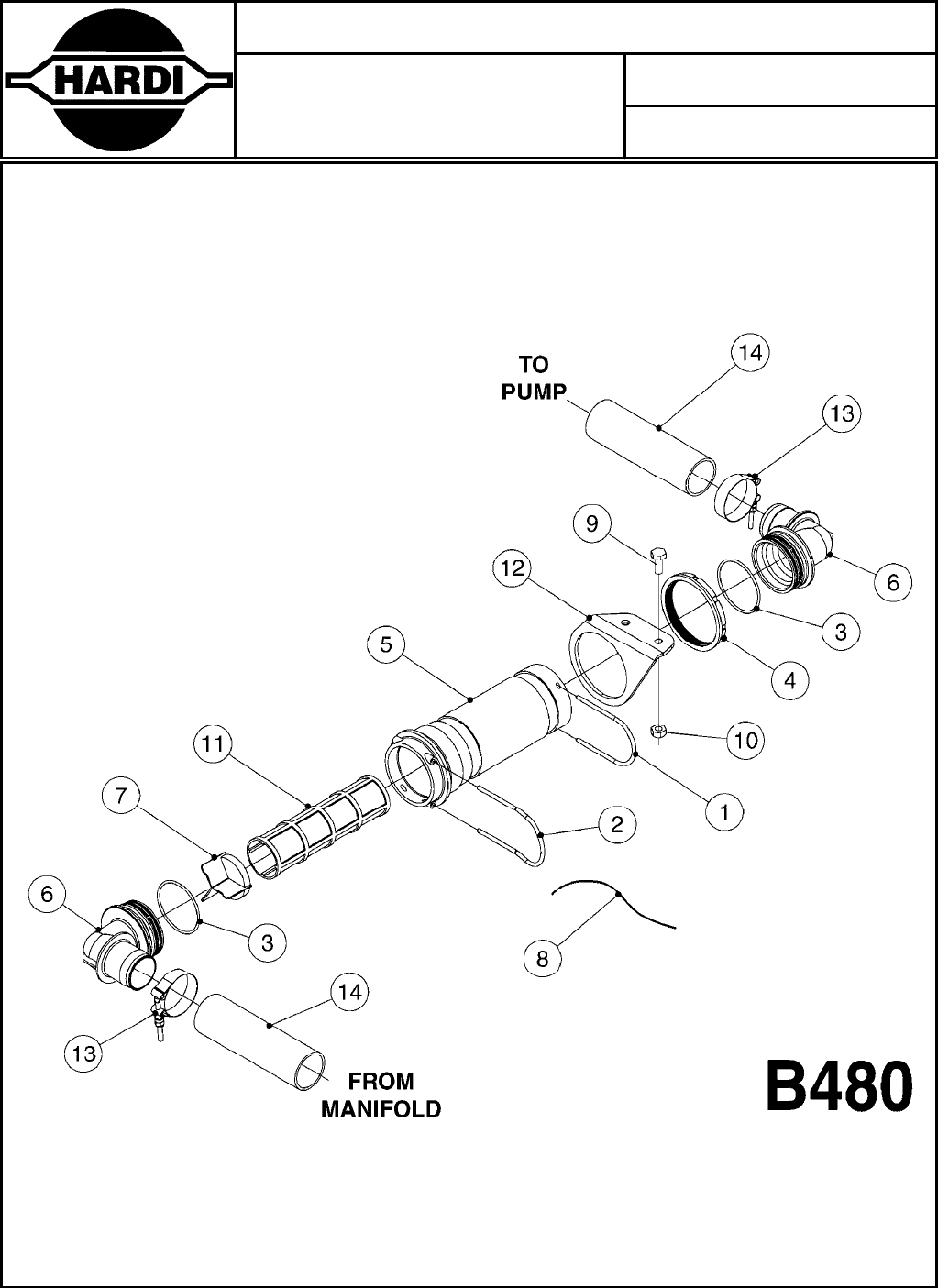

B480-HIN 15:06:10 SUCTION FILTER - RANGER

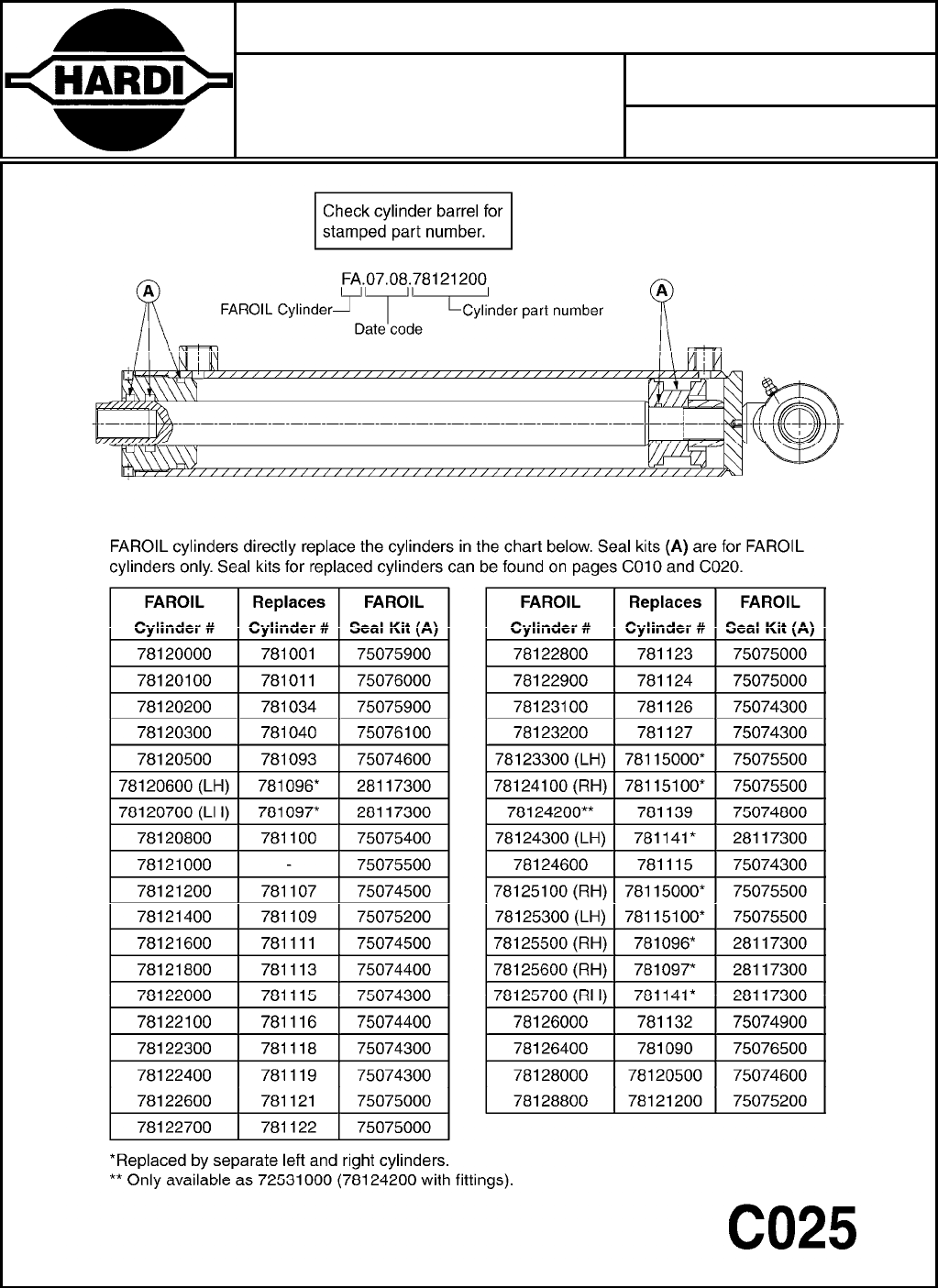

Hydraulics C025-HIN 15:08:12 HYDRAULICS - FAROIL CYLINDERS

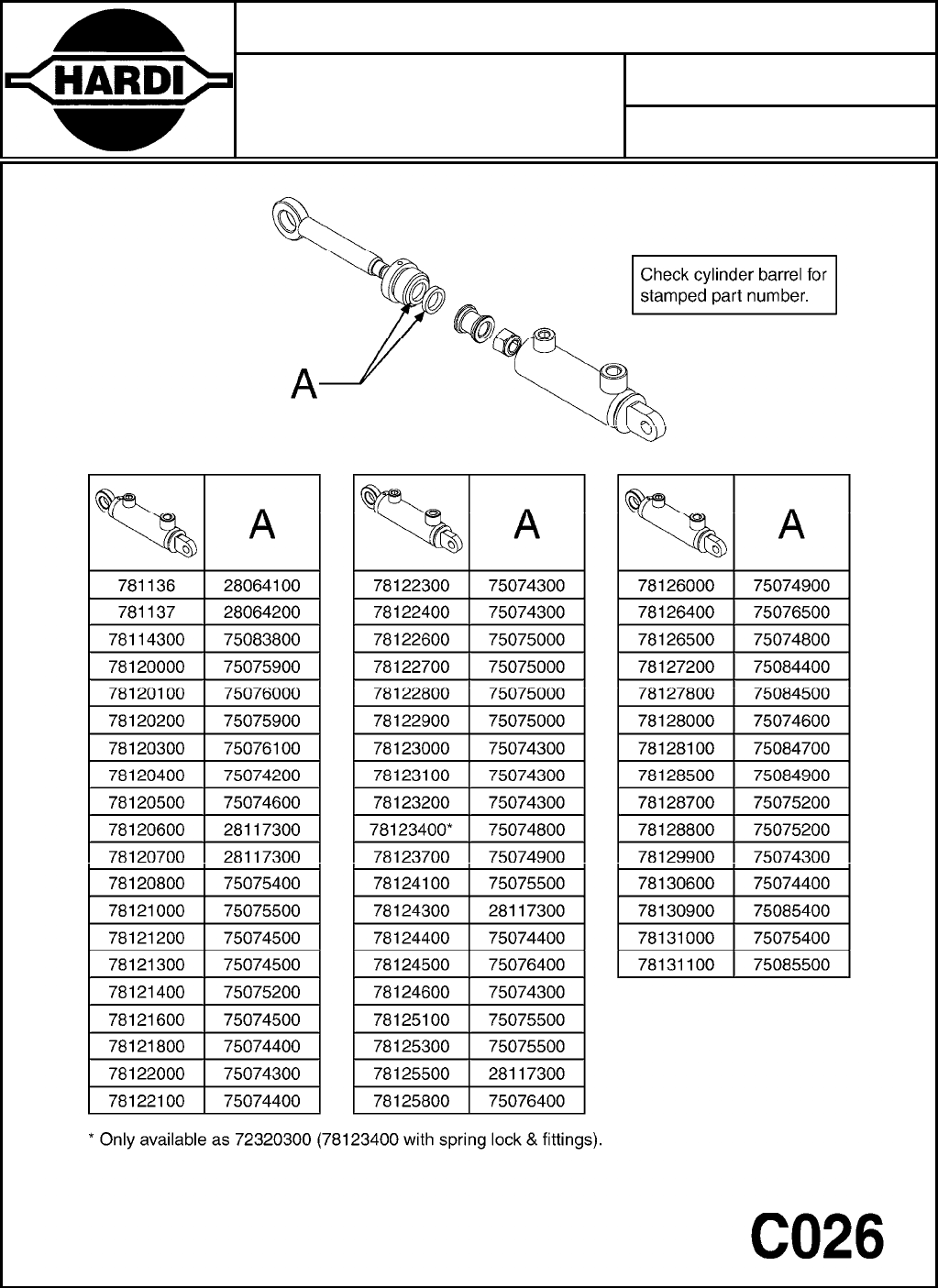

C026-HIN 15:08:12 HYDRAULICS - CYLINDERS (07)

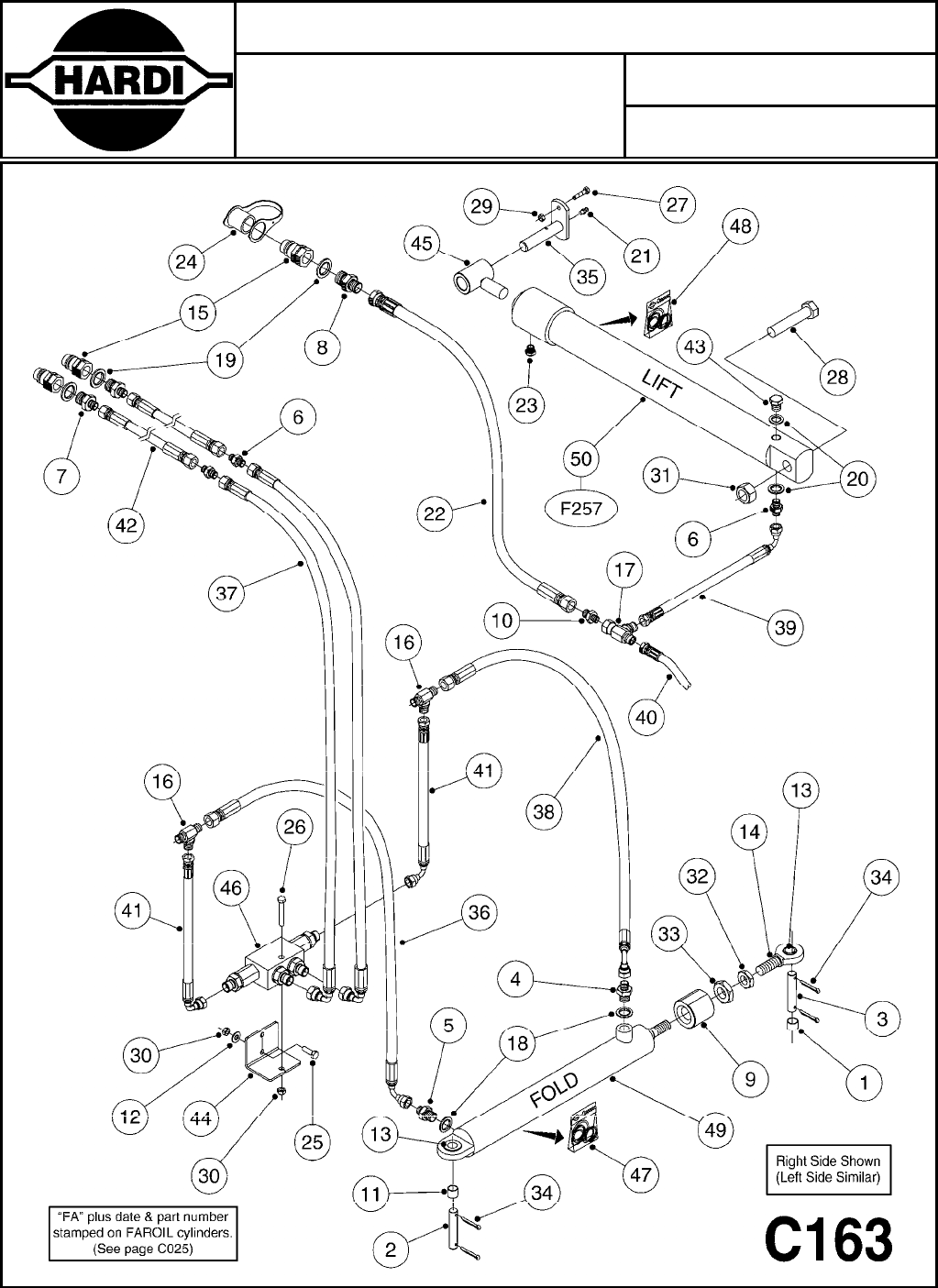

C163-HIN 18:09:12 HYDRAULICS-EAG.HY RANGER 2011

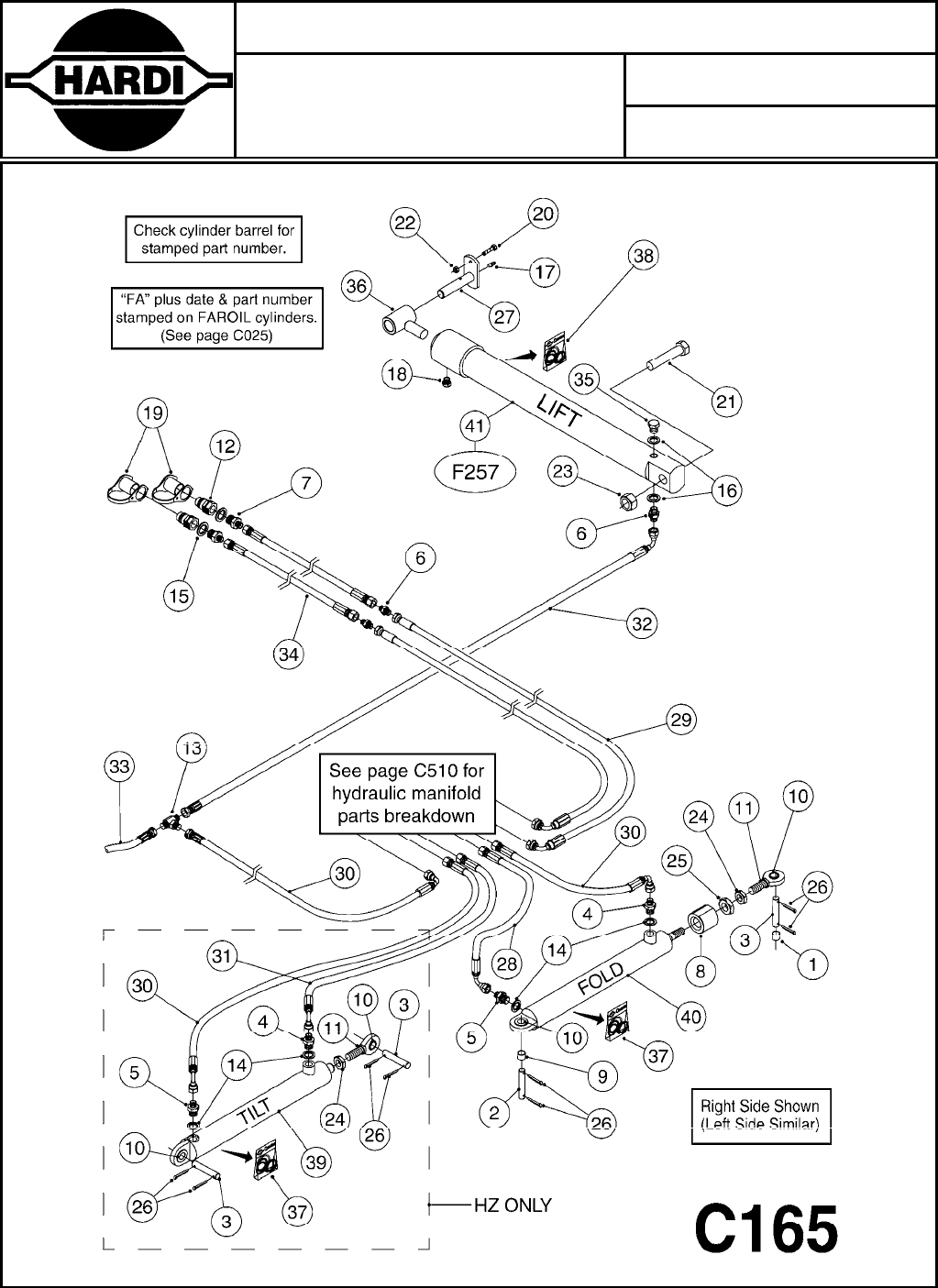

C165-HIN 18:09:12 HYDRAULICS HV/HZ - RANGER 550

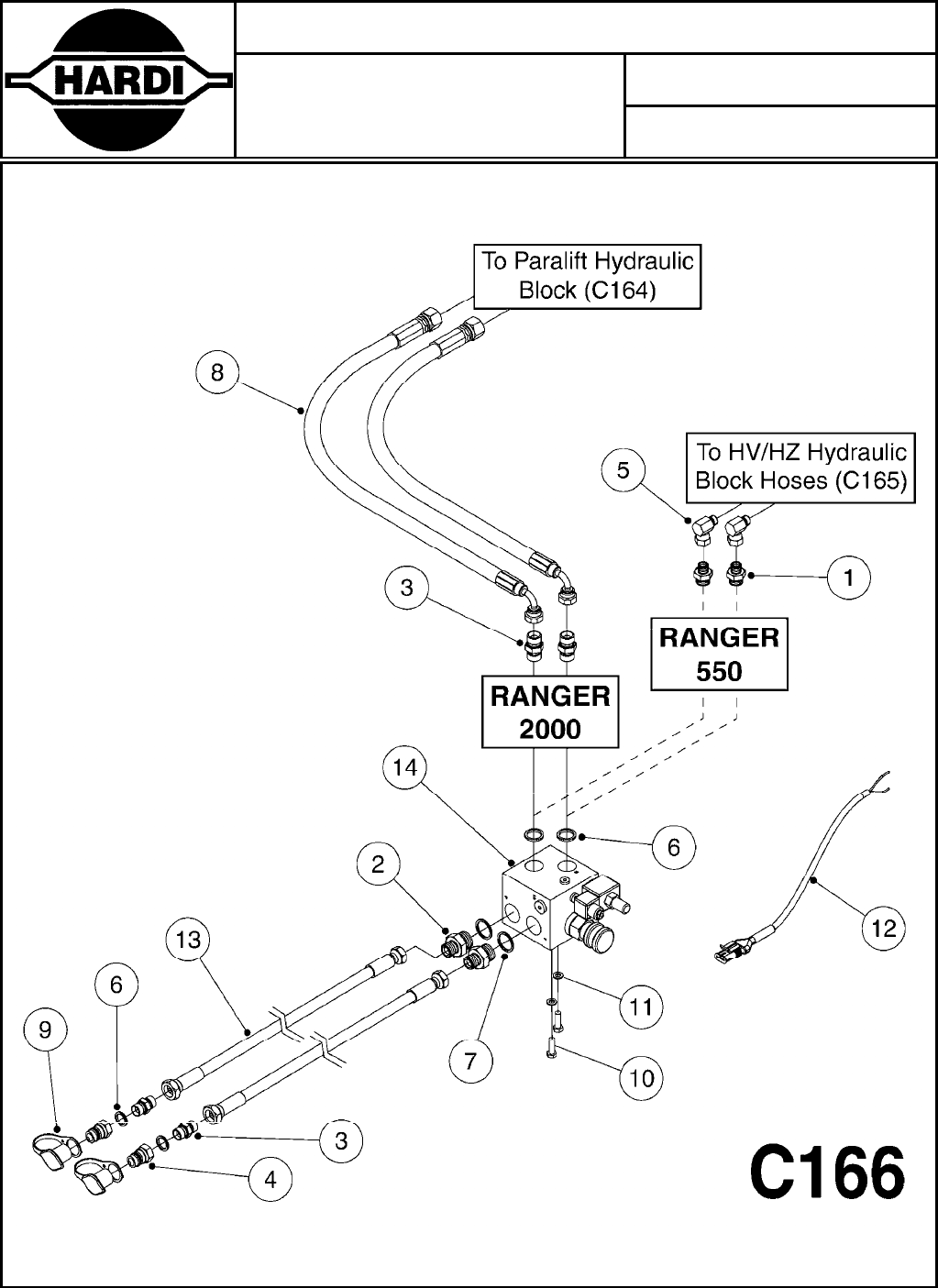

C166-HIN 13:06:11 HYDRAULICS OPEN CENTER RANGER

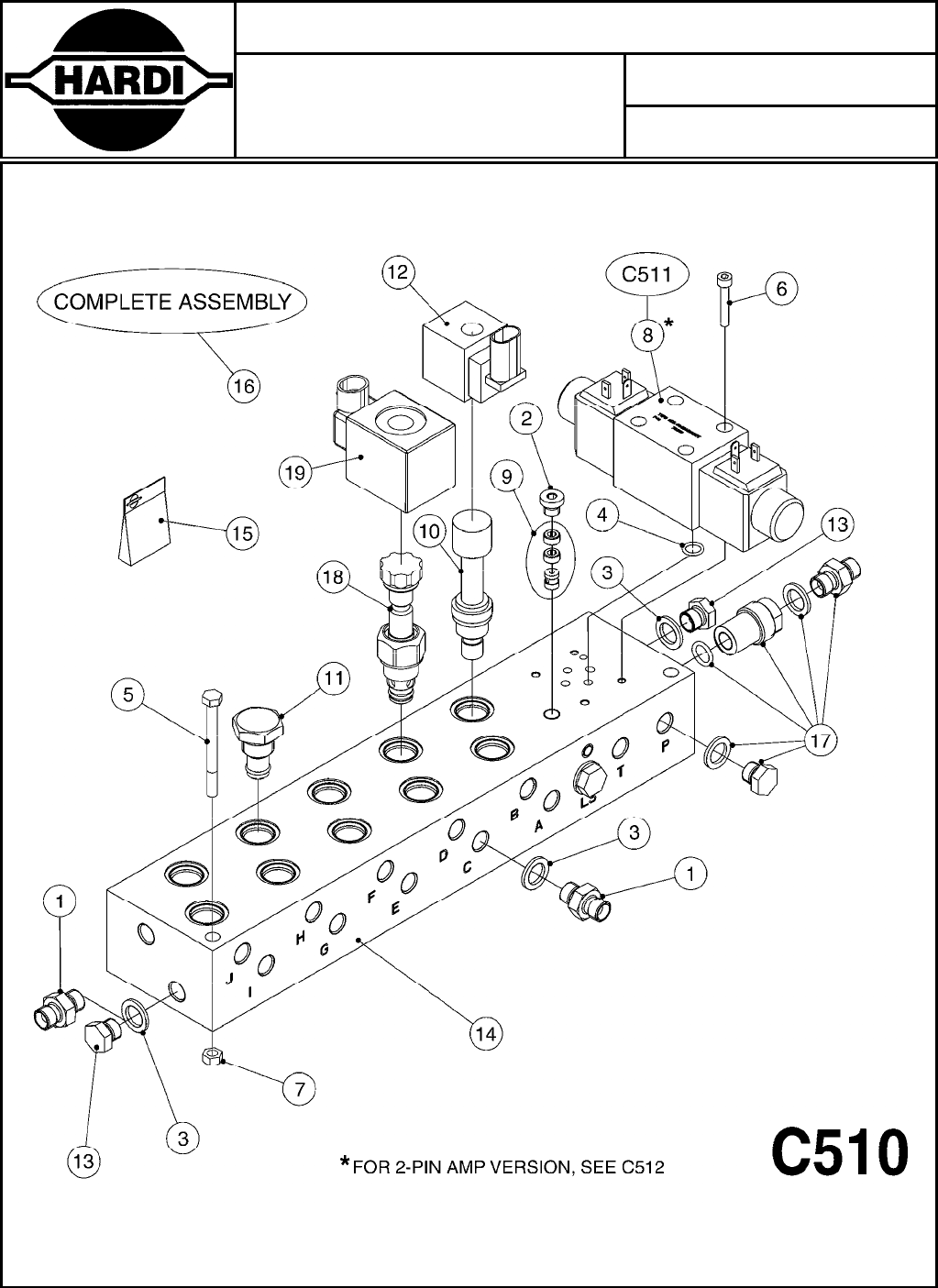

C510-HIN 19:07:12 HYD.BLOCK EAGLE/FORCE PRE 2012
C511-HIN 30:05:12 CETOP VALVES

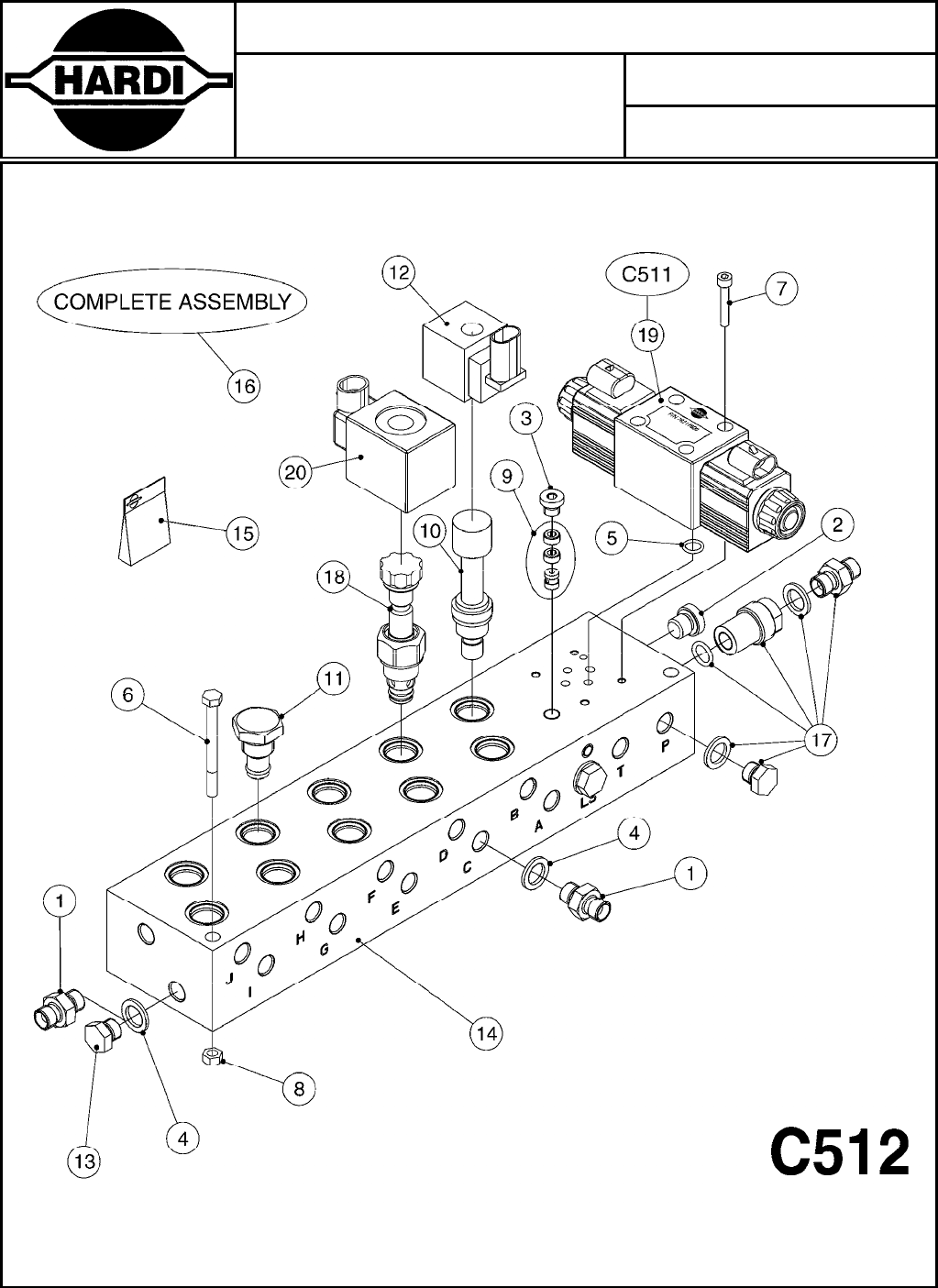

C512-HIN 29:05:12 HYD.BLOCK EAGLE/FORCE 2012
Booms, Nozzle Bodies & Tubes D290-HIN 09:03:10 BOOM EAGLE WINGS 45' 50'

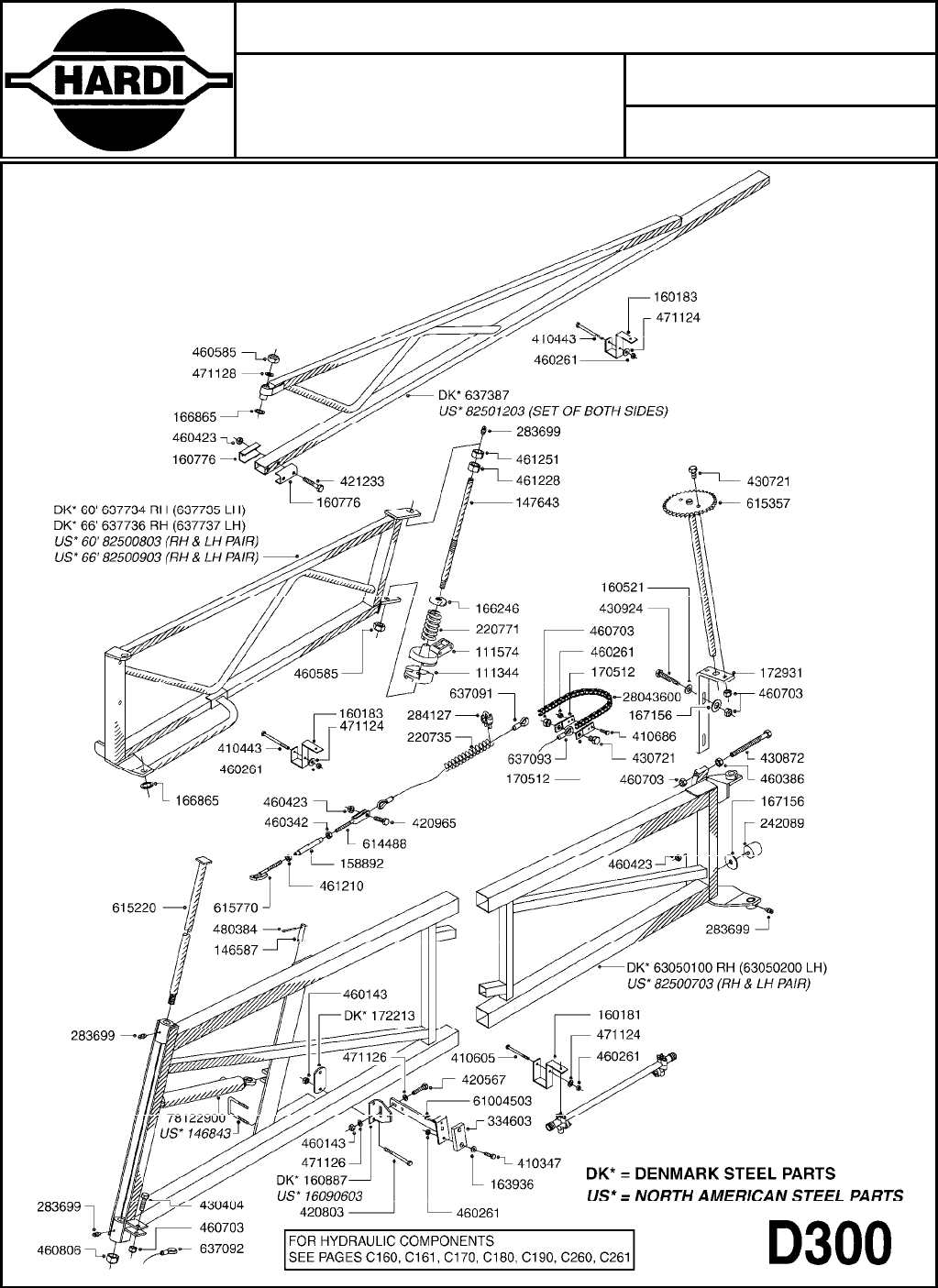

D300-HIN 09:03:10 BOOM EAGLE WINGS 60' 66'

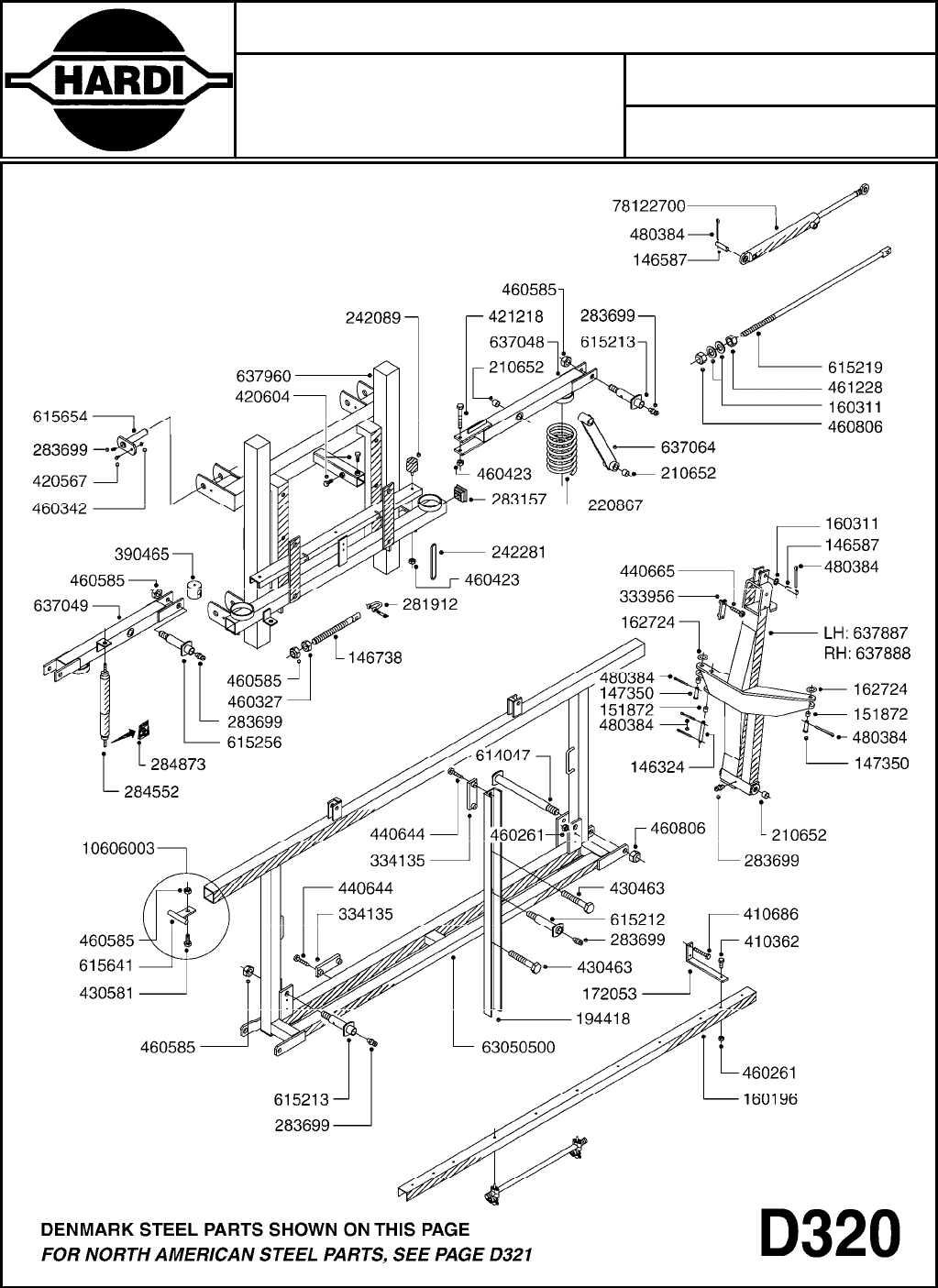

D320-HIN 01:11:12 BOOM COMMANDER CENTER 45-66'DK

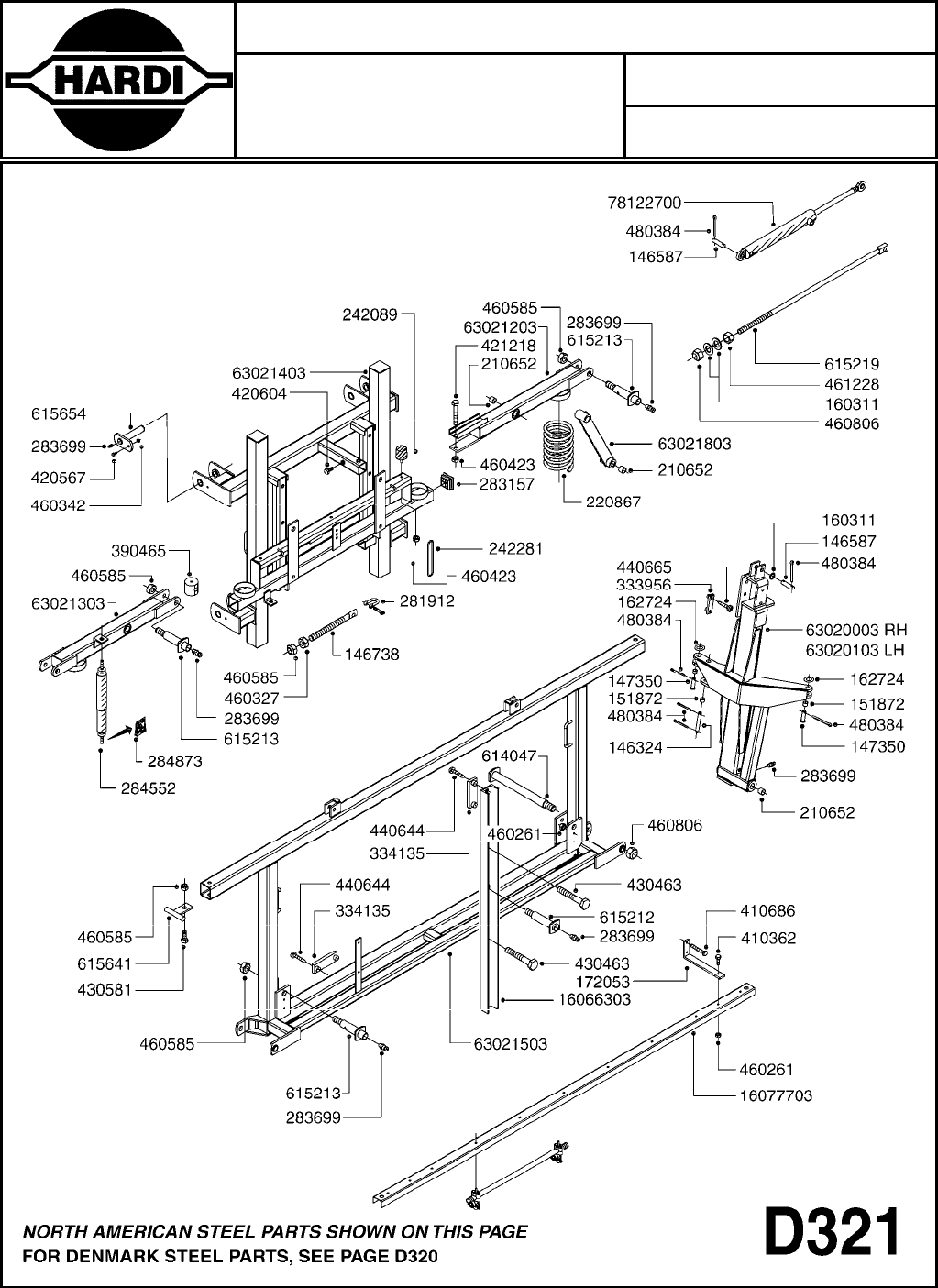

D321-HIN 01:11:12 BOOM COMMANDER CENTER 45-66'US

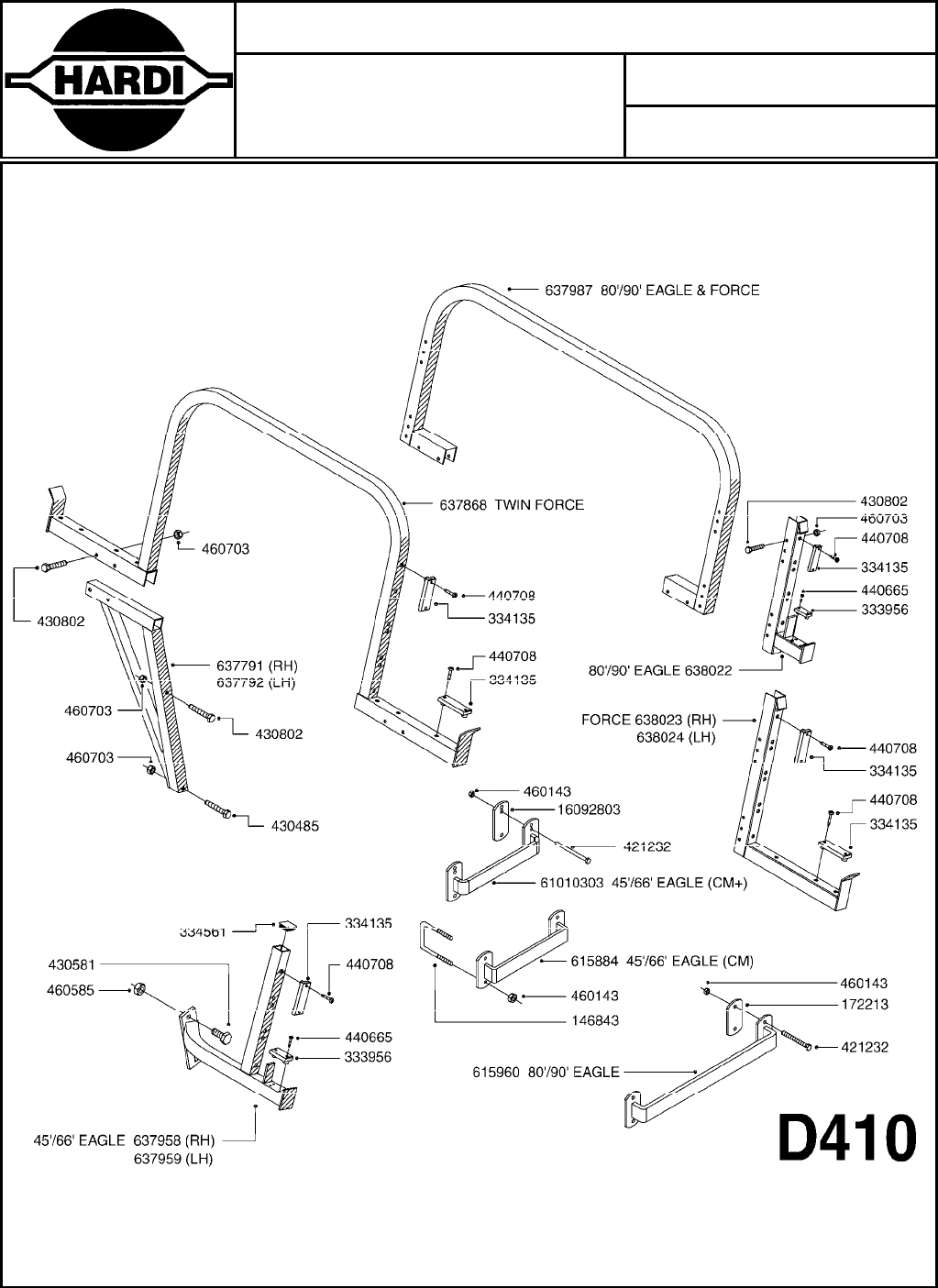

D410-HIN 16:12:08 TRANSPORT BRACKETS - CM/CM+

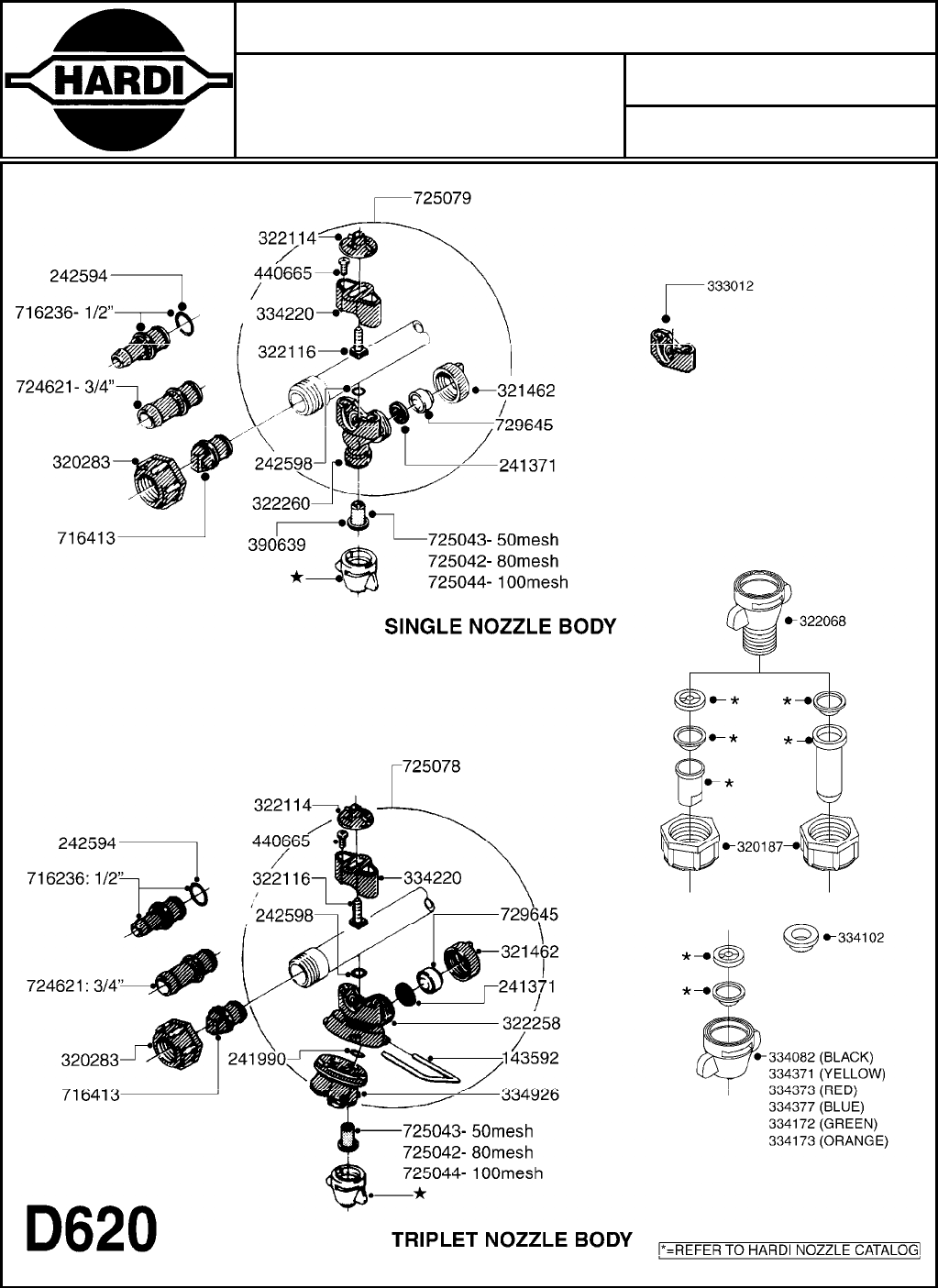

D620-HIN 18:03:10 NOZZLE BODIES-SNAP FIT

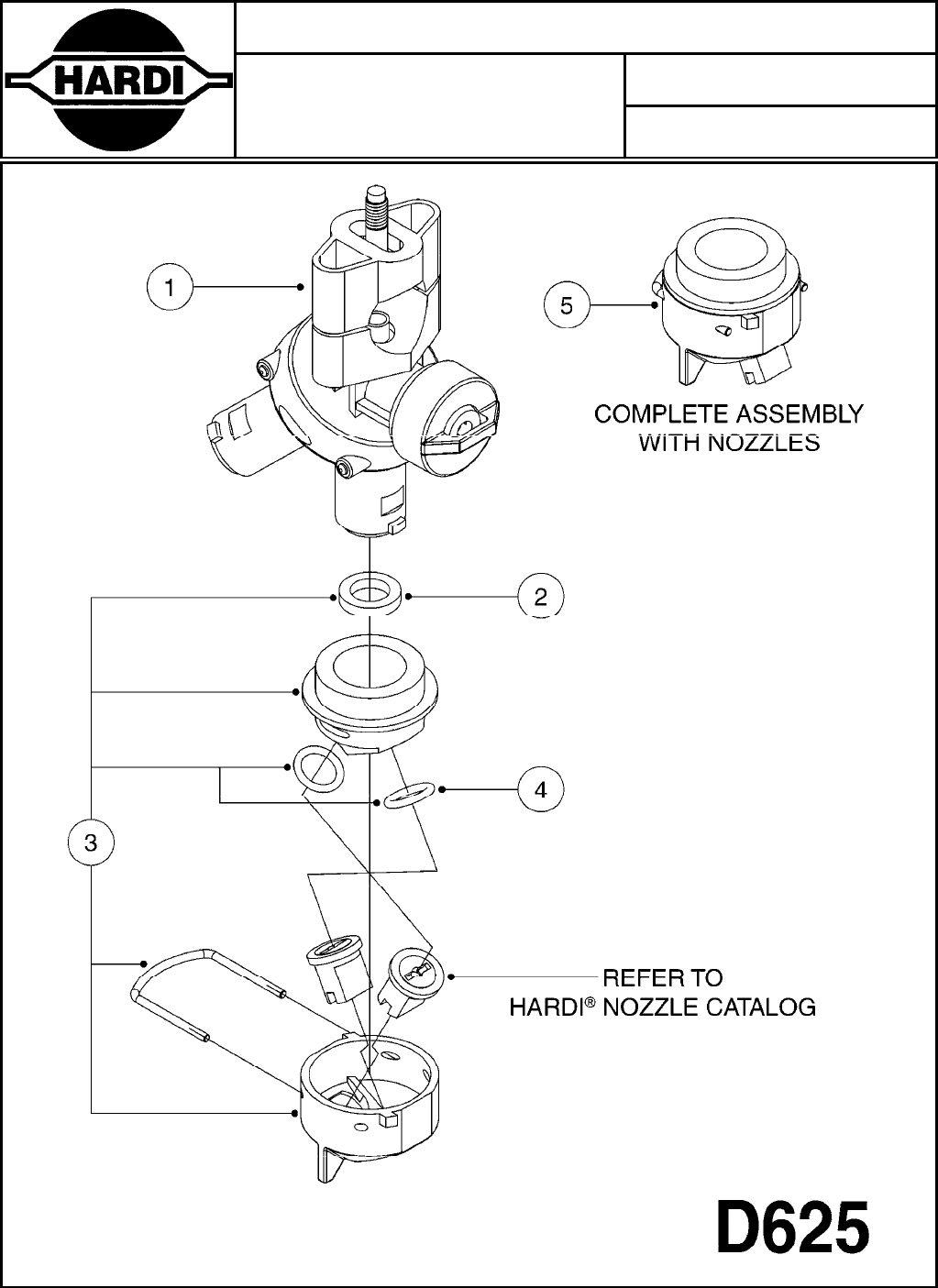

D625-HIN 28:11:06 DOUBLE NOZZLE HOLDER-SNAP FIT

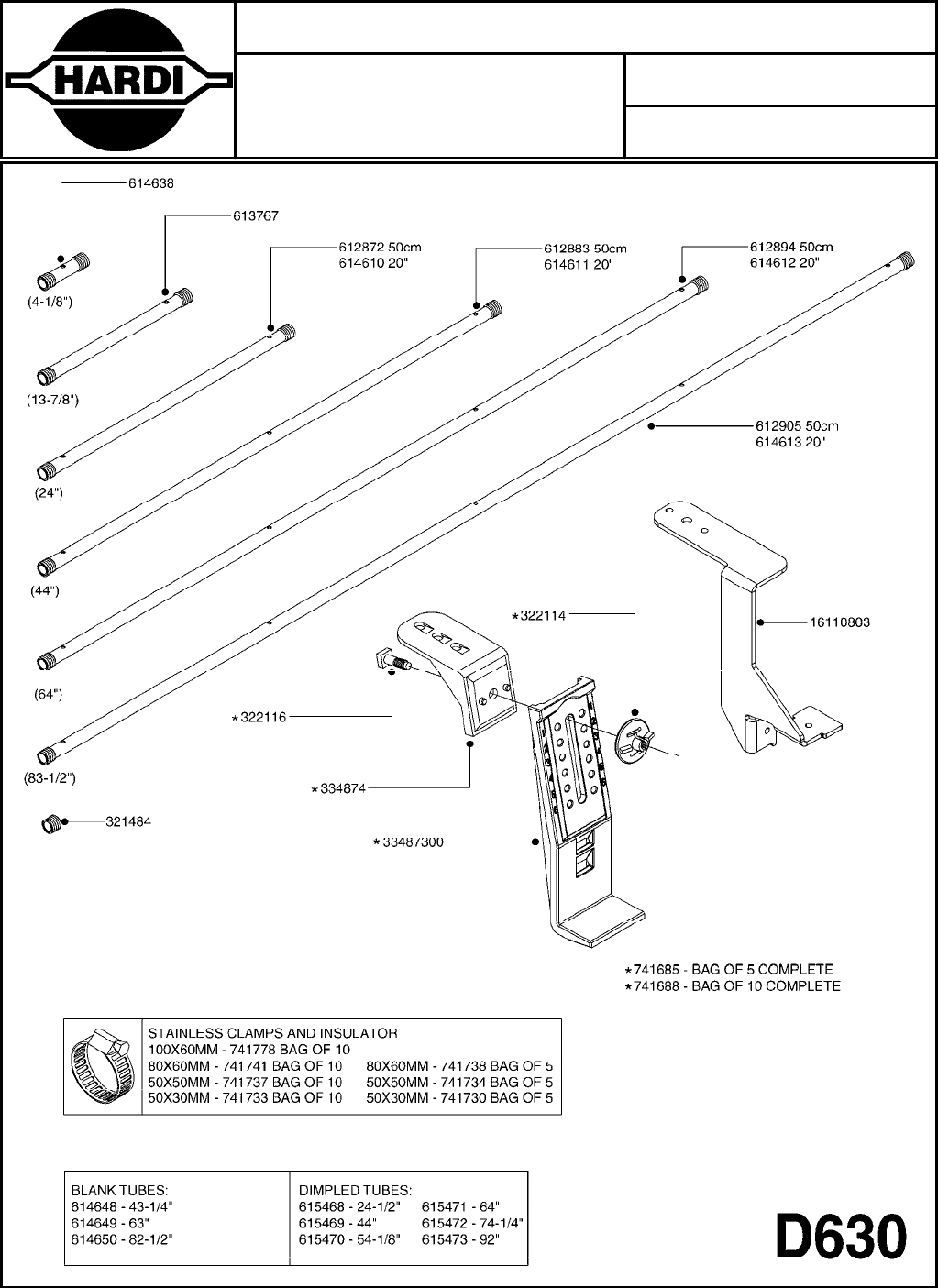

D630-HIN 08:04:10 NOZZLE TUBES & HOLDER-PLASTIC
D700-HIN 14:12:07 BOOM-NOZZLES 110° FLAT FAN ISO

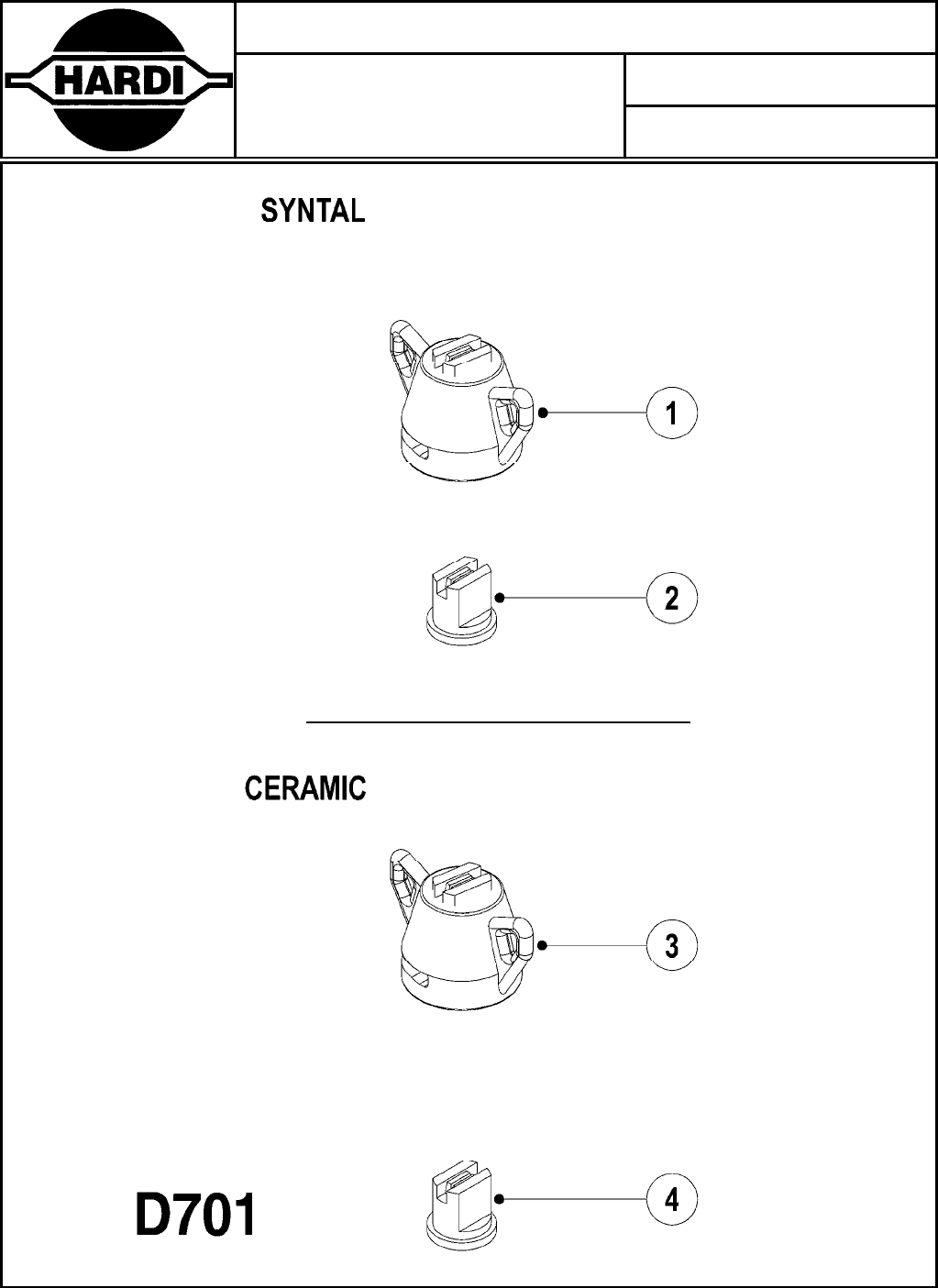

D701-HIN 14:12:07 BOOM-NOZZLES 110° LOWDRIFT ISO

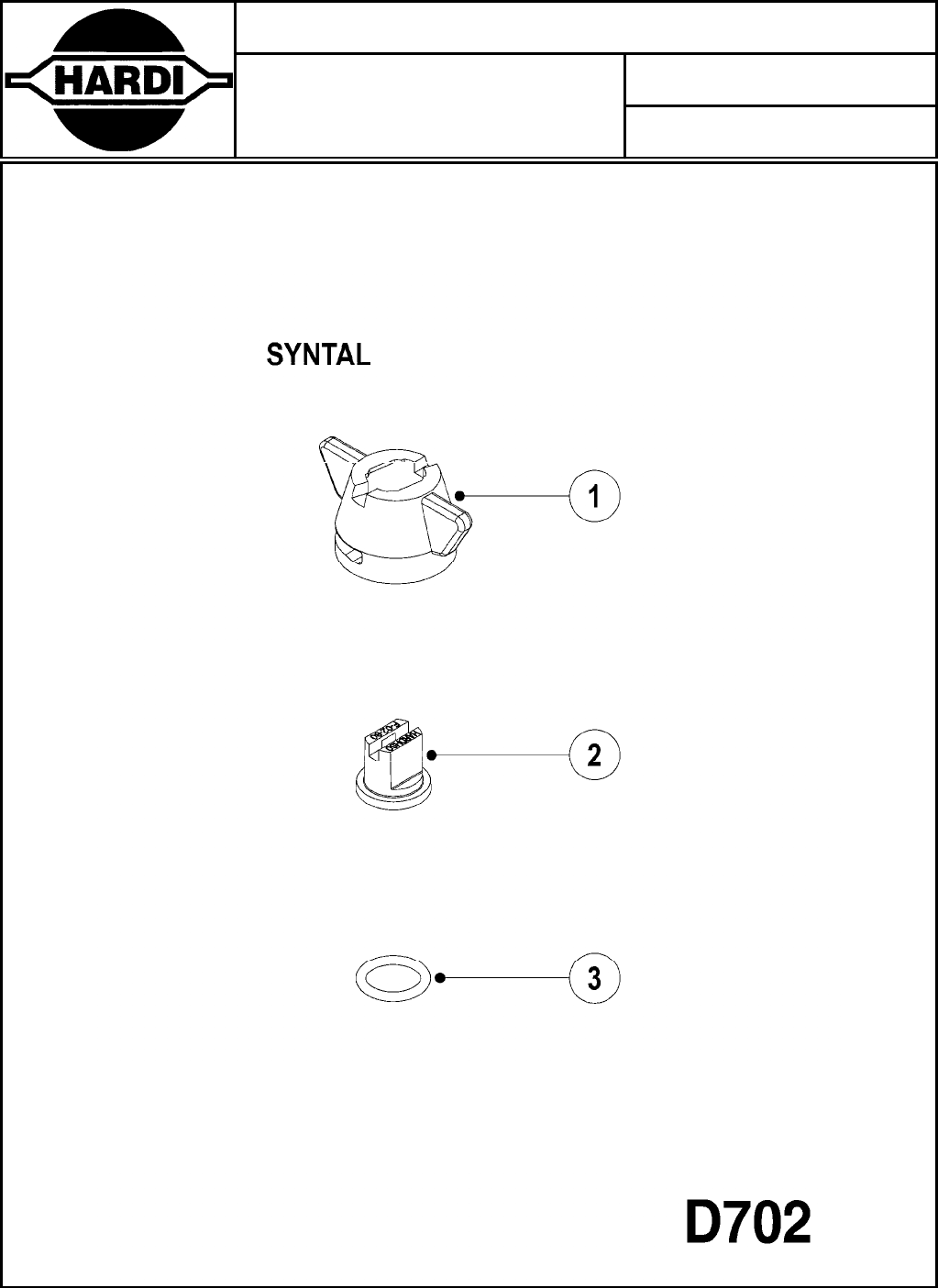

D702-HIN 14:12:07 BOOM-NOZZLES 80° FLAT FAN ISO

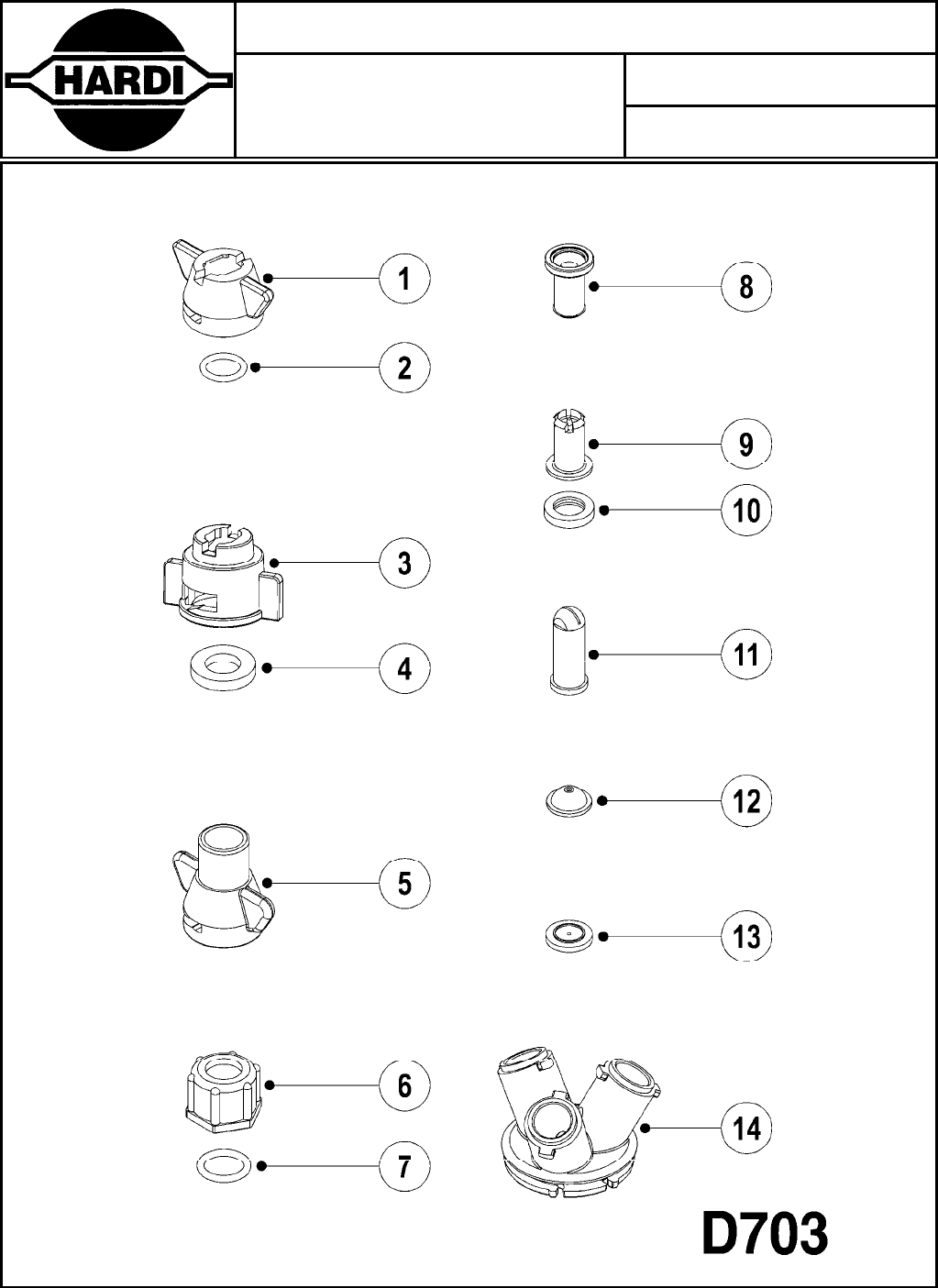

D703-HIN 14:12:07 BOOM-NOZZLE CAPS AND FILTERS

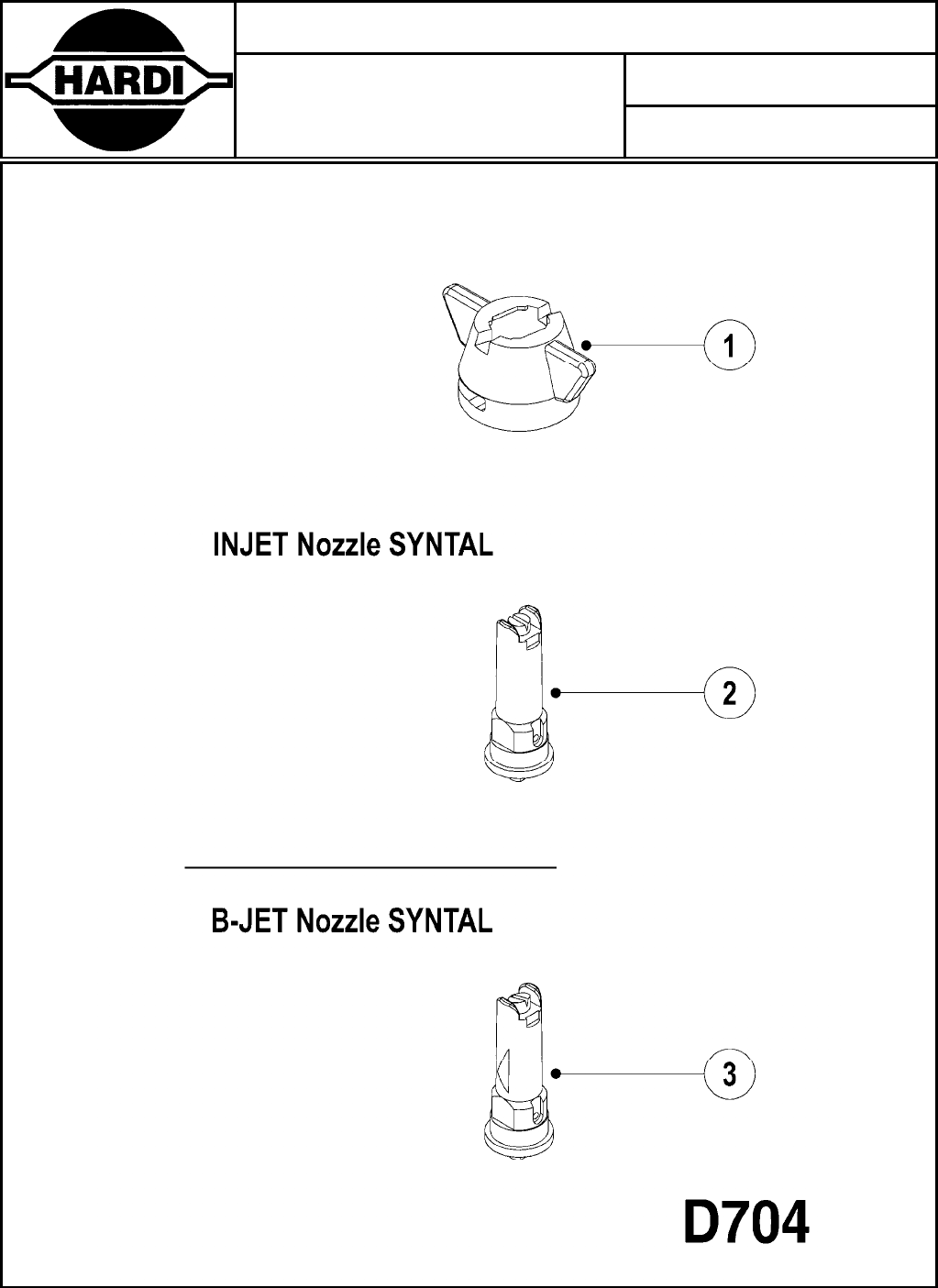

D704-HIN 14:12:07 BOOM-NOZZLES INJET
D705-HIN 14:12:07 BOOM-NOZZLES MINIDRIFT

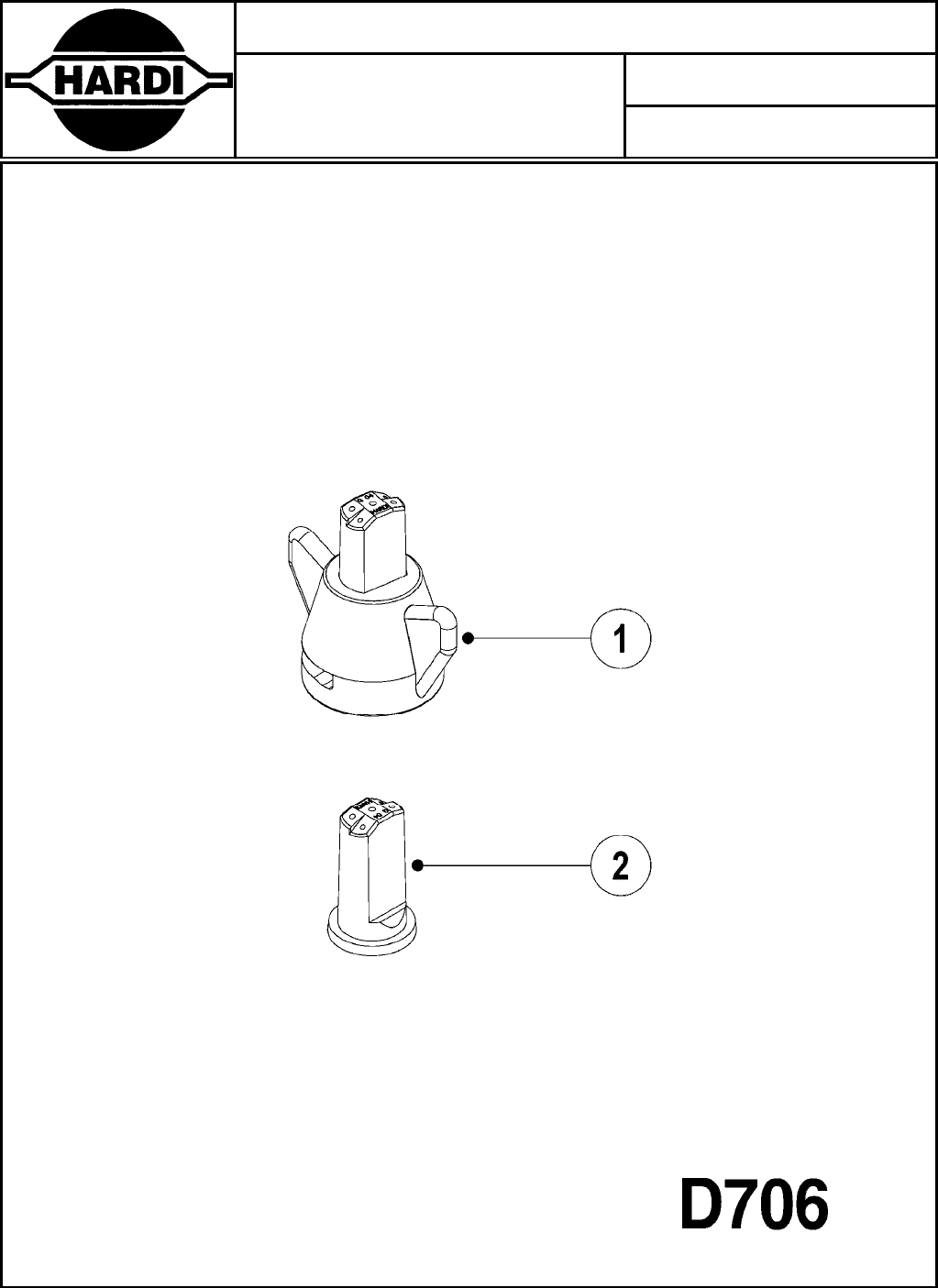

D706-HIN 14:12:07 BOOM-NOZZLES QUINTASTREAM
Tanks E317-HIN 05:01:12 TANK - RANGER 550

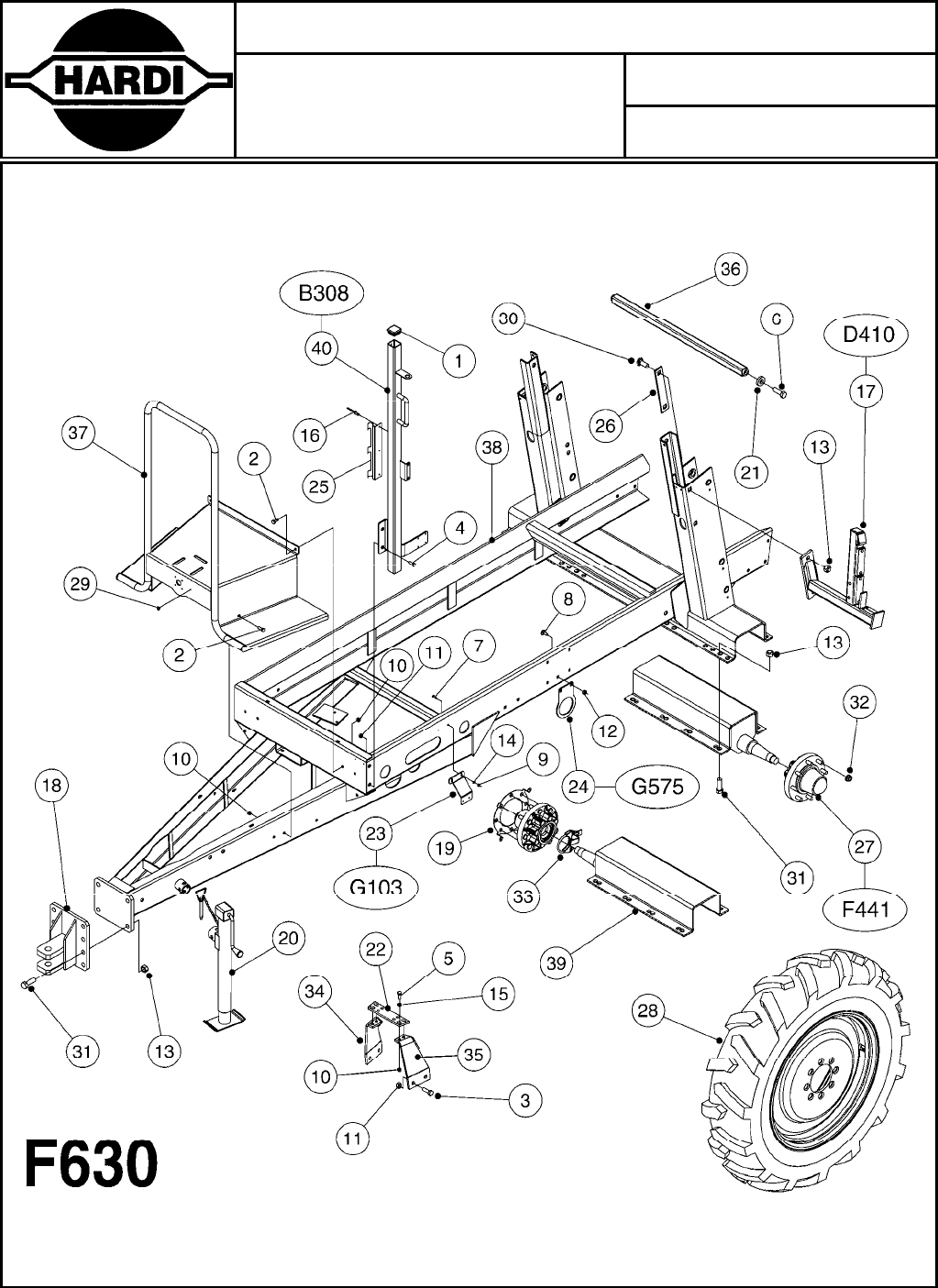

Frames, Hub Assemblies F630-HIN 09:05:11 FRAME - RANGER 550

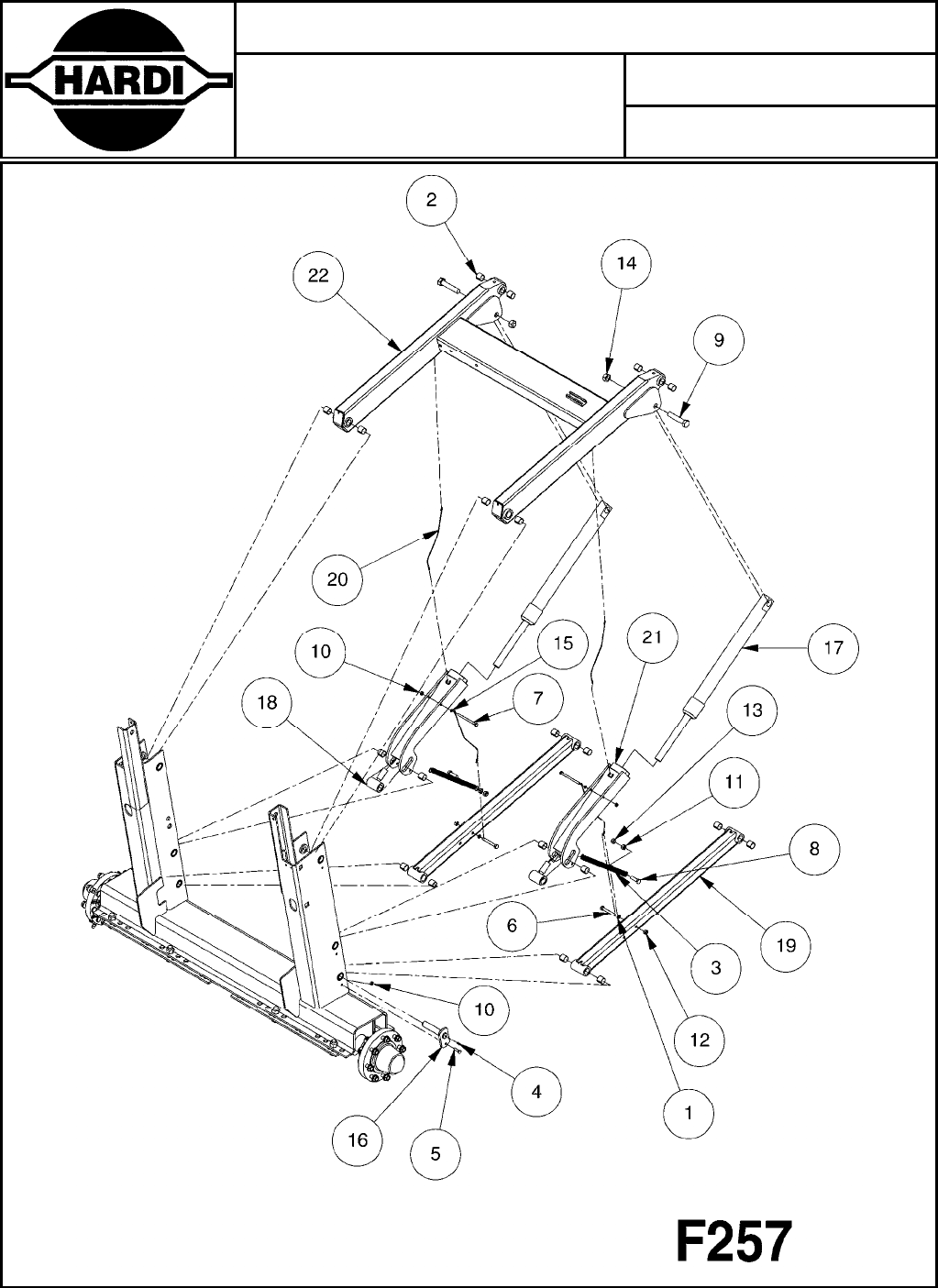

F257-HIN 12:11:10 PARALIFT - RANGER

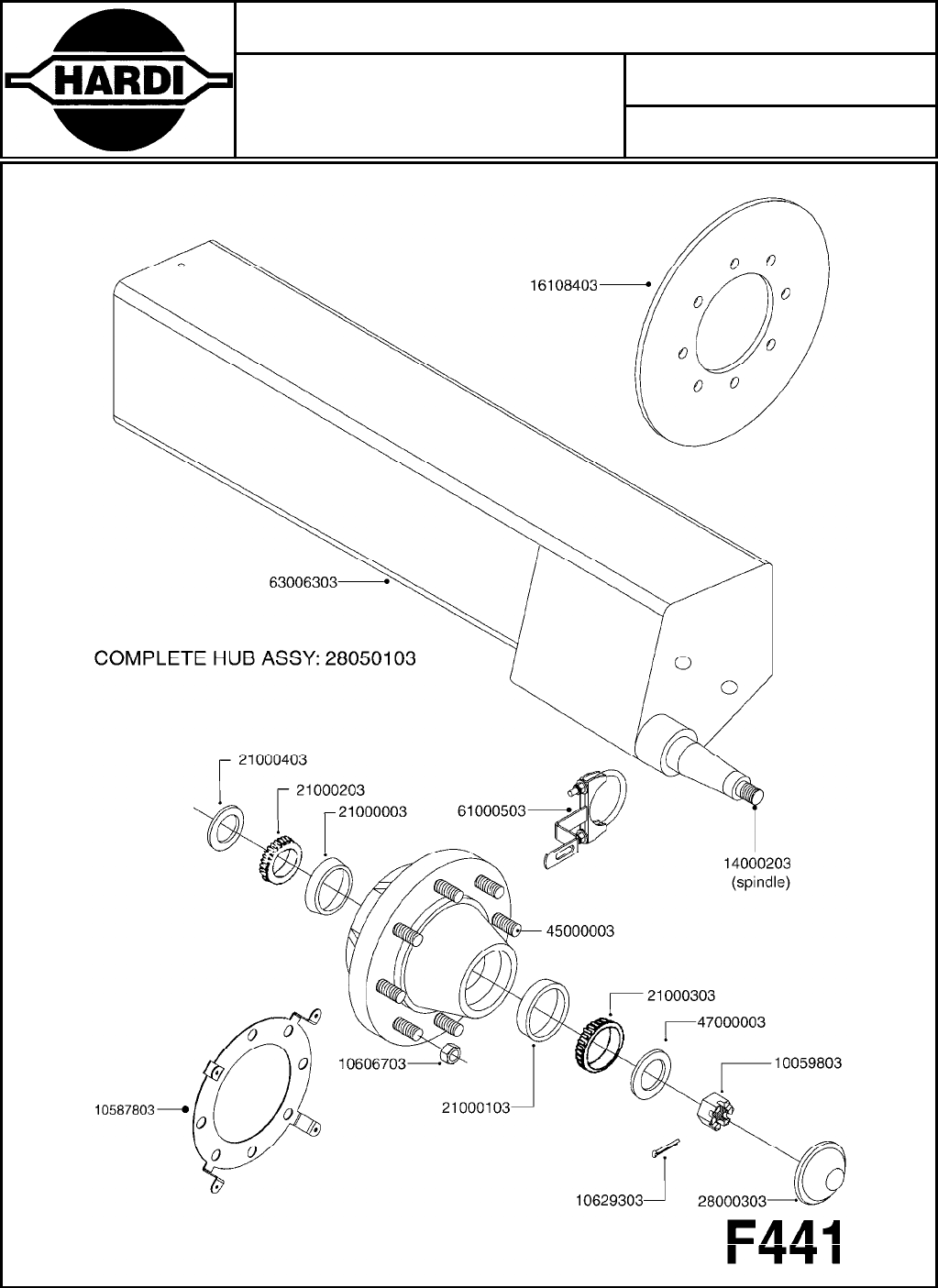

F441-HIN 19:06:10 HUB ASSY 3" SPINDLE NAV 575

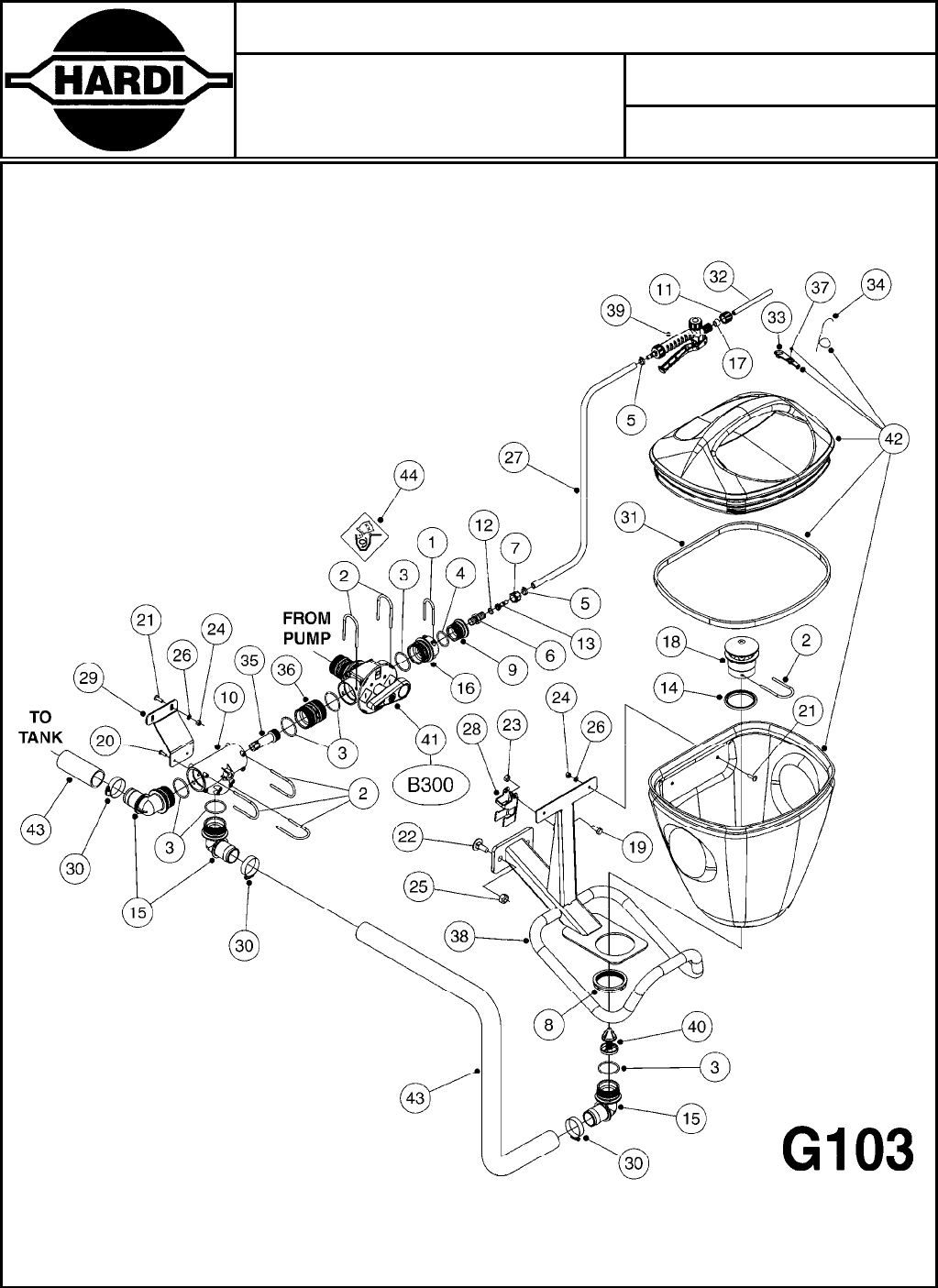

Accessories G103-HIN 03:05:11 CHEMICAL FILLER-RANGER 550

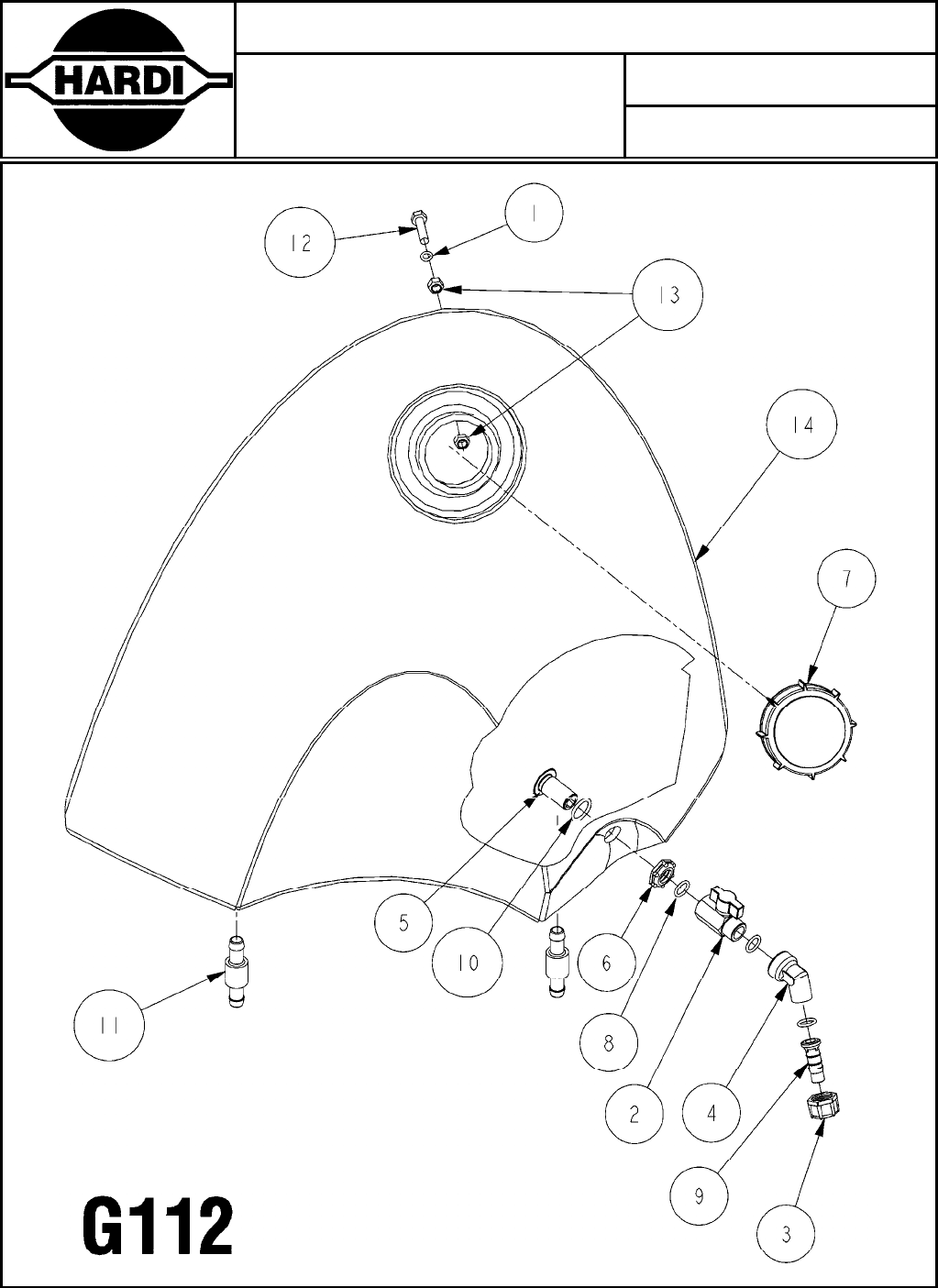

G112-HIN 28:06:06 CLEAN WATER TANK - RANGER
G120-HIN 05:04:12 DRAIN ASSEMBLY-PULL CORD TYPE
G190-HIN 28:11:06 END NOZZLE KIT

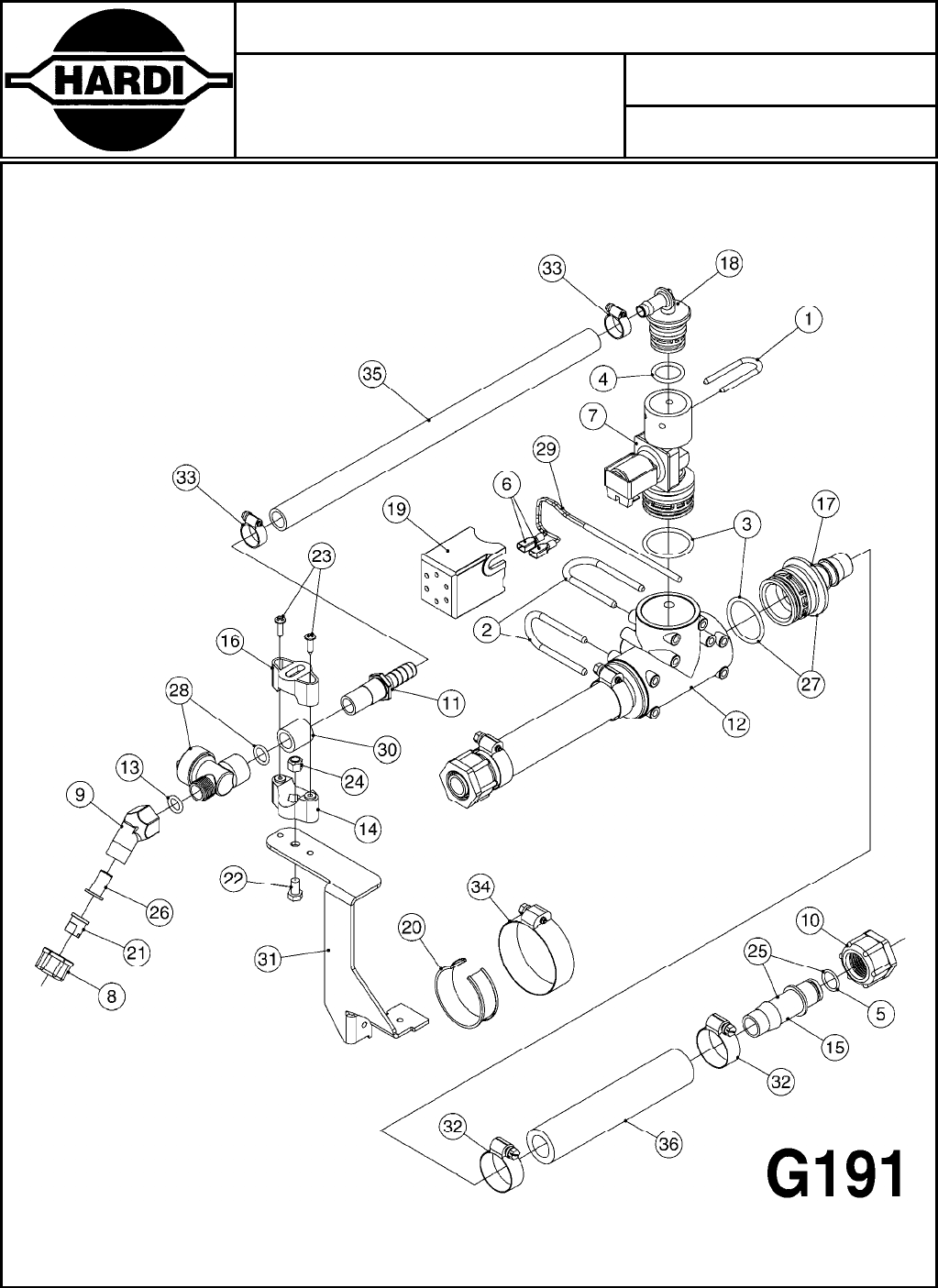

G191-HIN 21:05:12 ELECTRIC END NOZZLE KIT '09

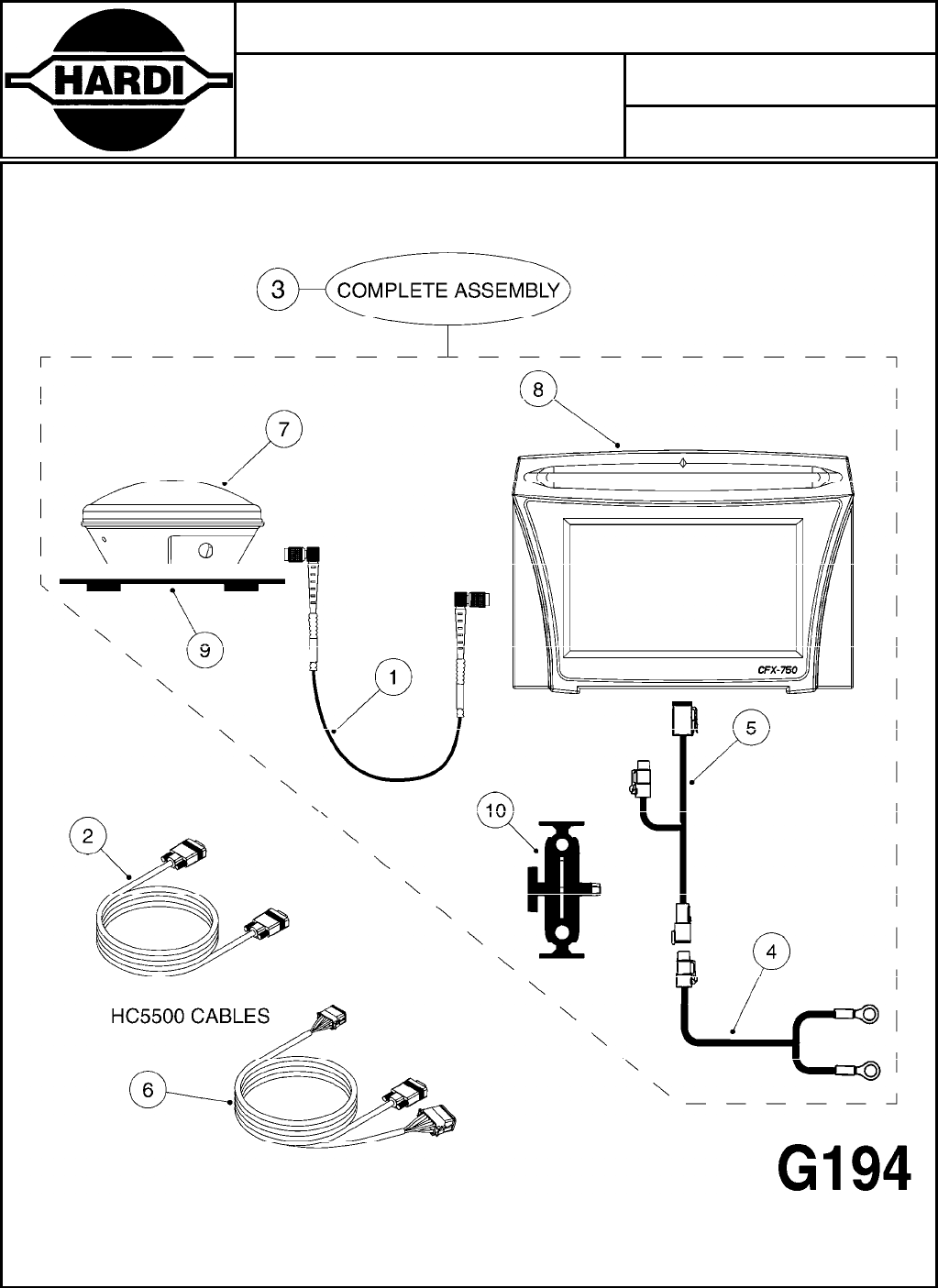

G194-HIN 30:11:11 CFX-750 DISPLAY, DGPS

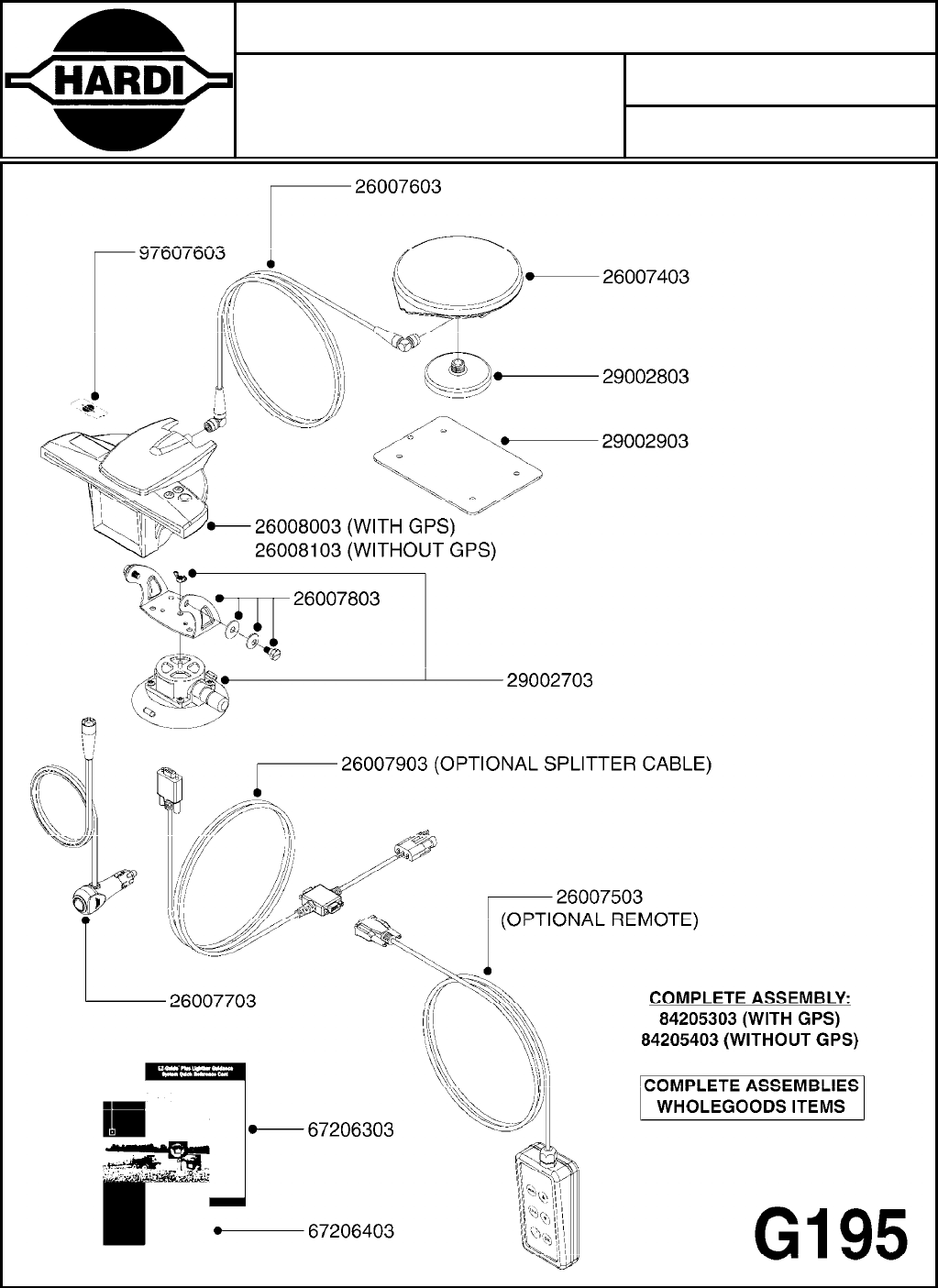

G195-HIN 01:01:01 EZ-GUIDE PLUS LIGHT BAR

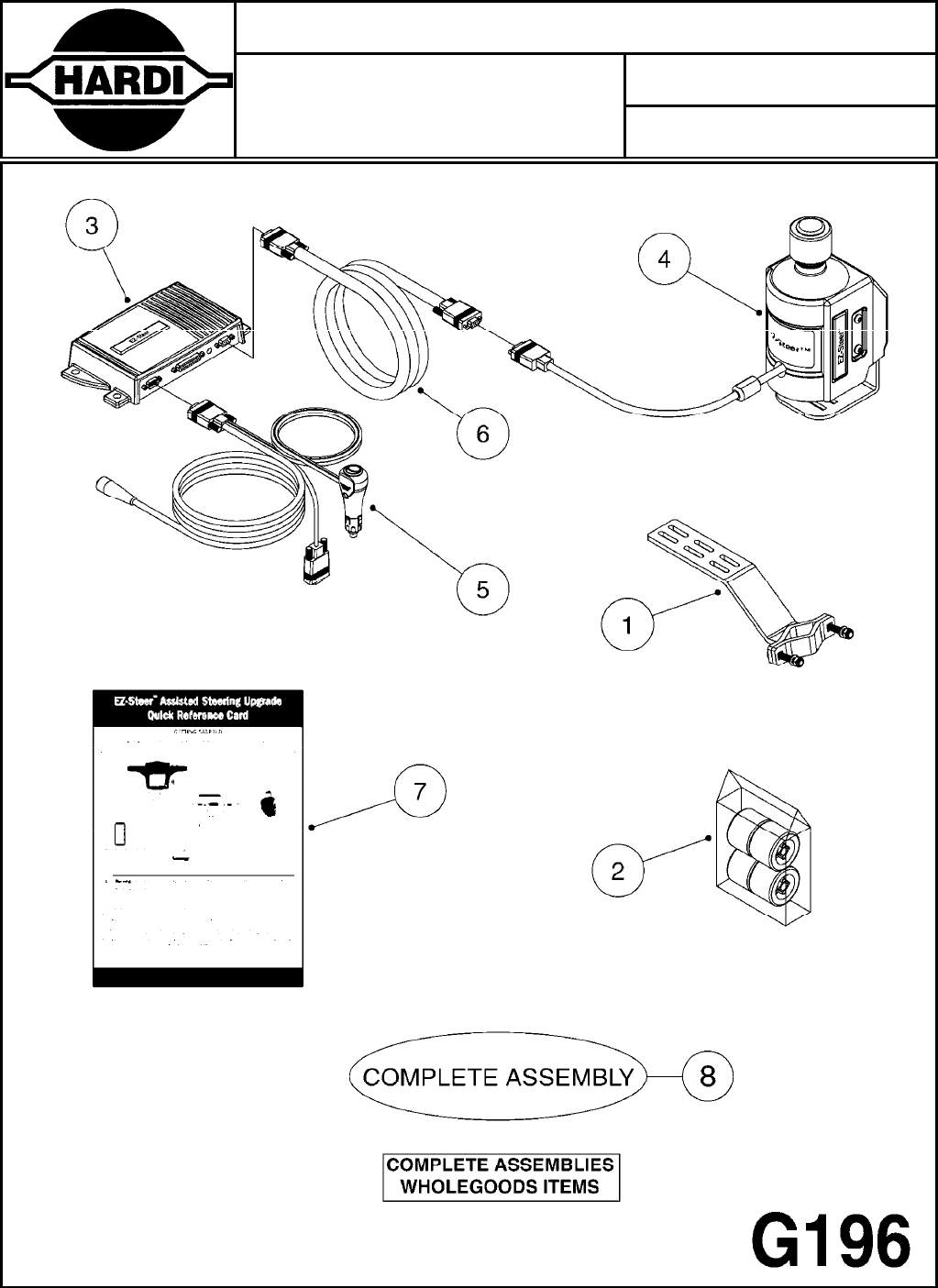

G196-HIN 15:11:09 EZ-STEER STEERING SYSTEM

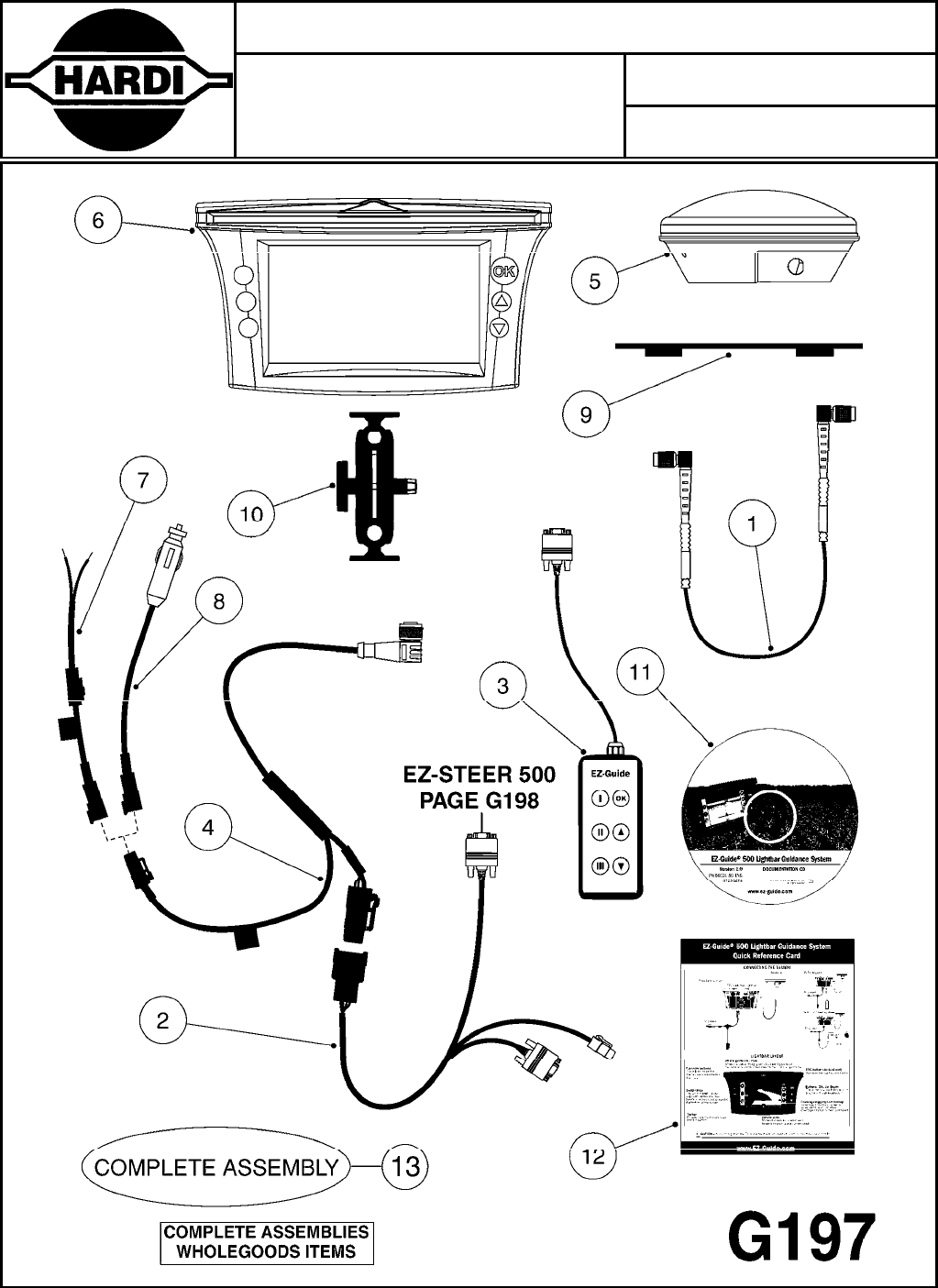

G197-HIN 09:12:09 EZ-GUIDE 500 LIGHTBAR

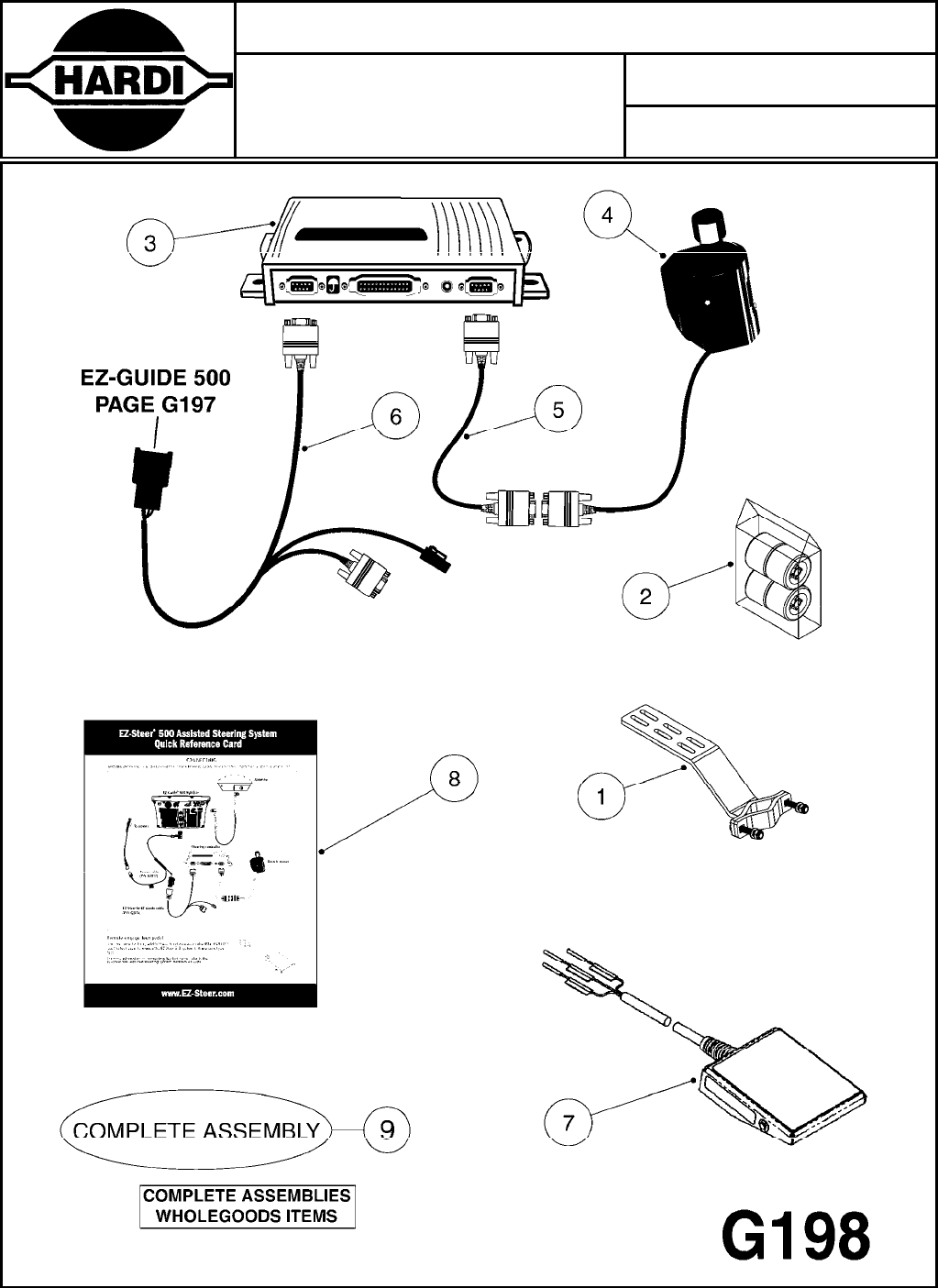

G198-HIN 01:12:09 EZ-STEER 500 STEERING SYSTEM

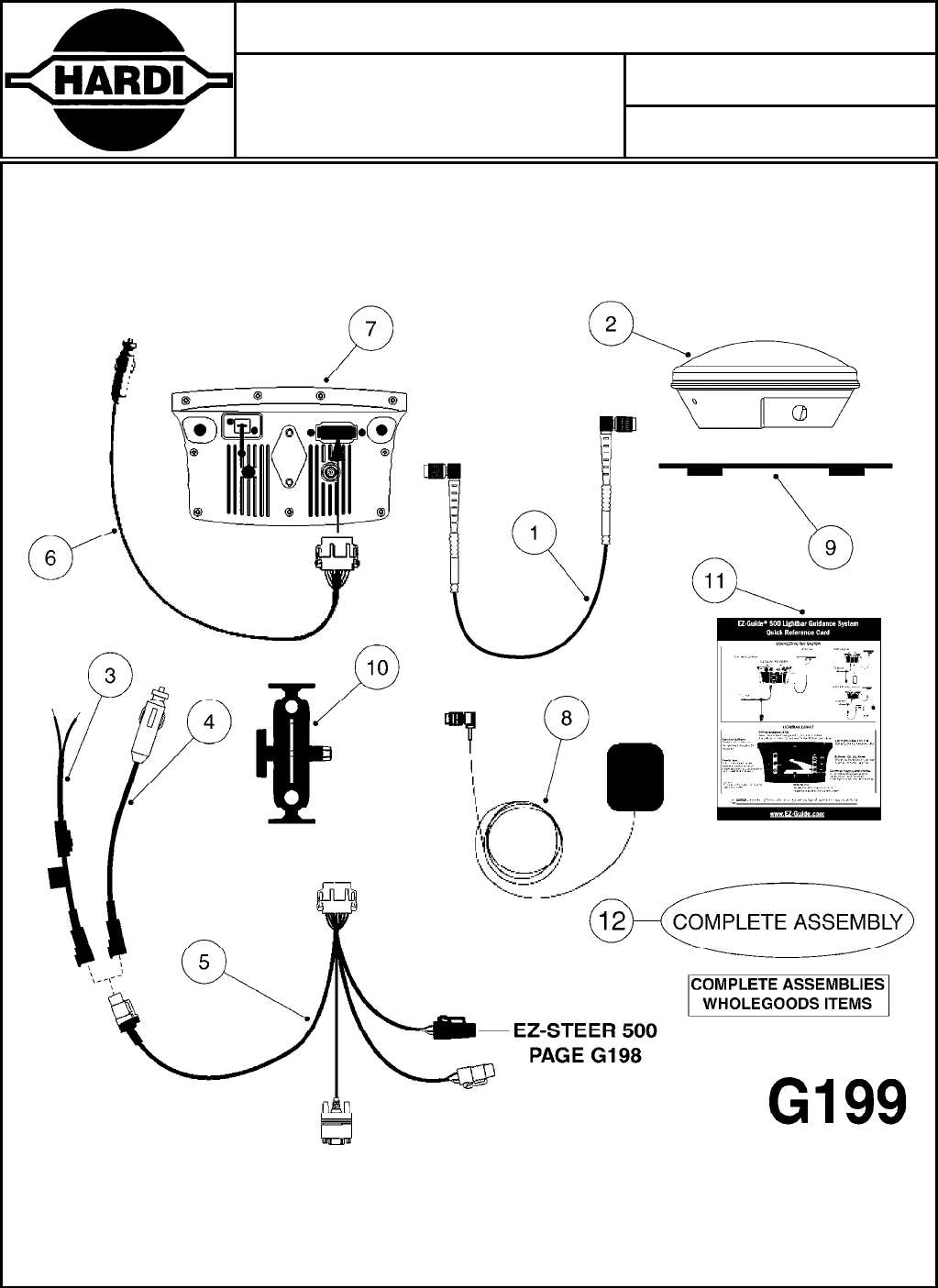

G199-HIN 30:11:09 EZ-GUIDE 250 LIGHTBAR
G220-HIN 29:08:12 FILTER ASSEMBLIES-IN LINE

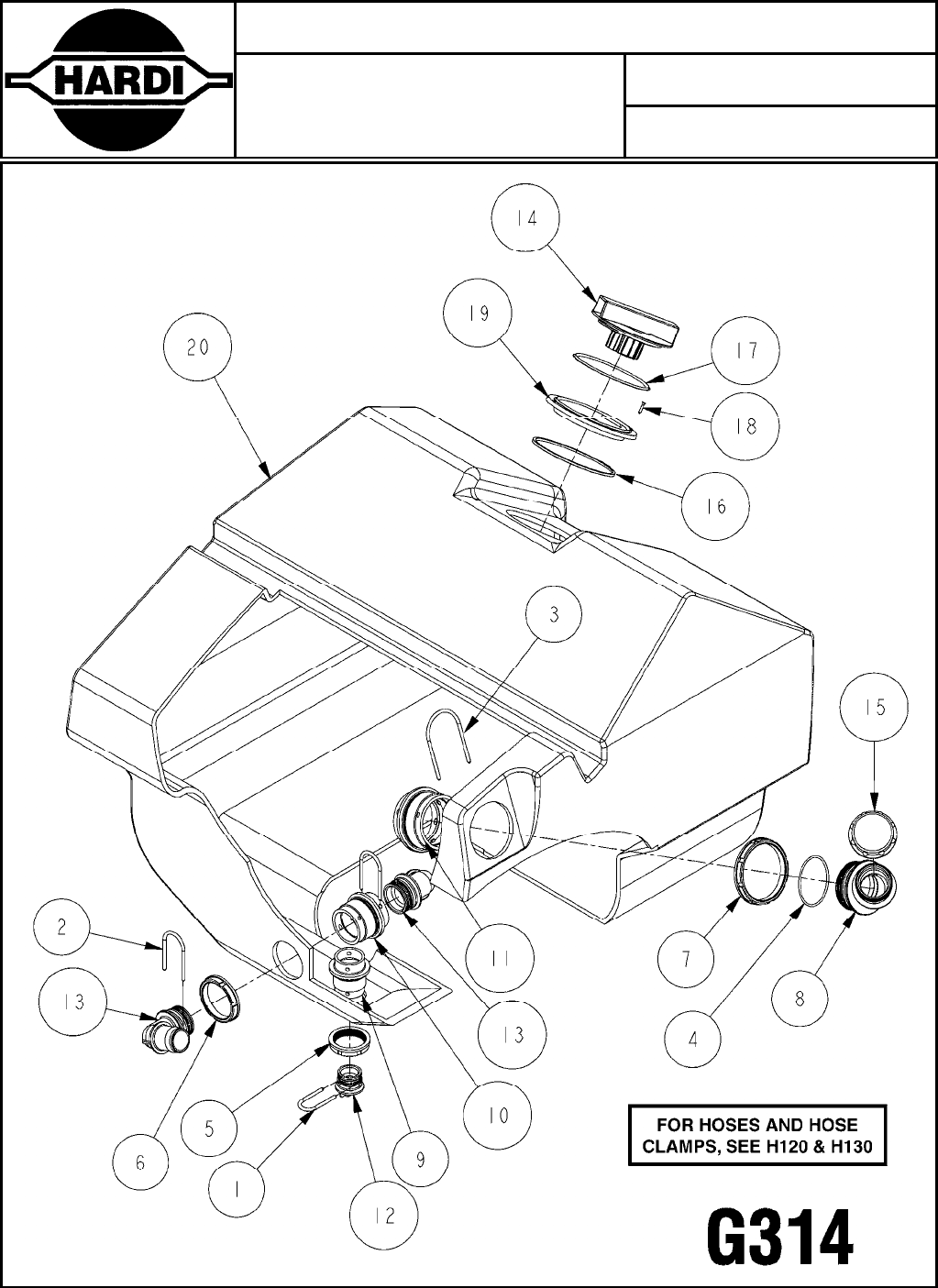

G314-HIN 25:04:11 FLUSH SYSTEM - RANGER
Agroparts: www.HARDI-INTERNATIONAL.com
Ranger 550/2000/2200 550
Gallon Cent/Eagle 45', 60'
Page 0.2
Date 19.03.2013 8:42
main group page-n° date description

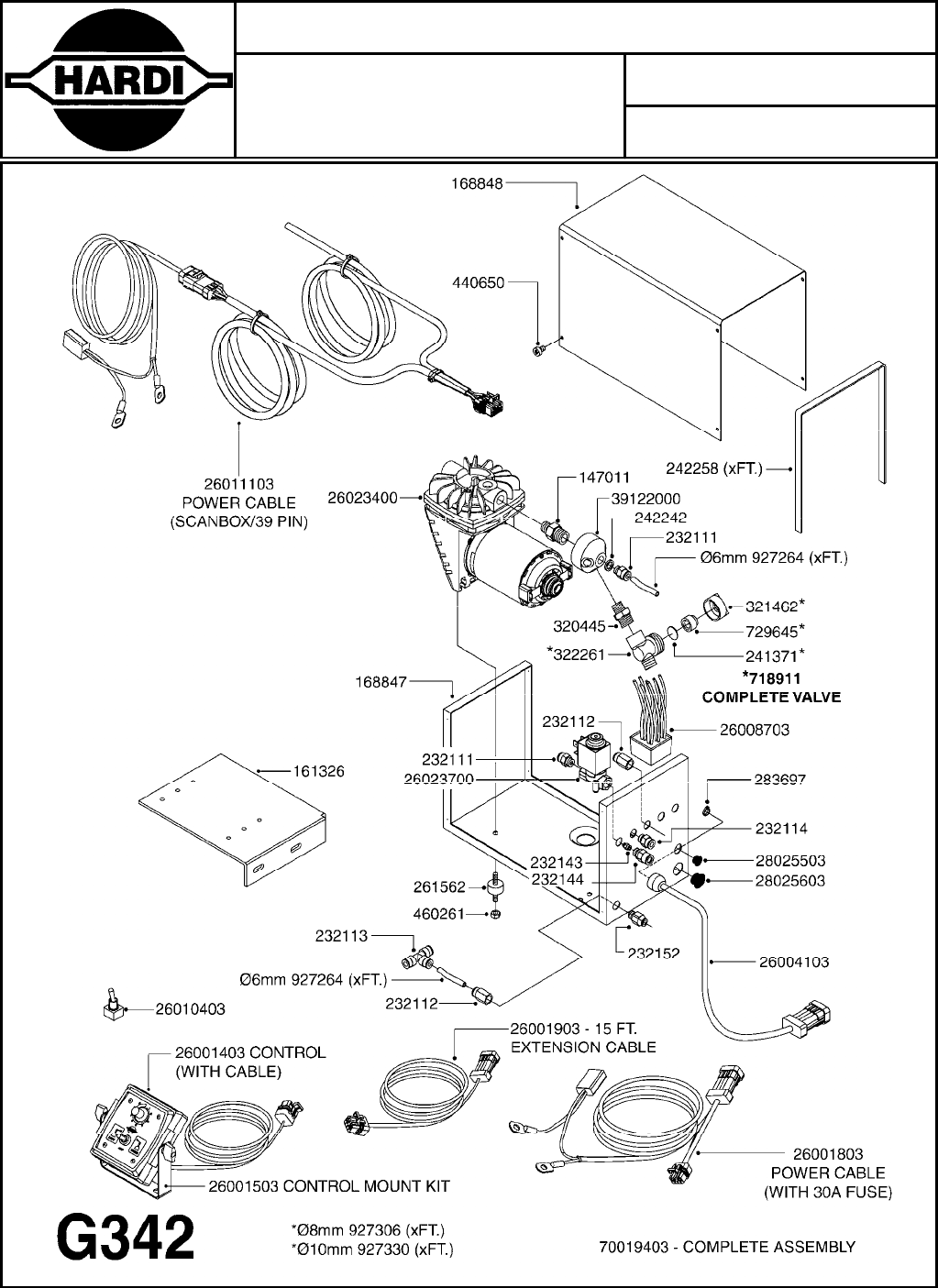

G342-HIN 17:12:07 FOAM MARKER COMPRESSOR 2007
G390-HIN 05:05:11 FOAMMARKER TANK/DROPPER POST93

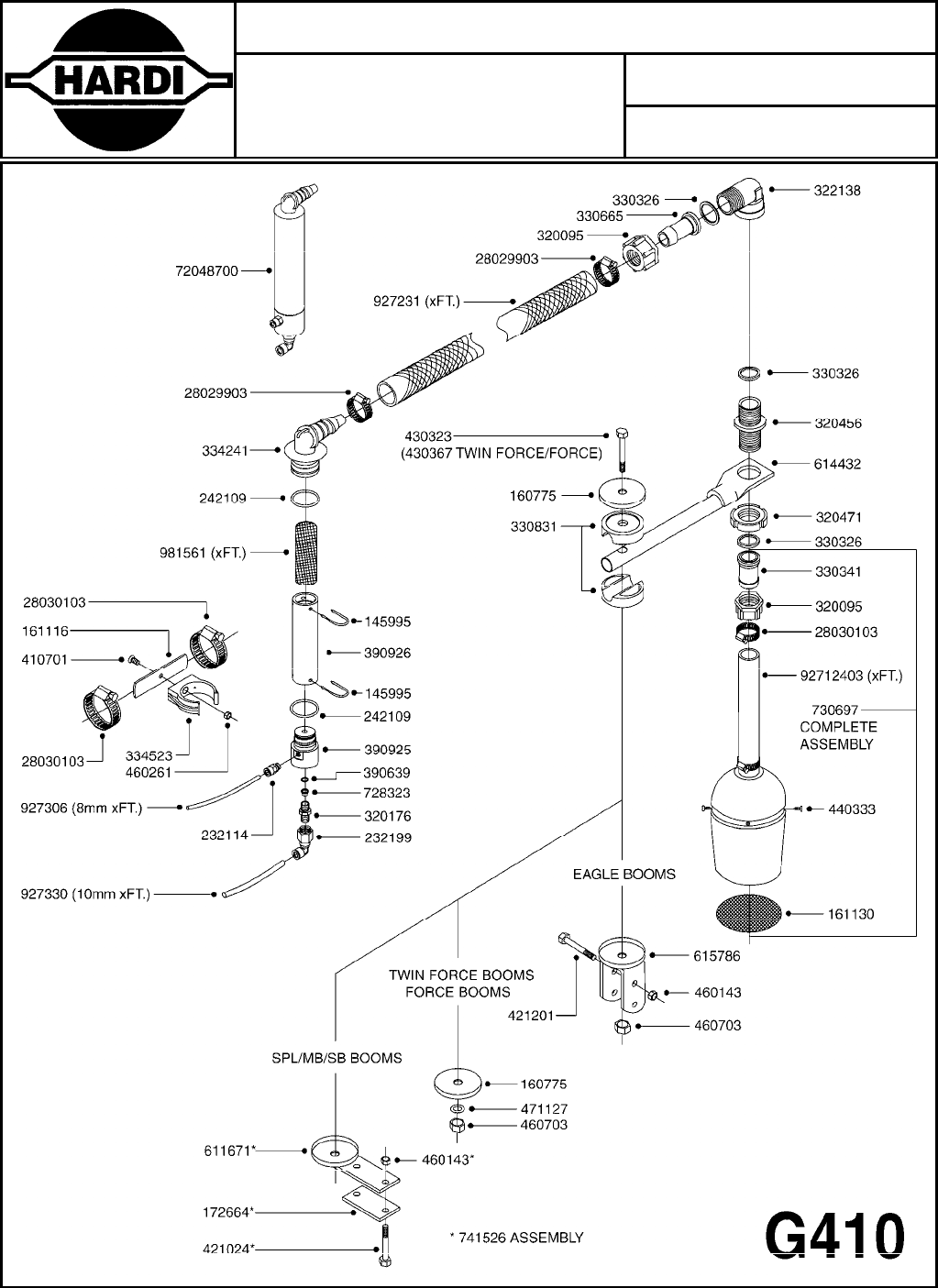

G410-HIN 12:12:05 FOAMMARKER DROPPER UPDATE 2000

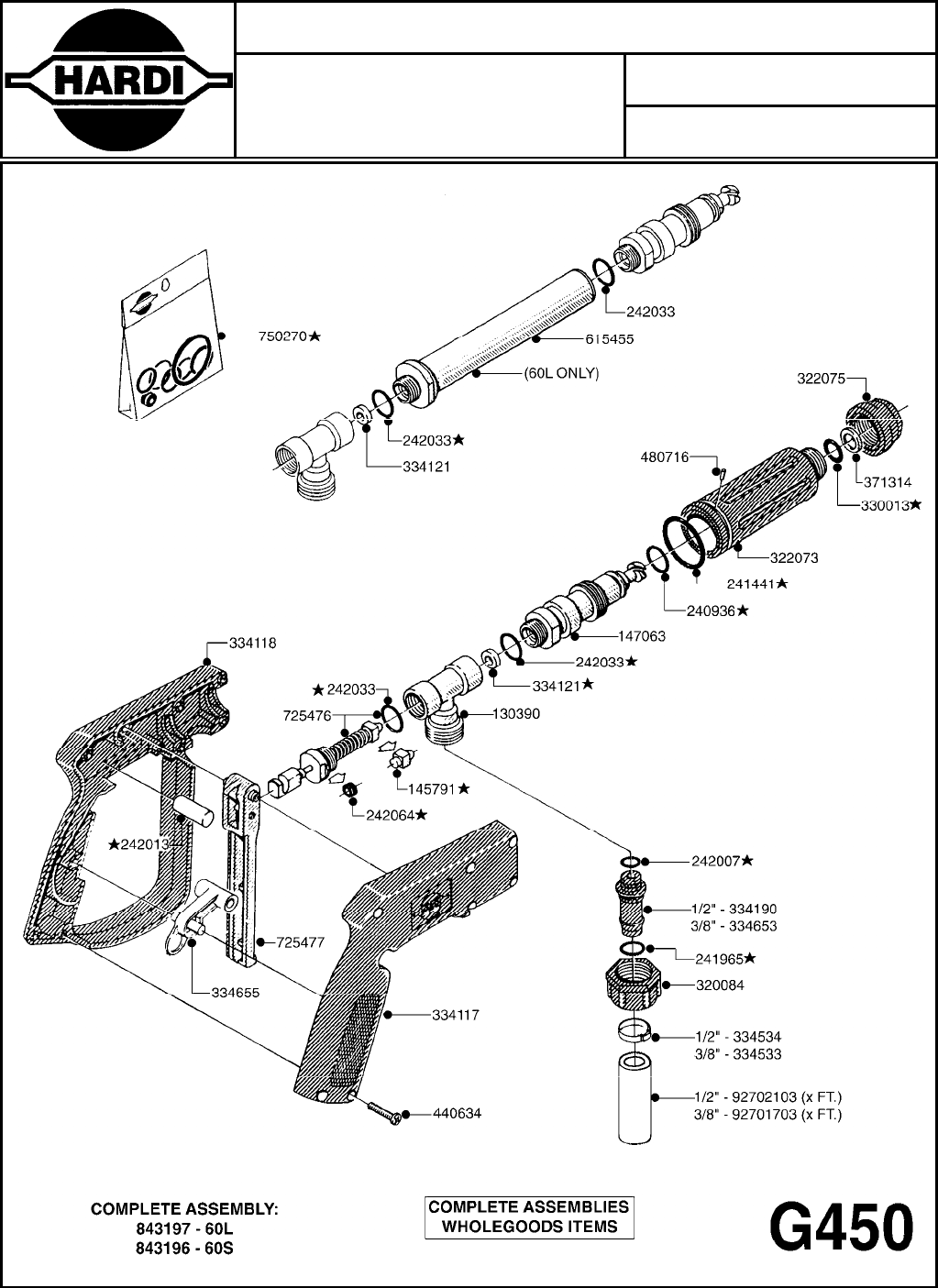

G450-HIN 19:05:11 HANDGUN TYPE 60S/60L POST 95

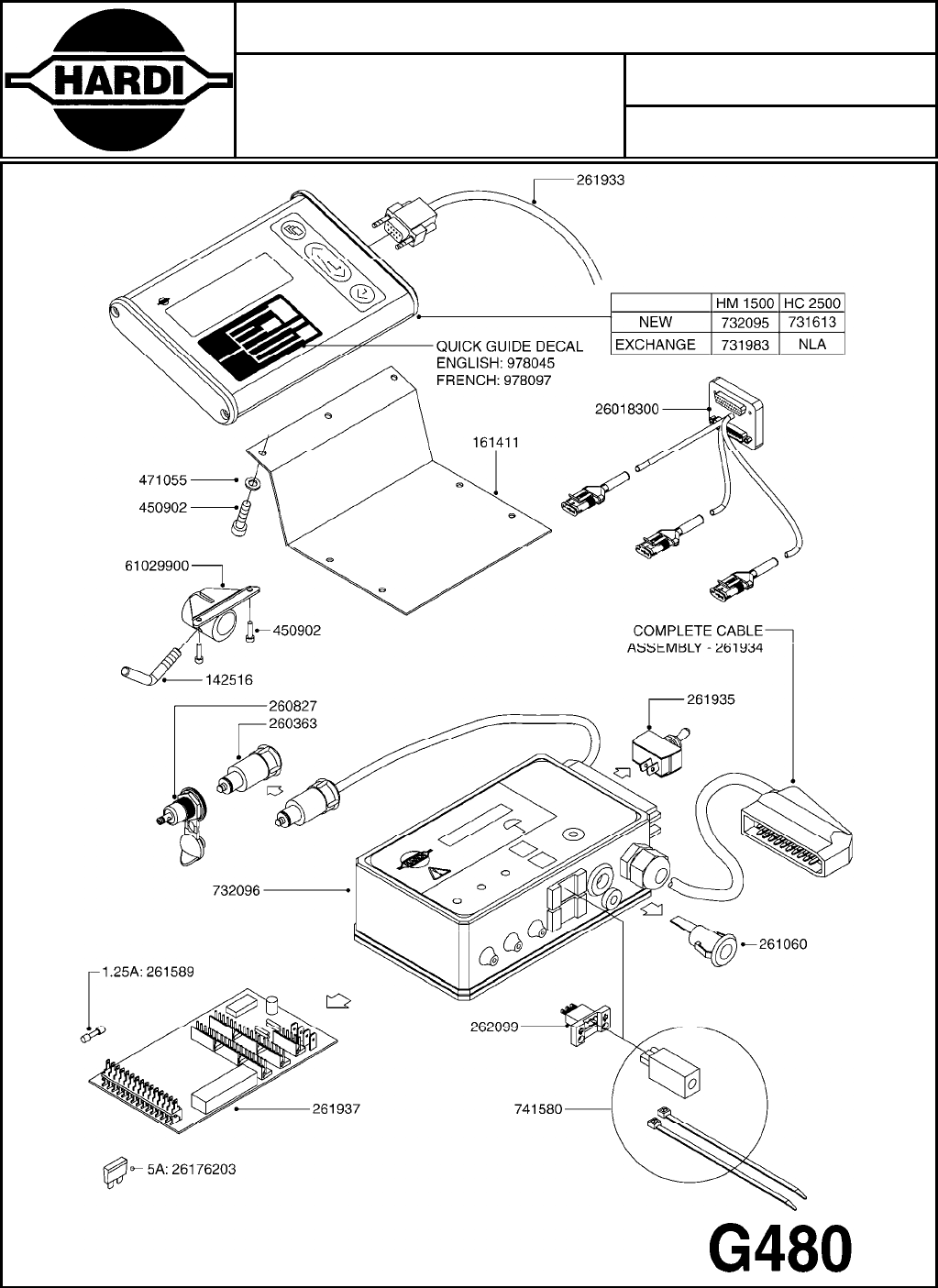

G480-HIN 15:11:09 HC 2500/HM1500 DISPLAY/SCANBOX

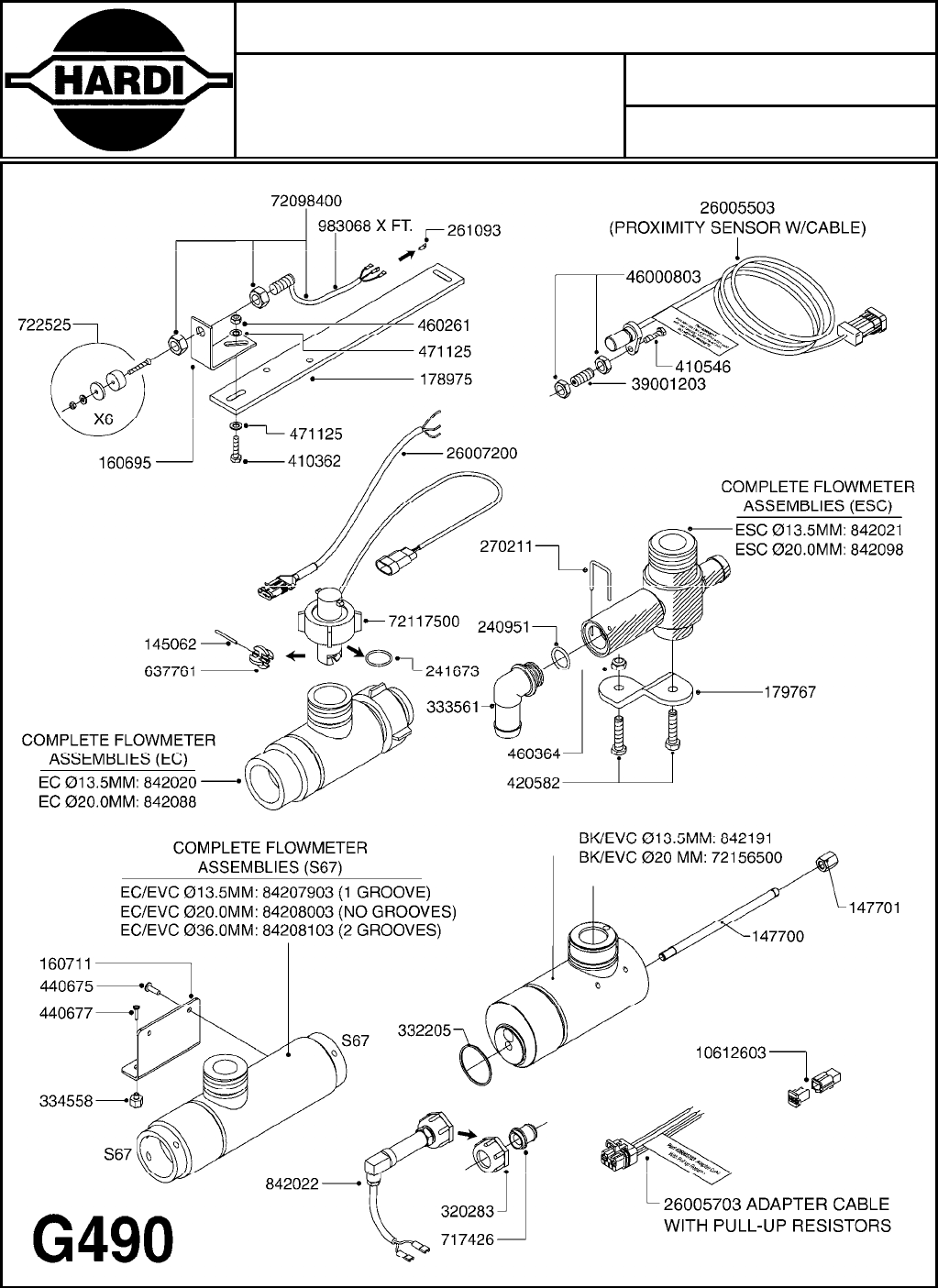

G490-HIN 08:04:10 TRANSDUCERS AND ACCESSORIES

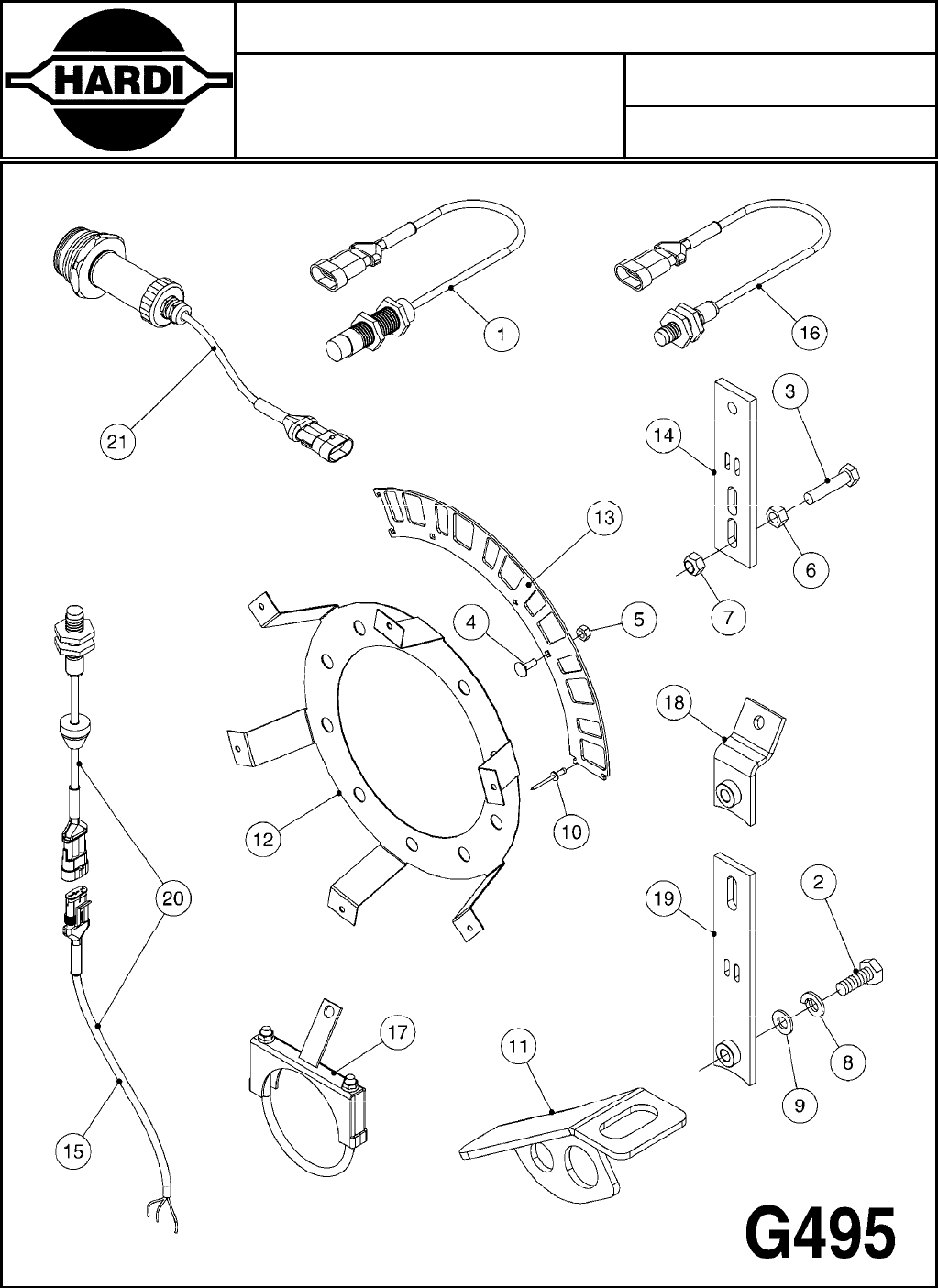

G495-HIN 20:11:12 COMMON SENSORS AND BRACKETS

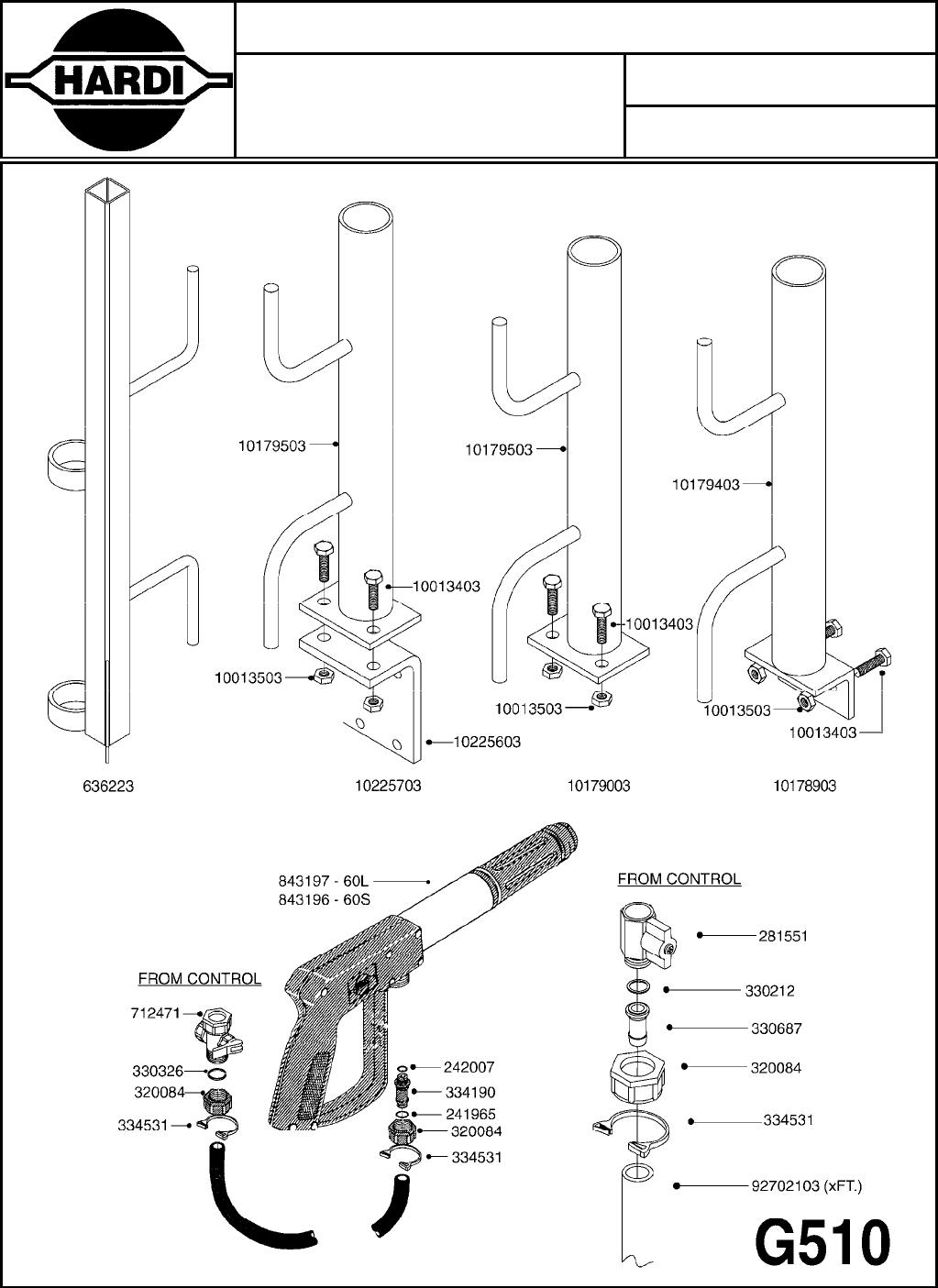

G510-HIN 19:05:11 HOSE WRAPS

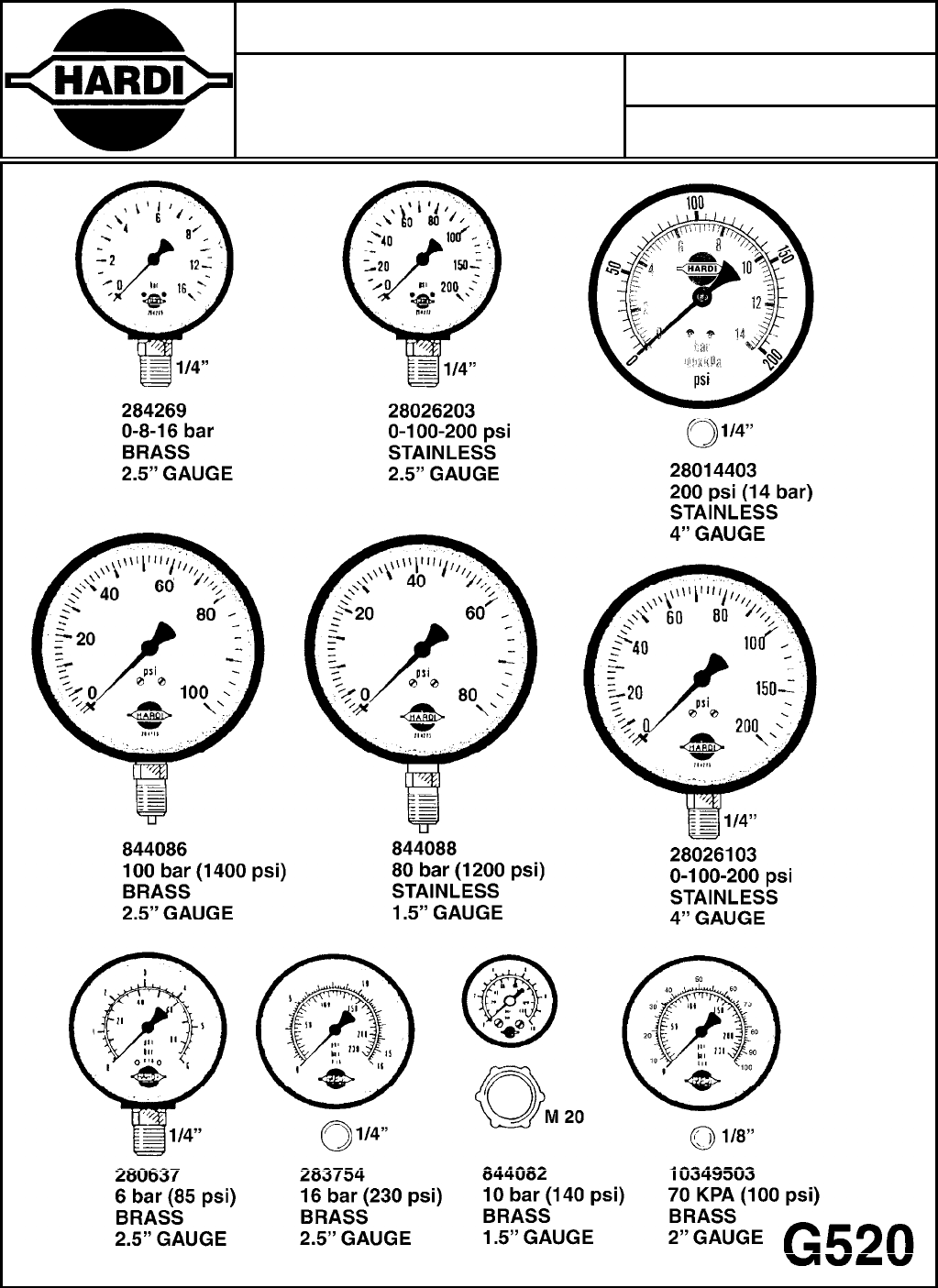

G520-HIN 13:06:08 PRESSURE GAUGES

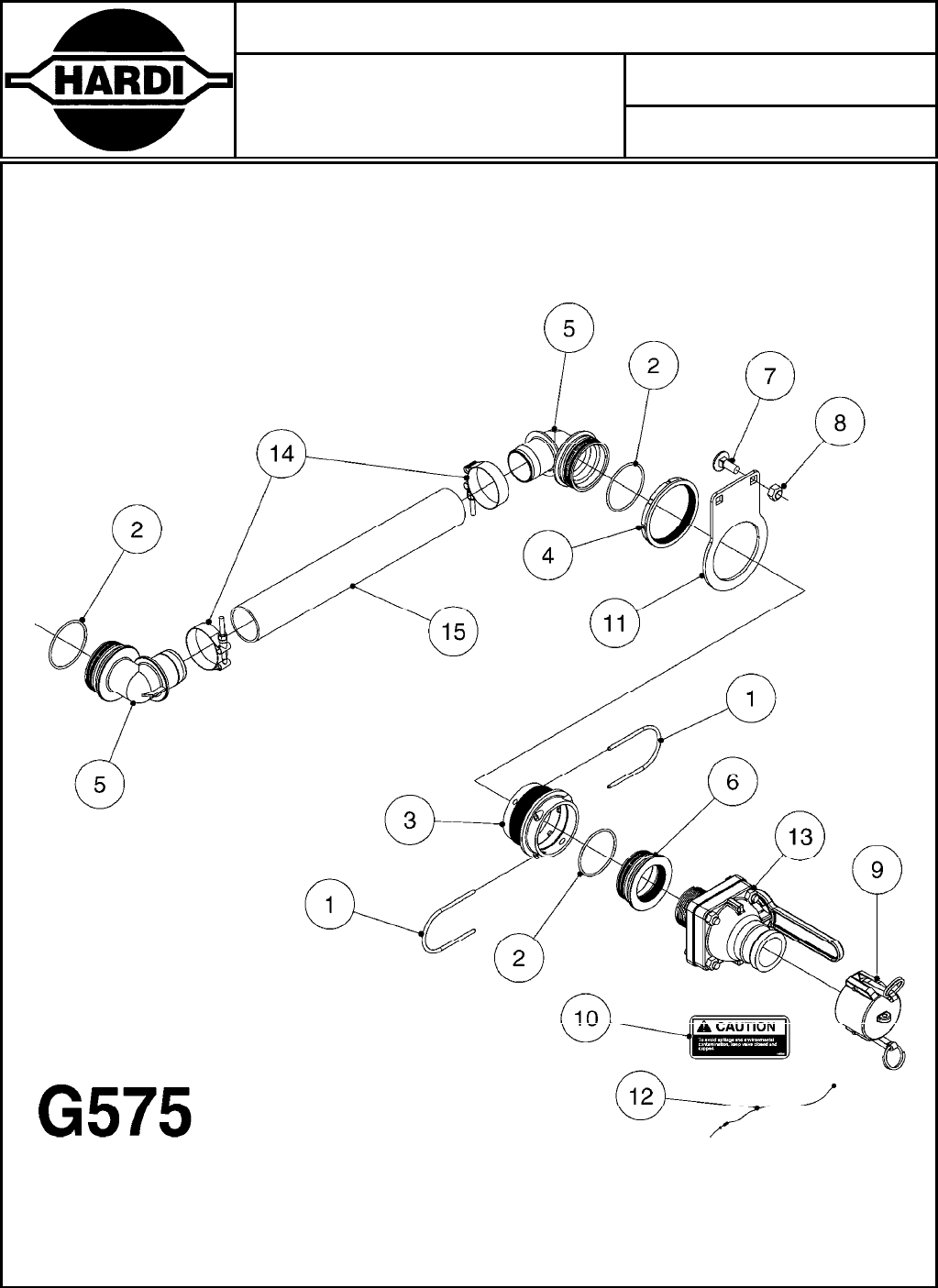

G575-HIN 21:04:11 QUICKFILL - RANGER 550

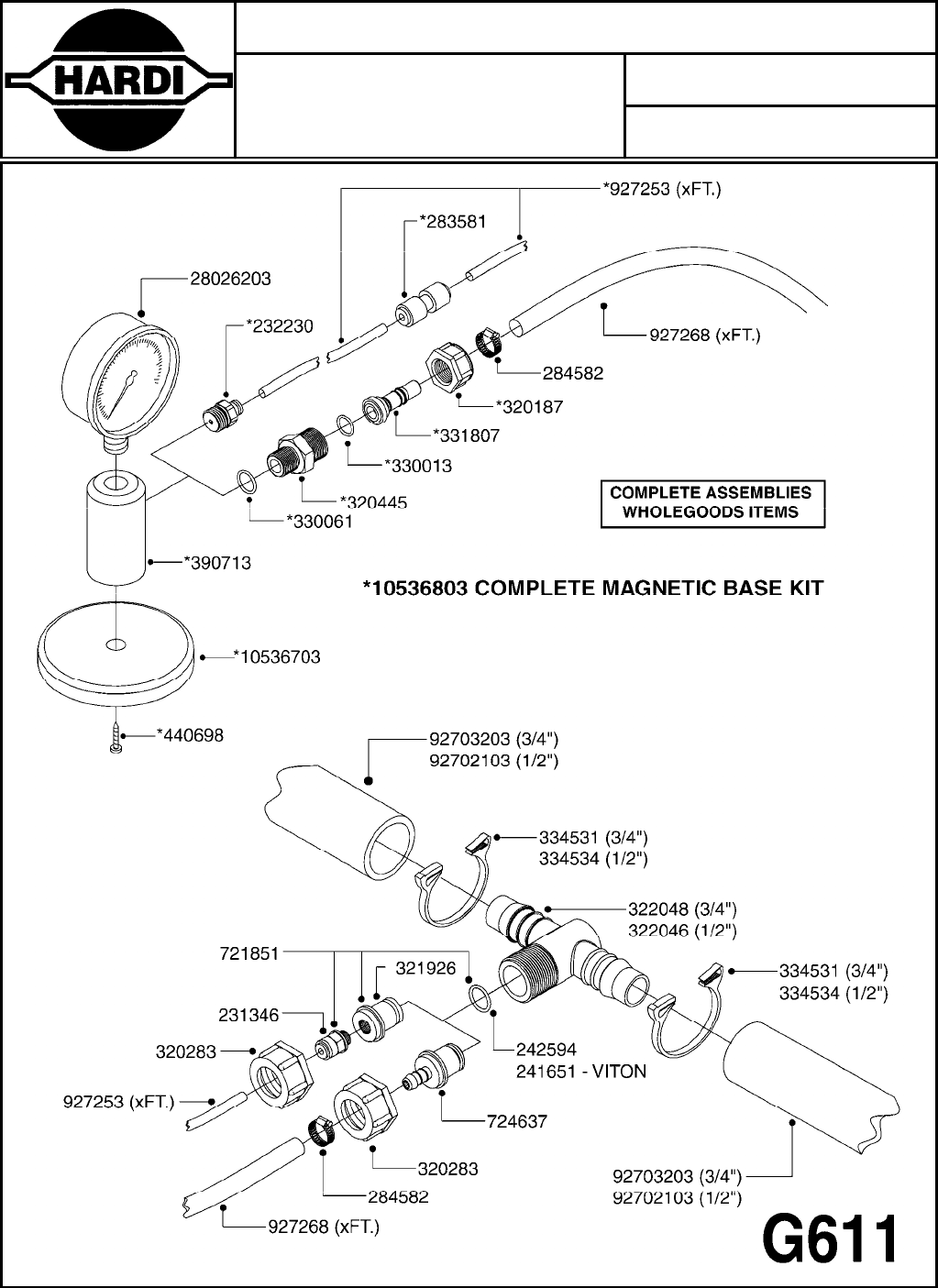

G611-HIN 19:05:11 REMOTE GAUGE-MAGNETIC BASE KIT

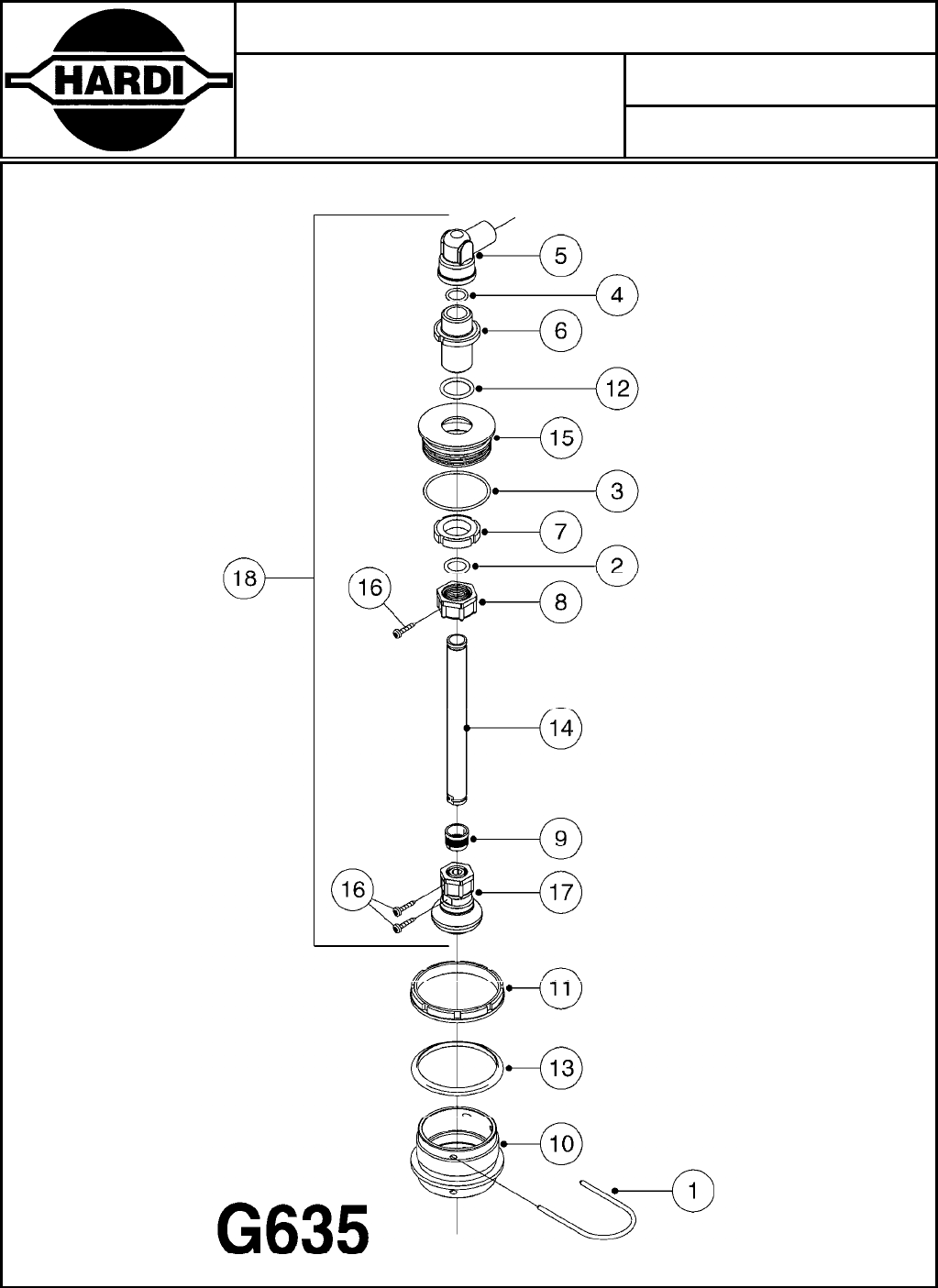

G635-HIN 30:11:10 RINSE SYSTEM NOZZLE - LOW MOD.

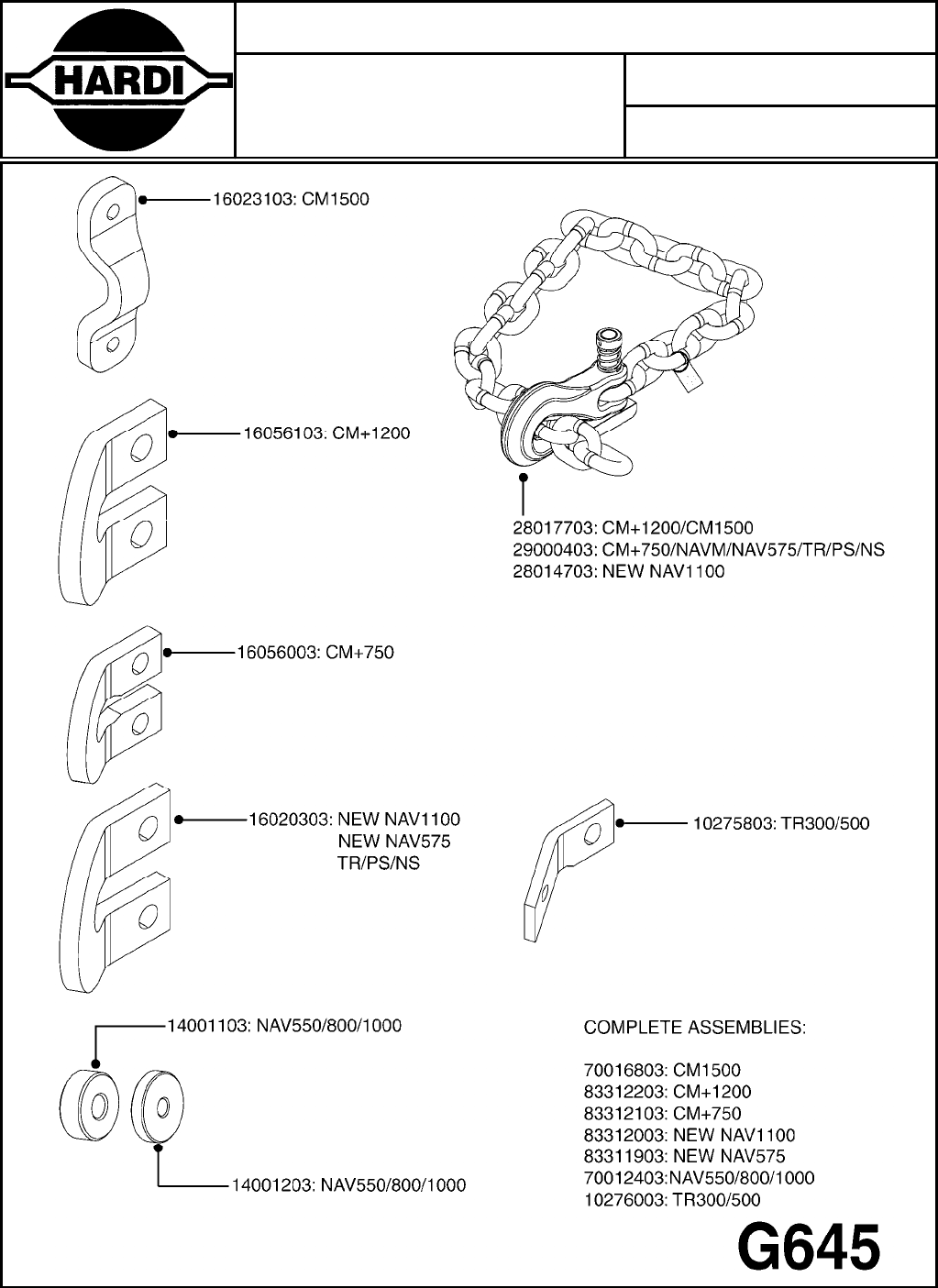

G645-HIN 12:12:05 SAFETY CHAINS

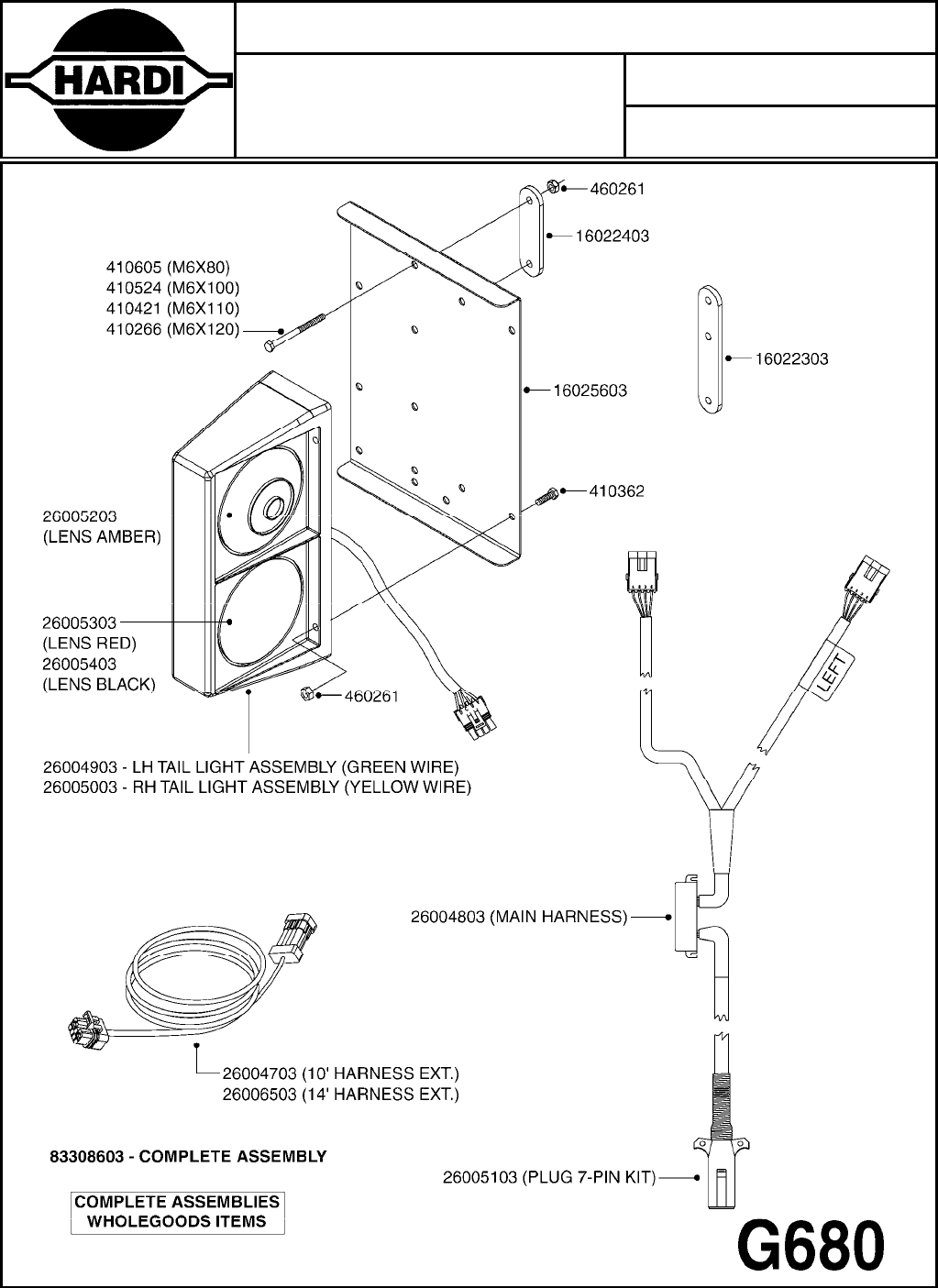

G680-HIN 01:01:01 TRAFFIC LIGHT KIT

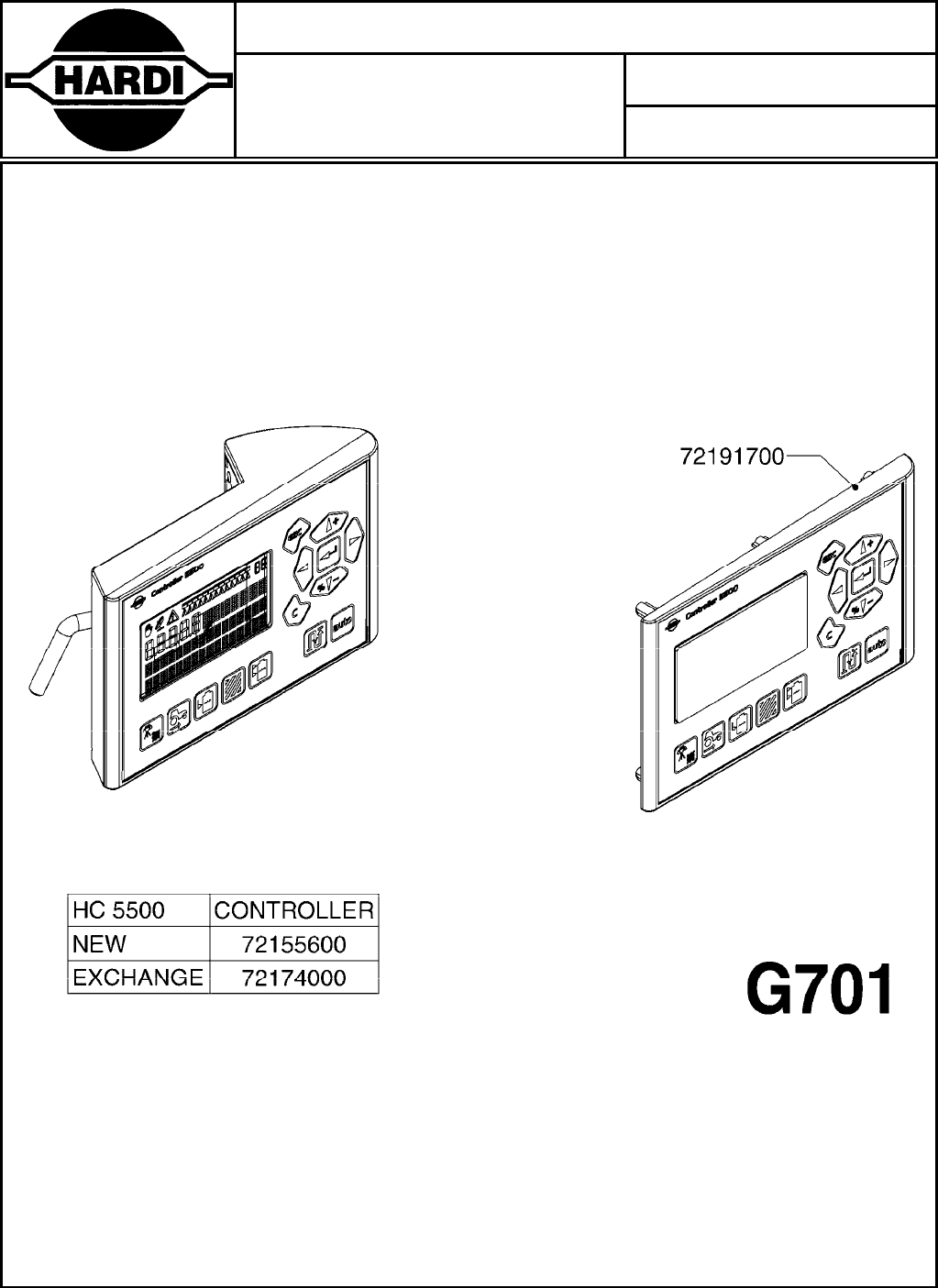

G701-HIN 15:06:07 DISPLAY HC 5500

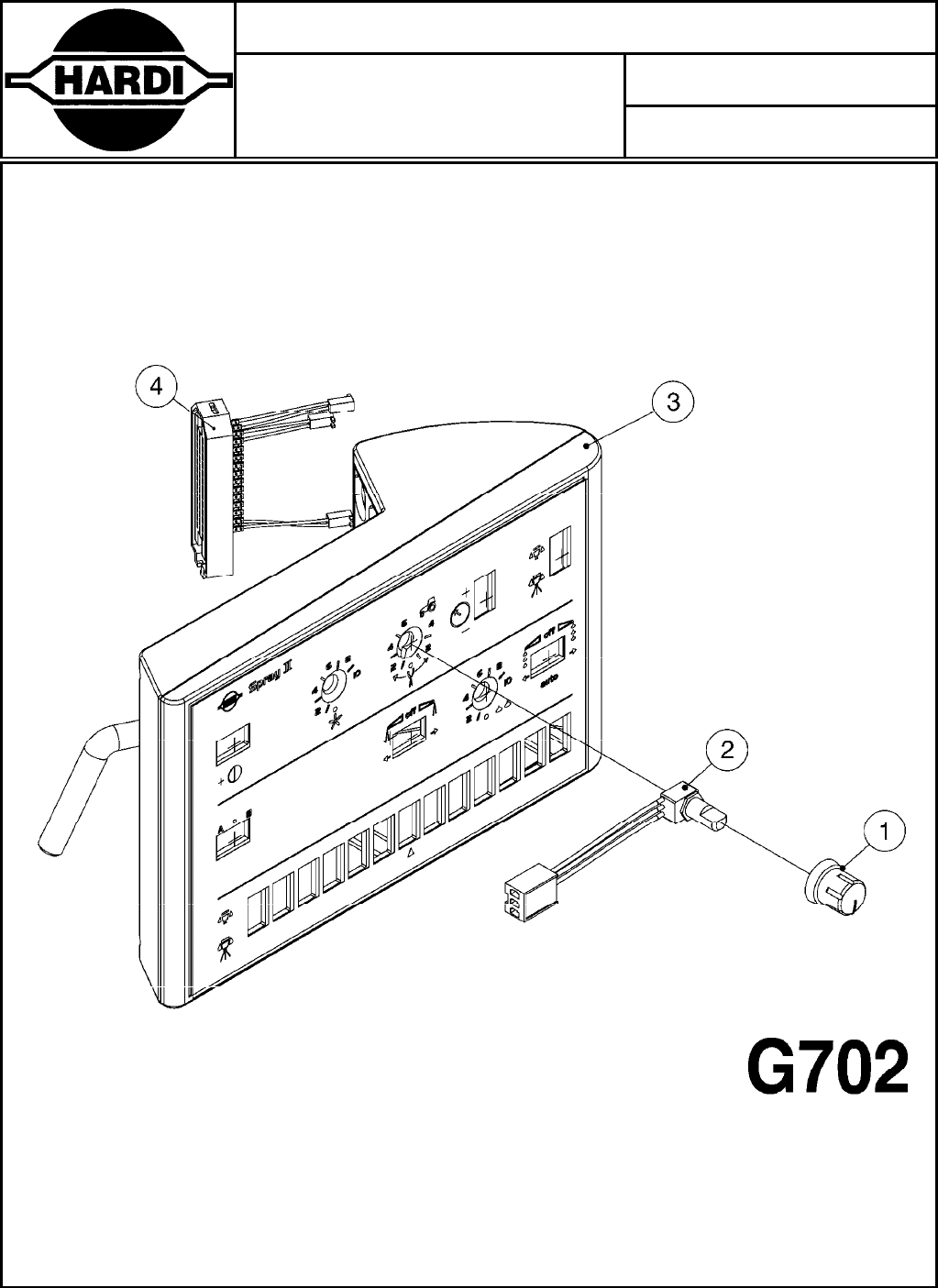

G702-HIN 15:06:07 SPRAYBOX II

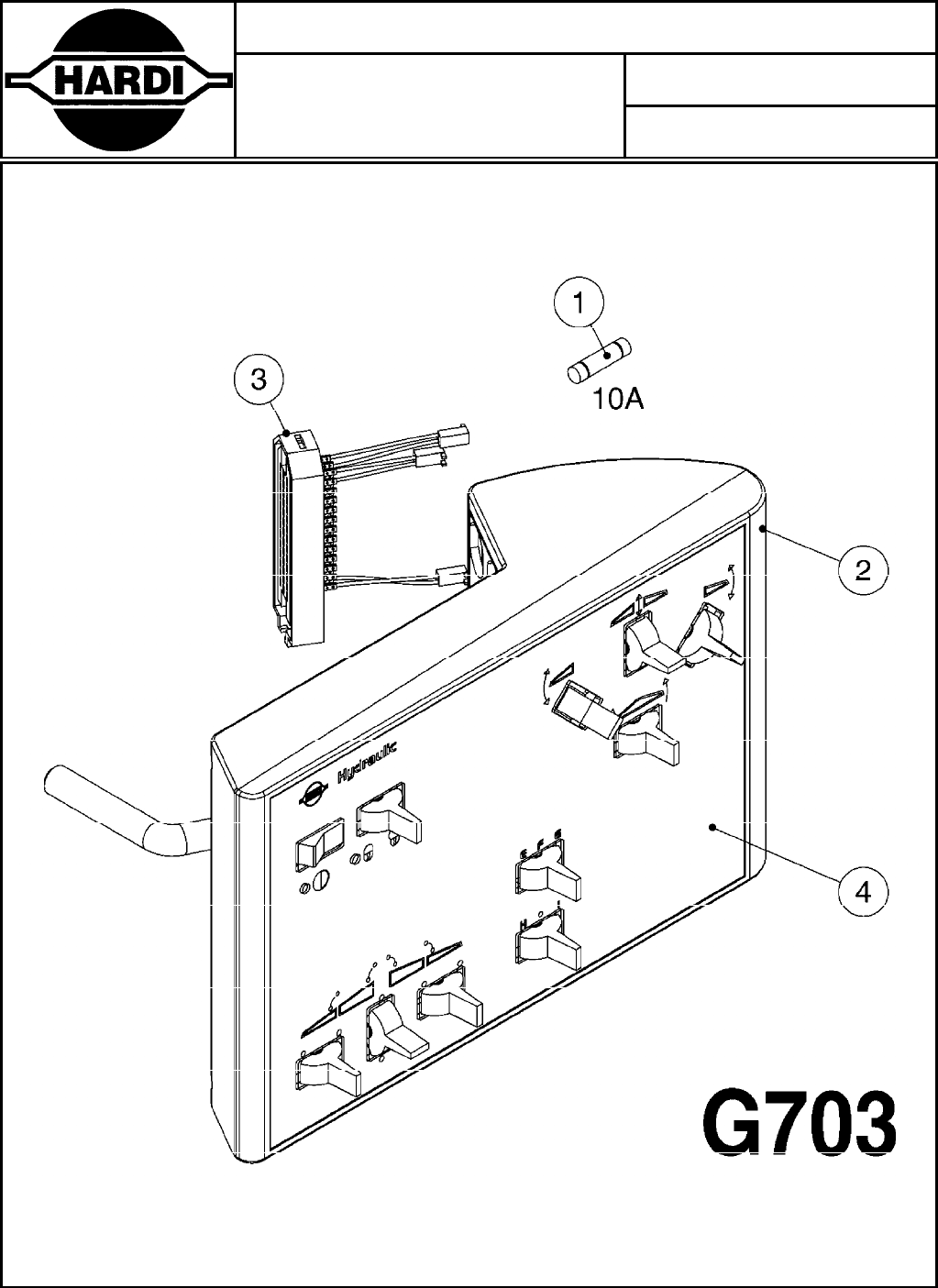

G703-HIN 14:06:12 HYDRAULIC CONTROL BOX 39-PIN

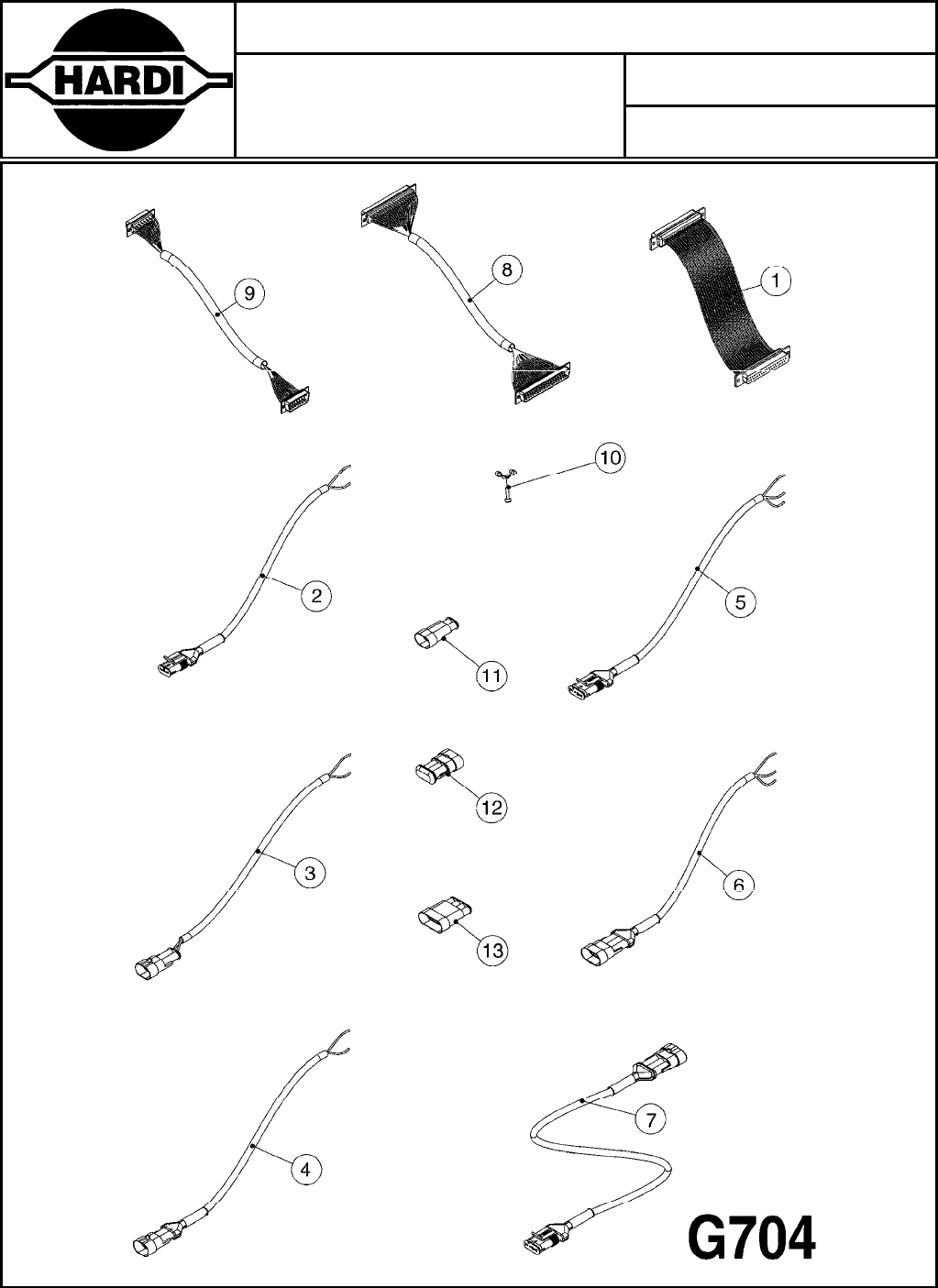

G704-HIN 22:06:09 CABLES

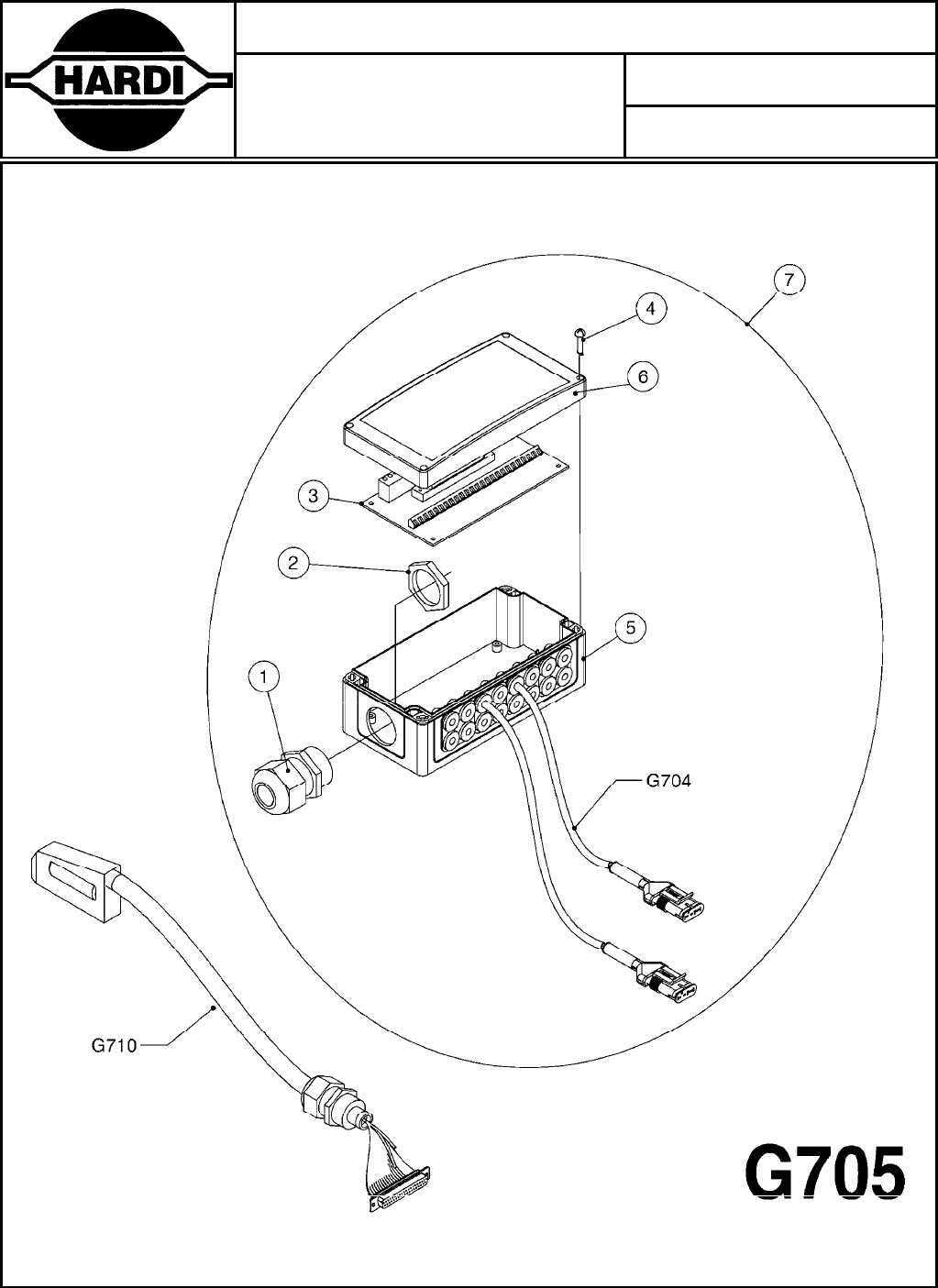

G705-HIN 01:12:10 JUNCTION BOX - LIQUID

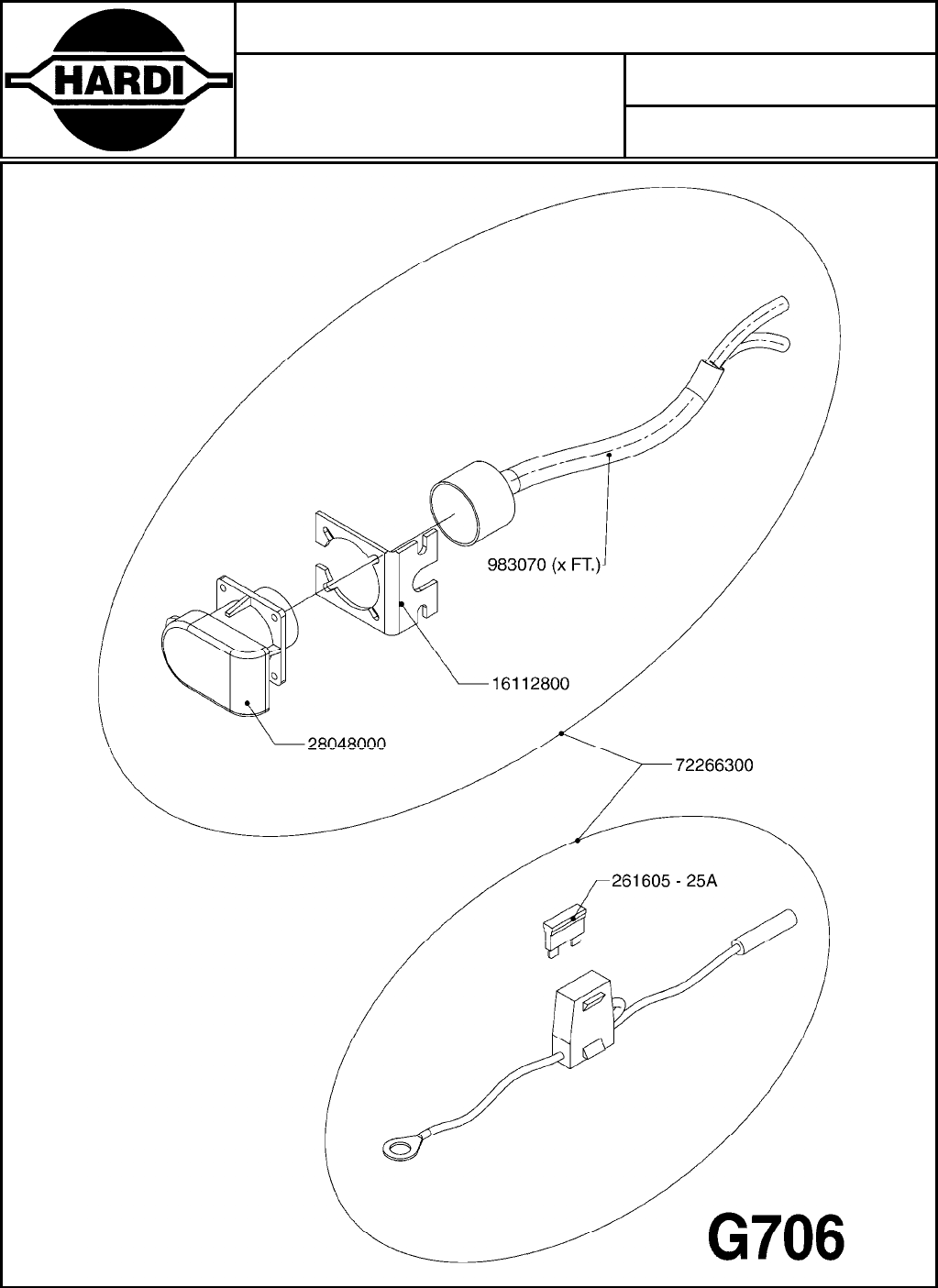

G706-HIN 04:06:10 POWER SUPPLY CABLES

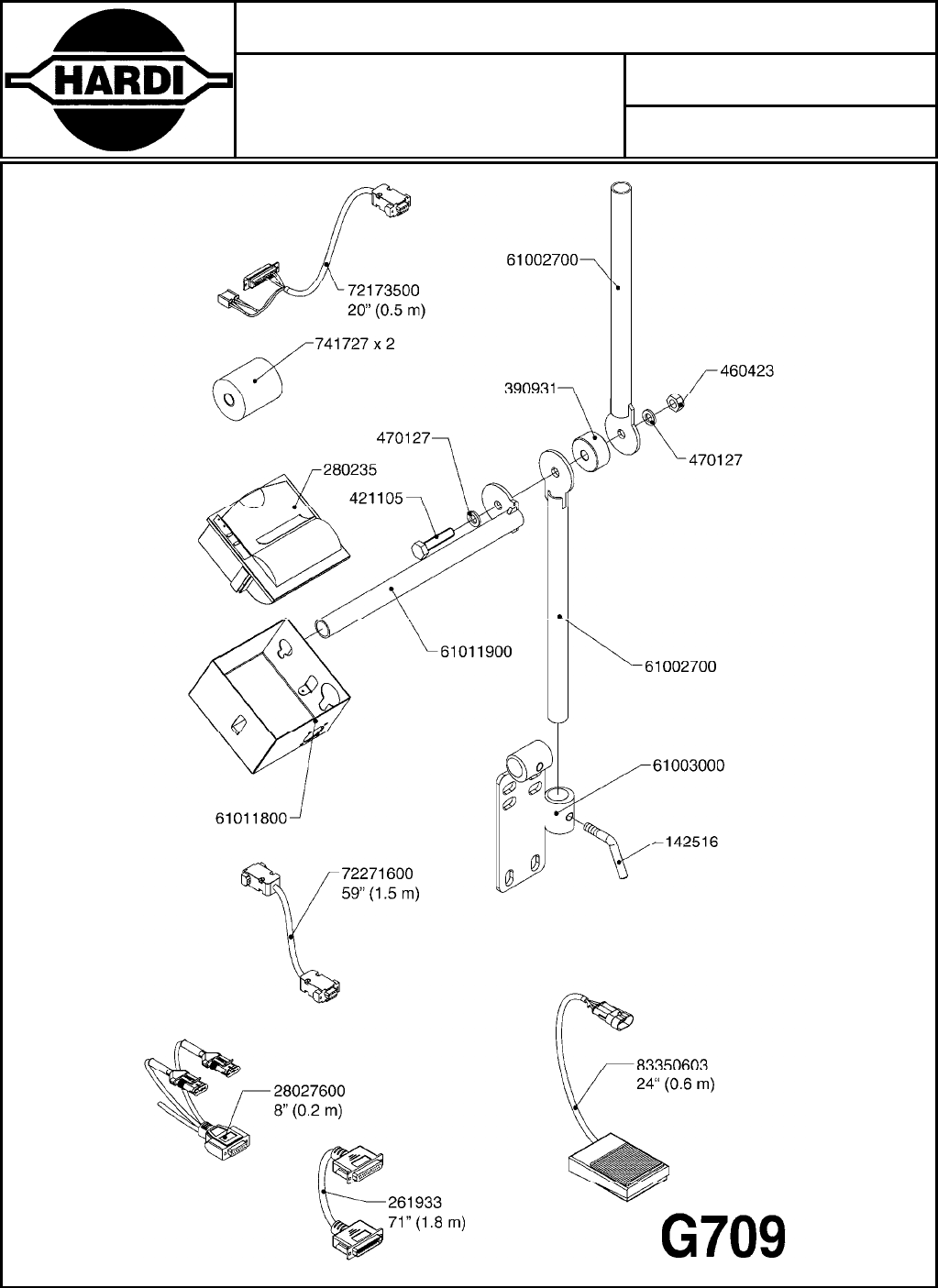

G709-HIN 13:06:08 HC 5500 ACCESSORIES

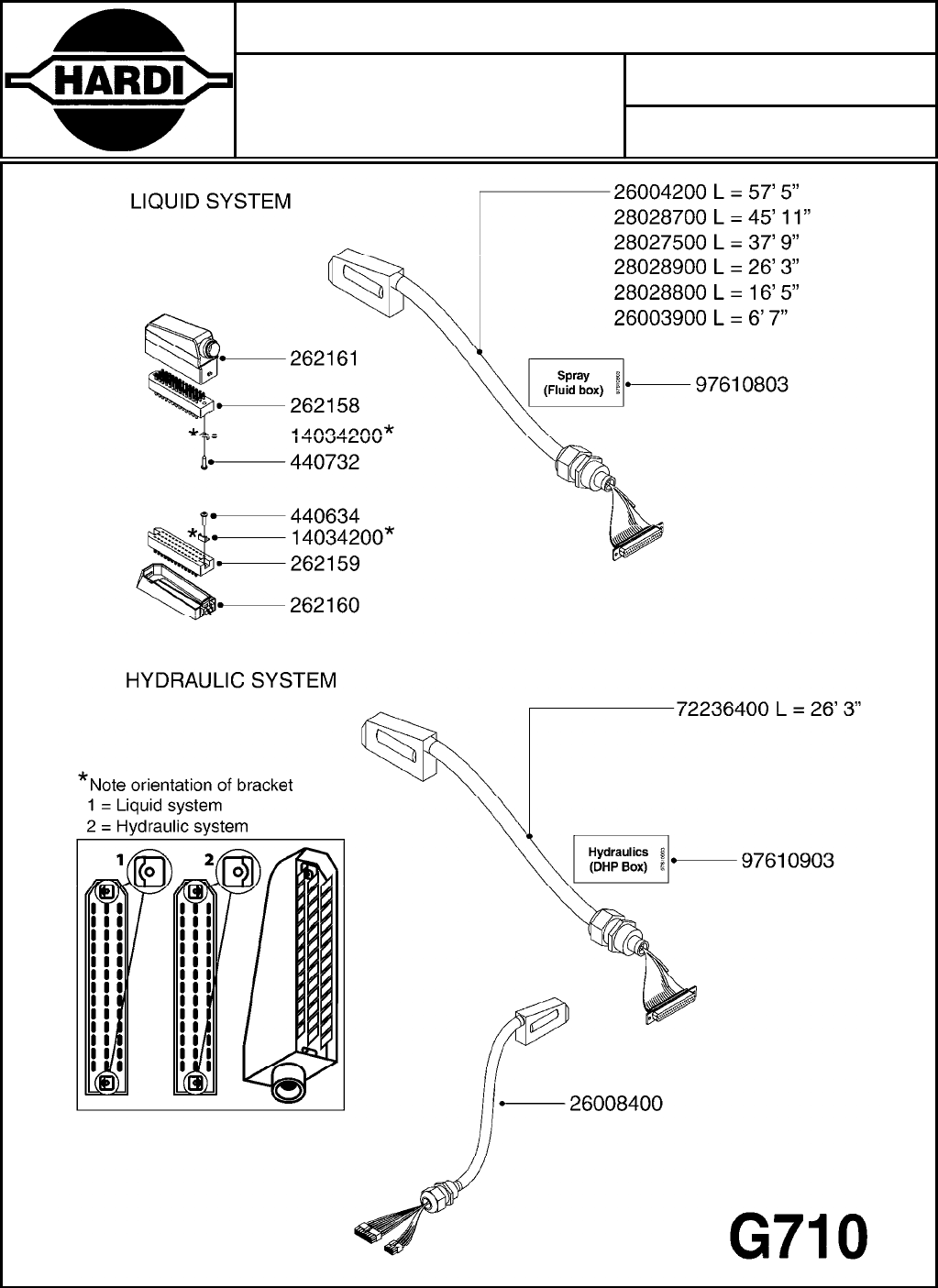

G710-HIN 16:05:12 39 PIN CABLES

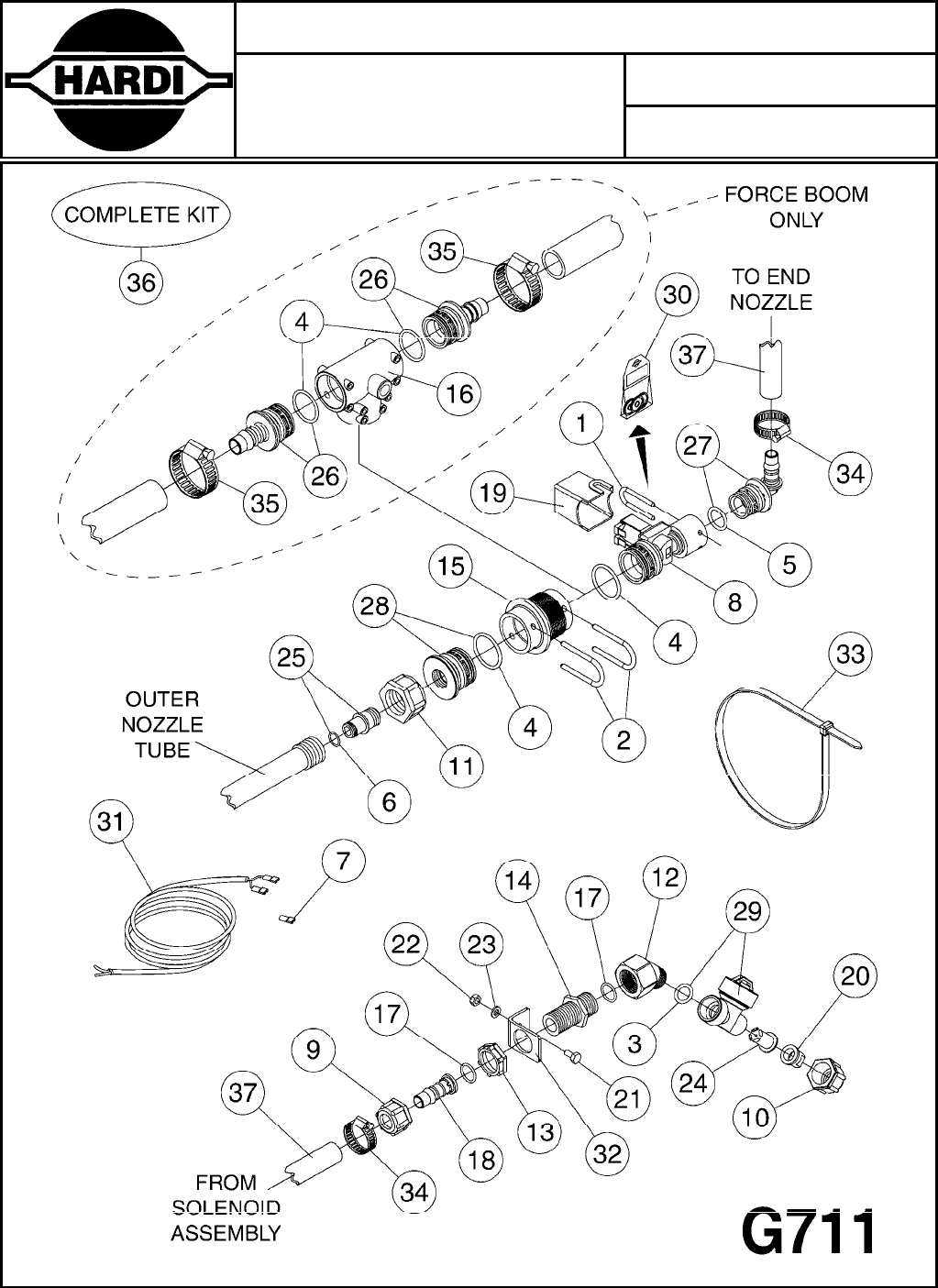

G711-HIN 11:05:10 ELECTRIC END NOZZLE KIT

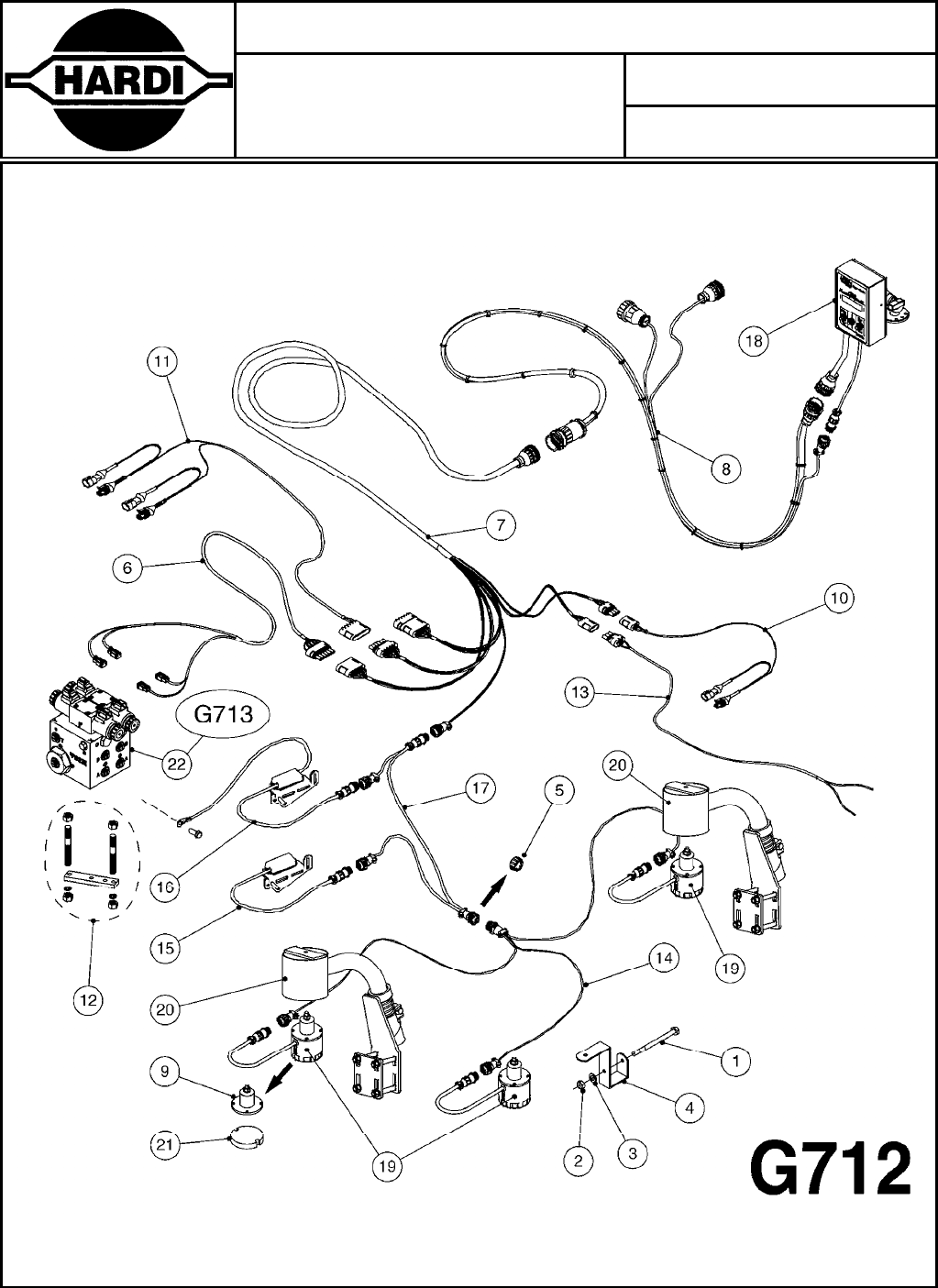

G712-HIN 02:06:11 NORAC UC4 BOOM HEIGHT CONTROL

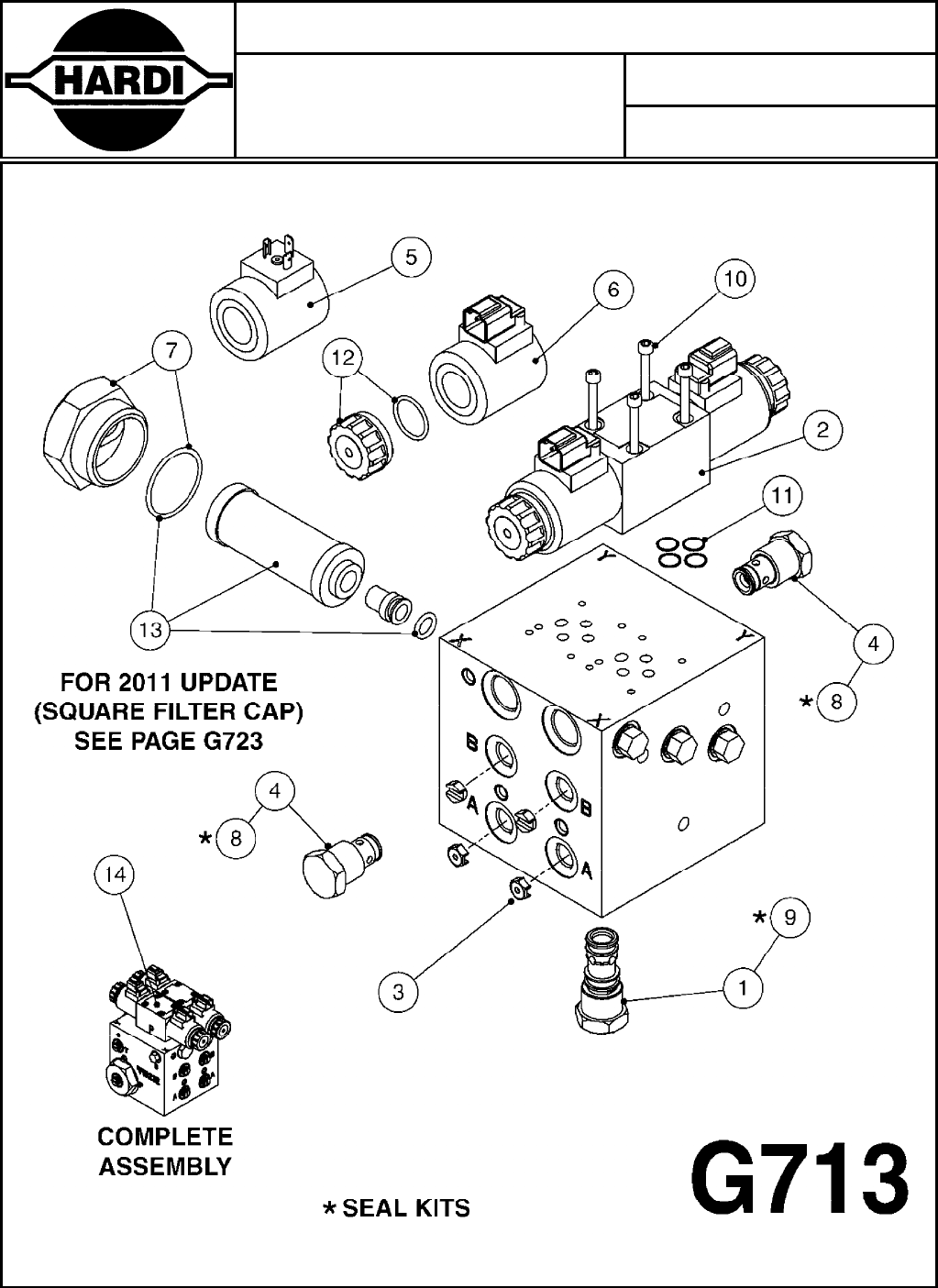

G713-HIN 25:10:12 NORAC VARIABLE RATE VALVE UC4

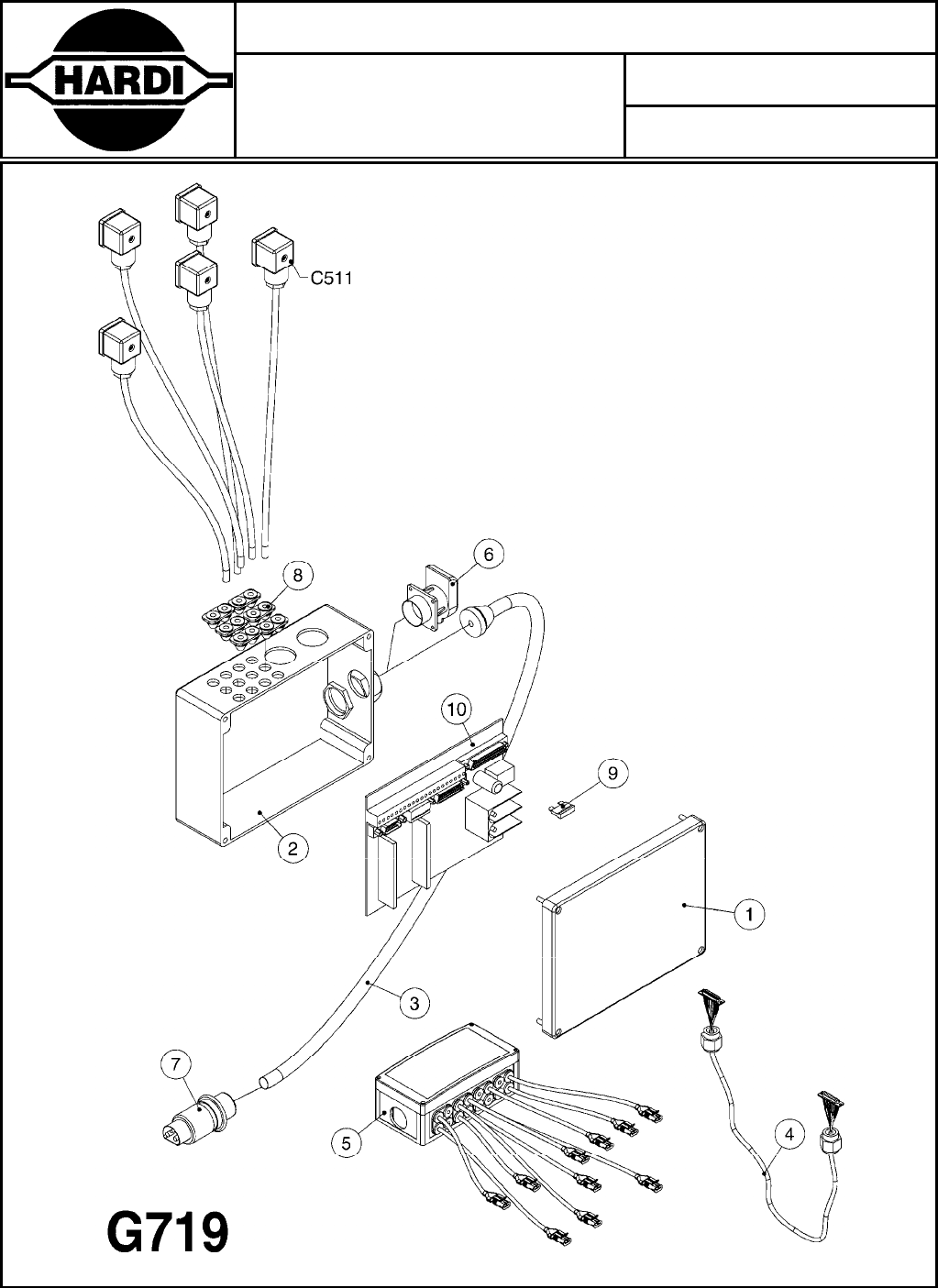

G719-HIN 05:06:12 JUNCTION BOXES - HYDRAULIC

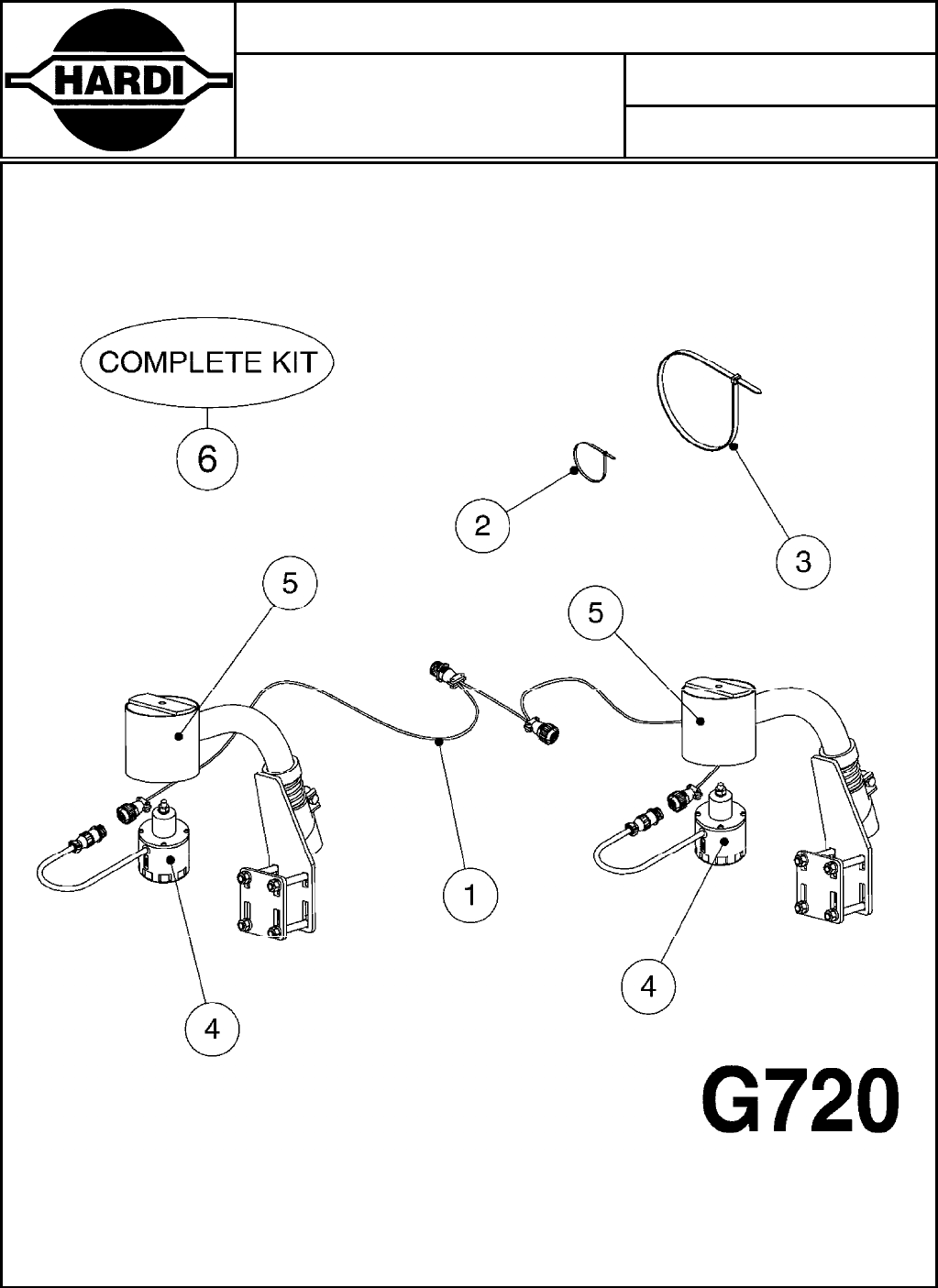

G720-HIN 18:03:10 NORAC SEVERE TERRAIN KIT

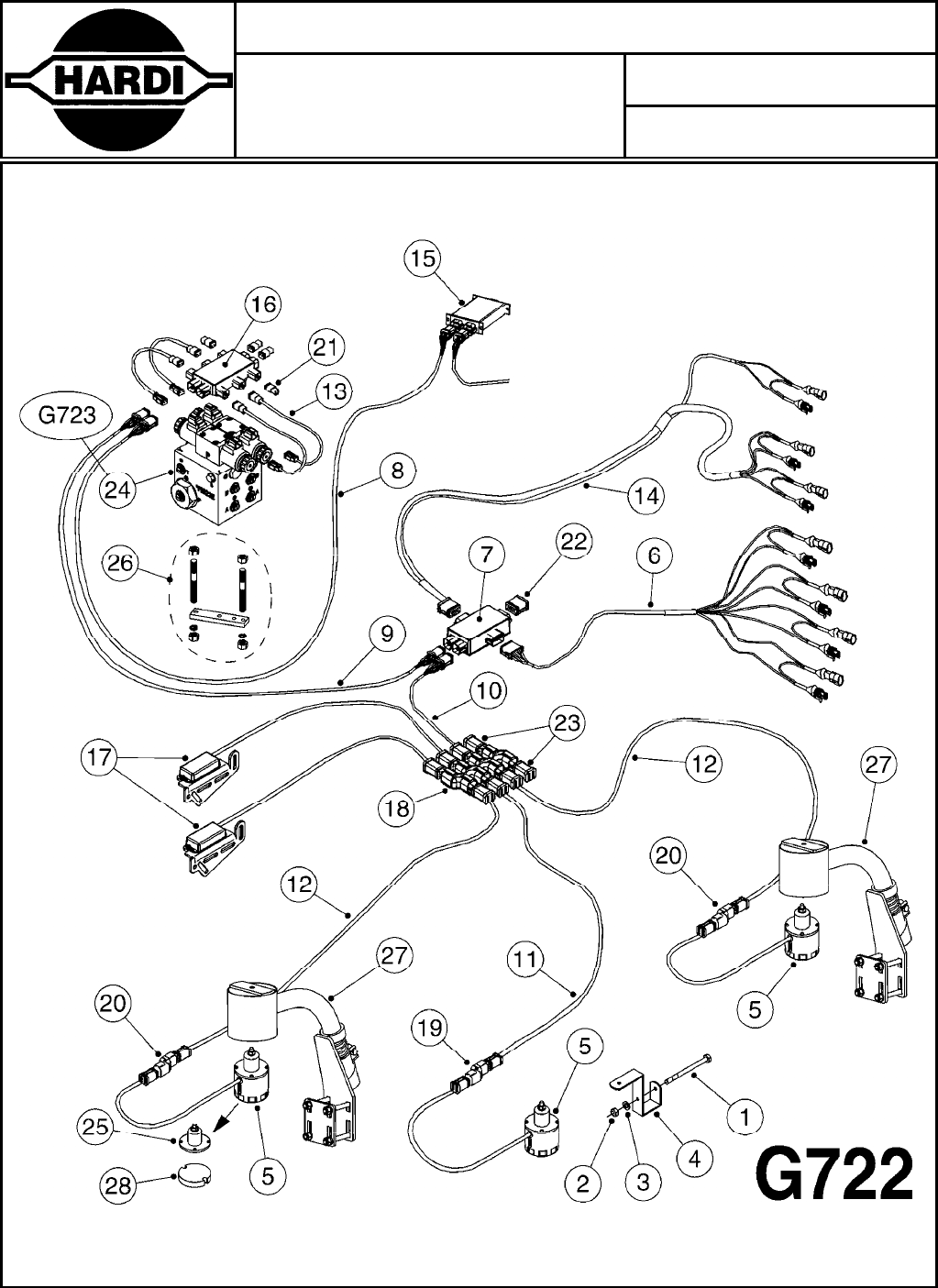

G722-HIN 09:06:11 NORAC UC5 BOOM HEIGHT CONTROL

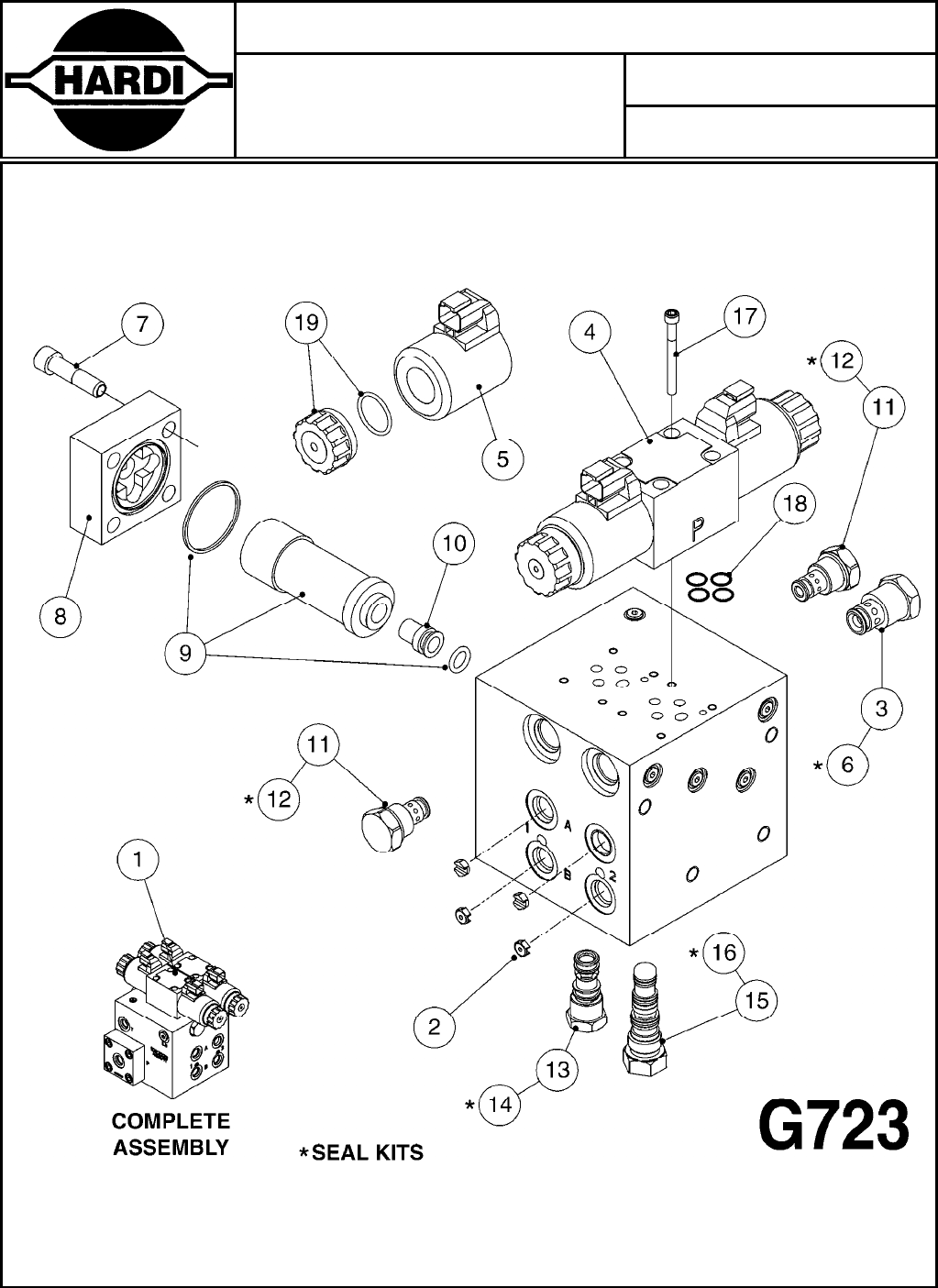

G723-HIN 25:10:12 NORAC VAR. RATE VALVE UC4/UC5

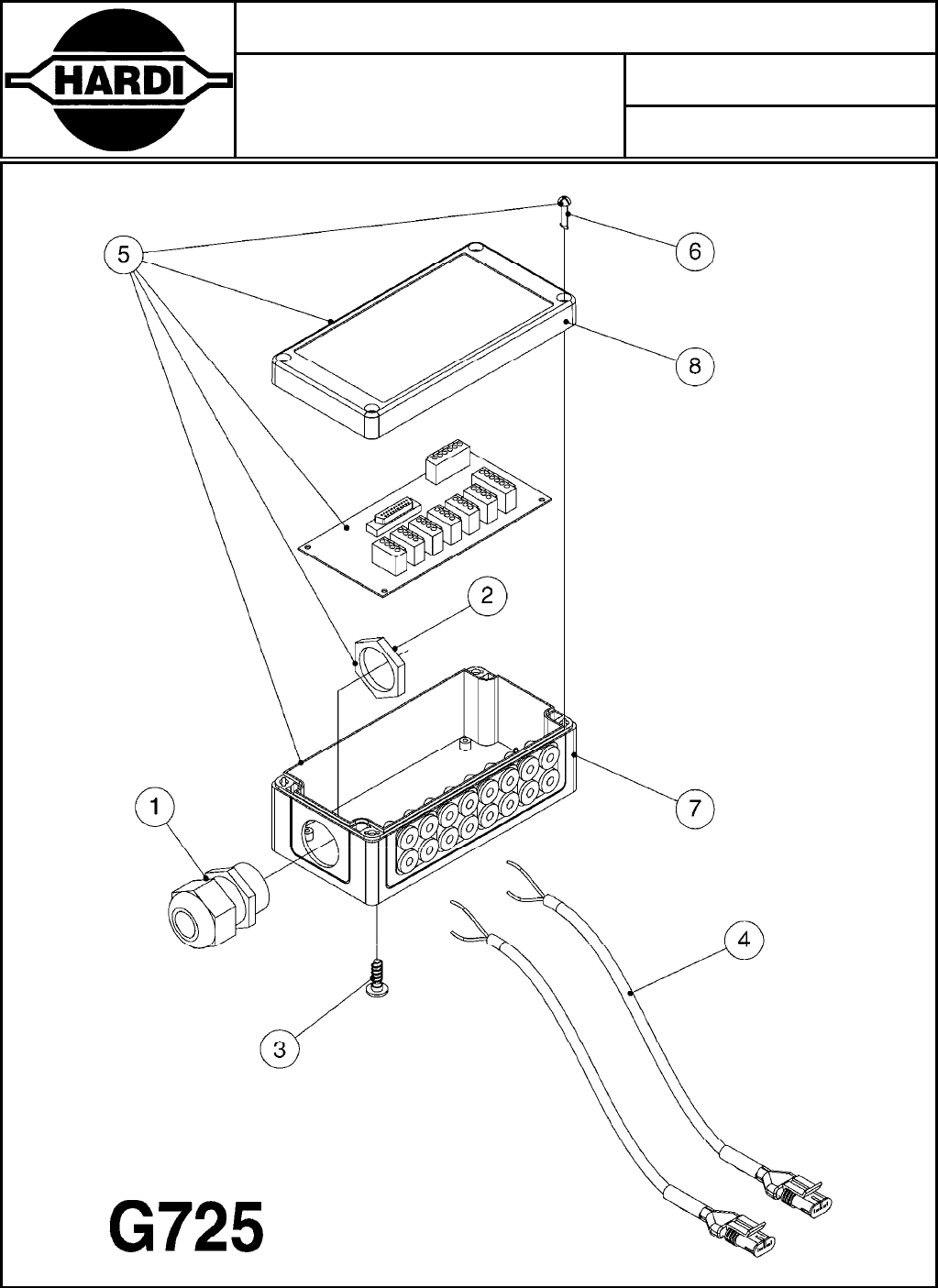

G725-HIN 30:05:12 HYD. JUNCTION BOX 2012

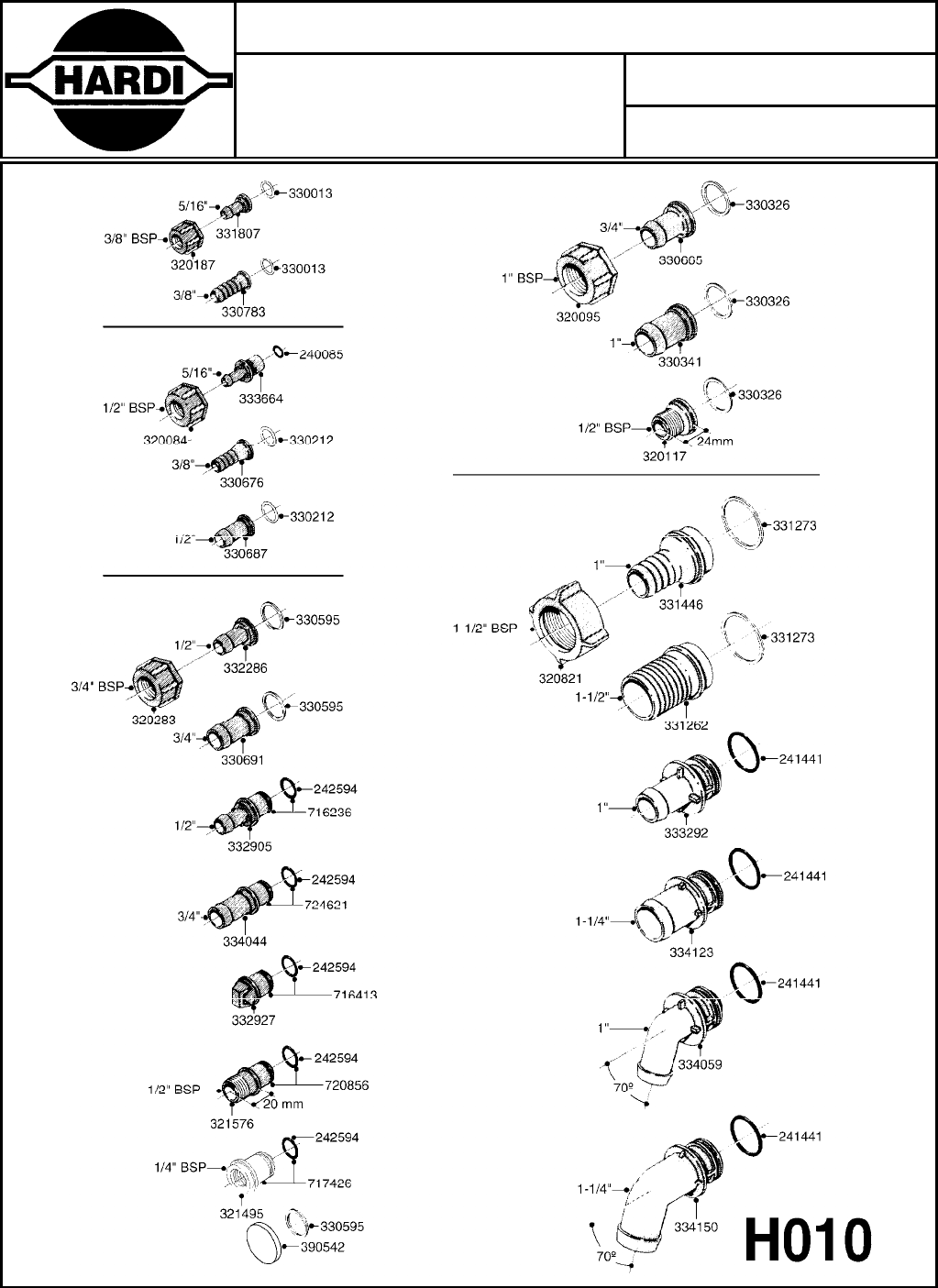

Fittings, Bulk Hose & Clamps H010-HIN 28:11:06 FITTINGS-CAP NUTS & HOSE BARBS
H020-HIN 01:01:01 FITTNGS-T-PIECES,CAPS & ELBOWS

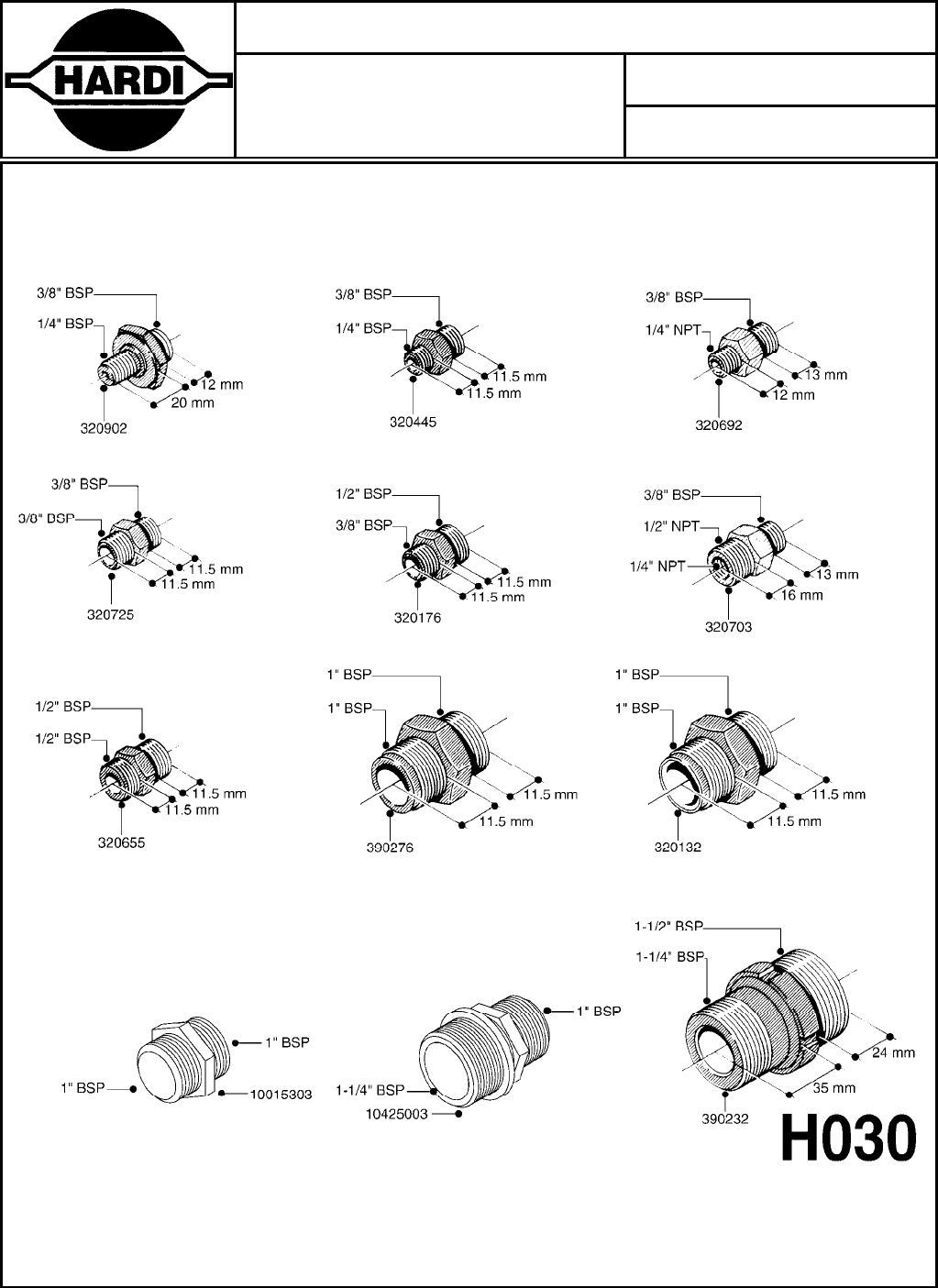

H030-HIN 01:01:01 FITTINGS - HEXAGON NIPPLES

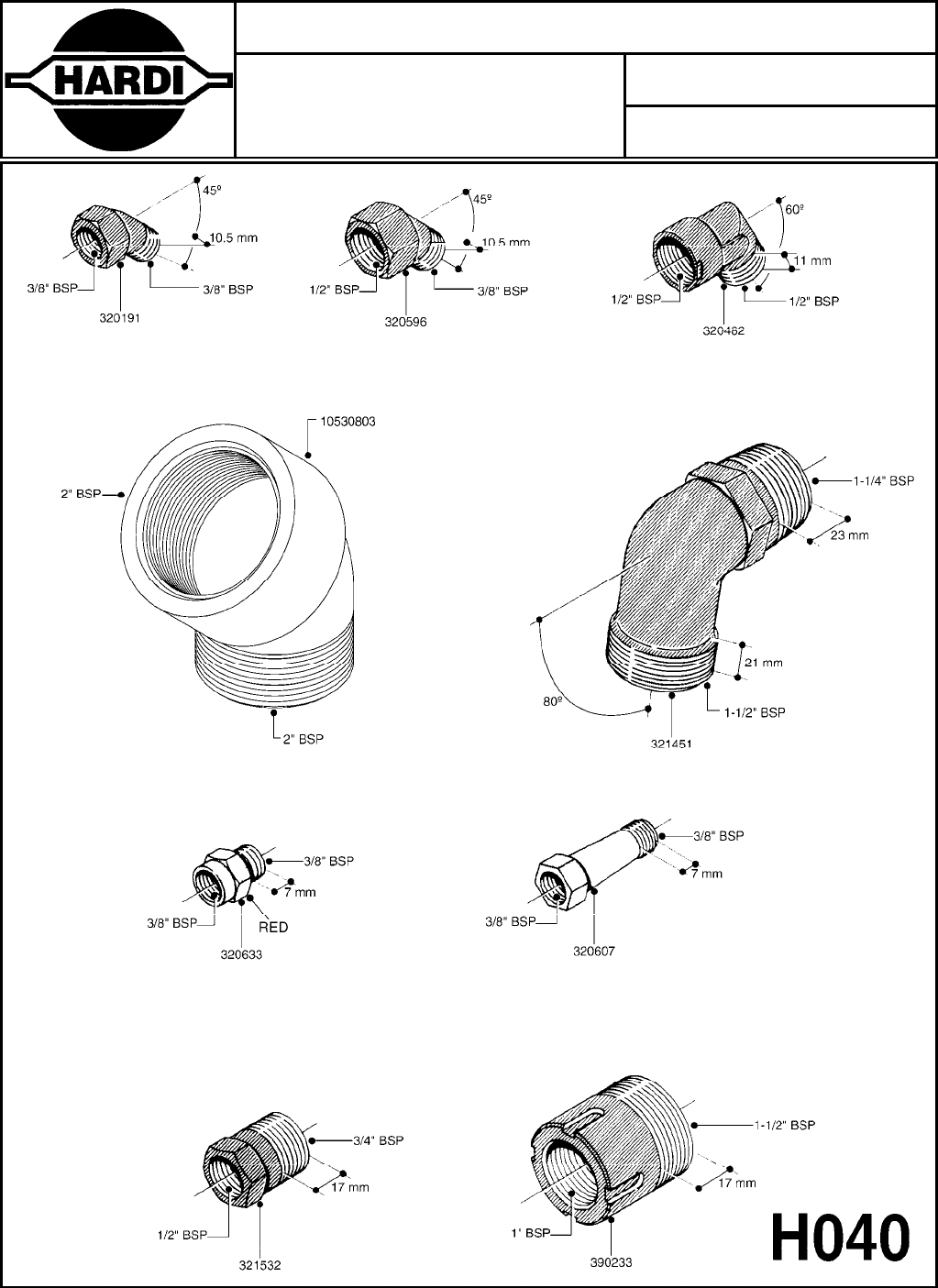

H040-HIN 01:01:01 FITTINGS - NIPPLES & ELBOWS

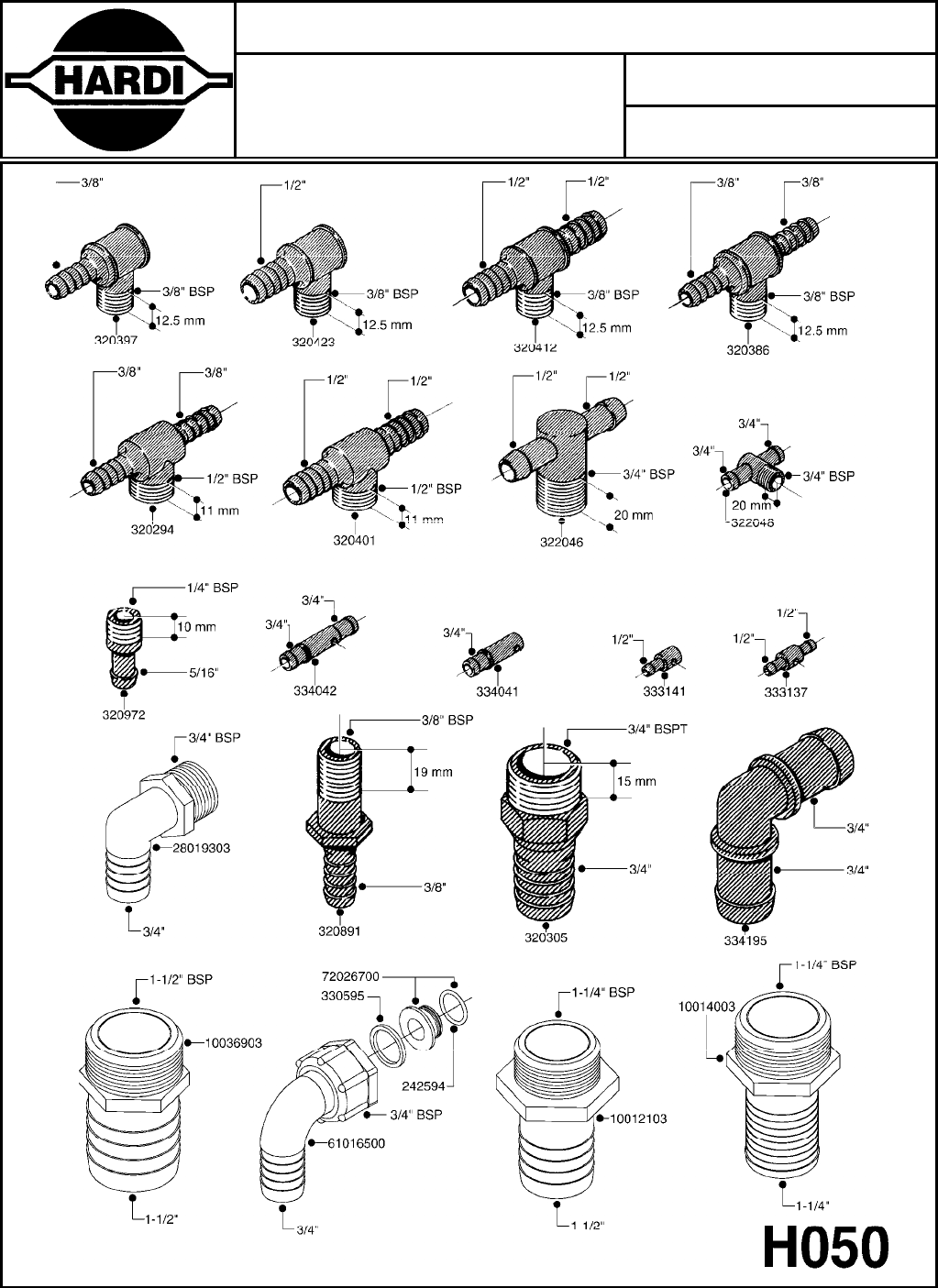

H050-HIN 31:03:09 FITTINGS - HOSE CONNECTORS

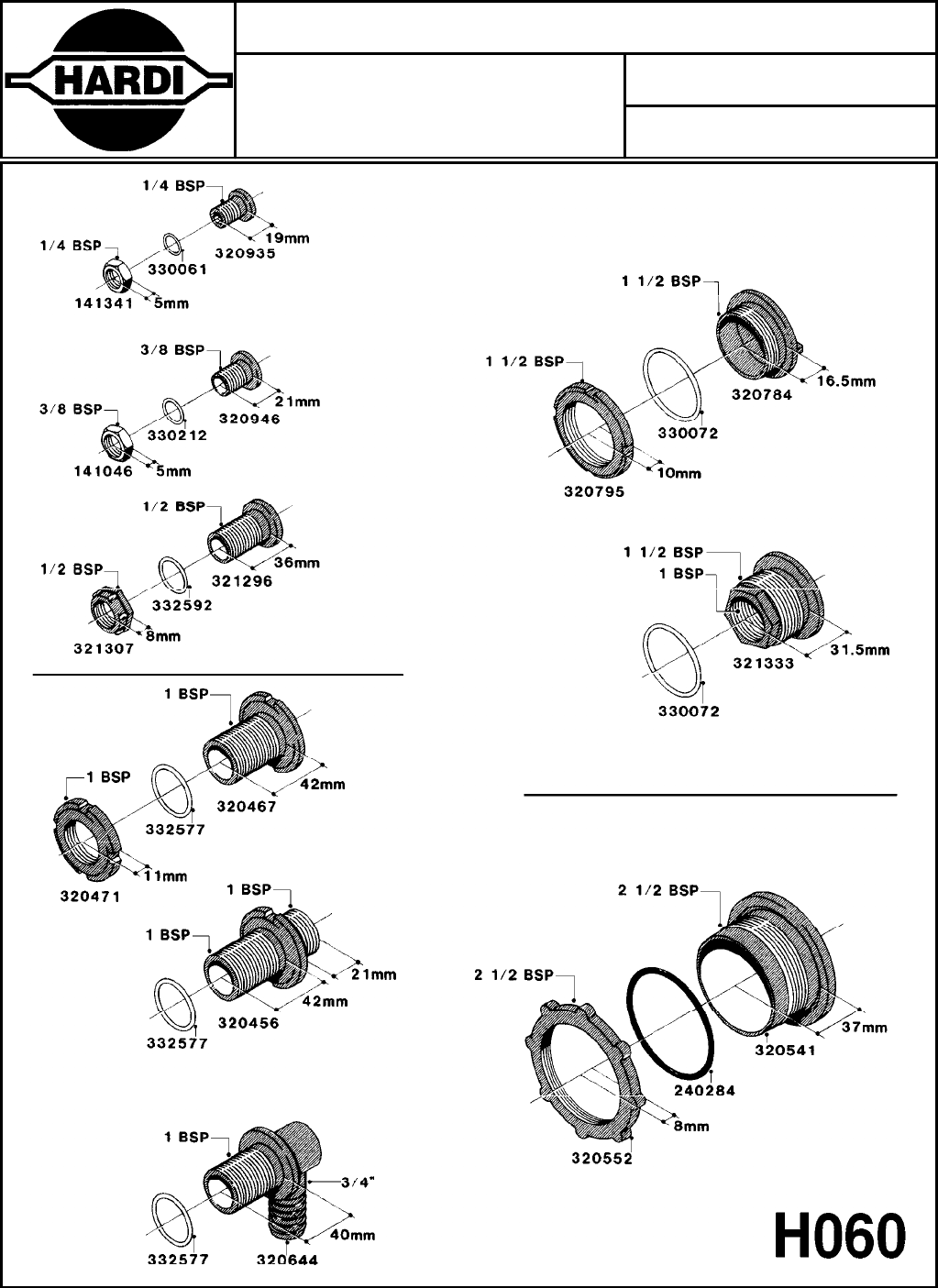

H060-HIN 01:01:01 FITTINGS - BULKHEAD

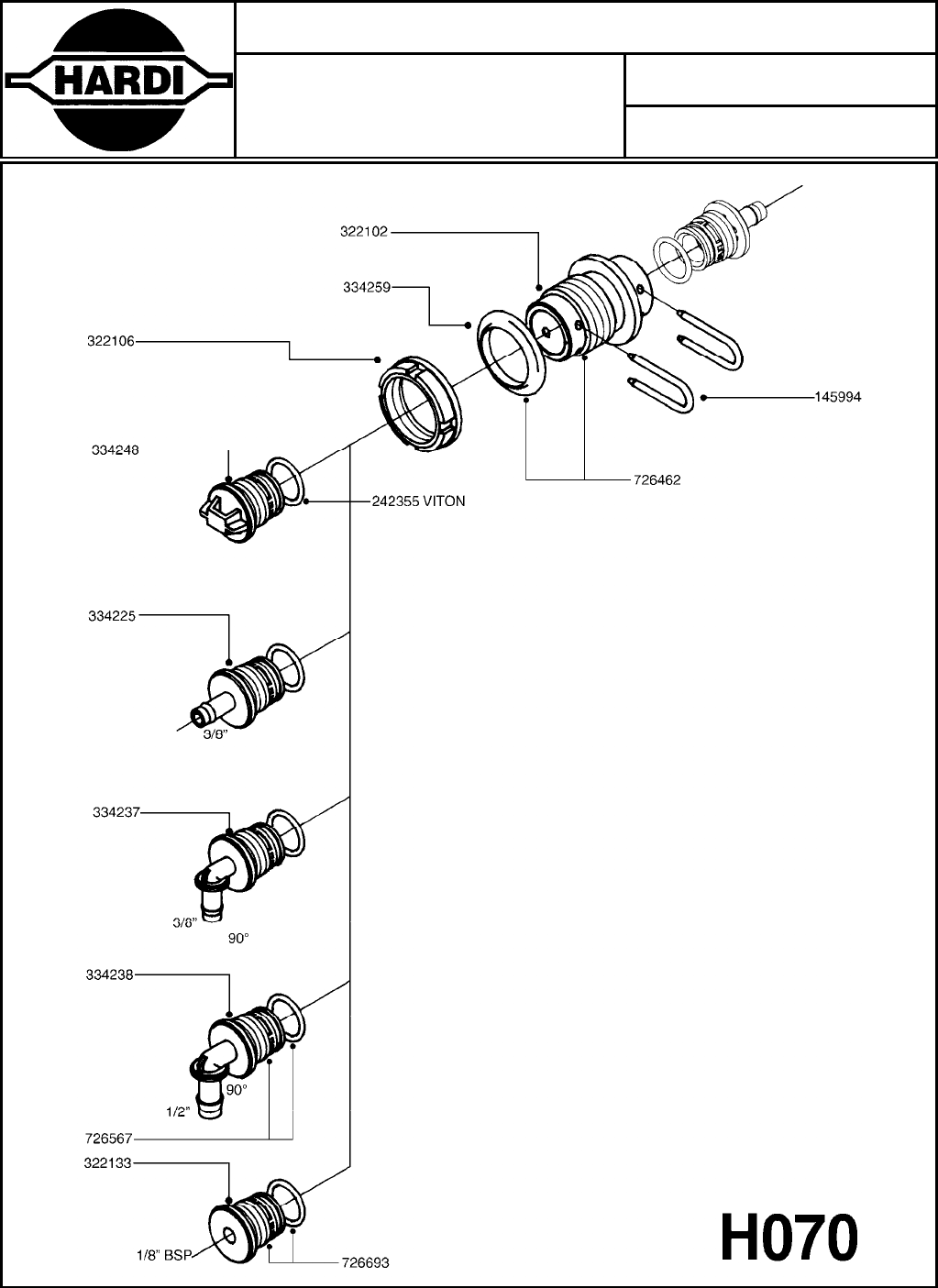

H070-HIN 01:02:12 FITTINGS - S-40

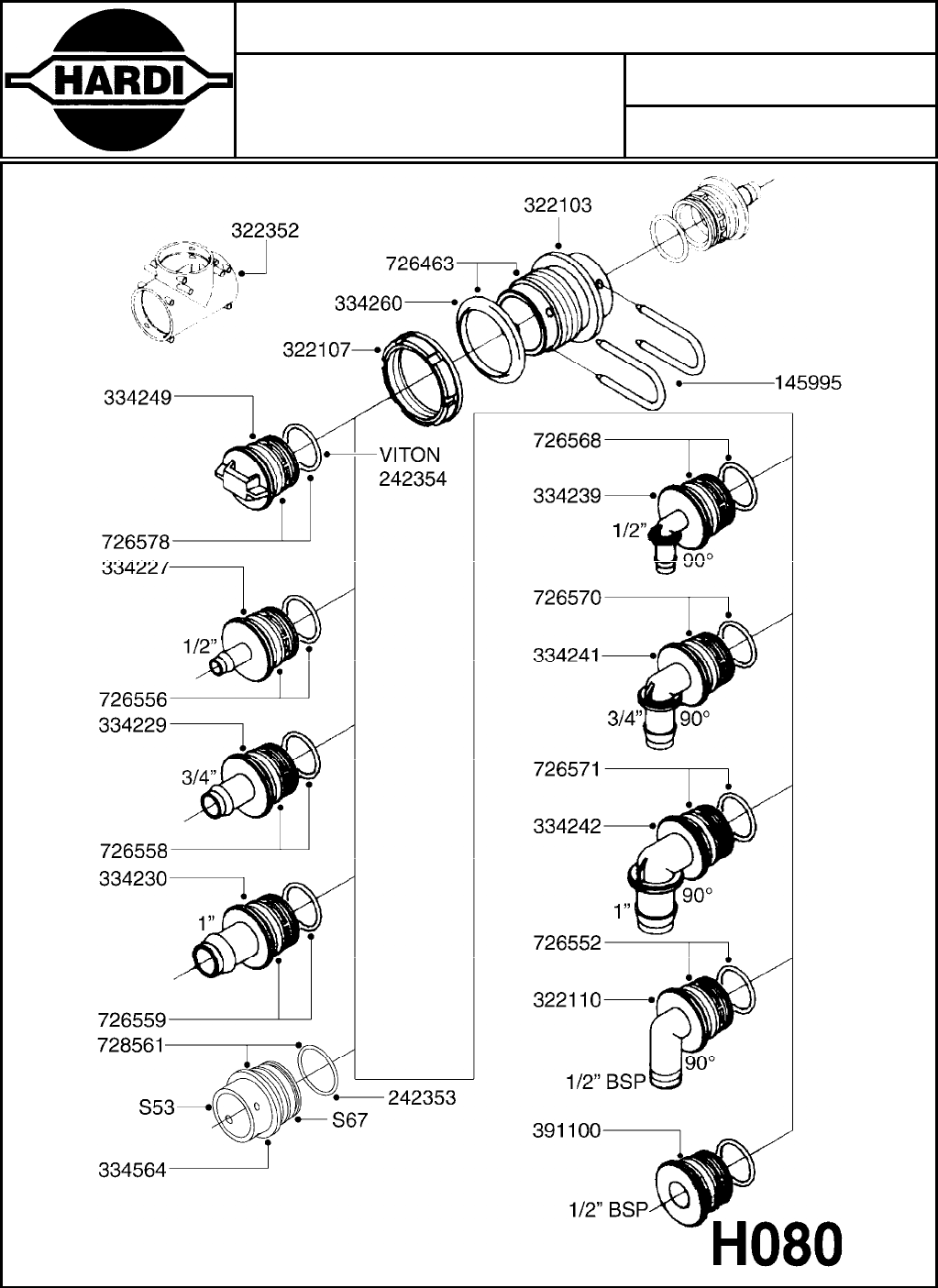

H080-HIN 01:02:12 FITTINGS - S-53

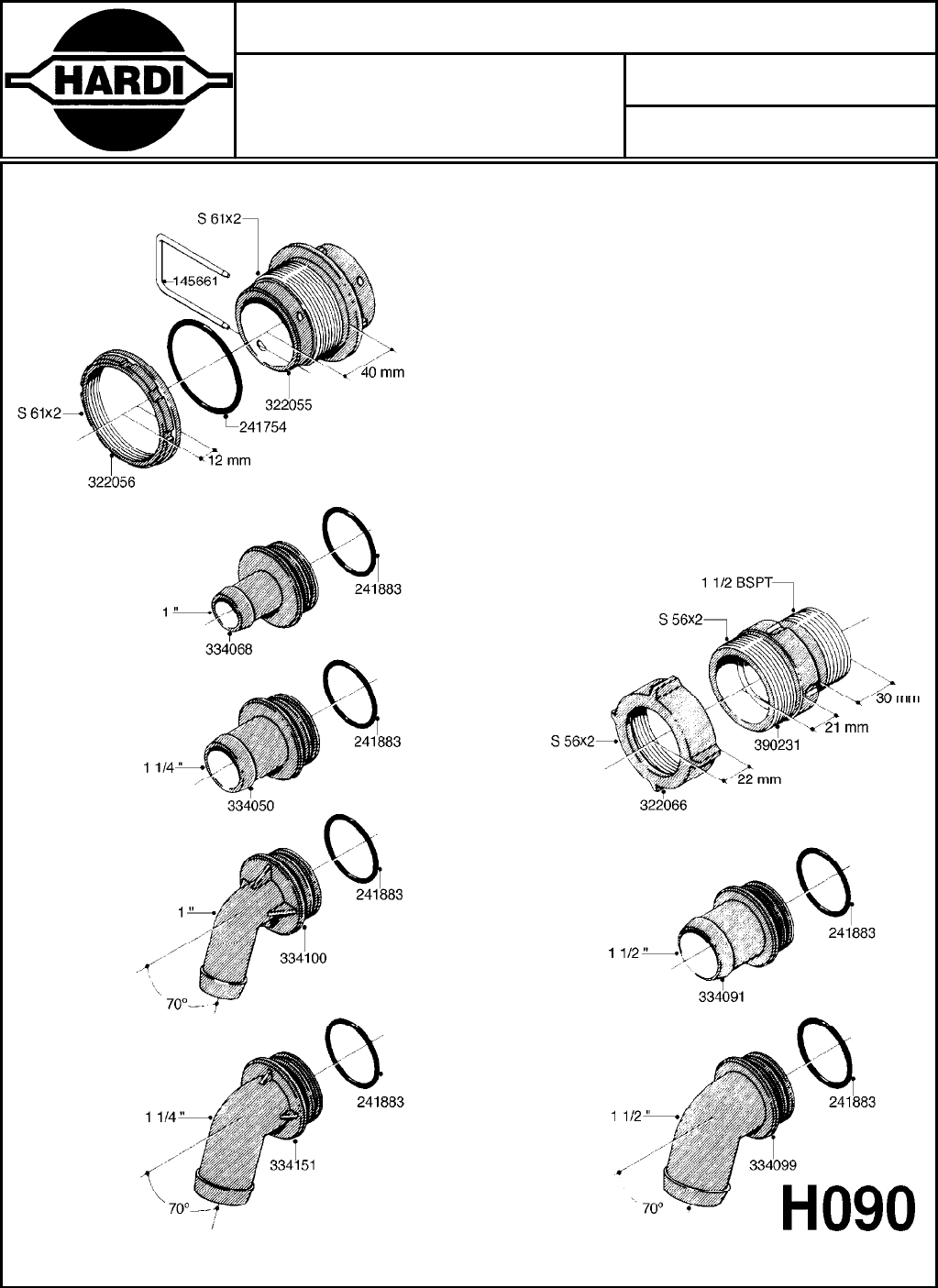

H090-HIN 01:01:01 FITTINGS - S-56 & S-61

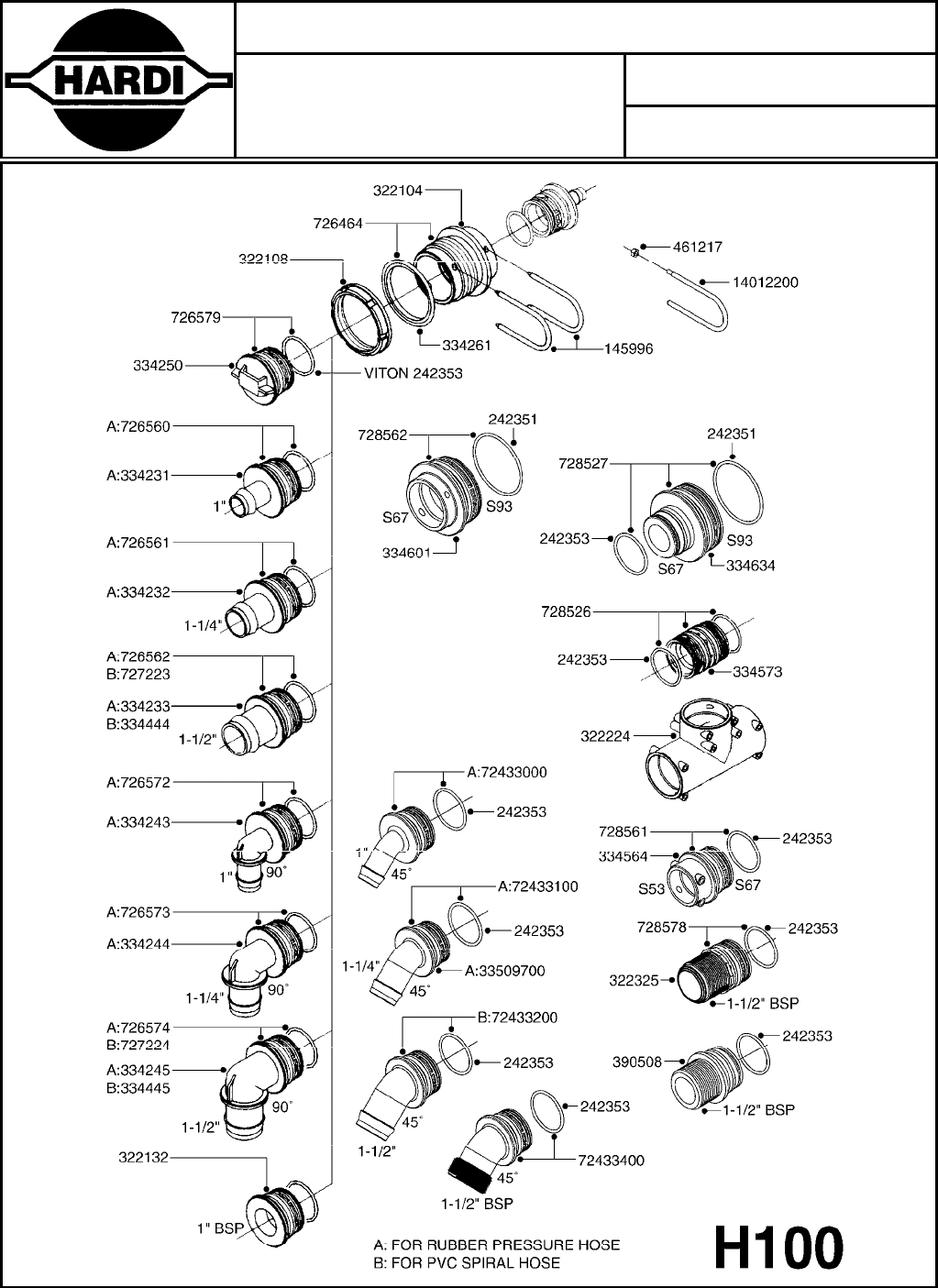

H100-HIN 08:11:12 FITTINGS - S-67

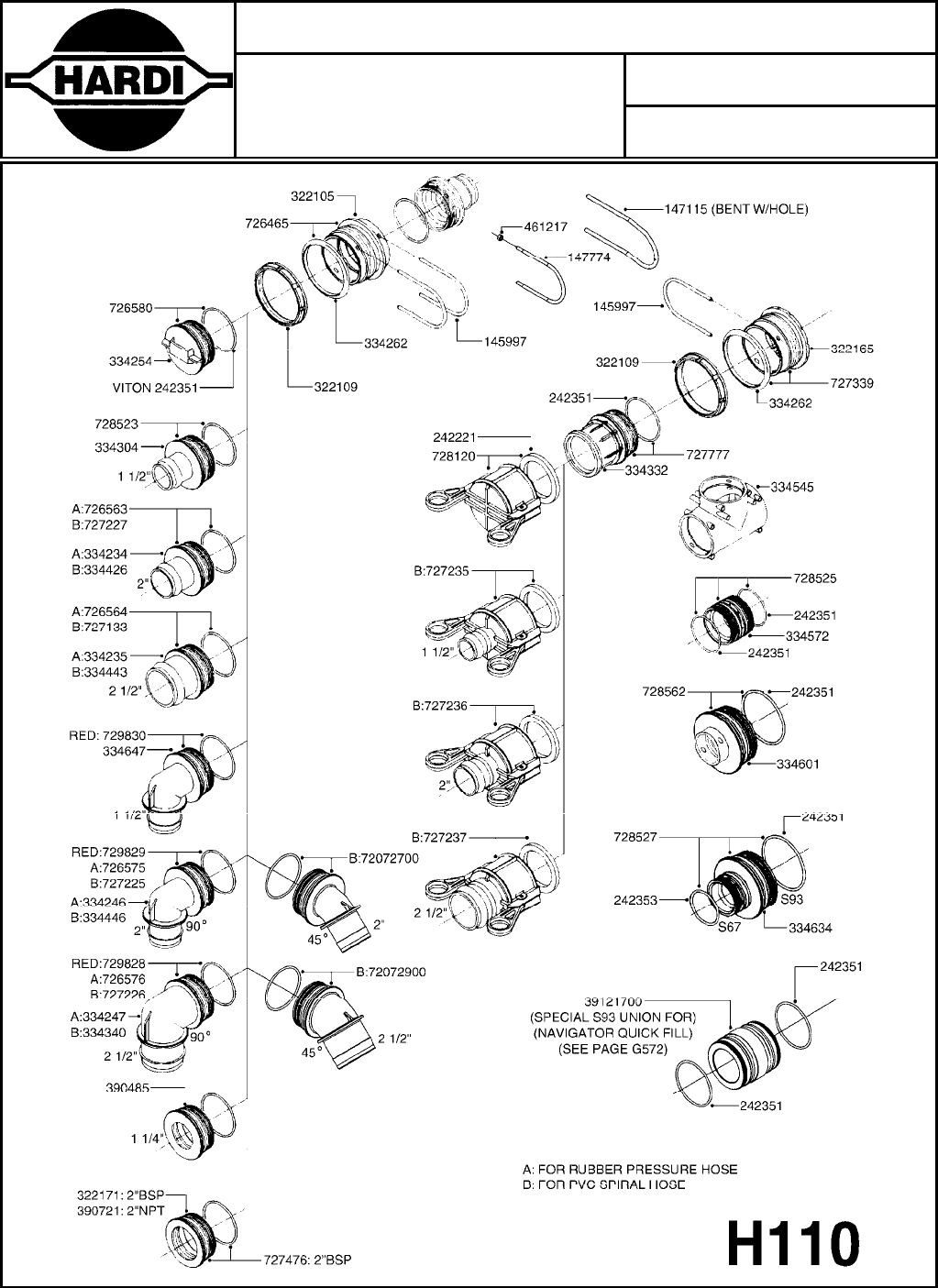

H110-HIN 08:11:12 FITTINGS - S-93

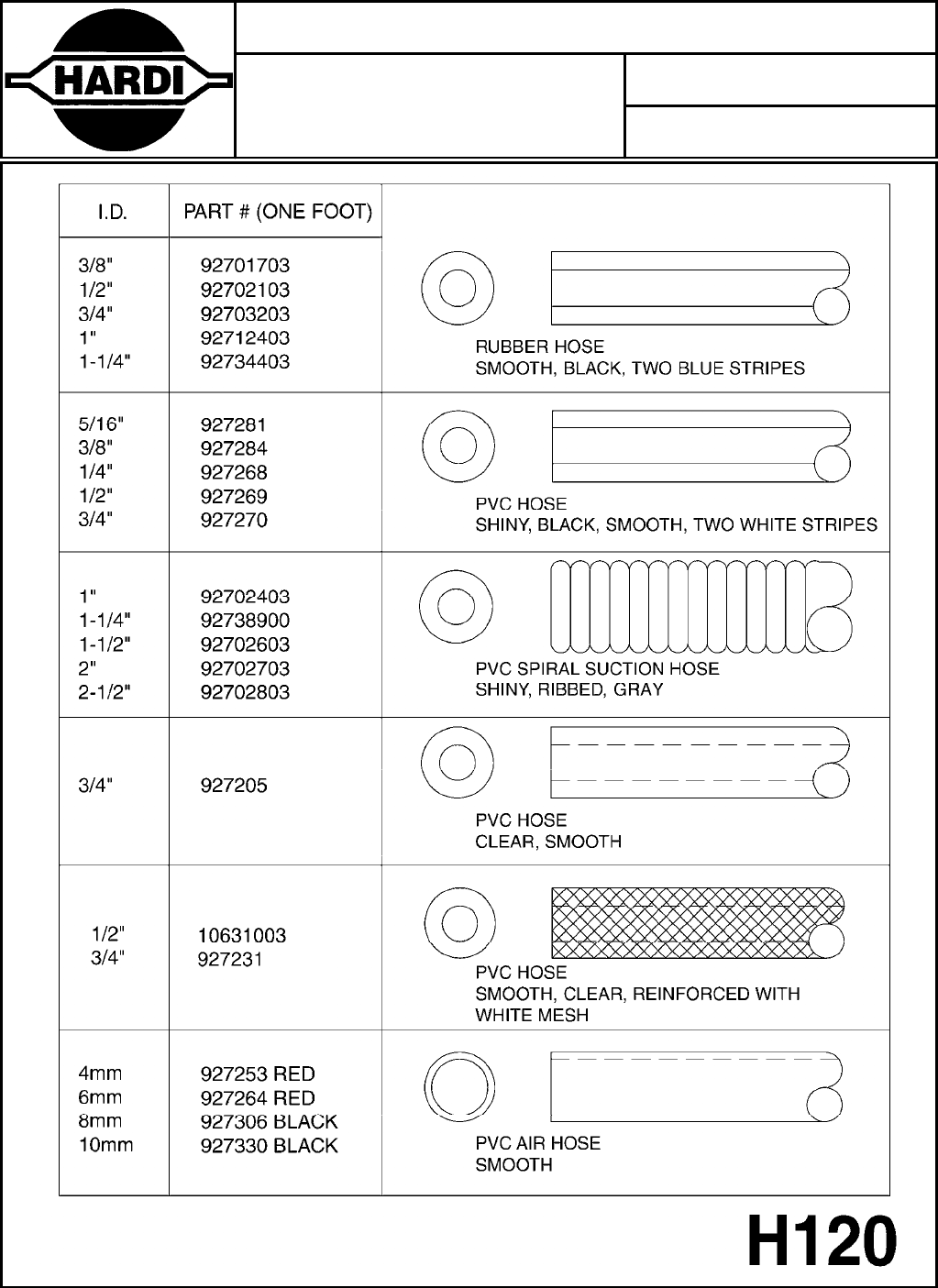

H120-HIN 11:05:10 BULK HOSE

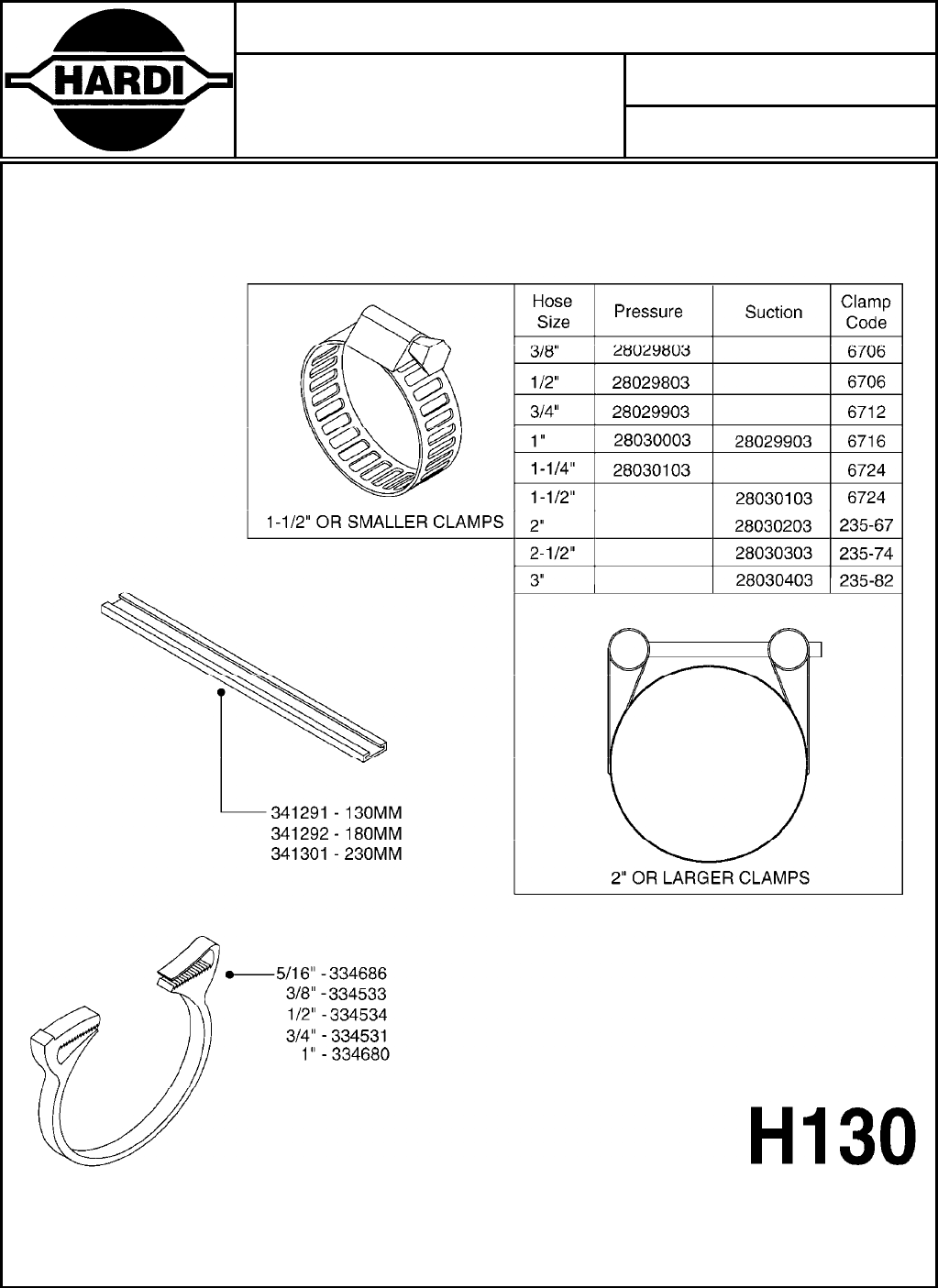

H130-HIN 05:07:11 HOSE CLAMPS
Agroparts: www.HARDI-INTERNATIONAL.com

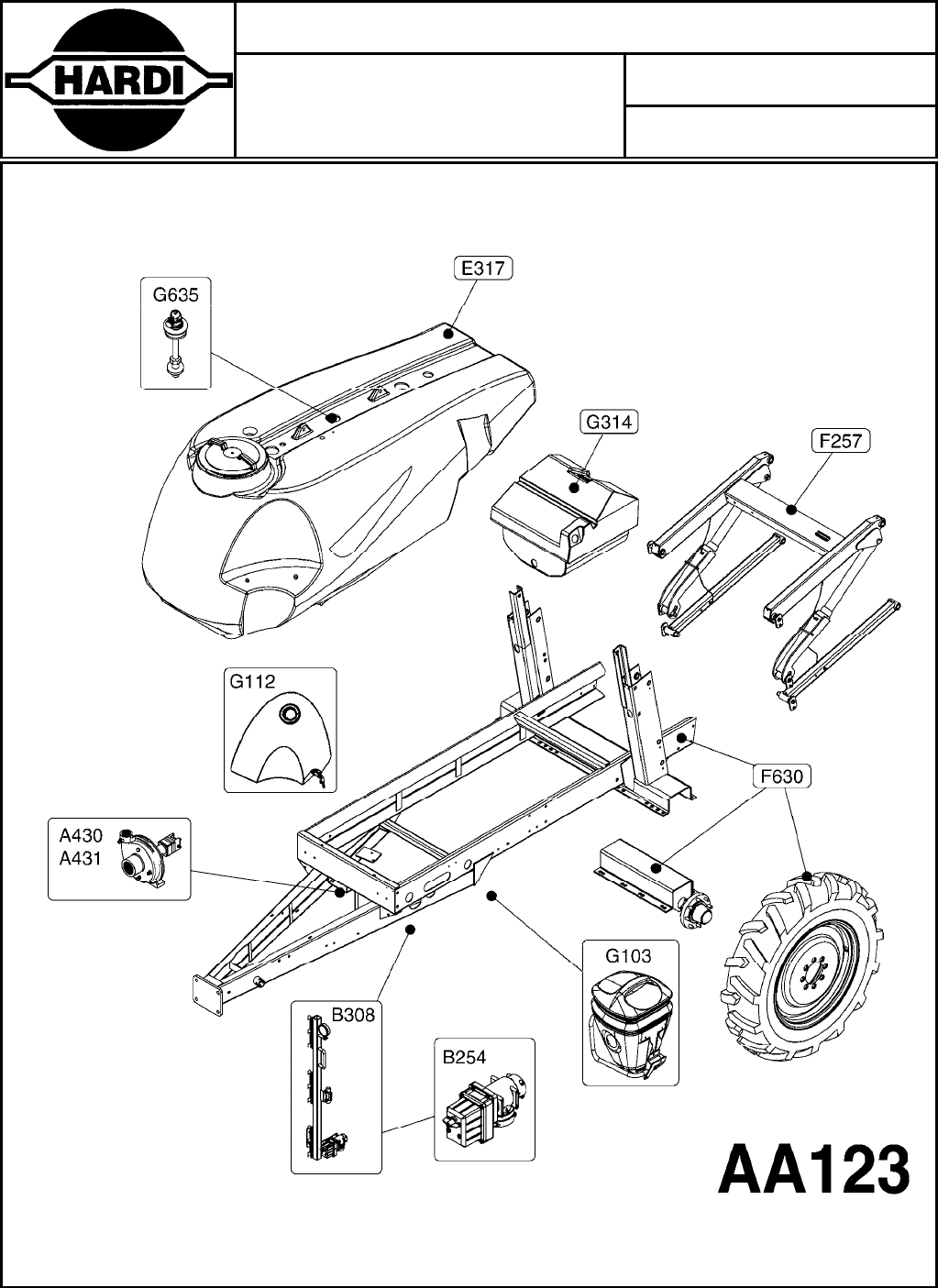

RANGER 550 SYSTEM OVERVIEW
AA123-HIN, 21:12:11
Page 0
Date 19.03.2013 8:42
Agroparts: www.HARDI-INTERNATIONAL.com
RANGER 550 SYSTEM OVERVIEW
AA123-HIN, 21:12:11
Page 1
Date 19.03.2013 8:42
parts-n° order
qty description
Agroparts: www.HARDI-INTERNATIONAL.com

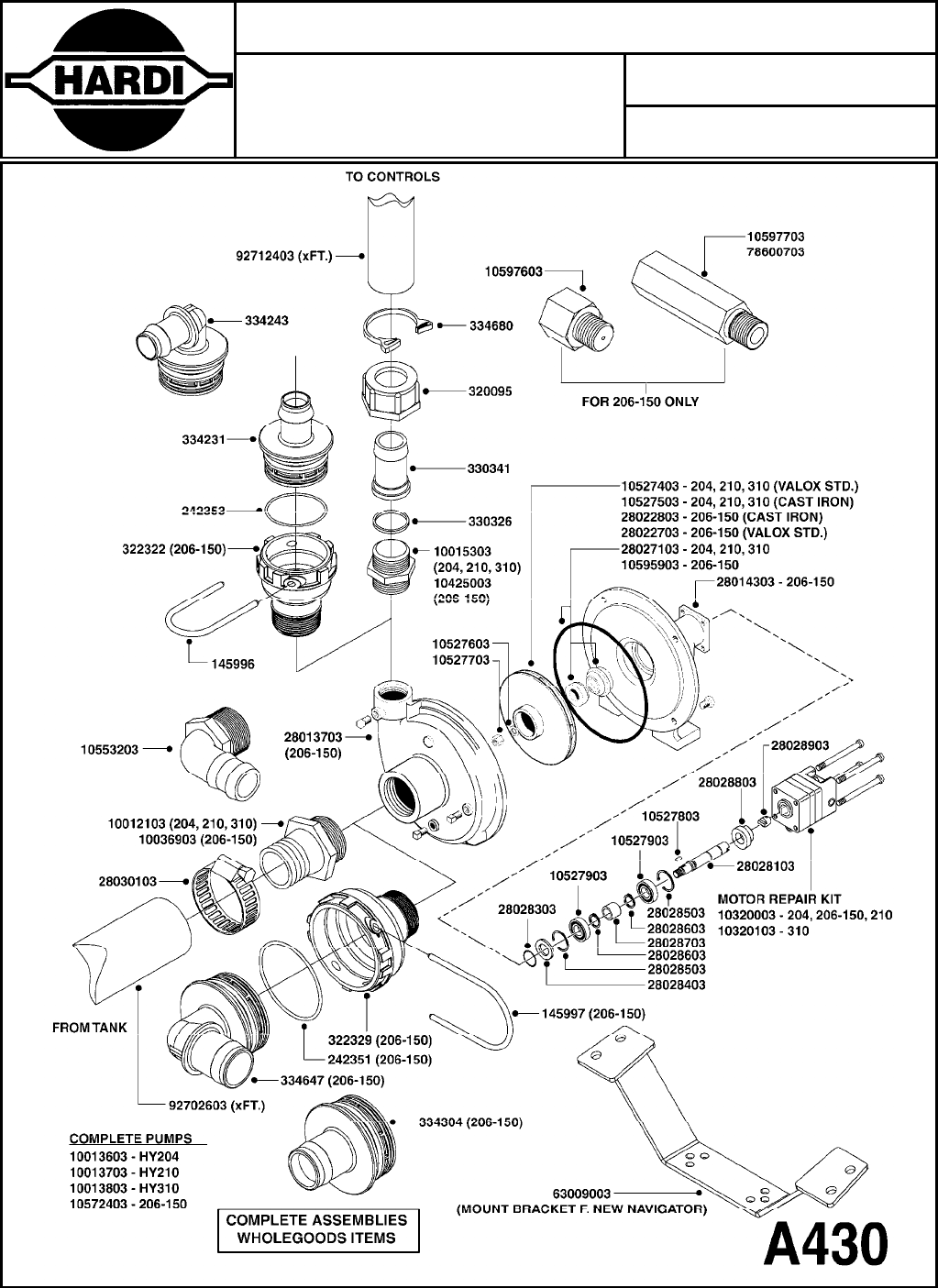

PUMP-204,206-150,210,310 ACE
A430-HIN, 14:06:12
Page 0
Date 19.03.2013 8:42
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP-204,206-150,210,310 ACE
A430-HIN, 14:06:12
Page 1
Date 19.03.2013 8:42
parts-n° order
qty description
145996 1 FITT.DK S-67 FORK
145997 1 FITT.DK S-93 FORK
242351 1 O-RING D69.5X3.0 VITON F.S-93
242353 1 O-RING D44.2X3.0 VITON F.S-67
320095 1 FITT.DK NUT 1" BSP
322322 1 FITT.DK S-67 X 1-1/4"BSP MALE
322329 1 FITT.DK S-93 X 1-1/2"BSP MALE2
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
334231 1 FITT.DK S-67 STR.1'
334243 1 FITT.DK S-67 ELB.1"
334304 1 FITT.DK S-93 STR.1-1/2" PVC
334647 1 FITT.DK S93 ELB 1-1/2" 90 PVC
334680 1 CLAMP HOSE PLASTIC 1"
10012103 1 FITT.PO.HB 1.25X1.50 IMB1012
10013603 1 PUMP ACE HY 204
10013703 1 PUMP ACE HY 210
10013803 1 PUMP ACE HY 310
10015303 1 FITT.PO.HN 1.00X1.00 M1000
10036903 1 FITT.PO.HB 1.50X1.50 IMB1212
10320003 1 MOTOR REPAIRKIT ACE204,206,210
10320103 1 MOTOR REPAIR KIT ACE 304,310
10425003 1 FITT.PO.HN 1.25X1.00 MCPHEE
10527403 1 IMPELLER VALOX F.ACE PUMP
10527503 1 IMPELLER CASTIRON F.ACE PUMP
10527603 1 WASHER 3/8' F.ACE PUMP
10527703 1 NUT HEX NF 3/8 F.ACE PUMP
10527803 1 KEY 1/8x1/8x1/2'F.ACE PUMP
10527903 1 BEARING F.ACE PUMP (#40870)
10553203 1 FITT.PO.EL 1.5X1.5 HB BLACK
10572403 1 PUMP ACE HY 206 SERIES 150
10595903 1 REPAIR KIT ACE 206-150
10597603 1 ORIFACE RESTRICTOR F. ACE 206
10597703 1 FITT, HYD FLOW FUSE ACE 206OLD
28013703 1 PUMP HOUSING FRONT ACE 206-150
28014303 1 PUMP HOUSING W.FEET 206-150
28022703 1 IMPELLER THERMOPLASTIC
28022803 1 IMPELLER CAST IRON
28027103 1 REPAIR KIT ACE 204,210,310
28028103 1 SHAFT 5/8"DIA.1/2"KEYWAY SS
28028303 1 O-RING, SHAFT SEAL
28028403 1 SLINGER
28028503 1 SNAP RING - INTERNAL
28028603 1 SNAP RING - EXTERNAL
28028703 1 SPACER FOR SHAFT
28028803 1 SEAL SUPPORT SPACER 200 SERIES
28028903 1 COUPLING FOR HYDRAULIC MOTOR
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"6724
63009003 1 CENTRIFUGAL PUMP BRACKET
78600703 1 FITT, HYD FLOW FUSE ACE 206N
92702603 1 HOSE PVC SUCT GRAY 1-1/2"
92712403 1 HOSE R X1" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com

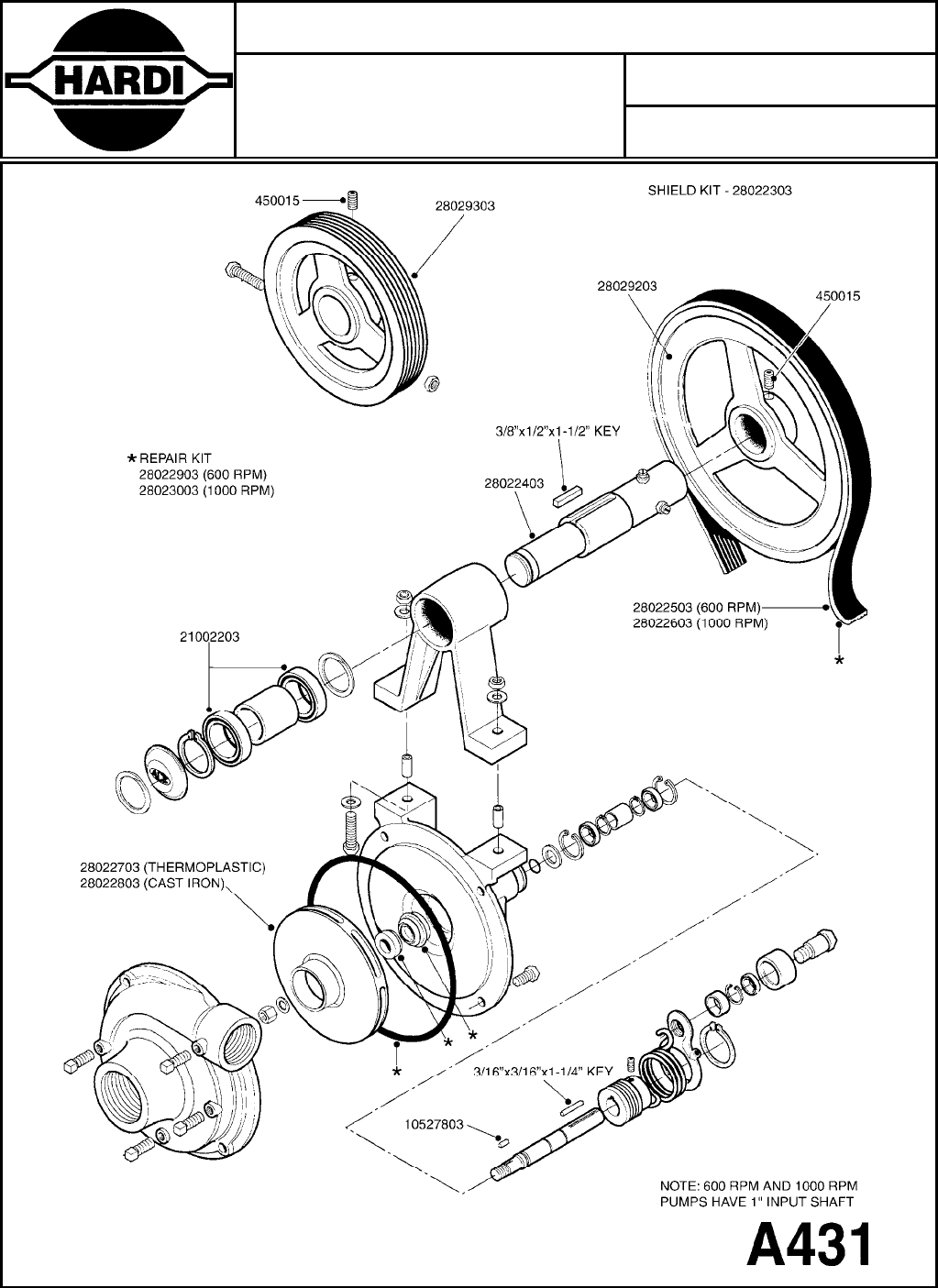

PUMP - ACE 150 BELT DRIVE
A431-HIN, 13:11:12
Page 0
Date 19.03.2013 8:42
Agroparts: www.HARDI-INTERNATIONAL.com
PUMP - ACE 150 BELT DRIVE
A431-HIN, 13:11:12
Page 1
Date 19.03.2013 8:42
parts-n° order
qty description
450015 1 SCREW ALLAN 3/8'X5/8' BLACK
10527803 1 KEY 1/8x1/8x1/2'F.ACE PUMP
21002203 1 BEARING, SEALED ACE BELT DRIVE
28022303 1 SHIELD KIT
28022403 1 OUTPUT SHAFT ACE BELT DR PUMP
28022503 1 BELT 600 RPM ACE PUMP
28022603 1 BELT 1000 RPM ACE PUMP
28022703 1 IMPELLER THERMOPLASTIC
28022803 1 IMPELLER CAST IRON
28022903 1 REPAIR KIT 600 RPM
28023003 1 REPAIR KIT 1000 RPM
28029203 1 11.6"P.D.X2"BORE PULLEY 600RPM
28029303 1 7.9"P.D.X2"BORE PULLEY 1000RPM
Agroparts: www.HARDI-INTERNATIONAL.com

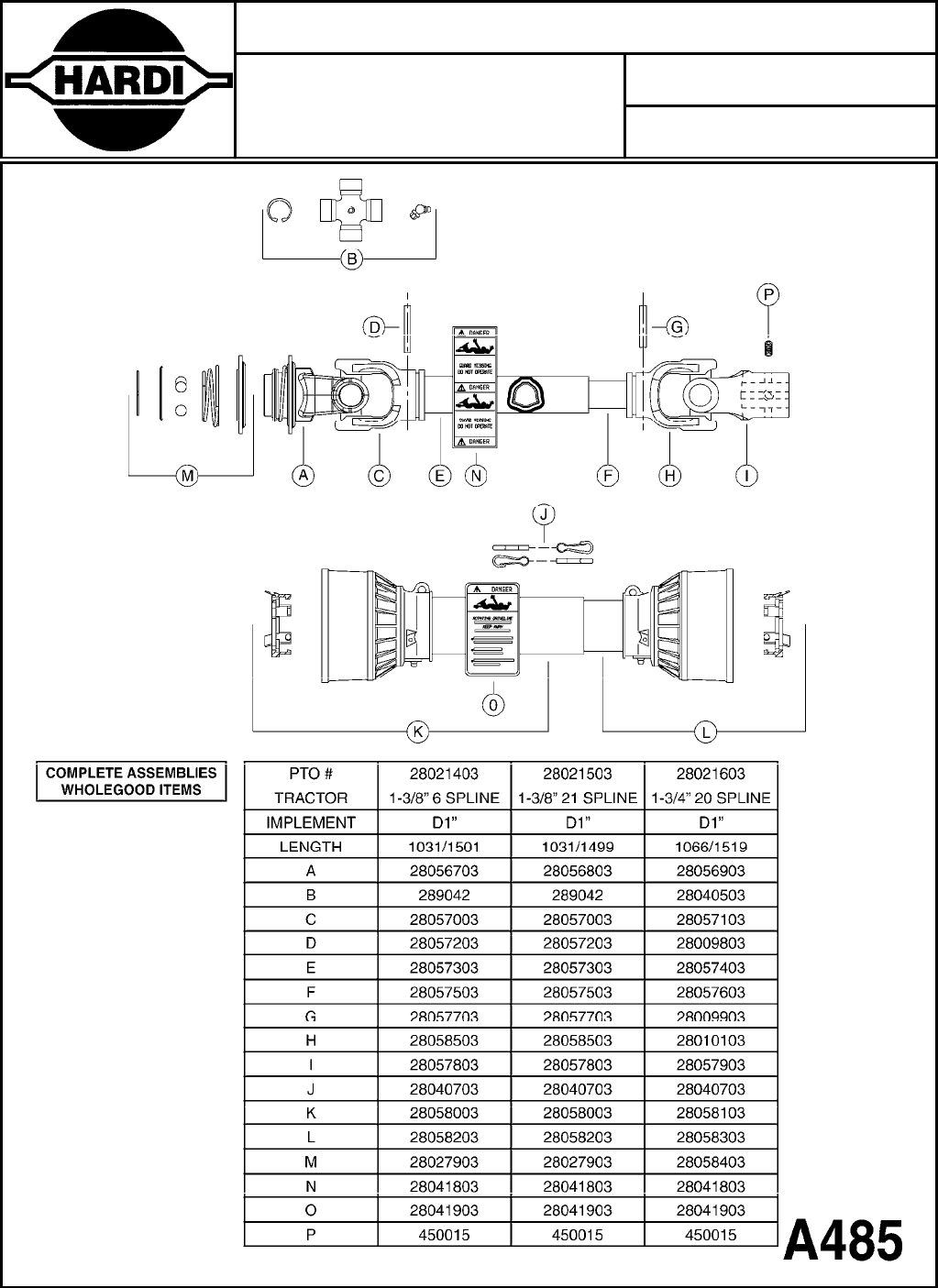

PTO SHAFTS - BONDIOLI CENT.
A485-HIN, 13:11:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
PTO SHAFTS - BONDIOLI CENT.
A485-HIN, 13:11:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
289042 1 UNIV.CROSS F. PTO SHAFT 41201
450015 1 SCREW ALLAN 3/8'X5/8' BLACK
28009803 1 PTO PIN TUBE RETAINER OUTER
28009903 1 PTO TUBE RETAINER INNER
28010103 1 PTO YOKE F.INNER TUBE CV PTO
28021403 1 PTO 1"STR/1-3/8" 6SPL B&P
28021503 1 PTO 1"STR/1-3/8" 21SPL B&P
28021603 1 PTO 1"STR/1-3/4" 20SPL B&P
28027903 1 PTO BALL LOCK.KIT F.1-3/8 YOKE
28040503 1 UNIV. JOINT 30.2x79.4mm F/BLK.
28040703 1 SAFETY CHAIN F.CV BLACK PTO
28041803 1 DECAL DANGER GUARD MISSING
28041903 1 DECAL DANGER ROT.DRIVELINE
28056703 1 PTO YOKE #1 1-3/8" X 6 SPLINE
28056803 1 PTO YOKE #1 1-3/8" X 21 SPLINE
28056903 1 PTO YOKE #4 1-3/8" X 20 SPLINE
28057003 1 PTO TUBE YOKE #1-G1 OUTER
28057103 1 PTO TUBE YOKE #4-G4 OUTER
28057203 1 PTO PIN TUBE RETAINER OUTER
28057303 1 PTO TUBE OUTER #1 745MM
28057403 1 PTO TUBE OUTER #4 720MM
28057503 1 PTO TUBE INNER #1 745MM
28057603 1 PTO TUBE INNER #4 720MM
28057703 1 PTO TUBE RETAINER INNER
28057803 1 PTO TUBE YOKE #1 Ø=1"
28057903 1 PTO TUBE YOKE #4 Ø=1"
28058003 1 PTO SHIELD COMPLETE
28058103 1 PTO SHIELD COMPLETE
28058203 1 TRACK LH 187" X 14" (30-1401)
28058303 1 TRACK LH 187" X 14" (30-1401)
28058403 1 PTO BALL LOCK.KIT F.1-3/4 YOKE
28058503 1 PTO TUBE YOKE #1-G1 INNER
Agroparts: www.HARDI-INTERNATIONAL.com

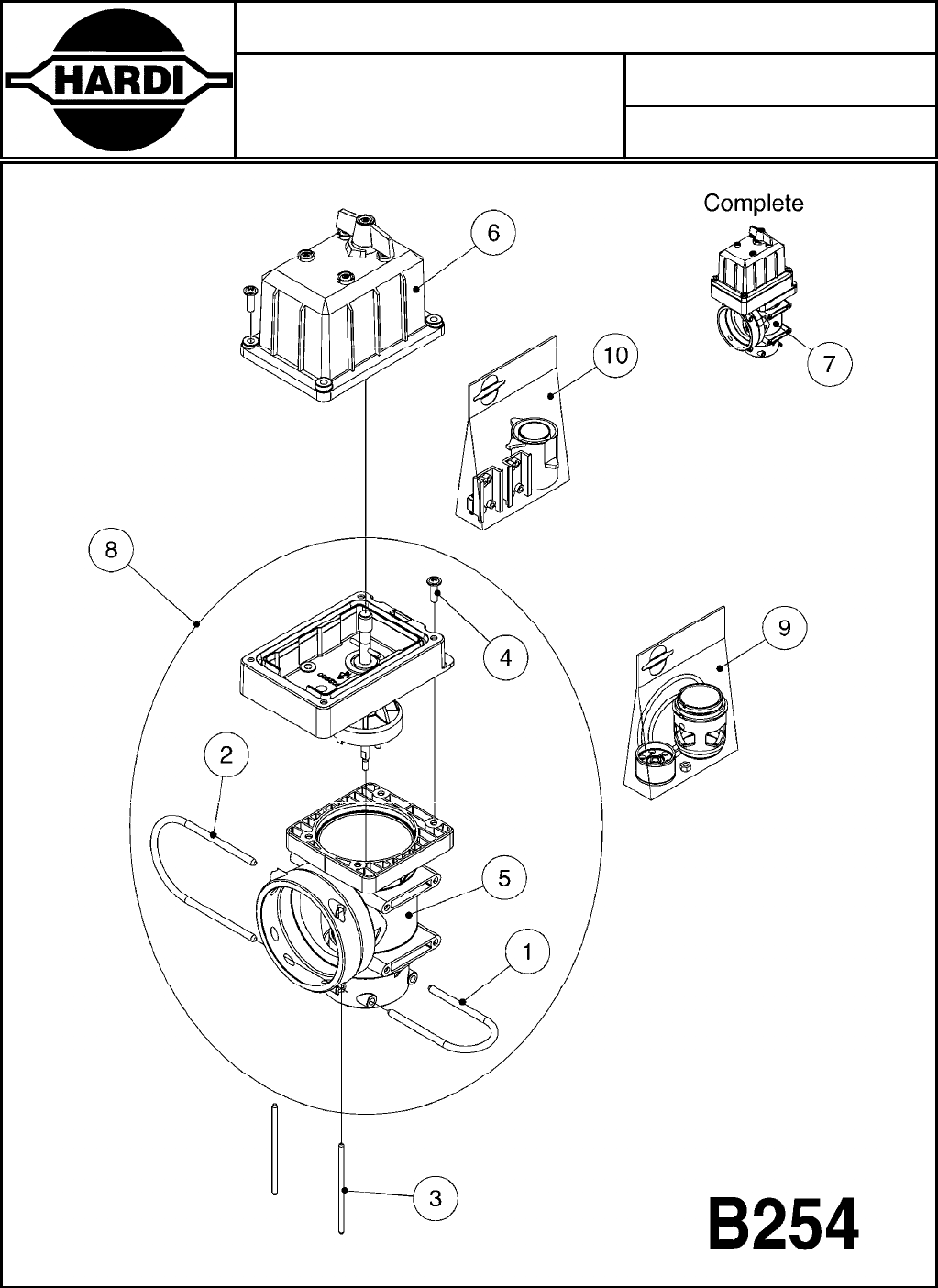

PRESSURE REGULATOR - S93 06
B254-HIN, 08:12:11
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
PRESSURE REGULATOR - S93 06
B254-HIN, 08:12:11
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145996 1 FITT.DK S-67 FORK1
145997 1 FITT.DK S-93 FORK2
147767 1 PIN 5Ø X 60 S-93 DOUBLE CLAMP3
440675 1 SCREW F. PLASTIC 5X16 SS4
33510800 1 HOUSING F.PRESS.REG.S67/S935
72374200 1 MOTOR HOUS.REG.1:150 ENCODER6
72425500 1 REGULATOR S67/S93 CROSS-DRILL7
72678700 1 REGULATOR S67/S93 CROSS-DRILL
CERAMIC COMPONENTS
7
72481600 1 BAG W. CONSOLE&SPINDLE COMPL8
72678900 1 BAG W.CONE/CYL/GASKET CERAMIC
CERAMIC COMPONENTS
9
74190800 1 BAG W.CONE/CYL. AND GASKET9
74187500 1 SWITCH 5A PRESS.REG REP.KIT 0810
Agroparts: www.HARDI-INTERNATIONAL.com

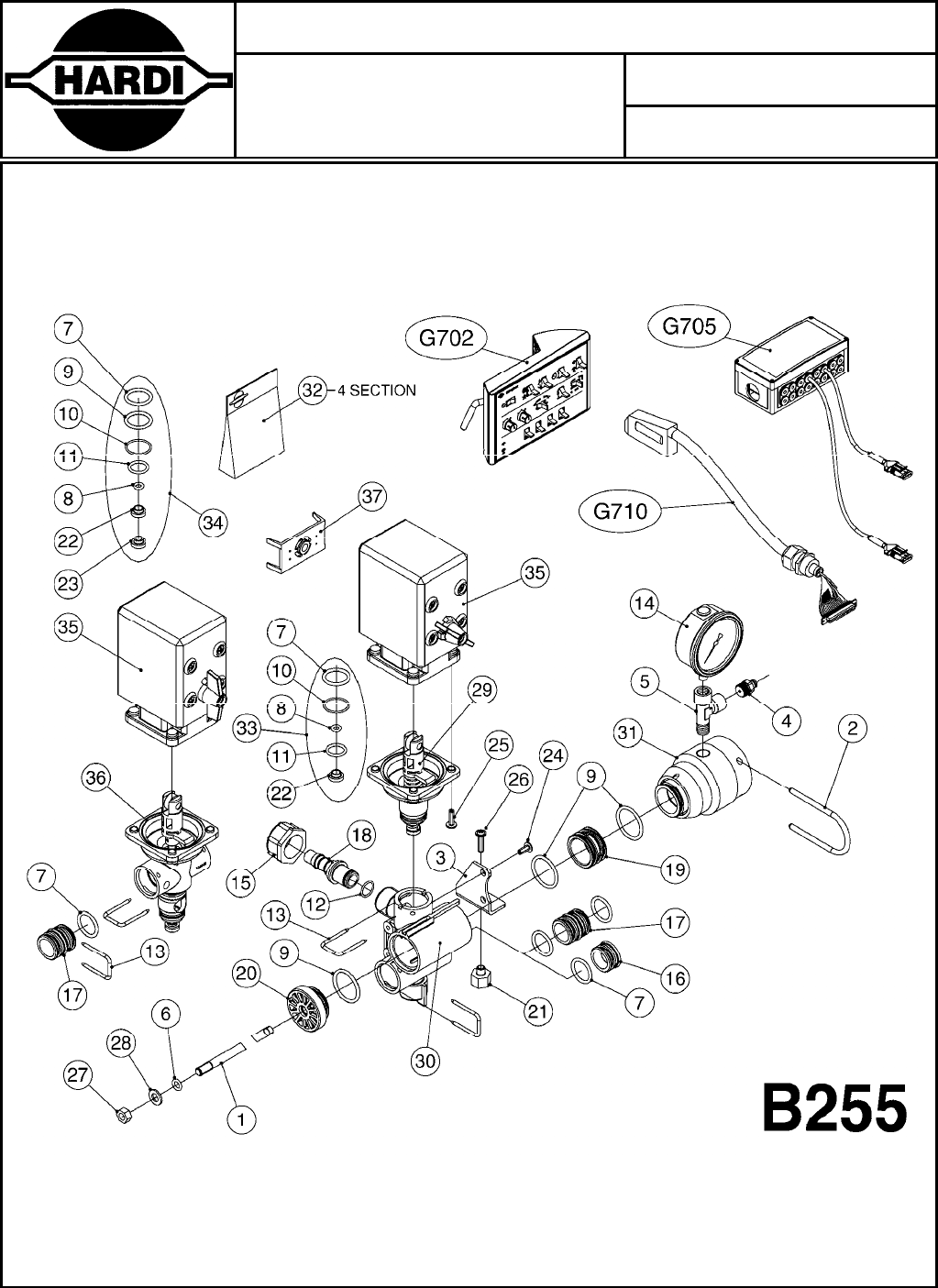

EVC, ECP, ECPC CONTROLS 39-PIN
B255-HIN, 15:06:10
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
EVC, ECP, ECPC CONTROLS 39-PIN
B255-HIN, 15:06:10
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
142214 1 STUD BOLT 8 X 265 - 5 MODULS
3 SECTION
1
145693 1 STUD BOLT M8X330
4 SECTION
1
145928 1 STUD BOLT 8M X 400
5 SECTION
1
146355 1 STUD BOLT M8 X 540
7 SECTION
1
145996 1 FITT.DK S-67 FORK2
167963 1 MOUNT BKT.F.EC BOOM SEC.3
232230 1 QUICK COUPLER 1/4"BSP X 4 MM4
232285 1 TEE 1/4"MALE RUN X 2 1/4"FEMAL5
240947 1 O-RING D7.3X2.4 NITRIL6
240951 1 O-RING D21.2X3 NITRIL7
241323 1 O-RING D5.3X2.4 NITRIL8
241441 1 O-RING D29.3X39
241673 1 O-RING D22.1X1.610
241861 1 O-RING D15.3X2.4 VITON11
242594 1 O-RING D14 X 1.78 SCH.70-EPDM12
270211 1 FITT.DK S25 FORK L=37.513
284269 1 GAUGE 2.5'BR BOTT.BAR1614
320283 1 FITT.DK NUT 3/4"BSP15
333583 1 END PIECE FOR BYPASS16
333594 1 CONNECTING PIECE F. BYPASS17
334044 1 FITT.DK HB 3/4' F. 3/4' CAP18
334547 1 CONNECTING PIECE F. PRESSURE19
334548 1 END COVER20
334558 1 NUT HEX PLASTIC INSERT21
334669 1 VALVE CONE D14/D7-SH 63 WHITE22
334940 1 VALVE CONE D14/D6-SH 63 GREEN23
440673 1 SCREW F.PLASTIC 5X12 SS24
440675 1 SCREW F. PLASTIC 5X16 SS25
440677 1 SCREW F. PLASTIC 5X20 SS26
460817 1 NUT HEX M8 STAINLESS DIN 93427
471126 1 WASHER D16/D8.4X1.6 SS28
725257 1 SPINDLE SECT. F/EC DISTRIBUTOR29
728010 1 DISTRIB HOUSING W/CONST PR GRN30
731811 1 FITT.DK ADAPTOR S67 EC BOOM SE31
750271 1 O-RING KIT F.EC/4 CONTROL UNIT32
755726 1 O-RING KIT F.EC/ESC SEC.VALVE33
755754 1 GASKET SET EVC DIST34
72048000 1 MOTOR, DISTRIBUTION 1:30035
72117600 1 SPINDLE EVC DIST36
72137200 1 MCROSWCH ASSY F.BOOM VLV 300:137
Agroparts: www.HARDI-INTERNATIONAL.com
12 VOLT OUTLET BOX
B280-HIN, 16:05:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
12 VOLT OUTLET BOX
B280-HIN, 16:05:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
260363 1 PLUG 2 POLE 12V
260827 1 PLUG F.EC ATTACHMENTS
260901 1 SPADE F.ELEC CONN.1.5MM BLUE
261060 1 PLUG F.EC ATTACHMENTS
261061 1 SPADE F.ELEC.2 WAY CONNECTOR
261067 1 GROMMET 10-14 GREY
261205 1 FUSE HOLDER
261206 1 FUSE 25 A
261207 1 ELECTRIC CONNECTOR 4MM
261208 1 SPADE F.ELEC.CONNECTOR 4MM
261213 1 WIRE 6.4MM BLACK
261214 1 WIRE 6.4MM RED
270561 1 SCREW W/SPRING ASSY. (QTY 1)
283697 1 TIESTRAP 200MM
283880 1 COVER F. ELEC.BOX 160X80X15
390265 1 CONNECTING BOX F.OUTLETS
471122 1 WASHER D20/D10.5X2 SS
731853 1 CABLE 2X4MM L=138"
817925 1 OUTLET BOX 12 VOLT ELEC.
978237 1 DECAL OUTLET BOX
Agroparts: www.HARDI-INTERNATIONAL.com
RANGER 550 MANIFOLD
B308-HIN, 12:05:11
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
RANGER 550 MANIFOLD
B308-HIN, 12:05:11
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
140766 1 NUT 1/2" BSP1
145996 1 FITT.DK S-67 FORK2
145997 1 FITT.DK S-93 FORK3
146439 1 FITT.DK REDUC 1/2"x1/8"x1/4"BS4
231346 1 QUICK COUPLER 1/8"BSP X 4 MM5
242351 1 O-RING D69.5X3.0 VITON F.S-936
242353 1 O-RING D44.2X3.0 VITON F.S-677
320047 1 FITT.DK CAPNUT 1/2" BSP8
320073 1 DISTRIBUTOR HOUSING 1/2"9
320084 1 FITT.DK NUT 1/2" BSP10
320095 1 FITT.DK NUT 1" BSP11
320106 1 FITT.DK CAPNUT 1" BSP12
322104 1 FITT.DK S-67 BULKHEAD13
322105 1 FITT.DK S-93 BULKHEAD DOUBLE14
322108 1 FITT.DK S-67 BULKHEAD NUT15
322224 1 FITT.DK S-67 TEE16
330212 1 O-RING D19/D14X2.4 F.1/2"NUT17
330315 1 O-RING D18.4/D13X.618
330326 1 O-RING D30/D24X2 F.1"NUT19
330665 1 FITT.DK HB 3/4"F.1" NUT20
331122 1 VALVE SEAT WITH 1/2" HOSE TAIL21
334195 1 FITT.DK ELB. 3/4"HB X 3/4"HB22
334203 1 ORFICE 6MM FOR SCF GREEN23
334231 1 FITT.DK S-67 STR.1'24
334243 1 FITT.DK S-67 ELB.1"25
334250 1 FITT.DK S-67 PLUG26
334426 1 FITT.DK S-93 STR.2'27
334446 1 FITT.DK S-93 ELB. 2' RUBBER28
334561 1 PLUG 50x50x2 F.SQ.TUBE29
334573 1 FITT.DK S-67 CONNECTOR30
334601 1 FITT.DK S-93 TO S67 ADAPTOR31
334878 1 BALL RED SIGHT GAUGE32
391105 1 FINAL STOPPER, 3/4"33
420567 1 BOLT HEX 8.8 DEL M8X30 FT34
430684 1 BOLT HEX 8.8 DEL M16X30 FT35
440675 1 SCREW F. PLASTIC 5X16 SS36
460143 1 NUT HEX M8 LOCK37
460585 1 NUT HEX M16X2 LOCK38
480804 1 RIVET Ø4.8x14.539
709741 1 VALVE ASSY. 1/2" FLIP LEVER40
724530 1 THUMB WHEEL FOR AGITATION41
726580 1 FITT. S93 PLUG W/O-RING42
927205 1 HOSE R X CLEAR X 3/4 X 0012"43
927253 1 HOSE R X PE D4/D2 X 0012"RED44
16226200 1 BRACKET F.TANK SCALE - PAINTED45
28026103 1 GAUGE 200PSI/BR,4",1/4"BSP-BTM46
28026203 1 GAUGE 200PSI/BR,2.5"1/4BSP-BTM46
28029803 1 CLAMP HOSE GEAR P1/2" 670847
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 671248
28030003 1 CLAMP HOSE GEAR P1" 671649
28030203 1 CLAMP HOSE T-BOLT S2" 235-6750
28059103 1 FITTING,TEE,1"
3/4"
1" BARB
51
63035203 1 CONTROL POST, RANGER 55052
72072700 1 FITT.DK S-93 45D 2" PVC53
72425500 1 REGULATOR S67/S93 CROSS-DRILL54
72433000 1 FITT.S67 1" 45º W/ORING55
72518900 1 SUCTION VALVE 2008 NAV56
92702103 1 HOSE R X1/2" X300PSI WP X0012"57
92702703 1 HOSE PVC SUCT GRAY 2"58
Agroparts: www.HARDI-INTERNATIONAL.com
RANGER 550 MANIFOLD
B308-HIN, 12:05:11
Page 2
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
92703203 1 HOSE R X3/4" X300PSI WP X0012"59
92712403 1 HOSE R X1" X300PSI WP X0012"60
97613103 1 DECAL S/G RANGER 550 (GALLON)61
97613203 1 DECAL S/G RANGER 550 (LITER)61
97613503 1 DECAL RANGER 550 MANIFOLD62
Agroparts: www.HARDI-INTERNATIONAL.com
MANIFOLD - S93 VALVE (07)
B322-HIN, 29:10:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
MANIFOLD - S93 VALVE (07)
B322-HIN, 29:10:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145997 1 FITT.DK S-93 FORK1
242047 1 O-RING 89.5 X 3.0 VITON2
242449 1 O'RING D13.3 x 2.4 VITON3
242450 1 O-RING D84.5X3.0 VITON4
242475 1 O'RING D56.52x5.33 SH70-VITON5
285791 1 HAIR PIN S93/S676
322327 1 HOUSING,VALVE,S93,220 PSI7
322328 1 END CAP F.VALVE S-938
322354 1 THRUST PLATE F.3-WAY VALVES-939
334579 1 SPINDLE F.3 WAY VALVE S-9310
334594 1 PLUG F.VALVE HANDLE BLACK11
390543 1 SEAT F.BALL 3-WAY VALVE S-9312
390544 1 BALL F.3 WAY S93 VLVE/SUCT.MAN13
391019 1 BALL F.2 WAY S93 SMART VALVE13
440729 1 SCREW F. PLASTIC 40X40 SS14
741726 1 REPAIR KIT F.S93 VALVE VIT.'0215
33514400 1 HANDLE FOR 2 ICONS 0716
33514500 1 PLUG FOR HANDLE W/2 ICONS17
72518800 1 QUICK FILL VALVE 2008 NAV18
72518900 1 SUCTION VALVE 2008 NAV18
Agroparts: www.HARDI-INTERNATIONAL.com
CHECK VALVES - S53
B345-HIN, 21:06:10
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
CHECK VALVES - S53
B345-HIN, 21:06:10
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145995 1 FITT.DK S-53 FORK1
242354 1 O-RING D32.2X3.0 VITON F.S-532
322103 1 FITT.DK S-53 BULKHEAD3
334230 1 FITT.DK S-53 STR.1"4
72132600 1 CHECK VALVE SUBASSEMBLY S535
Agroparts: www.HARDI-INTERNATIONAL.com
SUCTION FILTER - RANGER
B480-HIN, 15:06:10
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
SUCTION FILTER - RANGER
B480-HIN, 15:06:10
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145997 1 FITT.DK S-93 FORK1
147115 1 FITT.DK S-93 FORK SPECIAL2
242351 1 O-RING D69.5X3.0 VITON F.S-933
322109 1 FITT.DK S-93 BULKHEAD NUT4
322227 1 HOUSING F.FILTER S-93 2"5
334446 1 FITT.DK S-93 ELB. 2' RUBBER6
334605 1 VANE F.TOP SUCTION FILTER7
390509 1 *STRING POLYESTER D1 X 325MM8
420604 1 BOLT HEX 8.8 DEL M10X25 FT9
460423 1 NUT HEX M10X1.5 LOCK10
615415 1 FILTER ELEM.S93,30 MESH-GREEN11
615416 1 FILTER ELEM.S93,50 MESH-BLUE11
615417 1 FILTER ELEM.S93,80 MESH-RED11
16029503 1 PLATE 5.0X114X160/BOW/HOLE D9412
28030203 1 CLAMP HOSE T-BOLT S2" 235-6713
92702703 1 HOSE PVC SUCT GRAY 2"14
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - FAROIL CYLINDERS
C025-HIN, 15:08:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - FAROIL CYLINDERS
C025-HIN, 15:08:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
781001 1 CYLINDER TELESCOPING
781011 1 CYLINDER TELESC.70/60/40
781034 1 HY. CYLINDER D50/40/25 - 1200
781040 1 CYLINDER 60/50/30 1100MM
781090 1 CYLINDER DBLE D32/16-200 W.STP
781093 1 CYLINDER FOLD SPC D60/30 L=300
781096 1 CYLINDER 60/25 X 662 NAV PAR
781097 1 CYLINDER 60/25 X 725 CM PAR
781100 1 CYLINDER DOUBLE 60/30-300
781107 1 CYLINDER F.INNER WING FOLD
781109 1 DOUBLE CYLINDER D 50/30-300
781111 1 CYLINDER DOUBLE D50/30-300
781113 1 CYLINDER DOUBLE D50/25-300
781115 1 CYLINDER DOUBLE D40/20-300
781116 1 CYLINDER DOUBLE D50/25-298
781118 1 CYLINDER DOUBLE D40/20-180
781119 1 CYLINDER DOUBLE D40/20-300
781121 1 CYLINDER D40/22-300 BLACK
781122 1 CYLINDER D40/22X300MM
781123 1 CYLINDER D40/22-300 BLACK
781124 1 CYLINDER D40/22X300MM
781126 1 CYLINDER DOUBLE D40/20-120
781127 1 CYLINDER DOUBLE D40/20-120
781132 1 CYLINDER STABILIZER CM 1200 04
781139 1 CYLINDER D25/12-50
781141 1 CYLINDER 60/25 X 635 DELTA PAR
28117300 1 SEAL KIT 78120600/07/43
72531000 1 CYL. D25/12-50/78124200 W/FITT
75074300 1 SEALKIT78122000/23-25/30-32/46
75074400 1 SEAL KIT 78121800/21/44
75074500 1 SEALKIT78121100-13/15/16/36/48
75074600 1 SEAL KIT 78120500/49
75074800 1 SEAL KIT 78123400/42
75074900 1 SEAL KIT 78123700
75075000 1 SEAL KIT 78122600/27/28/29
75075200 1 SEAL KIT 78120900/14/50
75075400 1 SEAL KIT 78120800
75075500 1 SEAL KIT 78121000/33/41/51/53
75075900 1 SEAL KIT 78120000 & 78120200
75076000 1 SEAL KIT 78120100
75076100 1 SEAL KIT 78120300
75076500 1 SEAL KIT 78126400
78115000 1 DBL CYL D70/40-320 AIRING
78115100 1 CYL DOB.D70/40-265/INDB 502-UD
78120000 1 CYL.TELESCOPING Ø50/40/25_1100
78120100 1 CYLINDER TELESC.70/60/40
78120200 1 HY. CYLINDER D50/40/25 - 1200
78120300 1 CYLINDER 60/50/30 1100MM
78120500 1 CYLINDER FOLD SPC D60/30 L=300
NLA - REPLACED BY 78128000
78120600 1 CYLINDER 60/25 X 662 NAV PAR
78120700 1 CYLINDER 60/25 X 725 CM PAR
78120800 1 CYLINDER DOUBLE 60/30-300
78121000 1 CYLINDER DOUBLE D70/40-400
78121200 1 CYLINDER F.INNER WING FOLD
78121400 1 DOUBLE CYLINDER D 50/30-300
78121600 1 DOUBLE CYLINDER D 50/30-300
78121800 1 CYLINDER D50/25 L=300
78122000 1 CYLINDER DOUBLE Ø40/20-300
78122100 1 CYLINDER DOUBLE D50/25-298
78122300 1 CYLINDER DOUBLE D40/20-180
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - FAROIL CYLINDERS
C025-HIN, 15:08:12
Page 2
Date 19.03.2013 8:43
parts-n° order
qty description
78122400 1 DOUBLE CYLINDER D 40/20-300
78122600 1 CYLINDER D40/22-300 BLACK
78122700 1 CYLINDER D40/22X300MM RED
78122800 1 CYLINDER D40/22-300 BLACK
78122900 1 CYLINDER D40/22X300MM RED
78123100 1 CYLINDER DOUBLE D40/20-120
78123200 1 CYLINDER DOUBLE D40/20-120
78123300 1 DBL CYL D70/40-320 AIR INLET L
78124100 1 CYL DOB.D70/40-265 AIR INLET R
78124200 1 CYLINDER D25/12-50
78124300 1 CYLINDER 60/25 X 635 DELTA L
78124600 1 CYLINDER DOUBLE Ø40/20-300 90º
78125100 1 DBL CYL D70/40-320 AIR INLET R
78125300 1 CYL DOB.D70/40-265 AIR INLET L
78125500 1 CYLINDER 60/25 X 662 NAV PAR R
78125600 1 CYLINDER 60/25 X 725 CM PAR R
78125700 1 CYLINDER 60/25 X 635 DELTA R
78126000 1 CYLINDER,DAMPNER,LOCKING
78126400 1 CYLINDER DBLE D32/16-200 W.STP
78128000 1 CYLINDER DOUB. D60/30 L=300 09
78128800 1 CYL.INNER WING FOLD 50/30-500
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - CYLINDERS (07)
C026-HIN, 15:08:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - CYLINDERS (07)
C026-HIN, 15:08:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
781136 1 HYDRAULIC SHOCK NCM4400 SUSP.
781137 1 HYDRAULIC SHOCK NCM6600 SUSP.
28064100 1 GASKET SET FOR CYL. 781136
28064200 1 GASKET SET FOR CYL. 781137
28117300 1 SEAL KIT 78120600/07/43
72320300 1 HYD. CYL. STEERING LOCK CM "05
75074200 1 SEAL KIT 78120400
75074300 1 SEALKIT78122000/23-25/30-32/46
75074400 1 SEAL KIT 78121800/21/44
75074500 1 SEALKIT78121100-13/15/16/36/48
75074600 1 SEAL KIT 78120500/49
75074800 1 SEAL KIT 78123400/42
75074900 1 SEAL KIT 78123700
75075000 1 SEAL KIT 78122600/27/28/29
75075200 1 SEAL KIT 78120900/14/50
75075400 1 SEAL KIT 78120800
75075500 1 SEAL KIT 78121000/33/41/51/53
75075900 1 SEAL KIT 78120000 & 78120200
75076000 1 SEAL KIT 78120100
75076100 1 SEAL KIT 78120300
75076400 1 SEAL KIT 78124500 & 78125800
75076500 1 SEAL KIT 78126400
75083800 1 SEAL KIT F.78114300
75084400 1 SEAL KIT FOR 78127200/7500
75084500 1 SEAL KIT FOR 78127800
75084700 1 SEAL KIT FOR 78128100
75084900 1 SEAL KIT FOR 78128500
75085400 1 SEAL KIT FOR 78130900
75085500 1 SEAL KIT F.HY CYL. 78131100
78114300 1 CYLINDER 70/30 X 662 LG PAR R
78120000 1 CYL.TELESCOPING Ø50/40/25_1100
78120100 1 CYLINDER TELESC.70/60/40
78120200 1 HY. CYLINDER D50/40/25 - 1200
78120300 1 CYLINDER 60/50/30 1100MM
78120400 1 CYLINDER DBLE D32/16-200 W.STP
78120500 1 CYLINDER FOLD SPC D60/30 L=300
78120600 1 CYLINDER 60/25 X 662 NAV PAR
78120700 1 CYLINDER 60/25 X 725 CM PAR
78120800 1 CYLINDER DOUBLE 60/30-300
78121000 1 CYLINDER DOUBLE D70/40-400
78121200 1 CYLINDER F.INNER WING FOLD
78121300 1 CYLINDER DBLE Ø50/30-600(700)
78121400 1 DOUBLE CYLINDER D 50/30-300
78121600 1 DOUBLE CYLINDER D 50/30-300
78121800 1 CYLINDER D50/25 L=300
78122000 1 CYLINDER DOUBLE Ø40/20-300
78122100 1 CYLINDER DOUBLE D50/25-298
78122300 1 CYLINDER DOUBLE D40/20-180
78122400 1 DOUBLE CYLINDER D 40/20-300
78122600 1 CYLINDER D40/22-300 BLACK
78122700 1 CYLINDER D40/22X300MM RED
78122800 1 CYLINDER D40/22-300 BLACK
78122900 1 CYLINDER D40/22X300MM RED
78123000 1 CYLINDER DOUBLE D40/20-120
78123100 1 CYLINDER DOUBLE D40/20-120
78123200 1 CYLINDER DOUBLE D40/20-120
78123400 1 CYLINDER FOR TRACK LOCK, NCM
78123700 1 CYLINDER,DAMPNER,LOCKING
78124100 1 CYL DOB.D70/40-265 AIR INLET R
78124300 1 CYLINDER 60/25 X 635 DELTA L
78124400 1 CYLINDER DOUBLE D50/25_250
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS - CYLINDERS (07)
C026-HIN, 15:08:12
Page 2
Date 19.03.2013 8:43
parts-n° order
qty description
78124500 1 CYLINDER 70/30 X 662 LG PAR L
78124600 1 CYLINDER DOUBLE Ø40/20-300 90º
78125100 1 DBL CYL D70/40-320 AIR INLET R
78125300 1 CYL DOB.D70/40-265 AIR INLET L
78125500 1 CYLINDER 60/25 X 662 NAV PAR R
78125800 1 CYLINDER 70/30 X 662 LG PAR R
78126000 1 CYLINDER,DAMPNER,LOCKING
78126400 1 CYLINDER DBLE D32/16-200 W.STP
78126500 1 CYLINDER D25/12-50 FAROIL NNAV
78127200 1 CYLINDER DOUB. D40/25 L=455
78127800 1 HYDRAULIC CYLINDER 25-40
78128000 1 CYLINDER DOUB. D60/30 L=300 09
78128100 1 CYLINDER 70/30-300/TILT TDZ
78128500 1 CYLINDER DOUBLE PLUNGER D60X75
78128700 1 CYLINDER DOUBLE D50/30 500
78128800 1 CYL.INNER WING FOLD 50/30-500
78129900 1 CYLINDER DOUBLE D40/20 180 1/4
78130600 1 DOB.CYL.Ø50/25-240/M. SENSOR
78130900 1 CYLINDER, D70/40-500 TDZ FOLD
78131000 1 CYLINDER, 60/30X462, 120' SPC
78131100 1 HY. CYLINDER, 70/40X400
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS-EAG.HY RANGER 2011
C163-HIN, 18:09:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS-EAG.HY RANGER 2011
C163-HIN, 18:09:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145912 1 BUSHING D19.8/D17.0X7MM1
146324 1 SHAFT D16.8 L102/2 X 52
146587 1 PIN D16.8 X 653
146835 1 HEX NIPPLE 1/4"X3/8" BSP4
146839 1 HEX NIPPLE 1/4"X3/8" BSP 0.7MM5
146845 1 HEX NIPPLE 1/4"X1/4"6
146846 1 HEX NIPPLE 1/2" X 1/4"7
146847 1 HEX NIPPLE 1/2"X3/8"8
146992 1 BUSHING F.CYLINDER9
147061 1 HEX NIPPLE 1/4"X3/8"/1.810
151872 1 BUSHING D22.0/18.0 10MM11
163936 1 WASHER D15/D6.2X112
210728 1 BEARING F.LINK HEAD M1713
210879 1 LINK HEAD M16 x D1714
230311 1 QUICK COUPLING 1/2"15
230963 1 TEE 1/4"M X 1/4"M X 1/4"M BSP16
232109 1 FITT.HY TEE 1/4'BSP UNION17
240866 1 DOWTYSEAL 3/8"18
241356 1 DOWTYSEAL 1/2"19
241404 1 DOWTYSEAL 1/4"20
283699 1 GREASE NIPPLE M6X121
284141 1 HYD HOSE 3/8" L=6000 STR.+STR
RANGER 550
22
284257 1 HOSE HY X 3/8 X 242.30'STR+STR
RANGER 2000
22
284265 1 PLUG Breather 1/4" F/CYLINDER23
334206 1 DUST HOOD FOR HY-COUPLING24
410362 1 BOLT HEX 8.8 DEL M6X20 FT25
410583 1 BOLT HEX 8.8 DEL M6X4026
420567 1 BOLT HEX 8.8 DEL M8X30 FT27
430918 1 M20X100 DIN 931-8.8 DEL28
460143 1 NUT HEX M8 LOCK29
460261 1 NUT HEX M6X1 LOCK30
460806 1 NUT HEX M20X2.5 LOCK31
461198 1 NUT HEX M16 x 2 JAMB32
461249 1 NUT HEX M22X1.533
480384 1 PIN COTTER D5X4034
615654 1 PIN D25 X 123 F. PARALIFT35
784001 1 HOSE HY X 1/4 X 067.00"STR+ELB36
784015 1 HOSE HY X 1/4 X 209.5"
RANGER 550
37
784049 1 HOSE HY X 1/4" X 240"STR+ELB
RANGER 2000
37
784019 1 HOSE HY X 1/4 X 078.75"STR+ELB38
784037 1 HOSE HY X 1/4" x 130"STR+ELB39
784069 1 HOSE HY X 1/4 X 90.5" STR+ELB40
784076 1 HOSE,HY,1/4" L=8.5" STR-ELB41
784087 1 HOSE HY X 1/4 X 126.00"STR+STR42
14010400 1 PLUG 1/4" BSP43
16100400 1 PLATE 3 X 60 X 91 HY BLOCK MT44
61011803 1 ROD END M24X2 25M 06'07'45
72256500 1 DOUB.PILOT STEERED COUNT.VALVE46
75075000 1 SEAL KIT 78122600/27/28/2947
75075200 1 SEAL KIT 78120900/14/5048
78122900 1 CYLINDER D40/22X300MM RED49
78128800 1 CYL.INNER WING FOLD 50/30-50050
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS HV/HZ - RANGER 550
C165-HIN, 18:09:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS HV/HZ - RANGER 550
C165-HIN, 18:09:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145912 1 BUSHING D19.8/D17.0X7MM1
146324 1 SHAFT D16.8 L102/2 X 52
146587 1 PIN D16.8 X 653
146835 1 HEX NIPPLE 1/4"X3/8" BSP4
146839 1 HEX NIPPLE 1/4"X3/8" BSP 0.7MM5
146845 1 HEX NIPPLE 1/4"X1/4"6
146846 1 HEX NIPPLE 1/2" X 1/4"7
146992 1 BUSHING F.CYLINDER8
151872 1 BUSHING D22.0/18.0 10MM9
210728 1 BEARING F.LINK HEAD M1710
210879 1 LINK HEAD M16 x D1711
230311 1 QUICK COUPLING 1/2"12
230963 1 TEE 1/4"M X 1/4"M X 1/4"M BSP13
240866 1 DOWTYSEAL 3/8"14
241356 1 DOWTYSEAL 1/2"15
241404 1 DOWTYSEAL 1/4"16
283699 1 GREASE NIPPLE M6X117
284265 1 PLUG Breather 1/4" F/CYLINDER18
334206 1 DUST HOOD FOR HY-COUPLING19
420567 1 BOLT HEX 8.8 DEL M8X30 FT20
430918 1 M20X100 DIN 931-8.8 DEL21
460143 1 NUT HEX M8 LOCK22
460806 1 NUT HEX M20X2.5 LOCK23
461198 1 NUT HEX M16 x 2 JAMB24
461249 1 NUT HEX M22X1.525
480384 1 PIN COTTER D5X4026
615654 1 PIN D25 X 123 F. PARALIFT27
784001 1 HOSE HY X 1/4 X 067.00"STR+ELB28
784015 1 HOSE HY X 1/4 X 209.5"29
784019 1 HOSE HY X 1/4 X 078.75"STR+ELB30
784025 1 HOSE HY X 1/4" x 86.6"STR+ELB31
784037 1 HOSE HY X 1/4" x 130"STR+ELB32
784069 1 HOSE HY X 1/4 X 90.5" STR+ELB33
784087 1 HOSE HY X 1/4 X 126.00"STR+STR34
14010400 1 PLUG 1/4" BSP35
61011803 1 ROD END M24X2 25M 06'07'36
75075000 1 SEAL KIT 78122600/27/28/2937
75075200 1 SEAL KIT 78120900/14/5038
78122700 1 CYLINDER D40/22X300MM RED39
78122900 1 CYLINDER D40/22X300MM RED40
78128800 1 CYL.INNER WING FOLD 50/30-50041
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS OPEN CENTER RANGER
C166-HIN, 13:06:11
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULICS OPEN CENTER RANGER
C166-HIN, 13:06:11
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
146846 1 HEX NIPPLE 1/2" X 1/4"1
146849 1 HEX. NIPPLE 3/4"BSP X 1/2"BSP2
147132 1 HEX NIPPLE 1/2"X1/2" BSP DEL3
230311 1 QUICK COUPLING 1/2"4
232060 1 HY.ELBOW 1/4" BSP SWIVEL5
241356 1 DOWTYSEAL 1/2"6
241367 1 DOWTYSEAL 28.5x227
285547 1 HOSE HY X 1/2" X 13.75"STR+ELB8
334206 1 DUST HOOD FOR HY-COUPLING9
420582 1 BOLT HEX 8.8 DEL M8X20 FT
RANGER 2000
10
421046 1 BOLT HEX 8.8 DEL M8X25 FT
RANGER 550
10
471126 1 WASHER D16/D8.4X1.6 SS11
26006300 1 WIRE W.PLUG AMP FEMALE L=.5M
RANGER 2000
12
26006600 1 WIRE W.PLUG AMP FEMALE L=9M
RANGER 550
12
28052100 1 HOSE HY X 1/2" X 122.0"STR+STR13
72338700 1 HYD. BLOCK OPEN CENTER KIT NCM14
Agroparts: www.HARDI-INTERNATIONAL.com
HYD.BLOCK EAGLE/FORCE PRE 2012
C510-HIN, 19:07:12
Page 0
Date 19.03.2013 8:43
HYD.BLOCK EAGLE/FORCE PRE 2012
C510-HIN, 19:07:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
146845 1 HEX NIPPLE 1/4"X1/4"1
146851 1 HEX NIPPLE 1/4"x1/4" 0.7MM1
147498 1 HEX NIPPLE 1/4"-1/4" 1.2mm1
231987 1 PLUG 1/8' BSP W/GASKET2
241404 1 DOWTYSEAL 1/4"3
242102 1 O-RING 9.25 X 1.784
420847 1 BOLT HEX 8.8 DEL M8X855
450964 1 SCREW M5X30 F.CYLINDER6
460143 1 NUT HEX M8 LOCK7
782116 1 MAGNET VLV.MD1L-S3/10N-D12K1/P8
782124 1 SWITCH VALVE OUTS.1/8" 5000PSI9
782129 1 SOLENOID VALVE 25L, 3/4"NC10
782131 1 BLIND PLUG F.3/4" CARTR.VALVE11
782135 1 SOLENOID W. AMP F.VALVE 78212912
14010400 1 PLUG 1/4" BSP13
14098600 1 HYD. BLOCK SPC/FTZ 3/4" 201014
28047800 1 SEAL KIT F.78212915
75083900 1 SEAL KIT F. 782129/7821550015
72679100 1 HY.BLOCK BOOM HYDR. FTZ 201016
74191700 1 ADJ. FLOW VALVE REPAIR KIT DHP17
78215500 1 HY SOLENOID VALVE 40L
3/4"NC
18
78602100 1 MAGNET M.AMP/DIODE KIT 0819
Agroparts: www.HARDI-INTERNATIONAL.com
CETOP VALVES
C511-HIN, 30:05:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
CETOP VALVES
C511-HIN, 30:05:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
242102 1 O-RING 9.25 X 1.781
450964 1 SCREW M5X30 F.CYLINDER2
450965 1 SCREW ROUND M5X703
782115 1 HY SOLENOID VALVE DH HYD4
782116 1 MAGNET VLV.MD1L-S3/10N-D12K1/P5
782118 1 LOCK VALVE MVPP-D6
782146 1 HYD. CHECK VALVE 1 WAY7
782829 1 SOLENOID MD1L-TA/10N-D12K1/DT8
28123700 1 CAP F.SOLENOID - MD1L9
74187700 1 CAP + O-RING F.CETOP - MD1L10
78216000 1 SOLENOID F.CETOP VALVE - MD1L11
78217800 1 MAGNET VLV.MD1L-S3/10N-D12K8DT12
78218200 1 SOLENOID W/AMP F.MD1L13
Agroparts: www.HARDI-INTERNATIONAL.com
HYD.BLOCK EAGLE/FORCE 2012
C512-HIN, 29:05:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
HYD.BLOCK EAGLE/FORCE 2012
C512-HIN, 29:05:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
146845 1 HEX NIPPLE 1/4"X1/4"1
146851 1 HEX NIPPLE 1/4"x1/4" 0.7MM1
23234500 1 HEX NIPPLE 1/4"-9/16"1
231103 1 PLUG 1/4" BSP, O-RING 08BPUP042
231987 1 PLUG 1/8' BSP W/GASKET3
241404 1 DOWTYSEAL 1/4"4
242102 1 O-RING 9.25 X 1.785
420847 1 BOLT HEX 8.8 DEL M8X856
450964 1 SCREW M5X30 F.CYLINDER7
460143 1 NUT HEX M8 LOCK8
782124 1 SWITCH VALVE OUTS.1/8" 5000PSI9
782129 1 SOLENOID VALVE 25L, 3/4"NC10
782131 1 BLIND PLUG F.3/4" CARTR.VALVE11
782135 1 SOLENOID W. AMP F.VALVE 78212912
14010400 1 PLUG 1/4" BSP13
14098600 1 HYD. BLOCK SPC/FTZ 3/4" 201014
28047800 1 SEAL KIT F.78212915
75083900 1 SEAL KIT F. 782129/7821550015
70084403 1 HYD. BLOCK, 5P, FOLD/FLOW16
74191700 1 ADJ. FLOW VALVE REPAIR KIT DHP17
78215500 1 HY SOLENOID VALVE 40L
3/4"NC
18
78217800 1 MAGNET VLV.MD1L-S3/10N-D12K8DT19
78602100 1 MAGNET M.AMP/DIODE KIT 0820
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM EAGLE WINGS 45' 50'
D290-HIN, 09:03:10
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM EAGLE WINGS 45' 50'
D290-HIN, 09:03:10
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
111555 1 BREAKAWAY CLUTCH EAGLE (23MM)
146587 1 PIN D16.8 X 65
146741 1 BUSHING D28/D22.2X10
146843 1 BOLT U M8 F Æ60 x 60
158892 1 TURN BUCKLE HOUSING/M10 L&R
160181 1 CLAMP NOZZLE TUBE 60X60
160183 1 CLAMP NOZZLE TUBE 50X30
160521 1 WASHER D30.5/D13X2
160887 1 PLATE F.EAGLE STOPARM
163936 1 WASHER D15/D6.2X1
170512 1 ASSEMBLY BRACKET FOR CHAIN
172213 1 FLAT BAR F.BOOM STRAP
220735 1 DRAW SPRING FOR CABLE
220802 1 BELLVILLE WASHER D50/D22.4X2
242089 1 RUBBER STOP D50X40 M10
283699 1 GREASE NIPPLE M6X1
284127 1 U-CLAMP F.CABLE 6MM NUTS
334603 1 RUBBER STOP 86X48X15
410347 1 SCREW M6X20 8.8
410443 1 BOLT HEX 8.8 DEL M6X70
410605 1 BOLT HEX 8.8 DEL M6X80
410686 1 BOLT HEX 8.8 DEL M6X30
420567 1 BOLT HEX 8.8 DEL M8X30 FT
420803 1 BOLT HEX 8.8 DEL M8X90
420965 1 BOLT HEX 8.8 DEL M10X40
430404 1 BOLT HEX 8.8 DEL M12X50
430721 1 BOLT HEX 8.8 DEL M12X40 FT
430846 1 BOLT HEX 8.8 DEL M12X80
430872 1 BOLT HEX 8.8 DEL M12X100 FT
460143 1 NUT HEX M8 LOCK
460261 1 NUT HEX M6X1 LOCK
460342 1 NUT HEX M10
460386 1 NUT HEX M12X1.75
460423 1 NUT HEX M10X1.5 LOCK
460703 1 NUT HEX M12X1.75 LOCK
460806 1 NUT HEX M20X2.5 LOCK
461210 1 NUT HEX M10X1.5 L.THREAD
471124 1 WASHER D18/D6.4x1.6
471126 1 WASHER D16/D8.4X1.6 SS
480384 1 PIN COTTER D5X40
614488 1 FORK/ R.THREAD 10mmX144mm
615220 1 PIN 25 X 910 FOR EAGLE
615224 1 BREAKAWAY SHAFT EAGLE
615541 1 ANCHOR PART TURNBUCKLE EAGLE
615770 1 ANCHOR F.EAGLE CABLE
637090 1 SPROCKET EAGLE
637091 1 CABLE FRONT EAGLE D7X3010
637093 1 CABLE REAR 5 X 3100MM EAGLE
637160 1 BOOM WING 50'OUTER RIGHT EAGLE
637161 1 BOOM WING 50'OUTER LEFT EAGLE
637162 1 BOOM WING 45'OUTER RIGHT EAGLE
637163 1 BOOM WING 45'OUTER LEFT EAGLE
16090603 1 BOOM STOP MTG. BKT SPB/C
28043600 1 CHAIN 5/8X810MM (51 LINKS)
61004503 1 BOOM STOP SPB/SPC
63044200 1 CABLE CENTER EAG. 7mm x 1390mm
63050100 1 WING INNER SPB R.H. 05
63050200 1 WING INNER SPB L.H. 05
78122900 1 CYLINDER D40/22X300MM RED
82500703 1 WING INNER SET FPS SPB 45-66'
82501003 1 WING OUTER SET FPS 45' SPB
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM EAGLE WINGS 45' 50'
D290-HIN, 09:03:10
Page 2
Date 19.03.2013 8:43
parts-n° order
qty description
82501103 1 WING OUTER SET FPS 50' SPB
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM EAGLE WINGS 60' 66'
D300-HIN, 09:03:10
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM EAGLE WINGS 60' 66'
D300-HIN, 09:03:10
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
111344 1 CLAW CLUTCH LOWER PART (21MM)
111574 1 CLAW CLUTCH D100 UPPER (MACH)
146587 1 PIN D16.8 X 65
146843 1 BOLT U M8 F Æ60 x 60
147643 1 AXLE F.BOOM BREAKAWAY W. ZERT
158892 1 TURN BUCKLE HOUSING/M10 L&R
160181 1 CLAMP NOZZLE TUBE 60X60
160183 1 CLAMP NOZZLE TUBE 50X30
160521 1 WASHER D30.5/D13X2
160776 1 U-CHANNEL F.3PT.
160887 1 PLATE F.EAGLE STOPARM
163936 1 WASHER D15/D6.2X1
166246 1 WASHER CUP D53 F.SPRING
166865 1 WASHER D35/D25X2
167156 1 WASHER D46.5/D12.4X2.5
170512 1 ASSEMBLY BRACKET FOR CHAIN
172213 1 FLAT BAR F.BOOM STRAP
172931 1 FLAT STEEL 15X50
220735 1 DRAW SPRING FOR CABLE
220771 1 SPRING D53/D43X100
242089 1 RUBBER STOP D50X40 M10
283699 1 GREASE NIPPLE M6X1
284127 1 U-CLAMP F.CABLE 6MM NUTS
334603 1 RUBBER STOP 86X48X15
410347 1 SCREW M6X20 8.8
410443 1 BOLT HEX 8.8 DEL M6X70
410605 1 BOLT HEX 8.8 DEL M6X80
410686 1 BOLT HEX 8.8 DEL M6X30
420567 1 BOLT HEX 8.8 DEL M8X30 FT
420803 1 BOLT HEX 8.8 DEL M8X90
420965 1 BOLT HEX 8.8 DEL M10X40
421233 1 BOLT HEX 8.8 10.9 DEL M10X70
430404 1 BOLT HEX 8.8 DEL M12X50
430721 1 BOLT HEX 8.8 DEL M12X40 FT
430872 1 BOLT HEX 8.8 DEL M12X100 FT
430924 1 BOLT HEX 8.8 DEL M12 X 85
460143 1 NUT HEX M8 LOCK
460261 1 NUT HEX M6X1 LOCK
460342 1 NUT HEX M10
460386 1 NUT HEX M12X1.75
460423 1 NUT HEX M10X1.5 LOCK
460585 1 NUT HEX M16X2 LOCK
460703 1 NUT HEX M12X1.75 LOCK
460806 1 NUT HEX M20X2.5 LOCK
461210 1 NUT HEX M10X1.5 L.THREAD
461228 1 NUT HEX M20
461251 1 NUT HEX M20 X 2.5 JAMB
471124 1 WASHER D18/D6.4x1.6
471126 1 WASHER D16/D8.4X1.6 SS
471128 1 WASHER D30/D17X3
480384 1 PIN COTTER D5X40
614488 1 FORK/ R.THREAD 10mmX144mm
615220 1 PIN 25 X 910 FOR EAGLE
615357 1 SHAFT W.SPROCKET EAGLE 60'3PT
615770 1 ANCHOR F.EAGLE CABLE
637091 1 CABLE FRONT EAGLE D7X3010
637092 1 CABLE CENTER EAG. 7mm x 1370mm
637093 1 CABLE REAR 5 X 3100MM EAGLE
637387 1 BOOM WING BREAKAWAY EAG 60-90'
637734 1 BOOM WING OUTER 60'RH EAGLE 97
637735 1 BOOM WING OUTER 60'LH EAGLE 97
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM EAGLE WINGS 60' 66'
D300-HIN, 09:03:10
Page 2
Date 19.03.2013 8:43
parts-n° order
qty description
637736 1 BOOM WING OUTER 66'RH EAGLE 97
637737 1 BOOM WING OUTER 66'LH EAGLE 97
16090603 1 BOOM STOP MTG. BKT SPB/C
28043600 1 CHAIN 5/8X810MM (51 LINKS)
61004503 1 BOOM STOP SPB/SPC
63050100 1 WING INNER SPB R.H. 05
63050200 1 WING INNER SPB L.H. 05
78122900 1 CYLINDER D40/22X300MM RED
82500703 1 WING INNER SET FPS SPB 45-66'
82500803 1 WING OUTER SET FPS 60' SPB
82500903 1 WING OUTER SET FPS 66' SPB
82501203 1 BREAKAWAY SET FPS 60-66' SPB
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM COMMANDER CENTER 45-66'DK
D320-HIN, 01:11:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM COMMANDER CENTER 45-66'DK
D320-HIN, 01:11:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
146324 1 SHAFT D16.8 L102/2 X 5
146587 1 PIN D16.8 X 65
146738 1 PIN FOR CENTER CABLE EAGLE
147350 1 PIN D16.8 L60MM
151872 1 BUSHING D22.0/18.0 10MM
160196 1 NOZZLE TRACK EAGLE
160311 1 WASHER D30/D20.4X2
162724 1 WASHER D25/D18.1X1
172053 1 NOZZLE TRACK HOLDER
194418 1 U CHANNEL 65 X 1175 CENTER EAG
210652 1 BUSHING TEFLON D25/D22X20
220867 1 SPRING 134/14/320 EAGLE 60/66'
242089 1 RUBBER STOP D50X40 M10
242281 1 RUBBER BAND OVAL 180MM
281912 1 SHACKLE M-10
283157 1 PLUG F.DRAIN 60X60X4
283699 1 GREASE NIPPLE M6X1
284552 1 SHOCK ABSORBER F.EAGLE BOOM
284873 1 KIT F.SHOCK ABSORBER HDW.EAG.
333956 1 SLIDE SHOE 91X25X10
334135 1 SLIDE SHOE 140X45X15
390465 1 JOINER BLOCK TRAPEEZE EAGLE
410362 1 BOLT HEX 8.8 DEL M6X20 FT
410686 1 BOLT HEX 8.8 DEL M6X30
420567 1 BOLT HEX 8.8 DEL M8X30 FT
420604 1 BOLT HEX 8.8 DEL M10X25 FT
421218 1 BOLT HEX 8.8 DEL M10X90
430463 1 BOLT HEX 8.8 DEL M16X110
430581 1 BOLT HEX 8.8 DEL M16X40 FT
440644 1 SCREW NO.10 5/8"
440665 1 SCREW M4.2X16 STAINLESS
460261 1 NUT HEX M6X1 LOCK
460327 1 NUT HEX M16X2
460342 1 NUT HEX M10
460423 1 NUT HEX M10X1.5 LOCK
460585 1 NUT HEX M16X2 LOCK
460806 1 NUT HEX M20X2.5 LOCK
461228 1 NUT HEX M20
480384 1 PIN COTTER D5X40
614047 1 PIN D22 X 243 HINGE EAGLE
615212 1 PIN D22 X 84 LUBED F.EAGLE
615213 1 PIN D22 X 70 LUBED F.EAGLE
615219 1 TILT CYL.REPLACEMENT EAGLE
615256 1 PIN 22 X 70 SHORT THREA. EAGLE
615641 1 SAFETY BAR F.WING TILT 45'-66'
615654 1 PIN D25 X 123 F. PARALIFT
637048 1 SUSP.ARM RIGHT EAGLE
637049 1 SUSP.ARM LEFT EAGLE
637064 1 TRAPEEZE ARM EAGLE 45'-66'
637887 1 HINGE EAGLE LH 45'-66' '97
637888 1 HINGE EAGLE RH 45'-66' '97
637960 1 CENTER LIFT FRAME EAG CM45-66'
10606003 1 KIT F.TILT STOP 45'-66' EAGLE
63050500 1 CENTER FRAME SPB 05
78122700 1 CYLINDER D40/22X300MM RED
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM COMMANDER CENTER 45-66'US
D321-HIN, 01:11:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM COMMANDER CENTER 45-66'US
D321-HIN, 01:11:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
146324 1 SHAFT D16.8 L102/2 X 5
146587 1 PIN D16.8 X 65
146738 1 PIN FOR CENTER CABLE EAGLE
147350 1 PIN D16.8 L60MM
151872 1 BUSHING D22.0/18.0 10MM
160311 1 WASHER D30/D20.4X2
162724 1 WASHER D25/D18.1X1
172053 1 NOZZLE TRACK HOLDER
210652 1 BUSHING TEFLON D25/D22X20
220867 1 SPRING 134/14/320 EAGLE 60/66'
242089 1 RUBBER STOP D50X40 M10
242281 1 RUBBER BAND OVAL 180MM
281912 1 SHACKLE M-10
283157 1 PLUG F.DRAIN 60X60X4
283699 1 GREASE NIPPLE M6X1
284552 1 SHOCK ABSORBER F.EAGLE BOOM
284873 1 KIT F.SHOCK ABSORBER HDW.EAG.
333956 1 SLIDE SHOE 91X25X10
334135 1 SLIDE SHOE 140X45X15
390465 1 JOINER BLOCK TRAPEEZE EAGLE
410362 1 BOLT HEX 8.8 DEL M6X20 FT
410686 1 BOLT HEX 8.8 DEL M6X30
420567 1 BOLT HEX 8.8 DEL M8X30 FT
420604 1 BOLT HEX 8.8 DEL M10X25 FT
421218 1 BOLT HEX 8.8 DEL M10X90
430463 1 BOLT HEX 8.8 DEL M16X110
430581 1 BOLT HEX 8.8 DEL M16X40 FT
440644 1 SCREW NO.10 5/8"
440665 1 SCREW M4.2X16 STAINLESS
460261 1 NUT HEX M6X1 LOCK
460327 1 NUT HEX M16X2
460342 1 NUT HEX M10
460423 1 NUT HEX M10X1.5 LOCK
460585 1 NUT HEX M16X2 LOCK
460806 1 NUT HEX M20X2.5 LOCK
461228 1 NUT HEX M20
480384 1 PIN COTTER D5X40
614047 1 PIN D22 X 243 HINGE EAGLE
615212 1 PIN D22 X 84 LUBED F.EAGLE
615213 1 PIN D22 X 70 LUBED F.EAGLE
615219 1 TILT CYL.REPLACEMENT EAGLE
615641 1 SAFETY BAR F.WING TILT 45'-66'
615654 1 PIN D25 X 123 F. PARALIFT
16066303 1 U-CHANNEL F. CENTER SPB
16077703 1 CENTER TRACK SPB
63020003 1 HINGE SPB R.H. SEE BOM
63020103 1 HINGE SPB L.H. SEE BOM
63021203 1 TRAPEZE ARM R.H. SPB
63021303 1 TRAPEZE ARM L.H. SPB
63021403 1 PARA-LIFT LIFT CENTER SPB
63021503 1 CENTER FRAME SPB
63021803 1 TRAPEZE ARM SPB
78122700 1 CYLINDER D40/22X300MM RED
Agroparts: www.HARDI-INTERNATIONAL.com
TRANSPORT BRACKETS - CM/CM+
D410-HIN, 16:12:08
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
TRANSPORT BRACKETS - CM/CM+
D410-HIN, 16:12:08
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
146843 1 BOLT U M8 F Æ60 x 60
172213 1 FLAT BAR F.BOOM STRAP
333956 1 SLIDE SHOE 91X25X10
334135 1 SLIDE SHOE 140X45X15
334561 1 PLUG 50x50x2 F.SQ.TUBE
421232 1 BOLT HEX 8.8 DEL M8X110
430485 1 BOLT HEX 8.8 DEL M12X90
430581 1 BOLT HEX 8.8 DEL M16X40 FT
430802 1 BOLT HEX 8.8 DEL M12X75
440665 1 SCREW M4.2X16 STAINLESS
440708 1 SCREW M5.5X16 SELF TAPPING SS
460143 1 NUT HEX M8 LOCK
460585 1 NUT HEX M16X2 LOCK
460703 1 NUT HEX M12X1.75 LOCK
615884 1 HOOK BRACKET F.TNSPORT 45'-66'
615960 1 TRANSPORT BKT.F.80'-90'HZ CM
637791 1 TRANS.MOUNT BKT. CM PLTFORM RH
637792 1 TRANS.MOUNT BKT. CM PLTFORM LH
637868 1 TRANS.BKT UPPER CM TWIN FORCE
637958 1 TRANS.BKT CM EAGLE45'-66' RH
637959 1 TRANS.BKT CM EAGLE45'-66' LH
637987 1 TRANS.BKT UPPER CM EAGLE80-90'
638022 1 TRANSPORT BKT.F.80-90'HZ CM
638023 1 TRANSPORT BKT.F.110'FORCE RH
638024 1 TRANSPORT BKT.F.110'FORCE LH
16092803 1 PLATE F. TRANSPORT CM+
61010303 1 TRANSPORT MT. F. WING SPB CM+
Agroparts: www.HARDI-INTERNATIONAL.com
NOZZLE BODIES-SNAP FIT
D620-HIN, 18:03:10
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
NOZZLE BODIES-SNAP FIT
D620-HIN, 18:03:10
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
143592 1 LOCK CLAMP FOR TRIPLET
241371 1 DIAPHRAGM F.NO-DRIP,VULC
241990 1 O-RING D9.3 X 2.4 VITON
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
242598 1 O-RING D7.0 X 2.5 NITRIL
320187 1 FITT.DK CAP 3/8" BSP BLACK
320283 1 FITT.DK NUT 3/4"BSP
321462 1 CAP F.NO-DRIP ASSY.
322068 1 SNAP-FIT ADAPTER THREAD. HARDI
322114 1 NUT PLASTIC F.NOZZ.H
322116 1 BOLT PLASTIC F.NOZZ.H.
322258 1 HOUSING F.TRIPLET
322260 1 NOZZLE HOLDER UPPER PART
333012 1 NOZZLE HOLD. UPPER PART
334082 1 SNAP-FIT NOZZ.HOLD.CONE BLACK
334102 1 BLANK F.NOZZLE
334172 1 SNAP-FIT NOZZ.HOLD.CONE GREEN
334173 1 SNAP-FIT NOZZ.HOLD.CONE ORANGE
334220 1 NOZZLE BODY SING.SN.FT.UPPER
334371 1 SNAP-FIT NOZZLE HOLDER YELLOW
334373 1 SNAP-FIT NOZZLE HOLDER RED
334377 1 SNAP-FIT NOZZLE HOLDER BLUE
334926 1 SNAP-FIT TURN PLATE F TRIPLET
390639 1 O-RING F.NOZZLE FILTER
440665 1 SCREW M4.2X16 STAINLESS
716236 1 FITT.DK HB 1/2" ASSY. F. 3/4"
716413 1 FITT.DK PLUG ASSY. F.NOZ TUBE
724621 1 FITT.DK HB 3/4"ASSY F.3/4" NUT
725042 1 SCREEN 80 MESH W.GASKET, RED
725043 1 SCREEN 50 MESH W.GASKET,BLUE
725044 1 SCREEN 100 MESH W.GASKET,YELLO
725078 1 SNAP-FIT TRIPLET W/O NOZZ HOLD
725079 1 NOZZLE ASSY.SING.SNAP-FIT GREN
729645 1 NON-DRIP SPRING ASSY.GREEN 10
Agroparts: www.HARDI-INTERNATIONAL.com
DOUBLE NOZZLE HOLDER-SNAP FIT
D625-HIN, 28:11:06
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
DOUBLE NOZZLE HOLDER-SNAP FIT
D625-HIN, 28:11:06
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
725078 1 SNAP-FIT TRIPLET W/O NOZZ HOLD1
10423503 1 O-RING 9.12x3.53 NITRIL2
28032503 1 DOUBLE NOZZLE HOLDER LD ISO3
28040103 1 O-RING F.DOUBLE NOZZLE HOLDER4
70056803 1 DOUBLE NOZZLE CAP ORANGE LD 015
70056903 1 DOUBLE NOZZLE CAP GREEN LD 0155
70057003 1 DOUBLE NOZZLE CAP YELLOW LD 025
70057103 1 DOUBLE NOZZLE CAP LILAC LD 0255
70057203 1 DOUBLE NOZZLE CAP BLUE LD 035
70057303 1 DOUBLE NOZZLE CAP RED LD 045
70057403 1 DOUBLE NOZZLE CAP BROWN LD 055
NOZZLE TUBES & HOLDER-PLASTIC
D630-HIN, 08:04:10
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
NOZZLE TUBES & HOLDER-PLASTIC
D630-HIN, 08:04:10
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
321484 1 BUSHING THREADED F.NOZZ.TUBE
322114 1 NUT PLASTIC F.NOZZ.H
322116 1 BOLT PLASTIC F.NOZZ.H.
334874 1 NOZZLE HOLDER - TOP HALF
612872 1 NOZZLE TUBE 2 HOLE 50CM
612883 1 NOZZLE TUBE 3 HOLE 50CM
612894 1 NOZZLE TUBE 4 HOLE 50CM
612905 1 NOZZLE TUBE 5 HOLE 50CM
613767 1 NOZZLE TUBE 1 HOLE
614610 1 NOZZLE TUBE 2 HOLE L-24"/SP20"
614611 1 NOZZLE TUBE 3 HOLE L-44"/SP20"
614612 1 NOZZLE TUBE 4 HOLE 20"
614613 1 NOZZLE TUBE 5 HOLE L-83.5"/20"
614638 1 NOZZLE TUBE 1 HOLE L-4.125"
614648 1 NOZZLE TUBE L=1100mm NO HOLES
614649 1 NOZZLE TUBE L=1600mm NO HOLES
614650 1 NOZZLE TUBE L=2100mm NO HOLES
615468 1 NOZZLE TUBE MARKED 1" 24"
615469 1 NOZZLE TUBE MARKED 1" 44"
615470 1 NOZZLE TUBE MARKED 1" 54"
615471 1 NOZZLE TUBE MARKED 1" 64"
615472 1 NOZZLE TUBE MARKED 1" 74"
615473 1 NOZZLE TUBE MARKED 1" 92"
741685 1 NOZZLE HOLDER COMPLETE/5 PCS
741688 1 NOZZLE HOLDER COMPLETE/10PCS
741730 1 CLAMP,NZLE BKT BAG OF 5 50X30
741733 1 CLAMP,NZLE BKT BAG OF 10 50X30
741734 1 CLAMP,NZLE BKT BAG OF 5 50X50
741737 1 CLAMP,NZLE BKT BAG OF 10 50X50
741738 1 CLAMP,NZLE BKT BAG OF 5 80X60
741741 1 CLAMP,NZLE BKT BAG OF 10 80x60
741778 1 CLAMP,NZL BKT BAG OF 10 100x60
16110803 1 NOZZLE BRACKET VAR SPACINGS
33487300 1 NOZZLE HOLDER - BOTTOM HALF
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 110° FLAT FAN ISO
D700-HIN, 14:12:07
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 110° FLAT FAN ISO
D700-HIN, 14:12:07
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
371764 1 NOZZLE ISO CT F-01-110 ORANGE1
371765 1 NOZZLE ISO CT F-015-110 GREEN1
371766 1 NOZZLE ISO CT F-02-110 YELLOW1
371767 1 NOZZLE ISO CT F-03-110 BLUE1
371768 1 NOZZLE ISO CT F-04-110 RED1
371769 1 NOZZLE ISO CT F-05-110 BROWN1
371770 1 NOZZLE ISO CT F-06-110 GREY1
371771 1 NOZZLE ISO CT F-08-110 WHITE1
371950 1 NOZZLE ISO CT F-025-110 LILAC1
371964 1 NOZZLE ISO CT F-075-110 PINK1
371970 1 NOZZLE ISO CT F-10-110 LT BLUE1
371706 1 NOZZLE ISO F-01-110 ORANGE2
371707 1 NOZZLE ISO F-015-110 GREEN2
371708 1 NOZZLE ISO F-02-110 YELLOW2
371709 1 NOZZLE ISO F-03-110 BLUE2
371710 1 NOZZLE ISO F-04-110 RED2
371711 1 NOZZLE ISO F-05-110 BROWN2
371712 1 NOZZLE ISO F-06-110 GREY2
371713 1 NOZZLE ISO F-08-110 WHITE2
371946 1 NOZZLE ISO F-025-110 LILAC2
371963 1 NOZZLE ISO F-075-110 PINK2
371966 1 NOZZLE ISO F-10-110 LT BLUE2
371772 1 NOZZLE ISO CT F-015-110C GREEN3
371773 1 NOZZLE ISO CT F-02-110C YELLOW3
371774 1 NOZZLE ISO CT F-03-110C BLUE3
371775 1 NOZZLE ISO CT F-04-110C RED3
371776 1 NOZZLE ISO CT F-05-110C BROWN3
371777 1 NOZZLE ISO CT F-06-110C GREY3
371738 1 NOZZLE ISO F-015-110C GREEN4
371739 1 NOZZLE ISO F-02-110C YELLOW4
371740 1 NOZZLE ISO F-03-110C BLUE4
371741 1 NOZZLE ISO F-04-110C RED4
371742 1 NOZZLE ISO F-05-110C BROWN4
371743 1 NOZZLE ISO F-06-110C GREY4
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 110° LOWDRIFT ISO
D701-HIN, 14:12:07
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 110° LOWDRIFT ISO
D701-HIN, 14:12:07
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
371837 1 NOZZLE ISO LD-01-110 ORANGE1
371838 1 NOZZLE ISO LD-015-110 GREEN1
371839 1 NOZZLE ISO LD-02-110 YELLOW1
371840 1 NOZZLE ISO LD-03-110 BLUE1
371841 1 NOZZLE ISO LD-04-110 RED1
371894 1 NOZZLE ISO CT LD-05-110 BROWN1
371958 1 NOZZLE ISO LD-025-110 LILAC1
371817 1 NOZZLE ISO LD-01-110 ORANGE2
371818 1 NOZZLE ISO LD-015-110 GREEN2
371819 1 NOZZLE ISO LD-02-110 YELLOW2
371820 1 NOZZLE ISO LD-03-110 BLUE2
371821 1 NOZZLE ISO LD-04-110 RED2
371893 1 NOZZLE ISO LD-05-110 BROWN2
371957 1 NOZZLE ISO LD-025-110 LILAC2
371842 1 NOZZLE ISO CT LD-01-110C ORANG3
371843 1 NOZZLE ISO CT LD-015-110C GRN3
371844 1 NOZZLE ISO CT LD-02-110C YELLO3
371845 1 NOZZLE ISO CT LD-03-110C BLUE3
371846 1 NOZZLE ISO CT LD-04-110C RED3
371897 1 NOZZLE ISO CT LD-05-110C BROWN3
371822 1 NOZZLE ISO LD-01-110C ORANGE4
371823 1 NOZZLE ISO LD-015-110C GREEN4
371824 1 NOZZLE ISO LD-02-110C YELLOW4
371825 1 NOZZLE ISO LD-03-110C BLUE4
371826 1 NOZZLE ISO LD-04-110C RED4
371896 1 NOZZLE ISO LD-05-110C BROWN4
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 80° FLAT FAN ISO
D702-HIN, 14:12:07
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES 80° FLAT FAN ISO
D702-HIN, 14:12:07
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
334083 1 SNAP-FIT NOZZLE HOLDER SS BLCK1
371931 1 SYNTAL ISO F-01-80 TIP ORNG2
371932 1 SYNTAL ISO F-015-80 TIP GREEN2
371933 1 SYNTAL ISO F-02-80 TIP YELLOW2
371934 1 SYNTAL ISO F-03-80 TIP BLUE2
10423503 1 O-RING 9.12x3.53 NITRIL3
BOOM-NOZZLE CAPS AND FILTERS
D703-HIN, 14:12:07
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLE CAPS AND FILTERS
D703-HIN, 14:12:07
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
334083 1 SNAP-FIT NOZZLE HOLDER SS BLCK1
10423503 1 O-RING 9.12x3.53 NITRIL2
334862 1 NOZZLE CAP TJBLACK F.ISO/INJET3
242222 1 GASKET 19.0 X 10.0 X 3.3 EPDM4
322068 1 SNAP-FIT ADAPTER THREAD. HARDI5
320187 1 FITT.DK CAP 3/8" BSP BLACK6
321517 1 FITT.DK CAP 3/8" BSP WHITE
ALWAYS USE WITH ISO AND INJET NOZZLES
6
321797 1 FITT.DK CAP 3/8' BSP BLUE6
321801 1 FITT.DK CAP 3/8' BSP GREEN6
321812 1 FITT.DK CAP 3/8' BSP RED6
321823 1 FITT.DK CAP 3/8' BSP ORANGE6
321834 1 FITT.DK CAP 3/8' BSP YELLOW6
330013 1 O-RING D15/D10X2.5 F.3/8"NUT7
725042 1 SCREEN 80 MESH W.GASKET, RED8
725043 1 SCREEN 50 MESH W.GASKET,BLUE8
725044 1 SCREEN 100 MESH W.GASKET,YELLO8
614366 1 FILTER 50 MESH F.NOZZLE9
614367 1 FILTER 80 MESH F.NOZZLE9
614368 1 FILTER 100 MESH F.NOZZLE9
390639 1 O-RING F.NOZZLE FILTER10
371551 1 NOZZ LRG DROP FLAT SPRAY SINGL11
370016 1 NOZZLE CONE JET 1553-0812
370027 1 NOZZLE CONE JET 1553-1012
370031 1 NOZZLE CONE JET 1553-1212
370042 1 NOZZLE CONE JET 1553-1412
370053 1 NOZZLE CONE JET 1553-1612
370064 1 NOZZLE CONE JET 1553-1812
370075 1 NOZZLE CONE JET 1553-2012
370086 1 NOZZLE CONE JET 1553-2212
370097 1 NOZZLE CONE JET 1553-2412
370101 1 NOZZLE CONE JET 1553-3012
370112 1 NOZZLE CONE JET 1553-3512
370123 1 NOZZLE CONE JET 1553-4012
370134 1 NOZZLE SWIRL 1554-GREY13
370145 1 NOZZLE SWIRL 1554-BLACK13
370156 1 NOZZLE SWIRL 1554-BLUE13
370167 1 NOZZLE SWIRL 1554-1.3 WHITE13
334926 1 SNAP-FIT TURN PLATE F TRIPLET14
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES INJET
D704-HIN, 14:12:07
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES INJET
D704-HIN, 14:12:07
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
334083 1 SNAP-FIT NOZZLE HOLDER SS BLCK1
371872 1 NOZZLE INJET 015 GREEN SINGLE2
371873 1 NOZZLE INJET 02 YELLOW SINGLE2
371874 1 NOZZLE INJET 025 LILAC SINGLE2
371875 1 NOZZLE INJET 03 BLUE SINGLE2
371876 1 NOZZLE INJET 04 RED SINGLE2
371926 1 NOZZLE INJET 01 ORANGE SINGLE2
371927 1 NOZZLE INJET 05 BROWN SINGLE2
371928 1 NOZZLE INJET 06 GREY SINGLE2
371929 1 NOZZLE INJET 08 WHITE SINGLE2
371870 1 NOZZLE B-JET 03 BLUE3
371871 1 NOZZLE B-JET 04 RED3
371877 1 NOZZLE B-JET 025 LILAC3
371930 1 NOZZLE B-JET 02 YELLOW3
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES MINIDRIFT
D705-HIN, 14:12:07
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES MINIDRIFT
D705-HIN, 14:12:07
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
372121 1 NOZZLE CT ISO MD-015-110 GREEN1
372122 1 NOZZLE CT ISO MD-02-110 YELLOW1
372123 1 NOZZLE CT ISO MD-025-110 LILAC1
372124 1 NOZZLE CT ISO MD-03-110 BLUE1
372125 1 NOZZLE CT ISO MD-04-110 RED1
372126 1 NOZZLE CT ISO MD-05-110 BROWN1
372111 1 NOZZLE ISO MD-015-110 GREEN2
372112 1 NOZZLE ISO MD-02-110 YELLOW2
372113 1 NOZZLE ISO MD-025-110 LILAC2
372114 1 NOZZLE ISO MD-03-110 BLUE2
372115 1 NOZZLE ISO MD-04-110 RED2
372116 1 NOZZLE ISO MD-05-110 BROWN2
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES QUINTASTREAM
D706-HIN, 14:12:07
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
BOOM-NOZZLES QUINTASTREAM
D706-HIN, 14:12:07
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
372011 1 NOZZLE ISO QS-015-5H GREEN1
372012 1 NOZZLE ISO QS-02-5H YELLOW1
372013 1 NOZZLE ISO QS-03-5H BLUE1
372014 1 NOZZLE ISO QS-04-5H RED1
372015 1 NOZZLE ISO QS-05-5H BROWN1
372016 1 NOZZLE ISO QS-06-5H GREY1
372017 1 NOZZLE ISO QS-08-5H WHITE1
372018 1 NOZZLE ISO QS-10-5H LT. BLUE1
372019 1 NOZZLE ISO QS-15-5H LT. GREEN1
372002 1 ISO QNTSTRM 015 S-GREEN2
372003 1 ISO QNTSTRM 02 S-YELLOW2
372004 1 ISO QNTSTRM 03 S-BLUE2
372005 1 ISO QNTSTRM 04 S-RED2
372006 1 ISO QNTSTRM 05 S-BROWN2
372007 1 ISO QNTSTRM 06 S-GREY2
372008 1 ISO QNTSTRM 08 S-WHITE2
372009 1 ISO QNTSTRM 10 S-LT.BLU2
372010 1 ISO QNTSTRM 15 S-LT.GRN2
Agroparts: www.HARDI-INTERNATIONAL.com
TANK - RANGER 550
E317-HIN, 05:01:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
TANK - RANGER 550
E317-HIN, 05:01:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145995 1 FITT.DK S-53 FORK1
145996 1 FITT.DK S-67 FORK2
145997 1 FITT.DK S-93 FORK3
147774 1 FITT.DK S-93 FORK W. M5 THREAD4
242351 1 O-RING D69.5X3.0 VITON F.S-935
242354 1 O-RING D32.2X3.0 VITON F.S-536
320084 1 FITT.DK NUT 1/2" BSP7
320563 1 FITT.DK 3 WAY 1/2" 110 DEG.8
320655 1 FITT.DK HN 1/2"-1/2" BSP9
322097 1 THREADED RING F. LID10
322103 1 FITT.DK S-53 BULKHEAD11
322107 1 FITT.DK S-53 BULKHEAD NUT12
322108 1 FITT.DK S-67 BULKHEAD NUT13
322109 1 FITT.DK S-93 BULKHEAD NUT14
322352 1 FITT.DK S-53 TEE15
334235 1 FITT.DK S-93 STR.2-1/2'RUBBER16
334545 1 FITT.DK S-93 TEE17
341149 1 RETURN TUBE F.NAV.D40 L=200018
370495 1 NOZZLE INJECTOR 5066-3.019
391100 1 FITT.DK S-53THREAD INS.1/2"BSP20
440392 1 SCREW NO.14 1"21
461217 1 NUT HEX M5 LOCK22
614588 1 SEAL F. LID23
614602 1 FILTER BASKET24
726003 1 LID F. TANK25
726463 1 FITT.DK S53 BULKHEAD W/GASKET26
726464 1 FITT.DK S-67 BULKHEAD W/GASKET27
726465 1 FITT.DK S-93 BULKHEAD W/GASKET28
726556 1 FITT.DK S-53 HB 1/2" W/O-RING29
726561 1 FITT.DK S-67 STR.1-1/4" O'RING30
726568 1 FITT.DK.S-53 HB 1/2"90 W/ORING31
726570 1 FITT.DK S-53 ELB.3/4" W.ORING32
726572 1 FITT.DK S-67 1" ELBOW 90 ASSY.33
726579 1 FITT. S67 PLUG W/O-RING34
726580 1 FITT. S93 PLUG W/O-RING35
727223 1 FITT.S67 1.5" STRAIT S W/ORING36
727224 1 FITT.DK S-67 ELB.1-1/2"37
727225 1 FITT.DK S-93 ELB.2'PVC W/ORING38
727742 1 TOP DRAIN CORD TYPE39
728525 1 FITT. S93 CONNECTOR W/O-RINGS40
14001500 1 GROMMET F.TOP DRAIN CORD41
14012200 1 FITT.DK S-67 FORK W/M5 THREADS42
28030303 1 CLAMP HOSE T-BOLT S2.5" 235-7643
35003803 1 TANK, MAIN 2200L RANGER DK PIG44
72114300 1 FITT. DK S-53 MALE MALE W.ORIN45
72132600 1 CHECK VALVE SUBASSEMBLY S5346
72374800 1 TANK VENT S93 2-1/2" NAV/NCM47
92702803 1 HOSE PVC SUCT GRAY 2-1/2"48
97612403 1 DECAL 550 LEFT49
97612503 1 DECAL 550 RIGHT50
97811600 1 DECAL COMPANY 335MM X 210MM51
97817500 1 DECAL RANGER LEFT52
97817600 1 DECAL RANGER RIGHT53
Agroparts: www.HARDI-INTERNATIONAL.com
FRAME - RANGER 550
F630-HIN, 09:05:11
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
FRAME - RANGER 550
F630-HIN, 09:05:11
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
334561 1 PLUG 50x50x2 F.SQ.TUBE1
421002 1 BOLT HEX 8.8 DEL M10X30 FT2
430581 1 BOLT HEX 8.8 DEL M16X40 FT3
430684 1 BOLT HEX 8.8 DEL M16X30 FT4
430721 1 BOLT HEX 8.8 DEL M12X40 FT5
430890 1 BOLT HEX 8.8 DEL M20X506
451007 1 SCREW M6X20 STAINLESS7
451070 1 SQUARE NECK BOLT M12X308
460261 1 NUT HEX M6X1 LOCK9
460423 1 NUT HEX M10X1.5 LOCK10
460585 1 NUT HEX M16X2 LOCK11
460703 1 NUT HEX M12X1.75 LOCK12
460806 1 NUT HEX M20X2.5 LOCK13
471125 1 WASHER D12/D6.4x1.6 SS14
471127 1 WASHER D24/D13X2.5 STAINLESS15
480804 1 RIVET Ø4.8x14.516
637958 1 TRANS.BKT CM EAGLE45'-66' RH17
637959 1 TRANS.BKT CM EAGLE45'-66' LH17
10507303 1 CLEVIS NAV.550/800/1000 GAL.18
10587803 1 MAG MNT F. SPEED SNS 8 BOLT19
10632103 1 JACK F RANGER 5000LB20
15006503 1 WASHER FRAME BUSHING21
16054903 1 PUMP MT. PLATE ACE B.D.22
16143803 1 BRACKET, FILLER TEE, RG55023
16144003 1 BRACKET, QUICK FILL, RG55024
16226200 1 BRACKET F.TANK SCALE - PAINTED25
17012703 1 BAR, CRG BOLT RANGER FRAME26
28050103 1 HUB F 3" 758 7500# PACKAGE27
28058703 1 TIRE, 12.4x28, 6-PLY28
28058803 1 RIM, 28X10, 8-8-6, 4.12" OS28
70058403 1 AXLE ASSY. NON-SUS. ADJ. CM"0528
70085303 1 TIRE ASSY 12.4-28 RH28
28087800 1 BUTTON, VALVE FUNCTION 4Ø29
43000203 1 BOLT HEX 8.8 CARRIAGE M20x2.530
43000803 1 BOLT HEX M20 X 70MM DEL - FT31
46000703 1 NUT TAPERED LUG 5/8-1832
61000503 1 SPEED SNS MNT CLAMP - 3"33
61004603 1 PUMP MT. TOWER R.H. ACE B.D.34
61004703 1 PUMP MT. TOWER L.H. ACE B.D.35
61011603 1 CROSS BAR RANGER FRAME36
61015903 1 PLATFORM, RANGER 55037
63027303 1 FRAME, RANGER 550/2000/220038
63027703 1 AXLE RANGER 60-9839
63035203 1 CONTROL POST, RANGER 55040
Agroparts: www.HARDI-INTERNATIONAL.com
PARALIFT - RANGER
F257-HIN, 12:11:10
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
PARALIFT - RANGER
F257-HIN, 12:11:10
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
163737 1 WASHER D15.5/D10.5X11
210835 1 BUSHING D28/25 L=252
220949 1 SPRING Ø20.0/3.0 L=240 BLACK3
283699 1 GREASE NIPPLE M6X14
420567 1 BOLT HEX 8.8 DEL M8X30 FT5
420884 1 BOLT HEX 8.8 DEL M10X80 FT6
421232 1 BOLT HEX 8.8 DEL M8X1107
430721 1 BOLT HEX 8.8 DEL M12X40 FT8
430918 1 M20X100 DIN 931-8.8 DEL9
460143 1 NUT HEX M8 LOCK10
460386 1 NUT HEX M12X1.7511
460423 1 NUT HEX M10X1.5 LOCK12
460703 1 NUT HEX M12X1.75 LOCK13
460806 1 NUT HEX M20X2.5 LOCK14
471126 1 WASHER D16/D8.4X1.6 SS15
615654 1 PIN D25 X 123 F. PARALIFT16
781107 1 CYLINDER F.INNER WING FOLD
NLA - ORDER 78128800 AND 63029803
17
78121200 1 CYLINDER F.INNER WING FOLD
NLA - REPLACED BY 78128800
17
78128800 1 CYL.INNER WING FOLD 50/30-500
ONLY USE WITH 63029803 LOCKING ARM
17
61011803 1 ROD END M24X2 25M 06'07'18
61011903 1 PAIRLIFT LINK ARM19
61012003 1 WIRE Ø2 L"=457 +/-2MM20
63027903 1 LOCKING ARM, PAIRLIFT RANGER
ONLY USE WITH OBSOLETE CYLINDER 781107
21
63029803 1 LOCKING ARM, PARALIFT RG 2008
ONLY USE WITH CYLINDER 78121200 OR 78128800
21
63028003 1 PAIRLIFT LIFT ARM22
Agroparts: www.HARDI-INTERNATIONAL.com
HUB ASSY 3" SPINDLE NAV 575
F441-HIN, 19:06:10
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
HUB ASSY 3" SPINDLE NAV 575
F441-HIN, 19:06:10
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
10059803 1 NUT HEX NF 1"
10587803 1 MAG MNT F. SPEED SNS 8 BOLT
10606703 1 NUT HEX NF 5/8" FLANGED F.STUD
10629303 1 PIN, COTTER 7/32" X 1.75" LONG
14000203 1 SPINDLE 3" X 16" W/NUT &WASHER
16108403 1 REINFORCEMENT RING 8-8-6 HUB
FOR NON-REINFORCED 3/8" RIMS ONLY
21000003 1 BEARING INNER CUP #382A
21000103 1 BEARING OUTER CUP #LM501310
21000203 1 BEARING INNER CONE #387AS
21000303 1 BEARING OUTER CONE #LM501349
21000403 1 SEAL GREASE #CR29968
28000303 1 DUST CAP #1609
28050103 1 HUB F 3" 758 7500# PACKAGE
45000003 1 STUD BOLT 5/8" X 2-1/2"
47000003 1 WASHER SPNDL 3" 1.12X2.1 .25TK
61000503 1 SPEED SNS MNT CLAMP - 3"
63006303 1 AXLE INSERT W/M SUS. 575 NAV
Agroparts: www.HARDI-INTERNATIONAL.com
CHEMICAL FILLER-RANGER 550
G103-HIN, 03:05:11
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
CHEMICAL FILLER-RANGER 550
G103-HIN, 03:05:11
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145995 1 FITT.DK S-53 FORK1
145996 1 FITT.DK S-67 FORK2
242353 1 O-RING D44.2X3.0 VITON F.S-673
242354 1 O-RING D32.2X3.0 VITON F.S-534
284582 1 CLmP HSE GEAR3/8" alt 280298035
320176 1 FITT.DK HN 3/8"X1/2" BSP6
320187 1 FITT.DK CAP 3/8" BSP BLACK7
322108 1 FITT.DK S-67 BULKHEAD NUT8
322134 1 FITT.DK S-53THREAD INS.1/2"BSP9
322224 1 FITT.DK S-67 TEE10
322343 1 NOZZLE CAP M18 X 1.5 - 199911
330013 1 O-RING D15/D10X2.5 F.3/8"NUT12
331807 1 FITT.DK HB 5/16" F.3/8" NUT13
334261 1 GASKET F. S-67 BULKHEAD14
334445 1 FITT.DK S-67 ELB.1-1/2"15
334564 1 FITT.DK S-67 TO S-53 ADAPTER16
334727 1 GROMMET17
391163 1 DRAIN VORTEX CHEM-FILL CM "05"18
420582 1 BOLT HEX 8.8 DEL M8X20 FT19
440675 1 SCREW F. PLASTIC 5X16 SS20
451007 1 SCREW M6X20 STAINLESS21
451070 1 SQUARE NECK BOLT M12X3022
460143 1 NUT HEX M8 LOCK23
460261 1 NUT HEX M6X1 LOCK24
460703 1 NUT HEX M12X1.75 LOCK25
471125 1 WASHER D12/D6.4x1.6 SS26
927281 1 HOSE R X PVC X 5/16 X 0012"27
15108500 1 MOUNTING FOR WAND28
16143803 1 BRACKET, FILLER TEE, RG55029
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"672430
28084800 1 GASKET D415 W=20 H=10 NEOPRENE31
28087600 1 LANCE Ø10/Ø6-GUP L=12532
33514700 1 AIR VALVE F. TURBO FILL33
39124200 1 POLY STRING Ø 1.5 X 80034
39131300 1 EJECTOR NOZZLE Ø8.4 TURBOFILL35
39131400 1 EJECTOR NOZZLE Ø10.4 TURBOFILL35
39131500 1 EJECTOR NOZZLE Ø12.4 TURBOFILL35
39132400 1 FITT.DK S-67 CONNECTOR, 1" RG36
44074500 1 PT SCREW 40X10 WN1411 SS37
63106600 1 FRAME F.FILLER 25L US38
72032500 1 CP TRGGR VLV ASSY,NEW STYLE'0039
72089900 1 CHECK VALVE S67 SUBASMBLY.200140
72691600 1 VALVE, S67, 2-WAY F. FILLER41
72691800 1 CHEMFILLER HOPPER W/LID 25L42
92702603 1 HOSE PVC SUCT GRAY 1-1/2"43
97817300 1 DECAL MANIFOLD SYS.CHEM.FILL44
Agroparts: www.HARDI-INTERNATIONAL.com
CLEAN WATER TANK - RANGER
G112-HIN, 28:06:06
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
CLEAN WATER TANK - RANGER
G112-HIN, 28:06:06
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
240947 1 O-RING D7.3X2.4 NITRIL1
281551 1 BALL VALVE 1/2"2
320084 1 FITT.DK NUT 1/2" BSP3
320482 1 FITT.DK ELB. 1/2" BSP 60 DEG.4
321296 1 FITT.DK BULKHEAD 1/2" BSP SING5
321307 1 FITT.DK NUT 1/2" BSP JAMB6
321322 1 SCREW CAP F. S80 X 47
330212 1 O-RING D19/D14X2.4 F.1/2"NUT8
330687 1 FITT.DK HB 1/2" F. 1/2" NUT9
332592 1 O-RING D26/D20X310
333137 1 FITT.DK CONN.1/2" F.NOZZ. DOUB11
420641 1 BOLT HEX 8.8 DEL M8X3512
460143 1 NUT HEX M8 LOCK13
35003503 1 TANK, HAND WASH 20L RG PRE 0814
Agroparts: www.HARDI-INTERNATIONAL.com
DRAIN ASSEMBLY-PULL CORD TYPE
G120-HIN, 05:04:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
DRAIN ASSEMBLY-PULL CORD TYPE
G120-HIN, 05:04:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
145997 1 FITT.DK S-93 FORK
220799 1 SPRING F.TOP DRAIN
241754 1 O-RING D59,5X3
242221 1 GASKET F. S-93 QUICK COUPLERS
242351 1 O-RING D69.5X3.0 VITON F.S-93
322109 1 FITT.DK S-93 BULKHEAD NUT
322165 1 FITT.DK S-93 BULKHEAD SINGLE
322166 1 VALVE FLAP LOWER PART
322169 1 CORD PLUG F.TOP DRAIN
322171 1 FITT.DK S-93 THREAD INS.2"BSP
334262 1 GASKET F.S-93 BULKHEAD
334332 1 FITT.DK S-93 MALE QUICK COUP.
334340 1 FITT.DK S-93 ELB.2-1/2' PVC
334434 1 CAGE F.SPRING BOTTOM DRAIN ASY
334437 1 SEAL FOR VALVE FLAP
334469 1 CLEVIS F.CORD TOP DRAIN ASSY.
334472 1 HANDLE FOR TOP DRAIN
334557 1 SPRING SEAT TOP DRAIN
390982 1 CORD NYLON 4000MM
440392 1 SCREW NO.14 1"
727172 1 FITT.DK S-93 SEAT INSERT
727617 1 FITT.DK S-93 BOTTOM VALVE 2'
727742 1 TOP DRAIN CORD TYPE
728120 1 QUICK COUPLER CAP F.S93 DRAIN
14001500 1 GROMMET F.TOP DRAIN CORD
16025500 1 TANK SPACER SIGHT GAUGE
16135600 1 GUIDE FOR SIGHT GAUGE NAV/NCM
Agroparts: www.HARDI-INTERNATIONAL.com
END NOZZLE KIT
G190-HIN, 28:11:06
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
END NOZZLE KIT
G190-HIN, 28:11:06
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
281551 1 BALL VALVE 1/2"
320187 1 FITT.DK CAP 3/8" BSP BLACK
320283 1 FITT.DK NUT 3/4"BSP
320596 1 FITT.DK ELB 3/8'-1/2'BSP 45DEG
322255 1 FITT.DK NIPPLE 3/4'X 3/4'
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
720856 1 FITT.DK 1/2'BSP ASSY.F.3/4'NUT
729610 1 NOZZLE ASSY. 3/8 THREAD
83327803 1 END NOZZLE KIT "04"
Agroparts: www.HARDI-INTERNATIONAL.com
ELECTRIC END NOZZLE KIT '09
G191-HIN, 21:05:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
ELECTRIC END NOZZLE KIT '09
G191-HIN, 21:05:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145994 1 FITT.DK S-40 FORK1
145995 1 FITT.DK S-53 FORK2
242354 1 O-RING D32.2X3.0 VITON F.S-533
242355 1 O-RING D19.2X3.0 VITON F.S-404
242594 1 O-RING D14 X 1.78 SCH.70-EPDM5
261539 1 SPADE F.ELEC CONNEC BLUE INSUL6
262104 1 VALVE, SOLENOID, S53/S407
320187 1 FITT.DK CAP 3/8" BSP BLACK8
320191 1 FITT.DK ELB 3/8' BSP 45 DEGREE9
320283 1 FITT.DK NUT 3/4"BSP10
320891 1 FITT.DK HB 3/8'- 3/8' BSP11
322352 1 FITT.DK S-53 TEE12
330013 1 O-RING D15/D10X2.5 F.3/8"NUT13
333012 1 NOZZLE HOLD. UPPER PART14
334044 1 FITT.DK HB 3/4' F. 3/4' CAP15
334220 1 NOZZLE BODY SING.SN.FT.UPPER16
334229 1 FITT.DK S-53 STR.3/4"17
334237 1 FITT.DK S-40 ELB.3/8'18
334965 1 COVER FOR S53 SOLENOID VALVE19
341291 1 RUBBER HOSE CLAMP COVER 130MM20
370392 1 NOZZLE END FAN 1850-G 30021
410546 1 BOLT HEX 8.8 DEL M6X12 FT22
440665 1 SCREW M4.2X16 STAINLESS23
460261 1 NUT HEX M6X1 LOCK24
724621 1 FITT.DK HB 3/4"ASSY F.3/4" NUT25
725042 1 SCREEN 80 MESH W.GASKET, RED26
726558 1 FITT.DK S53 STR. 3/4" W.ORING27
729610 1 NOZZLE ASSY. 3/8 THREAD28
983087 1 ELEC. CABLE 2 WIRE X 0.75MM29
10631003 1 HOSE R X CLEAR BRAID.X 1/2 12"30
16110803 1 NOZZLE BRACKET VAR SPACINGS31
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 671232
28044903 1 CLAMP HOSE GEAR P3/8" 670633
28047003 1 CLAMP HOSE GEAR 30 X 50 673234
92701703 1 HOSE R X3/8" X300PSI WP X0012"35
92703203 1 HOSE R X3/4" X300PSI WP X0012"36
Agroparts: www.HARDI-INTERNATIONAL.com
CFX-750 DISPLAY, DGPS
G194-HIN, 30:11:11
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
CFX-750 DISPLAY, DGPS
G194-HIN, 30:11:11
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
26007603 1 CABLE, ANTENNA, EZGUIDEPLUS1
26012003 1 NULL MODEM CABLE2
26021403 1 CFX-750 DISPLAY, DGPS3
26021503 1 CABLE, BASIC POWER, CFX-7504
26021603 1 CABLE, POWER BUS, CAN CFX-7505
26021703 1 CABLE, ASC INTERFACE, CFX-7506
26021803 1 AG-25 ANTENNA L1/L2 GLN7
26022103 1 CFX-750 DISPLAY ONLY8
28048203 1 EZ-GUIDE 500 MOUNT F.AG15 ANT.9
28048303 1 EZ-GUIDE 250/500 RAM MNT.1.5"10
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-GUIDE PLUS LIGHT BAR
G195-HIN, 01:01:01
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-GUIDE PLUS LIGHT BAR
G195-HIN, 01:01:01
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
26007403 1 ANTENNA,HURRICANE F. EZGUIDEPL
26007503 1 REMOTE KEYPAD EZ-GUIDE PLUS
26007603 1 CABLE, ANTENNA, EZGUIDEPLUS
26007703 1 CABLE, POWER F. EZGUIDEPLUS
26007803 1 BRACKET KIT F. EZGUIDEPLUS
26007903 1 EZ-Guide 500 External Interfac
26008003 1 LIGHT BAR ASSM WITH GPS
26008103 1 LIGHT BAR ASSM WITHOUT GPS
29002703 1 VACUUM CUP 4 1/2" 1420I
29002803 1 MOUNT, MAG F. ANTENNA
29002903 1 PLATE, F. ANTENNA MOUNT
67206303 1 QUICK REFERENCE CARD EZ-GUIDE+
67206403 1 MANUAL EZ GUIDE PLUS
84205303 1 EZ GUIDE PLUS W GPS, NO LABLE
84205403 1 EZ GUIDE PLUS W/O GPS,NO LABLE
97607603 1 DECAL COMPANY 45MM X 20MM
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-STEER STEERING SYSTEM
G196-HIN, 15:11:09
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-STEER STEERING SYSTEM
G196-HIN, 15:11:09
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
26008803 1 EZ-STR.BKT-JD 4000,8000 4WD1
26008903 1 EZ-STR.BKT-JD80002WD,7X20,90001
26009003 1 EZ-STR.BKT-CASE IH 7100/72001
26009103 1 EZ-STR.BKT-JD COMBINE&ROGATOR1
26009203 1 EZ-STR.BKT-JD 6000,70001
26009303 1 EZ-STR.BKT-BUHLER,NH VERSATILE1
26009403 1 EZ-STR.BKT-STEIGER,NH VERSATIL1
26009503 1 EZ-STR.BKT-INTERNATIONAL TRUCK1
26009603 1 EZ-STR.BKT-AGCHEM TERRAGATOR1
26009703 1 EZ-STR.BKT-CASE IH MXM1
28036903 1 EZ-STR.BKT-CASE IH COMB.16001
28037003 1 EZ-STR.BKT-JD 89XX,71XX,72XX1
28037103 1 EZ-STR.BKT-JD 8000/90001
28037203 1 EZ-STR.T2 TERRAIN COMP.UPDATE1
28037303 1 EZ-STR.BKT-SPR.COUPE 3000/40001
28038203 1 EZ-STR.BKT-FENDT 9241
28046503 1 EZ-STR.BKT-AGCO DT/RT,MF64/741
28047803 1 EZ-STR.BKT.-NH TVT,CASE IH CVX1
28050203 1 EZ-STR.BKT-CASE JX(U),NH TL(A)1
28055203 1 EZ-STR.BKT-CASE MXM/N.HOLLAND1
28055903 1 EZ-STR.BKT-WILMAR EAGLE1
26009803 1 EZ-STEER FOAM WHEELS 4-PK2
26009903 1 EZ-STEER CONTROLLER3
26010003 1 EZ-STEER MOTOR KIT4
26010103 1 EZ-STEER POWER CABLE5
26010203 1 EZ-STEER MOTOR CABLE 3M6
67210803 1 QUICK REFERENCE CARD EZ-STEER7
84205503 1 EZ-STEER SYSTEM COMPLETE8
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-GUIDE 500 LIGHTBAR
G197-HIN, 09:12:09
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-GUIDE 500 LIGHTBAR
G197-HIN, 09:12:09
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
26007603 1 CABLE, ANTENNA, EZGUIDEPLUS1
26012203 1 EZ-STEER/GUIDE 500 ADAPT.CABLE2
26015303 1 REMOTE KEYPAD EZGUIDE 500/2503
28048403 1 DECAL - REMOTE OVERLAY 500/2503
26015403 1 EZ-GUIDE 500 CABLE POWER/CAN904
26015503 1 EZ-GUIDE 500 Z PLUS ANTENNA5
26015603 1 ANTENNA AG15 L1,EZ GDE 500/2505
26015703 1 EZ-GUIDE 500 DGPS DISPLAY6
26015803 1 EZ-GUIDE 500 OMNISTAR DISPLAY6
26016103 1 EZ-GUIDE 500 CABLE UNTERM.FUSE7
26016203 1 EZ-GUIDE 500 POWER CONN.CABLE8
28048203 1 EZ-GUIDE 500 MOUNT F.AG15 ANT.9
28048303 1 EZ-GUIDE 250/500 RAM MNT.1.5"10
29003803 1 EZ-GUIDE 500 CD,GET.STARTED V111
67215403 1 EZ-GUIDE 500 QUICK REF.CARD V112
84208303 1 EZ GUIDE 500 LIGHTBAR (DGPS)13
84208403 1 EZ GUIDE 500 LIGHTBAR (XP/HP)13
84208503 1 EZ GUIDE 500 LIGHTBAR (RTK)13
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-STEER 500 STEERING SYSTEM
G198-HIN, 01:12:09
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-STEER 500 STEERING SYSTEM
G198-HIN, 01:12:09
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
26008803 1 EZ-STR.BKT-JD 4000,8000 4WD1
26008903 1 EZ-STR.BKT-JD80002WD,7X20,90001
26009003 1 EZ-STR.BKT-CASE IH 7100/72001
26009103 1 EZ-STR.BKT-JD COMBINE&ROGATOR1
26009203 1 EZ-STR.BKT-JD 6000,70001
26009303 1 EZ-STR.BKT-BUHLER,NH VERSATILE1
26009403 1 EZ-STR.BKT-STEIGER,NH VERSATIL1
26009503 1 EZ-STR.BKT-INTERNATIONAL TRUCK1
26009603 1 EZ-STR.BKT-AGCHEM TERRAGATOR1
26009703 1 EZ-STR.BKT-CASE IH MXM1
28036903 1 EZ-STR.BKT-CASE IH COMB.16001
28037003 1 EZ-STR.BKT-JD 89XX,71XX,72XX1
28037103 1 EZ-STR.BKT-JD 8000/90001
28037203 1 EZ-STR.T2 TERRAIN COMP.UPDATE1
28037303 1 EZ-STR.BKT-SPR.COUPE 3000/40001
28038203 1 EZ-STR.BKT-FENDT 9241
28046503 1 EZ-STR.BKT-AGCO DT/RT,MF64/741
28047803 1 EZ-STR.BKT.-NH TVT,CASE IH CVX1
28050203 1 EZ-STR.BKT-CASE JX(U),NH TL(A)1
28055203 1 EZ-STR.BKT-CASE MXM/N.HOLLAND1
28055903 1 EZ-STR.BKT-WILMAR EAGLE1
26009803 1 EZ-STEER FOAM WHEELS 4-PK2
26009903 1 EZ-STEER CONTROLLER3
26010003 1 EZ-STEER MOTOR KIT4
26010203 1 EZ-STEER MOTOR CABLE 3M5
26012203 1 EZ-STEER/GUIDE 500 ADAPT.CABLE6
26012503 1 EZ-STR.FOOT SWITCH & ACC.CABLE7
67214803 1 EZ-STR.REF.GUIDE V3 SPARE8
67214903 1 EZ-STEER QUICK REF.CARD V38
67215203 1 EZ-STEER 500 QUICK REF.CARD V18
67215303 1 MANUAL EZ-STEER 500 REF V18
84208603 1 EZ-STEER 500/250 SYS. COMPLETE9
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-GUIDE 250 LIGHTBAR
G199-HIN, 30:11:09
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
EZ-GUIDE 250 LIGHTBAR
G199-HIN, 30:11:09
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
26007603 1 CABLE, ANTENNA, EZGUIDEPLUS1
26015603 1 ANTENNA AG15 L1,EZ GDE 500/2502
26016103 1 EZ-GUIDE 500 CABLE UNTERM.FUSE3
26016203 1 EZ-GUIDE 500 POWER CONN.CABLE4
26017303 1 EZ-GUIDE 250 ALL PORT CABLE5
26017703 1 EZ-GUIDE 250 POWER CABLE6
26017803 1 EZ-GUIDE 250 LIGHTBAR DISPLAY7
26017903 1 EZ-GUIDE 250 PATCH ANTENNA8
28048203 1 EZ-GUIDE 500 MOUNT F.AG15 ANT.9
28048303 1 EZ-GUIDE 250/500 RAM MNT.1.5"10
67217403 1 EZ-GUIDE 250 QUICK REF.CARD11
84210603 1 EZ GUIDE 250 LIGHTBAR12
Agroparts: www.HARDI-INTERNATIONAL.com
FILTER ASSEMBLIES-IN LINE
G220-HIN, 29:08:12
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
FILTER ASSEMBLIES-IN LINE
G220-HIN, 29:08:12
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
240925 1 O-RING D49.5X3 NITRIL1
242594 1 O-RING D14 X 1.78 SCH.70-EPDM2
320283 1 FITT.DK NUT 3/4"BSP3
322241 1 FILTER HOUSING W.3/4' BARBS4
322249 1 FILTER HOUSING W.1/2' BARBS4
322242 1 FILTER BOWL / IN-LINE5
322250 1 FILTER HOUSING W.3/4"BSP THRD6
341291 1 RUBBER HOSE CLAMP COVER 130MM7
341292 1 RUBBER HOSE CLAMP COVER 180MM7
410605 1 BOLT HEX 8.8 DEL M6X808
440673 1 SCREW F.PLASTIC 5X12 SS9
460261 1 NUT HEX M6X1 LOCK10
615443 1 FILTER ELEM.50 MESH BLUE11
615444 1 FILTER ELEM.80 MESH RED11
615445 1 FILTER ELEM.100 MESH YELLOW11
716236 1 FITT.DK HB 1/2" ASSY. F. 3/4"12
724621 1 FITT.DK HB 3/4"ASSY F.3/4" NUT12
845205 1 FILTER IN-LINE 1/2' 50 MESH13
845208 1 FILTER IN-LINE 3/4' 50 MESH13
845209 1 FILTER IN-LINE 3/4' 80 MESH13
845218 1 FILTER IN-LINE 3/4'50 MESH OML14
845219 1 FILTER IN-LINE 3/4'80 MESH OML14
16022203 1 PLATE 3.0 X 55 X 19615
16022403 1 BRACKET 60MM TUBE16
24263000 1 O-RING Ø24.4 X 3.1 NITRIL SH7017
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 671218
28047103 1 CLAMP HOSE GEAR 50 X 50 674019
28047203 1 CLAMP HOSE GEAR 60 X 80 675619
32239700 1 FITT.DK NUT T2520
32239800 1 FITT.DK IN-LINE FILTER TOP T2521
33515500 1 FITT.DK NUT LOCK RING T2522
72700600 1 FILTER IN-LINE 80 MESH, T2523
92702103 1 HOSE R X1/2" X300PSI WP X0012"24
92703203 1 HOSE R X3/4" X300PSI WP X0012"24
Agroparts: www.HARDI-INTERNATIONAL.com
FLUSH SYSTEM - RANGER
G314-HIN, 25:04:11
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
FLUSH SYSTEM - RANGER
G314-HIN, 25:04:11
Page 1
Date 19.03.2013 8:43
parts-n° order
qty descriptionPos.
145995 1 FITT.DK S-53 FORK1
145996 1 FITT.DK S-67 FORK2
145996 1 FITT.DK S-67 FORK
S-67 MODELS WITHOUT THREADED CAP (15)
3
145997 1 FITT.DK S-93 FORK
S-93 MODELS WITH THREADED CAP (15)
3
242351 1 O-RING D69.5X3.0 VITON F.S-93
S-93 MODELS WITH THREADED CAP (15)
4
242353 1 O-RING D44.2X3.0 VITON F.S-67
S-67 MODELS WITHOUT THREADED CAP (15)
4
322107 1 FITT.DK S-53 BULKHEAD NUT5
322108 1 FITT.DK S-67 BULKHEAD NUT6
322108 1 FITT.DK S-67 BULKHEAD NUT
S-67 MODELS WITHOUT THREADED CAP (15)
7
322109 1 FITT.DK S-93 BULKHEAD NUT
S-93 MODELS WITH THREADED CAP (15)
7
322337 1 FITT.DK S-93 ELB.2"BSP 45D
S-93 MODELS WITH THREADED CAP (15)
8
334250 1 FITT.DK S-67 PLUG
S-67 MODELS WITHOUT THREADED CAP (15)
8
726463 1 FITT.DK S53 BULKHEAD W/GASKET9
726464 1 FITT.DK S-67 BULKHEAD W/GASKET10
726464 1 FITT.DK S-67 BULKHEAD W/GASKET
S-67 MODELS WITHOUT THREADED CAP (15)
11
726465 1 FITT.DK S-93 BULKHEAD W/GASKET
S-93 MODELS WITH THREADED CAP (15)
11
726578 1 FITT.DK S53 PLUG WITH O-RING12
727224 1 FITT.DK S-67 ELB.1-1/2"13
10052203 1 LID VENT ASSY14
10053603 1 FITT. CAPNUT 2"BSP 560115
10064203 1 SET SEALING SPONGE RUBBER16
10102203 1 GASKET F.16" LID BREATHER17
10619703 1 SCREW SS #6x3/4' SELF TAPPING18
10619803 1 LID HOUSING TREADED F. 6'19
35003903 1 TANK, FLUSH 250L RANGER DK PIG20
Agroparts: www.HARDI-INTERNATIONAL.com
FOAM MARKER COMPRESSOR 2007
G342-HIN, 17:12:07
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
FOAM MARKER COMPRESSOR 2007
G342-HIN, 17:12:07
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
147011 1 HEX NIPPLE 3/8'X1/4'BSP BRASS
161326 1 MOUNT BKT. F. FOAM COMP.BOX 98
168847 1 ENCLOSURE LOWER F.MARKER
168848 1 COVER F. FOAM MARKER
232111 1 QUICK COUPLER 6MM X 1/8 EXT.
232112 1 QUICK COUPLER 6MM 1/8 INT.
232113 1 QUICK COUPLER 6MM T-PIECE
232114 1 COUPLER 1/8" THREADX8MM HOSE
232143 1 REDUCER 1/4'INT-1/8'EXT
232144 1 QUICK COUPLER 10MM X 1/4 EXT
232152 1 QUICK COUPLER 8MMX1/8 EXT.LONG
241371 1 DIAPHRAGM F.NO-DRIP,VULC
242242 1 O-RING F.AIR HOSE FITTING
242258 1 TRIM 3X10 SELF ADHESIVE 0012"
261562 1 RUBBER DAMPER 2XM6X25
283697 1 TIESTRAP 200MM
320445 1 FITT.DK HN 1/4"X3/8" BSP
321462 1 CAP F.NO-DRIP ASSY.
322261 1 HOUSING F.SAFETY VALVE 3/8"
440650 1 SCREW 3.5x13 STAINLESS
460261 1 NUT HEX M6X1 LOCK
718911 1 VALVE (SAFETY) F.MARKER
729645 1 NON-DRIP SPRING ASSY.GREEN 10
927264 1 HOSE R X PE D6/D4 X 0012"
927306 1 HOSE R X PE D8/D6 X 0012"BLACK
927330 1 HOSE R X PE D10/D8 X 012"BLACK
26001403 1 HC FOAM MARKR CONSOLE VS3.0.00
26001503 1 HC FOAM MARKER CONSOLE MT.KIT
26001803 1 POWER CABLE
26001903 1 15' 7-PIN EXTENSION CABLE
26004103 1 FOAM MARKER CNTRL MOD CABL STD
26008703 1 FOAM MARKER CONTROL SCII
26010403 1 TOGGLE SWITCH MICRO-TRAK F.M.
26011103 1 FOAMER POWER/CONTROL CABLE 39P
26023400 1 COMPRESSOR F.FOAM MARKER CM40
26023700 1 SOLENOID VAL 12V 1/8' FLO '07
28025503 1 PLUG F.DRILLED HOLE 1/2"
28025603 1 PLUG F.DRILLED HOLE 3/4"
39122000 1 DISTR.HOUSING F.FOAM MARKER'07
70019403 1 FOAM MARKER COMPRESSOR KIT STD
Agroparts: www.HARDI-INTERNATIONAL.com
FOAMMARKER TANK/DROPPER POST93
G390-HIN, 05:05:11
Page 0
Date 19.03.2013 8:43
Agroparts: www.HARDI-INTERNATIONAL.com
FOAMMARKER TANK/DROPPER POST93
G390-HIN, 05:05:11
Page 1
Date 19.03.2013 8:43
parts-n° order
qty description
10010803 1 NUT HEX NC (NYLON LOCK) 5/16
10453803 1 STRAP F.FOAMER TANK (755mm)
10465903 1 *LID F.FOAM MARKER, DRILLED
10494103 1 FILL WELL ASSY.FOAM MARK EPOXY
10494203 1 TANK ASSY. 10 GAL. D14' F/M
10494303 1 TANK ASSY. 15 GAL. D14'F/M
10494403 1 *TANK ASSY. 20 GAL. D14'F/M
10533603 1 DECAL CAUTION-OPEN SLOWLY ENG
10598503 1 TANK STRAP 10/15/20 GAL FOAMER
145994 1 FITT.DK S-40 FORK
160182 1 FILTER SCREEN
160775 1 WASHER F. FRICTION PLATE
168838 1 FILTER SCREEN D40 FOR FOAM GEN
172664 1 FLATBAR BACKING PLATE
232118 1 HOSE CONN. 90DEG 1/8'X 6MM PE
23212303 1 HOSE CONNECTOR STR. F.8MM PE
23212403 1 HOSE CONNECTOR STR. F.6MM PE
23214603 1 HOSE CONNECTOR STR. F. 10MM PE
232150 1 HOSE CONN. 90DEG. 1/8'X8MM PE
240457 1 O-RING D40.2/D34X2
242234 1 PLUG F.FOAM GENERATOR HOSES
242351 1 O-RING D69.5X3.0 VITON F.S-93
242355 1 O-RING D19.2X3.0 VITON F.S-40
284353 1 SPONGE FOR FOAM MARKER
284584 1 CLAMP HOSE GEAR 3/4" MINI 012
320471 1 FITT.DK NUT 1" BSP JAMB
320644 1 FITT.DK ELB.3/4"HB X 1" BSP
322102 1 FITT.DK S-40 BULKHEAD
322106 1 FITT.DK S-40 BULKHEAD NUT
322109 1 FITT.DK S-93 BULKHEAD NUT
322133 1 FITT.DK S-40 PLUG W 1/8 THREAD
330326 1 O-RING D30/D24X2 F.1"NUT
330352 1 FOAM DROP HOUSING
330831 1 FRICTION PLATE
332581 1 GASKET F. 1-1/2" BSP CAPNUT.
334178 1 RETAINER FOR FOAM MARKER
334259 1 GASKET F. S-40 BULKHEAD
334602 1 ORIFICE ID 70MM F.FOAM MARKER
370543 1 NOZZLE FLAT FAN 4625-46
390418 1 MIXING CHAMBER FOR FOAM MARKER
390419 1 HOUSING F. MIXING CHAMBER
390425 1 END PIECE FOR MIXING CHAMBER
430323 1 BOLT HEX 8.8 DEL M12X60
440333 1 SCREW 3.5 X 9.5 SS
440447 1 SCREW M4.2X9.5
460143 1 NUT HEX M8 LOCK
460703 1 NUT HEX M12X1.75 LOCK
480487 1 PIN M5X60 SLOTTED GALV
611671 1 BREAK AWAY HOLDER F-MARKER
614432 1 BREAK AWAY ARM F. FOAM MARKER
615522 1 CHECK VALVE F.FOAM MARKER
637187 1 MOUNT BKT F.FOAM TANK 10/15GAL
637434 1 MOUNT BRACKET F.FOAM TANK 20G
728668 1 FOAM GENERATOR ASSY.
728839 1 FOAM NOZZLE ASSY.W.RESTRICTOR
92703203 1 HOSE R X3/4" X300PSI WP X0012"
927264 1 HOSE R X PE D6/D4 X 0012"
927306 1 HOSE R X PE D8/D6 X 0012"BLACK
976183 1 DECAL COMPANY 185 X 300
Agroparts: www.HARDI-INTERNATIONAL.com
FOAMMARKER DROPPER UPDATE 2000
G410-HIN, 12:12:05
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FOAMMARKER DROPPER UPDATE 2000
G410-HIN, 12:12:05
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
145995 1 FITT.DK S-53 FORK
160775 1 WASHER F. FRICTION PLATE
161116 1 FLATBAR PLATE 3 X 25 X 110
161130 1 FILTER SCREEN F/FOAM DROPPER
172664 1 FLATBAR BACKING PLATE
232114 1 COUPLER 1/8" THREADX8MM HOSE
232199 1 COUPLER 3/8' BSP-90/10MM HOSE
242109 1 O-RING D32.2x3.0 (USE 242354)
320095 1 FITT.DK NUT 1" BSP
320176 1 FITT.DK HN 3/8"X1/2" BSP
320456 1 FITT.DK BULKHEAD 1"BSP DOUBLE
320471 1 FITT.DK NUT 1" BSP JAMB
322138 1 FITT.DK ELB 1"M X 1"F BSP
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
330665 1 FITT.DK HB 3/4"F.1" NUT
330831 1 FRICTION PLATE
334241 1 FITT.DK S-53 ELB.3/4"
334523 1 PIPE HOLDER D51.5
390639 1 O-RING F.NOZZLE FILTER
390925 1 FITTING F.FOAM MIX.CHAMB. STD
390926 1 TUBE,MIX CHAMB. FOAM MARK STD
410701 1 SCREW M6X16 GALV.
421024 1 BOLT HEX 8.8 DEL M8X60
421201 1 BOLT HEX 8.8 DEL M8X70
430323 1 BOLT HEX 8.8 DEL M12X60
430367 1 BOLT HEX 8.8 DEL M12X100
440333 1 SCREW 3.5 X 9.5 SS
460143 1 NUT HEX M8 LOCK
460261 1 NUT HEX M6X1 LOCK
460703 1 NUT HEX M12X1.75 LOCK
471127 1 WASHER D24/D13X2.5 STAINLESS
611671 1 BREAK AWAY HOLDER F-MARKER
614432 1 BREAK AWAY ARM F. FOAM MARKER
615786 1 MOUNT BKT. F.FOAM DROPPER 98
728323 1 VALVE NON-RETURN
730697 1 FOAM DROPPER COMP. BLACK '97
741526 1 FOAM DROPPER MT. KIT MB-SPL
927231 1 HOSE R X PVCX3/4 CLR/BRD 0012"
927306 1 HOSE R X PE D8/D6 X 0012"BLACK
927330 1 HOSE R X PE D10/D8 X 012"BLACK
981561 1 SPONGE MAT. MIX.CHAMBER-x0012"
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 6712
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"6724
72048700 1 MIXING CHAMBER,FOAM MARK. STD
92712403 1 HOSE R X1" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com
HANDGUN TYPE 60S/60L POST 95
G450-HIN, 19:05:11
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
HANDGUN TYPE 60S/60L POST 95
G450-HIN, 19:05:11
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
130390 1 TEE 3/8'X 1/2' BSP F.TYPE 60S
145791 1 CONE FOR ON/OFF
147063 1 SWIRL F.SPRAY GUN TYPE 60
240936 1 O-RING D13.3X2.4 NITRIL
241441 1 O-RING D29.3X3
241965 1 O-RING 12.1 X 1.6
242007 1 O-RING D9.1X1.6
242013 1 SPRING RUBBER F/TRIGGER
242033 1 O-RING
242064 1 SLEEVE RUBBER 3X8X4MM
320084 1 FITT.DK NUT 1/2" BSP
322073 1 HOUSING F.SWIRL TYPE 60S H.G.
322075 1 CASTING
330013 1 O-RING D15/D10X2.5 F.3/8"NUT
334117 1 HANDLE PIECE RIGHT F.60S/60L
334118 1 HANDLE PIECE LEFT F.60S/60L
334121 1 SEAT FOR ON/OFF
334190 1 FITT.DK HB 1/2' F. PISTOL 60S
334533 1 CLAMP HOSE PLASTIC 3/8"
334534 1 CLAMP HOSE PLASTIC 1/2"
334653 1 FITT.DK HB 3/8' F.HANDGUN
334655 1 TRIGGER SAFETY F.60S/60L GUN
371314 1 NOZZLE CERAMIC 1099-20
440634 1 SCREW 5/8"
480716 1 PIN D3X6 STAINLESS
615455 1 TUBE F.LANCE TYPE 60L
725476 1 SPINDLE
725477 1 TRIGGER
750270 1 GASKET KIT F.SPRAY GUN
843196 1 HANDGUN KIT TYPE 60 SHORT
843197 1 HANDGUN KIT TYPE 60 LONG
92701703 1 HOSE R X3/8" X300PSI WP X0012"
92702103 1 HOSE R X1/2" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com
HC 2500/HM1500 DISPLAY/SCANBOX
G480-HIN, 15:11:09
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
HC 2500/HM1500 DISPLAY/SCANBOX
G480-HIN, 15:11:09
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
142516 1 SCREW SET M10 BENT F. LOCKING
161411 1 MT.BRK. HC2500/HM1500 DISPLAY
26018300 1 ADAPTOR 2500 FOR SPRAYBOX II
39-PIN/REPLACES SCANBOX
260363 1 PLUG 2 POLE 12V
260827 1 PLUG F.EC ATTACHMENTS
261060 1 PLUG F.EC ATTACHMENTS
261589 1 FUSE 5X20 1.25 AMP
26176203 1 FUSE 5.0A QUICK-ACT.
261933 1 CABLE W/PLUG 2X25 L=71"
261934 1 CABLE W/PLUG 18X0.5MM L=79"
261935 1 SWITCH 2 POLE
261937 1 CIRCUIT BOARD F. SCANBOX
262099 1 PLUG SOCKET 3-POLE 2.5/3
450902 1 BOLT ALLEN HEAD M4 X 16MM
471055 1 WASHER D4.1/7.6 X 0.9
61029900 1 BRACKET FOR HC2500
731613 1 DISPLAY HC2500 NEW
731983 1 DISPLAY HM1500 REFURBISHED
732095 1 DISPLAY HM1500 NEW
732096 1 SCANBOX F.HM1500/HC2500
741580 1 PLUG 3-POLE 2.5/3
978045 1 DECAL QUICK GUIDE 1500/2500
978097 1 DECAL QUICK GUIDE 1500/2500 FR
Agroparts: www.HARDI-INTERNATIONAL.com
TRANSDUCERS AND ACCESSORIES
G490-HIN, 08:04:10
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
TRANSDUCERS AND ACCESSORIES
G490-HIN, 08:04:10
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
145062 1 ROTOR SHAFT
147700 1 STUD BOLT M8 X 158MM
147701 1 NUT HEX M8 STAINLESS L=16
160695 1 BRACKET F.SENSOR
160711 1 BRACKET FOR FLOW METER
178975 1 MOUNT BRACKET F. SPEED SENSOR
179767 1 FLOW SENSOR MOUNTING BRACKET
240951 1 O-RING D21.2X3 NITRIL
241673 1 O-RING D22.1X1.6
261093 1 SPADE F.ELEC.WIRE DK 2.8X0.8
270211 1 FITT.DK S25 FORK L=37.5
320283 1 FITT.DK NUT 3/4"BSP
332205 1 O-RING D43/39XD2
333561 1 FITT.DK ELB.1" EC RETURN
334558 1 NUT HEX PLASTIC INSERT
410362 1 BOLT HEX 8.8 DEL M6X20 FT
410546 1 BOLT HEX 8.8 DEL M6X12 FT
420582 1 BOLT HEX 8.8 DEL M8X20 FT
440675 1 SCREW F. PLASTIC 5X16 SS
440677 1 SCREW F. PLASTIC 5X20 SS
460261 1 NUT HEX M6X1 LOCK
460364 1 NUT HEX M8 GALV.
471125 1 WASHER D12/D6.4x1.6 SS
637761 1 ROTOR F.FLOWMETER - PILOT
717426 1 FITT.DK REDUC 1/4"BSP F.3/4"N
722525 1 MONITOR MAGNETS SET OF 8PCS
842020 1 HP FLOW METER EC 2-30 GPM
842021 1 HP FLOW METER ESC 2-30 GPM
842022 1 HP PRESS. TRANSDUCER 0-150 PSI
842088 1 HP FLOW METER EC 4-70 GPM
842098 1 HP FLOW METER ESC 4-70 GPM
842191 1 HP FLOW METER BK/EVC 2-30 GPM
983068 1 ELEC. CABLE 3 WIRE X .25MM HP
10612603 1 KIT PLUG 6 PIN F.PILOT MONITOR
26005503 1 SPEED SENSOR/CABLE ASSY PROX
26005703 1 *SPEED SENS ADPT CBLE W PULLUP
26007200 1 CABLE,EXT F.SENS AMP PLUG 13M
39001203 1 THREAD PLST 1/2-13UNCXM6X1L=1"
46000803 1 NUT, 1/2-13 THIN
72098400 1 SPEED SENSOR W/CABLE 10000MM
72117500 1 FLOW SENSOR - M.AMP L=1M
72156500 1 HP FLOW METER PIN 4-70 GPM 20Ø
84207903 1 FLOW METER,2-30 GPM,S67,CAL
84208003 1 FLOW METER,4-70 GPM,S67,CAL
84208103 1 FLOW METER,20-160 GPM,S67,CAL
Agroparts: www.HARDI-INTERNATIONAL.com
COMMON SENSORS AND BRACKETS
G495-HIN, 20:11:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
COMMON SENSORS AND BRACKETS
G495-HIN, 20:11:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
285855 1 SENSOR INDUCTIVE M18 W/WIRE1
430286 1 BOLT HEX 8.8 DEL M12X30 FT2
430870 1 BOLT HEX 8.8 DEL M12X55 FT3
440695 1 BOLT CARRIAGE M8X254
460143 1 NUT HEX M8 LOCK5
460386 1 NUT HEX M12X1.756
460703 1 NUT HEX M12X1.75 LOCK7
470466 1 WASHER D21.1/D12.2X2.5 LOCK8
471127 1 WASHER D24/D13X2.5 STAINLESS9
480804 1 RIVET Ø4.8x14.510
16020300 1 BRACKET FOR SPEED SENSOR11
16094703 1 WHEEL SENSOR MT BKT12
16138203 1 SPEED SENSOR RING NCM 2009 1/313
16138403 1 PLATE F. SPEED SENSOR14
26006100 1 WIRE W.PLUG AMP FEMALE L=5M15
28047500 1 SPEED SENSOR HM16
61000603 1 SPEED SNS MNT CLAMP F/DLS 4.5"17
61010703 1 SPEED SENSOR BKT NCM NON-S OLD18
61015803 1 SPEED SENSOR BKT NCM 201019
72050100 1 TWIN RPM SENSOR HN20
72534000 1 TANK LEVEL ELEC SENSOR KIT 9M21
Agroparts: www.HARDI-INTERNATIONAL.com
HOSE WRAPS
G510-HIN, 19:05:11
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
HOSE WRAPS
G510-HIN, 19:05:11
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
241965 1 O-RING 12.1 X 1.6
242007 1 O-RING D9.1X1.6
281551 1 BALL VALVE 1/2"
320084 1 FITT.DK NUT 1/2" BSP
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330326 1 O-RING D30/D24X2 F.1"NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
334190 1 FITT.DK HB 1/2' F. PISTOL 60S
334531 1 CLAMP HOSE PLASTIC 3/4"
636223 1 POST 12 VOLT TR30
712471 1 AGITATION VALVE ASSY. ON/OFF
843196 1 HANDGUN KIT TYPE 60 SHORT
843197 1 HANDGUN KIT TYPE 60 LONG
10013403 1 BOLT HEX 3/8-16X1 1/4 HCS Z5
10013503 1 NUT HEX NC 3/8"
10178903 1 WRAP HOSE SIDE MOUNT PLATE
10179003 1 WRAP HOSE BOTTOM PLATE MOUNT
10179403 1 WRAP WELDMENT FOR HI101789
10179503 1 WRAP WELDMENT FOR HI101790
10225603 1 BKT.FOR HOSE WRAP MOUNT NL NK
10225703 1 WRAP HOSE BDL.BOTTOM PLATE
92702103 1 HOSE R X1/2" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com
PRESSURE GAUGES
G520-HIN, 13:06:08
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
PRESSURE GAUGES
G520-HIN, 13:06:08
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
280637 1 GAUGE 2.5"BR BOTT.PSI85 BAR6
283754 1 GAUGE 2.5'BR REAR PSI200 BAR16
284269 1 GAUGE 2.5'BR BOTT.BAR16
844082 1 GAUGE 1.5'BR REAR PSI140BAR10
844086 1 GAUGE 2.5'BR BOTT.PSI1000BAR80
844088 1 GAUGE 2.5'BR BOTT PSI1200BAR80
10349503 1 GAUGE 2'BR REAR PSI100KP700
28014403 1 GAUGE 4"BR REAR PSI200
28026103 1 GAUGE 200PSI/BR,4",1/4"BSP-BTM
28026203 1 GAUGE 200PSI/BR,2.5"1/4BSP-BTM
Agroparts: www.HARDI-INTERNATIONAL.com
QUICKFILL - RANGER 550
G575-HIN, 21:04:11
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
QUICKFILL - RANGER 550
G575-HIN, 21:04:11
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
145997 1 FITT.DK S-93 FORK1
242351 1 O-RING D69.5X3.0 VITON F.S-932
322105 1 FITT.DK S-93 BULKHEAD DOUBLE3
322109 1 FITT.DK S-93 BULKHEAD NUT4
334446 1 FITT.DK S-93 ELB. 2' RUBBER5
390721 1 FITT.DK S-93 PLUG W/2'NPT THRE6
451070 1 SQUARE NECK BOLT M12X307
460703 1 NUT HEX M12X1.75 LOCK8
10531003 1 CAP F.MALE QUICK COUPLER 2"9
10533303 1 DECAL CAUTION-LEAK Q.FILL ENG10
16144003 1 BRACKET, QUICK FILL, RG55011
24001203 1 RBR LANYARD 11" F.QCK FILL CAP12
28014603 1 VALVE STUBBY 2" BANJO13
28030203 1 CLAMP HOSE T-BOLT S2" 235-6714
92702703 1 HOSE PVC SUCT GRAY 2"15
Agroparts: www.HARDI-INTERNATIONAL.com
REMOTE GAUGE-MAGNETIC BASE KIT
G611-HIN, 19:05:11
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
REMOTE GAUGE-MAGNETIC BASE KIT
G611-HIN, 19:05:11
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
231346 1 QUICK COUPLER 1/8"BSP X 4 MM
232230 1 QUICK COUPLER 1/4"BSP X 4 MM
241651 1 O-RING D14.0X3.0 NITRIL
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
283581 1 HOSE CONNECTOR STR.F.4MM PE
284582 1 CLmP HSE GEAR3/8" alt 28029803
320187 1 FITT.DK CAP 3/8" BSP BLACK
320283 1 FITT.DK NUT 3/4"BSP
320445 1 FITT.DK HN 1/4"X3/8" BSP
321926 1 FITT.DK REDUC 1/8"BSP F.3/4"N
322046 1 FITT.DK TEE 1/2X1/2HB X3/4'BSP
322048 1 FITT.DK TEE 3/4X3/4HB X3/4'BSP
330013 1 O-RING D15/D10X2.5 F.3/8"NUT
330061 1 O-RING D16/D11X2,5
331807 1 FITT.DK HB 5/16" F.3/8" NUT
334531 1 CLAMP HOSE PLASTIC 3/4"
334534 1 CLAMP HOSE PLASTIC 1/2"
390713 1 GAUGE ADAPTOR 1/4" BSP
440698 1 SCREW F.PLASTIC 6X18 SS HEXHD
721851 1 SCREW PLUG W/QUICK FIT
724637 1 FITT.DK HB 5/16' F. 3/4" COMP.
927253 1 HOSE R X PE D4/D2 X 0012"RED
927268 1 HOSE R X PVC X 1/4 X 0012"
10536703 1 MAGNETIC BASE D3,2'/90LB
10536803 1 MAGNETIC BASE KIT F.GAUGE
28026203 1 GAUGE 200PSI/BR,2.5"1/4BSP-BTM
92702103 1 HOSE R X1/2" X300PSI WP X0012"
92703203 1 HOSE R X3/4" X300PSI WP X0012"
Agroparts: www.HARDI-INTERNATIONAL.com
RINSE SYSTEM NOZZLE - LOW MOD.
G635-HIN, 30:11:10
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
RINSE SYSTEM NOZZLE - LOW MOD.
G635-HIN, 30:11:10
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
145997 1 FITT.DK S-93 FORK1
240306 1 O-RING D29/D21X42
242351 1 O-RING D69.5X3.0 VITON F.S-933
242355 1 O-RING D19.2X3.0 VITON F.S-404
320342 1 FITT.DK EL 3/4"M X 1"F BSP5
320456 1 FITT.DK BULKHEAD 1"BSP DOUBLE6
320471 1 FITT.DK NUT 1" BSP JAMB7
320574 1 FITT.DK NUT 1" BSP SPECIAL8
321484 1 BUSHING THREADED F.NOZZ.TUBE9
322105 1 FITT.DK S-93 BULKHEAD DOUBLE10
322109 1 FITT.DK S-93 BULKHEAD NUT11
332577 1 O-RING D38/D30X4 F.1" PUR.12
334262 1 GASKET F.S-93 BULKHEAD13
341106 1 TUBE F.RINSE NOZZLE14
390485 1 FITT.DK S-93 PLUG W D34 HOLE15
440665 1 SCREW M4.2X16 STAINLESS16
728014 1 RINSE NOZZLE MOUNTED17
72358000 1 TANK RINSE LOW MOD.ASSMBLY NCM18
Agroparts: www.HARDI-INTERNATIONAL.com
SAFETY CHAINS
G645-HIN, 12:12:05
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
SAFETY CHAINS
G645-HIN, 12:12:05
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
10275803 1 CHAIN BKT. FOR TR300/500/TX650
10276003 1 SAFETY CHAIN KIT TR300/500
14001103 1 MOUNTING HUB F. SAFETY CHAIN
14001203 1 MNT WASHER F. SAFE CHAIN KIT
16020303 1 SAFETY CHAIN MNT.BRKT.30,400LB
16023103 1 SAFETY CHAIN MNT.BRKT.40,500LB
16056003 1 SAFETY CHAIN MNT.BRKT.16100 lb
16056103 1 SAFETY CHAIN MNT.BRKT.40500 lb
28014703 1 SAFETY CHAIN 30,400LBS CERT.
28017703 1 SAFETY CHAIN 40,500LBS CERT.
29000403 1 SAFETY CHAIN CERT 16100LB
70012403 1 *SAFETY CHAIN KIT 16100LB NAV
70016803 1 SAFETY CHAIN KIT CM1500
83311903 1 SAFTY CHAIN KIT 575 NAV.
83312003 1 SAFETY CHAIN KIT 1100 NAV.
83312103 1 SAFETY CHAIN KIT CM+750
83312203 1 SAFETY CHAIN KIT CM+1200
Agroparts: www.HARDI-INTERNATIONAL.com
TRAFFIC LIGHT KIT
G680-HIN, 01:01:01
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
TRAFFIC LIGHT KIT
G680-HIN, 01:01:01
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
410266 1 BOLT HEX 8.8 DEL M6X120
410362 1 BOLT HEX 8.8 DEL M6X20 FT
410421 1 BOLT HEX 8.8 DEL M6X110
410524 1 BOLT HEX 8.8 DEL M6X100
410605 1 BOLT HEX 8.8 DEL M6X80
460261 1 NUT HEX M6X1 LOCK
16022303 1 BRACKET 100MM TUBE
16022403 1 BRACKET 60MM TUBE
16025603 1 BRACKET TAIL LIGHT DUAL LAMP
26004703 1 HARNESS 13' EXT 4 WIRE WP
26004803 1 HARNESS MAIN TAIL LIGHT
26004903 1 TAIL LIGHT GREEN WIRE LH
26005003 1 TAIL LIGHT YELLOW WIRE RH
26005103 1 PLUG 7-PIN AG TAIL LIGHT
26005203 1 LENS AMBER BEFORE 2009
26005303 1 LENS RED BEFORE 2009
26005403 1 LENS BLACK BEFORE 2009
26006503 1 HARNESS 14' EXT 4 WIRE WP
83308603 1 TRAFFIC LIGHT KIT
Agroparts: www.HARDI-INTERNATIONAL.com
DISPLAY HC 5500
G701-HIN, 15:06:07
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
DISPLAY HC 5500
G701-HIN, 15:06:07
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
72155600 1 HC 5500 DISPLAY UNIT
72174000 1 DISPLAY HC5500 REFURBISHED
72191700 1 HC5500 DISPLAY FRONT COMPLETE
Agroparts: www.HARDI-INTERNATIONAL.com
SPRAYBOX II
G702-HIN, 15:06:07
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
SPRAYBOX II
G702-HIN, 15:06:07
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
26000400 1 KNOB F.FOAM ADJUST HC55001
26005300 1 POT.METER F. SPRAYBOX II2
26010200 1 CONTROL BOX 2SEC, SPRAY BOX II3
26010300 1 CONTROL BOX 3SEC, SPRAY BOX II3
26010400 1 CONTROL BOX 4SEC, SPRAY BOX II3
26010500 1 CONTROL BOX 5SEC, SPRAY BOX II3
26010600 1 CONTROL BOX 6SEC, SPRAY BOX II3
26010700 1 CONTROL BOX 7SEC, SPRAY BOX II3
26011000 1 SPRAY CONT. II EVC 4 SEC. HAZ3
26011100 1 SPRAY CONT. II EVC 5 SEC. HAZ3
26011200 1 SPRAY CONT. II EVC 6 SEC. HAZ3
26011300 1 SPRAY CONT. II EVC 7 SEC. HAZ3
28031400 1 PLUG 39-POLE FEMALE HC55004
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULIC CONTROL BOX 39-PIN
G703-HIN, 14:06:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
HYDRAULIC CONTROL BOX 39-PIN
G703-HIN, 14:06:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
26000300 1 FUSE 10A D5X20 MM1
26016600 1 HYD. CONTROL BOX DHP 39 PIN2
26030900 1 HYD. CONTROL BOX WITHOUT DECAL2
28031400 1 PLUG 39-POLE FEMALE HC55003
97611203 1 DECAL-FTZ SEQUENTIAL FOLD4
97612603 1 DECAL HYD.CNTRL.BOX RANGER HZ4
97612703 1 DECAL HYD.CNTRL.BOX RANGER HV4
97614803 1 DECAL HYD.CNTRL.BOX 90/604
97614903 1 DECAL HYD.CNTRL.BOX 120/904
Agroparts: www.HARDI-INTERNATIONAL.com
CABLES
G704-HIN, 22:06:09
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
CABLES
G704-HIN, 22:06:09
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
26005900 1 CABLE 37/37 POLE DAH/JOBCOM1
26006200 1 WIRE W.PLG 2P.AMP FEM.L=14'9"2
26006300 1 WIRE W.PLUG AMP FEMALE L=.5M2
26006400 1 WIRE W.PLG 2P.AMP FEM.L=29.5"2
26006500 1 WIRE W.PLUG AMP FEMALE L=1.5M2
26006600 1 WIRE W.PLUG AMP FEMALE L=9M2
26006700 1 WIRE W.PLG 2P.AMP MALE L=4.75"3
26006800 1 WIRE W.PLG 2P.AMP MALE L=39"4
26006000 1 WIRE W.PLG 3P.AMP FEM.L=59"5
26006100 1 WIRE W.PLUG AMP FEMALE L=5M5
26007000 1 WIRE W.PLUG AMP FEMALE L=0.2M5
26007100 1 CABLE AMP MALE 3 WIRE L=9M5
26007200 1 CABLE,EXT F.SENS AMP PLUG 13M5
26007300 1 WIRE W.PLG 3P.AMP MALE L=39"6
26007400 1 SENSOR EXTENSION CABLE AMP,3M7
26009800 1 EXTENSION CABLE 2P.AMP L=20"7
26004900 1 CABLE FEM/MALE 37P L=9.5M8
26007500 1 CABLE FEM/FEM 15P L=3.5M9
262150 1 SCREW ASSM.FOR D-SUB PLUG10
72450600 1 CAP F. AMP SUPER SEAL 2P PLUG11
72450700 1 CAP F. AMP SUPER SEAL 3P PLUG12
72450800 1 CAP F. AMP SUPER SEAL 4P PLUG13
Agroparts: www.HARDI-INTERNATIONAL.com
JUNCTION BOX - LIQUID
G705-HIN, 01:12:10
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
JUNCTION BOX - LIQUID
G705-HIN, 01:12:10
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
262106 1 BULKHEAD F. CABLE 6.5-14 BLACK1
262107 1 NUT F. BULKHEAD CABLE BLACK2
26004800 1 CIRCUIT BD SEC VLV NCM 13SEC
13 SECTION
3
72173900 1 CIRCUIT BD SEC VLV 39PIN 9SEC
9 SECTION
3
28082100 1 SCREW F. BOX LID 1/4" L=204
33508700 1 BOX 160X80X40 BLACK5
33508800 1 BOX LID 160X80X15 BLACK6
72115400 1 CONNECTION BOX F. OP. UNIT SV97
Agroparts: www.HARDI-INTERNATIONAL.com
POWER SUPPLY CABLES
G706-HIN, 04:06:10
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
POWER SUPPLY CABLES
G706-HIN, 04:06:10
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
261605 1 FUSE 25A F. HP3050
983070 1 CABLE 2X6MM
16112800 1 BRACKET F.12V POWER CABLE/PLUG
28048000 1 PLUG 3-POL DIN 9680 FEM.CHASS
72266300 1 CABLE 12VDC POWER F. TRACTOR
Agroparts: www.HARDI-INTERNATIONAL.com
HC 5500 ACCESSORIES
G709-HIN, 13:06:08
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
HC 5500 ACCESSORIES
G709-HIN, 13:06:08
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
142516 1 SCREW SET M10 BENT F. LOCKING
261933 1 CABLE W/PLUG 2X25 L=71"
280235 1 HARDI PRINTER WITH CLOCK
390931 1 PLASTIC SPACER D40XD11 L=20
421105 1 BOLT HEX 8.8 DEL M10X45 FT
460423 1 NUT HEX M10X1.5 LOCK
470127 1 WASHER D15D10X2 M10 LOCK
741727 1 PAPER, THERMAL, HC5500 PRINTER
28027600 1 WIRE HC5500 AUX.
61002700 1 TUBE BRACKET F.TRACTOR MOUNT
61003000 1 BRACKET F.TRACTOR MOUNT
61011800 1 BOX FOR HARDI PRINTER
61011900 1 TUBE BRACKET F.TRACTOR MOUNT
72173500 1 WIRE F.PRINTER HC5500 L=20"
72271600 1 HC5500 COMMUNICATION CABLE
83350603 1 FOOT SWITCH HC5500 CONTROL
Agroparts: www.HARDI-INTERNATIONAL.com
39 PIN CABLES
G710-HIN, 16:05:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
39 PIN CABLES
G710-HIN, 16:05:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
262158 1 PLUG INSERT 39 POLE MALE
262159 1 PLUG INSERT 39 POLE FEMALE
262160 1 PLUG HOUSING 39 POLE FEMALE
262161 1 PLUG HOUSING F/39 POLE MALE
440634 1 SCREW 5/8"
440732 1 PT SCREW 35X12B Z5452 ELZ
14034200 1 CODE BRACKET FOR 39 PIN CABLE
26003900 1 WIRE 37-39 PIN EVC, 6.6'
26004200 1 WIRE 37-39 PIN EVC, 57.4'
26008400 1 WIRE 39-PIN 24 WIRE L=8M
28027500 1 WIRE 37-39 PIN EVC, 37.7'
28028700 1 WIRE 37-39 PIN EVC, 45.9'
28028800 1 WIRE 37-39 PIN EVC, 16.4'
28028900 1 WIRE 37-39 PIN EVC, 26.2'
72236400 1 DAH CONN. WIRE/TRACTOR L=8M
97610803 1 DECAL-SRAY BOX 39-PIN
97610903 1 DECAL-HYDRAULIC BOX 39-PIN
Agroparts: www.HARDI-INTERNATIONAL.com
ELECTRIC END NOZZLE KIT
G711-HIN, 11:05:10
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
ELECTRIC END NOZZLE KIT
G711-HIN, 11:05:10
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
145994 1 FITT.DK S-40 FORK1
145995 1 FITT.DK S-53 FORK2
240177 1 O-RING D16, 1/11, 3 X 2,43
242354 1 O-RING D32.2X3.0 VITON F.S-534
242355 1 O-RING D19.2X3.0 VITON F.S-405
242594 1 O-RING D14 X 1.78 SCH.70-EPDM6
261539 1 SPADE F.ELEC CONNEC BLUE INSUL7
262104 1 VALVE, SOLENOID, S53/S408
320084 1 FITT.DK NUT 1/2" BSP9
320187 1 FITT.DK CAP 3/8" BSP BLACK10
320283 1 FITT.DK NUT 3/4"BSP11
320596 1 FITT.DK ELB 3/8'-1/2'BSP 45DEG12
321307 1 FITT.DK NUT 1/2" BSP JAMB13
321742 1 FITT.DK BULKHEAD 1/2' BSP14
322103 1 FITT.DK S-53 BULKHEAD15
322352 1 FITT.DK S-53 TEE16
330212 1 O-RING D19/D14X2.4 F.1/2"NUT17
330687 1 FITT.DK HB 1/2" F. 1/2" NUT18
334965 1 COVER FOR S53 SOLENOID VALVE19
370366 1 NOZZLE END FAN 1850-G 15020
410185 1 BOLT HEX 8.8 DEL M6X1621
460261 1 NUT HEX M6X1 LOCK22
471125 1 WASHER D12/D6.4x1.6 SS23
614366 1 FILTER 50 MESH F.NOZZLE24
614367 1 FILTER 80 MESH F.NOZZLE24
614368 1 FILTER 100 MESH F.NOZZLE24
720856 1 FITT.DK 1/2'BSP ASSY.F.3/4'NUT25
726558 1 FITT.DK S53 STR. 3/4" W.ORING26
726567 1 FITT.DK S-40 ELB.1/2" W.ORING27
726694 1 PLUG,S53,1/2"FBSP THD W.ORING28
729610 1 NOZZLE ASSY. 3/8 THREAD29
750722 1 REPAIR KIT FOR 3S SC CONTROL30
983087 1 ELEC. CABLE 2 WIRE X 0.75MM31
16180100 1 PLATE, END ROW NOZZLE32
28025203 1 TIE STRAP L=23" x W=1/2"33
28029803 1 CLAMP HOSE GEAR P1/2" 670834
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 671235
82611603 1 ELEC.END NOZ.KIT. OBSOLETE36
92702103 1 HOSE R X1/2" X300PSI WP X0012"37
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC UC4 BOOM HEIGHT CONTROL
G712-HIN, 02:06:11
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC UC4 BOOM HEIGHT CONTROL
G712-HIN, 02:06:11
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
410443 1 BOLT HEX 8.8 DEL M6X70
FORCE BOOM (FTZ)
1
410605 1 BOLT HEX 8.8 DEL M6X80
SPB/SPC BOOM
1
460261 1 NUT HEX M6X1 LOCK2
471124 1 WASHER D18/D6.4x1.63
16128603 1 BRACKET F. SENSOR 60X60 TUBE
SPB/SPC BOOM
4
16128703 1 BRACKET F. SENSOR 50x50 TUBE
FORCE BOOM (FTZ)
4
26016303 1 CONNECTOR RING CPC #11 NORAC5
26026600 1 NORAC CABLE VAR.RT.VLV DIN
3-PIN CONNECTORS/HIRSCHMAN
6
28055603 1 NORAC CABLE VAR.RT.VLV DEUTSCH
2-PIN CONNECTORS/DEUTSCH
6
28049503 1 NORAC CABLE EXTENSION7
28049603 1 NORAC POWER CABLE8
28050303 1 NORAC RUBBER TOP&BOLT F.SENSOR9
28050703 1 NORAC UC4+ OPEN CTR. CABLE10
28054303 1 PARALIFT INTERFACE CABLE NORAC11
28055503 1 NORAC VALVE MOUNTING HARDWARE12
28055703 1 NORAC VALVE CABLE ROLL PIGTAIL13
28085900 1 SENSOR BRANCH CABLE NORAC14
28086000 1 CAN NODE (AXLE) NORAC15
28086100 1 CAN NODE (BOOM) NORAC16
28086200 1 CAN NODE DUAL CABLE NORAC17
28086300 1 UC4 DISPLAY PANEL NORAC18
28086400 1 UC4 ULTRASOUND SENSOR NORAC19
28086500 1 UC4 SENSOR MOUNTING BKT. NORAC20
28086600 1 FOAM DISC F. SENSOR NORAC21
78216100 1 NORAC VALVE BLOCK COMPLETE UC422
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC VARIABLE RATE VALVE UC4
G713-HIN, 25:10:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC VARIABLE RATE VALVE UC4
G713-HIN, 25:10:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
28048803 1 NORAC CHECK VALVE1
28048903 1 NORAC PROP VALVE
3-PIN CONNECTORS/HIRSCHMAN
2
28055803 1 NORAC SOLENOID - DEUTSCH CONN.
2-PIN CONNECTORS/DEUTSCH
2
28049203 1 NORAC ONE WAY ORIFICE3
28049403 1 NORAC CHECK VALVE4
28056403 1 COIL, NORAC, PROP, DIN5
28056503 1 COIL, NORAC, PROP, DEUTSCH6
28066803 1 NORAC FILTER CAP W/O-RING7
28066903 1 NORAC SEAL KIT F.280494038
28067003 1 NORAC SEAL KIT F.280488039
28068103 1 NORAC HEX CAPSCREW 10-24X2 SS10
28068203 1 NORAC O-RING F.SOLENOID VALVE11
28074903 1 NORAC COIL NUT AND O-RING12
75076900 1 NORAC FILTER ELEMENT KIT13
78216100 1 NORAC VALVE BLOCK COMPLETE UC4
COMPLETE W/2-PIN DEUTSCH SOLENOIDS
14
Agroparts: www.HARDI-INTERNATIONAL.com
JUNCTION BOXES - HYDRAULIC
G719-HIN, 05:06:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
JUNCTION BOXES - HYDRAULIC
G719-HIN, 05:06:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
261442 1 LID F.3010/3012 HP BOX1
391071 1 BOX FOR HY.DAH2
983070 1 CABLE 2X6MM3
26016900 1 CABLE DB25M - DB25F L=8.5m4
26018000 1 HYD JUNCTION BOX SPZ
PRE 2012 EAGLE SPC BOOMS
5
26018100 1 HYD. BOX BOOM PCB W/LEADS
FOR FORCE/TWIN FORCE BOOMS
5
26018500 1 HYD. BOX BOOM PCB NO LEADS5
26038300 1 HYD JUNCTION BOX GENERIC
2012 EAGLE SPC/FORCE BOOMS
5
28048000 1 PLUG 3-POL DIN 9680 FEM.CHASS6
28048100 1 PLUG 3-POL DIN 9680 MALE SPRAY7
28048200 1 WIRE GROMET RUBBER 4 HOLE8
28048500 1 FUSE 10A AUTO9
72243500 1 DAH INTERFACE PCB MOUNTED10
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC SEVERE TERRAIN KIT
G720-HIN, 18:03:10
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC SEVERE TERRAIN KIT
G720-HIN, 18:03:10
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
26030300 1 NORAC SEVERE TERRAIN CABLE1
28024103 1 TIE STRAP L=8" x W=3/16"2
28025203 1 TIE STRAP L=23" x W=1/2"3
28086400 1 UC4 ULTRASOUND SENSOR NORAC4
28086500 1 UC4 SENSOR MOUNTING BKT. NORAC5
72591600 1 NORAC HC SEVERE TERRAIN KIT6
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC UC5 BOOM HEIGHT CONTROL
G722-HIN, 09:06:11
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC UC5 BOOM HEIGHT CONTROL
G722-HIN, 09:06:11
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
410443 1 BOLT HEX 8.8 DEL M6X70
FORCE BOOM (FTZ)
1
410605 1 BOLT HEX 8.8 DEL M6X80
SPB/SPC BOOM
1
460261 1 NUT HEX M6X1 LOCK2
471124 1 WASHER D18/D6.4x1.63
16128603 1 BRACKET F. SENSOR 60X60 TUBE
SPB/SPC BOOM
4
16128703 1 BRACKET F. SENSOR 50x50 TUBE
FORCE BOOM (FTZ)
4
26022403 1 SENSOR, NORAC, UC5, ULTRASONIC5
26022703 1 CABLE,INTERFACE,TILT,NORAC UC56
26022803 1 MODULE, INPUT, NORAC UC57
26022903 1 CABLE UC5 NETWORK 14 AWG 10M8
26023003 1 CABLE UC5 NETWORK 14 AWG 1M9
26023103 1 CABLE UC5 NETWORK 18 AWG 3M10
26023203 1 CABLE UC5 NETWORK 18 AWG 1M11
26023303 1 CABLE UC5 NETWORK 18 AWG 20M12
26023403 1 CABLE UC5 VALVE 2PIN/2PIN DT13
26023503 1 CABLE UC5 INTERFACE MAIN AMP14
26023603 1 NORAC UC5 CONTROLLER MODULE15
26023703 1 NORAC UC5 VALVE MODULE16
26023803 1 NORAC UC5 ROLL SENSOR17
26023903 1 NORAC UC5 NETWRK COUPLER 8-WAY18
26024003 1 NORAC UC5 NETWRK COUPLER 2-WAY19
26024103 1 NORAC UC5 COUPLER 2-WAY/TERM.20
26024203 1 NORAC UC5 NETWORK 2-PIN PLUG21
26024303 1 NORAC UC5 NETWORK 12-PIN PLUG22
26024403 1 NORAC UC5 NETWORK 6-PIN PLUG23
26024503 1 NORAC VALVE BLOCK COMPLETE UC524
28050303 1 NORAC RUBBER TOP&BOLT F.SENSOR25
28055503 1 NORAC VALVE MOUNTING HARDWARE26
28086500 1 UC4 SENSOR MOUNTING BKT. NORAC27
28086600 1 FOAM DISC F. SENSOR NORAC28
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC VAR. RATE VALVE UC4/UC5
G723-HIN, 25:10:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
NORAC VAR. RATE VALVE UC4/UC5
G723-HIN, 25:10:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
26024503 1 NORAC VALVE BLOCK COMPLETE UC51
28049203 1 NORAC ONE WAY ORIFICE2
28049403 1 NORAC CHECK VALVE3
28055803 1 NORAC SOLENOID - DEUTSCH CONN.4
28056503 1 COIL, NORAC, PROP, DEUTSCH5
28066903 1 NORAC SEAL KIT F.280494036
28067103 1 NORAC HEX CAPSCREW 3/8X1-1/4"7
28067203 1 NORAC FILTER CAP - 4 BOLT8
28067303 1 NORAC FILTER ELEMENT KIT UC59
28067403 1 NORAC VALVE FILTER INSERT10
28067503 1 NORAC CHECK VALVE C-8-211
28067603 1 NORAC SEAL KIT F.2806750312
28067703 1 NORAC CHECK VALVE C-8-313
28067803 1 NORAC SEAL KIT F.2806770314
28067903 1 NORAC CHECK VALVE C-8-415
28068003 1 NORAC SEAL KIT F.2806790316
28068103 1 NORAC HEX CAPSCREW 10-24X2 SS17
28068203 1 NORAC O-RING F.SOLENOID VALVE18
28074903 1 NORAC COIL NUT AND O-RING19
Agroparts: www.HARDI-INTERNATIONAL.com
HYD. JUNCTION BOX 2012
G725-HIN, 30:05:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
HYD. JUNCTION BOX 2012
G725-HIN, 30:05:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty descriptionPos.
262106 1 BULKHEAD F. CABLE 6.5-14 BLACK1
262107 1 NUT F. BULKHEAD CABLE BLACK2
440675 1 SCREW F. PLASTIC 5X16 SS3
26006400 1 WIRE W.PLG 2P.AMP FEM.L=29.5"4
26018500 1 HYD. BOX BOOM PCB NO LEADS5
28082100 1 SCREW F. BOX LID 1/4" L=206
33508700 1 BOX 160X80X40 BLACK7
33508800 1 BOX LID 160X80X15 BLACK8
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS-CAP NUTS & HOSE BARBS
H010-HIN, 28:11:06
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS-CAP NUTS & HOSE BARBS
H010-HIN, 28:11:06
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
240085 1 O-RING D13,1/8,3X02,4 NITRIL
241441 1 O-RING D29.3X3
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
320084 1 FITT.DK NUT 1/2" BSP
320095 1 FITT.DK NUT 1" BSP
320117 1 FITT.DK CONN.1/2"BSP F. 1" CAP
320187 1 FITT.DK CAP 3/8" BSP BLACK
320283 1 FITT.DK NUT 3/4"BSP
320821 1 FITT.DK NUT 1-1/2" BSP
321495 1 FITT.DK REDUC 1/4'BSP F.3/4'NT
321576 1 FITT.DK CONN 1/2"BSP F.3/4"NUT
330013 1 O-RING D15/D10X2.5 F.3/8"NUT
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330326 1 O-RING D30/D24X2 F.1"NUT
330341 1 FITT.DK HB 1" F. 1" NUT
330595 1 O-RING D24.6/D20X2.1 -3/4"
330665 1 FITT.DK HB 3/4"F.1" NUT
330676 1 FITT.DK HB 3/8" F. 1/2" NUT
330687 1 FITT.DK HB 1/2" F. 1/2" NUT
330691 1 FITT.DK HB 3/4'F.3/4' NUT
330783 1 FITT.DK HB 3/8"F.3/8" NUT
331262 1 FITT.DK HB 1-1/2" F. 1-1/2"NUT
331273 1 O-RING D44/D38X2 F.1-1/2"
331446 1 FITT.DK HB 1" F.1-1/2" NUT
331807 1 FITT.DK HB 5/16" F.3/8" NUT
332286 1 FITT.DK HB 1/2" F. 3/4" NUT
332905 1 FITT.DK HB 1/2" F. 3/4" CAP
332927 1 FITT.DK PL.F. NOZZLE TUBE
333292 1 FITT.DK HB 1"O'RING F.1-1/2"
333664 1 FITT.DK HB 5/16' F. 1/2' NUT
334044 1 FITT.DK HB 3/4' F. 3/4' CAP
334059 1 FITT.DK EL 1" 110 DEG.F.1-1/2"
334123 1 FITT.DK HB 1-1/4"O-RNG F.1-1/2
334150 1 FITT.DK HB 1-1/4" 110 F.1-1/2"
390542 1 PLUG WASHER FOR 3/4'CAP NUT
716236 1 FITT.DK HB 1/2" ASSY. F. 3/4"
716413 1 FITT.DK PLUG ASSY. F.NOZ TUBE
717426 1 FITT.DK REDUC 1/4"BSP F.3/4"N
720856 1 FITT.DK 1/2'BSP ASSY.F.3/4'NUT
724621 1 FITT.DK HB 3/4"ASSY F.3/4" NUT
Agroparts: www.HARDI-INTERNATIONAL.com
FITTNGS-T-PIECES,CAPS & ELBOWS
H020-HIN, 01:01:01
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTNGS-T-PIECES,CAPS & ELBOWS
H020-HIN, 01:01:01
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
10053603 1 FITT. CAPNUT 2"BSP 5601
10194303 1 CAP BLANK 1 1/2 MCPHEE 210060
320047 1 FITT.DK CAPNUT 1/2" BSP
320106 1 FITT.DK CAPNUT 1" BSP
320272 1 FITT.DK CAPNUT 3/8' BSP
320316 1 FITT.DK TEE 3/4" X3/4" X1"BSP
320331 1 FITT.DK TEE 1" - 1" - 3/4" BSP
320342 1 FITT.DK EL 3/4"M X 1"F BSP
320563 1 FITT.DK 3 WAY 1/2" 110 DEG.
320677 1 NO LONGER AVAILABLE
320961 1 FITT.DK CAPNUT 1-1/2" BSP
321053 1 FITT.DK TEE 1/2 X1/2 X1/2" BSP
322072 1 FITT.DK TEE 3/8'X3/8'X3/8' BSP
322095 1 FITT.DK TEE 1-1/2 X1 X3/4" BSP
322138 1 FITT.DK ELB 1"M X 1"F BSP
330013 1 O-RING D15/D10X2.5 F.3/8"NUT
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
330326 1 O-RING D30/D24X2 F.1"NUT
331273 1 O-RING D44/D38X2 F.1-1/2"
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - HEXAGON NIPPLES
H030-HIN, 01:01:01
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - HEXAGON NIPPLES
H030-HIN, 01:01:01
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
10015303 1 FITT.PO.HN 1.00X1.00 M1000
10425003 1 FITT.PO.HN 1.25X1.00 MCPHEE
320132 1 FITT.DK HN 1" BSP
320176 1 FITT.DK HN 3/8"X1/2" BSP
320445 1 FITT.DK HN 1/4"X3/8" BSP
320655 1 FITT.DK HN 1/2"-1/2" BSP
320692 1 FITT.DK HN 3/8'BSPX1/4'NPT
320703 1 FITT.DK HN 3/8BSP X1/2 &1/4NPT
320725 1 FITT.DK NIPPLE 3/8"-3/8" BSP
320902 1 FITT.DK HN 3/8'X 1/4' BSP
390232 1 FITT.DK HN 1-1/2' X 1-1/4' BSP
390276 1 FITT.DK HN 1'BSP
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - NIPPLES & ELBOWS
H040-HIN, 01:01:01
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - NIPPLES & ELBOWS
H040-HIN, 01:01:01
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
10530803 1 FITT.PO.SE 2.00X2.00 45 DEG.
320191 1 FITT.DK ELB 3/8' BSP 45 DEGREE
320482 1 FITT.DK ELB. 1/2" BSP 60 DEG.
320596 1 FITT.DK ELB 3/8'-1/2'BSP 45DEG
320607 1 FITT.DK HN 3/8M X 3/8F BSP LNG
320633 1 FITT.DK HN 3/8"M X 3/8"F BSP
321451 1 FITT.DK ELB.1-1/2 X1-1/4 80DEG
321532 1 FITT.DK REDUC 3/4' X 1/2' BSP
390233 1 FITT.DK REDUC 1-1/2" X 1" BSP
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - HOSE CONNECTORS
H050-HIN, 31:03:09
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - HOSE CONNECTORS
H050-HIN, 31:03:09
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
242594 1 O-RING D14 X 1.78 SCH.70-EPDM
320294 1 FITT.DK TEE 3/8X3/8HB X1/2"BSP
320305 1 FITT.DK HB 3/4'- 3/4' BSP
320386 1 FITT.DK TEE 3/8X3/8HB X3/8"BSP
320397 1 FITT.DK ELB 3/8"HB X 3/8" BSP
320401 1 FITT.DK TEE 1/2X1/2HB X1/2"BSP
320412 1 FITT.DK TEE 1/2X1/2HB X3/8'BSP
320423 1 FITT.DK ELB 1/2'HB X 3/8' BSP
320891 1 FITT.DK HB 3/8'- 3/8' BSP
320972 1 FITT.DK HB 5/16'- 1/4' BSP
322046 1 FITT.DK TEE 1/2X1/2HB X3/4'BSP
322048 1 FITT.DK TEE 3/4X3/4HB X3/4'BSP
330595 1 O-RING D24.6/D20X2.1 -3/4"
333137 1 FITT.DK CONN.1/2" F.NOZZ. DOUB
333141 1 FITT.DK CONN.1/2" F.NOZZ.SING
334041 1 FITT.DK CONN.3/4' F.NOZZ. SING
334042 1 FITT.DK CONN.3/4' F.NOZZ. DOUB
334195 1 FITT.DK ELB. 3/4"HB X 3/4"HB
10012103 1 FITT.PO.HB 1.25X1.50 IMB1012
10014003 1 FITT.PO.HB 1.25X1.25 IMB1010
10036903 1 FITT.PO.HB 1.50X1.50 IMB1212
28019303 1 FITTING HB ELB 3/4NPT-3/4HOSE
61016500 1 HOSE TAIL 3/4" 90°+RG CAP 3/4"
72026700 1 NOZZLE TUBE ADAPTER W/O-RING
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - BULKHEAD
H060-HIN, 01:01:01
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - BULKHEAD
H060-HIN, 01:01:01
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
141046 1 NUT 3/8" BSP
141341 1 NUT 1/4' BSP
240284 1 O-RING D82,5/75 X 3,5
320456 1 FITT.DK BULKHEAD 1"BSP DOUBLE
320467 1 FITT.DK BULKHEAD 1"BSP SINGLE
320471 1 FITT.DK NUT 1" BSP JAMB
320541 1 FITT.DK BULKHEAD 2-1/2'BSP SIN
320552 1 FITT.DK NUT 2-1/2' BSP JAMB
320644 1 FITT.DK ELB.3/4"HB X 1" BSP
320784 1 FITT.DK CAP 1-1/2" BSP
320795 1 FITT.DK NUT 1-1/2" BSP JAMB
320935 1 FITT.DK BULKHEAD 1/4' BSP SING
320946 1 FITT.DK BULKHEAD 3/8' BSP SING
321296 1 FITT.DK BULKHEAD 1/2" BSP SING
321307 1 FITT.DK NUT 1/2" BSP JAMB
321333 1 FITT.DK BULK 1-1/2" X 1"F BSP
330061 1 O-RING D16/D11X2,5
330072 1 O-RING D53,5/D45,5X4
330212 1 O-RING D19/D14X2.4 F.1/2"NUT
332577 1 O-RING D38/D30X4 F.1" PUR.
332592 1 O-RING D26/D20X3
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-40
H070-HIN, 01:02:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-40
H070-HIN, 01:02:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
145994 1 FITT.DK S-40 FORK
242355 1 O-RING D19.2X3.0 VITON F.S-40
322102 1 FITT.DK S-40 BULKHEAD
322106 1 FITT.DK S-40 BULKHEAD NUT
322133 1 FITT.DK S-40 PLUG W 1/8 THREAD
334225 1 FITT.DK S-40 STR.3/8'
334237 1 FITT.DK S-40 ELB.3/8'
334238 1 FITT.DK S-40 ELB.1/2'
334248 1 FITT.DK S-40 PLUG
334259 1 GASKET F. S-40 BULKHEAD
726462 1 FITT. S40 BULHEAD W. GASKET
726567 1 FITT.DK S-40 ELB.1/2" W.ORING
726693 1 FITT.DK S-40 PLUG 1/8BSP ORING
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-53
H080-HIN, 01:02:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-53
H080-HIN, 01:02:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
145995 1 FITT.DK S-53 FORK
242353 1 O-RING D44.2X3.0 VITON F.S-67
242354 1 O-RING D32.2X3.0 VITON F.S-53
322103 1 FITT.DK S-53 BULKHEAD
322107 1 FITT.DK S-53 BULKHEAD NUT
322110 1 FITT.DK S-53 ELB. 1/2" BSP
322352 1 FITT.DK S-53 TEE
334227 1 FITT.DK S-53 STR.1/2'
334229 1 FITT.DK S-53 STR.3/4"
334230 1 FITT.DK S-53 STR.1"
334239 1 FITT.DK S-53 ELB.1/2"
334241 1 FITT.DK S-53 ELB.3/4"
334242 1 FITT.DK S-53 ELB.1"
334249 1 FITT.DK S-53 PLUG
334260 1 GASKET F. S-53 BULKHEAD
334564 1 FITT.DK S-67 TO S-53 ADAPTER
391100 1 FITT.DK S-53THREAD INS.1/2"BSP
726463 1 FITT.DK S53 BULKHEAD W/GASKET
726552 1 FIT.DK S-53X90 1/2" BSP,O-RING
726556 1 FITT.DK S-53 HB 1/2" W/O-RING
726558 1 FITT.DK S53 STR. 3/4" W.ORING
726559 1 FITT DK. S-53 HB 1" W/O-RING
726568 1 FITT.DK.S-53 HB 1/2"90 W/ORING
726570 1 FITT.DK S-53 ELB.3/4" W.ORING
726571 1 FITT.DK S-53 ELB.1", W ORING
726578 1 FITT.DK S53 PLUG WITH O-RING
728561 1 FITT.DK. S67M - S53F REDUCER
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-56 & S-61
H090-HIN, 01:01:01
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-56 & S-61
H090-HIN, 01:01:01
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
145661 1 FITT.DK S-61 FORK
241754 1 O-RING D59,5X3
241883 1 O-RING D39.2X3 NITRIL
322055 1 FITT.DK S-61 BULKHEAD
322056 1 FITT.DK S-61 BULKHEAD NUT
322066 1 FITT.DK S-56 NUT
334050 1 FITT.DK S-61 STR.1-1/4"
334068 1 FITT.DK S-61 STR.1"
334091 1 FITT.DK S-61 STR.1-1/2'
334099 1 FITT.DK S-61 ELB.1-1/2"110 DEG
334100 1 FITT.DK S-61 ELB.1" 110 DEG.
334151 1 FITT.DK S-61 ELB.1-1/4"110 DEG
390231 1 FITT.DK NIPPLE 1-1/2 X S56
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-67
H100-HIN, 08:11:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-67
H100-HIN, 08:11:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
145996 1 FITT.DK S-67 FORK
242351 1 O-RING D69.5X3.0 VITON F.S-93
242353 1 O-RING D44.2X3.0 VITON F.S-67
322104 1 FITT.DK S-67 BULKHEAD
322108 1 FITT.DK S-67 BULKHEAD NUT
322132 1 FITT.DK S-67 THREAD INS.1'BSP
322224 1 FITT.DK S-67 TEE
322325 1 FITT.DK S-67 X 1-1/2"BSP LONG
334231 1 FITT.DK S-67 STR.1'
334232 1 FITT.DK S-67 STR.1-1/4'
334233 1 FITT.DK S-67 STR.1-1/2' RUBBER
334243 1 FITT.DK S-67 ELB.1"
334244 1 FITT.DK S-67 ELB.1-1/4"
334245 1 FITT.DK S-67 ELB. 1-1/2'RUBBER
334250 1 FITT.DK S-67 PLUG
334261 1 GASKET F. S-67 BULKHEAD
334444 1 FITT.DK S-67 STR.1-1/2" PVC
334445 1 FITT.DK S-67 ELB.1-1/2"
334564 1 FITT.DK S-67 TO S-53 ADAPTER
334573 1 FITT.DK S-67 CONNECTOR
334601 1 FITT.DK S-93 TO S67 ADAPTOR
334634 1 FITT.DK ADAPTER S-93M S67M
390508 1 FITT DK S67X1.5M BSPalt322325
461217 1 NUT HEX M5 LOCK
726464 1 FITT.DK S-67 BULKHEAD W/GASKET
726560 1 FITT.DK S-67 STR.1" W.O'RING
726561 1 FITT.DK S-67 STR.1-1/4" O'RING
726562 1 FITT.DK.S-67 HB 1-1/2"W.O-RING
726572 1 FITT.DK S-67 1" ELBOW 90 ASSY.
726573 1 FITT. S67 5/4" 90º W/O-RING
726574 1 FIT.DK S67X90,1.5HB W ORING
726579 1 FITT. S67 PLUG W/O-RING
727223 1 FITT.S67 1.5" STRAIT S W/ORING
727224 1 FITT.DK S-67 ELB.1-1/2"
728526 1 FITT.DK S-67 CONNECT W. ORINGS
728527 1 ADAPTER S67FE TO S93MALE W/ORI
728561 1 FITT.DK. S67M - S53F REDUCER
728562 1 FITT.DK S-93 TO S67 ADAPTOR
728578 1 FITT.DK S-67X1-1/2"BSP LG W/OR
14012200 1 FITT.DK S-67 FORK W/M5 THREADS
33509700 1 FITT.DK S-67 45° 1-1/4"
72433000 1 FITT.S67 1" 45º W/ORING
72433100 1 FITT.DK S-67 45° 1-1/4"W/ORING
72433200 1 FITT.S67 1-1/2" 45ºPVC W/ORING
72433400 1 FITT.S67 1-1/2" 45ºBSP W/ORING
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-93
H110-HIN, 08:11:12
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
FITTINGS - S-93
H110-HIN, 08:11:12
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
145997 1 FITT.DK S-93 FORK
147115 1 FITT.DK S-93 FORK SPECIAL
147774 1 FITT.DK S-93 FORK W. M5 THREAD
242221 1 GASKET F. S-93 QUICK COUPLERS
242351 1 O-RING D69.5X3.0 VITON F.S-93
242353 1 O-RING D44.2X3.0 VITON F.S-67
322105 1 FITT.DK S-93 BULKHEAD DOUBLE
322109 1 FITT.DK S-93 BULKHEAD NUT
322165 1 FITT.DK S-93 BULKHEAD SINGLE
322171 1 FITT.DK S-93 THREAD INS.2"BSP
334234 1 FITT.DK S-93 STR.2" RUBBER
334235 1 FITT.DK S-93 STR.2-1/2'RUBBER
334246 1 FITT.DK S-93 ELB. 2' RUBBER
334247 1 FITT.DK S-93 ELB.2-1/2'RUBBER
334254 1 FITT.DK S-93 PLUG
334262 1 GASKET F.S-93 BULKHEAD
334304 1 FITT.DK S-93 STR.1-1/2" PVC
334332 1 FITT.DK S-93 MALE QUICK COUP.
334340 1 FITT.DK S-93 ELB.2-1/2' PVC
334426 1 FITT.DK S-93 STR.2'
334443 1 FITT.DK S-93 STR.2-1/2'
334446 1 FITT.DK S-93 ELB. 2' RUBBER
334545 1 FITT.DK S-93 TEE
334572 1 FITT.DK S-93 ADAPTOR MALE MALE
334601 1 FITT.DK S-93 TO S67 ADAPTOR
334634 1 FITT.DK ADAPTER S-93M S67M
334647 1 FITT.DK S93 ELB 1-1/2" 90 PVC
390485 1 FITT.DK S-93 PLUG W D34 HOLE
390721 1 FITT.DK S-93 PLUG W/2'NPT THRE
461217 1 NUT HEX M5 LOCK
726465 1 FITT.DK S-93 BULKHEAD W/GASKET
726563 1 FITT.DK S-93 STR 2" W/O-RING
726564 1 HOSE TAIL 2 1/2' W.O-RING S93
726575 1 FITT.DK S-93 ELB. 2' RUBBER
726576 1 FITT. DK S-93 2 1/2" 90º
726580 1 FITT. S93 PLUG W/O-RING
727133 1 FITT. S93 2-1/2" STR. S W/O-RI
727225 1 FITT.DK S-93 ELB.2'PVC W/ORING
727226 1 FITT. S93 2-1/2" 90º S W/O-RIN
727227 1 FITT.DK S-93 STR.2' W/ORING
727235 1 QUICK COUPLER FEMALE W 1-1/2HB
727236 1 QUICK COUPLER FEMALE W 2'HB
727237 1 QUICK COUPLER FEMALE W2-1/2'HB
727339 1 FITT. S93 DRAIN BULKHEAD W/O-R
727476 1 FITT. DK S-93 2"FM THD W.ORING
727777 1 QUICK COUPLER S93 DRAIN W/O-RI
728120 1 QUICK COUPLER CAP F.S93 DRAIN
728523 1 FITT.DK S-93 STR.1-1/2"
728525 1 FITT. S93 CONNECTOR W/O-RINGS
728527 1 ADAPTER S67FE TO S93MALE W/ORI
728562 1 FITT.DK S-93 TO S67 ADAPTOR
729828 1 FITT.DK S-93 ELB 2-1/2" RED
729829 1 FITT.DK S-93 ELB 2 RED
729830 1 FITT.DK S-93 ELB 1-1/2" 90 RED
39121700 1 FITT.DK S93 ADAP LG MALE MALE
72072700 1 FITT.DK S-93 45D 2" PVC
72072900 1 FITT.S93 2-1/2" 45ºPVC W/ORING
Agroparts: www.HARDI-INTERNATIONAL.com
BULK HOSE
H120-HIN, 11:05:10
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
BULK HOSE
H120-HIN, 11:05:10
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
927205 1 HOSE R X CLEAR X 3/4 X 0012"
927231 1 HOSE R X PVCX3/4 CLR/BRD 0012"
927253 1 HOSE R X PE D4/D2 X 0012"RED
927264 1 HOSE R X PE D6/D4 X 0012"
927268 1 HOSE R X PVC X 1/4 X 0012"
927269 1 HOSE R X PVC X 1/2 X 0012"
927270 1 HOSE R X PVC X 3/4 X 0012"
927281 1 HOSE R X PVC X 5/16 X 0012"
927284 1 HOSE 3/8 PVC W/ INSERT
927306 1 HOSE R X PE D8/D6 X 0012"BLACK
927330 1 HOSE R X PE D10/D8 X 012"BLACK
10631003 1 HOSE R X CLEAR BRAID.X 1/2 12"
92701703 1 HOSE R X3/8" X300PSI WP X0012"
92702103 1 HOSE R X1/2" X300PSI WP X0012"
92702403 1 HOSE PVC SUCT GRAY 1"
92702603 1 HOSE PVC SUCT GRAY 1-1/2"
92702703 1 HOSE PVC SUCT GRAY 2"
92702803 1 HOSE PVC SUCT GRAY 2-1/2"
92703203 1 HOSE R X3/4" X300PSI WP X0012"
92712403 1 HOSE R X1" X300PSI WP X0012"
92734403 1 HOSE R X5/4" X200PSI WP X0012"
92738900 1 HOSE R X PVC X 1-1/4" 0012"
Agroparts: www.HARDI-INTERNATIONAL.com
HOSE CLAMPS
H130-HIN, 05:07:11
Page 0
Date 19.03.2013 8:44
Agroparts: www.HARDI-INTERNATIONAL.com
HOSE CLAMPS
H130-HIN, 05:07:11
Page 1
Date 19.03.2013 8:44
parts-n° order
qty description
334531 1 CLAMP HOSE PLASTIC 3/4"
334533 1 CLAMP HOSE PLASTIC 3/8"
334534 1 CLAMP HOSE PLASTIC 1/2"
334680 1 CLAMP HOSE PLASTIC 1"
334686 1 CLAMP HOSE PLASTIC 5/16'
341291 1 RUBBER HOSE CLAMP COVER 130MM
341292 1 RUBBER HOSE CLAMP COVER 180MM
341301 1 RUBBER HOSE CLAMP COVER 230MM
28029803 1 CLAMP HOSE GEAR P1/2" 6708
28029903 1 CLAMP HOSE GEAR P3/4"-S1" 6712
28030003 1 CLAMP HOSE GEAR P1" 6716
28030103 1 CLAMP HOSE GEAR P5/4-S1.5"6724
28030203 1 CLAMP HOSE T-BOLT S2" 235-67
28030303 1 CLAMP HOSE T-BOLT S2.5" 235-76
28030403 1 CLAMP HOSE T-BOLT S3" 235-82

Navigation menu
