The Ranger® MS-UC DefendIR is an industry leading mid-range thermal imager for
seeing in complete darkness and through a multitude of environmental conditions
including smoke, rain, snow, dust and dense fog. The Ranger MS-UC DefendIR is
the rst of its kind, uncooled imager to offer continuous optical zoom. The system is
based on forward looking infrared (FLIR) technology developed for the US military,
but vaults ahead of the competition through the innovative use of VisionSense™. This
technology offers user-controlled, customized real time mixing and merging of the
two visual sources - a visible light (CCD) camera and an infrared camera. VisionSense
generates the ability to penetrate glare, and see through windows, glass or water.
The Ranger MS-UC DefendIR is ideally suited for day and night perimeter security,
maritime surveillance and DHS/DoD applications. Offering multiple lens and detector
combinations, each camera can be customized to meet detailed performance
requirements. Featuring a sleek integrated pan and tilt design, the camera is capable
of continuous 360° panning and a +/- 80° tilt (varies with some lens congurations)
withstanding ambient temperatures ranging from -40° to +65° C. The ruggedized
housing is environmentally sealed to meet NEMA 4, IP66 and MIL-STD-810F
specications and has been tested and certied by an independent lab.
Out of the box, the Ranger MS-UC DefendIR is ready to integrate into your system.
It supports most protocols used in commercial and military applications and can be
easily integrated into existing ber, wireless or IP networks. It can also interface with
VMD, radar, UGS or other trigger sensors for a “slew to cue” solution.
KEY FEATURES
• Simultaneous analog video outputs – thermal and visible-light – along with IP
and serial control interfaces for easy integration into IP or analog networks
• Available in 640 x 480 detector arrays
• Continuous thermal zoom available
• P/T with continuous 360° pan
• VisionSense™ technology combines infrared and CCD
imagery in real time
• Multiple lens combinations for tailor-made range performance
• NEMA 4, IP66, MIL-STD-810F, CE tested, ISO 9001:2008
www.flir.com
FLIRRANGER
MS-UC DefendIR
Portable, MID Range Thermal imaging Surveillance
System with Multi-sensor option
®
APPLICATIONS
• Force Protection
• Border Surveillance
• Tactical Reconaissance
• Training Range Applications
• Fixed and Mobile Security

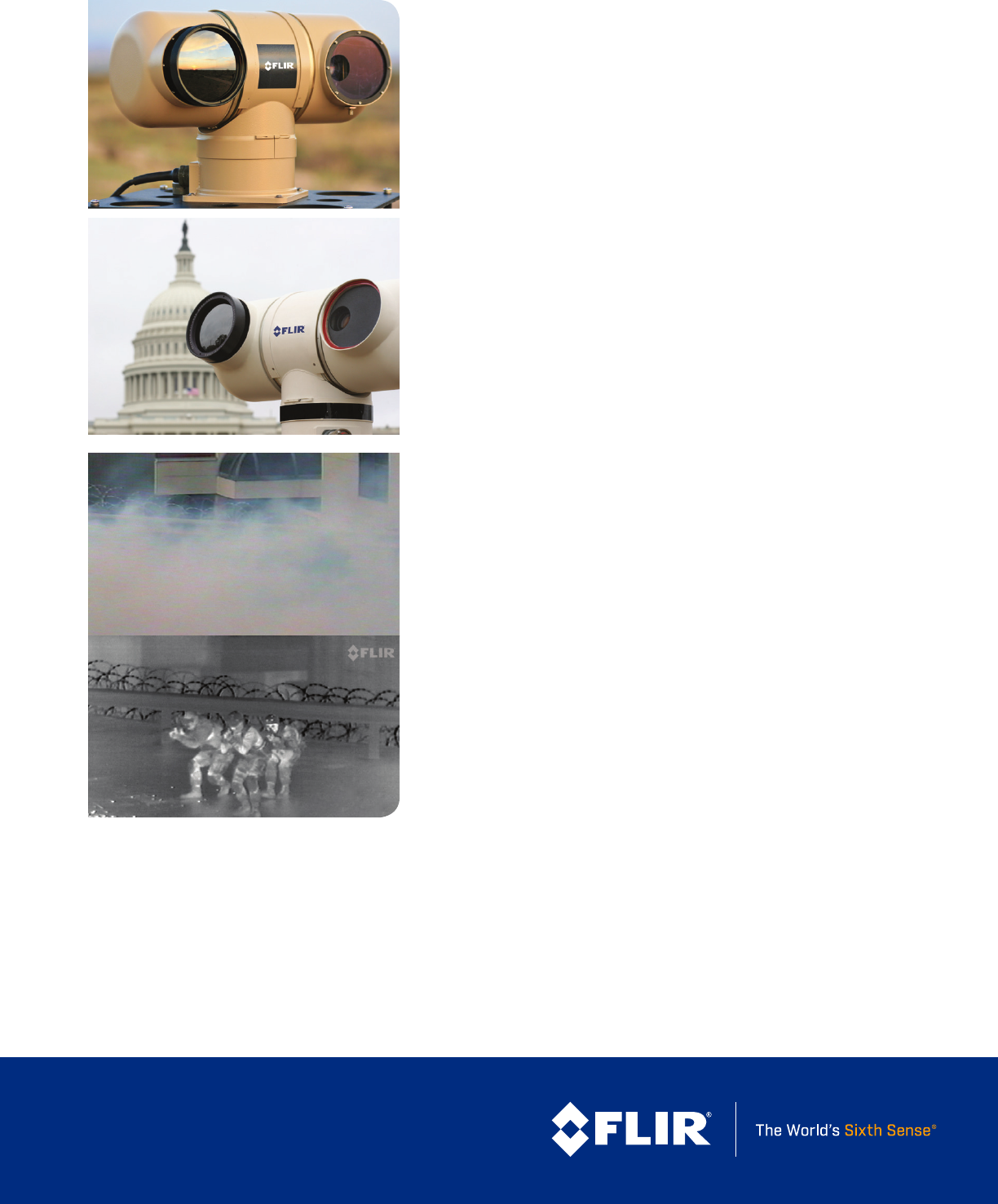

Visible vs FLIR Thermal Comparison

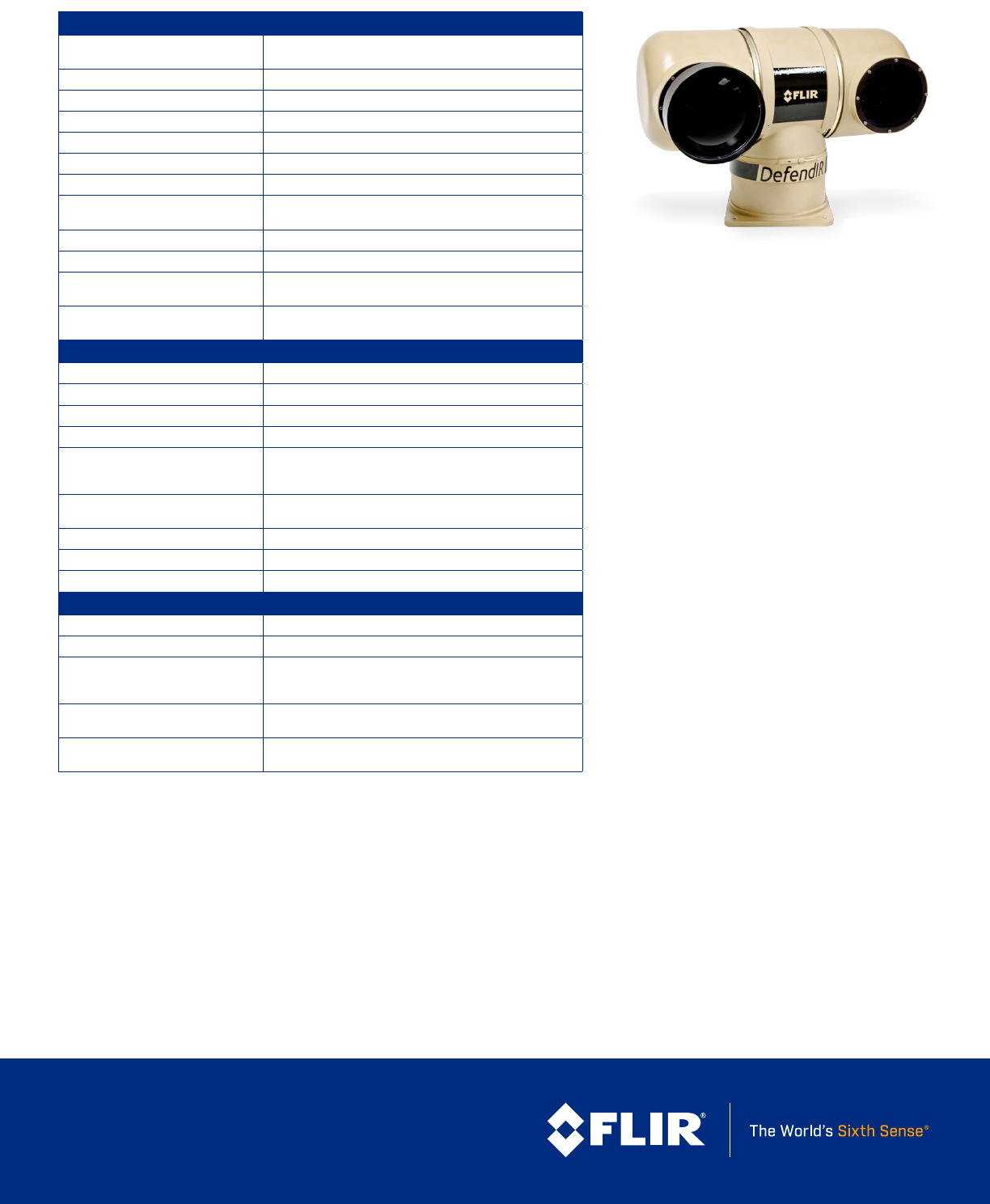

Specifications
www.flir.com
RANGER MC-US DEFENDIR
Video Outputs Two video channels - one thermal and one mixed
(CCD EO and thermal), varying from 0 to 100% CCD EO
Serial Interface RS-422 and 10/100 Ethernet
Power Input 15-24 VDC ± 20% or 220/110 VAC 50/60 Hz
Power Consumption <22 Watts (nominal) / 45 Watts (peak)
Weight <28 lbs. (12.7 kg) (Varies by conguration)
Operating Temperature -40° to +65° C
Environmentally Sealed NEMA 4 and IP66 Certied, MIL STD 810F tested
MIL-STD-810F tests Methods 501.4, 502.4, 503.4, 505.4, 506.4, 507.4,
508.5, 509.4, 510.4, 514.5, 516.5 and 521.2
Azimuth Control Continuous 360°
Elevation Control 45mm/135mm model: -25° to +80° All other models: -80° to +80°
Pan & Tilt Slew Rate 0.25-60°/sec Controlled (varies by conguration)
Up to 110°/sec Uncontrolled. (varies by conguration)
Pointing Accuracy & Pan Repeatability Pan ± 0.25° (varies by conguration)
Tilt ± 0.1° (varies by conguration)
THERMAL CAMERA
Detector Uncooled, Vanadium Oxide Microbolometer
Frame Rate 30 Hz (NTSC) and 25 Hz (PAL)
Resolution 640 x 480
Spectral Response LWIR
IR Lens Options
25mm, 50mm, 100mm
30/90mm DFOV or Continuous zoom,
45/135mm DFOV or Continuous zoom
Optical IR Zoom 30/90mm 3X continuous
45/135mm 3X continous
Digital IR Zoom Continuous Digital Zoom 1x to 4x
Focus Remote focus
Gain / Level Controls Automatic or Manual
CCD CAMERA
CCD Camera Narrow FOV 1.6°, Wide FOV 42°
Image Stabilization By software command
Zoom
Optical: 26x
Digital: 12x
Total: 312x
Minimum Illumination 2.0 lux/1/60 sec (NTSC)
0.14 lux/1/4 sec (NTSC)
Starlight Mode 0.7 lux/1/60 sec (NTSC)
0.05lux/1/4 sec (NTSC)
Ranger® MS-UC DefendIR
Equipment described herein is subject to US export regulations and may
require a license prior to export. Diversion contrary to US law is prohibited.
Imagery for illustration purposes only. Specications are subject to change
without notice. ©2017 FLIR Systems, Inc. All rights reserved. 03/01/17
17- 0712-SUR
