Welcome to our solar system

SRPO120 & SRPO240

solar regulators

Ideal for permanent

installation in motorhomes,

caravans and camper-

trailers, our solar regulators

ensure that your battery

receives the optimum

voltage to maintain

maximum charge.

■■Safely charges single

or dual battery systems

■■Protects your battery

from overcharging

■■Provides three-stage

charging of various

battery types

SRPO240-RM

remote monitor

Keep track of how your

solar panels and batteries

are performing.

■■Large, backlit LCD

display gives real time

monitoring of your solar

panel performance

■■Monitors solar panel

voltage and current

■■Real time battery

voltage display

Regulators and

remote monitor

L

I

M

I

T

E

D

W

A

R

R

A

N

T

Y

2 YEARS

M

A

T

E

R

I

A

L

S

&

W

O

R

K

M

A

N

S

H

I

P

*

redarcsolar.com.au

N3533

Fuse

Fuse

Australia

Phone (08) 8322 4848

Fax (08) 8387 2889

International

Phone +61 8 8322 4848

Fax +61 8 8387 2889

REDARC Electronics

ABN 77 136 785 092

23 Brodie Road (North)

Lonsdale, South Australia

Australia 5160

power@redarc.com.au

Copyright © 2012 REDARC Electronics Pty Ltd. All rights reserved

Model SRP0240-RM

Rated voltage 12V

Current consumption

with backlight <30mA

without backlight <3mA

Operating temperature -10˚C to +40˚C

Dimensions 95 x 95 x 24mm

Supplied

cable

8 pin RJ45

10 metres

Certification CE

Why you need a solar regulator...

The output voltage from a solar panel

varies depending on the amount of light

falling upon it.

A Redarc solar regulator adjusts the voltage

to ensure it is at the optimum level to maintain

the maximum possible charge in your auxiliary

battery.

Redarc regulators are available in two sizes -

10 and 20 amp and can even charge two

separate battery installations.

and why you need

a remote monitor

A remote monitor provides information about

the output from your solar panels to ensure that

everything is working as it should.

Install the monitor where it’s most convenient

and you can see at a glance what voltage you’re

getting from your panel in real time...

all from an easy to read, backlit LCD display.

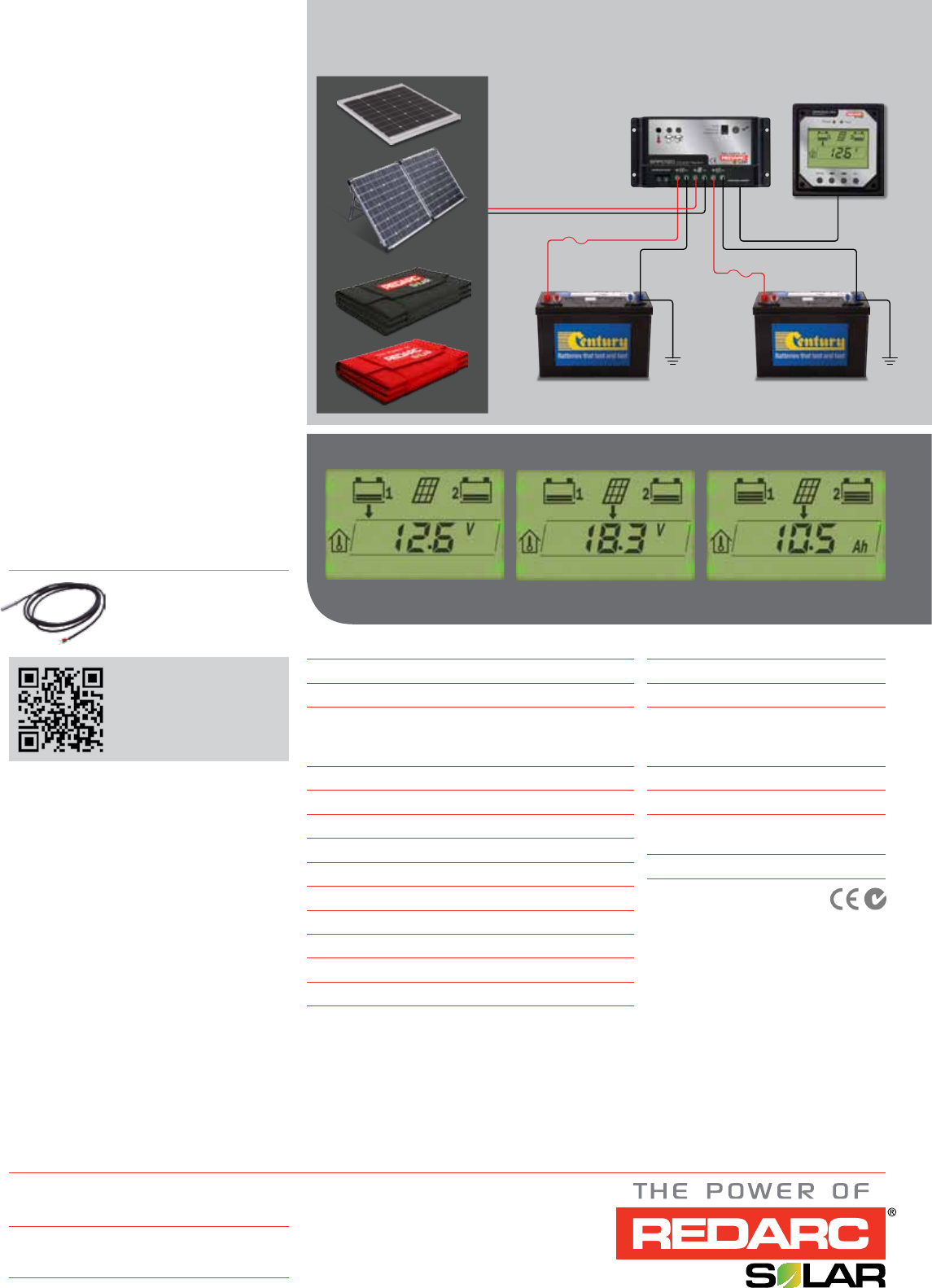

Standard solar regulator setup

SRP0240-RM remote monitor display shows... (and more)

Auxiliary battery

Main battery voltage

Optional second battery

Model SRP0120 SRP0240

Output current 10A 20A

AGM/gel Lead

acid

Calcium

content

Maximum voltage 14.4V 14.6V 14.8V

Float voltage 13.6V

Maximum input voltage 30V

Standby current draw 4mA

Nominal current draw 10mA

Temp compensation -30mV/˚C

Operating temperature -35˚C to +55˚C

Terminals 4mm2

Remote connection 8 pin RJ45

Dimensions 153 x 76 x 37mm

Certification CE

Specifications

Works with...

SRP0240-TP temperature probe

Monitors your battery temperature

and adjusts voltage to maintain

optimum charging conditions.

Need more information?

Scan this QR code with your smart

phone. If you don’t have a QR code

reader they are available free of

charge from your phone’s app store.

*Warranty information

Redarc Electronics guarantees satisfactory operation of

this product to the original purchaser for two years from

the purchase date on receipt of proof of purchase.

Solar panel amp hoursSolar panel voltage
