V40 1 Renault Without CAN Emulator
User Manual: V40-1
Open the PDF directly: View PDF
.
Page Count: 21
Sirius 34 without CAN
EMS 3132
1.9 2.2 and 2.5 DCi without CAN
1.5 DCi without CAN
1.9 DTi 1 plug
1.9 DTi 2 plugs
1.9 Diesel DCU3
2.8 TD
3.0 gasoline 1 plug
Volvo S40 and V40 – 1.9TD (Bosch 0 281 001 906 ECU)
Sirius 32 without CAN
In Sirius 32 ECU there is 29F200 or 29F400 flash
2
In the addresses from 4000 to 7FFF, find all values 64 C7 or 54 D7
and change these values and two units before them into FF FF FF FF
Repeat it in the whole map from 4000 to 7FFF !!!
Connecting emulator to ECU:
3
Take power and GND for the emulator from the capacitor
Connect Code signal after desoldering a 333 resistor

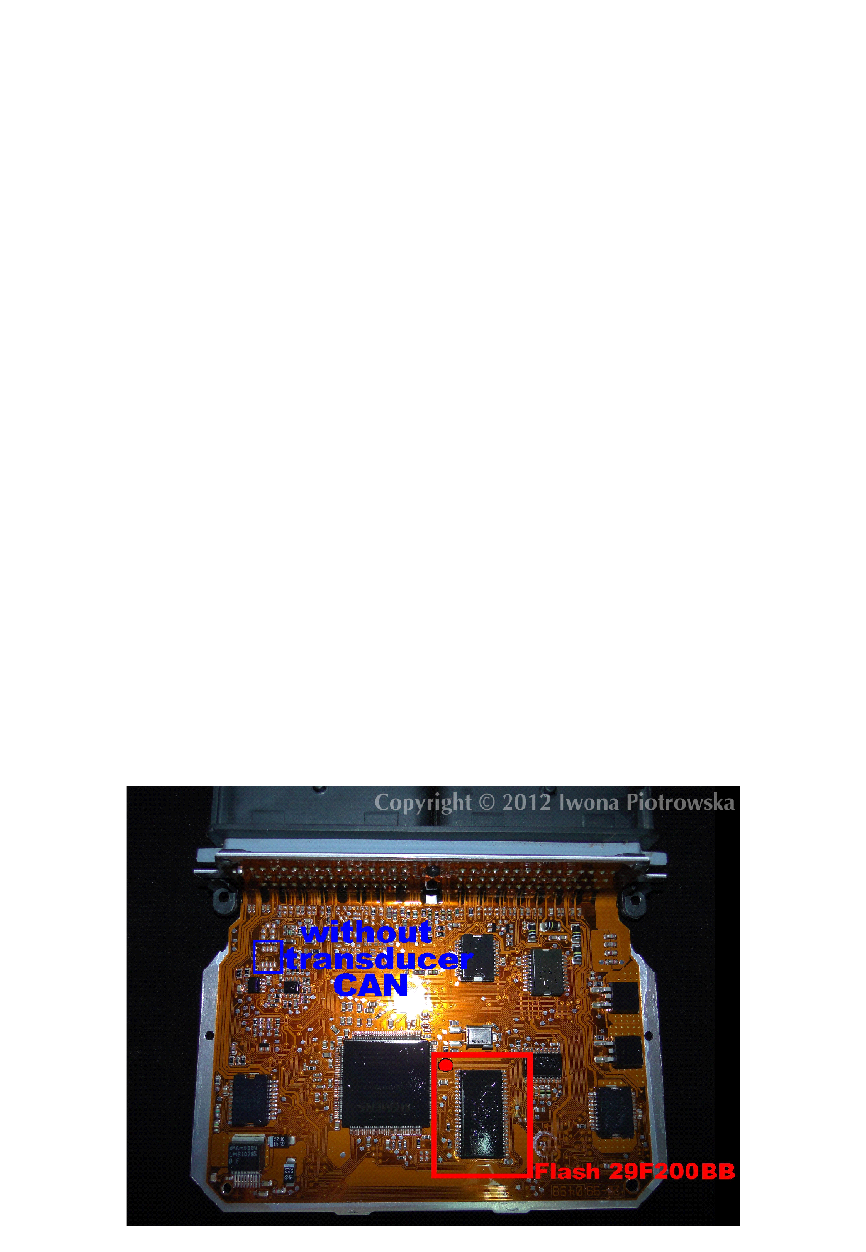

If there is A82C250
CAN transducer on the plate in the ECU, then the emulator will not work in this
ECU!!!
4
Sirius 34 without CAN
In Syrius 34 ECU there is 29F200 or 29F400 flash

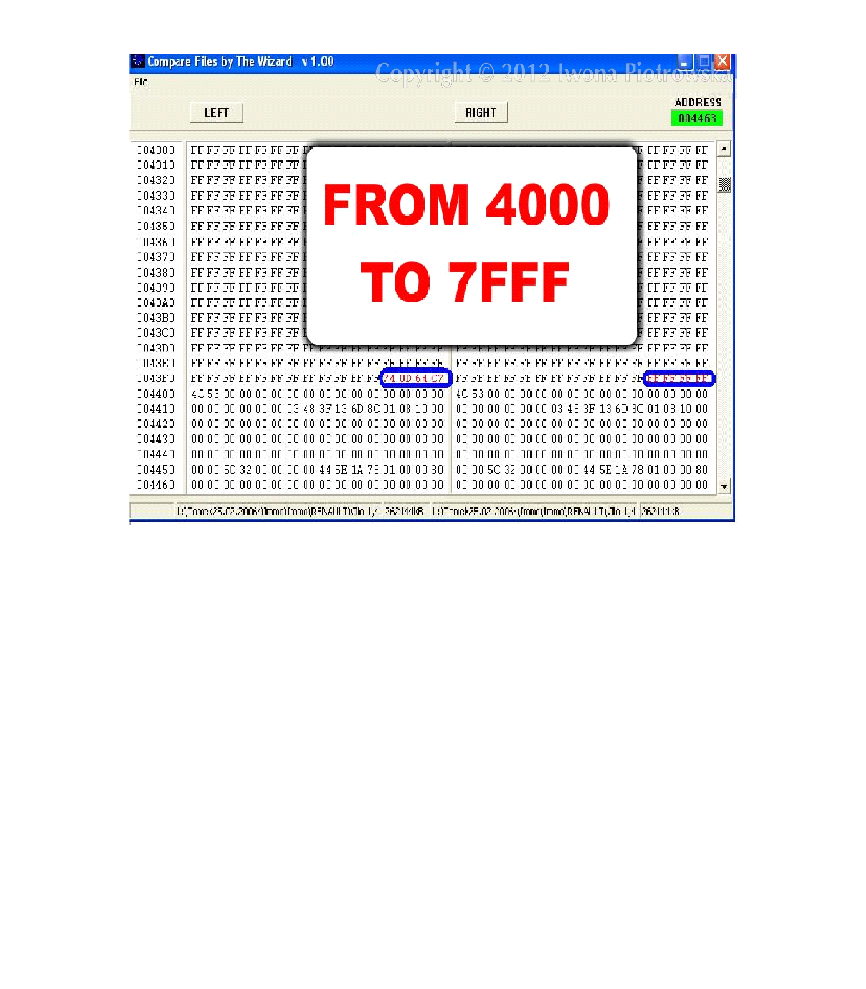

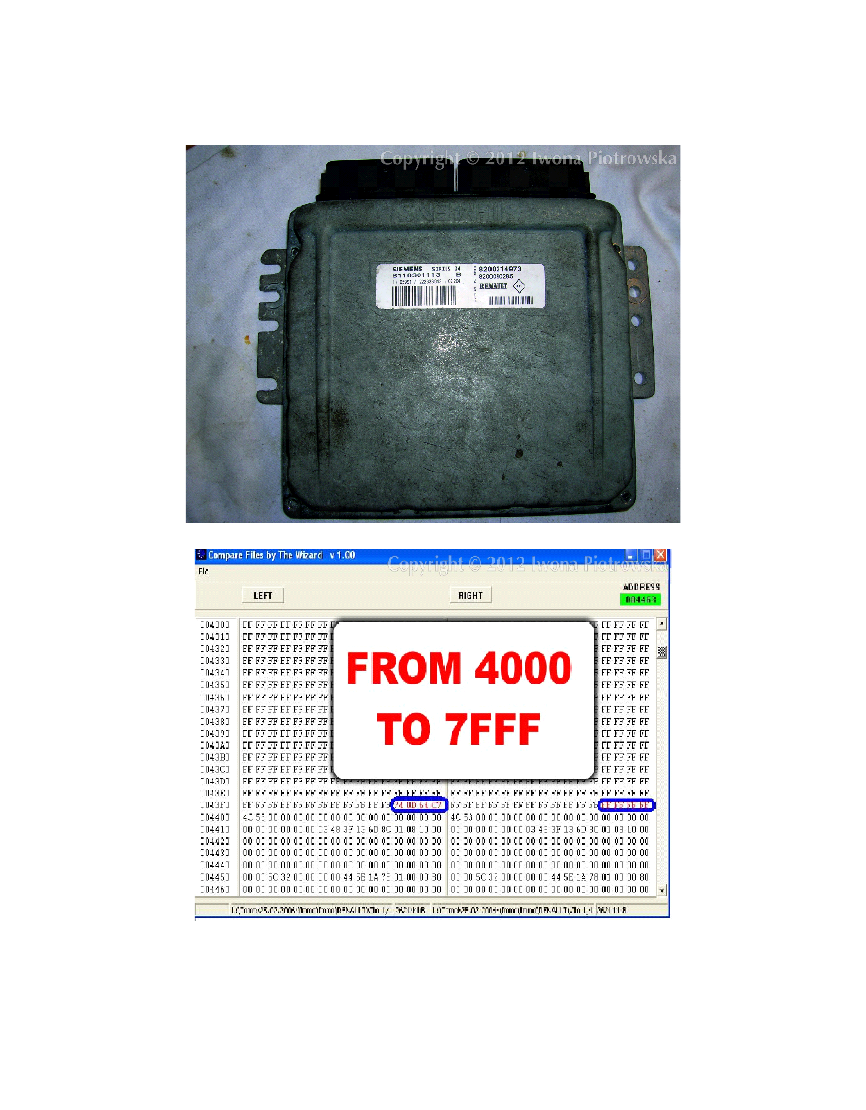

In the addresses from 4000 to 7FFF, find all values 64 C7 or 54 D7
and change these values and two units before them into FF FF FF FF
Repeat it in the whole map from 4000 to 7FFF !!!
5
Take power for the emulator
from the capacitor at the flash
EMS 3132
In EMS3132 ECU there is 29F200 or 29F400 flash
6

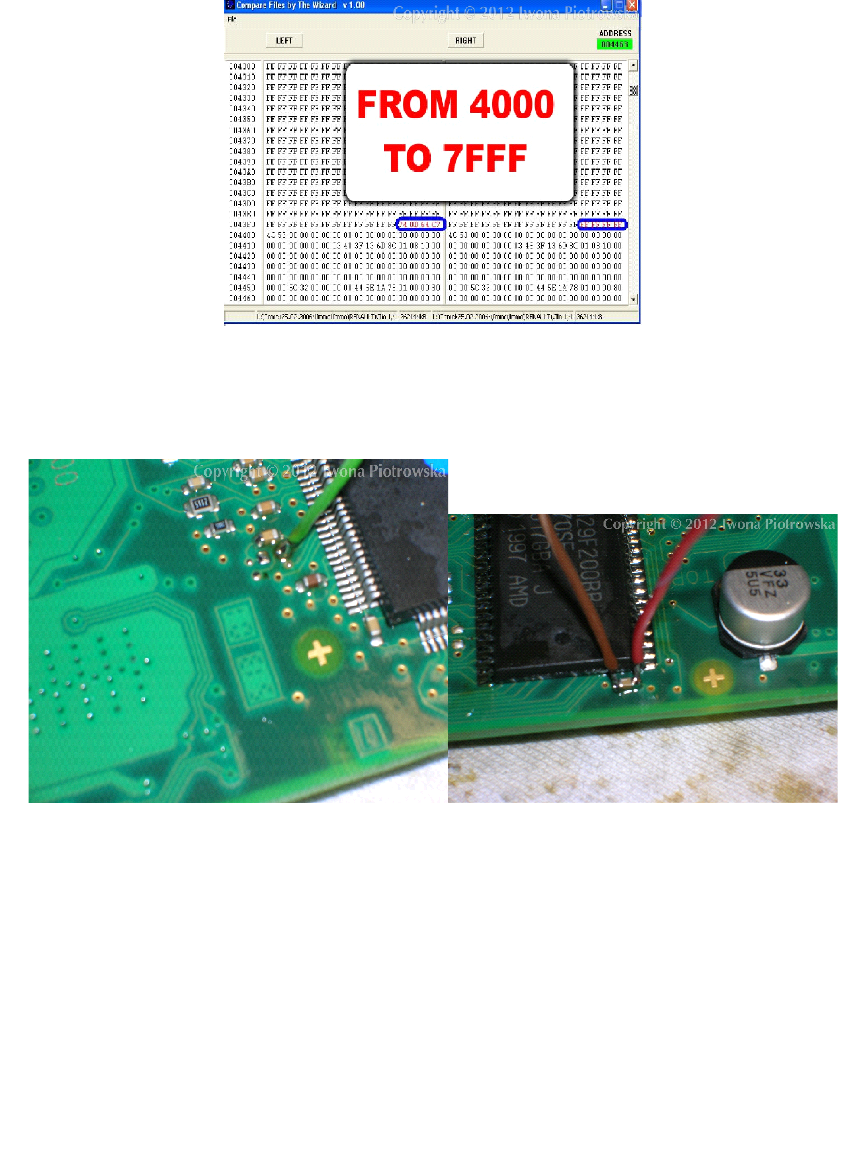

In the addresses from 4000 to 7FFF, find all values 64 C7 or 54 D7
and change these values and two units before them into FF FF FF FF
Repeat it in the whole map from 4000 to 7FFF !!!

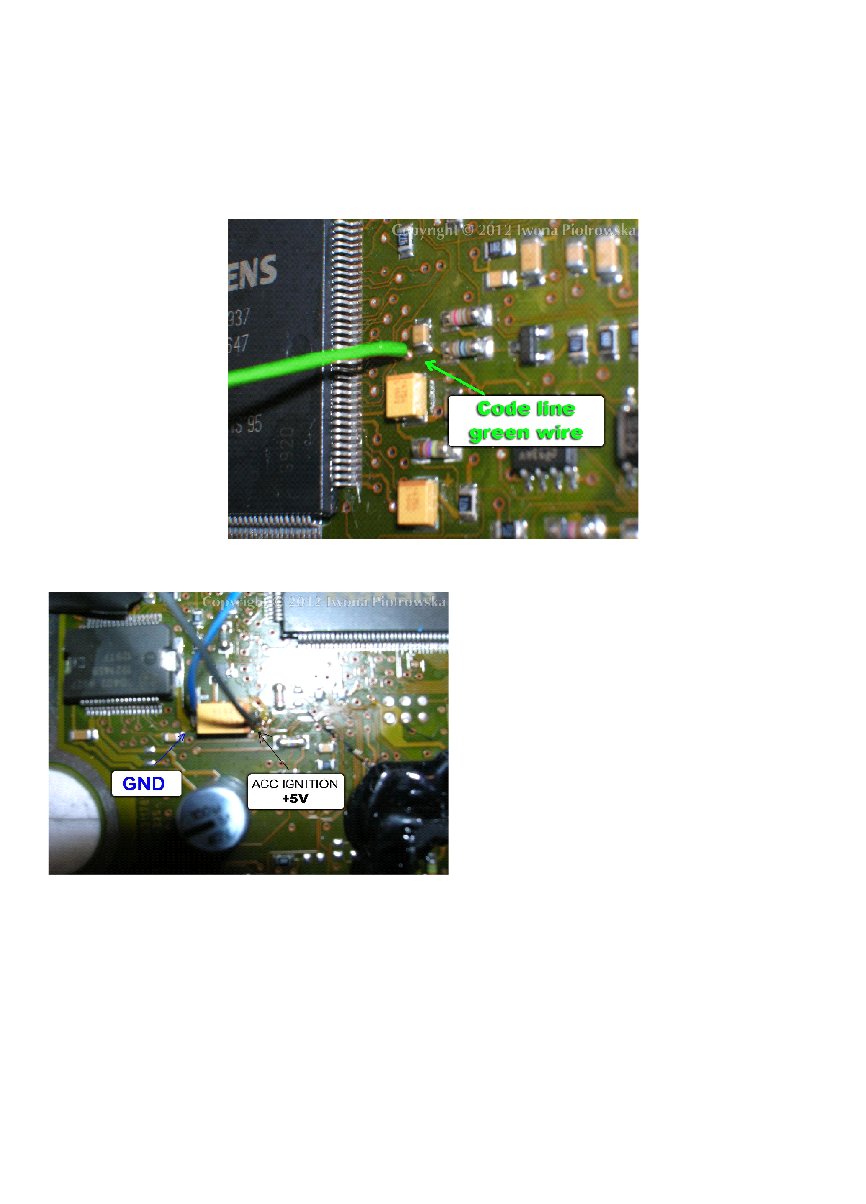

Take power for the emulator from the capacitor at the flash.

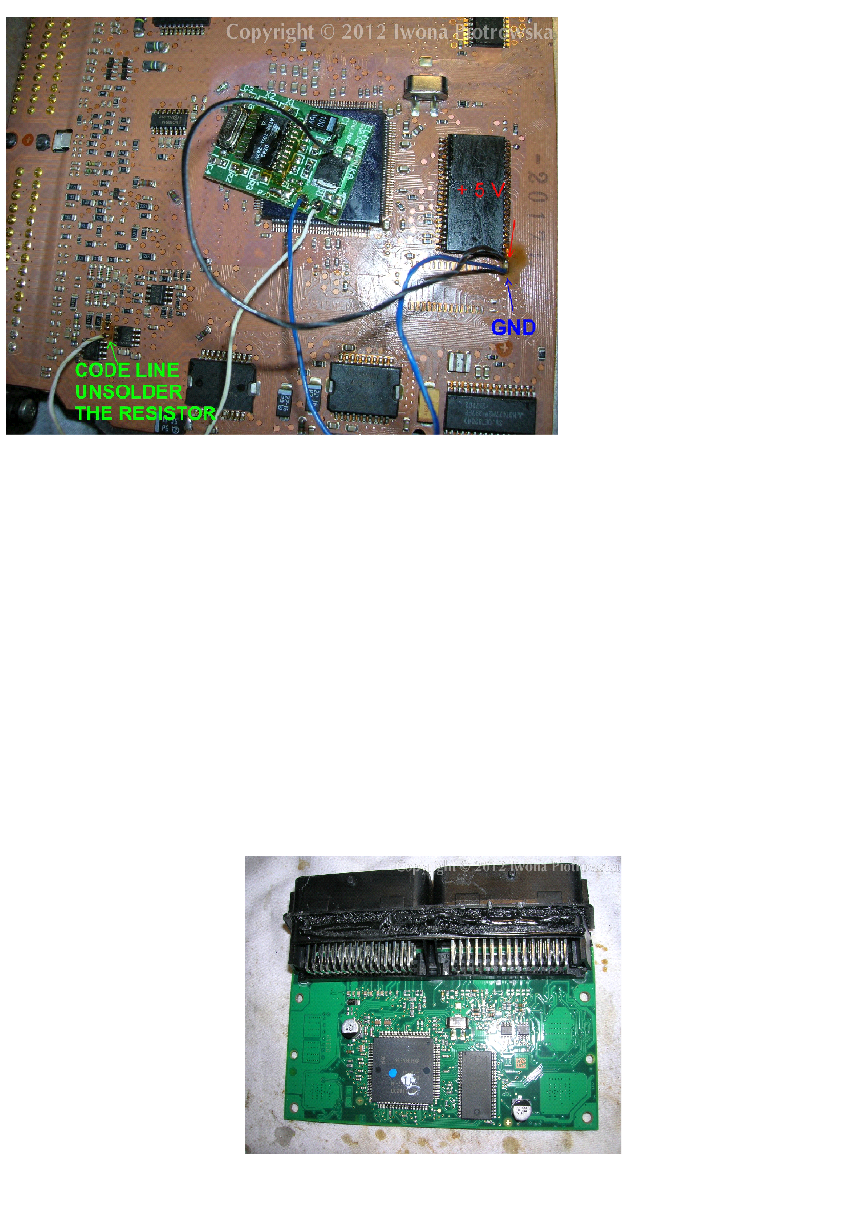

Connect emulator as pictured after unsoldering the capacitor.
Connect it to the point which leads to the processor.
1.9 2.2 and 2.5 DCi without CAN
7

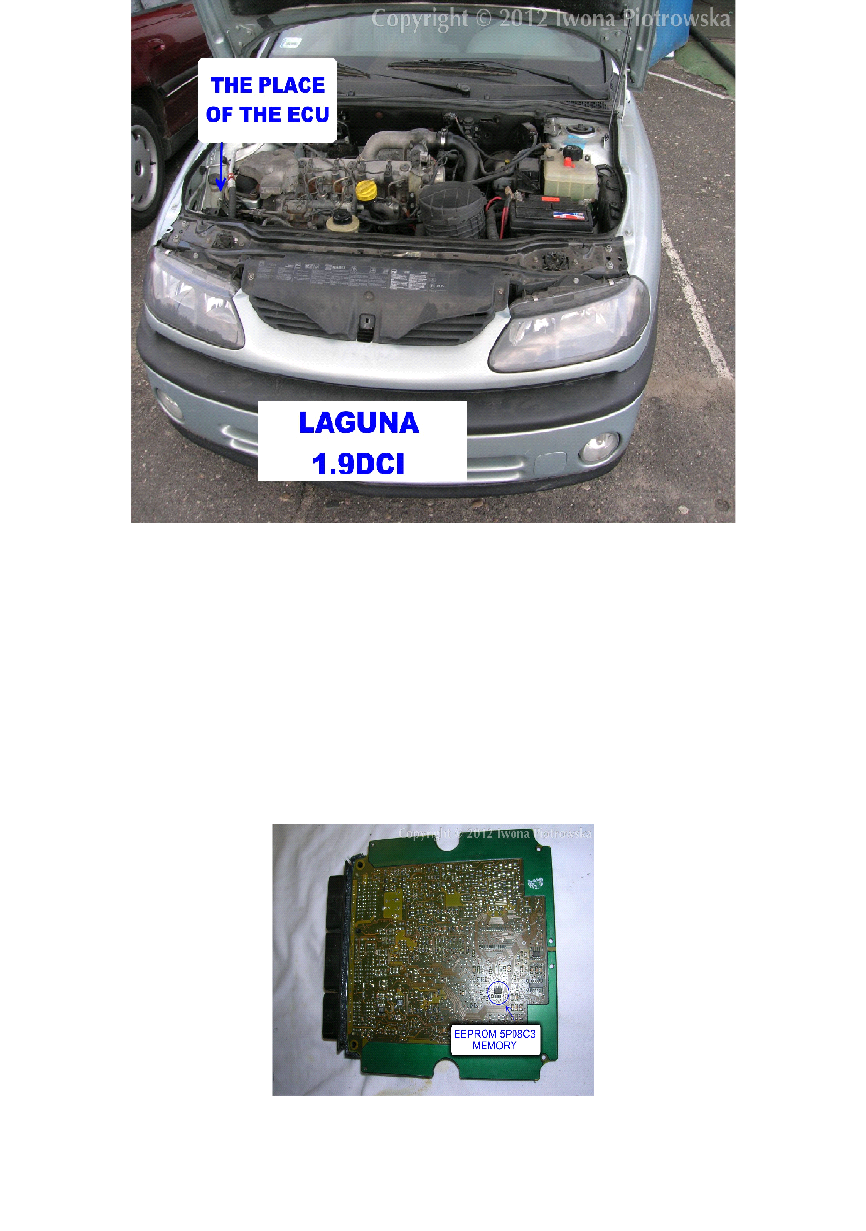

Renault Laguna 1.9 DCI 1999 with mechanical ignition switch
8
In 5P08C3 memory
in the addresses:
003E 003F 0040 0041
and
0044 0045 0046 0047
change these values into FF
In ECU, solder immo line (code) of
emulator to the point as pictured
Take power for the emulator from the capacitor on the ECU plate
9

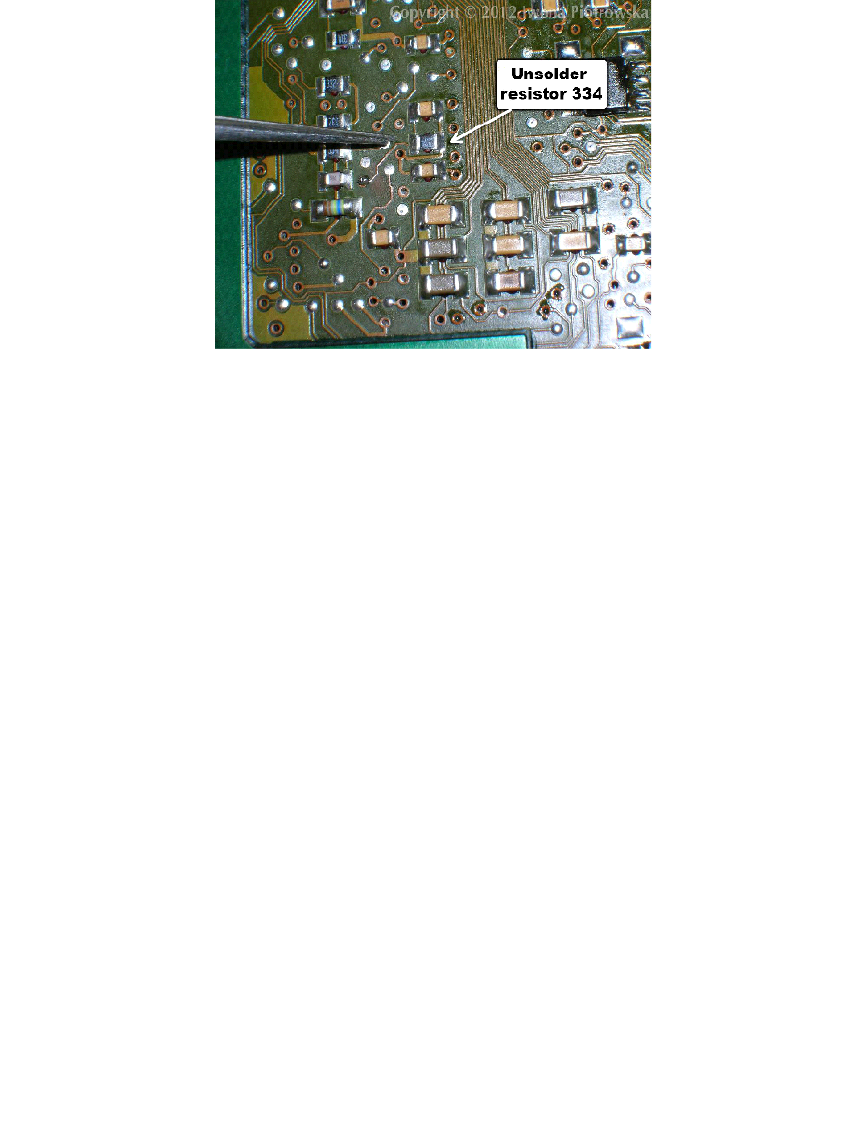

Unsolder 334 resistor
Turn on the ignition for 30 seconds,then turn it off for 30 seconds and repeat the
procedure a few times
1.5 DCi without CAN
10
Car without tachometer
Replace 25080 content and connect emulator.
10 pin of processor is immo line as pictured, which must be raised.

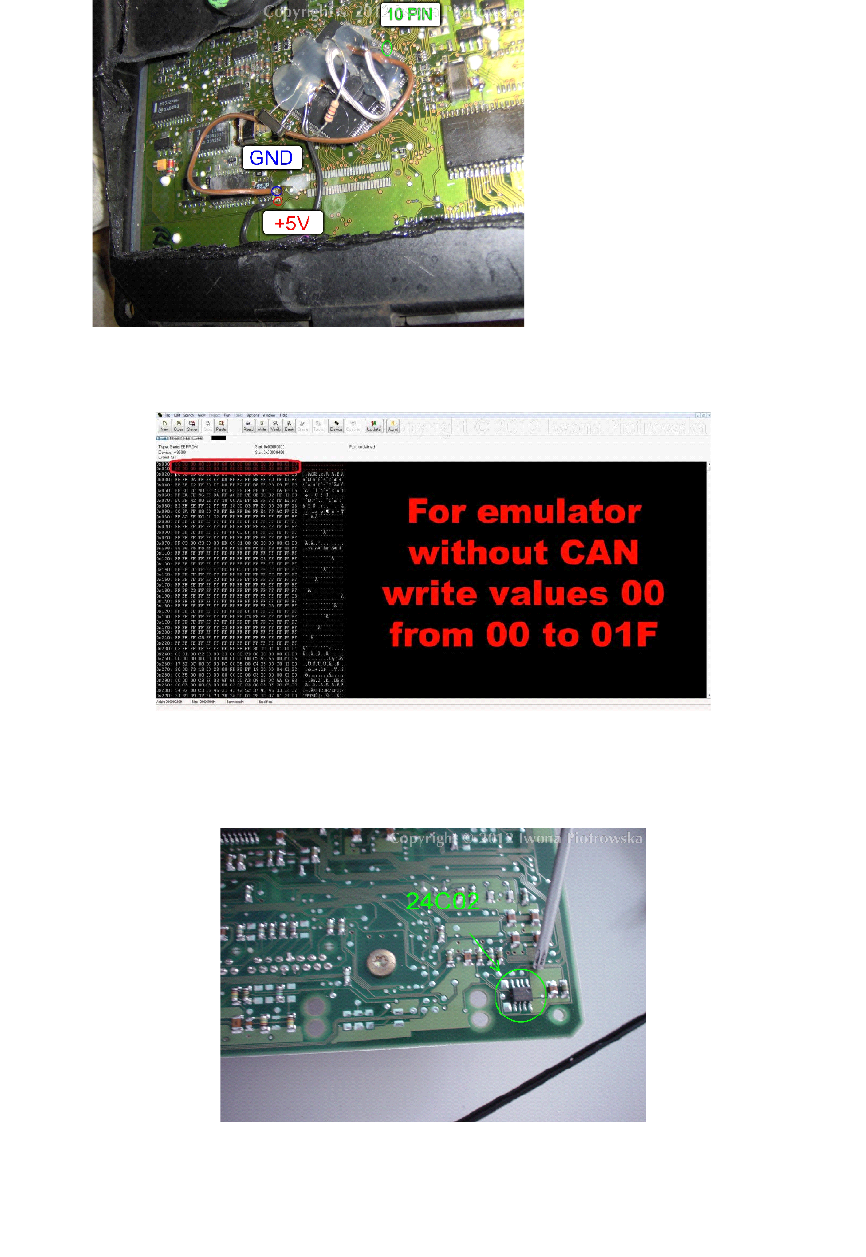

Take power from the capacitor at the memory.
Code injectors and settings with Clip or Launch.
1.9 DTi 1plug
11
Connecting emulator to ECU
Connect the immo line of emulator to pin 59 of ECU.
Connect GND and ACC to diode in the ECU.
12

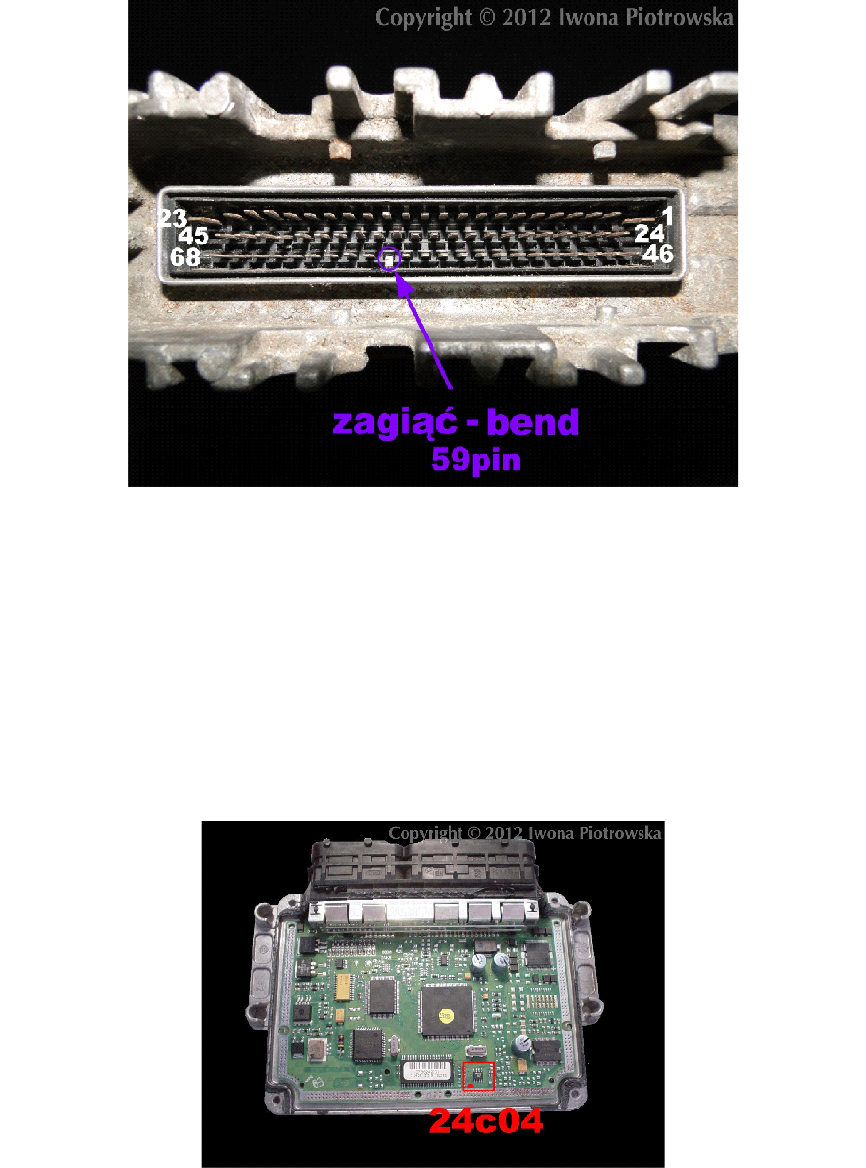

Bend pin 59 in ECU socket
Renault Megane 1.9 DTi 2 plugs
13

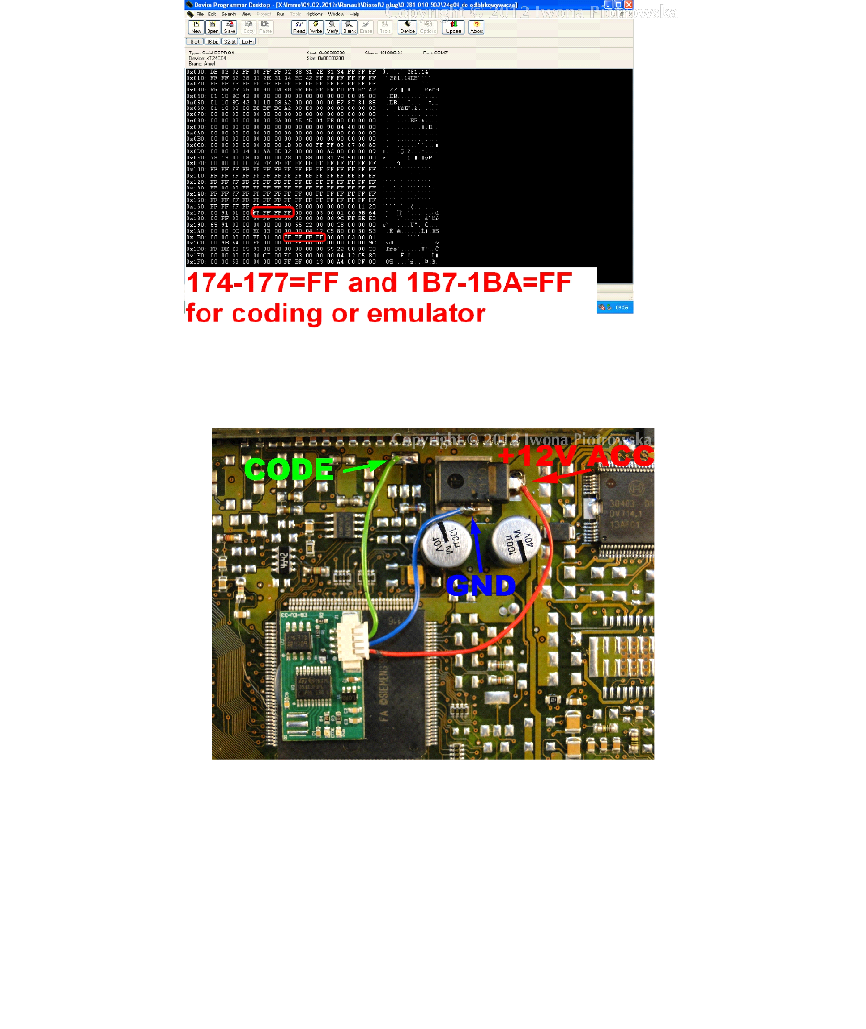

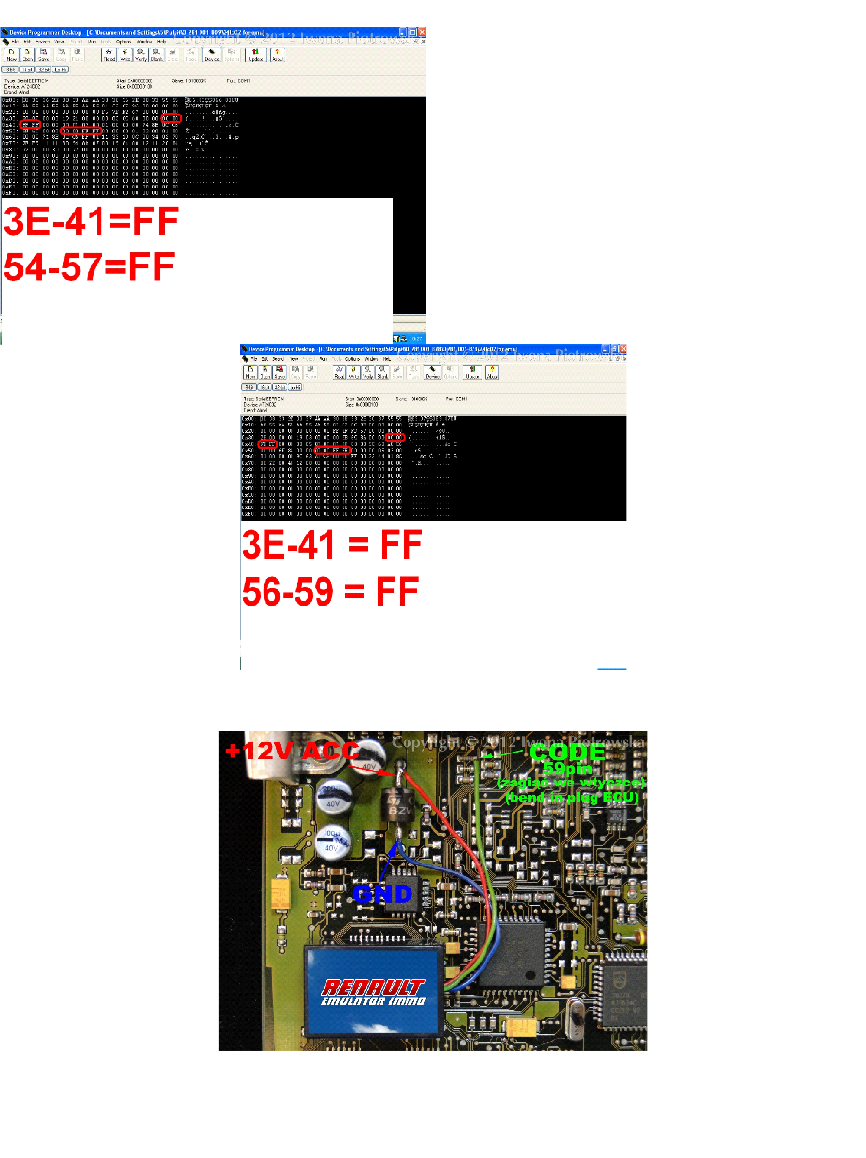

In the addresses from 174 to 177 and 1B7 to 1BA
change these values into FF FF FF FF in 24C04 memory
Connecting emulator to ECU
GND pin 4 and 5
ACC pin 81
immo line pin 15
14
Cut off pin 15 from wiring!!!
1.9 Diesel DCU3
Renault Kangoo 1.9 Diesel 2001
In addresses from 02 to 05 and 82
to 85
15
change these values into 00 00 FF FF in 95080 memory
Connecting emulator to ECU
+5V Vcc from capacitor
GND - 79pin
CODE - 20pin

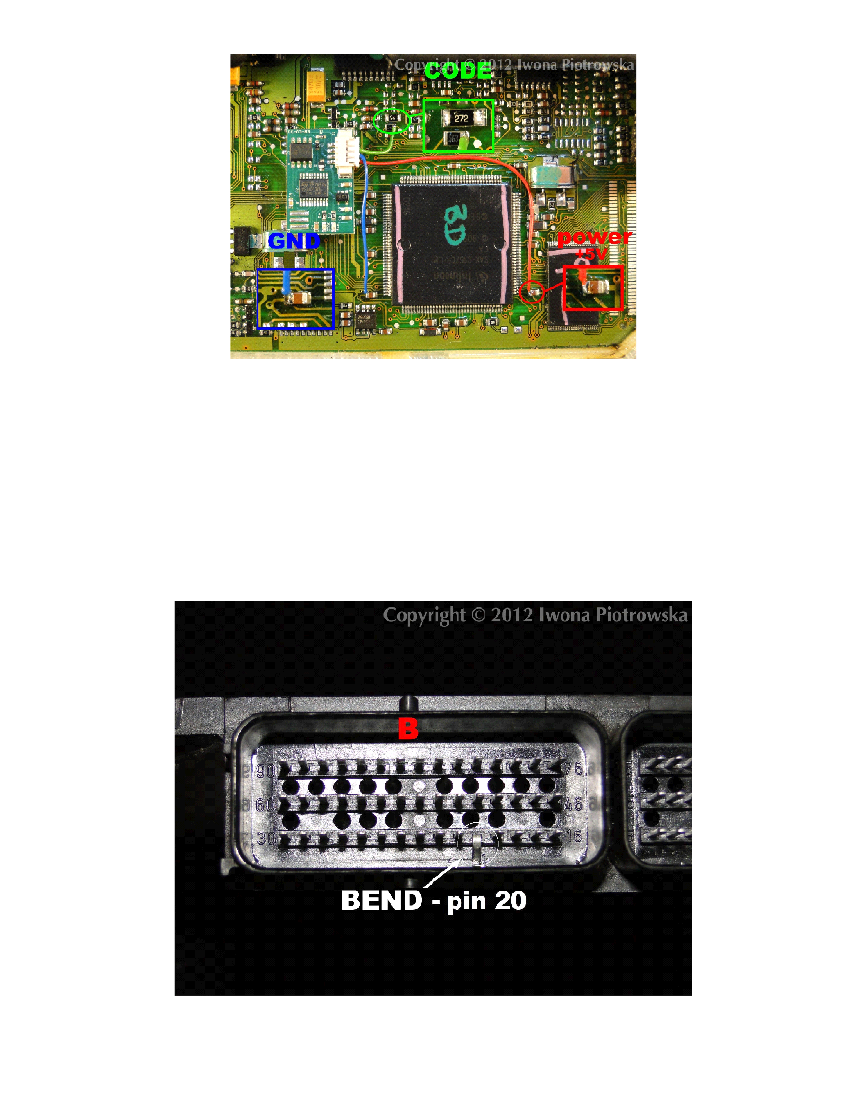

Pin 20 must be bent in socket or cut off from the car wiring.
Connecting emulator to ECU
16

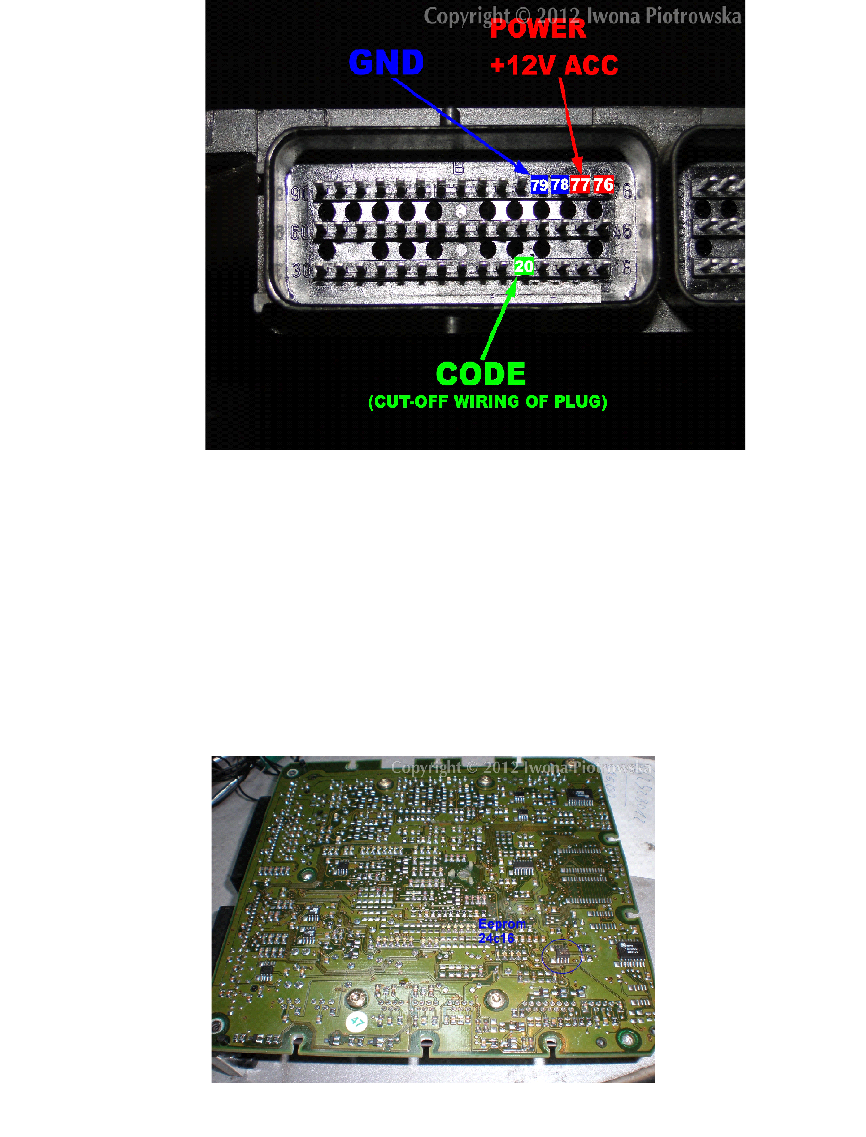

+12V ACC – 76 or 77pin
GND – 78 or 79pin
CODE – 20pin (cut-off wiring from ECU plug)
Mascott 2.8 TD
In addresses from 040 to 1FF change these values into FF in 24C16 memory
17
Connecting emulator to ECU

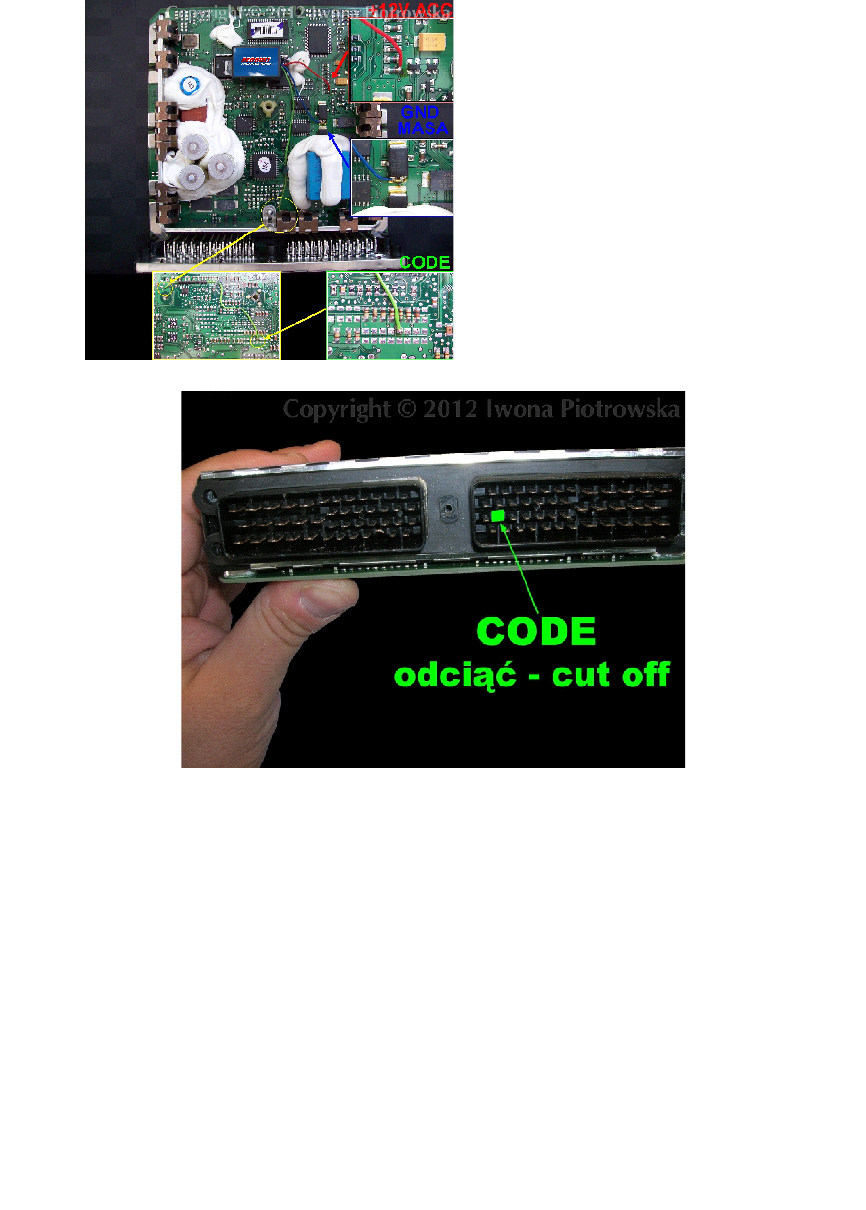

Cut off pin code from ECU
Laguna 3.0 gasoline 1 plug with 24C02 memory
18

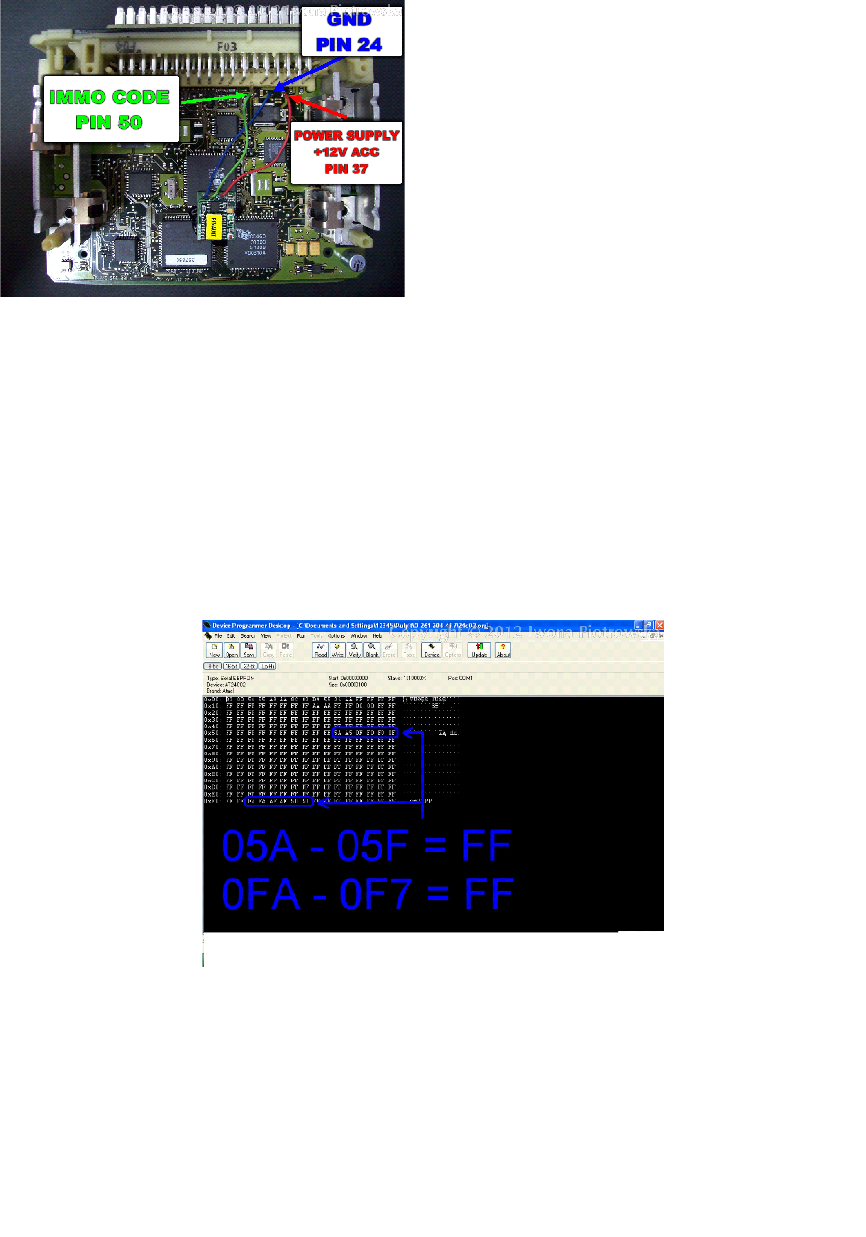

Cut off pin 50 from ECU
Connecting the emulator
ACC – pin 37
GND – pin 24
immo – pin 50
In addresses from 05A to 05F and from 0F2 to 0F7 change these values into FF
in 24C02 memory
19
Volvo S40 and V40 – 1.9TD
MSA15.5-5.40
Bosch 0 281 001 906 ECU

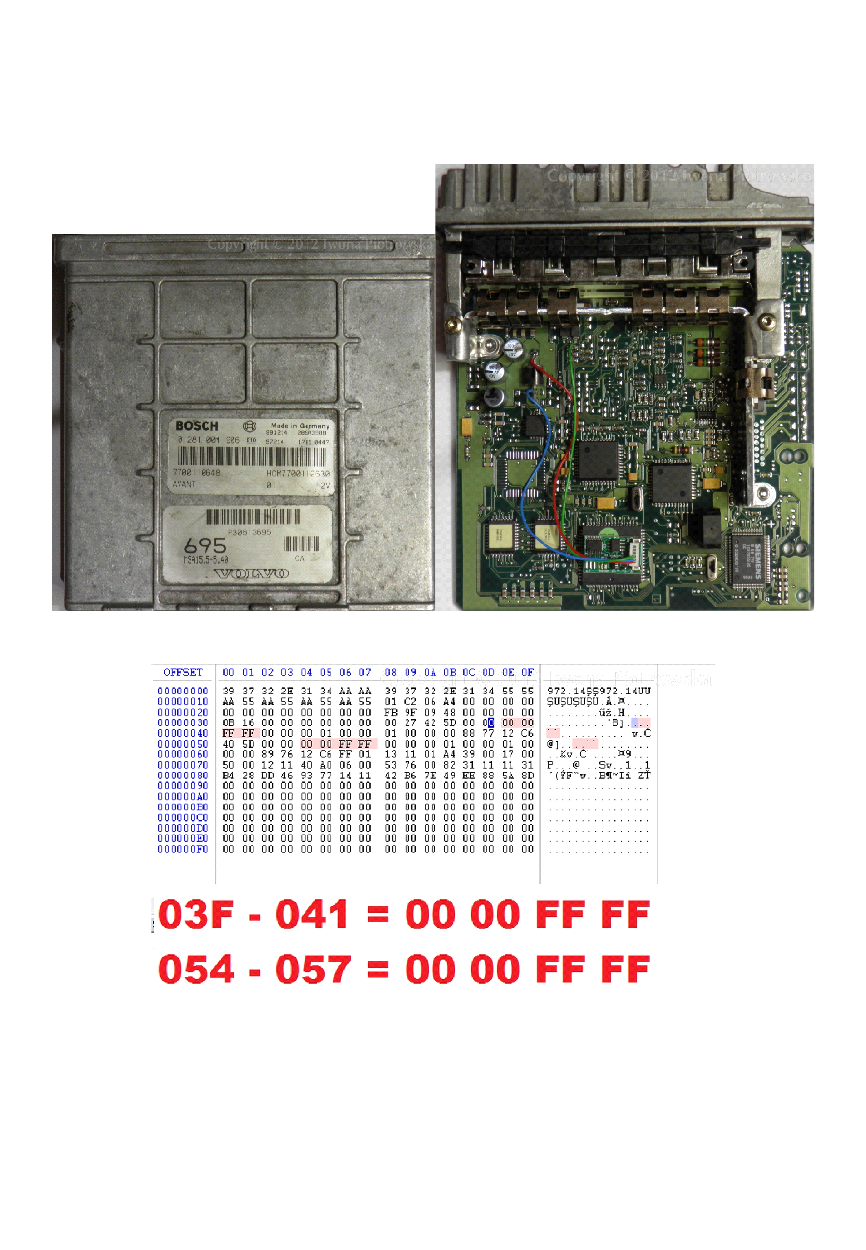

In addresses from 03F to 041 and from 054 to 057
change these values into 00 00 FF FF in 24C02 memory
20
Warning!!!
Due to possible construction changes of cars, check signals with multimeter in
the ECU plug before connecting the device.
