RHEEM WATER HEATER PARTS GUIDE

Parts & Accessories

2009

for water heating systems

Preferred Parts

The premium line approved for replacement in

•Rheem®and Ruud®residential water heaters

•Rheem®-Ruud®commercial water heaters

•Richmond®residential water heaters

•PerfectFit™commercial water heaters

•GE and Hotpoint residential water heaters

Universal Parts

The value line for all your replacement parts

for most brands of water heaters

Listings, Diagrams,

Reference Guide, Displays

and more!

NEW FOR 2009

ools& Acces

ories

http://waterheatertimer.org/How-to-troubleshoot-gas-water-heater.html

Rheem Advantages

It is the goal of Rheem Parts to set the standard for the plumbing industry we serve, and to

be the organization against which others are measured. We are market driven, and will

continue to explore products and services that offer our customers a competitive advantage

in the marketplace.

Technology

Rheem has significant research and development capability which allows us

to offer the latest technology and product reliability to our customers.

Patented Products

Rheem has a number of patented products that allow us to offer

the highest quality replacement parts.

Customer Service

Rheem has an industry leading customer service team that can provide fast

and convenient answers to our customer’s questions.

Brand Equity

The Rheem and Ruud names are synonymous with quality and customer service

and allows Rheem Parts and our partners to capitalize on this brand recognition

with professional plumbers.

Business Partner

Rheem is a proven business partner to our customers.

SalesProfessionals

Rheem Water Heating has an exceptional network of sales professionals

to help our customers sell replacement parts.

Merchandising Opportunities

Rheem Parts has taken the opportunity to complement our factory authorized

Preferred Parts with Universal Parts and differentiate these by branding

each with unique packaging and selling messages.

National Parts service center

from Rheem

To place your order call 1-800-621-5622; fax 1-800-535-9538

General Terms and Conditions Table of Contents

FREIGHT ALLOWANCE

F.O.B. Plant, Randleman, North Carolina. Full freight allowed

on ground shipping, within Continental United States on Preferred

Parts orders of $250.00 or more.

TAXES

Prices are subject to the addition of any tax imposed by any

present or future Federal, State, County or Municipal law on the

sale of such material, unless we have a tax exemption certificate

on file.

ACCEPTANCE OF ORDERS

All orders are subject to final approval on the terms and conditions

contained in our standard customer acknowledgment form.

VOLUME DISCOUNT

A 5% discount will be applied to all orders totalling $1000.00 or

more.

Note: Excludes Thermal Expansion Tanks and Protection Plus Kits.

Preferred Parts for Residential Water Heaters

Elements ..........................................................................................2-3

Preferred Parts Plumber’s Pack..........................................................4

Thermostats ........................................................................................4

Replacement Parts.........................................................................5-17

Preferred Parts for Commercial Water Heaters

Replacement Parts.......................................................................18-25

Universal Parts for Residential Water Heaters

Elements............................................................................................26

Universal Plumber’s Pack .................................................................27

Replacement Parts.......................................................................28-29

Parts Diagrams with Parts Lists

Residential Water Heaters ...........................................................30-54

Commercial Water Heaters..........................................................55-63

Parts Reference Guide

Residential Water Heaters ...........................................................64-69

Commercial Water Heaters..........................................................70-73

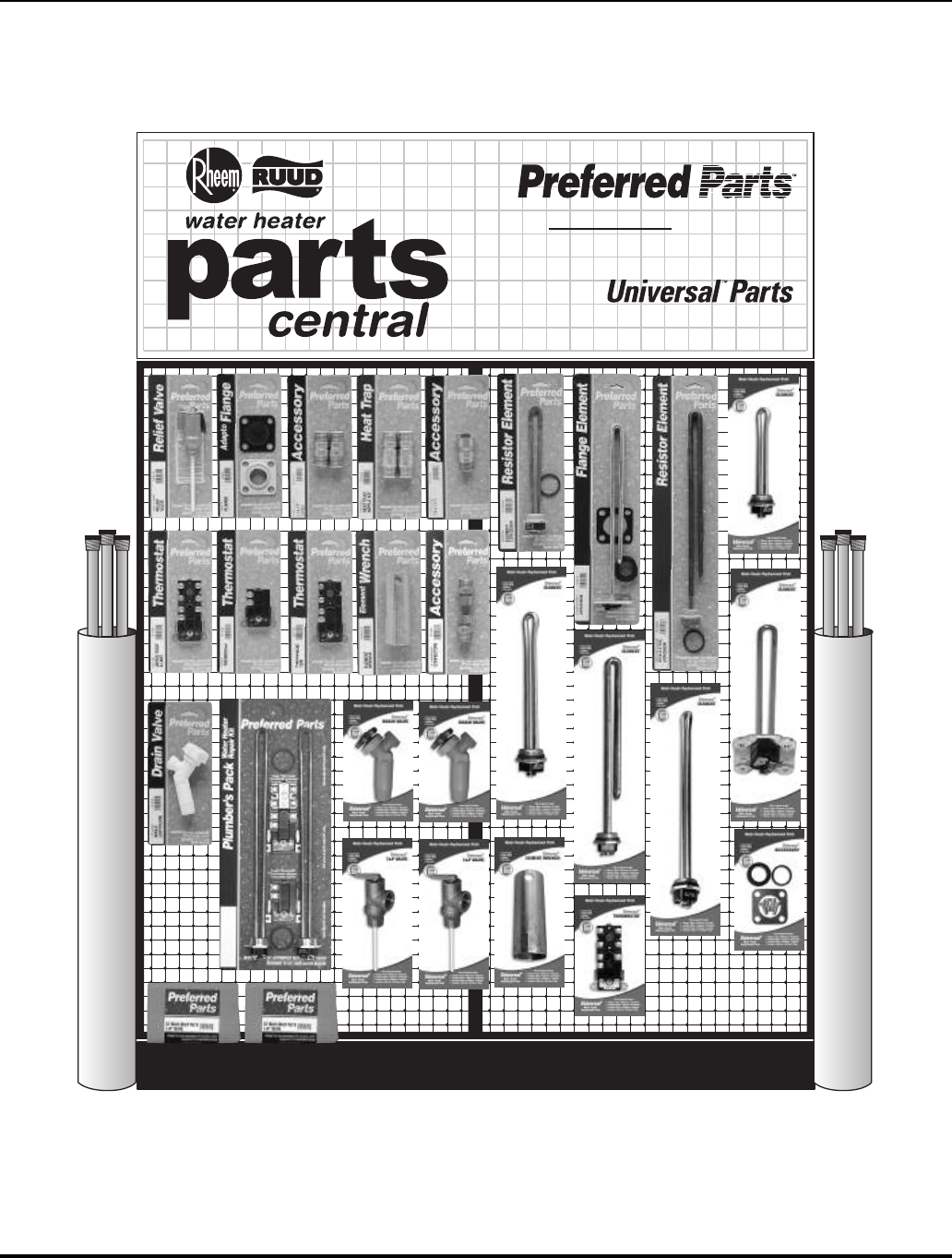

Display and Planograms ...................................................................74-77

Supplies & Hardware ......................................................................78-104

Tools & Instruments ....................................................105-127

A comprehensive catalog of approved replacement parts for Rheem®and Ruud®, Richmond®, PerfectFit™, and all GE and Hotpoint water heaters.

The Water Heater

PARTS

Guide 2009

Note: Please contact the Rheem National Customer Service Center at 1-800-621-5622 for items not listed in this guide.

Rheem National Customer Service

Division Office..................................................334-260-1500

Parts, Customer Service, Warranty ......................1-800-621-5622

Fax .......................................................1-800-535-9538

Email .................................................parts@rheem.com

Technical Service............................................1-800-HEATER3

(1-800-432-8373)

Email .............................................techserv@rheem.com

Website......................................................www.rheem.com

MATERIAL RETURNS - WATER HEATER PARTS

Material purchased from Rheem Parts Department may be returned

for credit within 90 days of the date of invoice, subject to a 25%

re-stocking charge. Total dollar amount returned must exceed

$25.00.

The following parts are not eligible for return:

• Items with net price less that $10.00.

• Items with date codes prior to year 2008.

• Chemicals.

• LP Conversion Kits.

• “AE”, “AM” or “AS” prefix part numbers.

• Opened cartons of items requiring Case Qty purchase.

• Special Order Items (Non-stock items.)

The only exception to this policy may be for extenuating circum-

stances. the Manager, Water Heater Parts, will make final determi-

nation for issuing a Return Goods Authorization (RGA).

All returns must have prior written approval from Rheem Parts

Department.

Request for the issue of an RGA must be submitted to Rheem

Customer Service. Fax request for RGA to 800-535-9538.

Information required is the original purchase order or credit card

order number that the parts were ordered on, Rheem sales order

number, Rheem invoice number along with the part number and

quantity to be returned. (We recommend faxing a copy of the

invoice with the part(s) identified to expedite the process. All

required information will be on the invoice.)

All materials must be “new & unused” and in the original pack-

aging (material received unpackaged or used will be returned to

sender Freight Collect, with no credit issued).

All approved returns must be shipped (FOB destination, prepaid

and allowed).

All approved returns must be shipped within 30 days approval.

Items returned without prior approval will be scrapped, no credit

issued.

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Elements may be ordered

in bulk. Box consists of 50

elements. Order Gasket

AP6708-9 seperately.

Resistored Stainless Steel Heating Elements

Preferred Parts resistored stainless steel elements feature a low watt density design with an

outer sheath of Incology®800 to resist failure from “dry firing”. Built in resistor helps prolong

anode life for greater tank protection and longer working life.

SCREW-IN ELEMENTS

•480V/2000W, 9-1/2", LWD

SP10870GL (Single)

AP10870GL-3 (Bulk*: 50)

• 480V/3000W, 12-5/8", LWD

SP10870JL (Single)

AP10870JL-3 (Bulk*: 50)

• 480V/4000W, 16-1/4", LWD

SP10870LL (Single)

AP10870LL-3 (Bulk*: 50)

• 480V/4500W, 17-1/2", LWD

SP10870ML (Single)

AP10870ML-3 (Bulk*: 50)

• 480V/5000W, 19-1/8", LWD

SP10870NL (Single)

AP10870NL-3 (Bulk*: 50)

• 480V/6000W, 19-1/8", LWD

SP10870QL (Single)

AP10870QL-3 (Bulk*: 50)

• 277V/2000W, 19-1/2", LWD

SP10871GL (Single)

AP10871GL-3 (Bulk*: 50)

• 277V/3000W, 12-3/8", LWD

SP10871JL (Single)

AP10871JL-3 (Bulk*: 50)

• 277V/4000W, 16-1/4", LWD

SP10871LL (Single)

AP10871LL-3 (Bulk*: 50)

• 277V/4500W, LWD

SP10871ML (Single)

AP10871ML-3 (Bulk*: 50)

• 277V/5000W, 19-1/8", LWD

SP10871NL (Single)

AP10871NL-3 (Bulk*: 50)

• 277V/6000W, 19-1/8", LWD

SP10871QL (Single)

AP10871-QL-3 (Bulk*: 50)

• 240V/2000W, 9-1/2", LWD

SP10869GL (Single)

AP10869GL-5 (Bulk*: 50)

• 240V/2500W, 9-15/16", LWD

SP10869HL (Single)

AP10869HL-5 (Bulk*: 50)

• 240V/3000W, 12-3/8", LWD

SP10869JL (Single)

AP10869JL-5 (Bulk*: 50)

• 240V/3500W, 13-1/2", LWD

SP10869KL (Single)

AP10869KL-5 (Bulk*: 50)

•240V/4000W, 16-1/4", LWD

SP10869LL (Single)

AP10869LL-5 (Bulk*: 50)

• 240V/4500W, 15-1/2", LWD

SP10869ML (Single)

AP10869ML-5 (Bulk*: 50)

• 240V/4500W, 13-1/2", MWD

SP10869MM (Single)

AP10869MM-5 (Bulk*: 50)

• 240V/5000W, 19-1/8", LWD

SP10869NL (Single)

AP10869NL-5 (Bulk*: 50)

• 240V/5500W, 13-1/2", HWD

SP10869PH (Single)

AP10869PH-5 (Bulk*: 50)

• 240V/6000W, 19-1/8", LWD

SP10869QL (Single)

AP10869QL-5 (Bulk*: 50)

• 208V/2000W, 9-1/2", LWD

SP10867GL (Single)

AP10867GL-3 (Bulk*: 50)

• 208V/3000W, 12-5/8", LWD

SP10867JL (Single)

AP10867JL-3 (Bulk*: 50)

• 208V/4000W, 16-1/4", LWD

SP10867LL (Single)

AP10867LL-3 (Bulk*: 50)

• 208V/4500W, 17-1/2", LWD

SP10867ML (Single)

AP10867ML-3 (Bulk*: 50)

• 208V/5000W, 19-1/8", LWD

SP10867NL (Single)

AP10867NL-3 (Bulk*: 50)

• 208V/6000W, 19-1/8", LWD

SP10867QL (Single)

AP10867QL-3 (Bulk*: 50)

• 120V/1440W, 7-11/16", HWD

SP10868LH (Single)

AP10868LH-5 (Bulk*: 50)

• 120V/1700W, 13-1/2", LWD

SP10868KL(Single)

AP10868KL-5(Bulk*: 50)

• 120V/2000W, 9-1/2", LWD

SP10868GL (Single)

AP10868GL-5 (Bulk*: 50)

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Resistored Copper Heating Elements

Preferred Parts energy efficient resistor copper heating elements help fight lime

build up and the resistor feature helps prolong the tank life of the water heater.

SCREW-IN ELEMENTS

• 240V/1500W, 10-5/8", LWD

SP10552FL (Single)

AP10552FL-3 (Bulk*: 50)

• 240V/2000W, 7-11/16", HWD

SP10552GH (Single)

AP10552GH-3 (Bulk*: 50)

• 240V/2000W, 13-5/8", LWD

SP10552GL (Single)

AP10552GL-3 (Bulk*: 50)

• 240V/2500W, 9-7/16", HWD

SP10552HH (Single)

AP10552HH-3 (Bulk*: 50)

• 240V/3000W, 10-5/8", HWD

SP10552JH (Single)

AP10552JH-3 (Bulk*: 50)

• 240V/3000W, 11-11/16", LWD

SP10552JL (Single)

AP10552JL-3 (Bulk*: 50)

• 240V/3500W, 13-3/8", LWD

SP10552KL (Single)

AP10552KL-3 (Bulk*: 50)

• 240V/4000W, 13-3/8", LWD

SP10552LL (Single)

AP10552LL-3 (Bulk*: 50)

• 240V/4500W, 13-5/8", HWD

SP10552MH (Single)

AP10552MH-3 (Bulk*: 50)

• 240V/4500W, 13-3/4", LWD

SP10552ML (Single)

AP10552ML-3 (Bulk*: 50)

• 240V/5000W, 13-3/4", LWD

SP10552NL (Single)

AP10552NL-3 (Bulk*: 50)

• 240V/5500W, 13-1/2", HWD

SP10552PH (Single)

AP10552PH-3 (Bulk*: 50)

• 240V/5500W

SP10552PL (Single)

AP10552PL-3 (Bulk*: 50)

• 240V/6000W, 11-3/4", HWD

SP10552QH (Single)

AP10552QH-3 (Bulk*: 50)

• 240V/6000W

SP10552QL (Single)

AP10552QL-3 (Bulk*: 50)

• 208V/2000W, 7-11/16", HWD

SP10872GH (Single)

AP10872GH-2 (Bulk*: 50)

• 208V/2000W, 13-5/8", LWD

SP10872GL (Single)

AP10872GL-2 (Bulk*: 50)

• 208V/2500W, 9-7/16", HWD

SP10872HH (Single)

AP10872HH-2 (Bulk*: 50)

• 208V/3000W

SP10872JH (Single)

AP10872JH-2 (Bulk*: 50)

• 208V/3000W, 11-11/16", LWD

SP10872JL (Single)

AP10872JL-2 (Bulk*: 50)

• 208V/4000W, 13-3/8", LWD

SP10872LL (Single)

AP10872LL-2 (Bulk*: 50)

• 208V/4500W

SP10872MH (Single)

• 208V/4500W, 13-3/4", LWD

SP10872ML (Single)

AP10872ML-2 (Bulk*: 50)

• 208V/5000W, 13-3/4", LWD

SP10872NL (Single)

AP10872NL-2 (Bulk*: 50)

• 208V/5500W, 13-7/16", LWD

SP10872PL (Single)

AP10872PL-2 (Bulk*: 50)

• 208V/6000W, 11-3/4", HWD

SP10872QH (Single)

AP10872QH-2 (Bulk*: 50)

• 208V/6000W, 15-1-16", LWD

SP10872QL (Single)

AP10872QL-2 (Bulk*: 50)

• 120V/1500W, 7-11/16", HWD

SP10874FH (Single)

AP10874FH-2 (Bulk*: 50)

• 120V/1700W, 11-1/2", LWD

SP10874KL (Single)

AP10874KL-2 (Bulk*: 50)

• 120V/2000W, 7-11/16", HWD

SP10874GH (Single)

AP10874GH-2 (Bulk*: 50)

• 120V/2500W, 9-7/16", HWD

SP10874HH (Single)

AP10874HH-2 (Bulk*: 50)

• 120V/3000W, 10-5/8", HWD

SP10874JH (Single)

AP10874JH-2 (Bulk*: 50)

OPEN COIL ELEMENTS

• 120V/1500W

AP13169

• 120V/2000W

AP13170

• 240V/1500W

AP13171

• 240V/2000W

AP13172

ADAPTERS

• Adapter Kit

ST6830 (Single)

Elements may be ordered

in bulk. Box consists of 50

elements. Order Gasket

AP6708-9 seperately.

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Preferred Parts Plumber’s Pack

The plumber’s pack is an all-inclusive “tune-up” kit for electric water

heaters featuring the most popular replacement parts on the market.

Plumber’s Pack Kit - includes two resistored 4500 watt screw-in copper heating elements, two heating

element gaskets, and upper & lower thermostats (all of which are factory preferred replacement quality)

SP20060 (single)

Gas Thermostats

• Robertshaw LP Gas Thermostat

(57-160 degrees) control

valve with left hand main burner outlet threads with 1 1/4"

shank - single use high limit (200 degrees) - 1/2" inlet & outlet

SP12258B (single) 1.25” Shank

SP12258N (single) 2.375” Shank

• Robertshaw Convertible Natural and LP Gas Thermostat

(

150 degree max) for Manufactured Housing with 1 1/4"

shank - single use high limit (195 degree)

SP9051B (single) 1.25” Shank

SP9051D (single) 2.25” Shank

• Robertshaw Natural Gas Thermostat - (57-160 degrees)

control valve with 1 1/4" shank - single use high limit

(200 degrees) - 1/2" inlet & outlet

SP8555B (single)

• Robertshaw Natural Gas Thermostat - (57-160 degrees)

control valve with 2 7/8" shank - single use high limit

(200 degrees) - 1/2" inlet & outlet

SP8555P (single)

Electric Thermostats*

• Therm-O-Disc Upper Thermostat (max 150 degree) & High

Limit (170 degree) - Two element non-simultaneous 208,

240, 277, 480 volt

SP11698 (single)

• Therm-O-Disc Upper Thermostat (max 150 degree) & High

Limit (170 degree) - Two element simultaneous 208, 240,

277, 480 volt

SP11699 (single)

• Therm-O-Disc Upper Thermostat (max 150 degree) & High Limit

(170 degree) - Single element 120 volt

SP11700 (single)

• Therm-O-Disc Lower Thermostat (max 150 degrees)

simultaneous and non-simultaneous 208,240,277,480 volt

SP11695 (single)

Electric Thermostat Covers

• Upper Thermostat Cover

AP8313-9 (single)

• Lower Thermostat Cover

AP8314-9 (single)

Plumber’s Pack

Gas Thermostats:

• Designed to sense the water

temperature inside the tank, and

control on/off function of the main

burner assembly

Electric Thermostats:

• Temperature range of 100° F

to 150° F

• Models are available for upper and

lower heating elements on double

element 240V and single element

120V water heaters

Electric thermostats may be

ordered in bulk. Box consists of

50 thermostats of the same part

number. Bulk pricing is less

than the single price. Please call

for pricing.

Preferred Parts™Electric

Thermostat Covers

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Thermocouple

This bi-metal device

detects pilot flame heat

and carries millivolt

current to the magnet

assembly in the gas

control valve which

sends gas to the

burner assembly to

ignite the burner.

Pilot Burner

Designed to light the

main burner when the

thermostat senses the

demand for more heat.

T & P Relief

Valve:

Safety device that

allows water to

escape from the

tank in the unlikely

event that the

temperature or

pressure becomes

excessive. Designed

to operate at

approx. 150 PSI

and 210º F.

Drain Valve:

Used to drain hot

water from the tank

when performing

periodic cleaning or

replacing a part.

Thermocouples

• 15” Thermocouple

SP6379E (single)

• 17” Thermocouple

SP6379K (single)

• 21” Thermocouple

SP6379C (single)

• 24” Thermocouple

SP6379R (single)

• 30” Thermocouple

SP6379H (single)

Pilot Burner Assemblies

• Natural Gas Pilot Burner Assembly - .0115 orifice

SP8980B (single)

• LP Gas Pilot Burner Assembly - .008 orifice - colored red for

easy LP identification

SP8980C (single)

Temperature & Pressure Relief Valves

• Watts 100XL-4; 3/4" inlet x 3/4" discharge - M150# (150 PSI

pressure / 210 degree temperature) up to 100,000 BTU

SP12574 (single)

• Watts 100XL; 3/4" inlet x 3/4" discharge (150 PSI pressure /

210 degree temperature) - long shank up to 100,000 BTU

SP8346 (single)

• T&P Extender; 3/4" x 2-1/2" Poly Liner

SP11620 (single)

Drain Valves

• Brass Drain Valve; 3/4" x 2 1/4" shank

SP6070G (single)

• Brass Drain Valve; 3/4" x 3" shank - Commercial Light Duty

SP12112S (single)

• Standard Melet; 3/4" NPT x 2 1/4" shank

SP12039 (single)

• Brass Drain Valve; 3/4" x 2 1/4" shank – Residential

SP12112G (single)

Gas Connectors

• 12” Stainless Steel Gas Connector MIP X MIP

AP13140A

• 18” Stainless Steel Gas Connector MIP X MIP

AP13140B

• 24” Stainless Steel Gas Connector MIP X MIP

AP13140C

• 48” Pro Coat Gas Connector

AP13318D

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Flexible Link

Anode Rod:

Metallic rod installed

inside the tank to

protect against

corrosion. The

“R-Tech”®anode rod

is made of magnesium

and is designed to

offer the longest

lasting tank protection.

Dip Tube

Non-metallic. Runs from

the cold water inlet to

deliver cold water to the

bottom of the tank as

hot water is drawn out.

Basic Installation Kit

Anode Rods

• R Tech Resistor Magnesium Anode Rod 44" long x .700 dia

SP11309C (single)

• Galvo Magnesium 44" long x .840 dia

SP11345C (single)

• Magnesium Anode Rod 44" long x .840 dia

SP11524C (single)

• Magnesium Anode Rod 58" long x .840 dia

SP11524Z (single)

• R Tech Resistor Magnesium Anode Rod 44" long x .900 dia

SP11526C (single)

• R Tech Resistor Magnesium flexible link Anode Rod

52" long - 12" sections

SP8371B (single)

• Aluminum Anode Rod 42" long x .625 dia

AP12938 (single)

Dip Tubes*

• Dip Tube with anti-siphon hole - 3/4” x 54” long - clear

(North Carolina code) with gasket

SP11251R (single)

• Dip Tube with anti-siphon hole - 1” x 26” long with gasket

SP11269C (single)

• Dip Tube with anti-siphon hole - 3/4” x 54” long with gasket

SP11248R (single)

* Due to the unique application of the EverKleen Dip Tube, please

call for part number and pricing. Have the model number and

serial number of the water heater on hand.

Installation Kits

• Basic Installation Kit

SP20009

• Gas Installation Kit

SP20010

• Electric Installation Kit

SP20011

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Robertshaw Parts

• Gas Valve – Natural Gas

SP8555S

• Gas Valve – Natural Gas

SP8555R

• Gas Valve – Natural Gas

SP8555U

• Gas Valve – Natural Gas

SP8555W

• Gas Valve – Natural Gas

SP8555T

• Gas Valve – LP

SP13160E

• Gas Valve – LP

SP13160A

• Gas Valve – LP

SP13160D

• Pilot Assembly – Natural Gas

SP20065

• Pilot Assembly – Natural Gas

SP20069

• Pilot Assembly – LP

SP20070

• Pilot Assembly – Natural Gas

SP20071

• Pilot Assembly – LP

SP20072

• Pilot Assembly – Natural Gas

SP20075

• Pilot Assembly – LP

SP20076

• Thermocouple Kit

SP20064

White-Rodgers Parts

• Gas Valve – Natural Gas

SP14270G

• Gas Valve – Natural Gas

SP14270H

• Gas Valve – Natural Gas

SP14270K

• Gas Valve – Natural Gas

SP14270M

• Gas Valve – Natural Gas

SP14339B

• Gas Valve – LP

SP14269A

• Gas Valve – LP

SP14269D

• Gas Valve – LP

SP14269E

• Gas Valve – LP

SP14340C

• Pilot Assembly Kit – Natural Gas

SP20127

• Pilot Assembly Kit – LP

SP20128

• Thermocouple Kit

SP20129

• Piezo Ignitor

AP14316-1 Piezo Only

• Piezo Ignitor - With Bracket

SP14410

Common Service Parts

• Heat Traps

SP20003

• Brass Drain Valve

SP12112S

• Relief Valve

SP12575B

• Gasket Kit

SP20063

FVIR (Flammable Vapor Ignition Resistant) Parts

PARTS DIAGRAM

ON PAGE 33

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

FVIR Standing Pilot Parts: 30, 40 and 50 Gallon Standing

Pilot Models (Excluding Direct Vent and PowerVent models)

Cross Reference – Models with Robertshaw Controls

Service Parts – Robertshaw Controls

Gas Valve Gas Valve Pilot Assy Pilot Assy Thermo-

Rheem Model Ruud Model (NG) (LP) Kit (NG) Kit (LP) couple Kit Gasket Kit

PROFESSIONAL SERIES WITH THE GUARDIAN SYSTEM - 30, 40 and 50 Gallon Capacities

22V40 PROF P2-40 PROF SP8555S N/A N/A

42V40 PROF PH2-40 PROF SP8555R SP13160E SP20076

RHG PRO40-40F RUG PRO40-40F SP8555T SP13160D SP20076

22V50 PROF P2-50 PROF SP8555S N/A N/A

42V50-40 PROF PH2-50-40 PROF SP8555R SP13160E SP20076

RHG PRO50-40F RUG PRO50-40F SP8555T SP13160D SP20076

RHG PRO50-50F RUG PRO50-50F SP8555W N/A N/A

42V40SPROF PH2-40SPROF SP8555S SP13160E SP20076

42V50SPROF PH2-50SPROF SP8555S AP13160A SP20076

FURY SERIES WITH THE GUARDIAN SYSTEM - 30, 40 and 50 Gallon Capacities

42VR40-40F PH2R40-40F SP8555T SP13160D SP20076 SP20064

42VR50-40F PH2R50-40F SP8555T SP13160D SP20076 SP20064

22V30F P2-30F SP8555S SP13160A SP20076 SP20069

22V40-36F1 P40-36F1 SP8555S N/A N/A

22V40F1 P2-40F1 SP8555S N/A N/A

42V40F PH2-40F SP8555R SP13160E SP20076

22V50F1 P2-50F1 SP8555S N/A N/A

42V50-40F PH2-50-40F SP8555R SP13160E SP20076

42V50-50F PH2-50-50F SP8555W N/A N/A

22V30S-30F P2-30S-30F SP8555R N/A N/A

22V40SF P2-40SF SP8555S SP13160A SP20076

42V40SF PH2-40SF SP8555S SP13160A SP20076

42V50SF PH50SF SP8555S SP13160A SP20076

SP20075

SP20064

SP20063

SP20064

SP20075

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

FVIR Standing Pilot Parts: 30, 40, 50, 60 and 75 Gallon Standing

Pilot Models (Excluding Direct Vent and PowerVent models)

Cross Reference – Models with White-Rodgers Controls

Service Parts – White-Rodgers Controls (Sept. 2007)

Gas Valve Gas Valve Pilot Assy Pilot Assy Thermo-

Rheem Model Ruud Model (NG) (LP) Kit (NG) Kit (LP) couple Kit Gasket Kit

PROFESSIONAL SERIES WITH THE GUARDIAN SYSTEM - 30, 40, 50 and 60 Gallon Capacities

22V40 PROF P2-40 PROF SP14270G N/A N/A

42V40 PROF PH2-40 PROF SP14270F SP14269E SP20128

RHG PRO40-40F RUG PRO40-40F SP14270H SP14269D SP20128

22V50 PROF P2-50 PROF SP14270G N/A N/A

42V50-40 PROF PH2-50-40 PROF SP14270F SP14269E SP20128

RHG PRO50-40F RUG PRO50-40F SP14270H SP14269D SP20128

RHG PRO50-50F RUG PRO50-50F SP14270K N/A N/A

42V40SPROF PH2-40SPROF SP14270G SP14269A SP20128

42V50SPROF PH2-50SPROF SP14270G SP14269A SP20128

RHGPRO60F RUGPRO60F SP14270M SP14269A SP20128

FURY SERIES WITH THE GUARDIAN SYSTEM - 30, 40, 50 and 60 Gallon Capacities

42VR40-40F PH2R40-40F SP14270H SP14269D SP20128

42VR50-40F PH2R50-40F SP14270H SP14269D SP20128

22V30F P2-30F SP14270G SP14269A SP20128

22V40-36F1 P40-36F1 SP14270G N/A N/A

22V40F1 P2-40F1 SP14270G N/A N/A

42V40F PH2-40F SP14270F SP14269E SP20128

22V50F1 P2-50F1 SP14270G N/A N/A

42V50-40F PH2-50-40F SP14270F SP14269E SP20128

42V50-50F PH2-50-50F SP14270K N/A N/A

22V30S-30F P2-30S-30F SP14270F N/A N/A

22V40SF P2-40SF SP14270G SP14269A SP20128

42V40SF PH2-40SF SP14270G SP14269A SP20128

42V50SF PH50SF SP14270G SP14269A SP20128

42V60F PH2-60F SP14270M SP14269A SP20128

PROFESSIONAL AND FURY SERIES WITH THE GUARDIAN SYSTEM - 75 Gallon Capacity

RHGPRO75F RUGPRO75F SP14339B SP14340C SP20127 SP20128 SP20129 SP20063

42V75F PH2-75F SP14339B SP14340C SP20127 SP20128 SP20129 SP20063

SP20127

SP20129

SP20063

SP20129

SP20127

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Natural Gas Control Valve

Ignition Control

Blower Motor Assembly

Pilot Burner

and Ignitor

Sensor:

PowerVent Replacement Parts

• Honeywell 24V Natural Gas Control Valve,

PowerVent Series, 1/2” inlet x 3/8” outlet - 40/50/75

gallon Residential and Commercial models

SP11652B (single)

• Honeywell 24V LP Gas Control Valve, PowerVent

Series, 1/2” inlet x 3/8” outlet - 40/50/75 gallon

Residential and Commercial models

SP11652C (single)

• LP Gas Valve (1992-1995)

SP10886C (single)

• Hot Surface Ignitor (Models Thru 12/1995)

SP10758

•

Honeywell Ignition Control - S8600M - Continuous

Retry - 24V - used with electronic ignition system

SP10763C

(single)

•

Honeywell Ignition Cable - 25 inch - 1/4”

disconnect with rubber boot on pilot end

SP8828G

(single)

•

Therm-O-Disc Residential Thermostat (max 140

degrees) and high limit (180 degrees) 40, 50 & 75

gallon residential

SP12390 (single)

• Therm-O-Disc Residential Thermostat (max 160

degrees) and high limit (190 degrees)75 gallon

commercial only

SP12391 (single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - Natural Gas - 40-50 gallon

SP12049B (single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - LP Gas - 40-50 gallon

SP12049C

(single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - Natural Gas - 75 gallon

SP12049D

(single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - LP Gas - 75 gallon

SP12049E

(single)

•

Hot Surface Ignitor - 115V, 1800 degree F, with 19”

female quick connect leads - Natural or LP

SP10972

(single)

• Pressure

Switch

SP11875

(single)

• Pressure

Switch (Prior to June, 1991)

SP10887K

(single)

•

Transformer, 120VAC to 24VAC

SP11787

(single)

•

Blower Motor Assembly 40, 50 gallon standard

AP10983-4

(single)

•

Blower Motor Assembly 40, 50 gallon - High

Altitude only

AP10984-3

(single)

•

Blower Motor Assembly 75 gallon residential or

commercial

SP11608

(single)

PARTS DIAGRAM

ON PAGES 37

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Blower Assembly

Wiper Control and Gas

Valve Assembly

PowerVent 2 Replacement Parts

• Blower Assembly - Integrated vent hood, includes

installed vacuum switch (SP12766), power cord,

and vent coupling (SP12638). This fits the

PowerVent 2 product only.

SP12562

(single)

• Anode Rod

SP11309C

(single)

•

Flue Baffle with hanger (has extra restrictors)

AM39341

(single)

•

Temperature & Pressure Relief Valve

SP8346

(single)

•

Dip Tube

AP11251Q-2

(single)

•

Dip Tube Gasket

AP6948-3

(single)

•

Drain Valve

SP12112S

(single)

•

Drain Valve Shroud

AP9167

(single)

•

Inner Door

AM29501

(single)

•

Outer Door

AM29254-4C

(single)

•

Protective Cover (cover for wiper control)

AP12558

(single)

•

Burner Assembly (40 Gal Natural Gas - Low NOx)

AM39503RY

(single)

•

Burner Assembly (40 Gal LP Gas)

AM39504RM

(single)

•

Burner Assembly (50 Gal Natural Gas - Low NOx)

AM39503SY

(single)

•

Burner Assembly (50 Gal LP Gas)

AM39504SM

(single)

•

Heat Trap Kit

SP20003

(single)

•

Terminal Vent Assembly - 2” Termination

AM39508

(single)

• 2-inch

45 Degree PVC

AP12646

(single)

• 3-inch

Screen

AS37079

•

Vacuum Tube

AP12768

(single)

• Vent Coupling, 2” rubber coupling with clamps.

Connects blower to 2” PVC pipe.

This fits the

PowerVent 2 product only.

SP12638

(single)

• Spark Ignitor and Pilot Assembly - Natural Gas.

This fits the PowerVent 2 product only.

SP12560B

(single)

• Spark Ignitor and Pilot Assembly - LP Gas.

This fits the PowerVent 2 product only.

SP12560C

(single) (40/50)

SP12049E (75)

• Wiper Control and Gas Valve Assembly - Natural

Gas, includes wire cover.

This fits the PowerVent 2

product only.

SP20161A

(single)

• Wiper Control and Gas Valve Assembly - LP Gas,

includes wire cover.

This fits the PowerVent 2

product only.

SP20162A

(single)

• Pressure Switch.

This fits the PowerVent 2 product

only.

SP12766

(single) (40/50)

SP20130 (75)

• On/Off Switch

AP12767

(single)

• Blower Motor

(VR units only)

AP13194 (single) (For 41VRP50-55 only)

• Blower Motor

(22VRP75)

AP13211-1

(single)

• Pressure Switch (22VRP75)

SP20130

PARTS DIAGRAM

ON PAGE 39

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

PowerVent with the Guardian System™

Replacement Parts

Parts Specific to Models Manufactured with

Robertshaw gas control valves between

July 2006 and October 2007

•

Pilot Assembly – Natural Gas Models

SP13418

SP13420

SP13422

SP13424

•

Pilot Assembly – LP Gas Models

SP13419

SP13421

SP13423

SP13425

•

FV Wiper Control and Gas Valve Assembly –

Natural Gas Models

SP20170A (40)

SP20170B (50)

SP13458D

•

FV Wiper Control and Gas Valve Assembly –

LP Gas Models

SP13459

SP13459B

•

Control – FV Wiper Electronics

SP20123B

•

FV Sensor Kit

SP13447B

Parts Specific to Models Manufactured

with White-Rodgers gas control valves

October 2007 to Present

•

Intelli-Vent Gas Valve – Natural Gas

SP13845A

SP13845B

•

Intelli-Vent Gas Valve – LP Gas

SP13846A

SP13846B

•

Hot Surface Ignitor – All White-Rodgers Models

SP14218A (40/50)

SP14218B (75)

Common Service Parts

•

Blower Assembly – High Performance

SP13416 (40/50)

•

Blower Assembly

SP13605 (40/50 Short)

•

Blower Assembly

SP14140 (60)

•

Blower Assembly

AP14378 (75)

•

Anode Rod

SP11309C (40/50 only)

•

Temperature & Pressure Relief Valve

SP8346 (40/50 only)

•

Temperature & Pressure Relief Valve

SP12574 (40/50 Short)

•

Drain Valve

SP12112G (40/50 only)

•

Heat Trap Kit

SP20003 (40/50 only)

•

Inner Door Gasket Kit

SP20063

•

FV Sensor and Snap Cap

(Note: Sensor and Snap Cap must be ordered together)

AP13447 FV Sensor

AP13450 Snap Cap

•

Vacuum Switch – For use with 40 and 50 Gallon

Tall Models

SP20116

•

Vacuum Switch – For use with 40 and 50 Gallon

Short Models

SP20117

•

Vacuum Switch – For use with 60 Gallon Models

SP20116A

•

Vacuum Switch – For use with 75 Gallon Models

SP20117A

PARTS DIAGRAM

ON PAGE 43 Hot Surface Ignitor

Intelli-Vent Gas Valve

FV Sensor

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

PowerVent with the Guardian System

™

Parts Cross Reference Chart

Pilot Assy. Pilot Assy.

Gas Valve – Gas Valve – Replacement Replacement Blower

Rheem Model Ruud Model Natural Gas LP Gas Kit (NG) Kit (LP) Assembly Gasket Kit Relief Valve

RHEEM AND RUUD MODELS WITH ROBERTSHAW GAS CONTROL VALVES

42VP40F PVP40F SP20170A SP13459 SP13418 SP13419 SP13416 SP20063 SP8346

42VP50F PVP50F SP20170B SP13459 SP13422 SP13423 SP13416 SP20063 SP8346

42VP40SF PVP40SF SP13458D SP13459B SP13420 SP13421 SP13605 SP20063 SP12574

42VP50SF PVP50SF SP13458D SP13459B SP13424 SP13425 SP13605 SP20063 SP12574

Gas Valve – Gas Valve – Blower

Rheem Model Ruud Model Natural Gas LP Gas Hot Surface Ignitor Kit Assembly Gasket Kit Relief Valve

RHEEM AND RUUD MODELS WITH WHITE-RODGERS GAS CONTROL VALVES

42VP40FW PVP40FW SP13845A SP13846A SP14218A SP13416 SP20063 SP8346

42VP50FW PVP50FW SP13845A SP13846A SP14218A SP13416 SP20063 SP8346

42VP40SFW PVP40SFW SP13845B SP13846B SP14218A SP13605 SP20063 SP12574

42VP50SFW PVP50SFW SP13845B SP13846B SP14218A SP13605 SP20063 SP12574

42VP60FW PVP60FW SP13845B SP13846B SP14218A SP14140 SP20063 SP12574

42VP75FW PVP75FW SP13845A SP13846A SP14218B AP14378 SP20063 SP12575

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Direct Vent with the Guardian System™

Replacement Parts

•

White-Rodgers Gas Valve – NG

SP14270K

•

White-Rodgers Gas Valve – LP

SP14269E

•

White-Rodgers Pilot Assembly Kit – NG

SP20159

•

White-Rodgers Pilot Assembly Kit – LP

SP20160

•

White-Rodgers Thermocouple Kit

SP20129

• Gasket Kit

SP20063

• Brass

Drain Valve

SP12112G

• Relief Valve

SP8346

•

4’ Horizontal Vent Extension Kit

SP20131

•

4’ Vertical Vent Extension Kit

SP20132

•

Piezo Ignitor

AP14316

Direct Vent with the Guardian System™Parts Cross Reference Chart

Pilot Assy. Pilot Assy. Thermocouple

Gas Valve – Gas Valve – Replacement Replacement Replacement Gasket Relief

Rheem Model Ruud Model NG LP Kit – NG Kit – LP Kit Kit Valve

RHEEM FURY SERIES / RUUD PACEMAKER SERIES

22DV40F PH2DV40F SP14270K SP14269E SP20159 SP20160 SP20129 SP20063 SP8346

22DV50F PH2DV50F SP14270K SP14269E SP20159 SP20160 SP20129 SP20063 SP8346

PARTS DIAGRAM

ON PAGE 44

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ultra Low NOx with the Guardian System™Replacement Parts

•

Combustion Chamber Maintenance

Gasket Kit

SP20135

•

Combustion Chamber Maintenance

Gasket Kit

SP20136

•

Combustion Chamber Maintenance

Gasket Kit

SP20137

•

Pilot Assembly Replacement Kit

SP20138

•

Pilot Assembly Replacement Kit

SP21039

•

Pilot Assembly Replacement Kit

SP20140

•

Pilot Assembly Replacement Kit

SP20141

•

Pilot Assembly Replacement Kit

SP20142

•

Thermocouple Replacement Kit

SP20143

•

Thermocouple Replacement Kit

SP20144

•

Thermocouple Replacement Kit

SP20145

•

Thermocouple Replacement Kit

SP20146

•

Thermocouple Replacement Kit

SP20147

•

Burner Assembly Replacement Kit

SP20148

•

Burner Assembly Replacement Kit

SP20149

•

Burner Assembly Replacement Kit

SP20150

•

Burner Assembly Replacement Kit

SP20151

•

Burner Assembly Replacement Kit

SP20152

•

Inner Door Assembly Replacement Kit

SP20153

•

Inner Door Assembly Replacement Kit

SP20154

•

Inner Door Assembly Replacement Kit

SP20155

•

Inner Door Assembly Replacement Kit

SP20156

•

Inner Door Assembly Replacement Kit

SP20157

•

Inner Door Assembly Replacement Kit

SP20158

•

Gas Valve – NG

SP14270M

•

Gas Valve – NG

SP14270L

•

Relief Valve

SP12574

•

Relief Valve

SP12575B

•

Relief Valve

SP12575C

•

Heat Trap – Flapper Type

AP12992C

•

Drain Valve

SP12112E

•

Drain Valve

SP12112S

•

Piezo Ignitor

AP14316

Ultra Low NOx with the Guardian System

™

Parts Cross Reference Chart

Combustion Pilot Assy. Thermocouple Burner Assy. Inner

Chamber Replacement Replacement Replacement Door Relief Drain

Rheem Model Ruud Model Gas Valve Gasket Kit Kit Kit Kit Assy. Kit Valve Valve

RHEEM FURY SERIES / RUUD PACEMAKER SERIES

22V30FN P2-30FN SP14270M SP20135 SP20138 SP20143 SP20148 SP20153 SP12574C SP12112E

22V40FN P2-40FN SP14270M SP20136 SP20139 SP20144 SP20149 SP21054 SP12574C SP12112E

22V40SFN P2-40SFN SP14270M SP20137 SP20141 SP20146 SP20151 SP20156 SP12574C SP12112E

22VR40FN P2R40-FN SP14270L SP20136 SP20140 SP20145 SP20150 SP20157 SP12575C SP12112S

22V50FN P2-50FN SP14270M SP20137 SP20141 SP20156 SP20151 SP20155 SP12574C SP12112E

22VR50FN P2R-50FN SP14270L SP20137 SP20142 SP20147 SP20152 SP20158 SP12575C SP12112S

RHEEM AND RUUD PROFESSIONAL SERIES

22V30 PROFN P2-30 PROFN SP14270M SP20135 SP20138 SP20143 SP20148 SP20153 SP12574C SP12112E

22V40 PROFN P2-40 PROFN SP14270M SP20136 SP20139 SP20144 SP20149 SP20154 SP12574C SP12112E

22V40S PROFN P2-40S PROFN SP14270M SP20137 SP20141 SP20146 SP20151 SP20156 SP12574C SP12112E

RHG PRO40FN RUG PRO40FN SP14270L SP20136 SP20140 SP20145 SP20150 SP20157 SP12575C SP12112S

22V50 PROFN P2-50 PROFN SP14270M SP20137 SP20141 SP20146 SP20151 SP20155 SP12574C SP12112E

RHG PRO50FN RUG PRO50FN SP14270L SP20137 SP20142 SP20147 SP20152 SP20158 SP12575C SP12112S

RHEEM IMPERIAL SERIES / RUUD MASTER SERIES

22X30FN M2-30FN SP14270M SP20135 SP20138 SP20143 SP20148 SP20153 SP12574C SP12112E

22X40FN M2-40FN SP14270M SP20136 SP20139 SP20144 SP20149 SP20154 SP12574C SP12112E

22X40SFN M2-40SFN SP14270M SP20137 SP20141 SP20146 SP20151 SP20156 SP12574C SP12112E

22XR40FN M2R-40FN SP14270L SP20136 SP20140 SP20145 SP20150 SP20157 SP12575C SP12112S

22X50FN M2-50FN SP14270M SP20137 SP21041 SP20146 SP20151 SP20155 SP12574C SP12112E

22XR50FN M2R-50FN SP14270L SP20137 SP21042 SP20147 SP20152 SP20158 SP12575C SP12112S

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Marathon Replacement Parts

HEATING ELEMENTS

•Lower Element (3800W), MR30, MR40 gallon

models

SP212700 (single)

•Lower Element (3000W), MR50, MSR50, MR75,

MR85, and MR105 gallon models

SP212750 (single)

•Lower Element (3800W), MR50 gallon model

SP212760 (single)

•Lower Element (3800W), MSR50, MR75, MR85,

MR105 gallon models

SP212770 (single)

•Lower Element (4500W), MR50 gallon model

SP212780 (single)

•Lower Element (4500W), MSR50, MR75, MR85,

MR105 gallon models

SP212790 (single)

•Heating Element (3000W/240V)

SP213480 (single)

•Heating Element (2000W/120V)

SP213540 (single)

•Upper Element (3800W)

SP610130 (single)

•Upper Element (5500W)

SP610140 (single)

•Upper Element (3000W)

SP610150 (single)

•Upper Element (4500W)

SP610160 (single)

•Lower element (4500W), MR30, MR40 gallon

SP610680 (single)

•Lower Element (3000W), MR30, MR40 gallon

SP610690 (single)

•Heating Element (5500W)

SP10698PH (single)

•Heating Element (4500W/240V)

SP10698MH (single)

•Heating Element (5500W/240V)

SP10698RL (single)

REPLACEMENT PARTS

•Knock Out Bracket

SP213070 (single)

•Lower Access Panel Cover

SP213090 (single)

•Use and Care Manual

SP213270 (single)

•Access Panel Cover Insulation

SP213340 (single)

•Thermostat Insulation

SP213350 (single)

•Use and Care Manual Supplement

SP213360 (single)

•120V Temperature Control Thermostat

SP213590 (single)

•240V Temperature Control Thermostat

SP213600 (single)

•Use and Care Manual

SP213620 (single)

•Use and Care Manual Supplement

SP213630 (single)

•Vacuum Relief Assembly

SP221790 (single)

•Dip Tube (MR85, MR105 gallon models)

SP230018 (single)

•Dip Tube (MSR50 gallon short model)

SP230019 (single)

•Dip Tube (MR15, MR20 gallon models)

SP230021 (single)

•Dip Tube (MR30 gallon model)

SP230023 (single)

•Dip Tube (MR75 gallon model)

SP230024 (single)

•Dip Tube (MR40, MR50 gallon models)

SP230025 (single)

•Seal Ring (MR30, MR40, MR50, MSR50,

MR75, MR80 gallon models)

SP230090 (single)

•Seal Ring Hot Side (MR105 gallon model only)

SP230110 (single)

•Pipe Wrap Energy Kit

SP231520 (single)

•Lock Washer

SP231710 (single)

•Cap Screw

SP240420 (single)

•Grommet Hot Side (MR105 gallon model only)

SP240480 (single)

•Grommet Hot Side (MR30, MR40, MR50,

MSR50, MR75, MR85 gallon models)

SP240490 (single)

•Lower Protector

SP310010 (single)

•Lower Thermostat

SP310020 (single)

•Upper Protector

SP310040 (single)

•Element Gasket

SP310060 (single)

•Upper Temperature Control Thermostat

SP310230 (single)

•Screw #10-32 x 3/8

SP310240 (single)

•Drain Valve

SP310270 (single)

•Screw #10-16 x 5/8

SP330020 (single)

•Reducer Bushing 1” x 3/4” (MR105)

SP330030 (single)

•T & P Valve

SP330040 (single)

•Drain Valve

SP330090 (single)

•Screw #8

SP330180 (single)

•Reducer 1” x 3/4” Cold Side

SP330200 (single)

•Tee 3/4” x 3/4” x 3/4”

SP330210 (single)

•Nipple 3/4” x 3”

SP330230 (single)

•Junction Box Cover

SP410910 (single)

•Upper Access Panel

SP411800 (single)

•Lower Access Panel

SP411810 (single)

•Access Panel

SP412050 (single)

•Element Wrench

SP610070 (single)

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Accessories

• Mobile Home Straps

AP11154 (single)

• Earthquake Straps

SP13345 (single)

• Heat Traps

SP20003 (single)

• Water Heater Stand, 21” X 21” X 16”

SP13044

•

ProtectionPlus 4-Yr. Limited Warranty Extension Kits* -

Pkg. of 6 (no single kit orders)

SP20079

*For use on: Professional, Fury, Pacemaker, Heavy Duty, PowerVent and Direct Vent models.

Not for use on: Warrior, Warrior DV, Marathon, Point-of-Use or Table Top models.

Expansion Tanks

Thermal Expansion Tanks

Save Energy and Money

Expanded (heated) water is absorbed by a

Thermal Expansion Tank which means...

• Water heater and fixtures are protected

• Eliminates BTU and water waste, saving money and energy

• No dangerous pressure build up in the system

• Relief valves will not be triggered

• Potential safety hazard reduced

• RRT Therm-X-Guard Expansion Tank 2.5 Gal

RRT-5 (Single)

• RRT Therm-X-Guard Expansion Tank 5 Gal

RRT-12 (Single)

• RRT Therm-X-Guard Expansion Tank 10 Gal

RRT-25 (Single)

ProtectionPlus

Kit

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

Immersion Thermostat

3-Pole Fuse Block

Fuses

ELECTRIC THERMOSTATS

•Therm-O-Disc Upper Thermostat (max 150

degree) & High Limit (170 degree) - 50 Gallon

Surface Mount

SP11234 (single)

• Therm-O-Disc Upper Thermostat (max 170

degree) & High Limit (190 degree) - 85 & 120

Gallon Surface Mount

SP11231 (single)

• Immersion Thermostat - White-Rogers

(110 - 190 degrees) 60” capillary tube

SP11805 (single)

• Immersion High Limit - White-Rogers

(200 degrees) manual reset - 60” capillary tube

SP11806 (single)

• Immersion Thermostat (80 - 190 degrees) - 24”

capillary tube

SP8260 (single)

• Immersion High Limit - (205 degrees) manual

reset - 15” capillary tube

SP5411 (single)

• Therm-O-Disc Upper Thermostat

(110-170 degree) & High Limit (190 degree),

non-simultaneous ELD models only

SP8293 (single)

• Therm-O-Disc Lower Thermostat (110-170

degree), non-simultaneous ELD models only

SP8295 (single)

• Hand Hole Gasket Kit

SP22079 (single)

• Hand Hole Gasket ONLY

SP5886

CONTACTORS AND TRANSFORMERS

• Contactor - 3 pole; 120V; 35 amp; I-F-G Class G

SP12841 (single)

• Transformer with Jumper

SP10006 (single)

• Copper Conductor

AM25285 (single)

FUSES AND FUSE BLOCKS

• Fuse Block - 3 pole; holds 1 5/8 L x 13/32 dia

fuses Class G - 30 amp

SP8311E (single)

• Fuse Block - Class G - 35 amp Fuse

SP11112 (single)

• Fuse - 30 amp 1 5/8 L x 13/32 dia Class G

SP8264M (single)

• Fuse - 35 amp Class G

SP8264K (single)

• Junction Box

AM35196

TEMPERATURE AND PRESSURE RELIEF VALVES

•Watts 100XL-4; 3/4”inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) 6-27 KW (100,000BTU)

SP12574 (single)

• Watts 40XL-5; 3/4” inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) 30-54 KW (200,000 BTU)

SP9013D (single)

• Watts L100XL-3; 3/4” inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) 81 KW

AP13849 (single)

RESISTORED STAINLESS STEEL

HEATING ELEMENTS – POWERPACK

• 480V/4000W (PowerPack)

AP12879LL (Bulk**: 50)

• 480V/4500W (PowerPack)

AP12879ML (Bulk**: 50)

• 480V/5000W (PowerPack)

AP12879NH (Bulk**: 50)

• 480V/6000W (PowerPack)

AP12879QH (Bulk*: 50)

• 277V/4000W (PowerPack)

AP12880LL (Bulk**: 50)

• 277V/4500W (PowerPack)

AP12880ML (Bulk**: 50)

• 277V/5000W (PowerPack)

AP12880NH (Bulk**: 50)

• 277V/6000W (PowerPack)

AP12880QH (Bulk*: 50)

• 240V/4000W (PowerPack)

AP12878LL (Bulk**: 50)

• 240V/5000W (PowerPack)

AP12878NH (Bulk**: 50)

• 240V/6000W (PowerPack)

AP12878QH (Bulk**: 50)

• 208V/4000W (PowerPack)

AP12877LL (Bulk**: 50)

• 208V/4500W (PowerPack)

AP12877ML (Bulk**: 50)

• 208V/5000W (PowerPack)

AP12877NH (Bulk**: 50)

• 208V/6000W (PowerPack)

AP12877QH (Bulk**: 50)

Commercial Electric Water Heaters

Elements may be

ordered in bulk. Box

consists of 50

elements. Order

gaskets seperately.

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

Honeywell Ignition Control

Pilot Burner and

Ignitor Sensor

Watts Temperature

& Pressure Relief

Valve

Immersion

Thermostat & High Limit

GAS VALVES

• Honeywell 1/2 Inlet x 3/4 Outlet Gas Valve -

Natural Gas - 24V

SP10963B

(single)

• Honeywell 1/2 Inlet x 3/4 Outlet Gas Valve -

LP Gas - 24V

SP10963C (single)

• Honeywell 3/4 Inlet x 3/4 Outlet Gas Valve -

Natural Gas - 24V

SP10963D (single)

• Honeywell 3/4 Inlet x 3/4 Outlet Gas Valve -

LP Gas- 24V

SP10963E (single)

• Robertshaw High Capacity Natural Gas Valve

1” Inlet x 1” Outlet Slow Opening Valve

SP8099N (single)

• Robertshaw High Capacity LP Gas Valve

1” Inlet x 1” Outlet - Slow Opening Valve

SP8099P (single)

IGNITION CONTROL MODULE & CABLE

• Honeywell Ignition Control S8600M -

Continuous Retry - 24V - used with electronic

ignition system

SP10763C (single)

• Honeywell Ignition Cable - 25 inch - 1/4”

disconnect with rubber boot on pilot end

SP8828G (single)

PILOT SENSOR

• Honeywell Pilot Burner and Ignitor Sensor -

Natural Gas - Electronic Ignition

SP10764B (single)

• Honeywell Pilot Burner and Ignitor Sensor -

LP Gas - Electronic Ignition

SP10764C (single)

TRANSFORMER

• Bassler - 120 VAC to 240 VAC

SP10550B (single)

LEG EXTENSIONS REQUIRED FOR N.S.F.

APPROVAL

• Leg Extension Kit for N.S.F. Approval for

Models: G50-98, G75-125, G82-156, G76-180,

G37-200, G76-200, G91-200, G100-200(A),

G72-250(A), G100-250(A), GD100-250(A),

G100-270(A), GD100-270(A), G72-300(A),

G65-360(A), G85-300(A), G100-310(A),

GD100-310(A), GD100-360(A), G65-400(A),

G85-400(A), G100-400(A)

AM35450 (single)

THERMOSTATS AND HIGH LIMITS

• Honeywell Immersion Thermostat - (100-180

degrees) & High Limit - single immersion well -

1 13/16” shank x 3/4” NPT

SP11799 (single)

• Honeywell Immersion Thermostat - (100-180

degrees) & High Limit (200 degrees) - dual

immersion well with 39 1/4” capillary - 1 13/16”

shank x 3/4” NPT

SP11798B (single)

• White-Rogers Manual Re-Set Immersion

Thermostat (100-180 degrees) & High Limit

dual immersion well with 46” capillary -

3/4” NPT

SP12015 (single)

DAMPER ASSEMBLY

• Due to the unique application of damper

assemblies, please call for part numbers and

pricing. Have the model number and serial

number of the water heater on hand.

TEMPERATURE AND PRESSURE RELIEF VALVES

• Watts 100XL-4; 3/4”inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) up to 100,000 BTU

SP9013E (single)

• Watts 40XL-5; 3/4” inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) up to 200,000 BTU

SP9013D (single)

• Watts L40XL-6; 1” inlet x 1” discharge (150 PSI

pressure/ 210 degree temperature) up to

500,000 BTU

SP9012B (single)

DIAGNOSTIC SYSTEM

• System Sentinel

AM38875 (single)

OTHER PARTS

• Ignitor Bracket

AE34933-1

• Wiring Harness

AP11327-5

Commercial Heavy Duty Gas Water Heaters

Model Gas Valve Gas Valve Ignition Control Pilot Sensor Pilot Sensor Thermostat T&P Valve

Number (NG) (LP) Module (NG) (LP)

G50-98 SP10963B SP10963C SP11799

G75-125

G82-156

G37-200

G76-180

G76-200

G91-200

G100-200

G72-250

G100-250

G100-270

G72-300

G85-300

G100-310

G65-360

G65-400

G85-400

G100-400 SP8099N SP8099P

GD100-250

GD100-270

GD100-310

GD100-360

COMMERCIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

• Inducer Assembly

SP13800 – Fits models GD100-250(A) and

GD270(A), NG and LP

• Inducer Assembly

SP13801 – Fits model GD100-310(A),

NG only

• Inducer Assembly

SP13802 – Fits models GD100-310(A), LP only

and GD100-360(A), NG and LP

• Pressure Switch

SP13989

Commercial Induced Draft Gas Water Heaters

Unique Replacement Parts

Nine basic commercial gas parts fix all 23 Universal and

Induced Draft Water Heaters

SP10963D

SP10963E

SP10763C

SP10764B

SP10764C

SP11798B

SP9013DSP9012B

SP10963D

SP10963E

PARTS DIAGRAM

ON PAGE 55

SP12015

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

HONEYWELL GAS VALVES

• GN37-200, GN65-360, GN72-250, GN75-125,

GN76-200, GN82-156, GN91-200, GN100-200,

GN100-250, GN100-270

SP12541B (single)

• GN100-400 SP12543 (single)

BURNER ASSEMBLIES

(Includes gas valve and blower assembly)

• GN37-200 AM39755 (single)

• GN65-360 AM39768 (single)

• GN72-250 AM40021 (single)

• GN75-125 AM39731 (single)

• GN76-200 AM39741 (single)

• GN82-156 AM39760 (single)

• GN91-200 AM39189 (single)

• GN100-200 AM39732 (single)

• GN100-250 AM39737 (single)

• GN100-270 AM39738 (single)

• GN100-400 AM40016 (single)

BURNER/MANIFOLD ASSEMBLIES

(Without gas valve and blower assembly)

• GN37-200 AM39188 (single)

• GN65-360 AM39767 (single)

• GN72-250 AM40020 (single)

• GN75-125 AM39245-3 (single)

• GN76-200 AM39188 (single)

• GN82-156 AM39759 (single)

• GN91-200 AM39342 (single)

• GN100-200 AM39718-3 (single)

• GN100-250 AM39764 (single)

• GN100-270 AM39246 (single)

• GN100-400 AM39526 (single)

BLOWER ASSEMBLIES

• GN37-200 AM39729 (single)

• GN65-360 AM39766 (single)

• GN72-250 AM39734 (single)

• GN75-125 AM39728 (single)

• GN76-200 AM39740 (single)

• GN82-156 AM39761 (single)

• GN91-200 AM39739 (single)

• GN100-200 AM39729 (single)

• GN100-250 AM39729 (single)

• GN100-270 AM39753 (single)

• GN100-400 AM39733 (single)

IGNITORS WITH BURNER BRACKET

• GN37-200, GN75-125, GN76-200, GN82-156,

GN91-200, GN100-200, GN65-360, GN72-250,

GN100-250, GN100-270, GN100-400

AM39758 (single)

PRESSURE SWITCHES

• GN75-125

SP20165A

SP20165B

• GN37-200, GN100-200

SP20165C

• GN72-250, GN76-200, GN100-250

SP20165D

• GN91-200, GN100-270

SP20165E

• GN65-360

SP20165F

• GN100-400

SP20165G

• GN76-200H, GN91-200H, GN100-200H

SP20165H

DAMPER ASSEMBLY

• Due to the unique application of damper

assemblies, please call for part numbers and

pricing. Have the model number and serial

number of the water heater on hand.

• White-Rogers Relay

SP12732 (single)

• Baffle Assembly

AM39581 (single)

• Pilot Assembly

SP20058 (single)

• SMC South Blower Cage

AP12712 (single)

• QNI Wiring Harness

AP12594B-3 (single)

• Honeywell Ignition Cable

AP12761 (single)

• Gasket Blower Inlet

AP12468

• Blower Centrifugal

AP12526-3

• Gasket Bower Outlet

AP12592-1

• Cap-Rubber Hose-Barb

AP14636

• Instruction Sheet

AP14637

• Screw 8x3/8 SM Self Drill

AP5925ES-3

Commercial Low NOx Water Heaters

PARTS DIAGRAM

ON PAGE 58

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

• Robertshaw Natural Gas Thermostat

(180 degrees) control valve with 2 3/8” shank -

single use high limit (200 degrees) - 75,000 BTU

- 1/2” inlet & outlet

SP12234B (single)

• Robertshaw Natural Gas Thermostat (180

degrees) control valve with 1 5/8” shank - single

use high limit (200 degrees) - 75,000 BTU - 1/2”

inlet & outlet

SP12234C (single)

• Robertshaw Natural Gas Thermostat (180

degrees) control valve with 2 7/8” shank - single

use high limit (200 degrees) - 75,000 BTU - 1/2”

inlet & outlet

SP12234E (single)

• Natural Gas Pilot Burner Assembly -

.0115 orifice

SP8384B (single)

• LP Pilot Burner Assembly .008 orifice (colored

red for easy identification)

SP8384D (single)

• 24” Thermocouple

SP6379R (single)

Commercial Gas – Light Duty, Standing Pilot

•Terminal Block 175 AMP

SP13407 (single)

•Transformer 50 VA

SP13408 (single)

•Vacuum Relief Valve

SP221790 (single)

•Switch

SP13411 (single)

• T&P Relief Valve

SP330040

•Thermostat

SP13410

ELEMENTS

• 3100W / 208V

SP13409AL (single)

AP13409AL (bulk*: 50)

• 4500W / 6000W 208V / 240V

SP13409BL (single)

AP13409BL (bulk*: 50)

• 6000W / 208V

SP13409CL (single)

AP13409CL (bulk*: 50)

• 3100W / 240V

SP13409DL (single)

AP13409DL (bulk*: 50)

• 4500W / 6000W 240V / 277V

SP13409EL (single)

AP13409EL (bulk*: 50)

• 3100W / 277V

SP13409FL (single)

AP13409FL (bulk*: 50)

• 4500W / 277V

SP13409GL (single)

AP13409GL (bulk*: 50)

• 3100W / 480V

SP13409HL (single)

AP13409HL (bulk*: 50)

• 4500W / 480V

SP13409JL (single)

AP13409JL (bulk*: 50)

• 6000W / 480V

SP13409KL (single)

AP13409KL (bulk*: 50)

Commercial Eclipse Water Heaters

Elements may be ordered

in bulk. Box consists of

50 elements. Order

gaskets seperately.

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

110 Volt Ignitor Kit

• Interconnecting Ribbon Cable to PC Board

SP12139 (single)

• Pressure Switch

SP12140 (single)

• Transformer with Ignition Cable

SP12141 (single)

• ECO/Temperature Probe

SP12142 (single)

• Ignitor

SP12143 (single)

• 110V Ignitor Kit

SP12143K (single)

• Flame Rectification Probe

SP12144 (single)

• Gas Valve

SP12145 (single)

• Low Voltage Cable

SP12146 (single)

• Line Cable

SP12147 (single)

• Over Temperature Switch (Exhaust Outlet)

SP12149 (single)

• Glass Sight Window

SP12150 (single)

• Neutralizer Condensate

SP12151 (single)

• Gasket Burner Mounting Flange

SP12152 (single)

• Gasket Blower Outlet Flange

SP12153 (single)

• Gasket Air Inlet

SP12154 (single)

• Gasket Sight Window

SP12156 (single)

• Main Control PC Board, 160 deg., 130,000 BTU

SP12136 (single)

• Main Control PC Board, 160 deg., 160,000 BTU

SP12137 (single)

• Display PC Board

SP12138 (single)

• Main Control PC Board, 160 deg., 199,000 BTU

SP12186 (single)

• Main Control PC Board, 160 deg., 100,000 BTU

AP12416 (single)

• Main Control PC Board, 180 deg., 160,000 BTU

AP12418 (single)

• Main Control PC Board, 180 deg., 199,000 BTU

AP12419 (single)

• Gasket Ignitor Collar

AP12654

• Burner – 100-130K BTU

SP14114

• Burner – 160-199K BTU

SP14115

• Low Water Cutoff

SP20124

• Combustion Blower

SP12189 (Single)

ORIFICE KITS

• 130,000 BTU, LP

SP12389B

• 160,000 BTU, LP

SP12389C

• 199,000 BTU, LP

SP12389D

• 130,000 BTU, NG

SP12190B

• 160,000 BTU, NG

SP12190C

• 199,000 BTU, NG

SP12190D

ADVANTAGEPLUS ACCESSORIES

• Concentric Vent Termination Kit 3”

SP12161 (single)

• Aluminum Outside Termination Vent Kit

SP12162 (single)

• Mesh Screen 3-1/2” Size Stainless for 3” Pipe

SP12163 (single)

• Model 450 CO Meter

AP12516 (single)

AdvantagePlus Commercial Water Heaters

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

XTREME Commercial Water Heaters

• Thermostat and High Limit

AP12015-1 (single)

• Pressure Switch (GX90-500, GX90-550,

GX90-600, GX90-680)

SP14197B (single)

SP14197C (GX90-640, GX90-715)

• Gas Valve

SP12866P (single, LP)

SP12866N (single, NG)

• Pilot / Ignitor Assembly

SP12305 (single, LP)

SP12237 (single, NG)

• Relief Valve (GX90-715, GX90-680)

AP12323-1 (single)

• Relief Valve (GX90-640, GX90-600, GX90-550)

AP12035 (single)

• Relief Valve (GX90-500)

SP9012B (single)

• Full Flow Drain Valve

AP12231B-1 (single)

• Damper Assembly

AP13156

• Blower Motor

SP12525 (single)

• Gasket Plenum

AP12382-1 (single)

• Gasket Set/Fan

AP12383 (single)

VentMaster Commercial Water Heaters

• Anode Rod - 42” long x .840 dia

SP11345S

• Thermostat and High Limit

SP11789B

• Blower (GP100-150, GP100-200)

AP13192

• Blower (GP100-250)

AP13186-1 (4” Outlet)

• Relief Valve (GP100-200, GP100-150)

SP9013D

• Pilot Ignitor Assembly

SP13185

• Gas Valve

SP13714

• System Sentinel Panel

AM38875

• Control Module

AM40782

• Relay

SP12732

• On/Off Switch

SP8825

• Transformer

SP10550B

• Full Flow Drain Valve

AP12231B-1

• Ignition Control

SP10763C

PARTS DIAGRAM

ON PAGE 59

PARTS DIAGRAM

ON PAGE 56

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

Light Duty Brass Drain Valve:

R-Tech Resistor

Magnesium Flexible

Link Anode Rod:

DRAIN VALVES

• Brass Drain Valve - 3/4” x 2 1/4” shank

SP6070G (single)

• Brass Drain Valve - 3/4” x 3” shank -

Commercial Light Duty

SP12112S (single)

• Standard Melet - 3/4” NPT x 2 1/4” shank

SP12039 (single)

• Brass Drain Valve - 3/4” x 2 1/4” shank

SP12112G (single)

• Brass Full Flow Drain Valve 3.1” (gas)

AP12231B-1 (single)

• Brass Full Flow Drain Valve 3.1” (electric)

AP12231C-1 (single)

ANODE RODS

• R Tech Resistor Magnesium Anode Rod -

44” long x .700 dia

SP11309C (single)

• Galvo Magnesium - 44” long x .840 dia

SP11345C (single)

• Magnesium Anode Rod - 44” long x .840 dia

SP11524C (single)

• Magnesium Anode Rod - 58” long x .840 dia

SP11524Z (single)

• R Tech Resistor Magnesium Anode Rod -

44” long x .900 dia

SP11526C (single)

• R Tech Resistor Magnesium Flexible Link

Anode Rod - 52” long - 12” sections

SP8371B (single)

DIP TUBES

• Dip Tube with anti-siphon hole - 3/4” x 54” long

- clear (North Carolina code) with gasket

SP11251R (single)

• Dip Tube with anti-siphon hole - 1” x 26” long

with gasket

SP11269C (single)

• Dip Tube with anti-siphon hole - 3/4” x 54” long

with gasket

SP11248R (single)

GASKETS

• Hand Hole Gasket

SP5886 (single)

Common Replacement Parts

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL

The value line for all your replacement parts needs.

Non-Resistored Heating Elements

COPPER SCREW-IN ELEMENTS

• 120V/1500W, 7-5/8”, HWD

UV12890 (Single)

AP12890 (Bulk*: 50)

• 120V/2000W, 7-5/8”, HWD

UV12892 (Single)

AP12892 (Bulk*: 50)

• 240V/1500W, 7-5/8”, HWD

UV12891 (Single)

AP12891 (Bulk*: 50)

• 240V/2000W, 7-5/8”, HWD

UV12893 (Single)

AP12893 (Bulk*: 50)

• 240V/2500W, 9-3/8”, HWD

UV12894 (Single)

AP12894 (Bulk*: 50)

• 240V/3000W, 10-9/16”, HWD

UV12895 (Single)

AP12895 (Bulk*: 50)

• 240V/3500W, 12-9/16”, HWD

UV12896 (Single)

AP12896 (Bulk*: 50)

• 240V/3800W, 13-7/16”, HWD

UV12897 (Single)

AP12897 (Bulk*: 50)

• 240V/4000W, 13-9/16”, HWD

UV12898 (Single)

AP12898 (Bulk*: 50)

• 240V/4500W, 13-9/16”, HWD

UV12899 (Single)

AP12899 (Bulk*: 50)

• 240V/4500W, 10”, MWD

UV13049 (Single)

AP13049 (Bulk*: 50)

• 240V/5500W, 10-1/8”, LWD

UV12900 (Single)

AP12900 (Bulk*: 50)

• 240V/4500W, 11-3/4”, LWD

UV12901 (Single)

AP12901 (Bulk*: 50)

COPPER 1-3/8” SCREW-IN ELEMENTS

• 240V/4500W, 11-9/16”, LWD

UV12902 (Single)

AP12902 (Bulk*: 50)

COPPER FLANGE ELEMENTS

• 120V/1500W, 7-5/8”, HWD

UV12944 (Single)

AP12944 (Bulk*: 50)

• 240V/1500W, 7-5/8”, HWD

UV12908 (Single)

AP12908 (Bulk*: 50)

• 240V/2500W, 10”, HWD

UV13047D (Single)

AP13047D (Bulk*: 50)

• 240V/3500W, 12-9/16”, HWD

UV12909 (Single)

AP12909 (Bulk*: 50)

•240V/4500W, 13-9/16”, HWD

UV12910 (Single)

AP12910 (Bulk*: 50)

• 240V/3000W, 10”, HWD

UV13047A (Single)

AP13047A (Bulk*: 50)

• 240V/5500W, 12”, HWD

UV13047B (Single)

AP13047B (Bulk*: 50)

• 240V/4500W, 9”, MWD

UV13047C (Single)

AP13047C (Bulk*: 50)

COPPER FLAT FLANGE ELEMENTS

• 240V/4500W, 13-9/16”, HWD

UV12907 (Single)

AP12907 (Bulk*: 50)

• 240V/4500W, 14”, LWD

UV13051 (Single)

AP13051 (Bulk*: 50)

SLIP-IN ELEMENTS

• 240V/3000W, HWD

UV13066A (Single)

AP13066A (Bulk*: 50)

•240V/3500W, HWD

UV13066B (Single)

AP13066B (Bulk*: 50)

• 240V/4500W, HWD

UV13066C (Single)

AP13066C (Bulk*: 50)

STAINLESS STEEL SCREW-IN ELEMENTS

• 240V/3500W, 13-7/8”, LWD

UV12903 (Single)

AP12903 (Bulk*: 50)

• 240V/4500W, 13-1/2”, LWD

UV12904 (Single)

AP12904 (Bulk*: 50)

• 240V/5500W, 13-1/2”, LWD

UV12905 (Single)

AP12905 (Bulk*: 50)

• 120V/1500W, 12”, HWD

UV13050B (Single)

AP13050B (Bulk*: 50)

• 240V/2500W, 11”, HWD

UV13050A (Single)

AP13050A (Bulk*: 50)

STAINLESS STEEL FLANGE ELEMENT

• 240V/2500W, 11”, LWD

UV12911 (Single)

AP12911 (Bulk*: 50)

• 240V/4500W, 14”, HWD

UV13048 (Single)

AP13048 (Bulk*: 50)

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

Note: Elements listed not

recommended with Rheem, Ruud,

and GE products. Use of this

component may lead to premature

failure of the product and voiding

of manufacturers warranties.

Elements may be

ordered in bulk. Box

consists of 50 elements.

Order Gasket AP6708-9

seperately.

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL

The value line for all your replacement parts needs.

Universal Gasket Kit

Heavy duty

element wrench

Element Accessories

•Gaskets for screw-in elements

AP6708-9

(Bulk: 50)

• 1/2” Round Gasket for flange elements

AP6614J

(Bulk: 50)

• 4-hole Gasket for flange elements

AP10363

(Bulk: 50)

• Gasket Kit - (1) screw-in gasket, (1) flange,

(1) 4-hole gasket, (4) 1/4” - 20 x 3/4” hex slot

UV12914

(Single)

• Universal Adapter Kit - (1) flat gasket, (1) round

gasket, (1) element adapter

UV6830

(Single)

• 4” Heavy Duty Element Wrench

UV38628

(Single)

Plumber’s Pack Kit - includes two non-resistored 4500 watt screw-in

heating elements, two heating element gaskets, and

upper & lower thermostats

UV20018 (single)

Universal Parts Plumber’s Pack

The plumber’s pack is an all-inclusive “tune-up” kit for electric water

heaters featuring the most popular replacement parts on the market.

• Two non-resistored heating elements and gaskets

• Upper and lower thermostats

• Economy package that includes all the major components for a

complete “tune-up” for the water heater

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL

The value line for all your replacement parts needs.

Thermocouple Kit

Thermostat Bracket

Electric Thermostats*

• APCOM Upper Thermostat

(max 150 degrees) & High Limit (170 degree)

- Two element non-simultaneous 208, 240,

277, 480 volt

UV13359 (single)

• Therm-O-Disc Upper Thermostat

(max 150 degrees) & High Limit (170 degree)

- Two element simultaneous 208, 240,

277, 480 volt

UV11699 (single)

• Therm-O-Disc Upper Thermostat

(max 150 degrees) & High Limit (170 degree)

- Single element 120 volt

UV11700 (single)

• APCOM Lower Thermostat

(max 150 degrees)simultaneous and

non-simultaneous 208, 240, 277, 480 volt

UV13360 (single)

• Therm-O-Disc Lower Thermostat

(max 150 degrees) & High Limit (170 degree)

- Two element non-simultaneous 208, 240,

277, 480 volt

UV11695 (single)

• Therm-O-Disc Upper Thermostat

(max 150 degrees)simultaneous and

non-simultaneous 208, 240, 277, 480 volt

UV11698 (single)

Gas Replacement Parts

• 18” Thermocouple Kit

UV6379L

(Single)

• 24” Thermocouple Kit

UV6379R

(Single)

• 30” Thermocouple Kit

UV6379H

(Single)

• 36” Thermocouple Kit

UV6379S

(Single)

Common Replacement

Parts

• Flared Dip Tube

SP11248R

• Threaded Dip Tube

AP12933

• Screw-In Thermostat Bracket

AM23557

• Heat Traps (flapper type)

UV12992

(Single: 2/pkg.)

• Watts 100XL-4; 3/4" inlet x 3/4" discharge -

M150# (150 PSI pressure / 210 degree

temperature) up to 100,000 BTU

SP12574 (single)

• Watts 100XL; 3/4" inlet x 3/4" discharge

(150 PSI pressure / 210 degree temperature) -

long shank up to 100,000 BTU

SP8346 (single)

• Drain Valve; Standard Melet

3/4" NPT x 2 1/4" shank

UV12039 (single)

Electric thermostats may be ordered in bulk. Box consists of 50 thermostats of the

same part number. Bulk pricing is less than the single price. Please call for pricing.

Universal ™Parts

To place your order call 1-800-621-5622; fax 1-800-535-9538

RESIDENTIAL

The value line for all your replacement parts needs.

* Gas connector kits contain (2) 3/4” nipples, (2) 3/4” x 12”, 15”, 18” flex water connectors, (1) teflon tape, (2) 3/4” comp. fittings, (1) 18” flex. gas connector.

Electric connector kits contain (2) 3/4” x 2” nipples, (2) 3/4” x 12”, 15”, 18” flex water connectors, (1) teflon tape, (2) 3/4” MPT comp. fittings.

Water connector kits contain (2) 3/4” x 2” nipples, (2) 3/4” x 12”, 15”, 18” flex water connectors, (1) teflon tape.

Drain Pan with Fittings:

• Available in plastic or

aluminum in a variety of sizes.

Accessories

WATER CONNECTORS

• 12” Flexible Copper Water Connector 3/4”

UV10351 (Single: 2/Pkg.)

AP10351 (Bulk: 25)

• 15” Flexible Copper Water Connector 3/4”

UV10505 (Single: 2/Pkg.)

AP10505 (Bulk: 25)

• 18” Flexible Copper Water Connector 3/4”

UV10506 (Single: 2/Pkg.)

AP10506 (Bulk: 25)

• 24” Flexible Copper Water Connector 3/4”

AP13006 (Bulk: 25)

• 18” Flexible Copper Water Connector

3/4” FIP x 3/4” Sweat

AP13012 (Bulk: 25)

• 24” Flexible Copper Water Connector

3/4” FIP x 3/4” Sweat

AP13015 (Bulk: 25)

• Stainless Steel 3/4” Water Connector 12”

UV12927 (Single: 2/Pkg.)

AP12927 (Bulk: 25)

• Stainless Steel 3/4” Water Connector 15”

UV12928 (Single: 2/Pkg.)

AP12928 (Bulk: 25)

• Stainless Steel 3/4” Water Connector 18”

UV12929 (Single: 2/Pkg.)

AP12929 (Bulk: 25)

GAS CONNECTORS

• 12” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP10349 (Bulk: 25)

• 18” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP10350 (Bulk: 25)

• 24” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP13014 (Bulk: 25)

• 48” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP13013

(Bulk: 25)

INSTALLATION KITS

• 15” Water Connector Kit 3/4”*

UV20010 (Single: 2/Pkg.)

• 15” Gas Connector Kit 3/4”*

UV20016 (Single: 2/Pkg.)

• 15” Electric Connector Kit 3/4”*

UV20013 (Single: 2/Pkg.)

• 18” Water Connector Kit 3/4”*

UV20011 (Single: 2/Pkg.)

• 18” Gas Connector Kit 3/4”*

UV20017 (Single: 2/Pkg.)

• 18” Electric Connector Kit 3/4”*

UV20014 (Single: 2/Pkg.)

•12” Water Connector Kit 3/4”*

UV20009 (Single: 2/Pkg.)

• 12” Gas Connector Kit 3/4”*

UV20015 (Single: 2/Pkg.)

• 12” Electric Connector Kit 3/4”*

UV20012 (Single: 2/Pkg.)

FITTINGS

• 3/4” Compression Fitting x 3/4” MPT

UV10374 (Single: 2/Pkg.)

• 1/2” Compression Fitting x 3/4” MPT

UV10354 (Single: 2/Pkg.)

• Nipples 3/4” x 2-1/4” PP Lined

UV8397G (Single: 2/Pkg.)

AP8397G-8 (Bulk: 100)

• Nipples 3/4” x 3” PP Lined

AP8397N-8 (Bulk: 100)

• Dielectric Union

AP13045 (Single)

OTHER ACCESSORIES

• Center Top Run-Off Tube

SP11956B (Bulk: 12)

• 20” Plastic Drain Pan with Fittings (Electric)

SP12934 (Bulk: 20)

• 22” Plastic Drain Pan with Fittings (Electric)

SP12937 (Bulk: 20)

• 24” Plastic Drain Pan with Fittings (Electric)

SP12935 (Bulk: 20)

• 26” Plastic Drain Pan with Fittings (Electric)

SP12936 (Bulk: 10)

• 30” Plastic Drain Pan with Fittings

SP13319 (Bulk: 5)

• 20” Aluminum Drain Pan with Fittings

SP12939 (Bulk: 10)

• 22” Aluminum Drain Pan with Fittings

SP12941 (Bulk: 10)

• 24” Aluminum Drain Pan with Fittings

SP12942 (Bulk: 10)

• 26” Aluminum Drain Pan with Fittings

SP12940 (Bulk: 10)

• 30” Aluminum Drain Pan with Fittings

SP13325 (Bulk: 5)

• Gas Control Extender

AP11620-1 (Bulk: 50)

Residential Replacement Parts List

All standing pilot models except direct vent and PowerVent

NATURAL OR LP GAS (NON-FVIR)

Ref. No. Part Description Qty. Req. Part Number

1. Thermostat 1 (NAT) SP8555B

(LP) SP12258B

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379K

4. Burner Supply Tube (30 Gal NAT) AM35050CNN

(30 Gal LP) AM36336IJ

5. Burner Orifice (40 Gal NAT) AM35050DT

(40 Gal LP) AM36336DZZ

6. Burner (50 Gal NAT) AM35050EFF

(50 Gal LP) AM36336EZZ

7. Pilot Burner 1 SP8980B (NG)

7A. Pilot Burner SP8980C (LP)

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 SP12039

SP12112E (brass)

10. Jacket Door 1 AM29254-4C

11. Inner Door 1 AM29501

12. Flue Baffle 1 (30 Gal) AM25812-1

(40 Gal) AM25812-1

(50 Gal) AM25816

12A. Flue Baffle Hanger 1 AM20622C

13. Anode Rod 1 (5 Year) SP11309C

(10 Year) SP11526C

14. Draft Hood 1 AM36352H

15. Dip Tube 1 SP112481Q

16. Dip Tube Gasket 1 AP6948-1

17. T&P Relief Valve 1 SP12574

40 and 50 Gal VR Models

1. Thermostat 1 (NAT) SP8555P

(LP) SP12258P

9. Drain Valve 1 SP12112S

12. Flue Baffle 1 AM38876

14. Draft Hood 1 AM36333H

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

Units manufactured prior to July, 2003

Residential Replacement Parts List

60-50 GALLON NATURAL OR LP GAS (NON-FVIR)

Ref.

No. Part Description Qty. Req. Part Number

1. Thermostat 1 (NAT) SP20085K

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379K

4. Burner Supply Tube N/A

5. Burner Orifice N/A

6. Burner Assembly NAT (#30 orifice) SP20084A

6A. Assembly Low NOx (#30 orifice) SP20084D

6B. Burner Assembly LP (#46 orifice) SP20084E

6C. Assy LP High Altitude (#47 orifice) SP20084F

7. Pilot Burner N/A

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 SP12112G

10. Jacket Door 1 SP20084K

11. Inner Door 1 SP20084H

12. Flue Baffle 1 SP20084G

13. Anode Rod 1 AP11526S

14. Draft Hood 1 SP20084J

15. Dip Tube (30” Polysulfone) 1 AP11251G

15. Dip Tube (36” Polysulfone) 1 AP11625Q

16. Dip Tube Gasket 1 AP6948-3

17. T&P Relief Valve 1 SP12574

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

• Adapter Kit

(1) flat gasket, (1) round gasket, (1) element adapter

SP6830 (single)

Residential Replacement Parts List

50-6, 75 & 100 GALLON MODELS: NATURAL OR LP GAS

(NON-FVIR)

Part Number

Ref. No. Part Description Qty. Req. 50-6 75VR 100 Gal

1. Thermostat 1 (NAT) SP10022P (NAT) SP12491D (NAT) SP10022F

(LP) SP12258P (LP) SP12258N (LP) SP12258F

2. Pilot Supply Tube 1 N/A N/A N/A

3. Thermocouple 1 SP6379K SP6379C SP6379K

4. Burner Supply Tube (NAT) AM29602STT AM39178BC (NAT) AM29602FRR

5. Burner Orifice (LP) AM36419SN (LP) AM36419RKK (LP) AM36419FKK

6. Burner

7. Pilot Burner 1 (NAT) SP8384B (NAT) SP8980B (NAT) SP8384B

1(LP) SP8384D (LP) SP8384D (LP) SP8384D

8. Drain Valve Shroud 1 AP9167 AP9167 AP9167

9. Drain Valve 1 SP12112S SP12112S SP12112E

10. Jacket Door 1 AM21658C AM21658C AM21658C

11. Inner Door 1 AM27902-2 AM27902-2 AM27902-2

12. Flue Baffle 1 AM26055 AM26053 AM26054

12A. Flue Baffle Hanger 1 N/A N/A N/A

13. Flue Baffle Collar 1 AM25187 AM25187 AM25187

14. Anode Rod 1 SP11309C AP11525C AP11525BD

15. Draft Hood 1 AM25206 AM25206 AM25206

16. Dip Tube 1 SP11269C AP11273G SP11269C

17. Dip Tube Gasket 1 AP9060-1 AP9060-1 AP9060-1

18. T&P Relief Valve 1 AP12575B-1 SP12575B AP12576B-1

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30, 40 AND 50 GALLON FVIR MODELS

(Flammable Vapor Ignition Resistant System)

NATURAL OR LP GAS

To place orders call

1-800-621-5622

All parts orders should include:

1. The model and serial number of the water

heater from the rating plate.

2. Specify type of gas (natural or LP) as

marked on the rating plate.

3. Part description (as noted below) and

number of parts desired.

Ref. Qty.

No. Part Description Req.

1. Draft Hood 1

2. Heat Traps 1

3. Lined Nipples 1

4. Anode Rod 1

5. Flue Baffle & Hanger 1

6. Dip Tube 1

7. Dip Tube Gasket 1

8. T&P Relief Valve 1

9. Drain Valve 1

10. Gas Control (thermostat) 1

11. Piezo Ignition Ignitor 1

12. Mounting Bracket 1

13. Jacket Door 1

14. Burner Orifice

15. Burner Supply Tube

16. Burner Access Door

17. Sight Glass

18. Burner Access Door Grommet

19. Burner Access Door Gasket

20. Burner

21.

Pilot Burner and Piezo Electrode

22. Thermocouple

23. Pilot Supply Tube

24. Piezo Ignitor Wire

Burner Assembly

Burner Assembly Kit provides extra

speed clips and tamper resistant screws.

Burner Assembly Kit

To place your order call 1-800-621-5622; fax 1-800-535-9538

Part Number

Ref. No. Part Description Qty. Req. 30 gallon models 40 gallon models 50 gallon models

1. Draft Hood 1 AM36352-H AM36352-H AM36352-H

2. Heat Traps 1 SP20003 N/A N/A

3. Lined Nipples 1 N/A SP11623B (VR models only) SP11623B (VR models only)

4. Anode Rod 1 SP11309C SP11309C SP11309C

5. Flue Baffle & Hanger 1 Call for Application Call for Application Call for Application

6. Dip Tube 1 AP11625G-1 AP11625F-1 AP11625P

7. Dip Tube Gasket 1 AP6948-3 AP6948-3 AP6948-3

8. T&P Relief Valve 1 SP12574 SP12574 SP12574

9. Drain Valve 1 SP12112E SP12112E SP12159B

10.

Gas Control (thermostat) 1

SP8555B (NAT) SP12258B (LP) SP12258B (LP)

11. Piezo Ignition Ignitor 1 AP11941 AP11941 AP11941

12. Mounting Bracket 1 AP12384 AP12384 AP12384

13. Jacket Door 1 AS39789-2C AS39789-2C AS39789-2C

Burner Kit 1 Call for Application Call for Application Call for Application

Gasket Kit 1 SP20063 SP20063 SP20063

Thermocouple Kit 1 SP20064 SP20064 SP20064

Units manufactured between July, 2003 – December, 2003

Residential Replacement Parts List

30, 40 AND 50 GALLON FVIR MODELS

(Flammable Vapor Ignition Resistant System)

NATURAL OR LP GAS

To place your order call 1-800-621-5622; fax 1-800-535-9538

Part Number

Ref. No. Part Description Qty. Req. 30 gallon models 40 gallon models 50 gallon models

1. Draft Hood 1 AM36352-H AM36352-H AM36352-H

4. Anode Rod 1 SP11309C (6-YR) SP11309C(6-YR) SP11309C(6-YR)

SP11526C (12-YR) SP11526C (12-YR SP11526C (12-YR

5. Flue Baffle & Hanger 1 Call for Application Call for Application Call for Application

6. Dip Tube 1 Call for Application Call for Application Call for Application

7. Dip Tube Gasket 1 AP6948-3 AP6948-3 AP6948-3

8. T&P Relief Valve 1 AP12575B-1 AP12575B-1 AP12575B-1

9. Drain Valve 1 SP12112S SP12112S SP12112S

10.

Gas Control (thermostat) 1

SP8555T (NAT) SP8555T (NAT) SP8555T (NAT)

SP13160D (LP) SP13160D (LP) SP13160D (LP)

13. Jacket Door 1 AS39789-2C AS39789-2C AS39789-2C

Drain Valve Shroud 1 AP9167 AP9167 AP9167

Burner Kit 1 Call for Application Call for Application Call for Application

Pilot Assembly Kit 1 SP20075 (NAT) SP20075 (NAT) SP20075 (NAT)

SP20076 (LP) SP20076 (LP) SP20076 (LP)

Thermocouple Kit 1 SP20064 SP20064 SP20064

For NAECA V-PLUS units manufactured between January, 2004 and September 2007

Part Number

Ref. No. Part Description Qty. Req. 30 gallon models 40 gallon models 50 gallon models

1. Draft Hood 1 AM36333-H AM36352-H AM36352-H

4. Anode Rod 1 SP11309C SP11309C SP11309C

5. Flue Baffle & Hanger 1 Call for Application Call for Application Call for Application

6. Dip Tube 1 Call for Application Call for Application Call for Application

7. Dip Tube Gasket 1 AP6948-3 AP6948-3 AP6948-3

8. T&P Relief Valve 1 SP8346 SP8346 SP8346

9. Drain Valve 1 SP12112G SP12112G SP12112G

10.

Gas Control (thermostat) 1

SP8555R (NAT) SP8555R (NAT) SP8555R (NAT)

SP13160E (LP) SP13160E (LP) SP13160E (LP)

13. Jacket Door 1 AS39789-2C AS39789-2C AS39789-2C

Drain Valve Shroud 1 AP9167 AP9167 AP9167

Burner Kit 1 Call for Application Call for Application Call for Application

Pilot Assembly Kit 1 SP20075 (NAT) SP20075 (NAT) SP20075 (NAT)

SP20076 (LP) SP20076 (LP) SP20076 (LP)

Thermocouple Kit 1 SP20064 SP20064 SP20064

For NAECA Non-VR units manufactured between January, 2004 and September 2007

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30, 40, 50, 60 AND 75 GALLON ATMOSPHERIC FVIR

MODELS NATURAL AND LP GAS FOR USE IN MODELS

MANUFACTURED WITH WHITE-RODGERS CONTROLS

AFTER SEPTEMBER 2007

Ref. Qty.

No. Part Description Req.

1. Draft Hood 1

2. Heat Traps 2

3. Lined Nipples 2

4. Anode Rod 1

5. Flue Baffle and Hanger 1

6 Dip Tube 1

7. Dip Tube Gasket 1

8. T&P Relief Valve 1

9. Drain Valve 1

10. Gas Control Valve (thermostat) 1

11. Burner Access Door Gasket 1

12. Burner Assembly Kit 1

13. Jacket Door 1

Burner Assembly Kit provides extra speed clips and

tamper resistant screws.

12. Burner Assembly Kit

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30, 40, 50, 60 AND 75 GALLON ATMOSPHERIC FVIR MODELS

Cross Reference – Models with White-Rodgers Controls

Service Parts – White-Rodgers Controls (Sept. 2007)

Gas Valve – Gas Valve – Pilot Assy Pilot Assy Thermo-

Rheem Model Ruud Model NG LP Kit – NG Kit – LP couple Kit Gasket Kit Piezo

PROFESSIONAL SERIES WITH THE GUARDIAN SYSTEM - 30, 40, 50 and 60 Gallon Capacities

22V40 PROF P2-40 PROF SP14270G N/A N/A

42V40 PROF PH2-40 PROF SP14270G SP14269A SP20128

RHG PRO40-40F RUG PRO40-40F SP14270H SP14269D SP20128

22V50 PROF P2-50 PROF SP14270G N/A N/A

42V50-40 PROF PH2-50-40 PROF SP14270F SP14269E SP20128

RHG PRO50-40F RUG PRO50-40F SP14270H SP14269D SP20128

RHG PRO50-50F RUG PRO50-50F SP14270K N/A N/A

42V40SPROF PH2-40SPROF SP14270G SP14269E SP20128

42V50SPROF PH2-50SPROF SP14270F SP14269A SP20128

RHGPRO60F RUGPRO60F SP14270M SP14269A SP20128

FURY SERIES WITH THE GUARDIAN SYSTEM - 30, 40, 50 and 60 Gallon Capacities

42VR40-40F PH2R40-40F SP14270H SP14269D SP20128

42VR50-40F PH2R50-40F SP14270H SP14269D SP20128

22V30F P2-30F SP14270G SP14269A SP20128

22V40-36F1 P40-36F1 SP14270G N/A N/A

22V40F1 P2-40F1 SP14270G N/A N/A

42V40F PH2-40F SP14270F SP14269E SP20128

22V50F1 P2-50F1 SP14270G N/A N/A

42V50-40F PH2-50-40F SP14270F SP14269E SP20128

42V50-50F PH2-50-50F SP14270K N/A N/A

22V30S-30F P2-30S-30F SP14270F N/A N/A

22V40SF P2-40SF SP14270G SP14269A SP20128

42V40SF PH2-40SF SP14270G SP14269A SP20128

42V50SF PH50SF SP14270G SP14269A SP20128

42V60F PH2-60F SP14270M SP14269A SP20128

PROFESSIONAL AND FURY SERIES WITH THE GUARDIAN SYSTEM - 75 Gallon Capacity

RHGPRO75F RUGPRO75F SP14339 SP14340 SP20127 SP20128 SP20129 SP20063 AP14316

42V75F PH2-75F SP14339 SP14340 SP20127 SP20128 SP20129 SP20063 AP14316

SP20127

SP20129

SP20063SP20063

AP14316 AP14316

SP20129

SP20127

Note: This cross reference covers parts specific to models using White-Rodgers Controls only. Common service parts such as draft hoods, anode rods, flue baffles, dip tubes,

T & P relief valves, jacket doors, drain valves and burner kits remain unchanged, and can be referenced on Page 48.

Residential Replacement Parts List

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

18. Vent Fan Assembly 1 (40/50 Gal) AP10983-4

(75 Gal) AP11608-1

19. Anode 1 (40/50 Gal) SP11309C

(75 Gal) 11526C

20. Flue Baffle Assembly 1 (40/50 Gal) AM20622C

(75 Gal) AM38168

21 Flue Baffle Hanger 1 (All models) AM20622C

22. T & P Relief Valve 1 (All models) SP6571B

23. Heat Trap Dip Tube 1 (40/50 Gal) AP10768C-4

Dip Tube 1 (75 Gal) SP11269C

24. Dip Tube Gasket 1 (40/50 Gal) AP6948-3

(75 Gal) AP9060-1

25. Hot Outlet Heat Trap 1 (40/50 Gal) AP8910-1

26. Drain Valve 1 (40/50 Gal) SP12039

(75 Gal) SP12112G

27. Drain Valve Shroud 1 (All models) AP2480-3

28. Enclosure Box Gasket 1 N/A

29. Inner door 1 (All models) AM29501

30. Captive Screw w/ Retainer 1 (All models) AP8162B-1

Spark Ignition

POWER VENTED MODELS: NATURAL OR LP GAS

Residential Replacement Parts List

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Gas Control Valve 1 (NAT) SP11652B

(LP) SP11652C

2. Assembly, Control Enclosure 1 N/A

3. Transformer 1 SP11787

4 On/Off Switch 1 SP10778

5. Assembly, Power Cord 1 AM36917

6. Thermostat Bracket 1 AM37830

7. Composite Edge Grommet 1 AP10780-1

8. Ignition Control 1 SP10763C

9. Vinyl Vacuum Tubing 1 AP10723-2

10. Vacuum Switch 1 SP11875

11. Thermostat 1 SP12390

12. Burner 1 (40 Gal NAT) AM38380C

(40 Gal LP) AM38379C

(50 Gal NAT) AM38380B

(50 Gal LP) AM38379B

(75 Gal NAT) AM38140

(75 Gal LP) AM38142

13. Burner Supply Tube 1 N/A

14. Inverted Flare Nut 1 AP10691-2

15. Pilot Supply Tube 1 N/A

16. Ignitor Cable 1 SP8828D

17. Pilot / Electrode Assembly 1 (before September 1998: NAT) SP10764B

(before September 1998: LP) SP10764C

(after September 1998: 40/50 Gal NAT) SP12049B

(after September 1998: 40/50 Gal LP) SP12049C

(after September 1998: 75 Gal NAT) SP12049D

(after September 1998: 75 Gal LP) SP12049E

Spark Ignition

POWER VENTED MODELS: NATURAL OR LP GAS

Residential Replacement Parts List

POWER VENTED - 2 IN. VENT: 40 AND 50 GALLON MODELS

NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Blower Assembly 1 SP12562

2. Anode Rod 1 SP11309C

3. Flue Baffle Assembly 1 AM39341

4. Flue Baffle Hanger 1 N/A

5. T & P Relief Valve 1 SP8346

6. Dip Tube 1 SP11251R

7. Dip Tube Gasket 1 AP6948-1

8. Drain Valve 1 SP12112S

9. Drain Valve Shroud 1 AP9167

10. Inner Door 1 AM29501

11. Outer Door 1 AM29254-4C

12. Protective Cover 1 AP12558

13. Thermostat 1 (NAT) SP12556

(LP) SP12557

14. Spark Ignitor Assembly 1 (NAT) SP12560B

(LP) SP12560C

15. Main Burner Assembly 1 (40 Gal NAT Low NOx) AM39503RY

(40 Gal LP) AM39504RM

(50 Gal NAT Low NOx) AM39503SY

(50 Gal LP) AM39504SM

16. Heat Trap Hot 1 SP20003 Kit

17. Heat Trap Cold 1 SP20003 Kit

18. Burner Supply Tube 1 N/A

19. Pressure Switch 1 SP12766

20. Rubber Coupling 1 SP12658

21. On/Off Switch 1 AP12767

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

75 GALLON POWERVENT

NATURAL OR LP GAS

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Blower Assembly 1 AP13211

2. Anode Rod 1 AP11525C

3. Heat Trap Nipple (Hot) 1 AP13163-1

3. Heat Trap Nipple (Cold) 1 AP13164-1

5. Dip Tube with Gasket 1 AP13226A

6. T & P Relief Valve 1 SP12575B

7. Flue Baffle with Hanger 1 (NAT) AM40182

(LP) AM40427

8. Drain Valve 1 SP12112S

9. Gas Control (Thermostat) 1 (NAT) SP12556

(LP) SP12557

10. Burner Assembly 1 (NAT) AM40195BA

(LP) AM40448

11. Pilot Ignitor Assembly 1 (NAT) SP12560B

(LP) SP12049E

12. Jacket Door 1 AM21658-2C

13. Inner Door 1 AM27902-2

Residential Replacement Parts List

To place your order call 1-800-621-5622; fax 1-800-535-9538

POWERVENT (FVIR COMPLIANT)

MANUFACTURED BETWEEN JULY 2006 AND OCTOBER 2007

40 AND 50 GALLON MODELS: NATURAL OR LP GAS

WITH INVENSYS (ROBERTSHAW) CONTROLS

Residential Replacement Parts List

POWERVENT (FVIR COMPLIANT)

MANUFACTURED BETWEEN JULY 2006 AND OCTOBER 2007

40 AND 50 GALLON MODELS: NATURAL OR LP GAS

WITH INVENSYS (ROBERTSHAW) CONTROLS

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Number Description. Model(s)

1 SP13416 Blower - High Performance 42VP40F, 42VP50F, 42VP40PF, 42VP50PF

1 SP13605 Blower - Low Noise 42VP40SF, 42VP50SF, 42VP40SPF, 42VP50SPF

3 SP20116 Vacuum Switch - HP Blower Assy 42VP40F, 42VP40PF, 42VP50F, 42VP50PF

3 SP20117 Vacuum Switch - Low Noise Blower Assy 42VP40SF, 42VP40SPF 42VP50SF, 42VP50SPF

4 SP11903C Anode Rod All

5 SP20003 Heat Trap Nipples All

7 SP11625R Dip Tube - 34.5" Helix 42VP50F, 42VP50PF

7 SP11625G Dip Tube - 32" Helix 42VP40F, 42VP40PF

7 SP11625S Dip Tube - 30" Helix 42VP40SF, 42VP40SPF, 42VP50SF, 42VP50SPF

9 SP12112G Drain Valve All

10 SP20170A FV Wiper Control - NG (2.375" Shank,160°F) 42VP40F

10 ST20170B FV Wiper Control - NG (2.375” Shank, 160°F) 42VP50F

10 SP13458D FV Wiper Control - NG (1.5" Shank, 160°F) 42VP40SF, 42VP50SF

10 SP13459 FV Wiper Control - LP (2.375" Shank, 160°F) 42VP40PF, 42VP50PF

10 SP13459B FV Wiper Control - LP (1.50" Shank, 160°F) 42VP40SPF, 42VP50SPF

12 SP13418 Pilot Assy - NG 42VP40F

12 SP13419 Pilot Assy - LP 42VP40PF

12 SP13420 Pilot Assy - NG 42VP40SF

12 SP13421 Pilot Assy - LP 42VP40SPF

12 SP13422 Pilot Assy - NG 42VP50F

12 SP13423 Pilot Assy - LP 42VP50PF

12 SP13424 Pilot Assy - NG 42VP50SF

12 SP13425 Pilot Assy - LP 42VP50SPF

13 SP20063 Inner Door Gasket Kit All

10A SP20123B Control - FV Wiper Electronics All

1b SP20120 Hose - Pressure Switch All

Not Shown SP20122 Blower - Gasket All

Not Shown SP13447B FV Sensor/FV Wiper Replacement Kit All

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

POWERVENT (FVIR COMPLIANT)

MANUFACTURED AFTER OCTOBER 2007

40, 50, 60 AND 75 GALLON MODELS: NATURAL OR LP GAS

WITH WHITE-RODGERS INTELLI-VENT CONTROLS

Gas Valve – Gas Valve – Blower

Rheem Model Ruud Model Natural Gas LP Gas Hot Surface Ignitor Kit Assembly Gasket Kit Relief Valve

RHEEM AND RUUD MODELS WITH WHITE-RODGERS GAS CONTROL VALVES

42VP40FW PVP40FW SP13845A SP13846A SP14218B SP13416 SP20063 SP8346

42VP50FW PVP50FW SP13845A SP13846A SP14218B SP13416 SP20063 SP8346

42VP40SFW PVP40SFW SP13845B SP13846B SP14218B SP13605 SP20063 SP12574

42VP50SFW PVP50SFW SP13845B SP13846B SP14218B SP13605 SP20063 SP12574

42VP60FW PVP60FW SP13845B SP13846B SP14218B SP14140 SP20063 SP12574

42VP75FW PVP75FW SP13845A SP13846A SP14218B AP14378 SP20063 SP12575

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

DIRECT VENT (FVIR) MODELS: NATURAL AND LP GAS

MANUFACTURED AFTER OCTOBER 2007

Direct Vent with the Guardian System™Parts Cross Reference Chart

Pilot Assy. Pilot Assy. Thermocouple

Gas Valve – Gas Valve – Replacement Replacement Replacement Gasket Relief

Rheem Model Ruud Model NG LP Kit – NG Kit – LP Kit Kit Valve

RHEEM FURY SERIES / RUUD PACEMAKER SERIES

22DV40F PH2DV40F SP14270K SP14269E SP20159 SP20160 SP20129 SP20063 SP12576C

22DV50F PH2DV50F SP14270K SP14269E SP20159 SP20160 SP20129 SP20063 SP12576C

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

ULTRA LOW NOx

NATURAL GAS MODELS ONLY (FVIR)

Complies with South Coast Air Quality Management District

(SCAQMD) Requirements

Residential Replacement Parts List

30 & 40 GALLON MODELS FOR

MANUFACTURED HOUSING, WITH CONVERTIBLE

GAS CONTROL FOR NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part No.

1. Thermostat 1 SP9051B

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379E

4. Burner Supply Tube

5. Burner Orifice

6. Burner

7. Pilot Burner NG 1 SP8980B

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 AP12039

10. Jacket Door 1 AM29254-4C

11. Inner Door 1 AM29501

12. Flue Baffle 1

12A. Flue Baffle Hanger 1 AM20622C

13. Anode Rod 1 SP11309C

14. Draft Hood 1 AM36352H

15. T&P Relief Valve 1 SP12574

1 NG

Burner

Assembly

(30 Gal) AM35050CT

(40 Gal) AM35050DT

(30 Gal) AM25812

(40 Gal) AM29068

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30, 40 & 50 GALLON DIRECT VENT MODELS

FOR MANUFACTURED HOUSING, WITH CONVERTIBLE

GAS CONTROL FOR NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Thermostat 1 SP9051B

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379R

4. Burner Supply Tube

(30 Gal) AM28804BHH

5. Burner Orifice

(40 Gal) AM38804CHH

6. Burner

(50 Gal) AM38804DNN

7. Pilot Burner NG 1 SP8384E

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 SP12039

10. Jacket Door 1 AM35622

11. Inner Door 1 AM38692

12. Flue Baffle 1 AM29201

12A. Flue Baffle Hanger 1 AM20622C

13. Anode Rod 1 SP11309C

14. Roof Jack Assembly 1 As Required

15. Air Inlet Assembly 1 AP12019B

16. T&P Relief Valve 1 SP12574

17. Shroud, Relief Valve 1 AP9167

1 NG

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

DIRECT VENT (NON-FVIR) MODELS: NATURAL GAS ONLY

Ref. No. Part Description Qty. Req. 21DV Model Part Number 22DV Model Part Number

1. Thermostat 1 SP8555B SP8555U

2. Pilot Supply Tube 1 N/A N/A

3. Thermocouple 1 SP6379R SP6379R

4. Burner Supply Tube

5. Burner Orifice AM35651DY AM40497EY

6. Burner

7. Pilot Burner 1

SP8980B SP12380B

8. Drain Valve Shroud 1 AP9167 AP9167

9. Drain Valve 1 SP12039 AP12159C-1

10. Jacket Door 1 AM35622 AM35622

11. Inner Door 1 AM38692 AM40615

12. Flue Baffle AE35629D-2 AE35629D-2

12A. Flue Baffle Hanger

13. Anode Rod 1 SP11309C SP11309C

14. Dip Tube 1 SP11248R AP11251H-2

15. Dip Tube Gasket 1 AP6948-1 AP6948-1

16. Upper Air Inlet Box 1 AM35613-H AM40290-H

17. Air Tube Elbow 1 AP10197-1 AP10197-1

18. Sliding Air Tube 1 AP11126B-1 AP11126B-1

19. Main Air Tube 1 AP11126C-1 AP11126C-1

20. Vent Terminal Cap 1 AP11498 AP11498

21. T&P Relief Valve 1 SP12574 SP8346

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

21/2GALLON MODELS

120 OR 240 VOLT OPERATION

Ref. No. Part Description Qty. Req. Part Number

1. Heating Element 1 (120V) SP10868LH 1440W

(240V) SP10869FH 1500W

2. Heating Element Gasket 1 AP6708-9

3. Thermostat Bracket 1 AM23557

4. Thermostat 1 (120V) SP11700

(240V) SP11699

5. Thermostat Protective Cover 1 AP8413-9

6. Cavity Insulation 1 AP9184-7

7. Jacket Access Panel 1 AM38409-1C

8. Drain Valve 1 (PVC) SP12039

(Brass) SP12112G

9. Drain Valve Shroud 1 AP2480-3

10. Electrical Cord Set (120 VAC models ONLY) 1 AP10883-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

6 – 20 GALLON MODELS

120 OR 240 VOLT OPERATION

Ref. No. Part Description Qty. Req. Part Number

1. Heating Element 1 (120V) SP10874GH 2000W

(240V) SP10552GH 2000W

2. Heating Element Gasket 1 AP6708-9

3. Thermostat Bracket 1 AM23557

4. Thermostat 1 (120V) SP11700

(240V) SP11699

5. Thermostat Protective Cover 1 AP8313-9

6. Cavity Insulation 1 AP9184-7

7. Jacket Access Panel 1 AM38409-1C

8. Nipple, Hot Outlet 1 AP11623F

9. Nipple, Cold Inlet 1 AP11623F

10. Shroud As Required AP2480-3

11. Anode Rod 1 SP11309P 6 GAL

SP11309L 10-20 GAL

12. Snap Bushing 1 AP7733-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30 GALLON MODELS

120 OR 240 VOLT OPERATION

Ref. No. Part Description Qty. Req. Part Number

1. Heating Element As Required (120V) SP10874GH

(240V) SP10552GH

2. Heating Element Gasket As Required AP6708-9

3. Thermostat Bracket As Required AM23557

4. Thermostat, Upper (on double element models only) 1 SP11698

5. Thermostat, Lower 1 (120V) SP11700

(240V) SP11695

6. Thermostat (single element models only) 1 (120V) SP11700

(240V) SP11699

7. Thermostat Protective Cover As Required AP8313-9 (Double element upper and Single element lower)

AP8314-9 (Double element lower)

8. Cavity Insulation As Required AP9184-7

9. Jacket Access Panel As Required AM38409-1C

10. J-Tube, Hot Outlet 1 AP8877E-12

11. Nipple, Cold Inlet 1 AP11623F

12. Shroud As Required AP2480-3

13. Anode Rod 1 (5 Year) SP11309C

(10 Year) SP11526C

14. Snap Bushing 1 AP7733-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

20 – 120 GALLON MODELS: SINGLE AND DOUBLE ELEMENT

Ref. No. Part Description Qty. Req. Part Number

1. Dip Tube Gasket – 3/4” 1 AP6948-3

2. Dip Tube – 3/4” 1 SP11248R

3. Anode Rod 1 (5 Year, 44”) SP11309C

(10 Year, 44”) SP11526C

(10 Year, 58”) SP11526Z NLAP

4. Plate Cover 1 AM29892 AS29892-2

5. Junction Box Cover 1 AM29893 AS29893-2

6. Upper Thermostat (on double element models only) 1 SP11698

7. Thermostat Protective Cover (on double element models only) 1 AP8313-9

8. Cavity Insulation 2 AP9184-7

9. Jacket Access Panel (Rheem Blue) As Required AM38409-1C

10. Heating Element Gasket As Required AP6708-9

11. Heating Element As Required (240V) SP10552MH

(120V) SP10874GH

12. Thermostat Bracket As Required AS23557-6

13. Lower Thermostat 1 (DE) SP11695

(SE-240V) SP11699

(SE120V) SP11700

14. Lower Thermostat Protective Cover 1 AP8314-9

15. Drain Valve 1 (PVC) SP12039

AP12112G

16. Drain Valve Shroud 1 AP2480-3

17. Relief Valve 1 (Top) SP12574

(Side) SP8346

18. Hot Outlet Heat Trap or Dip Cup Insert (HT Kit) 1 SP20003 or AP12992

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

20 – 52 GALLON MODELS: SINGLE AND DOUBLE ELEMENT

Ref. No. Part Description Qty. Req. Part Number

1. Dip Tube Gasket (on top connect models only) 1 AP6948-3

2. Dip Tube (on top connect models only) 1 SP11248R

3. Anode Rod 1 SP11309C

4. Plate Cover (hole) 1 AM29892 AS29892-2

5. Junction Box Cover (no hole) 1 AM29893 AS29893-2

6. Upper Thermostat (on double element models only) 1 SP11698

7. Upper Thermostat Protective Cover (on double element models only) 1 AP8313-9

8. Cavity Insulation 2 AP9184-7

9. Jacket Access Panel As Required AM38409-1C

10. Heating Element Gasket As Required AP6708-9

11. Heating Element As Required (240V) SP10552MH

(120V) SP10874GH

12. Thermostat Bracket As Required AS23557-6

13. Lower Thermostat 1 (DE) SP11695

(SE-240V) SP11699

(SE120V) SP11700

14. Lower Thermostat Protective Cover 1 AP8314-9

15. Drain Valve 1 SP12039

16. Drain Valve Shroud As Required AP2480-3

17. Cold Inlet Nipple (on side connect models only) 1 AP8397N-8

18. Hot Outlet Tube (on side connect models only) 1 (71V20S) AP8877K-12

(71V30D) AP8877K-12

(71V40D) AP8877J-12

(71V50D) AP8877J-12

19. Relief Valve 1 (Top) SP12574

(Side) SP8346

20. Hot Outlet Heat Trap or Dip Cup Insert 1 AP12992 or SP20003

To place your order call 1-800-621-5622; fax 1-800-535-9538

* These parts are supplied only on double element models.

Residential Replacement Parts List

40 GALLON TABLE TOP MODELS

SINGLE AND DOUBLE ELEMENT

Ref. No. Part Description Qty. Req. Part Number

1. Splash Top 1 AP14549

2. Front Center Panel 1 AM28677-A

3. Upper Thermostat (on double element models only) 1 SP11698

4. Upper Thermostat Protective Cover (on double element models only) 1 AP8313-9

5. Thermostat Bracket As Required AM23557

6. Heating Element Gasket As Required AP6708-9

7. Heating Element As Required SP10552MH

8. Lower Thermostat Protective Cover 1 AP8314-9

9. Lower Thermostat 1 (DE) SP11695

(SE) SP11699

10. Drain Valve 1 SP12112L

11. Dip Tube 1 SP11248P

12. Dip Tube Gasket 2 AP6948-3

13. Anode 1 AP11525V

14. Relief Valve 1 SP12574

15. Hot Outlet Heat Trap or Dip Cup Insert (Kit) 1 SP20003

To place your order call 1-800-621-5622; fax 1-800-535-9538

Commercial Replacement Parts List

UNIVERSAL SPARK IGNITION: NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Drain Valve Bushing 1 AP7733-2

2. Drain Valve Nipple 1

3. Drain Valve 1 AP12231B-1

4. Jacket Handhole Cover 1 AM3459-H

5. Tank Handhole Assembly 1 SP22079

5A. Yoke 1 AS24346-1

5B. Nut 1 AP2247-1

5C. Gasket 1 AP5886-1

5D. Stud 1 AP5983-2

5E. Seal Plate 1 AS22078-2

6. Outlet Nipple Assembly 1 call for size

7. Inlet/Outlet Bushing 2 AP12421

8. Relief Valve Bushing 1 AP9078

9. Relief Valve Nipple 1

10. Relief Valve 1 SP9013D

11. Auto-Vent Damper Assembly 1 ***

12. Damper Motor 1 AP11617-1

13. Damper Drive Wiring 1 AP11314C-3

14. T’stat/T’well Bushing 1 AP9078-1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

15. Thermostat Hi-Limit 1 SP11798B

16. Gas Manifold Assembly 1

16A. Gas Valve (NAT) 1 SP10963D

16A. Gas Valve (LP) 1 SP10963E

17. Pilot Tube (straight) 1 AP7033L-14

18. Gas Manifold Assembly 1

18A Burner Orifice 1

18B. Burner Bracket (front) 1

18C. Burner 1

18D Burner Bracket (rear) 1

19. Pilot (NAT) 1 SP10764B

19. Pilot (LP) 1 SP10764C

20. Ignition Cable 1 SP8828D

21. Ignition Control 1 SP10763C

22. On/Off Switch 1 AP8825

23. Transformer 1 SP10550B

24. Inlet Nipple 1 call for size

25. Flue Baffle & Hanger 1 ***

26. Anode As Required AP11524C

Sold as burner

tray assembly

Call for

application

***Call for application ***Call for application

Commercial Replacement Parts List

VENTMASTER COMMERCIAL GAS MODEL

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Pilot Ignitor Assembly 1 SP13185

2. Burner Assembly 1 Call for Quote

3. Gas Valve 1 SP13714

4. System Sentinel Panel 1 AM38875

5. Ignition Control Assembly 1 AM40782

5A. Control Module 1 SP10763C

5B. Relay 1 SP12732

5C. On/Off Switch 1 AP8825

5D. Transformer 1 SP10550B

6. Blower Assembly 1 AP13192

7. Temperature & Pressure Relief Valve 1 SP9013D

8. Hand Hole Cover Gasket 1 AP5886-1

9. Thermostat 1 SP11798

10. Drain Valve 1 AP12231B-1

Commercial Replacement Parts List

INDUCED DRAFT

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1 Pilot Ignitor Assembly 1 AP13185

2 Burner Assy; 250, 270, 310, 360 kBTU 1 Call for Quote

3 Gas Valve 1 SP10963D (NG)

4 System Sentinel Panel 1 AM38875

5 Control Module 1 SP10763C

6 Relay 1 SP12732

7 ON/OFF Switch 1 AP8825

8 Transformer 1 SP10550B

9 Draft Inducer 250 kBTU - Natural or LP; and 270 kBTU - Natural or LP 1 AP1300-2

Draft Inducer 310 kBTU; Natural AP13801-2

Draft Inducer 310 kBTU – LP; and 360 kBTU; Natural or LP AP13802-2

10 Temperature & Pressure Relief Valve 1 AP12323-1

11 Hand Hole Cover Gasket 1 AP5886-1

12 Thermostat 1 SP11798B (NG)

13 Drain Valve 1 AP12231B-1

14 Vacuum Switch Assy 1 SP13989

Commercial Replacement Parts List

LOW NOX COMMERCIAL GAS MODEL

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Vent Damper Assembly 1 Call for quote

Damper Drive Motor - SP11617 (NG)

2. Temperature & Pressure Relief Valve 1 BTU Dependent

3. Thermostat Hi-Limit 1 SP11798B

4. System Sentinel Panel 1 AM38875

5. Ignition Control 1 SP10763C

6. Relay 1 SP12732

7. Transformer 1 SP10550B

8. On/Off Switch 1 AP8825

9. Pressure Switch 1 BTU Dependent

10. Gas Valve (NAT) 1 SP12541B

Gas Valve (NAT 400,000 BTU Only) - SP12543

11. Blower Motor 1 BTU Dependent

12. Blower Motor Protection Cage 1 AP12712

13. Pilot Ignitor (NAT 200K and below) 1 AS39758

Pilot Ignitor (NAT above 200K) - AM40023

14. Drain Valve 1 AP12231B-1

15. Hand Hole Gasket 1 AP5886-1

Commercial Replacement Parts List

XTREME COMMERCIAL GAS MODEL

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Vent Damper Assembly 1 AP13156

2. Temperature & Pressure Relief Valve 1 BTU Dependent

3. Thermostat Hi-Limit 1 AP12015-1

4. System Sentinel Panel 1 AM38875

5. Ignition Control 1 SP10763C

6. Relay 1 SP12732

7. Transformer 1 SP10550B

8. On/Off Switch 1 AP8825

9. Pressure Switch 1 SP12576C

10. Gas Valve (NAT) 1 SP12866N

Gas Valve (LP) 1 SP12866P

11. Blower Motor 1 SP12525

- Blower Motor Protection Cage 1 AP13017

12. Pilot Ignitor (NAT) 1 SP12237

Pilot Ignitor (LP) 1 SP12305

13. Drain Valve 1 AP12231B-1

14. Hand Hole Gasket 1 AP5886-1

15. Burner Assembly 1 Call for quote

Commercial Replacement Parts List

208, 240,277 OR 480 VOLT OPERATION –

50, 85, 120 GALLON MODELS: IMMERSION THERMOSTAT

Ref. No. Part Description Qty. Req. Part Number

1. Drain Valve Shroud 1 AP7733-2

2. Drain Valve 1 AP12231C-1

3. Inlet Nipple Shroud 1 AP12421

4. Inlet Nipple 1 AP11179B

5. Jacket Handhole Cover 1 AM3459-H

6. Outlet Nipple 1 AP11179C

7. Outlet Nipple Shroud 1 AP12421

8. Anode 1 SP11524C

9. T&P Valve Shroud 1 AP7733-2

10. Captive Screw with Retainer 1 AP8162B-1

AP8162-1

11. Door 1

12. Element As Required

13. Thermostat Retainer 1

14. Element Gasket As Required AP6708-9

15. Copper Connectors 3 AM25285

16. Transformer Fuse 1 SP8264R

17. Transformer Fuse Block 1 SP8889

18. Fuse (goes with SP8311E) 3 SP8264M

Fuse (goes with SP11112) 3 SP8264K

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

19. Fuse Block 1 SP8311E

Fuse Block (36, 45 & 54 KW) 1 SP11112

20. Terminal Block 1 SP10260

21. Control Encl Frame 1

22. Controls Mount Panel 1

23. Seal Strip 1

24. Outlet Nipple 1 AP11179C

25. Handhole Assembly 1 SP22079

25A. Seal Plate 1 AS22078-2

25B. Stud 1 AP5983-2

25C. Handhole Gasket 1 AP5886-1

25D. Yoke 1 AS24346-1

25E. Nut 1 AP2247-1

26. Transformer 1 SP10006

27. Contactor 1 SP12841

28. Limit 1

29. Thermostat Bracket 1

30. Thermostat 1 SP11805

31. Relief Valve N/S 1 SP9013E

Commercial Replacement Parts List

208, 240, 277 OR 480 VOLT OPERATION –

50, 85, AND 120 GALLON MODELS:

SURFACE MOUNTED THERMOSTAT

Ref. No. Part Description Qty. Req. Part Number

1. Drain Valve Shroud 1 AP7733-2

2. Drain Valve 1 AP12231C-1

3. Inlet Nipple Shroud 1 AP12421

4. Inlet Nipple 1 AP11179B

5. Jacket Handhole Cover 1 AM3459-H

6. Outlet Nipple 1 AP11179C

7. Outlet Nipple Shroud 1 AP12421

8. Anode Assembly 1 SP11524C

9. T&P Valve Shroud 1 AP7733-2

10. Captive Screw with Retainer 1 AP8162B-1

AP8162-1

11. Door 1

12. Element As Required

13. Thermostat Retainer 1 AM23557

14. Element Gasket As Required AP6708-9

15. Insulation - Controls 1

16. Insulation - Controls 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

17. Thermostat 1 AP11231-2

18. Fuse (goes with SP8311E) 3 SP8264M

Fuse (goes with SP11112) 3 SP8264K

19. Fuse Block 1 SP8311E

Fuse Block (36, 45 & 54 KW) 1 SP11112

20. Terminal Block 1 SP10260

21. Control Encl Frame 1

22. Controls Mount Panel 1

23. Seal Strip 1

24. Relief Valve 1 SP9013E

25. Handhole Assembly 1 SP22079

25A. Seal Plate 1 AS22078-2

25B. Stud 1 AP5983-2

25C. Handhole Gasket 1 AP5886-1

25D. Yoke 1 AS24346-1

25E. Nut 1 AP2247-1

Commercial Replacement Parts List

ELECTRIC LIGHT DUTY (ELD) SERIES

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Gasket 1 AP6948-3

2. Diptube 1 SP11251R

3. Anode 1 SP11526C

4. Field Connect Plate 1 AS29892-2

5. Junction Box Cover 1 AS29893-2

6. Thermostat, Upper 1 SP8293

7. Thermostat Cover - Upper 1 AP8313-9

8. Cavity Opening Insulation 1 AP9184-7

9. Front Panel 2 AM38409-1C

10. Gasket, Heating Element 1 AP6708-9

11. Heating Element 2 SP10552ML

12. Thermostat Bracket 1 AS23557-6

13. Thermostat, Lower 1 SP8295

14. Thermostat Cover - Lower 1 AP8314-9

15. Drain Valve 1 SP12112S

16. Drain Valve Shroud 1 AP9167

17. T & P Valve 1

18. Hot Outlet Heat Trap 1 SP20003 (kit)

Commercial Replacement Parts List

208, 240,277 OR 480 VOLT OPERATION:

10 GALLON BOOSTER MODELS

Ref. No. Part Description Qty. Req. Part Number

1. Transformer 1 SP10006

2. Cleanout Assembly 1

2A. Bolt 1

2B. Gasket 1

2C. Cover 1

2D. Tank Holddown Bracket 1

2E. Lock Washer 1

2F. Nut 1

3. Anode Assembly 1 SP11524C

4. Element 1

5. Element Insulation 1

6. Side Panel 1

7. Side & Back Panel 1

8. Inlet-Outlet Insulation 1

9. Shroud 2 AP9167

10. Shroud 2 AP6334-1

11. Nipple 3/4 inch NPT 1 AP508C-8

12. Drain Valve 1 SP6070G

13. Top Pan

14. Nipple 1-1/4 inch NPT 2 AP12012B

15. Assembly - bottom tank

supports & enclosure 1

16. Washer 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

17. Cap Screw 1

18. Support Bracket 1

19. Upper Control Panel 1

20. Thermostat 1 SP8260

21. Limit 1 SP5411

22. Thermostat Dial 1 AP8339

23. Captive Screw 1 AP8162B-1

AP8162-1

24. Front Door 1

25. Contactors 1 SP12841

26. Copper Connector 1 AM25285

27. Element Fuse 1 SP8264M

SP8264K

28. Element Fuse Block 1 SP8311E

SP11112

29. Terminal Block 1 SP10127

30. Control Mounting Panel 1

31. Snap Bushing 1 AP5316B-4

32. Snap Bushing 1 AP5316C-4

33. Leg 4 AP7803

34. Rubber Channel 1 AP7475D-5

35. Relief Valve (not shown) 1 AP9013E-3

21DV40 PDV40 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21DV50 PDV50 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21DX40 MDV40 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21DX50 MDV50 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21DX50N MDV50N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379C

21I30-6 PI30-6 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21I30-6P PI30-6P SP11309C SP11248R SP12039 NONE SP12258B SP8980B SP8980C SP6379K

21I30-7/P PI30-7P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21I30DV PI30DV SP11309C SP11248R SP12039 SP9051B SP9051B SP8980B SP8384F SP6379C

21I30S-2/P PI30S-2/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21I40-7/P PI40-7/P SP11309C SP11248R SP12039 NONE SP12258B SP8980B SP8980C SP6379K

21I40DV PI40DV SP11309C SP11248R SP12039 SP9051B SP9051B SP8980B SP8980C SP6379C

21I40S-2/P PI40S-2/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21I50-2/P PI50-2/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21IR30DV N/A AP6240C-11 N/A SP12159C SP9051D N/A AP11944D N/A SP6379C

21IR40DV N/A AP6240C-11 N/A SP12159C SP9051D N/A AP11944D N/A SP6379C

21IR40T N/A AP6240C-11 N/A SP12159C SP9051D N/A AP11944K N/A SP6379C

21IR50DV N/A AP6240C-11 N/A SP12159C SP9051D N/A AP11944E N/A SP6379C

21V100 P100 SP11526C SP11269C SP12039 SP10022F SP12258B SP8384B SP8384D SP6379K

21V20 PI20 SP11309C SP11248R SP12039 SP8555B SP12258B SP8384B SP8384D SP6379K

21V30-5N P30-5N SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V30-6 P30-6 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V30-6P P30-6P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V30-7/P P30-7/P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V30-7N P30-7N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V30DV PX30DV SP11309C SP11248R SP12039 SP9051B SP9051B SP8384E SP8384F SP6379C

21V30S-2/P P30S-2/P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V30S-2N P30S-2N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V30S-3/P P30S-3/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V30T PV30-T SP11309C SP11248R SP12039 SP9051B SP9051B SP8980B SP8980C SP6379K

21V40-36P P40-36P SP11309C SP11248R SP12112E NONE SP12258B NONE SP8980C SP6379E

21V40-36P P40-36P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V40-38 P40-38 SP11309C SP11248R SP12112E SP8555B NONE SP8980B NONE SP6379E

21V40-38 P40-38 SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V40-5N P40-5N SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V40-7/P P40-7/P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V40-7N P40-7N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V40DV P40-DV SP11309C SP11248R SP12039 SP9051B SP9051B SP8384E SP8384F SP6379C

21V40S-2/P P40S-2/P SP11309C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21V40S-2N P40S-2N SP11309C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21V40S-3/P P40S-3P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V40S-8A P40S-8-A SP11309C SP11248R SP12039 SP8555J NONE SP8980B NONE SP6379K

21V40T PV40T SP11309C SP11248R SP12039 SP9051B SP9051B SP8980B SP8980C SP6379K

21V50-2/P P50-2/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V50-4/P P50-4/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21V50-6 P50-6 SP11309C SP11248R SP12039 SP10022N SP11879F SP8384B SP8384D SP6379K

21V50-6 P50-6 SP11526C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379K

21V50-6-A P50-6-A SP11526C SP11269C SP12039 SP10022N SP12258B SP8384B SP8384D SP6379K

21VR30-5/P PR30-51P SP11309C SP11269C SP12112E NONE SP12258N NONE SP8980C SP6379K

21VR30-5N PR30-5N SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR30-6 PR30-6 SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR30-6-A PR30-6-A SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR30-6P PR30-6P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR30-7N-A PR30-7N-A SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR30-7P-A PR30-7P-A SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR30DV N/A SP11309C N/A SP12159C SP9051D N/A AP11944D N/A SP6379C

21VR30T N/A SP11309C N/A SP12159C SP9051D N/A AP11944K N/A SP6379C

21VR40-5/P PR40-5/P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR40-5N PR40-5N SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR40-7/P PR40-7/P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR40-7N-A PR40-7N-A SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR40-7P PR40-7P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR40-7P-A PR40-7 SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR40DV N/A SP11309C N/A SP12159C SP9051D N/A AP11944D N/A SP6379C

21VR40T N/A SP11309C N/A SP12159C SP9051D N/A AP11944K N/A SP6379C

21VR50-2/P-A PR50-21P-A SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

21VR50-2N-A PR50-2N-A SP11309C SP11248R SP12039 SP8555N NONE SP8980B NONE SP6379K

21VR50-2P PR50-2P SP11309C SP11248R SP12039 NONE SP12258N NONE SP8980C SP6379K

REFERENCE GUIDE

Residential Gas

Thermo- Thermo-

Rheem Model Ruud Model Dip Drain stat stat Pilot Pilot Thermo

Number Number Anode Tube Valve Nat LP Nat LP Couple

21VR50DV N/A SP11309C N/A SP12159C SP9051D N/A AP11944E N/A SP6379C

21VR75/P PR75/P SP11309C SP11269C SP12039 NONE SP12258N NONE SP8384D SP6379K

21VR75-1 PR75-1 SP11309C SP11269C SP12039 SP10022N NONE SP8384B NONE SP6379K

21X30-6 M30-6 SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X30-6P M30-6P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X30-7/P M30-7/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X30-7N M30-7N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X30S-2/P M30-2/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X30S-2N M30S-2N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X40-7/P M40-7/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X40-7N M40-7N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X40S-2/P M40S-2/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X40S-2N M40S-2N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

21X40S-2P M40S-2/P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

21X50-2/P M50-2/P SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21X50-4 M50-4 SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

21X50-6 M50-6 SP11309C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379K

21X50-6 M50-6 SP11526C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379K

21X50-6A M50-6A SP11526C SP11269B SP6070S SP10022P SP12258P SP8384B SP8384D SP6379K

21X75 M75 SP11309C SP11269C SP12039 SP8555B SP12258F SP8384B SP8384D SP6379K

21Xl00 M100 SP11309C SP11269C SP6070E SP10022F SP12258F SP8384B SP8384D SP6379K

21XR75 MR75 SP11526C SP11269B SP6070S SP8555N SP12258N SP8384B SP8384C SP6379K

22DV40S-36 PH2DV40S-36 AP11309Y AP11251Q-2 SP12159C SP8555U N/A AP11944K N/A SP6379C

22DV50-40 PH2DV50-40 SP11309C AP11251H-2 SP12159C SP8555U N/A AP11944K N/A SP6379C

22I40SDVX N/A AP6240Y-11 AP11251C-2 SP12159C SP9051D N/A AP11944K N/A SP6379C

22I50DVX N/A AP6240C-11 AP11251BC SP12159C SP9051D N/A AP11944K N/A SP6379C

22V30-27PF P2-30-27PF SP11309C AP11625G-1 SP12112G N/A SP20167C N/A SP20070 SP20064

22V30-30F P2-30-30F SP11309C AP11625G-1 SP12112G SP8555R N/A SP20069 N/A SP20064

22V30S-30F P2-30S-30F AP11309Y AP11625D-1 SP12112G SP8555R N/A SP20075 N/A SP20064

22V40F1 P2-40F1 SP11309C AP11625H-1 SP12112E SP8555S N/A SP20075 N/A SP20064

22V40SDVX N/A AP11309Y AP11251C-2 SP12159C SP9051D N/A AP11944K N/A SP6379C

22V50DVX N/A SP11309C AP11248S SP12159C SP9051D N/A AP11944K N/A SP6379C

22V50F1 P2-50F1 SP11309C AP11625H-1 SP12112E SP8555S N/A SP20075 N/A SP20064

22VR75-69P PR75P-69P AP11525C AP11237G SP12112S N/A SP12258N N/A SP8980C SP6379C

22VR75-70N PR75-70N AP11525C AP11237G SP12112S SP12941D N/A SP8980B N/A SP6379C

22X40F1 M2-40F1 SP11526C AP11625H-1 SP12112E SP8555S N/A SP20075 N/A SP20064

22X50F1 M2-50F1 SP11526C AP11625H-1 SP12112E SP8555S N/A SP20075 N/A SP20064

22XR75-69P MR75-69P SP11526C AP11237G SP12112S N/A SP12258N N/A SP8980C SP6379C

22XR75-70N MR75-70N SP11526C AP11237G SP12112S SP12941D N/A SP8980B N/A SP6379C

41V30, T/P PH30, T/P SP11309C SP11269C SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V30LB PH30LB SP11309C SP11269C SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V30S PH30S SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V30SP PH30SP SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40 PH40 SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40LB PH40LB SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40P PH40P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40S PH40S SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V40SP PH40SP SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V50 PH50 SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V50-4/P PH50-4/P SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41V50P PH50 SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980G SP6379K

41V50S PH50S SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41VR40 PHR40 SP11309C SP11248R SP12039 SP8555P SP12258P SP8980B SP8980C SP6379K

41VR40N PHR40N SP11309C SP11248R SP12039 SP8555P SP12258P SP8980B SP8980C SP6379K

41VR50 PHR50 SP11309C SP11248R SP12039 SP8555P SP12258P SP8980B SP8980C SP6379K

41VR50N PHR50N SP11309C SP11248R SP12039 SP8555P SP12258P SP8980B SP8980C SP6379K

41X30S MH30S SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41X30SP MH30SP SP11309C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41X40 MH40 SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41X40P MH40P SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41X40S MH40S SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41X40SP MH40SP SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41X50 MH50 SP11526C SP11248R SP12039 SP8555B SP12258B SP8980B SP8980C SP6379K

41X50-6 MH50-6 SP11526C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379K

41X50-6-A MH50-6-A SP11526C SP11269C SP12039 SP10022P SP12258P SP8384B SP8384D SP6379K

41X50N MH50N SP11526C SP11248R SP12039 SP8555B NONE SP8980B NONE SP6379K

41X50P MH50P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

41X75 MH75 SP11526C SP11269C SP12039 SP8555B SP12258N SP8384B SP8384D SP6379K

41XR40 MR40 SP11526C AP11624G SP12039 SP8555P SP12258P SP8980B SP8980C SP6379K

41XR40N MR40N SP11526C AP11624G SP12039 SP8555P SP12258P SP8980B SP8980C SP6379K

41XR50 MR50 SP11526C AP11624G SP12039 SP8555P SP12258P SP8980B SP8980C SP6379K

PREFERRED PARTS REFERENCE CONTINUED

Residential Gas – Continued

Thermo- Thermo-

Rheem Model Ruud Model Dip Drain stat stat Pilot Pilot Thermo

Number Number Anode Tube Valve Nat LP Nat LP Couple

41XR50N MR50N SP11526C AP11624G SP12039 SP8555P SP12258P SP8980B SP8980C SP6379K

41XR75 MR75 SP11526C SP11269C SP12039 SP8555N SP12258N SP8384B SP8384D SP6379K

41XR75-1 MR75-1 SP11526C SP11269C SP12039 SP8555N NONE SP8384B NONE SP6379K

42V38-34PROPF PH2-38-34PROPF SP11526C AP11625G-1 SP12112G N/A SP13160E N/A SP20076 SP20064

42V40F PH2-40F SP11309C AP11625G-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42V40PF PH2-40PF SP11309C AP11625G-1 SP12112G N/A SP13160E N/A SP20076 SP20064

42V40PROF PH2-40PROF SP11526C AP11625G-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42V40S-36PF PH2-40S-36PF AP11309Y AP11625E-1 SP12112G N/A SP13160E N/A SP20076 SP20064

42V40S-36PROPF PH2-40S-36PROPF AP11526Y AP11625E-1 SP12112G N/A SP13160E N/A SP20076 SP20064

42V40S-40F PH2-40S-40F AP11309Y AP11625E-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42V40S-40PROF PH2-40S-40PROF AP11526Y AP11625E-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42V50-36PF PH2-50-36PF SP11309C AP11625P SP12112G N/A SP13160E N/A SP20076 SP20064

42V50-36PROPF PH2-50-36PROPF SP11526C AP11625P SP12112G N/A SP13160E N/A SP20076 SP20064

42V50-40F PH2-50-40F SP11309C AP11625P SP12112G SP8555R N/A SP20075 N/A SP20064

42V50-40PROF PH2-50-PROF SP11526C AP11625P SP12112G SP8555R N/A SP20075 N/A SP20064

42V60-50T PH2-60-50T AP11526S-1 AP11251G-2 SP12112G SP20085K N/A N/A N/A SP6379K

42VR40-34PF PH2R40-34PF SP11309C AP11625F-1 SP12112S N/A SP13160D N/A SP20076 SP20064

42VR40-40F PH2R40-40F SP11309C AP11625F-1 SP12112S SP8555T N/A SP20075 N/A SP20064

42VR50-36PF PH2R50-36PF SP11309C AP11625P SP12112S N/A SP13160D N/A SP20076 SP20064

42VR50-40F PH2R50-40F SP11309C AP11625P SP12112S SP8555T N/A SP20075 N/A SP20064

42X40F MH2-40F SP11526C AP11625G-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42X40S-40F MH2-40S-40F AP11526Y AP11625E-1 SP12112G SP8555R N/A SP20075 N/A SP20064

42X50-40F MH2-50-40F SP11526C AP11625P SP12112G SP8555R N/A SP20075 N/A SP20064

42XR40-40F MH240-40F SP11526C AP11625F-1 SP12112S SP8555T N/A SP20075 N/A SP20064

42XR50-40F MH2R50-40F SP11526C AP11625P SP12112S SP8555T N/A SP20075 N/A SP20064

44V40 PT40 SP11526C SP11248R SP12039 SP8555F SP12258F SP8980B SP8980C SP6379K

44V40-1 PT40-1 SP11526C SP11248R SP12039 SP8555F SP12258F SP8980B SP8980C SP6379K

44V40-1 P PT40-1 P SP11526C SP11248R SP12039 SP8555F SP12258F SP8980B SP8980C SP6379K

44V40-2 PT40-2 SP11526C SP11248R SP12039 SP8555F NONE SP8980B NONE SP6379K

44V40P PT40P SP11526C SP11248R SP12039 NONE SP12258B NONE SP8980C SP6379K

44V50 PT50 SP11526C SP11248R SP12039 SP8555F SP12258F SP8980B SP8980C SP6379K

44V50-1 PT50-1 SP11526C SP11248R SP12039 SP8555F NONE SP8980B NONE SP6379K

44V50-2 PT50-2 SP11526C SP11248R SP12039 SP10022F NONE SP8384B NONE SP6379C

44V50P PT50P SP11526C SP11248R SP12039 NONE SP12258F NONE SP8980C SP6379K

42V60-50 PH2-60-50 SP11526S AP11625Q SP12112G SP20085K N/A SP8980B SP8980C SP6379K

44V62 PT62 SP11309C SP11269C SP12039 SP8555B NONE SP8384B NONE SP6379C

44V76 PT76 SP11309C SP11269C SP12039 SP8555B NONE SP8384B NONE SP6379C

44V91 PT91 SP11309C SP11269C SP12039 SP10022F NONE SP8384B NONE SP6379C

44X40 MT40 AP10377D-1 SP11248R SP12039 SP10022F NONE SP8384B NONE SP6379L

44X40-1 MT40-1 AP10377D-1 SP11248R SP12039 SP8555F NONE SP8980B NONE SP6379K

44X40-1 P MT40-1 P AP10377D-1 SP11248R SP12039 NONE SP12258F NONE SP8980C SP6379K

44X40-2 MT40-2 AP10377D-1 SP11248R SP12039 SP8555F NONE SP8980E NONE SP6379K

44X50-2 MT50-2 AP10377D-1 SP11248R SP12039 SP10022F NONE SP8384B NONE SP6379L

44X50P MT50P AP10377D-1 SP11248R SP12039 NONE SP12258F NONE SP8980C SP6379K

44X62 MT62 SP11309C SP11248R SP12039 SP8555B NONE SP8384B NONE SP6379C

44X76 MT76 SP11309C SP11269C SP12039 SP8555B NONE SP8384B NONE SP6379C

44X91 MT91 SP11309C SP11269C SP12039 SP10022F NONE SP8384B NONE SP6379C

RHGPRO100-75* RUGPRO100-75* SP11526C SP11269C SP12112E SP10022F SP12258F SP8384B SP8384D SP6379K

RHGPRO40-34PF RUGPRO40-34PF SP11526C AP11625F-1 SP12112S N/A SP13160D N/A SP20076 SP20064

RHGPRO40-37* RUGPRO40-37* SP11526C SP11624G SP12112S SP8555P SP12258B SP8980B SP8980C SP6379K

RHGPRO40-40* RUGPRO40-40* SP11526C SP11624G SP12112S SP8555P SP12258P SP8980B SP8980C SP6379K

RHGPRO40-40F RUGPRO40-40F SP11526C AP11625F-1 SP12112S SP8555T N/A SP20075 N/A SP20064

RHGPRO40S-37* RUGPRO40S-37* SP11526C AP11624G SP12112E SP8555B SP12258B SP8980B SP8980C SP6379K

RHGPRO50-34PF RUGPRO50-34PF SP11526C AP11625P SP12112S N/A SP13160D N/A SP20076 SP20064

RHGPRO50-40* RUGPRO50-40* SP11526C AP11624G SP12112S SP8555P SP12258P SP8980B SP8980C SP6379K

RHGPRO50-40F RUGPRO50-40F SP11526C AP11625P SP12112S SP8555T N/A SP20075 N/A SP20064

RHGPRO50-50* RUGPRO50-50* SP11526C AP11624G SP12112S SP8555P SP12258B SP8980B SP8980C SP6379K

RHGPRO50-50F RUGPRO50-50F SP11526C AP11625P SP12112G AP8555W-2 N/A SP20075 N/A SP20064

RHGPRO50-60* RUGPRO50-60* SP11526C SP11269C SP12112S SP8555P SP12258P SP8384B SP8384D SP6379K

RHGPRO75-69P RUGPRO75-69P SP11526C AP11237G SP12112S N/A SP12258N N/A SP8980C SP6379C

RHGPRO75-70N RUGPRO75-70N SP11526C AP11237G SP12112S SP12941D N/A SP8980B N/A SP6379C

RHGPRO75-75* RUGPRO75-75* SP11526C SP11269C SP12112S SP10022N SP12258N SP8384B SP8384D SP6379K

RMGPRO40* RDG-PRO40* SP11526C SP11248R SP12112E SP8555P NONE SP8980B NONE SP6379K

RMGPRO40P* RDG-PRO40P* SP11526C SP11248R SP12112E NONE SP12258B NONE SP8980C SP6379K

RMGPRO40S* RUGPRO40S* SP11526C SP11248R SP12112E SP8555B SP12258B SP8980B SP8980C SP6379K

RMGPRO40SP* RDG-PRO40SP* SP11526C SP11248R SP12112E SP8555B SP12258B SP8980B SP8980C SP6379K

RMGPRO50P* RDG-PRO50P* SP11526C SP11248R SP12112E SP8555P SP12258P SP8980B SP8980C SP6379K

RMGVRPRO40* RDGVR-PRO40* SP11526C SP11248R SP12112S SP8555P NONE SP8980B NONE SP6379K

RMGVRPRO40P* RDGVR-PRO40P* SP11526C SP11248R SP12112S NONE SP12258P NONE SP8980C SP6379K

RMGVRPRO50* RDGVR-PRO50* SP11526C SP11248R SP12112S SP8555P NONE SP8980B NONE SP6379K

RMGVRPRO50P* RDGVR-PRO50P* SP11526C SP11248R SP12112S NONE SP12258P NONE SP8980C SP6379K

* EverKleen dip tubes available for PRO models

PREFERRED PARTS REFERENCE CONTINUED

Residential Gas – Continued

Thermo- Thermo-

Rheem Model Ruud Model Dip Drain stat stat Pilot Pilot Thermo

Number Number Anode Tube Valve Nat LP Nat LP Couple

68V30S/D PESC30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

71V40-B PM40-B SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

71V52-B PM52-B SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

72-20-1 N/A N/A N/A N/A N/A SP11700 N/A AP6240V-11 SP12159C

72-30-1 N/A N/A N/A N/A N/A SP11700 SP11699 AP6240T-11 SP12159F

72-30-2 N/A SP11698 N/A SP11695 N/A N/A SP11699 AP6240T-11 SP12159F

72-40-1 N/A N/A N/A N/A N/A N/A SP11699 AP6240T-11 SP12159F

72-40-2 N/A SP11698 N/A SP11695 N/A N/A N/A AP6240T-11 SP12159F

72-52-1 N/A N/A N/A N/A N/A N/A SP11699 AP6240BD SP12159F

72-52-2 N/A SP11698 N/A SP11695 N/A N/A N/A AP6240BD SP12159F

72V20-1 N/A N/A N/A N/A N/A SP11700 SP11699 AP11309V-1 SP12159C

72V30 N/A SP11698 N/A SP11695 N/A N/A SP11699 AP11309T SP12159F

72V40-2 N/A SP11698 N/A SP11695 N/A N/A N/A SP12525T SP12159F

72V52-2 N/A SP11698 N/A SP11695 N/A N/A N/A AP11309BD SP12159F

81VR100-1/-T RSPER100-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81166S/D PEI66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81180S/D PEI80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX30 MEG30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX40-B MEG40-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX52-8 MEG52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX66S/D MEG66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81GX80S/D MEG80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81MV30-A PEM30-A SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81MV52-B PEB52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81MVR52S/D PEM52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81MX30D MEM30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81MX52D MEM52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81SV20S/D PES20-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV30D PES30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV30-D PES30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV40-A PES40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV40D PES40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV50D PES50-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV52-B PES52-2B SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SV52D PES52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SX20S/D MES20-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SX30D MES30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SX40D MES40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

Residential Electric

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

22VRP75 PVRP75 AP13211-1 AP13266A SP12112S SP12556 N/A SP12560B N/A N/A

22VRP75P PVRP75P AP13211-1 AP13266A SP12112S N/A SP12557 N/A SP12560C

41VRP40N PVRP40N SP12562 AP11251Q-2 SP12112S SP12556 N/A SP12560B N/A N/A

41VRP40-P PVRP40-P SP12562 AP11251Q-2 SP12112S N/A SP12557 N/A SP12560C

41VRP50-55N PVRP50-55N AP13194 AP11251Q-2 SP12112S SP12556 N/A SP12560B N/A N/A

41VRP50N PVRP50N SP12562 AP11251Q-2 SP12112S SP12556 N/A SP12560B N/A N/A

41VRP50-P PVRP50-P SP12562 AP11251Q-2 SP12112S N/A SP12557 N/A SP12560C N/A

GPV75-75E GPV75-75E AP11608-1 SP11269F SP6070S SP12556 SP11652C SP12049D SP12049E SP10763B

Obsolete Models

21VP40-1 PVP40-1 AP10983-4*** SP10768C SP12039 SP10886B N/A SP10972 N/A SP10758

21VP40-1 /P-A PVP40-1/P-A AP10983-4*** SP10768C SP12039 N/A SP10886C N/A SP10972 SP10758

21VP40E-1 PVP40-E1-A AP10983-4*** SP11248R SP12039 SP11652B N/A SP12049B N/A SP10763B

21VP40E-1P PVP40E-1P AP10983-4*** SP11248R SP12039 N/A SP11652C N/A SP12049C SP10763B

21VP40H-1/P-A PVP40H-1/P-A AP10983-4*** SP10768C SP12039 N/A SP10886C NA SP10972 SP10758

21VP40HE-1 PVP40HE-1 AP10983-4*** SP11248R SP12039 SP11652B N/A SP12049B N/A SP10763B

21VP40HE-1P PVP40HE-1P AP10983-4*** SP11248R SP12039 N/A SP11652C N/A SP12049C SP10763B

21VP50-1 PVP50-1 AP10983-4*** SP10768C SP12039 SP10886B N/A SP10972 N/A SP10758

21VP50-1 /P-A PVP50-1/P-A AP10983-4*** SP10768C SP12039 N/A SP10886C N/A SP10972 SP10758

21VP50E-1 PVP50E-1 AP10983-4*** SP11248R SP12039 SP11652B N/A SP12049B N/A SP10763B

21VP50E-1P PVP50E-1P AP10983-4*** SP11248R SP12039 N/A SP11652C N/A SP12049C SP10763B

21VP50H-1/P-A PVP50H-1/P-A AP10983-4*** SP10768C SP12039 N/A SP10886C N/A SP10972 SP10758

21VP50HE-1 PVP50HE-1 AP10983-4*** SP11248R SP12039 SP11652B N/A SP12049B N/A SP10763B

21VP50HE-1P PVP50HE-1P AP10983-4*** SP11248R SP12039 N/A SP11652C N/A SP12049C SP10763B

21VP75E-1 PVP75E-1 AP11608-1 SP11269C SP6070S SP11652B N/A SP12049D N/A SP10763B

21VP75E-1 PVP75E-1 AP11608-1 SP11269F SP6070S SP11652B SP11652C SP12049D SP12049E SP10763B

21VP75E-1P PVP75E-1P AP11608-1 SP11269C SP6070S N/A SP11652C N/A SP12049E SP10763B

• Surface Mounted Thermostat –SP12390 – all residential models, SP12391 all commercial models

• ** Vacuum Switch – SP11875 – all models

• *** High Altitude Blower Assembly, 40 & 50 Gallon, use AP10984-3

PowerVents – Residential and Commercial

Gas Gas Pilot Pilot Ignition

Rheem Model Ruud Model Blower Dip Drain Valve Valve Ignitor Ignitor Control

Number Number Motor Tube Valve Nat LP Nat LP Module

81SX50D MES-50-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81SX52D MES-52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81V-100HE-1/-T RSPE-100HE-1/-T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81V120-B PE120-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12112S

81V-120HE-1/-T RSPE-120HE-1/-T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12112S

81V30-A PE30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112G

81V40-A PE40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112G

81V40-C PE40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12112G

81V52-B PE52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112G

81V66-A PE66-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12112G

81V-80HE-1/-T RSPE-80HE-1/-T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12112S

81V80S/D PE80-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12112G

81VP10S PEP10-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C NONE

81VP15S PEP15-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C NONE

81VP20S PEP20-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C NONE

81VP2S PEP2-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VP4S PEP4-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VP6S PEP6-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VR100TC-1/-T RSPER100-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR120-1 RSPER120-1 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR120-1/-T RSPER120-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR120TC-1/-T RSPER120-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR30-A PER30-A SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VR30S/D PER30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81VR40-C PER40-C SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

81VR52S/D PER52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81VR66-1/-T RSPER66-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR66S/D PER66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR66TC-1/-T RSPER66TC-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR80-1/-T RSPER80-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR80S/D PER80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81VR80TC-1/-T RSPER80TC-1/T SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11524C SP12039

81X120D ME120-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X30D ME30-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X40D ME40-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X52D ME52-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X66D ME66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X66S/D ME66-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81X80D ME80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526S SP12039

81X80S/D ME80-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

81XH52D MEH52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82IP30-1 N/A N/A N/A N/A N/A SP11700 SP11699 AP6240BH N/A

82IP30-2 N/A SP11698 N/A SP11695 N/A N/A N/A AP6240BH N/A

82MV30-2 PE2M-30-2 SP11698 N/A SP11695 N/A N/A N/A AP11525BC-1 SP12112G

82MV52-1 PE2M-52-1 N/A N/A N/A N/A N/A SP11699 AP11525T SP12112G

82MV52-2 PE2M-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11525T SP12112G

82MVR52-2 EMV52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82MXR52-2 EMVR52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82SV20-1 PE2S20-1 N/A N/A N/A N/A SP11700 SP11699 AP11309V SP12112G

82SV20-2 PES20-2 SP11698 N/A SP11695 N/A N/A N/A AP11309V SP12112G

82SV30-1 PES30-1 N/A N/A N/A N/A SP11700 SP11699 AP11525BH-1 SP12112G

82SV30-2 PES30-2 SP11698 N/A SP11695 N/A N/A N/A AP11525BH-1 SP12112G

82SV40-1 PE2S40-1 N/A N/A N/A N/A SP11700 SP11699 AP11525V SP12112G

82SV40-2 PE2S40-2 SP11698 N/A SP11695 N/A N/A N/A AP11525V SP12112G

82SV50-1 PES250-1 N/A N/A N/A N/A N/A SP11699 AP11525V SP12112S

82SV50-2 PE2S50-2 SP11698 N/A SP11695 N/A N/A N/A AP11525V SP12112S

82V30-1 PE2-30-1 N/A N/A N/A N/A SP11700 SP11699 AP11309T SP12112G

82V30-2 PE2-30-2 SP11698 N/A SP11695 N/A N/A N/A AP11309T SP12159F

82V40-1 PE2-40-1 N/A N/A N/A N/A SP11700 SP11699 AP11525T SP12112G

82V40-2 PE2-40-2 SP11698 N/A SP11695 N/A N/A N/A AP11525T SP12112G

82V52-1 PE2-52-1 N/A N/A N/A N/A N/A SP11699 AP11309BD SP12112G

82V52-2 PE2-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11309BD SP12112G

82V66-1 PE2-66-1 N/A N/A N/A N/A N/A SP11699 AP11525W SP12112G

82V66-2 PE2-66-2 SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112G

82V80-2 PE2-80-2 SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112G

82VH40-1 PE2H-40-1 N/A N/A N/A N/A N/A SP11699 AP11309W SP12112G

82VH40-2 PE2H-40-2 SP11698 N/A SP11695 N/A N/A N/A AP11309W SP12112G

82VP30-1 PEP30-1 N/A N/A N/A N/A SP11700 SP11699 AP11525BH-1 N/A

82VP30-2 PEP30-2 SP11698 N/A SP11695 N/A N/A N/A AP11525BH-1 N/A

82VR30-2 EVR30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11309C SP12039

82VR40-2 EVR40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82VR52-2 EVR52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82VR66-2 EVR66-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

PREFERRED PARTS REFERENCE CONTINUED

Residential Electric – Continued

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

82VR80-2 EVR80-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR30-2 EXR30-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR40-2 EXR40-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR52-2 EXR52-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR66-2 EXR66-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

82XR80-2 EXR80-2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

83MVR52-2 PE3MR-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11525T SP12112T

83MXR52-2 ME3MR-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

83VR40-2 PE3R-40-2 SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

83VR52-2 PE3R-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11309BD SP12112T

83VR66-2 PE3R-66-2 SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112S

83VR80-2 PE3R-80-2 SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112S

83XR40-2 ME3R-40-2 SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

83XR52-2 ME3R-52-2 SP11698 N/A SP11695 N/A N/A N/A AP11526BD SP12112T

83XR66-2 ME3R-66-2 SP11698 N/A SP11695 N/A N/A N/A AP11526W SP12112S

83XR80-2 ME3R-80-2 SP11698 N/A SP11695 N/A N/A N/A AP11526W SP12112S

8lXl20S/D ME120-1/2 SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12039

RHEHPRO40-2* RUEHPRO40-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070G

RHEHPRO40-2-A RUEHPRO40-2-A SP11698 N/A SP11695 N/A N/A N/A AP11525W SP12112G

RHEMPRO30-2* RUEHPRO30-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112S

RHEMPRO30-2-A RUEMPRO30-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526BC-1 SP12112G

RHEMPRO52-2* RUEMPRO52-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112S

RHEMPRO52-2-A RUEHPRO52-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

RHEPRO30-2* RUEPRO30-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070S

RHEPRO40-2* RUEPRO40-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112S

RHEPRO40-2-A RUEHPRO40-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526T SP12112T

RHEPRO52-2* RUEPRO52-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112S

RHEPRO52-2-A RUEPRO52-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526BD SP12112T

RHEPRO66-2* RUEPRO66-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112S

RHEPRO66-2-A RUEPRO66-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526W SP12112S

RHEPRO80-2* RUEPRO80-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112S

RHEPRO80-2-A RUEPRO80-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526W SP12112S

RHESPRO30-2* RUESPRO30-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070G

RHESPRO30-2-A RUESPRO30-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526BH-1 SP12112G

RHESPRO40-2* RUESPRO40-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP6070G

RHESPRO40-2-A RUESPRO40-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526V-1 SP12112G

RHESPRO50-2-A RUESPRO50-2-A SP11698 N/A SP11695 N/A N/A N/A AP11526V-1 SP12112S

RHESPRO52-2* RUESPRO52-2* SP11698 SP11699 SP11695 SP11695 SP11700 SP11699 SP11526C SP12112S

PREFERRED PARTS REFERENCE CONTINUED

Residential Electric – Continued

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

* EverKleen dip tubes available for PRO models

G100-200 G100-200 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13144-1 SP10763B

G100-250 G100-250 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13149 SP10763B

G100-270/A G100-270/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13149 SP10763B

G100-310/A G100-310/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13152 SP10763B

G100-400/A G100-400/A SP6070E SP8099N SP8099P AP12015-1 SP10764B SP10764C AP13150 SP10763B

G100-75 G100-75 SP6070E SP12234C SP12233C NONE SP8384B SP8384D NONE NONE

G37-200-1 G37-200-1 AP12231B-1 SP10963D SP10963E SP11799 SP10764B SP10764C AP13155-1 SP10763B

G50-98 G50-98 SP6070E SP10963B SP10963C SP11799 SP10764B SP10764C AM36431BH SP10763B

G65-360/A G65-360/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13143-1 SP10763B

G65-400/A G65-400/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AM36426CH SP10763B

G72-250/A G72-250/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13153 SP10763B

G72-300/A G72-300/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13151 SP10763B

G75-125 G75-125 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13147 SP10763B

G75-75 G75-75 SP6070E SP12234B SP12233B NONE SP8384B SP8384D NONE NONE

G82-156 G82-156 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13148 SP10763B

G85-300-1 G85-300-1 AP12231B-1 SP10963D SP10963E SP11798B SP10764B SP10764C AP13142 SP10763B

G85-400/A G85-400/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13154 SP10763B

G91-200 G91-200 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13145 SP10763B

GX90-500 GX90-500 AP12231B-1 N/A SP12866P SP12015-1 N/A SP12305 AP13156 SP10763B

GX90-550 GX90-550 AP12231B-1 SP12866N N/A SP12015-1 SP12237 N/A AP13156 SP10763B

GX90-600 GX90-600 AP12231B-1 N/A SP12866P SP12015-1 N/A SP12305 AP13156 SP10763B

GX90-640 GX90-640 AP12231B-1 SP12866N N/A SP12015-1 SP12237 N/A AP13156 SP10763B

GX90-680 GX90-680 AP12231B-1 N/A SP12866P SP12015-1 N/A SP12305 AP13156 SP10763B

GX90-715 GX90-715 AP12231B-1 SP12866N N/A SP12015-1 SP12237 N/A AP13156 SP10763B

Gas Gas

Rheem Model Ruud Model Drain Valve Valve Thermo- Pilot Pilot Blower Ignition

Number Number Valve Nat LP stat Nat LP Assy Control

VentMaster

GP100-200 GP100-200 AP12231B-1 AP13714 N/A SP11798B AP13185-1 N/A AP13192 SP10763B

GP100-150 GP100-150 AP12231B-1 AP13714 N/A SP11798B AP13185-1 N/A AP13192 SP10763B

Gas Gas Vent

Rheem Model Ruud Model Drain Valve Valve Thermo- Pilot Pilot Damper Ignition

Number Number Valve Nat LP stat Nat LP Assy Control

Obsolete Models

G37-160 G37-160 SP6070E SP10963D SP10963E SP11799 SP10764B SP10764C AP13146 SP10763C

G50-60 G50-60 SP6070G SP12234B SP12233E NONE SP8384B SP8384D NONE NONE

G58-50 GL50-58 SP6070E SP12234C NONE SP8980B SP8980C NONE NONE

G600-77/-A GL77-600-A SP6070E SP8099N NONE AP12015-1 SP10764B NONE AM38836H SP10763C

G60-50C GL50-60C SP6070G SP12234B SP12233B NONE SP8980B SP8980C NONE NONE

G63-100B GL100-63B SP6070E SP12234C SP12233C NONE SP8384B SP8384D NONE NONE

G63-50B GL50-63B SP6070E NONE SP12232D NONE SP8384B SP8384D NONE NONE

G76-100B GL100-76B SP6070E SP12234C SP12233C NONE SP8384B SP8384D NONE NONE

G76-180 G76-180 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13145 SP10763C

G76-200 G76-200 SP6070E SP10963D SP10963E SP11798B SP10764B SP10764C AP13146-1 SP10763C

G76-50 GL50-76 SP12039 SP12234C NONE NONE SP8384B NONE NONE NONE

G76-62 GL62-76 SP6070E SP10022D NONE NONE SP8384B NONE NONE NONE

G76-76 GL76-76 SP6070E SP12234B SP12233B NONE SP8384B SP8384D NONE NONE

G76-91 GL91-76 SP6070E NONE NONE NONE SP8384B NONE NONE NONE

G77-500/A G77-500/A SP6070E SP8099N SP8099P AP12015-1 SP10764B SP10764C AM36428BH SP10763C

G67-114 G67-114 SP6070E SP10963B SP10963C SP11799 SP10764B SP10764C AM36431BH SP10763C

G91-300/A G91-300/A SP6070E SP10963D SP10963E AP12015-1 SP10764B SP10764C AP13142 SP10763C

GD500-77/-A GLD77-500-A SP6070E SP8099N SP8099P AP12015-1 SP10764B SP10764C AM36428BH SP10763C

GD600-77/-A GLD77-600-A SP6070E SP8099N NONE AP12015-1 SP10764B NONE AM36428BH SP10763C

R160-37 R37-160 SP6070E SP5870E SP5870C SP11799 SP10399B SP10399C NONE NONE

R360-65 R65-360 SP6070E SP5870F SP5870D SP8824B SP10399B SP10399C NONE NONE

R400-85 R85-400 SP6070E SP8099K SP5870D SP8824B SP10399B SP10399C NONE NONE

RCD156-82 RCD82-156 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424BH SP10763C

RCD156-82-1 RCD82-156-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424BH NONE

RCD180-98 RCD98-180 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424DH SP10763C

RCD180-98-1 RCD98-180-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424DH NONE

RCD200-100-1 RCD100-200-1 SP6070K SP10962D/K SP10962E/K SP8824C SP10399B SP10399C AM38634H NONE

RCD200-76 RCD76-200 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424DH SP10763C

RCD200-76-1 RCD76-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424DH NONE

RCD200-91 RCD91-200 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424CH SP10763C

RCD200-91-1 RCD91-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424CH NONE

RCD200-92-1 RCD92-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424BH NONE

RCD250-100-1 RCD100-250-1 SP6070K SP10962D/K SP10962E/K SP8824C SP10399B SP10399C AM36632H NONE

RCD250-76-1 RCD76-250-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36425BH NONE

RCD250-86 RCD86-250 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36432BH SP10763C

RCD250-86-1 RCD86-250-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36432BH NONE

RCD300-100-1 RCD-100-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36633H NONE

RCD300-91 RCD91-300 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36426CH SP10763C

RCD300-91 -1 RCD91-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36426CH NONE

RCD300-92-1 RCD92-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36426BH NONE

RD156-40 RD40-156 SP6070E SP10963D/K SP10963E/K SP11799 SP10764B SP10764C AM36424DH SP10763C

PREFERRED PARTS REFERENCE CONTINUED

Commercial Gas

Gas Gas Vent

Rheem Model Ruud Model Drain Valve Valve Thermo- Pilot Pilot Damper Ignition

Number Number Valve Nat LP stat Nat LP Assy Control

ELDS30 ELDS30 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (24 3/8) SP12112S

ELDS40 ELDS40 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (25 3/8) SP12112S

ELD40 ELD40 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (39 3/8) SP12112S

ELDS50 ELDS50 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (32 3/8) SP12112S

ELD52 ELD52 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (50 3/8) SP12112S

ELD66 ELD66 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (53 3/8) SP12112S

ELD80 ELD80 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (53 3/8) SP12112S

ELD120 ELD120 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (56 3/8) SP12112S

Obsolete Models

ELD40 ELDR40 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (39 3/8) SP12112S

ELD52 ELDR52 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (50 3/8) SP12112S

ELD80 ELDR80 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (53 3/8) SP12112S

ELD120 ELDR120 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (56 3/8) SP12112S

ELDS30 ELDRS30 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (24 3/8) SP12112S

ELDS40 ELDRS40 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (25 3/8) SP12112S

ELDS52 ELDRS52 SP8293 SP8294 SP8295 SP8295 SP8296 SP8294 SP11526C (32 3/8) SP12112S

Light Duty Commercial Electric

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

EGSP2 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP6 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP10 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP15 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP20 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP30 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

Obsolete Models

EGSP6S EGLSP65 SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (11 3/8) None

EGSP20S EGLSP20S SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (20 3/8) None

EGSP15S EGLSP15S SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (20 3/8) None

EGSP10S EGLSP10S SP11699 SP11699 SP11695 SP11699 SP11700 SP11699 SP11309C (20 3/8) None

EGSP – Commercial Electric

Non-Sim Sim Non-Sim Sim

Thermo- Thermo- Thermo- Thermo- S/E

Rheem Model Ruud Model stat stat stat stat 208- Drain

Number Number Upper Upper Lower Lower S/E 120V 480V Anode Valve

RD160-37 RD37-160 SP6070E SP10963D/K SP10963E/K SP11799 SP10764B SP10764C AM36424DH SP10763C

RD360-65 RD65-360 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36426BH SP10763C

RD400-85 RD85-400 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36427BH SP10763C

RF200-91 RF91-200 SP6070E SP5870E SP5870C SP11798B SP10399B SP10399C NONE NONE

RF250-86 RF86-250 SP6070E SP5870F SP5870C SP11798B SP10399B SP10399C NONE NONE

RF300-91 RF91-300 SP6070E SP5870F SP5870C SP11798B SP10399B SP10399C NONE NONE

RF98-50 RF50-98 SP6070E SP11823D SP12232D NONE SP10399B SP10399C NONE NONE

RFD120-67 RFD67-120 SP6070E SP10963B SP10963C SP11799 SP10764B SP10764C AM36431BH SP10763C

RFD120-67-1 RFD67-120-1 SP6070E SP10962D/K SP10962E/K SP11799 SP10399C SP10399C AM36431BH NONE

RFD156-82 RFD82-156 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424BH SP10763C

RFD156-82-1 RFD82-156-1 SP6070E SP1096 2D/K SP10962E/K SP11798B SP10399B SP10399C AM36424BH NONE

RFD180-98 RFD98-180 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424DH SP10763C

RFD180-98-1 RFD98-180-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424DH NONE

RFD200-76 RFD76-200 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424DH SP10763C

RFD200-76-1 RFD76-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424DH NONE

RFD200-91 RFD91-200 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36424CH SP10763C

RFD200-91-1 RFD91-200-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424CH NONE

RFD200-92-1 RFD92-900-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36424BH NONE

RFD250-76-1 RFD76-250-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36425BH NONE

RFD250-76A-1 RFD76A-250-1 SP6070E SP10962D/K SP10962E/K AP12015-1 SP10399B SP10399C AM36425BH NONE

RFD250-86 RFD86-250 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36432BH SP10763C

RFD250-86-1 RFD86-250-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36432BH NONE

RFD300-91 RFD91-300 SP6070E SP10963D/K SP10963E/K SP11798B SP10764B SP10764C AM36426CH SP10763C

RFD300-91 -1 RFD91-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36426CH SP10763C

RFD300-92-1 RFD92-300-1 SP6070E SP10962D/K SP10962E/K SP11798B SP10399B SP10399C AM36426BH SP10763C

RFD300-92A-1 RFD92A-300-1 SP6070E SP10962D/K SP10962E/K AP12015-1 SP10399B SP10399C AM36426BH SP10763C

RFD98-50 RFD50-98 SP6070E SP10963B SP10963C SP11799 SP10764B SP10764C AM36431BH SP10763C

RFD98-50-1 RFD50-98-1 SP6070E SP10962D/K SP10962E/K SP11799 SP10399B SP10399C AM36431BH SP10763C

PREFERRED PARTS REFERENCE CONTINUED

Commercial Gas – Continued

Gas Gas

Rheem Model Ruud Model Drain Valve Valve Thermo- Pilot Pilot Blower Ignition

Number Number Valve Nat LP stat Nat LP Assy Control

Heavy Duty Commercial Electric

* Heaters manufactured after 10-95 use SP11805 - Thermostat

** Heaters manufactured after 10-95 use SP11806 - High Limit

Rheem Trans- Relief Relief

Model Ruud Drain Therm- High Trans- Element former Valve Valve

Number Model Number Valve ostat Limit former Contactor Fuse Fuse 6-27KW 30-81KW

E(18-36KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(18-36KW)-120G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(18-36KW)-50G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(24-36KW)-85G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(3-18KW)-20G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264K SP8264R SP12575B NONE

E(3-36KW)-30G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264K SP8264R NONE SP9013E

E(3-36KW)-40G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264M SP8264R NONE SP9013E

E(36-54KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

E(36-54KW)-120G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

E(36-54KW)-50G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

E(36-54KW)-85G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

E(3-9KW)-12G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264M SP8264R SP12575B NONE

E(6-18KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

E(6-18KW)-120G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(6-18KW)-50G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R NONE SP12574

E(6-18KW)-85G SP6070G SP11805 SP11806 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

E(81KW)-120G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264K SP8264R NONE SP9013E

E(81KW)-85G AP12231C-1 SP11805 SP11806 SP10006 SP12841 SP8264K SP8264R NONE SP9013E

ES(18-36)KW-85G SP6070G SP11231 SP11234 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(18-36KW)-120G SP6070G SP11231 SP11234 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(18-36KW)-50G SP6070G SP11231 SP11234 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

ES(36-54KW)-120G SP6070G SP11231 SP11234 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(36-54KW)-50G SP6070G SP11231 SP11234 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(36-54KW)-85G SP6070G SP11231 SP11234 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

ES(6-18KW)-120G SP6070G SP11231 SP11234 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

ES(6-18KW)-50G SP6070G SP11231 SP11234 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

ES(6-18KW)-85G SP6070G SP11231 SP11234 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

Obsolete Models

EG(06-18KW)-10G EGL(06-18KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-10G,GN EGL(06-18KW)-10G,GN SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-10T EGL(06-18KW)-10T SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-120G EGL(06-18KW)-120G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-I8KW)-120G EGL(06-I8KW)-120G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-120GN EGL(06-18KW)-120GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(06-18KW)-120T EGL(06-18KW) SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-120TN EGL(06-18KW) SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-50G EGL(06-18KW)-50G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-50GN EGL(06-18KW)-50GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(06-18KW)-50T EGL(06-18KW)-50T SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-50TN EGL(06-18KW)-50TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(06-18KW)-85G EGL(06-18KW)-85G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EG(06-18KW)-85GN EGL(06-18KW)-85GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(06-18KW)-85T EGL(06-18KW)-85T SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 NONE

EG(06-18KW)-85TN EGL(06-18KW)-85TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 NONE

EG(18-36KW)-10G EGL(18-36KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

EG(18-36KW)-10G,GN EGL(18-36KW)-10G,GN SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-10GN EGL(18-36KW)-10GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-10GS EGL(18-36KW)-10GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

EG(18-36KW)-10GSN EGL(18-36KW)-10GSN SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-10T EGL(18-36KW)-10T SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 SP9013D

EG(18-36KW)-10TS EGL(18-36KW)-10TS SP6070G SP8260 SP5411 SP10006 SP7861B NONE NONE SP12574 SP9013D

EG(18-36KW)-120G EGL(18-36KW)-120G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-120GN EGL(18-36KW)-120GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-120GS EGL(18-36KW)-120GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-120GSN EGL(18-36KW)-120GSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-120T EGL(18-36KW)-120T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EG(18-36KW)-120TS EGL(18-36KW)-120TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EG(18-36KW)-50G EGL(18-36KW)-50G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-50GN EGL(18-36KW)-50GN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-50GS EGL(18-36KW)-50GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

PREFERRED PARTS REFERENCE CONTINUED

EG(18-36KW)-50GS EGL(18-36KW)-50GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

EG(18-36KW)-50GSN EGL(18-36KW)-50GSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-50T EGL(18-36KW)-50T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EG(18-36KW)-50TS EGL(18-36KW)-50TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EG(18-36KW)-85G EGL(18-36KW)-85G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-85GS EGL(18-36KW)-85GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EG(18-36KW)-85GSN EGL(18-36KW)-85GSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(18-36KW)-85T EGL(l8-36KW)-85T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892E SP8892C SP12574 SP9013D

EG(18-36KW)-85TS EGL(18-36KW)-85TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8264R SP12574 SP9013D

EG(24-36KW)-10GSN EGL(24-36KW)-10GSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-10TSN EGL(24-36KW)-10TSN SP6070G SP8260 SP5411 SP10006 SP8266K NONE SP8264R SP12574 SP9013D

EG(24-36KW)-120TN EGL(24-36KW)-120TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-120TSN EGL(24-36KW)-120TSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-50TN EGL(24-36KW)-50TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-50TSN EGL(24-36KW)-50TSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-85TN EGL(24-36KW)-85TN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(24-36KW)-85TSN EGL(24-36KW)-85TSN SP6070G SP8260 SP5411 SP10006 SP7861B NONE SP8264R SP12574 SP9013D

EG(36-54KW)-10G EGL(36-54KW)-10G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-10GS EGL(36-54KW)-10GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-120G EGL(36-54KW)-120G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-120GS EGL(36-54KW)-120GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-50G EGL(36-54KW)-50G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-50GS EGL(36-54KW)-50GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-85G EGL(36-54KW)-85G SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(36-54KW)-85GS EGL(36-54KW)-85GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EG(45-54KW)-I0T EGL(45-54KW)-I0T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-10TS EGL(45-54KW)-10TS SP6070G SP8260 SP5411 SP10006 SP8266K SP8892C SP8892E NONE SP9013D

EG(45-54KW)-120T EGL(45-54KW)-120T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-120TS EGL(45-54KW)-120TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-50T EGL(45-54KW)-50T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-50TS EGL(45-54KW)-50TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-85T EGL(45-54KW)-85T SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(45-54KW)-85TS EGL(45-54KW)-85TS SP6070G SP8260 SP5411 SP10006 SP7861B SP8892C SP8892E NONE SP9013D

EG(36-54KW)-50GS EGL(36-54KW)-50GS SP6070G SP8260 SP5411 SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EGS(06-18KW)-120G EGLS(06-18KW)-120G SP6070G SP11231 NONE NONE NONE SP8264M NONE SP12574 NONE

EGS(06-18KW)-120G EGLS(06-18KW)-120G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-120T EGLS(06-18KW)-120T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8892E SP12574 NONE

EGS(06-18KW)-50G EGLS(06-18KW)-50G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-50G EGLS(06-18KW)-50G SP6070G SP11234 NONE SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-50T EGLS(06-18KW)-50T SP6070G SP11234 NONE SP10006 SP7861B SP8892C SP8892E SP12574 NONE

EGS(16-18KW)-85G EGLS(16-18KW)-85G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-85G EGLS(06-18KW)-85G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R SP12574 NONE

EGS(06-18KW)-85T EGLS(06-18KW)-85T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8892E SP12574 NONE

EGS(18-36KW)-120G EGLS(18-36KW)-120G SP6070G SP11231 NONE NONE NONE SP8264K SP8264R SP12574 SP9013D

EGS(18-36KW)-120G EGLS(18-36KW)-120G SP6070G SP11231 NONE SP10006 SP7861B SP8264K SP8264R SP12574 SP9013D

EGS(18-36KW)-120T EGLS(18-36KW)-120T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EGS(18-36KW)-50G EGLS(18-36KW)-50G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 SP9013D

EGS(18-36KW)-50G EGLS(18-36KW)-50G SP6070G SP11234 NONE SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EGS(18-36KW)-50T EGLS(18-36KW)-50T SP6070G SP11234 NONE SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EGS(18-36KW)-85G EGLS(18-36KW)-85G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R SP12574 SP9013D

EGS(L 8-36KW)-85G EGLS(L 8-36KW)-85G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R SP12574 SP9013D

EGS(18-36KW)-85T EGLS(18-36KW)-85T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8892E SP12574 SP9013D

EGS(36-54KW)-120G EGLS(36-54KW)-120G SP6070G SP11231 NONE NONE NONE SP8264K SP8264R NONE SP9013D

EGS(36-54KW)-120G EGLS(36-54KW)-120G SP6070G SP11231 NONE SP10006 SP7861B SP8264K SP8264R NONE SP9013D

EGS(36-54KW)-50G EGLS(36-54KW)-50G SP6070G SP11234 NONE SP10006 SP7861B SP8264M SP8264R NONE SP9013D

EGS(36-54KW)-85G EGLS(36-54KW)-85G SP6070G SP11231 NONE SP10006 SP7861B SP8264M SP8264R NONE SP9013D

EGS(36-54KW)-85G EGLS(36-54KW)-85G SP6070G SP11231 NONE NONE NONE SP8264M SP8264R NONE SP9013D

EGS(45-54KW)-120T EGLS(45-54KW)-120T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8264R NONE SP9013D

EGS(45-54KW)-50T EGLS(45-54KW)-50T SP6070G SP11234 NONE SP10006 SP7861B SP8264M SP8264R NONE SP9013D

EGS(45-54KW)-85T EGLS(45-54KW)-85T SP6070G SP11231 NONE SP10006 SP7861B SP8892C SP8264R NONE SP9013D

PREFERRED PARTS REFERENCE CONTINUED

Heavy Duty Commercial Electric – Continued

Rheem Trans- Relief Relief

Model Ruud Drain Therm- High Trans- Element former Valve Valve

Number Model Number Valve ostat Limit former Contactor Fuse Fuse 6-27KW 30-81KW

4’ x 4’ PARTS DISPLAY FOR

GAS AND ELECTRIC MARKET

AP13266 Display unit (Empty)

Preferred Gas and Electric Parts

SP13266 (with parts shown below)

SP6571B Relief Valve ..................................................3 each

SP12039 Melet Drain Valve .........................................3 each

SP20009 Basic Install Kit 12" ......................................3 each

SP20011 Installation Kit Electric .................................3 each

SP11695 Lower Electric T'stat ....................................3 each

SP11698 Upper Electric T'stat .....................................3 each

SP10552ML 4500W 240V LWD Resistor .........................3 each

SP11699 Single Element Thermostat ...........................3 each

SP10552KH 3500W 240V High Watt ................................3 each

SP35871AB Element wrench ............................................3 each

SP10374 Compression Fitting3/4.................................3 each

SP10354 Compression Fitting 1/2................................3 each

SP20003 Heat Trap Nipple Kit .....................................3 each

SP10552PL 5500W 240V Low Watt.................................3 each

SP10972 Hot surface Ignitor ........................................3 each

SP6379R Thermocouple 24" .........................................3 each

SP6379K Thermocouple 17" .........................................3 each

SP8397G Plastic Lined Nipple 2 1/4" ............................3 each

SP8346 Relief Valve Long Shank ...............................3 each

SP8980B Gas Pilot (Natural) ........................................3 each

SP8980C Gas Pilot (LP)................................................3 each

SP8555B Gas Thermostat-Natural ................................3 each

SP12258B Gas Thermostat-LP .......................................3 each

SP10552MH 4500W 240V HWD Resistor .........................3 each

SP10869MM 4500W 240V SS Resistor ............................3 each

SP20010 Installation Kit-Gas .......................................3 each

SP20060 Plumbers Pack .............................................3 each

SP6830 Adapt-o-Flange .............................................3 each

Universal Gas and Electric Parts

UV13266 (with parts shown below)

UV12899 4500W 240V HWD Non-resistor ...................3 each

UV12901 4500W 240V LWD Non-resistor....................3 each

UV12904 4500W 240V SS Non-Resistor .....................3 each

UV20016 Installation Kit-Gas........................................3 each

UV20010 Basic Installation Kit 15"................................3 each

UV13359 Upper Electric T'stat .....................................3 each

UV13360 Lower Electric T'stat ....................................3 each

UV20015 Installation Kit 12" Gas .................................3 each

UV12039 Melet Drain Valve .........................................3 each

UV12927 Stainless Steel Water Conn 12" ....................3 each

UV6830 Adapt-o-Flange .............................................3 each

UV6379L Thermocouple Kit 18"....................................3 each

UV6379H Thermocouple Kit30".....................................3 each

UV6379R Thermocouple Kit 24"....................................3 each

UV6379S Thermocouple Kit36".....................................3 each

UV10351 Copper Flex Water Conn 12" .........................3 each

UV20014 Installation Kit 18" Electric ............................3 each

UV6571B Relief Valve ..................................................3 each

UV12992 Heat Trap Nipple Kit .....................................3 each

UV20018 Plumbers Pack ..............................................3 each

UV38628 Element Wrench ...........................................3 each

UV12914 Gasket Kit .....................................................3 each

UV10374 3/4" Compression Fitting ..............................3 each

UV10354 1/2" Compression Fitting ..............................3 each

The premium line of approved

replacement parts.

The value line for all your

replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

4’ x 4’ PLANOGRAM FOR

GAS PREDOMINANT MARKET

4’ x 4’ PLANOGRAM FOR

ELECTRIC PREDOMINANT MARKET

The premium line of approved

replacement parts.

The value line for all your

replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

The premium line of approved

replacement parts.

The value line for all your

replacement parts needs.

4’ x 4’ PLANOGRAM FOR

GAS & ELECTRIC MARKET

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

PRODUCT FEATURES

• Moisture & vapor resistance requiring no additional vapor barriers.

• Stable thermal conducitivity (k.value) during its long service life,

due to its dense surface skins and closed cell characteristics.

• Flexibility which makes installation work easy and neat.

• Outstanding ultraviolet and weather resistance.

• Aerocel products are processed without CFC chemical

that is harmful to the earth ozone layer.

AEROCEL

Insulated Tubing

SELF-SEAL WITH PROTAPE

Nominal 3/8” Wall

AC1238SSPT 1/2” x 3/8” x 6’ 1/2” 1/4” 510 85

AC5838SSPT 5/8” x 3/8” x 6’ 5/8” 3/8” 426 71

AC3438SSPT 3/4” x 3/8” x 6’ 3/4” - 378 63

AC7838SSPT 7/8” x 3/8” x 6’ 7/8” 1/2” 336 56

AC11838SSPT 1-1/8” x 3/8” x 6’ 1-1/8” - 216 36

AC13838SSPT 1-3/8” x 3/8” x 6’ 1-3/8” 1” 180 30

AC15838SSPT 1-5/8” x 3/8” x 6’ 1-5/8” 1-1/4” 150 25

AC21838SSPT 2-1/8” x 3/8” x 6’ -- 96 16

AC25838SSPT 2-5/8” x 3/8” x 6’ -- 84 14

AC31838SSPT 3-1/8” x 3/8” x 6’ -- 60 10

Nominal 1/2” Wall

AC3812SSPT 3/8” x 1/2” x 6’ 3/8” - 456 76

AC1212SSPT 1/2” x 1/2” x 6’ 1/2” 1/4” 372 62

AC5812SSPT 5/8” x 1/2” x 6’ 5/8” 3/8” 288 48

AC3412SSPT 3/4” x 1/2” x 6’ 3/4” - 276 46

AC7812SSPT 7/8” x 1/2” x 6’ 7/8” 1/2” 234 39

AC11812SSPT 1-1/8” x 1/2” x 6’ 1-1/8” - 156 26

AC13812SSPT 1-3/8” x 1/2’ x 6’ 1-3/8” 1” 144 24

AC15812SSPT 1-5/8” x 1/2’ x 6’ 1-5/8” 1-1/4” 114 19

Nominal 3/4” Wall

AC3834SSPT 3/8” x 3/4” x 6’ 3/8” - 294 49

AC1234SSPT 1/2” x 3/4” x 6’ 1/2” 1/4” 216 36

AC5834SSPT 5/8” x 3/4” x 6’ 5/8” 3/8” 180 30

AC3434SSPT 3/4” x 3/4” x 6’ 3/4” - 144 24

AC7834SSPT 7/8” x 3/4” x 6’ 7/8” 1/2” 144 24

AC11834SSPT 1-1/8” x 3/4” x 6’ 1-1/8” - 108 18

AC13834SSPT 1-3/8” x 3/4” x 6’ 1-3/8” 1” 84 14

AC15834SSPT 1-5/8” x 3/4” x 6’ 1-5/8” 1-1/4” 72 12

Nominal 1” Wall

AC5810SSPT 5/8” x 1” x 6’ 5/8” 3/8” 108 18

AC3410SSPT 3/4” x 1” x 6’ 3/4” - 108 18

AC7810SSPT 7/8” x 1” x 6’ 7/8” 1/2” 96 16

AC11810SSPT 1-1/8” x 1” x 6’ 1-1/8” - 72 12

AC13810SSPT 1-3/8” x 1” x 6’ 1-3/8” 1” 72 12

AC15810SSPT 1-5/8” x 1” x 6’ 1-5/8” 1-1/4” 54 9

AC23810SSPT 2-3/8” x 1” x 6’ 2-3/8” 2” 36 6

AC31210SSPT 3-1/2” X 1” X 6’ 3-1/2” 3” 30 5

Size ID IPS Iron Feet 6’ Piece

Part ID X Wall Copper W x D x H Qty/ Qty. /

Number X Length Range (Inches) Carton Carton ✜

✜

All prices based on quantity of one. Must order in multiples of 6’ piece quantity shown. Partial case quantities cannot be returned.

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

Part Vendor Case

Number Number

Description

Qty

86-D12912025 Work Light - 25’ (ProGlo Yellow 12/3 SJTW) 6

86-D15511003 GFCI-3’ (ProGlo Green 12/3 SJTW, Triple Tap) 24

86-D17223050 Ext. Cord - 50’ (ProGlo Lighted Yellow Triple Tap, 12/3 SJTW) 6

86-D17223100 Ext. Cord - 100’ (ProGlo Lighted Yellow Triple Tap, 12/3 SJTW) 4

86-D17442025 Ext. Cord - 25’ (ProGlo Lighted Orange, 12/3 SJTW) 12

86-D17442050 Ext. Cord - 50’ (ProGlo Lighted Orange, 12/3 SJTW) 6

86-D17442100 Ext. Cord - 100’ (ProGlo Lighted Orange, 12/3 SJTW) 4

86-D17443025 Ext. Cord - 25’ (ProGlo Lighted Yellow, 12/3 SJTW) 12

86-D17443050 Ext. Cord - 50’ (ProGlo Lighted Yellow, 12/3 SJTW) 6

86-D17443100 Ext. Cord - 100’ (ProGlo Lighted Yellow, 12/3 SJTW) 4

86-D17444025 Ext. Cord - 25’ (ProGlo Lighted Green, 12/3 SJTW) 12

86-D17444050 Ext. Cord - 50’ (ProGlo Lighted Green, 12/3 SJTW) 6

86-D17444100 Ext. Cord - 100’ (ProGlo Lighted Green, 12/3 SJTW) 4

86-D17445025 Ext. Cord - 25’ (ProGlo Lighted Pink, 12/3 SJTW) 12

86-D17445050 Ext. Cord - 50’ (ProGlo Lighted Pink, 12/3 SJTW) 6

86-D17445100 Ext. Cord - 100’ (ProGlo Lighted Pink, 12/3 SJTW) 4

86-D17446025 Ext. Cord - 25’ (ProGlo Lighted Blue, 12/3 SJTW) 12

86-D17446050 Ext. Cord - 50’ (ProGlo Lighted Blue, 12/3 SJTW) 6

86-D17446100 Ext. Cord - 100’ (ProGlo Lighted Blue, 12/3 SJTW) 4

86-D17447025 Ext. Cord - 25’ (ProGlo Lighted Red, 12/3 SJTW) 12

86-D17447050 Ext. Cord - 50’ (ProGlo Lighted Red, 12/3 SJTW) 6

86-D17447100 Ext. Cord - 100’ (ProGlo Lighted Red, 12/3 SJTW) 4

86-D17448025 Ext. Cord - 25’ (ProGlo Lighted Black, 12/3 SJTW) 12

86-D17448050 Ext. Cord - 50’ (ProGlo Lighted Black, 12/3 SJTW) 6

86-D17448100 Ext. Cord - 100’ (ProGlo Lighted Black, 12/3 SJTW) 4

86-D17449025 Ext. Cord - 25’ (ProGlo Lighted Purple, 12/3 SJTW) 12

86-D17449050 Ext. Cord - 50’ (ProGlo Lighted Purple, 12/3 SJTW) 6

86-D17449100 Ext. Cord - 100’ (ProGlo Lighted Purple, 12/3 SJTW) 4

Part Case

Number Description Qty

Pro-Glo Extension Cords

Special Features

❉

Designed for construction / industrial use.

❉

Highly visible Cenflex PVC jacket provides -

• extreme durability;

• chemical, moisture and ozone resistance; and

• flexibility at below freezing temperatures.

❉

Molded on non-slip plugs and connectors resist

breaking or pulling off cord.

❉

Tri-Tap / Quad-Tap Extension Cords are equipped

with additional outlets for job site power.

❉

Lighted End Extension Cords feature a neon power

light to confirm the power is on.

No Corner is Cut!

Cords and cables are

made with industrial

grade brass blades,

contacts and ground

pins, assuring a qual-

ity product.

UV Sunlight Resistant

Special UV inhibitors

give great flexibility.

The cords can be

used in a wide range

of climatic conditions

without cracking or

aging in direct sunlight.

Water Resistant

Rating

Moisture resistant

insulation guarantees

water will not penetrate

the copper conductors

that can lead to

corrosion and shorts.

UL / cUL Listed

Use in the USA

and Canada.

OSHA Compliant.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Part Vendor Case

Number Number

Description

Qty ✜

Polar/Solar Trouble Lights 16/3 UL/CSA, SJEOW Side Outlet &

Switch Metal Cage, PVC Coated (Yellow).

86-05857-00 05857-00-02 Trouble Light - 25 Ft. 6

86-05858-00 05858-00-02 Trouble Light - 50 Ft. 6

12 AWG Polar/Solar+ Lighted Extension Cord w/3-Way Power Block UL, SEOW, SJEOW, OSHA (Yellow).

86-03487-00 03487-00-02 Lighted Extension Cord - 25 Ft. 12

86-03488-00 03488-00-02 Lighted Extension Cord - 50 Ft. 6

86-03489-00 03489-00-02 Lighted Extension Cord - 100 Ft. 4

Baron Trouble Lights & Extension Cords

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

86-05857-00

To place your order call 1-800-621-5622; fax 1-800-535-9538

86-136 Fire/Smoke and Draft Sealant:

❉

Completely non-toxic and contains no asbestos or PCBs.

❉Applied with a conventional caulking gun.

❉Easily applied sealant with water clean-up capability.

❉An accredited fire block/smoke seal caulk.

❉Single component system, no mixing necessary and

no additions required.

❉Meets residential construction code approvals.

❉Red color.

86-139 Fire Mortar:

❉Can withstand extremely high heat.

❉Applied with standard caulking gun.

❉Dries rock hard when cured and fired.

❉Safe to use and handle.

❉No harmful odors.

❉Water clean-up (prior to curing).

❉VOC compliant.

❉Contains NO asbestos fillers of any kind.

❉Black color.

86-340G Fast Cure Polyurethane Adhesive/Sealant:

❉

High Modulus, non-slump, fast cure, tack free in 60-90 min.

❉Cures to a tough, polyurethane elastomer.

❉Excellent adhesion to woods, masonry, metals,

fiberglass and most other construction materials.

❉Paintable.

❉Ideal for environments where silicone is not allowed.

❉Suitable for marine applications.

❉Grey color.

86-341 Polyurethane Adhesive/Sealant:

❉

Primerless adhesion to most building materials.

❉Non-sag formulation.

❉Excellent weatherability.

❉Paintable.

❉Cures to a tough, flexible rubber.

❉Tools easily.

86-360W Acrylic Latex Painter’s Caulk:

❉25 Year durability.

❉Interior and exterior uses.

❉Paintable, flexible bond.

❉Resistant to water.

❉White color.

86-362W Acrylic Tub ‘n’ Tile Caulk:

❉Paintable.

❉Seals around ceramic tiles, showers, tubs, sinks and

plumbing fixtures.

❉Resists mildew/rust inhibitor.

❉Bonds, seals and waterproofs.

❉White color.

86-367 Elastomeric Adhesive/Sealant.

Compatability with a variety of materials makes it the

ideal sealant for use with:

❉Woods, including oil woods.

❉All metals

❉Glass.

❉Brick, cement and masonry.

❉Asphalt, and asphalt like materials.

❉Vinyl building products.

❉Roofing products.

86-370 HVAC/R Silicone Sealant:

❉

One-part RTV actetoxy sealant formulated for general

heating, ventilation, air conditioning & refrigeration sealing.

❉Adheres to clean ductwork, metals & many types of wood.

❉Meets FDA and USDA requirements for use in federally

inspected meat and poultry plants.

❉Seals wall penetrations.

❉Meets NSF Standard 51.

❉86-370A is aluminum color; 86-370C is clear color;

86-370W is white color.

SUPPLIES & HARDWARE

PROTECH™ and BossW Caulking, Sealants, Adhesives & Lubricants

To place your order call 1-800-621-5622; fax 1-800-535-9538

Part Case

Number

Description Logo Color

Qty ✜

86-136 Fire/Smoke & Draft Sealant Boss Red 12

86-139 Fire Mortar Boss Black 12

86-340G Fast Cure Polyurethane Adhesive/Sealant Boss Grey 12

86-341 Polyurethane Adhesive/Sealant Boss White, Gray, Black, Limestone, Bronze 12

86-360W Acrylic Latex Painters Caulk Boss White 12

86-362W Acrylic Tub ‘n’ Tile Caulk Boss White 12

86-367 Elastomeric Adhesive Sealant Boss White, Clear 12

86-370A HVAC/R Silicone Sealant Protech Aluminum 12

86-370C HVAC/R Silicone Sealant Protech Clear 12

86-370W HVAC/R Silicone Sealant Protech White 12

86-376R High Temp Silicone Sealant Protech Red 12

86-333 Expanding Foam Sealant (12 Oz. Can) Boss — 12

86-814 Intumescent Latex Firestop Sealant Boss Red 12

86-815 Firestop Insert for Electrical Outlet Boxes Boss Black 50

(Sizes: 4 x 4 x 1/8, 4 x4 x 1/4, 4 x 2x 1/8, 4 x 2 x1/4)

86-816R Intumescent Firestop Sealant Boss Red 12

PROTECH™ and Boss Caulking, Sealants, Adhesives & Lubricants

86-376R High Temp Red Silicone Sealant:

❉Sealing and encapsulating heating elements in appliances,

stove & furnace vent pipes.

❉Moving oven belts.

❉Industrial ovens.

❉Bag filters on smoke stacks.

❉Other critical bonding, sealing, potting, encapsulating &

protective coating where parts must perform at high temps

86-333 Expanding Foam Sealant:

❉Easy-to-use, multi-purpose urethane foam.

❉Expands to three times its original volume.

❉Adheres to all building materials except Teflon, silicone &

polyethelene.

❉Seals by expanding into gaps, cracks and crevices.

❉Uses include insulating, sealing and filing gaps around

pipes, plumbing fixtures, ductwork and foundations.

❉UL Classified.

86-814 Intumescent Latex Firestop Sealant:

❉Interior/Exterior use on virtually any surface.

❉Remains flexible.

❉VOC compliant.

❉Excellent freeze/thaw properties.

❉Safe to use and handle.

❉Water clean-up.

❉24 month shelf life.

❉Applied with a conventional caulking gun.

❉Red color.

86-815 Firestop Insert for Electrical Outlet Boxes:

❉Cost effective - fast and easy to install.

❉Peel and stick to inside of metal electrical outlet box.

❉Safe to use, completely non-toxic.

❉Two standard sizes available - no trimming required.

❉Intumescent - expands whenexposed to heat and fire.

❉Meets all acoustical requirements.

86-816R Intumescent Firestop Sealant:

❉Mildew resistant. ❉Water based and paintable.

❉Remains flexible. ❉2 year shelf life.

❉VOC compliant.

❉Excellent freeze/thaw properties.

❉Safe to use and handle.

❉Bonds quickly with excellent adhesion.

See our Caulking Guns in Tools and Instruments Section.

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

Touch’n Seal®

Touch’n Seal®No Warp Foam 4004521212 (12 oz.) 4004521224 (24 oz.)

Touch ‘n Seal offers a low-pressure, polyurethane foam as a disposable, straw-dispensed

aerosol. No-warp fills and seals space between finished jambs, sills, headers and rough

openings while exerting up to 90% less curing pressure than conventional foam, providing

airtight insulation without warping. (Available in 12 or 24 oz)

❉Low-pressure formula exerts up to 90% less curing pressure

❉Stops air infiltration permanently - outperforms fiberglass

❉Creates moisture vapor barrier

❉Bright while foam

❉Cures fast

❉No gun applicator needed

❉ASTM E-84: Flame Spread 5, Smoke Developed 25

❉Contains fire retardant

Touch’n Seal®Gun Foam II 4004528712 (24 oz.)

Gun Foam is a one-component, polyurethan foam sealant used to seal cracks and holes,

providing airtight insulation that blocks drafts, moisuture and insects. It’s applied with a

gun applicator and can be used under the plate line, at the juncture of the plate line and

the slab or foundation, and any penetration through the top or the bottom plate line into a

conditioned area. It fills cracks in the exterior sheeting (due to poor application or pene-

trations made for utility services), at the corner and tee-joints in framing, and any other

place where air might penetrate the exterior envelope.

❉Seal gaps and cracks, providing over 75% closed cell content

❉Stops air infiltration permanently

❉Outperforms fiberglass

❉High yield (3000 plus linear feet of 1/4” diameter bead)

❉Fast cure

❉UL Classified: Flame Spread 15, Smoke Developed 25

❉Contains fire retardant

❉Meets Building Codes: CABO (Council of American Building Officials)

BOCA (Building Officials and Code Administrators, International)

CCMC (Canadian Construction Material Centre (formerly CHMC)

ICBO (International Conference of Building Officials)

SBCCI (Southern Building Code Congress International)

Technical Information

Density: (ASTM D-1622) 1.3-1/8 lbs./cu. ft. Max. Service Temp. (Cured): 2407F (1167C)

Comprehensive Strength: (ASTM D-1621) 11 psi Tensile Strength: (ASTM D-1623) 26 psi

Percent Elongation at Break: 12% Shear Strength: (ASTM C-273) 18 psi

Thermal Resistance: (ASTM C-518) Shear Strain: (ASTM C-273) 38 psi

R-Value: 4.5 /inch thick Size (Volume): 24 oz. can (1.25 cu. ft.)

Solvent Free Shelf Life: 18 months

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

Touch’n Seal®Poly-Clean 4004712022 (12 oz.)

Poly-Clean is made to remove wet polyurethane foam from hands, tools and gun applica-

tors. It can be attached directly to the gun basket to flush foam from the barrell. Any ex-

cess foam should be cleaned immeidately (while wet), as dried foam is extremely difficult to

remove and may have to wear off.

Touch’n Seal®Sharpshooter Gun Foam Applicators

Sharpshooter gun applicators have been manufactured and tested to work with Touch’n

Seal gun foam sealants. Whether it’s a pro gun or a disposable model, gun applicators

allow for more precise control of bead size as well as an easier dispensing method for ex-

tended use.

Sharpshooter-D Gun 4004510604

❉Economical, disposable gun applicator

❉Lightweight plastic with metal internal parts

Sharpshooter-D Gun 4004510608

❉Professional model for extended use

❉Long-lasting metal barrell

Touch’n Seal®

4004510604

Part Case

Number Description Qty. ✜

4004521212 No-Warp Foam, 12 oz. 12

4004521224 No-Warp Foam, 24 oz. 12

4004528712 Gun Foam II, 24 oz. 12

4004712022 Poly Clean, 12 oz. 12

4004510604 Sharpshooter-D Foam Applicator 6

4004510608 Sharpshooter-X Foam Applicator 1

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

To place your order call 1-800-621-5622; fax 1-800-535-9538

670008 31012 4 oz. Clear 24

670007 31013 8 oz. Clear 24

670006 31014 16 oz. Clear 24

670005 31015 32 oz. Clear 12

670004 31016 Gallon Clear 6

670003 30818 4 oz. Clear 24

670002 30821 8 oz. Clear 24

670001 30834 16 oz. Clear 24

670000 30847 32 oz. Clear 12

SUPPLIES & HARDWARE

Oatey Adhesives

Multi-Purpose Regular Clear Cement

FOR ABS, PVC & CPVC Pipe and Fittings

PVC Regular Clear Cement – Fast Set

FOR PVC Pipe and Fittings

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

Regular-bodied clear cement for use on ABS, PVC and CPVC up to 4”

in diameter. Recommended for pipes and fittings Sch. 40 and Sch. 80,

potable water, pressure pipe, gas, conduit and DWV. Apply at tem-

peratures 40° to 100°F. Meets ASTM D-2564, D-2235, F-493.

Regular-bodied clear cement for use on PVC pipe and fittings up to 4”

for DWV Sch. 40 and up to 2” for Sch. 80. Recommended for ALL

grades and types of PVC pipes and fittings, potable water, pressure

pipe, gas, conduit and DWV. . Sets up quickly. Apply at temperatures

40° to 100°F. Meets ASTM D-2564.

Part Oatey Case

Number Part No. Description Qty. ✜

Part Oatey Case

Number Part No. Description Qty. ✜

To place your order call 1-800-621-5622; fax 1-800-535-9538

670010 31132 16 oz. Clear 24

670009 31129 32 oz. Clear 12

670016 30891 8 oz. “Hot” Blue 24

670015 30893 16 oz. “Hot” Blue 24

670014 30894 32 oz. “Hot” Blue 12

PVC Medium “Hot” Blue Cement

FOR PVC Pipe and Fittings

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

Medium-bodied blue colored cement for PVC pipe and fittings up to

6” for Sch. 40 and Sch. 80. Blue color fades to clear in direct sun-

light. No primer needed on non-pressure DWV,

where local codes

permit

. Recommended for ALL grades and types of PVC pipe and

fittings, potable water, pressure pipe, gas, conduit and DWV. Very

fast-setting, formulated for wet conditions and/or quick pressurization

and fast installation. Apply at temperatures 40° to 100°F. Meets

ASTM D-2564.

Part Oatey Case

Number Part No. Description Qty. ✜

PVC All Weather Cement

FOR PVC Pipe and Fittings

Medium-bodied clear cement for PVC pipe and fittings up to 6” for

DWV Sch. 40 and Sch. 80. No primer needed on non-pressure DWV,

where local codes permit

. Recommended for ALL grades and

types of PVC pipe and fittings, potable water, pressure pipe, gas,

conduit and DWV. Formulated for fast initial set-up at temperatures

down to -5° to 100°F. Meets ASTM D-2564.

Part Oatey Case

Number Part No. Description Qty. ✜

Oatey Adhesives (cont’d))

SUPPLIES & HARDWARE

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

670012 31128 4 oz. Orange 24

670011 31129 8 oz. Orange 24

CPVC Medium Orange Cement

FOR CPVC Pipe and Fittings

Medium-bodied orange colored cement for CPVC pipe and fittings up to

6”. For C.T.S. (copper tube size) and Sch. 80, potable water, and pres-

sure pipe. Apply at temperatures 40° to 100°F. Meets ASTM F-493.

Part Oatey Case

Number Part No. Description Qty. ✜

670024 30850 4 oz. Clear 24

670025 30863 8 oz. Clear 24

670026 30876 16 oz. Clear 24

670027 31008 32 oz. Clear 12

670028 31011 Gallon 6

PVC Heavy Duty Clear Cement

FOR PVC Pipe and Fittings

Heavy-bodied clear cement for ALL grades and types of PVC pipe and

fittings up to 12”. For Sch. 40 and 80, potable water, pressure pipe, gas

conduit and DWV. Recommended application temperature 40° to 100°F.

Thick formula fills gaps in large diameter pipe and loose fitting joints.

Meets ASTM D-2564.

Part Oatey Case

Number Part No. Description Qty. ✜

Oatey Adhesives (cont’d)

To place your order call 1-800-621-5622; fax 1-800-535-9538

523003 30782 8 oz. Clear 24

523002 30795 16 oz. Clear 24

523001 30805 32 oz. Clear 12

523000 30766 Gallon Clear 6

523008 30755 4 oz. Purple 24

523007 30756 8 oz. Purpler 24

523006 30757 16 oz. Purple 24

523005 30758 32 oz. Purple 12

523004 30759 Gallon Purple 6

SUPPLIES & HARDWARE

Purple Primer

FOR PVC & CPVC Pipe and Fittings

Clear All Purpose Cleaner

FOR ABS, PVC & CPVC Pipe and Fittings

Purple-tinted aggressive primer for use on PVC and CPVC pipe and

fittings where plumbing code calls for verification that a primer has

been used. Exceeds environmental requirements and meets various

California district rules. Removes surface dirt, grease and grime as

well as softens the pipe surface to allow a fast, secure solent weld.

Meets ASTM F-656.

Clear cleaner for use on ABS, PVC and CPVC pipe and fittings, all

schedules and all diameters. Flows freely and evaporates quickly.

Removes surface dirt, grease and grime. Exceeds environmental re-

quirements and meets California PVC requirements.

Part Oatey Case

Number Part No. Description Qty. ✜

Part Oatey Case

Number Part No. Description Qty. ✜

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

Oatey Adhesives (cont’d)

To place your order call 1-800-621-5622; fax 1-800-535-9538

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

Oatey Pipe Joint Compounds

31229 31229 Pipe Dope with Teflon,1 fl. oz. 12

31230 31230 Pipe Dope with Teflon w/ brush, 4 fl. oz. 12

31231 31231 Pipe Dope with Teflon w/ brush, 8 fl. oz. 12

31232 31232 Pipe Dope with Teflon w/ brush, 16 fl. oz. 24

31233 31233 Pipe Dope with Teflon w/ brush, 32 fl. oz. 12

Part Oatey Case

Number Part No. Description Qty. ✜

GREAT WHITE®Pipe Joint Compound with Teflon

• Lubricates and seals all threaded joints.

• White, non-hardening, non-separating, non-toxic paste.

• Withstands up to 3,000 PSI on gases from -50°F to +400°F, and 10,000 PSI

on liquids from -50°F to +500°F.

• For use with water, steam, caustics or dilute acid lines of PVC, CPVC, ABS,

cycolac, polypropylene, iron, steel or copper.

TEFLON®IS A REGISTERED TRADEMARK OF DUPONT FLUOROCARBON RESINS.

31265 31265 Great Blue Pipe Joint Compound, 1 fl. oz. 12

31261 31261 Great Blue Pipe Joint Compound, 4 fl. oz. 12

31262 31262 Great Blue Pipe Joint Compound, 8 fl. oz. 12

31263 31263 Great Blue Pipe Joint Compound, 16 fl. oz. 24

31264 31264 Great Blue Pipe Joint Compound, 32 fl. oz. 12

Part Oatey Case

Number Part No. Description Qty. ✜

GREAT BLUE®Pipe Joint Compound with Teflon

•All the benefits of a Teflon based thread sealant •Lubricates and seals thread on water, natural

without the mess. gas, steam, airlines, caustics and dilute acids.

•Flexible blue, non-hardening, non-separating,

non-toxic paste, no odor, easy clean-up.

•Withstands up to 3,000 PSI on gases from

-50°F to +400°F, and 10,000 PSI on liquids

from -50°F to +500°F.

•Use on PVC, CPVC, ABS, polythylene,

polypropylene, iron, steel, copper or brass

threads up to and including 2".

SUPPLIES & HARDWARE

To place your order call 1-800-621-5622; fax 1-800-535-9538

Total Tensile Adhesion

Part Thickness Strength To Steel Case

Number Description Color mils (mm) lbs/in(kg/cm) ozs/in (g/cm) Qty. ✜

86-N322

❉

2” x 50 yd Dead Soft Aluminum Foil Backed Tape Foil 7.4 (0.19) 23 (4.09) 126 (1411) 24

86-N322-3

❉

3” x 50 yd Dead Soft Aluminum Foil Backed Tape Foil 7.4 (0.19) 23 (4.09) 126 (1411) 16

86-N324-P

2.5” x 60 yd Printed Aluminum Foil Tape w/Kraft Liner Foil 8.1 (0.21) 25 (4.45) 60 (672) 16

86-N345

❉

2” x 60 yd Professional Grade, Water Proof Duct Tape Silver 12.0 (0.30) 29 (5.16) 54 (605) 24

86-N345-P ❉2” x 60 yd Prof. Grade, Water Proof Printed Duct Tape Silver 12.0 (0.30) 29 (5.16) 54 (605) 24

86-N357

❉

2” x 60 yd Premium, Tensile Strength Duct Tape Silver 13.0 (0.33) 45 (8.01) 55 (616) 24

86-N357-B

❉

2” x 60 yd Premium, Tensile Strength Duct Tape Black 14.0 (0/36) 45 (8.01) 55 (616) 24

86-N357-SA Spray Adhesive, 24 oz. Can

—

N/A N/A N/A 12

86-N396

❉

2” x 60 yd General Purpose Duct Tape Silver 10.0 (0.25) 21 (3.74) 49 (549) 24

86-N398

❉

2” x 60 yd Industrial Grade Duct Tape Silver 11.0 (0.28) 26 (4.63) 49 (549) 24

86-N398-B

❉

2” x 60 yd Industrial Grade Duct Tape Black 11.0 (0.28) 26 (4.63) 49 (549) 24

86-N398-P

❉

2” x 60 yd Industrial Grade Printed Duct Tape Silver 11.0 (0.28) 26 (4.63) 49 (549) 24

86-N556

■

2” x 120 yd Clear Tape Clear N/A N/A N/A 36

86-N557❉♦

2” x 60 yd Premium Flex Duct Tape Silver 14.0 (0.36) 45 (8.01) 50 (560) 24

777ID

■

3/4” x 66 ft. Electrical Tape

Black —— —

86-NFSK

❉

3” x 50 yd Foil Scrim Kraft Tape Foil 10.5 (0.27) 50 (8.90) 100 (1120) 16

86-826Y 2” x 100’ Gas Pipe Tape Yellow

—— —12

❉

Meets UL 723

♦Meets UL 181B-FX

■

Meets UL 181A-P

+UL Approved

Total Tensile Adhesion

Part Thickness Strength To Steel Case

Number Description Color mils (mm) lbs/in(kg/cm) ozs/in (g/cm) Qty. ✜

86-P223

❉

2” x 60 yd High Tensile Strength Duct Tape Silver 10.0 (0.25) 22 (3.92) 50 (560) 24

86-P223-P

❉

2” x 60 yd High Tensile Strength Duct Tape Silver 10.0 (0.25) 22 (3.92) 50 (560) 24

86-P227

❉

2” x 60 yd Contractor Grade Duct Tape Silver 11.0 (0.28) 24 (4.27) 70 (784) 24

86-P236-P

❉

2” x 60 yd Heavy Duty Printed Duct Tape Silver 12.0 (0.30) 28 (4.98) 36 (403) 24

86-P243

❉

2” x 60 yd High Performance Duct Tape Silver 10.0 (0.25) 22 (3.92) 50 (560) 24

86-P243-B

❉

2” x 60 yd High Performance Duct Tape Black 10.0 (0.25) 22 (3.92) 50 (560) 24

86-P251

❉

2” X 60 yd Professional Grade Metallized Duct Tape Metallic 11.0 (0.28) 25 (4.45) 30 (336) 24

86-P337

❉

2” x 50 yd Dead Soft Aluminum Foil Backed Tape Alum 3.6 (0.09) 20 (3.56) 60 (672) 24

86-P337-3

❉

3” x 50 yd Dead Soft Aluminum Foil Backed Tape Alum 3.6 (0.09) 20 (3.56) 60 (672) 16

86-P338

❉

3” x 50 yd Foil/Scrim/Kraft, Tear-resistant Tape Alum N/A 35 (6.23) 50 (616) 16

86-P339-P

2.5” x 60 yd Foil Tape Alum

—— —

86-P348

❉

3” x 50 yd Fiberglass Backed Jacket Sealing Tape White N/A 45 (8.01) 50 (560) 16

86-P360-35 3” x 100 yd Sealing Tape Silver 35 (0.87) 20 (0.36) – 16

86-P360-17

❉

2” x 100 yd Foil Tape Silver

—— —

86-P44 Spray Adhesive, 17 oz. Can

—

N/A N/A N/A 12

86-P557-P

❉

♦

2” x 60 yd Premium Printed Flex Duct Tape Silver 14.0 (0.36) 45 (8.01) 50 (560) 24

86-P747 2” x 55 yd Package Tape

—

N/A N/A N/A 36

86-P821

■

3/4” x 60 ft. Electrical Tape Black 7.8 (0.20) 1800 (320.40) 30 (336) 96

86-826-Y 2” x 100 ft. Gas Pipe Tape Yellow -- -24

POLYKEN& NASHUATapes & Supplies

POLYKEN

NASHUA

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

86-P339-P

86-P44

86-N357

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

Teflon Thread Seal Tape

Use with chemicals, solvents & oxygen. Withstands up to 2000 psi of pressure.

Case

Part Number Description Qty. ✜

686027 1/2” x 260” Roll 12

686028 1/2” x 520” Roll 12

686027

To place your order call 1-800-621-5622; fax 1-800-535-9538

Duct Hanger Strap

Hanger Iron

Galvanized vent strapping, hanger iron, plumber’s tape, pipe hanger

tape & many other uses. 1/4” centers for bolts or nails.

Case

Part Number Description Qty. ✜

86-25172-03 3/4” x 100’ Roll (Boxed) 20

86-P50 Black Plastic 24

640010 Black Plastic 1-3/4” x 100 Ft. 24

640020 Silver Plastic 1-3/4” x 100 Yds. 24

640021 Silver Plastic 3” x 100 Yds. 8

640022 Black Plastic 3” x 100 Yds. 8

Case

Part Number Description Qty. ✜

86-25172-04 Galvanized–28 Ga. – 10’ Rolls 50

640016 Galvanized–28 Ga. – 100’ Rolls 6

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

86-25172-03

640016

Hanging Wire

18 Gauge galvanized or soft black annealed on reel.

Case

Part Number Description Qty. ✜

86-25172-01 2# Roll (330’) 18 Gauge Galvanized 16

86-25172-02 2# Roll (330’) 18 Gauge Black 16

640017 5# Roll (830’) 18 Gauge Galvanized 16

86-25172-02

To place your order call 1-800-621-5622; fax 1-800-535-9538

✜All prices based on quantity of one. Must order in multiples of case/package quantity shown. Orders received for quantities

other than those shown will be rounded up. Partial case/package quantities cannot be returned.

SUPPLIES & HARDWARE

Micro-Gear All Purpose Hose Clamps

Band and housing 300 stainless steel. Slotted 1/4”

hex-head screw Zinc plated carbon steel. Up to 1000 psi with

only 10 lbs, screw torque.

Case

Part Number Description Qty. ✜

86-25172-05 Size 12, Fits Hose 5/8” - 3/4” 10

86-25172-06 Size 16, Fits Hose 3/4” - 1” 10

86-25172-07 Size 20, Fits Hose11/16” - 1 1/2” 10

86-25172-05

640011

Heavy Duty Cable Ties/Duct Strap

6.6 nylon, accommodates 7” to 15” ducts – 175 lb Tensile.

Package

Part Number Description Qty. ✜

640007 24” – Fits up to 6” Duct 50

640008 36” – Fits up to 10” Duct 50

86-14195-50PK 36” – Fits up to 10” Duct 1

640009 48” – Fits up to 14” Duct 50

86-14197-50PK 45-1/2” – Fits up to 14” Duct 1

Duct Strap

Galvanized duct strap in convenient cardboard dispenser.

Solid strapping, easy to drill or nail.

Casw

Part Number Description Qty. ✜

640011 26 Ga. Metal – 1” x 100 Ft. 1

640012 30 Ga. Metal – 1” x 100 Ft. 1

640013 30 Ga. Metal – 1-1/2” x 100 Ft. 1

640014 26 Ga. Metal – 1-1/2” x 100 Ft. 1

640015 22 Ga. Metal – 1” x 100 Ft. 1

640007

To place your order call 1-800-621-5622; fax 1-800-535-9538

583006

583005 1-1/2" - 3" / Brown 12944 (ARFCO) 12

583006 1-1/2" - 3" / Black 12943 (ARFCO) 12

583010 3" - 4" / Black 12954 (ARFCO) 12

583011 3" - 4" / Gray 12953 (ARFCO) 12

583012 3" - 4" / Terracotta 12952 (ARFCO) 12

Part Size/ Cross Case

Number Description Reference Qty. ✜

SUPPLIES & HARDWARE

ROOF FLASHINGS

583001 1-1/4" - 1-1/2" 12101 (ARFCO), 12920 (OATEY) 12

583002 2" 12102 (ARFCO), 12933 (OATEY) 12

583003 3" 12103 (ARFCO), 12946 (OATEY) 12

583004 4" 12104 (ARFCO), 12959 (OATEY) 12

Part Size/ Cross Case

Number Description Reference Qty. ✜

ALUMINUM BASE NO CALK®ROOF FLASHINGS

•Slides over pipe - for pitch to 40 degrees. •Approved for Type B installations.

•Rustproof .032 stamped aluminum standard base. •Not for hot-mopped or built-up roofs.

•Non-fading sealing collar. •Soft aluminum base (18" x 18") allows

•18" x 18" bases for code required areas. for easy molding to tile roofing.

•Rated 180°F continuous heat. •Do not use petroleum based products

on collars.

NO CALK®ALL-FLASH®COLOR-FLASH®ROOF FLASHINGS

•Handles 1-1/2" to 3" and 3" to 4" pipe sizes. •Available in black, gray, brown or

•Available in aluminum or galvanized. terracotta.

•Matches the color of your roof. •Do not use petroleum based products

on collars.

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received

for quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

583001

To place your order call 1-800-621-5622; fax 1-800-535-9538

583024 3" - 4" 14188 (ARFCO) 6

SUPPLIES & HARDWARE

ROOF FLASHINGS

583013 1/8" - 3/4" 16250 (ARFCO), 14049 (OATEY) 12

583014 1/4" - 2" 16251 (ARFCO), 14050 (OATEY) 6

583015 1-1/4" - 3" 16252 (ARFCO), 14051 (OATEY) 6

583016 1/4" - 4" 16253 (ARFCO), 14052 (OATEY) 6

583017 3" - 6" 16254 (ARFCO), 14053 (OATEY) 6

583018 4" - 7" 16255 (ARFCO), 14054 (OATEY) 6

583019 5" - 9" 16256 (ARFCO), 14055 (OATEY) 6

583020 6" - 11" 16257 (ARFCO), 14056 (OATEY) 6

583021 7" - 13" 16258 (ARFCO), 14057 (OATEY) 6

583025 10" - 18" 16259 (ARFCO), 14058 (OATEY) 6

Part Cross Case

Number Size Reference Qty. ✜

Part Cross Case

Number Size Reference Qty. ✜

MASTER FLASH®ROOF FLASHINGS

• Slides over pipe - for pitch to 450 degrees. • Molds to metal, plastic, etc.

• Use silicone sealant between base and surface, • Non-fading EPDM collar.

and secure with sheet metal screws. • Rated 212°F continuous heat.

• Multi-size pipe sealing range. • Approved for Type B installations.

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received

for quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

583018

Multi-Size High-Rise Self-Seal Thermoplastic Flashing

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

QC Flags

Wire Nut - Plastic

QC Connector

Double Male/Single Female

QC Flag/Ring

Butt Connector

QC-Piggyback - Insul

Terminal Ring-Insul

Terminal Ring-Uninsul

Alligator Clip

Spade/QC Adapter

Ties - 6” to 45 1/2”

Spade/Ring Adapter

QC Straight

Terminal Spade

Test Leads - 36”

Wire Nut - Clear Pigtail

Individual part numbers & order quantities on next 2 pages!

Professional HVAC Installer/Repair Kits

86-6966F-1PK 86-6967F-1PK

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

✜These parts are sold in package quantities: Example 1 - Order (1) 455012, receive 1 package of 100 Butt Connectors. Ex-

ample 2 - Order (1) 455013, receive 1 package of 25 Butt Connectors.

Part Included in Package

Number Spinner Display Description Qty. ✜

455010 2 pkgs. Non-Insulated Ring, 8 AWG,. 1/4” 25

455011 2 pkgs. QC - Flag/Ring, 16-14 AWG, #10 Stud - SS 50

455012 2 pkgs. Butt Connectors, Uninsulated, 16-14 AWG - SS 100

455013 2 pkgs. Butt Connectors, Uninsulated, 16-14 AWG - SS 25

455014 2 pkgs. QC Flags, 12-14 AWG - SS 50

455015 2 pkgs. QC - Compressor Terminal, Slip-on Lug, Female Notched Grip, 16-14 AWG, 1/4” - SS 50

455016 2 pkgs. QC Adapters, Double Male/Single Female, .296 Chair - Gold 50

455017 2 pkgs. QC Adapters, Double Male/Single Female, .296 - Gold 50

455018 2 pkgs. Spade/Ring Adapter, Male Straight, #10, .250 Tab - SS 50

455019 2 pkgs. Spade (2) QC Adapters, Double Male, Single Female, .296 Flat - Gold 50

455020 2 pkgs. Wire Nuts, Pigtail Wire Connector, Clear, 22-14 AWG - Clear 50

455021 2 pkgs. 12-10 AWG Closed-End Connector, Nylon - Clear 25

455022 2 pkgs. Terminal Rings - Insulated, 22-18 AWG, #10 Stud - Red 100

455023 2 pkgs. Terminal Rings - Insulated, 22-18 AWG, #10 Stud - Red 50

455024 2 pkgs. Terminal Rings - Insulated, 16-14 AWG, #6 Stud - Blue 100

455025 2 pkgs. Terminal Rings - Insulated, 16-14 AWG, #6 Stud - Blue 50

455026 2 pkgs. Terminal Rings - Insulated, 16-14 AWG, #10 Stud - Blue 100

455027 2 pkgs. Terminal Rings - Insulated, 16-14 AWG, #10 Stud - Blue 50

455028 2 pkgs. Strip-Tie, Hook & Loop Fastener w/Buckle, 12” - Black 6

455029 2 pkgs. Strip-Tie, Hook & Loop Fastener w/Buckle, 12” - Safety Yellow 6

455030 2 pkgs. Terminal Rings - Insulated, 12-10 AWG, #10 Stud - Safety Yellow 100

455031 2 pkgs. Terminal Rings - Insulated, 12-10 AWG, #10 Stud - Safety Yellow 50

455032 2 pkgs. 12-10 5/16” Vinyl Insulated Ring - Safety Yellow 50

455033 2 pkgs. Terminal Rings - Insulated, 8-10 AWG, 1/4” Stud - Red 50

455034 2 pkgs. Flared Insulated Spade, 16-14 AWG, #8 Stud - Blue 15

455035 2 pkgs. Vinyl Insulated Spade, 16-14 AWG, #10 Stud - Blue 100

455036 2 pkgs. Vinyl Insulated Spade, 12-10 AWG, #8 Stud - Blue 25

455037 2 pkgs. Vinyl Insulated Spade, 12-10 AWG, #10 Stud - Blue 25

455038 2 pkgs. Butt Connectors, Insulated, 22-18 AWG - Red 100

455039 2 pkgs. Butt Connectors, Insulated, 16-14 AWG - Blue 100

455040 2 pkgs. Butt Connectors, Insulated, 16-14 AWG - Blue 50

455041 2 pkgs. Butt Connectors, Insulated, 12-10 AWG - Safety Yellow 100

455042 2 pkgs. Butt Connectors, Insulated, 12-10 AWG - Safety Yellow 50

455043 2 pkgs. Disconnects, Insulated Female, 22-18 AWG, 1/4” Tab - Red 50

455044 2 pkgs. Disconnects, Insulated Female, 16-14 AWG, .187” Tab - Blue 50

455045 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #16-14 - Blue 100

455046 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #16-14 - Blue 50

455047 2 pkgs. Disconnects, Insulated Male, 1/4” Tab, #16-14 - Blue 100

455048 2 pkgs. Disconnects, Insulated Male, 1/4” Tab, #16-14 - Blue 50

455049 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #12-10 - Safety Yellow 100

455050 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #12-10 - Safety Yellow 50

455051 2 pkgs. Disconnects, Vinyl Insulated Male, 12-10 AWG - Safety Yellow 100

455052 2 pkgs. Piggy Back, Insulated, 12-14 AWG - Blue 50

455053 2 pkgs. Spade, Male, Vinyl Insulated, 16-14 AWG - Light Blue 100

455054 2 pkgs. Spade, Female, Vinyl Insulated, 16-14 AWG - Natural 25

455055 2 pkgs. Alligator Clips, Black 1” 6

455056 2 pkgs. Alligator Clips, Red 1” 6

455057 2 pkgs. Deluxe Test Leads, 18 AWG, Heavy-Duty - Red/Black 1

455058 2 pkgs. Compressor Lead Set - 12 Gauge Red, Black & White Leads w/.250 Flag Female 1

455059 2 pkgs. Compressor Lead Set - 12 Gauge Red, Black & White Leads w/.#10 Ring Terminal 1

455060 2 pkgs. Stainless Steel Wire Tie, 7.5”, 250 lb. Tensile Strength 50

455061 2 pkgs. Stainless Steel Wire Tie, 14.5”, 250 lb. Tensile Strength 50

455062 2 pkgs. H.S. Tubing Asst. 1/16”, 3/32” 1/8” 12

455063 2 pkgs. Nylon Wire Tie, 4” Natural, 100 PK. 100

455064 2 pkgs. Nylon Wire Tie, 4” UV Black, 100 PK. 100

455065 2 pkgs. Nylon Wire Tie, 5.5” Natural, 100 PK. 100

455066 2 pkgs. Nylon Wire Tie, 5.5” UV Black, 100 PK. 100

455067 2 pkgs. Nylon Wire Tie, 7.5” Natural, 100 PK. 100

455068 2 pkgs. Nylon Wire Tie, 7.5” UV Black, 100 PK 100

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

✜These parts are sold in package quantities: Example 1 - Order (1) 455012, receive 1 package of 100 Butt Connectors.

Example 2 - Order (1) 455013, receive 1 package of 50 Butt Connectors.

Part Included in Package

Number Spinner Display Description Qty. ✜

455069 2 pkgs. Nylon Wire Tie, 11.5” Natural, 100 PK. 100

455070 2 pkgs. Nylon Wire Tie, 11.5” UV Black, 100 PK 100

455071 2 pkgs. Nylon Wire Tie, 14.5” Natural, 100 PK. 100

455072 2 pkgs. Nylon Wire Tie, 14.5” UV Black, 100 PK 100

455073 2 pkgs. Nylon Wire Tie, Screw Mount-Head, 7.5” - UV Black, 100 PK. 100

455074 2 pkgs. Flared Insulated Spade, 16-14 AWG, #8 Stud - Blue 50

455075 2 pkgs. Wire Nut, Plastic, 22-14 AWG - Blue 50

455076 2 pkgs. Butt Connectors, Insulated, 22-18 AWG - Red 15

455077 2 pkgs. Wire Nut, Plastic, 22-14 AWG - Orange 50

455078 2 pkgs. Butt Connectors, Insulated, 16-14 AWG - Blue 15

455079 2 pkgs. Wire Nut, Plastic, 18-12 AWG - Safety Yellow 50

455080 2 pkgs. Terminal Ring, Uninsulated High Heat, 12-14 AWG, #10 Stud - SS 50

455081 2 pkgs. Motor Hook-Up Wire, Black, 10 AWG, 8 FT 8

455082 2 pkgs. Motor Hook-Up Wire, Red, 10 AWG, 8 FT 8

455083 2 pkgs. Motor Hook-Up Wire, Black, 12 AWG, 12 FT 12

455084 2 pkgs. Motor Hook-Up Wire, Red, 12 AWG, 12 FT 12

455085 2 pkgs. Motor Hook-Up Wire, Black, 14 AWG, 15 FT 15

455086 2 pkgs. Motor Hook-Up Wire, Red, 14 AWG, 15 FT 15

455087 2 pkgs. Motor Hook-Up Wire, Black, 16 AWG, 16 FT 16

455088 2 pkgs. Motor Hook-Up Wire, Red, 16 AWG, 16 FT 16

455089 2 pkgs. Compressor Terminal, 12, 12-10 AWG, .250 x .032 Female - SS 25

455090 2 pkgs. Butt Connectors, Insulated, 12-10 AWG - Safety Yellow 15

455091 2 pkgs. Disconnects, Insulated Female, 16-14 AWG, .187“ Tab - Blue 15

455092 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #16-14 - Blue 15

455093 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #12-10 - Safety Yellow 15

455094 2 pkgs. Wire Nut, Plastic, 22-14 AWG - Blue 9

455095 2 pkgs. Wire Nut, Plastic, 22-14 AWG - Orange 9

455096 2 pkgs. Wire Nut, Plastic, 18-12 AWG - Safety Yellow 15

455097 - Wire Nut, Plastic, 18-10 AWG - Red 100

640001 — Wire Ties - Nylon Natural/7” (100/Package) 100

640002 — Wire Ties - Nylon Natural/11” (100/Package) 100

640003 — Wire Ties - Nylon Natural/15” (100/Package) 100

640004 — Wire Ties - Nylon Black/7” (100/Package) 100

640005 — Wire Ties - Nylon Black/11” (100/Package) 100

640006 — Wire Ties - Nylon Black/15” (100/Package) 100

86-6966F-1PK — Professional HVAC Installer Repair Kit 1

86-6967F-1PK — Professional HVAC Installer Repair Kit 1

86-6980-1PK — 6 Panel Product Spinner Display (fully stocked) 1

87-5008F 2 pkgs. Stripper-EZ Multi Purpose, Self-Adjusting 1

87-5020F 2 pkgs. Stripper-EZ Multi Purpose, Self-Adjusting 1

86-6980-1PK – 6 Panel Product

Spinner (fully stocked)

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

Case

Part Number

Description

Qty ✜

85-10108 8 oz Can 12

85-110078 11 oz Can 12

85-10308 11 oz Can (PrePack Cardboard Display) 48

85-10116 16 oz Can 12

With literally thousands of uses, WD-40 is the #1

multi-purpose problem solver. It cleans, protects,

penetrates, lubricates & displaces moisture like no

other product on earth.

❉Displaces moisture.

❉Penetrates, loosens & frees stuck, frozen or rusted parts.

❉Lubricates & protects metal.

❉Removes grease, grime, tar, gum, crayon, water deposits

and much more.

❉

Lubricates squeaks in hard-to-reach mechanisms.

WD-40

To place your order call 1-800-621-5622; fax 1-800-535-9538

100

Disposable Hand Towels / Sunscreen / Insect Repellant

SCRUBS®Hand Cleaner Towels

Premoistened, heavy duty hand cleaner towels that go where you go!

SCRUBS easily remove soil from your hands and leaves them clean and condi-

tioned anywhere you are working. Powerful, yet safe, patented citrus-based

hand cleaner towels for proven performance.

• Portable and convenient, one step cleaning process.

• Conditions and softens hands.

• Will not transfer soils back onto hands.

• Works fast to loosen, dissolve and absorb dirt and grease.

• Packaged in durable bucket that is light and portable.

Quickly Removes Other Uses

*Dirt *Tar *Tools, Equipment

*Oils *Urethanes *Composites

*Adhesives *Epoxies *Metals, Vinyls, Plastics

*Lubricants *Inks & Dyes *Work Surfaces

*Paints *Sealants *Painted Surfaces

*Grease *Caulks

SOLAR GUARD®Sunscreen Towels

A unique liquid SPF 30, water / sweat resistant sunscreen formula com-

bined with a large, lint free towel that delivers full UVA/UVB sun protection.

Greaseless, stain-free application for professionals that work outdoors.

Use on face, neck, ears and arms.

INSECT SHIELD®Insect Repellant Towel

A waterproof / greaseless EPA approved insect repellant formula, combined

with a large, lint-free towel. The 30% *DEET based

application safely offers the most effective, long lasting protection against

disease causing insects.

*The Centers for Disease control recommends using a Deet-based repellant.

See Items on Next Page

SUPPLIES & HARDWARE

91401

91201

42210

4366-87

To place your order call 1-800-621-5622; fax 1-800-535-9538

101

Disposable Hand Towels / Sunscreen / Insect Repellant (cont’d.)

4366-87 SCRUBS-In-A-Bucket (72 Count) Bucket 6

42230 SCRUBS-In-A-Bucket (30 Count) Bucket 6

91201 Solar Guard Single Packs (100 Count - Gravity Dispenser) Dispenser 1

91401 Insect Shield Single Packs (100 Count - Gravity Dispenser) Dispenser 1

42212 SCRUBS Single Packs Clip Strips (4 Strips, 12 Packs/Ea.) Box 1

42210 SCRUBS-In-A-Pack (10 Count Packs, 24 Packs/Case) Box 6

42296 Tray Display (holds 6 Buckets) (SCRUBS not included) Each 1

42293 Attachable Bucket Bracket for Shop or Vehicle Each 1

Part Case

Number Description Unit Qty. ✜

✜All prices based on quantity of one. Must order in multiples of pallet quantity shown. Orders received

for quantities other than those shown will be rounded up. Partial pallet quantities cannot be returned.

SUPPLIES & HARDWARE

To place your order call 1-800-621-5622; fax 1-800-535-9538

102

SUPPLIES & HARDWARE

ShuBee Shoe Covers

Made for the Service Industry

❉Bigger – Fits up to size 16 - guaranteed.

❉Better – More durable, made for the service industry.

❉Colors – Available safety yellow, bright blue, red and dark blue.

❉Safer – Non-Skid, slip resistant bottoms.

❉Cleaner – Fresh citrus scent.

Mud Proof •Snow and Ice Proof •Water Proof

Shoe Covers

These show covers are made from a slip-resistant, textured plastic material

that is ideal for adverse weather conditions. The unique plastic is so durable

you can get many uses out of them before discarding.

ShuBee Disposable Coveralls

❉Save money – eliminate torn or dirty uniforms.

❉Made from a "Stay Cool", breathable material.

❉Durable material made to last.

❉5 convenient pockets -

2 back and 2 front pockets, 1 pocket on shirt top.

❉Comfortable elastic waist / wrist bands with boot cut legs.

❉Styled with or without a hood.

❉Versatile Fit - large (under 6 feet) or extra large (over 6 feet).

❉Available in dark blue or white for a professional appearance.

See Items on Next Page

ShuBee offers simple, distinct products that provide protection to both you and your customers during service calls.

Your service department will appreciate the convenience of using ShuBee tough shoe covers, disposable cover-

alls, dust masks, gloves, floor mats and carpet films, while your clients appreciate the clean service areas and the

protection you give them from mud, rain, snow and ice. Give your customers the best impression by using the

ShuBee solution!

To place your order call 1-800-621-5622; fax 1-800-535-9538

103

849101 SB-SP-DB Shoe Covers - Dk. Blue - 10 Pair 15

849102 SB-SP-RD Shoe Covers - Red - 10 Pair 15

849103 SB-SP-OR Shoe Covers - Orange - 10 Pair 15

849104 SB-SP-YL Shoe Covers - Yellow - 10 Pair 15

849105 SB-SP-LB Shoe Covers - Lt. Blue - 10 Pair 15

849106 SB-SP-WH Shoe Covers - White- 10 Pair 15

849107 SB-SP-GR Shoe Covers - Dk. Green - 10 Pair 15

849108 SB-SP-WP-LB Shoe Covers - Lt. Blue/Waterproof - 10 Pair 15

849110 SB-SP-WP-DB Shoe Covers - Dk. Blue/Waterproof - 10 Pair 15

849111 SB-SC-DB Shoe Covers - Dk. Blue - 50 Pair 3

849113 SB-SC-OR Shoe Covers - Orange - 50 Pair 3

849114 SB-SC-YL Shoe Covers - Yellow - 50 Pair 3

849115 SB-SC-LB Shoe Covers - Lt. Blue - 50 Pair 3

849118 SB-SC-WP-LB Shoe Covers - Lt. Blue/Waterproof - 50 Pair 15

849120 SB-SC-WP-DB Shoe Covers - Dk. Blue/Waterproof - 50 Pair 15

849121 SB-CA-DB-L Coveralls - Dk. Blue - L 25

849122 SB-CA-DB-XL Coveralls - Dk. Blue - XL 25

849125 SB-TCH-XL Coverall - White - XL - Tyvek Hooded 25

849129 SB-LG-PF-L Gloves - Powderfree Latex - L 10

849130 SB-LG-PF-XL Gloves - Powderfree Latex - XL 10

849133 SB-LG-LP-XL Gloves - Powdered Latex - XL 10

849134 SB-NG-PF-M Gloves - Powderfree Nitrile - M 10

849135 SB-NG-PF-L Gloves - Powderfree Nitrile - L 1

849136 SB-NG-PF-XL Gloves - Powderfree Nitrile - XL 1

849142 SB-HS Citrus Scent Blast Hand Soap - 16 oz. 18

849143 SB-RCT-24 Red Carpet - 24 inches x 200 feet 1

849145 SB-CPF-24 Clear Carpet Film - 24 inches 1

849152 BS-DF Dust Mask - Dust Filter, Box of 50 1

SUPPLIES & HARDWARE

Part Vendor Cross Case

Number Reference Description Qty. ✜

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

ShuBee Products

To place your order call 1-800-621-5622; fax 1-800-535-9538

104

Tools & Instruments

Soldering Tools

J. W. Harris Soldering and Brazing Products

BRIDGIT®

Lead-free solder for plumbing applications, with exceptional strength and capping ability.

1/8” dia., 1 pound spool. 86-25254-03

Solidus 460°F.

Liquidus 630°F.

STAY-BRITE® 8

Low temperature solder with 6% silver for all metals except aluminum. Used in AC/R

joints with a plastic range useful in bridging wider gaps.

1/8” dia., 1 pound spool. 86-25254-01

Solidus 430°F.

Liquidus 535°F.

STAY-BRITE

Low temperature solder with 4% silver for all metals except aluminum.

Used in AC/R joints, NSF accepted.

1/8” dia., 1 pound spool. 86-25254-02

Solidus 430°F.

Liquidus 535°F.

87-SP23L 87-8200

86-25254-01

86-25254-03

Case

Part Number

Description Volts Watts Hz Qty

87-SP23L Weller Solder Iron, 25W 120 25 60/60 6

87-SP40L Weller Solder Iron, 40W 120 40 50/60 6

87-8200 Weller Universal Soldering Gun 120 140/100 50/60 3

87-D550 Weller Professional Soldering Gun 120 260/220 50/60 3

To place your order call 1-800-621-5622; fax 1-800-535-9538

105

Tools & Instruments

SAFETY-SILV®45

Excellent, cadmium-free general purpose brazing alloy with good ductility and flow.

1/16” dia., 1 troy oz. package includes 1.75 07 flux. (76012) 86-25254-08

Solidus 1195°F.

Liquidus 1265°F.

STAY-SILV®15%

For many years, the industry standard for air conditioning and refrigeration applications. .050 x 1/8”

dia., 28 stick tube, approximately 1 pound. (61035) 86-25254-06

Solidus 1190°F.

Liquidus 1480°F.

STAY-SILV®--0

Low-cost alloy for many copper-to-copper applications where good fit-up can be maintained and

brazing temperature is not critical. 86-25254-12

STAY-SILV®5 AND STAY-SILV 6

Medium-range allows; Stay Silv 5 is useful primarily where fit-up cannot be tightly controlled.

Stay Silv 6 is slightly more fluid and can be used where closer tolerances are available.

Stay Silv 5 86-25254-13

Stay-Silv 6 86-25254-14

✜All prices based on quantity of one. Must order in multiples of case/package quantity shown. Orders received for quantities

other than those shown will be rounded up. Partial case quantities cannot be returned.

DYNAFLOW®

Reliable, economical substitute for 15%; excellent strength and ductility. Good for poorly

fitted or tight connections.

.050 x 1/8” dia., 28 stick tube, approximately 1 pound. 86-25254-05

Solidus 1190°F.

Liquidus 1465°F.

86-25254-06

86-25254-08

STAY-CLEAN®PASTE FLUX

Excellent soldering flux, in paste form, for joining copper to copper & copper to brass.

4oz. jar, 24/case. ✜(40027) 86-25254-04

86-25254-04

86-25254-12

86-25254-13

86-25254-14

J. W. Harris Soldering and Brazing Products (cont’d.)

86-25254-05

To place your order call 1-800-621-5622; fax 1-800-535-9538

106

Tools & Instruments

ALSOLDER®500 KIT

Joins all solderable aluminum alloys to each other and to dissimilar metals. Forms

tough excellent corrosion-resistant joints on the tough-to-solder aluminum alloys.

Contains 1 oz. of 1/16” dia. Alsolder 500 aluminum solder wire and 1 oz. Stay-Clean

aluminum flux, plus instructions. 86-25254-10

86-25254-10

BLOCKADE™ SILICON BRAZING ALLOY

First in a new family of silicon brazing alloys – phosphorus/copper brazing alloys al-

loyed with silicon. Engineered to join copper, brass and bronze. Faster brazing –

228° F lower temperature than phos/copper. Ability to easily form a large cap or

shoulder at the braze connection. Silver-gray cap = a highly visible fillet which pro-

vides instant, visual confirmation of a leak-free seal. Improved ductility over BCuP-2

(phos/copper 0)brazing alloys. Eliminates need for silver to join copper to brass and

brass to brass. 572001 572001

STAY-SILV®WHITE FLUX

For use with silver brazing alloys on all metals other than aluminum, magnesium, titanium

7 oz. brush cap, 24/case. ✜(40022) 86-25254-09

86-25254-09

J. W. Harris Soldering and Brazing Products (cont’d.)

To place your order call 1-800-621-5622; fax 1-800-535-9538

107

Tools & Instruments

Klein Cushion-Grip Screwdrivers

❉

Designed for extra-long, dependable service & comfort.

❉

Comfortable Cushion-Grip is locked around a solid plastic

handle.Grip extends up to handle end.

❉

Shank has integral flanges to provide a solid,torque-proof

anchor deep in the plastic handle.

❉

Heavy-duty screwdrivers have special bolster construction

to reinforce against hard use.

❉

Fully chrome-plated blade with black tip.

Klein 7-Piece Screwdriver Set

❉

5 Cushion Grip Screwdrivers.

❉

1 Cushion Grip Rotary Screwdriver.

❉

1 Plastic Handle Slotted Screw-Holding Screwdriver.

Part Overall Case

Number

Description Length Qty

87-85077 Screwdriver Set, Cushion & Regular Grip, 7 Piece 8” to 11” 1

Shank Tip Width Overall Case

Part Number

Description X Shank Length Length Qty

87-600-4 Heavy Duty Square-Shank, Keystone-Tip 1/4 x 4 8 11/32 6

87-600-6 Heavy Duty Square-Shank, Keystone-Tip 5/16 x 6 10 15/16 6

87-601-3 Round-Shank, Cabinet-Tip 3/16 x 3 6 3/4 6

87-601-4 Round-Shank, Cabinet-Tip 3/16 x 4 7 3/4 6

87-601-6 Round-Shank, Cabinet-Tip 3.16 x 6 9 3/4 6

87-601-8 Round-Shank, Cabinet-Tip 3/16 x 8 11 3/4 6

87-602-4 Heavy Duty, Round-Shank, Keystone-Tip 1/4 x 4 8 11/32 6

87-602-6 Heavy Duty, Round-Shank, Keystone-Tip 5/16 x 6 10 15/16 6

87-602-8 Heavy Duty, Round-Shank, Keystone-Tip 3/8 x 8 13 7/16 6

87-603-1 Round-Shank, Special Profilated Phillips-Tip 1-1/2 3 7/16 6

87-603-3 Round-Shank, Special Profilated Phillips-Tip 3 6 3/4 6

87-603-4 Round-Shank, Special Profilated Phillips-Tip 4 8 5/16 6

87-603-6 Round-Shank, Special Profilated Phillips-Tip 6 11 6

87-603-7 Round-Shank, Special Profilated Phillips-Tip 7 11 15/16 6

87-605-4 Round-Shank, Cabinet-Tip 1/4 x 4 8 11/32 6

87-605-6 Round-Shank, Cabinet-Tip 1/4 x 6 10 11/32 6

87-605-8 Round-Shank, Cabinet-Tip 1/4 x 8 12 11/32 6

87-600-4

87-603-4

87-85077

Klein 7-Piece Cushion-Grip Screwdriver Set

❉

3 Cabinet-Tip Screwdrivers.

❉

2 Phillips-Tip Screwdrivers.

❉

2 Keystone-Tip Screwdrivers.

❉

Heat-Treated, Tempered-Steel Blades with Vinyl Pouch.

Part Overall Case

Number

Description Length Qty

87-85076 Screwdriver Set, Cushion-Grip, 7 Piece 8” to 11” 1

87-85076

To place your order call 1-800-621-5622; fax 1-800-535-9538

108

Tools & Instruments

CPS 6-in-1 Auto-Loading Screwdriver

❉

6 replaceable industrial grade 1/4” hex bits, standard 1/4” hex drive.

❉

Includes standard valve core tool bit.

❉

Magnetic head holds fasteners in place.

❉

Ergonomic high impact housing design.

Part Case

Number

Description Qty

87-TLSD1 6-in-1 Auto Loading Screwdriver 1

87-TLSD1

Klein 7-Piece Nut Driver Set

❉

3” Shaft, Plastic-Handle Nut Drivers

❉

Hollow Shanked with Vinyl Storage Pouch

❉

3/16” - 1/2”, Chrome Plated

Part Hex Case

Number Description Size Qty

87-K7 Nut Driver Set 3/16” - 1/2” 1

Klein Cushion-Grip Nut Drivers

Features:

❉

Designed for extra-long, dependable service & comfort.

❉

Color-coded cap identifies hex size.

❉

Comfortable Cushion-Grip is locked around a solid plastic

handle.Grip extends up to handle end.

❉

Shank has integral flanges to provide a solid,torque-proof

anchor deep in the plastic handle.

❉

Full length hollow shaft fits over long screws.

87-631S

87-646

Hex Shank Case

Part Number

Description Size Length Qty

87-646-1/4 Cushion-Grip Nut Driver 1/4" 6" 6

87-646-5/16 Cushion-Grip Nut Driver 5/16" 6" 6

87-646-3/8 Cushion-Grip Nut Driver 3/8" 6" 6

87-646-1/2 Cushion-Grip Nut Driver 1/2" 6" 6

87-647L Cushion-Grip Nut Drivers - 7 Piece Set

3/16, 1/4, 5/16, 11/32, 3/8, 7/16, 1/2

6" 1

87-631S Cushion-Grip Nut Drivers - 7 Piece Set

3/16, 1/4, 5/16, 11/32, 3/8, 7/16, 1/2

3” 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

109

Klein Stubby 1 1/4” Shaft Nut Drivers

Klein 3” & 6” Shaft Nut Drivers

❉

Chrome-Plated, Hollow Shank, Amber-Colored Plastic Handle Nut Drivers

Hex Shank Case

Part Number

Description Size Length Qty

87-S8M-1/4 Klein Nut Driver, Magnetic, Hollow Shaft 1/4" 3” 6

87-S10M-5/16 Klein Nut Driver, Magnetic, Hollow Shaft 5/16" 3” 6

87-S86M-1/4 Klein Nut Driver, Magnetic, Hollow Shaft 1/4" 6” 6

87-S106M-5/16 Klein Nut Driver, Magnetic, Hollow Shaft 5/16" 6” 6

Hex Shank Case

Part Number

Description Size Length Qty

87-SS8-1/4 Hollow Shaft Nut Driver 1/4” 3-3/4” 6

87-SS10-5/16 Hollow Shaft Nut Driver 5/16” 3-3/4” 6

87-SS12-3/8 Hollow Shaft Nut Driver 3/8” 3-3/4” 6

Hex Shank Case

Part Number

Description Size Length Qty

87-S8-1/4 Hollow Shaft Nut Driver 1/4” 3” 6

87-S10-5/16 Hollow Shaft Nut Driver 5/16” 3” 6

87-S11-11/32 Hollow Shaft Nut Driver 11/32” 3” 6

87-S12-3/8 Hollow Shaft Nut Driver 3/8” 3” 6

87-S14-7/16 Hollow Shaft Nut Driver 7/16” 3” 6

87-S86-1/4 Hollow Shaft Nut Driver 1/4” 6” 6

87-S106-5/16 Hollow Shaft Nut Driver 5/16” 6” 6

87-S116-11/32 Hollow Shaft Nut Driver 11/32” 6” 6

87-S126-3/8 Hollow Shaft Nut Driver 3/8” 6” 6

87-SS10

Tools & Instruments

Klein Magnetic Nut Drivers

87-S10M

87-S10

87-S116

To place your order call 1-800-621-5622; fax 1-800-535-9538

110

Tools & Instruments

87-70581

Wrenches

87-TLSWL 87-TLSWS 87-TLSWO

87-AC16CV

87-8-301

87-SL12/87-SL20

87-68310

Case

Part Number

Description Length Qty

87-AC16CV Crescent Adj Wrench, Chrome Finish w/Cushion Grip Handle 6" 6

87-AC18CV Crescent Adj Wrench, Chrome Finish w/Cushion Grip Handle 8" 6

87-12-301 Midwest Adj Box End Wrench, Plastic Dip Handle 12" 6

87-10-301 Midwest Adj Box End Wrench, Plastic Dip Handle 10" 6

87-8-301 Midwest Adj Box End Wrench, Plastic Dip Handle 8" 6

87-D507-6 Midwest Adj Box End Wrench, Extra Capacity, Plastic Dip Handle 6" 6

87-D507-8 Midwest Adj Box End Wrench, Extra Capacity, Plastic Dip Handle 8" 6

87-D507-10 Midwest Adj Box End Wrench, Extra Capacity, Plastic Dip Handle 10" 6

87-D507-12 Midwest Adj Box End Wrench, Extra Capacity, Plastic Dip Handle 12" 6

87-68310 Klein 5 1/2" Refrigeration Rachet Wrench, Fully Reversible 3/16",5/16" 6

10550

Jiffy 3/16” HVACR Hex Bit for Service Valves

4” 1

10551

Jiffy 5/16” HVACR Hex Bit for Service Valves

4” 1

87-70570 Klein Hex Key Set, Folding, 5” Grip-It 8 keys 6

87-70574 Klein Hex Key Set, Folding, 9” Grip-It 8 keys 6

87-70575 Klein Hex Key Set, Folding, 9” Grip-It 8 keys 6

87-70579 Klein Hex Key Set, Folding, 5-1/4” 3/16”, 7/32”, 1/4”, 5/16, 3/8”6

87-70581 Klein Hex Key Set, Folding 8 keys 6

87-70591 Klein Hex Key Set, Folding 9 keys 6

87-89954 Klein T-Handle Hex Key Set, 6” Keys 8 keys 6

87-LLK12 Klein Hex Key Set - 7 Piece, “L” Style, Long Arm (5/64” - 1/4”) 7 keys 1

87-SL12 Klein Hex Short Arm Key (Sold only in Case Quantity) 3/16" 25

87-SL20 Klein Hex Short Arm Key (Sold only in Case Quantity) 5/16” 25

87-TLSWL CPS Service Wrench

3/16”, 1/4”, 9/16”, 1/2”

87-TLSWO CPS Offset Wrench

3/16”, 1/4”, 3/8”, 5/16”

87-TLSWS CPS Service Wrench

3/16”, 1/4”, 3/8”, 5/16”

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

Extra Long Hex for difficult to

access service Valves

To place your order call 1-800-621-5622; fax 1-800-535-9538

111

87-TLPP

87-D203-6

87-TLPO

87-D2000-48

87-R210CV

87-D203-8N

Pliers

Case

Part Number

Description Length Qty

87-TLPO CPS Pinch-Off Pliers 1

87-TLPP CPS Piercing Pliers 1

87-6546CV Crescent Long Nose Chain Plier w/Side Cutter 6 5/8” 6

87-D502-6 Klein Tongue & Groove Pump Pliers 6-1/2” 6

87-D502-10 Klein Tongue & Groove Pump Pliers 10” 6

87-D502-12 Klein Tongue & Groove Pump Pliers 12” 6

87-D203-6 Klein Long Nose Side-Cutting Pliers 6-5/8" 6

87-D203-7 Klein Long-Nose Side-Cutting Pliers 7-1/8" 6

87-D203-8N Klein Heavy Duty Long Nose w/Side Cutters & Skinning Hole 8-5/16” 6

87-D213-8NE Klein Side-Cutting, High Leverage Pliers 8-1/2" 6

87-D213-9NE Klein Side-Cutting, High Leverage Pliers 9-1/4” 6

87-D228-7 Klein Diagonal-Cutting, High Leverage Pliers 7” 6

87-D248-8 Klein Diagonal-Cutting, High Leverage Pliers 8” 6

87-D2000-9NE Klein Side-Cutting 2000 Series, High Leverage Pliers 9-1/4" 6

87-D2000-48

Klein Diagonal-Cutting 2000 Series, High Leverage Pliers with Angled Head

8" 6

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

112

87-1010

87-11045

Strippers and Cutters

87-P6100

87-P6300

87-5008F

87-5020F

Case

Part Number

Description Length Qty

87-1001 Klein All-Purpose Electricians Tool 6” 6

8-18 AWG Solid, 10-22 AWG Stranded

87-1005 Klein Crimping Tool, 10-22 AWG 6” 6

87-1006 Klein Crimping Tool, 10-22 AWG 9-3/4” 6

87-1010 Klein Multi-Purpose Wire Cutter/Crimper 8 1/4” 6

87-1011 Klein Multi-Purpose Wire Stripper/Cutter 6” 6

87-11045 Klein 10-18 Wire Stripper/Cutter 6” 12

87-11049 Klein 8-10 Wire Stripper/Cutter (Narrow Nose, Comfort Handle) 6” 6

87-5008F J T & T EZ Stripper; Multi-Function, Self-Adjusting 9” 1

87-5020F J T & T EZ Stripper; Multi-Function, Self-Adjusting 1

87-5427CV Crescent Side Cutter (Designed for heavy-duty wire cutting) 7" 6

87-P6300 Midwest Hard Wire Rope Cutter -3

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

113

87-M1200

87-P6510S

87-P6716S

Snips

87-P77D 87-P77S

Cutting Nominal Case

Part Number

Description Capacity Length Qty

87-M1200 Midwest Replaceable Blade Snips 22ga. CR/26ga. SS 13” 6

87-M1200R Midwest Blade Kit 12" 22ga. CR/26ga. SS -6

87-P6510L Midwest Aviation Snips, Offset Left 18ga. CR/22ga. SS 9 3/4” 6

87-P6510R Midwest Aviation Snips, Offset Right 18ga. CR/22ga. SS 9 3/4” 6

87-P6510S Midwest Aviation Snips, Offset Straight 18ga. CR/22ga. SS 9 3/4” 6

87-P6716L Midwest Aviation Snips, Left Cut Pattern -6

87-P6716R Midwest Aviation Snips, Right Cut Pattern -6

87-P6716S Midwest Aviation Snips, Straight Cut Pattern -6

87-P6716A Midwest Aviation Snips, Long Cut - Straight 20ga. CR/24ga. SS 11 1/2” 6

87-P6716B Midwest Aviation Snips, Bulldog 16 ga. CR/18ga. SS 9” 6

87-SSP6716L Midwest Aviation Snips, Hvy Duty Left 22ga. SS 9 3/4” 6

87-SSP6716R Midwest Aviaiton Snips, Hvy Duty Right 22ga. SS 9 3/4” 6

87-P77S Midwest Tinner Snips, Straight 7" 24ga. CR/28ga. SS 7” 6

87-P107S Midwest Tinner Snips, Straight 10" 22ga. CR/26ga. SS 10” 6

87-P127S Midwest Tinner Snips, Straight 12" 20ga. CR/22ga. SS 12” 6

87-P77D Midwest Tinner Snips, Duckbill/Circular 7" 26ga. CR/28ga. SS 7” 6

87-P107D Midwest Tinner Snips, Duckbill/Circular 10" 24ga. CR/26ga. SS 10” 6

87-P127D Midwest Tinner Snips, Duckbill/Circular 12" 22ga. CR/24ga. SS 12” 6

87-P147C Midwest Tinner Snips, Combination 14" 18ga. CR/22ga. SS 14” 1

87-P167B Midwest Tinner Snips, Bulldog 16" --1

87-P657N Midwest Light Metal Shear (Needle Nose Snip) 24ga. CR/28ga. SS 6 1/2” 5

87-P6900-L Midwest Aviation Snips, Left Cut Pattern, Right Angle Blades 24ga. CR/28ga. SS -

87-P6900-R Midwest Aviation Snips, Right Cut Pattern, Right Angle Blades 24ga. CR/28ga. SS -6

87-P657N

87-SSP6716R

87-P147C

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

114

Tools & Instruments

Sheet Metal Tools

87-FCTMS6

87-FCTMN1

87-FCTMF1

87-FCTMD1

87-FCTMX1

87-FCTML1

87-FCTMT1

87-FCTMC5

87-FCTMP1

Cutting Nominal Case

Part Number

Description Capacity Length Qty

87-FCTMS1 Midwest Sheet Metal, Straight Hand Seamer 3" 22 CR/24 SS 8 1/4” 2

87-FCTMS2 Midwest Sheet Metal, Offset Hand Seamer 22 CR/24 SS 7 3/4” 2

87-FCTMS6 Midwest Sheet Metal, Straight Hand Seamer 6" 22 CR/24 SS 8 1/4” 1

87-FCTMN1 Midwest Sheet Metal, Hand Notcher 24 CR/ 28 SS 8” 3

87-FCTMC5

Midwest Sheet Metal, Crimper 5 Blade (Long)

- 10” 3

87-FCTMC5S

Midwest Sheet Metal, Crimper 5 Blade (Short)

- 9 1/4” 3

87-FCTMF1 Midwest Flat Folding Tool 12" 24 CR/28 SS 12” 6

87-FCTMF2 Midwest Flat Folding Tool 18" 24 CR/28 SS 18” 4

87-FCTMD1 Midwest Offset Duct Stretcher - 15 3/4” 6

87-FCTMX1 Midwest Duct Slicer - 13” 4

87-FCTML1 Midwest Snap Lock Punch 24 CR 8” 3

87-FCTMP1 Midwest Pipe Duct Cutter (Double Cut) - 10 1/2” 6

87-FCTMT1 Midwest Plastic Tie Tensioning Tool - 8” 3

To place your order call 1-800-621-5622; fax 1-800-535-9538

115

Tools & Instruments

Pro-SetTube Cutters

❉

For Hard or Soft Tubing.

“Copper, Aluminum Brass, Stainless Steel”

❉

Smooth operation provides consistent clean cuts.

❉

High impact metal & precision machining combine to

offer a quality tool built to last a lifetime.

Mastercool



Tube Cutters

❉

Lightweight yet durable.

❉

For Hard or Soft Tubing.

“Copper, Aluminum Brass, Stainless Steel”

❉

All cutters feature rollers with flare cut-off grooves

to salvage as much old tubing material as possible.

87-TC312

87-TC274

87-TC127

87-TC174

Part Number

Description Capacity

87-TC127 Pro-Set Mini Tube Cutter - Features an over- 1/8” to 5/8” OD

sized turning wheel for a sure comfortable grip.

87-TC174 Pro-Set Tube Cutter. 3/8” to 1-1/8” OD

87-TC274 Pro-Set Premium Tube Cutter - Features a 1/8” to 1-1/8” OD

retractable reamer to remove inside burrs

cleanly and a spare cutting wheel.

87-TC312 Pro-Set Premium Large Tube Cutter - Features 1/4” to 1-5/8” OD

a retractable reamer to remove inside burrs

cleanly and a spare cutting wheel.

70027 Mastercool Mini Tube Cutter 1/8” to 5/8”

70029 Mastercool Midi Tube Cutter 3/8” to 1-1/8”

70033 Mastercool Heavy Duty Tubing Cutter 1/8” to 1-1/8”

70035 Mastercool Heavy Duty Tubing Cutter 1/4” to 1-5/8”

70037 Mastercool Slide Tubing Cutter 1/4” to 2-5/8”

70038 Mastercool Slide Tubing Cutter 1/4” to 3-1/8”

70090

Mastercool Tubing Cutter Kit

3 Piece Set

70090-A

Mastercool Tubing Cutter Kit

4 Piece Set

70028

Mastercool Replacement Cutting Wheels for 70027 (10 Pieces)

70034 Mastercool Replacement Cutting Wheels for 70029,

70033, 70035 and 70037 (10 Pieces)

70138

Mastercool Replacement Cutting Wheel for 70038 (1 Piece)

70029 70035 70037

70027

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

To place your order call 1-800-621-5622; fax 1-800-535-9538

116

Saws and Blades

87-80710

87-80952

87-81128

87-70012

87-62825

Tools & Instruments

Nominal Case

Part Number

Description Length Width Gauge Qty

87-62819 Nicholson Bi-Met Hacksaw Blade 14 T 12” 1/2” 0.25” 10

87-62826 Nicholson Bi-Met Hacksaw Blade 18T 12” 1/2” 0.25” 2/Card

87-62832 Nicholson Bi-Met Hacksaw Blade 24T 12” 1/2” 0.25” 2/Card

87-62839 Nicholson Bi-Met Hacksaw Blade 32TPI 12” 1/2” 0.25” 2/Card

87-701S Klein Industrial Hacksaw 12” --6/Case

87-72319 Nicholson Portabands 10 Raker (Sold only in Case Qty) 3

87-80965 Nicholson 12P Premium Hacksaw Frame 1

87-81124 Nicholson Recip Blade 24TPI (Multi-purpose) 6” 3/4” 0.035” 1/Card

87-81128 Nicholson Recip Blade 14TPI (For Metal under 1/8” thick) 9” 3/4” 0.050” 1/Card

87-81120, 87-81122, 87-81124, 87-81132

To place your order call 1-800-621-5622; fax 1-800-535-9538

117

Tools & Instruments

Hole Saw Blades

87-81432

87-81260

Case

Part Number Description Diameter Qty

87-81167 Nicholson Hole Saw 7/8" 1

87-81173 Nicholson Hole Saw 1" 1

87-81179 Nicholson Hole Saw 1 1/8" 1

87-81188 Nicholson Hole Saw 1 1/4" 1

87-81197 Nicholson Hole Saw 1 3/8" 1

87-81206 Nicholson Hole Saw 1 1/2" 1

87-81227 Nicholson Hole Saw 2" 1

87-81233 Nicholson Hole Saw 2 1/8" 1

87-81260 Nicholson Hole Saw 3" 1

87-81272 Nicholson Hole Saw 3 1/2" 1

87-81275 Nicholson Hole Saw 3 5/8" 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

118

Caulking Guns

Part Case

Number Description Qty

87-M0017 Caulking Gun; 1/10 Gal., Hex Rod Parallel Frame 12

87-M0016 Caulking Gun; 1/10 Gal., Super Ratched Rod 12

87-250 Caulking Gun; 1/10 Gal., Super Smooth Rod 6

87-M0017 Caulking Gun

1/10 Gal., Hex Rod Parallel Frame

❉

E-Z Thrust

❉

EZ Load Front Cap

❉

Cartridge Retainer Spring

❉

Ladder Hook

❉

Produces short radius bends up to 180°

87-M0016 Caulking Gun

1/10 Gal., Super Ratchet Rod

❉

Seal Puncture Tool

❉

Built-In Spout Cutter

❉

Ladder Hook

❉

No Pinch Finger Guard

87-250 Caulking Gun

1/10 Gal., Super Smooth Rod

❉

Revolving Barrel

❉

Zinc Alloy Handle

❉

Ladder Hook

❉

Thumb Release

❉

Thrust Ratio 18:1

87-M0017

87-M0016

87-250

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

119

Tools & Instruments

Gallo Gun & Swoosh CO2 Cartridges

Part Case

Number Description Qty

GG-1 Gallo Gun Drain Cleaner 1

GGC-12 SWOOSH CO2 Cartridges (Standard pack of 12) 1

The Gallo Gun clears condensate drains with Swoosh. It is a

lightweight (3 oz.) portable tool designed to blow out drain lines

instantly. Simply insert a SWOOSH CO2 cartridge into the Gallo

Gun and with a press of the trigger, 800 PSI of oil free food grade

air clears the line. Each unit comes equipped with a tapered fitting

to work on 3/8” thru 3/4” drain openings. Flexible hose assembly

enables you to maneuver through cabinets, coils and hard to reach

drains. Cartridges are safe for the environment and recyclable.

No need to carry air or nitrogen tanks. Saves time on service calls

and reduces labor costs.

GG-1 & GGC-12

To place your order call 1-800-621-5622; fax 1-800-535-9538

120

Tape Measures

Case

Part Number

Description Color Qty

87-2212 Lufkin 1/2” x 12' Tape Measure - Chrome Chrome 6

87-2212DX Lufkin 1/2” x 12' Tape Measure - Chrome (Eng) Chrome 6

87-2316 Lufkin 3/4” x 16' Tape Measure - Chrome Chrome 6

87-HV1012 Lufkin 1/2” x 12' Tape Measure (HiVisibility) Orange 6

87-HV1312 Lufkin 3/4” x 12' Tape Measure (HiVisibility) Orange 6

87-HV1316 Lufkin 3/4” x 16' Tape Measure (HiVisibility) Orange 6

87-QR1312 Lufkin 3/4” x 12' Tape Measure (QuickRead) Blue 6

87-QR1316 Lufkin 3/4” x 16' Tape Measure (QuickRead) Blue 6

87-928-16HV Klein Power Return Tape Measure 3/4” x 16’ (HiVisibility) Orange 6

87-928-25HV Klein Power Return Tape Measure 1” x 25’ (HiVisibility) Orange 6

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

121

Tools & Instruments

CPS

87-AC600 Meter

The 87-AC600 incorporates a rugged analog display to measure AC current, AC voltage

and ohms. A continuity alarm and an optional temperature probe add to the 87-AC600’s

impressive design making it an ideal unit for the electrical & HVAC/R technician.

The 87-AC600 allows the user to measure current flow, in appliances & power lines by

simply clamping the transformer jaws around the conductor. A meter lock function is provided

to lock the analog display’s pointer when taking measurements in areas of low visibility or

limited access. The optional temperature probe can take measurements of gas liquid and

solid materials. The 87-AC600 includes a spare fuse 0.5A/250V, test leads, carry case,

“AA” battery, and slip proof wrist strap.

APPLICATIONS

❉Measure motor start-up current.

❉Measure current to determine circuit overload, control circuit current and circuit

operating current.

❉Measure line temperatures on refrigeration and air conditioning units.

❉Measure continuity to determine good or bad fuses, open or shorted conductors,

operation of switches and circuit paths.

❉Measure AC lines and voltages.

RANGES:

Best

Function Range Accuracy

VAC 0 - 600V +/- 3% of full scale

ACA 0 - 600A +/- 3% of full scale

Temp -26° to 392°F/-50° to 200° C +/- 3% of full scale

87-AC600

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

To place your order call 1-800-621-5622; fax 1-800-535-9538

122

ACCESSORIES FOR: 87-AC400, 87-AC600 & 87-AC610

Part Number Description

87-ACXB4 Batteries (1.55V) for 87-AC400 (2 pk)

87-ACXC4 Carrying Case for 87-AC400

87-ACXC6 Carrying Case for 87-AC600/87-AC610

87-ACXF60 Fuse for 87-AC600

87-ACXOP Ohms Probe 87-AC600

87-ACXP Probe Set for 87-AC610/87-AC400

87-ACXTP Temperature Probe 87-AC600

Tools & Instruments

CPS

87-AC400 Meter

The 87-AC400 is a pocket sized clamp-on meter with full size features. A convenient autoranging

feature automatically selects the correct operating range when the user selects either the ACA or

ACV measurement function. The 3-1/2 digit, 1999 count LCD display incorporates low battery and.

function select indicators. Data Hold Feature stores the present measurement value on the display.

An ACV continuity function is also included in the 87-AC400’s compact design enabling the techni-

cian to check wiring, fuses, conductors, switches, etc. The 87-AC400 is protected to a maximum

range of 800 Vrms/500 Arms.

87-AC400 includes test leads, batteries, carry case, and a drop proof wrist strap.

Best

Function Range Accuracy

VAC 200v - 500V +/- (1.2% rdg + 5 dgts) 40Hz to 500 Hz

ACA 200 - 400A +/- (1.5% rdg + 5 dgts) 50/600 Hz

Continuity Below 600 W

RANGES: 87-AC400

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

CPS87-DM350 Meter

The 87-DM350 incorporates a feature rich design that enables the unit to expand beyond tradi-

tional electrical & HVAC/R service technician’s need, effectively covering all analytical service

measurements.

Autoranging

Aconvenient autoranging feature automatically selects correct range when the RANGE key is

depressed and the rotary switch is placed on the desired measurement function

(Voltage, Ohms, current, frequency & capacitance).

Rugged Design

The 87-DM350’s has a rugged waterproof outer case, and advanced 600V high energy fuse, which

protects the unit against current surge. A voltage overload system protects to 1100VDC/800VAC.

The unit bears a CE approval and complies with EN-61010-1 1000V CAT111 POLLUTION standards

Display

The 3.75in/85mm LCD incorporates a 42-segment bar graph display for indication of peaks and

nulls. A back light display allows easy viewing in dark areas.

The display incorporates a 4000

count LCD & a battery saving function that automatically turns off the back light after a period of time

Min/Max Memory

Automatically detects & stores the max/min readings during line voltage monitoring.

Relative Reference Mode

Stores a value for comparison against future values.

Data Hold

Stores present reading on the display when the data hold key is depressed.

APPLICATIONS

❉

Measure voltage to determine voltage source, voltage drop and

voltage imbalance

❉

Measure resistance to determine resistance of a load or a conductor,

value of a resistor and test operation of a variable resistor.

❉Measurement of frequency for trouble shooting power sources,

communication equipment and computers.

❉Verify line frequency.

❉Measure capacitance for checking motor run and start capacitors.

87-DM350

ACCESSORIES FOR 87-DM350

Part Number Description

87-DMXL 87-DM350 Test Leads

87-DMXF05 87-DM350 0.5 Amp Fuse

87-DMXF2 87-DM350 20 Amp Fuse

To place your order call 1-800-621-5622; fax 1-800-535-9538

123

87-TMAP

Pocket Thermometers

Part

Number Range Description

87-TMAP 0 to 220°F CPS Analog Pocket Thermometer

87-TMDP -58 to 302°F CPS Digital Pocket Thermometer

52223-A -58 to 302°F Mastercool Digital Pocket Thermometer

87-TMDP

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

52223-A

*Distance to Spot Size

The TMINI infrared thermometer provides instant temperature measurement over a wide

range of applications. The unit offers simple one-handed operation, laser point sighting, a

backlit display, °C/°F select ability and an automatic power off feature. Use the TMINI to

quickly measure temperatures of registers, ductwork, furnaces, evaporator, condensers,

compressors, relays, manifolds radiators, exhaust systems, thermostats, bearings and more.

Leatherette carrying case and 9V alkaline batter are included.

Tools & Instruments

CPS



Infrared Thermometers

Part Number Description

87-TMINI12 Infrared Thermometer

To place your order call 1-800-621-5622; fax 1-800-535-9538

124

Tools & Instruments

875025

Specifications

Probe type: Semiconductor probe

Meas. Range: 0 to +10,000 ppm CH4

Dimensions: 7.5" x 2.2" x 1.7"

Weight: 11 oz.

Battery Type: 9 V

Life: 10 hr.

1st alarm limit: from 200 ppm CH4

2nd alarm limit: 10,000 ppm CH4

875025 Combustible Gas Leak Detector

Testo # 0632-0316 – 316

The practical and rugged Testo 316-1 gas leak detector quickly detects

even the smallest gas leaks.

Features & Benefits

•Flexible measurement probe for hard to reach locations

•Visual and audible alarms signal in proportion to increasing gas

concentration

•TopSafe protective case protects from dirt and impact (optional)

•Rugged, yet lightweight for professional use

•Flexible 10" probe for hard to reach areas

•Battery included

•2 year product warranty

Rheem National Customer Service

Division Office...............................................................334-260-1500

Parts, Customer Service, Warranty ...................................1-800-621-5622

Fax.....................................................................1-800-535-9538

Email...............................................................parts@rheem.com

Technical Service.........................................................1-800-HEATER3

(1-800-432-8373)

Email...........................................................techserv@rheem.com

Website...................................................................www.rheem.com

In keeping with its policy of continuous progress

and product improvement, Rheem reserves the

right to make changes without notice.

National Parts service center

from Rheem

Rheem Sales Company

4744 Island Ford Road

Randleman, NC 27317

www.rheem.com

02/09 PP-101 Rev. 8

2006Parts SEP Rev.5 Rheem Ruud 2009 Water Heater Parts Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
