RHEEM WATER HEATER PARTS GUIDE

Parts & Accessories

2011

for water heating systems

Preferred Parts

The premium line approved for replacement in

•Rheem®and Ruud®residential water heaters

•Rheem®-Ruud®commercial water heaters

•Richmond®residential water heaters

•PerfectFit™commercial water heaters

•GE and Hotpoint residential water heaters

Universal Parts

•The value line for all your replacement parts

•Fits most brands of water heaters

Tools & Accessories

•Supplies that help with any job

Listings, Diagrams,

Reference Guide, Displays

and more!

http://waterheatertimer.org/How-to-troubleshoot-gas-water-heater.html

Rheem Advantages

It is the goal of Rheem Parts to set the standard for the plumbing industry we serve, and to

be the organization against which others are measured. We are market driven, and will

continue to explore products and services that offer our customers a competitive advantage

in the marketplace.

Technology

Rheem has significant research and development capability which allows us

to offer the latest technology and product reliability to our customers.

Patented Products

Rheem has a number of patented products that allow us to offer

the highest quality replacement parts.

Customer Service

Rheem has an industry leading customer service team that can provide fast

and convenient answers to our customer’s questions.

Brand Equity

The Rheem and Ruud names are synonymous with quality and customer service

and allows Rheem Parts and our partners to capitalize on this brand recognition

with professional plumbers.

Business Partner

Rheem is a proven business partner to our customers.

Sales Professionals

Rheem Water Heating has an exceptional network of sales professionals

to help our customers sell replacement parts.

Merchandising Opportunities

Rheem Parts has taken the opportunity to complement our factory authorized

Preferred Parts with Universal Parts and differentiate these by branding

each with unique packaging and selling messages.

National Parts service center

from Rheem

To place your order call 1-800-621-5622; fax 1-800-535-9538

General Terms and Conditions Table of Contents

FREIGHT ALLOWANCE

F.O.B. Plant, Randleman, North Carolina. Full freight allowed

on ground shipping, within Continental United States on Preferred

Parts orders of $250.00 or more.

TAXES

Prices are subject to the addition of any tax imposed by any

present or future Federal, State, County or Municipal law on the

sale of such material, unless we have a tax exemption certificate

on file.

ACCEPTANCE OF ORDERS

All orders are subject to final approval on the terms and conditions

contained in our standard customer acknowledgment form.

VOLUME DISCOUNT

A 5% discount will be applied to all orders totalling $1000.00 or

more.

Note: Excludes Thermal Expansion Tanks and Protection Plus Kits.

Preferred Parts for Residential Water Heaters

Elements ..........................................................................................2-3

Preferred Parts Plumber’s Pack ..........................................................4

Thermostats ........................................................................................4

Replacement Parts.........................................................................5-22

Preferred Parts for Commercial Water Heaters

Replacement Parts.......................................................................23-32

Universal Parts for Residential Water Heaters

Elements............................................................................................33

Universal Plumber’s Pack .................................................................34

Replacement Parts.......................................................................35-36

Parts Diagrams with Parts Lists

Residential Water Heaters ...........................................................37-68

Commercial Water Heaters..........................................................69-79

Display and Planograms ...................................................................80-83

Supplies & Hardware ......................................................................84-109

Tools & Instruments ....................................................110-130

A comprehensive catalog of approved replacement parts for Rheem®and Ruud®, Richmond®, PerfectFit™, and all GE and Hotpoint water heaters.

The Water Heater

PARTS

Guide 2011

Note: Please contact the Rheem National Customer Service Center at 1-800-621-5622 for items not listed in this guide.

Rheem National Customer Service

Division Office..................................................334-260-1500

Parts, Customer Service, Warranty ......................1-800-621-5622

Fax .......................................................1-800-535-9538

Email .................................................parts@rheem.com

Technical Service............................................1-800-HEATER3

(1-800-432-8373)

Email .............................................techserv@rheem.com

Website......................................................www.rheem.com

MATERIAL RETURNS - WATER HEATER PARTS

Material purchased from Rheem Parts Department may be returned

for credit within 90 days of the date of invoice, subject to a 25%

re-stocking charge. Total dollar amount returned must exceed

$25.00.

The following parts are not eligible for return:

• Items with net price less that $10.00.

• Items with date codes prior to year 2008.

• Chemicals.

• LP Conversion Kits.

• “AE”, “AM” or “AS” prefix part numbers.

• Opened cartons of items requiring Case Qty purchase.

• Special Order Items (Non-stock items.)

The only exception to this policy may be for extenuating circum-

stances. The Manager, Water Heater Parts, will make final determi-

nation for issuing a Return Goods Authorization (RGA).

All returns must have prior written approval from Rheem Parts

Department.

Request for the issue of an RGA must be submitted to Rheem

Customer Service. Fax request for RGA to 800-535-9538.

Information required is the original purchase order or credit card

order number that the parts were ordered on, Rheem sales order

number, Rheem invoice number along with the part number and

quantity to be returned. (We recommend faxing a copy of the

invoice with the part(s) identified to expedite the process. All

required information will be on the invoice.)

All materials must be “new & unused” and in the original pack-

aging (material received unpackaged or used will be returned to

sender Freight Collect, with no credit issued).

All approved returns must be shipped (FOB destination, prepaid

and allowed).

All approved returns must be shipped within 30 days approval.

Items returned without prior approval will be scrapped, no credit

issued.

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

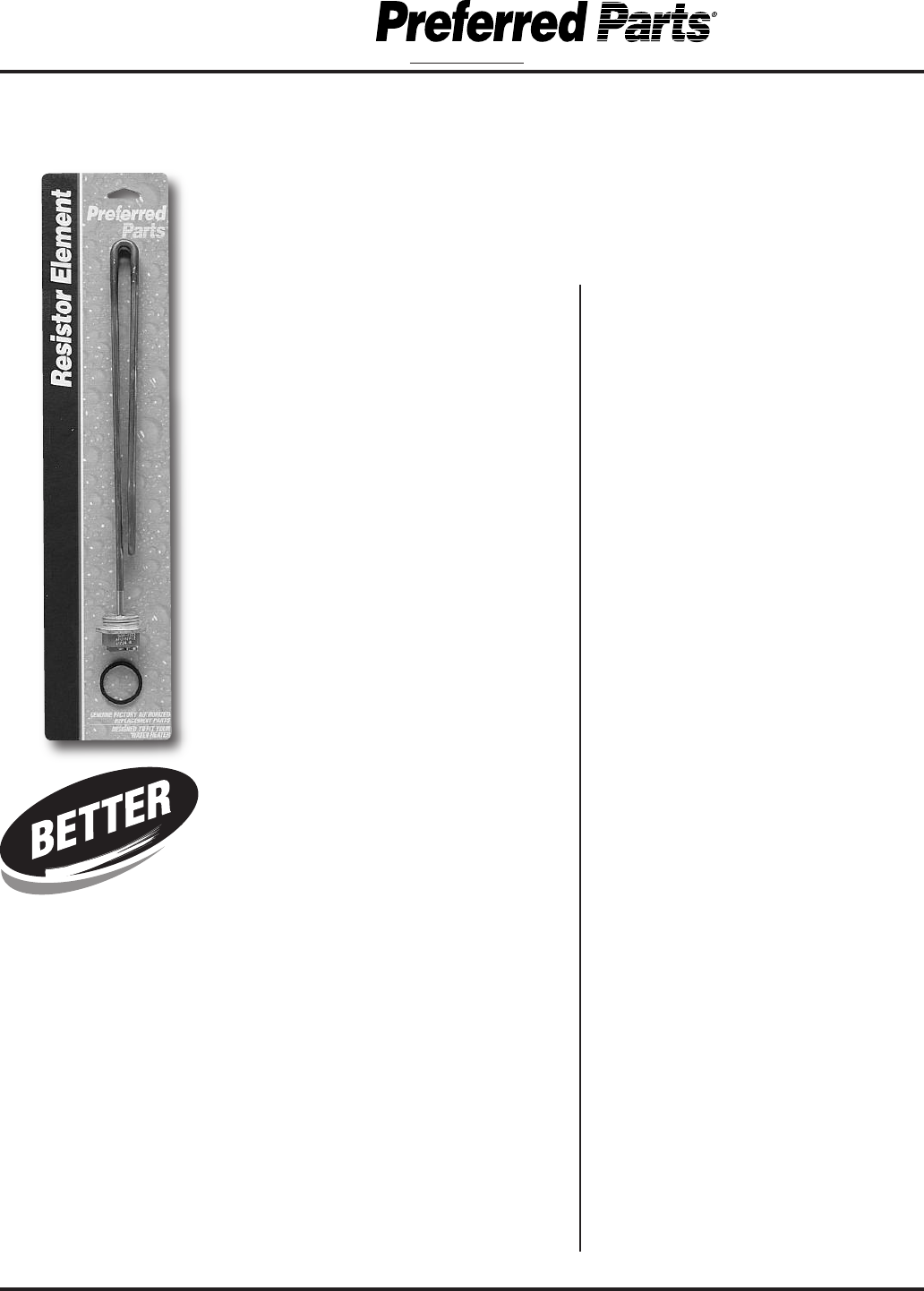

Resistored Stainless Steel Heating Elements

Preferred Parts resistored stainless steel elements feature a low watt density design with an

outer sheath of Incology®800 to resist failure from “dry firing”. Built in resistor helps prolong

anode life for greater tank protection and longer working life.

SCREW-IN ELEMENTS

• 480V/2000W, 9-1/2", LWD

SP10870GL (Single)

• 480V/3000W, 12-5/8", LWD

SP10870JL (Single)

• 480V/4000W, 16-1/4", LWD

SP10870LL (Single)

• 480V/4500W, 17-1/2", LWD

SP10870ML (Single)

• 480V/5000W, 19-1/8", LWD

SP10870NL (Single)

• 480V/6000W, 19-1/8", LWD

SP10870QL (Single)

• 277V/2000W, 19-1/2", LWD

SP10871GL (Single)

• 277V/3000W, 12-3/8", LWD

SP10871JL (Single)

• 277V/4000W, 16-1/4", LWD

SP10871LL (Single)

• 277V/4500W, LWD

SP10871ML (Single)

• 277V/5000W, 19-1/8", LWD

SP10871NL (Single)

• 277V/6000W, 19-1/8", LWD

SP10871QL (Single)

• 240V/2000W, 9-1/2", LWD

SP10869GL (Single)

• 240V/2500W, 9-15/16", LWD

SP10869HL (Single)

• 240V/3000W, 12-3/8", LWD

SP10869JL (Single)

• 240V/3500W, 13-1/2", LWD

SP10869KL (Single)

• 240V/4000W, 16-1/4", LWD

SP10869LL (Single)

• 240V/4500W, 15-1/2", LWD

SP10869ML (Single)

• 240V/4500W, 13-1/2", MWD

SP10869MM (Single)

• 240V/5000W, 19-1/8", LWD

SP10869NL (Single)

• 240V/5500W, 13-1/2", HWD

SP10869PH (Single)

• 240V/6000W, 19-1/8", LWD

SP10869QL (Single)

• 208V/2000W, 9-1/2", LWD

SP10867GL (Single)

• 208V/3000W, 12-5/8", LWD

SP10867JL (Single)

• 208V/4000W, 16-1/4", LWD

SP10867LL (Single)

• 208V/4500W, 17-1/2", LWD

SP10867ML (Single)

• 208V/5000W, 19-1/8", LWD

SP10867NL (Single)

• 208V/6000W, 19-1/8", LWD

SP10867QL (Single)

• 120V/1440W, 7-11/16", HWD

SP10868LH (Single)

• 120V/1700W, 13-1/2", LWD

SP10868KL(Single)

• 120V/2000W, 9-1/2", LWD

SP10868GL (Single)

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Resistored Copper Heating Elements

Preferred Parts energy efficient resistor copper heating elements help fight lime

build up and the resistor feature helps prolong the tank life of the water heater.

SCREW-IN ELEMENTS

• 240V/1500W, 10-5/8", LWD

SP10552FL (Single)

• 240V/2000W, 7-11/16", HWD

SP10552GH (Single)

• 240V/2000W, 13-5/8", LWD

SP10552GL (Single)

• 240V/2500W, 9-7/16", HWD

SP10552HH (Single)

• 240V/3000W, 10-5/8", HWD

SP10552JH (Single)

• 240V/3000W, 11-11/16", LWD

SP10552JL (Single)

• 240V/3500W, 13-3/8", LWD

SP10552KL (Single)

• 240V/4000W, 13-3/8", LWD

SP10552LL (Single)

• 240V/4500W, 13-5/8", HWD

SP10552MH (Single)

• 240V/4500W, 13-3/4", LWD

SP10552ML (Single)

• 240V/5000W, 13-3/4", LWD

SP10552NL (Single)

• 240V/5500W, 13-1/2", HWD

SP10552PH (Single)

• 240V/5500W

SP10552PL (Single)

• 240V/6000W, 11-3/4", HWD

SP10552QH (Single)

• 240V/6000W

SP10552QL (Single)

• 208V/2000W, 7-11/16", HWD

SP10872GH (Single)

• 208V/2000W, 13-5/8", LWD

SP10872GL (Single)

• 208V/2500W, 9-7/16", HWD

SP10872HH (Single)

• 208V/3000W

SP10872JH (Single)

• 208V/3000W, 11-11/16", LWD

SP10872JL (Single)

• 208V/4000W, 13-3/8", LWD

SP10872LL (Single)

• 208V/4500W

SP10872MH (Single)

• 208V/4500W, 13-3/4", LWD

SP10872ML (Single)

• 208V/5000W, 13-3/4", LWD

SP10872NL (Single)

• 208V/5500W, 13-7/16", LWD

SP10872PL (Single)

• 208V/6000W, 11-3/4", HWD

SP10872QH (Single)

• 208V/6000W, 15-1-16", LWD

SP10872QL (Single)

• 120V/1500W, 7-11/16", HWD

SP10874FH (Single)

• 120V/1700W, 11-1/2", LWD

SP10874KL (Single)

• 120V/2000W, 7-11/16", HWD

SP10874GH (Single)

• 120V/2500W, 9-7/16", HWD

SP10874HH (Single)

• 120V/3000W, 10-5/8", HWD

SP10874JH (Single)

OPEN COIL ELEMENTS

• 120V/1500W

AP13169

• 120V/2000W

AP13170

• 240V/1500W

AP13171

• 240V/2000W

AP13172

ADAPTERS

• Adapt-O-Flange Kit

SP6830 (Single)

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

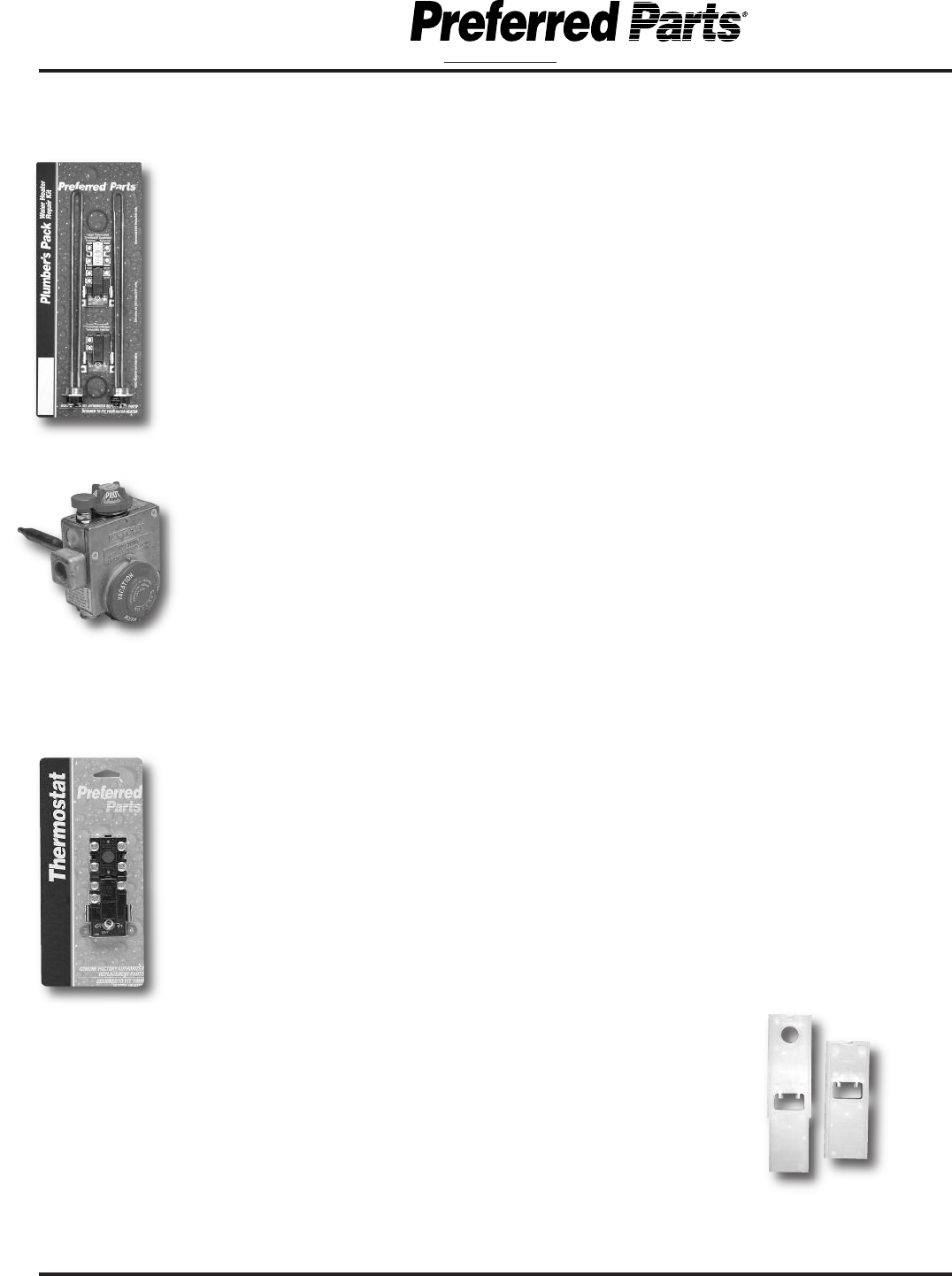

Preferred Parts Plumber’s Pack

The plumber’s pack is an all-inclusive “tune-up” kit for electric water

heaters featuring the most popular replacement parts on the market.

Plumber’s Pack Kit - includes two resistored 4500 watt screw-in copper heating elements, two heating

element gaskets, and upper & lower thermostats (all of which are factory preferred replacement quality)

SP20060 (single)

Gas Thermostats

• Robertshaw LP Gas Thermostat

(57-160 degrees) control

valve with left hand main burner outlet threads with 1 1/4"

shank - single use high limit (200 degrees) - 1/2" inlet & outlet

SP12258B (single) 1.25” Shank

SP12258N (single) 2.375” Shank

• Robertshaw Convertible Natural and LP Gas Thermostat

(

150 degree max) for Manufactured Housing with 1 1/4"

shank - single use high limit (195 degree)

SP9051B (single) 1.25” Shank

SP9051D (single) 2.25” Shank

• Natural Gas Thermostat - (57-160 degrees)

control valve with 1 1/4" shank - single use high limit

(200 degrees) - 1/2" inlet & outlet

SP20164

• WR Natural Gas Thermostat - (57-160 degrees)

control valve with 2 7/8" shank - single use high limit

(200 degrees) - 1/2" inlet & outlet

SP20264 (single)

Electric Thermostats*

• Therm-O-Disc Upper Thermostat (max 150 degree) & High

Limit (170 degree) - Two element non-simultaneous 208,

240, 277, 480 volt

SP11698 (single)

• Therm-O-Disc Upper Thermostat (max 150 degree) & High

Limit (170 degree) - Two element simultaneous 208, 240,

277, 480 volt

SP11699 (single)

• Therm-O-Disc Upper Thermostat (max 150 degree) & High Limit

(170 degree) - Single element 120 volt

SP11700 (single)

• Therm-O-Disc Lower Thermostat (max 150 degrees)

simultaneous and non-simultaneous 208,240,277,480 volt

SP11695 (single)

Electric Thermostat Covers

• Upper Thermostat Cover

AP8313-9 (single)

• Lower Thermostat Cover

AP8314-9 (single)

Plumber’s Pack

Gas Thermostats:

• Designed to sense the water

temperature inside the tank, and

control on/off function of the main

burner assembly

Electric Thermostats:

• Temperature range of 100° F

to 150° F

• Models are available for upper and

lower heating elements on double

element 240V and single element

120V water heaters

Electric thermostats may be

ordered in bulk. Box consists of

50 thermostats of the same part

number. Bulk pricing is less

than the single price. Please call

for pricing.

Preferred Parts™Electric

Thermostat Covers

Manufactured

Housing Only

LP Conversion Kits

• AS38849-1 30-40 Gal DV

• AS38903-1 50 Gal DV

• AS40716-2 30-40 Gal Tall

WR Controls

• AP15162-C

30, 40,

50 Gal DV

• AP15162A 30-40 Gal Tall

High Wind Cap

• SP13068

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Thermocouple

This bi-metal device

detects pilot flame heat

and carries millivolt

current to the magnet

assembly in the gas

control valve which

sends gas to the

burner assembly to

ignite the burner.

Pilot Burner

Designed to light the

main burner when the

thermostat senses the

demand for more heat.

T & P Relief

Valve:

Safety device that

allows water to

escape from the

tank in the unlikely

event that the

temperature or

pressure becomes

excessive. Designed

to operate at

approx. 150 PSI

and 210º F.

Drain Valve:

Used to drain hot

water from the tank

when performing

periodic cleaning or

replacing a part.

Thermocouples

• 15” Thermocouple

SP6379E (single)

• 17” Thermocouple

SP6379K (single)

• 21” Thermocouple

SP6379C (single)

• 24” Thermocouple

SP6379R (single)

• 30” Thermocouple

SP6379H (single)

Pilot Burner Assemblies

• Natural Gas Pilot Burner Assembly - .0115 orifice

SP8980B (single)

• LP Gas Pilot Burner Assembly - .008 orifice - colored red for

easy LP identification

SP8980C (single)

Temperature & Pressure Relief Valves

• Watts 100XL-4; 3/4" inlet x 3/4" discharge - M150# (150 PSI

pressure / 210 degree temperature) up to 100,000 BTU

SP12574 (single)

• Watts 100XL; 3/4" inlet x 3/4" discharge (150 PSI pressure /

210 degree temperature) - long shank up to 100,000 BTU

SP8346 (single)

• T&P Extender; 3/4" x 2-1/2" Poly Liner

SP11620 (single)

Drain Valves

• Brass Drain Valve; 3/4" x 2 1/4" shank

SP6070G (single)

• Brass Drain Valve; 3/4" x 3" shank - Commercial Light Duty

SP12112S (single)

• Standard Melet; 3/4" NPT x 2 1/4" shank

SP12039 (single)

• Brass Drain Valve; 3/4" x 2 1/4" shank – Residential

SP12112G (single)

Gas Connectors

• 12” Stainless Steel Gas Connector MIP X MIP

SP13140A

• 18” Stainless Steel Gas Connector MIP X MIP

SP13140B

• 24” Stainless Steel Gas Connector MIP X MIP

SP13140C

• 48” Pro Coat Gas Connector

AP13318D

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Flexible Link

Anode Rod:

Metallic rod installed

inside the tank to

protect against

corrosion. The

“R-Tech”®anode rod

is made of magnesium

and is designed to

offer the longest

lasting tank protection.

Dip Tube

Non-metallic. Runs from

the cold water inlet to

deliver cold water to the

bottom of the tank as

hot water is drawn out.

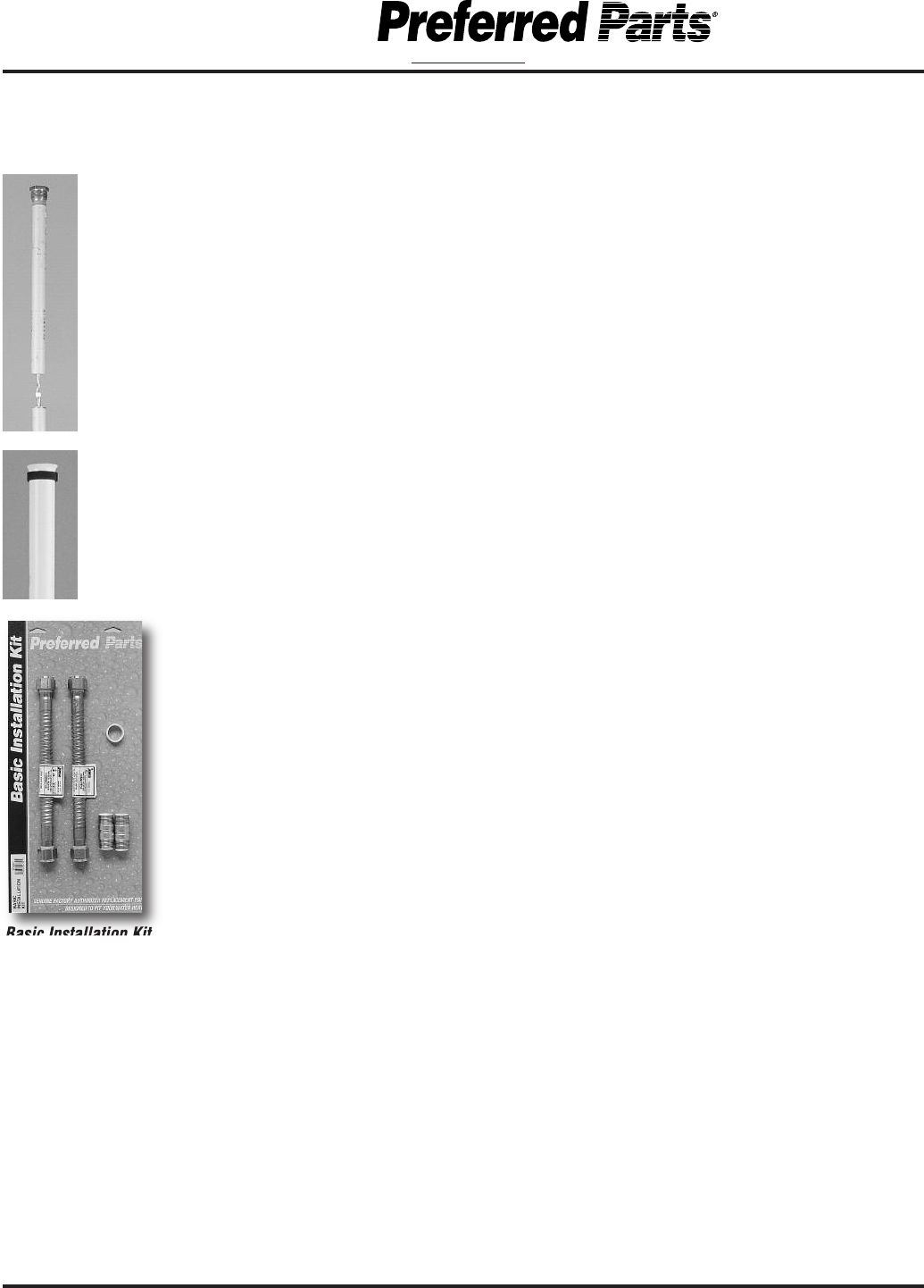

Basic Installation Kit

Anode Rods

• R Tech Resistor Magnesium Anode Rod 44" long x .700 dia

SP11309C (single)

• Galvo Magnesium 44" long x .840 dia

SP11345C (single)

• Magnesium Anode Rod 44" long x .840 dia

SP11524C (single)

• Magnesium Anode Rod 58" long x .840 dia

SP11524Z (single)

• R Tech Resistor Magnesium Anode Rod 44" long x .900 dia

SP11526C (single)

• R Tech Resistor Magnesium flexible link Anode Rod

52" long - 12" sections

SP8371B (single)

• Aluminum Anode Rod 42" long x .625 dia

AP12938 (single)

Dip Tubes*

• Dip Tube with anti-siphon hole - 3/4” x 54” long - clear

(North Carolina code) with gasket

SP11251R (single)

• Dip Tube with anti-siphon hole - 1” x 26” long with gasket

SP11269C (single)

• Dip Tube with anti-siphon hole - 3/4” x 54” long with gasket

SP11248R (single)

* Due to the unique application of the EverKleen Dip Tube, please

call for part number and pricing. Have the model number and

serial number of the water heater on hand.

Installation Kits

• Basic Installation Kit

SP20009

• Gas Installation Kit

SP20010

• Electric Installation Kit

SP20011

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

• Thermostats

SP20296 (NG - All except 43V50-50E2 & ULN)

SP202967 (NG - 43V50-50E2 Only)

SP20298 (NG - ULN Only)

SP20302 (LP - All Models)

• Thermal Well

AP14696B (All models except ULN)

AP15324 (ULN Only)

• Flue Damper

SP20294 (3 Inch - 43V50-50E2 Only)

SP20295 (4 Inch - 43V50-50E2 Only)

• Damper Housing

AS42968H (3 Inch)

AS42969H (4 Inch)

• Pilot Assembly

AP14698G (NG - All Models)

AP14700D (LP - All Models)

• Draft Hood

AS41646-H (3 and 4 Inch Models)

• Pilot Igniter Assembly

AP16006A (40 Gallon ULN Only)

AP16006B (50 Gallon ULN Only)

• Heat Traps

SP20003 (All Models)

• Transformer Assembly

SP20293 (All Models)

• Wiring Harness

AP15849 (All Models)

• T&P Valves

SP12575B (All Models)

• Drain Valve

SP12112G (All Models)

• Inner Door Gasket

SP20063 (All Models)

• FV Sensor

AP13447-3 (All Models)

• Anode Rod

SP11309C (All Models)

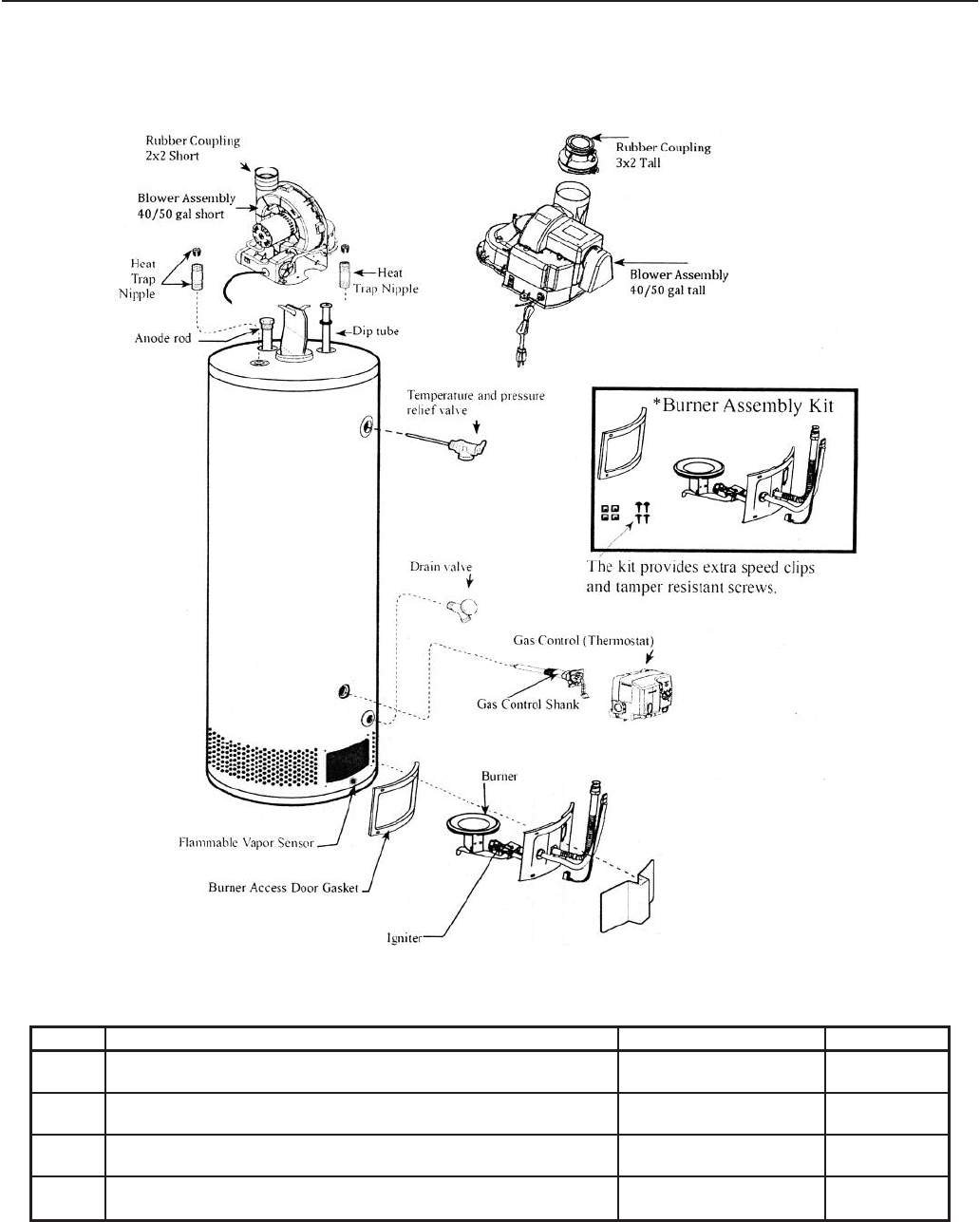

Energy Star II Powered Damper

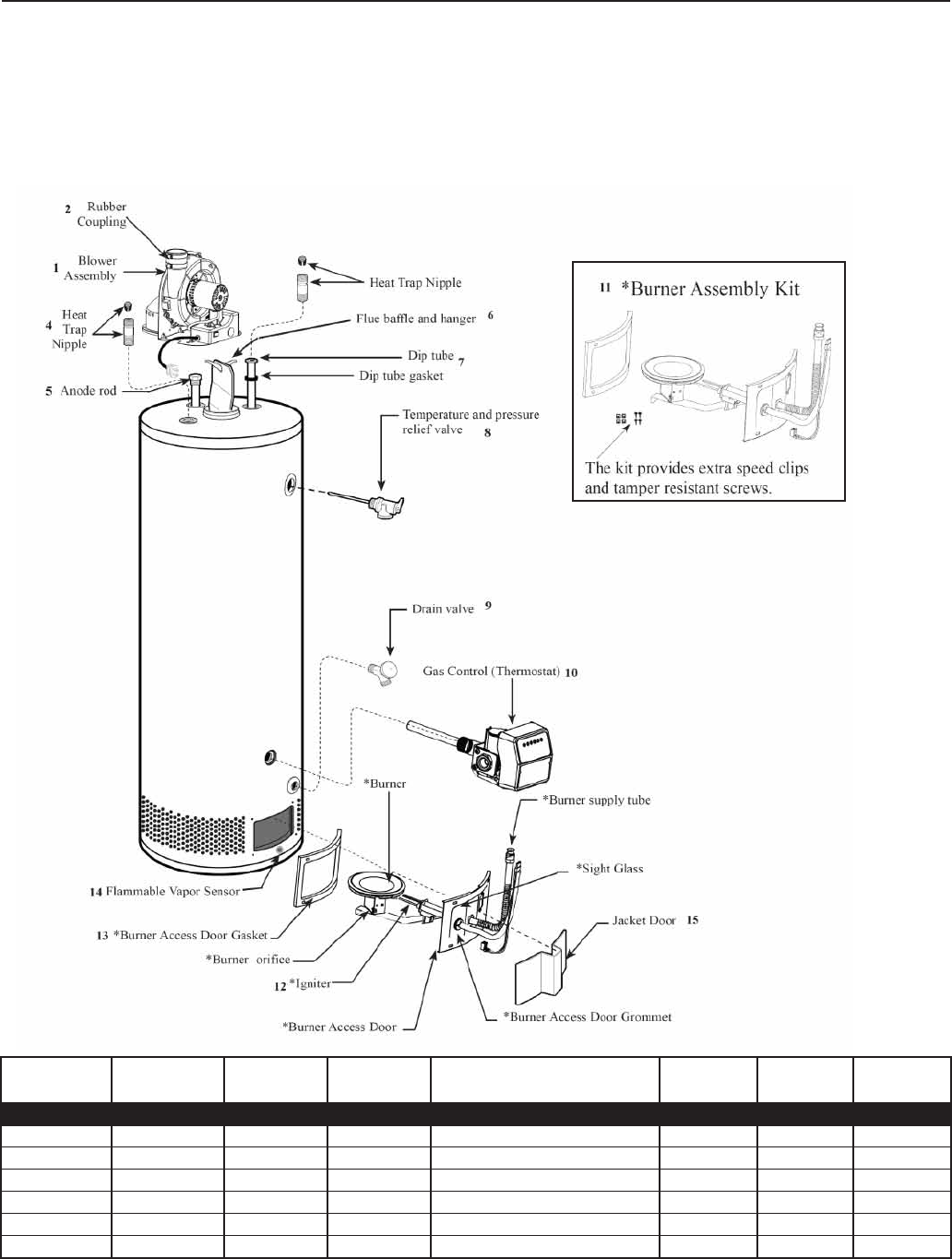

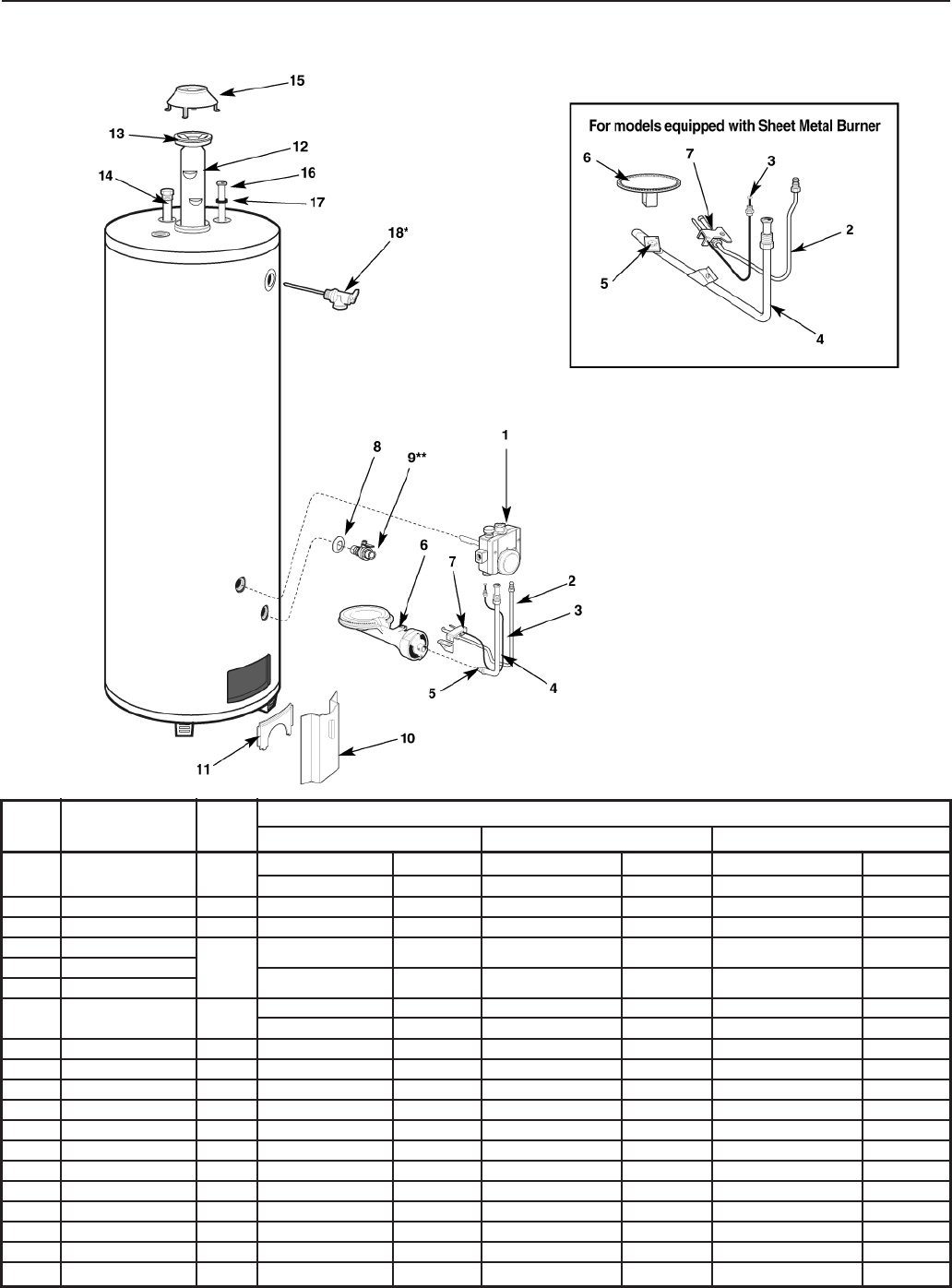

PARTS DIAGRAM

ON PAGE 37

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

• Blower Assembly

AP15109 (40/50 Gallon Tall)

AP15534 (40/50 Gallon Short)

• Blower Gasket Kit

SP20289 (40/50 Gallon Tall)

SP20122 (40/50 Gallon Short)

• Pressure Switch Hose

SP20288 (40/50 Gallon Tall)

SP20120 (40/50 Gallon Short)

• Over Temperature Blower Switch

SP20287 (40/50 Gallon Tall)

SP20119 (40/50 Gallon Short)

• Rubber Blower Coupler

SP20290 (40/50 Gallon Tall)

SP12638 (40/50 Gallon Short)

• Anode Rod

SP11309C (All Models)

• Heat Traps

SP20003 (All Models)

•DIP Tube with Gasket

SP11625R (All Models)

• Pressure Switch

SP20292 (40/50 Gallon Tall)

SP20291 (40/50 Gallon Short)

• T&P Valves

AP14835G (All Models)

• Drain Valve

SP12112G (All Models)

• Electronic Gas Control

AP14671 (NG - All Models)

AP14672 (LP - All Models)

• Gas Control Shank

AP14696A (All Models)

• Spark Igniter Assembly

AP14698D (NG - All Models)

AP14700D (LP - All Models)

• Inner Door Gasket

SP20063 (All Models)

• FV Sensor

AP13447-3 (All Models)

• Electronic Display

AP14697A (43VP40 / 50-E)

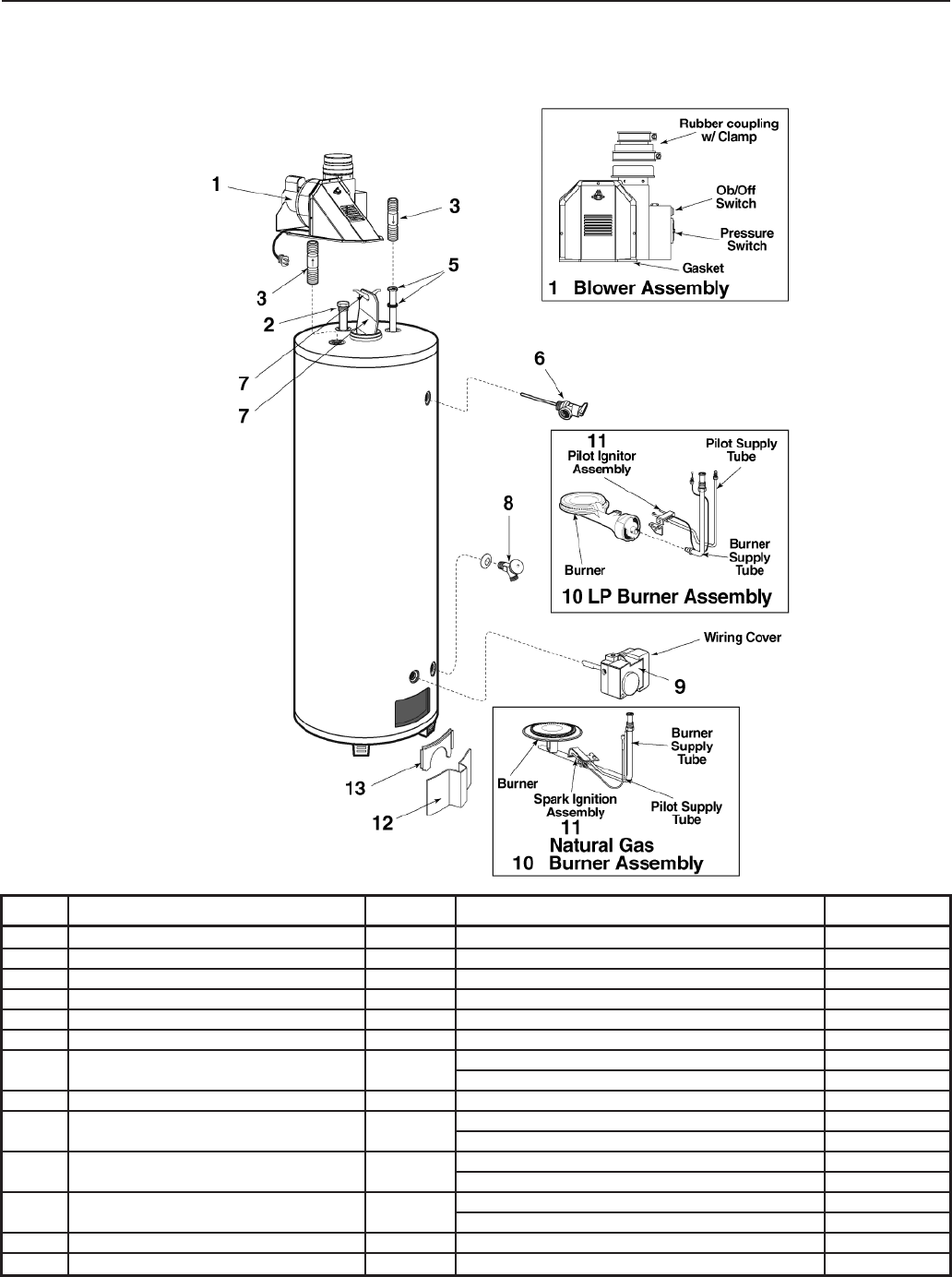

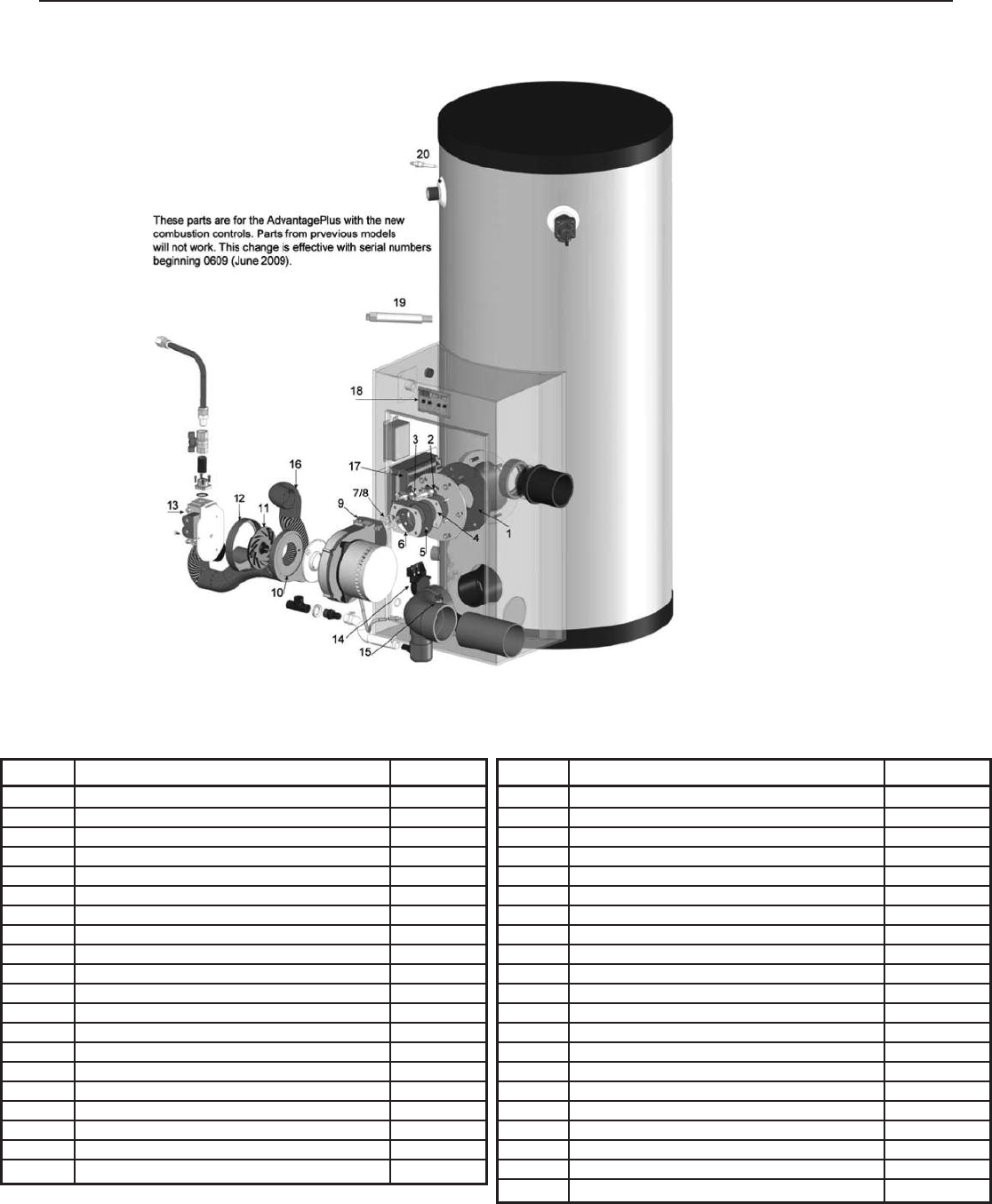

POWERVENT ENERGY STAR II (43 PV)

PARTS DIAGRAM

ON PAGE 41

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

• T&P Relief Valve

SP12577G

• Hot Outlet J-Tube

SP8878N

• ECO & Upper Tank Sensor

SP15100

• Heating Element SS 2.5 KW Upper & Lower

SP10869HL

• Lower Tank Sensor

SP15228

• Brass Drain Valve

SP12112S

• Water Pump

38-103141-01

• Fan

70-103140-01

• Fan Filter

54-103049-01

• Circuit Board

47-103171-01

• Transformer

46-101905-02

• Capacitor

43-25136-10

• Relay

42-101208-03

• Membrane Switch

Rheem – 47-103216-01

Ruud – 47-103216-02

Richmond – 47-103216-03

EcoSense – 47-103216-04

• Ambient Thermistor

47-103122-01

• Evaporator Thermistor

47-103122-02

• Discharge Thermistor

47-103122-03

• Suction Thermistor

47-103122-04

• Water Out Thermistor

47-103122-05

Heat Pump Water Heater

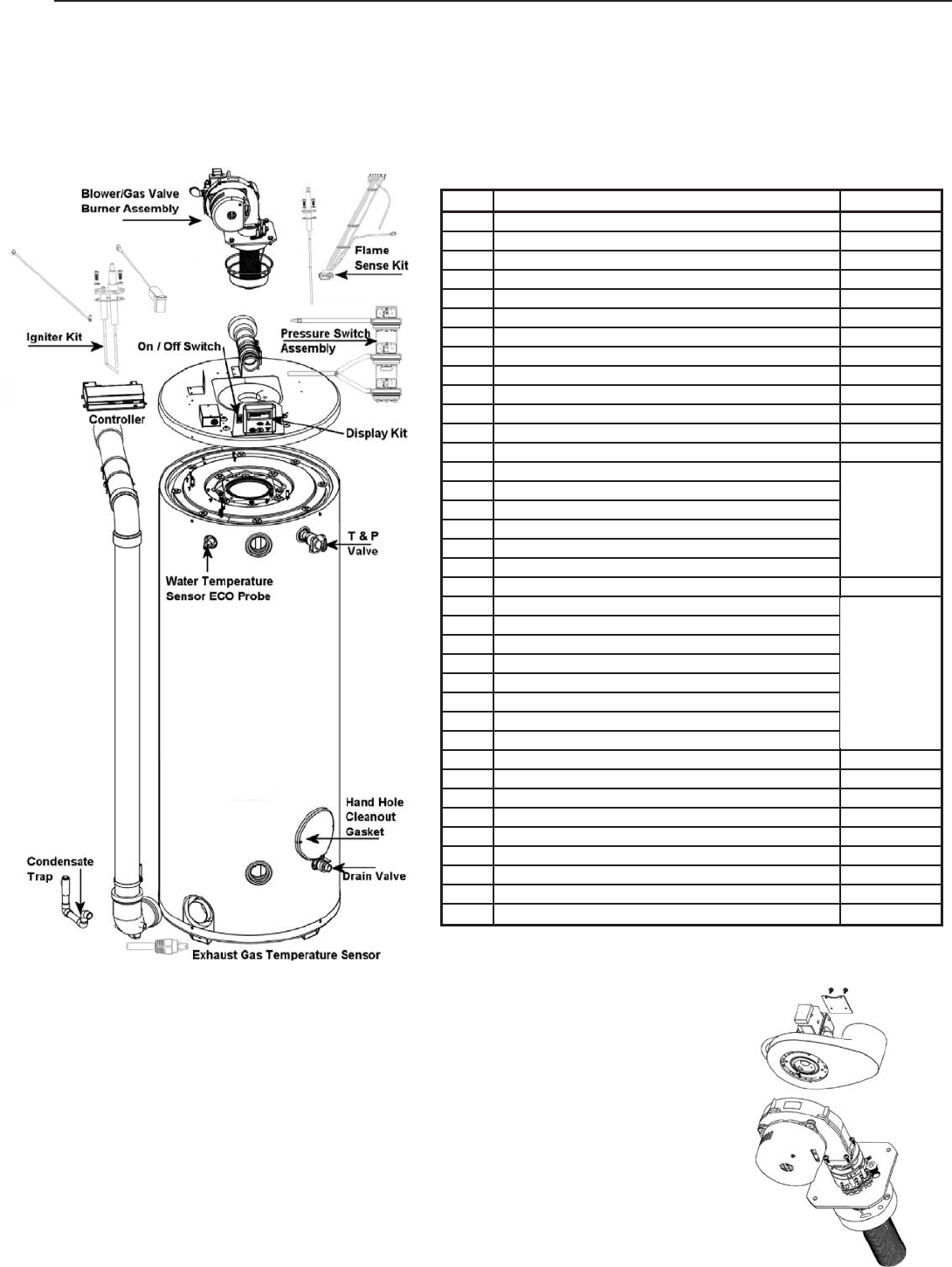

PARTS DIAGRAM

ON PAGE 39

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Robertshaw Parts

• Gas Valve – Natural Gas

SP20166B

• Gas Valve – Natural Gas

SP20166A

• Gas Valve – Natural Gas

SP20264

• Gas Valve – Natural Gas

SP8555W

• Gas Valve – Natural Gas

SP20166C

• Gas Valve – LP

SP13160E

• Gas Valve – LP

SP13160A

• Gas Valve – LP

SP13160D

• Pilot Assembly – Natural Gas

SP20065

• Pilot Assembly – Natural Gas

SP20069

• Pilot Assembly – LP

SP20070

• Pilot Assembly – Natural Gas

SP20071

• Pilot Assembly – LP

SP20072

• Pilot Assembly – Natural Gas

SP20075

• Pilot Assembly – LP

SP20076

• Thermocouple Kit

SP20064

• Piezo Ignitor

AP11941

• Piezo & Pilot Assembly Kit

SP20055

White-Rodgers Parts

• Gas Valve – Natural Gas

SP14270G

• Gas Valve – Natural Gas

SP14270H

• Gas Valve – Natural Gas

SP14270K

• Gas Valve – Natural Gas

SP14270M

• Gas Valve – Natural Gas

SP14339B

• Gas Valve – LP

SP14269A

• Gas Valve – LP

SP14269D

• Gas Valve – LP

SP14269E

• Gas Valve – LP

SP14340C

• Pilot Assembly Kit – Natural Gas

SP20127

• Pilot Assembly Kit – LP

SP20128

• Thermocouple Kit

SP20129

• Piezo Ignitor

AP14316-1 Piezo Only

• Piezo Bracket

AP14315

• Piezo Ignitor - With Bracket

SP14410

Common Service Parts

• Heat Traps

SP20003

• Brass Drain Valve

SP12112S

• Relief Valve

SP12575B

• Gasket Kit

SP20063

• Site Glass

AP12617-2

FVIR (Flammable Vapor Ignition Resistant) Parts

PARTS DIAGRAM

ON PAGE 45

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

FVIR Standing Pilot Parts: 30, 40 and 50 Gallon Standing

Pilot Models (Excluding Direct Vent and PowerVent models)

Cross Reference – Models with Robertshaw Controls & WR Conversions

Service Parts – Robertshaw Controls

Gas Valve Gas Valve Pilot Assy Pilot Assy Thermo-

Rheem Model Ruud Model (NG) (LP) Kit (NG) Kit (LP) couple Kit Gasket Kit

PROFESSIONAL SERIES WITH THE GUARDIAN SYSTEM - 30, 40 and 50 Gallon Capacities

22V40 PROF P2-40 PROF SP20166B* N/A N/A

42V40 PROF PH2-40 PROF SP20166A SP13160E SP20076

RHG PRO40-40F RUG PRO40-40F SP20166C* SP13160D SP20076

22V50 PROF P2-50 PROF SP20166B* N/A N/A

42V50-40 PROF PH2-50-40 PROF SP20166A SP13160E SP20076

RHG PRO50-40F RUG PRO50-40F SP20166C* SP13160D SP20076

RHG PRO50-50F RUG PRO50-50F SP8555W N/A N/A

42V40SPROF PH2-40SPROF SP20166B* SP13160E SP20076

42V50SPROF PH2-50SPROF SP20166B* AP13160A SP20076

FURY SERIES WITH THE GUARDIAN SYSTEM - 30, 40 and 50 Gallon Capacities

42VR40-40F PH2R40-40F SP20166C* SP13160D SP20076 SP20064

42VR50-40F PH2R50-40F SP20166C* SP13160D SP20076 SP20064

22V30F P2-30F SP20166B* SP13160A SP20076 SP20069

22V40-36F1 P40-36F1 SP20166B* N/A N/A

22V40F1 P2-40F1 SP20166B* N/A N/A

42V40F PH2-40F SP20166A SP13160E SP20076

22V50F1 P2-50F1 SP20166B* N/A N/A

42V50-40F PH2-50-40F SP20166A SP13160E SP20076

42V50-50F PH2-50-50F SP8555W N/A N/A

22V30S-30F P2-30S-30F SP20166A N/A N/A

22V40SF P2-40SF SP20166B* SP13160A SP20076

42V40SF PH2-40SF SP20166B* SP13160A SP20076

42V50SF PH50SF SP20166B* SP13160A SP20076

SP20075

SP20064

SP20063

SP20064

SP20075

*WR Conversions

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

FVIR Standing Pilot Parts: 30, 40, 50, 60 and 75 Gallon Standing

Pilot Models (Excluding Direct Vent and PowerVent models)

Cross Reference – Models with White-Rodgers Controls

Service Parts – White-Rodgers Controls (Sept. 2007)

Gas Valve Gas Valve Pilot Assy Pilot Assy Thermo-

Rheem Model Ruud Model (NG) (LP) Kit (NG) Kit (LP) couple Kit Gasket Kit

PROFESSIONAL SERIES WITH THE GUARDIAN SYSTEM - 30, 40, 50 and 60 Gallon Capacities

22V40 PROF P2-40 PROF SP14270G N/A N/A

42V40 PROF PH2-40 PROF SP14270F SP14269E SP20128

RHG PRO40-40F RUG PRO40-40F SP14270H SP14269D SP20128

22V50 PROF P2-50 PROF SP14270G N/A N/A

42V50-40 PROF PH2-50-40 PROF SP14270F SP14269E SP20128

RHG PRO50-40F RUG PRO50-40F SP14270H SP14269D SP20128

RHG PRO50-50F RUG PRO50-50F SP14270K N/A N/A

42V40SPROF PH2-40SPROF SP14270G SP14269A SP20128

42V50SPROF PH2-50SPROF SP14270G SP14269A SP20128

RHGPRO60F RUGPRO60F SP14270M SP14269A SP20128

FURY SERIES WITH THE GUARDIAN SYSTEM - 30, 40, 50 and 60 Gallon Capacities

42VR40-40F PH2R40-40F SP14270H SP14269D SP20128

42VR50-40F PH2R50-40F SP14270H SP14269D SP20128

22V30F P2-30F SP14270G SP14269A SP20128

22V40-36F1 P40-36F1 SP14270G N/A N/A

22V40F1 P2-40F1 SP14270G N/A N/A

42V40F PH2-40F SP14270F SP14269E SP20128

22V50F1 P2-50F1 SP14270G N/A N/A

42V50-40F PH2-50-40F SP14270F SP14269E SP20128

42V50-50F PH2-50-50F SP14270K N/A N/A

22V30S-30F P2-30S-30F SP14270F N/A N/A

22V40SF P2-40SF SP14270G SP14269A SP20128

42V40SF PH2-40SF SP14270G SP14269A SP20128

42V50SF PH50SF SP14270G SP14269A SP20128

42V60F PH2-60F SP14270M SP14269A SP20128

PROFESSIONAL AND FURY SERIES WITH THE GUARDIAN SYSTEM - 75 Gallon Capacity

RHGPRO75F RUGPRO75F SP14339B SP14340C SP20127 SP20128 SP20129 SP20063

42V75F PH2-75F SP14339B SP14340C SP20127 SP20128 SP20129 SP20063

SP20127

SP20129

SP20063

SP20129

SP20127

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

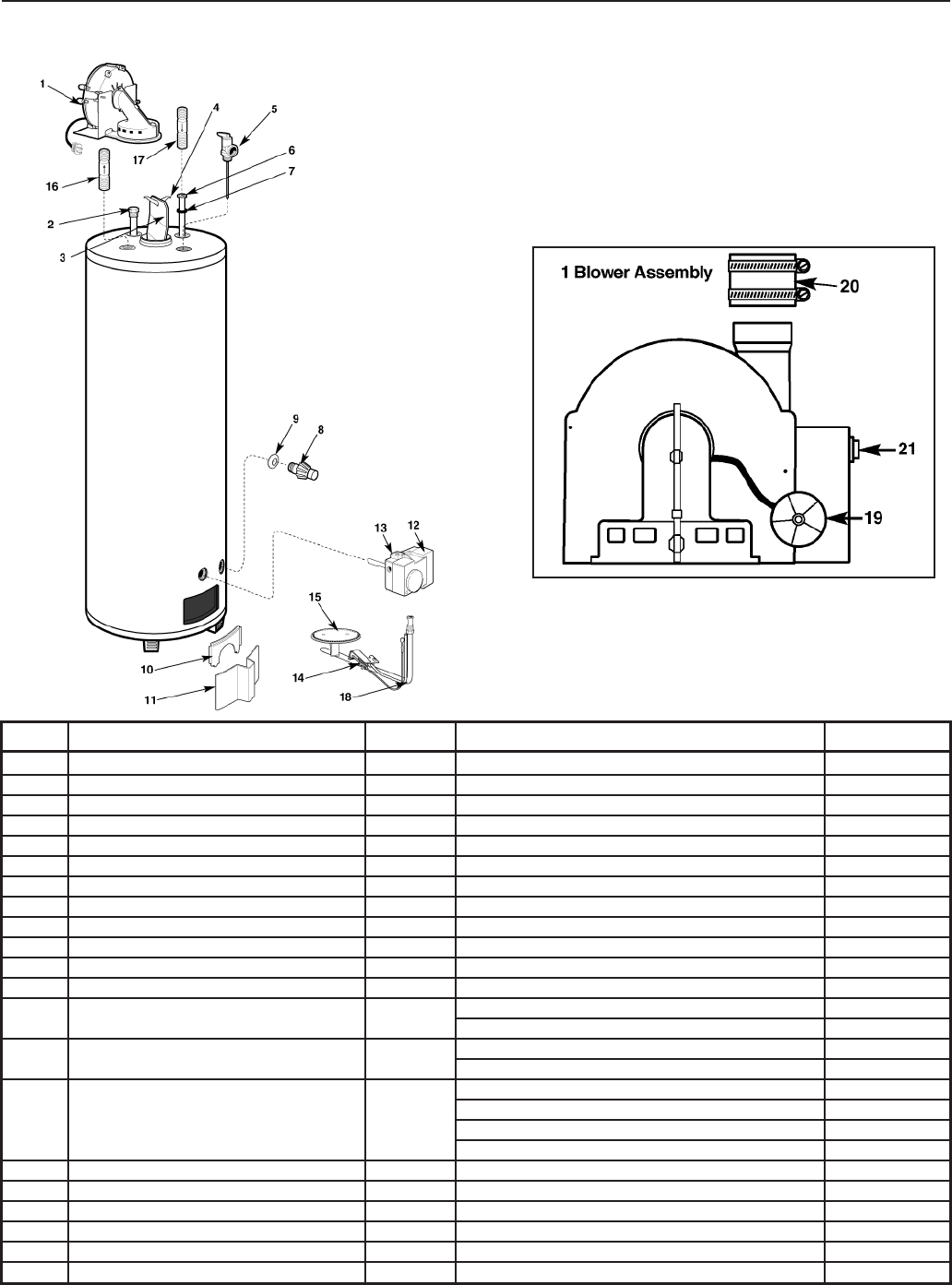

• Blower Assembly with Pressure Switch

SP13416 (40 & 50 Gal. Tall)

SP13605 (40 & 50 Gal. Short)

• Pressure Switch

SP13910

• Coupling

SP12638

• Anode Rod

SP11309C (40 & 50 Gal. Tall)

SP11309Y (40 & 50 Gal. Short)

• Heat Trap Nipple

SP20003

• Dip Tube

SP11625G (40 Gal. Tall)

SP11625R (50 Gal. Tall)

SP11625S (40 & 50 Gal. Short)

• T&P Valve

SP8346

• Drain Valve

SP12112G

• Electronic Gas Control

AP14671 (Nat)

AP14672 (LP)

• Thermostat Shank (1.926)

AP14696A

• Thermostat Shank (2.870)

AP14696B

• Spark Igniter Assembly

SP14698D (Nat)

SP14700D (LP)

• Inner Door Gasket Kit

SP20063

• Flammable Vapor Sensor

AP13447-3

• PCB Enclosure (Display Power Supply)

AP14875

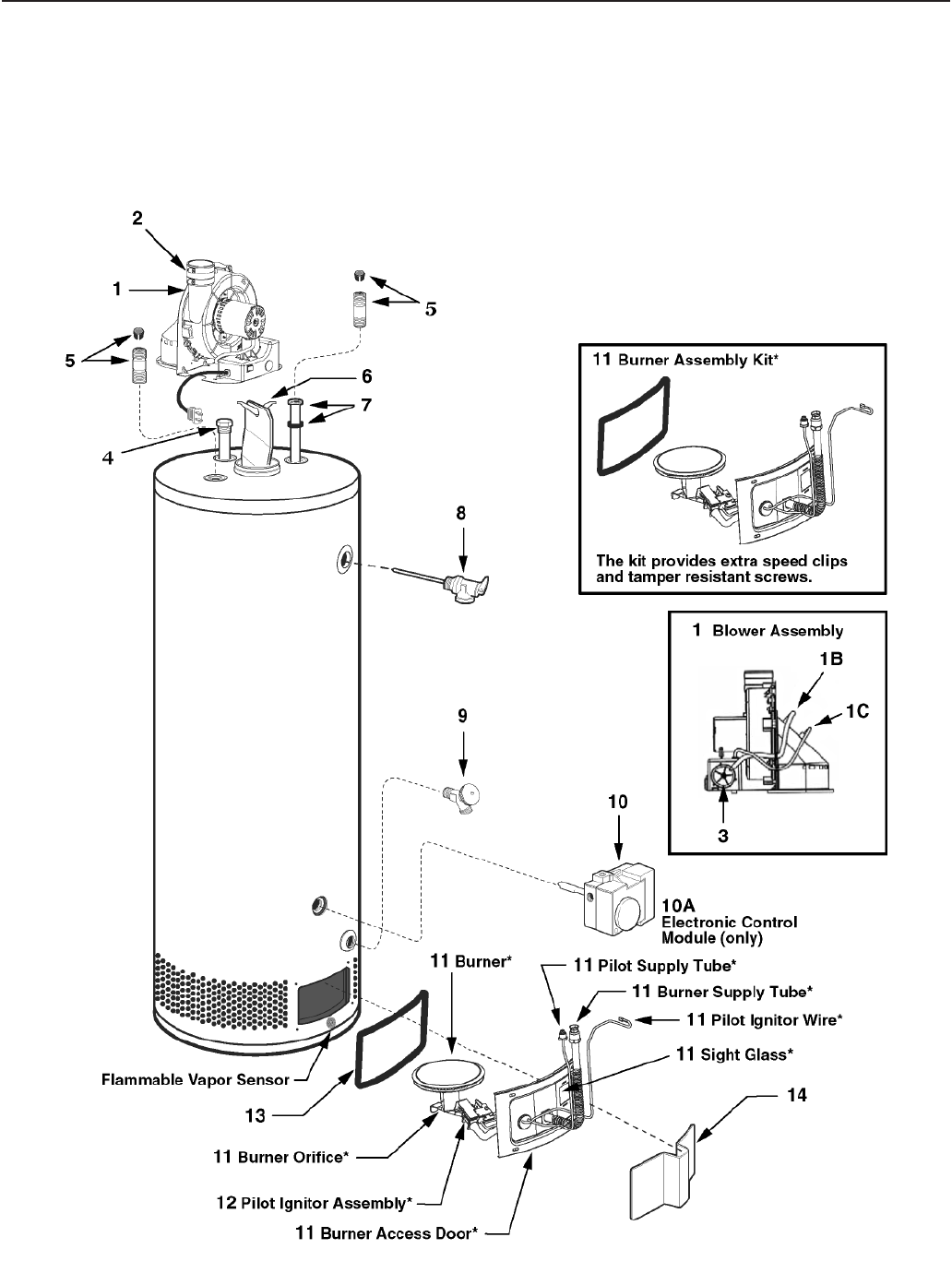

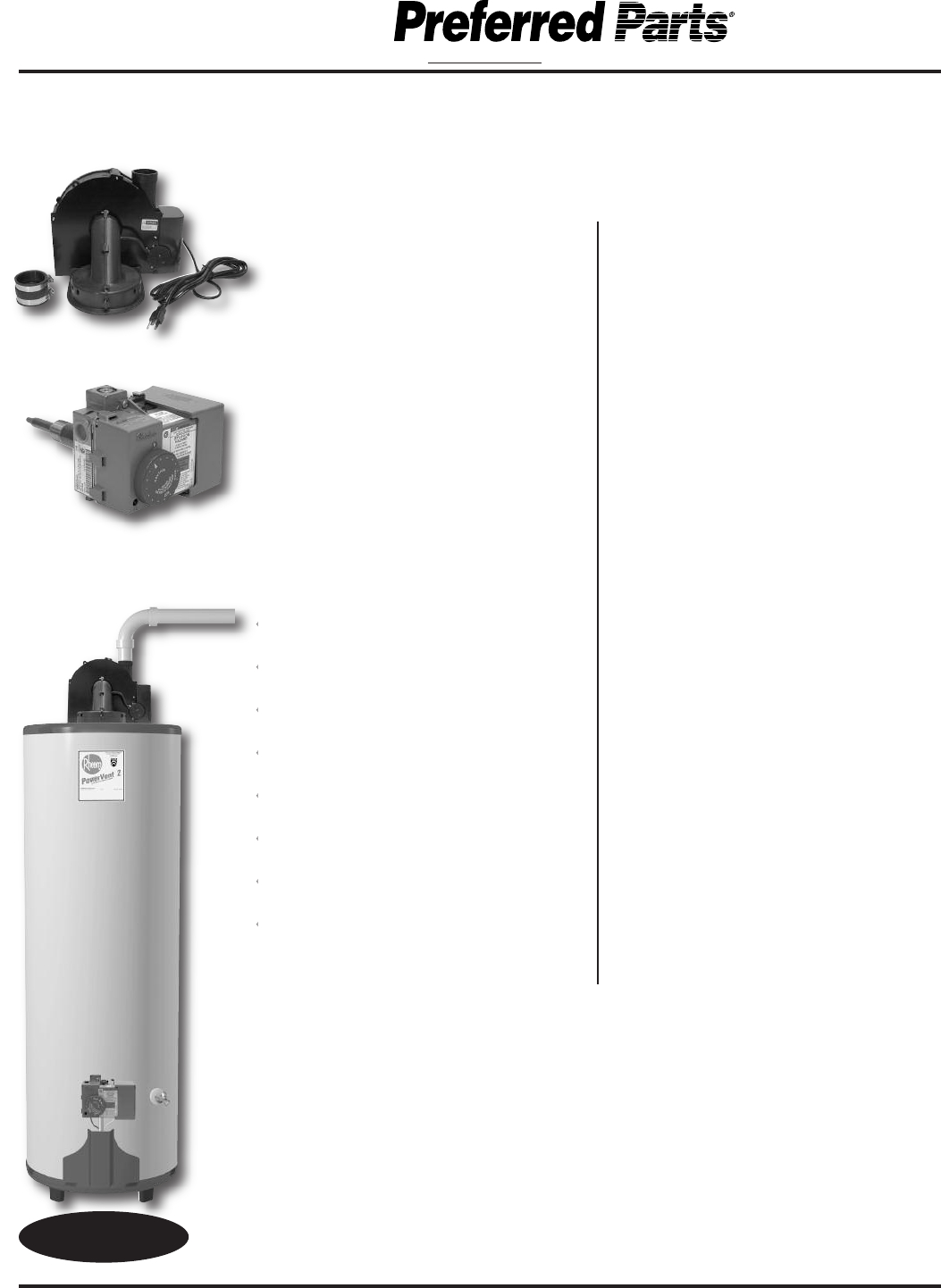

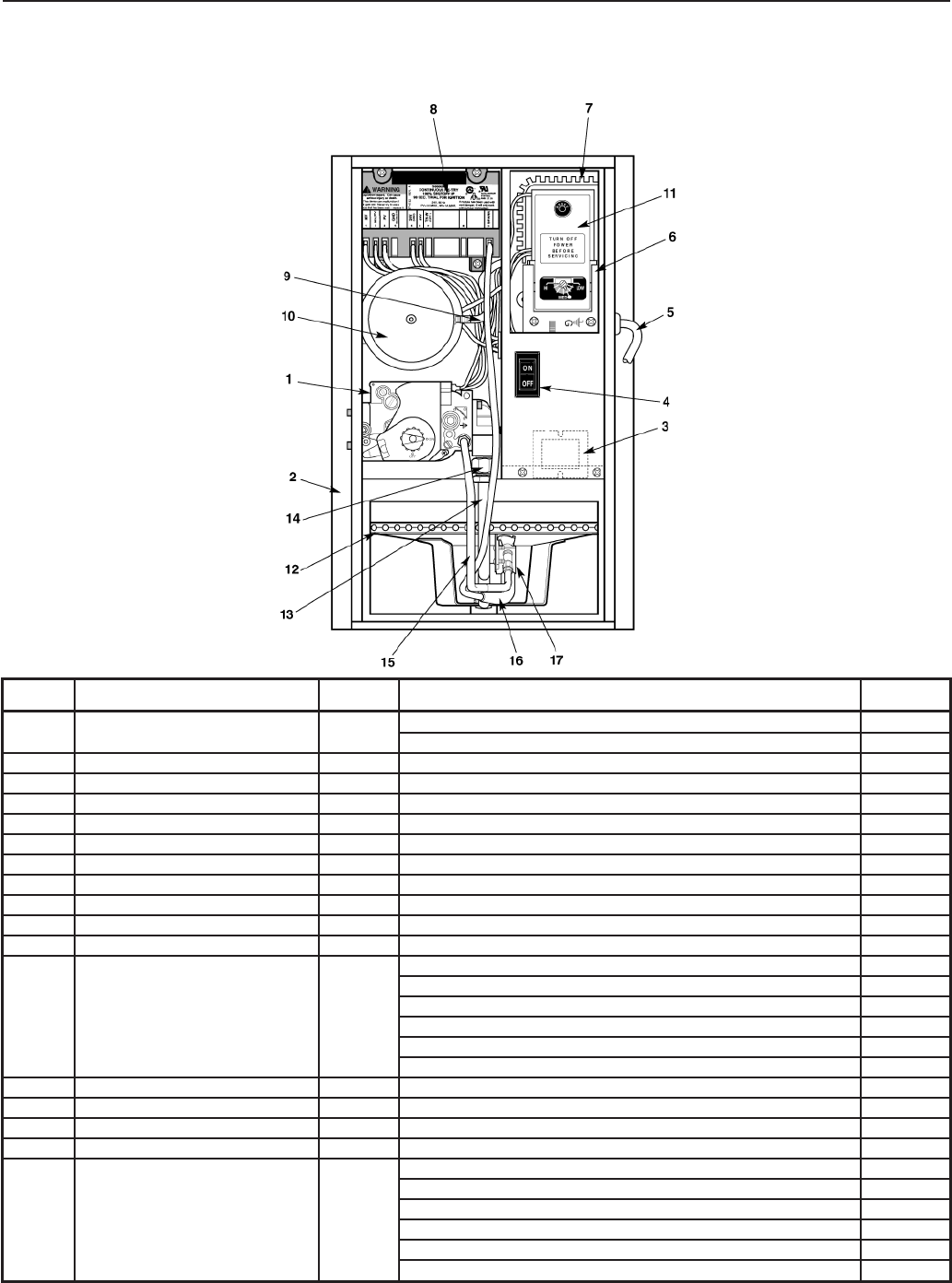

Power Vent with Electronic Controls

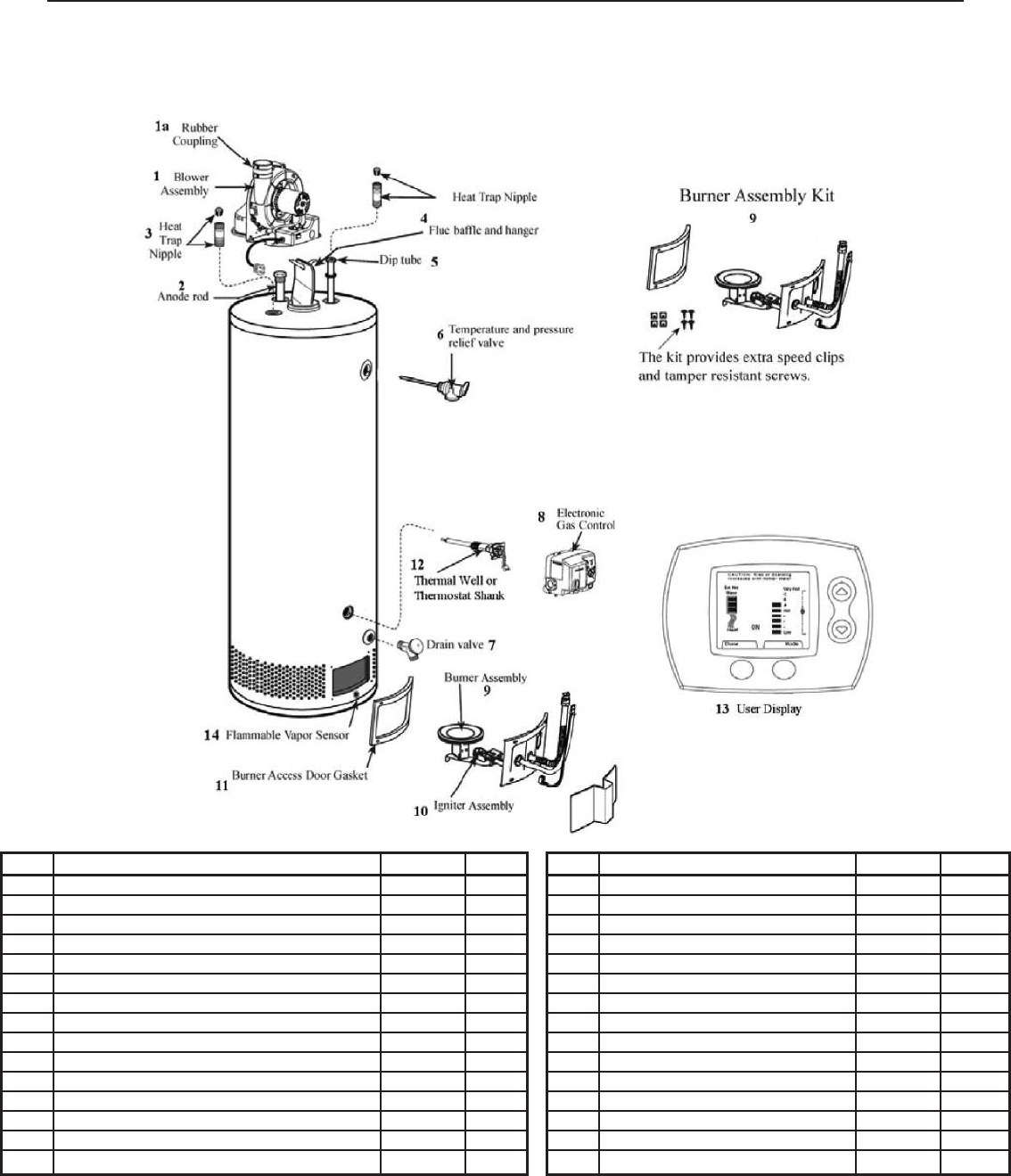

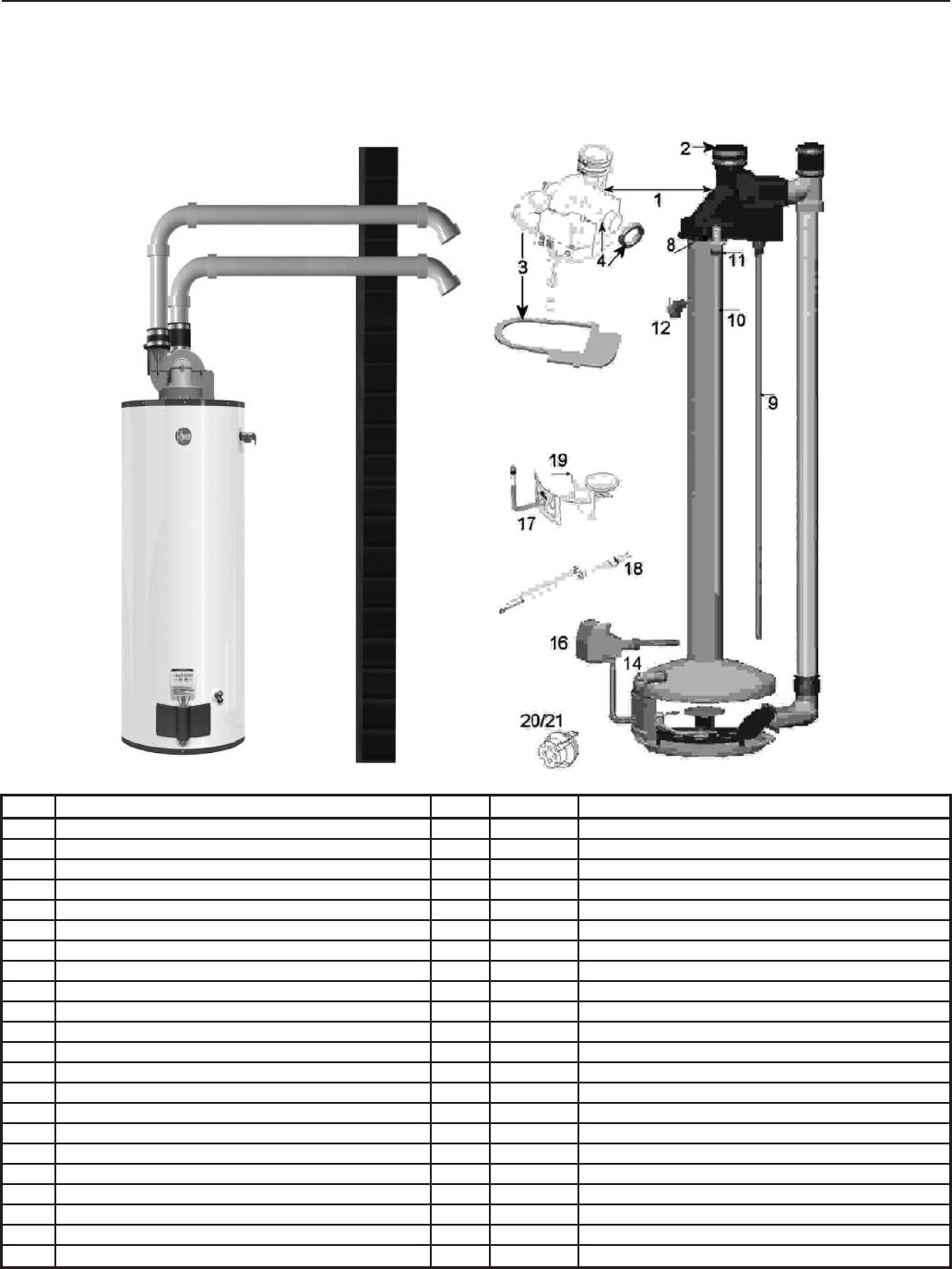

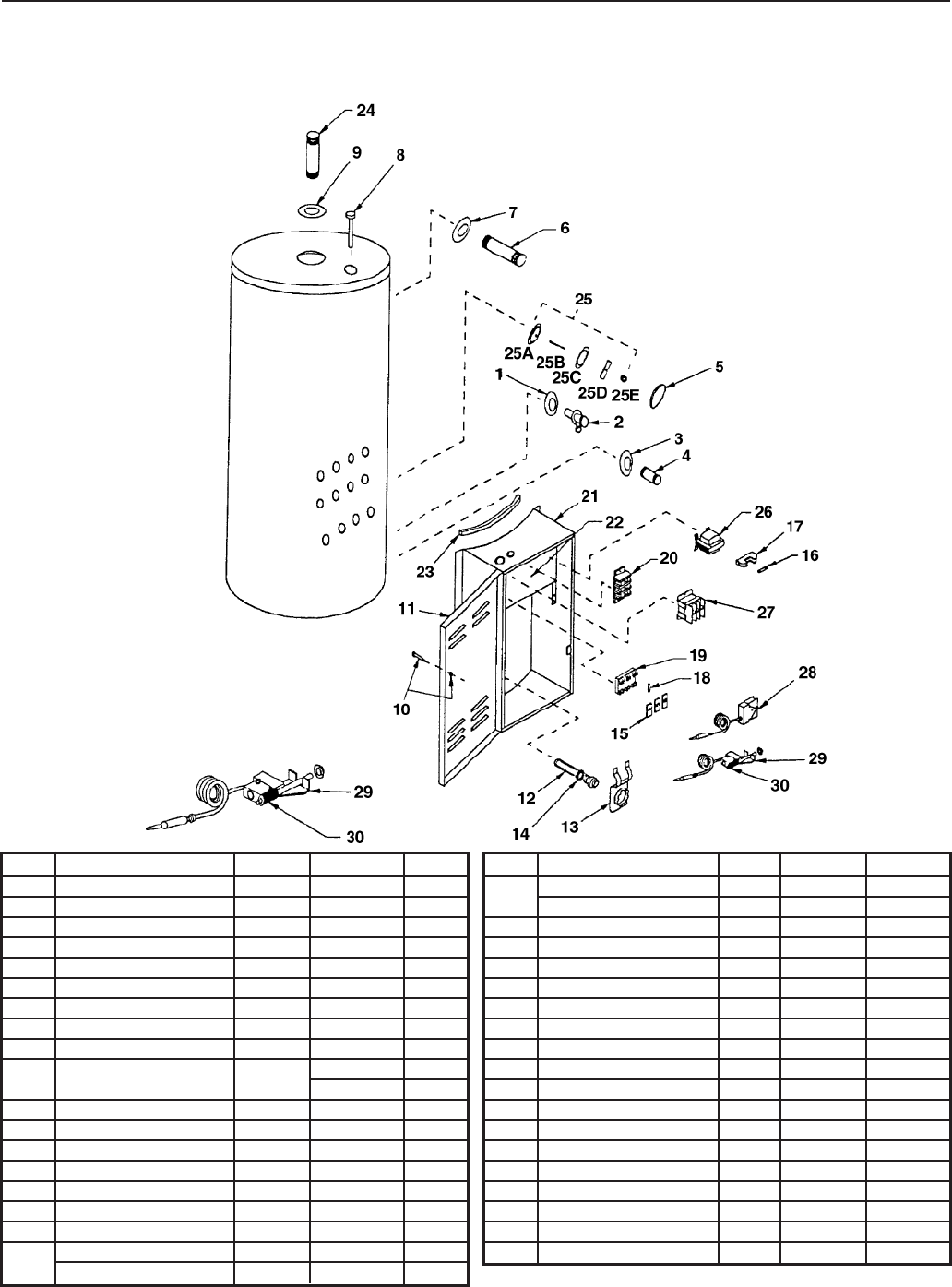

PARTS DIAGRAM

ON PAGE 51

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Natural Gas Control Valve

Ignition Control

Blower Motor Assembly

Pilot Burner

and Ignitor

Sensor:

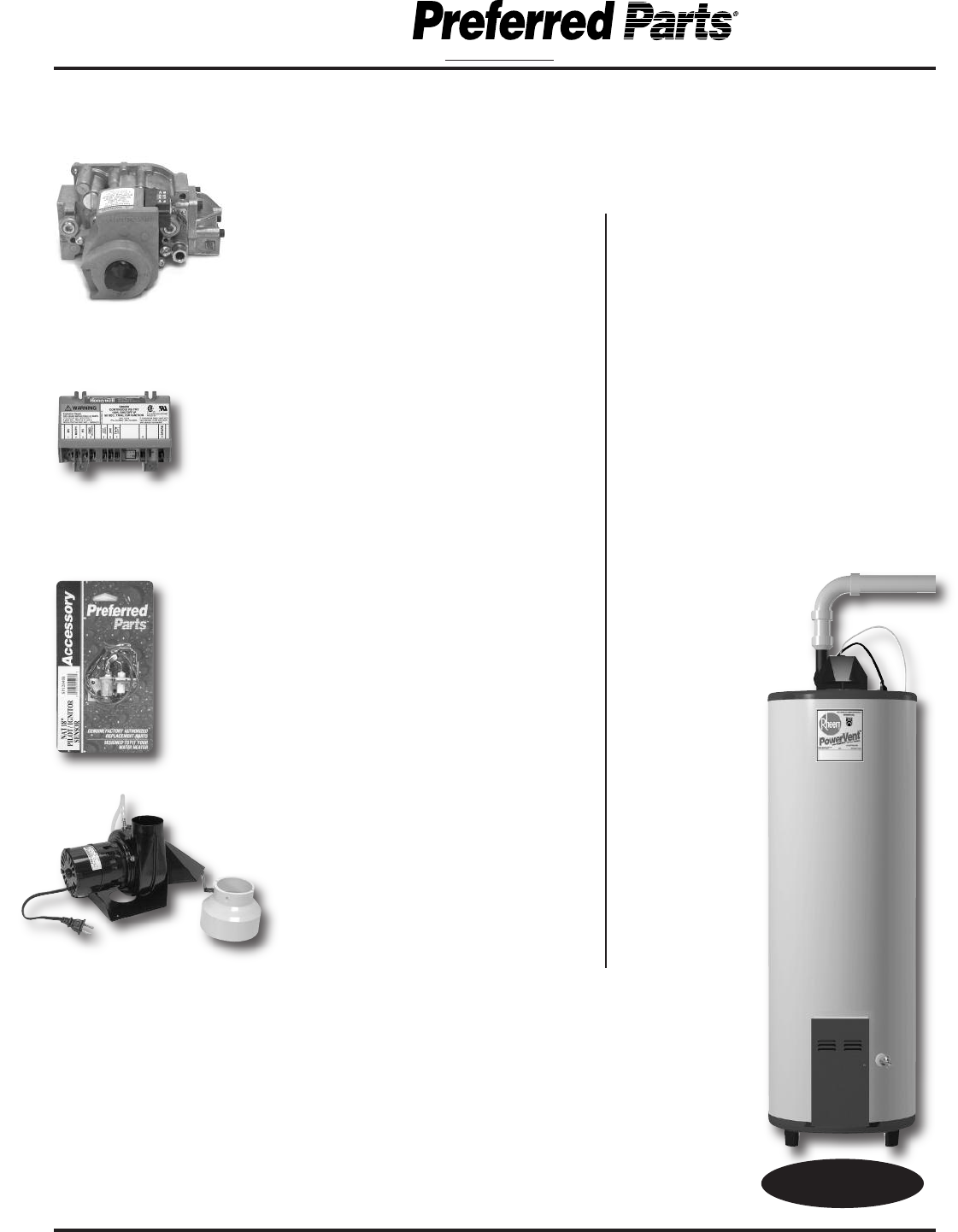

PowerVent Replacement Parts

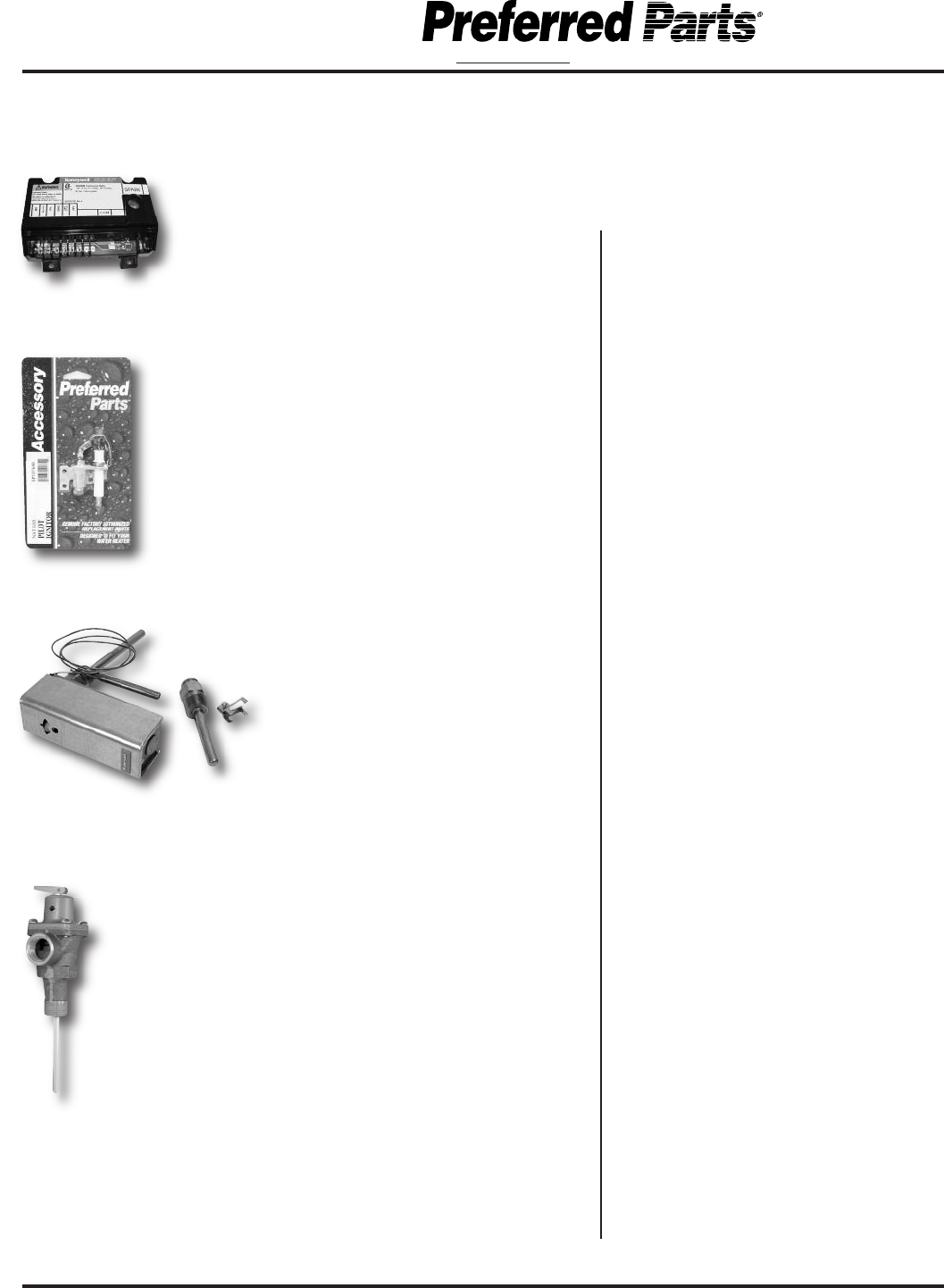

• Honeywell 24V Natural Gas Control Valve,

PowerVent Series, 1/2” inlet x 3/8” outlet - 40/50/75

gallon Residential and Commercial models

SP11652B (single)

• Honeywell 24V LP Gas Control Valve, PowerVent

Series, 1/2” inlet x 3/8” outlet - 40/50/75 gallon

Residential and Commercial models

SP11652C (single)

• Ignition Control (Models Thru 12/1995)

SP10758

•

Honeywell Ignition Control - S8600M - Continuous

Retry - 24V - used with electronic ignition system

SP10763C

(single)

•

Honeywell Ignition Cable - 25 inch - 1/4”

disconnect with rubber boot on pilot end

SP8828G

(single)

•

Therm-O-Disc Residential Thermostat (max 140

degrees) and high limit (180 degrees) 40, 50 & 75

gallon residential

SP12390 (single)

• Therm-O-Disc Residential Thermostat (max 160

degrees) and high limit (190 degrees)75 gallon

commercial only

SP12391 (single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - Natural Gas - 40-50 gallon

SP12049B (single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - LP Gas - 40-50 gallon

SP12049C

(single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - Natural Gas - 75 gallon

SP12049D

(single)

•

Honeywell Pilot Burner and Ignitor Sensor -

Electronic Ignition - LP Gas - 75 gallon

SP12049E

(single)

•

Hot Surface Ignitor - 115V, 1800 degree F, with 19”

female quick connect leads - Natural or LP

SP10972

(single)

• Pressure

Switch

SP11875

(single)

• Pressure

Switch (Prior to June, 1991)

SP10887K

(single)

•

Transformer, 120VAC to 24VAC

SP11787

(single)

•

Blower Motor Assembly 40, 50 gallon standard

AP10983-4

(single)

•

Blower Motor Assembly 40, 50 gallon - High

Altitude only

AP10984-3

(single)

•

Blower Motor Assembly 75 gallon residential or

commercial

SP11608

(single)

PARTS DIAGRAM

ON PAGES 49

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Blower Assembly

Wiper Control and Gas

Valve Assembly

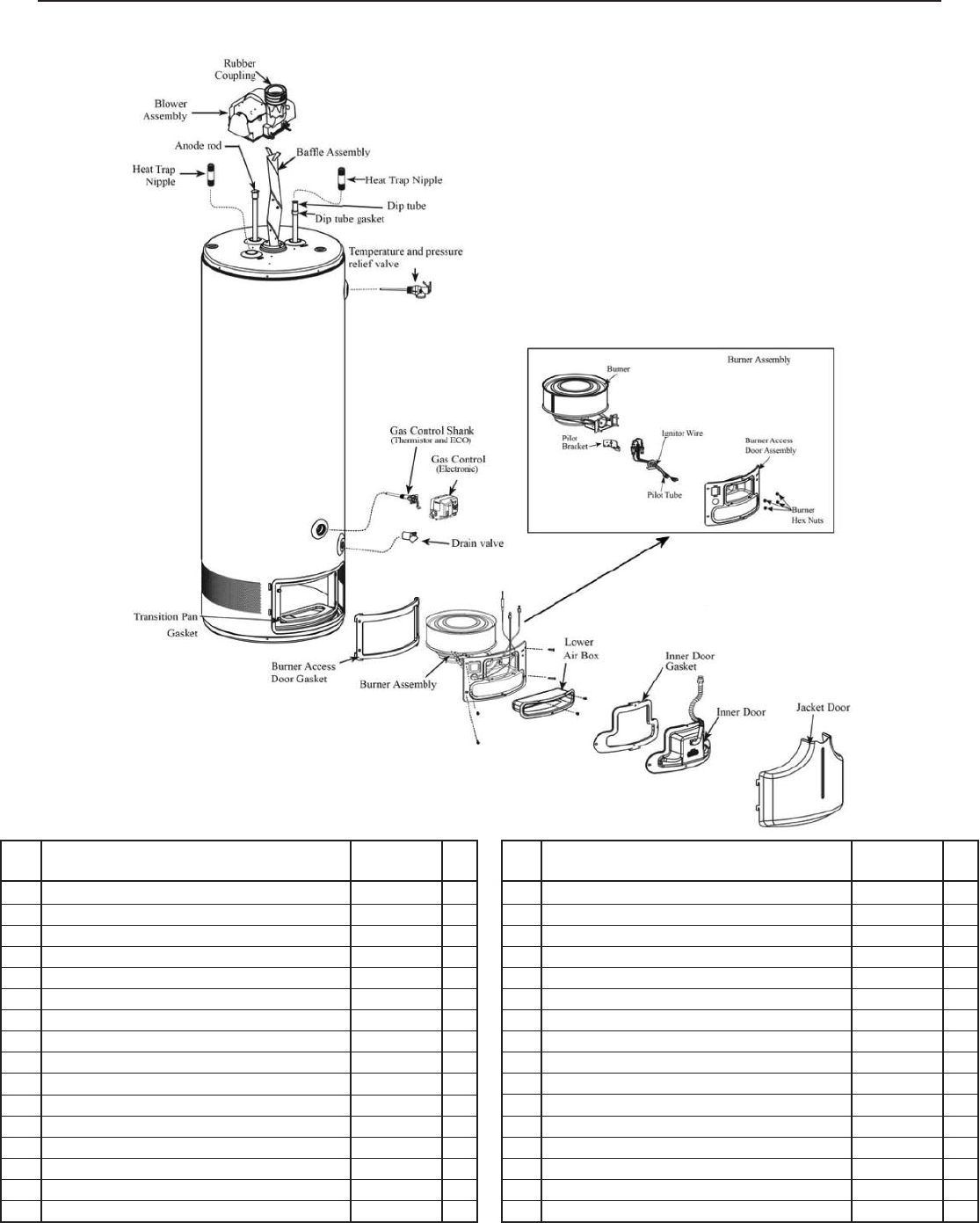

PowerVent 2 Replacement Parts

• Blower Assembly - Integrated vent hood, includes

installed vacuum switch (SP12766), power cord,

and vent coupling (SP12638). This fits the

PowerVent 2 product only.

SP12562

(single)(40/50 gallon only)

• Anode Rod

SP11309C

(single)

•

Flue Baffle with hanger (has extra restrictors)

AM39341

(single)

•

Temperature & Pressure Relief Valve

SP8346

(single)

•

Dip Tube

AP11251Q-2

(single)

•

Dip Tube Gasket

AP6948-3

(single)

•

Drain Valve

SP12112S

(single)

•

Drain Valve Shroud

AP9167

(single)

•

Inner Door

AM29501

(single)

•

Outer Door

AM29254-4C

(single)

•

Protective Cover (cover for wiper control)

AP12558

(single)

•

Burner Assembly (40 Gal Natural Gas - Low NOx)

AM39503RY

(single)

•

Burner Assembly (40 Gal LP Gas)

AM39504RM

(single)

•

Burner Assembly (50 Gal Natural Gas - Low NOx)

AM39503SY

(single)

•

Burner Assembly (50 Gal LP Gas)

AM39504SM

(single)

•

Heat Trap Kit

SP20003

(single)

•

Terminal Vent Assembly - 2” Termination

AM39508

(single)

• 2-inch

45 Degree PVC

AP12646

(single)

• 3-inch

Screen

AS37079

•

Vacuum Tube

AP12768

(single)

• Vent Coupling, 2” rubber coupling with clamps.

Connects blower to 2” PVC pipe.

This fits the

PowerVent 2 product only.

SP12638

(single)

• Spark Ignitor and Pilot Assembly - Natural Gas.

This fits the PowerVent 2 product only.

SP12560B

(single)

• Spark Ignitor and Pilot Assembly - LP Gas.

This fits the PowerVent 2 product only.

SP12560C

(single) (40/50)

SP12049E (75)

• Wiper Control and Gas Valve Assembly - Natural

Gas, includes wire cover.

This fits the PowerVent 2

product only.

SP20161A

(single)

• Wiper Control and Gas Valve Assembly - LP Gas,

includes wire cover.

This fits the PowerVent 2

product only.

SP20162A

(single)

• Pressure Switch.

This fits the PowerVent 2 product

only.

SP12766

(single) (40/50)

• On/Off Switch

AP12767

(single)

• Blower Motor

(VR units only)

AP13194 (single) (For 41VRP50-55 only)

• Blower Motor

(22VRP75)

AP13211-1

(single)

• Pressure Switch (22VRP75)

SP20130

PARTS DIAGRAM

ON PAGE 52

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

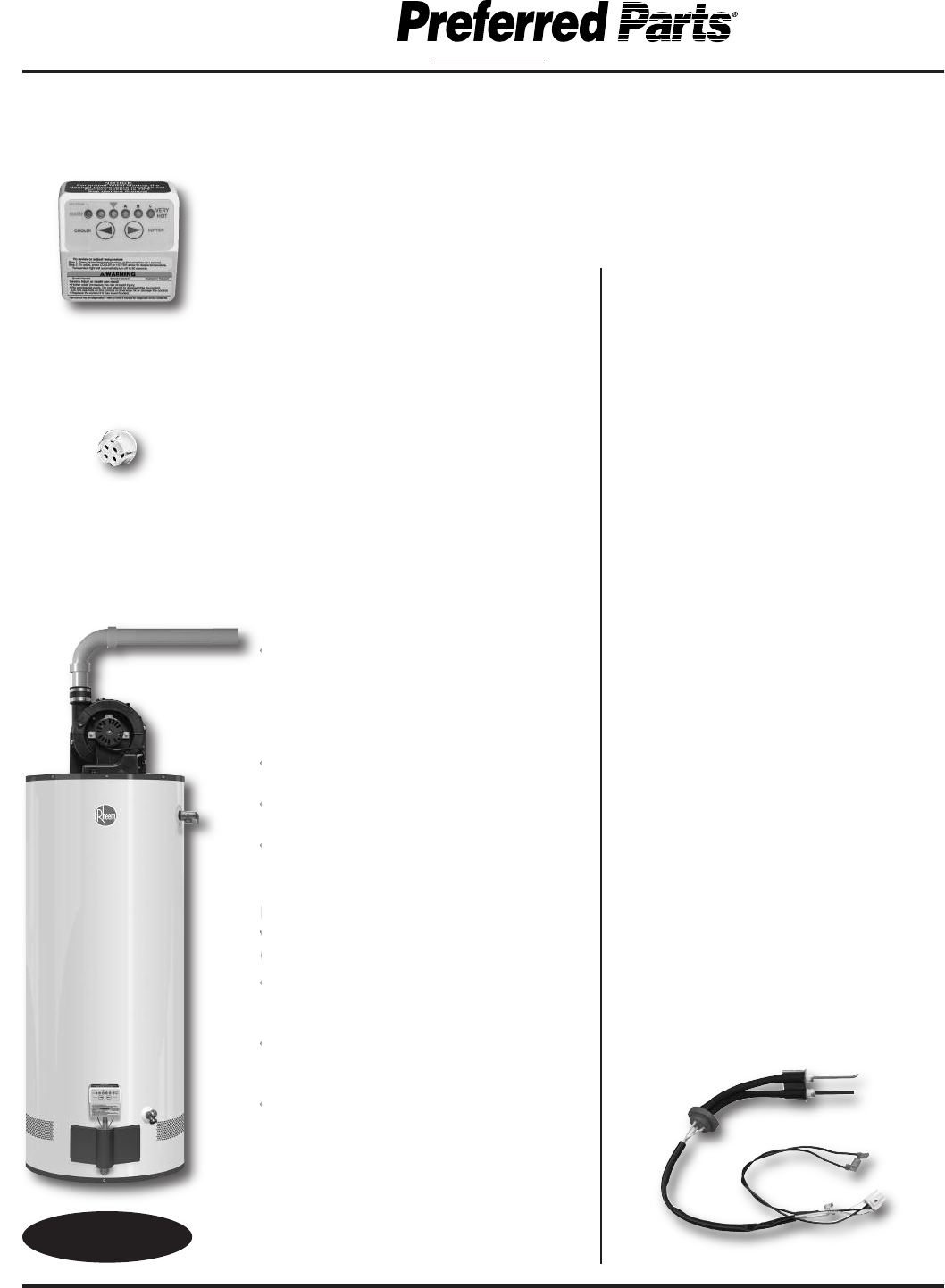

PowerVent with the Guardian System™

Replacement Parts

Parts Specific to Models Manufactured with

Robertshaw gas control valves between

July 2006 and October 2007

•

Pilot Assembly – Natural Gas Models

SP13418

SP13420

SP13422

SP13424

•

Pilot Assembly – LP Gas Models

SP13419

SP13421

SP13423

SP13425

•

FV Wiper Control and Gas Valve Assembly –

Natural Gas Models+

SP20170A (40F)

SP20170B (50F)

SP20170C (40SF)

SP20170D (50SF)

•

FV Wiper Control and Gas Valve Assembly –

LP Gas Models

SP20171A (PVP40F)

SP20171B (PVP50F)

SP20171C (PVP40SF)

SP20171D (PVP50SF)

•

Control – FV Wiper Electronics

SP20123B

•

FV Sensor Kit

SP13447B

•

FV Sensor Kit w/ Cap Plug

SP20172

Parts Specific to Models Manufactured

with White-Rodgers gas control valves

October 2007 to Present

•

Intelli-Vent Gas Valve – Natural Gas

SP13845A

SP13845B

•

Intelli-Vent Gas Valve – LP Gas

SP13846A

SP13846B

•

Hot Surface Ignitor – All White-Rodgers Models

SP14218A (40/50)

SP14218B (75)

Common Service Parts

•

Blower Assembly – High Performance

SP13416 (40/50)

•

Blower Assembly

SP13605 (40/50 Short)

•

Blower Assembly

SP14140 (60)

•

Blower Assembly

AP14378 (75)

•

Anode Rod

SP11309C (40/50 only)

•

Temperature & Pressure Relief Valve

SP8346 (40/50 only)

•

Temperature & Pressure Relief Valve

SP12574 (40/50 Short)

•

Drain Valve

SP12112G (40/50 only)

•

Heat Trap Kit

SP20003 (40/50 only)

•

Inner Door Gasket Kit

SP20063

•

Vacuum Switch – For use with 40 and 50 Gallon

Tall Models

SP20116

•

Vacuum Switch – For use with 40 and 50 Gallon

Short Models and 75 Gallon Models

SP20117

•

Vacuum Switch – For use with 60 Gallon Models

SP20116A

PARTS DIAGRAM

ON PAGE 56 Hot Surface Ignitor

Intelli-Vent Gas Valve

FV Sensor

+ Converts Robertshaw to White Rogers.

Kit contains the Gas Control, Burner Assembly,

Wiring Harness, Adapters, etc.

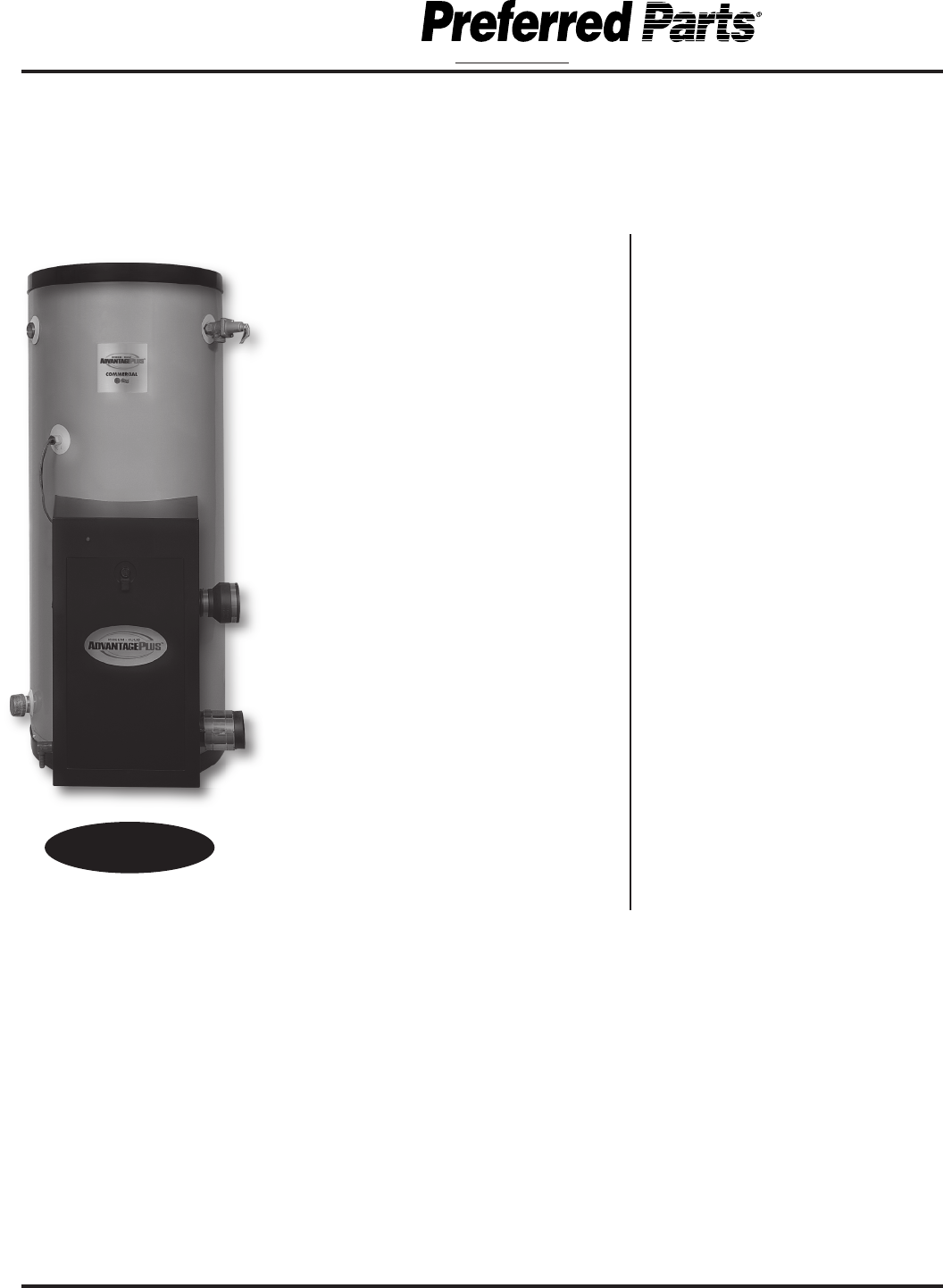

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

• Blower Motor Coupler

SP20252

• Blower Assembly Gasket

SP20256

• Blower Motor Seal

AP15000

• Heat Trap Nipple

AP12992D

• Anode Rod

AP11309C

• Dip Tube

AP11625H (PDV40)

AP11625T (PDV40P)

AP11625U (PDV50)

AP11625V (PDV50P, PDV50-65, PDV50P-65)

• Dip Tube Gasket

AP6948

• T&P Valve

SP12575B

• Drain Valve

SP12112S

• White Rodger’s Intelli-vent Combination

Gas Control (NG)

SP14904A

• White Rodger’s Intelli-vent Combination

Gas Control (LP)

SP14905A

• Hot Surface Igniter

SP14218A (PDV40, PDV40P)

SP14218B (PDV50, PDV50P, PDV50-65, PDV50P-65)

• Burner Access Door Gasket

SP20063

• Flammable Vapor Sensor

SP20172

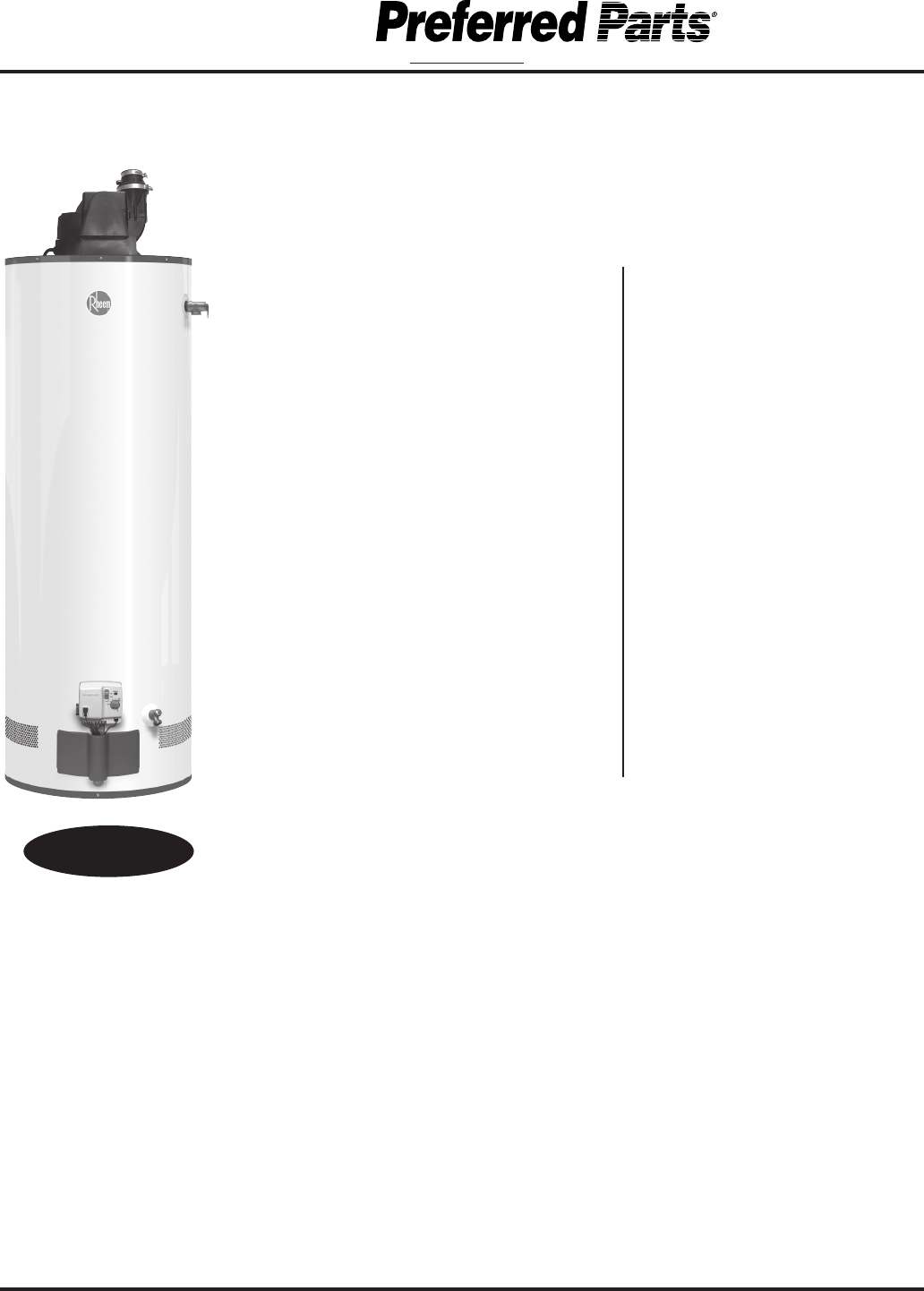

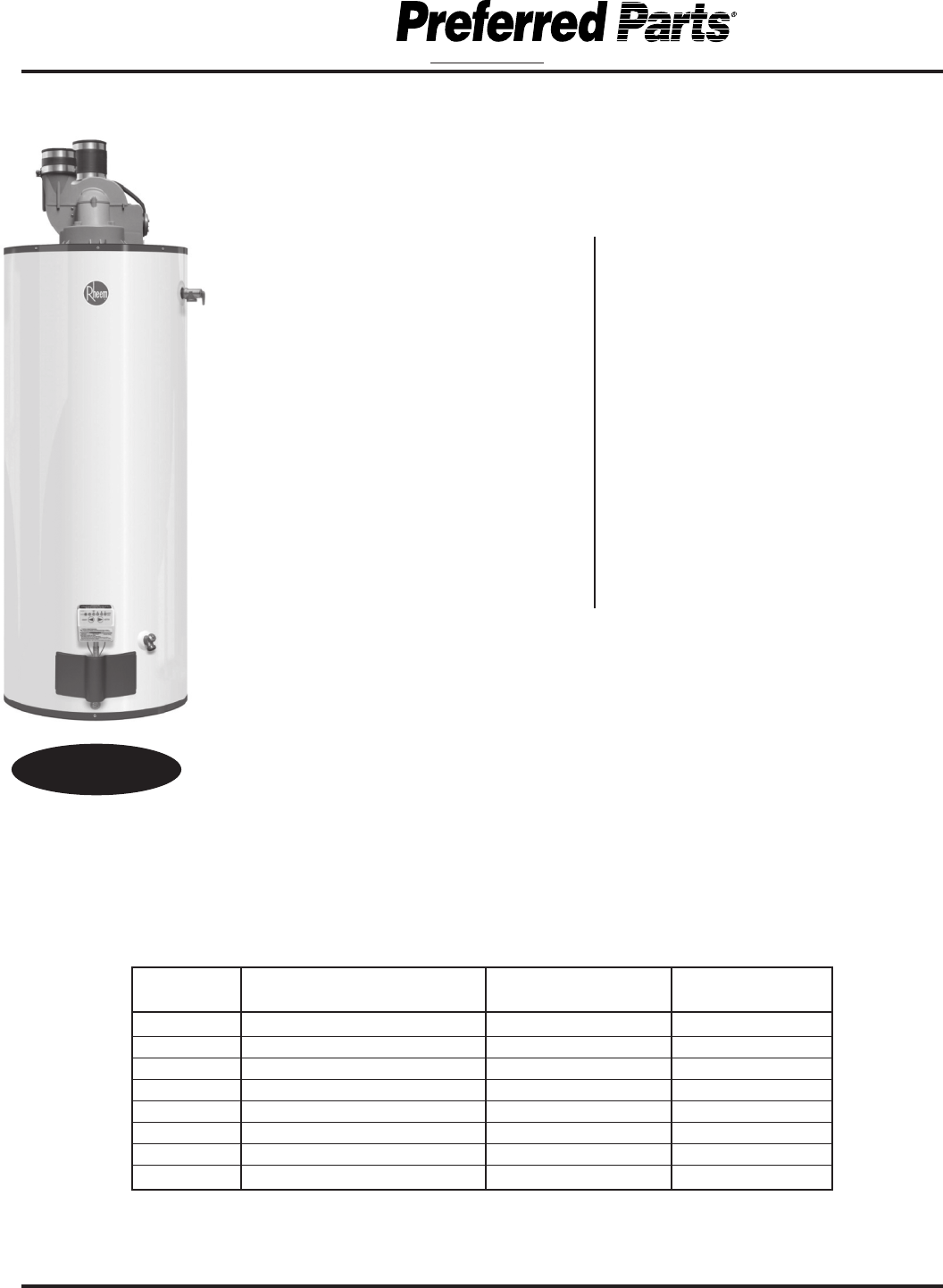

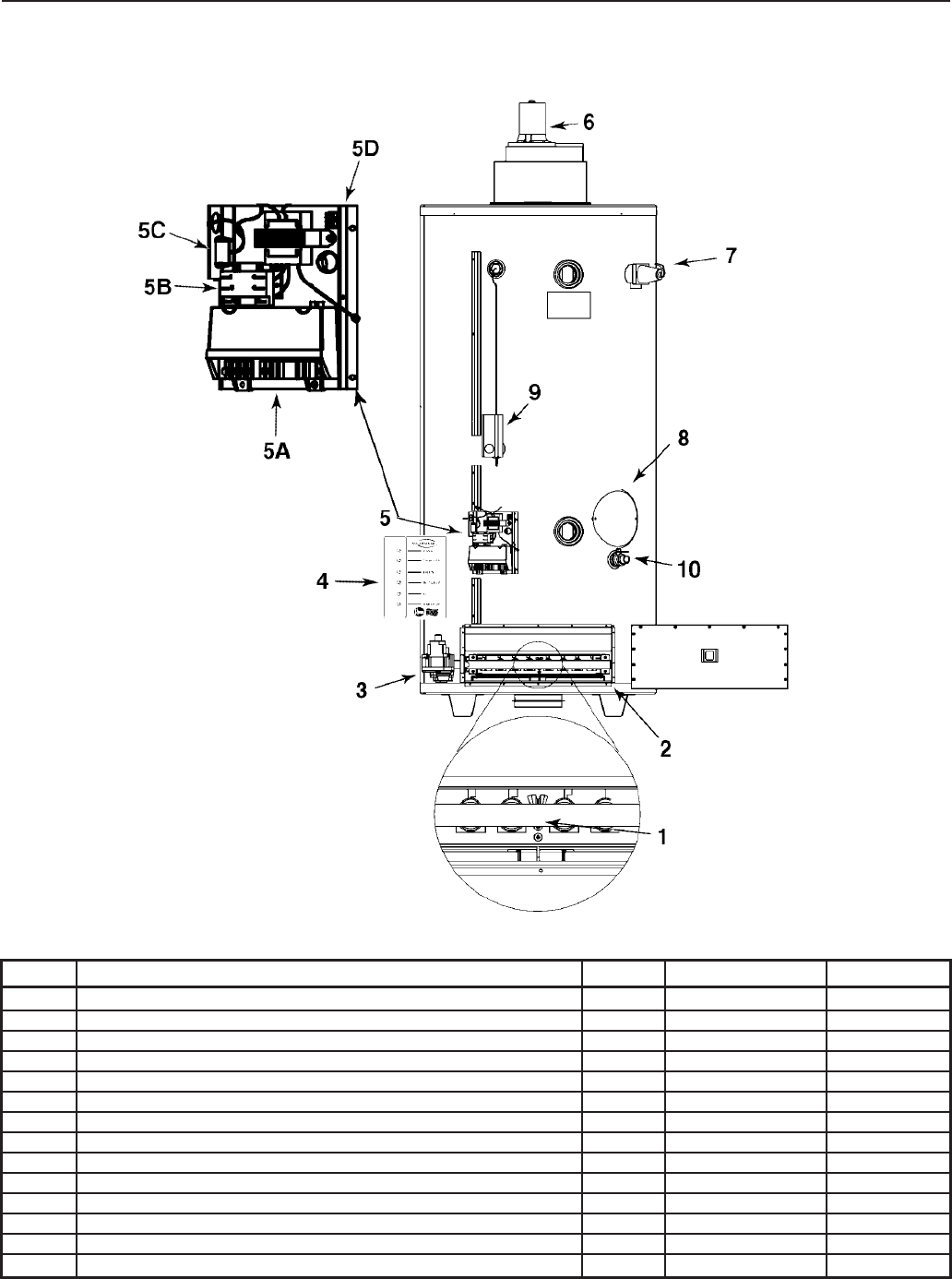

Power Direct Vent

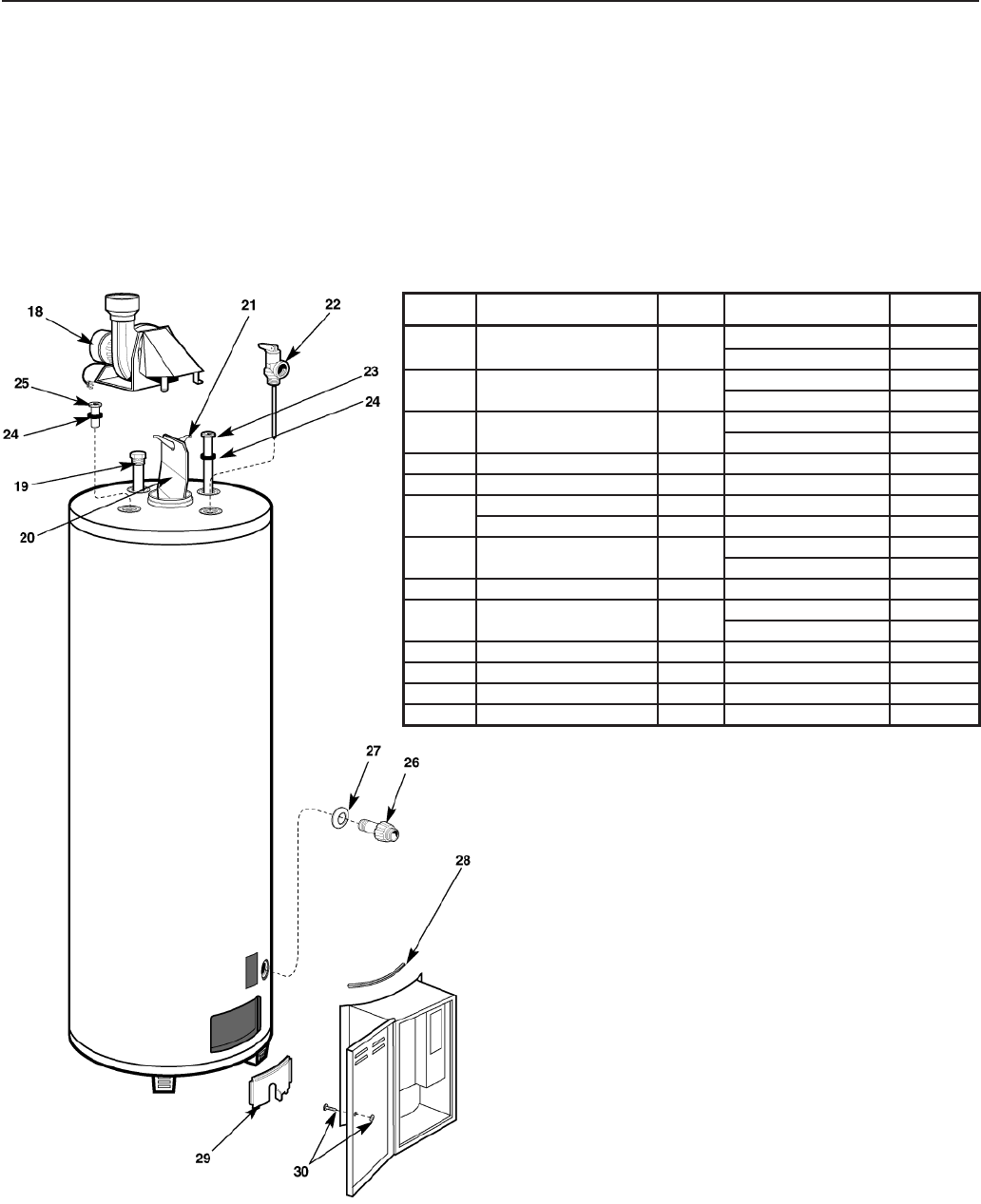

PARTS DIAGRAM

ON PAGE 58

Power Direct Vent (PDV and GPDV) Blower

Assemblies and High Attitude Kits

Part Number

(H)

AP14640A-2 Blower Assembly 40 Gal No. -0.86± .05 NC -1.10± .07

AP14640A-2 Blower Assembly 50 Gal No. -0.86± .05 NC -1.10± .07

AP14640B-2 Blower Assembly 50 Gal LP Only No. -1.00± .05 NC -1.10± .07

AP14771A-4 Blower Assembly 50-65 No. -1.13± .07 NC -1.10± .07

AP14640C Blower Assembly 65 No. -0.86± .05 NC -1.05± .07

AP14771B Blower Assembly 75 No. -1.00± .05 NC -1.00± .06

SP20268 High Altitude Kit PDV 65 No. -0.86± .05 No change required

SP20277 High Altitude Kit PDV 75 No. -1.00± .05 No change required

Part Name Exhaust Switch Setting

(V)

Inlet Switch Setting

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

PowerVent with the Guardian System

™

Parts Cross Reference Chart

Pilot Assy. Pilot Assy.

Gas Valve – Gas Valve – Replacement Replacement Blower

Rheem Model Ruud Model Natural Gas LP Gas Kit (NG) Kit (LP) Assembly Gasket Kit Relief Valve

RHEEM AND RUUD MODELS WITH ROBERTSHAW GAS CONTROL VALVES

42VP40F PVP40F SP20170A SP20171A SP13418 SP13419 SP13416 SP20063 SP8346

42VP50F PVP50F SP20170B SP20171B SP13422 SP13423 SP13416 SP20063 SP8346

42VP40SF PVP40SF SP20170C SP20171C SP13420 SP13421 SP13605 SP20063 SP12574

42VP50SF PVP50SF SP20170D SP20171D SP13424 SP13425 SP13605 SP20063 SP12574

Gas Valve – Gas Valve – Blower

Rheem Model Ruud Model Natural Gas LP Gas Hot Surface Ignitor Kit Assembly Gasket Kit Relief Valve

RHEEM AND RUUD MODELS WITH WHITE-RODGERS GAS CONTROL VALVES

42VP40FW PVP40FW SP13845A SP13846A SP14218A SP13416 SP20063 SP8346

42VP50FW PVP50FW SP13845A SP13846A SP14218A SP13416 SP20063 SP8346

42VP40SFW PVP40SFW SP13845B SP13846B SP14218A SP13605 SP20063 SP12574

42VP50SFW PVP50SFW SP13845B SP13846B SP14218A SP13605 SP20063 SP12574

42VP60FW PVP60FW SP13845B SP13846B SP14218A SP14140 SP20063 SP12574

42VP75FW PVP75FW SP13845A SP13846A SP14218B AP14378 SP20063 SP12575

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Direct Vent with the Guardian System™

Replacement Parts

•

White-Rodgers Gas Valve – NG

SP14270K

•

White-Rodgers Gas Valve – LP

SP14269E

•

White-Rodgers Pilot Assembly Kit – NG

SP20159

•

White-Rodgers Pilot Assembly Kit – LP

SP20160

•

White-Rodgers Thermocouple Kit

SP20129

• Gasket Kit

SP20063

• Brass

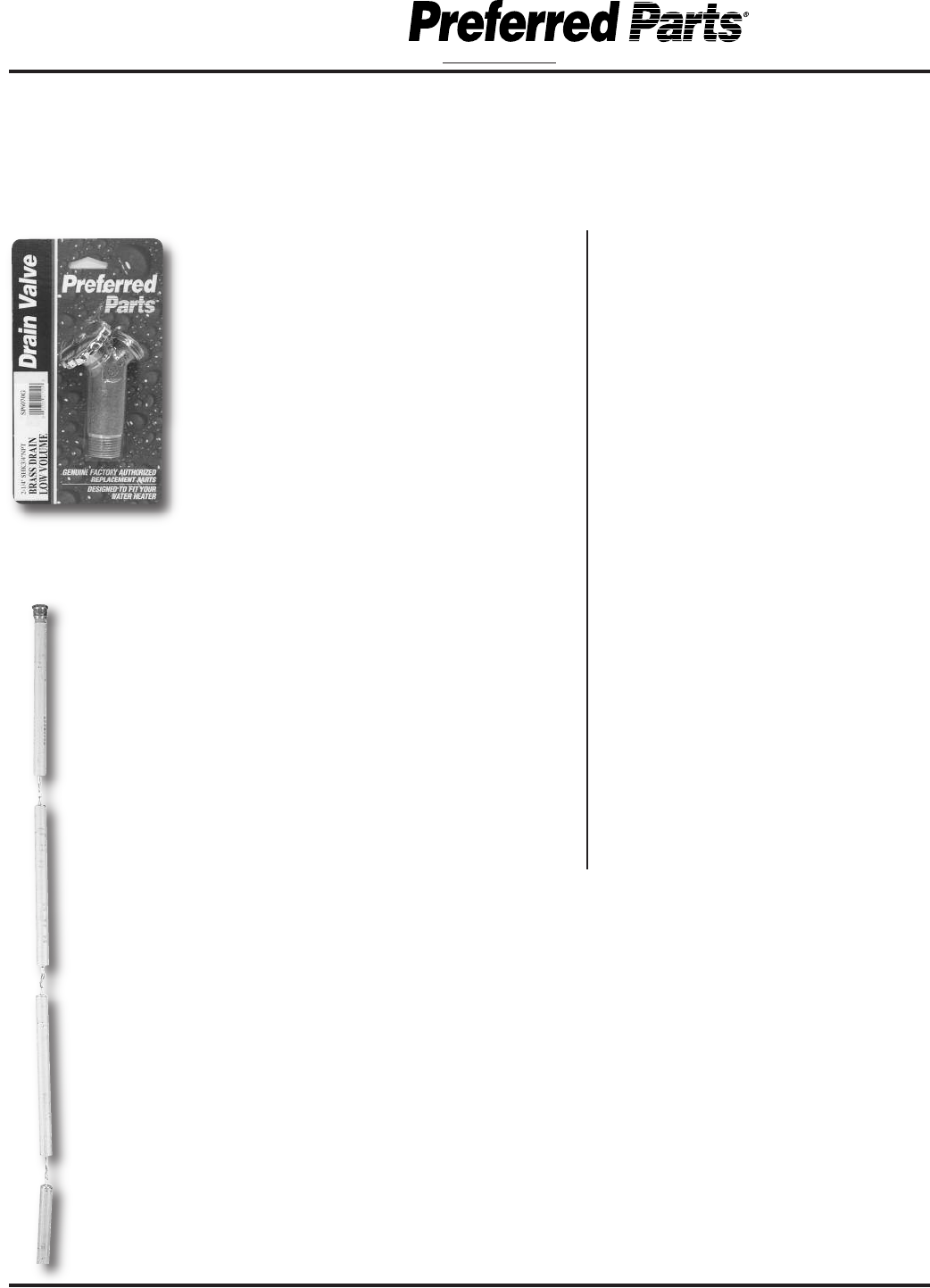

Drain Valve

SP12112G

• Relief Valve

SP8346

•

4’ Horizontal Vent Extension Kit

SP20131

•

4’ Vertical Vent Extension Kit

SP20132

•

Standard Vent Kit

AS41461

•

Piezo Ignitor

AP14316

Direct Vent with the Guardian System™Parts Cross Reference Chart

Pilot Assy. Pilot Assy. Thermocouple

Gas Valve – Gas Valve – Replacement Replacement Replacement Gasket Relief

Rheem Model Ruud Model NG LP Kit – NG Kit – LP Kit Kit Valve

RHEEM FURY SERIES / RUUD PACEMAKER SERIES

22DV40F PH2DV40F SP14270K SP14269E SP20159 SP20160 SP20129 SP20063 SP8346

22DV50F PH2DV50F SP14270K SP14269E SP20159 SP20160 SP20129 SP20063 SP8346

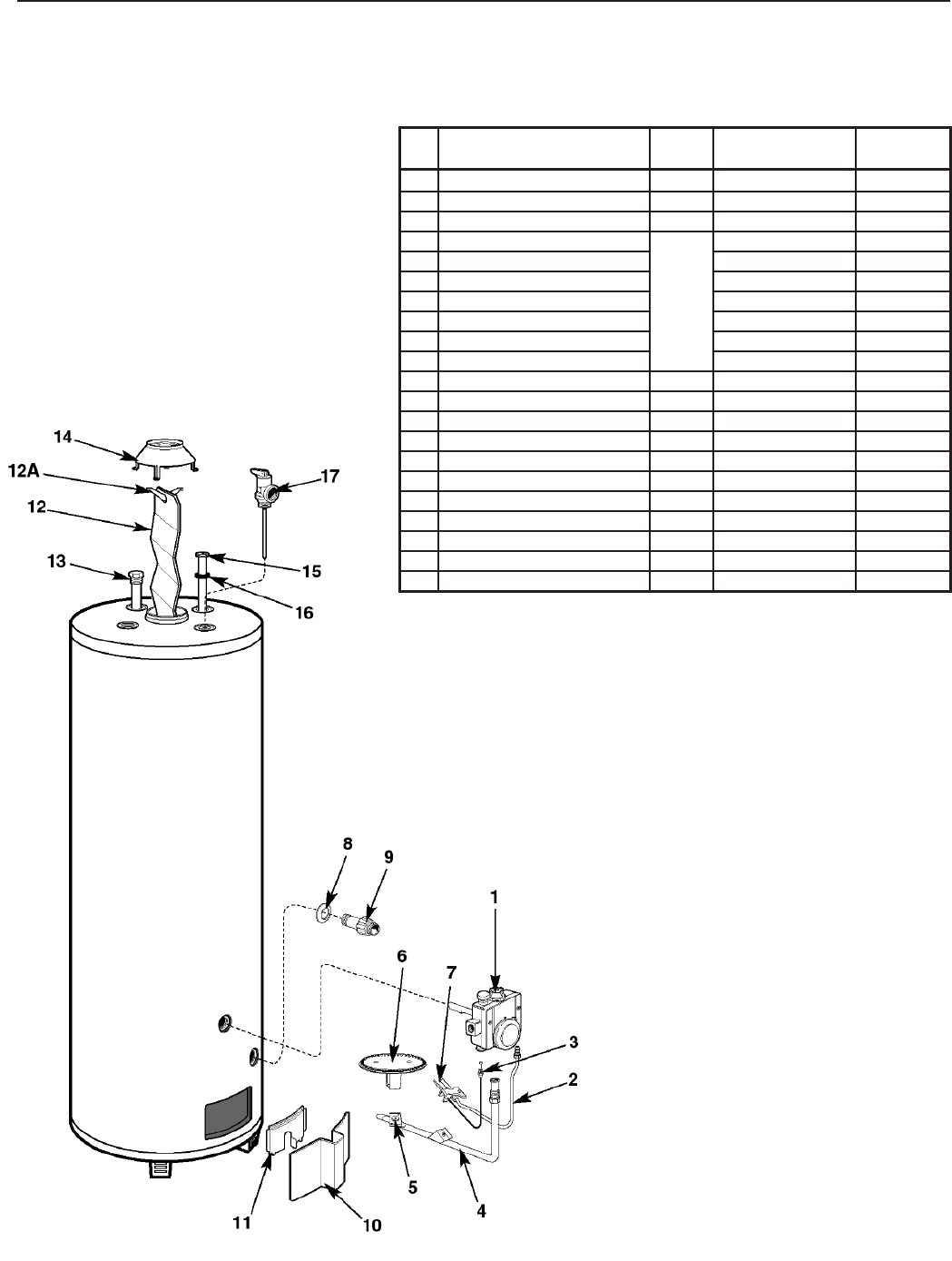

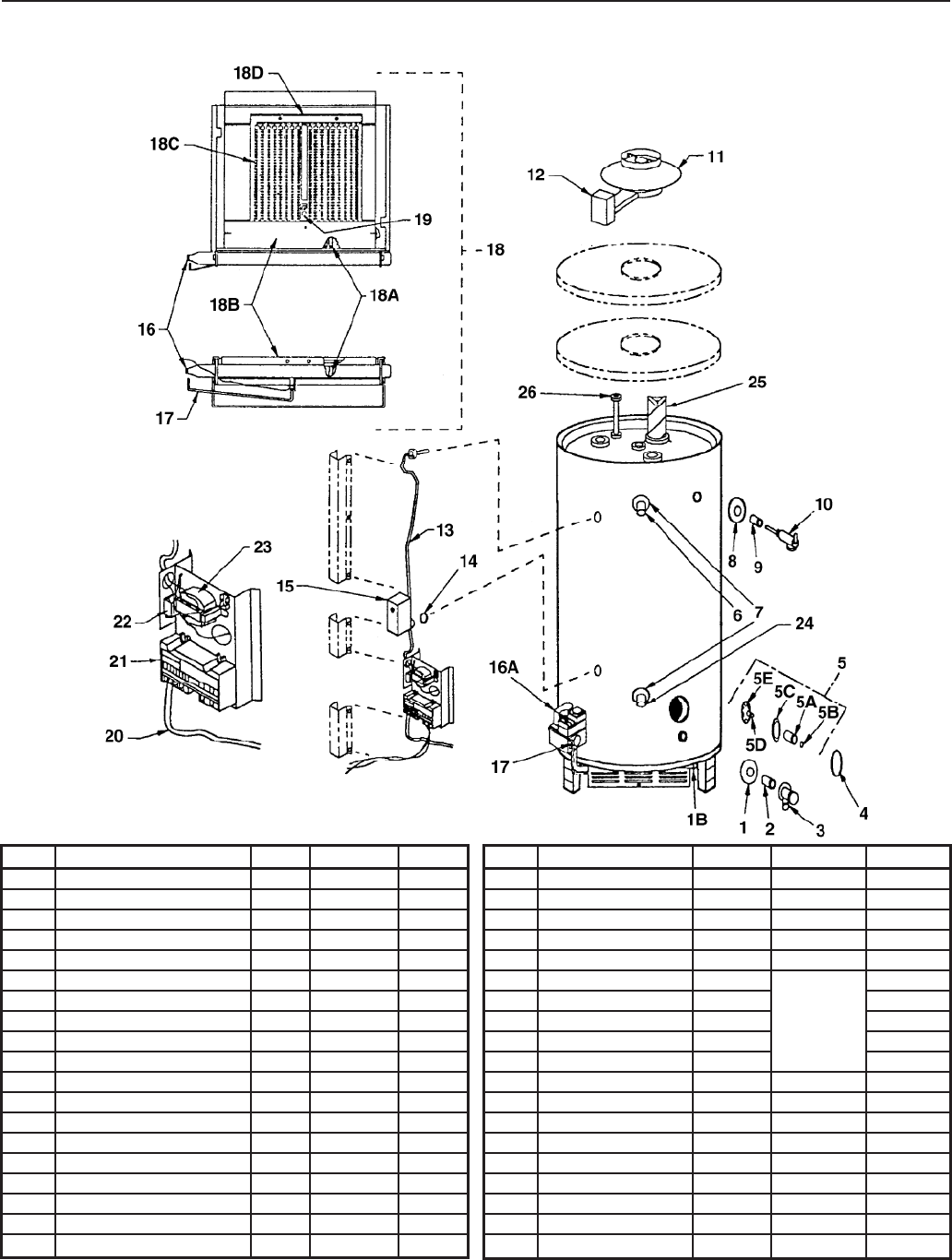

PARTS DIAGRAM

ON PAGE 57

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ultra Low NOx with the Guardian System™Replacement Parts

•

Combustion Chamber Maintenance

Gasket Kit

SP20135

•

Combustion Chamber Maintenance

Gasket Kit

SP20136

•

Combustion Chamber Maintenance

Gasket Kit

SP20137

•

Pilot Assembly Replacement Kit

SP20138

•

Pilot Assembly Replacement Kit

SP20139

•

Pilot Assembly Replacement Kit

SP20140

•

Pilot Assembly Replacement Kit

SP20141

•

Pilot Assembly Replacement Kit

SP20142

•

Burner Assembly Replacement Kit

SP20148

•

Burner Assembly Replacement Kit

SP20149

•

Burner Assembly Replacement Kit

SP20150

•

Burner Assembly Replacement Kit

SP20151

•

Burner Assembly Replacement Kit

SP20152

•

Inner Door Assembly Replacement Kit

SP20153

•

Inner Door Assembly Replacement Kit

SP20154

•

Inner Door Assembly Replacement Kit

SP20155

•

Inner Door Assembly Replacement Kit

SP20156

•

Inner Door Assembly Replacement Kit

SP20157

•

Inner Door Assembly Replacement Kit

SP20158

•

Gas Valve – NG

SP14270M

•

Gas Valve – NG

SP14270L

•

Relief Valve

SP12574

•

Relief Valve

SP12575B

•

Relief Valve

SP12575C

•

Heat Trap – Flapper Type

AP12992C

•

Drain Valve

SP12112E

•

Drain Valve

SP12112S

•

Piezo Ignitor

AP14316

Ultra Low NOx with the Guardian System

™

Parts Cross Reference Chart

Combustion Pilot Assy. Burner Assy. Inner

Chamber Replacement Replacement Door Relief Drain

Rheem Model Ruud Model Gas Valve Gasket Kit Kit Kit Assy. Kit Valve Valve

RHEEM FURY SERIES / RUUD PACEMAKER SERIES

22V30FN P2-30FN SP14270M SP20135 SP20138 SP20148 SP20153 SP12574C SP12112E

22V40FN P2-40FN SP14270M SP20136 SP20139 SP20149 SP20154 SP12574C SP12112E

22V40SFN P2-40SFN SP14270M SP20137 SP20141 SP20151 SP20156 SP12574C SP12112E

22VR40FN P2R40-FN SP14270L SP20136 SP20140 SP20150 SP20157 SP12575C SP12112S

22V50FN P2-50FN SP14270M SP20137 SP20141 SP20151 SP20155 SP12574C SP12112E

22VR50FN P2R-50FN SP14270L SP20137 SP20142 SP20152 SP20158 SP12575C SP12112S

RHEEM AND RUUD PROFESSIONAL SERIES

22V30 PROFN P2-30 PROFN SP14270M SP20135 SP20138 SP20148 SP20153 SP12574C SP12112E

22V40 PROFN P2-40 PROFN SP14270M SP20136 SP20139 SP20149 SP20154 SP12574C SP12112E

22V40S PROFN P2-40S PROFN SP14270M SP20137 SP20141 SP20151 SP20156 SP12574C SP12112E

RHG PRO40FN RUG PRO40FN SP14270L SP20136 SP20140 SP20150 SP20157 SP12575C SP12112S

22V50 PROFN P2-50 PROFN SP14270M SP20137 SP20141 SP20151 SP20155 SP12574C SP12112E

RHG PRO50FN RUG PRO50FN SP14270L SP20137 SP20142 SP20152 SP20158 SP12575C SP12112S

RHEEM IMPERIAL SERIES / RUUD MASTER SERIES

22X30FN M2-30FN SP14270M SP20135 SP20138 SP20148 SP20153 SP12574C SP12112E

22X40FN M2-40FN SP14270M SP20136 SP20139 SP20149 SP20154 SP12574C SP12112E

22X40SFN M2-40SFN SP14270M SP20137 SP20141 SP20151 SP20156 SP12574C SP12112E

22XR40FN M2R-40FN SP14270L SP20136 SP20140 SP20150 SP20157 SP12575C SP12112S

22X50FN M2-50FN SP14270M SP20137 SP21041 SP20151 SP20155 SP12574C SP12112E

22XR50FN M2R-50FN SP14270L SP20137 SP21042 SP20152 SP20158 SP12575C SP12112S

•Upper Element (4500W)

SP610160 (single)

•Upper Element (4500W) MR30 - MR105

SP213790 (single)

•Lower element (4500W), MR30,

MR40 gallon

SP213660

•Heating Element (5500W)

SP10698PH (single)

•Heating Element (4500W/240V)

SP10698MH (single)

•Heating Element (5500W/240V)

SP10698RL (single)

REPLACEMENT PARTS

•Knock Out Bracket

SP213070 (single)

•Lower Access Panel Cover

SP213090 (single)

•Use and Care Manual

SP213270 (single)

•Access Panel Cover Insulation

SP213340 (single)

•Thermostat Insulation

SP213350 (single)

•Use and Care Manual Supplement

SP213360 (single)

•120V Temperature Control Thermostat

SP213590 (single)

•240V Temperature Control Thermostat

SP213600 (single)

•Use and Care Manual

SP213620 (single)

•Use and Care Manual Supplement

SP213630 (single)

•Vacuum Relief Valve

SP623335 (single)

•Dip Tube (MR85, MR105 gallon models)

SP230018 (single)

•Dip Tube (MSR50 gallon short model)

SP230019 (single)

•Dip Tube (MR15, MR20 gallon models)

SP230021 (single)

•Dip Tube (MR30 gallon model)

SP230023 (single)

•Dip Tube (MR75 gallon model)

SP230024 (single)

•Dip Tube (MR40, MR50 gallon models)

SP230025 (single)

•Seal Ring (MR30, MR40, MR50, MSR50,

MR75, MR80 gallon models)

SP230090 (single)

•Seal Ring Hot Side

(MR105 gallon model only)

SP230110 (single)

•Pipe Wrap Energy Kit

SP231520 (single)

•Lock Washer

SP231710 (single)

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Marathon Replacement Parts

HEATING ELEMENTS

•Lower Element (3800W), MR30, MR40

gallon models

SP210197

•Lower Element (3000W), MR30, MR40,

MR50, MSR50, MR75, MR85, and MR105

gallon models

SP210201

•Lower Element (3800W), MSR50, MR75,

MR85, MR105 gallon models

SP210198

•Lower Element (4500W), MSR50, MR75,

MR85, MR105 gallon models

SP213670

•Heating Element (3000W/240V)

SP213480 (single)

•Heating Element (2000W/120V)

SP213540 (single)

•Upper Element (3800W)

SP610130 (single)

•Upper Element (3800W) MR30 - MR105

SP213820 (single)

•Upper Element (5500W)

SP610140 (single)

•Upper Element (3000W)

SP610150 (single)

•Cap Screw

SP240420 (single)

•Grommet Hot Side

(MR105 gallon model only)

SP240480 (single)

•Grommet Hot Side (MR30, MR40, MR50,

MSR50, MR75, MR85 gallon models)

SP240490 (single)

•Lower Protector

SP310010 (single)

•Lower Thermostat

SP310020 (single)

•Lower Thermostat (30 Gallon and Larger)

SP210239 (single)

•Upper Thermostat (30 Gallon and Larger)

SP210245 (single)

•Upper Thermostat (High Temp)

SP210246 (single)

•Upper Protector

SP310040 (single)

•Element Gasket

SP310060 (single)

•Upper Temperature Control Thermostat

SP310230 (single)

•Screw #10-32 x 3/8

SP310240 (single)

•Drain Valve

SP310270 (single)

•Screw #10-16 x 5/8

SP330020 (single)

•Reducer Bushing 1” x 3/4” (MR105)

SP330030 (single)

•T & P Valve

SP330040 (single)

•Drain Valve

SP330090 (single)

•Screw #8

SP330180 (single)

•Reducer 1” x 3/4” Cold Side

SP330200 (single)

•Tee 3/4” x 3/4” x 3/4”

SP330210 (single)

•Nipple 3/4” x 3”

SP330230 (single)

•Junction Box Cover

SP410910 (single)

•Upper Access Panel

SP411800 (single)

•Lower Access Panel

SP411810 (single)

•Access Panel

SP412050 (single)

•Element Wrench

SP610070 (single)

RESIDENTIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Accessories

• Mobile Home Straps

SP20048

• Earthquake Straps

SP13345 (single)

• Heat Traps

SP20003 (single)

• Water Heater Stand, 21” X 21” X 16”

SP13044

•

ProtectionPlus 4-Yr. Limited Warranty Extension Kits* -

Pkg. of 6 (no single kit orders)

SP20079

•

Wall Mount Kit

AS 36111

* For use on: Professional, Fury, Pacemaker, Heavy Duty, PowerVent and Direct Vent models.

Not for use on: Warrior, Warrior DV, Marathon, Point-of-Use or Table Top models.

Expansion Tanks

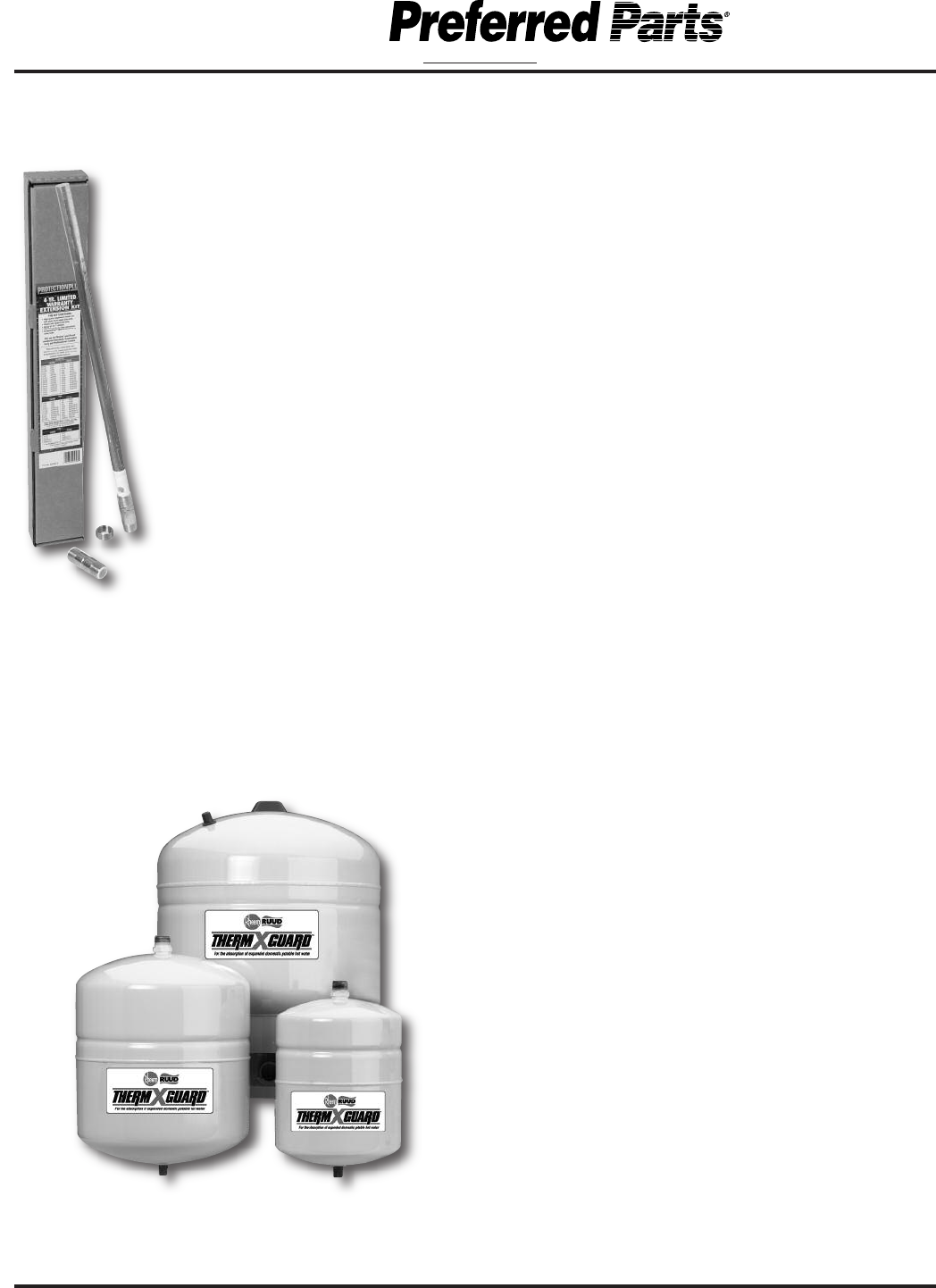

Thermal Expansion Tanks

Save Energy and Money

Expanded (heated) water is absorbed by a

Thermal Expansion Tank which means...

• Water heater and fixtures are protected

• Eliminates BTU and water waste, saving money and energy

• No dangerous pressure build up in the system

• Relief valves will not be triggered

• Potential safety hazard reduced

• RRT Therm-X-Guard Expansion Tank 2.5 Gal

RRT-5 (Single)

• RRT Therm-X-Guard Expansion Tank 5 Gal

RRT-12 (Single)

• RRT Therm-X-Guard Expansion Tank 10 Gal

RRT-25 (Single)

ProtectionPlus

Kit

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

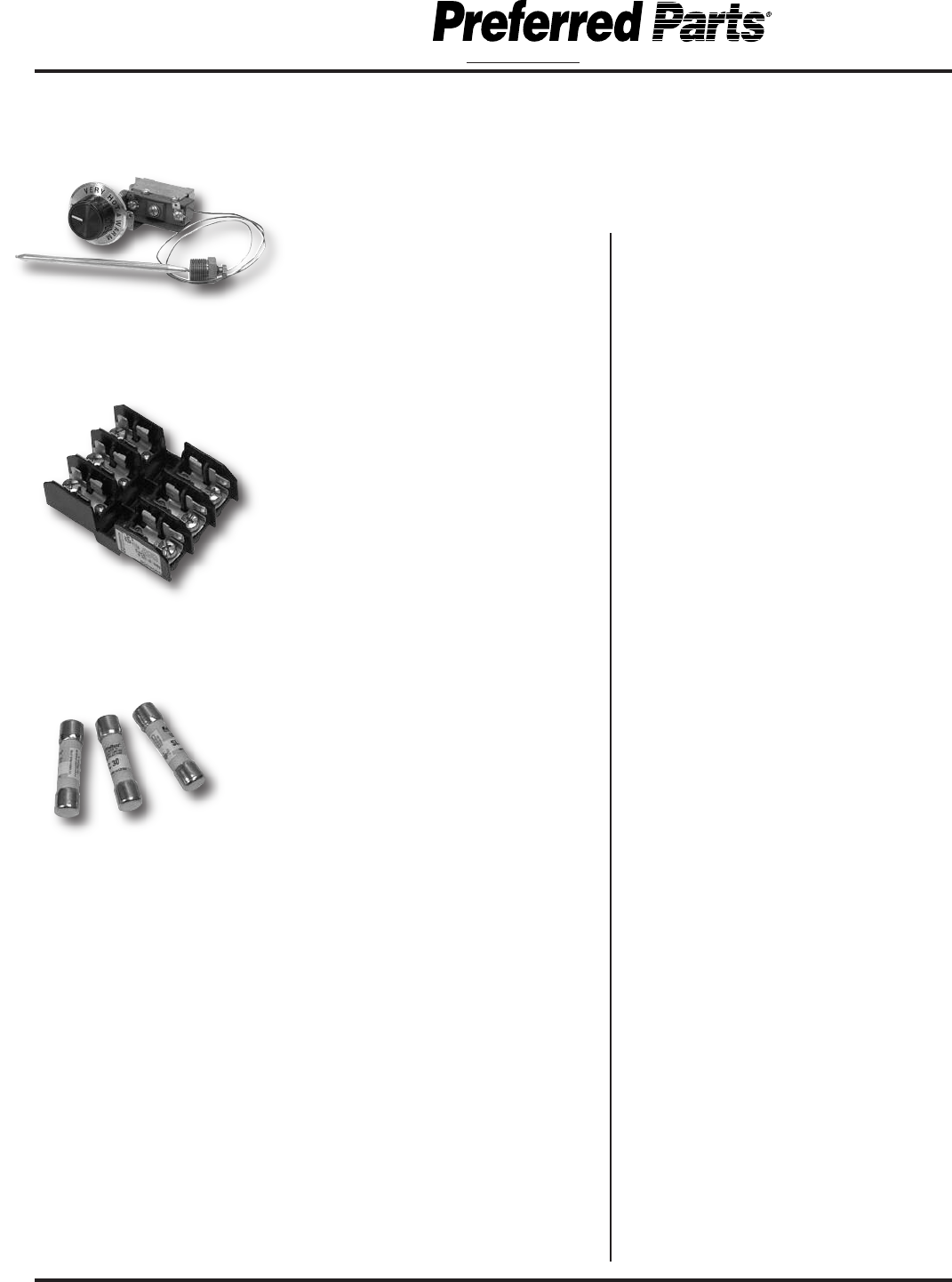

Immersion Thermostat

3-Pole Fuse Block

Fuses

ELECTRIC THERMOSTATS

• Therm-O-Disc Upper Thermostat (max 150

degree) & High Limit (170 degree) - 50 Gallon

Surface Mount

SP11234 (single)

• Therm-O-Disc Upper Thermostat (max 170

degree) & High Limit (190 degree) - 85 & 120

Gallon Surface Mount

SP11231 (single)

• Immersion Thermostat - White-Rogers

(110 - 190 degrees) 60” capillary tube

SP11805 (single)

• Immersion High Limit - White-Rogers

(200 degrees) manual reset - 60” capillary tube

SP11806 (single)

• Immersion Thermostat (80 - 190 degrees) - 24”

capillary tube

SP8260 (single)

• Immersion High Limit - (205 degrees) manual

reset - 15” capillary tube

SP5411 (single)

• Therm-O-Disc Upper Thermostat

(110-170 degree) & High Limit (190 degree),

non-simultaneous ELD models only

SP8293 (single)

• Therm-O-Disc Lower Thermostat (110-170

degree), non-simultaneous ELD models only

SP8295 (single)

• Hand Hole Gasket Kit

SP22079 (single)

• Hand Hole Gasket ONLY

SP5886

CONTACTORS AND TRANSFORMERS

• Contactor - 3 pole; 120V; 35 amp; I-F-G Class G

SP12841 (single)

• Transformer with Jumper

SP10006 (single)

• Copper Conductor

AM25285 (single)

FUSES AND FUSE BLOCKS

• Fuse Block - 3 pole; holds 1 5/8 L x 13/32 dia

fuses Class G - 30 amp

SP8311E (single)

• Fuse Block - Class G - 35 amp Fuse

SP11112 (single)

• Fuse - 30 amp 1 5/8 L x 13/32 dia Class G

SP8264M (single)

• Fuse - 35 amp Class G

SP8264K (single)

• Junction Box

AM35196

TEMPERATURE AND PRESSURE RELIEF VALVES

• Watts 100XL-4; 3/4”inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) 6-27 KW (100,000BTU)

SP12574 (single)

• Watts 40XL-5; 3/4” inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) 30-54 KW (200,000 BTU)

SP9013D (single)

• Watts L100XL-3; 3/4” inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) 81 KW

AP13849 (single)

RESISTORED STAINLESS STEEL

HEATING ELEMENTS – POWERPACK

• 480V/4000W (PowerPack)

AP12879LL

• 480V/4500W (PowerPack)

AP12879ML

• 480V/5000W (PowerPack)

AP12879NH

• 480V/6000W (PowerPack)

AP12879QH

• 277V/4000W (PowerPack)

AP12880LL

• 277V/4500W (PowerPack)

AP12880ML

• 277V/5000W (PowerPack)

AP12880NH

• 277V/6000W (PowerPack)

AP12880QH

• 240V/4000W (PowerPack)

AP12878LL

• 240V/5000W (PowerPack)

AP12878NH

• 240V/6000W (PowerPack)

AP12878QH

• 208V/4000W (PowerPack)

AP12877LL

• 208V/4500W (PowerPack)

AP12877ML

• 208V/5000W (PowerPack)

AP12877NH

• 208V/6000W (PowerPack)

AP12877QH

• Gasket – Element

SP6708

Commercial Electric Water Heaters

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

Honeywell Ignition Control

Pilot Burner and

Ignitor Sensor

Watts Temperature

& Pressure Relief

Valve

Immersion

Thermostat & High Limit

GAS VALVES

• Honeywell 1/2 Inlet x 3/4 Outlet Gas Valve -

Natural Gas - 24V

SP10963B

(single)

• Honeywell 1/2 Inlet x 3/4 Outlet Gas Valve -

LP Gas - 24V

SP10963C (single)

• Honeywell 3/4 Inlet x 3/4 Outlet Gas Valve -

Natural Gas - 24V

SP10963D (single)

• Honeywell 3/4 Inlet x 3/4 Outlet Gas Valve -

LP Gas- 24V

SP10963E (single)

• Robertshaw High Capacity Natural Gas Valve

1” Inlet x 1” Outlet Slow Opening Valve

SP8099N (single)

• Robertshaw High Capacity LP Gas Valve

1” Inlet x 1” Outlet - Slow Opening Valve

SP8099P (single)

IGNITION CONTROL MODULE & CABLE

• Honeywell Ignition Control S8600M -

Continuous Retry - 24V - used with electronic

ignition system

SP10763C (single)

• Honeywell Ignition Cable - 25 inch - 1/4”

disconnect with rubber boot on pilot end

SP8828G (single)

PILOT SENSOR

• Honeywell Pilot Burner and Ignitor Sensor -

Natural Gas - Electronic Ignition

SP10764B (single)

• Honeywell Pilot Burner and Ignitor Sensor -

LP Gas - Electronic Ignition

SP10764C (single)

TRANSFORMER

• Bassler - 120 VAC to 24 VAC

SP10550B (single)

LEG EXTENSIONS REQUIRED FOR N.S.F.

APPROVAL

• Leg Extension Kit for N.S.F. Approval for

Models: G50-98, G75-125, G82-156, G76-180,

G37-200, G76-200, G91-200, G100-200(A),

G72-250(A), G100-250(A), GD100-250(A),

G100-270(A), GD100-270(A), G72-300(A),

G65-360(A), G85-300(A), G100-310(A),

GD100-310(A), GD100-360(A), G65-400(A),

G85-400(A), G100-400(A)

AM35450 (single)

THERMOSTATS AND HIGH LIMITS

• Honeywell Immersion Thermostat - (100-180

degrees) & High Limit - single immersion well -

1 13/16” shank x 3/4” NPT

SP11799 (single)

• Honeywell Immersion Thermostat - (100-180

degrees) & High Limit (200 degrees) - dual

immersion well with 39 1/4” capillary - 1 13/16”

shank x 3/4” NPT

SP11798B (single)

• White-Rogers Manual Re-Set Immersion

Thermostat (100-180 degrees) & High Limit

dual immersion well with 46” capillary -

3/4” NPT

SP12015 (single)

DAMPER ASSEMBLY

• Due to the unique application of damper

assemblies, please call for part numbers and

pricing. Have the model number and serial

number of the water heater on hand.

TEMPERATURE AND PRESSURE RELIEF VALVES

• Watts 100XL-4; 3/4”inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) up to 100,000 BTU

SP9013E (single)

• Watts 40XL-5; 3/4” inlet x 3/4” discharge -

M150# (150 PSI pressure/ 210 degree

temperature) up to 200,000 BTU

SP9013D (single)

• Watts L40XL-6; 1” inlet x 1” discharge (150 PSI

pressure/ 210 degree temperature) up to

500,000 BTU

SP9012B (single)

DIAGNOSTIC SYSTEM

• System Sentinel

AM38875 (single)

OTHER PARTS

• Ignitor Bracket

AE34933-1

• Wiring Harness

AP11327-5

Commercial Heavy Duty Gas Water Heaters

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

• Direct Spark Igniter

SP20258

• Flame Sensor Rod Kit

SP20259

• Temperature Sensor – Water & ECO

AP14074-3

• Flue Sensor – Exhaust Temp

AP14280-1

• Control Board – Argus

AP14023-1

• Display Board Kit – Argus

SP20260

• Condensate Trap

AP14685-2

• Drain Valve

AP12231B-1

• T&P Valve

SP9013D (130 to 199k)

SP9012B (250 to 400k)

• On/Off Switch

AP12767

• Hand Hole Gasket

SP5886

• UL Sanitation Kit

AS42690C (130/160/199k)

AS42690B (250/300/350k)

• Concentric Vent Kit

Call for Application

• Display Jumper Harness

AP14758

• Diffuser Nipple

AP14859

• 45° Elbow (ULC636 Canada Only)

AP14889

• Pressure Switch Assembly

Call For Application

• GHE Burner Assembly Kit (NG)

Call For Application

• GHE Burner Assembly Kit (LP)

Call For Application

• GHE Main Control Harness

AP14092-2

• GHE Blower Control Harness

AP14157-3

• GHE Main Power Harness

AP14158-6

• GHE Gas Valve Harness

AP14159-4

• GHE Igniter Cable Harness

AP15294-4

• Ground Wire Harness

AP15261

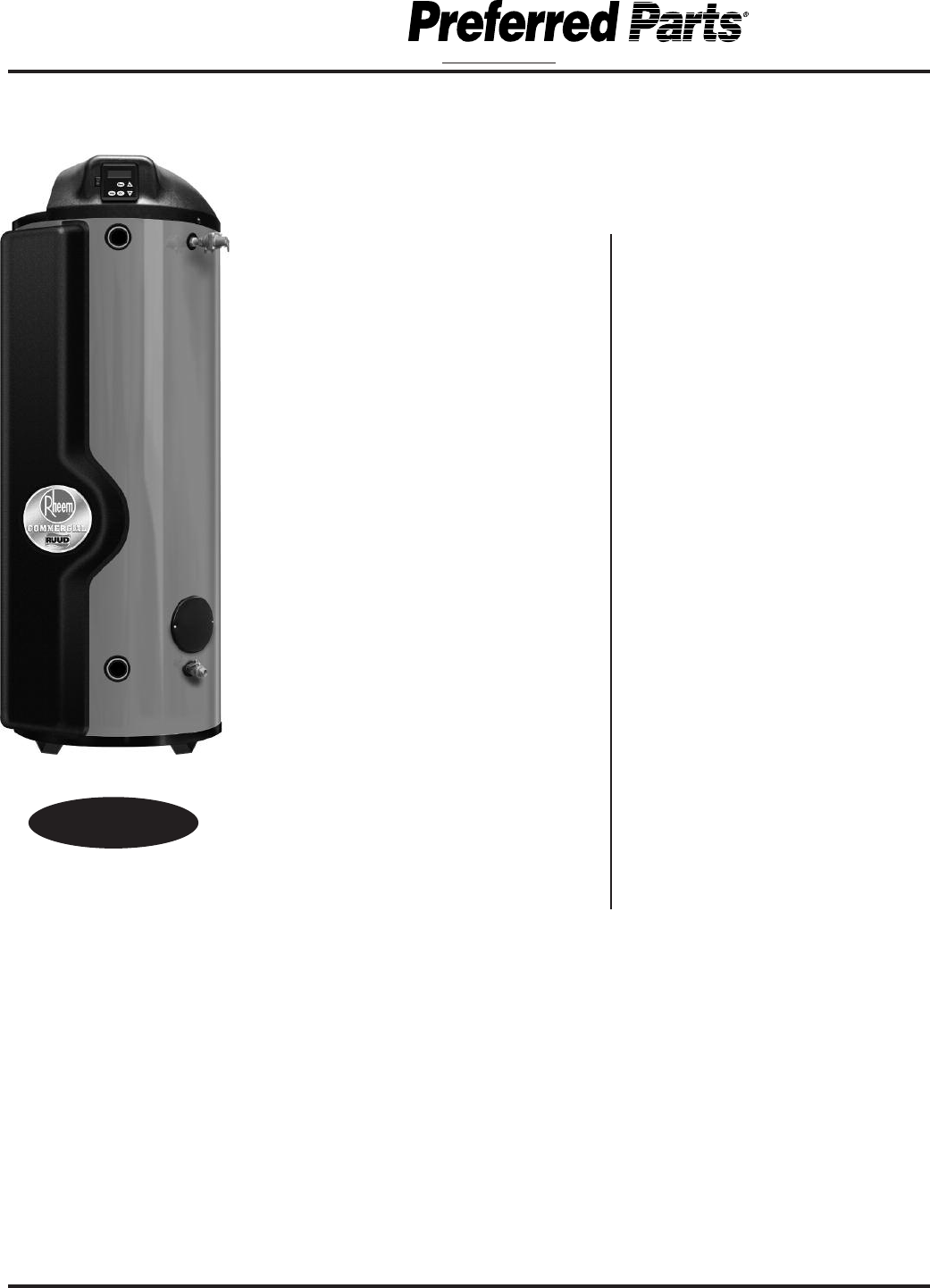

SpiderfireTM Ultra High Efficiency Commercial Gas

PARTS DIAGRAM

ON PAGE 69

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

Model Gas Valve Gas Valve Ignition Control Pilot Sensor Pilot Sensor Thermostat T&P Valve

Number (NG) (LP) Module (NG) (LP)

G50-98 SP10963B SP10963C SP11799

G75-125

G82-156

G37-200

G76-180

G76-200

G91-200

G100-200

G72-250

G100-250

G100-270

G72-300

G85-300

G100-310

G65-360

G65-400

G85-400

G100-400 SP8099N SP8099P

GD100-250

GD100-270

GD100-310

GD100-360

• Inducer Assembly

SP13800 – Fits models GD100-250(A) and

GD270(A), NG and LP

• Inducer Assembly

SP13801 – Fits model GD100-310(A),

NG only

• Inducer Assembly

SP13802 – Fits models GD100-310(A), LP only

and GD100-360(A), NG and LP

• Pressure Switch

SP13989

Commercial Induced Draft Gas Water Heaters

Unique Replacement Parts

Nine basic commercial gas parts fix all 23 Universal and

Induced Draft Water Heaters

SP10963D

SP10963E

SP10763C

SP10764B

SP10764C

SP11798B

SP9013DSP9012B

SP10963D

SP10963E

PARTS DIAGRAM

ON PAGE 71

SP12015

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

Commercial Low NOx Water Heaters

PARTS DIAGRAM

ON PAGE 74

• GN75-125 AM39731 (single)

• GN76-200 AM39741 (single)

• GN82-156 AM39760 (single)

• GN91-200 AM39189 (single)

• GN100-200 AM39732 (single)

• GN100-250 AM39737 (single)

• GN100-270 AM39738 (single)

• GN100-400 AM40016 (single)

BURNER/MANIFOLD ASSEMBLIES

(Without gas valve and blower assembly)

• GN37-200 AM39188 (single)

• GN65-360 AM39767 (single)

• GN72-250 AM40020 (single)

• GN75-125 AM39245-3 (single)

• GN76-200 AM39188 (single)

• GN82-156 AM39759 (single)

• GN91-200 AM39342 (single)

• GN100-200 AM39718-3 (single)

• GN100-250 AM39764 (single)

• GN100-270 AM39246 (single)

• GN100-400 AM39526 (single)

BLOWER ASSEMBLIES

• GN37-200 AM39729 (single)

• GN65-360 AM39766 (single)

• GN72-250 AM39734 (single)

• GN75-125 AM39728 (single)

• GN76-200 AM39740 (single)

• GN82-156 AM39761 (single)

• GN91-200 AM39739 (single)

• GN100-200 AM39729 (single)

• GN100-250 AM39729 (single)

• GN100-270 AM39753 (single)

• GN100-400 AM39733 (single)

IGNITORS WITH BURNER BRACKET

• GN37-200, GN75-125, GN76-200,

GN82-156, GN91-200, GN100-200,

GN65-360, GN72-250,GN100-250,

GN100-270, GN100-400

AM39758 (single)

BLOWER ASSEMBLY

• GN75-125

SP20165A

SP20165B

PRESSURE SWIRT

• GN75-125 AP14551A

• GN37-200 AP14551C

• GN72-250 AP14551D

• GN91-200 AP14551E

• GN65-360 AP14551F

• GN100-400 AP14551G

• GN76-200 AP14551H

HONEYWELL GAS VALVES

• GN37-200, GN65-360, GN72-250,

GN75-125, GN76-200, GN82-156,

GN91-200, GN100-200, GN100-250,

GN100-270

SP12541B (single)

• GN100-400 SP12543 (single)

BURNER ASSEMBLIES

(Includes gas valve and blower assembly)

• GN37-200 AM39755 (single)

• GN65-360 AM39768 (single)

• GN72-250 AM40021 (single)

• GN37-200, GN100-200

SP20165C

• GN72-250, GN76-200, GN100-250

SP20165D

• GN91-200, GN100-270

SP20165E

• GN65-360

SP20165F

• GN100-400

SP20165G

• GN76-200H, GN91-200H, GN100-200H

SP20165H

DAMPER ASSEMBLY

• Due to the unique application of damper

assemblies, please call for part numbers

and pricing. Have the model number and

serial number of the water heater on

hand.

• White-Rogers Relay

SP12732 (single)

• Baffle Assembly

AM39581 (single)

• Pilot Assembly

SP20058 (single)

• SMC South Blower Cage

AP12712 (single)

• QNI Wiring Harness

AP12594B-3 (single)

• Honeywell Ignition Cable

AP12761 (single)

• Gasket Blower Inlet

AP12468

• Blower Centrifugal

AP12526-3

• Gasket Bower Outlet

AP12592-1

• Cap-Rubber Hose-Barb

AP14636

• Instruction Sheet

AP14637

• Screw 8x3/8 SM Self Drill

AP5925ES-3

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

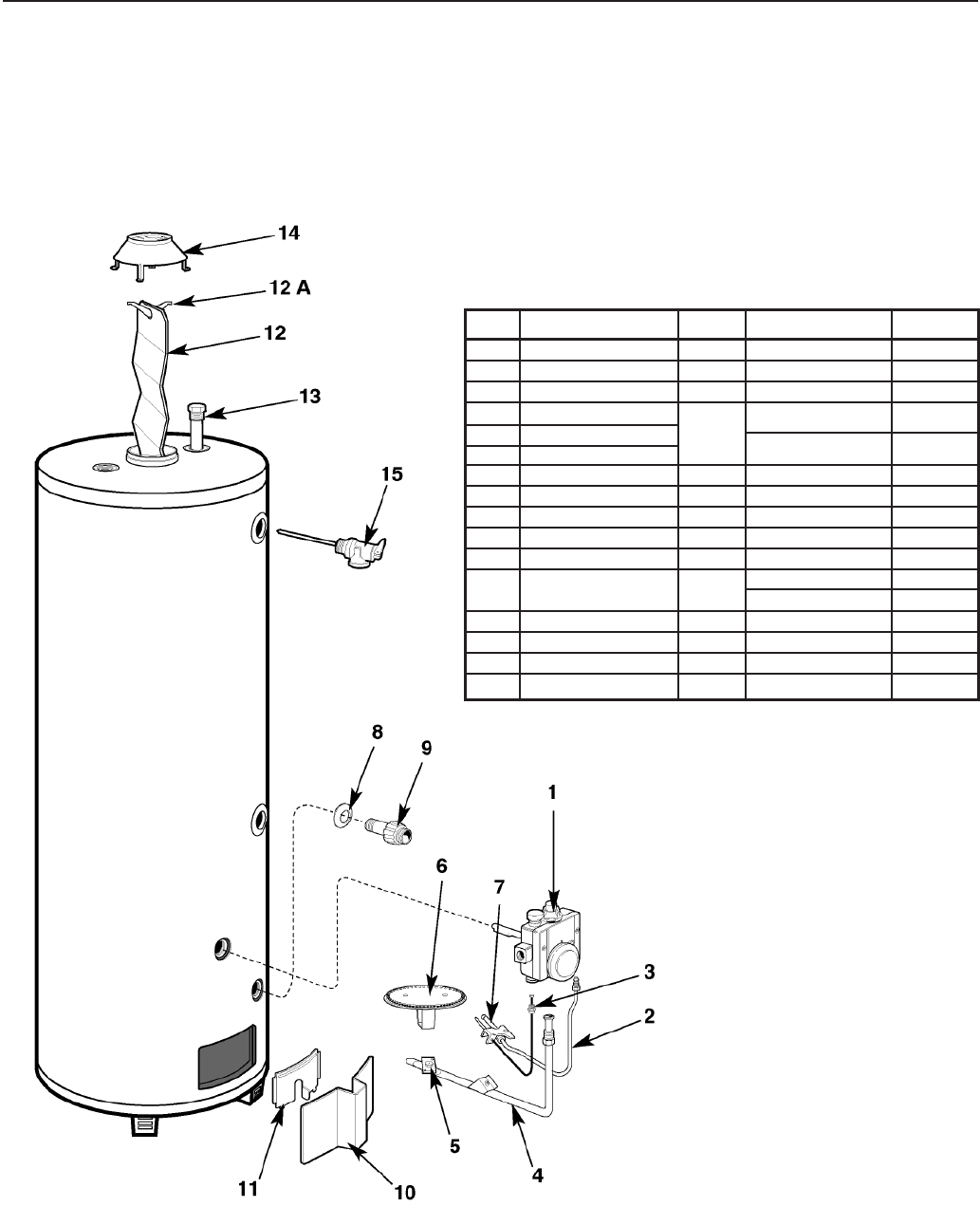

• Robertshaw Natural Gas Thermostat

(180 degrees) control valve with 2 3/8” shank -

single use high limit (200 degrees) - 75,000 BTU

- 1/2” inlet & outlet

SP12234B (single)

• Robertshaw Natural Gas Thermostat (180

degrees) control valve with 1 5/8” shank - single

use high limit (200 degrees) - 75,000 BTU - 1/2”

inlet & outlet

SP12234C (single)

• Robertshaw Natural Gas Thermostat (180

degrees) control valve with 2 7/8” shank - single

use high limit (200 degrees) - 75,000 BTU - 1/2”

inlet & outlet

SP12234E (single)

• Natural Gas Pilot Burner Assembly -

.0115 orifice

SP8384B (single)

• LP Pilot Burner Assembly .008 orifice (colored

red for easy identification)

SP8384D (single)

• 24” Thermocouple

SP6379R (single)

Commercial Gas – Light Duty, Standing Pilot

•Terminal Block 175 AMP

SP13407 (single)

•Transformer 50 VA

SP13408 (single)

•Vacuum Relief Valve

SP221790 (single)

•Switch

SP13411 (single)

• T&P Relief Valve

SP330040

•Thermostat

SP13410

ELEMENTS

• 3100W / 208V

SP13409AL (single)

• 4500W / 6000W 208V / 240V

SP13409BL (single)

• 6000W / 208V

SP13409CL (single)

• 3100W / 240V

SP13409DL (single)

• 4500W / 6000W 240V / 277V

SP13409EL (single)

• 3100W / 277V

SP13409FL (single)

• 4500W / 277V

SP13409GL (single)

• 3100W / 480V

SP13409HL (single)

• 4500W / 480V

SP13409JL (single)

• 6000W / 480V

SP13409KL (single)

Commercial Eclipse Water Heaters

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

110 Volt Ignitor Kit

• Interconnecting Ribbon Cable to PC Board

SP12139 (single)

• Pressure Switch

SP12140 (single)

• Transformer with Ignition Cable

SP12141 (single)

• ECO/Temperature Probe

SP12142 (single)

• Ignitor

SP12143 (single)

• 110V Ignitor Kit

SP12143K (single)

• Flame Rectification Probe

SP12144 (single)

• Gas Valve

SP12145 (single)

• Low Voltage Cable

SP12146 (single)

• Line Cable

SP12147 (single)

• Over Temperature Switch (Exhaust Outlet)

SP12149 (single)

• Glass Sight Window

SP12150 (single)

• Neutralizer Condensate

SP12151 (single)

• Gasket Burner Mounting Flange

SP12152 (single)

• Gasket Blower Outlet Flange

SP12153 (single)

• Gasket Air Inlet

SP12154 (single)

• Gasket Sight Window

SP12156 (single)

• Main Control PC Board, 160 deg., 130,000 BTU

SP12136 (single)

• Main Control PC Board, 160 deg., 160,000 BTU

SP12137 (single)

• Display PC Board

SP12138 (single)

• Main Control PC Board, 160 deg., 199,000 BTU

SP12186 (single)

• Booster Kit

ASBK-1200

• Exhaust Elbow

7000P-604

• Main Control PC Board, 160 deg., 100,000 BTU

SP12416 (single)

• Main Control PC Board, 180 deg., 160,000 BTU

SP12418 (single)

• Main Control PC Board, 180 deg., 199,000 BTU

SP12419 (single)

• Gasket Ignitor Collar

AP12654

• Burner – 100-130K BTU

SP14114

• Burner – 160-199K BTU

SP14115

• Low Water Cutoff

SP20124

• Combustion Blower

SP12189 (Single)

ORIFICE KITS

• 130,000 BTU, LP

SP12389B

• 160,000 BTU, LP

SP12389C

• 199,000 BTU, LP

SP12389D

• 130,000 BTU, NG

SP12190B

• 160,000 BTU, NG

SP12190C

• 199,000 BTU, NG

SP12190D

ADVANTAGEPLUS ACCESSORIES

• Concentric Vent Termination Kit 3”

Call for Application

• Aluminum Outsize Termination Vent Kit

SP12162 (single)

• Mesh Screen 3-1/2” Size Stainless for 3” Pipe

SP12163 (single)

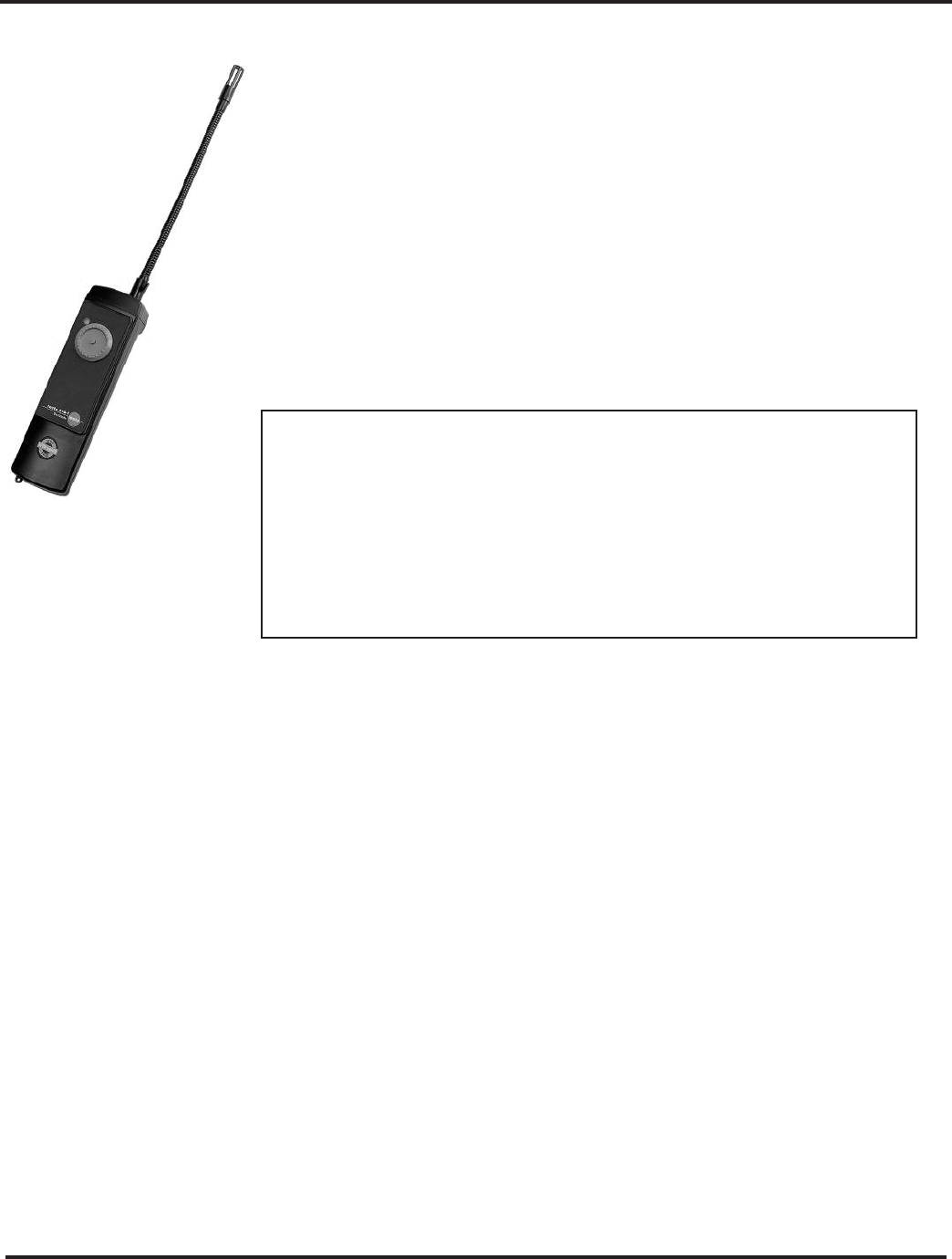

• Model 450 CO Meter

AP12516 (single)

• Condensate Hose

7000486

AdvantagePlus Commercial Water Heaters

Before 6/1/2009

To place your order call 1-800-621-5622; fax 1-800-535-9538

COMMERCIAL

The premium line of approved replacement parts.

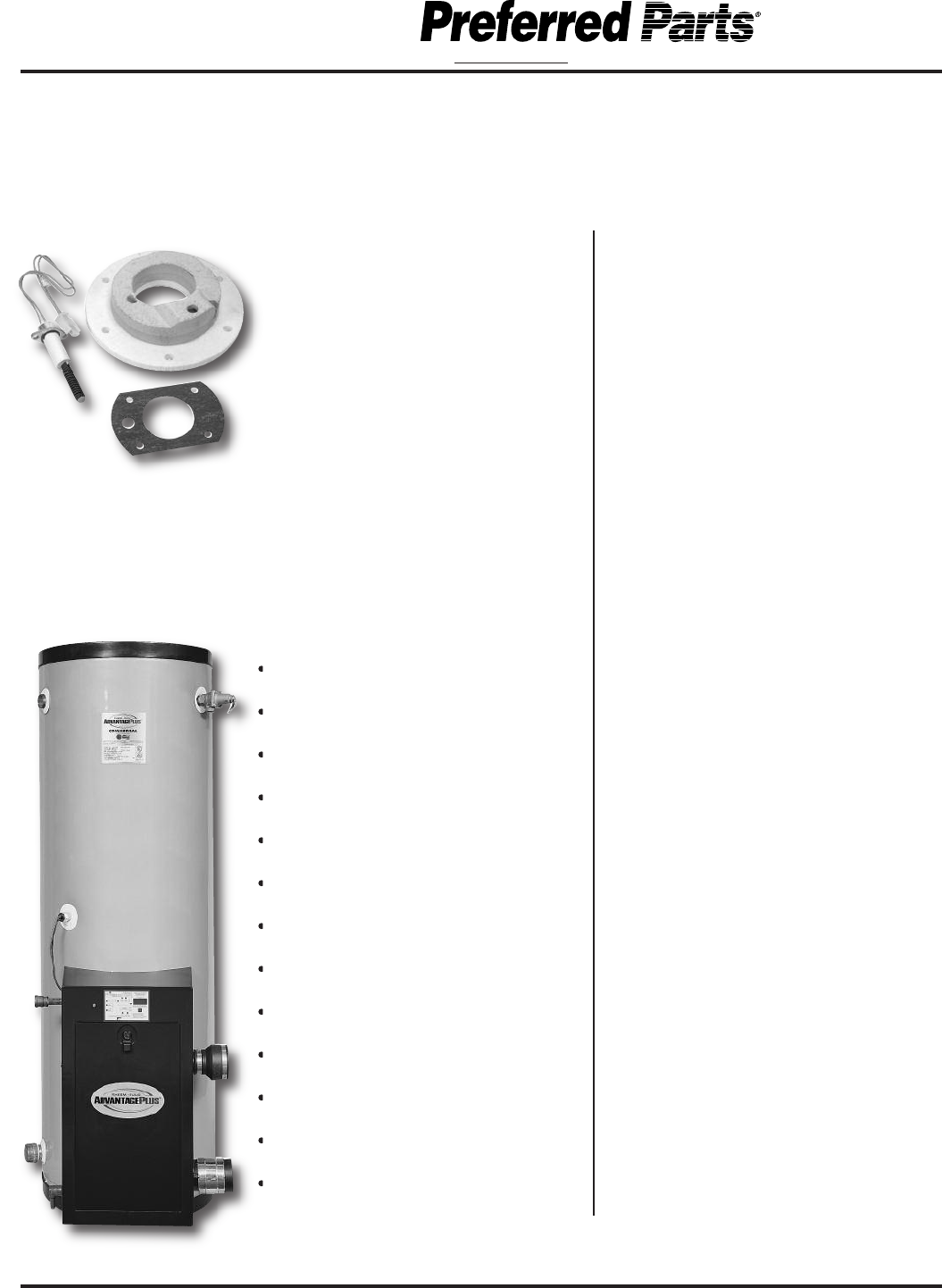

• Gasket – Burner Mounting Flange

SP15138

• Igniter w/ Gasket & Mounting Screws (NG)

SP15128

• Igniter w/ Gasket & Mounting Screws (LP)

SP15134

• Flame Sensor w/ Gasket & Mounting Screw

SP15129

• Gasket – Burner Blower

SP15239

• Burner w/ Gasket

SP15126 (130k btu or less)

SP15127 (>130k btu)

• Gasket – Burner Mounting Plate

SP15139

• Gasket – Sight Glass

SP15152

• Sight Glass w/ Gasket

SP15136

• Combustion Blower w/ Gasket

SP15130

• Air Intake Adapter – Blower Side

SP15158

• Air Intake Adapter – Valve Side

SP15157

• Swirl Plate

SP15155 (130k btu or less)

SP15156 (>130k btu)

• Condensate Neutralizer

SP12151

• Mesh Screen for 3-Inch Pipe

SP12163

• Gas Valve Assembly

SP15131 (130k btu or less)

SP15132 (>130k btu)

• Pressure Switch

SP12140

• Over Temperature Switch – Outlet

SP12149

• Tube – Air Inlet

SP15137

• Main Control Board – 160°F

SP15133A (130k)

SP15133B (160k)

SP15133C (199k)

SP15133D (100k)

• Main Control Board – 180°F

SP15133A (160E)

SP15133B (199F)

• Control Board Display

SP15153

• ECO/Temperature Probe

SP12142

• Low Water Cutoff

SP15140

• Low Voltage 24V Cable

SP15183

• Line Cable – 120V

SP15184

• Aluminum Vent Kit

SP12162 (Outsize Aluminum)

• PVC Vent Kit

Call for Application

• Model 450 CO Meter

AP12516

AdvantagePlus Commercial Gas

After 6/1/2009

PARTS DIAGRAM

ON PAGE 70

To place your order call 1-800-621-5622; fax 1-800-535-9538

XTREME Commercial Water Heaters

• Thermostat and High Limit

AP12015-1 (single)

• Pressure Switch (GX90-500, GX90-550,

GX90-600, GX90-680)

SP14197B (single)

SP14197C (GX90-640, GX90-715)

• Gas Valve

SP12866P (single, LP)

SP12866N (single, NG)

• Pilot / Ignitor Assembly

SP12305 (single, LP)

SP12237 (single, NG)

• Relief Valve (GX90-715, GX90-680)

AP12323-1 (single)

• Relief Valve (GX90-640, GX90-600, GX90-550)

AP12035 (single)

• Relief Valve (GX90-500)

SP9012B (single)

• Full Flow Drain Valve

SP12231B (single)

• Damper Assembly

AP13156

• Blower Motor

SP12525 (single)

• Gasket Plenum

AP12382-1 (single)

• Gasket Set/Fan

AP12383 (single)

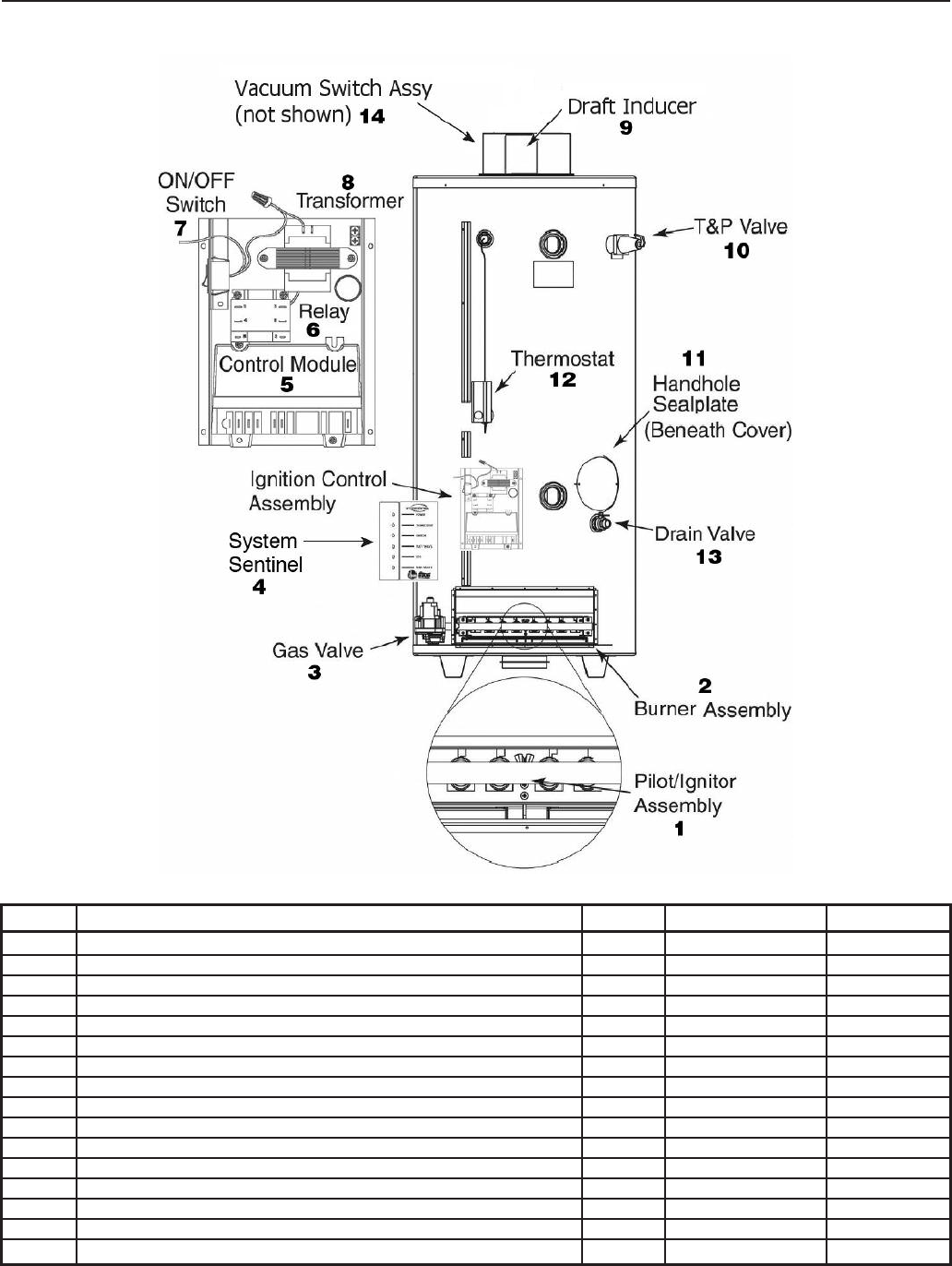

VentMaster Commercial Water Heaters

• Anode Rod - 42” long x .840 dia

SP11345S

• Thermostat and High Limit

SP11789B

• Blower (GP100-150, GP100-200)

AP13192

• Blower (GP100-250)

AP13186-1 (4” Outlet)

• Relief Valve (GP100-200, GP100-150)

SP9013D

• Pilot Ignitor Assembly

SP13185

• Gas Valve

SP13714

• System Sentinel Panel

AM38875

• Control Module

AS40782-1

• Relay

SP12732

• On/Off Switch

SP8825

• Transformer

SP10550B

• Full Flow Drain Valve

SP12231B

• Ignition Control

SP10763C

PARTS DIAGRAM

ON PAGE 75

PARTS DIAGRAM

ON PAGE 72

COMMERCIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Light Duty Brass Drain Valve:

R-Tech Resistor

Magnesium Flexible

Link Anode Rod:

DRAIN VALVES

• Brass Drain Valve - 3/4” x 2 1/4” shank

SP6070G (single)

• Brass Drain Valve - 3/4” x 3” shank -

Commercial Light Duty

SP12112S (single)

• Standard Melet - 3/4” NPT x 2 1/4” shank

SP12039 (single)

• Brass Drain Valve - 3/4” x 2 1/4” shank

SP12112G (single)

• Brass Full Flow Drain Valve 3.1” (gas)

SP12231B (single)

• Brass Full Flow Drain Valve 3.1” (electric)

AP12231C-1 (single)

ANODE RODS

• R Tech Resistor Magnesium Anode Rod -

44” long x .700 dia

SP11309C (single)

• Galvo Magnesium - 44” long x .840 dia

SP11345C (single)

• Magnesium Anode Rod - 44” long x .840 dia

SP11524C (single)

• Magnesium Anode Rod - 58” long x .840 dia

SP11524Z (single)

• R Tech Resistor Magnesium Anode Rod -

44” long x .900 dia

SP11526C (single)

• R Tech Resistor Magnesium Flexible Link

Anode Rod - 52” long - 12” sections

SP8371B (single)

DIP TUBES

• Dip Tube with anti-siphon hole - 3/4” x 54” long

- clear (North Carolina code) with gasket

SP11251R (single)

• Dip Tube with anti-siphon hole - 1” x 26” long

with gasket

SP11269C (single)

• Dip Tube with anti-siphon hole - 3/4” x 54” long

with gasket

SP11248R (single)

GASKETS

• Hand Hole Gasket

SP5886 (single)

Common Replacement Parts

COMMERCIAL

The premium line of approved replacement parts.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Non-Resistored Heating Elements

COPPER SCREW-IN ELEMENTS

• 120V/1500W, 7-5/8”, HWD

UV12890 (Single)

• 120V/2000W, 7-5/8”, HWD

UV12892 (Single)

• 240V/1500W, 7-5/8”, HWD

UV12891 (Single)

• 240V/2000W, 7-5/8”, HWD

UV12893 (Single)

• 240V/2500W, 9-3/8”, HWD

UV12894 (Single)

• 240V/3000W, 10-9/16”, HWD

UV12895 (Single)

• 240V/3500W, 12-9/16”, HWD

UV12896 (Single)

• 240V/3800W, 13-7/16”, HWD

UV12897 (Single)

• 240V/4000W, 13-9/16”, HWD

UV12898 (Single)

• 240V/4500W, 13-9/16”, HWD

UV12899 (Single)

• 240V/4500W, 10”, MWD

UV13049 (Single)

• 240V/5500W, 10-1/8”, LWD

UV12900 (Single)

• 240V/4500W, 11-3/4”, LWD

UV12901 (Single)

COPPER 1-3/8” SCREW-IN ELEMENTS

• 240V/4500W, 11-9/16”, LWD

UV12902 (Single)

COPPER FLANGE ELEMENTS

• 120V/1500W, 7-5/8”, HWD

UV12944 (Single)

• 240V/1500W, 7-5/8”, HWD

UV12908 (Single)

• 240V/2500W, 10”, HWD

UV13047D (Single)

• 240V/3500W, 12-9/16”, HWD

UV12909 (Single)

• 240V/4500W, 13-9/16”, HWD

UV12910 (Single)

• 240V/3000W, 10”, HWD

UV13047A (Single)

• 240V/5500W, 12”, HWD

UV13047B (Single)

• 240V/4500W, 9”, MWD

UV13047C (Single)

COPPER FLAT FLANGE ELEMENTS

• 240V/4500W, 13-9/16”, HWD

UV12907 (Single)

• 240V/4500W, 14”, LWD

UV13051 (Single)

SLIP-IN ELEMENTS

• 240V/3000W, HWD

UV13066A (Single)

•240V/3500W, HWD

UV13066B (Single)

• 240V/4500W, HWD

UV13066C (Single)

STAINLESS STEEL SCREW-IN ELEMENTS

• 240V/3500W, 13-7/8”, LWD

UV12903 (Single)

• 240V/4500W, 13-1/2”, LWD

UV12904 (Single)

• 240V/5500W, 13-1/2”, LWD

UV12905 (Single)

• 120V/1500W, 12”, HWD

UV13050B (Single)

• 240V/2500W, 11”, HWD

UV13050A (Single)

STAINLESS STEEL FLANGE ELEMENT

• 240V/2500W, 11”, LWD

UV12911 (Single)

• 240V/4500W, 14”, HWD

UV13048 (Single)

HWD = High Watt Density

MWD = Medium Watt Density

LWD = Low Watt Density

Note: Elements listed not

recommended with Rheem, Ruud,

and GE products. Use of this

component may lead to premature

failure of the product and voiding

of manufacturers warranties.

Universal ™Parts

RESIDENTIAL

The value line for all your replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Universal Gasket Kit

Heavy duty

element wrench

Element Accessories

• Gasket Kit - (1) screw-in gasket, (1) flange,

(1) 4-hole gasket, (4) 1/4” - 20 x 3/4” hex slot

UV12914

(Single)

• Universal Adapter Kit - (1) flat gasket, (1) round

gasket, (1) element adapter

UV6830

(Single)

• 4” Heavy Duty Element Wrench

UV38628

(Single)

Plumber’s Pack Kit - includes two non-resistored 4500 watt screw-in

heating elements, two heating element gaskets, and

upper & lower thermostats

UV20018 (single)

Universal Parts Plumber’s Pack

The plumber’s pack is an all-inclusive “tune-up” kit for electric water

heaters featuring the most popular replacement parts on the market.

• Two non-resistored heating elements and gaskets

• Upper and lower thermostats

• Economy package that includes all the major components for a

complete “tune-up” for the water heater

Universal ™Parts

RESIDENTIAL

The value line for all your replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

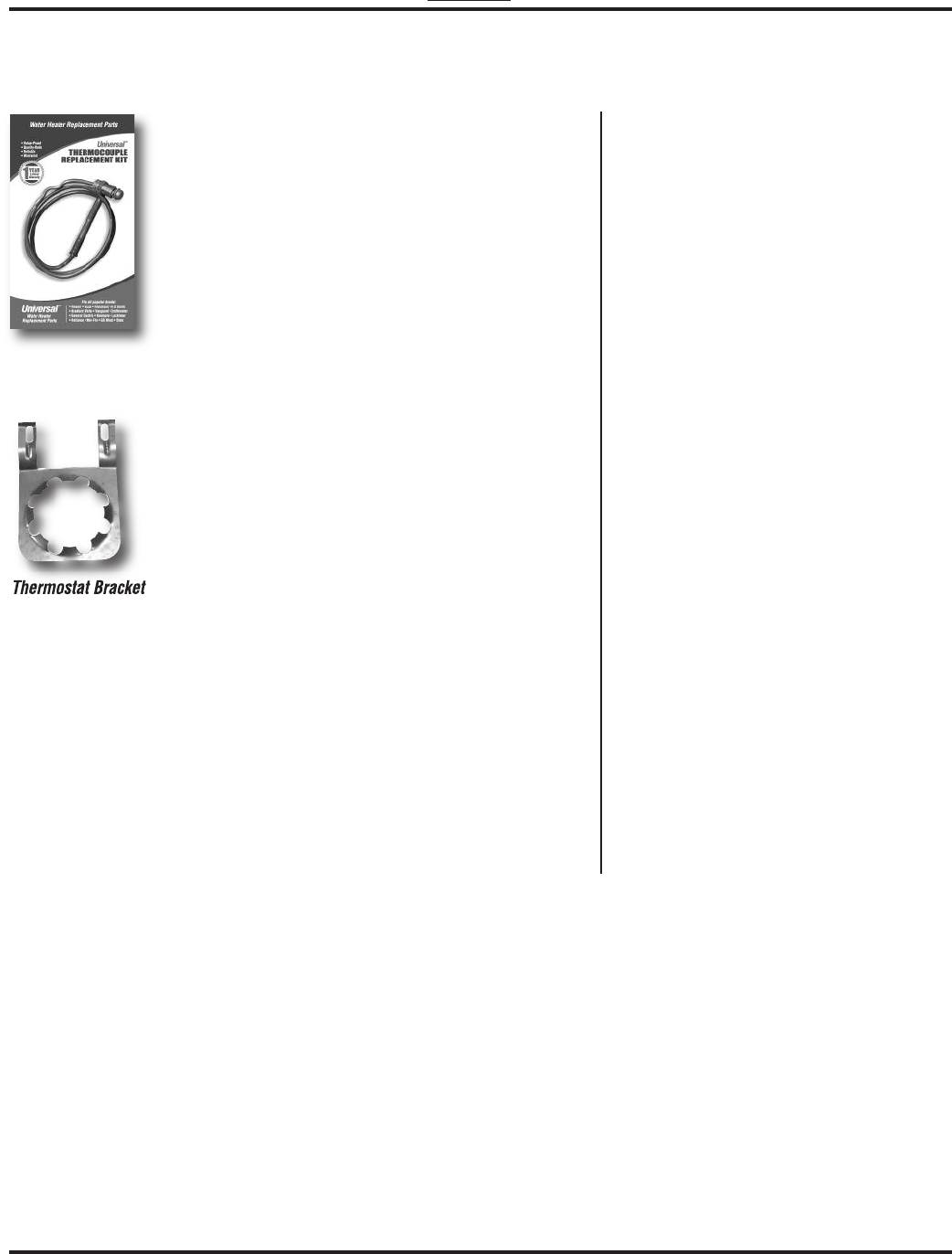

Thermocouple Kit

Thermostat Bracket

Electric Thermostats*

• APCOM Upper Thermostat

(max 150 degrees) & High Limit (170 degree)

- Two element non-simultaneous 208, 240,

277, 480 volt

UV13359 (single)

• Therm-O-Disc Upper Thermostat

(max 150 degrees) & High Limit (170 degree)

- Two element simultaneous 208, 240,

277, 480 volt

UV11699 (single)

• Therm-O-Disc Upper Thermostat

(max 150 degrees) & High Limit (170 degree)

- Single element 120 volt

UV11700 (single)

• APCOM Lower Thermostat

(max 150 degrees)simultaneous and

non-simultaneous 208, 240, 277, 480 volt

UV13360 (single)

• Therm-O-Disc Lower Thermostat

(max 150 degrees) & High Limit (170 degree)

- Two element non-simultaneous 208, 240,

277, 480 volt

UV11695 (single)

• Therm-O-Disc Upper Thermostat

(max 150 degrees)simultaneous and

non-simultaneous 208, 240, 277, 480 volt

UV11698 (single)

Gas Replacement Parts

• 18” Thermocouple Kit

UV6379L

(Single)

• 24” Thermocouple Kit

UV6379R

(Single)

• 30” Thermocouple Kit

UV6379H

(Single)

• 36” Thermocouple Kit

UV6379S

(Single)

Common Replacement

Parts

• Flared Dip Tube

SP11248R

• Threaded Dip Tube

AP12933

• Screw-In Thermostat Bracket

AS23557-6

• Heat Traps (flapper type)

UV12992

(Single: 2/pkg.)

• Watts 100XL-4; 3/4" inlet x 3/4" discharge -

M150# (150 PSI pressure / 210 degree

temperature) up to 100,000 BTU

SP12574 (single)

• Watts 100XL; 3/4" inlet x 3/4" discharge

(150 PSI pressure / 210 degree temperature) -

long shank up to 100,000 BTU

SP8346 (single)

• Drain Valve; Standard Melet

3/4" NPT x 2 1/4" shank

UV12039 (single)

Electric thermostats may be ordered in bulk. Box consists of 50 thermostats of the

same part number. Bulk pricing is less than the single price. Please call for pricing.

Universal ™Parts

RESIDENTIAL

The value line for all your replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

* Gas connector kits contain (2) 3/4” nipples, (2) 3/4” x 12”, 15”, 18” flex water connectors, (1) teflon tape, (2) 3/4” comp. fittings, (1) 18” flex. gas connector.

Electric connector kits contain (2) 3/4” x 2” nipples, (2) 3/4” x 12”, 15”, 18” flex water connectors, (1) teflon tape, (2) 3/4” MPT comp. fittings.

Water connector kits contain (2) 3/4” x 2” nipples, (2) 3/4” x 12”, 15”, 18” flex water connectors, (1) teflon tape.

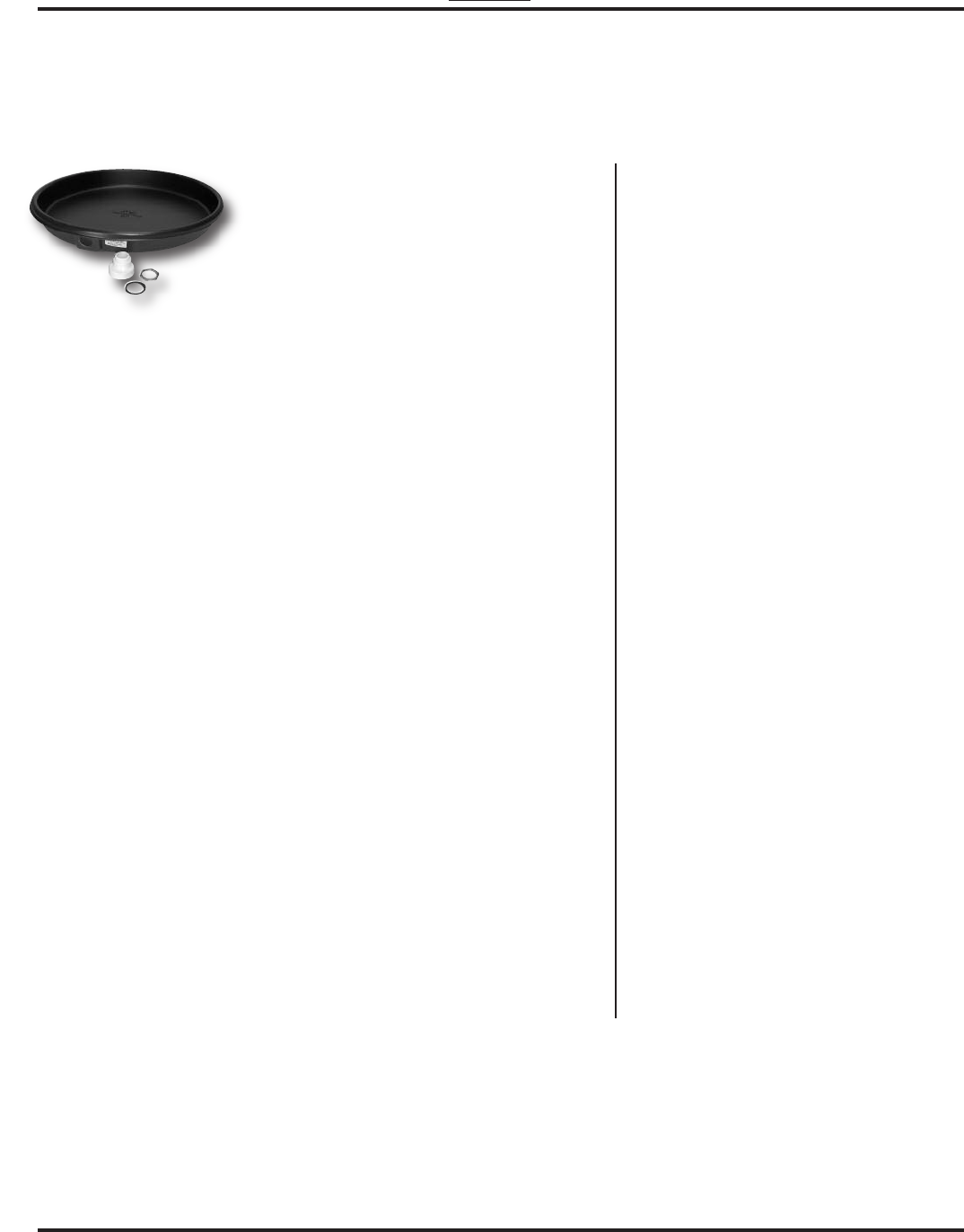

Drain Pan with Fittings:

• Available in plastic or

aluminum in a variety of sizes.

Accessories

WATER CONNECTORS

• 12” Flexible Copper Water Connector 3/4”

UV10351 (Single: 2/Pkg.)

• 15” Flexible Copper Water Connector 3/4”

UV10505 (Single: 2/Pkg.)

• 18” Flexible Copper Water Connector 3/4”

UV10506 (Single: 2/Pkg.)

• 24” Flexible Copper Water Connector 3/4”

AP13006

• 18” Flexible Copper Water Connector

3/4” FIP x 3/4” Sweat

AP13012

• 24” Flexible Copper Water Connector

3/4” FIP x 3/4” Sweat

AP13015

• Stainless Steel 3/4” Water Connector 12”

UV12927 (Single: 2/Pkg.)

• Stainless Steel 3/4” Water Connector 15”

UV12928 (Single: 2/Pkg.)

• Stainless Steel 3/4” Water Connector 18”

UV12929 (Single: 2/Pkg.)

GAS CONNECTORS

• 12” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

SP10349

• 18” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

SP10350

• 24” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP13014

• 48” Stainless Steel Gas Connector

1/2” FIP x 1/2” MIP

AP13013

INSTALLATION KITS

• 15” Water Connector Kit 3/4”*

UV20010 (Single: 2/Pkg.)

• 15” Gas Connector Kit 3/4”*

UV20016 (Single: 2/Pkg.)

• 15” Electric Connector Kit 3/4”*

UV20013 (Single: 2/Pkg.)

• 18” Water Connector Kit 3/4”*

UV20011 (Single: 2/Pkg.)

• 18” Gas Connector Kit 3/4”*

UV20017 (Single: 2/Pkg.)

• 18” Electric Connector Kit 3/4”*

UV20014 (Single: 2/Pkg.)

• 12” Water Connector Kit 3/4”*

UV20009 (Single: 2/Pkg.)

• 12” Gas Connector Kit 3/4”*

UV20015 (Single: 2/Pkg.)

• 12” Electric Connector Kit 3/4”*

UV20012 (Single: 2/Pkg.)

FITTINGS

• 3/4” Compression Fitting x 3/4” MPT

UV10374 (Single: 2/Pkg.)

• 1/2” Compression Fitting x 3/4” MPT

UV10354 (Single: 2/Pkg.)

• Nipples 3/4” x 2-1/4” PP Lined

UV8397G (Single: 2/Pkg.)

• Nipples 3/4” x 3” PP Lined

AP8397N-8

• Dielectric Union

AP13045 (Single)

OTHER ACCESSORIES

• Center Top Run-Off Tube

SP11956B (Bulk: 12)

• 20” Plastic Drain Pan with Fittings (Electric)

SP12934 (Bulk: 20)

• 22” Plastic Drain Pan with Fittings (Electric)

SP12937 (Bulk: 20)

• 24” Plastic Drain Pan with Fittings (Electric)

SP12935 (Bulk: 20)

• 26” Plastic Drain Pan with Fittings (Electric)

SP12936 (Bulk: 10)

• 30” Plastic Drain Pan with Fittings

SP13319 (Bulk: 5)

• 20” Aluminum Drain Pan with Fittings

SP12939 (Bulk: 10)

• 22” Aluminum Drain Pan with Fittings

SP12941 (Bulk: 10)

• 24” Aluminum Drain Pan with Fittings

SP12942 (Bulk: 10)

• 26” Aluminum Drain Pan with Fittings

SP12940 (Bulk: 10)

• 30” Aluminum Drain Pan with Fittings

SP13325 (Bulk: 5)

• Gas Control Extender

SP11620

Universal ™Parts

RESIDENTIAL

The value line for all your replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Part Number Qty.

1. Honeywell Thermostat (Gas Valve) SP20296 1

Natural (all except 43V05-50E2 & ULN)

Honeywell Thermostat (Gas Valve) SP20297 1

Natural (43V50-50E2-50 only)

Honyewell Thermostat (Gas Valve) SP20298 1

Natural (ULN only)

Honeywell Thermostat (Gas Valve) LP SP20302 1

(all models)

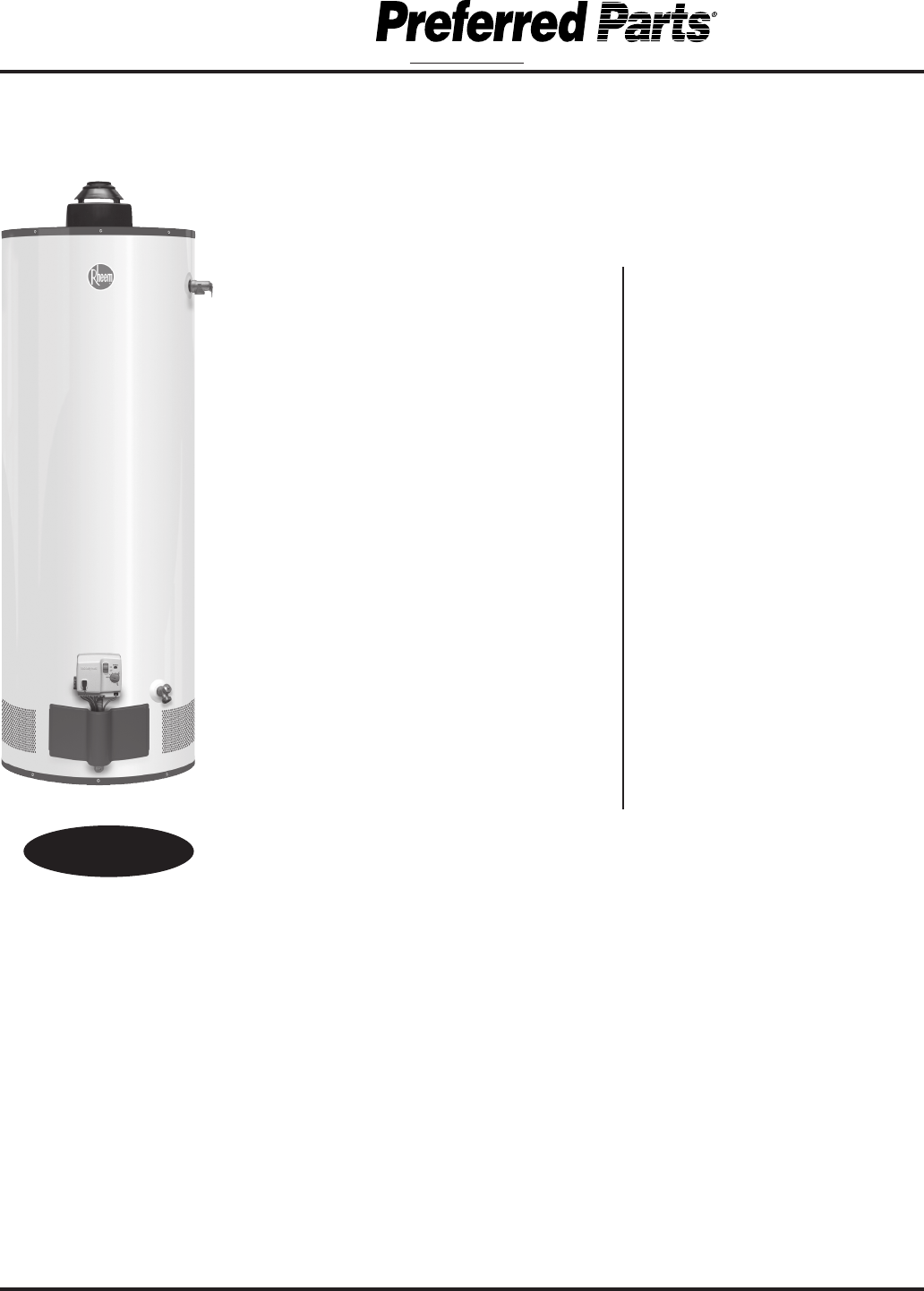

Residential Gas (Energy Star II) Replacement Parts

For ESII Fury Dampered products and Ultra Low NOx

Manufactured after 1 Feburary 2011

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Gas (Energy Star II) Replacement Parts

For ESII Fury Dampered products and Ultra Low NOx

Manufactured after 1 Feburary 2011

Ref. No. Part Description Part Number Qty.

2. Gas Valve Thermal Well (all models except ULN) AP14696B 1

Gas Valve Thermal Well (ULN only) AP15324 1

3.* Flue Damper (Assembly 3 inch (w/ gasket & screws) SP20294 1

(all except 43V50-50E2 only)

Flue Damper Assembly 4 inch (w/ gasket & screws) SP20295 1

43V50-50E2 only)

4. Damper Housing Only (3 inch) AM42968H 1

5. Damper Housing Only (4 inch) AM42969H 1

Pilot / Igniter Assembly Kit - natural (all models) AP14698G 1

Pilot / Ignitor Assembly Kit - LP (all models) AP14700D 1

Pilot / Ignitor Assembly Kit - (40 gallon ULN Only) AP16006A 1

Pilot / Ignitor Assembly Kit - (50 gallon ULN Only) AP16006B 1

6. Transformer Assembly w/strain relief SP20293 1

7. Wiring Harness-24V (not shown) AP15849 1

8. Inner Burner Door Gasket Kit SP20063 1

9. T&P Relief Valve SP12575B 1

10. Drain Valve SP12112G 1

11. Anode Rod SP11309C 1

12. Draft Hood 3” to 4” AM41646 1

13. Heat Trap Nipples - flapper type SP20003 2

14. Flammable Vapor Sensor w/harness AP13447-3 1

15. Dip Tube Call for Application 1

16. Flue Baffle Call for Application 1

17. Burner Assembly Call for Application 1

*= Flue Damper Assembly does not come with the draft diverter or the metal housing. It does come with screws

and gaskets.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

HEAT PUMP WATER HEATER

Ref. No. Part Description Part Number Qty. Req.

1. T&P Relief Valve SP12577G 1

2. Hot Outlet J-Tube SP8878N 1

3. ECO & Upper Tank Sensor SP15100 1

4. Heating Element SS 2.5 KW (upper & lower) SP10869HL 2

5. Lower Tank Sensor SP15228 1

6. Brass Drain Valve SP12112S 1

7. Water Pump 38-103141-04 1

8. Fan 70-103140-01 1

9. Fan Filter 54-103049-01 1

10. Circuit Board 47-103171-01 1

11. Transformer 46-101905-02 1

12. Capacitor 43-25136-10 1

13. Relay 42-101208-03 3

Ref. No. Part Description Part Number Qty. Req.

14. Membrane Switch (user control) -- --

Membrane Switch (user control) - Rheem 47-103216-01 1

Membrane Switch (user control) - Ruud 47-103216-02 1

Membrane Switch (user control) - Richmond 47-103216-03 1

Membrane Switch (user control) - EcoSense 47-103216-04 1

15. Ambient Thermistor (not shown) 47-103122-01 1

16. Evaporator Thermistor (not shown) 47-103122-02 1

17. Discharge Thermistor (not shown) 47-103122-03 1

18. Suction Thermistor (not shown) 47-103122-04 1

19. Water Out Thermistor (not shown) 47-103122-05 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

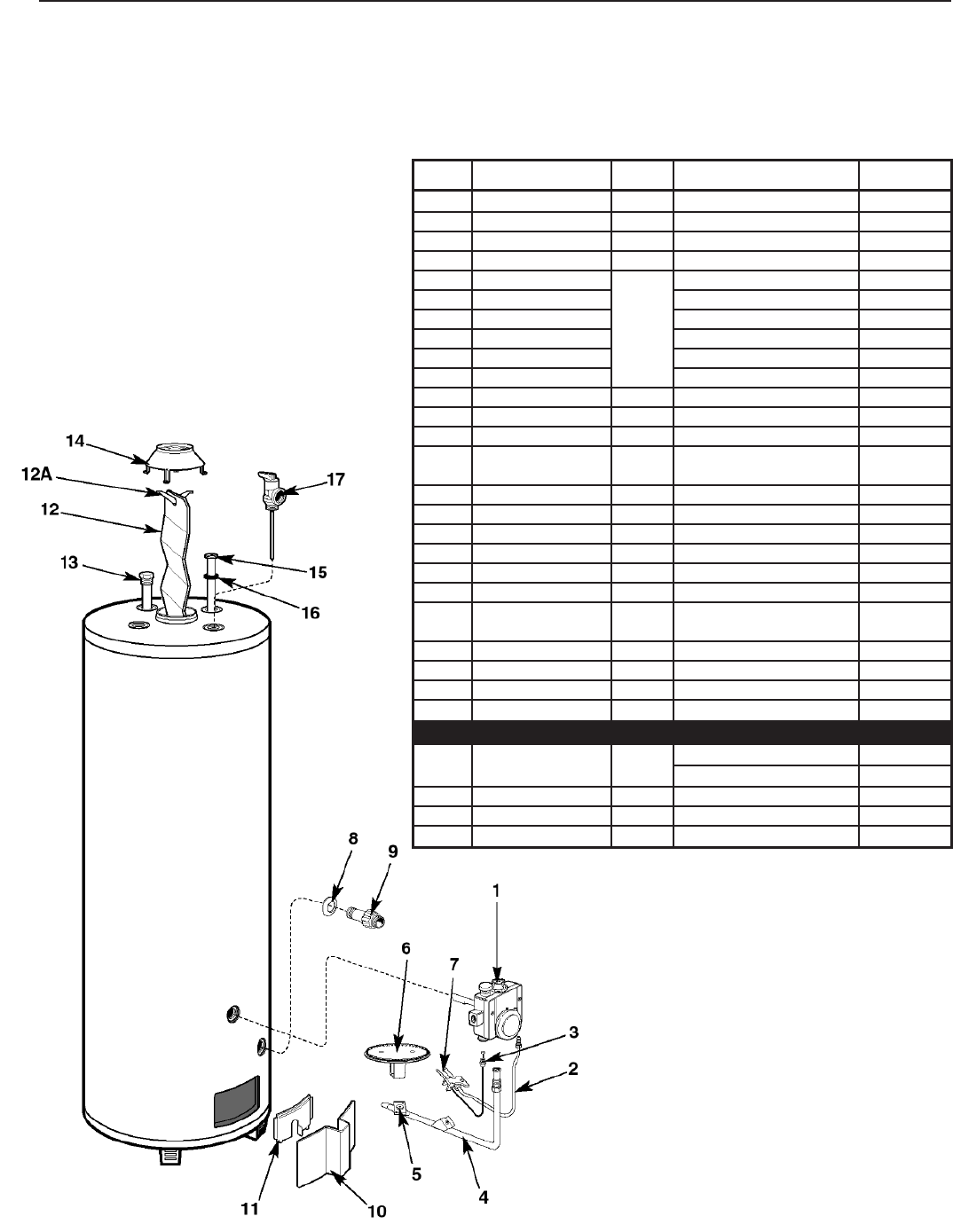

Residential Replacement Parts List

All standing pilot models except direct vent and PowerVent

NATURAL OR LP GAS (NON-FVIR)

Ref. No. Part Description Qty. Req. Part Number

1. Thermostat 1 (NAT) SP20164

(LP) SP12258B

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379K

4. Burner Supply Tube (30 Gal NAT) AM35050CNN

(30 Gal LP) AM36336IJ

5. Burner Orifice (40 Gal NAT) AM35050DT

(40 Gal LP) AM36336DZZ

6. Burner (50 Gal NAT) AM35050EFF

(50 Gal LP) AM36336EZZ

7. Pilot Burner 1 SP8980B (NG)

7A. Pilot Burner SP8980C (LP)

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 SP12039

SP12112E (brass)

10. Jacket Door 1 AM29254-4C

11. Inner Door 1 AM29501

12. Flue Baffle 1 (30 Gal) AM25812-1

(40 Gal) AM25812-1

(50 Gal) AM25816

12A. Flue Baffle Hanger 1 AM20622C

13. Anode Rod 1 (5 Year) SP11309C

(10 Year) SP11526C

14. Draft Hood 1 AM36352H

15. Dip Tube 1 SP11248Q

16. Dip Tube Gasket 1 AP6948-1

17. T&P Relief Valve 1 SP12574

40 and 50 Gal VR Models

1. Thermostat 1 (NAT) SP20264

(LP) SP12258P

9. Drain Valve 1 SP12112S

12. Flue Baffle 1 AM38876

14. Draft Hood 1 AM36333H

Burner

Assembly

Units manufactured prior to July, 2003

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. 40 Gal Tall 40 Gal Short 50 Gal Tall 50 Gal Short

1. Blower Assembly w/pressure switch; 1 AP15109 AP15534 AP15109 AP15534

w/ gasket; w/ screws

PowerVent (FVIR compliant) for Energy Star II

Effective September 2010

40/50 gallon models (43PV); Natural or LP

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. 40 Gal Tall 40 Gal Short 50 Gal Tall 50 Gal Short

1a. Blower Gasket Kit (not Shown) 1 SP20289 SP20122 SP20289 SP20122

1b. Hose - Pressure Switch (not Shown) 1 SP20288 SP20120 SP20288 SP20120

1c. Blower Over-temperature Switch - 180 1 SP20287 SP20119 SP20287 SP20119

(not shown)

1d. Blower Rubber Coupling; 1 SP20290 SP12638 SP20290 SP12638

tall = 3x2; short = 2x2

1e. Pressure Switch 1 SP20292 SP20291 SP20292 SP20291

2. Anode Rod - cut to length 1 SP11309C SP11309C SP11309C SP11309C

3. Heat Trap Nipples - flapper 2 SP20003 SP20003 SP20003 SP20003

4. Dip Tube with Gasket 1 AP11625R AP11625R AP11625R AP11625R

5. T&P Relief Valve 1 AP14835G AP14835G AP14835G AP14835G

6. Drain Valve 1 SP12112G SP12112G SP12112G SP12112G

7. Electronic Gas Control ------ ------------ ------------ ------------ ------------

Honeywell Natural 1 AP14671 AP14671 AP14671 AP14671

Honeywell LP (propane) 1 AP14672 AP14672 AP14672 AP14672

8. Gas Control Shank 1 AP14696B AP14696B AP14696B AP14696B

9. Spark Ignitor Assembly Kit 1 AP14698D AP14698D AP14698D AP14698D

(ignitor, gasket, etc.) NAT

10. Spark ignitor Assembly Kit 1 AP14700D AP14700D AP14700D AP14700D

(ignitor, gasket, etc) LP

11. Inner Door Gasket Kit 1 SP20063 SP20063 SP20063 SP20063

(gasket, screws)

12. Flammable Vapor Sensor 1 AP13447-3 AP13447-3 AP13447-3 AP13447-3

w/ harness

13. Burner Assemble 1

14. Flue Baffle with hanger 1

PowerVent (FVIR compliant) for Energy Star II

Effective September 2010

40/50 gallon models (43VP); Natural or LP

Call for Application

15. Electronic Display 1

For the PowerVent with Electronic Display only (43VP40/50-E)

Call for Application

To place your order call 1-800-621-5622; fax 1-800-535-9538

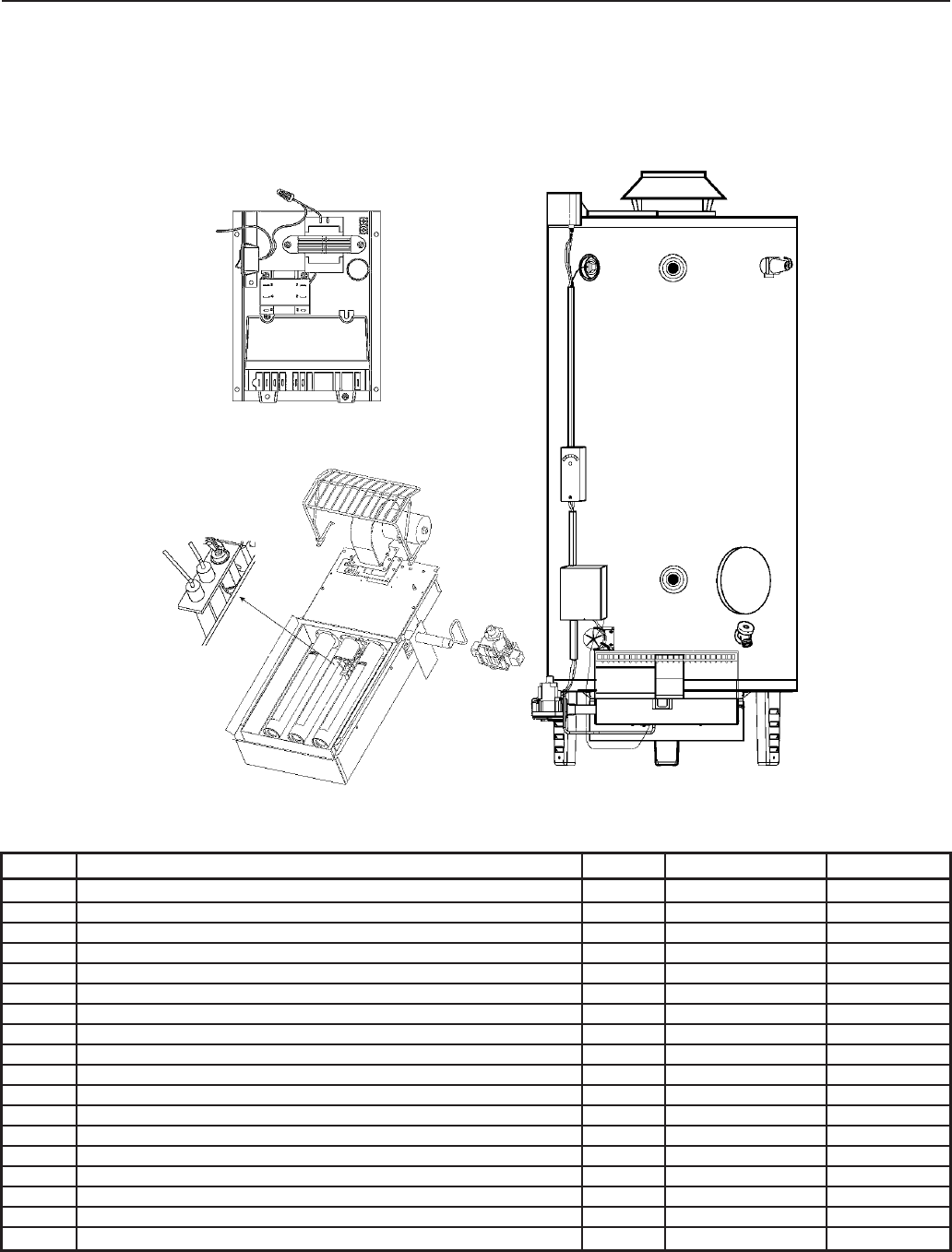

Residential Replacement Parts List

60-50 GALLON NATURAL OR LP GAS (NON-FVIR)

Ref.

No. Part Description Qty. Req. Part Number

1. Thermostat 1 (NAT) SP20085K

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379K

4. Burner Supply Tube N/A

5. Burner Orifice N/A

6. Burner Assembly NAT (#30 orifice) SP20084A

6A. Assembly Low NOx (#30 orifice) SP20084D

6B. Burner Assembly LP (#46 orifice) SP20084E

6C. Assy LP High Altitude (#47 orifice) SP20084F

7. Pilot Burner N/A

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 SP12112G

10. Jacket Door 1 SP20084K

11. Inner Door 1 SP20084H

12. Flue Baffle 1 SP20084G

13. Anode Rod 1 AP11526S

14. Draft Hood 1 SP20084J

15. Dip Tube (30” Polysulfone) 1 AP11251G

15. Dip Tube (36” Polysulfone) 1 AP11625Q

16. Dip Tube Gasket 1 AP6948-3

17. T&P Relief Valve 1 SP12574

Burner

Assembly

• Adapter Kit

(1) flat gasket, (1) round gasket, (1) element adapter

SP6830 (single)

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

50-6, 75 & 100 GALLON MODELS: NATURAL OR LP GAS

(NON-FVIR)

Part Number

Ref. No. Part Description Qty. Req. 50-6 75VR 100 Gal

1. Thermostat 1 (NAT) SP10022P (NAT) SP12491D (NAT) SP10022F

(LP) SP12258P (LP) SP12258N (LP) SP12258F

2. Pilot Supply Tube 1 N/A N/A N/A

3. Thermocouple 1 SP6379K SP6379C SP6379K

4. Burner Supply Tube (NAT) AM29602STT AM39178BC (NAT) AM29602FRR

5. Burner Orifice (LP) AM36419SN (LP) AM36419RKK (LP) AM36419FKK

6. Burner

7. Pilot Burner 1 (NAT) SP8384B (NAT) SP8980B (NAT) SP8384B

1(LP) SP8384D (LP) SP8384D (LP) SP8384D

8. Drain Valve Shroud 1 AP9167 AP9167 AP9167

9. Drain Valve 1 SP12112S SP12112S SP12112E

10. Jacket Door 1 AM21658C AM21658C AM21658C

11. Inner Door 1 AM27902-2 AM27902-2 AM27902-2

12. Flue Baffle 1 AM26055 AM26053 AM26054

12A. Flue Baffle Hanger 1 N/A N/A N/A

13. Flue Baffle Collar 1 AM25187 AM25187 AM25187

14. Anode Rod 1 SP11309C AP11525C AP11525BD

15. Draft Hood 1 AM25206 AM25206 AM25206

16. Dip Tube 1 SP11269C AP11273G SP11269C

17. Dip Tube Gasket 1 AP9060-1 AP9060-1 AP9060-1

18. T&P Relief Valve 1 AP12575B-1 SP12575B AP12576B-1

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30, 40 AND 50 GALLON FVIR MODELS

(Flammable Vapor Ignition Resistant System)

NATURAL OR LP GAS

To place orders call

1-800-621-5622

All parts orders should include:

1. The model and serial number of the water

heater from the rating plate.

2. Specify type of gas (natural or LP) as

marked on the rating plate.

3. Part description (as noted below) and

number of parts desired.

Ref. Qty.

No. Part Description Req.

1. Draft Hood 1

2. Heat Traps 1

3. Lined Nipples 1

4. Anode Rod 1

5. Flue Baffle & Hanger 1

6. Dip Tube 1

7. Dip Tube Gasket 1

8. T&P Relief Valve 1

9. Drain Valve 1

10. Gas Control (thermostat) 1

11. Piezo Ignition Ignitor 1

12. Mounting Bracket 1

13. Jacket Door 1

14. Burner Orifice

15. Burner Supply Tube

16. Burner Access Door

17. Sight Glass

18. Burner Access Door Grommet

19. Burner Access Door Gasket

20. Burner

21.

Pilot Burner and Piezo Electrode

22. Thermocouple

23. Pilot Supply Tube

24. Piezo Ignitor Wire

Burner Assembly

Burner Assembly Kit provides extra

speed clips and tamper resistant screws.

Burner Assembly Kit

Part Number

Ref. No. Part Description Qty. Req. 30 gallon models 40 gallon models 50 gallon models

1. Draft Hood 1 AM36352-H AM36352-H AM36352-H

2. Heat Traps 1 SP20003 N/A N/A

3. Lined Nipples 1 N/A SP11623B (VR models only) SP11623B (VR models only)

4. Anode Rod 1 SP11309C SP11309C SP11309C

5. Flue Baffle & Hanger 1 Call for Application Call for Application Call for Application

6. Dip Tube 1 AP11625G-1 AP11625F-1 AP11625P

7. Dip Tube Gasket 1 AP6948-3 AP6948-3 AP6948-3

8. T&P Relief Valve 1 SP12574 SP12574 SP12574

9. Drain Valve 1 SP12112E SP12112E SP12159B

10.

Gas Control (thermostat) 1

SP20164 SP12258B (LP) SP12258B (LP)

11. Piezo Ignition Ignitor 1 AP11941 AP11941 AP11941

12. Mounting Bracket 1 AP12384 AP12384 AP12384

13. Jacket Door 1 AS39789-2C AS39789-2C AS39789-2C

Burner Kit 1 Call for Application Call for Application Call for Application

Gasket Kit 1 SP20063 SP20063 SP20063

Thermocouple Kit 1 SP20064 SP20064 SP20064

Units manufactured between July, 2003 – December, 2003

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30, 40 AND 50 GALLON FVIR MODELS

(Flammable Vapor Ignition Resistant System)

NATURAL OR LP GAS

Part Number

Ref. No. Part Description Qty. Req. 30 gallon models 40 gallon models 50 gallon models

1. Draft Hood 1 AM36352-H AM36352-H AM36352-H

4. Anode Rod 1 SP11309C (6-YR) SP11309C(6-YR) SP11309C(6-YR)

SP11526C (12-YR) SP11526C (12-YR SP11526C (12-YR

5. Flue Baffle & Hanger 1 Call for Application Call for Application Call for Application

6. Dip Tube 1 Call for Application Call for Application Call for Application

7. Dip Tube Gasket 1 AP6948-3 AP6948-3 AP6948-3

8. T&P Relief Valve 1 AP12575B-1 AP12575B-1 AP12575B-1

9. Drain Valve 1 SP12112S SP12112S SP12112S

10.

Gas Control (thermostat) 1

SP20166C SP20166C SP20166C

SP13160D (LP) SP13160D (LP) SP13160D (LP)

13. Jacket Door 1 AS39789-2C AS39789-2C AS39789-2C

Drain Valve Shroud 1 AP9167 AP9167 AP9167

Burner Kit 1 Call for Application Call for Application Call for Application

Pilot Assembly Kit 1 SP20075 (NAT) SP20075 (NAT) SP20075 (NAT)

SP20076 (LP) SP20076 (LP) SP20076 (LP)

Thermocouple Kit 1 SP20064 SP20064 SP20064

For NAECA V-PLUS units manufactured between January, 2004 and September 2007

Part Number

Ref. No. Part Description Qty. Req. 30 gallon models 40 gallon models 50 gallon models

1. Draft Hood 1 AM36333-H AM36352-H AM36352-H

4. Anode Rod 1 SP11309C SP11309C SP11309C

5. Flue Baffle & Hanger 1 Call for Application Call for Application Call for Application

6. Dip Tube 1 Call for Application Call for Application Call for Application

7. Dip Tube Gasket 1 AP6948-3 AP6948-3 AP6948-3

8. T&P Relief Valve 1 SP8346 SP8346 SP8346

9. Drain Valve 1 SP12112G SP12112G SP12112G

10.

Gas Control (thermostat) 1

SP8555R (NAT) SP8555R (NAT) SP8555R (NAT)

SP13160E (LP) SP13160E (LP) SP13160E (LP)

13. Jacket Door 1 AS39789-2C AS39789-2C AS39789-2C

Drain Valve Shroud 1 AP9167 AP9167 AP9167

Burner Kit 1 Call for Application Call for Application Call for Application

Pilot Assembly Kit 1 SP20075 (NAT) SP20075 (NAT) SP20075 (NAT)

SP20076 (LP) SP20076 (LP) SP20076 (LP)

Thermocouple Kit 1 SP20064 SP20064 SP20064

For NAECA Non-VR units manufactured between January, 2004 and September 2007

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30, 40, 50, 60 AND 75 GALLON ATMOSPHERIC FVIR

MODELS NATURAL AND LP GAS FOR USE IN MODELS

MANUFACTURED WITH WHITE-RODGERS CONTROLS

AFTER SEPTEMBER 2007

Ref. Qty.

No. Part Description Req.

1. Draft Hood 1

2. Heat Traps 2

3. Lined Nipples 2

4. Anode Rod 1

5. Flue Baffle and Hanger 1

6 Dip Tube 1

7. Dip Tube Gasket 1

8. T&P Relief Valve 1

9. Drain Valve 1

10. Gas Control Valve (thermostat) 1

11. Burner Access Door Gasket 1

12. Burner Assembly Kit 1

13. Jacket Door 1

Burner Assembly Kit provides extra speed clips and

tamper resistant screws.

12. Burner Assembly Kit

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30, 40, 50, 60 AND 75 GALLON ATMOSPHERIC FVIR MODELS

Cross Reference – Models with White-Rodgers Controls

Service Parts – White-Rodgers Controls (Sept. 2007)

Gas Valve – Gas Valve – Pilot Assy Pilot Assy Thermo-

Rheem Model Ruud Model NG LP Kit – NG Kit – LP couple Kit Gasket Kit Piezo

PROFESSIONAL SERIES WITH THE GUARDIAN SYSTEM - 30, 40, 50 and 60 Gallon Capacities

22V40 PROF P2-40 PROF SP14270G N/A N/A

42V40 PROF PH2-40 PROF SP14270G SP14269A SP20128

RHG PRO40-40F RUG PRO40-40F SP14270H SP14269D SP20128

22V50 PROF P2-50 PROF SP14270G N/A N/A

42V50-40 PROF PH2-50-40 PROF SP14270F SP14269E SP20128

RHG PRO50-40F RUG PRO50-40F SP14270H SP14269D SP20128

RHG PRO50-50F RUG PRO50-50F SP14270K N/A N/A

42V40SPROF PH2-40SPROF SP14270G SP14269E SP20128

42V50SPROF PH2-50SPROF SP14270F SP14269A SP20128

42V50-65F PH2-50-60F SP1433913 SP14340C SP20127 SP20128 SP20129 SP20063 AP14316

RHGPRO60F RUGPRO60F SP14270M SP14269A SP20128

FURY SERIES WITH THE GUARDIAN SYSTEM - 30, 40, 50 and 60 Gallon Capacities

42VR40-40F PH2R40-40F SP14270H SP14269D SP20128

42VR50-40F PH2R50-40F SP14270H SP14269D SP20128

22V30F P2-30F SP14270G SP14269A SP20128

22V40-36F1 P40-36F1 SP14270G N/A N/A

22V40F1 P2-40F1 SP14270G N/A N/A

42V40F PH2-40F SP14270F SP14269E SP20128

22V50F1 P2-50F1 SP14270G N/A N/A

42V50-40F PH2-50-40F SP14270F SP14269E SP20128

42V50-50F PH2-50-50F SP14270K N/A N/A

22V30S-30F P2-30S-30F SP14270F N/A N/A

22V40SF P2-40SF SP14270G SP14269A SP20128

42V40SF PH2-40SF SP14270G SP14269A SP20128

42V50SF PH50SF SP14270G SP14269A SP20128

42V60F PH2-60F SP14270M SP14269A SP20128

PROFESSIONAL AND FURY SERIES WITH THE GUARDIAN SYSTEM - 75 Gallon Capacity

RHGPRO75F RUGPRO75F SP14339 SP14340 SP20127 SP20128 SP20129 SP20063 AP14316

42V75F PH2-75F SP14339 SP14340 SP20127 SP20128 SP20129 SP20063 AP14316

SP20127

SP20129

SP20063SP20063

AP14316 AP14316

SP20129

SP20127

Note: This cross reference covers parts specific to models using White-Rodgers Controls only. Common service parts such as draft hoods, anode rods, flue baffles, dip tubes,

T & P relief valves, jacket doors, drain valves and burner kits remain unchanged, and can be referenced on Page 48.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

Ref. No. Part Description Qty. Req. Part Number

18. Vent Fan Assembly 1 (40/50 Gal) AP10983-4

(75 Gal) AP11608-1

19. Anode 1 (40/50 Gal) SP11309C

(75 Gal) 11526C

20. Flue Baffle Assembly 1 (40/50 Gal) AM20622C

(75 Gal) AM38168

21 Flue Baffle Hanger 1 (All models) AM20622C

22. T & P Relief Valve 1 (All models) SP6571B

23. Heat Trap Dip Tube 1 (40/50 Gal) AP10768C-4

Dip Tube 1 (75 Gal) SP11269C

24. Dip Tube Gasket 1 (40/50 Gal) AP6948-3

(75 Gal) AP9060-1

25. Hot Outlet Heat Trap 1 (40/50 Gal) AP8910-1

26. Drain Valve 1 (40/50 Gal) SP12039

(75 Gal) SP12112G

27. Drain Valve Shroud 1 (All models) AP2480-3

28. Enclosure Box Gasket 1 N/A

29. Inner door 1 (All models) AM29501

30. Captive Screw w/ Retainer 1 (All models) AP8162B-1

Spark Ignition

POWER VENTED MODELS: NATURAL OR LP GAS

To place your order call 1-800-621-5622; fax 1-800-535-9538

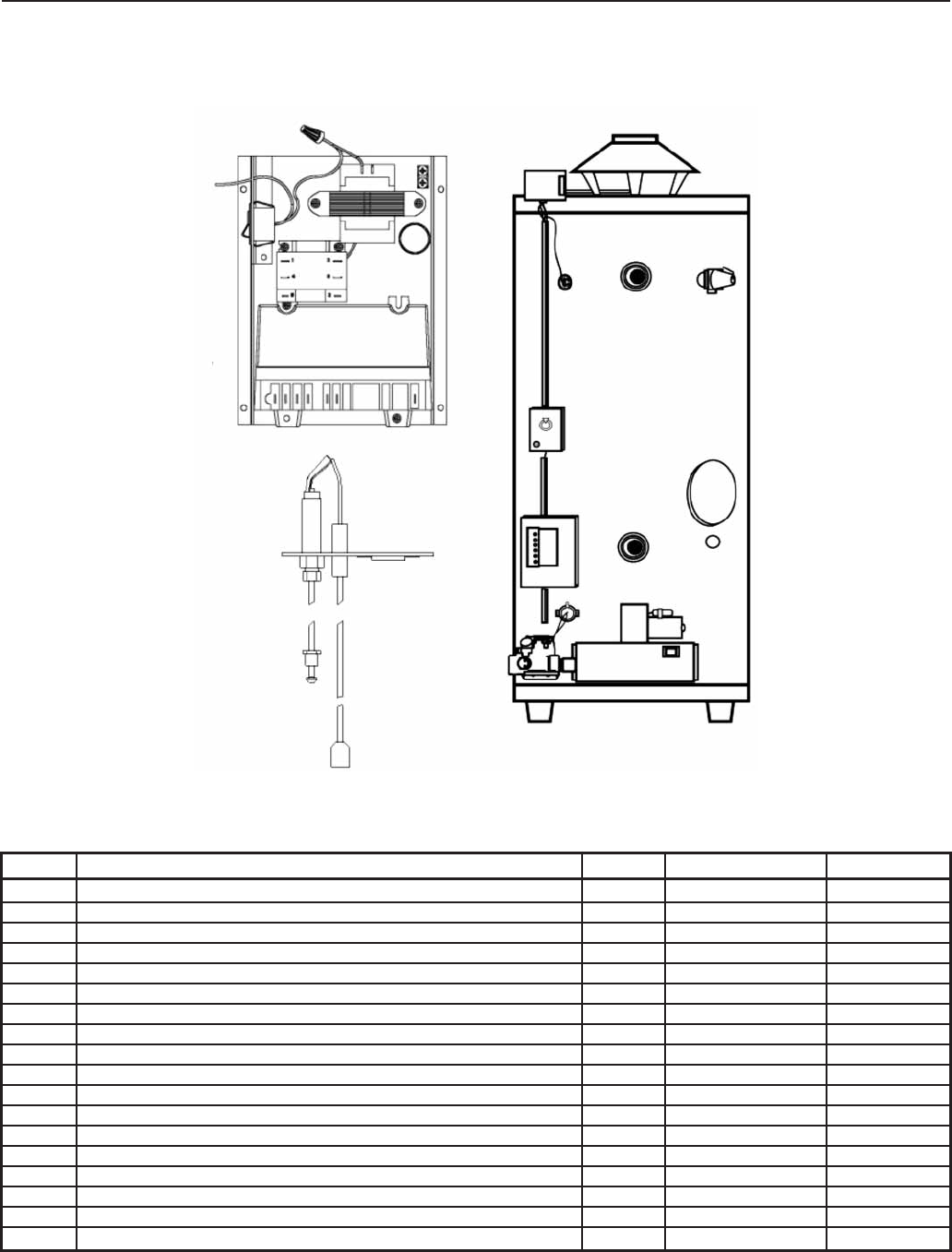

Residential Replacement Parts List

Ref. No. Part Description Qty. Req. Part Number

1. Gas Control Valve 1 (NAT) SP11652B

(LP) SP11652C

2. Assembly, Control Enclosure 1 N/A

3. Transformer 1 SP11787

4 On/Off Switch 1 SP10778

5. Assembly, Power Cord 1 AM36917

6. Thermostat Bracket 1 AM37830

7. Composite Edge Grommet 1 AP10780-1

8. Ignition Control 1 SP10763C

9. Vinyl Vacuum Tubing 1 AP10723-2

10. Vacuum Switch 1 SP11875

11. Thermostat 1 SP12390

12. Burner 1 (40 Gal NAT) AM38380C

(40 Gal LP) AM38379C

(50 Gal NAT) AM38380B

(50 Gal LP) AM38379B

(75 Gal NAT) AM38140

(75 Gal LP) AM38142

13. Burner Supply Tube 1 N/A

14. Inverted Flare Nut 1 AP10691-2

15. Pilot Supply Tube 1 N/A

16. Ignitor Cable 1 SP8828D

17. Pilot / Electrode Assembly 1 (before September 1998: NAT) SP10764B

(before September 1998: LP) SP10764C

(after September 1998: 40/50 Gal NAT) SP12049B

(after September 1998: 40/50 Gal LP) SP12049C

(after September 1998: 75 Gal NAT) SP12049D

(after September 1998: 75 Gal LP) SP12049E

Spark Ignition

POWER VENTED MODELS: NATURAL OR LP GAS

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

POWER VENT WITH ELECTRONIC CONTROL

(FVIR COMPLIANT)

Ref. No. Part Description Part Number Qty. Req.

1. Blower Assembly w/ Press Switch 40 & 50 Gal. Tall AP13416 1

Blower Assembly w/ Press Switch 40 & 50 Gal. Short AP13605 1

Pressure Switch AP13910 1

1a. Coupling SP12638 1

2 Anode Rod -- --

40 & 50 Gallon Tall SP11309C 1

40 & 50 Gallon Short SP11309Y 1

3. Heat Trap Nipples SP20003 2

4. Flue Baffle with Hanger Call for App 1

5. Dip Tube with Gasket -- --

40 Gallon Tall AP11625G 1

50 Gallon Tall AP11625R 1

40 & 50 Gallon Short AP11625S 1

6. T&P Relief Valve SP8346 1

7. Drain Valve SP12112G 1

Ref. No. Part Description Part Number Qty. Req.

8. Electronic Gas Control -- --

Honeywell Natural AP14671 1

Honeywell LP AP14672 1

9. Burner Assembly -- --

40 & 50 Gallon Natural Call for App 1

40 & 50 Gallon LP Call for App 1

10. Spark Igniter Assy Kit -- --

Spark Igniter Assy Kit 17” Natural SP14698D 1

Spark Igniter Assy Kit 17” LP SP14700D 1

11 Inner Door Gasket Kit SP20063 1

12. Thermostat Shank 1.926 AP14696A

Thermostat Shank 2.870 AP14696B

13. Display, Electronic Control AP14697 1

14. Flammable Vapor Sensor AP13447-3 1

-- PCB Enclosure (power supply for display) AP14875 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

POWER VENTED - 2 IN. VENT: 40 AND 50 GALLON MODELS

NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Blower Assembly 1 SP12562

2. Anode Rod 1 SP11309C

3. Flue Baffle Assembly 1 AM39341

4. Flue Baffle Hanger 1 N/A

5. T & P Relief Valve 1 SP8346

6. Dip Tube 1 SP11251R

7. Dip Tube Gasket 1 AP6948-1

8. Drain Valve 1 SP12112S

9. Drain Valve Shroud 1 AP9167

10. Inner Door 1 AM29501

11. Outer Door 1 AM29254-4C

12. Protective Cover 1 AP12558

13. Thermostat 1 (NAT) SP20161A

(LP) SP20162A

14. Spark Ignitor Assembly 1 (NAT) SP12560B

(LP) SP12560C

15. Main Burner Assembly 1 (40 Gal NAT Low NOx) AM39503RY

(40 Gal LP) AM39504RM

(50 Gal NAT Low NOx) AM39503SY

(50 Gal LP) AM39504SM

16. Heat Trap Hot 1 SP20003 Kit

17. Heat Trap Cold 1 SP20003 Kit

18. Burner Supply Tube 1 N/A

19. Pressure Switch 1 SP12766

20. Rubber Coupling 1 SP12658

21. On/Off Switch 1 AP12767

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

75 GALLON POWERVENT

NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Blower Assembly 1 AP13211

2. Anode Rod 1 AP11525C

3. Heat Trap Nipple (Hot) 1 AP13163-1

3. Heat Trap Nipple (Cold) 1 AP13164-1

5. Dip Tube with Gasket 1 AP13226A

6. T & P Relief Valve 1 SP12575B

7. Flue Baffle with Hanger 1 (NAT) AM40182

(LP) AM40427

8. Drain Valve 1 SP12112S

9. Gas Control (Thermostat) 1 (NAT) SP20161A

(LP) SP20162A

10. Burner Assembly 1 (NAT) AM40195BA

(LP) AM40448

11. Pilot Ignitor Assembly 1 (NAT) SP12560B

(LP) SP12049E

12. Jacket Door 1 AM21658-2C

13. Inner Door 1 AM27902-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

POWERVENT (FVIR COMPLIANT)

MANUFACTURED BETWEEN JULY 2006 AND OCTOBER 2007

40 AND 50 GALLON MODELS: NATURAL OR LP GAS

WITH INVENSYS (ROBERTSHAW) CONTROLS

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

POWERVENT (FVIR COMPLIANT)

MANUFACTURED BETWEEN JULY 2006 AND OCTOBER 2007

40 AND 50 GALLON MODELS: NATURAL OR LP GAS

WITH INVENSYS (ROBERTSHAW) CONTROLS

Ref. No. Part Number Description. Model(s)

1 SP13416 Blower - High Performance 42VP40F, 42VP50F, 42VP40PF, 42VP50PF

1 SP13605 Blower - Low Noise 42VP40SF, 42VP50SF, 42VP40SPF, 42VP50SPF

3 SP20116 Vacuum Switch - HP Blower Assy 42VP40F, 42VP40PF, 42VP50F, 42VP50PF

3 SP20117 Vacuum Switch - Low Noise Blower Assy 42VP40SF, 42VP40SPF 42VP50SF, 42VP50SPF

4 SP11903C Anode Rod All

5 SP20003 Heat Trap Nipples All

7 SP11625R Dip Tube - 34.5" Helix 42VP50F, 42VP50PF

7 SP11625G Dip Tube - 32" Helix 42VP40F, 42VP40PF

7 SP11625S Dip Tube - 30" Helix 42VP40SF, 42VP40SPF, 42VP50SF, 42VP50SPF

9 SP12112G Drain Valve All

10 SP20170A FV Wiper Control - NG (2.375" Shank,160°F) 42VP40F

10 ST20170B FV Wiper Control - NG (2.375” Shank, 160°F) 42VP50F

10 SP13458D* FV Wiper Control - NG (1.5" Shank, 160°F) 42VP40SF, 42VP50SF

10 SP20171A FV Wiper Control (2.375" Shank, 160°F) 42VP40PF

10 SP20171B FV Wiper Control (2.375” Shank, 160°F) 42VP50PF

10 SP20171C FV Wiper Control (1.5” Shank, 160°F) 42VP40SPF

10 SP20171D FV Wiper Control (1.5” Shank, 160°F) 42VP50SPF

12 SP13418 Pilot Assy - NG 42VP40F

12 SP13419 Pilot Assy - LP 42VP40PF

12 SP13420 Pilot Assy - NG 42VP40SF

12 SP13421 Pilot Assy - LP 42VP40SPF

12 SP13422 Pilot Assy - NG 42VP50F

12 SP13423 Pilot Assy - LP 42VP50PF

12 SP13424 Pilot Assy - NG 42VP50SF

12 SP13425 Pilot Assy - LP 42VP50SPF

13 SP20063 Inner Door Gasket Kit All

10A SP20123B Control - FV Wiper Electronics All

1b SP20120 Hose - Pressure Switch All

Not Shown SP20122 Blower - Gasket All

Not Shown SP13447B FV Sensor/FV Wiper Replacement Kit All

SP13458D will switch to SP20170C and SP20170D when supplies of SP13458D run out.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

POWERVENT (FVIR COMPLIANT)

MANUFACTURED AFTER OCTOBER 2007

40, 50, 60 AND 75 GALLON MODELS: NATURAL OR LP GAS

WITH WHITE-RODGERS INTELLI-VENT CONTROLS

Gas Valve – Gas Valve – Blower

Rheem Model Ruud Model Natural Gas LP Gas Hot Surface Ignitor Kit Assembly Gasket Kit Relief Valve

RHEEM AND RUUD MODELS WITH WHITE-RODGERS GAS CONTROL VALVES

42VP40FW PVP40FW SP13845A SP13846A SP14218B SP13416 SP20063 SP8346

42VP50FW PVP50FW SP13845A SP13846A SP14218B SP13416 SP20063 SP8346

42VP40SFW PVP40SFW SP13845B SP13846B SP14218B SP13605 SP20063 SP12574

42VP50SFW PVP50SFW SP13845B SP13846B SP14218B SP13605 SP20063 SP12574

42VP60FW PVP60FW SP13845B SP13846B SP14218B SP14140 SP20063 SP12574

42VP75FW PVP75FW SP13845A SP13846A SP14218B AP14378 SP20063 SP12575

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

DIRECT VENT (FVIR) MODELS: NATURAL AND LP GAS

MANUFACTURED AFTER OCTOBER 2007

Direct Vent with the Guardian System™Parts Cross Reference Chart

Pilot Assy. Pilot Assy. Thermocouple

Gas Valve – Gas Valve – Replacement Replacement Replacement Gasket Relief

Rheem Model Ruud Model NG LP Kit – NG Kit – LP Kit Kit Valve

RHEEM FURY SERIES / RUUD PACEMAKER SERIES

22DV40F PH2DV40F SP14270K SP14269E SP20159 SP20160 SP20129 SP20063 SP12576C

22DV50F PH2DV50F SP14270K SP14269E SP20159 SP20160 SP20129 SP20063 SP12576C

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

POWER DIRECT VENT WITH WHITE RODGERS CONTROL

40 & 50 GALLON MODELS – NATURAL OR LP

Ref. No. Part Description Qty. Req. Part Number Rheem Model(s)

1. Blower Assembly Kit 1 SP20250A PDV40, PDV40P

Blower Assembly Kit 1 SP20250B PDV50, PDF50P

Blower Assembly Kit 1 SP20251A PDV50-65, PDV50P-65

2. Rubber Coupling Blower Motor to Exhaust Vent 1 SP20252 PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

3. Blower Assembly Gasket (to top pan of heater) 1 SP20256 PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

4. Blower Motor Seal to Inlet Vent 1 AP15000 PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

8. Heat Trap Nipple 2 AP12992D PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

9. Anode Rod 1 AP11309C PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

10. Dip Tube – 38.5” Helix 1 AP11625H PDV40

Dip Tube – 41” Helix 1 AP11625T PDV40P

Dip Tube – 40” Helix 1 AP11625U PDV50

Dip Tube – 37” Helix 1 AP11625V PDV50P, PDV50-65, PDV50P-65

11. Dip Tube Gasket 1 AP6948 PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

12. Temperature & Pressure Relief Valve 1 SP12575B PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

14. Drain Valve 1 SP12112S PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

16. White-Rodger’s, Intelli-vent Combination Gas Control LP 1 SP14904A PDV40, PDV50, PDV50-65

16. White-Rodger’s, Intelli-vent Combination Gas Control LP 1 SP14905A PDV40P. PDV50P, PDV50P-65

17. Burner Assembly (Nat or LP) 1 Call for App PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

18. Hot Surface Igniter 1 SP14218A PDV40, PDV40P

18. Hot Surface Igniter 1 SP14218B PDV50, PDV50P, PDV50-65, PDV50P-65

19. Burner Access Door Gasket Kit 1 SP20063 PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

20/21 Flammable Vapor Sensor 1 SP20172 PDV40, PDV40P, PDV50, PDV50P, PDV50-65, PDV50P-65

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

ULTRA LOW NOx ES II PowerVent

November 2010

Ref.

No.

1. Blower Assembly - 40 Gal AP15342 1

Blower Assembly - 50 Gal AP15210 1

2. Pressure Switch - 40 Gal AP15981 1

Pressure Switch - 50 Gal AP15980 1

3. Rubber Coupling 3 inch SP20252 1

4. Baffle Assembly AS42697 1

5. Heat Trap Nipples AP12992C 2

6. Anode Road SP11309C 1

7. Dip Tube AP11625H 1

8. Dip Tube Gasket AP14457 1

9. T&P Relief Valve SP12575C 1

10. Gas Control (Honeywell Electronic) Natural AP15211 1

11. Gas Control Shank (Thermistor and ECO) AP15324 1

12. Drain Valve SP12112S 1

13. Flammable Vapor Sensor Kit w/wiring harness SP13447-3 1

14. Jacket Door AP15321 1

Part Description Part No. Qty. Ref.

No.

15. Burner Assembly w/gasket Kit -

40 Gal SP20283

50 Gal SP20284

16. Pilot Igniter w/gaskets Kit -

40 Gal SP20281 1

50 Gal SP20282 1

17. Burner Gasket Kit (all gaskets) 40 gallon SP20136 1

Burner Gasket Kit (all gaskets) 50 gallon SP20137 1

Transition Pan Gasket (1)

Burner Access Door Gasket (1)

Inner Door Gasket (1)

Inner Door Torx 20 Screws (4)

Lower Air Box Mounting Screws (Phillips) (2)

Burner Hex Nuts 5/16” (4)

Restrictor, minimum vent 2 inch AP15532C 1

Restrictor, minimum vent 3 inch P15532D 1

Part Description Part No. Qty.

Not

Shown

Not

Shown

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30 & 40 GALLON MODELS FOR

MANUFACTURED HOUSING, WITH CONVERTIBLE

GAS CONTROL FOR NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part No.

1. Thermostat 1 SP9051B

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379E

4. Burner Supply Tube

5. Burner Orifice

6. Burner

7. Pilot Burner NG 1 SP8980B

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 AP12039

10. Jacket Door 1 AM29254-4C

11. Inner Door 1 AM29501

12. Flue Baffle 1

12A. Flue Baffle Hanger 1 AM20622C

13. Anode Rod 1 SP11309C

14. Draft Hood 1 AM36352H

15. T&P Relief Valve 1 SP12574

1 NG

Burner

Assembly

(30 Gal) AM35050CT

(40 Gal) AM35050DT

(30 Gal) AM25812

(40 Gal) AM29068

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30, 40 & 50 GALLON DIRECT VENT MODELS

FOR MANUFACTURED HOUSING, WITH CONVERTIBLE

GAS CONTROL FOR NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Thermostat 1 SP9051B

2. Pilot Supply Tube 1 N/A

3. Thermocouple 1 SP6379R

4. Burner Supply Tube

(30 Gal) AM28804BHH

5. Burner Orifice

(40 Gal) AM38804CHH

6. Burner

(50 Gal) AM38804DNN

7. Pilot Burner NG 1 SP8384E

8. Drain Valve Shroud 1 AP9167

9. Drain Valve 1 SP12039

10. Jacket Door 1 AM35622

11. Inner Door 1 AM38692

12. Flue Baffle 1 AM29201

12A. Flue Baffle Hanger 1 AM20622C

13. Anode Rod 1 SP11309C

14. Roof Jack Assembly 1 As Required

15. Air Inlet Assembly 1 AP12019B

16. T&P Relief Valve 1 SP12574

17. Shroud, Relief Valve 1 AP9167

1 NG

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

DIRECT VENT (NON-FVIR) MODELS: NATURAL GAS ONLY

Ref. No. Part Description Qty. Req. 21DV Model Part Number 22DV Model Part Number

1. Thermostat 1 SP20164 SP20264

2. Pilot Supply Tube 1 N/A N/A

3. Thermocouple 1 SP6379R SP6379R

4. Burner Supply Tube

5. Burner Orifice AM35651DY AM40497EY

6. Burner

7. Pilot Burner 1

SP8980B SP12380B

8. Drain Valve Shroud 1 AP9167 AP9167

9. Drain Valve 1 SP12039 AP12159C-1

10. Jacket Door 1 AM35622 AM35622

11. Inner Door 1 AM38692 AM40615

12. Flue Baffle AE35629D-2 AE35629D-2

12A. Flue Baffle Hanger

13. Anode Rod 1 SP11309C SP11309C

14. Dip Tube 1 SP11248R AP11251H-2

15. Dip Tube Gasket 1 AP6948-1 AP6948-1

16. Upper Air Inlet Box 1 AM35613-H AM40290-H

17. Air Tube Elbow 1 AP10197-1 AP10197-1

18. Sliding Air Tube 1 AP11126B-1 AP11126B-1

19. Main Air Tube 1 AP11126C-1 AP11126C-1

20. Vent Terminal Cap 1 AP11498 AP11498

21. T&P Relief Valve 1 SP12574 SP8346

Burner

Assembly

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

21/2GALLON MODELS

120 OR 240 VOLT OPERATION

Ref. No. Part Description Qty. Req. Part Number

1. Heating Element 1 (120V) SP10868LH 1440W

(240V) SP10869FH 1500W

2. Heating Element Gasket 1 AP6708-9

3. Thermostat Bracket 1 AM23557

4. Thermostat 1 (120V) SP11700

(240V) SP11699

5. Thermostat Protective Cover 1 AP8413-9

6. Cavity Insulation 1 AP9184-7

7. Jacket Access Panel 1 AM38409-1C

8. Drain Valve 1 (PVC) SP12039

(Brass) SP12112G

9. Drain Valve Shroud 1 AP2480-3

10. Electrical Cord Set (120 VAC models ONLY) 1 AP10883-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

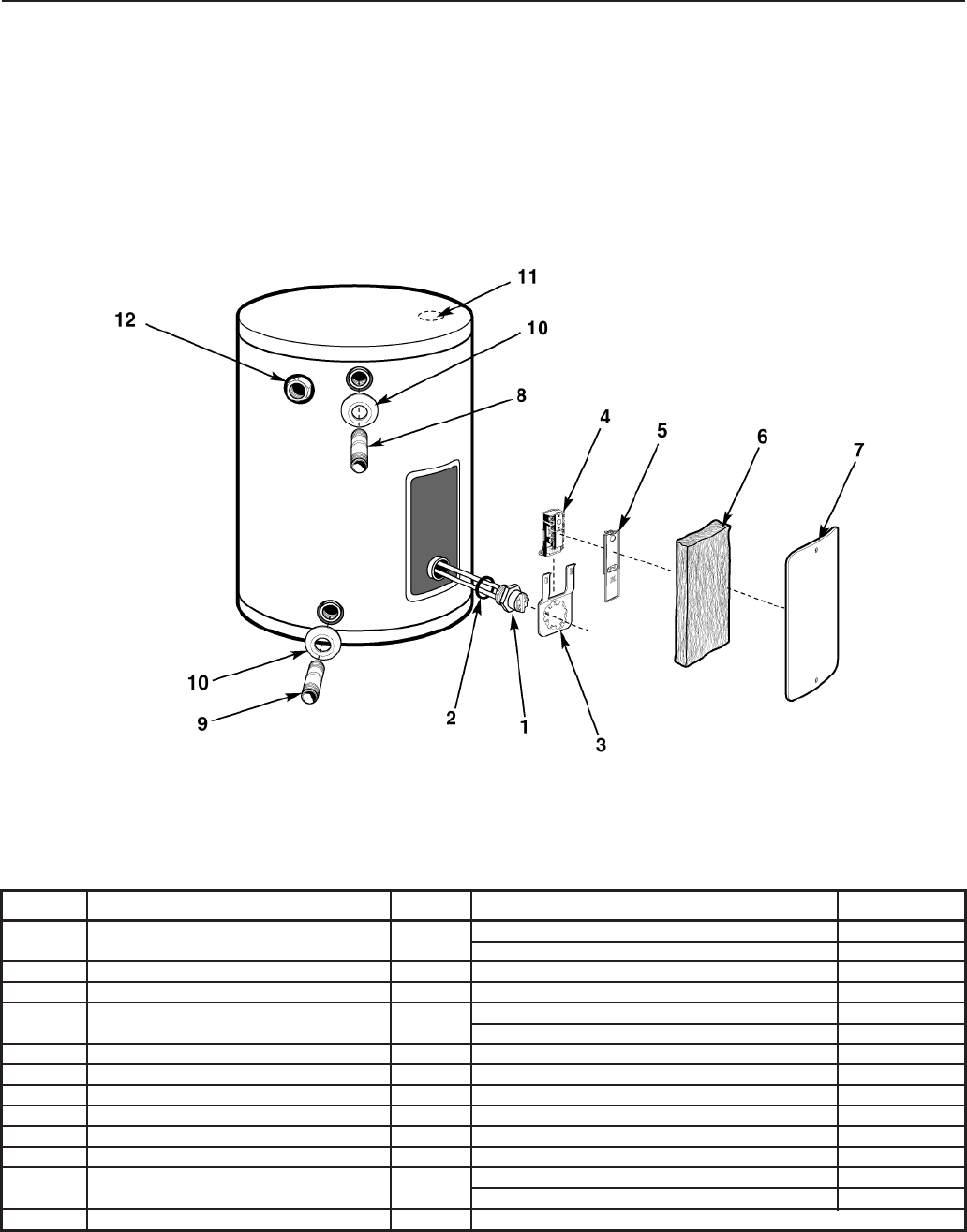

Residential Replacement Parts List

6 – 20 GALLON MODELS

120 OR 240 VOLT OPERATION

Ref. No. Part Description Qty. Req. Part Number

1. Heating Element 1 (120V) SP10874GH 2000W

(240V) SP10552GH 2000W

2. Heating Element Gasket 1 AP6708-9

3. Thermostat Bracket 1 AM23557

4. Thermostat 1 (120V) SP11700

(240V) SP11699

5. Thermostat Protective Cover 1 AP8313-9

6. Cavity Insulation 1 AP9184-7

7. Jacket Access Panel 1 AM38409-1C

8. Nipple, Hot Outlet 1 AP11623F

9. Nipple, Cold Inlet 1 AP11623F

10. Shroud As Required AP2480-3

11. Anode Rod 1 SP11309P 6 GAL

SP11309L 10-20 GAL

12. Snap Bushing 1 AP7733-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

30 GALLON MODELS

120 OR 240 VOLT OPERATION

Ref. No. Part Description Qty. Req. Part Number

1. Heating Element As Required (120V) SP10874GH

(240V) SP10552GH

2. Heating Element Gasket As Required AP6708-9

3. Thermostat Bracket As Required AM23557

4. Thermostat, Upper (on double element models only) 1 SP11698

5. Thermostat, Lower 1 (120V) SP11700

(240V) SP11695

6. Thermostat (single element models only) 1 (120V) SP11700

(240V) SP11699

7. Thermostat Protective Cover As Required AP8313-9 (Double element upper and Single element lower)

AP8314-9 (Double element lower)

8. Cavity Insulation As Required AP9184-7

9. Jacket Access Panel As Required AM38409-1C

10. J-Tube, Hot Outlet 1 AP8877E-12

11. Nipple, Cold Inlet 1 AP11623F

12. Shroud As Required AP2480-3

13. Anode Rod 1 (5 Year) SP11309C

(10 Year) SP11526C

14. Snap Bushing 1 AP7733-2

To place your order call 1-800-621-5622; fax 1-800-535-9538

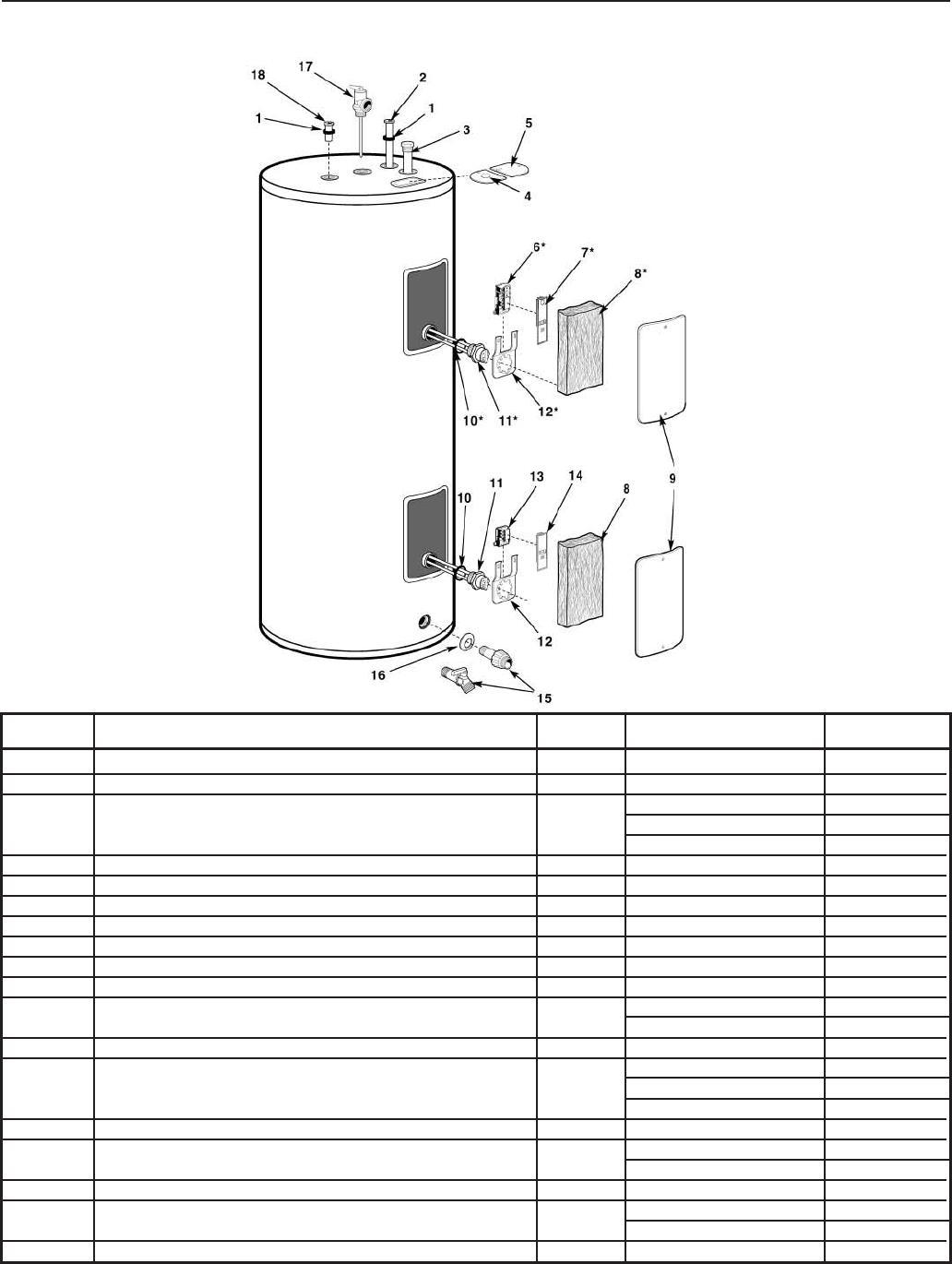

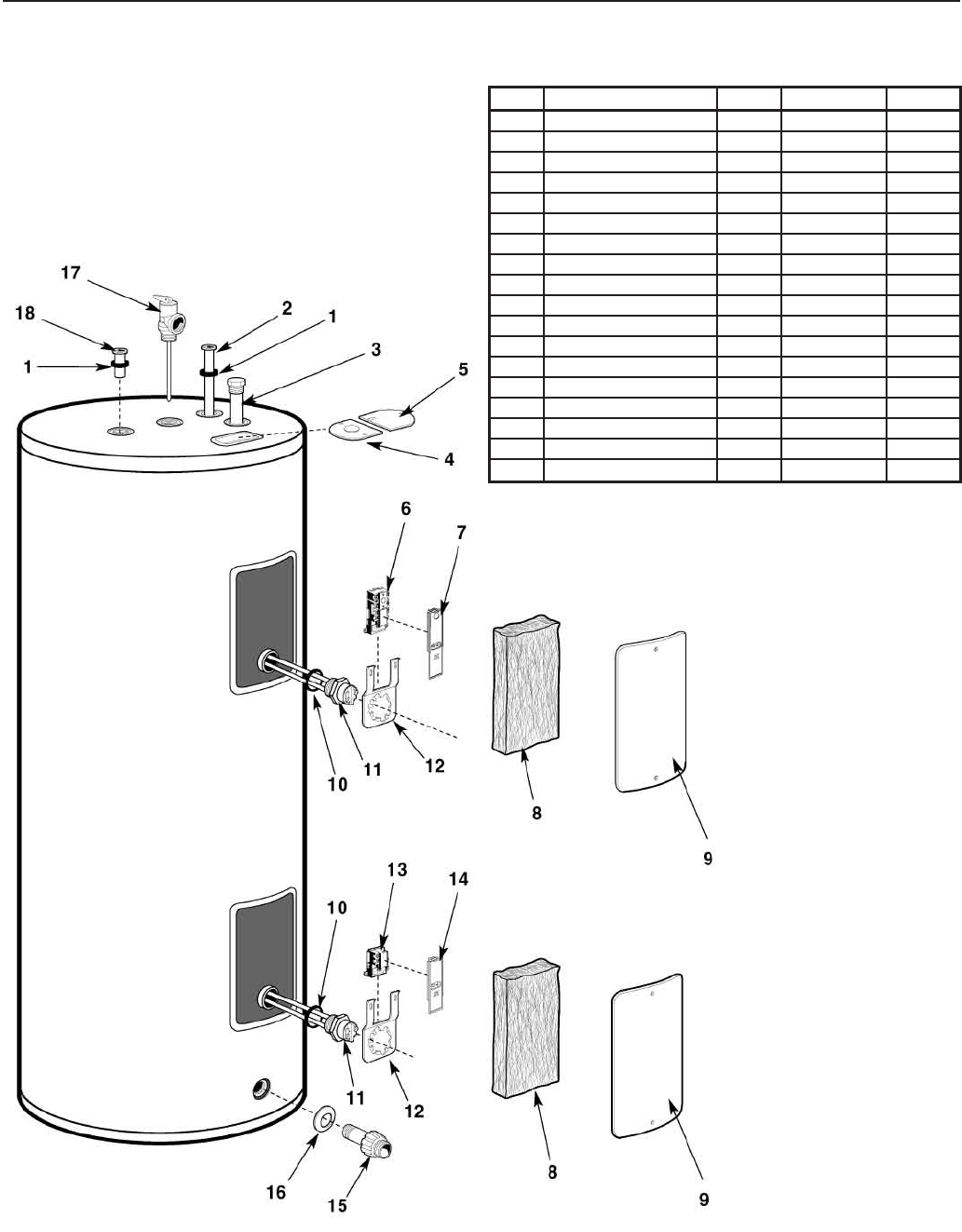

Residential Replacement Parts List

20 – 120 GALLON MODELS: SINGLE AND DOUBLE ELEMENT

Ref. No. Part Description Qty. Req. Part Number

1. Dip Tube Gasket – 3/4” 1 AP6948-3

2. Dip Tube – 3/4” 1 SP11248R

3. Anode Rod 1 (5 Year, 44”) SP11309C

(10 Year, 44”) SP11526C

(10 Year, 58”) SP11526Z NLAP

4. Plate Cover 1 AM29892 AS29892-2

5. Junction Box Cover 1 AM29893 AS29893-2

6. Upper Thermostat (on double element models only) 1 SP11698

7. Thermostat Protective Cover (on double element models only) 1 AP8313-9

8. Cavity Insulation 2 AP9184-7

9. Jacket Access Panel (Rheem Blue) As Required AM38409-1C

10. Heating Element Gasket As Required AP6708-9

11. Heating Element As Required (240V) SP10552MH

(120V) SP10874GH

12. Thermostat Bracket As Required AS23557-6

13. Lower Thermostat 1 (DE) SP11695

(SE-240V) SP11699

(SE120V) SP11700

14. Lower Thermostat Protective Cover 1 AP8314-9

15. Drain Valve 1 (PVC) SP12039

AP12112G

16. Drain Valve Shroud 1 AP2480-3

17. Relief Valve 1 (Top) SP12574

(Side) SP8346

18. Hot Outlet Heat Trap or Dip Cup Insert (HT Kit) 1 SP20003 or AP12992

To place your order call 1-800-621-5622; fax 1-800-535-9538

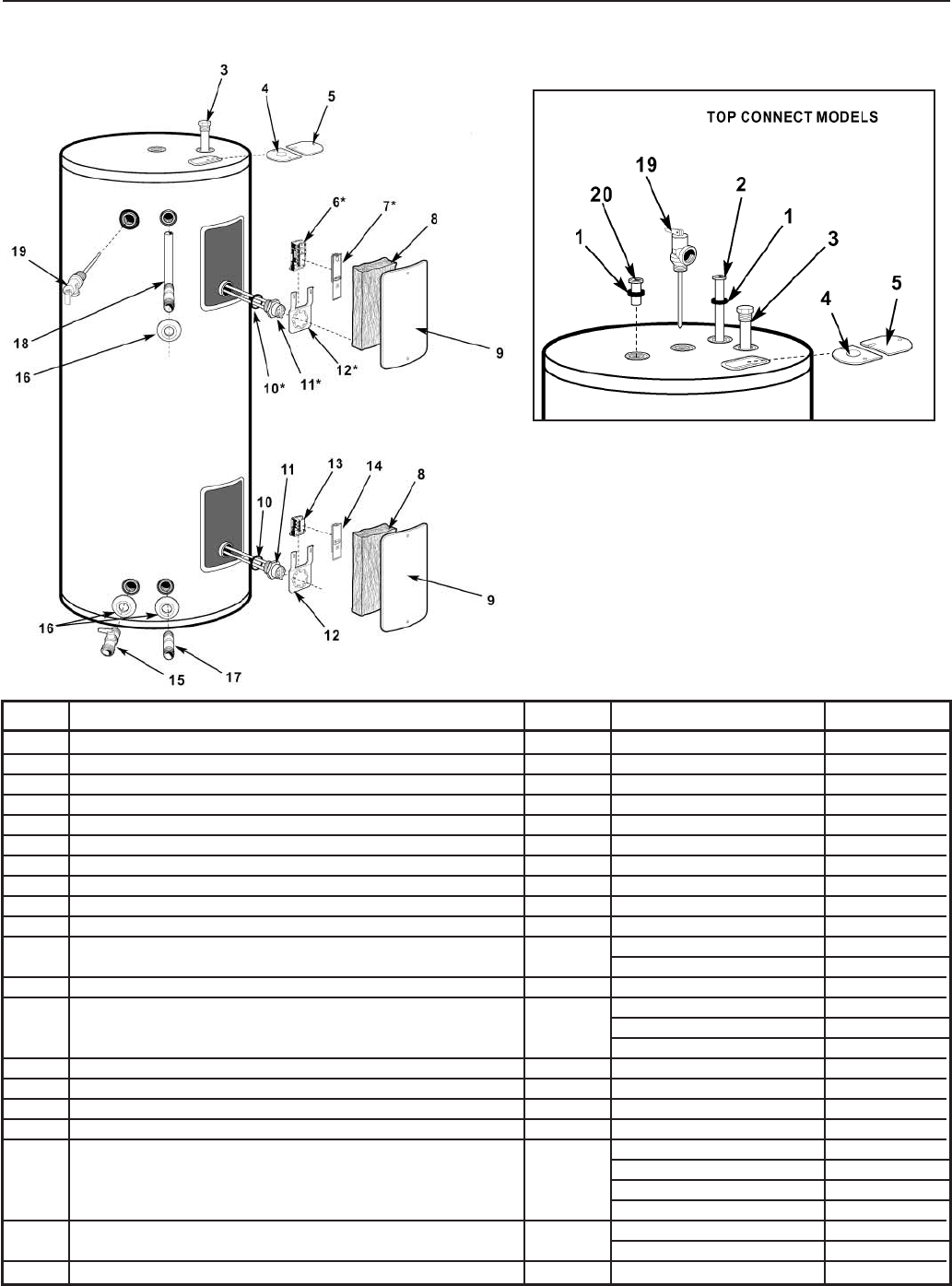

Residential Replacement Parts List

20 – 52 GALLON MODELS: SINGLE AND DOUBLE ELEMENT

Ref. No. Part Description Qty. Req. Part Number

1. Dip Tube Gasket (on top connect models only) 1 AP6948-3

2. Dip Tube (on top connect models only) 1 SP11248R

3. Anode Rod 1 SP11309C

4. Plate Cover (hole) 1 AM29892 AS29892-2

5. Junction Box Cover (no hole) 1 AM29893 AS29893-2

6. Upper Thermostat (on double element models only) 1 SP11698

7. Upper Thermostat Protective Cover (on double element models only) 1 AP8313-9

8. Cavity Insulation 2 AP9184-7

9. Jacket Access Panel As Required AM38409-1C

10. Heating Element Gasket As Required AP6708-9

11. Heating Element As Required (240V) SP10552MH

(120V) SP10874GH

12. Thermostat Bracket As Required AS23557-6

13. Lower Thermostat 1 (DE) SP11695

(SE-240V) SP11699

(SE120V) SP11700

14. Lower Thermostat Protective Cover 1 AP8314-9

15. Drain Valve 1 SP12039

16. Drain Valve Shroud As Required AP2480-3

17. Cold Inlet Nipple (on side connect models only) 1 AP8397N-8

18. Hot Outlet Tube (on side connect models only) 1 (71V20S) AP8877K-12

(71V30D) AP8877K-12

(71V40D) AP8877J-12

(71V50D) AP8877J-12

19. Relief Valve 1 (Top) SP12574

(Side) SP8346

20. Hot Outlet Heat Trap or Dip Cup Insert 1 AP12992 or SP20003

* These parts are supplied only on double element models.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Residential Replacement Parts List

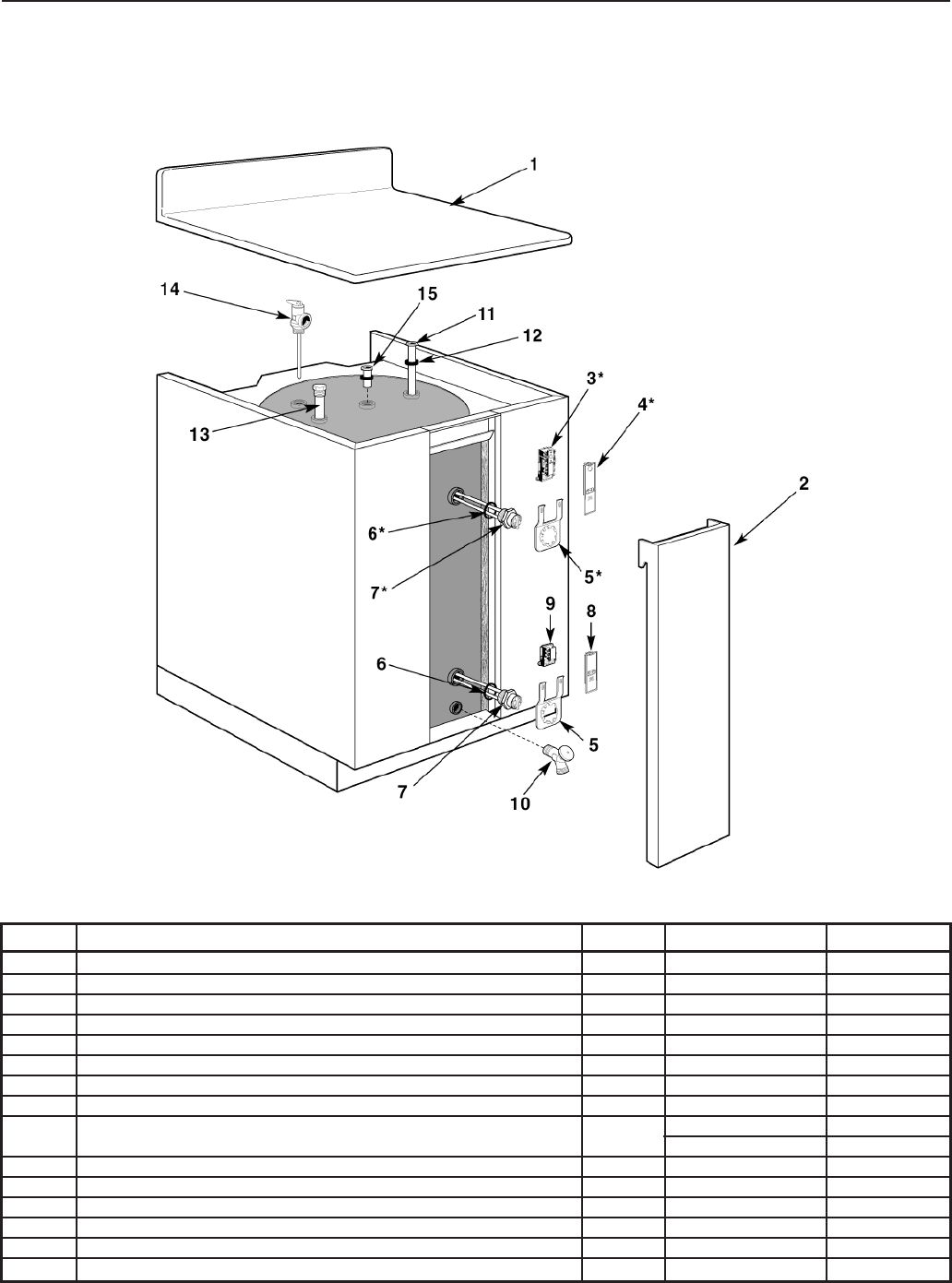

40 GALLON TABLE TOP MODELS

SINGLE AND DOUBLE ELEMENT

Ref. No. Part Description Qty. Req. Part Number

1. Splash Top 1 AP14549

2. Front Center Panel 1 AM28677-A

3. Upper Thermostat (on double element models only) 1 SP11698

4. Upper Thermostat Protective Cover (on double element models only) 1 AP8313-9

5. Thermostat Bracket As Required AM23557

6. Heating Element Gasket As Required AP6708-9

7. Heating Element As Required SP10552MH

8. Lower Thermostat Protective Cover 1 AP8314-9

9. Lower Thermostat 1 (DE) SP11695

(SE) SP11699

10. Drain Valve 1 SP12112L

11. Dip Tube 1 SP11248P

12. Dip Tube Gasket 2 AP6948-3

13. Anode 1 AP11525V

14. Relief Valve 1 SP12574

15. Hot Outlet Heat Trap or Dip Cup Insert (Kit) 1 SP20003

To place your order call 1-800-621-5622; fax 1-800-535-9538

Commercial Replacement Parts List

ULTRA HIGH EFFICIENCY COMMERCIAL GAS

Ref. No. Part Description Part Number

1. Ignited – Direct Spark Kit SP20258

2. Flame Sensor Rod Kit SP20259

3. Temperature Sensor – Water & ECO AP14074

4. Flue Sensor – Exhaust Temperature AP14280

5. Control Board – Argus AP14023

6. Display Board Kit – Argus AP20260

7. Condensate Trap AP14685

8. Drain Valve 3/4 Inch NPT AP12231B-1

9. Temperature and Pressure Relief Valve – 130 to 199K AP9013D

Temperature and Pressure Relief Valve – 250 to 400K AP9012B

10. ON/OFF Switch AP12767

11. Hand Hole Cleanout Gasket SP5886

12. Pressure Switch Assy w/Tubing and Mounting Bracket --

Pressure Switch Assembly GHE 130 – Green AP15465B

Pressure Switch Assembly GHE 160 – Yellow AP15465C

Pressure Switch Assembly GHE 200 – Blue AP15465D

Pressure Switch Assembly GHE 250 – Orange AP15465E

Pressure Switch Assembly GHE 300 – Red AP15465F

Pressure Switch Assembly GHE 350 – Brown AP15465G

13. GHE Burner Assy Kit *See below for kit contents --

*GHE Burner Assy Kit 130-160K LP SP20257A

*GHE Burner Assy Kit 130-160K Natural SP20257B

*GHE Burner Assy Kit 200K LP SP20257C

*GHE Burner Assy Kit 200K Natural SP20257D

*GHE Burner Assy Kit 250K LP SP20257E

*GHE Burner Assy Kit 250K Natural SP20257F

*GHE Burner Assy Kit 300-350K LP SP20257G

*GHE Burner Assy Kit 300-350K Natural SP20257H

14. Harness – Display Jumper AP14758

15. Harness – GHE Main Control AP14092

16. Harness – GHE Blower Control AP14157

17. Harness – GHE Main Power AP14158

18. Harness – GHE Gas Value AP14159

19. Harness – GHE Igniter Cable w/1k Ohm Resistor AP15294

20. Harness – Ground Wire AP15261

-- UL Sanitation Kit for NSF Compliance AS42690

-- Concentric Vent Kit ***

*Complete burner assemblies consist of the following components:

• Blower

• Ignitor

• Flame Probe

• Burner with Mesh

• Sight Glass

• Gas Valve

• Gaskets & O-Rings

• Wiring Harness’

• Screws

*** Call for Application

Call For Application

To place your order call 1-800-621-5622; fax 1-800-535-9538

Commercial Replacement Parts List

ADVANTAGE PLUS

Ref. No. Part Description Part Number

1. Gasket – Burner Mounting Flange SP15138

2. Igniter w/ Gasket and Mounting Screw – Natural SP15128

Igniter w/ Gasket and Mounting Screw – Propane SP15134

3. Flame Sensor w/ Gasket and Mounting Screw SP15129

4. Gasket – Burner / Blower SP15239

5. Burner w/ Gasket – 130k btu or less SP15126

Burner w/ Gasket – Greater than 130k btu SP15127

6. Gasket – Burner / Mounting Plate SP15139

7. Gasket, Sight Glass SP15152

8. Sight Glass with Gaskets SP15136

9. Combustion Blower w/ Gasket SP15130

10. Air Intke Adapter – Blower Side SP15158

11. Swirl Plate – 130k btu or less SP15155

Swirl Plate – Greater than 130k btu SP15156

12. Air Intake Adapter – Valve Side SP15157

13. Gas Valve Assembly – 130k btu or less SP15131

Gas Valve Assembly – Greater than 130k btu SP15132

14. Pressure Switch SP12140

15. Over Temp. Switch – Outlet SP12149

16. Tube – Air Inlet SP15137

Ref. No. Part Description Part Number

17. 926 Main Control Board – 160˚F. 130k SP15133A

926 Main Control Board – 160˚F. 160k SP15133B

926 Main Control Board – 160˚F. 199k SP15133C

926 Main Control Board – 160˚F. 100k SP15133D

926 Main Control Board – 180˚F. 160k SP15133E

926 Main Control Board – 180˚F. 199k SP15133F

18. Control Board Display SP15153

19. ECO / Temperature Probe SP12142

20. Low Water Cut-off SP15140

Parts not Shown

NS Low Voltage 24V Cable SP15183

NS Line Cable 120V SP15184

NS Gas Converstion Kit – Propane to Nat. Kit SP15159

NS Gas Conversion Kit – Nat. to Propane SP15160

NS Use and Care Manual AP15135

NS Concentric Vent Kit – 3 Inch SP20245

NS Aluminum Outside Vent Kit SP12162

NS Neutralizer, Condensate SP12151

NS Mesh Screen for 3” Pipe SP12163

NS Model 450 CO Meter (used for installation setup) AP12516

Commercial Replacement Parts List

UNIVERSAL SPARK IGNITION: NATURAL OR LP GAS

Ref. No. Part Description Qty. Req. Part Number

1. Drain Valve Bushing 1 AP7733-2

2. Drain Valve Nipple 1

3. Drain Valve 1 AP12231B-1

4. Jacket Handhole Cover 1 AM3459-H

5. Tank Handhole Assembly 1 SP22079

5A. Yoke 1 AS24346-1

5B. Nut 1 AP2247-1

5C. Gasket 1 AP5886-1

5D. Stud 1 AP5983-2

5E. Seal Plate 1 AS22078-2

6. Outlet Nipple Assembly 1 call for size

7. Inlet/Outlet Bushing 2 AP12421

8. Relief Valve Bushing 1 AP9078

9. Relief Valve Nipple 1

10. Relief Valve 1 SP9013D

11. Auto-Vent Damper Assembly 1 ***

12. Damper Motor 1 AP11617-1

13. Damper Drive Wiring 1 AP11314C-3

14. T’stat/T’well Bushing 1 AP9078-1

Ref. No. Part Description Qty. Req. Part Number

15. Thermostat Hi-Limit 1 SP11798B

16. Gas Manifold Assembly 1

16A. Gas Valve (NAT) 1 SP10963D

16A. Gas Valve (LP) 1 SP10963E

17. Pilot Tube (straight) 1 AP7033L-14

18. Gas Manifold Assembly 1

18A Burner Orifice 1

18B. Burner Bracket (front) 1

18C. Burner 1

18D Burner Bracket (rear) 1

19. Pilot (NAT) 1 SP10764B

19. Pilot (LP) 1 SP10764C

20. Ignition Cable 1 SP8828D

21. Ignition Control 1 SP10763C

22. On/Off Switch 1 AP8825

23. Transformer 1 SP10550B

24. Inlet Nipple 1 call for size

25. Flue Baffle & Hanger 1 ***

26. Anode As Required AP11524C

Sold as burner

tray assembly

Call for

application

***Call for application ***Call for application

-To place your order call 1-800-621-5622; fax 1-800-535-9538

Commercial Replacement Parts List

VENTMASTER COMMERCIAL GAS MODEL

Ref. No. Part Description Qty. Req. Part Number

1. Pilot Ignitor Assembly 1 SP13185

2. Burner Assembly 1 Call for Quote

3. Gas Valve 1 SP13714

4. System Sentinel Panel 1 AM38875

5. Ignition Control Assembly 1 AM40782

5A. Control Module 1 SP10763C

5B. Relay 1 SP12732

5C. On/Off Switch 1 AP8825

5D. Transformer 1 SP10550B

6. Blower Assembly 1 AP13192

7. Temperature & Pressure Relief Valve 1 SP9013D

8. Hand Hole Cover Gasket 1 AP5886-1

9. Thermostat 1 SP11798

10. Drain Valve 1 AP12231B-1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Commercial Replacement Parts List

INDUCED DRAFT

Ref. No. Part Description Qty. Req. Part Number

1 Pilot Ignitor Assembly 1 AP13185

2 Burner Assy; 250, 270, 310, 360 kBTU 1 Call for Quote

3 Gas Valve 1 SP10963D (NG)

4 System Sentinel Panel 1 AM38875

5 Control Module 1 SP10763C

6 Relay 1 SP12732

7 ON/OFF Switch 1 AP8825

8 Transformer 1 SP10550B

9 Draft Inducer 250 kBTU - Natural or LP; and 270 kBTU - Natural or LP 1 AP1300-2

Draft Inducer 310 kBTU; Natural AP13801-2

Draft Inducer 310 kBTU – LP; and 360 kBTU; Natural or LP AP13802-2

10 Temperature & Pressure Relief Valve 1 AP12323-1

11 Hand Hole Cover Gasket 1 AP5886-1

12 Thermostat 1 SP11798B (NG)

13 Drain Valve 1 AP12231B-1

14 Vacuum Switch Assy 1 SP13989

To place your order call 1-800-621-5622; fax 1-800-535-9538

Commercial Replacement Parts List

LOW NOX COMMERCIAL GAS MODEL

Ref. No. Part Description Qty. Req. Part Number

1. Vent Damper Assembly 1 Call for quote

Damper Drive Motor - SP11617 (NG)

2. Temperature & Pressure Relief Valve 1 BTU Dependent

3. Thermostat Hi-Limit 1 SP11798B

4. System Sentinel Panel 1 AM38875

5. Ignition Control 1 SP10763C

6. Relay 1 SP12732

7. Transformer 1 SP10550B

8. On/Off Switch 1 AP8825

9. Pressure Switch 1 BTU Dependent

10. Gas Valve (NAT) 1 SP12541B

Gas Valve (NAT 400,000 BTU Only) - SP12543

11. Blower Motor 1 BTU Dependent

12. Blower Motor Protection Cage 1 AP12712

13. Pilot Ignitor (NAT 200K and below) 1 AS39758

Pilot Ignitor (NAT above 200K) - AM40023

14. Drain Valve 1 AP12231B-1

15. Hand Hole Gasket 1 AP5886-1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Commercial Replacement Parts List

XTREME COMMERCIAL GAS MODEL

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Vent Damper Assembly 1 AP13156

2. Temperature & Pressure Relief Valve 1 BTU Dependent

3. Thermostat Hi-Limit 1 AP12015-1

4. System Sentinel Panel 1 AM38875

5. Ignition Control 1 SP10763C

6. Relay 1 SP12732

7. Transformer 1 SP10550B

8. On/Off Switch 1 AP8825

9. Pressure Switch 1 SP12576C

10. Gas Valve (NAT) 1 SP12866N

Gas Valve (LP) 1 SP12866P

11. Blower Motor 1 SP12525

- Blower Motor Protection Cage 1 AP13017

12. Pilot Ignitor (NAT) 1 SP12237

Pilot Ignitor (LP) 1 SP12305

13. Drain Valve 1 AP12231B-1

14. Hand Hole Gasket 1 AP5886-1

15. Burner Assembly 1 Call for quote

Commercial Replacement Parts List

208, 240,277 OR 480 VOLT OPERATION –

50, 85, 120 GALLON MODELS: IMMERSION THERMOSTAT

Ref. No. Part Description Qty. Req. Part Number

1. Drain Valve Shroud 1 AP7733-2

2. Drain Valve 1 AP12231C-1

3. Inlet Nipple Shroud 1 AP12421

4. Inlet Nipple 1 AP11179B

5. Jacket Handhole Cover 1 AM3459-H

6. Outlet Nipple 1 AP11179C

7. Outlet Nipple Shroud 1 AP12421

8. Anode 1 SP11524C

9. T&P Valve Shroud 1 AP7733-2

10. Captive Screw with Retainer 1 AP8162B-1

AP8162-1

11. Door 1

12. Element As Required

13. Thermostat Retainer 1

14. Element Gasket As Required AP6708-9

15. Copper Connectors 3 AM25285

16. Transformer Fuse 1 SP8264R

17. Transformer Fuse Block 1 SP8889

18. Fuse (goes with SP8311E) 3 SP8264M

Fuse (goes with SP11112) 3 SP8264K

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

19. Fuse Block 1 SP8311E

Fuse Block (36, 45 & 54 KW) 1 SP11112

20. Terminal Block 1 SP10260

21. Control Encl Frame 1

22. Controls Mount Panel 1

23. Seal Strip 1

24. Outlet Nipple 1 AP11179C

25. Handhole Assembly 1 SP22079

25A. Seal Plate 1 AS22078-2

25B. Stud 1 AP5983-2

25C. Handhole Gasket 1 AP5886-1

25D. Yoke 1 AS24346-1

25E. Nut 1 AP2247-1

26. Transformer 1 SP10006

27. Contactor 1 SP12841

28. Limit 1

29. Thermostat Bracket 1

30. Thermostat 1 SP11805

31. Relief Valve N/S 1 SP9013E

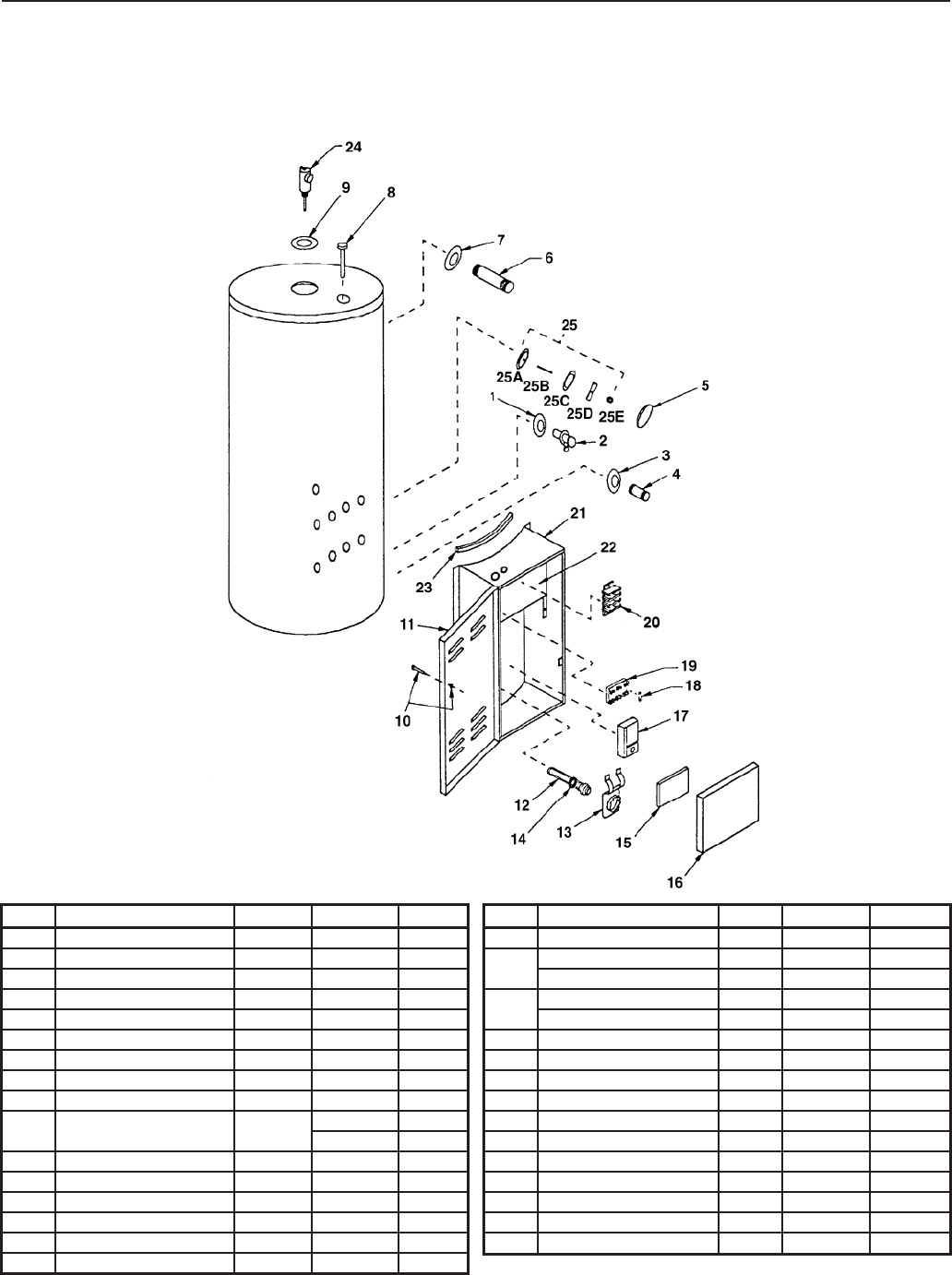

Commercial Replacement Parts List

208, 240, 277 OR 480 VOLT OPERATION –

50, 85, AND 120 GALLON MODELS:

SURFACE MOUNTED THERMOSTAT

Ref. No. Part Description Qty. Req. Part Number

1. Drain Valve Shroud 1 AP7733-2

2. Drain Valve 1 AP12231C-1

3. Inlet Nipple Shroud 1 AP12421

4. Inlet Nipple 1 AP11179B

5. Jacket Handhole Cover 1 AM3459-H

6. Outlet Nipple 1 AP11179C

7. Outlet Nipple Shroud 1 AP12421

8. Anode Assembly 1 SP11524C

9. T&P Valve Shroud 1 AP7733-2

10. Captive Screw with Retainer 1 AP8162B-1

AP8162-1

11. Door 1

12. Element As Required

13. Thermostat Retainer 1 AM23557

14. Element Gasket As Required AP6708-9

15. Insulation - Controls 1

16. Insulation - Controls 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

17. Thermostat 1 AP11231-2

18. Fuse (goes with SP8311E) 3 SP8264M

Fuse (goes with SP11112) 3 SP8264K

19. Fuse Block 1 SP8311E

Fuse Block (36, 45 & 54 KW) 1 SP11112

20. Terminal Block 1 SP10260

21. Control Encl Frame 1

22. Controls Mount Panel 1

23. Seal Strip 1

24. Relief Valve 1 SP9013E

25. Handhole Assembly 1 SP22079

25A. Seal Plate 1 AS22078-2

25B. Stud 1 AP5983-2

25C. Handhole Gasket 1 AP5886-1

25D. Yoke 1 AS24346-1

25E. Nut 1 AP2247-1

Commercial Replacement Parts List

ELECTRIC LIGHT DUTY (ELD) SERIES

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

1. Gasket 1 AP6948-3

2. Diptube 1 SP11251R

3. Anode 1 SP11526C

4. Field Connect Plate 1 AS29892-2

5. Junction Box Cover 1 AS29893-2

6. Thermostat, Upper 1 SP8293

7. Thermostat Cover - Upper 1 AP8313-9

8. Cavity Opening Insulation 1 AP9184-7

9. Front Panel 2 AM38409-1C

10. Gasket, Heating Element 1 AP6708-9

11. Heating Element 2 SP10552ML

12. Thermostat Bracket 1 AS23557-6

13. Thermostat, Lower 1 SP8295

14. Thermostat Cover - Lower 1 AP8314-9

15. Drain Valve 1 SP12112S

16. Drain Valve Shroud 1 AP9167

17. T & P Valve 1

18. Hot Outlet Heat Trap 1 SP20003 (kit)

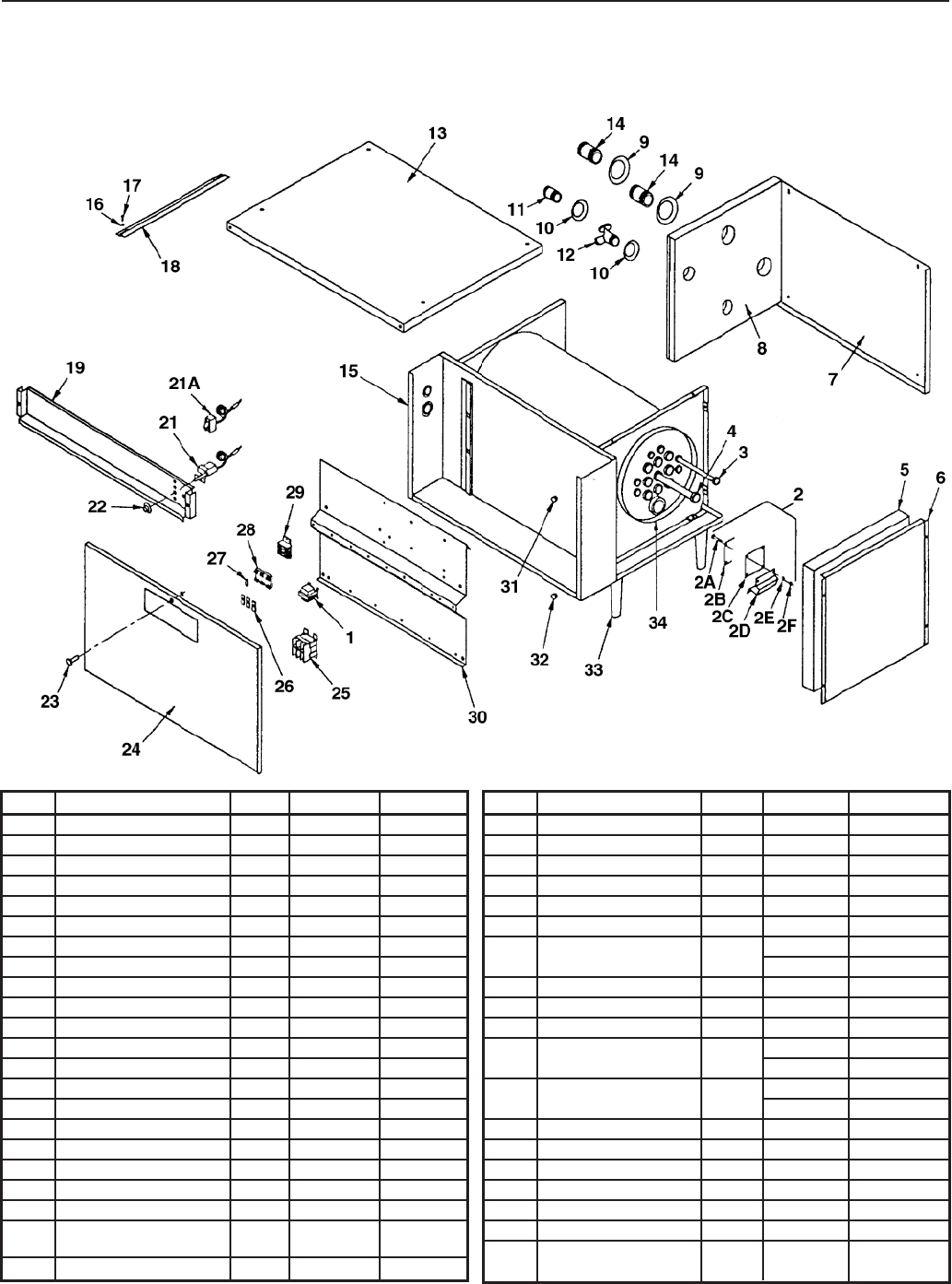

Commercial Replacement Parts List

208, 240,277 OR 480 VOLT OPERATION:

10 GALLON BOOSTER MODELS

Ref. No. Part Description Qty. Req. Part Number

1. Transformer 1 SP10006

2. Cleanout Assembly 1

2A. Bolt 1

2B. Gasket 1

2C. Cover 1

2D. Tank Holddown Bracket 1

2E. Lock Washer 1

2F. Nut 1

3. Anode Assembly 1 SP11524C

4. Element 1

5. Element Insulation 1

6. Side Panel 1

7. Side & Back Panel 1

8. Inlet-Outlet Insulation 1

9. Shroud 2 AP9167

10. Shroud 2 AP6334-1

11. Nipple 3/4 inch NPT 1 AP508C-8

12. Drain Valve 1 SP6070G

13. Top Pan

14. Nipple 1-1/4 inch NPT 2 AP12012B

15. Assembly - bottom tank

supports & enclosure 1

16. Washer 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

Ref. No. Part Description Qty. Req. Part Number

17. Cap Screw 1

18. Support Bracket 1

19. Upper Control Panel 1

20. Thermostat 1 SP8260

21. Limit 1 SP5411

22. Thermostat Dial 1 AP8339

23. Captive Screw 1 AP8162B-1

AP8162-1

24. Front Door 1

25. Contactors 1 SP12841

26. Copper Connector 1 AM25285

27. Element Fuse 1 SP8264M

SP8264K

28. Element Fuse Block 1 SP8311E

SP11112

29. Terminal Block 1 SP10127

30. Control Mounting Panel 1

31. Snap Bushing 1 AP5316B-4

32. Snap Bushing 1 AP5316C-4

33. Leg 4 AP7803

34. Rubber Channel 1 AP7475D-5

35. Relief Valve (not shown) 1 AP9013E-3

4’ x 4’ PARTS DISPLAY FOR

GAS AND ELECTRIC MARKET

AP13266 Display unit (Empty)

Preferred Gas and Electric Parts

SP13266 (with parts shown below)

SP6571B Relief Valve ..................................................3 each

SP12039 Melet Drain Valve .........................................3 each

SP20009 Basic Install Kit 12" ......................................3 each

SP20011 Installation Kit Electric .................................3 each

SP11695 Lower Electric T'stat ....................................3 each

SP11698 Upper Electric T'stat .....................................3 each

SP10552ML 4500W 240V LWD Resistor .........................3 each

SP11699 Single Element Thermostat ...........................3 each

SP10552KH 3500W 240V High Watt ................................3 each

SP35871AB Element wrench ............................................3 each

SP10374 Compression Fitting3/4.................................3 each

SP10354 Compression Fitting 1/2................................3 each

SP20003 Heat Trap Nipple Kit .....................................3 each

SP10552PL 5500W 240V Low Watt.................................3 each

SP10972 Hot surface Ignitor ........................................3 each

SP6379R Thermocouple 24" .........................................3 each

SP6379K Thermocouple 17" .........................................3 each

SP8397G Plastic Lined Nipple 2 1/4" ............................3 each

SP8346 Relief Valve Long Shank ...............................3 each

SP8980B Gas Pilot (Natural) ........................................3 each

SP8980C Gas Pilot (LP)................................................3 each

SP8555B Gas Thermostat-Natural ................................3 each

SP12258B Gas Thermostat-LP .......................................3 each

SP10552MH 4500W 240V HWD Resistor .........................3 each

SP10869MM 4500W 240V SS Resistor ............................3 each

SP20010 Installation Kit-Gas .......................................3 each

SP20060 Plumbers Pack .............................................3 each

SP6830 Adapt-o-Flange .............................................3 each

Universal Gas and Electric Parts

UV13266 (with parts shown below)

UV12899 4500W 240V HWD Non-resistor...................3 each

UV12901 4500W 240V LWD Non-resistor....................3 each

UV12904 4500W 240V SS Non-Resistor .....................3 each

UV20016 Installation Kit-Gas........................................3 each

UV20010 Basic Installation Kit 15"................................3 each

UV13359 Upper Electric T'stat .....................................3 each

UV13360 Lower Electric T'stat ....................................3 each

UV20015 Installation Kit 12" Gas .................................3 each

UV12039 Melet Drain Valve .........................................3 each

UV12927 Stainless Steel Water Conn 12" ....................3 each

UV6830 Adapt-o-Flange .............................................3 each

UV6379L Thermocouple Kit 18"....................................3 each

UV6379H Thermocouple Kit30".....................................3 each

UV6379R Thermocouple Kit 24"....................................3 each

UV6379S Thermocouple Kit36".....................................3 each

UV10351 Copper Flex Water Conn 12" .........................3 each

UV20014 Installation Kit 18" Electric ............................3 each

UV6571B Relief Valve ..................................................3 each

UV12992 Heat Trap Nipple Kit .....................................3 each

UV20018 Plumbers Pack ..............................................3 each

UV38628 Element Wrench ...........................................3 each

UV12914 Gasket Kit .....................................................3 each

UV10374 3/4" Compression Fitting ..............................3 each

UV10354 1/2" Compression Fitting ..............................3 each

The premium line of approved

replacement parts.

The value line for all your

replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

4’ x 4’ PLANOGRAM FOR

GAS PREDOMINANT MARKET

4’ x 4’ PLANOGRAM FOR

ELECTRIC PREDOMINANT MARKET

The premium line of approved

replacement parts.

The value line for all your

replacement parts needs.

To place your order call 1-800-621-5622; fax 1-800-535-9538

The premium line of approved

replacement parts.

The value line for all your

replacement parts needs.

4’ x 4’ PLANOGRAM FOR

GAS & ELECTRIC MARKET

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

PRODUCT FEATURES

• Moisture & vapor resistance requiring no additional vapor barriers.

• Stable thermal conducitivity (k.value) during its long service life,

due to its dense surface skins and closed cell characteristics.

• Flexibility which makes installation work easy and neat.

• Outstanding ultraviolet and weather resistance.

• Aerocel products are processed without CFC chemical

that is harmful to the earth ozone layer.

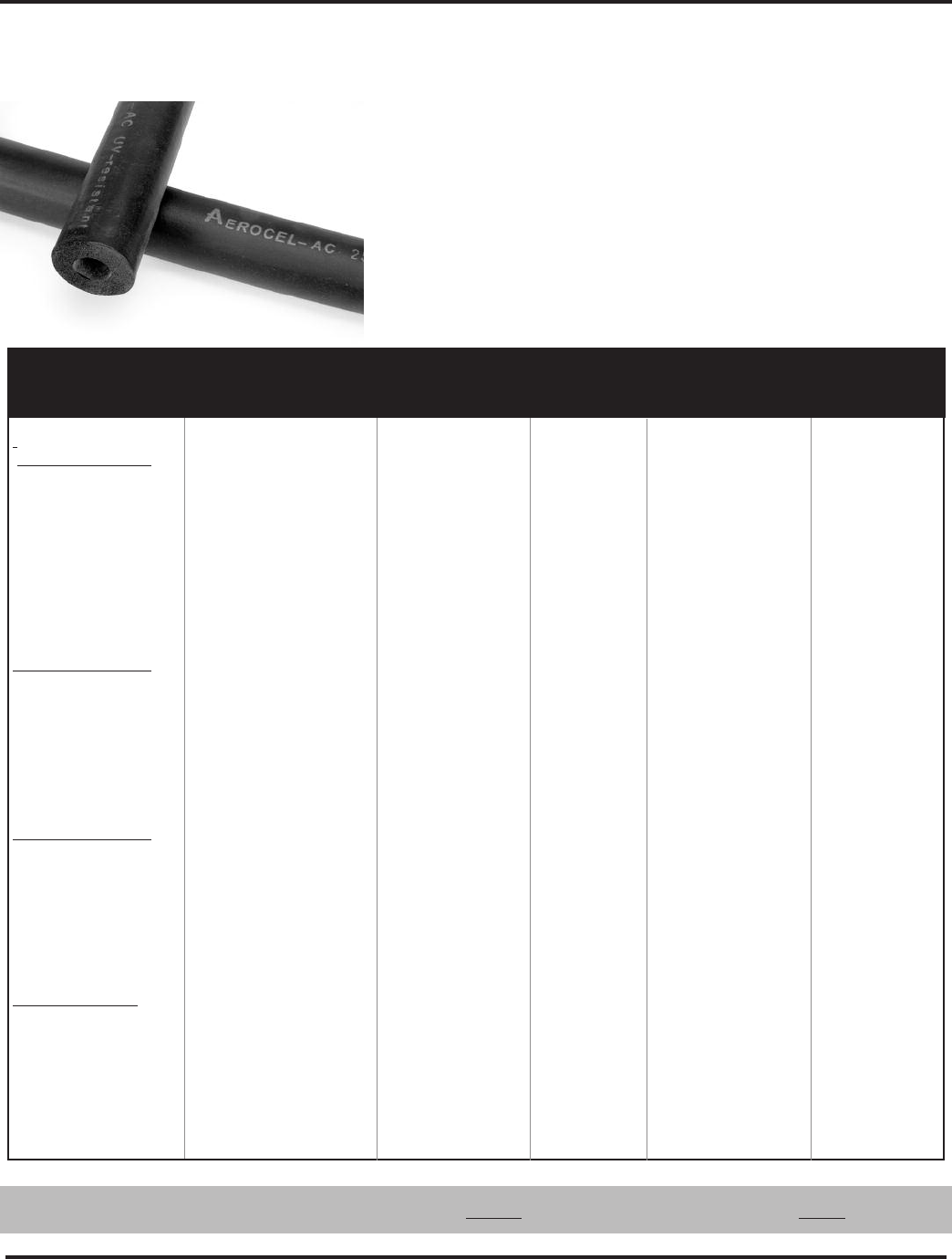

AEROCEL

Insulated Tubing

SELF-SEAL WITH PROTAPE

Nominal 3/8” Wall

AC1238SSPT 1/2” x 3/8” x 6’ 1/2” 1/4” 510 85

AC5838SSPT 5/8” x 3/8” x 6’ 5/8” 3/8” 426 71

AC3438SSPT 3/4” x 3/8” x 6’ 3/4” - 378 63

AC7838SSPT 7/8” x 3/8” x 6’ 7/8” 1/2” 336 56

AC11838SSPT 1-1/8” x 3/8” x 6’ 1-1/8” - 216 36

AC13838SSPT 1-3/8” x 3/8” x 6’ 1-3/8” 1” 180 30

AC15838SSPT 1-5/8” x 3/8” x 6’ 1-5/8” 1-1/4” 150 25

AC21838SSPT 2-1/8” x 3/8” x 6’ -- 96 16

AC25838SSPT 2-5/8” x 3/8” x 6’ -- 84 14

AC31838SSPT 3-1/8” x 3/8” x 6’ -- 60 10

Nominal 1/2” Wall

AC3812SSPT 3/8” x 1/2” x 6’ 3/8” - 456 76

AC1212SSPT 1/2” x 1/2” x 6’ 1/2” 1/4” 372 62

AC5812SSPT 5/8” x 1/2” x 6’ 5/8” 3/8” 288 48

AC3412SSPT 3/4” x 1/2” x 6’ 3/4” - 276 46

AC7812SSPT 7/8” x 1/2” x 6’ 7/8” 1/2” 234 39

AC11812SSPT 1-1/8” x 1/2” x 6’ 1-1/8” - 156 26

AC13812SSPT 1-3/8” x 1/2’ x 6’ 1-3/8” 1” 144 24

AC15812SSPT 1-5/8” x 1/2’ x 6’ 1-5/8” 1-1/4” 114 19

Nominal 3/4” Wall

AC3834SSPT 3/8” x 3/4” x 6’ 3/8” - 294 49

AC1234SSPT 1/2” x 3/4” x 6’ 1/2” 1/4” 216 36

AC5834SSPT 5/8” x 3/4” x 6’ 5/8” 3/8” 180 30

AC3434SSPT 3/4” x 3/4” x 6’ 3/4” - 144 24

AC7834SSPT 7/8” x 3/4” x 6’ 7/8” 1/2” 144 24

AC11834SSPT 1-1/8” x 3/4” x 6’ 1-1/8” - 108 18

AC13834SSPT 1-3/8” x 3/4” x 6’ 1-3/8” 1” 84 14

AC15834SSPT 1-5/8” x 3/4” x 6’ 1-5/8” 1-1/4” 72 12

Nominal 1” Wall

AC5810SSPT 5/8” x 1” x 6’ 5/8” 3/8” 108 18

AC3410SSPT 3/4” x 1” x 6’ 3/4” - 108 18

AC7810SSPT 7/8” x 1” x 6’ 7/8” 1/2” 96 16

AC11810SSPT 1-1/8” x 1” x 6’ 1-1/8” - 72 12

AC13810SSPT 1-3/8” x 1” x 6’ 1-3/8” 1” 72 12

AC15810SSPT 1-5/8” x 1” x 6’ 1-5/8” 1-1/4” 54 9

AC23810SSPT 2-3/8” x 1” x 6’ 2-3/8” 2” 36 6

AC31210SSPT 3-1/2” X 1” X 6’ 3-1/2” 3” 30 5

Size ID IPS Iron Feet 6’ Piece

Part ID X Wall Copper W x D x H Qty/ Qty. /

Number X Length Range (Inches) Carton Carton ✜

✜

All prices based on quantity of one. Must order in multiples of 6’ piece quantity shown. Partial case quantities cannot be returned.

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

Part Vendor Case

Number Number

Description

Qty

86-D12912025 Work Light - 25’ (ProGlo Yellow 12/3 SJTW) 6

86-D15511003 GFCI-3’ (ProGlo Green 12/3 SJTW, Triple Tap) 24

86-D17223050 Ext. Cord - 50’ (ProGlo Lighted Yellow Triple Tap, 12/3 SJTW) 6

86-D17223100 Ext. Cord - 100’ (ProGlo Lighted Yellow Triple Tap, 12/3 SJTW) 4

86-D17442025 Ext. Cord - 25’ (ProGlo Lighted Orange, 12/3 SJTW) 12

86-D17442050 Ext. Cord - 50’ (ProGlo Lighted Orange, 12/3 SJTW) 6

86-D17442100 Ext. Cord - 100’ (ProGlo Lighted Orange, 12/3 SJTW) 4

86-D17443025 Ext. Cord - 25’ (ProGlo Lighted Yellow, 12/3 SJTW) 12

86-D17443050 Ext. Cord - 50’ (ProGlo Lighted Yellow, 12/3 SJTW) 6

86-D17443100 Ext. Cord - 100’ (ProGlo Lighted Yellow, 12/3 SJTW) 4

86-D17444025 Ext. Cord - 25’ (ProGlo Lighted Green, 12/3 SJTW) 12

86-D17444050 Ext. Cord - 50’ (ProGlo Lighted Green, 12/3 SJTW) 6

86-D17444100 Ext. Cord - 100’ (ProGlo Lighted Green, 12/3 SJTW) 4

86-D17445025 Ext. Cord - 25’ (ProGlo Lighted Pink, 12/3 SJTW) 12

86-D17445050 Ext. Cord - 50’ (ProGlo Lighted Pink, 12/3 SJTW) 6

86-D17445100 Ext. Cord - 100’ (ProGlo Lighted Pink, 12/3 SJTW) 4

86-D17446025 Ext. Cord - 25’ (ProGlo Lighted Blue, 12/3 SJTW) 12

86-D17446050 Ext. Cord - 50’ (ProGlo Lighted Blue, 12/3 SJTW) 6

86-D17446100 Ext. Cord - 100’ (ProGlo Lighted Blue, 12/3 SJTW) 4

86-D17447025 Ext. Cord - 25’ (ProGlo Lighted Red, 12/3 SJTW) 12

86-D17447050 Ext. Cord - 50’ (ProGlo Lighted Red, 12/3 SJTW) 6

86-D17447100 Ext. Cord - 100’ (ProGlo Lighted Red, 12/3 SJTW) 4

86-D17448025 Ext. Cord - 25’ (ProGlo Lighted Black, 12/3 SJTW) 12

86-D17448050 Ext. Cord - 50’ (ProGlo Lighted Black, 12/3 SJTW) 6

86-D17448100 Ext. Cord - 100’ (ProGlo Lighted Black, 12/3 SJTW) 4

86-D17449025 Ext. Cord - 25’ (ProGlo Lighted Purple, 12/3 SJTW) 12

86-D17449050 Ext. Cord - 50’ (ProGlo Lighted Purple, 12/3 SJTW) 6

86-D17449100 Ext. Cord - 100’ (ProGlo Lighted Purple, 12/3 SJTW) 4

Part Case

Number Description Qty

Pro-Glo Extension Cords

Special Features

❉

Designed for construction / industrial use.

❉

Highly visible Cenflex PVC jacket provides -

• extreme durability;

• chemical, moisture and ozone resistance; and

• flexibility at below freezing temperatures.

❉

Molded on non-slip plugs and connectors resist

breaking or pulling off cord.

❉

Tri-Tap / Quad-Tap Extension Cords are equipped

with additional outlets for job site power.

❉

Lighted End Extension Cords feature a neon power

light to confirm the power is on.

No Corner is Cut!

Cords and cables are

made with industrial

grade brass blades,

contacts and ground

pins, assuring a qual-

ity product.

UV Sunlight Resistant

Special UV inhibitors

give great flexibility.

The cords can be

used in a wide range

of climatic conditions

without cracking or

aging in direct sunlight.

Water Resistant

Rating

Moisture resistant

insulation guarantees

water will not penetrate

the copper conductors

that can lead to

corrosion and shorts.

UL / cUL Listed

Use in the USA

and Canada.

OSHA Compliant.

To place your order call 1-800-621-5622; fax 1-800-535-9538

Part Vendor Case

Number Number

Description

Qty ✜

Polar/Solar Trouble Lights 16/3 UL/CSA, SJEOW Side Outlet &

Switch Metal Cage, PVC Coated (Yellow).

86-05857-00 05857-00-02 Trouble Light - 25 Ft. 6

86-05858-00 05858-00-02 Trouble Light - 50 Ft. 6

12 AWG Polar/Solar+ Lighted Extension Cord w/3-Way Power Block UL, SEOW, SJEOW, OSHA (Yellow).

86-03487-00 03487-00-02 Lighted Extension Cord - 25 Ft. 12

86-03488-00 03488-00-02 Lighted Extension Cord - 50 Ft. 6

86-03489-00 03489-00-02 Lighted Extension Cord - 100 Ft. 4

Baron Trouble Lights & Extension Cords

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

86-05857-00

To place your order call 1-800-621-5622; fax 1-800-535-9538

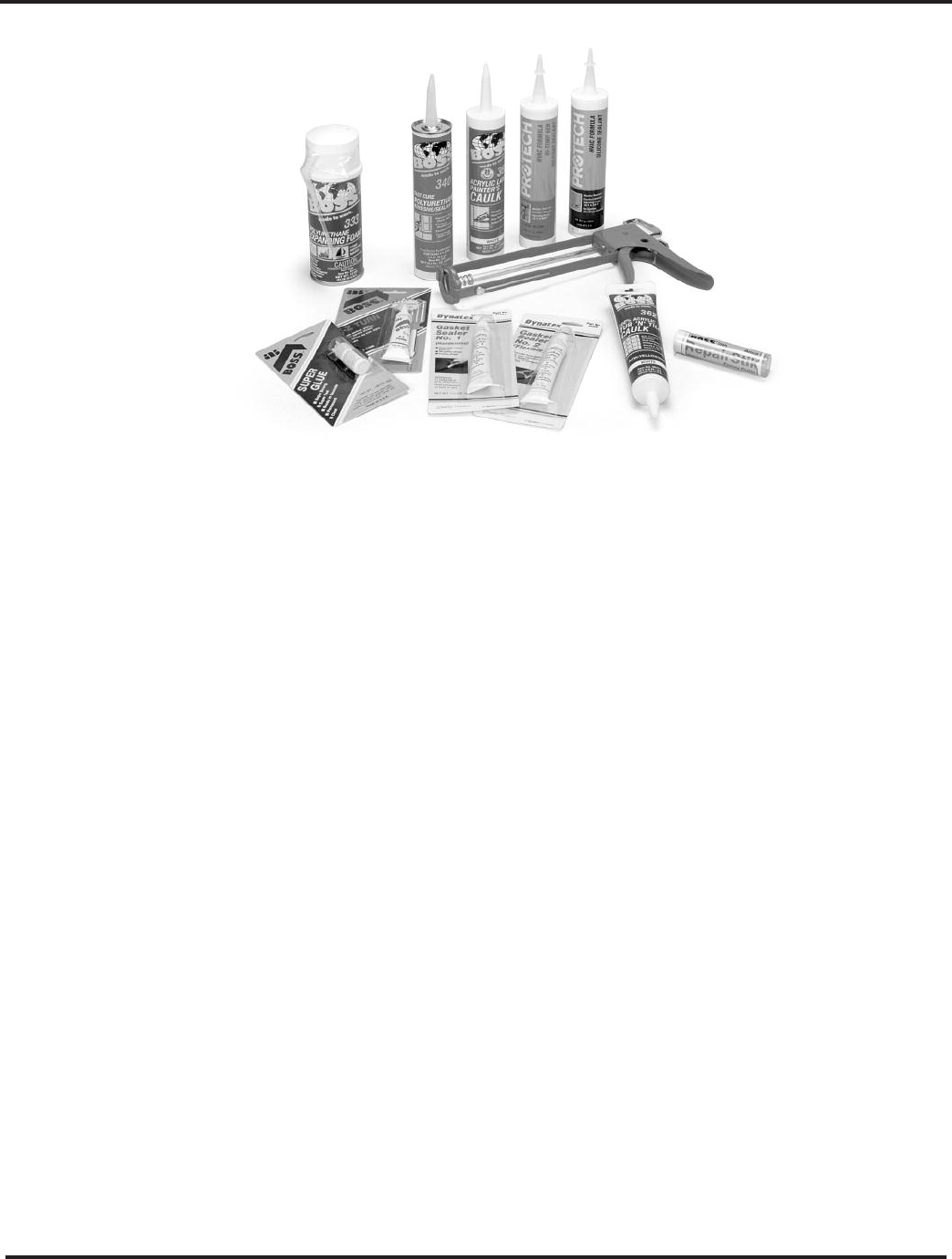

86-136 Fire/Smoke and Draft Sealant:

❉

Completely non-toxic and contains no asbestos or PCBs.

❉Applied with a conventional caulking gun.

❉Easily applied sealant with water clean-up capability.

❉An accredited fire block/smoke seal caulk.

❉Single component system, no mixing necessary and

no additions required.

❉Meets residential construction code approvals.

❉Red color.

86-139 Fire Mortar:

❉Can withstand extremely high heat.

❉Applied with standard caulking gun.

❉Dries rock hard when cured and fired.

❉Safe to use and handle.

❉No harmful odors.

❉Water clean-up (prior to curing).

❉VOC compliant.

❉Contains NO asbestos fillers of any kind.

❉Black color.

86-340G Fast Cure Polyurethane Adhesive/Sealant:

❉

High Modulus, non-slump, fast cure, tack free in 60-90 min.

❉Cures to a tough, polyurethane elastomer.

❉Excellent adhesion to woods, masonry, metals,

fiberglass and most other construction materials.

❉Paintable.

❉Ideal for environments where silicone is not allowed.

❉Suitable for marine applications.

❉Grey color.

86-341 Polyurethane Adhesive/Sealant:

❉

Primerless adhesion to most building materials.

❉Non-sag formulation.

❉Excellent weatherability.

❉Paintable.

❉Cures to a tough, flexible rubber.

❉Tools easily.

86-360W Acrylic Latex Painter’s Caulk:

❉25 Year durability.

❉Interior and exterior uses.

❉Paintable, flexible bond.

❉Resistant to water.

❉White color.

86-362W Acrylic Tub ‘n’Tile Caulk:

❉Paintable.

❉Seals around ceramic tiles, showers, tubs, sinks and

plumbing fixtures.

❉Resists mildew/rust inhibitor.

❉Bonds, seals and waterproofs.

❉White color.

86-367 Elastomeric Adhesive/Sealant.

Compatability with a variety of materials makes it the

ideal sealant for use with:

❉Woods, including oil woods.

❉All metals

❉Glass.

❉Brick, cement and masonry.

❉Asphalt, and asphalt like materials.

❉Vinyl building products.

❉Roofing products.

86-370 HVAC/R Silicone Sealant:

❉

One-part RTV actetoxy sealant formulated for general

heating, ventilation, air conditioning & refrigeration sealing.

❉Adheres to clean ductwork, metals & many types of wood.

❉Meets FDA and USDA requirements for use in federally

inspected meat and poultry plants.

❉Seals wall penetrations.

❉Meets NSF Standard 51.

❉86-370A is aluminum color; 86-370C is clear color;

86-370W is white color.

SUPPLIES & HARDWARE

PROTECH™ and BossW Caulking, Sealants, Adhesives & Lubricants

To place your order call 1-800-621-5622; fax 1-800-535-9538

Part Case

Number

Description Logo Color

Qty ✜

86-136 Fire/Smoke & Draft Sealant Boss Red 12

86-139 Fire Mortar Boss Black 12

86-340G Fast Cure Polyurethane Adhesive/Sealant Boss Grey 12

86-341 Polyurethane Adhesive/Sealant Boss White, Gray, Black, Limestone, Bronze 12

86-360W Acrylic Latex Painters Caulk Boss White 12

86-362W Acrylic Tub ‘n’ Tile Caulk Boss White 12

86-367 Elastomeric Adhesive Sealant Boss White, Clear 12

86-370A HVAC/R Silicone Sealant Protech Aluminum 12

86-370C HVAC/R Silicone Sealant Protech Clear 12

86-370W HVAC/R Silicone Sealant Protech White 12

86-376R High Temp Silicone Sealant Protech Red 12

86-333 Expanding Foam Sealant (12 Oz. Can) Boss — 12

86-814 Intumescent Latex Firestop Sealant Boss Red 12

86-815 Firestop Insert for Electrical Outlet Boxes Boss Black 50

(Sizes: 4 x 4 x 1/8, 4 x4 x 1/4, 4 x 2x 1/8, 4 x 2 x1/4)

86-816R Intumescent Firestop Sealant Boss Red 12

PROTECH™ and Boss Caulking, Sealants, Adhesives & Lubricants

86-376R High Temp Red Silicone Sealant:

❉Sealing and encapsulating heating elements in appliances,

stove & furnace vent pipes.

❉Moving oven belts.

❉Industrial ovens.

❉Bag filters on smoke stacks.

❉Other critical bonding, sealing, potting, encapsulating &

protective coating where parts must perform at high temps

86-333 Expanding Foam Sealant:

❉Easy-to-use, multi-purpose urethane foam.

❉Expands to three times its original volume.

❉Adheres to all building materials except Teflon, silicone &

polyethelene.

❉Seals by expanding into gaps, cracks and crevices.

❉Uses include insulating, sealing and filing gaps around

pipes, plumbing fixtures, ductwork and foundations.

❉UL Classified.

86-814 Intumescent Latex Firestop Sealant:

❉Interior/Exterior use on virtually any surface.

❉Remains flexible.

❉VOC compliant.

❉Excellent freeze/thaw properties.

❉Safe to use and handle.

❉Water clean-up.

❉24 month shelf life.

❉Applied with a conventional caulking gun.

❉Red color.

86-815 Firestop Insert for Electrical Outlet Boxes:

❉Cost effective - fast and easy to install.

❉Peel and stick to inside of metal electrical outlet box.

❉Safe to use, completely non-toxic.

❉Two standard sizes available - no trimming required.

❉Intumescent - expands whenexposed to heat and fire.

❉Meets all acoustical requirements.

86-816R Intumescent Firestop Sealant:

❉Mildew resistant. ❉Water based and paintable.

❉Remains flexible. ❉2 year shelf life.

❉VOC compliant.

❉Excellent freeze/thaw properties.

❉Safe to use and handle.

❉Bonds quickly with excellent adhesion.

See our Caulking Guns in Tools and Instruments Section.

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

Touch’n Seal®

Touch’n Seal®No Warp Foam 4004521212 (12 oz.) 4004521224 (24 oz.)

Touch ‘n Seal offers a low-pressure, polyurethane foam as a disposable, straw-dispensed

aerosol. No-warp fills and seals space between finished jambs, sills, headers and rough

openings while exerting up to 90% less curing pressure than conventional foam, providing

airtight insulation without warping. (Available in 12 or 24 oz)

❉Low-pressure formula exerts up to 90% less curing pressure

❉Stops air infiltration permanently - outperforms fiberglass

❉Creates moisture vapor barrier

❉Bright while foam

❉Cures fast

❉No gun applicator needed

❉ASTM E-84: Flame Spread 5, Smoke Developed 25

❉Contains fire retardant

Touch’n Seal®Gun Foam II 4004528712 (24 oz.)

Gun Foam is a one-component, polyurethan foam sealant used to seal cracks and holes,

providing airtight insulation that blocks drafts, moisuture and insects. It’s applied with a

gun applicator and can be used under the plate line, at the juncture of the plate line and

the slab or foundation, and any penetration through the top or the bottom plate line into a

conditioned area. It fills cracks in the exterior sheeting (due to poor application or pene-

trations made for utility services), at the corner and tee-joints in framing, and any other

place where air might penetrate the exterior envelope.

❉Seal gaps and cracks, providing over 75% closed cell content

❉Stops air infiltration permanently

❉Outperforms fiberglass

❉High yield (3000 plus linear feet of 1/4” diameter bead)

❉Fast cure

❉UL Classified: Flame Spread 15, Smoke Developed 25

❉Contains fire retardant

❉Meets Building Codes: CABO (Council of American Building Officials)

BOCA (Building Officials and Code Administrators, International)

CCMC (Canadian Construction Material Centre (formerly CHMC)

ICBO (International Conference of Building Officials)

SBCCI (Southern Building Code Congress International)

Technical Information

Density: (ASTM D-1622) 1.3-1/8 lbs./cu. ft. Max. Service Temp. (Cured): 2407F (1167C)

Comprehensive Strength: (ASTM D-1621) 11 psi Tensile Strength: (ASTM D-1623) 26 psi

Percent Elongation at Break: 12% Shear Strength: (ASTM C-273) 18 psi

Thermal Resistance: (ASTM C-518) Shear Strain: (ASTM C-273) 38 psi

R-Value: 4.5 /inch thick Size (Volume): 24 oz. can (1.25 cu. ft.)

Solvent Free Shelf Life: 18 months

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

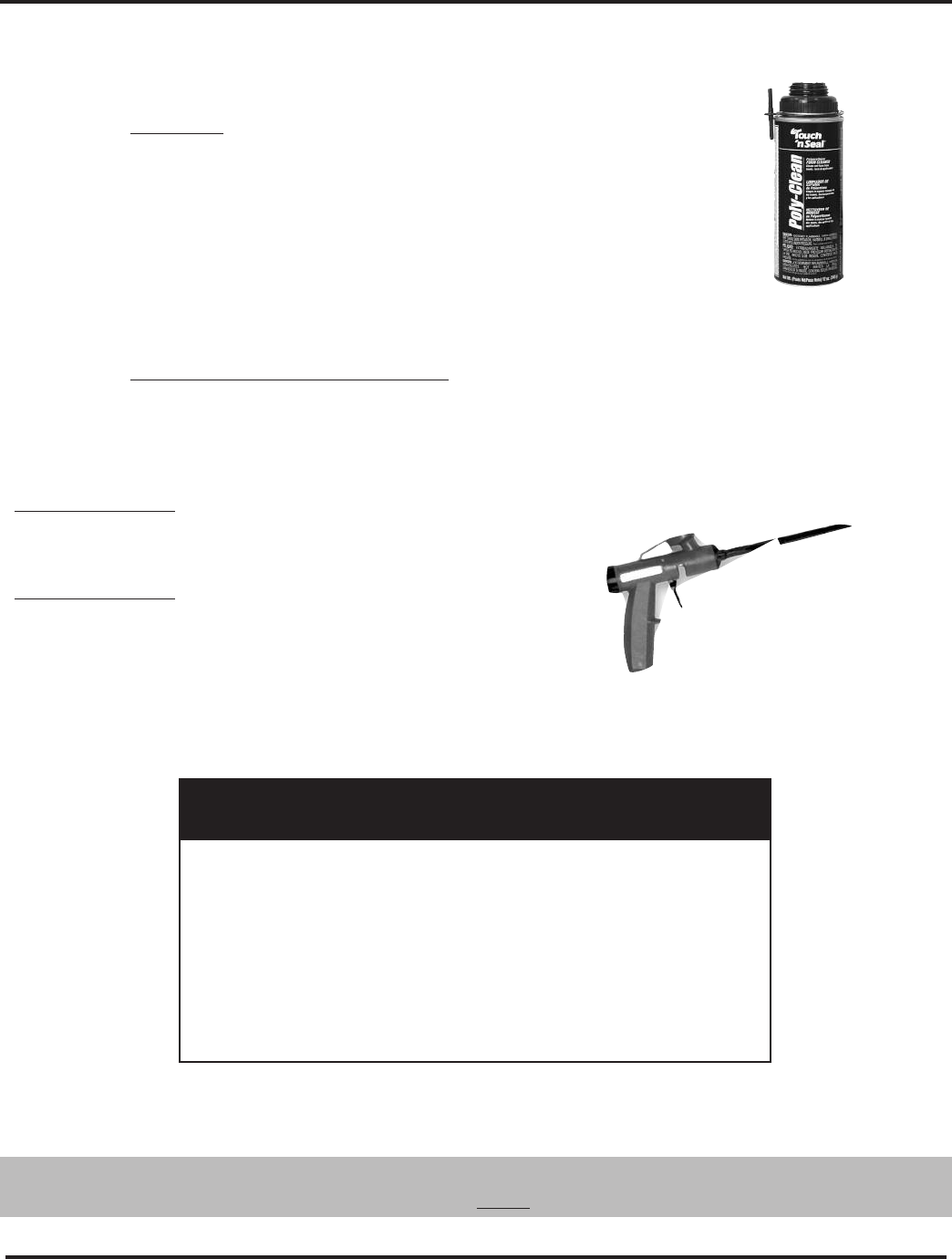

Touch’n Seal®Poly-Clean 4004712022 (12 oz.)

Poly-Clean is made to remove wet polyurethane foam from hands, tools and gun applica-

tors. It can be attached directly to the gun basket to flush foam from the barrell. Any ex-

cess foam should be cleaned immeidately (while wet), as dried foam is extremely difficult to

remove and may have to wear off.

Touch’n Seal®Sharpshooter Gun Foam Applicators

Sharpshooter gun applicators have been manufactured and tested to work with Touch’n

Seal gun foam sealants. Whether it’s a pro gun or a disposable model, gun applicators

allow for more precise control of bead size as well as an easier dispensing method for ex-

tended use.

Sharpshooter-D Gun 4004510604

❉Economical, disposable gun applicator

❉Lightweight plastic with metal internal parts

Sharpshooter-D Gun 4004510608

❉Professional model for extended use

❉Long-lasting metal barrell

Touch’n Seal®

4004510604

Part Case

Number Description Qty. ✜

4004521212 No-Warp Foam, 12 oz. 12

4004521224 No-Warp Foam, 24 oz. 12

4004528712 Gun Foam II, 24 oz. 12

4004712022 Poly Clean, 12 oz. 12

4004510604 Sharpshooter-D Foam Applicator 6

4004510608 Sharpshooter-X Foam Applicator 1

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

To place your order call 1-800-621-5622; fax 1-800-535-9538

670008 31012 4 oz. Clear 24

670007 31013 8 oz. Clear 24

670006 31014 16 oz. Clear 24

670005 31015 32 oz. Clear 12

670004 31016 Gallon Clear 6

670003 30818 4 oz. Clear 24

670002 30821 8 oz. Clear 24

670001 30834 16 oz. Clear 24

670000 30847 32 oz. Clear 12

SUPPLIES & HARDWARE

Oatey Adhesives

Multi-Purpose Regular Clear Cement

FOR ABS, PVC & CPVC Pipe and Fittings

PVC Regular Clear Cement – Fast Set

FOR PVC Pipe and Fittings

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

Regular-bodied clear cement for use on ABS, PVC and CPVC up to 4”

in diameter. Recommended for pipes and fittings Sch. 40 and Sch. 80,

potable water, pressure pipe, gas, conduit and DWV. Apply at tem-

peratures 40° to 100°F. Meets ASTM D-2564, D-2235, F-493.

Regular-bodied clear cement for use on PVC pipe and fittings up to 4”

for DWV Sch. 40 and up to 2” for Sch. 80. Recommended for ALL

grades and types of PVC pipes and fittings, potable water, pressure

pipe, gas, conduit and DWV. . Sets up quickly. Apply at temperatures

40° to 100°F. Meets ASTM D-2564.

Part Oatey Case

Number Part No. Description Qty. ✜

Part Oatey Case

Number Part No. Description Qty. ✜

To place your order call 1-800-621-5622; fax 1-800-535-9538

670010 31132 16 oz. Clear 24

670009 31129 32 oz. Clear 12

670016 30891 8 oz. “Hot” Blue 24

670015 30893 16 oz. “Hot” Blue 24

670014 30894 32 oz. “Hot” Blue 12

PVC Medium “Hot” Blue Cement

FOR PVC Pipe and Fittings

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

Medium-bodied blue colored cement for PVC pipe and fittings up to

6” for Sch. 40 and Sch. 80. Blue color fades to clear in direct sun-

light. No primer needed on non-pressure DWV, where local codes

permit. Recommended for ALL grades and types of PVC pipe and

fittings, potable water, pressure pipe, gas, conduit and DWV. Very

fast-setting, formulated for wet conditions and/or quick pressurization

and fast installation. Apply at temperatures 40° to 100°F. Meets

ASTM D-2564.

Part Oatey Case

Number Part No. Description Qty. ✜

PVC All Weather Cement

FOR PVC Pipe and Fittings

Medium-bodied clear cement for PVC pipe and fittings up to 6” for

DWV Sch. 40 and Sch. 80. No primer needed on non-pressure DWV,

where local codes permit. Recommended for ALL grades and

types of PVC pipe and fittings, potable water, pressure pipe, gas,

conduit and DWV. Formulated for fast initial set-up at temperatures

down to -5° to 100°F. Meets ASTM D-2564.

Part Oatey Case

Number Part No. Description Qty. ✜

Oatey Adhesives (cont’d))

SUPPLIES & HARDWARE

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

670012 31128 4 oz. Orange 24

670011 31129 8 oz. Orange 24

CPVC Medium Orange Cement

FOR CPVC Pipe and Fittings

Medium-bodied orange colored cement for CPVC pipe and fittings up to

6”. For C.T.S. (copper tube size) and Sch. 80, potable water, and pres-

sure pipe. Apply at temperatures 40° to 100°F. Meets ASTM F-493.

Part Oatey Case

Number Part No. Description Qty. ✜

670024 30850 4 oz. Clear 24

670025 30863 8 oz. Clear 24

670026 30876 16 oz. Clear 24

670027 31008 32 oz. Clear 12

670028 31011 Gallon 6

PVC Heavy Duty Clear Cement

FOR PVC Pipe and Fittings

Heavy-bodied clear cement for ALL grades and types of PVC pipe and

fittings up to 12”. For Sch. 40 and 80, potable water, pressure pipe, gas

conduit and DWV. Recommended application temperature 40° to 100°F.

Thick formula fills gaps in large diameter pipe and loose fitting joints.

Meets ASTM D-2564.

Part Oatey Case

Number Part No. Description Qty. ✜

Oatey Adhesives (cont’d)

To place your order call 1-800-621-5622; fax 1-800-535-9538

523003 30782 8 oz. Clear 24

523002 30795 16 oz. Clear 24

523001 30805 32 oz. Clear 12

523000 30766 Gallon Clear 6

523008 30755 4 oz. Purple 24

523007 30756 8 oz. Purpler 24

523006 30757 16 oz. Purple 24

523005 30758 32 oz. Purple 12

523004 30759 Gallon Purple 6

SUPPLIES & HARDWARE

Purple Primer

FOR PVC & CPVC Pipe and Fittings

Clear All Purpose Cleaner

FOR ABS, PVC & CPVC Pipe and Fittings

Purple-tinted aggressive primer for use on PVC and CPVC pipe and

fittings where plumbing code calls for verification that a primer has

been used. Exceeds environmental requirements and meets various

California district rules. Removes surface dirt, grease and grime as

well as softens the pipe surface to allow a fast, secure solent weld.

Meets ASTM F-656.

Clear cleaner for use on ABS, PVC and CPVC pipe and fittings, all

schedules and all diameters. Flows freely and evaporates quickly.

Removes surface dirt, grease and grime. Exceeds environmental re-

quirements and meets California PVC requirements.

Part Oatey Case

Number Part No. Description Qty. ✜

Part Oatey Case

Number Part No. Description Qty. ✜

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

Oatey Adhesives (cont’d)

To place your order call 1-800-621-5622; fax 1-800-535-9538

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for

quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

Oatey Pipe Joint Compounds

31229 31229 Pipe Dope with Teflon,1 fl. oz. 12

31230 31230 Pipe Dope with Teflon w/ brush, 4 fl. oz. 12

31231 31231 Pipe Dope with Teflon w/ brush, 8 fl. oz. 12

31232 31232 Pipe Dope with Teflon w/ brush, 16 fl. oz. 24

31233 31233 Pipe Dope with Teflon w/ brush, 32 fl. oz. 12

Part Oatey Case

Number Part No. Description Qty. ✜

GREAT WHITE®Pipe Joint Compound with Teflon

• Lubricates and seals all threaded joints.

• White, non-hardening, non-separating, non-toxic paste.

• Withstands up to 3,000 PSI on gases from -50°F to +400°F, and 10,000 PSI

on liquids from -50°F to +500°F.

• For use with water, steam, caustics or dilute acid lines of PVC, CPVC, ABS,

cycolac, polypropylene, iron, steel or copper.

TEFLON®IS A REGISTERED TRADEMARK OF DUPONT FLUOROCARBON RESINS.

31265 31265 Great Blue Pipe Joint Compound, 1 fl. oz. 12

31261 31261 Great Blue Pipe Joint Compound, 4 fl. oz. 12

31262 31262 Great Blue Pipe Joint Compound, 8 fl. oz. 12

31263 31263 Great Blue Pipe Joint Compound, 16 fl. oz. 24

31264 31264 Great Blue Pipe Joint Compound, 32 fl. oz. 12

Part Oatey Case

Number Part No. Description Qty. ✜

GREAT BLUE®Pipe Joint Compound with Teflon

•All the benefits of a Teflon based thread sealant •Lubricates and seals thread on water, natural

without the mess. gas, steam, airlines, caustics and dilute acids.

•Flexible blue, non-hardening, non-separating,

non-toxic paste, no odor, easy clean-up.

•Withstands up to 3,000 PSI on gases from

-50°F to +400°F, and 10,000 PSI on liquids

from -50°F to +500°F.

•Use on PVC, CPVC, ABS, polythylene,

polypropylene, iron, steel, copper or brass

threads up to and including 2".

SUPPLIES & HARDWARE

To place your order call 1-800-621-5622; fax 1-800-535-9538

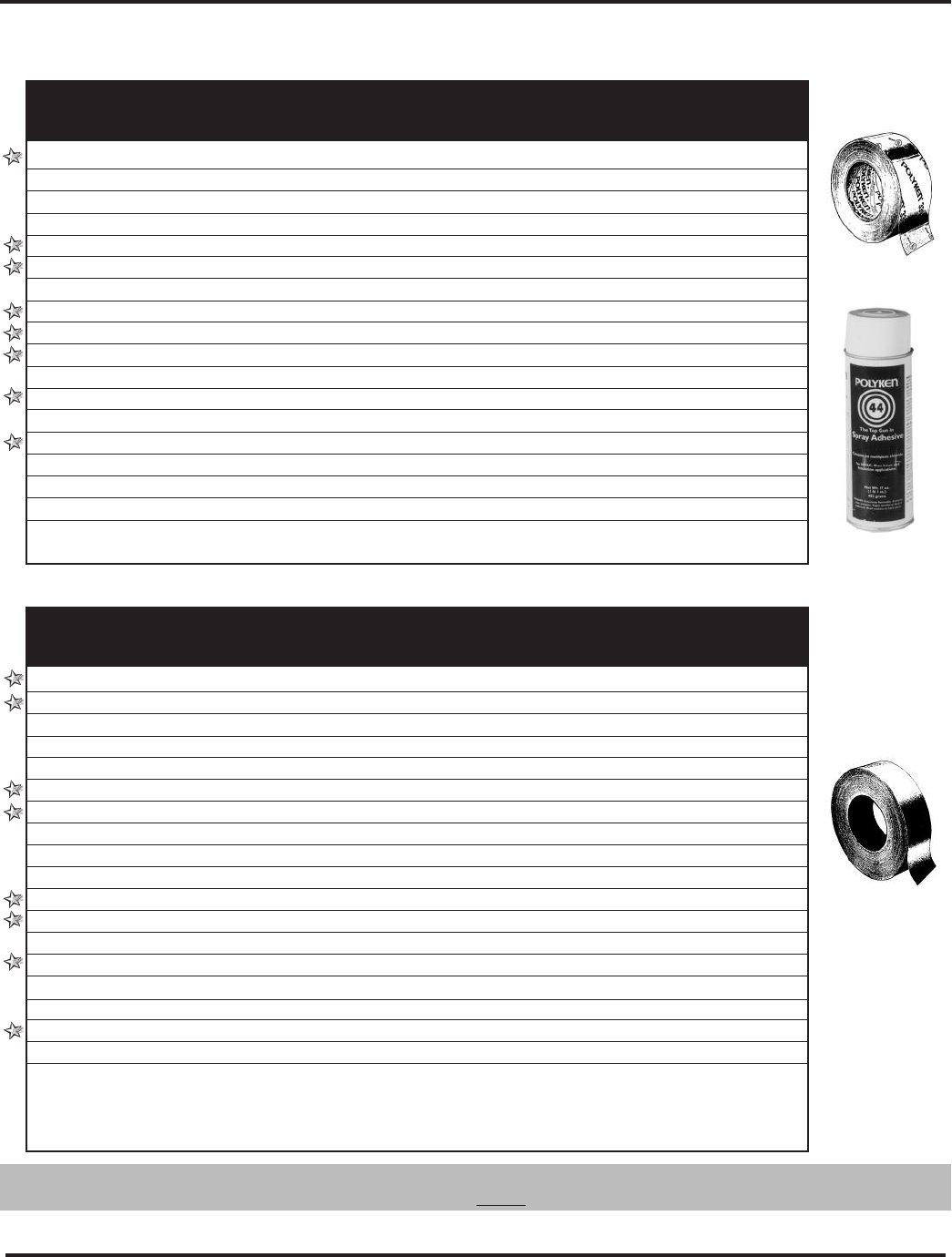

Total Tensile Adhesion

Part Thickness Strength To Steel Case

Number Description Color mils (mm) lbs/in(kg/cm) ozs/in (g/cm) Qty. ✜

86-N322

❉

2” x 50 yd Dead Soft Aluminum Foil Backed Tape Foil 7.4 (0.19) 23 (4.09) 126 (1411) 24

86-N322-3

❉

3” x 50 yd Dead Soft Aluminum Foil Backed Tape Foil 7.4 (0.19) 23 (4.09) 126 (1411) 16

86-N324-P

2.5” x 60 yd Printed Aluminum Foil Tape w/Kraft Liner Foil 8.1 (0.21) 25 (4.45) 60 (672) 16

86-N345

❉

2” x 60 yd Professional Grade, Water Proof Duct Tape Silver 12.0 (0.30) 29 (5.16) 54 (605) 24

86-N345-P ❉2” x 60 yd Prof. Grade, Water Proof Printed Duct Tape Silver 12.0 (0.30) 29 (5.16) 54 (605) 24

86-N357

❉

2” x 60 yd Premium, Tensile Strength Duct Tape Silver 13.0 (0.33) 45 (8.01) 55 (616) 24

86-N357-B

❉

2” x 60 yd Premium, Tensile Strength Duct Tape Black 14.0 (0/36) 45 (8.01) 55 (616) 24

86-N357-SA Spray Adhesive, 24 oz. Can

—

N/A N/A N/A 12

86-N396

❉

2” x 60 yd General Purpose Duct Tape Silver 10.0 (0.25) 21 (3.74) 49 (549) 24

86-N398

❉

2” x 60 yd Industrial Grade Duct Tape Silver 11.0 (0.28) 26 (4.63) 49 (549) 24

86-N398-B

❉

2” x 60 yd Industrial Grade Duct Tape Black 11.0 (0.28) 26 (4.63) 49 (549) 24

86-N398-P

❉

2” x 60 yd Industrial Grade Printed Duct Tape Silver 11.0 (0.28) 26 (4.63) 49 (549) 24

86-N556

■

2” x 120 yd Clear Tape Clear N/A N/A N/A 36

86-N557❉

2” x 60 yd Premium Flex Duct Tape Silver 14.0 (0.36) 45 (8.01) 50 (560) 24

777ID

■

3/4” x 66 ft. Electrical Tape

Black —— —

86-NFSK

❉

3” x 50 yd Foil Scrim Kraft Tape Foil 10.5 (0.27) 50 (8.90) 100 (1120) 16

86-826Y 2” x 100’ Gas Pipe Tape Yellow

—— —12

❉

Meets UL 723

Meets UL 181B-FX

■

Meets UL 181A-P

+UL Approved

Total Tensile Adhesion

Part Thickness Strength To Steel Case

Number Description Color mils (mm) lbs/in(kg/cm) ozs/in (g/cm) Qty. ✜

86-P223

❉

2” x 60 yd High Tensile Strength Duct Tape Silver 10.0 (0.25) 22 (3.92) 50 (560) 24

86-P223-P

❉

2” x 60 yd High Tensile Strength Duct Tape Silver 10.0 (0.25) 22 (3.92) 50 (560) 24

86-P227

❉

2” x 60 yd Contractor Grade Duct Tape Silver 11.0 (0.28) 24 (4.27) 70 (784) 24

86-P236-P

❉

2” x 60 yd Heavy Duty Printed Duct Tape Silver 12.0 (0.30) 28 (4.98) 36 (403) 24

86-P243

❉

2” x 60 yd High Performance Duct Tape Silver 10.0 (0.25) 22 (3.92) 50 (560) 24

86-P243-B

❉

2” x 60 yd High Performance Duct Tape Black 10.0 (0.25) 22 (3.92) 50 (560) 24

86-P251

❉

2” X 60 yd Professional Grade Metallized Duct Tape Metallic 11.0 (0.28) 25 (4.45) 30 (336) 24

86-P337

❉

2” x 50 yd Dead Soft Aluminum Foil Backed Tape Alum 3.6 (0.09) 20 (3.56) 60 (672) 24

86-P337-3

❉

3” x 50 yd Dead Soft Aluminum Foil Backed Tape Alum 3.6 (0.09) 20 (3.56) 60 (672) 16

86-P338

❉

3” x 50 yd Foil/Scrim/Kraft, Tear-resistant Tape Alum N/A 35 (6.23) 50 (616) 16

86-P339-P

2.5” x 60 yd Foil Tape Alum

—— —

86-P348

❉

3” x 50 yd Fiberglass Backed Jacket Sealing Tape White N/A 45 (8.01) 50 (560) 16

86-P360-35 3” x 100 yd Sealing Tape Silver 35 (0.87) 20 (0.36) – 16

86-P360-17

❉

2” x 100 yd Foil Tape Silver

—— —

86-P44 Spray Adhesive, 17 oz. Can

—

N/A N/A N/A 12

86-P557-P

❉



2” x 60 yd Premium Printed Flex Duct Tape Silver 14.0 (0.36) 45 (8.01) 50 (560) 24

86-P747 2” x 55 yd Package Tape

—

N/A N/A N/A 36

86-P821

■

3/4” x 60 ft. Electrical Tape Black 7.8 (0.20) 1800 (320.40) 30 (336) 96

86-826-Y 2” x 100 ft. Gas Pipe Tape Yellow -- -24

POLYKEN& NASHUATapes & Supplies

POLYKEN

NASHUA

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

86-P339-P

86-P44

86-N357

To place your order call 1-800-621-5622; fax 1-800-535-9538

SUPPLIES & HARDWARE

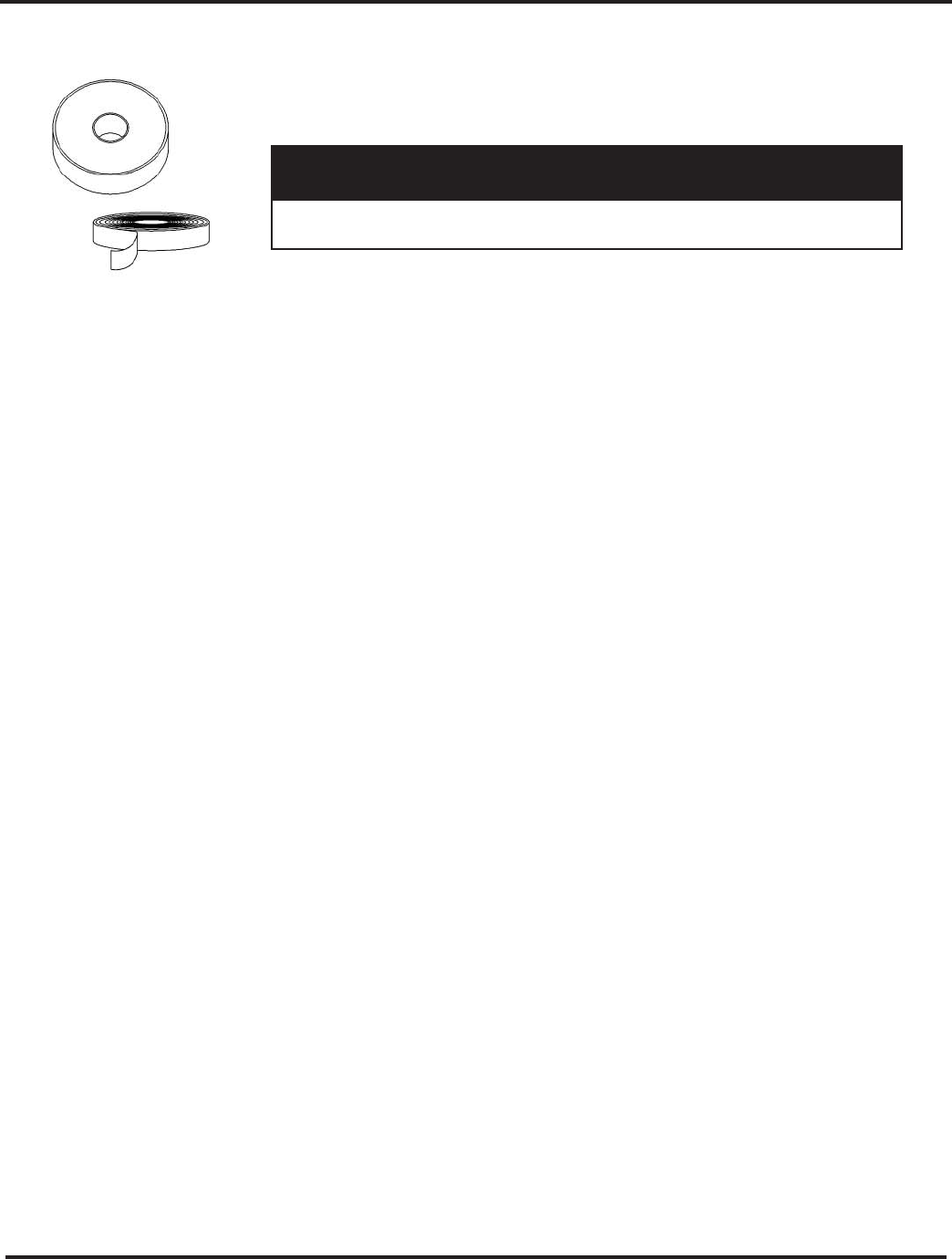

Teflon Thread Seal Tape

Use with chemicals, solvents & oxygen. Withstands up to 2000 psi of pressure.

Case

Part Number Description Qty. ✜

686027 1/2” x 260” Roll 12

686028 1/2” x 520” Roll 12

686027

To place your order call 1-800-621-5622; fax 1-800-535-9538

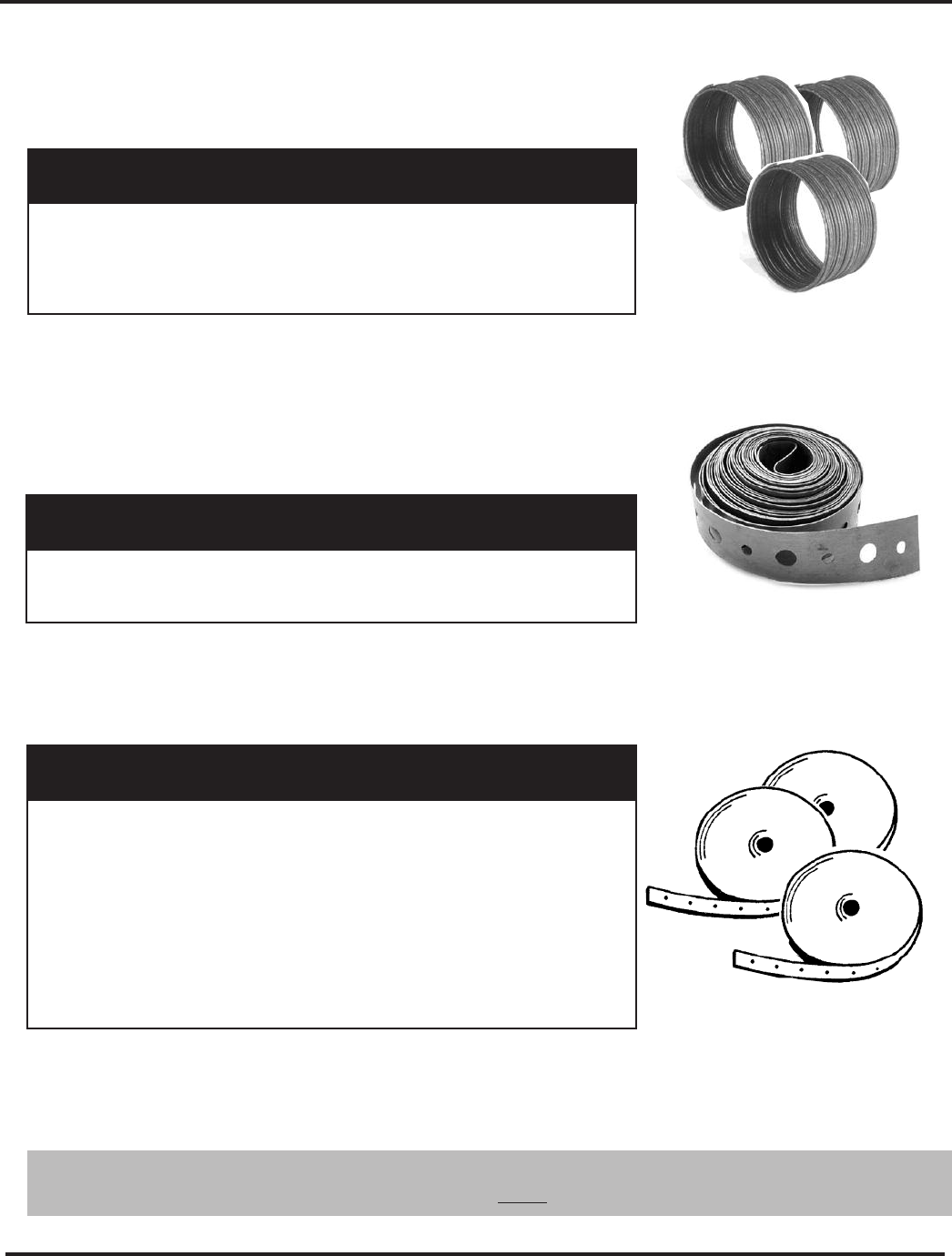

Duct Hanger Strap

Hanger Iron

Galvanized vent strapping, hanger iron, plumber’s tape, pipe hanger

tape & many other uses. 1/4” centers for bolts or nails.

Case

Part Number Description Qty. ✜

86-25172-03 3/4” x 100’ Roll (Boxed) 20

86-P50 Black Plastic 24

640010 Black Plastic 1-3/4” x 100 Ft. 24

640020 Silver Plastic 1-3/4” x 100 Yds. 24

640021 Silver Plastic 3” x 100 Yds. 8

640022 Black Plastic 3” x 100 Yds. 8

Case

Part Number Description Qty. ✜

86-25172-04 Galvanized–28 Ga. – 10’ Rolls 50

640016 Galvanized–28 Ga. – 100’ Rolls 6

SUPPLIES & HARDWARE

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

86-25172-03

640016

Hanging Wire

18 Gauge galvanized or soft black annealed on reel.

Case

Part Number Description Qty. ✜

86-25172-01 2# Roll (330’) 18 Gauge Galvanized 16

86-25172-02 2# Roll (330’) 18 Gauge Black 16

640017 5# Roll (830’) 18 Gauge Galvanized 16

86-25172-02

To place your order call 1-800-621-5622; fax 1-800-535-9538

✜All prices based on quantity of one. Must order in multiples of case/package quantity shown. Orders received for quantities

other than those shown will be rounded up. Partial case/package quantities cannot be returned.

SUPPLIES & HARDWARE

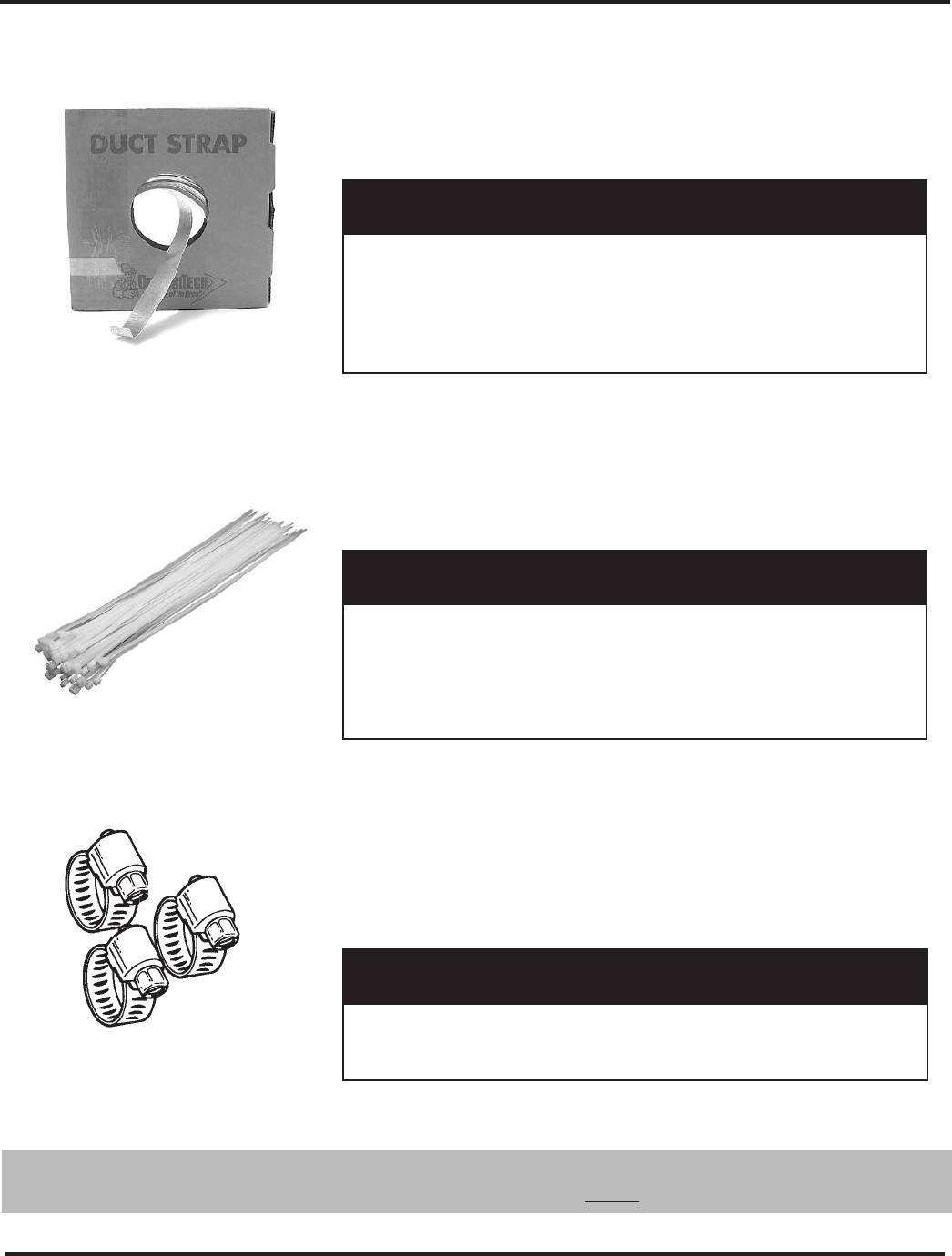

Micro-Gear All Purpose Hose Clamps

Band and housing 300 stainless steel. Slotted 1/4”

hex-head screw Zinc plated carbon steel. Up to 1000 psi with

only 10 lbs, screw torque.

Case

Part Number Description Qty. ✜

86-25172-05 Size 12, Fits Hose 5/8” - 3/4” 10

86-25172-06 Size 16, Fits Hose 3/4” - 1” 10

86-25172-07 Size 20, Fits Hose11/16” - 1 1/2” 10

86-25172-05

640011

Heavy Duty Cable Ties/Duct Strap

6.6 nylon, accommodates 7” to 15” ducts – 175 lb Tensile.

Package

Part Number Description Qty. ✜

640007 24” – Fits up to 6” Duct 50

640008 36” – Fits up to 10” Duct 50

86-14195-50PK 36” – Fits up to 10” Duct 1

640009 48” – Fits up to 14” Duct 50

86-14197-50PK 45-1/2” – Fits up to 14” Duct 1

Duct Strap

Galvanized duct strap in convenient cardboard dispenser.

Solid strapping, easy to drill or nail.

Casw

Part Number Description Qty. ✜

640011 26 Ga. Metal – 1” x 100 Ft. 1

640012 30 Ga. Metal – 1” x 100 Ft. 1

640013 30 Ga. Metal – 1-1/2” x 100 Ft. 1

640014 26 Ga. Metal – 1-1/2” x 100 Ft. 1

640015 22 Ga. Metal – 1” x 100 Ft. 1

640007

To place your order call 1-800-621-5622; fax 1-800-535-9538

100

583006

583005 1-1/2" - 3" / Brown 12944 (ARFCO) 12

583006 1-1/2" - 3" / Black 12943 (ARFCO) 12

583010 3" - 4" / Black 12954 (ARFCO) 12

583011 3" - 4" / Gray 12953 (ARFCO) 12

583012 3" - 4" / Terracotta 12952 (ARFCO) 12

Part Size/ Cross Case

Number Description Reference Qty. ✜

SUPPLIES & HARDWARE

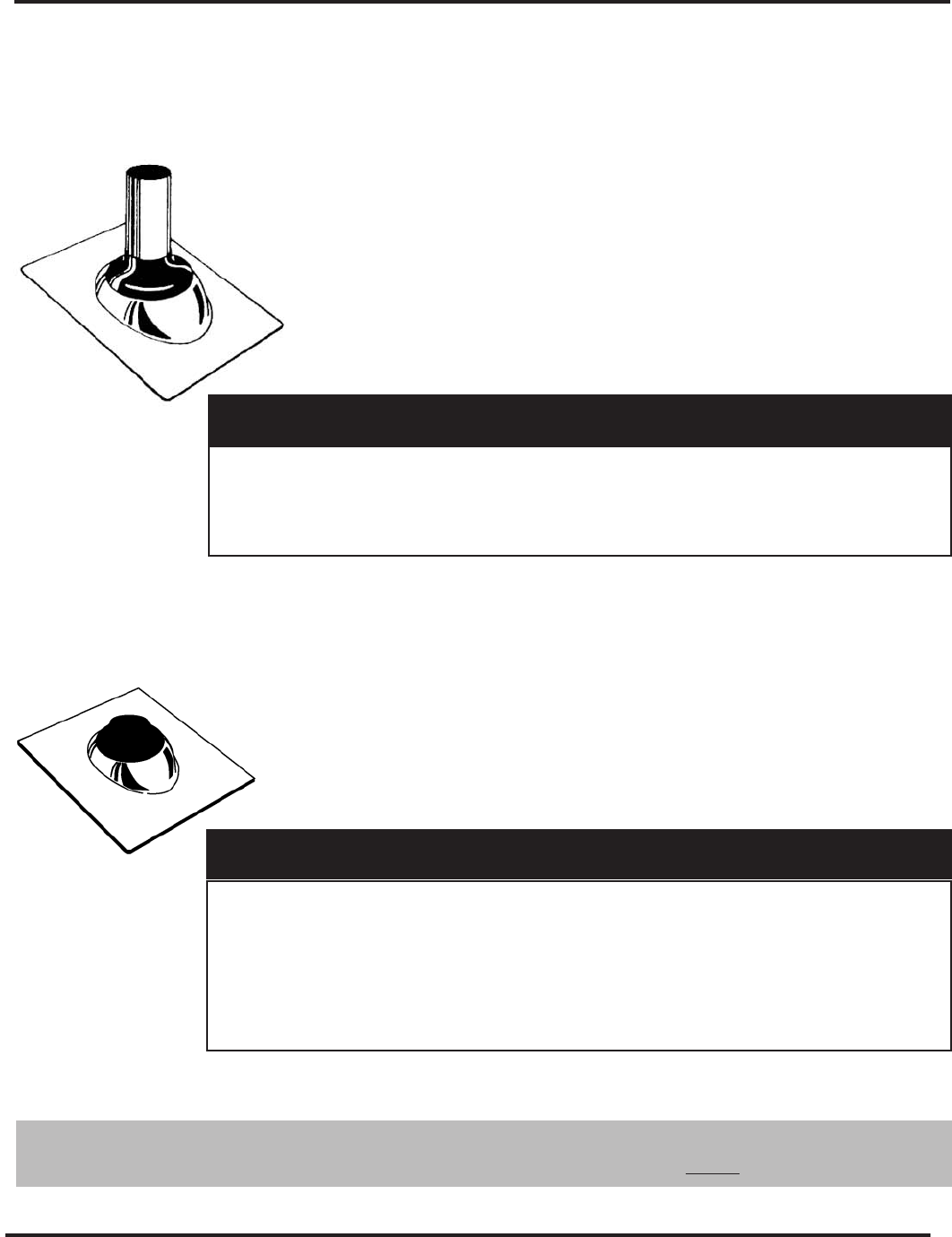

ROOF FLASHINGS

583001 1-1/4" - 1-1/2" 12101 (ARFCO), 12920 (OATEY) 12

583002 2" 12102 (ARFCO), 12933 (OATEY) 12

583003 3" 12103 (ARFCO), 12946 (OATEY) 12

583004 4" 12104 (ARFCO), 12959 (OATEY) 12

Part Size/ Cross Case

Number Description Reference Qty. ✜

ALUMINUM BASE NO CALK®ROOF FLASHINGS

•Slides over pipe - for pitch to 40 degrees. •Approved for Type B installations.

•Rustproof .032 stamped aluminum standard base. •Not for hot-mopped or built-up roofs.

•Non-fading sealing collar. •Soft aluminum base (18" x 18") allows

•18" x 18" bases for code required areas. for easy molding to tile roofing.

•Rated 180°F continuous heat. •Do not use petroleum based products

on collars.

NO CALK®ALL-FLASH®COLOR-FLASH®ROOF FLASHINGS

•Handles 1-1/2" to 3" and 3" to 4" pipe sizes. •Available in black, gray, brown or

•Available in aluminum or galvanized. terracotta.

•Matches the color of your roof. •Do not use petroleum based products

on collars.

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received

for quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

583001

To place your order call 1-800-621-5622; fax 1-800-535-9538

101

583024 3" - 4" 14188 (ARFCO) 6

SUPPLIES & HARDWARE

ROOF FLASHINGS

583013 1/8" - 3/4" 16250 (ARFCO), 14049 (OATEY) 12

583014 1/4" - 2" 16251 (ARFCO), 14050 (OATEY) 6

583015 1-1/4" - 3" 16252 (ARFCO), 14051 (OATEY) 6

583016 1/4" - 4" 16253 (ARFCO), 14052 (OATEY) 6

583017 3" - 6" 16254 (ARFCO), 14053 (OATEY) 6

583018 4" - 7" 16255 (ARFCO), 14054 (OATEY) 6

583019 5" - 9" 16256 (ARFCO), 14055 (OATEY) 6

583020 6" - 11" 16257 (ARFCO), 14056 (OATEY) 6

583021 7" - 13" 16258 (ARFCO), 14057 (OATEY) 6

583025 10" - 18" 16259 (ARFCO), 14058 (OATEY) 6

Part Cross Case

Number Size Reference Qty. ✜

Part Cross Case

Number Size Reference Qty. ✜

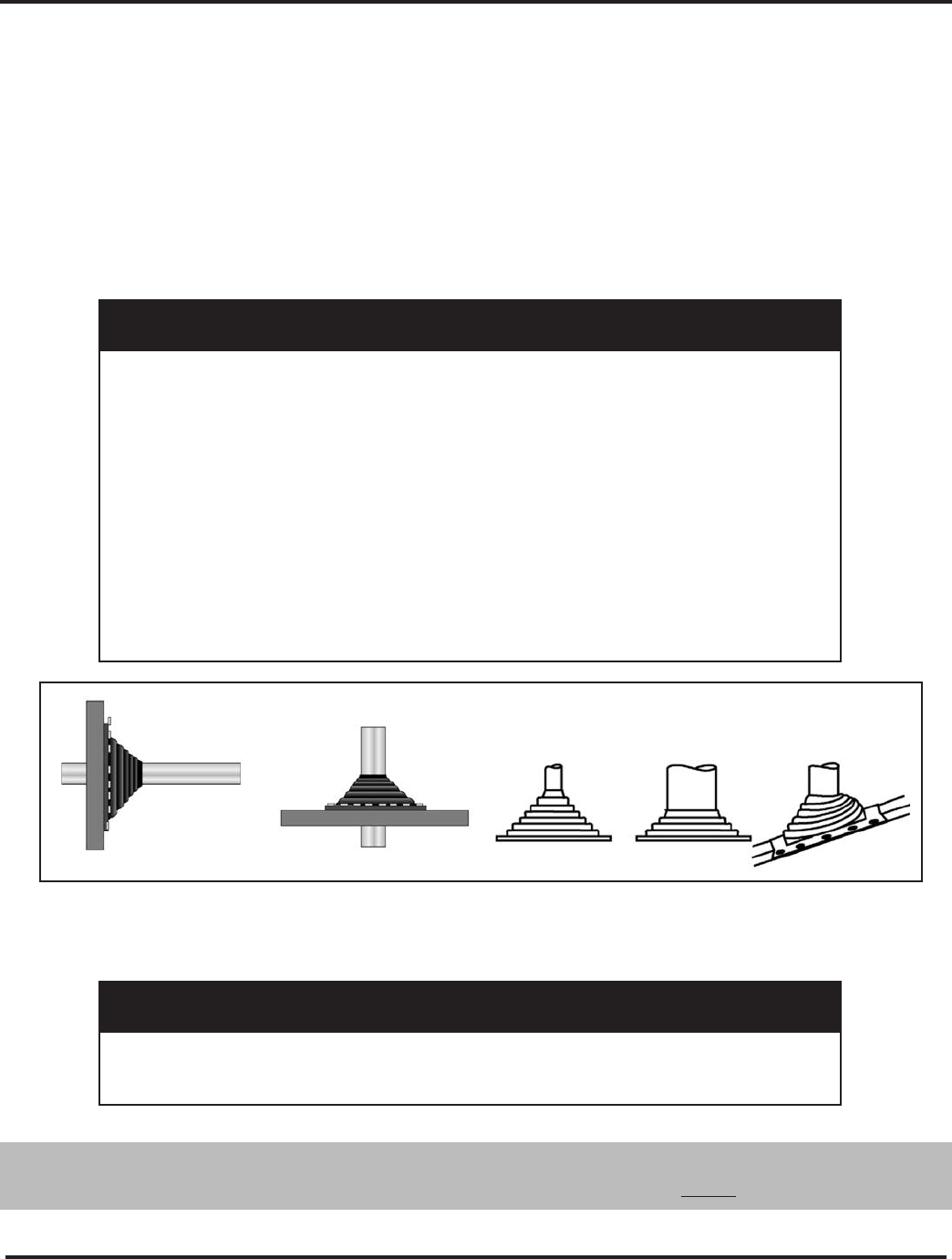

MASTER FLASH®ROOF FLASHINGS

• Slides over pipe - for pitch to 450 degrees. • Molds to metal, plastic, etc.

• Use silicone sealant between base and surface, • Non-fading EPDM collar.

and secure with sheet metal screws. • Rated 212°F continuous heat.

• Multi-size pipe sealing range. • Approved for Type B installations.

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received

for quantities other than those shown will be rounded up. Partial case quantities cannot be returned.

583018

Multi-Size High-Rise Self-Seal Thermoplastic Flashing

To place your order call 1-800-621-5622; fax 1-800-535-9538

102

SUPPLIES & HARDWARE

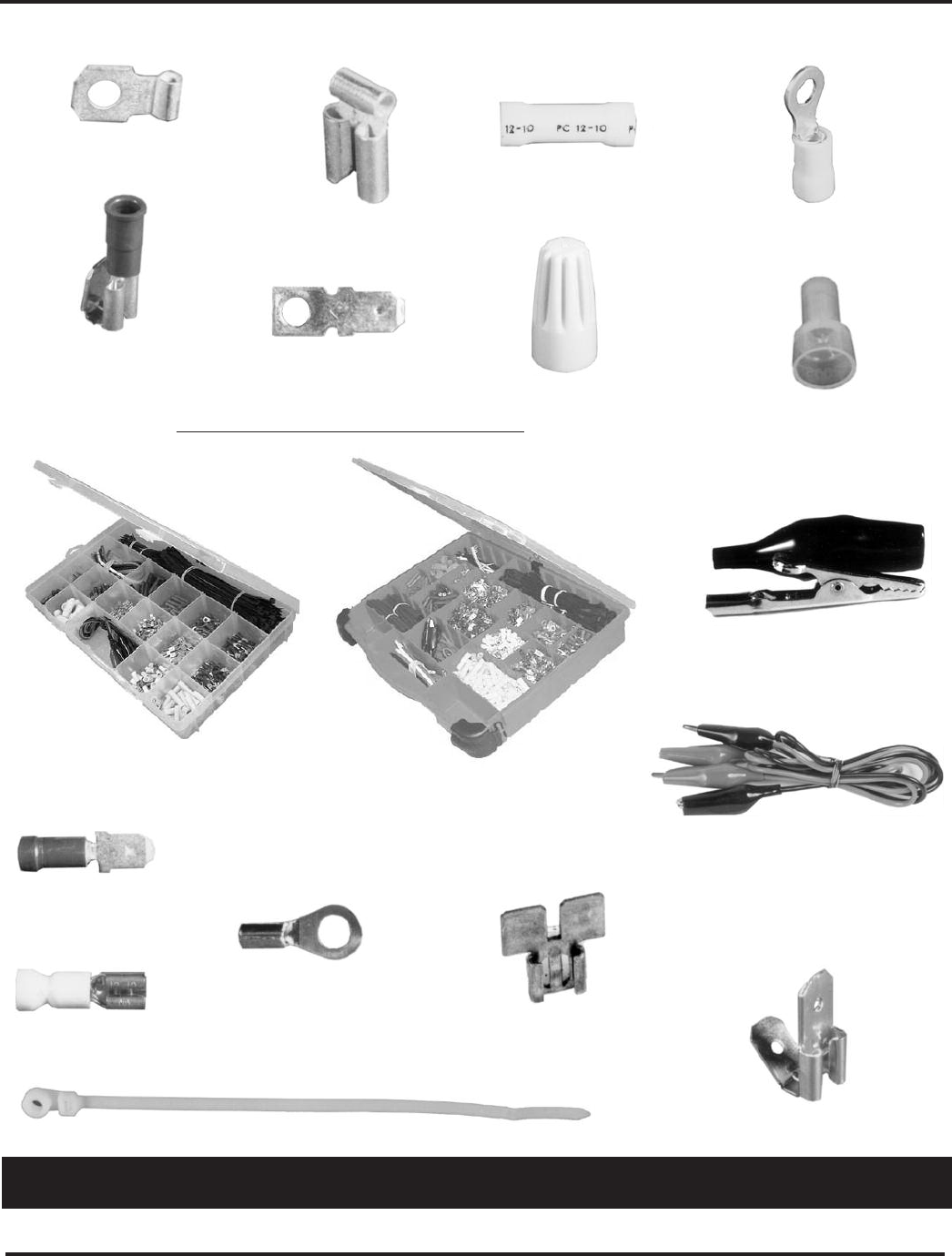

QC Flags

Wire Nut - Plastic

QC Connector

Double Male/Single Female

QC Flag/Ring

Butt Connector

QC-Piggyback - Insul

Terminal Ring-Insul

Terminal Ring-Uninsul

Alligator Clip

Spade/QC Adapter

Ties - 6” to 45 1/2”

Spade/Ring Adapter

QC Straight

Terminal Spade

Test Leads - 36”

Wire Nut - Clear Pigtail

Individual part numbers & order quantities on next 2 pages!

Professional HVAC Installer/Repair Kits

86-6966F-1PK 86-6967F-1PK

To place your order call 1-800-621-5622; fax 1-800-535-9538

103

SUPPLIES & HARDWARE

✜These parts are sold in package quantities: Example 1 - Order (1) 455012, receive 1 package of 100 Butt Connectors. Exam-

ple 2 - Order (1) 455013, receive 1 package of 25 Butt Connectors.

Part Included in Package

Number Spinner Display Description Qty. ✜

455010 2 pkgs. Non-Insulated Ring, 8 AWG,. 1/4” 25

455011 2 pkgs. QC - Flag/Ring, 16-14 AWG, #10 Stud - SS 50

455012 2 pkgs. Butt Connectors, Uninsulated, 16-14 AWG - SS 100

455013 2 pkgs. Butt Connectors, Uninsulated, 16-14 AWG - SS 25

455014 2 pkgs. QC Flags, 12-14 AWG - SS 50

455015 2 pkgs. QC - Compressor Terminal, Slip-on Lug, Female Notched Grip, 16-14 AWG, 1/4” - SS 50

455016 2 pkgs. QC Adapters, Double Male/Single Female, .296 Chair - Gold 50

455017 2 pkgs. QC Adapters, Double Male/Single Female, .296 - Gold 50

455018 2 pkgs. Spade/Ring Adapter, Male Straight, #10, .250 Tab - SS 50

455019 2 pkgs. Spade (2) QC Adapters, Double Male, Single Female, .296 Flat - Gold 50

455020 2 pkgs. Wire Nuts, Pigtail Wire Connector, Clear, 22-14 AWG - Clear 50

455021 2 pkgs. 12-10 AWG Closed-End Connector, Nylon - Clear 25

455022 2 pkgs. Terminal Rings - Insulated, 22-18 AWG, #10 Stud - Red 100

455023 2 pkgs. Terminal Rings - Insulated, 22-18 AWG, #10 Stud - Red 50

455024 2 pkgs. Terminal Rings - Insulated, 16-14 AWG, #6 Stud - Blue 100

455025 2 pkgs. Terminal Rings - Insulated, 16-14 AWG, #6 Stud - Blue 50

455026 2 pkgs. Terminal Rings - Insulated, 16-14 AWG, #10 Stud - Blue 100

455027 2 pkgs. Terminal Rings - Insulated, 16-14 AWG, #10 Stud - Blue 50

455028 2 pkgs. Strip-Tie, Hook & Loop Fastener w/Buckle, 12” - Black 6

455029 2 pkgs. Strip-Tie, Hook & Loop Fastener w/Buckle, 12” - Safety Yellow 6

455030 2 pkgs. Terminal Rings - Insulated, 12-10 AWG, #10 Stud - Safety Yellow 100

455031 2 pkgs. Terminal Rings - Insulated, 12-10 AWG, #10 Stud - Safety Yellow 50

455032 2 pkgs. 12-10 5/16” Vinyl Insulated Ring - Safety Yellow 50

455033 2 pkgs. Terminal Rings - Insulated, 8-10 AWG, 1/4” Stud - Red 50

455034 2 pkgs. Flared Insulated Spade, 16-14 AWG, #8 Stud - Blue 15

455035 2 pkgs. Vinyl Insulated Spade, 16-14 AWG, #10 Stud - Blue 100

455036 2 pkgs. Vinyl Insulated Spade, 12-10 AWG, #8 Stud - Blue 25

455037 2 pkgs. Vinyl Insulated Spade, 12-10 AWG, #10 Stud - Blue 25

455038 2 pkgs. Butt Connectors, Insulated, 22-18 AWG - Red 100

455039 2 pkgs. Butt Connectors, Insulated, 16-14 AWG - Blue 100

455040 2 pkgs. Butt Connectors, Insulated, 16-14 AWG - Blue 50

455041 2 pkgs. Butt Connectors, Insulated, 12-10 AWG - Safety Yellow 100

455042 2 pkgs. Butt Connectors, Insulated, 12-10 AWG - Safety Yellow 50

455043 2 pkgs. Disconnects, Insulated Female, 22-18 AWG, 1/4” Tab - Red 50

455044 2 pkgs. Disconnects, Insulated Female, 16-14 AWG, .187” Tab - Blue 50

455045 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #16-14 - Blue 100

455046 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #16-14 - Blue 50

455047 2 pkgs. Disconnects, Insulated Male, 1/4” Tab, #16-14 - Blue 100

455048 2 pkgs. Disconnects, Insulated Male, 1/4” Tab, #16-14 - Blue 50

455049 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #12-10 - Safety Yellow 100

455050 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #12-10 - Safety Yellow 50

455051 2 pkgs. Disconnects, Vinyl Insulated Male, 12-10 AWG - Safety Yellow 100

455052 2 pkgs. Piggy Back, Insulated, 12-14 AWG - Blue 50

455053 2 pkgs. Spade, Male, Vinyl Insulated, 16-14 AWG - Light Blue 100

455054 2 pkgs. Spade, Female, Vinyl Insulated, 16-14 AWG - Natural 25

455055 2 pkgs. Alligator Clips, Black 1” 6

455056 2 pkgs. Alligator Clips, Red 1” 6

455057 2 pkgs. Deluxe Test Leads, 18 AWG, Heavy-Duty - Red/Black 1

455058 2 pkgs. Compressor Lead Set - 12 Gauge Red, Black & White Leads w/.250 Flag Female 1

455059 2 pkgs. Compressor Lead Set - 12 Gauge Red, Black & White Leads w/.#10 Ring Terminal 1

455060 2 pkgs. Stainless Steel Wire Tie, 7.5”, 250 lb. Tensile Strength 50

455061 2 pkgs. Stainless Steel Wire Tie, 14.5”, 250 lb. Tensile Strength 50

455062 2 pkgs. H.S. Tubing Asst. 1/16”, 3/32” 1/8” 12

455063 2 pkgs. Nylon Wire Tie, 4” Natural, 100 PK. 100

455064 2 pkgs. Nylon Wire Tie, 4” UV Black, 100 PK. 100

455065 2 pkgs. Nylon Wire Tie, 5.5” Natural, 100 PK. 100

455066 2 pkgs. Nylon Wire Tie, 5.5” UV Black, 100 PK. 100

455067 2 pkgs. Nylon Wire Tie, 7.5” Natural, 100 PK. 100

455068 2 pkgs. Nylon Wire Tie, 7.5” UV Black, 100 PK 100

To place your order call 1-800-621-5622; fax 1-800-535-9538

104

SUPPLIES & HARDWARE

✜These parts are sold in package quantities: Example 1 - Order (1) 455012, receive 1 package of 100 Butt Connectors.

Example 2 - Order (1) 455013, receive 1 package of 50 Butt Connectors.

Part Included in Package

Number Spinner Display Description Qty. ✜

455069 2 pkgs. Nylon Wire Tie, 11.5” Natural, 100 PK. 100

455070 2 pkgs. Nylon Wire Tie, 11.5” UV Black, 100 PK 100

455071 2 pkgs. Nylon Wire Tie, 14.5” Natural, 100 PK. 100

455072 2 pkgs. Nylon Wire Tie, 14.5” UV Black, 100 PK 100

455073 2 pkgs. Nylon Wire Tie, Screw Mount-Head, 7.5” - UV Black, 100 PK. 100

455074 2 pkgs. Flared Insulated Spade, 16-14 AWG, #8 Stud - Blue 50

455075 2 pkgs. Wire Nut, Plastic, 22-14 AWG - Blue 50

455076 2 pkgs. Butt Connectors, Insulated, 22-18 AWG - Red 15

455077 2 pkgs. Wire Nut, Plastic, 22-14 AWG - Orange 50

455078 2 pkgs. Butt Connectors, Insulated, 16-14 AWG - Blue 15

455079 2 pkgs. Wire Nut, Plastic, 18-12 AWG - Safety Yellow 50

455080 2 pkgs. Terminal Ring, Uninsulated High Heat, 12-14 AWG, #10 Stud - SS 50

455081 2 pkgs. Motor Hook-Up Wire, Black, 10 AWG, 8 FT 8

455082 2 pkgs. Motor Hook-Up Wire, Red, 10 AWG, 8 FT 8

455083 2 pkgs. Motor Hook-Up Wire, Black, 12 AWG, 12 FT 12

455084 2 pkgs. Motor Hook-Up Wire, Red, 12 AWG, 12 FT 12

455085 2 pkgs. Motor Hook-Up Wire, Black, 14 AWG, 15 FT 15

455086 2 pkgs. Motor Hook-Up Wire, Red, 14 AWG, 15 FT 15

455087 2 pkgs. Motor Hook-Up Wire, Black, 16 AWG, 16 FT 16

455088 2 pkgs. Motor Hook-Up Wire, Red, 16 AWG, 16 FT 16

455089 2 pkgs. Compressor Terminal, 12, 12-10 AWG, .250 x .032 Female - SS 25

455090 2 pkgs. Butt Connectors, Insulated, 12-10 AWG - Safety Yellow 15

455091 2 pkgs. Disconnects, Insulated Female, 16-14 AWG, .187“ Tab - Blue 15

455092 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #16-14 - Blue 15

455093 2 pkgs. Disconnects, Insulated Female, 1/4” Tab, #12-10 - Safety Yellow 15

455094 2 pkgs. Wire Nut, Plastic, 22-14 AWG - Blue 9

455095 2 pkgs. Wire Nut, Plastic, 22-14 AWG - Orange 9

455096 2 pkgs. Wire Nut, Plastic, 18-12 AWG - Safety Yellow 15

455097 - Wire Nut, Plastic, 18-10 AWG - Red 100

640001 — Wire Ties - Nylon Natural/7” (100/Package) 100

640002 — Wire Ties - Nylon Natural/11” (100/Package) 100

640003 — Wire Ties - Nylon Natural/15” (100/Package) 100

640004 — Wire Ties - Nylon Black/7” (100/Package) 100

640005 — Wire Ties - Nylon Black/11” (100/Package) 100

640006 — Wire Ties - Nylon Black/15” (100/Package) 100

86-6966F-1PK — Professional HVAC Installer Repair Kit 1

86-6967F-1PK — Professional HVAC Installer Repair Kit 1

86-6980-1PK — 6 Panel Product Spinner Display (fully stocked) 1

87-5008F 2 pkgs. Stripper-EZ Multi Purpose, Self-Adjusting 1

87-5020F 2 pkgs. Stripper-EZ Multi Purpose, Self-Adjusting 1

86-6980-1PK – 6 Panel Product

Spinner (fully stocked)

To place your order call 1-800-621-5622; fax 1-800-535-9538

105

SUPPLIES & HARDWARE

Case

Part Number

Description

Qty ✜

85-10108 8 oz Can 12

85-110078 11 oz Can 12

85-10308 11 oz Can (PrePack Cardboard Display) 48

85-10116 16 oz Can 12

With literally thousands of uses, WD-40 is the #1

multi-purpose problem solver. It cleans, protects,

penetrates, lubricates & displaces moisture like no

other product on earth.

❉Displaces moisture.

❉Penetrates, loosens & frees stuck, frozen or rusted parts.

❉Lubricates & protects metal.

❉Removes grease, grime, tar, gum, crayon, water deposits

and much more.

❉

Lubricates squeaks in hard-to-reach mechanisms.

WD-40

To place your order call 1-800-621-5622; fax 1-800-535-9538

106

Disposable Hand Towels / Sunscreen / Insect Repellant

SCRUBS®Hand Cleaner Towels

Premoistened, heavy duty hand cleaner towels that go where you go!

SCRUBS easily remove soil from your hands and leaves them clean and condi-

tioned anywhere you are working. Powerful, yet safe, patented citrus-based

hand cleaner towels for proven performance.

• Portable and convenient, one step cleaning process.

• Conditions and softens hands.

• Will not transfer soils back onto hands.

• Works fast to loosen, dissolve and absorb dirt and grease.

• Packaged in durable bucket that is light and portable.

Quickly Removes Other Uses

*Dirt *Tar *Tools, Equipment

*Oils *Urethanes *Composites

*Adhesives *Epoxies *Metals, Vinyls, Plastics

*Lubricants *Inks & Dyes *Work Surfaces

*Paints *Sealants *Painted Surfaces

*Grease *Caulks

SOLAR GUARD®Sunscreen Towels

A unique liquid SPF 30, water / sweat resistant sunscreen formula com-

bined with a large, lint free towel that delivers full UVA/UVB sun protection.

Greaseless, stain-free application for professionals that work outdoors.

Use on face, neck, ears and arms.

INSECT SHIELD®Insect Repellant Towel

A waterproof / greaseless EPA approved insect repellant formula, combined

with a large, lint-free towel. The 30% *DEET based

application safely offers the most effective, long lasting protection against

disease causing insects.

*The Centers for Disease control recommends using a Deet-based repellant.

See Items on Next Page

SUPPLIES & HARDWARE

91401

91201

42210

4366-87

To place your order call 1-800-621-5622; fax 1-800-535-9538

107

Disposable Hand Towels / Sunscreen / Insect Repellant (cont’d.)

4366-87 SCRUBS-In-A-Bucket (72 Count) Bucket 6

42230 SCRUBS-In-A-Bucket (30 Count) Bucket 6

91201 Solar Guard Single Packs (100 Count - Gravity Dispenser) Dispenser 1

91401 Insect Shield Single Packs (100 Count - Gravity Dispenser) Dispenser 1

42212 SCRUBS Single Packs Clip Strips (4 Strips, 12 Packs/Ea.) Box 1

42210 SCRUBS-In-A-Pack (10 Count Packs, 24 Packs/Case) Box 6

42296 Tray Display (holds 6 Buckets) (SCRUBS not included) Each 1

42293 Attachable Bucket Bracket for Shop or Vehicle Each 1

Part Case

Number Description Unit Qty. ✜

✜All prices based on quantity of one. Must order in multiples of pallet quantity shown. Orders received

for quantities other than those shown will be rounded up. Partial pallet quantities cannot be returned.

SUPPLIES & HARDWARE

To place your order call 1-800-621-5622; fax 1-800-535-9538

108

SUPPLIES & HARDWARE

ShuBee Shoe Covers

Made for the Service Industry

❉Bigger – Fits up to size 16 - guaranteed.

❉Better – More durable, made for the service industry.

❉Colors – Available safety yellow, bright blue, red and dark blue.

❉Safer – Non-Skid, slip resistant bottoms.

❉Cleaner – Fresh citrus scent.

Mud Proof •Snow and Ice Proof •Water Proof

Shoe Covers

These show covers are made from a slip-resistant, textured plastic material

that is ideal for adverse weather conditions. The unique plastic is so durable

you can get many uses out of them before discarding.

ShuBee Disposable Coveralls

❉Save money – eliminate torn or dirty uniforms.

❉Made from a "Stay Cool", breathable material.

❉Durable material made to last.

❉5 convenient pockets -

2 back and 2 front pockets, 1 pocket on shirt top.

❉Comfortable elastic waist / wrist bands with boot cut legs.

❉Styled with or without a hood.

❉Versatile Fit - large (under 6 feet) or extra large (over 6 feet).

❉Available in dark blue or white for a professional appearance.

See Items on Next Page

ShuBee offers simple, distinct products that provide protection to both you and your customers during service calls.

Your service department will appreciate the convenience of using ShuBee tough shoe covers, disposable cover-

alls, dust masks, gloves, floor mats and carpet films, while your clients appreciate the clean service areas and the

protection you give them from mud, rain, snow and ice. Give your customers the best impression by using the

ShuBee solution!

To place your order call 1-800-621-5622; fax 1-800-535-9538

109

849101 SB-SP-DB Shoe Covers - Dk. Blue - 10 Pair 15

849102 SB-SP-RD Shoe Covers - Red - 10 Pair 15

849103 SB-SP-OR Shoe Covers - Orange - 10 Pair 15

849104 SB-SP-YL Shoe Covers - Yellow - 10 Pair 15

849105 SB-SP-LB Shoe Covers - Lt. Blue - 10 Pair 15

849106 SB-SP-WH Shoe Covers - White- 10 Pair 15

849107 SB-SP-GR Shoe Covers - Dk. Green - 10 Pair 15

849108 SB-SP-WP-LB Shoe Covers - Lt. Blue/Waterproof - 10 Pair 15

849110 SB-SP-WP-DB Shoe Covers - Dk. Blue/Waterproof - 10 Pair 15

849111 SB-SC-DB Shoe Covers - Dk. Blue - 50 Pair 3

849113 SB-SC-OR Shoe Covers - Orange - 50 Pair 3

849114 SB-SC-YL Shoe Covers - Yellow - 50 Pair 3

849115 SB-SC-LB Shoe Covers - Lt. Blue - 50 Pair 3

849118 SB-SC-WP-LB Shoe Covers - Lt. Blue/Waterproof - 50 Pair 15

849120 SB-SC-WP-DB Shoe Covers - Dk. Blue/Waterproof - 50 Pair 15

849121 SB-CA-DB-L Coveralls - Dk. Blue - L 25

849122 SB-CA-DB-XL Coveralls - Dk. Blue - XL 25

849125 SB-TCH-XL Coverall - White - XL - Tyvek Hooded 25

849129 SB-LG-PF-L Gloves - Powderfree Latex - L 10

849130 SB-LG-PF-XL Gloves - Powderfree Latex - XL 10

849133 SB-LG-LP-XL Gloves - Powdered Latex - XL 10

849134 SB-NG-PF-M Gloves - Powderfree Nitrile - M 10

849135 SB-NG-PF-L Gloves - Powderfree Nitrile - L 1

849136 SB-NG-PF-XL Gloves - Powderfree Nitrile - XL 1

849142 SB-HS Citrus Scent Blast Hand Soap - 16 oz. 18

849143 SB-RCT-24 Red Carpet - 24 inches x 200 feet 1

849145 SB-CPF-24 Clear Carpet Film - 24 inches 1

849152 BS-DF Dust Mask - Dust Filter, Box of 50 1

SUPPLIES & HARDWARE

Part Vendor Cross Case

Number Reference Description Qty. ✜

✜All prices based on quantity of one. Must order in multiples of case quantity shown. Orders received for quantities other

than those shown will be rounded up. Partial case quantities cannot be returned.

ShuBee Products

To place your order call 1-800-621-5622; fax 1-800-535-9538

110

Tools & Instruments

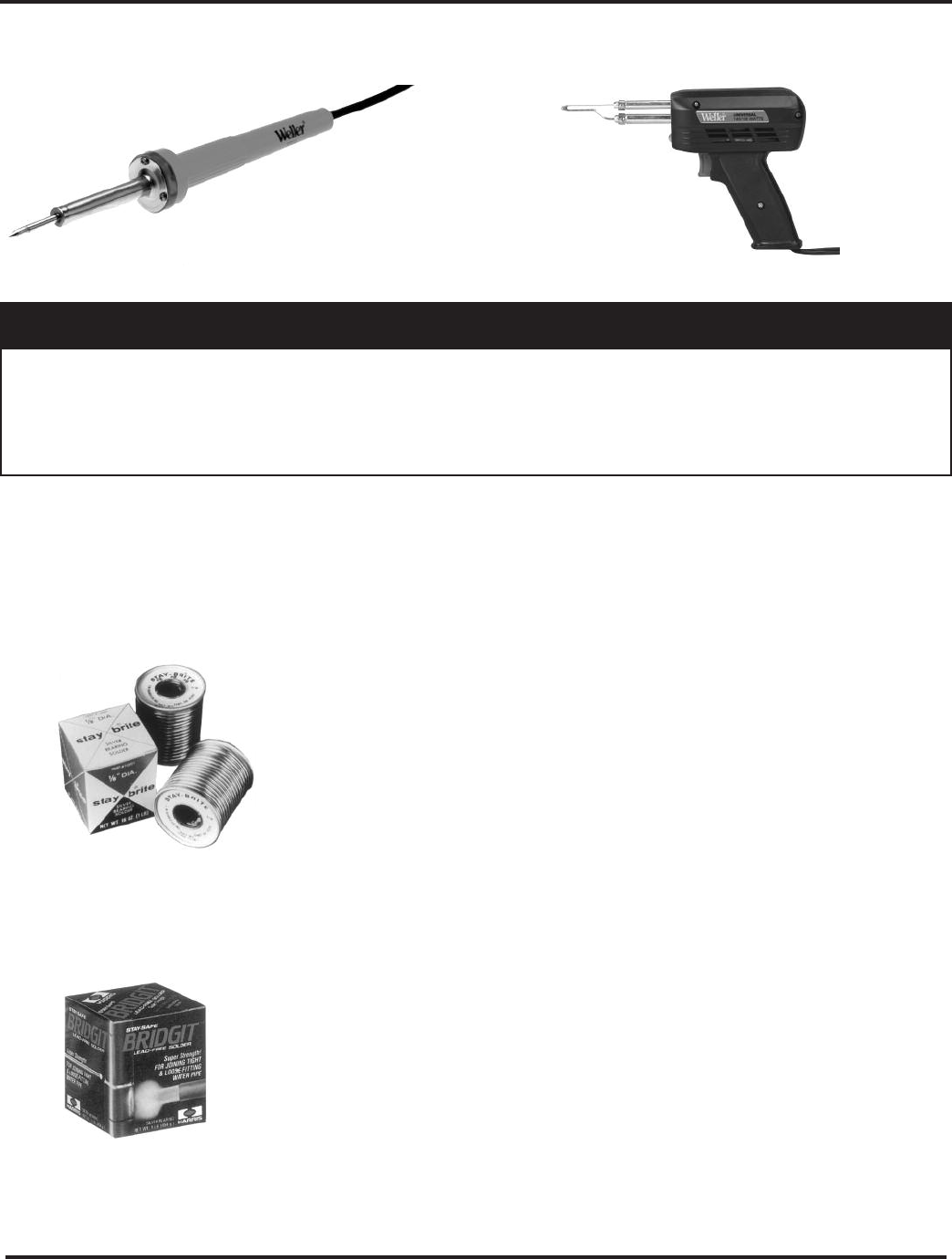

Soldering Tools

J. W. Harris Soldering and Brazing Products

BRIDGIT®

Lead-free solder for plumbing applications, with exceptional strength and capping ability.

1/8” dia., 1 pound spool. 86-25254-03

Solidus 460°F.

Liquidus 630°F.

STAY-BRITE® 8

Low temperature solder with 6% silver for all metals except aluminum. Used in AC/R

joints with a plastic range useful in bridging wider gaps.

1/8” dia., 1 pound spool. 86-25254-01

Solidus 430°F.

Liquidus 535°F.

STAY-BRITE

Low temperature solder with 4% silver for all metals except aluminum.

Used in AC/R joints, NSF accepted.

1/8” dia., 1 pound spool. 86-25254-02

Solidus 430°F.

Liquidus 535°F.

87-SP23L 87-8200

86-25254-01

86-25254-03

Case

Part Number

Description Volts Watts Hz Qty

87-SP23L Weller Solder Iron, 25W 120 25 60/60 6

87-SP40L Weller Solder Iron, 40W 120 40 50/60 6

87-8200 Weller Universal Soldering Gun 120 140/100 50/60 3

87-D550 Weller Professional Soldering Gun 120 260/220 50/60 3

To place your order call 1-800-621-5622; fax 1-800-535-9538

111

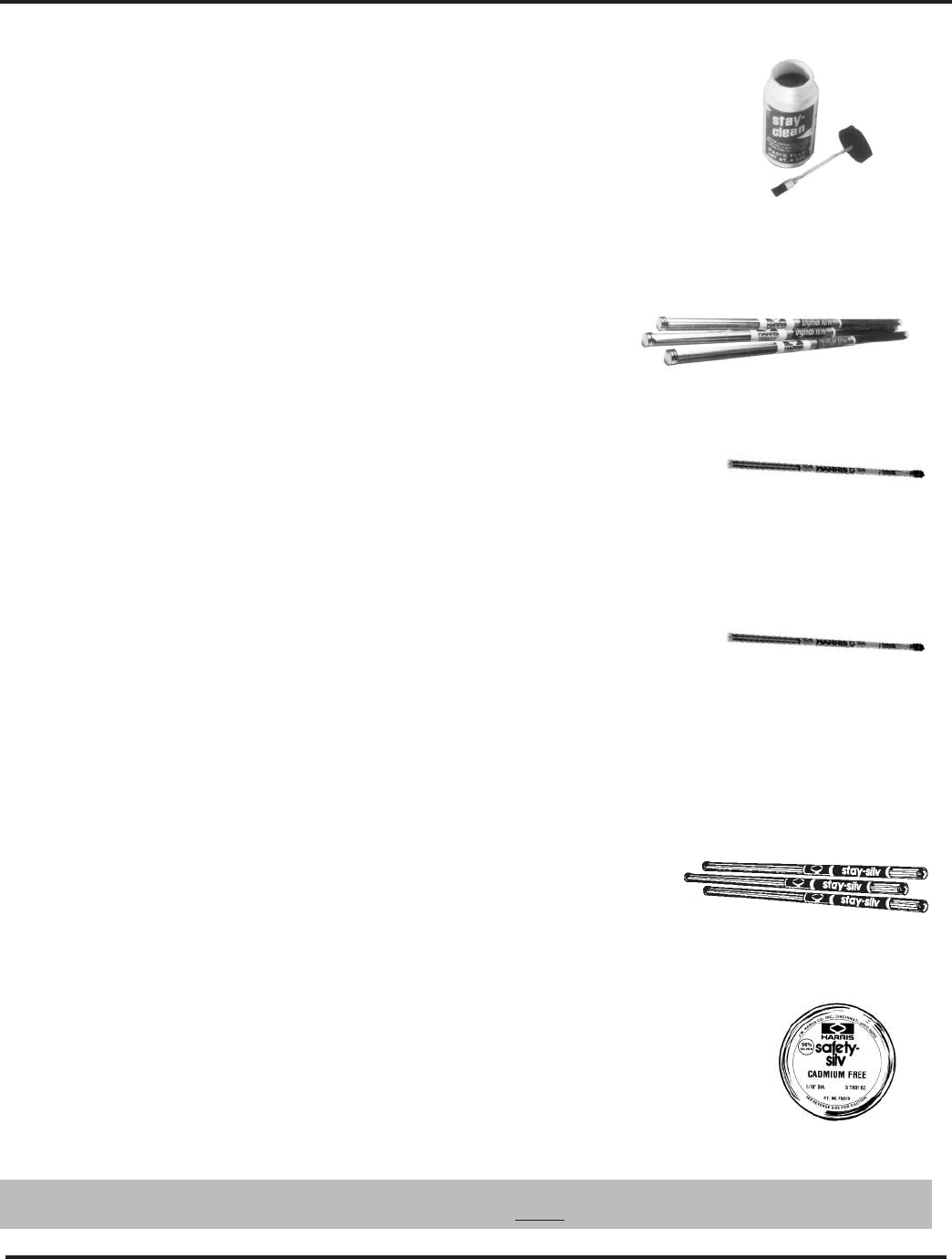

Tools & Instruments

SAFETY-SILV®45

Excellent, cadmium-free general purpose brazing alloy with good ductility and flow.

1/16” dia., 1 troy oz. package includes 1.75 07 flux. (76012) 86-25254-08

Solidus 1195°F.

Liquidus 1265°F.

STAY-SILV®15%

For many years, the industry standard for air conditioning and refrigeration applications. .050 x 1/8”

dia., 28 stick tube, approximately 1 pound. (61035) 86-25254-06

Solidus 1190°F.

Liquidus 1480°F.

STAY-SILV®--0

Low-cost alloy for many copper-to-copper applications where good fit-up can be maintained and

brazing temperature is not critical. 86-25254-12

STAY-SILV®5 AND STAY-SILV 6

Medium-range allows; Stay Silv 5 is useful primarily where fit-up cannot be tightly controlled.

Stay Silv 6 is slightly more fluid and can be used where closer tolerances are available.

Stay Silv 5 86-25254-13

Stay-Silv 6 86-25254-14

✜All prices based on quantity of one. Must order in multiples of case/package quantity shown. Orders received for quantities

other than those shown will be rounded up. Partial case quantities cannot be returned.

DYNAFLOW®

Reliable, economical substitute for 15%; excellent strength and ductility. Good for poorly

fitted or tight connections.

.050 x 1/8” dia., 28 stick tube, approximately 1 pound. 86-25254-05

Solidus 1190°F.

Liquidus 1465°F.

86-25254-06

86-25254-08

STAY-CLEAN®PASTE FLUX

Excellent soldering flux, in paste form, for joining copper to copper & copper to brass.

4 oz. jar, 24/case. ✜(40027) 86-25254-04

86-25254-04

86-25254-12

86-25254-13

86-25254-14

J. W. Harris Soldering and Brazing Products (cont’d.)

86-25254-05

To place your order call 1-800-621-5622; fax 1-800-535-9538

112

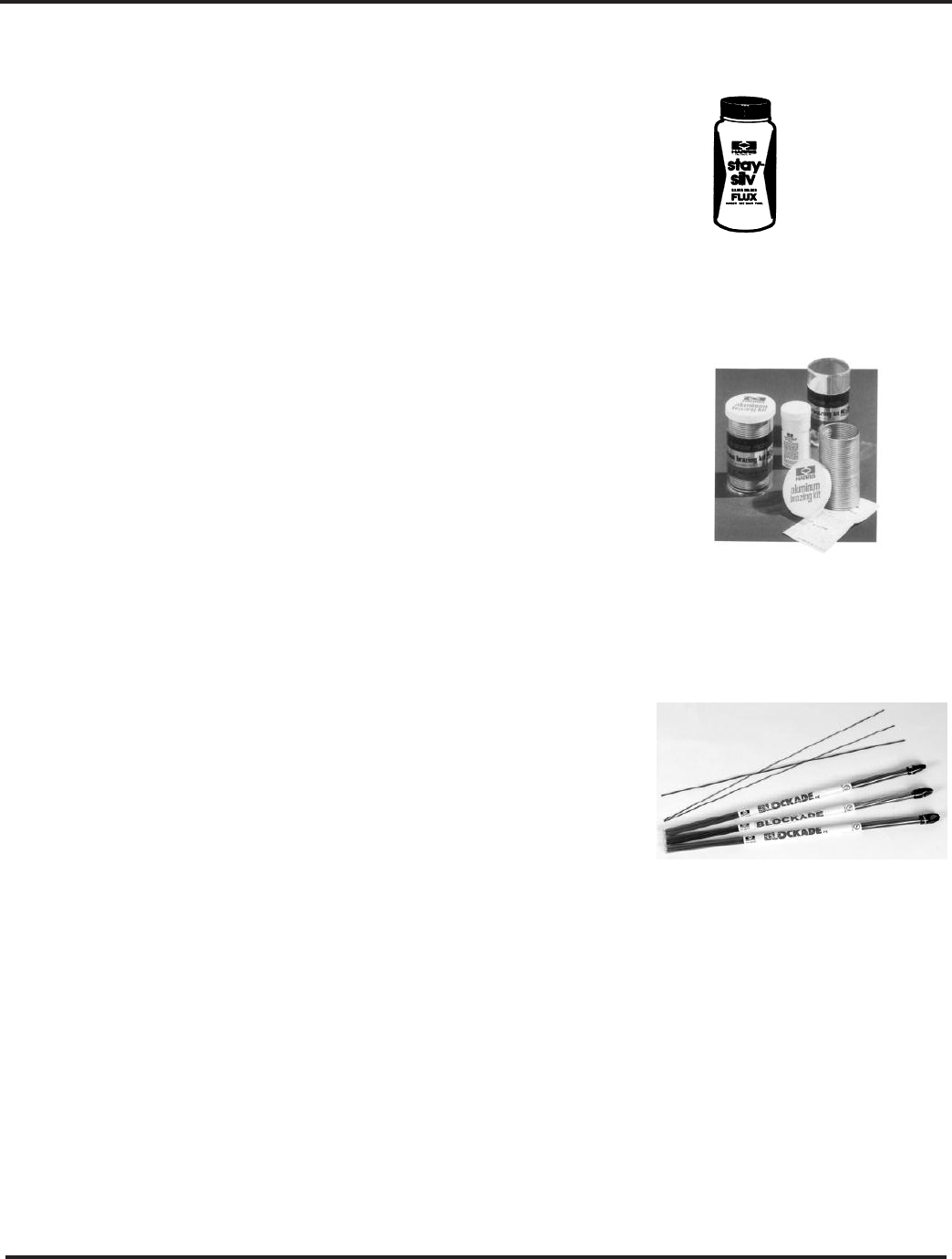

Tools & Instruments

ALSOLDER®500 KIT

Joins all solderable aluminum alloys to each other and to dissimilar metals. Forms

tough excellent corrosion-resistant joints on the tough-to-solder aluminum alloys.

Contains 1 oz. of 1/16” dia. Alsolder 500 aluminum solder wire and 1 oz. Stay-Clean

aluminum flux, plus instructions. 86-25254-10

86-25254-10

BLOCKADE™ SILICON BRAZING ALLOY

First in a new family of silicon brazing alloys – phosphorus/copper brazing alloys al-

loyed with silicon. Engineered to join copper, brass and bronze. Faster brazing –

228° F lower temperature than phos/copper. Ability to easily form a large cap or

shoulder at the braze connection. Silver-gray cap = a highly visible fillet which pro-

vides instant, visual confirmation of a leak-free seal. Improved ductility over BCuP-2

(phos/copper 0)brazing alloys. Eliminates need for silver to join copper to brass and

brass to brass. 572001 572001

STAY-SILV®WHITE FLUX

For use with silver brazing alloys on all metals other than aluminum, magnesium, titanium

7 oz. brush cap, 24/case. ✜(40022) 86-25254-09

86-25254-09

J. W. Harris Soldering and Brazing Products (cont’d.)

To place your order call 1-800-621-5622; fax 1-800-535-9538

113

Tools & Instruments

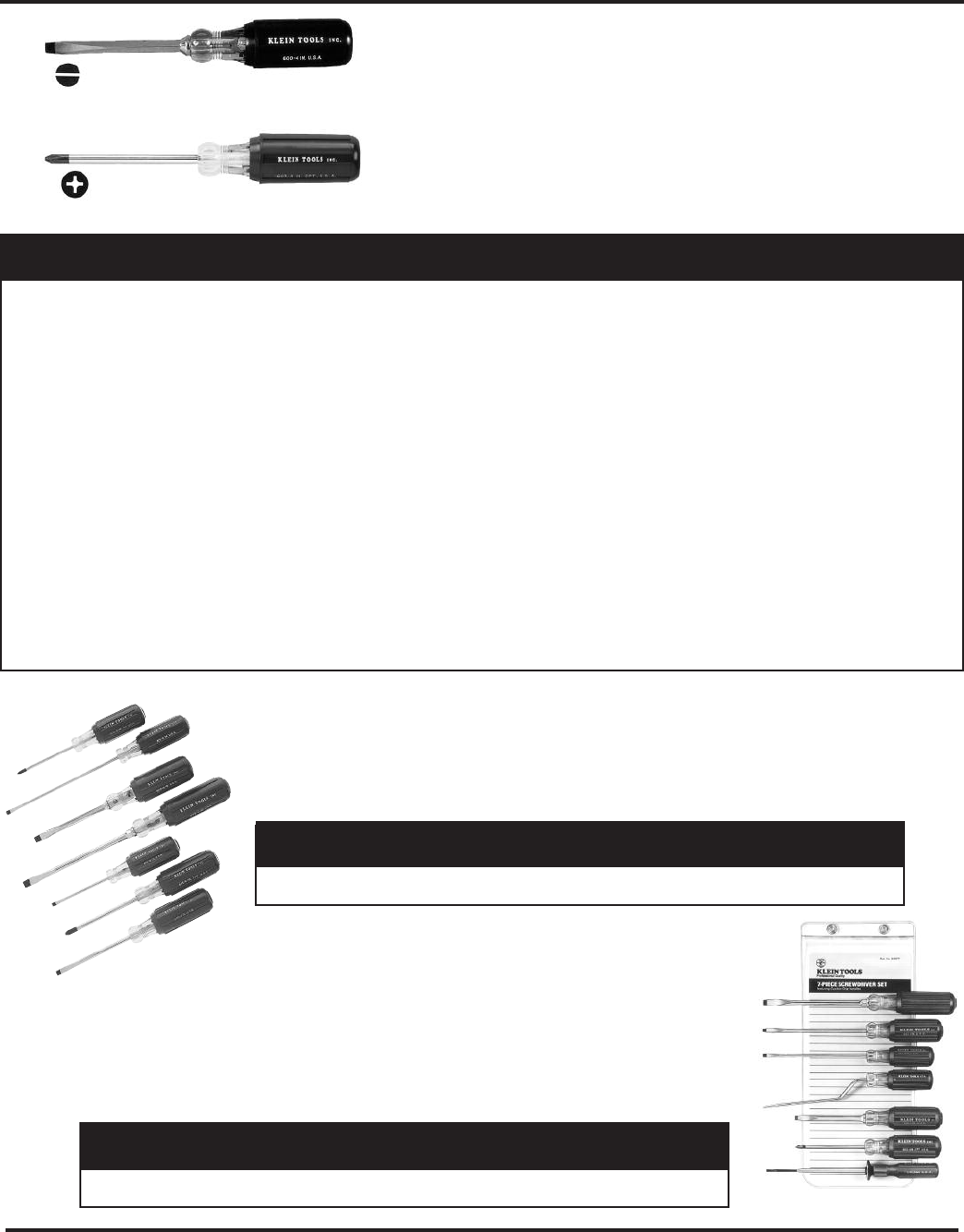

Klein Cushion-Grip Screwdrivers

❉

Designed for extra-long, dependable service & comfort.

❉

Comfortable Cushion-Grip is locked around a solid plastic

handle.Grip extends up to handle end.

❉

Shank has integral flanges to provide a solid,torque-proof

anchor deep in the plastic handle.

❉

Heavy-duty screwdrivers have special bolster construction

to reinforce against hard use.

❉

Fully chrome-plated blade with black tip.

Klein 7-Piece Screwdriver Set

❉

5 Cushion Grip Screwdrivers.

❉

1 Cushion Grip Rotary Screwdriver.

❉

1 Plastic Handle Slotted Screw-Holding Screwdriver.

Part Overall Case

Number

Description Length Qty

87-85077 Screwdriver Set, Cushion & Regular Grip, 7 Piece 8” to 11” 1

Shank Tip Width Overall Case

Part Number

Description X Shank Length Length Qty

87-600-4 Heavy Duty Square-Shank, Keystone-Tip 1/4 x 4 8 11/32 6

87-600-6 Heavy Duty Square-Shank, Keystone-Tip 5/16 x 6 10 15/16 6

87-601-3 Round-Shank, Cabinet-Tip 3/16 x 3 6 3/4 6

87-601-4 Round-Shank, Cabinet-Tip 3/16 x 4 7 3/4 6

87-601-6 Round-Shank, Cabinet-Tip 3.16 x 6 9 3/4 6

87-601-8 Round-Shank, Cabinet-Tip 3/16 x 8 11 3/4 6

87-602-4 Heavy Duty, Round-Shank, Keystone-Tip 1/4 x 4 8 11/32 6

87-602-6 Heavy Duty, Round-Shank, Keystone-Tip 5/16 x 6 10 15/16 6

87-602-8 Heavy Duty, Round-Shank, Keystone-Tip 3/8 x 8 13 7/16 6

87-603-1 Round-Shank, Special Profilated Phillips-Tip 1-1/2 3 7/16 6

87-603-3 Round-Shank, Special Profilated Phillips-Tip 3 6 3/4 6

87-603-4 Round-Shank, Special Profilated Phillips-Tip 4 8 5/16 6

87-603-6 Round-Shank, Special Profilated Phillips-Tip 6 11 6

87-603-7 Round-Shank, Special Profilated Phillips-Tip 7 11 15/16 6

87-605-4 Round-Shank, Cabinet-Tip 1/4 x 4 8 11/32 6

87-605-6 Round-Shank, Cabinet-Tip 1/4 x 6 10 11/32 6

87-605-8 Round-Shank, Cabinet-Tip 1/4 x 8 12 11/32 6

87-600-4

87-603-4

87-85077

Klein 7-Piece Cushion-Grip Screwdriver Set

❉

3 Cabinet-Tip Screwdrivers.

❉

2 Phillips-Tip Screwdrivers.

❉

2 Keystone-Tip Screwdrivers.

❉

Heat-Treated, Tempered-Steel Blades with Vinyl Pouch.

Part Overall Case

Number

Description Length Qty

87-85076 Screwdriver Set, Cushion-Grip, 7 Piece 8” to 11” 1

87-85076

To place your order call 1-800-621-5622; fax 1-800-535-9538

114

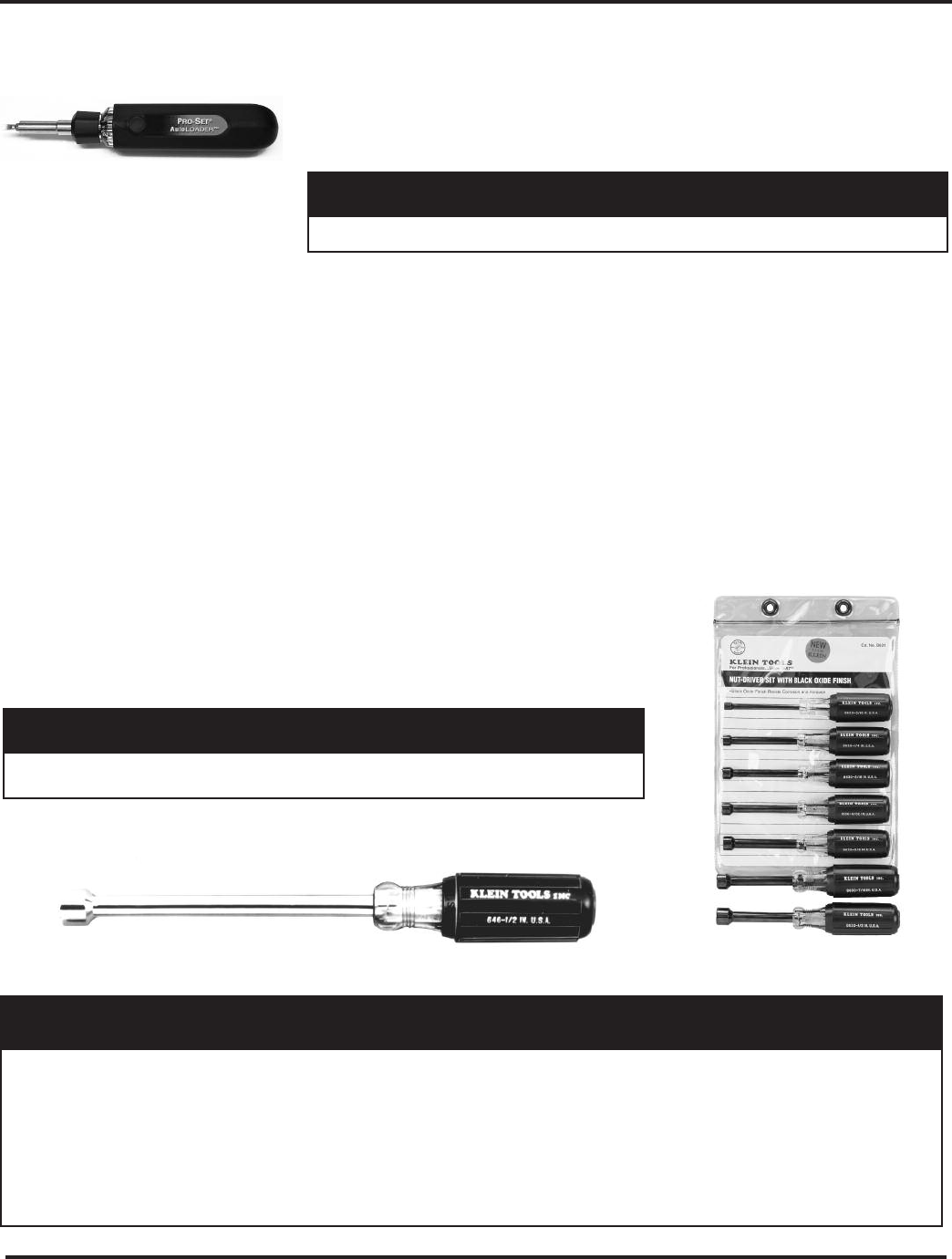

Tools & Instruments

CPS 6-in-1 Auto-Loading Screwdriver

❉

6 replaceable industrial grade 1/4” hex bits, standard 1/4” hex drive.

❉

Includes standard valve core tool bit.

❉

Magnetic head holds fasteners in place.

❉

Ergonomic high impact housing design.

Part Case

Number

Description Qty

87-TLSD1 6-in-1 Auto Loading Screwdriver 1

87-TLSD1

Klein 7-Piece Nut Driver Set

❉

3” Shaft, Plastic-Handle Nut Drivers

❉

Hollow Shanked with Vinyl Storage Pouch

❉

3/16” - 1/2”, Chrome Plated

Part Hex Case

Number Description Size Qty

87-K7 Nut Driver Set 3/16” - 1/2” 1

Klein Cushion-Grip Nut Drivers

Features:

❉

Designed for extra-long, dependable service & comfort.

❉

Color-coded cap identifies hex size.

❉

Comfortable Cushion-Grip is locked around a solid plastic

handle.Grip extends up to handle end.

❉

Shank has integral flanges to provide a solid,torque-proof

anchor deep in the plastic handle.

❉

Full length hollow shaft fits over long screws.

87-631S

87-646

Hex Shank Case

Part Number

Description Size Length Qty

87-646-1/4 Cushion-Grip Nut Driver 1/4" 6" 6

87-646-5/16 Cushion-Grip Nut Driver 5/16" 6" 6

87-646-3/8 Cushion-Grip Nut Driver 3/8" 6" 6

87-646-1/2 Cushion-Grip Nut Driver 1/2" 6" 6

87-647L Cushion-Grip Nut Drivers - 7 Piece Set

3/16, 1/4, 5/16, 11/32, 3/8, 7/16, 1/2

6" 1

87-631S Cushion-Grip Nut Drivers - 7 Piece Set

3/16, 1/4, 5/16, 11/32, 3/8, 7/16, 1/2

3” 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

115

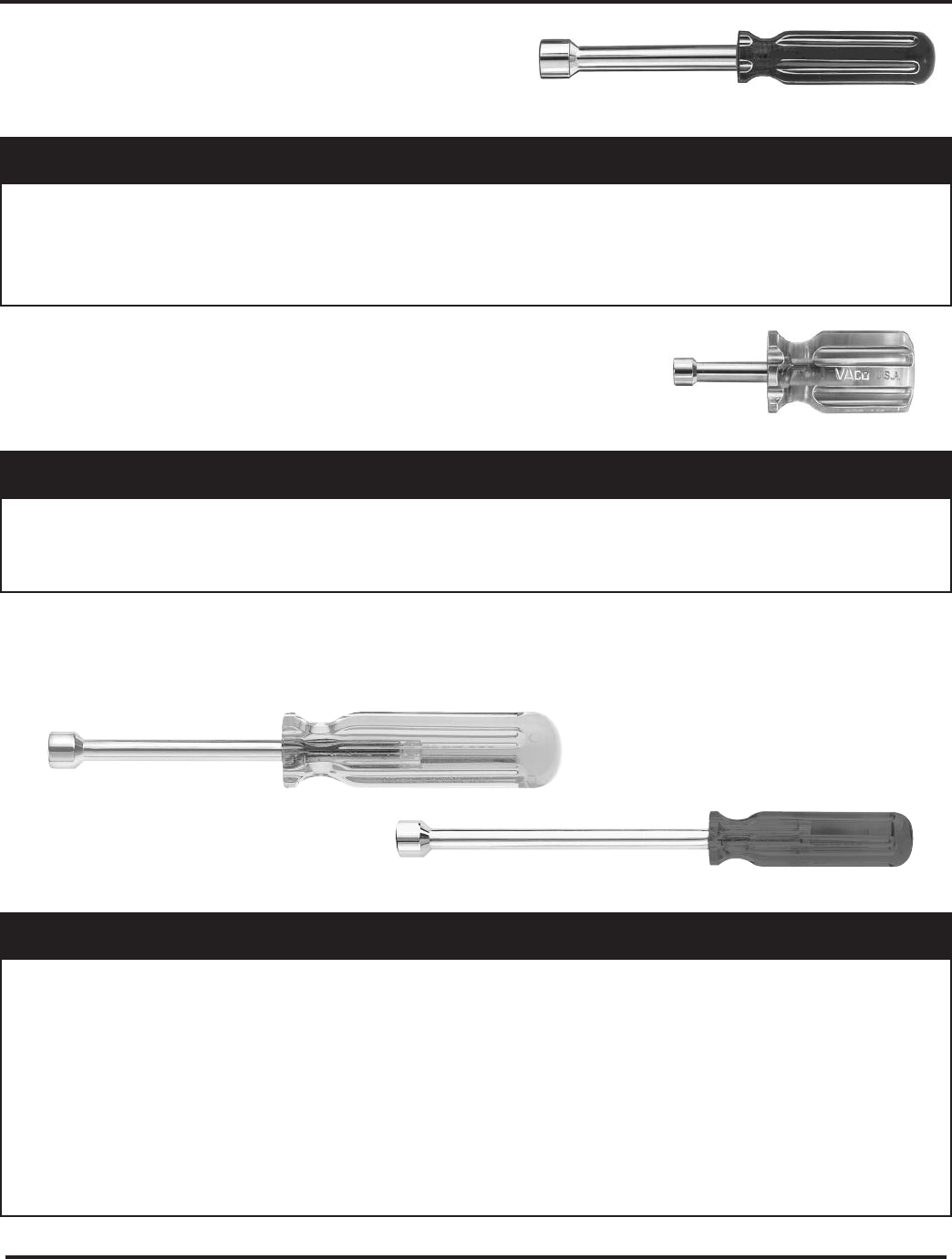

Klein Stubby 1 1/4” Shaft Nut Drivers

Klein 3” & 6” Shaft Nut Drivers

❉

Chrome-Plated, Hollow Shank, Amber-Colored Plastic Handle Nut Drivers

Hex Shank Case

Part Number

Description Size Length Qty

87-S8M-1/4 Klein Nut Driver, Magnetic, Hollow Shaft 1/4" 3” 6

87-S10M-5/16 Klein Nut Driver, Magnetic, Hollow Shaft 5/16" 3” 6

87-S86M-1/4 Klein Nut Driver, Magnetic, Hollow Shaft 1/4" 6” 6

87-S106M-5/16 Klein Nut Driver, Magnetic, Hollow Shaft 5/16" 6” 6

Hex Shank Case

Part Number

Description Size Length Qty

87-SS8-1/4 Hollow Shaft Nut Driver 1/4” 3-3/4” 6

87-SS10-5/16 Hollow Shaft Nut Driver 5/16” 3-3/4” 6

87-SS12-3/8 Hollow Shaft Nut Driver 3/8” 3-3/4” 6

Hex Shank Case

Part Number

Description Size Length Qty

87-S8-1/4 Hollow Shaft Nut Driver 1/4” 3” 6

87-S10-5/16 Hollow Shaft Nut Driver 5/16” 3” 6

87-S11-11/32 Hollow Shaft Nut Driver 11/32” 3” 6

87-S12-3/8 Hollow Shaft Nut Driver 3/8” 3” 6

87-S14-7/16 Hollow Shaft Nut Driver 7/16” 3” 6

87-S86-1/4 Hollow Shaft Nut Driver 1/4” 6” 6

87-S106-5/16 Hollow Shaft Nut Driver 5/16” 6” 6

87-S116-11/32 Hollow Shaft Nut Driver 11/32” 6” 6

87-S126-3/8 Hollow Shaft Nut Driver 3/8” 6” 6

87-SS10

Tools & Instruments

Klein Magnetic Nut Drivers

87-S10M

87-S10

87-S116

To place your order call 1-800-621-5622; fax 1-800-535-9538

116

Tools & Instruments

87-70581

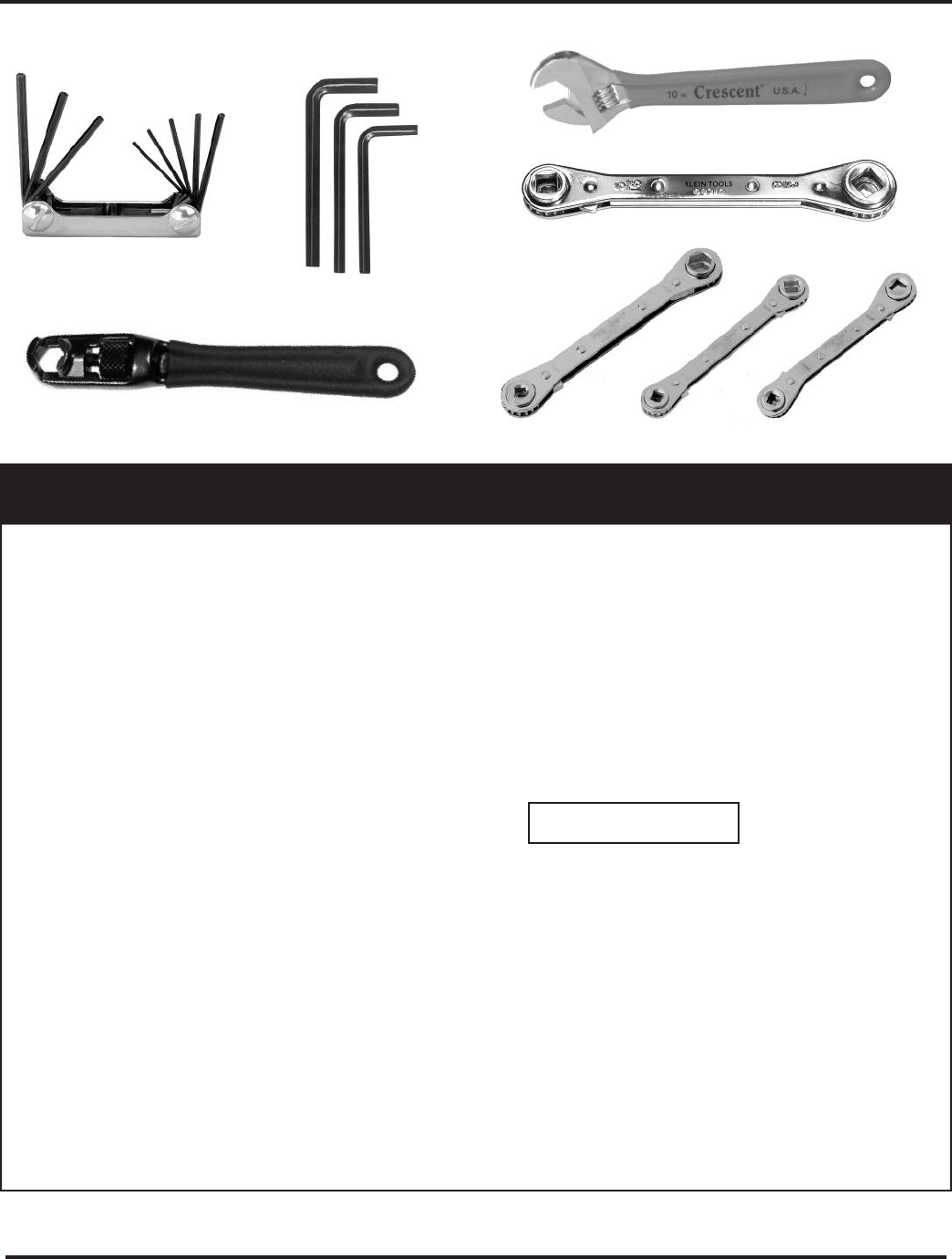

Wrenches

87-TLSWL 87-TLSWS 87-TLSWO

87-AC16CV

87-8-301

87-SL12/87-SL20

87-68310

Case

Part Number

Description Length Qty

87-AC16CV Crescent Adj Wrench, Chrome Finish w/Cushion Grip Handle 6" 6

87-AC18CV Crescent Adj Wrench, Chrome Finish w/Cushion Grip Handle 8" 6

87-12-301 Midwest Adj Box End Wrench, Plastic Dip Handle 12" 6

87-10-301 Midwest Adj Box End Wrench, Plastic Dip Handle 10" 6

87-8-301 Midwest Adj Box End Wrench, Plastic Dip Handle 8" 6

87-D507-6 Midwest Adj Box End Wrench, Extra Capacity, Plastic Dip Handle 6" 6

87-D507-8 Midwest Adj Box End Wrench, Extra Capacity, Plastic Dip Handle 8" 6

87-D507-10 Midwest Adj Box End Wrench, Extra Capacity, Plastic Dip Handle 10" 6

87-D507-12 Midwest Adj Box End Wrench, Extra Capacity, Plastic Dip Handle 12" 6

87-68310 Klein 5 1/2" Refrigeration Rachet Wrench, Fully Reversible 3/16",5/16" 6

10550

Jiffy 3/16” HVACR Hex Bit for Service Valves

4” 1

10551

Jiffy 5/16” HVACR Hex Bit for Service Valves

4” 1

87-70570 Klein Hex Key Set, Folding, 5” Grip-It 8 keys 6

87-70574 Klein Hex Key Set, Folding, 9” Grip-It 8 keys 6

87-70575 Klein Hex Key Set, Folding, 9” Grip-It 8 keys 6

87-70579 Klein Hex Key Set, Folding, 5-1/4” 3/16”, 7/32”, 1/4”, 5/16, 3/8”6

87-70581 Klein Hex Key Set, Folding 8 keys 6

87-70591 Klein Hex Key Set, Folding 9 keys 6

87-89954 Klein T-Handle Hex Key Set, 6” Keys 8 keys 6

87-LLK12 Klein Hex Key Set - 7 Piece, “L” Style, Long Arm (5/64” - 1/4”) 7 keys 1

87-SL12 Klein Hex Short Arm Key (Sold only in Case Quantity) 3/16" 25

87-SL20 Klein Hex Short Arm Key (Sold only in Case Quantity) 5/16” 25

87-TLSWL CPS Service Wrench

3/16”, 1/4”, 9/16”, 1/2”

87-TLSWO CPS Offset Wrench

3/16”, 1/4”, 3/8”, 5/16”

87-TLSWS CPS Service Wrench

3/16”, 1/4”, 3/8”, 5/16”

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

Extra Long Hex for difficult to

access service Valves

To place your order call 1-800-621-5622; fax 1-800-535-9538

117

87-TLPP

87-D203-6

87-TLPO

87-D2000-48

87-R210CV

87-D203-8N

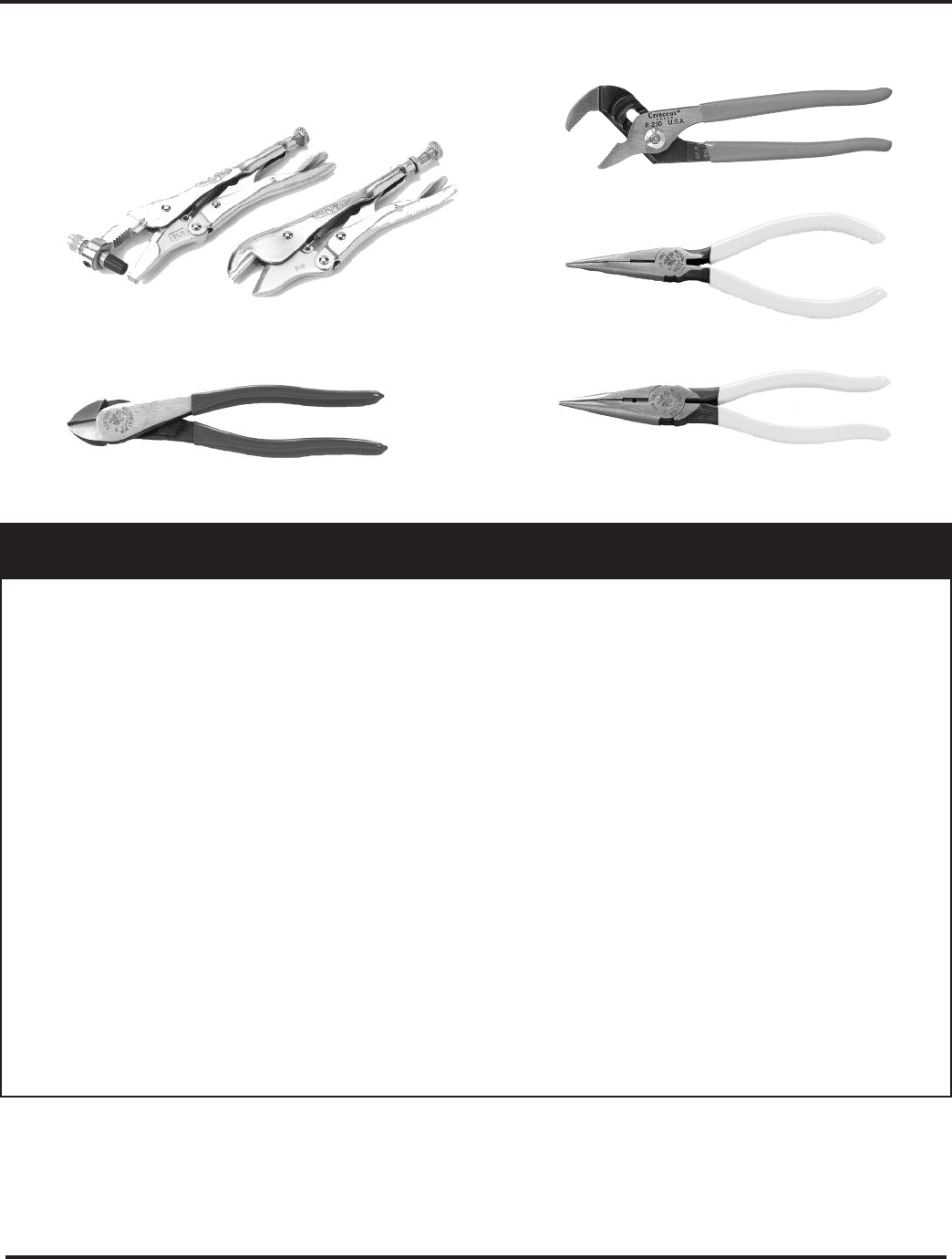

Pliers

Case

Part Number

Description Length Qty

87-TLPO CPS Pinch-Off Pliers 1

87-TLPP CPS Piercing Pliers 1

87-6546CV Crescent Long Nose Chain Plier w/Side Cutter 6 5/8” 6

87-D502-6 Klein Tongue & Groove Pump Pliers 6-1/2” 6

87-D502-10 Klein Tongue & Groove Pump Pliers 10” 6

87-D502-12 Klein Tongue & Groove Pump Pliers 12” 6

87-D203-6 Klein Long Nose Side-Cutting Pliers 6-5/8" 6

87-D203-7 Klein Long-Nose Side-Cutting Pliers 7-1/8" 6

87-D203-8N Klein Heavy Duty Long Nose w/Side Cutters & Skinning Hole 8-5/16” 6

87-D213-8NE Klein Side-Cutting, High Leverage Pliers 8-1/2" 6

87-D213-9NE Klein Side-Cutting, High Leverage Pliers 9-1/4” 6

87-D228-7 Klein Diagonal-Cutting, High Leverage Pliers 7” 6

87-D248-8 Klein Diagonal-Cutting, High Leverage Pliers 8” 6

87-D2000-9NE Klein Side-Cutting 2000 Series, High Leverage Pliers 9-1/4" 6

87-D2000-48

Klein Diagonal-Cutting 2000 Series, High Leverage Pliers with Angled Head

8" 6

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

118

87-1010

87-11045

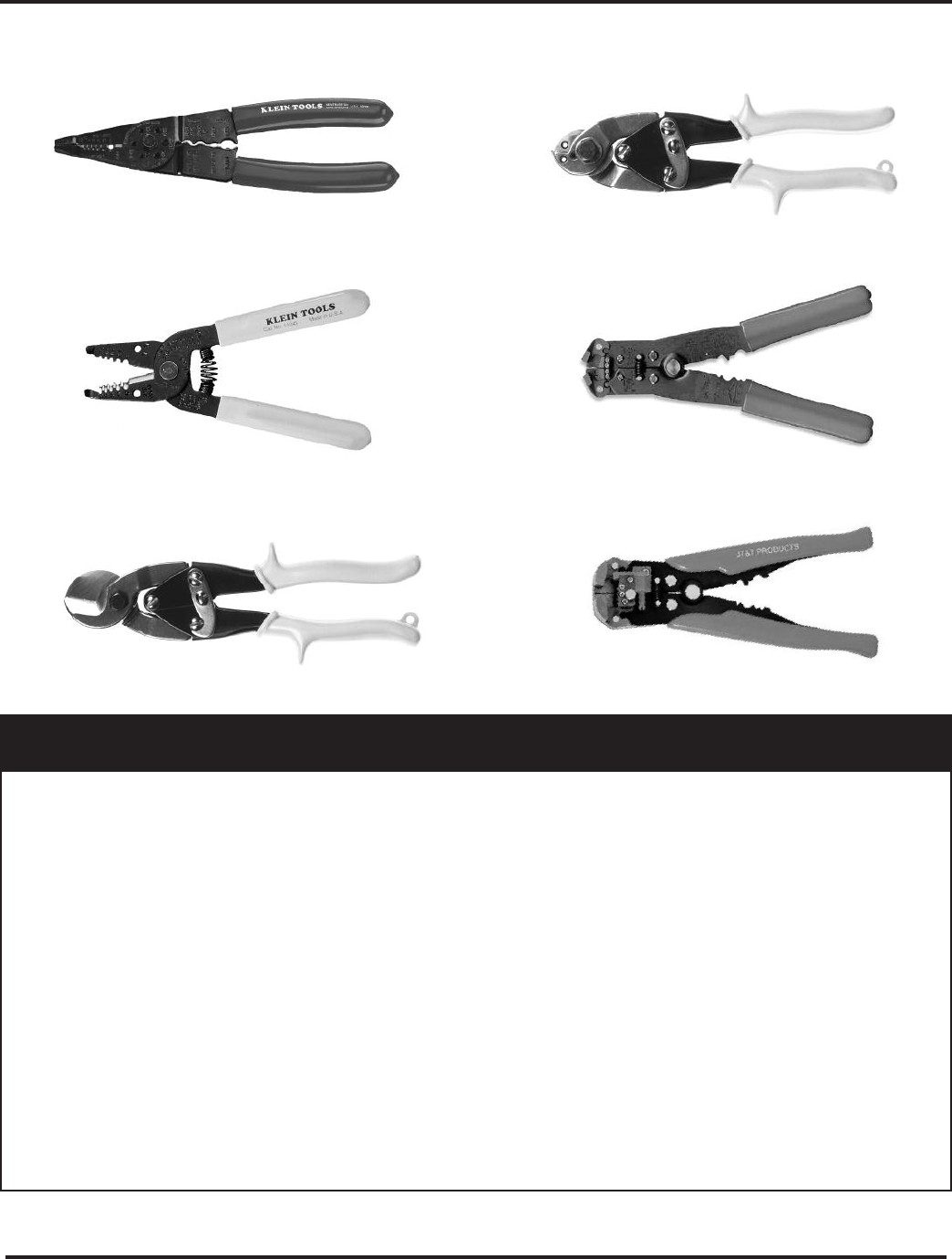

Strippers and Cutters

87-P6100

87-P6300

87-5008F

87-5020F

Case

Part Number

Description Length Qty

87-1001 Klein All-Purpose Electricians Tool 6” 6

8-18 AWG Solid, 10-22 AWG Stranded

87-1005 Klein Crimping Tool, 10-22 AWG 6” 6

87-1006 Klein Crimping Tool, 10-22 AWG 9-3/4” 6

87-1010 Klein Multi-Purpose Wire Cutter/Crimper 8 1/4” 6

87-1011 Klein Multi-Purpose Wire Stripper/Cutter 6” 6

87-11045 Klein 10-18 Wire Stripper/Cutter 6” 12

87-11049 Klein 8-10 Wire Stripper/Cutter (Narrow Nose, Comfort Handle) 6” 6

87-5008F J T & T EZ Stripper; Multi-Function, Self-Adjusting 9” 1

87-5020F J T & T EZ Stripper; Multi-Function, Self-Adjusting 1

87-5427CV Crescent Side Cutter (Designed for heavy-duty wire cutting) 7" 6

87-P6300 Midwest Hard Wire Rope Cutter -3

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

119

87-M1200

87-P6510S

87-P6716S

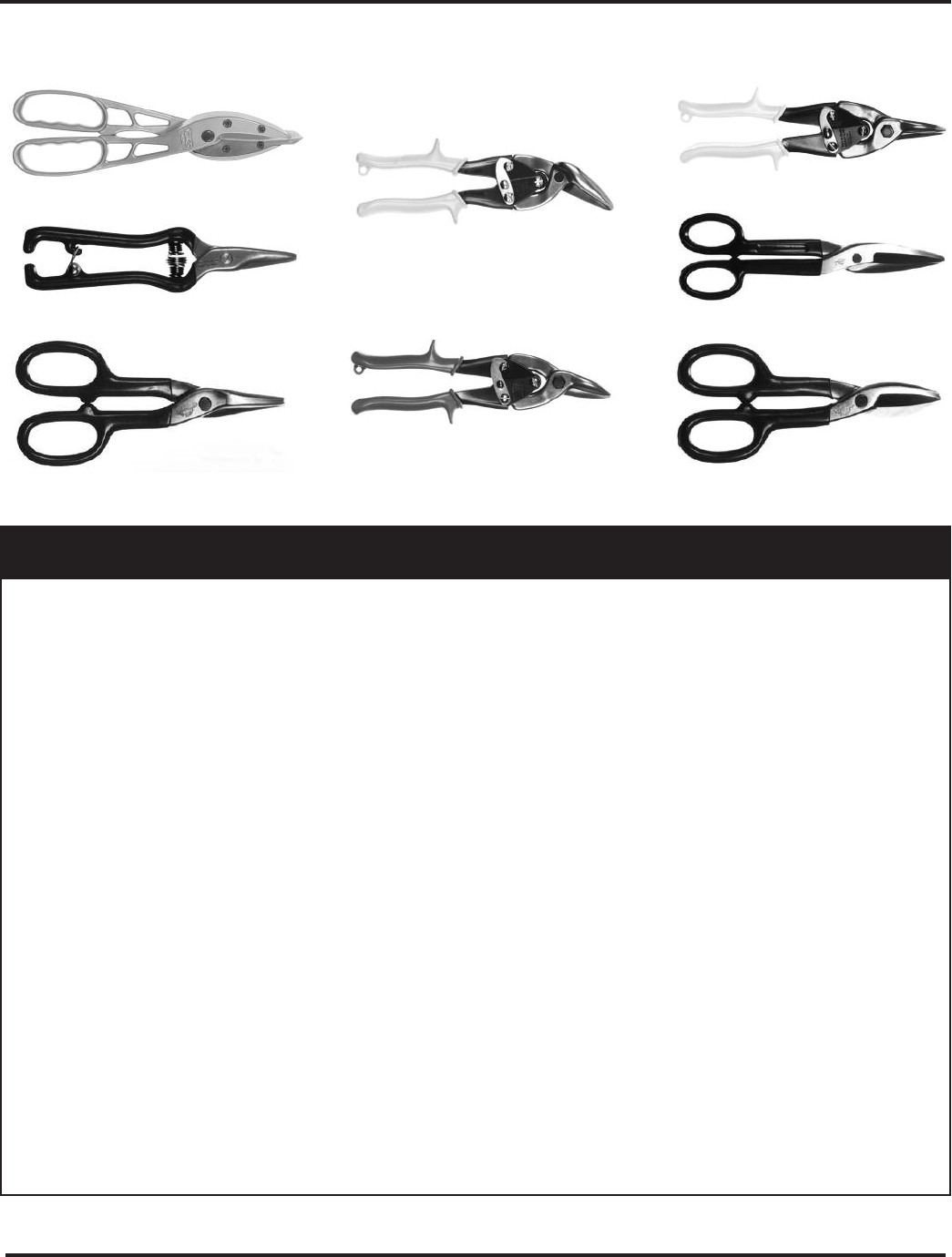

Snips

87-P77D 87-P77S

Cutting Nominal Case

Part Number

Description Capacity Length Qty

87-M1200 Midwest Replaceable Blade Snips 22ga. CR/26ga. SS 13” 6

87-M1200R Midwest Blade Kit 12" 22ga. CR/26ga. SS -6

87-P6510L Midwest Aviation Snips, Offset Left 18ga. CR/22ga. SS 9 3/4” 6

87-P6510R Midwest Aviation Snips, Offset Right 18ga. CR/22ga. SS 9 3/4” 6

87-P6510S Midwest Aviation Snips, Offset Straight 18ga. CR/22ga. SS 9 3/4” 6

87-P6716L Midwest Aviation Snips, Left Cut Pattern -6

87-P6716R Midwest Aviation Snips, Right Cut Pattern -6

87-P6716S Midwest Aviation Snips, Straight Cut Pattern -6

87-P6716A Midwest Aviation Snips, Long Cut - Straight 20ga. CR/24ga. SS 11 1/2” 6

87-P6716B Midwest Aviation Snips, Bulldog 16 ga. CR/18ga. SS 9” 6

87-SSP6716L Midwest Aviation Snips, Hvy Duty Left 22ga. SS 9 3/4” 6

87-SSP6716R Midwest Aviaiton Snips, Hvy Duty Right 22ga. SS 9 3/4” 6

87-P77S Midwest Tinner Snips, Straight 7" 24ga. CR/28ga. SS 7” 6

87-P107S Midwest Tinner Snips, Straight 10" 22ga. CR/26ga. SS 10” 6

87-P127S Midwest Tinner Snips, Straight 12" 20ga. CR/22ga. SS 12” 6

87-P77D Midwest Tinner Snips, Duckbill/Circular 7" 26ga. CR/28ga. SS 7” 6

87-P107D Midwest Tinner Snips, Duckbill/Circular 10" 24ga. CR/26ga. SS 10” 6

87-P127D Midwest Tinner Snips, Duckbill/Circular 12" 22ga. CR/24ga. SS 12” 6

87-P147C Midwest Tinner Snips, Combination 14" 18ga. CR/22ga. SS 14” 1

87-P167B Midwest Tinner Snips, Bulldog 16" - -1

87-P657N Midwest Light Metal Shear (Needle Nose Snip) 24ga. CR/28ga. SS 6 1/2” 5

87-P6900-L Midwest Aviation Snips, Left Cut Pattern, Right Angle Blades 24ga. CR/28ga. SS -

87-P6900-R Midwest Aviation Snips, Right Cut Pattern, Right Angle Blades 24ga. CR/28ga. SS -6

87-P657N

87-SSP6716R

87-P147C

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

120

Tools & Instruments

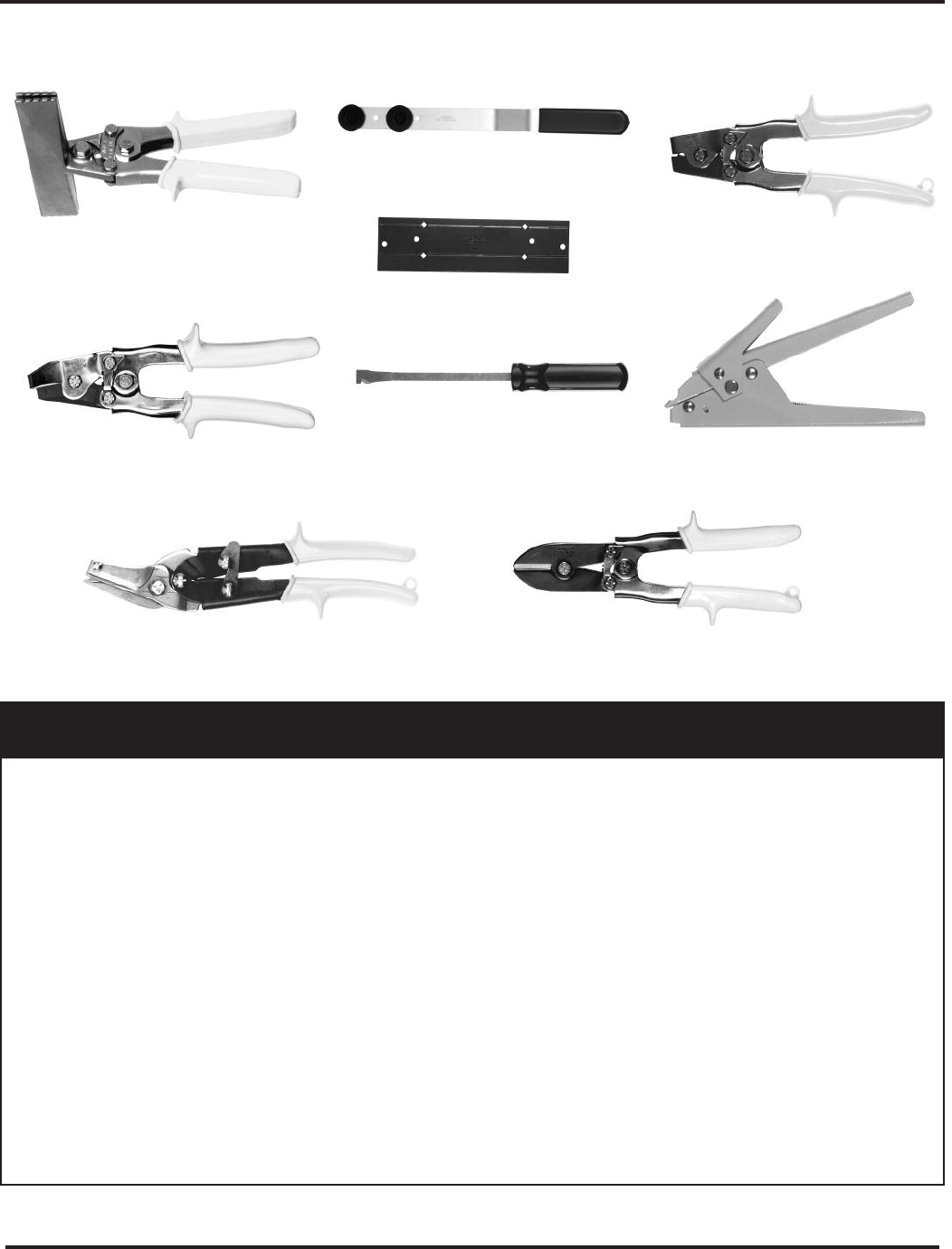

Sheet Metal Tools

87-FCTMS6

87-FCTMN1

87-FCTMF1

87-FCTMD1

87-FCTMX1

87-FCTML1

87-FCTMT1

87-FCTMC587-FCTMP1

Cutting Nominal Case

Part Number

Description Capacity Length Qty

87-FCTMS1 Midwest Sheet Metal, Straight Hand Seamer 3" 22 CR/24 SS 8 1/4” 2

87-FCTMS2 Midwest Sheet Metal, Offset Hand Seamer 22 CR/24 SS 7 3/4” 2

87-FCTMS6 Midwest Sheet Metal, Straight Hand Seamer 6" 22 CR/24 SS 8 1/4” 1

87-FCTMN1 Midwest Sheet Metal, Hand Notcher 24 CR/ 28 SS 8” 3

87-FCTMC5

Midwest Sheet Metal, Crimper 5 Blade (Long)

- 10” 3

87-FCTMC5S

Midwest Sheet Metal, Crimper 5 Blade (Short)

- 9 1/4” 3

87-FCTMF1 Midwest Flat Folding Tool 12" 24 CR/28 SS 12” 6

87-FCTMF2 Midwest Flat Folding Tool 18" 24 CR/28 SS 18” 4

87-FCTMD1 Midwest Offset Duct Stretcher - 15 3/4” 6

87-FCTMX1 Midwest Duct Slicer - 13” 4

87-FCTML1 Midwest Snap Lock Punch 24 CR 8” 3

87-FCTMP1 Midwest Pipe Duct Cutter (Double Cut) - 10 1/2” 6

87-FCTMT1 Midwest Plastic Tie Tensioning Tool - 8” 3

To place your order call 1-800-621-5622; fax 1-800-535-9538

121

Tools & Instruments

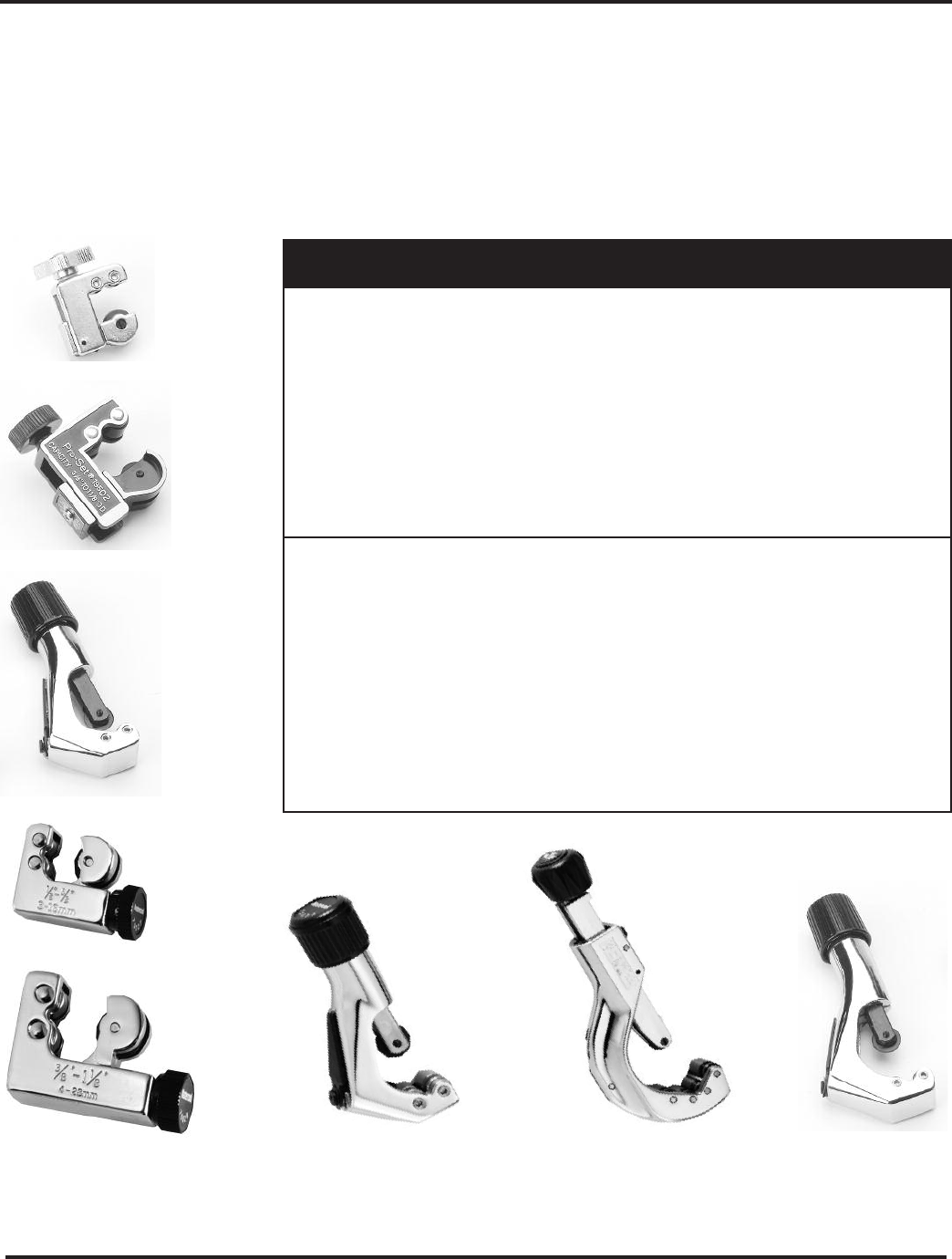

Pro-SetTube Cutters

❉

For Hard or Soft Tubing.

“Copper, Aluminum Brass, Stainless Steel”

❉

Smooth operation provides consistent clean cuts.

❉

High impact metal & precision machining combine to

offer a quality tool built to last a lifetime.

Mastercool



Tube Cutters

❉

Lightweight yet durable.

❉

For Hard or Soft Tubing.

“Copper, Aluminum Brass, Stainless Steel”

❉

All cutters feature rollers with flare cut-off grooves

to salvage as much old tubing material as possible.

87-TC312

87-TC274

87-TC127

87-TC174

Part Number

Description Capacity

87-TC127 Pro-Set Mini Tube Cutter - Features an over- 1/8” to 5/8” OD

sized turning wheel for a sure comfortable grip.

87-TC174 Pro-Set Tube Cutter. 3/8” to 1-1/8” OD

87-TC274 Pro-Set Premium Tube Cutter - Features a 1/8” to 1-1/8” OD

retractable reamer to remove inside burrs

cleanly and a spare cutting wheel.

87-TC312 Pro-Set Premium Large Tube Cutter - Features 1/4” to 1-5/8” OD

a retractable reamer to remove inside burrs

cleanly and a spare cutting wheel.

70027 Mastercool Mini Tube Cutter 1/8” to 5/8”

70029 Mastercool Midi Tube Cutter 3/8” to 1-1/8”

70033 Mastercool Heavy Duty Tubing Cutter 1/8” to 1-1/8”

70035 Mastercool Heavy Duty Tubing Cutter 1/4” to 1-5/8”

70037 Mastercool Slide Tubing Cutter 1/4” to 2-5/8”

70038 Mastercool Slide Tubing Cutter 1/4” to 3-1/8”

70090

Mastercool Tubing Cutter Kit

3 Piece Set

70090-A

Mastercool Tubing Cutter Kit

4 Piece Set

70028

Mastercool Replacement Cutting Wheels for 70027 (10 Pieces)

70034 Mastercool Replacement Cutting Wheels for 70029,

70033, 70035 and 70037 (10 Pieces)

70138

Mastercool Replacement Cutting Wheel for 70038 (1 Piece)

70029 70035 70037

70027

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

To place your order call 1-800-621-5622; fax 1-800-535-9538

122

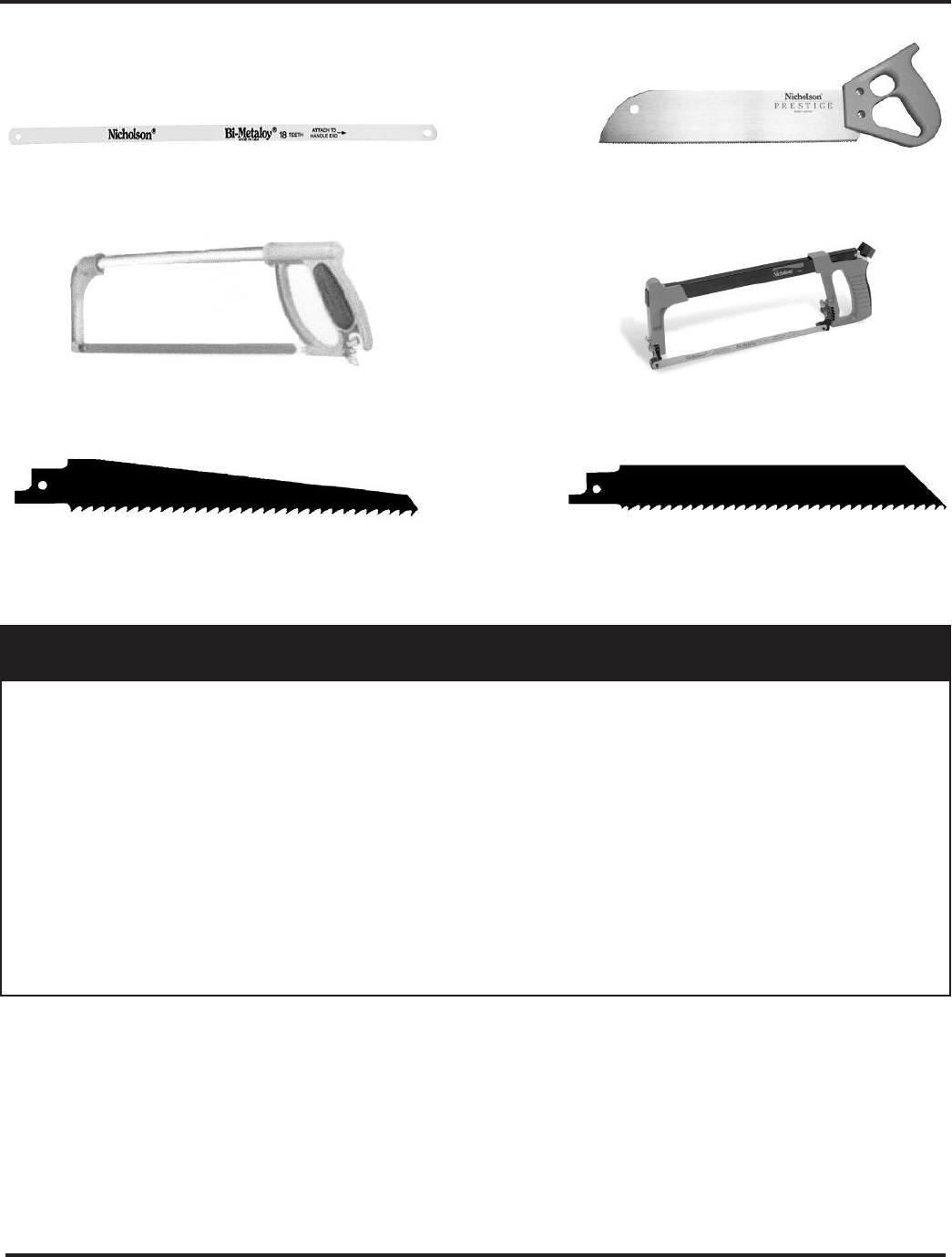

Saws and Blades

87-80710

87-80952

87-81128

87-70012

87-62825

Tools & Instruments

Nominal Case

Part Number

Description Length Width Gauge Qty

87-62819 Nicholson Bi-Met Hacksaw Blade 14 T 12” 1/2” 0.25” 10

87-62826 Nicholson Bi-Met Hacksaw Blade 18T 12” 1/2” 0.25” 2/Card

87-62832 Nicholson Bi-Met Hacksaw Blade 24T 12” 1/2” 0.25” 2/Card

87-62839 Nicholson Bi-Met Hacksaw Blade 32TPI 12” 1/2” 0.25” 2/Card

87-701S Klein Industrial Hacksaw 12” --6/Case

87-72319 Nicholson Portabands 10 Raker (Sold only in Case Qty) 3

87-80965 Nicholson 12P Premium Hacksaw Frame 1

87-81124 Nicholson Recip Blade 24TPI (Multi-purpose) 6” 3/4” 0.035” 1/Card

87-81128 Nicholson Recip Blade 14TPI (For Metal under 1/8” thick) 9” 3/4” 0.050” 1/Card

87-81120, 87-81122, 87-81124, 87-81132

To place your order call 1-800-621-5622; fax 1-800-535-9538

123

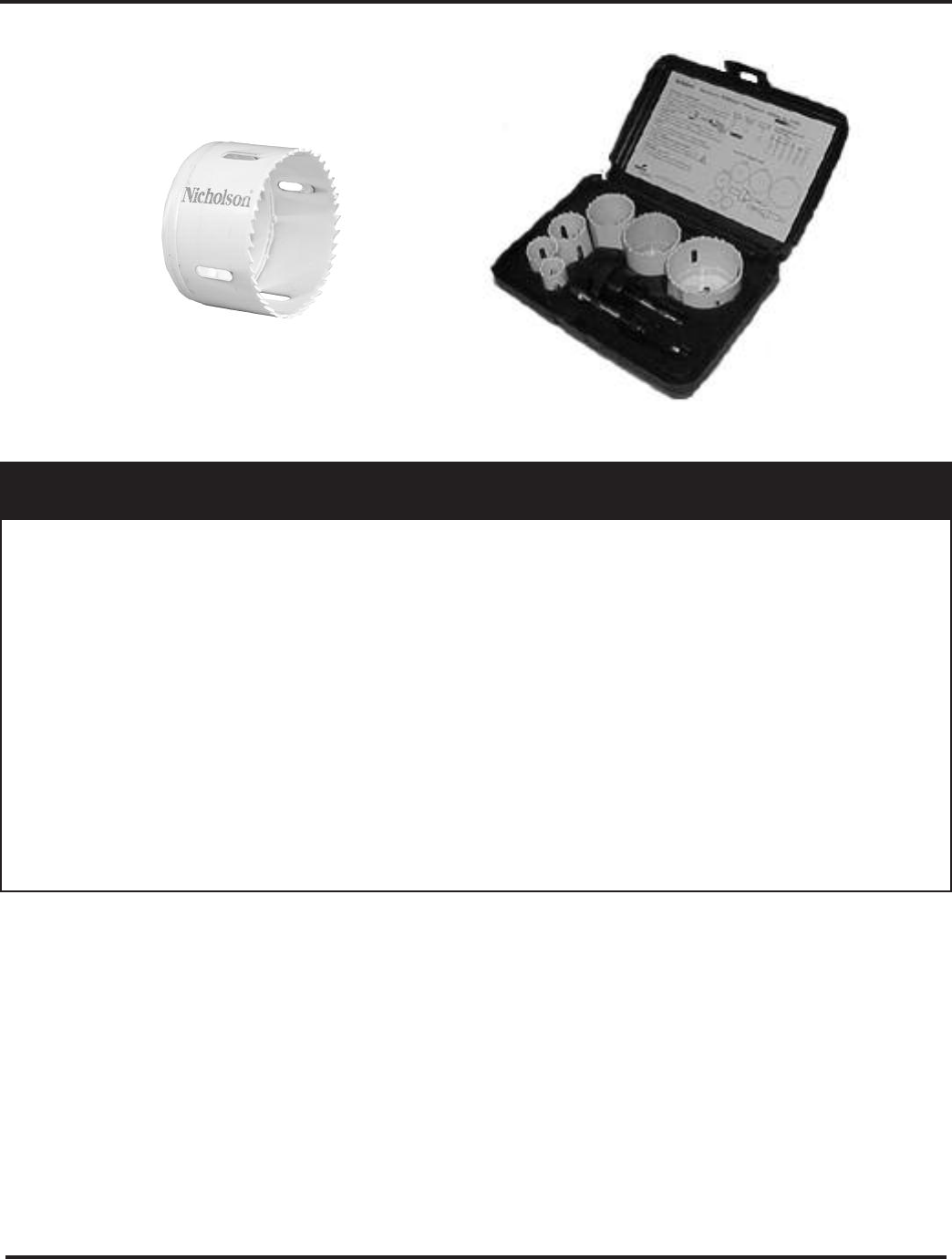

Tools & Instruments

Hole Saw Blades

87-81432

87-81260

Case

Part Number Description Diameter Qty

87-81167 Nicholson Hole Saw 7/8" 1

87-81173 Nicholson Hole Saw 1" 1

87-81179 Nicholson Hole Saw 1 1/8" 1

87-81188 Nicholson Hole Saw 1 1/4" 1

87-81197 Nicholson Hole Saw 1 3/8" 1

87-81206 Nicholson Hole Saw 1 1/2" 1

87-81227 Nicholson Hole Saw 2" 1

87-81233 Nicholson Hole Saw 2 1/8" 1

87-81260 Nicholson Hole Saw 3" 1

87-81272 Nicholson Hole Saw 3 1/2" 1

87-81275 Nicholson Hole Saw 3 5/8" 1

To place your order call 1-800-621-5622; fax 1-800-535-9538

124

Caulking Guns

Part Case

Number Description Qty

87-M0017 Caulking Gun; 1/10 Gal., Hex Rod Parallel Frame 12

87-M0016 Caulking Gun; 1/10 Gal., Super Ratched Rod 12

87-250 Caulking Gun; 1/10 Gal., Super Smooth Rod 6

87-M0017 Caulking Gun

1/10 Gal., Hex Rod Parallel Frame

❉

E-Z Thrust

❉

EZ Load Front Cap

❉

Cartridge Retainer Spring

❉

Ladder Hook

❉

Produces short radius bends up to 180°

87-M0016 Caulking Gun

1/10 Gal., Super Ratchet Rod

❉

Seal Puncture Tool

❉

Built-In Spout Cutter

❉

Ladder Hook

❉

No Pinch Finger Guard

87-250 Caulking Gun

1/10 Gal., Super Smooth Rod

❉

Revolving Barrel

❉

Zinc Alloy Handle

❉

Ladder Hook

❉

Thumb Release

❉

Thrust Ratio 18:1

87-M0017

87-M0016

87-250

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

125

Tools & Instruments

Gallo Gun & Swoosh CO2 Cartridges

Part Case

Number Description Qty

GG-1 Gallo Gun Drain Cleaner 1

GGC-12 SWOOSH CO2 Cartridges (Standard pack of 12) 1

The Gallo Gun clears condensate drains with Swoosh. It is a

lightweight (3 oz.) portable tool designed to blow out drain lines

instantly. Simply insert a SWOOSH CO2 cartridge into the Gallo

Gun and with a press of the trigger, 800 PSI of oil free food grade

air clears the line. Each unit comes equipped with a tapered fitting

to work on 3/8” thru 3/4” drain openings. Flexible hose assembly

enables you to maneuver through cabinets, coils and hard to reach

drains. Cartridges are safe for the environment and recyclable.

No need to carry air or nitrogen tanks. Saves time on service calls

and reduces labor costs.

GG-1 & GGC-12

To place your order call 1-800-621-5622; fax 1-800-535-9538

126

Tape Measures

Case

Part Number

Description Color Qty

87-2212 Lufkin 1/2” x 12' Tape Measure - Chrome Chrome 6

87-2212DX Lufkin 1/2” x 12' Tape Measure - Chrome (Eng) Chrome 6

87-2316 Lufkin 3/4” x 16' Tape Measure - Chrome Chrome 6

87-HV1012 Lufkin 1/2” x 12' Tape Measure (HiVisibility) Orange 6

87-HV1312 Lufkin 3/4” x 12' Tape Measure (HiVisibility) Orange 6

87-HV1316 Lufkin 3/4” x 16' Tape Measure (HiVisibility) Orange 6

87-QR1312 Lufkin 3/4” x 12' Tape Measure (QuickRead) Blue 6

87-QR1316 Lufkin 3/4” x 16' Tape Measure (QuickRead) Blue 6

87-928-16HV Klein Power Return Tape Measure 3/4” x 16’ (HiVisibility) Orange 6

87-928-25HV Klein Power Return Tape Measure 1” x 25’ (HiVisibility) Orange 6

Tools & Instruments

To place your order call 1-800-621-5622; fax 1-800-535-9538

127

Tools & Instruments

CPS

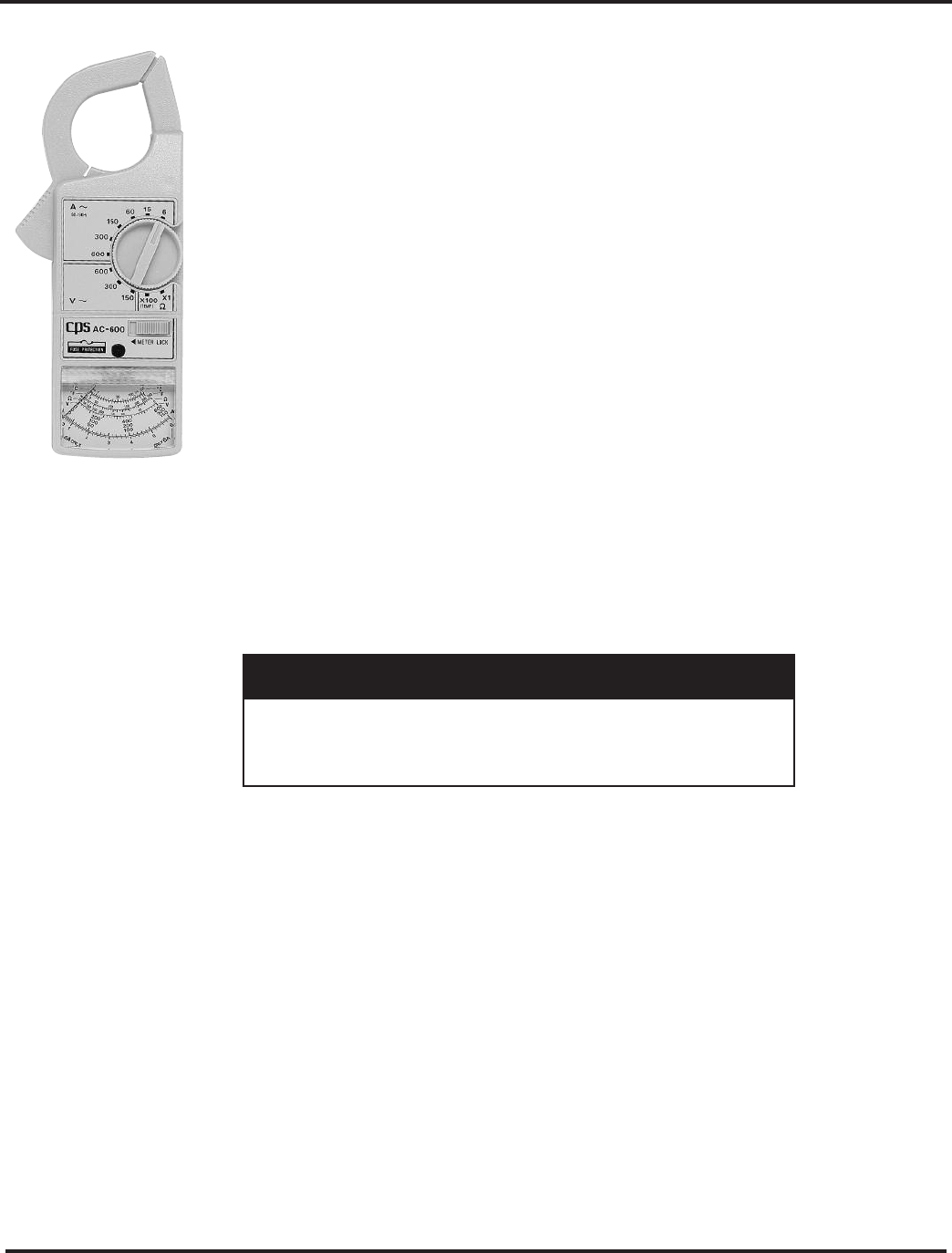

87-AC600 Meter

The 87-AC600 incorporates a rugged analog display to measure AC current, AC voltage

and ohms. A continuity alarm and an optional temperature probe add to the 87-AC600’s

impressive design making it an ideal unit for the electrical & HVAC/R technician.

The 87-AC600 allows the user to measure current flow, in appliances & power lines by

simply clamping the transformer jaws around the conductor. A meter lock function is provided

to lock the analog display’s pointer when taking measurements in areas of low visibility or

limited access. The optional temperature probe can take measurements of gas liquid and

solid materials. The 87-AC600 includes a spare fuse 0.5A/250V, test leads, carry case,

“AA” battery, and slip proof wrist strap.

APPLICATIONS

❉Measure motor start-up current.

❉Measure current to determine circuit overload, control circuit current and circuit

operating current.

❉Measure line temperatures on refrigeration and air conditioning units.

❉Measure continuity to determine good or bad fuses, open or shorted conductors,

operation of switches and circuit paths.

❉Measure AC lines and voltages.

RANGES:

Best

Function Range Accuracy

VAC 0 - 600V +/- 3% of full scale

ACA 0 - 600A +/- 3% of full scale

Temp -26° to 392°F/-50° to 200° C +/- 3% of full scale

87-AC600

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

To place your order call 1-800-621-5622; fax 1-800-535-9538

128

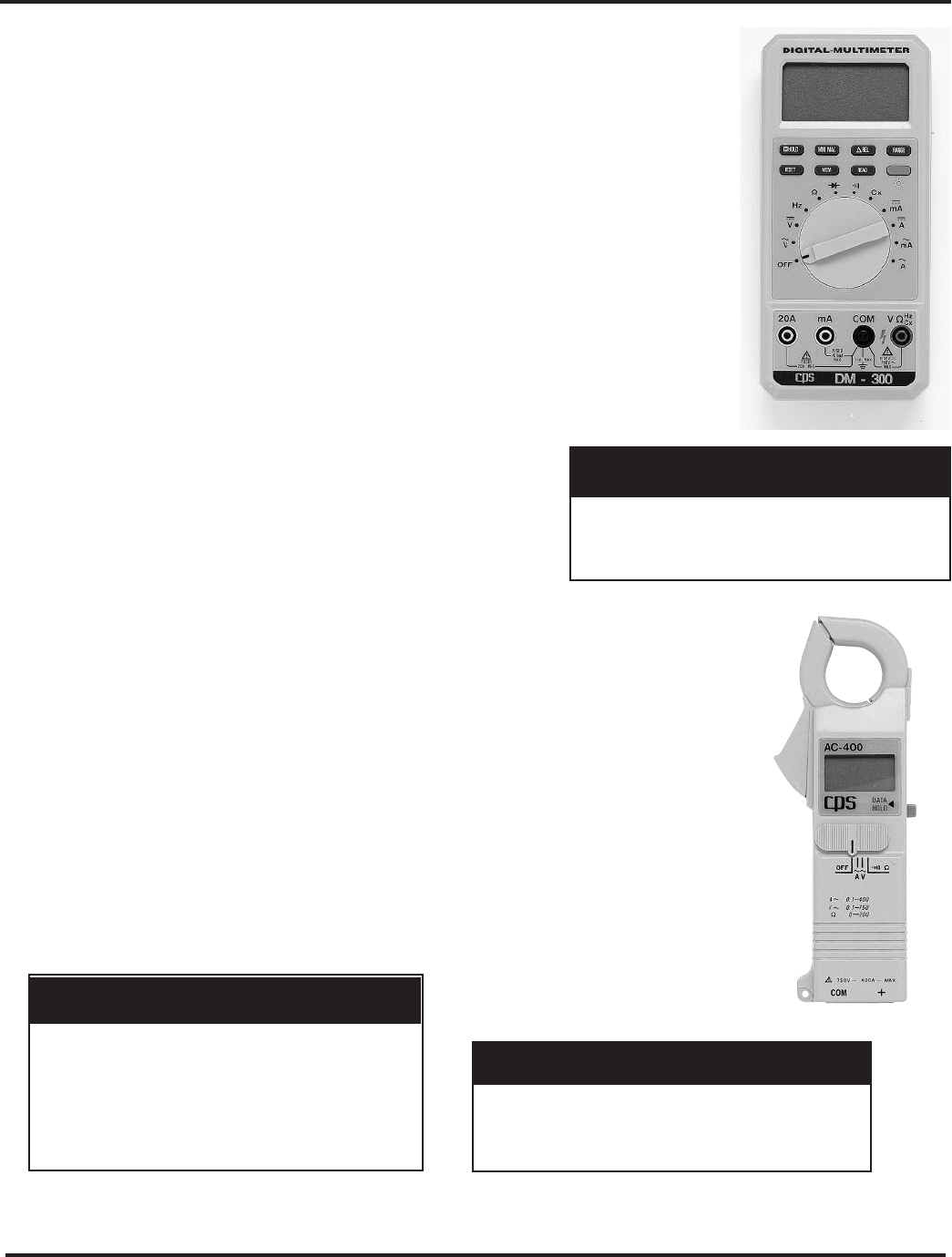

ACCESSORIES FOR: 87-AC400, 87-AC600 & 87-AC610

Part Number Description

87-ACXB4 Batteries (1.55V) for 87-AC400 (2 pk)

87-ACXC4 Carrying Case for 87-AC400

87-ACXC6 Carrying Case for 87-AC600/87-AC610

87-ACXF60 Fuse for 87-AC600

87-ACXOP Ohms Probe 87-AC600

87-ACXP Probe Set for 87-AC610/87-AC400

87-ACXTP Temperature Probe 87-AC600

Tools & Instruments

CPS

87-AC400 Meter

The 87-AC400 is a pocket sized clamp-on meter with full size features. A convenient autoranging

feature automatically selects the correct operating range when the user selects either the ACA or

ACV measurement function. The 3-1/2 digit, 1999 count LCD display incorporates low battery and.

function select indicators. Data Hold Feature stores the present measurement value on the display.

An ACV continuity function is also included in the 87-AC400’s compact design enabling the techni-

cian to check wiring, fuses, conductors, switches, etc. The 87-AC400 is protected to a maximum

range of 800 Vrms/500 Arms.

87-AC400 includes test leads, batteries, carry case, and a drop proof wrist strap.

Best

Function Range Accuracy

VAC 200v - 500V +/- (1.2% rdg + 5 dgts) 40Hz to 500 Hz

ACA 200 - 400A +/- (1.5% rdg + 5 dgts) 50/600 Hz

Continuity Below 600 W

RANGES: 87-AC400

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

CPS87-DM350 Meter

The 87-DM350 incorporates a feature rich design that enables the unit to expand beyond tradi-

tional electrical & HVAC/R service technician’s need, effectively covering all analytical service

measurements.

Autoranging

A convenient autoranging feature automatically selects correct range when the RANGE key is

depressed and the rotary switch is placed on the desired measurement function

(Voltage, Ohms, current, frequency & capacitance).

Rugged Design

The 87-DM350’s has a rugged waterproof outer case, and advanced 600V high energy fuse, which

protects the unit against current surge. A voltage overload system protects to 1100VDC/800VAC.

The unit bears a CE approval and complies with EN-61010-1 1000V CAT111 POLLUTION standards

Display

The 3.75in/85mm LCD incorporates a 42-segment bar graph display for indication of peaks and

nulls. A back light display allows easy viewing in dark areas.

The display incorporates a 4000

count LCD & a battery saving function that automatically turns off the back light after a period of time

Min/Max Memory

Automatically detects & stores the max/min readings during line voltage monitoring.

Relative Reference Mode

Stores a value for comparison against future values.

Data Hold

Stores present reading on the display when the data hold key is depressed.

APPLICATIONS

❉

Measure voltage to determine voltage source, voltage drop and

voltage imbalance

❉

Measure resistance to determine resistance of a load or a conductor,

value of a resistor and test operation of a variable resistor.

❉Measurement of frequency for trouble shooting power sources,

communication equipment and computers.

❉Verify line frequency.

❉Measure capacitance for checking motor run and start capacitors.

87-DM350

ACCESSORIES FOR 87-DM350

Part Number Description

87-DMXL 87-DM350 Test Leads

87-DMXF05 87-DM350 0.5 Amp Fuse

87-DMXF2 87-DM350 20 Amp Fuse

To place your order call 1-800-621-5622; fax 1-800-535-9538

129

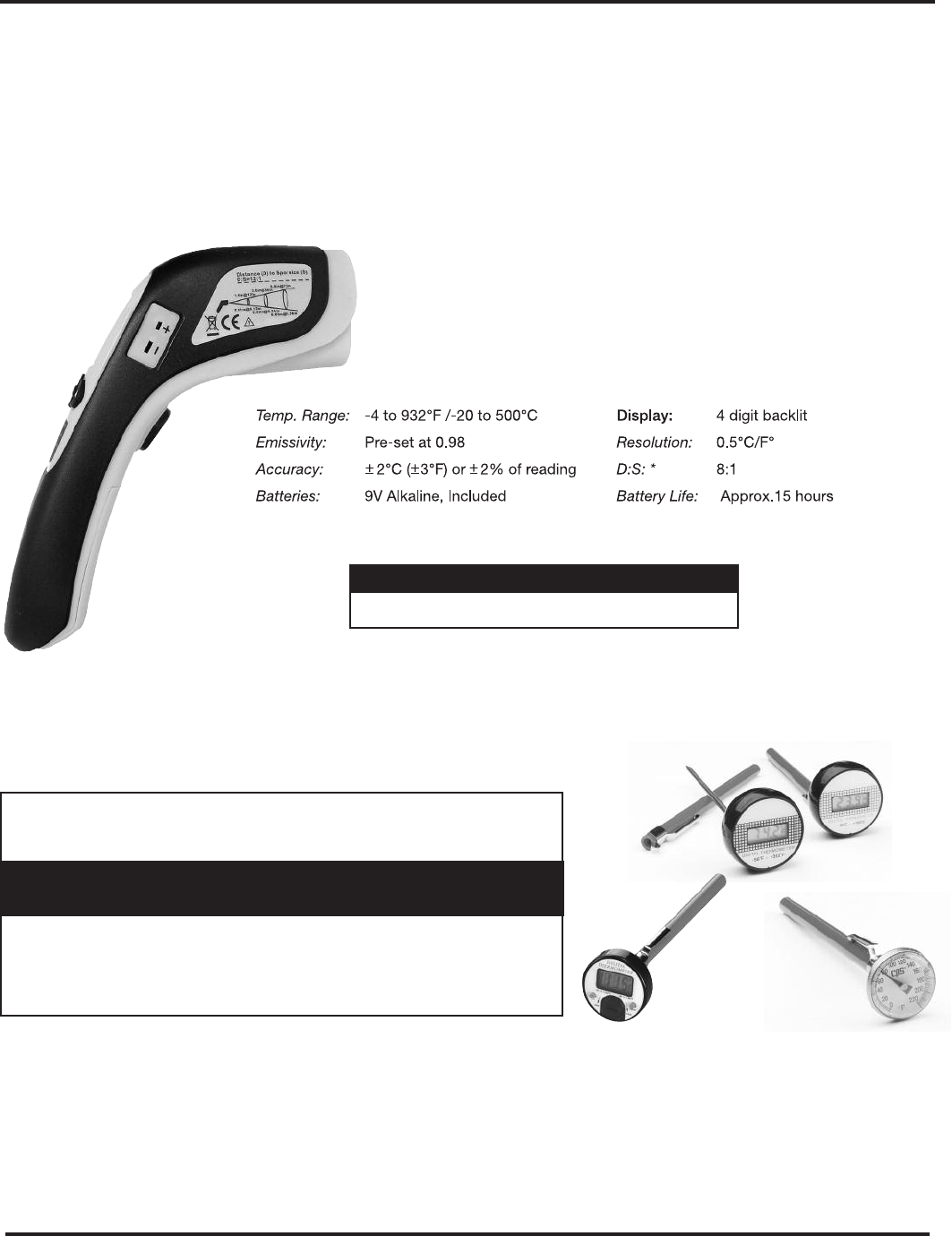

87-TMAP

Pocket Thermometers

Part

Number Range Description

87-TMAP 0 to 220°F CPS Analog Pocket Thermometer

87-TMDP -58 to 302°F CPS Digital Pocket Thermometer

52223-A -58 to 302°F Mastercool Digital Pocket Thermometer

87-TMDP

NOTE: CPS Merchandise (for warranty credit) should be returned directly to CPS using the CPS Warranty

Return Form that can be downloaded from rheemote.net in the PROSTOCK Literature Tab.

52223-A

*Distance to Spot Size

The TMINI infrared thermometer provides instant temperature measurement over a wide

range of applications. The unit offers simple one-handed operation, laser point sighting, a

backlit display, °C/°F select ability and an automatic power off feature. Use the TMINI to

quickly measure temperatures of registers, ductwork, furnaces, evaporator, condensers,

compressors, relays, manifolds radiators, exhaust systems, thermostats, bearings and more.

Leatherette carrying case and 9V alkaline batter are included.

Tools & Instruments

CPS



Infrared Thermometers

Part Number Description

87-TMINI12 Infrared Thermometer

To place your order call 1-800-621-5622; fax 1-800-535-9538

130

Tools & Instruments

875025

Specifications

Probe type: Semiconductor probe

Meas. Range: 0 to +10,000 ppm CH4

Dimensions: 7.5" x 2.2" x 1.7"

Weight: 11 oz.

Battery Type: 9 V

Life: 10 hr.

1st alarm limit: from 200 ppm CH4

2nd alarm limit: 10,000 ppm CH4

875025 Combustible Gas Leak Detector

Testo # 0632-0316 – 316

The practical and rugged Testo 316-1 gas leak detector quickly detects

even the smallest gas leaks.

Features & Benefits

•Flexible measurement probe for hard to reach locations

•Visual and audible alarms signal in proportion to increasing gas

concentration

•TopSafe protective case protects from dirt and impact (optional)

•Rugged, yet lightweight for professional use

•Flexible 10" probe for hard to reach areas

•Battery included

•2 year product warranty

Rheem National Customer Service

Division Office...............................................................334-260-1500

Parts, Customer Service, Warranty ...................................1-800-621-5622

Fax.....................................................................1-800-535-9538

Email...............................................................parts@rheem.com

Technical Service.........................................................1-800-HEATER3

(1-800-432-8373)

Email...........................................................techserv@rheem.com

Website...................................................................www.rheem.com

In keeping with its policy of continuous progress

and product improvement, Rheem reserves the

right to make changes without notice.

National Parts service center

from Rheem

Rheem Sales Company

4744 Island Ford Road

Randleman, NC 27317

www.rheem.com

02/09 PP-101 Rev. 8

7007915_Invitations.qxp Rheem Ruud Water Heater Parts Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
