The Digital Partyline Experience (EN)
PERFORMER
Performer Digital Partyline
The Digital Partyline Experience
The Performer Series provides the world’s rst digital partyline
intercom system, providing 2 and 4-channel master stations,
rack-mount, wall-mount and desktop speaker stations as well as
call light indicators and 2-channel beltpack headset stations. In
addition to pure partyline applications the C44 system interface
makes the Performer series the rst fully integrated ‘digital’
solution for combined digital matrix and partyline intercom. The
Performer product line is completed by the Performer 32 digital
intercom matrix/stage management system, which is aligned
for the requirements of stand-alone broadcast applications,
opera houses and theatres as well as sports and cultural events.

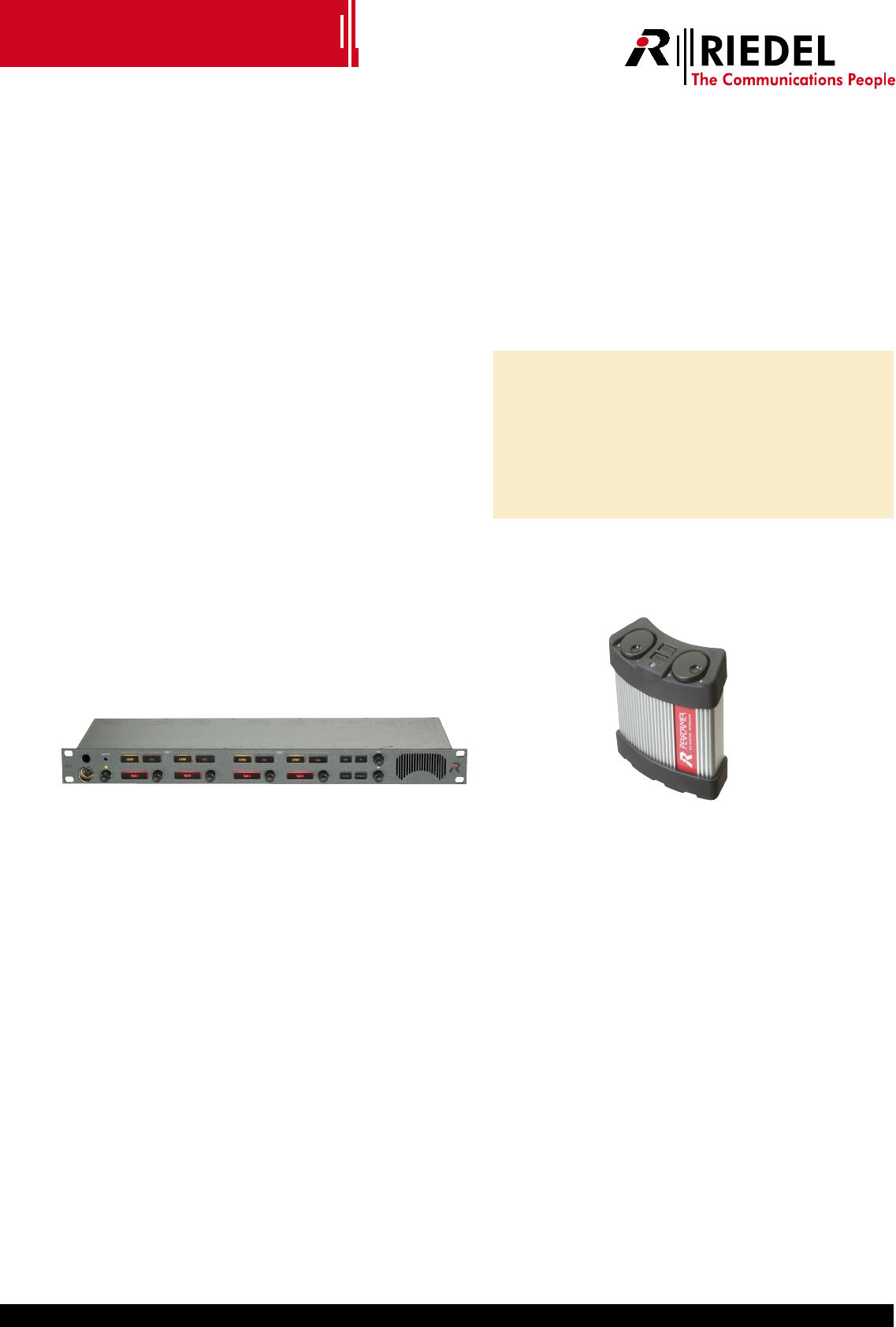

Performer C3 Digital Beltpack / Headset
Station
The Performer C3 is an ergonomically shaped, fully digital 2-
channel beltpack that includes all the standard features from
conventional analogue partyline systems including daisy-chaining.
The beltpack uses high quality digital audio providing noise- and
hum-free signals. Extensive DSP signal processing provides perfect
side tone-nulling and excellent intelligibility in applications with
very high ambient noise levels. The C3 has three XLR connectors,
one for headset, one for signal input and one for signal loop
through, which can also be used as an additional analogue
program input.
Operation is extremely convenient. Two large rotary level controls
on the top of the C3 adjust the listen volumes for CH-A and CH-B.
Pushing on the A or B volume control toggles talk on/off with
momentary/latching operation to the respective channel and
includes talk LED indication. The C3 is easy to congure and
features also a call send button. A bright call light indicates an
incoming call to all daisy-chained Performer devices.
Features:
• High quality digital audio:
no noise, no hum
• Fully digital: audio, DSP,
controls
• Perfect side tone-nulling
• Remote Mic-Kill
Performer CR-4 / CR-2 Master Station
The new Performer master stations CR-4 (4-channel) and CR-2
(2-channel) are the ideal choice for setting up a stand-alone digital
partyline system. Depending on the set-up the integrated power
supply of the 19”/1RU device can power up to 32 Performer
devices such as beltpacks, split-boxes or desktop speaker stations
per line. Additional power-supplies easily expand the possibilities.
The clear user interface offers the user ultimate performance and
exibility. The colour-illuminated buttons are ideal for applications
in operational environments. The remote mic-kill function allows
the user to silence any open microphone on the intercom chan-
nels. The CR-4/CR-2 features an additional program input that
can be mixed individually to each of the intercom channels. Other
features include individual listen volume controls for all partylines,
Call and S-Call, IFB and a stage announce function to use the inter-
com microphone to talk over the PA system. The CR-4/CR-2 can be
operated using a headset or the integrated powerful loudspeaker
with a gooseneck microphone.
• 2-channel intercom
operation plus additional
program sound on XLR
cables
• Real plug-and-play
installation
Performer Digital Partyline
Performer C44plus
System Interface
The C44plus System Interface allows for
seamless integration of digital partylines in
matrix intercom environments. The 19“/1RU
unit converts four two-channel CAT5 matrix
ports to four phantom powered beltpack
lines. The beltpacks are connected to the
C44plus via standard 3 pin XLR cables. Up
to 16 beltpacks can be daisy-chained on
each line, one C44plus can power up to 38
beltpacks. For stand-alone use the device
features an integrated 24x24 ports digital
intercom matrix, which can be congured via
Riedel’s audio assignment software. Pre-
programmed congurations can be loaded via
the DIP-switches on the front.
Full digital interfacing is provided for Artist
and Performer 32 matrix systems. Analogue
4-wire I/Os and GPIs are provided for
interfacing to 3rd party intercom systems. The
C44plus provides short-circuit protection on
each powered line individually. Separate DC
inputs and outputs at the rear of the unit can
be used to provide redundant power.

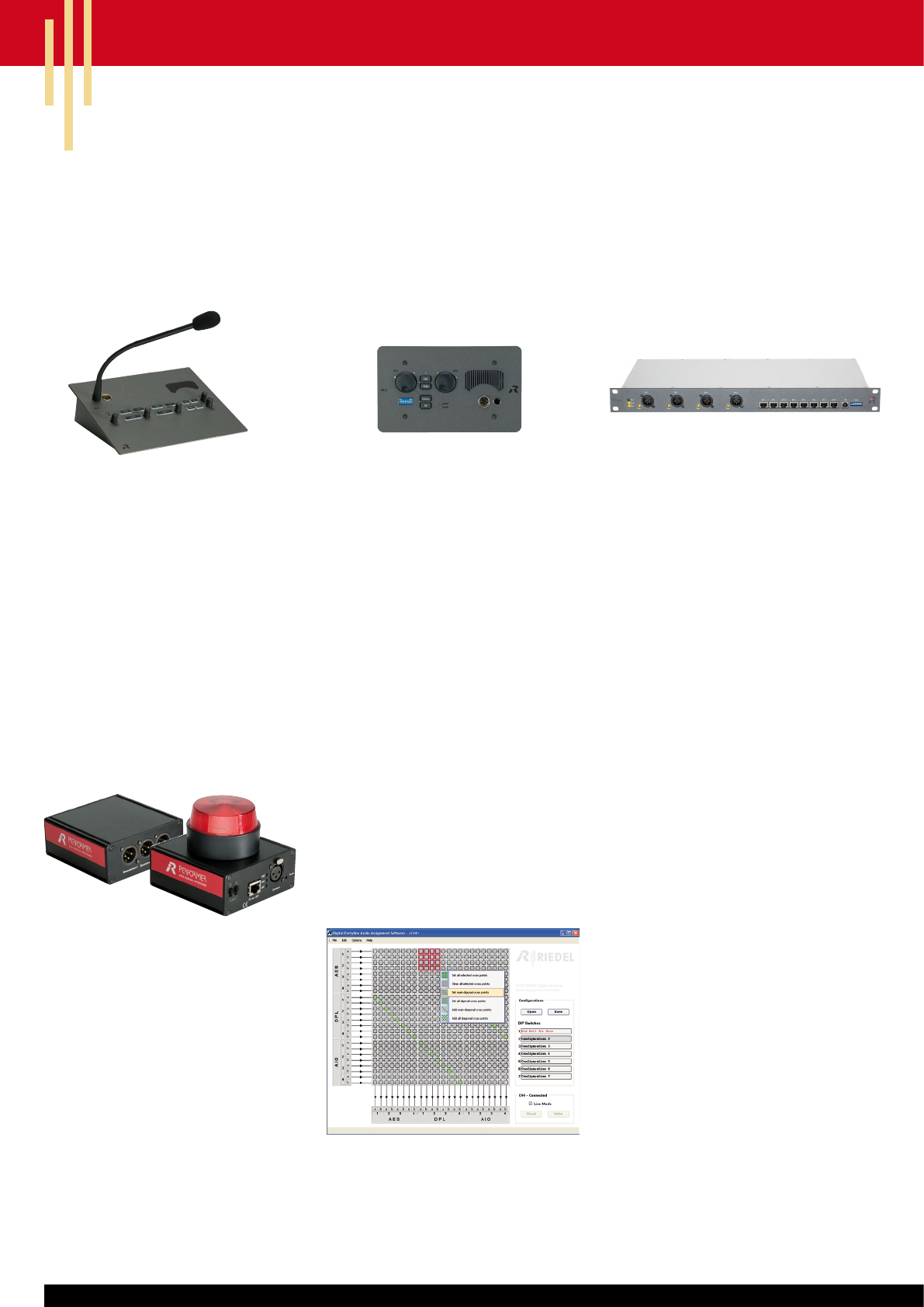

Performer CD-2 Desktop
Speaker / Headset Station
The CD-2 Desktop Speaker/Headset
Station provides the same feature set as
the CR-2 Master Station except for the
internal power-supply. This makes the CD-
2 ideal either for operation as a desktop
speaker station or – in combination with
an external power-supply – as a 2-channel
master station for setting up a stand-alone
digital partyline system.
Performer CW-2 Wall Mount
Speaker / Headset Station
The CW-2 Wall Mount Speaker/Headset
Station comes with a standard 4-gang
outlet box and provides an easy-to-use
2-channel digital intercom panel. The
large rotary level controls combine volume
control and a talk button with momentary/
latching operation. The unit can be
operated using a headset or the integrated
powerful loudspeaker with a microphone.
A call signal LED, Call and S-Call function
complete the feature list. The CW-2 can be
powered from the partyline or via a local
power supply.
Performer C31 Split Box
The C31 Split Box splits one signal input
on XLR3 onto three XLR3 outputs. C31
can be powered by the partyline or with an
external power supply for extra long cable
runs.
Performer CI31 Call Indicator
The CI31 Call Indicator combines a C31
Split Box with a selectable high volume
buzzer and a large ashing lamp to provide
visual and/or audible indication of a “call”.

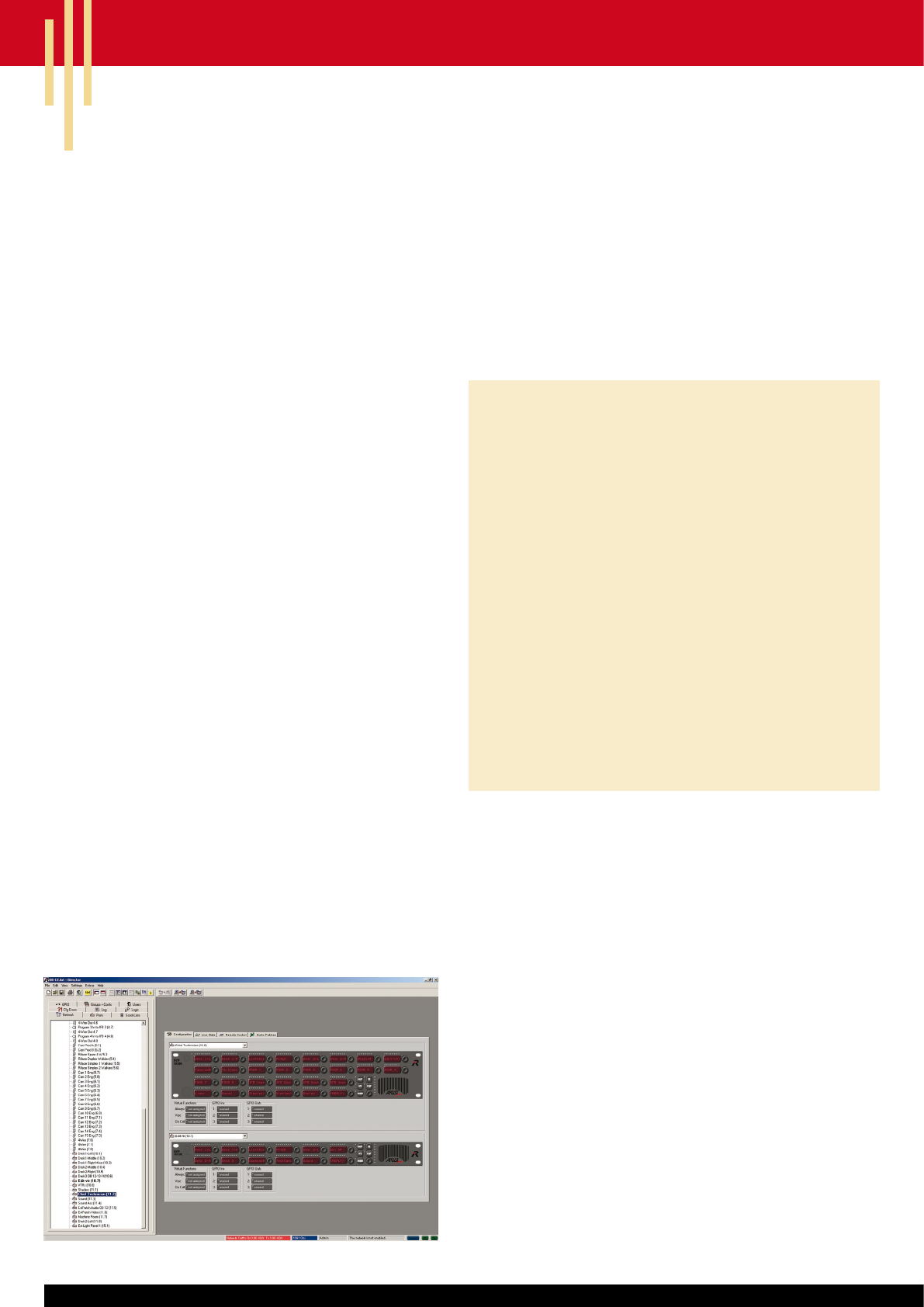

The Performer Audio Assignment Software is an intuitive
tool for editing the settings of eight pre-programmed
congurations of the Performer C44plus System Interface.
This enables the C44plus to serve as the heart of a small
stand-alone intercom solution.
Performer Audio
Assignment Software
* For best results balanced cables with 110 Ohms specic impedance are recommended.
If the specic impedance is different the maximum achievable distance may vary.
C3 / C3-SE CR-4 / CR-2 CD-2 CW-2 C31 / CI31 C44plus
Microphone Preamp:
Mic input impedance 1 kOhm 1.6 kOhm 1.6 kOhm 1 kOhm
Dynamic mic input level > -52 dBu @ 1 kHz > -52 dBu @ 1 kHz > -52 dBu @ 1 kHz > -52 dBu @ 1 kHz
Electret mic input level > -38 dBu @ 1 kHz > -38 dBu @ 1 kHz > -38 dBu @ 1 kHz > -38 dBu @ 1 kHz
Frequency response 80 Hz to 12 kHz, ± 3 dB 80 Hz to 12 kHz, ± 3 dB 80 Hz to 12 kHz, ± 3 dB 80 Hz to 12 kHz, ± 3 dB
Headphone Amplier:
Load impedance 32 – 600 Ohms 24 – 600 Ohms 24 – 600 Ohms 32 – 600 Ohms
Max. output level 12 Volts peak-to-peak 14 Volts peak-to-peak 14 Volts peak-to-peak 12 Volts peak-to-peak
Max. output power 255 mW / 600 Ohms 300 mW / 600 Ohms 300 mW / 600 Ohms 255 mW / 600 Ohms
Frequency response 20 Hz to 12 kHz, ± 3 dB 80 Hz to 12 kHz, ± 3 dB 80 Hz to 12 kHz, ± 3 dB 20 Hz to 12 kHz, ± 3 dB
Signal-to-noise-ratio > 80 dB (A) > 82 dB (A) > 82 dB (A) > 80 dB (A)
Headset connector
(XLR4M)
1x
(C3-SE: 1x XLR5M) 2x 2x 1x
Power Supply:
Output voltage +48V DC ± 5% with optional C31 PS with optional C31 PS with optional C31 PS +48V DC ± 5%
Output current 2 A max. total 3 A max.total
Short circuit protection per individual line per individual line
Short circuit reset time 500 ms 500 ms
Power requirements 36 – 48 V DC 85 – 265 V AC /
47 – 63 Hz 36 – 48 V DC 36 – 48 V DC 36 – 48 V DC 85 – 265 V AC /
47 – 63 Hz
Power consumption 22mA/50mA @ 48 V 120 VA (CR-4) /
85 VA (CR-2) 220mA @ 48 V 180mA @ 48 V 22mA @ 48 V 170 VA with full load
(38 x C3)
Max. Distance / Cable Type:
Cable type C44 to matrix CAT5 FTP, 4x2 AWG24
Cable type Partyline XLR cable*XLR cable*XLR cable*XLR cable*XLR cable*XLR cable*
Between any two
Performer devices up to 300 m (1000 ft)*up to 300 m (1000 ft)*up to 300 m (1000 ft)*up to 300 m (1000 ft)*up to 300 m (1000 ft)*up to 300 m (1000 ft)*
Max. partyline length up to 2.5 km (1.5 miles)*up to 2.5 km (1.5 miles)*up to 2.5 km (1.5 miles)*up to 2.5 km
(1.5 miles)* up to 2.5 km (1.5 miles)*2.5 km (1.5 miles)*
Dimensions:
H x W x D 140 x 120 x 39 mm 44 (1 RU) x 483 x
190 mm 75 x 255 x 222 mm 134 x 223 x 44 mm 44 x 105 x 111 mm /
94 x 105 x 111 mm
44 (1 RU) x 483 x
250 mm
Mass 450 g (0,99 lb) 2880 g (6.35 lb) /
2600 g (5.73 lb) 1600 g (3.53 lb) 1020 g (2.25 lb) 370 g (0.81 lb) /
470 g (1.04 lb) 3500 g (7.72 lb)
Specications Performer Digital Partyline
Light signal
8x 4-wire analogue I/O
Performer C44
System Interface
PC for system configuration
and monitoring
Acrobat
Digital Wireless Intercom
GPI/O Relay Card
Performer 32
Utilized (load) relay contacts
Light signals with voltage interpretation
SIDETONE
SIDETONE
SIDETONE
SIDETONE
PSU
CW-2 CW-2
CW-2
CD-2
CR-4
AUX out
CR-2
CR-2
Performer
C3 Digital
Beltpack
Performer
C31 Split Box
AUX in
Stage
Announcement out
Program in
GPI/O
SIDETONE
CD-2
Artist 5000/5100 Panels
Artist 2000/2100 Panels
- VoIP
RiFace G2
Basic Set-up Matrix Integrated Set-up
Master Station Set-up
System Overview

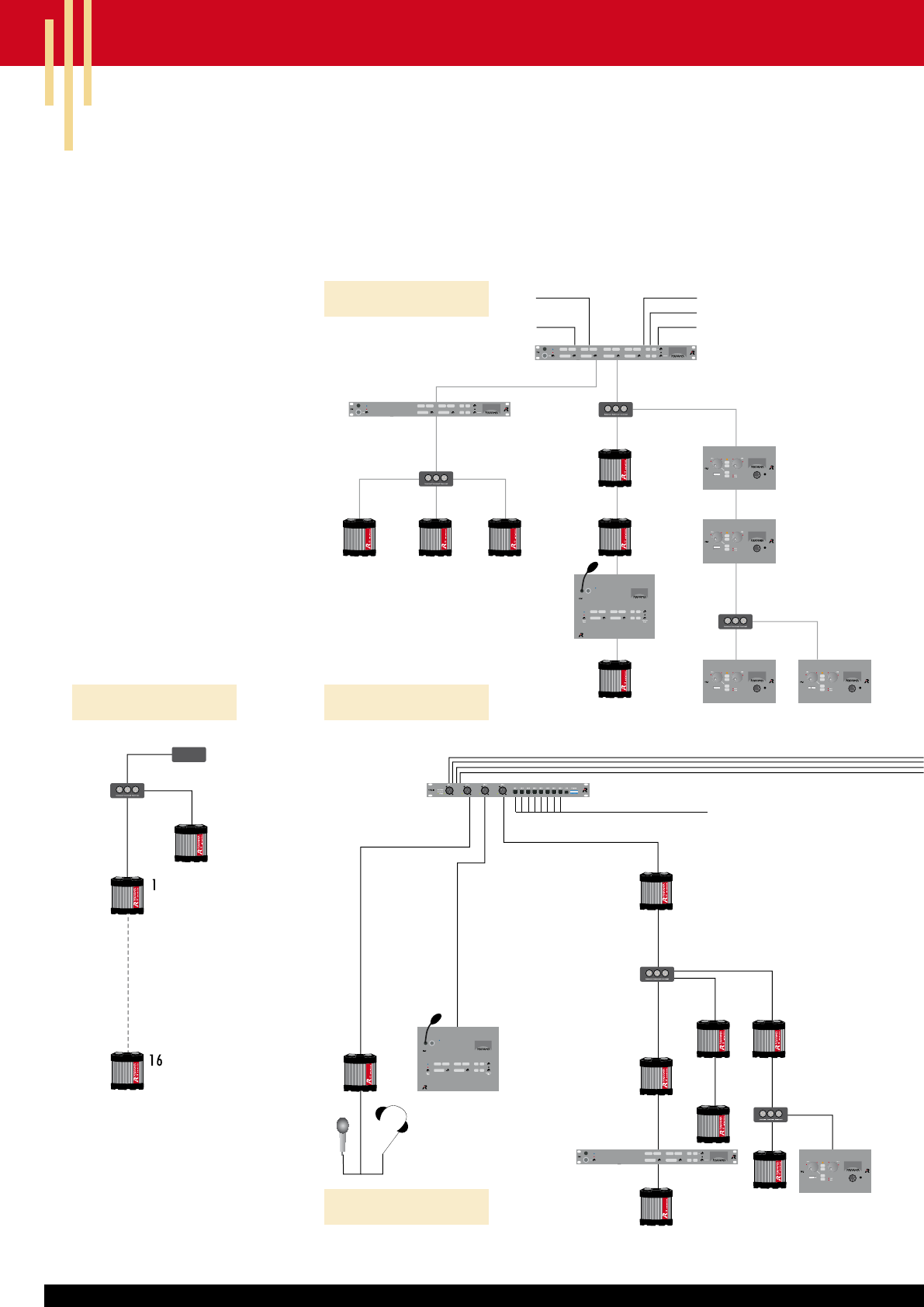

The Performer series are a fl exible and
powerful system to meet your speci c
communications needs. The set-up of
distributed partylines can be easily
adjusted to meet any requirement nally
providing digital audio quality on a
beltpack.
Whether used in stand-alone partyline
applications or integrated with a digital
matrix intercom system: The Performer
product line is always the ideal choice for
demanding customers in broadcast, opera
houses and theatres as well as sports and
cultural events.
Kommentator Set-up
Light signal
8x 4-wire analogue I/O
Performer C44
System Interface
PC for system configuration
and monitoring
Acrobat
Digital Wireless Intercom
GPI/O Relay Card
Performer 32
Utilized (load) relay contacts
Light signals with voltage interpretation
SIDETONE
SIDETONE
SIDETONE
SIDETONE
PSU
CW-2 CW-2
CW-2
CD-2
CR-4
AUX out
CR-2
CR-2
Performer
C3 Digital
Beltpack
Performer
C31 Split Box
AUX in
Stage
Announcement out
Program in
GPI/O
SIDETONE
CD-2
Artist 5000/5100 Panels
Artist 2000/2100 Panels
- VoIP
RiFace G2
Performer 32 Matrix System
Performer 32 is a powerful and cost-effective digital intercom
matrix/stage management system, which is aligned for the
requirements of stand-alone broadcast applications, opera
houses and theatres as well as sports and cultural events. The
system is based on a modular concept and can be adapted to
the individual requirements of the users.
The successor to the legendary Riedel Compact System is
available in two sizes and can be modularly equipped. Both
versions can realize 32 user matrices. In addition to the client
cards the compact systems also offer up to 16 (Performer 32+16)
respectively 80 (Performer 32+80) relay switches for the control of
intermission signs, cue lights and special effects.
Performer 32 systems are the ideal integration platform for diverse
audio and communications sources. Versatile interface solutions
allow seamless integration of digital and analogue partylines,
radios, audio routers, telephones as well as other analogue and
digital systems. Combined with the digital partyline interface C44,
the Performer line for the rst time offers a completely integrated
solution for the combination of matrix systems and conventional
partyline applications. The conguration of the partylines is
realized with the same conguration software and is therefore
totally integrated into the matrix environment.
Performer 32 at a glance
• Modular expansion from 8 x 8 up to 32 x 32 ports
• Broadcast quality audio (AES3/EBU) throughout the
entire system
• Digital connection to the panels via COAX, CAT5 or bre
• Redundant power supply, all modules hot-swappable
• Intuitive conguration software
• Individual volume control for each cross-point
(1000 & 2000 series panels)
• Secure long-term investment made in Germany
Applications
• Stand-alone Broadcast Applications
• Theatres
• Sport & Cultural Events
• Exhibition and Convention Centres
• Stadiums & Theme parks
Director 32 – Intuitive Conguration Software
The intuitive and user friendly conguration software Director 32
allows for simple conguration and control of Performer intercom/
stage management systems.
Director 32 offers the familiar look & feel of Windows software.
The programming is not only easy to learn, but also intuitive
and efcient. Congurations are simply set via “drag & drop”.
Programmable logic-functions allow simple realisation of complex
production processes.

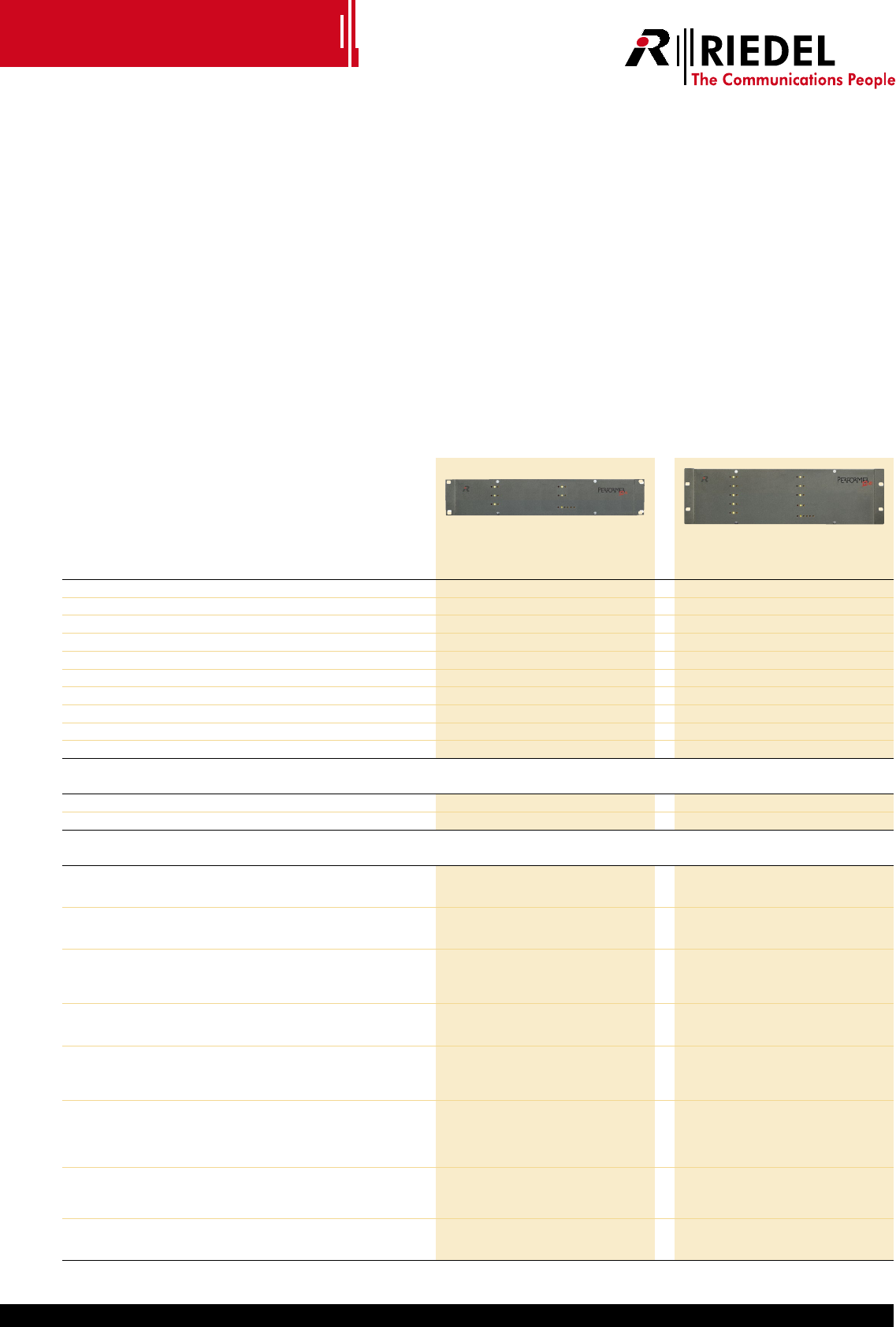

Digital Matrix Intercom /
Stage Management System
Performer 32+16 Performer 32+80
Features
Maximum matrix size 32 x 32 32 x 32
DSP at every I/O for audio signal processing yes yes
VOX at every port yes yes
Hot swap of all modules yes yes
Redundant power supplies yes yes
Intuitive conguration software Director 32 Director 32
Max. ports per frame 32 32
Max. number of controller / client / GPI cards per frame 1 / 4* / 1 1 / 4* / 5
External sync (AES3 / Word Clock) optional optional
Alarm signalisation (Hardware/Director) yes / yes yes / yes
System Components
Mainframes MFR-32+16 (19”/2RU) MFR-32+80 (19”/3RU)
Controller cards CPU-032 CPU-032
Client Cards
Digital Client Card Coax
8 digital control key-panel ports on individual 75Ω BNC connectors for connection
of Artist control key-panels using coax cable
COX-008 COX-008
Digital Client Card CAT5
8 digital control key-panel ports on individual RJ-45 connectors for connection of
Artist control key-panels using CAT5 computer cable
CAT-008 CAT-008
Analogue Client Card
8 transformer balanced analogue 4-wire intercom ports (+6dB in/out) on individual
RJ-45 for connection to equipment such as studio loudspeakers, RiFace wireless
base station, cameras, 4-wire leased landlines, telephone hybrids etc.
AIO-008
(AIO-009)
AIO-008
(AIO-009)
Digital Client Card AES
Digital audio I/O-card (4x AES3) on RJ-45 for connection to digital mixing consoles,
routers, multitracks, etc.
AES-008 AES-008
GPI / relay card
16 potential free change-over contacts (contact load 2A/24V =~or 50W/100V ELA)
as well as 16 optical inputs (+5V to +48V); for input of red-light signals, activation of
radio transmitters, triggering of stage effects, etc. connector type: SubD 37
ELA-OP-016 ELA-OP-016
GPI / relay card
16 single fused change-over contacts with voltage interpretation for lighting signals
(contact load 2A/24V =~ ) as well as 16 optical inputs (+5V to +48 V); for input of
red-light signals, activation of radio transmitters, triggering of stage effects, etc.
connector type: SubD37
LI-OP-016 LI-OP-016
8 Channel MADI Client Card
Cascadable to 64 channels on one MADI stream. Includes audio & panel data to
remote panels or connect multi-channel audio to audio routers. Optical & Coax
MADI links are supported.
MADI-008 MADI-008
8 Channel VoIP Client Card
Converts 8 Artist control key-panel ports into a compressed IP-stream and vice
versa, SIP-based, RJ45 connector
VOIP-008 VOIP-008
* Client Card Slots also support GPI / relay cards

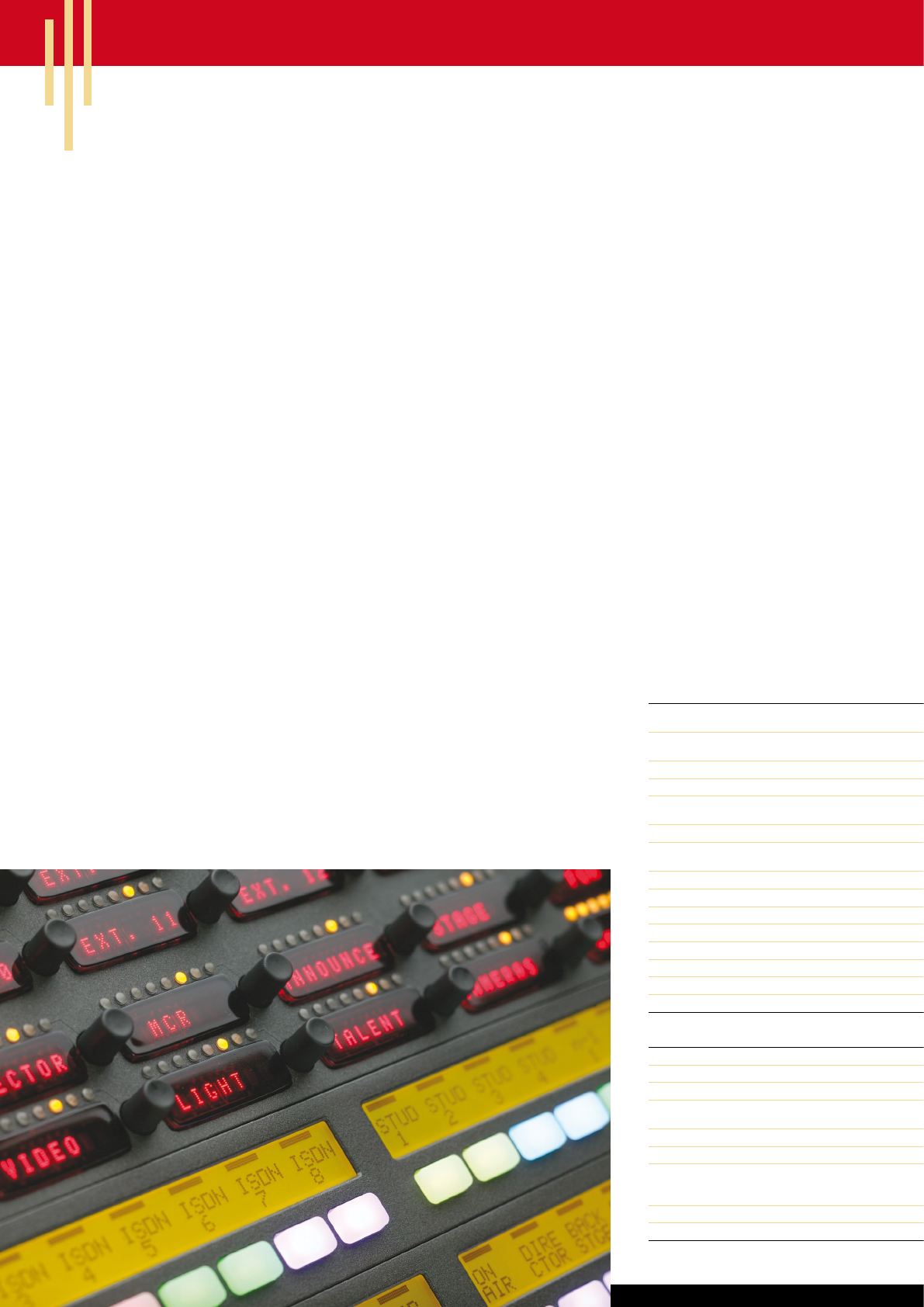

Control Key-Panels
Performer 32 matrix systems are compatible with all Artist
control panels. Whether you make your decision for the 1000
LED series, the 2000 LCD series, the 3000 series or the 5000
series: You can be sure to get easy-to-operate, high-tech control
panels with broadcast quality audio, minimum dimensions and
outstanding design made by quality German manufacturing.
Artist 1000 LED-Panels
The 1000 Series are the premium control key-panels from Riedel
and are available in 19“ rack-mount, desktop and modular (Danner)
versions. All control key-panels feature bright, dimmable 8-digit
alpha numeric LED displays, individual rotary encoder for listen
level control and LED level indication for each talk key. A special
alphanumeric 8-digit LED display key has been developed which
allows clear labelling of destinations and excellent readability under
all lighting conditions. These exclusive display keys are used on all
1000 Series control and expansion key-panels resulting in an ultra-
compact design. 3 GPIs and 3 GPOs are available for system-wide
programming as standard. Two sets of balanced line level audio
inputs and outputs are also provided as standard.
Easy-to-operate Control Key-Panels
Artist 2000/2100 LCD-Panels
The Riedel 2000 Series control key-panels fulll all requirements of
high-quality versatile and economical intercom control key-panels. The
2000 Series are available in 1RU rack mount and desktop versions.
They feature 8-digit, high-contrast, full graphic LCD displays, showing
label and cross-point level for each talk key.
Each talk key has individual listen level control and LCD level
indication. All control key-panels are equipped with a “shift”-page,
essentially doubling up the number of keys. Up to three expansion
panels can be daisy-chained to the 19” rack-mount control key-panels
providing up to 128 control keys with displays. The 2100 models
feature additional audio inputs/outputs and GPIs.
Artist 1000
LED-Panels
Artist 2000/2100
LCD-Panels
Artist 3000
Panels
Artist 5000/5100
Panels
Features
Display type exclusive 8 character LED in-key display 8 character LCD display marker stripes marker stripes
(5100 series: 8 character LCD display)
Key type exclusive key with integrated display push-button with illuminated colour
indication
push-button with illuminated colour
indication
push-button with illuminated color
indication
Support of horizontal and vertical mode yes yes yes no
Cross-point level indication for each key yes (LED) yes (LCD) no no
Individual listen level / on-off controls for each key yes / yes (individual rotary control for
each key) yes / yes no / no no / no
Shift-page to double the keys yes yes no 5000: no / 5100: yes
Function keys for fast operation headset/panel mic, shift-page,
normalisation, options, beep
mute, shift-page, normalisation, options,
beep, cross-point, scroll
Digital connection to matrix CAT5 / Coax / Fibre (optional) CAT5 / Coax / Fibre (optional) CAT5 / Coax / Fibre (optional) CAT5 / Coax & Fibre (optional)
Balanced analogue line level inputs / outputs 2x / 2x no / no (2100 series: 2x / 2x) no / no no / no
GPI opto-inputs / relay outputs on DB9 connectors 3x / 3x no / no (2100 series: 3x / 3x) no / no no / no
Removable gooseneck microphone yes yes yes xed gooseneck microphone
Front headset on 4-pin XLR yes yes yes yes
Optional external Microphone / Speaker yes / yes no / no (2100 Serie: yes / yes) no / no no / no
Built-in loudspeaker yes yes yes yes
Integrated power supply yes yes yes yes
Modelle
Rack-mount RCP-1012E; 12 keys; 19“/1RU RCP-2016P4; 16 keys; 19“/1RU RCP-3016P4; 16 keys; 19“/1RU
RCP-1028E; 28 keys; 19“/2RU RCP-2116P4; 16 keys; 19“/1RU ECP-3016P; 16 keys expansion; 19“/1RU
ECP-1016E; 16 keys expansion; 19“/1RU ECP-2016P; 16 keys expansion; 19“/1RU
ECP-1012ET: 12 keys expansion with
keypad; 19″/1HE
ECP-2016PT; 16 keys expansion with
keypad; 19“/1RU
Desktop DCP-1016E; 16 keys DCP-2016P4; 16 keys DCP-3016P4; 16 keys DCP-5008; 8 keys/2RU
DCP-2116P4; 16 keys DCP-5108; 8 keys/2RU
Modular (Danner)
DIF-1000 / DPS-1000
Modular Panel Interface / Power Supply;
19“/1RU
(Universal enclosure for rack-mount,
desktop & wall-mount operation)
DBM-1004E; 4 keys Base Module
DEM-1006E; 6 keys Expansion Module
Artist 3000 Panels
The Artist 3000 control key-panels are the cost-effective entry
to the Performer matrix platform. Fullling all requirements of
a versatile intercom control key-panel the panels comprise the
2000 Series illuminated colour indication of the push-buttons and
provide marker stripes for easy labelling of the keys.
Artist 5000/5100 Panels
The Artist 5000 panel series is a very cost-effective matrix
intercom solution designed to meet the demands of all intercom
markets. It provides the full functionality of Riedel’s digital matrix
intercom panels at an unbeatable entry-price level. The 5100
models feature an 8 character, high-contrast LCD display while the
5000 models provide marker stripes for easy labelling of the keys.
The universal enclosure makes the panel suitable for rack-mount,
wall-mount and desktop operation.

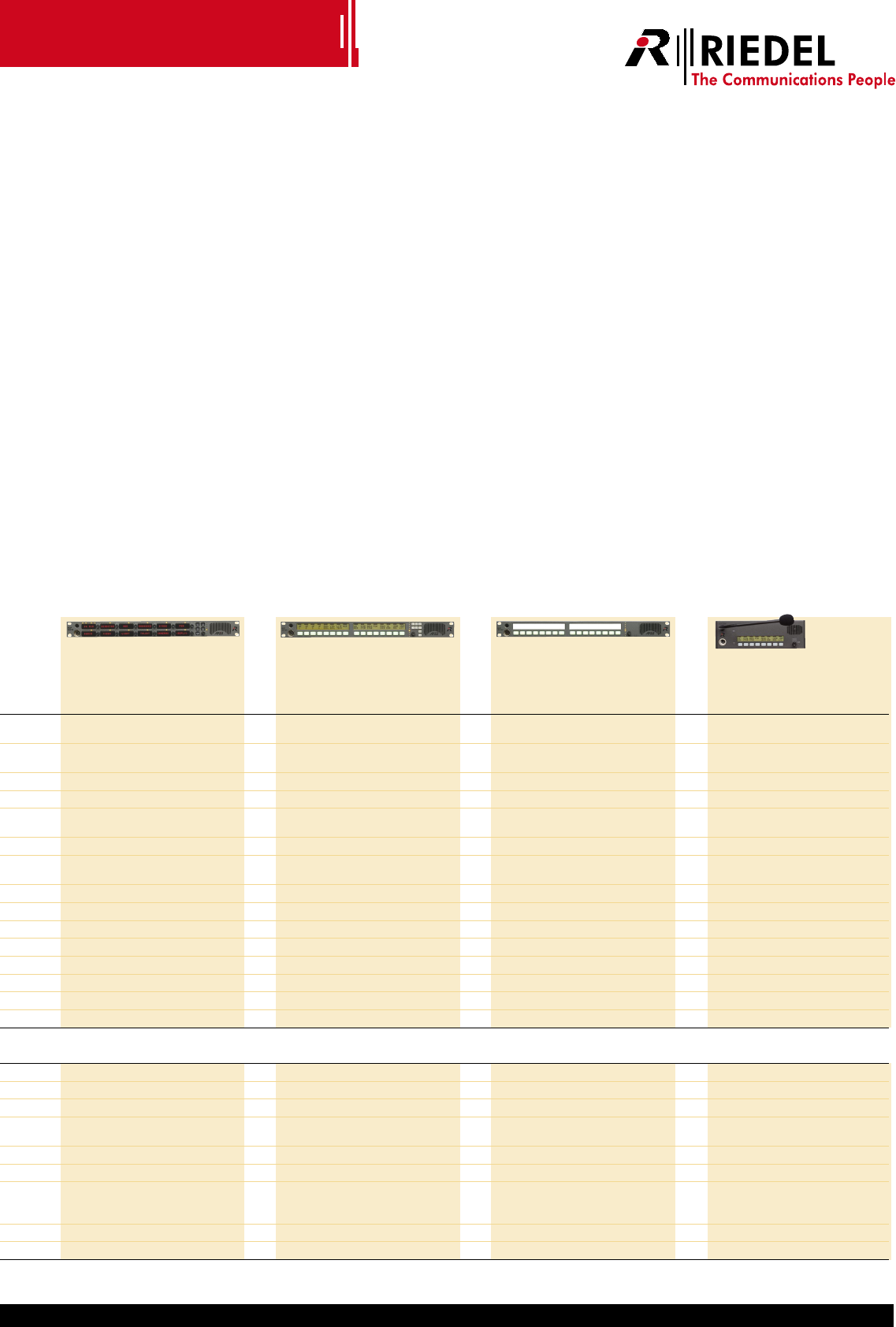

Artist 1000
LED-Panels
Artist 2000/2100
LCD-Panels
Artist 3000
Panels
Artist 5000/5100
Panels
Features
Display type exclusive 8 character LED in-key display 8 character LCD display marker stripes marker stripes
(5100 series: 8 character LCD display)
Key type exclusive key with integrated display push-button with illuminated colour
indication
push-button with illuminated colour
indication
push-button with illuminated color
indication
Support of horizontal and vertical mode yes yes yes no
Cross-point level indication for each key yes (LED) yes (LCD) no no
Individual listen level / on-off controls for each key yes / yes (individual rotary control for
each key) yes / yes no / no no / no
Shift-page to double the keys yes yes no 5000: no / 5100: yes
Function keys for fast operation headset/panel mic, shift-page,
normalisation, options, beep
mute, shift-page, normalisation, options,
beep, cross-point, scroll
Digital connection to matrix CAT5 / Coax / Fibre (optional) CAT5 / Coax / Fibre (optional) CAT5 / Coax / Fibre (optional) CAT5 / Coax & Fibre (optional)
Balanced analogue line level inputs / outputs 2x / 2x no / no (2100 series: 2x / 2x) no / no no / no
GPI opto-inputs / relay outputs on DB9 connectors 3x / 3x no / no (2100 series: 3x / 3x) no / no no / no
Removable gooseneck microphone yes yes yes xed gooseneck microphone
Front headset on 4-pin XLR yes yes yes yes
Optional external Microphone / Speaker yes / yes no / no (2100 Serie: yes / yes) no / no no / no
Built-in loudspeaker yes yes yes yes
Integrated power supply yes yes yes yes
Modelle
Rack-mount RCP-1012E; 12 keys; 19“/1RU RCP-2016P4; 16 keys; 19“/1RU RCP-3016P4; 16 keys; 19“/1RU
RCP-1028E; 28 keys; 19“/2RU RCP-2116P4; 16 keys; 19“/1RU ECP-3016P; 16 keys expansion; 19“/1RU
ECP-1016E; 16 keys expansion; 19“/1RU ECP-2016P; 16 keys expansion; 19“/1RU
ECP-1012ET: 12 keys expansion with
keypad; 19″/1HE
ECP-2016PT; 16 keys expansion with
keypad; 19“/1RU
Desktop DCP-1016E; 16 keys DCP-2016P4; 16 keys DCP-3016P4; 16 keys DCP-5008; 8 keys/2RU
DCP-2116P4; 16 keys DCP-5108; 8 keys/2RU
Modular (Danner)
DIF-1000 / DPS-1000
Modular Panel Interface / Power Supply;
19“/1RU
(Universal enclosure for rack-mount,
desktop & wall-mount operation)
DBM-1004E; 4 keys Base Module
DEM-1006E; 6 keys Expansion Module

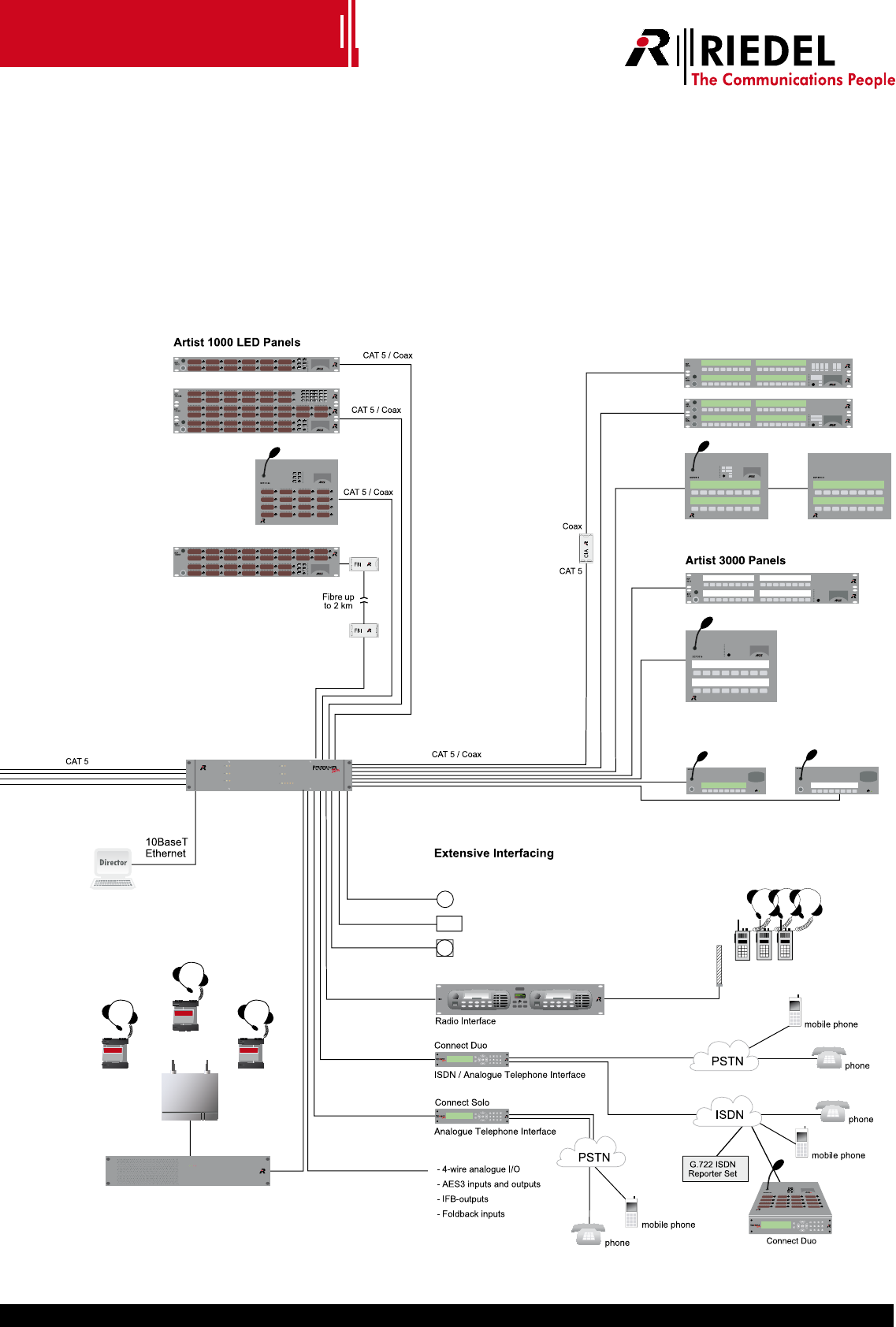

Interfaces
The Performer platform is an open world of communications.
Distinct interface solutions let you communicate with telephones,
digital and analogue partylines, camera intercoms, 2-way radios
and other analogue and digital systems.
Extensive Interfacing

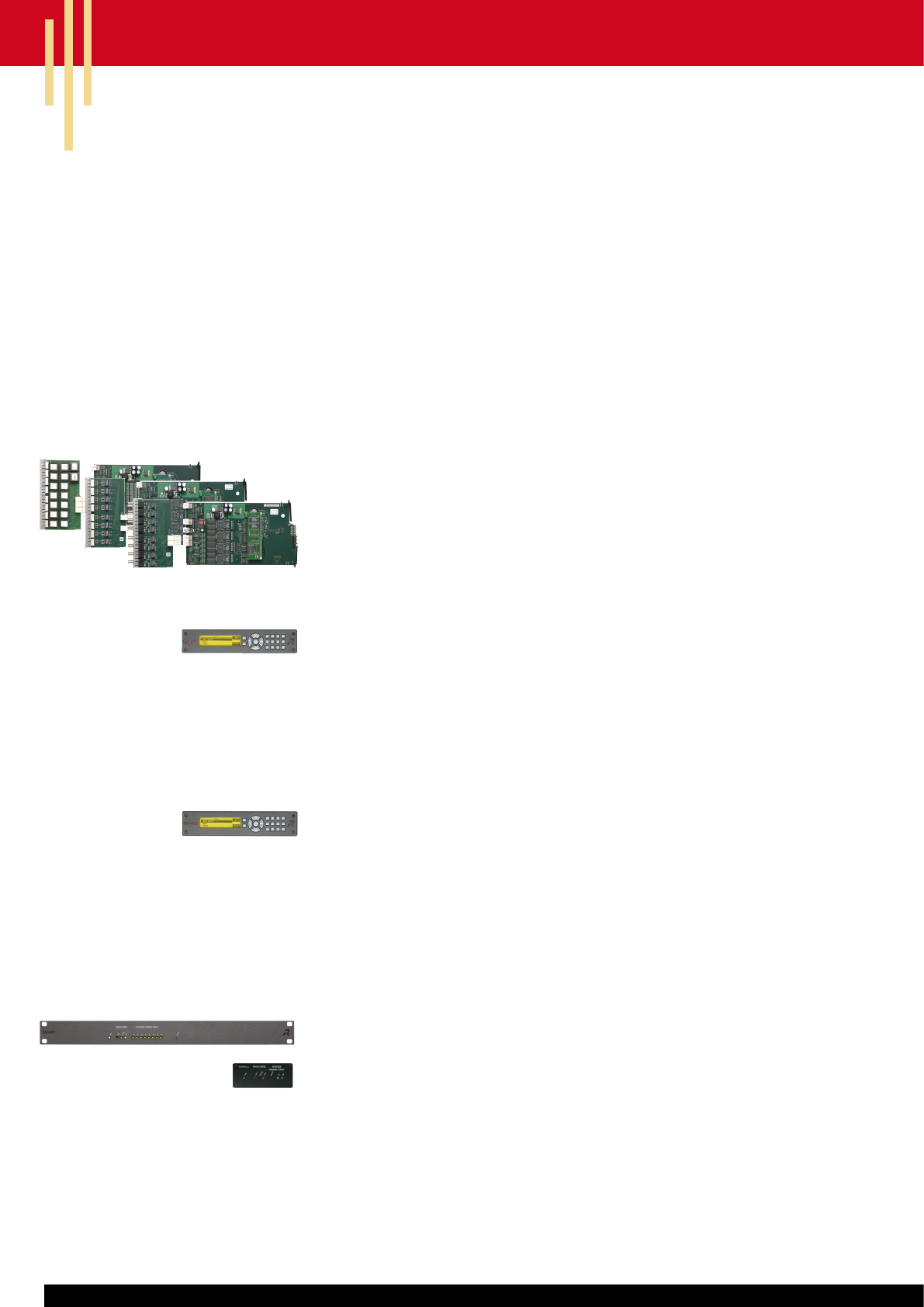

Client Card’s Standard Interfaces
• Analogue 4-wire I/O
• AES3 I/O
• GPI / relay
• MADI
• VoIP
Connect Solo
Intelligent and seamless interfacing to the outside world is the key to success in many
intercom applications. Connect Solo is the only device you need for hassle-free connection of
intercom systems to PSTN public telephone networks. Combining two independent analogue
POTS telephone hybrids in just one halfrack/1RU unit, the compact system is designed for
easy installation in studio and mobile applications. The device can be used stand-alone or
integrated with an intercom system.
Connect Duo
Connect Duo interfaces your intercom system to ISDN (European protocol) and PSTN public
telephone networks. It combines an ISDN S0 interface and an analogue POTS telephone
hybrid in one halfrack/1RU device and enables you to dial, make and receive calls to and from
any PSTN, ISDN or mobile phone as well as G.722 reporter codecs. Since the unit can trans-
mit and receive two separate audio channels over one single S0 interface it allows connec-
tions to two separate destinations to be established. When used with Artist intercom systems
you can even remotely control panels via ISDN.
Connect IPx8 / Connect IPx2
Connect IPx8 provides high quality audio-over-IP interfacing for intercom systems. The
19”/1RU unit (IPx2: ¼ 19“/1RU) is designed to connect up to eight (IPx2: two) Artist control
panels or audio lines to the Artist VOIP108-G2 matrix client card via IP based networks. The
SIP-based interfaces convert AES3- or analogue signals into compressed IP data and vice
versa. Connect IPx8 can be congured to your individual bandwidth needs, always providing
an unmatched combination of audio quality and low network trafc. The panel interface
awlessly connects any Artist 1100, 1000, 2000, 3000 or 5000 series control panel with full
functionality to Artist matrices via IP-networks.
RiFace G2 – Universal Radio Interface

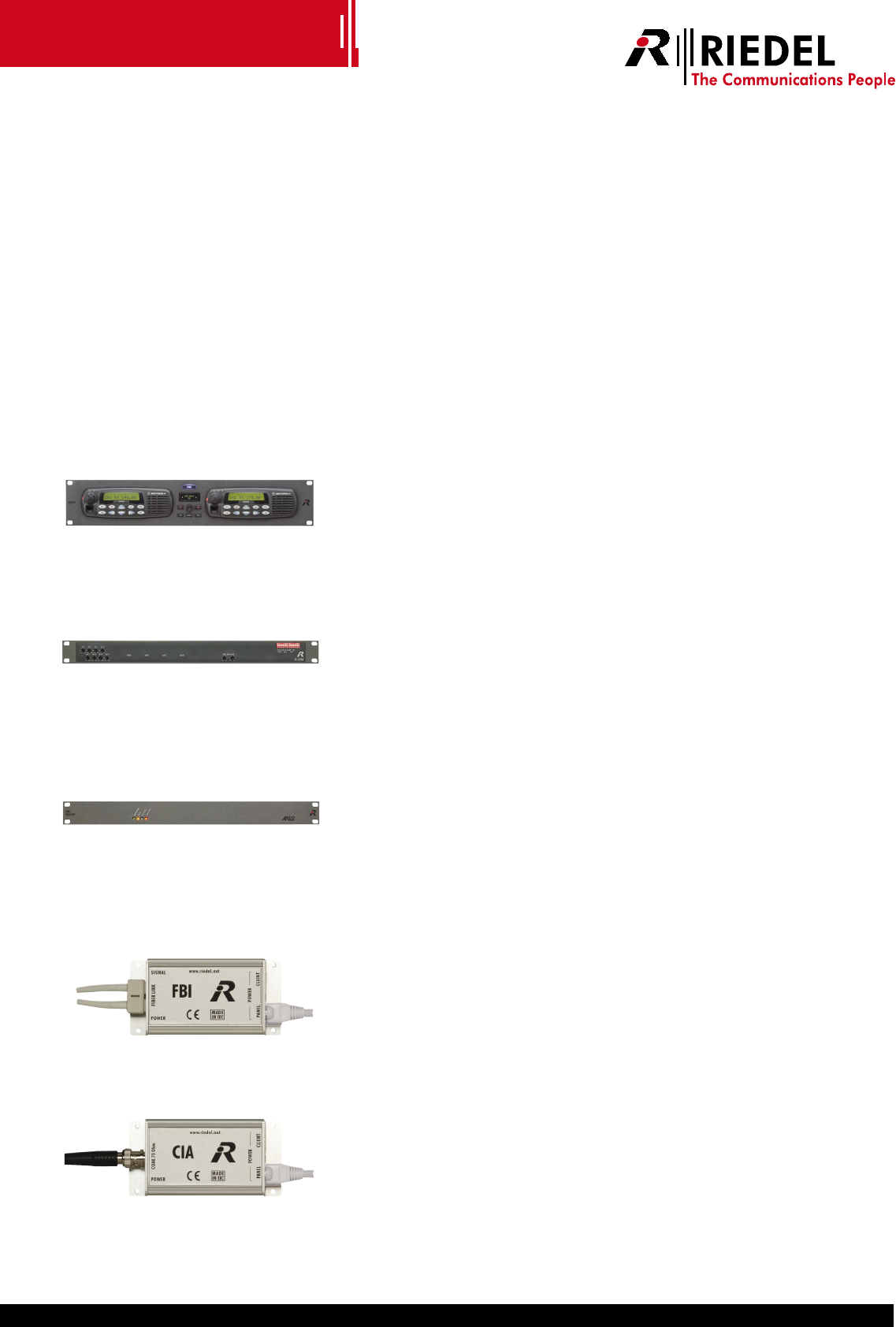

The RiFace G2 is a universal radio interface to connect wired communication systems with
walkie-talkie radio systems or stand-alone as a repeater. The 19”/2RU interface includes
one or two two-way radios (user provided), processor logic to control the radios, DSP-
Presets as well as circuitry to adjust the levels of the various audio sources. Set-up and
operation is fast and easy.
IF-2104 – 2/4-Wire Interface
The 19“/1 RU 4-channel 2/4-wire interface IF-2104 converts four party line channels to
transformer balanced audio inputs and outputs (4-wire) on individual XLR-connectors. The
2/4-wire hybrid features automatic nulling. The interface detects the GPI-CALL and switches
built in relays to activate paging systems, radio equipment or other external devices.
PMX-2004 SFP – Panel Multiplexer
The PMX-Series panel multiplexers are used to remote up to four (PMX-2008: eight)
intercom panels from the Performer 32 matrix using a bre link. Depending on the SFP
modul (SM/MM) the system allows operation of a group of intercom panels over a distance
of up to 500 m (1,600 ft) or 2 km (1.2 miles) in a cost-effective way while reducing setup
time to a minimum.
FBI – Fibre Interface Adapter
The FBI converts a Performer panel port from CAT5 to bre in a bidirectional way providing
long distance operation of Artist control panels. As the unit offers both connectors, for the
matrix and for the panel, it can be inserted on either side. The interface may also be used
for the bidirectional transmission of an AES3 signal. Distances up to 2,000 m (6,600 ft)
can be realized using duplex multimode bre.
CIA – Coax Interface Adapter
The CIA interface converts a Performer panel port from CAT5 to 75 Ω Coax and vice versa.
Since Artist control panels provide both CAT5 and coax interfaces for connection to the
matrix, CIA’s can be used to adapt a Performer 32 matrix port to the existing infrastructure,
especially useful for events and mobile applications. Distances up to 500 m (1,800 ft) can
be realized using 0.8/4.9 video cable.
Product Overview

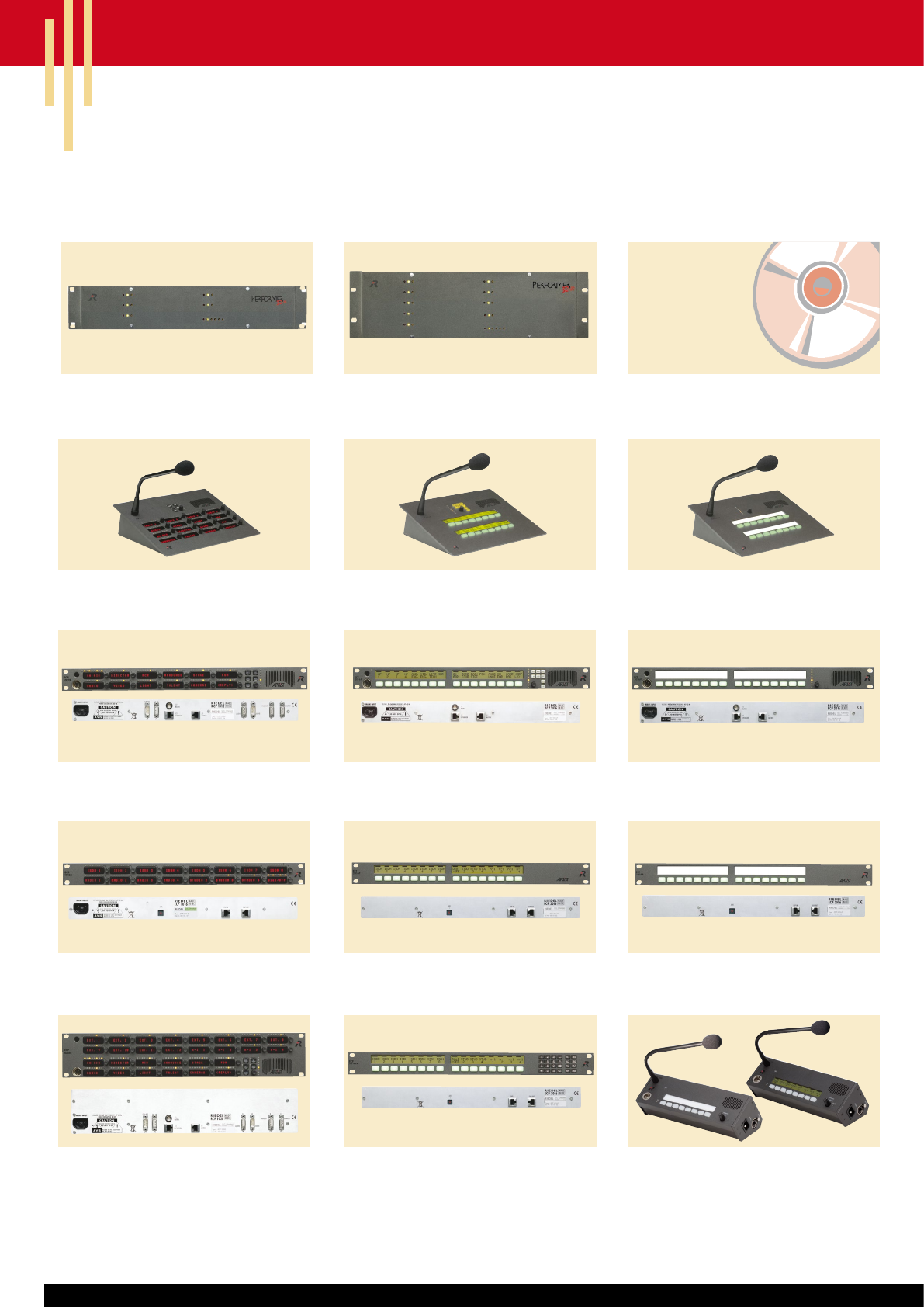

Director 32
Matrix MainframeMatrix Mainframe Performer 32+80Performer 32+16
DCP-2016P4 Control Panel
DCP-1016E/O Control Panel DCP-3016P4 Control Panel
Expansion Panel
ECP-2016P
Expansion Panel
ECP-1016E ECP-3016P Expansion Panel
Control Panel
RCP-2016P4
RCP-1012E/O Control Panel RCP-3016P4 Control Panel
ECP-2016PT Expansion Panel
with Telephone Keypad
Control Panel
RCP-1028E/O
Director 32
Conguration Software
DCP-5008/
DCP-5108
Universal Control Panel
Windows is a registered trademark of Microsoft Corporation. All
trademarks are the property of their respective owners. Product
specications are subject to change without notice. This material
is provided for information purposes only; Riedel assumes no
liability related to its use. November 2010.
For detailed informations regarding the
products above please visit our website
www.riedel.net
Panel
Multiplexer
PMX-2004 SFP
PMX-2008 SFP
GPI Interface
RIF-1032
XLR-Patch CAT5 to XLR Patch Field

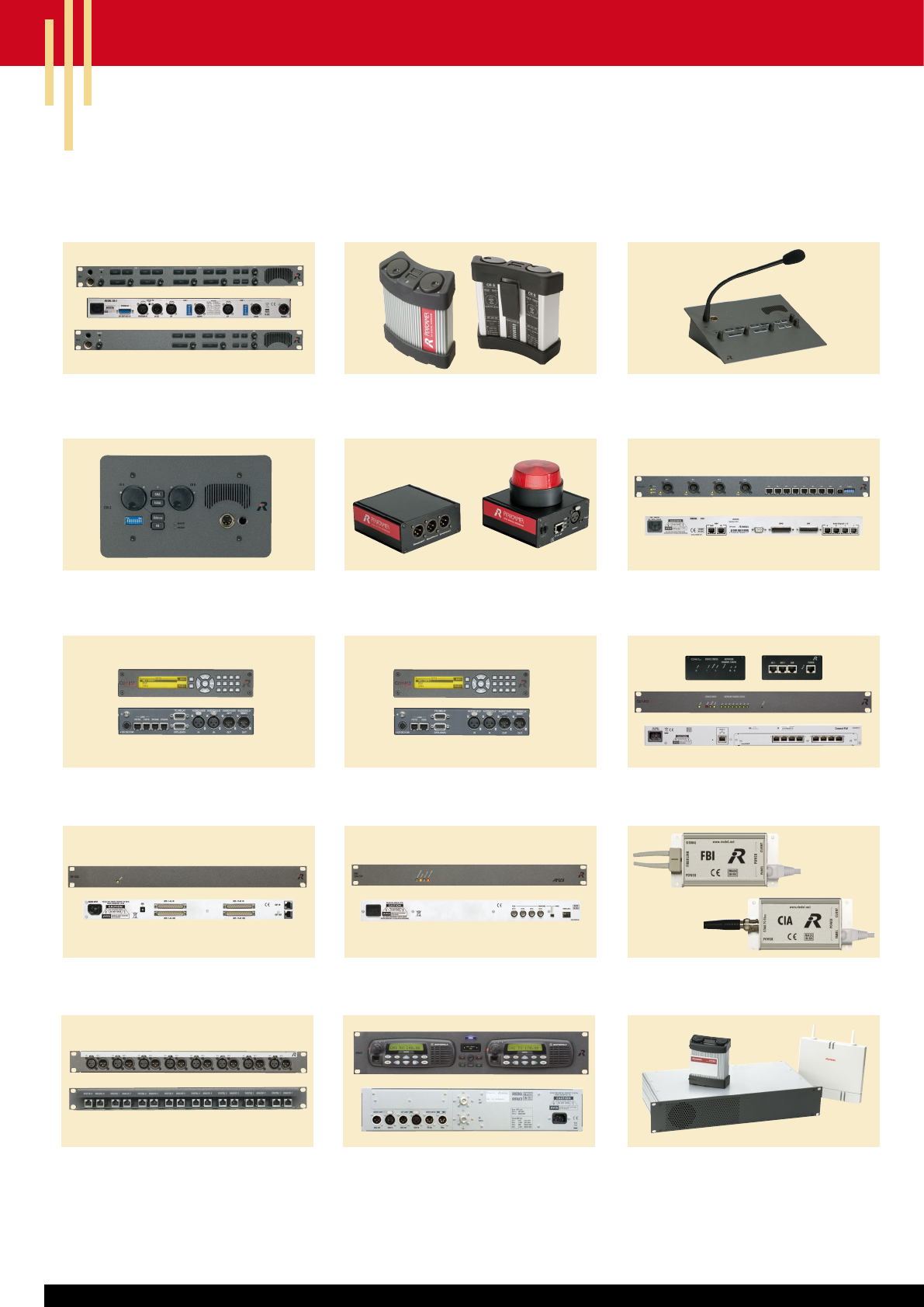

Connect Duo ISDN/Telephone Interface
FBI / CIA
Acrobat
Fibre/CAT5 Converter
Coax/CAT5 Converter
Digital Wireless Intercom
Connect Solo Telephone Interface
Performer C44plus System Interface
Split Box/
Call Indicator
Performer C31/CI31
Performer CW-2 Wall Mount Speaker/
Headset Station
Performer CD-2 Desktop Speaker/
Headset Station
Digital Beltpack/
Headset Station
Performer C3
Performer CR-4
Performer CR-2
Master Station
RiFace G2 Radio Interface
Audio-over-IP Interface
Connect IPx2
Connect IPx8

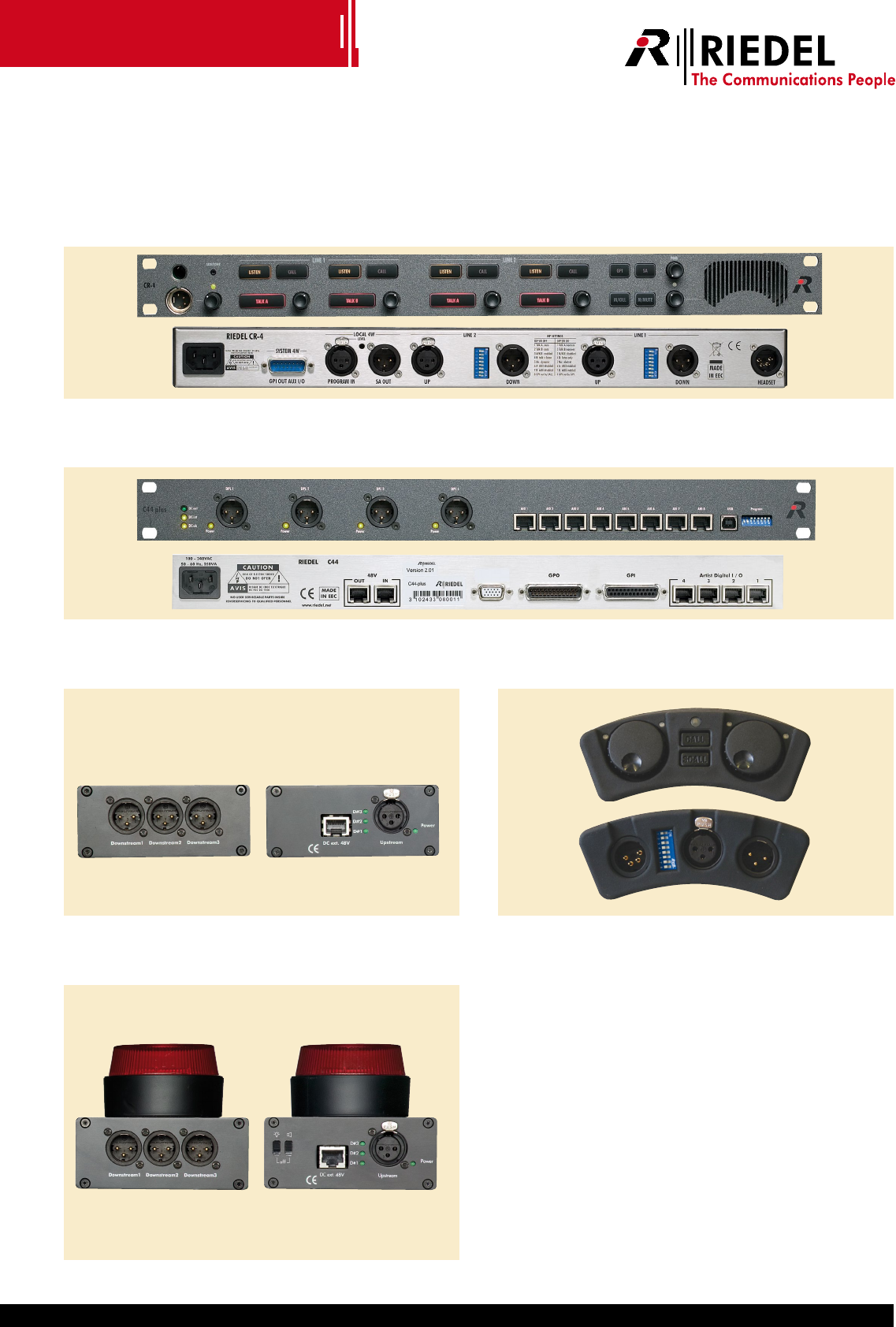

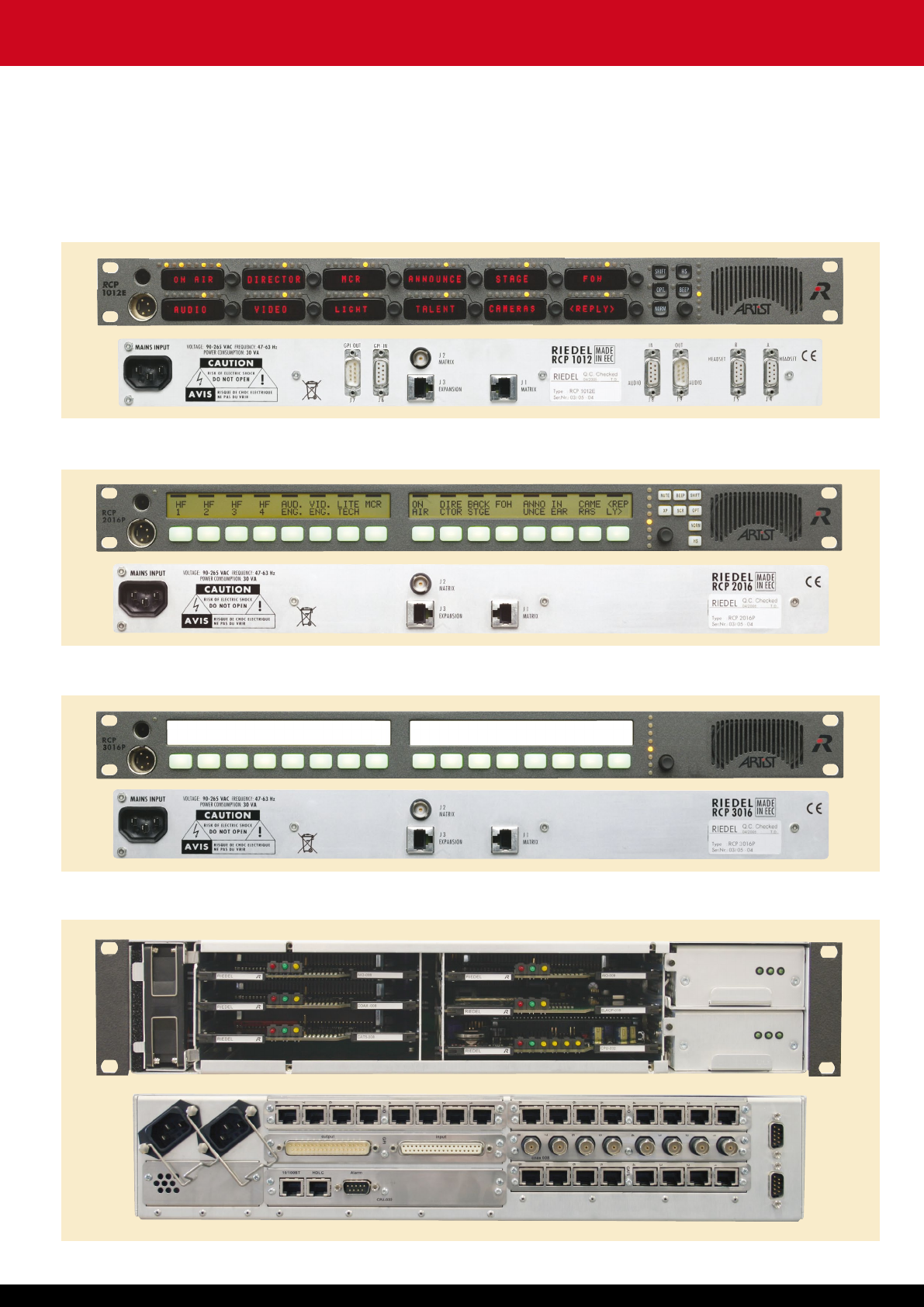

RCP-1012E/O (front & rear view)
RCP-2016P4 (front & rear view)
Performer 32+16 (front & rear view)
RCP-3016P4 (front & rear view)
Performer CR-4 (front & rear view)
Performer C44 (front & rear view)
Performer C31 (front & rear view) Performer C3 (front & rear view)
Performer CI31 (front & rear view)
Riedel Communications GmbH & Co. KG • Uellendahler Str. 353 • 42109 Wuppertal • Germany
Phone: +49 (0) 202 292-90 • Fax: +49 (0) 202 292-99 99 • www.riedel.net
Wuppertal | Beijiing | Berlin | Glendale | London | Singapore | Sydney | Vienna | Zurich
