Rockchip Linux WIFI BT Developer Guide V4.0 20181120

Rockchip

WIFI/BT Developer Guide

Version: 4.0

Date: 2018.11

Rockchip Developer Guide Warranty Disclaimer

Warranty Disclaimer

This document is provided by “status" and Fuzhou Rockchip Electronics Co., Ltd ("our company ", the same below)

does not provide any express or implied statement or warranty of any accuracy, reliability, integrity, merchantability,

specific purpose and non-infringement of any statement, information and content of this document. This document

is intended as a guide only for use.

Due to product version upgrades or other reasons, this document may be updated or modified from time to time

without notice.

Trademarks

Rockchip and “瑞芯微”、“瑞芯” are trademarks of Fuzhou Rockchip Electronics Co., Ltd. and are exclusively owned

by Fuzhou Rockchip Electronics Co., Ltd.

References to other companies and their products use trademarks owned by the respective companies and are for

reference purpose only.

Exceeding the scope of reasonable use, No part of this publication may be copied or reproduced without the written

permission of our company, and may not be transmitted in any form.

Fuzhou Rockchip Electronics Co., Ltd

Address: No.18 Building, A District, No.89 Software Boulevard, FuZhou, FuJian, PRC

Website: www.rock-chips.com

Tel： +86-591-83991906

Fax： +86-591-83951833

Mail： service@rock-chips.com

Rockchip Developer Guide Preface

Preface

Overview

This document mainly introduces kernel configurations and related functions development,

etc. of WIFI and BT based on Rockchip platform.

Chipset model

Chip name

Kernel version

RK3308

4.4

Applicable object

This document is mainly suitable for the following engineers

- Field application engineers

- Software development engineers

Revision history

Revision Date

Version No.

Author

Revision Description

2018/05/02

0.01

XY

Initial Release

2018/05/16

1.0

XY

Release version

2018/06/22

2.0

CTF

Release version

2018/07/21

3.0

CTF

Release version

2018/11/20

4.0

XY

Release version

2018/11/22

5.0

CTF

Release version

Rockchip Developer Guide Table of content

Table of content

Preface .................................................................................................................. 1-1

Chapter 1. WIFI or BT Kernel configurations ............................................................ 1-1

1.1 DTS ........................................................................................................ 1-1

1.2 Kernel ..................................................................................................... 1-2

Chapter 2. Network configuration develop ............................................................... 2-3

2.1 Configure network by Command line: .......................................................... 2-3

2.2 Mobile phones configure network ................................................................. 2-3

2.2.1 Softap network configuration .............................................................. 2-3

2.2.2 Bluetooth configure network ............................................................... 2-6

2.2.3 Simple config for network configuration ................................................ 2-8

Chapter 3. Bluetooth application develop .............................................................. 3-10

3.1 AzureWave /AMPAK modules ..................................................................... 3-10

3.1.1 Configuration ................................................................................. 3-10

3.1.2 Source code directory ...................................................................... 3-11

3.1.3 Application Demo ............................................................................ 3-13

3.1.4 Set Bluetooth device name and mac address ...................................... 3-14

3.1.5 Ble configure network ...................................................................... 3-14

3.1.6 A2DP SINK ..................................................................................... 3-14

3.1.7 A2DP SRC ...................................................................................... 3-15

3.1.8 HFP ............................................................................................... 3-18

Chapter 4. WiFi wireless resume（WoWLAN） ........................................................ 4-19

Chapter 5. Monitor mode of WiFi ......................................................................... 5-20

5.1 Broadcom chips ...................................................................................... 5-20

5.2 Realtek chips .......................................................................................... 5-20

Chapter 6. WiFi RF indicators .............................................................................. 6-21

Chapter 7. WiFi troubleshoot ............................................................................... 7-21

7.1 WiFi is unrecognizable ............................................................................. 7-21

7.2 WiFi cannot connect to router ................................................................... 7-22

7.3 WiFi connection is unstable ....................................................................... 7-23

7.4 Other problems of WiFi ............................................................................ 7-23

Appendix 1: Load Realtek Map calibration files .......................................................... 7-23

Appendix 2: Capture packet code example in Wifi Monitor mode .................................. 7-24

Rockchip Developer Guide WIFI/BT

Preface

This document mainly introduces WiFi or BT development on RK linux platform, RTL series

chip as a supplement to this document: \docs\Linux reference documents:

RK3308_RTL8723DS_WIFI_BT_Instruction_V1.20.pdf

Chapter 1. WIFI or BT Kernel configurations

1.1 DTS

WIFI hardware pin configurations mainly includes the following items:

WIFI_REG_ON: Pin of WiFi power

sdio_pwrseq: sdio-pwrseq {

compatible = "mmc-pwrseq-simple";

pinctrl-names = "default";

pinctrl-0 = <&wifi_enable_h>;

reset-gpios = <&gpio0 RK_PA2 GPIO_ACTIVE_LOW>; // Note: the level state here is

exactly opposite of enable state. For example, if REG_ON is active high, here is LOW; if

REG_ON is active low, it is HIGH here.

};

&pinctrl {

sdio-pwrseq {

wifi_enable_h: wifi-enable-h {

rockchip,pins =

<0 RK_PA2 RK_FUNC_GPIO &pcfg_pull_none>; // WIFI_REG_ON

};

WIFI_WAKE_HOST: WIFI resume the PIN of controller

wireless-wlan {

compatible = "wlan-platdata";

rockchip,grf = <&grf>;

wifi_chip_type = "ap6255"; // The name cant not be change when using AzureWave

/AMPAK modules, realtek needs to be filled in according to actual situation.

WIFI,host_wake_irq = <&gpio0 RK_PA0 GPIO_ACTIVE_HIGH>; //WIFI_WAKE_HOST

GPIO_ACTIVE_HIGH needs special attention: Check the connection relationship of the wifi pin

and controller, if a reverse tube is added in the middle, it should be changed to low level

trigger.

status = "okay";

};

wireless-bluetooth {

compatible = "bluetooth-platdata";

uart_rts_gpios = <&gpio4 RK_PA7 GPIO_ACTIVE_LOW>;

pinctrl-names = "default", "rts_gpio";

Rockchip Developer Guide WIFI/BT

pinctrl-0 = <&uart4_rts>;

pinctrl-1 = <&uart4_rts_gpio>;

BT,power_gpio = <&gpio4 RK_PB3 GPIO_ACTIVE_HIGH>; // BT_REG_ON

BT,wake_host_irq = <&gpio4 RK_PB4 GPIO_ACTIVE_HIGH>; // BT_WAKE_HOST

status = "okay";

};

1.2 Kernel

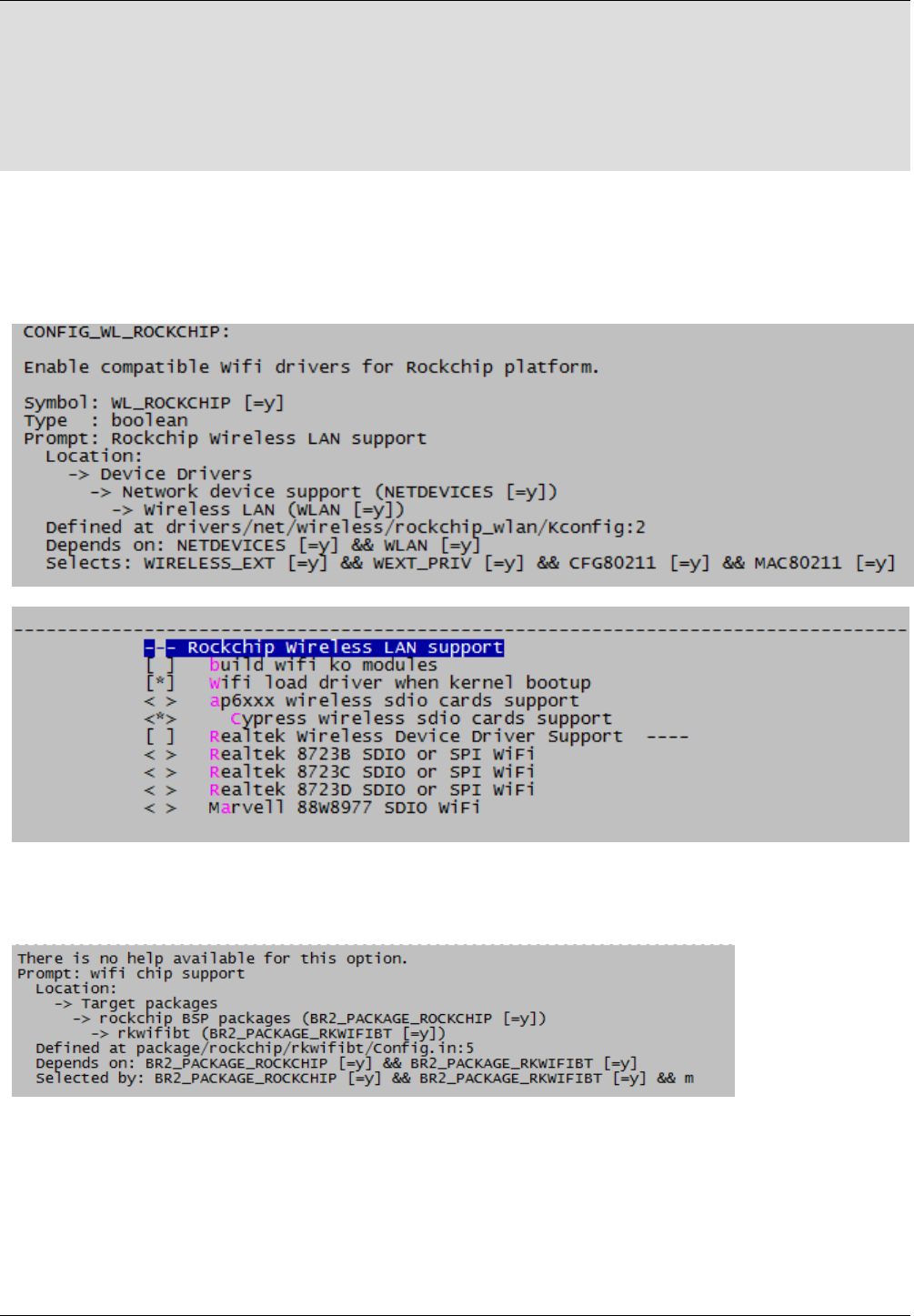

Select corresponding configuration according to actual WiFi

Buildroot configuration：

Select corresponding configurations according to actual WiFi, it must be consistent with the

kernel configurations:

puma

Rockchip Developer Guide WIFI/BT

Chapter 2. Network configuration develop

2.1 Configure network by Command line:

First ensure that WiFi service process starts: ps | grep wpa_supplicant, If it does not start,

please start it manually:

wpa_supplicant -B -i wlan0 -c /data/cfg/wpa_supplicant.conf

Modify the following file:

/ # vi /data/cfg/wpa_supplicant.conf

ctrl_interface=/var/run/wpa_supplicant

ap_scan=1

#Add the following configuration items

network={

ssid="WiFi-AP" // WiFi name

psk="12345678" // WiFi password

key_mgmt=WPA-PSK // Optional encryption method, automatically recognized if

not filled

# key_mgmt=NONE // Not encrypted

}

Reread the above configurations: wpa_cli reconfigure

And reconnect: wpa_cli reconnect

2.2 Mobile phones configure network

2.2.1 Softap network configuration

APP: /external/app/RkEcho.apk

Brief introduction: Firstly, create an AP hotspot using the WiFi of SDK board, connect the

AP hotspot on the mobile phone side; secondly, obtain the currently scanned hotspot list of

the SDK board through the mobile phone apk, and fill in the password of the AP to be

connected on the mobile phone. Apk will send AP's ssid and password to SDK; finally, the

SDK will connect to WiFi based on the received information.

Buildroot configuration:

Rockchip Developer Guide WIFI/BT

Source code directory：

/external/softapServer/ -- WiFi and APK related operations

/external/softapDemo/ -- WiFi related operations

Prepare a phone to install apk:

Make sure wifi server process starts

# wpa_supplicant -B -i wlan0 -c /data/cfg/wpa_supplicant.conf

Step 1: Board command line runs:

# softapServer Rockchip-Echo-123 (The name of wifi hotspot must be prefixed to

Rockchip-Echo-xxx)

Step 2：Open wifi setting interface of the mobile phone：

Found Rockchip-Echo-123, click connection；

Step 3: Open the apk of the mobile phone：

Open apk, click wifi setup->CONFIRM-> CONFIRM ->wifi list-> Click on the name of

network you want to connect to ->enter the password->click confirm

Rockchip Developer Guide WIFI/BT

The serial port of the board will display:

Check if the network is connected：

/ # echo nameserver 8.8.8.8 > etc/resolv.conf // Add dns domain name resolution

/ # ping www.baidu.com // check whether it will ping successfully

Notes：

1, After softspServer Rockchip-Echo-123 is executed, the command line cannot be exited

Rockchip Developer Guide WIFI/BT

until network configuration is completed.

2, Don't write a wrong name, otherwise the apk can't enter the confirmation interface.

(Rockchip-Echo-xxx)

2.2.2 Bluetooth configure network

1, Realtek can refer to: \docs\Linux reference documents:

RK3308_RTL8723DS_WIFI_BT_Instruction_V1.20.pdf。

2, apk path：external/app/ WiFiIntroducer.apk

3, AP Bluetooth network configuration, run bsa_ble_wifi_introducer.sh start on the board.

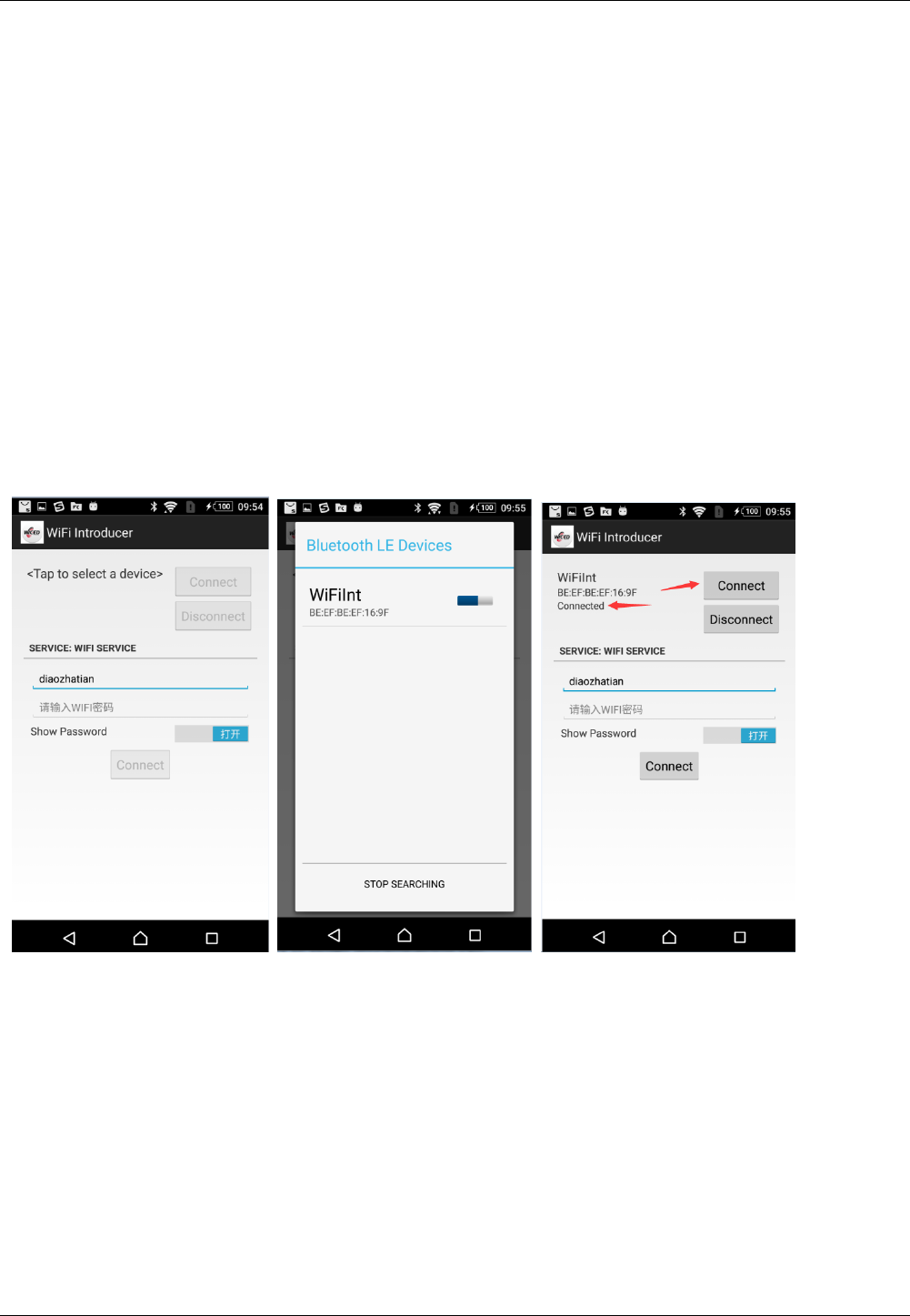

4, Mobile phone app: click Tap to select a device -> select the device with a network

configuration service -> connect device –> device option box shows the connection status–>

If don’t match, a window or a notification bar will prompt to match. Mismatch will result in

matching timeout and Bluetooth disconnection -> Enter the WiFi name and password,

Connect

Rockchip Developer Guide WIFI/BT

5, After the board receives SSID and Passphrase, store to data/bsa/wpa_supplicant.conf；

Command line menu select 4 => Display WiFi Introducer Sensor Information, can view the

configured SSID and Passphrase

6, Starts wpa_supplicant and dhcpcd on the board to start configuring network. After

network configuration is completed, command line runs wpa_cli status to check network

connection status and ip address.

Rockchip Developer Guide WIFI/BT

2.2.3 Simple config for network configuration

Realtek modules：

Kernel changes：

--- a/drivers/net/wireless/rockchip_wlan/rtl8xxx/Makefile

+++ b/drivers/net/wireless/rockchip_wlan/rtl8xxx /Makefile

@@ -68,7 +68,7 @@ CONFIG_80211W = n

CONFIG_REDUCE_TX_CPU_LOADING = n

CONFIG_BR_EXT = y

CONFIG_TDLS = n

-CONFIG_WIFI_MONITOR = n

+CONFIG_WIFI_MONITOR = y

Only Realtek modules are supported

external/app/SimpleConfigApp.apk

Command line runs：rtw_simple_config –D & (rtw_simple_config –h to view help)

Install app on mobile phone: select Network -> enter Password -> click start to send ->

finish configuration

Rockchip Developer Guide WIFI/BT

It will show below information on the board：

Rockchip Developer Guide WIFI/BT

Chapter 3. Bluetooth application develop

3.1 AzureWave /AMPAK modules

3.1.1 Configuration

1, source buildroot/build/envsetup.sh, select the version you want to compile, usually

choose rockchip_rk3308_release

2, make menuconfig，

Rockchip Developer Guide WIFI/BT

2.1 AMPAK modules

Select ’broadcom(ampak) bsa server and app’

Enter ’wifi/bt chip support (AP6255) --->’ select chip model

2.2 AzureWave modules

Select ‘broadcom(cypress) bsa server and app’

Enter ‘wifi/bt chip support (AW-CM256) --->’ select chip model

2.3 Exit option box, select Yes, make savedefconfig to save configuration；

2.4 Compile and package

AMPAK modules：make broadcom_bsa-rebuild

AzureWave modules：make cypress_bsa-rebuild

make rkwifibt-rebuild

make

./mkfirmware.sh

3.1.2 Source code directory

Broadcom-based AzureWave / AMPAK modules supports BSA protocol stack, while BSA

protocol stack is a Bluetooth protocol stack developed by Broadcom, which is similar to

BLUEZ, developers can develop various Bluetooth apps based on it and provides rich app

demos.

Note: It is only a brief introduction here. Since BSA protocol stack is not open source and

we do not have any code. Therefore, if you need detailed development documentations,

please consult the module vendors. They will provide technical support. If you can't get in

touch with them, you can contact us; of course, if you don't want to use BSA, you can also

use the open source BlueZ which is universal, so you can refer directly to:

RK3308_RTL8723DS_WIFI_BT_Instruction_V1.20.pdf.

Rockchip Developer Guide WIFI/BT

1, AMPAK modules：

Script and compile mk file: buildroot/package/rockchip/broadcom_bsa

Source code: external/broadcom_bsa

App demo: external/broadcom_bsa/3rdparty/embedded/bsa_examples/linux

2, AzureWave modules：

Script and compile mk file: buildroot/package/rockchip/cypress_bsa

Source code: external/bluetooth_bsa

App demo: external/ bluetooth_bsa /3rdparty/embedded/bsa_examples/linux

*Bsa Application Demo List

app_3d -- This application is used to connect 3D stereo glasses

app_ag -- Audio Gateway (AG) application. AG applications (usually located in cellular

phones) are used to connect to mono headsets.

app_av -- This application is used to stream music from an AV Source (AVS) profile.

app_avk -- This application is used to receive a music steam from an AV sink (AVK) profile.

app_ble -- This application shows how to use BLE client/server module BSAs.

app_ble_blp -- This application is sample code for the BLE blood-pressure collector.

app_ble_cscc -- This application is sample code for the BLE cycling speed and cadence

collector.

app_ble_hrc -- This application is sample code for the BLE heart rate controller.

app_ble_htp -- This application is sample code for the BLE health thermometer collector.

app_ble_pm -- This application is sample code for the BLE proximity monitor.

app_ble_rscc -- This application is sample code for the BLE running speed and cadence

collector.

app_ble_wifi -- This sample application makes it easier to set up a Wi-Fi Direct connection

between peers by exchanging Wi-Fi Direct information over BLE.

app_dg -- Data Gateway (DG). Two Bluetooth devices can connect using this application to

exchange data via serial communications port emulation.

app_fm -- This application shows how to use the FM radio APIs.

app_ftc -- FTP client (FTC). FTP clients can connect and access (browse/read/write) files

located on the FTP server.

app_fts -- File Transfer Server (FTS). The FTS can connect and access (browse/read/write)

files located on the FTP server.

app_hd -- Demonstrates Bluetooth HID device and remote control functionality.

app_headless -- Shows how the Headless mode is controlled.

app_hd -- Connects Human Interface Devices (HIDs) such as a keyboard, mouse, or remote

control.

app_hh -- Connects Human Interface Devices (HIDs) such as a keyboards, mice, or remote

controls.

app_hl -- This application is used to connect the health devices.

app_hs -- Headset (HS) application. HS applications are used to connect to cellular phones

which run AG applications.

Rockchip Developer Guide WIFI/BT

app_manager -- The main regular application. Governs security and device management. It

must always be running.

app_mce -- This application provides the Bluetooth MAP client (Message Client Equipment

[MCE]) function.

app_opc -- OP client (OPC). OP clients can exchange (send/receive) files with the OPS.

app_ops -- Object Push (OP) server (OPS). OP clients can exchange (send/receive) files with

the OP server.

app_pan -- This application provides the test framework for Bluetooth PAN functionality.

app_pbc -- This application provides the Bluetooth PBAP client (PBC) function.

app_pbs -- Phone Book (PB) server (PBS). PB clients can connect to the PBS to

download/upload phone books.

app_sac -- This application provides the Bluetooth SIM Access Profile (SAP) client function.

app_sc -- This application provides the Bluetooth SAP client (SC) function.

app_switch -- This application demonstrates the sequence of operations necessary to

implement role switching between AV/AG and AVK/HF.

app_tm -- This application describes Test Module (TM) APIs.

3.1.3 Application Demo

1, Power on：

echo 0 > /sys/class/rfkill/rfkill0/state

sleep 1

echo 1 > /sys/class/rfkill/rfkill0/state

sleep 1

2, All Bluetooth related processes must be run in the /data/bsa/config directory.

mkdir -p /data/bsa/config

cd /data/bsa/config

3, Start server process

bsa_server -r 12 -p /system/etc/firmware/XXXX.hcd -d /dev/ttyS4 -b /data/btsnoop.log >

/data/bsa_log &

XXXX.hcd：firmwares corresponding to each chip

AP6255： BCM4345C0.hcd

AP6212A1 ：bcm43438a1.hcd

AWCM256： BCM4345C0.hcd

AWNB197： BCM4343A1.hcd

4, Start management process: (Run to this step, you will discover and connect device on the

phone Bluetooth list)

app_manager &

5, Start the client you want to run (app_av, app_avk, etc.):

app_xxxx &

Rockchip Developer Guide WIFI/BT

3.1.4 Set Bluetooth device name and mac address

1, File: app_manager.c

2, Interface: app_mgr_config

3, Example:

Note：

1), app_xml_config.name：Store Bluetooth name

2), app_xml_config.bd_addr：Store mac address

3), app_mgr_get_bt_config：Get mac address from Bluetooth chip

4), bdcpy(app_xml_config.bd_addr, local_bd_addr): Write a fixed mac address, the last

two bits use a random value

4, Setting method：

Write your desired Bluetooth name and mac address in app_xml_config.name and

app_xml_config.bd_addr

3.1.5 Ble configure network

1, Execute bsa_ble_wifi_introducer.sh start

2, Refer to chapter 2.2.2 Bluetooth configure network in this document for configuration

network with apk

3, Code directory: external/broadcom_bsa/3rdparty/embedded/bsa_examples/linux/

app_ble_wifi_introducer

4, Modify device name when configuring network：

3.1.6 A2DP SINK

1, Execute：bsa_bt_sink.sh start

2, Turn on the mobile phone Bluetooth, it will display My BSA Bluetooth Device XXXX, click

connection to achieve music playing function;

Rockchip Developer Guide WIFI/BT

Note: If there is no sound after connection, check sound card configuration.

3, Code path: external/broadcom_bsa/3rdparty/embedded/bsa_examples/linux/app_avk

3.1.7 A2DP SRC

1, Code path: external/broadcom_bsa/3rdparty/embedded/bsa_examples/linux/app_av

2, Run: bsa_bt_source.sh start

3, cd data/bsa/config/

4, Run app_av, will display below app_av menu

5, Enter 2, start discovering Bluetooth devices

Rockchip Developer Guide WIFI/BT

6, Enter 6 => AV Open (Connect)

7, Enter 1, display the list of devices that were last discovered (if device is already

connected, select 0 directly)

Rockchip Developer Guide WIFI/BT

8, Enter the Dev serial number corresponding to the device you want to connect , enter 3

here and select Dev:3 Fiil Wireless for matching and connection.

9, Play wav file

Enter 11 to display a list of wav files that can be played in the

/data/bsa/config/test_files/av directory; you can push the wav file you want to play to this

directory, or you can make a copy in

buildroot/package/rockchip/broadcom_bsa/broadcom_bsa.mk. Select the serial number

corresponding to the file you want to play to play the corresponding file.

10, When there is a wav file currently playing, you need to enter 14 => AV Stop to stop

playing, in order to repeat step 9 to play a new file. You can also control playback with the

following commands:

14 => AV Stop

15 => AV Pause

Rockchip Developer Guide WIFI/BT

16 => AV Resume

17 => AV Send RC Command (Inc Volume)

18 => AV Send RC Command (Dec Volume)

3.1.8 HFP

1, Only suitable for AMPAK modules

2, The external/broadcom_bsa must contain the following submission:

commit 756a6c3d984a085b3a5aaf5a9691a3f39dcc7c8c

Author: ctf <ctf@rock-chips.com>

Date: Wed Sep 26 18:00:28 2018 +0800

bluetooth: broadcom_bsa: integrate arecord and aplay into HFP.

Change-Id: Ic3fef580a24eaa4126dd6eb53a59adb4e2ed6d01

Signed-off-by: ctf ctf@rock-chips.com

3, Code path: external/broadcom_bsa/3rdparty/embedded/bsa_examples/linux/app_hs

4, Analog mic v11: default 0,1channel map loopback, should set the adc-channel map in

dts; as follows:

Take rk3308-evb-amic-v11.dts as an example:

5, Add a Bluetooth device node，and modify period_size and buffer_size of playback

Add code below at the end of buildroot/board/rockchip/rk3308/fs-overlay/etc/ asound.conf:

pcm.bluetooth {

type asym

playback.pcm {

type plug

slave {

pcm "hw:1,0"

channels 2

rate 16000

}

capture.pcm {

type plug

Rockchip Developer Guide WIFI/BT

slave {

pcm "hw:1,0"

}

Modify period_size and buffer_size of playback:

pcm.playback {

type dmix

ipc_key 5978293 # must be unique for all dmix plugins!!!!

ipc_key_add_uid yes

slave {

pcm "hw:7,0,0"

channels 2

- period_size 1024

- buffer_size 4096

+ period_size 3072

+ buffer_size 12288

}

bindings {

0 0

1 1

}

6, Execute bsa_bt_hfp.sh start

7, Connect My BSA Bluetooth Device XXXX device to achieve Hfp two-way conversation

Chapter 4. WiFi wireless resume（WoWLAN）

At present, WiFi supports wireless network packet resume system. For example, if an audio

device is normally connected to WiFi and obtains the correct IP address, then when the

device suspends, we can resume the system through wireless network packet. Wake up rule:

as long as they are network packages which are sent to this device IP address, they will

resume the system.

AP6XXX/RTL modules upper layer configuration: modify “wpa_supplicant.conf” file, add the

following configuration:

wpa_supplicant.conf

ctrl_interface=/var/run/wpa_supplicant

update_config=1

ap_scan=1

+wowlan_triggers=any // Make sure the changes take effect

Please open the following configuration of Realtek modules in the corresponding Makefile:

/drivers/net/wireless/rockchip_wlan/rtl8xxx/Makefile

CONFIG_WOWLAN = y

Rockchip Developer Guide WIFI/BT

CONFIG_GPIO_WAKEUP = y

Note:

1, Make sure that WIFI_WAKE_HOST is configured: WIFI resumes the PIN of

controller

WiFi configuration of Dts: WIFI,host_wake_irq = <&gpio0 RK_PA0 GPIO_ACTIVE_HIGH>;

// Special attention of WIFI_WAKE_HOST GPIO_ACTIVE_HIGH: Confirm the connection

relationship between the wifi pin and controller. If a reverse tube is added in the middle, it

should be changed to low level trigger.

2, Make sure hostapd process is turned off before suspending. The network

wakeup function requires that hostapd process should be turn off；

Software can refer to source code of ping

Test method: After the device is connected to WiFi and obtains IP address normally, (echo

mem > sys/power/state), after suspending, mobile phone downloads a ping software (make

sure the mobile phone or PC is connected to the same LAN), and then ping the device IP

address, if normal, you can see that the device will be resume.

Troubleshooting: AP and RTL chips are triggered by high level by default. Assume that

WiFi_Wake_Host pin is directly connected to the controller, after the device enters

suspending, the pin is low level by default. When there is a network packet to resume, this

pin can be measured in high pulse input with an oscilloscope; so when the device is not

resumed, please use the oscilloscope to measure whether the pin meets the above behavior;

if you still can't solve issues, please provide: the whole dmesg kernel log and cat

proc/interrupts printout.

Chapter 5. Monitor mode of WiFi

Turn on monitor mode of WiFi:

5.1 Broadcom chips

dhd_priv SDK comes with this command

Set channel:

dhd_priv channel 6 // channal numbers

Turn on monitor mode:

dhd_priv monitor 1

Then use the sample code raw code in attachment 2 to read the captured package.

Turn off monitor mode:

dhd_priv monitor 0

5.2 Realtek chips

Need to open driver Makefile:

CONFIG_WIFI_MONITOR = y

1. ifconfig wlan0 up

ifconfig p2p0 down

2. iwconfig wlan0 mode monitor /*support wext sulution.*/

or iw dev wlan0 set type monitor /*support cfg80211 sulution.*/

3. echo "<chan> 0 0" > /proc/net/<rtk_module>/wlan0/monitor /*<rtk_module> is the

Rockchip Developer Guide WIFI/BT

realtek wifi module name, such like rtl8812au, rtl8188eu ..etc */

4. tcpdump -i wlan0 -s 0 -w snf_pkts.pcap /*capture the sniffer packets and save it as a

file "snf_pkts.pcap" or use the sample code raw code in attachment 2 to read the captured

package. */

Chapter 6. WiFi RF indicators

Hardware engineers have to confirm whether RF indicator and frequency offset of WiFi are

normal; Realtek chips need to provide signaling mode hardware test reports, and ask the

modules vendor for the map calibration file of the corresponding chip (about calibration file

download, refer to Appendix 1); Make sure the hardware indicators are qualified.

Chapter 7. WiFi troubleshoot

7.1 WiFi is unrecognizable

First, measures the hardware voltage of WIFI_REG_ON/VDDIO

VBAT/SDIO_CLK/SDIO_CMD/SDIO_DATA0~SDIO_DATA3, which is described in detail as

follows:

(1) Confirm whether the signal of WIFI_CLK is normal, confirm that 37.4/24/26M has

normal oscillation started after power-on. When loading drive, there is a clock to be

discharged on SDIO_CLK, initialization 400K. After stabilization, it will reach the CLK set by

DTS.

(2) Confirm whether the 32.768K square wave signal is normal, the peak-to-peak value is

required to be within the range of 0.7 * VDDIO ~ VDDIO. Otherwise there will be problems;

(3) Confirm whether the WL/WIFI_REG_ON WIFI power-on pin is normally pulled high

when WIFI is turned on, and whether there are level changes during abnormal time, whether

the VBAT power supply is rippled or not; Pin configurations of WIFI_REG_ON (sdio-pwrseq) in

the DTS part corresponding parsing code operation, refer to:

drivers/mmc/core/pwrseq_simple.c

Parse reset-gpio:

mmc_pwrseq_simple_alloc

Power up and down:

static struct mmc_pwrseq_ops mmc_pwrseq_simple_ops = {

.pre_power_on = mmc_pwrseq_simple_pre_power_on, // pull down WiFi_REG_ON

.post_power_on = mmc_pwrseq_simple_post_power_on, // pull up WiFi_REG_ON

.power_off = mmc_pwrseq_simple_power_off, // pull down WiFi_REG_ON

.free = mmc_pwrseq_simple_free,

};

You can see through an oscilloscope: WiFi_REG_ON will be pulled down and then pulled up

after WiFi initialization. If it is not observed, please add some debug at the above code to

confirm.

(4) Confirm whether there are missing or soldering errors in the peripheral component

materials of crystal part;

(5) Check if there are any problems with the 4 data traces of sdio, if there is any

interference.

Rockchip Developer Guide WIFI/BT

(6)SDIO data transmission is abnormal, check whether the materials used by sdio wifi

hardware meet the standard, such as whether capacitors or resistors are misconnected or

missing;

(7) The &io-domains, as shown in the following figure VCCIO/VCCIO_SDIO to supply

SDIO_DX/CMD/CLK, it needs to be consistent with the software configuration: for example,

APIO4 corresponds to vccio4-supply = <&vccio_sdio>; //it will fill the name which will supply

to Apio4, as VCC_IO and Vccio_sdio are the same supply, you can also fill vcc_io.

If WiFi is properly recognized, it will be printed as follows in the log:

mmcX: new ultra high speed SDR104 SDIO card at address 0001

or

mmcX: new high speed SDIO card at address 0001

7.2 WiFi cannot connect to router

1, Please make sure that the following two processes are running.

wpa_supplicant -B -i wlan0 -c /data/cfg/wpa_supplicant.conf

/sbin/dhcpcd -f /etc/dhcpcd.conf

2, wpa_cli scan and wpa_scan_r commands will scan hotspots. If execution fails, it can be

executed multiple times to confirm whether it can scan to wifi: normally, it will contain below

information: check if there is WiFi in the following information, If you can't capture it, or if

the captured wifi number is different from which captured by your mobile phone or other

devices, or the signal is very weak (signal level), please check if the WiFi antenna meets the

standard and whether the frequency offset meets the requirement.

Rockchip Developer Guide WIFI/BT

Selected interface 'wlan0'

bssid / frequency / signal level / flags / ssid

dc:ef:09:a7:77:52 5765 -33 [WPA2-PSK-CCMP][ESS] NETGEAR75-5G

10:be:f5:1d:a3:76 5220 -53 [WPA-PSK-CCMP+TKIP][WPA2-PSK-CCMP+TKIP][ESS] D-Link_DIR-880L_5GHz

d0:ee:07:1c:2d:18 5745 -54 [WPA-PSK-CCMP][WPA2-PSK-CCMP][ESS] ROCKROOM_5G

a0:63:91:2e:16:fa 5765 -56 [WPA-PSK-CCMP+TKIP][WPA2-PSK-CCMP+TKIP][ESS] hjk_5GEXT

30:fc:68:bb:09:bb 5745 -67 [WPA-PSK-CCMP][WPA2-PSK-CCMP][ESS] TP-LINK_5G_09B9

64:09:80:0a:13:b1 5805 -59 [WPA-PSK-CCMP+TKIP][WPA2-PSK-CCMP+TKIP][ESS] diaozhatian

74:7d:24:61:39:d0 5180 -48 [WPA-PSK-CCMP+TKIP][WPA2-PSK-CCMP+TKIP][ESS] @PHICOMM_CE_5G

... ...

7.3 WiFi connection is unstable

Refer to the WIFI RF target chapter

7.4 Other problems of WiFi

Please provide the log of kernel dmesg and wpa_supplicant (method: add the debug option

to the place where the wpa_supplicant program is started, such as: wpa_supplicant -B -i

wlan0 -c /data/cfg/wpa_supplicant.conf -f debug.txt // log will be redirected to the debug.txt

file).

Appendix 1: Load Realtek Map calibration files

KO mode: for convenience of debugging, you can change to the ko mode to load map files.

Let's take 8723DS as an example. Others are similar:

(1), Change kernel configuration:

CONFIG_RTL8723DS=m

change the directory where you think is convenient:

+EXTRA_CFLAGS += -DEFUSE_MAP_PATH=\"/data/wifi_efuse_8723ds.map\"

+++ b/drivers/net/wireless/rockchip_wlan/rtl8723ds/Makefile

@@ -797,7 +797,7 @@ EXTRA_CFLAGS += -

DEFUSE_MAP_PATH=\"$(USER_EFUSE_MAP_PATH)\"

else ifeq ($(MODULE_NAME), 8189es)

EXTRA_CFLAGS += -DEFUSE_MAP_PATH=\"/system/etc/wifi/wifi_efuse_8189e.map\"

else ifeq ($(MODULE_NAME), 8723ds)

-EXTRA_CFLAGS += -

DEFUSE_MAP_PATH=\"/vendor/etc/firmware/wifi_efuse_8723ds.map\"

+EXTRA_CFLAGS += -DEFUSE_MAP_PATH=\"/data/wifi_efuse_8723ds.map\"

else

EXTRA_CFLAGS += -

DEFUSE_MAP_PATH=\"/system/etc/wifi/wifi_efuse_$(MODULE_NAME).map\"

Recompile and generate the ko

drivers/net/wireless/rockchip_wlan/rtl8723ds/8723ds.ko

Update kernel

Rockchip Developer Guide WIFI/BT

(2), Push necessary documents

Push wifi_efuse_8723ds.map file to the directory changed above:

+EXTRA_CFLAGS += -DEFUSE_MAP_PATH=\"/data/wifi_efuse_8723ds.map\"

Push the 8723ds.ko to data or other directory where you think is convenient

adb push wifi_efuse_8723ds.map /data/

adb push 8723ds.ko /data

(3), Execute after power on

insmod /data/8723ds.ko // Note to be consistent with the directory you pushed

above.

will display in log:

[ 29.002020] RTW: efuse file:/oem/wifi_efuse_8723ds.map, 0x200 byte content

read

[ 29.002065] RTW: EFUSE FILE

[ 29.002098] RTW: 0x000: 29 81 00 7C 01 88 07 00 A0 04 EC 35 12 C0 A3 D8

[ 29.002289] RTW: 0x010: 28 28 28 28 28 28 28 28 28 28 28 02 FF FF FF FF

[ 29.002477] RTW: 0x020: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

Buildin mode:

Sometimes in order to speed up network speed when power on, it hope to use buildin, you

can achieve by the following ways:

drivers/net/wireless/rockchip_wlan/rtl8189fs/core/efuse/rtw_efuse.c

Find rtw_read_efuse_from_file function:

{

... ...

map = rtw_vmalloc(map_size); // Apply for memory

for (i = 0 ; i < map_size ; i++) {

... ... //Parse the contents of the map file, assign value to map pointer

}

DBG_871X_LEVEL(_drv_always_,"efuse file:%s, 0x%03xbyte content

read\n",path,i);

//First load it in the ko mode, print the contents of map pointer here, and

then make the contents into an array, directly assign to the map, and skip

parsing action.

_rtw_memcpy(buf, map, map_size); // Here is the final assignment operation.

... ...

}

Appendix 2: Capture packet code example in Wifi Monitor mode

#include <sys/types.h>

#include <sys/socket.h>

#include <sys/ioctl.h>

#include <linux/socket.h>

Rockchip Developer Guide WIFI/BT

#include <stdio.h>

#include <string.h>

#include <netpacket/packet.h>

#include <net/if.h>

#include <netinet/in.h>

#include <stdlib.h>

#include <stdio.h>

#include <stdarg.h>

#include <string.h>

//unsigned short protocol = 0x888e;

unsigned short protocol = 0x0003;

#define NAME "wlan0"

int cc = 0;

int main(int argc, char ** argv)

{

struct ifreq ifr;

struct sockaddr_ll ll;

int fd;

fd = socket(PF_PACKET, SOCK_RAW, htons(protocol));

printf("fd = %d \n", fd);

if(argv[1])

printf("name = %s \n", argv[1]);

memset(&ifr, 0, sizeof(ifr));

if(argv[1])

strlcpy(ifr.ifr_name, argv[1], sizeof(ifr.ifr_name));

else

strlcpy(ifr.ifr_name, NAME, sizeof(ifr.ifr_name));

printf("ifr.ifr_name = %s \n", ifr.ifr_name);

if (ioctl(fd, SIOCGIFINDEX, &ifr) < 0) {

close(fd);

printf("get infr fail\n");

return -1;

}

memset(&ll, 0, sizeof(ll));

ll.sll_family = PF_PACKET;

ll.sll_ifindex = ifr.ifr_ifindex;

ll.sll_protocol = htons(protocol);

Rockchip Developer Guide WIFI/BT

if (bind(fd, (struct sockaddr *) &ll, sizeof(ll)) < 0) {

printf("bind fail \n");

close(fd);

return -1;

}

while(1) {

unsigned char buf[2300];

int res;

socklen_t fromlen;

int i = 0;

memset(&ll, 0, sizeof(ll));

fromlen = sizeof(ll);

res = recvfrom(fd, buf, sizeof(buf), 0, (struct sockaddr *) &ll,

&fromlen);

if (res < 0) {

printf("res < 0\n");

return -1;

} else {

cc++;

printf("%04d(%03d) - ", cc, res);

//for(i = 0; i < res && i < 8; i++)

for(i = 0; i < res; i++)

printf("%02x ", buf[i]);

printf("\n");

}

close(fd);

return 0;

}

Rockchip Linux WIFI BT Developer Guide V4.0 20181120

Navigation menu

Versions of this User Manual:

Views

Navigation
