RK3399 Linux4.4
2018-03-01 V1.0 吴良峰 初始版本
2019-01-09 V1.1 吴良峰 使用markdownlint修订格式
RK3399 USB DTS
发布版本：1.1
作者邮箱：wulf@rock-chips.com
日期：2019-01-09
文档密级：公开资料

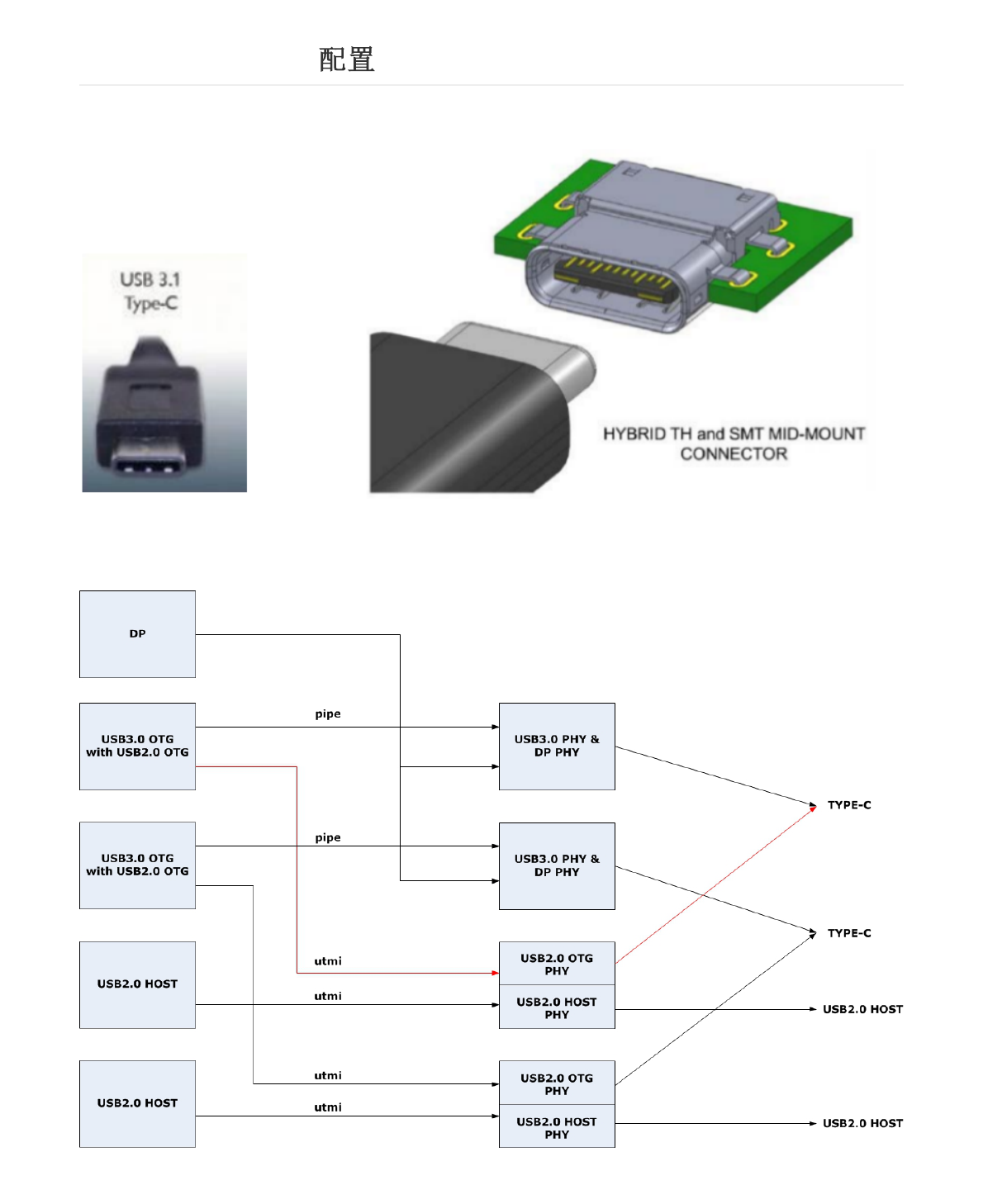

本文档提供RK3399 USB DTS的配置方法。RK3399支持两个Type-C USB3.0(Type-C PHY is a combination of
USB3.0 SuperSpeed PHY and DisplayPort Transmit PHY)，两个USB2.0 Host。其中，两个Type-C USB3.0控制器
都可以支持OTG（USB Peripheral和USB Host），并且向下兼容USB2.0/1.1/1.0。Type-C USB3.0可以根据实际的应
用需求，将物理接口设计为Type-A USB3.0 Host，Micro USB3.0 OTG，Micro USB2.0 OTG等类型，内核USB驱动已
经兼容这几种不同类型的USB接口，只需要修改DTS配置，就可以使能相应的USB接口。
本文档（本指南）主要适用于以下工程师： 软件工程师 技术支持工程师
RK3399 USB DTS
1 Type-C USB DTS配置 (default)
1.1 Type-C0 /C1 USB 控制器DTS配置
1.2 Type-C0 /C1 USB PHY DTS配置
1.2.1 Type-C0 /C1 USB3.0 PHY DTS配置
1.2.2 Type-C0 /C1 USB2.0 PHY DTS配置
1.3 Type-C1 USB OTG DTS配置
2 Type-A USB3.0 Host DTS配置
3 Micro USB3.0 OTG DTS配置
4 Micro USB2.0 OTG DTS配置
5 USB2.0 Host DTS配置
5.1 USB2.0 Host 控制器 DTS配置
5.2 USB2.0 Host PHY DTS配置
6 参考文档
RK3399 SDK DTS的默认配置，支持Type-C0 USB3.0 OTG功能，Type-C1 USB3.0 Host功能。DTS的配置主要包括
DWC3控制器、Type-C USB3.0 PHY、USB2.0 PHY。
1.1 Type-C0 /C1 USB DTS
Type-C0/C1 USB控制器支持USB3.0 OTG（USB Peripheral和USB Host）功能，并且向下兼容USB2.0/1.1/1.0。但
由于当前内核的USB 框架只支持一个USB 口作为Peripheral功能，所以SDK默认配置Type-C0支持OTG mode，而
Type-C1仅支持Host mode。
以RK3399 EVB Type-C0/C1 USB3.0 控制器DTS配置为例：
arch/arm64/boot/dts/rockchip/rk3399.dtsi
usbdrd3_0: usb@fe800000 { /* Type-C0 USB3.0 控制器DTS配置*/
compatible = "rockchip,rk3399-dwc3";
clocks = <&cru SCLK_USB3OTG0_REF>, <&cru SCLK_USB3OTG0_SUSPEND>,
<&cru ACLK_USB3OTG0>, <&cru ACLK_USB3_GRF>;
clock-names = "ref_clk", "suspend_clk",
"bus_clk", "grf_clk";
power-domains = <&power RK3399_PD_USB3>;
resets = <&cru SRST_A_USB3_OTG0>;
reset-names = "usb3-otg";
#address-cells = <2>;
#size-cells = <2>;
ranges;
status = "disabled";
usbdrd_dwc3_0: dwc3@fe800000 {
compatible = "snps,dwc3";
reg = <0x0 0xfe800000 0x0 0x100000>;
interrupts = <GIC_SPI 105 IRQ_TYPE_LEVEL_HIGH 0>;
dr_mode = "otg"; /* 支持OTG mode */
phys = <&u2phy0_otg>, <&tcphy0_usb3>; /* usb2 phy和usb3 phy属
性 */
phy-names = "usb2-phy", "usb3-phy";
phy_type = "utmi_wide";
snps,dis_enblslpm_quirk;
snps,dis-u2-freeclk-exists-quirk;
snps,dis_u2_susphy_quirk;
snps,dis-del-phy-power-chg-quirk;
snps,tx-ipgap-linecheck-dis-quirk;
snps,xhci-slow-suspend-quirk;
snps,usb3-warm-reset-on-resume-quirk;
status = "disabled";
};
};
usbdrd3_1: usb@fe900000 { /* Type-C1 USB3.0 控制器DTS配置*/
compatible = "rockchip,rk3399-dwc3";
clocks = <&cru SCLK_USB3OTG1_REF>, <&cru SCLK_USB3OTG1_SUSPEND>,
<&cru ACLK_USB3OTG1>, <&cru ACLK_USB3_GRF>;
clock-names = "ref_clk", "suspend_clk",
"bus_clk", "grf_clk";
power-domains = <&power RK3399_PD_USB3>;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
arch/arm64/boot/dts/rockchip/rk3399-evb.dtsi
1.2 Type-C0 /C1 USB PHY DTS
Type-C0/C1 USB PHY的硬件由USB3.0 PHY（只支持Super-speed）和USB2.0 PHY（支持High-speed/Full-
speed/Low-speed）两部分组成。所以，对应的USB PHY DTS也包括USB3.0 PHY和USB2.0 PHY两部分。
1.2.1 Type-C0 /C1 USB3.0 PHY DTS
resets = <&cru SRST_A_USB3_OTG1>;
reset-names = "usb3-otg";
#address-cells = <2>;
#size-cells = <2>;
ranges;
status = "disabled";
usbdrd_dwc3_1: dwc3@fe900000 {
compatible = "snps,dwc3";
reg = <0x0 0xfe900000 0x0 0x100000>;
interrupts = <GIC_SPI 110 IRQ_TYPE_LEVEL_HIGH 0>;
dr_mode = "host"; /* 只支持Host mode */
phys = <&u2phy1_otg>, <&tcphy1_usb3>; /* usb2 phy和usb3 phy属
性 */
phy-names = "usb2-phy", "usb3-phy";
phy_type = "utmi_wide";
snps,dis_enblslpm_quirk;
snps,dis-u2-freeclk-exists-quirk;
snps,dis_u2_susphy_quirk;
snps,dis-del-phy-power-chg-quirk;
snps,tx-ipgap-linecheck-dis-quirk;
snps,xhci-slow-suspend-quirk;
snps,usb3-warm-reset-on-resume-quirk;
status = "disabled";
};
};
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
&usbdrd3_0 {
extcon = <&fusb0>; /* extcon属性 */
status = "okay";
};
&usbdrd_dwc3_0 {
status = "okay";
};
&usbdrd3_1 {
extcon = <&fusb1>; /* extcon属性 */
status = "okay";
};
&usbdrd_dwc3_1 {
status = "okay";
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
以RK3399 EVB3 Type-C0 /C1 USB3.0 PHY DTS配置为例：
arch/arm64/boot/dts/rockchip/rk3399.dtsi
tcphy0: phy@ff7c0000 {
compatible = "rockchip,rk3399-typec-phy";
reg = <0x0 0xff7c0000 0x0 0x40000>;
rockchip,grf = <&grf>;
#phy-cells = <1>;
clocks = <&cru SCLK_UPHY0_TCPDCORE>,
<&cru SCLK_UPHY0_TCPDPHY_REF>;
clock-names = "tcpdcore", "tcpdphy-ref";
assigned-clocks = <&cru SCLK_UPHY0_TCPDCORE>;
assigned-clock-rates = <50000000>;
power-domains = <&power RK3399_PD_TCPD0>;
resets = <&cru SRST_UPHY0>,
<&cru SRST_UPHY0_PIPE_L00>,
<&cru SRST_P_UPHY0_TCPHY>;
reset-names = "uphy", "uphy-pipe", "uphy-tcphy";
rockchip,typec-conn-dir = <0xe580 0 16>;
rockchip,usb3tousb2-en = <0xe580 3 19>;
rockchip,usb3-host-disable = <0x2434 0 16>;
rockchip,usb3-host-port = <0x2434 12 28>;
rockchip,external-psm = <0xe588 14 30>;
rockchip,pipe-status = <0xe5c0 0 0>;
rockchip,uphy-dp-sel = <0x6268 19 19>;
status = "disabled";
tcphy0_dp: dp-port {
#phy-cells = <0>;
};
tcphy0_usb3: usb3-port { /* Type-C0 USB3.0 port */
#phy-cells = <0>;
};
};
tcphy1: phy@ff800000 {
compatible = "rockchip,rk3399-typec-phy";
reg = <0x0 0xff800000 0x0 0x40000>;
rockchip,grf = <&grf>;
#phy-cells = <1>;
clocks = <&cru SCLK_UPHY1_TCPDCORE>,
<&cru SCLK_UPHY1_TCPDPHY_REF>;
clock-names = "tcpdcore", "tcpdphy-ref";
assigned-clocks = <&cru SCLK_UPHY1_TCPDCORE>;
assigned-clock-rates = <50000000>;
power-domains = <&power RK3399_PD_TCPD1>;
resets = <&cru SRST_UPHY1>,
<&cru SRST_UPHY1_PIPE_L00>,
<&cru SRST_P_UPHY1_TCPHY>;
reset-names = "uphy", "uphy-pipe", "uphy-tcphy";
rockchip,typec-conn-dir = <0xe58c 0 16>;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
arch/arm64/boot/dts/rockchip/rk3399-evb.dtsi
arch/arm64/boot/dts/rockchip/rk3399-evb-rev3.dtsi
rockchip,usb3tousb2-en = <0xe58c 3 19>;
rockchip,usb3-host-disable = <0x2444 0 16>;
rockchip,usb3-host-port = <0x2444 12 28>;
rockchip,external-psm = <0xe594 14 30>;
rockchip,pipe-status = <0xe5c0 16 16>;
rockchip,uphy-dp-sel = <0x6268 3 19>;
status = "disabled";
tcphy1_dp: dp-port {
#phy-cells = <0>;
};
tcphy1_usb3: usb3-port { /* Type-C1 USB3.0 port */
#phy-cells = <0>;
};
};
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
&tcphy0 {
extcon = <&fusb0>;
status = "okay";
};
&tcphy1 {
extcon = <&fusb1>;
status = "okay";
};
&pinctrl {
......
fusb30x {
fusb0_int: fusb0-int { /* TypeC0 fusb302 中断 */
rockchip,pins = <1 2 RK_FUNC_GPIO &pcfg_pull_up>;
};
fusb1_int: fusb1-int { /* Type-C1 fusb302 中断 */
rockchip,pins = <1 24 RK_FUNC_GPIO &pcfg_pull_up>;
};
};
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
&i2c0 {
fusb1: fusb30x@22 {
compatible = "fairchild,fusb302";
reg = <0x22>;
pinctrl-names = "default";
pinctrl-0 = <&fusb1_int>;
vbus-5v-gpios = <&gpio1 4 GPIO_ACTIVE_LOW>;
int-n-gpios = <&gpio1 24 GPIO_ACTIVE_HIGH>;
1
2
3
4
5
6
7
8
1.2.2 Type-C0 /C1 USB2.0 PHY DTS
以RK3399 EVB3 Type-C0 /C1 USB2.0 PHY DTS配置为例：
arch/arm64/boot/dts/rockchip/rk3399.dtsi
status = "okay";
};
......
};
&i2c6 {
status = "okay";
fusb0: fusb30x@22 {
compatible = "fairchild,fusb302";
reg = <0x22>;
pinctrl-names = "default";
pinctrl-0 = <&fusb0_int>;
vbus-5v-gpios = <&gpio1 3 GPIO_ACTIVE_LOW>;
int-n-gpios = <&gpio1 2 GPIO_ACTIVE_HIGH>;
status = "okay";
};
......
};
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
grf: syscon@ff770000 {
compatible = "rockchip,rk3399-grf", "syscon", "simple-mfd";
......
u2phy0: usb2-phy@e450 {
compatible = "rockchip,rk3399-usb2phy";
reg = <0xe450 0x10>;
clocks = <&cru SCLK_USB2PHY0_REF>;
clock-names = "phyclk";
#clock-cells = <0>;
clock-output-names = "clk_usbphy0_480m";
status = "disabled";
u2phy0_otg: otg-port { /* Type-C0 USB2.0 PHY port */
#phy-cells = <0>;
interrupts = <GIC_SPI 103 IRQ_TYPE_LEVEL_HIGH 0>,
<GIC_SPI 104 IRQ_TYPE_LEVEL_HIGH 0>,
<GIC_SPI 106 IRQ_TYPE_LEVEL_HIGH 0>;
interrupt-names = "otg-bvalid", "otg-id",
"linestate";
status = "disabled";
};
......
};
u2phy1: usb2-phy@e460 {
compatible = "rockchip,rk3399-usb2phy";
reg = <0xe460 0x10>;
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
arch/arm64/boot/dts/rockchip/rk3399-evb.dtsi
1.3 Type-C1 USB OTG DTS
在1.1 Type-C0 /C1 USB 控制器DTS配置中已经提到，由于当前的内核USB框架只能支持一个USB 口作为Peripheral
功能，所以RK3399 SDK默认配置Type-C0作为OTG mode 支持USB Peripheral功能，而Type-C1只支持Host
mode。实际产品中，可以根据应用需求，修改为Type-C1作为OTG mode支持USB Peripheral功能，需要修改的地
方有两个：
DTS的“dr_mode”属性
clocks = <&cru SCLK_USB2PHY1_REF>;
clock-names = "phyclk";
#clock-cells = <0>;
clock-output-names = "clk_usbphy1_480m";
status = "disabled";
u2phy1_otg: otg-port { /* Type-C1 USB2.0 PHY port*/
#phy-cells = <0>;
interrupts = <GIC_SPI 108 IRQ_TYPE_LEVEL_HIGH 0>,
<GIC_SPI 109 IRQ_TYPE_LEVEL_HIGH 0>,
<GIC_SPI 111 IRQ_TYPE_LEVEL_HIGH 0>;
interrupt-names = "otg-bvalid", "otg-id",
"linestate";
status = "disabled";
};
......
};
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
&u2phy0 {
status = "okay";
extcon = <&fusb0>; /* extcon 属性*/
u2phy0_otg: otg-port {
status = "okay";
};
......
};
&u2phy1 {
status = "okay";
extcon = <&fusb1>; /* extcon 属性 */
u2phy1_otg: otg-port {
status = "okay";
};
......
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
init.rk30board.usb.rc 的USB控制器地址 （适用于Android平台）
设置USB控制器的地址为Type-C1 USB控制器的基地址：
setprop sys.usb.controller "fe900000.dwc3"
2 Type-A USB3.0 Host DTS

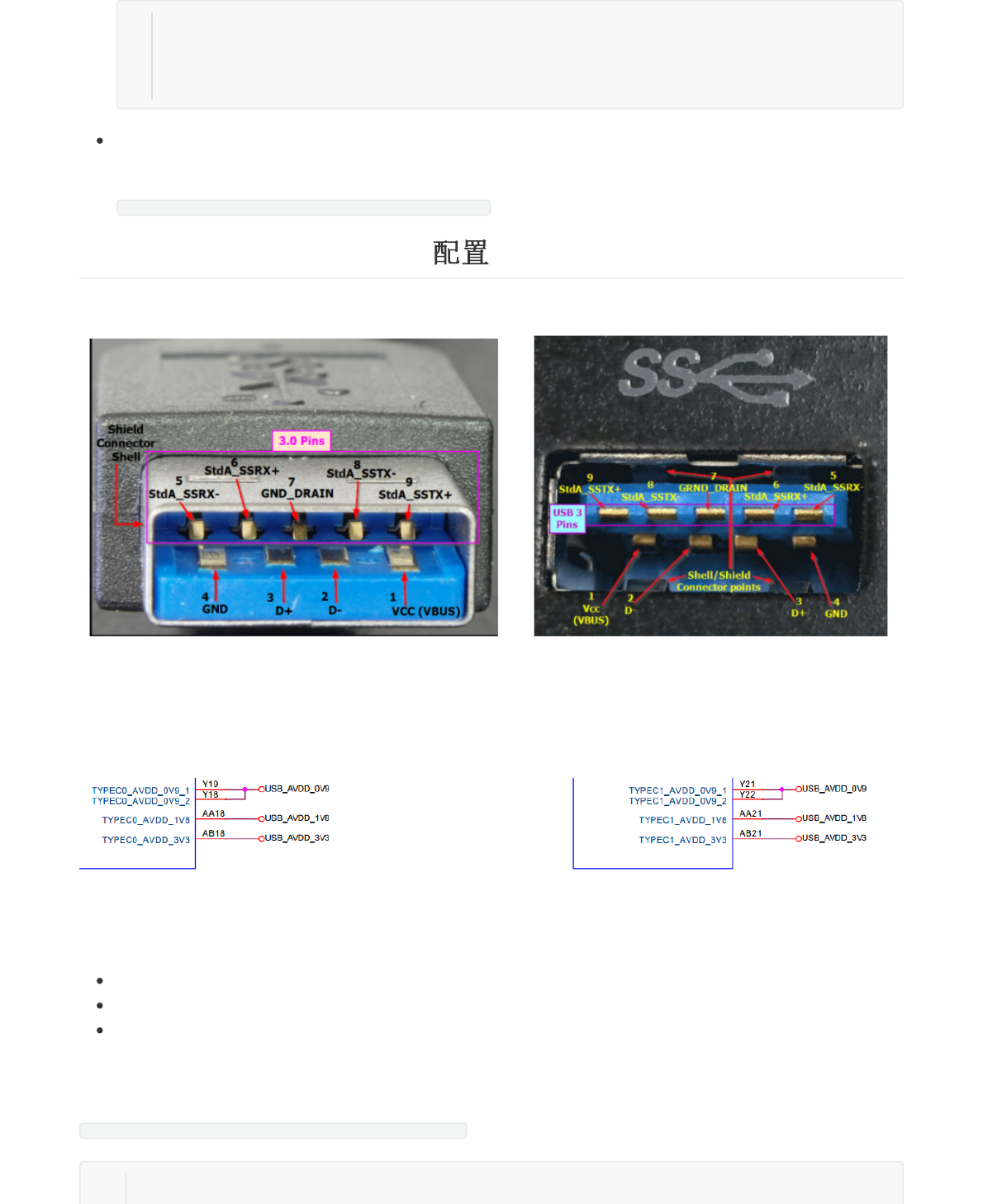

Type-A USB3.0的接口类型如下图2-1所示。
图2-1 Type-A USB3.0接口类型示意图
Type-C USB可以配置为Type-A USB使用。如RK3399 BOX SDK平台的Type-C1 USB默认设计为Type-A USB Host。
这种设计，USB Vbus 5V一般为常供电，不需要单独的GPIO控制，也不需要fusb302芯片，但Type-C的三路供电需
要正常开启，如下图2-2所示，才能支持USB3.0 Super-speed。
图2-2 Type-C 供电电路
Type-A USB3.0 Host DTS配置的注意点如下：
对应的fusb节点不要配置，因为Type-A USB3.0不需要fusb302芯片
对应的USB控制器父节点（usbdrd3）和PHY的节点（tcphy和u2phy）都要删除extcon属性
对应的USB控制器子节点（usbdrd_dwc3）的dr_mode属性要配置为"host"
以RK3399 BOX平台为例（Type-C0 配置为Type-C接口，Type-C1配置为Type-A USB3 接口），介绍Type-A USB3.0
Host DTS配置的方法：
arch/arm64/boot/dts/rockchip/rk3399-box.dtsi
&usbdrd_dwc3_1 {
status = "okay";
dr_mode = "otg"; /* 配置Type-C1 USB控制器为OTG mode */
};
1
2
3
4
&tcphy0 {1
arch/arm64/boot/dts/rockchip/rk3399-box-rev2.dts
extcon = <&fusb0>; /* Type-C0 USB3 PHY extcon属性 */
status = "okay";
};
&tcphy1 { /* Type-A USB3 PHY 删除了extcon属性 */
status = "okay";
};
&u2phy0 {
status = "okay";
extcon = <&fusb0>; /* Type-C0 USB2 PHY extcon属性 */
u2phy0_otg: otg-port {
status = "okay";
};
....
};
&u2phy1 {
status = "okay"; /*Type-A USB2 PHY 删除了extcon属性*/
u2phy1_otg: otg-port {
status = "okay";
};
......
};
&usbdrd3_0 {
extcon = <&fusb0>;
status = "okay";
};
&usbdrd_dwc3_0 {
dr_mode = "otg";
status = "okay";
};
&usbdrd3_1 {
status = "okay";
};
&usbdrd_dwc3_1 { /* Type-C1 USB控制器删除extcon属性，同时配置dr_mode为host */
dr_mode = "host";
status = "okay";
};
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
&pinctrl {
......
fusb30x {
fusb0_int: fusb0-int {
1
2
3
4
3 Micro USB3.0 OTG DTS

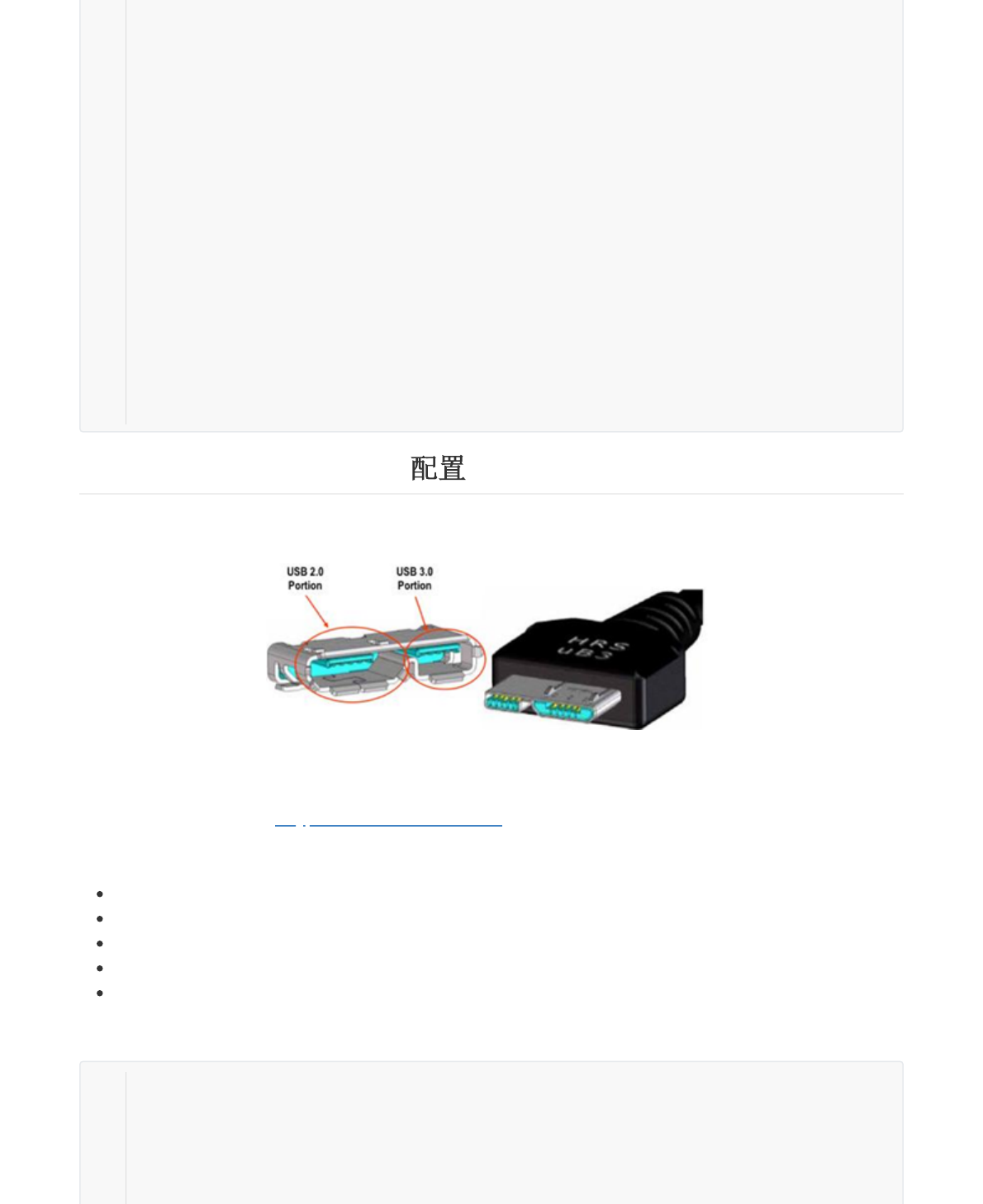

Micro USB3.0 OTG的接口类型如下图3-1所示。
图3-1 Micro USB3.0 OTG接口类型示意图
Type-C USB可以配置为Micro USB3.0 OTG使用。这种设计，硬件上不需要fusb302芯片，USB Vbus 5V一般由GPIO
控制，Type-C的三路供电与2 Type-A USB3.0 Host DTS配置的硬件电路一样，需要正常开启。
Micro USB3.0 OTG DTS配置的注意点如下：
对应的fusb节点不要配置，因为Micro USB3.0不需要fusb302芯片
对应的USB PHY节点（tcphy和u2phy）都要删除extcon属性
对应的USB控制器父节点（usbdrd3）中，extcon属性引用为u2phy
对应的USB控制器子节点（usbdrd_dwc3）的dr_mode属性要配置为"otg"
对应的USB2 PHY节点（u2phy）中，配置Vbus regulator
以Type-C0 USB配置为Micro USB3.0 OTG为例：
rockchip,pins =
<1 2 RK_FUNC_GPIO &pcfg_pull_up>;
};
};
......
};
&i2c4 {
status = "okay";
fusb0: fusb30x@22 { /* Type-C0 对应的fusb302芯片的节点，Type-C1不需要fusb302 */
compatible = "fairchild,fusb302";
reg = <0x22>;
pinctrl-names = "default";
pinctrl-0 = <&fusb0_int>;
vbus-5v-gpios = <&gpio1 3 GPIO_ACTIVE_LOW>;
int-n-gpios = <&gpio1 2 GPIO_ACTIVE_HIGH>;
status = "okay";
};
};
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
&tcphy0 { /* Micro USB3 PHY 删除了extcon属性 */
status = "okay";
};
&u2phy0 {
1
2
3
4
5
Note1.
Kernel 4.4最新的代码，已经将OTG USB Vbus的控制改为regulator的方式（commit a1ca1be8f6ed “phy:
rockchip-inno-usb2: use fixed-regulator for vbus power”），参考文档：
Documentation/devicetree/bindings/phy/phy-rockchip-inno-usb2.txt
所以，DTS中对OTG USB Vbus的控制，应该改为：
status = "okay"; /*Micro USB2 PHY 删除了extcon属性*/
otg-vbus-gpios = <&gpio3 RK_PC6 GPIO_ACTIVE_HIGH>; /* Vbus GPIO配置，见Note1
*/
u2phy1_otg: otg-port {
status = "okay";
};
......
};
&usbdrd3_0 {
extcon = <&u2phy0>; /* Micro USB3控制器的extcon属性引用u2phy0 */
status = "okay";
};
&usbdrd_dwc3_0 {
dr_mode = "otg"; /* Micro USB3控制器的dr_mode配置为otg */
status = "okay";
};
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
vcc_otg_vbus: otg-vbus-regulator {
compatible = "regulator-fixed";
gpio = <&gpio3 RK_PC6 GPIO_ACTIVE_HIGH>;
pinctrl-names = "default";
pinctrl-0 = <&otg_vbus_drv>;
regulator-name = "vcc_otg_vbus";
regulator-min-microvolt = <5000000>;
regulator-max-microvolt = <5000000>;
enable-active-high;
};
&pinctrl {
......
usb {
otg_vbus_drv: otg-vbus-drv {
rockchip,pins = <3 RK_PC6 RK_FUNC_GPIO &pcfg_pull_none>;
};
};
};
&u2phy0 {
status = "okay";
u2phy0_otg: otg-port {
vbus-supply = <&vcc_otg_vbus>; /*配置Vbus regulator属性 */
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
4 Micro USB2.0 OTG DTS

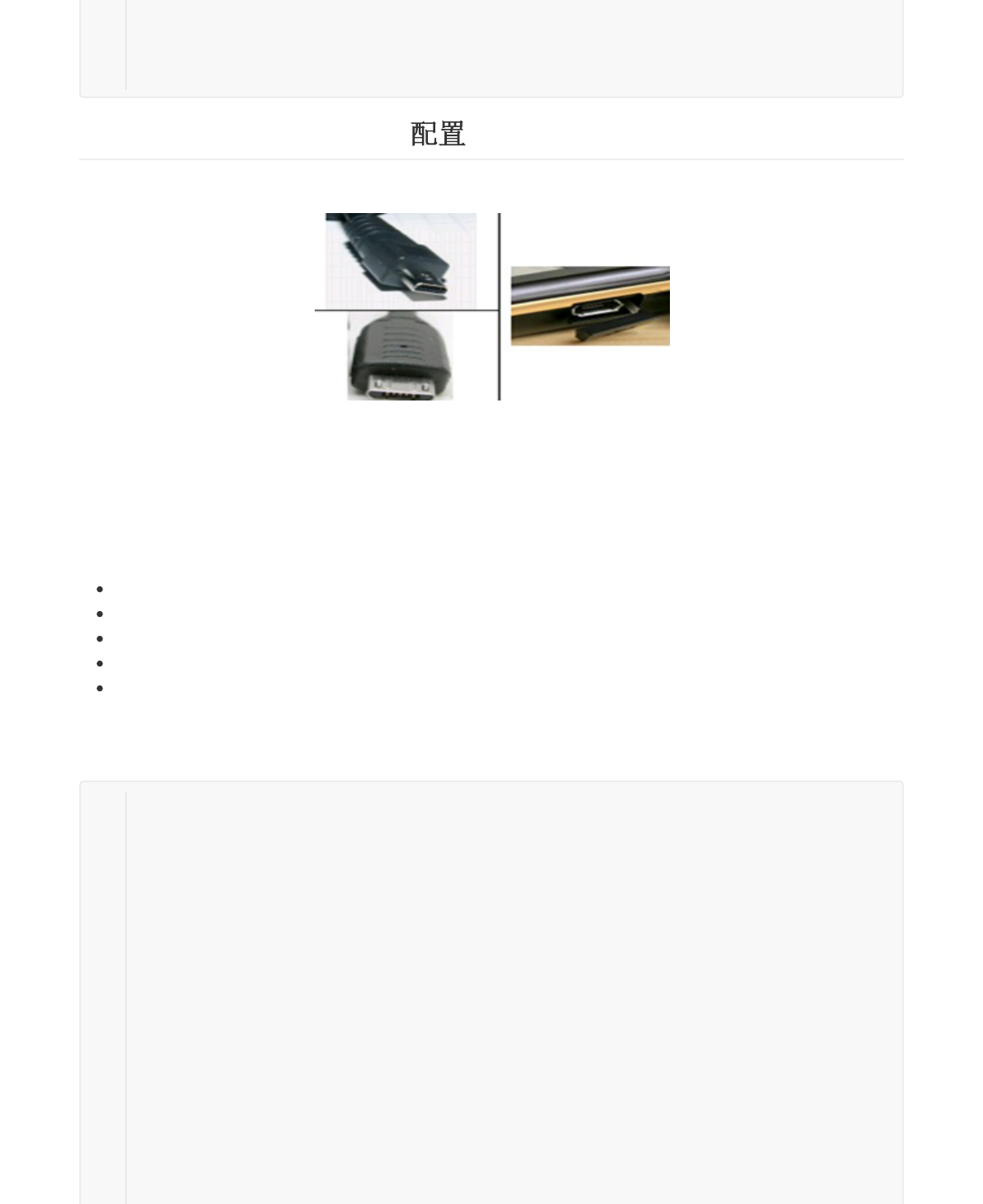

Micro USB2.0 OTG的接口类型如下图4-1所示。
图4-1 Micro USB2.0 OTG接口类型示意图
Type-C USB可以配置为Micro USB2.0 OTG使用。这种设计，硬件上不需要fusb302芯片，USB Vbus 5V一般由GPIO
控制，因为不需要支持USB3.0，所以对应的Type-C三路供电（USB_AVDD_0V9，USB_AVDD_1V8，
USB_AVDD_3V3）可以关闭。
Micro USB2.0 OTG DTS配置的注意点如下:
对应的fusb节点不要配置，因为Micro USB2.0不需要fusb302芯片
Disable对应的USB3 PHY节点（tcphy）
对应的USB2 PHY节点（u2phy）要删除extcon属性，并且配置Vbus regulator
对应的USB控制器父节点（usbdrd3）中，extcon属性引用为u2phy
对应的USB控制器子节点（usbdrd_dwc3）的dr_mode属性要配置为"otg"，maximum-speed 属性配置为
high-speed，phys 属性只引用USB2 PHY节点
以Type-C0 USB配置为Micro USB2.0 OTG为例：
status = "okay";
};
......
};
26
27
28
29
&tcphy0 {
status = "disabled";
};
&u2phy0 {
status = "okay"; /*Micro USB2 PHY 删除了extcon属性*/
otg-vbus-gpios = <&gpio3 RK_PC6 GPIO_ACTIVE_HIGH>; /* Vbus GPIO配置，见Note1
*/
u2phy1_otg: otg-port {
status = "okay";
};
......
};
&usbdrd3_0 {
extcon = <&u2phy0>; /* Micro USB3控制器的extcon属性引用u2phy0 */
status = "okay";
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Note1.
Kernel 4.4最新的代码，已经将OTG USB Vbus的控制改为regulator的方式（commit a1ca1be8f6ed “phy:
rockchip-inno-usb2: use fixed-regulator for vbus power”），参考文档：
Documentation/devicetree/bindings/phy/phy-rockchip-inno-usb2.txt
所以，DTS中对OTG USB Vbus的控制，请参考3 Micro USB3.0 OTG DTS配置中Vbus regulator的配置方法。
5 USB2.0 Host DTS
RK3399 支持两个USB2.0 Host接口，对应的USB控制器为EHCI&OHCI，相比Type-C接口的多种硬件设计方案，
USB2.0 Host的接口一般只有一种设计方案，即Type-A USB2.0 Host接口，对应的DTS配置，包括控制器DTS配置和
PHY DTS配置。
5.1 USB2.0 Host DTS
以RK3399 EVB USB2.0 Host 控制器 DTS配置为例:
arch/arm64/boot/dts/rockchip/rk3399.dtsi
};
&usbdrd_dwc3_0 {
dr_mode = "otg"; /* Micro USB3控制器的dr_mode配置为otg */
maximum-speed = “high-speed”; /* maximum-speed 属性配置为high-speed */
phys = <&u2phy0_otg>; /* phys 属性只引用USB2 PHY节点 */
phy-names = "usb2-phy";
status = "okay";
};
18
19
20
21
22
23
24
25
26
usb_host0_ehci: usb@fe380000 {
compatible = "generic-ehci";
reg = <0x0 0xfe380000 0x0 0x20000>;
interrupts = <GIC_SPI 26 IRQ_TYPE_LEVEL_HIGH 0>;
clocks = <&cru HCLK_HOST0>, <&cru HCLK_HOST0_ARB>,
<&cru SCLK_USBPHY0_480M_SRC>;
clock-names = "hclk_host0", "hclk_host0_arb", "usbphy0_480m";
phys = <&u2phy0_host>;
phy-names = "usb";
power-domains = <&power RK3399_PD_PERIHP>;
status = "disabled";
};
usb_host0_ohci: usb@fe3a0000 {
compatible = "generic-ohci";
reg = <0x0 0xfe3a0000 0x0 0x20000>;
interrupts = <GIC_SPI 28 IRQ_TYPE_LEVEL_HIGH 0>;
clocks = <&cru HCLK_HOST0>, <&cru HCLK_HOST0_ARB>,
<&cru SCLK_USBPHY0_480M_SRC>;
clock-names = "hclk_host0", "hclk_host0_arb", "usbphy0_480m";
phys = <&u2phy0_host>;
phy-names = "usb";
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
arch/arm64/boot/dts/rockchip/rk3399-evb.dtsi
5.2 USB2.0 Host PHY DTS
以RK3399 EVB USB2.0 Host PHY DTS配置为例:
power-domains = <&power RK3399_PD_PERIHP>;
status = "disabled";
};
usb_host1_ehci: usb@fe3c0000 {
compatible = "generic-ehci";
reg = <0x0 0xfe3c0000 0x0 0x20000>;
interrupts = <GIC_SPI 30 IRQ_TYPE_LEVEL_HIGH 0>;
clocks = <&cru HCLK_HOST1>, <&cru HCLK_HOST1_ARB>,
<&cru SCLK_USBPHY1_480M_SRC>;
clock-names = "hclk_host1", "hclk_host1_arb", "usbphy1_480m";
phys = <&u2phy1_host>;
phy-names = "usb";
power-domains = <&power RK3399_PD_PERIHP>;
status = "disabled";
};
usb_host1_ohci: usb@fe3e0000 {
compatible = "generic-ohci";
reg = <0x0 0xfe3e0000 0x0 0x20000>;
interrupts = <GIC_SPI 32 IRQ_TYPE_LEVEL_HIGH 0>;
clocks = <&cru HCLK_HOST1>, <&cru HCLK_HOST1_ARB>,
<&cru SCLK_USBPHY1_480M_SRC>;
clock-names = "hclk_host1", "hclk_host1_arb", "usbphy1_480m";
phys = <&u2phy1_host>;
phy-names = "usb";
power-domains = <&power RK3399_PD_PERIHP>;
status = "disabled";
};
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
&usb_host0_ehci {
status = "okay";
};
&usb_host0_ohci {
status = "okay";
};
&usb_host1_ehci {
status = "okay";
};
&usb_host1_ohci {
status = "okay";
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
arch/arm64/boot/dts/rockchip/rk3399.dtsi
arch/arm64/boot/dts/rockchip/rk3399-evb.dtsi
grf: syscon@ff770000 {
compatible = "rockchip,rk3399-grf", "syscon", "simple-mfd";
reg = <0x0 0xff770000 0x0 0x10000>;
#address-cells = <1>;
#size-cells = <1>;
......
u2phy0: usb2-phy@e450 {
compatible = "rockchip,rk3399-usb2phy";
reg = <0xe450 0x10>;
clocks = <&cru SCLK_USB2PHY0_REF>;
clock-names = "phyclk";
#clock-cells = <0>;
clock-output-names = "clk_usbphy0_480m";
status = "disabled";
......
u2phy0_host: host-port { /* 配置USB2.0 Host0 USB2 PHY节点 */
#phy-cells = <0>;
interrupts = <GIC_SPI 27 IRQ_TYPE_LEVEL_HIGH 0>;
interrupt-names = "linestate";
status = "disabled";
};
};
u2phy1: usb2-phy@e460 {
compatible = "rockchip,rk3399-usb2phy";
reg = <0xe460 0x10>;
clocks = <&cru SCLK_USB2PHY1_REF>;
clock-names = "phyclk";
#clock-cells = <0>;
clock-output-names = "clk_usbphy1_480m";
status = "disabled";
......
u2phy1_host: host-port { /* 配置USB2.0 Host1 USB2 PHY节点 */
#phy-cells = <0>;
interrupts = <GIC_SPI 31 IRQ_TYPE_LEVEL_HIGH 0>;
interrupt-names = "linestate";
status = "disabled";
};
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
vcc5v0_host: vcc5v0-host-regulator {
compatible = "regulator-fixed";
enable-active-high;
gpio = <&gpio4 25 GPIO_ACTIVE_HIGH>; /* 配置USB2.0 Host Vbus GPIO */
pinctrl-names = "default";
pinctrl-0 = <&host_vbus_drv>;
regulator-name = "vcc5v0_host";
regulator-always-on;
1
2
3
4
5
6
7
8
6
1. Documentation/devicetree/bindings/usb/generic.txt
2. Documentation/devicetree/bindings/usb/dwc3.txt
3. Documentation/devicetree/bindings/usb/rockchip,dwc3.txt
4. Documentation/devicetree/bindings/usb/usb-ehci.txt
5. Documentation/devicetree/bindings/usb/usb-ohci.txt
6. Documentation/devicetree/bindings/phy/phy-rockchip-typec.txt
7. Documentation/devicetree/bindings/phy/phy-rockchip-inno-usb2.txt
};
&pinctrl {
......
usb2 {
host_vbus_drv: host-vbus-drv {
rockchip,pins =
<4 25 RK_FUNC_GPIO &pcfg_pull_none>;
};
};
......
};
&u2phy0 {
status = "okay";
...
u2phy0_host: host-port {
phy-supply = <&vcc5v0_host>; /* 配置USB2.0 Host0 Vbus regulator属性 */
status = "okay";
};
};
&u2phy1 {
status = "okay";
...
u2phy1_host: host-port {
phy-supply = <&vcc5v0_host>; /* 配置USB2.0 Host1 Vbus regulator属性 */
status = "okay";
};
};
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
