INTRODUCTION

• This parts book is designed so that you can look up part numbers in two

different ways.

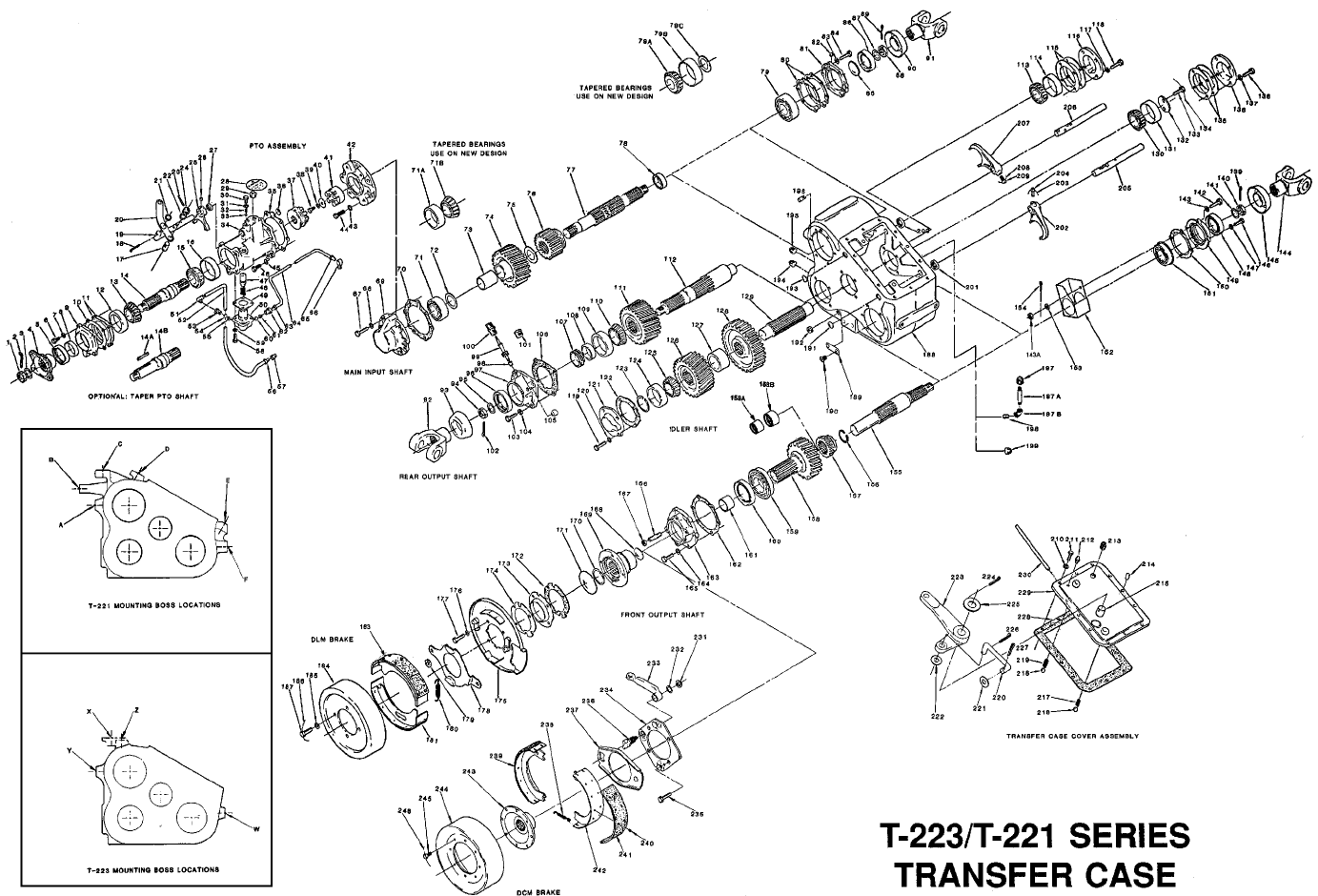

1. If you know the part number of the transfer case, for example, if the

model number is T-223-H36, you simply match the item number in the

picture with the item number in the parts list. The parts list shows which

part number is used on each model.

2. If you don't know the model number, the description column in the parts

list has descriptions of the different part numbers that are used on different

models.

• This book only lists current models. Included with the list of models covered is

a list of superseded models. For service parts for models not listed, contact

Meritor Specifications Department, Florence, Kentucky (888) 725-9355.

• All Meritor gears and shafts are marked with the check letter and final digits of

the part number, for example, F-5024 or X-2442.

• When you service gears, we recommend that you replace all mating gears for

the best quality repair.

• Proper tools and maintenance procedures must be used. For T-221 series

and T-223 series transfer cases, follow the service instructions on Meritor

Field Maintenance Manual 3A. Also see Meritor Field Maintenance Manual

No. 1 for proper lubricant, lubricant capacities and change intervals. Manuals

may be obtained by calling the to Meritor’s Customer Service Center at

800-535-5560.

• Service kits include parts to service all the different models covered by this

book, so the kit may include extra parts that you won't need. In addition to

kits, individual parts are available.

• For service parts, contact ArvinMeritor Commercial Vehicle Aftermarket,

888-725-9355. In Canada, 800-668-3508/option 7.

TABLE OF CONTENTS

Page

1. T-223/ T-221 Series Supersessions

...............................................................................

2. T-223/ T-221 Series Options

...........................................................................................

3. T-223/ T-221 Series Service Kit Reference

....................................................................

4. T-223 Series Service Kits

P.T.O. Miscellaneous Parts....................................................................................

P.T.O. Bearings/Shims...........................................................................................

Main Case Seals....................................................................................................

Main Case Bearings/Shims/Spacers......................................................................

Capscrews/Washers/Nuts......................................................................................

Main Case Miscellaneous Parts.............................................................................

DLM 10" x 1-1/2" Non-Asbestos Brake Kit.............................................................

DCM 10" x 3" Brake Kit..........................................................................................

Shaft Output and Input Assemblies.......................................................................

Shaft P.T.O. ...........................................................................................................

5. T-221 Series Service Kits

Main Case Seals....................................................................................................

Main Case Miscellaneous Parts.............................................................................

Main Case Fasteners.............................................................................................

DLM 7-1/4" x 1-1/2" Non-Asbestos Brake Kit.........................................................

6. T-223 Transfer Case

Power Take Off......................................................................................................

Main Case..............................................................................................................

DLM Brake.............................................................................................................

DCM Brake.............................................................................................................

7. T-221 Transfer Case

Main Case..............................................................................................................

DLM Brake.............................................................................................................

7. Numerical Parts Listing

..................................................................................................

T-223 SERIES SUPERSESSIONS

RELEASE REPLACES RELEASE REPLACES RELEASE REPLACES RELEASE

MODEL DATE MODEL DATE MODEL DATE MODEL DATE

T-223-A84 Oct-82 T-223-A73 May-75

T-223-A88 May-83 T-223-A36 May-63 T-223-A2 Dec-55

T-223-A89 Oct-84 T-223-A57 Jan-68

T-223-A90 Oct-84

T-223-A92 Oct-86

T-223-A94 Jan-91 T-223-A83 Oct-82 T-223-A35 May-63 T-223-A Nov-59

T-223-A102 Mar-95 T-223-A91 May-86

T-223-A103 Mar-96

T-223-A104 May-96 T-223-A101 Oct-94 T-223-A99 Aug-94 T-223-A-95 Jan-91

T-223-A105 Jan-97 T-223-A100 Sep-94 T-223-A98 May-93 T-223-A97 Mar-91

T-223-C22 Jun-83 T-223-C9 Nov-68

T-223-C35 Aug-94 T-223-C30 Sep-93 T-223-C26 Jul-86 T-223-C20 Feb-83

T-223-C41 Mar-96 T-223-C39 Apr-95 T-223-C32 Jun-93 T-223-C28 Jan-89

T-223-C42 Oct-96 T-223-C37 Jan-95 T-223-C29 Sep-92 T-223-C23 Nov-83

T-223-C43 Apr-96 T-223-C36 Nov-94 T-223-C29 Sep-92 T-223-C23 Nov-83

T-223-C44 Jan-97 T-223-C38 Mar-95 T-223-C31 Sep-92 T-223-C27 Apr-87

T-223-E22 Jan-89 T-223-E18 Sep-71 T-223-E8 Nov-61

T-223-E23 Apr-83 T-223-E13 May-63 T-223-E7 Feb-61 T-223-E3 Feb-60

T-223-H29 May-82

T-223-H31 May-82 T-223-H5 Oct-63 T-223-H1 May-60

T-223-H33 Oct-82 T-223-H16 Apr-70

T-223-H39 Sep-84

T-223-H40 Sep-84

T-223-H41 Jan-86

T-223-H44 Feb-88

T-223-H45 Nov-90 T-223-H36 Jan-83 T-223-H25 Oct-80

T-223-H52 Jan-96 T-223-C40 May-95 T-223-C34 May-94 T-223-C33 Feb-94

T-223-H53 Feb-96

T-223-H54 Mar-96 T-223-H50 Mar-95 T-223-H46 Sep-92 T-223-H32 Oct-82

T-223-H55 Mar-96 T-223-H49 Sep-94 T-223-H47 Nov-92 T-223-H42 Jul-86

T-223-H56 Jun-96 T-223-H48 Sep-93 T-223-H43 Oct-87

T-223-H57 Aug-96 T-223-H51 Oct-95

T-223-M4 Oct-82 T-223-M2 Dec-63 T-223-M Mar-61

T-221 SERIES SUPERSESSIONS

RELEASE REPLACES RELEASE REPLACES RELEASE REPLACES RELEASE

MODEL DATE MODEL DATE MODEL DATE MODEL DATE

T-221-A1 Mar-59 T-221-A Oct-55

T-221-M6 Mar-61 T-221-M3 Dec-59 T-221-M Feb-59

T-221-M7 Mar-61 T-221-M4 Dec-59 T-221-M1 Apr-59 T-221-M Feb-59

T-221-N4 Apr-67 T-221-N1 Apr-66 T-221-M7 Mar-61 T-221-M4 Dec-59

T-221-N7 Apr-68 T-221-N5 Apr-67 T-221-N2 Apr-66 T-221-M8 Mar-61

T-223 SERIES OPTIONS

FLANGE/YOKE

DLM DCM INTER- SPEEDO FRONT REAR

MODEL P.TO. DECLUTCH BRAKE BRAKE LOCK GEARS INPUT OUTPUT OUTPUT

T-223-A84 XX

T-223-A88 X 10" x 1-1/2" X

T-223-A89 X 10" x 1-1/2" X

T-223-A90 X 10" x 1-1/2"

T-223-A92 X 10" x 1-1/2"

T-223-A94 X 10" x 1-1/2" X

T-223-A102 XXXXX

T-223-A103 XXXX

T-223-A104 X 10" x 1-1/2" X

T-223-A105 X 10" x 1-1/2"

T-223-C22 X 10" x 1-1/2" X X

T-223-C35 XX

T-223-C41 X 10" x 1-1/2" X

T-223-C42 X

T-223-C43 X

T-223-C44 XX

T-223-E22 X

T-223-E23 X 10" x 1-1/2" X X X X

T-223-H29 X 10" x 3"

T-223-H31 X

T-223-H33 XX

T-223-H39 XX X

T-223-H40 XXX

T-223-H41 X 10" x 1-1/2" X X X

T-223-H44 X X 10" x 1-1/2"

T-223-H45 X 10" x 3"

T-223-H52 X 10" x 3" X X X X X

T-223-H53 XXX

T-223-H54 X

T-223-H55 XXXXXX

T-223-H56 XXXXX

T-223-H57 XXXXXX

T-223-M4 XXX X

T-221 SERIES OPTIONS

FLANGE/YOKE

DLM DCM INTER- SPEEDO FRONT REAR

MODEL P.TO. DECLUTCH BRAKE BRAKE LOCK GEARS INPUT OUTPUT OUTPUT

T-221-A1 X 7-1/4" x 1-1/2" X

T-221-M6 XXXXX

T-221-M7 XXXXX

T-221-N4 XXXXXX

T-223 SERIES SERVICE KITS REFERENCE

KIT NUMBER

MODEL T223-1 T223-2 T223-3 T223-4 T223-5 T223-6 T223-7 T223-8

T-223-A84 XX X X

T-223-A88 XX X XX

T-223-A89 XX X XX

T-223-A90 XX X XX

T-223-A92 XX X XX

T-223-A94 XX X XX

T-223-A102 XX X X

T-223-A103 XX X X

T-223-A104 XX X XX

T-223-A105 XX X XX

T-223-C22 XX X XX

T-223-C35 XX X XX

T-223-C41 XX X XX

T-223-C42 XX X X

T-223-C43 XX X X

T-223-C44 XX X X

T-223-E22 XX X X

T-223-E23 XX X XX

T-223-H29 XX X X X

T-223-H31 XX X X

T-223-H33 XX X X

T-223-H39 XXXXXX

T-223-H40 XX X X

T-223-H41 XX X XX

T-223-H44 XXXXXXX

T-223-H45 XX X X X

T-223-H52 XX X X X

T-223-H53 XX X X

T-223-H54 XX X X

T-223-H55 XX X X

T-223-H56 XX X X

T-223-H57 XX X X

T-223-M4 XX X X

T-221 SERIES SERVICE KITS REFERENCE

KIT NUMBER

MODEL T-221-1 T-221-3 T-221-4 T-221-5

T-221-A1 XX X X

T-221-M6 XX X

T-221-M7 XX X

T-221-N4 XX X

T-221-N7 XX X

T-223 SERIES SERVICE KITS REFERENCE

MODEL MPS-3831 MPS-4118 MPS-4120 MPS-4121 MPS-4122 MPS-4123 MPS-4124 MPS-4126 MPS-4217

T-223-A84 XX X

T-223-A88 XX X

T-223-A89 XX X

T-223-A90 XX X

T-223-A92 XX X

T-223-A94 XX X X

T-223-A102 XX X

T-223-A103 XX X X

T-223-A104 XX X X

T-223-A105 XX X X

T-223-C22 XX X

T-223-C35 XXX X

T-223-C41 XX X

T-223-C42 XX X

T-223-C43 XX X

T-223-C44 XX X

T-223-E22 XX X

T-223-E23 XX X

T-223-H29 XX

T-223-H31 XX X

T-223-H33 XX

T-223-H39 XX X

T-223-H40 XX X

T-223-H41 XX X

T-223-H44 XX X

T-223-H45 XX X

T-223-H52 XX X X

T-223-H53 XX X X

T-223-H54 XX X X

T-223-H55 XX X X

T-223-H56 XX X X

T-223-H57 XX X X

T-223-M4 XX X

T-223 SERIES SERVICE KITS

KIT T-223-1 P.T.O. MISCELLANEOUS PARTS

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Cotter-P.T.O. shaft nut K-2412 1 2

Oil Seal-P.T.O. shaft A-1805-N-352 1 5

Cotter-shift lever and shift lever stud K-238 2 18, 23

Oil Seal-P.T.O. shift shaft A-1805-B-158 1 27

Silicone Gasket-3 oz. tube 2297-Z-6656 1 10, 35, 49

Sleeve-P.T.O. shaft oil seal 1874-A-105 1 8

Spring-shift lock ball 2858-T-20 1 32

Ball-shift shaft lock 1898-H-34 1 33

Lockwasher-shift lockscrew and drive clutch 1229-E-421 2 31, 39

retainer

Spring-oil pump plunger 2858-W-101 1 48

Ball-pump inlet check valve 1898-Q-251 1 54

Spring-check valve 2858-X-102 2 55, 61

Ball-pump outlet check valve 1228-K-37 1 60

Key-tapered P.T.O. shaft 16-X-40 1 14B

KIT T-223-2 P.T.O. BEARINGS/SHIMS

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shims-P.T.O. shaft cap (.003") 2803-V-568 3 11

Shims-P.T.O. shaft cap (.005") 2803-W-569 3 11

Shims-P.T.O. shaft cap (.010") 2803-X-570 5 11

Cup-P.T.O. shaft brg. outer and inner 332 2 12, 16

Cone-P.T.O. shaft brg. outer and inner 335 2 13, 15

Silicone Gasket-3 oz. tube 2297-Z-6656 1 10, 35, 49

KIT T-223-3 MAIN CASE SEAL

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Oil Seal-input shaft front brg. cap and output A-1805-R-408 2 86, 148

shaft front

Oil Seal-input shaft front brg. cap A-1205-T-1242 1 86

Oil Seal-input shaft front brg. cap and rear A-1805-A-573 2 86, 96

output shaft

Oil Seal-front output shaft rear A-1805-P-536 1 160

Oil Seal-shift shaft A-1205-N-1132 2 200, 201

Silicone Gasket-3 oz. tube 2297-Z-6656 1 70, 106, 122, 150, 162, 228

T-223 SERIES SERVICE KITS

KIT T-223-4 MAIN CASE BEARINGS/SHIMS/SPACER

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Cup-input shaft rear 332 1 71A

Cone-input shaft rear 339 1 71B

Cone-input shaft front 357 1 79A

Cone-input shaft front 376 1 79A

Cup-input shaft front 353 1 79B

Cup-input shaft front 372 1 79B

Washer-input shaft front 1229-F-3048 1 79C

Washer-input shaft front 1229-F-2814 1 79C

Washer-input shaft front 1229-E-3047 1 79C

Shim-input shaft front brg. cap (.003") 2803-L-1832 2 80

Shim-input shaft front brg. cap (.005") 2803-M-1833 4 80

Shim-input shaft front brg. cap (.010") 2803-N-1834 2 80

Shim-input shaft front brg. cap (.003") 2803-B-1874 2 80

Shim-input shaft front brg. cap (.005") 2803-C-1875 6 80

Shim-input shaft front brg. cap (.010") 2803-D-1876 1 80

Shim-input shaft front brg. cap (.003") 2803-G-1931 2 80

Shim-input shaft front brg. cap (.005") 2803-H-1932 6 80

Shim-input shaft front brg. cap (.010") 2803-J-1934 4 80

Spacer-input shaft 1844-C-809 1 78

Cup-rear output shaft rear brg. 25520 1 109

Cone-rear output shaft rear brg. 25584 1 110

Spacer-rear output shaft 1844-S-565 1 108

Spacer-rear output shaft 1844-J-166 1 108

Cone-rear output shaft forward brg. 25878 1 113

Cup-rear output shaft forward brg. 25821 1 114

Shim-rear output forward brg. cap and idler 2803-Z-1846 4 115, 135

shaft front brg. cap (.003")

Shim-rear output forward brg. cap and idler 2803-A-1847 4 115, 135

shaft front brg. cap (.005")

Shim-rear output forward brg. cap and idler 2803-B-1848 8 115, 135

shaft front brg. cap (.010")

Cup-idler shaft front and rear brg. 31521 2 124, 131

Cone-idler shaft front and rear brg. 31597 2 125, 130

Spacer-idler shaft front brg. 1844-L-480 1 127

Cone-idler shaft front brg. HM-89449 1 130

Cup-idler shaft front brg. HM-89411 1 131

Bearing-output shaft front 1828-V-74 1 151

Bearing-front output shaft rear 1828-S-149 1 159

Spacer-front output shaft 1244-Q-1629 1 161

Silicone Gasket-3 oz. tube 2297-Z-6656 1 70, 106, 122, 150, 162, 228

Washer-idler shaft brg. 1829-H-788 1 132

T-223 SERIES SERVICE KITS

KIT T-223-5 CAPSCREWS/WASHERS/NUTS

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Nut-P.T.O. shaft, input shaft, rear output shaft 1227-L-714 4 1, 88, 94, 140

and front output shaft

Capscrew-P.T.O. shaft cap and oil pump to S-256P-2 8 6, 58

P.T.O. carrier

Washer-P.T.O. shaft cap and oil pump 1229-E-1669 8 7, 59

to carrier

Stud-shift lever 4-X-1521 1 17

Washer-shift shaft 1829-J-244 1 21

Washer-shift lever stud WA-38 1 22

Nut-shift lever stud NL-28-1 1 24

Lockscrew-shift fork 26-X-56 1 26

Screw-shift shaft lock ball 3-X-161 1 30

Lockwasher-shift lockscrew 1229-E-421 1 31

Capscrew-drive clutch retainer S-267-2 1 38

Lockwasher-drive clutch retainer 1229-E-421 1 39

Capscrew-cage to T-case, case and top cover S-268-2 14 44, 211

Washer-cage to T-cage, P.T.O. carrier to T-case, 1229-K-1597 67 43, 45, 68, 83, 104, 117, 120,

input shaft front and rear brg. cage, rear output 137, 143, 147, 164, 210

and rear output forward cap, front brg. cap, idler

shaft front brg. cap, front output shaft rear cap

and case and top cover

Capscrew-P.T.O. carrier to T-case, input shaft S-269-1 46 46, 84, 103, 118, 119, 138,

front and rear brg. cage, rear output and rear 146, 165

output forward cap, idler shaft front and rear cap,

front brg. cap, and front output shaft rear cap

Washer-input shaft rear brg. 1829-S-721 1 72

Washer-direct drive gear 1829-P-380 1 75

Washer-input shaft front 1229-F-3048 1 79C

Washer-input shaft front 1229-F-2814 1 79C

Washer-input shaft front 1229-E-3047 1 79C

Washer-input and output shaft 1829-V-100 2 87, 141

Washer-input shaft and rear output shaft nut 1229-E-1331 2 87, 95

Washer-idler shaft brg. 1829-H-788 1 132

Capscrew-oil catcher 10-X-830 1 142

Washer-oil catcher and brake pull rod WA-36 2 153, 221, 222

Capscrew-front output shaft rear cap and case S-2610-2 7 165, 213

top cover

Stud-rear output shaft 4-X-840 6 166

Nut-rear output shaft N-16-1 6 167

Lockscrew-shift fork 26-X-54 2 204, 209

Washer-bellcrank pin WA-310 1 225

Washer-brake oil detector 1829-Z-754 1 174

Washer-bake mounting capscrew and brake 1229-E-1513 8 176, 185

drum capscrew

Capscrew-brake mounting S-278A-2 4 177

Capscrew-brake drum S-276D-2 4 187

Capscrew-brake drum S-166D-2 4 245

Washer-brake WA-39 1 232

Nut-lock 1779-Z-260 1 231

T-223 SERIES SERVICE KITS

KIT T-223-6 MAIN CASE MISCELLANEOUS PART

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Washer-direct drive gear 1829-P-380 1 75

Cotter-input shaft nut, rear output shaft nut, and K-2412 3 89, 102, 139

output shaft nut

Bushing-speed driven gear 1199-M-1105 1 89

Snap Ring-idler shaft 1854-E-187 1 123

Pin-oil drain K-236 1 54

Snap Ring-front output shaft 1254-M-91 1 156

Snap Ring-brake hub 1854-W-257 1 170

Plug-oil drain 1850-T-150 1 192

Lockscrew-shift fork 26-X-54 2 204, 209

Dowels- T-case and cover 1846-X-284 2 214

Pin-brake bellcrank 1846-B-262 1 215

Washer-bellcrank pin WA-310 1 225

Cotter-bellcrank pin K-248 1 225

Washer-brake pull rod WA-36 1 221, 222

Cotter-brake pull rod K-236 1 226, 227

Ball-shift shaft lock 1898-E-57 2 216, 218

Spring-shift shaft lock 2858-A-1 2 217, 219

Spring-shift shaft lock 2858-C-237 2 217, 219

Spring-shift shaft lock 2858-B-236 2 217, 219

DLM 10" x 1-1/2"

KIT T-223-7 NON-ASBESTOS BRAKE KI

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Roller-brake 2297-L-6720 1 179

Spring-brake shoe return 2258-Q-719 4 180

Brake Shoe and Lining Assy. c A6-3722-L-194 2 181

KIT T-223-8 DCM 10" x 3" BRAKE KIT d

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Spring-brake shoe return 2758-A-53 1 238

Nut-lock 1779-Z-260 1 231

Capscrew-brake mounting S-289A-2 4 235

c Brake lining and rivets available separately in kit 2000-S-1397

d Brake lining and rivets available separately in kit 2000-J-1362

T-223 SERIES SERVICE KITS

MPS 3831 SHAFT-OUTPUT ASSEMBLY

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shaft-output assy. A-3297-Q-1369 1 155

Shaft-gear assy. A-3892-E-5465 1 158

Oil Seal-output shaft front A-1805-R-408 1 148

Oil Seal-front output shaft rear A-1805-P-536 1 160

Expansion Plug-front output shaft PW-225 1 168

Expansion Plug-brake hub PW-252 1 171

Elbow-high oil level 1898-X-258 1 197B

Snap Ring-brake hub 1854-W-257 1 170

Nut-output shaft 1227-C-939 1 140

MPS 4118 SHAFT-REAR DRIVE OUTPUT

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shaft-output assy. 3297-S-1370 1 112

Nut-output shaft 1227-C-939 1 140

MPS 4120 SHAFT-INPUT

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shaft-input 3297-S-1372 1 77

Nut-input shaft 1227-C-939 1 88

MPS 4121 SHAFT-INPUT

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shaft-input 3297-S-1373 1 77

Nut-input shaft 1227-C-939 1 88

MPS 4122 SHAFT-INPUT

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shaft-input 3297-Y-1374 1 77

Nut-input shaft 1227-C-939 1 88

MPS 4123 SHAFT-INPUT

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shaft-input 3297-Y-1375 1 77

Nut-input shaft 1227-C-939 1 88

MPS 4124 SHAFT-INPUT

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shaft-input 3297-Y-1376 1 77

Nut-input shaft 1227-C-939 1 88

T-223 SERIES SERVICE KITS

MPS 4126 SHAFT-P.T.O.

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shaft-output assy. 3297-Y-1378 1 14

Nut-output shaft 1227-C-939 1 140

MPS 4217 SHAFT-OUTPUT

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Shaft-output assy. A-3297-Q-1369 1 155

Gear-output assy. A-3892-E-5465 1 158

Nut-output shaft 1227-C-939 1 140

T-221 SERIES SERVICE KITS

KIT T-221-1 MAIN CASE SEAL

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Oil Seal-input shaft front brg. cap, rear output A-1805-E-447 4 86, 96, 148, 160

shaft, output shaft front and front output shaft rear

Oil Seal-front output shaft rear A-1205-Z-1768 1 160

Oil Seal-shift shaft A-1205-N-1132 2 200, 201

KIT T-221-3 MAIN CASE MISCELLANEOUS PART

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Cotter-input shaft nut, rear output shaft nut and K-2412 3 89, 102, 139

output shaft nut

Bushing-speed driven gear 1199-M-1105 1 98

Sleeve-speed driven gear 1898-U-671 1 100

Cotter-rear output shaft nut K-2410 1 102

Pin-oil catcher and brake pull rod K-236 2 154, 226, 227

Ball-shift shaft lock 1898-E-57 2 216, 218

Spring-shift shaft lock 2858-A-1 2 217, 219

Spring-shift shaft lock 2858-Q-277 1 217, 219

T-221 SERIES SERVICE KITS

KIT T-221-4 MAIN CASE FASTENER

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Washer-input shaft front and rear brg. cage, rear 1229-K-1597 36 68, 83, 104, 117, 120, 137,

output cap, rear output forward cap, idler shaft 147, 164, 210

rear and front brg. cap, front brg. cap, front

output shaft rear cap, case and top cover

Washer-input shaft front and rear brg. cage, rear WA-16 36 68, 83, 104, 117, 120, 137,

output cap, rear output forward cap, idler shaft 147, 164, 210

rear and front brg. cap, front brg. cap, front

output shaft rear cap, case and top cover

Washer-input shaft rear brg. 1829-X-726 1 72

Washer-direct drive gear 1829-Y-727 1 75

Capscrew-input shaft front brg. cap and front S-2612-2 6 84, 146

brg. cap

Nut-input shaft, rear output shaft and output shaft 1827-H-242 3 88, 94, 140

Capscrew-rear output cap S-2614-2 1 103

Capscrew-rear output cap 10-X-665 1 103

Capscrew-rear output cap and front output shaft S-269-1 6 130, 105

rear cap

Washer-rear output cap 1229-E-525 1 104

Capscrew-rear output forward cap, idler shaft S-267-2 9 118, 119, 138

rear cap and idler shaft front brg. cap

Nut-output shaft N-512-1 1 104

Washer-output shaft 1229-V-1556 1 141

Snap Ring-front output shaft 1854-P-146 1 156

Lockscrew-shift fork 26-X-54 2 204, 209

Capscrew-case top cover S-2610-2 1 213

Pin-brake bellcrank 1846-E-265 1 215

Washer-bellcrank pin WA-310 1 225

Washer-brake pull rod WA-36 1 221, 222

Capscrew-input shaft front and rear brg. cage, S-268-2 22 67, 84, 103, 165, 211

rear output cap, front output shaft rear cap and

case and top cover.

DLM 7-1/4" x 1-1/2"

KIT T-221-5 NON-ASBESTOS BRAKE KI

PAR

ITEM NUMBER

PART NAME NUMBE

ON EXPLODED VIE

Roller-brake 1779-P-94 2 179

Spring-brake shoe return 2258-Q-719 2 180

Brake Shoe and Lining Assy. e A13-3722-T-202 2 181

e Lining and rivets available separately in kit 2000-Q-173

T-223 SERIES POWER TAKE OFF

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

1 Nut-P.T.O. shaft H39, H44 1 1227-L-714 1.00"-20 slotted nut, 1.50" across flats,

grade 8.

2 Cotter-P.T.O. shaft nut H39, H44 1 K-2412 0.13" diameter, 1.50" long.

3 Washer-P.T.O. shaft nut - 1 1229-E-1331 Not used on models in this book.

4 Flange-input - 1 3897-N-1002 Not used on models in this book.

5 Oil Seal-P.T.O. shaft H39, H44 1 A-1805-N-352 2.44" O.D., 1.69" shaft, 0.32" wide,

double lip, single case, with spring.

6 Capscrew-P.T.O. shaft cap H39, H44 4 S-256P-2 0.31"-18, 0.75" long, grade 8.

7 Washer-P.T.O. shaft cap - 4 1229-E-1669 Not used on models in this book,

8 Sleeve-P.T.O. shaft oil seal H39, H44 1 1874-A-105 1.69" O.D., 1.38" I.D., 0.94" wide.

9 Cap-P.T.O. shaft H39, H44 1 A-3866-S-357 4 holes on 3.75" bolt circle,

3.15" pilot.

10 Gasket-P.T.O. shaft cap H39, H44 - 2297-Z-6656 Silicone gasket, use as required.*

11 Shim-P.T.O. shaft cap H39, H44 3 2803-V-568 .003", use as required.

3 2803-W-569 .005", use as required.

5 2803-X-570 .010", use as required.

12 Cup-P.T.O. shaft brg. outer H39, H44 1 332 3.15" O.D.

13 Cone-P.T.O. shaft brg. outer H39, H44 1 335 1.38" bore.

14 Shaft-P.T.O. H39, H44 1 MPS-4126 9.06" long, threaded one end, offset

lobe in center, 1.38"-10T spline,

1.38"-6T spline, includes

item 140.

14A Shaft-tapered P.T.O. - 1 3880-X-336 Not used on models in this book.

If used omit items 8 and 14.

14B Key-tapered P.T.O. shaft - 1 16-X-40 Not used on models in this book.

15 Cone-P.T.O. shaft brg. inner H39, H44 1 335 1.38" bore.

16 Cup P.T.O. shaft brg. inner H39, H44 1 332 3.15" O.D., included pin item 34.

17 Stud-shift lever H39, H44 1 4-X-1521 0.50"-13/0.50"-20, 1.63" long, 0.13"

drilled hole in 0.50"-20 thread, included

in item 34.

18 Cotter-shift lever H39, H44 1 K-238 0.09" diameter, 1.00" long.

19 Shaft-P.T.O. shift H39, H44 1 2843-C-107 0.31" diameter, 5.87" developed length.

20 Lever-shift H39, H44 1 2847-E-291 0.52"-3 holes, 0.44" diameter,

0.25" thick.

21 Washer-shift shaft H39, H44 1 1829-J-244 0.94" O.D., 0.58" I.D., 0.03" thick.

22 Washer-shift lever stud H39, H44 1 WA-38 1.06" O.D., 0.53" I.D., 0.09" thick.

23 Cotter-shift lever stud H39, H44 1 K-238 0.09" diameter, 1.00" long.

24 Nut-shift lever stud H39, H44 1 NL-28-1 Self locking nut 0.5"-13, 0.75" across

flats, grade 8.

25 Fork-P.T.O. shaft H39, H44 1 2849-Y-77 0.27"-1 hole, 0.31"-24 UNF.

26 Lockscrew-shift fork H39, H44 1 26-X-56 0.31"-24 thread, 0.53" long, slot head.

27 Oil Seal-P.T.O. shift shaft H39, H44 1 A-1805-B-158 Retainer, 0.81" O.D., 0.56" shaft, 0.12"

wide, single lip, single case without

spring, included in item 34.

28 Tag-oil instruction H39, H44 1 1898-C-55 2.38" dia., yellow with black lettering.

29 Plug-P.T.O. carrier H39, H44 1 1850-T-150 Male square head with 0.13" dia. hole.

30 Screw-shift shaft lockscrew H39, H44 1 3-X-161 0.38" -16, 0.31" long.

31 Lockwasher-shift lockscrew H39, H44 1 1229-E-421 Internal tooth type, 0.69" O.D.,

0.04" thick.

32 Spring-shift lock ball H39, H44 1 2858-T-20 5.50 coils, 0.53" long, 0.31" O.D.

33 Ball-shift shaft lock H39, H44 1 1898-H-34 0.31" diameter.

34 Carrier Assy.-P.T.O. shaft H39, H44 1 A-3826-Y-285 3826-D-394 cast, Includes items 16,

bearing cage 117, 27, and 36.

35 Gasket-P.T.O. carrier to brg. H39, H44 - 2297-Z-6656 Silicone gasket, use as required.*

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-223 SERIES POWER TAKE OFF

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

36 Plug-expansion H39, H44 1 PW-210 0.625" O.D., 0.062" thick. Included in

item 34.

37 Clutch-P.T.O. sliding H39, H44 1 2848-J-88 5 dog jaws, 2.75" O.D., 1.38"-6T

spline, includes external shift

groove.

38 Capscrew-drive clutch H39, H44 1 S-267-2 0.38"-16, 0.88" long, grade 8.

retainer

39 Lockwasher-drive clutch H39, H44 1 1229-E-421 Internal tooth type, 0.69" O.D.,

retainer 0.04" thick.

40 Retainer-drive clutch H39, H44 1 1829-D-680 0.41" diameter hole.

41 Clutch-P.T.O. drive H39, H44 1 2848-H-86 5 dog jaws, 2.25" O.D., 1.38"-6 spline.

42 Cage-input shaft rear brg. H39, H44 1 3826-X-284 3826-X-326 cast, 6 drilled holes on

5.00" bolt circle, 6 tapped holes on

5.00" bolt circle, 1 angle drilled hole,

open end.

43 Capscrew-cage to T-case H39, H44 6 S-268-2 0.38"-16, 1.00" long, grade 8.

44 Washer-cage to T-case H39, H44 6 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

45 Washer-P.T.O. carrier to H39, H44 6 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

T-case

46 Capscrew-P.T.O. carrier to H39, H44 6 S-269-1 0.38"-16, 1.12" long, grade 8.

T-case

47 Plunger-oil pump H39, H44 1 1846-V-126 0.35" I.D., 0.74" O.D., 1.65" long.

48 Spring-oil pump plunger H39, H44 1 2858-W-101 11.2 coils, 1.75" long, 0.38" O.D.

49 Gasket-oil pump to carrier H39, H44 - 2297-Z-6656 Silicone gasket, use as required.*

50 Oil pump-body assy. H39, H44 1 A2-2847-Q-303 0.33"-4 mounting holes,

0.50"-20 UNF 2 holes.

51 Elbow-oil intake tube to H39, H44 1 A-1898-W-595 90 degree elbow, 0.38" tube,

fitting 0.25" pipe thread.

52 Tube assy.-intake H39, H44 1 A-3897-T-1762 Includes item 56.

53 Fitting-oil pump to intake H39, H44 1 1898-H-866 0.50"-20 thread, 1.19" long,

elbow 0.25" pipe thread.

54 Ball-inlet check valve H39, H44 1 1898-Q-251 0.34" diameter.

55 Spring-check valve H39, H44 1 2858-X-102 3 coils 0.49" long, 0.41" diameter.

56 Connector-oil pump intake H39, H44 1 1898-G-241 Included in item 52.

tube

57 Fitting-intake tube to case H39, H44 1 1898-J-868 0.75" dia. 0.25"-18 N.P.T.F., 1.00" long.

58 Capscrew-oil pump to P.T.O. H39, H44 4 S-256P-2 0.31"-18, 0.75" long, grade 8.

carrier

59 Washer-oil pump to P.T.O. H39, H44 4 1229-E-1669 0.62" O.D., 0.34" I.D., 0.06" thick.

carrier

60 Ball-pump outlet check valve H39, H44 1 1228-K-37 0.37" diameter.

61 Spring-check valve H39, H44 1 2858-X-102 3 coils 0.48" long, 0.41" diameter.

62 Fitting-oil outlet tube to H39, H44 1 1898-K-531 0.50"-20 thread, 1.00" long,

pump 24 thread.

63 Connector-oil pump outlet H39, H44 1 1898-J-504 Included in item 64.

tube

64 Tube Assy.-outlet H39, H44 1 A-2847-R-642 Includes items 63 and 65.

65 Connector-oil pump outlet H39, H44 1 1898-J-504 Included in item 64.

tube

66 Elbow-oil pump outlet tube H39, H44 1 1898-L-532 0.44"-13 thread 0.90" long, 24 thread.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

67 Capscrew-input shaft rear All 6 S-268-2 0.38"-16, 1.12" long, grade 8.

bearing cage

68 Washer-input shaft rear All 6 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

bearing cage

69 Cage-input shaft rear brg. All except 1 3838-N-196 3828-Y-311 cast, 6 drilled holes on

transfer cases 5.00" bolt circle, 2 tapped holes on

equipped with 5.00" bolt circle, 2 inside angle

PTO. drilled holes, closed.

70 Gasket-input shaft rear cap All - 2297-Z-6656 Silicone gasket, use as required.*

71 Bearing-input shaft rear See remarks 1 1228-S-409 f0.53" diameter, 8 balls.

71A Cup-input shaft rear All 1 332 3.15" O.D.

71B Cone-input shaft rear All 1 339 1.38" bore.

72 Washer-input shaft rear brg. All 1 1829-S-721 2.31" O.D., 1.39" I.D., 0.16" thick.

73 Bushing-direct drive gear All 1 1825-R-200 g1.75" O.D., 1.61" I.D., 1.78" wide, split,

2 holes and 4 grooves, included in item

74, not sold separately.

74 Gear Assy.-direct drive A84, A88, A89, 1 A-3892-J-1544 27T, includes item 73, standard, L.H.

(1.87-1) A90, A91, A92, Helical, 5.23" O.D., includes 17T

A94, A98, A99, spline, available as assembly only.

Gear Assy.-direct drive A103, A104, A105, 1 A-3892-W-1635 27T, includes item 73, standard, L.H.

(2.05-1) C20, C22, C29, Helical, 5.23" O.D., includes 16T spline.

C30, C32, C34,

Gear Assy.-direct drive C41, C43, C44, 1 A-3892-R-1604 27T, includes item 73, standard, L.H.

(2.25-1) E22, E23, M4 Helical, 5.23" O.D., includes 15T spline.

Gear Assy.-direct drive All others 1 A-3892-L-1806 27T, includes item 73, heavy duty, R.H.

(2.00-1) Helical, 5.23" O.D., spur, 14T spline,

3.22" I.D., available as assembly only.

75 Washer-direct drive gear All 1 1829-P-380 2.38" O.D., 1.64" I.D., 0.18" thick

with 4 slots.

76 Gear-low speed sliding A84, A88, A89, 1 3892-Z-2444 17T, spur, standard, 3.71" O.D.,

(1.87-1) A90, A91, A94, 15T spline, with shift groove.

A103, A104, A105

Gear-low speed sliding A98, A99, C20, 1 3892-Y-2443 16T, spur, standard, 3.48" O.D.,

(2.05-1) C22, C29, C30, 15T spline, with shift groove.

C41, C43, C44

Gear-low speed sliding C31, C32, C34, 1 3892-X-2442 15T, spur, standard, 3.29" O.D.,

(2.25-1) E22, E23, M4 15T spline, with shift groove.

Gear-low speed sliding All others 1 3892-W-2441 14T, spur, heavy duty, 3.71" O.D.,

(2.00-1) 15T spline, with shift groove.

77 Shaft-input A84, A88, A90, 1 MPS-4122 12.00" long, 4 splines, 2- 2.00"-15T,

A91, A92, A94, 1 spline 1.37"-6T, 1 spline 1.50"-10T,

A98, A99, A103, Input bearing journal 1.57", induction

A104, A105, harden spline 1.47". high gear thick/

C22, E22, E23 thin over all dimension 1.91", input

spline 1.50" diameter, 12.13" long,

(Continued) includes item 88.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

f Replace with items 71A and 71B.

g Non-serviceable item. Must service with direct drive gear only

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

77 Shaft-input A89 1 MPS-4124 12.00" long, 4 splines, 2- 2.00"-15T,

1 spline 1.37"-6T, 1 spline 1.50"-10T,

No induction hardening on spline, input

bearing journal 1.57", includes item 88.

A94, C20, C29, 1 MPS-4120 12.00" long, 4 splines, 2- 2.00"-15T,

C30, C31, C32, 1 spline 1.37"-6T, 1 spline 1.50"-10T,

C41, C43, C44 Input bearing journal 1.34" diameter

induction harden spline length 3.25",

includes item 88.

M4 1 MPS-4123 Same as MPS4122 except high gear

thick/thin spline over all dimension

1.78", includes item 88.

All others 1 MPS-4121 12.13" long, 4 splines, 2- 2.00"-15T,

1 spline 1.75"-10T, 1 spline 1.37"-6T,

Induction harden 1.47" in thick spline

area, input bearing journal 1.75",

input spline 1.75", includes item 88.

78 Spacer-input shaft A89 1 1844-C-809 1.94" O.D., 1.59" I.D., 0.77" wide.

79 Bearing-input shaft front See remarks 1 1228-R-408 0.69" diameter, 8 balls.

79A Cone-input shaft front A84, A88, A89, 1 357 1.57" I.D.

A90, A91, A92,

A94, A98, A99,

A103, A104,

A105, C22, E22,

E23, M4

All others 1 376 1.77" I.D.

79B Cup-input shaft front A84, A88, A89, 1 353 3.54" O.D.

A90, A91, A92,

A94, A98, A99,

A103, A104,

A105, C22,

E22, E23, M4

All others 1 372 3.94" O.D.

79C Washer-input shaft front A84, A88, A89, 1 1229-F-3048 1.84" O.D., 1.51" I.D., 0.06" thick.

A90, A91, A92,

A98, A99, A103,

A104, A105, C22,

E22, E23, M4

C20, C29, C30, 1 1229-F-2814 2.12" O.D., 1.51" I.D., 0.125" thick.

C31, C34, C41

C43, C44

All others 1 1229-E-3047 2.06" O.D., 1.76" I.D., 0.13" thick.

80 Shim-input shaft front A84, A88, A89, 2 2803-L-1832 .003", use as required, 3.60" I.D.,

bearing cap A90, A91, A92, 2 notches 168 degrees apart.

A94, A99, 2 2803-M-1833 .005", use as required, 3.60" I.D.,

A103, A104, 2 notches 168 degrees apart.

A105, C22, E22, 4 2803-N-1834 .010", use as required, 3.60" I.D.,

E23 2 notches 168 degrees apart.

M4 2 2803-B-1874 .003", use as required, 3.60" I.D.,

2 notches 85 degrees apart.

6 2803-C-1875 .005", use as required, 3.60" I.D.,

2 notches 85 degrees apart.

1 2803-D-1876 .010", use as required, 3.60" I.D.,

(Continued) 2 notches 85 degrees apart.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

80 Shim-input shaft front All others 2 2803-G-1931 .003", use as required, 4" I.D.,

bearing cap (continued) 5.25" O.D.

6 2803-H-1932 .005", use as required, 4" I.D.,

5.25" O.D.

4 2803-J-1934 .010", use as required, 4" I.D.,

5.25" O.D.

81 Cap Assy-input shaft front A84, A88, A89, 1 A-3866-S-721 3866-B-1250 cast, includes item 86

bearing cap A90, A91, A92, (R-408), cast in oil slots about 168°

A94, A99, A103, apart, 4.25" bolt circle, 6 holes,

A104, C22, E22, 2.87" seal bore, 3.55" bearing bore,

E23 available as assembly only.

A85, A98, 1 A-3866-Y-935 3866-B-1250 cast, includes item 86

A105 (R-408), same as S-721 except has

1 drilled thru hole 0.13"-27 N.P.S.F.

tap thread, available as assembly only.

C20, C29, C31, 1 A1-3866-X-804 3866-Z-1274 cast, same as

C32, C41, C43, A-3866-X-804 except item 86 is

C44, H46, H47, A-1205-T-1242.

H48

M4 1 3866-C-757 3866-C-757 cast, uses item 86

(R-408), cast in oil slots approx. 67

degrees apart, 4.25" bolt circle, 6 holes,

2.87" seal bore, 3.55" bearing bore.

All others 1 A-3866-X-804 3866-Z-1274 cast, includes item 86

(A-573). 0.13" tapped hole,

4.75" bolt circle, 6 holes 3.00" seal

bore, 3.94" bearing bore.

82 Plug-input shaft front A98, A99, A104, 1 P-42 Hex socket-female, 0.125"-27 thread.

bearing cap A105, C20, C29,

C30, C31, C32,

C34, C41, C43,

C44, H31, H33,

H36, H40, H41,

H46, H47, H48,

H52, H53, H54,

H55, H56, H57

83 Washer-input shaft front All 6 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

bearing cap

84 Capscrew-input shaft front All 6 S-269-1 0.38"-16, 1.12" long, grade 8.

bearing cap

85 Plug-input shaft shipping N4, N7 1 PW-226 1.63" O.D. No longer available.

cover

86 Oil Seal-input shaft front A84, A88, A89, 1 A-1805-R-408 2.87" O.D., 2.12" shaft, double lip,

bearing cap A90, A91, A92, double or single case with 8 spring,

A94, A98, A99, 0.44" wide.

A104, A105, C22,

E22, E23, M4

C20, C29, C30, 1 A-1205-T-1242 3.00" seal O.D., 0.50" wide, 2.13" shaft,

C31, C32, double lip, double case with spring.

C34, C41

All others 1 A-1805-A-573 3.00" seal O.D., 0.48" wide, 2.25" shaft,

double lip, double case, with spring,

replaces A-1805-S-409 with single lip.

86A Washer, thrust C41, C43, C44 1 1229-F-2814 2.12" O.D., 1.51" I.D., 0.125" thick.

A103, A104, A105 1 1229-F-3048 1.84" O.D., 1.51" I.D., 0.06" thick.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

87 Washer-input shaft A84, A88, A89, 1 1829-V-100 1.75" O.D., 1.03" I.D., 0.16" thick.

A90, A91, A92,

A103, C20, C29,

C30, C31, C32,

C41, C43, C44,

E22, E23, M4

H56, H57 1 1829-M-585 2.00" O.D., 1.02" I.D., 0.250" thick.

H52 1 1229-C-4553 1.48" O.D., 0.823" I.D., 0.217" thick.

All others 1 1229-E-1331 1.81" O.D., 0.25" thick, 1.03" I.D.

88 Nut-input shaft All 1 1227-C-939 1.00"-20, 1.312" width across flats,

included in item 77.

89 Cotter-input shaft nut All 1 K-2412 0.13" diameter, 1.50" long.

90 Deflector-input yoke - 1 2847-P-640 Not used on 223 models in this book.

91 Flange/Yoke-input A89 1 3897-L-1962 1600 flange, 1.50"-10T spline, 8 holes

on 6.13" bolt circle.

A90 1 3897-Z-1794 7C yoke, 4 holes, 4.63" apart,

1.50"-10T spline.

A91 1 2WCS24-81 1550 flange, 4 holes 0.56" at 80/100°,

4.75" bolt circle, 1.50"-10T spline.

A92 1 3897-Q-1369 1350/1410 flange, 4 holes at 80/100°,

3.75" bolt circle, 1.50"-10T spline.

C20, M4 1 2WCS24-43 1500 flange, 4 holes 0.25" at 80/100°,

4.75" bolt circle, 1.50"-10T spline.

C34 1 3897-K-1441 1410 yoke, 4.22" long,

drilled holes for mounting u-joint.

E23 1 3897-L-1728 1550 yoke, 1.50"-10T spline, 4 tapped

holes 0.31"-24 UNF on 2.07" bolt circle.

H41 1 3897-P-1966 1480 yoke, 4 holes, 3.69" apart,

1.75"-10T spline.

H47, H55, H56 1 3280-S-7897 1550 yoke, 1.75"-10T spline, 4 holes

0.45" diameter.

H52 1 3897-J-1440 4.22" long, drilled holes for mounting

u-joint.

H57 1 3897-R-1370 1410/ 1480 flange, 4 holes at 80/100°,

3.75" bolt circle, 1.75"-10T spline.

92 Flange/Yoke-rear output A89 1 3897-K-1961 1600 flange, 1.75"-10T spline, 8 holes

on 6.13" bolt circle, 2.25" seal O.D.

A90 1 3897-Y-1793 7C/ 72N yoke, 4 holes, 4.63" apart,

1.75"-10T spline.

A91, A103 1 3260-H-1256 1550 flange, 4 holes 0.56" at 80/100°,

4.75" bolt circle, 1.75"-10T spline.

A92, H57 1 3897-R-1370 1410/ 1480 flange, 4 holes at 80/100°,

3.75" bolt circle, 1.75"-10T spline.

C20, M4 1 2WCS28-32 1500 flange, 4 holes 0.25" at 80/100°,

4.75" bolt circle, 1.75"-10T spline.

C34, H52 1 3897-J-1440 4.22" long, drilled holes for mounting

u-joint.

E23 1 3897-M-1729 1550 yoke, 1.75"-10T spline, 4 tapped

holes 0.31"-24 UNF on 2.07" bolt circle.

H41 1 3897-P-1966 1480 yoke, 4 holes, 3.68" apart,

1.75"-10T spline.

H47 1 3280-S-7897 1550 yoke, 1.75"-10T spline,

4 holes 0.45" diameter.

93 Deflector-rear output yoke - 1 2847-P-640 Not used on 223 models in this book.

A98, A99, A104, 1 2847-S-617 4 holes 0.47" on 4.31" bolt circle,

A105, C41 2 slots 0.23".

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

94 Nut-rear output shaft All 1 1227-C-939 1.00"-20, 1.312" width across flats,

included in item 112.

95 Washer-rear output shaft A103, H55, 1 1829-M-585 2.00"O.D., 1.02" I.D., 0.250" thick.

nut H56, H57

H52 1 1229-C-4553 1.48" O.D., 0.823" I.D., 0.217" thick.

All others 1 1229-E-1331 1.81" O.D., 1.03" I.D., 0.25" thick.

96 Oil Seal-rear output shaft All 1 A-1805-A-573 3.00" seal O.D., 0.44" width, 2.25" shaft,

double lip, double case, with spring,

included in item 97, replaces

A-1805-S-409 with single lip only,

available as assembly only.

97 Cap Assy.-rear output shaft A84, A88, A89, 1 A-3866-E-733 3866-F-1254 cast, 3 holes on 4.50"

A90, A91, A92, bolt circle, 4th hole 2.56" from center,

A94, A98, A99, open end, includes item 96 and 98,

A103, A104, available as assembly only.

A105, C20, C29,

C30, C31, C32,

C34, C41, C43,

C44, E22, E23,

H53, M4

All others 1 A-3866-G-891 3866-E-733 cast, includes item 96 and

98, same as E-733 except add

0.13"-27 N.P.S.F. threaded hole.

98 Bushing-speedometer All 1 1199-M-1105 Flanged, 0.44" flange O.D., 0.03" flange

driven gear width, 0.31" O.D., 0.25" I.D., 0.34" wide,

included in item 97.

99 Gear-speedometer driven A84, A88, A89, 1 1898-V-776 14T, Helical, 0.73" O.D., 0.38" wide,

A98, A99, A104, speedometer gear on shaft.

C20, C34, E23,

H33, H39, H40,

H42, H52, H55,

H57, M4

A91, A103 1 3891-C-1849 15T, Helical, 0.73" O.D., 0.50" wide,

speedometer gear on shaft.

100 Sleeve-speedometer driven A84, A88, A89, 1 1898-U-671 0.38" thru-hole, 0.88"-18 NS male

gear A99, A104, thread one end, 0.81"-20 UNEF male

C20, E23, thread other end, 0.88" nut.

H33, H39, M4

A91, A103 1 1199-N-1106 0.47" thru-hole, 0.88"-18 NS male

thread one end, 0.50" O.D., 0.81"-20

UNEF male thread other end, 0.41" I.D.

C34, H40, 1 2245-X-50 0.31" thru-hole, 0.88"-18 NS male

H47, H52, thread one end, 0.81"-20 UNEF male

H55, H57 thread other end, 0.88" nut.

101 Plug-speedometer hole A85, A90, A92, 1 A-1850-R-18 Metal threaded plug, replaces

A98, A99, A105, 1850-Z-104 plastic plug.

C29, C30, C31,

C32, C41, C43,

C44, H41, H43,

H44, H48, H53,

H56

102 Cotter-rear output shaft nut All 1 K-2412 0.13" diameter, 1.50" long.

103 Capscrew-rear output cap All 4 S-269-1 0.38"-16, 1.12" long, grade 8.

104 Washer-rear output cap All 4 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

105 Breather-rear output shaft A98, A99, A104, 1 A-1199-C-1043 0.13"-27 N.P.T.F., 1.03" long.

rear A105, C29, C30,

C30, C31, C32,

C34, H31, H33,

H36, H39, H40,

H41, H44, H46,

H47, H48

106 Gasket-rear output cap All - 2297-Z-6656 Silicone gasket, use as required.*

107 Gear-speedometer drive A84, A88, A89, 1 1898-S-799 4T, Helical, 2.22" O.D., 1.75" I.D.,

A91, A99, A103, 0.75" wide.

A104, C23, C29,

C30, C31, C32,

C34, C41, C43,

C44, H33, H39,

H40, H47, H52,

H53, H55, H56,

H57, M4

108 Spacer-rear output shaft A85, A92, 1 1844-S-565 2.13" O.D., 1.76" I.D., 1.18" wide.

A98, E22, H41

A84, A88, A89, 1 1844-J-166 2.13" O.D., 1.76" I.D., 0.42" wide.

A91, A99, A103,

A104, C23, C29,

C30, C31, C32,

C34, C41, C43,

C44, H33, H39,

H40, H47, H52,

H53, H55, H57,

109 Cup-rear output shaft rear All 1 25520 3.27" O.D.

bearing

110 Cone-rear output shaft rear All 1 25584 1.71" bore.

bearing

111 Gear-rear output shaft All 1 3892-P-1550 27T, L.H. Helical, 5.83" O.D.,

1.79"-10T spline.

112 Shaft-rear output All 1 MPS-4118 11.5" long, threaded one end,

1.75"-10T spline, 2.00"-10T spline,

includes item 94.

113 Cone-rear output shaft All 1 25878 1.38" bore.

forward bearing

114 Cup-rear output shaft All 1 25821 2.88" O.D.

forward bearing

115 Shim-rear output forward All 2 2803-Z-1846 .003", use as required.

bearing 2 2803-A-1847 .005", use as required.

4 2803-B-1848 .010", use as required.

116 Cap-rear output forward All 1 3866-C-731 Stamping, 4 holes, 3.63" bolt circle,

no flats, on O.D., replaces 3866-S-773

with 2 flats on O.D.

117 Washer-rear output forward All 4 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

cap

118 Capscrew-rear output All 4 S-269-1 0.38"-16, 1.12" long, grade 8.

forward cap

119 Capscrew-idler shaft rear All 4 S-269-1 0.38"-16, 1.12" long, grade 8.

cap

120 Washer-idler shaft rear cap All 4 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

121 Cap-idler shaft rear H29, H31, H33, 1 3866-N-794 3866-M-819 cast, round O.D. with

H36, H39, H40, scallop and 2 flats on O.D., 4 holes,

H41, H44, H46, 3.63" bolt circle, closed end.

H47, H48, H52,

H53, H54, H55,

H56, H57

All others 1 3866-C-731 Stamping, 4 holes, 3.63" bolt circle, with

no flats on O.D., replaces 3866-S-773

with 2 flats on O.D., closed end.

122 Gasket-idler shaft rear cap All - 2297-Z-6656 Silicone gasket, use as required.*

123 Snap ring-idler shaft H29, H31, H33, 1 1854-E-187 Fits over 1.44" diameter shaft.

H36, H39, H40,

H41, H44, H46,

H47, H48, H52,

H54, H55, H56,

H57

124 Cup-idler shaft rear brg. All 1 31521 3.00" O.D.

125 Cone-idler shaft rear brg. All 1 31597 1.44" bore.

126 Gear-idler shaft All 1 3892-C-1641 28T, R.H., Helical, 5.41" O.D.,

includes 1.88"-10T spline.

127 Spacer-idler shaft gear All 1 1844-L-480 2.50" O.D., 1.94" I.D., 1.28" wide.

128 Gear-low speed (1.87-1) A84, A88, A89, 1 3892-B-1640 33T, standard, spur 6.88" O.D.,

A90, A91, A94, includes 1.88"-10T spline.

A98, A99, A103,

A104, A105

Gear-low speed (2.05-1) A92, A94, A95, 1 3892-Y-1637 34T, standard, spur 7.08" O.D.,

C20, C22, C29, includes 1.88"-10T spline.

C30, C31, C32,

C34, C41, C43,

C44

Gear-low speed (2.25-1) A94, E22, 1 3892-T-1606 35T, standard, spur 7.28" O.D.,

E23, M4 includes 1.88"-10T spline.

Gear-low speed (2.00-1) All others 1 3892-K-1805 29T, heavy duty, spur 7.06" O.D.,

includes 1.88"-10T spline.

129 Shaft-idler A84, A88, A89, 1 3880-U-723 7.30" long, 1.44" bearing diameter

A90, A91, A92, both ends, 1.88"-10T spline.

A94, A98, A99, Reference TSA-4-43 for further

A103, A104, technical information.

A105, C20, C22,

C29, C30, C31,

C32, C34, C41,

C43, C44, E22,

E23, M4

All others 1 3880-A-807 7.50" long, 1.44" bearing diameter

both ends, 1.88"-10T spline.

130 Cone-idler shaft front brg. A84, A88, A89, 1 31597 1.38" I.D. bore.

A90, A91, A92,

A94, A98, A99,

A103, A104,

A105, C20, C22,

C29, C30, C31,

C32, C34, C41,

C43, C44, E22,

E23, H46, H47,

H48, M4

All others 1 HM-89449 1.44" bore.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

131 Cup-idler shaft front brg. A84, A88, A89, 1 31521 0.94" long, 3.00" O.D.

A90, A91, A92,

A94, A98, A99,

A103, A104,

A105, C20, C22,

C29, C30, C31,

C32, C34, C41,

C43, C44, E22,

E23, H46, H47,

H48, M4

All others 1 HM-89411 0.91" long, 3.00" O.D.

132 Washer-idler shaft brg. H29, H31, H33, 1 1829-H-788 1.75" O.D., 0.19" thick, with 2 holes

H36, H39, H40, 0.39" diameter on 0.88" bolt circle.

H41, H44, H46,

H47, H48, H52,

H53, H54, H55,

H56, H57

133 Capscrew-idler shaft brg. H29, H31, H33, 2 10-X-1292 0.38"-16, 0.88" long, grade 8,

washer H36, H39, H40, 1 hole drilled in head.

H41, H44, H46,

H47, H48, H52,

H53, H54, H55,

H56, H57

134 Lockwire-idler shaft brg. H29, H31, H33, 1 LW-163 16 gage, 3.00" long.

washer H36, H39, H40, .

H41, H44, H46,

H47, H48, H52,

H53, H54, H55,

H56, H57

135 Shim-idler shaft front brg. All 2 2803-Z-1846 .003", use as required.

cap 2 2803-A-1847 .005", use as required.

4 2803-B-1848 .010", use as required.

136 Cap-idler shaft front brg. A84, A88, A89, 1 3866-C-731 Stamping, 4 holes, 3.63" bolt circle,

A90, A91, A92, no flats on O.D., replaces 3866-S-773

A94, A98, A103, 2 flats on O.D.

A104, A105, C20,

C22, C29, C30,

C31, C32, C34,

C41, C43, C44,

E22, E23, M4

All others 1 3866-N-794 3866-M-819 rough part, round O.D. with

scallops, 2 flats, 4 holes on 3.63"

bolt circle closed cap.

137 Washer-idler shaft front brg. All 4 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

138 Capscrew-idler shaft front All 4 S-269-1 0.38"-16, 1.12" long, grade 8.

bearing

139 Cotter-output shaft nut All 1 K-2412 0.13" diameter, 1.50" long.

140 Nut-output shaft All 1 1227-C-939 1.00"-20, 1.312" width across flats,

included in items 14 and 155.

141 Washer-output shaft All 1 1829-V-100 1.75" O.D., 1.03" I.D., 0.16" thick.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

142 Capscrew-oil catcher C20, C29, C30, 1 10-X-830 0.38"-16, 1.87" long, grade 8.

C31, C32, C34,

C41, C43, C44,

H29, H32, H33,

H36, H39, H44,

H46, H48, H53,

H54, H56

143A Locknut, oil catcher C41, C43, C44, 1 NL-26-1 0.38"-16 thread, 0.56" width across flats,

capscrew H53, H54, H56 grade 8.

143 Washer-front brg. cap C20, H29, H32, 1 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

H33, H36, H39,

H44

144 Flange/Yoke-front output A90 1 3897-Z-1794 7C yoke, 4 holes 4.63" apart,

1.50"-10T spline.

A91, A103 1 2WCS24-81 1550 flange, 1.50"-10T spline, 4 holes

0.56" at 80/100°, 4.75" bolt circle dia.

A92, H57 1 3897-Q-1369 1350/ 1410 flange, 4 holes at 80/100°,

3.75" bolt circle, 1.50-10T spline.

C20, M4 1 2WCS24-43 1500 flange, 4 holes 0.50" at 80/100°,

4.75" bolt circle, 1.50"-10T spline.

C34, H41, H52 1 3897-K-1441 1410 yoke, 1.50"-10T spline,

2.13" seal O.D.

E23 1 3897-L-1728 1550 yoke, 1.50"-10T spline, 4 tapped

holes 0.31"-24 UNF on 2.07" bolt circle.

H47, H55 1 A1-3280-R-7896 1550/155N yoke, 1.50"-10T spline,

includes item 145.

H56 1 155NYS24-6 1550/155N yoke, 1.50"-10T spline.

145 Deflector-front output yoke H47 1 2297-S-695 "S" shape (cross section), 3.44" O.D.,

2.18" I.D., 0.88" wide, included

in item 144.

146 Capscrew-front brg. cap All 4 S-269-1 0.38"-16, 1.12" long, grade 8.

147 Washer-front brg. cap All 4 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

148 Oil Seal-output shaft front All 1 A-1805-R-408 2.88" O.D., 2.12" shaft, double lip,

double or single case, with spring,

0.44" wide, included in item 149 and

155.

149 Cap Assy.-output shaft front All 1 A-3866-B-730 3866-D-1292 cast, 4 holes on

4.13" bolt circle, includes item 148,

available as assembly only.

150 Gasket-output shaft front All - 2297-Z-6656 Silicone gasket, use as required.*

cap

151 Bearing-output shaft front All 1 1828-V-74 Ball bearing, 3.15" O.D., 1.57" I.D.,

0.71" wide, with snap ring.

152 Oil Catcher-output shaft C20, C30, C31, 1 2847-Q-849 1.97" both ends.

C32, C34, H29,

H33, H36, H39,

H44, H46, H48

C29, C41, C43, 1 3221-S-19 3.62" high, 2.31" long, 1.68"/ 1.56"

C44, H53, H54, wide at opposite ends.

H56

153 Washer-oil catcher C20, C30, C31, 1 WA-36 0.81" O.D., 0.46" I.D., 0.06" thick.

C32, C34, H29,

H33, H36, H39,

H44, H46

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

154 Pin-oil catcher C20, C30, C31, 1 K-236 0.09" diameter, 0.75" long.

C32, C34, H29,

H33, H36, H39,

H44, H46

155 Shaft-front output assembly A84, A88, A89, 1 MPS-3831 11.91" long, 1"-20 thread one end,

A90, A91, A92, spline at threaded end 1.49"-10, two

A94, A99, C22, bearing journals at opposite end, outer

C30, C31, C32 journal 1.25", inner journal 1.50".

C34, E22, E23, Includes items 140, 148, 155, 156,

H31, H40, H41, 157A, 157B, 158, 160, 168, 171,

H46, H47, H48, and 197B.

A98, A103, A104, 1 MPS-4217 11.91" long, 1"-20 thread one end,

A105, C18, C23, spline at threaded end 1.49"-10, two

C29, C43, H52, bearing journals at opposite end, outer

H53, H54, H55, journal 1.25", inner journal 1.50".

H56, H57 Includes items 155, 156, 157A,

157B and 158.

156 Snap Ring-front output shaft A103, A104, 1 1254-M-91 Included in item 155 (MPS-3831).

A105, C20, C29,

C31, C32, C34,

C41, C43, C44,

H29, H33, H36,

H39, H44, H46,

H47, H48, H52,

H53, H54, H55,

H56, H57

157 Clutch-front output sliding All 1 2848-E-161 23T, thick/thin external spline,

2.92" O.D., has external shift groove,

1.88"-10T spline.

158 Gear-front output shaft All 1 MPS-4217 27T, L.H. Helical, 5.23" O.D.,

includes 16T external spline and 23T

internal spline, included in MPS-3831.

158A Bearing-needle, outer All 1 1228-B-1380 I.D. 1.25", O.D. 1.50", 1.00" length.

158B Bearing-needle, inner All 1 1228-A-183 I.D. 1.50", O.D. 1.88", 0.88" length.

159 Bearing-front output shaft All 1 1828-S-149 Ball bearing, 3.94" O.D., 2.17" I.D.,

rear 0.82" wide, with snap ring.

160 Oil Seal-front output shaft A84, A88, A89, 1 A-1805-P-536 3.50" O.D., 2.63" shaft, 0.50" wide,

rear A90, A92, A94, double lip, double case with springs,

A98, A99, A104, replaces A-1805-R-356 with single

A105, C20, C22, lip only. Included in item 155.

C29, C30, C31,

C32, C34, C41,

E22, E23, H29,

H31, H33, H36,

H39, H41, H44,

H46, H48, M4

161 Spacer-front output shaft A91, A103, H40, 1 1244-Q-1629 2.62" O.D., 2.19" I.D., 2.25" wide.

H47, H53,

H55, H57

162 Gasket-front output rear cap All 1 2297-Z-6656 Silicone gasket, use as required.*

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

163 Cap Assy.-front output shaft A84, C29, C43, 1 A-3866-C-887 3866-E-1253 cast, 6 drilled holes on

rear C44, E22, H46, 4.88" bolt circle, 1.16" thick, includes

H54 item 160.

A91, A103, H40, 1 3266-Y-857 6 holes, 3.31" long.

H47, H55, H57

A99, C30, 1 A-3866-W-777 3866-E-1253 cast, same as C-887

C31, C34, except 4 additional drilled holes on

C41, H39 4.31" bolt circle on either side of slot on

O.D. are not equal distance,

includes item 160, available as an

assembly only.

H29, H36, 1 A-3866-R-1162 3866-D-732 cast, 6 and 4 holes,

H52, H53 2.82" long, includes item 160.

All others 1 A-3866-D-732 3866-E-1253 cast, Same as W-777

except drilled holes on sides of slot on

O.D. are equal distance, includes item

160. Available as an assembly only.

164 Washer-front output shaft All 6 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

rear

165 Capscrew-front output shaft H40, H42, H55, 6 S-2610-2 0.38"-16, 1.25" long, grade 8.

rear H57

All others 6 S-269-1 0.38"-16, 1.12" long, grade 8.

166 Stud-rear output shaft H29, H36, 6 4-X-840 0.38"-16 both ends, 1.81" long.

H53, H54

167 Nut-rear output shaft H29, H36, 6 N-16-1 0.38"-24, grade 8.

H53, H54

168 Expansion Plug-front output A84, A88, A89, 1 PW-225 1.56" O.D., 0.08" thick, included in

shaft A90, A92, A94, item 155.

A98, A99, A104,

A105, C20,

C22, C29, C30,

C31, C32, C34,

C41, C43, C44,

E22, E23, H29,

H31, H33, H36,

H39, H41, H44,

H46, H52, H53,

H54, H56, M4

169 Hub-brake A84, A88, A89, 1 3897-F-1332 5.50" O.D., 4.50" bolt circle,

A90, A92, A94, 2.78" long.

A99, A104, A105,

C20, C22, C29,

C30, C31, C32,

C34, C41, C43,

C44, E22, E23,

H31, H33, H39,

H40, H41, H44,

H46, H48, H54,

H56, M4

H29, H36 1 3897-R-3008 6.56" O.D., 5.75" bolt circle,

4.53" long.

170 Snap Ring-brake hub All 1 1854-W-257 Fits over 2.12" diameter shaft.

Included in item 155.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

171 Expansion Plug-brake hub A84, A88, A89, 1 PW-252 3.25" O.D., 0.134" thick, disc shape,

A90, A92, A94, included in item 155.

A98, A99, A104,

A105, C20, C22,

C29, C30, C31,

C32, C34, C41,

C43, C44, E22,

E23, H29, H31,

H33, H36, H39,

H41, H44, H46,

H48, H52, H53,

H54, H56, M4

188 Case-transfer A84, A88, A89, 1 3875-Q-433 5875-P-432 casting, less interlock

A90, A92, A94 notches. W and Y mounting bosses.

A85 1 3875-K-531 5875-P-432 casting, same as Q-433

except tapped hole for P.T.O. with

pump and oil level hole location.

W and Y mounting bosses.

A91, A103 1 3290-Q-1005 5875-P-432 casting, same as Q-433

except oil fill plug 15° below output gear

center. W and Y mounting bosses.

A98, A105, 1 3290-F-1072 5875-P-432 casting, same as Q-443

C31 except for drain and oil level hole

locations.

A99, A104 1 3875-Z-884 5875-K-453 casting, 4.13" bolt circle-

4 holes, 2 holes 3.63" bolt circle-4 holes

each, 4.25" bolt circle-6 holes, hole size

0.38"-16. W and Z mounting bosses.

C22 1 3875-V-438 5875-P-432 casting, same as Q-433

except with interlock notches and

reposition holes for clocking brake.

W and Y mounting bosses.

C34 1 3290-R-1084 3875-Z-520 casting, W, Y, and Z

mounting bosses, 3.63" bolt circle

4 holes, 4.88" bolt circle 6 holes,

4.50" bolt circle-4 holes, 5.00" bolt

circle-6 holes, 0.38"-16 dia. holes.

L.H. offset with interlock notches.

W, Y, and Z mounting bosses.

E22, E23 1 3875-A-469 5875-Z-468 casting, same as Q-433

except for oil level and drain location.

W and X mounting bosses.

H31 1 3290-G-1073 5875-Z-520 casting, same as Q-433

except for drain and oil level hole

location. W, Y and Z mounting bosses.

All others 1 3290-E-1071 5875-K-453 casting, same as Z-884

except with interlock notches different

bore size at input and tapped hole for

oil. W and Z mounting bosses.

189 Name Plate All 1 1199-K-1493 3.00" x 1.25", 2 holes 1.30" diameter.

190 Screw-name plate All 2 9-X-16 1.25" length, 0.32" diameter.

191 Expansion Plug-shift shaft C20, C41, C44, 1 1199-K-3287 0.05" thick, cup shape.

H40, H47, H52,

H53, H55, H57

All others 1 PW-214 0.08" thick, disc shape.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

192 Plug-oil drain A97, A98, 1 P-24 Non-magnetic, female square socket,

A105, C20, C29, 0.25"-18 thread.

C30, C31, C32,

C34, C41, C43,

C44, H29, H31,

H33, H40, H41,

H46, H47, H48,

H52, H53, H54,

H55, H56, H57

A89, A98, A99, 1 1850-T-150 Magnetic-male square head,

A103, A104, A105, 0.75"-15 thread.

C29, C30, C31,

C32, C34, C41,

C43, C44, H46,

H47, H48, H52,

H53, H54, H55,

H56, H57

C29 1 1250-G-475 Magnetic-0.62" square one end,

0.71" other end, 0.75"-14 P.T.F.

193 Expansion Plug-shift shaft C20, C29, C30, 1 1199-K-3287 0.05" thick, cup shape.

C31, C32,

H40, H47

All others 1 PW-214 0.08" thick, 0.875" O.D., disc shape.

194 Plug-oil drain A84, A88, A90, 1 P-112 Male, square head, 0.75"-14 thread.

A91, A92, A94,

A98, A103, C20,

C22, C29, C30,

C32, C34, E22,

E23, H29, H31,

H33, H36, H40,

H41, H44, H46,

H47, H48, M4

195 Plug-oil level A84, A88, A89, 1 P-112 Male, square head, 0.75"-14 thread.

A90, A91, A92,

A94, C20, C22,

C30, C32, C34,

E22, E23, H32,

H33, H39, M4

196 Oil Catcher-input H29, H31, H33, 1 1898-X-856 0.38" diameter, 1.00" long.

H36, H39, H40,

H41, H44, H46,

H47, H48, H52,

H53, H54, H55,

H56, H57

197 Plug-oil high level H29, H31, H36, 1 P-112 Male, square head, 0.75"-14 thread.

H39, H40, H41,

H44

H33 1 P-212 Female, square socket, 0.75"-14 thread.

- 1 1199-J-894 0.75" standard pipe thread,

cap plug, not available at this time.

197A Pipe-nipple oil level - 1 1898-A-261 6 pint capacity, 3.75" long,

0.75"-14 N.P.T.F., not available

at this time.

- 1 2296-W-1063 5 pint capacity, 2.50" long,

0.75"-14 N.P.T.F., not available

at this time.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

197B Elbow-high oil level - 1 1898-C-835 0.75"-14 N.P.T.F., 90 degrees,

not available at this time.

- 1 1898-S-201 Use for 3 and 4 pint capacity,

0.75"-14 N.P.T.F., not available

at this time.

H29, H31, H33, 1 1898-X-258 45 degree elbow, 1.50" one end, 0.69"

H36, H39, H40, other end, 0.75" standard pipe thread.

H41, H44, H46, Included in item 155.

H47, H48, H52,

H53, H54, H55,

H56, H57

198 Nipple - 1 1898-D-836 0.75" standard pipe thread, 0.50" long,

0.82" I.D., 1.05" O.D.

199 Plug-oil level A84, A88, A89, 1 P-112 Male, square head, 0.75"-14 thread.

A104, A105,

H29, H36, H40,

H41, H44

C41, C43, C44, 2

H52, H53, H54,

H55, H56, H57

200 Oil Seal-shift shaft All 1 A-1205-N-1132 1.26" O.D., 0.75" shaft, single lip and

dirt lip with spring, 0.25" wide, replaces

A-1805-S-305 with single lip only.

201 Oil Seal-shift shaft All 1 A-1205-N-1132 1.26" O.D., 0.75" shaft, single lip and

dirt lip with spring, 0.25" wide, replaces

A-1805-S-305 with single lip only.

202 Shift Fork-declutch M4 1 2849-G-241 2849-Z-338 forging., small fork

tang, 0.19" wide, 2.25" fork opening.

All others 1 2849-L-220 2849-T-332 forging, small fork

tang, 0.13" wide, 2.25" fork opening.

203 Lockwire-shift fork All 1 LW-166 16 gage, 6.00" long.

204 Lockscrew-shift fork All 1 26-X-54 0.38"-24 thread, 1.15" long, 0.09"

diameter double drill square head.

205 Shift Shaft-declutch C20, C22, C30, 1 2843-T-410 7.25" long, 2 equal ball detents 0.16"

C31, C32, C34, deep from ball detent end, setscrew

C41, C44, H40, hole bottom right quadrant.

H47, H48, H52,

H55, H56, H57

C29, C43, H53 1 2244-M-39 7.25" long, tap drill 1.00" deep-

0.44"-20 UNF, 0.68" deep, 0.75" O.D.

E22, E23, 1 2843-W-439 Same as T-410 except unequal ball

detent, depth 0.13" and 0.21". No

longer available.

M4 1 2843-Q-459 Same as T-410 except 7.13" long

and ball detent end setscrew hole

bottom, left quadrant.

All others 1 2843-C-393 Same as T-410 except 2 equal ball

detents 0.19" deep.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

206 Shift Shaft- hi-low A84, A88, A89, 1 2843-B-392 7.28" long, 2 equal ball detents, 0.19"

A90, A91, A92, deep from ball detent end, setscrew

A94, A98, A99, hole upper right quadrant.

A103, A104, A105

C20, C29, C30, 1 2297-P-2226 Same as B-392 except 7.41" long and

C31, C32, C34, 2 equal ball detents 0.23" deep.

C41, C43, C44,

H40, H47, H52,

H53, H55, H57

C22 1 2843-S-409 Same as B-392 except extra slot added

at ball detent area. No longer available.

E22, E23 1 2843-X-440 Same as B-392 except 2 unequal ball

detents 0.16" and 0.19" deep.

H29, H31, H33, 1 2843-K-453 Same as B-392 except 7.31" long.

H36, H39, H41,

H44, H46, H54

H48, H56 1 2843-U-463 Same as K-453 except extra slot added

at ball detent area.

M4 1 2843-P-458 7.63" long, 2 equal ball detents

0.19" deep from ball detent end,

setscrew hole upper left quadrant.

207 Shift Fork- hi-low M4 1 2849-U-281 2849-Z-338 forg., 2.38" fork opening,

inner fork width 0.19".

All others 1 2849-V-282 Same as U-281 except 0.75" diameter

hole, inner fork width 0.06".

208 Lockwire-shift fork All 1 LW-166 16 gage, 6.00" long.

209 Lockscrew-shift fork All 1 26-X-54 0.38"-24 thread, 1.15" long, 0.09"

diameter double drill square head.

210 Washer-case and top cover C43, H29, H31, 14 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

H33, H36, H39,

H40, H41, H44,

H46, H47, H48,

H52, H53, H54,

H55, H56, H57

M4 12

All others 10

211 Capscrew-case and top C43, H29, H31, 14 S-268-2 0.38"-16, 1.00" long, grade 8.

cover H33, H36, H39,

H40, H41, H44,

H46, H47, H48,

H52, H53, H54,

H55, H56, H57

M4 12

All others 10

212 Breather-oil A84, A88, A89, 1 A-1199-C-1043 0.13"-27 N.P.T.F., 1.03" long.

A90, A91, A92,

A94, A103, A104,

A105, C20, C22,

C41, C43, C44,

E22, E23, H29,

H52, H53, H54,

H55, H56, H57,

Plug A99, H43, H46 1 P-42 Hex socket-female, 0.125"-27 thread.

213 Capscrew-case top cover - 1 S-2610-2 0.38"-16, 1.25" long, grade 8.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

214 Dowel-T-case and cover All 2 1846-X-284 0.38" diameter, 0.88" long.

215 Pin-brake bell crank A88, A89, A90, 1 1846-B-262 1.75" long, 0.75" diameter,

A92, A94, A98, 0.16" diameter hole.

A99, A104, A105,

C20, C22, C31,

C32, C34, C41,

E23, H43, H48

216 Ball-shift shaft lock All 1 1898-E-57 0.44" diameter ball.

217 Spring-shift shaft lock A99, A104, C30, 1 2858-A-1 13 coils, 1.88" free length.

C31, C32, C44,

E22, E23

C34, H29, H31, 1 2858-C-237 10.75 coils, 1.48" free length.

H33, H36, H39,

H41, H44, H46,

H48, H54, H56,

All others 1 2858-B-236 9.25 coils, 1.28" free length.

218 Ball-shift lock All 1 1898-E-57 0.44" diameter ball.

219 Spring-shift shaft lock A99, A104, C41, 1 2858-A-1 13 coils, 1.88" free length.

E22, E23

C34, H29, H31, 1 2858-C-237 10.75 coils, 1.48" free length.

H33, H36, H39,

H41, H44, H46,

H48, H54, H56,

All others 1 2858-B-236 9.25 coils, 1.28" free length.

220 Pull Rod-brake - 1 1845-A-27 Not used on 223 models in this book.

221 Washer-brake pull rod - 1 WA-36 Not used on 223 models in this book.

222 Washer-brake pull rod - 1 WA-36 Not used on 223 models in this book.

223 Bellcrank-brake operating - 1 302-T-540 Not used on 223 models in this book.

224 Cotter-bellcrank pin - 1 K-248 Not used on 223 models in this book.

225 Washer-bellcrank pin - 1 WA-310 Not used on 223 models in this book.

226 Cotter-brake pull rod - 1 K-236 Not used on 223 models in this book.

227 Cotter-brake pull rod - 1 K-236 Not used on 223 models in this book.

228 Gasket-cover - 1 2297-Z-6656 Silicone gasket-use as required.*

229 Cover Assy.- T-case top A84, A91, A103, 1 3855-B-210 3855-E-447 rough part, 8 mounting

E22 holes 0.41" and 2 dowel holes 0.40".

A88, A89, A90, 1 A-3855-G-189 3855-C-445 rough part, same as

A92, A94, A98, N-196 except with 0.75" hole.

A99, A104, A105, Includes item 215.

C20, C41, E23

C22, C29, C30, 1 A-3855-N-196 3855-C-445 rough part, with interlock,

C31, C32, C34, 8 mounting holes 0.40" and 2 dowel

C43, C44, H48, holes 0.38". Includes item 215,

H53, H56 available as assembly only.

H29, H31, H33, 1 3855-J-270 3855-E-447 rough part, 12 thru-holes,

H36, H39, H41, 2 dowel holes 0.39" diameter

H44, H46 and 2 holes 0.36" diameter.

H40, H47, H52, 1 3855-S-279 3855-C-445 rough part, same as

H54, H55, H57 J-270 except add 0.93" thru hole

thru 2 lower bosses for interlock.

M4 1 3855-L-272 3855-B-444 rough part, 10 thru holes,

2 dowel holes, 1 breather hole.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-223 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

230 Shaft-shift interlock pin C20, C22, C29, 1 1846-D-264 0.38" diameter, 6.62" long.

C30, C31, C32,

C34, C41, C44,

H40, H47, H48,

H52, H53, H55,

H56, H57

T-223 SERIES DLM BRAKES

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

172 Gasket-brake oil A88, A89, - 2297-Z-6656 Silicone gasket, use as required.*

deflector A90, A92,

C20, C22,

E23, H41, H44

173 Oil Deflector-brake A88, A89, A90, 1 2847-S-617 4 holes on 4.31" bolt circle,

A92, A94, A98, 2 notches, 4 flats.

A99, A104,

A105, C20, C22,

C32, C34, C41,

E23, H41, H44

174 Washer-brake oil A88, A89, A90, 1 1829-Z-754 5.00" O.D., 3.56" I.D., 0.09" thick with

deflector A92, A94, A98, 2 holes on 4.31" bolt circle.

A99, A104,

A105, C20, C22,

C32, C34, C41,

E23, H41, H44

175 Backing Plate Assy. A88, A89, 1 A1-3736-U-229 10.20" O.D., 3.50" I.D., 0.47" diameter-

A90, A92, 4 holes on 4.13" bolt circle.

A104, A105,

C20, C22, C41,

E23, H41,H44

176 Washer-brake A88, A89, A90, 1 1229-E-1513 0.81" O.D., 0.47" I.D., 0.09" thick.

mounting capscrew A92, A94, A98,

A99, A104,

A105, C20, C22,

C32, C34, C41,

E23, H41, H44

177 Capscrew-brake A88, A89, A90, 1 S-278A-2 0.44"-14, 1.00" long, loctite patch,

mounting A92, A94, A98, grade 8.

A99, A104,

A105, C20, C22,

C32, C34, C41,

E23, H41, H44

178 Lever-brake A88, A89, 1 2247-K-1259 Center hole diameter of 4.00", length

A90, A92, from center of linkage hole to center

A104, A105, of roller hole approx. 10.42".

C20, C22, C41,

E23, H41, H44

179 Roller-brake A88, A89, A90, 1 2297-L-6720 1.00" O.D., 0.56" I.D., 0.25" thick.

A92, A94, A98,

A99, A104,

A105, C20, C22,

C32, C34, C41,

E23, H41, H44

180 Spring-brake shoe A88, A89, 4 2258-Q-719 Tension spring, 0.50" O.D., 17 coils,

return A90, A92, 2.09" free length.

A104, A105,

C20, C22, C41,

E23, H41, H44

A94, C34 1 2258-T-1268 1.88" free length, 0.43" O.D. 0.88" solid

height.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-223 SERIES DLM BRAKES

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

181 Brake Shoe and A88, A89, 2 A6-3722-L-194 Includes item 182 and 183.

Lining Assy. A90, A92, Replaces A4-3722-L-194.

A104, A105,

C22, C41, E23,

H41, H44

182 Rivet-lining to shoe A88, A89, 20 RV-354 Included in item 181 and 183.

A90, A92,

A104, A105,

C20, C22, C41,

E23, H41, H44

183 Lining Kit-brake shoe A88, A89, 1 2000-S-1397 Brake linings and rivets. Included in

A90, A92, item 181.

A104, A105,

C20, C22, C41,

E23, H41, H44

184 Drum-brake A88, A89, 1 3719-Y-51 3.63" pilot diameter, 0.45" punch-4 holes

A90, A92, on 4.50" bolt circle.

A104, A105,

C20, C22, C41,

E23, H41, H44

185 Washer-brake A88, A89, A90, 4 1229-E-1513 0.81" O.D., 0.47" I.D., 0.09" thick.

drum capscrew A92, A94, A99,

A104, A105,

C20, C22, C32,

C34, C41, E23,

H41, H44, H56

186 Lockwire-brake A88, A89, 1 LW-1616 16 gage, 16.00" long.

drum capscrew A90, A92,

A104, A105,

C20, C22, C41,

E23, H41, H44

187 Capscrew-brake A88, A89, 4 S-276D-2 0.44"-14, 0.75" long, 1 hole drilled in head,

drum A90, A92, grade 8.

A104, A105, C20,

C22, C41, E23,

H41, H44, H56

T-223 SERIES DCM BRAKES

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

231 Nut-lock H29, H36, H52 1 1779-Z-260 0.56"-12, 1.01" across flats.

232 Washer-brake H29, H36, H52 1 WA-39 1.188" O.D., 0.59" I.D., 0.09" thick.

233 Lever-brake H29, H52 1 372-X-206 5.25" from center line outer hole

to 1.00" bore.

H36 1 372-B-210 6.50" from center line outer hole

to 1.00" bore.

234 Backing Plate Assy. H29, H36, H52 1 A-3736-D-472 0.50" diameter-4 holes on 5.20" bolt circle.

235 Capscrew-brake H29, H36, H52 4 S-289A-2 0.50"-13, 1.13" long with loctite patch.

mounting

236 Camshaft H29, H36, H52 1 2710-U-151 2710-X-1154 forging, 32 serrations equally

spaced.

237 Strut Assy. H29, H36, H52 1 A-3787-Q-17 9.40" long, 0.56" thick.

238 Spring-brake H29, H36, H52 4 2758-A-53 11 coils, 0.75" diameter, 2.75" long.

shoe return

239 Brake Shoe and H29, H36, H52 1 A2-3722-G-501 Includes lining and rivets.

Lining Assy.

240 Rivet-lining to shoe H29, H36, H52 24 RV-875

241 Lining Kit-brake shoe H29, H36, H52 1 2000-J-1362 Includes brake shoe lining and rivets.

242 Brake Shoe and H29, H36, H52 1 A2-3722-G-501 Includes lining and rivets.

Lining Assy.

243 Hub-brake H29, H36, H52, 1 3897-R-3008 6.56" O.D., 4.34" long, 0.36"-24 UNF,

H53 4 holes on 5.75" bolt circle diameter.

244 Drum-brake H29, H36, H52 1 A-3819-E-525 Mounted on item 243 using item 186.

245 Capscrew-brake H29, H36, H52 4 S-166D-2 0.38"-24, 0.75" long, 1 long drilled

drum in head, grade 8.

246 Lockwire-brake H29, H36, H52 1 LW-1616 16 gage, 16.00" long.

drum capscrew

T-221 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

67 Capscrew-input shaft rear All 4 S-268-2 0.38"-16, 1.00" long, grade 8.

bearing cage

68 Washer-input shaft rear brg. A1 4 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

cage All others 4 WA-16 0.67" O.D., 0.32" I.D., 0.09" thick.

69 Cage-input shaft rear brg. All 1 3866-R-746 4 holes on 4.25" bolt circle,

closed end, 1.31" long.

70 Gasket-input shaft rear cap All - 2297-Z-6656 Silicone gasket, use as required.*

71 Bearing-input shaft rear All 1 1828-P-94 Ball bearing, with shield,

2.44" O.D., 1.18" I.D., 0.63" wide.

71A Cup-input shaft rear - 1 332 Not used on 221 models in this book.

71B Cone-input shaft rear - 1 339 Not used on 221 models in this book.

72 Washer-input shaft rear brg. All 1 1829-X-726 2.00" O.D., 1.20" I.D., 0.12" thick.

73 Bushing-direct drive gear All 1 1825-W-205 1.50" O.D., 1.36" I.D., 1.28" wide, split,

4 holes and 8 grooves, included in item 74.

Not sold separately. Sold with direct drive

gear only.

74 Gear Assy.-direct drive All 1 A-3892-U-1711 33T, spur, 4.98" O.D., 20T spline,

(1.796-1) 1.49" bushing bore, includes item 73.

No longer available.

Gear Assy.-direct drive (1.94-1) 1 A-3892-X-1714 33T, spur, 4.98" O.D., 19T spline,

1.49" bushing bore, includes item 73.

75 Washer-direct drive gear All 1 1829-Y-727 2.00" O.D., 1.41" I.D., 0.12" thick.

76 Gear-low speed sliding All 1 3892-V-1712 20T, spur, 3.68" O.D., 1.63"-10

(1.796-1) spline, with shift groove, no longer

available.

Gear-low speed sliding (1.94-1) 1 3892-Y-1715 19T, spur, 3.51" O.D., 1.63"-10

spline.

77 Shaft-input A1, M, M6, M7 1 3880-P-744 9.09" long with threaded end.

All others 1 3880-J-1128 8.14" long, no threads.

78 Spacer-input shaft - 1 1844-C-809 Not used on 221 models in this book.

79 Bearing-input shaft front All 1 1828-L-142 Ball bearing with shield, 2.83" O.D.,

1.38" I.D., 0.67" long.

79A Cone-input shaft front - 1 357 Not used on 221 models in this book.

79B Cup-input shaft front - 1 353 Not used on 221 models in this book.

79C Washer-input shaft front - 1 1229-F-3048 Not used on 221 models in this book.

80 Shim-input shaft front brg. cap A1, M, M6, 1 2803-S-1865 .003", use as required, 3 holes.

M7 1 2803-T-1866 .005", use as required, 3 holes.

3 2803-U-1867 .010", use as required, 3 holes

All others 2 2803-D-2162 .003", use as required, 9 holes.

3 2803-E-2163 .005", use as required, 9 holes.

2 2803-F-2164 .010", use as required, 9 holes.

81 Cap Assy.-input shaft front brg. A1, M, M6, 1 A3-3866-U-749 3866-J-1258 cast, 3 holes on 3.75" bolt

M7 circle, open end, includes item 86.

Replaces A-3866-U-749 with oil seal

A-1805-N-378 which replaced

A1-3866-U-749 with oil seal A-1805-W-413.

All others 1 A-3866-U-1113 Shipping cover only.

82 Plug-input shaft front brg. cap - 1 P-42 Hex socket-female, 0.125"-27 thread.

83 Washer-input shaft front A1 3 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

brg. cap All others 3 WA-16 0.67" O.D., 0.39" I.D., 0.09" thick.

84 Capscrew-input shaft front brg. A1, M, M6, 3 S-2612-2 0.38"-16, 1.50" long, grade 8.

M7 Replaces S-2611-1 which is 1.38" long.

All others 3 S-268-2 0.38"-16, 1.00" long, grade 8.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-221 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

85 Plug-input shaft shipping cover N4, N7 1 PW-226 1.63" diameter, 0.08" thick. Part no longer

available.

86 Oil Seal-input shaft front brg. A1 1 A-1805-E-447 2.50" O.D., 1.75" I.D., 0.77" wide, double

cap seal lip, and case, included in item 81.

87 Washer-input shaft - 1 1829-V-100 Not used on 221 models in this book.

88 Nut-input shaft A1, M, M6, M7 1 1827-H-242 0.88"-14, 5.00" height, slotted.

89 Cotter-input shaft nut A1, M, M6, M7 1 K-2412 0.13" diameter, 1.50" long.

90 Deflector-input yoke M, M6, M7 1 2847-P-640 Hook shape (cross section), 2.75" O.D.,

1.76" I.D., 0.50" wide, included in item 91.

91 Flange/Yoke-input M, M6, M7 1 A1-3897-A-1431 1310 series, 3.69" long, includes item 90,

1.25"-10T spline.

92 Flange/Yoke-rear output M, M6 1 A1-3897-A-1431 1310 series, 3.69" long, includes item 93,

1.25"-10 spline.

M7, N4, N7 1 A1-3897-Q-1655 1310 series, 3.53" long, 1.25"-10T spline,

includes item 93.

93 Deflector-rear output yoke M, M6, M7, 1 2847-P-640 Included in item 92.

N4, N7

94 Nut-rear output shaft All 1 1827-H-242 1.81" O.D., 1.03" I.D., 0.25" thick.

95 Washer-rear output shaft nut - 1 1229-E-1331 Not used on 221 models in this book.

96 Oil Seal-rear output shaft All 1 A-1805-E-447 2.50" O.D., 1.75" I.D., 0.77" wide, double

seal lip and case, included in item 97.

97 Cap Assy.-rear output shaft All 1 A-3866-Y-805 4 holes on 3.88" bolt circle,

includes item 96 and 98.

98 Bushing-speedometer All 1 1199-M-1105 Flanged, 0.44" flange O.D., 0.03" flange

driven gear width, 0.31" O.D., 0.25" I.D. 0.34" wide,

99 Gear-speedometer driven A1 1 1898-N-846 15T, R.H., helical, 0.74" O.D.

100 Sleeve-speedometer A1 1 1898-U-671 0.38" thru-hole, 1.26" long, 0.81"-20 UNEF

driven gear 2A threads one end, 0.88"-18 NS 2A

threads other end.

101 Plug-speedometer hole - 1 A-1850-R-18 Not used on 221 models in this book.

102 Cotter-rear output shaft nut A1, M, M6, M7 1 K-2412 0.13" diameter, 1.50" long.

All others 1 K-2410 0.13" diameter, 1.25" long.

103 Capscrew-rear output cap A1, M, M6, 2 S-268-2 0.38"-16, 1.00" long, grade 8.

M7 1 S-2614-2 0.38"-16, 1.75" long, grade 8.

1 10-X-665 0.38"-16, 1.00" long, flat head.

N4, N7 2 S-269-1 0.38"-16, 1.12"long, grade 8.

1 S-2614-2 0.38"-16, 1.75" long, grade 8.

1 10-X-665 0.38"-16, 1.00" long, flat head.

104 Washer-rear output cap A1 3 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

1 1229-E-525 0.78" O.D., 0.39" I.D., external teeth.

All others 3 WA-16 0.67" O.D., 0.39" I.D., 0.09" thick.

1 1229-E-525 0.78" O.D., 0.39" I.D., external teeth.

105 Breather-rear output shaft cap - 1 A-1199-C-1043 Not used on 221 models in this book.

106 Gasket-rear output cap All 1 2297-Z-6656 Silicone gasket, use as required.*

107 Gear-speed driven A1 1 1898-Q-849 4T, R.H., Helical, 1.78" O.D.

All others 1 1898-P-848 4T, R.H., Helical, 1.88" O.D.

108 Spacer-rear output shaft N, M6, M7 1 2.13" O.D., 1.81" I.D., 1.38" wide. No

longer available.

109 Cup-rear output shaft rear brg. All 1 15245 2.44" O.D.

110 Cone-rear output shaft rear brg. All 1 15126 1.25" bore.

111 Gear-rear output shaft All 1 3892-R-1708 33T, L.H., Helical, 4.97" O.D., 1.63"-10T

spline.

112 Shaft-rear output All 1 3880-Q-745 9.06" long, threaded one end,

1.25"-10 spline, 1.63"-10T spline.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-221 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

113 Cone-rear output shaft fwd. brg. All 1 15126 1.25" bore.

114 Cup-rear output shaft fwd. brg. All 1 15245 2.44" O.D.

115 Shim-rear output forward brg. A1, M 1 2803-V-1868 .003", use as required, 3 holes.

cap 1 2803-W-1869 .005", use as required, 3 holes.

3 2803-X-1870 .010", use as required, 3 holes.

M6, M7 2 2803-V-1868 .003", use as required, 3 holes.

3 2803-W-1869 .005", use as required, 3 holes.

2 2803-X-1870 .010", use as required, 3 holes.

All others 2 2803-G-2165 .003", use as required, 4 holes.

3 2803-H-2166 .005", use as required, 4 holes.

2 2803-J-2168 .010", use as required, 4 holes.

116 Cap-rear output forward cap All 1 3866-T-748 Stamping, 3 holes on

3.25" bolt circle, closed end.

117 Washer-rear output forward A1 3 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

cap All others 3 WA-16 0.67" O.D., 0.39" I.D., 0.09" thick.

118 Capscrew-rear output fwd. cap All 3 S-267-2 0.38"-16", 0.88" long, grade 8.

119 Capscrew-idler shaft rear cap All 3 S-267-2 0.38"-16", 0.88" long, grade 8.

120 Washer-idler shaft rear cap A1 3 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

All others 3 WA-16 0.67" O.D., 0.39" I.D., 0.09" thick.

121 Cap-idler shaft rear All 1 3866-T-748 Stamping, 3 holes on

3.25" bolt circle, closed end.

122 Gasket-idler shaft rear cap All - 2297-Z-6656 Silicone gasket, use as required.*

123 Snap Ring-idler shaft - 1 1854-E-187 Not used on 221 models in this book.

124 Cup-idler shaft rear brg. All 1 15245 2.44" bore.

125 Cone-idler shaft rear brg. All 1 15126 1.25" bore.

126 Gear-idler shaft All 1 3892-W-1713 34T, R.H., Helical, 5.12" O.D., 1.63"-10T

spline.

127 Spacer-idler shaft gear All 1 1844-D-498 2.13" O.D., 1.69" I.D., 1.16" wide.

128 Gear-low speed (1.796-1) All 1 3892-W-1713 37T, spur, 6.44" O.D., 1.63"-10T spline.

Gear-low speed (1.94-1) 1 3892-Z-1716 38T, spur, 6.61" O.D., 1.63"-10T spline.

129 Shaft-idler All 1 3880-N-742 5.38" long, 1.25" bearing diameter both

ends, 1.63"-10T spline.

130 Cone idler shaft front brg. All 1 02476 1.25" bore.

131 Cup-idler shaft front brg. All 1 02420 2.69" O.D.

132 Washer-idler shaft brg. - 1 1829-H-788 Not used on 221 models in this book.

133 Capscrew-idler shaft brg. - 1 10-X-1292 Not used on 221 models in this book.

washer

134 Lockwire-idler shaft brg. washer - 1 LW-163 Not used on 221 models in this book.

135 Shim-idler shaft front brg. cap A1, M 1 2803-V-1868 .003", use as required, 3 holes.

1 2803-W-1869 .005", use as required, 3 holes.

3 2803-X-1870 .010", use as required, 3 holes.

All others 2 2803-V-1868 .003", use as required, 3 holes.

3 2803-W-1869 .005", use as required, 3 holes.

2 2803-X-1870 .010", use as required, 3 holes.

136 Cap-idler shaft front brg. All 1 3866-T-748 Stamping, 3 holes on

3.25" bolt circle, closed end.

137 Washer-idler shaft front brg. A1 3 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

All others 3 WA-16 0.67" O.D., 0.39" I.D., 0.09" thick.

138 Capscrew-idler shaft front brg. All 3 S-267-2 0.38"-16, 0.88" long, grade 8.

139 Cotter-output shaft nut All 1 K-2412 0.13" diameter, 1.50" long.

140 Nut-output shaft A1, M, M6, M7 1 1827-H-242 0.88"-14, 0.50" high, slotted.

All others 1 N-512-1 0.75"-16, slotted, grade 8.

141 Washer-output shaft N4, N7 1 1229-V-1556 1.38" O.D., 0.78" I.D., 0.12" thick.

142 Capscrew-oil catcher - 1 10-X-830 Not used on 221 models in this book.

143 Washer-front brg. cap - 1 1229-K-1597 Not used on 221 models in this book.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-221 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

144 Flange/Yoke-front output M, M6, M7 1 A1-3897-A-1431 1310 series, 3.69" long, 1.25"-10T spline,

includes item 145 (2847-P-640).

N4 1 A-3897-C-2811 1310 yoke, 3.38" long, 1.25"-10T spline,

includes item 145 (2847-K-791).

N7 1 A-3897-D-3072 Same as C-2811 except undercut versus

radius on deflector seat, includes item 145

(2847-K-791).

145 Deflector-front output yoke M, M6, M7 1 2847-P-640 Hook shape (cross section), 2.75" O.D.,

1.76" I.D., 0.50" wide, included in item 144.

N4, N7 1 2847-K-791 "S" shape (cross section), 2.75" O.D.,

1.78" I.D., 0.50" wide, included in item 144.

Part no longer available.

146 Capscrew-front brg. cap All 3 S-2612-2 0.38"-16, 1.50" long, grade 8.

Replaces S-2611-1 which is 1.38" long.

147 Washer-front brg. cap A1 3 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

All others 3 WA-16 0.67" O.D., 0.39" I.D., 0.09" thick.

148 Oil Seal-output shaft front All 1 A-1805-E-447 2.50" O.D., 1.75" I.D., 0.77" wide, double

seal lip and case, included in item 149.

149 Cap Assy.-output shaft front All 1 A3-3866-U-749 3 holes on 3.75" bolt circle, open

end, includes item 148.

150 Gasket-output shaft front cap All - 2297-Z-6656 Silicone gasket, use as required.*

151 Bearing-output shaft front All 1 1228-V-308 Ball bearing, with snap ring, 2.83" O.D.,

1.38" bore, 0.67" wide.

152 Oil Catcher-output shaft - 1 2847-Q-849 Not used on 221 models in this book.

153 Washer-oil catcher - 1 WA-36 Not used on 221 models in this book.

154 Pin-oil catcher - 1 K-236 Not used on 221 models in this book.

155 Shaft-front output A1, M, M6 1 3880-R-746 9.50" long, 3.34" from threaded end to

M7 1.70" diameter. Replaces A-3880-R-746

which has snap ring and groove.

All others 1 3880-T-1112 9.69" long, 3.53" from 0.75"-16, threaded

end to 1.75" diameter.

156 Snap Ring-front output shaft N4, N7 1 1854-P-146 Fits over 1.75" diameter shaft. Part no

longer available.

157 Clutch-front output sliding All 1 3892-T-1710 19T, spur, 2.57" O.D., 1.63"-10T spline,

with shift groove.

158 Gear-front output shaft All 1 3892-S-1709 33T, L.H., Helical, 4.97" O.D., on shaft with

16T spline, 1.77" O.D.

159 Bearing-front output shaft rear All 1 1828-F-110 Ball bearing, with snap ring, 3.35" O.D.,

1.77" I.D., 0.75" wide.

160 Oil Seal-front output shaft rear A1 1 A-1205-Z-1768 2.88" O.D., 2.19" I.D., included in item 163.

M, M6, M7 1 A-1805-E-447 2.50" O.D., 1.75" I.D., 0.77" wide, double

seal lip, and case, with spring.

161 Spacer-front output shaft N4, N7 1 1844-G-501 2.13" O.D., 1.81" I.D., 1.38" wide.

Part no longer available.

162 Gasket-front output rear cap All - 2297-Z-6656 Silicone gasket, use as required.*

163 Cap Assy.-front output shaft A1 1 A1-3866-S-747 3866-H-1256 cast, internal brake mounting,

rear 4 holes on 4.25" bolt circle, 4 threaded

holes on 3.75" bolt circle, includes item

160 (A-1205-Z-1768). No longer available.

All others 1 3866-X-752 3866-E-317 cast, enclosed cap with 4

holes on 4.25" bolt circle. No longer avail.

164 Washer-front output shaft rear A1 4 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

cap All others 4 WA-16 0.67" O.D., 0.39" I.D., 0.09" thick.

165 Capscrew-front output shaft A1, N4, N7 4 S-268-2 0.38"-16, 1.00" long, grade 8.

rear cap All others 4 S-269-1 0.38"-16, 1.12" long, grade 8.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-221 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

166 Stud-rear output shaft - 1 4-X-840 Not used on 221 model in this book.

167 Nut-rear output shaft - 1 N-16-1 Not used on 221 model in this book.

168 Expansion Plug-front output A1 1 PW-221 1.31" O.D., 0.08" thick.

shaft

169 Hub-brake - 1 3897-F-1332 Not used on 221 model in this book.

170 Snap Ring-brake hub A1, M, M6, M7 1 1854-P-146 1.63" assembled, 0.09" thick. Part no

longer available.

171 Expansion Plug-brake hub A1 1 PW-221 1.31" O.D., 0.08" thick.

188 Case-transfer A1 1 3875-B-444 3875-A-443 rough part, less interlock,

A, D, E, and F mounting bosses.

M 1 3875-W-491 5875-L-506 rough part, with interlock,

C, D, E, and F mounting bosses.

M6, M7 1 3875-L-558 5875-S-513 rough part, with interlock,

B, E, and F mounting bosses.

N4, N7 1 3875-M-793 5875-L-792 rough part, with interlock,

D (modified), E and F mounting bosses.

189 Name Plate - 1 1199-K-1493 Not used on 221 models in this book.

190 Screw-name plate - 2 9-X-16 Not used on 221 models in this book.

191 Expansion Plug-shift shaft All 1 PW-216 1.00" O.D., 0.08" thick.

192 Plug-oil drain N4, N7 1 P-24 Female, non-magnetic, 0.25"-18 thread.

193 Expansion Plug-shift shaft All 1 1850-X-76 0.06" thick, 1.00" long.

194 Plug-oil drain All 1 P-112 Male, square head, 0.75"-14 thread.

195 Plug-oil level All 1 P-112 Male, square head, 0.75"-14 thread.

196 Oil Catcher-input - 1 1898-X-856 Not used on 221 models in this book.

197 Plug-oil high level - 1 P-112 Not used on 221 models in this book.

198 Elbow-high oil level - 1 1898-X-258 Not used on 221 models in this book.

199 Plug-oil level - 1 P-112 Not used on 221 models in this book.

200 Oil Seal-shift shaft All 1 A-1205-N-1132 1.25" O.D., 0.75" I.D., single lip and dirt lip.

Replaces A-1805-S-305 with single lip only.

201 Oil Seal-shift shaft All 1 A-1205-N-1132 1.25" O.D., 0.75" I.D., single lip and dirt lip.

Replaces A-1805-S-305 with single lip only.

202 Shift Fork-declutch All 1 2849-E-239 2849-X-336 forging, 2.03" shift fork opening.

203 Lockwire-shift fork All 1 LW-166 16 gage, 6.00" long.

204 Lockscrew-shift fork All 1 26-X-54 0.38"-24, 1.16" long, square head.

205 Shift Shaft-declutch A1 1 2843-A-417 4.88" long. No longer available.

All others 1 2843-C-419 5.06" long. No longer available.

206 Shift Shaft-hi-low A1 1 2843-Z-416 Setscrew hole 150 degrees left of vertical.

No longer available.

All others 1 2843-B-418 Set screw hole 30 degrees right of vertical.

No longer available.

207 Shift Fork-hi-low All 1 2849-E-239 2849-X-336 forging, 2.03" shift fork opening.

208 Lockwire-shift fork All 1 LW-166 16 gage, 6.00" long.

209 Lockscrew-shift fork All 1 26-X-54 0.38"-24, 1.16" long, square head.

210 Washer-case and top cover A1 10 1229-K-1597 0.75" O.D., 0.41" I.D., 0.09" thick.

All others 9 WA-16 0.67" O.D., 0.39" I.D., 0.09" thick.

211 Capscrew-case and top cover A1 9 S-268-2 0.38"-16, 1.00" long, grade 8.

212 Breather-oil All 1 A-1199-C-1043 0.13"-27 N.P.T.F., 1.03" long.

213 Capscrew-case top cover - 1 S-2610-2 0.38"-16, 1.25" long, grade 8.

214 Dowel-T -case and cover - 1 1846-X-284 Not used on 221 models in this book.

215 Pin-brake bellcrank A1 1 1846-E-265 0.63" O.D., 1.66" long with 1 hole 0.16"

diameter.

216 Ball-shift shaft lock All 1 1898-E-57 0.44" diameter ball.

217 Spring-shift shaft lock A1, M, M6, M7 1 2858-A-1 13 coils, 1.88" free length.

All others 1 2858-Q-277 0.44" diameter, 1.52" free length. Part

no longer available.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

T-221 SERIES MAIN CASE

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

218 Ball-shift shaft lock All 1 1898-E-57 0.44" diameter.

219 Spring-shift shaft lock A1, M, M6, M7 1 2858-A-1 13 coils, 1.88" free length.

All others 1 2858-Q-277 0.44" diameter, 1.52" free length. Part

no longer available.

220 Pull Rod-brake A1 1 1845-A-27 1.65" diameter shaft, 0.10" thick.

221 Washer-brake pull rod A1 1 WA-36 0.81" O.D., 0.40" I.D., 0.06" thick.

222 Washer-brake pull rod A1 1 WA-36 0.81" O.D., 0.40" I.D., 0.06" thick.

223 Bellcrank-brake operating A1 1 302-T-540 0.63" dia. ream, 0.38" thick.

224 Cotter-bellcrank pin A1 1 K-248 0.13" diameter, 1.00" long.

225 Washer-bellcrank pin A1 1 WA-310 1.31" O.D., 0.66" I.D., 0.10" thick.

226 Cotter-brake pull rod A1 1 K-236 0.10" diameter, 0.75" long.

227 Cotter-brake pull rod A1 1 K-236 0.10" diameter, 0.75" long.

228 Gasket-cover All - 2297-Z-6656 Silicone gasket, use as required.*

229 Cover Assy.-T -case top A1 1 A-3855-G-267 No cast bosses on underside. Part no

longer available.

All others 1 3855-X-258 3855-L-506 cast, breather hole in center

and 2 cast interlock bosses on underside.

230 Shaft-shift interlock M, M6, M7, 1 1846-H-268 0.38" diameter, 6.16" long.

N4, N7

T-221 SERIES DLM BRAKES

PAR

ITEM PART NAME MODEL QT

NUMBE

DESCRIPTION

172 Gasket-brake oil deflector - - 2297-Z-6656 Not used on 221 models in this book.

173 Oil Deflector-brake - 1 2847-S-617 Not used on 221 models in this book.

174 Washer-brake oil deflector - 1 1829-Z-754 Not used on 221 models in this book.

175 Backing Plate Assy. A1 1 A-3736-R-200 7.25" x 1.50" DLM, 0.40" diameter-4 holes

on 3.70" bolt circle.

176 Washer-brake mtg. capscrew - 4 1229-E-1513 Not used on 221 models in this book.

177 Capscrew-brake mounting A1 4 S-266-2 0.38"-16, 0.75" long, grade 8.

178 Lever-brake A1 1 372-D-134 372-K-89 stamping, 0.38" diameter.

179 Roller-brake A1 2 1779-P-94 0.75" O.D., 0.44" I.D., 0.25" thick.

180 Spring-brake shoe return A1 2 2258-Q-719 Tension spring, 0.50" O.D., 12 coils 2.63"

length at 20 lb. load. Part no longer

available.

181 Brake Shoe and Lining Assy. A1 2 A13-3722-T-202 Includes lining.

182 Rivet-lining to shoe - - - Not used on 221 models in this book.

183 Lining-brake shoe - - - Not sold separately, bonded lining.

184 Drum-brake A1 1 3719-F-58 2.50" pilot diameter, 0.38" diameter-

4 holes on 3.13" bolt circle.

185 Washer-brake drum capscrew - 4 1229-E-1513 Not used on 221 models in this book.

186 Lockwire-brake drum capscrew A1 1 LW-1610 16 gage, 10" long.

187 Capscrew-brake drum A1 4 10-X-1254 0.38"-16, 0.75" long, with drilled hole,

grade 8.

* All preformed gaskets are replaced with silicone liquid gasket at time of service.

NUMERICAL PARTS LISTING

PART PART PART

NUMBER PAGE NUMBER PAGE NUMBER PAGE

3-X-161 13 A-1805-B-158 13 1898-A-261 27

4-X-840 25, 39 A-1805-N-352 13 1898-P-848 36

4-X-1521 13 A-1805-R-408 17, 23 1898-J-504 14

9-X-16 26, 39 A-1805-E-447 36, 38 1898-K-531 14

10-X-665 36 A-1805-P-536 24 1898-L-532 14

10-X-830 23, 37 A-1805-A-573 17, 19 A-1898-W-595 14

10-X-1254 40 1825-R-200 15 1898-U-671 19, 36

10-X-1292 22, 37 1825-W-205 35 1898-V-776 19

16-X-40 13 1827-H-242 36, 37 1898-S-799 20

26-X-54 28, 29, 39 1828-V-74 23 1898-C-835 28

26-X-56 13 1828-P-94 35 1898-D-836 28

302-T-540 30, 40 1828-F-110 38 1898-N-846 36

372-D-134 40 1828-L-142 35 1898-Q-849 36

372-X-206 34 1829-V-100 18, 22, 36 1898-X-856 27, 39

372-B-210 34 1828-S-149 24 1898-H-866 14

1199-J-894 27 1829-J-244 13 1898-J-868 14

A-1199-C-1043 20, 29, 36, 39 1829-P-380 15 2000-J-1362 34

1199-M-1105 19, 36 1829-M-585 18, 19 2000-S-1397 33

1199-N-1106 19 1829-D-680 14 2244-M-39 28

1199-K-1493 26, 39 1829-S-721 15 2245-X-50 19

1199-K-3287 26, 27 1829-X-726 35 2247-K-1259 32

A-1205-N-1132 28, 39 1829-Y-727 35 2258-Q-719 32, 40

A-1205-T-1242 17 1829-Z-754 32, 40 2258-T-1268 32

A-1205-Z-1768 38 1829-H-788 22, 37 2296-W-1063 27

1227-L-714 13 1844-J-166 20 2297-S-695 23

1227-C-939 18, 19, 22 1844-L-480 21 2297-P-2226 29

1228-K-37 14 1844-D-498 37 2297-Z-6656 13, 14, 15, 20,

1228-A-183 24 1844-G-501 38 21, 23, 24, 30,

1228-V-308 38 1844-S-565 20 32, 35, 36, 37,

1228-R-408 16 1844-C-809 16, 35 38, 40

1228-S-409 15 1845-A-27 30, 40 2297-L-6720 32

1228-B-1380 24 1846-V-126 14 2710-U-151 34

1229-E-421 13, 14 1846-B-262 30 2758-A-53 34

1229-E-525 36 1846-D-264 31 2803-V-568 13

1229-E-1331 13, 18, 19, 36 1846-E-265 39 2803-W-569 13

1229-E-1513 32, 33, 40 1846-H-268 40 2803-X-570 13

1229-V-1556 37 1846-X-284 30, 39 2803-L-1832 16

1229-K-1597 14, 15, 17, 19, A-1850-R-18 19, 36 2803-M-1833 16

20, 22, 23, 25, 1850-X-76 39 2803-N-1834 16

29, 35, 36, 37, 1850-T-150 13, 27 2803-Z-1846 20, 22

38, 39 1854-P-146 38, 39 2803-A-1847 20, 22

1229-E-1669 13, 14 1854-E-187 21, 37 2803-B-1848 20, 22

1229-F-2814 16, 17 1854-W-257 25 2803-S-1865 35

1229-E-3047 16 1874-A-105 13 2803-T-1866 35

1229-F-3048 16, 17, 35 1898-H-34 13 2803-U-1867 35

1229-C-4553 18, 19 1898-C-55 13 2803-V-1868 37

1244-Q-1629 24 1898-E-57 30, 39, 40 2803-W-1869 37

1250-G-475 27 1898-S-201 28 2803-X-1870 37

1254-M-91 24 1898-G-241 14 2803-B-1874 16

1779-P-94 40 1898-Q-251 14 2803-C-1875 16

1779-Z-260 34 1898-X-258 28, 39 2803-D-1876 16

NUMERICAL PARTS LISTING

PART PART PART

NUMBER PAGE NUMBER PAGE NUMBER PAGE

2803-G-1931 17 3280-S-7897 18 3875-B-444 39

2803-H-1932 17 3290-Q-1005 26 3875-A-469 26

2803-J-1934 17 3290-E-1071 26 3875-W-491 39

2803-D-2162 35 3290-F-1072 26 3875-K-531 26

2803-E-2163 35 3290-G-1073 26 3875-L-558 39

2803-F-2164 35 3290-R-1084 26 3875-M-793 39

2803-G-2165 37 3719-Y-51 33 3875-Z-884 26

2803-H-2166 37 3719-F-58 40 3880-X-336 13

2803-J-2168 37 A6-3722-L-194 33 3880-U-723 21

2843-C-107 13 A13-3722-T-202 40 3880-N-742 37

2843-B-392 29 A2-3722-G-501 34 3880-P-744 35

2843-C-393 28 A-3736-R-200 40 3880-Q-745 36

2843-S-409 29 A1-3736-U-229 32 3880-R-746 38

2843-T-410 28 A-3736-D-472 34 3880-A-807 21

2843-Z-416 39 A-3787-Q-17 34 3880-T-1112 38

2843-A-417 39 A-3819-E-525 34 3880-J-1128 35

2843-B-418 39 3826-X-284 14 3891-C-1849 19

2843-C-419 39 A-3826-Y-285 13 A-3892-J-1544 15

2843-W-439 28 3838-N-196 15 3892-P-1550 20

2843-X-440 29 A-3855-G-189 30 A-3892-R-1604 15

2843-K-453 29 A-3855-N-196 30 3892-T-1606 21

2843-P-458 29 3855-B-210 30 A-3892-W-1635 15

2843-Q-459 28 3855-X-258 40 3892-Y-1637 21

2843-U-463 29 A-3855-G-267 40 3892-B-1640 21

2847-E-291 13 3855-J-270 30 3892-C-1641 21

A2-2847-Q-303 14 3855-L-272 30 3892-R-1708 36

2847-S-617 18, 32, 40 3855-S-279 30 3892-S-1709 38

2847-P-640 18, 36, 38 A-3866-S-357 13 3892-T-1710 38

A-2847-R-642 14 A-3866-S-721 17 A-3892-U-1711 35

2847-K-791 38 A-3866-B-730 23 3892-V-1712 35

2847-Q-849 23, 38 3866-C-731 20, 21, 22 3892-W-1713 37

2848-H-86 14 A-3866-D-732 25 A-3892-X-1714 35

2848-J-88 14 A-3866-E-733 19 3892-Y-1715 35

2848-E-161 24 3866-R-746 35 3892-Z-1716 37

2849-Y-77 13 A1-3866-S-747 38 3892-K-1805 21

2849-L-220 28 3866-T-748 37 A-3892-L-1806 15

2849-E-239 39 A3-3866-U-749 35, 38 3892-W-2441 15

2849-G-241 28 3866-X-752 38 3892-X-2442 15

2849-U-281 29 3866-C-757 17 3892-Y-2443 15

2849-V-282 29 A-3866-W-777 25 3892-Z-2444 15

2858-A-1 30, 39, 40 3866-N-794 21, 22 3897-N-1002 13

2858-T-20 13 A-3866-X-804 17 3897-F-1332 25, 39

2858-W-101 14 A1-3866-X-804 17 3897-Q-1369 18, 23

2858-X-102 14 A-3866-Y-805 36 3897-R-1370 18

2858-B-236 30 A-3866-C-887 25 A1-3897-A-1431 36, 38

2858-C-237 30 A-3866-G-891 19 3897-J-1440 18

2858-Q-277 39, 40 A-3866-Y-935 17 3897-K-1441 18, 23

3221-S-19 23 A-3866-U-1113 35 A1-3897-Q-1655 36

3260-H-1256 18 A-3866-R-1162 25 3897-L-1728 18, 23

3266-Y-857 25 3875-V-438 26 3897-M-1729 18

A1-3280-R-7896 23 3875-Q-433 26 A-3897-T-1762 14

NUMERICAL PARTS LISTING

PART PART PART

NUMBER PAGE NUMBER PAGE NUMBER PAGE

3897-Y-1793 18 LW-163 22, 37

3897-Z-1794 18, 23 LW-166 28, 29, 39

3897-K-1961 18 MPS 3831 10, 24

3897-L-1962 18 MPS 4118 10, 20

3897-P-1966 18 MPS 4120 10, 16

A-3897-C-2811 38 MPS 4121 10, 16

3897-R-3008 25, 34 MPS 4122 10, 15

A-3897-D-3072 38 MPS 4123 10, 16

332 13, 15, 35 MPS 4124 10, 16

335 13 MPS 4126 11, 13

339 15, 35 MPS 4217 11, 24

353 16, 35 N-16-1 25, 39

357 16, 35 N-512-1 37

372 16 NL-26-1 23

376 16 NL-28-1 13

02420 37 P-24 27, 39

02476 37 P-42 17, 29, 35

15126 36, 37 P-112 27, 28, 39

15245 36, 37 P-212 27

25520 20 PW-210 14

25584 20 PW-214 26, 27

25821 20 PW-216 39

25878 20 PW-221 39

31521 21, 22 PW-225 25

31597 21 PW-226 17, 36

155NYS24-6 23 PW-252 26

2WCS24-43 18, 23 RV-354 33

2WCS24-81 18, 23 RV-875 34

2WCS28-32 18 S-166D-2 34

HM-89411 22 S-256P-2 13, 14

HM-89449 21 S-266-2 40

K-236 24, 30, 38, 40 S-267-2 14, 37

K-238 13 S-268-2 14, 15, 29, 35,

K-248 30, 40 36, 38, 39

K-2410 36 S-269-1 14, 17, 19, 20,

K-2412 13, 18, 19, 22, 22, 23, 25, 36,

36, 37 38

KIT T-221-1 11 S-276D-2 33

KIT T-221-3 11 S-278A-2 32

KIT T-221-4 12 S-289A-2 34

KIT T-221-5 12 S-2610-2 25, 29, 39

KIT T-223-1 6 S-2612-2 35, 38

KIT T-223-2 6 S-2614-2 36

KIT T-223-3 6 WA-16 35, 36, 37, 38,

KIT T-223-4 7 39

KIT T-223-5 8 WA-36 23, 30, 38, 40

KIT T-223-6 9 WA-38 13

KIT T-223-7 9 WA-39 34

KIT T-223-8 9 WA-310 30, 40

LW-1610 40

LW-1616 33, 34

MERITOR AFTERMARKET PARTS WARRANTY

We warrant all new parts for one year from date of shipment to the buyer against defective material or

workmanship (but not against damage caused by accident, abuse or improper installation, maintenance or

repair) when such parts are used on vehicles the specifications of which have been approved by our

Engineering Department.

As the exclusive remedy under this warranty, we will, at our option, repair or replace such parts free of

charge, or take back the nonconforming parts and refund the monies paid by buyer for such parts, if found

on examination by us to be nonconforming and if any necessary return charges are prepaid.

If it is necessary to return any parts under this warranty, buyer agrees not to make any deduction on account

thereof from remittances on current accounts while claims are in the process of disposition. Any expense

incurred without our consent for repairs or replacement will not be allowed.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS,

EXPRESS, IMPLIED OR STATUTORY, INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE. IN NO EVENT SHALL SELLER

BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

Only genuine Meritor replacement parts are covered by this aftermarket parts warranty.

M E R I T O R P A R T S . R I G H T F R O M T H E S T A R T .

Worldwide Aftermarket Information contained in this publication was in effect at the time the publication was approved for

Meritor Heavy Vehicle Systems, LLC printing and is subject to change without notice or liability. Meritor Automotive, Inc. reserves the

7975 Dixie Highway right to revise the information presented or discontinue the production of parts at any time.

Florence, KY 41042 USA

http://www.meritorauto.com Meritor Automotive, Inc. Revised 12-97

T223 Rockwell T 221 223 Transfer Case Parts Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
