LifeSize® Room 200™
HD Monitors
HD Cameras
Pan-Tilt-Zoom
(PTZ)
Point-to-Point
HD Video
Communications
Embedded
Continuous
Presence (CP)
HD Multipoint
Embedded
Voice Activated
Switching (VAS)
HD Multipoint
6 CP
6VAS
P-P
LifeSize Room 200
Key Features
Video
Quality
HD Audio
External
Audio, Video & Data
Input/Output
Full High Denition
Standards-based
1920x1080 - 30fps
1280x720 - 60fps
Audio: 4 in, 2 out
Video: 7 in, 4 out
Data: 2 in, 2 out
Introducing Full HD for the most
realistic video communications
experience ever
Experience Superior Communication
Experience the world’s rst, Full HD video communications system. One look and
you can see for yourself that the LifeSize® dierence is the LifeSize experience -
superior video experiences across cities, countries and continents.
With the LifeSize Room 200 solution, you get every bit of quality available today,
with Full High Denition, standards-based 1080p30 for the highest available
resolution and 720p60 for the best motion handling with half the latency. Plus, an
embedded 6-way Continuous Presence multipoint control unit (MCU), complete
with transcoding and all digital I/O in a compact, sleek unit that’s less than half the
size of comparable solutions.
Flexibility is enhanced, since our exemplary attention to the human interface
ensures that the LifeSize Room 200 system is easy to use. And because we’re
committed to open architecture, proven LifeSize interoperability provides full
integration into your existing communications infrastructure.
You also get unprecedented bandwidth/performance:
768kbps for 720p30•
1.1Mbps for 720p60•
1.7Mbps for 1080p30•
In today’s world, better than being there.
In addition to technology, service and support, LifeSize oers the most
interactive, face-to-face video communications experience you can get. In fact,
the LifeSize Room 200’s exceptional quality and user simplicity now make remote
communications a more productive, true-to-life experience. And like all LifeSize
products, LifeSize Room 200 delivers superior quality of experience, unique
exibility and unmatched price performance.
Experience Communication in High Denition
System Components
LifeSize codec with stand
High Denition PTZ LifeSize Camera 200
LifeSize Phone
New wireless remote control
Power Supply
Cables
Communications
128Kbps – 6.0Mbps (point-point)
128Kbps – 2.0Mbps (multipoint, per call)
H.323, SIP
1xRJ-45 Network LAN (10/100 Mbps)
1xRJ-45 for LifeSize Phone (PoE supported)
1xRJ-45 for LifeSize Networker (PoE supported)
1xRJ-11 for analog telephone line
1x3.5mm Mic In for LifeSize MicPod
Support for Multiple HD Displays
Support for Multiple HD Displays
Support for single or dual monitor HD displays
Any display supporting HDMI or DVI-I input up to
1080p30, 1080i60 and 720p60
For additional information on displays, visit:
www.lifesize.com/support
High Denition 1080p30/720p60 PTZ Camera
LifeSize-designed high denition 1080p30/720p60
pan/tilt/zoom camera (patent pending)
Maximum Resolution: 1920x1080, 30fps
Supported Resolution: 1280x720, 60fps
Support for multiple high denition cameras including
standard LifeSize Camera via rewire
Support for two active camera sources at 720p30
Wide-angle zoom lens with 70 degree eld of view
4.2x Optical Zoom / 4x Digital Zoom
Auto focus
Automatic gain control
10 camera presets (near or far end)
Standard 3.0 M HDMI cable
Support for Sony EVI-HD1 HD camera (optional)
Video Specications/Video Resolutions
Maximum resolutions widescreen 16:9 aspect ratio
All resolutions progressive scanning
All resolutions at 30 frames per second except 60
frames per second where noted
128Kbps (400x244pixels) Widescreen FCIF
384Kbps (768x432pixels) Cable TV
512Kbps (848x480pixels) DVD Resolution
768Kbps (1280x720pixels) High Denition
1.1 Mbps (1280x720pixels @ p60) High Denition
1.7 Mbps or higher (1920x1080pixels) High Denition
Actual resolution depends on capability of remote end
and is impacted by the quality of the communication
channel
Video Standards
H.261, H.263, H.263+, H.264, and H.239 compliant
Support for multiple dual live streaming modes:
720p60 pixels and 720p5
720p30 pixels and 720p30
Video Formats
16:9 High Denition aspect ratio

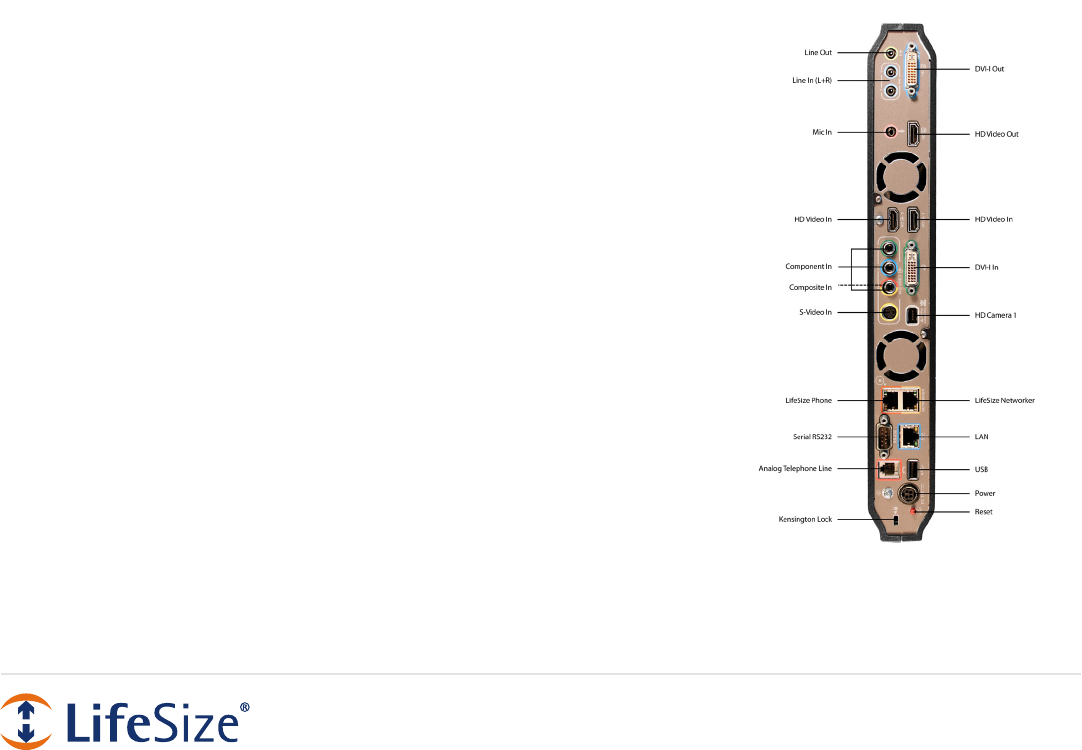

Video Inputs (7 Inputs)
1 x High Denition Camera (720p30)
2 x HD Video In (1080p30/720p60)
1 x DVI-I In (VGA enabled)
1 x Component In or 1 x Composite In
1 x S-Video In (VGA enabled)
Video Outputs (2 Outputs)
1 x HD Video Out (1080p30/720p60)
1 x DVI-I Video Out (1080p30/720p60)
Fully Integrated, High Denition Audio
Conference Phone
LifeSize-designed full featured conference
phone doubles as the microphone for video
system
16 microphones in a patent-pending Circular
Array with beam forming for clear audio
pickup
100Hz up to 16kHz
H.323/SIP support
Stand alone phone option using VoIP
No subwoofer or additional microphone pods
required
Powered by codec directly though cable
Audio Features
High Denition Audio
GIPS NetEQ packet loss concealment
Full duplex for natural conversations
Echo cancellation for echo-free calls
Automatic gain control
Automatic noise reduction
MicPod or Dual MicPod support (optional)
Audio Standards
G.711, G.722, G.722.1C (Polycom® Siren 14™), MPEG4-
AAC-LC
Audio Inputs (4 Inputs)
1 x RJ-45 (LifeSize Phone)
2 x Stereo Line In (3.5mm)
1 x Mic In – Two Channel (3.5mm)
Audio Outputs (2 Outputs)
1 x RJ-45 (LifeSize Phone)
1 x Stereo Line Output (3.5mm)
User Interface & Features
High Denition, context sensitive user interface
Wireless I/R remote
Graphical User Interface Call Manager
14 Localized languages supported
Customizable background screens
Selectable camera icons & live preview
Do Not Disturb (DND)
Security
Flash-based Web management tool
Admin and User level password
SNMP security alerts
Ability to disable HTTP, SSH and Telnet services
H.235 encryption support including strict compliance
Kensington Lock
Intelligent Networking Features
NAT/Firewall Traversal (H.460/SIP)
IP v4 and IPv6 support
Auto H.323 dialing
When used with LifeSize Networker:
H.320 dialing
Auto SPID detect/downspeeding
Auto Number Conguration
Directory and Address Book
Up to 1000 local directory entries
Save, Lock, Remove Redial List features
Auto-Discovery directory lookup
LDAP support / H.350 compliant
Meetings Directory support
Hierarchical address book
System Management
Out of box setup via web interface and management
SNMP
1 x DB-9 RS-232 port congurable as control
1 x USB (for future use)
Backup and Restore capability
Embedded HD Multipoint Control Unit
6-way HD CP multipoint conference with up to 4 visible
participants
Non-visible participants switched into visible
participant quadrant when dominant speaker
Support for Dominant Speaker icon to highlight active
speaker
6-way HD VAS multipoint conference
Transcoding support
Virtual Multiway allows participant viewing control
(patent pending)
H.239 multipoint support shared from any participant
Disable multipoint option
Seamless add/drop participants
Integrated management with LifeSize Control
management software
Power
AC Voltage 100-240V, 50-60 Hz, 2.5A via external power
supply
Environmental Data
Operating temperature:
0°C (32°F) to 40°C (104°F)
Operating Humidity:
15% to 85%, non-condensing
Storage temperature:
-20°C (-4°F) to 60°C (140°F)
Regulatory Model Number
Model: LifeSize Room 200 = LFZ-015
For additional information: www.lifesize.com/support
Information contained in this document is subject to change
without notice. LifeSize® is the registered trademark or trade-
mark of LifeSize Communications Inc. All other trademarks are
the property of their respective owners. For patents covering
LifeSize® products refer to http://www.lifesize.com/support/
legal. © Copyright 2008. All rights reserved. October 2008.
