nAMPLIFIER SECTION
RMS output power, 10 % total harmonic distortion
1 kHz FL/FR 65 W per channel 4 Ω
1 kHz Center 240 W per channel 4 Ω
1 kHz SL/SR 65 W per channel 4 Ω
100 Hz Subwoofer 250 W per channel 4 Ω
Total RMS Dolby Digital mode
power
750 W
FTC output power, 1 % total harmonic distortion
120 Hz - 20 kHz FL/FR 42 W per channel 4 Ω
120 Hz - 20 kHz Center 128 W per channel 4 Ω
120 Hz - 20 kHz SL/SR 42 W per channel 4 Ω
45 Hz - 120 kHz Subwoofer 144 W per channel 4 Ω
Total FTC power in Dolby Digital
mode (Band 1 % THD)
440 W
Input sensitivity
A
UX 250 mV
Input impedance 20 kΩ
nDISC SECTION
Discs played [8 cm (3”) or 12 cm (5”)]
©2005 Matsushita Electric Industrial Co. Ltd.. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
SA-HT833VP
Colour
(S)... Silver Type
1. DVD-RAM (DVD-VR formatted discs, JPEG formatted discs)
2. DVD-Audio
3. DVD-Video
4. DVD-R, DVD-RW (DVD-Video compatible) +R, +RW (Video
compatible)
5. CD-Audio (CD-DA)
6. Video CD
7. SVCD (Conforming to IEC62107)
8. CD-R/CD-RW (CD-DA, Video-CD, SVCD, MP3, WMA, JPEG
formatted discs)
9. MP3/WMA
·
Maximum number of tracks and groups recognizable:
4000 tracks and 400 groups
·
Compatible compression rate:
MP3: between 32 kbps and 320 kbps
WMA: between 48 kbps and 320 kbps
10. JPEG
·
Exif Ver 2.1 JPEG Baseline files
·
Maximum number of pictures and groups recognizable:
4000 pictures and 400 groups
·
Picture resolution: between 320x240 and 6144x4096 pixels
(sub sampling is 4:2:2 or 4:2:0)
11. HighMATTM Level 2 (Audio and Image)
DVD/VHS Home Theater Sound System
Specifications
ORDER NO. MD0503087C1
A6
Video
Signal system NTSC
Output level Composite video: 1 Vp-p (75Ω)
S-video: 1 Vp-p (Y), 0.286 Vp-p (C) (75Ω)
Component video: 1 Vp-p (Y) (75Ω)
0.7 Vp-p (PB/CB,P
R/CR)(75Ω)
A
udio
Sampling frequency
CD 44.1 kHz
MP3 32 kHz, 44.1 kHz, 48 kHz
DVD VIDEO 48 kHz, 96 kHz
DVD-Audio 192 kHz
Decoding 16/20/24 bit linear
Pick up
Beam Source Semiconductor Laser
Wavelength
CD/VCD 785 nm
DVD 662 nm
Number of channels 5.1ch(FL,FR,SL,SR,C,SW)
Frequency response 20 Hz - 20 kHz (+1, -2 dB)
nVHS SECTION
Video recording system 2 rotary heads, helical scanning
system
Video heads 4 heads
A
udio heads 2 heads
Tape speed SP: 33.35 mm/s, EP: 11.12 mm/s
Tape format VHS tape
Recording/playback time SP: 120 min. with NV-T120
EP: 360 min. with NV-T120
FF/REW time Approx. 54 s. with NV-T120
(FF/REW)
Approx. 36 s. with NV-T120 (JET
REW)
VIDEO
Television system EIA: Standard (525 lines, 60
fields), NTSC color signal
Modulation system Luminance: FM azimuth recording
Color signal: converted subcarrier phase shift recording
Input level VIDEO IN: 1 Vp-p, 75Ω
Output level VIDEO OUT: 1 Vp-p, 75Ω
A
ntenna receive input VHF 2-13 CH, 75Ω
UHF 14-69 CH, 75Ω
CATV 5A and A-5-EEE CH, 75Ω
A
UDIO
Input level AUDIO IN (PHONO): -10 dBV,
47 kΩ
Output level AUDIO OUT (PHONO): -8 dBV,
1kΩ
A
udio track 1 track (normal-mono only),
2 channels (Hi-Fi sound stereo)
Video horizontal resolution Color: more than 200 lines
Signal-to-Noise ratio Video: more than 40 dB/SP
Audio: more than 60 dB/Hi-Fi
A
udio frequency response 20 Hz-20 kHz/Hi-Fi
Wow and flutter 0.005 %
nFM TUNER SECTION
Frequency range 87.9 - 107.9 MHz (200 kHz step)
87.5 - 108.0 MHz (100 kHz step)
Sensitivity 2.5µV (IHF)
S/N 26 dB 2.2 µV
A
ntenna terminals 75 Ω(unbalanced)
Preset station 15
nAM TUNER SECTION
Frequency range 520 -1710 kHz (10 kHz step)
A
M Sensitivity S/N 20 dB at 1000
kHz
560 µV/m
Preset station 15
nGENERAL
RF converter Not provided
Power supply AC 120 V, 60Hz
Power consumption
Main unit 38 W
A
ctive subwoofer (SB-WA833) 340 W
Dimensions (W x H x D) 430 mm x 105 mm x 354 mm
(16-15/16” x 4-1/8” x 13-15/16”)
Mass 4.5 kg (9.92 lbs)
Power consumption in standby mode (when Demo function is off)
BRIGHT mode Approx. 3.7 W (main unit) + 0 W
(subwoofer)
DIM mode Approx. 3.4 W (main unit) + 0 W
(subwoofer)
OFF mode Approx. 1.9 W (main unit) + 0 W
(subwoofer)
nSYSTEM
SC-HT833V (P) Main unit: SA-HT833V (P)
Satellie speaker: SB-HT830 (P)
Active subwoofer: SB-WA833 (PP)
nSPEAKER
SB-HT830 (P) Front and surround speakers:
SB-FS730 (P) x 2,
SB-FS731 (P) x 2
Center speaker: SB-PC730 (P) x 1
Notes:
1. Specifications are subject to change without notice.
Mass and dimensions are aproximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
2
SA-HT833VP
1 Powering Up of the Main Unit 5
2 Before Repair and Adjustment 6
3 Protection Circuitry 6
4 Safety Precautions 7
4.1. General Guidelines 7
5 Handling the Lead-free Solder 8
5.1. About lead free solder (PbF) 8
6 Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices 9

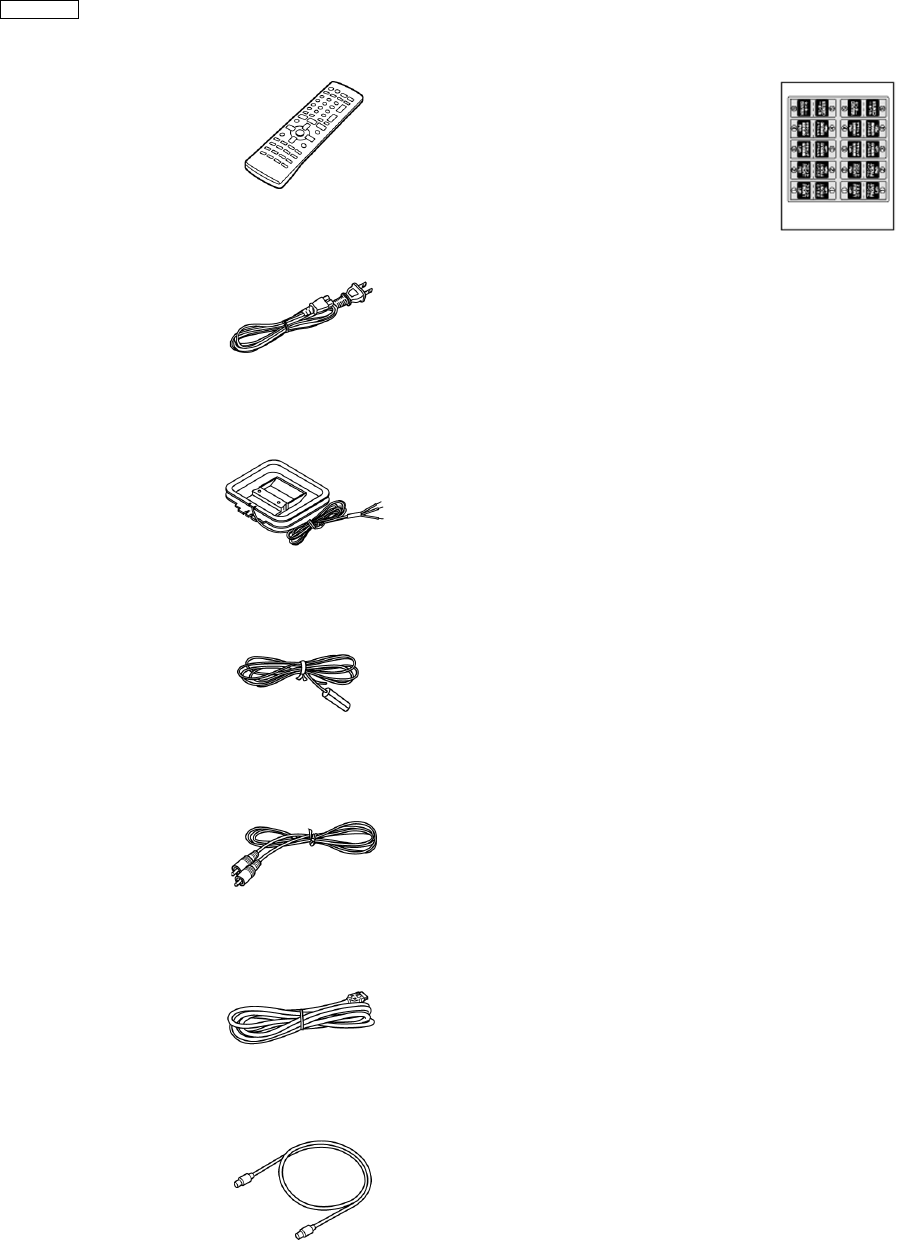

7 Accessories 10
8 Precaution of Laser Diode 11

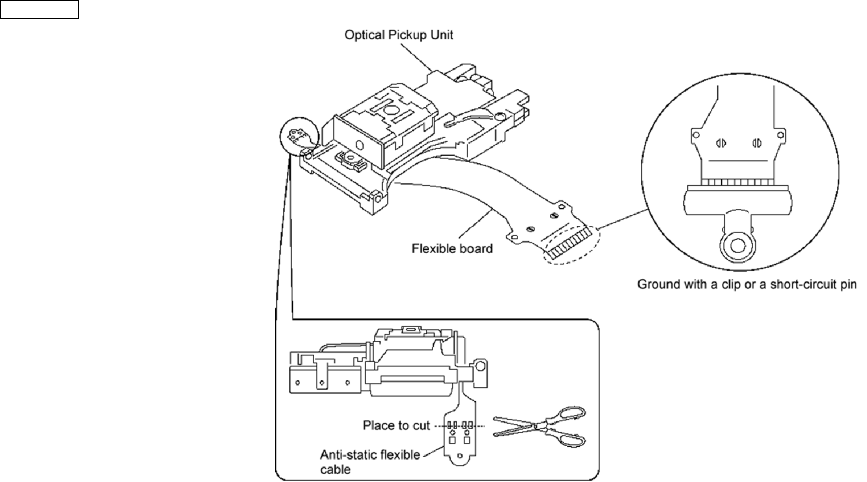

8.1. Cautions to be taken during replacement of optical pickup
11

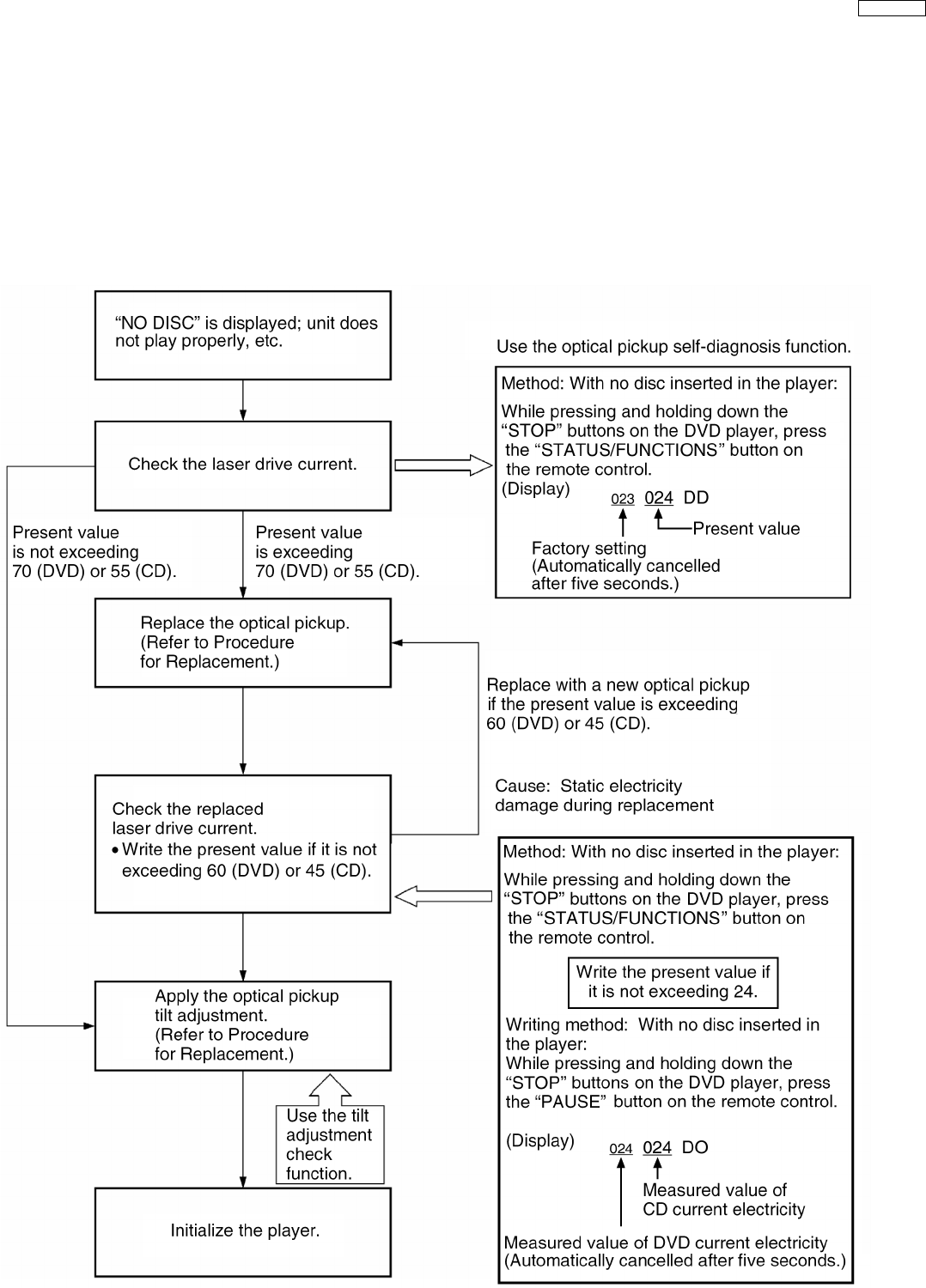

9 Optical Pickup Self-Diagnosis and Replacement Procedure
(DVD Section) 13
9.1. Self-diagnosis 13
10 Self-Diagnosis Function and Service Mode 14
10.1. Self-Diagnosis Function (VTR Section) 14

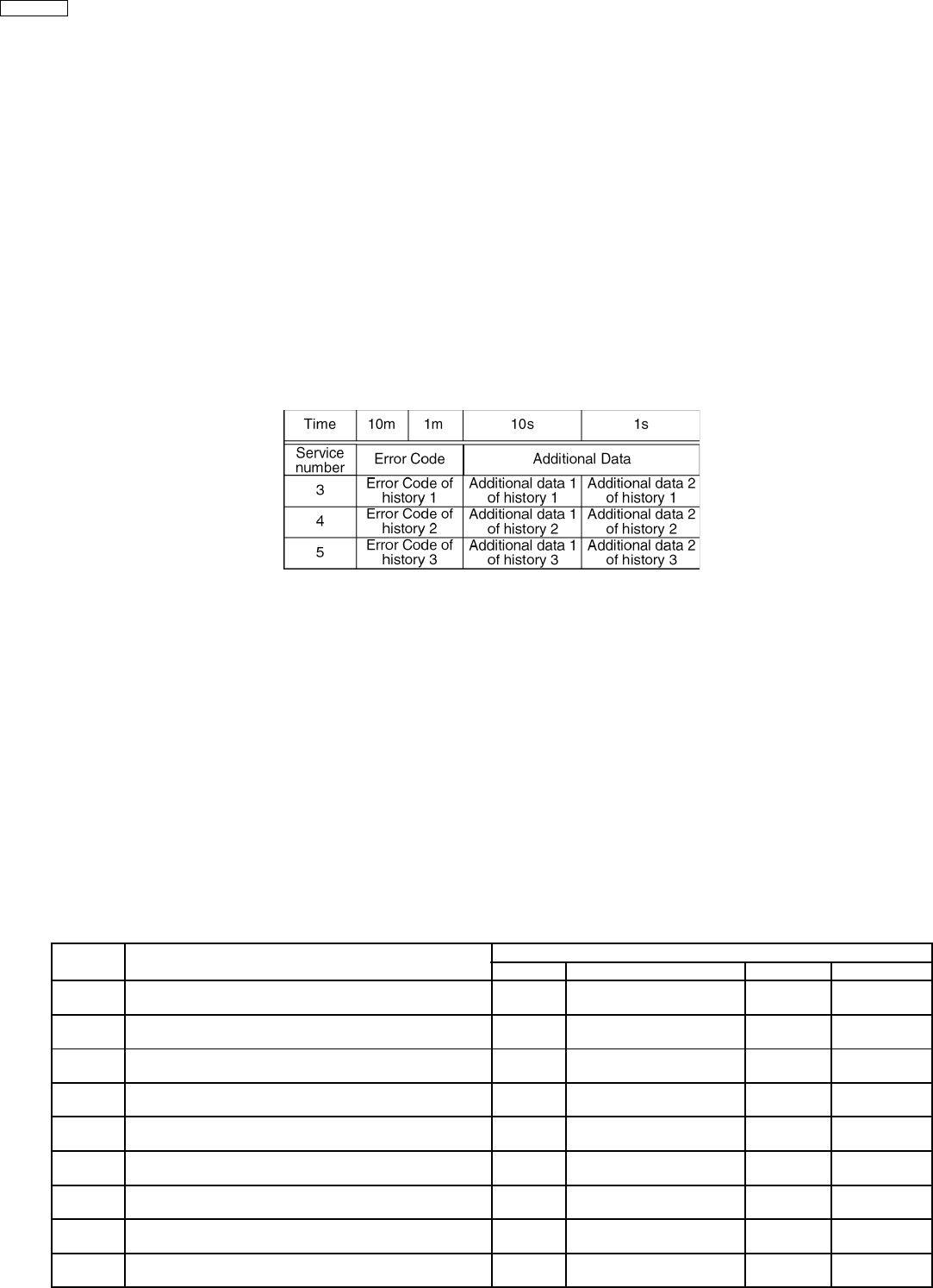

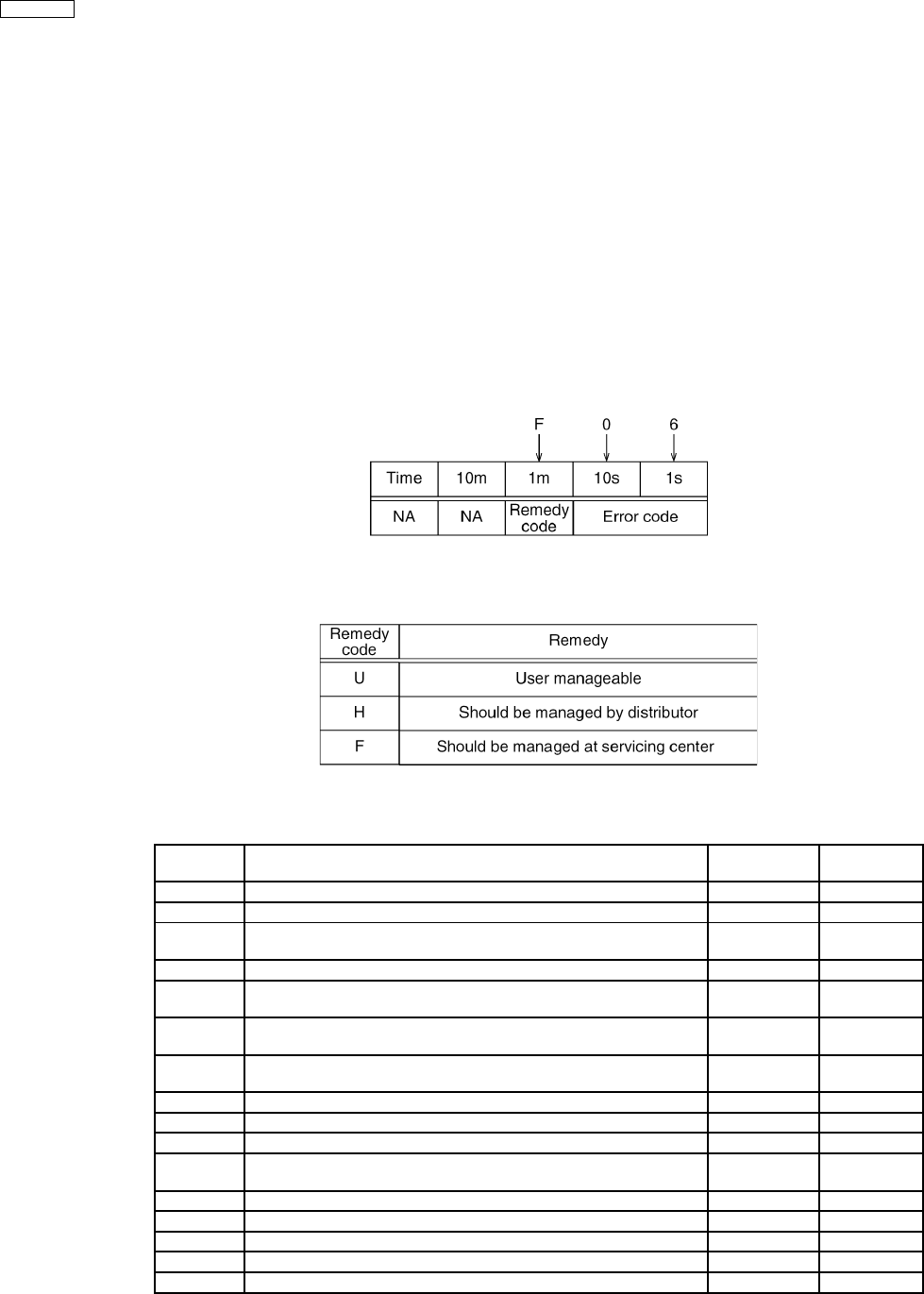

10.2. Self-Diagnosis Function (DVD Section) 18

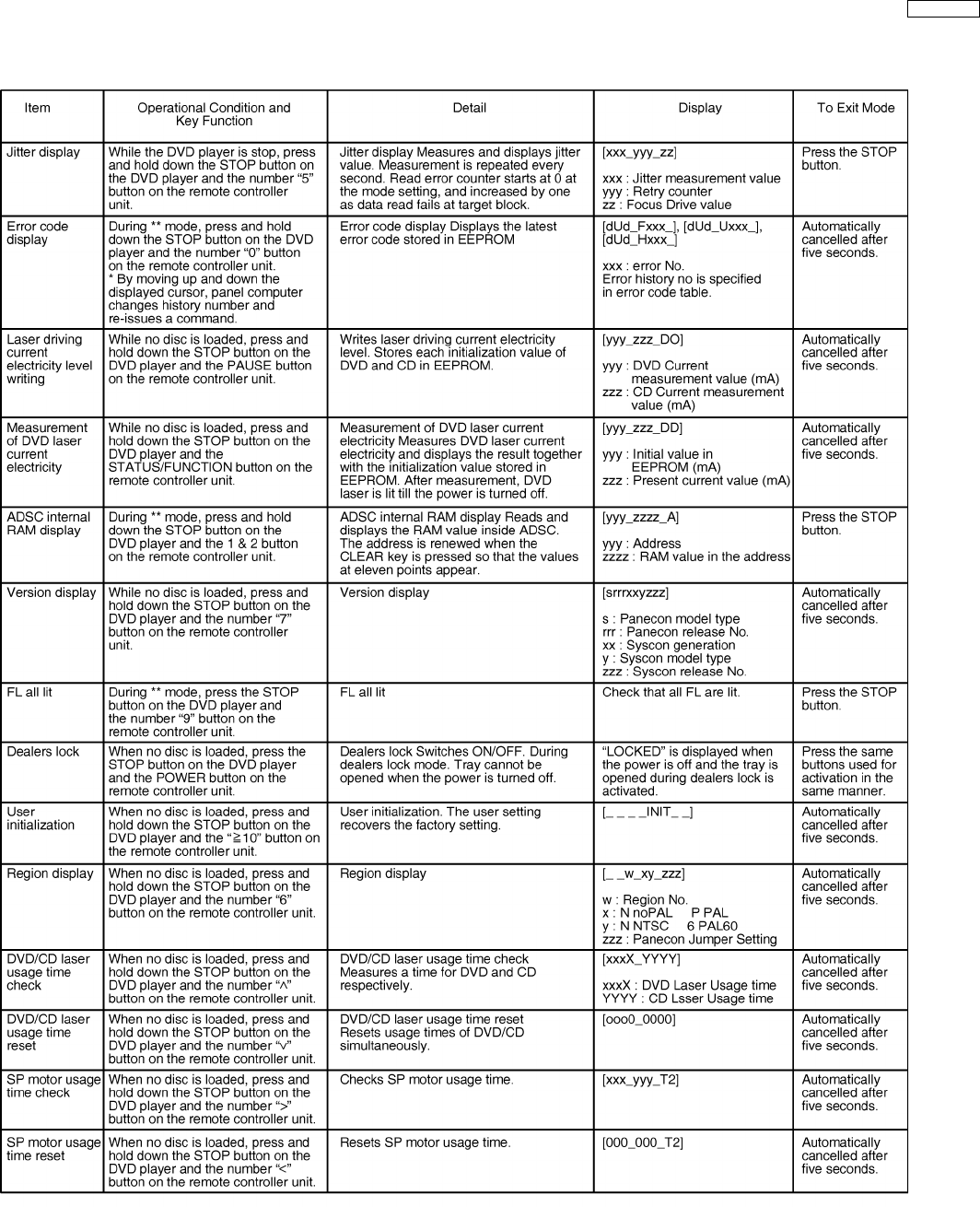

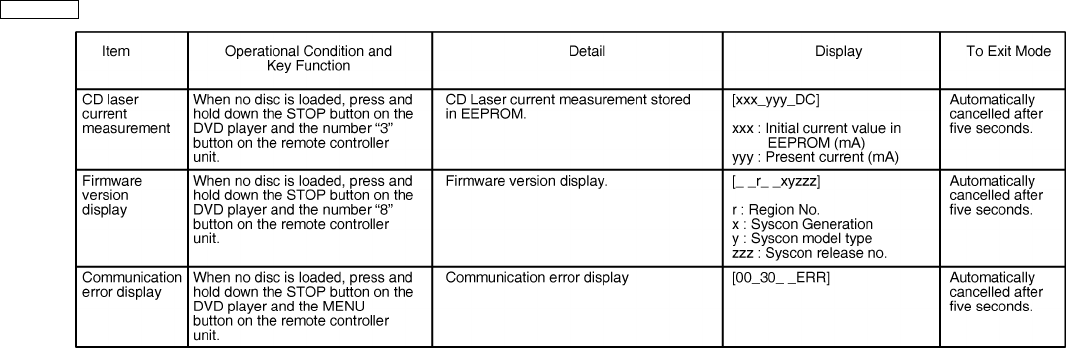

10.3. Mode Table 21
10.4. Lock Function 23
10.5. Cautions To Be Taken During Servicing 23
11 CHECKING POINTS FOR SYS COM TIMER MY-COM (IC6001)
(VIDEO) 24
11.1. Points to check when replacing 24

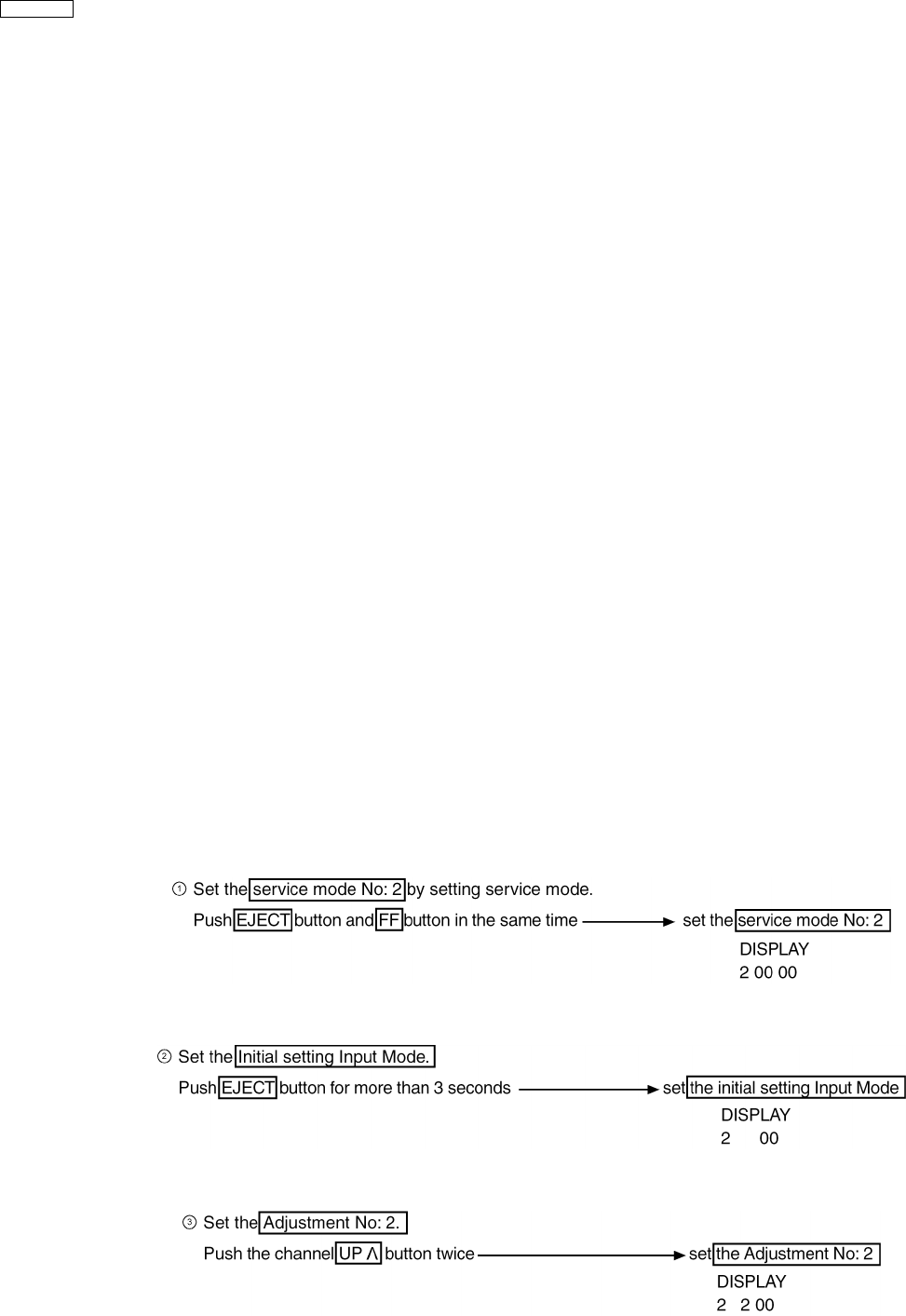

11.2. Initial setting when replacing My-com. 24

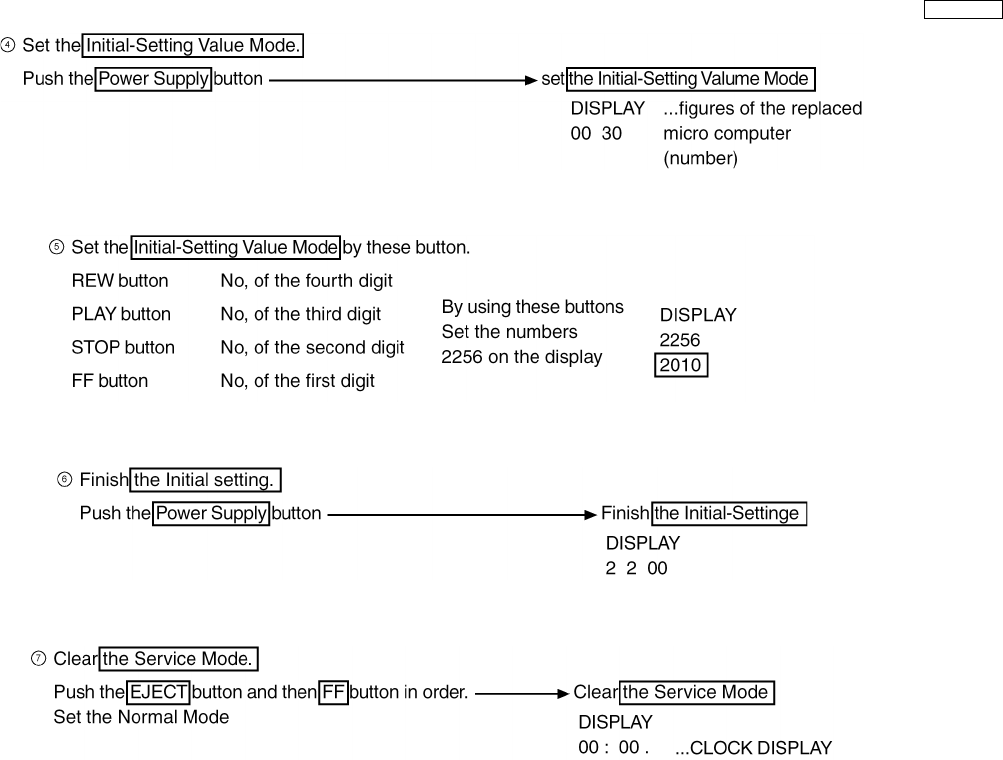

11.3. Initial figure (#) setting procedure 24
12 Adjustment Procedure (DVD Section) 26
12.1. Required Tools and Equipment 26
12.2. Necessity of Adjustment 26
12.3. Storing and Handling Test Discs 26

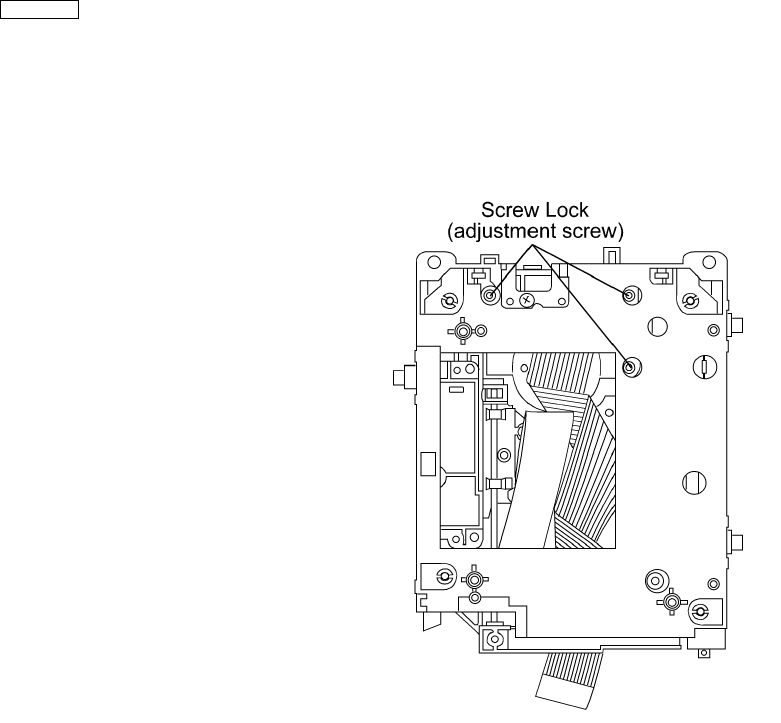

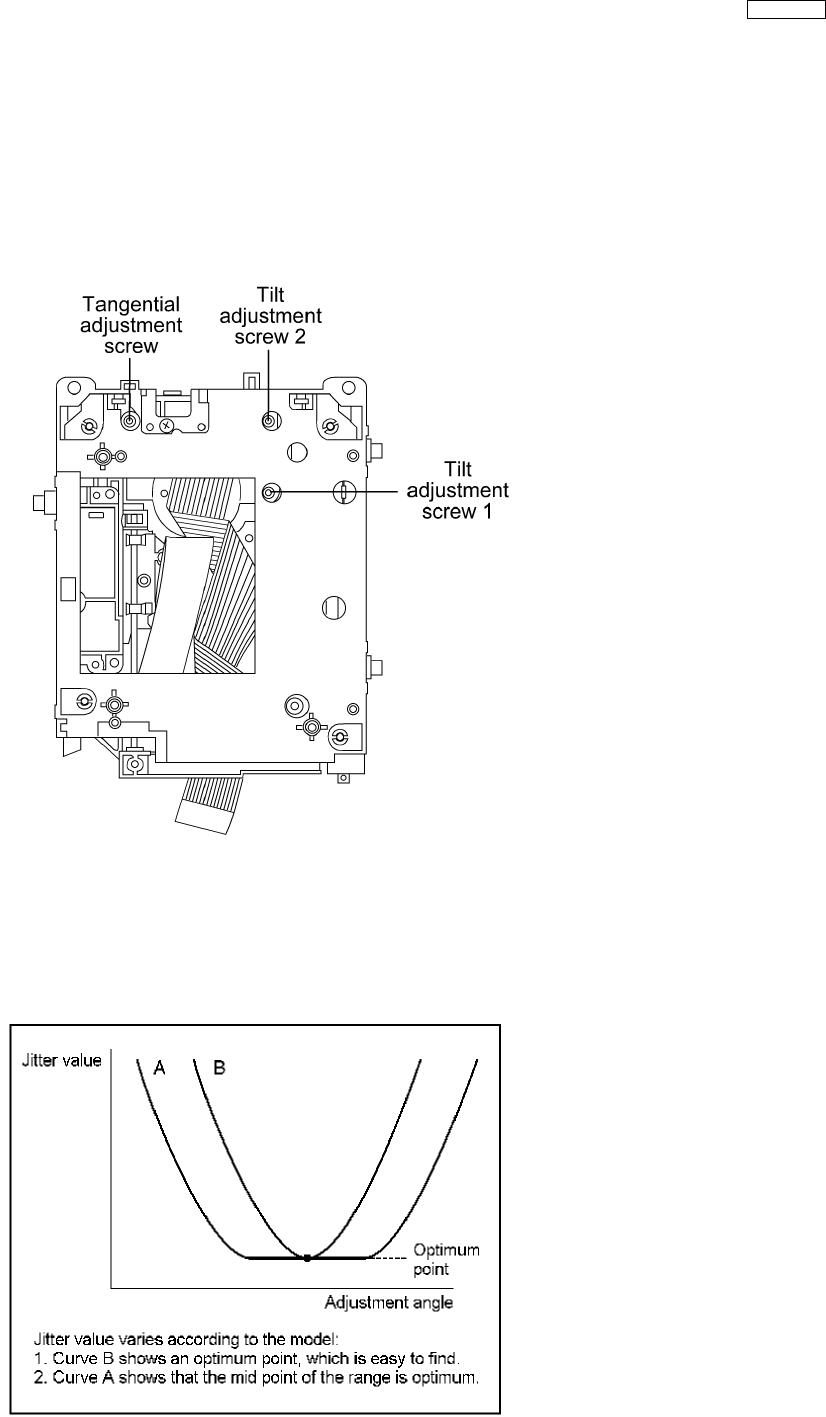

12.4. Optical Adjustment (Optical Pickup Tilt Adjustment) 26
13 Operation Procedure 29

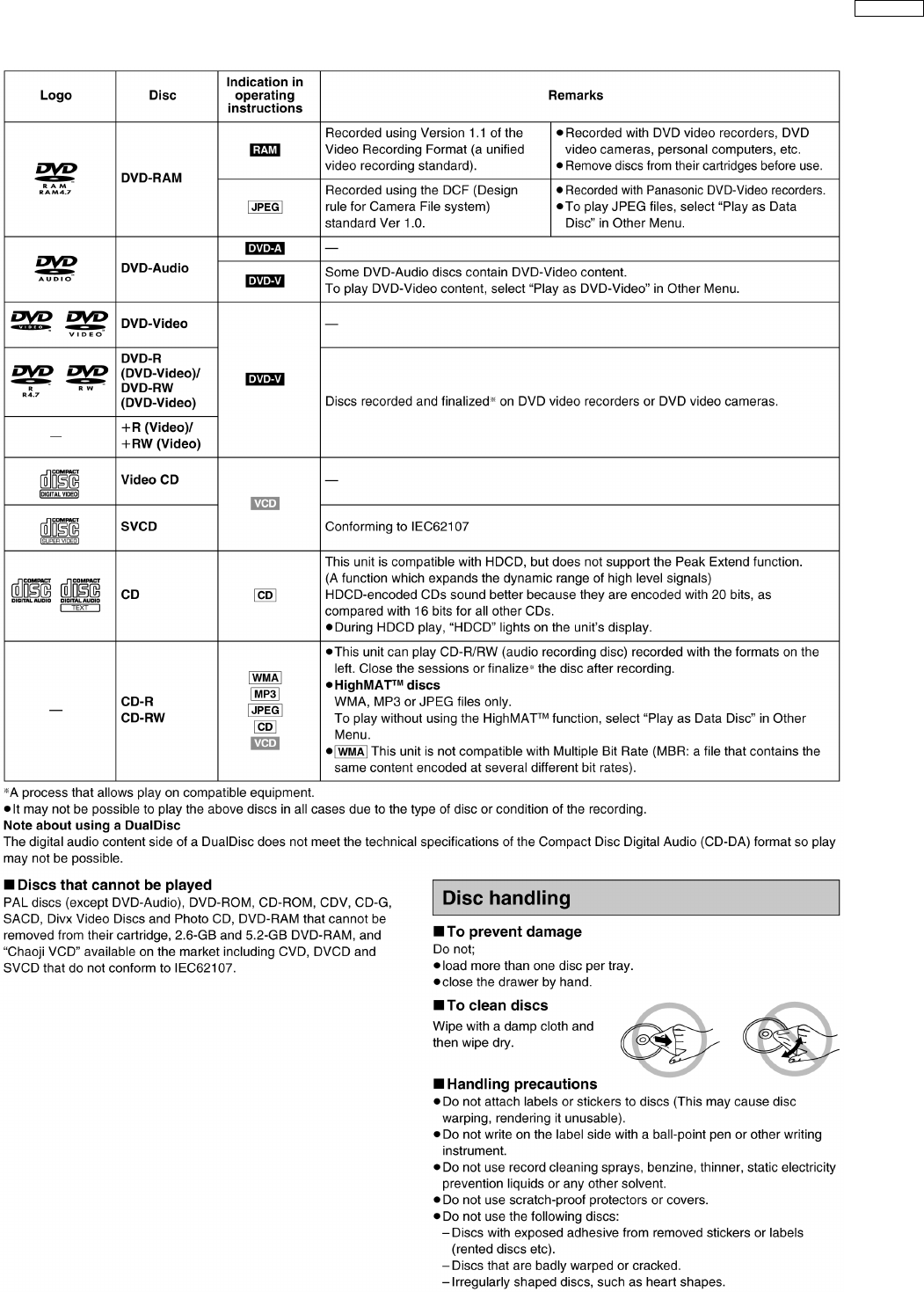

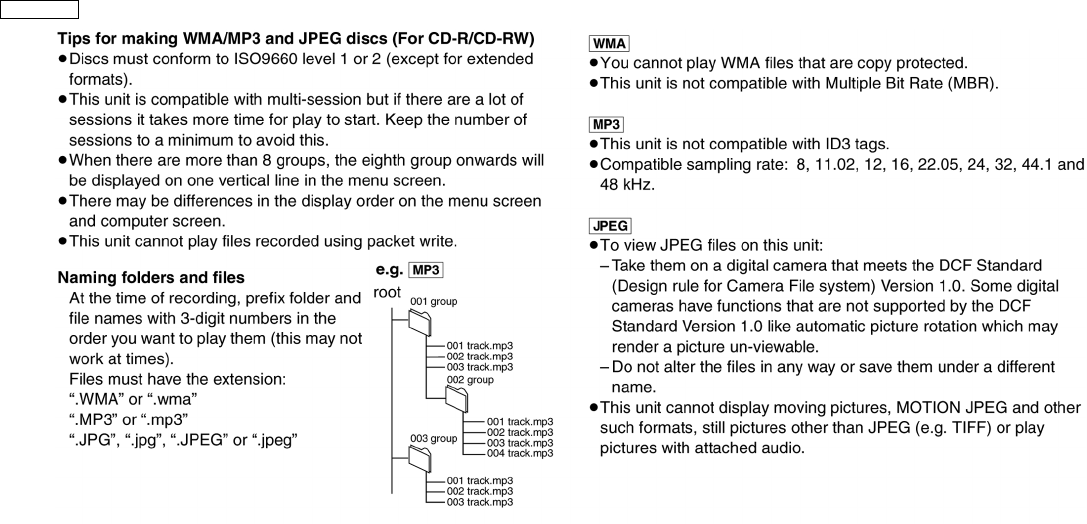

14 Disc information 31

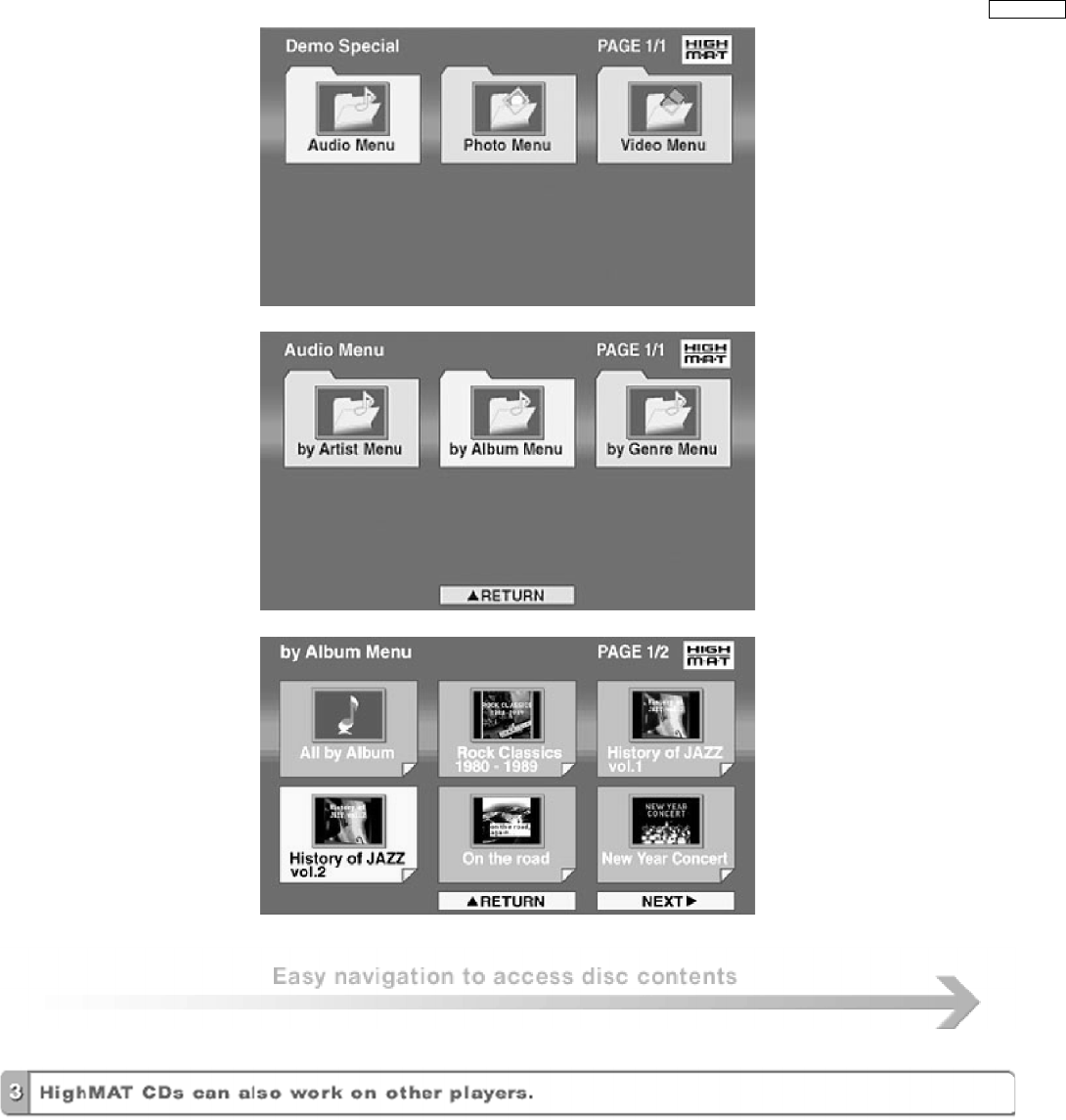

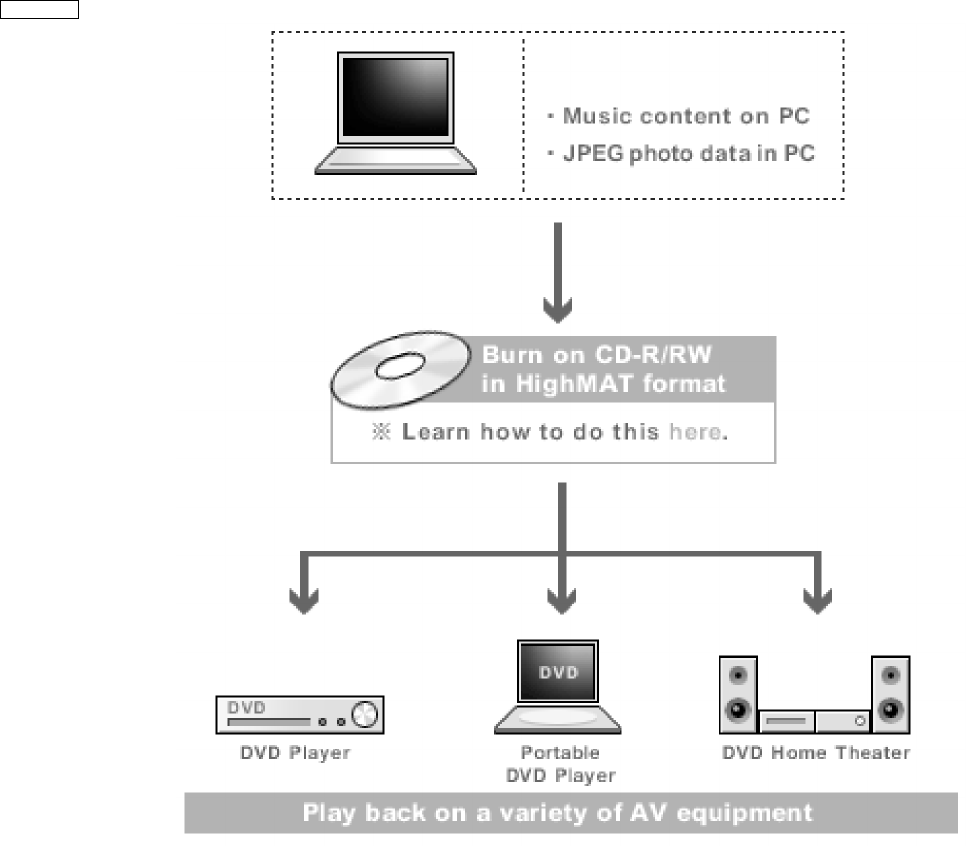

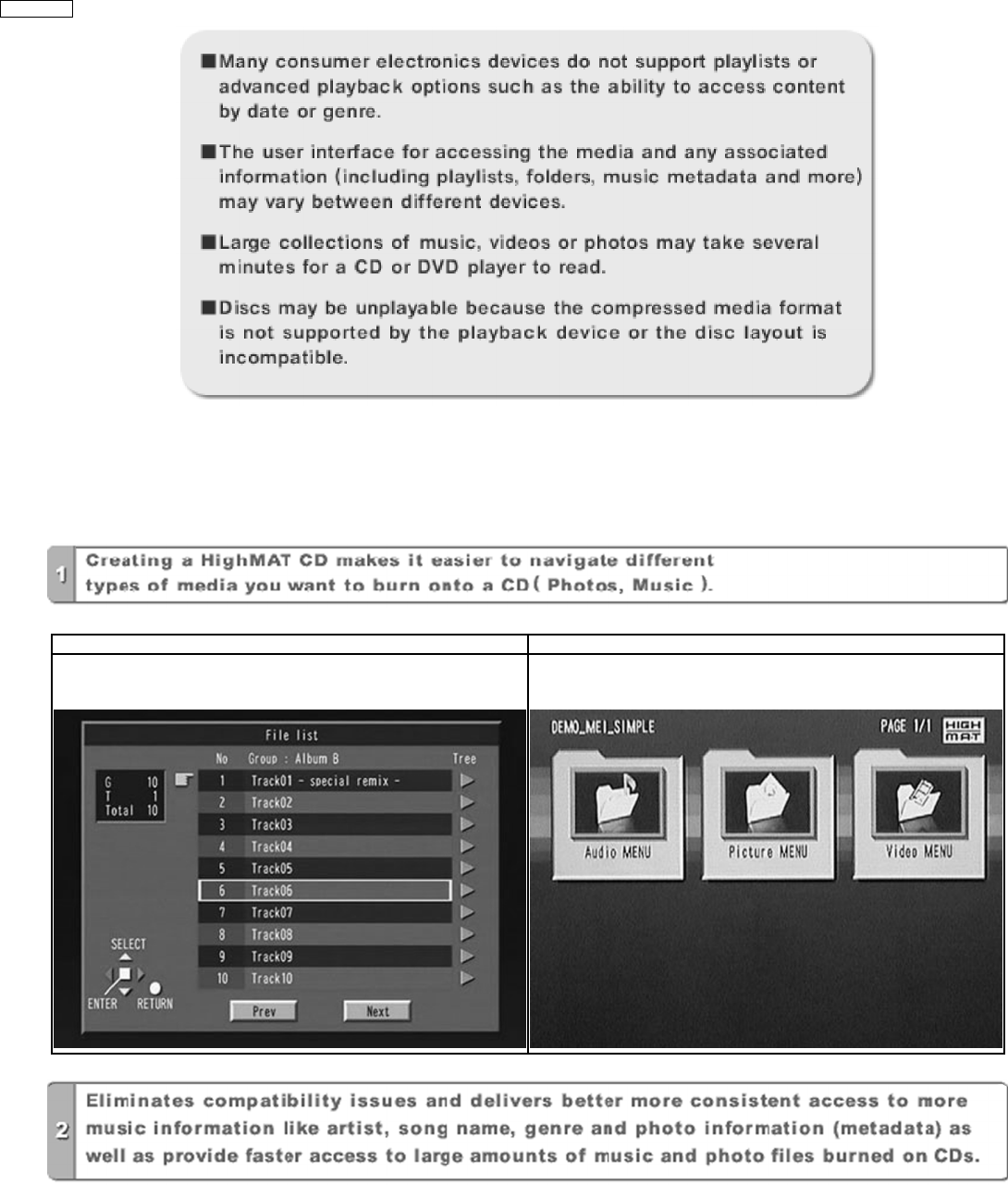

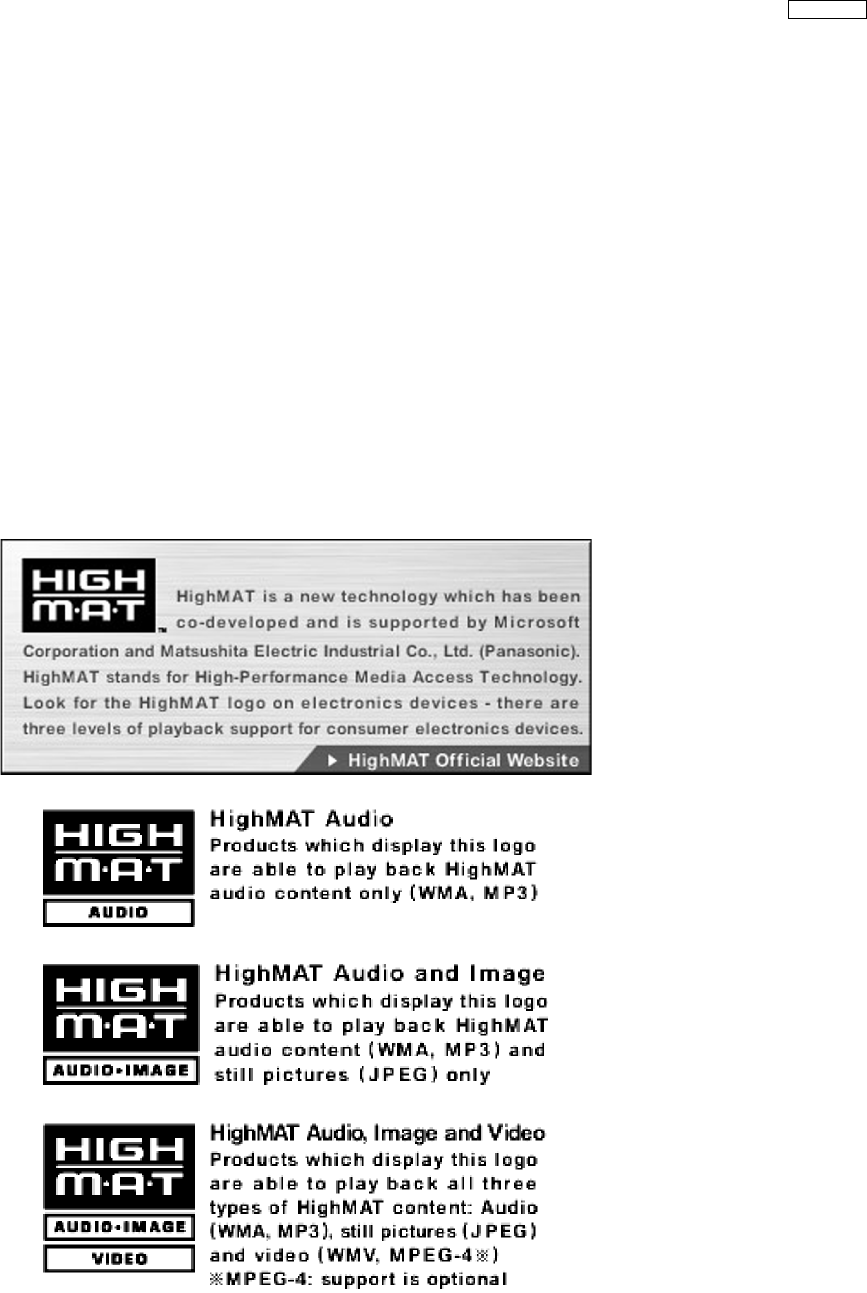

15 About HighMAT 33
15.1. What 痴HighMAT? 33
15.2. Why take advantage of HighMAT? 33
15.3. Benefits of HighMAT? 34
16 Assembling and Disassembling 37
16.1. Disassembly flow chart 37

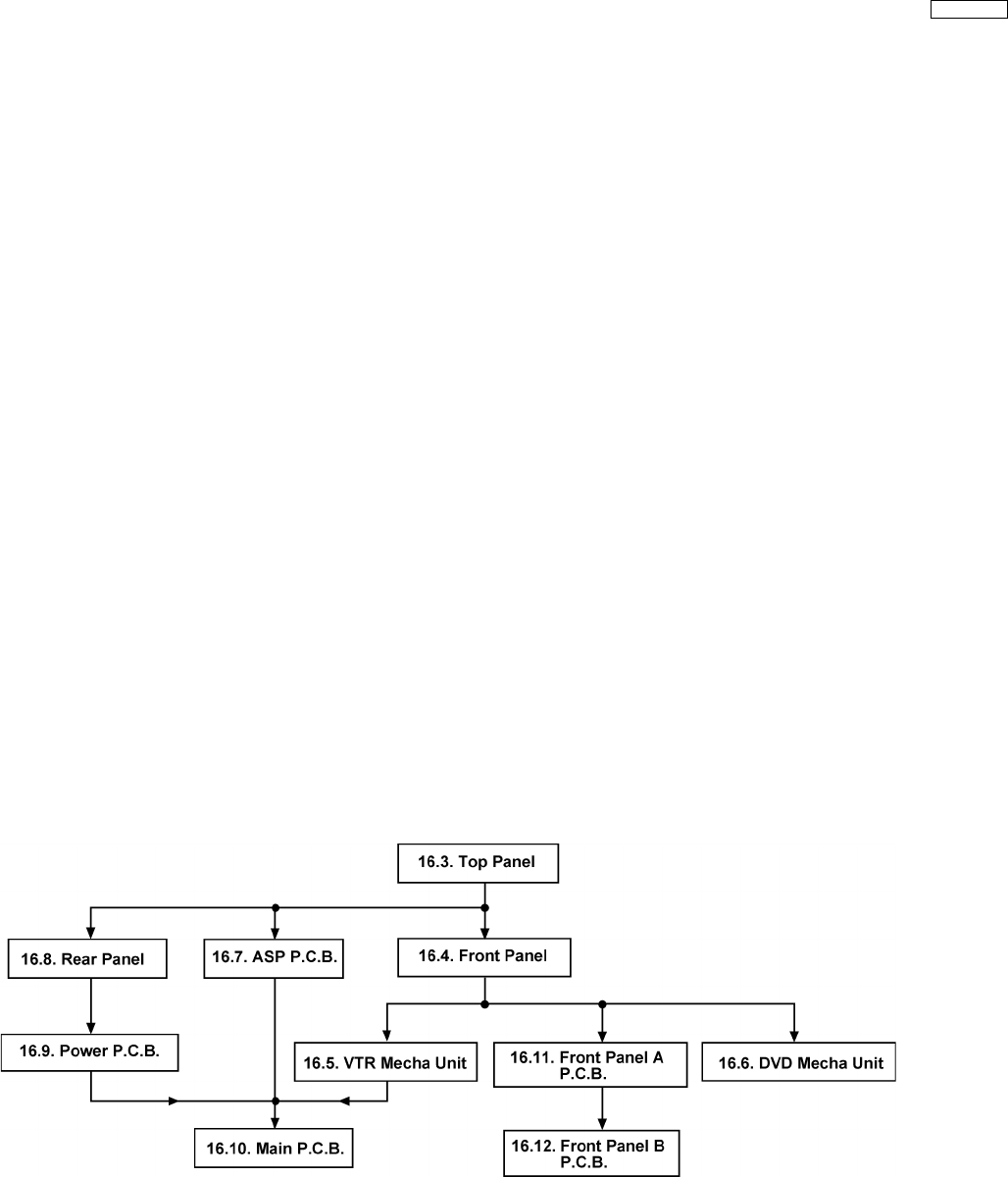

16.2. P.C.B. Positions 38
16.3. Disassembly of Top Panel 39
16.4. Disassembly of Front Panel 39

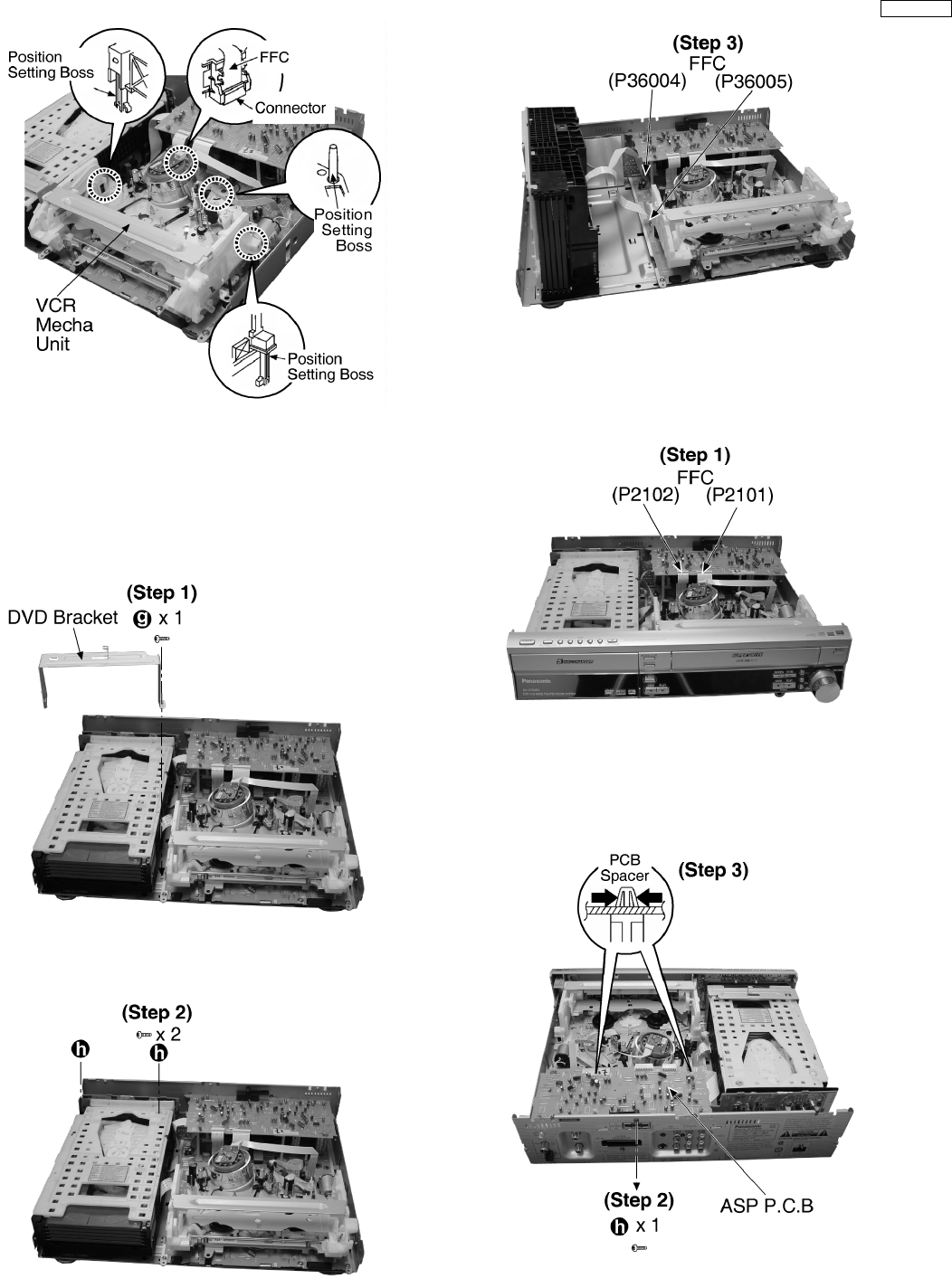

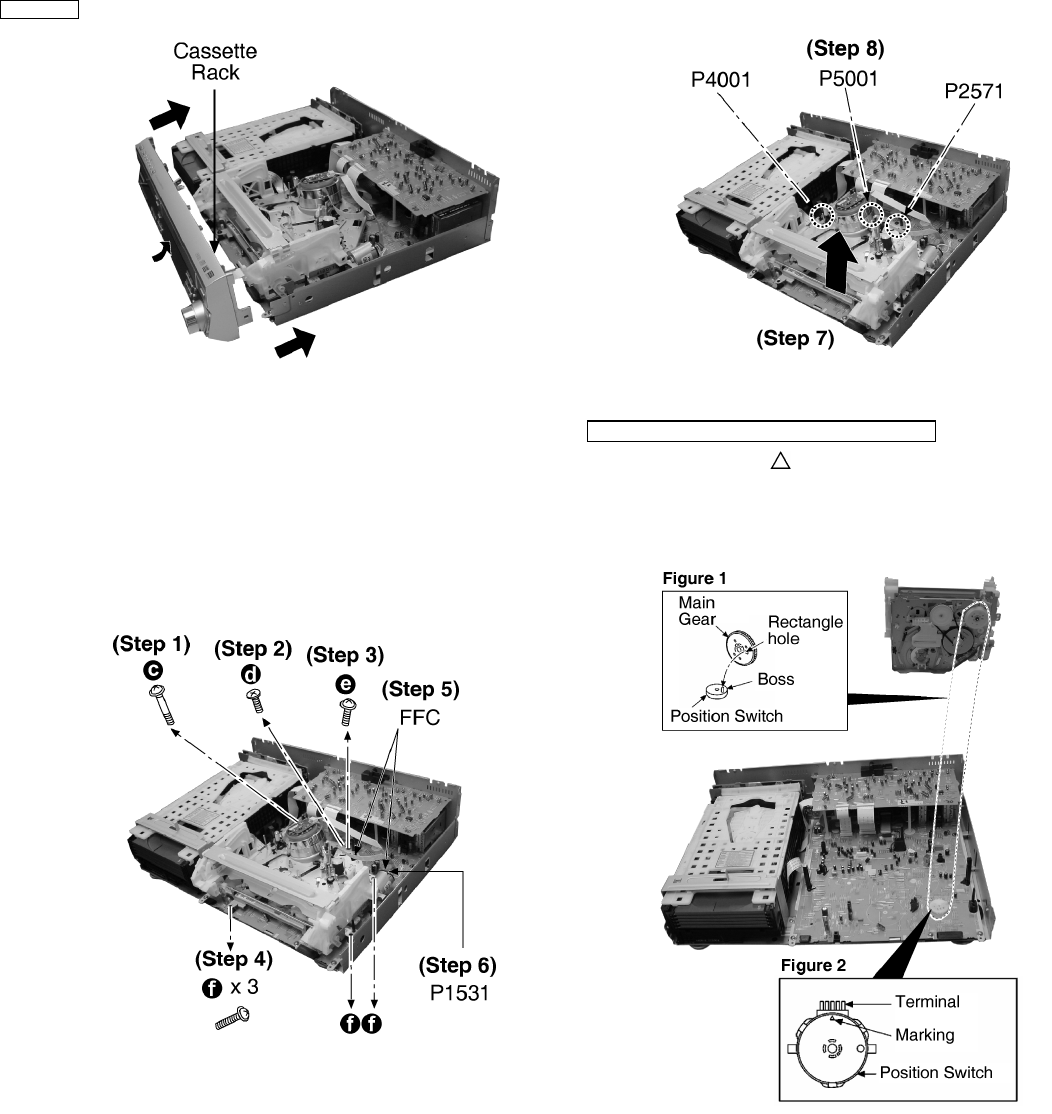

16.5. Disassembly of VTR Mecha Unit 40
16.6. Disassembly of DVD Mecha Unit 41
CONTENTS
Page Page
3
SA-HT833VP
16.7. Disassembly of ASP P.C.B. 41
16.8. Disassembly of Rear Panel 41

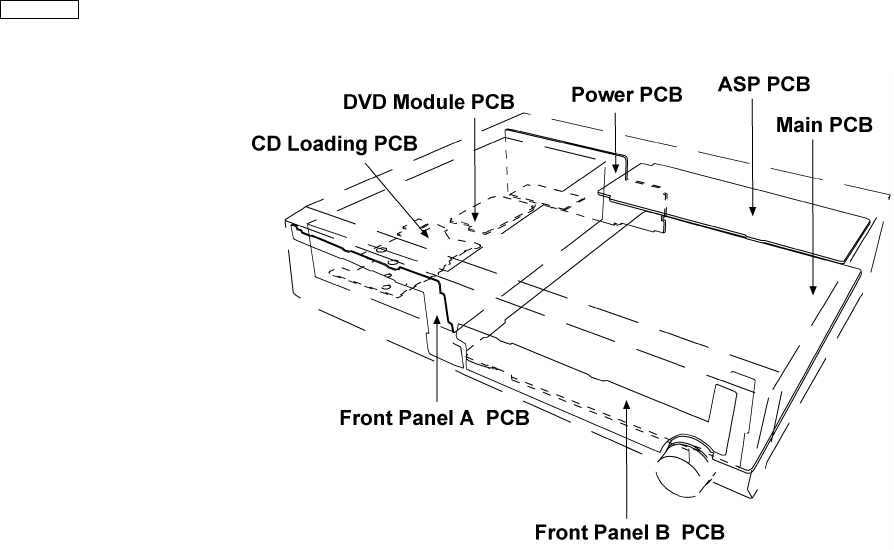

16.9. Disassembly of Power P.C.B. 42
16.10. Disassembly of Main P.C.B. 42
16.11. Disassembly of Front Panel A P.C.B. 42
16.12. Disassembly of Front Panel B P.C.B. 43
16.13. Procedure for removing CR16 mechanism (Precaution ) 43

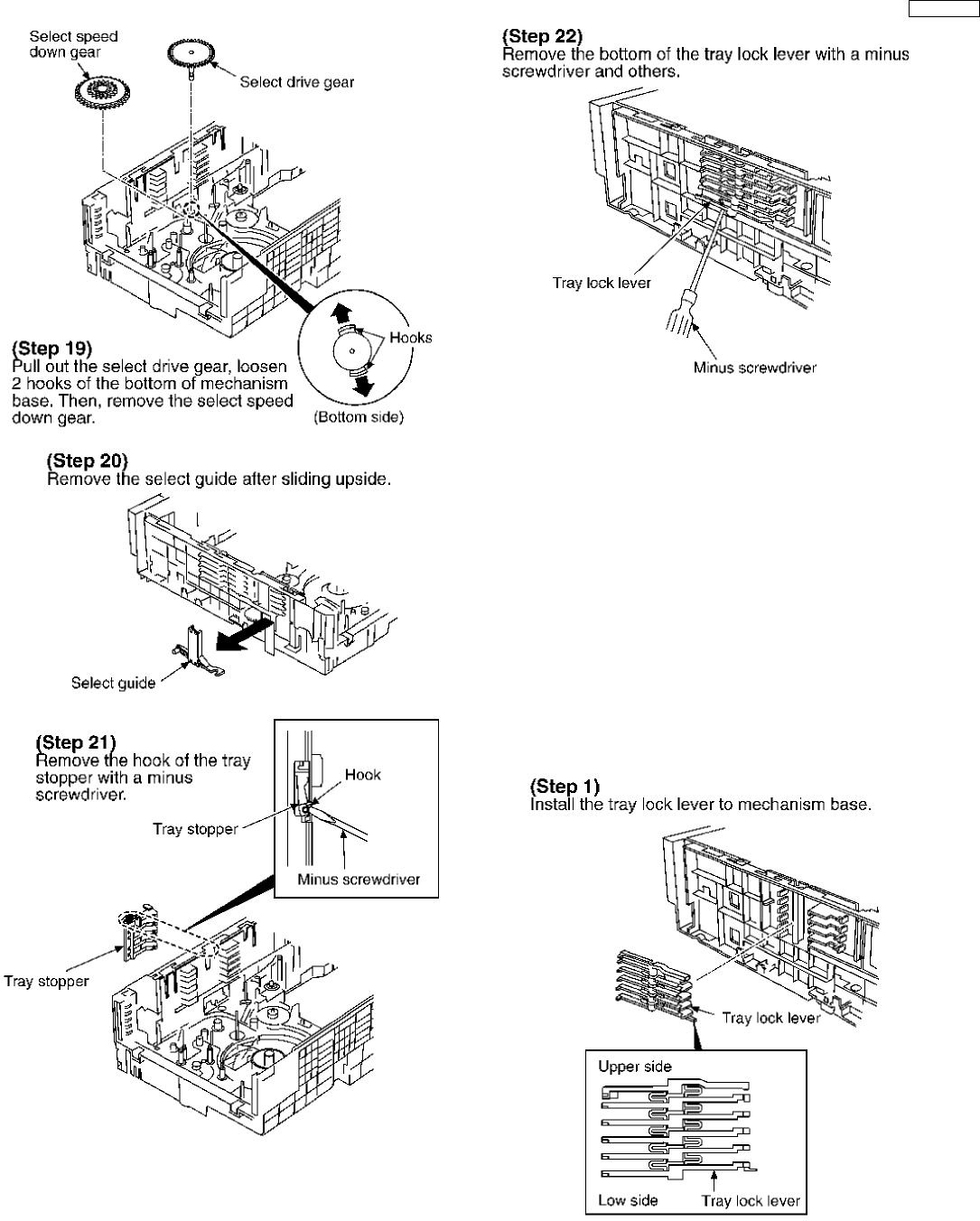

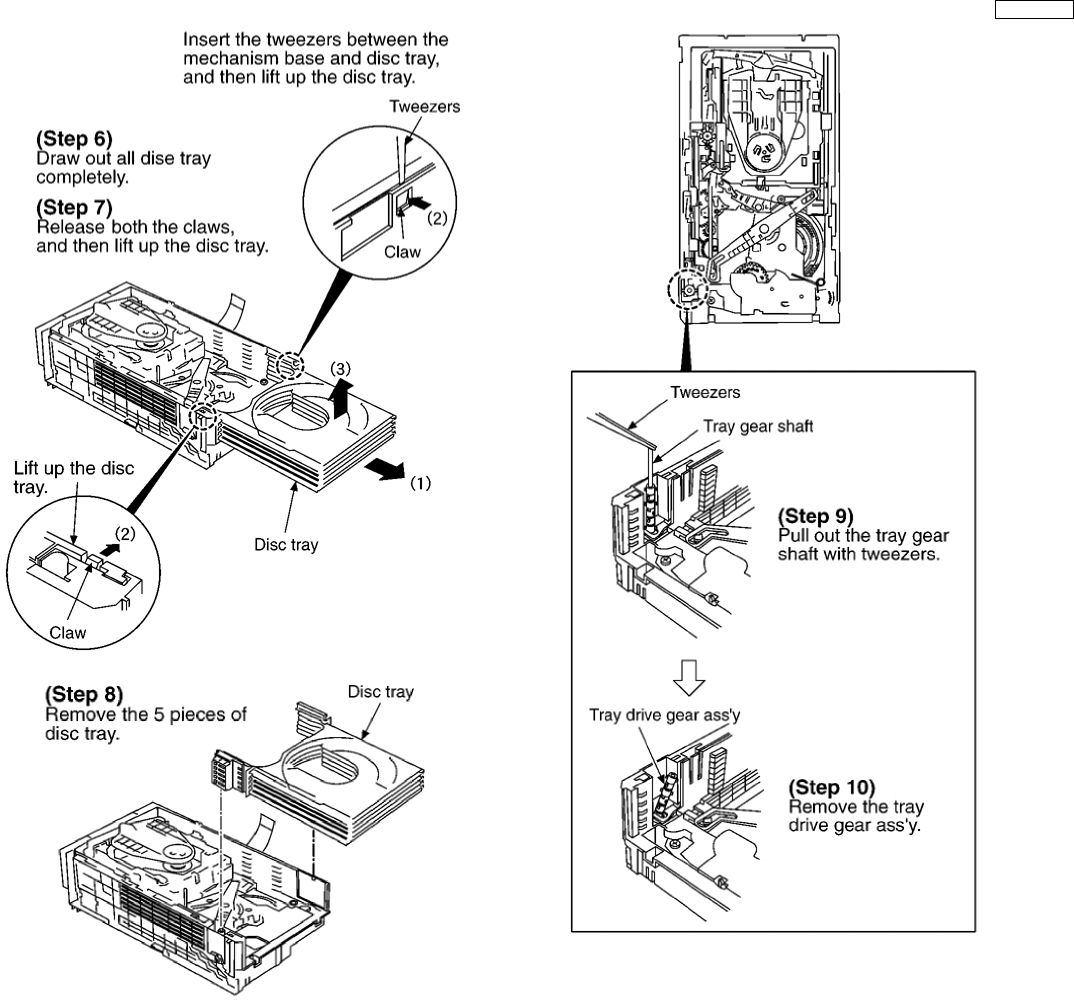

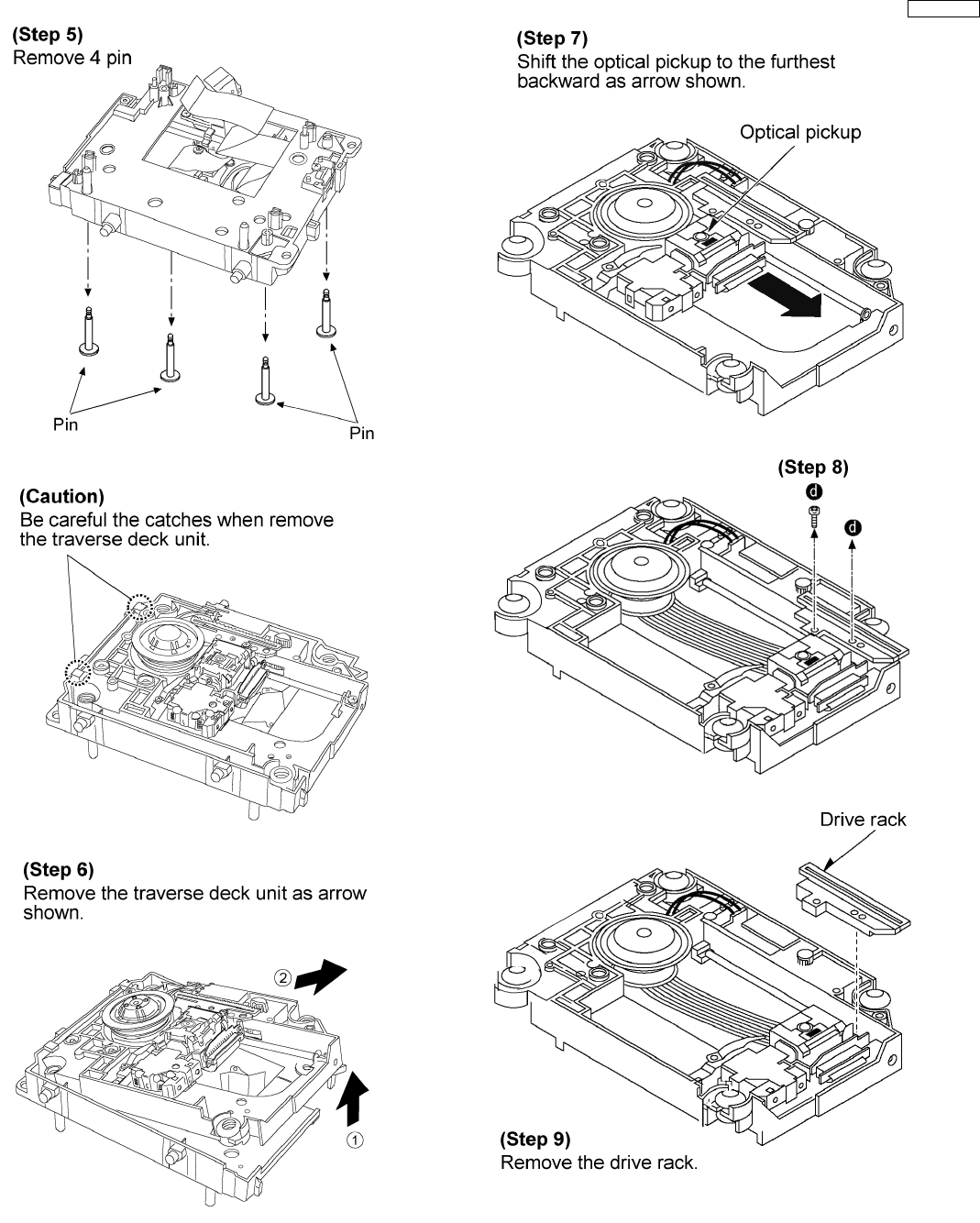

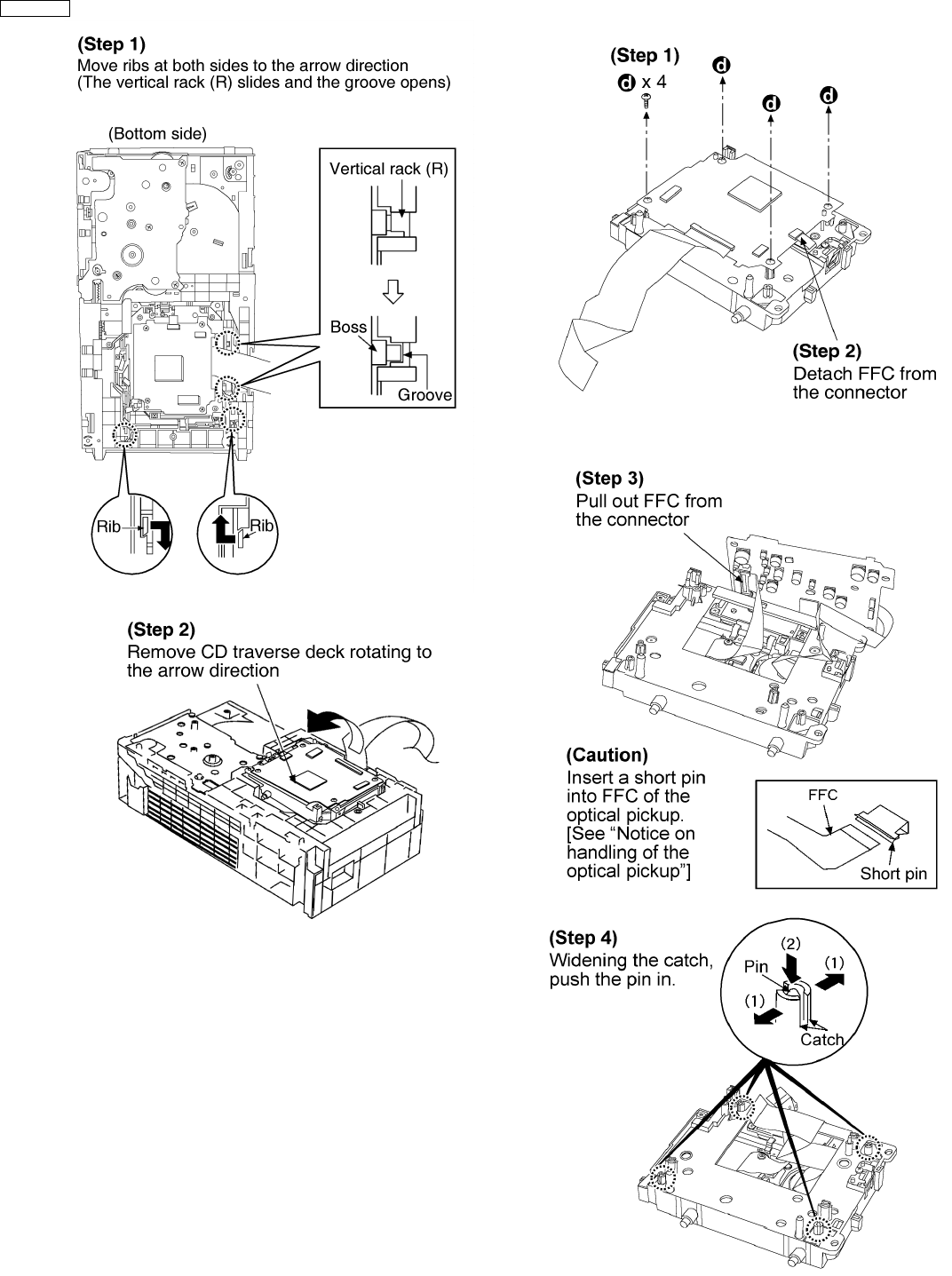

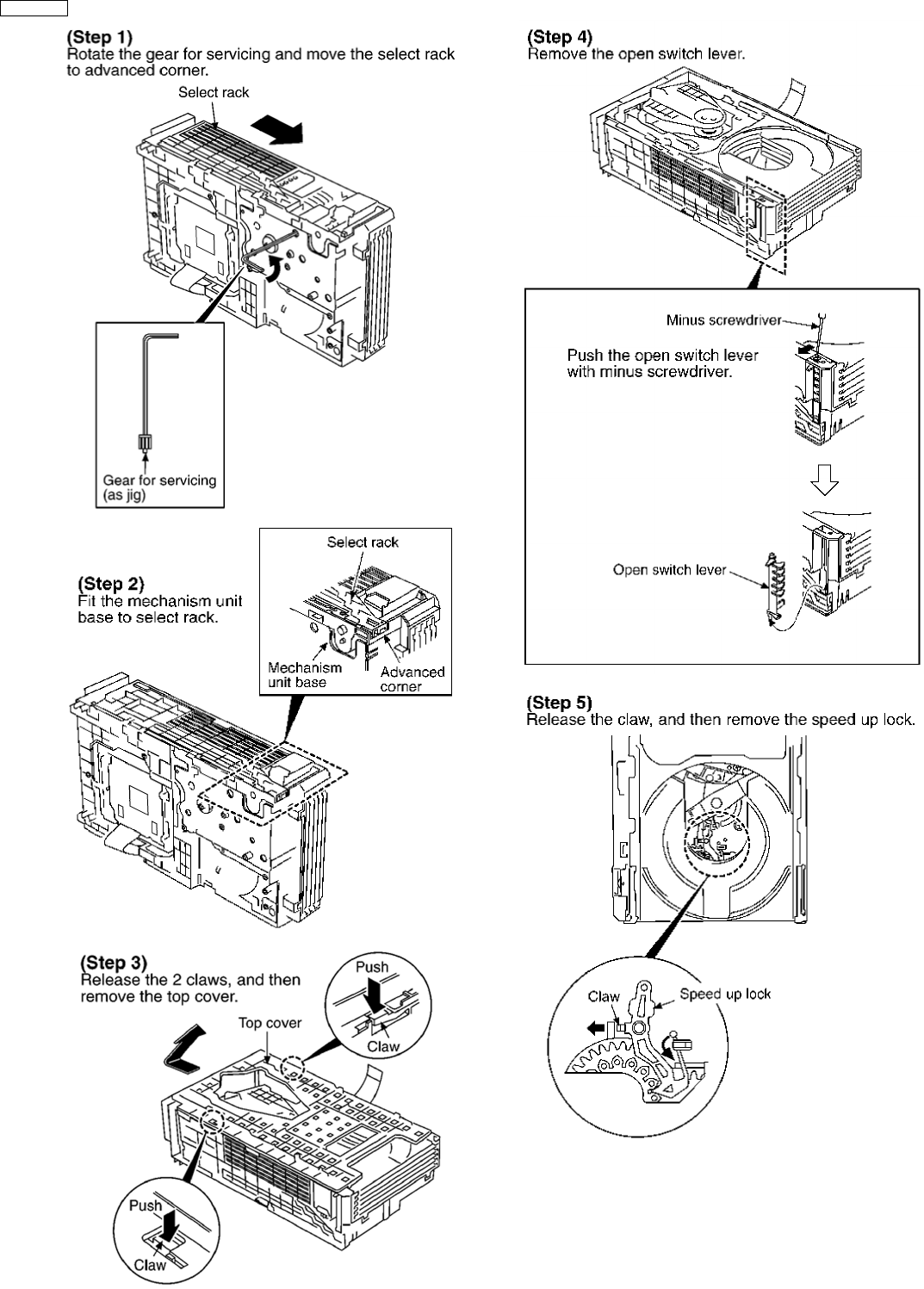

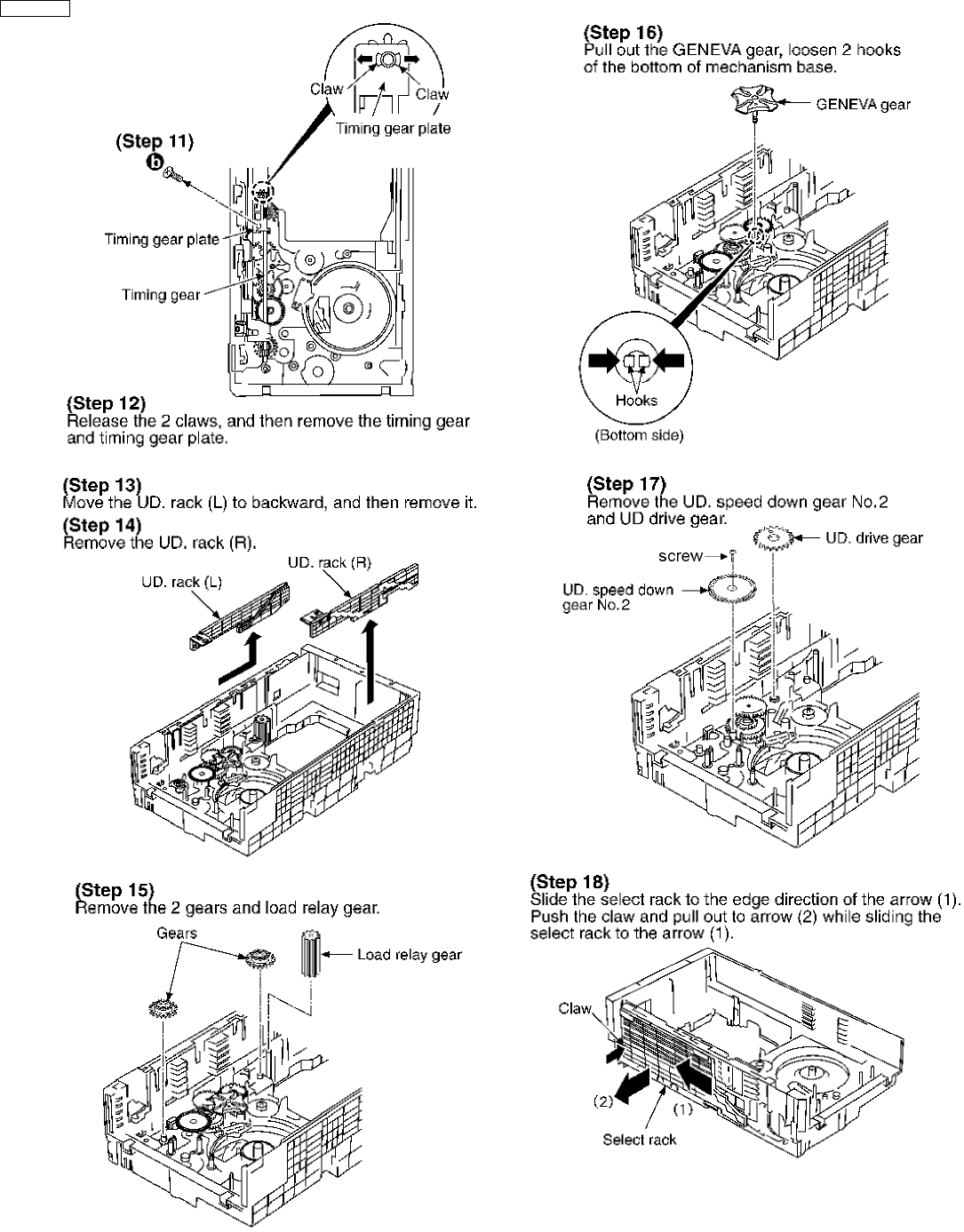

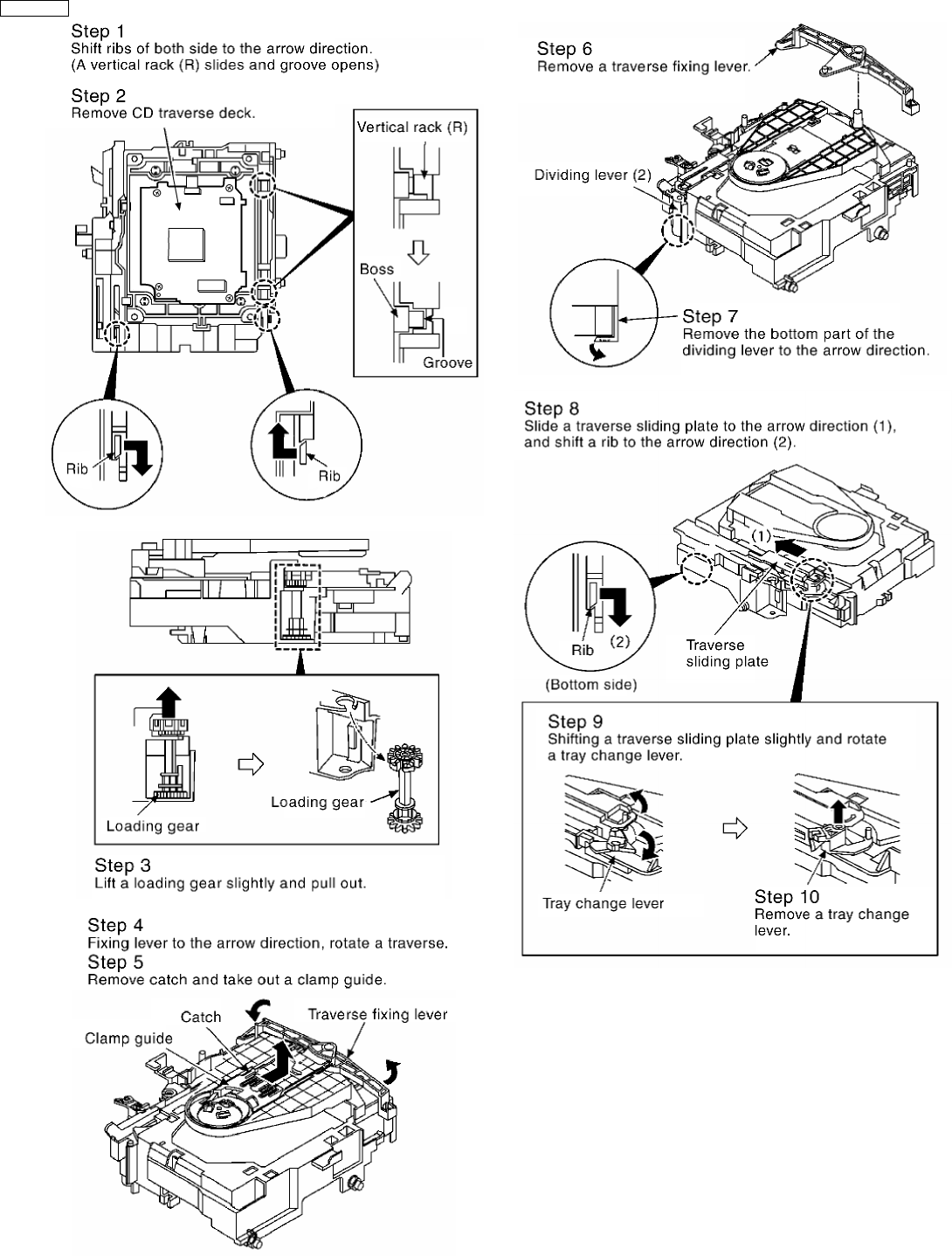

16.14. CR16 mechanism disassembly procedure 43

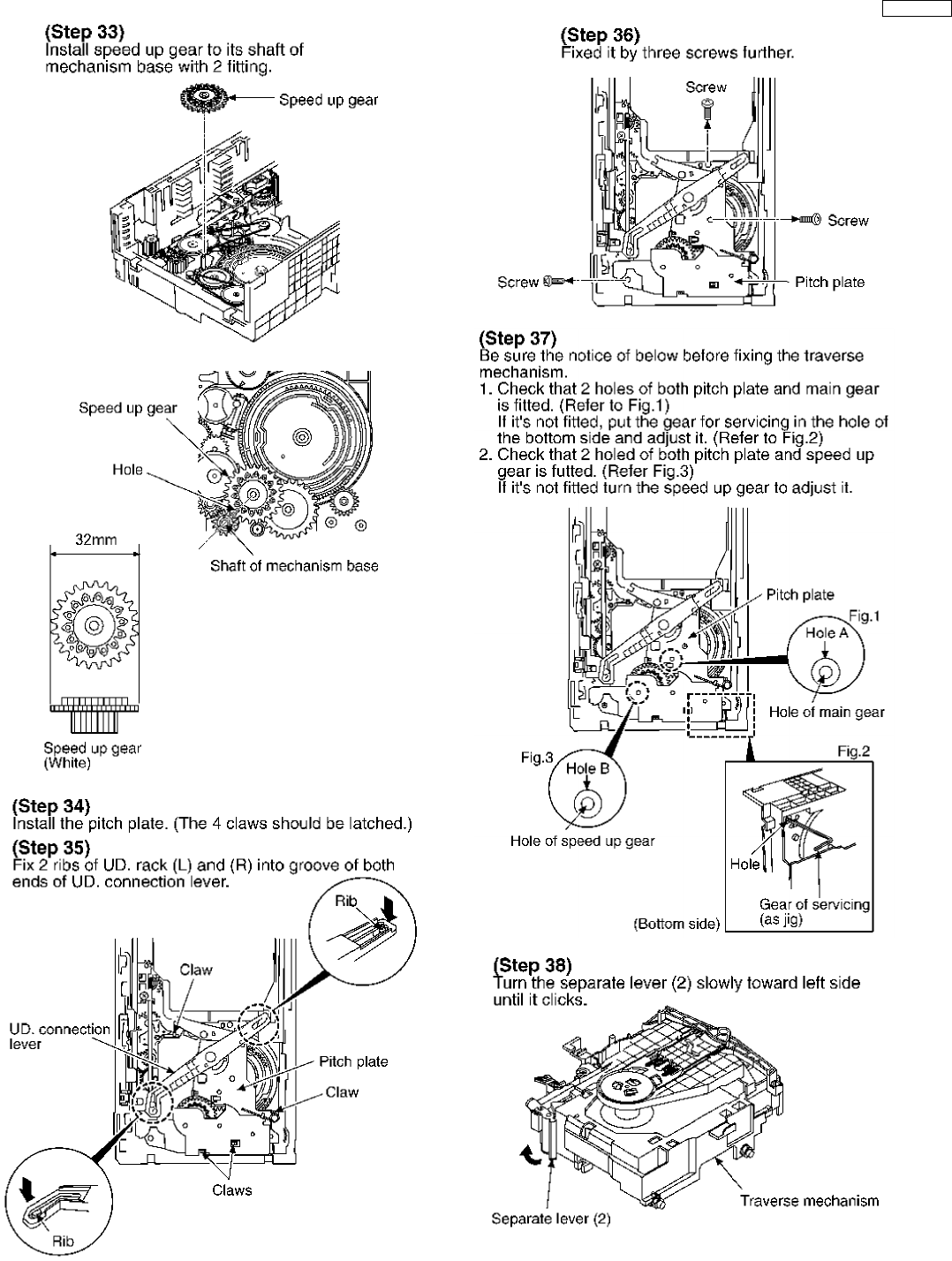

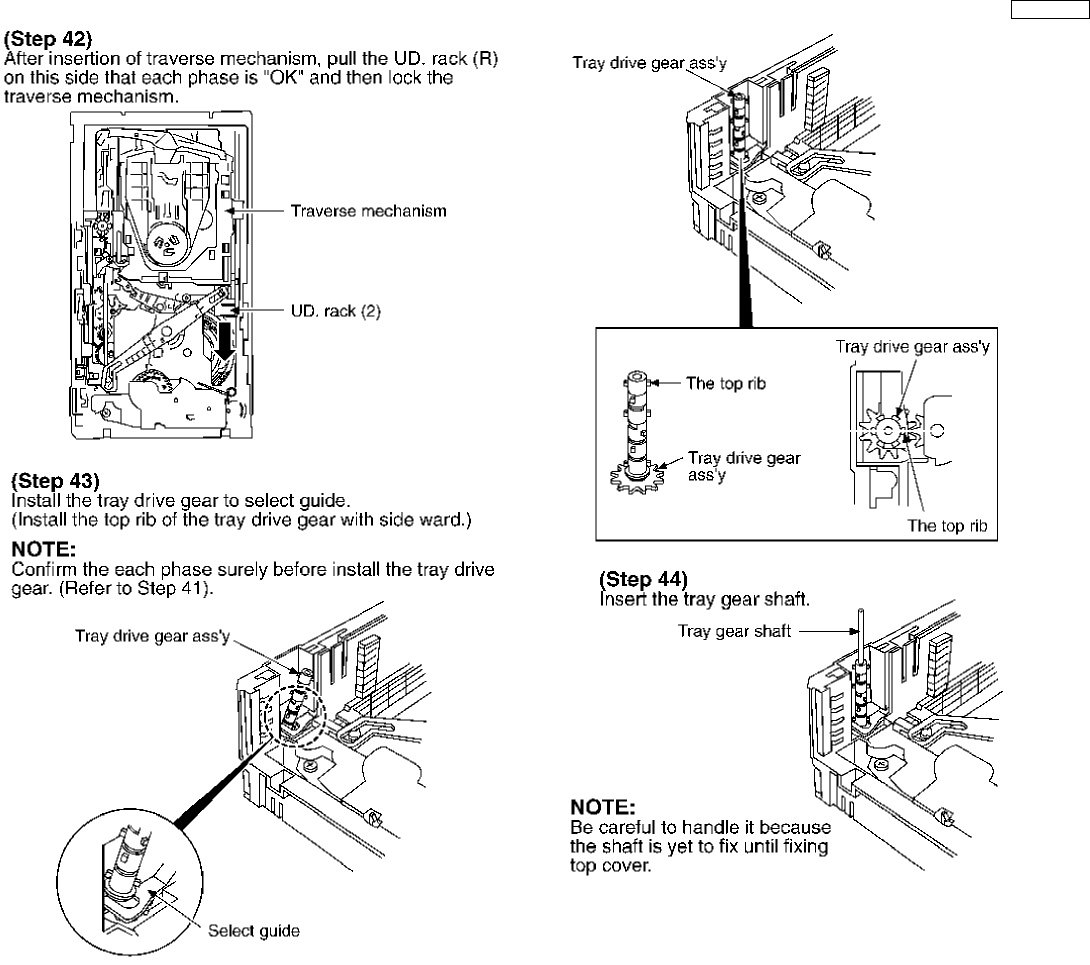

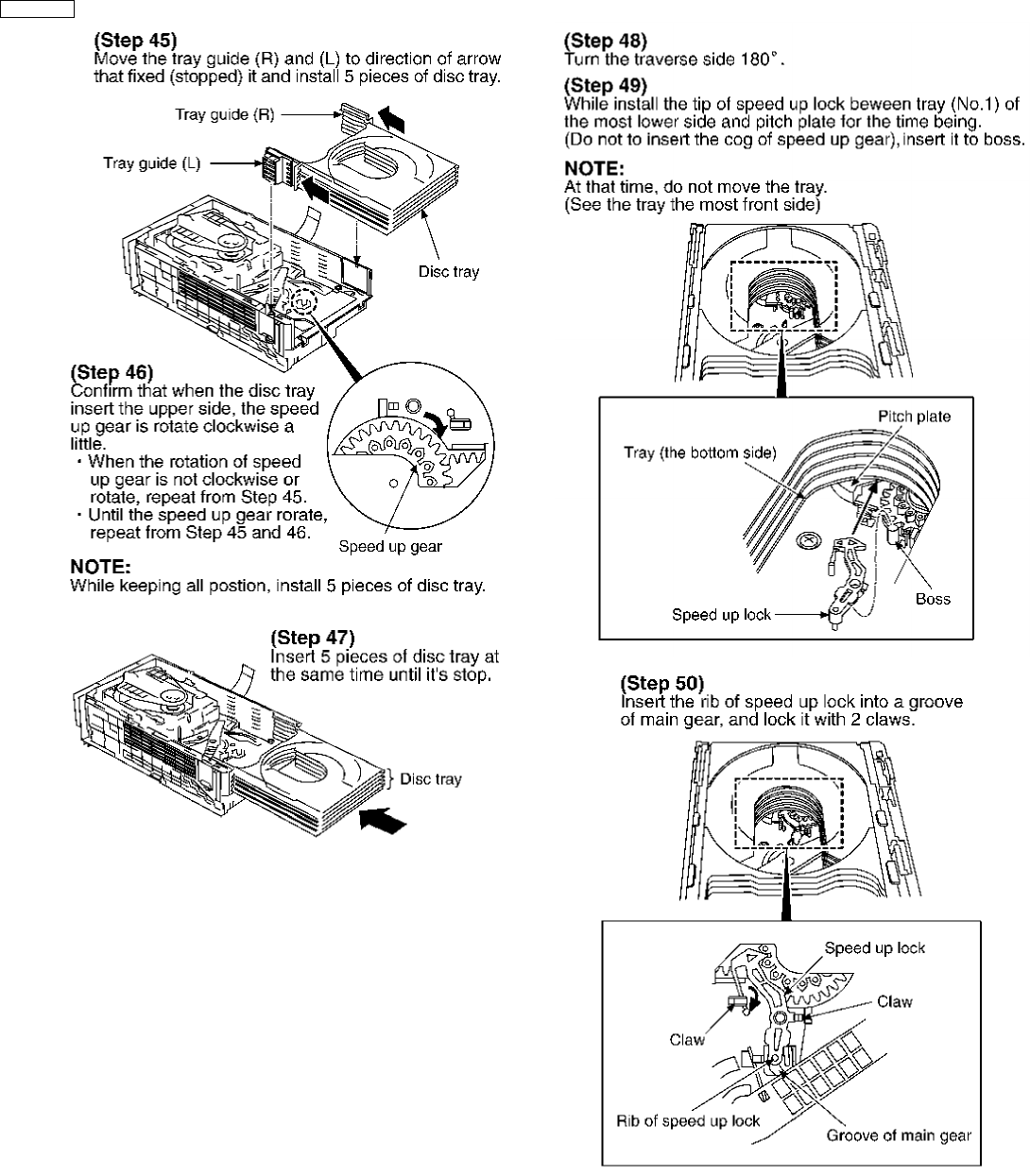

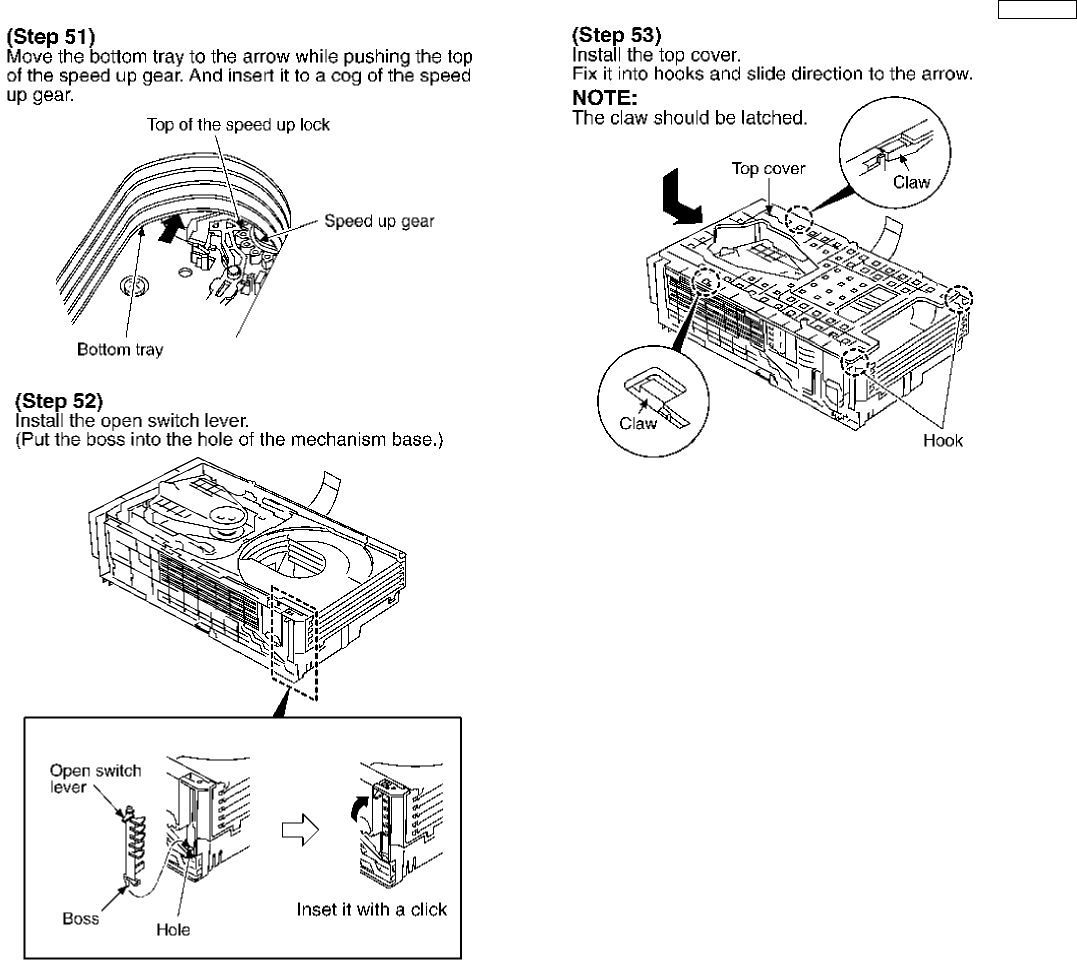

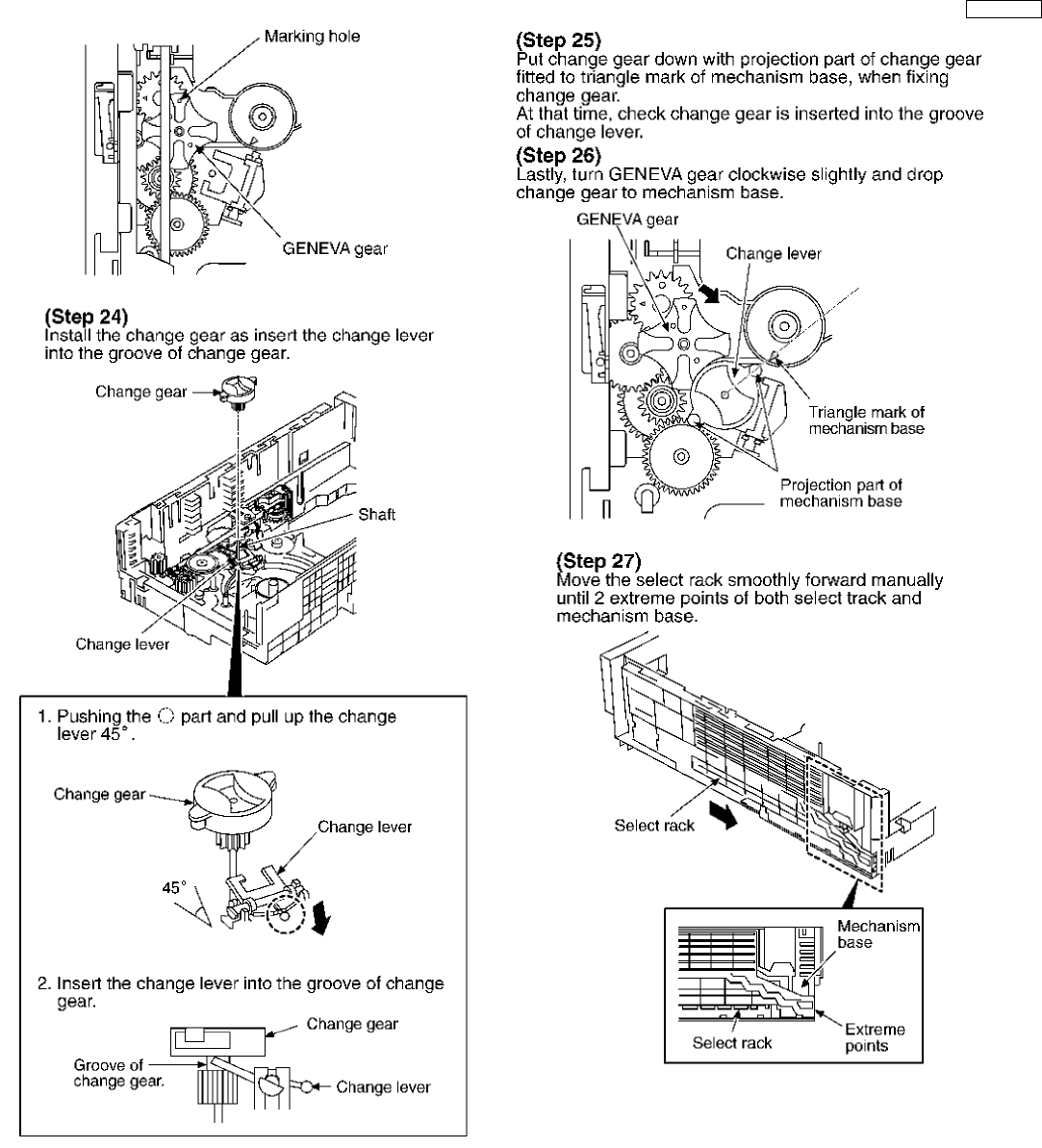

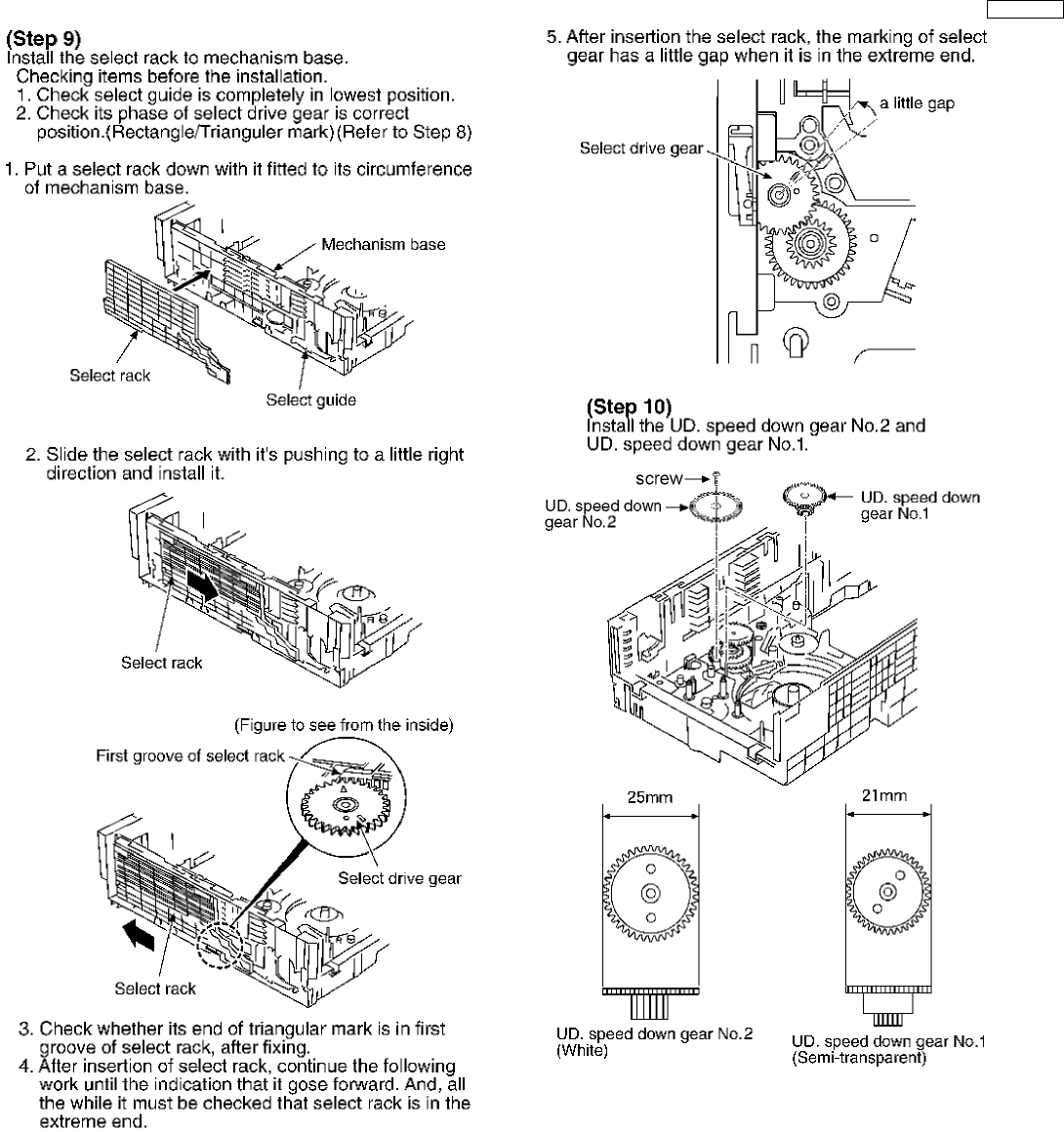

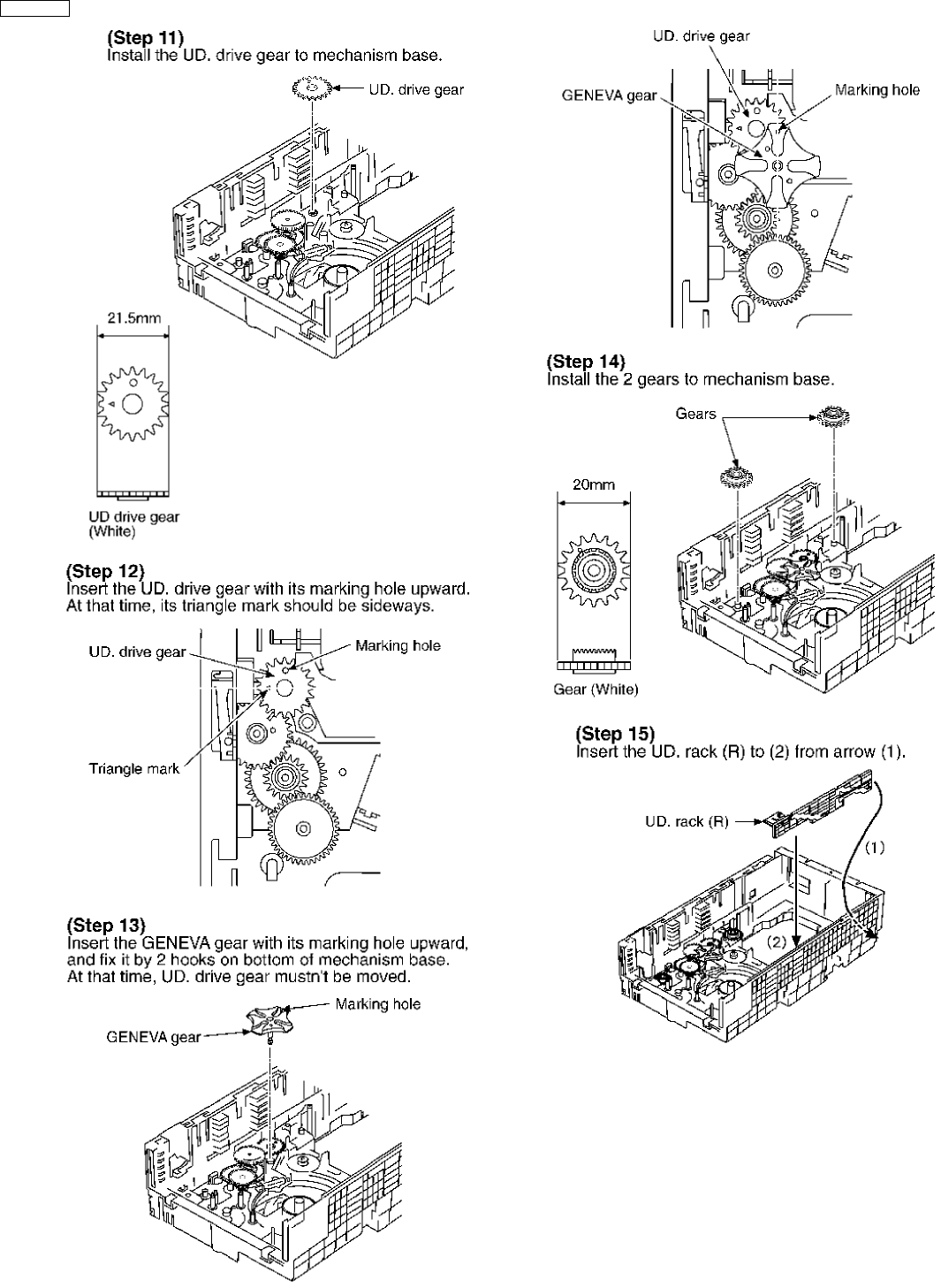

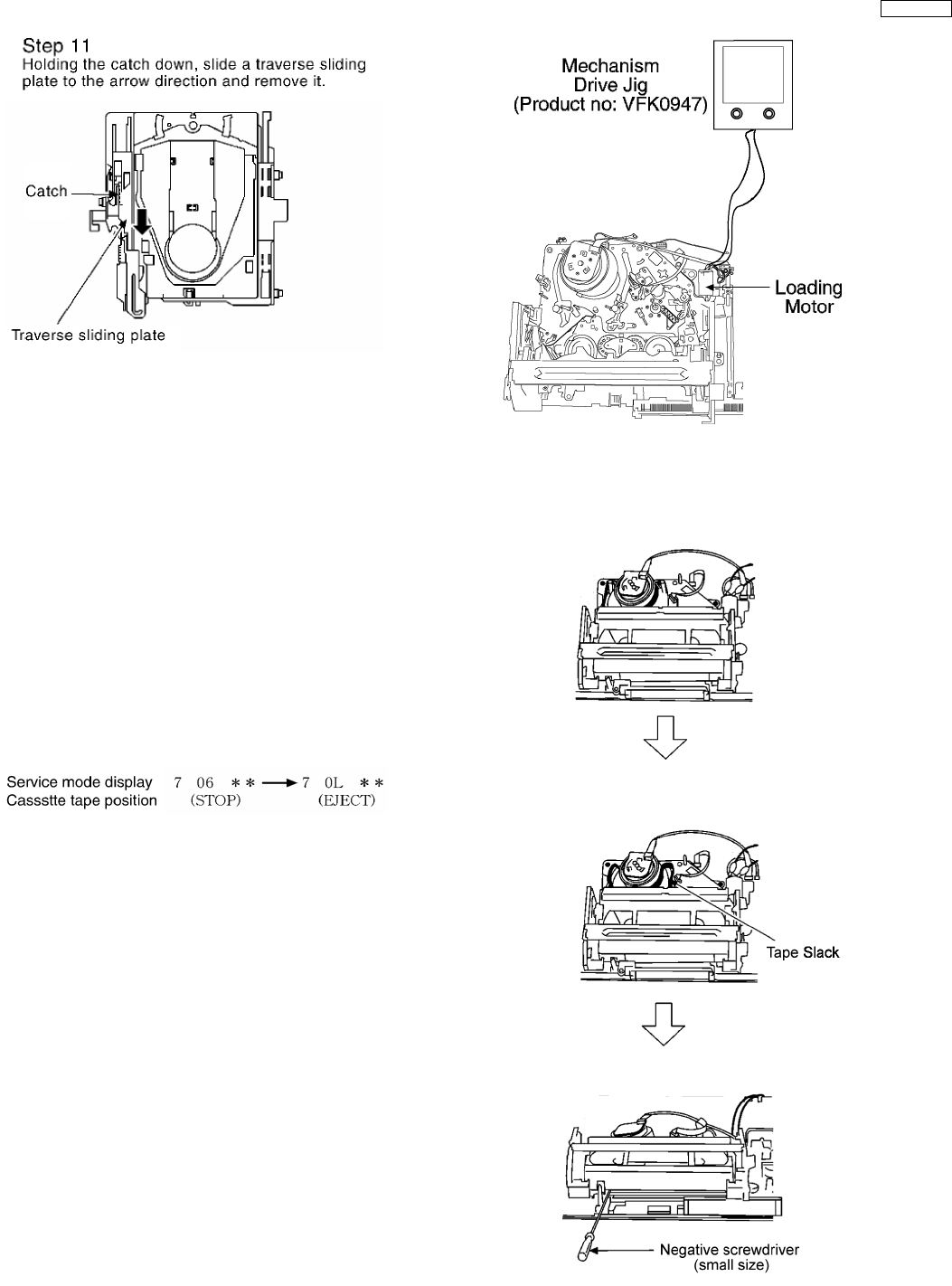

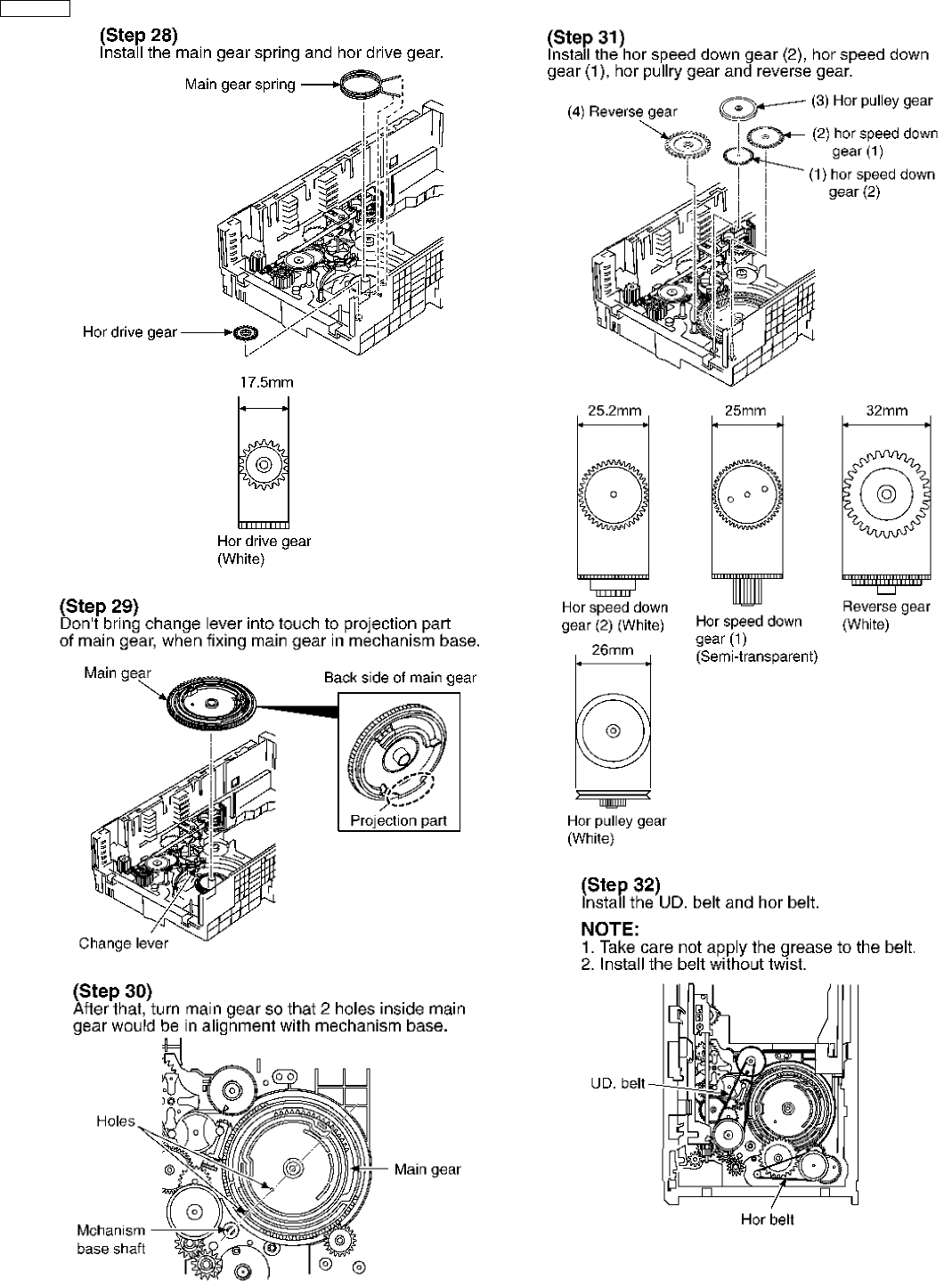

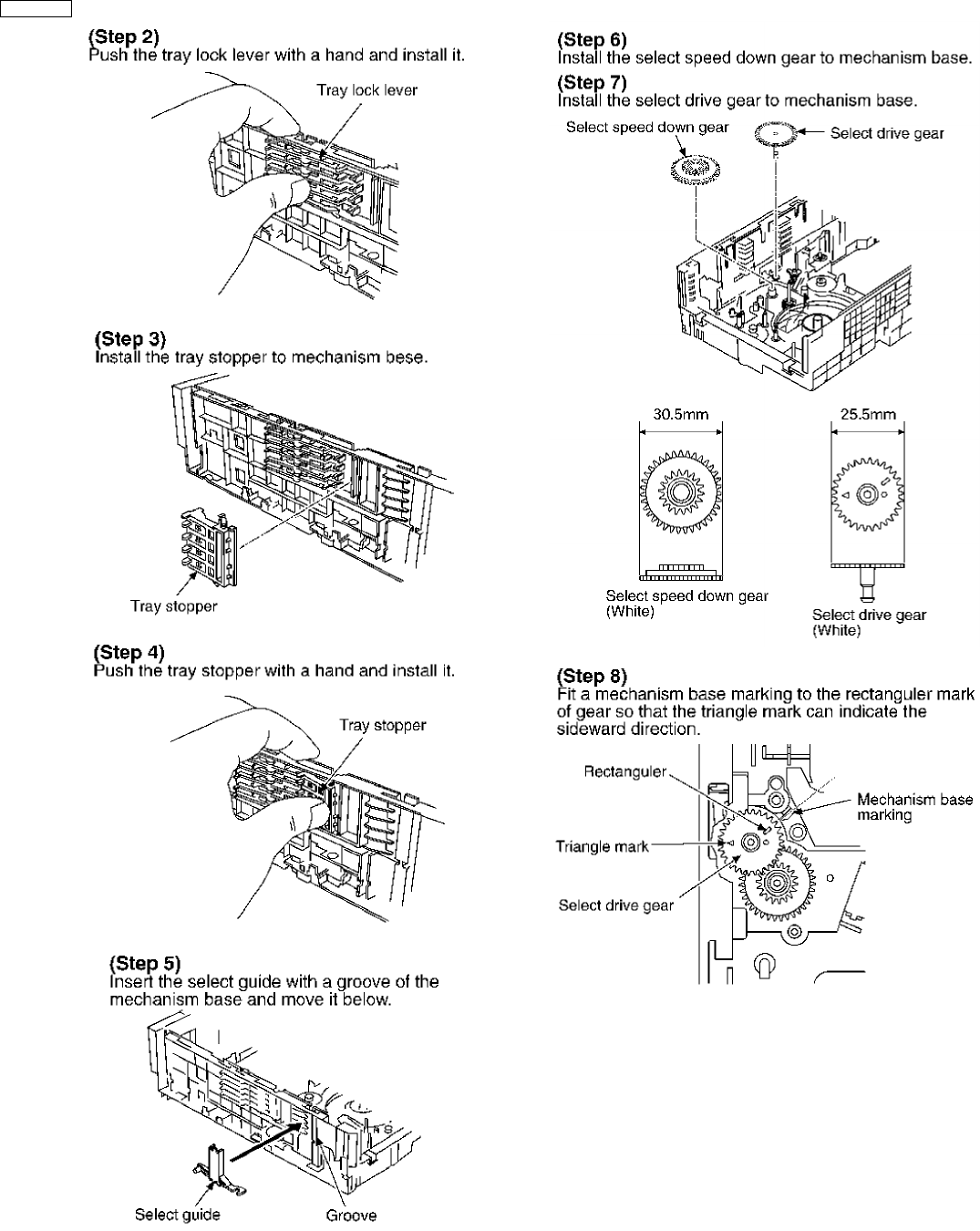

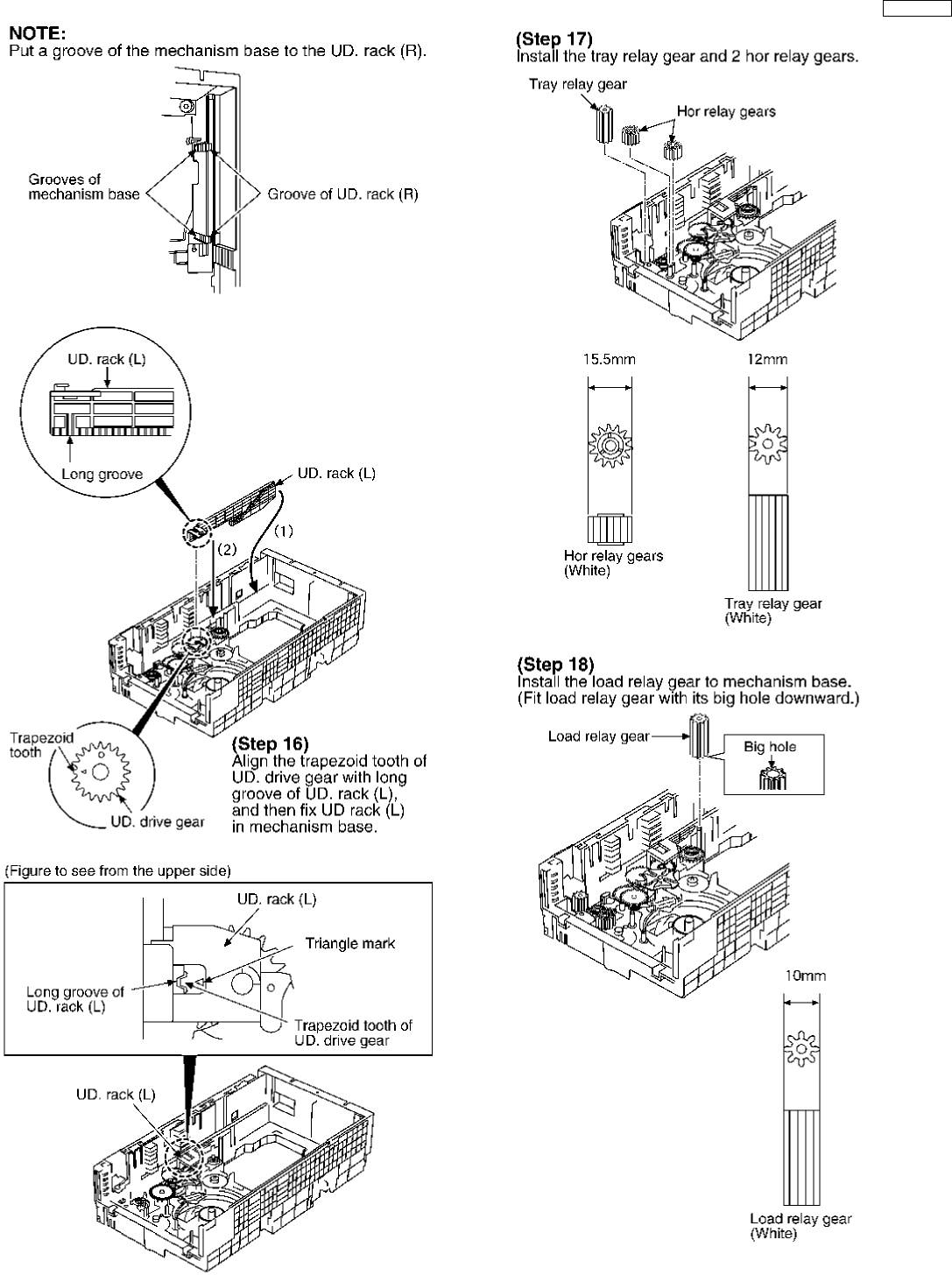

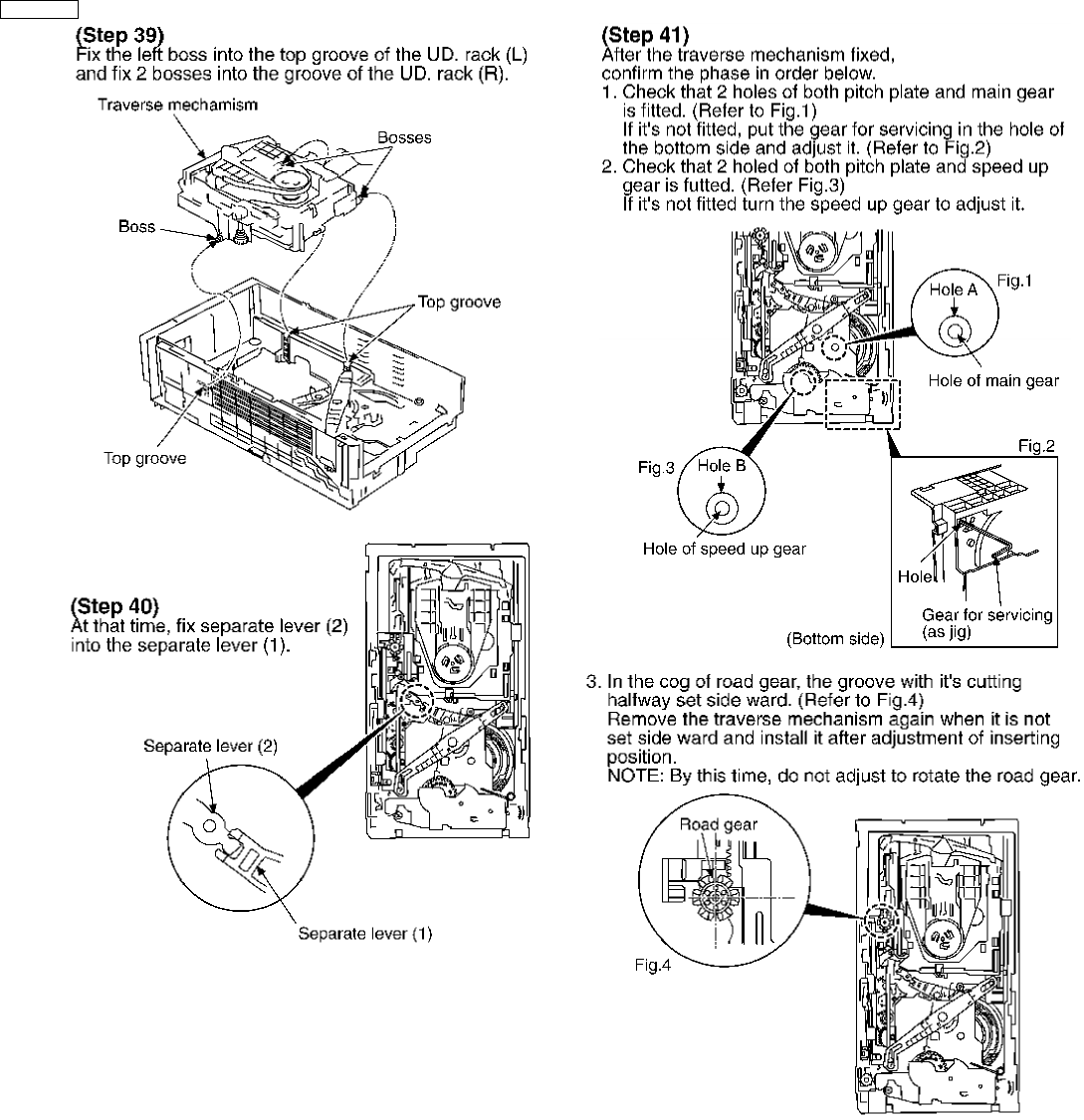

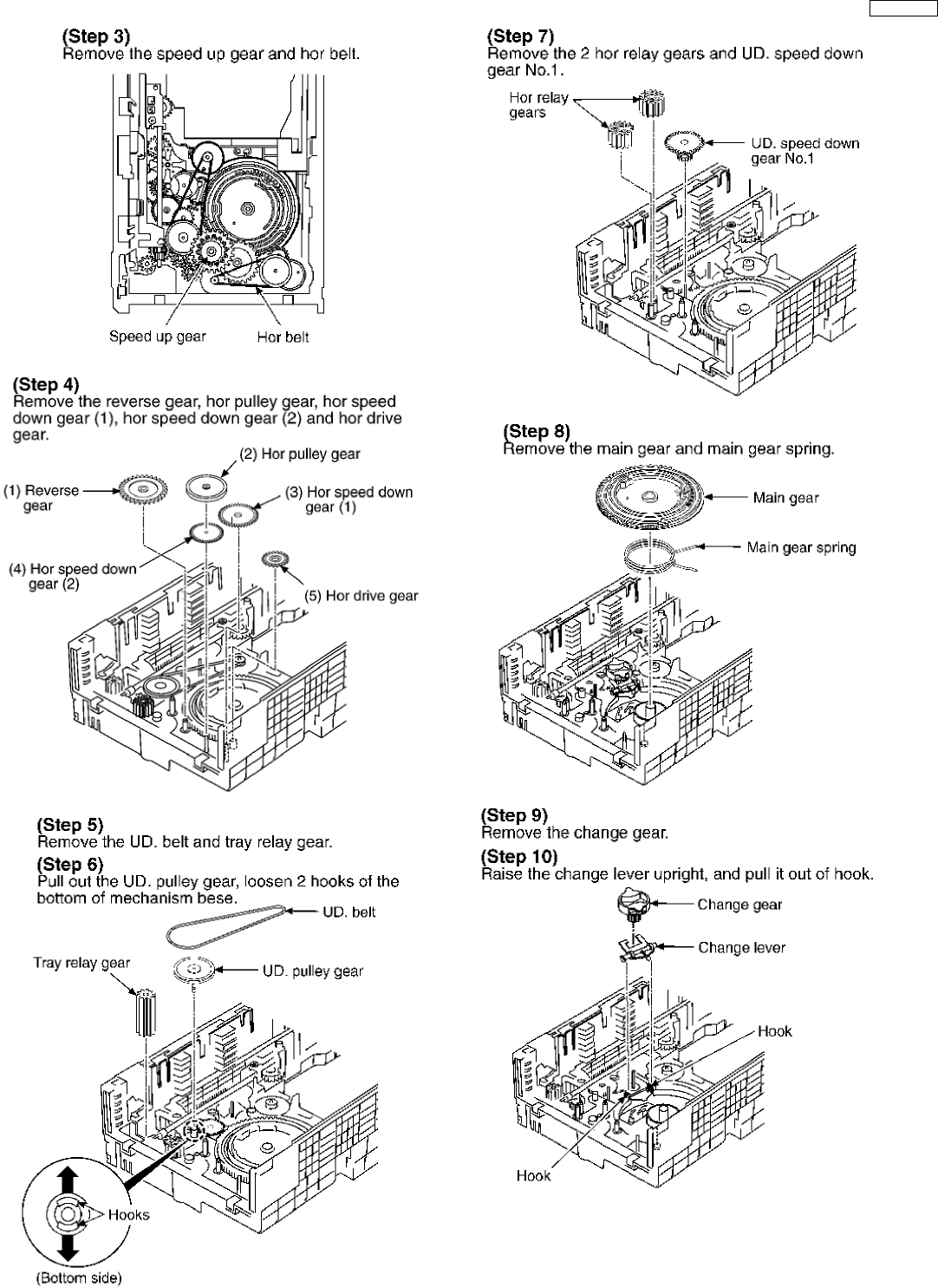

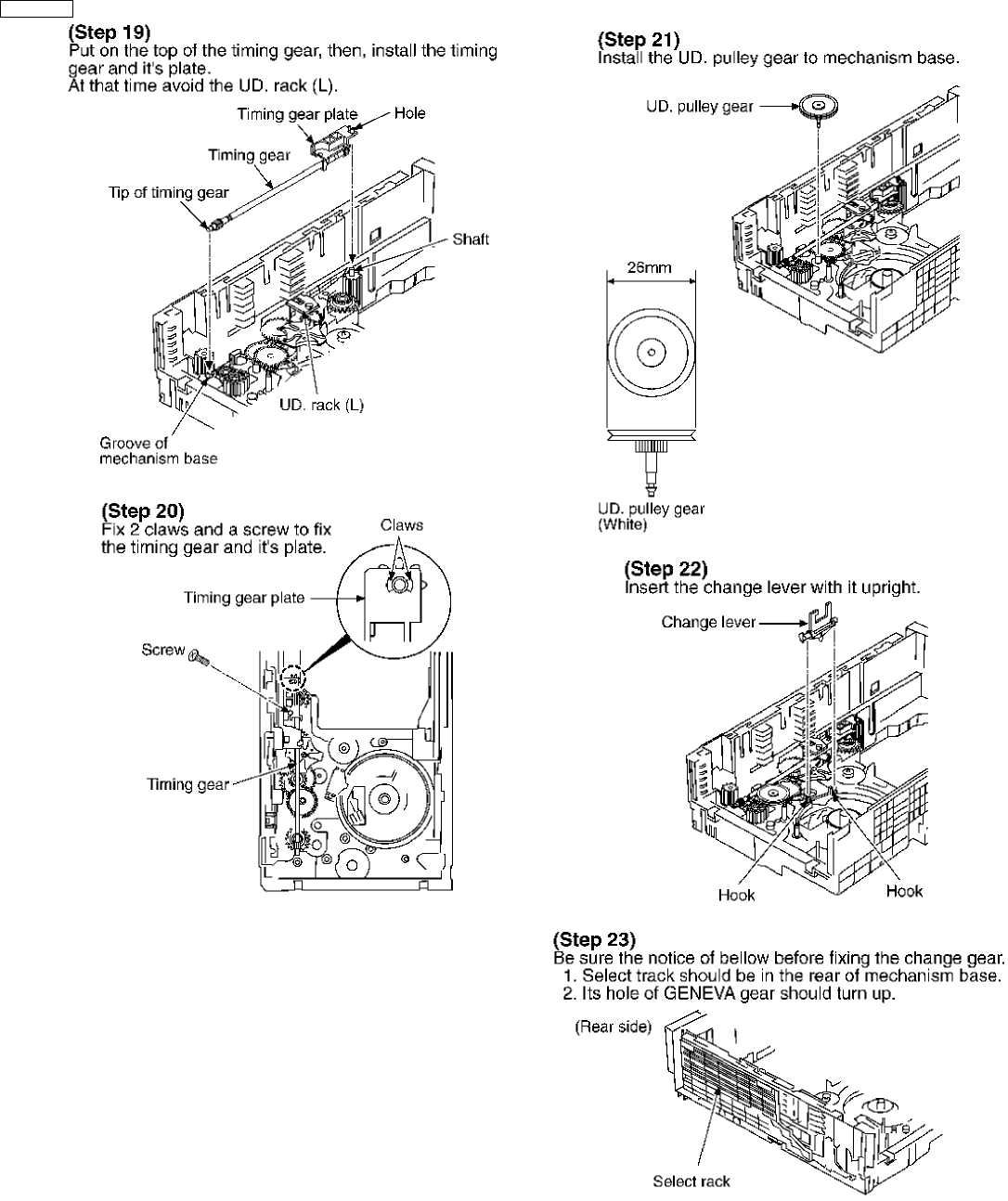

16.15. CR16 MECHANISM ASSEMBLY PROCEDURE 53

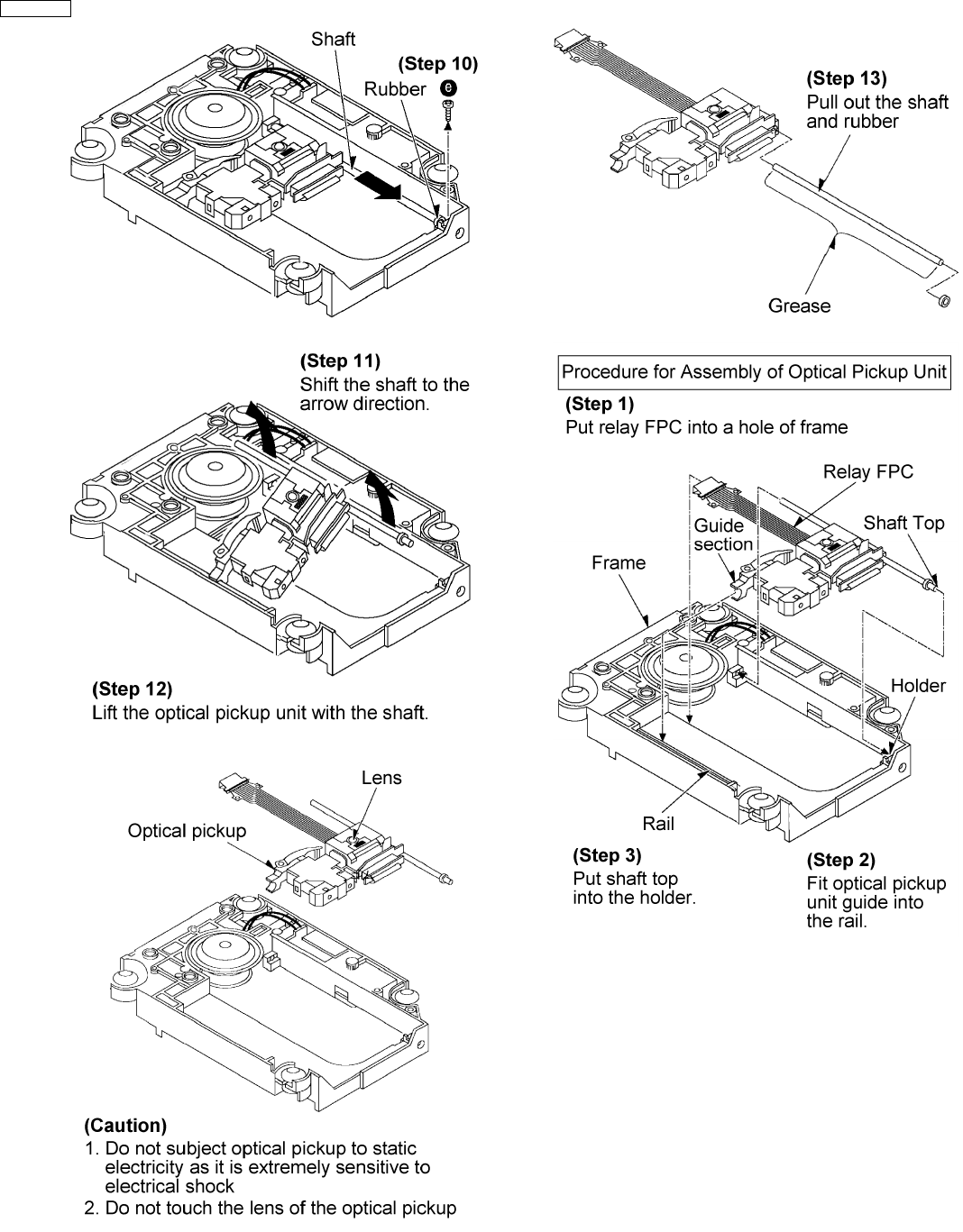

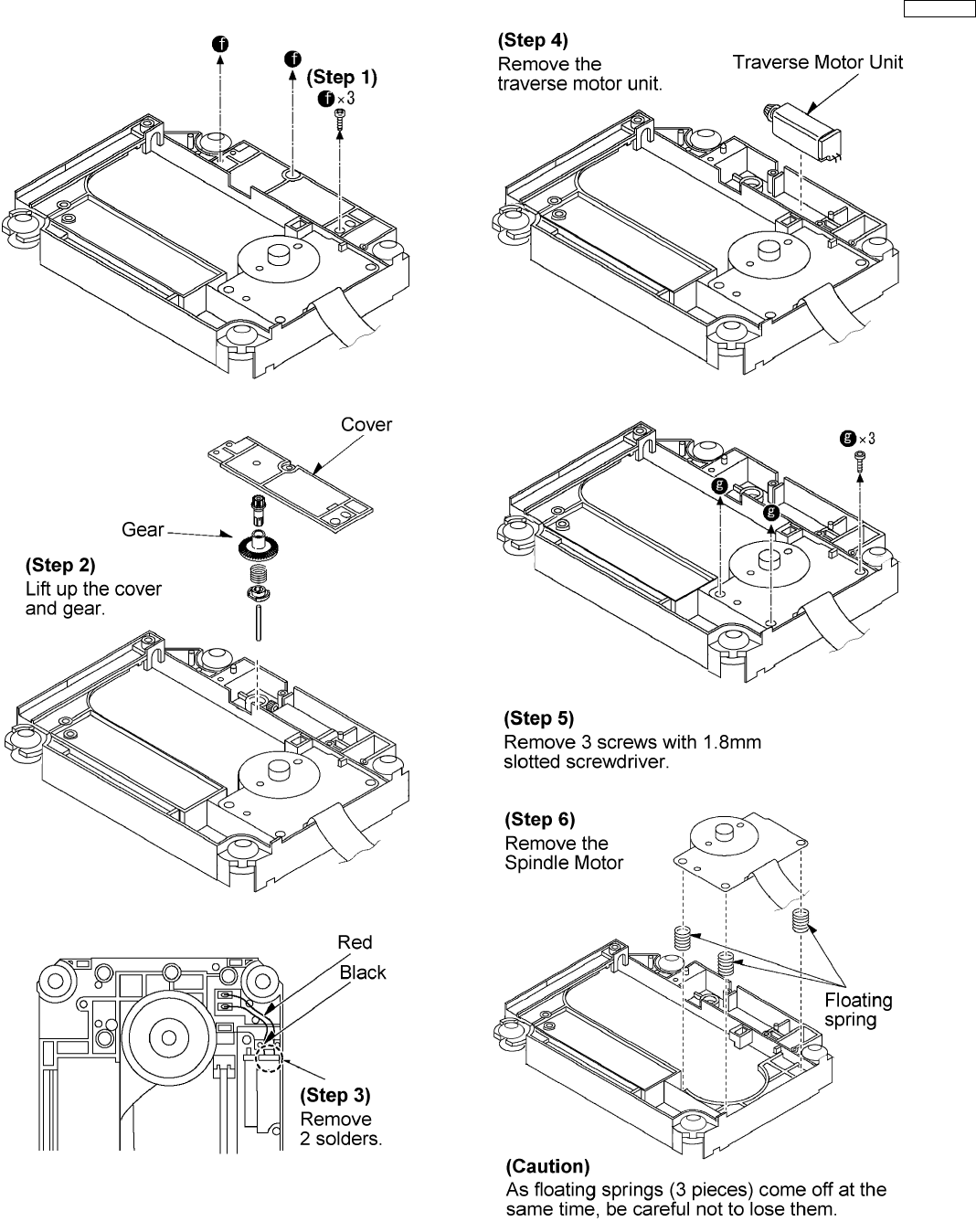

16.16. Disassembly of traverse mechanism 65
16.17. Removing the Cassette Tape Manually 67
17 Procedure for checking of the major P.C.B. 69

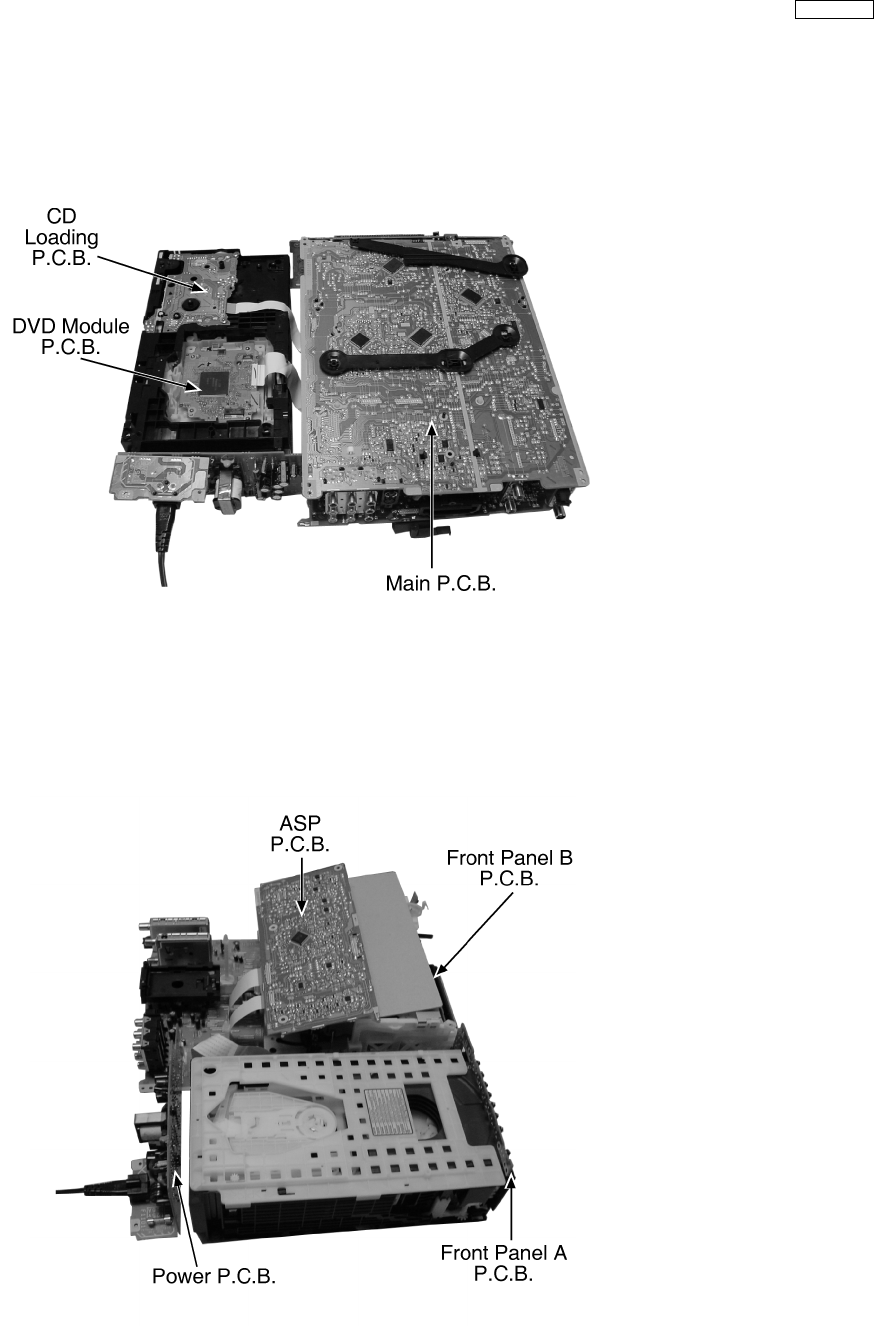

17.1. Checking the DVD Module P.C.B., CD Loading P.C.B. and
Main P.C.B. 69
17.2. Checking ASP P.C.B., Front Panel A P.C.B., Front Panel
B P.C.B. & Power P.C.B. 69
18 Voltage Measurement and Waveform Chart 70
18.1. Voltage Measurement 70

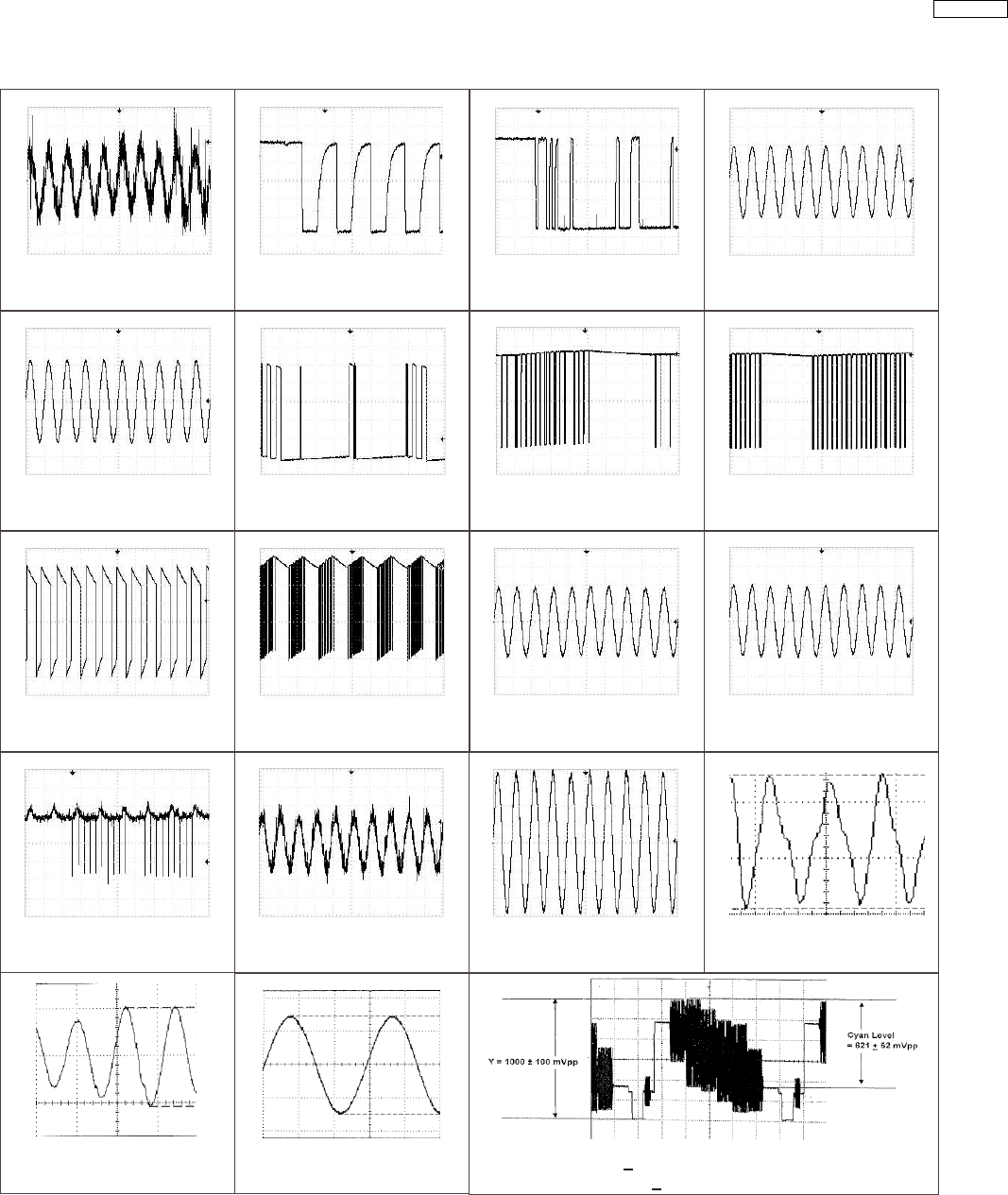

18.2. Waveform Chart 75

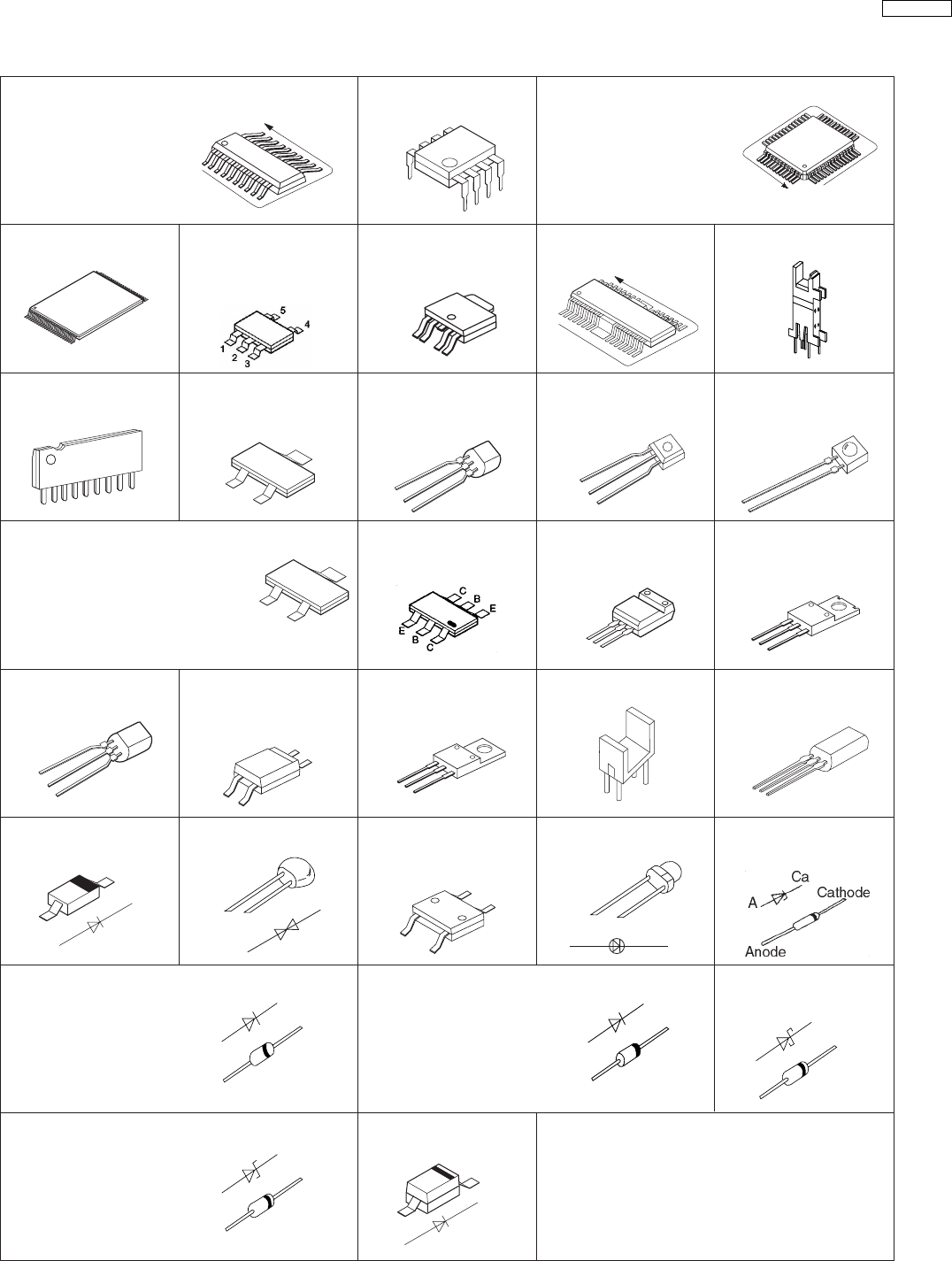

19 Illustration of IC 痴, Transistors and Diodes 77
20 Terminal Function of ICｴs 78
20.1. IC36001 (C2CBJG000576) IC MICROCONTROLLER 78

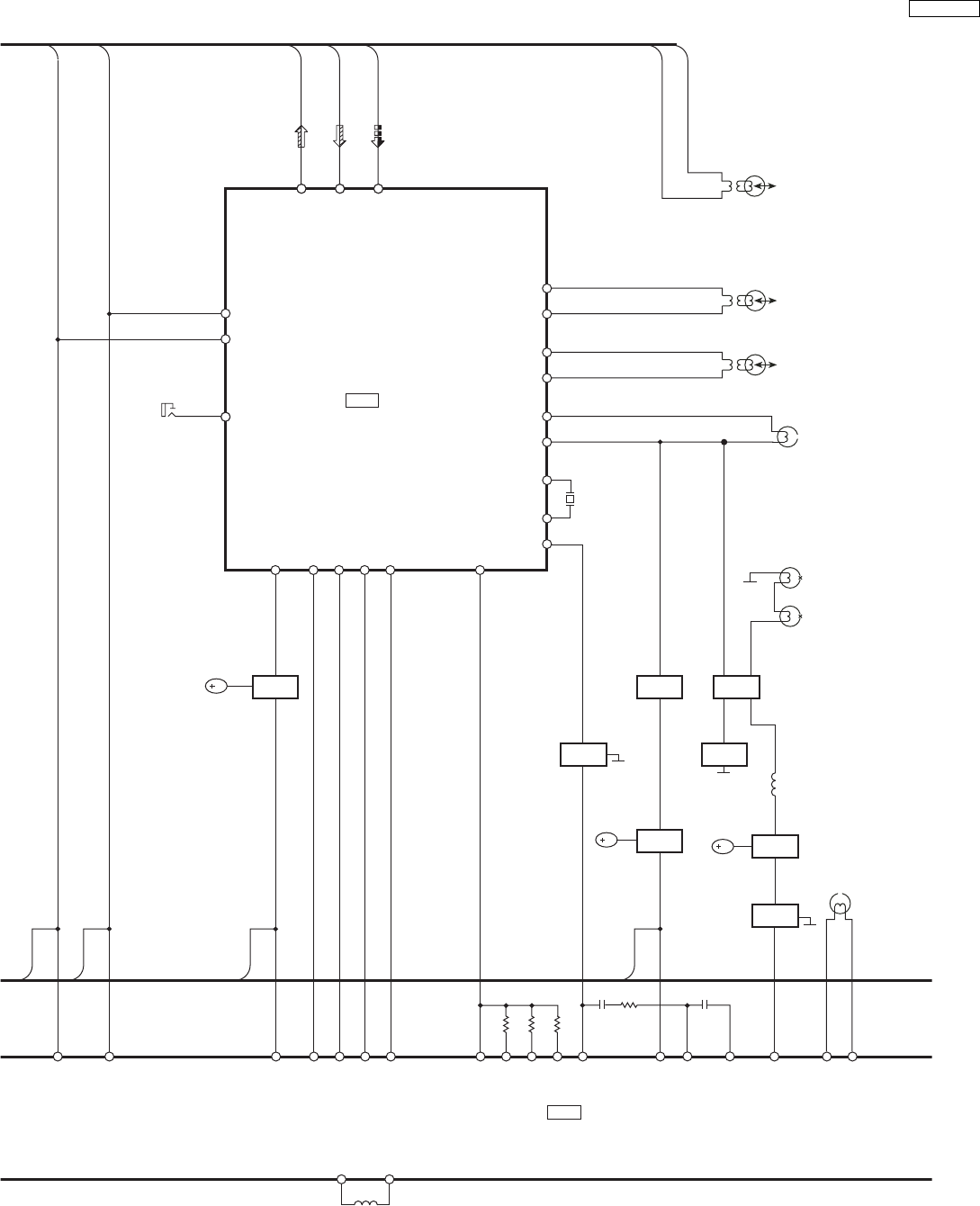

21 Block Diagram 79
21.1. DVD Module Block 79
21.2. Main Block 82
22 Notes of Schematic Diagram 90

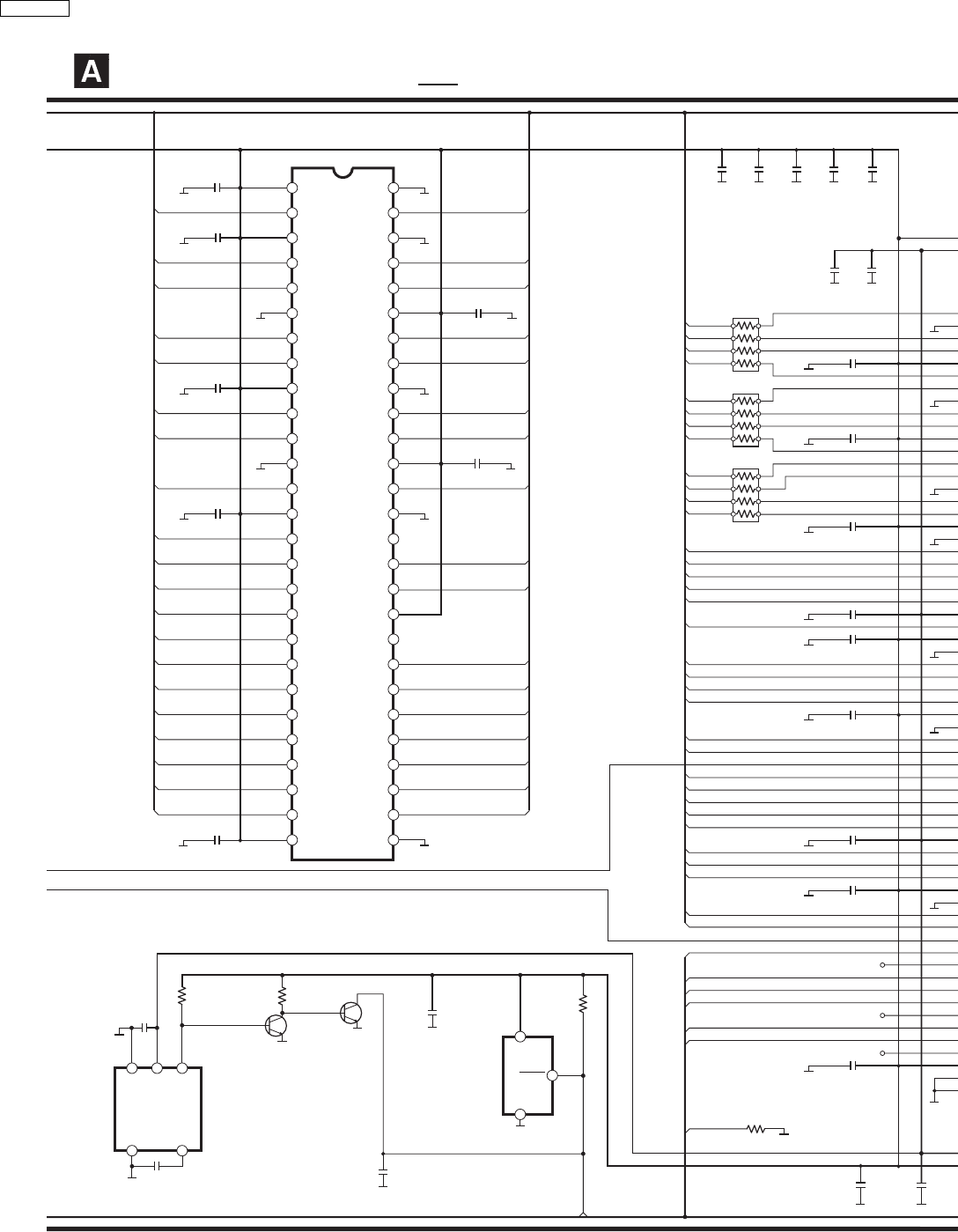

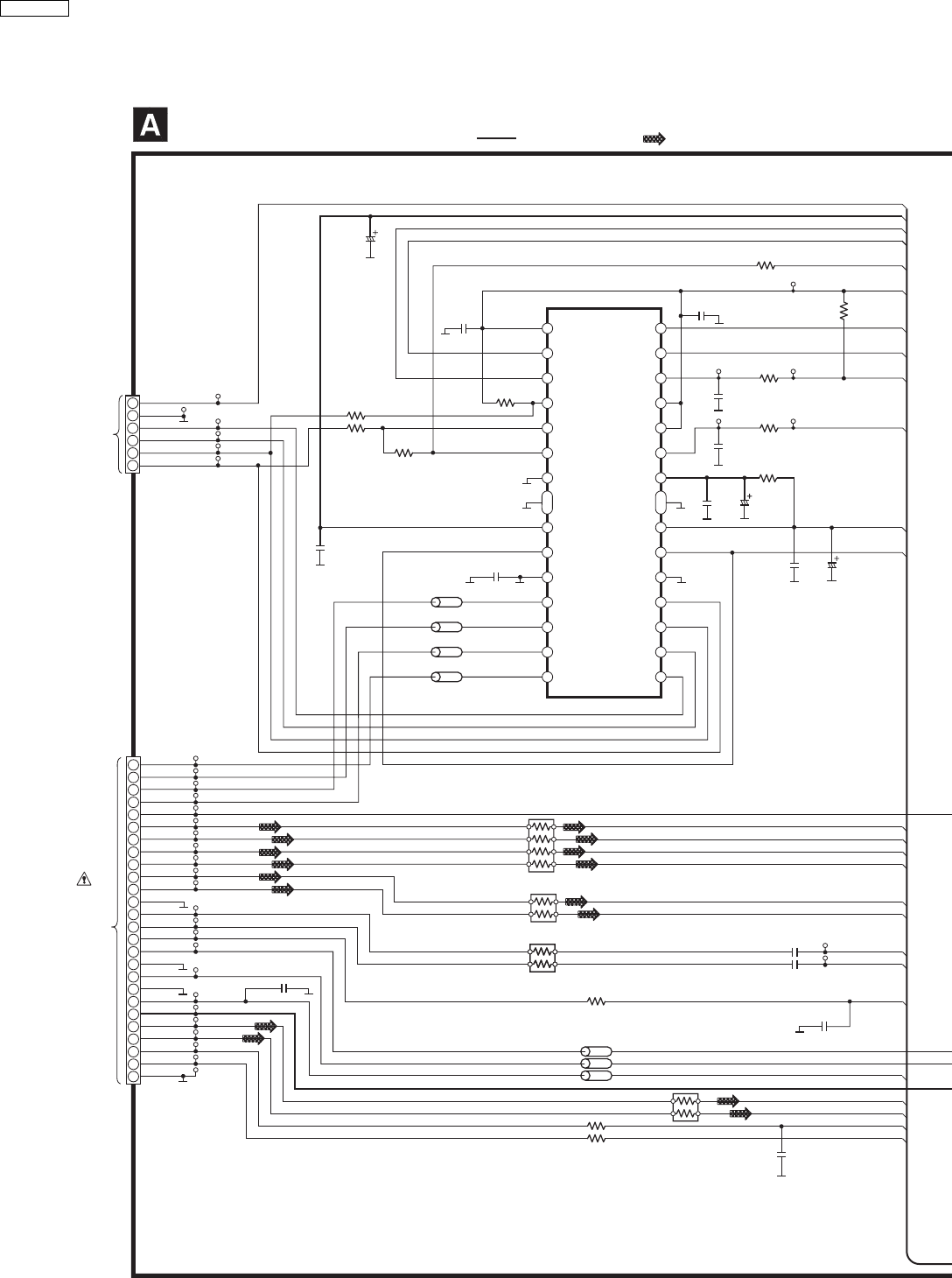

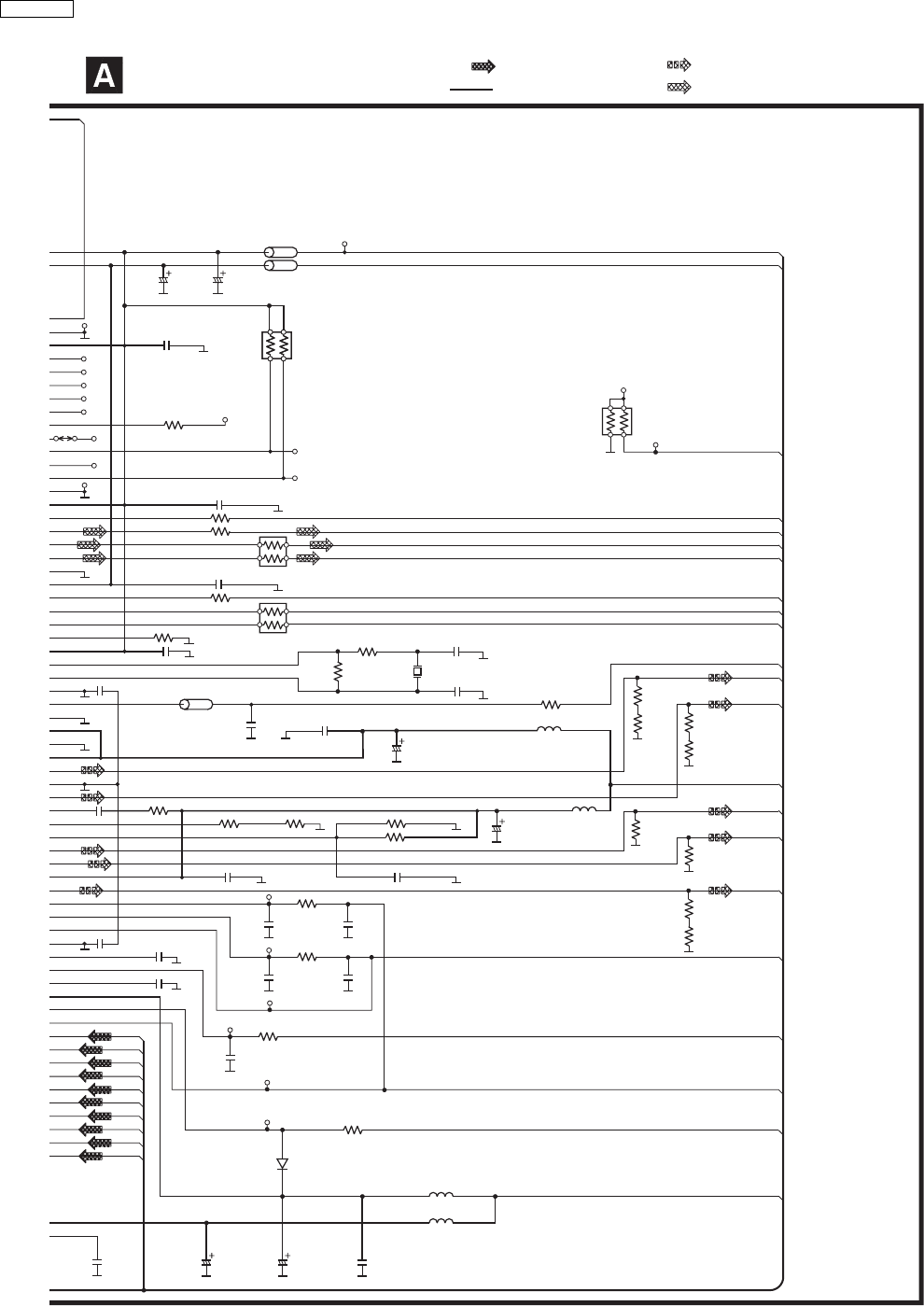

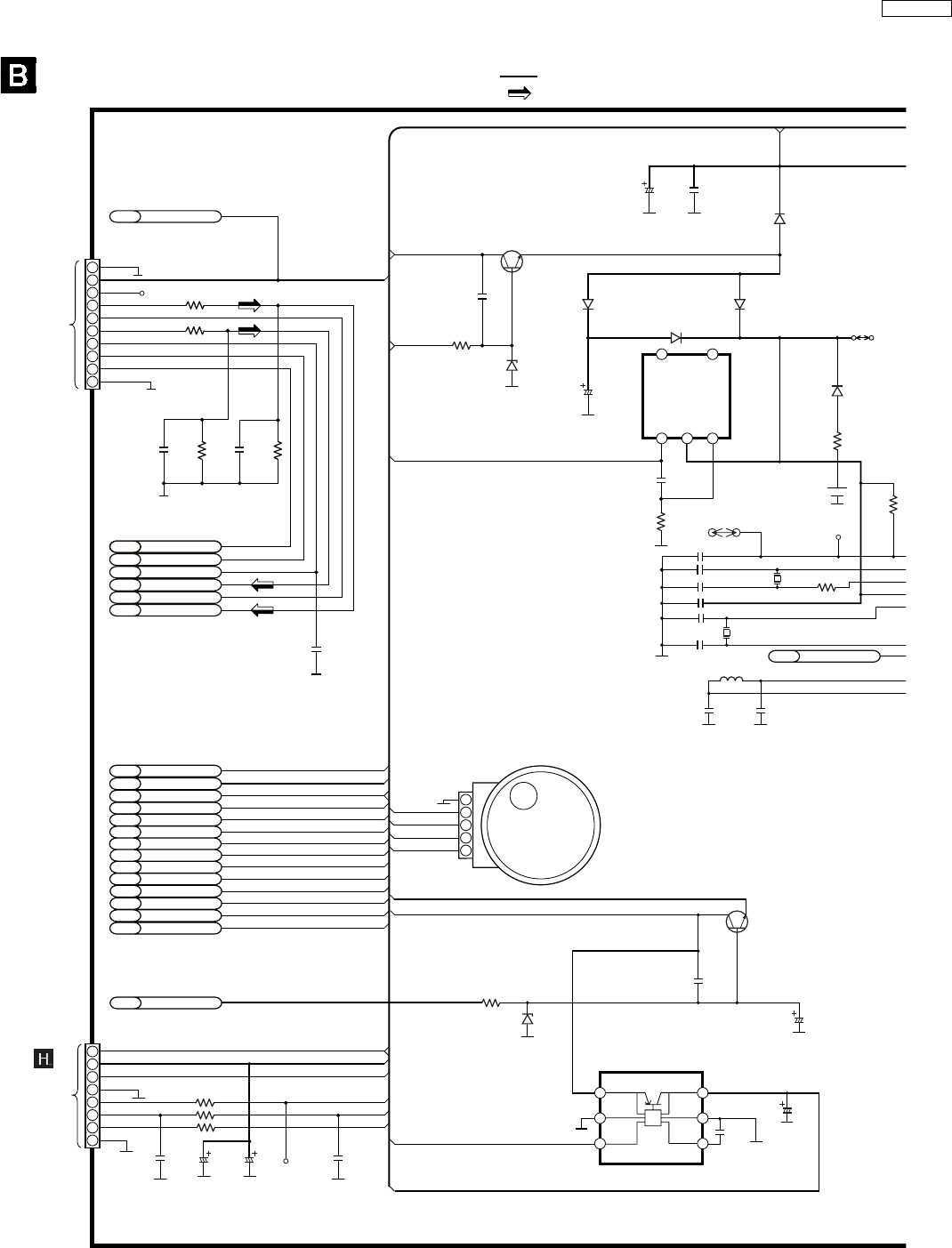

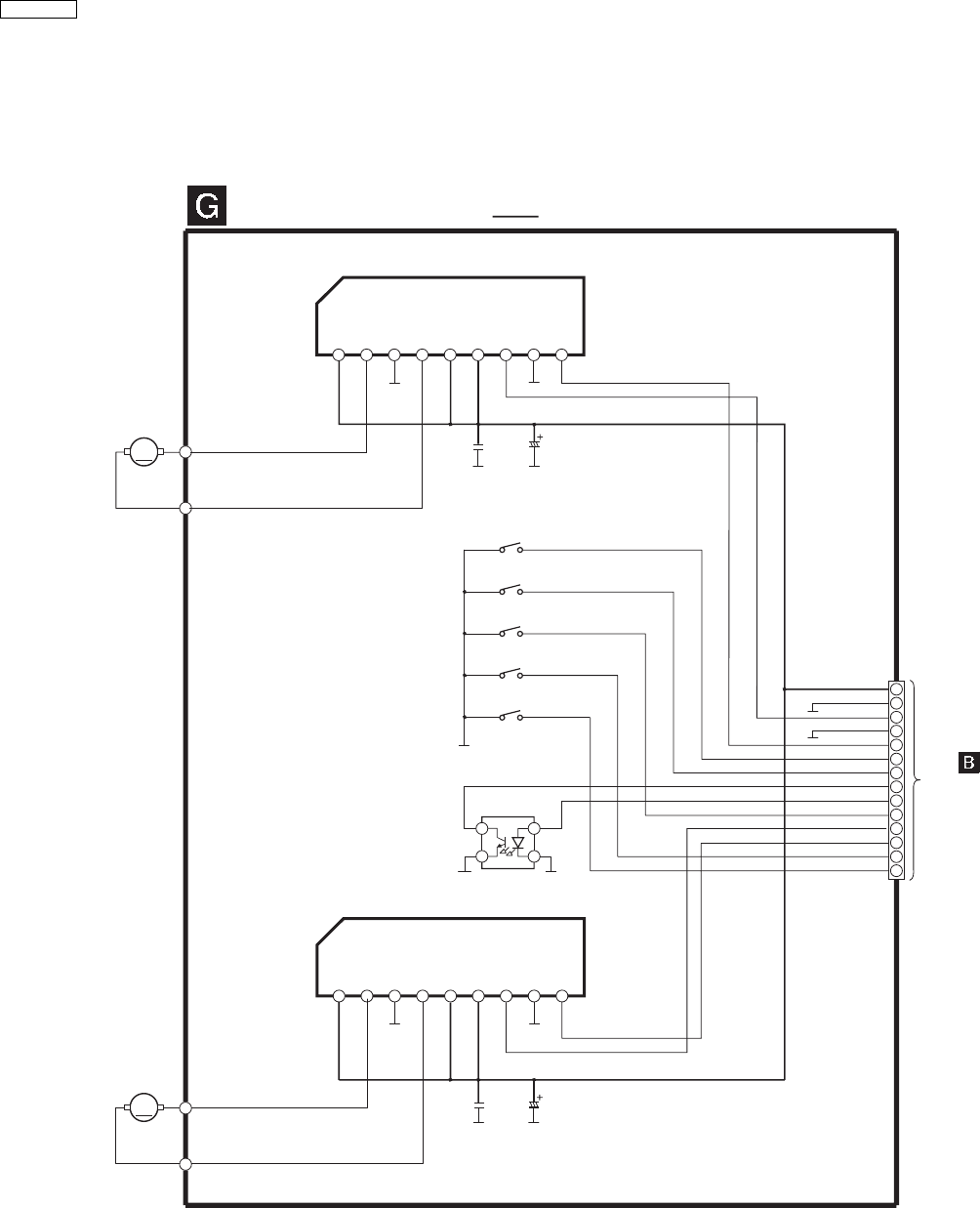

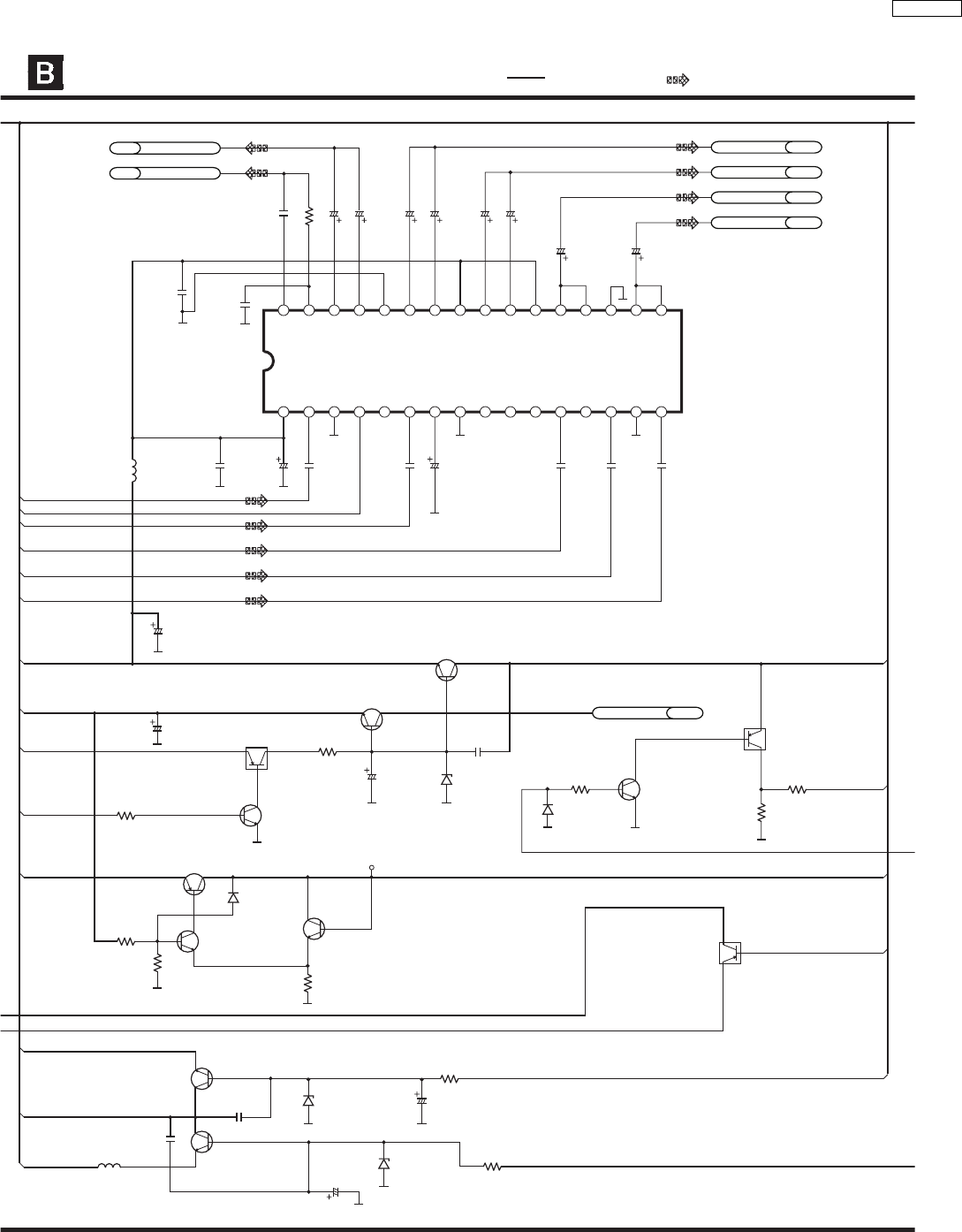

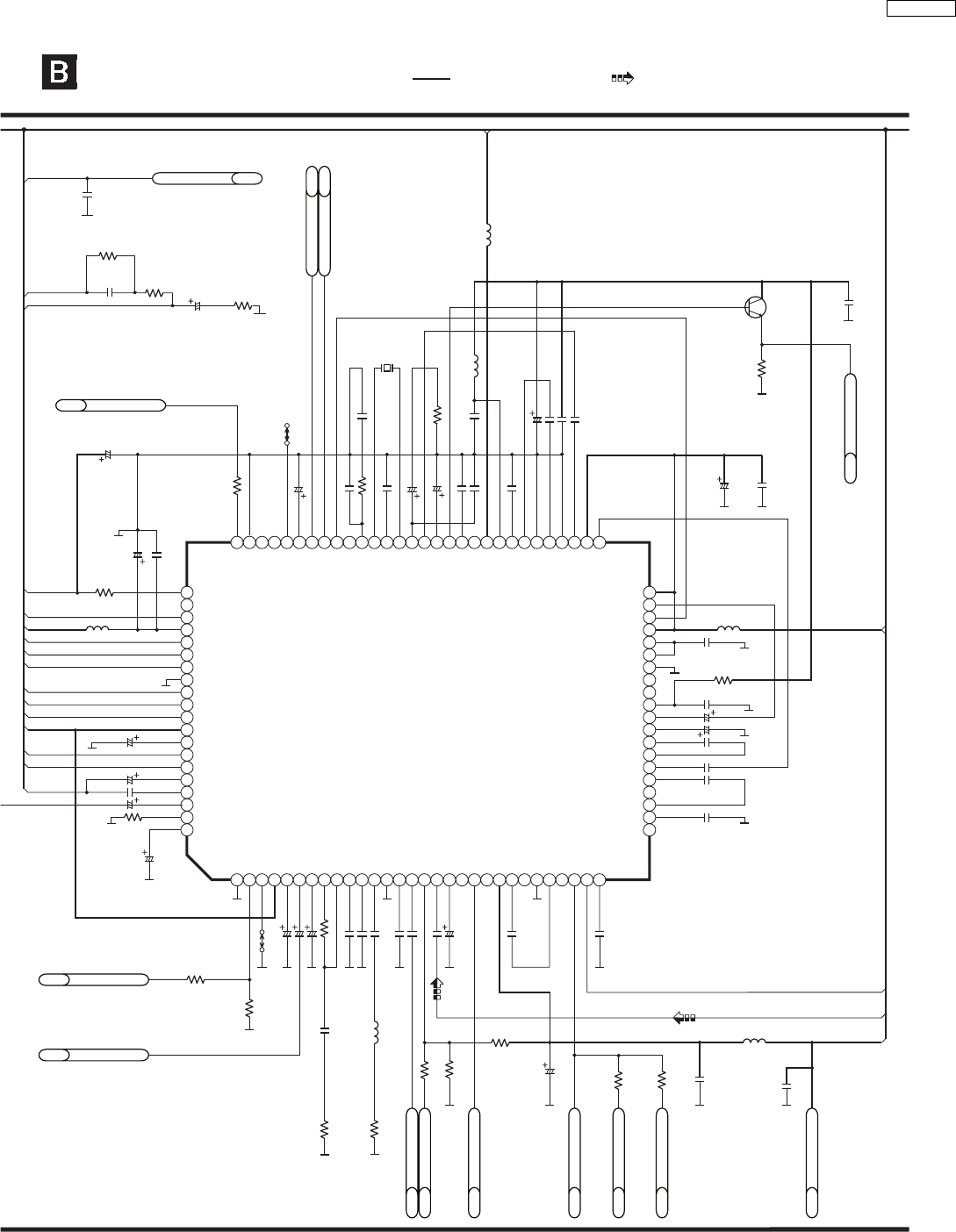

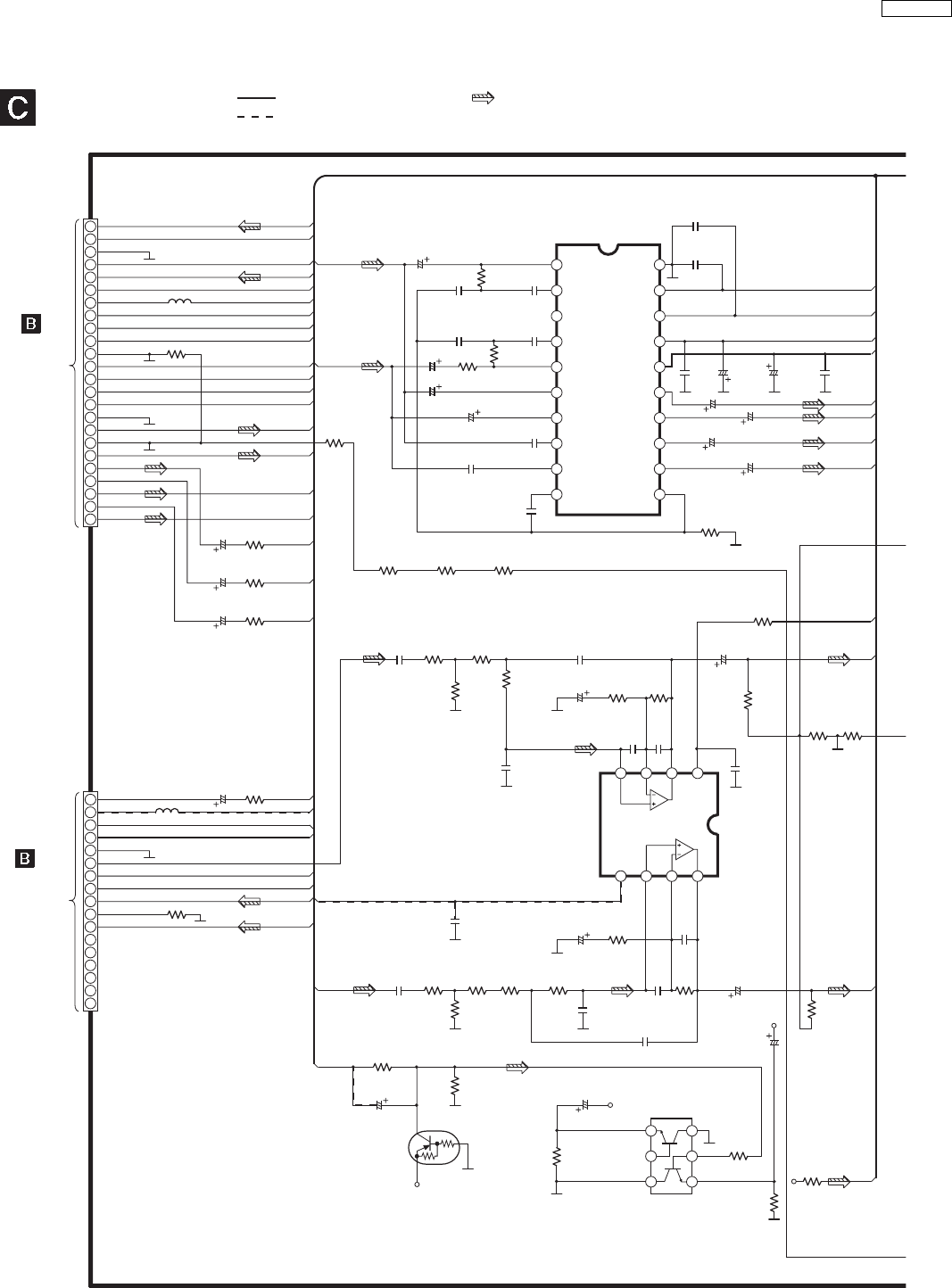

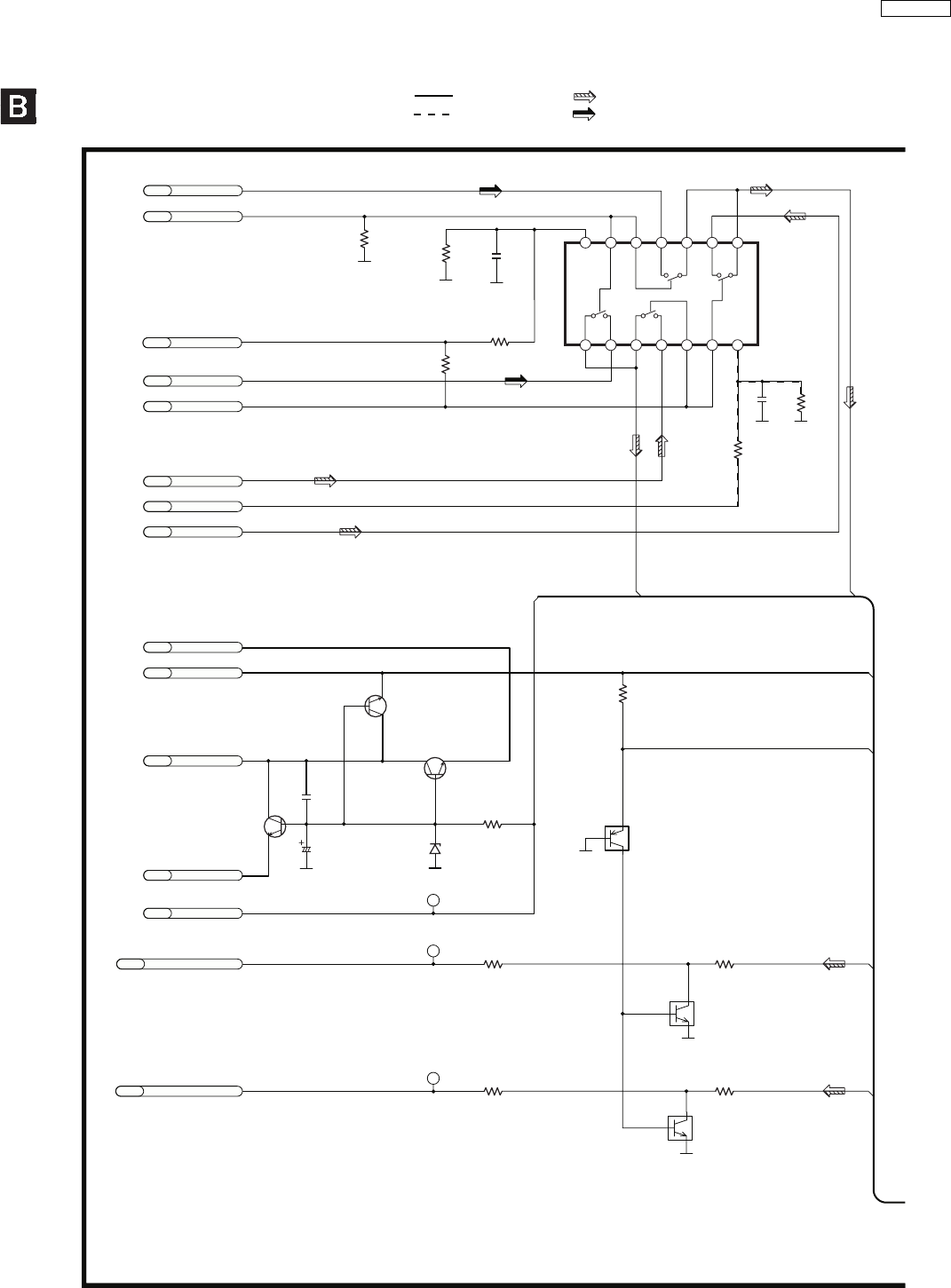

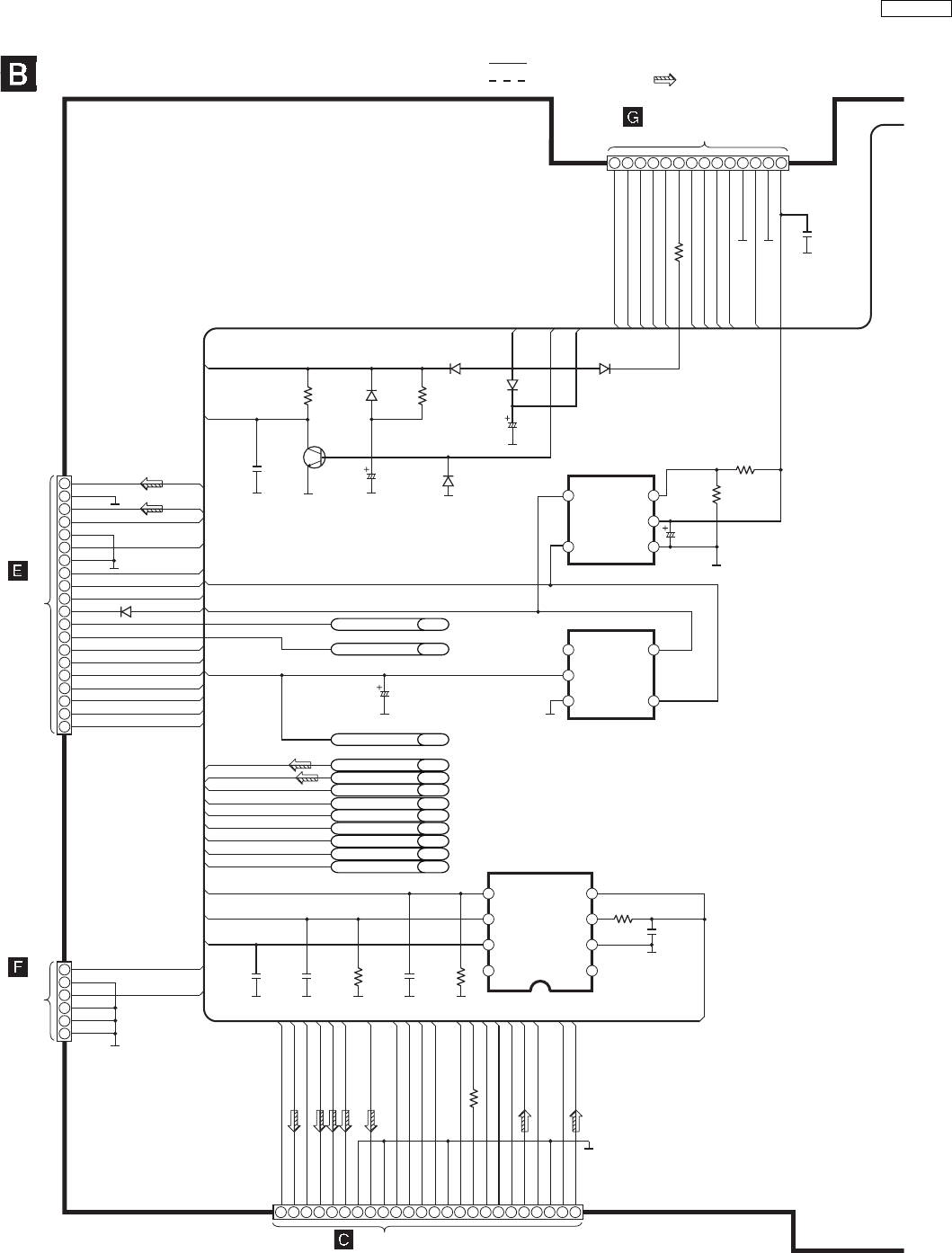

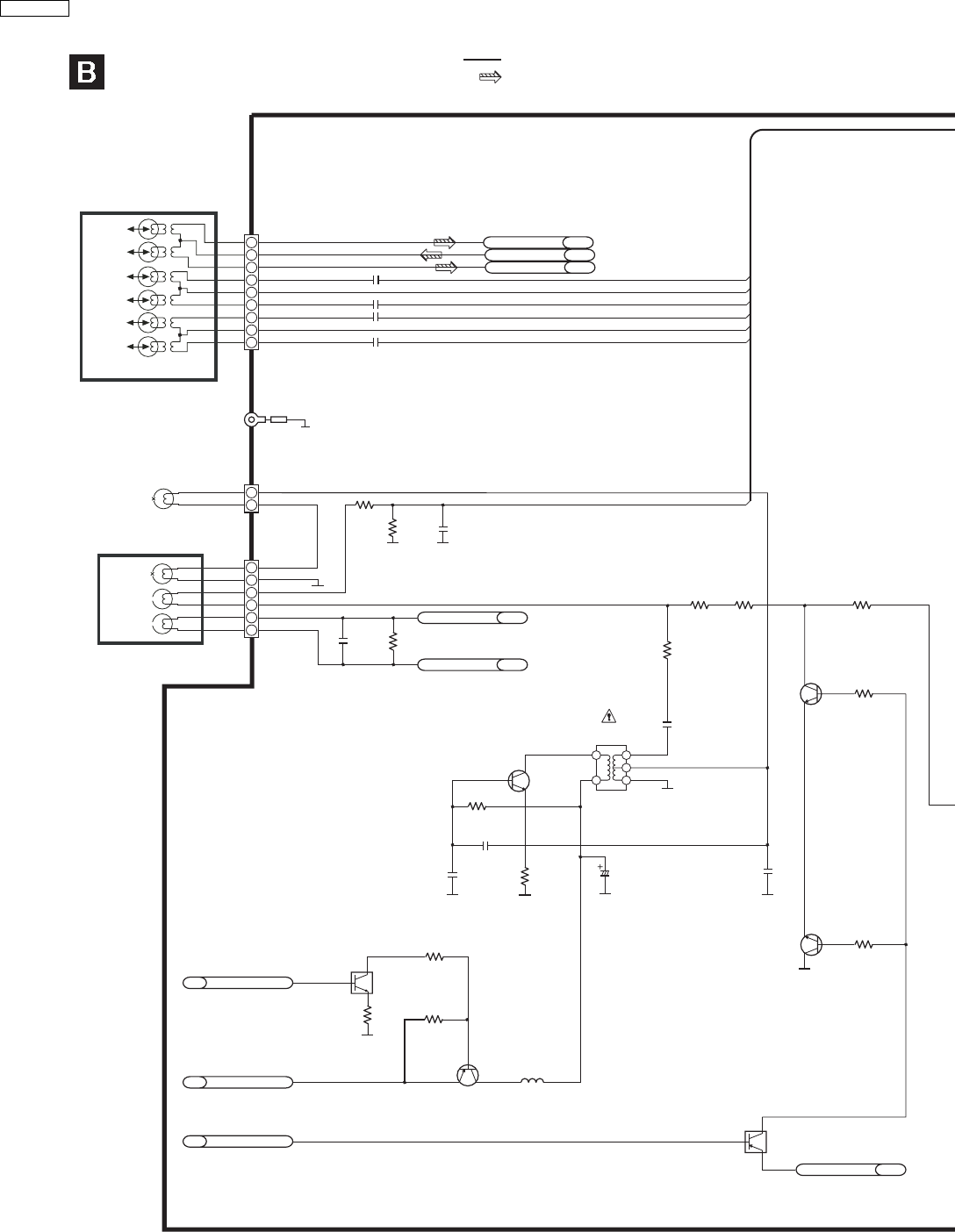

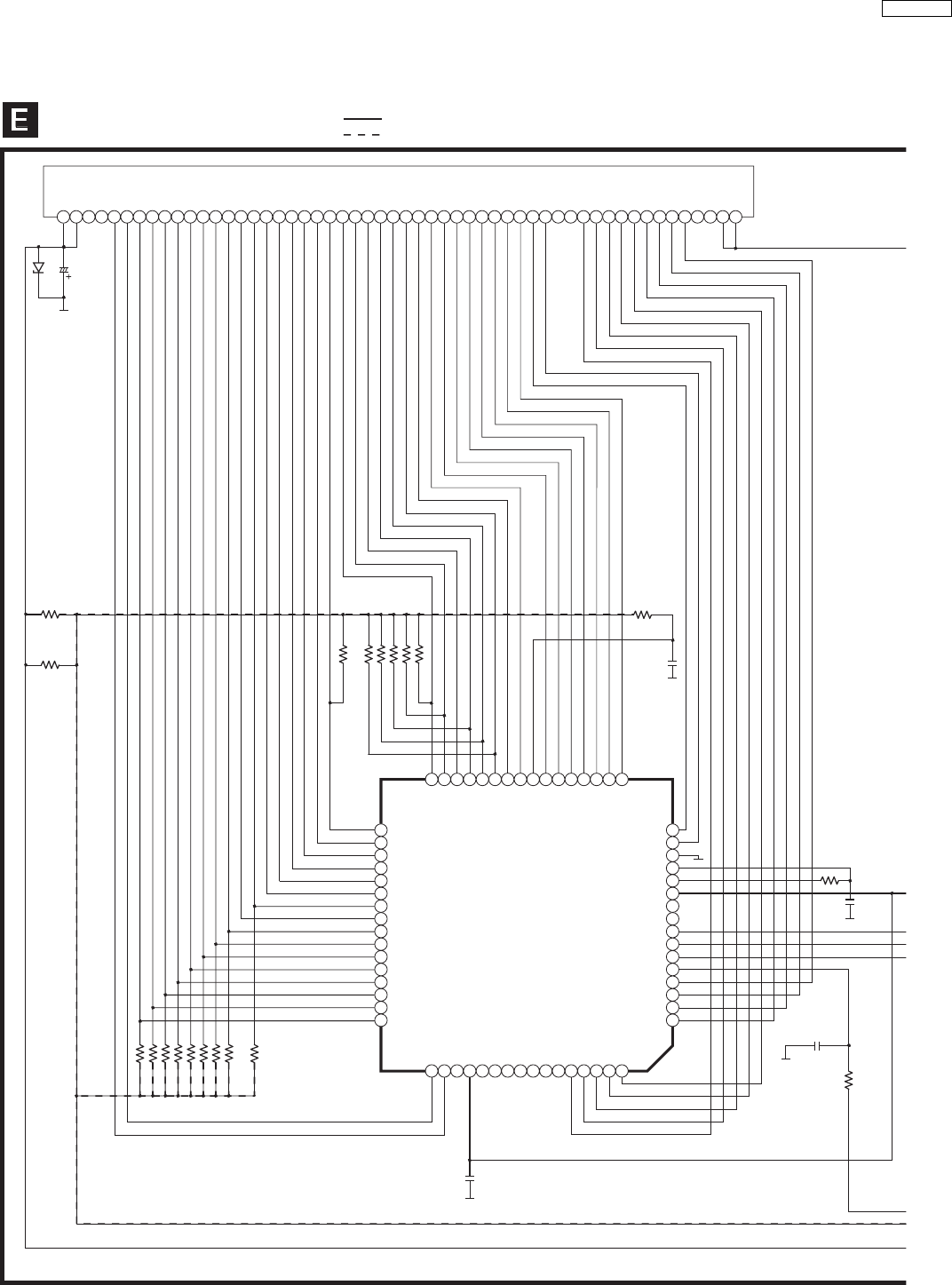

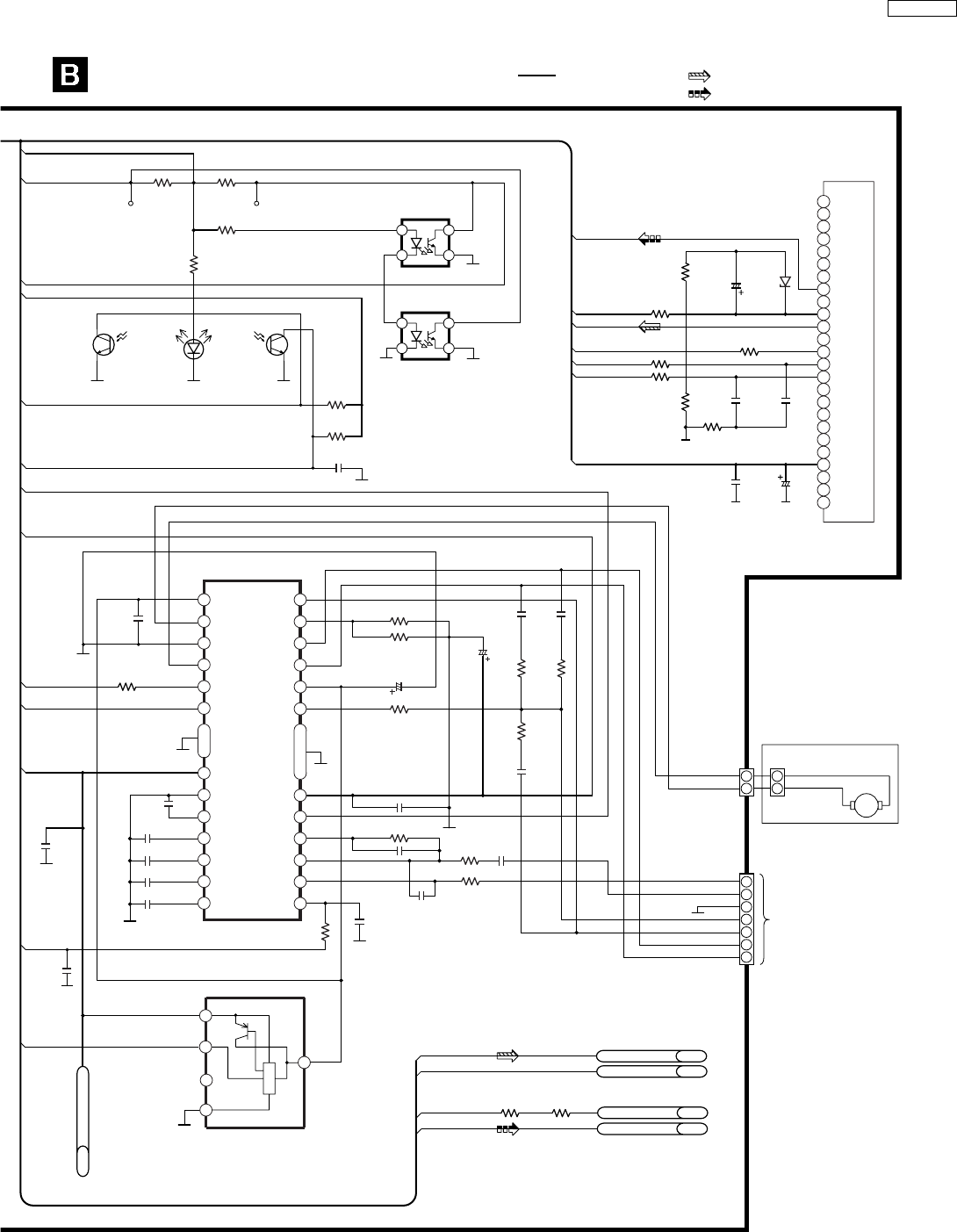

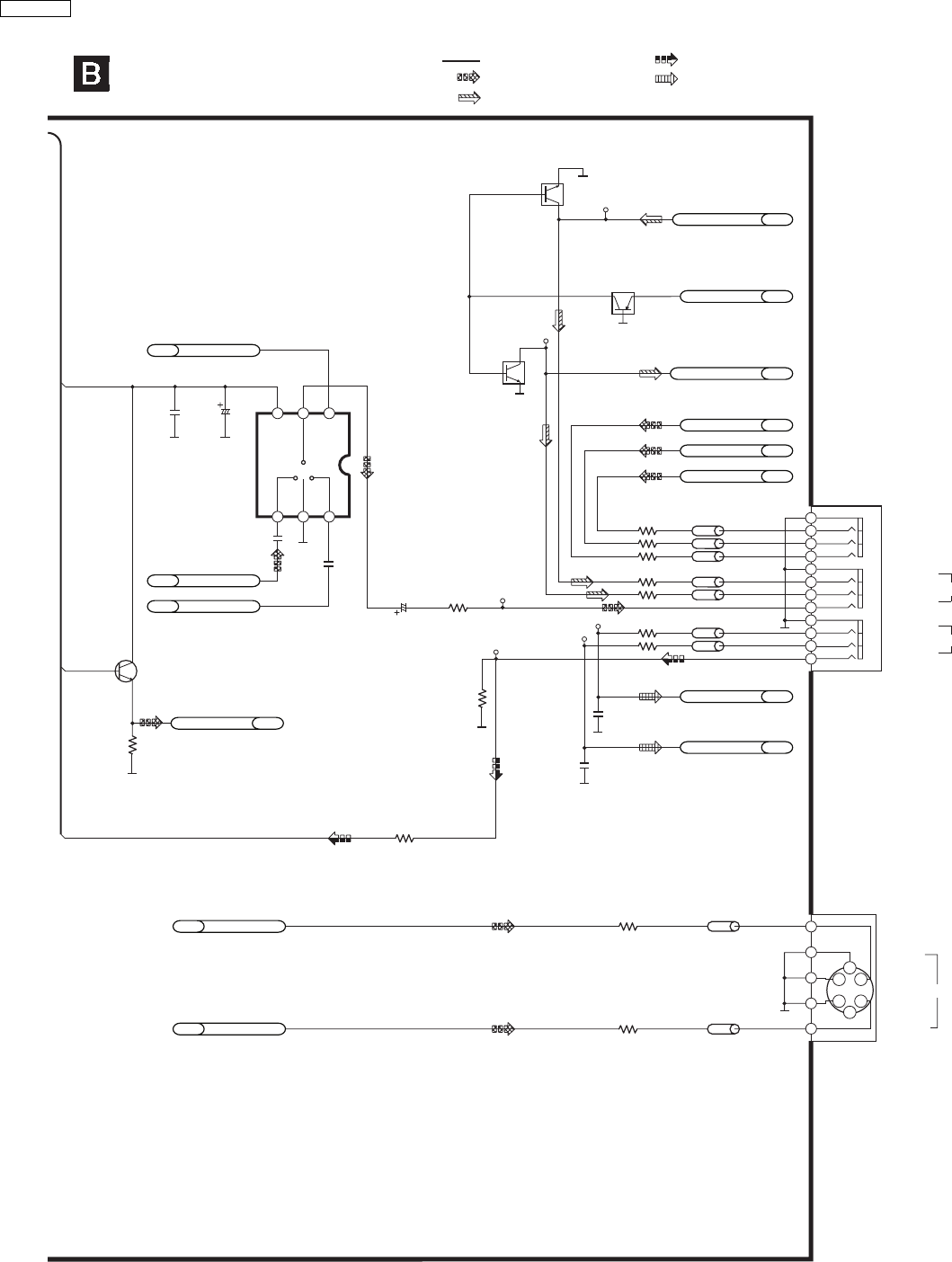

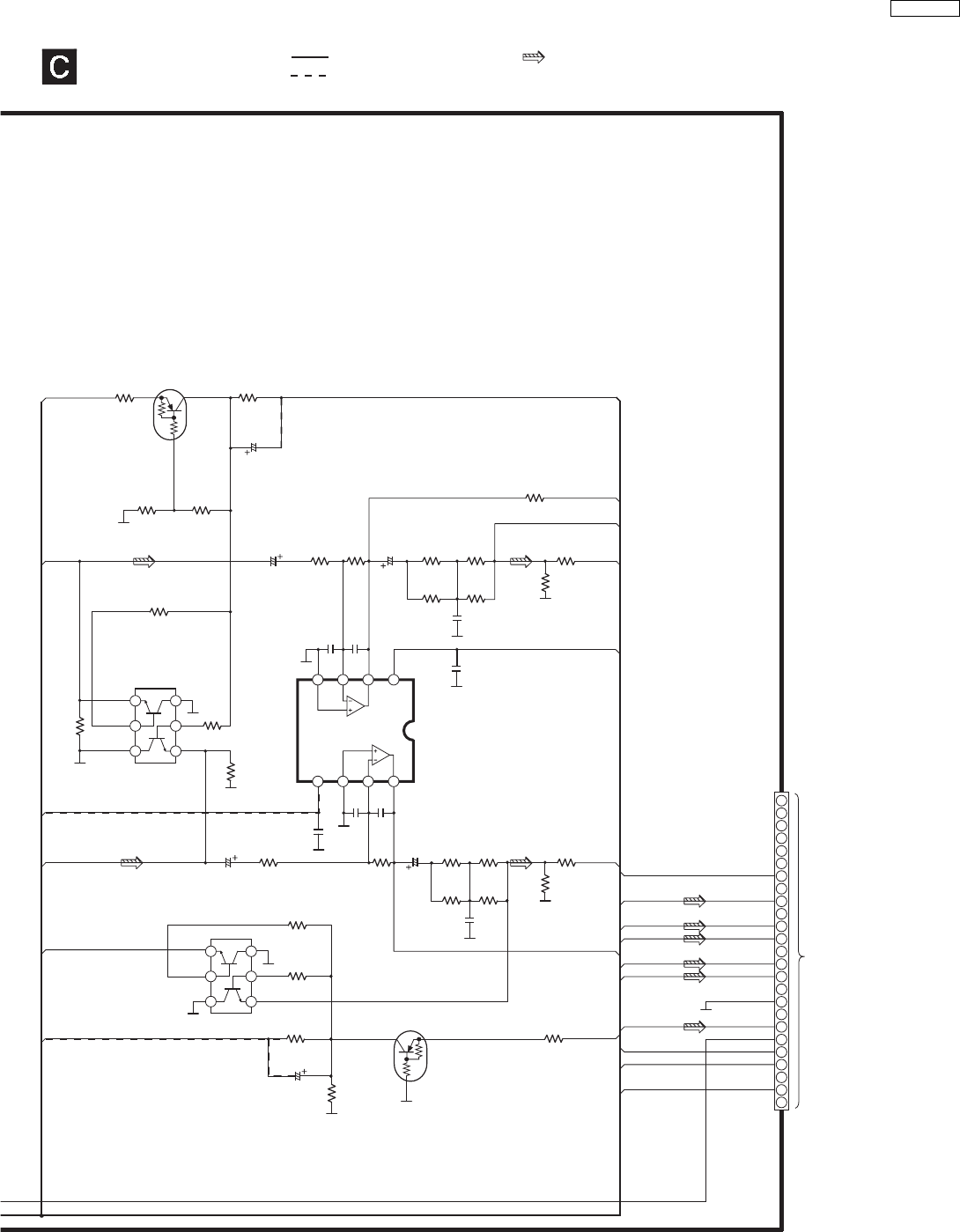

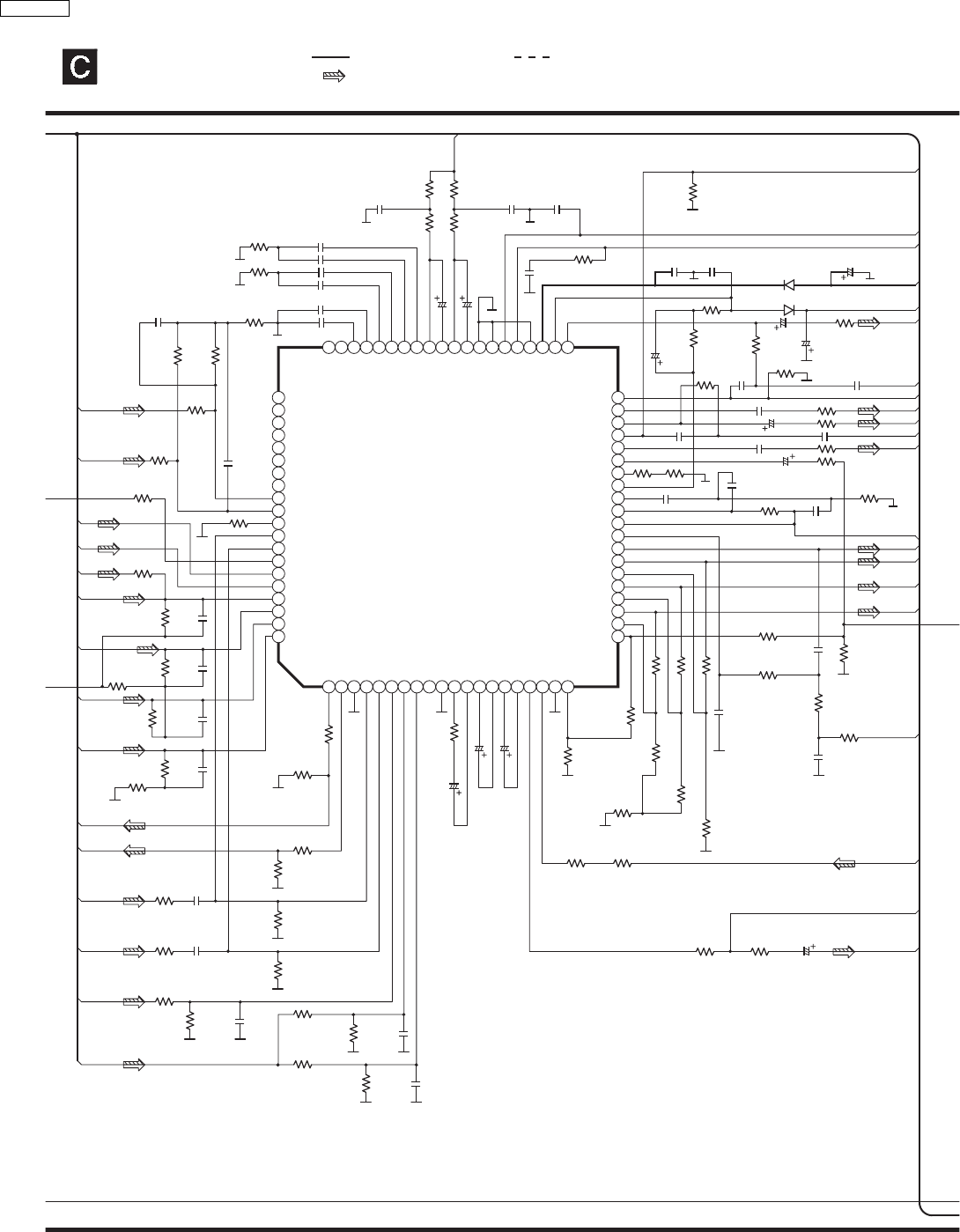

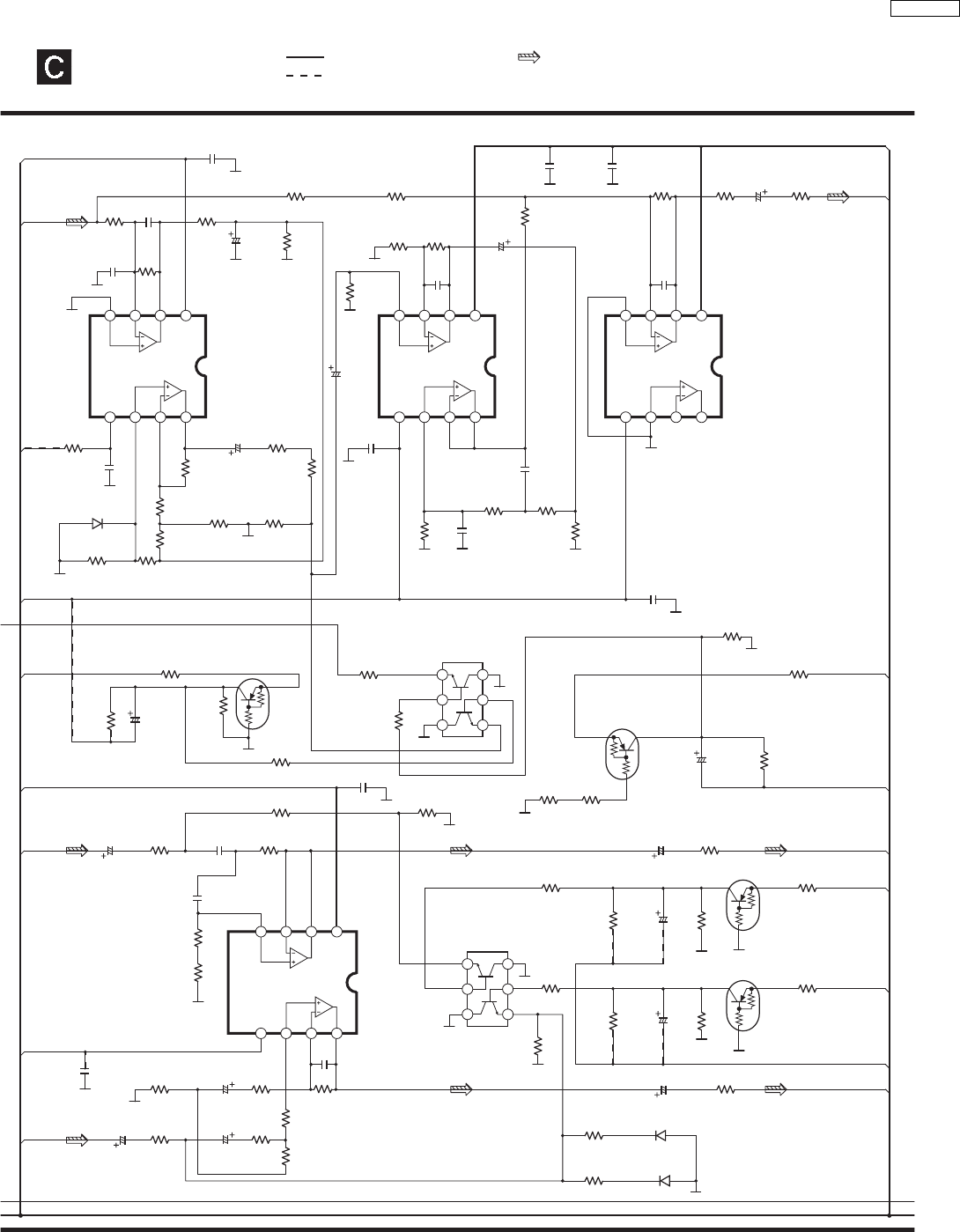

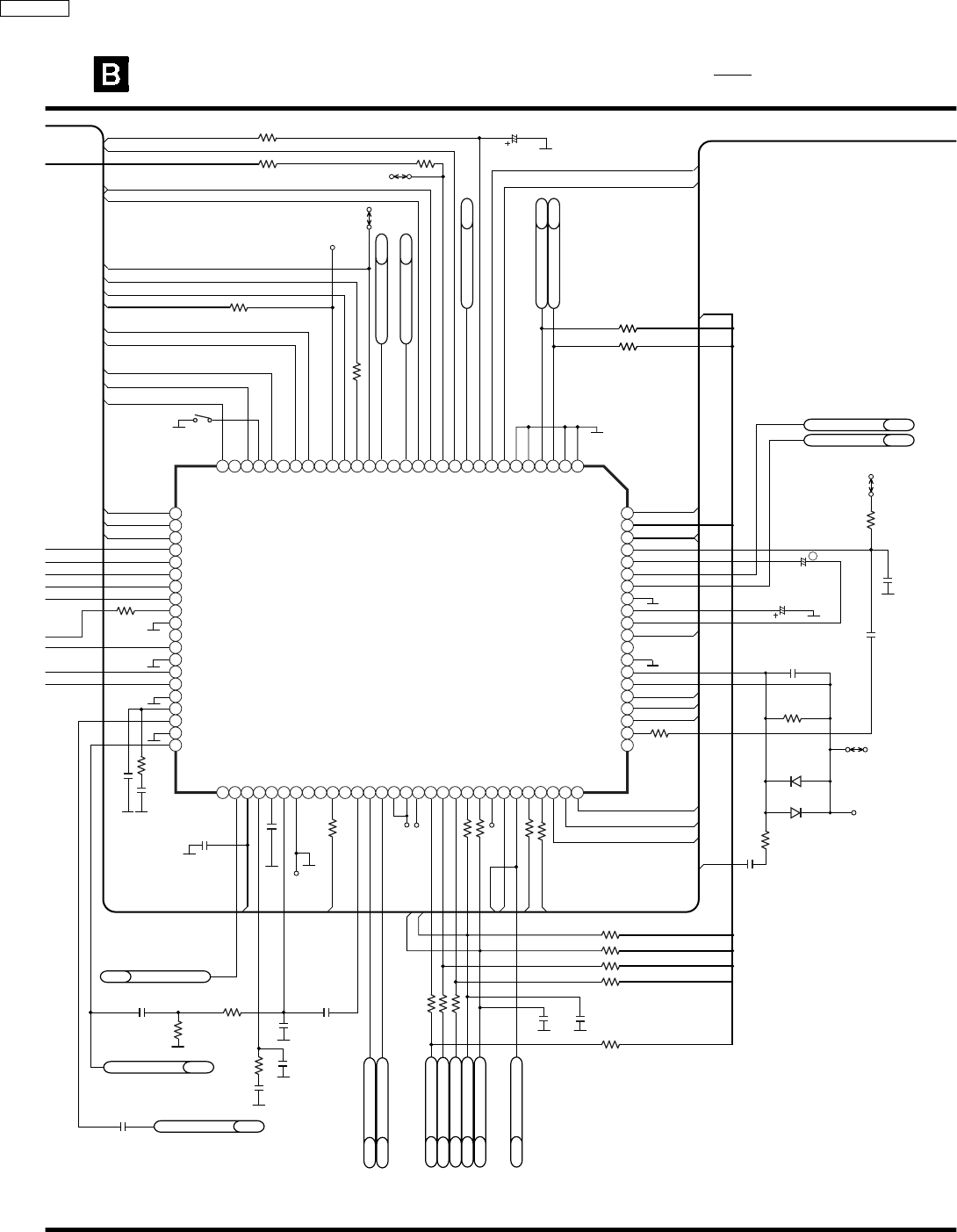

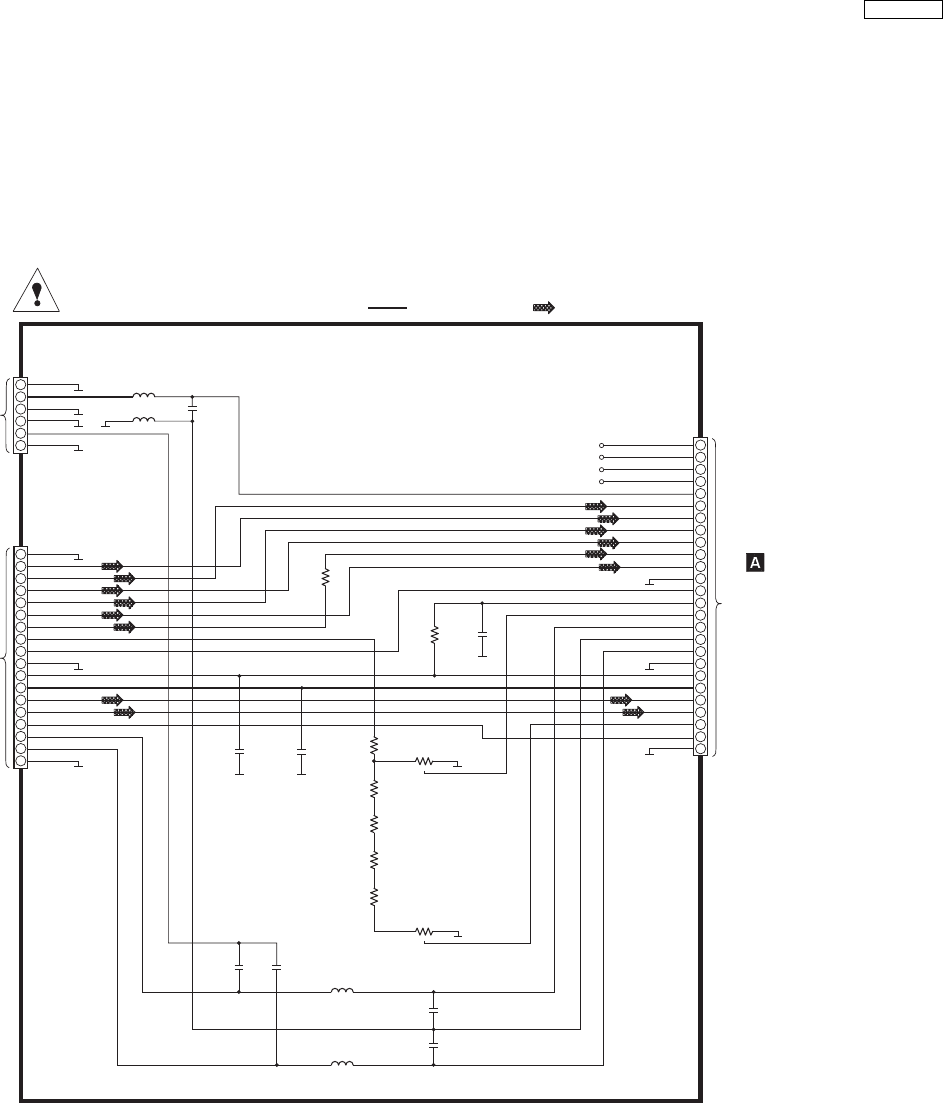

23 Schematic Diagram 91
23.1. Optical Pickup Unit Circuit 91

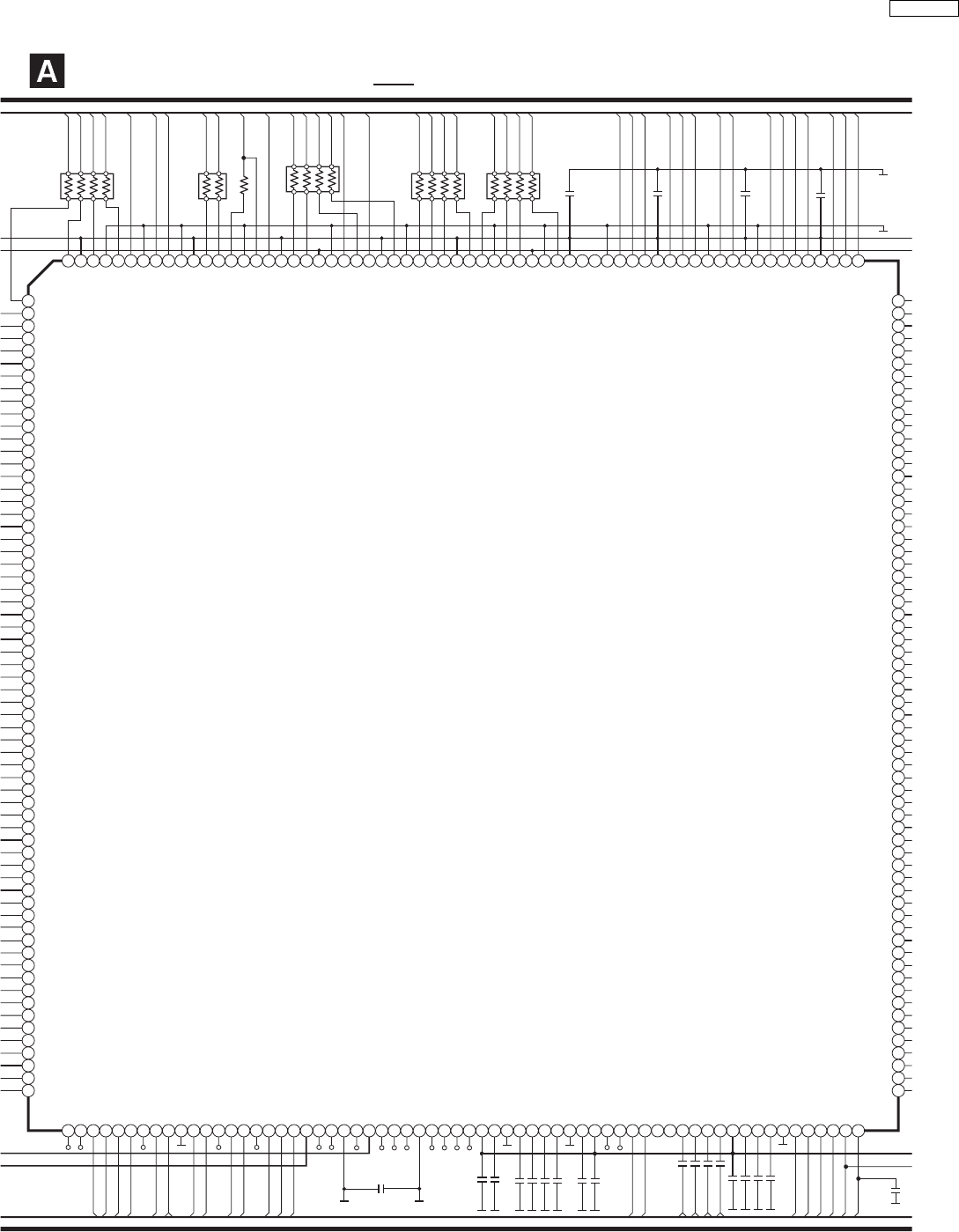

23.2. DVD Module Circuit 92

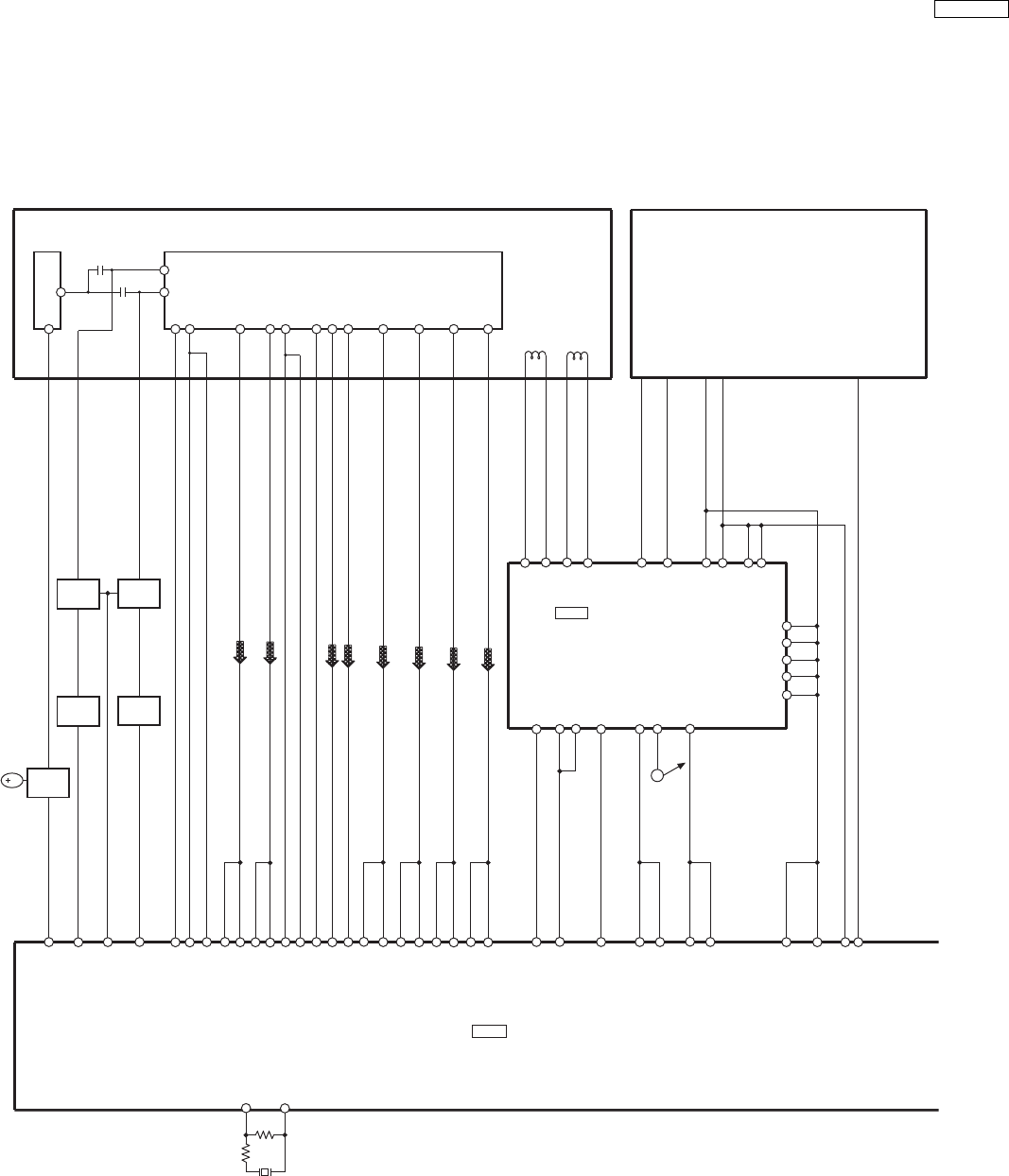

23.3. Main Circuit 99
23.4. ASP Circuit 111

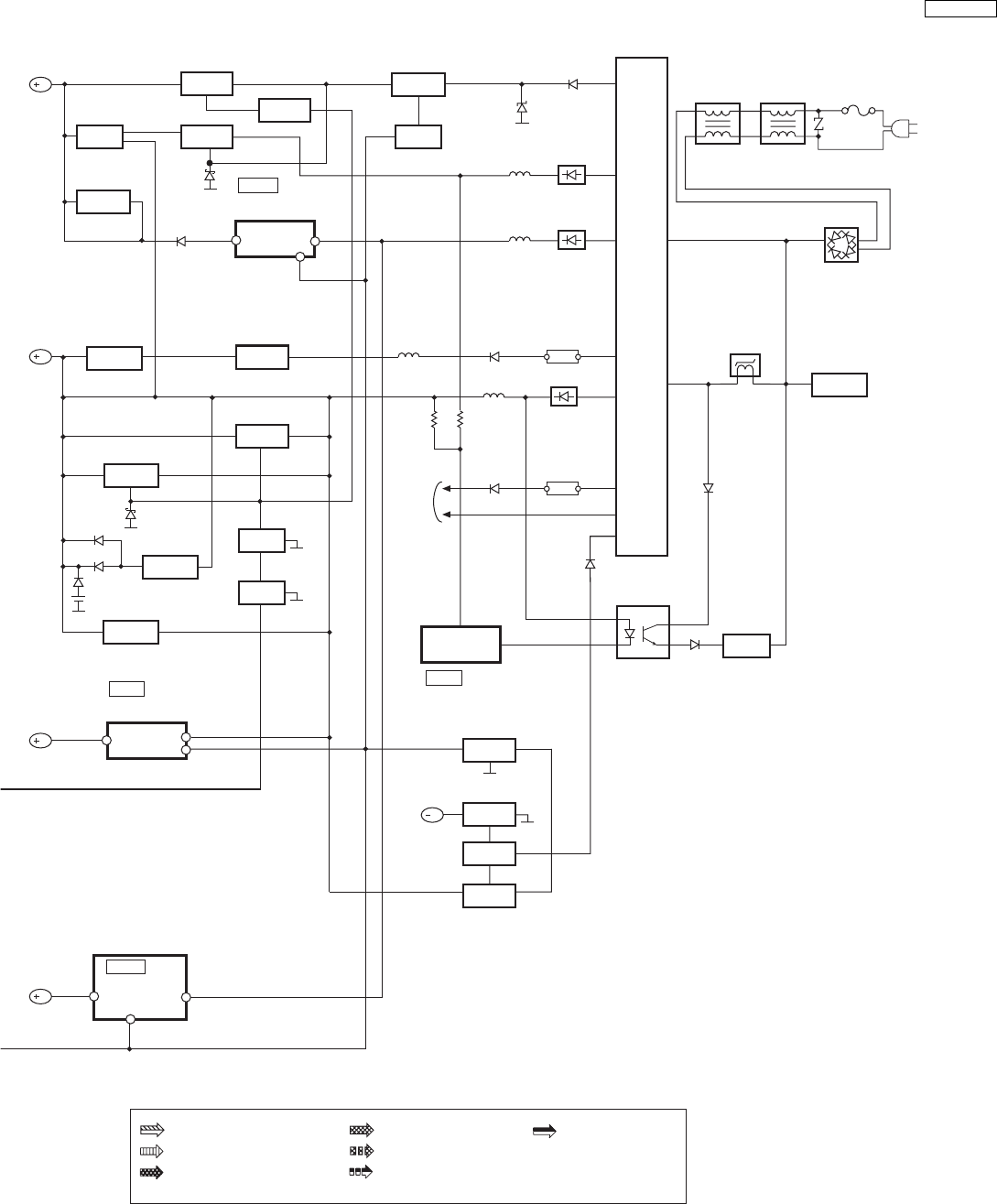

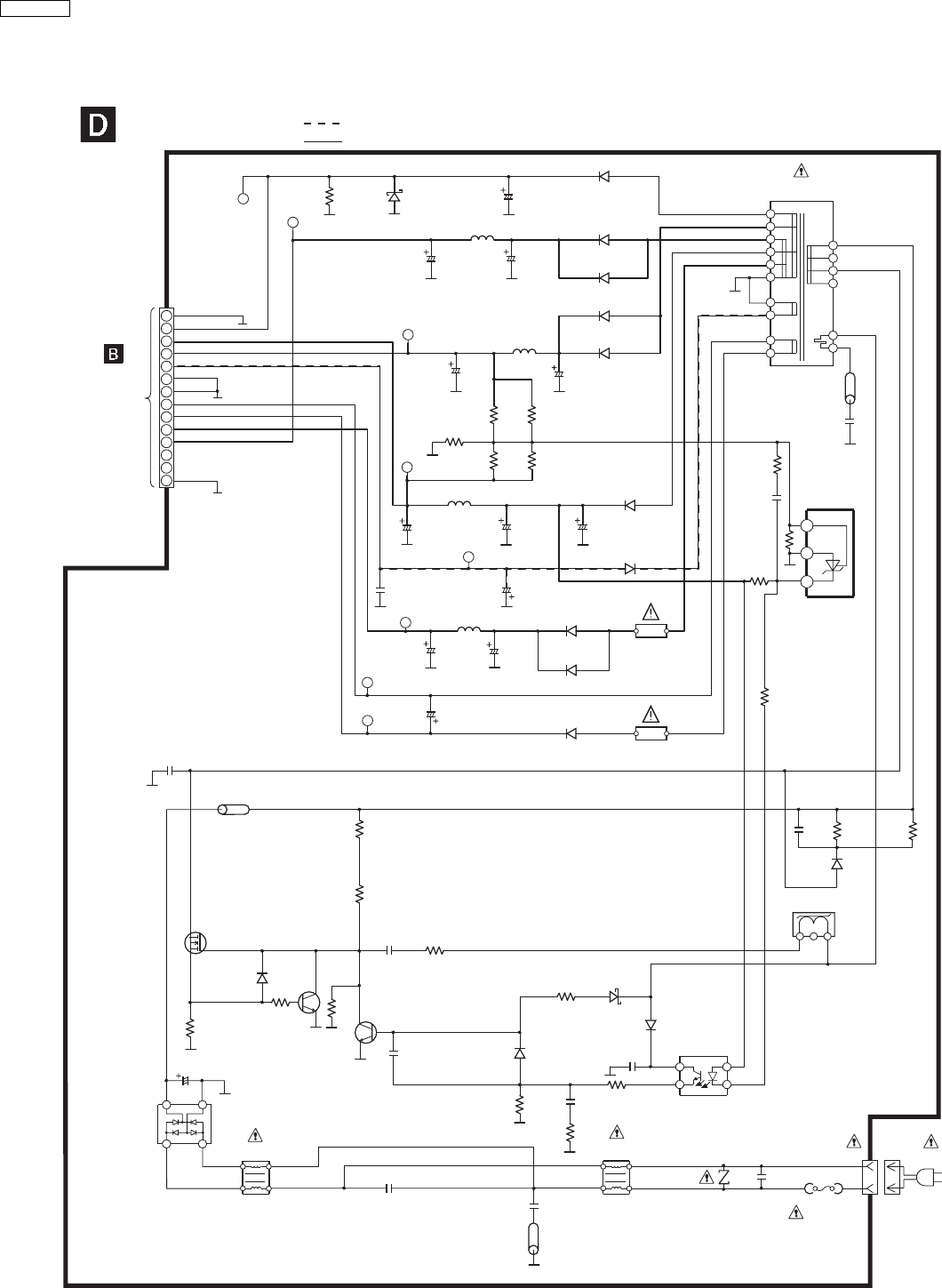

23.5. Power Circuit 116

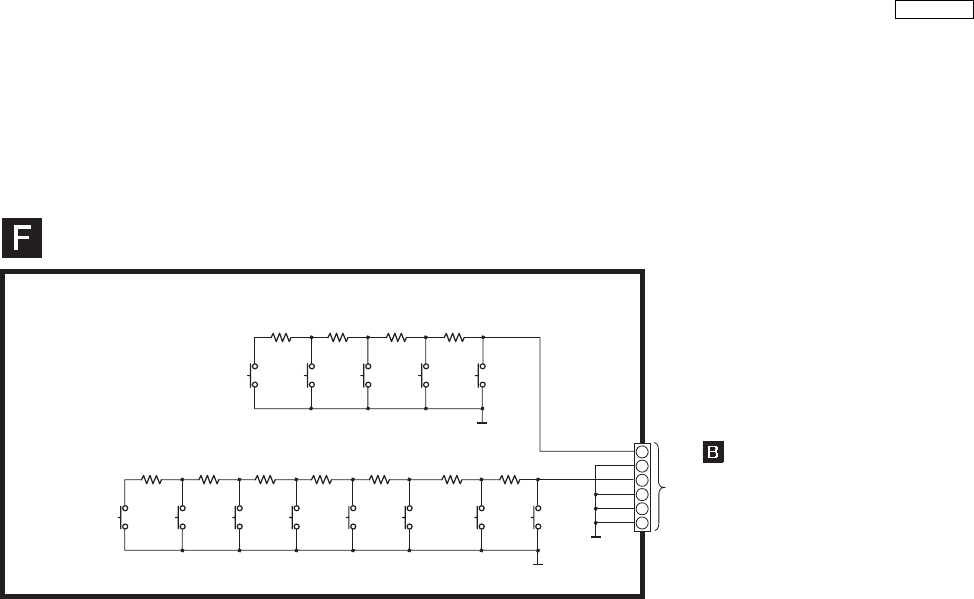

23.6. Front Panel B Circuit 117

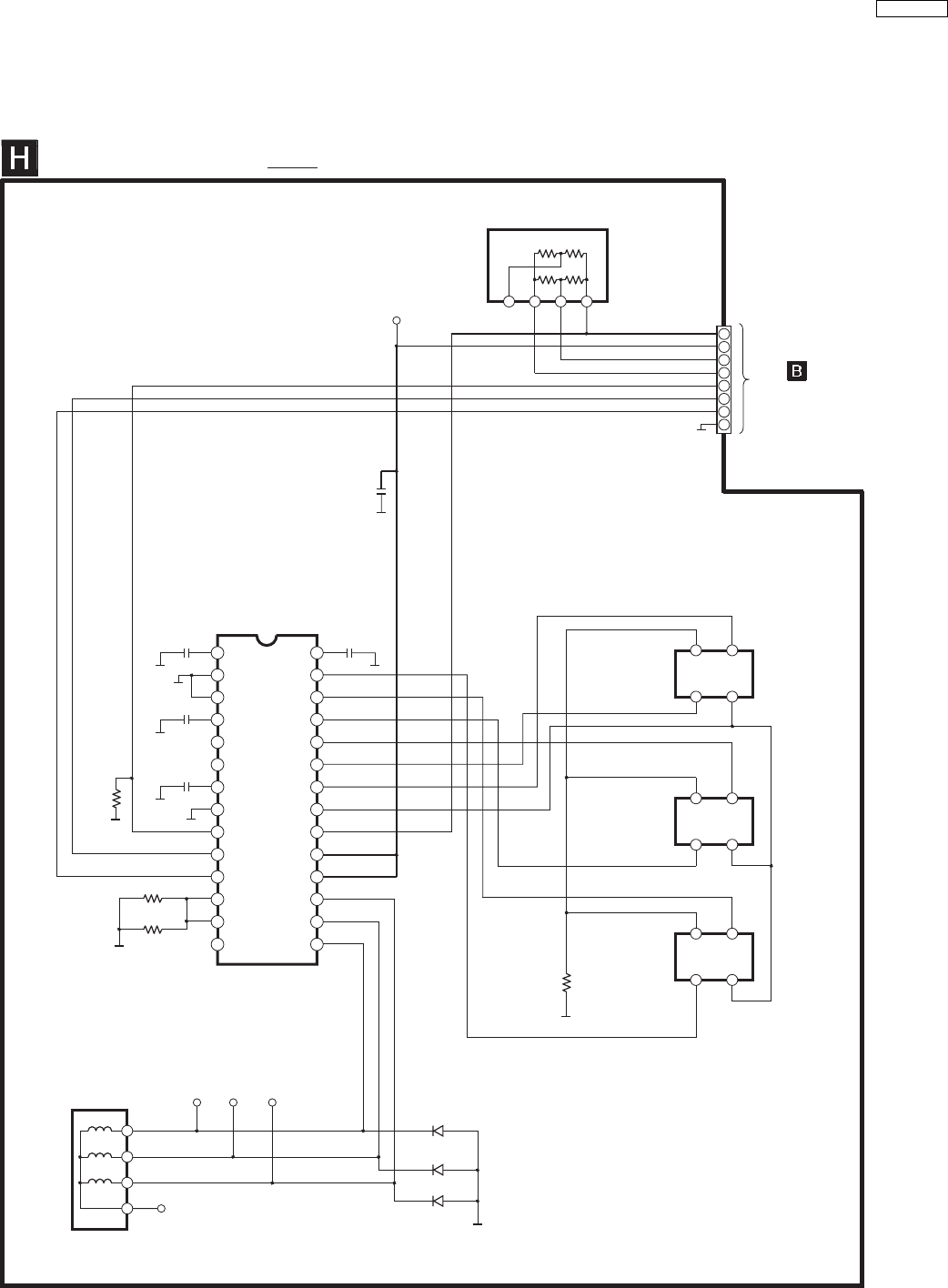

23.7. Front Panel A Circuit 119
23.8. CD Loading Circuit 120
23.9. VCR Deck Circuit 121

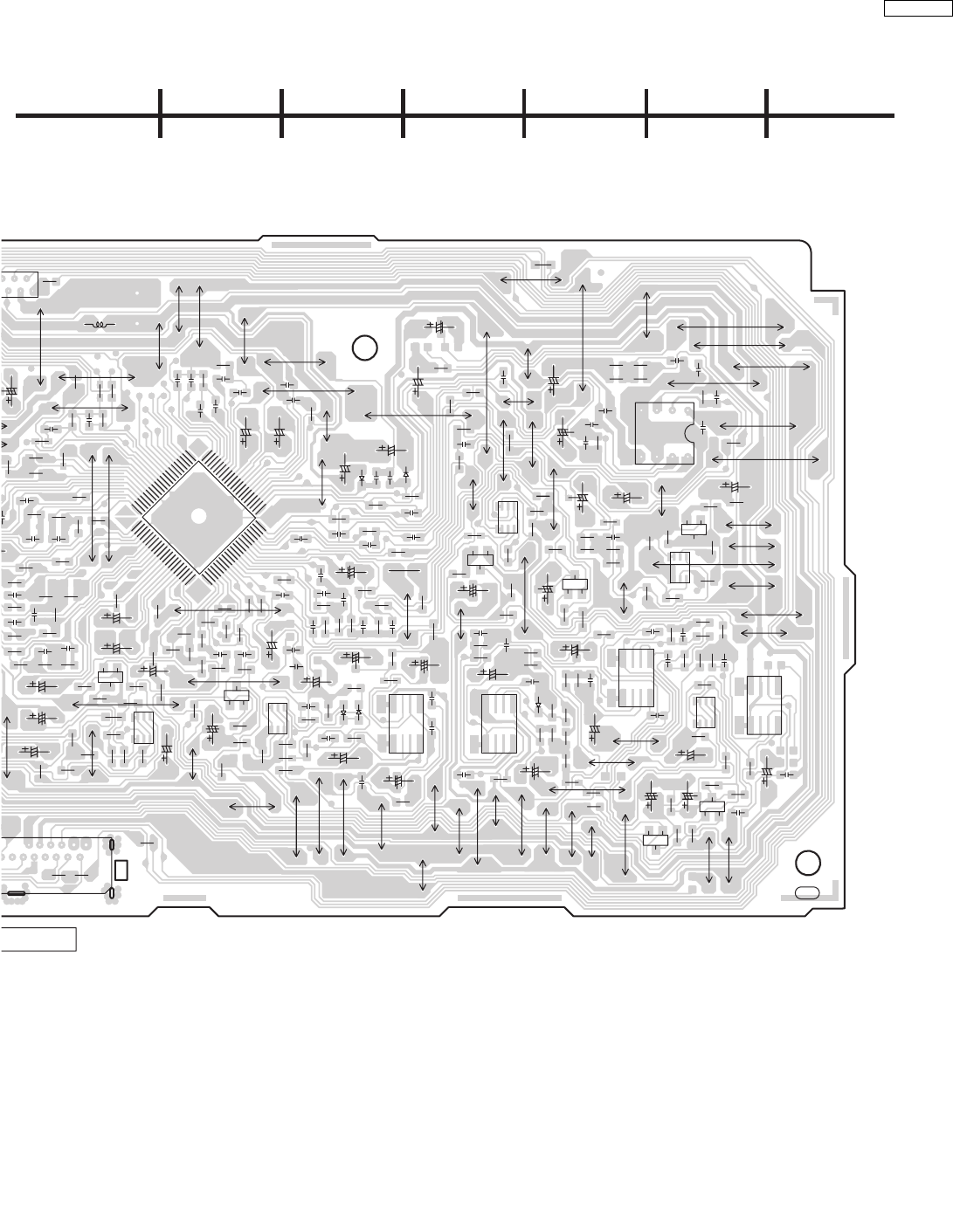

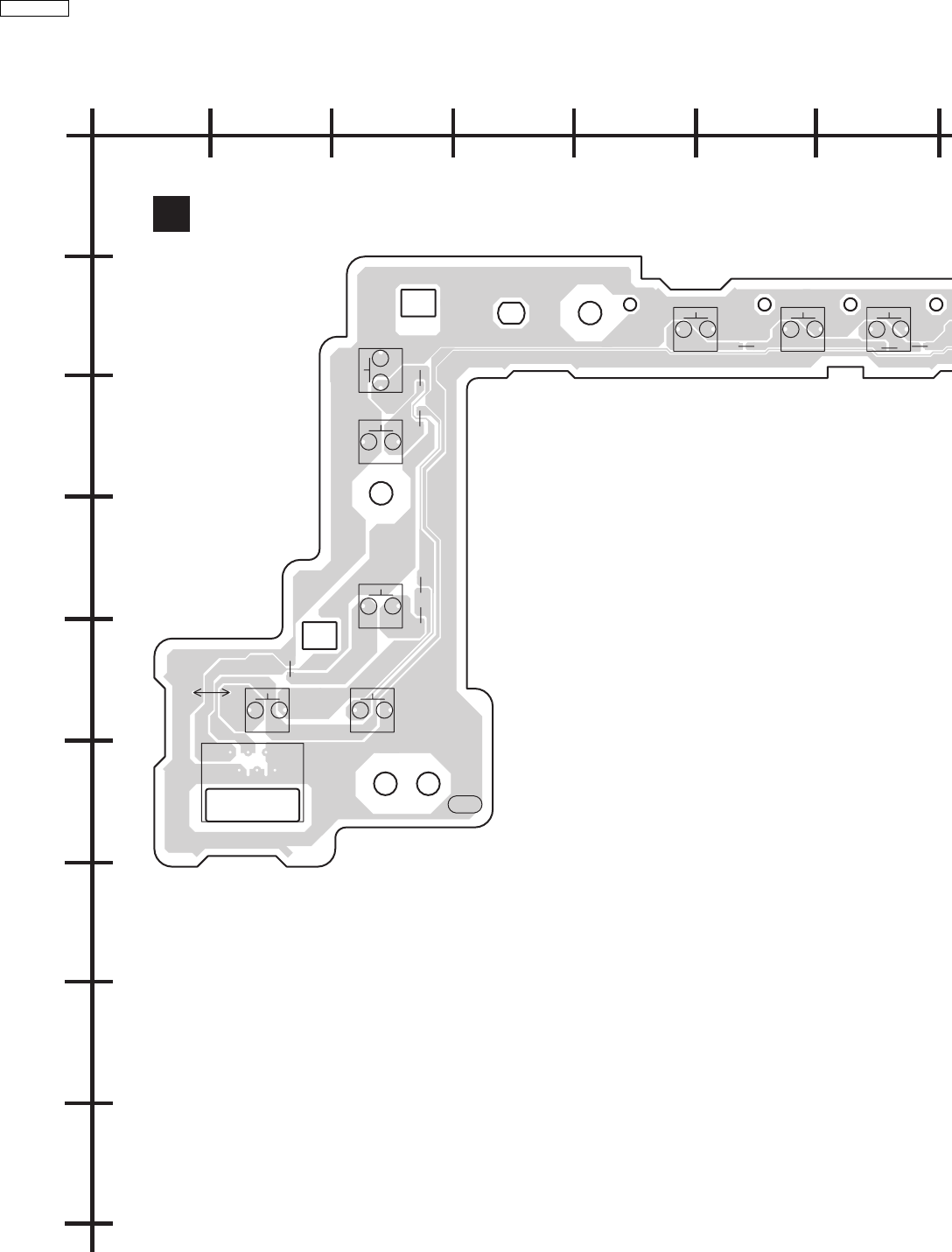

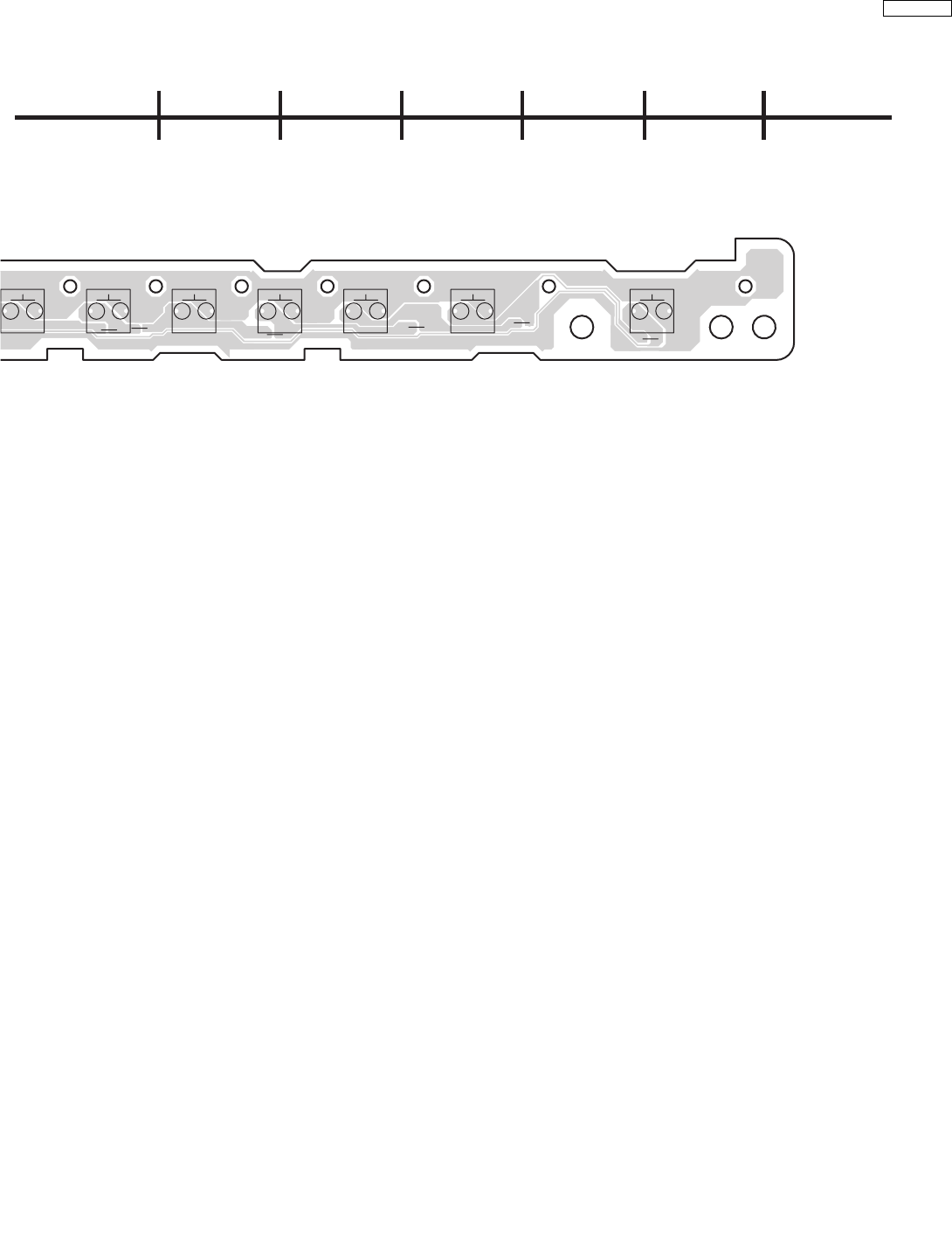

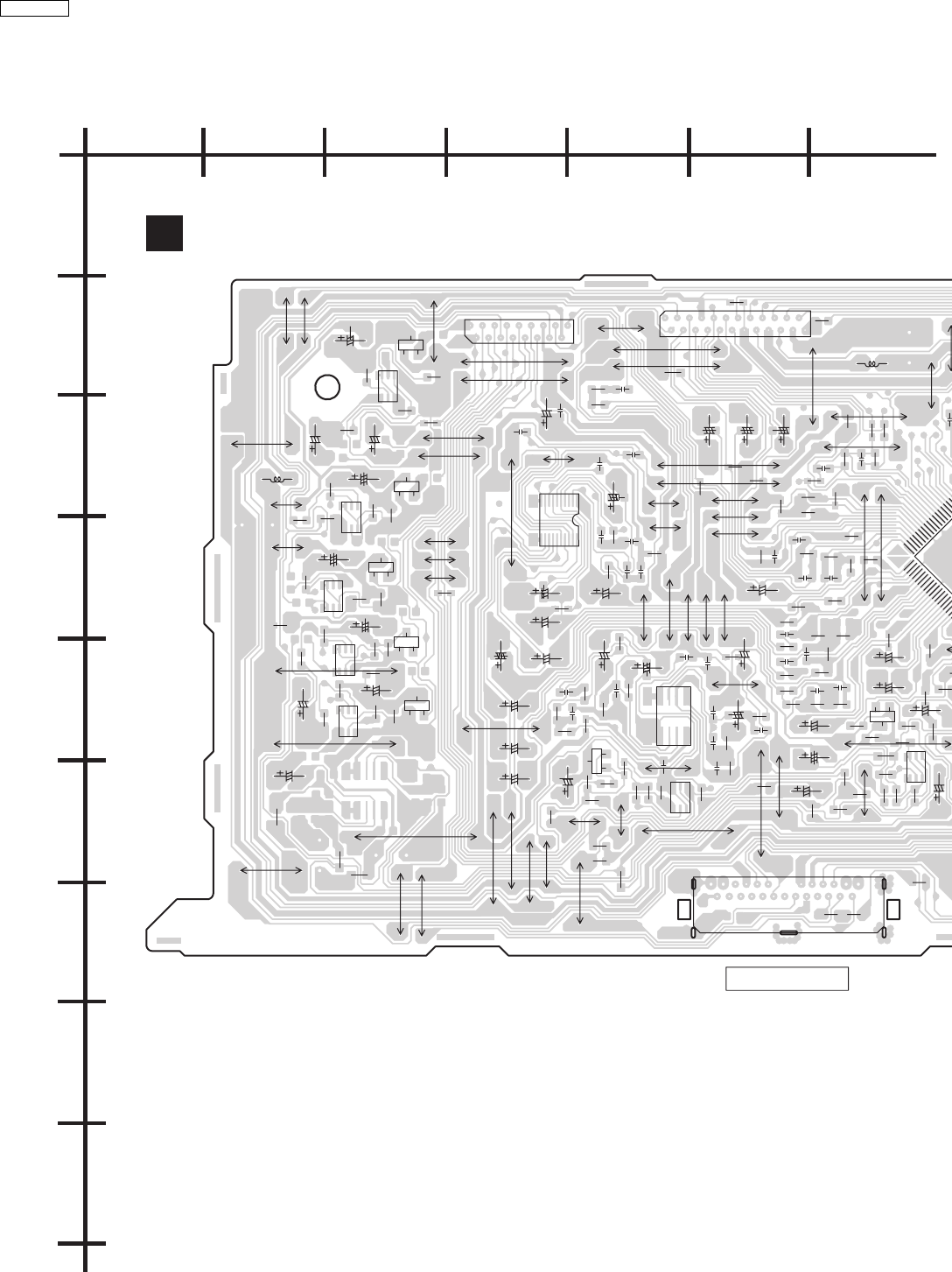

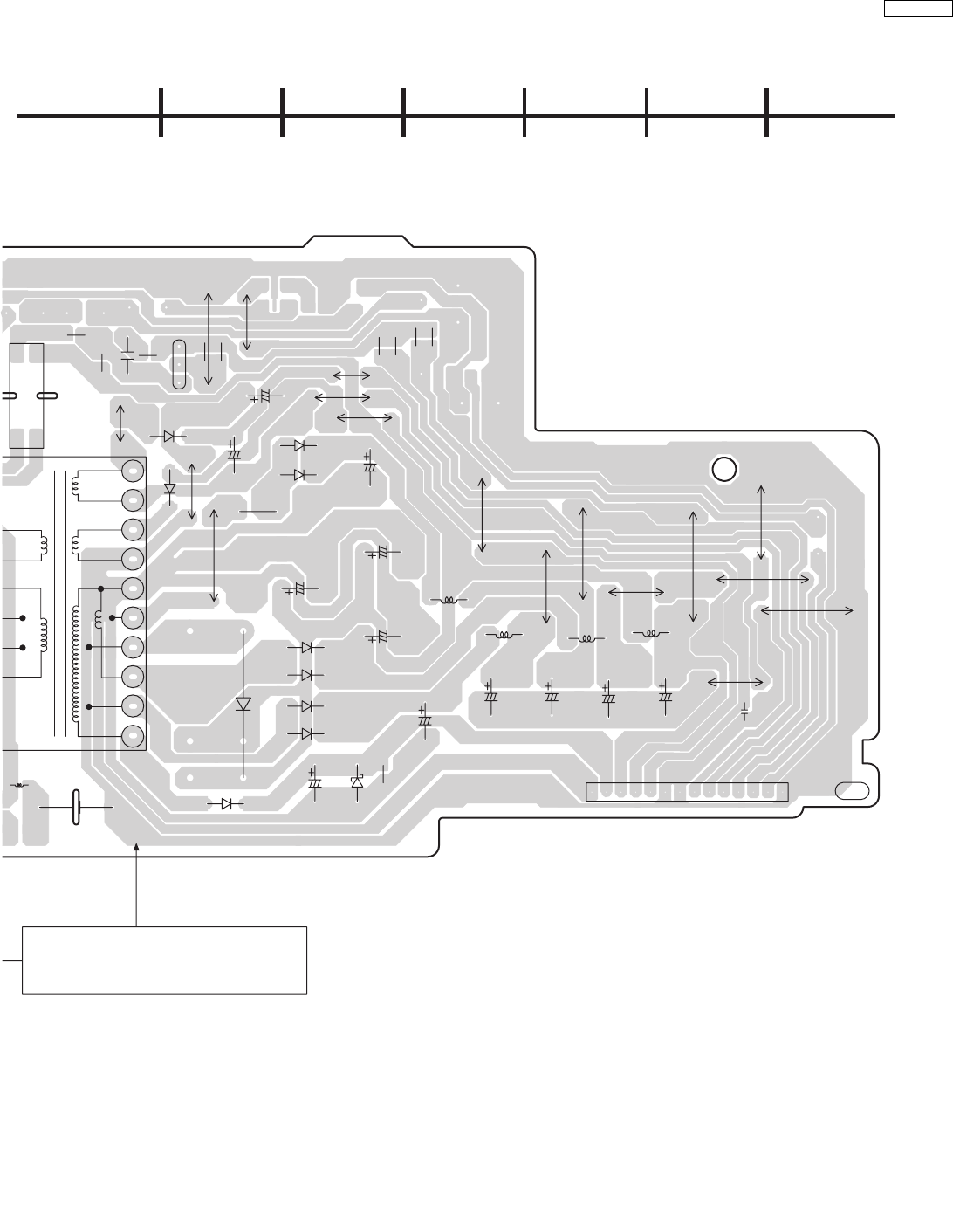

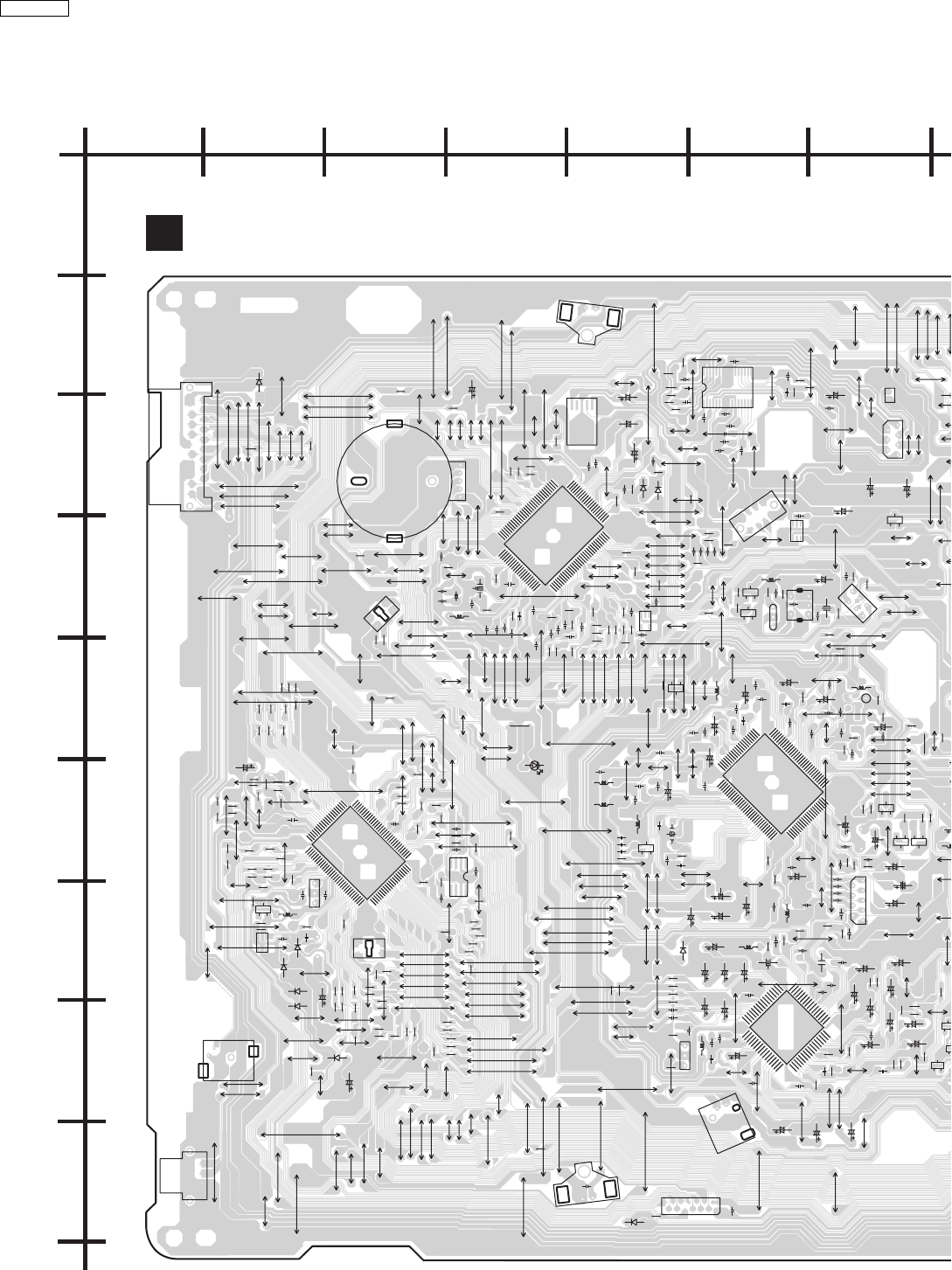

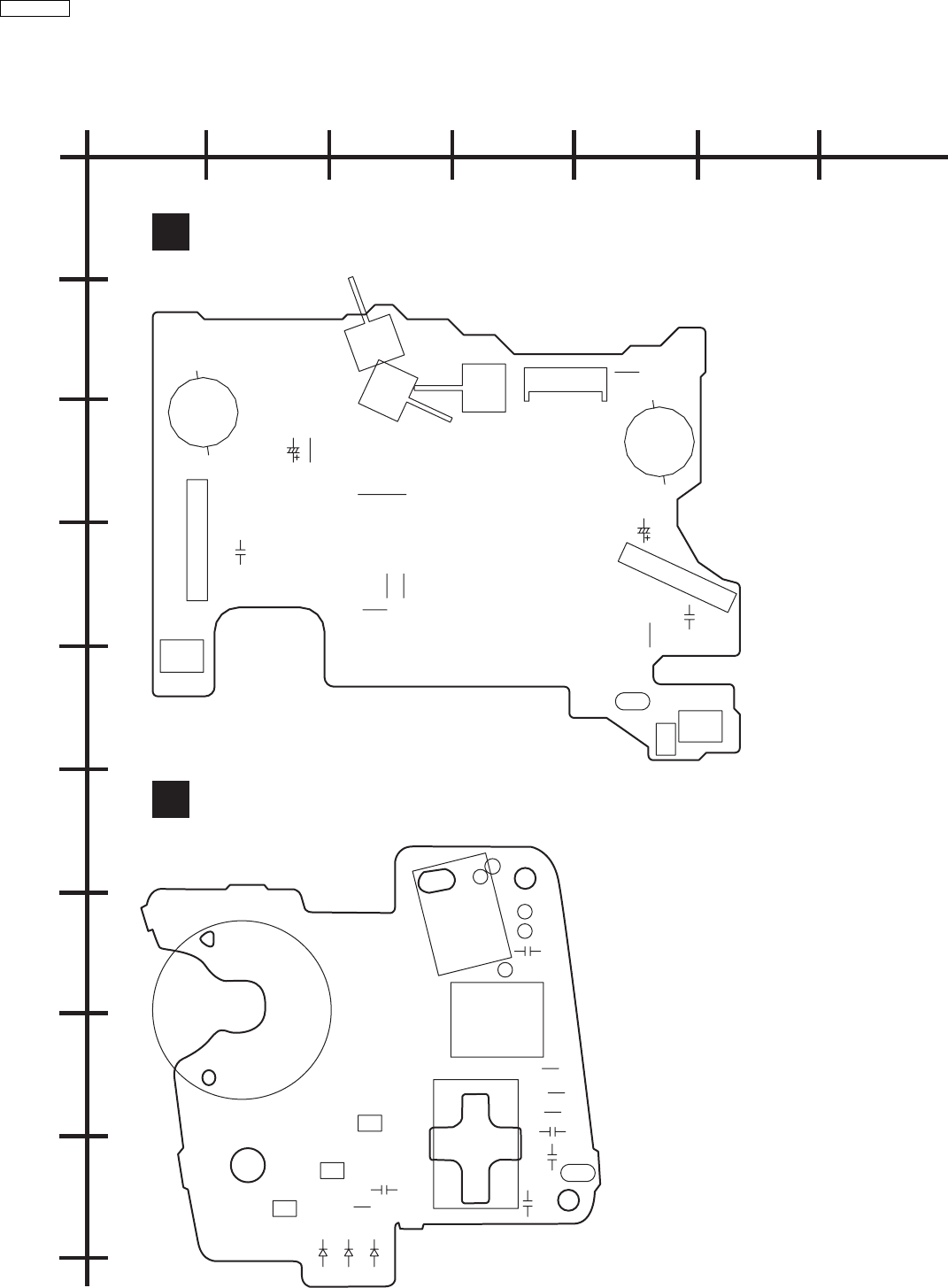

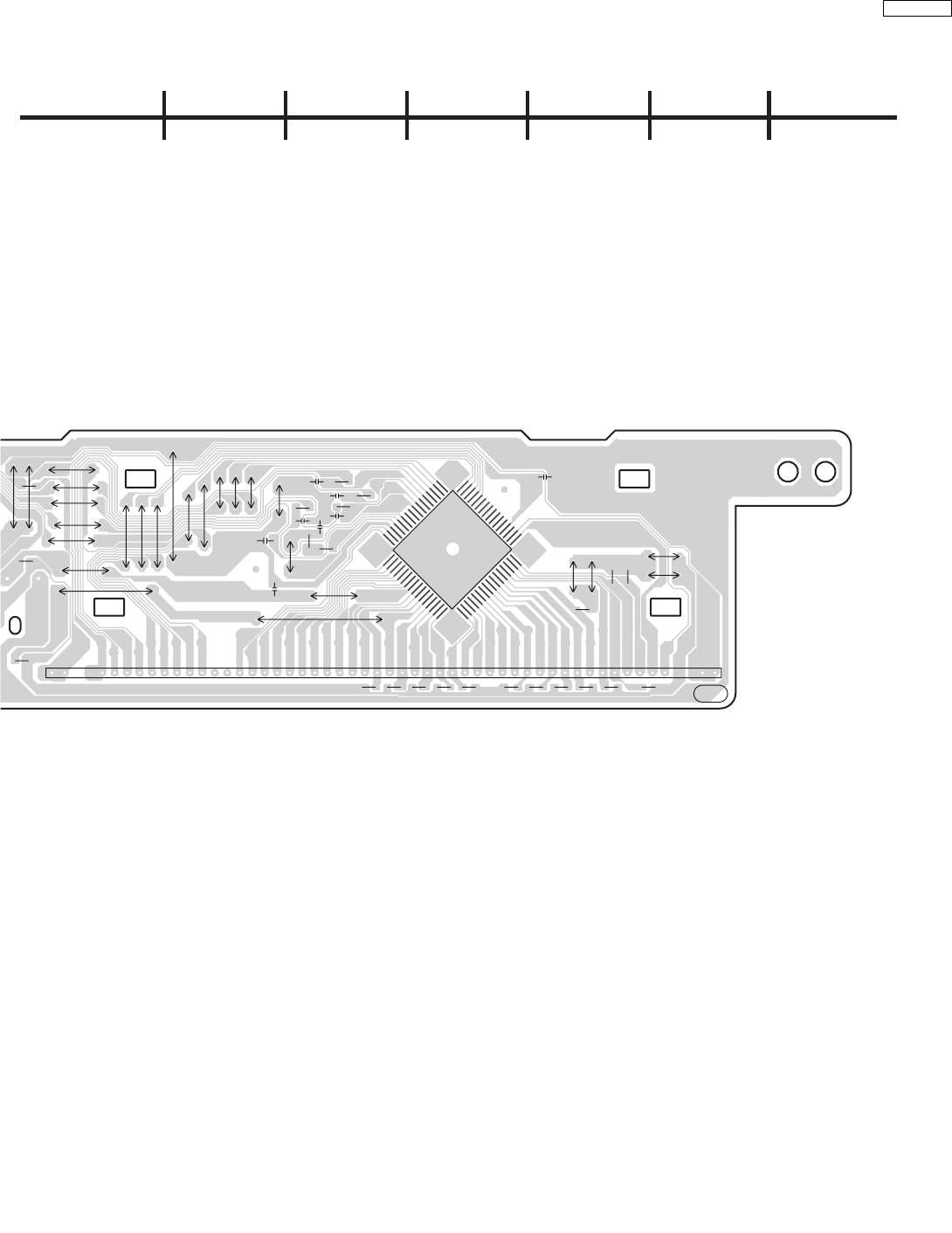

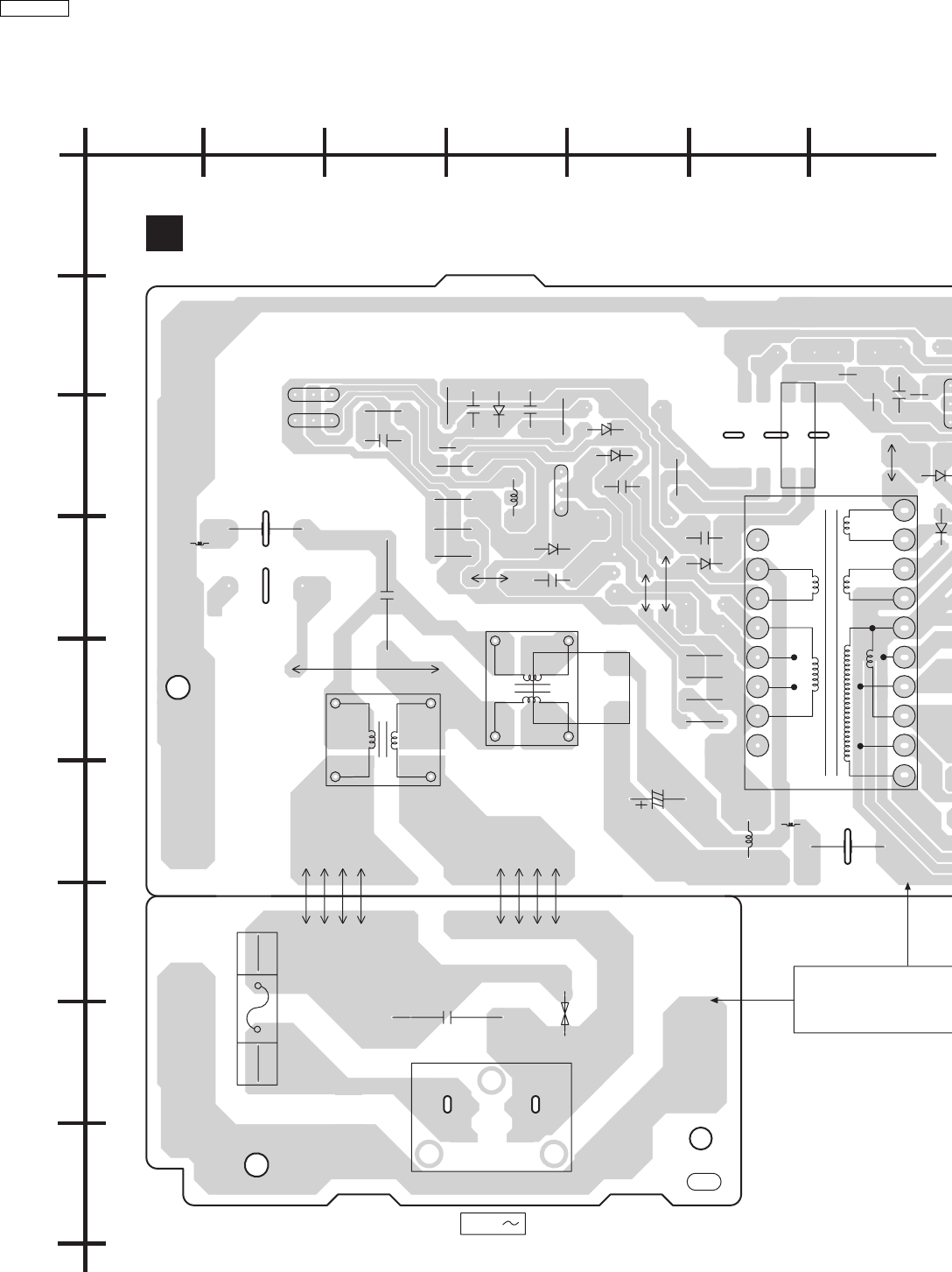

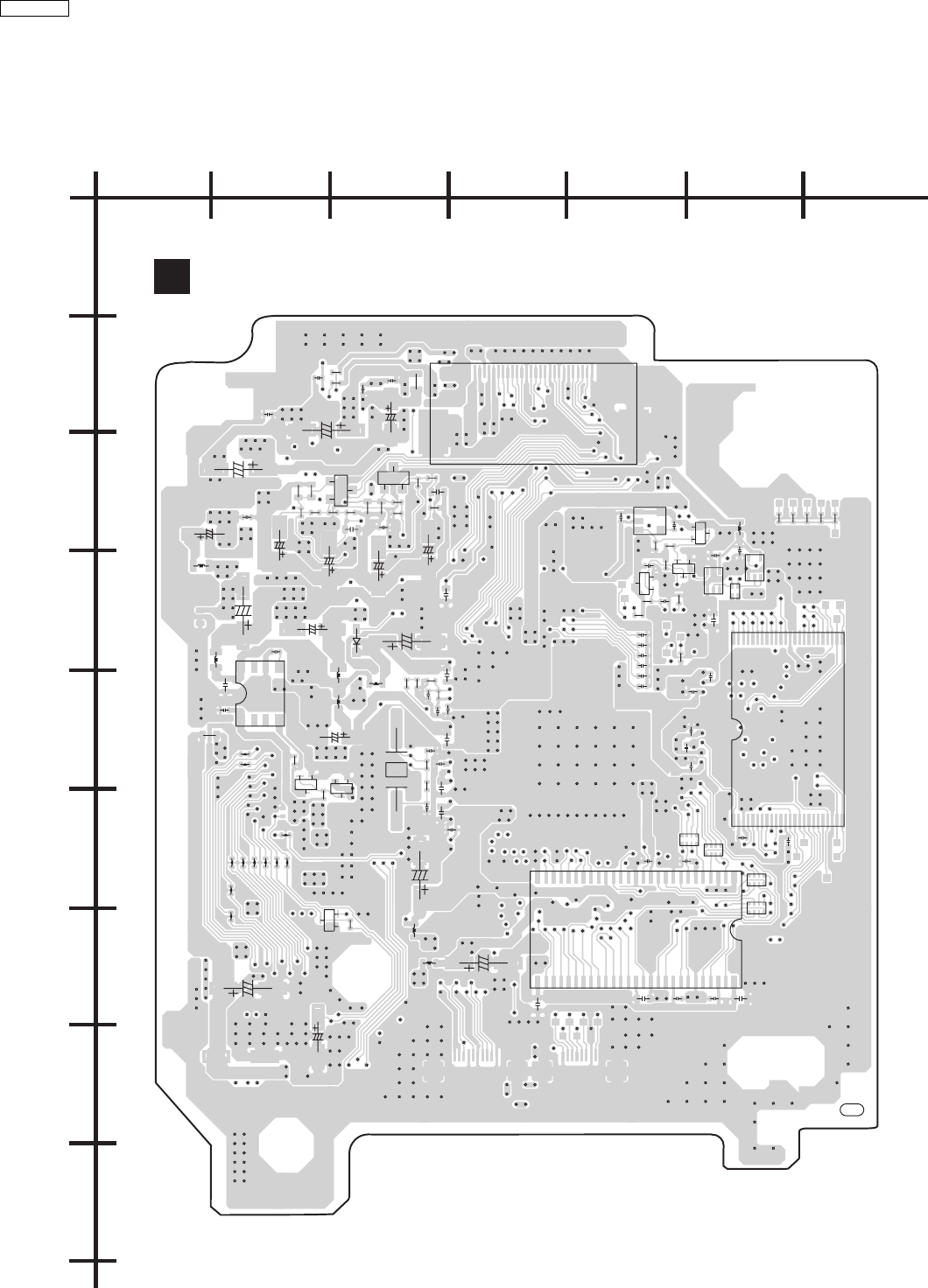

24 Printed Circuit Board 122

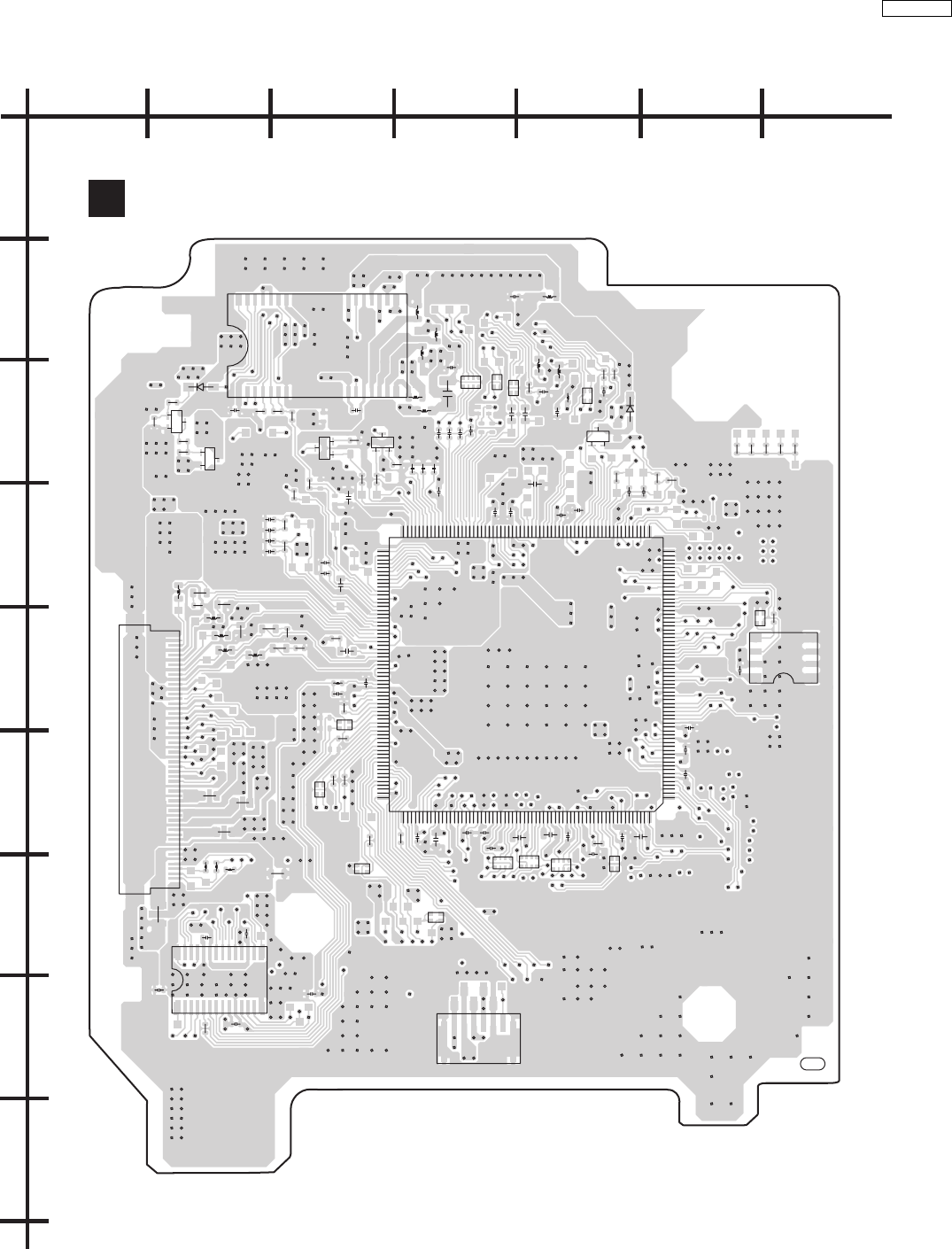

24.1. DVD Module P.C.B. (Side A and Side B) 122

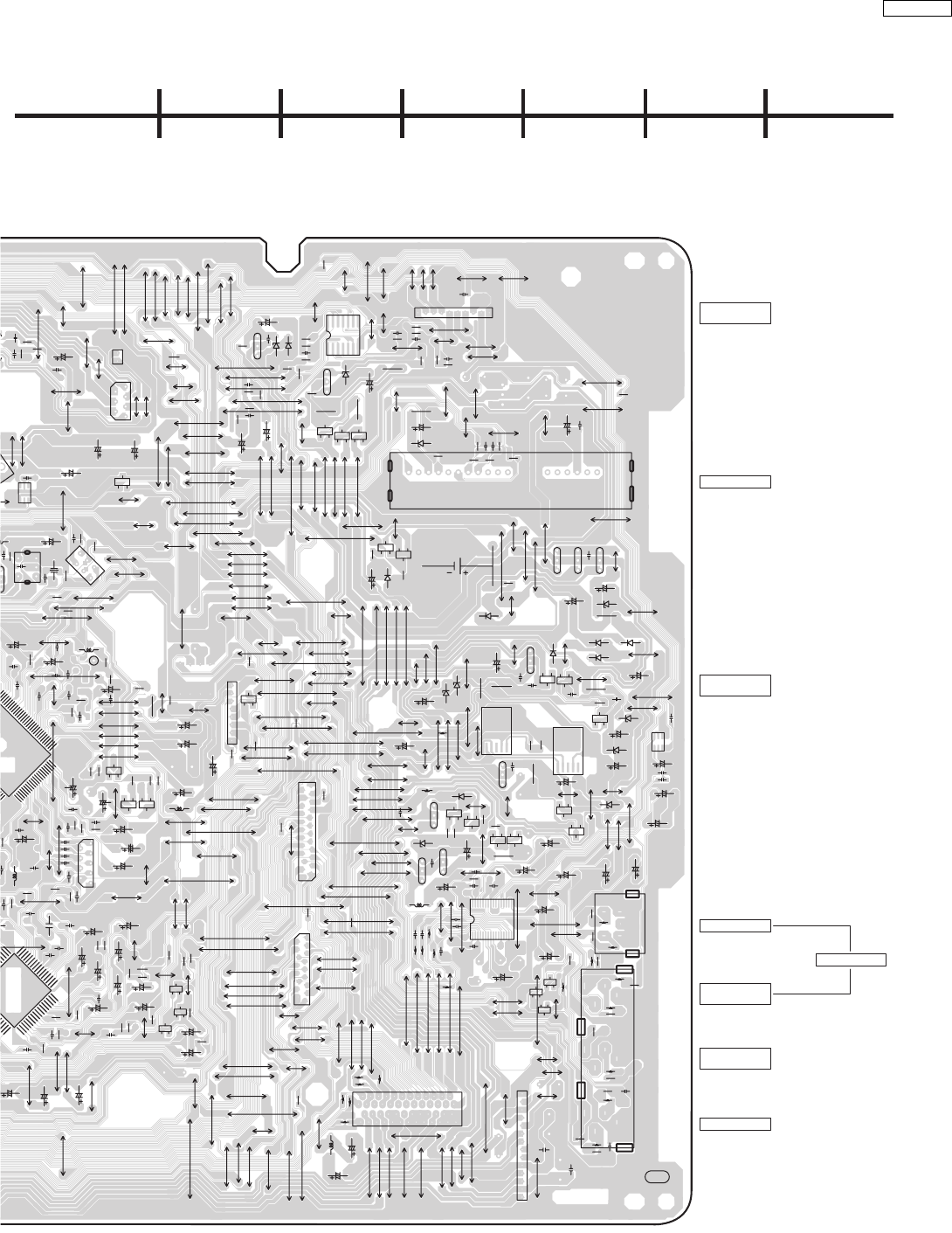

24.2. Main P.C.B. 124
24.3. ASP P.C.B. 126
24.4. Power P.C.B. 128
24.5. Front Panel B P.C.B. 130
24.6. Front Panel A P.C.B. 132
24.7. CD Loading P.C.B. and VCR Deck P.C.B. 134

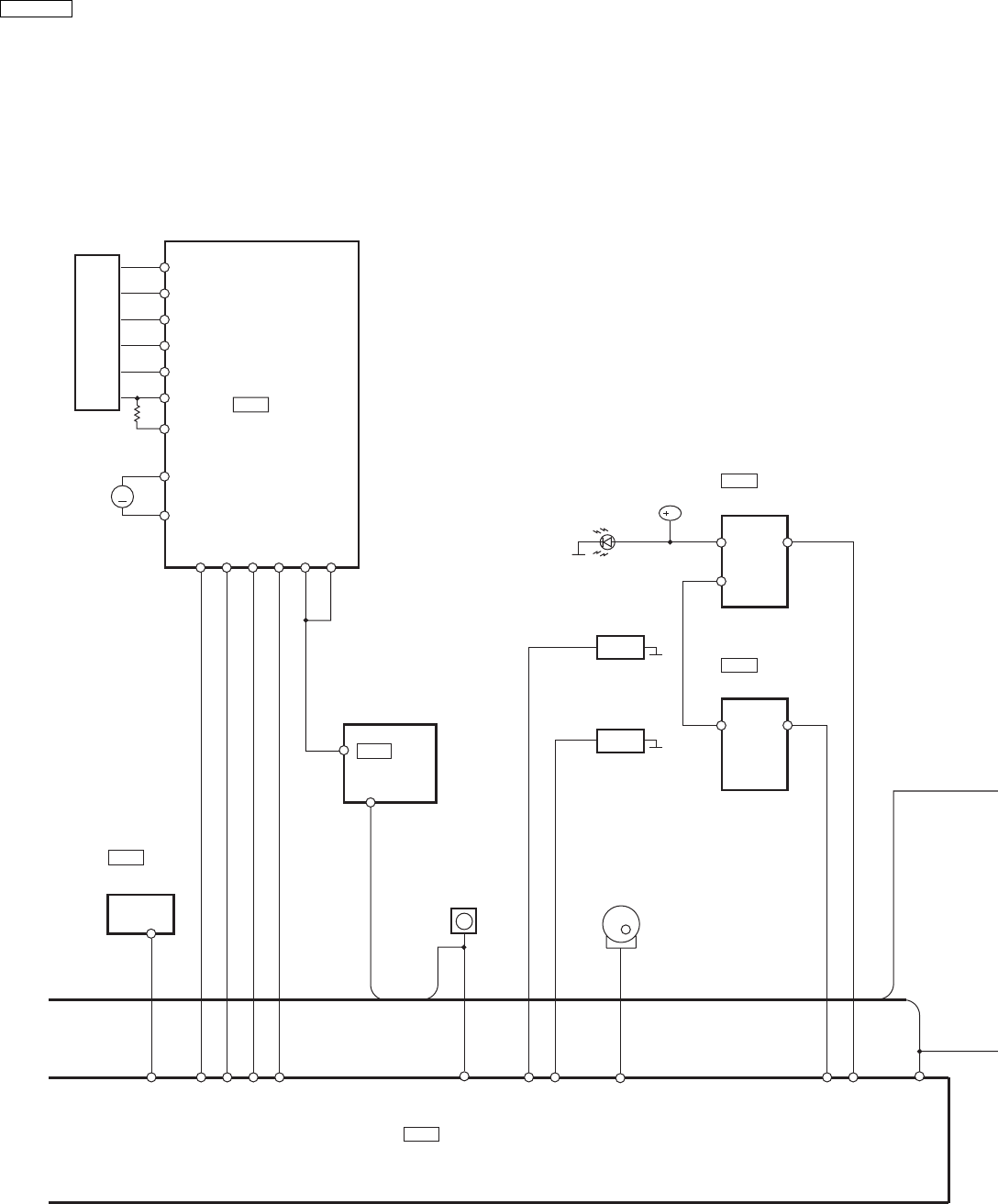

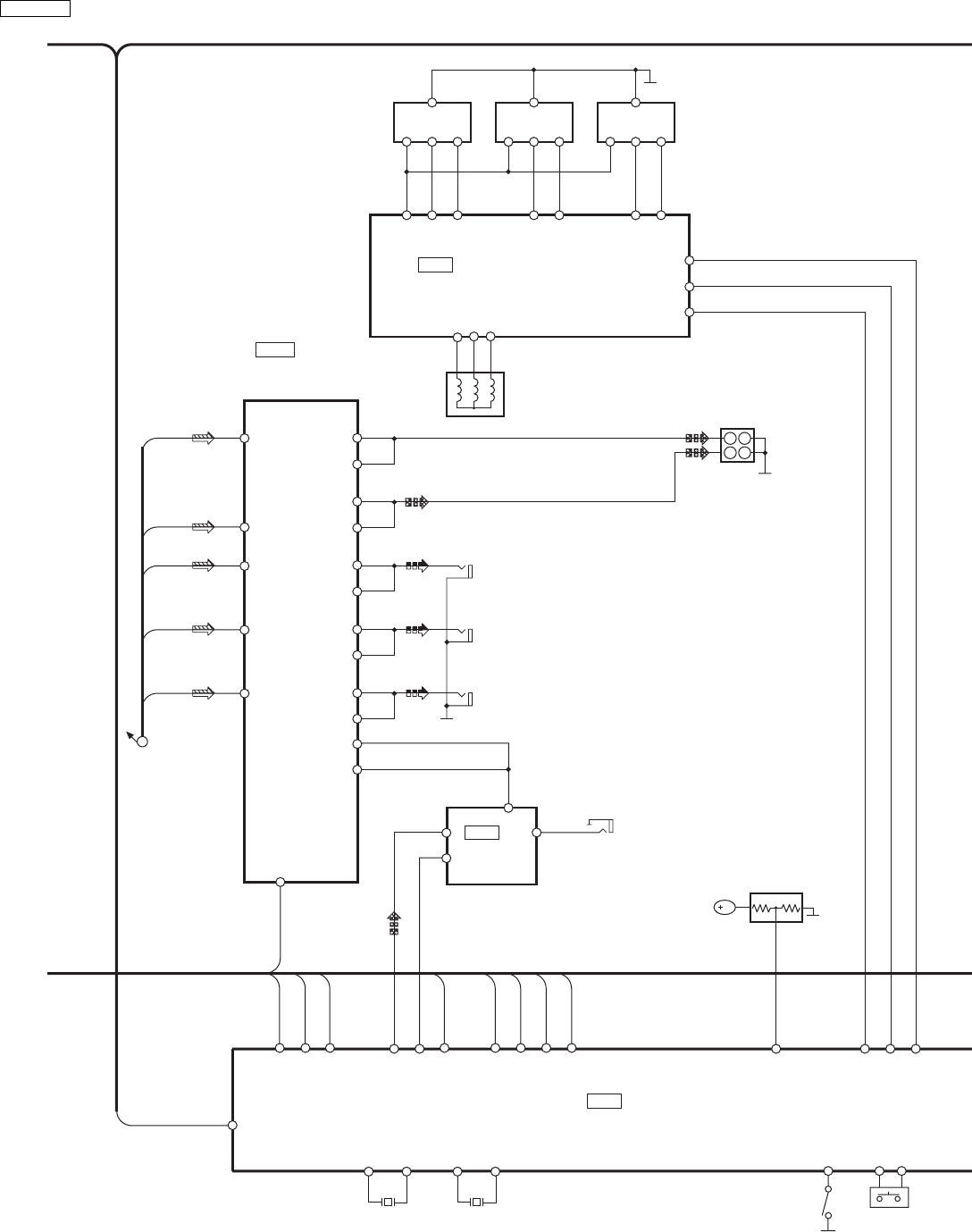

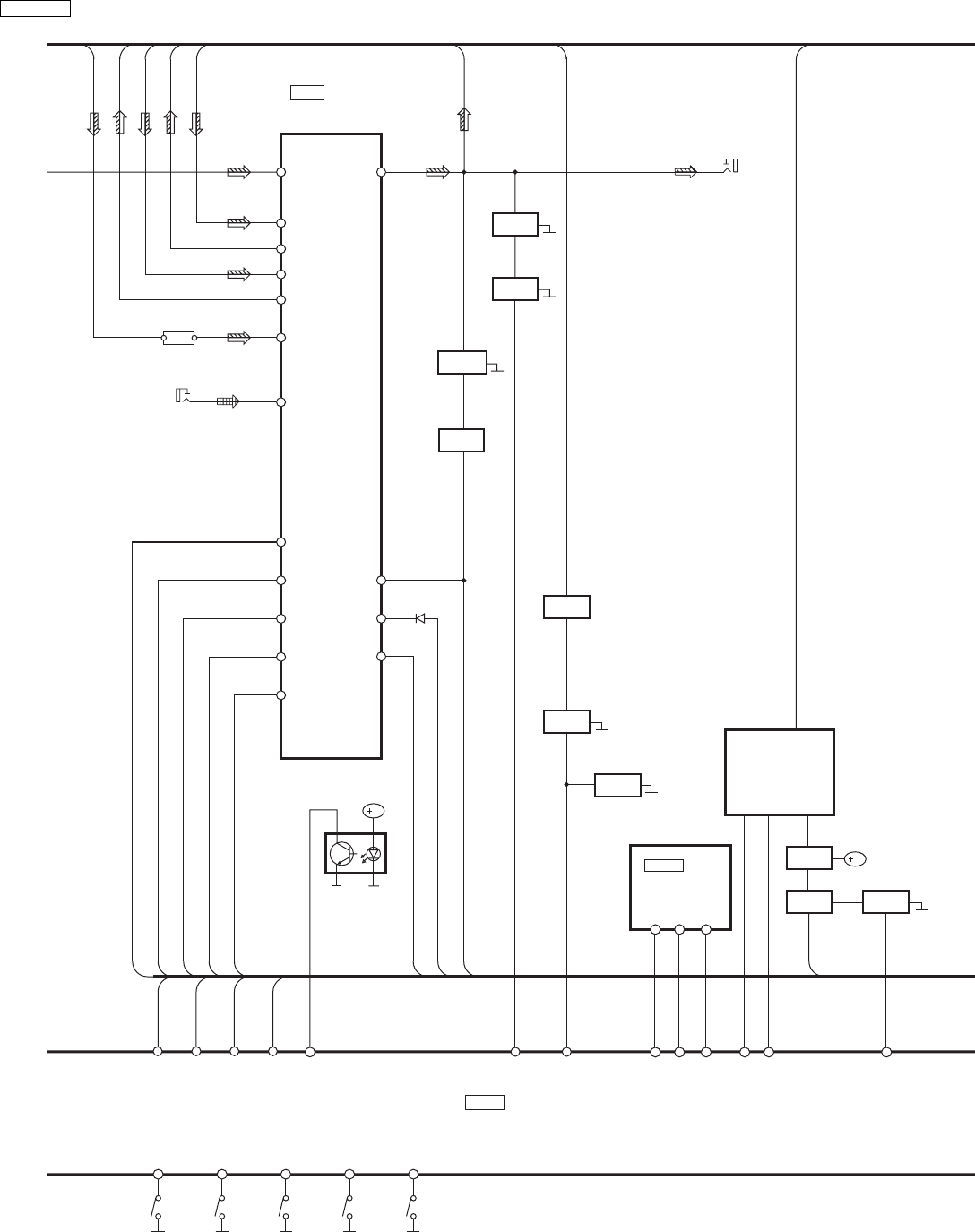

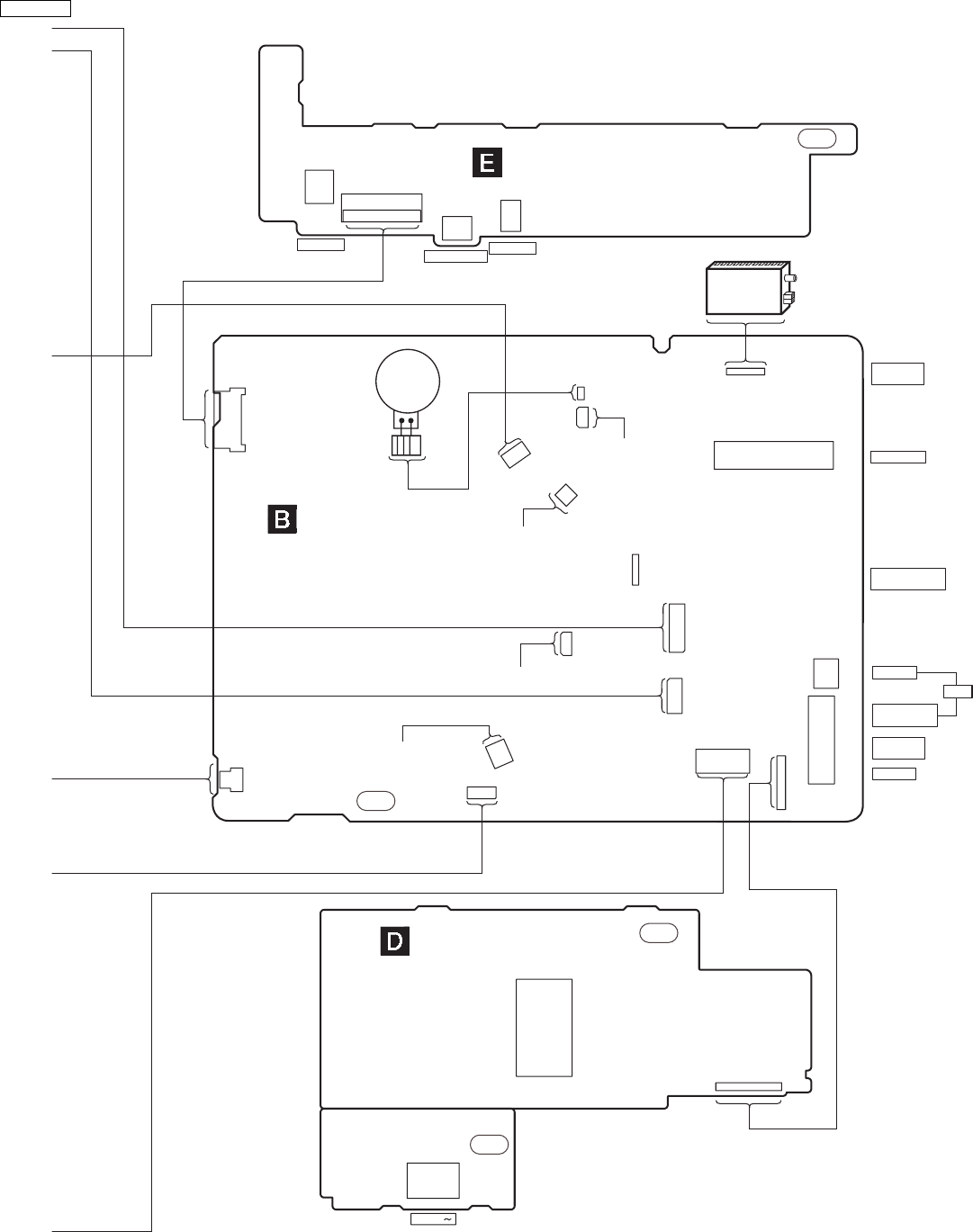

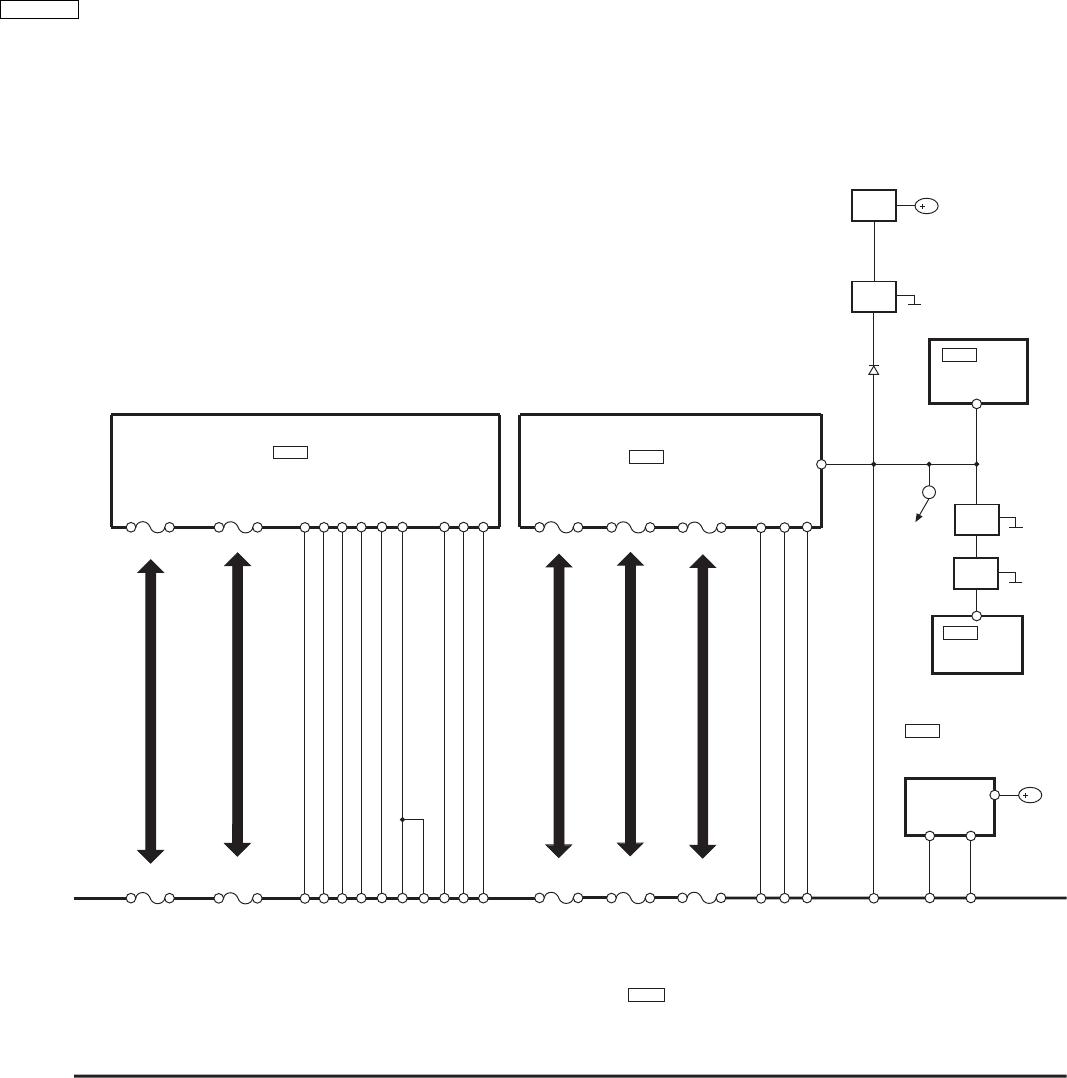

25 Wiring Connection Diagram 135
26 Parts Location and Replacement Parts List 137

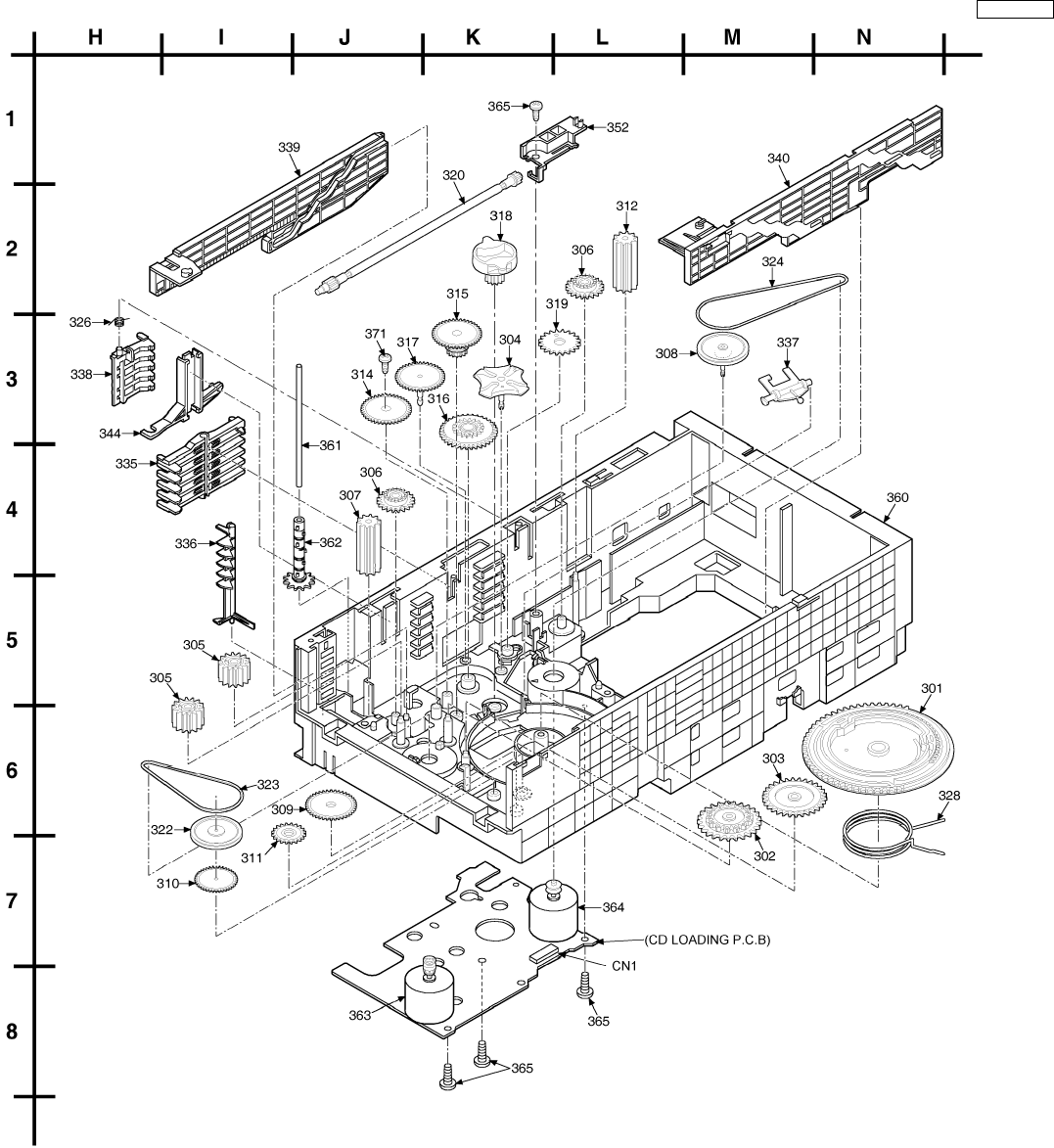

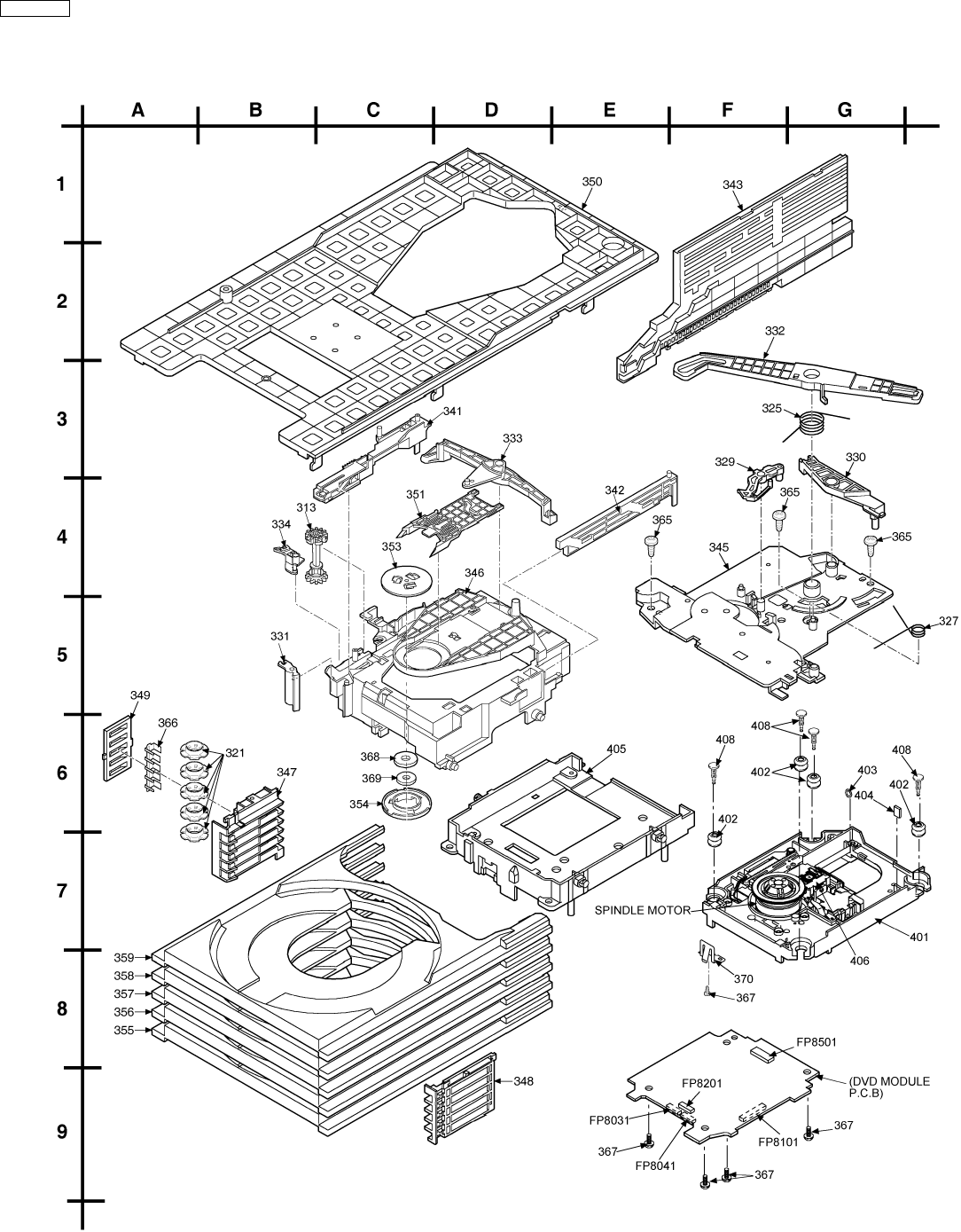

26.1. CD Loading Mechanism 138

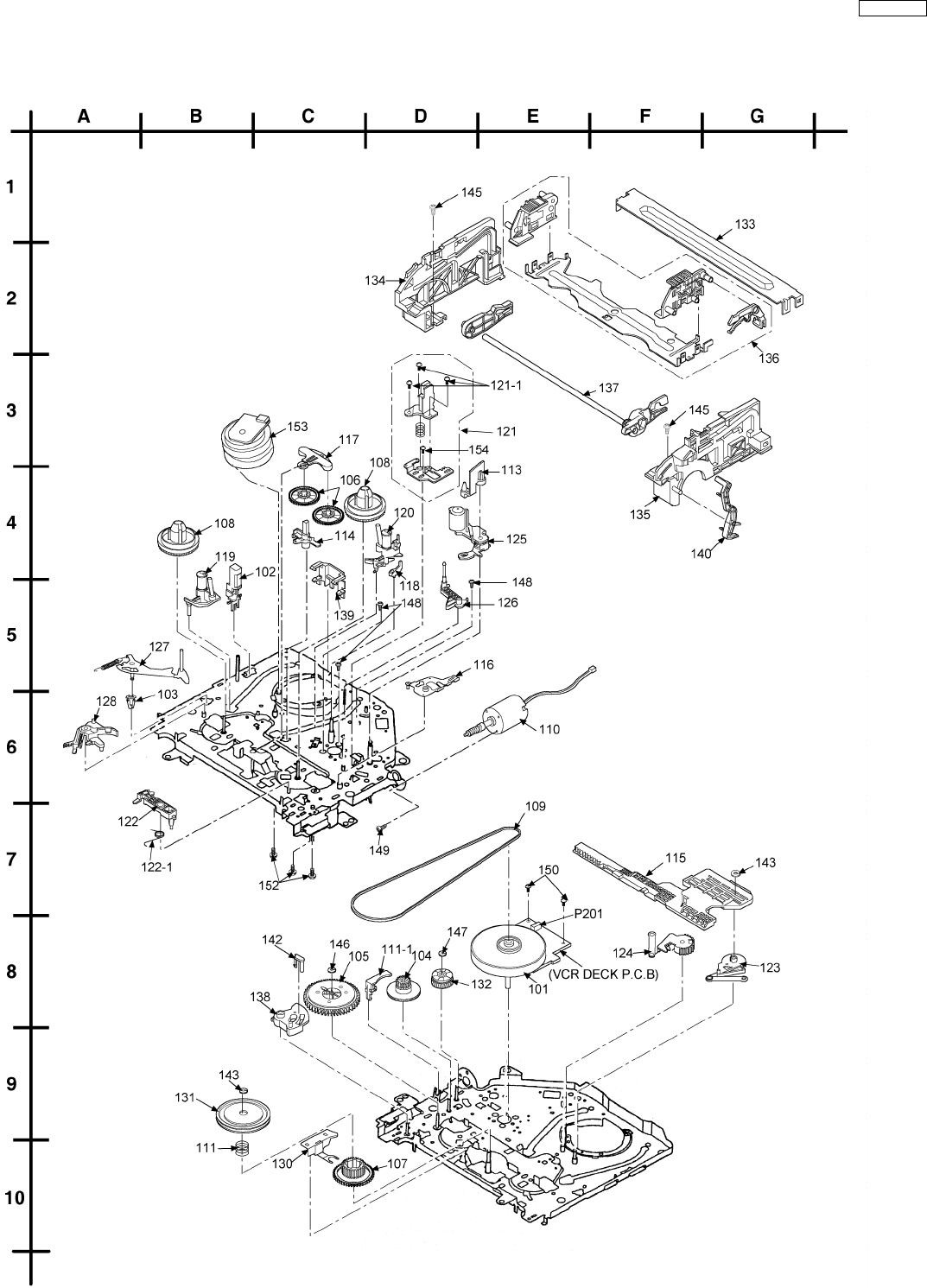

26.2. Cassette Mechanism 141

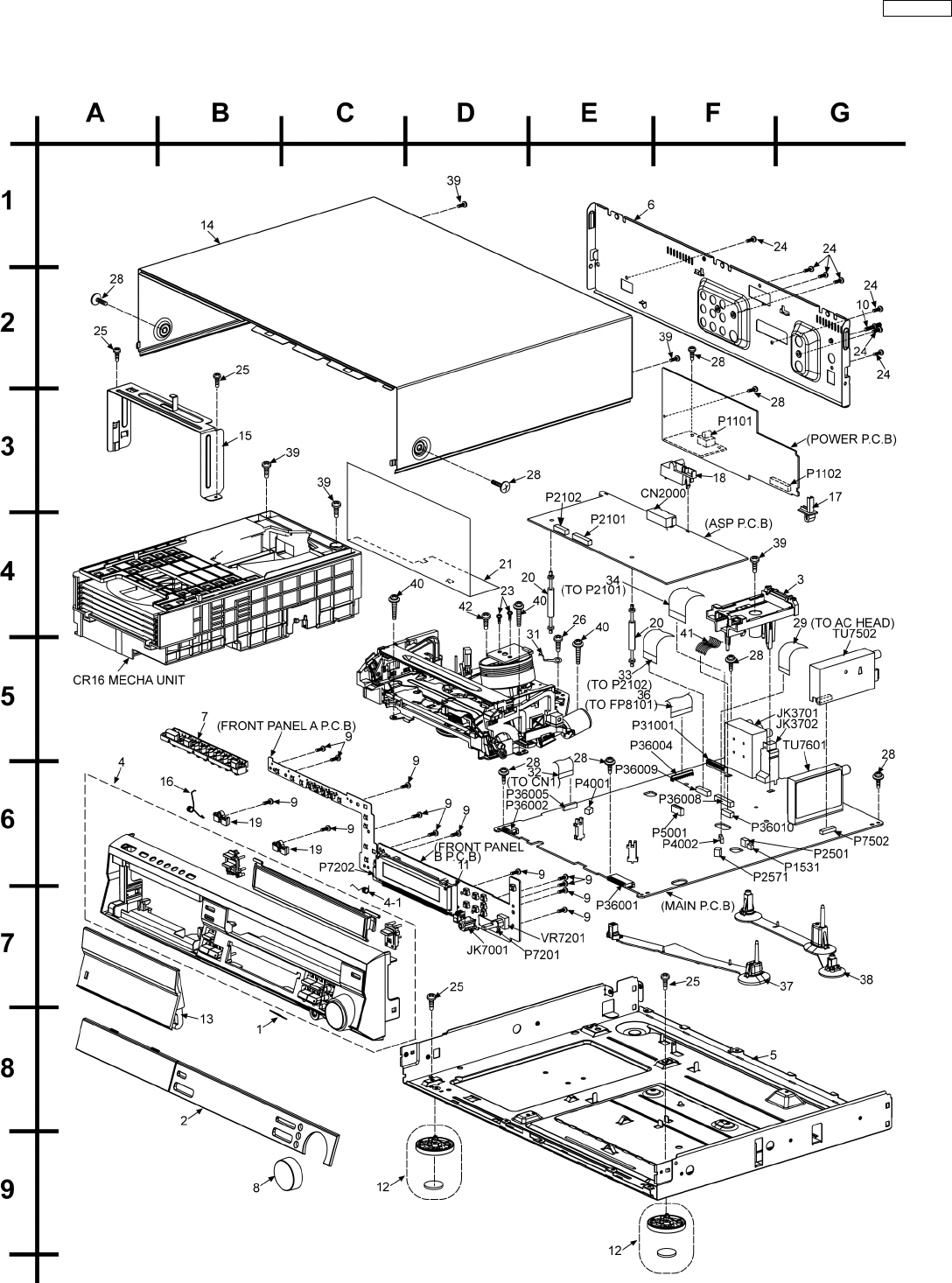

26.3. Cabinet 143
26.4. Electrical Parts List 145

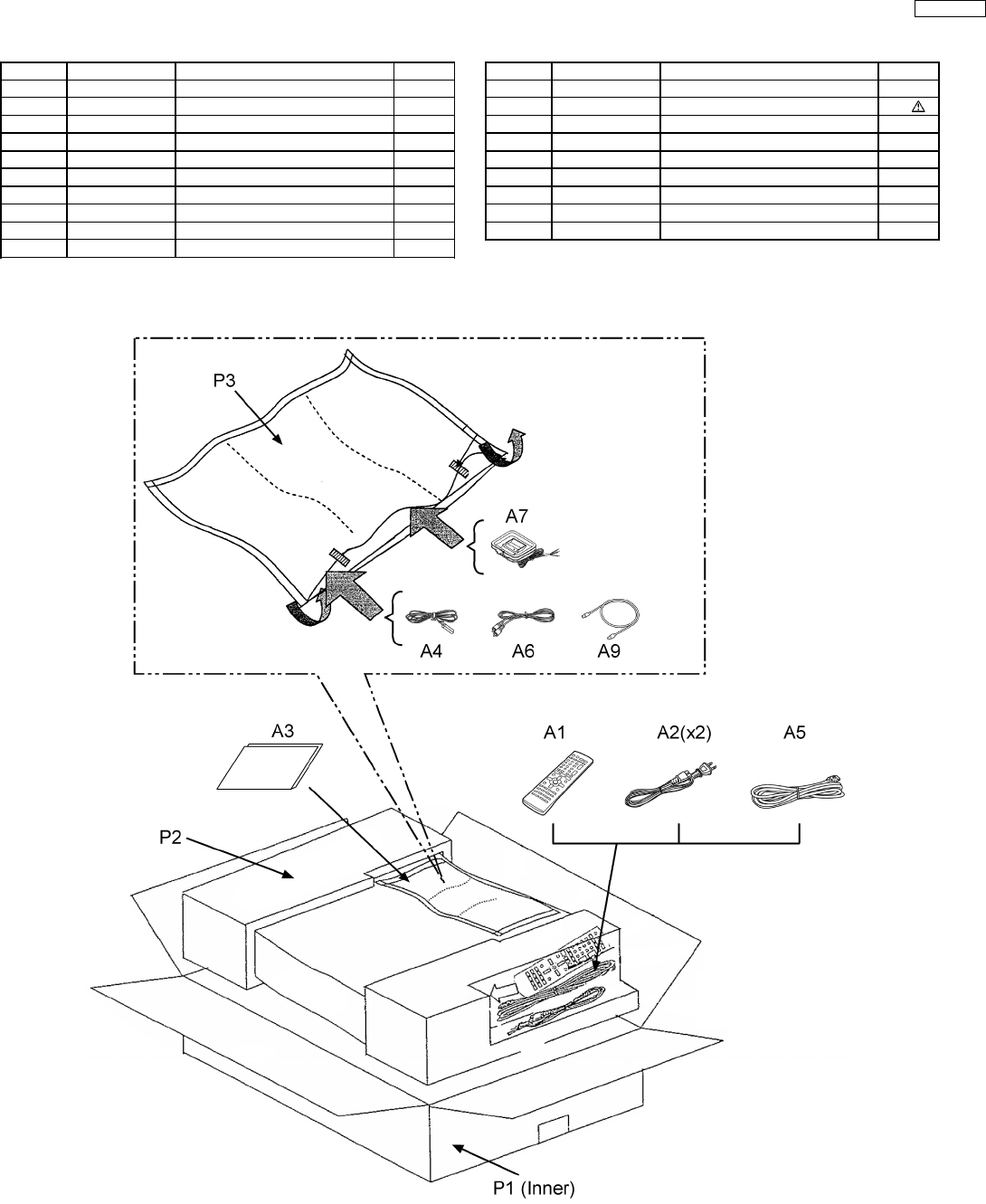

26.5. Packing Materials & Accessories Parts List 157

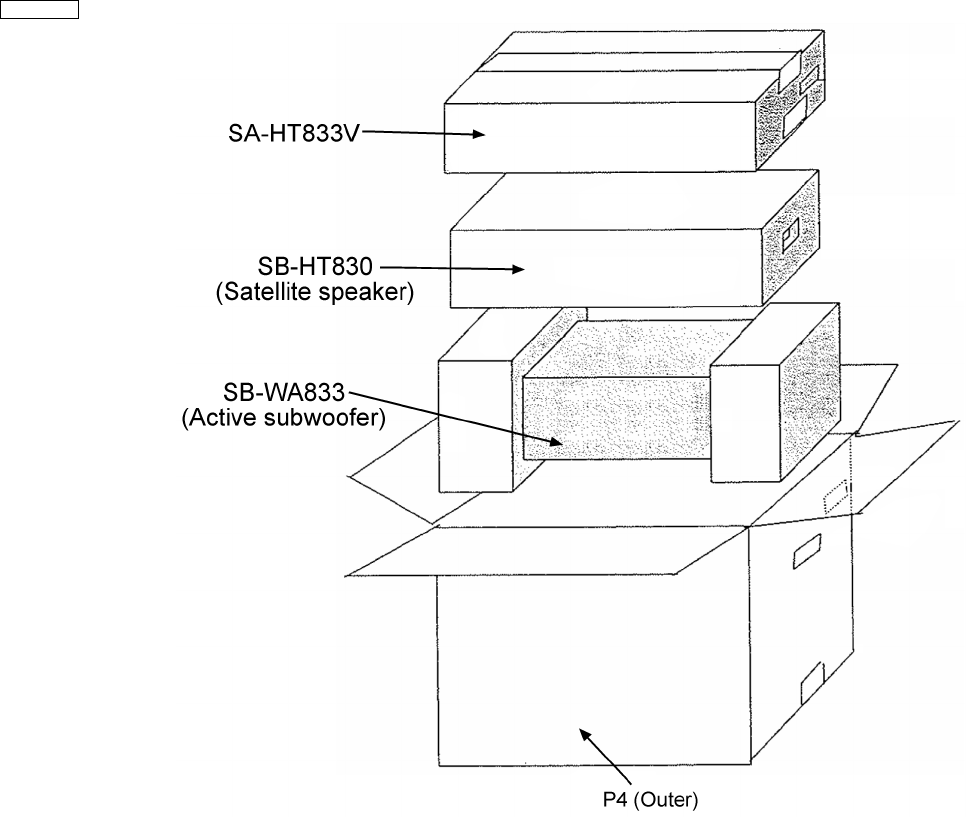

26.6. Packaging 157
4
SA-HT833VP
1 Powering Up of the Main Unit
1. This model has 2 AC inlets, each on Main Set and Active Subwoofer.
2. Power supply on Main Set supplies to VCR, DVD & FM/AM Tuner system. Power supply on Active Subwoofer supplies to sound
system.
Function Output Sound Control
VCR DVD FM AM Speaker Audio Line
Out
Head phone Video
Normal Model
Main Set AC :ON O O O O O O O O O
Active Subwoofer AC :ON
Player Model
Main Set AC :ON O O O O X O X O X
Active Subwoofer AC :OFF
5
SA-HT833VP
2 Before Repair and Adjustment
Disconnect AC power, discharge Power Supply Capacitors C1140 , C1250, C1280, C1128, C1121, C1125 & C1126 through a 10
Ω, 1W resistor to ground.
DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices.
After repairs are completed, restore power gradually using a variac, to avoid overcurrent.
Current consumption at AC 120V, 60Hz in NO SIGNAL mode should be ~318 mA.
3 Protection Circuitry
The protection circuitry may have operated if either of the following conditions is noticed:
·
No sound is heard when the power is switched ON.
·
Sound stops during a performance.
The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are
shorted, or if speaker systems with an impedance less than the indicated rated impedance of this unit are used.
If this occurs, follow the procedure outlines below:
1. Switch OFF the power.
2. Determine the cause of the problem and correct it.
3. Switch ON the power once again.
Note :
When the protection circuitry functions, the unit will not operate unless the power is first switched OFF and then ON again.
6
SA-HT833VP
4 Safety Precautions
4.1. General Guidelines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, ensure that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
3. After servicing, check for leakage current checks to prevent from being exposed to shock hazards.
(This “Safety Precaution” is applied only in U.S.A.)
1. Before servicing, unplug the power cord to prevent an electric shock.
2. When replacing parts, use only manufacturer’s recommended components for safety.
3. Check the condition of the power cord. Replace if wear or damage is evident.
4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.
5. Before returning the serviced equipment to the customer, be sure to make the following insulation resistance test to prevent the
customer from being exposed to a shock hazard.
4.1.1. Leakage Current Cold Check
1. Unplug the AC cord and connect a jumper between the two prongs on the plug.
2. Using an ohmmeter measure the resistance value, between the jumpered AC plug and each exposed metallic cabinet part on
the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the
chassis, the reading should be between 1MΩand 5.2MΩ.
When the exposed metal does not have a return path to the chassis, the reading must be .
Fig. 1

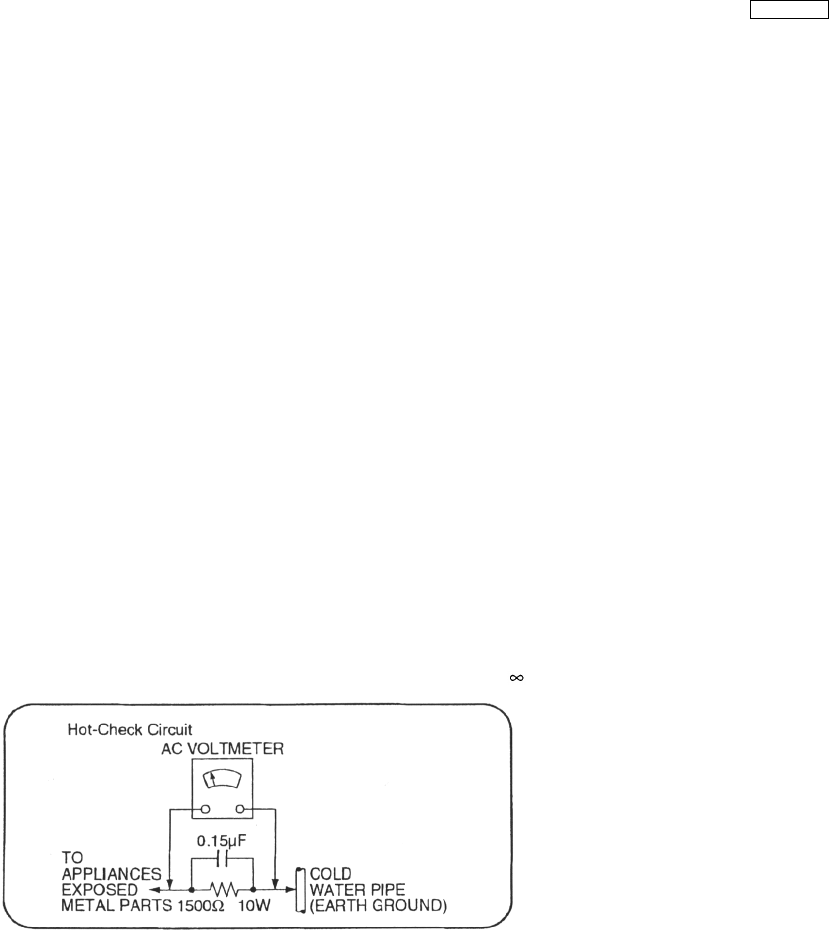

4.1.2. Leakage Current Hot Check (See Figure 1)
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a 0.15µF capacitor, between each exposed metallic part on the set and a
good earth ground such as a water pipe, as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.
6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may
be used to make the hot checks, leakage current must not exceed 1/2 milliamp. Should the measurement is out of the limits
specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to
the customer.
7
SA-HT833VP

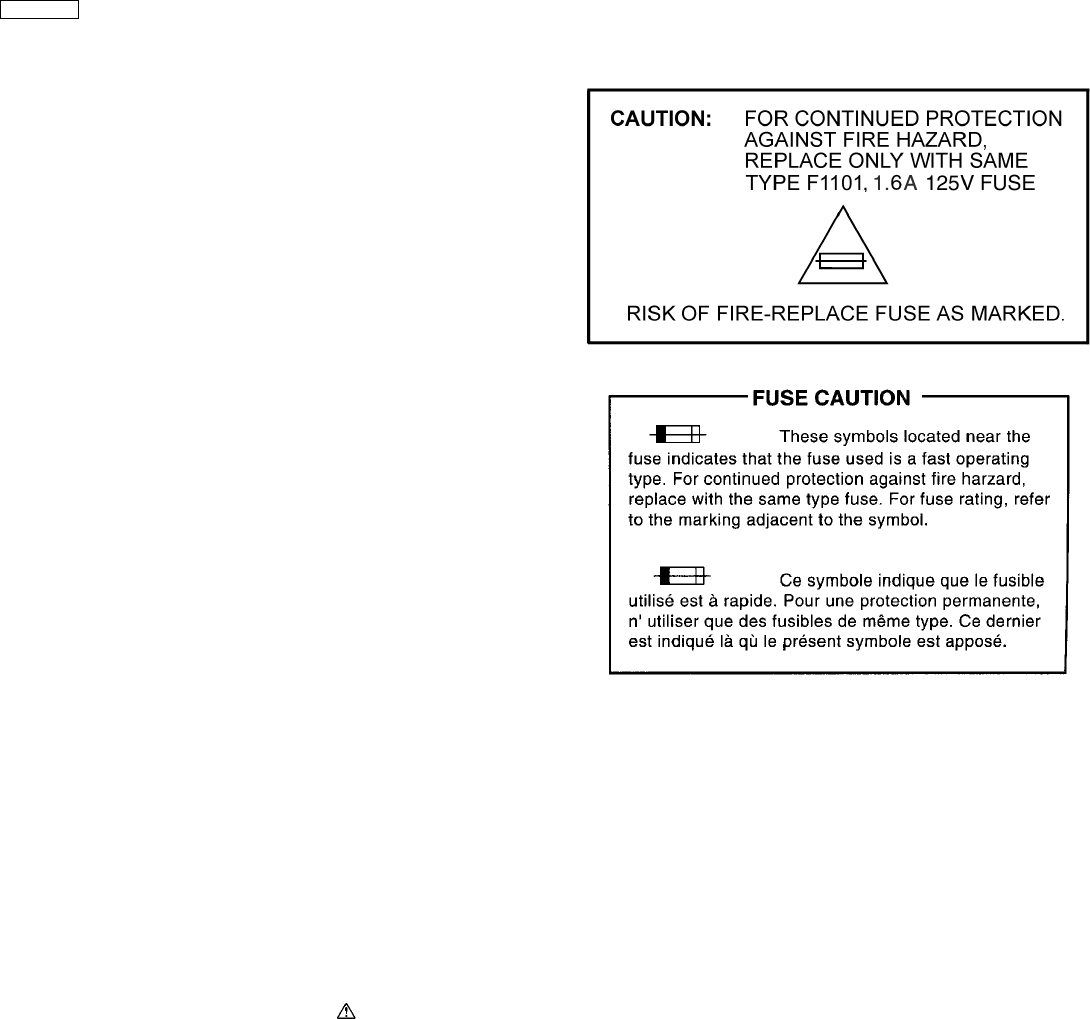

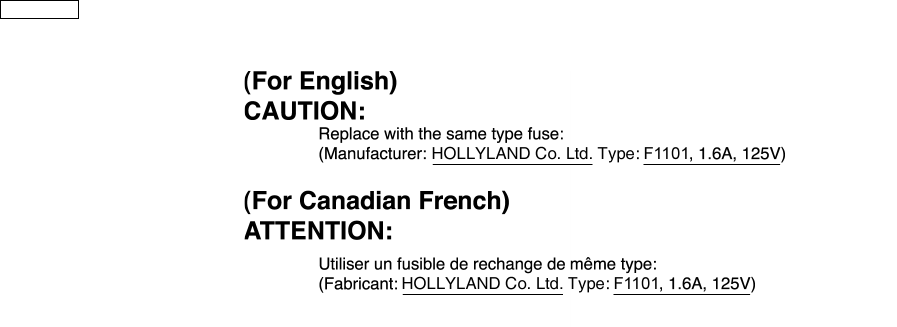

4.1.3. Caution for fuse replacement
5 Handling the Lead-free Solder
5.1. About lead free solder (PbF)
Distinction of PbF P.C.B.:
P.C.B.s (manufactured) using lead free solder will have a PbF stamp on the P.C.B.
Caution:
·
Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please
use a high temperature soldering iron. In case of soldering iron with temperature control, please set it to 700 ± 20°F (370 ±
10°C).
·
Pb free solder will tend to splash when heated too high (about 1100°F/600°C).
·
When soldering or unsoldering, please completely remove all of the solder on the pins or solder area, and be sure to heat the
soldering points with the Pb free solder until it melts enough.
8
SA-HT833VP
6 Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage
caused by electro static discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equiped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equiped with ES devices, place the assembly on a conductive surface such as aluminium
foil, to prevent electrostatic charge build up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder remover device. Some solder removal devices not classified as “anti-static (ESD protected)” can
generate electrical charge to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminium foil or
comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize body motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing
together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to
damage an ES device).
9
SA-HT833VP

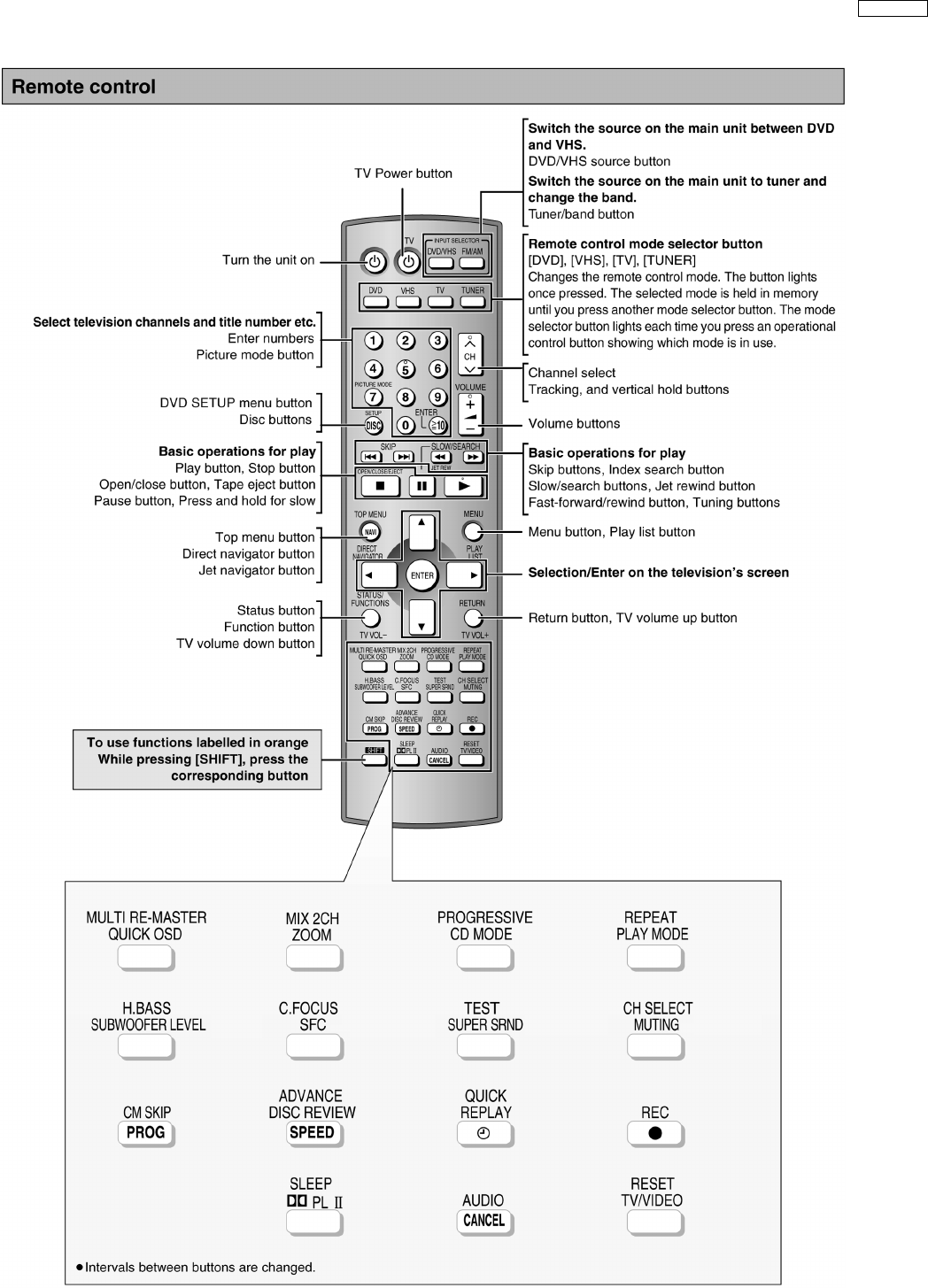

Remote control
AC power supply cord
AM loop antenna
FM indoor antenna
Video cable
System cable
RF cable
Speaker Cable
Stickers
7 Accessories
10
SA-HT833VP
8 Precaution of Laser Diode
CAUTION :
This unit utilizes a class 1 laser.
Invisible laser radiation is emitted from the optical pickup lens.
Wavelength: 662nm(DVD)/785nm(VCD/CD).
Maximum output radiation power from pickup: 100µW/VDE
When the unit is turned on :
1. Do not look directly into the pick up lens.
2. Do not use optical instruments to look at the pick up lens.
3. Do not adjust the preset variable resistor on the pickup lens.
4. Do not disassemble the optical pick up unit.
5. If the optical pick up is replaced, use the manufacturer’s specified replacement pick up only.
6. Use of control or adjustments or performance of procedures other than those specified herein may result in hazardous
radiation exposure.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT
IN HAZARDOUS RADIATION EXPOSURE.
nUse of Caution Labels
8.1. Cautions to be taken during replacement of optical pickup
Optical pickup could be damaged due to the static electricity discharged from human body. Wear proper protection gear against
static electricity during optical pickup and its peripheral repair. (Refer to the section regarding protection against static electricity.)
1. Do not touch laser diode, actuator and their peripherals.
2. Do not check laser diode with a tester and such. (The tester will be destroyed.)
3. For short-circuiting or removing laser diode, the use of an anti-static soldering iron is recommended.
(Recommended model: HAKKO ESD product)
4. Solder the land of the flexible cable in the optical pickup.
Note:
·
If an anti-static soldering iron is not available, short-circuit the terminal surface of the flexible cable and then the land using
a clip or equivalent device.
·
For short-circuit of the above laser diode, remove soldering as instructed in this manual after completing repair.
11
SA-HT833VP
12
SA-HT833VP
9 Optical Pickup Self-Diagnosis and Replacement
Procedure (DVD Section)
9.1. Self-diagnosis
This unit is equipped with the optical pickup self-diagnosis function and the tilt adjustment check function. Follow the procedure
described below during repair in order to perform self-diagnosis and tilt adjustment effectively. Especially when "NO DISC" is
displayed, be sure to apply the self-diagnosis function before replacing with an optical pickup. Replacement of optical pickup
generally requires when the present value of laser drive exceeds 55.
Note:
Start diagnosis within three minutes after turning on the power (as diagnosis fails when the unit becomes warm).
13
SA-HT833VP
10 Self-Diagnosis Function and Service Mode
10.1. Self-Diagnosis Function (VTR Section)
10.1.1. Sef-Diagnosis Display
(Overview)
The details of failures detected in circuit or mechanism by the microcomputer will be automatically displayed on the FL display
as the result of self diagnosis.
(Setting)
The details of a failure applicable to an error code are displayed on the minute, ten seconds, one second position of the FIP.
(Display)
FL display example:
(List of Remedy Code)
(List of Error Code)
Display Meaning Automatic
display
Memory
U11 Detection of head clogging-ups O O
U30 Remote controller mode error O X
H01 No initialization of cylinder due to no loading(Cylinder, driving circuit
failure, etc.)
O O
H02 No capstan FG at load position(Capstan, driving circuit failure, etc.) O O
F03 Mechanism locking not because of unloading, cassette up*
Displayed when detected twice consecutively.
O O
F04 Mechanism locking due to unloading* Displayed when detected twice
consecutively.
O O
F05 No S-reel pulse due to unloading(S-reel system, capstan system
failure)
X O
F06 Mechanism locking due to cassette up O O
F07 Recording circuit operation failure during REC operation O O
F08 Recording circuit operation failure not during REC operation O O
F15 No capstan FG when cassette is loaded(Capstan system, S-reel
system failure)
X O
H16 Cylinder lock detected during normal rotation X O
H17 S-reel lock detected during normal running O O
H18 T-reel lock detected during normal running O O
H80 EJECT mode when an error is detected X O
F2* Error during PG automatic adjustment O O
14
SA-HT833VP
10.1.2. Service Mode
(Service Mode and Service Data)
Number Details Meaning at Minute Position
(Service Data 1)
Meaning of Second Position
(Service Data 2)
Note
0 Service data VCR mode
(real time)
Processing number
(real time)
Deck mode Treatment during mechanism transition
Control number
1 Service data Starting/End terminal detect information Reception key information Displayed only
when the
reception key
button is ON.
00 : Detection of neither starting or end terminal
01 : Detecting starting terminal
02 : Detecting end terminal
03 : Detecting both starting and end terminals
When the unit key or remote controller
unit is used, the reception code is
displayed.
2 Service data Mechanical position
(real time)
Motor command
(real time)
Because the
mechanical
operation is
available without
a tape, this
mode accepts:
No starting/end
terminal
detection
No reel lock
detection
No judgment of
tape quality and
no position
detection
0L : EJECT position
02 : DOWN positions
03 : R-REW positions
04 : LOAD positions
05 : REV positions
06 : PLAY positions
07 : POFF positions
08 : STOP positions
09 : STOP positions
0- : FFREW positions
0_ : Middle of positions
0*, 2* : CYL off
Cap off
1* : CYL off
Cap on (fwd)
3* : CYL off
Cap ON (rev)
8*, U* : CYL on
Cap off
9* : CYL on
Cap on (fwd)
A* : CYL on
Cap ON (rev)
*0 : Moter off
*1 : Loading
*2 : Un Loading
*3 : Break
(Load + Unload)
3Self diagnosis history
(1st time)
Error code of History 1 Additional information 1 and 2 of History
1
4Self diagnosis history
(2nd time)
Error code of History 2 Additional information 1 and 2 of History
2
5Self diagnosis history
(3rd time)
Error code of History 3 Additional information 1 and 2 of History
3
6 Service data Cylinder ON command Cap motor ON/OFF and forward/reverse
rotation command
Same as the
details
numbered as 5
and 6 of
previous service
mode.
7Manual operation Real time Mechanical position Real time Motor command PLAY button
ON: loading
direction
STOP button
ON: Unloading
direction
Same as the details of Service 2 Same as the details of Service 2
10.1.3. Service Mode Display
(Overview)
A part of the microcomputer internal information is displayed on the FL in order to ease servicing during sales.
(Setting)
Press and hold down the FF and EJECT buttons for at least three seconds to enter the service mode. As this operation is
repeated, service number changes starting at 0 up to 7, and then counter (clock) is displayed.
(Display)
FL display example:
15
SA-HT833VP
10.1.4. Self-Diagnosis History Memory Function
(Memory Setting of Self-Diagnosis History)
1. Memorizes the self-diagnosis result and the additional data at the moment when an error is detected.
2. History is numbered up to three. The latest error always appears first, shifting the old ones as two and three.
3. Other data that cannot be fit within three histories are discarded.
4. The same error is not memorized.
(Resetting Self-Diagnosis History)
Press and hold down the FF and EJECT keys at the same time at least 5 seconds to reset the data. (Be sure to apply this
operation after repair.)
(Display of Self-Diagnosis History)
The self-diagnosis history and additional data will be displayed on the FL, using numbers 3 to 5 of the service mode.
FL display example:
By selecting 3, 4 or 5 of the service mode, error code and additional data of history 1, history 2, and history 3 are displayed
respectively.
When no error code is memorized, "-" will appear as error code and additional data.
10.1.5. Self-Diagnosis History Memory
(Overview)
The self-diagnosis history memory function stores up to three errors historically, which of each occurs consecutively, and also
additional data such as deck mode and mechanism position along with error code for the purpose of speedy solution of a
problem.
(Error code and additional data)
Following table shows additional data applicable to error code.
Error code Meaning Additional data
Data 1 Data 2 Data 3 Data 4
01 No initialization of cylinder due to no loading
(Cylinder, driving circuit failure, etc.)
VCR mode - Tape
position
None
02 No capstan FG at load position
(Capstan, driving circuit, etc. failure)
VCR mode - Tape
position
FG count
03 Mechanism locking not because of unloading, cassette up VCR mode Standby position Tape
position
LM information
04 Mechanism locking due to unloading VCR mode - Tape
position
LM information
05 No S-reel pulse due to unloading
(S-reel system, capstan system failure)
VCR mode Tape position Tape
position
LM information
06 Mechanism locking due to cassette up VCR mode Standby position Tape
position
LM information
07 Recording circuit operation failure during REC operation VCR mode - Tape
position
None
08 Recording circuit operation failure not during REC operation VCR mode - Tape
position
None
11 Detection of head clogging-ups VCR mode - Tape
position
None
16
SA-HT833VP
15 No S-reel pulse when cassette is loaded
(Capstan system, S-reel system failure)
VCR mode S-reel pulse counting value Tape
position
None
16 Cylinder lock detected during normal rotation VCR mode Processing number Tape
position
None
17 S-reel lock detected during normal running VCR mode Processing number Tape
position
FG count
18 T-reel lock detected during normal running VCR mode Processing number Tape
position
FG count
80 EJECT mode when an error is detected VCR mode *1 Tape
position
None
2* Error during PG automatic adjustment VCR mode - Tape
position
None
(Meaning of Additional data, (Data 1), VCR mode)
0 : STOP, 1 : EJECT, 2 : REW 3 : FF, 4 : REV, 5 : CUE, 6 : SLOW 7 : POWER OFF, 8 : PLAY, 9 : STILL, U : REC, A : REC
PAUSE, - : ADUB, N : ADUB PAUSE, L : INSERT, NONE DISPLAYED : INSERT PAUSE
(Meaning of Additional data, (Data 2), Tape position)
Type of tape Criterion of tape position between starting and end terminals
T-90 or above (Thin Hub) Between starting terminal: L and end terminal: 1 with fourteen levels of change
T-60 or below (Thick Hub) Between starting terminal: U and end terminal: 5 with sic levels of change
(Data 2 display)
Thin Hub Ln--Au987654321
Thick Hub U98765
*1 (Additional data, (Data 2)) (EJECT reason)
Data 2 Reason
1Loading completed when no tape is loaded. (spinning)
2S-photo, S-reel, or Cap system failure during down short REW
operation
3Mechanism locking during loading
4L both terminals detected when loading starts
*Additional data 3 and 4
While the self-diagnosis history is displayed, press the STOP button (on the unit or the remote controller unit) to switch
between Additional data 3 and 4.
17
SA-HT833VP
(Additional data 3) (Mechanical process transition NO)
(EJECT) (P ON)
10 : PLAY→REV passing11 : REV passing12 : REV
passing→LOAD
(Capstan stop)13 : LOAD→DOWN14 : DOWN→EJECT15
: EJECT completed
None displayed: Power ON treatment
(P OFF)
70 : PLAY→P OFF
(FF) (REW)
U0 : PLAY→STOP FU1 : STOP F→FFU2 : FF initialization A0 : PLAY→STOP FA1 : STOP F→REWA2 : REW
initialization
(PLAY) (STILL)
20 : Cylinder initialization, phase drawing21 : Audio mute, W
switch
40 : Forward rotation, REC signal off41 : Speed 0, Capstan
Off
(REC) (STILL→PLAY)
30 : Cylinder initialization, phase drawing31 : REC signal
output
48 : Tape forwarding
(CUE→PLAY) (REV)
4A : End terminal check, tape forwarding4- : PLAY check,
tape forwarding
80 : PLAY→P OFF81 : Rewind82 : P OFF→REV
(CUE)
49 : Double speed forwarding, remaining computation jump
(Additional data 4) (LM information)
By loading motor driving request
No change in mechanical position: 1 (loading motor OFF)
Some change in mechanical position: 2 (loading motor ON)
10.2. Self-Diagnosis Function (DVD Section)
10.2.1. Self-Diagnosis Display
(Overview)
The details of failures detected in circuit or mechanism by the microcomputer will be automatically displayed on the FL display
as the result of self diagnosis.
(Setting)
1. Power-up the unit.
2. Set to “DVD/CD” mode using [INPUT SELECTOR] button on main or [DVD] button on the remote control (Ensure no disc
is placed in the tray.)
3. Press & hold [STOP] button on main unit follow by [INPUT SELECTOR] for 2s. It enters into self-diagnostic mode.
4. Press [POWER] on main unit to exit this mode.
5. Press [STOP] to display if there is other error codes.
The details of a failure applicable to an error code will be displayed on the FL display.
(Display)
FL display example: [----T--H05]
(List of Error Code)
Display Type of error Description
U11 Focus error
H01 Tray loading error
H02 Spindle servo error Spindle servo, DSC, SP motor, CLV servo error
H03 Traverse motor error
H04 Tracking servo error
H05 SEEK time-out error
H15 Open SW error It is memorized if there is abnormal SW while operating, and is fail-save operation, and an abnormal
content is displayed by the self-diagnostic mode usually.
Abnormal SW is detected in the abnormal detection mode.
H16 Close SW error
18
SA-HT833VP
Display Type of error Description
CD F 28 DISC loading error During the horizontal motion toward to PLAY position, if there is no change when it exceeds the fail
safe timer or if counter direction does not enter into state of target, will be keep it memory mode.
Initialization is done when the next mecha mode starts.
Only when backup data is cleared of this error no. when it compels clearly or power supply start-up.
CD F 29 DISC unloading error During the horizontal motion toward opposite direction to PLAY position, if there is no change when it
exceeds the fail safe timer or if counter direction does not enter into state of target, will be keep it
memory mode. Initialization is done when the next mecha mode starts.
Only when backup data is cleared of this error no. when it compels clearly or power supply start-up.
CD F 27 DOWN SW error Memory when bottom switch is not changed even if it exceeds it to time of fail safe timer when going
up and down operates toward bottom position. When mechanism begins to operate next time,
initialization is done.
Only when backup data is cleared clearly of this error No. when it compels clearly or power supply
start-up.
CD F 22 Mechanism is loading
motor/abnormal
Memory at the initialization of mechanism due to abnormality of the loading motor or the mechanism
when entering the state usually cannot. When mechanism begins to operate next time, initialization is
done.
Only when backup data is cleared clearly of this error No. when it compels clearly or power supply
start-up.
F03 Traverse servo error
F04 Tracking servo error
F05 Seek error
F06 Power supply error Power cannot be turned off due to communication error between panel computer and system
computer.
F61 Power supply error Abnormal output or power supply abnormal circuit of Power Amp.
10.2.2. Error Code Display
1. Set to DVD/CD mode (Ensure no disc is loaded)
2. While pressing and holding down the [STOP] on main unit and press [0] on remote control in order to display the latest error
code. (Automatically cancelled after five seconds.)
Note: No error code will show if there is no problem with unit. Refer below for error code display.
(Error Code Display)
Section Code Meaning Note
Disc code F103 Illegal Highlight Position Possibility of illegal disc when highlight is displayed
Decoder related F220 Y level adjustment failure Brightness signal level adjustment cannot be properly
operated
F221 C level adjustment failure Color signal level adjustment cannot be properly
operated
II C error F4FF Compulsory initialization failure (time out)
DSC related F500 DSC error DSC stops due to servo failure. (Startup, focus failure,
etc.)
F501 DSC not ready Communication failure between DSC and system
computer(No communication because DSC does not
move)
F502 DSC time out failure See F500.
F503 DSC communication failure Communication failure (Result failure occurs after
communication command is transmitted.)
F504 Data slice offset adjustment failure Not in use. (FEP error)
F505 DSC Attention Error See F500.
F506 Invalid media Disc is placed upside down; TOC is unreadable or
invalid disc is inserted.
ODC related F600 Control information unattainable due to demodulation
error
Operation stops because navigation data cannot be
obtained due to demodulation system failure.
F601 Unknown sector ID requested Operation stops because access of illegal ID data is
requested.
F602 LEAD-IN unattainable due to demodulation error Unable to read LEAD IN data
F603 KEYDET unattainable due to demodulation error Unable to obtain CSS data
F610 ODC failure No permission of command issue
F611 6626 QCODE don´t read ERROR Unable to obtain seek address at CD system
F612 No CRC OK during a certain time of duration Unable to obtain ID data at DVD system
F630 No response to KEY DET makeshift (Internal use)
F631 CPPM KEY DET unavailable to FILE end terminal CPPM fail system cannot be read due to scratch.
F632 CPPM KEY DET unavailable Revoke or altered.
19
SA-HT833VP
Section Code Meaning Note
Microcomputer
error
F700 MBX overflow When replying a message to Disc Manager. (operation
continues)
F701 Message command incomplete A message is issued before replying to Disc Manager.
F702 Message command changed A message is issued before replying to Disc Manager.
F710 AD conversion at AN0 incomplete Conversion cannot be complete within a designated
time during check of AD conversion before Y/C
automatic adjustment.
F711 AD conversion at AN1 incomplete Conversion cannot be complete within a designated
time during check of AD conversion before Y/C
automatic adjustment.
F712 AD conversion at AN0 dispersed Conversion result exceeds standards while a
designated value is set during check of AD conversion
before Y/C automatic adjustment.
F713 AD conversion at AN1 dispersed Conversion result exceeds standards while a
designated value is set during check of AD conversion
before Y/C automatic adjustment.
F720 DA conversion at AN0 unchangeable Conversion result exceeds standards while a
designated value is set during check of AD conversion
before Y/C automatic adjustment.
F721 DA conversion at AN1 unchangeable Conversion result exceeds standards while a
designated value is set during check of AD conversion
before Y/C automatic adjustment.
F880 Unsuitable task number When a message arrives from not existing task (error
stops)
F890 A message is sent during AV task transmission During transmission of a message to AV task (error
stops)
F891 Unable to transmit a message to AV task When a message starts transmission to AV task (error
stops)
F893 FLASH ROM altered Content of FLASH ROM change
F894 EEPROM failure EEPROM Promlem
F895 PERR JMP MI SMUCH Firm device incompatible (non-conformant destination
value)
F896 PERR JMP NON Firm device incompatible (non existing jumper)
F897 PERR NO INIT Initialization incomplete
F8A0 Unsuitable message command When a message starts transmission to AV task (error
stops)
10.2.3. CR16 Mechanism Ageing Mode
To enter into ageing mode :
1. Enter self-diagnostic mode. (Doctor Mode)
2. Press [3] button on remote control. It enters into ageing mode. (See below for ageing process)
Ageing process
1. Tray 1 open.
2. It waits for one second (Note : Do not put any disc into the tray)
3. Tray 1 close.
4. TOC READ (Reading incomplete)
5. Tray 2 open & repeat process 1 to 4. (Process repeat until Tray 5)
6. Tray check.
7. Whole process complete (Counter on FL increase by 1)
Display Example : [00000T3OP] ...TRAY OPEN
[00000T3CL] ...TRAY CLOSE
[00000T3RE] ...TOC READING
[00000T3CH] ...TRAY CHANGING
Note : To exit ageing mode, press [POWER] button. The unit will power down. Do not unplug the power cord until FL display shows
“ BYE “. This is to avoid tray jam problem.
10.2.4. Clearing Of Error Code
1. Enter into self-diagnostic mode
2. Press & hold [STOP] for 5 secords or more.
20
SA-HT833VP
10.3. Mode Table
Following modes are available with combinations of the pressed buttons on the player and on the remote control.
21
SA-HT833VP
22
SA-HT833VP
10.4. Lock Function
This function prohibits removal of disc and some disc operations to prevent loss of disc at a shop during sales promotion or
equivalent occasions. While this function is activated, the player displays "LOCKED" if any button is touched.
10.4.1. Setting
While pressing and holding down the "STOP" key on the unit, press the POWER button on the remote controller unit to activate.
(The message, "LOCKED" appears when the function is activated.)
10.4.2. Exiting Lock Function
While the lock function is activated, press the buttons which are used to enter the mode in the same manner. (When the lock
function is deactivated, the message, "UNLOCKED" appears.) (This function cannot be cancelled even when the power is turned
off.)
10.5. Cautions To Be Taken During Servicing
10.5.1. To Exit Ageing Mode
To exit ageing mode, press [POWER] button. The unit will power down. Do not unplug the power cord until FL display
shows “BYE”. This is to avoid tray jam problem.
10.5.2. Recovery Process after Repair of DVD Player
When DVD Module 2 P.C.B and/or FLASH ROM, EEPROM, etc. inside DVD Module 2 P.C.B, apply the recovery operation in order
to optimize the new drive. Use the following disc so that the operation starts automatically.
Recovery disc (product number=RFKZD03R005)
Note:
Previously required initialization after repair of DVD player is no longer necessary. After completing the recovery process, the
user´s setting is replaced with factory setting like user initialization. Therefore, record the user´s setting before repair in order
to restore it after applying the recovery process.
10.5.3. DVD Player Firmware Version Upgrade Process
Firmware of DVD player may upgrade to conform to improvement of its performance and quality including operational range,
playability of non-standardized discs, etc. The version upgrade disc contains the recovery function, and the recovery disc is not
necessary.
Note:
Version upgrade process cannot be complete if the AC power is cut off due to power failure and other occasions during the
process. If this occurs, replace FLASH ROM and restart version upgrade. Version upgrade disc number is informed when
ordered.
23
SA-HT833VP
11 CHECKING POINTS FOR SYS COM TIMER MY-COM
(IC6001) (VIDEO)
11.1. Points to check when replacing
When the replacing the Sys Com Timer My-Com (IC6001), surely check the contents of data of a microcomputer before replacing.
When the Program Navi is "ON", take backup before replacing and set the initial value. *It also carries out at the time of replacing
the P.C.B
(The procedure)
1. Before replacing IC6001, please record and keep the channel of already set-up TV broadcast. The backup of the program navi
is also required since IC6001 already stores the program navi data. Please surely take the backup when the navi data is "ON".
*The procedure of checking the program navi data without a cassette.
a. Press both "EJECT" and "FF" buttons in the same time for 3 seconds and start the Service Mode.
b. Push the button of program navi on the remote controller for 5 seconds.
c. The program navi data is shown on the monitor.
2. After replacing IC6001, switch on the power supply of the VIDEO.
3. Short out TL6002 and TL6004 on the Main P.C.B by short jumper.
4. Initialise the Sys Com Timer My-Com as below.
5. After that, short out the TL7501 and TL7502 on the Main P.C.B. by short jumper twice to make the factory setting. (Unless
carrying out the Factory Setting, the indication of the line-in doesn´t appear on the FIP panel).
6. After carrying out the procedure 1. to 5. as above please adjust the PG shifter.
11.2. Initial setting when replacing My-com.
1. Initial setting is an important function in order to guarantee as a product correctly. Unless it inputs the number according to the
model, it cannot operate correctly.
2. Once the initial-setting value set up, even if a microcomputer (IC6001) is reset, it has memorized.
3. Be sure to set the initial-setting value when replacing the Main P.C.B. with a microcomputer (IC6001).
4. The RAM inside of the microcomputer (IC6001) stores the PG self-adjustment. Be sure to do the PG self-adjustment when the
Sys Com Timer My-Com, the P.C.B. with microcomputer, and cylinder unit are replaced.
11.3. Initial figure (#) setting procedure
24
SA-HT833VP
Caution:
When using the service mode, please be sure to plug in and plugout once (for resetting) after clearing the service mode and
setting the normal mode.
25
SA-HT833VP
12 Adjustment Procedure (DVD Section)
12.1. Required Tools and Equipment
Purpose of Use Tools/Equipment Model/Product Number
Tilt adjustment DVD test disc DVDT-S20
TORX screw driver (T6) Available on sales route. (T6) or RFKZ0185
Others Hanarl VFK1784
Grease RFKXPG641
Drysurf RFKXGUD24
Checking CD test disc PVCD-K06 and any commercially available disc
VCD test disc PVCD-K06 and any commercially available disc
Recovery disc RFKZD03R005
12.2. Necessity of Adjustment
12.2.1. Necessity of Optical Adjustment
·
Before starting optical system adjustment, be sure to wear proper protection gear against static electricity.
·
Optical adjustment (optical pickup tilt adjustment) is required after following parts are replaced:
1. Optical pickup
2. Spindle motor assembly
3. Optical pickup peripherals such as a rail, etc.
Note:
Optical adjustment is not necessary after replacement of other parts inside traverse, however, may require when picture
deterioration is detected. Optical adjustment cannot be applied to the inside of optical pickup. When a traverse unit is replaced,
the adjustment is not necessary.
12.2.2. Necessity of Electrical Adjustment
·
Follow the procedure for adjustment.
12.3. Storing and Handling Test Discs
·
Surface precision is vital for DVD test discs. Be sure to store and handle them carefully.
1. Do not leave the discs uncovered on the work desk or other places after use.
2. Handle the discs carefully to prevent scratches. Put each disc in its case and place it in the standing position. Store the discs
in a cool place and avoid direct sunlight or air conditioner.
3. Accurate adjustment cannot be expected with a disc warped against a flat surface. Obtain a new test disc for optical adjustment.
4. If a warped disc is used, adjustment would result incorrectly, and other discs could not be used.
12.4. Optical Adjustment (Optical Pickup Tilt Adjustment)
Measurement point Adjustment point Mode Disc
Tangential adjustment screw
Tilt adjustment screw
T1 (inner track) play
T30 (central periphery) play
T43 (outer track) play
DVDT-S20
Measuring equipment Adjustment value
None (LCD display of the player is used.) Adjust that jitter value becomes minimum.
12.4.1. Optical Adjustment (Optical Pickup Tilt Adjustment)
1. While the player is stopped and no disc is inserted, select the DVD function. Press and hold down the button on the player
and the number button, “5” on the remote controller unit.
2. Check that “J_xxx_yyy_zz” is appearing on the display.
For your information:
The values, “yyy” and “zz” are not associated to jitter value.
“yyy” indicates the frequency of error occurrence.
“zz” indicates the focus drive value.
Note:
Jitter value appears on the display.
26
SA-HT833VP
3. Play test disc T30 (central periphery).
4. Adjust till the jitter value becomes minimum, using a tangential adjustment screw. (Fig. 12-1)
5. Play test disc T30 (central periphery).
6. Adjust till the jitter value becomes minimum, using a tilt adjustment screw 1. (Fig. 12-1)
7. Play test disc T30 (central periphery).
8. Adjust till the jitter value becomes minimum, using a tilt adjustment screw 2.(Fig. 12-1)
9. Adjust till the jitter value becomes, using the tilt adjustment screws 1 and 2 alternatively.
10. Finally please reproduce T01 (inner priphery) and T43 (outer periphery) and check the jitter value. (Please readjust, when the
jitter value is extremely different.)
Fig. 12-1
12.4.2. Tips
1. Apply the tangential adjustment first and then the tilt adjustment.
2. Repeat the adjustment a couple of times to find the optimum point.
3. Complete with the tilt adjustment.
12.4.3. Check After Adjustment
Replay test discs or other commercial discs in order to confirm that no picture deterioration or sound skipping is detected in the
27
SA-HT833VP
inner, middle, and outer tracks. After this, fasten each adjustment screw securely using a screw lock.
12.4.4. Procedure for Screw Lock
1. After adjustment, remove the top cover, clamper base, disc tray and then traverse unit.
2. Place the traverse unit upside down, and fasten the adjustment screws with a screw lock. (Fig. 12.2)
3. After fastening the screws, assemble in order of the traverse unit, disc tray, clamper base, and then top cover.
Fig. 12-2
28
SA-HT833VP

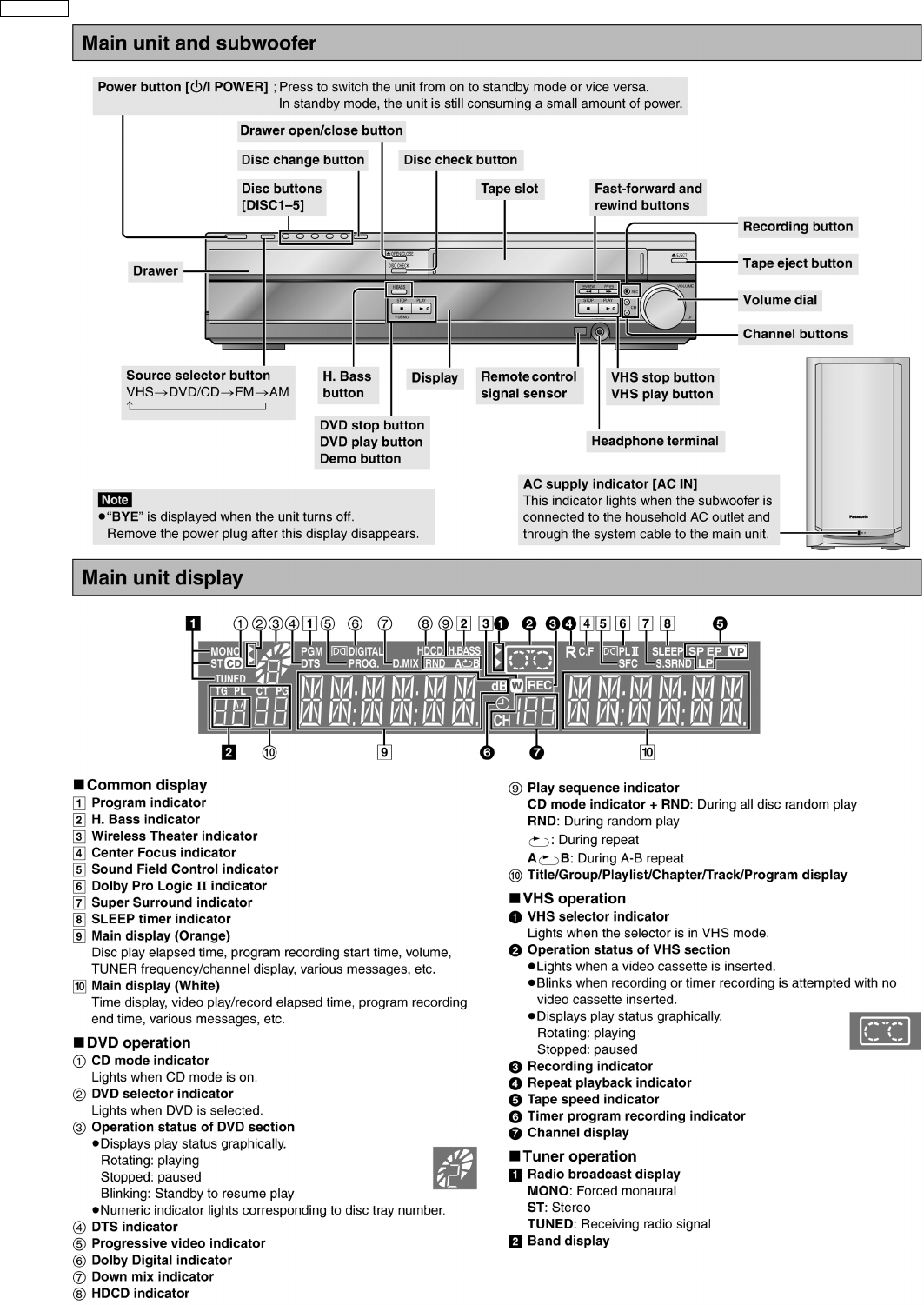

13 Operation Procedure
29
SA-HT833VP
30
SA-HT833VP
14 Disc information
31
SA-HT833VP
32
SA-HT833VP
15 About HighMAT
15.1. What’s HighMAT?
Consumers worldwide are using PCs to create their own collections of music, photos and even video by burning them onto CDs.
But how these collections can be experienced across different devices can be confusing to navigate, time consuming to access for
a DVD player, and be incomplete in terms of music information available to the customer.
HighMAT offers a solution to this growing consumer problem. HighMAT dramatically improves the digital media experience on
consumer electronic devices by delivering a simple, standardized approach that allows consumers who have created personal
collections of digital music, photography and video on their PC to:
·
Create a HighMAT CD or DVD which can be easily played back on consumer electronics devices such as CD and DVD players,
and car stereos.
·
Move digital media files (using recordable media such as CD-R and CD-RW) between the PC and various playback devices
such as CD and DVD players.
A new standard for creating personal media on consumer electronic devices, HighMAT enable easier and more seamless
interoperability between Windows PCs and devices designed for your living room, or the car.
15.2. Why take advantage of HighMAT?
A Problem Defined:Today, when consumers create their own digital audio, video or photo collections on CD-R or other physical
formats, there are numerous, inconsistent ways that devices read the data. For the consumer, the playback experience can be
confusing:
33
SA-HT833VP
A Solution Created: HighMAT delivers a better digital media access experience by creating a standard approach for PCs to
structure digital media on various physical formats and for playback devices to read the data.
15.3. Benefits of HighMAT?
Conventional HighMAT
Even though DVD player is CD-R/RW compatible, the inconsistent ways
that various DVD players can read the music or photos files often leads
to a confusing and inconsistant playback experince.
HighMAT compatible products play content back with consistent
interface. This includes products which are JPEG compatible products
without HighMAT support.
34
SA-HT833VP
35
SA-HT833VP
HighMAT is now available for CD Burning and in Leading DVD PlayersHighMAT is a new technology that is now available in leading
software and consumer electronic devices to dramatically improve the digital media experience when you create homemade
CDsHighMAT delivers a simple, standardized way for PC software and consumer electronics devices to talk to each other and work
better together.
When you create your homemade CDs with software that supports HighMAT CD burning, and then play them back on a DVD
player that supports HighMAT, you get better, easier navigation. You get folders you can access with a single click of your DVD
player´s remote control. You can view important information about your music like full song names, artist titles, album names and
genre. And you can get faster startup on your home entertainment device.
To enjoy the benefits of HighMAT, all you need is software that supports HighMAT for CD burning of music or photos, as well as
a home entertainment device like a DVD player that supports HighMAT for playback. Always look for the HighMAT logo on your
software or home entertainment device to ensure it supports the HighMAT experience.
36
SA-HT833VP
16 Assembling and Disassembling
“ATTENTION SERVICER”
Some chassis components may be have sharp edges. Be careful when disassembling and servicing.
1. This section describes procedures for checking the operation of the major printed circuit boards and replacing the main
components.
2. For reassembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.
3. Select items from the following index when checks or replacement are required.
·
Disassembly of Top Panel
·
Disassembly of Front Panel
·
Disassembly of VTR Mecha Unit
·
Disassembly of DVD Mecha Unit
·
Disassembly of ASP P.C.B.
·
Disassembly of Rear Panel
·
Disassembly of Power P.C.B.
·
Disassembly of Main P.C.B.
·
Disassembly of Front Panel A P.C.B.
·
Disassembly of Front Panel B P.C.B.
Warning:
This product uses a laser diode. Refer to “Precaution of Laser Diode”.
16.1. Disassembly flow chart
The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the
servicing.
To assemble the unit, reverse the steps shown in the chart below.
37
SA-HT833VP

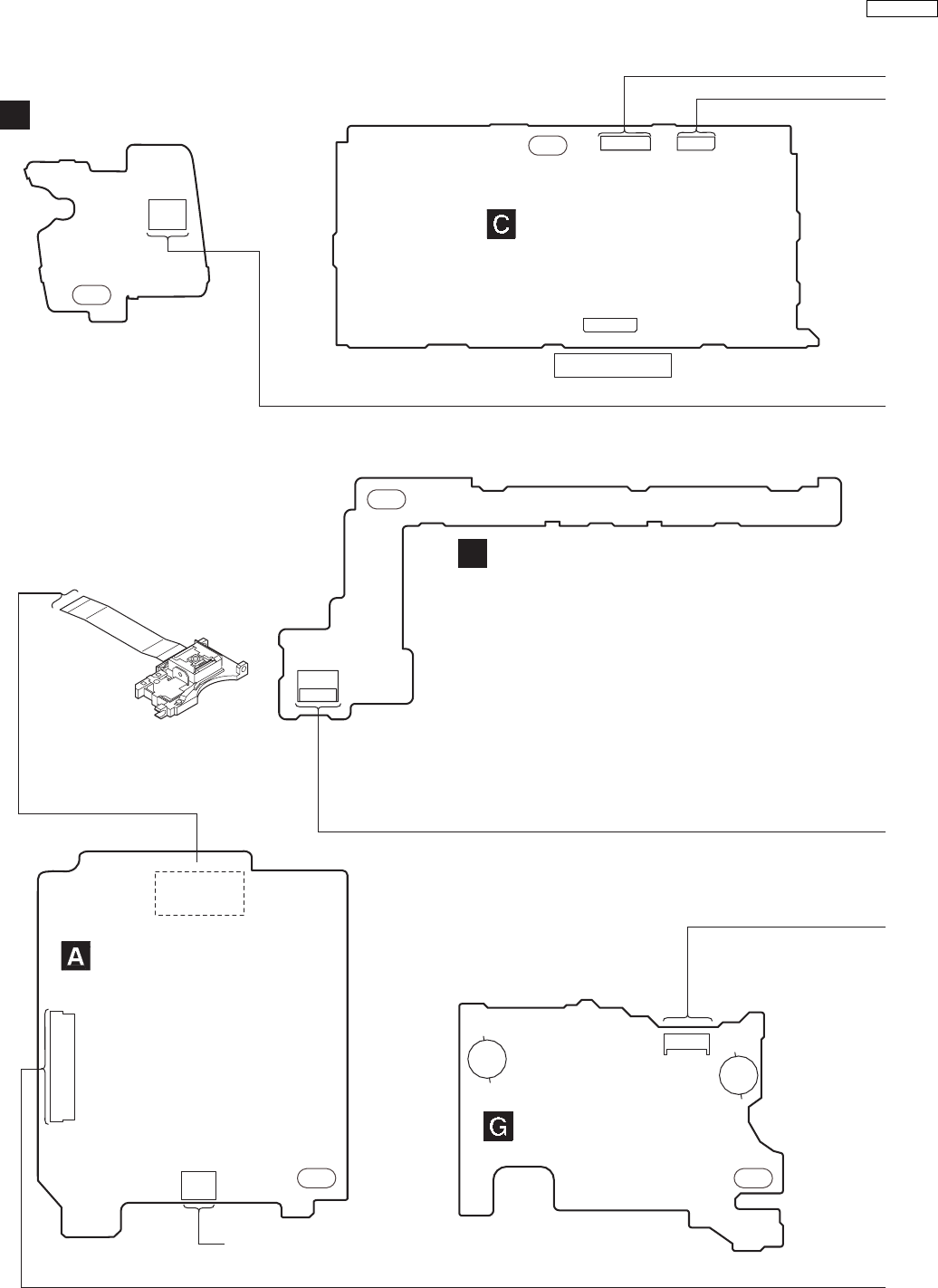

16.2. P.C.B. Positions
38
SA-HT833VP
16.3. Disassembly of Top Panel
Step 1: Remove 4 screws.
Step 2: Remove the Top Panel as arrow shown below.
16.4. Disassembly of Front Panel
·
Follow the (Step 1) to (Step 2) of item 16.3
Step 1: Release all the catches.
Step 2: Detach the connector (P36001, P36002).
Caution of disassembly for Front Panel
Press upward the cassette rack to place the Front Panel.
39
SA-HT833VP
16.5. Disassembly of VTR Mecha
Unit
·
Follow the (Step 1) to (Step 2) of item 16.3
·
Follow the (Step 1) to (Step 2) of item 16.4
Step 1 to 4: Remove 6 screws.
Step 5: Detach FFC (P4002, P2501).
Step 6: Disconnect the connector (P1531).
Step 7: Lift up the VTR Mecha Unit as arrow shown below.
Step 8: Detach the connector (P5001, P4001, P2571) carefully
when lift up the VTR Mecha Unit.
Caution of assembly the VTR Mecha Unit
1. Join the marking ( )of the position switch tothe position
of “EJECT” (the center part of the terminal). (Figure 2)
2. Assembly the boss at the position switch to the rectangular
hole at the main gear. (Figure 1)
3. Slowly join back the VTR Mecha Unit to fit the position
setting boss (3 locations) on the Main unit.
4. Make sure the FFC insert to the connector (P5001).
40
SA-HT833VP
16.6. Disassembly of DVD Mecha
Unit
·
Follow the (Step 1) to (Step 2) of item 16.3
·
Follow the (Step 1) to (Step 2) of item 16.4
Step 1: Remove 1 screw and DVD Bracket.
Step 2: Remove 2 screws.
Step 3: Detach FFC (P36004, P36005).
16.7. Disassembly of ASP P.C.B.
·
Follow the (Step 1) to (Step 2) of item 16.3
Step 1: Detach FFC (P2101, P2102).
Step 2: Remove 1 screw.
Step 3: Press the PCB Spacer as arrow shown and lift up the
ASP P.C.B.
16.8. Disassembly of Rear Panel
·
Follow the (Step 1) to (Step 2) of item 16.3
41
SA-HT833VP
Step 1: Remove 1 screw.
Step 2: Remove 6 screws.
Step 3: Remove the rear panel as arrow shown below.
16.9. Disassembly of Power P.C.B.
·
Follow the (Step 1) to (Step 2) of item 16.3
·
Follow the (Step 1) to (Step 3) of item 16.8
Step 1: Remove 2 screws.
Step 2: Detach the POWER P.C.B. while removing tab on
board holder.
Step 3: Detach connector (P1102).
16.10. Disassembly of Main P.C.B.
·
Follow the (Step 1) to (Step 2) of item 16.3
·
Follow the (Step 1) to (Step 2) of item 16.4
·
Follow the (Step 1) to (Step 8) of item 16.5
·
Follow the (Step 3) of item 16.6
·
Follow the (Step 1) to (Step 3) of item 16.7
·
Follow the (Step 1) to (Step 3) of item 16.8
·
Follow the (Step 1) to (Step 3) of item 16.9
Step 1: Remove 5 screws.
16.11. Disassembly of Front Panel A
P.C.B.
·
Follow the (Step 1) to (Step 2) of item 16.3
·
Follow the (Step 1) to (Step 2) of item 16.4
Step 1: Remove 5 screws.
42
SA-HT833VP
Step 2: Release the catches.
1. Turn off by pressing power SW in the body.
2. Unplug AC power cord after the indication of [BYE], then
disassemble the body.
16.14.1. Gear for servicing information
·
This unit has a gear which used for chacking items
(open/close of disc tray, up/down operation of traverse unit
by manually) when servicing. (For gear information, that is
described on the items for disassembly procedures.)
·
For preparation of gear (for servicing), perform the
procedures as follows.
·
In case of re-servicing the same set, the “ gear for servicing”
may be took off because it had been used. So, the “gear for
servicing” must be stored.
1. Remove the gear attached to top cover of CD loading
mechanism.
2. Insert the hexagonal wrench (2.5mm) into the gear.
16.12. Disassembly of Front Panel B
P.C.B.
·
Follow the (Step 1) to (Step 2) of item 16.3
·
Follow the (Step 1) to (Step 2) of item 16.4
Step 1: Release the catches and remove the Volume Knob.
Step 2: Remove 6 screws.
3. Disassemble the body, and take out CD loading
mechanism.
4. Perform disassembly according to the following procedure
for disassembly.
16.14.2. Replacement of traverse deck
·
Follow the (Step 1) - (Step 2) of Item 16.3.
·
Follow the (Step 1) - (Step 2) of Item 16.4.
·
Follow the (Step 1) - (Step 3) of Item 16.6.
16.13. Procedure for removing CR16 mechanism (Precaution)
16.14. CR16 mechanism disassembly procedure
43
SA-HT833VP
16.14.3. Replacement of optical pickup unit
·
Follow the (Step 1) - (Step 2) of Item 16.3.
·
Follow the (Step 1) - (Step 2) of Item 16.4.
·
Follow the (Step 1) - (Step 3) of Item 16.6.
·
Follow the (Step 1) - (Step 2) of Item 16.14.2.
44
SA-HT833VP
45
SA-HT833VP
16.14.4. Disassembly of Traverse Motor
(Unit) and Spindle Motor (Unit)
·
Follow the (Step 1) - (Step 2) of Item 16.3.
·
Follow the (Step 1) - (Step 2) of Item 16.4.
·
Follow the (Step 1) - (Step 3) of Item 16.6.
·
Follow the (Step 1) - (Step 2) of Item 16.14.2.
·
Follow the (Step 1) - (Step 13) of Item 16.14.3.
46
SA-HT833VP
16.14.5. Replacement for the disc tray
·
Follow the (Step 1) - (Step 2) of Item 16.3.
·
Follow the (Step 1) - (Step 2) of Item 16.4.
·
Follow the (Step 1) - (Step 3) of Item 16.6.
47
SA-HT833VP
48
SA-HT833VP
16.14.6. Replacement for the traverse deck
·
Follow the (Step 1) - (Step 2) of Item 16.3.
·
Follow the (Step 1) - (Step 2) of Item 16.4.
·
Follow the (Step 1) - (Step 3) of Item 16.6.
·
Follow the (Step 1) - (Step 10) of Item 16.14.5.
49
SA-HT833VP
16.14.7. Disassembly for loading unit
·
Follow the (Step 1) - (Step 2) of Item 16.3.
·
Follow the (Step 1) - (Step 2) of Item 16.4.
·
Follow the (Step 1) - (Step 3) of Item 16.6.
·
Follow the (Step 1) - (Step 10) of Item 16.14.5.
·
Follow the (Step 1) - (Step 4) of Item 16.14.6.
50
SA-HT833VP
51
SA-HT833VP
52
SA-HT833VP
16.15. CR16 MECHANISM ASSEMBLY
PROCEDURE
The following specified greases and/or oil must be applied
when some specific parts are changed.
1. Floil grease (VFK1298) : The floil grease must be
applied to tray, tray (L) and tray (R).
2. Hanarl oil (VFK1700) : The hanarl oil must be applied to
any parts with grease other than the said parts.
·
Follow the (Step 1) - (Step 2) of Item 16.3.
·
Follow the (Step 1) - (Step 2) of Item 16.4.
·
Follow the (Step 1) - (Step 3) of Item 16.6.
·
Follow the (Step 1) - (Step 10) of Item 16.14.5.
·
Follow the (Step 1) - (Step 4) of Item 16.14.6.
·
Follow the (Step 1) - (Step 22) of Item 16.14.7.
53
SA-HT833VP
54
SA-HT833VP
55
SA-HT833VP
56
SA-HT833VP
57
SA-HT833VP
58
SA-HT833VP
59
SA-HT833VP
60
SA-HT833VP
61
SA-HT833VP
62
SA-HT833VP
63
SA-HT833VP
64
SA-HT833VP
16.16. Disassembly of traverse mechanism
·
Follow the (Step 1) - (Step 2) of Item 16.3.
·
Follow the (Step 1) - (Step 2) of Item 16.4.
·
Follow the (Step 1) - (Step 3) of Item 16.6.
65
SA-HT833VP
66
SA-HT833VP
16.17. Removing the Cassette Tape
Manually
When electrical system failure occurs and a loaded cassette
tape is stuck in the unit, follow the instruction below to remove
it.
16.17.1. Removal by Compulsory Loading
(Available when service mode is on even when the power
cannot be turned off.)
1. Press and hold down the "FF" and "EJECT" buttons at
least three seconds then adjust the service number until
appears as "7".
2. Press the "STOP" button to unload.
(Carefully check for tape slack)
16.17.2. Removal by Use of Battery to
Rotate Loading Motor
1. Unplug the power outlet, and remove the top panel and the
front panel.
2. Use a mechanism drive jig (or three AA-size batteries
connected in series) in order to supply 4.5V and to rotate
the loading motor.
3. Suspend the unloading operation right before completion.
Rotate the S-reel board with a negative screwdriver (small
size) to remove tape slack.
4. Restart the unloading operation to remove the cassette
tape.
67
SA-HT833VP
16.17.3. Removal of Mecha Unit then take
out Cassette Tape
1. Unplug the power outlet and remove the top panel and the
front panel.
2. Remove the VTR mechanism unit.
3. Remove the loading motor (remove a screw).
4. Rotate the main cam gear counterclockwise, and suspend
the unloading operation right before completion.
5. Rotate the capstan rotor clockwise in order to remove tape
slack. Rotate the main cam gear counterclockwise again
and remove the cassette tape.
6. Reassemble the loading motor and the mechanical unit to
the Main P.C.B. and securely fasten with the screws.
(Refer to "Precaution to Be Taken During Installation of
Traverse Deck Unit".)
68
SA-HT833VP
17 Procedure for checking of the major P.C.B.
17.1. Checking the DVD Module P.C.B., CD Loading P.C.B. and Main P.C.B.
Preparation
Follow items 16.1 to 16.12 of Disassembly Procedure (Refer to below diagram for service position 1).
17.2. Checking ASP P.C.B., Front Panel A P.C.B., Front Panel B P.C.B. &
Power P.C.B.
Preparation
Follow items 16.1 to 16.12 of Disassembly Procedure (Refer to below diagram for service position 2).
69
SA-HT833VP
Note:
·
Indicated voltage values are the standard values for the
unit measured by the DC electronic circuit tester (high-
impedance) with the chassis taken as standard.
Therefore, there may exist some errors in the voltage
values, depending on the internal impedance of the DC
circuit tester.
·
Circuit voltage and waveform described herein shall be
regarded as reference information when probing defect
point because it may differ from actual measuring value
due to difference of Measuring instrument and its
measuring condition and product itself.
18 Voltage Measurement and Waveform Chart
18.1. Voltage Measurement
Ref No.
MODE 1 2 3 4 5 6 7 8 9
DVD PLAY 7.5 0 0 0 7.5 3.1 0 0 3.1
Ref No.
MODE 1 2 3 4 5 6 7 8 9
DVD PLAY 7.5 0 0 0 7.5 7.5 3.1 0 3.1
Ref No.
MODE 1 2 3 4
DVD PLAY 1.2 2.4 5 0
Ref No.
MODE 1 2 3 4
DVD PLAY 0 1.2 0.1 0
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 12.1 2.8 -0.1 2.8 0 0 16.5 0 0 1.1 3.8 0 0.4 5 2.5 2.5 2.5 2.5 5 0.8
Ref No.
MODE 21 22 23 24 25 26 27
DVD PLAY 12.1 0.8 0.8 0 0 0 0
Ref No.
MODE 1 2 3 4 5
DVD PLAY 16.4 4.8 4.9 0 0
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14
DVD PLAY 0 0 0 0 5.1 5.1 -1.9 0 0 0 0 0 0 5.8
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 0 0 0 0 0 2.6 2.8 1.9 1.9 1.9 2.1 1.8 0 1.4 2.8 2 2.8 2.1 2.8 0
Ref No.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
DVD PLAY 2.8 5 2.3 0.6 0 3 0.6 0 1.6 2.2 0.2 2.3 2 3.1 2.4 2.4 3 2.2 1.5 2.1
Ref No.
MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
DVD PLAY 2.8 2 2.1 0 3.2 3.2 5 4.9 3.8 5 2.2 5 2.6 0 2 0 2.2 2 5 5
Ref No.
MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
DVD PLAY 0 2.4 2.2 2.5 2.2 2.5 2.2 2.5 2 2.7 0.7 4.9 4 3.8 2.8 2.2 2.8 4.9 0 2.3
Ref No.
MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
DVD PLAY 0.7 0 0.3 4.9 2.2 2.2 2.2 0 2.2 2.2 2.2 5 1.9 2.5 2.5 2.5 0 2.3 0 2.6
Ref No.
MODE 1 2 3 4 5 6
DVD PLAY 5 1.4 5 1.3 0 1.4
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 2.4 0 2.4 0 2.4 2.5 2.1 0.7 0 0 0 2.1 2.5 0 0 2.6 0.8 2.5 2.5 2.1
Ref No.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
DVD PLAY 2.1 2.1 0 2.1 5.1 2.1 0 4.3 1.8 1.7 0 2.5 2.5 0.8 2.7 0.1 1.7 0 0.1 5.1
Ref No.
MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
DVD PLAY 0 4.1 0 0 0 3.5 2.7 2.2 0 3 5.1 2.7 6 2.4 0 - 6 12.2 6 0.7
Ref No.
MODE 61 62 63 64
DVD PLAY 2.5 2.5 2.5 0.7
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 0 0 5.1 5.1 0 0 0.7 0.7 3.1 - 0 5.1 0 5 3.2 0 5 0 0 0
Ref No.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
DVD PLAY 5.1 0 4.3 2 0 0 5 0.1 0 5 5 5 0 5 1.5 1.4 5 2.2 2.3 0
Ref No.
MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
DVD PLAY 0 0 0 0 5 0 1.4 2.3 0 1 1.1 0 5 3 1.3 1.3 0 0 0 0
Ref No.
MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
DVD PLAY 0 0.2 0 0 0 0 0 4.7 0.8 4.7 4.1 3.8 2.5 0 4.8 0 5 5 0.1 5.1
Ref No.
MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
DVD PLAY 0 0 0 0 0 2.5 2.5 0 2.1 2.5 2.5 2.5 0 2.5 2.5 2.5 2.5 51 5.1 0.2
CD LOADING PCB
IC11
IC6001
IC6001
IC21
IC2501
IC2501
IC2502
MAIN PCB
IC1511
IC1512
IC2601
IC3001
IC3701
IC4501
IC6001
IC6001
IC6001
IC3001
IC3001
IC3001
IC3001
IC4501
IC4501
IC4501
70
SA-HT833VP
Ref No.
MODE 1 2 3 4 5
DVD PLAY 0 0 0 5 5
Ref No.
MODE 1 2 3 4 5 6
DVD PLAY 5.6 0 4.8 1.3 0 5
Ref No.
MODE 1 2 3 4 5
DVD PLAY 4.8 10.8 0 9 0
Ref No.
MODE 1 2 3 4 5
DVD PLAY 4.8 10.8 0 7.7 1.3
Ref No.
MODE 1 2 3 4 5
DVD PLAY 5 5 0 0 0
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 5 2.4 0 0 1.9 1.2 0 0 1.9 3.3 3.3 1.2 4.8 2.4 0 2.4 2.4 2.4 0 2.4
Ref No.
MODE 21 22 23 24 25 26 27 28 29 30 31 32
DVD PLAY 2.4 5 1.2 1.2 5 1.2 1.2 0.2 1.4 1.4 0 2.4
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 5.1 5.1 5 1.4 0 0 5 2.4 0 2.4 5.1 5.1 0 5 5 5.1 5.1 0 5 5
Ref No.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
DVD PLAY 0 5 5 5 5.1 5 0 5.1 5.1 5.1 4.8 4.8 4.9 0 0.7 4.7 4.7 3.2 0 0
Ref No.
MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
DVD PLAY 0 0 5 0 0 5.1 5.1 5 4.9 5.1 4.8 0 0 0000000
Ref No.
MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
DVD PLAY 0 5 0 0 0 5 5 4.9 0 0 4.9 4.8 0 4.9 5 0 0 5.1 0 0
Ref No.
MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
DVD PLAY 0.1 5.1 0 0 5 0 0 3.5 4.2 5 5.1 0 0.4 0 0 0 5.1 5.1 5 0
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY -23.7 -24 0 -23.8 5 3.5 4.2 2.8 0 0 0 2.1 2.2 0 -26.9 -23.7 -26.8 -23.8 -23.8 -22.5
Ref No.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
DVD PLAY - - - -26 -25.8 -26.1 -27.2 -27.2 -24.1 -23.8 - 0 - -------
Ref No.
MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
DVD PLAY - - -24 - -24.1 - - - - - -26.8 5 -26.8 -26.8 -26.8 -26.8 -26.8 -26.8 -26.8 -26.8
Ref No.
MODE 61 62 63 64
DVD PLAY -23.8 -23.8 -23.8 -23.6
FRONT PANEL B P.C.B
IC33001
IC33002
IC7201
IC7201
IC6301
IC6201
IC7201
IC7201
IC36001
IC35501
IC35501
IC33003
IC36001
IC36001
IC36001
IC36001
71
SA-HT833VP
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 3.3 3.3 0 3.3 0.3 3.3 3.3 3.3 0 0.2 2 3.3 0.4 0.3 0.3 0 0.6 0.3 3.3 0
Ref No.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
DVD PLAY 3.3 3.3 3.3 3.3 0 0 3.3 3.3 0 0 0.3 0.5 3.3 3.3 0 0.4 0.5 0.3 3.3 3.3
Ref No.
MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
DVD PLAY 0.5 0.6 0 0 3.3 0.2 0.2 3.3 0 0.2 0 0.3 0 0 0 2.9 3.3 3.3 3.3 3.3
Ref No.
MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
DVD PLAY 0.2 3.3 0 0 0.2 0 0 3.3 3.3 0.2 3.3 3.3 3.1 0 3.3 0 0.2 3.3 0 3.3
Ref No.
MODE 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100
DVD PLAY 0 1.5 0 0 3.3 0.2 0 0.1 0 0.2 0 0.2 0 3.3 0.2 0.2 0 3.3 0 0
Ref No.
MODE 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120
DVD PLAY 3.3 3.3 3.3 1.8 0 3.3 3.3 1.7 1.7 1.7 1.7 0.2 0.6 1.6 3.3 1.5 0 3.3 3.3 3.3
Ref No.
MODE 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140
DVD PLAY 3.3 0 0 0 0 0 2.2 1.6 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 1 1.6
Ref No.
MODE 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160
DVD PLAY 3.3 3.3 1.9 3.3 0 1 1.5 2.8 0.1 3.3 0.1 0.4 1 1 2.2 1 0 1.3 3.3 0
Ref No.
MODE 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180
DVD PLAY 3.3 0 0.2 0 0 1.5 3.3 0.1 0 3.3 3.3 0 0 3.3 0 3.3 2.4 3.3 0 3.3
Ref No.
MODE 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200
DVD PLAY 3.3 3.3 0.1 0.1 0.1 0.1 3 0.1 0.1 0 3.3 3.3 3.3 0.3 3.3 3.3 0.2 0.3 3.3 0.2
Ref No.
MODE 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220
DVD PLAY 0 3.3 3.3 0 0 0.1 3.3 0.3 3.3 0.3 0.1 0.2 0 0.1 0.1 3.3 0.1 0 0 0.8
Ref No.
MODE 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240
DVD PLAY 0.1 0.2 0 0.2 0 3.3 0 0 0 0.2 3.3 0 0.3 0 3.3 3.3 0.3 3.3 0 0.3
Ref No.
MODE 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260
DVD PLAY 3.3 3.3 3.3 3.3 0 0 0.2 0.2 3.3 3.3 0.3 0 0.1 0.2 1 3.3 0 3.3 3.3 0
Ref No.
MODE 261 262 263 264 265 266
DVD PLAY 0.2 0.2 0 0.2 3.3 0.3
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 3.3 3.3 3.3 0.1 0.2 0 0 0.1 3.3 3.3 3.3 0 3.3 3.3 3.3 0 3.4 0 3.3 3.4
Ref No.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
DVD PLAY 0 0 0 3.3 0 0 3.3 0 3.3 0.1 3.3 0 3.3 3.3 0 3.3 3.3 0 3.3 0
Ref No.
MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54
DVD PLAY 0 0.2 3.3 3.3 3.3 0 3.3 3.3 3.3 0.2 0.1 0 0 0
Ref No.
MODE 1 2 3 4 5 6 7 8
DVD PLAY 3.3 0 0 1.9 4.9 0 0 4.9
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 1.7 1.7 1.7 1.7 1.7 1.7 0 4.9 3.3 0 2.8 2.9 2.8 2.8 2.2 2.2 3.1 1.2 0 0
Ref No.
MODE 21 22 23 24 25 26 27 28
DVD PLAY 4.9 9.3 1.8 1.7 1.7 1.7 3.3 3.1
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 3.3 3.3 0 0 0 5 0 0 5 2.5 0 0 3.3 3.3 0 0 5 0 0 0
Ref No.
MODE 21 22 23 24 25 26 27 28
DVD PLAY 0 0 5 0 0 0 0 3.3
Ref No.
MODE 1 2 3
DVD PLAY 0 3.1 3.3
IC8001
IC8001
IC8051
DVD MODULE P.C.B
IC8001
IC8001
IC8001
IC8001
IC8001
IC8001
IC8001
IC8001
IC8001
IC8001
IC8001
IC8001
IC8251
IC8601
IC8051
IC8051
IC8111
IC8251
IC8421
IC8421
72
SA-HT833VP
Ref No.
MODE 1 2 3 4 5 6 7 8
DVD PLAY 0 0 0 -7.2 0 0 0 7.2
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 0 0 0 4.6 4.6 - 0 -4.5 4.6 -4.5 4.6 -4.5 4.6 4.6 4.6 0 3.6
Ref No.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
DVD PLAY 4.6 3.6 4.6 3.6 4.6 3.6 4.6 4.6 4.6 4.6 4.6 4.6 -6.8 0 4.6 4.6 0 4.6 4.6 0
Ref No.
MODE 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
DVD PLAY 4.6 -6.8 7.2 0 - 0 0 0 -4.5 4.6 -4.5 4.6 4.6 4.6 4.6 4.6 4.6 4.6 - -
Ref No.
MODE 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
DVD PLAY - - - - - - - - 0 0 0 4.6 4.6 0000000
Ref No.
MODE 1 2 3 4 5 6 7 8
DVD PLAY 0 0 0 -7.2 0 0 0 7.2
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
DVD PLAY 0 0 0 -7.2 0 0 0 7.3 0 0 0 -7.2 0 0 0 7.3
Ref No.
MODE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
DVD PLAY 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 7.2 -7.2 0 0 0
Ref No.
MODE 1 2 3 4 5 6 7 8
DVD PLAY 0 0 0 -7.2 0 0 0 7.2
Ref No.
MODE 1 2 3 4 5 6 7 8
DVD PLAY 0 0 0 -7.2 0 0 0.5 77.2
Ref No.
MODE 1 2 3 4 5 6 7 8
DVD PLAY 7.1 1.2 1.3 7.2 0 0 0 7.2
Ref No.
MODE 1 2 3
DVD PLAY 2.5 0 4.1
IC2011
IC7701
IC7702
IC7703
IC2013
IC2011
IC6011
IC2011
IC2011
POWER P.C.B
IC1200
ASP P.C.B
IC2010
IC2015
73
SA-HT833VP
Ref No.
MODE E C B
DVD PLAY 0 0.1 1.2
Ref No.
MODE E C B E C B E C B E C B E C B
DVD PLAY 5.1 5.6 5.8 5.1 5.6 5.8 5.1 5.6 5.8 -30 -16.6 5.6 0 0.7 0
Ref No.
MODE E C B E C B E C B E C B E C B
DVD PLAY 0 3.1 0 1 5 1.6 1.6 4.9 2.2 0 0 0 0 2.3 0
Ref No.
MODE E C B E C B E C B E C B E C B
DVD PLAY 0 0 0 5.6 0 5.6 5.1 5.5 5.8 5.4 5.6 6.1 0 16.5 0
Ref No.
MODE E C B E C B E C B E C B E C B
DVD PLAY 5 5.6 5.8 4.3 1.2 3.7 5.1 5.6 5.8 12.2 16.5 12.9 0.6 - 1.2
Ref No.
MODE E C B E C B E C B E C B E C B
DVD PLAY 5.4 5.6 6.1 5.8 5.6 6.1 0 0 0.5 0 5 0 0.6 1.2 1.2
Ref No.
MODE E C B E C B E C B
DVD PLAY 7.2 9 8 -7.2 -16.6 -7.7 0 5.1 0
Ref No.
MODE E C B E C B E C B E C B E C B
DVD PLAY 5.6 5.6 0 0 0 4.8 0 0 7.2 0.1 -3 0 0 0 -3.3
Ref No.
MODE E C B E C B E C B E C B E C B
DVD PLAY 0 0 -3.2 0 0 4.6 0 0 4.6 4.7 4.6 0 0 5.6 0
Ref No.
MODE E C B E C B E C B E C B E C B
DVD PLAY 34.4 34.4 0 9 8.9 0 0 0 4.8 0 0 5.1 0 5.8 4.8
Ref No.
MODE E C B
DVD PLAY 5.8 0 0
Ref No.
MODE E C B E C B
DVD PLAY 0 -4.8 0 0 -4.8 0
Ref No.
MODE 1 2 3 4 5 6 E C B 1 2 3456
DVD PLAY 0 -4.8 0 0 -4.8 0 0 -4.7 0 0 -4.7 0 0 -4.6 0
Ref No.
MODE E C B E C B E C B 1 23456
DVD PLAY 2.2 2.1 0 0 -4.8 0 0 -4.8 0 0 -4.8 3.9 0 -4.8 3.9
Ref No.
MODE E C B 1 2 3 4 5 6 E C B E C B
DVD PLAY 0 0 0 0 0 3.9 0 0 3.9 0 -4.8 0 0 -4.8 0
Ref No.
MODE 1 2 3 4 5 6
DVD PLAY 0 -4.8 0 0 -4.8 0
Ref No.
MODE 1 2 3 4 5 6 E C B 1 2 3456
DVD PLAY 0 -4.8 0 0 -4.8 0 0 -4.8 0 0 -4.8 0 0 -4.8 0
Ref No.
MODE E C B E C B 1 2 3 4 5 6
DVD PLAY 2.6 2.6 0 0 -0.5 0 0 -0.3 0 0 0.7 0
Ref No.
MODE E C B E C B 1 2 3 4 5 6
DVD PLAY -4.8 -4.3 0 0 -4.8 0 0 -4.8 0 0 -4.8 0
Ref No.
MODE 1 2 3 4 5 6
DVD PLAY 0 -4.8 0 0 -4.8 0
Ref No.
MODE E C B E C B E C B 1 2 3 4
DVD PLAY 47.5 - 49.2 47.5 49.4 47.5 47.5 49.2 47.3 5.9 4.8 47.8 53.6
Ref No.
MODE E C B E C B E C B
DVD PLAY -18 -17.9 -17.2 0 4.9 5 0 0 4.9
Q7001
Q2600Q2303
CD LOADING P.C.B
Q2500Q2304
Q1
QR7202
ASP P.C.B
Q7701 Q7702 Q7703
Q1150 Q1151 Q1152 Q1200
QR7201
QR4505
QR4506 QR4701 QR4702 QR4703 QR4082
Q34004 Q36001
QR4504
Q33005Q33001 Q33002 Q33003 Q33004
MAIN P.C.B
Q4082
Q1351 Q1352 Q1354
Q1502 Q3001 Q3003 Q4801
Q1360 Q1501
FRONT PANEL B P.C.B
Q2104 Q2105 Q2200
Q2601
POWER P.C.B
Q3101 Q5101 Q5102
Q7501
QR1361 QR1363 QR4081
Q33006 Q33007 Q33008 Q33009 Q33011
Q34003
Q4083 Q4804 Q6305 Q6306
Q8101 Q8102 Q8110
Q8111
Q2201 Q2202 Q2301 Q2302
QR33013 QR36001 QR36002
Q2102 Q2103
QR36003
QR33002 QR33003
74
SA-HT833VP
18.2. Waveform Chart
IC2001 PIN 1
DVD PLAY
3.48Vp-p (1msec.div)
IC5401 PIN 42
DVD PLAY
51.2Vp-p (10usec.div)
IC5401 PIN 52
DVD PLAY
4.04Vp-p (1msec.div)
IC5401 PIN 54
DVD PLAY
4.64Vp-p (1msec.div)
IC36001 PIN 35
DVD PLAY
53.6Vp-p (2.5msec.div)
IC36001 PIN 36
DVD PLAY
53.2Vp-p (2.5msec.div)
IC36001 PIN 37
DVD PLAY
52.8Vp-p (2.5msec.div)
IC36001 PIN 38
DVD PLAY
62.4Vp-p (25msec.div)
IC36001 PIN 89
DVD PLAY
57.6Vp-p (25msec.div)
P2101 PIN 17
DVD PLAY
3.96Vp-p (1msec.div)
P2101 PIN 19
DVD PLAY
4.08Vp-p (1msec.div)
P2102 PIN 12
DVD PLAY
896mVp-p (50usec.div)
IC5401 PIN 43
DVD PLAY
51.6Vp-p (100usec.div)
QR4701 B
DVD PLAY
202mVp-p (1msec.div)
QR4702 C
DVD PLAY
3.96Vp-p (1msec.div)
P5001 PIN 9
TEST MODE 1
0.1Vp-p
P5001 PIN 5
TEST MODE 1
2.3Vp-p
P4002 PIN 4
TEST MODE 1
5.4Vp-p (20usec.div)
DVDT-S20 TRACK 9
Y LEVEL 1000 +100mVp-p
CYAN LEVEL 621 + 62mVp-p
75
SA-HT833VP
DVDT-S20 TRACK 9
Y LEVEL 1.0 + 0.1Vp-p
DVDT-S20 TRACK 9
CYAN LEVEL 0.621 + 0.062Vp-p
DVDT-S20 TRACK 9
Y LEVEL 1.0 + 0.1Vp-p
DVDT-S20 TRACK 9
CB LEVEL 0.525 + 0.053Vp-p
DVDT-S20 TRACK 9
CR LEVEL 0.525 + 0.053Vp-p
DVDT-S20 TRACK 9
Y + sync LEVEL 1.0 + 0.1Vp-p
Y TERMINATED WITH 75 Ohm TERMINATION
DVDT-S20 TRACK 9
Y LEVEL 1.0 + 0.1Vp-p
C TERMINATED WITH 75 Ohm TERMINATION
DVDT-S20 TRACK 9, Y+SYNC LEVEL 1.00+0.1Vp-p,
C LEVEL 0.621 + 0.062Vp-p.
LINE TERMINATED WITH 75 Ohm TERMINATION
DVDT-S20 TRACK 9, MAGENTA 0.842 + 0.04 Vp-p,
MAGENTA PHASE 61 + 4 Deg.
CB 525 + 53 mVp-p, CR 525 + 53 mVp-p
RGB TERMINATED WITH 75 Ohm TERMINATION
DVDT-S20 TRACK 9, MAGENTA 0.842 + 0.04 Vp-p,
MAGENTA PHASE 61 + 4 Deg.Y LEVEL 1.0 + 0.1Vp-p
RGB TERMINATED WITH 75 Ohm TERMINATION
76
SA-HT833VP
19 Illustration of IC’s, Transistors and Diodes
1
1
C1AB00001472 (28p)
C0DBCHD00004 (6p)
C0CBCBD00018 (8p)
C0ABBB000118 (8p)
C0JBAS000252 (14p)
C1AB00001935 (6p)
C1BB00000979 (20p)
C3ABPG000133 (54p)
C0FBBK000050 (28p)
AN13330A-VF (32p)
1
24
25
48
RFKWMH82H160 (48p)
C0HBB0000039 (64p)
MN2DS0003APH (256p)
C1BB00000845 (80p)
C1AB00002083 (100p)
AN3663FBP-TV (64p)
C2CBHF000410 (100p)
C2CBJG000576 (100p)
C0AABB000125 (8p)
C0EBH0000172 (5p)
C0EBA0000031 (5p)
C0JBAA000346 (5P)
1
5
3
C0DBZJG00007 (5p)
C0CBCHG00005 (5p)
C0CBCYG00003 (5P)
2134
B3NAA0000049 (4p)C1AB00001767 (25p)
C0GBG0000048 (28p)
1
1
9
C0GAG0000007 (9p) C0EBE0000384
1
2
3
C0DAEMB00003 2SC3311ASA PNA2604M01VT
E
C
B
KRA110STA
KRC103STA
2SB09700RL
2SB0710A0L
2SD0602A0L
2SD114900L
2SD0601A0L
B1ADHG000003
B1ABDF000018
E
C
B
B1GDCFLL0027
B1GBCFNN0016
B1GDCFJJ0040
B1GDBFNN0001
UNR521600L
UNR521400L
B1GBCFJJ0047
B1GDCFEC0001
B1GFGCAA0001
CE
B
2SB14170PA
B
C
E
B1BCCG000002
E
C
B
B1AAGD000016 B3PBA0000237
B
C
E
B1DEEQ000001
12
43
B3NAA0000098
EB
C
2SC3940A0A
A
Ca
Cathode
Anode
Anode
Cathode
A
Ca
Anode
Cathode
ACa
Cathode
Ca
A
Anode
Cathode
Ca
A
Anode
Cathode
Ca
A
Anode
A
Ca
Cathode
Anode
B0ACCK000005
MA2J11100L D4EA7471A007 B0KB00000052 B3EA00000072 B0BA7R900004
MA2J72800L
MA2C18800E
MA2C165001VT
B0AAED000003
B0JACE000001
B0JACE000003
MAZ751000C
B0JAPE000008
B0HAGM000006
B0JAMK000015
B0HAGR000002
B0JAME000085
Cathode
Ca
A
Anode
MA2C700A0F
MAZ4240NMF
MAZ40360MF
MAZ4075NHF
MAZ4300NMF
MAZ4062NLF
MAZ4056NHF
MAZ4130NLF
B0JCMD000024
1
4
8
5
77
SA-HT833VP
20.1. IC36001 (C2CBJG000576) IC
MICROCONTROLLER
Pin No. Mark I/O Function
1PLAY_SW IPlay Switch
2ST_SW I Stock Switch
3 LOAD_R O Charger Motor Reverse Control
4WS_LINK I Wireless Link
5WIDE1 OControl Signal for the WIDE
function
6 LOAD_F O Charger Motor 1 Forward Control
7OPEN_SW I Open Switch
8 GND I VSS (GND)
9 CNVSS - VSS (GND)
10 WS_DET IWIreless Module Detection
11 WS_MUTE OWireless Muting Control
12 RESET I SYSTEM RESET INPUT
13 XOUT - MAIN CLOCK OUTPUT (10
MHZ)
14 VSS - GND (0V)
15 XIN - MAIN CLOCK INPUT (10 MHZ)
16 VCC - POWER SUPPLY (5V)
17 /NMI I CONNECT TO VCC, EXTERNAL
INTERRUPT I/P
18 ASW_AC -No Connection
19 RMT I REMOCON INPUT
20 P_FAIL I Main AC Power Failure detect
(H=Normal, L=Fail)
21 N.C. - No Connection
22 V_MUTE2 O Mute signal 2 for video output
23 POS I Changer Position
24 BT_SW IChanger Bottom Switch
25 TU_ST I Tuner Stereo Signal
26 UP/DOWN_R OChanger Motor 2 Reverse Control
27 MUTE_DVD I Signal from DVD module control
mute circuit (H=ON, L=OFF)
28 TU_TUNED I Tuner Signal
29 TU_SCL O IIC clock for Tuner
30 TU_SDA I/O IIC data line for Tuner (bi-
direction)
31 DVD_CMD OCMD signal for the DVD Module
32 DVD_STA I STATUS signal from the DVD
Module
33 DVD_CK OClock signal for DVD Module
34 N.C. - No Connection
35 V_D0 O Data Output to Video Micon
36 V_DI I Data Input from Video Micon
37 V_CLK I Clock Input from Video Micon
38 V_CS I Chip Selector Signal from Video
Micon
39 ASP_DAT O Data Signal for ASP IC
40 ASP_CLK O Clock signal for ASP IC
41 EPM I For Flash (connect to Vss via
resistor)
42 N.C. - No Connection
43 UP/DOWN_F IChanger Motor 2 Forward Control
44 SSS_DAT O Super Surround IC Data
45 SSS_CLK O Super Surround IC Clock
46 CE I For Flash (connect to Vcc via
resistor)
47 CH_SW IChanger Change Switch
48 C_MIX O DPLII Bass Boost
49 MUTE_SW OSubwoofer MUTE signal (H=ON,
L=OFF)
50 DEMO_SEL I Demo Function Setting
(H=Default On, L=Default Off)
51 HB_MUTE O Harmonic ON/OFF Control
Pin No. Mark I/O Function
52 HB_LEVEL OHarmonic Level Control
53 SURR_FC1 OSurround Freq Limiter 1
54 MUTE_HP O Head Phone Mute signal (H=ON,
L=OFF)
55 ECS O LAT signal for the EEPROM
56 EDA I/O DATA signal for the EEPROM
57 ECK O CLOCK signal for the EEPROM
58 SURR_FC2 OSurround Freq Limiter 2
59 MUTE_H O HIC MUTE H=ON, L=OFF
60 V_MUTE_1 O Mute signal 1 for video output
61 FR_FC1 O Front Freq Limiter 1
62 VCC - POWER SUPPLY 5.0V
63 MUTE_WS OMute signal for surround Speaker
(exclude Wireless Surround)
64 VSS - GND (0V)
65 DSP_COM O Power Control for DSP 1 & 2
66 ASW_PCONT OControl Signal for the Power
Control Relay of ASW
67 DVD_PCNT OControl Signal for the Power for
the DVD MODULE
68 MUTE_L O MUTE signal for the Line output
(H=ON, L=OFF)
69 HP_SW IHead Phone Detect Switch
70 LED_BACK OAmber background LED
71 MUTE_C O Mute Signal for CENTRE (H=ON,
L=OFF)
72 MUTE_F O Mute Signal for FRONT END
(H=ON, L=OFF)
73 LED_5 OLED for Tray 5
74 MUTE_S O Mute signal for surround Audio
signal (H=ON, L=OFF)
75 PWR_SAVE OPower Save Control (H=PWR
SAVE OFF, L=PWR SAVE ON)
76 LED_4 OLED for Tray 4
77 LED_3 OLED for Tray 3
78 ASW_PDET ISignal from Power Detection
circuit for ASW
79 LED_2 OLED for Tray 2
80 LED_1 OLED for Tray 1
81 JOG_A I Signal A from Volume JOG
82 JOG_B I Signal B from Volume JOG
83 LED_HB OHarmonic Bass LED
84 TUNER_CTR O TUNER signal selection switch
85 DVD_CTR ODVD signal selection switch
86 FR_FC2 O Front Freq Limiter 2
87 FLD_DA O Data input for the FL Driver
88 FLD_CS O Latch Signal for the FL Driver
89 FLD_CK O Clock Signal for the FL Driver
90 FLD_RST O Reset Signal for the FL Driver
91 KEY2 IKey 2 line input
92 N.C. - No Connection
93 DES_3 I REGION Setting for DVD
94 DES_2 I REGION Setting for DVD
(Speaker Region)
95 DES_1 I REGION Setting for DVD (Tuner,
RDS, SCART Region)
96 AVSS - ANALOG POWER SUPPLY
INPUT
97 KEY1 IKey1 line input
98 VREF - REFERENCE VOLTAGE INPUT
99 AVCC - ANALOG POWER SUPPLY
INPUT
100 N.C. - No Connection
20 Terminal Function of IC´s
78
SA-HT833VP
21.1. DVD Module Block
21 Block Diagram
LDU
HFM
125
LPC2
82
DRV7
127
VREFH
110
RFINN
111
RFINP
132
VIN7
131
VIN8
136
VIN3
115
VIN3RF
135
VIN4
114
VIN4RF
137
VIN2
116
VIN2RF
138
VIN1
117
VIN1RF
13
V01-
11
V02-
12
V02+
14
V01+
17 18 5
OPIN-
6
OPOUT
1
4
24
25
26
23 9
76
20
83
2
146
VCOF/AD4
3
139
AD2
147
PWM1
148
PWM0
128
VHALF
75
DRV0
81
DRV6
140
AD1
1615
T+
F+
F-
T-
TA(DVD)
TB(DVD)
TD(DVD)
TC(DVD)
FE2(DVD/CD)
FE1(DVD/CD)
RF
VREF2 (RF-)
VREF1
PIN(CD)
SUBSEL
TRACKING COIL
FOCUS COIL
124
LPC01
Q8551
SWITCH
Q8552
SWITCH
126
LPC02
Q8561
SWITCH
Q8562
SWITCH
143
AD0
LDCD
LDDVD
78
DRV3
QR8571
SUPPLY
CONTROL
SWITCH
HFM VCC
OUT
130
VIN9
134
VIN5
129
VIN10
133
VIN6 SUB2
SUB1
123
LPC1 PIN(DVD)
SW
15
1M
8
SUB1
14
SUB2
13
VREF
11
RF
9
FE1
6
FE2
7
TC
4
OPTICAL PICKUP
SPINDLE MOTOR UNIT
TD
5
TB
2
TA
3
LD(DVD)
17
LD(CD)
16
B
28
R
IC8001
DV2.1
MN2DS0003APH
DRIVE
IC8251
C0GBG0000048
OSCO
166
OSCI
165
X8621
TRVM+
TRVM-
SPM+
SPM-
TRV_INNER_SW
BIAS1
V03+
V03-
V04+
DRV8
DRV1
V04-
OPIN+
LDIN
BIAS2
TRIN
MUTE12
VIN3
27
79
MUTE3 MUTE3
MUTE4
VIN1
LDCNT
VIN2
79

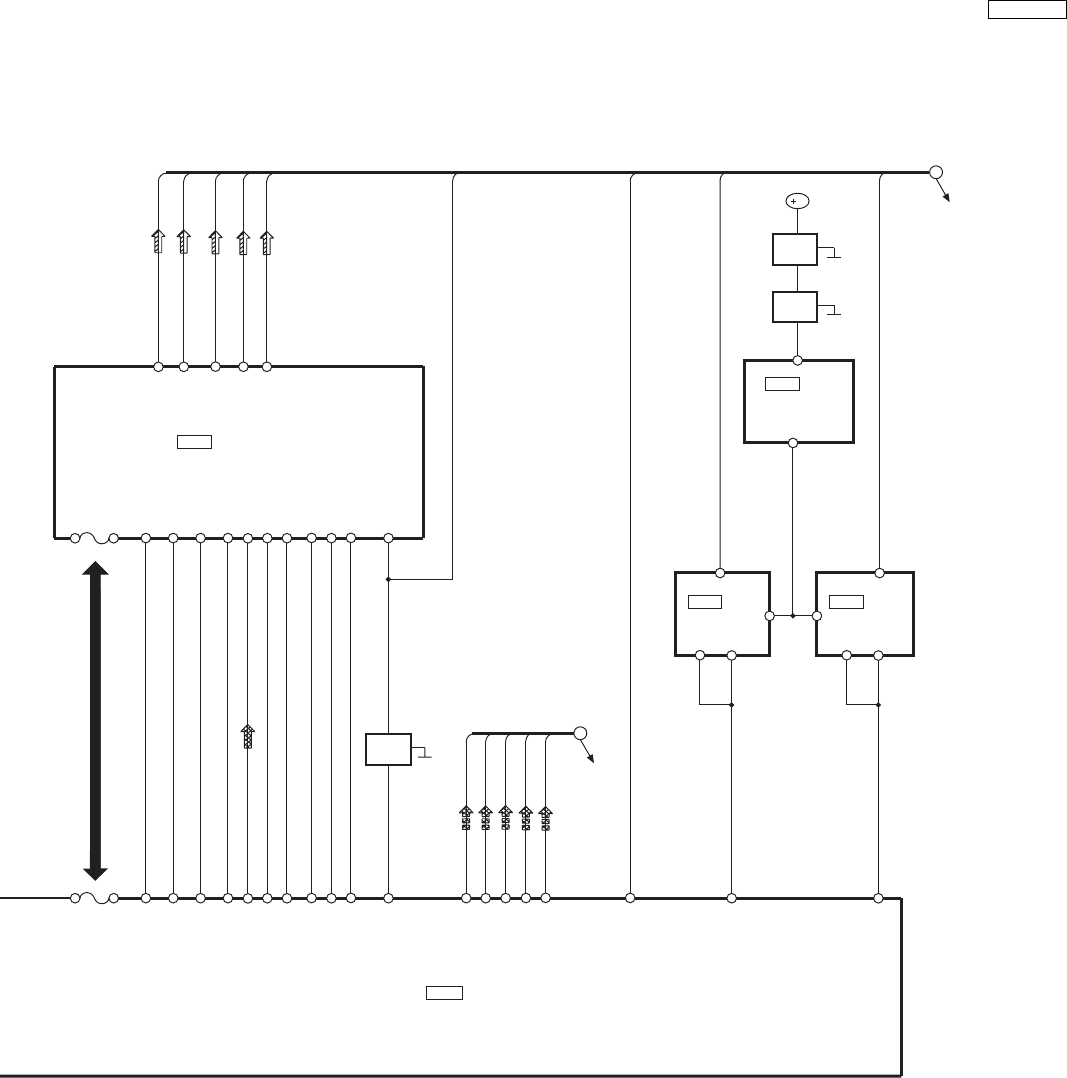

SA-HT833VP
DQ0
2,4,5,7,8,10,11,
13,42,44,45,47,
48,50,51,53
DQ15
MDQ0
MDQ15
1,2,4,5,7,8,10,
11,13-15,17,18,
252,254,256
MA0
MA11
217,220,221,223,
224,226-228,230,
233,237,238
A0
22-26,
29-35
A11
BA0
20
232
BA0
BA1
21
234
BA1
LDQM
15
249
DQM0
UDQM
39
251
DQM1
/CS
19
240
NCSM
CLK
38
243
MCK
241
MCKI
/RAS
18
244
NRAS
/CAS
17
245
NCAS
/WE
16
248
NWE
A16
9,10,16,17,48
A20
A0
1-8,18-25
A15
EXADR16
EXADR20
21,30,31,43,45
EXADT0
EXADT15
23-25,27,32,
33,36,37,39-42,
46,47,50,51
DQ0
29-36,
38-45
DQ15
MDQ16
MDQ31
192-195,197-200,
203,204,206-208,
210-212
XWE
11
XCE
26
XOE
28
12
XRESET
Q8607
SWITCH
Q8606
SWITCH
Q8560
SWITCH
Q8550
SWITCH
B
B
R
IC8001
DV2.1
MN2DS0003APH
64 SDRAM
IC8051
C3ABPG000133
16M FLASH ROM
IC8651
RFKWMH82H160
RESET
IC8601
C0EBE0000384
RESET
IC8606
C0EBA0000031
16M EEPROM
IC8611
C3EBGC000044
22
NEXWE
38
NEXCE
52
NEXOE
73
NRST
59
P9
60
65
P8
SCL
SDA
VCC
D8550
(NOT SUPPLIED)
80
SA-HT833VP
DIN1
45-47
DIN3
ADOUT0
ADOUT2
174-176 169
LRCK
171
ADOUT3
SRCK
170 163
DACCK
57 56
P12
P11
53
P15
28
55
P13
27(26)
VOUT1(2)
22(21)
VOUT3(4)
20(19)
VOUT5(6)
16 15
VOUT7
VOUT8
149
DAC1OUT
151
DAC2OUT
QR8420
MUTING
AUDIO
SWITCH
152
DAC3OUT
156
DAC4OUT
158
DAC5OUT
70
P1
69
P2
2
1
68
P3
2
1
55
8
5
B
MIXL(R)
FL(R)
SL(R)
CNT
SW
CMD
44
A
8-CH DAC
IC8421
C0FBBK000050
IC8001
DV2.1
MN2DS0003APH
IC8695
C0JBAA000346
AND GATE
LOGIC
AND GATE
LOGIC
IC8691
C0JBAA000346
3.3
REGULATOR
IC8111
C0CBCBD00018
B
QR8112
SWITCH
QR8111
SWITCH
STATUS
DSPCLK
TO MAIN
BLOCK
TO MAIN
BLOCK
ZERO2
MS
MC
MD
ZFLAG&AMUTE
234
SCK
5
BCK
7
DATA1
6
LRCK
8
176
ADOUT0 DATA2
11
175
ADOUT1 DATA3
12
174
ADOUT2 DATA4
13
Y
C
PR/CR/R
PB/CB/B
PY/Y/G
81
SA-HT833VP

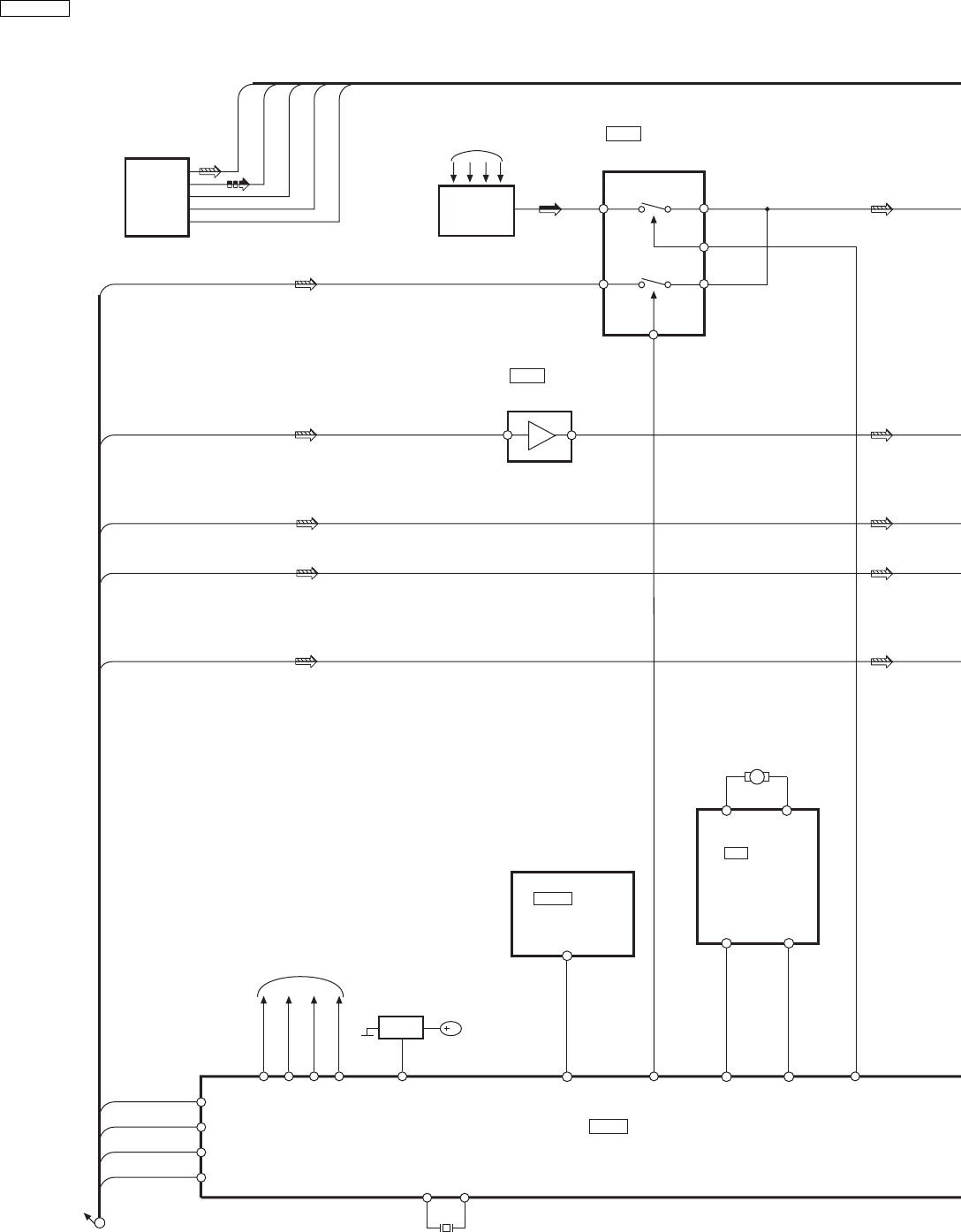

21.2. Main Block
STATUS
ZFLAG&AMUTE
CMD
DSPCLK
SW
SL(R)
CNT
FL(R) 7(1)
MICROCONTROLLERS
IC36001
A
8512
TU_SCL
TU_ST
TU_TUNED
TU_SDA
RESET
DVD_CTR
TUNER_CTR
84
8(3)
6(5)
IC2601
TU7502
FM/AM
TUNER
C0JBAS000252
9(4)
IC2010
C0ABBB000118
MIXL(R)
10(1)
11(2)
12(13)
SIF
TUN_V
IIC CLK
IIC DATA
AFT
Q33009
RESET
SWITCH
30282529
X OUT
X IN
DUAL OP-AMP
ANALOG SWITCH
TO
DVD BLOCK
B
DVD_CK
33
DVD_CMD
31
MUTE_DVD
27
DVD_STA
32
M
C0GAG0000007
DRIVE
IC21
F_IN
7
R_IN
9
OUT2
2
OUT1
4
LOAD_F
6
LOAD_R
3
RM21
LOADING
MOTOR
C0EBH0000172
IC36003
1
P_FAIL
20
POWER DETECT
TU7601
TV
TUNER
FROM IC36001
5(3)
X36001
13 15
TO FM/AM TUNER PACK
C2CBJG000576
82

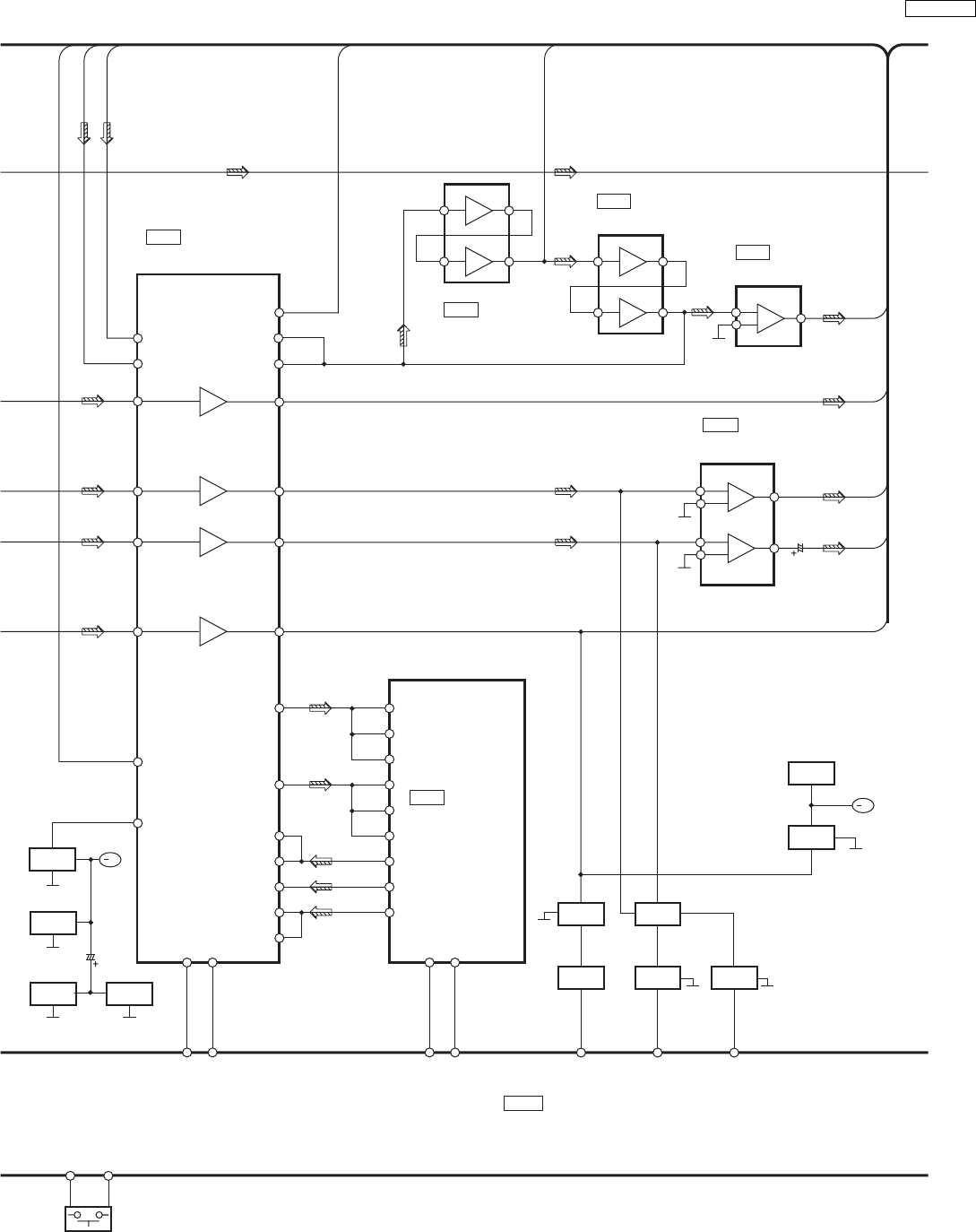

SA-HT833VP
MICROCONTROLLERS
IC36001
MUTE_SW
MAINL(R)
FIN3
KEY2
KEY1
49
SW
VIN
C
FRONTL(R)
HB
67
21
IC2015
C0ABBB000118
DUAL OP AMP
77 27
IC2011
C1BB00000845
78(79) 25(23)
80 FOUT1
OUTC
OUTLS(R)
AOUT1
AOUT2
EXIN1(2)
INFLB(R)
INCB
INLSB
INRSB
28INSUBA
LOUT(R)
75(76) OUTFL(R) 39(36)
FOUT4(3)
GOUTFL(R)
GOUTSUB
41(38)
INFLA(R)
69(70) MAIN_L(R)
VIN
VINSUB
INCA
INLSA(R)
40 FIN4
DSP
Q2600
MUTE_C
71
Q2500
Q2601
91 97
MUTE_S
74
Q2103
Q2104
KEY SW
S7001~S7013
SWITCH
MUTING
SWITCH
MUTING
SWITCH
MUTING
SWITCH
MUTING
SWITCH
Q8102
(Q8101)
MUTING
SWITCH
Q8111
(Q8110)
MUTING
SWITCH
ASP_DAT
39
ASP_CLK
40
45 46
DA
CL
SSS_DAT
44
18
SSS_CLK
45
19
-
+
-
+
3
5
Q2302,
Q2304
Q2301,Q2303
MUTING
SWITCH
MUTING
SWITCH
IC6011
C1BB00000979
SUPER SURROUND
1 1
6
17
52(50)
18
8
2 5
4(5) 15(14)
6 13
7
8
12
7
972(73)
IC7701
C0ABBB000118
C0ABBB000118
C0ABBB000118
67
3157
31
DUAL OP AMP
IC7703
67
DUAL OP AMP
IC7702
DUAL OP AMP
5
C2CBJG000576
B
B
37 FIN3
Q5101
SWITCH
Q5102
MUTING
SWITCH
SL(R)
83
SA-HT833VP
MICROCONTROLLERS
IC36001
WIRELESS
READY
P.WIRE
CONNECTION
68
MUTE_L
SIF
NORMAL_IN
NORMAL_OUT
QR4701
(QR4702)
QR4703
SL(R)
MUTING
SWITCH
MUTING
SWITCH
QR4506
(QR4505)
35 36 37 38
QR4504
MUTING
SWITCH
MUTING
SWITCH
MAI
MAO
HA1(2)
A_COM
SIF IN
E1
IC4501
AN3663FBP-TV
61
62
21
BS IN[L](R) L(R)
14(9)
3(1) 57(53)
24(22)
48
CLK
42
DATA
43
VCOFO
45
56
D4501
OUT
LED PORT L
29
MUTE CT
36
V_DO
V_CLK
A COM
A L (R)
MAINL(R)
BIL ST MO
IIC DATA
IIC CLK
D RECH
FM MUTE H
FSC
V_CS
V_DI
HB
AH SW
27
AH SW
ENV
28
ABS
HI-FI
V_DOCH_SW
V_DI
V_CLK
V_CS
C3EBEG000072
IC36002
(NOT
SUPPLIED)
35 4
S5
CHANGE
47
ST_SW
S1
STOCK
2
PLAY_SW
S2
PLAY
1
BT_SW
S3
BOTTOM
24
OPEN_SW
S4
OPEN
7
55 56
ECS
EDA
57
ECK
410
WS_LINK
WS_DET
11
WS_MUTE
Q1
SENSOR
23
POS
B
Q7702
HB_MUTE
51
Q7701
Q7703
MUTING
SWITCH
MUTING
SWITCH
MUTING
SWITCH
FL4561
JK3701
AUX L(R)
EEPROM
JK3701
[L]([R])
LINE OUT
C2CBJG000576
QR36004
MUTING
SWITCH
QR36002
MUTING
SWITCH
P.ON H
B
QR36001
MUTING
SWITCH
84

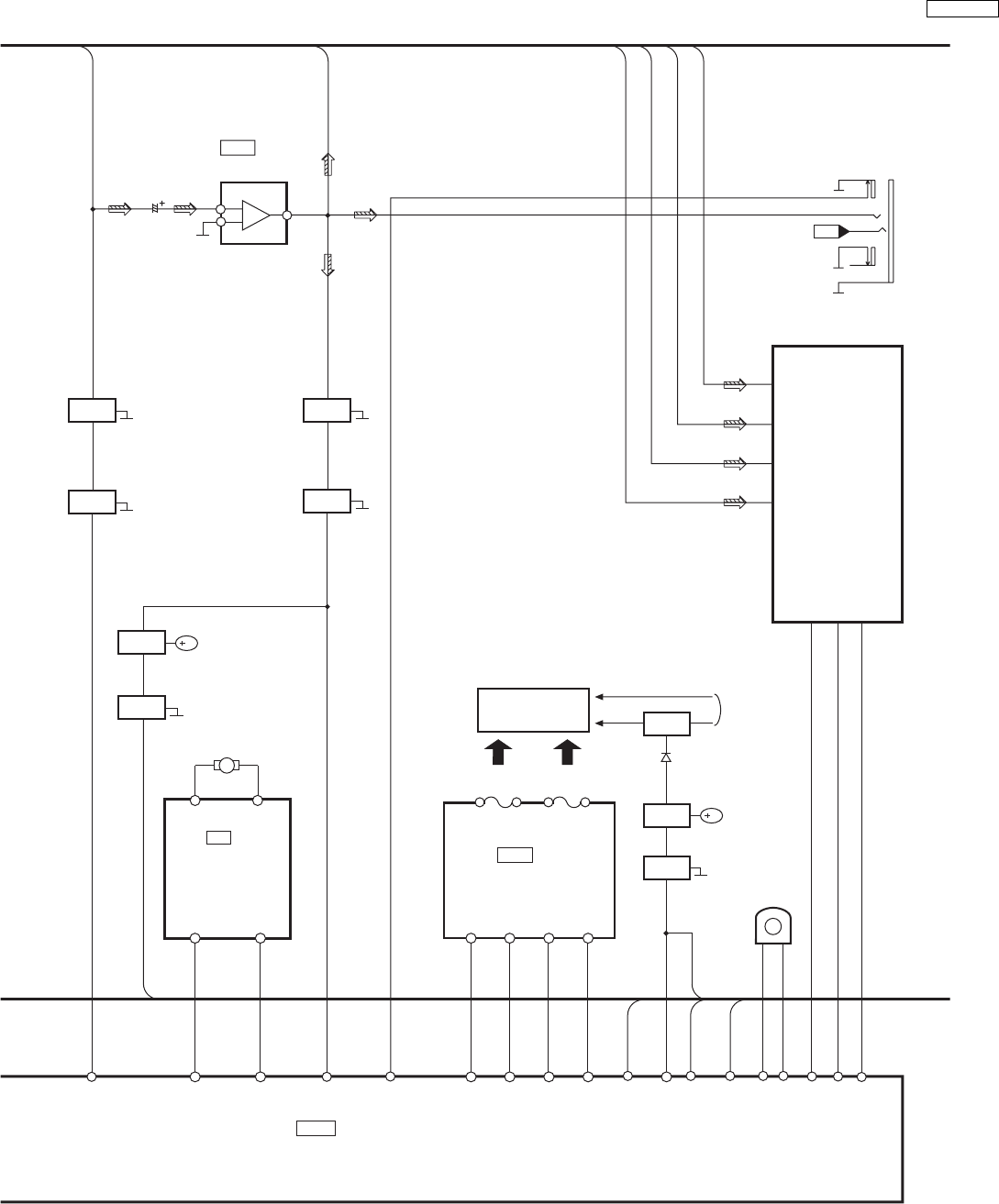

SA-HT833VP
MICROCONTROLLERS
IC36001
C2CBJG000576
ACTIVE SUB WOOFER
7(11) FL(R)
DCDET
SUBWOOFER
17
15
5
C
12(14) SL(R)
2
59
MUTE_H
69
HP_SW
RCH
HEADPHONE
JK7001
IC2013
C0AABB000125
C
SW
FRONTL(R)
SL(R)
HIC_MUTE
19
66
ASW_PCONT PCONT
78
ASW_PDET
LOUT(R)
FIN3
54
MUTE_HP
Q2102
Q2201
72
MUTE_F
Q2200
Q2105
MUTING
SWITCH
MUTING
SWITCH
Q36001
MUTING
SWITCH
QR36003
MUTING
SWITCH
2(6) 1(7)
8281
JOG A
JOG B
P.SAVEL
OP AMP
19 5
RMT
WIDE1
RMT
67
DVD_PCNT
DVD_PCNT
WIDE1
M
C0GAG0000007
DRIVE
IC11
F_IN
7
R_IN
9
UP/DOWN_F
43
UP/DOWN_R
26
OUT2
2
RM11
MUTING
SWITCH
MUTING
SWITCH
UP/DOWN
MOTOR
OUT1
4
SEG01
15~23,
25~50
SEG35
DIG00
DIG08
1~4,
60~64
DP7201
FL DISPLAY
IC7201
C0HBB0000039
FL DRIVER
657 8
88 90
FLD_CS /CS
FLD_RST
89 87
FLD_CK
FLD_DA
75
PWR_SAVE
/RESET
SCK
SDATA
FL DRIVE
QR7201
Q7001
D7202
QR7202
SWITCH
SWITCH
FROM
POWER
TRANSFORMER
B
VOLUME
JOG
VR7201
3(5)
P.ON H
B
85
SA-HT833VP
35
32KHz. IN
36 38 39
X6002
32KHz. OUT
12MHz. IN
X6001
12MHz. OUT
AFT
TO
DVD BLOCK
B
100
28
T.S.CURVE
FM MUTE [H] FM MUTE H
10
BIL_ST_MO/PICT2 BIL ST MO
19
AUDIO. H. SW A H SW
WIDE1
IC33501
AN13330A-VF
6YIN
2CIN
Y
C
12 CYIN 24
CY OUT
21
CB OUT
18
CR OUT
4
SDCIN
PY/Y/G
PB/CB/B
16 CRIN
14 CBIN
PR/CR/R
32
COUT
26
YSAG
27
YOUT
VH+
JK3701
H3 HOLL
SENSOR
H3 HOLL
SENSOR
H3 HOLL
SENSOR
VIDEO
JK3702
87
FG. AMP. IN
B
11
CURRENT_LIMIT
76
CAP. ET
74
CAP R/F
52
CVOUT
4
6
17
DVD OUT[H]
1
SYSCON/SERVO/TIMER/MICON/OSD
IC6001
C2CBHF000410
Y
C
G
G
17
CRSAG
20
CBSAG
23
CYSAG
30
VOUT
29
VSAG
2
IC201
C1AB00001472
21
15 16 17
A1
A2
A3
1
H3+
23
2
H3-
22
4
3
R207
1
H1+
25
2
H1-
24
4
3
R208
1
H2+
27
2
H2-
26
4
3
R210
CAPSTAN MOTOR
MAIN COIL
CAPSTAN DRIVE
8 BIT MICRO
CONTROLLER
10
EC
11
EDS
9
TL
IC3701
C1AB00001935
VIDEO
31
SDCOUT
JK3701
[V]
ABS
V_CS
V_CLK
V_DI
V_DO
23 15 70 68 69
ABS_NORMAL[L]
OPECOM_CS
IC.DATACLK
IC.DATA.OUT
IC.DATA.IN
27
S.TAB[L]
S1531
SAFETY
TAB
3
KEY1
4
KEY2
S7016~S7021,
S7023,S7024
KEY SW
R209
FG SENSOR
86
SA-HT833VP
72
IIC DATA
71
IIC CLK
IIC DATA
IIC DATA
74
63
Q3003
SWITCH
SWITCH
IIC CLK
73
IIC CLK
48
OSD. FSC IN
13
ART.V/H/N
64
VBI 1/CHARA
63
VBI 2
60
CHARA+HEM
FSC
17
6
NORMAL_OUT
2 15
NORMAL_IN
TUN_V
A COM
AL(R)
DATA
28
95
CTL. HEAD[+]
9
TRACKING_ENVE
83
18
VIDEO.H.SW
80
85
SQPB
20
CLOCK
QR4081
20
D.REC[H]
D RECH
Q4082,
Q4083
24
AVR[L]
16
98
67
69
97
90
89,91
T4081
B
B
QR4082
26
BIAS[H]
86
85,87
94
CTL. HEAD[-]
50
CV IN
Q3001
BIAS
OSC
BIAS
OSC
BIAS
OSC
D.REC
(H:OFF) POWER
SUPPLY
Q4081
IC3001
C1AB00002083
AV
IC6001
C2CBHF000410
29
X3001
SYSCON/SERVO/TIMER/MICON/OSD
JK3701
[V]
B
44
LC.OSC IN
45
LC.OSC OUT
L6001
56
CVIN[EDS]
62
A.SEARCH[L]
Q4084
L4081
CONTROL
HEAD
FULL
ERASE
HEAD
AUDIO
ERASE
HEAD
AUDIO
HEAD
EP
SP
AUDIO
HEAD
87
SA-HT833VP
7
S PHOTO
Q1502
8
T-PHOTO
Q1501
VM
VM2
78
P.FAIL[L]
IC6201
C0EBH0000172
1
79
S.REEL PULSE
IC1512
3
80
T.REEL PULSE
2
IC1511
B3NAA0000049
B3NAA0000049
3
1
2
D1501
B
M
IC2501
C1AB00001767
23
M2
22
M1
25
M3
20
COM
16
PG-
15
PG+
2
OUT1
4
121
90
PFG PFG
18
77
CYL ET EC
14
84
LOADING H F IN
5
83
UNLOADING H R IN
6
OUT2
IC2502
C0DBZJG00007
2
3
75
P.ON H
P.ON H
DVD_PCNT
14
REMOCON
POWER DETECT
CYLINDER DRIVE/
LOADING DRIVE
REGULATOR
T-REEL SENSOR
S-REEL SENSOR
IC6001
C2CBHF000410
T PHOTO
S PHOTO
SYSCON/SERVO/TIMER/MICON/OSD
RMT
VCR VIDEO HEAD
17 PG OUT
MECHA
P.ON H
(REMOTE SENSOR)
IR7001
30~33
POS.SW1~4
S1532
MODE SW
88
SA-HT833VP
B
B
Q1352,Q1354 Q1351
D1351
Q34003
5V REG
REGULATOR
REGULATOR
Q33005
L1250
T1150
Q33004
REGULATOR
SWITCH
QR33002,
QR33013
L1290
D1260,
D1261
L1260
L1240
D1240,
D1241
D1230
D33002
D6302
D7751
D7752
B7751
1
2
4
IC33001
C0CBCHG00005
Q33003
POWER
SUPPLY
+B
REGULATOR
+B
REGULATOR
REGULATOR
REGULATOR
SWITCH
Q33002,
Q33011
REGULATOR
QR33003
D1280
B
Q6305
Q33001
D33001
Q6306
Q33008
1
3
6
IC6301
C0DBCHD00004
B
1
2
4
TO
FL
DISPLAY
D1270
Q1200
IC1200
C0DAEMB00003
Q1151
PULSE
DRIVE
LR1150
SWITCHING
D1140
P1101
Q1150,Q1152
F1101
D1110
L1120L1121
B
Q1360
REGULATOR
QR1363
REGULATOR
QR1361
SWITCH
Q34004
REGULATOR
REGULATOR
REGULATOR
TUNER 5V REGULATOR
Q33006
REGULATOR
Q33007
REGULATOR D1180
IC33002
C0CBCYG00003
DC-DC
CONVERTER
PHOTO COUPLER
D1250,
D1251
D1290,
D1291
IP1240
IP1280
SIGNAL LINES
: MAIN SIGNAL LINE : DVD AUDIO SIGNAL LINE
: DVD VIDEO SIGNAL LINE
( ) Indicates the Pin No. of Right Channel. NOTE : Signal Lines are applicable to the Left Channel only.
: AUX SIGNAL LINE
: VIDEO SIGNAL LINE
: FM/AM SIGNAL LINE
: CD/DA SIGNAL LINE
DC-DC CONVERTER
D1155
D1152
89
SA-HT833VP
(All schematic diagrams may be modified at any time with the
development of the new technology)
Note:
S1 : Stock switch
S2 : Play switch
S3 : Bottom switch
S4 : Open switch
S5 : Change switch
S1531 : Safety Tab switch
S1532 : Mode switch
S7001 : Disc 5 switch
S7002 : Disc Change switch
S7003 : Disc 4 switch
S7004 : H.Bass switch
S7005 : Disc 3 switch
S7006 : Play switch
S7007 : Disc 2 switch
S7008 : Stop switch
S7009 : Disc 1 switch
S7010 : Disc Check switch
S7011 : Input Selector switch
S7012 : Open/Close switch
S7013 : Power switch
S7016 : Play switch
S7017 : FF switch
S7018 : Stop switch
S7019 : Rew switch
S7020 : Channel Up switch
S7021 : Channel Down switch
S7023 : Rec switch
S7024 : Eject switch
·
The voltage value and waveforms are the reference voltage
of this unit measured by DC electronic voltmeter (high
impedance) and oscilloscope on the basis of chassis.
Accordingly, there may arise some error in voltage values
and waveforms depending upon the internal impedance of
the tester or the measuring unit.
·
Importance safety notice :
Components identified by mark have special
characteristics important for safety. Furthermore, special
parts which have purposes of fire-retardant (resistors), high-
quality sound (capacitors), low-noise (resistors), etc. are
used. When replacing any of components, be sure to use
only manufacturer´s specified parts shown in the parts list.
Caution !
IC, LSI and VLSI are sensitive to static electricity.
Secondary trouble can be prevented by taking care during
repair.
·
Cover the parts boxes made of plastics with aluminium foil.
·
Put a conductive mat on the work table.
·
Ground the soldering iron.
·
Do not touch the pins of IC, LSI or VLSI with fingers directly.
22 Notes of Schematic Diagram
90
SA-HT833VP
23 Schematic Diagram
23.1. Optical Pickup Unit Circuit
16
17
18
19
20
21
25
23
22
24
26
1
2
3
4
5
6
14
12
10
8
7
9
11
13
15
2
4
6
5
3
1
15
14
13
12
11
10
2
4
6
8
9
7
5
3
1
17
18
16
TO ACT
TO
DVD
MODULE
CIRCUIT
(FP8501) ON
SCHEMATIC
DIAGRAM-2
TO
HFM
PCB
TO
LDU
PCB
L4
J0JBC0000105
L1
J0JBC0000105
L2
J0JCC0000307
C5
22P
C6
22P
C1
0.1
C3
0.1
C2
0.1
R1
0
R4
0
R2
0
C8
0.1
R3
0
R5
0
R6
0
R7
6.8K
C7
0.1
VR2
6.8K
VR1
6.8K
C4
0.1
L3
J0JBC0000105
T+
F+
F-
T-
HFM
TA
TB
TD
TC
FE2
FE1
GND (IM)
RF
VREF2(RF-)
PIN (DVD)
LD (CD)
LD GND
LD (DVD)
GND (OEIC)
VREF1
VCC
SUB2
SUB1
PIN(CD)
SUBSEL
GND (IM)
GND
VCC
GND
GND
OUT
GND
GND
TB
TA
TC
TD
FE1
FE2
IM
RF
GND
VREF
VCC
SUB2
SUB1
SW
LD (CD)
LD (DVD)
LDGND
SCHEMATIC DIAGRAM - 1
OPTICAL PICKUP UNIT CIRCUIT : +B SIGNAL LINE : CD-DA SIGNAL LINE
91
SA-HT833VP

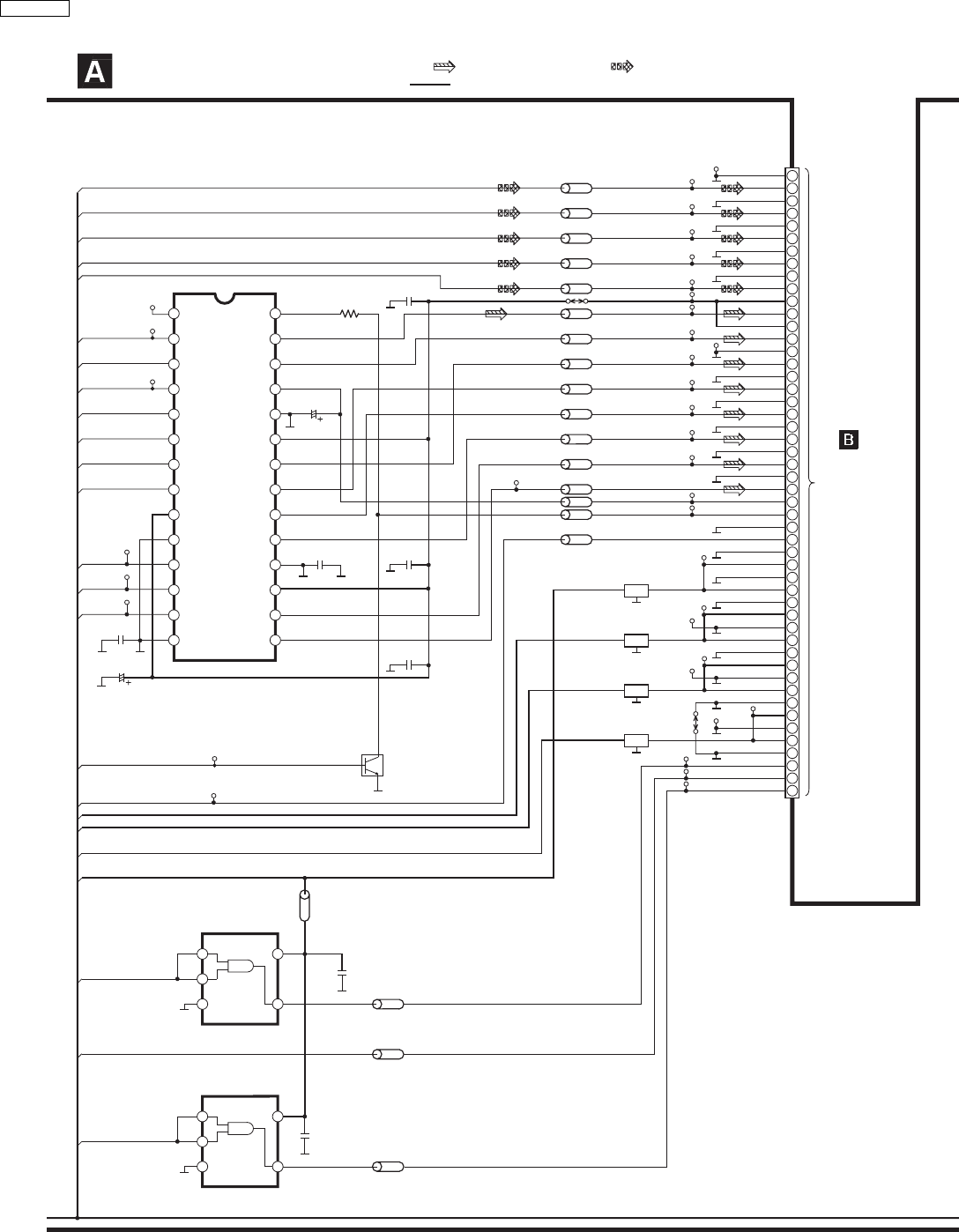

23.2. DVD Module Circuit
SCHEMATIC DIAGRAM - 2
DVD MODULE CIRCUIT
: +B SIGNAL LINE : CD-DA SIGNAL LINE
3029
15
16
17
12
13
14
18
11
19
10
20
9
21
8
22
7
23
6
24
5
25
4
26
3
27
2
28
1
16
17
18
19
20
21
25
23
22
24
26
1
2
3
4
5
6
14
12
10
8
7
9
11
13
15
CKE26
CKE25
CKE24
CKE23
CKE22
CKE21
CKE20
CKE19
CKE18
CKE17
CKE16
CKE14
CKE13
CKE12
CKE11
CKE9
T+
F+
F-
T-
HFM
TA(DVD)
TB(DVD)
TD(DVD)
TC(DVD)
FE2(DVD/CD)
FE1(DVD/CD)
GND
RF
VREF2(RF-)
PIN(DVD)
LDCD
LDGND
LDDVD
GND(OEIC)
VREF1
VCC
SUB2
SUB1
PIN(CD)
SUBSEL
GND(VRCD)
FP8501
LDCNT
MUTE3
TRIN
BIAS2
LDIN
VIN3
PREVCC
FIN
VCC(CH3.4)
MUTE4
GND(CH3.4)
VO3-
VO3+
VO4-
VO4+
BIAS1
VIN1
VIN2
OPIN+
OPIN-
OPOUT
GND(PRE)
FIN
VCC(CH1.2)
MUTE12
GND(CH1.2)
VO2-
VO2+
VO1-
VO1+
VIN1
VIN2
VIN4
VIN3
VIN8
VIN7
RFINP
RFINN
LPC1
VREFH
VIN6
VIN5
LPC2
RAM_CD
PNRST
LB8512 ERJ3GEY0R00V
LB8513 ERJ3GEY0R00V
LB8511 ERJ3GEY0R00V
LB8514 ERJ3GEY0R00V
LB8505 J0JCC0000119
LB8504 J0JCC0000119
LB8503 ERJ2GE0R00X
R8501 0
R8506 1.5K
C8504 0.1
C8256
0.1
C8257
0.1
R8251
6.8
RX8502
(56 x 4)
RX8504
(56 x 2)
RX8503
(56 x 2)
C8506
100P
C8505
220P
RX8501
(56 x 2)
IC8251
DRIVE IC
C0GBG0000048 IC8251
TO
OPTICAL
PICKUP
UNIT
CIRCUIT
ON
SCHEMATIC
DIAGRAM-1
C8253
16V22
C8255
0.1 C8252
16V47
R8505 2.2K
MUTE12
C8262
0.1
C8261
0.1
R8262
4.7K
R8261
82K
R8263
82K
R8264
4.7K
R8265
0
CL8242 CL8241
TL8201
R8241
22K
R8201
2.2K
C8241
0.1
DRV0
CL8244 CL8243
R8242
7.5K
C8242
0.1
DRV1
C8254
0.1
C8251
6.3V220
D+5V
TO
SPINDLE
MOTOR
2
4
6
5
3
1
FP8201
SPM-
SPM+
TRVM-
TRVM+
DGND
TRV_INNER_SW
M+9V
MUTE3
AD1
TRDRV
FODRV
VHALF
TRV-I-SW
CL8202
CL8201
C8218 1
C8217 1
CKE7
CKE6
CKE5
CKE4
CKE3
CKE2
CKE1
CKF1
CKF2
CKF3
CKF4
CKF5
CKF6
92
SA-HT833VP

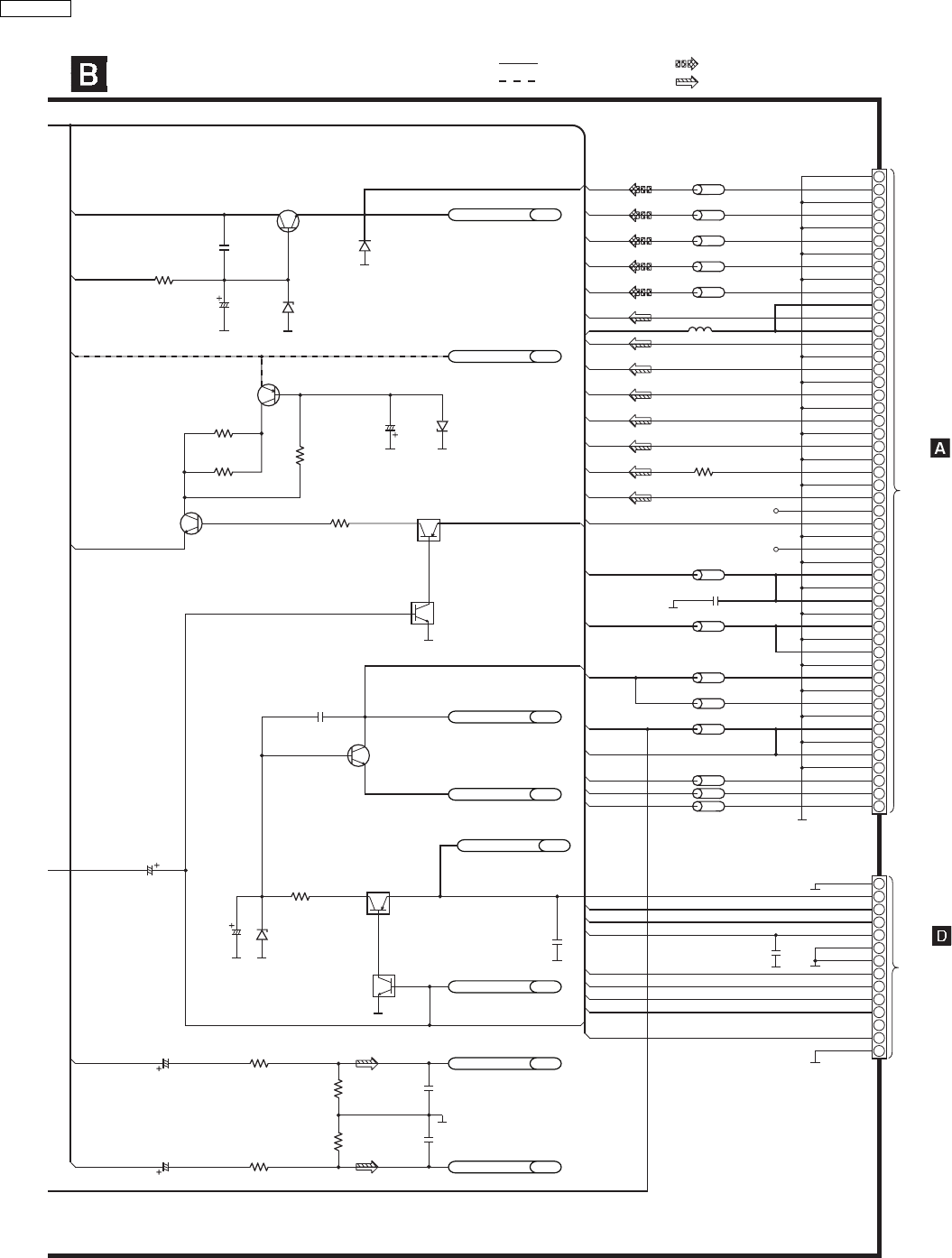

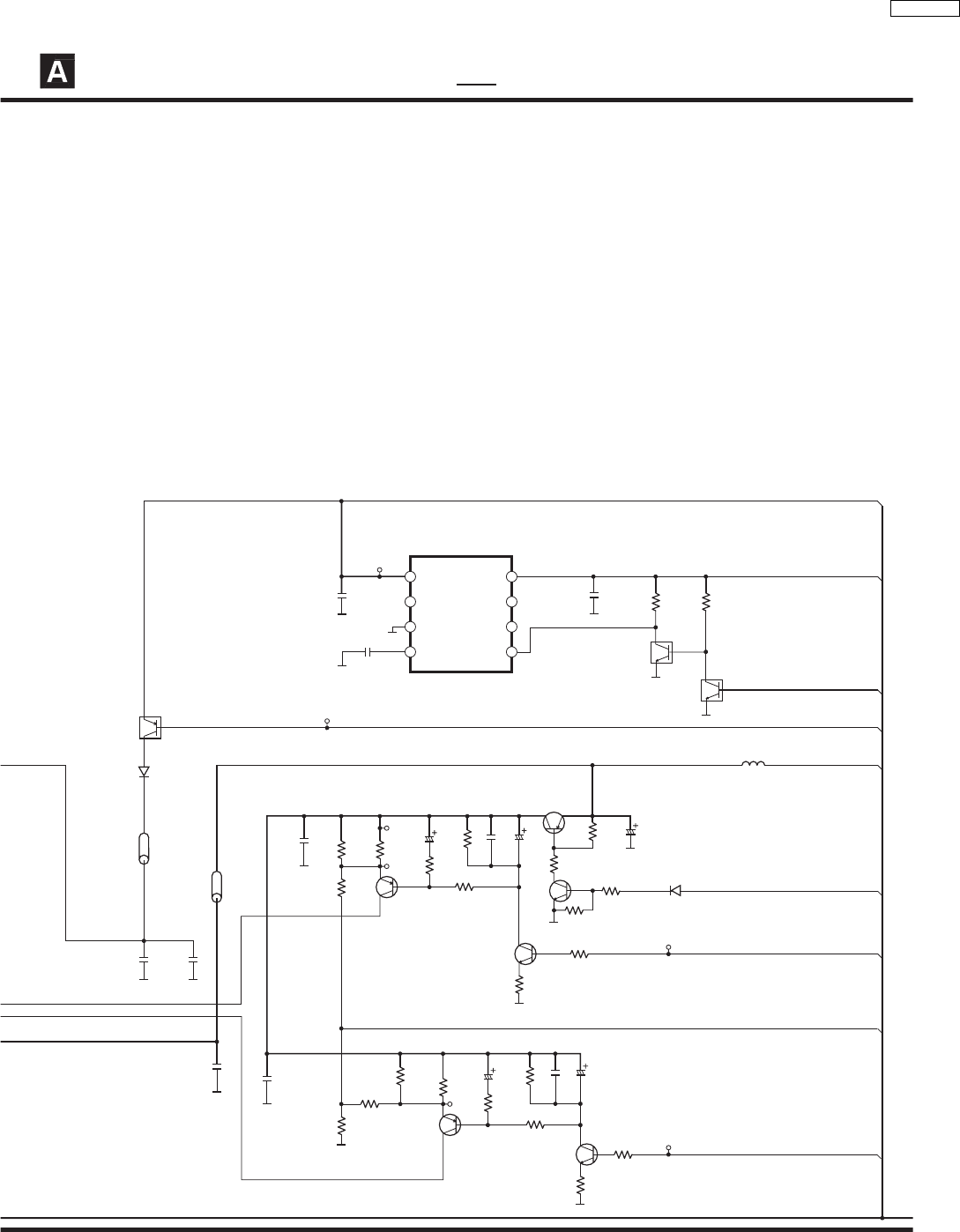

SCHEMATIC DIAGRAM - 3
DVD MODULE CIRCUIT
: +B SIGNAL LINE
1
2
36
7
8
45
D+5V
CL8571
TL8513
TL8522
TL8512
CL8551
CL8561
VO
NC
GND
CN
VIN
NC
NC
Cont
D+3.3V
HFMON
AD0
LPCO2
LPCO1
A+5V
D+1.2V
LB8507
J0JCC0000119
LB8502
J0JHC0000045
C8502
0.1
C8501
10
D8571
MA2J72800L
TL8111
C8112
1
C8113
470P
C8111
0.1
L8550
G1C100KA0055
C8561
0.1
C8551
0.1
C8503
0.1
R8559
15K
R8558
47K
R8557
51 R8556
56
C8553
6.3V47
R8555
2.2
R8553
1K
R8552
1K
R8551
0
R8554 68
C8552
16V10
R8567
51
R8568
47K
R8566
56
C8563
6.3V47
R8565
2.2
R8563
1K
C8564 1
C8562
16V10
R8564
22
R8562
1K
R8561
0
R8560
1K
R8569
12K
R8570
100K
R8550
7.5K C8550
6.3V33
D8550
MA2J11100L
C8554 1
QR8571
B1GDCFEC0001
SUPPLY CONTROL SWITCH
Q8550
Q8562
2SB09700RL
SWITCH
Q8552
2SB09700RL
SWITCH
Q8560
B1ABDF000018
SWITCH
B1ADHG000003
SWITCH
Q8560
Q8561
B1ABDF000018
SWITCH
Q8551
B1ABDF000018
SWITCH
IC8111
IC8111
C0CBCBD00018
3.3 REGULATOR IC
PNRST
R8112
22K
QR8112
UNR521400L
SWITCH
QR8111
UNR521400L
SWITCH
R8111
22K
93
SA-HT833VP
15
14
13
12
11
10
2
4
6
8
9
7
5
3
1
30
29
28
27
26
25
17
19
21
23
24
22
20
18
16
36
35
34
33
32
31
50
49
48
47
46
38
40
42
44
45
43
41
39
37
SCHEMATIC DIAGRAM - 4
DVD MODULE CIRCUIT
: +B SIGNAL LINE
TO
MAIN
(DVD
INTERFACE
:IF) CIRCUIT
(P36004) ON
SCHEMATIC
DIAGRAM-14
FP8101
4
51
2
3
4
51
2
3
Y/PY/G
VGND
VGND
VGND
VGND
VGND
ADAC5V
ADAC5V
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
ADACGND
DGND
DGND
D+5V
D+5V
D+5V
A+5V
A+5V
A+5V
AGND
AGND
D+1.2V
D+1.2V
DGND
DGND
M+9V
M+9V
MGND
MGND
DGND
DGND
LB8303 CKC2
CKC4
CKC6
CKC8
CKC10
CKC11
CKC12
CKC14
CKC15
CKC16
CKC18
CKC22
CKC20
CKC24
CKC27
CKC28
CKC32
CKC1
J0JCC0000119
CB/PB/B
LB8304 J0JCC0000119
CR/PR/R
LB8305 J0JCC0000119
Y
LB8301 J0JCC0000119
C
LB8302
K8421
J0JCC0000119
MIX-L
LB8421 ERJ2GE0R00X
MIX-R
LB8422 ERJ2GE0R00X
OP_CPU-CLK
LB8691
ERJ2GEJJ101X
ERJ2GEJJ101X
ERJ2GEJJ101X
FL
LB8425 ERJ2GE0R00X
FR
LB8426 ERJ2GE0R00X
SL
LB8427 ERJ2GE0R00X
SR
LB8428 ERJ2GE0R00X
CNT
LB8429 ERJ2GE0R00X
SW
LB8430 ERJ2GE0R00X
A-REF
LB8423 ERJ2GE0R00X
ZFLAG&AMUTE
LB8424
CKC36
CKC37
CKC40
CKC41
CKC45
CKC48
CKC49
CKC50
CKC44
ERJ2GE0R00X
AUDIODIGITAL
LB8491
CL8430
CL8491
ERJ2GE0R00X
OP_CPU-CMD
LB8693
OP_CPU-STAT
LB8692
FL8103
F1H0J1050022
FL8102
F1H0J1050022
FL8101
F1H0J1050022
FL8104
F1J1E1040022
VCC
GND
GND
VCC
CPU-CLK
CPU-CMD
CPU-STAT
Y/PY/G
CB/PB/B
CR/PR/R
Y
C
D+1.2V
C8695
0.1
C8691
0.1
LB8690
J0JCC0000091
IC8421
IC8691
C0JBAA000346
AND GATE LOGIC IC
IC8421
C0FBBK000050
8-CH DAC IC
QR8420
B1GBCFJJ0047
AUDIO MUTING SWITCH
IC8695
C0JBAA000346
AND GATE LOGIC IC
: MAIN SIGNAL LINE
M+9V
ZERO2
VOUT1
VOUT2
VCOM
AGND2
VCC2
VOUT3
VOUT4
VOUT5
VOUT6
AGND1
VCC1
VOUT7
VOUT8
ZERO1
MS
MC
MD
SCK
DATA1
BCK
LRCK
VDD
DGND
DATA2
DATA3
DATA4
MSEL
1
C8423
6.3V33
C8424
0.1
C8428
0.1
0.1
C8422
0.1
C8427
0.1
C8426
R8420
2.2K
CL8424
C8421
6.3V100
AUDIODIGITAL
CL8021
CL8025
CL8421
SBT3
227
28
326
425
524
623
722
821
920
10 19
11 18
12 17
13 16
14 15
STBDAC
SBO3
CL8023
AMUT
ADAC-CLK
DMIXOUT
SRCK
LRCK
ADOUT0
CL8425
ADOUT1
CL8426
ADOUT2
: DVD VIDEO SIGNAL LINE
K8106
0
94
SA-HT833VP

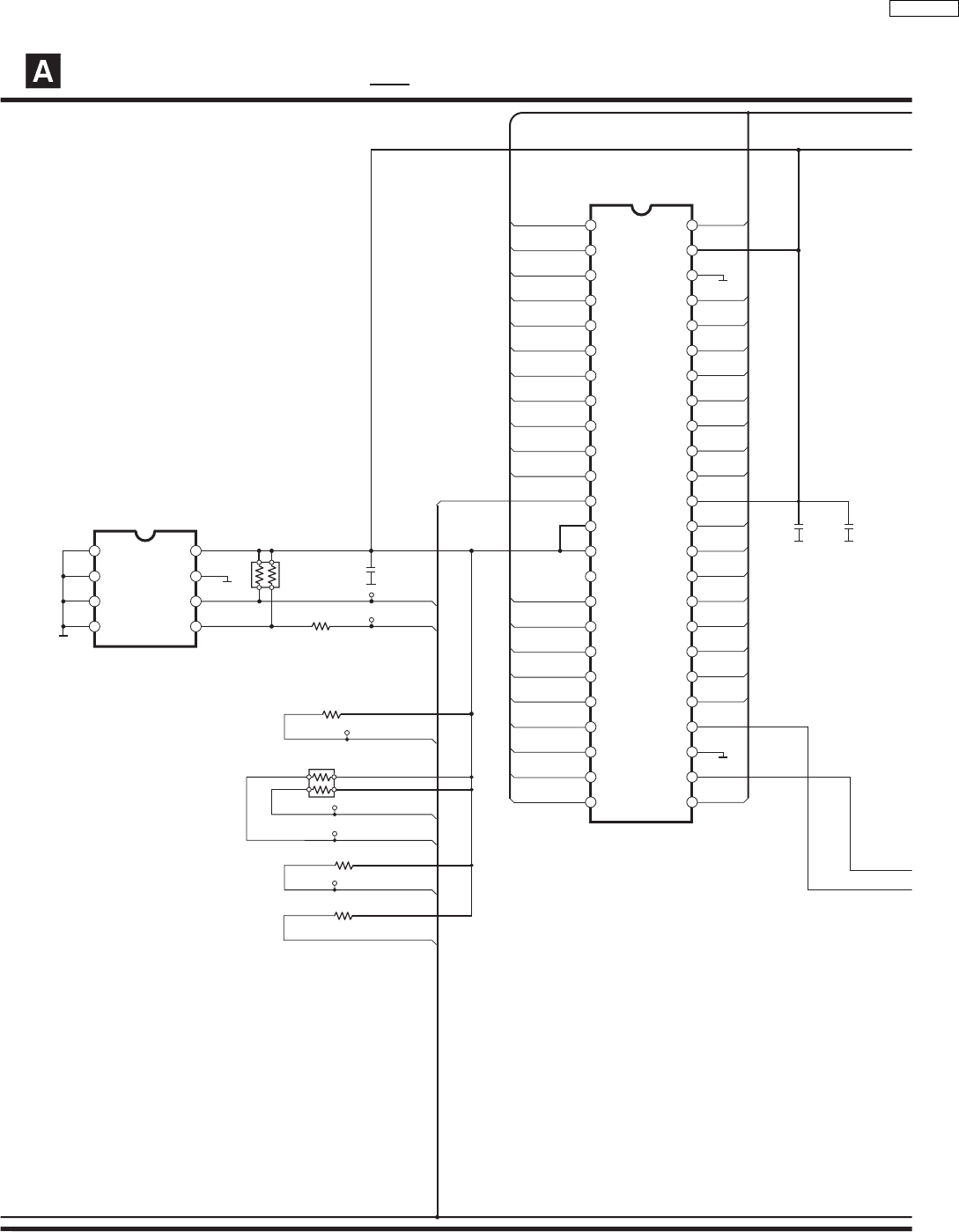

SCHEMATIC DIAGRAM - 5
DVD MODULE CIRCUIT
: +B SIGNAL LINE
1
2
346
47
48
445
544
643
742
841
940
10 39
11 38
12 37
13 36
14 35
15 34
16 33
17 32
18 31
19 30
20 29
21 28
22 27
23 26
24 25
8
7
2
1
6
3
5
4
RX8611
(4.7K x 2) C8611
0.1
R8611
100
R8021 10K
R8022 10K
R8023 47K
RX8021
(10K x 2)
CL8612
CL8611
CL8024
CL8031
CL8032
CL8033
C8651
0.1
C8652
0.1
A0
A1
A2
GND
VCC
WP
SCL
SDA
A15
A14
A13
A12
A11
A10
A9
A8
A19
A20
XWE
XRESET
NC
WP/ACC
RDY/XBSY
A18
A17
A7
A6
A5
A4
A3
A2
A1
A16
XBYTE
VSS
DQ15/A-1
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
VDD
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
XOE
VSS
XCE
A0
FDT15
FDT7
FDT14
FDT6
FDT13
FDT5
FDT12
FDT4
FDT11
FDT3
FDT10
FDT2
FDT9
FDT1
FDT8
FDT0
EXADT15 EXADR16
EXADT14
EXADT13
EXADT12
EXADT11
EXADT10
EXADT9
EXADT8
EXADR19
EXADR20
NEXWE
EXADR18
EXADR17
EXADT7
EXADT6
EXADT5
EXADT4
EXADT3
EXADT2
EXADT1 EXADT0
PNRST
SCL
SDA
SBT3
CPU-CLK
CPU-STAT
CPU-CMD
TRV-I-SW
IC8611
IC8611
C3EBGC000044
16M EEPROM IC
(NOT SUPPLIED)
IC8651
RFKWMH82H160
16M FLASH ROM IC
95
SA-HT833VP
SCHEMATIC DIAGRAM - 6
DVD MODULE CIRCUIT
: +B SIGNAL LINE
1
2
352
53
54
451
550
649
748
847
946
10 45
11 44
12 43
13 42
14 41
15 40
16 39
17 38
18 37
19 36
20 35
21 34
22 33
23 32
24 31
25 30
26 29
27 28
CL8022
CL8026
CL8027
C8031
0.1
VDD
DQ0
VDDQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VDDQ
DQ5
DQ6
VSSQ
DQ7
VDD
LDQM
/WE
/CAS
/RAS
/CS
BA0
BA1
A10/AP
A0
A1
A2
A3
VDD
VSS
DQ15
VSSQ
DQ14
DQ13
VDDQ
DQ12
DQ11
VSSQ
DQ10
DQ9
VDDQ
DQ8
VSS
NC
UDQM
CLK
CKE
NC
A11
A9
A8
A7
A6
A5
A4
VSS
SDA
SCL
SBO3
SBT3
AMUT
STBDAC
EXADT3
EXADT7
EXADT11
EXADT15
EXADR19
EXADR17
EXADT13
EXADT9
EXADT5
EXADT1
EXADT2
EXADT6
EXADT10
EXADT14
EXADR18
EXADR16
EXADT12
EXADT8
EXADT4
EXADT0
NEXWE
EXADR20
MDQ15
MDQ0
MDQ14
MDQ1
MDQ13
MDQ2
MDQ12
MDQ3
MDQ11
MDQ4
MDQ10
MDQ5
MDQ15
MDQ14
MDQ13
MDQ12
MDQ11
MDQ10
MDQ9
MDQ8
DQM1
CLK
MA11
MA9
MA8
MA7
MA6
MA5
MA4
MDQ0
MDQ1
MDQ2
MDQ3
MDQ4
MDQ5
MDQ6
MDQ7
DQM0
NWE
NCAS
NRAS
NCSM
BA0
BA1
MA10
MA0
MA1
MA2
MA3
FG
C8051
1
C8052
0.1
C8053
220P
C8054
1
C8055
1
C8056
0.1
C8057
2200P
C8011
1
C8010
0.1
C8008
0.1
C8007
0.1
C8005
0.1
C8009 0.1
C8006 0.1
C8004 0.1
C8003 2200P
RX8011
(82 x 4)
RX8012
(82 x 4)
RX8013
(82 x 4)
C8025
0.1
C8022
0.1
C8023
1
C8024
1
C8026
2200P
C8027
0.1
C8028
1
C8013
0.1
C8012
0.1
IC8051
IC8051
64 SDRAM IC
C3ABPG000133
45
12
3
1
2
3
GND
VDD
OUT
NC
CD
VDD
GND
RESET
PNRST
C8606
0.1
C8607
0.22
R8606
100K R8607
10K R8601
1K
C8601
0.1
IC8606
C0EBA0000031
RESET IC
Q8606
B1ABDF000018
SWITCH
Q8607
B1ABDF000018
SWITCH IC8601
C0EBE0000384
RESET IC
R8243 10K
96
SA-HT833VP
SCHEMATIC DIAGRAM - 7
DVD MODULE CIRCUIT
: +B SIGNAL LINE
1
2
3
4
5
6
7
8
9
65 66 67 68 69 70 71 72 73
185
186
187
188
189
190
191
192
248249250251252
253
254
255
256
10
184
74
247
11
183
75
246
12
182
13
181
76
245
77
244
14
180
15
179
16
178
78
243
79
242
80
241
17
177
18
176
19
175
20
174
81
240
82
239
83
238
84
237
21
173
22
172
23
171
24
170
25
169
85
236
86
235
87
234
88
233
89
232
26
168
27
167
28
166
29
165
30
164
31
163
32
162
90
231
91
230
92
229
93
228
94
227
95
226
96
225
33
161
34
35
159
36
158
97
224
98
223
99
222
100
221
37
157
38
156
39
155
40
154
41
153
42
152
43
151
44
150
101
220
102
219
103
218
104
217
105
216
106
215
107
214
108
213
160
45
149
46
148
47
147
48
146
49
145
50
144
51
143
52
142
109
212
110
211
111
210
112
209
113
208
114
207
115
206
116
205
53
141
54
140
55
138
56
137
57
136
58
135
59
134
60
133
61
132
62
131
63
130
64
129
117
204
118
203
119
202
120
201
121
200
122
199
123
198
124
197
125
196
126
195
127
194
128
193
139
CL8028
CL8029
CL8030
CL8035
CL8036
MDQ9
MDQ5
VSS
MDQ10
MDQ4
VDD33
MDQ11
MDQ3
VSS
MDQ12
MDQ2
VDD33
MDQ13
MDQ1
MDQ14
VSS
MDQ0
MDQ15
VDD33
VSS
EXADR20
NEXWE
EXADT0
EXADT4
EXADT8
VDD12
EXADT12
VDD33
VSS
EXADR16
EXADR18
EXADT14
EXADT10
VDD33
VSS
EXADT6
EXADT2
NEXCE
EXADT1
EXADT5
EXADT9
EXADT13
EXADR17
VDD12
EXADR19
EXADT15
EXADT11
VDD33
VSS
EXADT7
EXADT3
NEXOE
P15
P14
P13
P12
P11
P10
P9
P8
P7
VDD33
MMOD
VSS
MDQ24
VSS
VDD33
TRCST
TRCDATA3
TRCDATA2
TRCDATA1
TRCDATA0
TRCCLK
EXTRG1
SDATA
EXTRG0
SCLOCK
VSS
VDD33
IECOUT
ADOUT0
ADOUT1
ADOUT2
VSS
VDD12
ADOUT3
SRCK
LRCK
EXTCK
VDD33
OSCO
OSCI
VSS
DACCK
AVSSG
AVDDG
AVSSE
AVDDE
DAC5OUT
AVSSF
DAC4OUT
COMP
IREF1
VREF
DAC3OUT
DAC2OUT
AVDDF
DAC1OUT
PWM0
PWM1
VCOF/AD4
AVSSH
VREFH10
AD0
VREFL10
AVDDH
AD1
AD2
VIN1
VIN2
VIN3
VIN4
VIN5
VIN6
VIN7
VIN8
VIN9
VIN10
P6
P5
P4
P3
P2
P1
P0
FG
NRST
VSS
DRV0
DRV1
DRV2
DRV3
DRV4
DRV5
DRV6
DRV7
DRV8
VDD33
P16
P17
VSS
MONI7
VDD12
MONI6
MONI5
MONI4
VSS
MONI3
MONI2
MONI1
MONI0
AVDDD
PLFIL1
AVSSD
VREFH7
VREFM7
VREFL7
CCAPA
AVSSC
CDATA
AVDDC
ANAMONI1
ANAMONI2
RFINN
RFINP
VIN6RF
VIN5RF
VIN4RF
VIN3RF
VIN2RF
VIN1RF
AVDDB
VREFH5
VREFM5
VREFL5
AVSSB
LPC1
LPC01
LPC2
LPC02
VREFH
VHALF
MDQ6
VDD33
MDQ8
VSS
MDQ7
DQM1
VSS
DQM0
NWE
VSS
VDD33
NCAS
NRAS
MCK
VSS
MCKI
NCSM
VDD33
MA9
MA11
VDD12
VSS
BA0
MA8
BA1
VDD33
MA10
VSS
MA7
MA0
MA6
VDD33
MA1
MA5
VSS
MA2
MA4
VDD12
VSS
MA3
VDD33
DQM2
DQM3
VSS
MDQ16
MDQ31
MDQ17
VDD33
MDQ30
MDQ18
MDQ29
VSS
MDQ19
MDQ28
VDD33
VSS
MDQ20
MDQ27
MDQ21
MDQ26
VDD33
MDQ22
MDQ25
MDQ23
VHALF
VREFH
LPC02
LPC2
LPC01
LPC1
VIN1
VIN2
VIN3
VIN4
RFINP
RFINN
MUTE12
CL8002
TL8220
TL8219
TL8218
TL8217
TL8216
TL8215
TL8214
TL8213
CL8003
RAM_CD
TRV-I-SW
MUTE3
HFMON
DRV1
DRV0
PNRST
FG
CPU-CMD
CPU-STAT
CPU-CLK
KMODE
MDQ9
MDQ6
MDQ8
MDQ7
DQM1
DQM0
NWE
NCAS
NRAS
NCSM
CLK
MA9
MA11
MA8
MA10
BA0
BA1
MA7
MA0
MA6
MA1
MA5
MA2
MA4
MA3
FDT0
FDT15
FDT1
FDT14
FDT2
FDT13
FDT3
FDT12
FDT4
FDT11
FDT5
FDT10
FDT6
FDT9
FDT7
C8203 0.1
C8211 0.033
C8212 0.1
C8213 0.1
C8214 0.1
C8215 5600P
C8216 0.018
C8204 0.1
C8205 0.1
C8225 0.1
C8226 0.1
C8227 0.1
C8221 0.1
C8222 0.1
C8223 0.1
C8224 0.1
C8229
1
RX8014
(82 x 4)
RX8015
(22 x 2)
RX8016
(82 x 4)
RX8017
(82 x 4)
RX8018
(82 x 4)
C8021
0.1
R8011 22
C8020 0.1
C8019 1
C8018 0.1
IC8001
MN2DS0003APH
DV2.1 IC
TL8211
TL8212
0.1
C8207
97
SA-HT833VP
D8231
MA2J11100L
SCHEMATIC DIAGRAM - 8
DVD MODULE CIRCUIT
: +B SIGNAL LINE
: CD-DA SIGNAL LINE
: DVD AUDIO SIGNAL LINE
: DVD VIDEO SIGNAL LINE
D+1.2V
AUDIODIGITAL
ADOUT0
ADOUT1
ADOUT2
DMIXOUT
C
Y
CR/PR/R
CB/PB/B
Y/PY/G
SRCK
LRCK
ADAC-CLK
FODRV
TRDRV
AD0
KMODE
CL8034
RX8032
(4.7K x 2)
RX8031
(4.7K x 2)
L8302
J0JCC0000079
L8301
G1C100KA0055
C8302
6.3V33
C8301
6.3V220
R8325
160
R8326
0
R8321
160
R8322
10
R8341
82
R8335
82
R8331
160
R8332
10
VIN1
VIN2
VIN3
VIN4
VIN5
VIN6
VIN7
VIN8
VIN5
VIN6
FDT8
C8228
1
C8201
6.3V100
C8202
6.3V100
C8206
1
L8201
G1C100K00020
L8202
J0JCC0000079
R8231
10K
CL8231
CL8206
CL8233
CL8234
CL8236
CL8235
C8233
4700P
C8237
1000P C8238
820P
C8236
1000P
C8235
1000P
R8233
15K
R8236
8.2K
R8235
8.2K
C8232 0.1
C8234 0.1
C8303 0.1
C8312 1
C8304 1
C8311 0.1
R8311 2.4K
R8312 1KR8313 24K R8314 0
LB8401
ERJ2GEJ151X
C8308
15P
R8621
1M
R8622 C8622 12P
C8621 12P
270
H0J270500085
X8621
C8014 0.1
R8401 47K RX8401
(100 x 2)
RX8402
(100 x 2)
R8402 100
R8407 100
R8404 100
R8041
33
C8015 1
C8016 1
C8017
0.1
CL8040
CKA3
CKB4
CKB6
CKB2
CKA4
CKA5
CKA6
CKA7
CKA2
CKA1
C8002
4V330
C8001
6.3V100 LB8002
J0JHC0000045
LB8001
J0JHC0000045
R8315 6.8
C8208 0.1
C8307 0.1
D+3.3V
AD1
D+3.3V
D+3.3V
R8421
0
CKB9
CKB3
CKB1
K8031
0
98
SA-HT833VP
23.3. Main Circuit
R2606
47K
IC2601
C0JBAS000252
ANALOG SWITCH IC
IC2601
R2605
10K
C2602
0.01
R2602
4.7K
R2601
820
R2603
33K
R2604
100K
R1351
470
Q1354
B1AAGD000016
TUNER 5V
C1351
0.01
Q1352
B1AAGD000016
5V REG
Q1351
B1AAGD000016
REGULATOR
C1352
6.3V47
D1351
MAZ4056NHF
R4581
470
QR4505
UNR521600L
MUTING SWITCH
R4582
470
R4527
0
QR4506
UNR521600L
MUTING SWITCH
QR4504
B1GDBFNN0001
MUTING SWITCH
R4513
2.2K
L
MIX_TUN_L
MIX_TUN_R
MUTE TC
AUDIO_5V
SW_REG_12R3V
R
IF
IF
IF
IF
STUN_L
IF TUN_CTR
STUN_R
IF DVD_CTR
+7.5V
-7.5V
MIX_R_OUT
MIX_L_OUT
VAUDIO_5V
STUNER_5V
IF UNREG_6V
VVIDEO_5V
IF REG_12V
IF
IF TV_VCR_AUX_MIX_L
TV_VCR_AUX_MIX_R
MAIN (AUDIO:A) CIRCUIT
SCHEMATIC DIAGRAM-9
: +B SIGNAL LINE
: -B SIGNAL LINE
: MAIN SIGNAL LINE
: AM/FM SIGNAL LINE
C2601
0.01
TL4508
R4528
0
TL4509
TL1002
8910
567
11
4
12
3
13
2
14
1
99
SA-HT833VP
1
2
3
: AUX SIGNAL LINE
TW4501
VWJ0795=10
R4303
22K
W521
0
R4304
22K
R4538 33K
C4536
0.01 C4517
6.3V22
R4540
330
R4525
1K
R4539 330
C4516 16V10
C4567 25V3.3
FL4561
EFCT4R5MS5W
C4509 0.01
C4511 0.1
C4534 0.015
C4508 0.033
C4506 16V10
C4507 6.3V22
R4505
6.8K
R4510
6.8K
R4502
47K
R4509
47K
C4505
6.3V33 W515
0
W514
0
C4304
50V0.22
C4303 50V0.22
R4558 15K
R4554 15K
C4563 0.1
C4578 1
C4502 16V10
C4503 16V10
C4577 16V10
C4504 16V10
R4301
47K
R4302
47K
C4519 16V10
C4520 16V10
C4522 6.3V22
C4537
56P
C4512
0.22
R4500
1K
L4502
G0C391JA0019
C4535
0.015
R4534
120K
C4510 0.01
C4572 50V2.2 TL4507
C4521 16V10
R4602
6.8K
R4601
33K
C4524 0.1
C4576 0.022
C4574
50V3.3
C4514 16V10
C4513 6.3V22
C4515 6.3V33
L4501
G0C1R2J00004
TL4502 TL4501
C4523
0.01
C4565 0.1
R4563
1K
C4568
0.01
R4508
1K
C4575 0.1
C4570 0.1
C4501 0.1
SW_REG_12R3V
R
L
MIX_TUN_L
MIX_TUN_R
FM MIX
MUTE TC
TL4552
AUDIO_5V
C4538
0.01
C4525
16V22
V
V
V
S
S
A_R
VAUX_L
VAUX_R
A_L
A_COM
AUDIO_HSW
ABS_NORMALL
SCHEMATIC DIAGRAM-10
: +B SIGNAL LINE
: MAIN SIGNAL LINE
MAIN (AUDIO:A) CIRCUIT
FM_MUTEH S
R4529
680
VNORMAL_OUT
VNORMAL_IN
SBIL_ST_MO
SSIF_OUT
SOSD_FSC_IN
SIIC_DATA
SIIC_CLK
TL4511
C4530 150P
C4531 150P
TW4502
VWJ0795=10
ENVE
D4501
MA2C165001VT
IC4501
HI-FI IC
REC
DET
ZZ-PROM
adj LOGIN
VCO-f0
NAI
VCC(12V)
E2
E1
E4
GND
E2
E1
E4
REF1
VREF1
CUEDET
E3
BS IN[L]
E3
BS IN[R]
REF1
NR DET1
NR DET2
NR REF
CCAOUT
PB FM IN
OUT
ENV
AH SW
VCC
HA1
GND
HA2
CCA 0
HIF/NOR
NR REF
NR DET2
R
L
GND
NC
DC OUT R
MTS VCC(5V)
MAIN OUT
SUB LEVDET
LED PORT L
VCC(5V)
GND
RECADJ
NA0
SUB REF
COMP
AMP HEAD
SIF IN
DEM REF
MAIN REF
REG
CLK
GND
MUTE CT
NR DET1
DATA
AN3663FBP-TV
TL4510
123456789
17
18
19
20
21
22
23
24
25
40
41
42
43
44
45
46
47
48
56
57
58
59
60
61
62
63
64
10
39
26
55
11
38
27
54
12
37
13
36
28
53
29
52
14
35
15
34
16
33
30
51
31
50
32
49
SD_RECH
100
SA-HT833VP
MAIN (DVD INTERFACE:IF) CIRCUIT
SCHEMATIC DIAGRAM-11
: +B SIGNAL LINE
: -B SIGNAL LINE : MAIN SIGNAL LINE
2
1
5
4
3
2
15
4
3
2
1
3
4
8
7
6
5
P36005
TO CD LOADING CIRCUIT
(CN1) ON SCHEMATIC DIAGRAM-30
14 13 12 10
11 2
4
6
8
97531
PLAY_SW
STOCK_SW
LOAD_R
LOAD_F
OPEN_SW
LED
SENSOR
BOTTOM_SW
UP_DOWN_R
UP_DOWN_F
D_GND
CHANGE_SW
PLAY_SW
ST_SW
LOAD_R
LOAD_F
OPEN_SW
LED
POS
BT_SW
UP/DOWN_R
UP/DOWN_F
CH_SW
P_GND
+7.5V
15
14
13
12
11
10
2
4
6
8
9
7
5
3
1
17
19
18
16
HP_R HP_R
HP_L
HP_SW
JOG_B
JOG_A
5V_VCC
SDATA
SCK
CS
FL_RESET
UNREG_-30V
F+
F-
HP_GND
HP_L
HP_SW
GND
GND
JOG_B
JOG_A
P_SAVE[L]
5V_VCC
KEY_2
KEY_1
SDATA
SCK
CS
FL RESET
UNREG-30V
F+
F-
P36001
TO
FRONT
PANEL B
CIRCUIT
(P7201) ON
SCHEMATIC
DIAGRAM-28
P36002
TO
FRONT
PANEL A
CIRCUIT
(P7202) ON
SCHEMATIC
DIAGRAM-29
1
2
3
4
5
6KEY_1 KEY_1
KEY_2
VREF
ECS
ECK
EDA
VOUT_M+9V
P_ON [H]
RESET
VCC_L
5V_VCC
VREF_1
VREF
KEY_2
GND
GND
GND
P36008
15 14 13 12 10
11 2
4
6
8
97531
17
19
21
23
24 22 20 18 16
HP_R
ASP_DAT
MUTE_S
MUTE_H
MUTE_HP
MUTE_C
W522 0
MUTE_F
SS_CLK
SS_DAT
MUTE_WS
HP_L
HB_CTRL HB_CTRL
SL
CNT
SR
DVD_SR
WS_MUTE
DVD_SL
DVD_CNT
MAIN_R
GND
MAIN_L
D_GND
SS_DATA
SS_CLK
VOL_CLK
MUTE_F
GND
MUTE_C
VOL_DA
MUTE_SUR
+7.5V +7.5V
MUTE_SW MUTE_SW
HP_R
MUTE_HP
HP_GND
MUTE_HIC
HP_L
TO ASP CIRCUIT (P2101)
ON SCHEMATIC DIAGRAM-21
TV_VCR_AUX_MIX_R A
TV_VCR_AUX_MIX_L
TV_VCR_AUX_MIX_R
TV_VCR_AUX_MIX_L A/V
IR
IR
20
REG_9V S
KEY2 S
KEY1 S
TUN_CTR
TUN_CTR A
DVD_CTR
DVD_CTR A
C36006
0.022
C36005
330P
R36066
22K
C36004
330P
R36065
22K
C36009
10V22
R36089
47K
R36111
680
D36011
D36003
D36003
B0JACE000001
C36017
6.3V1000
C36008
0.1
D36006
D36004
B0JACE000003
D36002,D36006,
D36010,D36011
B0JACE000001
D36002
D36010
C33002
16V22
R36067
4.7K
C36007
330P
(NOT SUPPLIED)
IC36002
C3EBEG000072
EEPROM IC
IC33001
C0CBCHG00005
DC-DC CONVERTER IC
Q33009
Q33009
KRC103STA
RESET SWITCH
GND
VOUT
ADJ
VIN
VC
R36103 220
C36016
0.1
MUTE_LINE
MUTE_LINE V
OPECON_CS
OPECON_CS S
IC_DATA_CLK
IC_DATA_CLK S
IC_DATA_OUT
IC_DATA_OUT S
IC_DATA_IN
IC_DATA_IN S
R33009
24K
C33022
10V22
R33010
4.7K
IC33002
C0CBCYG00003
DC-DC CONVERTER IC
VC
VIN
ADJ
GND
VOUT
GND
ASP_CLK
P_SAVE[L]
UNREG_11V
TV_VCR_AUX_MIX_R
TV_VCR_AUX_MIX_L
101
SA-HT833VP
123456789
31
32
33
34
35
36
37
38
39
72
73
74
75
76
77
78
79
80
92
93
94
95
96
97
98
99
100
10
71
40
91
11
70
41
90
12
69
13
68
42
89
43
88
14
67
15
66
16
65
44
87
45
86
46
85
17
64
18
63
19
62
20
61
47
84
48
83
49
82
50
81
21
60
22
59
23
58
24
57
25
56
26
55
27
54
28
53
29
52
30
51
45
12
3
: +B SIGNAL LINE
: -B SIGNAL LINE
MAIN (DVD INTERFACE:IF) CIRCUIT
SCHEMATIC DIAGRAM-12
C_MIX
FR_FC2
FR_FC1
R36023
10K
R36021 220
R36041 330
R36042 330
R36043 680
R36044 680
R36045 680
R36046 100
R36047 100
R36049 100
L36001
G0C3R3JA0019
R36050
820
R36051
0
W506
0
R36052
0
C36014
0.1
R36055 10K
R36054 10K
R36053 10K
R36056 10K
R36057 10K
R36022 220
JOG_A
JOG_B
TUN_CTR W528 0
DVD_CTR
FR_FC2
VREF
VCC_L
ST_SW
PLAY_SW
VREF
LOAD_R
LOAD_F
OPEN_SW
RESET
5V_VCC
KEY_1
SDATA
CS
SCK
FL_RESET
KEY_2
R36020
10K
R36100
10K
R36040
100
R36101 220
TL36010
R36039 100
R36038 330
R36037 330
R36036 330
R36035 330
R36034 330
R36033 0
R36108 220
R36110 220
C36003 0.1
R36102
10K
VREF
DCDET
MUTE_S
MUTE_F
MUTE_C
MUTE_WS
MUTE_H
ECK
EDA
ECS
W534
0
MUTE_HP
SURR_FC1
HB_LEVEL
HB_CTRL
SURR_FC2
HP_SW
MUTE_LINE
DVD_PCNT
ASW_PCONT
R36109 220
FR_FC1
OPECON_CS
VREF
VREF
MUTE_SW
C_MIX
CH_SW
SS_CLK
SS_DAT
UP/DOWN_F
IC_DATA_CLK
IC_DATA_OUT
IC_DATA_IN
DVD_CK
DVD_STA
DVD_CMD
VREF
MUTE_DVD
UP/DOWN_R
IR
BT_SW
POS
TL36007
TL36005
TL36006
TL36004 R36014 220
R36015 220
R36016 220
R36017 220
R36018 220
R36019 220
R36082 220
R36087 330
R36025 220
ASP_CLK
R36026 220
ASP_DAT
R36024 220
R36030 220
R36029 220
R36027 220
R36028 220
R36106 220
R36092 10K
R36104 10K
TU_SDA
TU_SCL
TU_TUNED
WIDE1
S
TU_ST
S
IR
S
S
S
VREF_1
X36001
H2B100500004
TL36001
W510 0
W538 0
31
2
TL36003
TL36002
TL36028
TL36035
C36010
0.01
C36018
0.033
IC36003
C0EBH0000172
POWER DETECT IC
QR36001
B1GBCFNN0016
R36085 10K
R36062
22K
R36001
10K
R36063
22K
R36064
22K
R36058 220
R36060 220
W509
0
W500
0
W536 0
R36105
220
R36061 220
R36059 220
R36002 220
R36005 220
R36006 220
R36008 220
R36074 220
R36075 0
R36076 1K
R36077 1K
R36013 10K
C36002 0.1
C36001 6.3V100
R36083 10K
R36010 22K
R36009 22K
R36093 10K
R36096 10K
R36007 1K
R36004 1K
R36080 220
JOG_A
JOG_B
LED_HB
TUNER_CTR
DVD_CTR
FR_FC2
FLD_DA
IC36001
C2CBJG000576
MICROCONTROLLER
FLD_CS
FLD_CK
FLD_RST
KEY2
NC
DES_3
DES_2
DES_1
AVSS
KEY1
VREF
AVCC
NC
DEMO_SEL
MUTE_SW
C_MIX
CH_SW
CE
SSS_CLK
SSS_DAT
UP/DOWN_F
NC
EPM
ASP_CLK
ASP_DAT
V_CS
V_CLK
V_DI
V_DO
NC
DVD_CK
DVD_STA
DVD_CMD
LED_1
LED_2
ASW_PDET
LED_3
LED_4
PWR_SAVE
MUTE_S
LED_5
MUTE_F
MUTE_C
LED_BACK
HP_SW
MUTE_L
DVD_PCNT
ASW_PCONT
DSP_COM
VSS
MUTE_WS
VCC
FR_FC1
V_MUTE_1
MUTE_H
SURR_FC2
ECK
EDA
ECS
MUTE_HP
SURR_FC1
HB_LEVEL
HB_MUTE
PLAY_SW
ST_SW
LOAD_R
WS_LINK
WIDE1
LOAD_F
OPEN_SW
GND
CNVSS
WS_DET
WS_MUTE
RESET
XOUT
VSS
XIN
VCC
/NWI
ASW_AC
RMT
P_FAIL
NC
V_MUTE2
POS
BT_SW
TU_ST
UP/DOWN_R
MUTE_DVD
TU_TUNED
TU_SCL
TU_SDA
P36009
15 14 13 12 10
11 2
4
6
8
97531
17 16
CMIX
FR_FC2
FR_FC1
SURR_FC2 SURR_FC2
SURR_FC1
SURR_FC1
HB_LEVEL HB_LEVEL
WS_SR
GND
WS_SL
PCONT
DC_DET
DVD_FL
GND
SYS6V
DVD_FR
-7.5V -7.5V
DVD SUBW
TO ASP CIRCUIT (P2102)
ON SCHEMATIC DIAGRAM-21
: MAIN SIGNAL LINE
P36010
2
4
6
87531
5V
PGND
WS_LINK
WS_DET
WS_MUTE
WS_SR
AGND
WS_SL
R36003
10K
D36005
MA2C700A0F
TL36015
TL36037
P_SAVE[L]
UNREG_6V
REG_5V
W537
0
W502
0
W533
0
C36019
6.3V1000
FL
DCDET
FR
SW
ASW_PCONT
TO DIGITAL TRANSMITTER
MUTING SWITCH
D36014
D36014
B0JACE000001
MONO S
D36015 B0JACE000001
QR36004
B1GDCFLL0027
MUTING SWITCH
R36115
10K
R36097
10K
102
SA-HT833VP
MAIN (DVD INTERFACE:IF) CIRCUIT
SCHEMATIC DIAGRAM-13
: +B SIGNAL LINE : DVD VIDEO SIGNAL LINE
P_ON [H]
L_A+5V
D+5V
VOUT_M+9V
DVD_PCNT
5V_VCC
UNREG_6V
REG_5V
UNREG_16V
UNREG_6V
UNREG_6V S/A/V
UNREG_3V
WIDE1
C
C33516
0.01
C33531
0.01
C33517 6.3V330
C33509 6.3V1000
C33510 6.3V100
C33501
6.3V220
C33504
0.01
COUT
SDCOUT
VOUT
VSAG
GND2
YOUT
YSAG
VCC
CYOUT
CYSAG
VCC
CBOUT
CBSAG
GND2
CROUT
CRSAG
VCC2
CIN
MUTE1
SDCIN
Y EXT TRAP
YIN
BIAS
GND
CY EXT
TRAP
LIN1
LIN2
CYIN
LBOUT
CBIN
MUTE2
CRIN
C33522 6.3V22
C33502
0.01
C33014
6.3V220
R33001
270
R36113
27K
W539
0
R36114
100K
R33007
100K
R33002
3.9K
C33006
0.1
C36020
0.1
L36003
G0C220JA0052
C33007
10V47
C36021
10V47
R33006
1.6K
R36112
680
D33004
MAZ4062NLF
C33001
0.01
D33001
MAZ4056NHF
D36013
B0JACE000001
Q33001
B1AAGD000016
REGULATOR
Q33003
2SC3940A0A
REGULATOR
QR33003
B1GDCFLL0027
POWER SUPPLY
Q33008
2SD0601A0L
SWITCH
Q33005
2SD0601A0L
SWITCH
Q33011
2SD0601A0L
SWITCH
Q36001
2SD0601A0L
SWITCH
QR36003
B1GDCFLL0027
SWITCH
QR36002
B1GBCFNN0016
SWITCH
Q33002
2SB14170PA
SWITCH
Q33006
2SD0602A0L
REGULATOR
Q33007
B1AAGD000016
REGULATOR
IC33501
AN13330A-VF
8 BIT MICROCONTROLLER IC
IC33501
L33501
G0C220JA0019
C33015
6.3V220
VIDEO_CR V
Y
C33505
0.1 C33506
0.1
D33002
MA2C165001VT
R33004
120
R33003
1.2K
TL36014 D+1.2V
DVD_C_OUT
V
DVD_OUT
V
R33511 10K
C33503
0.01
Y/PY/G
C33507
1
CB/PB/B
C33508
1
CR/PR/R
C33515 6.3V330
VIDEO_CB V
C33513 6V1000
C33514 6.3V100
VIDEO_Y V
C33511 6.3V1000
C33512 6.3V100
DVD_Y_OUT V
12
31
32
3
30
4
29
5
28
6
27
7
26
8
25
9
24
10
23
11
22
12
21
13
20
14
19
15
18
16
17
MUTE_HP
D36012
MAZ4062NLF
C33016
6.3V47
103
SA-HT833VP
MAIN (DVD INTERFACE:IF) CIRCUIT
SCHEMATIC DIAGRAM-14
: +B SIGNAL LINE : DVD VIDEO SIGNAL LINE
: -B SIGNAL LINE : MAIN SIGNAL LINE
M+9V
-7.5V
MIX-R
MIX-L
UNREG_16V
P_ON [H]
PONH S
UNREG_38V S
REG_12V S/A/V
UNREG_16V S
-7.5V A
+7.5V
+7.5V
A
15
14
13
12
11
10
2
4
6
8
9
7
5
3
1
30
29
28
27
26
25
17
19
21
23
24
22
20
18
16
36
35
34
33
32
31
50
49
48
47
46
38
40
42
44
45
43
41
39
37
14
13
12
11
10
2
4
6
8
9
7
5
3
1
MIX_R_OUT A
MIX_L_OUT A
UNREG_6V
R34002
2.2K
C34012
0.01
C34013
50V4.7
R34003
330 W527
0
R34004
330
R34005
5.1K
R1360
10K
C34015
50V4.7
D36001
MAZ4075NHF
D34001
B0BA7R900004
Q34003
B1AAGD000016
REGULATOR
Q34004
B1BCCG000002
REGULATOR
Q1360
2SD0602A0L
REGULATOR
D34011
B0AAED000003
C33004
0.01
R33005
10K
QR33002
B1GDCFLL0027
SWITCH
Q33004
B1AAGD000016
REGULATOR
QR33013
B1GBCFNN0016
SWITCH
C33018
0.1
C33005
50V4.7
D33003
MAZ4130NLF
C33019
0.1
GND [M]
UNREG_38V
UNREG_6V
UNREG_16V
UNREG_-30V
GND
GND
D_GND
HE [-]
HE [+]
UNREG_3V
UNREG_11V
MICON_5V
UNREG_6V
UNREG_16V
P31001
P36004
UNREG_-30V
UNREG_-30V
F-
P_SAVE[L]
F+
UNREG_3V
UNREG_11V
P_SAVE[L]
UNREG_16V
C34405
1000P
C34427
1000P
R34426
3.3K
R34427
3.3K
R34428
3.3K
R34429
3.3K
C34414
16V47
C34415
16V47
L34001 G0C270JA0019
AUDIODIGITAL
DGND
ZFLAG&AMUTE
A-REF
SW
ADACGND
CNT
ADACGND
SR
AGND
A+5V
AGND
A+5V
DGND
D+5V
DGND
D+5V
DGND
OP_CPU_CLK
OP_CPU_CMD
OP_CPU_STAT
MGND
M+9V
MGND
M+9V
DGND
D+1.2V
DGND
D+1.2V
ADACGND
SL
ADACGND
FR
ADACGND
FL
ADACGND
MIX-R
ADAC5V
MIX-L
ADAC5V
C
VGND
Y
VGND
CR/PR/R
VGND
CB/PB/B
VGND
Y/PY/G
C
MIX-L
L_A+5V
MIX-R
FL
FR
SL
SR
CNT
SW
MUTE_DVD
D+5V
L_A+5V
D+1.2V
VOUT_M+9V
M+9V
DVD_CK
DVD_CMD
DVD_STA
Y
CR/PR/R
CB/PB/B
Y/PY/G
VGND
LB33003 ERJ3GEY0R00V
LB33004 ERJ3GEY0R00V
LB33002 ERJ3GEY0R00V
LB33005 ERJ3GEY0R00V
LB33008 ERJ3GEY0R00V
LB33007 ERJ3GEY0R00V
LB33009 ERJ3GEY0R00V
C33017 0.01
LB33006 J0JHC0000021
LB33011 J0JCC0000188
LB33010 J0JCC0000188
LB33012 J0JCC0000188
LB33001 J0JCC0000188
LB33013 J0JCC0000188
TL36011
TL36008
TO
DVD
MODULE
CIRCUIT
(FP8101) ON
SCHEMATIC
DIAGRAM-4
TO
POWER
CIRCUIT
(P1102) ON
SCHEMATIC
DIAGRAM-26
QR1361
B1GDCFLL0027
SWITCH
QR1363
B1GBCFNN0016
SWITCH
C36022
50V1
104
SA-HT833VP
X6002
D7751
B0JACE000001
IC6201
POWER DETECT IC
IC6201
TW1004
R6307
2.2K
S1532
MODE SW
Q6305
2SD0601A0L
+B REGULATOR
C6101 0.1
C6004 15P
R6003 22K
L6001
G0C5R6JA0019
C6002 22P
C6001 18P
R6401 1K
C6007
82P
R6309
820
IC6301
C0DBCHD00004
REGULATOR IC
D6306
MAZ4056NHF
C6006
100P
C6302
0.01
C6307
0.01
R2563 1K
R2562 47K
C2572
25V220
P2571
TL2502
C2561
0.056
C6308
6.3V47
R7751
1K
D7752
MA2C700A0F
B7751
N4BCT50A0005
D6302
B0JACE000001
R6201
3.3K
TL6004
TW6010
D7754
B0JACE000001
Q6306
+B REGULATOR
D6305
MAZ4062NLF
C6301
0.01
P7502
D7753
B0AAED000003
C7752
6.3V330
C6103 0.01
C6003 18P
X6002
H0A327200098
C0EBH0000172
X6001
H0D120500009
2SD0601A0L
V
GND[FG]
CAP R/F CAP R/F
M GND
TL TL
EC EC1
CAP VM
FG1 FG1
UNREG 6V
G
V
A
A/V
V
V
A
5V 5V
5V
V
IF
A
UNREG16V
POS.SW1
POS.SW3
POS.SW4
POS.SW2
P_ON_H
ART_V_H_N
AVR_L
ART_V_H_N
AVR_L
VIDEO_H_SW
AUDIO_HSW
D_RECH
ABS_NORMALL
BIASH
FM_MUTE_H
FM_MUTEH
REG_12V
VIDEO_5V VIDEO_5V
VIDEO_H_SW
A_H_SW
D_REC_H
ABS_NORM_L
BIAS_H
C6303
6.3V47
C2571
25V220
C7505
6.3V100
P.FAIL
UNREG 6V
+5VA
5VAD
UNREG16V
UNREG16V
IF
IF
IR IR
IF UNREG_6V UNREG 6V
UNREG_38V UNREG 38V
IF UNREG_16V
VTRACKING_ENV TRK_ENV
MAIN (SYSTEM CONTROL:S) CIRCUIT
SCHEMATIC DIAGRAM-15
: +B SIGNAL LINE
: FM/AM SIGNAL LINE
TO
TUNER
PACK
TU7502
(ENG06811QF)
TO
VCR DECK
CIRCUIT
(P201) ON
SCHEMATIC
DIAGRAM-31
W518
0
C6102
0.01
4
2
1
3
5
2
4
6
8
7
5
3
1
1
2
3
4
5
6
10
8
7
99V
GND
9V
FM_DET
RCH
STEREO
LCH
TUNED
SDA
CL
PORT_SEL
R7502 470
R7501 470
C7503
3900P
C7502
3900P
C7501
0.01
R7504
12K
R7503
12K
TU_SCLIF TU_SCLIF
REG_9VIF
TU_SDAIF
TU_TUNEDIF
TUN_LA
TU_STIF
TUN_RA
4
5
6
1
2
3
4
5
123
C2562
0.056
TL7501
MONOIF
C6019
1000P
105
SA-HT833VP
TW2015
C6014
TW2002
R6005
10K
C6011
IC6001
C2CBHF000410
S1531
SAFETY TAB
R6006 18K
R2001
R6102
C6010
0.01
KEY2
KEY1
IF
IF
R6013
1M
R6012
560
C6013
1
R6001
C6008
C6009
R6002
1K
C2051
6.3V22
R2002
1M
C2053 16V10
C2055
0.1
C2054
3900P
C2001
33P
D2001
B0AAED000003
D2002
B0AAED000003
C2003
TL2015
R6107
R6106
TL6001
C6016
1000P
R6017
2.2K
C6015
0.033
C6017
470P
R6104 220
R2551
R2561
R6105 220
R6004 220
C6112
33P
C6113
33P
C6005
50V3.3
1000P
0.01 3.9K
2.2K
1K
470P
0.01
1
220
220
C7709
1800P
10K
1K
SW2
KILLER[H]/
TVANTPOW
[L]
IF
EEPROM_CS
HLF
5V[OSD]
CVOUT
VHOLD
S.TAB [L]
FM_MUTE [H]
SW1
BIAS [H]
CAP.ET
P_ON_H
CYL.ET
T.REEL.
PULSE
S.REEL.PULSE
P.FAIL[L]
CODE1
KEY1
KEY2
KEY3
KEY4
L2_FM
T.S.
CURVE
DVD OUT [H]
TEST2
256HZ/ROMCOLE
32K.ST[L]
TL
EC1
SDA
P.FAIL
SCL
5VAD
OSD.FSC IN
NUB[GND]
4FC.LPF
OSD[GND]
CVIN
PAL_SQPB[H]
GND[OSC]
PAL_PB[L]
LC.OSC OUT
LC.OSC IN FG.AMP.IN
FG.AMP.OUT
MESECAM[H]
OPEF
PFG PFG
GND[A]
CAP R/F
CAP R/F
SP[L]
SYSCON/SERVO/TIMER/MICON/OSD
IIC.DATA
IIC.CLK
LOADING[H]
SQPB
UNLOADING[H] RIN
FIN
EX.FF/REW[L]
FG1
EEPROM CLK
VBI2
CHARA+HEM
A.SEARCH[L]
VBI1/CHARA
EEPROM OUT
NUA[GND]
SECAM_MIX
DVD_IN[H]
CVIN[EDS]
EEPROM IN
IC.DATA.CLOCK
IC.DATA.OUT
IC.DATA.IN
IF
IF
V/A
V/A
V
V
V
EC2
T-PHOTO
5V[AD]
CTL.HEAD[+]
CTL.HEAD[-]
PB.CTL.OUT
CTL.AMP.REF
+5V[A]
S CAS[H]
IREF
S-PHOTO
S-PHOTO
CURRENT_LIMIT
BIL_ST_MO/PICT2
ART.V/H/N
VIDEO.H.SW
AUDIO.H.SW
D.REC[H]
OPECON_CS
NC
REMOCON
TRACKING_ENVE
PB X5[H]
NC
ABS_NORM [L]
AVR [L]
32KHz.OUT
32KHz.IN
RESET[L]
POS.SW1
POS.SW3
POS.SW2
POS.SW1
POS.SW3
POS.SW4
POS.SW4
POS.SW2
12MHz.OUT
12MHz.IN
+5V[D]
IR
TRK_ENV
ART_V_H_N
BIAS_H
VIDEO_H_SW
TW6008
W526 0
A_H_SW
D_REC_H
ABS_NORM_L
AVR_L
FM_MUTE_H
VIDEO_5V
OSD_FSC_IN
OSD_VIDEO_IN
IC_DATA_IN
IC_DATA_CLK
IIC_CLK
IIC_DATA P_ON_H
CTL_HEAD [+]
CTL_HEAD [-]
CTL_HEAD_M
CTL_HEAD_P
+5VA
S_VHS_PB_H
IC_DATA_OUT
R6010
10K
R6016 10K
1
2
3
4
5
6
7
8
9
10
11
1213
14
15
16
17
181920
21
22
23
2425
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
26
27
28
29
30
51 52 53 54 55
N
R6026
3.3K
ART_V_H_N
SREEL
TREEL
T-PHOTO
5VAD
T.S.CURVE
IF PONH
V
V
VBI2
VBI1
V/A
SCHEMATIC DIAGRAM-16
: +B SIGNAL LINE
OSD_VIDEO_OUT
V
MAIN (SYSTEM CONTROL:S) CIRCUIT
TW2001
TL6010
R6009 10K
R6029 10K
R6028 10K
TL6015
TL6002
TL6014
R6021 10K
R6020 10K
BIL_ST_MO A
OPECON_CS IF
DVD_OUTH V
W512
0
W513
0
R6405 47K
106
SA-HT833VP
C2520
0.1
IC2502
C0DBZJG00007
Q1501
T PHOTO S PHOTO
Q1501
C2506
0.22
C2513
1
C6111
0.1
IC2501
CYLINDER DRIVE/
LOADING DRIVE IC
IC2501
C2502
6.3V220
C2510
C2511
R2515
220
R2514
220
R2521
1K
R2516
220
C2512
0.1
R2502
R2523 100
C2509
16V22
C2519
0.01
R6400
100
C2501 0.1
C2508 1800P
R2520 18K
C2505
0.022
C2504
0.022
R2501
R2552
10K
C2551
0.056
C2552
0.056
C2515
0.01 R2522 100
C2507
1000P
IC1511
T-REEL SENSOR
Q1502
Q1502
R1501
27K
R1502
27K
IC1512
S-REEL SENSOR
IC1511
IC1512
TL6013
R1513
120
D1501
B3EA00000072
R1503
150
TL6012
R1511
27K
R1512
27K
P2501
C2518
0.01
P1531
TO
VCR VIDEO HEAD
0.1
0.1
1.5
33K
IC
PNA2604M01VT PNA2604M01VT
C1AB00001767
B3NAA0000049
B3NAA0000049
IF
A
VG
VCC
PFG
PFG
GND
CST
OUT1
VM2
RNF
M3
RIN
RIN
UNREG16V
COM
L GND M2
VM
FIN
FIN
M1OUT2
V
V
A
PG+
PG OUT
PG-
EC
EC2
PCI
CT1
CT2
CNF
S-PHOTO
LOADING M[+]
LOADING M[+]
M
LOADING M[-] LOADING M[-]
M2
PG-
PG+
COM
GND
M3
M1
MECHA
UNREG_16V
P_ON_ H
TUN_V_IN
SIF_OUT
SIF_OUT
S_VHS_PBH
REGULATOR IC
TUN_V_IN
S_VHS_PB_H
TUNER_5V
TUNER5V
17
18
19
20
27
8
9
10
21
15
16
11
12
7
6
22
5
23
4
24
3
25
13
26
14
2
1
5V
TREEL
T-PHOTO
SREEL
5VAD
+5VA
SCHEMATIC DIAGRAM-17
: +B SIGNAL LINE
2
1
4
5
3
MAIN (SYSTEM CONTROL:S) CIRCUIT
R6022
1K
W516
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
AFT
SIF OUT
A_OUT
V_OUT
NC
BTL
BC
SDA
SCL
IF OUT
NC
NC
V_IN
CTR
NX
CH_SW
A_IN
BT
TUN_V_IN
T.S.CURVE
SIF_OUT
UNREG_38V
TUNER5V
SDA
SCL
R7604 0
W529
0
W530
0
W531
0
C7602
50V1
C7603
6.3V47
C7604
0.01
C7605
33P
C7606
33P
D7601
MAZ4300NMF
R7601
1K
R7602 0
R7603 0
TU7601
ENGF6503GF
4
3
2
1
4
3
2
1
1
2
3
4
5
6
7
1
2
1
2
: MAIN SIGNAL LINE
: VIDEO SIGNAL LINE
107
SA-HT833VP
6
43
2
1
2
1
2
4
6
5
3
1
1
2
3
4
5
6
8
7
9
P5001
P4002
J1
T4081
G2A362C00005
Q4083
2SD0601A0L
R4085
1K
Q4081
B1AAGD000016
BIAS OSC
BIAS OSC
BIAS OSC
BIAS OSC
POWER SUPPLY D.REC (H:OFF)
Q4084
2SB0710A0L
L4081
G0C471KA0004
R4086 2.2K
QR4081
B1GDCFJJ0040
C4084
1800P
C4083
6.3V47
C4085
0.068
QR4082
B1GBCFNN0016
R4087
2.2K
W519
0
C4081
R4082
3.3K
C5001 0.01
C5002 0.01
C5003 0.01
C5004 0.01
P4001
R4084
1K
Q4082
2SD114900L
R2099
6.8K
C2099
680P
C4082
470P
R4015
20K
W525
0
W524
0
R4081
8.2K
0.022
VEE0U97
FULL E
FULL E
A HEAD[V]
GND
A HEAD[V]
CTL HEAD[+]
CTL HEAD[-]
A HEAD[R]
AE IN
A L
A COM
A R
EP COM EP COM
EP L EP L
EP R EP R
SP COM SP COM
SP L SP L
SP R SP R
D_REC_H
AUDIO_5V
BIASH
CTL_HEAD [+]
CTL_HEAD [-]
A_R
A_COM
A_L
MAIN (VIDEO:V) CIRCUIT
SCHEMATIC DIAGRAM-18
A
A
A
R4071
W523
0
15K
C4065
1800P
S
S
A
S
UNREG_6V
IF
S
: +B SIGNAL LINE
: MAIN SIGNAL LINE
AUDIO/CONTROL HEAD
SP(L)
AUDIO
HEAD(L)
AUDIO
HEAD(R)
CYLINDER HEAD
SP(R)
EP(L)
EP(R)
FULL
ERASE
HEAD
AUDIO
ERASE
HEAD
AUDIO
HEAD
CONTROL
HEAD
R4083
2.2
108
SA-HT833VP
R4061
330K
C4061
0.01 R4062
10K C4062
6.3V33 R4063
200
94
TRK_ENV
95
TRACKING_ENV S
C4064 1800P
C4041 25V4.7
C4063 50V3.3
C4042 25V4.7
: +B SIGNAL LINE
MAIN (VIDEO:V) CIRCUIT
SCHEMATIC DIAGRAM-19
C4018
W517
0
6.3V22
A HEAD [V]
95
94
VIDEO5V
EP R
EP COM
EP L
SP R
SP COM
SP L
VIDEO5V
VIDEO5V
TRK_ENV
C3047
0.1
L5001
G0C680JA0019
R3038
2.2K
C5005
6.3V100
C5006
0.1
R4011
15K
R3020
1.5K
R3024
1K
R3002
3.9K
R3005 2.2K
R3004
3.3K
L3301
G0C270JA0019
C3011
6.3V47 C3012
0.1
R3025
3.3K
R3026
3.3K
C3004
150P
L3001
G0C271JA0019
R4012
22K
NORMAL_INA
TUN_V_INS
AVR_LS
S_VHS_PBHS
ART_V_H_NS
VBI1S
VBI2S
NORMAL_OUTA
C4010 16V10
C4601 16V10
C3062 16V10
C3008 50V4.7
C3002 0.1
C3003 0.1
C3005 0.1
C3013 0.1
C3015 0.1
C3029 0.01
C3017 0.1
C3053 0.1
C3022 0.01
C3025 330P
C3016 1
C3019 0.1
C3020 25V3.3
C3021 16V10
R3032 6.8M
C3006 1
C3010 1
C3007 33P
R3001 6.2K
R3003 1.5K
VIDEO5V
17
29
VIDEO_5VS
OSD_FSC_INS
L3302
G0C680JA0019 VIDEO5V
C3028
6.3V47
C3027
0.01
C3052
0.1
C3030 0.01
C3034 2P
R3012 1K
L3005
G0C120JA0019
C3033 1
L3303
G0C270JA0019
C3031 0.1
C3035 0.1
C3041 0.022
C3040 0.47
C3038 4700P
C3036 25V3.3
R3013 27K
C3039 0.033
C3032 6.3V47
C3037 50V2.2
C3042 25V4.7
C3099
6.3V100
X3001
H0D357400068
IC3001
C1AB00002083
AV IC
R3018 15K
IIC_CLK
IIC_DATA S
S
TW3001
VIDEO_H_SWS
VIDEO5V
Q3003
2SD0601A0L
SWITCH
C3065
0.22
123456789
31
32
33
34
35
36
37
38
39
72
73
74
75
76
77
78
79
80
92
93
94
95
96
97
98
99
100
10
71
40
91
11
70
41
90
12
69
13
68
42
89
43
88
14
67
15
66
16
65
44
87
45
86
46
85
17
64
18
63
19
62
20
61
47
84
48
83
49
82
50
81
21
60
22
59
23
58
24
57
25
56
26
55
27
54
28
53
29
52
30
51
: VIDEO SIGNAL LINE
K4509
0
109
SA-HT833VP
C3706
6.3V100
12
11
10
2
4
6
8
9
7
5
3
1[PR]
[PB]
[PY]
[V]
[L]
[R]
[R]
[L]
[V]
5
2
4
1
3
G
G
GY
C
: +B SIGNAL LINE
MAIN (VIDEO:V) CIRCUIT
SCHEMATIC DIAGRAM-20
: AUXILLARY SIGNAL LINE
: DVD VIDEO SIGNAL LINE
: VIDEO SIGNAL LINE
29
17
VIDEO5V
C3704
6.3V470
R3710
68
R3709 75
R4701 470
R4704 0
R4702 0
R3711
75
R3706
75
R3603
220
R3705
75
TV_VCR_AUX_MIX_R
MUTE_LINE IF
VIDEO_CR IF
VIDEO_CB IF
TV_VCR_AUX_MIX_L IF
AUX_R A
AUX_L A
DVD_C_OUT
IF
DVD_Y_OUT
IF
DVD_OUT
IF
OSD_VIDEO_IN S
QR4703
QR4702
UNR521600L
MUTING SWITCH
QR4703
B1GDBFNN0001
MUTING SWITCH
QR4701
UNR521600L
MUTING SWITCH
QR4702
QR4701
TL4503
TL3002
TL4504
JK3701
JK3702
VIDEO
R3021
330
TL4506
TL4505
TL3003
LB3704
VIDEO_Y IF
R3708 75 LB3703
R3707 75 LB3702
LB4701
R4703 470 LB4703
LB4704
LB4702
LB3701
ERJ3GEY0R00V
LB3700
ERJ3GEY0R00V
Q3001
2SD0601A0L
SWITCH
IC3701
C1AB00001935
VIDEO IC
L CH OUT
R CH OUT
VIDEO OUT
AUX L
AUX R
VIDEO IN
DVD/VHS
EXT
S-VIDEO
COMPONENT
VIDEO OUT
DVD
12
56
3
4
C3701
0.1
C4704
470P
470P
C4702
IF
DVD_OUTH
S
C3713
1
OSD_VIDEO_OUT
S
C3714
1
LB3702~LB3704
ERJ3GEY0R00V
LB4701~LB4704
ERJ3GEY0R00V
: MAIN SIGNAL LINE
110
SA-HT833VP
23.4. ASP Circuit
C2126
0.01
C2125
33P
R2115
27K
C2127
50V4.7
IC2010
IC6011
IC2010
C0ABBB000118
DUAL OP-AMP IC
IC6011
FL
ASP CIRCUIT
SCHEMATIC DIAGRAM-21
: +B SIGNAL LINE
: -B SIGNAL LINE
: MAIN SIGNAL LINE
W820
0
W808
0
W809
0
R2114
10K
C2123
16V10
C2500
16V10
W830
0
W835
0
HP_L
MUTE_HIC
GND1
MUTE_HP
HP_R
L102 G0C100JA0052
SUBMUTE
+7.5V
MUTE_S
VOL_DA
MUTE_C
GND1
MUTE_F
VOL_CLK
SS_CLK
SS_DATA
DGND
SS_CLK
SS_FL
SS_FR
SS_C
SS_SUR
SS_DATA
C2124
100P
C2122
390P
R2113
10K
R2169
7.5K
R2112
10K
R2156
10K
R2500
10K
W865 0
W874
0
W873
0
W872
0
W871
0
C2121
150P
C2156
1
C6108
0.15
C6102
3300P
87
21
6
3
5
4
P2101
TO
MAIN (DVD
INTERFACE:IF)
CIRCUIT
(P36008) ON
SCHEMATIC
DIAGRAM-11
15
14
13
12
11
10
2
4
6
8
9
7
5
3
1
17
19
21
23
24
22
20
18
16 MAIN_L
GND1
MAIN_R
DVDCNT
DVDSL
MUTE_WS
DVDSR
HB_CTRL
SUBW
-7.5V
+7.5V
DVDFR DVD_FR
DVD_FR
SYS_6V
GND1
DVDFL
DC_DET
PCONT
WS_SL
GND
WS_SR
H.B_LEVEL
FC1_SUR
FC2_SUR
FC1_FR
FC2_FR
P2102
TO
MAIN (DVD
INTERFACE:IF)
CIRCUIT
(P36009) ON
SCHEMATIC
DIAGRAM-12
15
14
13
12
11
10
2
4
6
8
9
7
5
3
1
17
16 C_MIX
-7.5V
C2226
0.01
C2225
33P
-7.5V
R2212
10K
W812
0
W867 0
W869
0
R2269
7.5K
R5102
56K
R2216
100K
R2116
100K
C2227
50V4.7 FR
C
C2222
390P
R2213
10K
R2214
10K
R2215
27K
R2256
10K
R5101
27K
C2224
100P
C2221
150P
C2256
1
C2223
16V10
SUBW
HP_L
MUTE_HIC
MUTE_HP SEL_FL
HP_R
SUBMUTE
+7.5V
MUTE_S
VOL_DA
MUTE_C
MUTE_F
VOL_CLK
SS_CLK
SS_DATA
MAIN_L
MAIN_R
DVDCNT
DVDSL
MUTE_WS
HB_CTRL
-7.5V
SYS_6V
DC_DET
PCONT
WS_SL
WS_SR
Q5101
KRA110STA
SWITCH
1
2
3
4
5
6
R5109
100K
R5107
100K
R5105
100K
Q5102
B1GFGCAA0001
MUTING SWITCH
C5101
50V4.7 C5103
16V10
C5102
16V10
1
219
20
318
417
516
615
714
813
912
10 11
C6101
16V10
SEL_FR
C6105
16V10
C6106
50V1
R6101
12K
C6103
0.015
C6109
0.022
C6107
50V1
C6110
0.022
C6104
3300P
R6102
12K
C6111
0.082
-7.5V
+7.5V
C6221
220P
C6220
220P
C6207
0.1
C6208
16V100
C6204 50V1
C6205
16V100
C6203
50V1
C6202
50V1
C6201
50V1
C6206
0.1
C1BB00000979
SUPER SURROUND IC
C2300
16V10
R2300
10K
DVDSR
C2400
16V10
R2400
10K
C2600
16V10
R2600
10K
L101
G0C100JA0052
111
SA-HT833VP
IC2011
C1BB00000845
DSP IC
OUT_FL
DVDSR
DVDCNT
DVDSL
G
ASP CIRCUIT
SCHEMATIC DIAGRAM-22
: +B SIGNAL LINE
: MAIN SIGNAL LINE
FIN4
IN4
VOL_CLK
F_FIN4
VOL_DA
FRONTL
+7.5V
-7.5V
FIN3
C2149 1 R2144 4.7K
C2265 2700P
C2164 2700P
C2219 0.12
C2220 0.12
R2172
0
R2173
68K
W811
0
R2210
10K
R2265
10K
W837
0
C2165 0.12
C2166 0.12
C2175
0.033
C2176
100P
C2276
100P
R2165
10K
R2178
15K R2278
15K
R2164
33K R2264
33K
R2507
10K
R2260
15K
C2507
470P
R2160
15K
W810
0
C2160
470P
C2260
470P
SUBW
R2607
27K C2604
2200P
C2618
0.056
C2608
0.1
C2158
1
C2167 50V4.7
123456789
21
22
23
24
25
26
27
28
29
52
53
54
55
56
57
58
59
60
72
73
74
75
76
77
78
79
80
10
51
30
71
11
50
31
70
12
49
13
48
32
69
33
68
14
47
15
46
16
45
34
67
35
66
36
65
17
44
18
43
19
42
20
41
37
64
38
63
39
62
40
61
SEL_FL
R2271
0
SEL_FR
R2977
5.6K
SS_FL
C2258
1
R2980
5.6K
SS_FR
R2978
10K
SS_C
C
FR
FL
MAIN_R
R2110
10K
R2111
10K
R2211
10K
MAIN_L
R2272
68K
R2159
100K
R2259
100K
R2603
1.8K
R2604
820
R2404
5.6K
R2605
2.2K
C2169
470P
R2170
4.7K
R2402
10K
R2302
10K
SS_SUR
C2402
47P
R2401
4.7K
C2301
47P
R2301
4.7K
FRONTR
C2263
50V3.3
R2263 1K
OUT_FR
C2249 1 R2244 4.7K
C2261
0.1
C2262 0.068
C2161
0.1 C2162
0.068
C2605 0.47
C2606
0.12
C2607
0.47
OUT_L
OUT_C
OUT_SW
FOUT2
OUT_R
R2611
56K
R2601
47K
W817
0
R2625
22K
R2609
56K
FOUT2
G
GOUTSUB
VINSUB
GAOUT
AGCC
AGCR
OUTC
FOUT1
FIN1
GOUTSUB
VINSUB
OUTCN
AGND
OUTSUB
OUTLS
OUTRS
OUTSN
OUTRSN
OUTSUB
INSUBB
VINLS
AGND
INLSB
INRSB
VINRS
GOUTRS
GOUTC
GOUTLS
VINC
FOUT2
FIN2
AGND
INFLB
AOUT2
AOUT1
EXIN1
AGND
EXIN2
INFLA
INFRA
INLSA
INCA
INRSA
INSUBA
IND2
IND1
INE2
INE1
AGND
INFRB
INCB
AGND
VCC
VEE
FOUT4
GOUTFL
THGND
VINFL
BNFRB
BNFLA
DA
CL
GOUTFR
VINFR
AGND
TNFR
TNFL
LOUT1
LOUT2
BNFRA
BNFRB
INA1
INB2
INB1
INC2
INC1
INA2
FIN4
FOUT3
FIN3
OUTFR
MX N
OUTFL
C2266 50V4.7
C2270
0.033
C2811
0.01 C2819
50V47
C2810
220P
C2812
0.01
C2818
50V47
R2163
1K
R2161
27K
R2162
3.9K
R2894
220K
R2261
3.9K
W804
0
C2809
220P D2035
D2035,D2036
B0ACCK000005
D2036
W805 0
C2163
16V10
C2815
16V10
R2896
0
R2893
22K
R2610
2.2K
R2612
12K
C2603
10V10
R2608 120K
C2501 16V10
C2405 16V10
C2401 16V10
R2403 33K
R2606
5.6K
R2304
5.6K
W801
0
W863
0
W862
0
W832
0
R2303 33K
R2502
5.6K
R2501 1.2
C2609 5600P
R2262
27K
C7701
50V1
W806 0
W807
0
W870
0
: -B SIGNAL LINE
112
SA-HT833VP
ASP CIRCUIT
SCHEMATIC DIAGRAM-23
: +B SIGNAL LINE
: -B SIGNAL LINE
: MAIN SIGNAL LINE
IC7701
C0ABBB000118
Q7703
B1GFGCAA0001
SWITCH
C7753
100P
C7702
0.022
IC7701
87
21
6
3
5
4
C7703
0.01
R7710
8.2K
R7750
1K
W825
0
R7707
100K
R7720
1.8K
R7702
10K
R7708
100K R7726
0
R7709
33K
R7706
1.5K
C7704
0.01
GOUTSUB
+7.5V
C7715
220P
C7752
220P
-7.5V
IC7702
C0ABBB000118
IC7702
87
21
6
3
5
4
IC7703
C0ABBB000118
IC7703
87
21
6
3
5
4
-7.5V
HB_LEVEL
R7701
12K
R7704
1K
R7730
3.9K
R7756
1.8K
R7703
220K
R7727
100K
R7713
10K
R7715
10K
R7705
100K
D7701
B0ACCK000005
C7705
50V4.7
C7751
16V10
R7721
27K
R7753
100k
C7711
50V4.7
C7750
16V10
IC2015
C0ABBB000118
IC2015
87
21
6
3
5
4
C2506
0.01
OUT_SW
+7.5V
C2503
0.033
C2615
5600P
-7.5V
OUT_C
R2504
6.8K
R7761
2.2K
W822
0
R7757
3.3K
R7760
2.2K
R2613
3.3K
W116
0
R2614
1K
R2505
1K
W828
0
W826
0
R2617
68K
R2615
100K
W823
0
R2506
33K
W836
0
C2610
16V10
R2503
3.3K
C2502
50V1
C2505
50V1
R2618
1K
R2620
1.8K
R2619
2.2K
R2511
2.2K
R2508
1.8K
C2616
50V3.3
C2611
50V4.7
C7713
50V0.47
C7719
16V10
1
2
3
4
5
6
Q7702
KRA110STA
MUTING SWITCH
R7725
56K
HB_CTRL
SW_A
CENTER
MUTE_C
-7.5V
SUBMUTE
-7.5V
R7716
1.8K
R7719
27K
C7710
50V4.7
C2617
50V4.7
+7.5V
VINSUB
Q7701
KRA110STA
MUTING SWITCH
Q2500
KRA110STA
MUTING SWITCH
Q2600
KRA110STA
MUTING SWITCH
Q2601
B1GFGCAA0001
SWITCH
1
2
3
4
5
6
C7706
0.01
C7716
0.01
C7707
0.01
C7717
0.01
R7729
68K
R7711
10K
R7734
39K
R7755
0
R7738
0
R7754
4.7K
R7714
100K C7708
0.1
C2504
0.1
C7709
0.47
R2624
100K
R2621
56K
R2622
27K
C2508
50V4.7
R2509
56K
R2510
27K
R2616
10K
C2612
50V4.7
R2623
100K
DUAL OP AMP IC
DUAL OP AMP IC
DUAL OP AMP IC
DUAL OP AMP IC
R7712
10K
C2613
0.01
R7724
56K
R2661
10K
D2602
B0ACCK000005
R2662
10K
D2603
B0ACCK000005
113
SA-HT833VP
: +B SIGNAL LINE
: -B SIGNAL LINE
: MAIN SIGNAL LINE
ASP CIRCUIT
SCHEMATIC DIAGRAM-24
R8115
56K
R8108
27K
R8109
2.2K
R8110
2.2K
-7.5V
Q8101
KRA110STA
MUTING SWITCH
C8102
50V4.7
OUT_L
C2403
1
OUT_R
R2306
100K
C2303
50V3.3
R2405
1K
W833
0
R2312
2.2K
R2311
2.2K
Q2104
B1GFGCAA0001
SWITCH
1
2
3
4
5
6
C2321
50V1
C2421
50V1
R2406
100K
C2302
1R2305
1K
W829
0
W834
0
R8117
12K
R8111
22K
Q8110
B1GFGCAA0001
SWITCH
4
5
6
1
2
3
R8116
58K
R8105
27K
F_FIN4
R8104
2.2K
R8102
2.2K
FIN4
-7.5V
Q8102
KRA110STA
MUTING SWITCH
C8101
50V4.7
Q8111
B1GFGCAA0001
SWITCH
3
2
1
6
5
4
R2333
56K
R2325
27K
R2321
1K
R2421
1K
-7.5V
Q2303
KRA110STA
MUTING SWITCH
C2312
50V4.7
R2309
56K
R2310
27K
R2353
100K
MUTE_S
LS
R2308
1.8K
WS_SL
R3101
1K
R2352
1K
R2307
100
C2404
50V3.3
R2351
100K
RS
WS_SR
R3102
1K
R2350
1K
R2407
100
-7.5V
Q2103
KRA110STA
MUTING SWITCH
C2170
50V4.7
R2332
1.5K
Q2304
B1GFGCAA0001
SWITCH
4
5
6
1
2
3
R2326
56K
R2327
27K
R2428
2.2K
W860
0
W813
0
W861
0
R2328
2.2K
-7.5V
Q2301
KRA110STA
MUTING SWITCH
C2311
50V4.7
R2430
12K
W856
0
W857
0
Q2302
B1GFGCAA0001
SWITCH
3
2
1
6
5
4
114
SA-HT833VP
ASP CIRCUIT
SCHEMATIC DIAGRAM-25
: +B SIGNAL LINE
: -B SIGNAL LINE
: MAIN SIGNAL LINE
CN2000
TO
ACTIVE
SUBWOOFER
UNIT
SB-WA833PP-S
16
17
18
19
20
21
25
23
22
24
1
2
3
4
5
6
14
12
10
8
7
9
11
13
15
PCONT
PCONT
SUBWOOFER
SW_A
CENTER
CENTER
SURR R
RS
SURR L
LS
FRONTR
FRONTR
FRONT L
OUTPUT GND
FRONTL
MUTE_H
DGND
HIC_MUTE
SYS_6V
DCDET
SYS6V
DC_DET
HP_L
IN4
C2152
180P
C2151
100P
R2146
33K
R2153
0
MUTE_HP
R2266
1K
R2145
6.8K
C2150
50V1
+7.5V
C2154
0.01
-7.5V
R2168
22K
Q2105
KRA110STA
MUTING SWITCH
W851
0
R2167
12K
C2168
50V3.3
-7.5V
IC2013
IC2013
C0AABB000125
OP AMP IC
87
21
6
3
5
4
C2254
0.01
4
5
6
1
2
3
R2255
100K
R2154
2.2K
R2155
100K
R2254
2.2K
Q2200
B1GFGCAA0001
MUTING SWITCH
W866
0
OUT_FL
HP_RA
OUT_FR HP_R
R2246
33K
R2247
22
R2249
82
R2248
22
R2250
82
R2253
0
R2245
6.8K
C2250
50V1 C2253
16V100
C2153
16V100
C2251
100P
1
2
3
4
5
6R2152
2.7K
R2252
2.7K
Q2102
B1GFGCAA0001
MUTING SWITCH
C2252
180P
HP_RA
FIN3
C2255
1000P
R2147
22
R2149
82
R2148
22
R2150
82
C2155
1000P
R2251
4.7K
R2151
4.7K
MUTE_F
R2166
1.2K
R2267
56K
Q2201
KRA110STA
MUTING SWITCH
R2268
27K
-7.5V
C2267
50V4.7
115
SA-HT833VP
23.5. Power Circuit
C1128
0.022
TL1016
TL1006
TL1007
TL1008
TL1038
L1260
G0A150GA0028
L1240
G0A220GA0026
C1241
6.3V220
C1262
10V220
C1230
50V22
C1251
25V100
C1291
16V100
C1290
16V680
D1290
B0JAMK000015
20
3
5
7
8
19
18
17
16
15
14
13
12
11
D1291
B0JAMK000015
D1280
B0JAME000085
Q1151
LB1211
J0JHC0000012
T1150
G4D2A0000216
LB1120
J0JKB0000003
Q1150
B1DEEQ000001
SWITCHING
C1126
330P
D1110
D4EA7471A007
F1101
125V 1.6A
ZA1104
ZA1103
P1101
R1207
220K
R1208
8.2K
C1121
0.068
C1261
10V1000
C1260
10V1000
D1260
B0JAPE000008
Q1152
2SC3311ASA
SWITCHING
Q1152
C1154
0.022 R1153
330
D1210
B0HAGM000006
LR1150
J1ZZA0000004
D1241
B0JAME000085
C1240
10V1000
IP1240
K5G252A0020
D1240
B0JAME000085
R1160
0.22
R1161
100
R1203
24K
R1202
2.2K
IC1200
C0DAEMB00003
REGULATOR IC
IC1200
D1157
MAZ40360MF
D1152
MA2C18800E
D1270
MA2C18800E
C1270
50V47
C1310
0.1
C1280
16V470
R1157
4.7K
D1155
MA2C165001VT
R1158
330
R1159
3.3
C1153
0.1
R1155
100K
C1151
0.022
R1205
2.2K
C1200
0.1
Q1200
B3PBA0000237
PHOTO COUPLER
R1206
270
R1204
C1125
1000P
LB1213
J0JHC0000012
4.7K
R1156
33
C1152
0.01
D1230
MA2C18800E
D1140
B0KB00000013
G0B233D00002
C1155
470P
R1154
1M
C1140
250V100
4
3
1
2
D1251
B0JAMK000015
D1250
B0JAMK000015
L1250
G0A220GA0026
C1250
25V680
L1120
G0B233D00002
L1290
G0A220GA0026
R1150
1M
D1180
MAZ751000C
P1102
N
A
A
R
C
Q1151
2SC3311ASA
PULSE DRIVE
HE[-]
GND
UNREG_11V
UNREG_3V
HE[+]
UNREG_38V
UNREG_6V
UNREG_16V
UNREG_-30V
GND[M]
GND
MICON_5V
P.SAVE[L]
M_GND
TL1009
AC IN
120V/60Hz
TO
MAIN (DVD
INTERFACE
:IF) CIRCUIT
(P31001) ON
SCHEMATIC
DIAGRAM-14
POWER CIRCUIT
SCHEMATIC DIAGRAM-26
: +B SIGNAL LINE
: -B SIGNAL LINE
R1200
33K
R1201
36K
R1230
47K
TL1030
TL1004
3
2
1
4
32
1
43
2
1
IP1280
K5G401A00001
2
3
1
R1152
330K
R1151
330K
D1150
D1150
B0HAGR000002
C1150
4700P
14
13
12
11
10
2
4
6
8
9
7
5
3
1
L1121
4
3
1
2
116
SA-HT833VP

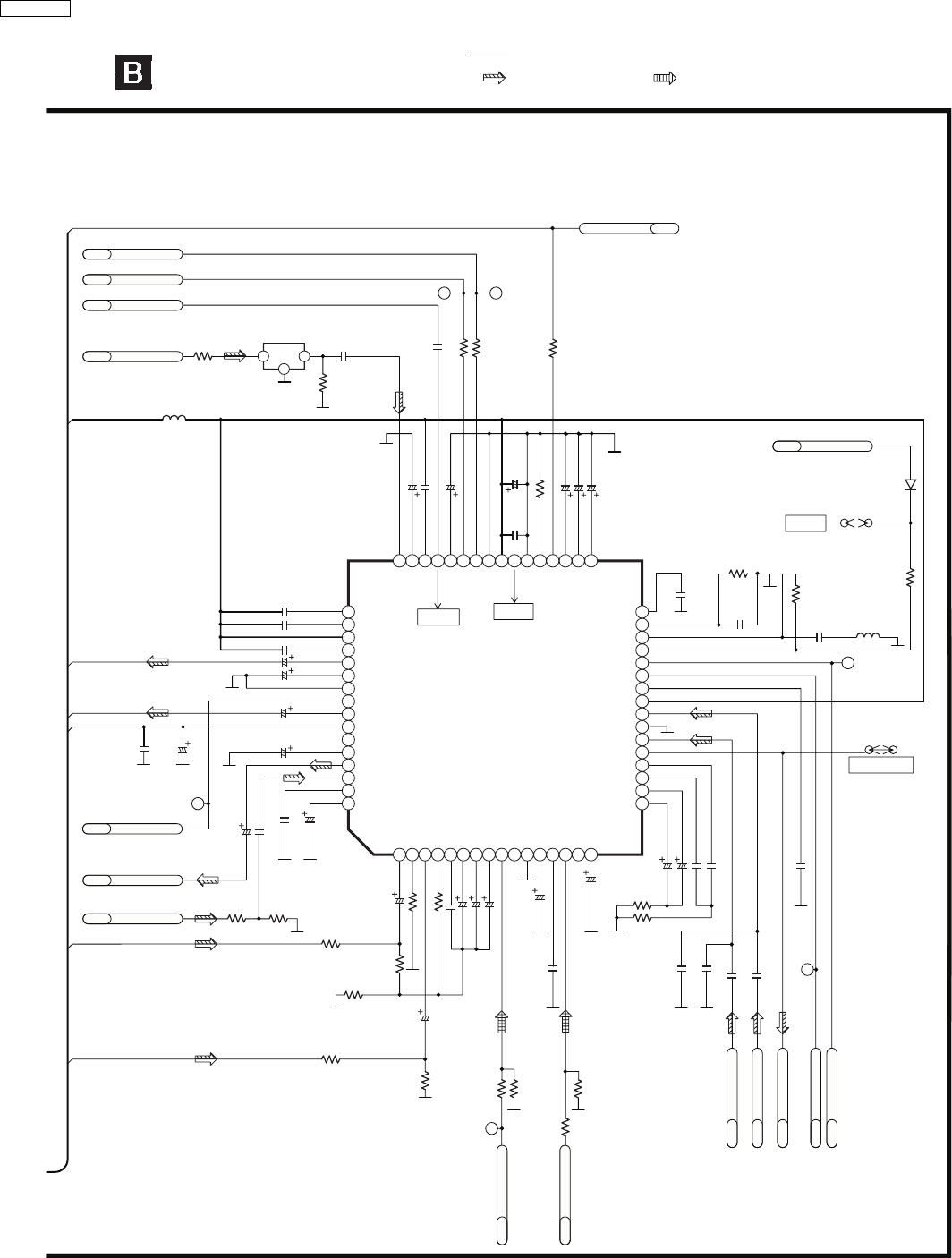

23.6. Front Panel B Circuit
FRONT PANEL B CIRCUIT
SCHEMATIC DIAGRAM-27
: -B SIGNAL LINE
: +B SIGNAL LINE
IC7201
C0HBB0000039
FL DRIVER IC
R7224 10K
R7223 10K
R7222 10K
R7221 10K
R7220 10K
R7219 10K
R7218 10K
R7217 10K
R7216 10K
SEG18
SEG19
SEG20
SEG21
SEG22
SEG23
SEG24
SEG25
SEG26
VP
SEG27
SEG28
SEG29
SEG30
SEG31
SEG32
SEG33
SEG02
SEG01
SEG00
VCC2
DIG15/SEG39
DIG14/SEG38
DIG13/SEG37
DIG12/SEG36
DIG11
DIG10
DIG09
DIG08
DIG07
DIG06
DIG05
DIG04
SEG17
SEG16
SEG15
SEG14
SEG13
SEG12
SEG11
SEG10
SEG09
SEG08
SEG07
SEG06
SEG05
SEG04
SEG03
SEG34
SEG35
VSS
XIN
XOUT
VCC1
P0
P1
SDATA
SCK
CS
RESET
DIG00
DIG01
DIG02
DIG03
R7226
100
C7211
27P
C7208 0.1
R7209
27K
C7212
0.1
DP7201
A2BD00000113
FL DISPLAY
C7201
35V10
D7201
MAZ4240NMF
R7215 10K
R7214 10K
R7213 10K
R7212 10K
R7211 10K
R7210 10K
C7204
0.1
R7225
680
R7013
680
R7205
0
1
2
3
4
5
6
7
8
9
17
18
19
202122
23
2425
40
41
42
43
44
45
46
47
48
56 57 58 59 60 61 62 63 64
1039
26
55
11
38
27
54
1237
1336
28
53
29
52
14
35
15
34
16
33
30
51
31
50
32
49
12345678 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54
117
SA-HT833VP
15
14
13
12
11
10
2
4
6
8
9
7
5
3
1
17
19
20
18
16
2
4
6
7
5
3
1
321
A B COM
TO
MAIN (DVD
INTERFACE
:IF) CIRCUIT
(P36001) ON
SCHEMATIC
DIAGRAM-11
P7201
R7208 1K
R7207 1K
R7206 1K
L7200
G0C3R3JA0027
C7209 0.1
C7210 10V100
C7014
100P
C7010
100P
HP_R
HPGND
HP_L
HP_SW
GND
IR
GND
JOGB
JOGA
P_SAVE[L]
5V VCC
KEY2
KEY1
SDATA
SCK
CS
FL_RESET
UNREG-30V
F+
F-
B1GDCFLL0027
SWITCH
QR7201
REMOTE SENSOR
IR7001
B1GBCFNN0016
SWITCH
QR7201
QR7202

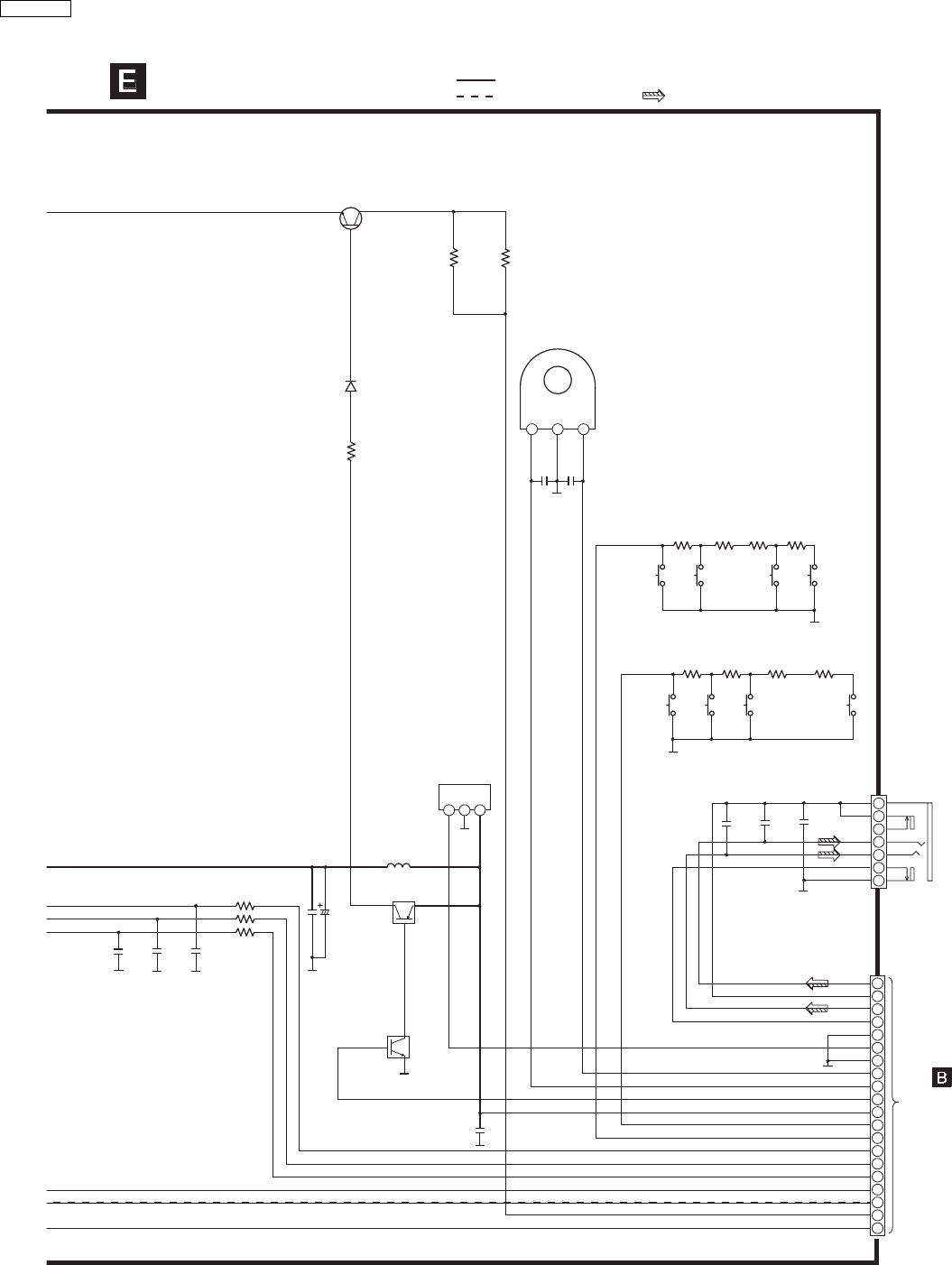

FRONT PANEL B CIRCUIT
SCHEMATIC DIAGRAM-28
: -B SIGNAL LINE
: +B SIGNAL LINE
C7205
220P
C7206
220P C7207
220P
C7011
100P
C7012
100P
C7013
100P
JK7001
HEADPHONE
S7016
PLAY
S7018
STOP
S7020
CH UP
S7017
FF
S7019
REW
S7021
CH.DWN
S7023
REC
S7024
EJECT
R7026
1.8K
R7024
1K
R7028
4.7K
R7030
1.8K
R7023
0
R7025
4.7K
R7027
3.3K
R7031
1K
Q7001
2SD602A0L
FL DRIVE
D7202
B0AAED000003
R7203
5.6K
R7202
18
R7201
18
VR7201
EVEKE2F3524B
VOLUME JOG
C7015
0.1
GVCC
IR
3
2
1
: MAIN SIGNAL LINE
118
SA-HT833VP
23.7. Front Panel A Circuit
SCHEMATIC DIAGRAM-29
TO
MAIN (DVD
INTERFACE :IF)
CIRCUIT (P36002) ON
SCHEMATIC DIAGRAM-11
FRONT PANEL A CIRCUIT
P7202
R7011
1K
R7009
1K
R7007
1.2K
R7005
1.8K
R7003
2.2K
R7001
2.7K
R7002
4.7K
S7013
POWER
S7011
INPUT
SELECTOR
S7009
DISC1
S7007
DISC2
S7005
DISC3
S7003
DISC4
S7001
DISC5
S7002
DISC
CHANGE
R7008
1K
R7006
1.2K
R7010
1K
S7012
OPEN/
CLOSE
S7010
DISC
CHECK
S7008
STOP
S7006
PLAY
5
3
1
2
4
6
R7004
1.8K
S7004
H.BASS
KEY1
GND
KEY2
GND
GND
GND
119
SA-HT833VP
23.8. CD Loading Circuit
M
M
4
32
1
14
13
12
11
10
2
4
6
8
9
7
5
3
1
CD LOADING CIRCUIT
SCHEMATIC DIAGRAM-30
RM11
UP/DOWN
MOTOR
C11
0.01
C12
16V100
C21
0.01
C22
16V100
Q1
B3NAA0000098
SENSOR
VREF
OUT2
RNF
OUT1
VM
VCC
F_IN
GND
R_IN
VREF
OUT2
RNF
OUT1
VM
VCC
F_IN
GND
R_IN
IC11
C0GAG0000007
DRIVE IC
IC21
C0GAG0000007
DRIVER IC
S3
BOTTOM
S4
OPEN
S1
STOCK
S2
PLAY
: +B SIGNAL LINE
CN1
S5
CHANGE
TO
MAIN (DVD
INTERFACE
:IF) CIRCUIT
(P36005) ON
SCHEMATIC
DIAGRAM-11
RM12
LOADING
MOTOR
123456789
123456789
PLAY_SW
STOCK_SW
LOAD_R
LOAD_F
OPEN_SW
LED
SENSOR
BOTTOM_SW
UP_DOWN_R
UP_DOWN_F
D_GND
CHANGE_SW
P_GND
+7.5V
120
SA-HT833VP
23.9. VCR Deck Circuit
2
4
6
8
7
5
3
1
R210
21
34
R208
21
34
R207
21
34
4321
4
3
2
1
P201
5V
CAP_VM
FG1
GND(FG)
TL
EC
CAP_R/F
MGND
C201
0.1
C204
0.1
C206
1000P
C207
0.015
R202
9.1K
R205
0.91
R203
0.91
C205
0.1
D201
B0JCMD000024
D202
B0JCMD000024
D203
B0JCMD000024
R201
180
PCV
SGND
NC
OSC
RCC
ECR
CNF
MGND
TL
EC
EDS
CS
ATC
NC
PCI
H2+
H2-
H1+
H1-
H3+
H3-
VH+
VCC
VM1
NC
A3
A2
A1
IC201
C1AB00001472
CAPSTAN DRIVE
IC201
R207
B4ABB0000013
(H3 HOLL SENSOR)
R208
B4ABB0000013
(H3 HOLL SENSOR)
R210
B4ABB0000013
(H3 HOLL SENSOR)
L201
CAPSTAN MOTOR
MAIN COIL
R209
EZMPX300F13
FG SENSOR
TL0204
TL205 TL203 TL202
TL201
VCR DECK CIRCUIT
SCHEM
ATIC DIAGRAM - 31
TO
MAIN
(SYSTEM CONTROL:S)
CIRCUIT (P2571) ON
SCHEMATIC
DIAGRAM-15
: +B SIGNAL LINE
4
6
19
20
21
22
7
18
1
2
3
5
23
24
25
26
27
28
8
17
9
16
10
15
11
14
12
13
121
SA-HT833VP
24 Printed Circuit Board
24.1. DVD Module P.C.B. (Side A and Side B)
ABCDEFG
1
2
3
4
5
6
7
8
9
DVD MODULE P.C.B (REPV0056A)
A
PbF
C8001
C8002
C8011
C8014
C8015
C8016
C8017
C8031
C8111
C8112
C8113
C8201
C8202
C8206
C8208
C8211
C8212
C8213
C8214
C8215
C8216
C8228
C8252
C8253
C8255
C8256
C8257
C8262
C8301
C8302
C8303
C8304
C8421
C8423
C8550 C8551
C8552
C8553
C8554
C8561
C8562
C8563
C8564
C8601
C8606
C8607
C8621
C8622
C8691
C8695
D8231
IC8111
IC8601
IC8606
K8006
K8007
K8008
K8009
K8010
K8421
L8201
L8202
L8301
L8302
L8550
LB8001
LB8002
LB8421
LB8422
LB8423
LB8424
LB8425 LB8426 LB8427
LB8428
LB8429
LB8430
LB8491
LB8690
Q8552
Q8562
Q8606
Q8607
QR8420
R8021
R8022
R8023
R8243
R8251
R8261
R8263
R8313
R8314
R8420
R8553
R8554
R8555
R8556
R8557
R8558
R8559
R8563
R8564
R8565
R8566
R8567
R8568
R8601
R8606
R8607
R8621R8622
X8621
QR8112 QR8111
R8112
R8111
RX8014
RX8013
C8057C8056
C8055
C8054 C8053 C8052 C8051
IC8051
FP8501
TO OPTICAL
PICKUP UNIT
C8006
C8007
C8008
C8009
C8010
C8651
C8652
IC8651
RX8011
RX8012
RX8021
R8312
R8311
C8311
C8251
IC8691
IC8695
(SIDE A)
CKA5
CKA6
CKA2
CKA4
CKA3
CKA1
CKA7
TL8111
CL8007
CL8008
CL8009
CL8010
CL8011
CL8012
CL8002
CL8003
CL8024
CL8026
CL8025
14
58
5
4
1
2
3
127
28 54
25 20 15 10 51
26
124
2548
123
45
123
45
2
3
46
7
8
9
11
12
13
14
19 16
17
1824
23 21
22
C
EB
C
E
B
C
E
B
BE
C
1
2
3
C
E
B
C
E
B
C
E
B
XXXX
XXX
X
XXXXX
X
X
X
X
X
X
122
SA-HT833VP
ABCDEFG
1
2
3
4
5
6
7
8
9
DVD MODULE P.C.B (REPV0056A)
A
PbF
C8012
C8013
C8018
C8019
C8203
C8204
C8205
C8221
C8222
C8223
C8224
C8225
C8226
C8227
C8229
C8233
C8234
C8235
C8236
C8237
C8238
C8241
C8242
C8254
C8261
C8308
C8312
C8422
C8501
C8502
D8550
D8571
FL8101
FL8102
FL8103
FL8104
FP8101
IC8001
IC8251
K8001
K8002
K8003
K8004
K8005
K8106
LB8691
LB8692
LB8693
LB8401
LB8302
LB8301
LB8303
LB8304
LB8305
LB8507
Q8550
Q8551
Q8561
QR8571
R8041
R8201
R8231
R8233
R8235 R8236
R8241
R8242
R8262 R8264
R8315
R8321
R8322
R8325 R8326
R8331
R8332 R8335
R8341
R8401
R8402
R8404
R8407
R8421
R8550
R8551
R8552
R8560
R8561
R8562
R8569
R8570
RX8401
RX8402
IC8421
Q8560
LB8514
LB8512
LB8513
LB8511
RX8018 RX8016
RX8017
C8023
C8022
C8021
C8020
C8025
R8011
RX8015
C8027
C8028
C8426
C8217
C8218
RX8502 RX8504
RX8503
RX8501
R8506
R8505
R8501
LB8505
LB8504
LB8503
LB8502
C8506
C8505
C8504
C8503
C8003 C8004
C8005
C8611
FP8201
TO SPINDLE MOTOR
IC8611
R8611
RX8031
RX8032
RX8611
C8424 C8428
K8031
R8265
C8427
C8232
C8207
C8026
C8024
C8307
(SIDE B)
X
X
TL8513
TL8522
X
TL8512
X
X
X
TL8201
CL8551
CL8561
X
CL8233
XX
CL8234
CL8236
X
X
CL8231
CL8235
XX
CKC1 CKC2
X
X
XX
CKC8 CKC10
CKC4
CKC6
XX
X
X
CKC11 CKC12
CKC14
CKC16
XXX
X
X
CKC15
CKC18
CKC20
CKC22
CKC24
X
X
X
X
CKC32
CKC36
CKC37
CKC40
X
XX
X
CKC44
CKC48
CKC49
CKC50
XX
X
CL8430
X
CL8421
XX
X
CL8424
CL8425
CL8426
CKC41
CKC45
XX
CL8040
CL8491
CKB1
CKB2
CKB3
CKB4
CKB6
CKB8
CKB9
CL8034
X
XXX
XXX
X
X
CKF1
CKF2
CKF3
CKF4
CKF5
CKF6
XX
XXX
CL8021
CL8022
CL8023 CL8027
CL8611
CL8612
XXX
XXX
CL8028
CL8029
CL8031
CL8032
XX
X
X
CL8030
X
CL8033
X
X
CL8241
X
CL8243
TL8211
TL8212
TL8213
TL8214
TL8215
TL8216
TL8217
TL8218
TL8219
TL8220
CL8242
CL8571
CL8036
CL8244
XX
XX
XCL8035
X
X
X
X
X
XX
X
X
XCL8006
CL8001
CL8013
CL8014
CL8004
CL8005
XXXXX
X
CL8201
CKE4
XX
CKE2
CKE3
CKE5
CKE7
CKE9
X
XXX
X
CKE23
CKE25
CKE22
CKE19
CKE18
CKE21
CKE12
CKE13
CKE14
CKE16
CKE17
CKE24
CKE1
CKE20
CKE11
X
X
X
X
XXXX
X
X
X
XX
X
X
CKE6
X
50
45
40
35
30
25
20
15
10
5
1
1
64
129
192
65
128
193 256
28 15
141
14
1528
1
123456
1
45
8
2
3
4
9
6
7
8
11
12
13
14
16
17
18
19
21
22
23
24
26
27
28
29
31
32
33
34
36
37
38
39
41
42
43
44
46
47
48
49
30
29
B
E
C
B
E
C
B
E
C
BE
C
BE
C
123
SA-HT833VP
24.2. Main P.C.B.
ABCDEFG
1
2
3
4
5
6
7
8
9
G
MAIN P.C.B (VEPV0032A)
B
W80
W70
W69
W68
W99
W97
W98
W96
W104
W101
W100
W102
P36001
D36003
W103
Q1502
W20
W21
W15
P36002
W4
W2
S1531
SAFETY TAB
W118
W12
W114
W110
W111
W113
W112
W10
W9
W8
W109
W5
W7
W3
W11
W13
W6
W14
W1
C36009
C36001
W57
W64
W65
W63
W61
W45
W44
W67
W37
W40
W39
W41
W29
W38
W33
W27
W28
W31
W34
W58
W62
W66
W59
W60
W52
W36
W35 W140
W142
W26
W25
W24
W22
W23
W32
D36004
D36010
L36001
X36001
D36002
W54
W53
W179
IC1512
W145
W138
W128
W131
W134
W137
IC1511
Q1501
S1532
MODE SW
P2571
P4002
TO AUDIO/CONTROL HEAD
P2501
TO VCR
VIDEO HEAD
C6005
L6001
X6001
C2571
W183
W222
W211
C2051
C2053
D2001
D2002
W184
W223
P1531
TO MECHA
W185
C2572
J2501
C2502
W277
W155
W194
W256
W189
W188
W73
W190
W150
W221
W181
W182
W214
W215
W216
W217
W168
W79
W77
W85
W87
W42
W152
W88
W55
W95
W74
W81
W83
W78
W89
W91
W93
W75
W76
W71
W72
W86
W84
W82
W94
W208
W207
W90
W219
W43
W172
W213
C2509
W220
TW3001
W209
W205
W218
W210
W212 W279
W280
W282
W276
W275
W278
W272
W269
W270
W268
W281
W257
W264
W201
W262
W261
W260
C4083
L4081
Q4081
T4081
C4081
W265
W200
W198
W195
W192
W191
W187
W258
W186 W259
C6308
TW2015
TW1004
C
4
C4041
C4063
C4042
W255
C4018
W254
J3602
C5005
W233
C3099
C4514
C4515
C4517
L4502
C3036
C3042
C3037
C3028
C3021
W158
W153
W159
W160
W176
W175
C3032
W174
W173
L3302
L3005
W178
L3303
X3001
W120
W122
W127
W126
C4513
D4501
W136
W135
C4567
C4516
W144
L4501
W243
C4572
W225
W147
W146
FL4561
W107
W108
P4001
TO FULL
ERASE HEAD
D36006
P36005
W232 W228
C4525
C4522
C4574
W231
W229
W230
W227
W253
W252
C
C
W251
W250
W249
W247
C3062
J1
L3001
C3008
W246
W244
C3011
C3020
W164
L3301
W245
W162
W161
W154
W165
W166
W167
W266
W202
W196
W193
W197
W199
W203
W151
W157
W156
W169
W177
D1501
W123
W121
W119
W124
W125
W129
W130
W132
W133
W141
W143
W139
L5001
W240
W238
W234
W235
C4534
C4507
W237
C4504
C4502
C4505
C4506
W224
C4577
C4303
W241
C4304
C4503
W226
C4535
P5001
TO
CYLINDER
HEAD
W148
W106
W105
W149
W115
W267
W170
W163
W239
T
W
W263
W242
W206
T
W
W236
TW6
0
W386
W274
W204
W271
C4062
W116
W117
W180
W171
X6002
TW2002
W
W
3
W330
W92
R1503
W248
W273
T
W
W461
TW6010
TW6009
W456
W460
W462
W464
W457
W468
W458
W467
D36011
W490
C36017
W46
W47
J4507
W600
K4505
W19
W17
W51
W603
W49
R3603
D36005
W30
L36
W465
W466
R36016
R36015
W509
C6111
R36014
R36096
R36074
R36063
R36059
R36008
TL36037
TL36015
TL36007
TL36006
TL36005
TL36004
TL36003
R36093
R36082
R36077
R36076
R36075
R36064
R36060
R36058
R36057
R36056
R36055
R36054
R36053
R36052
R36051
R36050
R36049
R36047
R36046 R36045
R36044 R36043
R36042 R36041
R36026
R36024
R36020
R36022
R36021
R36023
R36019
R36018
R36017
R36013
R36010
R36009
R36007
R36006
R36005
IC36001
C36014
W506
W500
R36083
W504
TL36010
R36102
R36101
R36100
R36066
R36065
R36040
R36039
R36038
R36037
R36036
R36035
R36034
R36033
IC36002
(NOT
SUPPLIED)
C36006
C36005
C36004
C36003
R36087
W502 TL36035
C36002
C36008
Q33009
R36085
R36089
R36002
R36004
R36061
R36062
R36080
TL36001
TL36028
W501
R36067
C36007
R36104
R36028
R36029
R36027
R36092
R36030
R36025
TL4501
TL4511
TL4507
W523
TL4502
IC6001
R1501
R1502
R1511
R1512
R1513
R6016
R6020
R6021
C6007
C6006
R6201
C6103
TL6004 TL6002
C6004
C6003
C6002
R6002
R6003
C6001 C6101
R2561
R2001
TL2015
R2002
C2001
C2054
C2055
R6006
TL6010
W513
R6400
R6102
TL6013
TL6012
C2003
W508
IC2502
TL4552
TL4510
IC2501
C2501
C2507
C2515
C2505
C2504
C2506
C2520
C2519
R2502
R2516
R2514
C2510
R2515
R2501
C2512
C2511
R2523
C2518
R2520
C2508
R2521
C2513
R2522
W512
R3003
R4087 R4086
QR4082
Q4084
R4082
C4085
R4083
C4084
R4081
C4082
W519 C2099
R2099
W525
R3005
R3004
R6401
R2562
TL2502
R2563
C2562
C2561
C2551
C2552
R2552
R2551
IC6301
C6307
R4063
R4071
C4065
R4015
Q4082
R4084
R4085
Q4083
R4012
QR4081
R4011
C4064
W517
R4062
R4061
C4061
C5006
C4052
C3047
C4536
C4512 R3018
R3038
R3012
IC3001
C3019
C3027 C3025
R6026
R3025
R3026
R3021
C3065 C3029
C3022
R3032
C3030
C3039
C3038
C3033
C3034
R3013
C3041
C3040
Q3003
C3052
C3031
C3035
R3024
R4525
R4538
R4540
R4513
W511
R4539
C4523
C4565
R4563
C4568
C4570
C4575
IC4501
C4501
C4538
R4508
R36103
C36016
C4576
R4558
C4563
R4554
R4505
R4502
R3001
C3004
C3010
R3020
C3002 C3003
R3002
C3006
C3007
C3005
C3053
C3017
C3016
C3012
C3013
W516
C3015
R6022
C6102
W518
IC6201
R6029
R6028
R6106
R6105
R6104
R6005
R6010
R6009
R6107
C6113
R6004
TL6001
C7709
C6013
R6013
C6017
C6016
C6014
R6012
R6017
C6015 C6011
C6010
R6001
C6008
C6009
C4537
R4500
R4529
C5001
C5002
C5003
C5004
C4508
W515
C4509
C4510
C4511
C4530
C4531
R4510
R4509
C4578
R4301
R4303
R4302
W521
R4304
R4602
R4601
QR450
4
Q
QR4
5
R4527
T
L
C4524
R4534
W524
TL36002
W514
C6112
W52
W507
Q3001
K4509
TL6015
TL6014
W535
R36110
R36108
R36109
R36111
W510
R36001
IC36003
R36003 C36010
C36018
QR36002
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
XX
X
X
X
X
X
X
X
12
19 20
12
6
5
1
2
3
1
1
2
3
4
-
+
1
5
1
6
7
1+
6
43
1
3
1
14 2
113
1
2
8
9
1
30 31
50
51
80
81
100
14
58
1
30
31
50 51
80
81
100
1
5
3
113
14
25
46
31
1
30
31
50
51
80 81
100
1
16
17
32
33
48
49
64
1
2
3
45
1
2
3
45
34
56
78
910
11 12
13 14
15 16
17 18
2
3
4
2-
4
5
2
3
1
8
4
5
32
67
6-C+
1-E
1
2
4
3
2
34
-+4
3
6
5
8
7
10
9
12
11
1
2
2
3
45
6
7
E
C
B
E
C
B
B
C
E
E
C
B
E
C
B
E
C
B
E
C
B
E
C
BE
C
B
C
B
E
C
B
E
C
B
E
C
B
2-G
3-V
4-R
5-C-
N
124
SA-HT833VP
GHI J KL M
PbF
P4002
TO AUDIO/CONTROL HEAD
P2501
TO VCR
VIDEO HEAD
C2571
P1531
TO MECHA
C2572
C2502
W277
W256
C7505
C7752
C33014
C34010
D6302
D7751
D7752
D7753
D7754
Q1351
Q1352
R33006
C33007
D33004
B7751 C1352
D1351
R1351
C33022
Q33007
Q1354
C6303
C7602
C7603
C33005
C33015
C33514
C34013
C34015
C34414
C34415
D6305
D6306
D7601
D33001
D33002
D33003
D34001
D34011
D36001
JK3702
W499
J7401
J36004
P7502
TO TUNER PACK
TU7502
(ENG06811QF)
P31001
P36004
Q33001
Q33002
Q33003
Q33004
Q34003
R6309
R7601
R33001
R33005
R34003
R34004
TU7601
TUNER UNIT
(ENGF6503GF)
W432
W405
W415
JK3701
J36010
W452
W453
W454
W455
W397
W393
Q34004
W401
W394
C33002
W323
W322
J36003
W312
W395
W450
W306
W309
W308
W291
W307
L34001
W299
W416
W414
W417
W301
W412
W406
W408
W287
W285
W407
W288
W413
W292
W293
W290
W424
C33509
W420
W421
C3706
C33513
C3704
C33515
C33510
C33511
C33517
C33512
W423
W427
W425
C33522
W426
C33501
L33501
W410
W430
W429
W284
W283
W428
W319
W318
W316
W315
W313
W314
W358
W441
W356
W422
W418
W352
W419
W355
W353
W439
W435
W335
W336
W433
J7701
W350
W437
W438
W431
W436
W434
W449
W445
W448
W354
W349
TW3001
W275
W278
W272
W384
W383
W269
W270
W268
W396
W281
W257
W264
W260
C4083
81
0
81
T4081
C4081
W265
59
C6308
TW2015
TW1004
C4521
C4041
C4063
C4042
W255
C4018
W254
J3602
C5005
C4525
C4522
C4574
W231
W229
W230
W227
W300
W302
W303
J36002
W296
W294
W289
W286
W327
W325
W317
W253
W252 C4010
C4601
W251
W250
W249
W247
C3062
J1
L3001
C3008
W246
W244
C3011
L5001
W240
W238
W234
W235
C4534
C4507
W237
C4504
C4502
C4505
C4506
W224
C4577
C4303
W241
C4304
C4503
C4519
C4520
W326
W324
W321
W226
3
5
P5001
TO
CYLINDER
HEAD
W267
W348
W343
W345
W346
W351
W357
W359
W311
W239
W320
TW4501
TW4502
W298
W341
W340
W339
W338
W337
W333
W342
W344
W334
W332
W447
W263
W329
W369
W368
W367
W366
W443
W370
W373
W365
W364
W444
W372
W371
W363
W382
W381
W328
W376
W377
W378
W379
W380
W374
W361
W360
W362
W242
W451
TW1342
W236
TW6008
W387
W391
W389
W386
W274
W398
W400
W402
W271
W440
C4062
W403
W305 W297
W388
W392
W390
W385
W442
W446
W411
W310
W347
TW2002
W399
W404
W498
W375
W330
W409
J36002
W248
W273
TW2001
P36008
P36009
P36010
J36011
W476
W469
W482
W474
W473
W475
W483
W478
W471
W472
W477
W481
W484
W486
W480
W487
W485
W488
W489
W468
W479
W493
W494
W459
W492
W497
W331
W491
W495
W496
W48
W46
W47
J4507
W17
R1360
W51
W16
W603
W49
W18
R3603
W601
W602
W604
W605
C36019
L36003
D36012
C36021
W606
R36112
C36022
D36013
W608
W609
S-VIDEO
COMPONENT
VIDEO OUT
DVD/VHS
OUT
EXT IN
DVD
J7601
DIGITAL
TRANSMITTER
FM/AM
ANTENNA
RF IN/OUT
W523
R7751
C33006
Q33006
IC33002
R33009
R33010
C1351
TL1002
C2601
C2602
C4702
C4704
C6301 C6302
C7606
C7501
C7502
C7503
C7604
C7605
C33001
C33004
C33017
C33018
C33019
C34012
C34405
C34427
IC2601
IC33001
LB3700
LB3701
LB3702
LB3704
LB4701
LB4702
LB4703
LB4704
LB33002
LB33004
LB33006
LB33008
LB33009
Q6305
Q6306
Q33005
Q33008
Q33011
QR1361
Q1360 QR1363
QR4701
QR4702
QR4703
QR33002
QR33003
QR33013
R2601
R2602
R2603
R2604
R2605
R2606
R3705 R3706
R3709
R3710
R3711
R4701
R4702
R4703
R4704
R6307
R7501
R7502
R7503
R7504
R7602
R7603
R7604
R33002
R33004
R33003
R33007
R34002
R34005
R34426
R34427 R34428
R34429
TL3002
TL3003
TL4505
TL4506
TL7501
TL36008
TL36011
TL36014
W528
LB33003
LB33005
LB33007
TL4503
TL4504
IC3701
C3701
R3708
LB3703
C33516
R33511
C33531
C33503
C33504
C33508
C33506
LB33013
C33507
LB33001
LB33012
LB33011
LB33010
C33505
IC33501
C33502
W527
TL4510
C2518
R2520
C2508
R2521
C2513
R2522
R3003
R4082
C4085
C4084
R4081
C4082
W519 C2099
R2099
W525
R3005
R3004
IC6301
C6307
R4063
R4071
C4065
R4015
Q4082
R4084
R4085
Q4083
R4012
QR4081
R4011
C4064
W517
R4062
R4061
C4061
C5006
C4052
R3038
0
01
IC4501
C4576
R4558
C4563
R4554
R4505
R4502
R3001
C3004
C3010
R3020
C3002 C3003
R3002
C3006
C3007
C3005
C3012
C3013
W516
C4537
R4500
R4529
C5001
C5002
C5003
C5004
C4508
W515
C4509
C4510
C4511
C4530
C4531
R4510
R4509
C4578
R4301
R4303
R4302
W521
R4304
R4602
R4601
QR4504
R4581
R4582
QR4506
QR4505
R4527
R4528
TL4509
TL4508
C4524
W524
W514
W522
W526
K4509
W529 W531W530
W535
W533
W536
W534
W532
R36106
R36105
C3714
C3713
R3707
C36020
QR36002
W538
QR36001
W537
R36113
Q36001
QR36003
W539
R36114
X
X
X
X
X
X
X
X
X
X
X
X
X
X
1
14
1
6
7
1+
4-C
3-Y
2-G
1-G
5-G
101
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
18 8 7 2
1-G
4-PY 2-PR
3-PB
9-G
11-L
12-V 10-R
7-L
6-R
8-V
5-G
6
43
1
1
2
89
1
2
23
24
1
2
17
1
8
15
3
17
814
15
3
46
13
1
1732
16
46
31
1
0
80 81
100
1
16
17
32
3
3
64
2-
4
5
2
3
6-C+
1-E
3
45
6
7
98765432
17 16 15 14 13 12 11 10 9 6 5 4 3
2
3
4
5
6
7
21
22
19
20
17
18
15
16
13
14
11
12
9
10
7
8
5
6
3
4
15
16
13
14
11
12
9
10
7
8
5
6
3
4
2
3
4
5
6
7
8
9
10
11
12
13
B
C
E
E
C
B
E
C
BE
C
B
E
C
B
E
C
BE
C
BE
C
B
E
C
B
E
C
BB
C
E
B
C
E
B
C
E
B
C
E
E
C
BE
C
B
E
C
B
E
C
B
B
C
E
E
C
BE
C
B
E
C
BE
C
B
E
C
B
E
C
B
B
C
E
B
C
E
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
E
C
B
2-G
3-V
4-R
5-C-
E
C
B
125
SA-HT833VP

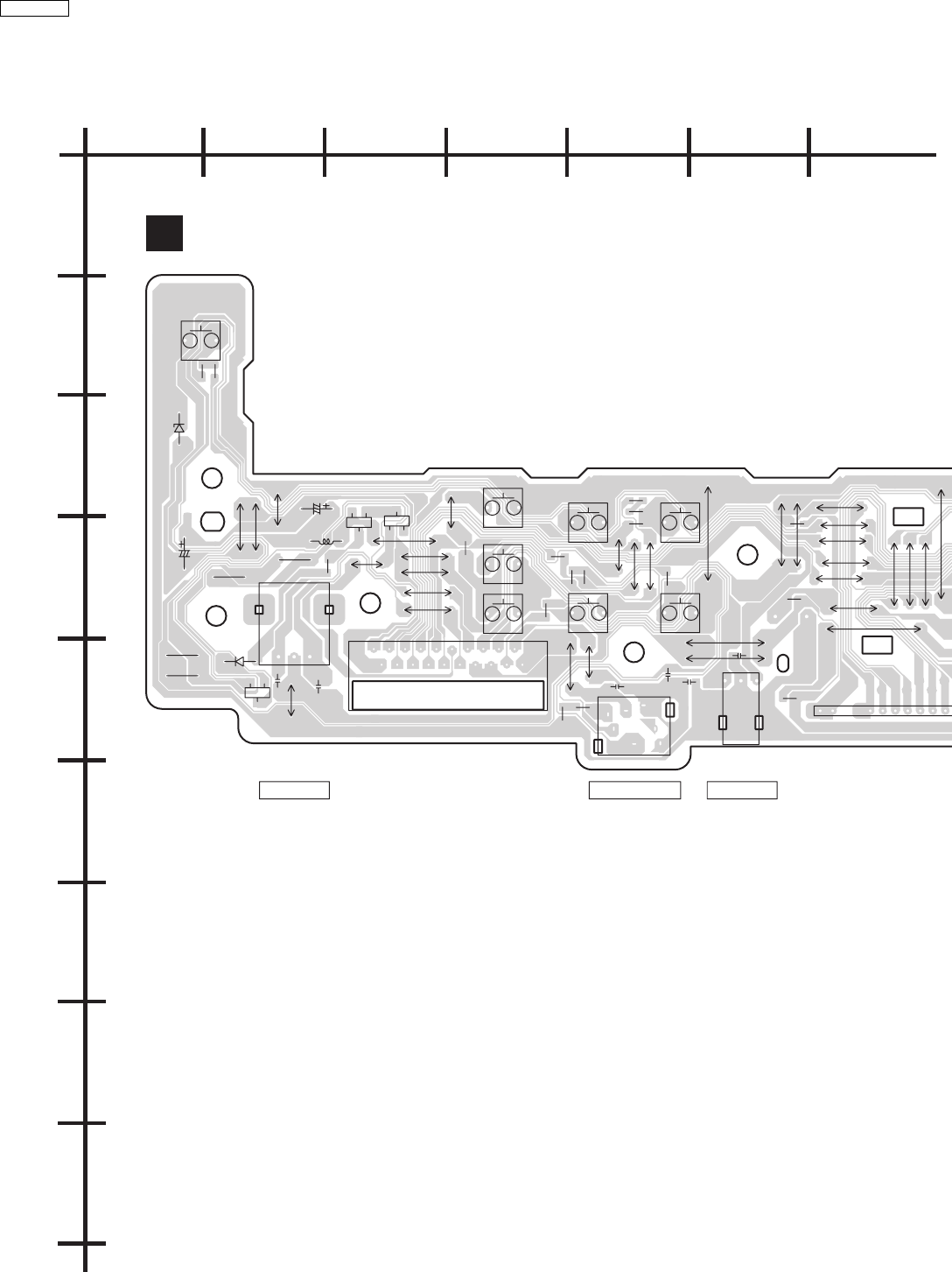

24.3. ASP P.C.B.
ABCDEFG
1
2
3
4
5
6
7
8
9
ASP P.C.B (VEPV0033A)
C
C2603
C2170
W203
W204
W205
C2223
C2123
C2127
C2227
W206
W207
W402
W208
W301
W209
C2501
C6203
C6204
C6202
C6201
C6205
W303
W701
W404
W702
C6101
C6105
C6106
C6107
C6208
W108
C2500
C2300
C2400
C2600
C2303
C2404
C3101
W305
W214
C2405
C2401
W306
W405
W307
W505
W506
W704
W309
W602
W313
W314
W316
W317
W407
P2102
C5101
C5103
C5102
C8102
C8101
C2312
C2311
P2101
C2321
C2421
W724
W723
W510
W725
W152
W154
W153
W351
W150
W151
W184
W308
W156
W111
W706
W727
W728
W350
W180
W181
W731
W730
W650
W380
W733
W191
W188
W892
CN2000
W655
L101
L102
TO ACTIVE SUBWOOFER
UNIT (SB-WA830PP-S)
R
R2603
R2607
C2604
R2260
C2260
C2160 R2160
C2507
R2507
R2216
R2116
C2265
R2310
R2309
Q2103
R2308
R2111
R2211
W806
W807
R2271
R2172
R2173
R2272
R2159 R2259
C2158
R2977
R2980
C2258
R2170
C2169
R2978
R2401
C2402 C2301
R2301
R2402
R2302
W808
W809
W810
W811
C2226
C2224
C2225
R2215
C2126
R2214
C2222
R2213
C2221
R2212
C2125
R2115
C2124
C2122
C2121
R2113
R2114
R2112
W812
R2312
R2311
R2306
R2406
R6101
C6108
C6102
C6103
R6102
C6104
C6109
C6110
C6111
R2153
R2600
R2500
C2156
R2156
R2169
R2307
R2407
R3109
R3108
Q2202
R3106
R3104
R3103
R3105
R3107
R2256 C2256
R2269
C6206
C6207
R3102
R3101
W820
W829
R2300
R2400
W832
W833
W834
W835
R260
6
W837
C6220
C6221
Q5101
R5107
R5101
R5109
R5102
R5105
R8117
R8109
R8111
R8110
R8115
Q8101
R8108
R8105
Q8102
R8116
R8102
R8104
R2332
R2321
R2421
R2333
Q2303
R2325
R2327
Q2301
R2326
R2328
R2428
R2430
W819
W856
W857
W830
W870
W869
W860
W861
W862
W863
R2352
R2353
R2350
R2351
W867
W865
W873
W872
W871
Q8110
Q8111
Q2304
Q2302
Q210
4
IC2010
Q3101
IC6011
Q5102
R2601
R2110
R2210
W818
C2276
C2176
1
80
46
31
46
31
46
31
110
11 20
46
31
25
2
1
1
2
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
1
2
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
46
31
46
31
46
31
4
3
6
5
8
7
10
9
12
11
16
15
18
17
20
19
22
21
24
23
14 13
14
58
C
EB
C
E
B
C
EB
C
EB
C
EB
C
EB
C
EB
5
2
5
2
5
2
5
2
5
2
5
2
5
2
126
SA-HT833VP
GHI J KL M
PbF
C2502
C2610
C2611
C2815
C2603
C2263
C2163
C2818
C2819
C2612
W201
W101
W202
W102
C2267
C2170
W103
C2617
C2508
C2168
W302 C2150
C2250
W403
C2253
C2153
C2501
W501
W601
W105
W106
W303
W404
W210
W211
W304
W110
W503
C2500
W212
C2303
C2404
C2616
C2505
C2405
C2401
W504
C7701
C7705
C7713
C7711
W703
W704
W310
W311
W602
W507
W705
W312
W112
W216
W317
W508
W318
W113
W217
W509
W406
W218
W219
W220
W221
J2264
W408
W115
W319
W320
P2101
W729
W182
W190
W183
W731
W730
C2266
C2167
W380
W213
W732
C7750
W555
C7751
W192
C7719
C7710
W188
W891
IC2013
W831
W813
W502
W511
W222
W655
L102
W107
W321
W251
V
E SUBWOOFER
B-WA830PP-S)
IC2011
R2604
R2404
R2403
C2403
R2405 R2305
C2302
R2303
R2304
R2501
R2502
W801
C2608
R2611
C2609
R2609
R2625
C2618
R2608
C2606
C2605
C2607
R2610
R2662
R2614 R2894
R2893
R2164
R2264
C2270
C2175
R2178
R2278
C2249
R2605
R2612
R2244
C2261
R2261 C2262
R2262
R2144
C2149
R2162
C2161
R2161
C2162
R2263
R2163
R2603
R2607
C2604
R2260
C2260
C2160 R2160
R2216
D2035
D2036
C2812
C2811
W804
C2809
C2810
R2116
C2164
C2265
R2165
C2165
C2166
R2615
R2504
C2503
W805
Q2201
R2267
R2266 R2268
R2310
R2309
Q2103
R2308
C2219
C2220
R2111
R2211
W806
W807
R2271
R2172
R2173
R2272
R2159 R2259
C2158
R2977
R2980
C2258
R2170
C2169
R2978
R2401
C2402 C2301
R2301
R2402
R2302
R2265
W808
R2622
Q2600
R2621
R2620
R2619
Q2500
R2508
R2510
R2511
R2509
R2167
R2166
Q2105
R2168
R2146
C2152
C2151
C2254
R2145
R2246
C2252
C2251
R2245
C2154
R2247 C2255
R2248 R2250
W814
R2148 R2150
R2147 R2149
C2155
R2312
R2311
R2306
R2406
R2623
R2255
R2154
R2254
R2155
W815
R2249
R2251
R2151
R2152
R2252
R2253
R2153
R2600
R2500
C2615
R2617
R2616
D7701
C7704
R7703
C7702
C7703
R7704
R7711
C7708
R7714
C7706
C7707
R2407 R2505
R2618
W817
R2624
R7701
R7712
R7713
R7715
R7730
R7729
R7727
R7734
C7715
C7716
C7717
Q7701 Q7702
R7724
R7725
R7721
R7720
R7719
R7716
R7738
R3102
W822
R2506
W823
W825
W826
W828
C2506
C2613
W832
W833
W834
W116
R2606
W836
W837
W874
W862
W863
R2350
R7702
R7705
R7707
R7706
R7709
R7708
R7710
R7750
R7755
R7753
C7752
W866
R7754
W873
W872
W871
IC7703
Q7703
IC7702
IC7701
IC2015
Q2601
Q2104
Q2102
Q2200
R2601
R2110
R2210
R7726
W818
W851
C7753
C7709
R7756
R2896
R7757
C2510
C2276
C2176
R7761
R7760
C2504
R2661
D2602
D2603
C2510
1
20
41
60
21
40
61
80
1
4
58
46
31
14
58
14
58
46
31
46
31
46
31
2
1
1
2
14
58
14
58
6
5
4
3
4
3
6
5
8
7
10
9
12
11
413
6
31
4
C
EB
C
EB
C
EB
C
EB
C
EB
C
EB
C
EB
5
2
5
2
5
2
5
2
5
2
127
SA-HT833VP
24.4. Power P.C.B.
ABCDEFG
1
2
3
4
5
6
7
8
9
POWER P.C.B (VEPV0035A)
D
PbF
C1126
L1120
C1121
W71
L1121
R1156
D1155
C1151
R1158
R1161
Q1151
Q1152
R1153
C1154
Q1150
R1157
D1152
D1157
LR1150
R1160
J1210
R1155
D1210
C1155
W72
R1154
R1150
LB1120
C1140
C1125
T1150
C1200
IC1
2
D128
0
D1270
IP1280
400
C1152
C1153
R1159
D1150
C1150
R1151
R1152
W69
W70
ZA1104
F1101
125V 1.6AL
D1110
ZA1103
K1101
C1128
K1102
K1103
K1104
K1108
K1107
K1106
K1105
P1101
LB1211
D1140
Q1200
LB1213
R1204
R1205
R1206
AC IN
120V 60Hz
CAUTION
RISK OF ELECTRIC S
H
TOUCH THIS P.C.B
AC VOLTAGE LINE. P
L
1+
2-
3~
4~
43
21
2
9
20
11
E
C
B
8
7
6
5
4
3
12
13
14
15
16
17
18
19
ECB
ECB
2
3
1
12
43
1
2
4
3
128
SA-HT833VP
GHI J KL M
PbF
C1125
T1150
C1200
IC1200
C1262
L1260
C1291
C1241
C1251
L1290
L1240
L1250
C1261
C1260
D1290
D1250
D1251
C1250
D1180
C1230
D1230
C1240
D1241
IP1240
2500
D1240
C1280
D1280
D1270
C1270
IP1280
400
D1291
C1290
W74
W60
W61
W75
W62
W63
W79
W78
W77
W64
W65
P1102
W67
W68
W66
W73
D1260
W76
Q1200
LB1213
R1207
R1208
R1200
R1204
R1203
R1202
R1201
R1230
TL1007
R1205
R1206
TL1004
TL1009
TL1006
TL1038
TL1016
TL1030
TL1008
C1310
XX
XX
X
XX
X
CAUTION
RISK OF ELECTRIC SHOCK
TOUCH THIS P.C.B
AC VOLTAGE LINE. PLEASE DO NOT
43
21
114
20
11
1312111098765432
12
13
14
15
16
17
18
19
2
3
1
129
SA-HT833VP
24.5. Front Panel B P.C.B.
ABCDEFG
1
2
3
4
5
6
7
8
9
FRONT PANEL B P.C.B (VEPV0037A)
E
S7021
CH.DWN
S7024
EJECT
S7023
REC
S7020
CH.UP
S7019
REW
S7016
PLAY
S7018
STOP
JK7001
D7201
W20
W21
W22
W28
W15
W14
W16
W19
W29
W30
W31
C7210 W27
D7202
W32
W12
W13
W23
W26
W37
W36
W35
W34
W33
W48
W49
W50
L7200
P7201
W51
W52
W11
C7201
IR7001
VR7201
R7202
R7201
S7017
FF
R7013
R7225
W17
W24
W25
W53
W18
VOLUME HEADPHONE SENSOR
R7211
R7030
R7028
R7024
R7027
R7025
R7023
R7031
C7013
C7012
C7011
C7010
QR7202
QR7201
R7203
Q7001
C7015
W504
W503
W506
W505
C7014
R7226
W502
R7026
W507
7
HPGND
6
5
4
HP_SW
3
HP_R
2
HP_L
1
HPGND 5054 53
1
220
19
13
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
G
4446474849 45
BE
C
BE
C
BE
C
COM
1
B
2
A
3
IR VCC
130
SA-HT833VP
GHI J KL M
PbF
DP7201
W46
W55
W43
W28
W29
W30
W31
W27
W42
W39
W40
W41
W44
W32
W23
W38
W37
W36
W35
W34
W33
W45
W49
W54
W24
W47
IC7201
R7221
R7219
R7217
R7224
R7223
R7220
R7222
R7216 R7218
R7214
R7213
R7212
R7210
R7211
R7205
C7208
R7206
C7205
R7207
C7206
C7207
C7211
R7209
R7208
W501
R7215
C7212
R7226
W507
C7204
C7209
1
16
17
3233
48
49
64
155054 253 67891011121718
1920 1314151625262728 2122232433343536 2930313241424344 3738394046474849 45
131
SA-HT833VP
24.6. Front Panel A P.C.B.
ABCDEFG
1
2
3
4
5
6
7
8
9
G
FRONT PANEL A P.C.B (VEPV0036A-1)
F
S7008
STOP
S7006
PLAY
S7004
H.BASS
S7002
DISC CHANGE
S7001
DISC 5
S7003
DISC 4
S7010
DISC CHECK
S7012
OPEN/CLOSE
P7202
W1
R7003
R7001
R7002
R7006
R7004 R7008 R7010
W541
PbF
1
26
5
4
3
132
SA-HT833VP
GHI J KL M
S7001
DISC 5 S7003
DISC 4 S7005
DISC 3
S7007
DISC 2
S7009
DISC 1
S7013
POWER
S7011
INPUT SELECTOR
R7011
R7009
R7007
R7005
R7003
R7001
133
SA-HT833VP
24.7. CD Loading P.C.B. and VCR Deck P.C.B.
CD LOADING P.C.B (REP3569A)
ABCDEFG
1
2
3
4
5
6
7
8
9
VCR DECK P.C.B (VEP02578C)
CN1
RM21
IC21
C22
C21
LOADING_MOTOR
OPENSW
STOCKSW
S1
PLAYSW
S2
RM11
UPDOWN
IC11
C12
C11
Q1
BOTTOMSW
S4
J21
J11
J13
J14
J12
S3
J15
J16
CHANGESW
S5
MM
PbF
R209
TL205
TL201
TL203
TL202
C201
TL204
P201
R203
R205
R202
C207
C206
C204
IC201
C205
R201
R208
R210
R207
D201
D202
D203
CAPSTON UNIT
PbF
14
9
1
2
3
4
5
6
7
8
9
10
11
12
13
8
7
6
5
4
3
2
1
1
2
3
4
5
6
7
8
9
1
2
4
3
1
2
4
3
1
2
4
3
41
58
23
76
8
14
15
21
1
722
28
1
4
2
3
G
H
134
SA-HT833VP
25 Wiring Connection Diagram
ASP P.C.B.
VCR DECK P.C.B.
DVD MODULE P.C.B.
CD LOADING P.C.B.
FRONT PANEL A P.C.B.
P2102
P2101
CN2000
P7202
PbF
SOLDER SIDE
SOLDER SIDE
PbF
SOLDER SIDE
PbF
SOLDER SIDE
SOLDER SIDE
PbF
4. . . . .1
5. . . . .8
1 . . . . . . . . . . . . . .25
2 . . . . . . . . . . . .24
23 . . . . . . . . . . .1
24 . . . . . . . . . . .2 17 . . . . . . . .1
16 . . . . . . 2
PbF
642
531
25 . . . . . . . . . . . . . .1
26 . . . . . . . . . . . . . .2
14 . . . . . . . . . .2
13 . . . . . . . . . .1
1
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
50
6 . . . . . . 1
CN1
RM21
LOADING_MOTOR
RM11
UPDOWN
MM
P201
To ACTIVE SUBWOOFER
UNIT (SB-WA833PP-S)
FP8501
TO SPINDLE MOTOR
FP8101
FP8201
F
H
(SIDE B)
135
SA-HT833VP
POWER P.C.B.
MAIN P.C.B.
FRONT PANEL B P.C.B.
P36001
P36002
P2571 P4002
P2501
P1531
JK3702
P7502
P31001
P36004
TU7601
JK3701
P4001
P36005
P5001
P36008
P36009
P36010
4
3
2
1
5
1
42
3
9
11
12 10
7
6
85
18
45
1
2
MOTOR
. .
. .
62
.
51
.
SOLDER SIDE
SOLDER SIDE
PbF
SOLDER SIDE
PbF
SOLDER SIDE
PbF
PbF
19. . . . . . . . . . . . . . .1
20. . . . . . . . . . . . . . .2
1. . . . . . . . . . . . . . .14
19
.
.
.
.
.
.
.
.
1
5
3
1
6
4
2
20
.
.
.
.
.
.
.
.
2
1
2
2
.
6
1
.
.
7
1
.
.
.
.
.
.
.
17
2
.
.
.
.
.
.
16
14
.
.
.
.
.
.
.
.
.
.
.
.
.
1
1
.
.
.
.
.
.
.
.
.
.
.
23
2
.
.
.
.
.
.
.
.
.
.
.
24
1
.
.
.
9
2
.
.
8
8
.
.
.
.
.
.
.
1
49 . . . . . . . . . . . . . 1
47 . . . . . . . . . . . . 3
50 . . . . . . . . . . . . . 2
48 . . . . . . . . . . . . 4
13 . . . . . . . . . . 1
14 . . . . . . . . . . 2
18 . . . . . . . . . . . . . . . . . . . 1
1. . . . . . . . . . . 10
VOLUME
HEADPHONE
RF IN/OUT
FM/AM
ANTENNA
S-VIDEO
COMPONENT
VIDEO OUT
DVD/VHS
OUT
EXIT IN
DVD
SENSOR
DIGITAL
TRANSMITTER
TUNER PACK
T1150
P1102
P1101
JK7001
P7201
VR7201
TO AUDIO/
CONTROL HEAD
TO VCR
VIDEO HEAD
TO HEAD CYLINDER
TO FULL ERASE HEAD
IR7001
7
6
5
43
2
1
AC IN
120V 60Hz
136
SA-HT833VP
Notes:
26 Parts Location and Replacement Parts List
·
Important safety notice:
Components identified by mark have special characteristics important for safety.
Furthermore, special parts which have purposes of fire-retardent (resistors), high-quality sound (capacitors), low noise
(resistors), etc are used.
When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list.
·
The parenthesized indications in the Remarks columns specify the areas or colour. (Refer to the cover page for area or colour)
Parts without these indications can be used for all areas.
·
Warning: This product uses a laser diode. Refer to caution statements on “Precaution of Laser Diode”.
·
Capacitor values are in microfarads (µF) unless specified otherwise, P= Pico-farads (pF), F= Farads.
·
Resistance values are in ohms, unless specified otherwise, 1K=1,000 (OHM).
·
The marking (RTL) indicates that the Retention Time is limited for this items. After the discontinuation of this assembly in
production, the item will continue to be available for a specific period of time. The retention period of a availability is dependent
on the type of assembly, and in accordance with the laws governing part and product retention. After the end of this period, the
assembly will no longer be available.
·
[M] markings in the Remarks columns indicates parts supplied by PAVCSG.
·
[SPG] marking in the Remarks columns indicates parts supplied by PAVC.
·
Reference for O/I book languages are as follows:
Ar : Arabic Du : Dutch It : Italian Sp : Spanish
Cf : Canadian French En : English Ko : Korean Sw : Swedish
Cz : Czech Fr : French Po : Polish Co : Traditional Chinese
Da : Danish Ge : German Ru : Russian Cn : Simplified Chinese
Pe : Persian Ur : Ukraine
137
SA-HT833VP
26.1. CD Loading Mechanism
26.1.1. CD Loading Mechanism Parts Location
138
SA-HT833VP
139
SA-HT833VP
26.1.2. CD Loading Mechanism Parts List
Ref. No. Part No. Part Name & Description Remarks
TRAVERSE DECK
301 RDG0519 MAIN GEAR [M]
302 RDG0520 SPEED UP GEAR [M]
303 RDG0521 REVERSE GEAR [M]
304 RDG0522 GENEVA GEAR [M]
305 RDG0523 HOR RELAY GEAR [M]
306 RDG0525 CROWN GEAR [M]
307 RDG0526 TRAY RELAY GEAR [M]
308 RDG0527 UD PULLEY GEAR [M]
309 RDG0528 HOR SPEED DOWN GEAR [M]
310 RDG0529 HOR SPEED DOWN GEAR [M]
311 RDG0530 HOR DRIVE GEAR [M]
312 RDG0531 LOAD RELAY GEAR [M]
313 RDG0532 LOAD GEAR [M]
314 RDG0535 UD SPEED DOWN GEAR [M]
315 RDG0534 UD SPEED DOWN GEAR [M]
316 RDG0536 SELECT SPEED DOWN GEAR [M]
317 RDG0537-1 SELECT DRIVE GEAR [M]
318 RDG0538-1 CHANGE GEAR [M]
319 RDG0539 UD DRIVE GEAR [M]
320 RDG0540 TIMING GEAR [M]
321 RDG0542 TRAY GEAR [M]
322 RDG0543 HOR PULLEY GEAR [M]
323 RDV0068 HOR BELT [M]
324 RDV0069 UD BELT [M]
325 RME0344-1 UD ASSIST SPRING [M]
326 RME0361 TRAY STOPPER SPRING [M]
327 RME0363-1 LIMIT SPRING [M]
328 RME0368-1 MAIN GEAR SPRING [M]
329 RML0616 SPEED UP LOCK [M]
330 RML0617-2 SEPARATE LEVER 1 [M]
331 RML0618-1 SEPARATE LEVER 2 [M]
332 RML0619-1 UD. CONNECTION LEVER [M]
333 RML0620 TRV.CONNECT LEVER [M]
334 RML0621-2 TRAY CHG. LEVER [M]
335 RML0622-1 TRAY LOCK LEVER [M]
336 RML0623 OPEN SW. LEVER [M]
337 RML0624 CHG. LEVER [M]
338 RML0637 TRAY STOPPER [M]
339 RMM0239-1 UD.RACK (L) [M]
340 RMM0240 UD.RACK (R) [M]
341 RMM0241-1 TRV.SLIDE PLATE (L) [M]
342 RMM0242-1 TRV.SLIDE PLATE (R) [M]
343 RMM0243 SELECT RACK [M]
344 RMM0244 SELECT GUIDE [M]
345 RMQ1051-2 PITCH PLATE [M]
346 RMQ1209 UD BASE [M]
347 RMQ1056 TRAY GUIDE (L) [M]
348 RMQ1057 TRAY GUIDE (R) [M]
349 RMQ1058 GEAR HOLDER [M]
350 RMQ1059-2 TOP COVER [M]
351 RMQ1060 CLAMP GUIDE [M]
352 RMQ1061 TG.PLATE [M]
353 RMR1531-X FIXTURE [M]
354 RMR1446-X CLAMPER [M]
355 RMR1407A-H8 TRAY NO. 1 [M]
356 RMR1407B-H8 TRAY NO. 2 [M]
357 RMR1407C-H8 TRAY NO. 3 [M]
358 RMR1407D-H8 TRAY NO. 4 [M]
359 RMR1407E-H8 TRAY NO. 5 [M]
360 RFKNAPM77MDS MECHA BASE ASS’Y [M]
361 RMS0762 TRAY GEAR SHAFT [M]
362 RXG0053 TRAY DRIVE GEAR ASSY [M]
363 RXQ0803 LOADING MOTOR ASS’Y [M]
364 RXQ0804 UD MOTOR ASS’Y [M]
365 XTB3+10JFJ SCREW [M]
366 RMC0472 TRAY SPRING [M]
367 XTV2+6GFJ SCREW [M]
368 XWG6FFY BACK YOKE [M]
369 JSM0048 MAGNET [M]
370 RMC0387 SUPPORT SPRING [M]
Ref. No. Part No. Part Name & Description Remarks
371 RHD26045-L SCREW [M]
401 RAE2012Z-S DU69U TRAVERSE UNIT [M]
402 RMG0598-A FLOATING RUBBER [M]
403 RMG0617-H CUSHION RUBBER A [M]
404 RMG0618-H CUSHION RUBBER B [M]
405 RMR1596-X2 MIDDLE CHASSIS [M]
406 RXQ1252 DVD OPU SUB ASS’Y [M]
408 RMS0789 FIXED PIN [M]
140
SA-HT833VP
26.2. Cassette Mechanism
26.2.1. Cassette Mechanism Parts Location
141
SA-HT833VP
26.2.2. Cassette Mechanism Parts List
Ref. No. Part No. Part Name & Description Remarks
CASSETTE DECK
101 VEM0750 CAPSTAN UNIT [M]
102 L1AZ00000004 FE HEAD UNIT [M]
103 VDB1431 TENSION ARM BOSH [M]
104 VDG1510 INTERMEDIATE GEAR [M]
105 VDG1511 MAIN CAM GEAR [M]
106 VDG1512 IDLER GEAR [M]
107 VDG1514 CHANGE GEAR [M]
108 VDR0372A REEL TABLE [M]
109 VDV0391-1 CAPSTAN BELT [M]
110 VEM0797 LOADING MOTOR UNIT 2 [M]
111 VMB3550 CHANGING GEAR SPRING [M]
111-1 VMD4987 WORM BEARING 2 [M]
113 VMD4252 OPENER PIECE [M]
114 VMD4253 LED PRISM [M]
115 VML3624 MAIN LEVER [M]
116 VML3626 PINCH CHARGE ARM [M]
117 VML3632 IDLER ARM [M]
118 VMX3092 CAPSTAN [M]
119 VXA7105 S SHAFT HOLDER UNIT [M]
120 VXA7106-3 T SHAFT HOLDER UNIT [M]
121 L1AE00000036 AC HEAD UNIT [M]
121-1 VHD1066 A/C SCREW B [M]
122 VMB3548 T BRAKE SPRING [M]
122-1 VXL3113 T BRAKE ARM UNIT [M]
123 VXL3107 S LOADING ARM UNIT [M]
124 VXL3108 T LOADING ARM UNIT [M]
125 VXL3109-6 PINCH ARM UNIT [M]
126 VXL3110 ARM UNIT [M]
127 VXL3111-1 TENSION ARM UNIT [M]
128 VXL3252 S BRAKE ARM 2 UNIT [M]
130 VXL3124 CHANGING LEVER UNIT [M]
131 VXP2133-2 CENTER CLUTCH UNIT [M]
132 VXP2168 TORQUE CLUTCH UNIT [M]
133 VMA0L25 TOP PLATE [M]
134 VMD4255 SIDE PLATE L [M]
135 VXA7109 SIDE PLATE R UNIT [M]
136 VXA7110 CASSETTE HOLDER UNIT [M]
137 VXL3160 MAIN SHAFT UNIT [M]
138 VXA7311 SECTOR GEAR UNIT [M]
139 VMD4983 FPC HOLDER [M]
140 VML3706 OPENER LEVER [M]
142 VMD4622 DETECT ACTUATOR [M]
143 VMX3196 CUT WASHER [M]
145 XTV26+8FFJ SCREW [M]
146 VMX2699 CUT WASHER [M]
147 VMX2208 CUT WASHER [M]
148 XTN26+7JFJ SCREW [M]
149 XYN3+C4FJ MOTOR FIXING SCREW [M]
150 XTV26+5FFJ STATOR SCREW [M]
152 VHD1117 CYLINDER SCREW [M]
153 VEG1641-D RDD CYLINDER [M]
154 VHD1044 A/C SET SCREW [M]
142
SA-HT833VP
26.3. Cabinet
26.3.1. Cabinet Parts Location
143
SA-HT833VP
26.3.2. Cabinet Parts List
Ref. No. Part No. Part Name & Description Remarks
CABINET AND CHASSIS
1RGKV0042 SENSOR PANEL [M]
2RGKV0086 VHS ORNAMENT [M]
3RYPX0091-K TRANSMITTER CARD [M]
4RYPV0075A FRONT PANEL 1 UNIT [M]
4-1 VMB2521 BLINDER SPRING [M]
5RXQV0005A CHASSIS FAN UNIT [M]
6RGRV0041 REAR PANEL [M]
7RGUV0098 TOP BUTTON [M]
8RGWV0002-1 VOLUME KNOB [M]
9RHD26045-L SCREW [M]
10 RHD30070 EARTH TERMINAL [M]
11 RJFV0001 FIP HOLDER [M]
12 RKAV0001A-S SET LEG UNIT [M]
13 RKFV0045A DVD DOOR UNIT [M]
14 RKMV0008A TOP PANEL [M]
15 RMAV0003-2 DVD BRACKET [M]
16 RMEV0033 DVD DOOR SPRING [M]
17 RMN0203 PCB HOLDER [M]
18 RMN0735 CONNECTOR HOLDER [M]
19 RMN0780 CD LID SUPPORT [M]
20 RMNV0013 PCB STAND [M]
21 RMZV0004 POWER BARRIER [M]
23 RHD30111 SCREW [M]
24 XSB3+5FJ SCREW RF [M]
25 XTB3+6JFJ SCREW (LEG) [M]
26 XTW3+10PN SCREW MECHA (CENTRE) [M]
28 XTW3+5TFC SCREW (TOP PANEL) [M]
29 VWJ1652 AC HEAD FFC WIRE [M]
31 VEE0U97 EARTH WIRE UNIT [M]
32 RWJV0028 14P FFC WIRE [M]
33 RWJV0026 17P FFC WIRE [M]
34 RWJV0027 24P FFC WIRE [M]
36 RWJV0031 50P FFC CABLE [M]
37 VMX3115 MECHA SPACER (F) [M]
38 VMX3229 MECHA SPACER (R) [M]
39 VHD0690 SCREW (BLACK) [M]
40 VHD1453-1 SCREW MECHA (S) [M]
41 K1NA08B00016 TRANSMITTER CARD CONNECTOR [M]
42 VHD1452-2 SCREW MECHA (L) [M]
144
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
PRINTED CIRCUIT BOARD
REPV0056A DVD MODULE P.C.B. [M]
(RTL)
REP3569A CD LOADING P.C.B. [M]
(RTL)
VEP02578C VCR DECK P.C.B. [M]
(RTL)
VEPV0032A MAIN P.C.B. [M]
(RTL)
VEPV0033A ASP P.C.B. [M]
(RTL)
VEPV0035A POWER P.C.B. [M]
(RTL)
VEPV0036A-1 FRONT PANEL A P.C.B. [M]
(RTL)
VEPV0037A FRONT PANEL B P.C.B. [M]
(RTL)
INTEGRATED CIRCUITS
IC11 C0GAG0000007 IC DRIVER [M]
IC21 C0GAG0000007 IC DRIVER [M]
IC201 C1AB00001472 IC CAPSTAN DRIVE [M]
IC1200 C0DAEMB00003 IC REGULATOR [M]
IC1511 B3NAA0000049 IC T-REEL SENSOR [M]
IC1512 B3NAA0000049 IC S-REEL SENSOR [M]
IC2010 C0ABBB000118 IC DUAL OP-AMP [M]
IC2011 C1BB00000845 IC DSP [M]
IC2013 C0AABB000125 IC OP AMP [M]
IC2015 C0ABBB000118 IC DUAL OP AMP [M]
IC2501 C1AB00001767 IC CYL DRIVE [M]
IC2502 C0DBZJG00007 IC REGULATOR [M]
IC2601 C0JBAS000252 IC ANALOG [M]
IC3001 C1AB00002083 IC AV [M]
IC3701 C1AB00001935 IC VIDEO [M]
IC4501 AN3663FBP-TV IC HI-FI [M]
IC6001 C2CBHF000410 IC SYSCON / SERVO / TIMER /
MICON / OSD
[M]
IC6011 C1BB00000979 IC SUPER SURROUND [M]
IC6201 C0EBH0000172 IC POWER DETECT [M]
IC6301 C0DBCHD00004 IC REGULATOR [M]
IC7201 C0HBB0000039 IC FL DRIVER [M]
IC7701 C0ABBB000118 IC DUAL OP AMP [M]
IC7702 C0ABBB000118 IC DUAL OP AMP [M]
IC7703 C0ABBB000118 IC DUAL OP AMP [M]
IC8001 MN2DS0003APH IC DV2.1 [M]
IC8051 C3ABPG000133 IC 64 SDRAM [M]
IC8111 C0CBCBD00018 IC 3.3 REGULATOR [M]
IC8251 C0GBG0000048 IC DRIVER [M]
IC8421 C0FBBK000050 IC 8-CH DAC [M]
IC8601 C0EBE0000384 IC RESET [M]
IC8606 C0EBA0000031 IC RESET [M]
IC8651 RFKWMH82H160 IC 16M FLASH ROM [SPG]
IC8691 C0JBAA000346 IC LOGIC [M]
IC8695 C0JBAA000346 IC LOGIC [M]
IC33001 C0CBCHG00005 IC DC-DC CONVERTER [M]
IC33002 C0CBCYG00003 IC DC-DC CONVERTER [M]
IC33501 AN13330A-VF IC 8 BIT MICROCONTROLLER [M]
IC36001 C2CBJG000576 IC MICROCONTROLLER [M]
IC36003 C0EBH0000172 IC POWER DETECT [M]
TRANSISTORS
Q1 B3NAA0000098 TRANSISTOR [M]
Q1150 B1DEEQ000001 TRANSISTOR [M]
Q1151 2SC3311ASA TRANSISTOR [M]
Q1152 2SC3311ASA TRANSISTOR [M]
Q1200 B3PBA0000237 TRANSISTOR [M]
Q1351 B1AAGD000016 TRANSISTOR [M]
Q1352 B1AAGD000016 TRANSISTOR [M]
Q1354 B1AAGD000016 TRANSISTOR [M]
Q1360 2SD0602A0L TRANSISTOR [M]
Ref. No. Part No. Part Name & Description Remarks
Q1501 PNA2604M01VT TRANSISTOR [M]
Q1502 PNA2604M01VT TRANSISTOR [M]
Q2102 B1GFGCAA0001 TRANSISTOR [M]
Q2103 KRA110STA TRANSISTOR [M]
Q2104 B1GFGCAA0001 TRANSISTOR [M]
Q2105 KRA110STA TRANSISTOR [M]
Q2200 B1GFGCAA0001 TRANSISTOR [M]
Q2201 KRA110STA TRANSISTOR [M]
Q2301 KRA110STA TRANSISTOR [M]
Q2302 B1GFGCAA0001 TRANSISTOR [M]
Q2303 KRA110STA TRANSISTOR [M]
Q2304 B1GFGCAA0001 TRANSISTOR [M]
Q2500 KRA110STA TRANSISTOR [M]
Q2600 KRA110STA TRANSISTOR [M]
Q2601 B1GFGCAA0001 TRANSISTOR [M]
Q3001 2SD0601A0L TRANSISTOR [M]
Q3003 2SD0601A0L TRANSISTOR [M]
Q4081 B1AAGD000016 TRANSISTOR [M]
Q4082 2SD114900L TRANSISTOR [M]
Q4083 2SD0601A0L TRANSISTOR [M]
Q4084 2SB0710A0L TRANSISTOR [M]
Q5101 KRA110STA TRANSISTOR [M]
Q5102 B1GFGCAA0001 TRANSISTOR [M]
Q6305 2SD0601A0L TRANSISTOR [M]
Q6306 2SD0601A0L TRANSISTOR [M]
Q7001 2SD0602A0L TRANSISTOR [M]
Q7701 KRA110STA TRANSISTOR [M]
Q7702 KRA110STA TRANSISTOR [M]
Q7703 B1GFGCAA0001 TRANSISTOR [M]
Q8101 KRA110STA TRANSISTOR [M]
Q8102 KRA110STA TRANSISTOR [M]
Q8110 B1GFGCAA0001 TRANSISTOR [M]
Q8111 B1GFGCAA0001 TRANSISTOR [M]
Q8550 B1ADHG000003 TRANSISTOR [M]
Q8551 B1ABDF000018 TRANSISTOR [M]
Q8552 2SB09700RL TRANSISTOR [M]
Q8560 B1ABDF000018 TRANSISTOR [M]
Q8561 B1ABDF000018 TRANSISTOR [M]
Q8562 2SB09700RL TRANSISTOR [M]
Q8606 B1ABDF000018 TRANSISTOR [M]
Q8607 B1ABDF000018 TRANSISTOR [M]
Q33001 B1AAGD000016 TRANSISTOR [M]
Q33002 2SB14170PA TRANSISTOR [M]
Q33003 2SC3940A0A TRANSISTOR [M]
Q33004 B1AAGD000016 TRANSISTOR [M]
Q33005 2SD0601A0L TRANSISTOR [M]
Q33006 2SD0602A0L TRANSISTOR [M]
Q33007 B1AAGD000016 TRANSISTOR [M]
Q33008 2SD0601A0L TRANSISTOR [M]
Q33009 KRC103STA TRANSISTOR [M]
Q33011 2SD0601A0L TRANSISTOR [M]
Q34003 B1AAGD000016 TRANSISTOR [M]
Q34004 B1BCCG000002 TRANSISTOR [M]
Q36001 2SD0601A0L TRANSISTOR [M]
QR1361 B1GDCFLL0027 DIGITAL TRANSISTOR [M]
QR1363 B1GBCFNN0016 DIGITAL TRANSISTOR [M]
QR4081 B1GDCFJJ0040 DIGITAL TRANSISTOR [M]
QR4082 B1GBCFNN0016 DIGITAL TRANSISTOR [M]
QR4504 B1GDBFNN0001 DIGITAL TRANSISTOR [M]
QR4505 UNR521600L DIGITAL TRANSISTOR [M]
QR4506 UNR521600L DIGITAL TRANSISTOR [M]
QR4701 UNR521600L DIGITAL TRANSISTOR [M]
QR4702 UNR521600L DIGITAL TRANSISTOR [M]
QR4703 B1GDBFNN0001 DIGITAL TRANSISTOR [M]
QR7201 B1GDCFLL0027 DIGITAL TRANSISTOR [M]
QR7202 B1GBCFNN0016 DIGITAL TRANSISTOR [M]
QR8111 UNR521400L TRANSISTOR [M]
QR8112 UNR521400L TRANSISTOR [M]
QR8420 B1GBCFJJ0047 TRANSISTOR [M]
QR8571 B1GDCFEC0001 TRANSISTOR [M]
QR33002 B1GDCFLL0027 DIGITAL TRANSISTOR [M]
26.4. Electrical Parts List
145
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
QR33003 B1GDCFLL0027 DIGITAL TRANSISTOR [M]
QR33013 B1GBCFNN0016 DIGITAL TRANSISTOR [M]
QR36001 B1GBCFNN0016 DIGITAL TRANSISTOR [M]
QR36002 B1GBCFNN0016 DIGITAL TRANSISTOR [M]
QR36003 B1GDCFLL0027 DIGITAL TRANSISTOR [M]
QR36004 B1GDCFLL0027 DIGITAL TRANSISTOR [M]
DIODES
D201 B0JCMD000024 DIODE [M]
D202 B0JCMD000024 DIODE [M]
D203 B0JCMD000024 DIODE [M]
D1110 D4EA7471A007 DIODE [M]
D1140 B0KB00000052 DIODE [M]
D1150 B0HAGR000002 DIODE [M]
D1152 MA2C18800E DIODE [M]
D1155 MA2C165001VT DIODE [M]
D1157 MAZ40360MF DIODE [M]
D1180 MAZ751000C DIODE [M]
D1210 B0HAGM000006 DIODE [M]
D1230 MA2C18800E DIODE [M]
D1240 B0JAME000085 DIODE [M]
D1241 B0JAME000085 DIODE [M]
D1250 B0JAMK000015 DIODE [M]
D1251 B0JAMK000015 DIODE [M]
D1260 B0JAPE000008 DIODE [M]
D1270 MA2C18800E DIODE [M]
D1280 B0JAME000085 DIODE [M]
D1290 B0JAMK000015 DIODE [M]
D1291 B0JAMK000015 DIODE [M]
D1351 MAZ4056NHF DIODE [M]
D1501 B3EA00000072 DIODE [M]
D2001 B0AAED000003 DIODE [M]
D2002 B0AAED000003 DIODE [M]
D2035 B0ACCK000005 DIODE [M]
D2036 B0ACCK000005 DIODE [M]
D2602 B0ACCK000005 DIODE [M]
D2603 B0ACCK000005 DIODE [M]
D4501 MA2C165001VT DIODE [M]
D6302 B0JACE000001 DIODE [M]
D6305 MAZ4062NLF DIODE [M]
D6306 MAZ4056NHF DIODE [M]
D7201 MAZ4240NMF DIODE [M]
D7202 B0AAED000003 DIODE [M]
D7601 MAZ4300NMF DIODE [M]
D7701 B0ACCK000005 DIODE [M]
D7751 B0JACE000001 DIODE [M]
D7752 MA2C700A0F DIODE [M]
D7753 B0AAED000003 DIODE [M]
D7754 B0JACE000001 DIODE [M]
D8231 MA2J11100L DIODE [M]
D8550 MA2J11100L DIODE [M]
D8571 MA2J72800L DIODE [M]
D33001 MAZ4056NHF DIODE [M]
D33002 MA2C165001VT DIODE [M]
D33003 MAZ4130NLF DIODE [M]
D33004 MAZ4062NLF DIODE [M]
D34001 B0BA7R900004 DIODE [M]
D34011 B0AAED000003 DIODE [M]
D36001 MAZ4075NHF DIODE [M]
D36002 B0JACE000001 DIODE [M]
D36003 B0JACE000001 DIODE [M]
D36004 B0JACE000003 DIODE [M]
D36005 MA2C700A0F DIODE [M]
D36006 B0JACE000001 DIODE [M]
D36010 B0JACE000001 DIODE [M]
D36011 B0JACE000001 DIODE [M]
D36012 MAZ4062NLF DIODE [M]
D36013 B0JACE000001 DIODE [M]
D36014 B0JACE000001 DIODE [M]
D36015 B0JACE000001 DIODE [M]
CHIP INDUCTORS
Ref. No. Part No. Part Name & Description Remarks
LB1120 J0JKB0000003 BEED CORE [M]
LB1211 J0JHC0000012 CHIP JUMPER [M]
LB1213 J0JHC0000012 CHIP JUMPER [M]
LB3700 ERJ3GEY0R00V CHIP JUMPER [M]
LB3701 ERJ3GEY0R00V CHIP JUMPER [M]
LB3702 ERJ3GEY0R00V CHIP JUMPER [M]
LB3703 ERJ3GEY0R00V CHIP JUMPER [M]
LB3704 ERJ3GEY0R00V CHIP JUMPER [M]
LB4701 ERJ3GEY0R00V CHIP JUMPER [M]
LB4702 ERJ3GEY0R00V CHIP JUMPER [M]
LB4703 ERJ3GEY0R00V CHIP JUMPER [M]
LB4704 ERJ3GEY0R00V CHIP JUMPER [M]
LB8001 J0JHC0000045 CHIP INDUCTOR [M]
LB8002 J0JHC0000045 CHIP INDUCTOR [M]
LB8301 J0JCC0000119 FERRITE BEAD [M]
LB8302 J0JCC0000119 FERRITE BEAD [M]
LB8303 J0JCC0000119 FERRITE BEAD [M]
LB8304 J0JCC0000119 FERRITE BEAD [M]
LB8305 J0JCC0000119 FERRITE BEAD [M]
LB8401 ERJ2GEJ151X CHIP RESISTOR [M]
LB8421 ERJ2GE0R00X CHIP JUMPER [M]
LB8422 ERJ2GE0R00X CHIP JUMPER [M]
LB8423 ERJ2GE0R00X CHIP JUMPER [M]
LB8424 ERJ2GE0R00X CHIP JUMPER [M]
LB8425 ERJ2GE0R00X CHIP JUMPER [M]
LB8426 ERJ2GE0R00X CHIP JUMPER [M]
LB8427 ERJ2GE0R00X CHIP JUMPER [M]
LB8428 ERJ2GE0R00X CHIP JUMPER [M]
LB8429 ERJ2GE0R00X CHIP JUMPER [M]
LB8430 ERJ2GE0R00X CHIP JUMPER [M]
LB8491 ERJ2GE0R00X CHIP JUMPER [M]
LB8502 J0JHC0000045 CHIP INDUCTOR [M]
LB8503 ERJ2GE0R00X CHIP JUMPER [M]
LB8504 J0JCC0000119 FERRITE BEAD [M]
LB8505 J0JCC0000119 FERRITE BEAD [M]
LB8507 J0JCC0000119 FERRITE BEAD [M]
LB8511 ERJ3GEY0R00V CHIP JUMPER [M]
LB8512 ERJ3GEY0R00V CHIP JUMPER [M]
LB8513 ERJ3GEY0R00V CHIP JUMPER [M]
LB8514 ERJ3GEY0R00V CHIP JUMPER [M]
LB8690 J0JCC0000091 FILTER [M]
LB8691 ERJ2GEJ101X CHIP RESISTOR [M]
LB8692 ERJ2GEJ101X CHIP RESISTOR [M]
LB8693 ERJ2GEJ101X CHIP RESISTOR [M]
LB33001 J0JCC0000188 CHIP COIL [M]
LB33002 ERJ3GEY0R00V CHIP JUMPER [M]
LB33003 ERJ3GEY0R00V CHIP JUMPER [M]
LB33004 ERJ3GEY0R00V CHIP JUMPER [M]
LB33005 ERJ3GEY0R00V CHIP JUMPER [M]
LB33006 J0JHC0000021 CHIP COIL [M]
LB33007 ERJ3GEY0R00V CHIP JUMPER [M]
LB33008 ERJ3GEY0R00V CHIP JUMPER [M]
LB33009 ERJ3GEY0R00V CHIP JUMPER [M]
LB33010 J0JCC0000188 CHIP COIL [M]
LB33011 J0JCC0000188 CHIP COIL [M]
LB33012 J0JCC0000188 CHIP COIL [M]
LB33013 J0JCC0000188 CHIP COIL [M]
LR1150 J1ZZA0000004 RESONANT SNUBBER [M]
VARIABLE RESISTOR
VR7201 EVEKE2F3524B VR VOLUME JOG [M]
SWITCHES
S1 K0L1BA000065 SW STOCK [M]
S2 K0L1BA000065 SW PLAY [M]
S3 K0L1BA000078 SW BOTTOM [M]
S4 RSH1A045-1A SW OPEN [M]
S5 K0L1BA000065 SW CHANGE [M]
S1531 K0C111A00006 SW SAFETY TAB [M]
S1532 K0ZZ00000598 SW MODE [M]
S7001 EVQ11G05R SW DISC 5 [M]
146
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
S7002 EVQ11G05R SW DISC CHANGE [M]
S7003 EVQ11G05R SW DISC 4 [M]
S7004 EVQ11G05R SW H.BASS [M]
S7005 EVQ11G05R SW DISC 3 [M]
S7006 EVQ11G05R SW D.PLAY [M]
S7007 EVQ11G05R SW DISC 2 [M]
S7008 EVQ11G05R SW D.STOP [M]
S7009 EVQ11G05R SW DISC 1 [M]
S7010 EVQ11G05R SW DISC CHECK [M]
S7011 EVQ11G05R SW SELECTOR [M]
S7012 EVQ11G05R SW OPEN/CLOSE [M]
S7013 EVQ11G05R SW POWER [M]
S7016 EVQ11G05R SW T.PLAY [M]
S7017 EVQ11G05R SW T.FF [M]
S7018 EVQ11G05R SW T.STOP [M]
S7019 EVQ11G05R SW T.REW [M]
S7020 EVQ11G05R SW CHANNEL UP [M]
S7021 EVQ11G05R SW CHANNEL DOWN [M]
S7023 EVQ11G05R SW REC [M]
S7024 EVQ11G05R SW EJECT [M]
CONNECTORS
CN1 K1MN14B00066 14P FFC CONNECTOR [M]
FP8101 K1MN50B00031 50P CONNECTOR [M]
FP8201 K1MN06B00080 6P CONNECTOR [M]
FP8501 K1MN26B00094 26P CONNECTOR [M]
P201 K1KB08A00083 8P CONNECTOR [M]
P1101 K2AB2B000007 2P CONNECTOR [M]
P1102 K1KB14B00026 14P CONNECTOR [M]
P1531 K1KA02A00375 2P CONNECTOR [M]
P2101 K1MN24B00045 24P CONNECTOR [M]
P2102 K1MN17B00032 17P CONNECTOR [M]
P2501 K1MN07A00020 7P CONNECTOR [M]
P2571 K1KA08A00290 8P CONNECTOR [M]
P4001 K1MZ02A00003 2P CONNECTOR [M]
P4002 RJS1A9406 CONNECTOR [M]
P5001 K1MN09A00029 9P CONNECTOR [M]
P7201 K1KA20B00013 20P CONNECTOR [M]
P7202 K1KA06B00150 6P CONNECTOR [M]
P7502 K1KA10AA0031 10P CONNECTOR [M]
P31001 K1KA14AA0031 14P CONNECTOR [M]
P36001 K1KB20B00033 20P CONNECTOR [M]
P36002 K1KB06B00033 6P CONNECTOR [M]
P36004 K1MN50A00008 50P CONNECTOR [M]
P36005 K1MN14A00090 14P CONNECTOR [M]
P36008 K1MN24A00017 24P CONNECTOR [M]
P36009 K1MN17A00040 17P FFC CONNECTOR [M]
P36010 K1MP08A00006 8P CONNECTOR [M]
COILS & TRANSFORMERS
L101 G0C100JA0052 INDUCTOR [M]
L102 G0C100JA0052 INDUCTOR [M]
L1120 G0B233D00002 LINE FILTER [M]
L1121 G0B233D00002 LINE FILTER [M]
L1240 G0A220GA0026 COIL [M]
L1250 G0A220GA0026 COIL [M]
L1260 G0A150GA0028 COIL [M]
L1290 G0A220GA0026 COIL [M]
L3001 G0C271JA0019 CHOKE COIL [M]
L3005 G0C120JA0019 COIL [M]
L3301 G0C270JA0019 COIL [M]
L3302 G0C680JA0019 COIL [M]
L3303 G0C270JA0019 COIL [M]
L4081 G0C471KA0065 COIL [M]
L4501 G0C1R2J00004 COIL [M]
L4502 G0C391JA0019 COIL [M]
L5001 G0C680JA0019 COIL [M]
L6001 G0C5R6JA0019 COIL [M]
L7200 G0C3R3JA0027 COIL [M]
L8201 G1C100K00020 CHIP INDUCTOR [M]
Ref. No. Part No. Part Name & Description Remarks
L8202 J0JCC0000079 CHIP INDUCTOR [M]
L8301 G1C100KA0055 CHIP INDUCTOR [M]
L8302 J0JCC0000079 CHIP INDUCTOR [M]
L8550 G1C100KA0055 CHIP INDUCTOR [M]
L33501 G0C220JA0019 COIL [M]
L34001 G0C270JA0019 COIL [M]
L36001 G0C3R3JA0019 AXIAL COIL [M]
L36003 G0C220JA0052 COIL [M]
T1150 G4D2A0000216 SW TRANSFORMER [M]
T4081 G2A362C00005 IF TRANSFORMER [M]
B7751 N4BCT50A0005 BATTERY (LEAD FREE) [M]
TU7502 ENG06811QF TUNER PACK [M]
TU7601 ENGF6503GF TUNER [M]
OSCILLATORS
X3001 H0D357400068 CRYSTAL OSCILLATOR [M]
X6001 H0D120500009 CRYSTAL OSCILLATOR [M]
X6002 H0A327200098 CRYSTAL OSCILLATOR [M]
X8621 H0J270500085 CRYSTAL [M]
X36001 H2B100500004 CERAMIC RESONATOR [M]
DISPLAY TUBES
FL4561 EFCT4R5MS5W CERAMIC FILTER [M]
FL8101 F1H0J1050022 CHIP CAPACITOR [M]
FL8102 F1H0J1050022 CHIP CAPACITOR [M]
FL8103 F1H0J1050022 CHIP CAPACITOR [M]
FL8104 F1J1E1040022 CHIP CAPACITOR [M]
FUSE
F1101 K5D162AQ0004 1.6A FUSE [M]
FUSE CLIP
ZA1103 EYF52BCY FUSE CLIP [M]
ZA1104 EYF52BCY FUSE CLIP [M]
FUSE PROTECTORS
IP1240 K5G252A00020 FUSE PROTECTOR [M]
IP1280 K5G400A00001 RESISTOR [M]
FIP DISPLAY
DP7201 A2BD00000113 FIP DISPLAY [M]
JACKS
CN2000 K1FB125B0097 JK [M]
JK3701 K2HA918B0013 JK I/O [M]
JK3702 K1CB105B0043 JK I/O [M]
JK7001 K2HC103A0029 JK I/O [M]
CHIP RESISTORS
W116 ERJ6GEY0R00V CHIP JUMPER [M]
W500 ERJ3GEY0R00V CHIP JUMPER [M]
W501 ERJ3GEY0R00V CHIP JUMPER [M]
W502 ERJ3GEY0R00V CHIP JUMPER [M]
W503 ERJ3GEY0R00V CHIP JUMPER [M]
W504 ERJ3GEY0R00V CHIP JUMPER [M]
W505 ERJ3GEY0R00V CHIP JUMPER [M]
W506 ERJ3GEY0R00V CHIP JUMPER [M]
W506 ERJ6GEY0R00V CHIP JUMPER [M]
W507 ERJ3GEY0R00V CHIP JUMPER [M]
W508 ERJ3GEY0R00V CHIP JUMPER [M]
W509 ERJ6GEY0R00V CHIP JUMPER [M]
W510 ERJ3GEY0R00V CHIP JUMPER [M]
147
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
W511 ERJ6GEY0R00V CHIP JUMPER [M]
W512 ERJ3GEY0R00V CHIP JUMPER [M]
W513 ERJ6GEY0R00V CHIP JUMPER [M]
W514 ERJ3GEY0R00V CHIP JUMPER [M]
W515 ERJ3GEY0R00V CHIP JUMPER [M]
W516 ERJ6GEY0R00V CHIP JUMPER [M]
W517 ERJ3GEY0R00V CHIP JUMPER [M]
W518 ERJ6GEY0R00V CHIP JUMPER [M]
W519 ERJ6GEY0R00V CHIP JUMPER [M]
W521 ERJ6GEY0R00V CHIP JUMPER [M]
W522 ERJ6GEY0R00V CHIP JUMPER [M]
W523 ERJ3GEY0R00V CHIP JUMPER [M]
W524 ERJ3GEY0R00V CHIP JUMPER [M]
W525 ERJ3GEY0R00V CHIP JUMPER [M]
W526 ERJ6GEY0R00V CHIP JUMPER [M]
W527 ERJ6GEY0R00V CHIP JUMPER [M]
W528 ERJ6GEY0R00V CHIP JUMPER [M]
W529 ERJ3GEY0R00V CHIP JUMPER [M]
W530 ERJ3GEY0R00V CHIP JUMPER [M]
W531 ERJ3GEY0R00V CHIP JUMPER [M]
W532 ERJ3GEY0R00V CHIP JUMPER [M]
W533 ERJ3GEY0R00V CHIP JUMPER [M]
W534 ERJ3GEY0R00V CHIP JUMPER [M]
W535 ERJ3GEY0R00V CHIP JUMPER [M]
W536 ERJ3GEY0R00V CHIP JUMPER [M]
W537 ERJ3GEY0R00V CHIP JUMPER [M]
W538 ERJ3GEY0R00V CHIP JUMPER [M]
W539 ERJ3GEY0R00V CHIP JUMPER [M]
W540 ERJ3GEY0R00V CHIP JUMPER [M]
W541 ERJ3GEY0R00V CHIP JUMPER [M]
W541 ERJ6GEY0R00V CHIP JUMPER [M]
W542 ERJ3GEY0R00V CHIP JUMPER [M]
W543 ERJ3GEY0R00V CHIP JUMPER [M]
W544 ERJ3GEY0R00V CHIP JUMPER [M]
W801 ERJ3GEY0R00V CHIP JUMPER [M]
W804 ERJ3GEY0R00V CHIP JUMPER [M]
W805 ERJ3GEY0R00V CHIP JUMPER [M]
W806 ERJ3GEY0R00V CHIP JUMPER [M]
W807 ERJ3GEY0R00V CHIP JUMPER [M]
W808 ERJ3GEY0R00V CHIP JUMPER [M]
W809 ERJ3GEY0R00V CHIP JUMPER [M]
W810 ERJ3GEY0R00V CHIP JUMPER [M]
W811 ERJ3GEY0R00V CHIP JUMPER [M]
W812 ERJ3GEY0R00V CHIP JUMPER [M]
W814 ERJ3GEY0R00V CHIP JUMPER [M]
W815 ERJ3GEY0R00V CHIP JUMPER [M]
W817 ERJ3GEY0R00V CHIP JUMPER [M]
W818 ERJ3GEY0R00V CHIP JUMPER [M]
W819 ERJ3GEY0R00V CHIP JUMPER [M]
W820 ERJ3GEY0R00V CHIP JUMPER [M]
W822 ERJ3GEY0R00V CHIP JUMPER [M]
W823 ERJ3GEY0R00V CHIP JUMPER [M]
W825 ERJ3GEY0R00V CHIP JUMPER [M]
W826 ERJ3GEY0R00V CHIP JUMPER [M]
W828 ERJ3GEY0R00V CHIP JUMPER [M]
W829 ERJ6GEY0R00V CHIP JUMPER [M]
W830 ERJ3GEY0R00V CHIP JUMPER [M]
W832 ERJ3GEY0R00V CHIP JUMPER [M]
W833 ERJ6GEY0R00V CHIP JUMPER [M]
W834 ERJ3GEY0R00V CHIP JUMPER [M]
W835 ERJ3GEY0R00V CHIP JUMPER [M]
W836 ERJ3GEY0R00V CHIP JUMPER [M]
W837 ERJ3GEY0R00V CHIP JUMPER [M]
W851 ERJ6GEY0R00V CHIP JUMPER [M]
W856 ERJ6GEY0R00V CHIP JUMPER [M]
W857 ERJ3GEY0R00V CHIP JUMPER [M]
W860 ERJ6GEY0R00V CHIP JUMPER [M]
W861 ERJ6GEY0R00V CHIP JUMPER [M]
W862 ERJ6GEY0R00V CHIP JUMPER [M]
W863 ERJ6GEY0R00V CHIP JUMPER [M]
W865 ERJ3GEY0R00V CHIP JUMPER [M]
W866 ERJ6GEY0R00V CHIP JUMPER [M]
W867 ERJ3GEY0R00V CHIP JUMPER [M]
W869 ERJ3GEY0R00V CHIP JUMPER [M]
Ref. No. Part No. Part Name & Description Remarks
W870 ERJ6GEY0R00V CHIP JUMPER [M]
W871 ERJ3GEY0R00V CHIP JUMPER [M]
W872 ERJ3GEY0R00V CHIP JUMPER [M]
W873 ERJ3GEY0R00V CHIP JUMPER [M]
W874 ERJ6GEY0R00V CHIP JUMPER [M]
IR7001 B3RAB0000016 SENSOR [M]
RESISTORS
R201 ERJ6GEYJ181V 180 1/10W [M]
R202 ERJ6GEYF912V 9.1K 1/10W [M]
R203 D0GZR91JA001 0.91 1/16W [M]
R205 D0GZR91JA001 0.91 1/16W [M]
R207 B4ABB0000013 00 1/16W [M]
R208 B4ABB0000013 00 1/16W [M]
R209 EZMPX300F13 RESISTOR [M]
R210 B4ABB0000013 RESISTOR [M]
R1150 ERDS2TJ105T 1M 1/4W [M]
R1151 ERDS2TJ334T 330K 1/4W [M]
R1152 ERDS2TJ334T 330K 1/4W [M]
R1153 ERG1SJ331E 330 1W [M]
R1154 ERDS2TJ105T 1M 1/4W [M]
R1155 D0AE104JA048 100K 1/4W [M]
R1156 ERDS2TJ330T 33 1/4W [M]
R1157 ERJ6GEYG472V 4.7K 1/10W [M]
R1158 D0AE331JA048 330 1/4W [M]
R1159 ERDS2TJ3R3T 3.3 1/4W [M]
R1160 ERX1SJR22E 0.22 1W [M]
R1161 D0AE101JA048 100 1/4W [M]
R1200 ERJ6GEYG333V 33K 1/10W [M]
R1201 ERJ6GEYG363V 36K 1/10W [M]
R1202 ERJ6GEYG222V 2.2K 1/10W [M]
R1203 ERJ6GEYG243V 24K 1/10W [M]
R1204 D0GB472JA041 4.7K 1/16W [M]
R1205 D0GB222JA041 2.2K 1/16W [M]
R1206 ERJ6GEYJ271V 270 1/10W [M]
R1207 ERJ6GEYG224V 220K 1/10W [M]
R1208 ERJ6GEYG822V 8.2K 1/10W [M]
R1230 ERJ6GEYJ473V 47K 1/10W [M]
R1351 ERDS2TJ471T 470 1/4W [M]
R1360 D0AE103JA048 10K 1/4W [M]
R1501 D0GB273JA007 27K 1/16W [M]
R1502 D0GB273JA007 27K 1/16W [M]
R1503 ERDS2TJ151T 150 1/4W [M]
R1511 D0GB273JA007 27K 1/16W [M]
R1512 D0GB273JA007 27K 1/16W [M]
R1513 ERJ6GEYJ121V 120 1/10W [M]
R2001 D0GB392JA041 3.9K 1/16W [M]
R2002 D0GB105JA007 1M 1/16W [M]
R2099 ERJ3GEYJ682V 6.8K 1/16W [M]
R2110 ERJ3GEYJ103V 10K 1/16W [M]
R2111 ERJ3GEYJ103V 10K 1/16W [M]
R2112 ERJ3GEYJ103V 10K 1/16W [M]
R2113 ERJ3GEYJ103V 10K 1/16W [M]
R2114 ERJ3GEYJ103V 10K 1/16W [M]
R2115 D0GB273JA007 27K 1/16W [M]
R2116 D0GB104JA007 100K 1/16W [M]
R2144 D0GB472JA041 4.7K 1/16W [M]
R2145 ERJ3GEYJ682V 6.8K 1/16W [M]
R2146 D0GB333JA007 33K 1/16W [M]
R2147 D0GB220JA007 22 1/16W [M]
R2148 D0GB220JA007 22 1/16W [M]
R2149 ERJ3GEYJ820V 82 1/16W [M]
R2150 ERJ3GEYJ820V 82 1/16W [M]
R2151 D0GB472JA041 4.7K 1/16W [M]
R2152 D0GB272JA007 2.7K 1/16W [M]
R2153 ERJ3GEY0R00V 0 1/16W [M]
R2154 D0GB222JA041 2.2K 1/16W [M]
R2155 D0GB104JA007 100K 1/16W [M]
R2156 ERJ3GEYJ103V 10K 1/16W [M]
R2159 D0GB104JA007 100K 1/16W [M]
R2160 D0GB153JA007 15K 1/16W [M]
R2161 D0GB273JA007 27K 1/16W [M]
148
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
R2162 D0GB392JA007 3.9K 1/16W [M]
R2163 ERJ3GEYJ102V 1K 1/16W [M]
R2164 D0GB333JA007 33K 1/16W [M]
R2165 ERJ3GEYJ103V 10K 1/16W [M]
R2166 ERJ3GEYJ122V 1.2K 1/16W [M]
R2167 D0GB123JA007 12K 1/16W [M]
R2168 D0GB223JA041 22K 1/16W [M]
R2169 ERJ3GEYJ752V 7.5K 1/16W [M]
R2170 D0GB472JA041 4.7K 1/16W [M]
R2172 ERJ3GEY0R00V 0 1/16W [M]
R2173 D0GB683JA007 68K 1/16W [M]
R2178 D0GB153JA007 15K 1/16W [M]
R2210 ERJ3GEYJ103V 10K 1/16W [M]
R2211 ERJ3GEYJ103V 10K 1/16W [M]
R2212 ERJ3GEYJ103V 10K 1/16W [M]
R2213 ERJ3GEYJ103V 10K 1/16W [M]
R2214 ERJ3GEYJ103V 10K 1/16W [M]
R2215 D0GB273JA007 27K 1/16W [M]
R2216 D0GB104JA007 100K 1/16W [M]
R2244 D0GB472JA041 4.7K 1/16W [M]
R2245 ERJ3GEYJ682V 6.8K 1/16W [M]
R2246 D0GB333JA007 33K 1/16W [M]
R2247 D0GB220JA007 22 1/16W [M]
R2248 D0GB220JA007 22 1/16W [M]
R2249 ERJ3GEYJ820V 82 1/16W [M]
R2250 ERJ3GEYJ820V 82 1/16W [M]
R2251 D0GB472JA041 4.7K 1/16W [M]
R2252 D0GB272JA007 2.7K 1/16W [M]
R2253 ERJ3GEY0R00V 0 1/16W [M]
R2254 D0GB222JA041 2.2K 1/16W [M]
R2255 D0GB104JA007 100K 1/16W [M]
R2256 ERJ3GEYJ103V 10K 1/16W [M]
R2259 D0GB104JA007 100K 1/16W [M]
R2260 D0GB153JA007 15K 1/16W [M]
R2261 D0GB392JA007 3.9K 1/16W [M]
R2262 D0GB273JA007 27K 1/16W [M]
R2263 ERJ3GEYJ102V 1K 1/16W [M]
R2264 D0GB333JA007 33K 1/16W [M]
R2265 ERJ3GEYJ103V 10K 1/16W [M]
R2266 ERJ3GEYJ102V 1K 1/16W [M]
R2267 D0GB563JA007 56K 1/16W [M]
R2268 D0GB273JA007 27K 1/16W [M]
R2269 ERJ3GEYJ752V 7.5K 1/16W [M]
R2271 ERJ3GEY0R00V 0 1/16W [M]
R2272 D0GB683JA007 68K 1/16W [M]
R2278 D0GB153JA007 15K 1/16W [M]
R2300 ERJ3GEYJ103V 10K 1/16W [M]
R2301 D0GB472JA041 4.7K 1/16W [M]
R2302 ERJ3GEYJ103V 10K 1/16W [M]
R2303 D0GB333JA007 33K 1/16W [M]
R2304 D0GB562JA007 5.6K 1/16W [M]
R2305 ERJ3GEYJ102V 1K 1/16W [M]
R2306 D0GB104JA007 100K 1/16W [M]
R2307 D0GB101JA007 100 1/16W [M]
R2308 D0GB182JA007 1.8K 1/16W [M]
R2309 D0GB563JA007 56K 1/16W [M]
R2310 D0GB273JA007 27K 1/16W [M]
R2311 D0GB222JA041 2.2K 1/16W [M]
R2312 D0GB222JA041 2.2K 1/16W [M]
R2321 ERJ3GEYJ102V 1K 1/16W [M]
R2325 D0GB273JA007 27K 1/16W [M]
R2326 D0GB563JA007 56K 1/16W [M]
R2327 D0GB273JA007 27K 1/16W [M]
R2328 D0GB222JA041 2.2K 1/16W [M]
R2332 D0GB152JA007 1.5K 1/16W [M]
R2333 D0GB563JA007 56K 1/16W [M]
R2350 ERJ3GEYJ102V 1K 1/16W [M]
R2351 D0GB104JA007 100K 1/16W [M]
R2352 ERJ3GEYJ102V 1K 1/16W [M]
R2353 D0GB104JA007 100K 1/16W [M]
R2400 ERJ3GEYJ103V 10K 1/16W [M]
R2401 D0GB472JA041 4.7K 1/16W [M]
R2402 ERJ3GEYJ103V 10K 1/16W [M]
R2403 D0GB333JA007 33K 1/16W [M]
Ref. No. Part No. Part Name & Description Remarks
R2404 D0GB562JA007 5.6K 1/16W [M]
R2405 ERJ3GEYJ102V 1K 1/16W [M]
R2406 D0GB104JA007 100K 1/16W [M]
R2407 D0GB101JA007 100 1/16W [M]
R2421 ERJ3GEYJ102V 1K 1/16W [M]
R2428 D0GB222JA041 2.2K 1/16W [M]
R2430 D0GB123JA007 12K 1/16W [M]
R2500 ERJ3GEYJ103V 10K 1/16W [M]
R2501 D0GB333JA007 33K 1/16W [M]
R2501 ERJ6GEYJ1R2V 1.2 1/10W [M]
R2502 D0GB562JA007 5.6K 1/16W [M]
R2502 ERJ6GEYJ1R5V 1.5 1/10W [M]
R2503 D0GB332JA007 3.3K 1/16W [M]
R2504 ERJ3GEYJ682V 6.8K 1/16W [M]
R2505 ERJ3GEYJ102V 1K 1/16W [M]
R2506 D0GB333JA007 33K 1/16W [M]
R2507 ERJ3GEYJ103V 10K 1/16W [M]
R2508 D0GB182JA007 1.8K 1/16W [M]
R2509 D0GB563JA007 56K 1/16W [M]
R2510 D0GB273JA007 27K 1/16W [M]
R2511 D0GB222JA041 2.2K 1/16W [M]
R2514 D0GB221JA041 220 1/16W [M]
R2515 D0GB221JA041 220 1/16W [M]
R2516 D0GB221JA041 220 1/16W [M]
R2520 D0GB183JA007 18K 1/16W [M]
R2521 ERJ3GEYJ102V 1K 1/16W [M]
R2522 D0GB101JA007 100 1/16W [M]
R2523 D0GB101JA007 100 1/16W [M]
R2551 ERJ3GEYJ103V 10K 1/16W [M]
R2552 ERJ3GEYJ103V 10K 1/16W [M]
R2561 ERJ3GEYJ102V 1K 1/16W [M]
R2562 D0GB473JA041 47K 1/16W [M]
R2563 ERJ3GEYJ102V 1K 1/16W [M]
R2600 ERJ3GEYJ103V 10K 1/16W [M]
R2601 D0GB473JA041 47K 1/16W [M]
R2601 D0GB821JA007 820 1/16W [M]
R2602 D0GB472JA041 4.7K 1/16W [M]
R2603 D0GB182JA007 1.8K 1/16W [M]
R2603 D0GB333JA007 33K 1/16W [M]
R2604 D0GB104JA007 100K 1/16W [M]
R2604 D0GB821JA007 820 1/16W [M]
R2605 D0GB222JA041 2.2K 1/16W [M]
R2605 ERJ3GEYJ103V 10K 1/16W [M]
R2606 D0GB473JA041 47K 1/16W [M]
R2606 D0GB562JA007 5.6K 1/16W [M]
R2607 D0GB273JA007 27K 1/16W [M]
R2608 D0GB124JA007 120K 1/16W [M]
R2609 D0GB563JA007 56K 1/16W [M]
R2610 D0GB222JA041 2.2K 1/16W [M]
R2611 D0GB563JA007 56K 1/16W [M]
R2612 D0GB123JA007 12K 1/16W [M]
R2613 D0GB332JA007 3.3K 1/16W [M]
R2614 ERJ3GEYJ102V 1K 1/16W [M]
R2615 D0GB104JA007 100K 1/16W [M]
R2616 ERJ3GEYJ103V 10K 1/16W [M]
R2617 D0GB683JA007 68K 1/16W [M]
R2618 ERJ3GEYJ102V 1K 1/16W [M]
R2619 D0GB222JA041 2.2K 1/16W [M]
R2620 D0GB182JA007 1.8K 1/16W [M]
R2621 D0GB563JA007 56K 1/16W [M]
R2622 D0GB273JA007 27K 1/16W [M]
R2623 D0GB104JA007 100K 1/16W [M]
R2624 D0GB104JA007 100K 1/16W [M]
R2625 D0GB223JA041 22K 1/16W [M]
R2661 ERJ3GEYJ103V 10K 1/16W [M]
R2662 ERJ3GEYJ103V 10K 1/16W [M]
R2893 D0GB223JA041 22K 1/16W [M]
R2894 D0GB224JA007 220K 1/16W [M]
R2896 ERJ3GEY0R00V 0 1/16W [M]
R2977 D0GB562JA007 5.6K 1/16W [M]
R2978 ERJ3GEYJ103V 10K 1/16W [M]
R2980 D0GB562JA007 5.6K 1/16W [M]
R3001 ERJ3GEYJ622V 6.2K 1/16W [M]
R3002 D0GB392JA041 3.9K 1/16W [M]
149
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
R3003 D0GB152JA007 1.5K 1/16W [M]
R3004 D0GB332JA007 3.3K 1/16W [M]
R3005 D0GB222JA041 2.2K 1/16W [M]
R3012 ERJ3GEYJ102V 1K 1/16W [M]
R3013 D0GB273JA007 27K 1/16W [M]
R3018 D0GB153JA007 15K 1/16W [M]
R3020 D0GB152JA007 1.5K 1/16W [M]
R3021 D0GB331JA007 330 1/16W [M]
R3024 ERJ3GEYJ102V 1K 1/16W [M]
R3025 D0GB332JA007 3.3K 1/16W [M]
R3026 D0GB332JA007 3.3K 1/16W [M]
R3032 ERJ3GEYJ685V 6.8M 1/16W [M]
R3038 D0GB222JA041 2.2K 1/16W [M]
R3101 ERJ3GEYJ102V 1K 1/16W [M]
R3102 ERJ3GEYJ102V 1K 1/16W [M]
R3603 D0AE221JA048 220 1/4W [M]
R3705 ERJ3GEYJ750V 75 1/16W [M]
R3706 ERJ3GEYJ750V 75 1/16W [M]
R3707 ERJ3GEYJ750V 75 1/16W [M]
R3708 ERJ3GEYJ750V 75 1/16W [M]
R3709 ERJ3GEYJ750V 75 1/16W [M]
R3710 ERJ3GEYJ680V 68 1/16W [M]
R3711 ERJ3GEYJ750V 75 1/16W [M]
R4011 D0GB153JA007 15K 1/16W [M]
R4012 D0GB223JA041 22K 1/16W [M]
R4015 D0GB203JA007 20K 1/16W [M]
R4061 D0GB334JA041 330K 1/16W [M]
R4062 ERJ3GEYJ103V 10K 1/16W [M]
R4063 D0GB201JA041 200 1/16W [M]
R4071 D0GB153JA007 15K 1/16W [M]
R4081 ERJ3GEYJ822V 8.2K 1/16W [M]
R4082 D0GB332JA007 3.3K 1/16W [M]
R4083 ERJ6GEYJ2R2V 2.2 1/10W [M]
R4084 ERJ3GEYJ102V 1K 1/16W [M]
R4085 ERJ3GEYJ102V 1K 1/16W [M]
R4086 D0GB222JA041 2.2K 1/16W [M]
R4087 D0GB222JA041 2.2K 1/16W [M]
R4301 D0GB473JA041 47K 1/16W [M]
R4302 D0GB473JA041 47K 1/16W [M]
R4303 D0GB223JA041 22K 1/16W [M]
R4304 D0GB223JA041 22K 1/16W [M]
R4500 ERJ3GEYJ102V 1K 1/16W [M]
R4502 D0GB473JA041 47K 1/16W [M]
R4505 ERJ3GEYJ682V 6.8K 1/16W [M]
R4508 ERJ3GEYJ102V 1K 1/16W [M]
R4509 D0GB473JA041 47K 1/16W [M]
R4510 ERJ3GEYJ682V 6.8K 1/16W [M]
R4513 D0GB222JA041 2.2K 1/16W [M]
R4525 ERJ3GEYJ102V 1K 1/16W [M]
R4527 ERJ3GEY0R00V 0 1/16W [M]
R4528 ERJ3GEY0R00V 0 1/16W [M]
R4529 ERJ3GEYJ681V 680 1/16W [M]
R4534 D0GB124JA007 120K 1/16W [M]
R4538 D0GB333JA007 33K 1/16W [M]
R4539 D0GB331JA007 330 1/16W [M]
R4540 D0GB331JA007 330 1/16W [M]
R4554 D0GB153JA007 15K 1/16W [M]
R4558 D0GB153JA007 15K 1/16W [M]
R4563 ERJ3GEYJ102V 1K 1/16W [M]
R4581 D0GB471JA041 470 1/16W [M]
R4582 D0GB471JA041 470 1/16W [M]
R4601 D0GB333JA007 33K 1/16W [M]
R4602 ERJ3GEYJ682V 6.8K 1/16W [M]
R4701 D0GB471JA041 470 1/16W [M]
R4702 ERJ3GEY0R00V 0 1/16W [M]
R4703 D0GB471JA041 470 1/16W [M]
R4704 ERJ3GEY0R00V 0 1/16W [M]
R5101 D0GB273JA007 27K 1/16W [M]
R5102 D0GB563JA007 56K 1/16W [M]
R5105 D0GB104JA007 100K 1/16W [M]
R5107 D0GB104JA007 100K 1/16W [M]
R5109 D0GB104JA007 100K 1/16W [M]
R6001 ERJ3GEYJ102V 1K 1/16W [M]
R6002 ERJ3GEYJ102V 1K 1/16W [M]
Ref. No. Part No. Part Name & Description Remarks
R6003 D0GB223JA041 22K 1/16W [M]
R6004 D0GB221JA041 220 1/16W [M]
R6005 ERJ3GEYJ103V 10K 1/16W [M]
R6006 D0GB183JA007 18K 1/16W [M]
R6009 ERJ3GEYJ103V 10K 1/16W [M]
R6010 ERJ3GEYJ103V 10K 1/16W [M]
R6012 ERJ3GEYJ561V 560 1/16W [M]
R6013 D0GB105JA007 1M 1/16W [M]
R6016 ERJ3GEYJ103V 10K 1/16W [M]
R6017 D0GB222JA041 2.2K 1/16W [M]
R6020 ERJ3GEYJ103V 10K 1/16W [M]
R6021 ERJ3GEYJ103V 10K 1/16W [M]
R6022 ERJ3GEYJ102V 1K 1/16W [M]
R6026 D0GB332JA007 3.3K 1/16W [M]
R6028 ERJ3GEYJ103V 10K 1/16W [M]
R6029 ERJ3GEYJ103V 10K 1/16W [M]
R6101 D0GB123JA007 12K 1/16W [M]
R6102 D0GB123JA007 12K 1/16W [M]
R6102 D0GB222JA041 2.2K 1/16W [M]
R6104 D0GB221JA041 220 1/16W [M]
R6105 D0GB221JA041 220 1/16W [M]
R6106 D0GB221JA041 220 1/16W [M]
R6107 D0GB221JA041 220 1/16W [M]
R6201 D0GB332JA007 3.3K 1/16W [M]
R6307 ERJ6GEYJ222V 2.2K 1/10W [M]
R6309 ERDS2TJ821T 820 1/4W [M]
R6400 D0GB101JA007 100 1/16W [M]
R6401 ERJ3GEYJ102V 1K 1/16W [M]
R6405 D0GB473JA041 47K 1/16W [M]
R7001 D0GB272JA041 2.7K 1/16W [M]
R7002 D0GB472JA041 4.7K 1/16W [M]
R7003 D0GB222JA041 2.2K 1/16W [M]
R7004 D0GB182JA007 1.8K 1/16W [M]
R7005 D0GB182JA007 1.8K 1/16W [M]
R7006 ERJ3GEYJ122V 1.2K 1/16W [M]
R7007 ERJ3GEYJ122V 1.2K 1/16W [M]
R7008 ERJ3GEYJ102V 1K 1/16W [M]
R7009 ERJ3GEYJ102V 1K 1/16W [M]
R7010 ERJ3GEYJ102V 1K 1/16W [M]
R7011 ERJ3GEYJ102V 1K 1/16W [M]
R7013 ERDS2TJ681T 680 1/4W [M]
R7023 ERJ3GEY0R00V 0 1/16W [M]
R7024 ERJ3GEYJ102V 1K 1/16W [M]
R7025 D0GB472JA041 4.7K 1/16W [M]
R7026 D0GB182JA007 1.8K 1/16W [M]
R7027 D0GB332JA007 3.3K 1/16W [M]
R7028 D0GB472JA041 4.7K 1/16W [M]
R7030 D0GB182JA007 1.8K 1/16W [M]
R7031 ERJ3GEYJ102V 1K 1/16W [M]
R7201 ERDS2TJ180T 18 1/4W [M]
R7202 ERDS2TJ180T 18 1/4W [M]
R7203 ERJ6GEYJ562V 5.6K 1/10W [M]
R7205 ERJ3GEY0R00V 0 1/16W [M]
R7206 ERJ3GEYJ102V 1K 1/16W [M]
R7207 ERJ3GEYJ102V 1K 1/16W [M]
R7208 ERJ3GEYJ102V 1K 1/16W [M]
R7209 D0GB273JA007 27K 1/16W [M]
R7210 ERJ3GEYJ103V 10K 1/16W [M]
R7211 ERJ3GEYJ103V 10K 1/16W [M]
R7212 ERJ3GEYJ103V 10K 1/16W [M]
R7213 ERJ3GEYJ103V 10K 1/16W [M]
R7214 ERJ3GEYJ103V 10K 1/16W [M]
R7215 ERJ3GEYJ103V 10K 1/16W [M]
R7216 ERJ3GEYJ103V 10K 1/16W [M]
R7217 ERJ3GEYJ103V 10K 1/16W [M]
R7218 ERJ3GEYJ103V 10K 1/16W [M]
R7219 ERJ3GEYJ103V 10K 1/16W [M]
R7220 ERJ3GEYJ103V 10K 1/16W [M]
R7221 ERJ3GEYJ103V 10K 1/16W [M]
R7222 ERJ3GEYJ103V 10K 1/16W [M]
R7223 ERJ3GEYJ103V 10K 1/16W [M]
R7224 ERJ3GEYJ103V 10K 1/16W [M]
R7225 ERDS2TJ681T 680 1/4W [M]
R7226 D0GB101JA007 100 1/16W [M]
150
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
R7501 D0GB471JA041 470 1/16W [M]
R7502 D0GB471JA041 470 1/16W [M]
R7503 D0GB123JA007 12K 1/16W [M]
R7504 D0GB123JA007 12K 1/16W [M]
R7601 ERDS2TJ102T 1K 1/4W [M]
R7602 ERJ3GEY0R00V 0 1/16W [M]
R7603 ERJ3GEY0R00V 0 1/16W [M]
R7604 ERJ3GEY0R00V 0 1/16W [M]
R7701 D0GB123JA007 12K 1/16W [M]
R7702 ERJ3GEYJ103V 10K 1/16W [M]
R7703 D0GB224JA007 220K 1/16W [M]
R7704 ERJ3GEYJ102V 1K 1/16W [M]
R7705 D0GB104JA007 100K 1/16W [M]
R7706 D0GB152JA007 1.5K 1/16W [M]
R7707 D0GB104JA007 100K 1/16W [M]
R7708 D0GB104JA007 100K 1/16W [M]
R7709 D0GB333JA007 33K 1/16W [M]
R7710 ERJ3GEYJ822V 8.2K 1/16W [M]
R7711 ERJ3GEYJ103V 10K 1/16W [M]
R7712 ERJ3GEYJ103V 10K 1/16W [M]
R7713 ERJ3GEYJ103V 10K 1/16W [M]
R7714 D0GB104JA007 100K 1/16W [M]
R7715 ERJ3GEYJ103V 10K 1/16W [M]
R7716 D0GB182JA007 1.8K 1/16W [M]
R7719 D0GB273JA007 27K 1/16W [M]
R7720 D0GB182JA007 1.8K 1/16W [M]
R7721 D0GB273JA007 27K 1/16W [M]
R7724 D0GB563JA007 56K 1/16W [M]
R7725 D0GB563JA007 56K 1/16W [M]
R7726 ERJ3GEY0R00V 0 1/16W [M]
R7727 D0GB104JA007 100K 1/16W [M]
R7729 D0GB683JA007 68K 1/16W [M]
R7730 D0GB392JA007 3.9K 1/16W [M]
R7734 D0GB393JA041 39K 1/16W [M]
R7738 ERJ3GEY0R00V 0 1/16W [M]
R7750 ERJ3GEYJ102V 1K 1/16W [M]
R7751 ERJ3GEYJ102V 1K 1/16W [M]
R7753 D0GB104JA007 100K 1/16W [M]
R7754 D0GB472JA041 4.7K 1/16W [M]
R7755 ERJ3GEY0R00V 0 1/16W [M]
R7756 D0GB182JA007 1.8K 1/16W [M]
R7757 D0GB332JA007 3.3K 1/16W [M]
R7760 D0GB222JA041 2.2K 1/16W [M]
R7761 D0GB222JA041 2.2K 1/16W [M]
R8011 ERJ2GEJ220X 22 2W [M]
R8021 ERJ2GEJ103X 10K 2W [M]
R8022 ERJ2GEJ103X 10K 2W [M]
R8023 ERJ2GEJ473X 47K 2W [M]
R8041 ERJ2GEJ330X 33 2W [M]
R8102 D0GB222JA041 2.2K 1/16W [M]
R8104 D0GB222JA041 2.2K 1/16W [M]
R8105 D0GB273JA007 27K 1/16W [M]
R8108 D0GB273JA007 27K 1/16W [M]
R8109 D0GB222JA041 2.2K 1/16W [M]
R8110 D0GB222JA041 2.2K 1/16W [M]
R8111 ERJ2GEJ223X 22K 2W [M]
R8112 ERJ2GEJ223X 22K 2W [M]
R8115 D0GB563JA007 56K 1/16W [M]
R8116 D0GB563JA007 56K 1/16W [M]
R8117 D0GB123JA007 12K 1/16W [M]
R8201 ERJ2GEJ222X 2.2K 2W [M]
R8231 ERJ2GEJ103X 10K 2W [M]
R8233 ERJ2GEJ153X 15K 2W [M]
R8235 ERJ2GEJ822X 8.2K 2W [M]
R8236 ERJ2GEJ822X 8.2K 2W [M]
R8241 ERJ2GEJ223X 22K 2W [M]
R8242 ERJ2GEJ752X 7.5K 2W [M]
R8243 ERJ2GEJ103X 10K 2W [M]
R8251 ERJ6GEYJ6R8V 6.8 1/10W [M]
R8261 ERJ2GEJ823X 82K 2W [M]
R8262 ERJ2GEJ472X 4.7K 2W [M]
R8263 ERJ2GEJ823X 82K 2W [M]
R8264 ERJ2GEJ472X 4.7K 2W [M]
R8265 ERJ2GE0R00X 02W [M]
Ref. No. Part No. Part Name & Description Remarks
R8311 ERJ2RHD242X 2.4K 2W [M]
R8312 ERJ2RHD102X 1K 2W [M]
R8313 ERJ2RHD243X 24K 2W [M]
R8314 ERJ2GE0R00X 02W [M]
R8315 ERJ2GEJ6R8X 6.8 2W [M]
R8321 ERJ3RBD161V 160 3W [M]
R8322 ERJ2RKD100X 10 2W [M]
R8325 ERJ3RBD161V 160 3W [M]
R8326 ERJ2GE0R00X 02W [M]
R8331 ERJ3RBD161V 160 3W [M]
R8332 ERJ2RKD100X 10 2W [M]
R8335 ERJ3RED820V 82 3W [M]
R8341 ERJ3RED820V 82 3W [M]
R8401 ERJ2GEJ473X 47K 2W [M]
R8402 ERJ2GEJ101X 100 2W [M]
R8404 ERJ2GEJ101X 100 2W [M]
R8407 ERJ2GEJ101X 100 2W [M]
R8420 ERJ2GEJ222X 2.2K 2W [M]
R8421 ERJ2GE0R00X 02W [M]
R8501 ERJ2GE0R00X 02W [M]
R8505 ERJ2GEJ222X 2.2K 2W [M]
R8506 ERJ2GEJ152X 1.5K 2W [M]
R8550 ERJ2GEJ752X 7.5K 2W [M]
R8551 ERJ2GE0R00X 02W [M]
R8552 ERJ2GEJ102X 1K 2W [M]
R8553 ERJ2GEJ102X 1K 2W [M]
R8554 ERJ2GEJ680X 68 2W [M]
R8555 ERJ2GEJ2R2X 2.2 2W [M]
R8556 ERJ3GEYJ560V 56 1/16W [M]
R8557 ERJ3GEYJ510V 51 1/16W [M]
R8558 ERJ2GEJ473X 47K 2W [M]
R8559 ERJ2GEJ153X 15K 2W [M]
R8560 ERJ2GEJ102X 1K 2W [M]
R8561 ERJ2GE0R00X 02W [M]
R8562 ERJ2GEJ102X 1K 2W [M]
R8563 ERJ2GEJ102X 1K 2W [M]
R8564 ERJ2GEJ220X 22 2W [M]
R8565 ERJ2GEJ2R2X 2.2 2W [M]
R8566 ERJ3GEYJ560V 56 1/16W [M]
R8567 ERJ3GEYJ510V 51 1/16W [M]
R8568 ERJ2GEJ473X 47K 2W [M]
R8569 ERJ2GEJ123X 12K 2W [M]
R8570 ERJ2GEJ104X 100K 2W [M]
R8601 ERJ2GEJ102X 1K 2W [M]
R8606 ERJ2GEJ104X 100K 2W [M]
R8607 ERJ2GEJ103X 10K 2W [M]
R8611 ERJ2GEJ101X 100 2W [M]
R8621 ERJ2GEJ105X 1M 2W [M]
R8622 ERJ2RHD271X 270 2W [M]
R33001 ERDS2TJ271T 270 1/4W [M]
R33002 ERJ6GEYJ392V 3.9K 1/10W [M]
R33003 ERJ3GEYJ122V 1.2K 1/16W [M]
R33004 ERJ3GEYJ121V 120 1/16W [M]
R33005 D0AE103JA048 10K 1/4W [M]
R33006 ERDS2TJ162T 1.6K 1/4W [M]
R33007 D0GB104JA007 100K 1/16W [M]
R33009 ERJ6GEYG243V 24K 1/10W [M]
R33010 ERJ6GEYG472V 4.7K 1/10W [M]
R33511 ERJ3GEYJ103V 10K 1/16W [M]
R34002 D0GB222JA041 2.2K 1/16W [M]
R34003 ERG2SJ331E 330 2W [M]
R34004 ERG2SJ331E 330 2W [M]
R34005 ERJ3GEYJ512V 5.1K 1/16W [M]
R34426 D0GB332JA007 3.3K 1/16W [M]
R34427 D0GB332JA007 3.3K 1/16W [M]
R34428 D0GB332JA007 3.3K 1/16W [M]
R34429 D0GB332JA007 3.3K 1/16W [M]
R36001 ERJ3GEYJ103V 10K 1/16W [M]
R36002 D0GB221JA041 220 1/16W [M]
R36003 ERJ3GEYJ103V 10K 1/16W [M]
R36004 ERJ3GEYJ102V 1K 1/16W [M]
R36005 D0GB221JA041 220 1/16W [M]
R36006 D0GB221JA041 220 1/16W [M]
R36007 ERJ3GEYJ102V 1K 1/16W [M]
151
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
R36008 D0GB221JA041 220 1/16W [M]
R36009 D0GB223JA041 22K 1/16W [M]
R36010 D0GB223JA041 22K 1/16W [M]
R36013 ERJ3GEYJ103V 10K 1/16W [M]
R36014 D0GB221JA041 220 1/16W [M]
R36015 D0GB221JA041 220 1/16W [M]
R36016 D0GB221JA041 220 1/16W [M]
R36017 D0GB221JA041 220 1/16W [M]
R36018 D0GB221JA041 220 1/16W [M]
R36019 D0GB221JA041 220 1/16W [M]
R36020 ERJ3GEYJ103V 10K 1/16W [M]
R36021 D0GB221JA041 220 1/16W [M]
R36022 D0GB221JA041 220 1/16W [M]
R36023 ERJ3GEYJ103V 10K 1/16W [M]
R36024 D0GB221JA041 220 1/16W [M]
R36025 D0GB221JA041 220 1/16W [M]
R36026 D0GB221JA041 220 1/16W [M]
R36027 D0GB221JA041 220 1/16W [M]
R36028 D0GB221JA041 220 1/16W [M]
R36029 D0GB221JA041 220 1/16W [M]
R36030 D0GB221JA041 220 1/16W [M]
R36033 ERJ3GEY0R00V 0 1/16W [M]
R36034 D0GB331JA007 330 1/16W [M]
R36035 D0GB331JA007 330 1/16W [M]
R36036 D0GB331JA007 330 1/16W [M]
R36037 D0GB331JA007 330 1/16W [M]
R36038 D0GB331JA007 330 1/16W [M]
R36039 D0GB101JA007 100 1/16W [M]
R36040 D0GB101JA007 100 1/16W [M]
R36041 D0GB331JA007 330 1/16W [M]
R36042 D0GB331JA007 330 1/16W [M]
R36043 ERJ3GEYJ681V 680 1/16W [M]
R36044 ERJ3GEYJ681V 680 1/16W [M]
R36045 ERJ3GEYJ681V 680 1/16W [M]
R36046 D0GB101JA007 100 1/16W [M]
R36047 D0GB101JA007 100 1/16W [M]
R36049 D0GB101JA007 100 1/16W [M]
R36050 D0GB821JA007 820 1/16W [M]
R36051 ERJ3GEY0R00V 0 1/16W [M]
R36052 ERJ3GEY0R00V 0 1/16W [M]
R36053 ERJ3GEYJ103V 10K 1/16W [M]
R36054 ERJ3GEYJ103V 10K 1/16W [M]
R36055 ERJ3GEYJ103V 10K 1/16W [M]
R36056 ERJ3GEYJ103V 10K 1/16W [M]
R36057 ERJ3GEYJ103V 10K 1/16W [M]
R36058 D0GB221JA041 220 1/16W [M]
R36059 D0GB221JA041 220 1/16W [M]
R36060 D0GB221JA041 220 1/16W [M]
R36061 D0GB221JA041 220 1/16W [M]
R36062 D0GB223JA041 22K 1/16W [M]
R36063 D0GB223JA041 22K 1/16W [M]
R36064 D0GB223JA041 22K 1/16W [M]
R36065 D0GB223JA041 22K 1/16W [M]
R36066 D0GB223JA041 22K 1/16W [M]
R36067 D0GB472JA041 4.7K 1/16W [M]
R36074 D0GB221JA041 220 1/16W [M]
R36075 ERJ3GEY0R00V 0 1/16W [M]
R36076 ERJ3GEYJ102V 1K 1/16W [M]
R36077 ERJ3GEYJ102V 1K 1/16W [M]
R36080 D0GB221JA041 220 1/16W [M]
R36082 D0GB221JA041 220 1/16W [M]
R36083 ERJ3GEYJ103V 10K 1/16W [M]
R36085 ERJ3GEYJ103V 10K 1/16W [M]
R36087 D0GB331JA007 330 1/16W [M]
R36089 ERJ6GEYG473V 47K 1/10W [M]
R36092 ERJ3GEYJ103V 10K 1/16W [M]
R36093 ERJ3GEYJ103V 10K 1/16W [M]
R36096 ERJ3GEYJ103V 10K 1/16W [M]
R36097 ERJ3GEYJ103V 10K 1/16W [M]
R36100 ERJ3GEYJ103V 10K 1/16W [M]
R36101 D0GB221JA041 220 1/16W [M]
R36102 ERJ3GEYJ103V 10K 1/16W [M]
R36103 ERJ6GEYJ221V 220 1/10W [M]
R36104 ERJ3GEYJ103V 10K 1/16W [M]
Ref. No. Part No. Part Name & Description Remarks
R36105 D0GB221JA041 220 1/16W [M]
R36106 D0GB221JA041 220 1/16W [M]
R36108 D0GB221JA041 220 1/16W [M]
R36109 D0GB221JA041 220 1/16W [M]
R36110 D0GB221JA041 220 1/16W [M]
R36111 ERJ3GEYJ681V 680 1/16W [M]
R36112 ERDS2TJ681T 680 1/4W [M]
R36113 D0GB273JA007 27K 1/16W [M]
R36114 D0GB104JA007 100K 1/16W [M]
R36115 ERJ3GEYJ103V 10K 1/16W [M]
K4509 ERJ3GEY0R00V CHIP JUMPER [M]
K8031 ERJ2GE0R00X CHIP JUMPER [M]
K8106 ERJ3GEY0R00V CHIP JUMPER [M]
K8421 ERJ3GEY0R00V CHIP JUMPER [M]
RX8011 D1H88204A024 CHIP RESISTOR [M]
RX8012 D1H88204A024 CHIP RESISTOR [M]
RX8013 D1H88204A024 CHIP RESISTOR [M]
RX8014 D1H88204A024 CHIP RESISTOR [M]
RX8015 D1H422020001 CHIP RESISTOR [M]
RX8016 D1H88204A024 CHIP RESISTOR [M]
RX8017 D1H88204A024 CHIP RESISTOR [M]
RX8018 D1H88204A024 CHIP RESISTOR [M]
RX8021 D1H410320002 CHIP RESISTOR [M]
RX8031 D1H447220001 CHIP RESISTOR [M]
RX8032 D1H447220001 CHIP RESISTOR [M]
RX8401 D1H410120001 CHIP RESISTOR [M]
RX8402 D1H410120001 CHIP RESISTOR [M]
RX8501 D1H456020001 CHIP RESISTOR [M]
RX8502 D1H85604A024 CHIP RESISTOR [M]
RX8503 D1H456020001 CHIP RESISTOR [M]
RX8504 D1H456020001 CHIP RESISTOR [M]
RX8611 D1H447220001 CHIP RESISTOR [M]
CAPACITORS
C11 F1D1E103A001 0.01 25V [M]
C12 F2A1C101A234 100P 16V [M]
C21 F1D1E103A001 0.01 25V [M]
C22 F2A1C101A234 100P 16V [M]
C201 ECJ2YB1H104K 0.1 50V [M]
C204 F1J1E104A081 0.1 25V [M]
C205 F1J1E104A081 0.1 25V [M]
C206 F1J1H102A623 1000P 50V [M]
C207 F1J1H153A623 0.015 50V [M]
C1121 ECQU2A683MLC 0.068 100V [M]
C1125 F1BAF1020020 1000P 10V [M]
C1126 F1BAF331A013 330 10V [M]
C1128 ECQU2A223MLC 0.022 100V [M]
C1140 F2B2E1010001 100P 250V [M]
C1150 F1B3A4720011 4700P 1000 [M]
C1151 ECQB1H223JF3 0.022 50V [M]
C1152 ECQB1H103JF3 0.01 50V [M]
C1153 ECQV1H104JL3 0.1 50V [M]
C1154 ECQB1H223JF3 0.022 50V [M]
C1155 F1B2H4710002 470P 500V [M]
C1200 ECQV1H104JL3 0.1 50V [M]
C1230 ECA1HM220B 22 50V [M]
C1240 F2A1A1020056 1000P 10V [M]
C1241 ECA0JM221B 220 6.3V [M]
C1250 F2A1E6810011 680P 25V [M]
C1251 ECA1EM101B 100 25V [M]
C1260 F2A1A1020056 1000P 10V [M]
C1261 F2A1A1020056 1000P 10V [M]
C1262 ECA1AM221B 220 10V [M]
C1270 F2A1H470A147 47P 50V [M]
C1280 F2A1C4710055 470P 16V [M]
C1290 F2A1C6810023 680P 16V [M]
C1291 ECA1CM101B 100 16V [M]
C1310 F1J1H104A578 0.1 50V [M]
C1351 F1H1H103A220 0.01 50V [M]
C1352 ECEA0JKA470B 47 6.3V [M]
C2001 ECJ1VC1H330J 33P 50V [M]
152
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
C2003 ECJ1VF1A105Z 1 10V [M]
C2051 ECEA0JKN220B 22 6.3V [M]
C2053 ECEA1CKA100B 10 16V [M]
C2054 F1H1H392A013 3900P 50V [M]
C2055 F1H1C104A008 0.1 16V [M]
C2099 ECJ1VC1H681J 680P 50V [M]
C2121 ECJ1VC1H151J 150P 50V [M]
C2122 ECJ1VB1H391K 390P 50V [M]
C2123 ECA1CAK100XB 10 16V [M]
C2124 ECJ1VC1H101K 100P 50V [M]
C2125 ECJ1VC1H330J 33P 50V [M]
C2126 F1H1E103A029 0.01 25V [M]
C2127 ECA1HAK4R7XB 4.7 50V [M]
C2149 ECJ1VB1A105K 1 10V [M]
C2150 ECA1HAK010XB 1 50V [M]
C2151 ECJ1VC1H101K 100P 50V [M]
C2152 ECJ1VC1H181K 180P 50V [M]
C2153 ECA1CM101B 100 16V [M]
C2154 F1H1E103A029 0.01 25V [M]
C2155 F1H1H102A219 1000P 50V [M]
C2156 ECJ1VB1A105K 1 10V [M]
C2158 ECJ1VB1A105K 1 10V [M]
C2160 F1H1H471A219 470P 50V [M]
C2161 F1H1C104A041 0.1 16V [M]
C2162 ECJ1VB1C683K 0.068 16V [M]
C2163 ECA1CAK100XB 10 16V [M]
C2164 F1H1H272A013 2700P 50V [M]
C2165 ECJ1VB1A124K 0.12 10V [M]
C2166 ECJ1VB1A124K 0.12 10V [M]
C2167 ECA1HAK4R7XB 4.7 50V [M]
C2168 ECA1HAK3R3XB 3.3 50V [M]
C2169 F1H1H471A219 470P 50V [M]
C2170 ECA1HAK4R7XB 4.7 50V [M]
C2175 ECJ1VB1H333K 0.033 50V [M]
C2176 ECJ1VC1H101K 100P 50V [M]
C2219 ECJ1VB1A124K 0.12 10V [M]
C2220 ECJ1VB1A124K 0.12 10V [M]
C2221 ECJ1VC1H151J 150P 50V [M]
C2222 ECJ1VB1H391K 390P 50V [M]
C2223 ECA1CAK100XB 10 16V [M]
C2224 ECJ1VC1H101K 100P 50V [M]
C2225 ECJ1VC1H330J 33P 50V [M]
C2226 F1H1E103A029 0.01 25V [M]
C2227 ECA1HAK4R7XB 4.7 50V [M]
C2249 ECJ1VB1A105K 1 10V [M]
C2250 ECA1HAK010XB 1 50V [M]
C2251 ECJ1VC1H101K 100P 50V [M]
C2252 ECJ1VC1H181K 180P 50V [M]
C2253 ECA1CM101B 100 16V [M]
C2254 F1H1E103A029 0.01 25V [M]
C2255 F1H1H102A219 1000P 50V [M]
C2256 ECJ1VB1A105K 1 10V [M]
C2258 ECJ1VB1A105K 1 10V [M]
C2260 F1H1H471A219 470P 50V [M]
C2261 F1H1C104A041 0.1 16V [M]
C2262 ECJ1VB1C683K 0.068 16V [M]
C2263 ECA1HAK3R3XB 3.3 50V [M]
C2265 F1H1H272A013 2700P 50V [M]
C2266 ECA1HAK4R7XB 4.7 50V [M]
C2267 ECA1HAK4R7XB 4.7 50V [M]
C2270 ECJ1VB1H333K 0.033 50V [M]
C2276 ECJ1VC1H101K 100P 50V [M]
C2300 ECA1CAK100XB 10 16V [M]
C2301 F1H1H470A230 47P 50V [M]
C2302 ECJ1VB1A105K 1 10V [M]
C2303 ECA1HAK3R3XB 3.3 50V [M]
C2311 ECA1HAK4R7XB 4.7 50V [M]
C2312 ECA1HAK4R7XB 4.7 50V [M]
C2321 ECA1HAK010XB 1 50V [M]
C2400 ECA1CAK100XB 10 16V [M]
C2401 ECA1CAK100XB 10 16V [M]
C2402 F1H1H470A230 47P 50V [M]
C2403 ECJ1VB1A105K 1 10V [M]
C2404 ECA1HAK3R3XB 3.3 50V [M]
Ref. No. Part No. Part Name & Description Remarks
C2405 ECA1CAK100XB 10 16V [M]
C2421 ECA1HAK010XB 1 50V [M]
C2500 ECA1CAK100XB 10 16V [M]
C2501 ECA1CAK100XB 10 16V [M]
C2501 F1H1C104A008 0.1 16V [M]
C2502 ECA1HAK010XB 1 50V [M]
C2502 ECEA0JKA221B 220 6.3V [M]
C2503 ECJ1VB1H333K 0.033 50V [M]
C2504 F1H1C104A041 0.1 16V [M]
C2504 F1H1E223A002 0.022 25V [M]
C2505 ECA1HAK010XB 1 50V [M]
C2505 F1H1E223A002 0.022 25V [M]
C2506 F1H1A224A025 0.22 10V [M]
C2506 F1H1E103A029 0.01 25V [M]
C2507 F1H1H102A219 1000P 50V [M]
C2507 F1H1H471A219 470P 50V [M]
C2508 ECA1HAK4R7XB 4.7 50V [M]
C2508 ECJ1VB1H182K 1800P 50V [M]
C2509 ECEA1CKA220B 22 16V [M]
C2510 F1H1C104A041 0.1 16V [M]
C2511 F1H1C104A041 0.1 16V [M]
C2512 F1H1C104A041 0.1 16V [M]
C2513 ECJ1VF1A105Z 1 10V [M]
C2515 F1H1H103A730 0.01 50V [M]
C2518 F1H1H103A730 0.01 50V [M]
C2519 F1H1H103A730 0.01 50V [M]
C2520 F1H1C104A041 0.1 16V [M]
C2551 ECJ1VB1C563K 0.056 16V [M]
C2552 ECJ1VB1C563K 0.056 16V [M]
C2561 ECJ1VB1C563K 0.056 16V [M]
C2562 ECJ1VB1C563K 0.056 16V [M]
C2571 ECA1EM221B 220 25V [M]
C2572 ECA1EM221B 220 25V [M]
C2600 ECA1CAK100XB 10 16V [M]
C2601 F1H1H103A730 0.01 50V [M]
C2602 F1H1H103A730 0.01 50V [M]
C2603 ECA1CAK100XB 10 16V [M]
C2604 F1H1H222A013 2200P 50V [M]
C2605 ECJ1VB1A474K 0.47 10V [M]
C2606 ECJ1VB1A124K 0.12 10V [M]
C2607 ECJ1VB1A474K 0.47 10V [M]
C2608 F1H1C104A041 0.1 16V [M]
C2609 ECJ1VB1H562K 5600P 50V [M]
C2610 ECA1CAK100XB 10 16V [M]
C2611 ECA1HAK4R7XB 4.7 50V [M]
C2612 ECA1HAK4R7XB 4.7 50V [M]
C2613 F1H1E103A029 0.01 25V [M]
C2615 ECJ1VB1H562K 5600P 50V [M]
C2616 ECA1HAK3R3XB 3.3 50V [M]
C2617 ECA1HAK4R7XB 4.7 50V [M]
C2618 ECJ1VB1C563K 0.056 16V [M]
C2809 F1H1H2210001 220P 50V [M]
C2810 F1H1H2210001 220P 50V [M]
C2811 F1H1E103A029 0.01 25V [M]
C2812 F1H1E103A029 0.01 25V [M]
C2815 ECA1CAK100XB 10 16V [M]
C2818 F2A1H470A147 47P 50V [M]
C2819 F2A1H470A147 47P 50V [M]
C3002 F1H1C104A041 0.1 16V [M]
C3003 F1H1C104A041 0.1 16V [M]
C3004 ECJ1VC1H151J 150P 50V [M]
C3005 F1H1C104A041 0.1 16V [M]
C3006 ECJ1VB1C105K 1 16V [M]
C3007 ECJ1VC1H330J 33P 50V [M]
C3008 ECEA1HKA4R7B 4.7 50V [M]
C3010 ECJ1VB1C105K 1 16V [M]
C3011 ECEA0JKA470B 47 6.3V [M]
C3012 F1H1C104A041 0.1 16V [M]
C3013 F1H1C104A041 0.1 16V [M]
C3015 F1H1C104A041 0.1 16V [M]
C3016 F1H1A105A025 1 10V [M]
C3017 F1H1C104A041 0.1 16V [M]
C3019 F1H1C104A041 0.1 16V [M]
C3020 ECEA1EKA3R3B 3.3 25V [M]
153
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
C3021 ECEA1CKA100B 10 16V [M]
C3022 F1H1H103A748 0.01 50V [M]
C3025 ECJ1VC1H331J 330P 50V [M]
C3027 F1J1H103A702 0.01 50V [M]
C3028 ECEA0JKA470B 47 6.3V [M]
C3029 F1H1H103A730 0.01 50V [M]
C3030 F1H1H103A730 0.01 50V [M]
C3031 F1H1C104A041 0.1 16V [M]
C3032 ECEA0JKA470B 47 6.3V [M]
C3033 ECJ1VB1C105K 1 16V [M]
C3034 ECJ1VC1H020C 2P 50V [M]
C3035 F1H1C104A041 0.1 16V [M]
C3036 ECEA1EKA3R3B 3.3 25V [M]
C3037 ECEA1HKA2R2B 2.2 50V [M]
C3038 ECJ1VB1H472K 4700P 50V [M]
C3039 F1H1C3330001 0.033 16V [M]
C3040 F1H1A4740009 0.47 10V [M]
C3041 F1H1E223A002 0.022 25V [M]
C3042 ECEA1EKA4R7B 4.7 25V [M]
C3047 F1H1C104A008 0.1 16V [M]
C3052 F1H1C104A041 0.1 16V [M]
C3053 F1H1C104A041 0.1 16V [M]
C3062 ECEA1CKA100B 10 16V [M]
C3065 F1H1A224A025 0.22 10V [M]
C3099 ECEA0JKA101B 100 6.3V [M]
C3701 F1H1C104A041 0.1 16V [M]
C3704 F2A0J471A247 470P 6.3V [M]
C3706 ECEA0JKA101B 100 6.3V [M]
C3713 ECJ1VB1C105K 1 16V [M]
C3714 ECJ1VB1C105K 1 16V [M]
C4010 ECEA1CKA100B 10 16V [M]
C4018 ECEA0JKA220B 22 6.3V [M]
C4041 ECEA1EKA4R7B 4.7 25V [M]
C4042 ECEA1EKA4R7B 4.7 25V [M]
C4061 F1H1H103A219 0.01 50V [M]
C4062 ECEA0JKA330B 33 6.3V [M]
C4063 ECEA1HKA3R3B 3.3 50V [M]
C4064 ECJ1VB1H182K 1800P 50V [M]
C4065 ECJ1VB1H182K 1800P 50V [M]
C4081 ECQB1H223JF3 0.022 50V [M]
C4082 F1H1H471A219 470P 50V [M]
C4083 ECEA0JKA470B 47 6.3V [M]
C4084 ECJ1VB1H182K 1800P 50V [M]
C4085 ECJ1VB1C683K 0.068 16V [M]
C4303 ECEA1HKAR22B 0.22 50V [M]
C4304 ECEA1HKAR22B 0.22 50V [M]
C4501 F1H1C104A041 0.1 16V [M]
C4502 ECEA1CKA100B 10 16V [M]
C4503 ECEA1CKA100B 10 16V [M]
C4504 ECEA1CKA100B 10 16V [M]
C4505 ECEA0JKA330B 33 6.3V [M]
C4506 ECEA1CKA100B 10 16V [M]
C4507 ECEA0JKA220B 22 6.3V [M]
C4508 F1H1C3330001 0.033 16V [M]
C4509 F1H1H103A220 0.01 50V [M]
C4510 F1H1H103A220 0.01 50V [M]
C4511 F1H1C104A041 0.1 16V [M]
C4512 ECJ1VB1A224K 0.22 10V [M]
C4513 ECEA0JKA220B 22 6.3V [M]
C4514 ECEA1CKA100B 10 16V [M]
C4515 ECEA0JKA330B 33 6.3V [M]
C4516 ECEA1CKA100B 10 16V [M]
C4517 ECEA0JKA220B 22 6.3V [M]
C4519 ECA1CAK100XB 10 16V [M]
C4520 ECA1CAK100XB 10 16V [M]
C4521 ECEA1CKA100B 10 16V [M]
C4522 ECEA0JKA220B 22 6.3V [M]
C4523 F1H1H103A220 0.01 50V [M]
C4524 F1H1C104A041 0.1 16V [M]
C4525 ECEA1CKA220B 22 16V [M]
C4530 ECJ1VC1H151J 150P 50V [M]
C4531 ECJ1VC1H151J 150P 50V [M]
C4534 ECQB1H153JF3 0.015 50V [M]
C4535 ECQB1H153JF3 0.015 50V [M]
Ref. No. Part No. Part Name & Description Remarks
C4536 F1H1H103A220 0.01 50V [M]
C4537 ECJ2VC1H560G 56P 50V [M]
C4538 F1H1H103A220 0.01 50V [M]
C4563 F1H1C104A041 0.1 16V [M]
C4565 F1H1C104A041 0.1 16V [M]
C4567 ECEA1EKA3R3B 3.3 25V [M]
C4568 F1H1H103A219 0.01 50V [M]
C4570 F1H1C104A041 0.1 16V [M]
C4572 ECEA1HKA2R2B 2.2 50V [M]
C4574 ECEA1HKA3R3B 3.3 50V [M]
C4575 F1H1C104A041 0.1 16V [M]
C4576 F1H1E223A002 0.022 25V [M]
C4577 ECEA1CKA100B 10 16V [M]
C4578 F1H1A105A025 1 10V [M]
C4601 ECEA1CKA100B 10 16V [M]
C4702 ECJ1VC1H471J 470P 50V [M]
C4704 ECJ1VC1H471J 470P 50V [M]
C5001 F1H1H103A748 0.01 50V [M]
C5002 F1H1H103A748 0.01 50V [M]
C5003 F1H1H103A748 0.01 50V [M]
C5004 F1H1H103A748 0.01 50V [M]
C5005 ECEA0JKA101B 100 6.3V [M]
C5006 F1H1C104A041 0.1 16V [M]
C5101 ECA1HAK4R7XB 4.7 50V [M]
C5102 ECA1CAK100XB 10 16V [M]
C5103 ECA1CAK100XB 10 16V [M]
C6001 ECJ1VC1H180J 18P 50V [M]
C6002 ECJ1VC1H220J 22P 50V [M]
C6003 ECJ1VC1H180J 18P 50V [M]
C6004 ECJ1VC1H150J 15P 50V [M]
C6005 ECEA1HKA3R3B 3.3 50V [M]
C6006 F1H1H101A230 100P 50V [M]
C6007 ECJ1VC1H820J 82P 50V [M]
C6008 ECJ1VC1H471J 470P 50V [M]
C6009 F1H1H103A730 0.01 50V [M]
C6010 F1H1H103A730 0.01 50V [M]
C6011 F1H1H103A730 0.01 50V [M]
C6013 ECJ1VF1A105Z 1 10V [M]
C6014 F1H1H102A219 1000P 50V [M]
C6015 F1H1C3330001 0.033 16V [M]
C6016 F1H1H102A219 1000P 50V [M]
C6017 ECJ1VC1H471J 470P 50V [M]
C6019 F1H1H103A219 0.01 50V [M]
C6101 ECA1CAK100XB 10 16V [M]
C6101 F1J1H104A578 0.1 50V [M]
C6102 F1H1H103A730 0.01 50V [M]
C6102 F1H1H332A013 3300P 50V [M]
C6103 ECJ1VB1C153K 0.015 16V [M]
C6103 F1H1H103A730 0.01 50V [M]
C6104 F1H1H332A013 3300P 50V [M]
C6105 ECA1CAK100XB 10 16V [M]
C6106 ECA1HAK010XB 1 50V [M]
C6107 ECA1HAK010XB 1 50V [M]
C6108 F1H1A154A001 0.15 10V [M]
C6109 F1J1H223A021 0.022 50V [M]
C6110 F1J1H223A021 0.022 50V [M]
C6111 ECJ1VB1C823K 0.082 16V [M]
C6111 F1H1C104A008 0.1 16V [M]
C6112 ECJ1VC1H330J 33P 50V [M]
C6113 ECJ1VC1H330J 33P 50V [M]
C6201 ECA1HAK010XB 1 50V [M]
C6202 ECA1HAK010XB 1 50V [M]
C6203 ECA1HAK010XB 1 50V [M]
C6204 ECA1HAK010XB 1 50V [M]
C6205 ECA1CM101B 100 16V [M]
C6206 F1H1C104A041 0.1 16V [M]
C6207 F1H1C104A041 0.1 16V [M]
C6208 ECA1CM101B 100 16V [M]
C6220 F1H1H2210001 220P 50V [M]
C6221 F1H1H2210001 220P 50V [M]
C6301 F1H1H103A730 0.01 50V [M]
C6302 F1H1H103A730 0.01 50V [M]
C6303 ECEA0JKA470B 47 6.3V [M]
C6307 F1H1H103A730 0.01 50V [M]
154
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
C6308 ECEA0JKA470B 47 6.3V [M]
C7010 F1H1H101A230 100P 50V [M]
C7011 F1H1H101A230 100P 50V [M]
C7012 F1H1H101A230 100P 50V [M]
C7013 F1H1H101A230 100P 50V [M]
C7014 F1H1H101A230 100P 50V [M]
C7015 F1J1E1040003 0.1 25V [M]
C7201 ECEA1VKA100B 10 35V [M]
C7204 F1J1H104A578 0.1 50V [M]
C7205 ECJ1VC1H221J 220P 50V [M]
C7206 ECJ1VC1H221J 220P 50V [M]
C7207 ECJ1VC1H221J 220P 50V [M]
C7208 F1J1E1040003 0.1 25V [M]
C7209 F1J1E1040003 0.1 25V [M]
C7210 ECEA1AKA101B 100 10V [M]
C7211 ECJ1VC1H270J 27P 50V [M]
C7212 F1J1E1040003 0.1 25V [M]
C7501 F1H1H103A730 0.01 50V [M]
C7502 F1H1H392A013 3900P 50V [M]
C7503 F1H1H392A013 3900P 50V [M]
C7505 ECEA0JKA101B 100 6.3V [M]
C7602 ECEA1HKA010B 1 50V [M]
C7603 ECEA0JKA470B 47 6.3V [M]
C7604 F1H1H103A730 0.01 50V [M]
C7605 ECJ1VC1H330J 33P 50V [M]
C7606 ECJ1VC1H330J 33P 50V [M]
C7701 ECA1HAK010XB 1 50V [M]
C7702 F1J1H223A021 0.022 50V [M]
C7703 F1H1E103A029 0.01 25V [M]
C7704 F1H1E103A029 0.01 25V [M]
C7705 ECA1HAK4R7XB 4.7 50V [M]
C7706 F1H1E103A029 0.01 25V [M]
C7707 F1H1E103A029 0.01 25V [M]
C7708 F1H1C104A041 0.1 16V [M]
C7709 ECJ1VB1A474K 0.47 10V [M]
C7709 ECJ1VB1H182K 1800P 50V [M]
C7710 ECA1HAK4R7XB 4.7 50V [M]
C7711 ECA1HAK4R7XB 4.7 50V [M]
C7713 ECEA1HKAR47B 0.47 50V [M]
C7715 F1H1H2210001 220P 50V [M]
C7716 F1H1E103A029 0.01 25V [M]
C7717 F1H1E103A029 0.01 25V [M]
C7719 ECA1CAK100XB 10 16V [M]
C7750 ECA1CAK100XB 10 16V [M]
C7751 ECA1CAK100XB 10 16V [M]
C7752 ECEA0JKA331Q 330 6.3V [M]
C7752 F1H1H2210001 220P 50V [M]
C7753 ECJ1VC1H101K 100P 50V [M]
C8001 F2G0J101A066 100P 6.3V [M]
C8002 F2G0G331A012 330P 4V [M]
C8003 ECJ0EB1E222K 2200P 25V [M]
C8004 ECJ0EF1C104Z 0.1 16V [M]
C8005 ECJ0EF1C104Z 0.1 16V [M]
C8006 ECJ0EF1C104Z 0.1 16V [M]
C8007 ECJ0EF1C104Z 0.1 16V [M]
C8008 ECJ0EF1C104Z 0.1 16V [M]
C8009 ECJ0EF1C104Z 0.1 16V [M]
C8010 ECJ0EF1C104Z 0.1 16V [M]
C8011 ECJ1VB0J105K 1 6.3V [M]
C8012 ECJ0EF1C104Z 0.1 16V [M]
C8013 ECJ0EF1C104Z 0.1 16V [M]
C8014 ECJ0EF1C104Z 0.1 16V [M]
C8015 ECJ1VB0J105K 1 6.3V [M]
C8016 ECJ1VB0J105K 1 6.3V [M]
C8017 ECJ0EF1C104Z 0.1 16V [M]
C8018 ECJ0EF1C104Z 0.1 16V [M]
C8019 ECJ1VB0J105K 1 6.3V [M]
C8020 ECJ0EF1C104Z 0.1 16V [M]
C8021 ECJ0EF1C104Z 0.1 16V [M]
C8022 ECJ0EF1C104Z 0.1 16V [M]
C8023 ECJ1VB0J105K 1 6.3V [M]
C8024 ECJ1VB0J105K 1 6.3V [M]
C8025 ECJ0EF1C104Z 0.1 16V [M]
C8026 ECJ0EB1E222K 2200P 25V [M]
Ref. No. Part No. Part Name & Description Remarks
C8027 ECJ0EF1C104Z 0.1 16V [M]
C8028 ECJ1VB0J105K 1 6.3V [M]
C8031 ECJ0EF1C104Z 0.1 16V [M]
C8051 ECJ1VB0J105K 1 6.3V [M]
C8052 ECJ0EF1C104Z 0.1 16V [M]
C8053 ECJ0EC1H221J 220P 50V [M]
C8054 ECJ1VB0J105K 1 6.3V [M]
C8055 ECJ1VB0J105K 1 6.3V [M]
C8056 ECJ0EF1C104Z 0.1 16V [M]
C8057 ECJ0EB1E222K 2200P 25V [M]
C8101 ECA1HAK4R7XB 4.7 50V [M]
C8102 ECA1HAK4R7XB 4.7 50V [M]
C8111 ECJ0EB1A104K 0.1 10V [M]
C8112 ECJ1VB0J105K 1 6.3V [M]
C8113 ECJ0EB1E471K 470P 25V [M]
C8201 F2G0J101A031 100P 6.3V [M]
C8202 F2G0J101A066 100P 6.3V [M]
C8203 ECJ0EF1C104Z 0.1 16V [M]
C8204 ECJ0EF1C104Z 0.1 16V [M]
C8205 ECJ0EF1C104Z 0.1 16V [M]
C8206 ECJ1VB0J105K 1 6.3V [M]
C8207 F1H1C104A008 0.1 16V [M]
C8208 ECJ0EF1C104Z 0.1 16V [M]
C8211 ECJ0EB1A333K 0.033 10V [M]
C8212 ECJ0EF1C104Z 0.1 16V [M]
C8213 ECJ0EF1C104Z 0.1 16V [M]
C8214 ECJ0EF1C104Z 0.1 16V [M]
C8215 ECJ0EB1E562K 5600P 25V [M]
C8216 ECJ0EB1C183K 0.018 16V [M]
C8217 ECJ1VB0J105K 1 6.3V [M]
C8218 ECJ1VB0J105K 1 6.3V [M]
C8221 ECJ0EB1A104K 0.1 10V [M]
C8222 ECJ0EB1A104K 0.1 10V [M]
C8223 ECJ0EB1A104K 0.1 10V [M]
C8224 ECJ0EB1A104K 0.1 10V [M]
C8225 ECJ0EF1C104Z 0.1 16V [M]
C8226 ECJ0EF1C104Z 0.1 16V [M]
C8227 ECJ0EF1C104Z 0.1 16V [M]
C8228 ECJ1VB0J105K 1 6.3V [M]
C8229 ECJ1VB0J105K 1 6.3V [M]
C8232 F1H1C104A008 0.1 16V [M]
C8233 ECJ0EB1E472K 4700P 25V [M]
C8234 ECJ0EF1C104Z 0.1 16V [M]
C8235 ECJ0EB1H102K 1000P 50V [M]
C8236 ECJ0EB1H102K 1000P 50V [M]
C8237 ECJ0EB1H102K 1000P 50V [M]
C8238 ECJ0EB1H821K 820P 50V [M]
C8241 ECJ0EB1A104K 0.1 10V [M]
C8242 ECJ0EB1A104K 0.1 10V [M]
C8251 F2G0J221A065 220P 6.3V [M]
C8252 F2G1C470A076 47P 16V [M]
C8253 F2G1C220A037 22P 16V [M]
C8254 ECJ0EF1C104Z 0.1 16V [M]
C8255 ECJ0EF1C104Z 0.1 16V [M]
C8256 ECJ0EF1C104Z 0.1 16V [M]
C8257 ECJ0EF1C104Z 0.1 16V [M]
C8261 ECJ0EF1C104Z 0.1 16V [M]
C8262 ECJ0EF1C104Z 0.1 16V [M]
C8301 F2G0J221A031 220P 6.3V [M]
C8302 F2G0J330A031 33P 6.3V [M]
C8303 ECJ0EF1C104Z 0.1 16V [M]
C8304 ECJ1VB0J105K 1 6.3V [M]
C8307 ECJ0EF1C104Z 0.1 16V [M]
C8308 ECJ0EC1H150J 15P 50V [M]
C8311 ECJ0EF1C104Z 0.1 16V [M]
C8312 ECJ1VB0J105K 1 6.3V [M]
C8421 F2G0J101A015 100P 6.3V [M]
C8422 ECJ0EF1C104Z 0.1 16V [M]
C8423 F2G0J330A015 33P 6.3V [M]
C8424 ECJ0EF1C104Z 0.1 16V [M]
C8426 ECJ0EF1C104Z 0.1 16V [M]
C8427 ECJ0EF1C104Z 0.1 16V [M]
C8428 ECJ0EF1C104Z 0.1 16V [M]
C8501 F1K1A1060017 10 10V [M]
155
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
C8502 ECJ0EF1C104Z 0.1 16V [M]
C8503 ECJ0EF1C104Z 0.1 16V [M]
C8504 ECJ0EF1C104Z 0.1 16V [M]
C8505 ECJ0EC1H221J 220P 50V [M]
C8506 ECJ0EC1H101J 100P 50V [M]
C8550 F2G0J330A031 33P 6.3V [M]
C8551 ECJ0EF1C104Z 0.1 16V [M]
C8552 F2G1C100A072 10P 16V [M]
C8553 F2G0J470A031 47P 6.3V [M]
C8554 ECJ1VB0J105K 1 6.3V [M]
C8561 ECJ0EF1C104Z 0.1 16V [M]
C8562 F2G1C100A072 10P 16V [M]
C8563 F2G0J470A031 47P 6.3V [M]
C8564 ECJ1VB0J105K 1 6.3V [M]
C8601 ECJ0EF1C104Z 0.1 16V [M]
C8606 ECJ0EF1C104Z 0.1 16V [M]
C8607 ECJ0EB0J224K 0.22 6.3V [M]
C8611 ECJ0EF1C104Z 0.1 16V [M]
C8621 ECJ0EC1H120J 12P 50V [M]
C8622 ECJ0EC1H120J 12P 50V [M]
C8651 ECJ0EF1C104Z 0.1 16V [M]
C8652 ECJ0EF1C104Z 0.1 16V [M]
C8691 ECJ0EF1C104Z 0.1 16V [M]
C8695 ECJ0EF1C104Z 0.1 16V [M]
C33001 F1H1H103A220 0.01 50V [M]
C33002 ECEA1CKA220B 22 16V [M]
C33004 F1H1H103A220 0.01 50V [M]
C33005 F2A1H4R7A234 4.7P 50V [M]
C33006 F1H1C104A041 0.1 16V [M]
C33007 ECEA1AKA470B 47 10V [M]
C33014 ECA0JM221B 220 6.3V [M]
C33015 ECA0JM221B 220 6.3V [M]
C33016 ECEA0JKA470B 47 6.3V [M]
C33017 F1H1H103A220 0.01 50V [M]
C33018 ECJ1VF1H104Z 0.1 50V [M]
C33019 ECJ1VF1H104Z 0.1 50V [M]
C33022 ECEA1AKA220B 22 10V [M]
C33501 ECA0JM221B 220 6.3V [M]
C33502 F1H1H103A220 0.01 50V [M]
C33503 F1H1H103A220 0.01 50V [M]
C33504 F1H1H103A748 0.01 50V [M]
C33505 F1H1C104A041 0.1 16V [M]
C33506 F1H1C104A041 0.1 16V [M]
C33507 F1H0J1050013 1 6.3V [M]
C33508 F1H0J1050013 1 6.3V [M]
C33509 ECA0JM102B 1000 6.3V [M]
C33510 ECEA0JKA101B 100 6.3V [M]
C33511 ECA0JM102B 1000 6.3V [M]
C33512 ECEA0JKA101B 100 6.3V [M]
C33513 ECA0JM102B 1000 6.3V [M]
C33514 ECEA0JKA101B 100 6.3V [M]
C33515 ECA0JM331B 330 6.3V [M]
C33516 F1H1H103A748 0.01 50V [M]
C33517 ECA0JM331B 330 6.3V [M]
C33522 ECEA0JKA220B 22 6.3V [M]
C33531 F1H1H103A748 0.01 50V [M]
C34012 F1H1H103A220 0.01 50V [M]
C34013 F2A1H4R7A234 4.7P 50V [M]
C34015 F2A1H4R7A234 4.7P 50V [M]
C34405 F1H1H102A219 1000P 50V [M]
C34414 ECEA1CKA470B 47 16V [M]
C34415 ECEA1CKA470B 47 16V [M]
C34427 F1H1H102A219 1000P 50V [M]
C36001 ECA0JM101B 100 6.3V [M]
C36002 F1H1C104A041 0.1 16V [M]
C36003 F1H1C104A041 0.1 16V [M]
C36004 ECJ1VC1H331J 330P 50V [M]
C36005 ECJ1VC1H331J 330P 50V [M]
C36006 F1H1E223A002 0.022 25V [M]
C36007 ECJ1VC1H331J 330P 50V [M]
C36008 F1H1C104A041 0.1 16V [M]
C36009 ECEA1AKA220B 22 10V [M]
C36010 F1H1H103A730 0.01 50V [M]
C36014 F1J1E1040003 0.1 25V [M]
Ref. No. Part No. Part Name & Description Remarks
C36016 F1J1E1040003 0.1 25V [M]
C36017 ECA0JM102B 1000 6.3V [M]
C36018 F1H1C3330001 0.033 16V [M]
C36019 ECA0JM102B 1000 6.3V [M]
C36020 F1H1C104A041 0.1 16V [M]
C36021 ECEA1AKA470B 47 10V [M]
C36022 ECEA1HKA010B 1 50V [M]
156
SA-HT833VP
Ref. No. Part No. Part Name & Description Remarks
PACKING MATERIALS
P1 RPGV0251 PACKING CASE (INNER) [M]
P2 RPNV0066 POLYFOAM [M]
P3 VPF1122 POLYBAG [M]
P4 RPGV0250 PACKING CASE (OUTER) [M]
ACCESSORIES
A1 EUR7722XJ0 REMOTE CONTROL [M]
Ref. No. Part No. Part Name & Description Remarks
A1-1 UR76EC3103A R/C BATTERY COVER [M]
A2 K2CB2CB00006 AC CORD [M]
A3 RQT7921-3P O/I BOOK (En) [M]
A4 RSA0007-L FM ANTENNA WIRE [M]
A5 K1HA25HA0001 SYSTEM CABLE [M]
A6 RJL1P016B15A VIDEO CABLE [M]
A7 N1DAAAA00002 AM LOOP ANTENNA [M]
A8 RQCA1029 SPEAKER LABEL SHEET [M]
A9 VJA1125 RF CABLE [M]
26.5. Packing Materials & Accessories Parts List
26.6. Packaging
157
SA-HT833VP
158
SA-HT833VP
FLE0503D/E/J/N/S/A
